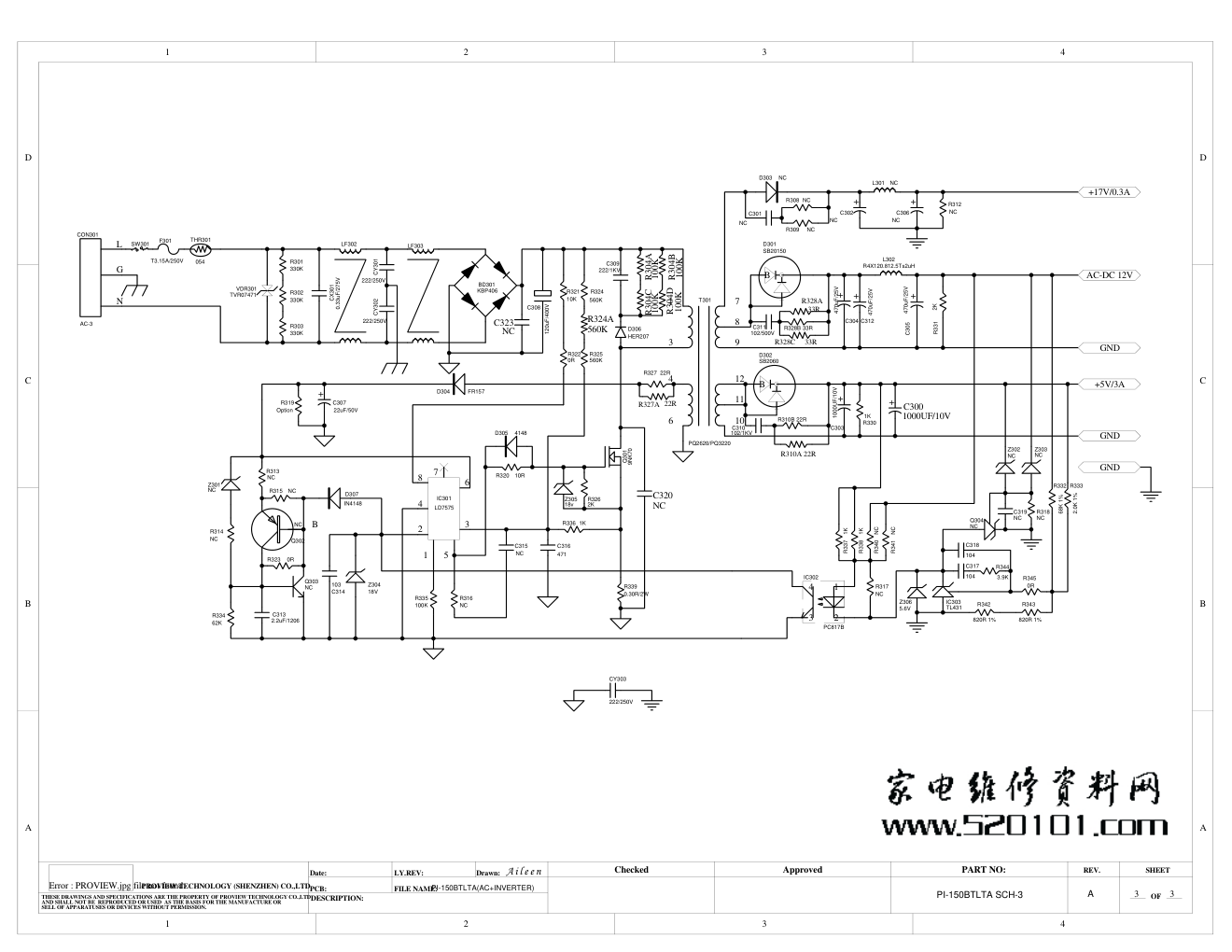

三洋LCD-32CA28液晶电视电源板电路图
1 2 3 4 A B C D 4 3 2 1 D C B A PROVIEW TECHNOLOGY (SHENZHEN) CO.,LTD THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF PROVIEW TECHNOLOGY CO.,LTD AND SHALL NOT BE REPRODUCED OR USED AS THE BASIS FOR THE MANUFACTURE OR SELL OF APPARATUSES OR DEVICES WITHOUT PERMISSION. PCB: LY.REV: Date: DESCRIPTION: FILE NAME: Drawn: Checked Approved PART NO: OF SHEET REV. Error : PROVIEW.jpg file not found. A i l e e n F301 T3.15A/250V THR301 054 VDR301 TVR07471 R301 330K R302 330K R303 330K CY301 222/250V CY302 222/250V CX301 0.33uF/275V C308 120uF/400V R327 22R + C307 22uF/50V R319 Option R322 0R R321 10K R313 NC R323 0R C313 2.2uF/1206 R334 62K R314 NC R315 NC C314 103 R335 100K R316 NC C315 NC C316 471 R336 1K R320 10R R339 0.30R/2W R326 2K BD301 KBP406 C309 222/1KV D306 HER207 R325 560K R324 560K C311 102/500V R328B 33R + C312 470uF/25V + C304 470uF/25V + C305 470uF/25V L302 R4X120.812.5Ts2uH R331 2K R340 NC R341 NC R317 NC R342 820R 1% R343 820R 1% R332 68K 1% R344 3.9K C318 104 R345 0R GND CY303 222/250V Q303 NC L N G CON301 AC-3 D305 4148 Q301 9NK70 B D301 SB20150 1 2 3 4 5 6 7 8 IC301 LD7575 Z304 18V Z306 5.6V Z305 18v Z301 NC D304 FR157 D307 IN4148 B Q302 NC IC303 TL431 LF302 LF303 C301 NC R308 NC R309 NC L301 NC R312 NC +17V/0.3A C310 102/1KV R310B 22R +5V/3A R330 1K R338 1K R337 1K R318 NC C319 NC 4 3 1 2 IC302 PC817B R333 2.0K 1% PI-150BTLTA SCH-3 A PI-150BTLTA(AC+INVERTER) D303 NC + C306 NC + C302 NC Z302 NC Z303 NC + C303 1000UF/10V 3 1 6 4 9 7 10 12 8 11 T301 PQ2620/PQ3220 GND B D302 SB2060 AC-DC 12V SW301 Q304 NC GND C317 104 3 3 + C300 1000UF/10V C320 NC R304A 100K R304B 100K R304C 100K R304D 100K R328A 33R R310A 22R C323 NC R328C 33R R327A 22R R324A 560K
