飞利浦105S7 CRT显示器维修手册和原理图

分类：电子电工日期：2023-03-23 点击：0

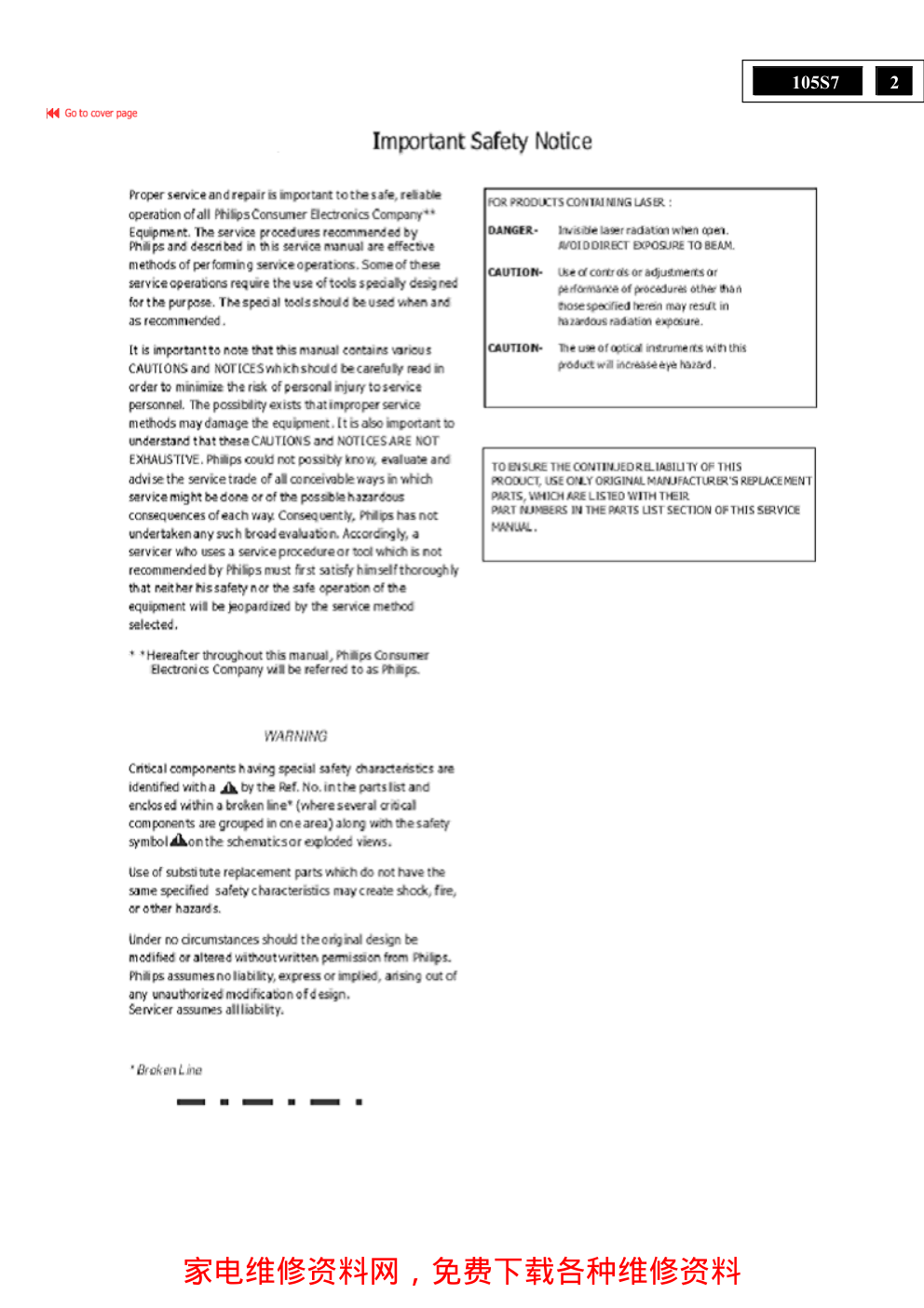

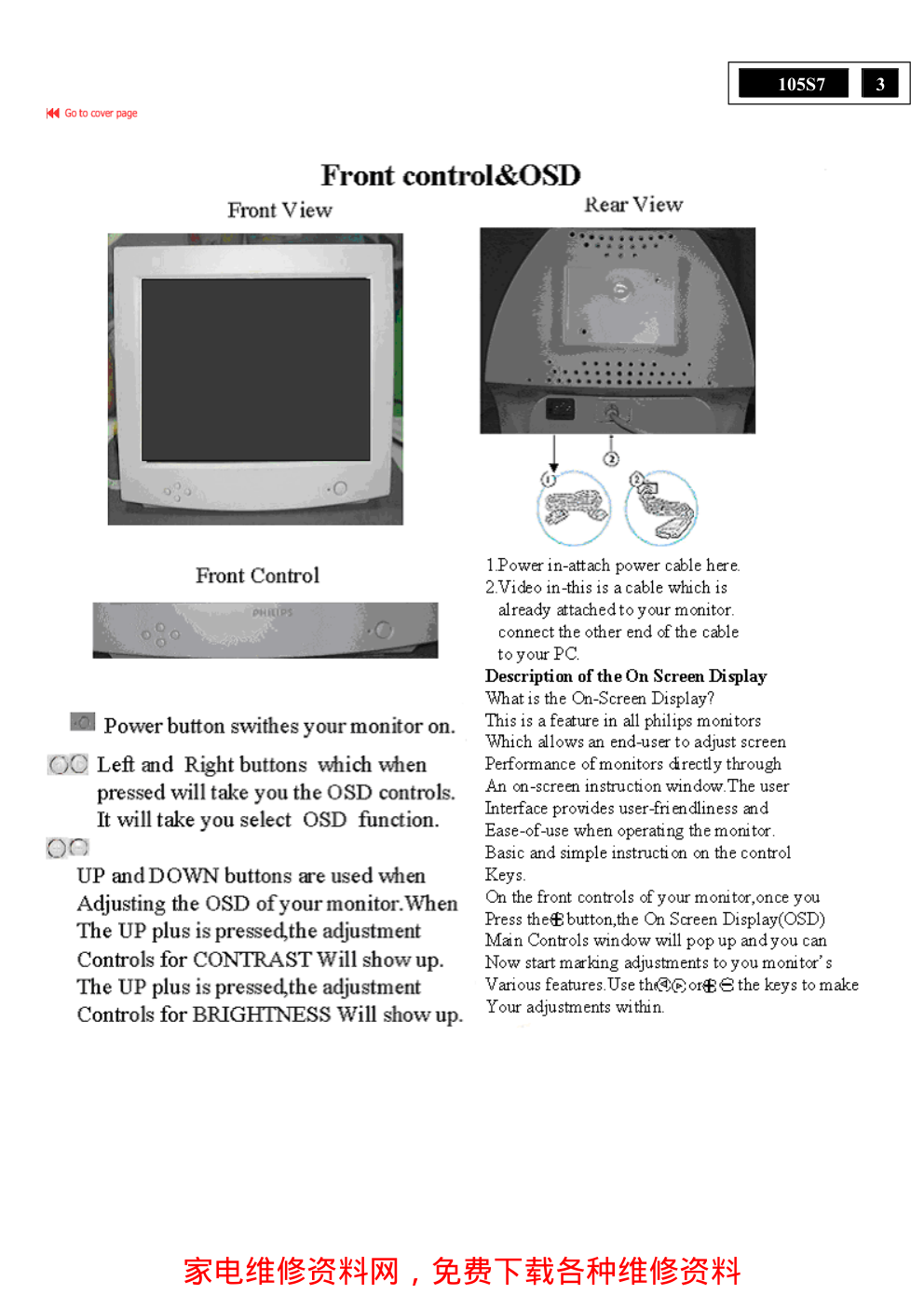

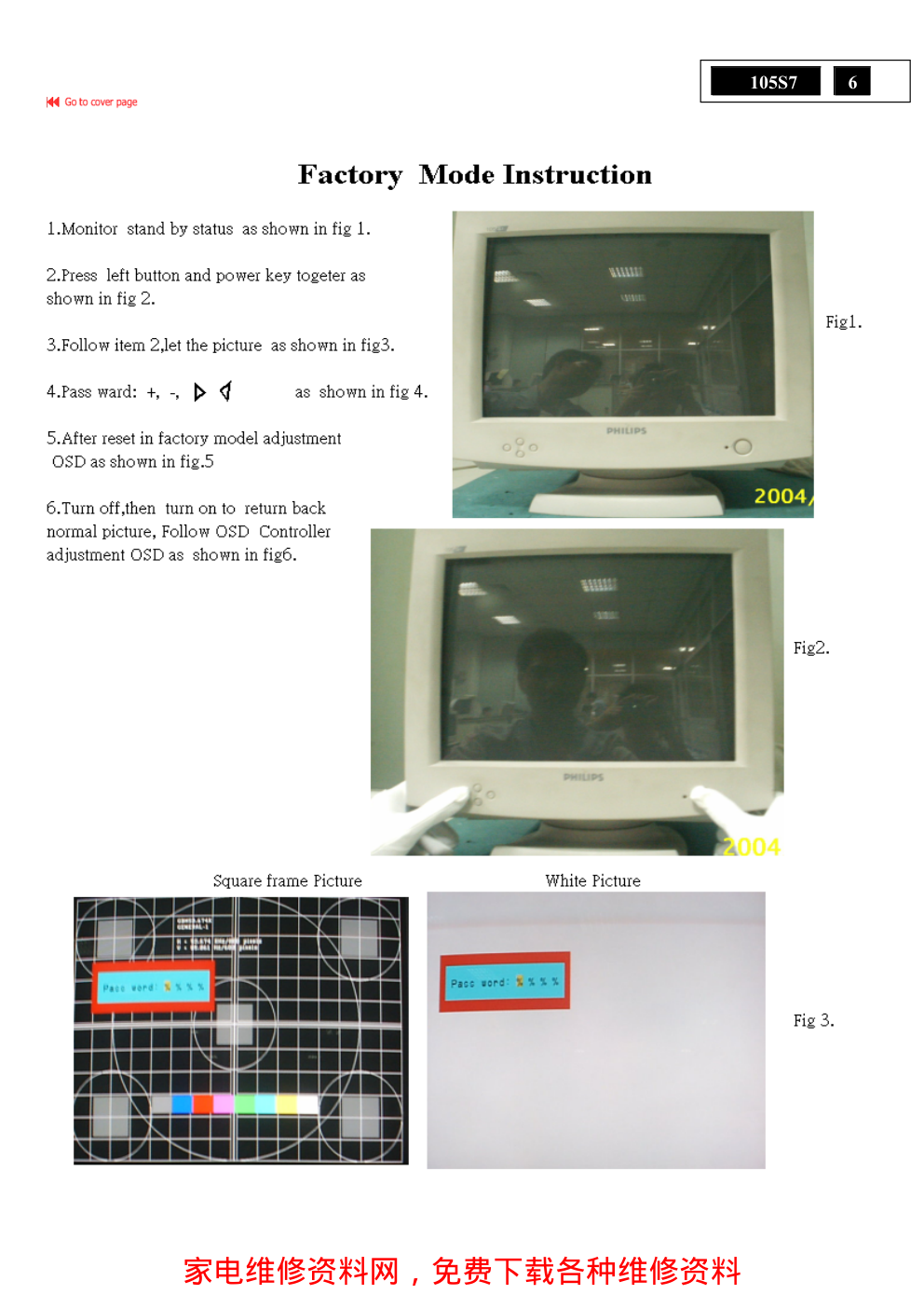

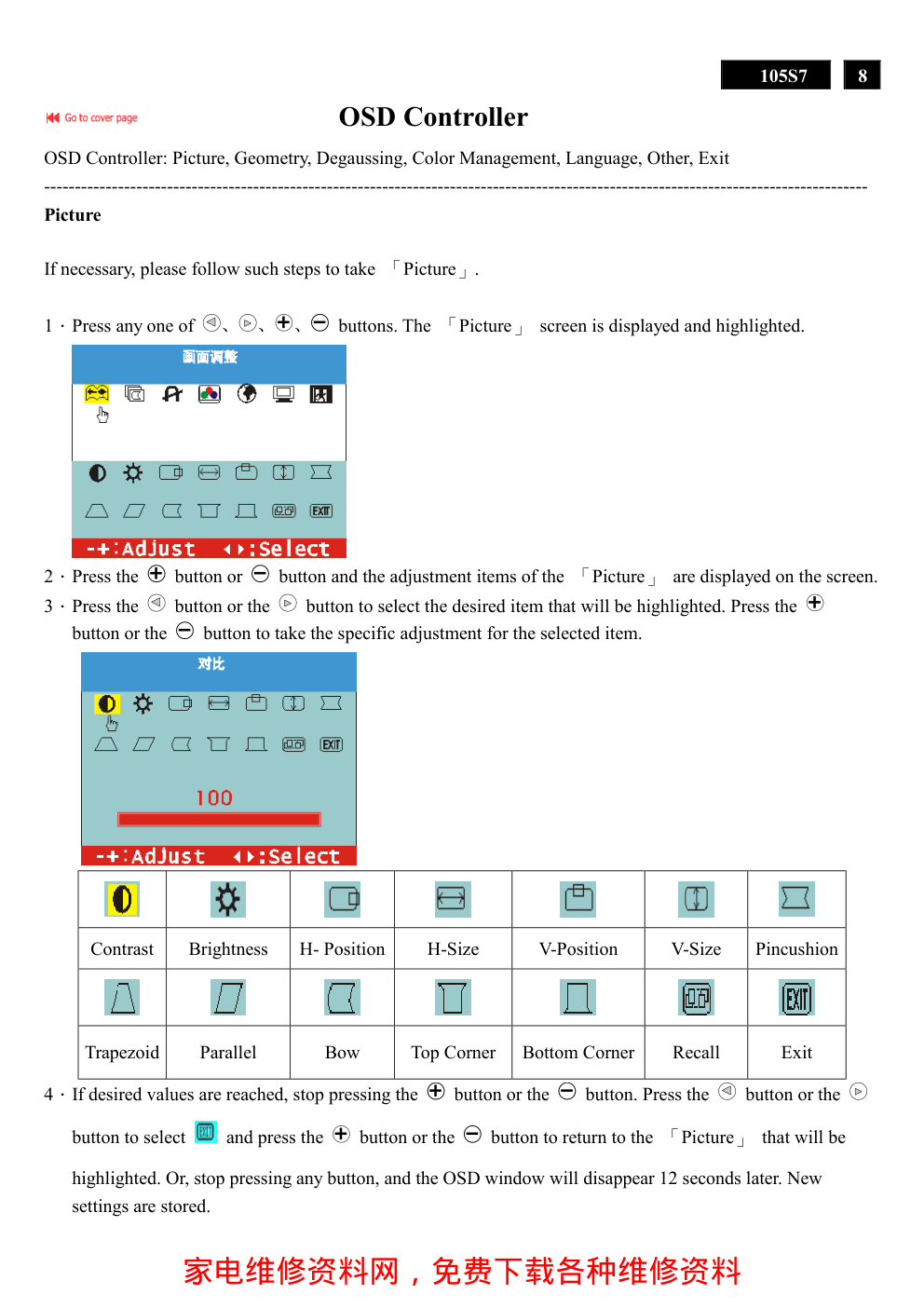

1.Important Safety Notice----------------------2 10.Mechanical Instructions------------------------31~36 2.Front Control&OSD--------------------------3 11.Data of DDC--------------------------------------- 37~38 3.OSDTree-----------------------------------------4 12.Exploded View------------------------------------39 4.Function Specification------------------------5 13.Key DC/AC Waveform--------------------------40~49 5.Factory Mode Instruction--------------------6~7 14.Safety Test Requirement------------------------50~51 6.OSD Controller---------------------------------8~14 15.Spare Parts List-----------------------------------52~65 7.Trouble Shooting-------------------------------15~24 16.PCB Layout ---------------------------------------66~69 8.Block Diagram----------------------------------25 17.Product Specification----------------------------70~88 9.Circuit Diagram--------------------------------26~30 18.Circuit Description-------------------------------89~91 家电维修资料网，免费下载各种维修资料 105S7 2 家电维修资料网，免费下载各种维修资料 105S7 3 家电维修资料网，免费下载各种维修资料 OSD Tree Picture Contrast Brightness H-position H-size V-position V-size Pincushion Trapezoid Parallel Bow Top corner Bottom Corner Recall Exit Geometry Exit Rotation V-moire H-moire V-focus Degause Color management 9300 6500 5500 USER EXIT Language ENGLISH DEUTSCH FRANCAISE ESPANOL JAPANESE CHINA Other OSD H-location OSD V-location Information Smart EXIT Exit R G B R G B R G B R G B 105S7 4 家电维修资料网，免费下载各种维修资料 105S7 5 家电维修资料网，免费下载各种维修资料 105S7 6 家电维修资料网，免费下载各种维修资料 105S7 7 家电维修资料网，免费下载各种维修资料 OSD Controller OSD Controller: Picture, Geometry, Degaussing, Color Management, Language, Other, Exit -------------------------------------------------------------------------------------------------------------------------------------- Picture If necessary, please follow such steps to take �Picture�. 1�Press any one of � � � buttons. The �Picture� screen is displayed and highlighted. 2�Press the button or button and the adjustment items of the �Picture� are displayed on the screen. 3�Press the button or the button to select the desired item that will be highlighted. Press the button or the button to take the specific adjustment for the selected item. Contrast Brightness H- Position H-Size V-Position V-Size Pincushion Trapezoid Parallel Bow Top Corner Bottom Corner Recall Exit 4�If desired values are reached, stop pressing the button or the button. Press the button or the button to select and press the button or the button to return to the �Picture� that will be highlighted. Or, stop pressing any button, and the OSD window will disappear 12 seconds later. New settings are stored. 105S7 8 家电维修资料网，免费下载各种维修资料 OSD Controller Geometry If necessary, please follow such steps to take geometry adjustment. 1. Press any one of � � � buttons and the OSD main image is displayed. Press the button or the button to select �Geometry� that will be highlighted. 2. Press the button or the button and the adjustment items of the �Geometry� are displayed on the screen. 3. Press the button or the button to select the desired item that will be highlighted. Press the button or the button to take specific adjustment for the selected item. Exit Rotation V-Moire H-Moire V-Focus 4. If desired values are reached, stop Pressing the button or the button. Press the button or the button to select and press the button or the button to return to �Geometry� screen that will be highlighted. Or, stop pressing any button, and the OSD window will disappear 12 seconds later. New settings are stored. 105S7 9 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 OSD Controller Degaussing If necessary, please follow such steps to take �Degaussing�. 1. Press any one of � � � buttons and the OSD main image is displayed. Press the button or the button to select �Degaussing� that will be highlighted. 2. Press the button or the button. The monitor buzzes and the degaussing begins. The image may jiggle slightly in the process of degaussing and the OSD window displays �Degaussing�. 3. When the image does not jiggle, the degaussing is finished and the Degaussing item is highlighted. Press the button or the button to select other desired items. Or, select and presss the button or the button, and the OSD window will disappear. 105S7 10 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Color Management The monitor has three preset optional items: �9300K�, �6500K� and �5500K�. When you select one, the monitor will make adjustment automatically. Besides, the monitor still has another option-- �User� item. You may use it to adjust the color of the image to your favorite values. 1. Press any one of � � � buttons and the OSD main image is displayed. Press the button or the button to select �Color Management� that will be highlighted. 2. Press the button or the button and the adjustment items of the �Color Management� are displayed on the screen. 3. Press the button or the button to select the desired item that will be highlighted. 4. Press the button or the button to select 9300K, 6500K or 5500K. Press the button or the button, the �9300K�, �6500K� and �5500K� will be highlighted and red. Stop pressing any button, which makes the OSD window disappear 12 seconds later, or shut down and restart the monitor, and new settings are stored. 5.1 If the User item is highlighted, press the button or the button to display �User� screen. Press the button or the button to highlight the Red. Then, press the button or the button to adjust the �Red�. 5.2 After the�Red� adjustment is finished, press the button or the button to highlight the �Green�. Then, Press the button or the button to adjust the Green. 5.3 After the �Green� adjustment is finished, press the button or the button to highlight the �Blue�. Then, press the button or the button to adjust the �Blue�. 105S7 11 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 OSD Controller 5.4 After all adjustments are finished, Press the button or the button to select and press the button or the button to return to �Color Management� . Here, �Color Management� is highlighted. Or, stop pressing any button, and the OSD window will disappear 12 seconds later. New settings are stored. Language OSD show all settings in one of six languages. The preset language is determined according to sales area. You may choose any one language among: English, German, French, Spanish, Japanese and China. 1. Press any one of � � � buttons and the OSD main image is displayed. Press the button or the button to select �Language� that will be highlighted. 2. Press the button or the button and the adjustment items of the Language are displayed on the screen. 3. Press the button or the button to select the desired OSD language that will be highlighted. Press the button or the button to select the language and return to the �Language� that will be highlighted. Or, stop pressing any button, the OSD window will disappear 12 seconds later. New settings are stored. ENGLISH DEUTSCH FRANCAISE ESPANOL JAPANNESE CHINA 105S7 12 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 OSD Controller Other Others can help you to select �OSD H-Location�,�OSD V-Location�, �Message�or�Smart Settings�. 1. Press any one of � � � buttons and the OSD main image is displayed. Press the button or the button to select �Other� that will be highlighted. Press the button or the button to select it. 2. Press the button or the button to select �OSD H-Location�or�OSD V-Location�that will be highlighted. Press the button or the button to adjust OSD H-Location�or�OSD V-Location�. 3. After OSD Location adjustments are finished, press the button or the button to select �Information�. The monitor will display current resolution, horizontal frequency, vertical frequency and polarity. 4. Press the button or the button to select�Smart Setting�. Press the button or the button to preset time. Thus, the monitor will show “Take break” screen to remind the user to have a rest every the preset time. 105S7 13 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 OSD Controller 5. After all adjustments are finished, Press the button or the button to select and press the button or the button to return to �Other� that will be highlighted. Or, stop pressing any button, and the OSD window will disappear 12 seconds later. New settings are stored. Exit After all adjustments are finished, return to the OSD main control image. Press the button or the button to select and Press the button or the button. Then the OSD window will disappear. Or, stop pressing any button, and the OSD window will disappear 12 seconds later. New settings are stored. 105S7 14 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Trouble Shooting 1. VERTICAL CAN NOT SYNCHRONIZE NG OK NG OK NG OK 105S7 15 CHECK IC701 PIN32(0.027v) VOUT CHECK IC101 PIN2(0.027v) VSYNC CHECK R128 CHECK IC101 PIN23(3.4v) CHECKIC201 PIN1, R205(1.164v) CHECK C105, C106 CHECK IC701 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Trouble Shooting 2. HORIZONTAL CANNOT SYNCHRONIZE NG OK NG OK NG ] 105S7 16 CHECK IC701 PIN33, HTTL(0.314v) CHECK IC101 PIN1 H-SYNC(0.314V) CHECK R120 CHECK IC101, PIN12(-0.264V) CHECK FBT (PIN1), C504, R130 CHECK IC701 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Trouble Shooting 3. SINGLE HORIZONTAL LINE NG OK NG OK NG OK 105S7 17 CHECK IC101 PIN23 (3.4V)WAVEFOR CHECK IC201 Pin 2=14.5V Pin 4=-13v CHECK 14.5V. -13V POWER SUPPLY CHECK IC201 PIN5 WAVEFORM(0.145V) CHECK W501 V-YOKE CHECK IC201. D201. C201 CHECK IC101 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Trouble Shooting 4. PINCHUSHION & DISTORTION OK NG OK NG OK NG 105S7 18 CHECK IC101 PIN24 (3.79V)WAVEFOR CHECK Q513 (B) WAVEFORM(3.6V) CHECK R549, R545, R556, R546 CHECK Q518 (B) WAVEFORM(0.519V) CHECK L503, D504, C536 CHECK Q513, Q514, R547, R550, R551 CHECK NO OUTPUT CHECK Q518, R558, C536, D504, C510 CHECK Q518 (C) WAVEFORM (22.24V) ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Trouble Shooting 5. POWER SUPPLY PROBLEM NG OK NG OK NG NG 105S7 19 CHECK C307 DC VOLTAGE(290V) CHECK 51V, 100V, 15V, 7V, -13V CHECK IC303 PIN6 WAVEFORM(2.276v) CHECK F301, D301, D302, D303, D307, C307 CHECK R305, R309, ZD301, D311, IC303 NO OUTPUT, CHECK D305, D308-A, D312, D313, D314 15V, 7V NO PUTPUT, CHECK POWER SAVING CIRCUIT ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Trouble Shooting 6. RASTER DOSE NOT APPEAR NG OK NG OK NG OK NG OK NG OK NG 105S7 20 CHECK IF IT`S IN POWER SAVING？ CHECK FBT PIN3 OR PIN 4 DC VOLTAGES(70~142.6v) CHECK IC701 PIN32, PIN33(0.027v,0.314v) WAVEFORM TO POWER SAVING TROUBLE SHOOTING CHECK IC101 HORIZONTAL SYNC. CIRCUIT CHECK Q519, Q101, Q102, IC101, PIN 28 CHECK Q507, Q506, IC101 PIN 26 CHECK HI-VOLTAGE CIRCUIT(24.5kv) CHECK G1 CIRCUIT(-18~-30 V) CHECK FBT PIN 9, R539, D513, C533, R557, R576, and D514,Q517 CHECK G2 VOLTAGE(400~50 0v) CHECK FBT, CRT ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Trouble Shooting 7. NO VIDEO BUT HAS RASTER NG OK NG OK NG OK NG OK NG 105S7 21 CHECK SIGNAL CABLE R, G, B(0.045v) CHECK IC401 PIN 17 .7 DC +7V.+5V CHECH IC401 PIN 19 HTTL SIGNAL REPLACE SIGNAL CABLE CHECK W405 HTTL SIGNAL, R407 CHECK 7V VCC, L401,L410,L404 CHECK Q401, R423, C421, C525, R542 CHECK IC401 PIN 2 ABL VOLTAGE(2~5v) CHECK IC 401 PIN 18, 16, 14 OUTPUTS(2.72v) CHECK IC401 PIN 17 VOLTAGE REPLACE IC401 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Trouble Shooting 8. VIDEO R, G, B COLOR PROBLEM NG OK NG OK NG OK NG OK NG OK 105S7 22 CHECK SIGNAL CABLE R, G, B(0.045v) CHECK IC401 PIN16 (R), PIN18 (B), PIN14 (G)(2.7v) CHECK IC401, PIN1 (B) , PIN3 (R), PIN5 (G)(0.97v) REPLACE SIGNAL CABLE CHECK C405 (B), C407 (R) , C413 (G) CHECK IC401 CHECK C406, R410 (B), C409, R413(R), C414, R417 (G) CHECK IC402 PIN 1, 2, and 3(2.7v) CHECK IC402 PIN9, 10, 11(50~70V) REPLACE IC402 CHECK CRT PIN8, 6, 11(50~70V) ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Trouble Shooting 9. POWER SAVING PROBLEM NG OK OK NG OK NG OK NG 105S7 23 CHECK SIGNAL CABLE IF ATTACHED PROPERLY CHECK IC701 PIN 18, 16 OUTPUTS(5v) CHECK IC701CPU CHECK 12V POWER SUSPEND MODE CHECK 6.5V POWER OFF MODE CHECK Q301, Q308 ATTACH IT PROPERLY CHECK Q304, Q306 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Trouble Shooting 10. OSD RELATED PROBLEM NG OK NG OK NG OK OK NG 105S7 24 CHECK IC403 PIN9, PIN4 5V SUPPLY CHECK IC403 PIN5, 10, 2 WAVEFORM CHECK H-BLK & VTTRL / VCO SIGNAL CHECK IC403 PIN 13, 14, 15 WAVEFORM ON OSD CONDITION(0.2~0.5v) CHECK IC403 CHECK 5V POWER SUPPLY, L411 CHECK IC401 PIN 8, 9, 10, 11 OSD(0.2~0.5v) CHECK IC401,R438,R439,R437,R440 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 5 4 3 2 1 D D C C B B A A +110V +54V -15V +12V +7V +5V +15V +12V +110V +7V +5V -15V +15V +12V +15V +180V +5V +5V R INPUT G INPUT B INPUT R/G/B OSD INPUT H.SYNC INPUT V.SYNC INPUT SCL SDA AV IN 視頻前置放大 VIDEO PRE-AMP IC401 TDA9210 畫面操作顯示積體電路OSD IC403 MTV030-56 微處理器 CPU PROCESSOR IC701 WT62P1 視頻放大器 VIDEO AMP IC402 STV9555 資料存取記憶體 EPROM IC703 24LC08 +12V電源開關 B+12VSW Q301(A928) Q303(C945) 電源控制 IC Control IC IC303 UC3842 7V電源開關 Q304(A928) Q306(C945) Q307(JC337) ZD302(5.6V) 自動消磁 Auto Degqussing Q302 RL301 TH302 修正回路 H.V.Regulation Q103.Q105 (C945) 複合公能處理器 MULTI-FUNCTION PROCESSOR IC101 STV6888/STV9118/TDA9112 垂直放大器 Vertical AMP IC201 TDA8172/STV9302 Rotion Control CKT Q601.Q603(C945) Q602(A733) 水平線性補償回路 CS Corection CRT Q505.Q510(C945) Q521.Q509(IRF630) 拋物波及水平寬度控制 E/W&H-SIZE CONTROL Q513.Q514.Q518 L503.C536 水平驅動 H-DRIVE Q507(BSN254A) T502 亮度控制 Brightness Control Q517(BF423 水平/高壓返馳變壓器 HOR/HV Generator Q506 D503 C509 C510 T501 SCL1 R G B SDA1 PS1 PS0 S0~S3 HD B-HD AFC X-RAY E/W G1 G2 FOCUS HV H V 105S7 25 Block Diagram + D315 HER203 D315 HER203 11 8 12 6 9 10 5 7 4 3 2 1 KB KR KG GND H1 H2 HV GND C1 C2 CRT KB KR KG GND H1 H2 HV GND C1 C2 CRT 1 3 2 5 8 7 3 1 2 4 6 13 14 15 16 12 11 9 10 T302 POWER XFMR ERL35 360uH T302 POWER XFMR ERL35 360uH 2 1 3 4 - + - + ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 5 4 3 2 1 D D C C B B A A Circuit Diagram +12V +7V FOCUS(W) FOCUS(R) 105S7 26 C442 1000PF C442 1000PF R405 56 1/4W R405 56 1/4W C413 0.1UF 50V C413 0.1UF 50V D412 1N4148 D412 1N4148 R422 100 1/8W R422 100 1/8W R443 100 1/8W R443 100 1/8W 11 8 12 6 9 10 5 7 4 3 2 1 KB KR KG GND H1 H2 HV GND C1 C2 W403 CRT KB KR KG GND H1 H2 HV GND C1 C2 W403 CRT C441 220P C441 220P R436 100 1/8W R436 100 1/8W D409 1N4148 D409 1N4148 R440 1K 1/8W R440 1K 1/8W L404 BEAR L404 BEAR R403 100 1/8W R403 100 1/8W D405 1N4148 D405 1N4148 C427 0.01UF C427 0.01UF C424 0.1U C424 0.1U D415 1N4148 D415 1N4148 L406 BEAR L406 BEAR R414 33 1/8W R414 33 1/8W C416 0.1UF C416 0.1UF R407 100 1/8W R407 100 1/8W R413 220 1/8W R413 220 1/8W C418 100P C418 100P D403 1N4148 D403 1N4148 R431 5K6 1/8W R431 5K6 1/8W C401 103 500V C401 103 500V D408 1N4148 D408 1N4148 + C434 47UF 16V + C434 47UF 16V L411 BEAR L411 BEAR L408 BEAR L408 BEAR R415 75/M 1/8W R415 75/M 1/8W R411 75/M 1/8W R411 75/M 1/8W R408 33 1/8W R408 33 1/8W R426 150 1/4W R426 150 1/4W C405 0.1UF 50V C405 0.1UF 50V D413 1N4148 D413 1N4148 R432 2 1/2W R432 2 1/2W L412 BEAR L412 BEAR C432 0.1U 500V C432 0.1U 500V R412 100 1/4W R412 100 1/4W R421 100 1/8W R421 100 1/8W Q401 2SA733P Q401 2SA733P + C429 220UF 16V + C429 220UF 16V + C415 100UF 10V + C415 100UF 10V C406 100P C406 100P D406 1N4148 D406 1N4148 C421 0.1UF C421 0.1UF C414 100P C414 100P C404 0.1UF C404 0.1UF C428 220P C428 220P L407 BEAR L407 BEAR L405 0.56UH peaking L405 0.56UH peaking D402 1N4148 D402 1N4148 1 2 3 4 9 7 5 11 10 6 8 12V 100V IC402 TDA9555 12V 100V IC402 TDA9555 R418 100 1/4W R418 100 1/4W + C402 4.7UF 160V + C402 4.7UF 160V R441 100 1/8W R441 100 1/8W D407 1N4148 D407 1N4148 C439 C439 C435 0.01UF C435 0.01UF L402 0.56UH peaking L402 0.56UH peaking C421 0.1UF C421 0.1UF 1 2 3 4 5 6 7 8 9 10 11 12 13 14 W405 W405 C407 0.1UF 50V C407 0.1UF 50V + C411 47UF 16V + C411 47UF 16V D416 1N4004 D416 1N4004 R439 1K 1/8W R439 1K 1/8W C422 0.01U 500V C422 0.01U 500V C437 330PF C437 330PF + C417 47UF 10V + C417 47UF 10V C422 1000P 2KV C422 1000P 2KV D407 1N4148 D407 1N4148 R434 5.1K 1/8W R434 5.1K 1/8W R409 100 1/4W R409 100 1/4W R437 1K 1/8W R437 1K 1/8W SG405 200V SG405 200V L413 BEAR L413 BEAR ZD401 12A2 ZD401 12A2 R420 100 1/8W R420 100 1/8W L403 0.56UH peaking L403 0.56UH peaking 1 2 3 4 5 6 W402 W402 SG402 200V SG402 200V D414 1N4148 D414 1N4148 R433 100 1/2W R433 100 1/2W SG404 200V SG404 200V R438 1K 1/8W R438 1K 1/8W R423 22 1/8W R423 22 1/8W C431 68PF C431 68PF R401 39 1/2W R401 39 1/2W C409 100P C409 100P L414 BEAR L414 BEAR L409 BEAR L409 BEAR L401 BEAR L401 BEAR R402 33 1/8W R402 33 1/8W 1 W404 W404 R429 5.6K 1/8W R429 5.6K 1/8W R418 150 1/4W R418 150 1/4W VSSA 1 VCO 2 RP 3 VDDA 4 HBLK 5 X 6 SDA1 7 SCL1 8 VDD 9 VTTL 10 11 11 FB 12 B 13 G 14 R 15 VSS 16 MTV030 IC403 MTV030 MTV030 IC403 MTV030 C430 68PF C430 68PF SG401 200V SG401 200V D407 1N4148 D407 1N4148 L415 BEAR L415 BEAR R410 220 1/8W R410 220 1/8W C419 100P C419 100P + C403 1000UF 16V + C403 1000UF 16V R404 150 1/4W R404 150 1/4W R417 220 1/8W R417 220 1/8W C436 0.047UF 750V C436 0.047UF 750V INB 1 AHL 2 INR 3 GND 4 ING 5 GND 6 VDD 7 B 8 R 9 G 10 FBLX 11 SCL1 12 SDA1 13 OUTG 14 GND 15 OUTR 16 GLK 20 HTTL 19 OUTB 18 OUTP 17 TDA9211 IC401 TDA9211 TDA9211 IC401 TDA9211 R423 22 1/8W R423 22 1/8W C410 100P C410 100P R419 56 1/4W R419 56 1/4W D410 1N4148 D410 1N4148 R442 100 1/8W R442 100 1/8W R406 75/M 1/8W R406 75/M 1/8W R427 56 1/4W R427 56 1/4W R428 100K 1/4W R428 100K 1/4W C433 0.1UF C433 0.1UF R424 JW R424 JW C425 33P 2KV C425 33P 2KV L410 BEAR L410 BEAR ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 5 4 3 2 1 D D C C B B A A H+ H+ Circuit Diagram S2 EW MUTE BCL X-RAY REG N79624 S0 AC-FB S1 V+ H- H+ H+ BHD AFC HD V- MUTE DC-FB BRIGHTNESS H- ABL IS AFC N79624 G1 N89607 +51V SCL1 +5V +12V VBLK +7V G1 HBLK VTTL+ +100V ABL SDA1 HTTL+ +12V +12V +12V +15V +15V +15V +15V +5V +12V 105S7 27 Q508 2SA733P Q508 2SA733P R543 NC R543 NC C526 0.01UF 50V C526 0.01UF 50V D506 1N4148 D506 1N4148 R562 390 Ohm 1/4W R562 390 Ohm 1/4W R550 56K Ohm 1/8W R550 56K Ohm 1/8W Q513 2SA733P Q513 2SA733P D505 1N5819 D505 1N5819 R553 NC R553 NC Q522 2SA733P Q522 2SA733P C524 NC C524 NC + C517 NC + C517 NC R540 1M Ohm 1/8W J R540 1M Ohm 1/8W J D502 1N4937 D502 1N4937 C518 NC C518 NC + C540 47UF 100V + C540 47UF 100V R502 100 Ohm.2W R502 100 Ohm.2W R569 10 Ohm 1/4W J R569 10 Ohm 1/4W J R587 2K R587 2K R539 10 Ohm 1/4W J R539 10 Ohm 1/4W J D508 1N4936 D508 1N4936 C549 47P C549 47P R567 1K Ohm 1/4W J R567 1K Ohm 1/4W J C535 2200PF 500V C535 2200PF 500V 1 2 3 4 5 6 W603 HEADER CONNECTOR WAFER 2.50mm 6P 180' W603 HEADER CONNECTOR WAFER 2.50mm 6P 180' C502 0.01UF 50V C502 0.01UF 50V D511 NC D511 NC C515 NC C515 NC R541 NC R541 NC R514 10 Ohm 2W R514 10 Ohm 2W C536 2.2UF 100V C536 2.2UF 100V 1 W506 W506 R544 330K Ohm 1/2W R544 330K Ohm 1/2W C509 0.0043UF 2KV C509 0.0043UF 2KV R521 22K Ohm 1/4W R521 22K Ohm 1/4W Q516 2SC945P Q516 2SC945P R559 15K Ohm 1/8W J R559 15K Ohm 1/8W J C527 NC C527 NC 1 2 3 4 6 5 7 8 9 10 11 12 13 14 SCREEN H.V H FOCUS(R) ABL H FOCUS(W) T501 FBT SCREEN H.V H FOCUS(R) ABL H FOCUS(W) T501 FBT Q521 IRF630MFP Q521 IRF630MFP Q517 BF423 Q517 BF423 R537 NC R537 NC Q507 BSN254A Q507 BSN254A R551 5.62K OHM 1/8W R551 5.62K OHM 1/8W R546 1K Ohm 1/2W J R546 1K Ohm 1/2W J R516 0.51 Ohm.3W R516 0.51 Ohm.3W R561 5.1K Ohm 1/8W R561 5.1K Ohm 1/8W R564 3K Ohm 1/8W R564 3K Ohm 1/8W R524 NC R524 NC R579 47 Ohm 1/8W R579 47 Ohm 1/8W R522 3.3K Ohm 1/8W J R522 3.3K Ohm 1/8W J Q509 BEAD Q509 BEAD R571 5.1K Ohm 1/4W R571 5.1K Ohm 1/4W R549 430 Ohm 1/8W R549 430 Ohm 1/8W D520 1N4148 D520 1N4148 J502 J502 + C533 10UF 250V 250V + C533 10UF 250V 250V D510 1N4936 D510 1N4936 R530 NC R530 NC 2.2 Ohm 1W 2.2R 2.2 Ohm 1W 2.2R D501 1N4936 D501 1N4936 Q505 2SC945P Q505 2SC945P D516 1N4148 D516 1N4148 L505 L505 C539 220PF 500V C539 220PF 500V R585 33K Ohm 1/8W J AXL R585 33K Ohm 1/8W J AXL D503 BY329X-1500S D503 BY329X-1500S C522 NC C522 NC + C512 100UF 35V + C512 100UF 35V R525 2.2 Ohm 1/4W J R525 2.2 Ohm 1/4W J + C528 47UF 250V + C528 47UF 250V Q519 2SK2417 Q519 2SK2417 C510 0.0082UF 1KV C510 0.0082UF 1KV R523 22K Ohm 1/8W J R523 22K Ohm 1/8W J ZD502 HZ5C1 ZD502 HZ5C1 R576 5.1K Ohm 1/8W R576 5.1K Ohm 1/8W D514 1N4148 D514 1N4148 1 W508 W508 Q512 NC Q512 NC R580 36K Ohm 1/8W R580 36K Ohm 1/8W 1 2 3 4 W501 HEADER CONNETOR 2.5 A/W 4P W501 HEADER CONNETOR 2.5 A/W 4P C506 2K Ohm 1/8W J C506 2K Ohm 1/8W J R538 NC R538 NC D512 1N5819 D512 1N5819 Q514 2SA733P Q514 2SA733P 1 2 3 4 5 6 7 8 W602 CONNECTOR HEADER.2.5 S1*8P A/W W602 CONNECTOR HEADER.2.5 S1*8P A/W C552 20PF 50V C552 20PF 50V R518 22 Ohm 1/2W J R518 22 Ohm 1/2W J R554 39K Ohm 1/8W R554 39K Ohm 1/8W + C520 4.7UF 50V + C520 4.7UF 50V 1 3 2 4 T502 T502 R536 1K Ohm 1/4W J R536 1K Ohm 1/4W J D509 NC D509 NC R528 NC R528 NC R586 3.3K Ohm 1/4W J AXL R586 3.3K Ohm 1/4W J AXL + C513 10UF 50V + C513 10UF 50V R531 NC R531 NC R519 150 Ohm 1/2W R519 150 Ohm 1/2W R526 NC R526 NC R545 22K Ohm 1/8W J R545 22K Ohm 1/8W J 3 2 1 4 5 L501 LIN COIL 1.54UH/+5A~16.16uH/-5A L501 LIN COIL 1.54UH/+5A~16.16uH/-5A R557 91K 1/4W R557 91K 1/4W J503 J503 C543 220PF 500V C543 220PF 500V C519 NC C519 NC R581 100K Ohm 1/4W J R581 100K Ohm 1/4W J C504 47PF 2KV C504 47PF 2KV C525 0.1UF 100V C525 0.1UF 100V C550 470P C550 470P + C508 4.7UF 50V + C508 4.7UF 50V R565 47 Ohm 1/4W R565 47 Ohm 1/4W D504 UGP30K D504 UGP30K R599 10 Ohm 1/4W J R599 10 Ohm 1/4W J L506 BEAD L506 BEAD + C523 NC + C523 NC D515 HER304G D515 HER304G VR501 22K Ohm VR501 22K Ohm C542 0.39U 5% 250V C542 0.39U 5% 250V C532 NC C532 NC C551 1500PF 500V C551 1500PF 500V C529 0.27UF 400V C529 0.27UF 400V R534 10R R534 10R L504 DRUM CORE L:125uH 6A(16*18) L504 DRUM CORE L:125uH 6A(16*18) R529 NC R529 NC VR502 50K Ohm VR502 50K Ohm Q506 BU4522 Q506 BU4522 R555 560 Ohm 1/2W R555 560 Ohm 1/2W L503 100uH 3A L503 100uH 3A + C521 4.7UF 50V + C521 4.7UF 50V R535 15K Ohm 1/8W J R535 15K Ohm 1/8W J R517 10 Ohm 1/8W J R517 10 Ohm 1/8W J Q518 TIP122 Q518 TIP122 C514 2200PF 50V C514 2200PF 50V R527 NC R527 NC R556 4.7K Ohm 1/8W R556 4.7K Ohm 1/8W R552 NC R552 NC J504 J504 Q515 2SC945P Q515 2SC945P + C548 100UF 16V 16V + C548 100UF 16V 16V Q510 BEAD Q510 BEAD C511 0.01UF 50V C511 0.01UF 50V R542 100K Ohm 1/2W J R542 100K Ohm 1/2W J R582 4.7K Ohm 1/8W R582 4.7K Ohm 1/8W D517 1N4148 D517 1N4148 D513 1N4936 D513 1N4936 J501 J501 1 W502 W502 D521 1N4148 D521 1N4148 R570 0.33 Ohm 2W R570 0.33 Ohm 2W R577 22K Ohm 1/8W J R577 22K Ohm 1/8W J R532 NC R532 NC R566 330 Ohm 1W R566 330 Ohm 1W R513 10K Ohm 1/8W J R513 10K Ohm 1/8W J Q511 NC Q511 NC R520 39K Ohm 1/8W R520 39K Ohm 1/8W C544 NC C544 NC ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 5 4 3 2 1 D D C C B B A A Circuit Diagram V- IS X-RAY VTTL+ X-RAY1 BHD DC-FB HD HTTL+ +7V EW V+ ROT VBLK REG F/V SCL1 -13V +15V SDA1 S0 AFC AC-FB +12V +12V +12V +7V +15V +12V +15V Do not POPULATE 105S7 28 C121 33P C121 33P R129 10K Ohm 1/8W J R129 10K Ohm 1/8W J C110 0.01UF 50V C110 0.01UF 50V C206 2200PF 50V C206 2200PF 50V R136 4.7K Ohm 1/8W R136 4.7K Ohm 1/8W R105 20K Ohm 1/8W J R105 20K Ohm 1/8W J R127 27K Ohm 1/4W J R127 27K Ohm 1/4W J R108 100 Ohm 1/8W J R108 100 Ohm 1/8W J R606 47K Ohm 1/8W R606 47K Ohm 1/8W R132 1K Ohm 1/8W J R132 1K Ohm 1/8W J D107 1N4148 D107 1N4148 D105 1N5819 D105 1N5819 C603 0.01UF 50V C603 0.01UF 50V C112 0.01UF 50V C112 0.01UF 50V R117 5.1K Ohm 1/8W R117 5.1K Ohm 1/8W R208 0.91 Ohm 1W R208 0.91 Ohm 1W R137 4.7K Ohm 1/8W R137 4.7K Ohm 1/8W R121 5.62K OHM 1/8W R121 5.62K OHM 1/8W R131 5.6K Ohm 1/8W R131 5.6K Ohm 1/8W 1 2 W601 W601 R120 100 Ohm 1/8W J R120 100 Ohm 1/8W J C114 220PF 50V C114 220PF 50V + C604 2.2UF 50V + C604 2.2UF 50V ZD101 17.5V- 18.3V 1/2W ZD101 17.5V- 18.3V 1/2W C207 220PF 50V C207 220PF 50V C203 0.1U C203 0.1U + C117 4.7UF 50V + C117 4.7UF 50V Q103 NC Q103 NC R207 6.2K Ohm 1/8W R207 6.2K Ohm 1/8W R114 16K Ohm 1/8W J R114 16K Ohm 1/8W J D201 1N4002 D201 1N4002 C104 0.01UF 50V C104 0.01UF 50V C602 0.01UF 50V C602 0.01UF 50V R125 82K Ohm 1/8W R125 82K Ohm 1/8W D109 1N4148 D109 1N4148 R605 560 Ohm 1/8W R605 560 Ohm 1/8W R116 NC R116 NC R133 100K Ohm 1/8W J R133 100K Ohm 1/8W J R107 130K Ohm 1/8W J R107 130K Ohm 1/8W J + C601 47UF 25V + C601 47UF 25V R135 27K Ohm 1/8W J R135 27K Ohm 1/8W J R123 36K Ohm 1/4W R123 36K Ohm 1/4W VR101 2K Ohm VR101 2K Ohm C111 820PF 100V G.T C111 820PF 100V G.T C123 0.022UF 100V C123 0.022UF 100V R138 10K 1/4W J AXL R138 10K 1/4W J AXL R130 47K Ohm 1/8W R130 47K Ohm 1/8W Q106 2SC945P Q106 2SC945P R603 4.7K Ohm 1/8W R603 4.7K Ohm 1/8W R106 24K Ohm 1/8W J AXL R106 24K Ohm 1/8W J AXL C105 0.15UF 63V C105 0.15UF 63V R203 6.19K OHM 1/8W R203 6.19K OHM 1/8W + C101 100UF 16V + C101 100UF 16V R110 NC R110 NC Q105 NC Q105 NC + C205 1000UF 25V + C205 1000UF 25V R126 4.7K Ohm 1/8W R126 4.7K Ohm 1/8W R602 8.2 Ohm 1/2W R602 8.2 Ohm 1/2W + C202 1000UF 25V + C202 1000UF 25V C120 0.1UF 50V C120 0.1UF 50V R134 1.8K Ohm 1/4W J A-T R134 1.8K Ohm 1/4W J A-T R140 1K Ohm 1/8W J R140 1K Ohm 1/8W J C102 0.01UF 50V C102 0.01UF 50V R204 1 Ohm 1/2W J A-T R204 1 Ohm 1/2W J A-T R144 NC R144 NC Q108 2SC945P Q108 2SC945P D106 1N4148 D106 1N4148 R124 36K Ohm 1/4W R124 36K Ohm 1/4W R122 1.8K Ohm 1/8W J R122 1.8K Ohm 1/8W J D108 1N4148 D108 1N4148 R143 10K Ohm 1/8W J R143 10K Ohm 1/8W J Q107 2SC945P Q107 2SC945P C103 0.1UF 100V C103 0.1UF 100V R139 1K Ohm 1/8W J R139 1K Ohm 1/8W J + C125 10UF 50V + C125 10UF 50V R601 1K Ohm 1/4W R601 1K Ohm 1/4W R128 100 Ohm 1/8W J R128 100 Ohm 1/8W J R119 NC R119 NC R112 NC R112 NC R142 1K Ohm 1/8W J R142 1K Ohm 1/8W J Q102 2SA733P Q102 2SA733P C118 0.1UF 50V C118 0.1UF 50V Q601 2SC945P Q601 2SC945P R109 100 Ohm 1/8W J R109 100 Ohm 1/8W J C106 0.47UF 63V C106 0.47UF 63V R201 4.7 Ohm 1W R201 4.7 Ohm 1W C108 0.001UF 100V C108 0.001UF 100V 1 2 3 4 5 6 7 STV9302A IC201 STV9302A STV9302A IC201 STV9302A C119 0.01UF 50V C119 0.01UF 50V C204 0.22UF 100V C204 0.22UF 100V R141 1.2K Ohm 1/4W J R141 1.2K Ohm 1/4W J R104 15K Ohm 1/8W J R104 15K Ohm 1/8W J H/HVIN 1 VSYNCIN 2 HLOCKOUT 3 FC1 4 PLL2C 5 C0 6 HGND 7 R0 8 PLL1F 9 HPOSITON 10 HVFOCUS 11 HFLY 12 HREF 13 COMP 14 RECIN 15 ISENSE 16 VFOCUS 32 SDA 31 SCL 30 VCC 29 BOUT 28 GND 27 HOUT 26 XRAY 25 EWOUT 24 VOUT 23 VCAP 22 VGND 21 VAGCCAP 20 VRB 19 VEHTCOMP 18 HEHTCOMP 17 STV6888 IC101 STV6888 STV6888 IC101 STV6888 C124 NC C124 NC R604 47K Ohm 1/8W R604 47K Ohm 1/8W + C122 47UF 16V + C122 47UF 16V C115 0.1UF 250V C115 0.1UF 250V C109 0.1UF 50V C109 0.1UF 50V R206 470 Ohm 1/2W R206 470 Ohm 1/2W R202 35.7K OHM 1/8W R202 35.7K OHM 1/8W Q603 2SC945P Q603 2SC945P R102 1K Ohm 1/4W J R102 1K Ohm 1/4W J Q101 2SC945P Q101 2SC945P R115 13K Ohm 1/8W J R115 13K Ohm 1/8W J R113 20K Ohm 1/8W J R113 20K Ohm 1/8W J R205 12K Ohm 1/8W J R205 12K Ohm 1/8W J + C116 47UF 16V + C116 47UF 16V R101 3.3K Ohm 1/8W J R101 3.3K Ohm 1/8W J + C113 4.7UF 50V + C113 4.7UF 50V Q602 2SA733P Q602 2SA733P + C107 47UF 16V + C107 47UF 16V + C201 100UF 35V + C201 100UF 35V ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 5 4 3 2 1 D D C C B B A A YELLOW GREEN POWER GND Circuit Diagram SCL SDA HSYNCI VSYNCI KEY GND BCL ROT SDA1 SCL1 MUTE PS0 PS1 X-RAY1 +15V DEG S0 S1 S2 VTTL+ HTTL+ BRIGHTNESS +5V +5V +5V 105S7 29 C708 27PF 50V C708 27PF 50V R727 4.7K Ohm 1/8W R727 4.7K Ohm 1/8W R721 4.7K Ohm 1/8W R721 4.7K Ohm 1/8W 1 W706 W706 1 2 3 4 5 6 W702 W702 R713 4.7K Ohm 1/8W R713 4.7K Ohm 1/8W A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 IC703 24LC08 IC703 24LC08 R706 1K Ohm 1/8W J R706 1K Ohm 1/8W J R717 1K Ohm 1/8W J R717 1K Ohm 1/8W J R704 4.7K Ohm 1/8W R704 4.7K Ohm 1/8W R714 1K Ohm 1/8W J R714 1K Ohm 1/8W J ZD703 4.9V- 5.1V 1/2W.HZ5C1 ZD703 4.9V- 5.1V 1/2W.HZ5C1 R720 4.7K Ohm 1/8W R720 4.7K Ohm 1/8W R703 4.7K Ohm 1/8W R703 4.7K Ohm 1/8W C714 0.1UF 50V C714 0.1UF 50V R722 330 Ohm 1/8W J R722 330 Ohm 1/8W J R733 51 Ohm 1/8W R733 51 Ohm 1/8W C707 0.1UF 50V C707 0.1UF 50V + C712 1UF 50V + C712 1UF 50V R710 2.2K Ohm 1/8W J R710 2.2K Ohm 1/8W J R701 4.7K Ohm 1/8W R701 4.7K Ohm 1/8W R716 4.7K Ohm 1/8W R716 4.7K Ohm 1/8W R724 4.7K Ohm 1/8W R724 4.7K Ohm 1/8W R702 10K Ohm 1/8W J R702 10K Ohm 1/8W J C703 220PF 50V C703 220PF 50V ZD706 5C1 ZD706 5C1 R705 1K Ohm 1/8W J R705 1K Ohm 1/8W J R707 100 Ohm 1/8W J R707 100 Ohm 1/8W J 1 2 3 4 5 W701 W701 C711 27PF 50V C711 27PF 50V R738 3K Ohm 1/8W R738 3K Ohm 1/8W R729 51 Ohm 1/8W R729 51 Ohm 1/8W + C705 10UF 50V + C705 10UF 50V + C701 100UF 25V + C701 100UF 25V R743 1.5K Ohm 1/4W J A-T R743 1.5K Ohm 1/4W J A-T R730 100 Ohm 1/8W J R730 100 Ohm 1/8W J Q701 2SA733P Q701 2SA733P R740 JUMPER R740 JUMPER R708 100 Ohm 1/8W J R708 100 Ohm 1/8W J R715 1K Ohm 1/8W J R715 1K Ohm 1/8W J R739 4.7K Ohm 1/8W R739 4.7K Ohm 1/8W ZD705 4.9V- 5.1V 1/2W.HZ5C1 ZD705 4.9V- 5.1V 1/2W.HZ5C1 J063 7.5MM J063 7.5MM R741 JUMPER R741 JUMPER C706 0.01UF 50V C706 0.01UF 50V R718 4.7K Ohm 1/8W R718 4.7K Ohm 1/8W PWM2 1 PURITY 2 PWM0 3 RESET 4 VDD 5 GND 6 OSCO 7 OSCI 8 SDA1 9 SCL1 10 MUTE 11 PB2 12 HD 13 HD/2 14 POWER 15 PS0 16 YELLOW 17 PS1 18 DEG 19 KEY 20 VSYNCI 40 HSYNCI 39 H-LIN 38 37 37 36 36 BRIGHT 35 TR 34 HSYNCO 33 VSYNCO 32 TL 31 BR 30 BL 29 S2 28 S1 27 S0 26 SCL 25 SDA 24 AD0 23 S3 22 S4 21 WT62P1 IC701 WT62P1-N40 WT62P1 IC701 WT62P1-N40 R712 4.7K Ohm 1/8W R712 4.7K Ohm 1/8W R734 100 Ohm 1/8W J R734 100 Ohm 1/8W J R732 22K Ohm 1/8W J R732 22K Ohm 1/8W J R723 4.7K Ohm 1/8W R723 4.7K Ohm 1/8W + C702 47UF 16V + C702 47UF 16V C704 0.01UF 50V C704 0.01UF 50V XTAL701 12MHZ HC-49U XTAL701 12MHZ HC-49U R719 4.7K Ohm 1/8W R719 4.7K Ohm 1/8W R728 4.7K Ohm 1/8W R728 4.7K Ohm 1/8W ZD704 4.9V- 5.1V 1/2W.HZ5C1 ZD704 4.9V- 5.1V 1/2W.HZ5C1 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 5 4 3 2 1 D D C C B B A A GND_SIGNAL Circuit Diagram +12V -13V +7V PS1 PS0 DEG +15V +12V +5V +51V +100V VCC VCC +15V VCC Substitute this circuit for regulators(7805&7012) For EMI For EMI 105S7 30 R320 390 Ohm 1/2W R320 390 Ohm 1/2W R309 82K Ohm 1W R309 82K Ohm 1W D305 HER107G 800V D305 HER107G 800V D308-A HER305G D308-A HER305G R331 150K Ohm 1/8W J R331 150K Ohm 1/8W J C344 100PF 50V C344 100PF 50V R311 1K Ohm 1/8W J R311 1K Ohm 1/8W J R315 5.1K Ohm 1/8W R315 5.1K Ohm 1/8W R308 100 Ohm 1/4W J R308 100 Ohm 1/4W J R324 10K Ohm 1/8W J R324 10K Ohm 1/8W J L307 L307 L312 L312 D304 RL205A 2A 600V D304 RL205A 2A 600V C303 0.47U C303 0.47U C331 0.1UF 50V C331 0.1UF 50V R322 47.5K R322 47.5K VREF 8 OUT 6 VCC 7 RT/CT 4 VFB 2 COMP 1 ISENSE 3 IC303 UC3842 IC303 UC3842 R341 11K R341 11K Q308 0.5A/50V JC337 Q308 0.5A/50V JC337 R319 10 Ohm 1/4W J R319 10 Ohm 1/4W J Q301 KSA928A-Y Q301 KSA928A-Y 1 GND GND D309 HER107 800V D309 HER107 800V R337 47 Ohm 1/8W R337 47 Ohm 1/8W IN 1 GND 2 OUT 3 IC301 7812 IC301 7812 + C325 100UF 16V 16V + C325 100UF 16V 16V C321 330P C321 330P R304 100K Ohm 1/2W J R304 100K Ohm 1/2W J R342 2K R342 2K R307 20R R307 20R R334 0.33 Ohm 1W R334 0.33 Ohm 1W + C328 47UF 25V 25V + C328 47UF 25V 25V L314 L314 D302 RL205A 2A 600V D302 RL205A 2A 600V C313 NC C313 NC R314 1K Ohm 1W R314 1K Ohm 1W 1 SYNC SYNC C343 220PF 1KV C343 220PF 1KV R302 1M Ohm 1/2W J R302 1M Ohm 1/2W J C346 220PF 1KV C346 220PF 1KV + C307 150UF 450V 400V + C307 150UF 450V 400V D315 DIODE 0.15A/75V 40nS 1N4148 D315 DIODE 0.15A/75V 40nS 1N4148 D318 DIODE 0.15A/75V 40nS 1N4148 D318 DIODE 0.15A/75V 40nS 1N4148 R339 1.2K Ohm 1/4W J R339 1.2K Ohm 1/4W J Q304 KSA928A-Y Q304 KSA928A-Y R338 1.2K Ohm 1/4W J R338 1.2K Ohm 1/4W J R323 5.1K Ohm 1/8W R323 5.1K Ohm 1/8W 3 2 4 5 1 6 RL301 RL301 C334 470PF 50V C334 470PF 50V R328 7.15K Ohm 1/8W R328 7.15K Ohm 1/8W D307 RL205A 2A 600V D307 RL205A 2A 600V C316 220P C316 220P 5 8 7 3 1 2 4 6 13 14 15 16 12 11 9 10 T302 POWER XFMR ERL35 360uH T302 POWER XFMR ERL35 360uH Q305 2SK2996 Q305 2SK2996 L304 COIL CHOKE 60uH 1A 8*10 L304 COIL CHOKE 60uH 1A 8*10 + C314 330UF 100V 100V + C314 330UF 100V 100V L309 L309 R310 JW R310 JW D314 HER203 D314 HER203 C304 4700PF 250V C304 4700PF 250V C311 100P C311 100P 1 3 2 SK301 SK301 D310 DIODE 0.15A/75V 40nS 1N4148 D310 DIODE 0.15A/75V 40nS 1N4148 C347 0.01U C347 0.01U C312 470PF 1KV C312 470PF 1KV L303 L303 R321 4.7K Ohm 1/8W R321 4.7K Ohm 1/8W VR301 2K Ohm VR301 2K Ohm C330 220PF 1KV C330 220PF 1KV C345 47PF 1KV C345 47PF 1KV R317 1K Ohm 1/8W J R317 1K Ohm 1/8W J Q306 2SC945P Q306 2SC945P ZD302 4.9V- 5.1V 1/2W.HZ5C1 ZD302 4.9V- 5.1V 1/2W.HZ5C1 C338 0.47UF 275V C338 0.47UF 275V + C320 1000UF 25V 25V + C320 1000UF 25V 25V C340 0.01U C340 0.01U TH301 5 OHM 4A TH301 5 OHM 4A R325 10K Ohm 1/8W J R325 10K Ohm 1/8W J R327 36K Ohm 1/4W R327 36K Ohm 1/4W R305 82K Ohm 1W R305 82K Ohm 1W L315 L315 ZD303 11.9-12.4V 1/2W ZD303 11.9-12.4V 1/2W + C324 100UF 25V 25V + C324 100UF 25V 25V 1 3 2 4 L301 L301 R312 470 Ohm 1/4W R312 470 Ohm 1/4W L313 L313 R340 6.8Ohm 2W R340 6.8Ohm 2W C327 0.1UF 63V C327 0.1UF 63V TH302 9 Ohm 20A TH302 9 Ohm 20A C337 220PF 1KV C337 220PF 1KV D301 RL205A 2A 600V D301 RL205A 2A 600V Q302 2SC1213AC Q302 2SC1213AC ZD301 20.0V 2% 0.5W(BZX79-B20) ZD301 20.0V 2% 0.5W(BZX79-B20) C336 2200PF 100V C336 2200PF 100V D312 HER303 D312 HER303 R336 100 Ohm 1/4W J R336 100 Ohm 1/4W J C341 220PF 1KV C341 220PF 1KV C332 2200PF 100V C332 2200PF 100V R306 47K Ohm 3W R306 47K Ohm 3W + C326 470UF 25V 25V + C326 470UF 25V 25V C342 220PF 1KV C342 220PF 1KV F301 250V 4A 250V F301 250V 4A 250V C333 100PF 50V C333 100PF 50V L308 L308 D311 1N4936 D311 1N4936 Q307 0.5A/50V JC337 Q307 0.5A/50V JC337 R303 0.22 Ohm 1W R303 0.22 Ohm 1W C335 220PF 1KV C335 220PF 1KV D313 HER303 D313 HER303 D320 DIODE 0.15A/75V 40nS 1N4148 D320 DIODE 0.15A/75V 40nS 1N4148 R318 470 Ohm 1/4W R318 470 Ohm 1/4W + C323 1000UF 16V 16V + C323 1000UF 16V 16V + C310 47UF 160V 160V + C310 47UF 160V 160V R307 10 Ohm 2W 2W R307 10 Ohm 2W 2W L311 L311 R316 10K Ohm 1/8W J R316 10K Ohm 1/8W J C329 4700PF 250V C329 4700PF 250V C305 4700PF 250V C305 4700PF 250V Q303 2SC945P Q303 2SC945P 1 2 W301 W301 L310 L310 D319 DIODE 0.15A/75V 40nS 1N4148 D319 DIODE 0.15A/75V 40nS 1N4148 L305 L305 R329 1K Ohm 1/4W J R329 1K Ohm 1/4W J ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Mechanical Instructions 105S7 31 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Mechanical Instructions 105S7 32 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 105S7 33 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 105S7 34 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 105S7 35 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Mechanical Instructions 105S7 36 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 105S7 37 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Data of DDC 105S7 38 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Exploded View 105S7 39 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Key DC/AC Waveform 105S7 40 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Key DC/AC Waveform 105S7 41 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Key DC/AC Waveform 105S7 42 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Key DC/AC Waveform 105S7 43 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 105S7 44 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Key DC/AC Waveform 105S7 45 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Key DC/AC Waveform Horizontal Scan 105S7 46 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Key DC/AC Waveform 105S7 47 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Key DC/AC Waveform 105S7 48 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Key DC/AC Waveform 105S7 49 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Safety test requirements All inits that are returned for service or repair must pass the original manufactures safety testing requires both Hipot and Ground Continuity testing. HI-POT TEST INSTRUCTION 1. Application requirements 1.1 All mains operated products must pass the Hi-pot test as described in this instruction. 1.2 This test must be performed again after the covers have beenrefitted following the repair, inspection or modification of the product. 2. Test method 2.1 Connecting conditions 2.1.1 The test specified must be applied between the parallel-blade plug of the mainscord and all accessible metal parts of the product. 2.1.2 Before carrying out the test, reliable conductive connections must be ensured and thereafter be maintained throughout the test period. 2.1.3 The mains switch(es) must be in the “ON” position. 2.2 Test Raquirements All products should be HiPot and Ground Continuity tested as follows: Condition HiPot Test for products where the mains input range is Full range(or 220V AC) HiPot Test for products where the mains input is 110V AC(USA type) Ground Continuity Test requirement Test voltage 3000VDC(2000VAC) 2121VDC(1500VAC) Test time(min.) 3 seconds 1 seconds Trip current(Tester) Set at 100 uA for Max.limitation;set at 0.1 uA for Min.limitation Ramp time Set at 2 seconds 5 mA Test current: 25A,AC Test time:3 seconds(min.) Resistance of the mains cord required: �0.1Ω 2.2.1 The test with AC voltage is only for production purpose, Service center shall use DC voltage. 2.2.2 The minimum test duration for Quality Control Inspector must be 1 minute. No breakdown during the test. 2.2.3 The test voltage must be maintained within the specified voltage +5%. 2.2.4 the groundign ro pin of mains plug must be conducted with accessible metal parts. 105S7 50 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 105S7 51 Safety test requirements 3.Equipments and connection 3.1 Equipment: Extech 7440 Electrical Safety Compliance Analyzer (ACW,DCW,IR,GB) 3.2 Connection: Turn the power switch of monitor before Hipot and Ground Continuity testing Connect the video cable or the grounding screw to the Current on the tester Connect the power cord to the monitor. Power outlet (Rear view of monitor) 4.Recording Hipot and Ground Continuity testing records have to be kept for a period of 10 years. ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Spare Parts List Spare Parts List Model : 105S78/05(YCM5T541SM401) Vendor: Model:A5FP(105S7) P/N: YCM5T541SM401 Location / Item / Position No. Vendor P/N Philips P/N Description S CD Manual F801180000001 9965 000 26238 CD MANUAL PHILIPS 105S78/A5F S W0328712AL261 9965 000 26239 SIGNAL CABLE UL20276 15P-6P/6P(FOR 1200mm BL S W40318A022631(��) 9965 000 26240 POWER CORD U.K 3P 250V 5.0A 1500m S F4007225T5402 9965 000 26241 CARTON S MKSE04 Y0540011GA00 9965 000 26242 PE BAG(FOR SET) S MKSE06 Y0540009GA00 9965 000 26243 PE BAG (FOR USER MANUAL) S CRT E3515054F28S1 9965 000 26244 CRT 15" M36QAW351X113 SAMSUNG S CRT E3515048F2811 9965 000 26245 CRT M36AES13X01 300UH MPRII - CPT S CRT E3515048F28L1 9965 000 26246 CRT M36LBL503X37 300uH MPRII LG(PHILIPS) X XCM5T54062S01 #N/A CRT ASS'Y A5F FST SAMSUNG S XCM5T54012101 9965 000 26247 HOUSING ASS'Y BLACK A5F S XCM5T54072101 9965 000 26248 BEZEL ASS'Y FOR PHILIPS 105S78-BL V P761A926CM020 #N/A POWER KNOB ABS HB BLACK A5F V P763A926CM020 #N/A FUNCTION KEY ABS HB BLACK A5F V P814A926CM010 #N/A POWER KNOB BUSHING ABS HB BLACK A V P727AJ26CM080 #N/A BEZEL ABS V0 BLACK PHILIPS 105S78 S XCM5T54032101 9965 000 26249 BASE ASS'Y BLACK A5F V P74AA926CM030 #N/A BASE ABS HB BLACK A5F V P74BA926CM030 #N/A SWIVEL BALL ABS HB BLACK A5F S XCM5T54172102 9965 000 26328 SWITCHING TRANSISTOR FS7KM-16A AS S XCM5T54022S01 9965 000 26250 CHASSIS ASS'Y A5F FST SAMSUNG S XCM5T54052S01 9965 000 26251 MAIN BOARD ASS'Y A5F FST SAMSUN S XCM5T54042S01 9965 000 26252 VIDEO /B ASS'Y A5F FST SAMSUNG S Y02KL05002SA 9965 000 26253 KEY/BD PCB S XCM5T54022101 9965 000 26254 CHASSIS ASS'Y - CPT S XCM5T54022L01 9965 000 26255 CHASSIS ASS'Y - LG X XCM5T54052S01A #N/A MAIN BOARD A/I ASS'Y A5F FST SA S XCM5T54182102 9965 000 26329 HIGH SPEED SWITCHING TRANSISTOR B S Y02KL05002SA 9965 000 26253 KEY/BD PCB S R744 Y21110218J11 9965 000 26275 RES. CARBON 11K Ohm 1/8W J S R745 Y21200118J11 9965 000 26276 RES. CARBON 2K Ohm 1/8W J 105S7 52 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 S XCM5T54042S01 9965 000 26252 VIDEO /B ASS'Y A5F FST SAMSUNG X XCM5T54042S01A #N/A VIDEO /B A/I ASS'Y A5F FST SAMSU S C401 Y3211030-3*3 9965 000 26277 CAP.CERAMIC 0.01UF 500V Z5U M S C404 Y3211045-5*3 9965 000 26272 CAP.CERAMIC 0.1UF 50V Y5V Z S C405 Y3211045-5*3 9965 000 26272 CAP.CERAMIC 0.1UF 50V Y5V Z S C406 Y3211005-2*3 9965 000 26278 CAP C/C-CH 10PF 50V J TAPING S C407 Y3211045-5*3 9965 000 26272 CAP.CERAMIC 0.1UF 50V Y5V Z S C410 Y3211045-5*3 9965 000 26272 CAP.CERAMIC 0.1UF 50V Y5V Z S C411 Y31847016V*3 9965 000 26279 CAP.EC 47UF 16V 85'C T S C413 Y3211045-5*3 9965 000 26272 CAP.CERAMIC 0.1UF 50V Y5V Z S C416 Y3211045-5*3 9965 000 26272 CAP.CERAMIC 0.1UF 50V Y5V Z S C418 Y3211015-2*3 9965 000 26280 CAP.CERAMIC 100PF 50V Y5P K S C421 Y3211045-5*3 9965 000 26272 CAP.CERAMIC 0.1UF 50V Y5V Z S C423 Y3211035-3*3 9965 000 26281 CAP.CERAMIC 0.01UF 50V Z5U S C424 Y3211045-5*3 9965 000 26272 CAP.CERAMIC 0.1UF 50V Y5V Z S C427 Y3211035-3*3 9965 000 26281 CAP.CERAMIC 0.01UF 50V Z5U S C430 Y3216805-0*3 9965 000 26282 CAP.CERAMIC 68PF 50V NPO S C403 Y31110216V*3 9965 000 26285 CAP EC 1000UF 16V 105'C S C409 Y3211505-0*3 9965 000 26286 CAP CD 15PF 50V NPO J T S C414 Y3211005-2*3 9965 000 26278 CAP C/C-CH 10PF 50V J TAPING S C415 Y31110050V*3 9965 000 26287 CAP EC 10uF 50V 105'C T S C417 Y31847010V*3 9965 000 26288 CAP.EC 47UF 10V 85'C T S C422 Y3211030-3*3 9965 000 26277 CAP.CERAMIC 0.01UF 500V Z5U M S C425 Y3211032-3*2 9965 000 26289 CAP CD 0.01UF 2KV Z5U M F S C426 Y3211022-2*3 9965 000 26290 CAP.CERAMIC 1000PF 2KV Y5P K S C428 Y3212215-2*3 9965 000 26283 CAP.CERAMIC 220PF 50V Y5P K S C429 Y31822116V*3 9965 000 26291 CAP.EC 220UF 16V 85'C T S C431 Y3216805-0*3 9965 000 26282 CAP.CERAMIC 68PF 50V NPO S C432 Y3211030-3*3 9965 000 26277 CAP.CERAMIC 0.01UF 500V Z5U M S C436 Y338473251J3 9965 000 26292 CAP MEFB 0.047UF 250V R82 T S C437 Y3213315-2*3 9965 000 26293 CAP.CERAMIC 330PF 50V Y5P K S C439 Y3211022-2*3 9965 000 26290 CAP.CERAMIC 1000PF 2KV Y5P K S C440 Y3211021-2*3 9965 000 26294 CAPCD 1000PF 1KV Y5P K T S C450 Y31810050V*3 9965 000 26295 CAP.EC 10UF 50V 85'C T S L401 Y501358008*1 9965 000 26296 FERRITE BEAD W4B RH 3.5*8*0.8 S L402 Y531568001*1 9965 000 26297 COIL 0.56uH K MINI TA COIL DEGAUSSING 0.35*45 COIL CHOKE 60uH 1A S L406 Y501356008*1 9965 000 26298 FERRITE BEAD:3.5*6*0.8 S L409 Y501356008*1 9965 000 26298 FERRITE BEAD:3.5*6*0.8 S L410 Y501358008*1 9965 000 26296 FERRITE BEAD W4B RH 3.5*8*0.8 105S7 53 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 S L414 Y501253008*1 9965 000 26299 CORE RF BEAD RH 2.5 *3*0.8TP S D401 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D403 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D406 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D407 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D409 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D412 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D413 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D414 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D415 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S R402 Y21330918J11 9965 000 26301 RES. CARBON 33 Ohm 1/8W J S R406 Y23750918F11 9965 000 26302 RES METAL 1% 75 OHM 1/8W F AXL S R407 Y21100018J11 9965 000 26303 RES. CARBON 100 Ohm 1/8W J S R408 Y21330918J11 9965 000 26301 RES. CARBON 33 Ohm 1/8W J S R409 Y21560914J11 9965 000 26304 RES. CF 56 Ohm 1/4W J AXL S R410 Y21220018J11 9965 000 26305 RES. CARBON 220 Ohm 1/8W J S R420 Y21100018J11 9965 000 26303 RES. CARBON 100 Ohm 1/8W J S R422 Y21100018J11 9965 000 26303 RES. CARBON 100 Ohm 1/8W J S R429 Y21560118J11 9965 000 26306 RES. CARBON 5.6K Ohm 1/8W J S R436 Y21100018J11 9965 000 26303 RES. CARBON 100 Ohm 1/8W J S R437 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/8W J S R438 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/8W J S R439 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/8W J S R440 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/8W J S R441 Y21100018J11 9965 000 26303 RES. CARBON 100 Ohm 1/8W J S R442 Y21100018J11 9965 000 26303 RES. CARBON 100 Ohm 1/8W J S L403 Y531568001*1 9965 000 26297 COIL 0.56uH K MINI TA COIL DEGAUSSING 0.35*45 COIL CHOKE 60uH 1A S L404 Y501356008*1 9965 000 26298 FERRITE BEAD:3.5*6*0.8 S L405 Y531568001*1 9965 000 26297 COIL 0.56uH K MINI TA COIL DEGAUSSING 0.35*45 COIL CHOKE 60uH 1A S L407 Y501358008*1 9965 000 26296 FERRITE BEAD W4B RH 3.5*8*0.8 S L408 Y501353008*2 9965 000 26308 SW TACT 3PIN 160G (SKHVPE3520) S L411 Y501356008*1 9965 000 26298 FERRITE BEAD:3.5*6*0.8 S L412 Y501355008*1 9965 000 26309 CORE FIC RH3.5*5*0.8(T/R) S L413 Y501253008*1 9965 000 26299 CORE RF BEAD RH 2.5 *3*0.8TP S L415 Y501253008*1 9965 000 26299 CORE RF BEAD RH 2.5 *3*0.8TP S L420 Y501353008*1 9965 000 26314 FERRITE BEAD:3.5*3.0*0.8 S D402 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D405 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 105S7 54 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 S D416 Y1311N4004** 9965 000 26310 GENERAL PURPOSE DIODE IN4004 S IC401 Y11STV9211*S 9965 000 26311 IC STV9211 S IC402 Y11STV9555*S 9965 000 26312 IC STV9555 S IC403 G11MTV0301*Y 9965 000 26313 IC CONTROLLER 16P MTV030 S R403 Y21100018J11 9965 000 26303 RES. CARBON 100 Ohm 1/8W J S R405 Y21100014J11 9965 000 26315 RES. CARBON 100 Ohm 1/4W J S R411 Y23750918F11 9965 000 26302 RES METAL 1% 75 OHM 1/8W F AXL S R412 Y21560914J11 9965 000 26304 RES. CF 56 Ohm 1/4W J AXL S R413 Y21220018J11 9965 000 26305 RES. CARBON 220 Ohm 1/8W J S R414 Y21330918J11 9965 000 26301 RES. CARBON 33 Ohm 1/8W J S R415 Y23750918F11 9965 000 26302 RES METAL 1% 75 OHM 1/8W F AXL S R416 Y21560914J11 9965 000 26304 RES. CF 56 Ohm 1/4W J AXL S R417 Y21220018J11 9965 000 26305 RES. CARBON 220 Ohm 1/8W J S R419 Y21150014J11 9965 000 26316 RES. CARBON 150 Ohm 1/4W J S R421 Y21100218J16 9965 000 26317 RES. CARBON 10K Ohm 1/8W J S R423 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R427 Y21100014J11 9965 000 26315 RES. CARBON 100 Ohm 1/4W J S R428 Y29100314J11 9965 000 26319 RES H-VOLTAGE 100K 1/4W J S R430 Y21100418J11 9965 000 26320 RES. CARBON 1M Ohm 1/8W J S R431 Y21560118J11 9965 000 26306 RES. CARBON 5.6K Ohm 1/8W J S R432 Y21100812J11 9965 000 26321 RES. CARBON 1 Ohm 1/2W J A- S R433 Y21100012J11 9965 000 26322 RES. CARBON 100 Ohm 1/2W J S R434 Y21510118J11 9965 000 26323 RES. CARBON 5.1K Ohm 1/8W J S C342 Y3212211-2*3 9965 000 26330 CAP.CERAMIC 220PF 1KV Y5P K S C434 Y31847016V*3 9965 000 26279 CAP.EC 47UF 16V 85'C T S C442 Y31810050V*3 9965 000 26295 CAP.EC 10UF 50V 85'C T S C704 Y3211035-3*3 9965 000 26281 CAP.CERAMIC 0.01UF 50V Z5U S XCM5T54052S01 9965 000 26251 MAIN BOARD ASS'Y A5F FST SAMSUN S Q303 Y122SC945P*N 4822 130 41198 TRANSISTOR 2SC945P (TO-92) S Q508 Y122SA733P*N 9965 000 26331 TRANSISTOR 2SA733P (TO-92) S Q513 Y122SA733P*N 9965 000 26331 TRANSISTOR 2SA733P (TO-92) S R315 Y21510118J11 9965 000 26323 RES. CARBON 5.1K Ohm 1/8W J S R723 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J v SW703 Y412000005*1 #N/A SW TACT 3PIN 160G (SKHVPE3520) S C101 Y31810116V*3 9965 000 26332 CAP.EC 100UF 16V 85'C T S C102 Y3211035-3*3 9965 000 26281 CAP.CERAMIC 0.01UF 50V Z5U S C104 Y3211035-3*3 9965 000 26281 CAP.CERAMIC 0.01UF 50V Z5U S C107 Y31847016V*3 9965 000 26279 CAP.EC 47UF 16V 85'C T S C109 Y3211045-5*3 9965 000 26272 CAP.CERAMIC 0.1UF 50V Y5V Z S C110 Y3211035-3*3 9965 000 26281 CAP.CERAMIC 0.01UF 50V Z5U 105S7 55 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 S C116 Y31847016V*3 9965 000 26279 CAP.EC 47UF 16V 85'C T S C118 Y3211045-5*3 9965 000 26272 CAP.CERAMIC 0.1UF 50V Y5V Z S C119 Y3211035-3*3 9965 000 26281 CAP.CERAMIC 0.01UF 50V Z5U S C124 Y3211045-5*3 9965 000 26272 CAP.CERAMIC 0.1UF 50V Y5V Z S C201 Y31810135V*3 9965 000 26333 CAP.EC 100UF 35V 85'C T S C202 Y31810225V*2 9965 000 26334 CAP.EC 1000UF 25V 85'C F S C311 Y3212211-2*3 9965 000 26330 CAP.CERAMIC 220PF 1KV Y5P K S C324 Y31810125V*3 9965 000 26335 CAP.EC 100UF 25V 85'C T S C328 Y31847025V*3 9965 000 26336 CAP.EC 47UF 25V 85'C T S C337 Y3212211-2*3 9965 000 26330 CAP.CERAMIC 220PF 1KV Y5P K S C341 Y3212211-2*3 9965 000 26330 CAP.CERAMIC 220PF 1KV Y5P K S C343 Y3212211-2*3 9965 000 26330 CAP.CERAMIC 220PF 1KV Y5P K S C344 Y3211015-2*3 9965 000 26280 CAP.CERAMIC 100PF 50V Y5P K S C346 Y3212211-2*3 9965 000 26330 CAP.CERAMIC 220PF 1KV Y5P K S C508 Y31847950V*3 9965 000 26337 CAP.EC 4.7UF 50V 85'C T S C511 Y3211035-3*3 9965 000 26281 CAP.CERAMIC 0.01UF 50V Z5U S C520 Y31847950V*3 9965 000 26337 CAP.EC 4.7UF 50V 85'C T S C526 Y3211035-3*3 9965 000 26281 CAP.CERAMIC 0.01UF 50V Z5U S C602 Y3211035-3*3 9965 000 26281 CAP.CERAMIC 0.01UF 50V Z5U S C603 Y3211035-3*3 9965 000 26281 CAP.CERAMIC 0.01UF 50V Z5U S C703 Y3212215-2*3 9965 000 26283 CAP.CERAMIC 220PF 50V Y5P K S C705 Y31810050V*3 9965 000 26295 CAP.EC 10UF 50V 85'C T S C707 Y3211045-5*3 9965 000 26272 CAP.CERAMIC 0.1UF 50V Y5V Z S C708 Y3212705-0*3 9965 000 26338 CAP.CERAMIC 27PF 50V NPO S C714 Y3211045-5*3 9965 000 26272 CAP.CERAMIC 0.1UF 50V Y5V Z S D107 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D108 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D109 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D301 Y131RL205A*C 9965 000 26339 DIODE RL205A 2A 600V S D302 Y131RL205A*C 9965 000 26339 DIODE RL205A 2A 600V S D304 Y131RL205A*C 9965 000 26339 DIODE RL205A 2A 600V S D310 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D312 Y131HER303KC 9965 000 26340 DIODE SUPER FAST HER303 S D315 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D318 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D319 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D506 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D512 Y1311N5819*C 4822 130 81234 DIODE SCHOTTKY 1N5819 S D514 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D516 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 105S7 56 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 S D517 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D520 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D521 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S JMP43 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/4W J S JMP88 Y501355008*1 9965 000 26309 CORE FIC RH3.5*5*0.8(T/R) S L303 Y502356008*1 9965 000 26341 BEAD CORE 3.5*6*0.8 X2 S L305 Y502356008*1 9965 000 26341 BEAD CORE 3.5*6*0.8 X2 S L309 Y502356008*1 9965 000 26341 BEAD CORE 3.5*6*0.8 X2 S L310 Y502356008*1 9965 000 26341 BEAD CORE 3.5*6*0.8 X2 S Q101 Y122SC945P*N 4822 130 41198 TRANSISTOR 2SC945P (TO-92) S Q107 Y122SC945P*N 4822 130 41198 TRANSISTOR 2SC945P (TO-92) S Q301 Y12KSA928A** 9965 000 25597 TR. S-SIGNAL KSA928A-Y TO-92 S Q306 Y122SC945P*N 4822 130 41198 TRANSISTOR 2SC945P (TO-92) S Q308 Y12JC337***P 9965 000 26342 TR NPN 0.5A/50V JC337 S Q509 Y500353010*1 9965 000 26343 BEAD CORE 3.5*3.0*1.0 S Q514 Y122SA733P*N 9965 000 26331 TRANSISTOR 2SA733P (TO-92) S Q516 Y122SC945P*N 4822 130 41198 TRANSISTOR 2SC945P (TO-92) S Q522 Y122SA733P*N 9965 000 26331 TRANSISTOR 2SA733P (TO-92) S Q601 Y122SC945P*N 4822 130 41198 TRANSISTOR 2SC945P (TO-92) S R101 Y21330118J11 9965 000 26344 RES. CARBON 3.3K Ohm 1/8W J S R102 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/4W J S R104 Y21150218J11 9965 000 26345 RES. CARBON 15K Ohm 1/8W J S R107 Y21330218J11 9965 000 26346 RES. CF 33K Ohm 1/8W J AXL S R108 Y21100018J11 9965 000 26303 RES. CARBON 100 Ohm 1/8W J S R109 Y21100018J11 9965 000 26303 RES. CARBON 100 Ohm 1/8W J S R120 Y21100018J11 9965 000 26303 RES. CARBON 100 Ohm 1/8W J S R124 Y21360214J11 9965 000 26347 RES. CARBON 36K Ohm 1/4W J S R126 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R128 Y21100018J11 9965 000 26303 RES. CARBON 100 Ohm 1/8W J S R136 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R139 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/8W J S R140 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/8W J S R141 Y21120114J11 9965 000 26348 RES. CARBON 1.2K Ohm 1/4W J S R142 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/8W J S R307 Y22100921J21 9965 000 26349 RES. M-OXIDE 10 Ohm 2W J S R309 Y22820211J21 9965 000 26350 RES. M-OXIDE 82K Ohm 1W J S R311 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/8W J S R317 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/8W J S R321 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R323 Y21510118J11 9965 000 26323 RES. CARBON 5.1K Ohm 1/8W J 105S7 57 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 S R325 Y21100218J12 9965 000 26351 RES. CARBON 10K Ohm 1/8W J S R327 Y21360214J11 9965 000 26347 RES. CARBON 36K Ohm 1/4W J S R329 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/4W J S R336 Y21100014J11 9965 000 26315 RES. CARBON 100 Ohm 1/4W J S R521 Y21270214J11 9965 000 26352 RES. CARBON 27K Ohm 1/4W J S R523 Y21220218J11 9965 000 26353 RES. CARBON 22K Ohm 1/8W J S R535 Y21150218J11 9965 000 26345 RES. CARBON 15K Ohm 1/8W J S R536 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/4W J S R542 Y21100218J14 9965 000 26354 RES. CARBON 10K Ohm 1/8W J S R556 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R561 Y21510118J11 9965 000 26323 RES. CARBON 5.1K Ohm 1/8W J S R569 Y21100914J11 9965 000 26355 RES. CARBON 10 Ohm 1/4W J S R576 Y21510118J11 9965 000 26323 RES. CARBON 5.1K Ohm 1/8W J S R603 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R604 Y21470218J11 9965 000 26273 RES. CARBON 47K Ohm 1/8W J S R701 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R703 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R704 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R706 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/8W J S R707 Y21100018J11 9965 000 26303 RES. CARBON 100 Ohm 1/8W J S R716 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R718 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R719 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R720 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R721 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R724 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R727 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R732 Y21220218J11 9965 000 26353 RES. CARBON 22K Ohm 1/8W J S R739 Y21560118J11 9965 000 26306 RES. CARBON 5.6K Ohm 1/8W J v SW702 Y412000005*1 #N/A SW TACT 3PIN 160G (SKHVPE3520) v SW705 Y412000005*1 #N/A SW TACT 3PIN 160G (SKHVPE3520) S ZD705 Y133HZ5C1**H 9965 000 26356 DIODE ZENER: 4.9V- 5.1V 1/2W.HZ S C103 Y332104101J3 9965 000 26357 CAP.MEF 0.1UF 100V T S C105 Y33815463VJ3 9965 000 26358 CAP MEFB 0.15UF 63V J T R82 S C106 Y33847463VJ3 9965 000 26359 CAP MEFB 0.47UF 63V J T R82 S C108 Y333102101J3 9965 000 26360 CAP.PPN 0.001UF 100V T S C111 Y339821101G3 9965 000 26361 CAP.APS 820PF 100V G.T S C112 Y3211035-3*3 9965 000 26281 CAP.CERAMIC 0.01UF 50V Z5U S C113 Y31847950V*3 9965 000 26337 CAP.EC 4.7UF 50V 85'C T S C114 Y3212215-2*3 9965 000 26283 CAP.CERAMIC 220PF 50V Y5P K 105S7 58 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 S C115 Y332104251J2 9965 000 26362 CAP.MEF 0.1UF 250V F S C117 Y31847950V*3 9965 000 26337 CAP.EC 4.7UF 50V 85'C T S C122 Y31847016V*3 9965 000 26279 CAP.EC 47UF 16V 85'C T S C123 Y338223101J3 9965 000 26363 CAP MEFB 0.022UF 100V R85 S C125 Y31810050V*3 9965 000 26295 CAP.EC 10UF 50V 85'C T S C204 Y332224101J3 9965 000 26364 CAP.MEF 0.22UF 100V S C205 Y31810225V*2 9965 000 26334 CAP.EC 1000UF 25V 85'C F S C206 Y3212225-2*3 9965 000 26365 CAP CERAMIC 2200PF 50V Y5P S C207 Y3212215-2*3 9965 000 26283 CAP.CERAMIC 220PF 50V Y5P K S C303 Y301224275*B 9965 000 26366 CAP C-X 0.22uF K 275V 15mm S C304 Y302472251*1 9965 000 26367 CAP.(Y) 4700PF 250V +/-20% Y5U S C305 Y302472251*1 9965 000 26367 CAP.(Y) 4700PF 250V +/-20% Y5U S C307 Y318151451*5 9965 000 26368 CAP EC 150UF 450V 85C TAN MAX 15% DIMENSIO S C310 Y311470161*2 9965 000 26369 CAP. EC 47UF 160V 105'C F S C312 Y3214711-2*3 9965 000 26370 CAP.CD 470PF 1KV K Y5P S C313 Y3212211-2*3 9965 000 26330 CAP.CERAMIC 220PF 1KV Y5P K S C314 Y311331101*2 9965 000 26371 CAP.EC 330UF 100V 105'C S C320 Y31110225V*2 9965 000 26372 CAP.EC 1000UF 25V 105'C F13*25 S C323 Y31110216V*2 9965 000 26373 CAP.EC 1000UF 16V 105'C S C325 Y31810116V*3 9965 000 26332 CAP.EC 100UF 16V 85'C T S C326 Y31147125V*3 9965 000 26374 CAP.EC 470UF 25V 105'C 8*11.5mm S C327 Y33810463VJ3 9965 000 26375 CAP MEFB 0.1UF 63V R82 NF S C329 Y302472251*1 9965 000 26367 CAP.(Y) 4700PF 250V +/-20% Y5U S C330 Y3212211-2*3 9965 000 26330 CAP.CERAMIC 220PF 1KV Y5P K S C331 Y3211045-5*3 9965 000 26272 CAP.CERAMIC 0.1UF 50V Y5V Z S C332 Y338222101J3 9965 000 26376 CAP MEFB 2200PF 100V J T R82 S C333 Y3211015-2*3 9965 000 26280 CAP.CERAMIC 100PF 50V Y5P K S C334 Y3214715-2*3 9965 000 26377 CAP.CERAMIC 470PF 50V Y5P K S C336 Y338222101J3 9965 000 26376 CAP MEFB 2200PF 100V J T R82 S C338 Y301474271*1 9965 000 26378 CAP(X) 0.47UF 275Vac +/-10% S C345 Y3214701-8*3 9965 000 26379 CAP CD 47PF 1KV SL K T S C502 Y3211035-3*3 9965 000 26281 CAP.CERAMIC 0.01UF 50V Z5U S C504 Y3214702-8*3 9965 000 26380 CAP CD 47PF 2KV SL TYPE S C506 Y21200118J11 9965 000 26276 RES. CARBON 2K Ohm 1/8W J S C509 C4394321J3201 9965 000 26381 CAP PLASTIC FILM/PPS 0.0043UF 2KV S C510 C439822BJ3201 9965 000 26382 CAP PLASTIC FILM/PPS 0.0082uF/1KV S C512 Y31810135V*3 9965 000 26333 CAP.EC 100UF 35V 85'C T S C513 Y31810050V*3 9965 000 26295 CAP.EC 10UF 50V 85'C T S C514 Y3212225-2*3 9965 000 26365 CAP CERAMIC 2200PF 50V Y5P S C521 Y31847950V*3 9965 000 26337 CAP.EC 4.7UF 50V 85'C T 105S7 59 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 S C525 Y330104101J3 9965 000 26383 CAP PEI 0.1UF 100V J T S C528 Y310470251*2 9965 000 26384 CAP HI-RIPPLE 47UF 250V 105'C S C529 Y335274401JA 9965 000 26385 CAP.MPS 0.27UF 400V F S C533 Y318100251*3 9965 000 26386 CAP.EC 10UF 250V 85'C T S C535 Y3212220-2*3 9965 000 26387 CAP.CERAMIC 2200PF 500V Y5P K S C536 Y332225101J2 9965 000 26388 CAP.MEF 2.2UF 100V F S C539 Y3212210-2*3 9965 000 26389 CAP.CERAMIC 220PF 500V Y5P K S C540 Y318470101*3 9965 000 26390 CAP.EC 47UF 100V 85'C T S C542 Y335334251J2 9965 000 26391 CAP MPS 0.33UF 250V J F S C543 Y3212210-2*3 9965 000 26389 CAP.CERAMIC 220PF 500V Y5P K S C548 Y31810116V*3 9965 000 26332 CAP.EC 100UF 16V 85'C T S C551 Y3211520-2*3 9965 000 26392 CAP CD 1500PF 500V K Y5P S C552 Y3212005-0*3 9965 000 26393 CAP CD 20PF 50V NPO J T S C601 Y31847025V*3 9965 000 26336 CAP.EC 47UF 25V 85'C T S C604 Y31822950V*3 9965 000 26394 CAP.EC 2.2UF 50V 85'C T S C701 Y31810125V*3 9965 000 26335 CAP.EC 100UF 25V 85'C T S C702 Y31847016V*3 9965 000 26279 CAP.EC 47UF 16V 85'C T S C706 Y3211035-3*3 9965 000 26281 CAP.CERAMIC 0.01UF 50V Z5U S C711 Y3212705-0*3 9965 000 26338 CAP.CERAMIC 27PF 50V NPO S C712 Y31810950V*3 9965 000 26395 CAP.EC 1UF 50V 85'C T S D105 Y1311N5819*C 4822 130 81234 DIODE SCHOTTKY 1N5819 S D106 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D201 Y1311N4002*X 5322 130 30684 GENERAL PURROSE DIODE 1N4002 S D305 Y131HER107GC 9965 000 26396 DIODE SUPER FAST HER107G 800V S D307 Y131RL205A*C 9965 000 26339 DIODE RL205A 2A 600V S D308-A Y131HER305GX 9965 000 26397 DIODE 3A/400V 50NS HER305G S D309 Y131HER107*C 9965 000 26396 DIODE SUPER FAST HER107 800V S D311 Y1311N4936*C 5322 130 33973 DIODE 1A 400V 200nS 1N4936 S D313 Y131HER303KC 9965 000 26340 DIODE SUPER FAST HER303 S D314 Y131HER203*C 3141 018 51150 DIODE SUPER FAST HER203 S D320 Y1311N4148** 9965 000 26300 DIODE 0.15A/75V 40nS 1N4148 S D501 Y1311N4936*C 5322 130 33973 DIODE 1A 400V 200nS 1N4936 S D502 Y1311N4937*C 9965 000 26399 DIODE RECOVERY : 1N4937 S D503 D491500M01S01 9965 000 26400 DIODE Damper DMV1500M TO-220AB ST S D505 Y1311N5819*C 4822 130 81234 DIODE SCHOTTKY 1N5819 S D508 Y1311N4936*C 5322 130 33973 DIODE 1A 400V 200nS 1N4936 S D510 Y1311N4936*C 5322 130 33973 DIODE 1A 400V 200nS 1N4936 S D513 Y1311N4936*C 5322 130 33973 DIODE 1A 400V 200nS 1N4936 S D515 Y131HER304FC 9965 000 26401 DIODE 3A/300V 50nS HER304G KI S F301 Y40134020011 9965 000 26402 FUSE TIME LAG 4A 250V 20*5 105S7 60 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 S FC301 Y403000001*1 9965 000 26403 FUSE CLIPER (5*20mm) S FC302 Y403000001*1 9965 000 26403 FUSE CLIPER (5*20mm) X HAMA02 Y625010003*2 #N/A HARNS RING CORE 1015#18 G/Y.95mm S IC101 Y11STV6888*S 9965 000 26404 IC STV6888 DIP-32 PIN S IC201 Y11STV9302*S 9965 000 26405 IC STV9302A S IC303 Y11UC3842BNS 4822 209 33432 IC UC3842BN DIP-8PIN S IC701 Y11G71024**W 9965 000 26406 CPU MASK WT6132 40PIN S IC703 3138 106 10434 EEPROM ASSY V IC703 Y1124LC08**V 9965 000 26487 IC 24LC08 DIP-8PIN V IC703 #N/A EEPROM DATA:a5fcptrev01-8b6e.bin S JMP110 Y502356008*1 9965 000 26341 BEAD CORE 3.5*6*0.8 X2 S JMP57 Y501358008*1 9965 000 26296 FERRITE BEAD W4B RH 3.5*8*0.8 S JMP71 Y501355008*1 9965 000 26309 CORE FIC RH3.5*5*0.8(T/R) S JMP89 Y501355008*1 9965 000 26309 CORE FIC RH3.5*5*0.8(T/R) S JMP90 Y501355008*1 9965 000 26309 CORE FIC RH3.5*5*0.8(T/R) S JMP95 Y501353008*1 9965 000 26314 FERRITE BEAD:3.5*3.0*0.8 S JUMP10 Y531101001*1 9965 000 26324 COIL PEAKING 100uH K A-T S L301 Y525280001*1 9965 000 26407 COIL COMMON CHOKE 25mH ET-28 S L304 Y533100003*1 9965 000 26408 COIL CHOKE 60uH 1A 8*10 S L307 Y502356008*1 9965 000 26341 BEAD CORE 3.5*6*0.8 X2 S L308 Y502356008*1 9965 000 26341 BEAD CORE 3.5*6*0.8 X2 S L501 L45090130LB01 9965 000 26409 COIL LINEARITY 13uH 2PIN S L503 L45101000L201 9965 000 26410 COIL CHOKE 14*15 100uH 2A 15% S L504 L45101900L201 9965 000 26411 DRUM CORE L:190uH 6A(16*18)15% S L505 Y501358008*1 9965 000 26296 FERRITE BEAD W4B RH 3.5*8*0.8 S L506 Y501356008*1 9965 000 26298 FERRITE BEAD:3.5*6*0.8 v LED1 Y150000001*1 #N/A LED 3PIN G/Y C-C D:5mm S Q102 Y122SA733P*N 9965 000 26331 TRANSISTOR 2SA733P (TO-92) S Q106 Y122SC945P*N 4822 130 41198 TRANSISTOR 2SC945P (TO-92) S Q108 Y122SC945P*N 4822 130 41198 TRANSISTOR 2SC945P (TO-92) S Q302 Y12SC1213ACH 9965 000 26412 TRANSISTOR 2SC1213AC (TO-92) S Q304 Y12KSA928A** 9965 000 25597 TR. S-SIGNAL KSA928A-Y TO-92 ? S Q305 Y122FS7KM16M 9965 000 26413 TR MOS FET FS7KM-16A S Q307 Y12JC337***P 9965 000 26342 TR NPN 0.5A/50V JC337 S Q505 Y122SC945P*N 4822 130 41198 TRANSISTOR 2SC945P (TO-92) S Q506 Y12BU4522A*P 9965 000 26414 TRANSISTOR BU4522 S Q507 Y12BSN254A*P 4822 130 63081 TRANSISTOR BSN254A (TO-92) S Q510 Y500353010*1 9965 000 26343 BEAD CORE 3.5*3.0*1.0 S Q515 Y122SC945P*N 4822 130 41198 TRANSISTOR 2SC945P (TO-92) S Q517 Y12BF423***P 4822 130 41646 TRANSISTOR BF423 105S7 61 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 S Q518 Y12TIP122**S 9965 000 26415 TRANSISTOR TIP122 S Q519 Y122SK2417*T 9965 000 26416 TRANSISTOR 2SK2417 S Q521 Y12IRF630MFS 9965 000 26417 TR MOS FET IRF630MFP TO-220FP S Q602 Y122SA733P*N 9965 000 26331 TRANSISTOR 2SA733P (TO-92) S Q603 Y122SC945P*N 4822 130 41198 TRANSISTOR 2SC945P (TO-92) S Q701 Y122SA733P*N 9965 000 26331 TRANSISTOR 2SA733P (TO-92) S R105 Y21200218J11 9965 000 26418 RES. CARBON 20K Ohm 1/8W J S R106 Y21470218J11 9965 000 26273 RES. CARBON 47K Ohm 1/8W J S R113 Y21200218J11 9965 000 26418 RES. CARBON 20K Ohm 1/8W J S R114 Y21160218J11 9965 000 26419 RES. CARBON 16K Ohm 1/8W J S R117 Y21510118J11 9965 000 26323 RES. CARBON 5.1K Ohm 1/8W J S R121 Y23562118F11 9965 000 26420 RES.METAL 5.62K OHM 1/8W S R122 Y21180118J11 9965 000 26421 RES. CARBON 1.8K Ohm 1/8W J S R123 Y21360214J11 9965 000 26347 RES. CARBON 36K Ohm 1/4W J S R125 Y21820218J11 9965 000 26422 RES. CARBON 82K Ohm 1/8W J S R127 Y21270214J11 9965 000 26352 RES. CARBON 27K Ohm 1/4W J S R130 Y21470218J11 9965 000 26273 RES. CARBON 47K Ohm 1/8W J S R131 Y21560118J11 9965 000 26306 RES. CARBON 5.6K Ohm 1/8W J S R132 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/8W J S R133 Y21100318J11 9965 000 26423 RES. CARBON 100K Ohm 1/8W J S R134 Y21180114J11 9965 000 26424 RES.CF.1.8K Ohm 1/4W J A-T S R135 Y21270218J11 9965 000 26425 RES. CARBON 27K Ohm 1/8W J S R137 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R138 Y21100214J11 9965 000 26426 RES.CF 10K 1/4W J AXL S R201 Y22470811J51 9965 000 26427 RES. M-OXIDE 4.7 Ohm 1W J S R202 Y23357218F11 9965 000 26428 RES.METAL 35.7K OHM 1/8W S R203 Y23619118F11 9965 000 26429 RES.METAL 6.19K OHM 1/8W S R204 Y21100812J11 9965 000 26321 RES. CARBON 1 Ohm 1/2W J A- S R205 Y21120218J11 9965 000 26430 RES. CARBON 12K Ohm 1/8W J S R206 Y21470012J11 9965 000 26431 RES.CF 470 Ohm 1/2W J AXL S R207 Y21620118J11 9965 000 26432 RES. CARBON 6.2K Ohm 1/8W J S R208 Y22910711J21 9965 000 26433 RES.MOF 0.91 Ohm 1W J HOR S R208 Y22110811J21 9965 000 26271 RES.MOF 1.1 Ohm 1W S R208 Y22110811J21 9965 000 26271 RES.MOF 1.1 Ohm 1W S R302 Y21100412J11 9965 000 26434 RES. CARBON 1M Ohm 1/2W J S R304 Y21100312J11 9965 000 26435 RES. CARBON 100K Ohm 1/2W J S R305 Y22820211J21 9965 000 26350 RES. M-OXIDE 82K Ohm 1W J S R306 Y22470231J51 9965 000 26436 RES. M-OXIDE 47K Ohm 3W J S R308 Y21100014J11 9965 000 26315 RES. CARBON 100 Ohm 1/4W J S R312 Y21470114J11 9965 000 26437 RES. CF 4.7K Ohm 1/4W J AXL 105S7 62 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 S R314 Y22100111J21 9965 000 26438 RES. M-OXIDE 1K Ohm 1W J S R318 Y21470014J11 9965 000 26439 RES. CARBON 470 Ohm 1/4W J S R319 Y21560914J11 9965 000 26304 RES. CF 56 Ohm 1/4W J AXL S R320 Y21390012J11 9965 000 26440 RES. CARBON 390 Ohm 1/2W J S R322 Y23475218F11 9965 000 26441 RES.METAL 47.5K OHM 1/8W S R328 Y23715118F11 9965 000 26442 RES MF 7.15K Ohm 1/8W F A-T. S R331 Y21150318J11 9965 000 26270 RES. CARBON 150K Ohm 1/8W J S R334 Y22330711J21 9965 000 26443 RES M-OXIDE-S 0.33 Ohm 1W J FORMI S R337 Y21470918J11 9965 000 26444 RES. CARBON 47 Ohm 1/8W J S R338 Y21120114J11 9965 000 26348 RES. CARBON 1.2K Ohm 1/4W J S R339 Y21120114J11 9965 000 26348 RES. CARBON 1.2K Ohm 1/4W J S R340 Y22680821J21 9965 000 26445 RES.M-OXIDE 6.8Ohm 2W J S R502 Y22100021J51 9965 000 26446 RES.MOF.100 Ohm.2W......J HOR(S). S R513 Y21100218J11 9965 000 26447 RES. CARBON 10K Ohm 1/8W J S R514 Y22100921J21 9965 000 26349 RES. M-OXIDE 10 Ohm 2W J S R517 Y21100918J11 9965 000 26448 RES. CARBON 10 Ohm 1/8W J S R518 Y21220912J11 9965 000 26449 RES. CARBON 22 Ohm 1/2W J S R519 Y21150012J11 9965 000 26450 RES CARBON 150 Ohm 1/2W S R520 Y21390218J11 9965 000 26451 RES. CARBON 39K Ohm 1/8W J S R522 Y21330118J11 9965 000 26344 RES. CARBON 3.3K Ohm 1/8W J S R525 Y21220814J11 9965 000 26452 RES. CARBON 2.2 Ohm 1/4W J S R539 Y21100914J11 9965 000 26355 RES. CARBON 10 Ohm 1/4W J S R540 Y21100418J11 9965 000 26320 RES. CARBON 1M Ohm 1/8W J S R542 Y21100312J11 9965 000 26435 RES. CARBON 100K Ohm 1/2W J S R544 Y21330312J11 9965 000 26453 RES. CARBON 330K Ohm 1/2W J S R545 Y21220218J11 9965 000 26353 RES. CARBON 22K Ohm 1/8W J S R546 Y21100112J11 9965 000 26454 RES. CARBON 1K Ohm 1/2W J S R549 Y21430018J11 9965 000 26455 RES.CF.430 Ohm 1/8W J A-T S R550 Y21560218J11 9965 000 26456 RES. CARBON 56K Ohm 1/8W J S R551 Y23562118F11 9965 000 26420 RES.METAL 5.62K OHM 1/8W S R554 Y21430218J11 9965 000 26269 RES. CARBON 43K Ohm 1/8W J S R554 Y21430218J11 9965 000 26269 RES. CARBON 43K Ohm 1/8W J S R554 Y21430218J11 9965 000 26269 RES.CARBON 43K Ohm 1/8W J S R555 Y21560012J11 9965 000 26457 RES.CF 560 Ohm 1/2W J AXL S R557 Y21150318J11 9965 000 26270 RES. CARBON 130K Ohm 1/8W J S R558 Y22220811J51 9965 000 26458 RES. M-OXIDE 2.2 Ohm 1W J S R559 Y21150218J11 9965 000 26345 RES. CARBON 15K Ohm 1/8W J S R562 Y21390014J11 9965 000 26459 RES. CARBON 390 Ohm 1/4W J S R564 Y21300118J11 9965 000 26460 RES.CF.3K Ohm 1/8W J A-T S R565 Y21470914J11 9965 000 26461 RES. CARBON 47 Ohm 1/4W J 105S7 63 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 S R566 Y22330011J21 9965 000 26462 RES.MOF 330 Ohm 1W S R567 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/4W J S R570 Y22330721J21 9965 000 26463 RES. M-OXIDE .33 Ohm 2W J S R571 Y21510114J11 9965 000 26464 RES. CARBON 5.1K Ohm 1/4W J S R577 Y21220218J11 9965 000 26353 RES. CARBON 22K Ohm 1/8W J S R579 Y21470918J11 9965 000 26444 RES. CARBON 47 Ohm 1/8W J S R580 Y21360218J11 9965 000 26465 RES. CARBON 36K Ohm 1/8W J S R581 Y21100314J11 9965 000 26466 RES. CARBON 100K Ohm 1/4W J S R582 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R585 Y21330218J11 9965 000 26346 RES. CF 33K Ohm 1/8W J AXL S R586 Y21330114J11 9965 000 26467 RES.CF 3.3K Ohm 1/4W J AXL S R599 Y21100914J11 9965 000 26355 RES. CARBON 10 Ohm 1/4W J S R601 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/4W J S R602 Y21820812J11 9965 000 26468 RES.CF 8.2 Ohm 1/2W J AXL S R605 Y21560018J11 9965 000 26469 RES.CF.560 Ohm 1/8W J A-T S R606 Y21470218J11 9965 000 26273 RES. CARBON 47K Ohm 1/8W J S R702 Y21100218J11 9965 000 26447 RES. CARBON 10K Ohm 1/8W J S R705 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/8W J S R708 Y21100018J11 9965 000 26303 RES. CARBON 100 Ohm 1/8W J S R710 Y21220118J11 9965 000 26470 RES. CARBON 2.2K Ohm 1/8W J S R712 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R713 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R714 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/8W J S R715 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/8W J S R717 Y21100114J11 9965 000 26307 RES. CARBON 1K Ohm 1/8W J S R722 Y21330018J11 9965 000 26471 RES.CF.3K Ohm 1/8W J A-T S R728 Y21470118J11 9965 000 26318 RES. CARBON 4.7K Ohm 1/8W J S R729 Y21510918J11 9965 000 26472 RES. CARBON 51 Ohm 1/8W J S R730 Y21100018J11 9965 000 26303 RES. CARBON 100 Ohm 1/8W J S R733 Y21510918J11 9965 000 26472 RES. CARBON 51 Ohm 1/8W J S R734 Y21100018J11 9965 000 26303 RES. CARBON 100 Ohm 1/8W J S R738 Y21300118J11 9965 000 26460 RES.CF.3K Ohm 1/8W J A-T S R743 Y21150114J11 9965 000 26473 RES.CF.1.5K Ohm 1/4W J A-T S RL301 Y42212V001*1 9965 000 26474 RELAY 250Vac 12Vdc/5A X SK301 Y640100001*1 #N/A GENERAL SOCKET:0714-CPJ(BLACK) S SW1 J4406T11ED201 9965 000 26475 SWITCH RESET H=11.5mm 2PIN DIP V SW701 Y412000005*1 #N/A SW TACT 3PIN 160G (SKHVPE3520) V SW704 Y412000005*1 #N/A SW TACT 3PIN 160G (SKHVPE3520) S T302 Y526350001*2 9965 000 26476 POWER XFMR ERL35 360uH S T501 Y512600008*1 9965 000 26477 XFMR FBT 26KV 105S7 64 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 S T502 Y521190001*1 9965 000 26478 X'FMR EI-19*05 4.7mH 210mA S TH301 Y201000005*1 9965 000 26479 RES NTC 5 OHM 4A P=7.5mm S TH302 Y202000003*1 9965 000 26480 PTC 9 Ohm 20A 2PIN S VR101 Y281202B0041 9965 000 26481 VR (B) 2K Ohm 6@ TA S VR301 Y281202B0041 9965 000 26481 VR (B) 2K Ohm 6@ TA S VR501 Y281223B0041 9965 000 26482 SVR. H-C-S 22K Ohm X W301 Y641100202*1 #N/A CONNECTOR WAFER 8/10mm 2P X W402 Y641100106*1 #N/A HEADER CONNECTOR WAFER 2.50mm 6P X W403 Y640000006*1 #N/A CRT SOCKET 8P(SMALL SIZE) X W405 Y621140003*1 #N/A HARNESS XHP14-SCN8-SCN6 1007# 24 X W501 Y641100204*1 #N/A HEADER CONNETOR 2.5 A/W 4P X W508(MPRII) Y620010017*1 #N/A HARNESS 1007#22 1460mm(FOR A5F70) X W601 Y641100102*1 #N/A CONNECTOR WAFER 2P XH TYPE X W602 Y641100108*1 #N/A CONNECTOR HEADER.2.5 S1*8P A/W X W603 Y641100106*1 #N/A HEADER CONNECTOR WAFER 2.50mm 6P X W701 Y641100105*1 #N/A CONNECTOR WAFER 2.50mm 5P 180' X W702 Y641100102*1 #N/A CONNECTOR WAFER 2P XH TYPE X W706W1 Y611182200*2 #N/A HARNESS UL 1015#18 220mm BLK S XTAL701 Y1412F001011 9965 000 26483 CRYSTAL : 12MHZ HC-49U S ZD101 Y133HZ182**H 9965 000 26484 DIODE ZENER: 17.5V- 18.3V 1/2W S ZD301 Y133HZ202**H 9965 000 26485 DIODE ZENER 20.0V 2% 0.5W(BZX79-B S ZD302 Y133HZ5C1**H 9965 000 26356 DIODE ZENER: 4.9V- 5.1V 1/2W.HZ S ZD303 Y133HZ12A2*H 9965 000 26325 DIODE ZENER 11.9-12.4V 1/2W S ZD401 Y133HZ12A2*H 9965 000 26325 DIODE ZENER 11.9-12.4V 1/2W S ZD502 Y133HZ5C1**H 9965 000 26356 DIODE ZENER: 4.9V- 5.1V 1/2W.HZ S ZD703 Y133HZ5C1**H 9965 000 26356 DIODE ZENER: 4.9V- 5.1V 1/2W.HZ S ZD704 Y133HZ5C1**H 9965 000 26356 DIODE ZENER: 4.9V- 5.1V 1/2W.HZ S R554 Y21430218J11 9965 000 26269 RES.CARBON 43K Ohm 1/8W J S R557 Y21150318J11 9965 000 26270 RES. CARBON 150K Ohm 1/8W J S R208 Y22110811J21 9965 000 26271 RES.MOF 1.1 Ohm 1W S C124 Y3211045-5*3 9965 000 26272 CAP.CERAMIC 0.1UF 50V Y5V Z S IC703 Y1124LC08**V 3138 106 10435 EEPROM ASSY V IC703 #N/A EEPROM DATA : A5fcptrev01-8b6e.bin V IC703 Y1124LC08**V 9965 000 26487 IC 24LC08 DIP-8PIN S R554 Y21470218J11 9965 000 26273 RES.CARBON 47K Ohm 1/8W J S R557 Y21130318J11 9965 000 26274 RES. CARBON 130K Ohm 1/8W J S R208 Y22110811J21 9965 000 26271 RES.MOF 1.1 Ohm 1W S IC703 Y1124LC08**V 3138 106 10436 EEPROM ASSY V IC703 3138106 #N/A EEPROM DATA : a5flgrev01-8b93.bin V IC703 Y1124LC08**V 9965 000 26487 IC 24LC08 DIP-8PIN 105S7 65 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 PCB Layout 105S7 66 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 PCB Layout 105S7 67 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 PCB Layout 105S7 69 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Product Specification INDEX 1.1 General description 1.2 Product range 2 Electrical Specification 2.1 CRT specification 2.2 Earth magnetic field 2.3 Voltage operation 2.4 Input requirement 2.5 Monitor connections 2.5.1 Power connector 2.5.2 Signal connector 2.6 Monitor controls and indicator 2.6.1 Power button 2.6.2 Power indicator LED 2.6.3 Display controls 2.7 Display capability 2.7.1 Factory preset modes 2.7.2 Factory preload modes 2.7.3 User definable modes 2.8 On Screen Display (OSD) controls 2.8.1 OSD tree 2.8.2 Attention signals 2.9 Display data center 2.9.1 Display data channel(DDC2B, VESA standard) 2.9.2 EDID ID number 2.9.3 EDID data file 2.10 DPMS 2.11 Display FOS performance 2.12 Degaussing 2.13 Power saving management 2.14 Low emission requirements(MPRII/TCO’03/TCO’99) 3 Mechanical specification 3.1 Physical specification 3.2 Artwork 3.3 Markings and Labels 3.4 Accessories 3.5 Carton box 3.6 Cushions 3.7 Container loading 4 Environmental characteristics 105S7 70 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Product Specification 4.1 Susceptibility of display to external environment 4.1.1 Environmental limit 4.1.2 Transportation test 4.1.2.1 All regions except China and India 4.1.2.2 China and India 4.2 Display disturbance from external environment 4.3 Display disturbance to external environment 5 Safety tests 6 Certifications 7 Reliability 8 Quality assurance requirements 9 Services ability 10 Appendix 105S7 71 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Product Specification 1 Product Introduction The AUTOSCAN analog color monitor is to operate at horizontal line rates between 30 to 54 KHz and refreshment rate between 50 to 120 Hz, can be applied to all RGB analog computers within this scanning frequencies. This monitor is specified as a display peripheral within an IBM PC, PS/2 ,VGA and advance VGA compatible system. 1.1General description Product Name Philips 105S7 Chassis Name A5F Horizontal Scan Range 30 ~ 54 kHz Vertical Refresh Rate Range 50 ~ 120 Hz Video dot rate 72 MHz Maximum resolution 1024 x 768@60Hz Recommended resolution 800 x 600@85Hz Number of new modes 10 Number of factory modes 15 Power consumption-operation 65W max, 62W typical Power consumption-off 5W Power supply 90-264V, 50/60 Hz OSD control-languages English, French, German, Italian, Japanese, S-Chinese Set dimension inc. base(WxHxD) 357mmx362mmx373mm Set dimension exc. Base(WxHxD) 357mmx300mmx373mm Net weight 13kg Box dimensions(WxHxD) 420mmx420mmx450mm Gross weight 14.8Kg Accessories Power cord, CD-ROM, QSG Optional accessory NO 1.2 Product Range(Draft) �� / 73 S. Africa 105S58/12 South South/Africa Glare Black �� / 70 Indonesia x Equator European Glare Black �� / 05 Pakistan/Dubai/HK x North UK Glare Black �� / 94 India x Equator India Glare Black �� / 73 S. Africa x South South/Africa Glare Grey �� / 67 Thailand x Equator US Glare Grey �� / 70 Indonesia 105S59/91 Equator European Glare Grey �� / 68 Malaysia/Singapore x Equator UK Glare Grey �� / 05 Pakistan/Dubai/HK x North UK Glare Grey �� / 94 India x Equator India Glare Grey 105S7 72 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Product Specification 2 Electrical Specification 2.1 CRT Specification(TBD) MPRII: CRT Supplier LPD CPT Remark CRT part number Mask type Shadow Mask Shadow Mask Dot pitch 0.28 mm 0.28 mm Horizontal dot pitch 0.24 mm 0.24 mm Deflection angle 90o 90o Light transmission 57% 57% Face treatment Anti-glare/Anti-static Anti-glare/Anti-static EHT 24.5 + 1 kV(Ib=0) 24.5 + 1 kV(Ib=0) Visible screen area 284 mm x 213 mm 284 mm x 213 mm Phosphor type P22 P22 Glare: CRT Supplier LPD CPT Comment CRT part number Mask type Shadow Mask Shadow Mask Dot pitch 0.28 mm 0.28 mm Horizontal dot pitch 0.24 mm 0.24 mm Deflection angle 90o 90o Light transmission 57% 57% Face treatment Glare Glare EHT 24.5 + 1 kV(Ib=0) 24.5 + 1 kV(Ib=0) Visible screen area 284 mm x 213 mm 284 mm x 213 mm Phosphor type P22 P22 2.2 Earth Magnetic Field The monitor is aligned in a magnetic cage having the following magnetic field. H V Z Northern hemisphere 0 450 mG 0 Southern hemisphere 0 -500 mG 0 Equator 0 0 mG 0 105S7 73 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 2.3 Voltage Operation The monitor electronics shall not be damaged with power input voltage ranging from 90 to 264 VAC, 47~63Hz. Power cord length is 1.5m, head of type refer to 1.2 Product range. 2.4 Input Requirements Video Analog level Sync. Separated sync. with TTL level Input signals Polarity Positive or negative Video 0.7 Vp-p 75 ohms (for individual of R,G and B signals must not deviate 0.015 Vp-p from each other for balance of white pattern) Signal input level Sync. TTL level (between 0 and 0.6 V to be considered as low level ,between 2.3 and 5.0 V as high level) Video Terminated with 75 ohms Impedance Sync. Terminated with 4.7K ohms pull down resistors. 2.5 Monitor Connections 2.5.1 Power connector This CRT monitor shall have an IEC 320 type female power receptacle. 2.5.2 Signal Connector A triple row, 15-position subminiature D type female VGA connector on the rear side of the monitor. Signal as below: 1 Red video input 9 NC 2 Green video input 10 Sync ground 3 Blue video input 11 GND 4 GND 12 DDC-Serial Data 5 For self test (PC Ground) 13 H. Sync 6 Red video ground 14 V. Sync (VCLK) 7 Green video ground 15 Data clock (SCL) 8 Blue video ground 2.6 Monitor Controls and Indicators 2.6.1 Power Button The monitor shall have a power control button on the front of the monitor. 2.6.2 Power Indicator LED The monitor shall make use of an LED type indicator located on the front of the monitor. The LED color shall indicate the power states as follows: Full Power � – LED is Green Sleep mode – LED is Orange 105S7 74 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Product Specification 2.6.3 Display Controls(TBD, Follow GBM) The monitor shall have display controls (tack switch type) on the front of the monitor: Controls Function MENU 1. Entering OSD main control & confirming selection 2. Save adjusting &return OSD main control 1.to select the item for screen settings through OSD menu 2.to directly access screen brightness adjustment 1.to select the item for screen settings through OSD menu 2.to directly access screen contrast adjustment Exit Exit OSD main control 2.7 Display Capability 2.7.1 Factory preset modes Factory Preset Mode (6 modes): Monitor in the production line should 100% check following 6 modes and adjust them perfectly. Item Resolution H. freq.(kHz) V. freq.(Hz) Remark 1 720 x 400 31.47 70 2 640 x 480 31.47 60 3 640 x 480 37.5 75 4 800 x 600 46.875 75 5 800 x 600 53.674 85 6 1024 x 768 48.36 60 2.7.2 Factory preload modes Item Resolution H. freq.(kHz) V. freq.(Hz) Remark 1 640 x 350 31.469 70 2 640 x 350 37.861 85 3 640 x 480 50.6 100.1 SNI 4 640 x 480 37.861 72.8 5 640 x 480 43.269 85 6 720 x 400 37.927 85 7 800 x 600 37.879 60.3 8 800 x 600 48.077 72.12 9 832 x 624 49.725 74.6 MAC 2.7.3 New user Modes Beside the 6 factory pre-set modes the monitor shall support 18 new user saving modes. 2.8 On Screen Display (OSD) Controls 2.8.1 OSD Tree(TBD, follow GBM) First Level Second Level CONTRAST BRIGHTNESS 105S7 75 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Product Specification H-CENTER H-SIZE V-CENTER V-SIZE ZOOM PINCUSHION TRAPEZOID PIN-BALANCE PARALLELOGRAM ROTATION 6500 RECALL USER COLOR RED/BLUE 9300 RECALL DEGAUSS MORIE H-MORIE REDUCE MORIE DISABLE V-MORIE REDUCE QUIT RECALL EXIT LANGUAGE ENG/DEU FRA/ESP LTA/POR/RUS 2.8.2 ion Signals When the signal cable is not connected , the OSD will be shown as following : No Signal Input OrCable Disconnected 2.9 Display Data Channel 2.9.1 Display data channel(DDC2B, VESA standard) The DDC HEX data should be written into the DDC IC(24LC21 or equivalent) 2.9.2 EDID ID Number (TBD) Product ID Manufacturer ID MS registration model name 0012 PHL Philips 105S6 2.9.3 EDID Data File EDID Version 1.0, Revision 3 structure requires 128 bytes that represent specific information. Please refer to the VESA EDID Version 3.0 standard for definitions and calculations. 2.10 DPMS The monitor is equipped with two state On-state and Off-state. There is a delay of 5s … 7s before the transition from On-state to Off-state during display resolution and timing mode changes. 105S7 76 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Product Specification Mode Hs Vs Video Pw-cons Indicator Rec.time Power On On On active <75W Green Power Off Off Off blanked <5W Orange <10s 2.11lay FOS Performance CRT supplier LPD Test Condition B=0%, C=0% <=0.03FL B=50%, C=100% 30 +/- 5 FL B=100%, C=100% 37+/- 5 FL 53.674 KHZ/85 HZ full white pattern. B=50%, C=100% 41+/-5 FL Brightness, Contrast (Fig 5) B=50%, C=0% <1 FL 53.674 KHZ/85 HZ 10x10cm square white pattern Raster light output B=50%, C=0% <0.2 FL 53.674kHz/85Hz, no video pattern Image size (Fig 1) Width: 270+/- 3 mm Height: 202 +/- 3 mm For all preset modes Due to brightness change <= 1.5% Full white pattern, B=50%, change contrast from 0% to 100% Due to aging <= 2.0% 25oC, 300 hrs Variation of image size (for all preset modes) Due to mains voltage variation (+/- 10%) <= 1.0% |A-B|<=4,|C-D|<=4 800x600, 85Hz Image centering deviation (mm) (Fig 2) |A-B|<=5,|C-D|<=5 All other preset modes H-shift +/- 10 min. Picture shift control range (mm) V-shift +/- 8 min. For 15 factory modes Picture tilt (mm) (Fig 3) |A-B|<=2 Trapezoid A,B,C,D<=2 Parallelogram A,B,C,D<=2 Pincushion A,B,C,D<=2 Barrel A,B,C,D<=1.5 Geometrical distortions (mm) (Fig 4) Waviness <=1.0 over a 50mm distance For all preset modes H <= 10 % for all modes two adjacent <=6% V <= 10 % for all modes two adjacent <=6% Non-linearity overall 43k H,V<14%, two adjacent <=6% For preset modes, 12(H)X9(V) block pattern, H=(Xmax-Xmin) / [(Xmax+Xmin)/2] x 100% V=(Ymax-Ymin) / [(Ymax+Ymin)/2] x 100% Zone A 0.25 Zone B 0.35 Mis-convergence (mm) Zone C 0.15 Focus Adjust brightness control to cental click and contrast control to 30 fl at full white pattern, generate �me� to cover all picture. Center 30+/-5 FL Luminance uniformity Max deviation of screen <=25% Full white pattern, max contrast, central brightness White color adjustment 9300oK X=0.283+/- 0.018 Y=0.297+/- 0.018 1931 CIE chromatic diagram(x,y) of white display on screen center, set brightness click at center position, contrast at maximum position 105S7 77 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Product Specification 6500oK X=0.313+/- 0.018 Y=0.329+/- 0.018 Color tracking Tolerance X=0.018 Y=0.018 1.Full white pattern 2.adjust luminance output from 3 to 30 fl by turning the contrast control (brightness control at center position), check color co-ordinate compared to display center Purity Test patterns: Full white/Red/Green/Blue Max contrast, central brightness No color stains may occur 1.After warming-up time of 30 min. 2.check under specified earth magnetic field Morie area Moiré area not over 1/3 of the screen Luminance from 15fl to 30 fl Full white pattern Blemish Accordance to CRT spec Please attach CRT spec Apply a white pattern of 5cm square. (Use CHROMA 2135). Set brightness control to center click position. Connect an oscilloscope with probe input capacitance 2 pf to the cathode of R/G/B of picture tube, and then adjust contrast to 30Vp-p. The fall time must be ≤ 13 nsec, rise time must be ≤ 13 nsec. (fall time = black to white) 2.11 Degaussing An automatic degaussing circuit is provided which requires no intervention. The degaussing activated at the time switch on or switch on again after switching off degaussing circuits for longer than 30 minutes. Degaussing noise should be under disturbing level. 2.12 Power saving management system Signal H-Sync V-Sync Video Compliance requirement LED light Power On Active Active Active Mandatory Green 65W Off Inactive Active Blanked Mandatory Orange 5W Off Active Inactive Blanked Mandatory Orange 5W Off Inactive Inactive Blank Mandatory Orange 5W Remark: Transition time from “ON” to any power saving mode will have 5 seconds delay. 2.13 Low emission requirements(MPRII/TCO’03/TCO’99) Item Band I ELF (rms) Band II VLF (rms) Alternating electric field MPRII< 25 V/M TCO < 10 V/M MPR II < 2.5 V/M TCO < 1.0 V/M Magnetic field MPRII< 250 nT TCO < 200 nT MPR II < 25 nT TCO < 25 nT Electrostatic potential < +/- 500V Band I : 5 to 2 kHz Band II: 2k to 400kHz Test procedure according to low emission and E.S.P. test method. 3 Mechanical Specification 105S7 78 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Product Specification 3.1 Physical Specification ID ODM styling Texture # of buttons for OSD controls 4 OSD board location On front bezel LED #/position Left side of power button LED output surface texture Icons for bezels 105S6 Icons for buttons Exit, Brightness, Contrast, Enter Labelling Rating label Serial number label Carton label Colour Gray colour Black Painting No. Painting to cover up cosmetic defects due to molding is strongly discouraged. Position of rating label Rating label/serial number label on back cover, carton label on carton Resin Cabinets: ABS V0 Pedestal: ABS-HB Philips Logo on bezel Printing Philips Logo on back cover Base shipping attached or detached? Detach Tilt/Swivel range Tilt range: 5o forward, 15o backward Swivel range: 180o Number of rubber pads on base 4 3.2 Artwork Graphics sheet Make-up sheet Carton sheet 3.3 Markings and Labels 3.3.1 Rating labels The Label shall appear as follows: (TBD) 3.3.2 Carton labels The Label shall appear as follows: (TBD) 3.4 Accessories Item Specification Remark EDFU(CD-ROM) Arabic, English, Korean, simple Chinese, traditional Chinese 5 languages QSG English, Arabic, simple Chinese, traditional Chinese 4 languages 105S7 79 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Product Specification Power cord Refer to 1.2 Product Range 3.5 Carton box(TBC) Item Specification Remark Size 420 mm(W) x 420 mm(D) x 450 mm(H) Material AB flute 7mm Bursting 14 kgf/cm2 Compression 400 kgf 3.6 Cushion Material: EPS 3.7 Container loading(TBC) Container With pallet W/o pallet Remark 20’ 320 325 40’ normal 670 700 40’ HQ 670 840 Remark: W/O pallet means without wrapping as well. 4 Environmental characteristics The following sections to define the interference and susceptibility condition limits that might occur between external environment and the display device. The overall test sequence is: vibration test, drop test and when applicable cold drop test. 4.1 Susceptibility of display to external environment 4.1.1 Environmental limit Item Operation limit Storage limit Remark Temperature 0~40 oC -25oC ~ 65 oC Humidity 10 ~ 90% 5 ~ 95% No condensation Altitude 700-1100 mbar 300-1100 mbar 4.1.2 Transportation test Test condition: ambient temperature 20 -23°C, relative humidity 40 –65% 105S7 80 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Product Specification 4.1.3 Transportation test Test condition: ambient temperature 20 -23°C, relative humidity 40 –65 4.2play disturbances from external environment Test Standard Remark ESD Disturbances EN55024 (also refer to EN61000-4-2 for detail). 4.3play disturbances to external environment Test Standard Remark Ionizetic radiation ICRP 0.5mR/HR EMI/EMS FCC part 15, and EN55022 B Emission. EMS EN61000-4-3 (80% 1KHz AM modulation) Picture jitter ≤ 2mm ICRP: International Commission of Radio logical Protection 5.fety tests Transportation test Test item Test condition 1.Packaged Test 1.1 Packaged random vibra. Test sets *5~200Hz, 0.73Grms 30min/axis, 3 axes 1.2 Drop test (after random vibra. test) 2 sets *Gross weight drop height 1~9.52 kg 91 cm 9.53~18.59 kg 76 cm 18.60~27.66 kg 61 cm 27.67~45.36 kg 45 cm *Sequence: 1C-3E-6F 1.3 Cold drop test (For design evaluation only)2 sets * -10 C for 16 hours *Gross weight drop height 1~9.52 kg 76 cm 9.53~18.59 kg 61 cm 18.60~27.66 kg 45 cm 27.67~45.36 kg 30 cm *Sequence: 1C-3F 2. Unpackaged test 2.1 Operating random vibra. test2 sets *5~500Hz, 0.25Grms 30min/axis, 3 axes 2.2 Shock test (half sine wave)2 sets *100 G, <3 msec, 1 shock per all direction exclude CRT impurity ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Product Specification Test Standard Remark Dielectric strength (Hi-pot test) IEC60950-1, UL60950 and CSA 22.2 No 950 Resistance for protective earthing IEC60950-1 Leakage current IEC60950-1, UL60950 and CSA22.2 No. 950 Grounding IEC60950-1, UL60950 and CSA22.2 No. 950 IEC60950:1999(3rd edition) and IEC60950-1:2001 1st edition to be discussed 5 Certifications Safety CB report, PSB(Singapore), UL, SABS EMI FCC ID, BSMI, EMC EN55024, CCC, SABS Ergonomic -TUV/GS ergo(MPRII), ISO 9241-3/7/8 for MPRII model -TUV/Bauart for Glare model X-Ray DHHS(USA) Compatibility WHQL logo, Windows2000, Windows ME, Windows XP, Windows NT, Mac, Red hat 6 Reliability Mean time between failures MTBF to be calculated according to Military standard MIL-HDBK-217FN2. MTBF ≥ 100,000 Hours Demonstration TOTAL HRS (POWER ON) X TOTAL SETS PRACTICE of MTBF = ------------------------------------------------------- NBR. OF FAILURE SETS 7 Quality assurance requirements 7.1 Acceptance test According to MIL-STD-105D level II, AQL Major: 0.4 Minor: 1.0 Customer acceptance : UAW 0377/40 criteria 8 Service ability The service ability of this monitor should fulfil with the requirement which are prescribed in UAW-0346 and must be checked with the check list UAT – 0361 9 Appendix 105S7 82 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Product Specification 267 mm 273 mm 270 mm 202 mm FIG-1 IMAGE DIMENSION 199 mm 205 mm 105S7 83 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Product Specification Product Specification 105S7 84 FIG-2 IMAGE CENTERING 270 mm 202 mm |A-B| AND |C-D| < 6 mm D A B C |A- B| <= 4 mm, |C- D| <=4 mm for 800x600, 85Hz |A- B| <=5 mm, |C- D| <=5 mm for others mode ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 FIG-3 IMAGE ROTATION 270 mm A-B < 2 mm B A 105S7 85 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Product Specification 105S7 86 FIG-4 IMAGE GEOMETRY 270 mm 202 mm A B C D A=B=C=D < 3.0 mm |A| + |C| < 5 mm |B| + |D| < 5 mm A=B=C=D=2mm for trapezoid/parallelogram A=B=C=D=2mm for pincushion A=B=C=D=1.5mm for barrel ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Product Specification MEASUREMENT AREA 270 mm 202 mm 100 mm 100 mm FIG-5 CONTRAST AND BRIGHTNESS ZONE A ZONE B 105S7 87 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 270 mm 202 mm FIG-6 MISCONVERGENCE ZONE A ZONE B ZONE C 105S7 88 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Circuit Description 0. Functional Block Diagram 1. General Description 2. Description of Circuit Diagram A. Power Supply & Power Saving Management B. Horizontal Deflection/Vertical Deflection/EHT Generator C. Video board & DDC 2B D. Digital Circuit & Micro-controller GENERAL DESCRIPTION � 105S7, This monitor is a high performance, multi frequency color monitor. With state-of-the-art electronics, this monitor is capable of resolutions up to non-interlacing 1024 x 768. Multi-scanning at horizontal frequency of 30KHz to 54KHz and vertical frequency of 50Hz to 120Hz.The intelligent microprocessor-based design enables the monitor to automatically synchronize and adjust to most common video modes.The OSD Control allows you to easily and simply make precise screen format adjustments, while user-programmability provides cross-platform compatibility. . 1. DESCRIPTION OF CIRCUIT DIAGRAM This description mainly introduces the functions including power supply, power saving management, horizontal /vertical deflection, video amplifier, and micro-controller, etc. A. POWER SUPPLY / POWER SAVING MANAGEMENT The monitor is designed to adopt switching mode power supply which can operate mains input from 90VAC to 264VAC.This switching power supply applies an IC UC3842B. The control scheme transforms a rectified voltage source into a multi-output voltages. The control concept exhibits many desirable properties such as inherent over-load protection,stable and fast system response. A current sense circuit (R334) is equipped for power limiting and safety reason on primary power supply circuit. Secondary feedback via a photo-coupler is used to obtain a stable output voltages. The secondary outputs supply all necessary voltages for deflection and video and micro-controller.Power transformer . Secondary Output Voltage:+110v,+51v,+15v,+12v,+7v,+5v,-13v. All rectified diodes on secondary site are without lead frame ( heat-sink), it gains some cost saving in thermal design, but the turn ratios of main transformer should be well determined to maintain an adequate voltage derating of primary switching MOSFET and secondary +110V rectified diode HER107G (with better thermal performance).This is trade-off design in between. This monitor can save power consumption while no sync pulses and automatically recover to normal power-on when sync signals are detected by micro-controller. The power saving off mode still exists in new designed monitors, but suspend / stand-by mode are deleted due to patent infringement issue. During Off mode, LED will flash and become orange and the output voltages of +7V,+12V open . When the monitor is switched off it is actually in burst mode (< 5W). 105S7 89 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Circuit Description HORIZONTAL DEFLECTION / VERTICAL DEFLECTION / EHT GENERATOR HORIZONTAL DEFLECTION: The heart of horizontal/vertical deflection controller is Demic IC – STV6888, which can offer a complete an defficient small signal sync processing for auto-sync monitors. All functions are controlled via I2C bus. This controller provides sync processing, which can accept separate and composite (H+V) input signals. A very short settling time after mode change for protection of external power components has been taken into account. However, it should be noted that according to 105S7 spec this monitor doesn't support composite (H+V) input signals to avoid some troubles. The STV6888 provides extensive functions like a flexible B+ controller block of H-deflection and a geometry control with facility, leading to excellent picture quality. This device also can directly drive the vertical deflection output stage. The horizontal size, east/west, trapezoid corrections can be adjusted by the output of pin24 (EWout), which is led to the diode modulation circuit. S-capacitors plus power MOSFET switches and DC controlled linearity coil are designed for optimal picture linearity. VERTICAL DEFLECTION: The majority of vertical deflection function is integrated by two ICs : STV6888 and STV9302A. The STV6888 takes care of sync polarity correction, automatic catching and holding of the vertical oscillator,generation of saw-tooth drive current for vertical output and vertical s-correction, and generation of a correct V-blanking pulse for video blanking during vertical retrace time. The STV9302A is a DC-coupled vertical deflection booster with differential input signals, suitable for color monitors. The output stage has thermal and soar protection, and high linear saw-tooth signal amplification to obtain the required vertical deflection current. The voltage supply at flyback time for output stage is generated by the internal flyback generator and the external diode (D201) and capacitor (C201) which make the so-called pump-up circuit. EHT GENERATOR The IC STV6888 is also used as a controller to generate required extra high voltage for CRT via a buck converter (Q519) which supplies the required B+ to LOT's primary. This is a conventional combination circuit of horizontal deflection and EHT generation. Flyback transformer (LOT) transfers the primary voltage to the required anode voltage and rest tertiary output voltages. The adjustable focus (G3) and screen (G2) voltages are internally derived from the anode voltage. Another secondary winding is used to generate the voltage for G1. For safety reasons, x-ray protection circuit is included, that STV6888will shut down EHT generator and horizontal deflection if the anode voltage exceeds a certain value (27.5-29.5kV). VIDEO AMPLIFIER & DDC2B VIDEO AMPLIFIER: 105S7 90 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料 Circuit Description The video circuit mainly consists of pre-amplifierTDA9211, post amplifier STV9555. The video DC level and gain at cathode are controlled via I2C bus & software. The red, green and blue video signals are amplified by pre-amplifier and post-amplifier, then DC coupled to CRT cathodes . Three cut-off adjustments are provided to set the video black level at cathode for all three guns. Three individual gain adjustments are also provided to adjust the white balance. Both cut-off and gain controls are digital control via micro-controller A spot-killer circuit (STV9555) is also provided to prevent the CRT damage due to spot burn-out when the set is switched off. DDC 2B:. Via SDA and SCL, the data about the information of the monitor, including the serial number, production codes, CRT type and applicable timings, are stored in the EEPROM. To avoid picture interference, the reading and writing processes are executed during vertical blanking which is informed by the vertical SYNC. D. MICRO-CONTROLLER GENERAL DESCRIPTION: The micro-controller is used to control all required functions of monitors. The preset data are stored in EEPROM M24C08. The most important point is using interrupt to do the fast detect of mode change. Then the MCU, through the deflection part of Demic IC, delivers a good protection behavior for horizontal output transistor during mode change. KEY BOARD There is a keypad with five keys at the front of monitor: Power-on/off (To switch on/off the set). + - 1. Enterning OSD main control&confirming selection 2. Adjusting OSD 1. Enterning OSD main control&confirming selection 2. Seledt the item for screen settings through OSD menu 105S7 91 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修家电维修资料网，免费下载各种维修资料
