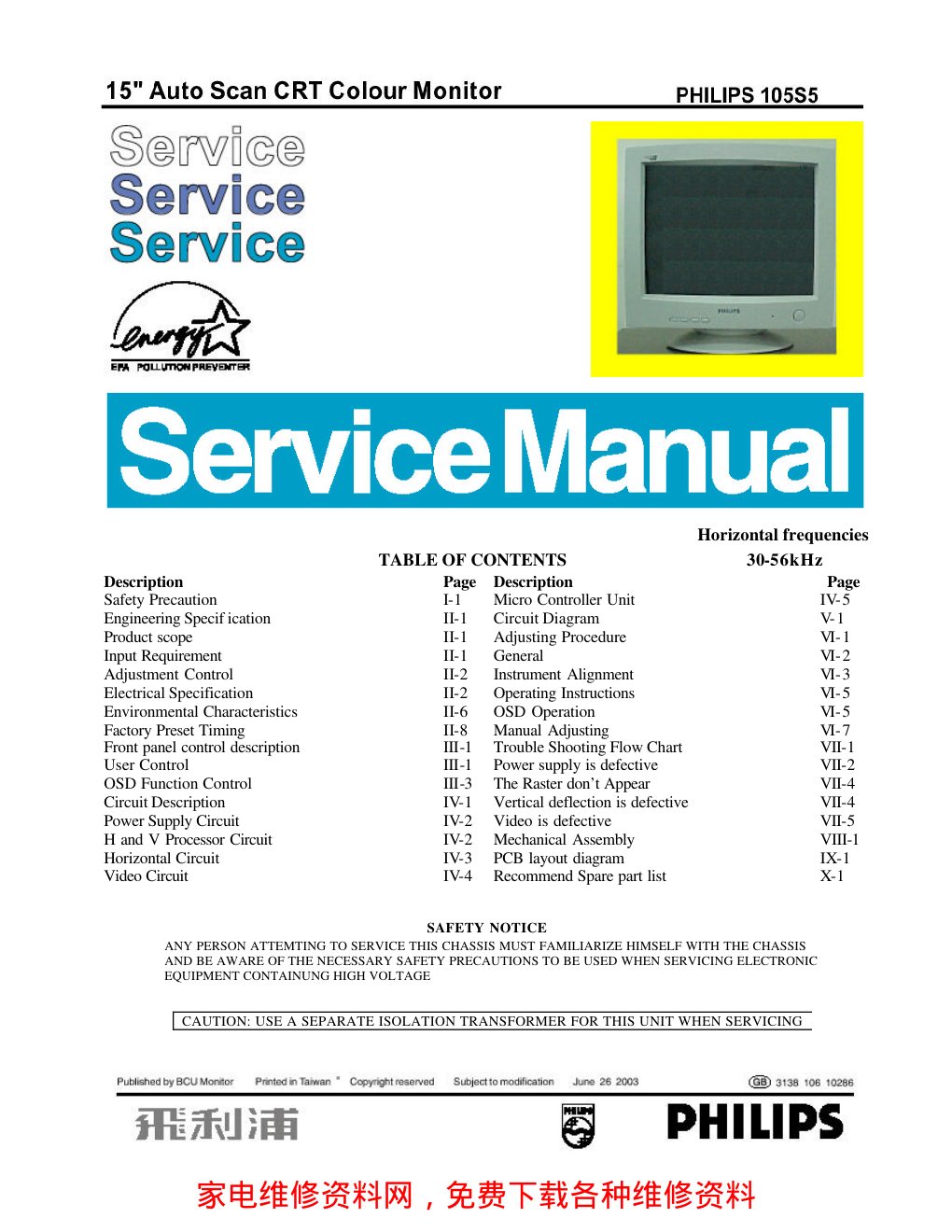

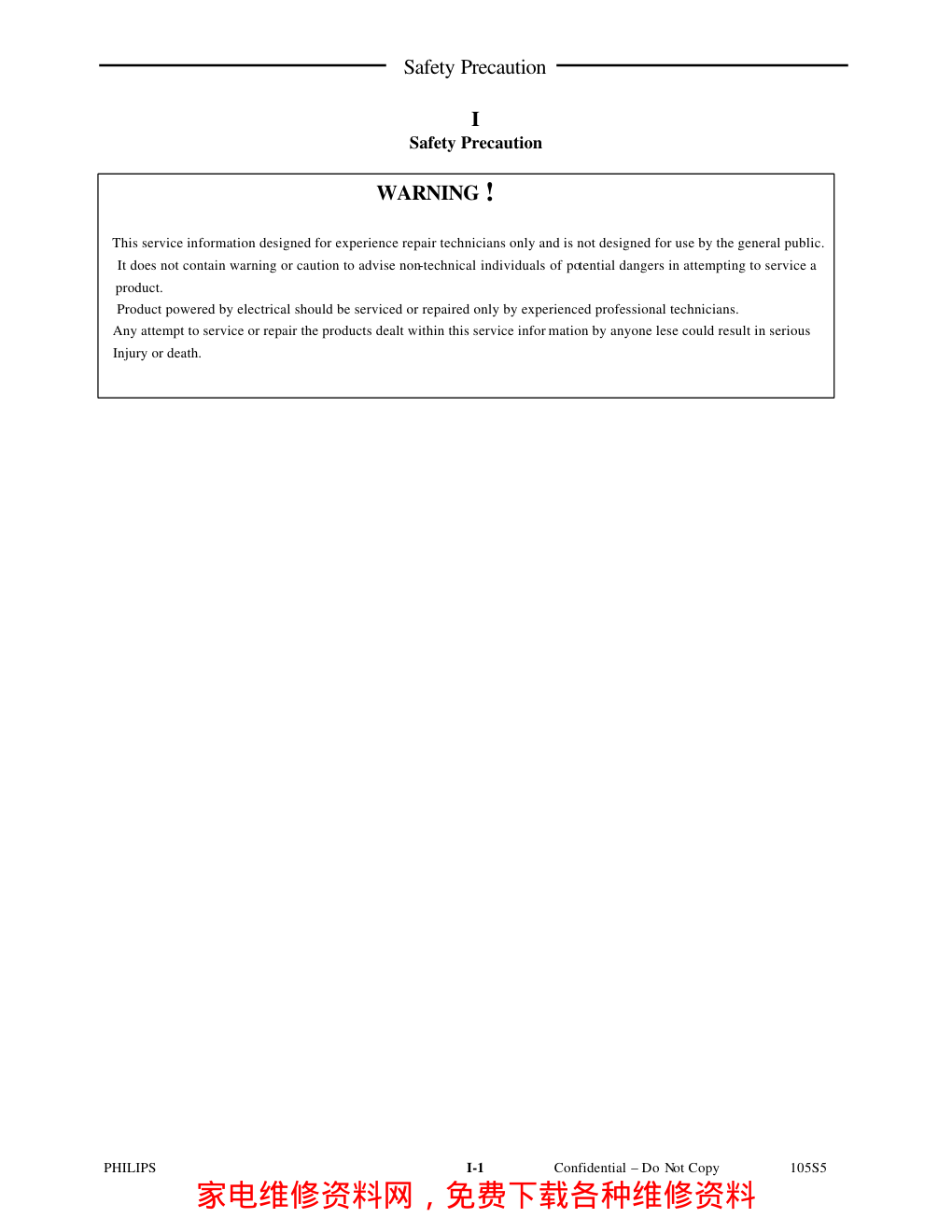

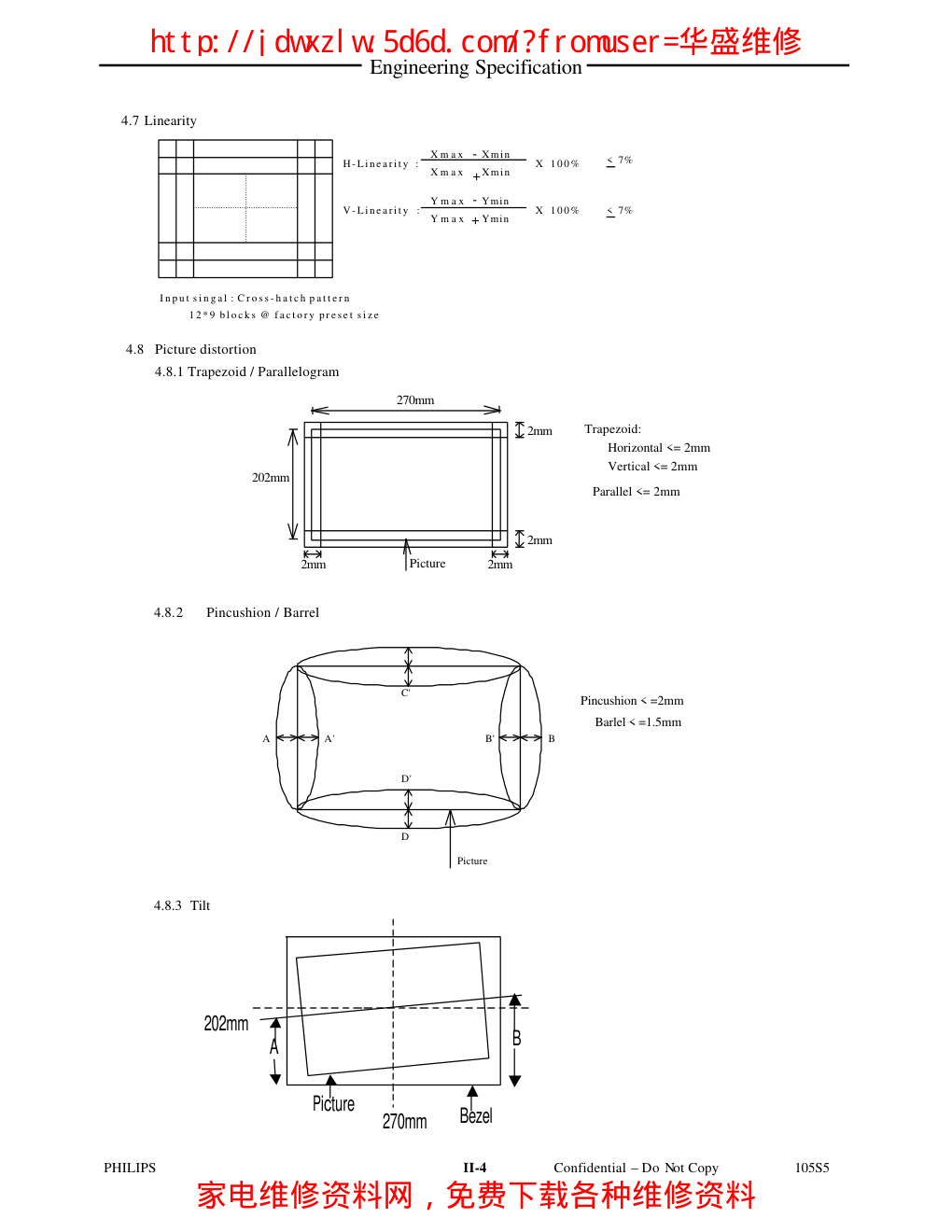

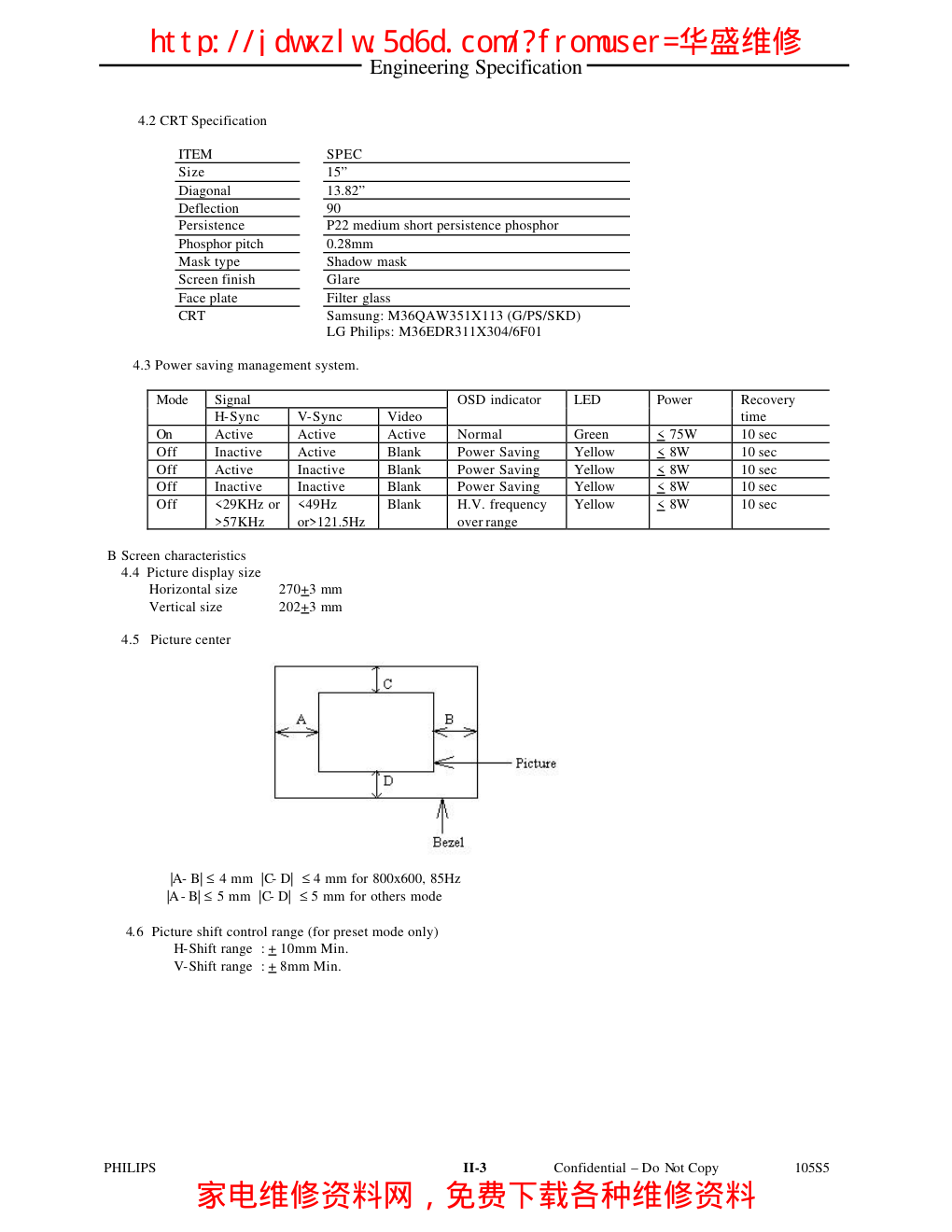

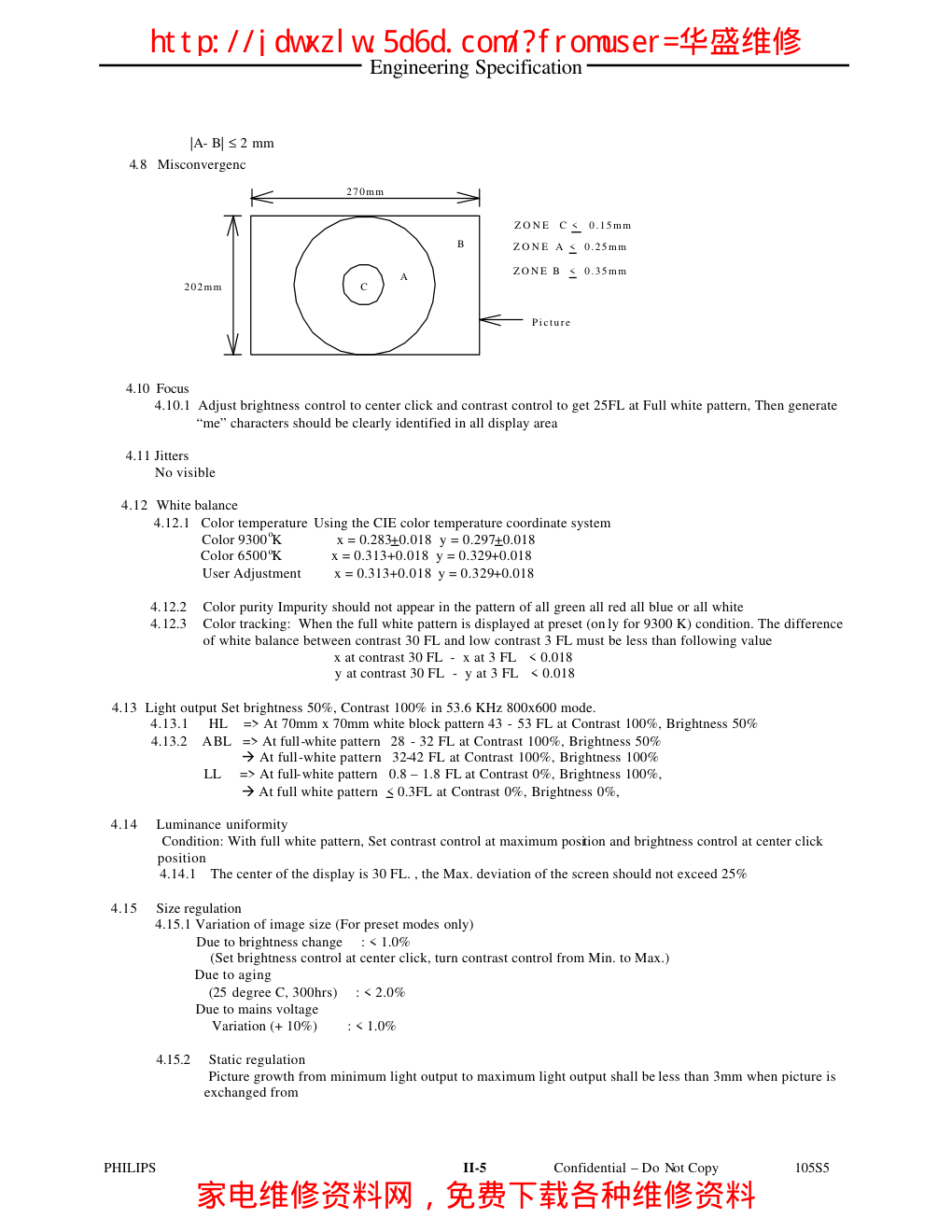

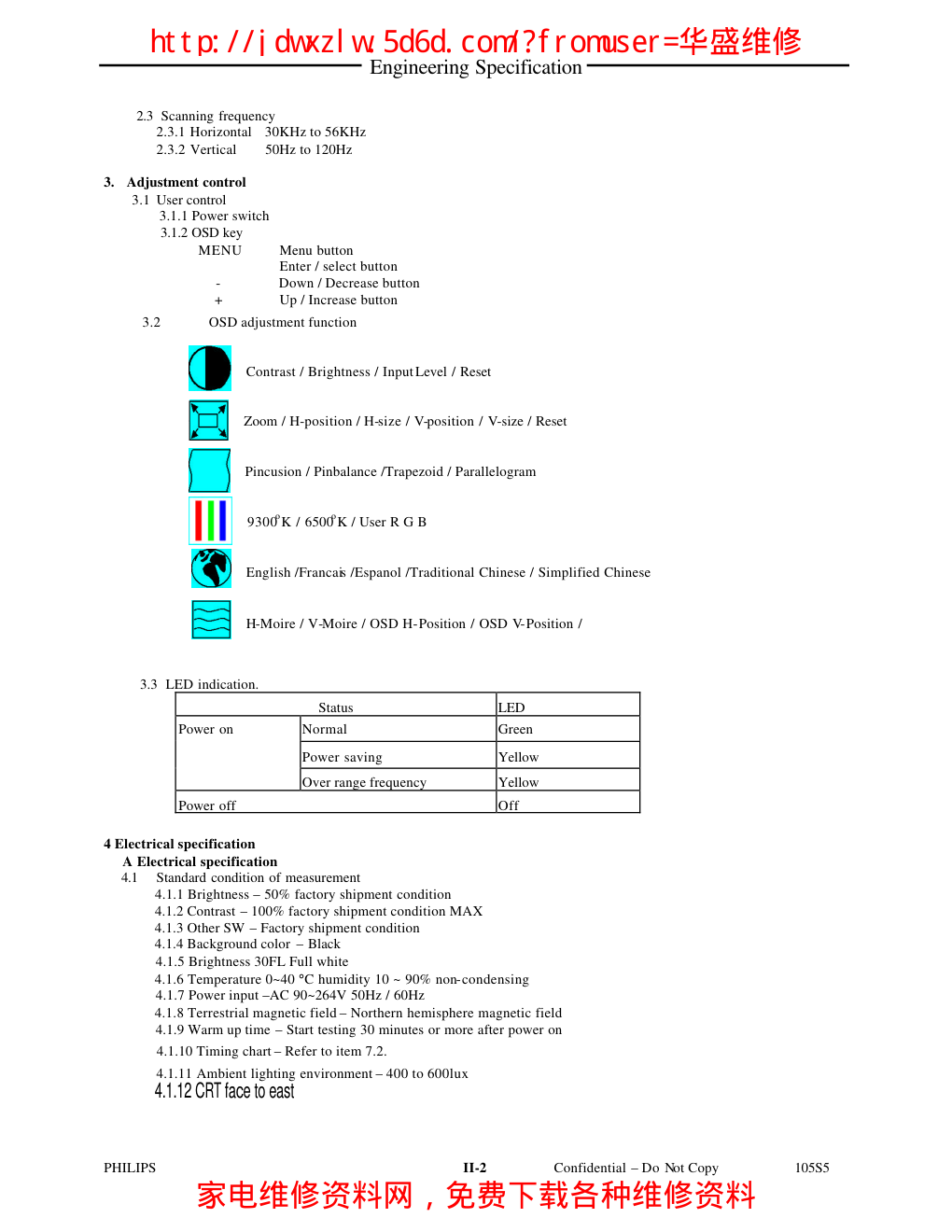

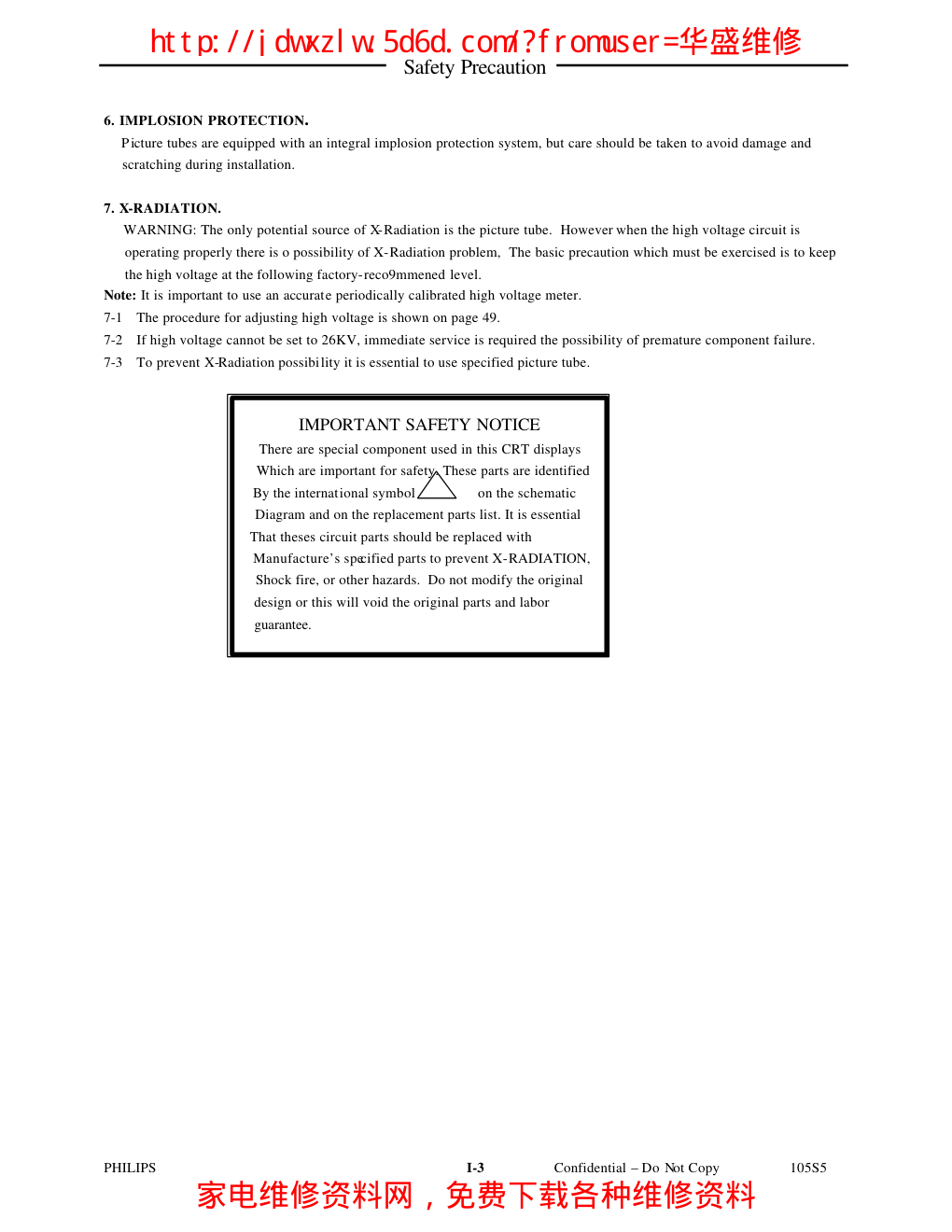

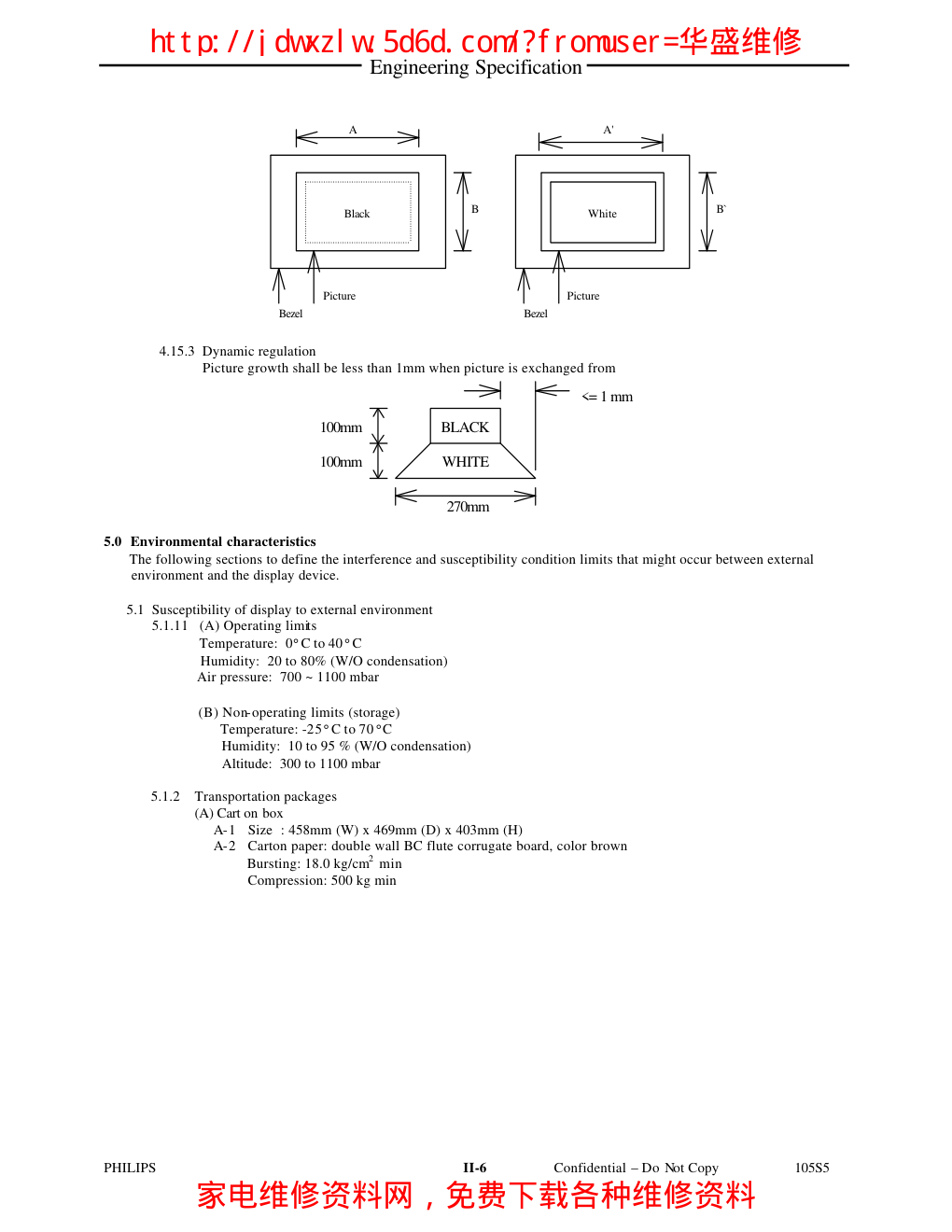

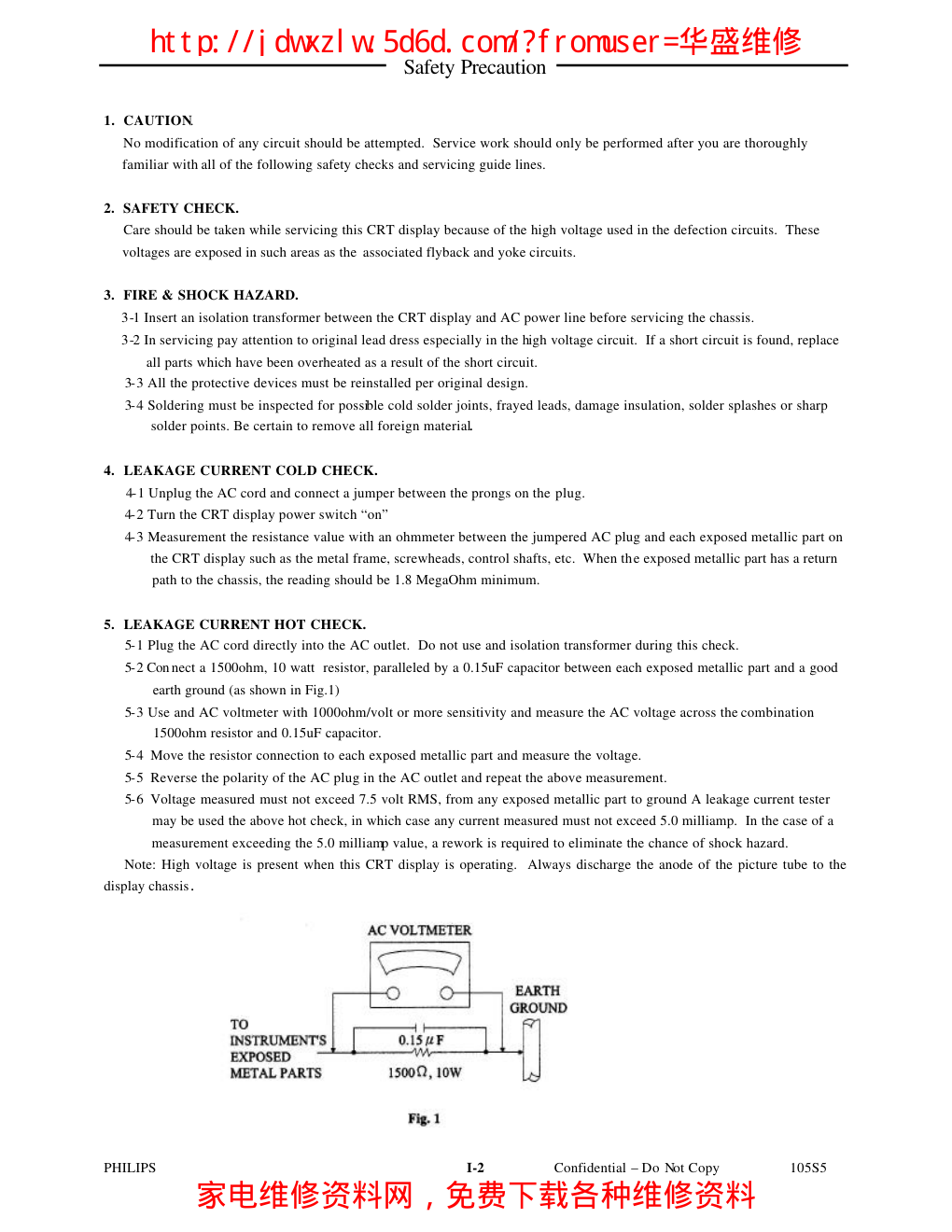

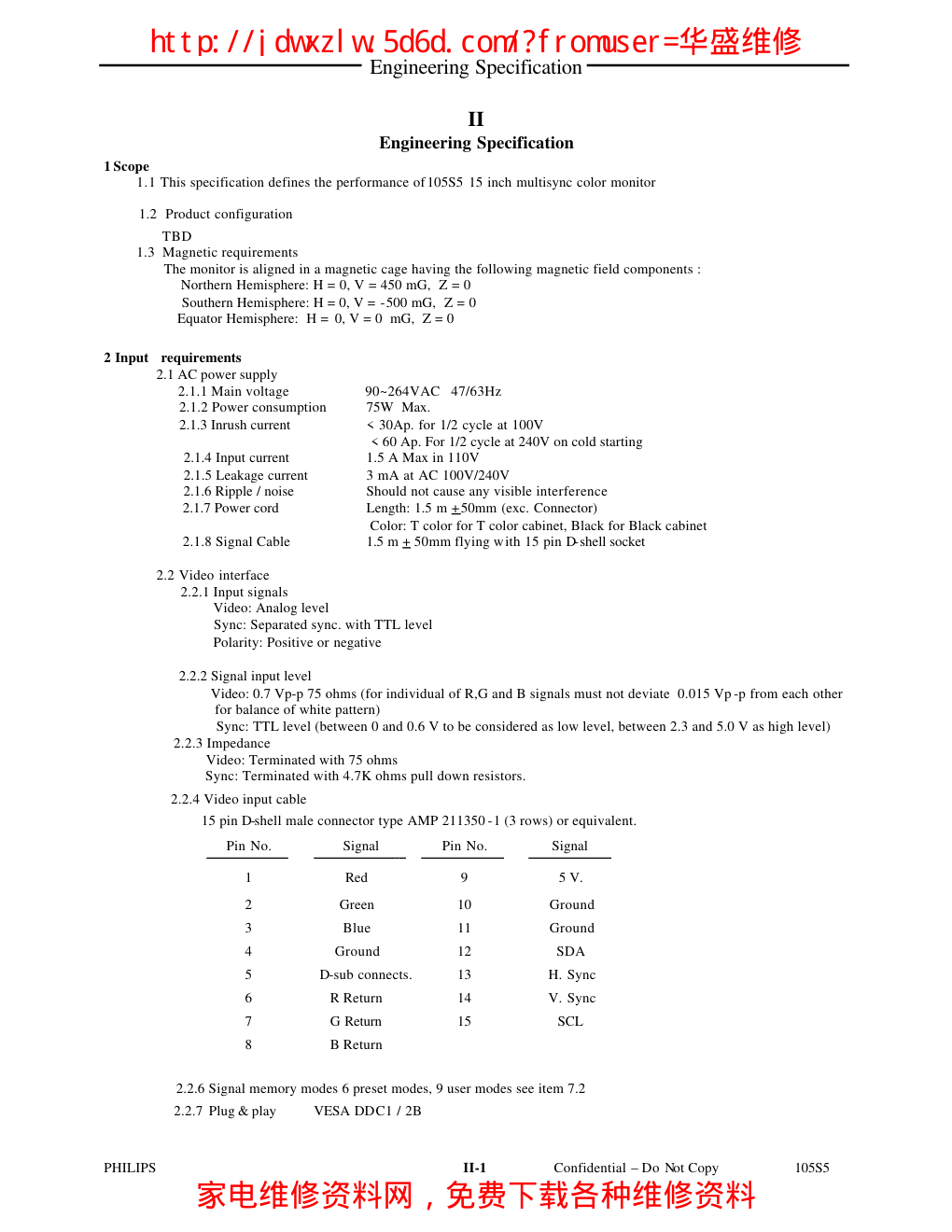

Horizontal frequencies TABLE OF CONTENTS 30-56kHz Description Page Description Page Safety Precaution I-1 Micro Controller Unit IV-5 Engineering Specif ication II-1 Circuit Diagram V-1 Product scope II-1 Adjusting Procedure VI-1 Input Requirement II-1 General VI-2 Adjustment Control II-2 Instrument Alignment VI-3 Electrical Specification II-2 Operating Instructions VI-5 Environmental Characteristics II-6 OSD Operation VI-5 Factory Preset Timing II-8 Manual Adjusting VI-7 Front panel control description III-1 Trouble Shooting Flow Chart VII-1 User Control III-1 Power supply is defective VII-2 OSD Function Control III-3 The Raster don’t Appear VII-4 Circuit Description IV-1 Vertical deflection is defective VII-4 Power Supply Circuit IV-2 Video is defective VII-5 H and V Processor Circuit IV-2 Mechanical Assembly VIII-1 Horizontal Circuit IV-3 PCB layout diagram IX-1 Video Circuit IV-4 Recommend Spare part list X-1 SAFETY NOTICE ANY PERSON ATTEMTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINUNG HIGH VOLTAGE CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING 家电维修资料网，免费下载各种维修资料 Safety Precaution PHILIPS Confidential – Do Not Copy 105S5 I-1 ! I Safety Precaution WARNING ! This service information designed for experience repair technicians only and is not designed for use by the general public. It does not contain warning or caution to advise non-technical individuals of potential dangers in attempting to service a product. Product powered by electrical should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the products dealt within this service infor mation by anyone lese could result in serious Injury or death. 家电维修资料网，免费下载各种维修资料 Safety Precaution PHILIPS Confidential – Do Not Copy 105S5 I-2 1. CAUTION. No modification of any circuit should be attempted. Service work should only be performed after you are thoroughly familiar with all of the following safety checks and servicing guide lines. 2. SAFETY CHECK. Care should be taken while servicing this CRT display because of the high voltage used in the defection circuits. These voltages are exposed in such areas as the associated flyback and yoke circuits. 3. FIRE & SHOCK HAZARD. 3-1 Insert an isolation transformer between the CRT display and AC power line before servicing the chassis. 3-2 In servicing pay attention to original lead dress especially in the high voltage circuit. If a short circuit is found, replace all parts which have been overheated as a result of the short circuit. 3-3 All the protective devices must be reinstalled per original design. 3-4 Soldering must be inspected for possible cold solder joints, frayed leads, damage insulation, solder splashes or sharp solder points. Be certain to remove all foreign material. 4. LEAKAGE CURRENT COLD CHECK. 4-1 Unplug the AC cord and connect a jumper between the prongs on the plug. 4-2 Turn the CRT display power switch “on” 4-3 Measurement the resistance value with an ohmmeter between the jumpered AC plug and each exposed metallic part on the CRT display such as the metal frame, screwheads, control shafts, etc. When the exposed metallic part has a return path to the chassis, the reading should be 1.8 MegaOhm minimum. 5. LEAKAGE CURRENT HOT CHECK. 5-1 Plug the AC cord directly into the AC outlet. Do not use and isolation transformer during this check. 5-2 Connect a 1500ohm, 10 watt resistor, paralleled by a 0.15uF capacitor between each exposed metallic part and a good earth ground (as shown in Fig.1) 5-3 Use and AC voltmeter with 1000ohm/volt or more sensitivity and measure the AC voltage across the combination 1500ohm resistor and 0.15uF capacitor. 5-4 Move the resistor connection to each exposed metallic part and measure the voltage. 5-5 Reverse the polarity of the AC plug in the AC outlet and repeat the above measurement. 5-6 Voltage measured must not exceed 7.5 volt RMS, from any exposed metallic part to ground A leakage current tester may be used the above hot check, in which case any current measured must not exceed 5.0 milliamp. In the case of a measurement exceeding the 5.0 milliamp value, a rework is required to eliminate the chance of shock hazard. Note: High voltage is present when this CRT display is operating. Always discharge the anode of the picture tube to the display chassis. ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Safety Precaution PHILIPS Confidential – Do Not Copy 105S5 I-3 ! 6. IMPLOSION PROTECTION. Picture tubes are equipped with an integral implosion protection system, but care should be taken to avoid damage and scratching during installation. 7. X-RADIATION. WARNING: The only potential source of X-Radiation is the picture tube. However when the high voltage circuit is operating properly there is o possibility of X-Radiation problem, The basic precaution which must be exercised is to keep the high voltage at the following factory-reco9mmened level. Note: It is important to use an accurate periodically calibrated high voltage meter. 7-1 The procedure for adjusting high voltage is shown on page 49. 7-2 If high voltage cannot be set to 26KV, immediate service is required the possibility of premature component failure. 7-3 To prevent X-Radiation possibility it is essential to use specified picture tube. IMPORTANT SAFETY NOTICE There are special component used in this CRT displays Which are important for safety. These parts are identified By the international symbol on the schematic Diagram and on the replacement parts list. It is essential That theses circuit parts should be replaced with Manufacture’s specified parts to prevent X-RADIATION, Shock fire, or other hazards. Do not modify the original design or this will void the original parts and labor guarantee. ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Engineering Specification PHILIPS Confidential – Do Not Copy 105S5 II-1 II Engineering Specification 1 Scope 1.1 This specification defines the performance of 105S5 15 inch multisync color monitor 1.2 Product configuration TBD 1.3 Magnetic requirements The monitor is aligned in a magnetic cage having the following magnetic field components : Northern Hemisphere: H = 0, V = 450 mG, Z = 0 Southern Hemisphere: H = 0, V = -500 mG, Z = 0 Equator Hemisphere: H = 0, V = 0 mG, Z = 0 2 Input requirements 2.1 AC power supply 2.1.1 Main voltage 90~264VAC 47/63Hz 2.1.2 Power consumption 75W Max. 2.1.3 Inrush current < 30Ap. for 1/2 cycle at 100V < 60 Ap. For 1/2 cycle at 240V on cold starting 2.1.4 Input current 1.5 A Max in 110V 2.1.5 Leakage current 3 mA at AC 100V/240V 2.1.6 Ripple / noise Should not cause any visible interference 2.1.7 Power cord Length: 1.5 m +50mm (exc. Connector) Color: T color for T color cabinet, Black for Black cabinet 2.1.8 Signal Cable 1.5 m + 50mm flying with 15 pin D-shell socket 2.2 Video interface 2.2.1 Input signals Video: Analog level Sync: Separated sync. with TTL level Polarity: Positive or negative 2.2.2 Signal input level Video: 0.7 Vp-p 75 ohms (for individual of R,G and B signals must not deviate 0.015 Vp -p from each other for balance of white pattern) Sync: TTL level (between 0 and 0.6 V to be considered as low level, between 2.3 and 5.0 V as high level) 2.2.3 Impedance Video: Terminated with 75 ohms Sync: Terminated with 4.7K ohms pull down resistors. 2.2.4 Video input cable 15 pin D-shell male connector type AMP 211350 -1 (3 rows) or equivalent. Pin No. Signal Pin No. Signal 1 Red 9 5 V. 2 Green 10 Ground 3 Blue 11 Ground 4 Ground 12 SDA 5 D-sub connects. 13 H. Sync 6 R Return 14 V. Sync 7 G Return 15 SCL 8 B Return 2.2.6 Signal memory modes 6 preset modes, 9 user modes see item 7.2 2.2.7 Plug & play VESA DDC1 / 2B ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Engineering Specification PHILIPS Confidential – Do Not Copy 105S5 II-2 2.3 Scanning frequency 2.3.1 Horizontal 30KHz to 56KHz 2.3.2 Vertical 50Hz to 120Hz 3. Adjustment control 3.1 User control 3.1.1 Power switch 3.1.2 OSD key MENU Menu button � Enter / select button - Down / Decrease button + Up / Increase button 3.2 OSD adjustment function Contrast / Brightness / Input Level / Reset Zoom / H-position / H-size / V-position / V-size / Reset Pincusion / Pinbalance /Trapezoid / Parallelogram 9300oK / 6500oK / User R G B English /Francais /Espanol /Traditional Chinese / Simplified Chinese H-Moire / V-Moire / OSD H-Position / OSD V-Position / 3.3 LED indication. Status LED Normal Green Power saving Yellow Power on Over range frequency Yellow Power off Off 4 Electrical specification A Electrical specification 4.1 Standard condition of measurement 4.1.1 Brightness – 50% factory shipment condition 4.1.2 Contrast – 100% factory shipment condition MAX 4.1.3 Other SW – Factory shipment condition 4.1.4 Background color – Black 4.1.5 Brightness 30FL Full white 4.1.6 Temperature 0~40 °C humidity 10 ~ 90% non-condensing 4.1.7 Power input –AC 90~264V 50Hz / 60Hz 4.1.8 Terrestrial magnetic field – Northern hemisphere magnetic field 4.1.9 Warm up time – Start testing 30 minutes or more after power on 4.1.10 Timing chart – Refer to item 7.2. 4.1.11 Ambient lighting environment – 400 to 600lux 4.1.12 CRT face to east ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Engineering Specification PHILIPS Confidential – Do Not Copy 105S5 II-3 4.2 CRT Specification ITEM SPEC Size 15” Diagonal 13.82” Deflection 90 Persistence P22 medium short persistence phosphor Phosphor pitch 0.28mm Mask type Shadow mask Screen finish Glare Face plate Filter glass CRT Samsung: M36QAW351X113 (G/PS/SKD) LG Philips: M36EDR311X304/6F01 4.3 Power saving management system. Signal Mode H-Sync V-Sync Video OSD indicator LED Power Recovery time On Active Active Active Normal Green < 75W 10 sec Off Inactive Active Blank Power Saving Yellow < 8W 10 sec Off Active Inactive Blank Power Saving Yellow < 8W 10 sec Off Inactive Inactive Blank Power Saving Yellow < 8W 10 sec Off <29KHz or >57KHz <49Hz or>121.5Hz Blank H.V. frequency over range Yellow < 8W 10 sec B Screen characteristics 4.4 Picture display size Horizontal size 270+3 mm Vertical size 202+3 mm 4.5 Picture center |A- B| ≤ 4 mm |C- D| ≤ 4 mm for 800x600, 85Hz |A- B| ≤ 5 mm |C- D| ≤ 5 mm for others mode 4.6 Picture shift control range (for preset mode only) H-Shift range : + 10mm Min. V-Shift range : + 8mm Min. ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Engineering Specification PHILIPS Confidential – Do Not Copy 105S5 II-4 A A' B B' C' D D' Picture Pincushion < =2mm Barlel < =1.5mm 4.7 Linearity 4.8 Picture distortion 4.8.1 Trapezoid / Parallelogram 4.8.2 Pincushion / Barrel 4.8.3 Tilt 1 2 * 9 b l o c k s @ f a c t o r y p r e s e t s i z e I n p u t s i n g a l : C r o s s - h a t c h p a t t e r n V-Linearity : X m a x X m a x Y m a x Y m a x Xmin Ymin Ymin Xmin X 100% H-Linearity : X 100% + - + - < 7% < 7% Picture 2mm 2mm 2mm 2mm 202mm 270mm Trapezoid: Horizontal <= 2mm Vertical <= 2mm Parallel <= 2mm 202mm 270mm A B Bezel Picture ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Engineering Specification PHILIPS Confidential – Do Not Copy 105S5 II-5 |A- B| ≤ 2 mm 4.8 Misconvergenc 4.10 Focus 4.10.1 Adjust brightness control to center click and contrast control to get 25FL at Full white pattern, Then generate “me” characters should be clearly identified in all display area 4.11 Jitters No visible 4.12 White balance 4.12.1 Color temperature Using the CIE color temperature coordinate system Color 9300oK x = 0.283+0.018 y = 0.297+0.018 Color 6500 oK x = 0.313+0.018 y = 0.329+0.018 User Adjustment x = 0.313+0.018 y = 0.329+0.018 4.12.2 Color purity Impurity should not appear in the pattern of all green all red all blue or all white 4.12.3 Color tracking: When the full white pattern is displayed at preset (on ly for 9300 K) condition. The difference of white balance between contrast 30 FL and low contrast 3 FL must be less than following value x at contrast 30 FL - x at 3 FL < 0.018 y at contrast 30 FL - y at 3 FL < 0.018 4.13 Light output Set brightness 50%, Contrast 100% in 53.6 KHz 800x600 mode. 4.13.1 HL => At 70mm x 70mm white block pattern 43 - 53 FL at Contrast 100%, Brightness 50% 4.13.2 ABL => At full-white pattern 28 - 32 FL at Contrast 100%, Brightness 50% � At full-white pattern 32-42 FL at Contrast 100%, Brightness 100% LL => At full-white pattern 0.8 – 1.8 FL at Contrast 0%, Brightness 100%, � At full white pattern < 0.3FL at Contrast 0%, Brightness 0%, 4.14 Luminance uniformity Condition: With full white pattern, Set contrast control at maximum position and brightness control at center click position 4.14.1 The center of the display is 30 FL. , the Max. deviation of the screen should not exceed 25% 4.15 Size regulation 4.15.1 Variation of image size (For preset modes only) Due to brightness change : < 1.0% (Set brightness control at center click, turn contrast control from Min. to Max.) Due to aging (25 degree C, 300hrs) : < 2.0% Due to mains voltage Variation (+ 10%) : < 1.0% 4.15.2 Static regulation Picture growth from minimum light output to maximum light output shall be less than 3mm when picture is exchanged from Picture 270mm 202mm C A Z O N E C < 0.15mm Z O N E A < 0.25mm B Z O N E B < 0.35mm ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Engineering Specification PHILIPS Confidential – Do Not Copy 105S5 II-6 4.15.3 Dynamic regulation Picture growth shall be less than 1mm when picture is exchanged from 5.0 Environmental characteristics The following sections to define the interference and susceptibility condition limits that might occur between external environment and the display device. 5.1 Susceptibility of display to external environment 5.1.11 (A) Operating limits Temperature: 0°C to 40°C Humidity: 20 to 80% (W/O condensation) Air pressure: 700 ~ 1100 mbar (B) Non-operating limits (storage) Temperature: -25°C to 70°C Humidity: 10 to 95 % (W/O condensation) Altitude: 300 to 1100 mbar 5.1.2 Transportation packages (A) Cart on box A-1 Size : 458mm (W) x 469mm (D) x 403mm (H) A-2 Carton paper: double wall BC flute corrugate board, color brown Bursting: 18.0 kg/cm2 min Compression: 500 kg min Picture Bezel Bezel Picture Black White A B A' B` 270mm WHITE BLACK 100mm 100mm <= 1 mm ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Engineering Specification PHILIPS Confidential – Do Not Copy 105S5 II-7 Transportation conditions Test Item Test Condition 1. Packaged Test Packaged random vibra. Test 2 Set *5~200Hz, 0.73 Grms 30min/axis, 3 axes Drop test (After random vibra. Test) 2 Set * Gross weight Drop height 1~9.52 kg 91 cm 9.53~18.59 kg 76 cm 18.60~27.66 kg 61 cm 27.67~45.36 kg 45 cm * Sequence: 1C-3E-6F Cold drop test 2 Set * -10 degree C for 16 hours * Gross weight Drop height 1~9.52 kg 76 cm 9.53~18.59 kg 61 cm 18.60~27.66 kg 45 cm 27.67~45.36 kg 30 cm * Sequence: 1C-3F 2. Unpackaged test 2.1 Operating random vibra. Test *5~500Hz, 0.25 Grms 30min/axis, 3axes 2.2 Shock test (half sine wave) 2 set *120 G, <3 msec, 6 Shocks # exclude CRT impurity 5.2 Display disturbances from external environment 5.2.1 ESD Disturbances According to EN50082-1 (also refer to IEC801-2 for detail). 15kV for air 8kv for contact 5.3 Display disturbances to external environment The disturbances induced by the display and tolerated by the environment are defined as follows: 5.3.1 Ionizetic radiation Completely fulfilled International Commission of Radio logical Protection (ICRP) requirement 0.5 mR/Hr. 5.3.2 EMI/EMS Can comply with FCC part 15, DOC C108.8 and EN55022 EMS EN61000-4-3 (80% 1KHz AM modulation) Picture jitter ≤ 6mm 6 Physical specification 6.1 Dimension Height: 374 mm Width 363 mm Depth 398 mm Monitor weight 12.5 Kg. 6.2 Mechanical adjustment Tilt angle: 5 degree forward and 15 degree backward Swivel rotation: 90 degree leftward or rightward 6.3 Packaging 6.3.1 Carton dimension Height 403 mm Width 458 mm Depth 469 mm 6.3.2 Shipping weight 14 Kg 6.3.3 Container loading 600 units with pallet. ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Engineering Specification PHILIPS Confidential – Do Not Copy 105S5 II-8 7. Factory preset timings 7.1 Timing diagram Video D C E A B Video R Q S O P Sync Sync Horizontal Vertical Sync Polarity : Positive / Negative ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Engineering Specification PHILIPS Confidential – Do Not Copy 105S5 II-9 7.2 Timing chart MODE NO. 1 2 3 4 5 6 VGA VGA VESA VESA VESA VESA MODE NAME 720X400 640X480 640X480 800X600 800X600 1024X768 HORIZONTAL DOTS 720 640 640 800 800 1024 VERTICAL LINES 400 480 480 600 600 768 PIXEL CLOCK (MHZ) 28.323 25.175 31.500 49.500 56.250 65.000 HORIZONTAL FREQ (KHZ) 31.470 31.469 37.50 46.875 53.674 48.363 SYNC. POLARITY + - - + + - H.TOTAL (us) 31.778 31.778 26.667 21.333 18.631 20.677 (PIXELS) (900) (800) (840) (1056) (1048) (1344) H.SYNC (us) 3.813 3.813 2.032 1.616 1.138 2.092 (PIXELS) (108) (96) (64) (80) (64) (136) H.BACK PORCH (us) 1.907 1.907 3.810 3.232 2.702 2.246 (PIXELS) (54) (48) (120) (160) (152) (160) H.ACTIVE (us) 25.422 25.423 20.317 16.162 14.222 15.754 (PIXELS) (720) (640) (640) (800) (800) (1024) H.FRONT PORCH (us) 0.635 0.636 0.508 0.323 0.569 0.369 (PIXELS) (18) (16) (16) (16) (32) (24) VERTICAL FREQ (HZ) 70.000 59.940 75.00 75.000 85.000 60.004 SYNC. POLARITY - - - + + - V.TOTAL (ms) 14.268 16.648 13.333 13.333 11.756 16.666 (LINES) (449) (525) (500) (625) (631) (806) V.SYNC (ms) 0.064 0.064 0.080 0.064 0.056 0.124 (LINES) (2) (2) (3) (3) (3) (6) V.BACK PORCH (ms) 1.112 0.794 0.427 0.448 0.503 0.6 (LINES) (35) (25) (16) (21) (27) (29) V.ACTIVE (ms) 12.711 15.254 12.800 12.800 11.179 15.880 (LINES) (400) (480) (480) (600) (600) (768) V.FRONT PORCH (ms) 0.381 0.064 0.027 0.023 0.019 0.062 (LINES) (12) (2) (1) (1) (1) (3) SCANTYPE INTERLACED NO NO NO NO NO NO ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Front panel function control description PHILIPS Confidential – Do Not Copy 105S5x III-1 III Front panel function control description Control function. A. User control B. OSD function control A. User control 1. Power switch 2. OSD key MENU Menu button / Exit OSD Select / Adjustment button - Select / Adjustment button + Enter the select button ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Front panel function control description PHILIPS Confidential – Do Not Copy 105S5x III-2 Control name. 1. Power switch: Push-on / Push-off switch for power control 2. LED indication Status LED Normal Green Power saving Yellow Power on Over range frequency Yellow Power off Off 3. Function select button: Press the “ MENU “ button to display OSD menu. Press the “ - , + “ button to select menu function or sub-function. Press the “ “ button to enter the select function. 4. Adjustment control button: Push the increased “ “ or decrease “ ” button for the desired adjustment, all adjustment are memorized automatically immediately. Power switch Adjustment control buttons Function select buttons ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Front panel function control description PHILIPS Confidential – Do Not Copy 105S5x III-3 B. OSD (On Screen Display) function control method. Contrast / Brightness / Input Level / Reset Zoom / H-position / H-size / V-position / V-size / Reset Pincusion / Pinbalance /Trapezoid / Parallelogram 9300oK / 6500oK / User R G B English /Francais /Espanol /Traditional Chinese / Simplified Chinese H-Moire / V-Moire / OSD H-Position / OSD V-Position ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Description PHILIPS Confidential – Do Not Copy 105S5 IV-1 IV Circuit Description 1. Power supply 1.1 Power supply 1.2 Power saving 2. H and V processor 2.1 Auto sync deflection control and B+ control circuit 2.2 Vertical deflection 2.3 Boost converter 2.4 X-Ray radiation protection 3. Horizontal 3.1 Horizontal driver 3.2 Horizontal output circuit 3.3 E-W pincushion and width control circuit 4. Video 4.1 Video pre- amplifier 4.2 On screen display (OSD) 4.3 Auto beam limit circuit 4.4 Brightness control 4.5 Blanking 5. Micro Controller Unit (IC301) 5.1 HS/VS processor 5.2 PWM control 5.3 Power saving / Mute / LED control 5.4 CS control 5.5 Key control 5.6 I2C Bus 5.7 External +5V with signal cable ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Description PHILIPS Confidential – Do Not Copy 105S5 IV-2 1. POWER SUPPLY 1.1 Power supply. A. Primary Side. The raw DC voltage is built on C101 from AC line voltage through EMI filter and bridge rectifier CR 101 then composes with main transformer (T101) switching MOSFET (Q101) and PWM IC (IC101) to form a DC-DC voltage converter by flyback switching topology, which means that the power energy is pumped up at primary winding of transformer during duty “ON” cycle, then transfer the stored energy to primary side, and voltage regulated by PWM IC (3842) using way of pulse width modulation. The IC101 starts up through some components composed of R103,R104,R105,Q102,ZD102 to build up VCC voltage at pin 7 and supplied by transformer once secondary voltage is established. IC101 have to work synchronously with horizontal sync by feeding flyback pulse through C110,R120, C108 and D113 composed a soft-start circuit to prevent over-stress occurred during power start. The TP201, 75V voltage can be adjusted through VR101. The IC101 pin 3 is current sense input of comparator PWM latch, if the volts reach 1.0V, The pin 6 pulse output will be terminate B. Secondary Each raw of DC voltage output from T101. a. TP201 voltage output from T101 pin12 and is rectified by D202, C201. b. TP202 voltage output from T101 pin11 and is rectified by D203, C202. c. TP203 voltage output from T101 pin17 and is received by D205, C205. d. TP204 voltage output from T101 pin18 and is rectified by D206, C206. e. TP205 voltage output by Q206, ZD201 and D208 is 12V f. TP206 voltage output by Q208, Q209, R213, R228 is 6.3V f. TP207 voltage output by R217,C211, ZD305, C305 is 5V 1.2 Power saving. The EPA power management state as follows. State PD Power consumption LED Normal H < 75W Green Active Off L ≤ 8W Yellow PD = IC301 (MCU) pin 17 output. There is no output from Q203, Q206 and Q208 while is in active off mode and PD (IC301 Pin 17) are at low Level voltage. That is, there is no output for 12V and 6.3V 2. H and V processor 2.1 Auto SYNC Deflection control and B+ control circuit Horizontal and vertical sync through IC401 STV6888 Transmit. Deflection controller IC401. a. The control input (V-position, H-position, V-size, H-size, Pincushion, Pin-Balance, Trapezoid, Parallelogram, moire) are use I2C control. b. SYNC input. H-sync (pin1) From IC301 pin33. ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Description PHILIPS Confidential – Do Not Copy 105S5 IV-3 V-sync (pin2) From IC301 pin32. c. Output. ∗ B+ Driver (pin28). ∗ H-Driver (pin26). ∗ EW-Driver (pin24). ∗ Vout (pin23). 2.1.1 Horizontal. a. H-sync inputs through pin1, then take a HFLB pulse from FBT pin5 to IC401 for AFC to make pin26 H-Driver output at the same time. b. Pin5 and pin6. C429, R471, control horizontal hold in range. 2.1.2 Vertical. a. V-sync outputs from MCU IC301 pin33 to IC401 pin2, then IC401 release V.out from pin23, pin21, to IC501 TDA9309 pin7, pin1. b. V.outputs to vertical hold in range is controlled by pin22 IC401 (C508). 2.1.3 B+ control. Take a pulse from FBT pin5 and accumulates to become a DC voltage via D423, C437, then transformed by VR403 to a conjunction to IC401 pin15 (≅5V) outputs pulse by pin28 via Q202 to boost converter circuit. 2.2 Vertical deflection. a. IC401 pin23 output to IC501 (TDA9309) pin7, then IC501 pin5 and pin7 make vertical deflection output. b. Vertical blank (IC501) pin3 take a blanking pulse. After passing Q420 buffer can supply video blanking signal. 2.3 Boost converter. The Booster converter mainly composes of n-channel MOSFET Q202 choke L201 capacitor C204 and rectifier diode D204. IC401 pin28 B+ driver output via Q204, Q205, Q202 to driver Booster converter and provide a DC-voltage to provide B+ H-output circuit use�As H-freq. Change IC401 pin28 B+ driver will change its output. Booster converter will also change the B+ it provides H-freq. will varies from 30K ~ 56KHz, B+ will vary from 68V ~ 150V. 2.4 X-RAY radiation protection. FBT pin5 output one pulse to pass through D423 and C437 integration DC voltage and through D418, ZD4054 to IC401 pin25. When anode voltage abnormal increase FBT pin5 and IC401 pin25 voltage to be increased too. As IC401 pin25≅8V�IC401 X-RAY protection circuit immediately active H-Driver and B- Driver , VOUT no output. The X-RAY radiation protection circuit is used in this monitor is a latching type the monitor will shut down and continue until turn -off the monitor with power switch. 3. HORIZONTAL 3.1 Horizontal driver circuit. The output of IC401 pin26 H-Driver connect to Q402 H-Driver transistor makes Q402 active ON/OFF Functions push H-output Q401 to reach secondary via induction of T402. For T402 is a transformer of reduced voltage and converted pole, Q401 will be turn off when Q402 is on (on the contrary) when Q402 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Description PHILIPS Confidential – Do Not Copy 105S5 IV-4 is turn off and Q401 will be on. 3.2 Horizontal output circuit. Horizontal output circuit is composed by Q401. Horizontal Transistor,T401(FBT), D401, D402, C401 and C416. H-Driver circuit output via T402 to switch Q401 ON/OFF to output saw tooth wave and make DY able to control the circuit scanning of elections in the CRT. L404, C414, C415 modify Horizontal linearity switching individually via Q414 3.3 EW-Pincushion and width control circuit. The voltage across C420 can be varied in accordance with vertical parabolic waveform and DC voltage which is generated by tw o stage drive Q411, Q412, Q409. The peak yoke current is increased in proportion to the voltage across C414 as the voltage across C420 is decreased for compensating the pincushion effect. The parabolic waveform and DC voltage are generated from IC401 pin24. 4. VIDEO 4.1 Video amplifier (IC601). The video amplifier module is composed of three amplifiers for Red, Green, Blue channel. The video input signal are fed to the video preamplifier IC601 pin5 is Red, pin6 is Green and pin7 is Blue, through AC coupling capacitor (C601, C602, C603). Cut off and drive voltage are controlled by IC301via I2C bus . Output of IC601 pin 16 , 15 and 14 to control the RGB cut off voltage through IC604. Output IC604 are DC voltage for D613, D614 ,D615 and C626, C627, C628 clamping the RGB cathode voltage.IC603 output amplifier for R,G,B channel. 4.2 On Screen Display (OSD : IC602). IC602 is the on screen display generator, pin5 for H-blank input, pin10 for V- blank input. The IC602 is controlled by IC301 via SDA, SCL bus IC602 (pin7, pin8). The on screen display signal is output from pin13, pin14 and pin15. OSD fast blanking from pin12 for delete display in area of OSD showing. The fast blanking is active high output = 5V while showing OSD. If no using OSD, so this pin shall be 0V. 4.3 Auto Beam Limit Circuit (ABL ). When beam current pass through R447 over 400 uA., the voltage build at base of Q418 will be low enough to turn on Q418, then the voltage of pin22 of IC601 will be pulled down accordingly to reduce the vide Pre- amplifier gain output. 4.4 Brightness Control. Brightness is controlled by varying the DC voltage of RGB output from IC601. Through I2C from the IC301.. 4.5 Blanking. Vert : IC501 (TDA9309) pin3 vertical blanking pulse are fed to the base of Q420 to pull down the G1 Voltage to –190 V. Hor : Horizontal blanking pulse are fed to IC601 pin24 and let video O/P amp cut off during the period of Horizontal retrace 4.6 Mute While mode was changing, IC301 pin16 pull high to turn off Q420. The G1 voltage will down to –190V then ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Description PHILIPS Confidential – Do Not Copy 105S5 IV-5 CRT will cut off the video output. 5. MICRO CONTROLLER UNIT (IC301) 5.1 H.Sync/V.Sync Processor. HS/VS input pin41 (HS), pin42 (VS). IC301 individually to work on frequency polarity process of H+V and power saving, then output horizontal sync (pin34) and vertical sync (pin33) of positive polarity to IC401 pin1, pin2. 5.2 PWM Control. The PWM control of IC301 is pin19. The PWM, The eight groups of PWM output via R, C after rectified may control each function. , Pin19 to control ABL (ABL adjusting is available only in factory mode) 5.3 Power saving / Mute / LED control. IC301 pin17 are power saving control pin. The condition of power saving and mode change pin17 will change from Low to Hi to active MUTE function for 1 -2 seconds. Normal Active Mute L H PD (pin17) H L (Power saving) IC301 pin21 (SUS) function as LED control, the mode is as listed. Power On Power saving Over range frequency Pin18 Hi Low Low 5.4 Linearity control the CS3 Output from pin22 of IC301 through R440 , Q415 and Q414 and select C415 to be parallel with C414 in low frequency. To count H-SYNC by the output frequency, then output the cumulating as listed. Freq. CS3 30K~36K 0 36K~41K 0 41K~52K 1 52K~57K 1 5.5 Key Control. IC301 pin37~pin40 function as DAC switch input to control OSD display function. 5.6 I2C Bus. IC301 have two groups I2C bus to control E2PROM, IC401 deflection IC, Auto alignment, IC601 pre-AMP, IC602 OSD IC function at pin 11,12 and pin13, 14. ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Description PHILIPS Confidential – Do Not Copy 105S5 IV-6 5.7 External +5V with signal cable: While PC VGA card pin9 with B+ : +5V input, When monitor power off and PC power on, the PC should be can read the EDID data, Which saved in IC302 the external +5V from PC through P301 pin1, D301 to IC301 pin 5 (VDD) and IC301 pin 4 (RESET) While PC first power on, IC401 is latch for no +7V power, the P-Test will high to reset IC301 again at pin 14, to release the IC401 function of monitor deflection. ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Diagram PHILIPS Confidential – Do Not Copy 105S5 V-1 V Circuit Diagram ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Diagram PHILIPS Confidential – Do Not Copy 105S5 V-2 Circuit waveform. 1 2 3 4 5 6 7 8 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Diagram PHILIPS Confidential – Do Not Copy 105S5 V-3 9 10 11 12 13 14 15 16 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Diagram PHILIPS Confidential – Do Not Copy 105S5 V-4 17 18 19 20 21 22 23 24 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Diagram PHILIPS Confidential – Do Not Copy 105S5 V-5 25 26 27 28 29 30 31 32 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Diagram PHILIPS Confidential – Do Not Copy 105S5 V-6 33 34 35 36 37 38 39 40 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Diagram PHILIPS Confidential – Do Not Copy 105S5 V-7 41 42 43 44 45 46 47 48 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Diagram PHILIPS Confidential – Do Not Copy 105S5 V-8 49 50 51 52 53 54 55 56 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Diagram PHILIPS Confidential – Do Not Copy 105S5 VI-1 VI Adjusting Procedure A. GENERAL B. INSTRUMENT ALIGNMENT 1. Deflection Presets 2. Power Supply Alignment. 3. Size & Geometry Adjustment 4. Video Alignment / Function memory recall 5. Focus adjustment C. OPERATING INSTRUCTION D. OSD OPERATION E. MANUAL ADJUSTING ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Diagram PHILIPS Confidential – Do Not Copy 105S5 VI-2 A. GENERAL 1. ALL SPECIFICATION MUST BE MET OVER LINE VOLTAGE RANGE OF 90 VAC TO 264VAC 50HZ/60HZ, UNLESS OTHERWISE SPECIFIED. 2. OPERATING TEMPERATURE RANGE IS 0 DEG.C TO 40 DEG.C WITH A RELATIVE HUMIDITY OF 10% OR LESS TO 95%. 3. THE MONITOR MUST BE OPERATIONAL IN AN USABLE STATE WITHIN 30 SECONDS AFTER TURN- ON. 4. ALL SIGNAL LEVELS ARE MEASURED ASSUMING TERMINATION AT THE MONITOR'S INPUT JACKS OR IN ITS CHARACTERISTIC IMPEDANCE. 5. AN AMBIENT LIGHTING LEVEL OF 400 TO 600 LUX IS ASSUMED WHEN SETTING BRIGHTNESS FOR RASTER EXTINCTION THRESHOLD. 6. ALL PURITY RELATED SPECIFICATIONS MUST BE MET WITHOUT EXTERNAL DEGAUSSING. 7. ALL CONTROLS MUST HAVE EXCESS RANGE (NO CONTROL MAY BE LEFT AT AN END STOP WHEN PROPER ALIGNMENT IS COMPLETED). 8. THE MONITOR IS NOT REQUIRED TO MEET SPECS DURING THE FOLLOWING BUT MUST TOLERATE, WITHOUT DAMAGE TO THE CRT OR CIRCUITS, ANY SEQUENCY OR COMBINATION OF POWER ON AND OFF, SIGNAL ON AND OFF, UNPLUGGING OF POWER OR SIGNAL, ERRATIC, WRONG FREQUENCY OR NOISY INPUTS WH ILE AT ANY POSSIBLE SETTINGS OF USER ACCESSIBLE CONTROLS. LIKEWISE, THE MONITOR SHOULD SURVIVE EXTENDED PERIODS OF OPERATION WITH LINE VOLTAGE REDUCED BELOW THE SPECIFIED MINIMUM 9. AN ISOLATION TRANSFORMER SHOULD BE USED WHEN PERFORMING ALIGNMENT AND TESTS. PORTIONS OF THE POWER SUPPLY BOARD ARE HOT GROUND. THE REMAINING BOARDS ARE COLD GROUND. 10. DISCHARGE OF CRT ANODE SHOULD BE DONE ONLY TO CRT GROUND STRAP. 11. GEOMETRIC MEASUREMENT IS ASSUMED TO BE MAKING ALONG A STRAIGHT SURFACE WITH A FLAT RULE OR TEMPLATE ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Diagram PHILIPS Confidential – Do Not Copy 105S5 VI-3 B. INSTRUMENT ALIGNMENT 1. Deflection Preset Control pots VR401, VR403, VR101, Focus VR are set at middle point. Screen set to min. 2. Power supply alignment 2.1 Input 800x600 53.6KHz & adjust screen VR to min. 2.2 Adjust VR101 until DC=75V + 0.3V at TP201. 2.3 Adjust VR403 until voltage at TP208: 147.5V + 0.3V (SAMSUNG CRT) 148.5V + 0.3V (LG.PHILIPS CRT) 3. Size & Geometry Adjustment 3.1 Raster Centering 3.1.1 Input CROSS-HATCH pattern at 53.6KHz mode. 3.1.2 Adjust screen just rater visible. 3.1.3 Adjust VR401 to center raster on screen such that the horizontal distance from the midpoint of the left display edge to the left bezel edge is within 2mm of the distance from the midpoint of the right display edge to the right bezel edge 3.2 Picture Size Input mode 1~6 signal adjust V-size, H-size to achieve. H-size: 270mm + 3mm V-size: 202mm + 3mm 3.3 Picture Centering. Input mode 1~6 adjust V-position, H-position such that the picture is centered with the screen. Bezel Picture A B Picture Bezel 202mm 270mm Picture Bezel C A D B A-B < 2mm C-D < 2mm ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Diagram PHILIPS Confidential – Do Not Copy 105S5 VI-4 A A' B B' C' D D' Picture Pincushion < 1.5mm Barlel < 1.5mm C 3.4 Geometry Adjustment 3.4.1 Input mode 1~6 3.4.2 Pincushion and barrel distortion. 3.4.3 Trapezoid and parallelogram distortion. 4. Video Alignment / Function memory recall. 4.1 Input 800x600 @ 85Hz 53.6KHz full white pattern. 4.2 Set Brightness 100%, Contrast 0%, Turn the screen VR to optain raster light O/P about 0.8FL. 4.3 Adjust R, G, B bias control to meet following chromatically spec. 9300K � x = 0.283 + 0.003, y = 0.297 + 0.003, Y = 1.2 + 0.1 FL 6500K � x = 0.313 + 0.003, y = 0.329 + 0.003 4.4 Adjust Brightness to 50%, Contrast 100% 4.5 Apply 50mmX50mm white window pattern, Adjust RGB-driver to meet following chromaticity spec. 9300K � x = 0.283 + 0.003, y = 0.297 + 0.003, Y = 48 + 1FL 6500K � x = 0.313 + 0.003, y = 0.329 + 0.003, Y = 48 + 1FL 4.6 Apply full white pattern 4.7 Adjust ABL to optain light output = 30 + 0.6 FL (9300K) 5. Focus Adjustment. 5.1 Apply all “me” pattern at 800x600 53.6KHz mode. 5.2 Set Brightness 50%, Contrast 100% 5.3 Set focus control for best focus Picture 2mm 2mm 2mm 2mm 202mm 270mm Trapezoid: Horizontal <= 2mm Vertical <= 2mm Parallel <= 2mm ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Diagram PHILIPS Confidential – Do Not Copy 105S5 VI-5 C. Operating instructions 1. Key function define MENU + - Power switch ( Pressing key) 2. Normal key function MENU - + P Power Switch MENU - + P Adjust to increase value and move up the cursor MENU - + P To select the main menu and move sub-menu curser. MENU - + P Adjust to decrease value and move down the menu MENU - + P To display OSD menu 3. Start up key function MENU - + P Write Burn-in flag to EEPROM Enter Burn-in MENU - + P Clear Burn-in flag (Exit Burn-in mode) MENU - + P All mode recall function Maintain key function by the Burn-in flag. When Burn-in on: Enable the maintain key function When Burn-in off: Disable the maintain key function Maintain key function MENU - + P Enter Factory mode D.OSD operation 1. Submenu 1 Contrast: Adjust the ratio of luminance Brightness: Adjust the ratio of black level Input Level: To show the signal input level Reset: To reset to factory preset WE200001: The monitor serial number ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Diagram PHILIPS Confidential – Do Not Copy 105S5 VI-6 2. Submenu 2 Zoom: Increase or decrease H -size and V-size toget her. H-Position: Move the picture toward right or lift sides. H-size: Increase or decrease horizontal size of picture. V-Position: Move the picture toward top or bottom. V-size: Increase or decrease vertical size of picture. 3. Submenu 3 2. PINCUSHION: Cause right and lift sides become barrel or pin. PIN-BALANCE: Cause right and lift sides become balance curve. TRAPIZOID: Adjust ratio between the horizontal size at top and the horizontal size at bottom of picture PARALLEL: Cause the picture become parallel. 4. Submenu 4 9300K: Selectable color temperature 9300K 6500K: Selectable color temperature 6500K USER: Selectable color temperature USER colors. 5. Submenu 5 ENGLISH: Selectable English language menu. FRANCAIS: Selectable France language menu ESPANAL: Selectable Spanish language menu Traditional Chinese: Selectable traditional Chinese language menu. Simplified Chinese: Selectable Simplified Chinese language menu. 6. Submenu 6 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Diagram PHILIPS Confidential – Do Not Copy 105S5 VI-7 H-MORIRE: Adjust picture morie. V-MORIE: Adjust picture morie. OSD H-POSITION: Move horizontal OSD position. OSD V-POSITION: Move vertical OSD position. E. Manual Adjusting 1. Manual white balance adjusting MENU + - Power switch *** Before adjust manual white balance must adjust picture to good size and center. *** 2. Enter to Burn-in mode 2.1 Press and - and Power On. Still press and - around 5 seconds after power On. 2.2 Apply Chroma to white pattern and degaussing the monitor. 2.3 Apply signal of Chroma to spec (See note. 2) and white pattern then Power Off monitor. 3. Enter to Factory mode 3.1 Press MENU and + and Power On.Still press MENU and + around 5 seconds after power On. 3.2 Press “ “ for display OSD (after entry to th Factory mode ).If can not see “Factory mode” in OSD. So try Item 4.4 again. (See note.1). This key for selection or enter to each function menu. - and + for move the cursor to each menu and for adjusting decrease and increase , respectively. After press to enter to each function in OSD menu. 4. Start adjust 9300K 4.1 After entering into “Factory mode “ . First move cursor to contrast and adjust Contrast to 0% then adjust Brightness to 100%. Then go to OSD position function and move OSD to corner of display. 4.2 Low light adjusting : Go to R-CUT OFF, and adjust R-CUT OFF to 0% on OSD. Repeat this method for G-CUT OFF and B-CUT OFF too. R R-CUT OFF R R-DRIVE G G-CUT OFF G G-DRIVE B B-CUT OFF B B-DRIVE 4.3 Observe which color is the most brightness. So that color is a strong gun. The strong gun shall be fixed the cut off at 0% . 4.4 Move OSD to corner of display and use the probe of color analyzer machine to measure color. Then adjust the other guns to meet x, y spec (See Note. 3) 4.5 Adjust G2 to meet Y (Low Light ) spec. (See Note. 3 ) ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Diagram PHILIPS Confidential – Do Not Copy 105S5 VI-8 4.6 If x , y out of range , adjust R,G,B CUT OFF again but still fix strong gun at 0% and adjust G2 until meet spec x, y and Y (Low light). (Must confirm the value by close OSD and use the probe measure again. If out off spec must adjust until in spec. 4.7 High light adjusting : Apply a white block pattern and adjust brightness to 50%. This step shall not adjust G2. !!! 4.8 Adjust R,G,B-DRIVE level until meet spec x , y and Y ( High Light ). (See Note. 3 ) (Must confirm the value by check while OSD disappear. If out off spec must adjust until in Spec) 4.9 If 9300 color temperature adjusting finish, move highlight (cursor) to “ S9 “ (SAVE 9300) function , then press “ and “ 2 “ respectively for saving the white balance data of 9300 into EEPROM (IC302) 4.10 After finish adjust 9300 , then adjust ABL by apply full white pattern. Set brightness to 50%, contrast 100% then adjust ABL in OSD to meet Y (ABL) spec ( See Note. 3) 5. Start adjust 6500K 5.1 Apply white pattern for Low Light adjusting. Adjust brightness to 100% and contrast to 100%. 5.2 Don’t adjust G2. Only adjust R,G,B_CUT OFF on OSD to meet spec x , y and Y (Low Light of 6500 K , see Note3 ) ( Method to adjust x , y , Y same as 9300 adjust , but different on spec) 5.3 Adjust brightness to 50%. Apply a white block pattern and adjust R,G,B-DRIVE to meet spec x, y ,Y (High Light of 6500K). 5.4 If 6500 color temperature adjusting finish, then move highlight (cursor) to “ S6 “ (SAVE 6500) function , then press and 2 respectively for saving the white balance data of 6500 into EEPROM (IC302) Note.1 1. If turn off monitor after enter Factory mode, during adjust not finish yet. Monitor will not save data and exit Factory mode. So must repeat step 4th for enter Factory mode again. 2. Before adjust white balance and size alignment should burn in Monitor for 30 min at least. 6. Manual size alignment adjusting 6.1 Use function key to adjust H-size to meet 270 +/- 3mm, V-size 202 +/- 3mm, H-Position and Ver position to picture is center with the edge of front bezel. Next use function keys to adjust “ Parallel”, “Pincusion” , “Trapezoid” , “Pin balance” for making display edge to straight vertical and no line distortion. 6.2 Apply next timing then repeat step 5.5 until complete every timing as shown in page II-9. 6.3 After adjust size follow spec finish all timing as shown in page 7. Move highlight (cursor) to “ SI “ (STORE IMAGE) function and press key “ “ for enter in the “ SI ” function, press key “ 2 “ for confirm store image data into EEPROM (IC302) 6.4 Press “ - “ key , Power ON again . Still press “ – “ around 5 seconds after power On. for canceling the Burn in mode. Note. 2 Timing spec. Model White balance signal Raster center Number of preset timing 105S5 800*600 / 85Hz 800*600 / 85Hz (See page II -9) ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Circuit Diagram PHILIPS Confidential – Do Not Copy 105S5 VI-9 Note 3 Color adjusting spec. MODEL 105S5 x 0.283 + 0.003 9300K y 0.297 + 0.003 x 0.313 + 0.003 6500K y 0.329 + 0.003 Y Low light 1.2 + 0.2Fls Y High light 48.0 + 1Fls Y ABL 30.0 + 1Fls ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Trouble shooting flow chart PHILIPS Confidential – Do Not Copy 105S5 VII-1 VII Trouble shooting flow chart 1. Power supply is defective 2. Horizontal deflection circuit is defective. 3. The raster don’t appear 4. Vertical deflection is deflective 5. Video is deflective ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Trouble shooting flow chart PHILIPS Confidential – Do Not Copy 105S5 VII-2 No power or power abnormal Power indicator LED don't light Is F101 normal Is CR101 normal is IC101 normal Is Q101 or R111, R112 normal Check horizontal and vertical circuit Replace F101 ReplaceCR101 Replace IC101 Replace Q101 or R111, R112 Does the power indictor LED light once and the go out Check horizontal circuit and power on again Is the power indicator LED light normally Check vertical circuit and power on again Is the LED normal Check video circuit Are TP201~TP205 voltage normal Check D201, D203, D205, D206, Q203, Q208 Is the T101 normal Replace T101 Yes Yes Yes Yes Yes No No No No No No Yes No No Yes No No Yes 1. Power supply is defective. ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Trouble shooting flow chart PHILIPS Confidential – Do Not Copy 105S5 VII-3 2. Horizontal deflection circuit is defective. The horizontal deflection circuit is defective Is the voltage on terminal TP208=45V? Is the power supply circuit normal? Is the pin1 waveform of IC401 normal? Is the pin28 waveform of IC401 normal? Is the pin26 waveform of IC401 normal? Is the waveform of Q402 "collector" normal? Is the waveform of Q401 "BASE" normal? Is the diode modulatic circuit normal? Is the voltage on terminal TP201=75V? Check power supply circuit Check H.sync input Q402 is defective Horizontal drive is defective T401, Q401, FBT Diode modulation circuit is defictive C401, D401, D402,C414, C415, Q409, C416 No Yes No Yes Yes Yes Yes Yes Yes Yes No No No No No No 0.8Vp-p 64Vp-p 2.4Vp-p 12Vp-p 4.6Vp-p fH CRT is defective No Check booster convertor circuit Q202, Q204, Q205 Check IC401 pin26 normal? ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Trouble shooting flow chart PHILIPS Confidential – Do Not Copy 105S5 VII-4 3. The raster don’t appear. 4. Vertical deflection is defective. The raster don't appear Is the C425= -200V normal? Does the CRT heater glow red? Does the entire screen light up? Turn the FBT screen clockwise FBT is defective R457, D420 are defective Is the voltage at the heater pin of CRT socket normal? D206,Q208, R226 are defective Heater voltage approx. 6.3V Video circuit Q420 g1 voltage control are defective No Yes Yes No Yes No No Vertical is defective The picture is one horizontal line Is the waveform pin14 of IC401 normal? Check the dflection Yoke Is the waveform at pin5 of IC501 normal? R502 is defective Check V-sync of IC301 pin32 or signal cable Is the IC501 pin2=13V pin4=-11V? Is the waveform of IC401 pin21, pin23 normal? Are R502 normal? Check power supply 13V, FBT -11V IC401 is defective 5Vp-p 45Vp-p Yes Yes Yes Yes No No No Yes No No ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Trouble shooting flow chart PHILIPS Confidential – Do Not Copy 105S5 VII-5 5. Video is defective. No video display Does the entire screen light up? Are the voltage on heater, G1,G2 of CRT socket normal? Are the waveform of the terminal BK,RK,GK of CRT socket normal? Are the waveform at the pin118, pin19, pin20 of IC601? Are the input waveform at P601 pin5, pin6, piin7 normal? The CRT is defective. The raster don't appear. Check the signal cable or computer No H.blank or no power to IC 601 . Or pin 12 IC602 always high Video optput circuit defective IC603 pin1, pin2, pin3 CRT drive circuit is defective heater, power supply circuit D206, G1, G2, FBT, D420, Q420 and its drive circuit Turn up the screen control and check whether the raster appear. 0.7Vp-p Heater: 6.3VDC G1: -40V G2: 500V _by high volt probe Yes Yes No No No No Yes Yes No Yes 3Vp-p 50Vp-p ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Mechanical Assembly PHILIPS Confidential – Do Not Copy 105S5 VIII-1 VIII Mechanical Assembly ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 PCB Layout Diagram PHILIPS Confidential – Do Not Copy 105S5 IX-1 IX PCB Layout Diagram ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Recommend Spare Part List PHILIPS Confidential – Do Not Copy 105S5 X-1 X Recommend spare part list Location Delta P/N Philips P/N Description Remark CRT 0741506407 - CRT .28 15" GLARE 292uH/48KHZ LG North CRT 0741506510 - CRT .28 GLARE 294UH/56KHZ Samsung North CRT 0741506610 - CRT .28 GLARE 294UH/56KHZ Samsung South CRT 0741506907 - CRT .28 15" GLARE 292UH/48KHZ LG South Degaussing 2840002006 - DEGAUSSING COIL 10.0OHM K Power Cord 3090136700 9965 000 22009 AC POWER CORD L1500 PHILIPS T AP Market T color Power Cord 3090136900 9965 000 21998 AC POWER CORD L1500 PHILIPS T Indonesia Market Power Cord 3080111600 9965 000 21996 AC POWER CORD L1500 BLACK UK AP Market Black Power Cord 3090137100 9965 000 21968 AC POWER CORD L1500 BLK SOUTH S Africa Black S/B Assy 3368048600 9965 000 21999 S/B ASSY J556PAG00A 5SC1SG&5C1 T Color F/B Assy 3368198400 9965 000 22002 F/B ASSY J556PAG00A 5FC7-2EL T Color R/C Assy 3368215700 9965 000 22006 R/C ASSY J556PAG00A 5RC6-3EL T Color S/B Assy 3368048500 9965 000 21971 S/B ASSY J556PAG00B 5SC1SG&5BC Black Color F/B Assy 3368198300 9965 000 21979 F/B ASSY J556PAG00B 5FC7-2EL Black Color R/C Assy 3368215600 9965 000 21985 R/C ASSY J556PAG00B 5RC6-3EL Black Color R457 0190201100 4822 052 11228 RES FUSING MF 1/2W 2.2 J Y301 0736000026 9965 000 22359 RESONATOR 12.00MHZ +/-0.1% 2P F101 0805340602 4822 252 11347 FUSE TSC 3.15A UL SEM PIG R225 0841110202 9965 000 22308 FUSE F/P 1.5A 125V UL CSA PTC101 0900150316 9965 000 22149 PTC 9 OHM 3PIN 20% NTC101 0910800316 4822 117 12948 NTC R=8 OHM L 3A P=7.5 C101 146401510428 9965 000 22010 CAP AL 400V 150U M 25*30 Other Market C415 1751151D06 9965 000 22051 CAP MP DP 250V .47U J KI15 C204 1751171F06 9965 000 22033 CAP MP DP 250V 1U J KI20 C414 1751591C06 9965 000 22050 CAP MP DP 250V .36U J KI10 C401 17D698AD26 9965 000 22044 CAP MP DP 1.5KVH 4.9KP H KI15 Samsung C401 17D195AD06 9965 000 22043 CAP MP DP 1.5KVH 5.1KP J KI15 LG C416 1891040D26 9965 000 22052 CAP PP DP 800V 6.8KP J KI15 CR101 200111610123 9965 000 22082 DIO BRD 4A 600V GBU D401 201033670108 9965 000 22094 DIO FRD 15A 1500V TO-220FPAC 1 D404 201300550223 9965 000 22093 DIO FRD 1A 100V DO-204AL(DO-41 D425 201300570223 9965 000 22099 DIO FRD 1A 200V DO-204AL(DO-41 D206 201300570523 9965 000 22093 DIO FRD 1A 200V DO-204AL(DO-41 D404 201300570534 - DIO FRD 1A 200V DO-41 50nS D420 201300590323 9965 000 22098 DIO FRD 1A 400V DO-41 150nS D617 201300590323 9965 000 22098 DIO FRD 1A 400V DO-41 150nS D409 201300610334 9965 000 22097 DIO FRD 1A 600V DO-41 250nS ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Recommend Spare Part List PHILIPS Confidential – Do Not Copy 105S5 X-2 Location Delta P/N Philips P/N Description Remark D414 201300610334 9965 000 22097 DIO FRD 1A 600V DO-41 250nS D202 201300610423 9965 000 22090 DIO FRD 1A 600V DO-41 75nS D108 201300620023 9965 000 22088 DIO FRD 1A 800V DO-41 75nS D406 201311050023 9965 000 22096 DIO FRD 2A 100V DO-204AC(DO-15 D204 201311070023 9965 000 22092 DIO FRD 2A 200V DO-204AC(DO-15 D205 201311070023 9965 000 22092 DIO FRD 2A 200V DO-204AC(DO-15 ZD307 203322520311 9965 000 22366 DIO ZEN 0.5W 2.8-3.0V DO-35 ZD305 203322540311 9965 000 22364 DIO ZEN 0.5W 4.9-5.1V DO-35 ZD306 203322540711 9965 000 22365 DIO ZEN 0.5W 5.1-5.3V DO-35 ZD301 203322550511 9965 000 22363 DIO ZEN 0.5W 6.0-6.3V DO-35 ZD302 203322550511 9965 000 22363 DIO ZEN 0.5W 6.0-6.3V DO-35 ZD303 203322550511 9965 000 22363 DIO ZEN 0.5W 6.0-6.3V DO-35 ZD304 203322550511 9965 000 22363 DIO ZEN 0.5W 6.0-6.3V DO-35 ZD201 203322610611 9965 000 22362 DIO ZEN 0.5W 11.9-12.4V DO-35 ZD405 203322670311 9965 000 22367 DIO ZEN 0.5W 17.5-18.3V DO-35 ZD102 203322690011 9965 000 22361 DIO ZEN 0.5W 18.8-19.7V DO-35 ZD101 203322850011 9965 000 22360 DIO ZEN 0.5W 36.4-38.0V DO-35 D203 205350610037 9965 000 22091 DIO SI 1A 600V RG4 P17.5 D402 205350610237 9965 000 22095 DIO SI 1A 600V RG4 KI20 Q409 210004050008 9965 000 22193 TR 100V 5A TO-220 1000 NPN*2 Q401 210057900017 9965 000 22191 TR 750V 10A TO-3PF 10 Q204 210102500217 9965 000 22169 TR 50V 0.15A TO-92 200-400 Q207 210102500217 9965 000 22169 TR 50V 0.15A TO-92 200-400 Q413 210102500217 9965 000 22169 TR 50V 0.15A TO-92 200-400 Q415 210102500217 9965 000 22169 TR 50V 0.15A TO-92 200-400 Q419 210102500217 9965 000 22169 TR 50V 0.15A TO-92 200-400 Q102 210106300017 9965 000 22151 TR 350V 0.5A TO-92 30-200 Q206 210161530117 9965 000 22177 TR 30V 3A TO-126 160-320 Q402 210233510011 9965 000 22192 TR 80V 1A TO-92MOD 100-200 Q411 211101500106 9965 000 22209 TR -30V -0.5A TO-92 120-240 Q412 211101500106 9965 000 22209 TR -30V -0.5A TO-92 120-240 Q205 211102500117 9965 000 22176 TR -50V -0.15A TO-92 200-240 Q403 211102500117 9965 000 22176 TR -50V -0.15A TO-92 200-240 Q418 211102500117 9965 000 22176 TR -50V -0.15A TO-92 200-240 Q420 211105700006 9965 000 22368 TR -250V -0.05A 2-5F1B 50 Q208 211162030006 9965 000 22178 TR -40V -3A 2-8H1A 120-240 Q203 211231010011 9965 000 22168 TR -20V -1A TO-92MOD 120-240 LED301 2300062706 4822 130 10955 LED 5mm ORG/GRN 3PIN Q414 242006100106 9965 000 22210 FET 200V 10A 0.4ohm TO-220 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Recommend Spare Part List PHILIPS Confidential – Do Not Copy 105S5 X-3 Location Delta P/N Philips P/N Description Remark Q202 242016350517 9965 000 22167 FET 250V 8.1A 0.45ohm TO-220F Q101 242017400006 9965 000 22150 FET 600V 6A 1.25ohm TO-220F IC603 2500113411 9965 000 22109 IC MONO TRIPLE 14nS CRT DRIVER IC604 2500165011 9965 000 20110 IC 80V TRIPLE BIAS CLAMP 8PIN IC101 2510004210 9965 000 22102 IC PWM 8PIN IC501 2530111006 9965 000 22106 IC VERT DEFLECTION 7PIN IC401 2530142106 9965 000 22105 IC DEFLECTION PROCESSOR DIP-32 IC601 2530159004 9965 000 22107 IC RGB VIDEO PRE-AMP 24PIN IC602 2530178826 9965 000 22108 IC MASK OSD CONTROLLER DIP-16P IC302 2610185342 9965 000 22104 IC EEPROM 8K 8PIN IC301 2610561018 9965 000 22103 IC 8BIT MICROCONTROLLER SDIP-4 T402 2800421400 9965 000 22350 X'FMR EE19 19mH K T101 2808400000 9965 000 22348 X'FMR SMT 300UH J L405 2816324410 9965 000 22124 CHOCK CD 180uH K L201 2816331400 9965 000 22122 CHOKE CD 150uH K L402 2816800210 4822 157 11773 CHOKE CD 3.9mH K FL101 2817206700 9965 000 22101 LINE FILTER 7.8mH MIN L404 2820401401 9965 000 22123 LINEAR COIL 6.5uH L T401 2850009410 9965 000 22349 FBT 15" 56KHZ 1.22mH SW101 3000065520 9965 000 22013 SWITCH PUSH SPST 15A 125VAC X601 3020005901 9965 000 22017 SOCKET CRT NORMAL SINGLE FOCUS Signal Cable 3080423701 9965 000 22018 CABLE D-SUB/HOUSING L1500 T-GR T Color Signal Cable 3080424600 9965 000 22369 CABLE D-SUB/HOUSING L1500 BLK Black Color C420 X141000163 4822 124 12292 CAP AL NP 50V 4.7U K 16*25 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Recommend Spare Part List PHILIPS Confidential – Do Not Copy 105S5 X-5 Philips 105S5 Service Part List Selling region AP (Black) S.Africa (Black) AP (T-Color) Indonesia (T-Color) Philips model name 105S58/97 105S58/12 105S59/97 105S59/91 Delta model name J556 PAG 02B J556 PAG 03B J556 PAG 02A J556 PAG 03A Item Location Description Delta P/N Philips P/N Delta P/N Philips P/N Delta P/N Philips P/N Delta P/N Philips P/N 1 Front Bezel Ass'y F/B ASSY J556PAG00A 5FC7-2EL 3368198300 9965 000 21979 3368198300 9965 000 21979 3368198400 9965 000 22002 3368198400 9965 000 22002 LED301 LED 5mm ORG/GRN 3PIN 2300062706 4822 130 10955 2300062706 4822 130 10955 2300062706 4822 130 10955 2300062706 4822 130 10955 2 Rear Cover Ass'y R/C ASSY J556PAG00B 5RC6-3EL 3368215600 9965 000 21985 3368215600 9965 000 21985 3368215700 9965 000 22006 3368215700 9965 000 22006 3 Swivel Base Ass'y S/B ASSY J556PAG00B 5SC1SG&5BC 3368048500 9965 000 21971 3368048500 9965 000 21971 3368048600 9965 000 21999 3368048600 9965 000 21999 4 15" CRT Tube SDI N/H 0741506510 - 0741506510 - 0741506510 - 0741506510 - SDI S/H 0741506610 - 0741506610 - 0741506610 - 0741506610 - Philips HwaFei N/H 0741506407 - 0741506407 - 0741506407 - 0741506407 - Philips HwaFei S/H 0741506907 - 0741506907 - 0741506907 - 0741506907 - 5 Degaussi ng 2840002006 9965 000 21966 2840002006 9965 000 21966 2840002006 9965 000 21966 2840002006 9965 000 21966 Mainboard Assy 6 R457 RES FUSING MF 1/2W 2.2 J 0190201100 4822 052 11228 0190201100 4822 052 11228 0190201100 4822 052 11228 0190201100 4822 052 11228 7 Y301 RESONATOR 12.00MHZ +/-0.1% 2P 0736000026 9965 000 22359 0736000026 9965 000 22359 0736000026 9965 000 22359 0736000026 9965 000 22359 8 F101 FUSE TSC 3.15A UL SEM PIG 0805340602 4822 252 11347 0805340602 4822 252 11347 0805340602 4822 252 11347 0805340602 4822 252 11347 9 R225 FUSE F/P 1.5A 125V UL CSA 0841110202 9965 000 22308 0841110202 9965 000 22308 0841110202 9965 000 22308 0841110202 9965 000 22308 10 PTC101 PTC 9 OHM 3PIN 20% 0900150316 9965 000 22149 0900150316 9965 000 22149 0900150316 9965 000 22149 0900150316 9965 000 22149 11 NTC101 NTC R=8 OHM L 3A P=7.5 0910800316 4822 117 12948 0910800316 4822 117 12948 0910800316 4822 117 12948 0910800316 4822 117 12948 12 C101 CAP AL 400V 150U M 25*30 146401510428 9965 000 22010 146401510428 9965 000 22010 146401510428 9965 000 22010 146401510428 9965 000 22010 13 C415 CAP MP DP 250V .47U J KI15 1751151D06 9965 000 22051 1751151D06 9965 000 22051 1751151D06 9965 000 22051 1751151D06 9965 000 22051 14 C204 CAP MP DP 250V 1U J KI20 1751171F06 9965 000 22033 1751171F06 9965 000 22033 1751171F06 9965 000 22033 1751171F06 9965 000 22033 15 C414 CAP MP DP 250V .36U J KI10 1751591C06 9965 000 22050 1751591C06 9965 000 22050 1751591C06 9965 000 22050 1751591C06 9965 000 22050 16 C401 CAP MP DP 1.5KVH 4.9KP H KI15 (Samsung) 17D698AD26 9965 000 22044 17D698AD26 9965 000 22044 17D698AD26 9965 000 22044 17D698AD26 9965 000 22044 17 C401 CAP MP DP 1.5KVH 5.1KP J KI15 (HwaFei) 17D195AD06 9965 000 22043 17D195AD06 9965 000 22043 17D195AD06 9965 000 22043 17D195AD06 9965 000 22043 18 C416 CAP PP DP 800V 6.8KP J KI15 1891040D26 9965 000 22052 1891040D26 9965 000 22052 1891040D26 9965 000 22052 1891040D26 9965 000 22052 19 C420 CAP AL NP 50V 4.7U K 16*25 X141000163 4822 124 12292 X141000163 4822 124 12292 X141000163 4822 124 12292 X141000163 4822 124 12292 20 CR101 DIO BRD 4A 600V GBU 200111610123 9965 000 22082 200111610123 9965 000 22082 200111610123 9965 000 22082 200111610123 9965 000 22082 21 D401 DIO FRD 15A 1500V TO-220FPAC 1 201033670108 9965 000 22094 201033670108 9965 000 22094 201033670108 9965 000 22094 201033670108 9965 000 22094 22 D404 DIO FRD 1A 100V DO-204AL(DO-41 201300550223 9965 000 22093 201300550223 9965 000 22093 201300550223 9965 000 22093 201300550223 9965 000 22093 23 D425 DIO FRD 1A 200V DO-204AL(DO-41 201300570223 9965 000 22099 201300570223 9965 000 22099 201300570223 9965 000 22099 201300570223 9965 000 22099 24 D206 DIO FRD 1A 200V DO-204AL(DO-41 201300570523 9965 000 22093 201300570523 9965 000 22093 201300570523 9965 000 22093 201300570523 9965 000 22093 25 D404 DIO FRD 1A 200V DO-41 50nS 201300570534 - 201300570534 - 201300570534 - 201300570534 - 26 D420 DIO FRD 1A 400V DO-41 150nS 201300590323 9965 000 22098 201300590323 9965 000 22098 201300590323 9965 000 22098 201300590323 9965 000 22098 27 D617 DIO FRD 1A 400V DO-41 150nS 201300590323 9965 000 22098 201300590323 9965 000 22098 201300590323 9965 000 22098 201300590323 9965 000 22098 28 D409 DIO FRD 1A 600V DO-41 250nS 201300610334 9965 000 22097 201300610334 9965 000 22097 201300610334 9965 000 22097 201300610334 9965 000 22097 29 D414 DIO FRD 1A 600V DO-41 250nS 201300610334 9965 000 22097 201300610334 9965 000 22097 201300610334 9965 000 22097 201300610334 9965 000 22097 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Recommend Spare Part List PHILIPS Confidential – Do Not Copy 105S5 X-6 Selling region AP (Black) S.Africa (Black) AP (T-Color) Indonesia (T-Color) Philips model name 105S58/97 105S58/12 105S59/97 105S59/91 Delta model name J556 PAG 02B J556 PAG 03B J556 PAG 02A J556 PAG 03A Item Location Description Delta P/N Philips P/N Delta P/N Philips P/N Delta P/N Philips P/N Delta P/N Philips P/N 30 D202 DIO FRD 1A 600V DO-41 75nS 201300610423 9965 000 22090 201300610423 9965 000 22090 201300610423 9965 000 22090 201300610423 9965 000 22090 31 D108 DIO FRD 1A 800V DO-41 75nS 201300620023 9965 000 22088 201300620023 9965 000 22088 201300620023 9965 000 22088 201300620023 9965 000 22088 32 D406 DIO FRD 2A 100V DO-204AC(DO-15 201311050023 9965 000 22096 201311050023 9965 000 22096 201311050023 9965 000 22096 201311050023 9965 000 22096 33 D204 DIO FRD 2A 200V DO-204AC(DO-15 201311070023 9965 000 22092 201311070023 9965 000 22092 201311070023 9965 000 22092 201311070023 9965 000 22092 34 D205 DIO FRD 2A 200V DO-204AC(DO-15 201311070023 9965 000 22092 201311070023 9965 000 22092 201311070023 9965 000 22092 201311070023 9965 000 22092 35 ZD307 DIO ZEN 0.5W 2.8-3.0V DO-35 203322520311 9965 000 22366 203322520311 9965 000 22366 203322520311 9965 000 22366 203322520311 9965 000 22366 36 ZD305 DIO ZEN 0.5W 4.9-5.1V DO-35 203322540311 9965 000 22364 203322540311 9965 000 22364 203322540311 9965 000 22364 203322540311 9965 000 22364 37 ZD306 DIO ZEN 0.5W 5.1-5.3V DO-35 203322540711 9965 000 22365 203322540711 9965 000 22365 203322540711 9965 000 22365 203322540711 9965 000 22365 38 ZD301 DIO ZEN 0.5W 6.0-6.3V DO-35 203322550511 9965 000 22363 203322550511 9965 000 22363 203322550511 9965 000 22363 203322550511 9965 000 22363 39 ZD302 DIO ZEN 0.5W 6.0-6.3V DO-35 203322550511 9965 000 22363 203322550511 9965 000 22363 203322550511 9965 000 22363 203322550511 9965 000 22363 40 ZD303 DIO ZEN 0.5W 6.0-6.3V DO-35 203322550511 9965 000 22363 203322550511 9965 000 22363 203322550511 9965 000 22363 203322550511 9965 000 22363 41 ZD304 DIO ZEN 0.5W 6.0-6.3V DO-35 203322550511 9965 000 22363 203322550511 9965 000 22363 203322550511 9965 000 22363 203322550511 9965 000 22363 42 ZD201 DIO ZEN 0.5W 11.9-12.4V DO-35 203322610611 9965 000 22362 203322610611 9965 000 22362 203322610611 9965 000 22362 203322610611 9965 000 22362 43 ZD405 DIO ZEN 0.5W 17.5-18.3V DO-35 203322670311 9965 000 22367 203322670311 9965 000 22367 203322670311 9965 000 22367 203322670311 9965 000 22367 44 ZD102 DIO ZEN 0.5W 18.8-19.7V DO-35 203322690011 9965 000 22361 203322690011 9965 000 22361 203322690011 9965 000 22361 203322690011 9965 000 22361 45 ZD101 DIO ZEN 0.5W 36.4-38.0V DO-35 203322850011 9965 000 22360 203322850011 9965 000 22360 203322850011 9965 000 22360 203322850011 9965 000 22360 46 D203 DIO SI 1A 600V RG4 P17.5 205350610037 9965 000 22091 205350610037 9965 000 22091 205350610037 9965 000 22091 205350610037 9965 000 22091 47 D402 DIO SI 1A 600V RG4 KI20 205350610237 9965 000 22095 205350610237 9965 000 22095 205350610237 9965 000 22095 205350610237 9965 000 22095 48 Q409 TR 100V 5A TO-220 1000 NPN*2 210004050008 9965 000 22193 210004050008 9965 000 22193 210004050008 9965 000 22193 210004050008 9965 000 22193 49 Q401 TR 750V 10A TO-3PF 10 210057900017 9965 000 22191 210057900017 9965 000 22191 210057900017 9965 000 22191 210057900017 9965 000 22191 50 Q204 TR 50V 0.15A TO-92 200-400 210102500217 9965 000 22169 210102500217 9965 000 22169 210102500217 9965 000 22169 210102500217 9965 000 22169 51 Q207 TR 50V 0.15A TO-92 200-400 210102500217 9965 000 22169 210102500217 9965 000 22169 210102500217 9965 000 22169 210102500217 9965 000 22169 52 Q413 TR 50V 0.15A TO-92 200-400 210102500217 9965 000 22169 210102500217 9965 000 22169 210102500217 9965 000 22169 210102500217 9965 000 22169 53 Q415 TR 50V 0.15A TO-92 200-400 210102500217 9965 000 22169 210102500217 9965 000 22169 210102500217 9965 000 22169 210102500217 9965 000 22169 54 Q419 TR 50V 0.15A TO-92 200-400 210102500217 9965 000 22169 210102500217 9965 000 22169 210102500217 9965 000 22169 210102500217 9965 000 22169 55 Q102 TR 350V 0.5A TO-92 30-200 210106300017 9965 000 22151 210106300017 9965 000 22151 210106300017 9965 000 22151 210106300017 9965 000 22151 56 Q206 TR 30V 3A TO-126 160-320 210161530117 9965 000 22177 210161530117 9965 000 22177 210161530117 9965 000 22177 210161530117 9965 000 22177 57 Q402 TR 80V 1A TO-92MOD 100-200 210233510011 9965 000 22192 210233510011 9965 000 22192 210233510011 9965 000 22192 210233510011 9965 000 22192 58 Q411 TR -30V -0.5A TO-92 120-240 211101500106 9965 000 22209 211101500106 9965 000 22209 211101500106 9965 000 22209 211101500106 9965 000 22209 59 Q412 TR -30V -0.5A TO-92 120-240 211101500106 9965 000 22209 211101500106 9965 000 22209 211101500106 9965 000 22209 211101500106 9965 000 22209 60 Q205 TR -50V -0.15A TO-92 200-240 211102500117 9965 000 22176 211102500117 9965 000 22176 211102500117 9965 000 22176 211102500117 9965 000 22176 61 Q403 TR -50V -0.15A TO-92 200-240 211102500117 9965 000 22176 211102500117 9965 000 22176 211102500117 9965 000 22176 211102500117 9965 000 22176 62 Q418 TR -50V -0.15A TO-92 200-240 211102500117 9965 000 22176 211102500117 9965 000 22176 211102500117 9965 000 22176 211102500117 9965 000 22176 63 Q420 TR -250V -0.05A 2-5F1B 50 211105700006 9965 000 22368 211105700006 9965 000 22368 211105700006 9965 000 22368 211105700006 9965 000 22368 64 Q208 TR -40V -3A 2-8H1A 120-240 211162030006 9965 000 22178 211162030006 9965 000 22178 211162030006 9965 000 22178 211162030006 9965 000 22178 65 Q203 TR -20V -1A TO-92MOD 120-240 211231010011 9965 000 22168 211231010011 9965 000 22168 211231010011 9965 000 22168 211231010011 9965 000 22168 66 Q414 FET 200V 10A 0.4ohm TO-220 242006100106 9965 000 22210 242006100106 9965 000 22210 242006100106 9965 000 22210 242006100106 9965 000 22210 67 Q202 FET 250V 8.1A 0.45ohm TO-220F 242016350517 9965 000 22167 242016350517 9965 000 22167 242016350517 9965 000 22167 242016350517 9965 000 22167 68 Q101 FET 600V 6A 1.25ohm TO-220F 242017400006 9965 000 22150 242017400006 9965 000 22150 242017400006 9965 000 22150 242017400006 9965 000 22150 69 IC603 IC MONO TRIPLE 14nS CRT DRIVER 2500113411 9965 000 22109 2500113411 9965 000 22109 2500113411 9965 000 22109 2500113411 9965 000 22109 70 IC604 IC 80V TRIPLE BIAS CLAMP 8PIN 2500165011 9965 000 22110 2500165011 9965 000 22110 2500165011 9965 000 22110 2500165011 9965 000 22110 71 IC101 IC PWM 8PIN 2510004210 9965 000 22102 2510004210 9965 000 22102 2510004210 9965 000 22102 2510004210 9965 000 22102 72 IC501 IC VERT DEFLECTION 7PIN 2530111006 9965 000 22106 2530111006 9965 000 22106 2530111006 9965 000 22106 2530111006 9965 000 22106 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Recommend Spare Part List PHILIPS Confidential – Do Not Copy 105S5 X-7 Selling region AP (Black) S.Africa (Black) AP (T-Color) Indonesia (T-Color) Philips model name 105S58/97 105S58/12 105S59/97 105S59/91 Delta model name J556 PAG 02B J556 PAG 03B J556 PAG 02A J556 PAG 03A Item Location Description Delta P/N Philips P/N Delta P/N Philips P/N Delta P/N Philips P/N Delta P/N Philips P/N 73 IC401 IC DEFLECTION PROCESSOR DIP-32 2530142106 9965 000 22105 2530142106 9965 000 22105 2530142106 9965 000 22105 2530142106 9965 000 22105 74 IC601 IC RGB VIDEO PRE-AMP 24PIN 2530159004 9965 000 22107 2530159004 9965 000 22107 2530159004 9965 000 22107 2530159004 9965 000 22107 75 IC602 IC MASK OSD CONTROLLER DIP-16P 2530178826 9965 000 22108 2530178826 9965 000 22108 2530178826 9965 000 22108 2530178826 9965 000 22108 76 IC302 IC EEPROM 8K 8PIN 2610185342 9965 000 22104 2610185342 9965 000 22104 2610185342 9965 000 22104 2610185342 9965 000 22104 77 IC301 IC 8BIT MICROCONTROLLER SDIP-4 2610561018 9965 000 22103 2610561018 9965 000 22103 2610561018 9965 000 22103 2610561018 9965 000 22103 78 T402 X'FMR EE19 19mH K 2800421400 9965 000 22350 2800421400 9965 000 22350 2800421400 9965 000 22350 2800421400 9965 000 22350 79 T101 X'FMR SMT 300UH J 2808400000 9965 000 22348 2808400000 9965 000 22348 2808400000 9965 000 22348 2808400000 9965 000 22348 80 L405 CHOCK CD 180uH K 2816324410 9965 000 22124 2816324410 9965 000 22124 2816324410 9965 000 22124 2816324410 9965 000 22124 81 L201 CHOKE CD 150uH K 2816331400 9965 000 22122 2816331400 9965 000 22122 2816331400 9965 000 22122 2816331400 9965 000 22122 82 L402 CHOKE CD 3.9mH K 2816800210 4822 157 11773 2816800210 4822 157 11773 2816800210 4822 157 11773 2816800210 4822 157 11773 83 FL101 LINE FILTER 7.8mH MIN 2817206700 9965 000 22101 2817206700 9965 000 22101 2817206700 9965 000 22101 2817206700 9965 000 22101 84 L404 LINEAR COIL 6.5uH L 2820401401 9965 000 22123 2820401401 9965 000 22123 2820401401 9965 000 22123 2820401401 9965 000 22123 85 T401 FBT 15" 56KHZ 1.22mH 2850009410 9965 000 22349 2850009410 9965 000 22349 2850009410 9965 000 22349 2850009410 9965 000 22349 86 SW101 SWITCH PUSH SPST 15A 125VAC 3000065520 9965 000 22013 3000065520 9965 000 22013 3000065520 9965 000 22013 3000065520 9965 000 22013 87 X601 SOCKET CRT NORMAL SINGLE FOCUS 3020005901 9965 000 22017 3020005901 9965 000 22017 3020005901 9965 000 22017 3020005901 9965 000 22017 88 Power Cord AC POWER CORD L1500 3080111600 9965 000 21996 3090137100 9965 000 21968 3090136700 9965 000 22009 3090136900 9965 000 21998 89 Signal Cable RGB SIGNAL CABLE 15 PIN 3080424600 9965 000 22369 3080424600 9965 000 22369 3080423701 9965 000 22018 3080423701 9965 000 22018 90 MANUAL PHILIPS J556PAG 5011094100 9965 000 22984 5011094100 9965 000 21984 5011094100 9965 000 21984 5011094100 9965 000 21984 91 SPACER SUPPORT NYLON 94V-2 14*9*11.8 3421047903 - 3421047903 - 3421047903 - 3421047903 - 92 CARTON 448*458*375 PHILIPS J556PAG 3512247701 9965 000 21978 3512247701 9965 000 21978 3512247701 9965 000 21978 3512247701 9965 000 21978 93 PE FILM t=0.02mm W=500 3520082400 - 3520082400 - 3520082400 - 3520082400 - 94 PE BAG NIL 810*710*0.035 3520085701 9965 000 21983 3520085701 9965 000 21983 3520085701 9965 000 21983 3520085701 9965 000 21983 95 LABEL ID 99.5*59.5 PHILIPS J556PGA02A 3201957400 - 3201957400 - 3201957300 - 3201957300 - ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 ISP Manual 105s5 Prepared by : Lu weidong PHILIPS XI-1 Confidential - Do Not Copy 105S5 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 First step : Tools Prepared 1. ISP board : PHILIPS XI-2 Confidential - Do Not Copy 105S5 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Three Ports: a) 25 pins Parallel port : ( connect PC ) b) 15 pins : ( connect signal generator ) PHILIPS XI-3 Confidential - Do Not Copy 105S5 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 c) 15 pins : ( connect monitor ) PHILIPS XI-4 Confidential - Do Not Copy 105S5 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Second step : Connect PC, Connect signal generator , connect monitor PHILIPS XI-5 Confidential - Do Not Copy 105S5 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Third step : Power On Monitor ; Forth step : Run sn.exe PHILIPS XI-6 Confidential - Do Not Copy 105S5 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Fifth Step : Press “ Enter “ Key PHILIPS XI-7 Confidential - Do Not Copy 105S5 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Sixth step : Input “ series number” Seventh Step : Press “Enter” Key again. PHILIPS XI-8 Confidential - Do Not Copy 105S5 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料 Eight Step : if you key “N”,the program will return to fifth step. Otherwise it will return sixth step. Press “Esc” key will quit this program. Notice : Please use PC PII to PIII. PHILIPS XI-9 Confidential - Do Not Copy 105S5 ht t p: //j dwxzl w. 5d6d. com/?f romuser=华盛维修 家电维修资料网，免费下载各种维修资料
