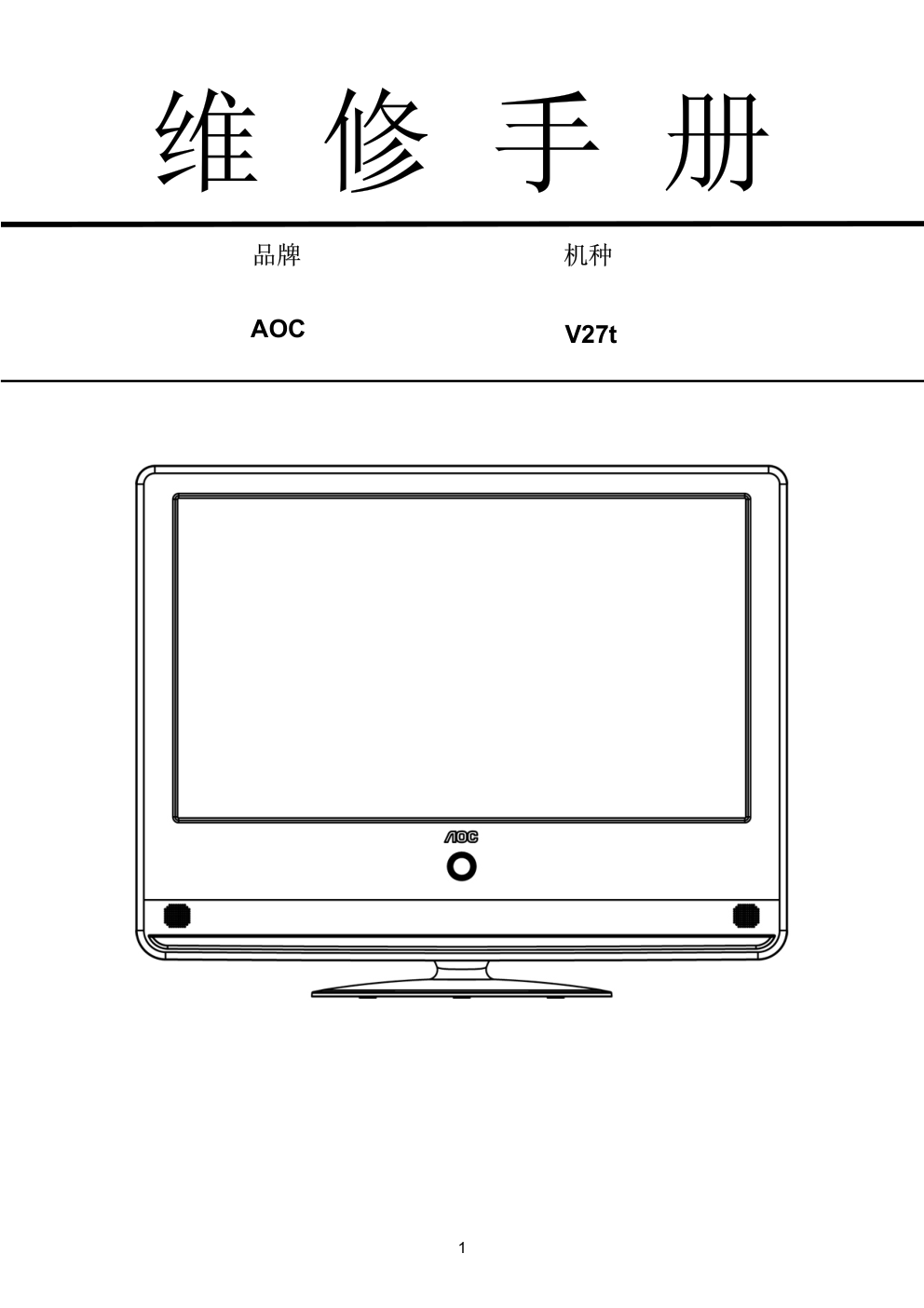

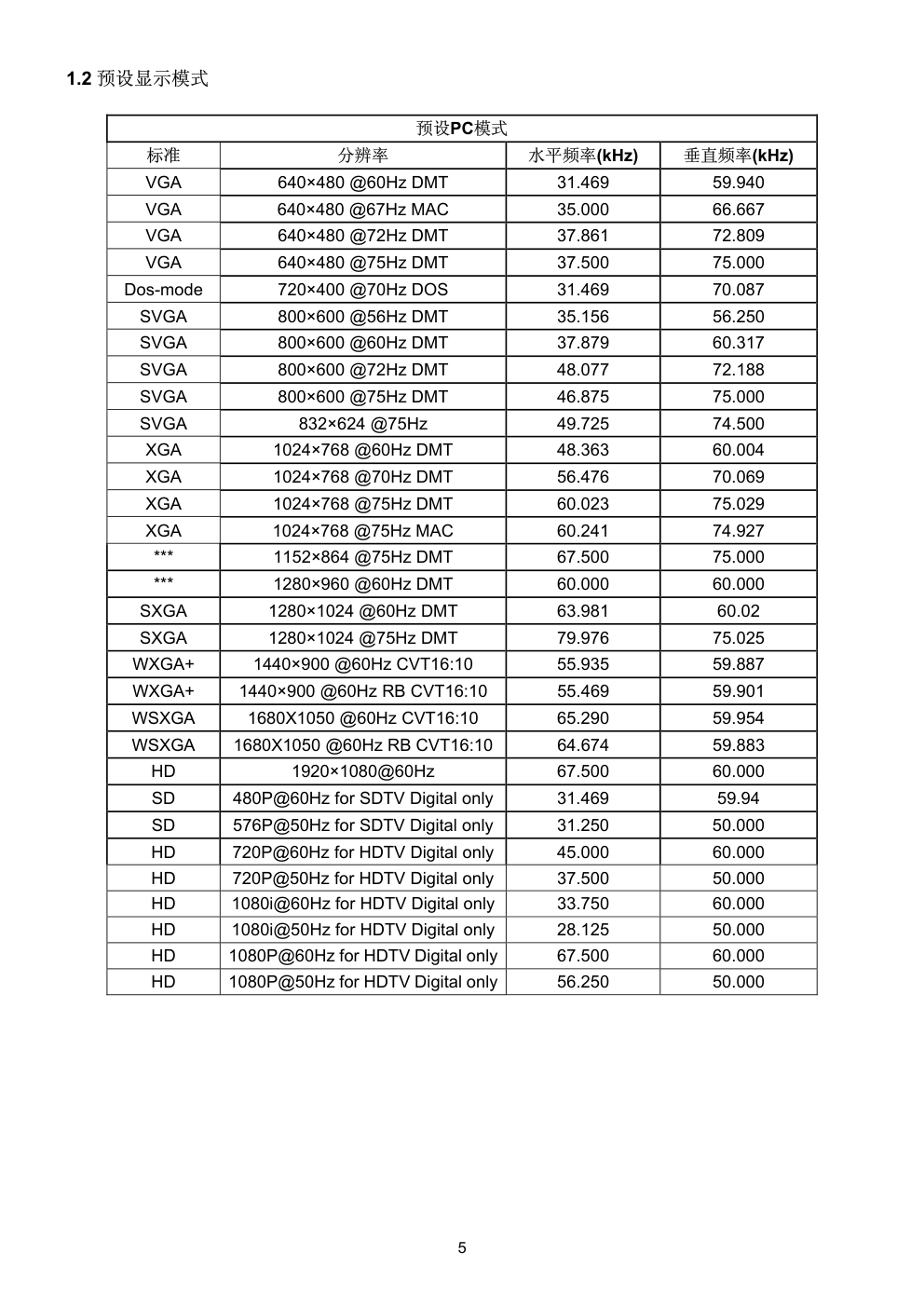

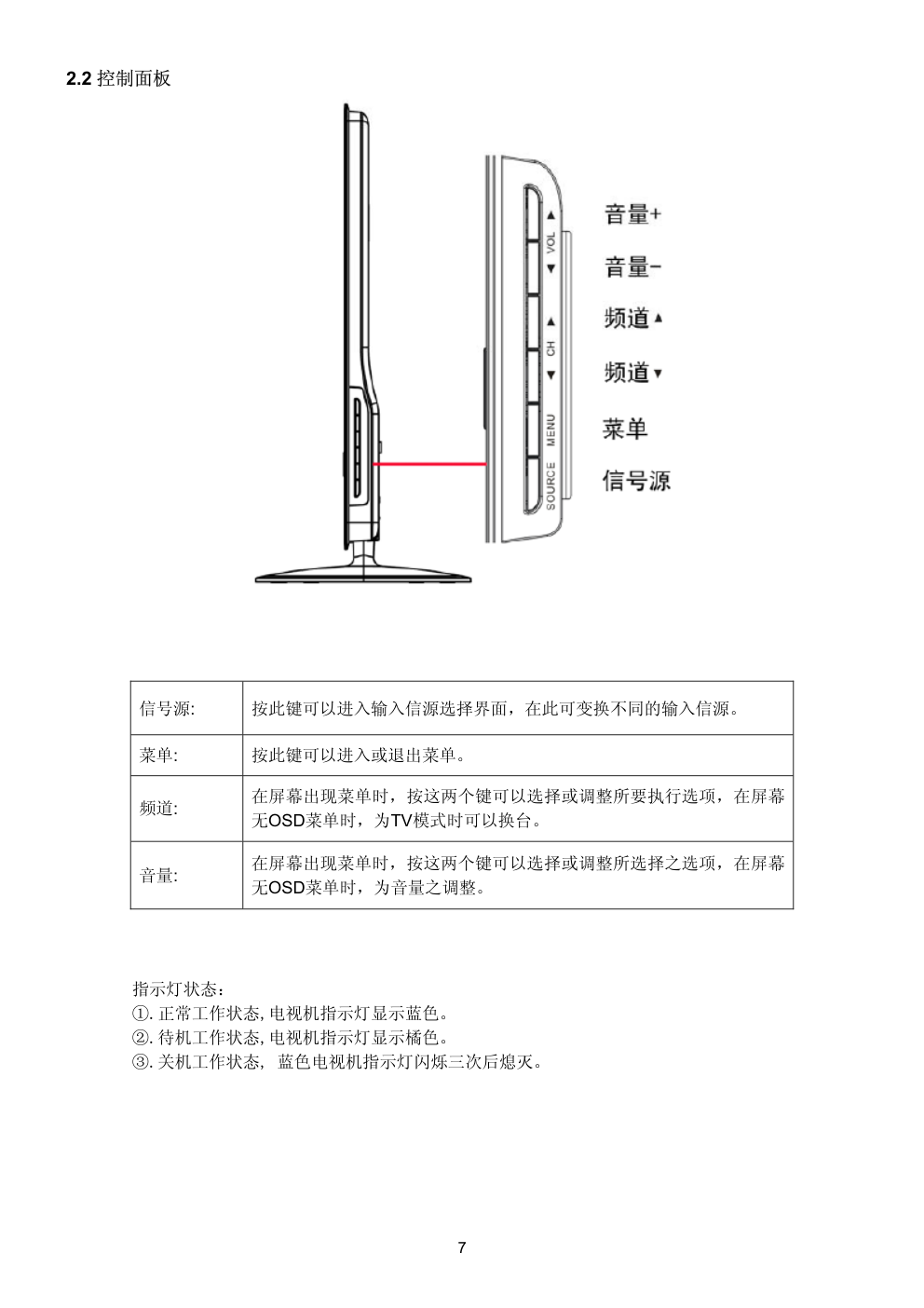

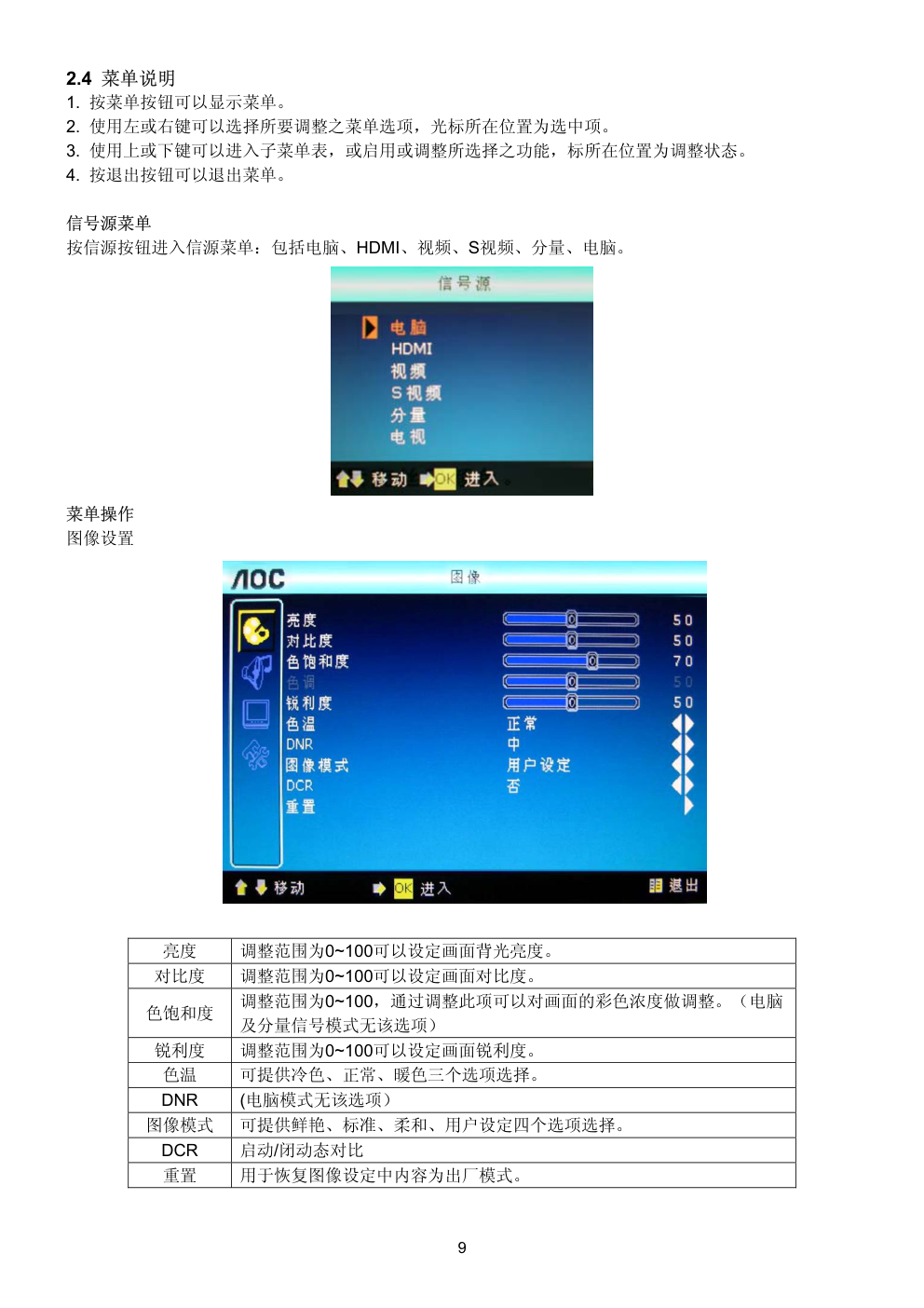

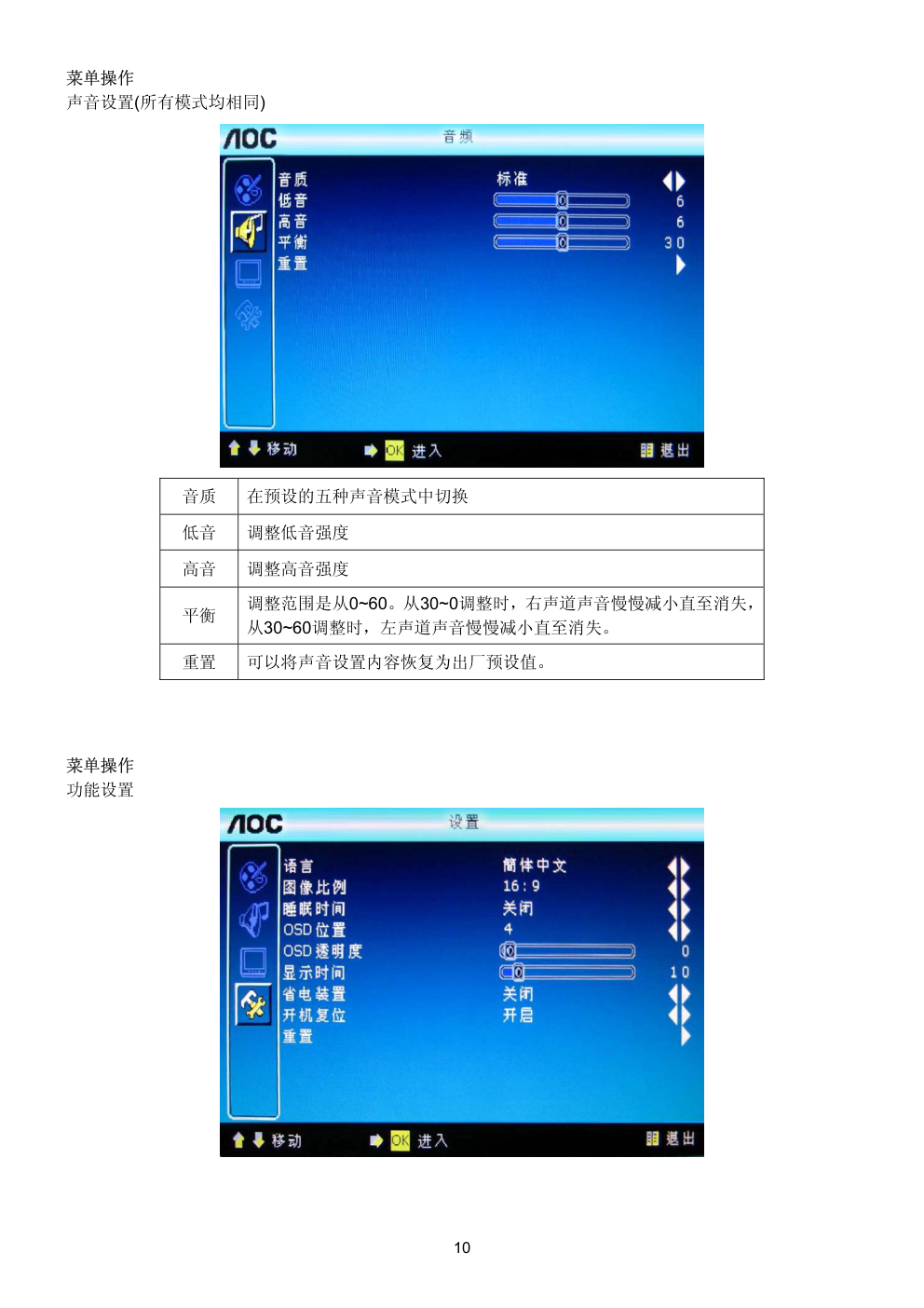

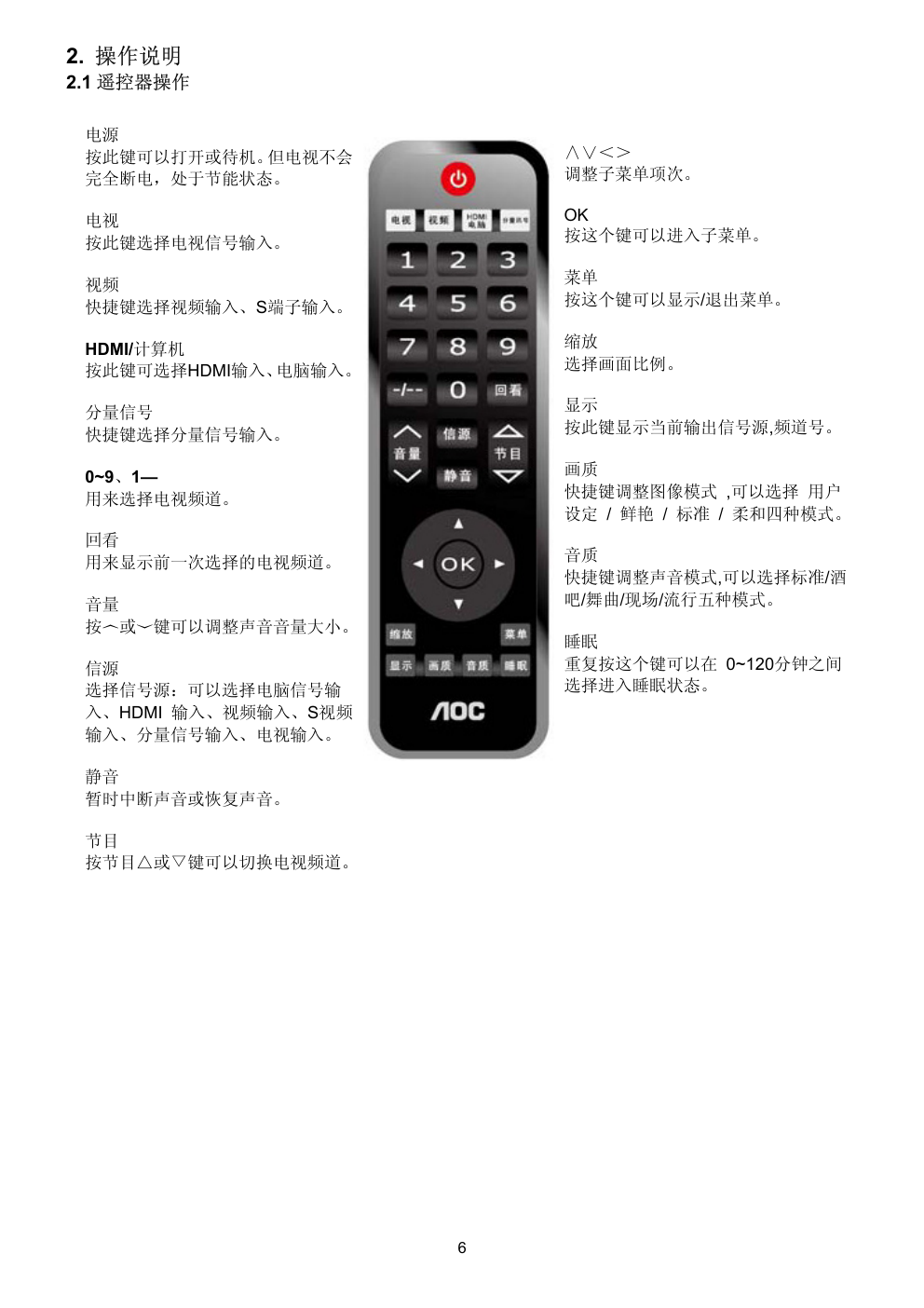

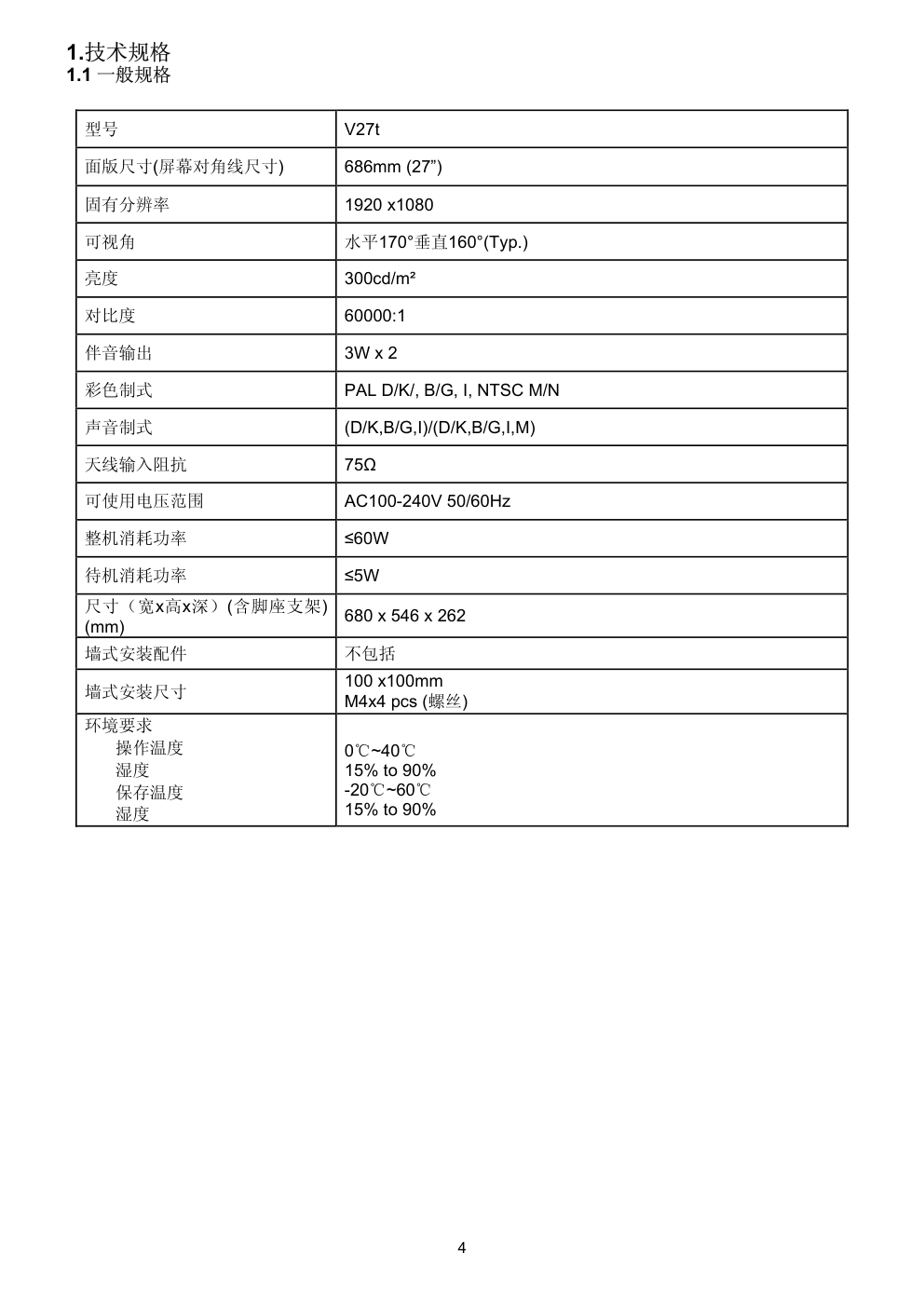

1 维 修 手 册 品牌 机种 V27t AOC 2 变更说明 版本 发布日期 变更说明 对内机种名 A00 2010-3-14 首次发布 V279MKND2XA1NZ A01 2010-11-13 增加新机种 V279MKND2XA1NG V279AKND2XA1NZ A02 Nov.18,2011 增加新机种 V279MKND2XA1N6 3 目录 1.技术规格 --------------------------------------------------------------------------------------------------------------- 04 1.1 一般规格 ---------------------------------------------------------------------------------------------------------- 04 1.2 预设显示模式 ---------------------------------------------------------------------------------------------------- 05 2.操作说明 --------------------------------------------------------------------------------------------------------------- 06 2.1 遥控器操作 ------------------------------------------------------------------------------------------------------- 06 2.2 控制面板 ---------------------------------------------------------------------------------------------------------- 07 2.3 背面信源接口 ---------------------------------------------------------------------------------------------------- 08 2.4 菜单说明 ---------------------------------------------------------------------------------------------------------- 09 3.工厂模式调整 --------------------------------------------------------------------------------------------------------- 13 4.故障处理流程 --------------------------------------------------------------------------------------------------------- 14 5.电气方框图 ------------------------------------------------------------------------------------------------------------ 16 5.1 主板 ------------------------------------------------------------------------------------------------------------------ 16 5.2 主板电源 ------------------------------------------------------------------------------------------------------------ 17 6.线路图 ------------------------------------------------------------------------------------------------------------------ 18 6.1 主板 ------------------------------------------------------------------------------------------------------------------ 18 6.2 电源板 --------------------------------------------------------------------------------------------------------------- 26 6.3 按键板 --------------------------------------------------------------------------------------------------------------- 28 6.4 IR 板 ----------------------------------------------------------------------------------------------------------------- 29 7. ISP 和 DDC SOP ---------------------------------------------------------------------------------------------------- 30 8. BOM -------------------------------------------------------------------------------------------------------------------- 31 4 1.技术规格 1.1 一般规格 型号 V27t 面版尺寸(屏幕对角线尺寸) 686mm (27”) 固有分辨率 1920 x1080 可视角 水平170°垂直160°(Typ.) 亮度 300cd/m² 对比度 60000:1 伴音输出 3W x 2 彩色制式 PAL D/K/, B/G, I, NTSC M/N 声音制式 (D/K,B/G,I)/(D/K,B/G,I,M) 天线输入阻抗 75Ω 可使用电压范围 AC100-240V 50/60Hz 整机消耗功率 ≤60W 待机消耗功率 ≤5W 尺寸（宽x高x深）(含脚座支架) (mm) 680 x 546 x 262 墙式安装配件 不包括 墙式安装尺寸 100 x100mm M4x4 pcs (螺丝) 环境要求 操作温度 湿度 保存温度 湿度 0 ~40 ℃ ℃ 15% to 90% -20 ~60 ℃ ℃ 15% to 90% 5 1.2 预设显示模式 预设PC模式 标准 分辨率 水平频率(kHz) 垂直频率(kHz) VGA 640×480 @60Hz DMT 31.469 59.940 VGA 640×480 @67Hz MAC 35.000 66.667 VGA 640×480 @72Hz DMT 37.861 72.809 VGA 640×480 @75Hz DMT 37.500 75.000 Dos-mode 720×400 @70Hz DOS 31.469 70.087 SVGA 800×600 @56Hz DMT 35.156 56.250 SVGA 800×600 @60Hz DMT 37.879 60.317 SVGA 800×600 @72Hz DMT 48.077 72.188 SVGA 800×600 @75Hz DMT 46.875 75.000 SVGA 832×624 @75Hz 49.725 74.500 XGA 1024×768 @60Hz DMT 48.363 60.004 XGA 1024×768 @70Hz DMT 56.476 70.069 XGA 1024×768 @75Hz DMT 60.023 75.029 XGA 1024×768 @75Hz MAC 60.241 74.927 *** 1152×864 @75Hz DMT 67.500 75.000 *** 1280×960 @60Hz DMT 60.000 60.000 SXGA 1280×1024 @60Hz DMT 63.981 60.02 SXGA 1280×1024 @75Hz DMT 79.976 75.025 WXGA+ 1440×900 @60Hz CVT16:10 55.935 59.887 WXGA+ 1440×900 @60Hz RB CVT16:10 55.469 59.901 WSXGA 1680X1050 @60Hz CVT16:10 65.290 59.954 WSXGA 1680X1050 @60Hz RB CVT16:10 64.674 59.883 HD 1920×1080@60Hz 67.500 60.000 SD 480P@60Hz for SDTV Digital only 31.469 59.94 SD 576P@50Hz for SDTV Digital only 31.250 50.000 HD 720P@60Hz for HDTV Digital only 45.000 60.000 HD 720P@50Hz for HDTV Digital only 37.500 50.000 HD 1080i@60Hz for HDTV Digital only 33.750 60.000 HD 1080i@50Hz for HDTV Digital only 28.125 50.000 HD 1080P@60Hz for HDTV Digital only 67.500 60.000 HD 1080P@50Hz for HDTV Digital only 56.250 50.000 6 2. 操作说明 2.1 遥控器操作 电源 按此键可以打开或待机。但电视不会 完全断电，处于节能状态。 电视 按此键选择电视信号输入。 视频 快捷键选择视频输入、S端子输入。 HDMI/计算机 按此键可选择HDMI输入、电脑输入。 分量信号 快捷键选择分量信号输入。 0~9、1— 用来选择电视频道。 回看 用来显示前一次选择的电视频道。 音量 按︿或﹀键可以调整声音音量大小。 信源 选择信号源：可以选择电脑信号输 入、HDMI 输入、视频输入、S视频 输入、分量信号输入、电视输入。 静音 暂时中断声音或恢复声音。 节目 按节目△或▽键可以切换电视频道。 ∧∨＜＞ 调整子菜单项次。 OK 按这个键可以进入子菜单。 菜单 按这个键可以显示/退出菜单。 缩放 选择画面比例。 显示 按此键显示当前输出信号源,频道号。 画质 快捷键调整图像模式 ,可以选择 用户 设定 / 鲜艳 / 标准 / 柔和四种模式。 音质 快捷键调整声音模式,可以选择标准/酒 吧/舞曲/现场/流行五种模式。 睡眠 重复按这个键可以在 0~120分钟之间 选择进入睡眠状态。 7 2.2 控制面板 信号源: 按此键可以进入输入信源选择界面，在此可变换不同的输入信源。 菜单: 按此键可以进入或退出菜单。 频道: 在屏幕出现菜单时，按这两个键可以选择或调整所要执行选项，在屏幕 无OSD菜单时，为TV模式时可以换台。 音量: 在屏幕出现菜单时，按这两个键可以选择或调整所选择之选项，在屏幕 无OSD菜单时，为音量之调整。 指示灯状态： ①.正常工作状态,电视机指示灯显示蓝色。 ②.待机工作状态,电视机指示灯显示橘色。 ③.关机工作状态, 蓝色电视机指示灯闪烁三次后熄灭。 8 2.3 背面信源接口 背面信源接口如下图： 9 2.4 菜单说明 1. 按菜单按钮可以显示菜单。 2. 使用左或右键可以选择所要调整之菜单选项，光标所在位置为选中项。 3. 使用上或下键可以进入子菜单表，或启用或调整所选择之功能，标所在位置为调整状态。 4. 按退出按钮可以退出菜单。 信号源菜单 按信源按钮进入信源菜单：包括电脑、HDMI、视频、S视频、分量、电脑。 菜单操作 图像设置 亮度 调整范围为0~100可以设定画面背光亮度。 对比度 调整范围为0~100可以设定画面对比度。 色饱和度 调整范围为0~100，通过调整此项可以对画面的彩色浓度做调整。（电脑 及分量信号模式无该选项） 锐利度 调整范围为0~100可以设定画面锐利度。 色温 可提供冷色、正常、暖色三个选项选择。 DNR (电脑模式无该选项） 图像模式 可提供鲜艳、标准、柔和、用户设定四个选项选择。 DCR 启动/闭动态对比 重置 用于恢复图像设定中内容为出厂模式。 10 菜单操作 声音设置(所有模式均相同) 音质 在预设的五种声音模式中切换 低音 调整低音强度 高音 调整高音强度 平衡 调整范围是从0~60。从30~0调整时，右声道声音慢慢减小直至消失， 从30~60调整时，左声道声音慢慢减小直至消失。 重置 可以将声音设置内容恢复为出厂预设值。 菜单操作 功能设置 11 语言 设定OSD语言功能，提供英文、简体中文两种语言选择。 图像比例 4:3 16:9 电影(电脑模式无该项功能) 全景(电脑模式无该项功能) 睡眠定时器 设定电视自动进入待机状态的时间。(电脑模式无该项功能) OSD位置 可更换OSD菜单显示位置，共九种位置可供更换。 OS透明度 调整范围为0~10可以设定OSD菜单透明度。 显示时间 调整范围为5~60可以设定OSD菜单显示时间（以秒为单位）。 省电装置 开启或关闭省电模式 开机复位 开启或关闭开机复位 重置 用于恢复功能设定中内容为出厂模式。 菜单操作 调台 （以下菜单只有在电视模式才出现） 频道号 显示当前电视频道号。 频率 显示当前电视频道的频率。 彩色制式 显示当前电视信号彩色制式。（自动存储后显示为自动） 声音制式 显示当前电视信号声音制式。（自动存储后显示为自动） 更新搜台 自动搜台 用于给用户自动搜索并存储节目功能,按“菜单”键可以推出自动搜台模式。 手动搜台 当按住左或右键3秒以上时，会进入手动搜台状态，当搜索到有信号的节目时自 动退出半自动搜台并将当前节目存储与当前节目号中。 手动微调方法 按上下建选择频率选项，频率选项变为黄色，然后通过左右键调整频率或直接 按遥控器上的数字键输入固定频率来选择您需要收看的节目。 频道跳跃 可以被设定为开和关，当设定为开时，按遥控器或面板上频 道切换 12 菜单操作 PC图像 （以下菜单只有在计算机模式才出现） 自动调整 自动调整至图像至最佳合适位置 水平位置 调整图像的水平位置 垂直位置 调整图像的垂直位置 时钟 消除垂直干扰线条 相位 消除水平干扰线条 重置 用于恢复功能设定中内容为出厂模式 13 3.工厂模式调整 此机种无需做白平衡调整。 进入工厂模式的方法: 先按遥控器上的“菜单”键，再按“1→9→9→9”，即进入工厂模式。 14 4.故障处理流程 无法启动（LED橘色） 检测电源板 CN902 的 PIN1/2/3 是否有 12V 电压输出 有 无 更换电源板 检测按键板的POWER键是否失灵 是 更换按键板 否 检测IR板的红外接收器U051是否失灵 是 否 更换IR板 更换主板 无电（LED 不亮） 检测电源板 CN902 的 PIN1/2/3 是否有 12V 电压输出 无 有 更换电源板 检测 IR 板及 LED 灯 检测插座是否有电或硬开关是否打开 有 无 重插电源插座或开启硬开关 更换 IR 板 15 无画（LED蓝色） 检测TV是否受控，能否用遥控器或按键板开关机 是 否 更换主板 检测是否有背光 是 否 检测FFC线是否良好 是 否 检测主板上CN402的 PIN1/2/3是否有5V供电 重插或更 换FFC线 是 否 更换主板 先更换主板 检测是否OK 否 更换Panel 检测电源板 CN902 的 PIN1/2/3 是否有 12V 电压输出 是 否 更换电源板 更换Panel 16 5.电气方框图 5.1 主板 17 5.2 主板电源 DC_12V (24.355W) 2029.58mA 12V from power board 1006.17mA 12V->5V +5V_MAIN (10.062W) AP2004 U704 2012.4mA 80% efficiency MC34063A 128mA 2mA M24C02 LVDS U103 (9.125W) U701 3mA EEPROM (VGA) (Panel) +31V CN403 U504 (HDMI) (0.907W) 181.4mA EEPROM 53.4mA 3mA CONNECTOR 1825mA 80% efficiency TUNER M24C02 U702 (actual test:103mA) (actual test:617mA) (12.074W) CN702 20.186W SPI EEPROM 791mA 500mA 100mA 1_2V 31mA IFADC3_3V 31mA YPP1_2V: Max_50mA (0.864W) 12V->1.2V CN105 U705 U404 RTD2663 D1_2V TACK SW+LED 12V->3.3V D1_2V: Max_600mA IR BOARD TPS54286 720mA SW001 PCA9536 IR POWER VDAC3_3V U051 VD3_3V 160mA YPP1_2V BB3_3V IRM-3638TS13F41-P LSADC3_3V M25P16 CONNECTOR IR SENSER (4.169W) Realtek IC_3.3V: Max_500mA DC_12V:2029.58mA I/O expander 1mA 80% efficiency U402 +5V_MAIN:2012.4mA 347.43mA YPP3_3V +12V_AUDIO:676mA 30mA TMDS3_3V PLL3_3V (2.6103W) D3_3V +12V_AUDIO U601 (8.112W) AUDIO AMPLIFIER TPA3121 676mA 18 6.线路图 6.1 主板 715G3678M01000004L C403 1UF K 16V X7R R411 510R 1/16W 5% R410 22K 1/16W 1 2 3 CN404 CONN R409 10K+-5%1/16W PA7 VGA_DET 6 C436 NC/10pF C423 22pF 50V D3_3V SPI_MISO PA[0..9] 4 D3_3V D1_2V YPP3_3V D1_2V PA0 R427 4.7K 1/16W PC_AUDIO_L 5 PC_AUDIO_R 5 1 2 3 CN401 CONN C401 100N16V C406 100N16V C408 100N16V C409 100N16V HDMI_HPD 7 PA1 FB401 300OHM TUN_IF+ 9 TUN_IF- 9 change R422 to bead for ESD portection X401 R406 510R 1/16W 5% R441 4.7K 1/16W R442 4.7K 1/16W PA2 BB3_3V VCM_BB for HDMI debug Cexl=CL1(or CL2)-Cpcb-Cpin-Cpad-Cesd AV_CVBS- 5 AV_CVBS+ 5 SPI_MOSI SPI_SCK second source:33T3802 3E PT PA3 Normal Function : CL = Cs + ((CL1*CL2)/(CL1+CL2)) (RX) D3_3V Cpcb+Cpin+Cpad+Cesd=6pF YPP1_2V SDA_tuner SCL_tuner D3_3V PA4 HD0+ 7 HD0- 7 BLK_ON/OFF 10 D1_2V HD1- 7 HD1+ 7 R403 10K+-5%1/16W HD2+ 7 HD2- 7 HCK+ 7 HCK- 7 1 2 X401 27.000MHz LED_AMBER R425 4.7K 1/16W R417 4.7K 1/16W Cs of SPEC SCL_tuner 9 SDA_tuner 9 PA5 CL of SPEC PLL3_3V D3_3V C422 22pF 50V from 1206 to 0805 (93G 2264B) for general debug (TX) PA8 3.4~4.3 pF AUDIO_SD_RTD 8 PLL3_3V (second source:EON) C405 100N16V X'TAL PA9 Cexl LED_B 5 LED_A 5 (RX) D3_3V change 47K to 4.7K R415 4.7K 1/16W R414 4.7K 1/16W C411 100N16V CS# 1 SO 2 WP# 3 GND 4 SI 5 SCLK 6 HOLD# 7 VCC 8 U402 MX25L1605DM2I-12G CEC 1 G3.3TMDS 2 RXCN0 3 RXCP0 4 RX0N0 5 RX0P0 6 RX1N0 7 RX1P0 8 RX2N0 9 RX2P0 10 HDMI_REXT 11 V3.3TMDS 12 V1.2CORE 13 G1.2CORE 14 G3.3LSADC 15 LSADC_REF 16 LSADC0 17 LSADC1 18 LSADC2 19 V3.3LSADC 20 AHS0 21 AVS0 22 V3.3YPPADC 23 BIN0N 24 BIN0P 25 GIN0N 26 GIN0P 27 RIN0N 28 RIN0P 29 BIN1N 30 BIN1P 31 GIN1N 32 GIN1P 33 RIN1N 34 RIN1P 35 G3.3YPPADC 36 V1.2YPPADC 37 G1.2CORE 38 V1.2CORE 39 V3.3APLL 40 G3.3APLL 41 XOUT 42 XIN 43 G3.3PLL 44 V3.3PLL 45 G3.3VDAC 46 AVOUT 47 V3.3VDAC 48 V3.3IFADC 49 IF1P 50 IF1N 51 G3.3IFADC 52 VDAC_REXT 53 G3.3VDADC 54 VIN2N 55 VIN2P 56 VIN1N 57 VIN1P 58 VIN0N 59 VIN0P 60 V3.3VDADC 61 RESET# 62 RF_AGC 63 SPI_CS# 64 SPI_SCK 65 SPI_DI 66 SPI_DO 67 V1.2CORE 69 G1.2CORE 70 TODP 71 TODN 72 TOCLKP 73 TOCLKN 74 TOCP 75 TOCN 76 TOBP 77 TOBN 78 TOAP 79 TOAN 80 V3.3LVDS 81 G3.3LVDS 82 TEDP 83 TEDN 84 TECLKP 85 TECLKN 86 TECP 87 TECN 88 TEBP 89 TEBN 90 TEAP 91 TEAN 92 I2C_M1_SDA 93 I2C_M1_SCL 94 IRRX 95 EJTAG_TRST# 96 EJTAG_TCLK 97 EJTAG_TDI 98 EJTAG_TDO 99 EJTAG_TMS 100 V1.2CORE 101 V1.2CORE 102 G1.2CORE 103 V3.3IO 104 G3.3IO 105 I2C_M0_SDA 106 I2C_M0_SCL 107 V1.2CORE 108 G1.2CORE 109 V3.3BB 110 HPOUT_R 111 HPOUT_L 112 AOUT_R 113 AOUT_L 114 G3.3BB 115 VCM_BB 116 AOUT_MONO 117 AIN_MONO 118 AIN_1R 119 AIN_1L 120 AIN_2R 121 AIN_2L 122 G3.3BB 123 V3.3BB 124 DDC0_SDA 125 DDC0_SCL 126 V3.3IO 127 V1.2CORE 128 V3.3IO 68 EPAD 129 U401 RTD2663-GR Cl1=CL2 PB0 (TX) C431 1UF K 16V X7R 30 pF change 4.7K to 1K C415 100N16V R444 0R05 1/10W 22 pF BB3_3V PB1 HDMI_SDA 7 C433 100N16V SPI_CS D3_3V VDAC3_3V HDMI_SCL 7 C407 100N16V PB2 C412 100N16V R418 22 OHM 1/16W R419 22 OHM 1/16W R420 22 OHM 1/16W R421 22 OHM 1/16W PB3 D3_3V C413 100N16V IFADC3_3V VCC1 D3_3V VD3_3V R440 1K 1/16W PB4 C416 100N16V R402 4.7K 1/16W VGA_VSYNC 6 VGA_HSYNC 6 C418 100N16V R430 100OHM1/16W R423 10K 1/16W PB5 C404 2U2 16V C421 100N16V C402 100N16V R431 100OHM1/16W PB6 FB402 300OHM SCK MOSI D1_2V CS MISO DIG1_2V PB7 HPOUT_R 8 YPP1_2V VD3_3V 1 2 FB411 430 OHM PWR_CTRL 10 C410 2U2 16V FB406 300OHM PB8 FB407 300OHM C414 2U2 16V HDMI_SDA1 7 HDMI_SCL1 7 HDMI_DET 7 D3_3V FB409 300OHM PB9 PB[0..9] C432 2U2 16V AOUT_R 8 AOUT_L 8 PA[0..9] R412 1KOHM +-1% 1/16W LED_BLUE 3 1 2 D401 BAT54C C437 NC/0.1uF 16V GND 1 RESET 2 Vcc 3 U403 NC/NCP803SN293D3T1G C419 100N16V STB 4 VCC2 R424 75 OHM +-1% 1/16W FB408 300OHM R407 4.7K 1/16W TMDS3_3V 7 D3_3V IFADC3_3V VDAC3_3V PLL3_3V R413 10K 1/16W TMDS3_3V C424 100N16V D3_3V D3_3V R416 4.7K 1/16W AV_AUDIO_L 5 AV_AUDIO_R 5 YPBPR_AUDIO_R 5 YPBPR_AUDIO_L 5 KEY_ADC0 5 HPOUT_L 8 KEY_ADC1 5 HPOUT_R 8 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 D Custom 3 10 Tuesday , December 01, 2009 715G3678-M0C-000-0040 RTD2663 G3678-M0D-X-X-1-091201 C417 10U 16V LSADC3_3V R429 2.2K 1/16W D3_3V WP_SPI 1_2V 10 C425 100N16V D3_3V C426 100N16V C427 100N16V C428 100N16V C429 100N16V C430 100N16V YPP3_3V BB3_3V ALOG1_2V PO 1 P1 2 P2 3 VSS 4 P3 5 SCL 6 SDA 7 VCC 8 U404 PCA9536DGKR TMDS3_3V R428 4.7K 1/16W RESET HPOUT_L 8 R405 22K 1/16W C420 10U 16V R447 0R05 1/16W Y+ 5 PB+ 5 PR+ 5 Y- 5 PB- 5 PR- 5 WP_EDID 7 FB410 300OHM Adj_BLK 10 D3_3V 5,8,9,10 C435 NC/10pF C434 100N16V RF_AGC_CTRL 9 IRRX 5 R426 NC/4K7 1/16W 5% D3_3V D1_2V D1_2V SCL_tuner R443 0R05 1/10W SDA_tuner 1 2 3 Q401 2N3906S-RTK/PS Q403 2N3904S-RTK/PS RTD_RIN+ 6 RTD_GIN+ 6 RTD_BIN+ 6 RTD_RIN- 6 RTD_BIN- 6 RTD_GIN- 6 R401 4.7K 1/16W D3_3V SV_C+ 5 SV_Y+ 5 SV_C- 5 SV_Y- 5 1 2 3 Q402 2N3906S-RTK/PS R448 10K 1/16W WP_SPI D1_2V LSADC3_3V PB[0..9] 4 PA6 19 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 CN403 NC/CONN Q405 2N3904S-RTK/PS C442 100N 50V C445 100N16V PANEL_VCC 10 PB[0..9] 1 2 FB417 120R/6000mA (27" Panel惠絋粄 inrush current) PB[0..9] 3 PA[0..9] 3 STB 3 R434 220 OHM 1/4W R437 100K 1/16W PA[0..9] S 1 S 2 S 3 G 4 D 8 D 7 D 6 D 5 Q404 AO4411 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 D Custom 4 10 Tuesday , December 01, 2009 715G3678-M0C-000-0040 PANEL INTERFACE G3678-M0D-X-X-1-091201 PANEL_VCC 2 1 3 Q406 NC R432 47K 1/16W R433 10K+-5%1/16W +5V_MAIN 1 2 FB415 120 OHM 1 2 FB416 120 OHM D_VCC 9 D_VCC R436 4.7K 1/16W R435 4.7K 1/16W RXE0+ +5V_MAIN 6,7,8,9,10 C446 NC/1uF/16V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 CN402 CONN VLCD RXE1+ RXE0+ RXE0- RXO2- RXEC- RXO1+ RXE3- RXE3+ RXO3- RXO2+ + C443 100uF/16V RXO3+ RXOC- RXE2- RXE1- RXO0+ RXO0- RXOC+ RXO1- RXEC+ RXE2+ VLCD RXO1- RXE2- RXO3- RXE3- RXO0- RXE1- RXEC- RXO2- RXE0- RXOC+ RXOC- RXE2+ RXO0+ RXO1+ RXEC+ RXO3+ RXO2+ RXE1+ RXE3+ C444 100N16V VLCD RXO3- PA8 RXE1+ PB3 RXO2+ PA5 RXE2- PB4 RXO2- PA4 RXE0+ PB1 RXE3+ PB9 RXE3- PB8 RXE2+ PB5 RXO3+ PA9 RXO0- PA0 RXO0+ PA1 RXE0- PB0 RXO1- PA2 RXO1+ PA3 RXE1- PB2 RXEC+ PB7 RXOC- PA6 RXOC+ PA7 RXEC- PB6 change to 0603 size change from 0402 to 0603 20 L103 CHIP INDUCTOR 1.0uH +-5% MICROGATE R110 10K+-5%1/16W R122 0R05 1/16W C110 270pF 50V R124 0R05 1/16W PC_AUDIO_R 3 PC_AUDIO_L 3 CVBS1+ (S-V_Y1-) S-V_Y1+ AV_CVBS- AV_CVBS- 3 AV_CVBS+ 3 R109 0R05 1/16W R108 0R05 1/16W Y PR Y+ PB+ CVBS1- PR+ C114 10U 16V C115 10U 16V C121 10U 16V C120 10U 16V R139 10K 1/16W PC_AUDIO_L1 PC_AUDIO_R1 R138 10K 1/16W C131 10U 16V C130 10U 16V 2 1 4 3 CN103 JACK 1 2 ZD103 VPORT0603100KV05 C101 470pF 50V 1 2 3 CN104 PHONEJACK C116 470pF 50V R130 10K 1/16W 1 2 FB105 30 OHM 1 2 FB107 30 OHM R131 10K 1/16W YPBPR_AUD_R1 1 2 FB108 30 OHM 1 2 FB110 30 OHM 1 2 FB109 30 OHM 1 2 FB111 30 OHM 1 2 FB112 30 OHM 1 2 FB113 30 OHM AV_CVBS+ IR_INPUT R132 0R05 1/16W 1 2 FB101 120 OHM 1 2 ZD101 VPORT0603100KV05 IRRX 3 1 2 ZD104 VPORT0603100KV05 1 2 ZD105 VPORT0603100KV05 SV_Y+ 1 2 ZD108 VPORT0603100KV05 1 2 ZD109 VPORT0603100KV05 1 2 ZD110 VPORT0603100KV05 1 3 4 2 5 6 7 CN102 2MJ1501-000111 R118 75 OHM +-1% 1/16W SV_C+ R117 75 OHM +-1% 1/16W 1 2 FB102 120 OHM S-V_C1+ C134 470pF 50V R119 75 OHM +-1% 1/16W R111 10K+-5%1/16W LED_B 3 LED_A 3 C105 NC/330pF 50V C122 5pF 50V C107 NC/330pF 50V R164 51.1KOHM 1% 1/16W C108 NC/330pF 50V RED BLUE GREEN RED WHITE YELLOW C102 47nF 16V R162 51.1KOHM 1% 1/16W C109 47nF 16V D3_3V 3,8,9,10 YPBPR_AUDIO_R 3 C118 47nF 16V AV_AUDIO_R 3 AV_AUDIO_L 3 C119 47nF 16V YPBPR_AUDIO_L 3 C129 47nF 16V C128 47nF 16V KEY_ADC1 KEY_ADC0 D3_3V D3_3V C103 47nF 16V C104 47nF 16V C113 47nF 16V C112 47nF 16V 1 2 ZD114 VPORT0603100KV05 C133 470pF 50V OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 D Custom 5 10 Tuesday , December 01, 2009 715G3678-M0C-000-0040 AV Input G3678-M0D-X-X-1-091201 KEY_ADC0 3 KEY_ADC1 3 R112 100OHM1/16W Y1+ 1 2 FB103 30 OHM LED_B PB LED_A PC_AUDIO_L2 PC_AUDIO_R2 AV_AUD_L1 RED WHITE PB1+ PR1+ C136 NC/560P 50V X7R +/-10% C137 NC/560P 50V X7R +/-10% C123 5pF 50V C124 5pF 50V D3_3V AV_AUD_R1 R113 100OHM1/16W R114 100OHM1/16W 1 2 FB114 120 OHM 1 2 FB115 120 OHM R121 100OHM1/16W GREEN R129 4.7K 1/16W R133 4.7K 1/16W R123 100OHM1/16W R128 4.7K 1/16W R125 100OHM1/16W IR_IN Y1- PB1- PR1- R106 75 OHM +-1% 1/16W 1 2 3 4 5 6 7 8 9 CN105 CONN PR- Y- PB- S-V_C- PB+ 3 PR+ 3 Y+ 3 S-V_Y- PB- 3 Y- 3 PR- 3 CVBS 1 2 FB127 121 OHM 1 2 ZD111 VPORT0603100KV05 1 2 FB128 121 OHM 1 2 ZD106 VPORT0603100KV05 R115 10K+-5%1/16W 1 2 ZD107 VPORT0603100KV05 SV_C+ 3 SV_Y- 3 SV_Y+ 3 C125 470pF 50V SV_C- 3 1 2 ZD112 VPORT0603100KV05 1 2 FB104 120 OHM YPBPR_AUD_L2 R116 10K+-5%1/16W YPBPR_AUD_R2 C126 470pF 50V 1 2 FB106 120 OHM YPBPR_AUD_L1 R103 51R 1/16W 5% R104 51R 1/16W 5% R105 75 OHM +-1% 1/16W C111 270pF 50V R136 10K+-5%1/16W 1 2 ZD113 VPORT0603100KV05 SV_C- SV_Y- AV_AUD_R2 AV_AUD_L2 R134 10K+-5%1/16W C117 47nF 16V R135 10K+-5%1/16W S-V_C2+ S-V_Y2+ C127 47nF 16V C132 100N16V R137 10K+-5%1/16W R101 75 OHM +-1% 1/16W L101 CHIP INDUCTOR 1.0uH +-5% MICROGATE R102 51R 1/16W 5% 1 2 ZD102 VPORT0603100KV05 C135 NC/0.1uF 16V R107 0R05 1/16W C106 270pF 50V 2 1 5 4 8 7 3 6 9 CN101 JACK 1 2 3 Q101 2N3906S-RTK/PS L102 CHIP INDUCTOR 1.0uH +-5% MICROGATE R120 0R05 1/16W 21 VGA_SCL VGA_ESD_VDD VGA_SDA R161 47 OHM 1/16W C152 100N16V R159 4.7K 1/16W R149 2.2K 1/16W R143 100OHM1/16W VGA_SCL R145 100OHM1/16W C153 220nF 16V R150 2.2K 1/16W R160 47 OHM 1/16W C148 10P 50V C147 22pF 50V +5V_MAIN 4,7,8,9,10 change from 65G040210412K T to 65G040210412K A WP 7 VSI OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 D B 6 10 Tuesday , December 01, 2009 715G3678-M0C-000-0040 VGA INPUT G3678-M0D-X-X-1-091201 R146 75 OHM +-1% 1/16W VGA_G+ VGA_R+ 1 2 FB125 30 OHM 1 2 FB124 30 OHM 1 2 FB126 30 OHM R165 0R05 1/10W R157 4.7K 1/16W VSI R166 0R05 1/10W R167 0R05 1/10W R168 0R05 1/10W R169 0R05 1/10W VGA_SDA R170 0R05 1/10W VGA_B- VGA_R- C142 47nF 16V C150 47nF 16V VGA_SCL VGA_SDA R158 4.7K 1/16W 1 3 2 ZD116 BAT54C +5V_MAIN I/O1 1 GND 2 I/O2 3 I/O3 4 VDD 5 I/O4 6 U104 AZC099-04S.R7G VGA_5V VGA_B+ 1 2 FB118 430 OHM 1 2 FB120 430 OHM I/O1 1 GND 2 I/O2 3 I/O3 4 VDD 5 I/O4 6 U101 AZC099-04S.R7G HSI C143 47nF 16V C141 47nF 16V C151 47nF 16V C149 47nF 16V A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 U103 AT24C02BN-SH-T VGA_HSYNC 3 R147 75 OHM +-1% 1/16W R148 75 OHM +-1% 1/16W VGA_G- 1 6 2 7 3 8 4 9 5 11 12 13 14 15 10 17 16 18 19 CN106 DB15 VGA_VSYNC 3 VGA_ESD_VDD RTD_GIN+ 3 RTD_RIN- 3 R152 100OHM1/16W RTD_BIN- 3 C146 5pF 50V RTD_RIN+ 3 R151 100OHM1/16W C144 5pF 50V R141 100OHM1/16W RTD_BIN+ 3 RTD_GIN- 3 R153 100OHM1/16W R142 100OHM1/16W C145 5pF 50V R144 100OHM1/16W ZD117 RLZ5.6B VGA_R+ VGA_G+ VGA_B+ VGA_DET HSI VGA_DET 3 22 C501 100N16V +5V_HDMI HDMI_D2+ HDMI_CK- HDMI_CK+ HDMI_D2- Q501 2N3904S-RTK/PS C502 100N16V HD2+ 3 HD2- 3 HCK+ 3 HD0+ 3 HCK- 3 HD1- 3 HD1+ 3 HD0- 3 R502 0R05 1/16W Q503 2N3904S-RTK/PS R503 0R05 1/16W R504 0R05 1/16W R505 0R05 1/16W R506 0R05 1/16W R507 0R05 1/16W R508 0R05 1/16W R509 0R05 1/16W C504 1N 50V 1 2 3 Q502 2N3906S-RTK/PS HDMI_D2+ HDMI_D2- I/O1 1 GND 2 I/O2 3 I/O3 4 VDD 5 I/O4 6 U503 AZC099-04S.R7G HDMI_D1+ HDMI_D1- HD1- HD0+ HD0- HDMI_D0- HDMI_CK+ HDMI_CK- HDMI_CK- HDMI_CK+ HDMI_D0+ 88T 340 21 VN 88T 340 21 VD HD2+ HD2- HDMI_D0- HDMI_D1- HDMI_D1+ HDMI_D2- HDMI_D2+ CEC HDMI_SDA 3 HDMI_SCL 3 R512 4.7K 1/16W A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 U504 AT24C02BN-SH-T +5V_MAIN +5V_MAIN 4,6,8,9,10 HDMI_SDA1 3 HDMI_SCL1 3 WP 6 HDMI_HPD 3 C503 220nF 16V R519 10K+-5%1/16W HDMI_DET 3 R513 47 OHM 1/16W R514 47 OHM 1/16W HDMI_ESD_VDD HDMI_D0+ HDMI_D0+ HDMI_D0- HDMI_D1+ OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 D Custom 7 10 Tuesday , December 01, 2009 715G3678-M0C-000-0040 HDMI G3678-M0D-X-X-1-091201 HDMI_D1- change from 88T 340 21 VT to 88T 340 21 VA TMDS3_3V R518 10K+-5%1/16W WP_EDID 3 TMDS3_3V 3 +5V_MAIN 4,6,8,9,10 1 2 FB501 121 OHM TMDSD0+ 7 TMDSD0- 9 TMDSD1+ 4 TMDSD1- 6 TMDSD2+ 1 TMDSD2- 3 SCL 15 DSHLD1 5 VCC5 18 CSHLD0 11 HPD 19 NC 14 DSHLD0 2 CEC 13 SDA 16 DDC_GND 17 DSHLD2 8 TMDSC+ 10 TMDSC- 12 SHLD_GND1 20 SHLD_GND2 21 SHLD1 22 SHLD2 23 SHLD3 24 SHLD4 25 SHLD5 26 CN501 HDMI +5V_HDMI HDMI_ESD_VDD HD1+ R501 27K 1/16W 5% second: 88T 340 21 VA R510 4.7K 1/16W R517 10K+-5%1/16W Line-1 1 Line-2 2 VDD 3 Line-3 4 Line-4 5 NC 6 NC 7 GND 8 NC 9 NC 10 U502 AZ1045-04QU.RDG R511 4.7K 1/16W Line-1 1 Line-2 2 VDD 3 Line-3 4 Line-4 5 NC 6 NC 7 GND 8 NC 9 NC 10 U501 AZ1045-04QU.RDG 3 1 2 D501 BAT54C R515 1K 1/16W ZD501 RLZ5.6B HDMI_SCL HDMI_SDA HDMI_ESD_VDD HDMI_HOTPLUG HCK- HCK+ HDMI_SDA1 +5V_MAIN HDMI_SCL1 R516 100K 1/16W 23 C643 220nF 16V GAIN0 GAIN1 1 2 FB609 300 OHM 1 2 FB606 121 OHM 1 2 FB607 121 OHM + C623 470UF16V R645 NC/0R05 1/16W second source:88G 302 9B CL OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 D Custom 8 10 Tuesday , December 01, 2009 715G3678-M0C-000-0040 AUDIO AMPLIFIER G3678-M0D-X-X-1-091201 C603 100N16V C604 100N16V R644 0R05 1/16W L601 22uH 10% L602 22uH 10% C648 1N 50V Q601 2N3904S-RTK/PS R646 0R05 1/16W PVCCL 1 SD 2 PVCCL 3 LIN 5 RIN 6 MUTE 4 BYPASS 7 AGND 8 AGND 9 PVCCR 10 VCLAMP 11 PVCCR 12 PGNDL 24 PGNDL 23 LOUT 22 BSL 21 AVCC 20 AVCC 19 GAIN0 18 BSR 16 GAIN1 17 ROUT 15 PGNDR 14 PGNDR 13 TH1 25 U601 TPA3121D2PWPR C642 220nF 16V R641 2K 1/16W 32 R603 1K 1/16W 1 C605 100N16V 0 0 36 1 20 1 0 GAIN0 0 26 GAIN(dB) 1 GAIN1 R636 6.2K 1/16W 1% Q602 2N3904S-RTK/PS EAR_R + C602 22uF/16V R623 0R05OHM1/8W R622 0R05OHM1/8W Add bead for EMI AOUT_L 3 AOUT_R 3 C627 NC/0.1uF 16V Q604 2N3904S-RTK/PS R620 10K+-5%1/16W + C601 22uF/16V 1 2 3 Q603 2N3906S-RTK/PS R607 47K 1/16W C640 1UF K 16V X7R 1 2 3 4 CN602 CONN C628 10U 16V R608 47K 1/16W C638 1uf 16V C629 100N16V C639 1UF 16V C641 1UF K 16V X7R Q606 2N3904S-RTK/PS AMP_BYPASS 1 2 3 Q605 2N3906S-RTK/PS D3_3V 3,5,9,10 1 2 ZD601 VPORT0603100KV05 Q607 2N3904S-RTK/PS D602 BAS316 +12V_AUDIO +12V_AUDIO +12V_AUDIO R640 100K 1/16W MUTE C636 1UF K 16V X7R C637 1UF K 16V X7R EAR_L R610 100K 1/16W R606 1K 1/16W R604 47K 1/16W R624 2.2K 1/16W EAR_DET C626 10U 16V C649 1N 50V HPOUT_L 3 1 2 FB608 300 OHM HPOUT_R 3 1 2 ZD603 VPORT0603100KV05 R602 1K 1/16W 1 2 ZD602 VPORT0603100KV05 D3_3V 1 5 4 3 2 7 6 CN601 PHONEJACK AUDIO_SD R642 2K 1/16W BLACK + C646 470UF16V +12V_MAIN + C647 470UF16V R601 10K+-5%1/16W C630 10U 16V C622 1UF K 16V X7R +12V_MAIN 10 D601 BAS316 ripple current:760mA modify audio circuit +12V_MAIN R- +12V_MAIN 10 C621 10U 16V C612 1UF K 16V X7R R + C606 47uF/50V L- L L+ R+ AUDIO_SD_RTD 3 change from 6.2K to 6.8K change from 6.2K to 6.8K R639 6.8K +-1% 1/16W +12V_AUDIO C631 100N 50V R605 10K+-5%1/16W C613 1UF K 16V X7R R643 NC/0R05 1/16W R638 6.8K +-1% 1/16W GAIN0 GAIN1 C644 0.68uF 25V R637 6.2K 1/16W 1% C645 0.68uF 25V change from 65G080568412K T to 65G080568422K Y R609 4.7K 1/16W +5V_MAIN +5V_MAIN 4,6,7,9,10 24 INPUT 1 INPUT 2 GND 3 OUTPUT 5 OUTPUT 4 U703 EMI FILTER Vo=1.24*[1+R707/(R709+R710)] C724 100N 50V 1 2 FB705 120 OHM C718 100N 50V C727 10U 16V + C730 10UF50V Switch Collector 1 Switch Emitter 2 Timing Capacitor 3 GND 4 Comparator Inv erting Input 5 Vcc 6 Ipk Sense 7 Driv er Collector 8 U702 AZ34063AMTR-E1 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 D Custom 9 10 Tuesday , December 01, 2009 715G3678-M0C-000-0040 TUNER G3678-M0D-X-X-1-091201 R709 150 OHM 1/10W 31V R710 1.8K 1/10W L708 2.2uH SDA 5 BP 7 AGC 1 IF 11 AFC 8 AS 3 BT 9 SCL 4 TH1 12 TH2 13 TH3 14 TH4 15 ANT IN U701 Tuner TCL F13WP-2D-E R760 0R05 1/16W change to AGND C719 100N 50V 1 2 D705 RB520S30 R702 NC/1K 1/16W 5% R708 1K 1/16W + C712 10uF/50V D705 2'nd source: 93G 60S925 T C704 1N 50V Q711 NC/MMBT3906 C713 1UF K 16V X7R R762 0R05 1/16W C716 1UF K 16V X7R R705 510R 1/16W 5% 1 2 FB706 300 OHM R763 0R05 1/16W C707 NC/100pF R711 100OHM1/16W (second source: 93G 64S522SEM) SCL_tuner 3 AGC_5V change from 67G 3151007KB to 67G215Y1007KT A_GND A_GND AGC_5V A_GND R706 0R05 1/16W R734 0R05OHM1/8W R761 NC/1K 1/16W 5% R712 100OHM1/16W SDA_tuner 3 R703 180 OHM 1/10W L701 180uH C710 100N 50V RF_AGC_CTRL 3 R701 10 OHM 1/10W TUN_5V C706 100N 50V C708 NC/100pF C703 10U 16V R707 47K +-5% 1/10W D701 BAS32L C702 100N16V TUN_IF+ 3 TUN_IF- 3 Q702 NC/MMBT3904 R730 NC/1K 1/16W 5% L703 10uH 94TNTSC MN 8L R729 NC/1K 1/16W 5% + C761 330UF 16V R704 1.2 OHM 1/4W (South America) + C701 100uF/50V new part PWM:41kHz D_VCC D_VCC 4 C711 100N 50V R731 0R05 1/16W D3_3V R732 4.7K 1/16W R733 4.7K 1/16W TUN_5V L702 200uH TUN_5V RF_AGC 1 2 FB711 120 OHM change from 73T 12010010B to 73G253S514 Y +5V_MAIN +5V_MAIN 4,6,7,8,10 change from 73T 12010010B to 73G253S514 Y change from 73T 12010010B to 73G253S514 Y TUN_5V 1 2 FB710 NC/120 OHM L705 10uH L709 10uH D3_3V 3,5,8,10 C720 NC/5pF/50V + C705 100uF/16V C721 NC/5pF/50V C717 10N 50V Q704 2N7002 Q706 2N7002 25 DC_12V 1 2 3 4 5 6 7 CN702 CONN D703 original : 93G 60S 38 T Adj_BLK 3 PVDD1 1 BOOT1 2 SW1 3 GND 4 EN1 5 EN2 6 FB1 7 FB2 8 ILIM2 9 SEQ 10 BP 11 SW2 12 BOOT2 13 PVDD2 14 Thermal Pad 15 U705 TPS54286PWPR PANEL_VCC C733 100N 50V +5V_MAIN 4,6,7,8,9 1_2V R751 100K 1/10W R735 10 OHM 1/4W C750 4U7 10V C754 100N16V 3 2 1 CN703 NC/JACK 1_2V 3 + C731 100uF/25V R741 1K 1/16W R742 100OHM1/16W D3_3V 3,5,8,9 R740 4.7K 1/16W PANEL_VCC 4 C742 100N16V YPP1_2V: Max_50mA D1_2V: Max_600mA 1 2 FB708 121 OHM Q708 2N3904S-RTK/PS R753 4.7K 1/16W R737 10 OHM 1/8W BLK_ON/OFF 3 D3_3V D3_3V R755 10K+-5%1/16W R756 10K+-5%1/16W R750 10K 1/10W C762 1N 50V R752 47K +-5% 1/10W + C753 220uF16V C738 1N 50V change from 67G405V221 3P to 67G 4052213PT C747 10uF 25V 1 2 3 Q710 2N3906S-RTK/PS C748 10uF 25V S 1 S 2 S 3 G 4 D 8 D 7 D 6 D 5 Q707 AO4411 C752 100pF 50V R738 12K +-1% 1/16W C739 NC/1000pF R736 36K 1/16W 5% 2 3 4 5 7 6 8 1 Q705 SI4835DDY Vref=0.8V change 220uf to 330uf SECOND: 93T 60S801 Vout=Vref*(1+Rdown/Rup) C744 150pF 50V 1 2 D703 SM340B L712 10uH 1.3A L713 10uH 1.3A 1 2 D704 B360B C758 10uF 25V R739 3.9K1/16W C746 470pF 50V R745 10OHM1/16W C745 33N 50V C749 33N 50V R746 10OHM1/16W C751 470pF 50V + C732 100uF/25V 1 2 FB707 NC/120 OHM L711 22uH D702 SM840B C736 56nF 50V +12V_MAIN + C743 330UF 16V + C763 330UF 16V change to NC C735 150pF 50V OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 V279MKND2XA2N D AOC V27t Custom 10 10 Tuesday , December 01, 2009 715G3678-M0C-000-0040 <称爹> POWER G3678-M0DX-X-1-091201 C737 2.2uF 10V OUT 1 VCC 2 COMP 3 FB 4 SCP 5 SS 6 CT 7 GND 8 U704 AP2004SA C734 6N8 50V + C740 330UF 16V Vout=Vfbx(1+Rup/Rdown) delete FB712(71G 56K121 TA) Vfb=1.25,R153=0.7K~5K ohm CURRENT:3A C728 100N 50V C741 1UF K 16V X7R R758 0R05 1/16W +5V_MAIN D3_3V DC_12V R743 22K 1/16W R744 12K +-1% 1/16W R748 6.2K 1/16W 1% C760 100N 50V R747 20K 1/16W DC_12V 1 2 FB709 120R/6000mA C729 100N 50V +12V +12V Q709 2N3904S-RTK/PS R754 4.7K 1/16W PWR_CTRL 3 +12V_MAIN 8 D704 original : 93G 60S 38 T 26 6.2 电源板 715G3677P01000001S R912 220 OHM 1/4W R914 0R33 5% 2W R938 10K 1/8W SCK084 R910 10 OHM D903 1N4148 CT 1 COMP 2 CS 3 GND 4 OUT 5 VCC 6 NC 7 HV 8 IC901 LD7576 73T 174106 DN C907 0.1UF 50V 1 2 FB902 BEAD D901 FR103 D900 FR107 C900 3300pF 250V 1 2 3 D906 FMX-12SL 1 2 4 3 IC903 PC123X2YFZOF C924 100N 50V +12V +19V R926 1K 1/10W R931 16KOHM +-1% 1/10W 1 2 3 D905 FMX-12SL 1 2 4 3 L901 13mH IC904 KIA431A-AT/P R940 NC R930 2.4K 1/10W 1 2 3 4 5 6 7 8 CN902 CONN R919 150 OHM 1/4W R920 150 OHM 1/4W R918 150 OHM 1/4W +19V +12V C912 1N 500V C943 10pF50V L904 Coil ! ! ! R924 390 OHM 1/4W D912 SB340 93G3004500 R922 150 OHM 1/4W ! R925 1K 1/8W NC ! + C917 470UF M 35V + C919 470UF M 35V + C918 470UF M 35V ! ! 1 2 ZD803 RLZ2.2B ! ! Q901 STP10NK70ZFP ! ! C933 100N 50V + C908 22uF/50V C944 1500pF 50V 2 3 4 5 6 7 8 9 10 11 12 T901 POWER X'FMR C934 470pF 50V ! + C932 220uF 35V + C915 220uF 35V C935 10N 50V OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 1 Custom 1 2 Thursday , December 17, 2009 715G3677P01000001S ODM MODEL 01.POWER G3677-1-X-X-1-091218 ERL-28 R973 130K 1/4W 1 2 HS1 HEAT SINK(Q901_Q90G6064-1) R972 1M 1/10W 1 2 HS2 HEAT SINK(D906&D905_Q90G6064-1) R909 15 OHM 1/4W R978 300K 1/8W C936 1uF 50V RC 1 SS 2 COMP 3 FB 4 GND 5 GDRV 6 ISNS 7 VDD 8 IC905 TPS40200DR 1 2 ZD804 RLZ27B C939 1N 50V L905 20uH R974 33 OHM 1/8W R977 NC Q910 AOD413L F901 FUSE R975 100KOHM +-1% 1/8W 1 2 FB901 BEAD R976 6.2K 1/8W C945 470pF 50V R980 30K 1/8W + C941 220uF 35V DIM R921 150 OHM 1/4W C942 100N 50V F906 FUSE ON/OFF C901 220pF C902 220pF NR901 NTCR R902 1 MOHM +-5% 1/4W R901 1 MOHM +-5% 1/4W C903 0.47uF 2 1 3 4 - + BD901 GBL408 + C905 82uF 450V + C904 82uF 450V L 1 N 2 CN901 CONN R904 8.2K 1/4W R905 8.2K 1/4W C906 1500PF2KV R903 100KOHM +-5% 2WS C940 47N 50V C928 10N 50V C909 220P 50V 27 S 1 G 2 S 3 G 4 D 8 D 7 D 6 D 5 Q802 AO4614 R810 2R2 OHM1/8W C819 5pF/3KV R808 10K 1/10W C823 12pF/3KV ON/OFF R836 100K 1/10W +5V +19V R833 5.1K 1/8W ENA:0V-->OFF ; 3V~5V-->ON R834 10M +-5% 1/8W VSEN 1 SSTCMP 2 CT 3 RT1 4 GNDA 5 PDR2 6 GNDP 7 NDR2 8 NDR1 9 PDR1 10 VDDA 11 TIMER 12 PWM 13 ISEN 14 OVPT 15 ENA 16 IC801 ta9687GN-A-0-TR SSTCMP R835 2R2 OHM1/8W 1 2 CN803 CONN Vin:17.1Vdc~20.9Vdc R823 0R05OHM1/8W R840 10K 1/10W PWM:30%~100% ; 30%=Dark,100%=Bright C821 3300PF C803 47NF 10% 50V X7R Q808 KTD1028 TIMER R812 1K 1/8W OVPT R815 1K 1/8W C804 47NF 10% 50V X7R 3 1 2 D801 BAV99 3 1 2 D807 BAV70 R837 100K 1/10W C820 5pF/3KV 1 2 CN804 CONN +19V 1 2 CN805 CONN 1 2 CN806 CONN +5V P1 R838 100K 1/10W R839 100K 1/10W P3 P2 C825 8200PF 50V R801 N.C C813 1U 25V P1 P2 C811 1U 25V P3 C822 3300PF OVPT C815 33N 50V R811 91KOHM +-1% 1/8W +5V R824 1M 1/10W R813 2R2 OHM1/8W C805 820PF/50V C810 0805 1NF J 50V X7R R816 3.9K 1/4W R814 2R2 OHM1/8W C809 33N 50V HV1 HV2 HV3 HV4 R818 3.9K 1/4W R841 510 OHM 1/4W HV1 C806 820PF/50V S 1 G 2 S 3 G 4 D 8 D 7 D 6 D 5 Q804 AO4614 HV2 S 1 G 2 S 3 G 4 D 8 D 7 D 6 D 5 Q803 AO4614 3 1 2 D808 BAV70 HV3 HV4 C807 470PF/50V VSEN VSEN C814 470PF/50V C812 NC 4 1 2 6 PT802 POWER X'FMR C808 220pF 2% 50V 4 1 2 6 PT803 POWER X'FMR C826 8200PF 50V 4 1 2 6 PT804 POWER X'FMR C830 NC DIM ON/OFF R804 3.9K 1/4W R809 3.9K 1/4W D806 1N4148 R826 510 OHM 1/4W R821 47KOHM +-1% 1/8W C829 1N 50V OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 D Custom 2 2 Thursday , December 17, 2009 715G3677P01000001S AOC MODEL 02.INVERTER G3677-1-X-X-1-091218 C801 1uF50V R830 27K 1/10W R832 27K 1/10W + C802 220uF 35V 2 1 3 D805 TL431KA R819 2.2 OHM 1/4W 1 2 ZD801 BZX79-B5V6 R827 10K 1/8W Q805 PMBS3904 R8222.2 OHM 1/4W 1 2 ZD802 BZX79-B5V6 R829 300K 1/8W Q807 DTC144WN3/S C818 100N 50V R805 5.1K 1/8W 4 1 2 6 PT801 POWER X'FMR R831 10K 1/8W D G S Q806 RK7002FD5T116 + C827 220uF 35V R820 36K 1/10W C 3 B 1 E 2 D803 BAW56 C828 1uF50V C 3 B 1 E 2 D804 BAW56 3 1 2 D802 BAV99 R807 2R2 OHM1/8W R817 360OHM 1/10W C817 10N 50V R806 5.1K 1/8W C824 12pF/3KV S 1 G 2 S 3 G 4 D 8 D 7 D 6 D 5 Q801 AO4614 R803 2R2 OHM1/8W C816 1N 50V 28 6.3 按键板 715G3752K01000004S 1 2 4 3 5 SW006 SW 1 2 3 4 5 CN001 CONN R004 82K 1/16W R005 20K 1/16W 1% R006 10K 1/16W switch change to SMT type connector change to SMT type C002 100N16V 1 2 ZD001 VPORT0603100KV05 1 2 FB002 430 OHM VOL- VOL+ CH+ OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 A Custom 2 2 Wednesday , September 09, 2009 715G3752-K0A-000-0040 Keypad G3752-A-X-X-1-090909 KEY_ADC0 1 2 FB001 430 OHM 1 2 ZD002 VPORT0603100KV05 CH- C001 100N16V KEY_ADC1 KEY_ADC0 R003 10K 1/16W R002 20K 1/16W 1% R001 82K 1/16W 1 2 4 3 5 SW001 SW 1 2 4 3 5 SW002 SW 1 2 4 3 5 SW003 SW MENU Source Input 1 2 4 3 5 SW004 SW 1 2 4 3 5 SW005 SW 29 6.4 IR 板 715G3413-1 C053 100nF 16V R051 15K 1/16W 5% C055 10uF 16V 1 2 3 4 5 6 CN051 CONN R052 4K7 1/16W 5% LED_B LED_A R054 39K 1/16W 1% IRRV OUT 1 GND 2 VCC 3 U051 IC GP18B38BCE-HB VCC_3V3 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 1 A 1 1 Tuesday , February 23, 2010 715G3413-1 IR&LED G3413-1-X-X-1-100224 Q051 2N3904S-RTK/PS LED_B LED_A KEY_ADC0 1 3 4 2 5 6 AMBER BLUE SW051 TACT SW+LED VCC_3V3 C052 100nF 16V Q052 2N3904S-RTK/PS C051 100nF 16V R053 4K7 1/16W 5% C054 100nF 16V 30 7. ISP 和 DDC SOP 请登陆 ftp://cs.tpv.com.cn/ 账号: TPVSQZ 密码: TPVZGDLSQZ20090707 到各相应的文件夹下载各相应平台的烧录 SOP。 注:该网址及登陆账号和密码后续都有可能变更，请以技术支持部最新发布的为准。 31 8. BOM 注意: 以下料件信息仅供参考，如有变更，恕不另行通知，请到 http://cs.tpv.com.cn 获取最新信息。 V279MKND2XA1NZ 点位 组件 描述 备注 007G 1 L124 WOODEN PALLET 041G 68508 A CONTROL CARD 044G6002600 2A PAPER BOARD 045G 77501 BARCODE RIBBON 049G 51 1A ERADICATOR 052G 1211 B CONDUCTIVE TAPE 85MM *40MM *0.09MM 052G 2191 A PAPER TAPE 070GHDCP500HDC HDCP CODE REALTEK-HD CP E7801 078G0035 1 K SPEAKER 4 OHM 3.5 W 450/350MM 60X30MM E7801 078G0035 1 Y SPEAKER 4 OHM 3.5W 450/350MM 60X30MM 2nd source 085T 583106 GASKET_ELECTRIC E08902 089G 725CAA DB D-SUB CABLE E08902 089G 725HAA DB D-SUB CABLE 2nd source 089G714A15NISR POWER CORD 1500MM 092TB1JX1A3NGC BATTERY LR03 AAA CH760A2S/G E08907 095G179J30N904 FFC CABLE 30P 410MM P1.0 JG330J1090279 E08907 095G179W30N904 FFC CABLE 30P 410MM P1.0 WDK09082305 2nd source E09502 095G8014 9D906 HARNESS 9P-3P+6P 750MM/180MM FQE91153I E09502 095G8014 9X906 HARNESS 9P-3P+6P 750MM/180MM LCDXXTF0324 2nd source 095G8019 2D506 HARNESS 2P-2P 180MM 098GRABDMNCACD REMOTE CONTROL AOC 0D1G1030 8120 SCREW 0G1G1040 14 47 CR3 SCREW 0M1G 930 6 47 CR3 SCREW 0Q1G 330 5120 SCREW 42-D003574 0Q1G 930 8 47 CR3 SCREW 0Q1G1030 8120 SCREW 0Q1G1840 10120 SCREW 705GQ934339 27" STAND-BASE ASS'Y 0Q1G 130 6120 SCREW (T3X6) 0Q1G 140 8120 SCREW T4X8 A15T0906101 BASE BRACKET A34T1495AED 1S0100 STAND A34T1496AED 1S0130 BASE A34T1497 1 1S0100 BASE DECO A37T0136 1 HINGE ASS'Y Q01G6139 1 SCREW Q12G6082 1 FOOT PAD 705GQ934340 27" LCD REAR-HING ASS'Y 0Q1G1840 10120 SCREW 32 A15T0904101 HINGE BRACKET A33T0609AED 1L0100 HINGE COVER A34T1494AEDA1A0100 REAR COVER 705TQ987003 AC SOCKET ASS'Y CN901 087G 501 7 AC SOCKET SA-4S-091-NP 095G8021 3D903 HARNESS 3P 100MM FQE094997HY 0M1G 130 6120 SCREW M3X6 A15T0905101 AC BRACKET 750TVM270H1112N000 PANEL M270H1-L01 C1 NB CMO 756TQ9CB KD005 00 MAIN BOARD(CBPF9K1DQ3) U402 056G1133 97 IC MX25L1605DM2I-12G 16Mb SOP-8 U504 056G1133918 IC AT24C02BN-SH-T 8-SOIC U103 056G1133918 IC AT24C02BN-SH-T 8-SOIC SMTF-U402 100GARMG000N11 MCU ASS'Y(056G1133 97) SMTF-U504 100GARMGA00N1E MCU ASS'Y(056G1133918) SMTF-U103 100GARMGV00N1E MCU ASS'Y(056G1133918) A15T0900101 PI BOARD SHIELD A15T0901101 PI BOARD SHIELD COVER A15T0902101 MAIN BOARD SHIELD A15T0903101 MAIN BOARD SHIELD COVER A33T0607BDXA1C0100 POWER BUTTON A33T0608 X2 1L0100 POWER KEY DECO A33T0634AED 1L0100 FUNCTION-KEY(V24) A33T0663AEDA1L0100 PLAN BUTTON A34T1491AEOA1M0101 BEZEL V27WTV-9AOC1-1 A34T1492 1 1C0100 BEZEL DECO A34T1493 QV 1S0100 SPEAKER PLATE 040G 45762412B CBPC LABEL CN404 033G3802 3 WAFER EH-3 CN401 033G3802 3E L WAFER 2.0MM 3P H:17.4MM CN602 033G3802 4B Y L CONN 2.0 4P CN702 033G3802 7B Y L CONN 2.0 7P CN105 033G3802 9B Y L CONN 2.0 9P CN401 033T3802 3E X WAFER 2.0MM 3P CN402 033T801930F C JS FFC CONNECTOR 1.0PITCH 30P U703 053T 44 8 SAW FILTER X6773M B39352-X6773-M100 C763 067G 515331 3C EC 330UF 16V GF 8*12MM C761 067G 515331 3C EC 330UF 16V GF 8*12MM C743 067G 515331 3C EC 330UF 16V GF 8*12MM C740 067G 515331 3C EC 330UF 16V GF 8*12MM C731 067G204V101 4K CS CAP 100UF 25V 10*12 MM C732 067G204V101 4K CS CAP 100UF 25V 10*12 MM C623 067G405V471 3P EC 105C CAP 470UF M 16V C646 067G405V471 3P EC 105C CAP 470UF M 16V C647 067G405V471 3P EC 105C CAP 470UF M 16V L702 073G 253195 L CHOKE COIL 200UH CC-008305 085T 583561 GASKET 33 CN101 088G 78 13930 S RCA JACK 2*3 G/B/R+Y/W/R V/A CN601 088G 302 9B CL PHONE JACK 3.5MM 7P BLACK CN103 088T 78 1357C RCA JACK 1*1 W+R V/A CN103 088T 78 13A37 YG RCA JACK 1*2 W/R V/A RCA-276D-01 CN101 088T 78 V6 C RCA JACK 2*3 VERTICAL TYPE CN102 088T 100904 ST MINI DIN JACK 4P 2MJ1501-000111 CN104 088T 30252C PHONE JACK 3.5MM 3P V/A GREEN CN601 088T 302901 S PHONE JACK 3.5MM 7P BLACK 2SJ-W48A-001 CN104 088T 302A17 YG PHONE JACK 3.5MM 3P V/T GREEN CN106 088T 35315F VD D-SUB 15PIN FEMALE VERTICAL WITH SCREW CN106 088T 35315FVSC D-SUB 15PIN VERTICAL CONN WITH SCREW CN102 088T100Z 51CL S-5 型端子 X401 093G 2264B NXS27.000AC30F-KAB10 HC-49/US U701 094G PAL DKVML TUNER TCL F13WP-2D-E C606 067G215Y4707KT 47UF 50V L602 073G 259901 T CHOKE 22UH 10% TSL0808RA-220K1R7 L601 073G 259901 T CHOKE 22UH 10% TSL0808RA-220K1R7 U704 056G 379 68 IC PWM_AP2004SA_SOP-8L U705 056G 379145 IC TPS54286PWPR HTSSOP-14 U702 056G 379147 IC AZ34063AMTR-E1 SOIC-8 U503 056G 662 13 IC AZC099-04S SOT23-6L U104 056G 662 13 IC AZC099-04S SOT23-6L U101 056G 662 13 IC AZC099-04S SOT23-6L U501 056G 662500 IC ESD AZ1045-04QU U502 056G 662500 IC ESD AZ1045-04QU U404 056G 665 35 IC PCA9536DGKR VSSOP-8 U402 056G1133 97 IC MX25L1605DM2I-12G 16MB SOP-8 U103 056G1133918 IC AT24C02BN-SH-T 8-SOIC U504 056G1133918 IC AT24C02BN-SH-T 8-SOIC U401 056T 562233 IC RTD2663 -GR EPAD LQFP-128 U601 056T 616 48 IC TPA3121D2PWPR 15W HTSSOP-24 Q707 057G 763 3 AO4411 SO-8 Q706 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS Q704 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS R107 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R108 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R109 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R120 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R122 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R124 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R132 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R447 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R502 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R503 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R763 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R762 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R760 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN 34 R758 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R731 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R706 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R646 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R644 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R509 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R508 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R507 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R506 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R505 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R504 061G0402000 JW RST CHIPR MAX0R05 1/16W WALSIN R745 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R746 061G0402100 JF RST CHIPR 10 OHM +-5% 1/16W FENGHUA R412 061G04021001FF RST CHIPR 1KOHM +-1% 1/16W FENGHUA R130 061G04021002FF RST CHIPR 10KOHM +-1% 1/16W FENGHUA R131 061G04021002FF RST CHIPR 10KOHM +-1% 1/16W FENGHUA R138 061G04021002FF RST CHIPR 10KOHM +-1% 1/16W FENGHUA R139 061G04021002FF RST CHIPR 10KOHM +-1% 1/16W FENGHUA R413 061G04021002FF RST CHIPR 10KOHM +-1% 1/16W FENGHUA R423 061G04021002FF RST CHIPR 10KOHM +-1% 1/16W FENGHUA R448 061G04021002FF RST CHIPR 10KOHM +-1% 1/16W FENGHUA R112 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R113 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R114 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R742 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R712 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R711 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R431 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R430 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R153 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R152 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R151 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R145 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R144 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R143 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R142 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R141 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R125 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R123 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R121 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R741 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R708 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R606 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R603 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R602 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R515 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R440 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA 35 R756 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R755 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R620 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R605 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R601 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R519 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R518 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R517 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R433 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R409 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R403 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R116 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R115 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R111 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R110 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R640 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R610 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R516 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R437 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R744 061G04021202FF RST CHIPR 0402 12K +-1% 1/16W FENGHUA R738 061G04021202FF RST CHIPR 0402 12K +-1% 1/16W FENGHUA R747 061G04022002FF RST CHIPR 20KOHM +-1% 1/16W FENGHUA R641 061G0402202 JF RST CHIPR 2KOHM +-5% 1/16W FENGHUA R642 061G0402202 JF RST CHIPR 2KOHM +-5% 1/16W FENGHUA R418 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R419 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R420 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R421 061G0402220 JF RST CHIPR 22 OHM +-5% 1/16W FENGHUA R743 061G04022202FF RST CHIPR 22KOHM +-1% 1/16W FENGHUA R624 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA R429 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA R150 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA R149 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA R405 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA R410 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA R501 061G0402273 JF RST CHIP 27K 1/16W 5% FENGHUA R736 061G0402363 JF RST CHIP 36K 1/16W 5% FENGHUA R739 061G04023901FF RST CHIPR 3.9KOHM +-1% 1/16W FENGHUA R160 061G0402470 JF RST CHIPR 47 OHM 5% 1/16W FENGHUA R161 061G0402470 JF RST CHIPR 47 OHM 5% 1/16W FENGHUA R513 061G0402470 JF RST CHIPR 47 OHM 5% 1/16W FENGHUA R514 061G0402470 JF RST CHIPR 47 OHM 5% 1/16W FENGHUA R428 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R427 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R425 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R417 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R416 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA 36 R415 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R414 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R407 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R402 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R401 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R159 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R158 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R157 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R133 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R129 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R128 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R510 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R754 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R753 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R740 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R733 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R732 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R609 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R512 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R442 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R441 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R436 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R435 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R511 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R608 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA R607 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA R604 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA R432 061G0402473 JF RST CHIPR 47KOHM +-5% 1/16W FENGHUA R102 061G0402510 JF RST CHIP 51R 1/16W 5% FENGHUA R103 061G0402510 JF RST CHIP 51R 1/16W 5% FENGHUA R104 061G0402510 JF RST CHIP 51R 1/16W 5% FENGHUA R406 061G0402511 JF RST CHIP 510R 1/16W 5% FENGHUA R705 061G0402511 JF RST CHIP 510R 1/16W 5% FENGHUA R411 061G0402511 JF RST CHIP 510R 1/16W 5% FENGHUA R162 061G04025112FF RST CHIPR 51.1KOHM 1% 1/16W FENGHUA R164 061G04025112FF RST CHIPR 51.1KOHM 1% 1/16W FENGHUA R636 061G04026201FF RST CHIP 6.2K 1/16W 1% FENGHUA R637 061G04026201FF RST CHIP 6.2K 1/16W 1% FENGHUA R748 061G04026201FF RST CHIP 6.2K 1/16W 1% FENGHUA R424 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA R148 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA R147 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA R146 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA R119 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA R118 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA R117 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA R106 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA 37 R105 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA R101 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA R165 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA R166 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA R167 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA R168 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA R169 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA R170 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA R443 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA R444 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA R701 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA R750 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA R751 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA R709 061G0603151 JF RST CHIPR 150 OHM +-5% 1/10W FENGHUA R703 061G0603181 JF RST CHIPR 180 OHM +-5% 1/10W FENGHUA R710 061G0603182 JF RST CHIPR 1.8K OHM +-5% 1/10W FENGHUA R752 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA R707 061G0603473 JF RST CHIPR 47KOHM +-5% 1/10W FENGHUA R734 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA R623 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA R622 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA R737 061G0805100 JF RST CHIPR 10 OHM +-5% 1/10W FENGHUA R704 061G1206129 JW RST CHIPR 1.2 OHM +-5% 1/4W WALSIN R434 061G1206221 JF RST CHIPR 220 OHM +-5% 1/4W FENGHUA C148 065G040210031J Y CAP CHIP 0402 10P 50V NPO +/-5% C752 065G040210131J F CAP CHIP 0402 100PF J 50V NPO C762 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10% C738 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10% C649 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10% C648 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10% C504 065G040210232K Y CAP CHIP 0402 1N 50V X7R +/-10% C717 065G040210332K Y CAP CHIP 0402 10N 50V X7R +/-10% C428 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C429 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C430 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C433 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C434 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C444 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C413 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C415 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C416 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C418 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C419 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C427 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C426 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C132 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C401 065G040210412K A CAP CHIP 0402 100NF K 16V X7R 38 C402 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C405 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C406 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C407 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C408 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C409 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C411 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C412 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C421 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C629 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C605 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C604 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C603 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C502 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C501 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C425 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C424 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C702 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C742 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C754 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C445 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C744 065G040215131J F CAP 0402 150PF J 50V NPO C735 065G040215131J F CAP 0402 150PF J 50V NPO C423 065G040222031J F CAP 0402 22PF J 50V NPO C422 065G040222031J F CAP 0402 22PF J 50V NPO C147 065G040222031J F CAP 0402 22PF J 50V NPO C643 065G040222417Z A CAP CHIP 0402 220NF Z 16V Y5V C642 065G040222417Z A CAP CHIP 0402 220NF Z 16V Y5V C503 065G040222417Z A CAP CHIP 0402 220NF Z 16V Y5V C153 065G040222417Z A CAP CHIP 0402 220NF Z 16V Y5V C111 065G040227131J F CAP 0402 270PF J 50V NPO C110 065G040227131J F CAP 0402 270PF J 50V NPO C106 065G040227131J F CAP 0402 270PF J 50V NPO C125 065G040247131J F CAP 0402 470PF J 50V NPO C126 065G040247131J F CAP 0402 470PF J 50V NPO C133 065G040247131J F CAP 0402 470PF J 50V NPO C134 065G040247131J F CAP 0402 470PF J 50V NPO C746 065G040247131J F CAP 0402 470PF J 50V NPO C751 065G040247131J F CAP 0402 470PF J 50V NPO C101 065G040247131J F CAP 0402 470PF J 50V NPO C116 065G040247131J F CAP 0402 470PF J 50V NPO C127 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C128 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C129 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C141 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C142 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C143 065G040247312K A 8.31HIP 0402 47NF K 16V X7R 39 C149 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C150 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C151 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C102 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C119 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C118 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C117 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C113 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C112 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C109 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C104 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C103 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C704 065G060310232K Y CAP CHIP 0603 1N 50V X7R +/-10% C760 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R C733 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R C729 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R C728 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R C724 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R C719 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R C718 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R C711 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R C710 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R C706 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R C631 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R C640 065G060310512K A CAP CHIP 0603 1UF K 16V X7R C637 065G060310512K A CAP CHIP 0603 1UF K 16V X7R C636 065G060310512K A CAP CHIP 0603 1UF K 16V X7R C622 065G060310512K A CAP CHIP 0603 1UF K 16V X7R C613 065G060310512K A CAP CHIP 0603 1UF K 16V X7R C612 065G060310512K A CAP CHIP 0603 1UF K 16V X7R C431 065G060310512K A CAP CHIP 0603 1UF K 16V X7R C403 065G060310512K A CAP CHIP 0603 1UF K 16V X7R C641 065G060310512K A CAP CHIP 0603 1UF K 16V X7R C713 065G060310512K A CAP CHIP 0603 1UF K 16V X7R C716 065G060310512K A CAP CHIP 0603 1UF K 16V X7R C741 065G060310512K A CAP CHIP 0603 1UF K 16V X7R C736 065G060356332K Y CAP CHIP 0603 56NF K 50V X7R C734 065G060368232K Y CAP CHIP 0603 6N8 50V X7R +/-10% C420 065G080510615K 3 CAP CHIP 0805 10U 16V X5R +/-10% C621 065G080510615K 3 CAP CHIP 0805 10U 16V X5R +/-10% C626 065G080510615K 3 CAP CHIP 0805 10U 16V X5R +/-10% C628 065G080510615K 3 CAP CHIP 0805 10U 16V X5R +/-10% C630 065G080510615K 3 CAP CHIP 0805 10U 16V X5R +/-10% C703 065G080510615K 3 CAP CHIP 0805 10U 16V X5R +/-10% C727 065G080510615K 3 CAP CHIP 0805 10U 16V X5R +/-10% C417 065G080510615K 3 CAP CHIP 0805 10U 16V X5R +/-10% C131 065G080510615K 3 CAP CHIP 0805 10U 16V X5R +/-10% 40 C130 065G080510615K 3 CAP CHIP 0805 10U 16V X5R +/-10% C121 065G080510615K 3 CAP CHIP 0805 10U 16V X5R +/-10% C120 065G080510615K 3 CAP CHIP 0805 10U 16V X5R +/-10% C115 065G080510615K 3 CAP CHIP 0805 10U 16V X5R +/-10% C114 065G080510615K 3 CAP CHIP 0805 10U 16V X5R +/-10% FB706 071G 56G301 EA BEAD 300 欧 FB415 071G 56K121 CHIP BEAD FB416 071G 56K121 CHIP BEAD FB711 071G 56K121 CHIP BEAD FB417 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB709 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB401 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL FB402 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL FB406 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL FB407 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL FB408 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL FB409 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL FB410 071G 56V301 B CHIP BEAD FCM2012VF-301T07 BULLWILL FB705 071G 59B121 TB160808B FB115 071G 59B121 TB160808B FB114 071G 59B121 TB160808B FB106 071G 59B121 TB160808B FB104 071G 59B121 TB160808B FB102 071G 59B121 TB160808B FB101 071G 59B121 TB160808B FB127 071G 59B121 J CHIP BEAD 121 OHM FB128 071G 59B121 J CHIP BEAD 121 OHM FB501 071G 59B121 J CHIP BEAD 121 OHM FB606 071G 59B121 J CHIP BEAD 121 OHM FB607 071G 59B121 J CHIP BEAD 121 OHM FB708 071G 59B121 J CHIP BEAD 121 OHM FB411 071G 59B431 BK1608 HW 431 FB120 071G 59B431 BK1608 HW 431 FB118 071G 59B431 BK1608 HW 431 FB126 071G 59C300 CHIP BEAD FB125 071G 59C300 CHIP BEAD FB124 071G 59C300 CHIP BEAD FB113 071G 59C300 CHIP BEAD FB112 071G 59C300 CHIP BEAD FB111 071G 59C300 CHIP BEAD FB108 071G 59C300 CHIP BEAD FB107 071G 59C300 CHIP BEAD FB105 071G 59C300 CHIP BEAD FB103 071G 59C300 CHIP BEAD FB109 071G 59C300 CHIP BEAD FB110 071G 59C300 CHIP BEAD L701 073G 62181 CHIP INDUCTOR 41 L712 073G253S 69 DN HF SMD CHOKE 10UH 1.3A LZ.25100.A2P L713 073G253S 69 DN HF SMD CHOKE 10UH 1.3A LZ.25100.A2P L101 073T 63109 5M IND CHIP 0603 1.0UF MICROGATE L102 073T 63109 5M IND CHIP 0603 1.0UF MICROGATE L103 073T 63109 5M IND CHIP 0603 1.0UF MICROGATE L708 073T 6322910K CHIP INDUCTOR 0603 2.2UH 10% D401 093G 60505 DIO SIG SM BAT54C(PHSE)R D501 093G 60505 DIO SIG SM BAT54C(PHSE)R ZD116 093G 60505 DIO SIG SM BAT54C(PHSE)R ZD109 093G 64 37 N VPORT0603100KV05 ZD110 093G 64 37 N VPORT0603100KV05 ZD111 093G 64 37 N VPORT0603100KV05 ZD112 093G 64 37 N VPORT0603100KV05 ZD113 093G 64 37 N VPORT0603100KV05 ZD114 093G 64 37 N VPORT0603100KV05 ZD601 093G 64 37 N VPORT0603100KV05 ZD602 093G 64 37 N VPORT0603100KV05 ZD603 093G 64 37 N VPORT0603100KV05 ZD108 093G 64 37 N VPORT0603100KV05 ZD101 093G 64 37 N VPORT0603100KV05 ZD102 093G 64 37 N VPORT0603100KV05 ZD103 093G 64 37 N VPORT0603100KV05 ZD104 093G 64 37 N VPORT0603100KV05 ZD105 093G 64 37 N VPORT0603100KV05 ZD106 093G 64 37 N VPORT0603100KV05 ZD107 093G 64 37 N VPORT0603100KV05 ZD117 093G 39S 24 T RLZ 5.6B LLDS ZD501 093G 39S 24 T RLZ 5.6B LLDS D704 093G 60S 31 T DIODE B360B 3A/60V SMB D703 093G 60S 38 T DIODE SM340B 3A/40V DO-214AA D701 093G 64S3PH BAS32L D601 093G 64S900 T DIODE BAS316 SOT-323 PHILIPS D602 093G 64S900 T DIODE BAS316 SOT-323 PHILIPS D702 093G8004500 SM840B U702 056G 379148 IC AP34063S8G-13 SOP-8L Q601 057G 417511 MMBT3904 Q503 057G 417511 MMBT3904 Q501 057G 417511 MMBT3904 Q405 057G 417511 MMBT3904 Q403 057G 417511 MMBT3904 Q602 057G 417511 MMBT3904 Q604 057G 417511 MMBT3904 Q606 057G 417511 MMBT3904 Q607 057G 417511 MMBT3904 Q708 057G 417511 MMBT3904 Q709 057G 417511 MMBT3904 Q101 057G 417512 MMBT3906 42 Q401 057G 417512 MMBT3906 Q402 057G 417512 MMBT3906 Q502 057G 417512 MMBT3906 Q603 057G 417512 MMBT3906 Q605 057G 417512 MMBT3906 Q710 057G 417512 MMBT3906 Q101 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC Q401 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC Q402 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC Q502 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC Q603 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC Q605 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC Q710 057G 417517 TRA LMBT3906LT1G -200MA/-40V SOT-23 LRC Q709 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q708 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q607 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q606 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q604 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q602 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q601 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q403 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q405 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q501 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q503 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q404 057G 763 3 AO4411 SO-8 Q706 057G 763511 MOSFET SRK7002LT1G SOT-23 LRC Q704 057G 763511 MOSFET SRK7002LT1G SOT-23 LRC Q705 057G 763912 MOSFET SI4835DDY SO-8 R107 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R108 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R109 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R120 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R122 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R124 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R763 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R762 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R760 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R758 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R731 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R706 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R646 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R644 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R509 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R508 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R507 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R506 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R505 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO 43 R504 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R503 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R502 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R447 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R132 061G0402000 JY RST CHIPR 0 OHM +-5% 1/16W YAGEO R746 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO R745 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO R412 061G04021001FY RST CHIPR 1KOHM 1% 1/16W YAGEO R130 061G04021002FY RST CHIP 10K 1/16W 1% R131 061G04021002FY RST CHIP 10K 1/16W 1% R138 061G04021002FY RST CHIP 10K 1/16W 1% R139 061G04021002FY RST CHIP 10K 1/16W 1% R413 061G04021002FY RST CHIP 10K 1/16W 1% R423 061G04021002FY RST CHIP 10K 1/16W 1% R448 061G04021002FY RST CHIP 10K 1/16W 1% R152 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R151 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R145 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R144 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R143 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R142 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R141 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R125 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R123 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R121 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R114 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R113 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R112 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R153 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R430 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R431 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R711 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R712 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R742 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO R741 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO R708 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO R606 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO R603 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO R602 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO R515 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO R440 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO R134 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R135 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R136 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R137 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R110 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R111 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 44 R115 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R116 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R403 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R409 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R433 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R517 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R518 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R519 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R601 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R605 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R620 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R755 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R756 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R134 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R135 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R136 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R137 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO R437 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO R516 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO R610 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO R640 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO R738 061G04021202FY RST CHIP 12K 1/16W 1% R744 061G04021202FY RST CHIP 12K 1/16W 1% R747 061G04022002FY RST CHIP 20K 1/16W 1% R642 061G0402202 JY RST CHIPR 2KOHM 1/16W YAGEO R641 061G0402202 JY RST CHIPR 2KOHM 1/16W YAGEO R418 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO R419 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO R420 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO R421 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO R743 061G04022202FY RST CHIP 22K 1/16W 1% R149 061G0402222 JY RST CHIPR 2.2KOHM +-5% 1/16W YAGEO R150 061G0402222 JY RST CHIPR 2.2KOHM +-5% 1/16W YAGEO R429 061G0402222 JY RST CHIPR 2.2KOHM +-5% 1/16W YAGEO R624 061G0402222 JY RST CHIPR 2.2KOHM +-5% 1/16W YAGEO R405 061G0402223 JY RST CHIPR 22KOHM +-5% 1/16W YAGEO R410 061G0402223 JY RST CHIPR 22KOHM +-5% 1/16W YAGEO R501 061G0402273 JY RST CHIPR 27K OHM +-5% 1/16W YAGEO R736 061G0402363 JY RST CHIP 36K 1/16W 5% YAGEO R739 061G04023901FY RST CHIPR 3.9KOHM 1% 1/16W YAGEO R514 061G0402470 JY RST CHIPR 47 OHM 5% 1/16W YAGEO R513 061G0402470 JY RST CHIPR 47 OHM 5% 1/16W YAGEO R161 061G0402470 JY RST CHIPR 47 OHM 5% 1/16W YAGEO R160 061G0402470 JY RST CHIPR 47 OHM 5% 1/16W YAGEO R414 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R407 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R402 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO 45 R401 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R159 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R158 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R157 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R133 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R129 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R128 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R511 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R754 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R753 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R740 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R733 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R732 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R609 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R512 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R415 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R416 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R417 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R425 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R427 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R428 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R435 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R436 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R441 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R442 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R510 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO R608 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO R607 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO R604 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO R432 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO R102 061G0402510 JY RST CHIP 51R 1/16W 5% YAGEO R103 061G0402510 JY RST CHIP 51R 1/16W 5% YAGEO R104 061G0402510 JY RST CHIP 51R 1/16W 5% YAGEO R406 061G0402511 JY RST CHIP 510R 1/16W 5% YAGEO R411 061G0402511 JY RST CHIP 510R 1/16W 5% YAGEO R705 061G0402511 JY RST CHIP 510R 1/16W 5% YAGEO R162 061G04025112FY RST CHIPR 51.1KOHM £«£1% 1/16W YAGEO R164 061G04025112FY RST CHIPR 51.1KOHM £«£1% 1/16W YAGEO R636 061G04026201FY RST CHIP 6.2K 1/16W 1% R637 061G04026201FY RST CHIP 6.2K 1/16W 1% R638 061G04026201FY RST CHIP 6.2K 1/16W 1% R639 061G04026201FY RST CHIP 6.2K 1/16W 1% R748 061G04026201FY RST CHIP 6.2K 1/16W 1% R638 061G04026801FF RST CHIPR 6.8K +-1% 1/16W FENGHUA R639 061G04026801FF RST CHIPR 6.8K +-1% 1/16W FENGHUA R424 061G04027509FY RST CHIPR 75 OHM +-1% 1/16W YAGEO R148 061G04027509FY RST CHIPR 75 OHM +-1% 1/16W YAGEO 46 R147 061G04027509FY RST CHIPR 75 OHM +-1% 1/16W YAGEO R146 061G04027509FY RST CHIPR 75 OHM +-1% 1/16W YAGEO R119 061G04027509FY RST CHIPR 75 OHM +-1% 1/16W YAGEO R118 061G04027509FY RST CHIPR 75 OHM +-1% 1/16W YAGEO R117 061G04027509FY RST CHIPR 75 OHM +-1% 1/16W YAGEO R106 061G04027509FY RST CHIPR 75 OHM +-1% 1/16W YAGEO R105 061G04027509FY RST CHIPR 75 OHM +-1% 1/16W YAGEO R101 061G04027509FY RST CHIPR 75 OHM +-1% 1/16W YAGEO R165 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO R166 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO R167 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO R168 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO R169 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO R170 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO R443 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO R444 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO R701 061G0603100 JY RST CHIPR 10OHM 1/10W YAGEO R750 061G0603103 JY RST CHIPR 10KOHM +-5% 1/10W YAGEO R751 061G0603104 JY RST CHIPR 100KOHM 1/10W YAGEO R709 061G0603151 JY RST CHIP 150R 1/10W 5% YAGEO R703 061G0603181 JY RST CHIPR 180R +-5% 1/10W YAGEO R710 061G0603182 JY RST CHIP 1.8K OHM 1/10W 5% R707 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO R752 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO R622 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA R623 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA R734 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA R622 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN R623 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN R734 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN R737 061G0805100 JY RST CHIPR 10OHM +- 5% 1/8W YEGAO R735 061G12060004JY RST CHIPR MAX0R05 4A 1/4W YAGEO R735 061G1206100 JF RST CHIPR 10 OHM +-5% 1/4W FENGHUA R704 061G1206129 JY RST CHIPR 1.2 OHM +-5% 1/4W YAGEO R434 061G1206221 JY RST CHIPR 220R +-5% 1/4W YAGEO C148 065G040210031J A CAP CHIP 0402 10PF J 50V NPO C752 065G040210131J A CAP 0402 100PF J 50V NPO C504 065G040210232K A CAP 0402 1NF K 50V X7R C648 065G040210232K A CAP 0402 1NF K 50V X7R C649 065G040210232K A CAP 0402 1NF K 50V X7R C738 065G040210232K A CAP 0402 1NF K 50V X7R C762 065G040210232K A CAP 0402 1NF K 50V X7R C717 065G040210332K A CAP 0402 10NF 50V X7R C152 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C132 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C415 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C416 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% 47 C418 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C419 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C421 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C424 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C425 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C426 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C427 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C428 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C429 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C430 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C433 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C434 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C444 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C445 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C501 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C502 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C754 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C742 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C702 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C629 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C605 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C604 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C603 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C401 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C402 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C405 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C406 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C407 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C408 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C409 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C411 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C412 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C413 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C152 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C639 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R C638 065G0402105A5K A CAP CHIP 0402 1UF K 10V X5R C638 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R C639 065G0402105A5K T CAP CHIP 0402 1UF K 10V X5R C735 065G040215131J A CAP CHIP 0402 150PF J 50V NPO C744 065G040215131J A CAP CHIP 0402 150PF J 50V NPO C147 065G040222031J A CAP 0402 22PF J 50V NPO C422 065G040222031J A CAP 0402 22PF J 50V NPO C423 065G040222031J A CAP 0402 22PF J 50V NPO C153 065G040222417Z Y CAP CHIP 0402 220NF 16V Y5V C503 065G040222417Z Y CAP CHIP 0402 220NF 16V Y5V C642 065G040222417Z Y CAP CHIP 0402 220NF 16V Y5V C643 065G040222417Z Y CAP CHIP 0402 220NF 16V Y5V 48 C106 065G040227131J Y CAP CHIP 0402 270PF J 50V NPO C110 065G040227131J Y CAP CHIP 0402 270PF J 50V NPO C111 065G040227131J Y CAP CHIP 0402 270PF J 50V NPO C751 065G040247131J A CAP CHIP 0402 470PF J 50V NPO C746 065G040247131J A CAP CHIP 0402 470PF J 50V NPO C134 065G040247131J A CAP CHIP 0402 470PF J 50V NPO C133 065G040247131J A CAP CHIP 0402 470PF J 50V NPO C126 065G040247131J A CAP CHIP 0402 470PF J 50V NPO C125 065G040247131J A CAP CHIP 0402 470PF J 50V NPO C116 065G040247131J A CAP CHIP 0402 470PF J 50V NPO C101 065G040247131J A CAP CHIP 0402 470PF J 50V NPO C122 065G040250931D F CAP CHIP 0402 5PF D 50V NPO C123 065G040250931D F CAP CHIP 0402 5PF D 50V NPO C124 065G040250931D F CAP CHIP 0402 5PF D 50V NPO C144 065G040250931D F CAP CHIP 0402 5PF D 50V NPO C145 065G040250931D F CAP CHIP 0402 5PF D 50V NPO C146 065G040250931D F CAP CHIP 0402 5PF D 50V NPO C704 065G060310232K A CAP CHIP 0603 1000PF K 50V X7R C760 065G060310432K A CAP CHIP 0603 100NF K 50V X7R C733 065G060310432K A CAP CHIP 0603 100NF K 50V X7R C729 065G060310432K A CAP CHIP 0603 100NF K 50V X7R C728 065G060310432K A CAP CHIP 0603 100NF K 50V X7R C724 065G060310432K A CAP CHIP 0603 100NF K 50V X7R C719 065G060310432K A CAP CHIP 0603 100NF K 50V X7R C718 065G060310432K A CAP CHIP 0603 100NF K 50V X7R C711 065G060310432K A CAP CHIP 0603 100NF K 50V X7R C710 065G060310432K A CAP CHIP 0603 100NF K 50V X7R C706 065G060310432K A CAP CHIP 0603 100NF K 50V X7R C631 065G060310432K A CAP CHIP 0603 100NF K 50V X7R C442 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R C741 065G060310512K T CAP CHIP 0603 1UF K 16V X7R C716 065G060310512K T CAP CHIP 0603 1UF K 16V X7R C713 065G060310512K T CAP CHIP 0603 1UF K 16V X7R C641 065G060310512K T CAP CHIP 0603 1UF K 16V X7R C640 065G060310512K T CAP CHIP 0603 1UF K 16V X7R C637 065G060310512K T CAP CHIP 0603 1UF K 16V X7R C636 065G060310512K T CAP CHIP 0603 1UF K 16V X7R C622 065G060310512K T CAP CHIP 0603 1UF K 16V X7R C613 065G060310512K T CAP CHIP 0603 1UF K 16V X7R C612 065G060310512K T CAP CHIP 0603 1UF K 16V X7R C431 065G060310512K T CAP CHIP 0603 1UF K 16V X7R C403 065G060310512K T CAP CHIP 0603 1UF K 16V X7R C737 065G0603225A5K 3 CAP CHIP 0603 2.2UF K 10V X5R C737 065G0603225A5K T CAP CHIP 0603 2.2UF K 10V X5R C745 065G060333332K F CAP CHIP 0603 33NF K 50V X7R C749 065G060333332K F CAP CHIP 0603 33NF K 50V X7R C749 065G060333332K Y CAP CHIP 0603 33NF K 50V X7R 49 C745 065G060333332K Y CAP CHIP 0603 33NF K 50V X7R C750 065G0603475A5K M CAP CHIP 0603 4.7UF K 10V X5R C750 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R C736 065G060356332K A CAP CHIP 0603 56NF K 50V X7R C734 065G060368232K A CAP CHIP 0603 6.8NF K 50V X7R C114 065G080510615K T CHIP 10UF 16V X5R 0805 C115 065G080510615K T CHIP 10UF 16V X5R 0805 C727 065G080510615K T CHIP 10UF 16V X5R 0805 C703 065G080510615K T CHIP 10UF 16V X5R 0805 C630 065G080510615K T CHIP 10UF 16V X5R 0805 C628 065G080510615K T CHIP 10UF 16V X5R 0805 C626 065G080510615K T CHIP 10UF 16V X5R 0805 C621 065G080510615K T CHIP 10UF 16V X5R 0805 C420 065G080510615K T CHIP 10UF 16V X5R 0805 C417 065G080510615K T CHIP 10UF 16V X5R 0805 C131 065G080510615K T CHIP 10UF 16V X5R 0805 C130 065G080510615K T CHIP 10UF 16V X5R 0805 C121 065G080510615K T CHIP 10UF 16V X5R 0805 C120 065G080510615K T CHIP 10UF 16V X5R 0805 C432 065G080522512K 3 CAP CHIP 0805 2U2 16V X7R +/-10% C414 065G080522512K 3 CAP CHIP 0805 2U2 16V X7R +/-10% C410 065G080522512K 3 CAP CHIP 0805 2U2 16V X7R +/-10% C404 065G080522512K 3 CAP CHIP 0805 2U2 16V X7R +/-10% C432 065G080522512K T CAP CHIP 0805 2.2UF K 16V X7R C414 065G080522512K T CAP CHIP 0805 2.2UF K 16V X7R C410 065G080522512K T CAP CHIP 0805 2.2UF K 16V X7R C404 065G080522512K T CAP CHIP 0805 2.2UF K 16V X7R C645 065G080568422K Y CAP CHIP 0805 0.68UF K 25V X7R C644 065G080568422K Y CAP CHIP 0805 0.68UF K 25V X7R C758 065G121010625K 3 CAP CHIP 1210 10UF K 25V X5R C748 065G121010625K 3 CAP CHIP 1210 10UF K 25V X5R C747 065G121010625K 3 CAP CHIP 1210 10UF K 25V X5R C758 065G121010625K T CAP CHIP 1210 10UF K 25V X5R C748 065G121010625K T CAP CHIP 1210 10UF K 25V X5R C747 065G121010625K T CAP CHIP 1210 10UF K 25V X5R FB608 071G 56G301 EA BEAD 300 欧 FB609 071G 56G301 EA BEAD 300 欧 FB709 071G 56K121 CHIP BEAD FB417 071G 56K121 CHIP BEAD FB415 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB416 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB711 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB401 071G 56V301 M CHIP BEAD 2012 300 OHM FB402 071G 56V301 M CHIP BEAD 2012 300 OHM FB406 071G 56V301 M CHIP BEAD 2012 300 OHM FB407 071G 56V301 M CHIP BEAD 2012 300 OHM FB408 071G 56V301 M CHIP BEAD 2012 300 OHM 50 FB409 071G 56V301 M CHIP BEAD 2012 300 OHM FB410 071G 56V301 M CHIP BEAD 2012 300 OHM L711 073G M5822020S CHOKE SMD 22UH+-20% TAICHANG L711 073G M5822020T 22UH +-20% L703 073G253S514 Y SMD CHOKE 10UH 10% 340MA L705 073G253S514 Y SMD CHOKE 10UH 10% 340MA L709 073G253S514 Y SMD CHOKE 10UH 10% 340MA L708 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE CN501 088G 340 21 VT HDMI HEADER 21P V/T CN501 088T 340 21 VA HDMI HEADER 21P V/T ZD116 093G 60518SEM DIODE BAT54C-HAF 300MA/30V SOT-23 D501 093G 60518SEM DIODE BAT54C-HAF 300MA/30V SOT-23 D401 093G 60518SEM DIODE BAT54C-HAF 300MA/30V SOT-23 D705 093G 60S 22 T DIODE RB520S-30 1A/30V SC-79 D705 093G 60S925 T DIODE RB520S30 SOD523 D701 093G 64S522SEM LL4148 E715 715G3678M01000004K MAIN PCB 198X95X1.6MM FR-4 D/S 1OZ E715 715G3678M01000004L MAIN PCB 198X95X1.6MM FR-4 D/S 1OZ C712 067G 3051007PT CAP 105℃ 10UF M 50V C705 067G 3051013PT EC 100UF 20% 16V 5*11 C443 067G 3051013PT EC 100UF 20% 16V 5*11 C701 067G 3051017PT EC 100UF 20% 50V 8*11.5 C602 067G 3052207PT EC 22UF 20% 50V 5*11 C601 067G 3052207PT EC 22UF 20% 50V 5*11 C753 067G 4052213PT EC 220UF M 16V 6.3*11MM C730 067G215Y1007KT KY50VB10M-TP5 5*11.5 IRPF9QY1 IR BOARD G3413-1-X-X-1-100224 CN051 033G3802 6B YH L WAFER U051 056G 627503 IC GP18B38BCE-HB SW051 077G610D 1 WB TACT SW+LED 709T3413 QM001 COMSUPTIVE ASS'Y 049G 51 1A ERADICATOR 052G 2191 A PAPER TAPE 055G 2 ALCOHOL 055G 23524 WELDING FLUX WITHOUT PB Q55G 100622 TIN STICK(SAC0507) Q55G 100625 TIN STICK_LOW ARGENTUM Q052 057G 417 12 T KEC 2N3904S-RTK/PS Q051 057G 417 12 T KEC 2N3904S-RTK/PS R051 061G0402153 RST CHIP 15K 1/16W 5% R054 061G04023902FY RST CHIP 39K 1/16W 1% R053 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R052 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W C052 065G040210412K T CAP CHIP 0402 0.1UF 16V X7R C053 065G040210412K T CAP CHIP 0402 0.1UF 16V X7R C054 065G040210412K T CAP CHIP 0402 0.1UF 16V X7R C051 065G040210412K T CAP CHIP 0402 0.1UF 16V X7R 51 C055 065G080510615K T CHIP 10UF 16V X5R 0805 715G3413 1 IR PCB 709T3413 QS001 COMSUPTIVE ASS'Y 055G 100610 TIN CREAM W/O PB 052G6026 3 MESH PRINTTING PAPER 055G 23520 IPA Q05G6054 1 SHEET Q09G6012 1 PIN 052G 2191 A PAPER TAPE C051 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C052 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C053 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C054 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% KEPF9QY3 KEY BOARD G3752-A-X-X-1-090909 CN001 033G8032 3F HR CONNECTOR 3P 1.25 R006 061G04021002FF RST CHIPR 10KOHM +-1% 1/16W FENGHUA R003 061G04021002FF RST CHIPR 10KOHM +-1% 1/16W FENGHUA R004 061G04028202FF RST CHIPR 82KOHM +-1% 1/16W FENGHUA R001 061G04028202FF RST CHIPR 82KOHM +-1% 1/16W FENGHUA C002 065G040210412K A CAP CHIP 0402 100NF K 16V X7R C001 065G040210412K A CAP CHIP 0402 100NF K 16V X7R FB001 071G 59B431 BK1608 HW 431 FB002 071G 59B431 BK1608 HW 431 ZD001 093G 64 37 N VPORT0603100KV05 ZD002 093G 64 37 N VPORT0603100KV05 CN001 033G8032 3F X WAFER 3P 1.25MM R003 061G04021002FY RST CHIP 10K 1/16W 1% R006 061G04021002FY RST CHIP 10K 1/16W 1% R002 061G04022002FF RST CHIPR 20KOHM +-1% 1/16W FENGHUA R005 061G04022002FF RST CHIPR 20KOHM +-1% 1/16W FENGHUA R002 061G04022002FT RST CHIP 20K 1/16W 1% TZAI YUAN R005 061G04022002FT RST CHIP 20K 1/16W 1% TZAI YUAN R005 061G04022002FY RST CHIP 20K 1/16W 1% R002 061G04022002FY RST CHIP 20K 1/16W 1% R001 061G04028202FY RST CHIP 82K 1/16W 1% R004 061G04028202FY RST CHIP 82K 1/16W 1% C002 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% C001 065G040210412K 3 CAP CHIP 0402 100N 16V X7R 10% FB001 071G 59B431 M CHIP BEAD 430 OHM FB002 071G 59B431 M CHIP BEAD 430 OHM SW006 077G 606 5B CJ TACT SWITCH SMT 5PIN SW005 077G 606 5B CJ TACT SWITCH SMT 5PIN SW004 077G 606 5B CJ TACT SWITCH SMT 5PIN SW003 077G 606 5B CJ TACT SWITCH SMT 5PIN SW002 077G 606 5B CJ TACT SWITCH SMT 5PIN SW001 077G 606 5B CJ TACT SWITCH SMT 5PIN 715G3752K01000004S KEY PCB 117X15X1.6MM FR-4 D/S 1OZ 52 PWTV9F44MQMS POWER BOARD G3677-1-X-X-1-091218 040G 45762412B CBPC LABEL CN804 033G8021 2E F WAFER CN803 033G8021 2E F WAFER CN805 033G8021 2E F WAFER CN806 033G8021 2E F WAFER CN806 033G8021 2E XY CONNECTOR CN805 033G8021 2E XY CONNECTOR CN804 033G8021 2E XY CONNECTOR CN803 033G8021 2E XY CONNECTOR CN901 033G8029 3A H B2P3S-VH CN901 033G8029 3A H GP WAFER IC903 056G 139 11 IC TLP781F(D4-BLL,F) PHOTOCOUPLER DIP-4 IC903 056G 139 3A IC PC123Y22FZ0F C903 063G107K474 6S CAP X2 0.47UF K 275VAC C903 063G107K474 TM CAP X2 0.47UF K 275VAC C903 063G107K474 US 0.47UF +-10% C823 065G 3J1206ES 12PF 5% SL 3KV SEC C824 065G 3J1206ES 12PF 5% SL 3KV SEC C823 065G 3J1206ET 12PF 5% SL 3KV TDK C824 065G 3J1206ET 12PF 5% SL 3KV TDK C819 065G 3J5096ES 5PF 5% SL 3KV SEC C820 065G 3J5096ES 5PF 5% SL 3KV SEC C820 065G 3J5096ET 5PF 5% SL 3KV C819 065G 3J5096ET 5PF 5% SL 3KV C901 065G306K2212B3 Y1 CAP 220PF +-10% 250VAC C902 065G306K2212B3 Y1 CAP 220PF +-10% 250VAC C901 065G306K2212BM CAP Y1 220PF 10% Y5P 250VAC KX C902 065G306K2212BM CAP Y1 220PF 10% Y5P 250VAC KX C900 065G306M3322BM 3300PF C900 065G306M3322BP 3300PF 20% C802 067G215D2216KV EC 220UF M 35V 10*12MM C827 067G215D2216KV EC 220UF M 35V 10*12MM C915 067G215D2216KV EC 220UF M 35V 10*12MM C932 067G215D2216KV EC 220UF M 35V 10*12MM C941 067G215D2216KV EC 220UF M 35V 10*12MM C917 067G215L4716LV EC 470UF M 35V 10*20MM C918 067G215L4716LV EC 470UF M 35V 10*20MM C919 067G215L4716LV EC 470UF M 35V 10*20MM C917 067G215P4716HV LOW ESR EC 470UF M 35V 10*21MM C918 067G215P4716HV LOW ESR EC 470UF M 35V 10*21MM C919 067G215P4716HV LOW ESR EC 470UF M 35V 10*21MM C917 067G215S4716KV CAP 105C 470UF M 35V 10*20 C918 067G215S4716KV CAP 105C 470UF M 35V 10*20 C919 067G215S4716KV CAP 105C 470UF M 35V 10*20 C904 067G305L82015H EC 82UF 20% 450V SP 18*35 C905 067G305L82015H EC 82UF 20% 450V SP 18*35 53 C905 067G305L82015K EC 82UF 20% 450V PW 18*35 C904 067G305L82015K EC 82UF 20% 450V PW 18*35 C905 067G305L82015L EC 82UF 20% 450V RXC 18*35.5 C904 067G305L82015L EC 82UF 20% 450V RXC 18*35.5 L901 073G 174106 L LINE FILTER 13MH LF-1008108 L904 073G 253 91 H CHOKE COIL L904 073G 253 91 L CHOKE BY LI TA L904 073G 253 91 V CHOKE COIL 3.5UH+-10% L905 073G 253194 L CHOKE COIL 20UH CC-008064 L901 073T 174106 V LINE FILTER 13MH MIN L901 073T 174106 DN LINE FILTER 13MH LK.TF032.A20 L905 073T 253194 H CHOKE COIL 20UH L905 073T 253194 S CHOKE COIL 20UH PT804 080GL24T 25 DN NVERTER X'FMR 410UH TK.6519A.101 PT803 080GL24T 25 DN NVERTER X'FMR 410UH TK.6519A.101 PT802 080GL24T 25 DN NVERTER X'FMR 410UH TK.6519A.101 PT801 080GL24T 25 DN NVERTER X'FMR 410UH TK.6519A.101 PT801 080GL24T 25 YS INVERTER X'FMR 410UH YS04170397 PT802 080GL24T 25 YS INVERTER X'FMR 410UH YS04170397 PT803 080GL24T 25 YS INVERTER X'FMR 410UH YS04170397 PT804 080GL24T 25 YS INVERTER X'FMR 410UH YS04170397 T901 080GL32P 7 H X'FMR 400UH 10% BCK-12850-HA T901 080GL32P 7 L X'FMR 400UH 10% PT-011126-11 T901 080GL32P 7 N X'FMR 400UH 10% YUVA-1248 T901 080GL32P 7 S X'FMR 400UH 10% BCK-ERL28-19209 BD901 093G 50460 44 BRIDGE GBL408 4A/800V GBL BD901 093G 50460 50 BRIDGE GBL08 4A/800V GBL D912 093G 60327 DIODE SB340 3A/40V DO-201AD CN902 095G 825 8D901 HARNESS 8P(SCN)-7P 300MM CN902 095G 825 8X901 HARNESS 8P(SCN)-7P 300MM C908 096G 29 8 TUBE 705GQ961004 NR901 ASS'Y NR901 061G 5810T RST NTCR 8 OHM +-20% 4A 13MM THINKING NR901 061G 58809MEN RST NTCR 8OHM ＋－20％ 4A XIANZHENG 096G 29 10 H.S. TUBE Q09G 203 8 PIN 705TQ957035 Q901 ASS'Y Q901 057G 667 21 STP10NK70ZFP Q901 057G 667 22 FQPF8N80C HS1 090G6064 1 HEAT SINK 0M1G 930 8120 SCREW 705TQ993044 D905/D906 ASS'Y HS2 090G6064 1 HEAT SINK D906 093G 52 57 DIODE FMXA-2202S 20A/200V TO-220F D905 093G 52 57 DIODE FMXA-2202S 20A/200V TO-220F D905 093G 64 53 F DIODE YG906C2RSC 20A/200V TO-220F15 D906 093G 64 53 F DIODE YG906C2RSC 20A/200V TO-220F15 54 0M1G 930 8120 SCREW D805 056G 158 18 IC TL431KB SC-59 D805 056G 158501 IC AS431AN-E1 SOT23 IC905 056G 379 84 IC TPS40200DR SOIC-8 IC901 056G 379529 IC LD7576AGR SOP-7 IC801 056G 608 12 IC TA9687GN-A-0-TR SOP-16 Q805 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q805 057G 417511 MMBT3904 Q806 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM Q807 057G 760 5 DTC144WKA BY ROHM SMT Q807 057G 760 5A DTC 144WN3/S SOT-23 Q803 057G 763 61 FET AO4614 SO-8 Q802 057G 763 61 FET AO4614 SO-8 Q801 057G 763 61 FET AO4614 SO-8 Q804 057G 763 61 FET AO4614 SO-8 Q806 057G 763 62 FET 2N7002K 300MA/60V SOT-23 Q910 057G 763101 FET AOD413L -12A/-40V TO-252 Q801 057G 763111 FET APM4568AKC-TRG 40V/6.5A SOP-8 Q802 057G 763111 FET APM4568AKC-TRG 40V/6.5A SOP-8 Q803 057G 763111 FET APM4568AKC-TRG 40V/6.5A SOP-8 Q804 057G 763111 FET APM4568AKC-TRG 40V/6.5A SOP-8 R926 061G06031001FF RST CHIPR 1KOHM +-1% 1/10W FENGHUA R926 061G06031001FY RST CHIPR 1KOHM +-1% 1/10W YAGEO R840 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA R840 061G0603103 JY RST CHIPR 10KOHM +-5% 1/10W YAGEO R836 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA R837 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA R839 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA R838 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA R838 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN R836 061G0603104 JY RST CHIPR 100KOHM 1/10W YAGEO R837 061G0603104 JY RST CHIPR 100KOHM 1/10W YAGEO R839 061G0603104 JY RST CHIPR 100KOHM 1/10W YAGEO R824 061G0603105 JF RST CHIPR 1M OHM +-5% 1/10W FENGHUA R972 061G0603105 JF RST CHIPR 1M OHM +-5% 1/10W FENGHUA R972 061G0603105 JY RST CHIP 1M 1/10W 5% YAGEO R824 061G0603105 JY RST CHIP 1M 1/10W 5% YAGEO R931 061G06031602FY RST CHIPR 16KOHM +-1% 1/10W YAGEO R930 061G06032401FF RST CHIPR 2.4KOHM +-1% 1/10W FENGHUA R930 061G06032401FY RST CHIPR 2.4KOHM +-1% 1/10W YAGEO R830 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA R832 061G0603273 JF RST CHIPR 27KOHM 5% 1/10W FENGHUA R830 061G0603273 JT RST CHIP 27K 1/10W 5% TZAI YUAN R832 061G0603273 JT RST CHIP 27K 1/10W 5% TZAI YUAN R817 061G06033600FF RST CHIPR 360 OHM +-1% 1/10W FENGHUA R817 061G06033600FY RST CHIPR 360 OHM +-1% 1/10W YAGEO R820 061G0603363 JF RST CHIPR 36KOHM 5% 1/10W FENGHUA 55 R820 061G0603363 JT RST CHIPR 36K OHM +-5% 1/10W TZAI YUAN R823 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA R823 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN R812 061G08051001FT RST CHIP 1K 1/8W 1% R815 061G08051001FT RST CHIP 1K 1/8W 1% R925 061G08051001FT RST CHIP 1K 1/8W 1% R925 061G08051001FT RST CHIP 1K 1/8W 1% R815 061G08051001FT RST CHIP 1K 1/8W 1% R812 061G08051001FT RST CHIP 1K 1/8W 1% R812 061G08051001FY RST CHIPR 1KOHM +-1% 1/8W YAGEO R815 061G08051001FY RST CHIPR 1KOHM +-1% 1/8W YAGEO R925 061G08051001FY RST CHIPR 1KOHM +-1% 1/8W YAGEO R925 061G08051001FY RST CHIPR 1KOHM +-1% 1/8W YAGEO R815 061G08051001FY RST CHIPR 1KOHM +-1% 1/8W YAGEO R812 061G08051001FY RST CHIPR 1KOHM +-1% 1/8W YAGEO R827 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA R827 061G08051002FF RST CHIPR 10KOHM +-1% 1/8W FENGHUA R827 061G08051002FY RST CHIPR 10KOHM +-1% 1/8W YAGEO R827 061G08051002FY RST CHIPR 10KOHM +-1% 1/8W YAGEO R975 061G08051003FF RST CHIPR 100KOHM +-1% 1/8W FENGHUA R975 061G08051003FT RST CHIP 100K 1/8W 1% R834 061G0805106 JF RST CHIPR 10M +-5% 1/8W FENGHUA R834 061G0805106 JF RST CHIPR 10M +-5% 1/8W FENGHUA R834 061G0805106 JT RST CHIP 10M 1/8W+-5% R835 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA R814 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA R813 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA R810 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA R807 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA R803 061G0805229 JF RST CHIPR 2R2 +-5% 1/8W FENGHUA R814 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN R835 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN R807 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN R810 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN R813 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN R803 061G0805229 JT RST CHIPR 2R2 +-5% 1/8W TZAI YUAN R980 061G0805303 JF RST CHIPR 30KOHM +-5% 1/8W FENGHUA R980 061G0805303 JT RST CHIPR 30K +-5% 1/8W TZAI YUAN R829 061G0805304 JF RST CHIPR 300KOHM +-5% 1/8W FENGHUA R978 061G0805304 JF RST CHIPR 300KOHM +-5% 1/8W FENGHUA R978 061G0805304 JT RST CHIP 300K 1/8W 5% TZAI YUAN R829 061G0805304 JT RST CHIP 300K 1/8W 5% TZAI YUAN R974 061G0805330 JF RST CHIPR 33 OHM +-5% 1/8W FENGHUA R974 061G0805330 JT RST CHIP 33R 1/8W 5% TZAI YUAN R821 061G08054702FF RST CHIPR 47KOHM +-1% 1/8W FENGHUA R821 061G08054702FT RST CHIP 47K 1/8W 1% R833 061G0805512 JF RST CHIPR 5.1KOHM +-5% 1/8W FENGHUA 56 R805 061G0805512 JF RST CHIPR 5.1KOHM +-5% 1/8W FENGHUA R833 061G0805512 JT RST CHIPR 5K1 +-5% 1/8W TZAI YUAN R805 061G0805512 JT RST CHIPR 5K1 +-5% 1/8W TZAI YUAN R976 061G0805622 JF RST CHIPR 6.2KOHM +-5% 1/8W FENGHUA R976 061G0805622 JT RST CHIPR 6K2 +-5% 1/8W TZAI YUAN R811 061G08059102FF RST CHIPR 91KOHM +-1% 1/8W FENGHUA JR903 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN RJ901 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN RJ902 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN RJ902 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO RJ901 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO JR903 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO R910 061G1206100 JF RST CHIPR 10 OHM +-5% 1/4W FENGHUA R910 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN R901 061G1206105 JF RST CHIPR 1 MOHM +-5% 1/4W FENGHUA R902 061G1206105 JF RST CHIPR 1 MOHM +-5% 1/4W FENGHUA R901 061G1206105 JT RST CHIPR 1MOHM +-5% 1/4W TZAI YUAN R902 061G1206105 JT RST CHIPR 1MOHM +-5% 1/4W TZAI YUAN R909 061G1206150 JF RST CHIPR 15 OHM +-5% 1/4W FENGHUA R909 061G1206150 JY RST CHIPR 15 OHM +-5% 1/4W YAGEO R921 061G1206151 JF RST CHIPR 150 OHM +-5% 1/4W FENGHUA R922 061G1206151 JF RST CHIPR 150 OHM +-5% 1/4W FENGHUA R918 061G1206151 JF RST CHIPR 150 OHM +-5% 1/4W FENGHUA R919 061G1206151 JF RST CHIPR 150 OHM +-5% 1/4W FENGHUA R920 061G1206151 JF RST CHIPR 150 OHM +-5% 1/4W FENGHUA R921 061G1206151 JT RST CHIPR 150 OHM +-5% 1/4W TZAI YUAN R922 061G1206151 JT RST CHIPR 150 OHM +-5% 1/4W TZAI YUAN R918 061G1206151 JT RST CHIPR 150 OHM +-5% 1/4W TZAI YUAN R919 061G1206151 JT RST CHIPR 150 OHM +-5% 1/4W TZAI YUAN R920 061G1206151 JT RST CHIPR 150 OHM +-5% 1/4W TZAI YUAN R912 061G1206221 JF RST CHIPR 220 OHM +-5% 1/4W FENGHUA R912 061G1206221 JT RST CHIPR 220 OHM +-5% 1/4W TZAI YUAN R924 061G1206391 JF RST CHIPR 390 OHM +-5% 1/4W FENGHUA R816 061G1206392 JF RST CHIPR 3.9KOHM +-5% 1/4W FENGHUA R818 061G1206392 JF RST CHIPR 3.9KOHM +-5% 1/4W FENGHUA R809 061G1206392 JF RST CHIPR 3.9KOHM +-5% 1/4W FENGHUA R804 061G1206392 JF RST CHIPR 3.9KOHM +-5% 1/4W FENGHUA R816 061G1206392 JT RST CHIPR 3.9 KOHM 1/4W TZAI YUAN R818 061G1206392 JT RST CHIPR 3.9 KOHM 1/4W TZAI YUAN R809 061G1206392 JT RST CHIPR 3.9 KOHM 1/4W TZAI YUAN R804 061G1206392 JT RST CHIPR 3.9 KOHM 1/4W TZAI YUAN R841 061G1206511 JT RST CHIPR 510OHM +-5% 1/4W TZAI YUAN R826 061G1206511 JT RST CHIPR 510OHM +-5% 1/4W TZAI YUAN R826 061G1206511 JY RST CHIPR 510 OHM 1/4W YAGEO R841 061G1206511 JY RST CHIPR 510 OHM 1/4W YAGEO R806 061G1206512 JF RST CHIPR 5.1KOHM +-5% 1/4W FENGHUA R806 061G1206512 JT RST CHIPR 5.1 KOHM 1/4W TZAI YUAN 57 R904 061G1206822 JF RST CHIPR 8.2KOHM +-5% 1/4W FENGHUA R905 061G1206822 JF RST CHIPR 8.2KOHM +-5% 1/4W FENGHUA R904 061G1206822 JT RST CHIPR 8.2 KOHM 1/4W TZAI YUAN R905 061G1206822 JT RST CHIPR 8.2 KOHM 1/4W TZAI YUAN C939 065G060310232K F CAP CHIP 0603 1NF K 50V X7R C939 065G060310232K Y CAP CHIP 0603 1N 50V X7R +/-10% C933 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R C933 065G060310432K Y CAP CHIP 0603 0.1UF K 50V X7R C945 065G060347132K W CAP CHIP 0603 470PF K 50V X7R C934 065G060347132K W CAP CHIP 0603 470PF K 50V X7R C934 065G060347132K Y CAP CHIP 0603 470PF K 50V X7R C945 065G060347132K Y CAP CHIP 0603 470PF K 50V X7R C943 065G080510032K 3 CAP CHIP 0805 10PF K 50V X7R C943 065G080510032K Y CAP CHIP 0805 100PF K 50V X7R C829 065G080510232K F CAP CHIP 0805 1NF K 50V X7R C816 065G080510232K F CAP CHIP 0805 1NF K 50V X7R C810 065G080510232K F CAP CHIP 0805 1NF K 50V X7R C829 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C810 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C816 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% C935 065G080510332K F CAP CHIP 0805 10NF K 50V X7R C817 065G080510332K F CAP CHIP 0805 10NF K 50V X7R C928 065G080510332K F CAP CHIP 0805 10NF K 50V X7R C817 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10% C928 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10% C935 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10% C942 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C924 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C818 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R C818 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% C924 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% C942 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% C811 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10% C813 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10% C811 065G080510522K T CAP CHIP 0805 1UF K 25V X7R C813 065G080510522K T CAP CHIP 0805 1UF K 25V X7R C801 065G080510532K 3 CAP CHIP 0805 1UF 50V K X7R C828 065G080510532K 3 CAP CHIP 0805 1UF 50V K X7R C801 065G080510537Z T CAP CHIP 0805 1UF Z 50V Y5V C828 065G080510537Z T CAP CHIP 0805 1UF Z 50V Y5V C944 065G080515232K A CAP CHIP 0805 1500PF K 50V X7R C944 065G080515232K Y CAP CHIP 0805 1N5 50V X7R +/-10% C808 065G080522131G F CAP 0805 220PF 2% 50V NPO C808 065G080522131G Y CAP CHIP 0805 220PF 2% 50V NPO C808 065G080522131G Y CAP CHIP 0805 220PF 2% 50V NPO C909 065G080522132K F CAP CHIP 0805 220PF K 50V X7R C909 065G080522132K Y CAP CHIP 0805 220P 50V X7R +/-10% 58 C822 065G080533232K F CAP CHIP 0805 3300PF K 50V X7R C821 065G080533232K F CAP CHIP 0805 3300PF K 50V X7R C822 065G080533232K Y CAP CHIP 0805 3300PF K 50V X7R C821 065G080533232K Y CAP CHIP 0805 3300PF K 50V X7R C809 065G080533332K 3 CAP CHIP 0805 33N 50V X7R +/-10% C815 065G080533332K 3 CAP CHIP 0805 33N 50V X7R +/-10% C815 065G080533332K Y CAP CHIP 0805 33N 50V X7R +/-10% C809 065G080533332K Y CAP CHIP 0805 33N 50V X7R +/-10% C807 065G080547131J Y CAP CHIP 0805 470P 50V NPO +/-5% C814 065G080547131J Y CAP CHIP 0805 470P 50V NPO +/-5% C940 065G080547332K F CAP CHIP 0805 47NF K 50V X7R C940 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10% C806 065G080582131G F CAP CHIP 0805 820PF G 50V NPO C805 065G080582131G F CAP CHIP 0805 820PF G 50V NPO C805 065G080582131J Y CAP CHIP 0805 820P 50V NPO +/-5% C806 065G080582131J Y CAP CHIP 0805 820P 50V NPO +/-5% C826 065G080582231J F CAP CHIP 0805 8.2NF 50V NPO C825 065G080582231J F CAP CHIP 0805 8.2NF 50V NPO C825 065G080582231J Y CAP CHIP 0805 8200PF J 50V NPO C826 065G080582231J Y CAP CHIP 0805 8200PF J 50V NPO C912 065G120610272K T CAP CHIP 1206 1000PF 500V X7R C912 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R C907 065G120610432K 3 CAP CHIP 100N 50V X7R +/- 10% C907 065G120610432K A CAP CHIP 1206 0.1UF K 50V X7R C907 065G120610432K Y CER 1206 100N 50V X7R +/-10% C936 065G120610532K 3 CAP CHIP 1UF 50V X7R C936 065G120610532K T CAP CHIP 1206 1UF K 50V X7R D801 093G 64 33 DIO SIG SM BAV99 (PHSE)R D802 093G 64 33 DIO SIG SM BAV99 (PHSE)R D803 093G 64 38 D DIODE BAW56 DIODES D804 093G 64 38 D DIODE BAW56 DIODES D803 093G 64 38 R BAW56T-116 D804 093G 64 38 R BAW56T-116 D808 093G 64 42 P BAV70 SOT23 BY PAN JIT D807 093G 64 42 P BAV70 SOT23 BY PAN JIT D807 093G 64 42 PP BAV70 SOT-23 D808 093G 64 42 PP BAV70 SOT-23 D801 093G 6433S DIODE BAV99 SEMTECH D802 093G 6433S DIODE BAV99 SEMTECH ZD803 093G 39G586 RLZ2.2B ZD804 093G 39S 42 T RLZ27B LLDS CN901 006G 31500 EYELET IC904 056G 158 10 T IC AS431AZTR-E1 TO-92 IC904 056G 158 12 KIA431A-AT/P TO-92 Q808 057G 761 16 TRA KTD1028 KEC R808 061G 17210352T XZ RST CFR 10KOHM +-5% 1/4W XIANZHENG R831 061G 17210352T XZ RST CFR 10KOHM +-5% 1/4W XIANZHENG 59 R938 061G 17210352T XZ RST CFR 10KOHM +-5% 1/4W XIANZHENG R819 061G 17222952T XZ 2.2OHM 5% 1/4W R822 061G 17222952T XZ 2.2OHM 5% 1/4W R973 061G 20013452T SH RST MFR 130KOHM +-1% 1/4W SANHUAN R903 061G152M10452T SY RST MOFR 100KOHM +-5% 2WS FUTABA R914 061G152M33852T SY RST MOF 0R33 5% 2W C906 065G 2K152 2T6921 CAP CER 1500PF K 2KV Y5P C803 065G500K4732GT CAP JC 47NF 10% 50V X7R C804 065G500K4732GT CAP JC 47NF 10% 50V X7R C803 065G500K4732HT CAP JC 47NF 10% 50V X7R C804 065G500K4732HT CAP JC 47NF 10% 50V X7R C908 067G 2152207NT KY50VB22M-TP5 5*11 C908 067G215Y2207KT CAP 105℃ 22UF M 50V KINGNICHI FB901 071G 55 9 T FERRITE BEAD FB902 071G 55 9 T FERRITE BEAD F906 084G 56 3 B FUSE 3.15A 250V F901 084G 56 4 B FUSE 4A 250V F906 084G 56 3W FUSE F901 084G 56 4W FUSE 4.0A 250V ZD802 093G 3955752T BZX79-B5V6 ZD801 093G 3955752T BZX79-B5V6 ZD802 093G 3956T52T TZX5V6C ZD801 093G 3956T52T TZX5V6C D900 093G 52 1552T DIODE 1N4007-E3/73 1A/1000V DO-41 D900 093G 6026T52T RECTIFIER DIODE FR107 D901 093G 6038P52T PS102R D901 093G 6038T52T FR103 D903 093G 64 1152T 1N4148 D806 093G 64 1152T 1N4148 D903 093G 6451652T 1N4148 D806 093G 6451652T 1N4148 J917 095G 90 23 JUMPER WIRE J916 095G 90 23 JUMPER WIRE J915 095G 90 23 JUMPER WIRE J914 095G 90 23 JUMPER WIRE J913 095G 90 23 JUMPER WIRE J912 095G 90 23 JUMPER WIRE J911 095G 90 23 JUMPER WIRE J910 095G 90 23 JUMPER WIRE J909 095G 90 23 JUMPER WIRE J908 095G 90 23 JUMPER WIRE J907 095G 90 23 JUMPER WIRE J906 095G 90 23 JUMPER WIRE J905 095G 90 23 JUMPER WIRE J904 095G 90 23 JUMPER WIRE J903 095G 90 23 JUMPER WIRE J918 095G 90 23 JUMPER WIRE 60 J938 095G 90 23 JUMPER WIRE J937 095G 90 23 JUMPER WIRE J936 095G 90 23 JUMPER WIRE J935 095G 90 23 JUMPER WIRE J934 095G 90 23 JUMPER WIRE J933 095G 90 23 JUMPER WIRE J932 095G 90 23 JUMPER WIRE J931 095G 90 23 JUMPER WIRE J930 095G 90 23 JUMPER WIRE J929 095G 90 23 JUMPER WIRE J928 095G 90 23 JUMPER WIRE J927 095G 90 23 JUMPER WIRE J926 095G 90 23 JUMPER WIRE J925 095G 90 23 JUMPER WIRE J924 095G 90 23 JUMPER WIRE J923 095G 90 23 JUMPER WIRE J922 095G 90 23 JUMPER WIRE J921 095G 90 23 JUMPER WIRE J919 095G 90 23 JUMPER WIRE J902 095G 90 23 JUMPER WIRE J901 095G 90 23 JUMPER WIRE E715 715G3677P01000001M POWER PCB FR1 228X122X1.6MM SS 2nd source E715 715G3677P01000001S POWER PCB FR1 228X122X1.6MM SS Q51G 6 4509 GLUE_RTV PT804 S80GL24T25V XFMR INVERTER 410UH P-E13-011 PT801 S80GL24T25V XFMR INVERTER 410UH P-E13-011 PT803 S80GL24T25V XFMR INVERTER 410UH P-E13-011 PT802 S80GL24T25V XFMR INVERTER 410UH P-E13-011 T901 S80GL32P7V X'FMR 400UH 10% P-C28L-059 TPV-PT Q05G6100 3 WASHER Q40G 58169022A QC PASS LABEL Q40G0001624 4A PALLET LABEL Q40G000361591A V27T I-O LABEL Q40G000361595A POP LABEL FOR V27T Q40G000361596A POP LABEL(WIN 7+EPEAT+EPA) Q41G78SV61511A V27T QSG Q44G9003200 CORNER PAPER Q44GF009101 EPS Q44GF009201 EPS Q44GF009615 1A 27 LCD AOC CARTON Q45G 99609 78 EPE BAG FOR MONITOR Q50G 4 10 TIE (Y1900221) Q52G 1185 98 MIDDLE CARTON TAPE FOR AOC Q52G 1185 99 BIG CARTON TAPE FOR AOC Q52G6025 13162 MYLAR Q52G6025 13263 INSULATE SHEET Q52G6025 13264 INSULATE SHEET 61 Q36G 600517 DUSTER CLOTH Q41G2009615 9A WARRANTY CARD Q45G 76 28 RN R PE BAG MANUAL Q70G27C1615 1A V27T CD MANUAL 040G 58162435A P/N LABEL FOR MANUAL PE BAG 040G 581689 4A BARCODE LABEL FOR 1 Q40G 27N615 1B RATING LABEL Q40G000161514A CARTON LABEL
