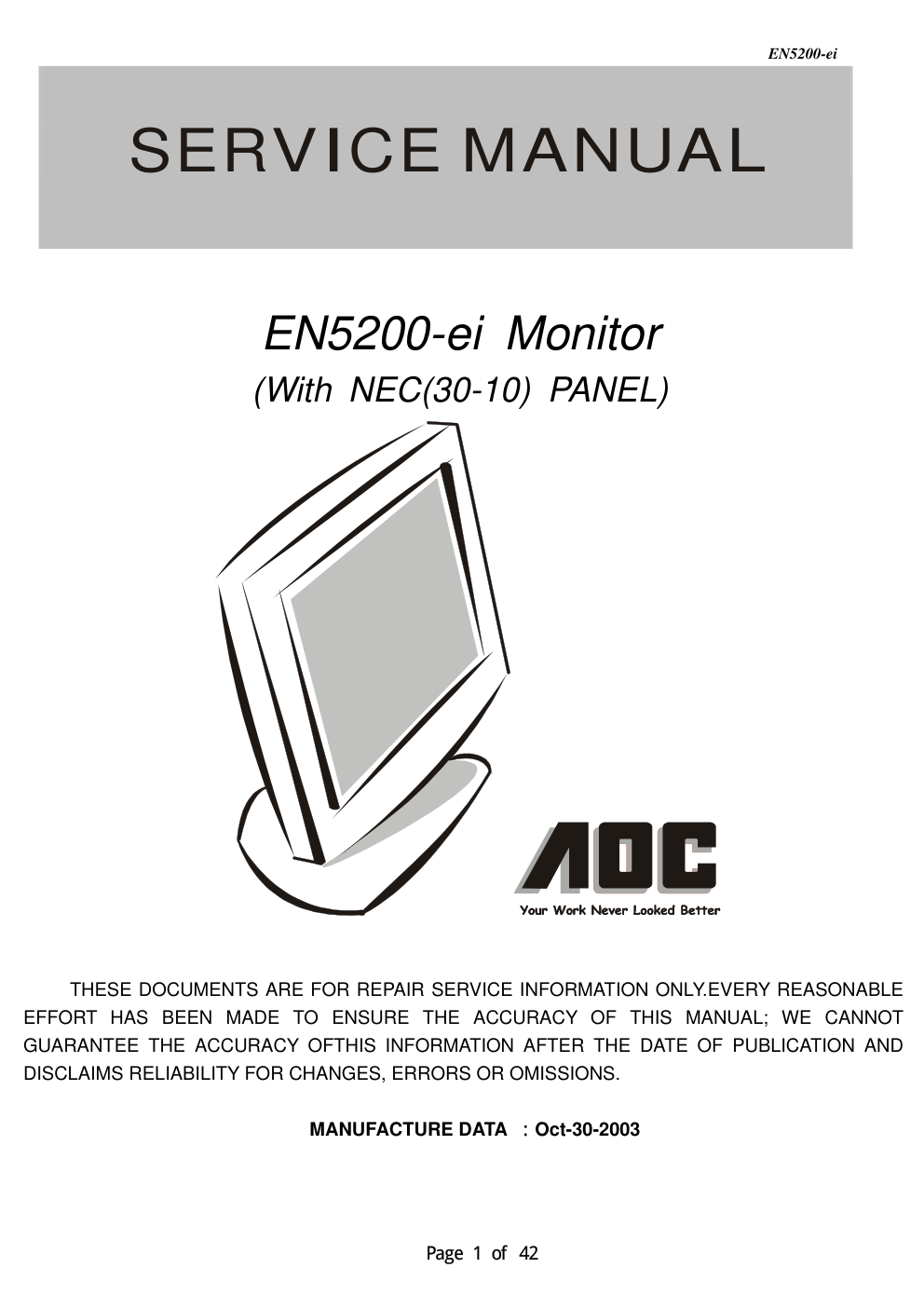

EN5200-ei Page 1 of 42 SERVICE MANUAL EN5200-ei Monitor (With NEC(30-10) PANEL) THESE DOCUMENTS ARE FOR REPAIR SERVICE INFORMATION ONLY.EVERY REASONABLE EFFORT HAS BEEN MADE TO ENSURE THE ACCURACY OF THIS MANUAL; WE CANNOT GUARANTEE THE ACCURACY OFTHIS INFORMATION AFTER THE DATE OF PUBLICATION AND DISCLAIMS RELIABILITY FOR CHANGES, ERRORS OR OMISSIONS. MANUFACTURE DATA ：Oct-30-2003 EN5200-ei Page 2 of 42 Table of Contents Table of Contents ----------------------------------------------------------------------------- 02 Revision List ------------------------------------------------------------------------------------04 1. Monitor Specification ---------------------------------------------------------------------05 2. LCD Monitor Description ---------------------------------------------------------------05 3. Operation Instructions --------------------------------------------------------------------06 3.1 General Instructions ------------------------------------------------------------------06 3.2 Control Button -------------------------------------------------------------------------06 3.3 Adjusting The Picture ----------------------------------------------------------------06 4. Input/Output Specification ---------------------------------------------------------------08 4.1 Input Signal Connector --------------------------------------------------------------08 4.2 Factory Preset Display Modes -----------------------------------------------------08 4.3 Power Supply Requirements -------------------------------------------------------09 4.3.1 Input Requirements ------------------------------------------------------------09 4.3.2 Output Requirements --------------------------------------------------------10 4.4 Panel Specification (NEC) ----------------------------------------------------10 4.4.1 Panel Feature --------------------------------------------------------------------10 4.4.2 Display Characteristics ---------------------------------------------------------10 4.4.3 Optical Characteristics --------------------------------------------------------11 4.4.4 Parameter guide line for CCFL Inverter ------------------------------------11 5. Block Diagram -----------------------------------------------------------------------------12 5.1 Monitor Exploded View -------------------------------------------------------------12 5.2 Software Flow Chart ------------------------------------------------------------------13 5.3 Electrical Block Diagram -------------------------------------------------------------14 EN5200-ei Page 3 of 42 5.3.1 Scalar Board ----------------------------------------------------------------------14 5.3.2 Inverter/Power Board -----------------------------------------------------------15 6. Schematic -----------------------------------------------------------------------------------16 7. PCB Layout ---------------------------------------------------------------------------------21 7.1 Main Board -----------------------------------------------------------------------------21 7.2 Inverter/Power Board ----------------------------------------------------------------22 8. Maintainability ------------------------------------------------------------------------------23 8.1 Equipments and Tools Requirements --------------------------------------------23 8.2 Trouble Shooting ----------------------------------------------------------------------24 9. White-Balance, Luminance Adjustment ----------------------------------------------27 10. EDID Content ------------------------------------------------------------------------------28 11. BOM List -----------------------------------------------------------------------------29～40 EN5200-ei Page 4 of 42 Revision List Revision Date Change Description EN5200-ei Page 5 of 42 1. MONITOR SPECIFICATIONS ITEM SPECIFICATION Display Area (mm) 301.1(H) x 228.1(V) (15.0-inch diagonal) Number of Pixels 1024(H) x 768(V) Pixel Pitch (mm) 0.297(H) x 0.297(V) Color Pixel Arrangement RGB vertical stripe Display Mode Normally white TN Number of Colors 262144(6bit/color) Brightness (cod / m²) 250cd/ m² (Typ.) Viewing Angle -60-60(H), -55-45(V)( Typ) Wide Viewing Angle Technology Optical Compensation Film Surface Treatment Anti-glare Electrical interface RSDS (1 pixel/clock) Total Module Power (W) 10.5(Typ.) Optimum Viewing Angle 6 O’clock Module Size (mm) 326.0(w) x 251.0(H) x 12.0(D) Module Weight (g) 1200 Backlight Unit CCFL, 2 tables, edge- light (top/bottom) 2. LCD MONITOR DESCRIPTION The LCD MONITOR will contain a main board, an inverter/power board, keypad board, which house the flat panel control logic, brightness control logic and DDC. The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips each voltage. Power board (include: adapter, inverter) Flat Panel and CCFL backlight Main Board Keyboard RS232 Connector For white balance adjustment in factory mode HOST Computer CCFL Drive. AC-IN 100V-240V Video signal, DDC Monitor Block Diagram EN5200-ei Page 6 of 42 3. OPERATING INSTRUCTIONS 3.1 GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the monitor. By changing these settings, the picture can be adjusted to your personal preferences. - The power cord should be connected. - Connect the video cable from the monitor to the video card. - Press the power button to turn on the monitor, the power indicator will light up. 3.2 CONTROL BUTTONS 3.2.1 KEY CONTROL 3.2.2 KEY FUNCTION Hot keys Navigation Within OSD Without OSD Menu MENU Select Function or select Sub menu Activate OSD main menu Left Previous Item or Decrease value Brightness Hot key Right Next Item or Increase value Contrast Hot key Exit / Auto AUTO Exit OSD or back to previous menu Auto configuration 3.3 ADJUSTING THE PICTURE EN5200-ei Page 7 of 42 OSD TABLE: 1. Contrast Adjust the picture contrast. 2. Brightness Adjust the picture brightness. 3. Focus Adjust picture Focus. 4. Clock Adjust picture Clock. 5. H- Position Adjust the horizontal position of the picture. 6. V.-Position Adjust the vertical position of the picture. 7 Language Multi-Language selection 8. Red Adjusts Red intensity. 9. Green Adjusts Green intensity. 10. Blue Adjusts Blue intensity. 11. C1 (Warm) Color Set the color temperature to warm white. 12. C2 (Cool) Color Set the color temperature to cool white. 13. Reset Clear each old status of Auto-configuration and re-do auto-configuration. 14. Exit Save user adjustment and OSD disappear. EN5200-ei Page 8 of 42 4. INPUIT/OUTPUT SPECFICATION 4.1 INPUT SIGNAL CONNECTOR PIN NO. DESCRIPTION PI N NO. DESCRIPTION 1. Red 9. +5V 2. Green 10. Detect Cable 3. Blue 11. NC 4. Ground 12. DDC-Serial Data 5. Ground 13. H-Sync 6. R-Ground 14. V-Sync 7. G-Ground 15. DDC-Serial Clock 8. B-Ground VGA Connector layout 1 5 6 10 11 15 4.2 FACTORY PRESET DISPLAY MODES： VESA MODES Horizontal Vertical Mode Resolution Total Nominal Frequency +/- 0.5kHz Sync Polarity Nominal Freq. +/- 1 Hz Sync Polarity Nominal Pixel Clock (MHz) 640x480@60Hz 800 x 525 31.469 N 59.940 N 25.175 640x480@72Hz 832 x 520 37.861 N 72.809 N 31.500 VGA 640x480@75Hz 840 x 500 37.500 N 75.00 N 31.500 800x600@60Hz 1056 x 628 37.879 P 60.317 P 40.000 800x600@72Hz 1040 x 666 48.077 P 72.188 P 50.000 SVGA 800x600@75Hz 1056x625 46.875 P 75.000 P 49.500 1024x768@60Hz 1344x806 48.363 N 60.004 N 65.000 1024x768@60Hz 1312x813 48.78 N 60.00 N 64.000 1024x768@70Hz 1328x806 56.476 N 70.069 N 75.000 1024x768@72Hz 1304x798 57.515 P 72.074 P 75.000 1024x768@75Hz 1328x804 60.200 N 74.90 N 80.000 XGA 1024x768@75Hz 1312x800 60.023 P 75.029 P 78.750 EN5200-ei Page 9 of 42 IBM MODES Horizontal Vertical Mode Resolution Total Nominal Frequency +/- .5kHz Sync Polarity Nominal Freq. +/- 1 Hz Sync Polarity Nominal Pixel Clock (MHz) DOS 720x400@70Hz 900 x 449 31.469 N 70.087 P 28.322 DOS 640x350@70Hz 800 x 449 31.469 N 70.087 P 25.175 MAC MODES VGA 640x480@67Hz 864x525 35.000 N 66.667 N 30.240 SVGA 832x624@75Hz 1152x667 49.725 N 74.551 N 57.2832 Note: All modes will automatically optimize the screen size with “ AUTO-config “ function, except 3 Dos- Modes: 720 x 400@70hz, 640x350@70hz, 640x400@70hz 4.3 POWER SUPPLY REQUIREMENT 4.3.1 INPUT REQUIREMENT PARAMETER RANGE CONDITION Input Voltage 100 to 240VAC RMS Universal input full range Input Frequency 60Hz @ 100VAC to 50Hz @ 240VAC Input Current Less than 2.0 Amps RMS Input voltage 100 VAC RMS; 60 Hertz. Parameter must be reached within 3 seconds of turn-on. Less than 1.0 Amps RMS Input voltage 220 VAC RMS ; 50 Hertz. Parameter must be reached within 3 seconds of turn-on. Input Power Less than 40 Watts Power factor > 0.5 Input voltage 120 VAC RMS ; 60 Hertz Inrush Current Less than 30 A peak Input voltage 100 VAC RMS; 60 Hertz at all Phase (0, 90, 180, 270 degree) Less than 50 A peak Input voltage 240 VAC RMS; 50 Hertz at all Phase (0, 90, 180, 270 degree) Input Fusing Fuse should be located internal to the adapter, easily accessible when the cover is removed Fuse must be UL/CSA approved. Fuse value must no have to change for 115 VAC or 230 VAC operation Leakage Current Less than 3.5 mA Input voltage 240 Volts RMS; 50 Hertz Hi-Pot Primary to secondary 1.5KVAC for 1 Minute (leakage current 10mA) 1.8KVAC for 1 Minute (leakage current 10mA) 3.0KVAC for 1 Minute (leakage current 10mA) without Y-cap & Coupling cap. EN5200-ei Page 10 of 42 Primary to Safety Ground 1.5KVAC for 1 Minute (leakage current 10mA) 1.8KVAC for 1 Minute (leakage current 10mA) 4.3.2 OUTPUT REQUIREMENT PARAMETER RANGE CONDITION DC Out 12VDC ± 5% Min 0A Max 3.75A Load Regulation 12.0V ± 5% 11.4 to 12.6VDC Dynamic Load Regulation Any frequency up to 250Hz(duty 50%) ±5% for 10% to 100%, 100% to 10% load change for +12Vdc Ripple & noise 170mVpp at 12VDC Input voltage: 100VAC at 60Hz 240VAC at 50Hz * Ripple and noise are measured. Output current protection Less than 7.0A, more than 12.0A at 12.0VDC Current exceeds maximum rating more than 20% Leakage Current Less than 0.25 mA Input voltage 100 Volts RMS; 50 Hertz Less than 0.5 mA Input voltage 240 Volts RMS; 50 Hertz 4.4 PANEL SPECIFICATION (NEC) 4.4.1 PANEL FEATURE － LVDS interface(8 bit) － Selectable LVDS input map － Wide color gamut － High contrast － Edge light type(Inverter less) － Replace lamp for backlight 4.4.2 DISPLAYS CHARACTERISTICS Items Specification Unit Display Area 304.1 (H) x 228.1(V) mm Driver element a-Si TFT active matrix Display color 6-bits driver with LVDS I/F Number of pixels 1024 x 768 pixel Pixel Arrangement RGB vertical stripe Pixel pitch 0.297(H) x 0.297(V) mm Display Mode Normally White TN EN5200-ei Page 11 of 42 4.4.3 OPTICAL CHARACTERISTICS The optical characteristics are measured under stable conditions at 25℃(Room Temperature)： ITEM SYMBOL CONDITION MIN TYP MAX UNIT Contrast Ratio CR θ=φ=0℃ 300 400 - - Normal LW θ=φ=0℃ 200 250 - cd/m² Luminance Uniformity △LW θ=φ=0℃ 75 80 - % Tr - 9 - ms Response Time (Black/White) Tf θ=φ=0℃ - 16 - ms Horizontal φ –50~50 –60~60 - 。 Vertical θ CR≧10 –45~35 –55~45 - 。 Horizontal φ –65~65 –75~75 - 。 Viewing Angle Vertical θ CR≧5 –65~45 –75~50 - 。 Image sticking tis 2hours - - 2 s Cross talk CMR θ=φ=0 - - 1 % Red Rx Ry 0.613 0.314 0.643 0.344 0.673 0.374 Green Gx Gy 0.274 0.536 0.304 0.566 0.334 0.596 Blue Bx By 0.111 0.055 0.141 0.085 0.171 0.115 Color Coordinates White Wx Wy θ=φ=0℃ 0.282 0.288 0.312 0.318 0.342 0.348 -   4.4.4 PARAMETER GUIDE LINE FOR CCFL INVERTER. Back-Light Unit： The backlight system is an edge-lighting type with 2-CCFL (Cold Cathode Fluorescent Lamp). The characteristics of four lamps are shown in the following tables. Item Symbol Min. Typ. Max. Unit Remark Lamp Voltage IL - 650 - V IL=7.0mA Lamp Current VL 5.0 7.0 8.0 mA Note1 Lamp frequency FL 40 50 60 KHz Note2 1300 - - V Tb=0℃,Note3 Starting Lamp Voltage VS 1100 - - V Ta=25℃,Note3 EN5200-ei Page 12 of 42 Lamp life Time LT 35000 45000 - hr IL=7.0mA Continuous Operation EN5200-ei Page 13 of 42 5. BLOCK DIAGRAM 5.1 MONITOR EXPLODED VIEW LCD PANEL MAIN FRAME MAIN BOARD SHIELD BASE SUPPORT(FRONT) HINGE INVERTER BOARD ADAPTER BOARD SUPPORT(BACK) INVERTER SHIELD SCREW 34E676 37A442 KEY PAD KEPC FRONT BEZEL 85A548 15A5683(HANNSTAR) 750ALCDX41-1 34A785 33A4095 KEPC560EKMN POWER LENS 33A3782 SHIELD 85A580 79AL15-6-S 85A577 Q1A1030-12-128X4 34A677 80AL15-2-L1 34A787 EARTH CLIP 85A562 TURN BASE 34A786 BASE SHIELD 15A5687 BASE HOLDER 15A5688 X 4 REAR COVER SCREW Q1A340-16-128X4 34A675 SCREW Q1A1030-10-128 X 4 SCREW Q1A1030-10-128 X 4 PLASTIC GEAR 11A144-1 SCREW Q1A1020-6-120 RUBBER FOOT 12A385-1 X 4 EN5200-ei Page 14 of 42 5.2 Software Flaw Chart (1) (2) (3) (4) (5) (7) (6 (8) (10) (11) (12) (9 Y N Y N EN5200-ei Page 15 of 42 1. Initialize MCU settings, including I/O, Timer, ISR and Serial Port settings. 2. Read EEPROM content to recover monitor settings, including brightness, contrast, color temperature and OSD position etc. 3. Initialize system variable, including system flag, OSD timeout counter, burin mode status… etc. 4. Initialize OSD menu variable for user operation 5. Initialize device on the board, now only MST scaler chip will be initialized 6. Check if system is in power off status from first AC power up. If yes, then go to 7, else go to 8. 7. If yes, system will be forced to enter power off status 8. Mode detection 9. Check if input timing has been changed, if yes then go to 10, else go to 11 10. Setup MST scaler for display according input timing 11. OSD handler for OSD operation. 12. Debug handler, only debug only 5.3 ELECTRICAL BLOCK DIAGRAM 5.3.1 SCALAR BOARD BLOCK DIAGRAM EN5200-ei Page 16 of 42 5.3.2 INVERTER/POWER BOARD BLOCK DIAGRAM Inverter Block Diagram EN5200-ei Page 17 of 42 Power Block Diagram EN5200-ei Page 18 of 42 6.SCHEMATIC 6.1 MAIN BOARD Analog input + C208 10uF/16V R203 1K 1/16W 　 VAA4 4 C203 0.1uF POWER A MST8011A/ MST8111Afor AOC B 2 6 Wednesday, June 11, 2003 Title Size Document Number Rev Date: Sheet of VAA2 4 GND R209 0 1/16W 　 R207 4.7K 1/16W 　 VAA4 R204 10K 1/16W 　 VCC5V+ CN201 CON402(PITCH 2.54) 1 3 5 7 9 11 2 4 6 8 10 12 VCC3.3 C B E GND SOT-223 R211 10K 1/16W 　 R208 10K 1/16W 　 C212 0.1uF C210 0.1uF C B E DIM + C215 47uF/16V U201 RT9164-25CG 3 2 1 VI VO GND VCC5V+ GND VLCD VCC5V+ D1 SCHOTTEYDIODE VCC5V U202 AIC1084-33M 3 1 2 VIN ADJ VOUT VCC2.5 4 + C204 220uF/25V VAA1 4 VCC3.3 4 C214 0.1uF VCC3.3 VCPU VCC5V D2 DIODE VCC12V VCC5V C216 0.1uF C207 0.1uF C205 0.1uF VLCD 5 ON_OFF VAA1 + C206 10uF/16V Q203 AO3401 GND Q201 PMBS3904 3 2 1 VCC5V VCC12V 6 VCC5V 3,6 VAA2 Brightness C201 0.1uF R212 4.7K 1/16W 　 + C211 47uF/16V R210 NC R201 4.7K 1/16W 　 AdjBACKLITE 4 VCC12V FB201 600 OHM VCPU 6 TO-263 GND R205 4.7K 1/16W 　 VCC2.5 VAA3 GND + C202 220uF/25V Q204 PMBS3904 3 2 1 onBACKLITE 6 VCC12V onPanel_5V/3.3V 6 VCC5V VCC5V VCC5V R202 10K 1/16W 　 VAA3 4 R206 10K 1/16W 　 Q202 PMBS3904 3 2 1 EN5200-ei Page 19 of 42 INPUT D320 MLL5232B 5.6V C313 0.1uF R317 10K 1/16W 　 U301 AT24C02N-10SC 1 2 3 4 5 6 7 8 A0 A1 A2 GND SDA SCL WP VCC DDC_CLK 4,6 D306 NC G- 4 VCC5V G+ 4 C314 0.1uF NC ST_DET2 6 R327 75 1/16W 　 R323 10K 1/16W NC 　 R304 470 1/16W 　 D303 BAV99 3 1 2 R307 100 1/16W 　 D311 NC VCC5V R325 75 1/16W 　 B+ 4 R326 75 1/16W 　 FB304 150 OHM CLK- 4 D319 MLL5232B 5.6V R309 100 1/16W 　 C312 220pF C311 33pF RXD 6 C302 NC R313 2.2K 1/16W 　 ST_DET1 6 D318 MLL5232B 5.6V FB302 0 1/16W 　 C305 0.047uF R319 100 1/16W NC 　 R318 10K 1/16W 　 DAT_DDC2 D308 NC B- 4 D302 BAV99 3 1 2 R308 10K 1/16W 　 C301 NC D316 LL5232B 5.6V 5% NC R316 100 1/16W 　 R320 100 1/16W NC 　 CLK_DDC2 D321 MLL5232B 5.6V D313 NC R302 100 1/16W 　 D310 NC R+ 4 DDC_DAT 4,6 VGA_CON FB301 0 1/16W 　 C309 0.047uF D304 BAT54C-GS08 3 1 2 DAT_DDC PC5V R306 100 1/16W 　 D307 NC R322 100 1/16W NC 　 D312 NC R315 100 1/16W 　 R310 150 1/16W 　 VCC5V CN302 JACK NC 1 2 3 4 5 6 7 8 25 28 9 10 11 12 13 14 15 16 26 29 17 18 19 20 21 22 23 24 27 DAT2- DAT2+ 2/4shield DAT4- DAT4+ DDC SCL DDC SDA VSYNC R HSYNC DAT1- DAT1+ 1/3shield DAT3- DAT3+ +5V SYNC GND HPD G RGB GND DAT0- DAT0+ 0/5shield DAT5- DAT5+ clk shield clk+ clk- B D315 LL5232B 5.6V 5% NC R311 1K 1/16W 　 SOG 4 U302 AT24C02N-10SC NC 1 2 3 4 5 6 7 8 A0 A1 A2 GND SDA SCL WP VCC C304 0.047uF FB303 0 1/16W 　 C306 0.047uF D301 BAV99 3 1 2 R324 10K 1/16W NC 　 GNDB 4 R312 100 1/16W 　 GIN 4 C303 NC R305 100 1/16W 　 R- 4 VSYNC 4 CLK_DDC R301 100 1/16W 　 HSI INPUT A MST8011A/ MST8111Aor AOC B 3 6 Wednesday, June 25, 2003 Title Size Document Number Rev Date: Sheet of PC5V C307 0.001uF RIN 4 DVI5V GNDR 4 CLK+ 4 R314 10K 1/16W 　 C310 0.047uF VSI TXD 6 CN301 DB15 1 6 2 7 3 8 4 9 5 11 12 13 14 15 10 GNDG 4 BIN 4 VCC5V HSYNC 4 C308 0.047uF C315 0.1uF NC D317 MLL5232B 5.6V D314 LL5232B 5.6V 5% NC R303 100 1/16W 　 D305 BAT54C-GS08 NC 3 1 2 DVI5V D309 NC R321 10K 1/16W NC 　 EN5200-ei Page 20 of 42 Scalar MST8011A / MST8111A FB402 600 OHM VCC3.3 FB405 600 OHM Volume 6 SCALER A MST8011A / MST8111A for AOC B 4 6 Thursday, May 08, 2003 Title Size Document Number Rev Date: Sheet of C413 0.1uF FB404 600 OHM C425 0.1uF PB5 C403 22pF + C414 10uF/16V VAD PA3 PA7 + C419 10uF/16V + C405 10uF/16V C402 22pF C406 0.1uF PA8 SCL 6 FB406 600 OHM VPO C420 0.1uF RIN 3 VCC2.5 VDPLL R- 3 CSZ 6 C417 0.1uF HWRESET 6 INT 6 C407 0.1uF C426 0.1uF VCC3.3 2 VDD C418 0.1uF C410 0.1uF R401 NC VAA2 PB[0..9] + C424 10uF/16V VPLL PB6 C401 0.1uF FB403 600 OHM U401 MST8031/8131 63 60 61 58 62 59 57 37 38 40 41 43 44 46 47 49 50 52 66 67 69 70 71 32 72 73 74 107 55 35 45 3 51 11 21 84 94 104 114 126 18 87 97 117 39 56 36 2 54 42 10 20 85 95 115 127 19 86 96 105 116 33 34 108 109 110 111 112 113 118 119 120 121 122 123 124 125 128 1 29 28 30 31 53 65 64 48 106 103 102 68 RIN0 GIN0 SOGIN0 BIN0 RIN0M GIN0M BIN0M HSYNC0 VSYNC0 R+ R- G+ G- B+ B- CK+ CK- REXT REFP REFM CSZ SDA SCL HWRESETZ INT PWM0 PWM1 LVACKM AVDD AVDD_MPLL AVDD_DVI BYPASS AVDD_DVI VDDP VDDP VDDP VDDP VDDP VDDP VDDP VDDC VDDC VDDC VDDC AVSS_DVI AVSS AVSS_MPLL AVSS_LPLL AVSS_PLL AVSS_DVI GNDP GNDP GNDP GNDP GNDP GNDP GNDC GNDC GNDC GNDP GNDC XIN XOUT LVA2P LVA2M LVA1P LVA1M LVA0P LVA0M NC/LVB3P NC/LVB3M NC/LVBCKP NC/LVBCKM NC/LVB2P NC/LVB2M NC/LVB1P NC/LVB1M NC/LVB0P NC/LVB0M DDC1_CLK/GPO8 DDC1_DAT/GPO7 DDCROM_CLK/GPO6 DDCROM_DAT/GPO5 AVDD_PLL AVDD AVSS AVSS_DVI LVACKP LVA3M LVA3P AVSS C409 0.1uF BIN 3 DDC_DAT 3,6 R403 390 1/16W 　 C404 0.1uF B+ 3 VDVI PB1 VAA4 PA6 + C427 10uF/16V C412 0.1uF VAA2 2 SOG 3 VCC2.5 2 PA1 B- 3 VSYNC 3 PA[0..9] 5 C408 0.1uF VAA1 2 PA5 GNDR 3 C411 0.1uF GIN 3 VAA3 PA[0..9] PB0 CLK- 3 C416 0.1uF VAD VDVI + C422 10uF/16V G- 3 DDC_CLK 3 SDA 6 R+ 3 PA9 VDD PB3 X401 14.318MHz G+ 3 C415 0.1uF PB9 VPO VAA1 AdjBACKLITE 2 GNDG 3 VAA4 2 PB[0..9] 5 VDVI R402 NC VDPLL VPLL C423 0.1uF VAA3 2 PA0 C428 0.1uF CLK+ 3 PB8 FB401 600 OHM PB4 HSYNC 3 PA2 C421 0.1uF GNDB 3 PB7 PB2 PA4 MST8011A/MST811 EN5200-ei Page 21 of 42 R631 10K C602 22pF R606 10K VCPU R619 4.7K VCPU CN603 1 2 3 4 VCC5V 2,3 RIGHT Mute_key RXD 3 C613 0.1uF/16V C609 NC VCPU 2 ST_DET2 3 Y601 11.0592MHZ Q601 PMBS3906 C B E OUT-R- LED_ORANGE C611 1uF/16V OUT-L- R607 10K R611 NC C607 NC C612 0.1uF/16V Q602 PMBS3906 C B E RP602 10Kx4 1 2 3 4 5 6 7 8 HWRESET 4 onPANEL_5V/3.3V 2 LEFT R610 NC R609 100 OUT-R+ VCC5V VCPU onBACKLITE 2 R603 10K R623 0 MPU A MST8011A / MST8111A for AOC B 6 6 Wednesday, June 25, 2003 Title Size Document Number Rev Date: Sheet of U601 8051-PLCC 35 21 20 10 14 15 16 17 2 3 4 5 6 7 8 9 43 42 41 40 39 38 37 36 24 25 26 27 28 29 30 31 19 18 32 33 13 11 22 44 12 EA/VP XTAL1 XTAL2 RESET INT0/P3.2 INT1/P3.3 T0/P3.4 T1/P3.5 P1.0 P1.1 P1.2 P1.3 P1.4 P1.5 P1.6 P1.7 P0.0 P0.1 P0.2 P0.3 P0.4 P0.5 P0.6 P0.7 P2.0 P2.1 P2.2 P2.3 P2.4 P2.5 P2.6 P2.7 P3.7/RD P3.6/WR PSEN ALE/P P3.1/TXD P3.0/RXD VSS VCC P4.3 AUTO R629 4.7K R602 10K LED_B Standby OUT-R+ SDA 4 C603 10u/16V SCL 4 C608 NC VCC12V 2 VCPU TXD 3 DVI-DSUB SELECT DDC_DAT 3,4 Mute ENTER R625 10K 1/16W 　 POWER LED_G R626 10K 1/16W OUT-R- R624 0 R605 10K R604 10K VCPU C605 .1u VCPU FB602 600 OHM FB603 600 OHM FB601 600 OHM R614 10K R612 NC INT 4 C615 NC VCPU ENTER R628 470 C610 NC AUTO CSZ 4 U602 24C16 1 2 3 4 5 6 7 8 A0 A1 A2 GND SDA SCL WP VCC DDC_CLK 3 OUT-L+ Volume 4 VCC12V R601 10K C614 NC CN602 CON16A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 OUT-L+ OUT-L- R633 0 R622 0 LEFT LED_GRN C604 22pF VCPU R620 0 R635 100 R616 4.7K R615 10K LED_G RIGHT LED_O RP601 10Kx4 1 2 3 4 5 6 7 8 R630 0 Mute_key C606 NC C601 .1u R617 470 POWER LED_O CN601 CON14A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 ST_DET1 3 LED_B R613 10K R621 0 Q603 PMBS3906 C B E R632 10K LED_BLUE D601 1N4148 R634 100 DVI-DSUB SELECT R627 10K 1/16W 　 R618 470 R608 100 CN201 CON402(PITCH 2.54) 1 3 5 7 9 11 2 4 6 8 10 12 VCC12V R208 10K 1/16W 　 VCC3.3 VCC12V R212 4.7K 1/16W 　 VLCD VLCD 5 GND Q204 PMBS3904 3 2 1 + C202 220uF/25V + C211 47uF/16V VCC5V+ VAA4 VCC5V VCC5V+ C214 0.1uF FB201 600 OHM VCC5V 3,6 VCPU VAA2 4 VCC5V VCC3.3 4 VAA3 R202 10K 1/16W 　 onBACKLITE 6 C201 0.1uF R205 4.7K 1/16W 　 VCPU 6 + C215 47uF/16V U202 AIC1084-33M 3 1 2 VIN ADJ VOUT DIM VCC5V C212 0.1uF D1 SCHOTTEYDIODE VCC2.5 + C204 220uF/25V GND C B E C205 0.1uF R201 4.7K 1/16W 　 VAA4 4 VAA2 C203 0.1uF Q201 PMBS3904 3 2 1 onPanel_5V/3.3V 6 R207 4.7K 1/16W 　 VCC12V R203 1K 1/16W 　 ON_OFF R206 10K 1/16W 　 SOT-223 VCC5V D2 DIODE VAA3 4 R210 NC C B E GND GND C210 0.1uF U201 RT9164-25CG 3 2 1 VI VO GND VCC5V + C206 10uF/16V VCC5V VCC12V 6 C207 0.1uF Q203 AO3401 VCC5V R204 10K 1/16W 　 VCC5V+ GND + C208 10uF/16V Q202 PMBS3904 3 2 1 VAA1 4 AdjBACKLITE 4 VCC3.3 R209 0 1/16W 　 C216 0.1uF VCC2.5 4 TO-263 GND VAA1 R211 10K 1/16W 　 Brightness EN5200-ei Page 22 of 42 7.PCB LAYOUT 7.1 MAIN BORAD EN5200-ei Page 23 of 42 ITEM Description X401 CRYSTAL 14.318MHzHC-49U X601 CRYSTAL 12MHz HC-49US A U201 RT9164-25CG U202 AIC1084-33CM U301 M24C02-WMN6T SMT U401 MST811A PQFP-128 U601 PLCC SMT CONN PD41C-441 CN201 WAFER CN301 PHONE JACK (Only for SPK) CN503 PIN HEADER 24P 2.0mm CN602 WAFER 16PIN 2.0mm DIP RN601 CHIP AR 8P4R 10KOHM +-5 RN602 CHIP AR 8P4R 10KOHM +-5 7.2 INVERTER/POWER BOARD EN5200-ei Page 24 of 42 ITEM Description PT201 1.5MM RIVET PT202 1.5MM RIVET IC901 SG6841D BY SYSTEM IC902 PC123 Y82 IC903 HTL431 CN102 HEADER 2*6P CN201 WAFER CN202 WAFER CN203 CONN.2P R/A 87210-0236 DIP CN204 WAFER CN301 PHONE JACK (Only for SPK) CN302 3 PIN BD901 BRIDGE 2KBP06M NR901 8 OHM NCTR C905 100UF +-20% 400V T901 X'FMR Q211 2SC5706 DIP SANYO 8. MAINTAINABILITY 8.1 EQUIREMENT AND TOOLS REQUIREMENT 1、 Voltmeter. 2、oscilloscope. 3、Pattern Generator. 4、DDC Tool with a IBM Compatible Computer. 5、Alignment Tool. 6、LCD Color Analyzer. 7、Service Manual. 8、User Manual. EN5200-ei Page 25 of 42 8.2 TROUBLE SHOOTING Defect Mode Failure Analysis Repair Testing Complete NG Next Abnorm al Missing Line Bright Dot Dark Dot Light Leakage Mura Image Sticking Dot Defect Brightness Dot Defect Particle Check Panel No display Check Power Check Check Panel Change Panel Change Change Power Check Keyboard Change Check Line Connectted Power board and Change Noise Check Check Panel Change Change Panel Test A EN5200-ei Page 26 of 42 A Test Next Complete A Noise Check Single Change Single Flicker Check Change Mainboard Check Panel Change Panel Abnorma l Gray Check Mainbord Change Mainboard Check Panel Change Panel Check LVD Change LVD R\G\B Display Ab Check Single Change Single Check Change Mainboard Check Panel Change Panel Monitor Shut Check Change Check Keyboard Change Keyboard Check Change Mainboard No signal Check Single Change Single Check Change Mainboard Power on Display Ab Check Change Mainboard EN5200-ei Page 27 of 42 Defect Mode Failure Analysis Repair Testing Change Keyboard or Change Keyboard or Change Keyboard Change Mainboard Change Mainboard Change LVDS LED Off Change Keyboard or Change Keyboard or A Change Wires LED Abnormal LED Dark LED Display Abnorma LED Flicker Abnorma l Check Wires Check Keyboard Check Mainboa (DDC)U301 Abnorma l Check Check LVDS Test Next Complete EN5200-ei Page 28 of 42 9. WHITE- BALANCE, LUMINANCE ADJUSTMENT Approximately 30 minutes should be allowed for warm up before proceeding White-Balance adjustment. Before started adjust white balance, please setting the Chroma-7120 MEM. CHANNEL 3 TO 7800 colors, MEM. and MEM. CHANNEL 4 TO 6500 color ( our 7800 parameter is x = 296 ±10, y = 311 ±10, Y = 180 ±10 cd/m2 , 6500 parameter is x = 313±10, y = 329 ±10, Y = 180 ±10 cd/m2) How to setting MEM .channel you can reference to chroma 7120 user guide or simple use “ SC” key and “ NEXT” key to modify xyY value and use “ID” key to modify the TEXT description Following is the procedure to do white-balance adjust Press MENU button during 2 seconds along with press Power button will activate the factory mode, then MCU will do AUTO LEVEL automatically. Meanwhile press MENU the OSD screen will located at LEFT TOP OF PANEL. 1、Bias adjustment : Set the Contrast to 50 Adjust the Brightness to 80. 2、Gain adjustment : Move cursor to “-F-” and press MENU key A、Adjust C2(7800) color-temperature 1、Switch the chroma-7120 to RGB-Mode (with press “MODE” button ) 2、Switch the MEM. channel to Channel9 (with up or down arrow on chroma 7120) 3、The LCD-indicator on chroma 7120 will show x = 296 ±10, y = 311 ±10, Y = 180 ±10 cd/m2 4、Adjust the RED of color1 on factory window until chroma 7120 indicator reached the value R=100 5、Adjust the GREEN of color1 on factory, until chroma 7120 indicator reached G=100 6、Adjust the BLUE of color1 on factory, until chroma 7120 indicator reached B=100 7、Repeat above procedure ( item 5,6,7) until chroma 7120 RGB value meet the tolerance =100±2 EN5200-ei Page 29 of 42 B、Adjust C1(6500) color-temperature 1、Switch the chroma-7120 to RGB-Mode (with press “MODE” button ) 2、Switch the MEM .channel to Channel 4( with up or down arrow on chroma 7120 ) 3、The LCD-indicator on chroma 7120 will show x = 313 ±10, y = 329 ±10, Y = 180 ±10 cd/m2 4、Adjust the RED of color3 on factory window until chroma 7120 indicator reached the value R=100 5、Adjust the GREEN of color3 on factory, until chroma 7120 indicator reached G=100 6、Adjust the BLUE of color3 on factory, until chroma 7120 indicator reached B=100 7、Repeat above procedure ( item 5,6,7) until chroma 7120 RGB value meet the tolerance =100±2 Press reset key Turn the POWER-button off to on to quit from factory mode. 10. EDID CONTENT x0 x1 x2 x3 x4 x5 x6 x7 x8 x9 xA xB xC xD xE xF 00 00 FF FF FF FF FF FF 00 16 09 63 E5 0B 60 01 00 16: 12 0D 01 03 68 1E 17 82 2A 71 F5 9F 55 4B 99 24 32: 1C 4F 54 BF EE 00 01 01 01 01 01 01 01 01 01 01 48: 01 01 01 01 01 01 64 19 00 40 41 00 26 30 18 88 64: 36 00 30 E4 10 00 00 18 00 00 00 FF 00 31 32 33 80: 34 35 36 37 38 39 30 31 32 33 00 00 00 FD 00 37 96: 4B 1E 3F 08 00 0A 20 20 20 20 20 20 00 00 00 FC 112 00 45 4E 2D 35 32 30 30 65 69 0A 20 20 20 00 78 Note: Byte 0C, 0D, 0E, 0F means Serial No. Byte 10, 11 mean Manufacture Time. Byte 7F means checksum EN5200-ei Page 30 of 42 11. BOM LIST T562KNXNKEE3N CBPC562KNXE3 CONVERSI ON BOARD FOR T5M 1 PCS KEPC562KD2 KEY BOARD FOR T562K* M 1 PCS PWPC5215A1E3 POWER BOARD M 1 PCS 7L 1 L 41 WOODEN PALLET P 0. 0053 PCS 7L 1 L 42 WOODEN PALLET P 0. 0053 PCS 15L5908 1 BRACKET P 1 PCS 15L6075 1 MAI N FRANE P 1 PCS 26L 800504 7 BARCODE P 1 PCS 33L4362 1 LENS P 1 PCS 33L4447 U2 2L POWER KEY PAD P 1 PCS 34L 973AD7 2L FRONT PANEL( HP MOUSE 同) 1 PCS 40L 15067312B I D LABEL P 1 PCS 40L 154501 1 HI - POT GND LABEL FOR MO P 1. 1 PCS 40L 581 26704 唛头纸 FOR CARTON/PALLET P 0. 05 PCS 41L 68508 A 管制卡 P 0. 1 PCS 41L780061513B I NPUT NOT SUPPORT CARD P 1 PCS 41L780067311A QSG P 1 PCS 41L780067312A WARRANTY BOOKLET P 1 PCS 44L3231 12500 EVA WASHER P 1 PCS 44L3525673 2A CARTON P 1 PCS 44L3539 1 EPS P 1 PCS 44L3539 2 EPS P 1 PCS 44L3539 3EPE EPE P 1 PCS 44L9003210 护角板 P 0. 042 PCS 45L 76 28 C PE Bag For Manual P 2 PCS 45L 77 3 打包膜 P 173 CM 45L 77500 BARCODE RI BBON P 19 CM 45L 77501 BARCODE RI BBON P 0. 5 CM 45L 88607 PE BAG FOR MONI TOR P 1 PCS 45L 88609 EPE COVER P 1 PCS 50L 600 2 HANDLE1 P 1 PCS 50L 600 3 HANDLE2 P 1 PCS 51L 2 14 荐翰溅 P 0. 4 G 52L 1185 MI DDLE TAPE FOR CARTON P 92 CM 52L 1186 SMALL TAPE P 8 CM 52L6020 2 PROTECT FI LM P 0 PCS EN5200-ei Page 31 of 42 52L6025 11522 MYLAR P 1 PCS 52L6025 11523 I NSULATE SHEET P 1 PCS 70L L15502EPI DREI VER DI SK P 1 PCS 85L 634 11 SHI ELD P 1 PCS 89L1735GAA D1 SI GNAL CABLE P 1 PCS 89L402A18N YH POWER CORD P 1 PCS 95L8014 11 1 HARNESS 12P 60mm P 1 PCS 95L8018 24501 HARNESS P 1 PCS M1L 325 4120 SCREW M2. 5X4 P 4 PCS M1L 330 4128 SCREW M3X4 P 1 PCS M1L1140 6128 SCREW 4X6 P 1 PCS M1L1730 6128 SCREW M3x6 P 8 PCS Q1L 330 8120 SCREW 3X8mm P 14 PCS 750LLE50 10 NEC 15"" LCD PANEL P 1. 000 0 PCS 705L562KB34133 LCD 后壳 ASS' Y X 1 PCS AI C562KNXE3 MAI N BOARD FOR T562K* M 1 PCS CN201 33L800911U HEADER 2*6P P 1 PCS CN503 33L801724A H PI N HEADER 24P 2. 0mm P 1 PCS CN602 33L8027 16 WAFER 16PI N 2. 0mm DI P P 1 PCS 52L6026 1 网版板 P 20 MM 52L6026 2 网版板 P 20 MM U601 56L1125137SS1 W78E65- 44 BY WI NBOND P 1 PCS C202 67L215B221 4H LOW ESR 220UF 25V 8*11 P 1 PCS C204 67L215B221 4H LOW ESR 220UF 25V 8*11 P 1 PCS CN301 88L 35315FHAS D- SUB 15PI N P 1 PCS X401 93L 22 53 CRYSTAL 14. 318MHzHC- 49UP 1 PCS X601 93L 22 55 CRYSTAL 20MHz HC- 49US P 0 PCS X601 93L 22 55 H 20MHZ P 1 PCS U401 56L 562 48 MST8011A PQFP- 128 P 1 PCS U202 56L 563 7 AI C1084- 33CM P 1 PCS U201 56L 585 5 RT9164- 25CG P 1 PCS U602 56L1133 33 M24C16- MN6T P 1 PCS U301 56L1133 34 M24C02- WMN6T SMT P 1 PCS Q201 57L 417 4 PMBS3904/PHI LI PS- SMT ( 04P 1 PCS Q202 57L 417 4 PMBS3904/PHI LI PS- SMT ( 04P 1 PCS Q204 57L 417 4 PMBS3904/PHI LI PS- SMT ( 04P 1 PCS Q601 57L 417 6 PMBS3906/PHI LI PS- SMT ( 06P 1 PCS Q602 57L 417 6 PMBS3906/PHI LI PS- SMT ( 06P 1 PCS Q603 57L 417 6 PMBS3906/PHI LI PS- SMT ( 06P 1 PCS EN5200-ei Page 32 of 42 Q203 57L 763 1 A03401 SOT23 BY AOS ( A1) P 0 PCS Q203 57L 763 1A TRANSI STOR P 1 PCS RN601 61L 125103 8 CHI P AR 8P4R 10KOHM +- 5P 1 PCS RN602 61L 125103 8 CHI P AR 8P4R 10KOHM +- 5P 1 PCS FB301 61L0603000 CHI PR 0OHM +- 5% 1/16W P 1 PCS FB302 61L0603000 CHI PR 0OHM +- 5% 1/16W P 1 PCS FB303 61L0603000 CHI PR 0OHM +- 5% 1/16W P 1 PCS R210 61L0603000 CHI PR 0OHM +- 5% 1/16W P 1 PCS R502 61L0603000 CHI PR 0OHM +- 5% 1/16W P 1 PCS R301 61L0603101 CHI PR 100 OHM +- 5% 1/16P 1 PCS R302 61L0603101 CHI PR 100 OHM +- 5% 1/16P 1 PCS R303 61L0603101 CHI PR 100 OHM +- 5% 1/16P 1 PCS R305 61L0603101 CHI PR 100 OHM +- 5% 1/16P 1 PCS R306 61L0603101 CHI PR 100 OHM +- 5% 1/16P 1 PCS R307 61L0603101 CHI PR 100 OHM +- 5% 1/16P 1 PCS R309 61L0603101 CHI PR 100 OHM +- 5% 1/16P 1 PCS R312 61L0603101 CHI PR 100 OHM +- 5% 1/16P 1 PCS R315 61L0603101 CHI PR 100 OHM +- 5% 1/16P 1 PCS R316 61L0603101 CHI PR 100 OHM +- 5% 1/16P 1 PCS R608 61L0603101 CHI PR 100 OHM +- 5% 1/16P 1 PCS R609 61L0603101 CHI PR 100 OHM +- 5% 1/16P 1 PCS R634 61L0603101 CHI PR 100 OHM +- 5% 1/16P 1 PCS R635 61L0603101 CHI PR 100 OHM +- 5% 1/16P 1 PCS R203 61L0603102 CHI PR 1K OHM +- 5% 1/16WP 1 PCS R311 61L0603102 CHI PR 1K OHM +- 5% 1/16WP 1 PCS R202 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS R204 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS R206 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS R208 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS R211 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS R308 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS R314 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS R317 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS R318 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS R601 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS R602 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS R603 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS R604 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS R605 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS EN5200-ei Page 33 of 42 R606 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS R607 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS R613 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS R614 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS R615 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS R310 61L0603151 CHI PR 150 OHM +- 5% 1/16P 1 PCS R313 61L0603222 CHI PR 2. 2K OHM+- 5% 1/16P 1 PCS R403 61L0603391 CHI P 390 OHM 1/16W P 1 PCS R304 61L0603471 CHI PR 470 OHM+- 5% 1/16WP 1 PCS R617 61L0603471 CHI PR 470 OHM+- 5% 1/16WP 1 PCS R618 61L0603471 CHI PR 470 OHM+- 5% 1/16WP 1 PCS R201 61L0603472 CHI PR 4. 7K OHM +- 5% 1/1P 1 PCS R205 61L0603472 CHI PR 4. 7K OHM +- 5% 1/1P 1 PCS R207 61L0603472 CHI PR 4. 7K OHM +- 5% 1/1P 1 PCS R212 61L0603472 CHI PR 4. 7K OHM +- 5% 1/1P 1 PCS R616 61L0603472 CHI PR 4. 7K OHM +- 5% 1/1P 1 PCS R619 61L0603472 CHI PR 4. 7K OHM +- 5% 1/1P 1 PCS R325 61L0603750 CHI PR 75 OHM+- 5% 1/16W P 1 PCS R326 61L0603750 CHI PR 75 OHM+- 5% 1/16W P 1 PCS R327 61L0603750 CHI PR 75 OHM+- 5% 1/16W P 1 PCS C307 65L0603102 32 1000PF +- 10% 50V X7R P 1 PCS C201 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C203 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C205 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C207 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C210 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C212 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C214 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C216 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C313 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C401 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C404 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C406 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C407 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C408 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C409 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C410 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C411 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C412 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS EN5200-ei Page 34 of 42 C413 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C415 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C416 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C417 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C418 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C420 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C421 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C423 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C425 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C426 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C428 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C510 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C511 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C601 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C605 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C606 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C607 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C608 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C609 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C610 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C614 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C615 65L0603104 32 CHI P 0. 1UF 50V X7R P 1 PCS C402 65L0603220 31 CHI P 22PF 50V NPO P 1 PCS C403 65L0603220 31 CHI P 22PF 50V NPO P 1 PCS C602 65L0603220 31 CHI P 22PF 50V NPO P 1 PCS C604 65L0603220 31 CHI P 22PF 50V NPO P 1 PCS C312 65L0603221 31 CAP: CER 220PF 5% 50V SMP 1 PCS C311 65L0603330 31 33PF+- 5% 50V NPO P 1 PCS C304 65L0603473 32 CHI P 0. 047UF 50V X7R P 1 PCS C305 65L0603473 32 CHI P 0. 047UF 50V X7R P 1 PCS C306 65L0603473 32 CHI P 0. 047UF 50V X7R P 1 PCS C308 65L0603473 32 CHI P 0. 047UF 50V X7R P 1 PCS C309 65L0603473 32 CHI P 0. 047UF 50V X7R P 1 PCS C310 65L0603473 32 CHI P 0. 047UF 50V X7R P 1 PCS C206 65L0805105 22 CHI P 1UF 25V X7R 0805 P 1 PCS C208 67L 312100 3 SMD 10uf +- 20% 16V P 1 PCS C405 67L 312100 3 SMD 10uf +- 20% 16V P 1 PCS C414 67L 312100 3 SMD 10uf +- 20% 16V P 1 PCS C419 67L 312100 3 SMD 10uf +- 20% 16V P 1 PCS EN5200-ei Page 35 of 42 C422 67L 312100 3 SMD 10uf +- 20% 16V P 1 PCS C424 67L 312100 3 SMD 10uf +- 20% 16V P 1 PCS C427 67L 312100 3 SMD 10uf +- 20% 16V P 1 PCS C603 67L 312100 3 SMD 10uf +- 20% 16V P 1 PCS C509 67L 312220 3 SMD 22UF +- 20% 16V P 1 PCS C211 67L 312470 3 SMD 47UF +- 20% 16V P 1 PCS C215 67L 312470 3 SMD 47UF +- 20% 16V P 1 PCS FB304 71L 56G151 CHI P BEAD 150 OHM P 1 PCS FB304 71L 56G151 A TB160808G151 P 0 PCS FB201 71L 56Z601 CHI P BEAD 600 OHM 0805 P 1 PCS FB401 71L 56Z601 CHI P BEAD 600 OHM 0805 P 1 PCS FB402 71L 56Z601 CHI P BEAD 600 OHM 0805 P 1 PCS FB403 71L 56Z601 CHI P BEAD 600 OHM 0805 P 1 PCS FB404 71L 56Z601 CHI P BEAD 600 OHM 0805 P 1 PCS FB405 71L 56Z601 CHI P BEAD 600 OHM 0805 P 1 PCS FB406 71L 56Z601 CHI P BEAD 600 OHM 0805 P 1 PCS R620 71L 59G301 CHI P BEAD 300OHM P 1 PCS R621 71L 59G301 CHI P BEAD 300OHM P 1 PCS R622 71L 59G301 CHI P BEAD 300OHM P 1 PCS R623 71L 59G301 CHI P BEAD 300OHM P 1 PCS R624 71L 59G301 CHI P BEAD 300OHM P 1 PCS R630 71L 59G301 CHI P BEAD 300OHM P 1 PCS R633 71L 59G301 CHI P BEAD 300OHM P 1 PCS U601 87L 202 44 PLCC SMT CONN PD41C- 441P 1 PCS D317 93L 39147 TZMC5V6- GS08 P 1 PCS D318 93L 39147 TZMC5V6- GS08 P 1 PCS D319 93L 39147 TZMC5V6- GS08 P 1 PCS D320 93L 39147 TZMC5V6- GS08 P 1 PCS D321 93L 39147 TZMC5V6- GS08 P 1 PCS D304 93L 60222 BAT54CFI LM ( D87) P 1 PCS D304 93L 60230 BAT54C ( L43) P 0 PCS D601 93L 6432V LL4148- GS08 P 1 PCS D301 93L 6433P BAV99 P 1 PCS D302 93L 6433P BAV99 P 1 PCS D303 93L 6433P BAV99 P 1 PCS D202 93L1004 3 SS14 P 1 PCS D201 93L1020 1 S GS1D? P 1. 0000 P CS 715L1150 B MAI N BOARD PCB P 1 PCS AI K562KD2 KEY BOARD FOR T562K* M 1 PCS EN5200-ei Page 36 of 42 SW101 77L 600 1GHJ KEY SWI TCH P 1 PCS SW102 77L 600 1GHJ KEY SWI TCH P 1 PCS SW103 77L 600 1GHJ KEY SWI TCH P 1 PCS SW104 77L 600 1GHJ KEY SWI TCH P 1 PCS SW105 77L 600 1GHJ KEY SWI TCH P 1 PCS LED1 81L 12 1 BH 3 PI N LED P 0 PCS LED1 81L 12 1 GP LED P 1 PCS J P801 95L8014 8508 HARNESS P 1 PCS 715L 707 1 2 TF- 1560 KEY BOARD ( SMD) P 1 PCS J 101 95L 90 23 TI N COATED P 0 PCS J 102 95L 90 23 TI N COATED P 0 PCS Q101 95L 90 23 TI N COATED P 0 PCS Q102 95L 90 23 TI N COATED P 0 PCS R106 95L 90 23 TI N COATED P 0 PCS R107 95L 90 23 TI N COATED P 0 PCS R109 95L 90 23 TI N COATED P 0 PCS R108 61L 60210152T 100OHM +- 5% 1/6W P 1 PCS PW5215A1E3SMT POWER BOARD FOR SMT M 1 PCS PWPC5215A1E3A POWER BOARD FOR AI M 1 PCS L904 73L 253 91 LS CHOKE BY LI SHI N P 0 PCS CN102 33L800912A HEADER 2*6P P 1 PCS CN201 33L8020 2D AC CONN. 2P R/A DI P BY ACESP 1 PCS CN202 33L8020 2D AC CONN. 2P R/A DI P BY ACESP 1 PCS 40L 45762412A CBPC LABEL P 1. 03 PCS 51L 6 4500 RTV 溅 P 2 G 51L 6 4502 RTV 溅 P 0 G 51L 6 4503 RTV 溅 P 0 G I C902 56L 139 3 PC123FY2 BY SHARP P 0 PCS I C902 56L 139 3A PC123Y22 P 1 PCS I C902 56L 139 3B PC123 Y82 P 0 PCS I C901 56L 379 32 SG6841D BY SYSTEM P 1 PCS Q209 57L 761 6 2SC5706 DI P SANYO P 1 PCS Q210 57L 761 6 2SC5706 DI P SANYO P 1 PCS R919 61L 2J 39864B 0. 39OHM 5% 2W P 1 PCS NR901 61L 58080 WT 8 OHM NCTR P 1 PCS R903 61L152M104 64 100KOHM 5% 2W P 1 PCS C904 63L 107474 5S 0. 47UF +- 10% 250VAC P 0 PCS C904 63L 107474 HS 0. 47UF +- 10% 250VAC P 1 PCS C904 63L 10747410S 0. 47UF +- 10% 250VAC P 0 PCS EN5200-ei Page 37 of 42 C213 63L210J 2242A2 PMS 0. 22UF 250V P 1 PCS C213 64L180J 224AAT CAP 0. 22UF 160V R79 P 0 PCS C906 65L 2K152 5E605 1500 PF 10% 2KV Y5P P 0 PCS C906 65L 2K152 5E628 1500 PF 10% 2KV Y5P P 0 PCS C906 65L 2K152 5E692 1500 PF 10% 2KV Y5P P 1 PCS C215 65L 3J 2206EM 22PF 5% 3KV MURATA P 0 PCS C216 65L 3J 2206EM 22PF 5% 3KV MURATA P 0 PCS C215 65L 3J 2206ET 22PF 5% 3KV TDK P 1 PCS C216 65L 3J 2206ET 22PF 5% 3KV TDK P 1 PCS C901 65L305M1022B2 1000PF 蹲勾 400VAC/250VACP 0 PCS C902 65L305M1022B2 1000PF 蹲勾 400VAC/250VACP 0 PCS C901 65L305M1022E3 1000PF +- 20% 400VAC BY P 1 PCS C902 65L305M1022E3 1000PF +- 20% 400VAC BY P 1 PCS C901 65L305M1022EM 1000PF +- 20% 250VAC/400P 0 PCS C902 65L305M1022EM 1000PF +- 20% 250VAC/400P 0 PCS C913 65L306M472 2B 4700PF 400V 20% Y1- CAP P 0 PCS C913 65L306M4722B2 4700PF +- 20% 400VAC Y1 P 1 PCS C922 67L 215102 3H 1000UF +- 20% 16V P 1 PCS C925 67L 215102 3H 1000UF +- 20% 16V P 1 PCS C922 67L 215102 3K 1000UF +- 20% 16V P 0 PCS C925 67L 215102 3K 1000UF +- 20% 16V P 0 PCS C905 67L305S10114K E. C 105　 CAP P 1 PCS L902 73L 174 26 LS COMMON CHOKE P 1 PCS L902 73L 174 26 T1 LI NE LI LTER 0. 45mm P 0 PCS L202 73L 174 30 LS FI LTER P 0 PCS L202 73L 174 30 YS FI LTER P 1 PCS L903 73L 253 91 L CHOKE BY LI TA P 1 PCS L904 73L 253 91 L CHOKE BY LI TA P 1 PCS L903 73L 253 91 LS CHOKE BY LI SHI N P 0 PCS L201 73L 253139 LL CHOKE COI L P 0 PCS L201 73L 253139 YL CHOKE P 0 PCS L201 73L 253139LSL CHOKE COI L P 1 PCS PT201 80LL15T 7 DN X' FMR P 0 PCS PT201 80LL15T 7 YS X' FMR P 1 PCS T901 80LL17T 2 L ADAPTOR BY LI TAI P 0 PCS T901 80LL17T 2 T X' FMR P 0 PCS T901 80LL17T 2 LS ADAPTOR BY LI SHI N P 1 PCS F901 84L 53 1 FUSE 2A 250V LF- 230002 P 0 PCS F901 84L 7H200 NL FUSE 2Z 250V HL- 50T 2A P 1 PCS EN5200-ei Page 38 of 42 F901 84L 7H200 SL 250V/2A LI HEL FUSE P 0 PCS BD901 93L 50460 8 BRI DGE 2KBP06M2A600V P 1 PCS D912 93L3006 1 31DQ06 P 1 PCS D912 93L3006 3 DI ODE P 0 PCS D910 93L3010 1 31DQ10 P 1 PCS D910 93L3010 2 DI ODE P 0 PCS CN201 33L8020 2D U WAFER P 0 PCS CN202 33L8020 2D U WAFER P 0 PCS 705L 560 57 01 Q903 ASS' Y X 1 PCS 705L 780 57 02 CN901 ASS' Y X 1 PCS U201 56L 379 31 FP1451 P 0 PCS Q203 56L 566 10 SI 4431DY- T1- SMT P 0 PCS U201 56L 608 1 TL1451ACD P 1 PCS U201 56L 622 1 BA9741F- SMT P 0 PCS Q203 56L 763 4 RSS050P03 P 0 PCS Q202 57L 760 4 DTA144WKA BY ROHM SMT ( 7P 1 PCS Q201 57L 760 5 DTC144WKA BY ROHM SMT ( 8P 1 PCS Q203 57L 763 3 AO4411 SO- 8 BY AOS SMT P 1 PCS R208 61L0603000 CHI PR 0OHM +- 5% 1/16W P 1 PCS R929 61L0603000 CHI PR 0OHM +- 5% 1/16W P 1 PCS R218 61L0603101 CHI PR 100 OHM +- 5% 1/16P 1 PCS R931 61L0603102 CHI PR 1K OHM +- 5% 1/16WP 1 PCS R204 61L0603103 CHI PR 10K OHM +- 5% 1/16P 1 PCS R222 61L0603123 CHI P 12K OHM 1/16W P 1 PCS R238 61L0603123 CHI P 12K OHM 1/16W P 1 PCS R210 61L0603183 CHI P 18K OHM 1/16W P 1 PCS R216 61L0603221 CHI PR 220 OHM+- 5% 1/16WP 1 PCS R214 61L0603222 CHI PR 2. 2K OHM+- 5% 1/16P 1 PCS R212 61L0603392 CHI P 3. 9K OHM 1/16W P 1 PCS R236 61L0603471 CHI PR 470 OHM+- 5% 1/16WP 1 PCS R240 61L0603513 CHI P 51K OHM P 1 PCS R234 61L0603911 CHI P 910 OHM 1/16W P 1 PCS R928 61L0805102 CHI PR 1K OHM +- 5% 1/10WP 1 PCS R926 61L0805240 1F CHI PR 2. 4KOHM +- 1% 1/10P 1 PCS R916 61L0805240 2F CHI P 24KOHM 1% 1/10W P 1 PCS R925 61L0805261 1F CHI P 2. 61KOHM 1/10W 1% P 1 PCS F902 61L1206000 4 0 OHM 4A P 1 PCS R912 61L1206101 CHI P 100 OHM 5% 1/8W P 1 PCS R219 61L1206102 CHI P 1K OHM 5% 1/8W P 1 PCS EN5200-ei Page 39 of 42 R232 61L1206102 CHI P 1K OHM 5% 1/8W P 1 PCS R915 61L1206103 CHI P 10KOHM 5% 1/8W P 1 PCS R901 61L1206105 CHI P 1MOHM 5% 1/8W P 1 PCS R902 61L1206105 CHI P 1MOHM 5% 1/8W P 1 PCS R904 61L1206105 CHI P 1MOHM 5% 1/8W P 1 PCS R905 61L1206105 CHI P 1MOHM 5% 1/8W P 1 PCS R224 61L1206152 CHI PR 1. 5K OHM+- 5%1/8W P 1 PCS R225 61L1206152 CHI PR 1. 5K OHM+- 5%1/8W P 1 PCS R226 61L1206152 CHI PR 1. 5K OHM+- 5%1/8W P 1 PCS R227 61L1206152 CHI PR 1. 5K OHM+- 5%1/8W P 1 PCS R909 61L1206472 CHI P 4. 7KOHM 5% 1/8W P 1 PCS R910 61L1206472 CHI P 4. 7KOHM 5% 1/8W P 1 PCS R911 61L1206472 CHI P 4. 7KOHM 5% 1/8W P 1 PCS R906 61L1206684 CHI PR 680K OHM+- 5% 1/8WP 1 PCS R907 61L1206684 CHI PR 680K OHM+- 5% 1/8WP 1 PCS C910 65L0603104 37 CHI P 0. 1UF 50V/Y5V P 1 PCS C927 65L0603104 37 CHI P 0. 1UF 50V/Y5V P 1 PCS C928 65L0603104 37 CHI P 0. 1UF 50V/Y5V P 1 PCS C202 65L0805104 22 0. 1UF +- 10% 25V X7R 080P 1 PCS C205 65L0805104 22 0. 1UF +- 10% 25V X7R 080P 1 PCS C203 65L0805105 27 CHI P 1UF 25V Y5V 0805 P 1 PCS C209 65L0805105 27 CHI P 1UF 25V Y5V 0805 P 1 PCS C211 65L0805105 27 CHI P 1UF 25V Y5V 0805 P 1 PCS C219 65L0805105 27 CHI P 1UF 25V Y5V 0805 P 1 PCS C225 65L0805105 27 CHI P 1UF 25V Y5V 0805 P 1 PCS C208 65L0805331 32 CHI P 330PF 50V X7R 0805P 1 PCS C221 65L0805474 27 CHI P 0. 47UF 25V Y5V P 1 PCS D203 93L 39S 3 T BZT52- C11 P 1 PCS D203 93L 39S 8 T ZD RLZ11B ROHM P 0 PCS ZD904 93L 39S 16 T SML4737A/1 P 0 PCS ZD904 93L 39S 19 T PTZ7. 5B P 1 PCS ZD901 93L 39S 20 T RLZ22B BY ROHM P 1 PCS ZD901 93L 39S 23 T PLZ22B P 0 PCS D201 93L2004 1 SMAL240LVXRO- SMT P 0 PCS D201 93L2004 2 SR24/PANJ I T- SMT P 1 PCS D201 93L2004 3 DI OED P 0 PCS C905 6L 31502 1. 5MM RI VET P 2 PCS L902 6L 31502 1. 5MM RI VET P 4 PCS PT201 6L 31502 1. 5MM RI VET P 2 PCS EN5200-ei Page 40 of 42 T901 6L 31502 1. 5MM RI VET P 4 PCS 715L1034 1A 1 PCB P 1 PCS J 101 95L 90 23 TI N COATED P 0 PCS J 102 95L 90 23 TI N COATED P 0 PCS J 103 95L 90 23 TI N COATED P 0 PCS J 105 95L 90 23 TI N COATED P 0 PCS J 106 95L 90 23 TI N COATED P 0 PCS J 107 95L 90 23 TI N COATED P 0 PCS J 108 95L 90 23 TI N COATED P 0 PCS J 109 95L 90 23 TI N COATED P 0 PCS J 110 95L 90 23 TI N COATED P 0 PCS J 111 95L 90 23 TI N COATED P 0 PCS J 112 95L 90 23 TI N COATED P 0 PCS J 113 95L 90 23 TI N COATED P 0 PCS J 114 95L 90 23 TI N COATED P 0 PCS J 115 95L 90 23 TI N COATED P 0 PCS J 116 95L 90 23 TI N COATED P 0 PCS J 901 95L 90 23 TI N COATED P 0 PCS J 902 95L 90 23 TI N COATED P 0 PCS J 903 95L 90 23 TI N COATED P 0 PCS J 904 95L 90 23 TI N COATED P 0 PCS J 905 95L 90 23 TI N COATED P 0 PCS J 906 95L 90 23 TI N COATED P 0 PCS R917 61L 17210052T 100HM 5% 1/4W P 1 PCS R930 61L 17210152T 100 OHM 5% 1/4W P 1 PCS R918 61L 17210352T CFR 10KOHM +- 5% 1/4W P 1 PCS R922 61L 17247052T 47OHM 5% 1/4W P 1 PCS R908 61L 17268952T 6. 8OHM 5% 1/4W P 1 PCS R205 61L 60210452T 100KOHM 5% 1/6W P 1 PCS R220 61L 60215352T 15KOHM 5% 1/6W P 1 PCS R201 61L 60275352T 75KOHM 5%1/6W P 1 PCS R920 61L175L47052T 47OHM +- 5% 1/2W P 1 PCS FB902 71L 55 19 T FERRI TE BEAD 9X3. 5X0. 8 P 1 PCS FB903 71L 55 19 T FERRI TE BEAD 9X3. 5X0. 8 P 1 PCS FB901 71L 55 29 FERRI TE BEAD P 1 PCS D901 93L 6026T52T RECTI FI ER DI ODE FR107 P 1 PCS D902 93L 6038P52T PS102R P 1 PCS D205 93L 64 1152T 1N4148 P 1 PCS D207 93L 64 1152T 1N4148 P 1 PCS EN5200-ei Page 41 of 42 D209 93L 64 1152T 1N4148 P 1 PCS D903 93L 64 1152T 1N4148 P 1 PCS I C903 56L 158 4 T A HTL431 P 1 PCS Q207 57L 414 2 MPS3906 P 1 PCS Q205 57L 417 3 T MPS3904 SI LI CON PLANER P 1 PCS Q902 57L 419 PP T 2PC945P P 1 PCS Q901 57L 420 PP T 2PA733P P 1 PCS C911 64L700J 1020AT 1000PF 50V PEN P 1 PCS C204 64L700J 1040AT 0. 1UF 50V PEN P 1 PCS C909 64L700J 1040AT 0. 1UF 50V PEN P 1 PCS C936 64L700J 1040AT 0. 1UF 50V PEN P 1 PCS C908 65L 450104 7T 0. 1UF +80- 20% 50V Y5V P 1 PCS C920 65L517K102 5T605 1000PF 10% Y5P 500V P 0 PCS C921 65L517K102 5T605 1000PF 10% Y5P 500V P 0 PCS C920 65L517K102 5T621 1000PF 10% Y5P 500V P 1 PCS C921 65L517K102 5T621 1000PF 10% Y5P 500V P 1 PCS C920 65L517K102 5T628 1000PF 10% Y5P 500V P 0 PCS C921 65L517K102 5T628 1000PF 10% Y5P 500V P 0 PCS C907 67L 309220 7T 22UF +- 20% 50V P 1 PCS C207 67L 309479 7T 4. 7UF +- 20% 50V 85 尼ん玃 1 PCS C924 67L215B4713HT 470UF 16V LTR471M1CF11VP 1 PCS C926 67L215B4713HT 470UF 16V LTR471M1CF11VP 1 PCS C201 67L215C1514HT LOW ESR 150UF 25V 8*7MMP 1 PCS 51L 200 1 床荐猳 P 0. 02 G Q903 57L 723 3B 2SK2761- 01MR P 0 PCS Q903 57L 724 4 2SK2996 P 0 PCS Q903 57L 724 4A STP9NK60ZFP P 1 PCS 90L 411 1 HEAT SI NK P 1 PCS M1L1730 6128 SCREW M3x6 P 1 PCS CN901 87L 501 12 CJ AC SOCKET P 1 PCS CN901 87L 501 12 RF AC SOCKET P 0 PCS 95L205S354022 HARNESS P 1 PCS 96L 29 6 SHRI NK TUBE UL/CSA P 20 MM 12L 385 1 RUBBER FOOT P 0 PCS 15L5786 1 VRSA BRACKET P 1 PCS 33L4339 U0 1L HI NGE COVER ( L) P 1 PCS 33L4339 U0 2L HI NGE COVER ( R) P 1 PCS 34L 911 U0 L STAND COVER F P 1 PCS 34L 912 U0 L STAND COVER B P 1 PCS EN5200-ei Page 42 of 42 34L 913 U0 L BASE P 1 PCS 34L1100 U0A6L BACK COVER P 1 PCS 37L 446 1 LCD HI NGE ( L501- C) P 1 PCS M1L 340 8128 SCREW P 2 PCS Q1L 330 8120 SCREW 3X8mm P 2 PCS Q1L 340 8128 SCREW 4X8mm P 1 PCS AM1L1740 12128 SCREW P 4 PCS
