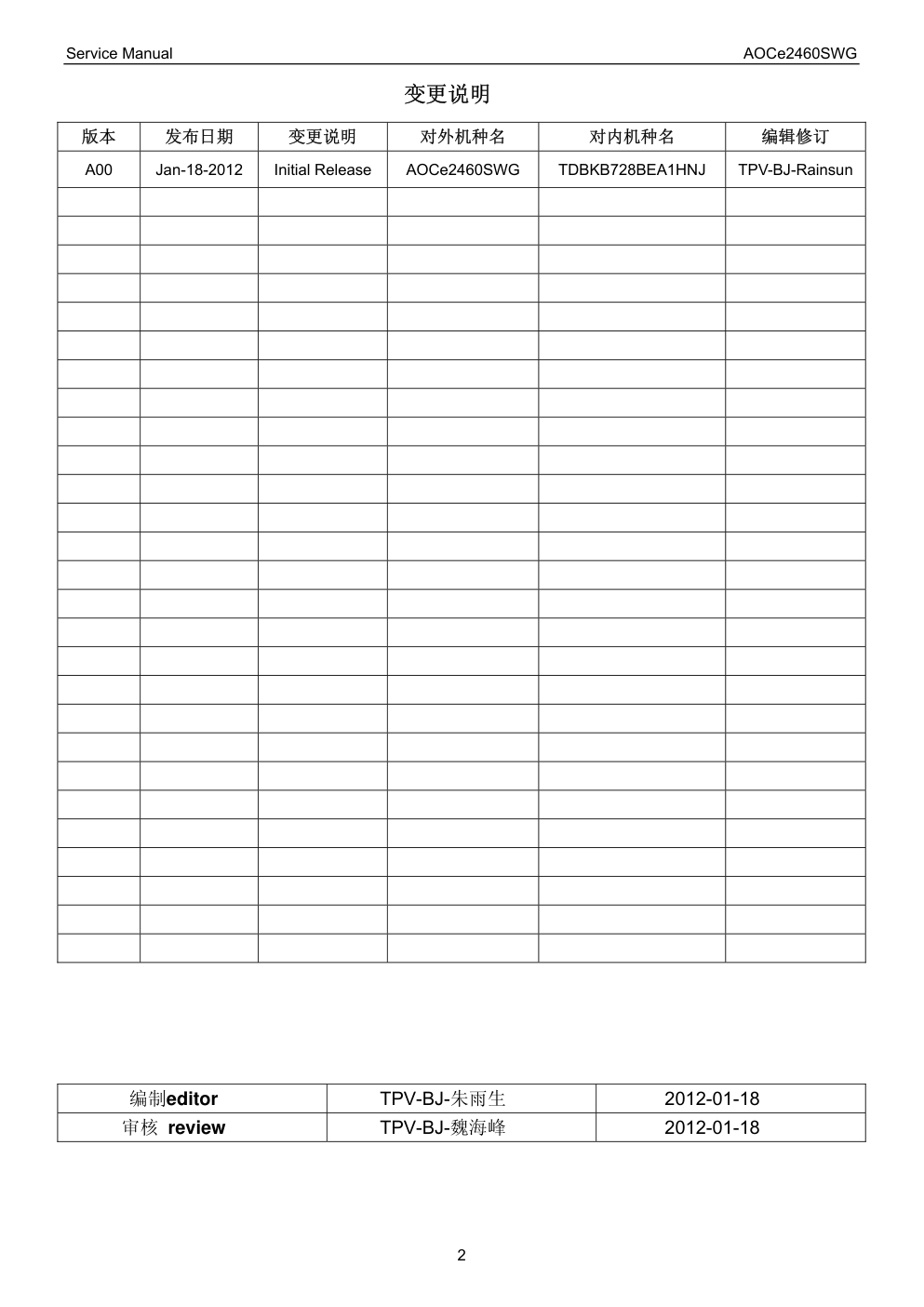

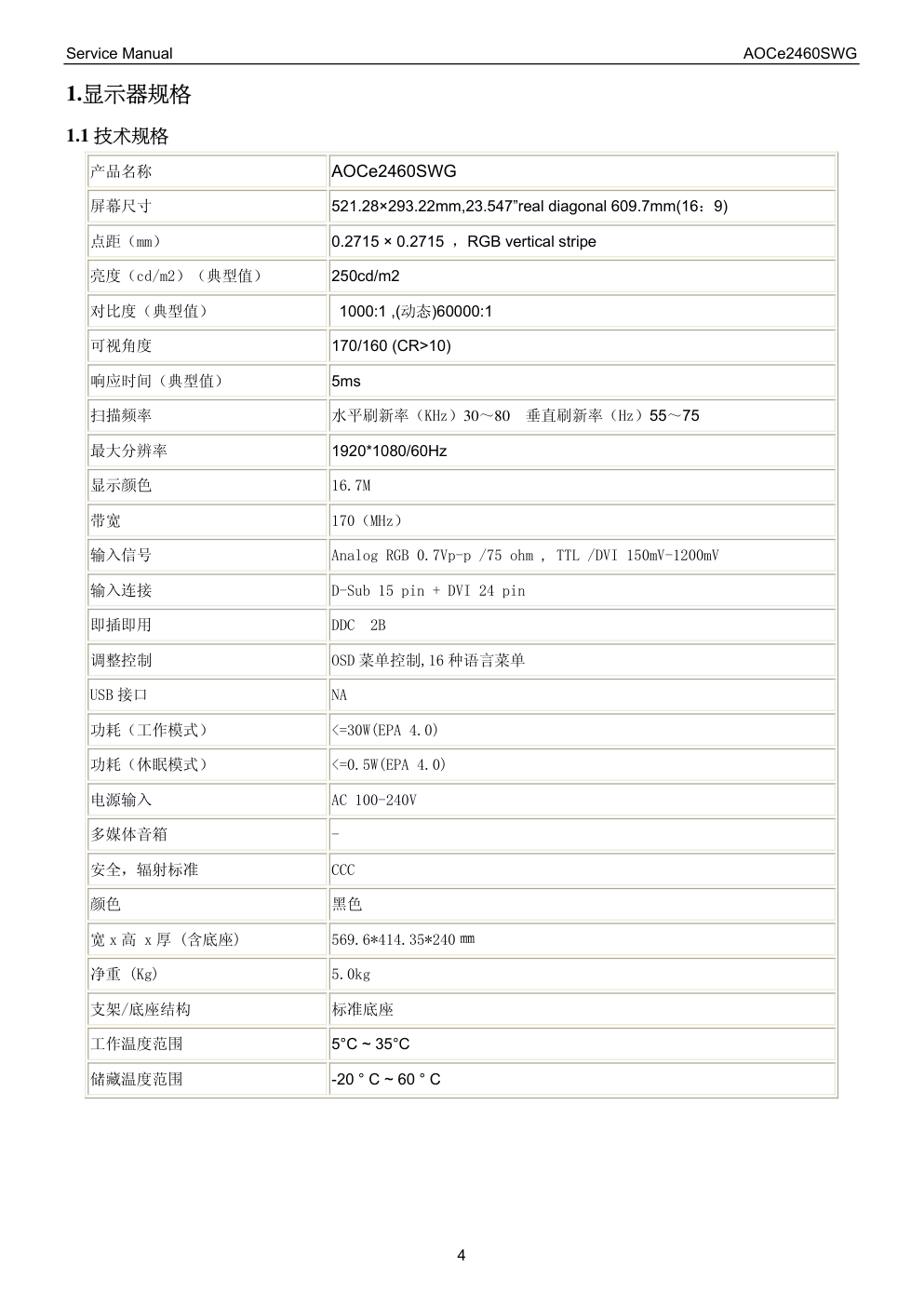

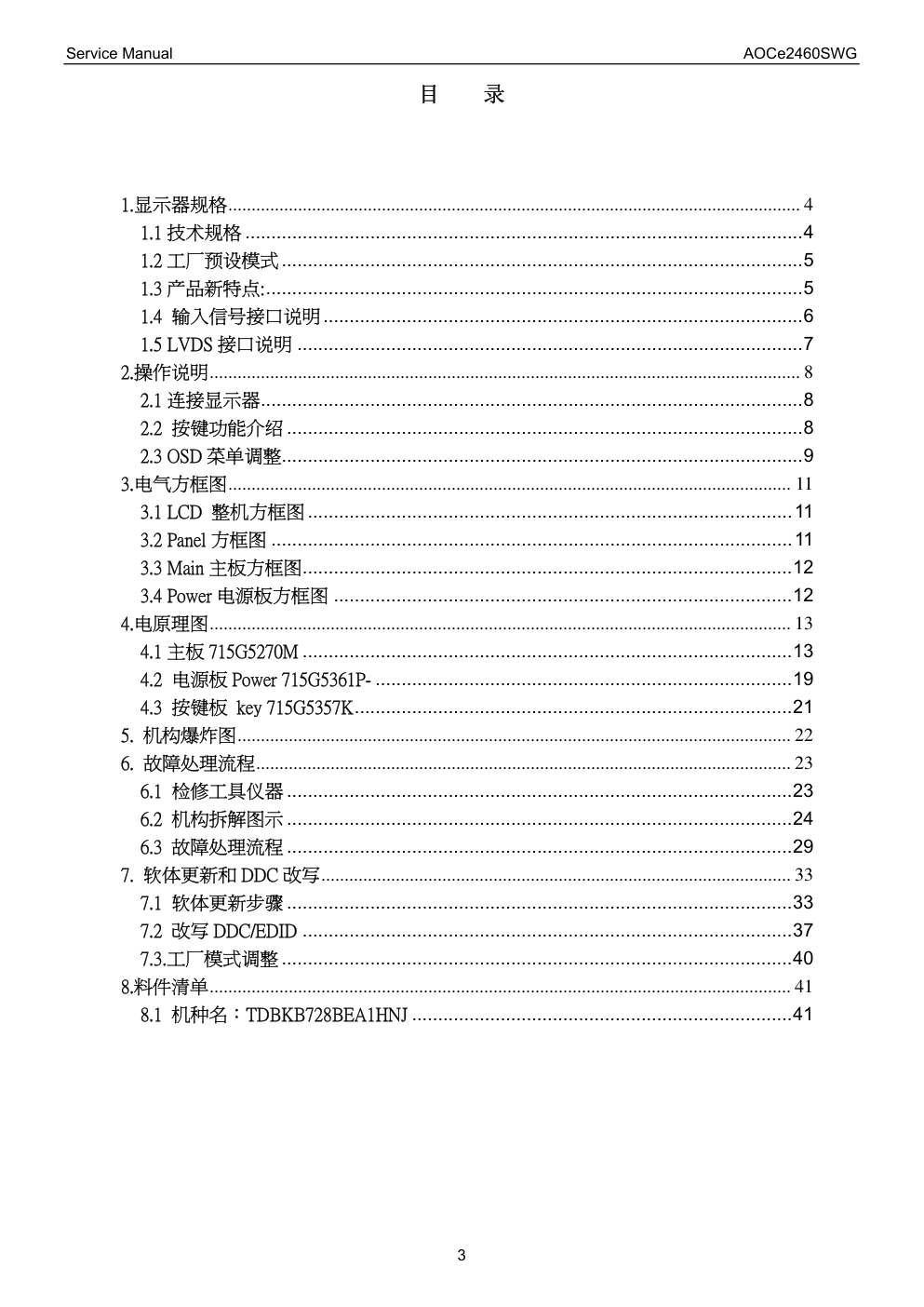

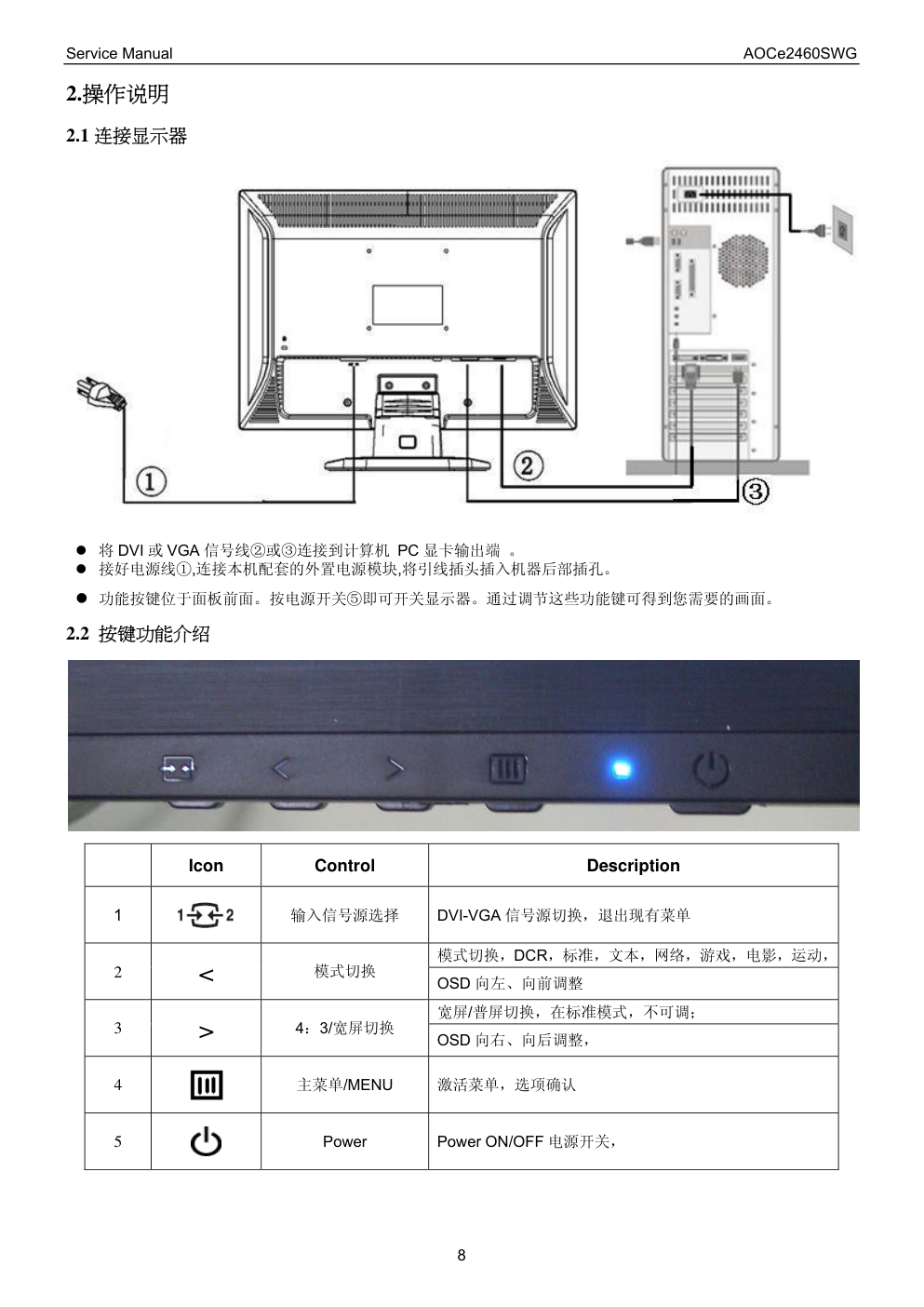

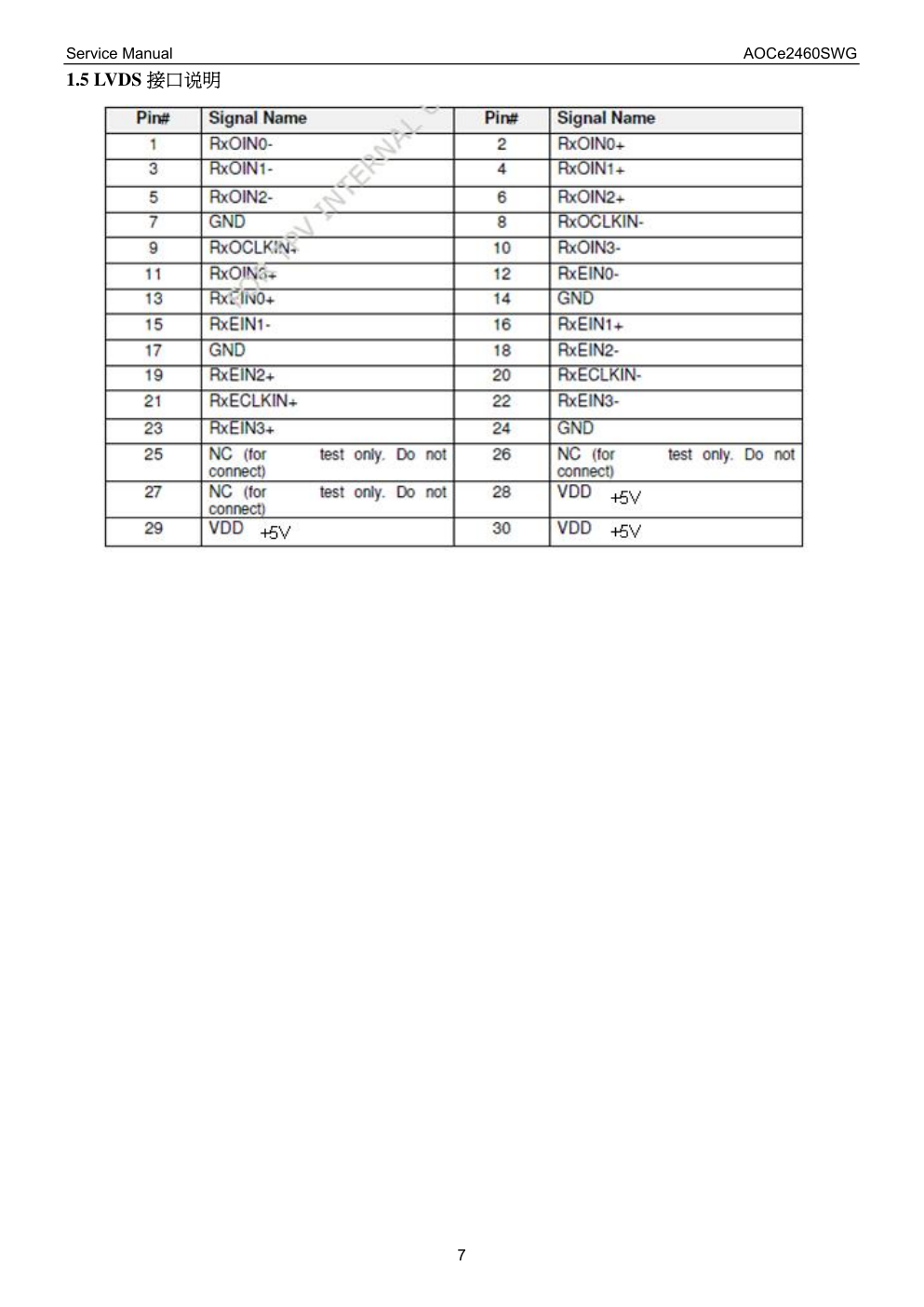

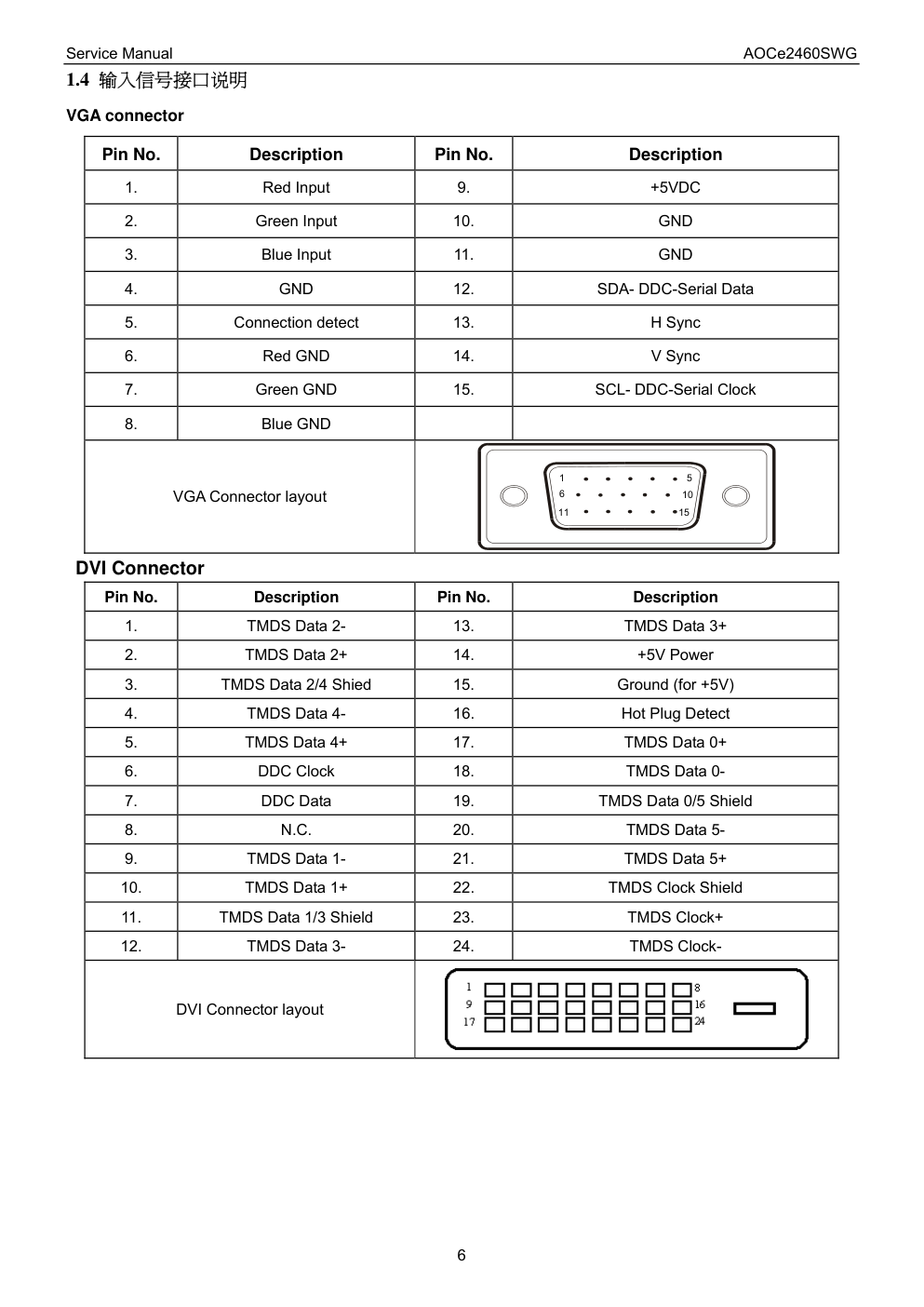

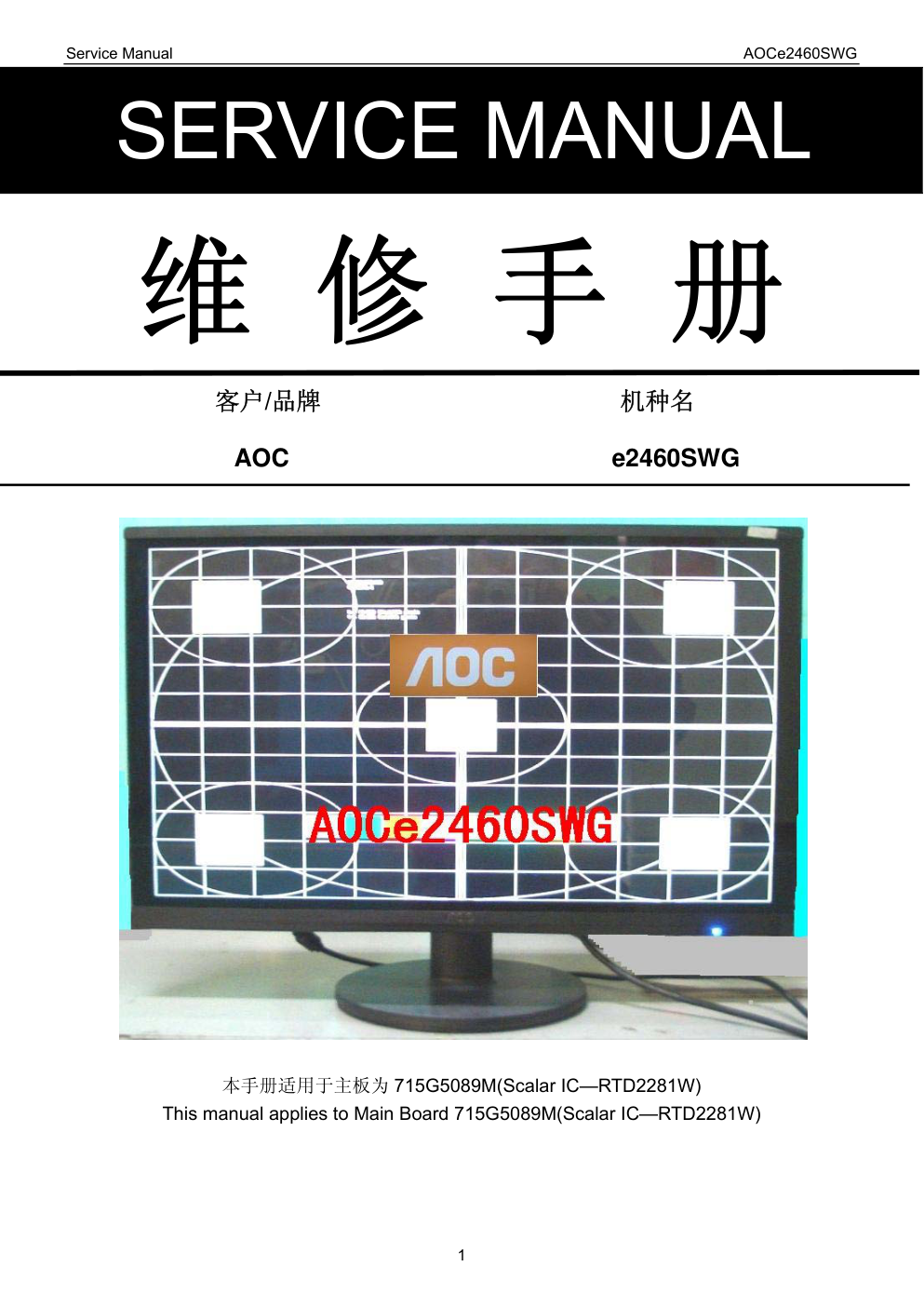

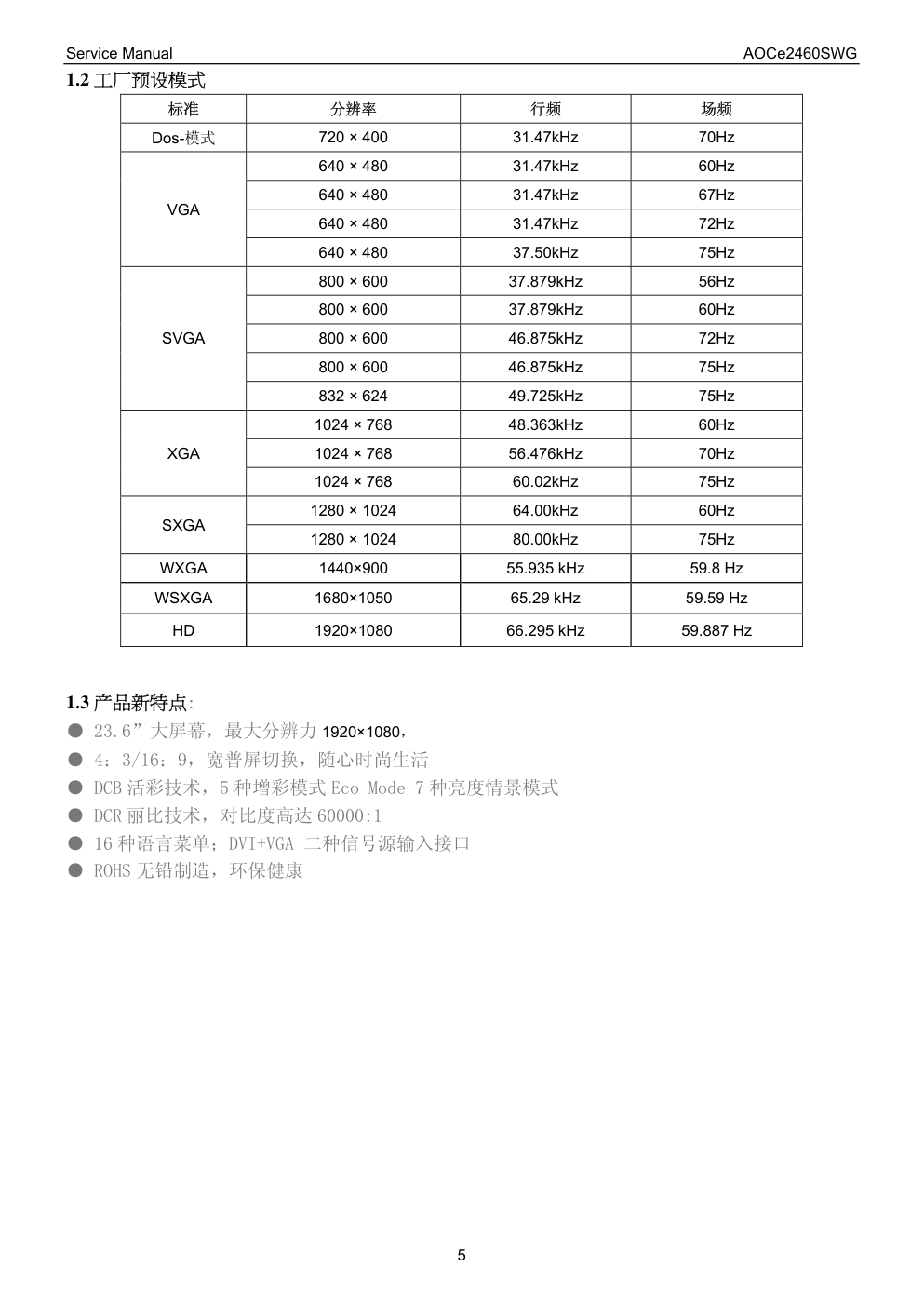

Service Manual AOCe2460SWG 1 / 维 修 手 册 客户/品牌 机种名 AOC e2460SWG 本手册适用于主板为 715G5089M(Scalar IC—RTD2281W) This manual applies to Main Board 715G5089M(Scalar IC—RTD2281W) SERVICE MANUAL Service Manual AOCe2460SWG 2 变更说明 版本 发布日期 变更说明 对外机种名 对内机种名 编辑修订 A00 Jan-18-2012 Initial Release AOCe2460SWG TDBKB728BEA1HNJ TPV-BJ-Rainsun 编制editor TPV-BJ-朱雨生 2012-01-18 审核 review TPV-BJ-魏海峰 2012-01-18 Service Manual AOCe2460SWG 3 目 录   1.显示器规格 ........................................................................................................................... 4 1.1 技术规格 ........................................................................................................... 4 1.2 工厂预设模式 .................................................................................................... 5 1.3 产品新特点: ....................................................................................................... 5 1.4 输入信号接口说明 ............................................................................................ 6 1.5 LVDS 接口说明 ................................................................................................. 7 2.操作说明 ............................................................................................................................... 8 2.1 连接显示器 ........................................................................................................ 8 2.2 按键功能介绍 ................................................................................................... 8 2.3 OSD 菜单调整.................................................................................................... 9 3.电气方框图 ......................................................................................................................... 11 3.1 LCD 整机方框图 ............................................................................................. 11 3.2 Panel 方框图 .................................................................................................... 11 3.3 Main 主板方框图 .............................................................................................. 12 3.4 Power 电源板方框图 ........................................................................................ 12 4.电原理图 ............................................................................................................................. 13 4.1 主板 715G5270M .............................................................................................. 13 4.2 电源板 Power 715G5361P- ................................................................................ 19 4.3 按键板 key 715G5357K .................................................................................... 21 5. 机构爆炸图 ....................................................................................................................... 22 6. 故障处理流程 ................................................................................................................... 23 6.1 检修工具仪器 ................................................................................................. 23 6.2 机构拆解图示 ................................................................................................. 24 6.3 故障处理流程 ................................................................................................. 29 7. 软体更新和 DDC 改写 ..................................................................................................... 33 7.1 软体更新步骤 ................................................................................................. 33 7.2 改写 DDC/EDID .............................................................................................. 37 7.3.工厂模式调整 .................................................................................................. 40 8.料件清单 ............................................................................................................................. 41 8.1 机种名：TDBKB728BEA1HNJ ......................................................................... 41  Service Manual AOCe2460SWG 4 1.显示器规格 1.1 技术规格 产品名称 AOCe2460SWG 屏幕尺寸 521.28×293.22mm,23.547”real diagonal 609.7mm(16：9) 点距（mm） 0.2715 × 0.2715 ，RGB vertical stripe 亮度（cd/m2）（典型值） 250cd/m2 对比度（典型值） 1000:1 ,(动态)60000:1 可视角度 170/160 (CR>10) 响应时间（典型值） 5ms 扫描频率 水平刷新率（KHz）30～80 垂直刷新率（Hz）55～75 最大分辨率 1920*1080/60Hz 显示颜色 16.7M 带宽 170（MHz） 输入信号 Analog RGB 0.7Vp-p /75 ohm , TTL /DVI 150mV-1200mV 输入连接 D-Sub 15 pin + DVI 24 pin 即插即用 DDC 2B 调整控制 OSD 菜单控制,16 种语言菜单 USB 接口 NA 功耗（工作模式） <=30W(EPA 4.0) 功耗（休眠模式） <=0.5W(EPA 4.0) 电源输入 AC 100-240V 多媒体音箱 - 安全，辐射标准 CCC 颜色 黑色 宽 x 高 x 厚 (含底座) 569.6*414.35*240 ㎜ 净重 (Kg) 5.0kg 支架/底座结构 标准底座 工作温度范围 5°C ~ 35°C 储藏温度范围 -20 ° C ~ 60 ° C Service Manual AOCe2460SWG 5 1.2 工厂预设模式 标准 分辨率 行频 场频 Dos-模式 720 × 400 31.47kHz 70Hz VGA 640 × 480 31.47kHz 60Hz 640 × 480 31.47kHz 67Hz 640 × 480 31.47kHz 72Hz 640 × 480 37.50kHz 75Hz SVGA 800 × 600 37.879kHz 56Hz 800 × 600 37.879kHz 60Hz 800 × 600 46.875kHz 72Hz 800 × 600 46.875kHz 75Hz 832 × 624 49.725kHz 75Hz XGA 1024 × 768 48.363kHz 60Hz 1024 × 768 56.476kHz 70Hz 1024 × 768 60.02kHz 75Hz SXGA 1280 × 1024 64.00kHz 60Hz 1280 × 1024 80.00kHz 75Hz WXGA 1440×900 55.935 kHz 59.8 Hz WSXGA 1680×1050 65.29 kHz 59.59 Hz HD 1920×1080 66.295 kHz 59.887 Hz 1.3 产品新特点: ● 23.6”大屏幕，最大分辨力 1920×1080， ● 4：3/16：9，宽普屏切换，随心时尚生活 ● DCB 活彩技术，5 种增彩模式 Eco Mode 7 种亮度情景模式 ● DCR 丽比技术，对比度高达 60000:1 ● 16 种语言菜单；DVI+VGA 二种信号源输入接口 ● ROHS 无铅制造，环保健康 Service Manual AOCe2460SWG 6 1.4 输入信号接口说明 VGA connector Pin No. Description Pin No. Description 1. Red Input 9. +5VDC 2. Green Input 10. GND 3. Blue Input 11. GND 4. GND 12. SDA- DDC-Serial Data 5. Connection detect 13. H Sync 6. Red GND 14. V Sync 7. Green GND 15. SCL- DDC-Serial Clock 8. Blue GND VGA Connector layout 1 5 6 10 11 15 DVI Connector Pin No. Description Pin No. Description 1. TMDS Data 2- 13. TMDS Data 3+ 2. TMDS Data 2+ 14. +5V Power 3. TMDS Data 2/4 Shied 15. Ground (for +5V) 4. TMDS Data 4- 16. Hot Plug Detect 5. TMDS Data 4+ 17. TMDS Data 0+ 6. DDC Clock 18. TMDS Data 0- 7. DDC Data 19. TMDS Data 0/5 Shield 8. N.C. 20. TMDS Data 5- 9. TMDS Data 1- 21. TMDS Data 5+ 10. TMDS Data 1+ 22. TMDS Clock Shield 11. TMDS Data 1/3 Shield 23. TMDS Clock+ 12. TMDS Data 3- 24. TMDS Clock- DVI Connector layout Service Manual AOCe2460SWG 7 1.5 LVDS 接口说明 Service Manual AOCe2460SWG 8 2.操作说明 2.1 连接显示器  将 DVI 或 VGA 信号线②或③连接到计算机 PC 显卡输出端 。  接好电源线①,连接本机配套的外置电源模块,将引线插头插入机器后部插孔。  功能按键位于面板前面。按电源开关⑤即可开关显示器。通过调节这些功能键可得到您需要的画面。 2.2 按键功能介绍 Icon Control Description 1 输入信号源选择 DVI-VGA 信号源切换，退出现有菜单 2 < 模式切换 模式切换，DCR，标准，文本，网络，游戏，电影，运动， OSD 向左、向前调整 3 > 4：3/宽屏切换 宽屏/普屏切换，在标准模式，不可调； OSD 向右、向后调整， 4 主菜单/MENU 激活菜单，选项确认 5 Power Power ON/OFF 电源开关， Service Manual AOCe2460SWG 9 ◀+MUNE--OSD锁定功能： 要锁定 OSD，请在显示器开机时按住 ，再按下 按钮，这时开机后OSD菜单控制键被锁住，并出现提示。 要解锁 OSD，请在显示器下一次开机时同样按住 时，+ 按钮，这时打开显示器后，菜单功能按键可用。 2.3 OSD 菜单调整 Hot key快捷键及图示 < > MENU-锁定 + Service Manual AOCe2460SWG 10 OSD 菜单调节  按 MENU 按钮 激活 OSD 窗口。  按 < 或 > 浏览这些功能。 如果想要调整的功能突出显示，按 MENU 按钮激活它。如果所选的功能包含有子菜 单，再按一下 < 或 > 可以浏览到子菜单功能。如果想要调整的功能突出显示，按 MENU 按钮激活它。  按 < 或 > 更改所选功能的设置。  要退出和保存，请选择退出功能。 如果您想调整其它任何功能，请重复以上步骤 。 OSD菜单图示如下： Service Manual AOCe2460SWG 11 3.电气方框图 3.1 LCD 整机方框图 3.2 Panel 方框图 电源模块 AC--DC12V Power Board Main Board 主板 715G5270 Key board 触摸按键板 VGA LED backlight Panel LVDS 1920x1080 模组 AC supply 90V-264V LCD Block Diagram RGB/H-V/DDC Input signal DVI Service Manual AOCe2460SWG 12 3.3 Main 主板方框图 3.4 Power 电源板方框图 Fuse EMI Rectifier Smoothing Capacitor Transformer T901 MOSQ901 Switching IC-PWM IC901 12V Rectifier 5V Rectifier 12V 5V Sense resistor Vcc Rectifier regulating sampling photocoupler Vcc Converter CN801 Switching MOS APMB005KCT AC input 100-240V CN804 Current Sense LED converter Part Power adapter Part Amplifier CN902-15V Audio in On/off DIM PWM Control U801 0Z9998 BGN 16V Power/ Converter Board Block Diagram SET 1-6 Panel Interface (CN403) Scalar TSUMU58VHN-1 LQFP-80 Mstar (Include ADC, OSD, MCU) (U401) VGA Connector (CN101) EEPROM Pm25LD020C (U402) Key Board Control (CN401/402) Voltage converter 12V 5V 3.3V Vlcd Crystal 14.318MHZ (X401) DVI Connector (CN102) Service Manual AOCe2460SWG 13 4.电原理图 4.1 主板 715G5270M EDID_WP RXC- RX1+ R0- VGA_CABLE_DET RX2+ AHS0 PB[0..9] R0+ +5V DVI_CABLE_DET 02.INPUT 02.D-SUB INPUT R0+ R0- SOG_DET G0+ G0- B0+ B0- +5V AHS0 AVS0 DDCSCL1 DDCSDA1 EDID_WP VGA_CABLE_DET VLCD PA[0..9] VCC3.3 VCC1.2 DDCSDA2 B0+ on_BACKLIGHT +5V VCC1.2 VCC3.3 RX0+ RX2- Adj_BACKLIGHT Panel_ON DVI_HPD EDID_WP AVS0 EDID_WP DDCSCL2 RX0- +5V DDCSCL1 RXC+ B0- DDCSDA1 +5V PS_EN 06.POWER 06.POWER Adj_BACKLIGHT on_BACKLIGHT Volume Mute PS_EN Panel_ON +5V VCC3.3 VCC1.2 VLCD RX1- G0- 03.DVI INPUT 03.DVI INPUT RX0+ RX0- RX1- RX1+ RX2+ RX2- RXC- RXC+ DDCSCL2 DDCSDA2 DVI_CABLE_DET EDID_WP +5V DVI_HPD 05.PANEL INTERFACE 05.PANEL INTERFACE VLCD PA[0..9] PB[0..9] JV_SCL JV_SDA Mute 04.SCALER 04.SCALER Adj_BACKLIGHT on_BACKLIGHT Volume Mute PS_EN Panel_ON PB[0..9] PA[0..9] R0+ R0- SOG_DET G0+ G0- B0+ B0- AHS0 AVS0 DDCSCL1 DDCSDA1 EDID_WP VGA_CABLE_DET RXC+ RXC- RX2- RX2+ RX1+ RX1- RX0- RX0+ DDCSCL2 DDCSDA2 DVI_CABLE_DET DVI_HPD VCC1.2 VCC3.3 +5V JV_SDA JV_SCL G0+ Volume VLCD SOG_DET Service Manual AOCe2460SWG 14 VGA input ESD_VGA R118 0R05 1/10W AVS0 5 C111 47N 16V SOG_DET 5 C110 5PF 50V R106 47R 1/16W 5% GIN0- EDID_WP DET_VGA ESD_VGA B0+ C113 22P 50V AHS0 5 BIN0- R108 47R 1/16W 5% R124 100R 1/16W 5% VSIN0 VSIN0 R126 2K2 1/16W 5% R120 10R 1/16W 5% DDCSDA1 5 C115 NC/22pF 50V DDCSDA1 DDCSCL1 C105 47N 16V DDCSDA_A C116 0.1UF 16V C124 NC/0.1UF 16V VSIN0 DET_VGA U103 AOZ8104CI 1 2 3 4 5 6 CH1 VN CH2 CH3 VP CH4 R125 100R 1/16W 5% FB101 300OHM G0+ 5 B0- DDCSCL_A R102 47R 1/16W 5% EDID_WP 4,5 R110 0R05 1/10W HSIN0 ZD101 RLZ5.6B DDCSCL1 C112 22P 50V ZD103 RLZ5.6B R0- BIN0 R109 470R 1/16W 5% R0+ BIN0- R116 4K7 1/16W 5% DDCSDA1 C101 5PF 50V R117 22K 1/16W 5% DUAL B OTS US215DGLW B 3 7 Monday , October 17, 2011 715G5270-B- <称爹> D-SUB I/O G5270-M0B-000-0040-100722 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 C190 NC/5PF 50V R122 47R 1/16W 5% B0- 5 +5V 4,5,7 C103 47N 16V R123 0R05 1/10W R115 4K7 1/16W 5% DDCSCL1 5 R0+ 5 C102 47N 16V D101 BAV70 3 1 2 R121 75 OHM +-5% 1/16W C104 1000pF 50V HSIN0 R114 47R 1/16W 5% B0+ 5 GIN0 C108 47N 16V C114 NC/22pF 50V R105 10R 1/16W 5% GIN0 GIN0 C192 NC/5PF 50V +5V VGA_5V G0- G0+ BIN0 R127 2K2 1/16W 5% RIN0 C117 0.1UF 16V U101 AOZ8104CI 1 2 3 4 5 6 CH1 VN CH2 CH3 VP CH4 RIN0- GIN0- DDCSCL_A U102 FM24C02A 1 2 3 4 5 6 7 8 A0 A1 A2 GND SDA SCL WP VCC R113 75 OHM +-5% 1/16W CN101 DB15 1 6 2 7 3 8 4 9 5 11 12 13 14 15 10 17 16 C125 NC/0.1UF 16V C107 47N 16V C106 5PF 50V RIN0 R107 75 OHM +-5% 1/16W R151 100R 1/16W 5% R0- 5 VGA_5V BIN0 RIN0 C109 220nF 16V ESD_VGA R112 10R 1/16W 5% G0- 5 R103 0R05 1/10W R150 1K 1/16W 5% VGA_CABLE_DET 5 HSIN0 C191 NC/5PF 50V DDCSDA_A RIN0- Service Manual AOCe2460SWG 15 DVI input part R142 10R 1/16W 5% DVI_HPD 5 RX1+ 5 DDC_WP ZD102 RLZ5.6B CN102 JACK 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 26 25 DAT2- DAT2+ 2/4shield DAT4- DAT4+ DDC SCL DDC SDA VSYNC DAT1- DAT1+ 1/3shield DAT3- DAT3+ +5V SYNC GND HPD DAT0- DAT0+ 0/5shield DAT5- DAT5+ clk shield clk+ clk- GND GND DVI5V R132 0R05 1/10W ZD104 RLZ5.6B R139 10R 1/16W 5% C126 NC/0.1UF 16V R138 10R 1/16W 5% +5V ESD_DVI DCLK+ R134 4K7 1/16W 5% U107 AOZ8104CI 1 2 3 4 5 6 CH1 VN CH2 CH3 VP CH4 C118 NC/0.1UF 16V DVI_CABLE_DET 5 DCLK- C123 0.1UF 16V DUAL B OTS VS215DGLW B 4 7 Monday , October 17, 2011 715G5270-B- <称爹> DVI G5270-M0B-000-0040-110722 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 +5V R144 10R 1/16W 5% DAT1+ R140 10R 1/16W 5% R131 1K 1/16W 5% U104 AOZ8104CI 1 2 3 4 5 6 CH1 VN CH2 CH3 VP CH4 R153 1K 1/16W 5% DAT2- DDCSCL2 5 R141 10R 1/16W 5% ESD_DVI R135 22K 1/16W 5% DAT0- FB190 300OHM 1 2 R136 NC/10K 1/16W 5% FB102 300OHM 1 2 RX0- 5 DAT2+ Q102 NC/LMBT3904LT1G R130 47R 1/16W 5% RX1- 5 R152 100R 1/16W 5% R137 10R 1/16W 5% R129 47R 1/16W 5% +5V_DVI R143 10R 1/16W 5% D104 NC/BAV70 3 1 2 RXC+ 5 DET_DVI C122 0.1UF 16V D103 BAV70 3 1 2 R154 NC/22K 1/16W 5% RXC- 5 Q101 NC/AO3401A SDA_DVI EDID_WP 3,5 U106 AOZ8104CI 1 2 3 4 5 6 CH1 VN CH2 CH3 VP CH4 DAT1- +5V 3,5,7 U105 FM24C02A 1 2 3 4 5 6 7 8 A0 A1 A2 GND SDA SCL WP VCC RX2+ 5 ESD_DVI SCL_DVI RX2- 5 DVI5V HPD RX0+ 5 C120 0.1UF 16V C119 220nF 16V R133 4K7 1/16W 5% DAT0+ DDCSDA2 5 Service Manual AOCe2460SWG 16 Power 5V+3.3V+Vlcd R720 NC VCC1.2 U701 LSP1117E33AG 1 2 3 4 ADJ(GND) VOUT VIN 4 C712 NC/0.1UF 16V + C710 NC/100uF16V R701 4K7 1/16W 5% C713 NC/0.1UF 16V +5V R723 4K7 1/16W 5% R704 10K 1/16W 5% +5V C706 0.1UF 16V Q706 LMBT3904LT1G R714 NC/470R 1/16W 5% C707 NC/0.1UF 16V R713 NC/100R 1/16W 5% U702 3 2 1 VIN VOUT ADJ(GND) +5V VCC3.3 TO252 VCC3.3 5 VCC3.3 CN701 CONN 1 2 3 4 5 6 7 8 9 R703 10K 1/16W 5% TO-252 + C705 100uF16V C717 NC C704 0.1UF 16V + C702 100uF16V C720 0.1UF 16V C718 0.1UF 16V DIM Panel_ON 5 DUAL A OTS US215DGLW B 7 7 Monday , October 17, 2011 715G5270-B- <称爹> POWER G5270-M0B-000-0040-110722 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 + C711 NC/100uF16V R708 NC/5.6 OHM +-5% 2WS Adj_BACKLIGHT 5 +5V R716 10K 1/16W 5% C721 0.1UF 16V R702 100R 1/16W 5% C715 220nF 16V R717 100K 1/16W 5% Volume 5 VCC3.3 Q701 LMBT3904LT1G R721 22K 1/16W 5% VLCD VCC1.2 5 ON/OFF on_BACKLIGHT 5 VLCD 6 Q704 NC/AO4411 1 2 3 4 8 7 6 5 S S S G D D D D +5V 3,4,5 +5V 3,4,5 PS_EN 5 R718 NC U704 NC/AZ1117D-1.2TRE1 1 2 3 ADJ/GND OUTPUT INPUT Mute 5 R722 NC +5V R705 22K 1/16W 5% Q705 AO3401A U703 3 2 1 4 VI VO GND 4 Service Manual AOCe2460SWG 17 Scalar IC part U401 /U402 PB[0..9] Q401 LMBT3906LT1G C423 NC/0.1UF 16V VCC3.3 R429 3K9 +/-5% 1/16W C410 0.22UF 10V D401 NC/RLZ5.6B U402 FLASH MX25L2026DM1I-12G 2Mb SOP-8 1 2 3 4 5 6 7 8 S DO W Vss DIO C HOLD Vcc R441 0R05 1/16W R447 NC/100K 1/16W 5% +5V BUZZER VDDP C413 47P 50V D402 NC/RLZ5.6B R408 NC/1MOHM 1/16W +/-5% WP PA6 CN401 NC/8PIN 1 2 3 4 5 6 7 8 KEY1 FB401 120 OHM DDCSDA2 5 LED_A R0+ 3 VCC3.3 TOUCH_POWER PA[0..9] R407 0R05 1/16W VCC1.2 R423 1K 1/16W 5% CN409 NC/CONN 1 2 3 4 5 6 R414 NC/100R 1/16W 5% CN405 NC/6PIN 1 2 3 4 5 6 RX2+ 3 VCC3.3 LED_G R476 NC R410 100R 1/16W 5% PS_EN 3 +5V PB8 R475 NC VCC1.2 2 EDID_WP 3 +5V LED_G PA8 ADC33 C402 0.1UF 16V R406 22R 1/16W 5% R472 NC/2K2 1/16W 5% R420 NC/100R 1/16W 5% CN407 CONN 1 2 3 4 5 6 7 U403 NC/M24C16 1 2 3 4 5 6 7 8 NC NC NC VSS SDA SCL WC VCC ADC33 LED_2 C403 0.1UF 16V RX1+ 3 Tack sw PB5 LED_A R437 NC/10K 1/16W 5% on_BACKLIGHT 2 G0+ 3 R403 22R 1/16W 5% C401 10uF 10V NC DVI_CABLE_DET 4 VCC3.3 LED_1 R448 NC/200K R417 NC/4K7 1/16W 5% WP PA3 VCC3.3 KEY1 R410, R411, R420 CN404 NC/CONN 1 2 3 4 5 6 C415 NC/1UF 10V R409 0R05 1/16W R438 470OHM +-5% 1/10W RX2- 3 C425, C426,C427 CABLE_DET FB404 NC/120 OHM 1 2 RESET KEY2 PA9 R411 NC/100R 1/16W 5% DDCSDA1 5 100 ohm LED_1 D404 NC/RLZ5.6B R490 NC/4K7 1/16W 5% DVI_HPD 3 Panel_ON 2 VCC3.3 LED_A PB7 KEY2 R413 10K 1/16W 5% R419 NC/100R 1/16W 5% C426 NC/0.1UF 16V C408 0.1UF 16V R431 NC/0R05 1/16W R401 10K 1/16W 5% VCC3.3 ADC5 JV_SCL 3 R484 NC/10K 1/16W 5% B0+ 3 DDCSCL1 5 POWER EE_WP FB402 120 OHM +5V G0- 3 PA0 R421 1K 1/16W 5% RX1- 3 PB2 X401 14.31818MHZ/32PF 1 2 C411 NC/5pf F 16V PB9 Touch Key EE_WP PB6 VGA_CABLE_DET 3 1K ohm VDDC PB1 FB403 NC/120 OHM R473 NC/2K2 1/16W 5% BUZZER RXC+ 3 VCC3.3 PB[0..9] 5 +5V R491 100K 1/16W 5% Volume 3 VCC3.3 MSCL PA5 CN406 NC/CONN 1 2 3 CABLE_DET C405 0.1UF 16V C427 NC/0.1UF 16V R402 10K 1/16W 5% +5V PA[0..9] 5 +5V 2,3,4,6,8 R0- 3 MSCL R443 NC/0R05 1/16W FB405 NC/120OHM 1 2 R418 NC/4K7 1/16W 5% C424 NC/0.1UF 16V RXC- 3 INTB PA1 R442 2K2 1/16W 5% SOG_DET 3 Mute 3 R444 330OHM 1/10W B0- 3 RX0- 3 ADC6 C412 47P 50V VDDP PA2 +5V C409 10uF 10V R416 10K 1/16W 5% +5V 3,4,7 R471 NC/100R 1/16W 5% MSDA PB4 D403 NC/RLZ5.6B INTB POWER R436 NC/10K 1/16W 5% R432 0R05 1/16W MSDA AVS0 3 R435 NC/10K 1/16W 5% adj_BACKLIGHT 2 VCC3.3 2,5 DDCSCL2 5 EE_WP PA4 RX0+ 3 Touch Key C406 NC/4.7UF 10V JV_SDA 3 PB3 PB3 DUAL B OTSVUS215DGLW C 5 7 Thursday , September 29, 2011 <称爹> 5.0.SCALER G5270-M0B-000-0040-11722 715G5270-B- OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 VCC3.3 PA7 VCC3.3 R492 220K 1/16W 5% R412 10K 1/16W 5% PA3 MSCL PB0 C414 NC/220N16V R404 22R 1/16W 5% R405 22R 1/10W 5% C407 0.1UF 16V CN408 NC/7PIN 1 2 3 4 5 6 7 R422 1K 1/16W 5% Q403 LMBT3906LT1G LED_2 AHS0 3 Tack sw VDDC R430 NC/0R05 1/16W R433 2K2 1/16W 5% PB2 R434 NC/0R05 1/16W R428 3K9 +/-5% 1/16W C425 NC/0.1UF 16V C404 10uF 10V R439 390K TSUMU58VHN-1 19 16 17 14 15 21 22 28 30 29 31 76 78 77 46 45 48 47 50 49 52 51 54 53 56 55 58 57 60 59 43 44 9 23 3 4 5 6 7 8 10 11 40 64 79 63 42 62 24 25 1 2 12 67 80 68 69 70 72 33 34 65 74 75 41 39 71 66 26 20 27 36 35 32 73 61 37 38 13 18 RIN0P GIN0P SOGIN0 BIN0P GIN0M HSYNC0 VSYNC0 SDO SCK CSZ SDI PWM0/PMGPIO04 XIN XOUT LVA2M LVA2P LVA1M LVA1P LVA0M LVA0P LVB3M LVB3P LVBCKM LVBCKP LVB2M LVB2P LVB1M LVB1P LVB0M LVB0P LVA3P LVA3M GND GND RX2P RX2N RX1P RX1N RX0P RX0N RXCKP RXCKN GND GND GND VDDC GND VCTRL DDCA_DA/RS232_TX0 DDCA_CK/RS232_RX0 DDCD_DA/RS232_TX1 DDCD_CK/RS232_RX1 AVDD_33 PWM1/GPIO22 PMGPIO11 SAR0/GPIO_SAR0 SAR1/GPIO_SAR1 SAR2/GPIO_SAR2 PWM4/PMGPIO00 IIC_SDA/GPIO02 IIC_SCL/GPIO03 RESET PWM0/PMGPIO02 PWM6/PMGPIO03 VDDC VDDP SAR3/GPIO_SAR3 PWM3/GPIO20 HOLDZ/PMGPIO06 PMGPIO16 WPZ/PMGPIO07 GPIO05 GPIO04 GPIO01 PWM5/PMGPIO01 VDDP PWM2/GPIO11 PWM1/GPIO12 BIN0M RIN0M MSDA R427 3K9 +/-5% 1/16W C429 NC/0.1uF 50V 0.1uF/16V Service Manual AOCe2460SWG 18 Output part LVB2P LVBCKP PB5 RXO0+ RXE0- PA9 FB406 120 OHM 1 2 RXO2- CN410 CONN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 PA4 C431 0.1UF 16V PB4 PA[0..9] VLCD 7 RXO0- RXE1- PB9 PB[0..9] RXE0- RXOC- CN411 NC/CONN 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 LVA2P RXO3- PB[0..9] 5 LVBCKM RXO2+ RXO3- RXO1+ RXOC- JV_SDA 5 RXOC- LVB2P RXOC+ JV_SCL PA2 LVA3M PA3 JV_SDA PB1 LVB1P RXE2+ RXOC+ C433 NC LVA0M LVACKP RXE3- PA[0..9] 5 PB6 LVACKM RXE0+ JV_SCL 5 LVB1M LVB1P RXOC+ RXO3+ LVB3M PA8 RXO1+ RXO3+ LVB3P LVB3P PA1 RXE2- RXE3+ R445 NC/300 OHM 1/4W RXEC- LVA0P VLCD RXO2- RXE3- RXE1+ LVA1P RXEC- PB0 RXO1- RXE2+ RXEC+ JV_SDA LVA0P PA6 PA0 RXO2+ LVBCKM JV_SCL RXE2- PB7 R446 300 OHM 1/4W LVB0P PB3 LVA3M LVA2P LVB0M PB2 PB8 RXEC- LVA3P LVA2M LVA1M LVA1M + C430 100uF16V LVA0M LVBCKP LVB0M RXO1- LVB2M RXE0+ RXEC+ LVA1P RXEC+ LVB3M RXO0+ LVACKM DUAL B OTS VS215DGLW A 6 7 Thursday , September 29, 2011 715G5270-B- <称爹> LVDS PANEL I/O G5270-M0B-000-0040-110722 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 RXE1- PA5 RXE3+ LVB1M LVB2M C432 NC LVA2M LVACKP RXO0- LVB0P PA7 LVA3P RXE1+ Service Manual AOCe2460SWG 19 4.2 电源板 Power 715G5361P- FB901 BEAD 1 2 IC903 KIA431A-AT/P R904 470R D905 SRF1060 1 2 3 F901 FUSE R918 10K 1/10W 1% +C933 1000uF25V ! ! + C922 330UF 25V R931 47K 1/10W 5% R906 100K C902 1NF 250V ! Q904 2SD1207-T-AE L901A 30mH 1 4 2 3 R937 22KOHM 1/10W R935 10K 1/4W ZD901 TZX22B R914 120K OHM - + BD901 D2SB80 2 1 3 4 5A/250V + C913 22uF/50V IC902 PC123X2YFZOF 1 2 4 3 + C918 1000uF25V R924 0.39R C939 0.1uF 50V ! +5V R917 10 OHM 1/4W C917 1000PF500V CN901 SOCKET 1 2 3 C915 1N 50V R909 100 OHM 1/4W Q905 LP3401LT1G R905 470 OHM 1/8W C926 0.47UF 50V R916 10K 1/10W 1% C936 NA F903 T5AL 250V C927 47nF 50V HS1 HEAT SINK(Q901) 1 2 T5AL 250VAC R934 NC +5V1 C911 1500PF2KV R908 10K 1/4W C923 1N 50V R910 100 OHM 1/4W C916 1000PF500V +5V VOL D906 SRF1060 1 2 3 C925 100N 50V R939 470R C900 3.3NF 250V ON/OFF R925 9K1 1/10W 1% R915 10 OHM +-5% 1/4W C932 10NF 1KV NC R936 47R L901 30MH 1 2 4 3 For lonic breeze power C914 470P 50V ! Q906 LMBT3904LT1G R923 200 OHM +-5% 1/6W R938 1 OHM 1/4W +5V GND1 GND 1 2 D903 FR107 C903 1NF 250V HS2 HEAT SINK(D901 D905 D906_5V/4A) 1 2 L907 3.5uH ! R900 680K 1/4W R928 1K 1/10W 1% D907 1N4148 R913 4.7 OHM F904 T5AL 250V R907 1K OHM +-5% 1/8W R920 9.1KOHM +-1% 1/10W + C934 330UF 25V L906 3.5uH CN604 CONN 1 2 +16V + C907 NA Q901 SMK0765F R929 100 OHM 1/4W T901 POWER X'FMR 1 3 4 5 6 7 8 9 10 11 12 R932 10K 1/10W 5% C924 100N 50V F902 T5AL 250V CN903 NC/CONN 1 2 3 4 ! C937 NA ! R930 100 OHM 1/4W - + BD901A KBP208G 2 1 3 4 R912 100 OHM 1/4W GND2 GND 1 2 D904 1N4007 C912 0.1uF 50V t NR901 NTCR 1 2 PANEL_ID ! C908 0.47UF C938 3.3NF 250V SW901 SW 1 2 D901 YG865C15RSC 1 2 3 PANEL_ID R901 680K 1/4W R919 150 OHM 1/4W DIM + C921 680UF 10V MUTE 2 CN902 Wire Harness 1 2 3 4 5 6 7 8 9 10 L905 3.5uH + C907A 150UF 450V + C920 680UF 10V R903 100 OHM 1/4W 3 IC901 AP3107MTR-G1 1 2 3 4 5 6 8 BNO FB SENSE GND GATE VCC HV + C919 330UF 25V C935 100N 50V PLPC1B661AAB8 C Custom Thursday , January 12, 2012 715G5361-P0A-000-0010 ODM MODEL 02.POWER G5361-P0A-000-X-1-110929 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 R902 680K 1/4W Service Manual AOCe2460SWG 20 LED drive R804 10 OHM 1/8W L801 47UH R824 NA R819 NC R802 300K 1/8W D801 SB5100-E 1 2 C808 NA FB802 BEAD 1 2 R817 1K OHM 1/4W R820 0 OHM R812 0.3R 5% R801 10K 1/8W DIM C803 1N 50V R805 100K 1/8W FB801 BEAD 1 2 C816 1000PF500V CN803 NC/CONN 1 2 C814 100N 50V R813 0.3R 5% 两个地同时存在，请不要删除！ CN802 CONN 1 2 3 4 5 R809 330K 1/8W Q801 APM8005KCTRG 1 2 3 4 5 6 7 8 S1 G1 S2 G2 D2 D2 D1 D1 + C801 330UF 25V Vcc-1 R816 5.1K 1% 1/8W CN801 Wire Harness 1 2 3 4 5 6 7 R822 NC C810 0.47UF 50V C811 0.47UF 50V + C809 33UF 100V C807 47NF/50V R807 10 OHM +-5% 1/8W U801 OZ9998BGN 13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 ISEN1 ISEN2 GND ISEN3 ISEN4 ISET OVP RT ENA ISW LDR VREF VIN STATUS SSTCMP PWM R821 0 OHM C802 10N 50V Vcc-1 ON/OFF R815 160KOHM +-1% 1/8W R811 0 OHM +-5% 1/8W R803 300K 1/8W C812 100PF 50V R818 10K 1/8W C804 0.47UF C805 2.2UF R810 10K +-1% 1/8W R823 NA +16V C815 1N 50V R814 NC R806 1K 1/8W C813 100PF 50V Service Manual AOCe2460SWG 21 4.3 按键板 key 715G5357K ZD003 NC/MLVS0603M041 2 LBADC2 ZD006 NC/MLVS0603M041 2 ZD001 NC/MLVS0603M041 2 R001 100R 1/10W 5% SGND LBADC1 DOWN ZD007 NC/MLVS0603M041 2 POWER AUTO LED_1# SW004 SW (2.0K) DOWN LBADC2 SGND SW001 SW (Power) UP SW005 SW 1.118V MENU LED_2# (MENU) MENU CN001 CONN 1 2 3 4 5 6 SW003 SW POWER AUTO DC_POWERON SUB UY LED001 269-3UYSUBC/S530-A3-X6/T3 1 2 3 0.083V R003 100R 1/10W 5% R004 2KOHM 1/10W SGND ( 100 ohm ) ZD002 NC/MLVS0603M041 2 LBADC1 BLUE LED 1.118V R002 1K 1/10W 5% POWER 0.673V ( 100 ohm ) ZD005 NC/MLVS0603M041 2 ZD004 NC/MLVS0603M041 2 CONNECTOR SW002 SW (UP+) (DOWN-) UP SGND (2K) R005 2KOHM 1/10W (AUTO) 0.083V (1K) Service Manual AOCe2460SWG 22 5. 机构爆炸图 Service Manual AOCe2460SWG 23 6. 故障处理流程 6.1 检修工具仪器 电压计、电流计、电阻计或数字多用表； 双踪示波器； 图形信号发生器； 色彩分析仪； 交流功率计； DDC 烧录工具； 十字螺丝刀、干净软布等等。 Phillips screwdriver spacer screwdriver C/D Disassembly Tool Gloves or soft cloth Prepare soft cloth and sponge as working platform Service Manual AOCe2460SWG 24 6.2 机构拆解图示 捏住卡片脱出底座 拆除支架螺丝 3 去除支架后 分解的支架 组合的支架 向下推开卡片 Service Manual AOCe2460SWG 25 LVDS 连接器 拆螺钉 2 脱出的后壳 分开前框后壳 分开后壳后 推出玻璃 Service Manual AOCe2460SWG 26 拆按键板 Service Manual AOCe2460SWG 27 拆螺钉 按键板 电源板 主板 Service Manual AOCe2460SWG 28 Main frame 铁盘 Service Manual AOCe2460SWG 29 6.3 故障处理流程 主板无电 无供电 按下电源键看画面是否正常 重新插插头然后检查 AC:100-240V 是否正常? 检查适配器及升压板部分和交流电源输入 检查 5V-CN404, 3.3V-U404-2; Panel-Vcc-Q405 检查 X401 震荡波形 更新 U403 软体 更换 X401、C411、C412 OK NG 检查更换 CN404,U404,Q409,Q410,Q405 NG NG NG OK OK 主板无电检查流程 更换 U401 更换 U403 更新软体 OK NG Service Manual AOCe2460SWG 30 面板白屏检查流程 屏幕无画 屏幕无画检查流程 无画 检查信号线 检查 U404 Vout=3.3V; 检查 RGB/H-V 信号 更换信号线 检查 X401 波形 更换 U404,Q409,Q410,Q405 &周边元件 更换 X401 检查 CN101-RGB/HS/VS 信号 75Ω/输入回路是否正常 检查 U402/U403 输出 检查周边元件 OK NG NG NG NG OK OK OK 更换 U401/U403 更新软体 OK NG 检查连接器 更换 Panel 白屏 检查 Q602 的基极是 否为低电平 检查 Q405=5V 或 CN403 焊接? 检查周边元件 检查 X401 的晶振是否正常 检查 U403/U402 面板白屏检查流程 更换 X401 检查周边元件 更新软体 更换 U402/U403/U401 NG NG NG NG OK OK OK OK Service Manual AOCe2460SWG 31 电源模块 无电死机 整机无电检查流程 无电 检测交流电 100V or 240V 是否正常？ 检测 C907 (+)的电压大小 检测 AC 输入 检测 IC901 第 8 脚电压是否正常？ 检测全桥整流回路和 F901 回路 检测 R904,R932 或更换 IC901 检测二次启动电压是否正常？ 检测 IC901 第 5,6 脚的 PWM 波形 1) 检测 IC901 2) 检测 D900,D901 回路 OK NG NG NG NG OK OK OK 检测 D905, D906,Q903,IC902,IC903,ZD920 检测更新 IC901 OK NG Service Manual AOCe2460SWG 32 屏幕无背光 按键板检查 按键板检查流程 OSD 画面不稳定及不可调整 检查按键板是否连接正常 检查按键开关是否正常 连接好按键板 检查按键板是否正常 替换按键开关 检测或更换按键板 检查主板&连接器 OK NG NG NG OK OK 屏幕无背光检查流程 无背光 检测 R801 电压是否为 14.5V 检测 ON/OFF 信号 检测 F801/Adapter 回路 检测 U801 第 9 脚是否为 12V 检测主板&连接器 检测或更换电源模块 检测 U801 第 12 脚的 PWM 波形？ 检测 U801 的输出 7pin 1) 检测阻容回路 2) 更换 U801 OK NG NG NG NG OK OK OK 检查 ISEN 反馈和保护回路 检测更换 Q801\D801 OK NG Service Manual AOCe2460SWG 33 7. 软体更新和 DDC 改写 7.1 软体更新步骤 本机信息： 756GJBCB0AA0600000 MCU ASS'Y+CBPCBB7A1QAJ G5270 U402 056G2233 11 IC Pm25LD020C-SCE SIOC-8(150mil) 2M SMTCB-U402 100GAMKD000B11 AOC_e2460_ID11_TSUMU58VHN_BOE U401 056G 562A22 SCALER TSUMU58VHN-1 LQFP-80 步骤 1 连接 1. 用 USB 连接线缆将软件改写工具（ISP 版 715GT089-B）连接到计算机 PC-USB 口，用 VGA15 芯线缆连 接显示器，如下图所示： 步骤 2 驱动安装 1.使用 715GT089-B，安装 USB 驱动：mstar ISP Driver3-DB07-6-XP-driver 步骤 3:运行 1. 打开 Mstar tool V4.5.0.8， （这 2 个文件在一个目录中），显示如下画面，按 图示点选。: Service Manual AOCe2460SWG 34 2. 点击“Connect”软体自动识别芯片类型，如下图： 3. 点击图中的“Device＂，出现下图，按图中勾选; Service Manual AOCe2460SWG 35 4.点击图中的“HDCP”，不加载 HDCP 码， 5.点击图中的“Restore”，保护原有的 HDCP 码，不受影响，如下图： 6.加载软体文件，寻找与本机适配的软体文件的存放路径,找到文件，打开， Service Manual AOCe2460SWG 36 7.点击“Auto”，出现下图： 8.点击“Run”，程序自动编程和更新软体， 9.更新结束，显示“PASS”，说明正常 OK。 Service Manual AOCe2460SWG 37 7.2 改写 DDC/EDID 1.连接工具---DDC Tool（715GT034-B+12V 电源），连接打印线缆到 PC，DVI&VGA 线缆连接显示器，如图所 示： 2.运行 DDC 软件 ，PC 须预先安装打印口驱动， Service Manual AOCe2460SWG 38 3.选择和本机匹配的 DDC 文件， 4.选择文件后，出现下图，输入二次机器序列号后，点击“Program” Service Manual AOCe2460SWG 39 5.DDC 改写成功，出现“PASS”。 Service Manual AOCe2460SWG 40 7.3.工厂模式调整 更新此机的软体后，有必要进行白平衡调整和对系统进行恢复工厂初始设置操作。 进入工厂模式方法： 显示器在通电状态，拔掉电源线，然后按住“menu”键，插入电源线，机器通电工作，松开“menu”按键，然后轻 按Menu键，就可激活工厂模式菜单，OSD菜单将位于屏的下方。 选中“F”，按下“MENU”,出现菜单内容，然后选中“Auto Color”，按下MENU,则机器自动进行白平衡 调整，显示“PASS”则系统正常。如下图所示： 调整完毕退出工厂模式菜单。 在改写了软体和 DDC 文件后，需要对显示器进行“重置”操作： 退出菜单，关闭电源，更新完毕。 Service Manual AOCe2460SWG 41 8.料件清单 注意: 以下料件信息仅供参考，如有变更，恕不另行通知，请到 http://cs.tpv.com.cn 获取最新信息。 8.1 机种名：TDBKB728BEA1HNJ 点位 组件 对象描述 备注 070GHDCP500HDC HDCP CODE 2 ECN410 089G179J30NH06 FFC CABLE 30P 279mm 1.0mm 1 0D1G1030 8120 screw 4 0M1G1740 6120 SCREW 1 0Q1G 130 6120 SCREW (T3X6) 2 E750 750GBK236W1111N000 LCD HM236WU1-100 4830 BJ BOE 1 E750 750GBK236W1121N000 LCD HM236WU1-100 4940 BJ BOE 2nd source 756GJBCB0AA0600000 MCU ASS'Y+CBPCBB7A1QAJ G5270 U402 056G2233 11 IC Pm25LD020C-SCE SIOC-8(150mil) 2M SMTCB-U402 100GAMKD000B11 AOC_e2460_ID11_TSUMU58VHN_BOE U401 056G 562A22 SCALER TSUMU58VHN-1 LQFP-80 1 CBPCBB7A1QAJ CONVERSION G5270-0B-000-0040-2-111102 1 A15G1790101 MAIN_FRAME 1 A24G0007 1 GLASS_BEZEL 1 A33G1295 1101A CLIP_Glass Bezel 1 A34G2831 1101A BEZEL_L236WAG-V60 1 A34G2832 1101A REAR COVER_L236WAG-V60 1 A34G2833 1101A STAND 1 A34G2834 1101A BASE_L236WAG-s1 1 A37G0296011 HINGE_23.6" 1 AM1G1740 8120 SCREW(M4*8) 3 AM1G1740 10 47 CR3 SCREW 3 2 CN404 033G3802 6B Y CONN 6PIN 2.0 2nd source CN404 033G3802 6B Y L WAFER 1 CN701 033G3802 9B Y CONNECTOR 9P 2.0 2nd source CN701 033G3802 9B Y L CONN 2.0 9P 1 CN410 033G801930F CH L FFC CONN 1.0mm 30P R/A 34mm 6mm 2nd source CN410 033G801930F CH JS FFC CONN 1.0mm 30P R/A 34mm 6.3mm 1 CN101 088G 35315F HD D-SUB CONN 15P BLUE - R/A 2nd source CN101 088G 35315F XH D-SUB 15PIN VERTICAL CONN WITH SCREW 1 CN102 088G 35424FXNH DVI CONN WITH SCREW 24P R/A 1 X401 093G 22 53 J CRYSTAL 14.31818MHZ/32PF49US 1 AIGBB7A1QAJ MAIN BOARD AI 1 C705 067G 3051013PB EC 105C 100uF M 16V 5*11mm JH CD263 1 C702 067G 3051013PB EC 105C 100uF M 16V 5*11mm JH CD263 1 C430 067G 3051013PB EC 105C 100uF M 16V 5*11mm JH CD263 1 SMTCBB7A1QAJ MAIN BOARD SMTJ 1 040G 45762420A LABEL 25x6mm 1 U701 056G 585 4A AP1117E33L-13-77 1A 3.3V SOT-223 1 U101 056G 662 48 ESD PROTECT AZC399-04S.R7G SOT23-6L 1 U103 056G 662 48 ESD PROTECT AZC399-04S.R7G SOT23-6L 1 U104 056G 662 48 ESD PROTECT AZC399-04S.R7G SOT23-6L 1 U106 056G 662 48 ESD PROTECT AZC399-04S.R7G SOT23-6L 1 U107 056G 662 48 ESD PROTECT AZC399-04S.R7G SOT23-6L 1 U101 056G 662 49 ESD PROTECT L30ESDL5V0C6-4 SOT23-6L 2nd source Service Manual AOCe2460SWG 42 U103 056G 662 49 ESD PROTECT L30ESDL5V0C6-4 SOT23-6L 2nd source U104 056G 662 49 ESD PROTECT L30ESDL5V0C6-4 SOT23-6L 2nd source U106 056G 662 49 ESD PROTECT L30ESDL5V0C6-4 SOT23-6L 2nd source U107 056G 662 49 ESD PROTECT L30ESDL5V0C6-4 SOT23-6L 2nd source U102 056G1133 34 1 EEPROM M24C02-RMN6TP 2Kb SO-8 1 U105 056G1133 34 1 EEPROM M24C02-RMN6TP 2Kb SO-8 1 U402 056G2233 11 IC Pm25LD020C-SCE SIOC-8(150mil) 2M 1 Q401 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC 1 Q403 057G 417517 Tra LMBT3906LT1G -200mA/-40V SOT-23 LRC 1 Q701 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC 1 Q706 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC 1 Q704 057G 763 3 AO4411 SO-8 BY AOS 1 R407 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN 2nd source R409 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN 2nd source R416 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN 2nd source R432 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN 2nd source R441 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN 2nd source R407 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1 R409 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1 R416 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1 R432 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1 R441 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO 1 R144 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN 1 R143 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN 1 R142 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN 1 R141 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN 1 R140 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN 1 R139 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN 1 R138 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN 1 R137 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN 1 R120 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN 1 R112 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN 1 R105 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN 1 R144 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 2nd source R143 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 2nd source R142 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 2nd source R141 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 2nd source R140 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 2nd source R139 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 2nd source R138 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 2nd source R137 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 2nd source R120 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 2nd source R112 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 2nd source R105 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 2nd source R702 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 2nd source R410 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 2nd source R152 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 2nd source R151 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 2nd source R125 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 2nd source R124 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 2nd source R702 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1 Service Manual AOCe2460SWG 43 R410 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1 R152 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1 R151 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1 R125 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1 R124 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1 R150 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN 2nd source R131 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN 2nd source R153 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN 2nd source R421 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN 2nd source R422 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN 2nd source R423 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN 2nd source R131 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 R150 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 R423 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 R422 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 R421 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 R153 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 R413 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 2nd source R412 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 2nd source R402 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 2nd source R401 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 2nd source R703 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 2nd source R704 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 2nd source R716 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 2nd source R401 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 R402 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 R412 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 R413 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 R703 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 R704 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 R716 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 R717 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN 1 R491 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN 1 R717 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO 2nd source R491 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO 2nd source R406 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN 1 R404 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN 1 R403 061G0402220 JT RST CHIP 22R 1/16W 5% TZAI YUAN 1 R403 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 2nd source R404 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 2nd source R406 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 2nd source R433 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN 2nd source R442 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN 2nd source R126 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN 2nd source R127 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN 2nd source R126 061G0402222 JY RST CHIPR 2.2KOHM +-5% 1/16W YAGEO 1 R127 061G0402222 JY RST CHIPR 2.2KOHM +-5% 1/16W YAGEO 1 R433 061G0402222 JY RST CHIPR 2.2KOHM +-5% 1/16W YAGEO 1 R442 061G0402222 JY RST CHIPR 2.2KOHM +-5% 1/16W YAGEO 1 R721 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN 2nd source R705 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN 2nd source Service Manual AOCe2460SWG 44 R117 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN 2nd source R135 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN 2nd source R721 061G0402223 JY RST CHIPR 22KOHM +-5% 1/16W YAGEO 1 R705 061G0402223 JY RST CHIPR 22KOHM +-5% 1/16W YAGEO 1 R135 061G0402223 JY RST CHIPR 22KOHM +-5% 1/16W YAGEO 1 R117 061G0402223 JY RST CHIPR 22KOHM +-5% 1/16W YAGEO 1 R492 061G0402224 JT RST CHIP 220K 1/16W 5% TZAI YUAN 1 R492 061G0402224 JY RST CHIPR 220KOHM +-5% 1/16W YAGEO 2nd source R427 061G0402392 JT RST CHIP R 3K9 +/-5% 1/16W TZAI YUAN 1 R428 061G0402392 JT RST CHIP R 3K9 +/-5% 1/16W TZAI YUAN 1 R429 061G0402392 JT RST CHIP R 3K9 +/-5% 1/16W TZAI YUAN 1 R427 061G0402392 JY RST CHIPR 3.9KOHM 5% 1/16W YAGEO 2nd source R428 061G0402392 JY RST CHIPR 3.9KOHM 5% 1/16W YAGEO 2nd source R429 061G0402392 JY RST CHIPR 3.9KOHM 5% 1/16W YAGEO 2nd source R439 061G0402394 JT RST 0402 390K 5% 1/16W 2nd source R439 061G0402394 JY RST CHIP R 390K +/-5% 1/16W YAGEO 1 R130 061G0402470 JT RST CHIP 47R 1/16W 5% TZAI YUAN 2nd source R129 061G0402470 JT RST CHIP 47R 1/16W 5% TZAI YUAN 2nd source R122 061G0402470 JT RST CHIP 47R 1/16W 5% TZAI YUAN 2nd source R114 061G0402470 JT RST CHIP 47R 1/16W 5% TZAI YUAN 2nd source R108 061G0402470 JT RST CHIP 47R 1/16W 5% TZAI YUAN 2nd source R106 061G0402470 JT RST CHIP 47R 1/16W 5% TZAI YUAN 2nd source R102 061G0402470 JT RST CHIP 47R 1/16W 5% TZAI YUAN 2nd source R130 061G0402470 JY RST CHIPR 47 OHM 5% 1/16W YAGEO 1 R129 061G0402470 JY RST CHIPR 47 OHM 5% 1/16W YAGEO 1 R122 061G0402470 JY RST CHIPR 47 OHM 5% 1/16W YAGEO 1 R114 061G0402470 JY RST CHIPR 47 OHM 5% 1/16W YAGEO 1 R108 061G0402470 JY RST CHIPR 47 OHM 5% 1/16W YAGEO 1 R106 061G0402470 JY RST CHIPR 47 OHM 5% 1/16W YAGEO 1 R102 061G0402470 JY RST CHIPR 47 OHM 5% 1/16W YAGEO 1 R109 061G0402471 JT RST CHIP 470R 1/16W 5% TZAI YUAN 2nd source R109 061G0402471 JY RST CHIPR 470OHM +-5% 1/16W YAGEO 1 R723 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN 2nd source R701 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN 2nd source R134 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN 2nd source R133 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN 2nd source R116 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN 2nd source R115 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN 2nd source R116 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO 1 R115 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO 1 R701 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO 1 R134 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO 1 R133 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO 1 R723 061G0402472 JY RST CHIPR 4.7KOHM +-5% 1/16W YAGEO 1 R107 061G0402750 JT RST 0402 75R 5% 1/16W 2nd source R113 061G0402750 JT RST 0402 75R 5% 1/16W 2nd source R121 061G0402750 JT RST 0402 75R 5% 1/16W 2nd source R121 061G0402750 JY RST CHIPR 75OHM +-5% 1/16W YAGEO 1 R113 061G0402750 JY RST CHIPR 75OHM +-5% 1/16W YAGEO 1 R107 061G0402750 JY RST CHIPR 75OHM +-5% 1/16W YAGEO 1 R132 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN 2nd source Service Manual AOCe2460SWG 45 R123 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN 2nd source R118 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN 2nd source R110 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN 2nd source R103 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN 2nd source R132 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO 1 R123 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO 1 R118 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO 1 R110 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO 1 R103 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO 1 R405 061G0603220 JT RST CHIP 22R 1/10W 5% TZAI YUAN 2nd source R405 061G0603220 JY RST CHIPR 22 OHM £«-5£¥ 1/10W YAGEO 1 R444 061G0603331 JT RST 0603 330R 5% 1/10W 2nd source R444 061G0603331 JY RST CHIPR 330 OHM +-5% 1/10W YAGEO 1 R438 061G0603471 JT RST CHIPR 470OHM +-5% 1/10W TZAI YUAN 2nd source R438 061G0603471 JY RST CHIPR 470 OHM 5% 1/10W YAGEO 1 R446 061G1206301 JF RST CHIPR 300 OHM +-5% 1/4W fenghua 2nd source R446 061G1206301 JT RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN 1 C104 065G040210232K 3 CAP CHIP 0402 1N 50V X7R +/-10% 2nd source C104 065G040210232K A CAP 0402 1NF 10% 50V X7R 1 C104 065G040210232K F CAP 0402 1NF 10% 50V X7R 2nd source C122 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1 C123 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1 C402 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1 C408 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1 C407 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1 C403 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1 C405 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1 C721 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1 C720 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1 C718 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1 C706 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1 C704 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1 C431 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1 C120 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1 C117 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1 C116 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 1 C122 065G040210412K F CAP 0402 100NF 10% 16V X7R 2nd source C123 065G040210412K F CAP 0402 100NF 10% 16V X7R 2nd source C402 065G040210412K F CAP 0402 100NF 10% 16V X7R 2nd source C403 065G040210412K F CAP 0402 100NF 10% 16V X7R 2nd source C405 065G040210412K F CAP 0402 100NF 10% 16V X7R 2nd source C407 065G040210412K F CAP 0402 100NF 10% 16V X7R 2nd source C408 065G040210412K F CAP 0402 100NF 10% 16V X7R 2nd source C431 065G040210412K F CAP 0402 100NF 10% 16V X7R 2nd source C704 065G040210412K F CAP 0402 100NF 10% 16V X7R 2nd source C706 065G040210412K F CAP 0402 100NF 10% 16V X7R 2nd source C718 065G040210412K F CAP 0402 100NF 10% 16V X7R 2nd source C720 065G040210412K F CAP 0402 100NF 10% 16V X7R 2nd source C721 065G040210412K F CAP 0402 100NF 10% 16V X7R 2nd source C120 065G040210412K F CAP 0402 100NF 10% 16V X7R 2nd source C117 065G040210412K F CAP 0402 100NF 10% 16V X7R 2nd source Service Manual AOCe2460SWG 46 C116 065G040210412K F CAP 0402 100NF 10% 16V X7R 2nd source C122 065G040210412K M CAP 0402 0.1UF 10% 16V X7R 2nd source C123 065G040210412K M CAP 0402 0.1UF 10% 16V X7R 2nd source C402 065G040210412K M CAP 0402 0.1UF 10% 16V X7R 2nd source C721 065G040210412K M CAP 0402 0.1UF 10% 16V X7R 2nd source C720 065G040210412K M CAP 0402 0.1UF 10% 16V X7R 2nd source C718 065G040210412K M CAP 0402 0.1UF 10% 16V X7R 2nd source C706 065G040210412K M CAP 0402 0.1UF 10% 16V X7R 2nd source C704 065G040210412K M CAP 0402 0.1UF 10% 16V X7R 2nd source C431 065G040210412K M CAP 0402 0.1UF 10% 16V X7R 2nd source C408 065G040210412K M CAP 0402 0.1UF 10% 16V X7R 2nd source C407 065G040210412K M CAP 0402 0.1UF 10% 16V X7R 2nd source C405 065G040210412K M CAP 0402 0.1UF 10% 16V X7R 2nd source C403 065G040210412K M CAP 0402 0.1UF 10% 16V X7R 2nd source C120 065G040210412K M CAP 0402 0.1UF 10% 16V X7R 2nd source C117 065G040210412K M CAP 0402 0.1UF 10% 16V X7R 2nd source C116 065G040210412K M CAP 0402 0.1UF 10% 16V X7R 2nd source C112 065G040222031J 3 CAP CHIP 0402 22P 50V NPO +/-5% 2nd source C113 065G040222031J 3 CAP CHIP 0402 22P 50V NPO +/-5% 2nd source C112 065G040222031J A CAP 0402 22PF J 50V NPO 1 C113 065G040222031J A CAP 0402 22PF J 50V NPO 1 C113 065G040222031J F CAP 0402 22PF 5% 50V NP0 2nd source C112 065G040222031J F CAP 0402 22PF 5% 50V NP0 2nd source C109 065G040222415K 3 NDS-Assign CAP CHIP 220nF 16V X5R 2nd source C119 065G040222415K 3 NDS-Assign CAP CHIP 220nF 16V X5R 2nd source C410 065G040222415K 3 NDS-Assign CAP CHIP 220nF 16V X5R 2nd source C715 065G040222415K 3 NDS-Assign CAP CHIP 220nF 16V X5R 2nd source C715 065G040222415K A CAP 0402 220NF 10% 16V X5R 1 C410 065G040222415K A CAP 0402 220NF 10% 16V X5R 1 C119 065G040222415K A CAP 0402 220NF 10% 16V X5R 1 C109 065G040222415K A CAP 0402 220NF 10% 16V X5R 1 C715 065G040222415K F CAP 0402 220NF 10% 16V X5R 2nd source C410 065G040222415K F CAP 0402 220NF 10% 16V X5R 2nd source C119 065G040222415K F CAP 0402 220NF 10% 16V X5R 2nd source C109 065G040222415K F CAP 0402 220NF 10% 16V X5R 2nd source C103 065G040247312K 3 CHIP CAP 47NF16V X7R 10% 2nd source C102 065G040247312K 3 CHIP CAP 47NF16V X7R 10% 2nd source C105 065G040247312K 3 CHIP CAP 47NF16V X7R 10% 2nd source C107 065G040247312K 3 CHIP CAP 47NF16V X7R 10% 2nd source C108 065G040247312K 3 CHIP CAP 47NF16V X7R 10% 2nd source C111 065G040247312K 3 CHIP CAP 47NF16V X7R 10% 2nd source C105 065G040247312K A CAP 0402 47NF 10% 16V X7R 1 C107 065G040247312K A CAP 0402 47NF 10% 16V X7R 1 C108 065G040247312K A CAP 0402 47NF 10% 16V X7R 1 C111 065G040247312K A CAP 0402 47NF 10% 16V X7R 1 C102 065G040247312K A CAP 0402 47NF 10% 16V X7R 1 C103 065G040247312K A CAP 0402 47NF 10% 16V X7R 1 C102 065G040247312K F CAP 0402 47NF 10% 16V X7R 2nd source C103 065G040247312K F CAP 0402 47NF 10% 16V X7R 2nd source C105 065G040247312K F CAP 0402 47NF 10% 16V X7R 2nd source C107 065G040247312K F CAP 0402 47NF 10% 16V X7R 2nd source Service Manual AOCe2460SWG 47 C111 065G040247312K F CAP 0402 47NF 10% 16V X7R 2nd source C108 065G040247312K F CAP 0402 47NF 10% 16V X7R 2nd source C110 065G040250931C 3 CAP CHIP 0402 5PF 50V NP0 +/-0.25pF 2nd source C106 065G040250931C 3 CAP CHIP 0402 5PF 50V NP0 +/-0.25pF 2nd source C101 065G040250931C 3 CAP CHIP 0402 5PF 50V NP0 +/-0.25pF 2nd source C110 065G040250931C A CAP 0402 5PF 0.25pF 50V NP0 2nd source C106 065G040250931C A CAP 0402 5PF 0.25pF 50V NP0 2nd source C101 065G040250931C A CAP 0402 5PF 0.25pF 50V NP0 2nd source C101 065G040250931C Y CAP 0402 5PF 0.25pF 50V NP0 1 C106 065G040250931C Y CAP 0402 5PF 0.25pF 50V NP0 1 C110 065G040250931C Y CAP 0402 5PF 0.25pF 50V NP0 1 C412 065G040256031J 3 CAP CHIP 0402 56pF 50V NP0 +/-5% 2nd source C413 065G040256031J 3 CAP CHIP 0402 56pF 50V NP0 +/-5% 2nd source C412 065G040256031J Y CAP CHIP 0402 56pF 50V NP0 +/-5% 1 C413 065G040256031J Y CAP CHIP 0402 56pF 50V NP0 +/-5% 1 C406 065G0603475A5K T CAP CHIP 0603 4.7UF K 10V X5R 1 C401 065G0805106A5K 3 CHIP 10uF 10V X5R 10% 2nd source C404 065G0805106A5K 3 CHIP 10uF 10V X5R 10% 2nd source C409 065G0805106A5K 3 CHIP 10uF 10V X5R 10% 2nd source C409 065G0805106A5K A CAP 0805 10UF 10% 10V X5R 1 C404 065G0805106A5K A CAP 0805 10UF 10% 10V X5R 1 C401 065G0805106A5K A CAP 0805 10UF 10% 10V X5R 1 FB406 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF 1 FB402 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF 1 FB401 071G 56K121 M CHIP BEAD 120OHM 6A MGLB2012-120T-LF 1 FB406 071G 56K121 TA CHIP BEAD 120R/6000mA HCB2012KF-121T60 2nd source FB402 071G 56K121 TA CHIP BEAD 120R/6000mA HCB2012KF-121T60 2nd source FB401 071G 56K121 TA CHIP BEAD 120R/6000mA HCB2012KF-121T60 2nd source FB190 071G 59G301 M CHIP BEAD 0603 300R 25% 200mA 2nd source FB102 071G 59G301 M CHIP BEAD 0603 300R 25% 200mA 2nd source FB101 071G 59G301 M CHIP BEAD 0603 300R 25% 200mA 2nd source FB190 071G 59G301 TA CHIP BEAD 300OHM 200mA FCM1608KF-301T02 1 FB102 071G 59G301 TA CHIP BEAD 300OHM 200mA FCM1608KF-301T02 1 FB101 071G 59G301 TA CHIP BEAD 300OHM 200mA FCM1608KF-301T02 1 D103 093G 64 42 P BAV70 SOT23 BY PAN JIT 1 D101 093G 64 42 P BAV70 SOT23 BY PAN JIT 1 ZD104 093G 39GA01 T RLZ5.6B 1 ZD103 093G 39GA01 T RLZ5.6B 1 ZD102 093G 39GA01 T RLZ5.6B 1 ZD101 093G 39GA01 T RLZ5.6B 1 ZD104 093G 39S 24 T RLZ 5.6B LLDS 2nd source ZD101 093G 39S 24 T RLZ 5.6B LLDS 2nd source ZD102 093G 39S 24 T RLZ 5.6B LLDS 2nd source ZD103 093G 39S 24 T RLZ 5.6B LLDS 2nd source E715 715G5270M0C000004L MAIN PCB FR4 DS 80*72*1.6mm 1 H40G 45762429A LABEL 1 J44GK9021010LY EPS 1 J44GK9022010LY EPS 1 J52G1801 5 1A TAPE_INSULATING 1 KEPCBQR1J KEY BOARD G5357-K0B-000-0010-2-111207 1 CN001 095G820H 6D702 HARNESS 6P(SANW)-6P(2008) 340mm 1 Service Manual AOCe2460SWG 48 LED001 381G00121YG0EL LED Y/G 269-3UYSYGC/S530-A3/F182-150 1 AIKEPCBQR1J KEY BOARD FOR AI 1 SW001 077G603S AI HJ TACT SWITCH AI 2PIN SEALED 1 SW002 077G603S AI HJ TACT SWITCH AI 2PIN SEALED 1 SW003 077G603S AI HJ TACT SWITCH AI 2PIN SEALED 1 SW004 077G603S AI HJ TACT SWITCH AI 2PIN SEALED 1 SW005 077G603S AI HJ TACT SWITCH AI 2PIN SEALED 1 SMTKEPCBQR1J KEY BOARD FOR SMT 1 R001 061G0603101 JI RST 0603 100R 5% 1/10W TA-I 2nd source R003 061G0603101 JI RST 0603 100R 5% 1/10W TA-I 2nd source R003 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN 1 R001 061G0603101 JT RST CHIP 100R 1/10W 5% TZAI YUAN 1 R002 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I 2nd source R002 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN 1 R005 061G0603202 JI RST 0603 2K 5% 1/16W TA-I 2nd source R004 061G0603202 JI RST 0603 2K 5% 1/16W TA-I 2nd source R004 061G0603202 JT RST 0603 2K 5% 1/10W 1 R005 061G0603202 JT RST 0603 2K 5% 1/10W 1 ZD007 093G 64 59 SU ESD MLVS0603M04 0603 1 ZD006 093G 64 59 SU ESD MLVS0603M04 0603 1 ZD005 093G 64 59 SU ESD MLVS0603M04 0603 1 ZD004 093G 64 59 SU ESD MLVS0603M04 0603 1 ZD003 093G 64 59 SU ESD MLVS0603M04 0603 1 ZD002 093G 64 59 SU ESD MLVS0603M04 0603 1 ZD001 093G 64 59 SU ESD MLVS0603M04 0603 1 E715 715G5357K0B000001C KEY PCB FR1 SS 115X10+1.6(mm) 1 PLPCB5361CYM1J POWER G5361-P0B-000-X-1-111115 1 GND1 009G6005 1 GND TERMINAL 1 GND2 009G6005 1 GND TERMINAL 1 IC902 056G 139 3A PC123Y22FZOF SHARP 1 IC903 056G 158 10 T DC/DC AS431AZTR-E1 150MA 40V TO-92 1 IC903 056G 158 12 Shunt Regulator KIA431A-AT/P TO-92 2nd source Q904 057G 419 18 T SMALLTRAN 2SD1207-T-AE 2A 60V MP 2nd source Q904 057G 530503 T 2SD1207T 1 NR901 061G 58809MEN RST NTCR 8OHM +/20%/NMM01 4A XIANZHENG 1 C908 063G107K474 6S 0.47UF +-10% 1 C932 065G 1M1033E3 CAP CER 10NF 20% 1KV Y5U 1 C902 065G305M1023WR CAP Y2 1NF 20% 250V Y5U 1 C903 065G305M1023WR CAP Y2 1NF 20% 250V Y5U 1 C900 065G306M3323WR CAP Y1 3.3NF 20% 250V Y5U 1 C907 067G 40Z10115K EC 100UF 20% 450V 18*35 1 C907 067G 40Z10115L EC 100uF 450V M 18*35.5mm 2nd source L901 073G 174 65 S2 LINE FILTER 30mH MIN 1 L907 073G 253 91 H IND CHOKE 3.5uH+-10% DADONG 1 L906 073G 253 91 H IND CHOKE 3.5uH+-10% DADONG 1 L905 073G 253 91 H IND CHOKE 3.5uH+-10% DADONG 1 L801 073G 253214 DN CHOKE COIL 47UH 10% LZ.CC013.G01 2.5A 1 T901 080GL22T 3 N1 X'FMR 490UH 7% 4UH YUVA-1093 EER28 1 CN901 087G 501 32 S AC SOCKET ST-01CP-BCE-R 1 BD901 093G 50460 51 BRIDGE D2SB80 2A 800V GBL 1 D801 093G 60988 SCHOTTKY SB5100-E 5A 100V DO-201AD 1 Service Manual AOCe2460SWG 49 CN902 095G 82510D532 HARNESS 10P(SCN)-9P(PLUG) 140MM 1 CN902 095G 82510W532 HARNESS 10P(SCN)-9P(PLUG) 140mm 2nd source CN801 311GW200A06ABX WAFER 2.0mm 6P 1 705GJB57062 Q901 ASS'Y 1 051G 200 1 OIL FOR DISAPPEAR 0.1 Q901 057G 667923 MOSFET SMK0765F 7A 650V TO-220FP 2nd source Q901 057G 667924 MOSFET SMK0965F 1 HS1 090G6064 1 HEAT SINK 1 0M1G 930 8120 SCREW 3x8 1 705GJB93070 D901/D905/D906 ASS'Y 1 051G 200 1 OIL FOR DISAPPEAR 0.3 HS3 090G6273 1 HEAT SINK 1 D901 093G 60268 SCHOTTKY YG865C15RSC 20A 150V TO-220F 1 D906 093G 60507 SCHOTTKY SRF1060 C0 10A 60V ITO-220AB 1 D905 093G 60507 SCHOTTKY SRF1060 C0 10A 60V ITO-220AB 1 0M1G1730 8120 SCREW 3x8 3 H40G 45762429A LABEL 2 PLB5361CYM1SMTJ POWER BOARD FOR SMT 1 IC901 056G 379198 AC/DC CONVERTER AP3107MTR-G1 SOIC-7 1 U801 056G 700 11 LED DRIVER OZ9998BGN-A1-0-TR SOP-16 1 Q801 057G 763947 MOSFET APM8005KCTRG 6A 80V SOP-8 1 R928 061G06031001FF RST CHIPR 1 KOHM +-1% 1/10W FENGHUA 2nd source R928 061G06031001FT RST CHIP 1K 1/10W 1% 1 R918 061G06031002FF RST CHIPR 10 KOHM +-1% 1/10W FENGHUA 2nd source R916 061G06031002FF RST CHIPR 10 KOHM +-1% 1/10W FENGHUA 2nd source R918 061G06031002FT RST CHIP 10K 1/10W 1% 1 R916 061G06031002FT RST CHIP 10K 1/10W 1% 1 R925 061G06039101FF RST CHIPR 9.1KOHM +-1% 1/10W FENGHUA 2nd source R920 061G06039101FF RST CHIPR 9.1KOHM +-1% 1/10W FENGHUA 1 R925 061G06039101FI TEST ONLY RST 0603 9.1K 1% 1/10W TA-I 1 R920 061G06039101FT RST CHIP 9K1 1/10W 1% 2nd source R925 061G06039101FT RST CHIP 9K1 1/10W 1% 2nd source R811 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA 2nd source R811 061G0805000 JT RST 0805 0.05R MAX 1/8W 1 R804 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA 1 R807 061G0805100 JF RST CHIPR 10 OHM +-5% 1/8W FENGHUA 2nd source R807 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN 1 R804 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN 2nd source R907 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA 2nd source R806 061G0805102 JF RST CHIPR 1K OHM +-5% 1/8W FENGHUA 1 R907 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN 1 R801 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA 1 R818 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA 1 R801 061G0805103 JT RST 0805 10K 5% 1/8W 2nd source R818 061G0805103 JT RST 0805 10K 5% 1/8W 2nd source R805 061G0805104 JY RST CHIPR 100KOHM 1/8W YAGEO 1 R810 061G08051202FT RST CHIP 12K 1/8W 1% 1 R815 061G0805164 JF RST 0805 160K 5% 1/8W 1 R803 061G0805304 JF RST CHIPR 300KOHM +-5% 1/8W FENGHUA 1 R802 061G0805304 JF RST CHIPR 300KOHM +-5% 1/8W FENGHUA 1 R803 061G0805304 JT RST CHIP 300K 1/8W 5% TZAI YUAN 2nd source Service Manual AOCe2460SWG 50 R802 061G0805304 JT RST CHIP 300K 1/8W 5% TZAI YUAN 2nd source R809 061G08053303FT RST CHIP 330K 1% 1/8W 1 R905 061G0805471 JF RST CHIPR 470 OHM +-5% 1/8W FENGHUA 1 R905 061G0805471 JT RST CHIPR 470OHM +-5% 1/8W TZAI YUAN 2nd source R816 061G08055101FF RST CHIPR 5.1KOHM +-1% 1/8W FENGHUA 2nd source R816 061G08055101FT RST CHIP 5K1 1/8W 1% 1 RJ901 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA 2nd source RJ801 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA 2nd source RJ801 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN 1 RJ901 061G1206000 JT RST CHIPR MAX0R05 1/4W TZAI YUAN 1 R917 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN 1 R817 061G12061001FT RST CHIP R 1Kohm +-1% 1/4W 1 R930 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA 2nd source R929 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA 2nd source R912 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA 2nd source R910 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA 2nd source R909 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA 2nd source R903 061G1206101 JF RST CHIPR 100 OHM +-5% 1/4W FENGHUA 2nd source R930 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN 1 R903 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN 1 R909 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN 1 R910 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN 1 R912 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN 1 R929 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN 1 R935 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA 2nd source R908 061G1206103 JF RST CHIPR 10KOHM +-5% 1/4W FENGHUA 2nd source R935 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN 1 R908 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN 1 R919 061G1206151 JF RST CHIPR 150 OHM +-5% 1/4W FENGHUA 2nd source R919 061G1206151 JT RST CHIPR 150 OHM +-5% 1/4W TZAI YUAN 1 R813 061G1206308 JF RST CHIPR 0.3 OHM +-5% 1/4W FENGHUA 1 R812 061G1206308 JF RST CHIPR 0.3 OHM +-5% 1/4W FENGHUA 1 R813 061G1206308 JT RST 1206 0.3R 5% 1/4W 2nd source R812 061G1206308 JT RST 1206 0.3R 5% 1/4W 2nd source R936 061G12064709FF RST 1206 47R 1% 1/4W FENGHUA 2nd source R936 061G12064709FT RST 1206 47R 1% 1/4W TZAI YUAN 1 R913 061G1206479 JF RST CHIPR 4.7OHM +-5% 1/4W FENGHUA 2nd source R913 061G1206479 JT RST 1206 4.7R 5% 1/4W 1 R900 061G1206684 JF RST CHIPR 680KOHM +-5% 1/4W FENGHUA 2nd source R901 061G1206684 JF RST CHIPR 680KOHM +-5% 1/4W FENGHUA 2nd source R902 061G1206684 JF RST CHIPR 680KOHM +-5% 1/4W FENGHUA 2nd source R901 061G1206684 JT RST CHIPR 680 KOHM +-5% 1/4W TZAI YUAN 1 R900 061G1206684 JT RST CHIPR 680 KOHM +-5% 1/4W TZAI YUAN 1 R902 061G1206684 JT RST CHIPR 680 KOHM +-5% 1/4W TZAI YUAN 1 C812 065G080510131J F CAP CHIP 0805 100PF J 50V NPO 1 C813 065G080510131J F CAP CHIP 0805 100PF J 50V NPO 1 C815 065G080510232K F CAP 0805 1000PF 10% 50V X7R 1 C803 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% 1 C915 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% 1 C923 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% 1 C803 065G080510332K F CAP 0805 10NF K 50V X7R 2nd source Service Manual AOCe2460SWG 51 C802 065G080510332K F CAP 0805 10NF K 50V X7R 2nd source C802 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10% 1 C912 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10% 2nd source C814 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10% 2nd source C924 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10% 2nd source C924 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R 1 C912 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R 1 C814 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R 1 C924 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN 2nd source C814 065G080510432K T 0.1UF K 50V X7R TAIYO YUDEN 2nd source C805 065G080522512K 3 CAP CHIP 0805 2U2 16V X7R +/-10% 2nd source C805 065G080522512K M CAP 0805 2.2UF 10% 16V X7R 1 C914 065G080547131J F CAP CHIP 0805 470PF J 50V NPO 2nd source C914 065G080547131J Y CAP CHIP 0805 470P 50V NPO +/-5% 1 C927 065G080547332K F CAP CHIP 0805 47NF K 50V X7R 1 C927 065G080547332K Y CAP CHIP 0805 47N 50V X7R +/-10% 2nd source C811 065G080547432K 3 CAP 0805 470NF 10% 50V X7R 2nd source C810 065G080547432K 3 CAP 0805 470NF 10% 50V X7R 2nd source C804 065G080547432K 3 CAP 0805 470NF 10% 50V X7R 2nd source C804 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R 1 C810 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R 1 C811 065G080547432K T CAP CHIP 0805 0.47UF K 50V X7R 1 PLB5361CYM1AIJ POWER BOARD FOR ai 1 CN901 006G 31500 EYELET 3 040G 45762420A LABEL 25x6mm 1 R915 061G 17210052T TZ RST CFR 10R 1/4W 5% 2nd source R915 061G 17210052T XZ RST CFR 10 OHM +-5% 1/4W XIANZHENG 1 R923 061G 60220152T TZ RST CFR 200OHM +-5% 1/6W TZAI YUAN 2nd source R923 061G 60220152T XZ RST CFR 200 OHM +-5% 1/6W XIANZHENG 1 R906 061G152M10452T HX RST MOF 100K 5% 2WS 2nd source R906 061G152M10452T SY RST MOFR 100KOHM +-5% 2WS FUTABA 1 R904 061G152M39152T SY RST MOFR 390 OHM +-5% 2WS 1 R924 061G152M39852T HX RST MOF 0.39R 5% 2W 2nd source R924 061G152M39852T SY RST MOF 0.39R 5% 2W 1 C911 065G 2K152 2T6213 CAP CER 1.5NF 10% 2KV Y5P 1 C807 065G500K4732GT CAP JC 47NF 10% 50V X7R 1 C807 065G500K4732HT CAP CER 47NF 10% 50V X7R 2nd source C917 065G517K102 2T6921 CAP CER 1000PF K 500V Y5P 1 C916 065G517K102 2T6921 CAP CER 1000PF K 500V Y5P 1 C816 065G517K102 2T6921 CAP CER 1000PF K 500V Y5P 1 C921 067G 2046812KT CS CAP 680uF 10V 8*11 mm 1 C920 067G 2046812KT CS CAP 680uF 10V 8*11 mm 1 C921 067G 2046812LT CAP CS 680UF 20% 10V 8*11.5 2nd source C920 067G 2046812LT CAP CS 680UF 20% 10V 8*11.5 2nd source C809 067G 4153309KT EC 33UF 20% 100V 8*12 ED 1 C801 067G 5153314KT EC 330UF 20% 25V EJ1E331MPN1009RU 1 C922 067G 5153314KT EC 330UF 20% 25V EJ1E331MPN1009RU 1 C934 067G 5153314KT EC 330UF 20% 25V EJ1E331MPN1009RU 1 C919 067G215D3314KT EC 330UF 20% 25V 10*12 ED 1 C918 067G215S1024KT EC 1000UF 20% 25V 12.5*20 ED 1 C933 067G215S1024KT EC 1000UF 20% 25V 12.5*20 ED 1 Service Manual AOCe2460SWG 52 C933 067G215S1024LT EC 1000UF 20% 25V 12.5*20 2nd source C918 067G215S1024LT EC 1000UF 20% 25V 12.5*20 2nd source C913 067G215Y2207KT CAP 105℃ 22UF M 50V KINGNICHI EG 1 FB601 071G 55 9 T BEAD 3.5*0.8*6.0mm 110R HF 1 FB801 071G 55 29 FERRITE BEAD 1 FB802 071G 55 29 FERRITE BEAD 1 FB901 071G 55 29 FERRITE BEAD 1 F901 084G 56 4 B FUSE 4A 250V 1 F903 084G 56 5 B FUSE 5A 250V SS-5-5A-AP 1 F902 084G 56 5 B FUSE 5A 250V SS-5-5A-AP 1 F903 084G 56 5 C FUSE 5A 250V MST 5A 250V 2nd source F902 084G 56 5 C FUSE 5A 250V MST 5A 250V 2nd source ZD901 093G 3916352T ZD TZX22B 1 D904 093G 5212T52T DIODE 1N4007-AO DO-41 1 D903 093G 6026T52T CTIFIER DIODE FR107 1 D907 093G 6451652T 1N4148 1 J809 095G 90 23 JUMPER WIRE 1 J810 095G 90 23 JUMPER WIRE 1 J811 095G 90 23 JUMPER WIRE 1 J812 095G 90 23 JUMPER WIRE 1 J813 095G 90 23 JUMPER WIRE 1 J901 095G 90 23 JUMPER WIRE 1 J902 095G 90 23 JUMPER WIRE 1 J903 095G 90 23 JUMPER WIRE 1 J904 095G 90 23 JUMPER WIRE 1 J905 095G 90 23 JUMPER WIRE 1 J906 095G 90 23 JUMPER WIRE 1 J908 095G 90 23 JUMPER WIRE 1 J909 095G 90 23 JUMPER WIRE 1 J801 095G 90 23 JUMPER WIRE 1 J802 095G 90 23 JUMPER WIRE 1 J803 095G 90 23 JUMPER WIRE 1 J804 095G 90 23 JUMPER WIRE 1 J805 095G 90 23 JUMPER WIRE 1 J806 095G 90 23 JUMPER WIRE 1 J807 095G 90 23 JUMPER WIRE 1 J808 095G 90 23 JUMPER WIRE 1 715G5361P0B0000010 PWR PCB FR1 CTI>600 SS 184X145X1.6mm 1 Q51G 6 4509 GLUE_RTV 1 Q12G6600 6 FOOT 4 Q33G0519 1101A KEY_FUNCTION 1 Q33G0520 1101A LENS_POWER 1 Q44G3231 15603 EVA 4
