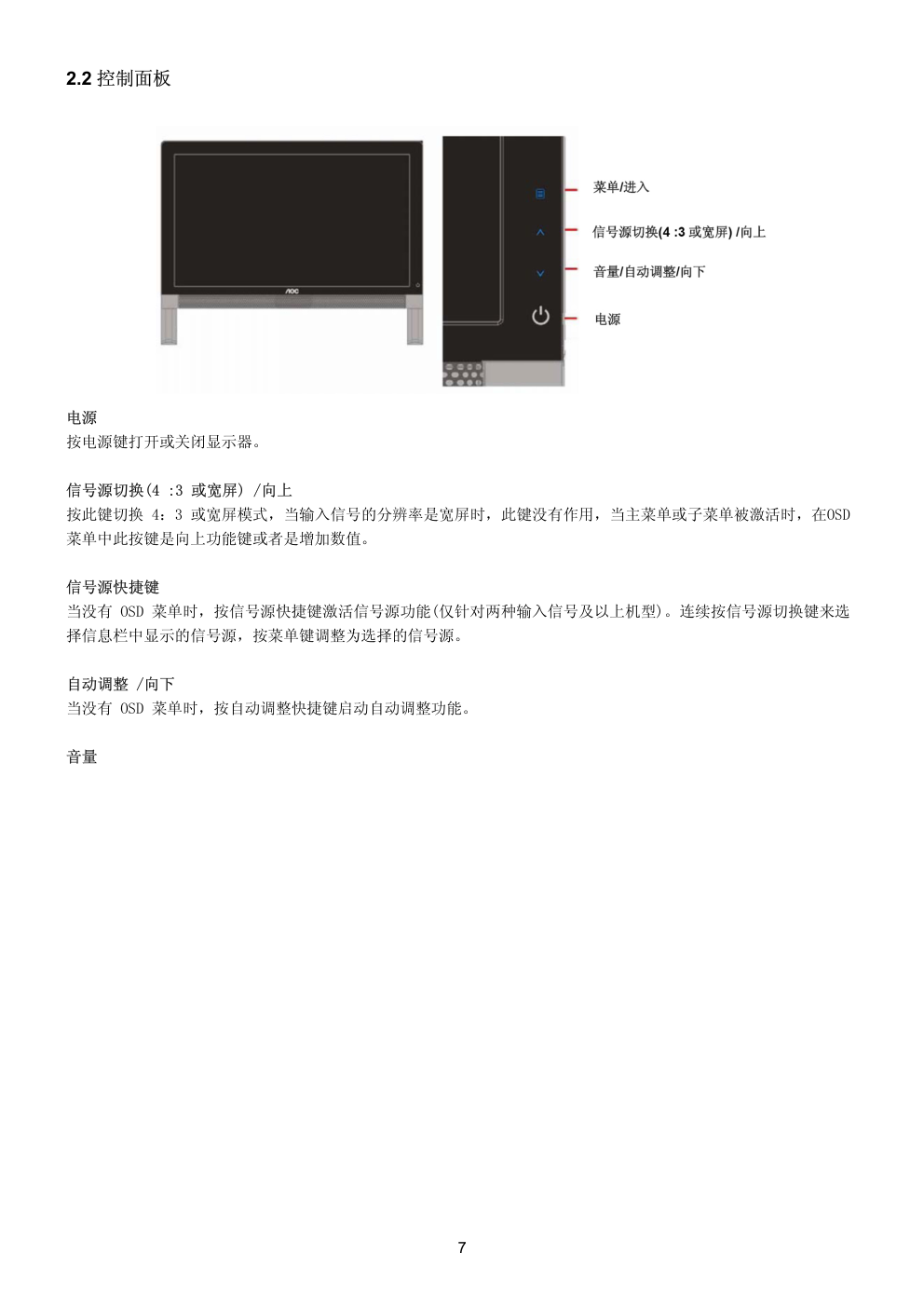

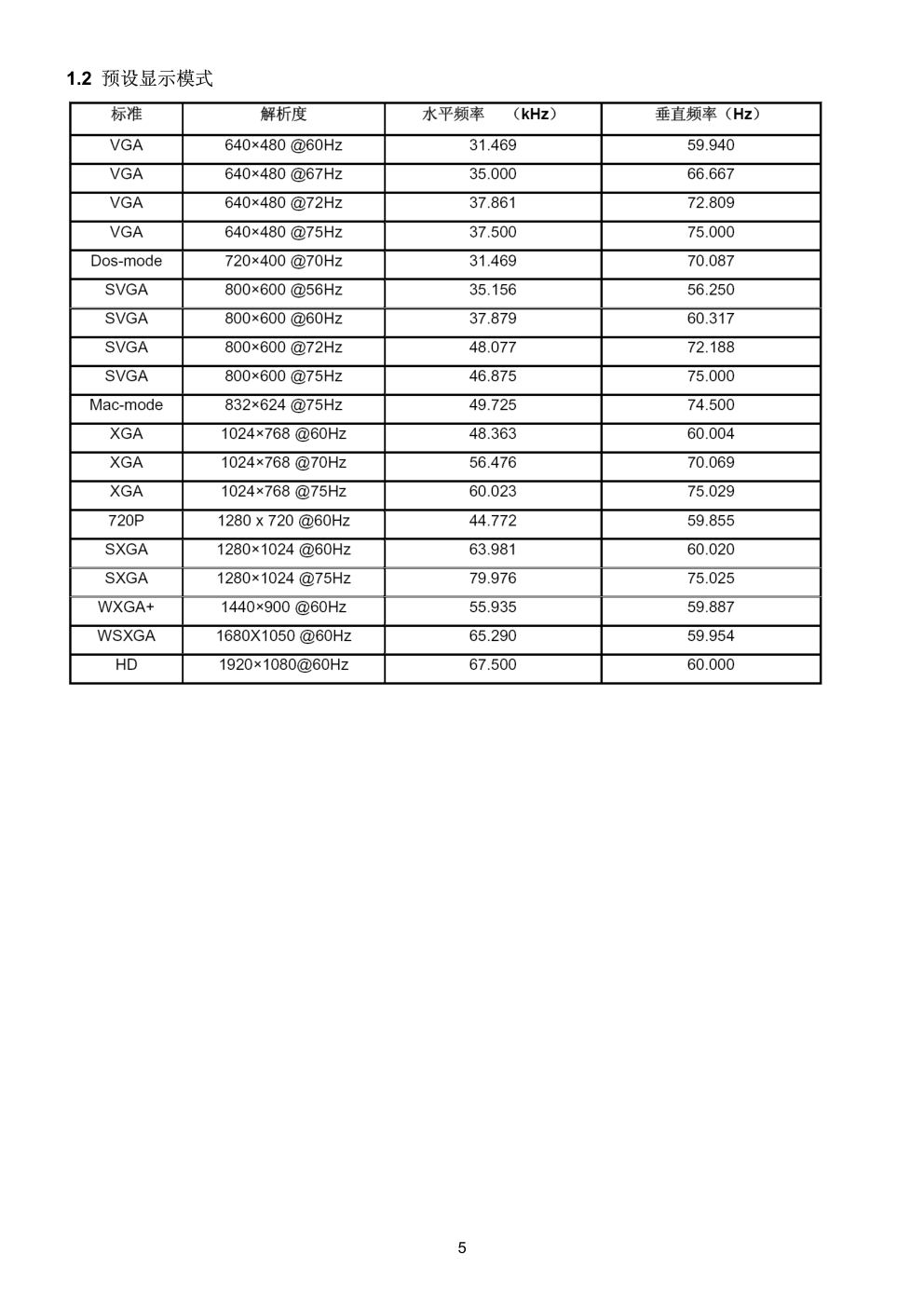

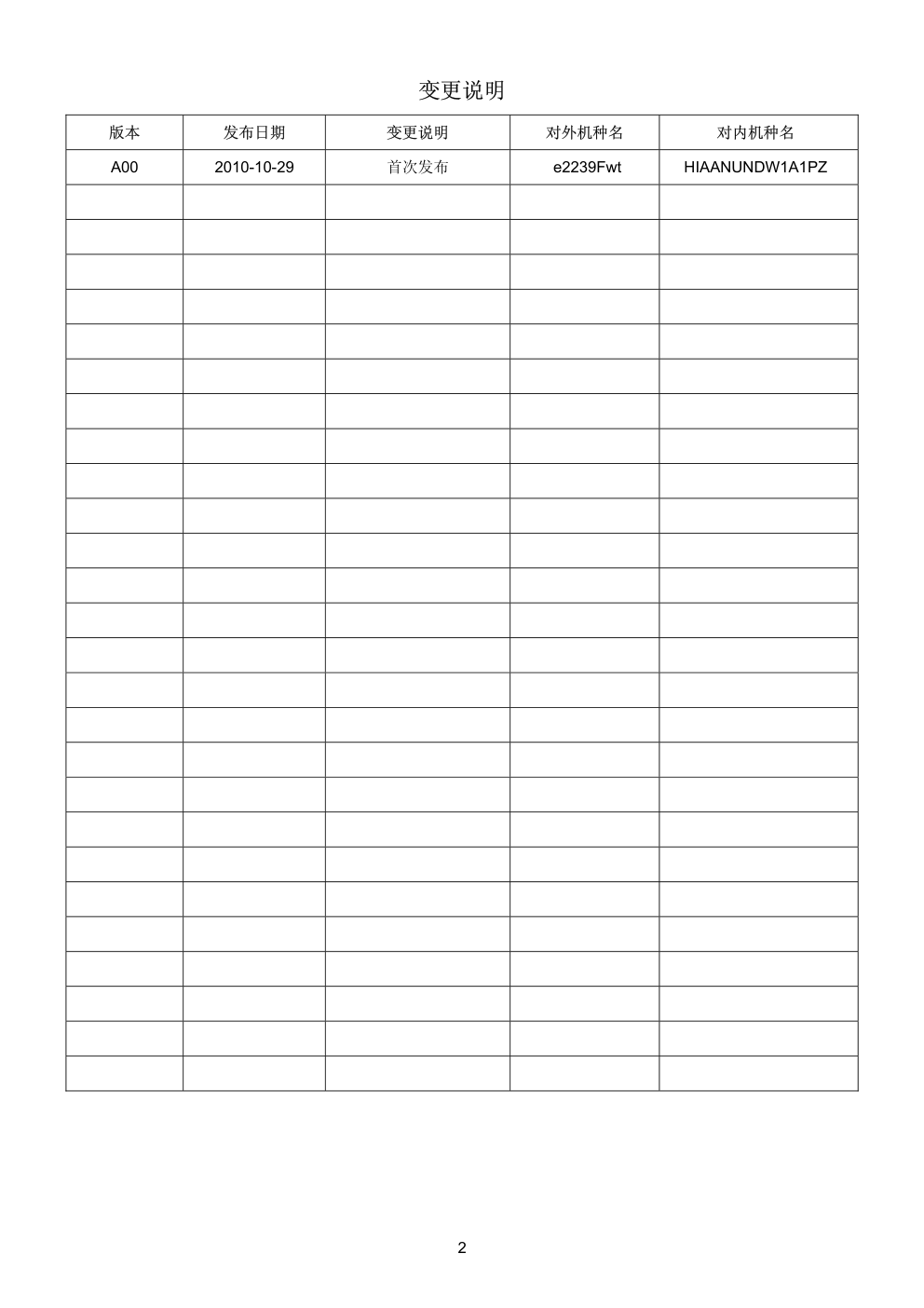

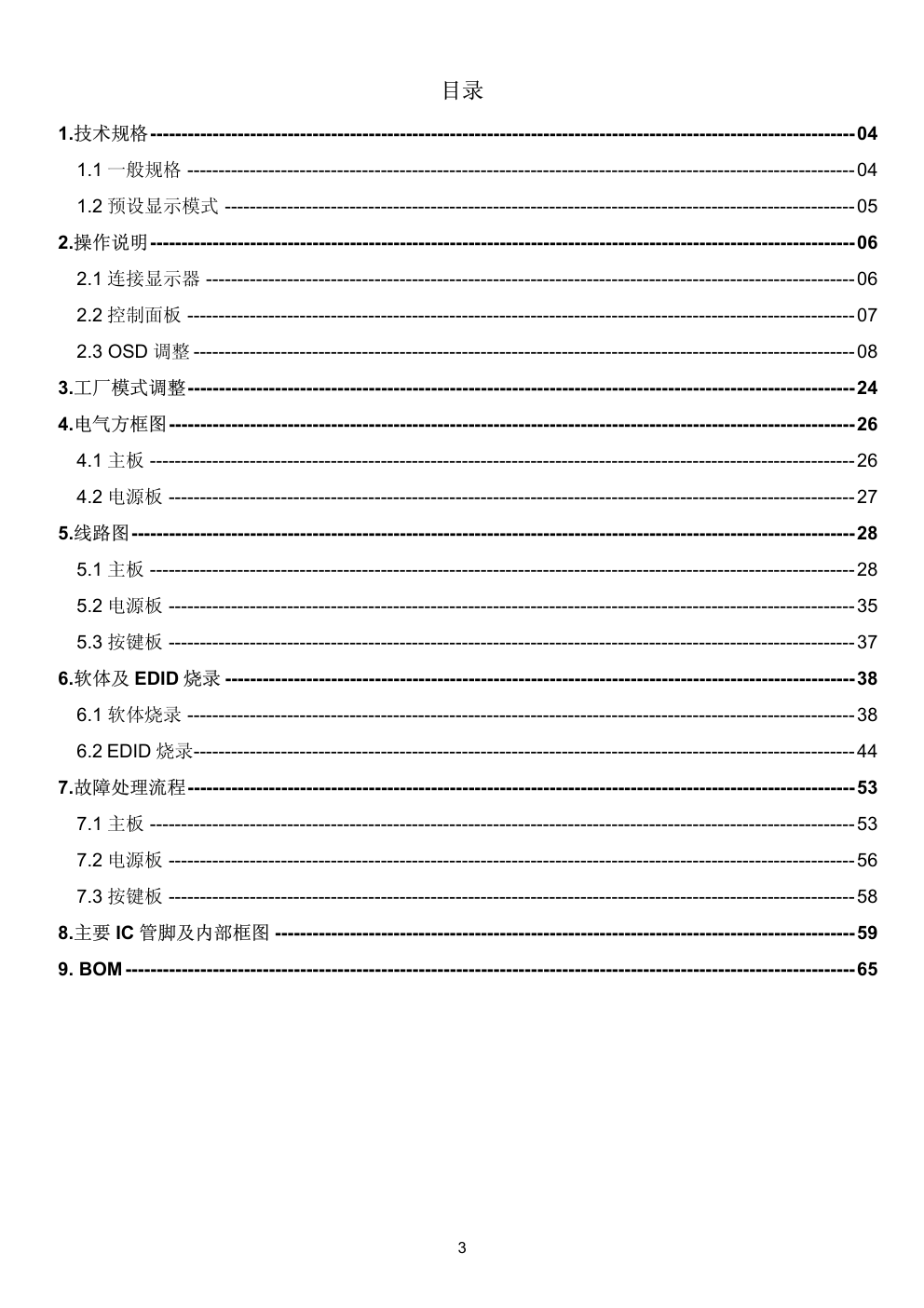

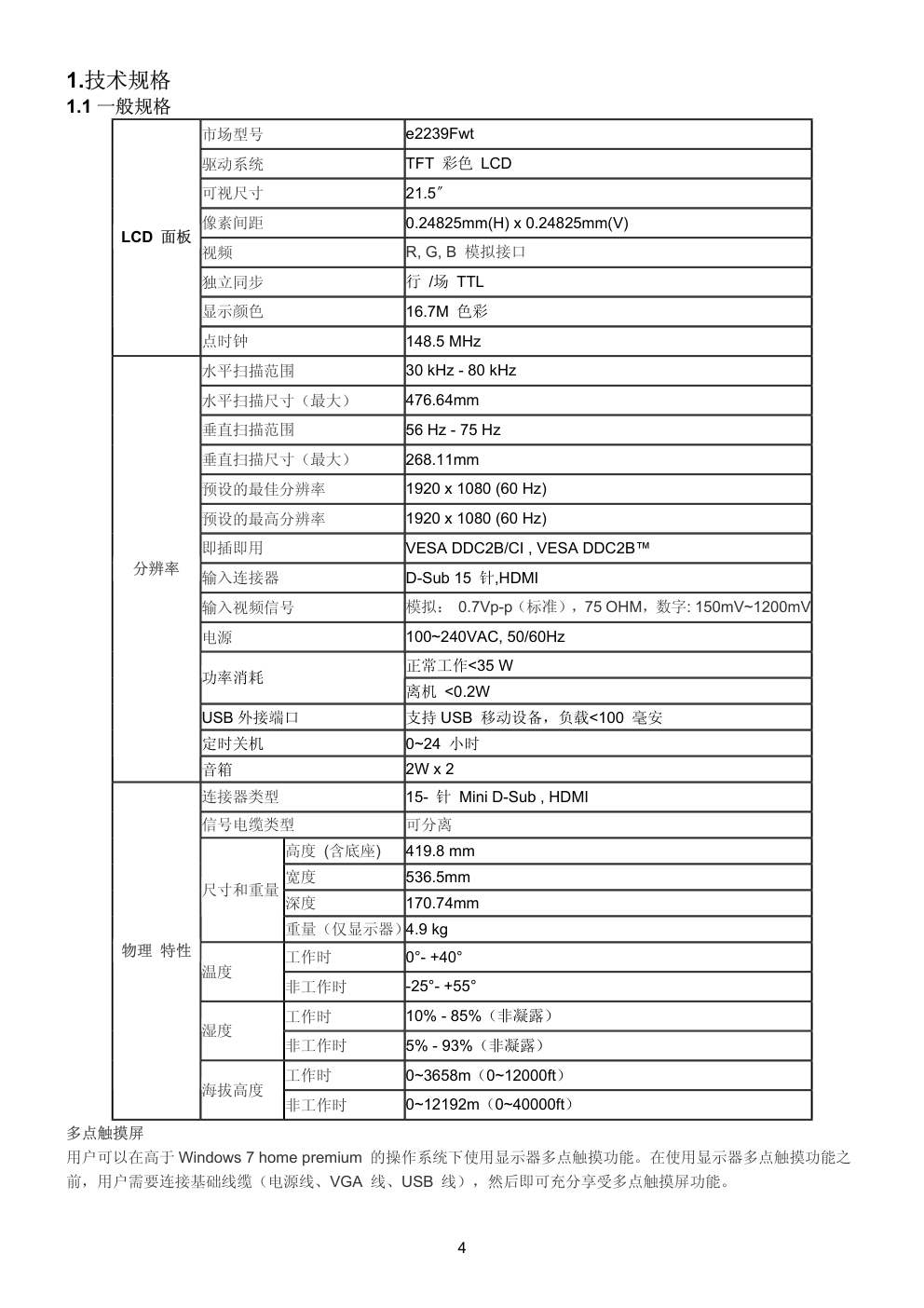

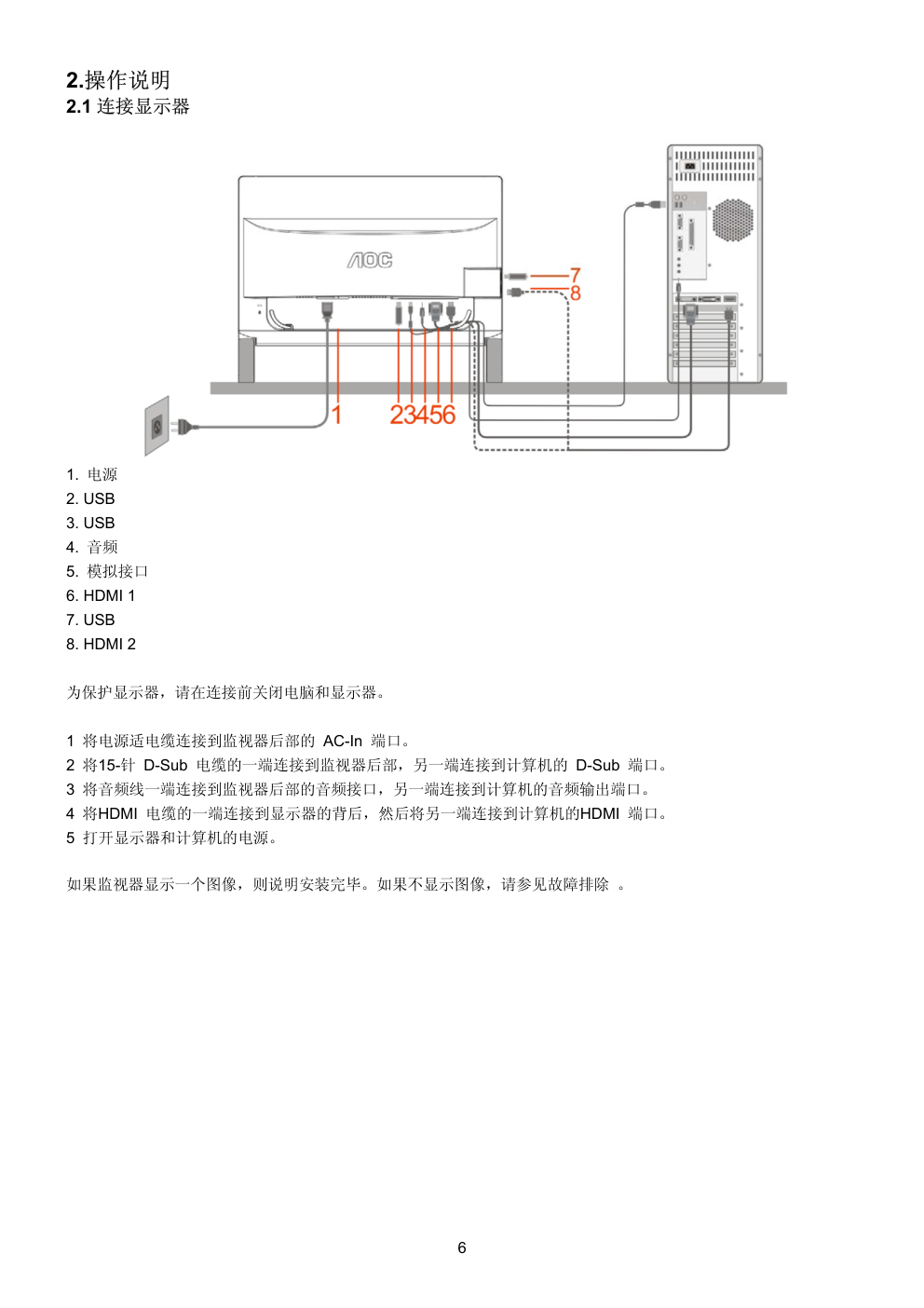

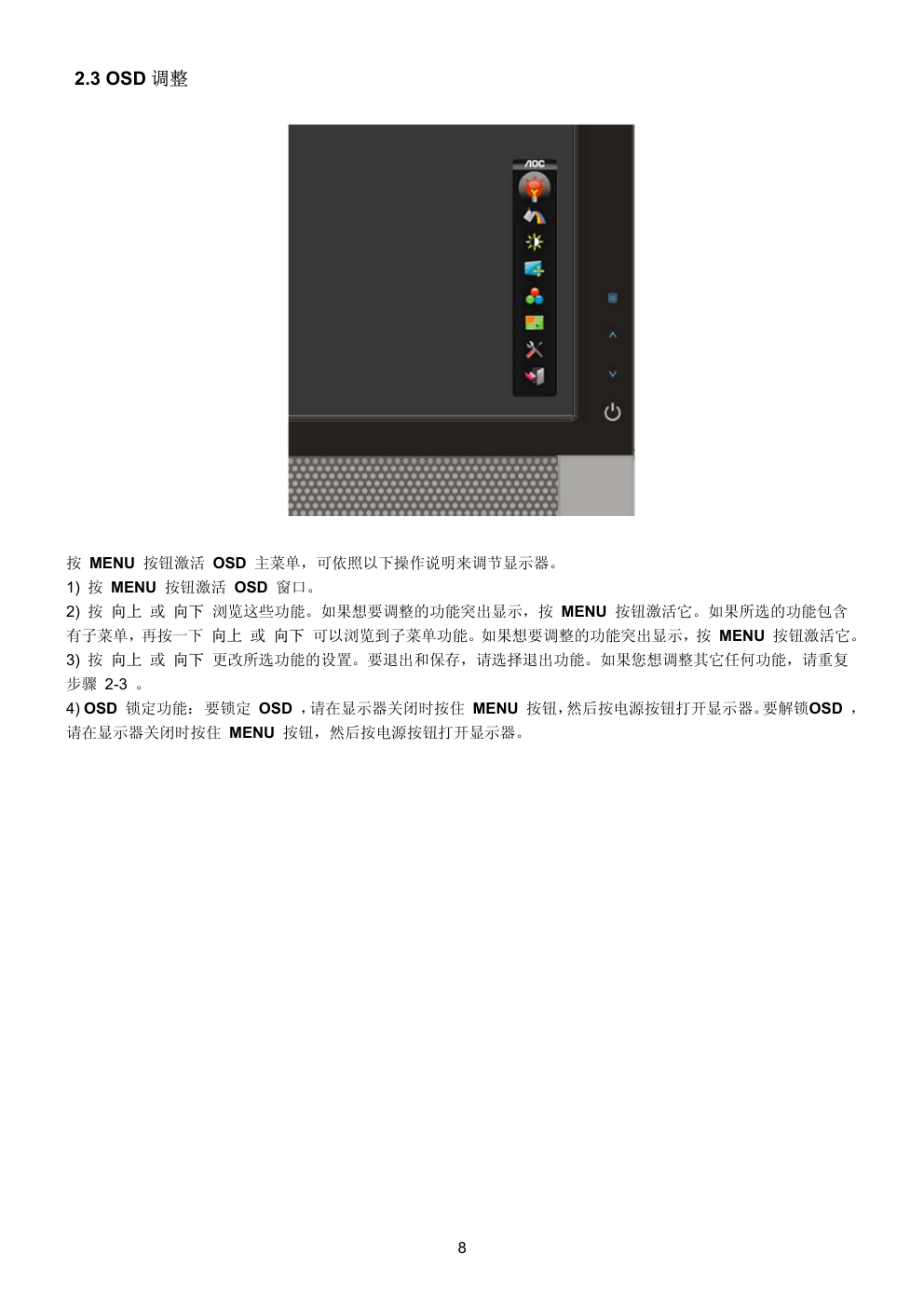

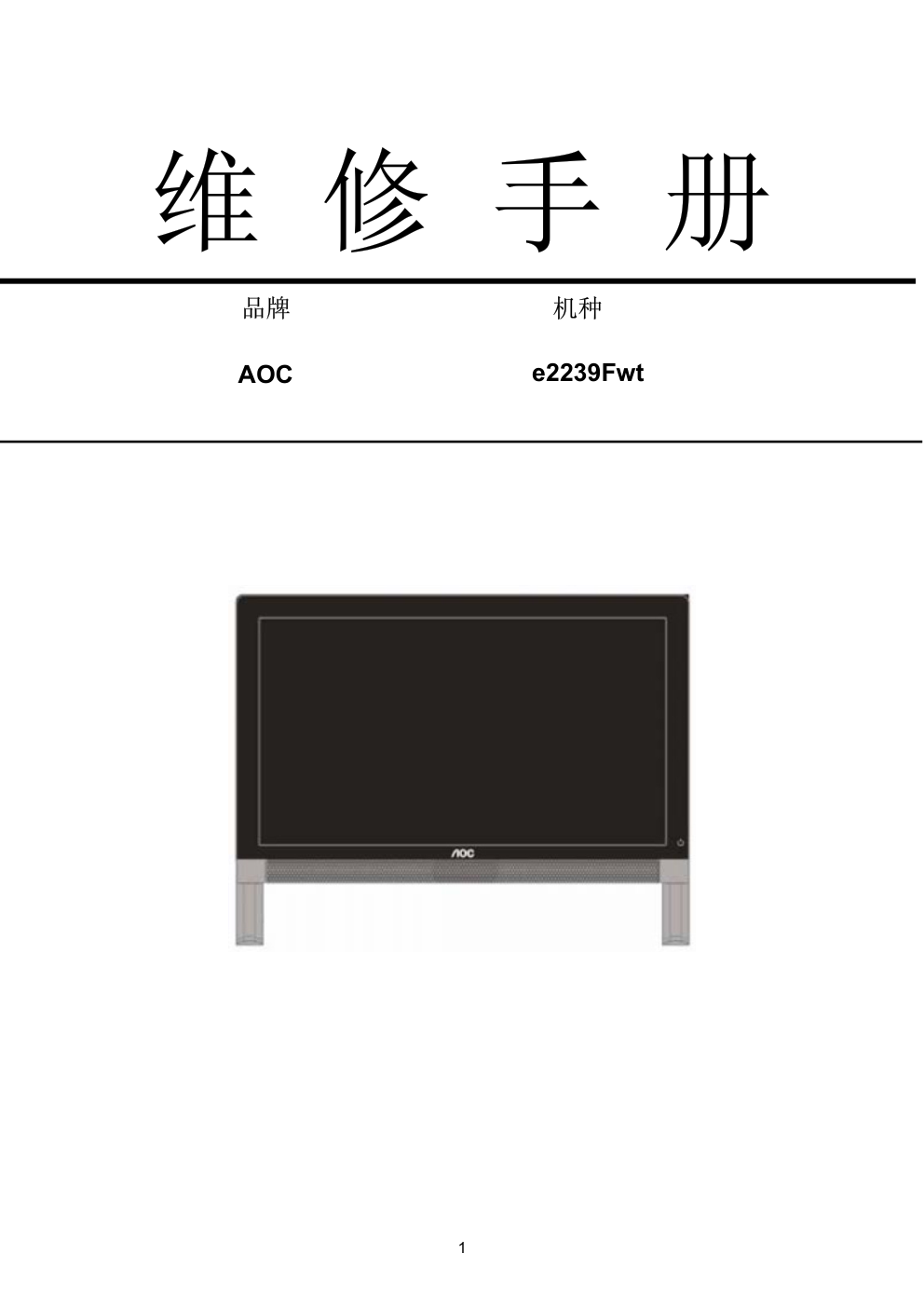

1 维 修 手 册 品牌 机种 e2239Fwt AOC 2 变更说明 版本 发布日期 变更说明 对外机种名 对内机种名 A00 2010-10-29 首次发布 e2239Fwt HIAANUNDW1A1PZ 3 目录 1.技术规格-----------------------------------------------------------------------------------------------------------------04 1.1 一般规格 -----------------------------------------------------------------------------------------------------------04 1.2 预设显示模式 -----------------------------------------------------------------------------------------------------05 2.操作说明-----------------------------------------------------------------------------------------------------------------06 2.1 连接显示器 --------------------------------------------------------------------------------------------------------06 2.2 控制面板 -----------------------------------------------------------------------------------------------------------07 2.3 OSD 调整 ----------------------------------------------------------------------------------------------------------08 3.工厂模式调整-----------------------------------------------------------------------------------------------------------24 4.电气方框图--------------------------------------------------------------------------------------------------------------26 4.1 主板 -----------------------------------------------------------------------------------------------------------------26 4.2 电源板 --------------------------------------------------------------------------------------------------------------27 5.线路图--------------------------------------------------------------------------------------------------------------------28 5.1 主板 -----------------------------------------------------------------------------------------------------------------28 5.2 电源板 --------------------------------------------------------------------------------------------------------------35 5.3 按键板 --------------------------------------------------------------------------------------------------------------37 6.软体及 EDID 烧录 -----------------------------------------------------------------------------------------------------38 6.1 软体烧录 -----------------------------------------------------------------------------------------------------------38 6.2 EDID 烧录----------------------------------------------------------------------------------------------------------44 7.故障处理流程-----------------------------------------------------------------------------------------------------------53 7.1 主板 -----------------------------------------------------------------------------------------------------------------53 7.2 电源板 --------------------------------------------------------------------------------------------------------------56 7.3 按键板 --------------------------------------------------------------------------------------------------------------58 8.主要 IC 管脚及内部框图 ---------------------------------------------------------------------------------------------59 9. BOM---------------------------------------------------------------------------------------------------------------------65 4 1.技术规格 1.1 一般规格 市场型号 e2239Fwt 驱动系统 TFT 彩色 LCD 可视尺寸 21.5〞 像素间距 0.24825mm(H) x 0.24825mm(V) 视频 R, G, B 模拟接口 独立同步 行 /场 TTL 显示颜色 16.7M 色彩 LCD 面板 点时钟 148.5 MHz 水平扫描范围 30 kHz - 80 kHz 水平扫描尺寸（最大） 476.64mm 垂直扫描范围 56 Hz - 75 Hz 垂直扫描尺寸（最大） 268.11mm 预设的最佳分辨率 1920 x 1080 (60 Hz) 预设的最高分辨率 1920 x 1080 (60 Hz) 即插即用 VESA DDC2B/CI , VESA DDC2B™ 输入连接器 D-Sub 15 针,HDMI 输入视频信号 模拟： 0.7Vp-p（标准），75 OHM，数字: 150mV~1200mV 电源 100~240VAC, 50/60Hz 正常工作<35 W 功率消耗 离机 <0.2W USB 外接端口 支持 USB 移动设备，负载<100 毫安 定时关机 0~24 小时 分辨率 音箱 2W x 2 连接器类型 15- 针 Mini D-Sub , HDMI 信号电缆类型 可分离 高度 (含底座) 419.8 mm 宽度 536.5mm 深度 170.74mm 尺寸和重量 重量（仅显示器）4.9 kg 工作时 0°- +40° 温度 非工作时 -25°- +55° 工作时 10% - 85%（非凝露） 湿度 非工作时 5% - 93%（非凝露） 工作时 0~3658m（0~12000ft） 物理 特性 海拔高度 非工作时 0~12192m（0~40000ft） 多点触摸屏 用户可以在高于 Windows 7 home premium 的操作系统下使用显示器多点触摸功能。在使用显示器多点触摸功能之 前，用户需要连接基础线缆（电源线、VGA 线、USB 线），然后即可充分享受多点触摸屏功能。 5 1.2 预设显示模式 6 2.操作说明 2.1 连接显示器 1. 电源 2. USB 3. USB 4. 音频 5. 模拟接口 6. HDMI 1 7. USB 8. HDMI 2 为保护显示器，请在连接前关闭电脑和显示器。 1 将电源适电缆连接到监视器后部的 AC-In 端口。 2 将15-针 D-Sub 电缆的一端连接到监视器后部，另一端连接到计算机的 D-Sub 端口。 3 将音频线一端连接到监视器后部的音频接口，另一端连接到计算机的音频输出端口。 4 将HDMI 电缆的一端连接到显示器的背后，然后将另一端连接到计算机的HDMI 端口。 5 打开显示器和计算机的电源。 如果监视器显示一个图像，则说明安装完毕。如果不显示图像，请参见故障排除 。 7 2.2 控制面板 电源 按电源键打开或关闭显示器。 信号源切换(4 :3 或宽屏) /向上 按此键切换 4：3 或宽屏模式，当输入信号的分辨率是宽屏时，此键没有作用，当主菜单或子菜单被激活时，在OSD 菜单中此按键是向上功能键或者是增加数值。 信号源快捷键 当没有 OSD 菜单时，按信号源快捷键激活信号源功能(仅针对两种输入信号及以上机型)。连续按信号源切换键来选 择信息栏中显示的信号源，按菜单键调整为选择的信号源。 自动调整 /向下 当没有 OSD 菜单时，按自动调整快捷键启动自动调整功能。 音量 8 2.3 OSD 调整 按 MENU 按钮激活 OSD 主菜单，可依照以下操作说明来调节显示器。 1) 按 MENU 按钮激活 OSD 窗口。 2) 按 向上 或 向下 浏览这些功能。如果想要调整的功能突出显示，按 MENU 按钮激活它。如果所选的功能包含 有子菜单，再按一下 向上 或 向下 可以浏览到子菜单功能。如果想要调整的功能突出显示，按 MENU 按钮激活它。 3) 按 向上 或 向下 更改所选功能的设置。要退出和保存，请选择退出功能。如果您想调整其它任何功能，请重复 步骤 2-3 。 4) OSD 锁定功能： 要锁定 OSD ，请在显示器关闭时按住 MENU 按钮，然后按电源按钮打开显示器。要解锁OSD ， 请在显示器关闭时按住 MENU 按钮，然后按电源按钮打开显示器。 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 LED指示灯 状态 颜色 开机模式 蓝色 离机模式 橙色 24 3.工厂模式调整 a.进入工厂模式的方法： 关掉显示器，然后按住“∧” 和 “∨”键的同时打开显示器；再按一次“∧” 和 “∨”键，即可进入工厂模式。 b.工厂模式图片如下： 注: 下页是关于一般工厂菜单的说明(和本机并非完全相同)，仅供参考！ 工厂菜单说明 选项名称 调整范围 注释 20101016 V001 不可调整 软体发布日期及版本信息。 Auto color /Auto Level 执行动作 Auto color/Auto Level 项只对需要做自动校正输入源时有效，否则它 不动作。Auto color/Auto Level 会对输入的 ADC 做自动矫正，调整 Gain 和 Offset RGB 值。 Gain 根据 IC SPEC 在 Auto color/Auto Level 做完立即更新，并可手动调整。 Offset 根据 IC SPEC 在 Auto color/Auto Level 做完立即更新，并可手动调整。 Cool 可调整 冷色色温 R/G/B/亮度/色度值。 Normal 可调整 正常色温 R/G/B/亮度/色度值。 Warm 可调整 暖色温 R/G/B/亮度/色度值。 sRGB 可调整 sRG 色温 R/G/B/亮度/色度值。 Panel Select AUO M215HW01 VB Panel 型号选择。 DFM On/Off 工厂生产模式打开或关闭。 BurnIn On/Off 打开或关闭 Burn in 模式。 BL Timer 不可调整 背光时间。 Timer 不可调整 通电时间。 25 c.增益调整: 调整SRGB色温 1、选中“Auto Level”先进行底光栅自动调整； 2、按“MENU”选择 SRGB 进行 R G B 增益调整；x = 313±30, y = 329±30 调整9300K色温 1、选中“Auto Level”先进行底光栅自动调整； 2、按“MENU”选择9300K进行R G B增益调整；x = 283±30, y = 297±30 调整7300K色温 1、选中“Auto Level”先进行底光栅自动调整； 2、按“MENU”选择7300K进行R G B增益调整；x = 302±30, y = 318±30 调整6500K色温 1、选中“Auto Level”先进行底光栅自动调整； 2、按“MENU”选择6500K进行R G B增益调整；x = 313±30, y = 329 ±30 d.调整完毕直接关闭电源。 26 4.电气方框图 4.1 主板 PA6 RX2- VLCD PB3 09.USB 9.USB USB_EN +5V GND HDMI2_+5V VCC3.3 HDMI2_+5V PA3 Reference 5xx RXC- DDCA_SCL RX1- +5V 03.INPUT 3.INPUT RIN GNDR GIN GNDG BIN GNDB HSYNC VSYNC DDCA_SDA DDCA_SCL VCC3.3 DET_VGAI DDC_WP GNDB DDC_WP 06.PANEL INTERFACE 6.PANEL INTERFACE VLCD PA0 PA1 PA2 PA3 PA4 PA5 PA6 PA7 PA8 PA9 PB0 PB1 PB2 PB3 PB4 PB5 PB6 PB7 PB8 PB9 04.HDMI 4.HDMI HDMI1_+5V HDMI1_D2+ HDMI1_D2- HDMI1_D1+ HDMI1_D1- HDMI1_D0+ HDMI1_D0- HDMI1_CK+ HDMI1_CK- HDMI1_SDA HDMI1_SCL DET_HDMI1 CEC_CTRL HDMI1_HPD DDC_WP VCC3.3 HDMI2_+5V RX2+ RX2- RX1+ RX1- RX0+ RX0- RXC- HDMI2_SDA HDMI2_SCL RXC+ DET_HDMI2 HDMI2_HPD PB1 Volume +5V on_Panel VLCD DET_HDMI1 RX0- PB4 DDCA_SDA +5V AIN_L Adj_BACKLIGHT MUTE HDMI1_D2- GIN VCC3.3 PA7 Reference 3xx HDMI2_SCL PB0 08.POWER 8.POWER on_Panel on_BACKLIGHT Adj_BACKLIGHT VCC1.8 VCC3.3 VLCD +5V AOUT_L USB_EN HDMI1_CK+ PB6 BIN HDMI2_HPD VSYNC VCC1.8 HDMI1_SDA PA0 GND Reference 1xx PB2 HDMI1_SCL DET_HDMI2 07.AUDIO 7.AUDIO MUTE AOUT_R AOUT_L AIN_L AIN_R +5V VOLUME GND HDMI1_D0- Reference 7xx RX0+ PA5 AIN_R HDMI1_CK- HDMI1_+5V PB7 PA4 RXC+ PB9 PA9 RIN Reference 6xx on_BACKLIGHT VCC3.3 PA1 DC POWER IN PA8 HDMI1_D1- HDMI1_HPD HDMI1_+5V HDMI1_D0+ HDMI1_D2+ PB5 PA2 VCC3.3 PB8 Reference 1xx CEC_CTRL DDC_WP +5V AOUT_R HDMI1_D1+ Reference 4xx VCC1.8 RX1+ GNDG RX2+ 05.SCALER 5.SCALER RIN GNDR GIN GNDG BIN GNDB HSYNC VSYNC DDCA_SDA DDCA_SCL HDMI2_SCL HDMI2_SDA RX0+ RX0- RX1+ RX1- RX2+ RX2- RXC+ RXC- DET_HDMI2 HDMI1_D2+ HDMI1_D2- HDMI1_D1+ HDMI1_D1- HDMI1_D0+ HDMI1_CK+ HDMI1_CK- HDMI1_D0- HDMI1_SDA HDMI1_SCL DET_HDMI1 CEC_CTRL HDMI1_HPD DDC_WP MUTE AOUT_L AOUT_R AIN_R AIN_L on_Panel on_BACKLIGHT Adj_BACKLIGHT VCC3.3 VCC1.8 PB0 PB1 PB2 PB3 PB4 PB5 PB6 PB7 PB8 PB9 PA0 PA1 PA2 PA3 PA4 PA5 PA6 PA7 PA8 PA9 HDMI2_HPD HDMI2_+5V HDMI1_+5V +5V USB_EN DET_VGAI DDC_WP VOLUME HSYNC GNDR DET_VGAI HDMI2_SDA 27 4.2 电源板 适配器板 转换板 EMI filter Start Resistor (R931,R932,R933) PWM Control (IC901) Transformer AC input 16V Bridge Rectifier and Filter Feedback Circuit Rectifier diodes Photo coupler IC902) ZD801 LED (CN803) PWM Control TA9690GN IC801) 12V MOSFET (Q801) DIM ENA L801 F801 PWM Control TA9690GN (IC802) LED (CN804) 5V 28 5.线路图 5.1 主板 715G4027M01000004L R108 75R 1/16W 1% R120 2K2 1/16W 5% C107 5PF 50V VSYNC 5 DET_VGAI 5 C110 47nF 16V C117 5PF 50V C114 100N16V C111 22P 50V R109 75R 1/16W 1% R119 100R 1/16W 5% SCL_VGA SDA_VGA SDA_VGA R125 0R05 1/16W R123 4K7 1/16W 5% GREEN+ HSI CN101 DB15 1 6 2 7 3 8 4 9 5 11 12 13 14 15 10 17 16 R111 47 OHM 1/16W DDCA_SDA 5 R121 2K2 1/16W 5% HSYNC 5 R112 47 OHM 1/16W VSI RIN 5 R115 100R 1/16W 5% BIN 5 VSI GREEN- VGA5V RED- R102 10R U103 AOZ8902CIL 1 2 3 4 5 6 CH1 VN CH2 CH3 VP CH4 VGA+2HDMI+USB M0D e2239Fwt B 3 9 Wednesday , May 05, 2010 715G4027M0D0000040 <称爹> INPUT G4027-M0D-000-X-1-100505 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 R104 10R DDC_WP 5 ESD_VGA D101 BAV70 3 1 2 GNDB 5 BLUE- GNDG 5 C109 47nF 16V C108 47nF 16V R110 47 OHM 1/16W R107 75R 1/16W 1% R117 0R05 1/10W BLUE+ ZD101 RLZ5.6B R118 100R 1/16W 5% C116 5PF 50V FB102 0R05 1/10W 1 2 VCC3.3 4,5,8 RED+ GNDR 5 U101 AOZ8902CIL 1 2 3 4 5 6 CH1 VN CH2 CH3 VP CH4 FB103 0R05 1/10W 1 2 DDCA_SCL 5 U102 AT24C02BN-SH-T 1 2 3 4 5 6 7 8 A0 A1 A2 VSS SDA SCL WP VCC GIN 5 RED+ C106 5PF 50V HSI SCL_VGA R126 0R05 1/16W DET_VGA C115 5PF 50V VCC3.3 DET_VGA C113 220N 10V VGA5V R103 10R ESD_VGA R122 4K7 1/16W 5% ESD_VGA C112 22P 50V FB101 0R05 1/10W 1 2 C102 47nF 16V DDC_WP C104 47nF 16V C105 5PF 50V C103 47nF 16V C101 100N16V GREEN+ R124 22K 1/16W 5% BLUE+ 29 HDMI1/CK+ R177 0R05 1/16W HDMI1_+5V HDMI1_D1- 5 HDMI1/CK- SHDMI1/D1+ HDMI1/D1+ HDMI1/D0+ VGA+2HDMI+USB M0D e2239Fwt Custom 4 9 Wednesday , May 05, 2010 715G4027M0D0000040 <称爹> HMI G4027-M0D-000-X-1-100505 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 DET_HDMI1 SHDMI1/D1+ SHDMI1/D0+ CEC_CTRL R186 100R 1/16W 5% HDMI2_+5V HDMI1_D2- 5 SHDMI1/D1+ HDMI1/D0- R189 NC RX2+ 5 SHDMI1/CK+ U112 AOZ8804DI 1 2 3 4 5 6 7 8 9 10 CH1 CH2 VN CH3 CH4 NC NC VN NC NC HDMI1/D0- VCC3.3 3,5,8 SHDMI1/CK+ HDMI1_D0- 5 HDMI2_SDA_A U108 AT24C02BN-SH-T 1 2 3 4 5 6 7 8 A0 A1 A2 VSS SDA SCL WP VCC R150 0R05 1/16W HDMI1/D2+ D103 BAT54C 1 3 2 HDMI1/D0- HDMI1/D0+ RX2- 5 SHDMI1/D2- SHDMI1/CK- HDMI1/D0- HDMI1/CK- R185 100R 1/16W 5% R146 0R05 1/16W HDMI1/D1- R153 1K 1/16W 5% HDMI1/D1+ SHDMI1/D0+ SHDMI1/D1- HDMI1/D2- C122 220N 10V HDMI2_SDA 5 R172 0R05 1/16W R160 NC ESD_HDMI2 SHDMI1/D0+ DDC_WP HDMI2_SDA_A HDMI1_SCL_A R184 22K 1/16W 5% CEC_CTRL 5 HDMI1/D1- HDMI2_SCL_A HDMI1_CK- 5 SHDMI1/D2+ HDMI1/CK+ R158 100R 1/16W 5% RX1- 5 HDMI1/D2+ HDMI1_+5V SHDMI1/D1- HDMI1/D2- HDMI1/CK- R190 NC HDMI1/D0- HDMI1_SDA_A C121 100N16V R181 1K 1/16W 5% R174 0R05 1/16W SHDMI1/D1- U123 AOZ8804DI 1 2 3 4 5 6 7 8 9 10 CH1 CH2 VN CH3 CH4 NC NC VN NC NC SHDMI1/D2+ HDMI1_SDA_A CN104 HDMI 20 21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 23 22 SHELL1 SHELL2 D2+ D2 Shield D2- D1+ D1 Shield D1- D0+ D0 Shield D0- CK+ CK Shield CK- CE Remote NC DDC CLK DDC DATA GND +5V HP DET SHELL4 SHELL3 RXC- 5 VCC3.3 SHDMI1/CK- SHDMI1/D0+ R175 0R05 1/16W HDMI1/D1- HDMI1/CK- DET_HDMI2 5 HDMI2_+5V 5 ZD105 RLZ5.6B SHDMI1/D0- HDMI1/D0+ SHDMI1/D2- HDMI1_SCL_A RXC+ 5 HDMI1/D2+ HDMI1_SDA_A CN103 HDMI 20 21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 23 22 SHELL1 SHELL2 D2+ D2 Shield D2- D1+ D1 Shield D1- D0+ D0 Shield D0- CK+ CK Shield CK- CE Remote NC DDC CLK DDC DATA GND +5V HP DET SHELL4 SHELL3 HDMI1/CK+ R155 4K7 1/16W 5% SHDMI1/D0- ESD_HDMI2 HDMI1/CK+ RX0- 5 HDMI2_HOTPLUG HDMI1/D1+ HDMI1/D1- ESD_HDMI1 HDMI1/D1- HDMI1/D2- R188 NC R159 100R 1/16W 5% R171 0R05 1/16W DDC_WP C124 100N16V ESD_HDMI1 SHDMI1/D1- SHDMI1/D0- HDMI2_+5V HDMI1_HOTPLUG SHDMI1/D2+ ZD104 RLZ5.6B U110 AOZ8804DI 1 2 3 4 5 6 7 8 9 10 CH1 CH2 VN CH3 CH4 NC NC VN NC NC HDMI1/D2+ SHDMI1/D0- HDMI1_+5V SHDMI1/CK+ SHDMI1/D2- R152 0R05 1/16W RX0+ 5 HDMI1_+5V 5 SHDMI1/D2+ R187 100R 1/16W 5% SHDMI1/D0- HDMI1/D0+ HDMI1_HPD 5 SHDMI1/D2+ HDMI2_SCL 5 SHDMI1/CK+ R156 4K7 1/16W 5% DET_HDMI1 5 SHDMI1/D2- R144 0R05 1/16W SHDMI1/CK- R149 0R05 1/16W HDMI1_SDA 5 HDMI1_SCL 5 VCC3.3 HDMI2_HOTPLUG DET_HDMI2 SHDMI1/CK+ Q102 NC SESD_HDMI1 HDMI1/D1+ RX1+ 5 CEC_CTRL_A U121 AOZ8902CIL 1 2 3 4 5 6 CH1 VN CH2 CH3 VP CH4 R179 0R05 1/16W HDMI2_SDA_A C120 220N 10V C119 100N16V R178 100R 1/16W 5% R148 0R05 1/16W C123 100N16V HDMI1_D0+ 5 HDMI1_HOTPLUG HDMI1_D2+ 5 U122 AOZ8804DI 1 2 3 4 5 6 7 8 9 10 CH1 CH2 VN CH3 CH4 NC NC VN NC NC DET_HDMI2 ESD_HDMI1 HDMI1/D2- R145 0R05 1/16W R173 0R05 1/16W R157 22K 1/16W 5% CEC_CTRL_A R151 100R 1/16W 5% SHDMI1/D2- HDMI1/D1+ R154 100R 1/16W 5% HDMI1/D2- R176 0R05 1/16W SHDMI1/CK- HDMI1/D0+ R182 4K7 1/16W 5% HDMI1_SCL_A D104 BAT54C 1 3 2 HDMI2_HPD 5 Q101 NC ZD103 RLZ5.6B SHDMI1/CK- HDMI1/D2+ HDMI1_D1+ 5 HDMI2_+5V SHDMI1/D1+ SHDMI1/D1- HDMI1/CK- HDMI1/CK+ HDMI2_SCL_A HDMI1_CK+ 5 HDMI2_SCL_A U120 AT24C02BN-SH-T 1 2 3 4 5 6 7 8 A0 A1 A2 VSS SDA SCL WP VCC R147 0R05 1/16W SHDMI1/D1+ U109 AOZ8902CIL 1 2 3 4 5 6 CH1 VN CH2 CH3 VP CH4 SHDMI1/D0+ DET_HDMI1 R180 NC R183 4K7 1/16W 5% DDC_WP 5 30 5V_DET SCL1_A U401 NT68676UFG 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 REXT/VCLK1 RX1C-/V10 RX1C+/V11 RX2C-/V20 RX2C+/V21 AGND RX10-/V12 RX10+/V13 RX20-/V22 RX20+/V23 AGND RX11-/V14 RX11+/V15 RX21-/V24 RX21+/V25 DVI_VCC RX12-/V16 RX12+/V17 RX22-/V26 RX22+/V27 PGND/AGND BIN1+ BIN1- GIN1+ GIN1- RIN1+ RIN1- ADC_1V8 ADC_VDD BIN0+ BIN0- GIN0+ GIN0- RIN0+ RIN0- HSYNCI2 VSYNCI2 HSYNCI1 VSYNCI1/TOUTP DGND PB4*/DDC_SCL0* PB5*/DDC_SDA0* PB6*/DDC_SCL1* PB7*/DDC_SDA1* P30*/RXD P31*/TXD PB0/ADC0/INTE0 PB1/ADC1/INTE1 PB2/ADC2/INTE2 PB3/ADC3/INTE3 DBC0*/PWMA*/PE2* CVDD DVDD/MVDD AUDIO_VDD AUDIO_GND I2S3/AIN1_R I2S2/AIN1_L I2S1/AIN0_R I2S0/AIN0_L WD/CEC1* SCK/AOUT_R MCLK/AOUT_L SPDIF A_GND PC4/PWM8 PC2*/PWM6* PC0*/PWM4* CVDD DGND T0M T0P T1M T1P T2M T2P TCLK1M TCLK1P T3M T3P DVDD T4M T4P T5M T5P T6M T6P TCLK2M TCLK2P T7M T7P DGND PD6 PD5 PD4/AMUTE PD3/SPI_CK PD2/SPI_SI PD1/SPI_SO PD0/SPI_CE P35*/T1 P34*/T0 DVDD A_VCC DVI_VCC DGND MVDD DDC_SDA3*/PA7* DDC_SCL3*/PA6* DDC_SDA2*/PA5* DDC_SCL2*/PA4* LPD_IN1*/PE1* LPD_IN0*/PE0* CVDD DVDD OSCO OSCI DGND RSTB ADC7/PWM3/PA3 ADC6/PWM2/PA2 ADC5/PWM1/PA1 DBC*/ADC4/PWM0/PA0 PWM11/PC7 PWM9/PC5 PWM7*/PC3* LPD_OUT*/PWM5*/PC1* DBC1*/PWMB*/PE3* DVDD/MVDD PWM10/PC6 C418 100N16V C408 100N16V X401 12MHz AIN_L 7 AUDIO_VDD CHANGE 100R +5V PB3 HDMI1_D1+ 4 AIN_R 7 VCC3.3 SCL1_A KEY2 PB5 LED_G R417 100R 1/16W 5% FB403 120 OHM 1 2 R427 NC +5V DVDD CN402 NC 1 2 3 4 5 C481 10U 10V R419 NC MUTE 7 /0.68027 DVDD SDA1 KEY1 VCC3.3 3,4,8 DVI_VCC Q402 NC FB405 120 OHM 1 2 LED_A PA8 R449 NC HDMI1_D2+ 4 HDMI1_D1- 4 ADC_1V8 R422 47K 1/16W 5% /0.68027 VCC3.3 R459 1K 1/16W 5% 33K PB8 VCC3.3 R434 47K 1/16W 5% C429 NC HDMI1_CK- 4 PA5 PA[0..9] DVDD C432 1uF 16V R433 47K 1/16W 5% R423 0R05 1/16W FB409 NC 1 2 R438 3K9 +/-5% 1/16W RX2- 4 AOUT_L 7 3.3V ADC_1V8 C499 100N16V DDCA_SDA 3 20091218-MODIFY GNDG 3 DET_HDMI2_+5V C414 100N16V C411 100N16V D401 NC 1 3 2 DDC_WP 3,4 R443 0R05 1/16W SCL1 DET_HDMI2 R414 NC HDMI1_D0- 4 4.5V/0.68027=3.061V VCC3.3 POWER R421 NC R453 NC PB[0..9] CN403 NC 1 2 3 R418 100R 1/16W 5% C420 100N16V R426 10K 1/16W 5% HDMI2_+5V DVDD DET_HDMI2 USB_EN 9 LEDG CN404 NC 1 2 3 4 5 6 on_Panel 8 VGA+2HDMI+USB M0D e2239Fwt C 5 8 Wednesday , May 05, 2010 715G4027M0D0000040 <称爹> SCALER G4027-M0D-000-X-1-100505 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 20091218-MODIFY VCC3.3 LEDA C428 NC R403 100K 1/16W 5% R416 100R 1/16W 5% Adj_BACKLIGHT 8 +5V OSCI R460 NC D406 NC RX0+ 4 DVI_VCC PB0 R439 3K9 +/-5% 1/16W R411 NC R430 NC POWER + C417 10uF 50V C405 100N16V /0.909 EE_WP MUTE_A DET_HDMI1 VCC3.3 VCC1.8 DET_HDMI2 4 TEST R425 NC FB402 120 OHM 1 2 HDMI2_SDA 4 FB406 120 OHM 1 2 R437 100K 1/16W 5% +5V 7,8,9 PA6 + C471 10uF 50V + C415 10uF 50V Q401 NC 5V/0.68027=3.401V SCL1 VOLUME_A C422 100N16V +5V Touch key_+5V LED power PA7 EE_WP KEY1 C480 100N16V HDMI1_SCL 4 on_BACKLIGHT 8 R420 NC PA[0..9] 6 HDMI1_HPD 4 + C416 47uF 16V R463 0R05 1/16W R452 NC C426 100N16V PA0 R406 NC R404 100R 1/16W 5% PB1 SDA1_A PB9 PA1 R413 NC R408 100R 1/16W 5% R456 NC C406 100N16V PA3 C424 47pF 50V 20091218-MODIFY VCC3.3 LEDG R448 NC C450 1uF 16V R461 NC RX0- 4 /0.68027 DET_HDMI1 DVDD USB CONTROL GIN 3 PA4 DET_HDMI1_+5V C437 NC +5V AUDIO_VDD CN407 NC 1 2 3 4 5 6 7 BIN 3 HDMI1_SDA 4 FB404 120 OHM 1 2 TOUCH_POWER RXC+ 4 CN401 NC 1 2 3 4 5 6 7 8 ZD403 RLZ5.6B R409 10K 1/16W 5% R424 100K 1/16W 5% + C403 100uF16V HDMI2_+5V 4 ADC_VDD PB7 R450 NC RX1- 4 R405 NC/100R 1/16W 5% R401 470R 1/16W 1% + C470 10uF 50V HDMI1_+5V 4 HDMI2_HPD 4 DDC_WP C425 100N16V C419 100N16V U402 MX25L2026MI-12G 1 2 3 4 5 6 7 8 CE# SDO WP# VSS SDI SCK HOLD# VDD PB[0..9] 6 RX1+ 4 Touch key_INT /0.909 Touch key_+3.3V PA2 PB4 ZD404 RLZ5.6B R464 NC VCC3.3 ZD405 RLZ5.6B R431 1MOHM 1/16W +/-5% LED_G WP USB_EN LED_A R428 10K 1/16W 5% AOUT_R 7 DVDD DVI_VCC PB6 DET_HDMI2_+5V R442 0R05 1/16W R440 3K9 +/-5% 1/16W DVDD C423 47pF 50V HDMI1_D0+ 4 CEC_CTRL 4 5V_DET HDMI1_D2- 4 VCC3.3 R432 NC HSYNC 3 DET_HDMI1 4 A_VCC DVDD DET_VGAI 3 +5V DVDD DVI_VCC C498 1uF 16V R458 12K 1/16W R429 NC DET_HDMI1_+5V 20091218-MODIFY C412 100N16V R412 NC C409 100N16V R436 100K 1/16W 5% HDMI1_+5V PB2 R446 10K 1/16W 5% C407 100N16V DDCA_SCL 3 CVDD LEDA R447 1K 1/16W 5% VCC1.8 + C402 100uF16V VSYNC 3 HDMI2_SCL 4 +5V CN405 NC 1 2 3 4 5 6 CVDD SDA1_A WP RXC- 4 VCC3.3 VOLUME_A 12K C401 220N 10V POWER SENSOR EE_WP R435 0R05 1/16W RX2+ 4 FB410 120 OHM 1 2 CN406 CONN 1 2 3 4 5 6 7 HDMI1_CK+ 4 A_VCC R415 10K 1/16W 5% R462 0R05 1/16W C427 100N16V + C413 10uF 50V VCC3.3 KEY2 PA9 FB407 120 OHM 1 2 C431 100N16V MUTE_A RSTB HDMI2_HPD C410 100N16V GNDB 3 VOLUME 7 Touch key_INT ADC_VDD VCC3.3 Adj_BACKLIGHT HDMI1_HPD TEST C404 100N16V /0.0435 +5V U403 NC 1 2 3 4 5 6 7 8 A0 A1 A2 VSS SDA SCL WP VCC GNDR 3 VCC1.8 8 SDA1 OSCO FB401 120 OHM 1 2 R402 100K 1/16W 5% RIN 3 31 RXE2- RXO3- LVA3P PB8 PB5 LVA3M RXO1+ VLCD LVA2M RXEC- LVBCKM PB2 RXE1- CN408 CONN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 PB7 PA6 RXO1- RXO3+ LVACKP RXO3- CN409 NC 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 LVA0P PA5 LVA1M R455 1K 1/4W LVACKP LVB2P PA3 RXO1+ RXO2- PA4 LVB2M LVB1M DGND LVB0M PA8 RXE0- VLCD 8 RXEC- RXE0+ LVBCKM LVA0M RXOC- RXE3- LVA2M LVA1M LVBCKP RXO0- LVB0P C436 100N16V RXO3+ RXO2+ PA1 LVB3P RXE2+ RXE1- PA9 LVB2M LVA1P PB1 LVACKM VGA+2HDMI+USB M0D e2239Fwt A 6 9 Wednesday , May 05, 2010 715G4027M0D0000040 <称爹> PANEL INTERFACE G4027-M0D-000-X-1-100505 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 PA[0..9] PA2 RXOC- RXO1- LVB1P RXO2- RXE2- LVACKM PB3 R454 1K 1/4W LVA2P RXE2+ LVB3P LVBCKP LVA3P RXOC+ RXO0+ PB[0..9] PB[0..9] 5 LVA2P PB6 + C435 47uF 16V RXE0+ RXEC+ LVA0M LVB3M RXE3+ RXE1+ PB0 LVB2P PA0 FB408 120 OHM 1 2 LVB1M LVB0M LVB0P PA[0..9] 5 RXE0- RXE3- LVA3M LVB3M PB9 RXO0- RXO0+ LVB1P RXO2+ RXOC+ RXEC+ RXE1+ RXE3+ PB4 LVA1P PA7 FB411 120 OHM 1 2 LVA0P 32 L L CN602 NC 1 2 3 4 FB605 0 OHM +-5% 1/8W OUTR AIN_L 5 +5V_AUDIO R614 1K 1/16W 5% GND 9 FB604 0 OHM +-5% 1/8W C621 330pF 50V R605 NC L- C608 NC R615 0R05 1/16W + C624 100uF16V FB610 0 OHM +-5% 1/8W C607 1uF 16V FB607 120 OHM 1 2 + C623 NC C601 0.47uF 16V R613 1K 1/16W 5% +5V_AUDIO A_SHDN OUTA-_R A_MUTE C602 1uF 16V C616 10U 10V C615 10U 10V R608 6.8K 1/16W C610 0.47uF 16V 1 FB603 0 OHM +-5% 1/8W R- SE CN604 CONN 1 2 3 4 MUTE 5 standard C618 330pF 50V 4 VOLUME 5 R+ +5V_AUDIO OUTL R611 NC C613 100N16V R617 0R05 1/16W R607 6.8K 1/16W 2 AIN_R R602 NC C617 1uF 16V C619 330pF 50V FB620 120 OHM 1 2 C612 330pF 50V R A_MUTE + C622 NC R618 NC C620 330pF 50V CN603 NC 5 2 4 3 1 6 7 8 9 10 11 12 13 14 OUTA-_L OUTL L+ AOUT_R 5 +5V_AUDIO C611 330pF 50V R610 680R 1/16W 5% C605 1uF 16V C614 100N16V + C628 220UF/25V C606 0.47uF 16V +5V FB608 120 OHM 1 2 +5V 5,8,9 AOUT_L 5 VGA+2HDMI+USB M0D e2239Fwt B 7 9 Wednesday , May 05, 2010 715G4027M0D0000040 <称爹> AUDIO G4027-M0D-000-X-1-100505 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 AIN_L OUTA+_L R603 3.9K 1/16W C625 1uF 16V + C627 220UF/25V +5V_AUDIO R U601 PAM8602MNHR 1 4 6 24 3 17 8 2 22 23 5 10 20 14 21 15 19 11 7 18 9 12 16 13 +OUTL -OUTL / MUTE +OUTR PGND INR INL PGND PGND PGND PVDD VDC PVDD VREF -OUTR NC / SHDN Volume VDD GND NC NC NC NC R620 NC R612 NC FB601 120 OHM 1 2 3 SE R616 NC C603 0.47uF 16V R606 NC +5V_AUDIO AIN_R 5 CN601 PHONEJACK 1 2 3 5 4 OUTR R601 3.9K 1/16W C609 NC OUTA+_R R604 NC A_SHDN C604 1uF 16V FB606 120 OHM 1 2 FB609 120 OHM 1 2 FB602 0 OHM +-5% 1/8W 33 C714 100N16V C704 100N16V R706 47K 1/16W 5% Adj_BACKLIGHT 5 ON/OFF VCC1.8 R710 5.1 OHM +-5% 2WS +5V +5V_SB DIM VCC3.3 R724 NC C709 NC VGA+2HDMI+USB M0D e2239Fwt B 8 9 Wednesday , May 05, 2010 715G4027M0D0000040 <称爹> POWER G4027-M0D-000-X-1-100505 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 VLCD 6 FB702 NC 1 2 + C706 100uF16V TO-252 + C711 100uF16V +5V_SB R721 100K 1/16W 5% VLCD C707 100N16V Q705 AO4411 1 2 3 4 8 7 6 5 S S S G D D D D C708 100N16V C701 100N16V SOT223 on_Panel 5 +5V_SB CN701 CONN 1 2 3 4 5 6 7 8 9 R702 1K 1/16W 5% R717 10K 1/16W 5% D702 NC C705 100N16V Q701 2N3904S-RTK/PS U701 G1117-33T63Uf 3 2 1 4 VI VO GND 4 FB701 120 OHM 1 2 R701 10K 1/16W 5% VCC1.8 5 VCC1.8 VCC3.3 + C703 100uF16V Vbc>Vec C712 100N16V SOT223 +5V 5,7,9 +5V_SB Q702 2N3904S-RTK/PS U703 G1117-18T63Uf 3 2 1 4 VI VO GND 4 + C702 100uF16V PANEL_VDD R705 10K 1/16W 5% + C718 10uF 50V R719 10K 1/16W 5% VCC3.3 R704 10K 1/16W 5% VCC3.3 3,4,5 C717 220N 10V Q706 NC -0.002 on_BACKLIGHT 5 VCC3.3 +5V + C713 100uF16V +5V +5V +5V_SB D701 NC R723 4K7 1/16W 5% VCC3.3 34 R532 0R05 1/16W VI 3 VO 2 GND 1 4 4 U503 NC R530 47K 1/16W 5% DM2 + C534 10uF 50V GND GND R509 1MOHM 1/16W +/-5% GND X501 12MHz PGANG GND USB_EN GND OVCUR1 OVCUR3 OVCUR2 GND 3_3V_IN R538 NC GND GND USB_5V 1 4 2 3 L503 90OHM R531 100K 1/16W 5% 1 4 2 3 L501 90OHM DP0 DM0 1 4 2 3 L504 90OHM DVDD2 + C519 100uF16V DVDD4 UAVDD GND 7 UDVDD 1 4 2 3 L505 90OHM X1 X2 GND C522 100N16V USB_EN AVDD2 AVDD1 AVDD4 DM2 C504 18pF 50V GND C535 10U 10V C521 100N16V PWREN1 DVDD1 C518 220N 10V AVDD3 DM1 1 2 3 4 6 5 2 1 3 4 CN501 CONN R529 4K7 1/16W 5% C520 100N16V R510 30Kohm 1/16W +/-5% GND 1 2 ZD510 NC 1 2 ZD508 NC + C509 100uF16V 1 2 FB502 120 OHM +5V 5,7,8 TEST + C512 100uF16V RREF + C514 47uF 16V C511 18pF 50V AVDD5 R525 47K 1/16W 5% 1 2 ZD503 NC +5V S 1 S 2 S 3 G 4 D 8 D 7 D 6 D 5 Q501 AO4411 1 2 ZD509 NC 1 2 ZD505 NC + C515 47uF 16V + C507 100uF16V R515 30Kohm 1/16W +/-5% AVDD4 DP1 1 2 FB501 120 OHM 1 2 ZD507 NC DP2 1 2 ZD504 NC 1 2 t F502 PTCR DP3 DM3 Q502 2N3904S-RTK/PS 1 2 ZD506 NC R511 30Kohm 1/16W +/-5% A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 U502 NC C523 100N16V 1 2 t F504 PTCR R516 30Kohm 1/16W +/-5% DP1 DM1 TEST R520 10K 1/16W 5% OVCUR4 C505 NC R533 10K 1/16W 5% R512 30Kohm 1/16W +/-5% R517 30Kohm 1/16W +/-5% R534 10K 1/16W 5% + C508 100uF16V 1 2 FB503 120 OHM 1 2 FB504 NC VBUS1 1 2 t F503 PTCR R513 30Kohm 1/16W +/-5% R518 30Kohm 1/16W +/-5% VBUS0 UDVDD UAVDD 3_3V_IN VBUS1 1 2 FB505 120 OHM VBUS2 VBUS3 VBUS2 VBUS3 GND VBUS0 USB_5V DP0 GND GND GND 3_3V_IN GND GND GND GND GND GND GND GND GND GND GND DVDD3 USB_5V USB_5V USB_5V +5V USB_5V +5V R524 10K 1/16W 5% R539 NC GND GND 3_3V_IN GND RESET# C524 100N16V GND DM3 AVDD3 USB_5V USB_EN 5 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 M0D Custom 9 9 Wednesday , May 05, 2010 715G4027M0D0000040 <称爹> USB G4027-M0D-000-X-1-100505 C525 100N16V R506 NC R507 NC R504 NC R508 NC R505 NC R514 NC R519 NC R522 NC 1 2 FB507 120 OHM VBUS0 R521 10K 1/16W 5% DM0 C526 100N16V C502 100N16V C527 100N16V C528 100N16V C529 100N16V C510 100N16V C513 100N16V 1 2 FB508 120 OHM GND C517 100N16V 1 2 3 4 6 5 1 2 3 4 CN505 CONN USB_5V 1 2 3 4 5 CN504 CONN DP2 GND AVDD2 GND DVDD2 OVCUR3 RESET# OVCUR4 DVDD1 AVDD3 DP3 AVDD4 X1 X2 AVDD5 GND RREF GND GND 2 DM0 3 DP0 4 DM1 5 DP1 6 AVDD 7 GND 8 DM2 9 DP2 10 RREF 11 AVDD 12 GND 13 X1 14 X2 15 AVDD 16 DM3 17 DP3 18 AVDD 19 GND 20 DM4 21 DP4 22 PSELF 37 AMBER2 36 GREEN2 35 DVDD 34 PWREN4# 29 OVCUR4# 28 TEST 27 RESET# 26 AVDD 1 V33 48 V5 47 AMBER1 46 GREEN1 45 SEL27 44 PWREN1# 43 PWREN2# 41 OVCUR2# 40 PGANG 39 DVDD 38 GREEN3 32 OVCUR1# 42 PWREN3# 31 OVCUR3# 30 GREEN4 23 AMBER4 24 AMBER3 33 SEL48 25 GL852G-MNG C516 100N16V PWREN1 AVDD1 PGANG 3_3V_IN DVDD3 DVDD4 OVCUR1 PSELF OVCUR2 C530 100N16V C503 100N16V C531 100N16V C532 100N16V C533 100N16V R528 680R 1/16W 5% 1 2 3 4 6 5 1 2 3 4 CN503 CONN 35 5.2 电源板 适配器板 715G2892P01026001S R916 20K 1/10W 1% C923 0.001uF +C920 680uF 10V + C913 22uF/50V R920 4.7K 1/10W 1% C902 1000pF R931 6.8M OHM 1% 1/4W R917 33R 1/4W 5% DIM VOL MUTE GND1 GND 1 2 R930 100 OHM 1/4W D901 FMX-12SL 1 2 3 + C907 100uF/450V ! ZD901 M TZJ T-72 22B R907 1K 1/10W 1% C924 0.1uF/16V +5V L907 Coil (NC) ON/OFF + C922 470UF M 16V - + BD901 KBP208G 2 1 3 4 ! C909 NC/0.22uF/275V CN902 1 2 3 4 5 6 7 8 9 R918 10K 1/10W 1% R924 0.36 OHM 2W +-5% ADPCAB41MQDF C Custom Thursday , May 13, 2010 715G2892-P0C-020 ODM MODEL 02.POWER G2892-P01-026-X-1-100513 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 R929 100 OHM 1/4W D908 JUMP_OR R928 20K 1/10W 1% R925 20K 1/10W 1% ! D904 FR103 HS2 HEAT SINK(D901 D906) 1 2 C919 0.001uF R905 470 ohm 1/10W 5% R901 680K OHM 1/4W +-5% +5Vi NR901 NTCR R915 680 OHM 2W +-5% IC902 PC123X2YFZOF 1 2 4 3 C914 470pF C908 0.47uF/275V Q901 STP10NK70ZFP R933 6.8M OHM 1% 1/4W R932 6.8M OHM 1% 1/4W C917 0.001uF R923 100 OHM 1/4W FB901 BEAD 1 2 C927 1UF + C931 NC C900 3300pF 250V R914 NC/43.2K OHM 1% 1/4W D907 NC +5V D903 FR107 L905 Coil D905 SR506-44 5A/60V ! Q904 KTD1028 R922 NC HS1 HEAT SINK(Q901) 1 2 R911 680 OHM 2W +-5% ! C915 1NF 50V R903 100 OHM 1/4W ! ! +5V1 R902 680K OHM 1/4W +-5% R913 5.1 OHM 1/4W +-5% + C918 1000uF 25V IC901 FAN6752MY 1 2 3 4 5 6 7 8 VIN FB SENSE GND GATE VDD NC HV ! + C925 1000uf /25v L906 Coil ! FB902 BEAD 1 2 L901 30mH 1 4 2 3 F901 FUSE R900 680K OHM 1/4W +-5% R934 200KOHM +-1% 1/4W ! R906 100K OMH 2W +-5% C912 0.1uF T901 POWER X'FMR 1 3 4 5 6 7 8 9 10 11 12 C911 1500PF2KV R908 200K OHM 1/4W +-5% C9031000pF F902 JUMPER WIRE R909 100 OHM 1/4W R919 470 1/8W 1% ! + C921 NC/1000uF25V R910 100 OHM 1/4W IC903 KIA431A-AT/P ! +16V R912 100 OHM 1/4W ! F903 FUSE(NC) D906 SRF2060 1 2 3 C926 0.1uF/16V R921 NC C916 0.001uF R935 NC ! CN901 SOCKET 1 2 3 36 转换板 715G3918P03000004F R825 0R05 1/4W ENA OVP2 R803 1K 1/10W 5% R805 160KOHM +-1%1/10W OVP1 R841 1 OHM 1/10W C807 2.2U16V Vout R827 1 OHM 1/10W R838 1 OHM 1/10W R822 1M 1/8W 5% C814 100P 50V F801 CHIPR MAX0R05 R808 NC R813 10K 1/10W 5% R810 1K 1/10W 5% R818 NC 1 A4 Friday , April 16, 2010 ODM MODEL 02.CONVERTER OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 R842 68 KOHM +-1% 1/10W R812 100 OHM 1/10W R835 1 OHM 1/10W + C813 100uF/35V R829 1 OHM 1/10W LNPCAI362AQD2 C808 0.47uF 16V R807 10R 1/10W R840 1 OHM 1/10W +12V R821 10K 1/10W 5% + C810 33uF 100V C811 N.C + C804 33uF 100V R804 51KOHM +-1% 1/10W R834 1 OHM 1/10W ZD801 B360B R845 100 OHM 1/10W L801 22uH CN805/NC CONN(33G801912Y H) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 R839 1 OHM 1/10W CN801 CONN 1 2 3 4 5 R811 0R05 1/10W R801 0.30 OHM +-1% 1/4W R816 160KOHM +-1%1/10W C809 2.2U16V C801 100N 50V IC802 TA9690GN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 PWM ISEN1 ISEN2 ISEN3 ISEN4 GNDA ISEN8 ISEN6 ISEN7 OVP ISET RT ENA ISW ISEN5 LDR VREF GNDP VIN SEL COMP SSTCMP NC STATUS Τ э 　 C805 0.47uF 16V CN804 CONN 1 2 3 4 5 6 7 8 9 10 11 12 Vout R830 1 OHM 1/10W IC801 TA9690GN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 PWM ISEN1 ISEN2 ISEN3 ISEN4 GNDA ISEN8 ISEN6 ISEN7 OVP ISET RT ENA ISW ISEN5 LDR VREF GNDP VIN SEL COMP SSTCMP NC STATUS R828 1 OHM 1/10W R831 1 OHM 1/10W R844 N.C R809 100K 1/10W 5% C812 100p 50V X7R CN802 CONN 1 2 OVP1 OVP2 R815 51KOHM +-1% 1/10W C806 2U2 25V R836 1 OHM 1/10W R843 68KOHM +-1% 1/10W G3918-P01-X-X-6-100416 C803 100N 50V R823 4.7K 1/10W R824 36K 1/10W 1% R820 100 OHM 1/10W Q801 AO4828L 1 2 3 4 5 6 7 8 S2 G2 S1 G1 D1 D1 D2 D2 R826 1 OHM 1/10W DIM R837 1 OHM 1/10W CN803 CONN 1 2 3 4 5 6 7 8 9 10 11 12 R832 1 OHM 1/10W Τ э 　 R817 10K 1/10W 5% R833 1 OHM 1/10W R806 10K 1/10W 5% R819 100K 1/10W 5% R802 0.30 OHM +-1% 1/4W R814 10 OHM 1/10W 37 5.3 按键板 715G4133K01000004S GPIO_09 GPIO_04 C006 100nF 25V 5V_LED CIN_07 Cap Pads CIN_11 T1 NC KEY0.1524 GPIO_02 R006 100R CIN_02 MENU_4 NC KEY0.1524 e2239Fwt B AOC e2239Fwt A3 2 2 Tuesday , March 23, 2010 715G4133K0B000004S <称爹> 2.0 Touch key G4133-K0B-000-X-1-100323 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 VBIAS CIN_09 Del R007,R008,R009,R010 CIN_04 C003 12P 50V U001 IT7230BFN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 CIN1 CIN2 CIN3 CIN4 CIN7 CIN9 CIN11 VSHILD VBIAS AVSS AVCC GPIO11 DVCC GPIO9 SCLK SDA INT# GPIO7 GPIO4 DVSS GPIO3 GPIO2 NC THD1 E-PAD GPIO_03 SM_CLK R002 10K 1/16W 5% V3.3 C009 100nF 25V CN001 CONN 1 2 3 4 5 6 7 8 9 CIN_01 CIN_07 LED003 LED 1 2 LED004 LED 1 2 GPIO_07 CIN_09 GPIO_02 T5 NC KEY0.1524 CIN_01 ZD001 NC 1 2 CIN_03 UP_3 NC KEY0.1524 Orange Blue LED001 2 3 1 C004 12P 50V V3.3 DOWN_2 NC KEY0.1524 Del T2 DATA GPIO_09 CIN_03 SM_INT# V3.3 GPIO_04 C005 100nF 25V AC_SHIELD GPIO_07 R001 10K 1/16W 5% CIN_11 TP2 NC KEY0.1524 H3 NC Add C009,C010 C008 100P 50V C011 1uF Z 10V V3.3 VBIAS SM_DATA H2 NC R003 10K 1/16W 5% CIN_04 GPIO_03 CLK C013 1uF Z 10V LED002 LED 1 2 SM_INT# 2010_03_11 MODIFY Antenna R005 100R T3 NC KEY0.1524 SM_DATA 5V_LED R004 100 OHM +-5% 1/16W 5V_LED SM_CLK Power button POWER1 NC KEY0.1524 C007 100nF 25V T4 NC KEY0.1524 AC_SHIELD C010 100nF 25V CIN_02 TP1 NC KEY0.1524 38 6. 软体及 EDID 烧录 说明: 此机种使用的是 NOVATEK IC ,以下是该 IC 的烧录 SOP。（注: 烧录过程以其他相似机种为例。） 6.1 软体烧录 （一）烧录准备 1.请使用 486 以上的 PC 硬件配置； 2.请使用 Windows 95/98/2000/XP 系统，推荐使用 XP SP1&SP2 版本的系统； 3.烧录软件：打印口驱动 PORT95NT.exe” 以及烧录软件 “NOVATEK EasyWriterV4.56”； 4.需要使用到 VGA 线以及打印 25PIN 连接线； 5.需要使用到的烧录治具，TPV 料号是：715GT034-B； 6.烧录软体(自己可以去 CS 网站技术支持软体下载栏下载)； 7.12V 直流电源适配器，给烧录卡 715GT034-B 供电。 （二）连接 （三）安装软件 1）双击以下图片安装 Port95nt 以及 TOOL 驱动 ntport24.EXE，然后重启电脑； 2）解压下边文件； . 3）双击 ，开始安装。 连接到打印口 连接 12V 电源 连接到显示器 39 （四）设置 ISP Tool 1）安装完这个程序，打开 “开始”-程序中的”writer”图标 ，如下图。 40 (2)点击“Option”，选择”FE2P Mode Enable”， 并且在烧录时保留 HDCP KEY。 3）用 LPT 接口，其它按下图选择，点击 AUTO DETECT 选择适当的速度。 41 4)点击“Load File”选择正确的软体，如下图所示： 42 5) 点击“Auto”升级软体，如出现下图错误提示（此 MODEL 用的 FLASH 是 MX2026），则按照第 6）步操作； 6）点击”Option”，选择”Send mx2026 CMD”，如下图所示： 43 7）点击 AUTO 开始烧录，成功后的截图如下： 8）进入工厂模式查看软体版本是否正确，并且进入用户模式做复位动作，否则 AC ON 无法看见开机 LOGO，机器 无法自动节能。 （五）软体确认 44 6.2 EDID 烧录 （一）准备工作 烧录工具： 1） 料号为 715GT034-B 的制具； 2） 数据 WA.DAT&WD.DAT&*. CONFIG.INI 文件； 3） 打印口驱动 (工厂提供)； 4） 线材：公对公打印线，公对公 D-SUB 信号线 DVI 转 HDMI 线材各一根； 5） 12V( Adapter)电源一个(维修站自己准备)； 6） TPVDDCHDMI 版本烧录程式； 7） PC 一台，推荐使用 XP 系统管理员权限。 （二）烧录 VGA&HDMI 一起读取与烧录连接如下图： 安装打印口驱动 Port95nt： 注意：烧录软件与 EDID 数据必须放在同一个文件夹中运行，且 EDID DATA 保存的文件夹必须有两层文件夹，第一 层文件夹文件名必须命名为 DDC,否则 TOOL 将无法识别,参考下图。 连接打印口 DVI 转 HDMI 线连接 HDMI 接口 12V 直流电源 45 VGA&HDMI 烧录： 1. 双击 ，选择”ANALOG+HDMI”，如下图所示： 46 2. 点击 Load file 出现如下对话框： 3. 输入日期，以及机器后壳的 SN，需要输入两遍。点击 Pragram 开始烧录当出现如下画面（PASS）时表示烧录成 功： 47 4. 点击”READ”，如下图所示。如果显示的 SN 和机器型号和之前输入的一致的话，则说明烧录成功。 48 HDMI 2 EDID 烧录： 1. 连接如下图： 2. 打开 EDID 文件夹，双击 ,选择 HDMI2，如下图所示： 连接打印口 12V 直流电源 DVI 转 HDMI 线连接 LCD HDMI 接口 2 HDMI 接口 2 49 3. 点击 Load file 后按如下对话框选择： 4. 点击上图 OK ，如下图所示： 50 5. 输入机器后壳的 SN，需要输入两遍。点击 Pragram 开始烧录当出现如下画面（PASS）时表示烧录成功。 51 6. 点击 READ 如果读出来的 SN 与之前输入的一样,Model name 也与之前的一样，表示烧录成功。 (三) Q&A 1. 如果出现以下错误请检查打印线以及 TOOL 的电源线是否连接 OK，以及显示器是否有开机？ 2. 如果 EDID 没有烧录 OK，将出现：VGA 无法上最佳分辨率，HDMI 静态无画，动态无声。如果还是无法烧录，点 击 READ 可以读，但是不可写，请参考下图做相关动作： VGA 无法烧录，请将接显示器那端第 5 PING 与第 9 PING 剪掉。如果是 DVI 无法烧录，请将 DVI 线接显示 器那端的第 14 PING （最短的那个 PIN）即供电脚剪掉。如果是 HDMI 无法烧录，请将 DVI-HDMI 线接制具那端的 第 14 PING 供电脚剪掉（如下图画红圈部分）： 52 3. 对于主板上有外挂 EEPROM（24C02）的机种，烧录 EDID 时，还是出现以上 DATA COMPARE ERROR 错误提 示，解决办法：用镊子直接将主板上的 EEPROM WP 脚接地后再烧录即可。 53 7.故障处理流程 7.1 主板 无供电 无供电 按下电源键看画面是否正常 重新插插头然后检查 AC:100-240V 是否正常? 检查 U701 Vout=3.3V; C711(+)=1.8V 检查交流电源输入 检查 X401 晶振是否正常 检查或更换 CN701,U701,U703 更换 U401 更换 X401 OK OK OK NG NG NG NG 54 无画 （LED 橙色） 无画 检查信号线 更换信号线 更换 U401 OK OK NG 检查 CN101 的 HS/VS 是否正常 检查相关回路 NG 55 白屏 白屏 检查 Q701 的基极是否 为高电平 检查Q706是否损坏或CN408虚焊 更换 PANEL OK OK NG 检查 U401 对 panel 的供电是否为高电平 OK 检查相关元件 NG 56 7.2 电源板 死机 检测交流电 100V or 240V 是否正常？ 检测 AC 输入 检测 C907 (+)的电压大小 检测全桥整流回路和 F901 回路 检测 IC901 第 1 脚电压是否正常？ 检测 R931, R932, R933 或更换 IC901 NG 检测二次启动电压是否正常？ 1) 检测 IC901 2) 检测 D904 回路 检测 D901,D906 OK 检测 IC901 第 6 脚的 PWM 波形 OK 检测 IC901 NG NG OK OK OK NG NG 57 无背光 检测C801电压是否为12V NG OK 检测 Adapter 回路 检测 LED 灯的工作电压（Vout）是否在 29V～34V 之间 检测 Q801 NG OK 检测 IC801, IC802 第 17 脚是否为 5V NG OK 检测 ENA 信号 检测 IC801, IC802 的 RT 脚是否有波形 更换 IC801, IC802 NG 检查接口或 LED 灯 OK 58 4.3 按键板 OSD 画面不稳定及不可调整 OK OSD 画面不稳定及不可调整 按键板是否连接正常 连接好按键板 按键开关是否正常 替换按键开关 OK NG NG 按键板是否正常 替换按键板 OK NG OK 检查主板 59 8.主要 IC 管脚及内部框图 1. NT68676UFG 60 61 2. GL852G-MNG 62 3. PAM8602MNHR 63 4. TPA6019A4PWPRG4 64 5. FAN6752MY 65 9. BOM 注意: 以下料件信息仅供参考，如有变更，恕不另行通知，请到 http://cs.tpv.com.cn 获取最新信息。 HIAANUNDW1A1PZ 点位 组件 对象描述 备注 052G 1211 B TASMA ALUMINIOWA 052G 2191 A PAPER TAPE 052G6019 1 INSULATING TAPE 070GHDCP500HDC NO-SUGGEST HDCP CODE 078G0025 1 V SPEAKER 4 OHM 2.5 W 320 230MM 40X20MM E08905 089G 175 8 G FQE41177F USB CABLE 1800MM A+B E08905 089G 175 8 X USB CABLE 1.8M 2nd source E08902 089G 725CAADBD D-SUB CABLE 1500MM 2nd source E08902 089G 725HAADBD D-SUB CABLE 1500MM E08901 089G414A15N HL POWER CORD 1500MM CHINA REG E08901 089G414A15N IS POWER 2nd source E09505 095G176J 10556 FFC CABLE 10PIN P0.5MM 230MM E09506 095G176J 10557 FFC CABLE 10PIN P0.5MM 285MM E09505 095G176W 10556 FFC CABLE 10PIN P0.5MM 230MM 2nd source E09506 095G176W 10557 FFC CABLE 10PIN P0.5MM 285MM 2nd source E09507 095G179W30NH21 FFC CABLE 30PIN P1.0 200MM 2nd source E09501 095G8014 5LH18 HARNESS 5P(A2008)-5P(A1250H) 330MM E09501 095G8014 5XH18 HARNESS 5P(A2008)-5P(A1250H) 330MM 2nd source E09502 095G8014 7W607 HARNESS 7P(A2008)-6P(A1253HA HR) 430MM E09502 095G8014 7X607 HARNESS 7P(A2008)-6P(A1253HA HR) 430MM 2nd source E09504 095G8022 5L502 HARNESS 5P-5P 200MM 2nd source E09504 095G8022 5X502 HARNESS 5P-5P 200MM E09503 095G8022 6D507 HARNESS 6P-6P 550MM E09503 095G8022 6X507 HARNESS 6P-6P 550MM 2nd source 0G1G1030 6120 SCREW 0M1G 130 6120 SCREW M3X6 0M1G 930 5120 SCREW 0M1G1730 5120 SCREW 0Q1G 940 10120 SCREW 705GQAPN005 PANEL ASS'Y 017G TM 4 Q TOUCH MODULE TQ2I E750 750GMU215H1633N000 PANEL M215HW01 V60B XM AUO 2nd source E750 750GMU215H1643N000 PANEL M215HW01 V60C XM AUO Q52G 3111 DOUBLE FACE TAPE Q52G 3112 DOUBLE FACE TAPE 708GB031 WP 1A AOC 40" WOOD PALLET(774) Q45G 77 5 PE PACKING (Y1900241) Q50G 4 10 TIE (Y1900221) Q52G 1185 99 BIG CARTON TAPE FOR AOC 756GQACB AA025 00 MAIN BOARD-CBPCANUA1QH U402 056G1133137 IC MX25L2026MI-12G SOP-8 SMTCA-U402 100GANAI003YT1 MCU ASS'Y-056G1133137 66 A15G1285101 MAINFRAME_E2239 A15G1286101 HINGE PLATE L_E2239 A15G1287101 HINGE PLATE R_E2239 A33G1131AGS 1L0100 CLIP A33G1132AGS 1L0100 CLIP A34G1541AEOB1M0101 BEZEL A34G1543AGS 1B0100 REAR COVER A37G0174011 HINGE L_E2239 A37G0175011 HINGE R_E2239 A85G0251101 USB SHIELD_E2239 A85G0252101 CONTROL PCB SHIELD_E2239 ADPCAB41MQDF POWER BOARD G2892-P01-026-X-1-100513 040G 45762412B CBPC LABEL GND1 009G6005 1 GROUND TERMINAL 051G 6 4503 GLUE_RTV IC902 056G 139 3A PC123Y22FZOF SHARP IC902 056G 139900 PHOTO COUPLER TLP421F NR901 061G 58100 X NTCR 10R 20% 5W(10D2-14 MCS) NR901 061G 58100 WD RST NTCR 10 OHM +-20% 5A THINKING R911 061G152M681 64 680OHM 5% 2W R915 061G152M681 64 680OHM 5% 2W C908 063G 10747410V NO-SUGGEST 0.47UF 275VAC ARCO C908 063G107K474 6S 0.47UF +-10% C908 063G107K474 US NO-SUGGEST 0.47UF +-10% C902 065G305M1022BP CAP Y2 1000PF M 250VAC C903 065G305M1022BP CAP Y2 1000PF M 250VAC C900 065G306M3322BP Y1 CAP 3300PF M 250VAC C925 067G215A1024KV EC 1000UF 25V 12.5*20MM C918 067G215A1024KV EC 1000UF 25V 12.5*20MM C925 067G215A1024LV EC 1000UF 20% 25V 12.5*20 C918 067G215A1024LV EC 1000UF 20% 25V 12.5*20 C925 067G215P1024XV CAP 105C 1000UF M 25V C918 067G215P1024XV CAP 105C 1000UF M 25V C922 067G215P4713XV CAP 105C 470UF M 16V C922 067G215S4713KV EC 105℃ CAP 470UF M 16V C922 067G215S4713LV LOW ESR EC 470UF 16V M 10*12.5MM C922 067G215V471 3H CAP L105C 470UF M 16V C907 067G315Z10115K EC 100UF 20% 450V 18*40 C907 067G315Z10115L EC 100UF 450V M 18*40MM C907 067G315Z10115X EC 100UF 20% 450V 18*40 L901 073G 174 65 H2 LINE FILTER 30MH MIN L901 073G 174 65 S2 LINE FILTER 30MH MIN L901 073G 174 65 X2 LINE FILTER 30MH MIN L906 073G 253 91 H IND CHOKE 3.5UH+-10% DADONG L905 073G 253 91 H IND CHOKE 3.5UH+-10% DADONG L905 073G 253 91 L CHOKE BY LI TA L906 073G 253 91 L CHOKE BY LI TA 67 L905 073G 253 91 V CHOKE COIL 3.5UH+-10% L906 073G 253 91 V CHOKE COIL 3.5UH+-10% T901 080GL22T 3 N1 X'FMR 490UH YUVA-1093 T901 080GL22T 3 S1 X'FMR 490UH CN901 087G 50143A S AC SOCKET BD901 093G 50460 28 BRIDGE DIODE KBP208G LITEON BD901 093G 50460502 BRIDGE KBP206G C2 D905 093G 60334 DIODE SR506 5A/60V DO-201AD CN902 095G 825 9D905 HARNESS 9P(SCN) - 9P 80MM FQE100911I 2nd source CN902 095G 825 9X905 HARNESS 9P(SCN) - 9P 80MM LCDXXTF0486 705GQ851001 OIL FOR DISAPPEAR ASS'Y 705GQ857044 Q901 ASS'Y Q901 057G 600 35 STP8NK80ZFP Q901 057G 667 21 NO-SUGGEST STP10NK70ZFP Q901 057G 667516 FET 2SK3673 TO-220 FUJI HS1 090G6064 1 HEAT SINK 0M1G 930 8120 SCREW 705GQA93017 D901/D906 ASS'Y D901 093G 52 66 DIODE FMX-12SL 10A/200V TO-220 D901 093G 52 68 DIODE FCF10A20 10A/200V TO-220 D901 093G 52 69 DIODE YG902C2RSC 10A/200V TO-220F15 D906 093G 60950 RECTIFIER SRF2060 20 60 ITO-220AB D906 093G 60951 RECTIFIER SBF2060CT 20 60 ITO-220AB 0M1G 930 8120 SCREW HS2 Q90G6264 5 HEAT SINK 709G2892 QM001 CONSUMPTIVE ASS'Y 055G 2 ALCOHOL 055G 23524 WELDING FLUX WITHOUT PB Q55G 100625 TIN STICK_LOW ARGENTUM IC901 056G 379160 IC FAN6752MY SOP-8 R907 061G06031001FY RST CHIPR 1KOHM +-1% 1/10W YAGEO R918 061G06031002FY RST CHIPR 10KOHM +-1% 1/10W YAGEO R928 061G06032002FF RST CHIPR 20KOHM +-1% 1/10W FENGHUA R916 061G06032002FF RST CHIPR 20KOHM +-1% 1/10W FENGHUA R925 061G06032002FF RST CHIPR 20KOHM +-1% 1/10W FENGHUA R928 061G06032002FT RST CHIP 20K 1/10W 1% R916 061G06032002FT RST CHIP 20K 1/10W 1% R925 061G06032002FT RST CHIP 20K 1/10W 1% R920 061G06034701FF RST CHIPR 4.7KOHM +-1% 1/10W R920 061G06034701FT RST CHIP 4K7 1/10W 1% R905 061G0603471 JF RST CHIPR 470OHM +-5% 1/10W FENGHUA R905 061G0603471 JT RST CHIPR 470OHM +-5% 1/10W TZAI YUAN R919 061G08054700FF RST 0805 470R 1% 1/8W R919 061G08054700FT RST CHIP 470R 1/8W 1% RJ802 061G12060007JY NO-SUGGEST RST CHIPR MAX0R05 7A 1/4W YAG RJ816 061G12060007JY NO-SUGGEST RST CHIPR MAX0R05 7A 1/4W YAG R923 061G1206101 JI RST 1206 100R 5% 1/4W 68 R912 061G1206101 JI RST 1206 100R 5% 1/4W R910 061G1206101 JI RST 1206 100R 5% 1/4W R909 061G1206101 JI RST 1206 100R 5% 1/4W R909 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R910 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R912 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R923 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R930 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R929 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R903 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN R934 061G12062003FF RST CHIPR 200KOHM +-1% 1/4W FENGHUA R934 061G12062003FT RST CHIPR 200KOHM +-1% 1/4W TZAI YUAN R908 061G1206204 JF RST CHIPR 200KOHM +-5% 1/4W FENGHUA R917 061G1206330 JF RST CHIPR 33 OHM +-5% 1/4W FENGHUA R917 061G1206330 JT RST CHIP R 33OHM 1/4W +/-5% R913 061G1206519 JT RST CHIPR 5.1 OHM +-5% 1/4W TZAI YUAN R931 061G12066804FF RST CHIPR 6.8MOHM 1% 1/4W FENGHUA R932 061G12066804FF RST CHIPR 6.8MOHM 1% 1/4W FENGHUA R933 061G12066804FF RST CHIPR 6.8MOHM 1% 1/4W FENGHUA R902 061G1206684 JT RST CHIPR 680 KOHM +-5% 1/4W TZAI YUAN R901 061G1206684 JT RST CHIPR 680 KOHM +-5% 1/4W TZAI YUAN R900 061G1206684 JT RST CHIPR 680 KOHM +-5% 1/4W TZAI YUAN C923 065G060310232K T MLCC 0603 CAP 1000PF 50V X7R C923 065G060310232K Y CAP CHIP 0603 1N 50V X7R +/-10% C924 065G060310412K W NO-SUGGEST CAP CHIP 0603 100NF K 16V X7R C926 065G060310412K W NO-SUGGEST CAP CHIP 0603 100NF K 16V X7R C926 065G060310412K Y CAP CHIP 0603 100N 16V X7R +/-10% C924 065G060310412K Y CAP CHIP 0603 100N 16V X7R +/-10% C914 065G060347132K T CAP CHIP 0603 470PF K 50V X7R C914 065G060347132K Y CAP CHIP 0603 470PF K 50V X7R C915 065G080510232K 3 CAP CHIP 0805 1N 50V X7R +/-10% C915 065G080510232K F CAP 0805 1000PF 10% 50V X7R C912 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10% C912 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% C927 065G080510522K 3 CAP CHIP 0805 1U 25V X7R +/-10% C927 065G080510522K M CAP 0805 1UF 10% 25V X7R C916 065G120610272K T NO-SUGGEST 1206 1000PF 500V X7R C917 065G120610272K T NO-SUGGEST 1206 1000PF 500V X7R C916 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R C917 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R C919 065G120610272K Y CAP CHIP 1206 1NF K 500V X7R 709G2892 QS001 CONSUMPTIVE ASS'Y 052G 2191 A PAPER TAPE CN901 006G 31500 EYELET IC903 056G 158 10 T IC AS431AZTR-E1 TO-92 BY AAC IC903 056G 158 12 SHUNT REGULATOR KIA431A-AT/P TO-92 Q904 057G 530503 T 2SD1207T 69 Q904 057G 761 16 TRA KTD1028 KEC R906 061G152M10452T NO-SUGGEST RST MOFR 100KOHM +-5% 2WS R906 061G152M10452T XZ RST MOFR 100KOHM +-5% 2WS XIANZHENG R924 061G152M36852T RST MOF 0R36 5% 2W C911 065G 2K152 2T6213 CAP CER 1.5NF 10% 2KV Y5P C911 065G 2K152 2T6921 CAP CER 1500PF K 2KV Y5P C920 067G 2046812KT CS CAP 680UF 10V 8*11 MM C920 067G 2046812LT CAP CS 680UF 20% 10V 8*11.5 C913 067G215S2207RT EC 22UF 50V 5*11MM C913 067G215Y2207KT CAP 105℃ 22UF M 50V KINGNICHI FB902 071G 55 9 T FERRITE BEAD 3.5*6*0.8-T52 FB901 071G 55 29 FERRITE BEAD F901 084G 56 4 B FUSE 4A 250V F901 084G 56 4W FUSE 4A 250V ZD901 093G 3952152T TZX18B D903 093G 6026T52T RECTIFIER DIODE FR107 D904 093G 6038T52T FR103 AO D903 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41 J904 095G 90 23 JUMPER WIRE FB602 095G 90 23 JUMPER WIRE J604 095G 90 23 JUMPER WIRE J901 095G 90 23 JUMPER WIRE J902 095G 90 23 JUMPER WIRE J903 095G 90 23 JUMPER WIRE F902 095G 90 23 JUMPER WIRE J913 095G 90 23 JUMPER WIRE J921 095G 90 23 JUMPER WIRE J912 095G 90 23 JUMPER WIRE J911 095G 90 23 JUMPER WIRE J910 095G 90 23 JUMPER WIRE J909 095G 90 23 JUMPER WIRE J908 095G 90 23 JUMPER WIRE J907 095G 90 23 JUMPER WIRE J906 095G 90 23 JUMPER WIRE J905 095G 90 23 JUMPER WIRE 709G2892 QA001 CONSUMPTIVE ASS'Y 095G 90 23 JUMPER WIRE E715 715G2892P01026001H POWER PCB 122X184X1.6MM FR-1 S/S 1OZ 2nd source E715 715G2892P01026001S POWER PCB 122X184X1.6MM FR-1 S/S 1OZ LNPCAC362AQD2 CONVERTER BOARD 040G 45762412B CBPC LABEL C813 067G215C1016KV EC 100UF 20% 35V EM 8*9 C804 067G415L330 9K EC 33UF 20% 100V ED 8*12 C804 067G415L330 9L EC 33UF 20% 100V 8*11.5 CN802 311GB254B04AAL PIN HEADER 2.54MM 4P 2P7.2MM/2P4.0MM CN802 311GB254B04AAW PIN HEADER 2.54MM 4P 2P7.2MM/2P4.0MM 2nd source CN801 311GB254B07AAL PIN HEADER 2.54MM 7P 5P7.2MM/2P4.0MM 70 CN801 311GB254B07AAW PIN HEADER 2.54MM 7P 5P7.2MM/2P4.0MM 2nd source CN803 033G801910Y H FPC CONN. 0.5MM SMT 10P CN804 033G801910Y H FPC CONN. 0.5MM SMT 10P IC801 056G 379185 AC/DC CONVERTER TA9690GN-A1-0-TR SOP-24 IC802 056G 379185 AC/DC CONVERTER TA9690GN-A1-0-TR SOP-24 Q801 057G 763 92 FET P8008HV 4A/80V SOP-8 R811 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN R814 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA R807 061G0603100 JT RST CHIP 10R 1/10W 5% TZAI YUAN R812 061G0603101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/10W R820 061G0603101 JY NO-SUGGEST RST CHIPR 100 OHM +-5% 1/10W R803 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN R810 061G0603102 JT RST CHIP 1K 1/10W 5% TZAI YUAN R806 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN R813 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN R817 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN R821 061G0603103 JT RST CHIP 10K 1/10W 5% TZAI YUAN R819 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN R809 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN R826 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA R827 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA R828 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA R829 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA R830 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA R831 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA R832 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA R833 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA R834 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA R835 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA R836 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA R837 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA R838 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA R839 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA R840 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA R841 061G0603109 JY NO-SUGGEST RST CHIPR 1 OHM +-5% 1/10W YA R805 061G0603164 JF RST CHIPR 160KOHM 5% 1/10W FENGHUA R816 061G0603164 JF RST CHIPR 160KOHM 5% 1/10W FENGHUA R824 061G06033602FY RST CHIPR 36KOHM 1/10W YAGEO R823 061G0603472 JY NO-SUGGEST RST CHIPR 4.7KOHM £«-5£¥ 1/1 R822 061G0805105 JT RST CHIP 1M 1/8W 5% TZAI YUAN R825 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA F801 061G12060004JF RST CHIPR MAX0R05 4A 1/4W FENGHUA R801 061G1206308 JF RST CHIPR 0.3 OHM +-5% 1/4W FENGHUA C808 065G060347412K 3 CAP CHIP 0603 0.47UF K 16V X7R C805 065G060347412K 3 CAP CHIP 0603 0.47UF K 16V X7R C801 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10% C803 065G080522141J Y CAP CHIP 0805 220P 100V NPO +/-5% 71 C807 065G080522512K T CAP CHIP 0805 2.2UF K 16V X7R C809 065G080522512K T CAP CHIP 0805 2.2UF K 16V X7R C806 065G080522522K Y CAP CHIP 0805 2U2 25V X7R +/-10% L801 073G253S 90 X SMD CHOKE 22UH 3A HF ZD801 093G 60S932 T DIODE SK310B DO-214AA F801 061G12060004JY NO-SUGGEST RST CHIPR MAX0R05 4A 1/4W YAG L801 073G253S 90 DN SMD CHOKE 22UH 3A LZ.38220.B1P HF C801 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R C801 065G080510432K 3 CAP CHIP 0805 100N 50V X7R +/-10% C805 065G060347412K Y CAP CHIP 0.47UF 16V +/-10% X7R C806 065G080522522K T CAP 0805 2.2UF 10% 25V X7R C807 065G080522512K A NO-SUGGEST 0805 2.2UF K 16V X7R C809 065G080522512K A NO-SUGGEST 0805 2.2UF K 16V X7R C808 065G060347412K Y CAP CHIP 0.47UF 16V +/-10% X7R R803 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I R810 061G0603102 JI TEST ONLY RST 0603 1K 5% 1/10W TA-I R802 061G1206308 JF RST CHIPR 0.3 OHM +-5% 1/4W FENGHUA R845 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA C814 065G060310131J Y CAP CHIP 0603 100P 50V NPO +/-5% R824 061G06033602FF RST CHIPR 36KOHM +-1% 1/10W FENGHUA R804 061G06035102FF RST CHIPR 51KOHM +-1% 1/10W FENGHUA R815 061G06035102FF RST CHIPR 51KOHM +-1% 1/10W FENGHUA R842 061G06036802FF RST CHIPR 68K OHM +-1% 1/10W FENGHUA R843 061G06036802FF RST CHIPR 68K OHM +-1% 1/10W FENGHUA R804 061G06035102FY RST CHIP 51K 1/10W 1% R815 061G06035102FY RST CHIP 51K 1/10W 1% R842 061G06036802FY RST CHIPR 68KOHM +-1% 1/10W YAGEO R843 061G06036802FY RST CHIPR 68KOHM +-1% 1/10W YAGEO L801 073G253S 90 S SMD CHOKE 22UH 3A SLG-1004R-220 HF C812 065G080510131J F CAP CHIP 0805 100PF J 50V NPO C812 065G080510131J A CAP CHIP 0805 100PF J 50V NPO E715 715G3918P03000004F CONVERTER PCB 45X80X1.6MM FR-4 D/S 1OZ E715 715G3918P03000004L CONVERTER PCB 45X80X1.6MM FR-4 D/S 1OZ 2nd source CN803 311GF050B10ADH FFC CONN 0.5MM 10P 2nd source CN804 311GF050B10ADH FFC CONN 0.5MM 10P 2nd source Q801 057G 763947 MOSFET APM8005KCTRG SOP-8 L801 073G253S 90 H SMD CHOKE 22UH 3A HF ZD801 093T 60S907 T DIODE 3A/100V B3100B SMB R811 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA R814 061G0603100 JI RST 0603 10R 5% 1/16W TA-I R807 061G0603100 JI RST 0603 10R 5% 1/16W TA-I R812 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA R820 061G0603101 JF RST CHIPR 100 OHM +-5% 1/10W FENGHUA R803 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA R810 061G0603102 JF RST CHIPR 1K OHM +-5% 1/10W FENGHUA R821 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA R817 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA 72 R813 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA R806 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA R809 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA R819 061G0603104 JF RST CHIPR 100KOHM 5% 1/10W FENGHUA R834 061G0603109 JF RST CHIP 1R 1/10W 5% FENGHUA R835 061G0603109 JF RST CHIP 1R 1/10W 5% FENGHUA R836 061G0603109 JF RST CHIP 1R 1/10W 5% FENGHUA R837 061G0603109 JF RST CHIP 1R 1/10W 5% FENGHUA R838 061G0603109 JF RST CHIP 1R 1/10W 5% FENGHUA R839 061G0603109 JF RST CHIP 1R 1/10W 5% FENGHUA R840 061G0603109 JF RST CHIP 1R 1/10W 5% FENGHUA R841 061G0603109 JF RST CHIP 1R 1/10W 5% FENGHUA R826 061G0603109 JF RST CHIP 1R 1/10W 5% FENGHUA R827 061G0603109 JF RST CHIP 1R 1/10W 5% FENGHUA R828 061G0603109 JF RST CHIP 1R 1/10W 5% FENGHUA R829 061G0603109 JF RST CHIP 1R 1/10W 5% FENGHUA R830 061G0603109 JF RST CHIP 1R 1/10W 5% FENGHUA R831 061G0603109 JF RST CHIP 1R 1/10W 5% FENGHUA R832 061G0603109 JF RST CHIP 1R 1/10W 5% FENGHUA R833 061G0603109 JF RST CHIP 1R 1/10W 5% FENGHUA R805 061G06031603FF RST CHIPR 160KOHM 1/10W R816 061G06031603FF RST CHIPR 160KOHM 1/10W R845 061G0603100 JI RST 0603 10R 5% 1/16W TA-I R823 061G0603472 JF RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA R822 061G0805105 JF RST CHIPR 1M OHM +- 5% 1/8W FENGHUA R825 061G1206000 JI RST 0 OHM 5% 1/4W TA-I R802 061G1206308 JI RST CHIPR 0.3 OHM +-5% 1/4W 1206 R801 061G1206308 JI RST CHIPR 0.3 OHM +-5% 1/4W 1206 C814 065G060310131J 3 CAP CHIP 0603 100PF J 50V NPO C803 065G080522141J F NO-SUGGEST 0805 220PF J 100V NPO C803 065G080522141J A NO-SUGGEST 0805 220PF J 100V NPO T901 S80GL22T3V1 FMR POWER 490UH TPV-PT 040G 45762412B CBPC LABEL CN604 033G3802 4 WAFER 2.0MM 4P CN504 033G3802 5B Y L CONNECTOR 5P 2.0 2nd source CN504 033G3802 5B Y W WEAFER CN406 033G3802 7B Y WAFER CN406 033G3802 7B Y L CONNECTOR 7P 2.0 2nd source CN701 033G3802 9B Y L CONN 2.0 9P 2nd source CN701 033G3802 9B Y W WAFER CN408 033G801930F CH L FFC CONNECTOR 30P 1.0PITCH CN408 033G801930F CH JS CONNECTOR 2nd source R710 061G152M519 64 SY RST MOFR 5.1 OHM +-5% 2WS FUTABA CN601 088G 30210K E PHONE JACK 5PIN CN501 088G 351 2B XH USB CONN 2nd source CN501 088G 3512B1 CL USB CONN 4PIN BLACK USB-04 CN505 088G 352 2 XH USB CONN 2nd source 73 CN503 088G 352 2 XH USB CONN 2nd source CN503 088G 352 21CL USB CONN TYPE A CN505 088G 352 21CL USB CONN TYPE A CN101 088G 35315F HD D-SUB CONN F ATTACHED SCREW CN101 088G 35315F XH D-SUB 15PIN VERTICAL CONN WITH SCREW 2nd source X501 093G 2251B J CRYSTAL 12MHZ NXS12.000AC30F-KAB10 X401 093G 2251B J CRYSTAL 12MHZ NXS12.000AC30F-KAB10 C718 067G 3051007PB EC 10UF 20% 50V 5*11 C534 067G 3051007PB EC 10UF 20% 50V 5*11 C471 067G 3051007PB EC 10UF 20% 50V 5*11 C470 067G 3051007PB EC 10UF 20% 50V 5*11 C417 067G 3051007PB EC 10UF 20% 50V 5*11 C415 067G 3051007PB EC 10UF 20% 50V 5*11 C413 067G 3051007PB EC 10UF 20% 50V 5*11 C402 067G 3051013PB EC 105C 100UF M 16V 5*11MM C403 067G 3051013PB EC 105C 100UF M 16V 5*11MM C507 067G 3051013PB EC 105C 100UF M 16V 5*11MM C508 067G 3051013PB EC 105C 100UF M 16V 5*11MM C509 067G 3051013PB EC 105C 100UF M 16V 5*11MM C512 067G 3051013PB EC 105C 100UF M 16V 5*11MM C519 067G 3051013PB EC 105C 100UF M 16V 5*11MM C624 067G 3051013PB EC 105C 100UF M 16V 5*11MM C702 067G 3051013PB EC 105C 100UF M 16V 5*11MM C703 067G 3051013PB EC 105C 100UF M 16V 5*11MM C706 067G 3051013PB EC 105C 100UF M 16V 5*11MM C711 067G 3051013PB EC 105C 100UF M 16V 5*11MM C713 067G 3051013PB EC 105C 100UF M 16V 5*11MM C627 067G 3052213PB CAP 105¡ÃC 220UF C628 067G 3052213PB CAP 105¡ÃC 220UF C515 067G 3054703PB EC 47UF M 16V 5*11MM C514 067G 3054703PB EC 47UF M 16V 5*11MM C435 067G 3054703PB EC 47UF M 16V 5*11MM C416 067G 3054703PB EC 47UF M 16V 5*11MM U401 056G 562330 IC SCALER NT68676UFG QFP-128 U703 056G 563113 IC G1117-18T63UF 1A/1.8V SOT-223 U701 056G 563114 IC G1117-33T63UF 1A/3.3V SOT-223 U601 056G 616 65 IC PAM8602MNHR SSOP-24 U501 056G 659 25 IC USB GL852G-MNG LQFP-48 U112 056G 662 21 IC AOZ8804DI DFN-10 U110 056G 662 21 IC AOZ8804DI DFN-10 U122 056G 662 21 IC AOZ8804DI DFN-10 U123 056G 662 21 IC AOZ8804DI DFN-10 U121 056G 662504 IC ESD AOZ8902CIL 24KV 5A SOT23-6 AOS U101 056G 662504 IC ESD AOZ8902CIL 24KV 5A SOT23-6 AOS U103 056G 662504 IC ESD AOZ8902CIL 24KV 5A SOT23-6 AOS U109 056G 662504 IC ESD AOZ8902CIL 24KV 5A SOT23-6 AOS U402 056G1133137 IC MX25L2026MI-12G SOP-8 74 U102 056G1133918 NO-SUGGEST AT24C02BN-SH-T 2KB SO-8 U108 056G1133918 NO-SUGGEST AT24C02BN-SH-T 2KB SO-8 U120 056G1133918 NO-SUGGEST AT24C02BN-SH-T 2KB SO-8 Q702 057G 417 12 T KEC 2N3904S-RTK/PS Q502 057G 417 12 T KEC 2N3904S-RTK/PS Q701 057G 417 12 T KEC 2N3904S-RTK/PS Q701 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q502 057G 417518 TRA LMBT3904LT1G 200MA/40V SOT-23 LRC Q501 057G 763 3 AO4411 SO-8 BY AOS Q705 057G 763 3 AO4411 SO-8 BY AOS F504 061G 56A075 LT HF SMD PTC 0.75A 1206L075THYR F503 061G 56A075 LT HF SMD PTC 0.75A 1206L075THYR F502 061G 56A075 LT HF SMD PTC 0.75A 1206L075THYR R152 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R150 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R149 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R148 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R147 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R146 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R145 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R144 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R126 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R125 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R617 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R615 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R532 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R463 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R462 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R443 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R442 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R435 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R423 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R171 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R172 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R173 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R174 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R175 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R176 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R177 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R179 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA R149 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R148 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R147 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R146 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R145 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R144 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R126 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN 75 R125 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R617 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R615 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R532 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R463 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R462 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R443 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R442 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R435 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R423 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R179 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R150 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R152 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R171 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R172 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R173 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R174 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R175 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R176 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R177 061G0402000 JT RST CHIPR MAX0R05 1/16W TZAI YUAN R102 061G0402100 JI TEST ONLY RST 0402 10R 5% 1/16W TA-I R103 061G0402100 JI TEST ONLY RST 0402 10R 5% 1/16W TA-I R104 061G0402100 JI TEST ONLY RST 0402 10R 5% 1/16W TA-I R102 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN R103 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN R104 061G0402100 JT RST CHIP 10R 1/16W 5% TZAI YUAN R115 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R118 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R119 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R151 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R154 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R158 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R159 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R178 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R185 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R186 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R187 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R404 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R408 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R416 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R417 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R418 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA R115 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN R118 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN R119 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN R151 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN R154 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 76 R158 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN R159 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN R178 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN R185 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN R186 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN R418 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN R417 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN R416 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN R408 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN R404 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN R187 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN R153 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R181 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R447 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R459 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R613 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R614 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R702 061G0402102 JF RST CHIPR 1KOHM +-5% 1/16W FENGHUA R702 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN R614 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN R613 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN R459 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN R447 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN R181 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN R153 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN R521 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R524 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R533 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R534 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R701 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R704 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R705 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R717 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R719 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R520 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R446 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R428 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R426 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R415 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R409 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA R409 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R415 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R426 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R428 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R446 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R520 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R521 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 77 R524 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R533 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R534 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R701 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R704 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R705 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R717 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R719 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R721 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R531 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R437 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R436 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R424 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R403 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R402 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA R721 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN R531 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN R437 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN R436 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN R424 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN R403 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN R402 061G0402104 JT RST CHIP 100K 1/16W 5% TZAI YUAN R431 061G0402105 JF RST CHIPR 1MOHM 5% 1/16W FENGHUA R509 061G0402105 JF RST CHIPR 1MOHM 5% 1/16W FENGHUA R431 061G0402105 JT RST CHIP R 1MOHM 1/16W +/-5% TZAI YUAN R509 061G0402105 JT RST CHIP R 1MOHM 1/16W +/-5% TZAI YUAN R458 061G0402123 JF RST CHIPR 12KOHM +-5% 1/16W FENGHUA R458 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO R120 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA R121 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA R120 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN R121 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN R124 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA R157 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA R184 061G0402223 JF RST CHIPR 22KOHM 5% 1/16W FENGHUA R184 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN R157 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN R124 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN R510 061G0402303 JF RST CHIP R 30KOHM 1/16W +/-5% FENGHUA R511 061G0402303 JF RST CHIP R 30KOHM 1/16W +/-5% FENGHUA R512 061G0402303 JF RST CHIP R 30KOHM 1/16W +/-5% FENGHUA R513 061G0402303 JF RST CHIP R 30KOHM 1/16W +/-5% FENGHUA R515 061G0402303 JF RST CHIP R 30KOHM 1/16W +/-5% FENGHUA R516 061G0402303 JF RST CHIP R 30KOHM 1/16W +/-5% FENGHUA R517 061G0402303 JF RST CHIP R 30KOHM 1/16W +/-5% FENGHUA R518 061G0402303 JF RST CHIP R 30KOHM 1/16W +/-5% FENGHUA R517 061G0402303 JT RST CHIP R 30KOHM 1/16W +/-5% TZAI YUAN 78 R516 061G0402303 JT RST CHIP R 30KOHM 1/16W +/-5% TZAI YUAN R515 061G0402303 JT RST CHIP R 30KOHM 1/16W +/-5% TZAI YUAN R513 061G0402303 JT RST CHIP R 30KOHM 1/16W +/-5% TZAI YUAN R512 061G0402303 JT RST CHIP R 30KOHM 1/16W +/-5% TZAI YUAN R511 061G0402303 JT RST CHIP R 30KOHM 1/16W +/-5% TZAI YUAN R510 061G0402303 JT RST CHIP R 30KOHM 1/16W +/-5% TZAI YUAN R518 061G0402303 JT RST CHIP R 30KOHM 1/16W +/-5% TZAI YUAN R438 061G0402392 JF RST CHIPR 3.9KOHM +-5% 1/16W FENGHUA R439 061G0402392 JF RST CHIPR 3.9KOHM +-5% 1/16W FENGHUA R440 061G0402392 JF RST CHIPR 3.9KOHM +-5% 1/16W FENGHUA R601 061G0402392 JF RST CHIPR 3.9KOHM +-5% 1/16W FENGHUA R603 061G0402392 JF RST CHIPR 3.9KOHM +-5% 1/16W FENGHUA R603 061G0402392 JT RST CHIP R 3K9 +/-5% 1/16W TZAI YUAN R601 061G0402392 JT RST CHIP R 3K9 +/-5% 1/16W TZAI YUAN R440 061G0402392 JT RST CHIP R 3K9 +/-5% 1/16W TZAI YUAN R439 061G0402392 JT RST CHIP R 3K9 +/-5% 1/16W TZAI YUAN R438 061G0402392 JT RST CHIP R 3K9 +/-5% 1/16W TZAI YUAN R112 061G0402470 JT RST CHIP 47R 1/16W 5% TZAI YUAN R111 061G0402470 JT RST CHIP 47R 1/16W 5% TZAI YUAN R110 061G0402470 JT RST CHIP 47R 1/16W 5% TZAI YUAN R110 061G0402470 JY NO-SUGGEST RST CHIPR 47 OHM 5% 1/16W YAG R111 061G0402470 JY NO-SUGGEST RST CHIPR 47 OHM 5% 1/16W YAG R112 061G0402470 JY NO-SUGGEST RST CHIPR 47 OHM 5% 1/16W YAG R401 061G04024700FF RST CHIP 470R 1/16W 1% FENGHUA R401 061G04024700FT RST CHIP 470R 1/16W 1% R706 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R530 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R529 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R525 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R434 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R433 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R422 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R183 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R182 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R156 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R122 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R123 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R155 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R723 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA R723 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R529 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R183 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R182 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R156 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R155 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R123 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN R122 061G0402472 JT RST CHIP 4K7 1/16W 5% TZAI YUAN 79 R422 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN R433 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN R434 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN R525 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN R530 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN R706 061G0402473 JT RST CHIP 47K 1/16W 5% TZAI YUAN R528 061G0402681 JF RST CHIP 680R 1/16W 5% FENGHUA R610 061G0402681 JF RST CHIP 680R 1/16W 5% FENGHUA R528 061G0402681 JT RST CHIP 680R 1/16W 5% TZAI YUAN R610 061G0402681 JT RST CHIP 680R 1/16W 5% TZAI YUAN R607 061G0402682 JF RST CHIPR 6.8KOHM +-5% 1/16W FENGHUA R608 061G0402682 JF RST CHIPR 6.8KOHM +-5% 1/16W FENGHUA R607 061G0402682 JT RST CHIP 6K8 1/16W 5% TZAI YUAN R608 061G0402682 JT RST CHIP 6K8 1/16W 5% TZAI YUAN R107 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA R108 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA R109 061G04027509FF RST CHIPR 75 OHM +-1% 1/16W FENGHUA R107 061G04027509FT RST CHIP 75R 1/16W 1% R108 061G04027509FT RST CHIP 75R 1/16W 1% R109 061G04027509FT RST CHIP 75R 1/16W 1% FB103 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB102 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA FB101 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA R117 061G0603000 JF RST CHIPR MAX 0R05 1/10W FENGHUA R117 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN FB103 061G0603000 JY NO-SUGGEST RST CHIPR MAX0R05 1/10W YAGEO FB102 061G0603000 JY NO-SUGGEST RST CHIPR MAX0R05 1/10W YAGEO FB101 061G0603000 JY NO-SUGGEST RST CHIPR MAX0R05 1/10W YAGEO FB610 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA FB605 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA FB604 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA FB603 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA FB602 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA FB602 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN FB603 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN FB604 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN FB605 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN FB610 061G0805000 JT RST CHIPR 0 OHM +- 5% 1/8W TZAI YUAN R455 061G1206102 JF RST CHIPR 1KOHM +-5% 1/4W FENGHUA R454 061G1206102 JF RST CHIPR 1KOHM +-5% 1/4W FENGHUA R454 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN R455 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN C513 065G040210412K T CAP CHIP 0402 100NF 16V X7R C510 065G040210412K T CAP CHIP 0402 100NF 16V X7R C503 065G040210412K T CAP CHIP 0402 100NF 16V X7R C418 065G040210412K T CAP CHIP 0402 100NF 16V X7R C419 065G040210412K T CAP CHIP 0402 100NF 16V X7R 80 C420 065G040210412K T CAP CHIP 0402 100NF 16V X7R C422 065G040210412K T CAP CHIP 0402 100NF 16V X7R C425 065G040210412K T CAP CHIP 0402 100NF 16V X7R C426 065G040210412K T CAP CHIP 0402 100NF 16V X7R C427 065G040210412K T CAP CHIP 0402 100NF 16V X7R C431 065G040210412K T CAP CHIP 0402 100NF 16V X7R C436 065G040210412K T CAP CHIP 0402 100NF 16V X7R C480 065G040210412K T CAP CHIP 0402 100NF 16V X7R C499 065G040210412K T CAP CHIP 0402 100NF 16V X7R C502 065G040210412K T CAP CHIP 0402 100NF 16V X7R C520 065G040210412K T CAP CHIP 0402 100NF 16V X7R C714 065G040210412K T CAP CHIP 0402 100NF 16V X7R C712 065G040210412K T CAP CHIP 0402 100NF 16V X7R C708 065G040210412K T CAP CHIP 0402 100NF 16V X7R C707 065G040210412K T CAP CHIP 0402 100NF 16V X7R C705 065G040210412K T CAP CHIP 0402 100NF 16V X7R C704 065G040210412K T CAP CHIP 0402 100NF 16V X7R C701 065G040210412K T CAP CHIP 0402 100NF 16V X7R C614 065G040210412K T CAP CHIP 0402 100NF 16V X7R C613 065G040210412K T CAP CHIP 0402 100NF 16V X7R C533 065G040210412K T CAP CHIP 0402 100NF 16V X7R C532 065G040210412K T CAP CHIP 0402 100NF 16V X7R C531 065G040210412K T CAP CHIP 0402 100NF 16V X7R C517 065G040210412K T CAP CHIP 0402 100NF 16V X7R C516 065G040210412K T CAP CHIP 0402 100NF 16V X7R C529 065G040210412K T CAP CHIP 0402 100NF 16V X7R C530 065G040210412K T CAP CHIP 0402 100NF 16V X7R C528 065G040210412K T CAP CHIP 0402 100NF 16V X7R C527 065G040210412K T CAP CHIP 0402 100NF 16V X7R C526 065G040210412K T CAP CHIP 0402 100NF 16V X7R C525 065G040210412K T CAP CHIP 0402 100NF 16V X7R C524 065G040210412K T CAP CHIP 0402 100NF 16V X7R C523 065G040210412K T CAP CHIP 0402 100NF 16V X7R C522 065G040210412K T CAP CHIP 0402 100NF 16V X7R C521 065G040210412K T CAP CHIP 0402 100NF 16V X7R C414 065G040210412K T CAP CHIP 0402 100NF 16V X7R C101 065G040210412K T CAP CHIP 0402 100NF 16V X7R C114 065G040210412K T CAP CHIP 0402 100NF 16V X7R C119 065G040210412K T CAP CHIP 0402 100NF 16V X7R C121 065G040210412K T CAP CHIP 0402 100NF 16V X7R C123 065G040210412K T CAP CHIP 0402 100NF 16V X7R C124 065G040210412K T CAP CHIP 0402 100NF 16V X7R C404 065G040210412K T CAP CHIP 0402 100NF 16V X7R C405 065G040210412K T CAP CHIP 0402 100NF 16V X7R C406 065G040210412K T CAP CHIP 0402 100NF 16V X7R C407 065G040210412K T CAP CHIP 0402 100NF 16V X7R C408 065G040210412K T CAP CHIP 0402 100NF 16V X7R 81 C409 065G040210412K T CAP CHIP 0402 100NF 16V X7R C410 065G040210412K T CAP CHIP 0402 100NF 16V X7R C411 065G040210412K T CAP CHIP 0402 100NF 16V X7R C412 065G040210412K T CAP CHIP 0402 100NF 16V X7R C436 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C480 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C499 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C502 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C503 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C510 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C513 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C516 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C517 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C431 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C427 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C426 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C425 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C422 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C420 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C419 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C418 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C414 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C412 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C520 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C707 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C705 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C704 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C701 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C614 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C613 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C533 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C532 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C531 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C530 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C529 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C528 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C527 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C526 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C525 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C524 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C523 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C522 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C521 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C714 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C712 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C708 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C101 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% 82 C114 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C119 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C121 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C123 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C124 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C404 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C405 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C406 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C407 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C408 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C409 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C410 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C411 065G040210412K Y CAP CHIP 0402 100N 16V X7R +/-10% C511 065G040218031J T CAP CHIP 0402 18PF 50V J NPO C504 065G040218031J T CAP CHIP 0402 18PF 50V J NPO C504 065G040218031J Y MLCC 0402 18PF 50V NPO +-5% YAGEO C511 065G040218031J Y MLCC 0402 18PF 50V NPO +-5% YAGEO C113 065G040222415K T CAP CHIP 0402 220NF K 16V X5R C120 065G040222415K T CAP CHIP 0402 220NF K 16V X5R C122 065G040222415K T CAP CHIP 0402 220NF K 16V X5R C401 065G040222415K T CAP CHIP 0402 220NF K 16V X5R C518 065G040222415K T CAP CHIP 0402 220NF K 16V X5R C717 065G040222415K T CAP CHIP 0402 220NF K 16V X5R C113 065G0402224A5K Y CAP CHIP 0402 220N 10V X5R +/-10% C120 065G0402224A5K Y CAP CHIP 0402 220N 10V X5R +/-10% C122 065G0402224A5K Y CAP CHIP 0402 220N 10V X5R +/-10% C401 065G0402224A5K Y CAP CHIP 0402 220N 10V X5R +/-10% C518 065G0402224A5K Y CAP CHIP 0402 220N 10V X5R +/-10% C717 065G0402224A5K Y CAP CHIP 0402 220N 10V X5R +/-10% C618 065G040233131J T CAP CHIP 0402 330PF 50V J NPO C619 065G040233131J T CAP CHIP 0402 330PF 50V J NPO C620 065G040233131J T CAP CHIP 0402 330PF 50V J NPO C621 065G040233131J T CAP CHIP 0402 330PF 50V J NPO C611 065G040233131J T CAP CHIP 0402 330PF 50V J NPO C612 065G040233131J T CAP CHIP 0402 330PF 50V J NPO C612 065G040233131J Y 0402 330PF J 50V NPO C611 065G040233131J Y 0402 330PF J 50V NPO C621 065G040233131J Y 0402 330PF J 50V NPO C620 065G040233131J Y 0402 330PF J 50V NPO C619 065G040233131J Y 0402 330PF J 50V NPO C618 065G040233131J Y 0402 330PF J 50V NPO C424 065G040247031J 3 CAP CHIP 0402 47P 50V NPO +/-5% C423 065G040247031J 3 CAP CHIP 0402 47P 50V NPO +/-5% C424 065G040247031J Y CAP CHIP 0402 47PF 50V NPO +/-5% C423 065G040247031J Y CAP CHIP 0402 47PF 50V NPO +/-5% C102 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C103 065G040247312K A 8.31HIP 0402 47NF K 16V X7R 83 C104 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C108 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C109 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C110 065G040247312K A 8.31HIP 0402 47NF K 16V X7R C110 065G040247312K T CAP 0402 47NF 10% 16V X7R C109 065G040247312K T CAP 0402 47NF 10% 16V X7R C108 065G040247312K T CAP 0402 47NF 10% 16V X7R C104 065G040247312K T CAP 0402 47NF 10% 16V X7R C103 065G040247312K T CAP 0402 47NF 10% 16V X7R C102 065G040247312K T CAP 0402 47NF 10% 16V X7R C105 065G040250931C 3 CAP CHIP 0402 5PF 50V NPO +/-0.25PF C106 065G040250931C 3 CAP CHIP 0402 5PF 50V NPO +/-0.25PF C107 065G040250931C 3 CAP CHIP 0402 5PF 50V NPO +/-0.25PF C115 065G040250931C 3 CAP CHIP 0402 5PF 50V NPO +/-0.25PF C116 065G040250931C 3 CAP CHIP 0402 5PF 50V NPO +/-0.25PF C117 065G040250931C 3 CAP CHIP 0402 5PF 50V NPO +/-0.25PF C117 065G040250931C Y CAP CHIP 0402 5PF 50V NPO +/-0.25PF C116 065G040250931C Y CAP CHIP 0402 5PF 50V NPO +/-0.25PF C115 065G040250931C Y CAP CHIP 0402 5PF 50V NPO +/-0.25PF C107 065G040250931C Y CAP CHIP 0402 5PF 50V NPO +/-0.25PF C106 065G040250931C Y CAP CHIP 0402 5PF 50V NPO +/-0.25PF C105 065G040250931C Y CAP CHIP 0402 5PF 50V NPO +/-0.25PF C625 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R C432 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R C450 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R C498 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R C602 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R C604 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R C605 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R C607 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R C617 065G060310512K 3 MLCC 0603 CAP 1UF K 16V X7R C625 065G060310517Z 3 CAP CHIP 0603 1UF 16V Y5V -20%+80% C617 065G060310517Z 3 CAP CHIP 0603 1UF 16V Y5V -20%+80% C607 065G060310517Z 3 CAP CHIP 0603 1UF 16V Y5V -20%+80% C605 065G060310517Z 3 CAP CHIP 0603 1UF 16V Y5V -20%+80% C604 065G060310517Z 3 CAP CHIP 0603 1UF 16V Y5V -20%+80% C602 065G060310517Z 3 CAP CHIP 0603 1UF 16V Y5V -20%+80% C498 065G060310517Z 3 CAP CHIP 0603 1UF 16V Y5V -20%+80% C450 065G060310517Z 3 CAP CHIP 0603 1UF 16V Y5V -20%+80% C432 065G060310517Z 3 CAP CHIP 0603 1UF 16V Y5V -20%+80% C112 065G060322031J 3 CAP 0603 22PF 5% 50V NPO C111 065G060322031J 3 CAP 0603 22PF 5% 50V NPO C111 065G060322031J Y CAP CHIP 0603 22P 50V NPO +/-5% C112 065G060322031J Y CAP CHIP 0603 22P 50V NPO +/-5% C601 065G060347412K Y CAP CHIP 0.47UF 16V +/-10% X7R C603 065G060347412K Y CAP CHIP 0.47UF 16V +/-10% X7R C606 065G060347412K Y CAP CHIP 0.47UF 16V +/-10% X7R 84 C610 065G060347412K Y CAP CHIP 0.47UF 16V +/-10% X7R C616 065G0805106A7Z 3 CAP CHIP 0805 10UF 10V Y5V -20~+80% C615 065G0805106A7Z 3 CAP CHIP 0805 10UF 10V Y5V -20~+80% C535 065G0805106A7Z 3 CAP CHIP 0805 10UF 10V Y5V -20~+80% C481 065G0805106A7Z 3 CAP CHIP 0805 10UF 10V Y5V -20~+80% C616 065G0805106A7Z Y CAP CHIP 0805 10U 10V Y5V -20~+80% C615 065G0805106A7Z Y CAP CHIP 0805 10U 10V Y5V -20~+80% C481 065G0805106A7Z Y CAP CHIP 0805 10U 10V Y5V -20~+80% C535 065G0805106A7Z Y CAP CHIP 0805 10U 10V Y5V -20~+80% FB401 071G 56K121 CHIP BEAD FB402 071G 56K121 CHIP BEAD FB403 071G 56K121 CHIP BEAD FB404 071G 56K121 CHIP BEAD FB405 071G 56K121 CHIP BEAD FB406 071G 56K121 CHIP BEAD FB407 071G 56K121 CHIP BEAD FB408 071G 56K121 CHIP BEAD FB620 071G 56K121 CHIP BEAD FB411 071G 56K121 CHIP BEAD FB701 071G 56K121 CHIP BEAD FB609 071G 56K121 CHIP BEAD FB608 071G 56K121 CHIP BEAD FB607 071G 56K121 CHIP BEAD FB606 071G 56K121 CHIP BEAD FB601 071G 56K121 CHIP BEAD FB508 071G 56K121 CHIP BEAD FB507 071G 56K121 CHIP BEAD FB505 071G 56K121 CHIP BEAD FB503 071G 56K121 CHIP BEAD FB502 071G 56K121 CHIP BEAD FB501 071G 56K121 CHIP BEAD FB410 071G 56K121 CHIP BEAD FB401 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB402 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB403 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB404 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB405 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB406 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB407 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB408 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB410 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB501 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB502 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB503 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB505 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB507 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB508 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 85 FB601 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB606 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB607 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB608 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB609 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB701 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB411 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 FB620 071G 56K121 TA CHIP BEAD 120R/6000MA HCB2012KF-121T60 L505 073G253S 6 M COMMON FILTER CHOKE 90 OHM HF L504 073G253S 6 M COMMON FILTER CHOKE 90 OHM HF L503 073G253S 6 M COMMON FILTER CHOKE 90 OHM HF L501 073G253S 6 M COMMON FILTER CHOKE 90 OHM HF CN104 088G 340 19 AV HDMI HEADER 19P +SCREW HOLE CN104 088G 340 19 DL HDMI HEADER 19P 2nd source CN103 088G 34019G AT HDMI HEADER 19P - - 2nd source CN103 088G 34019G AV HDMI HEADER 19P BLACK - D104 093G 60505 DIO SIG SM BAT54C(PHSE)R D103 093G 60505 DIO SIG SM BAT54C(PHSE)R D101 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC D101 093G 64 42 P BAV70 SOT23 BY PAN JIT ZD101 093G 39GA01 T RLZ5.6B ZD103 093G 39GA01 T RLZ5.6B ZD104 093G 39GA01 T RLZ5.6B ZD105 093G 39GA01 T RLZ5.6B ZD403 093G 39GA01 T RLZ5.6B ZD404 093G 39GA01 T RLZ5.6B ZD405 093G 39GA01 T RLZ5.6B ZD405 093G 39S 24 T RLZ 5.6B LLDS ZD404 093G 39S 24 T RLZ 5.6B LLDS ZD403 093G 39S 24 T RLZ 5.6B LLDS ZD105 093G 39S 24 T RLZ 5.6B LLDS ZD104 093G 39S 24 T RLZ 5.6B LLDS ZD103 093G 39S 24 T RLZ 5.6B LLDS ZD101 093G 39S 24 T RLZ 5.6B LLDS E715 715G4027M01000004F MAIN PCB FR4 DS 220X100X1.6MM 2nd source E715 715G4027M01000004L MAIN PCB FR4 DS 220X100X1.6MM KEPCAQH1 KEY BOARD G4133-K0B-000-X-1-100323 A33G0785AGS 1L0100 LENS Q05G6126 1 WASHER CN001 033G8032 7F S HR CONNECTOR 7P 1.25 U001 056G 669 15 TOUCH KEY IT7230BFN/BX-0001(R) QFN24 R004 061G0402101 JI BEST ONLY RST 0402 100R 5% 1/16W TA-I R006 061G0402101 JI BEST ONLY RST 0402 100R 5% 1/16W TA-I R005 061G0402101 JI BEST ONLY RST 0402 100R 5% 1/16W TA-I R004 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN R006 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN R005 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 86 R003 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I R001 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I R002 061G0402103 JI TEST ONLY RST 0402 10K 5% 1/16W TA-I R003 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R001 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R002 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN C008 065G040210131J T CAP CHIP 0402 100PF 50V NPO C008 065G040210131J Y CAP CHIP 0402 100P 50V NPO +/-5% C005 065G040210427Z T NO-SUGGEST 0402 0.1UF 25V Y5V C006 065G040210427Z T NO-SUGGEST 0402 0.1UF 25V Y5V C007 065G040210427Z T NO-SUGGEST 0402 0.1UF 25V Y5V C009 065G040210427Z T NO-SUGGEST 0402 0.1UF 25V Y5V C010 065G040210427Z T NO-SUGGEST 0402 0.1UF 25V Y5V C011 065G0402105A7Z Y CAP CHIP 0402 1UF Z 10V Y5V C013 065G0402105A7Z Y CAP CHIP 0402 1UF Z 10V Y5V C003 065G040212031J T CAP CHIP 0402 12PF 50V J NPO C004 065G040212031J T CAP CHIP 0402 12PF 50V J NPO C004 065G040212031J Y CAP CHIP 0402 12P 50V NPO +/-5% C003 065G040212031J Y CAP CHIP 0402 12P 50V NPO +/-5% LED004 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T LED003 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T LED002 081G 15B 1 EL LED BLUE 12-215-BHC-YLMQY-3T LED001 081G15BY 2 EL LED BLUE/ORANGE 12-22/BHS2C-C30/2C 715G4133K01000004S KEY PCB FR4 102X14.5X1.0MM DS Q01G6078 4 SCREW M4 6 Q27G6031 1 SPK NET Q40G0003615B61 E2239FWT POP LABEL Q40G0003615B62 DUAL STAND LABEL Q40G000362426A WIN7+EPEAT SILVER+EPA+SRS Q41G78S161533A E2239FWT QSG Q44GB031101 EPS Q44GB031201 PULP MOLD CUSHION Q44GB031615 1A 21.5" LCD CARTON Q45G 88609214 N EPE BAG Q70G22C161515D E2239FWT CD MANUAL E09507 S95G179T30NH21 FFC CABLE 30PIN 200MM P1.0MM 089F80002003BG 1.0*30*2.5-200-3-0.65*0.05 033F303FH10BK3 F1010HA-30P-BK 033F303FJSHK30 1.0S-19-30A 044F3231SMJ001 TAPE 30*11.5*0.1 044F3231SMJ002 TAPE 25*25*0.15 E08904 089G 17356G554 AUDIO CABLE 1800MM 2nd source E08904 089G 17356X554 AUDIO CABLE 1800MM Q36G 600517 DUSTER CLOTH Q41G2009615 9C WARRANTY CARD Q45G2010M0201A P.E. BAG (INSTR. BOOK) 040G 58162435A P/N LABEL FOR MANUAL PE BAG 87 040G 581689 4A BARCODE LABEL FOR 1 Q40G 22N61598A RATING LABEL Q40G000161514A CARTON LABEL Q40G000162439A LABEL -CEL G1 LABEL 1.05/0.5
