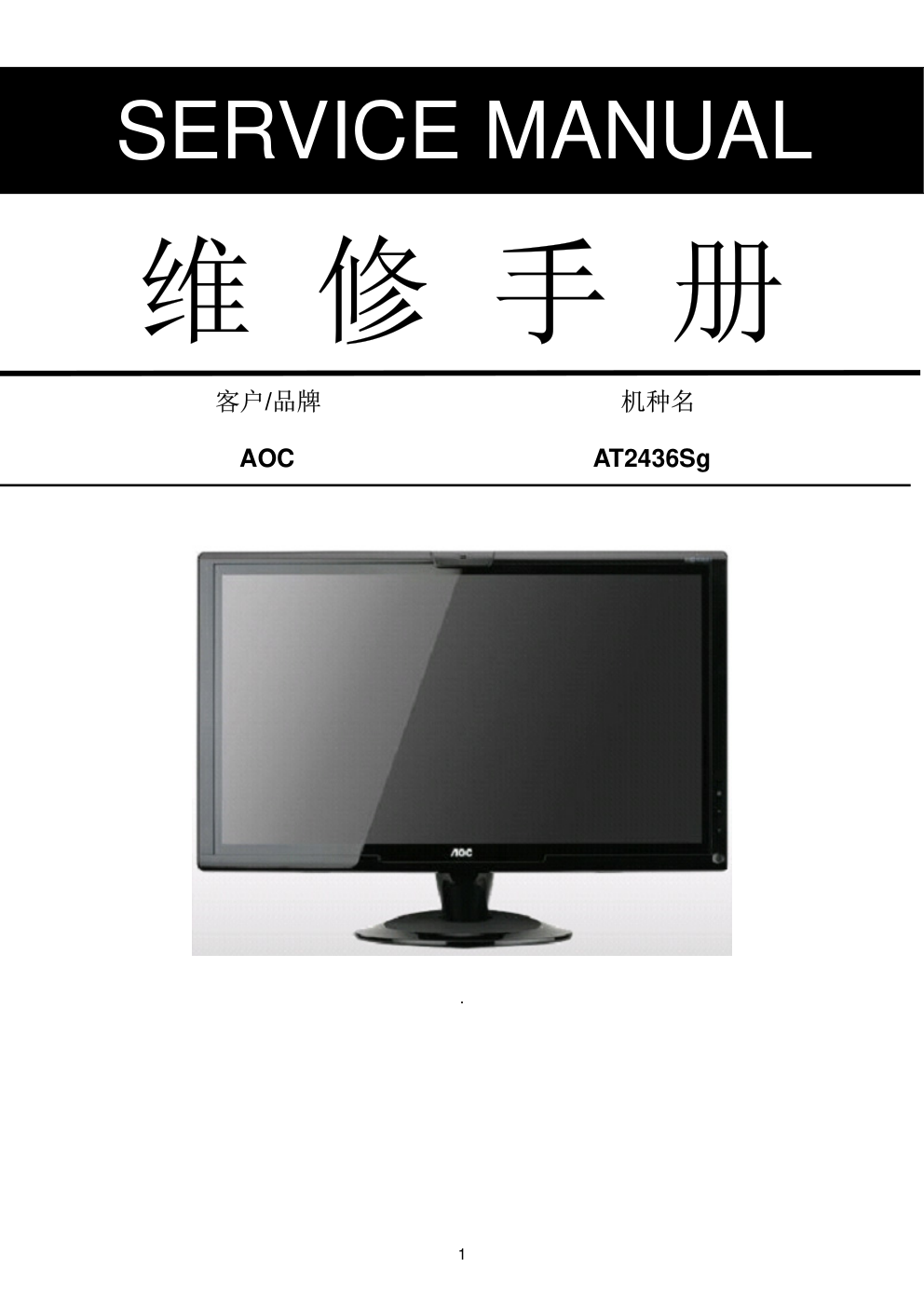

1 维 修 手 册 客户/品牌 机种名 AOC AT2436Sg SERVICE MANUAL 2 变更说明 版本 发布日期 变更说明 对外机种名 对内机种名 A00 Jul.-22-2010 Initial Release AT2436Sg TKAAA8ND3XA3B3E TKAAA8ND3XA3BNE A01 Aug.-26-2010 Add new Models AT2436Sg TKAAA8ND3XA3B6E TKAAA8ND3XA3BCE TKAAA8ND3XA4BCE TKAAA8ND3XA4B6E TKYAA8ND3XA3BNE TKYAA8ND3XA3B6E TKYAA8ND3XA4B6E TKYAA8ND3XA4BCE TKYAA8ND3XA3B3E TKYAA8ND3XA3BCE 3 目录 1. 技术规格 -------------------------------------------------------------------------------------------------------------- 4 1.1 一般规格 --------------------------------------------------------------------------------------------------------- 4 1.2 工厂预设模式 --------------------------------------------------------------------------------------------------- 5 2. 操作说明 -------------------------------------------------------------------------------------------------------------- 6 2.1 控制面板 --------------------------------------------------------------------------------------------------------- 6 2.2 接口说明 --------------------------------------------------------------------------------------------------------- 8 2.3 OSD 菜单调整 ------------------------------------------------------------------------------------------------- 9 3. 工厂模式调整 -------------------------------------------------------------------------------------------------------- 13 4. 故障处理流程 -------------------------------------------------------------------------------------------------------- 14 4.1 主板 --------------------------------------------------------------------------------------------------------------- 14 4.2 电源板 ------------------------------------------------------------------------------------------------------------ 17 4.3 按键板 ------------------------------------------------------------------------------------------------------------ 19 5. 电气方框图 ----------------------------------------------------------------------------------------------------------- 20 5.1 主板 --------------------------------------------------------------------------------------------------------------- 20 5.2 电源板 ------------------------------------------------------------------------------------------------------------ 21 6. 线路图 ----------------------------------------------------------------------------------------------------------------- 22 6.1 主板 --------------------------------------------------------------------------------------------------------------- 22 6.2 电源板 ------------------------------------------------------------------------------------------------------------ 26 6.3 USB 板 ----------------------------------------------------------------------------------------------------------- 28 6.4 按键板 ------------------------------------------------------------------------------------------------------------ 30 7. ISP 和 DDC 烧录 SOP --------------------------------------------------------------------------------------------- 31 8. 料件清单 -------------------------------------------------------------------------------------------------------------- 32 4 1. 技术规格 1.1 一般规格 5 1.2 工厂预设模式 6 2. 操作说明 2.1 控制面板 一般说明 按电源开关即可开关显示器（见下图）。其它功能按键位于前面板上通过调节这些功能键可得到您需要的画面 打开显示器把开关打到开机位置， 接好电源线。将信号线接到PC机显卡。电源指示灯亮。 外部控制 电源：按电源键打开或关闭显示器. 信号源切换(4 :3或宽屏) /向上： 按此键切换4：3或宽屏模式，当输入信号的分辨率是宽屏时，此键没有作用，当主菜单或子菜单被激活时， 在OSD菜单中此按键是向上功能键或者是增加数值。 信号源快捷键： 当没有OSD菜单时，按信号源快捷键激活信号源功能(仅针对两种输入信号及以上机型)。 连续按信号源切换键来选择信息栏中显示的信号源，按菜单键调整为选择的信号源。 自动调整 /向下：当没有OSD菜单时，按自动调整快捷键启动自动调整功能。 7 1. 电源 2. D-Sub 3. DVI 控制和连接 信号线 信号线连接：把15针插头的信号线一端接PC的显示卡输出口一端接显示器输入口并用螺丝锁好。 电源线连接：将电源线插入①电源线插孔。 注意： 若电源插座未接地(应为三孔), 必须安装正确的接地，以保证安全。 8 2.2 接口说明 D-Sub 接口 DVI接口 9 2.3 OSD 菜单调整 基本按键操作说明 按MENU 按钮激活OSD主菜单，可依照以下操作说明来调节显示器。 1) 按 MENU 按钮激活 OSD 窗口。 2) 按 向上 或 向下 浏览这些功能。 如果想要调整的功能突出显示，按 MENU 按钮激活它。 如果所选的功能包含有子菜单，再按一下 向上 或 向下 可以浏览到子菜单功能。如果想要调整的功能 突出显示，按 MENU 按钮激活它。 3) 按 向上 或 向下 更改所选功能的设置。要退出和保存，请选择退出功能。如果您想调整其它任何功能， 请重复步骤 2-3 。 4) OSD 锁定功能： 要锁定 OSD ，请在显示器关闭时按住 MENU 按钮，然后按电源按钮打开显示器。 要解锁 OSD ，请在显示器关闭时按住 MENU 按钮，然后按电源按钮打开显示器。 10 11 12 13 3. 工厂模式调整 进入工厂模式方法： 先按“电源”键关机，然后在按^(上)和ˇ(下)键的同时,按“电源”键开机，最后按“菜单”键，这时工厂模式菜单 将出现在屏幕的右下方。 a.基本调整: 设置对比度 为 50。 设置亮度 为 90。 b.增益调整: 调整9300K色温 1、选中“AUTO LEVEL”先进行底光栅自动调整 2、按“MENU”选择9300K进行R G B增益调整 x = 283±30, y = 297 ±30, Y =180 ±30 cd/m2 调整7300K色温 1、选中“AUTO LEVEL”先进行底光栅自动调整 2、按“MENU”选择7300K进行R G B增益调整 x = 302±30, y = 318±30, Y = 180 ±30 cd/m2 调整6500K色温 1、选中“AUTO LEVEL”先进行底光栅自动调整 2、按“MENU”选择 6500K 进行 R G B 增益调整 x = 313±30, y = 329 ±30, Y =180 ±30 cd/m2 调整SRGB色温 1、选中“AUTO LEVEL”先进行底光栅自动调整 2、按“MENU”选择 6500K 进行 R G B 增益调整 x = 313±30, y = 329 ±30, Y =180 ±30 cd/m2 c.调整完毕直接关闭电源。 14 4. 故障处理流程 4.1 主板 无供电 无供电 按下电源键看画面是否正常 重新插插头然后检查 AC:100-240V 是否正常? 检查 U701 Vout=3.3V; U703=1.8V 检查适配器及升压板部分和交流电源输入 检查 X401 晶振是否正常 检查或更换 CN701,U701,U703 更换 U401 更换 X401 OK OK OK NG NG NG NG 15 无画 (LED 橙色) 无画 检查信号线 更换信号线 检查 U701 Vout=3.3V; U703=1.8V 更换 U401 检查 X401 震荡波是否正常 更换 CN701,U701,U703 OK OK OK OK NG NG 检查 CN101 的 HS/VS 是否正常 更换 X401 检查相关回路 NG NG 16 白屏 白屏 检查 Q302 的基极是否为 低电平 检查 X401 的晶振是否正 常 检查 Q301 是否损坏或 CN301 虚焊 检查相关元件 更换 PANEL 检查相关元件 更换 U401 OK OK OK 更换 X401 OK NG NG NG NG 检查 U401 复位电路是否 正常 17 4.2 电源板 死机 检测交流电 100V or 240V 是否正常？ 检测 AC 输入 检测 C905 (+)的电压大小 检测全桥整流回路和 F901 回路 检测 IC901 第 8 脚电压是否正常？ 检测 R904,R905 或更换 IC901 NG 检测二次启动电压是否正常？ 1) 检测 IC901 2) 检测 D901,D903 回路 检测 D906,D907,D908,Q903,IC903,IC904,ZD902 OK 检测 IC901 第 5 脚的 PWM 波形 OK 检测 IC901 NG NG OK OK OK NG NG 18 无背光 检测 R803 电压是否为 16V NG OK 检测 Adapter 回路 检测 ON/OFF 信号 检测主板 NG OK 检测 IC801 第 11 脚是否为 5V NG OK 检测 IC801 第 6,8,9,10 脚的 PWM 波形 NG 更换 IC801 检查接口或灯管,反馈和保护回路 OK 更换 IC801 检测 Q805,Q806 NG 更换 Q805,Q806 OK 检测 PT801 NG 更换 PT801 OK 19 4.3 按键板 OSD 画面不稳定及不可调整 OK OSD 画面不稳定及不可调整 按键板是否连接正常 连接好按键板 按键开关是否正常 替换按键开关 OK NG NG 按键板是否正常 替换按键板 OK NG OK 检查主板 20 5 电气方框图 5.1 主板 Crystal 14.31818MHz (X401) FLASH ROM MX25L2026MI (U402) Scalar IC TSUMU58NHL-LF-1 (Include ADC, OSD, MCU) (U401) Panel Interface (CN301) Key Control Interface (CN402) D-Sub Connector (CN101) H sync V sync EEPROM AT24C02BN (U101) DVI Connector (CN102) EEPROM AT24C02BN (U102) DDC1_SCL DDC1_SDA DDC2_SCL DDC2_SDA 21 5.2 电源板 5V EMI filter Start Resistor (R904,R905) PWM Control LD7576 (IC901) Transformer (T901) AC input 16V Bridge Rectifier and Filter Feedback Circuit Rectifier diodes Photo coupler (IC903) ON/OFF 5V DIM PID Feedback Circuit Transformer (PT801) MOSFET (Q805, Q806) Lamp Output Circuit PWM Control TA9687GN (IC801) 16V Power Switch (Q901) Regulator (IC904) 22 6. 线路图 6.1 主板 715G3329 1 2 CN101 1 6 2 7 3 8 4 9 5 11 12 13 14 15 10 17 16 R120 10K 1/16W 5% VGA_PLUG Q101 NC ESD_VCC ESD_VCC ESD_VCC1 ESD_VCC1 DSUB_SCL DDC1_SCL CMVCC1 3,4 CMVCC1 DVI_5V C121 1000pF VGA_R- DSUB_B+ 5 R140 NC D104 BAV70 3 1 2 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 AOC 2236VWA B NEW R SERIES B 2 5 Wednesday , June 10, 2009 <称爹> 2.0.INPUT G3329-C-2-X-2-090401 DVI 1_5V U102 AT24C02BN-SH-T A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 DSUB_SCL DSUB_SDA 候綼　U101 候綼　U103 候綼　U107 候綼　U106 候綼　U105 C101 NC VGA_R+ VGA_B+ VGA_G+ V_Sy nc VGA_G- DDC1_SDA DSUB_SDA H_Sy nc C117 0.22uF16V DDC1_SCL DDC2_SDA DDC2_SCL R123 4K7 1/16W 5% R136 4K7 1/16W 5% D108 BAV70 3 1 2 FB104 300 OHM C120 NC H_Sy nc C116 0.22uF16V FB105 300 OHM DSUB_B- 5 DSUB_SOG 5 DSUB_G+ 5 DSUB_R+ 5 DSUB_R- 5 DSUB_G- 5 DSUB_H 5 U103 AZC199-04S I/O1 1 GND 2 I/O2 3 I/O3 4 VDD 5 I/O4 6 DSUB_V 5 DDC2_SCL 5 DDC2_SDA 5 RX0P 5 U104 AZC199-04S I/O1 1 GND 2 I/O2 3 I/O3 4 VDD 5 I/O4 6 RX0N 5 RX1N 5 RX1P 5 RX2P 5 RX2N 5 DVI 1_5V RXCP 5 RXCN 5 U106 AZC199-04S I/O1 1 GND 2 I/O2 3 I/O3 4 VDD 5 I/O4 6 DDC1_SCL 5 DDC1_SDA 5 DDC1_SDA VGA_B- DET_CABLE 5 U105 AZC199-04S I/O1 1 GND 2 I/O2 3 I/O3 4 VDD 5 I/O4 6 DDC_WP 5 U107 AZC199-04S I/O1 1 GND 2 I/O2 3 I/O3 4 VDD 5 I/O4 6 DDC_WP 5 ESD_VCC1 FB110 300 OHM ESD_VCC2 CN102 JACK DAT2- 1 DAT2+ 2 2/4shield 3 DAT4- 4 DAT4+ 5 DDC SCL 6 DDC SDA 7 VSYNC 8 DAT1- 9 DAT1+ 10 1/3shield 11 DAT3- 12 DAT3+ 13 +5V 14 SYNC GND 15 HPD 16 DAT0- 17 DAT0+ 18 0/5shield 19 DAT5- 20 DAT5+ 21 clk shield 22 clk+ 23 clk- 24 GND 26 GND 25 R104 1K 1/16W 5% R138 4K7 1/16W 5% DDC2_SDA C113 5pF/50V DSUB_5V V_Sy nc FB102 BEAD 1 2 R125 4K7 1/16W 5% VGA_PLUG RX1P R124 4K7 1/16W 5% C124 0.1uF/16V VCC3.3 VGA_R+ DDC2_SCL VGA_B+ ESD_VCC RX2P R137 4K7 1/16W 5% VGA_PLUG VGA_G- R122 NC C107 1000pF HDCP_CTRL 5 R139 6K8 1/16W 5% R127 10R 1/16W 5% R111 100R 1/16W 5% R101 100R 1/16W 5% C114 0.047uF R112 75R 1/16W 5% VGA_G+ RX0N DVI_5V C106 0.047uF ESD_VCC1 VGA_R- R129 10R 1/16W 5% R135 10K 1/16W 5% DGND R134 10R 1/16W 5% C103 22pF C104 22pF C110 0.047uF C122 1000pF ZD104 RLZ5.6B R121 NC VGA_B- R131 10R 1/16W 5% U101 AT24C02BN-SH-T A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 R103 1K 1/16W 5% FB103 BEAD 1 2 R126 10R 1/16W 5% R119 100R 1/16W 5% R105 100R 1/16W 5% C111 0.047uF VGA_G+ R108 75R 1/16W 5% VGA_B+ R115 100R 1/16W 5% ESD_VCC1 RXCN CMVCC1 RX1N DSUB_5V R117 100R 1/16W 5% C115 0.1uF/16V R110 470R 1/16W 5% C109 5pF/50V R116 75R 1/16W 5% R128 10R 1/16W 5% R106 2K2 1/16W 5% RX0P C108 0.047uF C118 NC VGA_R+ C119 NC R109 100R 1/16W 5% R107 2K2 1/16W 5% C112 NC DVI_HPD C102 0.047uF R102 0R05 1/10W 5% FB101 BEAD 1 2 RX2N R133 10K 1/16W 5% R130 10R 1/16W 5% R132 10R 1/16W 5%RXCP R113 100R 1/16W 5% R114 100R 1/16W 5% GND POWER DVI_HPD C105 5pF/50V R118 100R 1/16W 5% 23 LVB0P PB8 PA2 LVACKP LVB1M PB7 LVB3P PB0 PA5 LVA2M PA0 LVA3P PA9 LVA0M R301 220 OHM 1/4W PA4 LVA2P LVB3M PB1 PA8 LVA0P PA[0..9] LVB2M PB5 PA1 LVA3M LVB0M PB9 PA6 LVA1P LVBCKP PB2 PA3 LVACKM LVBCKM PB3 LVB2P PB4 PA7 LVA1M LVB1P PB6 PB[0..9] FB301 120 OHM 1 2 CN301 NC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 C304 0.1uF/16V R308 10K 1/16W 5% R302 220 OHM 1/4W R306 56K 1/16W 5% CN302 CONN 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 C302 0.22uF16V R307 NC R305 10K 1/16W 5% Q302 2N3904S-RTK/PS C301 0.1uF/16V Q301 AO3401 R303 4K7 1/16W 5% U301 NC/AO4411 S 1 S 2 S 3 G 4 D 8 D 7 D 6 D 5 + C305 100UF25V CMVCC1 PANEL_VCC PANEL_VCC PPWR_ON# 5 PB[0..9] 5 PA[0..9] 5 CMVCC1 PANEL_VCC CMVCC1 2,4 1 2 AO3401L 080912 G 3 D S C303 1uF/25V LVA0P RXE0+ R304 22K 1/16W 5% RXO0- LVB0M RXE3- LVA3M RXE1- LVA1M LVACKM RXEC- RXO3- LVB3M LVB2M RXO2- RXO1- LVB1M RXE2- LVA2M LVBCKM RXOC- RXOC+ LVBCKP RXE0- LVA0M RXE2+ LVA2P RXO0+ LVB0P RXO1+ LVB1P RXO3+ LVB3P RXO2+ LVB2P RXEC+ LVACKP RXE1+ LVA1P RXE3+ LVA3P LVACKM RXEC- LVBCKM RXOC- RXE2- LVA2M RXE1- LVA1M RXO3- LVB3M RXE0- LVA0M RXO0- LVB0M RXE3- LVA3M RXO1- LVB1M LVB2M RXO2- OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 AOC 2236VWA B NEW R SERIES B 3 5 Wednesday , June 10, 2009 <称爹> 3.0.OUTPUT G3329-C-2-X-2-090401 RXEC+ LVACKP RXO2+ LVB2P RXE0+ LVA0P RXE1+ LVA1P RXOC+ LVBCKP RXE2+ LVA2P RXE3+ LVA3P RXO0+ LVB0P RXO3+ LVB3P RXO1+ LVB1P 24 C712 0.1uF/16V CMVCC1 2,3 Volume# R708 3.3OHM 2W SOT 223 SOT 252 CMVCC1 PANEL_ID# 5 PANEL_ID# R709 NC R710 NC VCC3.3 VCC3.3 VCC3.3 R701 NC lock type + C704 100UF25V U701 AP1117E33LA VSS 1 VOUT 2 VIN 3 U704 NC/AP1117E18LA VI 3 VO 2 GND 1 4 4 Both 223 and 252 foot-print Mute1 BKLT-EN BKLT-VBRI BKLT-EN CMVCC1 BKLT-VBRI CMVCC1 R702 10K 1/16W 5% C701 0.1uF/16V R703 10K 1/16W 5% C708 0.1uF/16V C702 0.1uF/16V CN701 CONN 1 2 3 4 5 6 7 8 9 R705 1K 1/16W 5% R704 22K 1/16W 5% + C707 100UF25V C709 0.1uF/16V R706 100R 1/16W 5% Q701 2N3904S-RTK/PS C705 0.1uF/16V DGND 2,3,5 VCC1.8 Volume# 5 Mute 5 CMVCC1 U703 AZ1117D-1.8-E1 OUT 2 IN 3 GND 1 SOT 223 U702 NC/AP1117D33L-13 ADJ(GND) 1 VOUT 2 VIN 3 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 AOC 2236VWA B NEW R SERIES B 4 5 Wednesday , June 10, 2009 <称爹> 4.0.POWER G3329-C-2-X-2-090401 C713 0.1uF/16V on_BACKLIGHT 5 adj_BACKLIGHT 5 25 R461 0R05 1/10W 5% CMVCC1 Max condition for LED: 1. Vcc = 3.3 V 2. Current = 12 mA FW need to be modified. Q407 NC R456 22R 1/16W 5% Q408 NC R460 NC VCC3.3 R447 NC Q407 2N3906S 2N3906S NC Q408 NC WP ZD401 NC R433 3.9K OHM +-1% 1/16W NC NC NC NC NC NC VCC3.3 PA[0..9] 3 PB[0..9] 3 Cs and Cd (C420, C421) X'TAL 18 pF 瑉红 (93G 22-53-J) 　蔼 (93G 22-53B-H) Normal Function : CL = Cs + ((Cg*Cd)/(Cg+Cd)) P.S : Assume Cs = 4 pF X401 27 pF CL of SPEC 32 pF 56 pF For detect function, depend on FW R431 NC DSUB_R+ 2 R411 NC R406 22K 1/16W 5% R408 NC CMVCC1 VCC3.3 R453 NC R454 NC CMVCC1 VCC3.3 R457 NC R458 NC MSCL TSUMU58NHL-LF-1 RIN0P 23 GIN0P 20 SOGIN0 21 BIN0P 18 RIN0M 22 GIN0M 19 BIN0M 17 HSYNC0 27 VSYNC0 28 REXT 15 REFP 26 REFM 25 SDO 37 SCK 39 SCZ 38 SDI 40 PWM2/GPIO_P24 47 PWM3/GPIO_P27 86 LVACKM 59 XOUT 96 XIN 97 LVA2P 60 LVA2M 61 LVA1P 62 LVA1M 63 LVA0P 64 LVA0M 65 LVB3P 67 LVB3M 68 LVBCKP 69 LVBCKM 70 LVB2P 71 LVB2M 72 LVB1P 73 LVB1M 74 LVB0P 77 LVB0M 78 LVACKP 58 LVA3M 55 LVA3P 54 GND 2 GND 5 RX2P 3 RX2N 4 RX1P 6 RX1N 7 AVDD_33 8 RX0P 9 RX0N 10 RXCKP 12 RXCKN 13 GND 11 GND 29 GND 33 AVDD_33 24 VDDP 56 MODE[1] 53 MODE[0] 52 VCTRL 81 VDDC 51 DDCA_SDA/RS232_TX 30 DDCA_SCL/rs232_RX 31 DDCD_SDA 100 DDCD_SCL 1 PWM1/GPIO_P16 93 AVDD_33 14 VDDP 75 GPIO_P22/PWM0 35 GPIO_P45/PWM1 48 GPIO_P25 85 GPIO_P01/SAR1 88 GPIO_P02/SAR2 89 GPIO_P03/SAR3 90 GPIO_P07 91 GPIO_P15 92 GPIO_P12 94 GPIO_P13 95 GPIO_P14/PWM0 99 GPIO_P11/I2C_MDA 43 GPIO_P10/I2C_MCL 44 RST 84 GPIO_P47 41 GPIO_P46 42 AVDD_33 98 AVDD_33 16 VDDP 32 VDDP 49 VDDC 66 VDDC 82 VDDC 34 GND 50 GND 57 GND 76 GND 79 GND 83 BYPASS 80 GPIO_P00/SAR0 87 GPIO_P23 36 GPIO_P43 45 GPIO_P42 46 CMVCC1 TOUCH_POWER R451 NC R452 0R05 1/16W C420 47pF C413 0.1uF/16V R445 NC PANEL_ID# 4 KEY2 VDDP PA2 PA3 C415 0.1uF/16V VCC3.3 VCC3.3 2,4 C404 0.1uF/16V LED_ORANGE PB7 R401 390 OHM 1/16W C434 NC PB9 LED O MSCL R412 10K 1/16W 5% VCC3.3 PB5 LED G_B VMPLL LED O C416 0.1uF 16V PB0 PA7 C409 0.1uF/16V PB[0..9] R414 0R05 1/16W R418 0R05 1/16W FB404 300OHM C422 0.1uF/16V LED_GRN/BLUE C403 0.1uF/16V LED_ORANGE LF_B POWER_KEY# C410 0.1uF/16V AVDD C431 NC POWER_KEY# VDDC R420 NC VCC3.3 C407 0.1uF/16V C406 0.1uF/16V C405 0.1uF/16V LED_GRN/BLUE C414 0.1uF/16V R415 100R 1/16W 5% PA1 PA0 BUZZER VCC3.3 VPLL LED G_B R417 100R 1/16W 5% VMPLL C408 0.1uF/16V VCC3.3 C417 0.1uF/16V C411 0.1uF/16V MSDA C421 47pF PB4 R419 0R05 1/16W VCC3.3 PPWR_ON# 3 CMVCC1 EE_WP PB2 KEY1 R407 10K 1/16W 5% X401 14.31818MHz 1 2 AVDD MSDA R409 100R 1/16W 5% R428 100R 1/16W 5% CN401 NC/CONN 1 2 3 4 5 6 PA6 DVI 1_5V R446 NC FB401 300OHM VPLL KEY2 C401 0.22uF16V VDVI PA8 R425 NC R421 100K 1/16W 5% VDDP R423 0R05 1/16W VDDC PA5 C432 0.1uF/16V R462 NC C435 NC + C419 10UF50V C412 0.1uF/16V R422 100R 1/16W 5% C433 NC FB402 300OHM LVDS PB3 PA[0..9] AVDD PA4 DET_CABLE 2 PA9 R424 100R 1/16W 5% R416 100R 1/16W 5% VCC1.8 PB8 PB1 VDVI PB6 VCC1.8 4 R404 1K 1/16W 5% Q405 2N3906S-RTK/PS 1 2 3 VCC3.3 LF_B R402 1K 1/16W 5% R405 0R05 1/10W 5% R457 Direct LED R462 R459 100R 1/16W 5% NC 10K 1/16W 5% 100R 1/16W 5% R420 NC 0R 1/16W 5% NC R453 R419 2.2K 1/16W 5% Indirect LED 2.2K 1/16W 5% 10K 1/16W 5% 0R 1/16W 5% NC R455 FB405 NC C436 1uF 10V DDC2_SCL 2 U402 EN25F20-100GCP CS# 1 DO 2 WP# 3 VSS 4 DI 5 CLK 6 HOLD# 7 VCC 8 R432 3.9K OHM +-1% 1/16W R461 0R 1/16W 5% NC NC 0R 1/16W 5% KEY1 C402 4.7uF/10V CMVCC1 2 CN402 CONN 1 2 3 4 5 6 7 Q401 LMBT3904LT1G R434 0R05 1/16W WP DSUB_R- 2 DSUB_G+ 2 DSUB_G- 2 DSUB_B+ 2 DSUB_SOG 2 DSUB_V 2 DSUB_B- 2 DSUB_H 2 DDC1_SDA 2 DDC1_SCL 2 R435 NC RX2P 2 R436 10K 1/16W 5% U402 RX2N 2 SST Eon For ID2008 ID2009 RX1P 2 020A 010A Eon RX1N 2 U402 For user data, WB, EDID, HDCP are saved in Flash. For All model 020 Befor AOC ID2007 OSD SST U402 CN406 NC/CONN 1 2 3 RX0N 2 RX0P 2 RXCN 2 RXCP 2 CMVCC1 DDC2_SDA 2 For BUZZER control board or Touch Panel R441 NC EE_WP R440 NC VCC3.3 U403 NC NC 1 E1 2 E2 3 VSS 4 SDA 5 SCL 6 WC 7 VCC 8 R442 NC C423 NC FB410 300OHM BUZZER R430 NC 10K 1/16W 5% U403 M24C04-WMN6TP 100R 1/16W 5% 10K 1/16W 5% R440 C423 R441 R429 0.22uF16V 10K 1/16W 5% Without NVRAM R442 100R 1/16W 5% HDCP_CTRL 2 For NVRAM DDC_WP 2 on_BACKLIGHT 4 adj_BACKLIGHT 4 Volume# 4 Mute 4 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 AOC 2236VWA B NEW R SERIES Custom 5 5 Wednesday , June 10, 2009 <称爹> 5.0.SCALER G3329-C-2-X-2-090401 R426 NC R455 NC R459 NC R427 NC R429 NC CN403 NC/CONN 2 4 6 8 1 3 5 7 CN404 NC/CONN 1 2 3 4 5 6 CN405 NC/CONN 1 2 3 4 5 6 7 R430 NC C438 NC 26 6.2 电源板 715G2824 1 11 R903 100K OMH 2W +-5% L904 Coil 2436v REV:B ADD CN903(USB 称ノ) J806 BEAD 1 2 FB902 0R 1/4W 4A R927 10K 1/10W 1% +5V +16V +5V NC C921 1000PF/250VAC Q903 KTD1028 C912 0.001uF R962 100 OHM 1/4W CN902 Wire Harness 1 2 3 4 5 6 R920 100 OHM 1/4W R946 470 OHM +-5% 2WS D903 IN4148 +5V1 + C934 1000uF M 16V + C916 1000uF M 16V + C918 680uF25V HS3 HEAT SINK(D906) 1 2 ! - + BD901 GBU408 2 1 3 4 + C908 22uF 50V R938 10K 1/8W 5% ! ! C909 220pF R910 10R 1/4W 5% R939 1K 1/8W 5% R905 8.2K OHM 1/4W R912 220 OHM 1/4W L903 Coil ! NC ! R909 3.3 OHM 1/4W C931 0.1uF ! ! C903 0.22UF275V C928 0.01uF ! D908 SP1060 1 2 3 GND1 GND 1 2 2008-08-20 (D906)Modify C907 0.1uF + C905 120uF450V 67G315Z12115K F901 FUSE ! CN901 SOCKET 1 2 3 R904 8.2K OHM 1/4W R943 470R 1/8W 5% HS1 HEAT SINK(Q901) 1 2 C932 0.001uF ! C940 0.047uF R925 1K 1/8W 5% HS2 HEAT SINK(D908) 1 2 ! ! R940 NC ZD902 TZX18B C900 3300pF 250V GND2 GND 1 2 R914 0.39 OHM 2W +-5% F903 FUSE F902 NC C901 1000pF C930 NC R947 470 OHM +-5% 2WS C906 1500PF2KV C937 100pF/2KV bom change 2008-07-23 FB901 BEAD 1 2 C938 1500PF2KV L901 L 1 4 2 3 2008-08-20 (Q903.R946)Modify OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 PWPCAK41AHD1 1 Custom 3 3 Tuesday , April 27, 2010 715G2824-1-11 ODM MODEL 03.POWER G2824-1-11-X-1-100426 R902 1M 1/4W 5% T901 POWER X'FMR 1 3 4 5 6 7 8 9 10 11 12 DIM NC 2008-08-20 (D906)Modify L905 Coil ON/OFF IC903 PC123X2YFZOF 1 2 4 3 R924 100R 1/8W 5% NR901 NTCR + C917 680uF25V D907 31DQ06FC3 IC901 LD7576 CT 1 COMP 2 CS 3 GND 4 OUT 5 VCC 6 NC 7 HV 8 + C915 470uF/16V + C939 1000uF M 16V R961 100 OHM 1/4W IC904 KIA431A-AT/P R935 100 OHM 1/4W D906 FMX-12SL 1 2 3 R901 1M 1/4W 5% - + BD901A KBP208G 2 1 3 4 CN903 CONN 1 2 3 4 C929 0.001uF D901 FR103 R918 100 OHM 1/4W R919 100 OHM 1/4W C924 0.1uF +16V Q901 STP10NK70ZFP R926 1K 1/10W 1% C902 1000pF R930 9K1 1/10W 1% R949 100 OHM 1/4W R950 100 OHM 1/4W R951 100 OHM 1/4W NC C935 0.001uF C904 NC D900 FR107 27 C810 0.0033uF PT801 POWER X'FMR 6 2 7 5 1 8 2436v Q806 AO4620 S2 1 G2 2 S1 3 G1 4 D1 5 D1 6 D2 7 D2 8 IC801 ta9687GN-A-0-TR VSEN 1 SSTCMP 2 CT 3 RT1 4 GNDA 5 PDR2 6 GNDP 7 NDR2 8 NDR1 9 PDR1 10 VDDA 11 TIMER 12 PWM 13 ISEN 14 OVPT 15 ENA 16 R830 5K6 +-5% 1/8W R828 6.2M1W R806 100K 1/10W 1% CN801 CONN HV 1 LV 2 ZD803 RLZ5.6B 1 2 L801 200mH 1 4 2 3 Relayout Change SMT(Safety) C815 0.1uF C819 56pF3KV D806 BAV70 3 1 2 R813 100K 1/10W 5% C814 220pF R801 10K 1/10W 5% R809 1M 1/10W 5% R807 10K 1/10W 5% CN803 CONN HV 1 LV 2 LV3 C821 56pF3KV C812 NC Relayout Change SMT(Safety) C808 0.033uF R805 NC CN802 CONN HV 1 LV 2 Q805 AO4620 S2 1 G2 2 S1 3 G1 4 D1 5 D1 6 D2 7 D2 8 R837 7K5 1/10W 5% L802 200mH 1 4 2 3 R811 82K1/10W R810 82K 1/10W CN804 CONN HV 1 LV 2 R838 1M 1/10W 5% R842 5K1 1/10W 5% R836 56KOHM +-5% 1/10W LV1 LV4 LV2 LV1 33N/50V 22N/50V LV3 LV2 LV4 D801 IN4148 D803 BAV99 3 1 2 C801 0.047uF C802 0.047uF R803 5K1 1/8W 5% R804 5K1 1/8W 5% C813 NC +5V C811 0.1uF + C804 1000uF 25V R843 5K1 1/10W 5% R808 390R 1/10W 1% R844 5K1 1/10W 5% C805 0.022uF R845 5K1 1/10W 5% ZD802 RLZ5.6B 1 2 +16V ON/OFF DIM JR803 20K 1/8W R802 22R 1/8W 5% PID R816 4R7 1/8W 5% R817 4R7 1/8W 5% R818 4R7 1/8W 5% R819 4R7 1/8W 5% C806 2.2uF/16V R846 0R05OHM1/8W R847 0R05OHM1/8W R848 0R05OHM1/8W BOM change 2008-07-23 BOM change 2008-09-25 BOM change 2008-07-23 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 PWPCAK41AHD1 1 Custom 2 3 Tuesday , April 27, 2010 715G2824-1-11 ODM MODEL 02.INVERTER G2824-1-11-X-1-100426 Q802 2N7002 SOT-23 R812 100K 1/10W 1% C818 1.5UF/10V D807 BAV70 3 1 2 C820 56pF3KV C822 56pF3KV R815 NC C817 2pF/3KV D808 BAV70 3 1 2 R839 1M 1/10W 5% R840 1M 1/10W 5% R841 1M 1/10W 5% C809 220pF 28 6.3 USB 板 715G3501 2 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 A A4 1 1 Tuesday , January 13, 2009 715G3501-2 USB PLUG(UP STREAM) G3501-A-X-X-1-090113 FB501 1 2 3 4 6 5 1 2 3 4 CN502 CONNNECTOR D+ D- Vcc C501 5PF / 50V C502 5PF/50V C503 16V 1 2 3 4 5 CN501 CONN 29 715G2663 2 1 2 3 4 6 5 1 2 3 4 CN512 CONNNECTOR 1 2 3 4 5 CN511 63365 5P 2.0mm OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 D A4 1 1 Friday , October 24, 2008 715G2663-2 USB PLUG(DOWN STREAM) G2663-2-X-1-081024 30 6.4 按键板 715G3371 2 R008 0R05 1/10W 5% R001 0R05 1/10W 5% T08 T09 T07 LED_2 Button_3 Button_1 LED_1 T01 T03 T02 T04 T05 C001 0.001uF U001 CY8C20180-LDX2I GP0[0] 1 GP0[1] 2 I2C SCL 3 I2C SDA 4 GP1[0] 5 GP1[1] 6 VSS 7 GP1[2] 8 GP1[3] 9 GP1[4] 10 XRES 11 GP0[2] 12 VDD 13 GP0[3] 14 CSInt 15 GP0[4] 16 ZD005 UDZSNP5.6B 1 2 ZD004 UDZSNP5.6B 1 2 I2C_SCL I2C_SDA VCC LED_1 Rotate 90 degree Add ESD Move location ZD001 NC/UDZSNP5.6B 1 2 VCC I2C_SCL I2C_SDA C002 0.1uF/25V X7R change to NPO R003 NC/560R 1/10W 5% R005 560R 1/10W 5% R004 560R 1/10W 5% R006 560R 1/10W 5% R007 560R 1/10W 5% Button_1 Button_3 Button_2 Button_5 Button_4 CN001 CONN 1 2 3 4 5 6 I2C_SDA BLUE ORANGE LED001 LED 3 2 1 I2C_SCL T06 Button_2 Button_4 R002 100R 1/10W 5% R009 0R05 1/10W 5% VCC OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 2436Vw A A 1 1 Wednesday , December 03, 2008 715G3371-B <称爹> 1.key G3371-B-X-X-1-081203 Button_5 R010 NC/0R05 1/10W 5% LED_2 int sleep VCC R011 NC/0R05 1/10W 5% R012 0R05 1/10W 5% LED_power Buttons ZD002 NC/UDZSNP5.6B 1 2 ZD003 NC/UDZSNP5.6B 1 2 LED_power int 31 7. ISP 和 DDC 烧录 SOP 请登陆 ftp://cs.tpv.com.cn/ 到各相应的文件夹下载各相应平台的烧录 SOP。 账号: TPVSQZ 密码: TPVZGDLSQZ20090707 注:该网址及登陆账号和密码后续都有可能变更，请以技术支持部最新发布的为准。 32 8. 料件清单 注意: 以下料件信息仅供参考，如有变更，恕不另行通知，请到 http://cs.tpv.com.cn 获取最新信息。 TKAAA8ND3XA3B3E 点位 组件 对象描述 备注 026G 800504 H BARCODE 052G 1186 SMALL TAPE 052G 1208 A ALUMINIUM TAPE 052G 1211 B Conductive Tape 85mm *40mm *0.09mm (单导) 052G 2191 A PAPER TAPE HDCP-L 070GHDCP500HDC HDCP CODE E08902 089G 715HAAE01 SIGNAL CABLE E08901 089G414A15N HL POWER CORD E09508 095G8014 5XH09 HARNESS 5P(PLUG)-5P(2501) 200MM E09503 095G8014 7TE05 HARNESS 7P-6P 350MM 0D1G1730 6120 SCREW 0D1G1730 8120 SCREW 0M1G 130 6120 SCREW M3X6 0Q1G 930 10 47 CR3 SCREW 705GH934026 24"LCD STAND-BASE ASS'Y 705GHA34042 24" BEZEL ASS'Y E750 750GLU240H12B7N000 PANEL M240HW01 V20B WJ AUO A15G1265202 Main Frame-2436V A85G0140101 AC Shield H40G 24N61518A 2436Vg ID LABEL H40G 583615 6A Win7 gold EPEAT EPA LABEL H45G 77 6 PE PACKING H45G 87 1 20 EPE COVER KEPC9HAB KEY BOARD PWPCAK41AHD1 POWER BOARD Q24G 178 3 GLASS Q34G0587AEDA2B0100 REAR COVER 2436VG Q36G 600517 duster cloth Q40G0002615A84 USB LABEL FOR 2436Vwg 22X15mm Q45G 76 28V13 A PE BAG Q50G 4 10 TIE (Y1900221) Q52G 1185 99 big carton tape for aoc E08907 S95G179T30NE17 FFC CABLE 30PIN P1.0MM 275MM USB9HA1 USB BOARD USB9HA2 USB BOARD 0Q1G1040 10120 SCREW A34G1064AED 1S0100 Stand-Front A34G1065ABJ 1S0100 Stand-Back A34G1066AED 1S0130 BASE A37G0108 2 HINGE H01G6006 1 Screw Q16G0001 20 5 EVA Q16G0001 20 6 EVA Q16G0001 20 7 EVA Q19G5006 1 SPRING Q33G0199AED 1L0100 SLIED-L Q33G0200AED 1L0100 SLIED-R 33 Q33G0302AED 1L0100 CHIP Q33G0303AED 1L0100 BUTTON-CLIP Q34G0586AEDB1B0101 BEZEL 23.6"~24" 756GHACB A1061 MAIN BOARD-CBPCAA8A1H3 SMTCA-U402 100GAMAK011W11 MCU ASS'Y-056G1133137 CN402 033G3802 7B Y L conn 2.0 7p CN701 033G3802 9B Y L CONN 2.0 9P CN301 033G801930F CH JS CONNECTOR 040G 45762412B CBPC LABEL R708 061G152M33964L RST MOFR 3.3 OHM +-5% 2WS CN101 088G 35315F XH D-SUB 15PIN VERTICAL CONN WITH SCREW CN102 088G 35424F D DVI 24PIN CONN F ATTACHED SCREW X401 093G 2253B J NXS14.31818AC32F-KAB10 E09513 095G8022 6D504 HARNESS 6P-6P 200MM A33G0564 2 1L0100 Key-Guide Q52G 3 75 3M DOUBLE FACE TAPE GND1 009G6005 1 GROUND TERMINAL CN804 033G8021 2E L CONNECTOR CN803 033G8021 2E L CONNECTOR CN802 033G8021 2E L CONNECTOR CN801 033G8021 2E L CONNECTOR 040G 45762412B CBPC LABEL IC903 056G 139 7 1 IC EL817MA M-TYPE NR901 061G 58809MEN RST NTCR 8OHM ＋－20％ 4A XIANZHENG R947 061G152M561 64 SY RST MOFR 560 OHM +-5% 2WS FUTABA R946 061G152M561 64 SY RST MOFR 560 OHM +-5% 2WS FUTABA C903 063G107K224AUM CAP X2 0.22uF 10% 305V C819 065G 3J5606ET CAP CER 56PF J 3KV C820 065G 3J5606ET CAP CER 56PF J 3KV C821 065G 3J5606ET CAP CER 56PF J 3KV C822 065G 3J5606ET CAP CER 56PF J 3KV C817 065G 6J2096ET 2PF 5% SL 6KV C901 065G305M1022BP Y2 1000PF M 250VAC Y5P C902 065G305M1022BP Y2 1000PF M 250VAC Y5P C921 065G306M1022BP 1000PF Y1.CAP C900 065G306M3322BP 3300PF 20% C804 067G215A1024KV EC 1000uF 25V 12.5*20mm C939 067G215P1023XV CAP 105℃ 1000UF M 16V C934 067G215P1023XV CAP 105℃ 1000UF M 16V C915 067G215P4713AV CAP 105℃ 470UF M 16V C918 067G215P6814AV CAP 105C 680UF M 25V C917 067G215P6814AV CAP 105C 680UF M 25V C905 067G315Z12115K CAP 105℃ 120UF M 450V L905 073G 253 91 V CHOKE COIL 3.5uH+-10% L904 073G 253 91 V CHOKE COIL 3.5uH+-10% L903 073G 253 91 V CHOKE COIL 3.5uH+-10% CN901 087G 501 32 DL AC SOCKET DIP 3PIN+2PIN GROUND D907 093G3006 1 1 31DQ06FC3 NIHON INTER CN902 095G 82013WE03 harness 13p-9p 200mm 705GQ857026 Q901 ASS'Y 705GQ893039 D908 ASS'Y 705GQ893040 D906 ASS'Y PWAK41AHD1SMT POWER BOARD FOR SMT L801 S73G17435VA Transformer 34 L802 S73G17435VA Transformer L901 S73G17465V2 Transformer Ass'Y T901 S80GL22T3V1 XFMR POWER 490uH TPV-PT PT801 S80GL24T23V XFMR POWER 68uH TPV-PT VOC BD901 093G 50460911 BRIDGE GBU406 4A/800V CN511 033G3802 5 BH L CONNECTOR 5PIN CN512 088G 352 2 XH USB CONN 715G2663 2 USB BOARD PCB CN501 033G3802 5B Y L CONN 2.0 5P CN502 088G 3513B1 CL USB CONN BLACK C419 067G 3151007KB EC 10uF M 50V 5*11 C707 067G 3151014KB EC 100uF M 25V 6.3*11 C704 067G 3151014KB EC 100uF M 25V 6.3*11 C305 067G 3151014KB EC 100uF M 25V 6.3*11 U401 056G 562F02 IC TSUMU58NHL-LF-1 1920*1080 PQFP-100 U703 056G 563 31 IC AZ1117D-1.8-E1 U701 056G 585 4A IC AP1117E33L-13 U103 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L U104 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L U105 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L U106 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L U107 056G 662502 IC ESD AZC199-04S.R7G SOT23-6L U402 056G1133137 IC MX25L2026MI-12G SOP-8 U101 056G1133918 IC AT24C02BN-SH-T 8-SOIC U102 056G1133918 IC AT24C02BN-SH-T 8-SOIC Q302 057G 417 12 T KEC 2N3904S-RTK/PS Q701 057G 417 12 T KEC 2N3904S-RTK/PS Q405 057G 417 13 T KEC 2N3906S-RTK/PS Q401 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC Q301 057G 763 1 A03401 SOT23 BY AOS(A1) R452 061G0402000 RST CHIP MAX 0R05 1/16W R423 061G0402000 RST CHIP MAX 0R05 1/16W R419 061G0402000 RST CHIP MAX 0R05 1/16W R418 061G0402000 RST CHIP MAX 0R05 1/16W R414 061G0402000 RST CHIP MAX 0R05 1/16W R134 061G0402100 RST CHIPR 10 OHM +-5% 1/16W R132 061G0402100 RST CHIPR 10 OHM +-5% 1/16W R131 061G0402100 RST CHIPR 10 OHM +-5% 1/16W R130 061G0402100 RST CHIPR 10 OHM +-5% 1/16W R129 061G0402100 RST CHIPR 10 OHM +-5% 1/16W R128 061G0402100 RST CHIPR 10 OHM +-5% 1/16W R127 061G0402100 RST CHIPR 10 OHM +-5% 1/16W R126 061G0402100 RST CHIPR 10 OHM +-5% 1/16W R118 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R119 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R409 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R415 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R416 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R417 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R428 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R706 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R117 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R115 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R114 061G0402101 RST CHIPR 100 OHM +-5% 1/16W 35 R113 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R111 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R109 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R105 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R101 061G0402101 RST CHIPR 100 OHM +-5% 1/16W R705 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R404 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R402 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R104 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R103 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R703 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R702 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R436 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R412 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R407 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R308 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R305 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R135 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R133 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R120 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R421 061G0402104 RST CHIPR 100 KOHM +-5% 1/16W R106 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W R107 061G0402222 RST CHIPR 2.2 KOHM +-5% 1/16W R304 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W R406 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W R704 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W R401 061G0402390 0F RST CHIP 390R 1/16W 1% R432 061G0402390 1F RST CHIPR 3.9KOHM +-1% 1/16W R433 061G0402390 1F RST CHIPR 3.9KOHM +-1% 1/16W R110 061G0402471 RST CHIPR 470 OHM +-5% 1/16W R123 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R124 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R125 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R136 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R137 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R138 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R303 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R306 061G0402563 RST CHIP 56K 1/16W 5% R139 061G0402682 RST CHIP 6K8 1/16W 5% R108 061G0402750 RST CHIPR 75 OHM +-5% 1/16W R112 061G0402750 RST CHIPR 75 OHM +-5% 1/16W R116 061G0402750 RST CHIPR 75 OHM +-5% 1/16W R102 061G0603000 RST CHIP MAX 0R05 1/10W R405 061G0603000 RST CHIP MAX 0R05 1/10W R461 061G0603000 RST CHIP MAX 0R05 1/10W R456 061G0603220 RST CHIPR 22 OHM +-5% 1/10W R301 061G1206221 RST CHIPR 220 OHM +-5% 1/4W R302 061G1206221 RST CHIPR 220 OHM +-5% 1/4W C122 065G0402102 32 1000PF +-10% 50V X7R C121 065G0402102 32 1000PF +-10% 50V X7R C107 065G0402102 32 1000PF +-10% 50V X7R C413 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C414 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C415 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 36 C416 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C417 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C422 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C432 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C701 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C702 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C705 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C708 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C709 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C712 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C713 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C115 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C124 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C301 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C304 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C403 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C404 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C405 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C406 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C407 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C408 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C409 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C410 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C411 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C412 065G040210412K A CAP CHIP 0402 100nF K 16V X7R C436 065G0402105 A5 CAP 0402 1UF K 10V X5R C104 065G0402220 31 CHIP 22PF 50V NPO C103 065G0402220 31 CHIP 22PF 50V NPO C116 065G0402224 17 CAP CER 0.22UF -20%-80% C117 065G0402224 17 CAP CER 0.22UF -20%-80% C302 065G0402224 17 CAP CER 0.22UF -20%-80% C401 065G0402224 17 CAP CER 0.22UF -20%-80% C420 065G0402470 31 MLCC 0402 CAP 47PF J 50V NPO C421 065G0402470 31 MLCC 0402 CAP 47PF J 50V NPO C114 065G0402473 12 CHIP 0.047uF 16V X7R C111 065G0402473 12 CHIP 0.047uF 16V X7R C110 065G0402473 12 CHIP 0.047uF 16V X7R C108 065G0402473 12 CHIP 0.047uF 16V X7R C106 065G0402473 12 CHIP 0.047uF 16V X7R C102 065G0402473 12 CHIP 0.047uF 16V X7R C113 065G0402509 31 CHIP 5pF 50V NPO C109 065G0402509 31 CHIP 5pF 50V NPO C105 065G0402509 31 CHIP 5pF 50V NPO C303 065G060310522K T CAP CHIP 0603 1UF K 25V X7R C402 065G0805475 A5 0805 4.7UF +-10% 10V X5R FB301 071G 56K121 M CHIP BEAD FB410 071G 56V301 B CHIP BEAD FCM2012VF-301T07 bullwill FB404 071G 56V301 B CHIP BEAD FCM2012VF-301T07 bullwill FB402 071G 56V301 B CHIP BEAD FCM2012VF-301T07 bullwill FB401 071G 56V301 B CHIP BEAD FCM2012VF-301T07 bullwill FB104 071G 59G301 CHIP BEAD 300OHM FB105 071G 59G301 CHIP BEAD 300OHM FB110 071G 59G301 CHIP BEAD 300OHM FB103 071G 59K190 B 19 OHM BEAD 37 FB102 071G 59K190 B 19 OHM BEAD FB101 071G 59K190 B 19 OHM BEAD D104 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC D108 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC ZD104 093G 39GA01 T RLZ5.6B 715G3329 1 2 MAIN BOARD PCB CN001 033G8034 6H H X WAFER 1.0mm SMT 6P U001 056G 669 10 IC CG7246AM QFN-16(COL) R012 061G0603000 RST CHIP MAX 0R05 1/10W R009 061G0603000 RST CHIP MAX 0R05 1/10W R008 061G0603000 RST CHIP MAX 0R05 1/10W R001 061G0603000 RST CHIP MAX 0R05 1/10W R002 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R005 061G0603561 RST CHIPR 560 OHM +-5% 1/10W R006 061G0603561 RST CHIPR 560 OHM +-5% 1/10W R007 061G0603561 RST CHIPR 560 OHM +-5% 1/10W R004 061G0603561 RST CHIPR 560 OHM +-5% 1/10W C001 065G0603102 31 CHIP 1000PF 50V NPO C002 065G0603225 A5 CHIP 2.2uF 10V X5R LED001 081G15BY 2 GP LED GPTD1204BOC1-A GP ZD004 093G 39S 34 T UDZSNP5.6B ROHM ZD005 093G 39S 34 T UDZSNP5.6B ROHM 715G3371 2 KEY BOARD PCB Q901 057G 667 21 STP10NK70ZFP 0M1G 930 8120 SCREW HS1 Q90G6263 6 HEAT SINK D908 093G 60278 DIODE SP1060 ITO-220 SECOS 0M1G 930 8120 SCREW HS2 Q90G6263 6 HEAT SINK D906 093G 52 66 DIODE FMX-12SL 10A/200V TO-220 0M1G 930 8120 SCREW HS3 Q90G6264 5 HEAT SINK IC901 056G 379128 IC LD7576 GS SOP-8 IC801 056G 608 12 IC ta9687GN-A-0-TR SOP-16 Q802 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM Q806 057G 763 91 ET AO4620 7.2A/30V -5.3A/-30V SOIC-8 Q805 057G 763 91 ET AO4620 7.2A/30V -5.3A/-30V SOIC-8 R926 061G0603100 1F RST CHIPR 1 KOHM +-1% 1/10W R927 061G0603100 2F RST CHIPR 10K OHM +-1% 1/10W R812 061G0603100 3F RST CHIPR 100 KOHM +-1% 1/10W R806 061G0603100 3F RST CHIPR 100 KOHM +-1% 1/10W R801 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R807 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R813 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W R839 061G0603105 RST CHIPR 1M OHM +-5% 1/10W R838 061G0603105 RST CHIPR 1M OHM +-5% 1/10W R809 061G0603105 RST CHIPR 1M OHM +-5% 1/10W R840 061G0603105 RST CHIPR 1M OHM +-5% 1/10W R841 061G0603105 RST CHIPR 1M OHM +-5% 1/10W R808 061G0603390 0F RST CHIPR 390 OHM +-1% 1/10W R842 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W R843 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W R844 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W R845 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W 38 R836 061G0603563 RST CHIPR 56 KOHM +-5% 1/10W R837 061G0603752 RST CHIPR 7.5 KOHM +-5% 1/10W R811 061G0603820 2F RST CHIPR 82 KOHM +-1% 1/10W R810 061G0603820 2F RST CHIPR 82 KOHM +-1% 1/10W R930 061G0603910 1F RST CHIPR 9.1 KOHM +-1% 1/10W JR804 061G0805000 RST CHIP MAX 0R05 1/8W JR801 061G0805000 RST CHIP MAX 0R05 1/8W JR903 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA R846 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA R847 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA R848 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA R924 061G0805101 1ST CHIPR 100 OHM +-5% 1/8W R939 061G0805102 RST CHIPR 1K OHM +-5% 1/8W R925 061G0805102 RST CHIPR 1K OHM +-5% 1/8W R938 061G0805103 RST CHIPR 10K OHM +-5% 1/8W JR803 061G0805203 JF RST CHIPR 20KOHM +-5% 1/8W FENGHUA R802 061G0805220 RST CHIPR 22 OHM +-5% 1/8W R943 061G0805471 RST CHIPR 470 OHM +-5% 1/8W R816 061G0805479 RST CHIP 4R7 1/8W 5% R819 061G0805479 RST CHIP 4R7 1/8W 5% R818 061G0805479 RST CHIP 4R7 1/8W 5% R817 061G0805479 RST CHIP 4R7 1/8W 5% R804 061G0805512 RST CHIPR 5.1 KOHM +-5% 1/8W R803 061G0805512 RST CHIPR 5.1 KOHM +-5% 1/8W R830 061G0805562 JF RST CHIPR 5.6kOHM +-5% 1/8W FENGHUA JR901 061G1206000 RST CHIP MAX 0R05 1/4W JR802 061G1206000 RST CHIP MAX 0R05 1/4W JR902 061G1206000 RST CHIP MAX 0R05 1/4W FB902 061G12060004JT RST CHIP MAX 0R05 1/4W TZAI YUAN R910 061G1206100 RST CHIPR 10 OHM +-5% 1/4W R918 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R919 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R920 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R935 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R949 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R950 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R951 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R961 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R962 061G1206101 RST CHIPR 100 OHM +-5% 1/4W R901 061G1206105 1M 1206 R902 061G1206105 1M 1206 R912 061G1206221 RST CHIPR 220 OHM +-5% 1/4W R909 061G1206339 RST CHIPR 3.3 OHM +-5% 1/4W R904 061G1206822 RST CHIPR 8.2 KOHM +-5% 1/4W R905 061G1206822 RST CHIPR 8.2 KOHM +-5% 1/4W C932 065G0603102 32 1000PF +-10% 50V X7R C814 065G0603221 31 CER1 0603 NP0 50V 220P P C805 065G0603223 32 CHIP 0.022UF 50V X7R 0603 C810 065G0603332 32 CHIP 0.0033UF 50V X7R 0603 C928 065G0805103 32 CAP CHIP 0805 10NF K 50V X7R C931 065G0805104 32 CAP CHIP 0805 0.1uF K 50V X7R C930 065G0805104 32 CAP CHIP 0805 0.1uF K 50V X7R C924 065G0805104 32 CAP CHIP 0805 0.1uF K 50V X7R C907 065G0805104 32 CAP CHIP 0805 0.1uF K 50V X7R 39 C815 065G0805104 32 CAP CHIP 0805 0.1uF K 50V X7R C811 065G0805104 32 CAP CHIP 0805 0.1uF K 50V X7R C818 065G0805155A2K T CAP CHIP 0805 1.5UF K 10V X7R C909 065G0805221 31 CAP CHIP 0805 220PF J 50V NPO C809 065G080522131G F CAP 0805 220PF 2% 50V NPO C806 065G080522512K T CAP CHIP 0805 2.2UF K 16V X7R C808 065G0805333 32 CHIP 0.033UF 50V C940 065G0805473 32 CHIP 0.047UF 50V X7R C802 065G0805473 32 CHIP 0.047UF 50V X7R C801 065G0805473 32 CHIP 0.047UF 50V X7R C935 065G1206102 72 CAP CHIP 1206 1000PF K 500V X7R C929 065G1206102 72 CAP CHIP 1206 1000PF K 500V X7R C912 065G1206102 72 CAP CHIP 1206 1000PF K 500V X7R D806 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC D807 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC D808 093G 64 42 L DIODE LBAV70LT1G SOT-23 LRC D803 093G 6433S DIODE BAV99 SEMTECH ZD802 093G 39S 24 T RLZ 5.6B LLDS ZD803 093G 39S 24 T RLZ 5.6B LLDS PW9D41MHIEAI POWER BOARD FOR AI C503 065G0603104 12 CER2 0603 X7R 16V 100N P C501 065G0603509 31 CHIP 5PF +-0.5PF 50V NPO C502 065G0603509 31 CHIP 5PF +-0.5PF 50V NPO FB501 071G 56K121 M CHIP BEAD 715G3501 2 USB BOARD PCB CN901 006G 31500 EYELET IC904 056G 158 10 T IC AS431AZTR-E1 TO-92 Q903 057G 530503 T 2SD1207T R903 061G152M10452T SY RST MOFR 100KOHM +-5% 2WS FUTABA R914 061G152M39852T SY RST MOFR 0.39 OHM +-5% 2WS FUTABA R828 061G211S62552T SY MGFR 6.2MOHM 5% 1WS C906 065G 2K152 2T6921 CAP CER 1500pF K 2KV Y5P C908 067G215R2207KB LOW ESR EC 22uF 50V M 6.3*11mm J806 071G 55 9 T FERRITE BEAD FB901 071G 55 29 FERRITE BEAD F901 084G 56 4W FUSE 4.0A 250V F903 084G 56 4W FUSE 4.0A 250V ZD902 093G 39A0852T GDZJ18B D900 093G 6026T52T RECTIFIER DIODE FR107 D901 093G 6038T52T FR103 D903 093G 6452452T DIODE 1N4148-B4006 DO-35 SEMTECH D801 093G 6452452T DIODE 1N4148-B4006 DO-35 SEMTECH J808 095G 90 23 JUMPER WIRE J809 095G 90 23 JUMPER WIRE J810 095G 90 23 JUMPER WIRE J811 095G 90 23 JUMPER WIRE J812 095G 90 23 JUMPER WIRE J813 095G 90 23 JUMPER WIRE J814 095G 90 23 JUMPER WIRE J901 095G 90 23 JUMPER WIRE J902 095G 90 23 JUMPER WIRE J903 095G 90 23 JUMPER WIRE J904 095G 90 23 JUMPER WIRE J905 095G 90 23 JUMPER WIRE 40 J906 095G 90 23 JUMPER WIRE J907 095G 90 23 JUMPER WIRE J908 095G 90 23 JUMPER WIRE J909 095G 90 23 JUMPER WIRE J910 095G 90 23 JUMPER WIRE J911 095G 90 23 JUMPER WIRE J912 095G 90 23 JUMPER WIRE J913 095G 90 23 JUMPER WIRE J914 095G 90 23 JUMPER WIRE J915 095G 90 23 JUMPER WIRE L906 095G 90 23 JUMPER WIRE J807 095G 90 23 JUMPER WIRE J805 095G 90 23 JUMPER WIRE J804 095G 90 23 JUMPER WIRE J803 095G 90 23 JUMPER WIRE J801 095G 90 23 JUMPER WIRE 715G2824 1 11 POWER BOARD PCB
