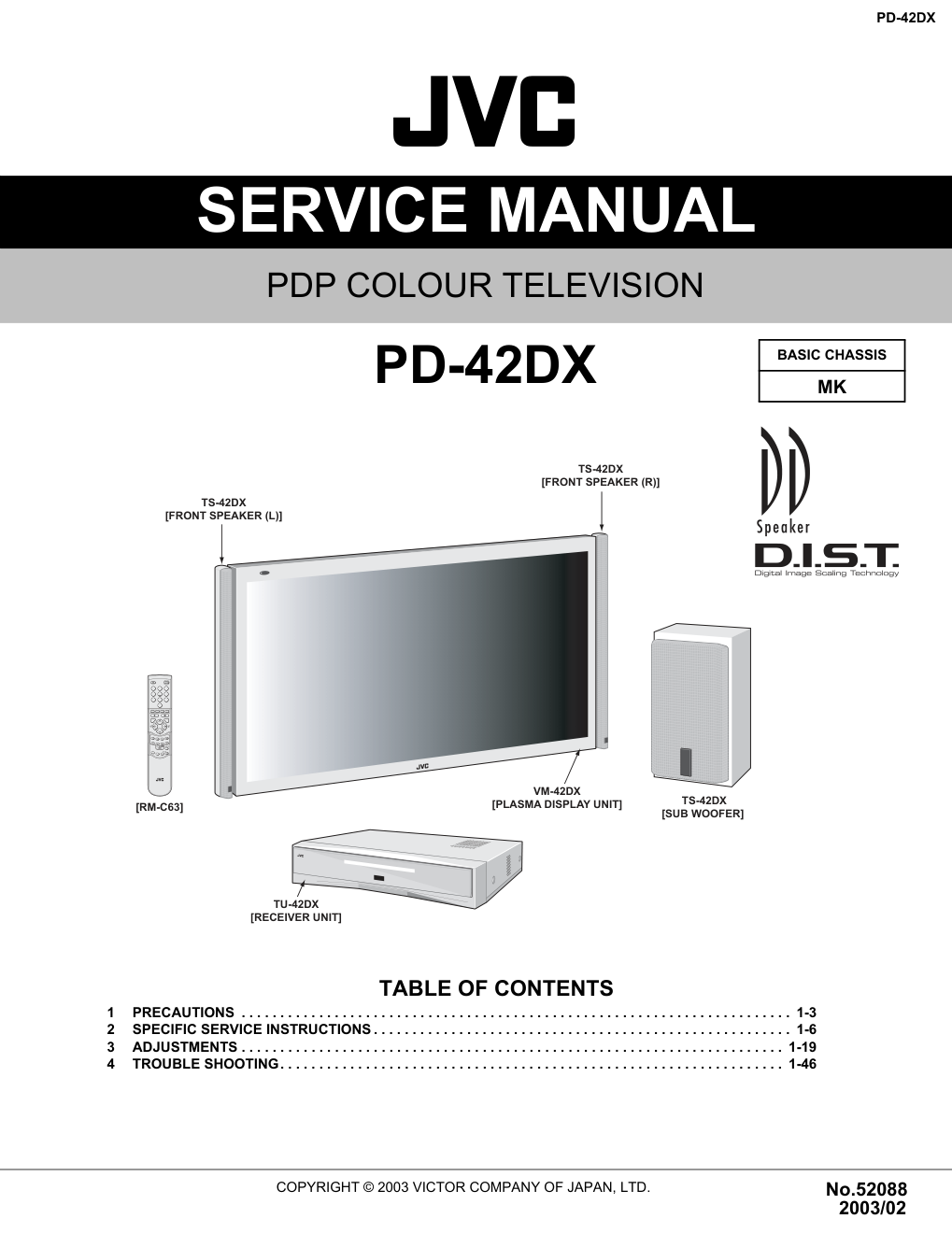

SERVICE MANUAL
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD.
No.52088
2003/02
PD-42DX
PDP COLOUR TELEVISION
52088
2003
02
PD-42DX
TABLE OF CONTENTS
1
PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2
SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

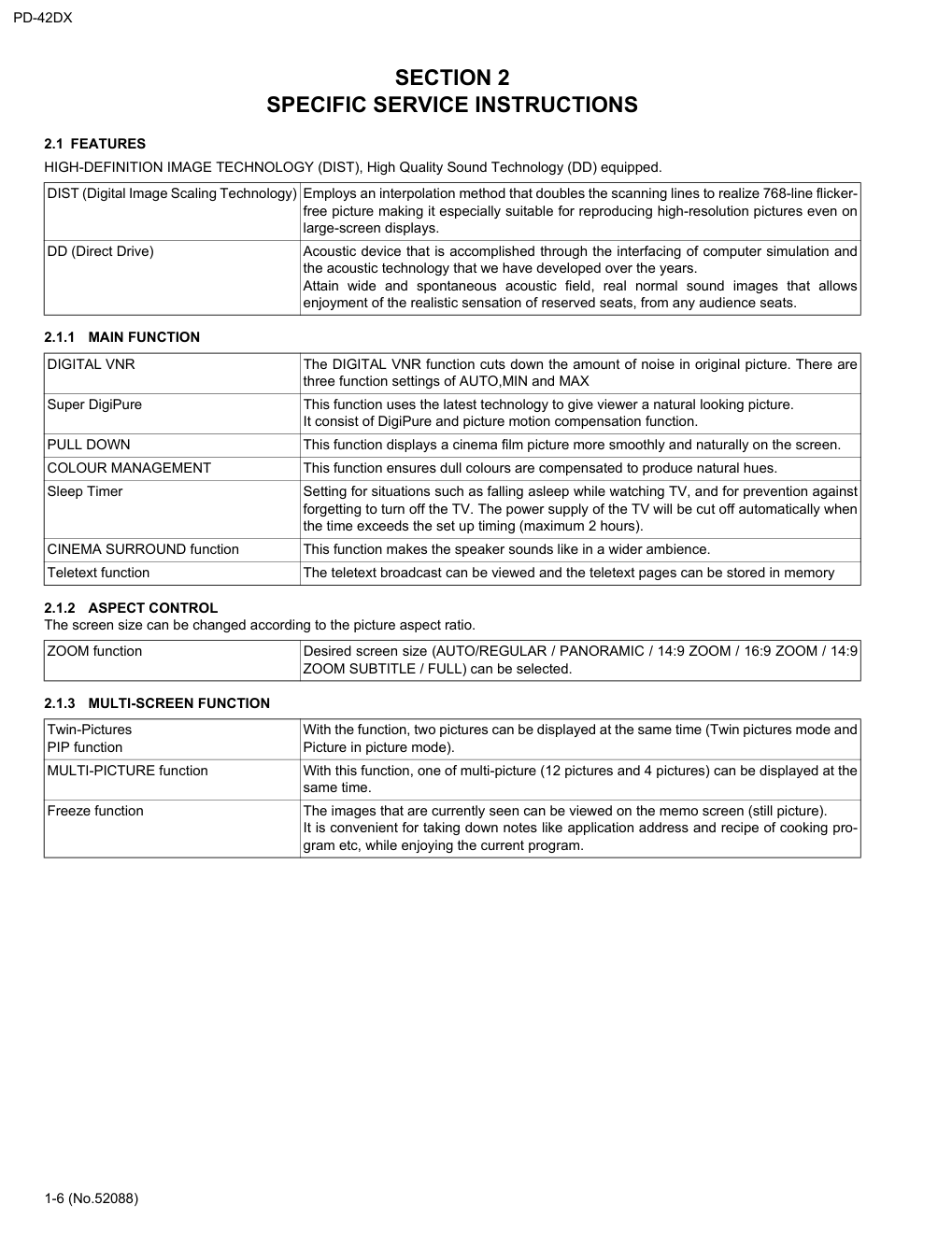

3
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
4
TROUBLE SHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-46
TS-42DX
[FRONT SPEAKER (R)]
TS-42DX
[FRONT SPEAKER (L)]
TS-42DX
[SUB WOOFER]
[RM-C63]
VM-42DX
[PLASMA DISPLAY UNIT]
TU-42DX
[RECEIVER UNIT]
FREEZE
SUB-P
BASIC CHASSIS
MK
PD-42DX
1-2 (No.52088)

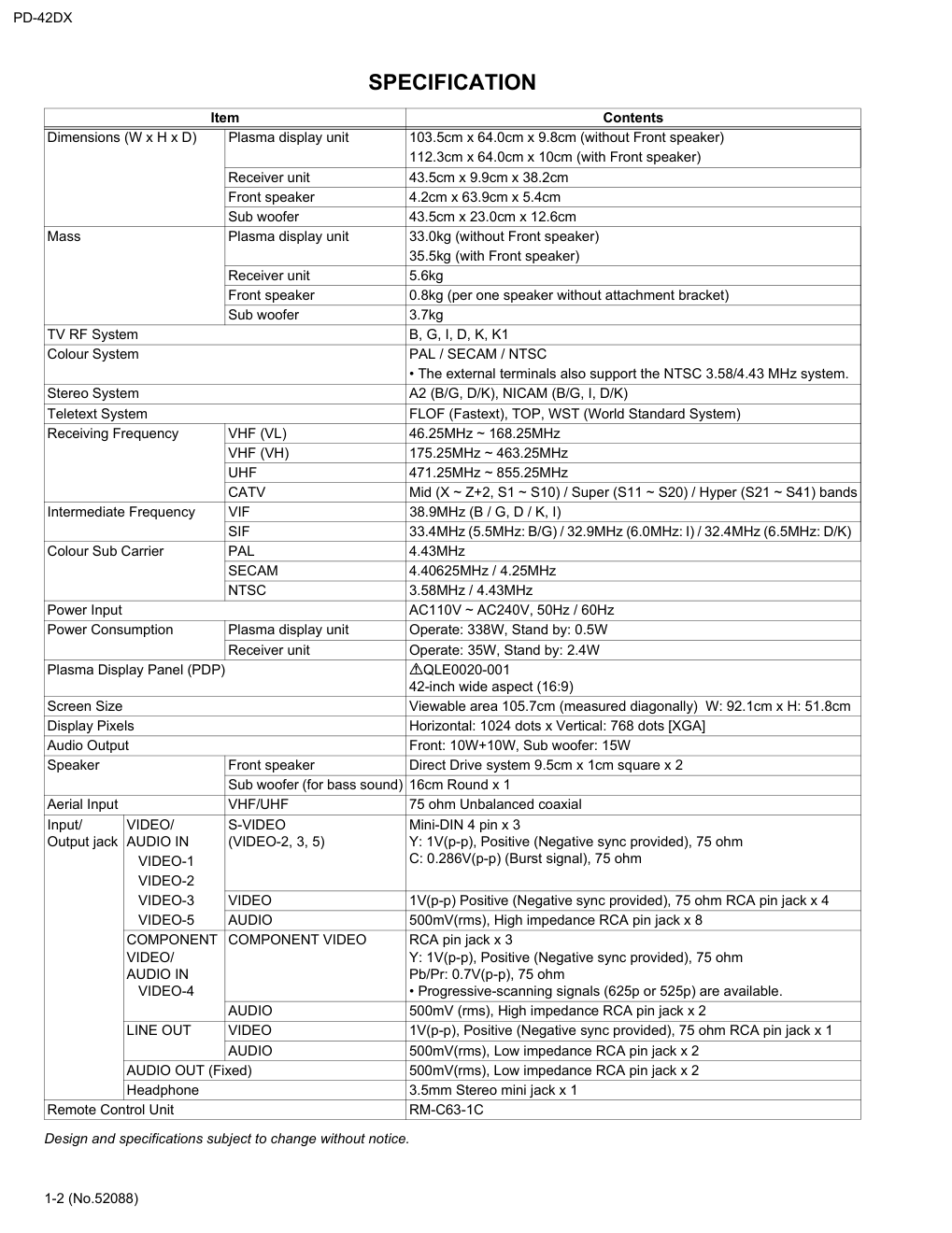

SPECIFICATION
Design and specifications subject to change without notice.
Item
Contents
Dimensions (W x H x D)
Plasma display unit
103.5cm x 64.0cm x 9.8cm (without Front speaker)
112.3cm x 64.0cm x 10cm (with Front speaker)
Receiver unit
43.5cm x 9.9cm x 38.2cm
Front speaker
4.2cm x 63.9cm x 5.4cm
Sub woofer
43.5cm x 23.0cm x 12.6cm
Mass
Plasma display unit
33.0kg (without Front speaker)
35.5kg (with Front speaker)
Receiver unit
5.6kg
Front speaker
0.8kg (per one speaker without attachment bracket)
Sub woofer
3.7kg
TV RF System
B, G, I, D, K, K1
Colour System
PAL / SECAM / NTSC
• The external terminals also support the NTSC 3.58/4.43 MHz system.
Stereo System
A2 (B/G, D/K), NICAM (B/G, I, D/K)
Teletext System
FLOF (Fastext), TOP, WST (World Standard System)
Receiving Frequency
VHF (VL)
46.25MHz ~ 168.25MHz
VHF (VH)
175.25MHz ~ 463.25MHz
UHF
471.25MHz ~ 855.25MHz
CATV
Mid (X ~ Z+2, S1 ~ S10) / Super (S11 ~ S20) / Hyper (S21 ~ S41) bands
Intermediate Frequency
VIF
38.9MHz (B / G, D / K, I)
SIF
33.4MHz (5.5MHz: B/G) / 32.9MHz (6.0MHz: I) / 32.4MHz (6.5MHz: D/K)
Colour Sub Carrier
PAL
4.43MHz
SECAM
4.40625MHz / 4.25MHz
NTSC
3.58MHz / 4.43MHz
Power Input
AC110V ~ AC240V, 50Hz / 60Hz
Power Consumption
Plasma display unit
Operate: 338W, Stand by: 0.5W
Receiver unit
Operate: 35W, Stand by: 2.4W
Plasma Display Panel (PDP)
QLE0020-001
42-inch wide aspect (16:9)
Screen Size
Viewable area 105.7cm (measured diagonally) W: 92.1cm x H: 51.8cm
Display Pixels
Horizontal: 1024 dots x Vertical: 768 dots [XGA]
Audio Output
Front: 10W+10W, Sub woofer: 15W
Speaker
Front speaker
Direct Drive system 9.5cm x 1cm square x 2
Sub woofer (for bass sound) 16cm Round x 1
Aerial Input
VHF/UHF
75 ohm Unbalanced coaxial
Input/
Output jack
VIDEO/
AUDIO IN
S-VIDEO
(VIDEO-2, 3, 5)
Mini-DIN 4 pin x 3
Y: 1V(p-p), Positive (Negative sync provided), 75 ohm
C: 0.286V(p-p) (Burst signal), 75 ohm
VIDEO-1
VIDEO-2
VIDEO-3
VIDEO
1V(p-p) Positive (Negative sync provided), 75 ohm RCA pin jack x 4
VIDEO-5
AUDIO
500mV(rms), High impedance RCA pin jack x 8
COMPONENT
VIDEO/
AUDIO IN
VIDEO-4
COMPONENT VIDEO
RCA pin jack x 3
Y: 1V(p-p), Positive (Negative sync provided), 75 ohm
Pb/Pr: 0.7V(p-p), 75 ohm
• Progressive-scanning signals (625p or 525p) are available.
AUDIO
500mV (rms), High impedance RCA pin jack x 2
LINE OUT
VIDEO
1V(p-p), Positive (Negative sync provided), 75 ohm RCA pin jack x 1
AUDIO
500mV(rms), Low impedance RCA pin jack x 2
AUDIO OUT (Fixed)
500mV(rms), Low impedance RCA pin jack x 2
Headphone
3.5mm Stereo mini jack x 1
Remote Control Unit
RM-C63-1C
PD-42DX
(No.52088)1-3

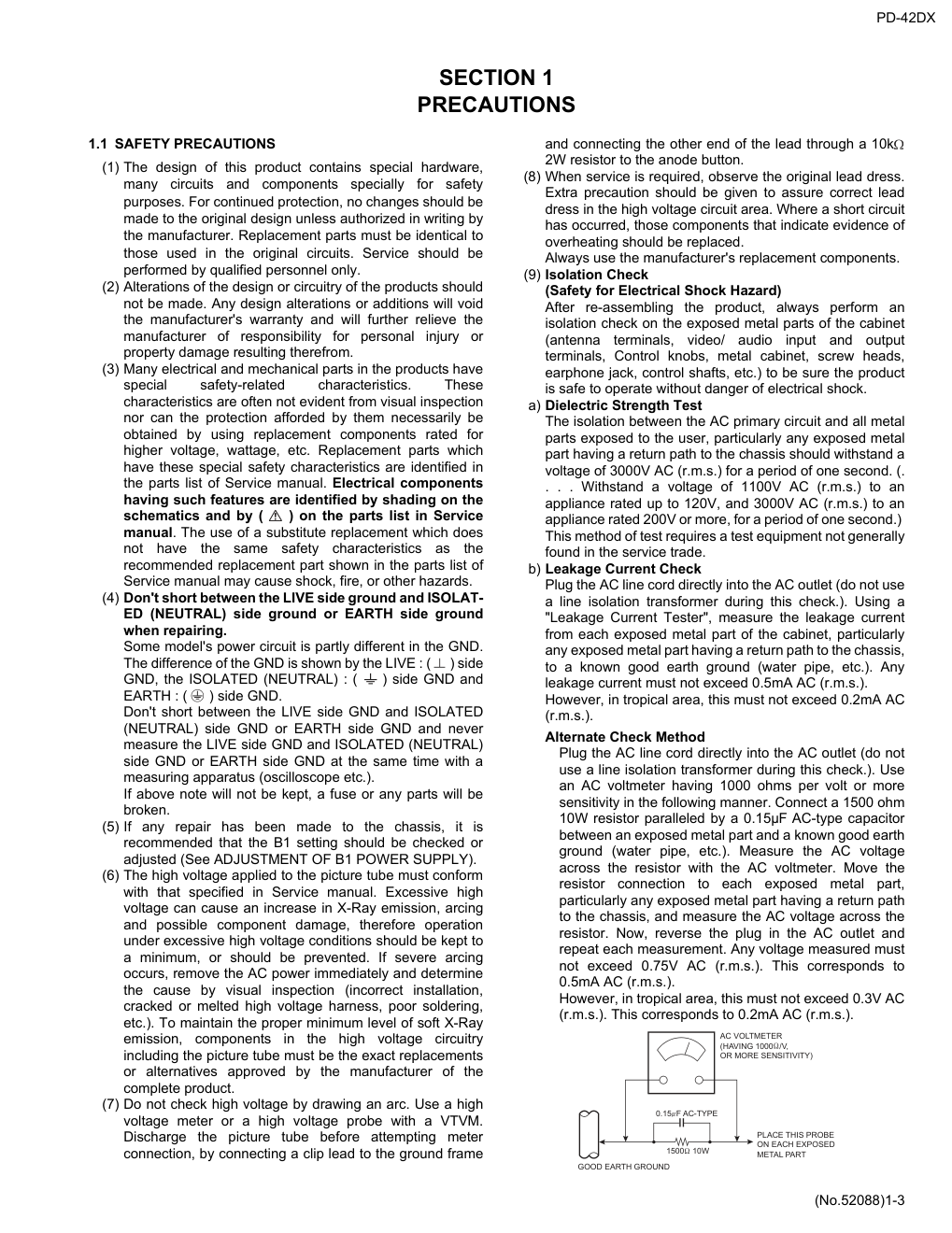

SECTION 1
PRECAUTIONS
1.1 SAFETY PRECAUTIONS
(1) The design of this product contains special hardware,
many circuits and components specially for safety
purposes. For continued protection, no changes should be
made to the original design unless authorized in writing by
the manufacturer. Replacement parts must be identical to
those used in the original circuits. Service should be
performed by qualified personnel only.
(2) Alterations of the design or circuitry of the products should
not be made. Any design alterations or additions will void
the manufacturer's warranty and will further relieve the
manufacturer of responsibility for personal injury or
property damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special
safety-related
characteristics.
These
characteristics are often not evident from visual inspection
nor can the protection afforded by them necessarily be
obtained by using replacement components rated for
higher voltage, wattage, etc. Replacement parts which
have these special safety characteristics are identified in
the parts list of Service manual. Electrical components
having such features are identified by shading on the
schematics and by (
) on the parts list in Service
manual. The use of a substitute replacement which does
not have the same safety characteristics as the
recommended replacement part shown in the parts list of
Service manual may cause shock, fire, or other hazards.
(4) Don't short between the LIVE side ground and ISOLAT-
ED (NEUTRAL) side ground or EARTH side ground
when repairing.
Some model's power circuit is partly different in the GND.
The difference of the GND is shown by the LIVE : (
) side
GND, the ISOLATED (NEUTRAL) : (
) side GND and
EARTH : (
) side GND.
Don't short between the LIVE side GND and ISOLATED
(NEUTRAL) side GND or EARTH side GND and never
measure the LIVE side GND and ISOLATED (NEUTRAL)
side GND or EARTH side GND at the same time with a
measuring apparatus (oscilloscope etc.).
If above note will not be kept, a fuse or any parts will be
broken.
(5) If any repair has been made to the chassis, it is
recommended that the B1 setting should be checked or
adjusted (See ADJUSTMENT OF B1 POWER SUPPLY).
(6) The high voltage applied to the picture tube must conform
with that specified in Service manual. Excessive high
voltage can cause an increase in X-Ray emission, arcing
and possible component damage, therefore operation
under excessive high voltage conditions should be kept to
a minimum, or should be prevented. If severe arcing
occurs, remove the AC power immediately and determine
the cause by visual inspection (incorrect installation,
cracked or melted high voltage harness, poor soldering,
etc.). To maintain the proper minimum level of soft X-Ray
emission, components in the high voltage circuitry
including the picture tube must be the exact replacements
or alternatives approved by the manufacturer of the
complete product.
(7) Do not check high voltage by drawing an arc. Use a high
voltage meter or a high voltage probe with a VTVM.
Discharge the picture tube before attempting meter
connection, by connecting a clip lead to the ground frame
and connecting the other end of the lead through a 10k
2W resistor to the anode button.
(8) When service is required, observe the original lead dress.
Extra precaution should be given to assure correct lead
dress in the high voltage circuit area. Where a short circuit
has occurred, those components that indicate evidence of
overheating should be replaced.
Always use the manufacturer's replacement components.
(9) Isolation Check
(Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an
isolation check on the exposed metal parts of the cabinet
(antenna terminals, video/ audio input and output
terminals, Control knobs, metal cabinet, screw heads,
earphone jack, control shafts, etc.) to be sure the product
is safe to operate without danger of electrical shock.
a) Dielectric Strength Test
The isolation between the AC primary circuit and all metal
parts exposed to the user, particularly any exposed metal
part having a return path to the chassis should withstand a
voltage of 3000V AC (r.m.s.) for a period of one second. (.
. . . Withstand a voltage of 1100V AC (r.m.s.) to an
appliance rated up to 120V, and 3000V AC (r.m.s.) to an
appliance rated 200V or more, for a period of one second.)
This method of test requires a test equipment not generally
found in the service trade.
b) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use
a line isolation transformer during this check.). Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal part of the cabinet, particularly
any exposed metal part having a return path to the chassis,
to a known good earth ground (water pipe, etc.). Any
leakage current must not exceed 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).
Alternate Check Method
Plug the AC line cord directly into the AC outlet (do not
use a line isolation transformer during this check.). Use
an AC voltmeter having 1000 ohms per volt or more
sensitivity in the following manner. Connect a 1500 ohm
10W resistor paralleled by a 0.15µF AC-type capacitor
between an exposed metal part and a known good earth
ground (water pipe, etc.). Measure the AC voltage
across the resistor with the AC voltmeter. Move the
resistor connection to each exposed metal part,
particularly any exposed metal part having a return path
to the chassis, and measure the AC voltage across the
resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Any voltage measured must
not exceed 0.75V AC (r.m.s.). This corresponds to
0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC
(r.m.s.). This corresponds to 0.2mA AC (r.m.s.).
AC VOLTMETER
(HAVING 1000 /V,
OR MORE SENSITIVITY)
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
1500 10W
0.15 F AC-TYPE
GOOD EARTH GROUND
PD-42DX
1-4 (No.52088)
1.2 INSTALLATION
1.2.1
HEAT DISSIPATION
If the heat dissipation vent behind this unit is blocked, cooling
efficiency may deteriorate and temperature inside the unit will
rise. The temperature sensor that protects the unit will be
activated when internal temperature exceeds the pre-determined
level and power will be turned off automatically.
Therefore, please make sure pay attention not to block the heat
dissipation vent as well as the ventilation outlet behind the unit
and ensure that there is room for ventilation around it.
1.2.2
INSTALLATION REQUIREMENTS
Ensure that the minimal distance is maintained, as specified
below, between the unit with and the surrounding walls, as well
as the floor etc.
Install the unit on stable flooring or stands.
Take precautionary measures to prevent the unit from tipping in
order to protect against accidents and earthquakes.
1.2.3
FALL TIP PREVENTION MEASURES
Take precautionary measures to prevent the unit from falling or
tipping to protect against emergencies such as earthquakes as
well as accidents.
Fasten the supplied hook for tip fall prevention using the screws,
also supplied, behind the display unit, and use them together
with durable cords (to be purchased separately) to secure the
unit to a robust part such as the wall surface or pillars.
150mm or more
200mm or more
150mm
or more
200mm
or more
50mm or more
SPACE REQUIRED FOR INSTALLATION OF THE DISPLAY UNIT
100mm or more
100mm or more
100mm or more
100mm or more
100mm or more
SPACE REQUIRED FOR INSTALLATION OF THE RECEIVER UNIT
MENU
OK
P
TV/VIDE
The supplied hook for tipfall prevention
PD-42DX
(No.52088)1-5

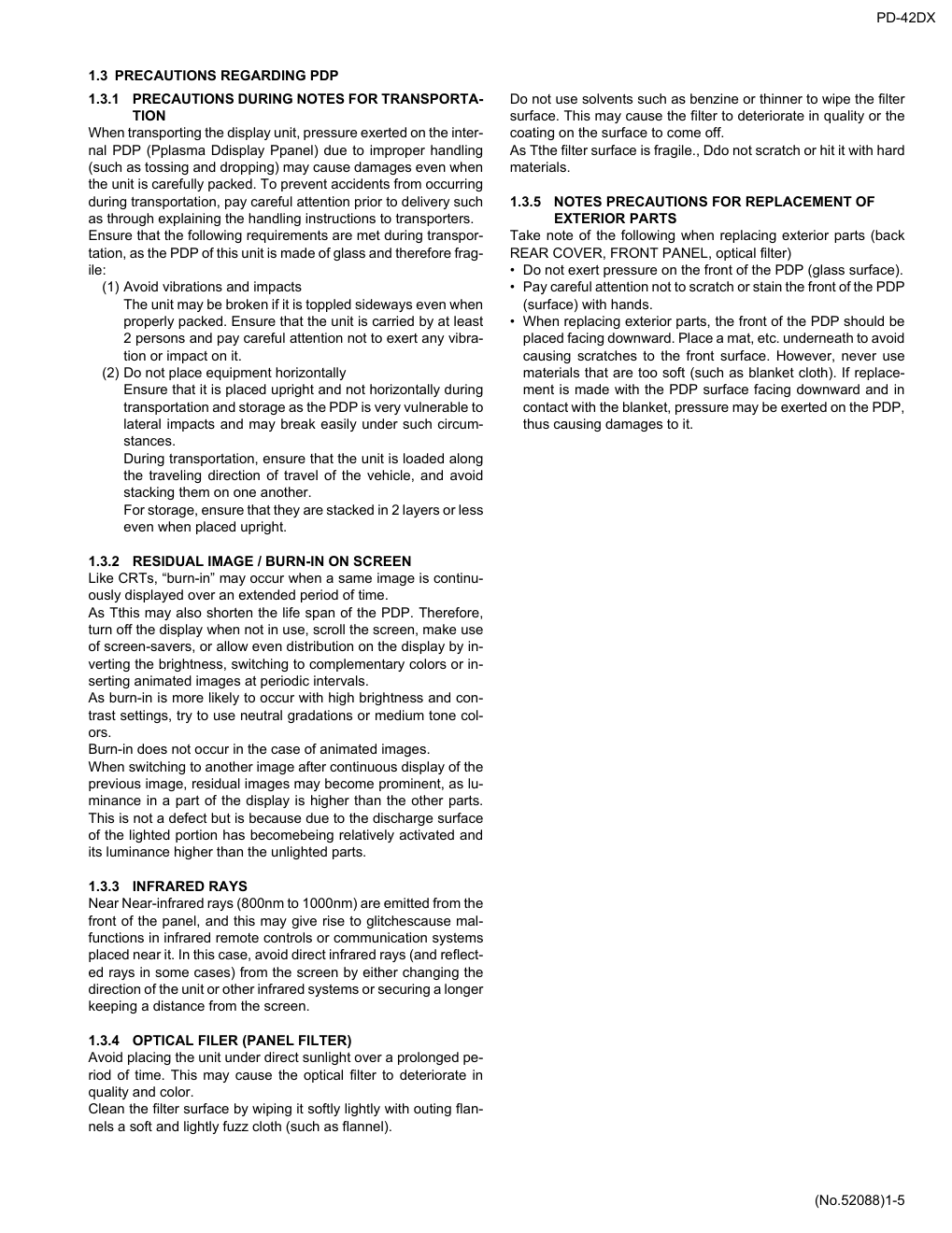

1.3 PRECAUTIONS REGARDING PDP
1.3.1
PRECAUTIONS DURING NOTES FOR TRANSPORTA-
TION
When transporting the display unit, pressure exerted on the inter-
nal PDP (Pplasma Ddisplay Ppanel) due to improper handling
(such as tossing and dropping) may cause damages even when
the unit is carefully packed. To prevent accidents from occurring
during transportation, pay careful attention prior to delivery such
as through explaining the handling instructions to transporters.
Ensure that the following requirements are met during transpor-
tation, as the PDP of this unit is made of glass and therefore frag-
ile:
(1) Avoid vibrations and impacts
The unit may be broken if it is toppled sideways even when
properly packed. Ensure that the unit is carried by at least
2 persons and pay careful attention not to exert any vibra-
tion or impact on it.
(2) Do not place equipment horizontally
Ensure that it is placed upright and not horizontally during
transportation and storage as the PDP is very vulnerable to
lateral impacts and may break easily under such circum-
stances.
During transportation, ensure that the unit is loaded along
the traveling direction of travel of the vehicle, and avoid
stacking them on one another.
For storage, ensure that they are stacked in 2 layers or less
even when placed upright.
1.3.2
RESIDUAL IMAGE / BURN-IN ON SCREEN
Like CRTs, “burn-in” may occur when a same image is continu-
ously displayed over an extended period of time.
As Tthis may also shorten the life span of the PDP. Therefore,
turn off the display when not in use, scroll the screen, make use
of screen-savers, or allow even distribution on the display by in-
verting the brightness, switching to complementary colors or in-
serting animated images at periodic intervals.
As burn-in is more likely to occur with high brightness and con-
trast settings, try to use neutral gradations or medium tone col-
ors.
Burn-in does not occur in the case of animated images.
When switching to another image after continuous display of the
previous image, residual images may become prominent, as lu-
minance in a part of the display is higher than the other parts.
This is not a defect but is because due to the discharge surface
of the lighted portion has becomebeing relatively activated and
its luminance higher than the unlighted parts.
1.3.3
INFRARED RAYS
Near Near-infrared rays (800nm to 1000nm) are emitted from the
front of the panel, and this may give rise to glitchescause mal-
functions in infrared remote controls or communication systems
placed near it. In this case, avoid direct infrared rays (and reflect-
ed rays in some cases) from the screen by either changing the
direction of the unit or other infrared systems or securing a longer
keeping a distance from the screen.
1.3.4
OPTICAL FILER (PANEL FILTER)
Avoid placing the unit under direct sunlight over a prolonged pe-
riod of time. This may cause the optical filter to deteriorate in
quality and color.
Clean the filter surface by wiping it softly lightly with outing flan-
nels a soft and lightly fuzz cloth (such as flannel).
Do not use solvents such as benzine or thinner to wipe the filter
surface. This may cause the filter to deteriorate in quality or the
coating on the surface to come off.
As Tthe filter surface is fragile., Ddo not scratch or hit it with hard
materials.
1.3.5
NOTES PRECAUTIONS FOR REPLACEMENT OF
EXTERIOR PARTS
Take note of the following when replacing exterior parts (back
REAR COVER, FRONT PANEL, optical filter)
• Do not exert pressure on the front of the PDP (glass surface).
• Pay careful attention not to scratch or stain the front of the PDP
(surface) with hands.
• When replacing exterior parts, the front of the PDP should be
placed facing downward. Place a mat, etc. underneath to avoid
causing scratches to the front surface. However, never use
materials that are too soft (such as blanket cloth). If replace-
ment is made with the PDP surface facing downward and in
contact with the blanket, pressure may be exerted on the PDP,
thus causing damages to it.
PD-42DX
1-6 (No.52088)
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
2.1 FEATURES
HIGH-DEFINITION IMAGE TECHNOLOGY (DIST), High Quality Sound Technology (DD) equipped.
2.1.1
MAIN FUNCTION
2.1.2
ASPECT CONTROL
The screen size can be changed according to the picture aspect ratio.
2.1.3
MULTI-SCREEN FUNCTION
DIST (Digital Image Scaling Technology) Employs an interpolation method that doubles the scanning lines to realize 768-line flicker-
free picture making it especially suitable for reproducing high-resolution pictures even on
large-screen displays.
DD (Direct Drive)
Acoustic device that is accomplished through the interfacing of computer simulation and
the acoustic technology that we have developed over the years.
Attain wide and spontaneous acoustic field, real normal sound images that allows
enjoyment of the realistic sensation of reserved seats, from any audience seats.
DIGITAL VNR
The DIGITAL VNR function cuts down the amount of noise in original picture. There are
three function settings of AUTO,MIN and MAX
Super DigiPure
This function uses the latest technology to give viewer a natural looking picture.
It consist of DigiPure and picture motion compensation function.
PULL DOWN
This function displays a cinema film picture more smoothly and naturally on the screen.
COLOUR MANAGEMENT
This function ensures dull colours are compensated to produce natural hues.
Sleep Timer
Setting for situations such as falling asleep while watching TV, and for prevention against
forgetting to turn off the TV. The power supply of the TV will be cut off automatically when
the time exceeds the set up timing (maximum 2 hours).
CINEMA SURROUND function
This function makes the speaker sounds like in a wider ambience.
Teletext function
The teletext broadcast can be viewed and the teletext pages can be stored in memory
ZOOM function
Desired screen size (AUTO/REGULAR / PANORAMIC / 14:9 ZOOM / 16:9 ZOOM / 14:9
ZOOM SUBTITLE / FULL) can be selected.
Twin-Pictures
PIP function
With the function, two pictures can be displayed at the same time (Twin pictures mode and
Picture in picture mode).
MULTI-PICTURE function
With this function, one of multi-picture (12 pictures and 4 pictures) can be displayed at the
same time.
Freeze function
The images that are currently seen can be viewed on the memo screen (still picture).
It is convenient for taking down notes like application address and recipe of cooking pro-
gram etc, while enjoying the current program.
PD-42DX
(No.52088)1-7

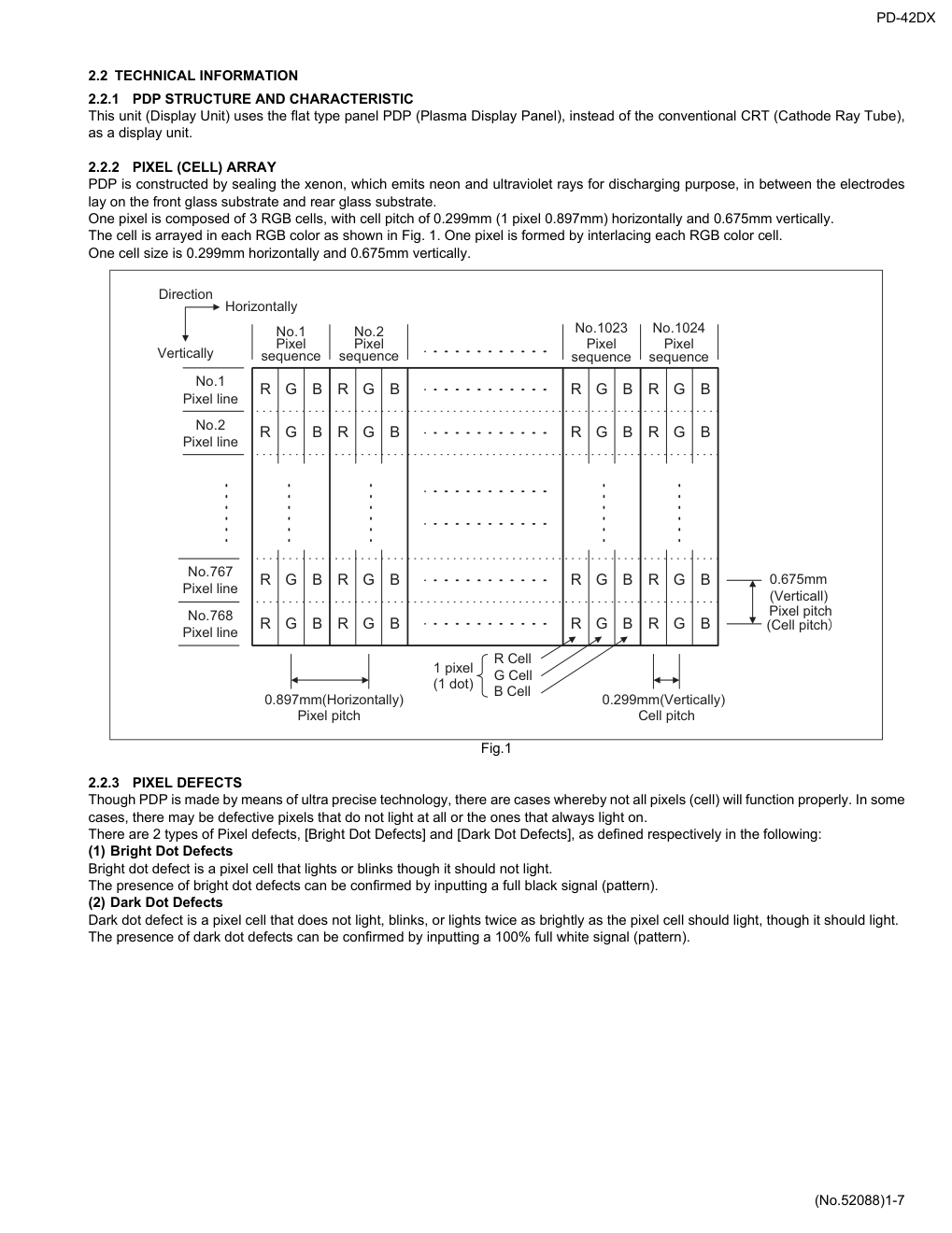

2.2 TECHNICAL INFORMATION
2.2.1
PDP STRUCTURE AND CHARACTERISTIC
This unit (Display Unit) uses the flat type panel PDP (Plasma Display Panel), instead of the conventional CRT (Cathode Ray Tube),
as a display unit.
2.2.2
PIXEL (CELL) ARRAY
PDP is constructed by sealing the xenon, which emits neon and ultraviolet rays for discharging purpose, in between the electrodes
lay on the front glass substrate and rear glass substrate.
One pixel is composed of 3 RGB cells, with cell pitch of 0.299mm (1 pixel 0.897mm) horizontally and 0.675mm vertically.
The cell is arrayed in each RGB color as shown in Fig. 1. One pixel is formed by interlacing each RGB color cell.
One cell size is 0.299mm horizontally and 0.675mm vertically.
Fig.1
2.2.3
PIXEL DEFECTS
Though PDP is made by means of ultra precise technology, there are cases whereby not all pixels (cell) will function properly. In some
cases, there may be defective pixels that do not light at all or the ones that always light on.
There are 2 types of Pixel defects, [Bright Dot Defects] and [Dark Dot Defects], as defined respectively in the following:
(1) Bright Dot Defects
Bright dot defect is a pixel cell that lights or blinks though it should not light.
The presence of bright dot defects can be confirmed by inputting a full black signal (pattern).
(2) Dark Dot Defects
Dark dot defect is a pixel cell that does not light, blinks, or lights twice as brightly as the pixel cell should light, though it should light.
The presence of dark dot defects can be confirmed by inputting a 100% full white signal (pattern).
R
G
B
R
G
B
R
G
B
R
G
B
G
B
R
G
B
G
B
R
G
B
R
R
R
G
B
R
G
B
R
G
B
R
G
B
G
B
R
G
B
G
B
R
G
B
R
R
No.1
Pixel
sequence
No.2
Pixel
sequence
No.1023
Pixel
sequence
No.1024
Pixel
sequence
No.1
Pixel line
No.2
Pixel line
Horizontally
Vertically
Direction
0.897mm(Horizontally)
Pixel pitch
0.299mm(Vertically)
Cell pitch
0.675mm
(Verticall)
Pixel pitch
(Cell pitch�
1 pixel
(1 dot)
No.767
Pixel line
No.768
Pixel line
R Cell
G Cell
B Cell
PD-42DX
1-8 (No.52088)

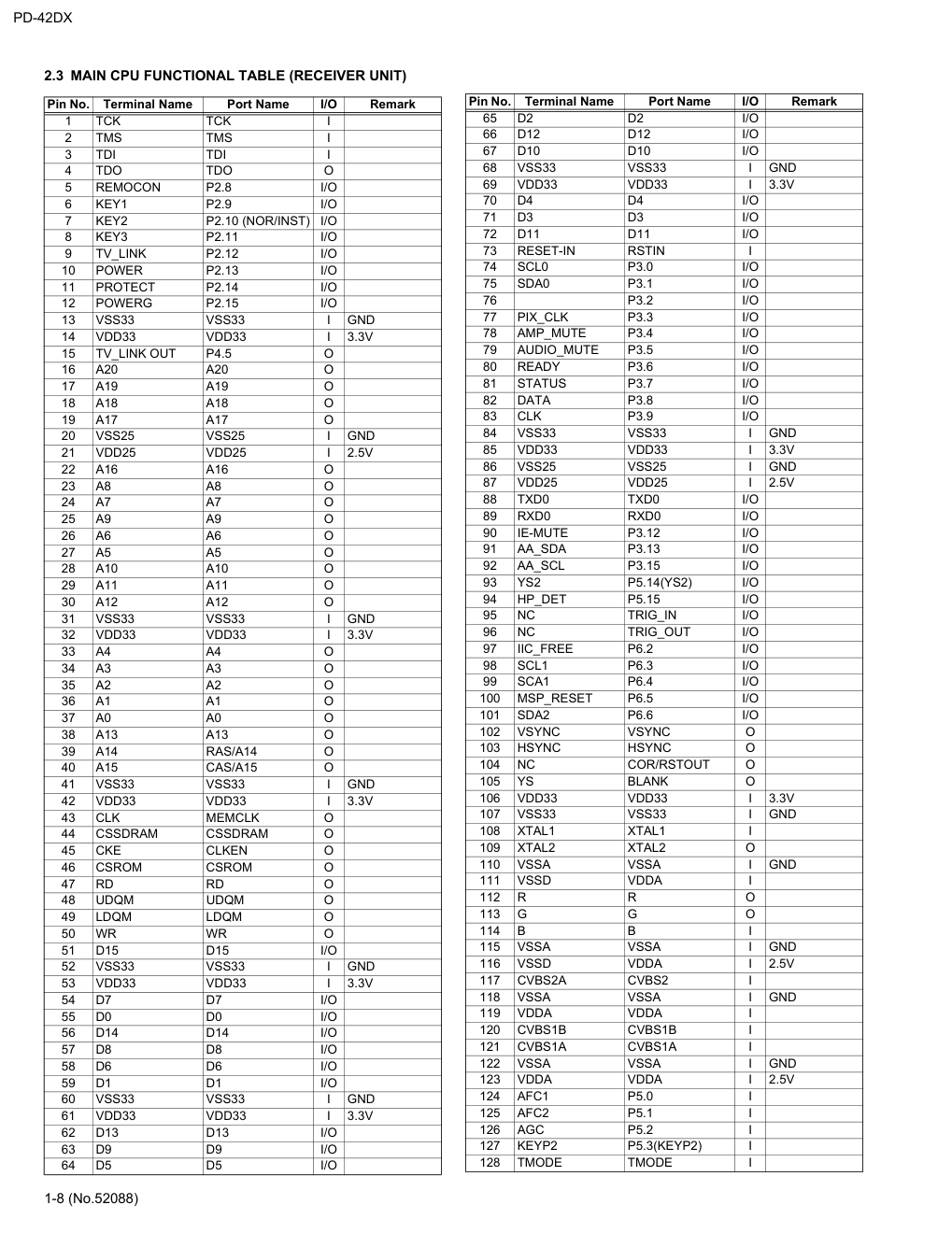

2.3 MAIN CPU FUNCTIONAL TABLE (RECEIVER UNIT)
Pin No.
Terminal Name
Port Name
I/O
Remark
1
TCK
TCK
I
2
TMS
TMS
I
3
TDI
TDI
I
4
TDO
TDO
O
5
REMOCON
P2.8
I/O
6
KEY1
P2.9
I/O
7
KEY2
P2.10 (NOR/INST)
I/O
8
KEY3
P2.11
I/O
9
TV_LINK
P2.12
I/O
10
POWER
P2.13
I/O
11
PROTECT
P2.14
I/O
12
POWERG
P2.15
I/O
13
VSS33
VSS33
I
GND
14
VDD33
VDD33
I
3.3V
15
TV_LINK OUT
P4.5
O
16
A20
A20
O
17
A19
A19
O
18
A18
A18
O
19
A17
A17
O
20
VSS25
VSS25
I
GND
21
VDD25
VDD25
I
2.5V
22
A16
A16
O
23
A8
A8
O
24
A7
A7
O
25
A9
A9
O
26
A6
A6
O
27
A5
A5
O
28
A10
A10
O
29
A11
A11
O
30
A12
A12
O
31
VSS33
VSS33
I
GND
32
VDD33
VDD33
I
3.3V
33
A4
A4
O
34
A3
A3
O
35
A2
A2
O
36
A1
A1
O
37
A0
A0
O
38
A13
A13
O
39
A14
RAS/A14
O
40
A15
CAS/A15
O
41
VSS33
VSS33
I
GND
42
VDD33
VDD33
I
3.3V
43
CLK
MEMCLK
O
44
CSSDRAM
CSSDRAM
O
45
CKE
CLKEN
O
46
CSROM
CSROM
O
47
RD
RD
O
48
UDQM
UDQM
O
49
LDQM
LDQM
O
50
WR
WR
O
51
D15
D15
I/O
52
VSS33
VSS33
I
GND
53
VDD33
VDD33
I
3.3V
54
D7
D7
I/O
55
D0
D0
I/O
56
D14
D14
I/O
57
D8
D8
I/O
58
D6
D6
I/O
59
D1
D1
I/O
60
VSS33
VSS33
I
GND
61
VDD33
VDD33
I
3.3V
62
D13
D13
I/O
63
D9
D9
I/O
64
D5
D5
I/O
65
D2
D2
I/O
66
D12
D12
I/O
67
D10
D10
I/O
68
VSS33
VSS33
I
GND
69
VDD33
VDD33
I
3.3V
70
D4
D4
I/O
71
D3
D3
I/O
72
D11
D11
I/O
73
RESET-IN
RSTIN
I
74
SCL0
P3.0
I/O
75
SDA0
P3.1
I/O
76
P3.2
I/O
77
PIX_CLK
P3.3
I/O
78
AMP_MUTE
P3.4
I/O
79
AUDIO_MUTE
P3.5
I/O
80
READY
P3.6
I/O
81
STATUS
P3.7
I/O
82
DATA
P3.8
I/O
83
CLK
P3.9
I/O
84
VSS33
VSS33
I
GND
85
VDD33
VDD33
I
3.3V
86
VSS25
VSS25
I
GND
87
VDD25
VDD25
I
2.5V
88
TXD0
TXD0
I/O
89
RXD0
RXD0
I/O
90
IE-MUTE
P3.12
I/O
91
AA_SDA
P3.13
I/O
92
AA_SCL
P3.15
I/O
93
YS2
P5.14(YS2)
I/O
94
HP_DET
P5.15
I/O
95
NC
TRIG_IN
I/O
96
NC
TRIG_OUT
I/O
97
IIC_FREE
P6.2
I/O
98
SCL1
P6.3
I/O
99
SCA1
P6.4
I/O
100
MSP_RESET
P6.5
I/O
101
SDA2
P6.6
I/O
102
VSYNC
VSYNC
O
103
HSYNC
HSYNC
O
104
NC
COR/RSTOUT
O
105
YS
BLANK
O
106
VDD33
VDD33
I
3.3V
107
VSS33
VSS33
I
GND
108
XTAL1
XTAL1
I
109
XTAL2
XTAL2
O
110
VSSA
VSSA
I
GND
111
VSSD
VDDA
I
112
R
R
O
113
G
G
O
114
B
B
I
115
VSSA
VSSA
I
GND
116
VSSD
VDDA
I
2.5V
117
CVBS2A
CVBS2
I
118
VSSA
VSSA
I
GND
119
VDDA
VDDA
I
120
CVBS1B
CVBS1B
I
121
CVBS1A
CVBS1A
I
122
VSSA
VSSA
I
GND
123
VDDA
VDDA
I
2.5V
124
AFC1
P5.0
I
125
AFC2
P5.1
I
126
AGC
P5.2
I
127
KEYP2
P5.3(KEYP2)
I
128
TMODE
TMODE
I
Pin No.
Terminal Name
Port Name
I/O
Remark
PD-42DX
(No.52088)1-9

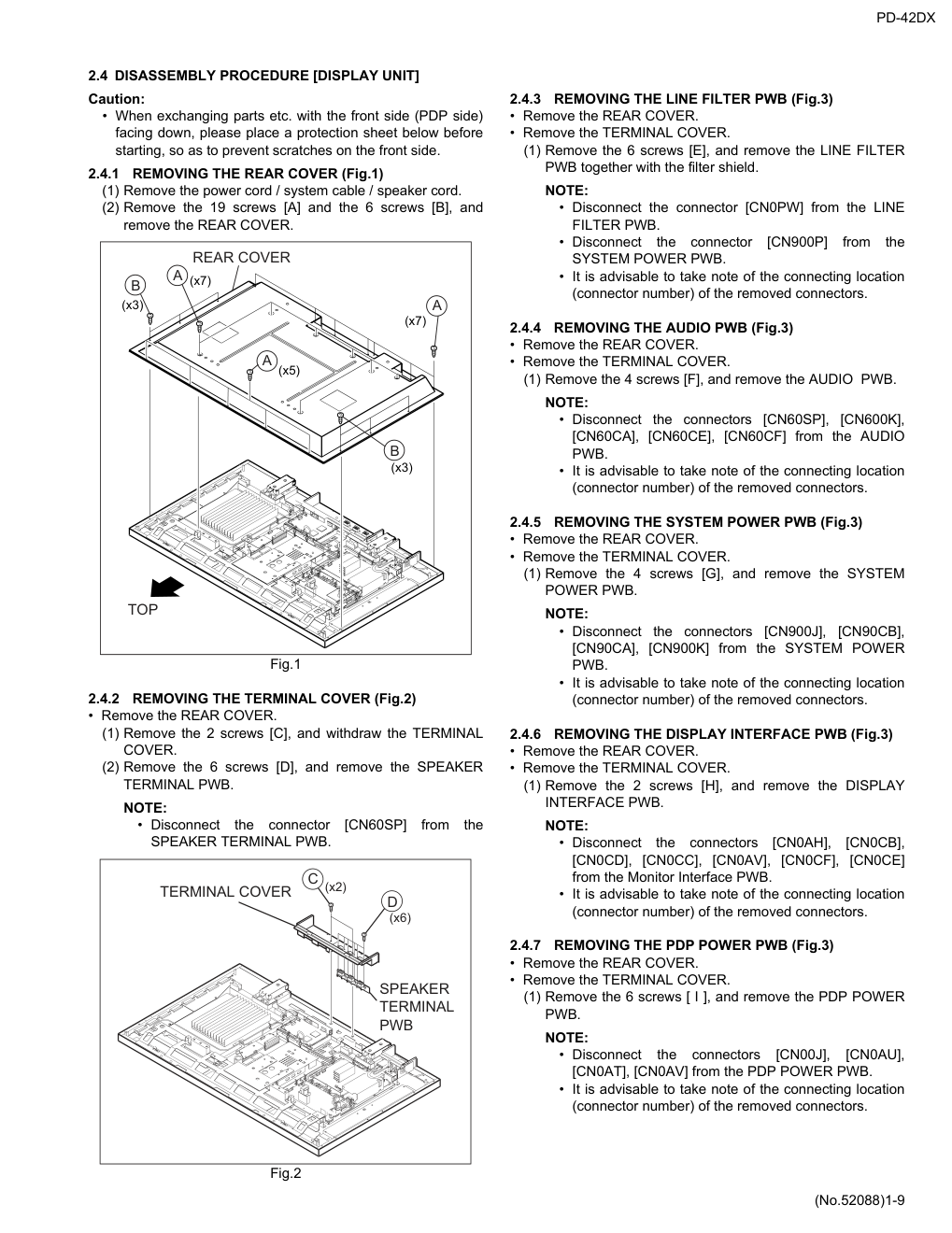

2.4 DISASSEMBLY PROCEDURE [DISPLAY UNIT]
Caution:
• When exchanging parts etc. with the front side (PDP side)
facing down, please place a protection sheet below before
starting, so as to prevent scratches on the front side.
2.4.1
REMOVING THE REAR COVER (Fig.1)
(1) Remove the power cord / system cable / speaker cord.
(2) Remove the 19 screws [A] and the 6 screws [B], and
remove the REAR COVER.
Fig.1
2.4.2
REMOVING THE TERMINAL COVER (Fig.2)
• Remove the REAR COVER.
(1) Remove the 2 screws [C], and withdraw the TERMINAL
COVER.
(2) Remove the 6 screws [D], and remove the SPEAKER
TERMINAL PWB.
NOTE:
• Disconnect the connector [CN60SP] from the
SPEAKER TERMINAL PWB.
Fig.2
2.4.3
REMOVING THE LINE FILTER PWB (Fig.3)
• Remove the REAR COVER.
• Remove the TERMINAL COVER.
(1) Remove the 6 screws [E], and remove the LINE FILTER
PWB together with the filter shield.
NOTE:
• Disconnect the connector [CN0PW] from the LINE
FILTER PWB.
• Disconnect the connector [CN900P] from the
SYSTEM POWER PWB.
• It is advisable to take note of the connecting location
(connector number) of the removed connectors.
2.4.4
REMOVING THE AUDIO PWB (Fig.3)
• Remove the REAR COVER.
• Remove the TERMINAL COVER.
(1) Remove the 4 screws [F], and remove the AUDIO PWB.
NOTE:
• Disconnect the connectors [CN60SP], [CN600K],
[CN60CA], [CN60CE], [CN60CF] from the AUDIO
PWB.
• It is advisable to take note of the connecting location
(connector number) of the removed connectors.
2.4.5
REMOVING THE SYSTEM POWER PWB (Fig.3)
• Remove the REAR COVER.
• Remove the TERMINAL COVER.
(1) Remove the 4 screws [G], and remove the SYSTEM
POWER PWB.
NOTE:
• Disconnect the connectors [CN900J], [CN90CB],
[CN90CA], [CN900K] from the SYSTEM POWER
PWB.
• It is advisable to take note of the connecting location
(connector number) of the removed connectors.
2.4.6
REMOVING THE DISPLAY INTERFACE PWB (Fig.3)
• Remove the REAR COVER.
• Remove the TERMINAL COVER.
(1) Remove the 2 screws [H], and remove the DISPLAY
INTERFACE PWB.
NOTE:
• Disconnect the connectors [CN0AH], [CN0CB],
[CN0CD], [CN0CC], [CN0AV], [CN0CF], [CN0CE]
from the Monitor Interface PWB.
• It is advisable to take note of the connecting location
(connector number) of the removed connectors.
2.4.7
REMOVING THE PDP POWER PWB (Fig.3)
• Remove the REAR COVER.
• Remove the TERMINAL COVER.
(1) Remove the 6 screws [ I ], and remove the PDP POWER
PWB.
NOTE:
• Disconnect
the
connectors
[CN00J],
[CN0AU],
[CN0AT], [CN0AV] from the PDP POWER PWB.
• It is advisable to take note of the connecting location
(connector number) of the removed connectors.
(x7)
(x7)
(x5)
A
A
A
(x3)
B
(x3)
B
REAR COVER
TOP
TERMINAL COVER
SPEAKER
TERMINAL
PWB
C
D
(x2)
(x6)
PD-42DX
1-10 (No.52088)

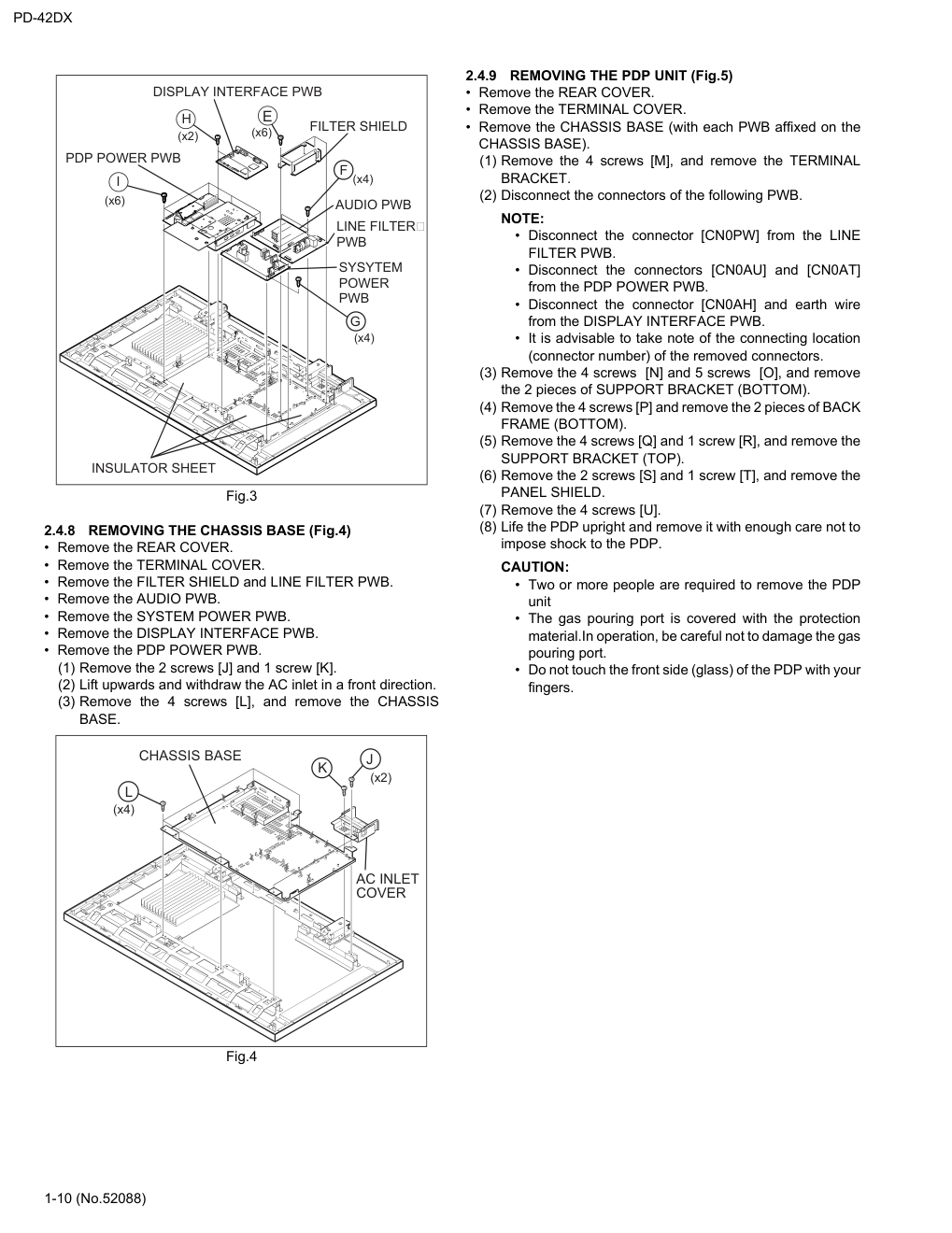

Fig.3
2.4.8
REMOVING THE CHASSIS BASE (Fig.4)
• Remove the REAR COVER.
• Remove the TERMINAL COVER.
• Remove the FILTER SHIELD and LINE FILTER PWB.
• Remove the AUDIO PWB.
• Remove the SYSTEM POWER PWB.
• Remove the DISPLAY INTERFACE PWB.
• Remove the PDP POWER PWB.
(1) Remove the 2 screws [J] and 1 screw [K].
(2) Lift upwards and withdraw the AC inlet in a front direction.
(3) Remove the 4 screws [L], and remove the CHASSIS
BASE.
Fig.4
2.4.9
REMOVING THE PDP UNIT (Fig.5)
• Remove the REAR COVER.
• Remove the TERMINAL COVER.
• Remove the CHASSIS BASE (with each PWB affixed on the
CHASSIS BASE).
(1) Remove the 4 screws [M], and remove the TERMINAL
BRACKET.
(2) Disconnect the connectors of the following PWB.
NOTE:
• Disconnect the connector [CN0PW] from the LINE
FILTER PWB.
• Disconnect the connectors [CN0AU] and [CN0AT]
from the PDP POWER PWB.
• Disconnect the connector [CN0AH] and earth wire
from the DISPLAY INTERFACE PWB.
• It is advisable to take note of the connecting location
(connector number) of the removed connectors.
(3) Remove the 4 screws [N] and 5 screws [O], and remove
the 2 pieces of SUPPORT BRACKET (BOTTOM).
(4) Remove the 4 screws [P] and remove the 2 pieces of BACK
FRAME (BOTTOM).
(5) Remove the 4 screws [Q] and 1 screw [R], and remove the
SUPPORT BRACKET (TOP).
(6) Remove the 2 screws [S] and 1 screw [T], and remove the
PANEL SHIELD.
(7) Remove the 4 screws [U].
(8) Life the PDP upright and remove it with enough care not to
impose shock to the PDP.
CAUTION:
• Two or more people are required to remove the PDP
unit
• The gas pouring port is covered with the protection
material.In operation, be careful not to damage the gas
pouring port.
• Do not touch the front side (glass) of the PDP with your
fingers.
INSULATOR SHEET
H
(x2)
I
(x6)
E
F
(x6)
(x4)
SYSYTEM
POWER
PWB
LINE FILTER�
PWB
AUDIO PWB
PDP POWER PWB
DISPLAY INTERFACE PWB
FILTER SHIELD
G
(x4)
K
(x2)
J
(x4)
L
AC INLET
COVER
CHASSIS BASE
PD-42DX
(No.52088)1-11
Fig.5
(x4)
N
(x2)
N
M
(x3)
O
(x2)
P
(x2)
S
T
(x2)
Q
(x2)
Q
R
(x4)
U
(x2)
N
(x2)
O
(x2)
P
SUPPORT BRACKET
(BOTTOM)
TERMINAL BRACKET
SUPPORT BRACKET
(BOTTOM)
BACK FRAME (BOTTOM)
PANEL SHIELD
BACK FRAME
(BOTTOM)
SUPPORT BRACKET
(TOP)
PDP UNIT
FRONT PANEL
INNER CASE
FRONT FILTER
TOP
GAS
insertion hole
PD-42DX
1-12 (No.52088)
2.4.10 REMOVING THE INNER CASE (Fig.6)
• Remove the REAR COVER.
• Remove the TERMINAL COVER.
• Remove the the CHASSIS BASE (with each PWB attached to
the CHASSIS BASE).
• Remove the PDP unit.
(1) Remove the 2 screws [V] and 3 screws [W].
(2) Lift the INNER CASE to about the height of the FRONT
PANEL frame, withdraw it in a front direction and remove it
from the 5 guiding bosses located at the top of the FRONT
PANEL.
CAUTION:
• The INNER CASE is attached with the filter (made of
glass). Be careful not to impose shock to it.
2.4.11 REMOVING THE DISPLAY SW PWB (Fig.6)
• Remove the INNER CASE.
(1) Remove the 2 screws [X], and remove the DISPLAY LED
PWB.
2.4.12 REMOVING THE PANEL SW PWB (Fig.6)
• Remove the INNER CASE.
(1) Remove the 2 screws [Y], and remove the CONTROL
BASE.
(2) Remove the 3 screws [Z], and remove the DISPLAY
SWITCH PWB.
2.4.13 REMOVING THE FRONT FILTER (Fig.6)
• Remove the INNER CASE.
(1) Remove the 10 screws [a], and remove the 10 FILTER
BRACKETS.
(2) Remove the FRONT FILTER with enough care not to
damage it.
Fig.6
Y
Z
DISPLAY LED
PWB
DISPLAY
SWITCH PWB
CONTROL BASE
FRONT FILTER
INNER CASE
FRONT PANEL
(x2)
(x3)
FILTER BRACKET
X
(x2)
W
V
(x3)
V
(x2)
BOSS
(x5)
a
(x2)
a
(x2)
a
(x3)
FILTER BRACKET
(x3)
FILTER BRACKET
(x2)
a
(x3)
FILTER BRACKET
(x3)
PD-42DX
(No.52088)1-13
2.5 DISASSEMBLY OF PROCEDURE [RECEIVER UNIT]
2.5.1
REMOVING THE TOP COVER
(1) Remove the 4 screws [A] on the both left and right sides.
(2) Remove the 3 screws [B] on the rear side.
(3) Lift upwards and withdraw the TOP COVER.
2.5.2
REMOVING THE FRONT PANEL
• Remove the TOP COVER.
(1) Remove the 1 screw [C] and 1 screw [D].
(2) Disengage the 2 claws [E] on the both left and right sides.
(3) Disengage the 2 claws [F] on the bottom side.
(4) Withdraw the FRONT PANEL in a front direction.
2.5.3
REMOVING THE DAMPER (INSIDE FRONT PANEL)
• Remove the TOP COVER.
• Remove the FRONT PANEL.
(1) Remove the 1 screw [G], and remove the DAMPER.
2.5.4
REMOVING THE FRONT CONTROL PWB
• Remove the TOP COVER.
• Remove the FRONT PANEL.
(1) Remove the 4 screws [H], and remove the FRONT
CONTROL PWB.
2.5.5
REMOVING THE REAR COVER
• Remove the TOP COVER.
(1) Remove the 2 screws [I], and withdraw the AC INLET.
(2) Remove the 2 screws [J] and the 2 screws [K], and with-
draw the display output terminal.
(3) Remove the 14 screws [L], and withdraw the video/audio
terminal.
(4) Remove the 2 screws [M] and the 1 screw [N], and with-
draw the REAR COVER in a rear direction.
2.5.6
REMOVING THE DIST PWB, DIST RELAY PWB, MI-
COM PWB, MI-COM INTERFACE PWB, AV JACK
PWB, AV SW PWB, and SUB TUNER PWB.
• Remove the TOP COVER
• Remove the REAR COVER.
(1) Remove the 1 screw [O], and remove the PB HOLDER.
(2) Remove the 2 screws [P] and 2 screws [Q]. Then, lift up-
wards and withdraw the SUPPORT BRACKET, the DIST
PWB, and the DIST RELAY PWB.
(3) Remove the 5 screws [R] and 1 screw [S], and remove the
SUPPORT BRACKET.
(4) Pull right and left and remove the DIST PWB and the DIST
RELAY PWB.
(5) Lift upwards and withdraw the MI-COM PWB and the MI-
COM INTERFACE PWB.
(6) Pull right and left and remove the MI-COM PWB and the
MI-COM INTERFACE PWB.
(7) Lift upwards and withdraw the AV JACK PWB and the AV
SW PWB.
(8) Pull right and left and remove the AV JACK PWB and the
AV SW PWB.
(9) Lift upwards and withdraw the SUB TUNER PWB.
2.5.7
REMOVING THE MAIN PWB AND RECEIVER POWER
PWB
• Remove the TOP COVER
• Remove the REAR COVER.
• Remove the DIST PWB, DIST RELAY PWB, MI-COM PWB,
MI-COM INTERFACE PWB, AV JACK PWB, AV SW PWB,
and SUB TUNER PWB.
(1) Remove the 2 screws [T] and 2 screws [U]. Then, lift up-
wards and withdraw the MAIN PWB.
(2) Remove the 6 screws [V], and remove the MI-COM
HOLDER and the RECEIVER POWER PWB.
2.5.8
REMOVING THE AC INLET
• Remove the TOP COVER
• Remove the REAR COVER.
(1) Remove the 1 screw [W], and remove the AC INLET.
PD-42DX
1-14 (No.52088)
Fig.7
a
a
A
(x2)
B
(x3)
A
D
(x1)
F
TOP COVER
FRONT PANEL
FRONT PANEL
FRONT
DOOR
FRONT PANEL
(BACK SIDE)
G
DAMPER
P
D
P
Q
Q
R
S
W
E
E
M
N
M
L
I
J
K
O
H
T
T
(x4)
(x4)
U
U
V
V
V
MAIN
PWB
AC INLET
BACK
COVER
BOTTOM
CASE
FRONT
CONTROL
PWB
RECEIVER POWER PWB
AV SW PWB
AV JACK PWB
SUB TUNER
PWB
MI-COM
HOLDER
MI-COM PWB
PB HOLDER
MI-COM
INTERFACE
PWB
SUPPORT
BRACKET
DIST PWB
DIST RELAY PWB
(x2)
(x2)
(x2)
(x14)
(x5)
(x2)
INSULATOR
C
(x1)
PD-42DX
(No.52088)1-15
2.6 REPLACEMENT OF MEMORY IC
This unit uses the nonvolatile memory IC.
The memory IC memories data for video and deflection circuits. To replace the memory IC without the data written, malfunctions might
occurred while power is on, and the normal image might not appear. When replacing the memory IC, be sure to use the IC written with
the initial values of data.
2.6.1
PROCEDURE FOR REPLACING THE MEMORY IC
(1) Switch the power off and unplug the power cord from the
wall outlet.
(2) Replacing the memory IC. [Be sure to use the IC written
with the initial values of data]
(3) Plug the power cord into the wall outlet and switch the
power on.
(4) Check and setting of SYSTEM CONSTANT SET
a) Press the [INFORMATION] key and [MUTING] key
on the remote control unit simultaneously.
The SERVICE MENU screen will be displayed. (See
Fig.1)
b) In the SERVICE MENU, press the [INFORMATION]
key and [MUTING] key simultaneously.
Then, the SYSTEM CONSTANT SET screen will be
displayed. (See FIg.2)
c) Check whether the setting value of the SYSTEM
CONSTANT SET is the same as these indicated in
Table 1.
d) Press the [INFORMATION] key twice to return to the
normal screen.
(5) Receive channel setting
Refer to the OPERATING INSTRUCTIONS and set the re-
ceive channels.
(6) User setting
Memories the user setting items.
The [SETTINGS OF THE LAST MEMORY FACTORY
SHIPMENT] setting is as next page.
(7) Serviceman setting mode
Check the serviceman setting items of setting mode, set if
necessary.
For setting method, please refer to the [ADJUSTMENT
PREPARATION] to [ADJUSTMENT PROCEDURE] of
ADJUSTMENTS section.
Fig.1
Fig.2
2.6.2
SETTING OF THE SYSTEM CONSTANT SET
Table 1
SERVICE MENU
1. IF
2. V/C
3. AUDIO
4. DD/CM
5. VSM PRESET
6. STATUS
7. VNR
8. IP
9. SHIPPING (OFF)
0. BUS FREE
1-9 : SELECT
i : EXIT
SERVICE MENU SCREEN
SERVICE MENU SCREEN
SYSTEM CONSTANT SET SCREEN
SYSTEM CONSTANT SET SCREEN
SYSTEM CONSTANT SET
1. DESTINATION
ASIA
-/+ : STORE
T: EXIT
OK
Setting item
Setting content
Setting value
DESTINATION
ASIA/EURO
ASIA
PD-42DX
1-16 (No.52088)
2.6.3
SETTINGS OF THE LAST MEMORY FACTORY SHIPMENT
Table 2
2.6.4
VSM PRESET SETTING
2.6.4.1
Setting of VSM PRESET
(1) Enter "5.VSM PRESET" from the SERVICE MENU.
(2) Press the [OK] key to select BRIGHT/STD/SOFT/COOL/NORMAL/WARM mode.
(3) Select the setting item using the [FUNCTION (UP/DOWN)] key.
(4) Set the value using the [FUNCTION (+/-)]key.
(5) Press the [OK] key to save the value.
(6) Press the [INFORMATION] key twice to return to the normal screen.
Setting item
Setting value
Setting item
Setting value
MAIN POWER SW
OFF
SOUND SETTING
SHIPPING CHANNEL
PR1
STEREO/I·II
Stereo sound
PRESET CHANNEL
Refer to
OPERATING INSTRUCTIONS
BASS
Center
TREBLE
Center
VOLUME
10
BALANCE
Center
PICTURE SETTING
SPEAKER
ON
PICTURE MODE
BRIGHT
BBE
OFF
CONTRAST
Center
CINEMA SURROUND
OFF
BRIGHT
Center
SUBWOOFER
LOW
SHARP
Center
HEADPHONE
COLOUR
Center
VOLUME 20
TINT
Center
TV SPEAKER OFF
WHITE BALANCE
MID
OUTPUT MAIN
PICTURE FEATURES
VIDEO SETTING
DIGITAL VNR
AUTO
ID LIST
---
Super DigiPure
AUTO
FEATURES
COLOUR SYSTEM
TV: Depend on PR/CH
EXT: AUTO
SLEEP TIMER
OFF
BLUE BACK
ON
PULL DOWN
AUTO
CHANNEL GUARD
SET ID NO 0000
4:3 AUTO ASPECT
PANORAMIC
COLOUR MANAGEMENT
ON
SNOW NOISE
OFF
PIP
Right below
INSTALL
LANGUAGE
ENGLISH
AUTO PROGRAM
GROUP-1
EDIT / MANUAL
EDIT
Item No.
Item
Variable
range
Setting value
PICTURE MODE
WHITE BALANCE
BRIHGT
STD
SOFT
COOL
NORMAL
WARM
1
CONT
-16~16
9
0
-13
-
-
-
2
BRIGHT
-16~16
0
0
0
-
-
-
3
SHARP
-16~16
6
0
-2
-
-
-
4
COLOUR
-16~16
2
0
-1
-
-
-
5
TINT
-16~16
0
0
0
-
-
-
1
WDR R
-128~127
-
-
-
-4
0
8
2
WDR G
-128~127
-
-
-
0
0
0
3
WDR B
-128~127
-
-
-
8
0
-1
PD-42DX
(No.52088)1-17
2.6.5
SERVICE MENU SETTING ITEMS
Table 3
Setting item
Setting value
Setting item
Setting value
1.IF
1.VCO
6.STATUS
(Do not adjust)
2.ATT ON/OFF
2. V/C
1.CUT OF R
13.COLOUR
7.VNR
(Do not adjust)
2.CUT OF G
14.HUE
1.MYLV
10.MCCOR
3.CUT OF B
15.BY GAIN
2.ONMVF
11.CLTL
4.DRIVE R
16.TWN COL
3.MYCOR
12.YNGA
5.DRIVE G
17.TWN TNT
4.MYGA
13.COR_OF
6.DRIVE B
18.B OF MR
5.YEGON
14.LPF_OF
7.TWIN HI R
19.B OF MB
6.YEGL
15.YCTL
8.TWIN HI B
20.B OF SR
7.YLTL
16.YNCL
9.BRIGHT
21.B OF SB
8.MCLV
17.YNCON
10.CONT
S01 ~ S97
9.MCGA
11.TWN BRG
A01 ~ A17
12.TWN CNT
PDA01 ~ PDA12
3.AUDIO
(Do not adjust)
1.ERROR LIMIT
8.IP
(Do not adjust)
PPA001 ~ PPA008
2.A2 ID THR
PPB001 ~ PPB036
3.Q-PEAK
PPC001 ~ PPC007
4.SOUND LEVEL
PPD001 ~ PPD016
ADS001 ~ ADS034
4.DD/CM
DDT01 ~ DDT34
IPA001 ~ IPA120
CMT01 ~ CMT57
IPB001 ~ IPB079
DDP01 ~ DDP37
IPC001 ~ IPC044
CMP01 ~ CMP03
IPD001 ~ IPD058
OSD-G
OSD-B
OSD-R
5.VSM PRESET
1.CONT
5.TINT
9.SHIPPING(OFF)
(Do not use under the adjustment)
2.BRIGHT
6.DRIVE R
3.SHARP
7.DRIVE G
4.COLOUR
8.DRIVE B
PD-42DX
1-18 (No.52088)
2.7 REPLACEMENT OF CHIP COMPONENT
2.7.1
CAUTIONS
(1) Avoid heating for more than 3 seconds.
(2) Do not rub the electrodes and the resist parts of the pattern.
(3) When removing a chip part, melt the solder adequately.
(4) Do not reuse a chip part after removing it.
2.7.2
SOLDERING IRON
(1) Use a high insulation soldering iron with a thin pointed end of it.
(2) A 30w soldering iron is recommended for easily removing parts.
2.7.3
REPLACEMENT STEPS
1. How to remove Chip parts
[Resistors, capacitors, etc.]
(1) As shown in the figure, push the part with tweezers and
alternately melt the solder at each end.
(2) Shift with the tweezers and remove the chip part.
[Transistors, diodes, variable resistors, etc.]
(1) Apply extra solder to each lead.
(2) As shown in the figure, push the part with tweezers and
alternately melt the solder at each lead. Shift and remove
the chip part.
Note :
After removing the part, remove remaining solder from the
pattern.
2. How to install Chip parts
[Resistors, capacitors, etc.]
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the
solder. Then heat and melt the solder at both ends of the
chip part.
[Transistors, diodes, variable resistors, etc.]
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the
solder.
(3) First solder lead A as indicated in the figure.
(4) Then solder leads B and C.
SOLDER
SOLDER
A
B
C
A
B
C
PD-42DX
(No.52088)1-19
SECTION 3
ADJUSTMENTS
3.1 ADJUSTMENT PREPARATION
(1) Adjustment of many Majority of the adjustment items for
this unit is performed using the remote control.
(2) However, adjustment of some adjustment items is
performed in the conventional way, i.e. with components
on the boards.
(3) Ensure that the power supply is AC220V.
(4) Allow the set and the measuring devices to run for at least
30 minutes.
(5) Do not alter settings of items/preset values on the service
screen that are not stated in this manual.
(6) Unless
otherwise
stated
in
the
“ADJUSTMENT
PROCEDURE” section, follow the settings for the features
stated below using the remote control.
3.2 MEASURING INSTRUMENT AND FIXTURES
• DC voltmeter (or Digital voltmeter)
• Oscilloscope
• Signal generator (Pattern generator)
• Remote control unit
3.3 MAIN PARTS LOCATIONS (RECEIVER UNIT)
Fig.1
Setting item
Settings
PICTURE MODE
STANDARD
PICTURE adjustment
All center (00)
WHITE BALANCE
MID
DIGITAL VNR
AUTO
Super Digi Pure
AUTO
SOUND adjustment
All centre (00)
ZOOM
FULL
MAIN PWB
MI-COM PWB
MI-COM
INTERFACE
PWB
DIST RELAY PWB
FRONT CONTROL PWB
RECEIVER POWER PWB
AV SW PWB
AV JACK PWB
SUB TUNER PWB
DIST PWB
PD-42DX
1-20 (No.52088)
3.4 MAIN PARTS LOCATIONS (DISPLAY UNIT)
Fig.2
SPEAKER TERMINAL
CHASSIS BASE
P
CA
J
K
PW
F901
LINE FILTER PWB
AH
SP
CB
CD
CC
CE
CE
SP
CF
CA
K
CB
J
P
AT
AV
AU
AV
C2
C1
NC
CF
NC
DISPALY SWITCH PWB
AUDIO PWB
SYSTEM POWER PWB
PDP POWER PWB
DISPLAY INTERFACE PWB
SPEAKER TERMINAL PWB
CN301
PDP
UNIT
CN302
PDP
UNIT
C4
POWER CONNECTOR
THE CONNECTOR
FOR ADJUSTMENT
CN0C4
DISPLAY LED PWB
TOP
CN104
PDP
UNIT
PD-42DX
(No.52088)1-21
3.5 SERVICE MENU SCREEN
Fig.3
SERVICE MENU
V/C
1. CUT OF R
2. V/C
PAL
- / +
: STORE i : EXIT
DD/CM
PAL
DDT01
0000
4. DD/CM
- / +
: STORE i : EXIT
DDT01 ~ DDT34
CMT01 ~ CMT57
DDP01 ~ DDP37
CMP01 ~ CMP03
OSD-G
OSD-B
OSD-R
IF SERVICE MENU
1. VCO
2. ATT ON/OFF
1-2 : SELECT i : EXIT
SERVICE MENU
1. IF
2. V/C
3. AUDIO
4. DD/CM
5. VSM PRESET
6. STATUS
7. VNR
8. IP
9. SHIPPING (OFF)
0. BUS FREE
1-9 : SELECT
i : EXIT
1. ERR LIMIT
2. A2 ID THR
3. Q
4. SOUND LEVEL
PEAK
AUDIO
3. AUDIO
1. ERROR LIMIT 0100
C_AD_BITS
=
ERROR LIMIT =
- / +
: STORE i : EXIT
1.IF
BRIGHT
STANDARD
SOFT
5. VSM PRESET
VSM PRESET BRIGHT
1.CONT
- / +
: STORE i : EXIT
1. CONT
2. BRIGHT
3. SHARP
4. COLOUR
5.
6.
7.
8.
TINT
WDR R
WDR G
WDR B
Do not adjust
Do not adjust
OK
6. STATUS
1. SOFT
2. TELE TEXT
3. ASPECT
4. IC
5. DEBUG
6. PANEL
7. VNR
1. MYLV
2. ONMVF
3. MYCOR
4. MYGA
5. YEGON
6. YEGL
7. YLTL
8. MCLV
9. MCGA
10. MCCOR
11. CLTL
12. YNGA
13.COROF
14. LPF_OF
15. YCTL
16.TNCL
17. YNCON
IP FULL PAL
8. IP
- / +
: STORE i : EXIT
PPA001 ~ PPA008
PPB001 ~ PPB036
PPC001 ~ PPC007
PPD001 ~ PPD016
ADS001 ~ ADS034
IPA001 ~ IPA120
IPB001 ~IPB088
IPC001 ~ IPC044
IPD001 ~ IPD058
OK
OK
OK
STATUS
1.SOFT
- / +
: SELECT i : EXIT
OK
OK
PICTURE MODE
COOL
NORMAL
WARM
WHITE BALANCE
1. CUT OF R
2. CUT OF G
3. CUT OF B
4. DRIVE R
5. DRIVE G
6. DRIVE B
7. TWN HI R
8. TWIN HI B
9. BRIGHT
10. CONT
11. TWN BRG
12. TWN CNT
13. COLOUR
14. HUE
15. BY GAIN
16. TWN COL
17. TWN TNT
18. B OF MR
19. B OF MB
20. B OF SR
21. B OF SB
S01 ~ S97
A01 ~ A17
PDA01 ~ PDA12
VNR
1.MYLV
- / +
: STORE i : EXIT
0000
000
000
0000
00000000
0000
PPA001
0000
OK
PD-42DX
1-22 (No.52088)
3.6 BASIC OPERATION OF THE SERVICE MENU MODE [USING REMOTE CONTROL UNIT]
3.6.1
HOW TO ENTER THE SERVICE MENU MODE
NOTE:
Ensure that the cursor (arrow) of the User Menu screen is
pointing at Picture Control.
(1) Press the [INFORMATION] key and the [MUTING] key of
the REMOTE CONTROL UNIT simultaneously, and the
SERVICE MENU screen of Fig.4 will be displayed.
(2) When the Main Menu is displayed, press any key of the [1]
to [0] key to enter the corresponding menu mode.
*Press any of the [1] to [0] keys before the Service Menu
mode disappears.
(3) Select the service item using the [FUNCTION (UP/DOWN)]
key.
(4) Set the value using the [FUNCTION (+/-)] key.
(5) Press the [OK] key to save the value.
Fig.4
3.6.2
HOW TO EXIT THE SERVICE MENU MODE
Press the [INFORMATION] key to exit the Service Menu mode.
3.6.3
SERVICE CONTROL KEY LAYOUT ON THE REMOTE
CONTROL UNIT
Fig.5
3.6.4
SETTINGS OF THE SERVICE MENUS
3.6.4.1
[1. IF] (VCO adjustment, ATT setting)
[Do not adjust]
3.6.4.2
[2. V/C] (VIDEO setting)
[Do not change settings of items that are not included in the
“ADJUSTMENT PROCEDURE”.]
Sets output data to the video circuit.
• [Function (up/down)] key
For scrolling up/down the item codes.
• [Function (+/-)] key
For scrolling up/down the data values.
3.6.4.3
[3. AUDIO] (SOUND setting)
[Do not adjust]
3.6.4.4
[4. DD/CM] (Panel picture processing setting)
[Do not change settings of items that are not included in the
“ADJUSTMENT PROCEDURE”.]
Sets output data to the deflection circuit.
• [Function (up/down)] key
For scrolling up/down the item codes.
• [Function (+/-)] key
For scrolling up/down the data values.
3.6.4.5
[5. VSM PRESET] (PICTURE preset setting)
[Refer to page 1-16.]
3.6.4.6
[6. STATUS]
(The version of software, the aspect, and the state of
debugging are displayed. )
[Setting for this item is not required in servicing]
3.6.4.7
[7. VNR] (Noise reduction setting)
[Do not adjust]
Sets output data to the digital noise reduction circuit.
3.6.4.8
[8. IP] (DIST setting)
[Do not adjust]
Sets output data to the DIST circuit.
3.6.4.9
[9. SHIPPING (OFF)]
[Setting for this item is not required in servicing]
3.6.4.10
[10. BUE FREE]
[Setting for this item is not required in servicing]
SERVICE MENU SCREEN
SERVICE MENU SCREEN
SERVICE MENU
1. IF
2. V/C
3. AUDIO
4. DD/CM
5. VSM PRESET
6. STATUS
7. VNR
8. IP
9. SHIPPING (OFF)
0. BUS FREE
1-9 : SELECT
i : EXIT
FREEZE
SUB-P
INFOMATION
FUNCTION-/+
OK
1~0
MUTING
FUNCTION UP/DOWN
PD-42DX
(No.52088)1-23
3.7 DEFAULT VALUES IN THE SERVICE MENU SETTING MODE
• Perform fine-tuning based on the "default values" using the remote control when in the SERVICE MENU setting mode.
• The "default values" serve only as an indication rough standard and therefore the values with which optimal display can be achieved
may be different from the default values. But, don't change the values that are not written in "ADJUSTMENT PROCEDURE". They
are fixed values.
3.7.1
[2. V/C]
3.7.1.1
VIDEO SYSTEM
Item No.
Item
Variable range
Setting value
TV
VIDEO-1 / 2 / 3 / 5
VIDEO-4
PAL
SECAM
PAL
SECAM
NTSC
625i
525i
625p
525p
1
CUT OF R
0000~0255
0088
0088
0088
0088
0088
0000
0000
0000
0000
2
CUT OF G
0000~0255
0101
0101
0101
0101
0101
0000
0000
0000
0000
3
CUT OF B
0000~0255
0106
0106
0106
0106
0106
0000
0000
0000
0000
4
DRIVE R
0000~0255
0129
0129
0129
0129
0129
0000
0000
0000
0000
5
DRIVE G
0000~0255
0112
0112
0112
0112
0112
0000
0000
0000
0000
6
DRIVE B
0000~0255
0110
0110
0110
0110
0110
0000
0000
0000
0000
7
TWIN HI R
0000~0127
0074
0074
0074
0074
0074
0000
0000
0000
0000
8
TWIN HI B
0000~0127
0066
0066
0066
0066
0066
0000
0000
0000
0000
9
BRIGHT
0000~0255
0014
0014
0014
0014
0014
0000
0000
0000
0000
10
CONT
0000~0015
0006
0006
0006
0006
0006
0000
0000
0000
0000
11
TWN BRG
0000~0127
0081
0081
0081
0081
0081
0000
0000
0000
0000
12
TWN CNT
0000~0015
0007
0007
0007
0007
0007
0000
0000
0000
0000
13
COLOUR
0000~0015
0006
0006
0000
0000
0007
0000
0000
0000
0000
14
HUE
0000~0063
0007
0007
0000
0000
0034
0000
0000
0000
0063
15
BY GAIN
0000~0063
0032
0032
0000
0000
0043
0000
0000
0000
0043
16
TWN COL
0000~0015
0010
0010
0002
0002
0002
0002
0002
0002
0002
17
TWN TNT
0000~0063
0032
0032
0032
0032
0032
0032
0032
0032
0032
18
B OF MR
0000~0015
0008
0008
0008
0008
0008
0008
0008
0008
0008
19
B OF MB
0000~0015
0008
0008
0008
0008
0008
0008
0008
0008
0008
20
B OF SR
0000~0015
0008
0008
0008
0008
0008
0008
0008
0008
0008
21
B OF SB
0000~0015
0008
0008
0008
0008
0008
0008
0008
0008
0008
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
S01
COLOUR
0000~0255
0100
0125
0135
S02
HUE
-128~0127
0000
0000
0000
S03
(NO DISPLAY)
-128~0127
0000
0000
0000
S04
(NO DISPLAY)
-128~0127
0000
0000
0000
S05
BRIGHT
0000~0255
0037
0037
0037
S06
CONT
0000~0255
0100
0100
0100
S07
(NO DISPLAY)
-128~0127
0000
0000
0000
S08
(NO DISPLAY)
-128~0127
0000
0000
0000
S09
(NO DISPLAY)
0000~0255
0138
0138
0138
S10
(NO DISPLAY)
-128~0127
0000
0000
0000
S11
(NO DISPLAY)
-128~0127
0006
0006
0006
S12
(NO DISPLAY)
0000~0003
0000
0000
0000
S13
R GAIN
0000~0255
0249
0249
0249
S14
(NO DISPLAY)
-128~0127
0000
0000
0000
S15
G GAIN
0000~0255
0255
0255
0255
S16
(NO DISPLAY)
-128~0127
0001
0001
0001
S17
B GAIN
0000~0255
0254
0254
0254
PD-42DX
1-24 (No.52088)
S18
(NO DISPLAY)
-128~0127
0000
0000
0000
S19
(NO DISPLAY)
0000~0255
0128
0128
0128
S20
(NO DISPLAY)
-128~0127
0000
0000
0000
S21
(NO DISPLAY)
0000~0255
0123
0123
0123
S22
(NO DISPLAY)
-128~0127
0000
0000
0000
S23
(NO DISPLAY)
0000~0255
0125
0125
0125
S24
(NO DISPLAY)
-128~0127
0000
0000
0000
S25
(NO DISPLAY)
0000/0001
0000
0000
0000
S26
(NO DISPLAY)
0000/0001
0000
0000
0000
S27
(NO DISPLAY)
0000/0001
0000
0000
0000
S28
(NO DISPLAY)
0000/0001
0001
0001
0001
S29
(NO DISPLAY)
0000/0001
0000
0000
0000
S30
(NO DISPLAY)
0000~0031
0003
0003
0003
S31
(NO DISPLAY)
0000~0063
0006
0006
0006
S32
(NO DISPLAY)
0000~0063
0030
0030
0030
S33
(NO DISPLAY)
0000/0001
0001
0001
0001
S34
(NO DISPLAY)
0000/0001
0001
0001
0001
S35
(NO DISPLAY)
0000/0001
0000
0000
0000
S36
(NO DISPLAY)
0000~0031
0000
0000
0000
S37
(NO DISPLAY)
0000~0255
0200
0200
0200
S38
(NO DISPLAY)
0000~0063
0050
0050
0050
S39
(NO DISPLAY)
0000~0063
0060
0060
0060
S40
(NO DISPLAY)
0000/0001
0001
0001
0001
S41
(NO DISPLAY)
0000/0001
0000
0000
0000
S42
(NO DISPLAY)
0000~0003
0001
0001
0001
S43
(NO DISPLAY)
0000~0031
0011
0011
0011
S44
(NO DISPLAY)
0000~0003
0001
0001
0001
S45
(NO DISPLAY)
0000~0003
0001
0001
0001
S46
(NO DISPLAY)
0000~0015
0015
0015
0015
S47
(NO DISPLAY)
0000~0015
0015
0015
0015
S48
(NO DISPLAY)
0000~0015
0015
0015
0015
S49
(NO DISPLAY)
0000/0001
0000
0000
0000
S50
(NO DISPLAY)
0000~0255
0010
0010
0010
S51
(NO DISPLAY)
0000/0001
0000
0000
0000
S52
(NO DISPLAY)
0000~0255
0087
0087
0087
S53
(NO DISPLAY)
0000/0001
0000
0000
0000
S54
(NO DISPLAY)
0000~0255
0006
0006
0006
S55
(NO DISPLAY)
0000/0001
0000
0000
0000
S56
(NO DISPLAY)
0000~0255
0092
0092
0092
S57
(NO DISPLAY)
0000~0255
0000
0000
0000
S58
(NO DISPLAY)
0000~0015
0000
0000
0000
S59
(NO DISPLAY)
0000~0255
0013
0013
0013
S60
(NO DISPLAY)
0000~0015
0000
0000
0000
S61
(NO DISPLAY)
0000/0001
0001
0001
0001
S62
(NO DISPLAY)
0000~0127
0010
0010
0010
S63
(NO DISPLAY)
0000/0001
0000
0000
0000
S64
(NO DISPLAY)
0000~0127
0000
0000
0000
S65
(NO DISPLAY)
0000~0003
0002
0002
0002
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
PD-42DX
(No.52088)1-25
3.7.1.2
AUDIO SYSTEM
S66
(NO DISPLAY)
0000~0003
0003
0003
0003
S67
(NO DISPLAY)
0000~0003
0003
0003
0003
S68
(NO DISPLAY)
0000~0015
0000
0000
0000
S69
(NO DISPLAY)
0000~0063
0019
0019
0019
S70
(NO DISPLAY)
0000/0001
0001
0001
0001
S71
(NO DISPLAY)
0000~0255
0255
0255
0255
S72
(NO DISPLAY)
0000~0255
0255
0255
0255
S73
(NO DISPLAY)
0000~0255
0255
0255
0255
S74
(NO DISPLAY)
0000~0031
0000
0000
0000
S75
(NO DISPLAY)
0000~0031
0000
0000
0000
S76
(NO DISPLAY)
-127~0128
0000
0000
0000
S77
(NO DISPLAY)
-127~0128
0000
0000
0000
S78
(NO DISPLAY)
0000~0255
0255
0255
0255
S79
(NO DISPLAY)
0000~0255
0000
0000
0000
S80
(NO DISPLAY)
0000~0255
0255
0255
0255
S81
(NO DISPLAY)
0000~0255
0000
0000
0000
S82
(NO DISPLAY)
0000~0255
0255
0255
0255
S83
(NO DISPLAY)
0000~0255
0000
0000
0000
S84
(NO DISPLAY)
0000~0015
0000
0000
0000
S85
(NO DISPLAY)
0000~0255
0010
0010
0010
S86
(NO DISPLAY)
0000~0255
0130
0130
0130
S87
(NO DISPLAY)
0000~0003
0001
0001
0001
S88
(NO DISPLAY)
0000~0007
0007
0007
0007
S89
(NO DISPLAY)
0000~0255
0030
0030
0030
S90
(NO DISPLAY)
0000~0127
0000
0000
0000
S91
(NO DISPLAY)
0000~0007
0007
0007
0007
S92
(NO DISPLAY)
0000~0031
0031
0031
0031
S93
(NO DISPLAY)
0000~0007
0007
0007
0007
S94
(NO DISPLAY)
0000~0031
0031
0031
0031
S95
(NO DISPLAY)
0000~0255
0060
0060
0060
S96
(NO DISPLAY)
0000~0015
0006
0006
0006
S97
(NO DISPLAY)
0000~0063
0040
0040
0040
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
A01
(NO DISPLAY)
0000~0007
0003
0003
0003
A02
(NO DISPLAY)
0000~0007
0003
0003
0003
A03
(NO DISPLAY)
0000~0007
0003
0003
0003
A04
(NO DISPLAY)
0000~0007
0003
0003
0003
A05
(NO DISPLAY)
0000~0009
0009
0009
0009
A06
(NO DISPLAY)
0000~0015
0006
0006
0006
A07
(NO DISPLAY)
0000~0015
0006
0006
0006
A08
(NO DISPLAY)
0000~0015
0003
0003
0003
A09
(NO DISPLAY)
0000~0007
0006
0006
0006
A10
(NO DISPLAY)
0000~0007
0004
0004
0004
A11
(NO DISPLAY)
0000~0063
0017
0017
0017
A12
(NO DISPLAY)
0000~0063
0010
0010
0010
A13
(NO DISPLAY)
0000~0003
0000
0000
0000
PD-42DX
1-26 (No.52088)
3.7.2
[3.AUDIO] (MULTISOUND SYSTEM) (*All fixed)
3.7.3
[4.DD/CM]
NOTE:
• For reference, initial setting values (except OSD-G/B/R) in the following conditions are written here.
Inut signal
:PAL/SECAM/NTSC
Picture mode
:Standard
Zoom
:Full
Multi screen
:Single screen
White balance :Mid
A14
(NO DISPLAY)
0000~0007
0000
0000
0000
A15
(NO DISPLAY)
0000~0003
0000
0000
0000
A16
(NO DISPLAY)
0000~0003
0000
0000
0000
A17
(NO DISPLAY)
0000~0003
0000
0000
0000
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
PDA01
(NO DISPLAY)
0000~0255
0000
0000
0000
PDA02
(NO DISPLAY)
0000~0255
0031
0031
0031
PDA03
(NO DISPLAY)
0000~0255
0085
0085
0085
PDA04
(NO DISPLAY)
0000~0255
0004
0004
0004
PDA05
(NO DISPLAY)
0000/0001
0001
0001
0001
PDA06
(NO DISPLAY)
0000/0001
0000
0000
0000
PDA07
(NO DISPLAY)
0000~0255
0150
0150
0150
PDA08
(NO DISPLAY)
0000~0255
0150
0150
0150
PDA09
(NO DISPLAY)
0000~0255
0002
0002
0002
PDA10
(NO DISPLAY)
0000~0255
0060
0060
0060
PDA11
(NO DISPLAY)
0000~0255
0000
0000
0000
PDA12
(NO DISPLAY)
0000~0127
0000
0000
0000
Item No.
Item
Variable range
Setting value
PAL
SECAM
1
ERROR LIMIT
0000~0FF0
0100
0100
2
A2 ID THR
0000~00FF
0019
0019
3
Q-PEAK
-
-
-
4
SOUND LEVEL
F00F~FFFF
FFFF
FFFF
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
DDT01
(NO DISPLAY)
0000~0015
0000
0000
0000
DDT02
(NO DISPLAY)
0000~0255
0022
0022
0020
DDT03
(NO DISPLAY)
0000~0255
0240
0240
0174
DDT04
(NO DISPLAY)
0000~0255
0255
0255
0255
DDT05
(NO DISPLAY)
0000~0255
0255
0255
0000
DDT06
(NO DISPLAY)
0000~0255
0255
0255
0255
DDT07
(NO DISPLAY)
0000~0003
0000
0000
0000
DDT08
(NO DISPLAY)
0000~0255
0255
0255
0255
DDT09
(NO DISPLAY)
0000~0003
0000
0000
0000
DDT10
(NO DISPLAY)
0000~0255
0000
0000
0000
DDT11
(NO DISPLAY)
0000~0007
0000
0000
0002
DDT12
(NO DISPLAY)
0000~0255
0090
0090
0115
PD-42DX
(No.52088)1-27
DDT13
(NO DISPLAY)
0000~0255
0000
0000
0000
DDT14
(NO DISPLAY)
0000~0003
0000
0000
0001
DDT15
(NO DISPLAY)
0000~0007
0000
0000
0000
DDT16
(NO DISPLAY)
0000~0255
0021
0021
0123
DDT17
(NO DISPLAY)
0000/0001
0001
0001
0001
DDT18
(NO DISPLAY)
0000/0001
0001
0001
0000
DDT19
(NO DISPLAY)
0000~0063
0001
0001
0001
DDT20
(NO DISPLAY)
0000~0015
0000
0000
0000
DDT21
(NO DISPLAY)
0000~0015
0000
0000
0000
DDT22
(NO DISPLAY)
0000~0015
0000
0000
0000
DDT23
(NO DISPLAY)
0000~0015
0000
0000
0000
DDT24
(NO DISPLAY)
0000/0001
0000
0000
0000
DDT25
(NO DISPLAY)
0000/0001
0000
0000
0000
DDT26
(NO DISPLAY)
0000/0001
0000
0000
0000
DDT27
(NO DISPLAY)
0000~0007
0000
0000
0000
DDT28
(NO DISPLAY)
0000~0255
0250
0250
0120
DDT29
(NO DISPLAY)
0000~0003
0000
0000
0002
DDT30
(NO DISPLAY)
0000/0001
0000
0000
0000
DDT31
(NO DISPLAY)
0000~0007
0005
0005
0000
DDT32
(NO DISPLAY)
0000~0255
0170
0170
0010
DDT33
(NO DISPLAY)
0000~0255
0000
0000
0000
DDT34
(NO DISPLAY)
0000~0255
0032
0032
0042
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
CMT01
(NO DISPLAY)
0000~0003
0000
0000
0000
CMT02
(NO DISPLAY)
0000~0255
0104
0104
0093
CMT03
(NO DISPLAY)
0000~0255
0020
0020
0010
CMT04
(NO DISPLAY)
0000~0255
0020
0020
0020
CMT05
(NO DISPLAY)
0000~0063
0062
0062
-004
CMT06
(NO DISPLAY)
-128~0127
0005
0005
0001
CMT07
(NO DISPLAY)
-128~0127
0000
0000
0000
CMT08
(NO DISPLAY)
-128~0127
-004
-004
-004
CMT09
(NO DISPLAY)
-128~0127
0000
0000
0000
CMT10
(NO DISPLAY)
0000~0003
0000
0000
0000
CMT11
(NO DISPLAY)
0000~0255
0155
0155
0164
CMT12
(NO DISPLAY)
0000~0255
0020
0020
0020
CMT13
(NO DISPLAY)
0000~0255
0020
0020
0020
CMT14
(NO DISPLAY)
0000~0063
0057
0057
-002
CMT15
(NO DISPLAY)
-128~0127
0005
0005
0007
CMT16
(NO DISPLAY)
-128~0127
0000
0000
0000
CMT17
(NO DISPLAY)
-128~0127
0000
0000
0000
CMT18
(NO DISPLAY)
-128~0127
0000
0000
0000
CMT19
(NO DISPLAY)
0000~0003
0000
0000
0000
CMT20
(NO DISPLAY)
0000~0255
0191
0191
0187
CMT21
(NO DISPLAY)
0000~0255
0040
0040
0030
CMT22
(NO DISPLAY)
0000~0255
0030
0030
0030
CMT23
(NO DISPLAY)
0000~0063
0057
0057
-005
PD-42DX
1-28 (No.52088)
CMT24
(NO DISPLAY)
-128~0127
0010
0010
0003
CMT25
(NO DISPLAY)
-128~0127
0020
0020
0010
CMT26
(NO DISPLAY)
-128~0127
0010
0010
0005
CMT27
(NO DISPLAY)
-128~0127
0015
0015
0010
CMT28
(NO DISPLAY)
0000~0003
0001
0001
0001
CMT29
(NO DISPLAY)
0000~0255
0078
0078
0038
CMT30
(NO DISPLAY)
0000~0255
0030
0030
0035
CMT31
(NO DISPLAY)
0000~0255
0030
0030
0040
CMT32
(NO DISPLAY)
0000~0063
0057
0057
-004
CMT33
(NO DISPLAY)
-128~0127
0010
0010
0013
CMT34
(NO DISPLAY)
-128~0127
0010
0010
0012
CMT35
(NO DISPLAY)
-128~0127
0000
0000
-003
CMT36
(NO DISPLAY)
-128~0127
0015
0015
0020
CMT37
(NO DISPLAY)
0000~0255
0064
0064
0064
CMT38
(NO DISPLAY)
0000~0255
0064
0064
0064
CMT39
(NO DISPLAY)
0000~0255
0074
0074
0088
CMT40
(NO DISPLAY)
-128~0127
0000
0000
0000
CMT41
(NO DISPLAY)
-128~0127
0010
0010
0010
CMT42
(NO DISPLAY)
0000/0001
0000
0000
0000
CMT43
(NO DISPLAY)
0000~0255
0128
0128
0128
CMT44
(NO DISPLAY)
0000/0001
0001
0001
0001
CMT45
(NO DISPLAY)
0000~0255
0080
0080
0000
CMT46
(NO DISPLAY)
0000/0001
0000
0000
0000
CMT47
(NO DISPLAY)
0000~0255
0070
0070
0128
CMT48
(NO DISPLAY)
0000/0001
0000
0000
0000
CMT49
(NO DISPLAY)
0000/0001
0001
0001
0001
CMT50
(NO DISPLAY)
0000~0031
0021
0021
0000
CMT51
(NO DISPLAY)
0000~0031
0021
0021
0000
CMT52
(NO DISPLAY)
0000/0001
0000
0000
0000
CMT53
(NO DISPLAY)
0000/0001
0000
0000
0000
CMT54
(NO DISPLAY)
0000~0003
0000
0000
0000
CMT55
(NO DISPLAY)
0000/0001
0000
0000
0000
CMT56
(NO DISPLAY)
0000/0001
0001
0001
0001
CMT57
(NO DISPLAY)
0000/0001
0000
0000
0001
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
DDP01
(NO DISPLAY)
0000~0003
0000
0000
0000
DDP02
(NO DISPLAY)
0000~0255
0032
0032
0032
DDP03
(NO DISPLAY)
0000~0003
0000
0000
0000
DDP04
(NO DISPLAY)
0000~0255
0001
0001
0001
DDP05
(NO DISPLAY)
0000~0255
0000
0000
0000
DDP06
(NO DISPLAY)
0000~0003
0000
0000
0001
DDP07
(NO DISPLAY)
0000~0031
0000
0000
0001
DDP08
(NO DISPLAY)
0000~0007
0000
0000
0000
DDP09
(NO DISPLAY)
0000~0255
0118
0118
0100
DDP10
(NO DISPLAY)
0000~0007
0001
0001
0001
DDP11
(NO DISPLAY)
0000~0255
0000
0000
0000
PD-42DX
(No.52088)1-29
DDP12
(NO DISPLAY)
0000~0007
0006
0006
0006
DDP13
(NO DISPLAY)
0000~0007
0004
0004
0002
DDP14
(NO DISPLAY)
0000~0003
0002
0002
0000
DDP15
(NO DISPLAY)
0000~0015
0000
0000
0001
DDP16
(NO DISPLAY)
0000~0015
0005
0005
0007
DDP17
(NO DISPLAY)
0000~0015
0003
0003
0004
DDP18
(NO DISPLAY)
0000/0001
0000
0000
0000
DDP19
(NO DISPLAY)
0000/0001
0001
0001
0001
DDP20
(NO DISPLAY)
0000~0015
0010
0010
0010
DDP21
(NO DISPLAY)
0000~0015
0006
0006
0006
DDP22
(NO DISPLAY)
0000~0015
0010
0010
0010
DDP23
(NO DISPLAY)
0000~0015
0006
0006
0006
DDP24
(NO DISPLAY)
0000~0015
0010
0010
0010
DDP25
(NO DISPLAY)
0000~0015
0006
0006
0006
DDP26
(NO DISPLAY)
0000~0015
0006
0006
0006
DDP27
(NO DISPLAY)
0000~0015
0010
0010
0010
DDP28
(NO DISPLAY)
0000~0015
0006
0006
0006
DDP29
(NO DISPLAY)
0000~0015
0010
0010
0010
DDP30
(NO DISPLAY)
0000~0015
0010
0010
0010
DDP31
(NO DISPLAY)
0000~0015
0006
0006
0006
DDP32
(NO DISPLAY)
0000~0255
0013
0013
0013
DDP33
(NO DISPLAY)
0000~0255
0133
0133
0133
DDP34
(NO DISPLAY)
0000~0255
0102
0102
0102
DDP35
(NO DISPLAY)
0000~0255
0144
0144
0144
DDP36
(NO DISPLAY)
0000~0255
0013
0013
0013
DDP37
(NO DISPLAY)
0000~0063
0048
0048
0048
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
CMP01
(NO DISPLAY)
0000/0001
0000
0000
0000
CMP02
(NO DISPLAY)
0000/0001
0001
0001
0000
CMP03
(NO DISPLAY)
0000/0001
0000
0000
0000
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
OSD-G
(NO DISPLAY)
0000~0255
0128
0128
0128
OSD-B
(NO DISPLAY)
0000~0255
0142
0142
0128
OSD-R
(NO DISPLAY)
0000~0255
0128
0128
0128
PD-42DX
1-30 (No.52088)
3.7.4
[7.VNR] (*All fixed)
NOTE:
• For reference, initial setting values in the following conditions are written here.
Inut signal
:PAL/SECAM/NTSC
Picture mode
:Standard
Zoom
:Full
Multi screen
:Single screen
White balance :Mid
3.7.5
[8.IP] (*All fixed)
NOTE:
• For reference, initial setting values in the following conditions are written here.
Inut signal
:PAL/SECAM/NTSC
Picture mode
:Standard
Zoom
:Full
Multi screen
:Single screen
White balance :Mid
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
1
MYLV
0000~000F
000E
000E
000E
2
ONMVF
0000/0001
0001
0001
0001
3
MYCOR
0000~001F
0003
0003
0003
4
MYGA
0000~0003
0002
0002
0002
5
YEGON
0000/0001
0001
0001
0001
6
YEGL
0000~000F
0000
0000
0000
7
YL TL
0000~007F
0009
0009
0009
8
MCLV
0000~000F
000E
000E
000E
9
MCGA
0000~0003
0002
0002
0002
10
MCCOR
0000~001F
0003
0003
0003
11
CLTL
0000~007F
0009
0009
0009
12
YNGA
0000~0003
0003
0003
0003
13
COR_OF
0000/0001
0000
0000
0000
14
LPF_OF
0000/0001
0000
0000
0000
15
YCTL
0000~000F
0004
0004
0004
16
YNCL
0000~000F
000E
000E
000E
17
YNCON
0000/0001
0001
0001
0001
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
PPA001
(NO DISPLAY)
0000~00FF
0040
0040
0040
PPA002
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPA003
(NO DISPLAY)
0000~00FF
0053
0056
0056
PPA004
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPA005
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPA006
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPA007
(NO DISPLAY)
0000~00FF
0053
0056
0056
PPA008
(NO DISPLAY)
0000~00FF
0031
0031
0031
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
PPB001
(NO DISPLAY)
0000~001F
0000
0000
0000
PPB002
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB003
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB004
(NO DISPLAY)
0000~001F
0000
0000
0000
PD-42DX
(No.52088)1-31
PPB005
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB006
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB007
(NO DISPLAY)
0000~001F
0000
0000
0000
PPB008
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB009
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB010
(NO DISPLAY)
0000~001F
0000
0000
0000
PPB011
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB012
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB013
(NO DISPLAY)
0000~001F
0000
0000
0000
PPB014
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB015
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB016
(NO DISPLAY)
0000~001F
0000
0000
0000
PPB017
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB018
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB019
(NO DISPLAY)
0000~001F
0000
0000
0000
PPB020
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB021
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB022
(NO DISPLAY)
0000~001F
0000
0000
0000
PPB023
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB024
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB025
(NO DISPLAY)
0000~001F
0000
0000
0000
PPB026
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB027
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB028
(NO DISPLAY)
0000~001F
0000
0000
0000
PPB029
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB030
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB031
(NO DISPLAY)
0000~001F
0000
0000
0000
PPB032
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB033
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB034
(NO DISPLAY)
0000~001F
0000
0000
0000
PPB035
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPB036
(NO DISPLAY)
0000~00FF
0000
0000
0000
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
PPC001
(NO DISPLAY)
0000~000F
0000
0000
0000
PPC002
(NO DISPLAY)
0000~00FF
000F
0019
0019
PPC003
(NO DISPLAY)
0000~00FF
0000
0002
0002
PPC004
(NO DISPLAY)
0000~000F
0000
0000
0000
PPC005
(NO DISPLAY)
0000~00FF
007C
007C
007C
PPC006
(NO DISPLAY)
0000~000F
0000
0000
0000
PPC007
(NO DISPLAY)
0000~00FF
0000
0000
0000
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
PPD001
(NO DISPLAY)
0000~00FF
0062
0062
0062
PPD002
(NO DISPLAY)
0000~00FF
0002
0002
0002
PPD003
(NO DISPLAY)
0000~00FF
00F7
00F7
00F7
PD-42DX
1-32 (No.52088)
PPD004
(NO DISPLAY)
0000~00FF
0002
0002
0002
PPD005
(NO DISPLAY)
0000~00FF
0038
0038
0038
PPD006
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPD007
(NO DISPLAY)
0000~00FF
001A
001A
001A
PPD008
(NO DISPLAY)
0000~00FF
0001
0001
0001
PPD009
(NO DISPLAY)
0000~00FF
0050
0050
0050
PPD010
(NO DISPLAY)
0000~00FF
0002
0002
0002
PPD011
(NO DISPLAY)
0000~00FF
00FB
00FB
00FB
PPD012
(NO DISPLAY)
0000~00FF
0002
0002
0002
PPD013
(NO DISPLAY)
0000~00FF
002E
002E
002E
PPD014
(NO DISPLAY)
0000~00FF
0000
0000
0000
PPD015
(NO DISPLAY)
0000~00FF
0058
0058
0058
PPD016
(NO DISPLAY)
0000~00FF
0001
0001
0001
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
ADS001
(NO DISPLAY)
0000~00FF
00D7
00D7
00D7
ADS002
(NO DISPLAY)
0000~000F
0000F
0000F
0000F
ADS003
(NO DISPLAY)
0000~0003
0001
0001
0001
ADS004
(NO DISPLAY)
0000~0007
0005
0005
0005
ADS005
(NO DISPLAY)
0000~001F
0016
0016
0016
ADS006
(NO DISPLAY)
0000~00FF
0028
0028
0028
ADS007
(NO DISPLAY)
0000~00FF
0096
0096
0096
ADS008
(NO DISPLAY)
0000~00FF
0020
0020
0020
ADS009
(NO DISPLAY)
0000~00FF
000FF
000FF
000FF
ADS010
(NO DISPLAY)
0000~00FF
000FF
000FF
000FF
ADS011
(NO DISPLAY)
0000~00FF
000FF
000FF
000FF
ADS012
(NO DISPLAY)
0000~007F
004A
004A
004A
ADS013
(NO DISPLAY)
0000~007F
0051
0051
0051
ADS014
(NO DISPLAY)
0000~007F
0042
0042
0042
ADS015
(NO DISPLAY)
0000/0001
0001
0001
0001
ADS016
(NO DISPLAY)
0000/0001
0001
0001
0001
ADS017
(NO DISPLAY)
0000/0001
0000
0000
0000
ADS018
(NO DISPLAY)
0000/0001
0001
0001
0001
ADS019
(NO DISPLAY)
0000/0001
0000
0000
0000
ADS020
(NO DISPLAY)
0000/0001
0000
0000
0000
ADS021
(NO DISPLAY)
0000/0001
0001
0001
0001
ADS022
(NO DISPLAY)
0000/0001
0000
0000
0000
ADS023
(NO DISPLAY)
0000/0001
0000
0000
0000
ADS024
(NO DISPLAY)
0000/0001
0001
0001
0001
ADS025
(NO DISPLAY)
0000/0001
0000
0000
0000
ADS026
(NO DISPLAY)
0000/0001
0001
0001
0001
ADS027
(NO DISPLAY)
0000/0001
0001
0001
0001
ADS028
(NO DISPLAY)
0000/0001
0001
0001
0001
ADS029
(NO DISPLAY)
0000/0001
0000
0000
0000
ADS030
(NO DISPLAY)
0000~001F
0003
0003
0003
ADS031
(NO DISPLAY)
0000/0001
0001
0001
0001
ADS032
(NO DISPLAY)
0000/0001
0000
0000
0000
PD-42DX
(No.52088)1-33
ADS033
(NO DISPLAY)
0000/0001
0001
0001
0001
ADS034
(NO DISPLAY)
0000~00FF
0002
0002
0002
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
IPA001
(NO DISPLAY)
0000/0001
0001
0001
0001
IPA002
(NO DISPLAY)
0000~003F
0022
0022
0022
IPA003
(NO DISPLAY)
0000~003F
0022
0022
0022
IPA004
(NO DISPLAY)
0000~003F
0000
0000
0000
IPA005
(NO DISPLAY)
0000~0003
0001
0001
0001
IPA006
(NO DISPLAY)
0000~0003
0001
0001
0001
IPA007
(NO DISPLAY)
0000~000F
000F
000F
000F
IPA008
(NO DISPLAY)
0000~003F
0000
0000
0000
IPA009
(NO DISPLAY)
0000~003F
000B
000B
000B
IPA010
(NO DISPLAY)
0000~003F
0018
0018
0018
IPA011
(NO DISPLAY)
0000~003F
0018
0018
0018
IPA012
(NO DISPLAY)
0000~003F
0020
0020
0020
IPA013
(NO DISPLAY)
0000~0003
0001
0001
0001
IPA014
(NO DISPLAY)
0000~0003
0002
0002
0002
IPA015
(NO DISPLAY)
0000~000F
000F
000F
000F
IPA016
(NO DISPLAY)
0000~003F
0004
0004
0004
IPA017
(NO DISPLAY)
0000/0001
0001
0001
0001
IPA018
(NO DISPLAY)
0000~003F
000B
000B
000B
IPA019
(NO DISPLAY)
0000/0001
0001
0001
0001
IPA020
(NO DISPLAY)
0000/0001
0001
0001
0001
IPA021
(NO DISPLAY)
0000~003F
0030
0030
0030
IPA022
(NO DISPLAY)
0000~0003
0001
0001
0001
IPA023
(NO DISPLAY)
0000~003F
000A
000A
000A
IPA024
(NO DISPLAY)
0000/0001
0001
0001
0001
IPA025
(NO DISPLAY)
0000/0001
0001
0001
0001
IPA026
(NO DISPLAY)
0000~003F
0030
0030
0030
IPA027
(NO DISPLAY)
0000~0003
0001
0001
0001
IPA028
(NO DISPLAY)
0000~003F
000A
000A
000A
IPA029
(NO DISPLAY)
0000~003F
0000
0000
0000
IPA030
(NO DISPLAY)
0000~000F
000F
000F
000F
IPA031
(NO DISPLAY)
0000~0007
0002
0002
0002
IPA032
(NO DISPLAY)
0000~003F
0000
0000
0000
IPA033
(NO DISPLAY)
0000/0001
0001
0001
0001
IPA034
(NO DISPLAY)
0000~003F
0000
0000
0000
IPA035
(NO DISPLAY)
0000/0001
0001
0001
0001
IPA036
(NO DISPLAY)
0000~003F
000D
000D
000D
IPA037
(NO DISPLAY)
0000~003F
000D
000D
000D
IPA038
(NO DISPLAY)
0000~003F
0010
0010
0010
IPA039
(NO DISPLAY)
0000~0003
0001
0001
0001
IPA040
(NO DISPLAY)
0000~0003
0001
0001
0001
IPA041
(NO DISPLAY)
0000~000F
000F
000F
000F
IPA042
(NO DISPLAY)
0000~003F
0005
0005
0005
IPA043
(NO DISPLAY)
0000~003F
0008
0008
0008
PD-42DX
1-34 (No.52088)
IPA044
(NO DISPLAY)
0000~003F
0020
0020
0020
IPA045
(NO DISPLAY)
0000~003F
0020
0020
0020
IPA046
(NO DISPLAY)
0000~003F
0020
0020
0020
IPA047
(NO DISPLAY)
0000~0003
0002
0002
0002
IPA048
(NO DISPLAY)
0000~0003
0002
0002
0002
IPA049
(NO DISPLAY)
0000~000F
0007
0007
0007
IPA050
(NO DISPLAY)
0000~003F
0008
0008
0008
IPA051
(NO DISPLAY)
0000/0001
0001
0001
0001
IPA052
(NO DISPLAY)
0000~003F
0008
0008
0008
IPA053
(NO DISPLAY)
0000/0001
0001
0001
0001
IPA054
(NO DISPLAY)
0000/0001
0001
0001
0001
IPA055
(NO DISPLAY)
0000~003F
0015
0015
0015
IPA056
(NO DISPLAY)
0000~0003
0000
0000
0000
IPA057
(NO DISPLAY)
0000~003F
000A
000A
000A
IPA058
(NO DISPLAY)
0000/0001
0001
0001
0001
IPA059
(NO DISPLAY)
0000/0001
0001
0001
0001
IPA060
(NO DISPLAY)
0000~003F
0015
0015
0015
IPA061
(NO DISPLAY)
0000~0003
0000
0000
0000
IPA062
(NO DISPLAY)
0000~003F
000A
000A
000A
IPA063
(NO DISPLAY)
0000~003F
003F
003F
003F
IPA064
(NO DISPLAY)
0000~000F
0006
0006
0006
IPA065
(NO DISPLAY)
0000~0007
0001
0001
0001
IPA066
(NO DISPLAY)
0000~003F
0008
0008
0008
IPA067
(NO DISPLAY)
0000/0001
0001
0001
0001
IPA068
(NO DISPLAY)
0000~003F
0007
0007
0007
IPA069
(NO DISPLAY)
0000~0003
0000
0000
0000
IPA070
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPA071
(NO DISPLAY)
0000~000F
0005
0005
0005
IPA072
(NO DISPLAY)
0000~00FF
00DB
00DB
00DB
IPA073
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA074
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA075
(NO DISPLAY)
0000~00FF
0018
0018
0018
IPA076
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA077
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA078
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA079
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA080
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA081
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA082
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA083
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA084
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA085
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA086
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA087
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA088
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA089
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA090
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA091
(NO DISPLAY)
0000~000F
0000
0000
0000
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
PD-42DX
(No.52088)1-35
IPA092
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPA093
(NO DISPLAY)
0000~000F
0006
0006
0006
IPA094
(NO DISPLAY)
0000~00FF
0071
0071
0071
IPA095
(NO DISPLAY)
0000~000F
0000
0000
0000
IPA096
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPA097
(NO DISPLAY)
0000~000F
0005
0005
0005
IPA098
(NO DISPLAY)
0000~00FF
00DD
00DD
00DD
IPA099
(NO DISPLAY)
0000~000F
0000
0000
0000
IPA100
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPA101
(NO DISPLAY)
0000~000F
0000
0000
0000
IPA102
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPA103
(NO DISPLAY)
0000~000F
0000
0000
0000
IPA104
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPA105
(NO DISPLAY)
0000~000F
0000
0000
0000
IPA106
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPA107
(NO DISPLAY)
0000~000F
0000
0000
0000
IPA108
(NO DISPLAY)
0000~00FF
0080
0080
0080
IPA109
(NO DISPLAY)
0000~000F
0000
0000
0000
IPA110
(NO DISPLAY)
0000~00FF
0040
0040
0040
IPA111
(NO DISPLAY)
0000~000F
0005
0005
0005
IPA112
(NO DISPLAY)
0000~00FF
0040
0040
0040
IPA113
(NO DISPLAY)
0000~000F
0000
0000
0000
IPA114
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPA115
(NO DISPLAY)
0000~000F
0002
0002
0002
IPA116
(NO DISPLAY)
0000~00FF
00EF
00EF
00EF
IPA117
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA118
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA119
(NO DISPLAY)
0000/0001
0000
0000
0000
IPA120
(NO DISPLAY)
0000/0001
0000
0000
0000
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
IPB001
(NO DISPLAY)
0000~00FF
0001
0001
0001
IPB002
(NO DISPLAY)
0000~00FF
004A
0003
0003
IPB003
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB004
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPB005
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB006
(NO DISPLAY)
0000~00FF
0086
0062
0062
IPB007
(NO DISPLAY)
0000~000F
0002
0002
0002
IPB008
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPB009
(NO DISPLAY)
0000~000F
0000
0001
0001
IPB010
(NO DISPLAY)
0000~00FF
0000
00A0
00A0
IPB011
(NO DISPLAY)
0000~000F
0000
0001
0001
IPB012
(NO DISPLAY)
0000~00FF
0000
0001
0001
IPB013
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB014
(NO DISPLAY)
0000~00FF
0000
00A8
00A8
IPB015
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB016
(NO DISPLAY)
0000~00FF
0000
0058
0058
PD-42DX
1-36 (No.52088)
IPB017
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB018
(NO DISPLAY)
0000~00FF
0000
0028
0028
IPB019
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB020
(NO DISPLAY)
0000~00FF
0000
0026
0026
IPB021
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB022
(NO DISPLAY)
0000~00FF
0000
0022
0022
IPB023
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB024
(NO DISPLAY)
0000~00FF
0000
0024
0024
IPB025
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB026
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPB027
(NO DISPLAY)
0000~000F
000F
000F
000F
IPB028
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPB029
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB030
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPB031
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB032
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPB033
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB034
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPB035
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB036
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPB037
(NO DISPLAY)
0000/0001
0000
0000
0000
IPB038
(NO DISPLAY)
0000~0007
0000
0000
0000
IPB039
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB040
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB041
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB042
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPB043
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB044
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPB045
(NO DISPLAY)
0000~000F
0001
0001
0001
IPB046
(NO DISPLAY)
0000~00FF
008B
008B
008B
IPB047
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB048
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPB049
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB050
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPB051
(NO DISPLAY)
0000~000F
0000
0006
0006
IPB052
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPB053
(NO DISPLAY)
0000~000F
0000
0001
0001
IPB054
(NO DISPLAY)
0000~00FF
0000
0056
0056
IPB055
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB056
(NO DISPLAY)
0000~00FF
0000
0024
0024
IPB057
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB058
(NO DISPLAY)
0000~00FF
0000
00FC
00FC
IPB059
(NO DISPLAY)
0000~0007
0000
0002
0002
IPB060
(NO DISPLAY)
0000~0003
0000
0000
0000
IPB061
(NO DISPLAY)
0000~0003
0000
0000
0000
IPB062
(NO DISPLAY)
0000/0001
0000
0000
0000
IPB063
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPB064
(NO DISPLAY)
0000~00FF
0000
0000
0000
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
PD-42DX
(No.52088)1-37
IPB065
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPB066
(NO DISPLAY)
0000/0001
009D
009D
009D
IPB067
(NO DISPLAY)
0000~000F
0006
0006
0006
IPB068
(NO DISPLAY)
0000~000F
0040
0040
0040
IPB069
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB070
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB071
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPB072
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB073
(NO DISPLAY)
0000~00FF
0050
0050
0050
IPB074
(NO DISPLAY)
0000/0001
0080
0080
0080
IPB075
(NO DISPLAY)
0000/0001
0080
0080
0080
IPB076
(NO DISPLAY)
0000/0001
0000
0000
0000
IPB077
(NO DISPLAY)
0000~000F
0000
0000
0000
IPB078
(NO DISPLAY)
0000/0001
0000
0000
0000
IPB079
(NO DISPLAY)
0000~00FF
0000
0000
0000
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
IPC001
(NO DISPLAY)
0000~0003
0002
0002
0002
IPC002
(NO DISPLAY)
0000~00FF
00EA
00EA
00EA
IPC003
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC004
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC005
(NO DISPLAY)
0000~000F
0000
0000
0000
IPC006
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPC007
(NO DISPLAY)
0000~000F
0005
0005
0005
IPC008
(NO DISPLAY)
0000~00FF
00DB
00DB
00DB
IPC009
(NO DISPLAY)
0000~000F
0007
0007
0007
IPC010
(NO DISPLAY)
0000~00FF
00B9
00B9
00B9
IPC011
(NO DISPLAY)
0000~000F
0000
0000
0000
IPC012
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPC013
(NO DISPLAY)
0000~0003
0000
0000
0000
IPC014
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC015
(NO DISPLAY)
0000/0001
0001
0001
0001
IPC016
(NO DISPLAY)
0000~00FF
001F
001F
001F
IPC017
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC018
(NO DISPLAY)
0000~007F
0000
0000
0000
IPC019
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC020
(NO DISPLAY)
0000~007F
0001
0001
0001
IPC021
(NO DISPLAY)
0000~000F
0000
0000
0000
IPC022
(NO DISPLAY)
0000~00FF
00FE
00FE
00FE
IPC023
(NO DISPLAY)
0000~0003
0000
0000
0000
IPC024
(NO DISPLAY)
0000~00FF
0040
0040
0040
IPC025
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC026
(NO DISPLAY)
0000~007F
0020
0020
0020
IPC027
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC028
(NO DISPLAY)
0000~007F
0000
0000
0000
IPC029
(NO DISPLAY)
0000/0001
0001
0001
0001
IPC030
(NO DISPLAY)
0000/0001
0000
0000
0000
PD-42DX
1-38 (No.52088)
IPC031
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC032
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC033
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC034
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC035
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC036
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC037
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC038
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC039
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC040
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC041
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC042
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC043
(NO DISPLAY)
0000/0001
0000
0000
0000
IPC044
(NO DISPLAY)
0000/0001
0000
0000
0000
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
IPD001
(NO DISPLAY)
0000~00FF
0040
0040
0040
IPD002
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPD003
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPD004
(NO DISPLAY)
0000~0007
0000
0000
0000
IPD005
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPD006
(NO DISPLAY)
0000~0007
0006
0006
0006
IPD007
(NO DISPLAY)
0000~00FF
0018
0018
0018
IPD008
(NO DISPLAY)
0000/0001
0000
0000
0000
IPD009
(NO DISPLAY)
0000~000F
0001
0001
0001
IPD010
(NO DISPLAY)
0000~00FF
0062
0062
0062
IPD011
(NO DISPLAY)
0000~000F
0005
0005
0005
IPD012
(NO DISPLAY)
0000~00FF
002B
002B
002B
IPD013
(NO DISPLAY)
0000~0007
0000
0000
0000
IPD014
(NO DISPLAY)
0000~0007
0000
0000
0000
IPD015
(NO DISPLAY)
0000/0001
0002
0002
0002
IPD016
(NO DISPLAY)
0000/0001
0002
0002
0002
IPD017
(NO DISPLAY)
0000~00FF
0002
0002
0002
IPD018
(NO DISPLAY)
0000~0007
0002
0002
0002
IPD019
(NO DISPLAY)
0000~00FF
0002
0002
0002
IPD020
(NO DISPLAY)
0000~0007
0002
0002
0002
IPD021
(NO DISPLAY)
0000~00FF
0070
0070
0070
IPD022
(NO DISPLAY)
0000/0001
0080
0080
0080
IPD023
(NO DISPLAY)
0000~000F
0080
0080
0080
IPD024
(NO DISPLAY)
0000~00FF
0070
0070
0070
IPD025
(NO DISPLAY)
0000~000F
0060
0060
0060
IPD026
(NO DISPLAY)
0000~00FF
0050
0050
0050
IPD027
(NO DISPLAY)
0000~00FF
0040
0040
0040
IPD028
(NO DISPLAY)
0000~0007
0002
0002
0002
IPD029
(NO DISPLAY)
0000~0007
0001
0001
0001
IPD030
(NO DISPLAY)
0000/0001
0000
0000
0000
IPD031
(NO DISPLAY)
0000/0001
0001
0001
0001
IPD032
(NO DISPLAY)
0000~00FF
0000
0000
0000
PD-42DX
(No.52088)1-39
IPD033
(NO DISPLAY)
0000/0001
0000
0000
0000
IPD034
(NO DISPLAY)
0000/0001
0000
0000
0000
IPD035
(NO DISPLAY)
0000~0003
0000
0000
0000
IPD036
(NO DISPLAY)
0000~000F
0000
0000
0000
IPD037
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPD038
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPD039
(NO DISPLAY)
0000/0001
0000
0000
0000
IPD040
(NO DISPLAY)
0000/0001
0000
0000
0000
IPD041
(NO DISPLAY)
0000/0001
0000
0000
0000
IPD042
(NO DISPLAY)
0000/0001
0000
0000
0000
IPD043
(NO DISPLAY)
0000/0001
0000
0000
0000
IPD044
(NO DISPLAY)
0000/0001
0000
0000
0000
IPD045
(NO DISPLAY)
0000/0001
0000
0000
0000
IPD046
(NO DISPLAY)
0000/0001
0000
0000
0000
IPD047
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPD048
(NO DISPLAY)
0000~00FF
0000
0000
0000
IPD049
(NO DISPLAY)
0000~00FF
0090
0090
0090
IPD050
(NO DISPLAY)
0000~0007
0000
0000
0000
IPD051
(NO DISPLAY)
0000~00FF
001D
001D
001D
IPD052
(NO DISPLAY)
0000~0007
0002
0002
0002
IPD053
(NO DISPLAY)
0000~00FF
00E6
00E6
00E6
IPD054
(NO DISPLAY)
0000/0001
0001
0001
0001
IPD055
(NO DISPLAY)
0000~000F
0001
0001
0001
IPD056
(NO DISPLAY)
0000~00FF
000E
000E
000E
IPD057
(NO DISPLAY)
0000~000F
0004
0004
0004
IPD058
(NO DISPLAY)
0000~00FF
00C0
00C0
00C0
Item No.
Item
Variable range
Setting value
PAL
SECAM
NTSC
PD-42DX
1-40 (No.52088)
3.8 ADJUSTMENT PROCEDURE
3.8.1
DISPLAY UNIT
Item
Measuring
instrument
Test point
Adjustment part
Description
PDP POWER
SUPPLY
VOLTAGE
DC voltmeter
Signal generator
Resistor (5Ω/5W)
Connector
CN0C4
[PDP POWER
PWB]
Vs VR :170V ADJ
(R628)
Vd VR : 60V ADJ
(R721)
版权声明
1. 本站所有素材，仅限学习交流，仅展示部分内容，如需查看完整内容，请下载原文件。
2. 会员在本站下载的所有素材，只拥有使用权，著作权归原作者所有。
3. 所有素材，未经合法授权，请勿用于商业用途，会员不得以任何形式发布、传播、复制、转售该素材，否则一律封号处理。
4. 如果素材损害你的权益请联系客服QQ：77594475 处理。
