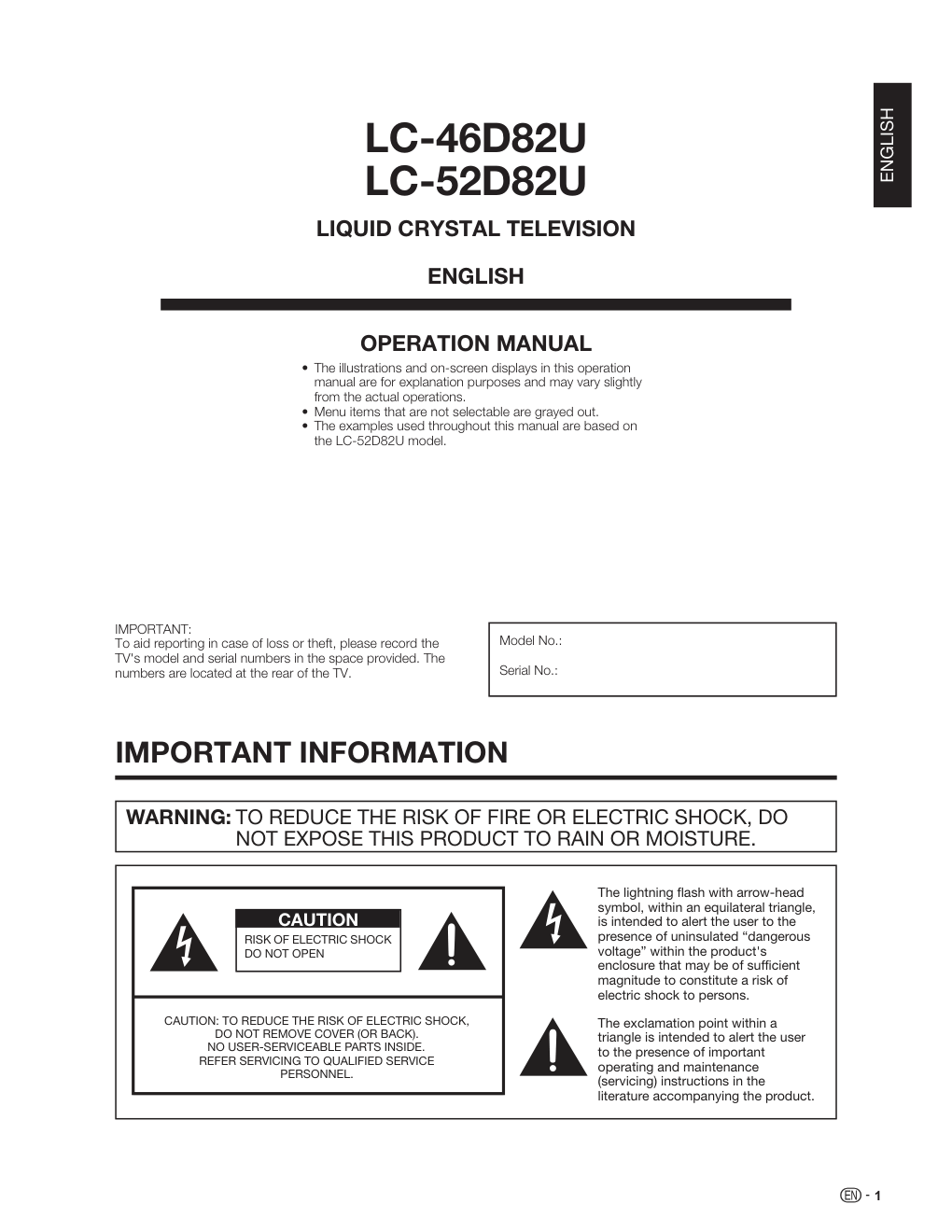

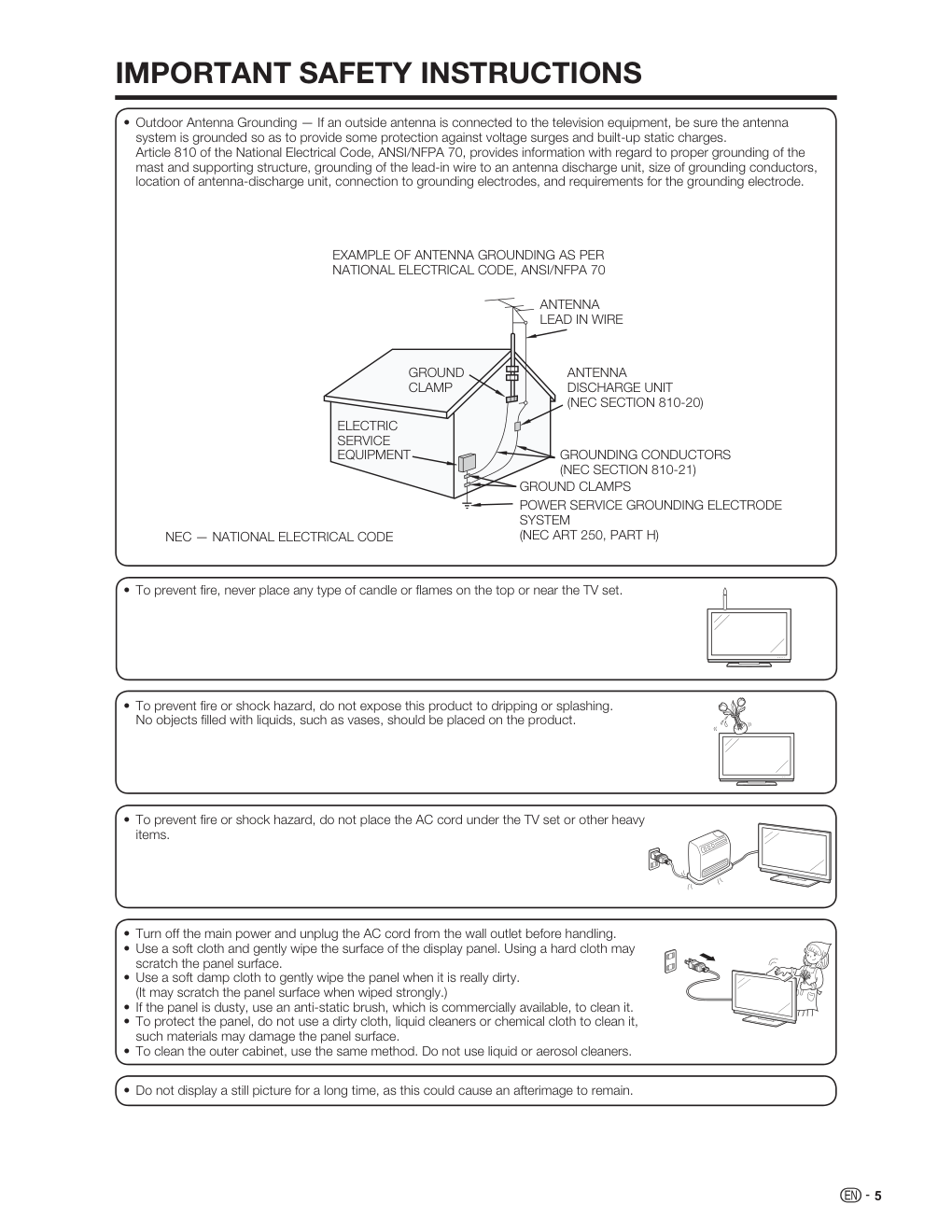

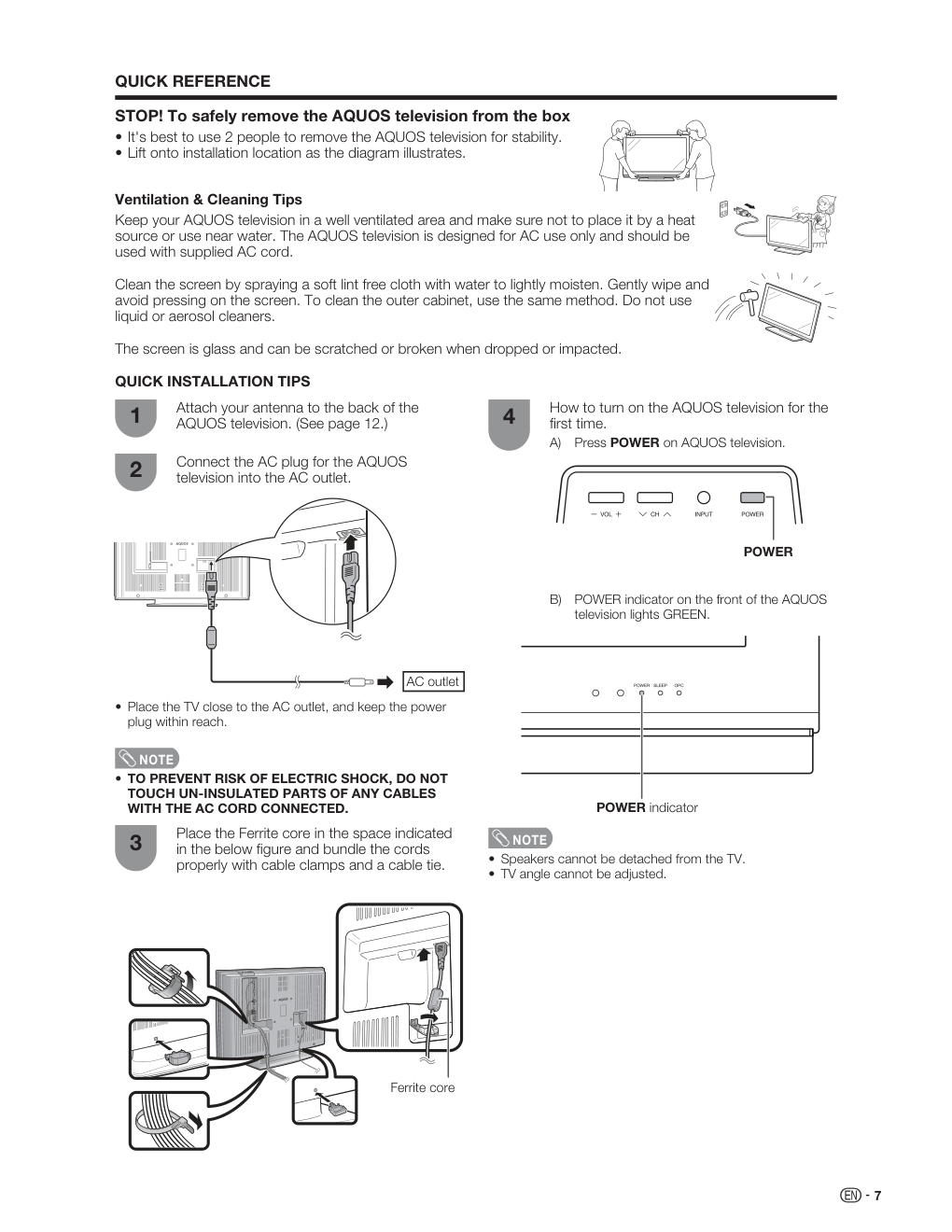

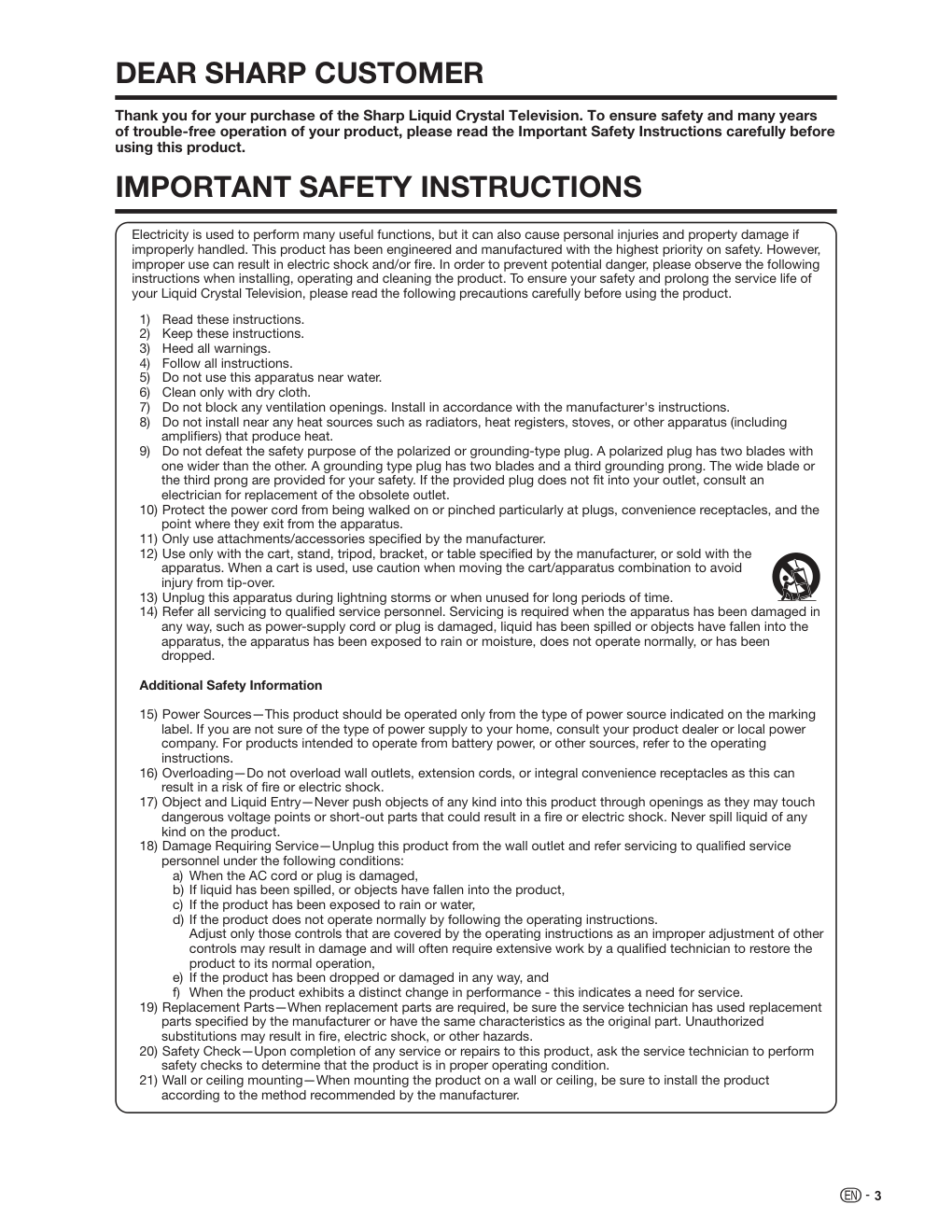

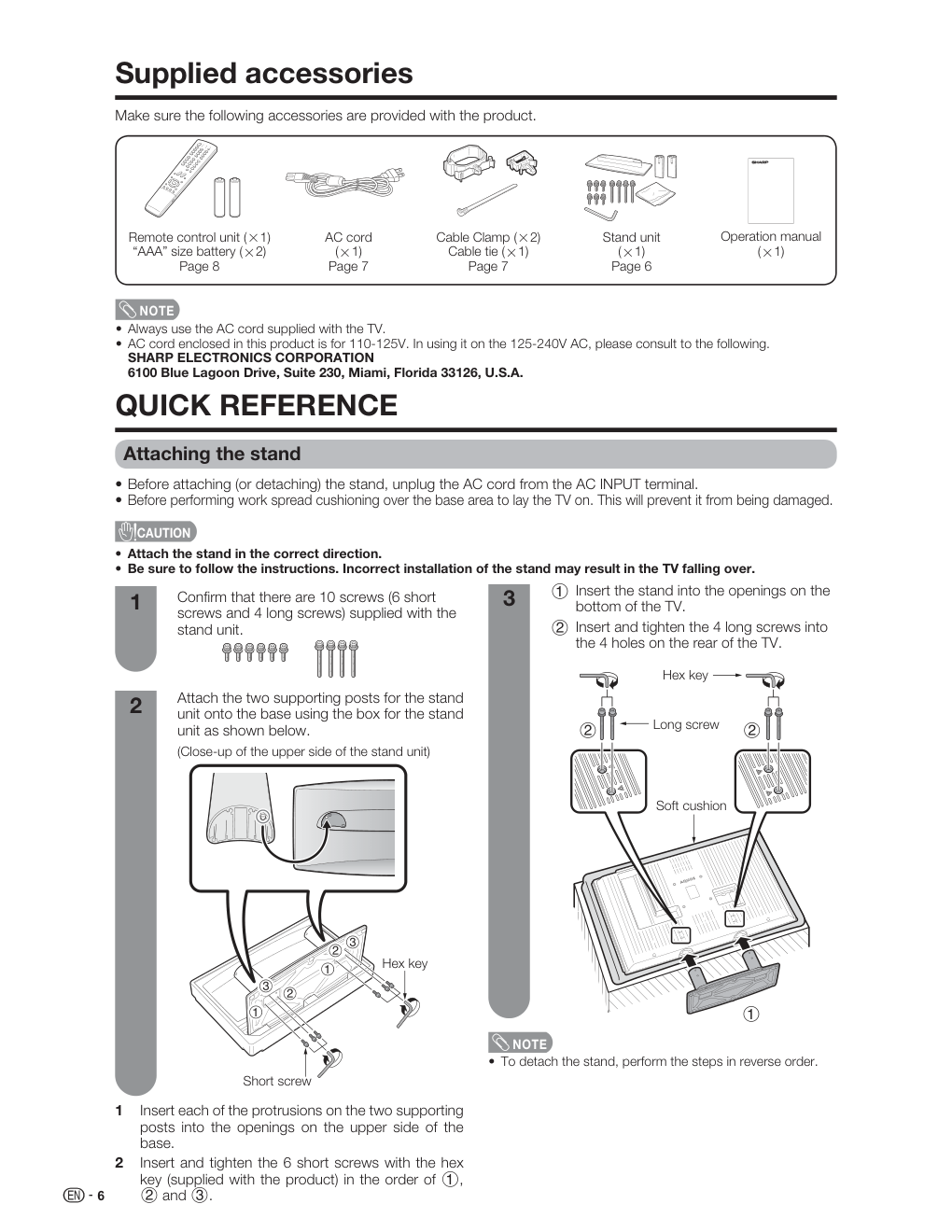

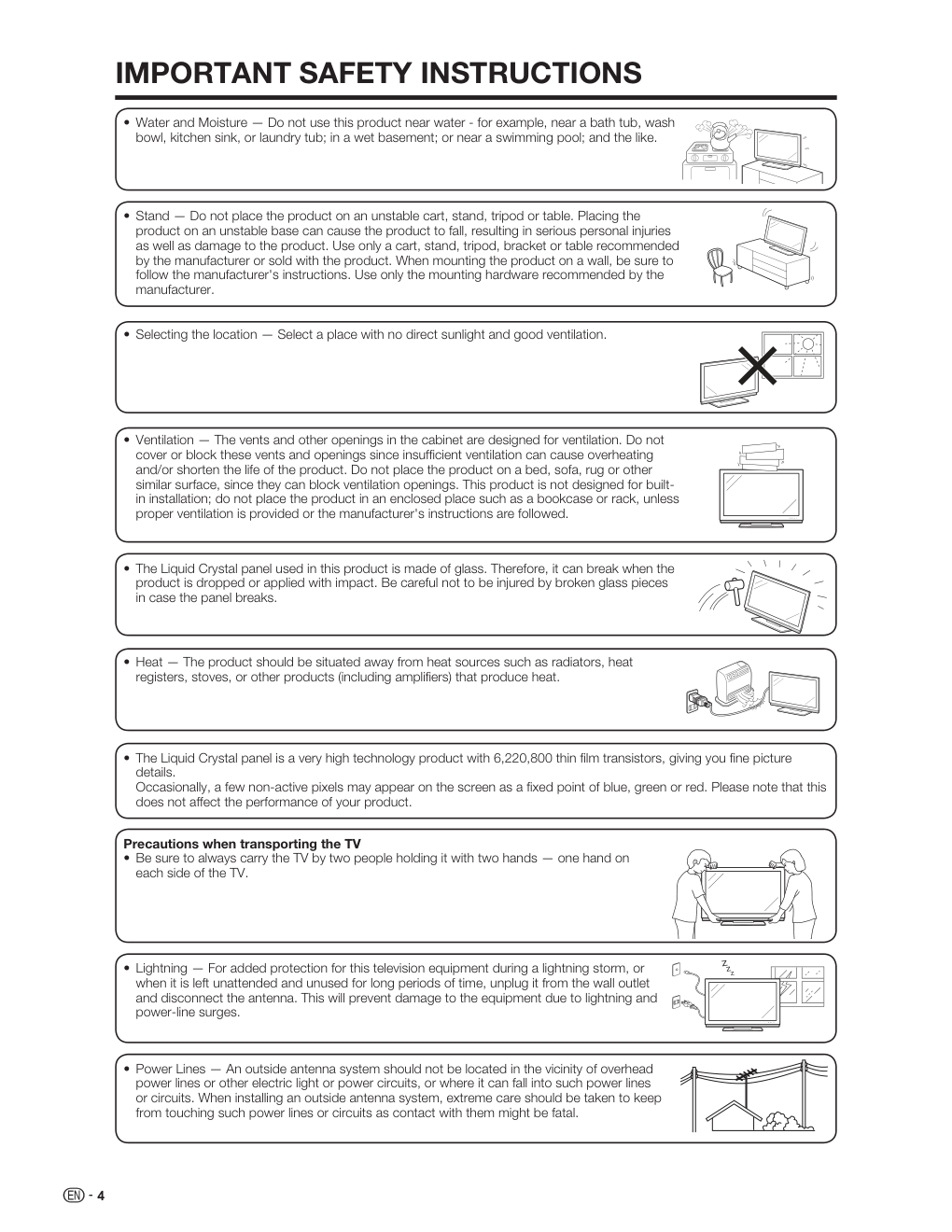

IMPORTANT: Please read this operation manual before starting operating the equipment. IMPORTANTE: Lea este manual de operación antes de comenzar a operar el equipo. LC-46D82U LC-52D82U LIQUID CRYSTAL TELEVISION TÉLÉVISEUR ACL TELEVISOR CON PANTALLA DE CRISTAL LÍQUIDO TELEVISOR DE CRISTAL LÍQUIDO ENGLISH FRANÇAIS ESPAÑOL OPERATION MANUAL MODE D'EMPLOI MANUAL DE OPERACIÓN MANUAL DE OPERAÇÃO PORTUGUÊS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. WARNING: The lightning flash with arrow-head symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. 1 LC-46D82U LC-52D82U OPERATION MANUAL • The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly from the actual operations. • Menu items that are not selectable are grayed out. • The examples used throughout this manual are based on the LC-52D82U model. IMPORTANT: To aid reporting in case of loss or theft, please record the TV's model and serial numbers in the space provided. The numbers are located at the rear of the TV. Model No.: Serial No.: LIQUID CRYSTAL TELEVISION ENGLISH IMPORTANT INFORMATION ENGLISH IMPORTANT INFORMATION Trademarks TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. CAUTION: WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment. “Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.” This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eia.org CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections. INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. DECLARATION OF CONFORMITY: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RESPONSIBLE PARTY: SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07430-2135 TEL: 1-800-BE-SHARP For Business Customers: URL http://www.sharpusa.com CAUTION: DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD, BRACKET, OR TABLE. THE PRODUCT MAY FALL CAUSING SERIOUS PERSONAL INJURY AND SERIOUS DAMAGE TO THE PRODUCT. USE ONLY WITH A CART, STAND, TRIPOD, BRACKET, OR TABLE RECOMMENDED BY THE MANUFACTURER OR SOLD WITH THE PRODUCT. FOLLOW THE MANUFACTURER'S INSTRUCTIONS WHEN INSTALLING THE PRODUCT AND USE MOUNTING ACCESSORIES RECOMMENDED BY THE MANUFACTURER. A PRODUCT AND CART COMBINATION SHOULD BE MOVED WITH CARE. QUICK STOPS, EXCESSIVE FORCE, AND UNEVEN SURFACES MAY CAUSE THE PRODUCT AND CART COMBINATION TO OVERTURN. SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-46D82U/LC-52D82U 2 • Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. • “HDMI, the HDMI logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.” • Products that have earned the ENERGY STAR ® are designed to protect the environment through superior energy effi ciency. Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your Liquid Crystal Television, please read the following precautions carefully before using the product. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Additional Safety Information 15) Power Sources—This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions. 16) Overloading—Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 17) Object and Liquid Entry—Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 18) Damage Requiring Service—Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the AC cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation, e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance - this indicates a need for service. 19) Replacement Parts—When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 20) Safety Check—Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. 21) Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer. 3 DEAR SHARP CUSTOMER Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years of trouble-free operation of your product, please read the Important Safety Instructions carefully before using this product. IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS 4 • Water and Moisture — Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. • Stand — Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer. • Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insuffi cient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built- in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed. • Heat — The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifi ers) that produce heat. • The Liquid Crystal panel is a very high technology product with 6,220,800 thin fi lm transistors, giving you fi ne picture details. Occasionally, a few non-active pixels may appear on the screen as a fi xed point of blue, green or red. Please note that this does not affect the performance of your product. Precautions when transporting the TV • Be sure to always carry the TV by two people holding it with two hands — one hand on each side of the TV. • The Liquid Crystal panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the panel breaks. • Lightning — For added protection for this television equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges. • Power Lines — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. • Selecting the location — Select a place with no direct sunlight and good ventilation. 5 • Outdoor Antenna Grounding — If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70 ANTENNA LEAD IN WIRE GROUND CLAMP NEC — NATIONAL ELECTRICAL CODE • To prevent fi re, never place any type of candle or fl ames on the top or near the TV set. • To prevent fi re or shock hazard, do not expose this product to dripping or splashing. No objects fi lled with liquids, such as vases, should be placed on the product. • To prevent fi re or shock hazard, do not place the AC cord under the TV set or other heavy items. • Turn off the main power and unplug the AC cord from the wall outlet before handling. • Use a soft cloth and gently wipe the surface of the display panel. Using a hard cloth may scratch the panel surface. • Use a soft damp cloth to gently wipe the panel when it is really dirty. (It may scratch the panel surface when wiped strongly.) • If the panel is dusty, use an anti-static brush, which is commercially available, to clean it. • To protect the panel, do not use a dirty cloth, liquid cleaners or chemical cloth to clean it, such materials may damage the panel surface. • To clean the outer cabinet, use the same method. Do not use liquid or aerosol cleaners. GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) ELECTRIC SERVICE EQUIPMENT ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) • Do not display a still picture for a long time, as this could cause an afterimage to remain. IMPORTANT SAFETY INSTRUCTIONS Supplied accessories Make sure the following accessories are provided with the product. NOTE • Always use the AC cord supplied with the TV. • AC cord enclosed in this product is for 110-125V. In using it on the 125-240V AC, please consult to the following. SHARP ELECTRONICS CORPORATION 6100 Blue Lagoon Drive, Suite 230, Miami, Florida 33126, U.S.A. QUICK REFERENCE Remote control unit (g1) “AAA” size battery (g2) Page 8 AC cord (g1) Page 7 Stand unit (g1) Page 6 Cable Clamp (g2) Cable tie (g1) Page 7 Attaching the stand • Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal. • Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged. Operation manual (g1) Attach the two supporting posts for the stand unit onto the base using the box for the stand unit as shown below. 2 2 3 3 1 1 2 1 Insert each of the protrusions on the two supporting posts into the openings on the upper side of the base. 2 Insert and tighten the 6 short screws with the hex key (supplied with the product) in the order of 1, 2 and 3. (Close-up of the upper side of the stand unit) 6 NOTE • To detach the stand, perform the steps in reverse order. 1 Insert the stand into the openings on the bottom of the TV. 2 Insert and tighten the 4 long screws into the 4 holes on the rear of the TV. 2 2 1 Hex key Long screw CAUTION • Attach the stand in the correct direction. • Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over. 3 1 Confi rm that there are 10 screws (6 short screws and 4 long screws) supplied with the stand unit. Soft cushion Short screw Hex key 7 QUICK REFERENCE STOP! To safely remove the AQUOS television from the box • It's best to use 2 people to remove the AQUOS television for stability. • Lift onto installation location as the diagram illustrates. Ventilation & Cleaning Tips Keep your AQUOS television in a well ventilated area and make sure not to place it by a heat source or use near water. The AQUOS television is designed for AC use only and should be used with supplied AC cord. Clean the screen by spraying a soft lint free cloth with water to lightly moisten. Gently wipe and avoid pressing on the screen. To clean the outer cabinet, use the same method. Do not use liquid or aerosol cleaners. The screen is glass and can be scratched or broken when dropped or impacted. QUICK INSTALLATION TIPS Attach your antenna to the back of the AQUOS television. (See page 12.) NOTE • TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE AC CORD CONNECTED. Place the Ferrite core in the space indicated in the below fi gure and bundle the cords properly with cable clamps and a cable tie. How to turn on the AQUOS television for the fi rst time. A) Press POWER on AQUOS television. POWER POWER indicator Connect the AC plug for the AQUOS television into the AC outlet. B) POWER indicator on the front of the AQUOS television lights GREEN. NOTE • Speakers cannot be detached from the TV. • TV angle cannot be adjusted. AC outlet • Place the TV close to the AC outlet, and keep the power plug within reach. 1 2 3 4 Ferrite core 30° 30° 8 QUICK REFERENCE If the remote control fails to operate TV functions, replace the batteries in the remote control unit. 1 Open the battery cover. • Place the batteries with their terminals corresponding to the (e) and (f) indications in the battery compartment. CAUTION Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below. • Do not mix batteries of different types. Different types of batteries have different characteristics. • Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries. • Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come in contact with skin can cause a rash. If you fi nd any chemical leakage, wipe thoroughly with a cloth. • The batteries supplied with this product may have a shorter life expectancy due to storage conditions. • If you will not be using the remote control unit for an extended period of time, remove batteries from it. Remote control sensor 2 Insert two “AAA” size batteries (supplied with the product). 3 Close the battery cover. IMPORTANT: The POWER indicator on the AQUOS television should light GREEN indicating you have power to the AQUOS television. If the POWER indicator on the AQUOS television still does not light up, press TV POWER on the remote control to turn the power on. IMPORTANT: IF THE UNIT DOES NOT POWER ON - UNPLUG THE AQUOS TELEVISION FROM THE OUTLET AND REPEAT THE INSTALLATION STEPS. IF YOU STILL ENCOUNTER NO POWER, PLEASE CONTACT US AT 1-800-BE-SHARP. Please refer to the BASIC ADJUSTMENT SETTINGS SECTION for EZ Setup and basic channel setup functions and USING EXTERNAL EQUIPMENT SECTION for other device connections (DVD, VCR, AUDIO, etc.) in your AQUOS operation manual. 17n (5 m) 9 IMPORTANT INFORMATION .................................. 1 Trademarks .............................................................. 2 DEAR SHARP CUSTOMER ..................................... 3 IMPORTANT SAFETY INSTRUCTIONS .................. 3 Supplied accessories .............................................. 6 QUICK REFERENCE ................................................ 6 Attaching the stand .............................................. 6 Contents ................................................................... 9 Part names ............................................................. 10 TV (Front) ........................................................... 10 TV (Rear) ............................................................ 10 Remote control unit ............................................ 11 Preparation ............................................................ 12 Using the remote control unit .............................. 12 Cautions regarding the remote control unit ..... 12 Antennas ............................................................ 12 Connecting a Blu-ray disc player, HD-DVD player, DVD player or a Digital TV STB (Air or Cable) .... 13 Connecting a VCR, game console or camcorder ................................................... 14 Using Digital Audio Output .................................. 14 Connecting HDMI equipment ............................. 14 Connecting a PC ................................................ 15 PC compatibility chart ........................................ 15 Watching TV ........................................................... 16 Turning on the power ......................................... 16 Turning off the power ......................................... 16 Initial setup ......................................................... 17 Simple button operations for changing channels .......................................... 18 Simple button operations for changing volume/sound .................................. 19 Setting MTS/SAP stereo mode ........................... 20 Setting Digital broadcasting audio mode ............ 20 Basic adjustment settings .................................... 21 Menu operation buttons ..................................... 21 On-Screen Display ............................................. 21 Menu items for TV/INPUT 1/2/3.......................... 22 Menu items for HDMI.......................................... 22 EZ Setup ............................................................ 23 Channel Setup ................................................... 23 Antenna Setup-DIGITAL ..................................... 24 Favorite channel setting ...................................... 25 Picture adjustments ............................................ 26 OPC setting .................................................... 26 Advanced picture adjustments ....................... 27 Color Temperature ......................................... 27 Black .............................................................. 27 Fine Motion Advanced .................................... 27 3D-Y/C ........................................................... 27 Monochrome .................................................. 27 Film Mode (3:2 pull-down) .............................. 27 Range of OPC ................................................ 27 Sound adjustment .............................................. 28 Surround ............................................................ 28 Power Control .................................................... 29 Digital Setup ....................................................... 29 Audio Setup ................................................... 29 Using external equipment ..................................... 30 Displaying an external equipment image ............. 30 Input Select ........................................................ 30 Displaying an image from HDMI equipment ........ 31 Input Skip ........................................................... 31 Useful adjustment settings ................................... 32 Language setting ................................................ 32 Image position .................................................... 32 Blue Illumination setting ...................................... 32 Reset ................................................................. 32 Input Label ......................................................... 33 Sleep Timer ........................................................ 33 View Mode for 4:3 Programs .............................. 34 View Mode for HD Programs .............................. 34 View Mode for PC input mode ............................ 35 Advanced Option settings .................................. 36 Audio Only ..................................................... 36 Digital Noise Reduction .................................. 36 Output Select ................................................. 36 Color System ................................................. 36 Program Title Display ...................................... 36 AV MODE ........................................................... 37 Input Signal (for PC input mode) ......................... 37 Closed Captions and Digital Closed Captions ..... 38 Caption Setup .................................................... 39 Secret number setting for parental control .......... 40 Parental control (setting V-CHIP level) ................. 42 How to temporarily release the V-CHIP BLOCK .......................................... 45 Reactivating the temporarily released V-CHIP BLOCK ................................................ 45 Other viewing options ........................................... 46 Freezing images ................................................. 46 Presetting remote control function ...................... 46 Appendix ................................................................ 50 Removing the stand ........................................... 50 Setting the TV on the wall ................................... 50 Troubleshooting ................................................. 51 Troubleshooting-Digital broadcasting ................. 51 Specifi cations ..................................................... 52 Optional accessory ............................................. 52 Calling for Service ................................................. 54 LIMITED WARRANTY ............................................ 54 Dimensional drawings • The dimensional drawings for the LCD TV set are shown on the inside back cover. Contents 10 Part names TV (Front) OPC indicator* POWER indicator** OPC sensor* Remote control sensor NOTE *OPC: Optical Picture Control (See page 26.) **See page 16 for TV status indicator. ***See page 32 for Blue Illumination LED. SLEEP indicator** TV (Rear) HDMI terminal (INPUT 4) AC INPUT terminal HDMI terminal (INPUT 5) DIGITAL AUDIO OUTPUT terminal Antenna/Cable in HDMI terminal (INPUT 6) AUDIO terminals (INPUT 6) INPUT 3 terminals INPUT 2 terminals INPUT 1 terminals AUDIO OUTPUT terminals POWER button Channel buttons (CHs/r) Volume buttons (VOLl/k) INPUT button Blue Illumination LED*** 3 2 1 14 5 6 4 8 17 15 16 18 19 7 20 10 9 21 11 23 24 25 12 13 27 22 26 11 Part names 1 TV POWER: Switch the TV power on or enters standby. (See page 16.) 2 DISPLAY: Display the channel information. 3 SOURCE POWER: Turns the power of the external equipment on and off. 4 External equipment operational buttons: Operate the external equipment. 5 0 – 9: Set the channel. (See page 18.) 6 • (DOT): (See pages 18 and 48.) 7 INPUT: Select a TV input source. (TV, INPUT 1, INPUT 2, INPUT 3, INPUT 4, INPUT 5, INPUT 6) (See pages 30 and 31.) 8 VOL k/l: Set the volume. (See page 19.) 9 SURROUND: Select Surround settings. (See page 19.) 10 FREEZE: Set the still image. Press again to return to normal screen. (See page 46.) 11 EXIT: Turn off the menu screen. 12 SLEEP: Set the sleep timer. (See page 33.) 13 AUDIO: Selects the MTS/SAP or the audio mode during multi-channel audio broadcasts. (See page 20.) 14 FUNCTION: Switches the remote control for TV, CBL/ SAT, VCR, DVD and AUDIO operation. Indicator lights up for the current mode. (See pages 46 to 49 for details.) * To enter the code registration mode, you need to press FUNCTION and DISPLAY at the same time. 15 LIGHT D: When pressed all buttons on the remote control unit will light. The lighting will turn off if no operations are performed within about 5 seconds. This button is used for performing operations in low-light situations. 16 VIEW MODE: Select the screen size. (See pages 34 and 35.) 17 ENT: Jumps to a channel after selecting with the 0–9 buttons. 18 FLASHBACK: Return to the previous channel or external input mode. (See page 18.) 19 CHr/s: Select the channel. (See page 18.) 20 MUTE: Mute the sound. (See page 19.) 21 MENU: Display the menu screen. 22 a/b/c/d/ENTER: Select a desired item on the screen. 23 RETURN: Return to the previous menu screen. 24 FAVORITE CH A, B, C, D: Select 4 preset favorite channels in 4 different categories. (See page 25 for details.) While watching, you can toggle the selected channels by pressing A, B, C and D. 25 FAVORITE: Set the favorite channels. (See page 25.) 26 CC: Display captions from a closed-caption source. (See page 38.) 27 AV MODE: Select an audio or video setting. (When the input source is TV, INPUT 1, 2 or 3: STANDARD, MOVIE, GAME, USER, DYNAMIC (Fixed), DYNAMIC. When the input source is INPUT 4, 5 or 6: STANDARD, MOVIE, GAME, PC, USER, DYNAMIC (Fixed), DYNAMIC) (See page 37.) Remote control unit NOTE • When using the remote control unit, point it at the TV. 300-ohm twin-lead cable 75-ohm coaxial cable (round) 75-ohm coaxial cable IN OUT 300-ohm twin-lead cable VHF ANTENNA UHF ANTENNA Combiner (commercially available) or 300/75-ohm adapter (commercially available) 300-ohm twin-lead cable (flat) 75-ohm coaxial cable (round) or Cable TV lead-In Coaxial cable (commercially available) Coaxial cable (commercially available) Home Antenna terminal (75-ohm) Home Antenna terminal (75-ohm) Using the remote control unit Use the remote control unit by pointing it towards the remote control sensor on the TV. Objects between the remote control unit and the remote control sensor may prevent proper operation. Cautions regarding the remote control unit • Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity. • Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the remote control unit. • The remote control unit may not work properly if the remote control sensor on the TV is under direct sunlight or strong lighting. In such cases, change the angle of the lighting or the TV, or operate the remote control unit closer to the remote control sensor. Antennas To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an F-type connector, plug it into the antenna terminal at the rear of the TV set. 1. A 75-ohm system is generally a round cable with F-type connector that can easily be attached to a terminal without tools (Commercially available). F-type connector Connecting Antenna Cable 300-ohm twin-lead cable (fl at) F-type connector 75-ohm coaxial cable (round) 75-ohm coaxial cable 1 Cable without a CATV converter 3 Combination VHF/ UHF antenna 4 Separate VHF/ UHF antenna NOTICE 2. A 300-ohm system is a fl at “twin-lead” cable that can be attached to a 75-ohm terminal through a 300/75-ohm adapter (Commercially available). F-type connector should be fi nger- tightened only. When connecting the RF cable to the TV set, do not tighten F-type connector with tools. If tools are used, it may cause damage to your TV set. (The breaking of internal circuit, etc.) To TV antenna terminal 2 VHF/UHF antenna • Connect the antenna cable to the TV using one of the methods in the illustration as shown (1, 2, 3 or 4). 12 Preparation Preparation 13 Connecting a Blu-ray disc player, HD-DVD player, DVD player or a Digital TV STB (Air or Cable) You can use the INPUT 1, INPUT 2 or INPUT 3 terminals when connecting to a Blu-ray disc player, HD-DVD player, DVD player, a Digital TV STB (Air or Cable) and other audiovisual equipment. Blu-ray disc player/HD-DVD player/ DVD player/Digital TV STB When using component cable. (INPUT 1 or 2) When using composite cable. (INPUT 1, 2 or 3) Component video cable (commercially available) Audio cable (commercially available) Blu-ray disc player/HD-DVD player/ DVD player/Digital TV STB You can connect many types of external equipment to your TV like a Blu-ray disc player, HD-DVD player, DVD player, VCR, Digital TV tuner, HDMI equipment, game console or camcorder. To view external source images, select the input source from INPUT on the remote control unit or on the TV. (See pages 30 and 31.) CAUTION • To protect equipment, always turn off the TV before connecting any external equipment. • Please read the relevant operation manual (Blu-ray disc player, etc.) carefully before making connections. AV cable (commercially available) 14 Preparation Connecting a VCR, game console or camcorder A VCR, game console, camcorder and other audiovisual equipment can be conveniently connected using the INPUT 1, 2 and 3 terminals. VCR/Game console/ Camcorder Using Digital Audio Output It is possible to output audio through the DIGITAL AUDIO OUTPUT terminal. (See page 29 for details.) PCM audio outputs from the terminal. External audio devices Optical fi ber cable (commercially available) When using S-VIDEO cable. NOTE • The S-VIDEO terminal takes priority over the video terminals. (INPUT 3 only) When using composite cable. VCR/Game console/ Camcorder HDMI equipment HDMI cable (commercially available) Connecting HDMI equipment You can use the INPUT 4, INPUT 5 or INPUT 6 terminal when connecting HDMI equipment. NOTE • When using an HDMI-DVI conversion cable, input the audio signal to AUDIO terminal of INPUT 6. • To enjoy the AQUOS 1080p display capability, connect your Blu-ray disc player, HD-DVD player or other external equipment using an HDMI cable and set the equipment to 1080p output. S-VIDEO cable (commercially available) Audio cable (commercially available) AV cable (commercially available) Preparation 15 NOTE • The HDMI terminals only support digital signal. PC It is necessary to set the PC format correctly to display XGA and WXGA signal. Refer to page 37 to set PC input signals. Connecting a PC When connecting to a PC with an HDMI terminal. (INPUT 4, 5 or 6) HDMI cable (commercially available) PC compatibility chart PC 31.5 kHz 31.5 kHz 37.9 kHz 37.5 kHz 35.1 kHz 37.9 kHz 48.1 kHz 46.9 kHz 48.4 kHz 56.5 kHz 60.0 kHz 47.7 kHz 64.0 kHz 640 x 480 720 x 400 VGA 800 x 600 SVGA XGA 1024 x 768 WXGA 1360 x 768 SXGA 1280 x 1024 70 Hz 60 Hz 72 Hz 75 Hz 56 Hz 60 Hz 72 Hz 75 Hz 60 Hz 70 Hz 75 Hz 60 Hz 60 Hz O O O O O O O O O O O O DDC is a registered trademark of Video Electronics Standards Association. Power Management is a registered trademark of Sun Microsystems, Inc. VGA and XGA are registered trademarks of International Business Machines Co., Inc. PC Horizontal Frequency VESA Standard Resolution Vertical Frequency 16 Simple operations for watching a TV program POWER indicator TV POWER (On/Standby) Turning on the power Press POWER on the TV, or TV POWER on the remote control unit. • POWER indicator (Green): The TV is on. (After a few seconds, a window appears with sound.) NOTE • The initial setup starts when the TV powers on for the fi rst time. If the TV has been turned on before, the EZ Setup will not be invoked. See page 23 for performing EZ Setup from the Setup menu. Turning off the power Press POWER on the TV, or TV POWER on the remote control unit. • The TV enters standby and the image on the screen disappears. • The POWER indicator on the TV turns off. NOTE • If you are not going to use this TV for a long period of time, be sure to remove the AC cord from the AC outlet. • Weak electric power is still consumed even when POWER is turned off. Watching TV POWER TV status indicator (POWER) ON Lighting (Green) Lights off Standby “Off” is selected in OPC setting “On” or “On: Display” is selected in OPC setting Lights off Lighting (Green) TV status indicator (OPC) • See page 26 for details. OPC indicator SLEEP indicator “Off” is selected in SLEEP setting “30”, “60”, “90” or “120” is selected in SLEEP setting Lights off Lighting (Red) TV status indicator (SLEEP) • See page 33 for details. 18 22. Air Air DIGITAL 22.1 22.1 Air 22 Air 2 Air 11 Cable 1 Cable 115 Cable ANALOG 5 Air 5 Air ANALOG Simple button operations for changing channels You can change channels in several ways. NOTE • When selecting a 1-digit channel number, it is not necessary to press 0 before the number. • When you enter 0-9 only, channel selection will be made if there is no operation within a few seconds. To select a 3-digit channel number (e. g., Channel 115): Press 1s1s5sENT To select a 4-digit channel number (e. g., Channel 22.1): Press 2 s2s • (DOT) s1sENT NOTE • When you enter 0–9 only, channel selection will be made if there is no operation within a few seconds. • If you push “0” by itself, nothing will happen. • Complete the above steps within a few seconds. • When you enter 0–9 and • (DOT), channel selection will be made if there is no operation within a few seconds. Method 1 Using CH r/s on the remote control unit or on the TV. Method 2 1 Press FLASHBACK to switch to the previously tuned channel. 2 Press FLASHBACK again to switch back to the currently tuned channel. NOTE • FLASHBACK will not work if no channel has been changed after the TV is turned on. Method 3 Using remote control buttons 0-9, • (DOT) to select channels for VHF/UHF/CATV/DIGITAL. To select a 1 or 2-digit channel number (e. g., Channel 5): Press 5sENT Watching TV 19 20 20 20 Surround : Off Surround : On Simple button operations for changing volume/sound ■ Changing the volume You can change the volume on the TV or on the remote control unit. NOTE • VOLl/k on the TV operates the same as VOL k/l on the remote control unit. ■ Using VOLk/l • To increase the volume, press VOLk. • To decrease the volume, press VOLl. Audio status Volume adjustment * When “Output Select” is set to “Variable”, the indicator on the screen changes as shown below. NOTE • See page 36 for details on the Output Select function. NOTE • You can have the same settings by choosing “Surround” on the menu items. (See page 28.) SURROUND produces Surround effect from the speakers. Each time you press SURROUND, the mode changes between On and Off. Surround sound options On: Makes it possible to enjoy natural, realistic surround sound. Off: Outputs the normal sound. ■ Using MUTE on the remote control unit Mutes the current sound output. NOTE • Within 30 minutes of pressing MUTE, mute can be canceled by using one of the methods below. — Mute will cancel if you press VOLl/k or MUTE. • Mute will be canceled after 30 minutes have passed. However, the TV will not suddenly output a loud sound as the volume level is set to 0 automatically. Mute Press MUTE. • M will be displayed on the screen for 30 minutes, and the sound is silenced. Watching TV ■ Using SURROUND on the remote control unit Output Select Output device Fixed Variable Variable sound Mute Speaker 20 2 Air ANALOG Audio : MONO 2 Air ANALOG Audio : STEREO 2 Air ANALOG Audio : MAIN 2 Air ANALOG Audio : SAP 2 Air ANALOG Audio : MONO 2 Air ANALOG Audio : ST(SAP) 2 Air ANALOG Audio : SAP(ST) 2 Air ANALOG Audio : MONO Setting MTS/SAP stereo mode The TV has a feature that allows reception of sound other than the main audio for the program. This feature is called Multi-channel Television Sound (MTS). The TV with MTS can receive mono sound, stereo sound and Secondary Audio Programs (SAP). The SAP feature allows a TV station to broadcast other information, which could be audio in another language or something completely different like weather information. You can enjoy Hi-Fi stereo sound or SAP broadcasts where available. • Stereo broadcasts View programs like live sporting events, shows and concerts in dynamic stereo sound. • SAP broadcasts Receive TV broadcasts in either MAIN or SAP sound. MAIN sound: The normal program soundtrack (either in mono or stereo). SAP sound: Listen to a second language, supplementary commentary or other information. (SAP is mono sound.) If stereo sound is diffi cult to hear. • Obtain a clearer sound by manually switching to fi xed mono-sound mode. NOTE • MTS only operates while in TV mode. You can change MTS as shown below to match the television broadcast signal. Press AUDIO to toggle between audio modes. Examples: when receiving MTS and SAP STEREO mode MAINkSAP mode Example: when receiving Digital broadcasting Setting Digital broadcasting audio mode The types of audio transmitted in a digital broadcast include SURROUND as well as MONO and STEREO. In addition, it is possible for multiple audio tracks to accompany a single video track. Press AUDIO to toggle between audio modes. Watching TV STEREOkSAP mode MONO mode 2.2 Air DIGITAL Audio3 : SURROUND 2.2 Air DIGITAL Audio1 : STEREO 2.2 Air DIGITAL Audio2 : STEREO 21 ENTER : Select : Enter MENU : Exit RETURN : Back On-Screen Display 1 Item displayed in yellow • This indicates the item currently selected. • Press ENTER to go to the adjustment screen for this item. 2 Item in brackets • This indicates the current setting for the item. 3 Item displayed in white • This indicates an item can be selected. 4 Item displayed in grey • This indicates that the item cannot be selected. There are various reasons why items cannot be selected, but the main reasons are as follows: — Nothing is connected to the selected input terminal. — The function is not compatible with the current input signal. NOTE • Menu options differ in the selected input modes, but the operating procedures are the same. • The screens in the operation manual are for explanation purposes (some are enlarged, others cropped) and may vary slightly from the actual screens. Example Option Audio Only Digital Noise Reduction Input Select Color System [Off] [VIDEO] Output select [Fixed] [Auto] [No] Program Title Display Caption Setup 3 4 2 1 Basic adjustment settings Menu operation buttons Use the following buttons on the remote control to operate the menu. MENU: Press to open or close the menu screen. a/b/c/d: Press to select a desired item on the screen or adjust a selected item. ENTER: Press to go to the next step or complete the setting. RETURN: Press to return to the previous step. The bar above is an operational guide for the remote control. The bar will change in accordance with each menu setting screen. 22 Picture Setup Audio Option Power Control Digital Setup Picture Setup Audio Option Power Control Menu items for TV/INPUT 1/2/3 Menu items for HDMI Basic adjustment settings OPC ............................................................. Page 26 Backlight .................................................... Page 26 Contrast ..................................................... Page 26 Brightness ................................................. Page 26 Color .......................................................... Page 26 Tint ............................................................. Page 26 Sharpness ................................................. Page 26 Advanced Color Temp. ..................................... Page 27 Black ................................................. Page 27 Fine Motion Advanced ..................... Page 27 3D-Y/C .............................................. Page 27 Monochrome ..................................... Page 27 Film Mode ......................................... Page 27 Range of OPC .................................. Page 27 Reset .......................................................... Page 26 Treble ......................................................... Page 28 Bass ............................................................ Page 28 Balance ....................................................... Page 28 Surround ..................................................... Page 28 Reset ........................................................... Page 28 No Signal Off .............................................. Page 29 No Operation Off ....................................... Page 29 OPC ............................................................. Page 26 Backlight .................................................... Page 26 Contrast ..................................................... Page 26 Brightness ................................................. Page 26 Color .......................................................... Page 26 Tint ............................................................. Page 26 Sharpness ................................................. Page 26 Advanced Color Temp. ..................................... Page 27 Black ................................................. Page 27 Fine Motion Advanced ..................... Page 27 Monochrome ..................................... Page 27 Film Mode ......................................... Page 27 Range of OPC .................................. Page 27 Reset .......................................................... Page 26 Treble ......................................................... Page 28 Bass ............................................................ Page 28 Balance ....................................................... Page 28 Surround ..................................................... Page 28 Reset ........................................................... Page 28 No Signal Off .............................................. Page 29 No Operation Off ....................................... Page 29 EZ Setup ..................................................... Page 23 CH Setup .................................................... Page 23 Antenna Setup-DIGITAL............................ Page 24 Input Skip ................................................... Page 31 Input Label ................................................ Page 33 Parental CTRL .....................................Pages 40-45 Position ....................................................... Page 32 Language .................................................... Page 32 Blue Illumination ........................................ Page 32 Reset ........................................................... Page 32 Audio Only .................................................. Page 36 Digital Noise Reduction ............................ Page 36 Input Select ................................................ Page 30 Output Select ............................................. Page 36 Color System ............................................. Page 36 Caption Setup ............................................ Page 39 Program Title Display ............................... Page 36 Favorite CH ................................................ Page 25 Audio Setup ................................................ Page 29 Input Skip ................................................... Page 31 Input Signal ................................................ Page 37 Input Label ................................................ Page 33 Position ....................................................... Page 32 Language .................................................... Page 32 Blue Illumination ........................................ Page 32 Reset ........................................................... Page 32 Audio Only .................................................. Page 36 Digital Noise Reduction ............................ Page 36 HDMI Setup ................................................ Page 31 Output Select ............................................. Page 36 NOTE • Some menu items may not be displayed depending on the selected input source. 23 Basic adjustment settings Press MENU to display the MENU screen, and then press c/d to select “Setup”. Press a/b to select “EZ Setup”, and then press ENTER. • If you already set the Secret No., go to step 3. If not, skip to step 4. Input the 4-digit secret number by using 0–9. Press a/b to select the desired language listed on the screen, and then press ENTER. Press c/d to select “Air” or “Cable”. Press ENTER to enter the setting. Antenna setting Make sure what kind of connection is made with your TV when selecting “Air” or “Cable”. Channel search Channel auto search makes the TV look for all channels viewable in the set area. NOTE • If no channel is found, confi rm the type of connection made with your TV and try EZ Setup again. • If you select “Analog Search Start” and initiate the channel search, the CH Memory for Cable Digital will be deleted. EZ Setup You can run EZ Setup again, even after setting up the preset channels. Language setting Select from among 3 languages: English, French and Spanish. Channel Setup If initial setup does not memorize all the channels in your region, follow the instructions below to manually memorize the channels. Antenna setting Press MENU to display the MENU screen, and then press c/d to select “Setup”. Press a/b to select “CH Setup”, and then press ENTER. • If you already set the Secret No., input the 4-digit secret number here. See page 40 for setting a secret number. Press c/d to select “Air” or “Cable”. Press ENTER to enter the setting. Press a/b to select “Air/Cable”, and then press ENTER. Channel search Channel auto search makes the TV look for all channels viewable in the set area. Repeat steps 1 and 2 in Antenna setting in Channel Setup. Press a/b to select “CH Search”, and then press ENTER. NOTE • If no channel is found, confi rm the type of connection made with your TV and try channel search again. • If you select “Analog Search Start” and initiate the channel search, the CH Memory for Cable Digital will be deleted. 1 2 3 4 5 6 1 2 3 4 1 2 When “Air” is selected in Antenna setting: Press c/d to select “Start”, and then press ENTER. When “Cable” is selected in Antenna setting: Press a/b to select “Analog & Digital Search Start” to search both analog and digital broadcasts or “Analog Search Start” to search only analog broadcasts, and then press ENTER. • The Channel search will start automatically. • To exit the Channel search screen, select “Cancel”, and then press ENTER. When “Air” is selected in Antenna setting: Press c/d to select “Start”, and then press ENTER. When “Cable” is selected in Antenna setting: Press a/b to select “Analog & Digital Search Start” to search both analog and digital broadcasts or “Analog Search Start” to search only analog broadcasts, and then press ENTER. • The Channel search will start automatically. • To exit the Channel search screen, select “Cancel”, and then press ENTER. 3 Press MENU to exit. 7 Press MENU to exit. 4 Press MENU to exit. 5 24 Signal Strength Channel Strength Signal Strength Current Max 0 0 Signal Strength Current CH Max 0 1 2 0 Signal Strength Channel Strength Basic adjustment settings Antenna Setup - DIGITAL In order to receive digital air broadcasts, you need a digital broadcast antenna. You can confi rm the antenna confi guration through the “Antenna Setup - DIGITAL” screen. If necessary, adjust the direction of the antenna to obtain the maximum signal strength. Signal Strength • On: Skips channels. (Channel selection disabled using CH r/s.) • Off: Does not skip channels. (Channel selection enabled using CH r/s.) Press a/b to select ANALOG (Air), ANALOG (Cable), DIGITAL (Air) or DIGITAL (Cable), and then press ENTER. When viewing ANALOG broadcasts: 1 Press c/d to select the channel to skip, and then press b to move down. 2 Press c/d to select “On”, and then press ENTER. When viewing DIGITAL broadcasts: 1 Press a/b to select the channel to skip, and then press c/d to select “On”. Press MENU to display the MENU screen, and then press c/d to select “Setup”. Press a/b to select “CH Setup”, and then press ENTER. • If you already set the Secret No., input the 4-digit secret number here. See page 40 for setting a secret number. Press a/b to select “CH Memory”, and then press ENTER. Channel memory setting Press MENU to display the MENU screen, and then press c/d to select “Setup”. Press a/b to select “Antenna Setup - DIGITAL”, and then press ENTER. Channel Strength The channel signal strength can also be checked separately. Repeat steps 1 and 2 in Signal Strength in Antenna Setup - DIGITAL. Input the 2-digit channel number to check the signal strength of the selected channel. • Make sure the signal is strong enough for each channel. Press a/b to select “Channel Strength”, and then press ENTER. Press a/b to select “Signal Strength”. • The signal strength of DIGITAL channel is displayed. The signal information is based on the current channel. NOTE • This function is available for DIGITAL (Air) only. 1 2 3 4 5 1 2 3 1 2 3 NOTE • Make sure what kind of connection is made with your TV. Press MENU to exit. 6 Press MENU to exit. 4 Press MENU to exit. 4 25 Air 3 Air 18 Air 10.1 A B C D Air 3 A B C D Air 10.1 Yes No Basic adjustment settings Favorite channel setting This function allows you to program 4 favorite channels, in 4 different categories. By setting the favorite channels in advance, you can select your favorite channels easily. Press a/b/c/d to select the position in the category, and then press ENTER to register. Select the channel you want to register as a favorite channel. Press FAVORITE. Press a/b to select “Register”, and then press ENTER. Deleting a favorite channel Press FAVORITE and the favorite channel screen displays. Press a/b to select “1 Data Clear”, and then press ENTER. • To delete all the favorite channels, select “All Data Clear”, and then skip to step 4. Press a/b/c/d to select the channel you want to delete, and then press ENTER. Press c/d to select “Yes”, and then press ENTER. 1 2 4 3 1 2 4 3 Air 3 A B C D Using FAVORITE CH on the remote control unit Using Favorite CH on the menu screen You can also set your favorite channels in “Option” on the MENU screen. Select the channel you want to register as a favorite channel. 1 Press MENU to display the MENU screen, and then press c/d to select “Option”. Press a/b to select “Favorite CH”, and then press ENTER. 2 3 Press a/b to select “Register”, and then press ENTER. 4 Press a/b/ c/d to select the position in the category, and then press ENTER to register. 5 Deleting a favorite channel Repeat steps 2 and 3 in Using Favorite CH on the menu screen. 1 Press a/b to select “1 Data Clear”, and then press ENTER. • To delete all the favorite channels, select “All Data Clear”, and then skip to step 4. 2 Press a/b/ c/d to select the channel you want to delete, and then press ENTER. 3 Press c/d to select “Yes”, and then press ENTER. 4 Press MENU to exit. 6 Press MENU to exit. 5 26 Picture Audio Contrast OPC Brightness Color Tint Sharpness Advanced Reset [b30] [ 0] [ 0] [ 0] [ b2] 0 a30 a30 a30 a10 b40 b30 b30 b30 b10 Backlight [b12] a16 b16 Off On On : Display Basic adjustment settings Picture adjustments Adjusts the picture to your preference with the following picture settings. NOTE • For resetting all Picture adjustment items to the factory preset values, press a/b to select “Reset”, press ENTER, press c/d to select “Yes”, and then press ENTER. NOTE • Select “Advanced” and then press ENTER to set “Color Temp.”, “Black”, “Fine Motion Advanced”, “3D-Y/C”, “Monochrome”, “Film Mode” or “Range of OPC”. See page 27. OPC setting Automatically adjusts the brightness of the screen. NOTE • When set to “On”, the OPC senses the surrounding light and automatically adjusts the backlight brightness. Make sure nothing obstructs the OPC sensor, which could affect its ability to sense surrounding light. • When set to “On: Display”, OPC effect displays on the screen while the OPC adjusts the screen brightness. Press a/b to select a specifi c adjustment item. Press c/d to adjust the item to the desired level. Press MENU to display the MENU screen, and then press c/d to select “Picture”. Press MENU to display the MENU screen, and then press c/d to select “Picture”. Press a/b to select “OPC”. Press c/d to select “On” or “On: Display”. 1 3 2 Selected item Backlight Contrast Brightness Color Tint Sharpness cbutton The screen dims For less contrast For less brightness For less color intensity Skin tones become reddish For less sharpness dbutton The screen brightens For more contrast For more brightness For more color intensity Skin tones become greenish For more sharpness 1 3 2 Selected item Off On On: Display Description The brightness is fi xed at the value set in “Backlight”. Automatically adjusts Displays the OPC effect on the screen while adjusting the brightness of the screen. Press MENU to exit. 4 Press MENU to exit. 4 27 Advanced picture adjustments This TV provides various advanced functions for optimizing the picture quality. Black Changes the viewing depth by automatically adjusting the dark portion of an image for easier viewing. 3D-Y/C Provides high quality images with minimal dot crawl and cross color noise. Press MENU to display the MENU screen, and then press c/d to select “Picture”. Press a/b to select “Advanced”, and then press ENTER. Press a/b to select a specifi c adjustment item, and then press ENTER. • You can select “Color Temp.”, “Black”, “Fine Motion Advanced”, “3D-Y/C”, “Monochrome”, “Film Mode” or “Range of OPC”. Press a/b (or c/d) to select the desired parameter. • See the table for the selectable parameters. Color Temperature For a better white balance, use color temperature correction. NOTE • 3D-Y/C is available for input signal from Composite Video and analog broadcasts (air and cable). Monochrome For viewing a video in monochrome. Film Mode (3:2 pull-down) Automatically detects a fi lm-based source (originally encoded at 24 frames/second), analyzes it then recreates each still fi lm frame for high-defi nition picture quality. Basic adjustment settings 1 3 2 4 Selected item High Mid-High Middle Mid-Low Low Description White with Bluish tone White with Reddish tone Selected item On Off Description For high detail in black portions No adjustment Selected item Standard Fast Slow Description Normal adjustment For moving images For still images Selected item On Off Description For viewing in monochrome Normal color Selected item On Off Description Detects, analyzes, converts fi lm source Normal viewing mode Range of OPC The brightness level range of the OPC sensor's automatic adjustments can be set according to your preferences. The adjustment range of the OPC sensor can be set to a maximum of e16 and a minimum of f16. NOTE • The range of OPC settings are active only when the OPC is set to On. • The maximum setting cannot be set to a smaller number than the minimum setting. • The minimum setting cannot be set to a bigger number than the maximum setting. • Depending on the brightness of the surrounding light, the OPC sensor might not operate if the adjustment range is small. Selected item Max. Min. Description f15 through e16 f16 through e15 Press MENU to exit. 5 Fine Motion Advanced Use Fine Motion Advanced to view fast-action video more clearly. Selected item On Off Description For obtaining a clearer image Normal image NOTE • Fine Motion Advanced may cause image noise. If this occurs turn the function “Off”. 28 Audio Power Control Treble Bass Balance Surround Reset [Off] a15 L b15 [ 0] [ 0] [ 0] a15 b15 R Sound adjustment You can adjust the sound quality to your preference with the following settings. Basic adjustment settings Surround Surround function allows you to enjoy realistic “live” sound. Press c/d to adjust the item to the desired level. NOTE • Audio menu is grayed out when Output Select is set to “Variable”. • For resetting all Audio adjustment items to the factory preset values, press a/b to select “Reset”, press ENTER, press c/d to select “Yes”, and then press ENTER. Press MENU to display the MENU screen, and then press c/d to select “Audio”. Press a/b to select a specifi c adjustment item. 1 2 3 Selected item Treble Bass Balance cbutton For weaker treble For weaker bass Decrease audio from the right speaker dbutton For stronger treble For stronger bass Decrease audio from the left speaker Press MENU to exit. 4 NOTE • You can choose Surround by pressing SURROUND on the remote control unit. (See page 19.) • Audio menu is grayed out when Output Select is set to “Variable”. • For some discs, setup may be required on your DVD player. In this case, please refer to the operation manual of your DVD player. Press MENU to display the MENU screen, and then press c/d to select “Audio”. Press a/b to select “Surround”, and then press ENTER. Press c/d to select “On”, and then press ENTER. 1 2 3 Audio Power Control Treble Bass Balance Surround Reset [Off] a15 L b15 a15 b15 R [ 0] [ 0] [ 0] Press MENU to exit. 4 29 Disable Enable PCM Dolby Digital Press MENU to exit. 4 Power Control Power control setting allows you to save energy. No signal off When set to “Enable”, the power will automatically shut down if there is no signal for 15 minutes. Audio Setup You can output digital audio to an AV amplifi er or similar device whose DIGITAL AUDIO INPUT terminal is connected to the DIGITAL AUDIO OUTPUT terminal on the TV. Please select an audio output format compatible with the audio format of the program you are watching and the equipment connected. NOTE • “Disable” is the factory preset value. • When a TV program fi nishes, this function may not operate. NOTE • “Disable” is the factory preset value. Press a/b to select “PCM” or “Dolby Digital”, and then press ENTER. Press MENU to display the MENU screen, and then press c/d to select “Power Control”. Press a/b to select “No Signal Off”, and then press ENTER. Press c/d to select “Enable”, and then press ENTER. • Five minutes before the power shuts down, the remaining time displays every minute. No operation off When set to “Enable”, the power will automatically shut down if there is no operation for 3 hours. Press MENU to display the MENU screen, and then press c/d to select “Power Control”. Press a/b to select “No Operation Off”, and then press ENTER. Press c/d to select “Enable”, and then press ENTER. • Five minutes before the power shuts down, the remaining time displays every minute. Digital Setup This setting allows you to optimize the settings of Digital broadcasting. Press MENU to display the MENU screen, and then press c/d to select “Digital Setup”. Press a/b to select “Audio Setup”, and then press ENTER. Basic adjustment settings 1 3 2 1 2 3 1 3 2 Selected item PCM Dolby Digital Description The optical output terminal outputs audio signal in PCM form. If your digital audio system does not support Dolby Digital, select “PCM”. The optical output terminal outputs audio signal in Dolby Digital form. It reproduces sound from surround program of digital. Press MENU to exit. 4 Press MENU to exit. 4 31 INPUT SOURCE TV INPUT1 INPUT2 INPUT3 INPUT4 INPUT5 INPUT6 Displaying an image from HDMI equipment To watch an HDMI equipment image, select “INPUT4”, “INPUT5” or “INPUT6” from “INPUT SOURCE” menu using INPUT on the remote control unit or on the TV. 1 Using external equipment Enable Disable Digital Analog Set whether or not to use View Mode based on signal recognition, including an HDMI signal. Select “Digital” for an audio signal via the HDMI terminal. Select “Analog” for an audio signal via the R-AUDIO -L terminal. Auto View Audio Select Press MENU to display the MENU screen, and then press c/d to select “Option”. Press a/b to select “HDMI Setup”, and then press ENTER. 2 3 Press c/d to select the desired setting, and then press ENTER. NOTE • Refer to your external equipment operation manual for the signal type. • “Audio Select” is only available for INPUT 6. • When connecting an HDMI-DVI conversion adapter/cable to the HDMI terminal, the image may not come in clearly. Press a/b to select the desired item, and then press ENTER. 4 5 HDMI Setup items Selectable items Description Press MENU to exit. 6 Digital Noise Reduction Output Select Audio Only [Fixed] HDMI Setup [Low] Input 4 (HDMI) Input 5 (HDMI) Input 6 (HDMI) Yes No Input Skip This setting allows you to skip the HDMI Input on the Input Selection operation. Press a/b to select “Input Skip”, and then press ENTER. Press MENU to display the MENU screen, and then press c/d to select “Setup”. 1 2 Press MENU to exit. Press a/b to select the Input (INPUT 4, INPUT 5, INPUT 6) you wish to skip, and then press ENTER. Press c/d to select “Yes”, and then press ENTER. 3 4 5 32 Useful adjustment settings Language setting You can also select a language from the Setup menu. Select from among 3 languages: English, French and Spanish. Blue Illumination setting The LED on the front of the TV is blue when illuminated. Now initializing... Reset If complex adjustments are made and the settings cannot be restored to normal, you can reset the settings to the factory preset values. Press c/d to select “Yes”, and then press ENTER. • “Now, TV will restart automatically. OK?” displays on the screen. Press MENU to display the MENU screen, and then press c/d to select “Setup”. Press a/b to select “Reset”, and then press ENTER. • If you already set the Secret No., input the 4-digit secret number here. See page 40 for setting a secret number. • “Return to the factory preset values” displays on the screen. 1 3 2 Press c/d to select “Yes”, and then press ENTER. • “Now initializing...” displays on the screen and blinks. • After the reset has completed, the power shuts off and then comes back on. The screen will have returned to its original settings. 4 NOTE • The Channel Setup settings will not be changed. • The Language settings will not be changed. • The Secret number settings will not be changed. Reset H-Pos. a10 b10 V-Pos. a20 b20 [ 0] [ 0] Press a/b to select the desired language listed on the screen, and then press ENTER. Press MENU to display the MENU screen, and then press c/d to select “Setup”. Press a/b to select “Language”, and then press ENTER. 1 3 2 Press MENU to exit. 4 Press a/b to select “H-Pos.” or “V-Pos.”. Press c/d to adjust the item to the desired position. NOTE • For resetting adjustments to the factory preset values, press a/b to select “Reset”, and then press ENTER. • Adjustments are stored separately according to input source. Image position For adjusting a picture's horizontal and vertical position. Press a/b to select “Position”, and then press ENTER. Press MENU to display the MENU screen, and then press c/d to select “Setup”. 1 3 2 Selected item H-Pos. V-Pos. Description Centers the image by moving it to the left or right. Centers the image by moving it up or down. 4 Press MENU to exit. 5 Example Press c/d to select “On” or “Off”. Press MENU to display the MENU screen, and then press c/d to select “Setup”. Press a/b to select “Blue Illumination”, and then press ENTER. 1 3 2 Press MENU to exit. 4 NOTE • The factory default setting is “On”. Set to “Off” if you do not want the LED to illuminate. 33 Sleep Timer: Remaining 30 Off 30 60 120 90 NOTE • Select “Off” by pressing SLEEP to cancel the sleep timer. • The TV will enter the standby when the remaining time reaches zero. • When the sleep timer is set, its indicator on the TV lights red. Sleep Timer Allows you to set a time when the TV automatically switches to standby. Press SLEEP. • The remaining time displays when the sleep timer has been set. Each time you press SLEEP, the remaining time switches as shown below. • When set, the time automatically starts counting down. • If you want to adjust the sleep timer, you can press SLEEP twice then change the time setting. • Five minutes before the time expires, the remaining time displays every minute. 1 2 INPUT SOURCE TV DVD INPUT2 INPUT3 INPUT4 INPUT5 INPUT6 Input Label Lets you set the input terminal displayed when using the INPUT SOURCE menu or channel display. Useful adjustment settings Press a/b/c/d to select the new name for the input mode, and then press ENTER. Example NOTE • You cannot change labels if the INPUT SOURCE is TV. Press INPUT to select the desired input source. Press MENU to display the MENU screen, and then press c/d to select “Setup”. Press a/b to select “Input Label”, and then press ENTER. 1 2 3 4 Press MENU to exit. 5 34 View Mode Side Bar S. Stretch Zoom Stretch Useful adjustment settings Press VIEW MODE or a/b while the View Mode menu is displayed to select a desired item on the menu. • You can sequentially select a View Mode that has its own aspect ratio. View Mode for 4:3 Programs Press VIEW MODE. • The View Mode menu displays. • The menu lists the View Mode options selectable for the type of video signal currently being received. Stretch: This mode is useful for 1.78:1 DVDs. When viewing 1.85:1 DVDs, stretch mode will still show very thin black bands at the top and bottom of the screen. Side Bar: Suitable for viewing conventional 4:3 programs in their normal format. S.Stretch (Smart stretch): Suitable for stretching 4:3 programs to fi ll the screen. Zoom: Suitable for viewing wide-screen 2.35:1 anamorphic DVDs in full screen. 1 2 View Mode for HD Programs The following modes are available for HD programs. Stretch: Suitable for viewing wide-screen 1.78:1 aspect ratio program, stretch mode will still show very thin black bands at the top and bottom of the screen. Dot by Dot (1080i/p only): Detects the resolution of the signal and displays an image with the same number of pixels on the screen. Full Screen (720p only): You can select “Full Screen” only when receiving a 720p signal. S.Stretch (Smart stretch): Suitable for stretching 4:3 programs to fi ll the screen. Zoom: Suitable for viewing wide-screen 2.35:1 aspect-ratio programs in full screen. NOTE • When using Dot by Dot, it is possible to see noise or bars around different outer portions of the screen. Please change view mode to correct this. 35 View Mode for PC input mode You can select the screen size. NOTE • Connect the PC before making adjustments. (See page 15.) • Selectable screen size may vary with input signal type. Useful adjustment settings Press VIEW MODE. • The View Mode menu displays. Press VIEW MODE or a/b while the View Mode menu is displayed to select a desired item on the menu. 1 2 Example: Screen size images Input signal Normal Zoom Dot by Dot Stretch Keeps the original aspect ratio in a full screen display. For viewing wide- screen programs. The top and bottom of the image is cropped. Detects the resolution of the signal and displays an image with the same number of pixels on the screen. An image fully fi lls the screen. View Mode Normal Zoom Stretch Dot by Dot 4:3 Detects the resolution of the signal and displays an image with the same number of pixels on the screen. An image fully fi lls the screen. 16:9 Input signal Dot by Dot Stretch Example 36 Useful adjustment settings Output Select Allows you to select what controls the audio output. Selected item Fixed Variable Description • Sound via speaker is adjusted with VOL k/l on the remote control unit or VOLl/k on the TV. • Sound via the AUDIO OUTPUT terminal is not adjustable and outputs at a consistent level. • Sound via the AUDIO OUTPUT terminal is adjusted with VOL k/l on the remote control unit or VOL l/k on the TV. • Sound via speaker is muted. Digital Noise Reduction Produces a clearer video image. Press a/b (or c/d) to select the desired setting, and then press ENTER. Audio Only When listening to music from a music program, you can set the screen off and enjoy audio only. Press MENU to display the MENU screen, and then press c/d to select “Option”. Press a/b to select a specifi c adjustment item, and then press ENTER. 1 3 2 Selected item On Off Description Audio is output without screen image. Both screen images and audio are output. NOTE • The screen image will return to normal when a button (except those for audio adjustment, such as VOL, MUTE, SURROUND, AUDIO) is pressed. Press MENU to exit. • Skip this step for “Audio Only”. 4 Selected item Off High Low Description No adjustment For enhanced Digital Noise Reduction For moderate Digital Noise Reduction Color System Select the video signal system compatible with your equipment from the list below; — Auto — NTSC — PAL-M — PAL-N NOTE • “Color System” can only be set for the INPUT 1/2 VIDEO and INPUT 3. Program Title Display Select the CH display when changing channels for digital broadcasting. Selected item Yes No Description “Program Info.” displays “Program Info.” does not display Advanced Option settings Perform the following steps to set the Option menu items on this page. 37 AV MODE: MOVIE AV MODE: STANDARD AV MODE: DYNAMIC AV MODE: GAME AV MODE: USER [TV] AV MODE: DYNAMIC (Fixed) When the input source is TV, INPUT 1, 2 or 3 terminals (Example) When the input source is INPUT 4, 5 or 6 terminals (Example) AV MODE: MOVIE AV MODE: STANDARD AV MODE: DYNAMIC AV MODE: GAME AV MODE: PC AV MODE: USER [ ] AV MODE: DYNAMIC (Fixed) Useful adjustment settings Press MENU to exit. 4 Input Signal (for PC input mode) Some input signals may have to be registered manually to display properly. The pair of input signals (resolutions) in the list below are not distinguishable when received. In such case, you have to set the correct signal manually. After setting once, it will display when the same signal (resolution) is input again. NOTE • You can only select the “Input Signal” on the Setup menu when receiving one of the 2 input signals listed above. Press a/b to select “Input Signal”, and then press ENTER. Press a/b to select the desired input signal on the display. Press MENU to display the MENU screen, and then press c/d to select “Setup”. 1 3 2 1024g768 1360g768 AV MODE AV MODE gives you 7 viewing options to choose from to best match the surrounding environment of the TV, which can vary due to factors like room brightness, type of program watched or the type of image input from external equipment. Press AV MODE again before the mode displayed on the screen disappears. • The mode changes as shown below. Press AV MODE. • Current AV MODE displays. 1 2 NOTE • You can select a different AV MODE item for each input mode. (For example, select STANDARD for TV input and DYNAMIC for INPUT 1.) • “Enhanced Picture Contrast” technology detects the source video characteristics and smoothly adjusts the screen brightness accordingly to realize deeper black levels. Selected item STANDARD MOVIE GAME PC USER DYNAMIC (Fixed) DYNAMIC Description For a highly defi ned image in a normal lighting [Enhanced Picture Contrast: on] For a movie [Enhanced Picture Contrast: off] Lowers image brightness for easier viewing [Enhanced Picture Contrast: off] For PC [Enhanced Picture Contrast: off] Allows the user to customize settings as desired. You can set the mode for each input source. [Enhanced Picture Contrast: off] Changes the image and sound settings to the factory preset values. No adjustments are allowed. [Enhanced Picture Contrast: on] For a clear-cut image emphasizing high contrast, useful for sports viewing [Enhanced Picture Contrast: on] 38 2 Air ANALOG Audio : MONO CC : 1/2 CC1 1/3 ENG 2/3 CC1 3/3 Text1 Off Closed Captions and Digital Closed Captions Your TV is equipped with an internal Closed Caption decoder. It allows you to view conversations, narration and sound effects as subtitles on your TV. Closed Captions are available on some TV programs and on some VHS home video tapes at the discretion of the program provider. Digital Closed Caption service is a new caption service available only on digital TV programs (also at the discretion of the service provider). It is a more fl exible system than the original Closed Caption system, because it allows for a variety of caption sizes and font styles. When the Digital Closed Caption service is in use, it will be indicated by the appearance of a 3-letter abbreviation that also indicates the language of the Digital Closed Captions: ENG (English), SPA (Spanish), FRA (French) or other language codes. Not all programs and VHS videotapes offer closed captions. Please look for the “N” symbol to ensure that captions will be shown. In the Closed Caption system, there can be more than one caption service provided. Each is identifi ed by its own number. The “CC1” and “CC2” services display subtitles of TV programs superimposed over the program's picture. In the Closed Caption system, the “Text1” or “Text2” services display text that is unrelated to the program being viewed (e.g., weather or news). These services are also superimposed over the program currently being viewed. • Depending on the number of caption services in the signal being received, you will see information such as 1/2 or 1/4 displayed. 1/2 means “the fi rst of two services”. Example: If a program has three services (Digital CC(ENG), CC1 and Text1), the closed caption display will toggle in this sequence: • The CC button keeps a record of the last service selected in its memory. If the last closed caption mode (e.g. 1/3ENG) you selected is not available for the next program, or on another channel, the closed caption service that is available is automatically selected, and this service appears in parentheses, e.g. “1/3(CC1)”. Closed Caption services that appear in parentheses will not be stored in the CC button's memory as your last selected service. Only services that you have selected with the CC button are stored. Examples: In a case where there are two closed caption services provided, (for instance, Digital CC(ENG) and CC1), and Digital CC(ENG) is displayed as your current selection, if Digital CC(ENG) is not broadcast for the next program, the other closed caption service, CC1, will be displayed in parentheses. A closed caption service appears in parentheses because the service you selected is not available and a different service is displayed on your screen. “1/1(CC1)” is displayed instead of “1/2/ENG”. Press CC. • This will present the Closed Caption information display. Press CC while the Closed Caption information is still on the screen. • Press repeatedly until you select the desired closed caption service. Closed Caption information NOTE • See page 39 for detailed closed caption settings. • When the program contains no closed caption, “--” displays in the closed caption information. • If the language code, e.g. “ENG”, is not found on Digital TV programs, “--” will be shown. • Four kinds of closed caption service (CC1, CC2, Text1, Text2) are potentially available, but a broadcast may contain none or only some of these services at the discretion of the program provider. Useful adjustment settings 1 2 39 Caption Size Default Font Style Default Foreground Color Default Foreground Opacity Default Background Color Default Background Opacity Default Character Edge Default Reset A B C 123 Caption Setup This function allows you to adjust the closed caption screen appearance to suit your preference. Press a/b to select a specifi c adjustment item. • You can adjust 7 items here; they are, 1 “Caption Size”, 2 “Font Style”, 3 “Foreground Color”, 4 “Foreground Opacity”, 5 “Background Color”, 6 “Background Opacity” and 7 “Character Edge”. Press c/d to select the desired parameter. NOTE • For resetting adjustments to the factory preset values, press a/b to select “Reset”, and then press ENTER. • The default value depends on the broadcasting station. Selectable items available for “Font Style”. Press MENU to display the MENU screen, and then press c/d to select “Option”. Press a/b to select “Caption Setup”, and then press ENTER. Useful adjustment settings 1 3 4 2 Selected item Default Type 0 Type 1 Type 2 Type 3 Type 4 Type 5 Type 6 Type 7 Description The font specifi ed by broadcasting station or default font. Proportional font used in the MENU screen. Monospaced with serifs. Proportionally spaced with serifs. Monospaced without serifs. Proportionally spaced without serifs. Casual font type. Cursive font type. Small capitals. Press MENU to exit. 5 40 V-Chip Secret No. Status V-Chip (DTV Only) V-Chip V-Chip (DTV Only) Secret No. Status On Off New Secret No. Secret No. Clear New Secret No. * * * * Input Secret No. a a a a Reconfirm a a a a Secret number setting for parental control Allows you to use a secret number to protect certain settings from being accidentally changed. IMPORTANT: Three conditions must be met to enable the V-Chip (see pages 40 to 45): 1 Secret No. is registered. 2 V-Chip/V-Chip (DTV Only) settings have been made. 3 “Status” is set to “On”. Setting a secret number Press a/b to select “Parental CTRL”, and then press ENTER. Press MENU to display the MENU screen, and then press c/d to select “Setup”. Press a/b to select “Secret No.”, and then press ENTER. Press RETURN to start confi guring the V-Chip settings. (See pages 43 and 45 for details.) Press a/b to select “Status”, and then press ENTER. Repeat steps 1 and 2 in Setting a secret number. • The secret number setting menu displays. Input the 4-digit secret number by using 0–9. Setting parental control status Used to enable or disable the parental control function. Press c/d to select “On” or “Off”, and then press ENTER. • Select “On” to enable and “Off” to disable Parental CTRL. NOTE • You can skip steps 1 and 2 above while in the Parental CTRL screen. • The “V-Chip (DTV Only)” will only be selectable when a new rating system can be downloaded via digital broadcasting in the U.S. Useful adjustment settings 1 3 New Secret No. Secret No. Clear New Secret No. a a a a Input Secret No. a a a a Reconfirm a a a a Select “New Secret No.”, and then press ENTER. Input the new 4-digit secret number by using 0–9. 4 2 6 Input the same 4-digit number on the “Reconfi rm” screen as in step 4 to confi rm. 5 1 2 4 3 Press MENU to exit. 7 Press MENU to exit. 5 41 New Secret No. Secret No. Clear New Secret No. a a a a Input Secret No. a a a a Reconfirm a a a a New Secret No. Secret No. Clear Yes No NOTE • See page 40 for re-registering a new secret number after being cleared. • As a precautionary measure, make a note of your secret number and keep it in a familiar place. • If the secret number is cleared, the Status setting automatically sets to “Off”. “V-Chip” and “Status” will not be selectable from the menu. Press a/b to select “Secret No.”, and then press ENTER. Press a/b to select “New Secret No.”, and then press ENTER. Input the old 4-digit secret number by using 0–9. Press c/d to select “Yes”, and then press ENTER. • Your secret number is cleared. Press a/b to select “Secret No. Clear”, and then press ENTER. Repeat steps 1 and 2 in Setting a secret number. • The secret number setting menu displays. Changing the secret number Allows you to change your current secret number. Input the 4-digit secret number by using 0–9. Clearing the secret number Allows you to clear your secret number. Repeat steps 1 and 2 in Setting a secret number. • The secret number setting menu displays. Input the 4-digit secret number by using 0–9. Press a/b to select “Secret No.”, and then press ENTER. Useful adjustment settings 1 2 5 3 4 1 2 5 3 4 New Secret No. Secret No. Clear New Secret No. a a a a Input Secret No. a a a a Reconfirm a a a a New Secret No. Secret No. Clear New Secret No. * * * * Input Secret No. a a a a Reconfirm a a a a Input the new 4-digit secret number by using 0–9. 6 Input the same 4-digit number on the “Reconfi rm” screen as in step 6 to confi rm. 7 Press MENU to exit. 8 Press MENU to exit. 6 42 MPAA TV Guidelines Can. English Ratings Can. French Ratings PG-13 R NC-17 X NONE PG G z: The content rating can be set, but this rating is not normally broadcast by TV stations. g: Content rating can be set. Rating TV-Y (All children) TV-Y7 (Directed to older children) TV-G (General audience) TV-PG (Parental Guidance suggested) TV-14 (Parents strongly cautioned) TV-MA (Mature audience only) Suggested age Content D (Sexually suggestive dialog) L (Adult language) S (Sexual situation) V (Violence) FV (Fantasy violence) z g z z z g g g z z z g g z z z g g g z z z g g g Parental control (setting V-CHIP level) V-CHIP is an electronic fi ltering device built into your TV. This tool gives parents a great degree of control over broadcasts accessed by their children. It allows parents to select programs judged suitable for child viewing while blocking ones judged not suitable. It does so automatically once you activate the V-CHIP feature in your TV. “V-Chip” and “Status” will not be selectable from the menu if you do not fi rst confi gure your secret number. (See page 40 for Secret number setting for parental control.) • The U.S. has two rating systems for viewing content: TV Parental Guidelines and movie ratings. • The TV Parental Guidelines work in conjunction with the V-CHIP to help parents screen out inappropriate television shows from their children. • Movie ratings are used for original movies rated by the Motion Picture Association of America (MPAA) as watched on cable TV and not edited for television. The V-CHIP can also be set to block MPAA-rated movies. Voluntary movie rating system (MPAA) TV Parental Guidelines a • If you select “PG-13”, this will automatically block the higher ratings “R”, “NC-17” and “X”. NOTE • Voluntary movie rating system only uses an age-based rating. Useful adjustment settings Rating Description G PG PG-13 R NC-17 X Age General audiences. All ages admitted. Parental guidance suggested. Some material may not be suitable for children. Parents strongly cautioned. Some material may be inappropriate for children under 13. Restricted. Under 17 requires accompanying parent or adult guardian (age varies in some jurisdictions). No one 17 and under admitted. X is an older rating that is unifi ed with NC-17 but may be encoded in the data of older movies. 43 MPAA TV Guidelines Can. English Ratings Can. French Ratings L S V FV D TV-G TV-PG TV-14 TV-MA NONE TV-Y7 TV-Y MPAA TV Guidelines Can. English Ratings Can. French Ratings L S V D TV-G TV-PG TV-14 TV-MA NONE TV-Y7 TV-Y FV Example • If Status is not set to “On”, the confi guration settings will not work. (See page 40.) Input the 4-digit secret number by using 0–9. Press a/b to select “Parental CTRL”, and then press ENTER. • The secret number setting menu displays only when “Secret No.” is set. (See page 40.) • “V-Chip” and “Status” will not be selectable from the menu if you do not fi rst confi gure your secret number. (See page 40.) Press a/b to select “V-Chip”, and then press ENTER. When setting an individual content-based rating item, do as follows: 1 Press d or ENTER to access blocked content items from the currently selected age- based rating item. 2 Press a/b to select an individual item, and then press ENTER to unblock it (“ ” is removed). Repeat the same steps for the other items. 3 Press c or RETURN to register after all individual content rating items are set. TV Parental Guidelines (TV Guidelines) Repeat steps 1 to 4 in Voluntary movie rating system (MPAA). Press a/b to select “TV Guidelines”, and then press ENTER. Press a/b to adjust the item to your desired position. “ ” indicates the item is blocked. • The setting automatically enters “Block” for any ratings below your selection. Voluntary movie rating system (MPAA) Press MENU to display the MENU screen, and then press c/d to select “Setup”. Useful adjustment settings Example 1 2 3 4 1 2 3 V-Chip V-Chip (DTV Only) Secret No. Status MPAA TV Guidelines Can. English Ratings Can. French Ratings PG-13 R NC-17 X NONE PG G Example Press a/b to adjust the item to your desired position. “ ” indicates the item is blocked. Press RETURN. • The setting automatically enters “Block” for any ratings below your selection. • If Status is not set to “On”, the confi guration settings will not work. (See page 40.) Press a/b to select “MPAA”, and then press ENTER. 5 6 Press MENU to exit. 7 Press MENU to exit. 4 44 Canadian Rating Systems • The TV rating systems in Canada are based on the Canadian Radio-Television and Telecommunications Commission (CRTC) policy on violence in television programming. • While violence is the most important content element to be rated, the structure developed takes into consideration other program content like language, nudity, sexuality and mature themes. • When setting the V-CHIP on the Canadian system you can choose either the Canadian English ratings or the Canadian French ratings. Useful adjustment settings Canadian French ratings Canadian English ratings Rating Description E C C8e G PG 14e 18e Age Exempt: Includes news, sports, documentaries and other information programming; talk shows, music videos, and variety programming. Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of security and well-being. Children over 8 years old: Contains no portrayal of violence as the preferred, acceptable, or only way to resolve confl ict; nor encourage children to imitate dangerous acts which they may see on the screen. General: Considered acceptable for all age groups. Appropriate viewing for the entire family, contains very little violence, physical, verbal or emotional. Parental Guidance: Intended for a general audience, but may not be suitable for younger children (under the age of 8) because it could contain controversial themes or issues. Over 14 Years: Could contain themes where violence is one of the dominant elements of the storyline, but it must be integral to the development of plot or character. Language usage could be profane and nudity present within the context of the theme. Adults: Intended for viewers 18 years and older and might contain depictions of violence, which while related to the development of plot, character or themes, are intended for adult viewing. Could contain graphic language and portrayals of sex and nudity. Rating Description E G 8anse 13anse 16anse 18anse Age Exempt programming. General: All ages and children, contains minimal direct violence, but may be integrated into the plot in a humorous or unrealistic manner. General but inadvisable for young children: May be viewed by a wide public audience, but could contain scenes disturbing to children under 8 who cannot distinguish between imaginary and real situations. Recommended for viewing with parent. Over 13 years: Could contain scenes of frequent violent scenes and therefore recommended for viewing with parent. Over 16 years: Could contain frequent violent scenes and intense violence. Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence. 45 Canadian English ratings Example Repeat steps 1 to 4 in Canadian English ratings. Press a/b to select “Can. French Ratings”, and then press ENTER. Press a/b to adjust the item to your desired position. “ ” indicates the item is blocked. • The setting automatically enters “Block” for any ratings below your selection. • If Status is not set to “On” the confi guration settings will not work. (See page 40.) Example How to temporarily release the V-CHIP BLOCK When the V-CHIP BLOCK is working and censors a broadcast, “V-CHIP HAS BEEN ACTIVATED.” displays. Reactivating the temporarily released V-CHIP BLOCK You can reactivate the temporarily released V-CHIP BLOCK as shown below. Method 1: Select “Status” setting from the Parental CTRL menu to reactivate BLOCK. (See page 40.) Method 2: Select “V-Chip” setting (“MPAA”, “TV Guidelines”, “Can. English Ratings” or “Can. French Ratings”) from the Parental CTRL to reactivate BLOCK. (See pages 43 and 45.) Method 3: Switch off the TV power. NOTE • Performing any of the three above will activate the V-CHIP BLOCK. Useful adjustment settings Canadian French ratings Input the 4-digit secret number by using 0–9. Press a/b to select “Parental CTRL”, and then press ENTER. • Secret number setting menu displays only when “Secret No.” is set. (See page 40.) • “V-Chip” and “Status” will not be selectable from the menu if you do not fi rst confi gure your secret number. (See page 40.) Press a/b to select “V-Chip”, and then press ENTER. Press MENU to display the MENU screen, and then press c/d to select “Setup”. Press a/b to adjust the item to your desired position. “ ” indicates the item is blocked. • The setting automatically enters “Block” for any ratings below your selection. • If Status is not set to “On” the confi guration settings will not work. (See page 40.) Press a/b to select “Can. English Ratings”, and then press ENTER. Press ENTER while the V-CHIP is working, and then the secret number setting menu displays. Input the 4-digit secret number by using 0– 9. At this time V-CHIP BLOCK temporarily releases. 1 2 3 4 5 6 Setup Option Secret No. a a a a V-Chip V-Chip (DTV Only) Secret No. Status MPAA TV Guidelines Can. English Ratings Can. French Ratings E C C8+ G PG 14+ 18+ NONE 1 2 3 MPAA TV Guidelines Can. English Ratings Can. French Ratings 8ans+ 13ans+ 16ans+ 18ans+ NONE G E 1 2 Press MENU to exit. 7 Press MENU to exit. 4 46 NOTE • When this function is not available, “No displaying still image available.” will display. • The still image automatically goes out after 30 minutes. • If you are using the freeze function and a broadcast activates the V-CHIP BLOCK, the freeze function will be cancelled and a V-CHIP BLOCK message will appear. Presetting remote control function You can operate the connected AV products (AV Receiver, Cable Box, SAT tuner, DTV, VCR, DVD, LD) using the presetting manufacturer function of your remote control unit. Press FREEZE again to cancel the function. Other viewing options Freezing images Allows you to capture and freeze a moving image that you are watching. Press FREEZE. • A moving image is captured. Presetting manufacturer codes After the LED for your device lights up, press FUNCTION and DISPLAY at the same time to enter the code registration mode. The LED will blink. Press FUNCTION until the LED for your device lights up. After registering the code, the LED will stop blinking then turn off after one second. (If you perform an incorrect operation, the LED will blink quickly then turn off.) Press 0–9 to enter the manufacturer code. (See page 47.) • Preset mode is fi nished once the LED no longer lights up. 1 2 1 2 4 3 47 Manufacturer codes REMOTE CONTROL CODE NUMBER Other viewing options VCR BRAND REMOTE CONTROL CODE NUMBER DVD/LD BRAND REMOTE CONTROL CODE NUMBER CATV/SAT BRAND NOTE • Numbers marked with * are SAT codes, all others are CATV codes. AUDIO BRAND REMOTE CONTROL CODE NUMBER 48 1 2 3 4 1 2 3 ■ Cable control buttons When the FUNCTION is set to CBL/SAT, the cable converter connected to the TV can be operated using 1 to 4. 1 SOURCE POWER Turns the cable converter power on and off. 2 0–9 Press a button (or buttons) that corresponds to the channel that you wish to watch. 3 FLASHBACK * Press to switch between the current channel and the channel you were watching immediately before. 4 CH r/s Press CHr or CHs to tune in a higher or lower channel. * Some manufacturers do not preset FLASHBACK. NOTE • CABLE and SAT cannot be selected at the same time. ■ SAT control buttons 1 SOURCE POWER Turns the cable converter power on and off. 2 0–9, • (DOT) Press a button (or buttons) that corresponds to the channel that you wish to watch. 3 ENTER, a/b/c/d ENTER: Press to activate the selected function. a/b/c/d: Press the button to select items on the SAT GUIDE screen or SAT MENU screen. NOTE • CABLE and SAT cannot be selected at the same time. Other viewing options 49 2 8 4 1 7 6 5 3 8 2 1 10 3 5 6 9 4 7 Other viewing options ■ VCR control buttons The remote control unit button will function as follows when the FUNCTION of the remote control unit is set to VCR. • Press INPUT until the input connected to the VCR is selected. The following 1 to 8 can be used to control the VCR. 1 CH r/s Press to select the channel of the TV tuner on the VCR. 2 SOURCE POWER Turns the power of the VCR on and off. 3 F Sets pauses and still pictures. 4 G Rewinds the tape and allows picture search. 5 H Stops the tape transport. 6 REC Starts recording. 7 J Rapidly advances the tape and allows picture search. 8 I Starts playback. ■ DVD control buttons The remote control unit button will function as follows when the FUNCTION of the remote control unit is set to DVD. • Press INPUT until the input connected to the DVD player is selected. The following 1 to 10 can be used to control the DVD player. 1 L Pressing quickly once takes you to the start of the next chapter. Each time you press it, you move ahead to the start of the next chapter. 2 K Pressing quickly once takes you to the start of the chapter currently playing. Each time you press it, you move back to the start of the previous chapter. 3 SOURCE POWER Turns the power of the DVD player on and off. 4 F Sets pauses and still pictures. 5 G Hold down to go in reverse. 6 H Playback stops when pressed. With some DVD players, pressing the button twice may open the disc tray. 7 MENU When this button is pressed, the DVD menu will display. 8 ENTER, a/b/c/d ENTER: Press to activate the selected function. a/b/c/d: Press the button to select items on the DVD MENU screen. 9 J Hold down to fast forward. 10 I Starts playback. 50 1 2 Removing the stand Before detaching (or attaching) stand, unplug the AC cord from the AC INPUT terminal. CAUTION • Do not remove the stand from the TV unless using an optional wall mount bracket to mount it. Before attaching/detaching stand • Before performing work make sure to turn off the TV. • Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged. Setting the TV on the wall CAUTION • This TV should be mounted on the wall only with the AN-52AG1 (SHARP) wall mount bracket. The use of other wall mount brackets may result in an unstable installation and may cause serious injuries. • Installing the TV requires special skill that should only be performed by qualifi ed service personnel. Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or mounting that results in accident or injury. Using an optional bracket to mount the TV • You can ask a qualifi ed service professional about using an optional AN-52AG1 bracket to mount the TV to the wall. • Carefully read the instructions that come with the bracket before beginning work. Hanging on the wall AN-52AG1 wall mount bracket. (See the bracket instructions for details.) Vertical mounting About setting the TV angle and height adjustment Unfasten the four screws used to secure the stand in place. Detach the stand from the TV. (Hold the stand so it will not drop from the edge of the base area.) Appendix NOTE • To attach the stand, perform the above steps in reverse order. Angular mounting 1 2 f1 63/64 (f5)/0/ e1 63/64 (e5) • can be moved 1 63/64 (5) up or down Unit: inch (cm) 0/5/10/15/20° Hex key NOTE • Detach the cable clamps on the rear of the TV when using the optional mount bracket. 1 Angle of TV 2 Height Adjustment 51 Troubleshooting Possible Solution • Is the volume too low? (See page 19.) • Is “Variable” selected in “Output Select”? (See page 36.) • Have you pressed MUTE on the remote control unit? (See page 19.) Cautions regarding use in high and low temperature environments Appendix Problem • No power • Unit cannot be operated. • Remote control unit does not operate. • Picture is cut off/with sidebar screen. • Strange color, light color, or color misalignment • Power is suddenly turned off. • No picture • No sound • Check if you pressed TV POWER on the remote control unit. (See page 16.) If the indicator on the TV does not light up, press POWER on the TV. • Is the AC cord disconnected? (See page 7.) • Has the power been turned on? (See page 16.) • External infl uences such as lightning, static electricity, may cause improper operation. In this case, operate the unit after fi rst turning on the power of the TV or unplugging the AC cord and replugging it in after 1 or 2 minutes. • Is the FUNCTION set correctly? Set it to the TV setting position. • Are batteries inserted with polarity (e, f) aligned? (See page 8.) • Are batteries worn out? (Replace with new batteries.) • Are you using it under strong or fl uorescent lighting? • Is a fl uorescent light illuminated near the remote control sensor? • Is the image position correct? (See page 32.) • Are screen mode adjustments such as picture size made correctly? (See pages 34 and 35.) • Adjust the picture tone. (See pages 26 and 27.) • Is the room too bright? The picture may look dark in a room that is too bright. • Check the input signal setting. (See page 37.) • Is the sleep timer set? (See page 33.) • Check the power control settings. (See page 29.) • The unit's internal temperature has increased. Remove any objects blocking vent or clean. • Is connection to other components correct? (See pages 13 to 15.) • Is correct input signal source selected after connection? (See page 30.) • Is the correct input selected? (See page 30.) • Is picture adjustment correct? (See pages 26 and 27.) • Is “On” selected in “Audio Only”? (See page 36.) • Is a non-compatible signal being input? (See page 15.) • When the unit is used in a low temperature space (e.g. room, offi ce), the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal. • Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the Liquid Crystal panel to malfunction. Storage temperature: f4°F to e140°F (f20°C to e60°C) Troubleshooting-Digital broadcasting The error message about reception of broadcast • Failed to receive broadcast. E203 • Check the broadcast time in the program guide. The example of an error message displayed on a screen • No broadcast now. Error code E202 Possible Solution • Check the antenna cable. Check that the antenna is correctly setup. 52 Digital cable* 1 (64/256 QAM) 1-135ch (non-scrambled channel only) Specifi cations Appendix LCD panel Number of dots TV Function TV-standard (CCIR) Receiving Channel VHF/UHF CATV Digital Terrestrial Broadcast (8VSB) Audio multiplex Backlight Audio out Terminals Rear INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUT 5 6,220,800 dots (1920 g 1080 g 3 dots) American TV Standard ATSC/NTSC System VHF 2-13ch, UHF 14-69ch 1-135ch (non-scrambled channel only) 2-69ch BTSC System 60,000 hours (at Backlight Standard position) 15W g 2 AV in, COMPONENT in AV in, COMPONENT in S-VIDEO in, AV in HDMI in with HDCP HDMI in with HDCP Item Model: LC-46D82U Model: LC-52D82U 46o Advanced Super View & BLACK TFT LCD 52o Advanced Super View & BLACK TFT LCD * 1 Emergency alert messages via Cable are unreceivable. * 2 The dimensional drawings are shown on the inside back cover. • As part of policy of continuous improvement, SHARP reserves the right to make design and specifi cation changes for product improvement without prior notice. The performance specifi cation fi gures indicated are nominal values of production units. There may be some deviations from these values in individual units. Optional accessory The listed optional accessory is available for the Liquid Crystal Television. Please purchase it at your nearest shop. • Additional optional accessories may be available in the near future. When purchasing, please read the newest catalogue for compatibility and check the availability. Model number AN-52AG1 Part name Wall mount bracket ANTENNA DIGITAL AUDIO OUTPUT OUTPUT OSD language Power Requirement Power Consumption Weight Dimension* 2 (W g H g D) Operating temperature 75 q Unbalance, F Type g 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE) Optical Digital audio output g 1 (PCM/Dolby Digital) Audio out English/French/Spanish AC 120 V, 60 Hz (FOR NORTH AMERICA) AC 110-240 V, 50/60 Hz (FOR OTHERS) e32°F to e104°F (0°C to e40°C) TV e stand TV e stand 285 W (0.7 W Standby with AC 120V) 322 W (0.7 W Standby with AC 120V) 78.3 lbs./35.5 kg 4449/64 g 3111/32 g 1211/64 inch 92.6 lbs./42.0 kg 501/8 g 3429/64 g 1211/64 inch INPUT 6 Audio in, HDMI in with HDCP TV only 68.3 lbs./31.0 kg 82.7 lbs./37.5 kg TV only 4449/64 g 287/8 g 457/64 inch 501/8 g 3163/64 g 431/32 inch 53 The secret number is NOTE • As a precautionary measure, make a note of your secret number above, cut it from this manual, and keep it in a safe place. . CLEARING THE SECRET NUMBER If you forget the secret number, clear the secret number using the following procedure. Press and hold both CHr and VOLk on the TV simultaneously until the message appears on the screen. Press MENU to display the MENU screen, and then press c/d to select “Setup”. Press a/b to select “EZ Setup”, “CH Setup”, “Parental CTRL” or “Reset”, and the Secret number input screen displays. 1 3 2 Setup Option Secret No. a a a a 54 For location of the nearest Sharp Authorized Service, or to obtain product literature, accessories, supplies, or customer assistance, please call 1-800-BE-SHARP. Calling for Service LIMITED WARRANTY CONSUMER LIMITED WARRANTY SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp. The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. Model Specific Section Where to Obtain Service: From a Sharp Authorized Servicer located in the United States. To find the location of the nearest Sharp Authorized Servicer, call Sharp toll free at 1-800-BE-SHARP. What to do to Obtain Service: Contact your Sharp Authorized Servicer to obtain in-home service for this Product. The Servicer will come to your home and if it is necessary to remove the Product, the Servicer will reinstall it. Be sure to have Proof of Purchase available. Additional Item(s) Excluded from Warranty Coverage (if any): Non-rechargeable batteries. Warranty Period for this Product: One (1) year parts and labor from the date of purchase. TO OBTAIN PRODUCT INFORMATION, CALL 1-800-BE-SHARP OR VISIT www.sharpusa.com SHARP ELECTRONICS CORPORATION SHARP CORPORATION Sharp Plaza, Mahwah, New Jersey 07430-2135 Your Product Model Number & Description: (Be sure to have this information available when you need service for your Product.) LC-46D82U/LC-52D82U LCD Color Television 55 56 NOTE 457/64 (124) 1211/64 (309) 325/32 (96) 1747/64 (450) 2563/64 (660) 4449/64 (1137) 3111/32 (796) 287/8 (733) 231/64 (63) 407/32 (1021.4) 2221/32 (575.4) 77/8 (200) 77/8 (200) 361/64 (100) 4531/64 (1155.0) 2563/64 (660) 501/8 (1273) 431/32 (126) 1211/64 (309) 33/4 (95) 2541/64 (651.0) 1919/64 (490) 3429/64 (875) 3163/64 (812) 231/64 (63) 77/8 (200) 77/8 (200) 361/64 (100) Dimensional drawings Unit: inch/(mm) LC-46D82U LC-52D82U SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07430-2135 SHARP CORPORATION Printed in Mexico Imprimé au Mexique Impreso en México Impresso no México TINS-C996WJZZ 07P02-MX-NG
