夏普LC-46D78UN液晶彩电使用说明书

分类：电子电工日期：2023-03-14 点击：0

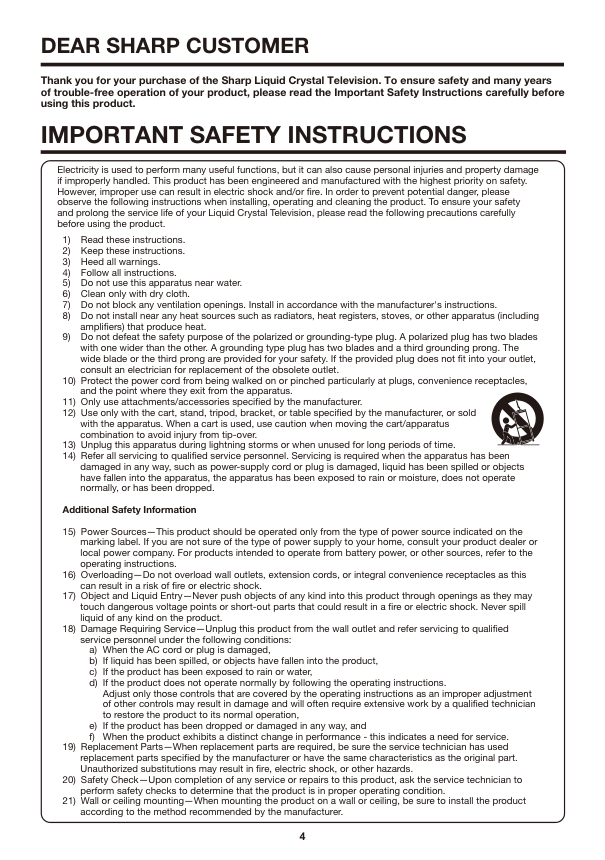

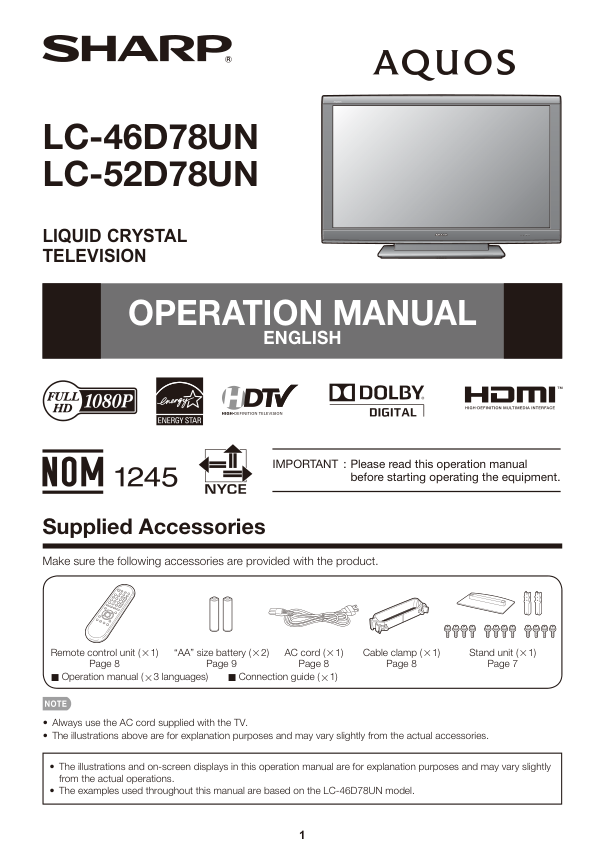

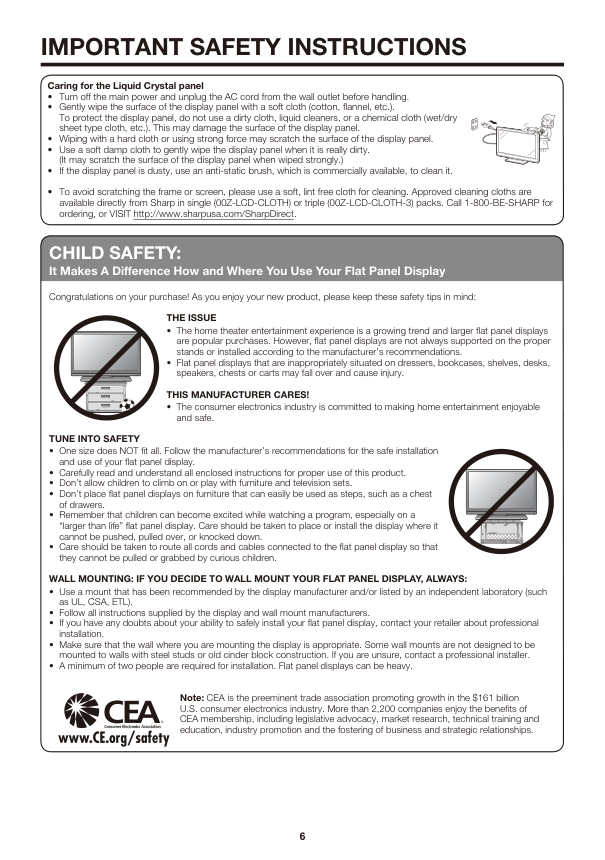

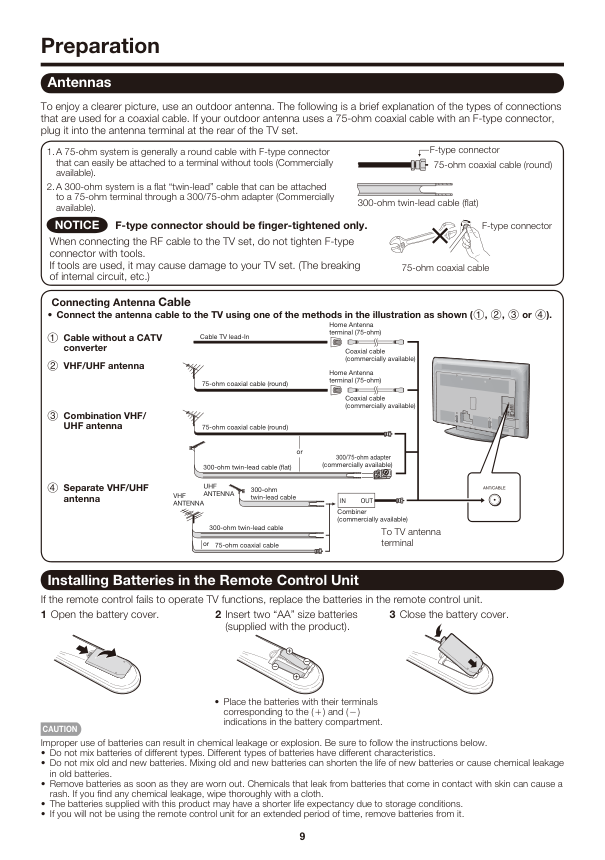

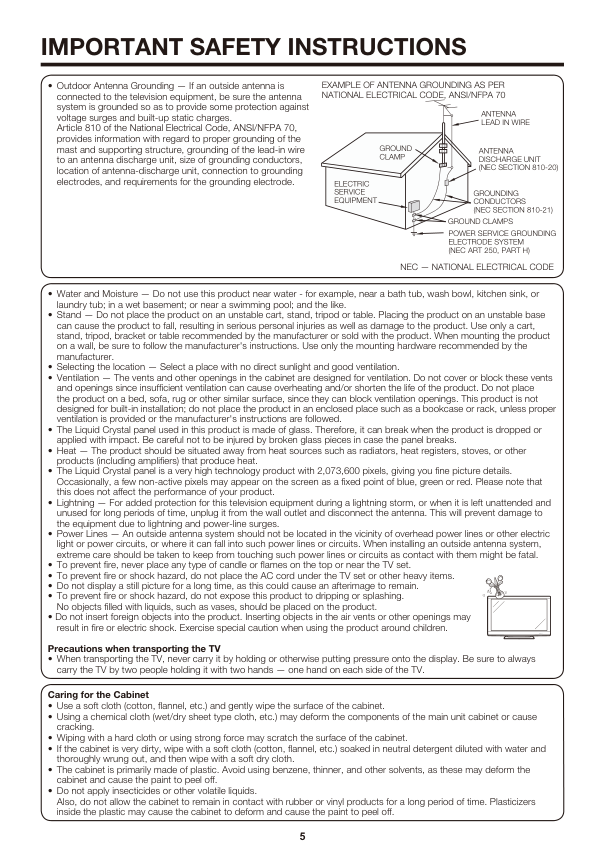

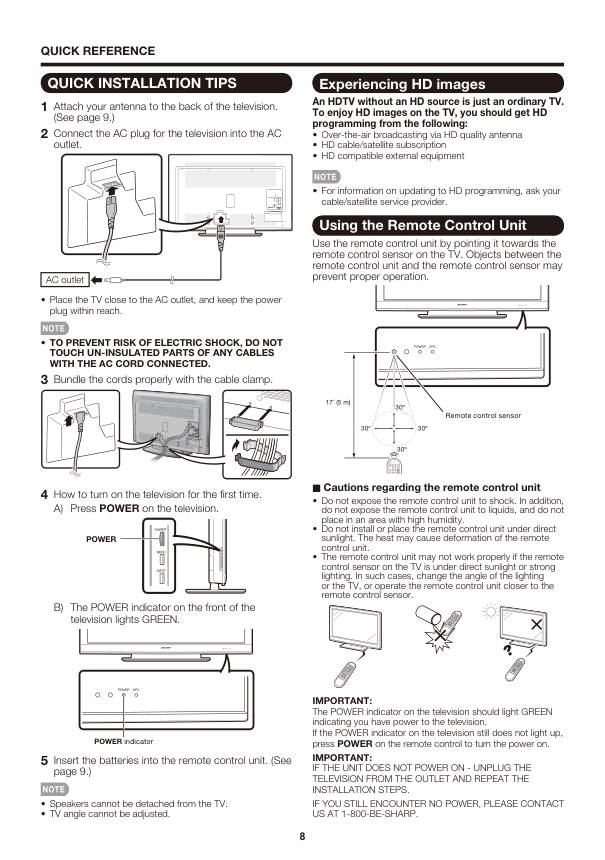

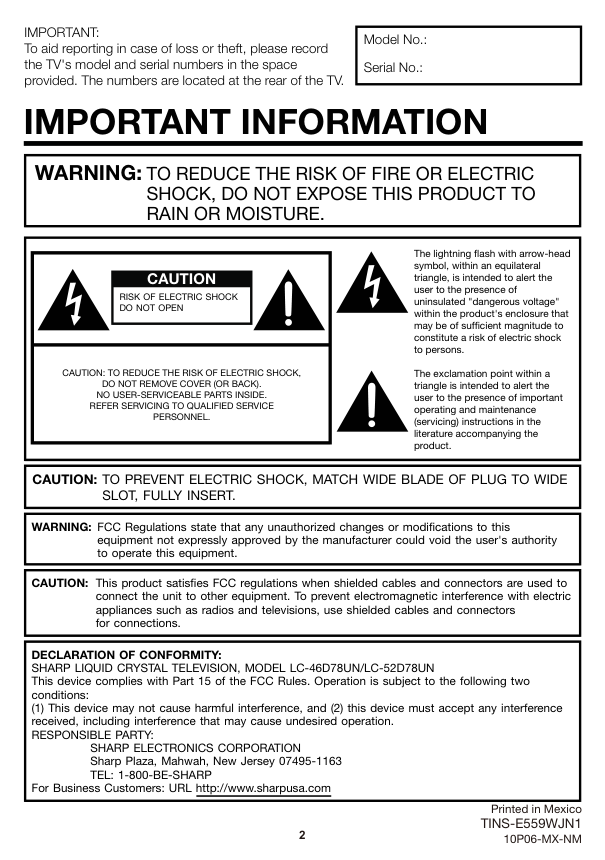

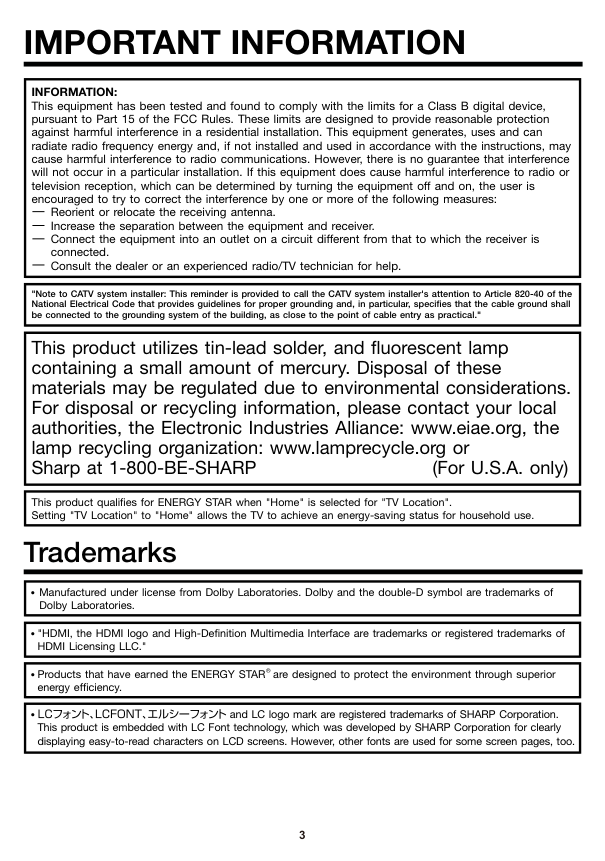

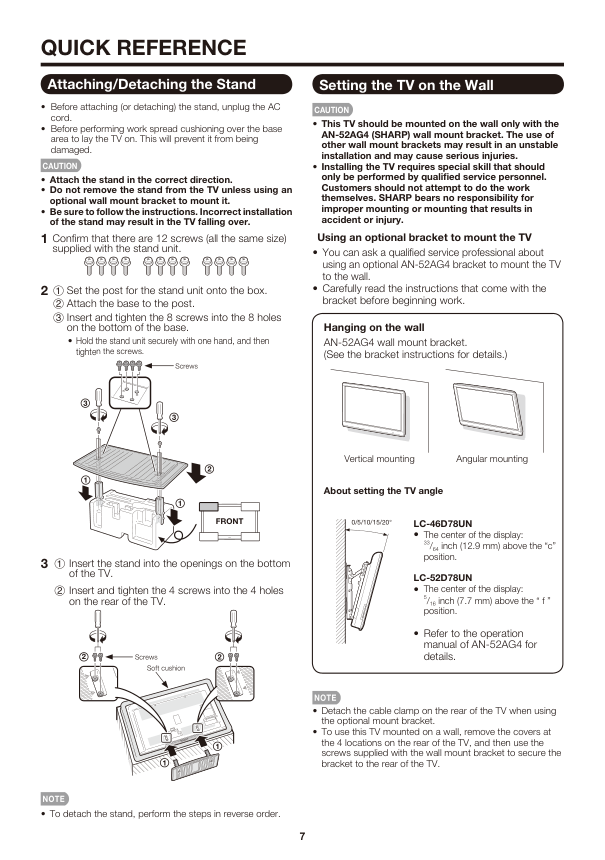

SHARP LC-46D78UN LC-52D78UN Operation Manual http://www.manuallib.com/file/2698417 From ManualLib.com ManualLib.com collects and classifies the global product instrunction manuals to help users access anytime and anywhere, helping users make better use of products. Home: http://www.manuallib.com/ Chinese: http://www.shuomingshuku.com/ 1 Supplied Accessories Make sure the following accessories are provided with the product. Remote control unit (g1) Page 8 “AA” size battery (g2) Page 9 AC cord (g1) Page 8 Cable clamp (g1) Page 8 LC-46D78UN LC-52D78UN LIQUID CRYSTAL TELEVISION OPERATION MANUAL ENGLISH Always use the AC cord supplied with the TV. The illustrations above are for explanation purposes and may vary slightly from the actual accessories. • • ■ Operation manual (g3 languages) ■ Connection guide (g1) IMPORTANT : Please read this operation manual before starting operating the equipment. Stand unit (g1) Page 7 • The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly from the actual operations. • The examples used throughout this manual are based on the LC-46D78UN model. 2 IMPORTANT: To aid reporting in case of loss or theft, please record the TV's model and serial numbers in the space provided. The numbers are located at the rear of the TV. Model No.: Serial No.: IMPORTANT INFORMATION WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. WARNING: FCC Regulations state that any unauthorized changes or modiﬁcations to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment. CAUTION: This product satisﬁes FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections. The lightning ﬂash with arrow-head symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufﬁcient magnitude to constitute a risk of electric shock to persons. The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. DECLARATION OF CONFORMITY: SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-46D78UN/LC-52D78UN This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RESPONSIBLE PARTY: SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07495-1163 TEL: 1-800-BE-SHARP For Business Customers: URL http://www.sharpusa.com Printed in Mexico TINS-E559WJN1 10P06-MX-NM 3 • Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. "Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electrical Code that provides guidelines for proper grounding and, in particular, speciﬁes that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical." INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. IMPORTANT INFORMATION Trademarks • "HDMI, the HDMI logo and High-Deﬁnition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC." • Products that have earned the ENERGY STAR are designed to protect the environment through superior energy efﬁciency. This product qualiﬁes for ENERGY STAR when "Home" is selected for "TV Location". Setting "TV Location" to "Home" allows the TV to achieve an energy-saving status for household use. • and LC logo mark are registered trademarks of SHARP Corporation. This product is embedded with LC Font technology, which was developed by SHARP Corporation for clearly displaying easy-to-read characters on LCD screens. However, other fonts are used for some screen pages, too. This product utilizes tin-lead solder, and ﬂuorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities, the Electronic Industries Alliance: www.eiae.org, the lamp recycling organization: www.lamprecycle.org or Sharp at 1-800-BE-SHARP (For U.S.A. only) 4 Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or ﬁre. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your Liquid Crystal Television, please read the following precautions carefully before using the product. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories speciﬁed by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Additional Safety Information 15) Power Sources—This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions. 16) Overloading—Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of ﬁre or electric shock. 17) Object and Liquid Entry—Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a ﬁre or electric shock. Never spill liquid of any kind on the product. 18) Damage Requiring Service—Unplug this product from the wall outlet and refer servicing to qualiﬁed service personnel under the following conditions: a) When the AC cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualiﬁed technician to restore the product to its normal operation, e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance - this indicates a need for service. 19) Replacement Parts—When replacement parts are required, be sure the service technician has used replacement parts speciﬁed by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in ﬁre, electric shock, or other hazards. 20) Safety Check—Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. 21) Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer. DEAR SHARP CUSTOMER Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years of trouble-free operation of your product, please read the Important Safety Instructions carefully before using this product. IMPORTANT SAFETY INSTRUCTIONS 5 IMPORTANT SAFETY INSTRUCTIONS • Outdoor Antenna Grounding — If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70 ANTENNA LEAD IN WIRE GROUND CLAMP NEC — NATIONAL ELECTRICAL CODE GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) ELECTRIC SERVICE EQUIPMENT ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) • Water and Moisture — Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. • Stand — Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer. • Selecting the location — Select a place with no direct sunlight and good ventilation. • Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufﬁ cient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed. • The Liquid Crystal panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the panel breaks. • Heat — The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including ampliﬁ ers) that produce heat. • The Liquid Crystal panel is a very high technology product with 2,073,600 pixels, giving you ﬁ ne picture details. Occasionally, a few non-active pixels may appear on the screen as a ﬁ xed point of blue, green or red. Please note that this does not affect the performance of your product. • Lightning — For added protection for this television equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges. • Power Lines — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. • To prevent ﬁ re, never place any type of candle or ﬂ ames on the top or near the TV set. • To prevent ﬁ re or shock hazard, do not place the AC cord under the TV set or other heavy items. • Do not display a still picture for a long time, as this could cause an afterimage to remain. • To prevent ﬁ re or shock hazard, do not expose this product to dripping or splashing. No objects ﬁ lled with liquids, such as vases, should be placed on the product. • Do not insert foreign objects into the product. Inserting objects in the air vents or other openings may result in ﬁ re or electric shock. Exercise special caution when using the product around children. Precautions when transporting the TV • When transporting the TV, never carry it by holding or otherwise putting pressure onto the display. Be sure to always carry the TV by two people holding it with two hands — one hand on each side of the TV. Caring for the Cabinet • Use a soft cloth (cotton, ﬂ annel, etc.) and gently wipe the surface of the cabinet. • Using a chemical cloth (wet/dry sheet type cloth, etc.) may deform the components of the main unit cabinet or cause cracking. • Wiping with a hard cloth or using strong force may scratch the surface of the cabinet. • If the cabinet is very dirty, wipe with a soft cloth (cotton, ﬂ annel, etc.) soaked in neutral detergent diluted with water and thoroughly wrung out, and then wipe with a soft dry cloth. • The cabinet is primarily made of plastic. Avoid using benzene, thinner, and other solvents, as these may deform the cabinet and cause the paint to peel off. • Do not apply insecticides or other volatile liquids. Also, do not allow the cabinet to remain in contact with rubber or vinyl products for a long period of time. Plasticizers inside the plastic may cause the cabinet to deform and cause the paint to peel off. 6 IMPORTANT SAFETY INSTRUCTIONS Caring for the Liquid Crystal panel • Turn off the main power and unplug the AC cord from the wall outlet before handling. • Gently wipe the surface of the display panel with a soft cloth (cotton, ﬂ annel, etc.). To protect the display panel, do not use a dirty cloth, liquid cleaners, or a chemical cloth (wet/dry sheet type cloth, etc.). This may damage the surface of the display panel. • Wiping with a hard cloth or using strong force may scratch the surface of the display panel. • Use a soft damp cloth to gently wipe the display panel when it is really dirty. (It may scratch the surface of the display panel when wiped strongly.) • If the display panel is dusty, use an anti-static brush, which is commercially available, to clean it. • To avoid scratching the frame or screen, please use a soft, lint free cloth for cleaning. Approved cleaning cloths are available directly from Sharp in single (00Z-LCD-CLOTH) or triple (00Z-LCD-CLOTH-3) packs. Call 1-800-BE-SHARP for ordering, or VISIT http://www.sharpusa.com/SharpDirect. CHILD SAFETY: It Makes A Difference How and Where You Use Your Flat Panel Display Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind: THE ISSUE The home theater entertainment experience is a growing trend and larger ﬂ at panel displays are popular purchases. However, ﬂ at panel displays are not always supported on the proper stands or installed according to the manufacturer’s recommendations. Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and cause injury. THIS MANUFACTURER CARES! The consumer electronics industry is committed to making home entertainment enjoyable and safe. TUNE INTO SAFETY One size does NOT ﬁ t all. Follow the manufacturer’s recommendations for the safe installation and use of your ﬂ at panel display. Carefully read and understand all enclosed instructions for proper use of this product. Don’t allow children to climb on or play with furniture and television sets. Don’t place ﬂ at panel displays on furniture that can easily be used as steps, such as a chest of drawers. Remember that children can become excited while watching a program, especially on a “larger than life” ﬂ at panel display. Care should be taken to place or install the display where it cannot be pushed, pulled over, or knocked down. Care should be taken to route all cords and cables connected to the ﬂ at panel display so that they cannot be pulled or grabbed by curious children. WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS: Use a mount that has been recommended by the display manufacturer and/or listed by an independent laboratory (such as UL, CSA, ETL). Follow all instructions supplied by the display and wall mount manufacturers. If you have any doubts about your ability to safely install your ﬂ at panel display, contact your retailer about professional installation. Make sure that the wall where you are mounting the display is appropriate. Some wall mounts are not designed to be mounted to walls with steel studs or old cinder block construction. If you are unsure, contact a professional installer. A minimum of two people are required for installation. Flat panel displays can be heavy. Note: CEA is the preeminent trade association promoting growth in the $161 billion U.S. consumer electronics industry. More than 2,200 companies enjoy the beneﬁ ts of CEA membership, including legislative advocacy, market research, technical training and education, industry promotion and the fostering of business and strategic relationships. • • • • • • • • • • • • • • 7 Attaching/Detaching the Stand • Before attaching (or detaching) the stand, unplug the AC cord. • Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged. CAUTION • Attach the stand in the correct direction. • Do not remove the stand from the TV unless using an optional wall mount bracket to mount it. • Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over. 1 Conﬁ rm that there are 12 screws (all the same size) supplied with the stand unit. 2 1 Set the post for the stand unit onto the box. 2 Attach the base to the post. 3 Insert and tighten the 8 screws into the 8 holes on the bottom of the base. Hold the stand unit securely with one hand, and then tighten the screws. FRONT Screws 3 1 Insert the stand into the openings on the bottom of the TV. 2 Insert and tighten the 4 screws into the 4 holes on the rear of the TV. 1 1 2 2 Screws Soft cushion • To detach the stand, perform the steps in reverse order. • Setting the TV on the Wall CAUTION • This TV should be mounted on the wall only with the AN-52AG4 (SHARP) wall mount bracket. The use of other wall mount brackets may result in an unstable installation and may cause serious injuries. • Installing the TV requires special skill that should only be performed by qualiﬁ ed service personnel. Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or mounting that results in accident or injury. Using an optional bracket to mount the TV • You can ask a qualiﬁ ed service professional about using an optional AN-52AG4 bracket to mount the TV to the wall. • Carefully read the instructions that come with the bracket before beginning work. QUICK REFERENCE Vertical mounting Angular mounting Hanging on the wall AN-52AG4 wall mount bracket. (See the bracket instructions for details.) About setting the TV angle • Detach the cable clamp on the rear of the TV when using the optional mount bracket. • To use this TV mounted on a wall, remove the covers at the 4 locations on the rear of the TV, and then use the screws supplied with the wall mount bracket to secure the bracket to the rear of the TV. 0/5/10/15/20° LC-46D78UN • The center of the display: 33/64 inch (12.9 mm) above the “c” position. LC-52D78UN • The center of the display: 5/16 inch (7.7 mm) above the “ f ” position. • Refer to the operation manual of AN-52AG4 for details. 8 QUICK REFERENCE Experiencing HD images An HDTV without an HD source is just an ordinary TV. To enjoy HD images on the TV, you should get HD programming from the following: • Over-the-air broadcasting via HD quality antenna • HD cable/satellite subscription • HD compatible external equipment • For information on updating to HD programming, ask your cable/satellite service provider. Using the Remote Control Unit Use the remote control unit by pointing it towards the remote control sensor on the TV. Objects between the remote control unit and the remote control sensor may prevent proper operation. 30º 30º 30º 30º 17´ (5 m) Remote control sensor ■ Cautions regarding the remote control unit • Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity. • Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the remote control unit. • The remote control unit may not work properly if the remote control sensor on the TV is under direct sunlight or strong lighting. In such cases, change the angle of the lighting or the TV, or operate the remote control unit closer to the remote control sensor. IMPORTANT: The POWER indicator on the television should light GREEN indicating you have power to the television. If the POWER indicator on the television still does not light up, press POWER on the remote control to turn the power on. IMPORTANT: IF THE UNIT DOES NOT POWER ON - UNPLUG THE TELEVISION FROM THE OUTLET AND REPEAT THE INSTALLATION STEPS. IF YOU STILL ENCOUNTER NO POWER, PLEASE CONTACT US AT 1-800-BE-SHARP. QUICK INSTALLATION TIPS 1 Attach your antenna to the back of the television. (See page 9.) 2 Connect the AC plug for the television into the AC outlet. AC outlet • Place the TV close to the AC outlet, and keep the power plug within reach. • TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE AC CORD CONNECTED. 3 Bundle the cords properly with the cable clamp. 4 How to turn on the television for the ﬁ rst time. A) Press POWER on the television. POWER B) The POWER indicator on the front of the television lights GREEN. POWER indicator 5 Insert the batteries into the remote control unit. (See page 9.) • Speakers cannot be detached from the TV. • TV angle cannot be adjusted. 9 300-ohm twin-lead cable 75-ohm coaxial cable (round) 75-ohm coaxial cable IN OUT 300-ohm twin-lead cable VHF ANTENNA UHF ANTENNA Combiner (commercially available) 300/75-ohm adapter (commercially available) 300-ohm twin-lead cable (ﬂat) 75-ohm coaxial cable (round) Cable TV lead-In Coaxial cable (commercially available) Coaxial cable (commercially available) Home Antenna terminal (75-ohm) Home Antenna terminal (75-ohm) or or Antennas To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an F-type connector, plug it into the antenna terminal at the rear of the TV set. 1. A 75-ohm system is generally a round cable with F-type connector that can easily be attached to a terminal without tools (Commercially available). F-type connector 300-ohm twin-lead cable (ﬂ at) F-type connector 75-ohm coaxial cable (round) 75-ohm coaxial cable NOTICE 2. A 300-ohm system is a ﬂ at “twin-lead” cable that can be attached to a 75-ohm terminal through a 300/75-ohm adapter (Commercially available). When connecting the RF cable to the TV set, do not tighten F-type connector with tools. If tools are used, it may cause damage to your TV set. (The breaking of internal circuit, etc.) F-type connector should be ﬁ nger-tightened only. CAUTION Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below. • Do not mix batteries of different types. Different types of batteries have different characteristics. • Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries. • Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come in contact with skin can cause a rash. If you ﬁ nd any chemical leakage, wipe thoroughly with a cloth. • The batteries supplied with this product may have a shorter life expectancy due to storage conditions. • If you will not be using the remote control unit for an extended period of time, remove batteries from it. 1 Open the battery cover. • Place the batteries with their terminals corresponding to the (e) and (f) indications in the battery compartment. 2 Insert two “AA” size batteries (supplied with the product). 3 Close the battery cover. Installing Batteries in the Remote Control Unit If the remote control fails to operate TV functions, replace the batteries in the remote control unit. Preparation Connecting Antenna Cable 1 Cable without a CATV converter 3 Combination VHF/ UHF antenna 4 Separate VHF/UHF antenna To TV antenna terminal 2 VHF/UHF antenna • Connect the antenna cable to the TV using one of the methods in the illustration as shown (1, 2, 3 or 4). 10 Part Names TV (Front) OPC indicator (See page 18.) OPC sensor* (See page 18.) POWER indicator (See page 12.) Remote control sensor * OPC: Optical Picture Control TV (Rear/Side) INPUT 3 terminals SERVICE terminal INPUT 5 terminal (HDMI) POWER button MENU button INPUT button Channel buttons (CH�/�) Volume buttons (VOL�/�) DIGITAL AUDIO OUTPUT terminal INPUT 7 terminal (HDMI) INPUT 6 terminal (HDMI) INPUT 4 terminal (PC-IN) AUDIO terminal (shared for INPUT 4 and INPUT 6) *4 Antenna/Cable in INPUT 1 terminals INPUT 2 terminals OUTPUT terminals AC INPUT terminal *1 *2 *1 *3 *1 See page 11 for external equipment connection. *2 See pages 12 and 17 for button operations. *3 See page 8 for connecting the AC cord. *4 See page 24 for details on the PC Audio Select function. 11 Connecting to External Equipment You can connect many types of external equipment to your TV. To view external source images, select the input source from INPUT on the remote control unit or on the TV. (See page 15.) For connecting the TV to external equipment, use commercially available cables. • The illustrations of the terminals are for explanation purposes and may vary slightly from the actual products. • To protect equipment, always turn off the TV before connecting any external equipment. • Please read the relevant operation manual (Blu-ray disc player, etc.) carefully before making connections. ■ Connecting a Blu-ray Disc Player, DVD Player, Cable/Satellite Set-top Box, VCR, Game Console or Camcorder *4 *3 *4 *1 *2 *3 Terminal on the TV Cable Terminal on external equipment INPUT 1 or 3 AV cable INPUT 1 or 2 Component video cable Audio cable INPUT 5, 6 or 7 AUDIO HD Quality Standard Quality ø 3.5 mm stereo minijack cable AUDIO DVI OUT HDMI-certiﬁed cable or DVI-HDMI conversion cable *1 Supported Audio format: Linear PCM, sampling rate 32/44.1/48kHz. *2 When using a DVI-HDMI conversion cable, you should make an analog audio connection. In this case, in addition to connecting a DVI-HDMI conversion cable to the INPUT 6 (HDMI) terminal, connect a ø 3.5 mm stereo minijack cable to the AUDIO terminal and set "PC Audio Select" to "Input 6 (HDMI)". (See page 24.) *3 To enjoy 1080p display capability, connect your external equipment using an HDMI-certiﬁ ed cable or a component cable and set the equipment to 1080p output. *4 The COMPONENT terminals take priority over the VIDEO terminal (INPUT 1 only). ■ Connecting an Audio Ampliﬁ er Terminal on the TV Cable Terminal on external equipment Optical ﬁber cable Audio cable OUTPUT DIGITAL AUDIO OUTPUT *5 Depending on the connected equipment, audio will not output from the DIGITAL AUDIO OUTPUT terminal in HDMI connection. In this case, set the audio formats of the connected equipment to PCM, 32/44.1/48 kHz. *6 See page 24 for details on the Output Select function. ■ Connecting a PC Terminal on the TV Cable Terminal on PC INPUT 4 Analog RGB cable (D-sub 15-pin cable or VGA cable) ø 3.5 mm stereo minijack cable INPUT 5, 6 or 7 AUDIO AUDIO ø 3.5 mm stereo minijack cable HDMI-certiﬁed cable or DVI-HDMI conversion cable AUDIO DVI OUT *8 *7 *7 When connecting a PC to the INPUT 4, set "PC Audio Select" to "Input 4 (PC)". (See page 24.) *8 Depending on the board, only video signals may be output. In this case, in addition to connecting an HDMI-certiﬁ ed cable to the INPUT 6 (HDMI) terminal, connect a ø 3.5 mm stereo minijack cable to the AUDIO terminal and set "PC Audio Select" to "Input 6 (HDMI)". (See page 24.) • The HDMI terminals only support digital signal. • Refer to page 30 for a list of PC signals compatible with the TV. CAUTION CAUTION *6 *5 12 Turning On/Off the Power Press POWER on the TV or on the remote control unit to turn the power on. • POWER indicator (Green): The TV is on. • The Initial Installation starts when the TV powers on for the ﬁ rst time. If the TV has been turned on before, the Initial Installation will not be invoked. For changing the settings of the Initial Installation, perform "EZ setup" on the Setup menu on page 20. Press POWER on the TV or on the remote control unit again to turn the power off. • The TV enters standby and the image on the screen disappears. • The POWER indicator on the TV turns off. • If you are not going to use this TV for a long period of time, be sure to remove the AC cord from the AC outlet. • Weak electric power is still consumed even when the TV is turned off. Watching TV Initial Installation When you turn on the TV for the ﬁ rst time, it will automatically memorize the broadcasting channels available in the region where you live. Perform the following steps before you press POWER on the remote control unit. 1. Insert the batteries into the remote control unit. (See page 9.) 2. Connect the antenna cable to the TV. (See page 9.) 3. Plug in the AC cord to the AC outlet. (See page 8.) • ENERGY STAR qualiﬁ cation is based on AV MODE "STANDARD". Air/Cable (Antenna setting) Make sure what kind of connection is made with your TV when selecting "Air" or "Cable". 3 Press c/d to select "Air" or "Cable". Press ENTER to enter the setting. POWER (On/Standby) CH Search (Channel search) Channel auto search makes the TV look for all channels viewable in the set area. 4 When "Air" is selected in Antenna setting: Press c/d to select "Start", and then press ENTER. When "Cable" is selected in Antenna setting: Press a/b to select "Analog & Digital Search Start" to search both analog and digital broadcasts, or to select “Analog Search Start” to search only analog broadcasts, and then press ENTER. • The Channel search will start automatically. • To exit the Channel search screen, select "Cancel", and then press ENTER. • If no channel is found, conﬁ rm the type of connection made with your TV and try "EZ Setup" again. (See page 20.) • For changing the settings of the Initial Installation, perform "EZ setup" on the Setup menu on page 20. Language (Language setting) Select from among 3 languages: English, French and Spanish. 1 Press a/b to select the desired language listed on the screen, and then press ENTER. TV Location Select "Home" or "Store" for the location where you plan to install the TV. This product qualiﬁ es for ENERGY STAR in Home mode default setting. 2 Press c/d to select "Home" or "Store". Press ENTER to enter the setting. Home: “Power Saving” is set to "Advanced", and AV MODE is set to "STANDARD". Store: “Power Saving” is set to "Off" and AV MODE is set to "DYNAMIC (Fixed)". Picture Reset and Feature Demo can be set. Picture Reset: AV MODE will be set to "DYNAMIC (Fixed)" regardless of whether Picture Reset is "On" or "Off". If you select "On", AV MODE will be reset to "DYNAMIC (Fixed)" if there is no operation for 30 minutes. When "Off" is selected, AV MODE will be set to "DYNAMIC (Fixed)". Feature Demo: When “On” is selected, after all the settings are completed, the Feature Demo screen is displayed if there is no operation for several minutes. Language TV Location Air/Cable CH Search English Español Français Analog & Digital Search Start Cancel Analog Search Start Air Cable Start Cancel Home Store Select POWER 13 Direct Button Operation Changing Volume You can change the volume by pressing VOLk/l on the TV or on the remote control unit. To increase the volume, press VOLk. To decrease the volume, press VOLl. 20 Audio status Output device Output Select Fixed Variable Speaker Variable sound Mute When "Output Select" is set to "Variable", the indicator on the screen changes as shown below. 60 See page 24 for details on the Output Select function. MUTE Mutes the current sound output. Press MUTE. " " will be displayed on the screen for 30 minutes, and the sound is silenced. Within 30 minutes of pressing MUTE, mute can be canceled by pressing VOLk/l or MUTE. Mute will be canceled after 30 minutes have passed. However, the TV will not suddenly output a loud sound as the volume level is set to 0 automatically. Sleep Timer Allows you to set a time when the TV automatically switches to standby. Press SLEEP. The remaining time displays when the sleep timer has been set. Each time you press SLEEP, the remaining time switches as shown below. Off 30 60 90 120 When set, the time automatically starts counting down. If you want to adjust the sleep timer, you can press SLEEP twice then change the time setting. When it is 5 minutes before the time expires, the remaining time will start to keep appearing every minute. Select "Off" by pressing SLEEP to cancel the sleep timer. The TV will enter standby when the remaining time reaches 0. FLASHBACK Press FLASHBACK to switch to the previously tuned channel. Press FLASHBACK again to switch back to the currently tuned channel. FLASHBACK will not work if no channel has been changed after the TV is turned on. • • • • • • • • • • • • • • • • � � � � � � � � � � � � � � � � POWER You can turn on the TV or put it on standby by pressing POWER on the TV or on the remote control unit. (See page 12.) Changing Channels You can change channels by pressing CHr/s or 0–9, • (DOT). Examples: To select a 1 or 2-digit channel number (e.g., Channel 5): Press 5 ENT. To select a 3-digit channel number (e.g., Channel 115): Press 1 1 5 ENT. To select a 4-digit channel number (e.g., Channel 22.1): Press 2 2 • (DOT) 1 ENT. When selecting a 1-digit channel number, it is not necessary to press 0 before the number. When you enter 0–9 only, channel selection will be made if there is no operation within a few seconds. If you push "0" by itself, nothing will happen. Complete the above steps within a few seconds. When you enter 0–9 and • (DOT), channel selection will be made if there is no operation within a few seconds. FAVORITE CH You can select 4 preset favorite channels in 4 different categories. Press A, B, C or D. While watching the TV, you can toggle the selected channels by pressing A, B, C and D. See page 25 for details of favorite channel settings. • • • • • • • 14 AV MODE AV MODE gives you several viewing options to choose from to best match the surrounding environment of the TV, which can vary due to factors like room brightness, type of program watched or the type of image input from external equipment. Press AV MODE. Current AV MODE displays. Press AV MODE again before the mode displayed on the screen disappears. The mode changes as shown below: Example: When the input source is TV, INPUT 1, 2 or 3 terminals STANDARD MOVIE GAME USER [TV] DYNAMIC DYNAMIC (Fixed) AUTO Example: When the input source is INPUT 4, 5, 6 or 7 terminals STANDARD MOVIE GAME PC USER[ ] DYNAMIC DYNAMIC (Fixed) AUTO STANDARD: For a highly deﬁ ned image in a normal lighting. MOVIE: For a movie. GAME: Lowers image brightness for easier viewing. PC: For PC. USER: Allows the user to customize settings as desired. You can set the mode for each input source. AUTO: Optimizes the image quality automatically based on the room brightness and image signal. DYNAMIC (Fixed): Changes the image and sound settings to the factory preset values. No adjustments are allowed. DYNAMIC: For a clear-cut image emphasizing high contrast, useful for sports viewing. You can select a different AV MODE item for each input mode. (For example, select STANDARD for TV input and DYNAMIC for INPUT 1.) When you play games, "GAME" is recommended for AV MODE. When AV MODE is set to "AUTO", part of the menu may not be displayed correctly or the setting range of the menu may be changed. ⑨ PC Allows you to gain quick access to PC mode. Press PC. ⑩ Operating On-Screen Display Menu You can operate the on-screen display menu by using the following buttons. MENU: Displays the menu screen. a/b/c/d, ENTER: Select a desired item on the screen. RETURN: Returns to the previous menu screen. EXIT: Turns off the menu screen. For operating the on-screen display menu, see “Menu Operation Buttons” on page 17. • • • • • Direct Button Operation ⑪ AUDIO ■ MTS/SAP stereo mode The TV has a feature that allows reception of sound other than the main audio for the program. This feature is called Multi-channel Television Sound (MTS). The TV with MTS can receive mono sound, stereo sound and Secondary Audio Programs (SAP). The SAP feature allows a TV station to broadcast other information, which could be audio in another language or something completely different like weather information. You can enjoy Hi-Fi stereo sound or SAP broadcasts where available. Stereo broadcasts: View programs like live sporting events, shows and concerts in dynamic stereo sound. SAP broadcasts: Receive TV broadcasts in either MAIN or SAP sound. MAIN sound: The normal program soundtrack (either in mono or stereo). SAP sound: Listen to a second language, supplementary commentary or other information. (SAP is mono sound.) If stereo sound is difﬁ cult to hear. Obtain a clearer sound by manually switching to ﬁ xed mono-sound mode. You can change MTS as shown below to match the television broadcast signal. Press AUDIO to toggle between audio modes. Examples: when receiving MTS and SAP STEREO mode: STEREO MONO STEREO + SAP mode: ST(SAP) SAP(ST) MONO MAIN + SAP mode: MAIN SAP MONO mode: MONO ■ Digital broadcasting audio mode The types of audio transmitted in a digital broadcast include SURROUND as well as MONO and STEREO. In addition, it is possible for multiple audio tracks to accompany a single video track. Press AUDIO to toggle between audio modes. Example: when receiving Digital broadcasting STEREO (Audio1) STEREO (Audio2) SURROUND (Audio3) MTS only operates while in TV mode. ⑫ FREEZE Allows you to capture and freeze a moving image that you are watching. Press FREEZE. A moving image is captured. Press FREEZE again to cancel the function. When this function is not available, "No displaying still image available." will display. The still image automatically goes out after 30 minutes. If you are using the freeze function and a broadcast activates the V-CHIP BLOCK, the freeze function will be canceled and a V-CHIP BLOCK message will appear. • • • • • • • • • 15 Direct Button Operation ⑬ INPUT To view external source images, select the input source by pressing INPUT on the remote control unit or on the TV. 1 Press INPUT. A list of selectable sources appears. 2 Press INPUT again or press a/b to select the input source. Each time INPUT is pressed, the input source toggles. INPUT1 INPUT2 INPUT3 INPUT4 TV An image from the selected source automatically displays. If the corresponding input is not plugged in, you cannot change the input. Be sure to connect the equipment beforehand. See page 11 for external equipment connection. Press PC to switch to an image from the PC. DISPLAY Displays channel information being viewed. Press DISPLAY. Closed Captions and Digital Closed Captions Your TV is equipped with an internal Closed Caption decoder. It allows you to view conversations, narration and sound effects as subtitles on your TV. Closed Captions are available on some TV programs and on some VHS home video tapes at the discretion of the program provider. Digital Closed Caption service is a new caption service available only on digital TV programs (also at the discretion of the service provider). It is a more ﬂ exible system than the original Closed Caption system, because it allows for a variety of caption sizes and font styles. When the Digital Closed Caption service is in use, it will be indicated by the appearance of a 3-letter abbreviation that also indicates the language of the Digital Closed Captions: ENG (English), SPA (Spanish), FRA (French) or other language codes. Not all programs and VHS videotapes offer closed captions. Please look for the “N” symbol to ensure that captions will be shown. In the Closed Caption system, there can be more than one caption service provided. Each is identiﬁ ed by its own number. The “CC1” and “CC2” services display subtitles of TV programs superimposed over the program's picture. In the Closed Caption system, the “Text1” or “Text2” services display text that is unrelated to the program being viewed (e.g., weather or news). These services are also superimposed over the program currently being viewed. • • • • • • 1 Press CC. This will present the Closed Caption information display. 2 Press CC while the Closed Caption information is still on the screen. Press repeatedly until you select the desired closed caption service. Depending on the number of caption services in the signal being received, you will see information such as 1/2 or 1/4 displayed. 1/2 means “the ﬁ rst of two services”. Example: If a program has three services (Digital CC(ENG), CC1 and Text1), the closed caption display will toggle in this sequence: 1/3 ENG Off 2/3 CC1 3/3 Text1 The CC button keeps a record of the last service selected in its memory. If the last closed caption mode (e.g. 1/3ENG) you selected is not available for the next program, or on another channel, the closed caption service that is available is automatically selected, and this service appears in parentheses, e.g. “1/3(CC1)”. Closed Caption services that appear in parentheses will not be stored in the CC button's memory as your last selected service. Only services that you have selected with the CC button are stored. Examples: In a case where there are two closed caption services provided (for instance, Digital CC(ENG) and CC1), and Digital CC(ENG) is displayed as your current selection, if Digital CC(ENG) is not broadcast for the next program, the other closed caption service, CC1, will be displayed in parentheses. A closed caption service appears in parentheses because the service you selected is not available and a different service is displayed on your screen. “1/1(CC1)” is displayed instead of “1/2/ENG”. • • • • 22.1 Air DIGITAL Audio : MONO : CC 1/2 CC1 : Video 1080i (16:9) Ratings : NONE : NONE Closed Caption information 22.1 Air DIGITAL Audio : MONO : CC 1/2 CC1 : Video 1080i (16:9) Ratings : NONE : NONE Closed Caption information When “Power Saving” is set to “Standard” or “Advanced”, the Power Saving leaf icon appears on the channel information window. See page 19 for details of Power Saving settings. See page 24 for detailed closed caption settings. When the program contains no closed caption, “--” displays in the closed caption information. If the language code, e.g. “ENG”, is not found on Digital TV programs, “--” will be shown. Four kinds of closed caption service (CC1, CC2, Text1, Text2) are potentially available, but a broadcast may contain none or only some of these services at the discretion of the program provider. • • • • • 16 Direct Button Operation VIEW MODE You can select the screen size. 1 Press VIEW MODE. The View Mode menu displays. The menu lists the View Mode options selectable for the type of video signal currently being received. 2 Press VIEW MODE or a/b while the View Mode menu is displayed to select a desired item on the menu. You can sequentially select a View Mode that has its own aspect ratio. ■ For 4:3 programs Example: Screen size images Side Bar S.Stretch (Smart stretch) Zoom Stretch Suitable for viewing conventional 4:3 programs in their normal format. Suitable for stretching 4:3 programs to ﬁ ll the screen. Suitable for viewing wide- screen 2.35:1 anamorphic DVDs in full screen. This mode is useful for 1.78:1 DVDs. When viewing 1.85:1 DVDs, stretch mode will still show very thin black bands at the top and bottom of the screen. ■ For HD programs Stretch: Suitable for viewing wide-screen 1.78:1 aspect ratio program, stretch mode will still show very thin black bands at the top and bottom of the screen. Dot by Dot (1080i/p only): Detects the resolution of the signal and displays an image with the same number of pixels on the screen. Full Screen (720p only): You can select "Full Screen" only when receiving a 720p signal. S.Stretch (Smart stretch): Suitable for stretching 4:3 programs to ﬁ ll the screen. Zoom: Suitable for viewing wide-screen 2.35:1 aspect-ratio programs in full screen. When using Dot by Dot or Full Screen, it is possible to see noise or bars around different outer portions of the screen. Please change view mode to correct this. ■ For PC input mode Connect the PC before making adjustments. (See page 11.) Selectable screen size may vary with input signal type. Example: Screen size images Input signal Normal Zoom Stretch Dot by Dot 4:3 Keeps the original aspect ratio in a full screen display. For viewing widescreen programs. The top and bottom of the image is cropped. An image fully ﬁ lls the screen. Detects the resolution of the signal and displays an image with the same number of pixels on the screen. Input signal Stretch Dot by Dot 16:9 An image fully ﬁ lls the screen. Detects the resolution of the signal and displays an image with the same number of pixels on the screen. • • • • • • 17 ENTER : Select : Enter MENU : Exit RETURN : Back The bar above is an operational guide for the remote control. The bar will change in accordance with each menu setting screen. 1 Item displayed in yellow • This indicates the item currently selected. • Press ENTER to go to the adjustment screen for this item. 2 Item in brackets • This indicates the current setting for the item. 3 Item displayed in white • This indicates that the item can be selected. 4 Item displayed in gray • This indicates that the item cannot be selected. There are various reasons why the items cannot be selected, but the main reasons are as follows: —Nothing is connected to the selected input terminal. —The function is not compatible with the current input signal. 1 Press MENU to display the MENU screen. 2 1 Press c/d to select the desired menu. 2 Press a/b to select a speciﬁ c adjustment item, and then press ENTER. 3 Press a/b (or c/d) to select or adjust the desired setting, and then press ENTER. 3 Press MENU to exit. On-Screen Display Menu Operation On-Screen Display Menu Example Menu options differ in the selected input modes, but the operating procedures are the same. The screens in the operation manual are for explanation purposes (some are enlarged, others cropped) and may vary slightly from the actual screens. The order of explanations for each menu item in the following pages is not necessarily in accordance with the alignment of the items on the screen. LCFONT: This product is embedded with LC Font technology, which was developed by SHARP Corporation for clearly displaying easy- to-read characters on LCD screens. • • • • Option [No] Program Title Display [Off] Clear Voice Auto Volume Favorite CH [Off] Operation Lock Out Demo Mode [Yes] Channel Selecting Effect Caption Setup Digital Caption Info. Audio Only Output Select [Fixed] PC Audio Select [Input 4 (PC)] [Off] MENU: Press to open or close the menu screen. a/b/c/d: Press to select a desired item on the screen or adjust a selected item. ENTER: Press to go to the next step or complete the setting. RETURN: Press to return to the previous step. MENU: MENU on the remote control. INPUT: ENTER on the remote control. CHr/s: Cursor a/b on the remote control. VOLk/l: Cursor c/d on the remote control. Menu Operation Buttons Using the control panel of the main unit You can also operate the menu with the control panel of the main unit. Button operations on the control panel correspond to the ones on the remote control as shown below. Using the remote control Use the following buttons on the remote control to operate the menu. Picture Contrast OPC Brightness Color Tint Sharpness Advanced Reset [b30] [ 0] [ 0] [ 0] [ b2] 0 a30 a30 a30 a10 b40 b30 b30 b30 b10 Backlight [b12] a16 b16 Off On On : Display Example LCFONT embedded 18 On-Screen Display Menu Color Temp. (Color Temperature) For a better white balance, use color temperature correction. High: White with bluish tone Mid-High: Middle: Mid-Low: Low: White with reddish tone White balance can be adjusted between a maximum of +30 and a minimum of –30 for each color temperature. R Gain (LO/HI): –30 through +30 G Gain (LO/HI): –30 through +30 B Gain (LO/HI): –30 through +30 For resetting all adjustment items to the factory preset values, press a/b to select "Reset", and then press ENTER. Fine Motion Enhanced Use Fine Motion Enhanced to view fast-action video more clearly. On: For obtaining a clearer image. Off: Normal image. "Fine Motion Enhanced" may cause image noise. If this occurs, turn the function "Off". Active Contrast Automatically adjusts the image contrast according to the scene. On: Automatically adjusts the image contrast. Off: No adjustment. Gamma Adjustment Adjusts the differences of picture tones between bright parts and dark parts. The adjustment range of the gamma can be set to a maximum of +2 and a minimum of –2 by pressing c or d. Black Level Adjusts on-screen black level to your preferred level. High: The black level gets brighter. Low: The black level gets darker. "Black Level" is available for input signal from Composite Video, Component 480i and analog broadcasts (air and cable). Film Mode (3:2 pull-down) Automatically detects a ﬁ lm-based source (originally encoded at 24 frames/second), analyzes it then recreates each still ﬁ lm frame for high-deﬁ nition picture quality. Advanced(High)/Advanced(Low): Select a desired level to remove jerkiness from ﬁ lm contents. Standard: Detects, analyzes, converts ﬁ lm source. Off: Normal viewing mode. "Film Mode" does not function when you set AV MODE to "GAME". "Standard" does not function when channel display shows an input signal resolution of 480p, 720p or 1080p. "Film MODE" is not available during PC format input. • • • • • • Picture Menu Adjusts the picture to your preference with the following picture settings. Selected item cbutton dbutton Backlight The screen dims The screen brightens Contrast For less contrast For more contrast Brightness For less brightness For more brightness Color For less color intensity For more color intensity Tint Skin tones become reddish Skin tones become greenish Sharpness For less sharpness For more sharpness For resetting all Picture adjustment items to the factory preset values, press a/b to select "Reset", press ENTER, press c/d to select "Yes", and then press ENTER. OPC Setting Automatically adjusts the brightness of the screen. Off: The brightness is ﬁ xed at the value set in "Backlight". On: Automatically adjusts. On: Display: Displays the OPC effect on the screen while adjusting the brightness of the screen. When set to "On", the Optical Picture Control (OPC) senses the surrounding light and automatically adjusts the backlight brightness. Make sure nothing obstructs the OPC sensor, which could affect its ability to sense surrounding light. When set to "On: Display", OPC effect displays on the screen while the OPC adjusts the screen brightness. OPC : OPC : When set to "On" or "On: Display", the OPC indicator on the TV lights green. Advanced Picture Setting This TV provides various advanced functions for optimizing the picture quality. C.M.S. (Color Management System) Color tone is managed using the six-color adjustment setting. C.M.S.-Hue: This is a standard to adjust the color either more reddish or more bluish in tone. C.M.S.-Saturation: Increases or decreases the saturation of a selected color. C.M.S.-Value: A higher value makes the image brighter. A lower value makes the image darker. For resetting all adjustment items to the factory preset values, press a/b to select "Reset", and then press ENTER. • • • • • 19 On-Screen Display Menu Digital Noise Reduction Produces a clearer video image. Auto: Automatically adjusts the level of noise reduction. High/Middle/Low: Select a desired level for viewing a clearer video image. Off: No adjustment. "Digital Noise Reduction" is not available during PC format input. 3D-Y/C Provides high quality images with minimal dot crawl and cross color noise. Slow: For still images. Standard: Normal adjustment. Fast: For moving images. "3D-Y/C" is available for input signal from Composite Video and analog broadcasts (air and cable). Monochrome For viewing a video in monochrome. On: For viewing in monochrome. Off: Normal color. Range of OPC The brightness level range of the OPC sensor's automatic adjustments can be set according to your preferences. The adjustment range of the OPC sensor can be set to a maximum of +16 and a minimum of –16. Max.: –15 through +16 Min.: –16 through +15 The "Range of OPC" settings are active only when "OPC" is set to "On". The maximum setting cannot be set to a smaller number than the minimum setting. The minimum setting cannot be set to a bigger number than the maximum setting. Depending on the brightness of the surrounding light, the OPC sensor might not operate if the adjustment range is small. Audio Menu You can adjust the sound quality to your preference with the following settings. Selected item cbutton dbutton Treble For weaker treble For stronger treble Bass For weaker bass For stronger bass Balance Decrease audio from the right speaker Decrease audio from the left speaker Audio menu is grayed out when "Output Select" is set to "Variable". (See page 24.) For resetting all Audio adjustment items to the factory preset values, press a/b to select "Reset", press ENTER, press c/d to select "Yes", and then press ENTER. • • • • • • • • Surround The surround function produces Surround effect from the speakers. On: Makes it possible to enjoy natural, realistic surround sound. Off: Outputs the normal sound. Audio menu is grayed out when "Output Select" is set to "Variable". (See page 24.) For some discs, setup may be required on your DVD player. In this case, please refer to the operation manual of your DVD player. Bass Enhancer This function allows you to enjoy bass-enhanced sound. On: Bass Enhancer function is on. Off: Normal sound. Audio menu is grayed out when "Output Select" is set to "Variable". (See page 24.) Power Control Menu Power control setting allows you to save energy. Power Saving This function allows you to set the Power Saving level in order to decrease the power consumption and increase the backlight lifespan. Standard: Optimizes power reduction based upon video content. When set to "Standard", " " appears on the screen. Advanced: Optimizes power reduction based upon video content and engages OPC. When set to "Advanced", " " appears on the screen. Off: This function does not work. "Power Saving" does not function when you set AV MODE to "AUTO" or "DYNAMIC (Fixed)". You cannot select a different Power Saving item for each AV MODE. When "Power Saving" is set, the "OPC" settings for all AV Modes will automatically change. —If you set "OPC" to "On" when "Power Saving" is set to "Standard", then the "Power Saving" setting will change to "Advanced". —When you change the "Power Saving" setting from "Advanced" to "Off" or to "Standard", "OPC" will be set to "Off". —"AUTO" and "DYNAMIC (Fixed)" will remain set to "Off". When "Power Saving" is set to "Standard" or "Advanced", the Power Saving leaf icon appears to the left of "OPC" in the Picture menu screen. No Signal Off When set to "Enable", the power will automatically shut down if there is no signal for 15 minutes. When it is 5 minutes before the power shuts down, the remaining time will start to keep appearing every minute. "Disable" is the factory preset value. When a TV program ﬁ nishes, this function may not operate. • • • • • • • • • 20 On-Screen Display Menu No Operation Off When set to "Enable", the power will automatically shut down if there is no operation for 3 hours. When it is 5 minutes before the power shuts down, the remaining time will start to keep appearing every minute. "Disable" is the factory preset value. Setup Menu EZ Setup You can run EZ Setup again, even after setting up the preset channels. Language: Select from among 3 languages (English, French and Spanish). TV Location: Select "Home" or "Store" for the location where you plan to install the TV. This product qualiﬁ es for ENERGY STAR in Home mode default setting. Home: “Power Saving” is set to "Advanced", and AV MODE is set to "STANDARD". Store: “Power Saving” is set to "Off" and AV MODE is set to "DYNAMIC (Fixed)". Picture Reset and Feature Demo can be set. Picture Reset: AV MODE will be set to "DYNAMIC (Fixed)" regardless of whether Picture Reset is "On" or "Off". If you select "On", AV MODE will be reset to "DYNAMIC (Fixed)" if there is no operation for 30 minutes. When "Off" is selected, AV MODE will be set to "DYNAMIC (Fixed)". Feature Demo: When “On” is selected, after all the settings are completed, the Feature Demo screen is displayed if there is no operation for several minutes. ENERGY STAR qualiﬁ cation is based on AV MODE "STANDARD". Air/Cable: Make sure what kind of connection is made with your TV when selecting "Air" or "Cable". CH Search: Channel auto search makes the TV look for all channels viewable in the set area. See Initial Installation on page 12 for setting each item. If no channel is found, conﬁ rm the type of connection made with your TV and try "EZ Setup" again. If you select "Analog Search Start" and initiate the channel search, the CH Memory for Cable Digital will be deleted. Antenna Setup-DIGITAL In order to receive digital air broadcasts, you need a digital broadcast antenna. You can conﬁ rm the antenna conﬁ guration through the "Antenna Setup- DIGITAL" screen. If necessary, adjust the direction of the antenna to obtain the maximum signal strength. Signal Strength: The signal strength of DIGITAL channel is displayed. The signal information is based on the current channel. Channel Strength: Input the 2-digit channel number to check the signal strength of the selected channel. Make sure the signal is strong enough for each channel. This function is available for DIGITAL (Air) only. • • • • • • • CH Setup If Initial Installation does not memorize all the channels in your region, follow the instructions below to manually memorize the channels. Air/Cable: Make sure what kind of connection is made with your TV when selecting "Air" or "Cable". CH Search: Channel auto search makes the TV look for all channels viewable in the set area. CH Memory: You can select the channels to skip in each ANALOG (Air), ANALOG (Cable), DIGITAL (Air) and DIGITAL (Cable). On: Skips channels. (Channel selection disabled using CH r/s.) Off: Does not skip channels. (Channel selection enabled using CHr/s.) Remove Scrambled CH: This function makes the TV look for and then delete digital cable channels that are scrambled and so unavailable in the set area. The process may take more than 20 minutes. Yes: Starts to remove scrambled channels. No: This function does not work. See Initial Installation on page 12 for setting each item. If no channel is found, conﬁ rm the type of connection made with your TV and try channel search again. If you select "Analog Search Start" and initiate the channel search, the CH Memory for Cable Digital will be deleted. Input Skip This setting allows you to skip the HDMI or PC-IN Input ("Input 4 (PC)", "Input 5 (HDMI)", "Input 6 (HDMI)" and "Input 7 (HDMI)") on the Input Selection operation. Yes: Skips the input. No: Does not skip input. Input Label Lets you set the input terminal displayed when using the INPUT SOURCE menu or channel display. Press a/b/c/d to select the new name for the input mode. Using the software keyboard, you can enter up to 10 characters for text. Caps Off/Caps On/Caps Lock If “alphabet” is selected in “Character Set”, this switches characters between uppercase and lowercase. Each time you press ENTER, the character type switches as shown below: Caps Off: All the characters are lowercased. Caps On: Only the ﬁ rst character is uppercased. Caps Lock: All the characters are uppercased. You cannot change labels if the INPUT SOURCE is TV. • • • • 21 On-Screen Display Menu Auto Sync. (for Analog PC Input Mode Only) For automatically adjusting the PC image. Yes: Auto Sync. starts and "Now adjusting the image." displays. No: This function does not work. When "Auto Sync." is successful, "Completed" displays. If not, "Auto Sync." failed. "Auto Sync." may fail even if "Completed" displays. "Auto Sync." may fail if the computer image has low resolution, has unclear (black) edges, or is moved while executing "Auto Sync.". Be sure to connect the PC to the TV and switch it on before starting "Auto Sync.". Fine Sync. Ordinarily you can easily adjust the picture as necessary to change image position using "Auto Sync.". In some cases, however, manual adjustment is needed to optimize the image. H-Pos.: Centers the image by moving it to the left or right. V-Pos.: Centers the image by moving it up or down. Clock: Adjust when the image ﬂ ickers with vertical stripes. Phase: Adjust when characters have low contrast or when the image ﬂ ickers. For resetting all "Fine Sync." adjustment items to the factory preset values, press a/b to select "Reset", and then press ENTER. It is not necessary to adjust the "Clock" or "Phase" when a digital signal is being input, so it cannot be selected. The default cursor position may not be in the center, because the screen position variable ranges may be asymmetrical. The screen position variable ranges depend on the View Mode or the signal type. The ranges can be seen on the position-setting screen. Position For adjusting a picture's horizontal and vertical position. H-Pos.: Centers the image by moving it to the left or right. V-Pos.: Centers the image by moving it up or down. For resetting adjustments to the factory preset values, press a/b to select "Reset", and then press ENTER. When connecting a PC to the HDMI terminal, the image position will be automatically adjusted. It cannot be manually adjusted. The screen position variable ranges depend on the View Mode or the signal type. The ranges can be seen on the position-setting screen. Adjustments are stored separately according to input source. Language You can also select a language from the Setup menu. Select from among 3 languages: English, French and Spanish. • • • • • • • • • • • • Reset If complex adjustments are made and the settings cannot be restored to normal, you can reset the settings to the factory preset values. 1 "Return to the factory preset values" displays on the screen. If you have already set the Secret No., input the 4-digit secret number here. 2 Select "Yes". "Now, TV will restart automatically. OK?" displays on the screen. 3 Select "Yes". "Now initializing..." displays on the screen and blinks. After the reset has been completed, the power shuts off and then comes back on. The screen will have returned to its original settings. The Channel Setup settings will not be changed. The Language settings will not be changed. The Secret number settings will not be changed. The TV Location settings will not be changed. Parental CTRL (Parental Control Setting) Secret No. Allows you to use a secret number to protect certain settings from being accidentally changed. IMPORTANT: Three conditions must be met to enable the V-Chip (see pages 22 to 23): 1. Secret No. is registered. 2. V-Chip/V-Chip (DTV Only) settings have been made. The “V-Chip (DTV Only)” will only be selectable when a new rating system can be downloaded via digital broadcasting in the U.S. 3. "Status" is set to "On". ■ New Secret No. You can set and change the secret number by using 0-9. Input Secret No.: When you change the secret number, enter the old 4-digit secret number here. The cursor moves to "New Secret No.". New Secret No.: When you set the new secret number, enter the new 4-digit secret number here. The cursor moves to "Reconﬁ rm". Reconﬁ rm: Enter the same 4-digit number you set in "New Secret No.". ■ Secret No. Clear You can clear your secret number. Yes: Your secret number is cleared. No: Your secret number is not cleared. As a precautionary measure, make a note of your secret number and keep it in a familiar place. If the secret number is cleared, the Status setting automatically sets to "Off". "V-Chip" and "Status" will not be selectable from the menu. • • • • • • • • • • 22 On-Screen Display Menu Status Used to enable or disable the parental control function. This function will not be selectable from the menu if you do not ﬁ rst conﬁ gure your secret number. On: Enables Parental CTRL. Off: Disables Parental CTRL. V-Chip V-CHIP is an electronic ﬁ ltering device built into your TV. This tool gives parents a great degree of control over broadcasts accessed by their children. It allows parents to select programs judged suitable for child viewing while blocking ones judged not suitable. It does so automatically once you activate the V-CHIP feature in your TV. "V-Chip" and "Status" will not be selectable from the menu if you do not ﬁ rst conﬁ gure your secret number. The U.S. has two rating systems for viewing content: TV Parental Guidelines and movie ratings. The TV Parental Guidelines work in conjunction with the V-CHIP to help parents screen out inappropriate television shows from their children. Movie ratings are used for original movies rated by the Motion Picture Association of America (MPAA) as watched on cable TV and not edited for television. The V-CHIP can also be set to block MPAA-rated movies. The setting automatically enters "Block" for any ratings below your selection. If Status is not set to "On", the conﬁ guration settings will not work. ■ MPAA (Voluntary movie rating system) Example MPAA TV Guidelines Can. English Ratings Can. French Ratings PG-13 R NC-17 X NONE PG G Press a/b to adjust the item to your desired position. " " indicates the item is blocked. Press MENU to exit. G: General audiences. All ages admitted. PG: Parental guidance suggested. Some material may not be suitable for children. PG-13: Parents strongly cautioned. Some material may be inappropriate for children under 13. R: Restricted. Under 17 requires accompanying parent or adult guardian (age varies in some jurisdictions). NC-17: No one 17 and under admitted. X: X is an older rating that is uniﬁ ed with NC-17 but may be encoded in the data of older movies. Voluntary movie rating system only uses an age-based rating. • • • • • • ■ TV Parental Guidelines Example MPAA TV Guidelines Can. English Ratings Can. French Ratings L S V FV D TV-G TV-PG TV-14 TV-MA NONE TV-Y7 TV-Y Press a/b to adjust the item to your desired position. " " indicates the item is blocked. Press MENU to exit. Suggested age TV-Y: All children. TV-Y7: Directed to older children. TV-G: General audience. TV-PG: Parental Guidance suggested. TV-14: Parents strongly cautioned. TV-MA: Mature audience only. Example MPAA TV Guidelines Can. English Ratings Can. French Ratings L S V D TV-G TV-PG TV-14 TV-MA NONE TV-Y7 TV-Y FV When setting an individual content-based rating item: 1 Press d or ENTER to access blocked content items from the currently selected age-based rating item. 2 Press a/b to select an individual item, and then press ENTER to unblock it (" " is removed). Repeat the same steps for the other items. 3 Press c or RETURN to register after all individual content rating items are set. Content FV: Fantasy violence. V: Violence. S: Sexual situation. L: Adult language. D: Sexually suggestive dialog. Rating Content FV V S L D Suggested age TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA : The content rating can be set, but this rating is not normally broadcast by TV stations. : Content rating can be set. 23 On-Screen Display Menu ■ Canadian French Ratings Example MPAA TV Guidelines Can. English Ratings Can. French Ratings 8ans+ 13ans+ 16ans+ 18ans+ NONE G E Press a/b to adjust the item to your desired position. " " indicates the item is blocked. Press MENU to exit. E: Exempt programming. G: General: All ages and children, contains minimal direct violence, but may be integrated into the plot in a humorous or unrealistic manner. 8ans+: General but inadvisable for young children: May be viewed by a wide public audience, but could contain scenes disturbing to children under 8 who cannot distinguish between imaginary and real situations. Recommended for viewing with parent. 13ans+: Over 13 years: Could contain scenes of frequent violent scenes and therefore recommended for viewing with parent. 16ans+: Over 16 years: Could contain frequent violent scenes and intense violence. 18ans+: Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence. ■ How to temporarily release the V-CHIP BLOCK When the V-CHIP BLOCK is working and censors a broadcast, "V-CHIP HAS BEEN ACTIVATED." displays. 1 Press ENTER while the V-CHIP is working, and then the secret number setting menu displays. 2 Input the 4-digit secret number by using 0–9. At this time V-CHIP BLOCK temporarily releases. ■ Reactivating the temporarily released V-CHIP BLOCK You can reactivate the temporarily released V-CHIP BLOCK as shown below. Select "Status" setting from the Parental CTRL menu to reactivate BLOCK. (See page 22.) Select "V-Chip" setting ("MPAA", "TV Guidelines", "Can. English Ratings" or "Can. French Ratings") from the Parental CTRL to reactivate BLOCK. (See pages 22 to 23.) Switch off the TV power. Performing any of the three above will activate the V-CHIP BLOCK. • • • • Canadian Rating Systems (Canadian English ratings and Canadian French ratings) The TV rating systems in Canada are based on the Canadian Radio-Television and Telecommunications Commission (CRTC) policy on violence in television programming. While violence is the most important content element to be rated, the structure developed takes into consideration other program content like language, nudity, sexuality and mature themes. When setting the V-CHIP on the Canadian system you can choose either the Canadian English ratings or the Canadian French ratings. ■ Canadian English Ratings Example MPAA TV Guidelines Can. English Ratings Can. French Ratings E C C8+ G PG 14+ 18+ NONE Press a/b to adjust the item to your desired position. " " indicates the item is blocked. Press MENU to exit. E: Exempt: Includes news, sports, documentaries and other information programming; talk shows, music videos, and variety programming. C: Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of security and well-being. C8+: Children over 8 years old: Contains no portrayal of violence as the preferred, acceptable, or only way to resolve conﬂ ict; nor encourage children to imitate dangerous acts which they may see on the screen. G: General: Considered acceptable for all age groups. Appropriate viewing for the entire family, contains very little violence, physical, verbal or emotional. PG: Parental Guidance: Intended for a general audience, but may not be suitable for younger children (under the age of 8) because it could contain controversial themes or issues. 14+: Over 14 years: Could contain themes where violence is one of the dominant elements of the storyline, but it must be integral to the development of plot or character. Language usage could be profane and nudity present within the context of the theme. 18+: Adults: Intended for viewers 18 years and older and might contain depictions of violence, which while related to the development of plot, character or themes, are intended for adult viewing. Could contain graphic language and portrayals of sex and nudity. • • • 24 On-Screen Display Menu Option Menu Audio Only When listening to music from a music program, you can turn the screen off and enjoy audio only. On: Audio is output without screen image. Off: Both screen images and audio are output. The screen image will return to normal when a button (except those for audio adjustment, such as VOL, MUTE, AUDIO) is pressed. Input Select If the image does not come in clearly from the external equipment connected to INPUT 1, you may need to change the input signal type setting from the list below. Auto/COMPONENT/VIDEO If the selected signal type is incorrect, images are not displayed at all or are displayed without any color. Refer to your external equipment operation manual for the signal type. If you set INPUT 1 to "Auto", the TV will automatically select the input signal. Setting INPUT 1 signal selection to "Auto" when other equipment is connected will result in the following connection priority. INPUT 1: 1 COMPONENT VIDEO 2 VIDEO HDMI Setup To watch an HDMI or PC-IN equipment image, select "INPUT5", "INPUT6" or "INPUT7" from INPUT SOURCE menu using INPUT on the remote control unit or on the TV. Auto View: Enable: To use View Mode based on signal recognition, including an HDMI signal. Disable: No function. Refer to your external equipment operation manual for the signal type. When connecting a DVI-HDMI conversion adapter/cable to the HDMI terminal, the image may not come in clearly. PC Audio Select Determines whether the AUDIO terminal is used for INPUT 4 (PC-IN) or INPUT 6 (HDMI). Input 4 (PC): Select this item when the audio signal is input via the INPUT 4 (PC-IN) terminal using an analog RGB cable (D-sub 15-pin cable or VGA cable). Input 6 (HDMI): Select this item when the audio signal is input via the INPUT 6 (HDMI) terminal using a DVI- HDMI conversion cable. • • • • • • • When "PC Audio Select" is set to "Input 6 (HDMI)", sound will not be produced if you use only an HDMI-certiﬁ ed cable to connect HDMI-compatible equipment. To produce sound, you should make an analog audio connection. If you want to connect HDMI-compatible equipment using only an HDMI-certiﬁ ed cable, set "PC Audio Select" to "Input 4 (PC)". Auto Volume Different sound sources sometimes do not have the same loudness level, such as a program and its commercial breaks. The Automatic Volume Control (Auto Volume) reduces this problem by equalizing levels. Clear Voice This function emphasizes speech against background noise for greater clarity. Output Select Allows you to select what controls the audio output. Fixed: Sound via speaker is adjusted with VOLk/l on the remote control unit or VOLk/l on the TV. Sound via the OUTPUT terminal is not adjustable and outputs at a consistent level. Variable: Sound via the OUTPUT terminal is adjusted with VOLk/l on the remote control unit or VOLk/l on the TV. Sound via speaker is muted. Color System Select the video signal system compatible with your equipment from the list below: Auto/NTSC/PAL-M/PAL-N "Color System" can only be set for the INPUT 1 VIDEO and INPUT 3. If you have already set the Secret No., input the 4-digit secret number here. See page 21 for setting a secret number. Caption Setup This function allows you to adjust the closed caption screen appearance to suit your preference. You can adjust 7 items: "Caption Size", "Font Style", "Foreground Color", "Foreground Opacity", "Background Color", "Background Opacity" and "Character Edge". Example: Selectable items available for "Font Style". Default: The font speciﬁ ed by broadcasting station or default font. Type 0: Proportional font used in the MENU screen. Type 1: Monospaced with serifs. Type 2: Proportionally spaced with serifs. Type 3: Monospaced without serifs. Type 4: Proportionally spaced without serifs. Type 5: Casual font type. Type 6: Cursive font type. Type 7: Small capitals. For resetting adjustments to the factory preset values, press a/b to select "Reset", and then press ENTER. The default value depends on the broadcasting station. • • • • • • 25 Channel Selecting Effect You can select whether to use transition effects when changing channels. Yes: A transition effect is used when the channel is changed. No: No function. Demo Mode You can select the image from several types of demo mode. 120Hz Demo 1/120Hz Demo 2/10 bit Demo/Feature Demo/Auto Play If you select "Auto Play", you need to set playback type. Continuous: Play Demos continuously. 10 min.: Play Demos every 10 minutes. 20 min.: Play Demos every 20 minutes. This function will be canceled when you press EXIT on the remote control unit. When "Demo Mode" is set to "Feature Demo", pressing FREEZE pauses/restarts demo. "Demo Mode" may not be selected depending on input signal type. "Demo Mode" may be automatically canceled depending on input signal type. Digital Setup Menu Audio Setup You can output digital audio to an AV ampliﬁ er or similar device whose DIGITAL AUDIO INPUT terminal is connected to the DIGITAL AUDIO OUTPUT terminal on the TV. Please select an audio output format compatible with the audio format of the program you are watching and the equipment connected. PCM: The optical output terminal outputs audio signal in PCM form. If your digital audio system does not support Dolby Digital, select "PCM". Dolby Digital: The optical output terminal outputs audio signal in Dolby Digital form. It reproduces sound from surround program of digital. Identiﬁ cation The current version of the TV software is displayed. Software Update This function allows software updates by inserting a USB memory device with the update ﬁ le into the SERVICE terminal on the TV. To check for the availability of a software update, visit http://www.sharpusa.com/products/support/. If you have any questions, please call 1-800-BE-SHARP (800-237-4277). CAUTION Do not remove the USB memory device or unplug the AC cord while the software is being updated. Be sure to properly follow the whole procedure described below, step by step. Otherwise, for example, the TV cannot read the data in the USB memory device and software updating will fail. • • • • • • On-Screen Display Menu Digital Caption Info. (Digital Caption Information) This function allows viewing of digital closed caption information for the digital broadcast program being viewed. This list is not displayed for analog broadcasts or external input audio/video. This information is not included in CC1, CC2, Text1, or Text2, and is not displayed in a list. Program Title Display Select the CH display when changing channels for digital broadcasting. Yes: "Program Info." displays. No: "Program Info." does not display. Favorite CH (Favorite Channel Setting) This function allows you to program 4 favorite channels, in 4 different categories. By setting the favorite channels in advance, you can select your favorite channels easily. To register your favorite channel: Select "Register" and then press ENTER. Press a/b/c/ d to select the position in the category, and then press ENTER to register. To delete your favorite channel: Select "1 Data Clear" and then press ENTER. Press a/b/ c/d to select the channel you want to delete, and then press ENTER. Select "Yes" and then press ENTER. To delete all the favorite channels, select "All Data Clear". Before setting the channel, select the channel you want to register as a favorite channel. Game Play Time This function displays the elapsed game time so you do not lose track of the time. To display the elapsed time, select "GAME" for the AV MODE before starting the game. On: The elapsed time is displayed every 30 minutes when you switch to GAME mode in external input mode. Off: No adjustment. Operation Lock Out This function locks the operation buttons on the TV and the remote control. Off: No adjustment. RC Control Lock: All buttons on the remote control are locked. Button Control Lock: All buttons on the TV, except POWER, are locked. To unlock the buttons on the remote control by using the control panel of the main unit (see page 17): 1 Press MENU to display the MENU screen, and then press VOL k/l to select "Option". 2 Press CHr/s to select "Operation Lock Out", and then press INPUT. 3 Press CHr/s to select "Off", and then press INPUT. 4 Press MENU to exit. To unlock the buttons on the TV, press MENU on the remote control, and then select "Off" in "Operation Lock Out". • • • • • 26 On-Screen Display Menu 1 Insert the USB memory device with the update ﬁ le into the SERVICE terminal on the TV. 2 Press MENU to display the MENU screen, and then press c/d to select “Digital Setup”. 3 Press a/b to select “Software Update”, and then press ENTER. If you have already set the Secret No., go to step 4. 4 Input the 4-digit secret number by using 0–9. 5 Press ENTER to start checking the data in the USB memory device. Insert the USB memory device containing the software update ﬁle. OK 6 During the data checking, “Checking” blinks. Checking Now checking the data in the USB memory device. The current version of the TV software and the version of the update ﬁ le on the USB memory device are displayed. To update the TV software with the update ﬁ le, select “Yes”, and then press ENTER. Example No Current Version: UXXXXXX1 Software update ﬁle is detected in the USB memory device. Start update? Update Version: UXXXXXX2 Yes If the USB memory device is not properly installed or the correct update ﬁ le cannot be found on the USB memory device, an error message is displayed. Check the ﬁ le on the USB memory device, and then reinsert the USB memory device correctly. Software update ﬁle is not detected in the USB memory device. Conﬁrm that you have transferred the ﬁle to the USB memory device and retry software update. OK • • • • There is more than one software ﬁle in the USB memory device. Conﬁrm that only the software update ﬁle is in the USB memory device. OK 7 Press ENTER to start updating. The screen becomes dark for a while until the update screen can be displayed. Please wait for the update screen to appear. Do not unplug the AC cord. The picture will temporarily go dark until the Software Update display appears. Wait several minutes and do not unplug the AC cord. OK Example 30% Now updating Do not unplug AC cord. Update Version UXXXXXX2 CAUTION Do not remove the USB memory device or unplug the AC cord while the software is being updated. 8 When the software is successfully updated, a screen is displayed indicating that the update process is completed. After this screen is displayed, the TV automatically turns off and then turns on again. Example Update Version UXXXXXX2 Software update is complete. If the update has failed, check the ﬁ le in the USB memory device and try Software Update again. Failed to complete update. Retry Software Update. If system Update fails again, contact the customer service center. 9 After the screen shown below is displayed, press ENTER. OK System software was successfully updated. Remove the USB memory device. 10 Remove the USB memory device. • • • 27 Troubleshooting Problem Possible Solution • No power • Check if you pressed POWER on the remote control unit. Page 12 If the indicator on the TV does not light up, press POWER on the TV. • Is the AC cord disconnected? Page 8 • Has the power been turned on? Page 12 • Unit cannot be operated. • External inﬂ uences such as lightning, static electricity, may cause improper operation. In this case, operate the unit after ﬁ rst turning off the power of the TV or unplugging the AC cord and replugging it in after 1 or 2 minutes. • Remote control unit does not operate. • Are batteries inserted with polarity (e, f) aligned? Page 9 • Are batteries worn out? (Replace with new batteries.) • Are you using it under strong or ﬂ uorescent lighting? • Is a ﬂ uorescent light illuminated near the remote control sensor? • Is "RC Control Lock" selected in "Operation Lock Out"? Page 25 • Picture is cut off/with sidebar screen. • Is the image position correct? Page 21 • Are screen mode adjustments such as picture size made correctly? Page 16 • Strange color, light color, or color misalignment • Adjust the picture tone. Pages 18 and 19 • Is the room too bright? The picture may look dark in a room that is too bright. • Power is suddenly turned off. • Is the sleep timer set? Page 13 • Check the power control settings. Pages 19 and 20 • The unit's internal temperature has increased. Remove any objects blocking vent or clean. • No sound • Is connection to other components correct? Page 11 • Is the volume too low? Page 13 • Is “Variable” selected in “Output Select”? Page 24 • Have you pressed MUTE on the remote control unit? Page 13 • Check the audio output of the connected external equipment. Is the volume too low or muted? • When external equipment is connected via an HDMI cable, you may need to conﬁ gure the audio to be output through the HDMI cable. • When audio is not output from external equipment connected to the INPUT 4 or INPUT 6 terminal, check the "PC Audio Select" setting. Page 24 • Even when external equipment is connected using an HDMI-certiﬁ ed cable, an audio cable connection may be required depending on the type of equipment and the media being played back. In this case, in addition to connecting an HDMI-certiﬁ ed cable to the INPUT 6 (HDMI) terminal, connect a ø 3.5 mm stereo minijack cable to the AUDIO terminal and set "PC Audio Select" to "Input 6 (HDMI)". Page 24 • When connecting a PC via an HDMI-certiﬁ ed cable, check the following: - Is the audio output of the PC conﬁ gured correctly? Check the audio output settings and output audio format in Sound Properties on the PC. Only PCM format audio can be output. Compressed audio (with a sampling rate of 32kHz, 44.1kHz, or 48kHz) and DTS format audio cannot be output. - Depending on the board, only video signals may be output. In this case, in addition to connecting an HDMI-certiﬁ ed cable to the INPUT 6 (HDMI) terminal, connect a ø 3.5 mm stereo minijack cable to the AUDIO terminal and set "PC Audio Select" to "Input 6 (HDMI)". Page 24 • If you are using a DVI-HDMI conversion cable to connect external equipment to the TV, check the following: - Is an audio cable connected? The DVI-HDMI conversion cable is for video only. Connect a ø 3.5 mm stereo minijack cable to listen to the audio. - Is INPUT 6 being used? When the TV is connected to another HDMI terminal, the audio and video are not output together even if a ø 3.5 mm stereo minijack cable is connected to the shared AUDIO terminal for INPUT 4 and INPUT 6. - Is "Input 4 (PC)" selected in "PC Audio Select"? Page 24 Appendix 28 Problem Possible Solution • No picture • Is connection to other components correct? Page 11 • Is the correct input signal type selected in "Input Select" after connection? Page 24 • Is the correct input selected? Page 15 • Is “On” selected in “Audio Only”? Page 24 • If the PC image is not displayed, check the following: - When connecting a laptop PC to the TV, check that display output mode of the PC is set to external monitor. - Check the resolution setting on the PC. Is a non-compatible signal being input? Page 30 • Picture quality of HD programs is poor. • To enjoy HD images from external equipment, you are required to set up HDMI connection or component connection. • If the program content is not of HD quality, HD images cannot be displayed. Check that the program you are viewing provides HD images. • The HD cable/satellite set-top box may need to be conﬁ gured to output HD images via cable/satellite. • The cable/satellite broadcast may not support a signal resolution of 1080p. • The TV sometimes makes a cracking sound. • This is not a malfunction. This happens when the cabinet slightly expands and contracts according to change in temperature. This does not affect the TV's performance. Appendix Cautions regarding use in high and low temperature environments • When the unit is used in a low temperature space (e.g. room, ofﬁ ce), the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal. • Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the Liquid Crystal panel to malfunction. Storage temperature: f4°F to e140°F (f20°C to e60°C) Troubleshooting - Error Message The example of an error message displayed on a screen Error code Possible Solution Failed to receive broadcast. • E202 Check the antenna cable. Check that the antenna is correctly setup. • No broadcast now. • E203 Check the broadcast time in the program guide. • An incompatible audio signal has been received. Change the output device audio settings to PCM. • — This message is displayed when an audio format other than PCM is input. (Dolby Digital and DTS audio formats are not supported.) - Set the audio output format of connected external HDMI equipment to PCM. - Refer to the operation manual of the external equipment for setting details. • • As a precautionary measure, make a note of your secret number above, cut it from this manual, and keep it in a safe place. The secret number is . CLEARING THE SECRET NUMBER If you forget the secret number, clear the secret number using the following procedure. 1 Select an item from the list below to display the secret number input screen. (For operating the on-screen display menu, see page 17.) • “EZ Setup”, “CH Setup”, “Parental CTRL” or “Reset” on the Setup menu. • “Color System” on the Option menu. • “Software Update” on the Digital Setup menu. 2 Press and hold both CHr and VOLk on the TV simultaneously until the message appears on the screen. 29 Item Model: LC-46D78UN Model: LC-52D78UN LCD panel Size 46o Class (45 63/64o Diagonal) 52o Class (52 1/32o Diagonal) Resolution 2,073,600 pixels (1,920 g 1,080) TV Function TV-standard (CCIR) American TV Standard ATSC/NTSC System Receiving Channel VHF/UHF VHF 2-13ch, UHF 14-69ch CATV 1-135ch (non-scrambled channel only) Digital Terrestrial Broadcast (8VSB) 2-69ch Digital cable *1 (64/256 QAM) 1-135ch (non-scrambled channel only) Audio multiplex BTSC System Audio out 10W g 2 Terminals INPUT 1 AV in, COMPONENT in INPUT 2 COMPONENT in INPUT 3 AV in INPUT 4 ANALOG RGB (PC) in (15-pin mini D-sub female connector), Audio in (ø 3.5 mm stereo minijack) INPUT 5 HDMI in with HDCP INPUT 6 HDMI in with HDCP, Audio in (ø 3.5 mm stereo minijack) INPUT 7 HDMI in with HDCP ANT/CABLE 75 q Unbalance, F Type g 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE) AUDIO Audio in (ø 3.5 mm stereo minijack) DIGITAL AUDIO OUTPUT Optical Digital audio output g 1 (PCM/Dolby Digital) OUTPUT Audio out SERVICE Software update OSD language English/French/Spanish Power Requirement AC 120 V, 60 Hz Power Consumption 188 W (0.4 W Standby with AC 120 V) 272 W (0.4 W Standby with AC 120 V) Weight TV + stand 47.4 lbs./21.5 kg 56.2 lbs./25.5 kg TV only 40.8 lbs./18.5 kg 46.2 lbs./22.5 kg Dimension *2 (W g H g D) TV + stand 44 1/16 g 29 19/64 g 13 61/64 inch 49 5/8 g 33 5/64 g 13 61/64 inch TV only 44 1/16 g 27 29/64 g 3 61/64 inch 49 5/8 g 30 59/64 g 4 27/64 inch Operating temperature e32°F to e104°F (0°C to e40°C) *1 Emergency alert messages via Cable are unreceivable. *2 The dimensional drawings are shown on the Spanish operation manual. • As part of policy of continuous improvement, SHARP reserves the right to make design and speciﬁ cation changes for product improvement without prior notice. The performance speciﬁ cation ﬁ gures indicated are nominal values of production units. There may be some deviations from these values in individual units. Optional Accessory The listed optional accessory is available for the Liquid Crystal Television. Please purchase it at your nearest shop. • Additional optional accessories may be available in the near future. When purchasing, please read the newest catalogue for compatibility and check the availability. Part name Model number Wall mount bracket AN-52AG4 Speciﬁ cations Appendix 30 PC Compatibility Chart It is necessary to set the PC correctly to display XGA and WXGA signal. VGA and XGA are registered trademarks of International Business Machines Corp. PC 31.5 kHz 31.5 kHz 37.9 kHz 37.5 kHz 35.1 kHz 37.9 kHz 48.1 kHz 46.9 kHz 48.4 kHz 56.5 kHz 60.0 kHz 47.7 kHz 640 x 480 720 x 400 VGA 800 x 600 SVGA XGA 1024 x 768 WXGA 1360 x 768 70 Hz 60 Hz 72 Hz 75 Hz 56 Hz 60 Hz 72 Hz 75 Hz 60 Hz 70 Hz 75 Hz 60 Hz O O O O O O O O O O O 64.0 kHz SXGA 1280 x 1024 60 Hz O 65.3 kHz SXGA+ 1400 x 1050 60 Hz O 75.0 kHz UXGA 1080p 1920 x 1080 67.5 kHz 60 Hz 1600 x 1200 60 Hz O PC Horizontal Frequency VESA Standard Resolution Vertical Frequency Information on the Software License for This Product ■ Software composition The software included in this product is comprised of various software components whose individual copyrights are held by SHARP or by third parties. ■ Software developed by SHARP and open source software The copyrights for the software components and various relevant documents included with this product that were developed or written by SHARP are owned by SHARP and are protected by the Copyright Act, international treaties, and other relevant laws. This product also makes use of freely distributed software and software components whose copyrights are held by third parties. These include software components covered by a GNU General Public License (hereafter GPL), a GNU Lesser General Public License (hereafter LGPL) or other license agreement. ■ Obtaining source code Some of the open source software licensors require the distributor to provide the source code with the executable software components. GPL and LGPL include similar requirements. For information on obtaining the source code for the open source software and for obtaining the GPL, LGPL, and other license agreement information, visit the following website: http://www.sharpusa.com/gpl We are unable to answer any questions about the source code for the open source software. The source code for the software components whose copyrights are held by SHARP is not distributed. ■ Acknowledgements The following open source software components are included in this product: • linux kernel/busybox/glibc/zlib/libpng/libjpeg/mtd-utils/U-Boot/device-mapper ■ Software Copyrights libjpeg This software is copyright © 1991-1998, Thomas G. Lane. Portions of this software are based in part on the work of the Independent JPEG Group. Appendix 31 For location of the nearest Sharp Authorized Service, or to obtain product literature, accessories, supplies, or customer assistance, please call 1-800-BE-SHARP. Calling for Service LIMITED WARRANTY SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07495-1163 SHARP CORPORATION CONSUMER LIMITED WARRANTY SHARP ELECTRONICS CORPORATION warrants to the ﬁrst consumer purchaser that this Sharp brand Liquid Crystal Display product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product or if the serial number or model number afﬁxed to the Product has been removed, defaced, changed, altered or tampered with. This warranty does not cover installation or signal reception problems. This limited warranty will not apply if the Product has been or is being used in a commercial setting or application; this warranty is meant solely for the non-commercial, household use of the Product by consumers in their home or residence. If you intend to or already use this Product for commercial purposes or in a commercial setting, there are warranties available to cover your use of this Product, the terms of which may vary. Please contact 1-888-GO-SHARP for further information. In order to enforce your rights under this limited warranty, you should follow the steps set forth below. You must be able to provide proof of purchase to the servicer, which proof must include the date of purchase. To the extent permitted by applicable state law, the warranties set forth are in lieu of, and exclusive of, all other warranties, express or implied. Speciﬁcally ALL OTHER WARRANTIES OTHER THAN THOSE SET FORTH ABOVE ARE EXCLUDED, ALL EXPRESS AND IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR USE, AND FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED. IF, UNDER APPLICABLE STATE LAW, IMPLIED WARRANTIES MAY NOT VALIDLY BE DISCLAIMED OR EXCLUDED, THE DURATION OF SUCH IMPLIED WARRANTIES IS LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. The warranties given herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser and only for the time periods set forth herein. No other representations or promises made by anyone are permitted. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulﬁllment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. Sharp does not warrant nor shall Sharp be liable, or in any way responsible, for Products which have been subject to abuse (including, but not limited to, improper voltage), accident, misuse, negligence, lack of reasonable care, alteration, modiﬁcation, tampering, misuse, improper operation or maintenance or any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than a Sharp authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequen- tial economic or property damage. Some states do not allow limits on warranties or on remedies for breach in certain transactions; in such states, the limits herein may not apply. THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND PUERTO RICO. Model Speciﬁc Section Where to Obtain Service: From a Sharp Authorized Servicer located in the United States. To ﬁnd the location of the nearest Sharp Authorized Servicer, please call Sharp toll free at 1-800-BE-SHARP. What to do to Obtain Service: Contact your Sharp Authorized Servicer to obtain in home service for this product. The Servicer will come to your location and if necessary remove the unit for repair at the Servicer’s facility and return the set to you once completed. Be sure to have Proof of Purchase available. TO OBTAIN PRODUCT INFORMATION OR PURCHASE ACCESSORIES AND EXTENDED WARRANTIES, CALL 1-800-BE-SHARP OR VISIT www.sharpusa.com Additional Exclusions from Warranty Coverage (if any): In order for the Product to be serviced, the Product must be readily available to the servicer, free and clear of any complex or non-standard installation, mounting or other encumbrance which would unreasonably interfere with servicing the Product. The Servicer will remount the Product after service, provided that such remounting is not into a complex or non-standard installation. Any additional labor and materials required to remove and/or reinstall a Product above and beyond the foregoing are not covered by this warranty, may result in additional charges and are the responsibility of the consumer. Image Retention resulting from a ﬁxed image being displayed for long periods of time is not covered by this Limited Warranty (see Operation Manual on how to prevent this). Warranty Period for this Product: One (1) year parts and labor from the date of purchase. Your Product Model Number & Description: (Be sure to have this information available when you need service for your Product.) LC-46D78UN/LC-52D78UN LCD Color Television
