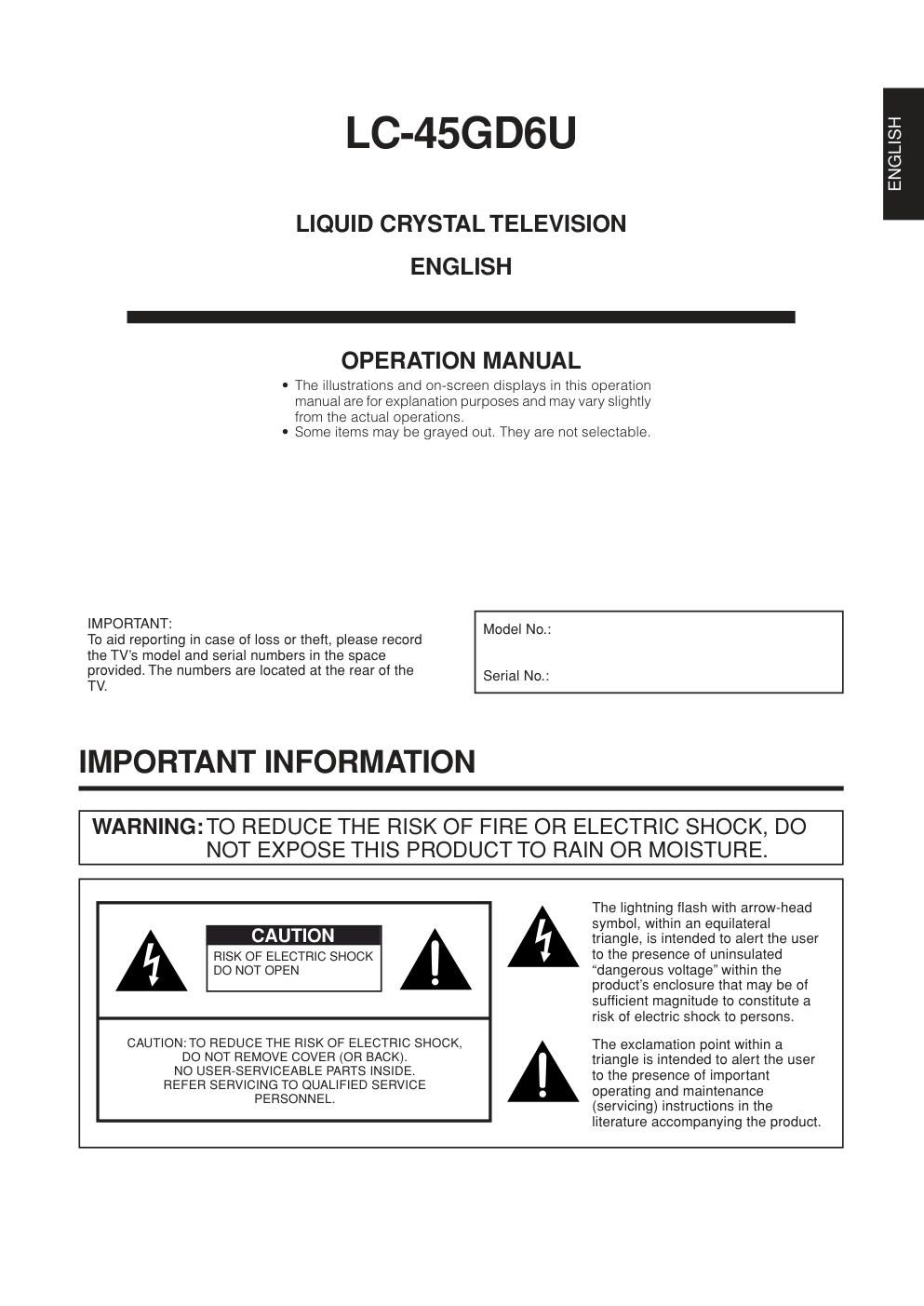

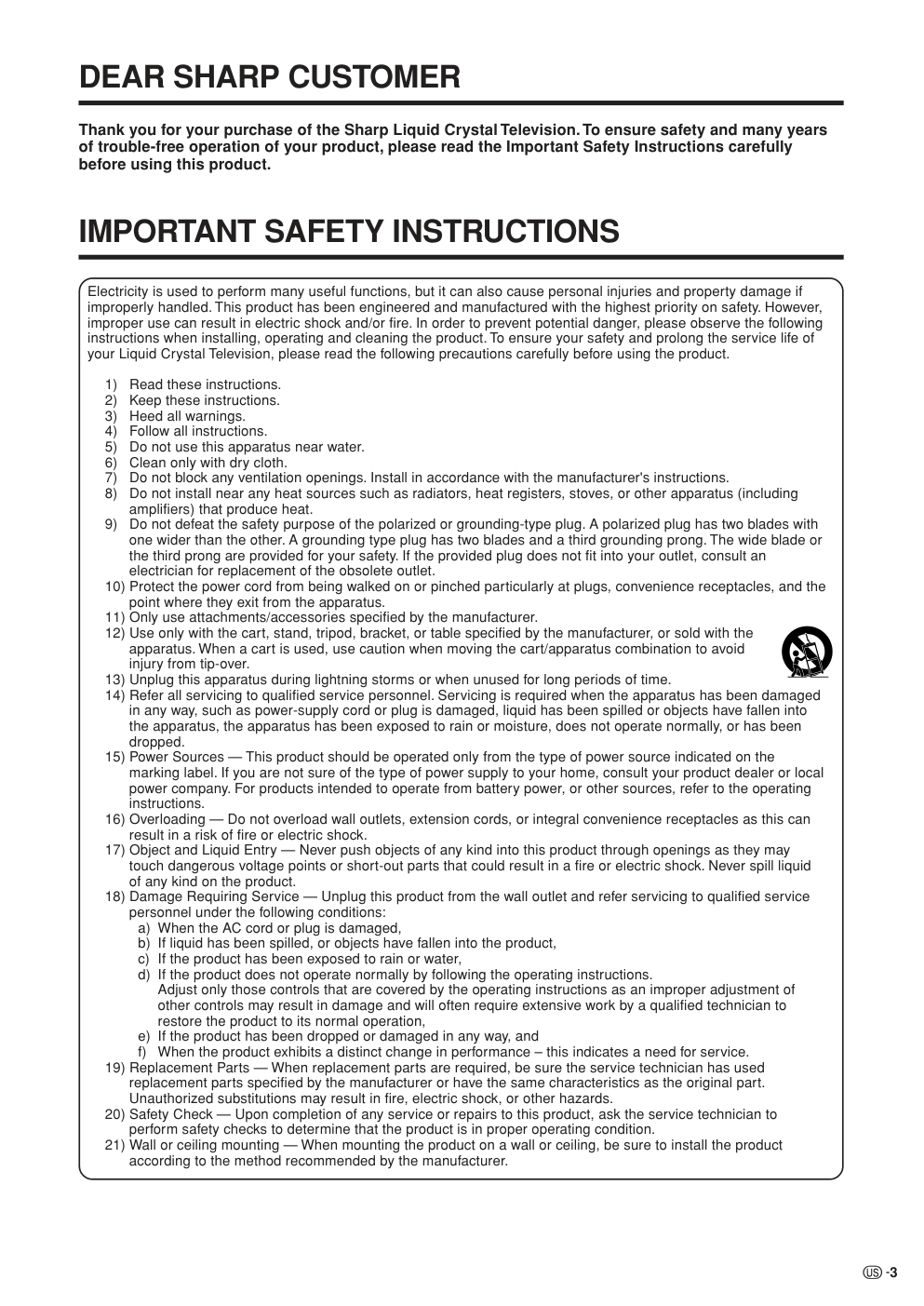

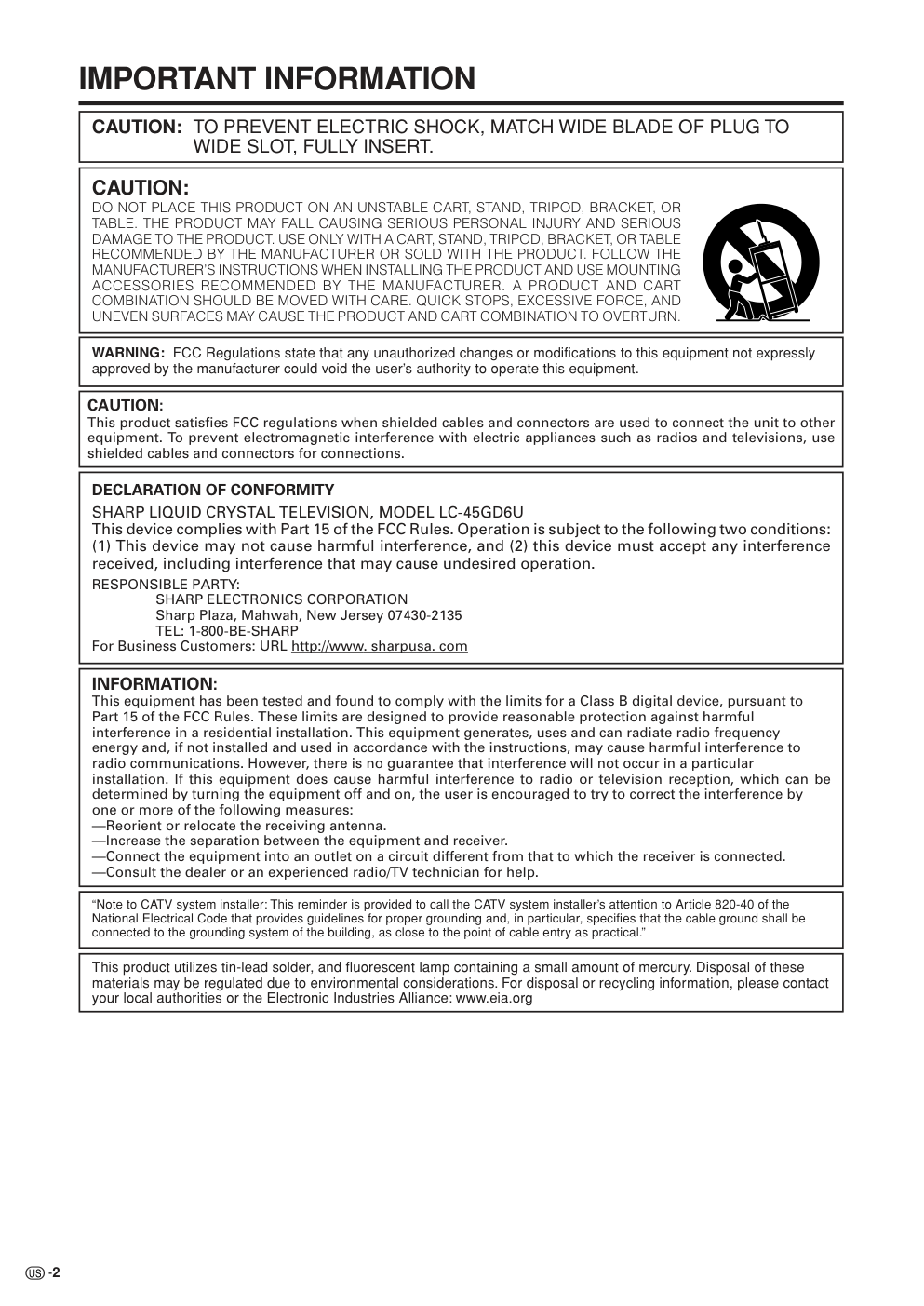

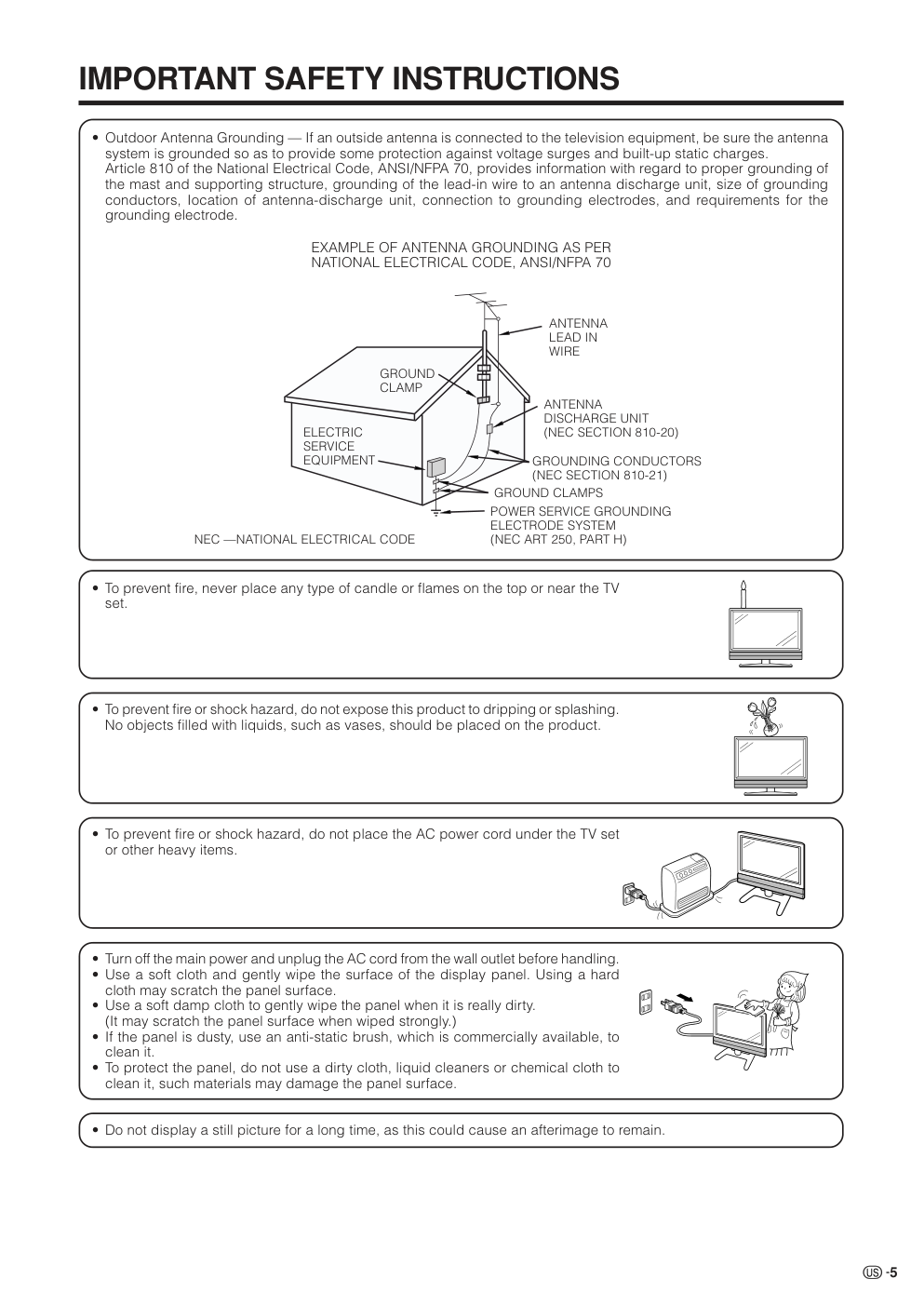

LIQUID CRYSTAL TELEVISION TÉLÉVISEUR ACL TELEVISOR CON PANTALLA DE CRISTAL LIQUIDO OPERATION MANUAL MODE D’EMPLOI MANUAL DE OPERACIÓN LC-45GD6U ENGLISH ESPAÑOL FRANÇAIS ENGLISH LC-45GD6U LIQUID CRYSTAL TELEVISION ENGLISH OPERATION MANUAL IMPORTANT INFORMATION WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrow-head symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. IMPORTANT: To aid reporting in case of loss or theft, please record the TV’s model and serial numbers in the space provided. The numbers are located at the rear of the TV. Model No.: Serial No.: • The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly from the actual operations. • Some items may be grayed out. They are not selectable. 2 IMPORTANT INFORMATION WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. “Note to CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.” This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eia.org CAUTION: DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD, BRACKET, OR TABLE. THE PRODUCT MAY FALL CAUSING SERIOUS PERSONAL INJURY AND SERIOUS DAMAGE TO THE PRODUCT. USE ONLY WITH A CART, STAND, TRIPOD, BRACKET, OR TABLE RECOMMENDED BY THE MANUFACTURER OR SOLD WITH THE PRODUCT. FOLLOW THE MANUFACTURER’S INSTRUCTIONS WHEN INSTALLING THE PRODUCT AND USE MOUNTING ACCESSORIES RECOMMENDED BY THE MANUFACTURER. A PRODUCT AND CART COMBINATION SHOULD BE MOVED WITH CARE. QUICK STOPS, EXCESSIVE FORCE, AND UNEVEN SURFACES MAY CAUSE THE PRODUCT AND CART COMBINATION TO OVERTURN. INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. DECLARATION OF CONFORMITY SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-45GD6U This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RESPONSIBLE PARTY: SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07430-2135 TEL: 1-800-BE-SHARP For Business Customers: URL http://www. sharpusa. com CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections. 3 DEAR SHARP CUSTOMER Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years of trouble-free operation of your product, please read the Important Safety Instructions carefully before using this product. IMPORTANT SAFETY INSTRUCTIONS Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your Liquid Crystal Television, please read the following precautions carefully before using the product. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15) Power Sources — This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions. 16) Overloading — Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 17) Object and Liquid Entry — Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 18) Damage Requiring Service — Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the AC cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation, e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance – this indicates a need for service. 19) Replacement Parts — When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 20) Safety Check — Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. 21) Wall or ceiling mounting — When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer. 4 IMPORTANT SAFETY INSTRUCTIONS • Water and Moisture — Do not use this product near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. • Stand — Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer. • Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed. • The Liquid Crystal panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the panel breaks. • The Liquid Crystal panel is a very high technology product with 6,220,800 thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product. Precautions when transporting the Display When transporting the Display, never carry it by holding onto the speaker. Be sure to always carry the Display by two people holding it with two hands—one hand on each side of the Display. • Heat — The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. • Lightning — For added protection for this television equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges. • Power Lines — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. • Selecting the location — Select a place with no direct sunlight and good ventilation. 5 IMPORTANT SAFETY INSTRUCTIONS • Outdoor Antenna Grounding — If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, Iocation of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70 ANTENNA LEAD IN WIRE ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) GROUND CLAMP ELECTRIC SERVICE EQUIPMENT NEC —NATIONAL ELECTRICAL CODE • To prevent fire, never place any type of candle or flames on the top or near the TV set. • To prevent fire or shock hazard, do not expose this product to dripping or splashing. No objects filled with liquids, such as vases, should be placed on the product. • To prevent fire or shock hazard, do not place the AC power cord under the TV set or other heavy items. • Turn off the main power and unplug the AC cord from the wall outlet before handling. • Use a soft cloth and gently wipe the surface of the display panel. Using a hard cloth may scratch the panel surface. • Use a soft damp cloth to gently wipe the panel when it is really dirty. (It may scratch the panel surface when wiped strongly.) • If the panel is dusty, use an anti-static brush, which is commercially available, to clean it. • To protect the panel, do not use a dirty cloth, liquid cleaners or chemical cloth to clean it, such materials may damage the panel surface. • Do not display a still picture for a long time, as this could cause an afterimage to remain. 6 Contents IMPORTANT INFORMATION ………………………1 DEAR SHARP CUSTOMER …………………………3 IMPORTANT SAFETY INSTRUCTIONS ……………3 Contents ………………………………………………6 Trademarks ……………………………………………7 COPYRIGHT AND LICENSE NOTICE ……………7 Supplied accessories ………………………………8 Preparation ……………………………………………9 Where to place the TV ……………………………9 Setting the TV ………………………………… 10 Removing speakers …………………………… 11 Removing the stand …………………………… 12 Setting the Display on the wall ……………… 12 Inserting the batteries ………………………… 13 Using the remote control unit ………………… 13 Cautions regarding remote control unit … 13 Part names ………………………………………… 14 Display ………………………………………… 14 Remote control unit …………………………… 16 Watching TV ……………………………………… 17 Antennas ……………………………………… 17 Cable TV/VCR connection …………………… 17 Outdoor antenna connection ………………… 19 Turning on/off the power ……………………… 20 Initial setup ……………………………………… 21 Changing channels-Analog-TV ……………… 22 Changing channels-Digital-TV ……………… 22 Changing volume/sound ……………………… 23 Setting MTS/SAP stereo mode ……………… 24 Setting Digital broadcasting audio mode …… 24 Connecting Digital Cable Module …………… 25 Basic adjustment settings ……………………… 27 AV input mode menu items …………………… 27 PC input mode menu items …………………… 28 EZ Setup ………………………………………… 28 Channel Setup ………………………………… 29 Antenna Setup-DIGITAL-Air ………………… 31 Favorite channel setting ……………………… 32 Language setting ……………………………… 32 Picture adjustments …………………………… 33 OPC setting ………………………………… 34 C.M.S. (Color Management System) …… 34 Color temperature ………………………… 35 Sharpness Enhancement ………………… 35 Automatic Contrast ……………………… 35 I/P Setting ………………………………… 36 Film mode (3:2 pull-down) ……………… 36 3D-Y/C ……………………………………… 36 Monochrome ……………………………… 36 Sound adjustment ……………………………… 37 Dolby Virtual …………………………………… 37 Power control …………………………………… 38 Power control for AV source ……………… 38 Power control for PC source……………… 38 Digital Setup …………………………………… 39 Video Setup ………………………………… 39 Audio Setup ……………………………… 40 Using memory card ……………………………… 41 Important notes on using memory card …… 41 Card Setup mode menu items ……………… 43 Recording a still image ……………………… 45 Displaying a still image ……………………… 45 Displaying Slide Show ………………………… 45 Setting Slide Show …………………………… 46 My Program …………………………………… 46 Audio Select …………………………………… 46 Protecting/unprotecting still image files …… 47 Deleting a still image file ……………………… 47 Deleting all still image files …………………… 47 Recording a motion picture …………………… 48 Displaying a motion picture ………………… 48 Rec. Mode ……………………………………… 48 Pre Record ……………………………………… 49 Repeat Play …………………………………… 49 Protecting/unprotecting motion picture files… 49 Deleting a motion picture file ………………… 50 Deleting all motion picture files ……………… 50 Format …………………………………………… 50 Using external equipment ……………………… 51 Displaying an external equipment image …… 51 Connecting a DVD player …………………… 52 Connecting a VCR …………………………… 53 Connecting a game console or camcorder ……………………………… 53 Connecting a Digital TV STB (Air or Cable) … 54 Connecting HDMI equipment ………………… 55 Displaying an image from HDMI equipment ………………………………… 55 Connecting a PC ……………………………… 56 Connecting D-VHS Decks (i.LINK connection) ……………………… 57 About i.LINK ……………………………… 57 i.LINK connection ………………………… 57 Connecting two or more D-VHS decks … 57 Setting the recording mode (i.LINK) …… 58 Setting the Standby Mode (i.LINK) ……… 58 Selecting a D-VHS deck (i.LINK) ………… 59 Disabling the TV’s operation of a D-VHS deck (i.LINK) ………………… 59 Deleting a preset D-VHS deck (i.LINK) … 60 Controlling an i.LINK device……………… 60 Automatic input switching to i.LINK …… 61 Recording digital programs with a D-VHS deck (i.LINK)…………… 62 Useful adjustment settings ……………………… 63 Image position (AV input mode only) ……… 63 Moving the picture on the screen …………… 63 Connecting external speakers ……………… 64 Audio Quality Control ………………………… 65 Auto Sync. adjustment (PC input mode only) … 66 Fine Sync. adjustment (PC input mode only) … 66 Input Select …………………………………… 67 Input Label ……………………………………… 68 Picture Flip ……………………………………… 68 AV MODE ……………………………………… 69 View mode for 4:3 Programs ………………… 69 View mode for HD Programs ………………… 69 View mode (for PC input mode) ……………… 70 Input signal (for PC input mode) …………… 71 3D Noise Reduction …………………………… 71 Mosquito Noise Reduction …………………… 71 Audio Only ……………………………………… 71 Output Select …………………………………… 72 Quick shoot …………………………………… 72 Sleep timer ……………………………………… 72 Title Display Type ……………………………… 73 7 Contents Closed caption ………………………………… 74 Caption Size ……………………………… 75 Font Style …………………………………… 75 Foreground Color ………………………… 76 Foreground Opacity ……………………… 76 Background Color ………………………… 76 Background Opacity ……………………… 77 Character Edge …………………………… 77 Secret number setting for parental control (AV input mode only) ……………………… 78 Parental control (setting V-CHIP level) ……… 80 How to temporarily release the V-CHIP BLOCK ……………………… 84 Reactivating the temporarily released V-CHIP BLOCK …………………………… 84 Center Channel Input ………………………… 85 Other viewing options …………………………… 86 Viewing a list of Digital broadcast channels… 86 Viewing information of the program ………… 86 Twin picture functions ………………………… 87 Presetting remote control function …………… 88 Appendix ………………………………………… 93 Troubleshooting ………………………………… 93 Attention about Digital broadcasting ………… 94 PC compatibility chart ………………………… 94 RS-232C port specifications ………………… 95 Specifications ………………………………… 97 Optional accessories ………………………… 97 Dimensional drawings …………………………… 98 COPYRIGHT AND LICENSE NOTICE • It is the intent of Sharp that this product be used in full compliance with the copyright laws of the United States and that prior permission be obtained from copyright owners whenever necessary. • This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. U. S. Patent Nos. 4,631,603; 4,577,216; 4,819,098; 4,907,093; 5,315,448; 6,381,747; and 6,516,132. • This digital television is capable of receiving analog basic, digital basic and digital premium cable television programming by direct connection to a cable system providing such programming. A security card provided by your cable operator is required to view encrypted digital programming. Certain advanced and interactive digital cable services such as video- on-demand, a cable operator's enhanced program guide and data-enhanced television services may require the use of a set-top box. For more information call your local cable operator. Trademarks • Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. • Manufactured under license from BBE Sound, Inc. Licensed by BBE Sound, Inc. under USP4638258, 5510752 and 5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc. • “HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.” • CableCARD™ is a trademark of Cable Television Laboratories, Inc. 8 Supplied accessories Make sure the following accessories are provided with the product. NOTE • Always use the AC cord supplied with the LCD-TV. RF cable (g1) QCNW-A342WJZZ or QCNWGA061WJZZ Pages 18 and 19 Remote control unit (g1) RRMCGA264WJSA Page 16 “AAA” size battery (g2) Page 13 QACCDA036WJPZ Page 10 AC cord (g1) TINS-B694WJZZ Operation manual (g1) Cable clamp (g1) LHLDW0110CEZZ Page 10 LC-45GD6U 9 Setting the TV in place Handling the Display CAUTION • Do not remove the stand and speaker from the Display unless using an optional bracket to mount it. • Keep enough space above and behind the Display. • When you move the TV, carry it by two or more people. • When you move the Display, hold the side portion of the Display, not the speaker. Where to place the TV First select the location where to place the TV. Selecting the location of the TV • Select a place with good ventilation. Display 1 2 4 inches (10 cm) or more CAUTION Adjust the screen with both hands. Put one hand on the Display and rotate the screen while steadying the stand with your other hand. Please note that you cannot adjust the screen vertically with this model. Preparation 10 Display (rear view) Setting the TV After putting the Display in place, connect the AC cord. Use the cable clamp for bundling the cables. Preparation Connecting the AC cord to the Display 1 2 3 Removing the terminal cover Bundling the cables with the clamp CAUTION • TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE AC CORD CONNECTED. Press down the hooks to remove the cover toward you. AC cord (with Ferrite core) Cable clamp Insert the cable clamp in the hole on the Display as shown. 11 Removing speakers Preparation NOTE • To attach the speakers, perform the steps in reverse order. CAUTION • Do not remove the stand and speaker from the Display unless using an optional bracket to mount it. • Before performing work spread cushioning over the base area to lay the Display on. This will prevent it from being damaged. 1 2 3 4 Unfasten the screw used to secure the speaker bracket. Unfasten the screws. Take off the speaker terminal cover. Disconnect the cable from the speaker. 12 Preparation Removing the stand Before detaching (or attaching) stand, unplug the AC cord from the AC input terminal. CAUTION • Do not remove the stand from the Display unless using an optional wall mount bracket to mount it. Before attaching/detaching stand • Before performing work make sure to turn off the TV. • Before performing work spread cushioning over the base area to lay the Display on. This will prevent it from being damaged. NOTE • To attach the stand, perform the above steps in reverse order. 2 Detach the stand from the Display. (Hold the stand so it will not drop from the edge of the base area.) 1 Unfasten the four screws used to secure the stand in place. Setting the Display on the wall CAUTION • Installing the Liquid Crystal Television requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or mounting that results in accident or injury. Using an optional bracket to mount the Display • You can ask a qualified service personnel about using the optional AN-37AG2 bracket to mount the Display to the wall. • Carefully read the instructions that come with the bracket before beginning work. Hanging on the wall AN-37AG2 wall mount bracket. (See the bracket instructions for details.) 10˚ About setting the Display angle CAUTION • Do not remove the stand and speaker from the Display unless using an optional bracket to mount it. Vertical mounting Angular mounting Angle of Display With Speakers Removed With Speakers Attached 10˚ 0˚ 13 1 Open the battery cover. 2 Insert two “AAA” size batteries (supplied with the product). • Place the batteries with their terminals corresponding to the (e) and (f) indications in the battery compartment. 3 Close the battery cover. CAUTION Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below. • Place the batteries with their terminals corresponding to the (e) and (f) indications. • Do not mix batteries of different types. Different types of batteries have different characteristics. • Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries. • Remove batteries as soon as they are worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth. • The batteries supplied with this product may have a shorter life expectancy due to storage conditions. • If you will not be using the remote control unit for an extended period of time, remove batteries from it. Inserting the batteries If the remote control fails to operate Liquid Crystal Television functions, replace the batteries in the remote control unit. Using the remote control unit Use the remote control unit by pointing it towards the remote control sensor on the Display. Objects between the remote control unit and the remote control sensor may prevent proper operation. Cautions regarding remote control unit • Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity. • Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the remote control unit. • The remote control unit may not work properly if the remote control sensor on the Display is under direct sunlight or strong lighting. In such cases, change the angle of the lighting or the Display, or operate the remote control unit closer to the remote control sensor. Preparation 14 Part names POWER indicator OPC sensor Display POWER button INPUT button VOLUME buttons (VOLl/k ) CHANNEL buttons (CHs/r) Remote control sensor OPC indicator CARD indicator * OPC: Optical Picture Control (see page 34.) 15 Part names Display * Press RESET if the TV cannot return to its original state after performing various operations. • AV MODE resets to DYNAMIC (Fixed) • TV channel returns to initial channel (Air:2ch, Cable:1 or 2ch) • Twin picture resets to normal • Audio setting initializes • Dolby virtual resets to off • Image position initializes ** Press SYSTEM RESET if the TV does not operate after starting up. NOTE • Pressing RESET will not work if the TV is in standby mode. • Pressing RESET will not delete channel preset or secret number. See page 79 for clearing the secret number when you know it. See page 99 for initializing to the factory preset values when you forget your secret number. RESET* INPUT 3 terminals SYSTEM RESET** ANALOG A IN terminal ANALOG B IN terminal ANALOG A OUT terminal DC OUTPUT terminal (Terminal for expanded functionality in the near future.) EXTERNAL SPEAKER terminals AC INPUT terminal RS-232C terminal INPUT 2 terminals INPUT 1 terminals INPUT 5 terminals INPUT 4 terminal DIGITAL AUDIO OUTPUT terminal CENTER CHANNEL INPUT terminal MONITOR OUTPUT terminals i.LINK terminals CableCARD slot DIGITAL IN terminal 16 Part names Remote control unit 3 2 1 17 5 6 4 7 20 18 19 21 22 23 8 24 9 25 10 26 11 28 29 30 13 14 15 12 31 16 33 27 32 1 TV POWER: Switches the Liquid Crystal Television power on or Standby. (See page 20.) 2 DISPLAY: Displays the channel information. 3 SOURCE POWER: Turns the power of the external equipment on and off. 4 External equipment operational buttons: Operates the external equipment. 5 0 – 9: Sets the channel. 6 A-ANALOG-B: Each button selects the corresponding antenna. 7 VOL k k k k k/l l l l l: Sets the volume. (See page 23.) 8 CARD: Switches to card mode. 9 INFO: Displays the program information screen. (See page 86.) 10 Virtual: Selects Virtual Dolby Surround settings. (See page 23.) 11 EXIT: Turns off the menu screen. 12 SELECT: Selects the active screen. (See page 87.) 13 TWIN PICTURE: Sets the twin picture mode. Press again to return to normal screen. (See page 87.) 14 SLEEP: Sets the sleep timer. (See page 72.) 15 AUDIO: Selects the MTS/SAP or the audio mode during multi-channel audio broadcasts. (See page 24.) 16 i.LINK: Displays the i.LINK panel. (See page 59.) 17 FUNCTION: Switches the remote control for TV, CBL/ SAT, VCR, DVD and AUDIO operation. Indicator lights up for the current mode. (See pages 88 to 91 for details.) 18 : When pressed all buttons on the remote control unit will light. The lighting will turn off if no operations are performed within about 5 seconds. This button is used for performing operations in low-light situations. 19 VIEW MODE: Selects the screen size. (See pages 69 and 70.) 20 FLASHBACK: Returns to the previous channel or input external mode. (See page 22.) 21 INPUT: Selects a Liquid Crystal Television input source. (TV, INPUT 1, INPUT 2, INPUT 3, INPUT 4, INPUT 5, i.LINK, Card) (See pages 51 and 67.) 22 DIGITAL: Receives digital broadcasts. 23 CH r r r r r/s s s s s: Selects the channel. 24 MUTE: Mutes the sound. (See page 23.) 25 CH LIST: Displays the channel list screen. 26 MENU: Displays the menu screen. 27 a/b/c/d/ENTER: Selects a desired item on the screen. 28 RETURN: Returns to the previous menu screen. 29 FAVORITE CH A, B, C, D: Selects four preset favorite channels in four different categories. (See page 32 for details.) While watching, you can toggle the selected channels by pressing A, B, C and D. 30 FREEZE: Sets the still image. Press again to return to normal screen. (See page 87.) 31 CC: Displays captions during closed-caption source. (See page 74.) 32 EDIT: Registers favorite channel. 33 AV MODE: Selects an audio or video setting. (See page 69.) (AV mode: STANDARD, MOVIE, GAME, USER, DYNAMIC (Fixed), DYNAMIC. PC mode: STANDARD, USER.) NOTE • When using the remote control unit, point it at the Liquid Crystal Television. 17 Watching TV Simple operations for watching a TV program Antennas To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an F-type connector, plug it into the antenna terminal at the rear of the TV set. 1. A 75-ohm system is generally a round cable with F-type connector that can easily be attached to a terminal without tools (Commercially available). 2. A 300-ohm system is a flat “twin-lead” cable that can be attached to a 75-ohm terminal through a 300/75-ohm adapter (Commercially available). F-type connector 75-ohm coaxial cable (round) 300-ohm twin-lead cable (flat) • Be sure to connect the antenna or the cable converter as follows. Signal reception may fail if improperly connected. • Be sure to remember what kind of connection is made with your TV. • The connection type will determine whether to select “Air” or “Cable” for both ANALOG-A and B when configuring “Air/ Cable” settings. Cable TV/VCR connection VIDEO AUDIO OUT IN Cable lead-in Cable TV converter (commercially available) OUT IN Coaxial Antenna Cable (commercially available) Coaxial Antenna Cable (commercially available) Coaxial Antenna Cable (commercially available) Signal splitter (commercially available) VCR Video Cable (commercially available) Audio Cable (commercially available) A-1. Connecting with cable TV Converter and VCR NOTE • Be sure to remember what kind of connection is made with your TV. • Shown here is the preferred method of connecting a VCR and CATV Converter to your System if you are in an area with good signal reception. This way you can view either TV programs or VCR tapes and not be concerned about the position of the VCR’s TV/VCR switch and you can enjoy stereo tape playback from a stereo VCR. • While in Standby, no signal is output from ANALOG-A OUT. 18 Watching TV A-2. Connecting with cable converter using AUX terminals for audio and video output. (If your cable TV converter has both RF OUTPUT and AUX terminals, it is recommended to connect it as shown in example A-1.) VIDEO AUDIO OUT IN VIDEO AUDIO Cable lead-in Cable TV converter OUT IN Coaxial Antenna Cable (commercially available) Coaxial Antenna Cable (commercially available) Coaxial Antenna Cable (commercially available) Signal splitter (commercially available) VCR Video Cable (commercially available) Audio Cable (commercially available) RF Cable (Supplied) NOTE • Be sure to remember what kind of connection is made with your TV. • Shown here is the preferred method of connecting a VCR and CATV Converter to your TV if you are in an area with good signal reception. This way you can view either TV programs or VCR tapes and not be concerned about the position of the VCR’s TV/VCR switch and you can enjoy stereo tape playback from a stereo VCR. B. Connecting with Cable Converter without VCR Cable lead-in Cable TV converter (commercially available) OUT IN Coaxial Antenna Cable (commercially available) Coaxial Antenna Cable (commercially available) Coaxial Antenna Cable (commercially available) Signal splitter (commercially available) NOTE • Be sure to remember what kind of connection is made with your TV. • Switching between ANALOG-A and ANALOG-B is possible by pressing the A-ANALOG-B button on the remote control. • A good color picture depends on a good TV signal. So does good multi-channel sound. Ask your dealer for advice on how to install your outdoor antenna to receive the best possible signal. • If you subscribe to Cable TV or have a central antenna for your building, you may not need an outdoor antenna. Cable TV/VCR connection (continued) 19 Watching TV C. Connecting Antenna Cable with VCR NOTE • Be sure to remember what kind of connection is made with your TV. • Shown here is the preferred method of connecting a VCR to your TV if you are in an area with good signal reception. This way you can view either TV programs or VCR tapes and not be concerned about the position of the VCR’s TV/VCR switch and you can enjoy stereo tape playback from stereo VCR. • If your lead cable is a 300-ohm twin-lead cable or UHF/VHF separate cable, use a 300/75-ohm adapter or combiner (output side is 75-ohm coaxial) to connect to the TV (see below). VIDEO AUDIO OUT IN Cable lead-in Coaxial Antenna Cable (commercially available) Coaxial Antenna Cable (commercially available) Signal splitter (commercially available) VCR Video Cable (commercially available) Audio Cable (commercially available) RF Cable (Supplied) Coaxial Antenna Cable (commercially available) Coaxial Antenna Cable (commercially available) Signal splitter (commercially available) RF Cable (Supplied) 300-ohm twin-lead (flat) 300-ohm twin-lead 75-ohm coaxial cable (round) 75-ohm coaxial cable Cable TV lead-In or IN OUT 300-ohm twin-lead VHF ANTENNA UHF ANTENNA Combiner (commercially available) or Home Antenna terminal (75-ohm) 300/75-ohm adapter (commercially available) Coaxial Antenna cable (commercially available) Cable without a CATV converter Combination VHF/UHF antenna Separate VHF/UHF antenna Connecting Antenna Cable Outdoor antenna connection F-type connector 75-ohm coaxial cable When connecting the RF cable to the TV set, do not tighten F-type connector with tools. If tools are used, it may cause damage to your TV set. (The breaking of internal circuit, etc.) F-type connector should be finger-tightened only. NOTICE 20 Display Turning on/off the power POWER Display status indicator POWER indicator 1 2 Plug in the AC cord of the TV. (See page 10.) • The TV enters standby mode or turns on depending on its status at the time the power was shut down. When the TV is standby mode: Press POWER on the Display or TV POWER on the remote control to turn on the power. • To go to standby mode when the TV is on, press POWER on the Display or TV POWER on the remote control. • To turn off the power completely, remove the AC cord from the power outlet when the TV is in standby mode. NOTE • The initial setup starts when the TV powers on for the first time. If the TV has been turned on before, the EZ setup will not be invoked. See page 28 to try EZ setup from the Setup menu. • If you are not going to use this TV for a long period of time, be sure to remove the AC cord from the power outlet. Watching TV ON w/o CableCARD When CableCARD inserted Standby OFF (Standby) CableCARD is downloading data. Lighting (Blue) Lights off Lighting (Blue) Lights off Lighting (Red) — TV POWER CAUTION • Please do not unplug the AC cord when the POWER indicator is red. 21 Watching TV Press a/b to select the desired language listed on the screen, and then press ENTER. Press c/d to select “Air” or “Cable” for ANALOG-A, then press a/b to move down. Press c/d to select “Air” or “Cable” for ANALOG-B, then press a/b to move down. Press c/d to select “Air” or “Cable” for DIGITAL, then press a/b to move down. Press ENTER to enter the setting. • This operation makes the TV search for ANALOG-A, B and DIGITAL. • There are 3 kinds of CATV system, including Standard, HRC and IRC. Select the one matches to your TV. Select Auto when you do not know which one to select for ANALOG antenna. Initial setup When you turn on the TV for the first time, it will automatically memorize the broadcasting channels where you live. Perform the following steps before you press TV POWER on the remote control unit. 1. Insert the batteries into the remote control unit. (See page 13.) 2. Connect the antenna cable to the TV. (See pages 17 to 19.) 3. Plug in the AC cord to the AC outlet. (See page 10.) Channel search Channel auto search makes the TV look for all channels viewable in the set area. 3 1 2 Language Air/Cable CH Search English Español Français Language Air/Cable CH Search ANALOG-A ANALOG-B Air Air DIGITAL Air CH Search ANALOG-A [ ] 25 Air [ ] 20 Found CH Search ANALOG-B [ ] 25 Air [ ] 20 Found 2 ANALOG-A Air Audio : MONO Language setting Select from among 3 languages: English, French and Spanish. Antenna setting Make sure what kind of connection is made with your TV when selecting “Air” or “Cable” for ANALOG-A, B and DIGITAL. NOTE • Make sure what kind of connection is made with your TV when selecting “Air” or “Cable” for ANALOG-A, B and DIGITAL. • If no channel is found, make sure what kind of connection is made with your TV and try EZ Setup again (see page 28). Press c/d to select “Yes” for ANALOG-A, then press a/b to move down. Press c/d to select “Yes” for ANALOG-B, then press a/b to move down. Press c/d to select “Yes” for DIGITAL (Air/ Cable), and press a/b to move down. Select “Search Start”, and then press ENTER. ANALOG-A Yes ANALOG-B No Yes No DIGITAL (Air) Yes No Search Start Language Air/Cable CH Search CH Search DIGITAL [ ] 25 Air [ ] 25 Found Example NOTE • For digital, the “Cable” option will be displayed only when the CableCARD is inserted. Example 22 Watching TV Changing channels - Analog-TV You can change channels in several ways. NOTE • While watching a broadcast, press A-ANALOG-B to view the image received from the other tuner. Method 1 Using CHr/s on the remote control unit or on the display. Method 2 1. Press FLASHBACK to switch to the previously tuned channel. 2. Press FLASHBACK again to switch back to the currently tuned channel. NOTE • FLASHBACK will not work if no channel has been changed after TV is turned on. Method 3 Using remote control buttons (0-9 and ENTER) to select up to 125 channels for VHF/UHF/CATV. To select a 1 or 2-digit channel number (e. g., Channel 5): Press 5s ENTER NOTE • When selecting a 1-digit channel number, it is not necessary to press 0 before the number. • When you enter 0-9 only, channel selection will be made if there is no operation for a few seconds. • • (DOT) can be used instead of ENTER. To select a 3-digit channel number (e. g., Channel 115): Press 1s1s5 NOTE • When you enter 0-9 only, channel selection will be made if there is no operation for a few seconds. • If you push “0” by itself, nothing will happen. Changing channels - Digital-TV You can change channels in several ways. As well as the methods outlined below, you can also select programs using the Channel List. (See page 86.) NOTE • While watching a broadcast, press DIGITAL. I Digital - Air (Two-part Number) Method 1 When you press CHr/sor FLASHBACK, repeat the same steps for Analog-TV. Method 2 Using remote control buttons (0-9, • (DOT) and ENTER) to select the channels including a decimal point. To select a 4-digit channel number (e. g., Channel 22.1): Press 2 s2s•(DOT) s1s ENTER NOTE • Complete the above steps within a few seconds. • When you enter 0-9 and •(DOT), channel selection will be made if there is no operation for a few seconds. I Digital - Cable (One-part Number) Method 1 When you press CHr/sor FLASHBACK, repeat the same steps for Analog-TV. Method 2 Using remote control buttons (0-9 and ENTER) to select the channels including a decimal point. To select a 3-digit channel number (e. g., Channel 310): Press 3s1s0sENTER NOTE • When you enter 0-9 only, channel selection will be made if there is no operation for a few seconds. 5 ANALOG-A Air 5 ANALOG-A Air 11 ANALOG-B Cable 1 ANALOG-B Cable 115 ANALOG-B Cable 22. DIGITAL Air DIGITAL Air 22.1 22.1 DIGITAL Air 22 DIGITAL Air 2 DIGITAL Air 310 DIGITAL Cable 310 DIGITAL Cable 31 DIGITAL Cable 3 DIGITAL Cable Please note: your new AQUOS Liquid Crystal Television is capable of receiving the full range of cable-TV channels available today, from the most advanced digital and HDTV channels, to the more traditional analog channels. As the transition toward full digital TV continues, some cable-TV systems in the USA will have a mixture of analog and digital channels in their lineups. When you are viewing analog cable-TV channels and wish to switch to viewing digital cable-TV channels, you must press the DIGITAL button (located just below the numbers) on the remote control first. In similar fashion, when you are viewing digital channels and wish to switch to viewing analog channels, you must press either the ANALOG-A or ANALOG- B button (depending on whether you have your cable connected to the A or B terminal) on the remote first. 23 Watching TV Volume adjustment Mute I Using VOL k k k k k/l l l l l • To increase the volume, press VOL k k k k k. • To decrease the volume, press VOL l l l l l. Output device Variable sound Output Select Variable Fixed Variable sound Constant as specified Mute NOTE • VOL l/kon the Display operates the same as VOL k/l on the remote control unit. Audio status Speaker MONITOR OUT Changing volume/sound I Changing the volume You can change the volume on the Display or on the remote control unit. * When “Output Select” is set to “Variable”, the indicator on the screen changes as shown below. NOTE • See page 72 for details on the output select function. I Using MUTE on the remote control unit Mutes the current sound output. Press MUTE. • “M” has been displayed on the screen for 30 minutes, and the sound is silenced. NOTE • Within 30 minutes of pressing MUTE, mute can be canceled by using one of the methods below. • Mute will cancel if you press VOL k/l or MUTE. • Mute will be canceled after 30 minutes have passed. However, the TV will not suddenly output a loud sound as the volume level is set to 0 automatically. Display VOL l/k 20 20 20 1 I Using Virtual on the remote control unit Virtual produces Dolby virtual effect from the speakers. Each time you press Virtual, the mode changes between On and Off. Dolby Virtual sound options • On: Makes it possible to enjoy natural, realistic surround sound. • Off: Outputs the normal sound. NOTE • You can have the same settings by choosing “Dolby Virtual” on the menu items. (See page 37.) Dolby Virtual : Off Dolby Virtual : On 24 Watching TV NOTE • MTS only operates while in TV mode. You can change MTS as shown below to match the television broadcast signal. STEREOkSAP mode MONO mode Examples: when receiving MTS and SAP STEREO mode MAINkSAP mode Setting MTS/SAP stereo mode The TV has a feature that allows reception of sound other than the main audio for the program. This feature is called Multi-channel Television Sound (MTS). The TV with MTS can receive mono sound, stereo sound and Secondary Audio Programs (SAP). The SAP feature allows a TV station to broadcast other information, which could be audio in another language or something completely different like weather information. You can enjoy Hi-Fi stereo sound or SAP broadcasts where available. • Stereo broadcasts View programs like live sporting events, shows and concerts in dynamic stereo sound. • SAP broadcasts Receive TV broadcasts in either MAIN or SAP sound. MAIN sound: The normal program soundtrack (either in mono or stereo). SAP sound: Listen to second language, supplementary commentary and other information. (SAP is mono sound.) If stereo sound is difficult to hear. • Obtain a clearer sound by manually switching to fixed mono-sound mode. 2 ANALOG-A Air Audio : MONO 2 ANALOG-A Air Audio : ST(SAP) 2 ANALOG-A Air Audio : SAP(ST) 2 ANALOG-A Air Audio : MONO 2 ANALOG-A Air Audio : MONO 2 ANALOG-A Air Audio : STEREO 2 ANALOG-A Air Audio : MAIN 2 ANALOG-A Air Audio : SAP Setting Digital broadcasting audio mode The types of audio transmitted in a digital broadcast include SURROUND as well as MONO and STEREO. In addition, it is possible for multiple audio tracks to accompany a single video track. Press AUDIO to toggle between audio modes. Examples: when receiving Digital broadcasting 2.2 DIGITAL Air Audio3 : SURROUND 2.2 DIGITAL Air Audio1 : STEREO 2.2 DIGITAL Air Audio2 : STEREO 25 Connecting Digital Cable Module Digital Cable Module is called CableCARD™. By attaching the CableCARD, you can receive various digital services provided by your Cable Company. To obtain and use a CableCARD you need to first submit an application. Please contact your cable company to discuss receiving an application. Watching TV Connect the antenna cable to DIGITAL IN. 2 Insert the CableCARD (upper side facing up) into the CableCARD slot. • A message will appear on the screen. (It might take a couple of minutes before the message appears.) Call the number on the screen and tell the operator the CableCARD ID and Host ID numbers displayed on the screen. 4 2 Press c/d to select “Digital Setup”, a/b to select “CableCARD MENU”, a/b to select “Pairing Information”, and then press ENTER. Pairing Information Diagnostic Screen ECM Conditional Access CableCARD slot DIGITAL IN terminal NOTE • Do not insert any PCMCIA card other than CableCARD into the CableCARD slot. • Please do not pull the AC cord out while the CableCARD is inserted. • After inserting the CableCARD, it may take several minutes before video output from the selected channel appears on screen. CableCARD(tm) Pairing Status In order to start cable service for this device, please contact your cable provider 1-888-555-2222 CableCARD™ ID: 7-561-034-449-009 Host ID: 0-100-331-784-018 • The words “Pairing Information” may be replaced by a different expression depending on the manufacturer of the CableCARD. Turn on the POWER. 1 Select “Cable” from “Air/Cable” in Channel setup mode. (See page 29) 3 I When you change your address (See page 92) I About EAS(Emergency Alert System) (See page 92) NOTE • If your cable company does not have CableCARD available, you must connect to the cable-TV set-top box via component video or DVI in order to receive HDTV programs. (See page 54.) Press MENU and the MENU screen display. 1 I If the above procedure does not work, please follow the following steps instead. I How to insert the CableCARD 1 Press down the stopper as shown on the right. Stopper 2 Remove the sample card as you press down the stopper. Sample card 3 Insert the CableCARD slowly as you press down the stopper and release the stopper when you have finished. 26 3 A message will appear on the screen. Call the number on the screen and tell the operator the CableCARD ID and Host ID numbers displayed on the screen. CableCARD Dialog CableCARD(tm) Pairing Status In order to start cable service for this device, please contact your cable provider 1-888-555-2222 CableCARD(tm) ID: 7-561-034-449-009 Host ID: 0-100-331-784-018 • If there is a white triangle at the right side of the screen, the screen is not showing the entire message. Press a/b on your remote control to display the rest of the message. • When there is a “LINK” button on the screen, there is a link to the next page. Press ENTER to go to the next page. CableCARD(tm) Diagnostic Information Power: ON In band: O.K. Out of band: O.K. Video: O.K. Audio: O.K. LINK • Turn on the POWER. • Check that the CableCARD upgrade screen is not displayed. If it is displayed, wait until it disappears. • Remove the cableCARD. 1 Removing CableCARD Watching TV 1 Disconnecting the cable antenna • Turn on the POWER. • Check that the CableCARD upgrade screen is not displayed. If it is displayed, wait until it disappears. • Disconnect the cable antenna. I How to remove the CableCARD 1 Press the eject button and the CableCARD will pop out. Eject button 2 Press down the stopper and remove the CableCARD. NOTE • Make sure the sample card is inserted whenever the CableCARD is not in use. CAUTION • When you press the eject button, receive the card with your left hand so as not to drop the card. 27 Basic adjustment settings AV input mode menu items List of AV menu items to help you with operations Picture No Signal Off ................................. Page 38 No Operation Off ........................... Page 38 EZ Setup .................................Pages 28-29 CH Setup .................................Pages 29-30 Antenna Setup-DIGITAL ............... Page 31 Speaker Setup ............................... Page 65 Input Label ..................................... Page 68 Parental CTRL ........................Pages 78-84 Position .......................................... Page 63 Picture Flip .................................... Page 68 Language ....................................... Page 32 Treble.............................................. Page 37 Bass ............................................... Page 37 Balance .......................................... Page 37 Dolby Virtual .................................. Page 37 Audio Only ..................................... Page 71 3D Noise Reduction ...................... Page 71 Mosquito Noise Reduction .......... Page 71 HDMI Setup .................................... Page 55 Input Select.................................... Page 67 Output Select................................. Page 72 Quick Shoot ................................... Page 72 Center Channel Input ................... Page 85 Caption Setup.........................Pages 74-77 Title Display Type .......................... Page 73 Audio Power Control Setup Option CableCARD MENU ........................ Page 25 Video Setup ................................... Page 39 Audio Setup ................................... Page 40 i.LINK Setup........................... Pages 58, 61 Digital Setup OPC ................................................ Page 34 Backlight ........................................ Page 33 Contrast ......................................... Page 33 Brightness ..................................... Page 33 Color............................................... Page 33 Tint ................................................. Page 33 Sharpness...................................... Page 33 Advanced C.M.S. ................................... Page 34 Color Temp. ......................... Page 35 Sharpness Enhancement... Page 35 Automatic Contrast ............ Page 35 I/P Setting ............................ Page 36 Film Mode ............................ Page 36 3D-Y/C .................................. Page 36 Monochrome ....................... Page 36 28 Basic adjustment settings Power Management ...................... Page 38 Speaker Setup ............................... Page 65 Input Signal ................................... Page 71 Auto Sync. ..................................... Page 66 Input Label ..................................... Page 68 Fine Sync. ...................................... Page 66 Picture Flip .................................... Page 68 Language ....................................... Page 32 Power Control Setup Option Audio Only ..................................... Page 71 Input Select.................................... Page 67 Output Select................................. Page 72 Quick Shoot ................................... Page 72 Center Channel Input ................... Page 85 EZ Setup You can run EZ Setup again, even after setting up the preset channels. Language setting Select from among 3 languages: English, French and Spanish. Press MENU and the MENU screen displays. Press c/d to select “Setup”. 1 2 Press a/b to select “EZ Setup”, and then press ENTER. • If you already set the Secret No., go to step 4. If not, skip to step 5. Input the 4-digit secret number by using 0 – 9. 3 MENU [Setup ... EZ Setup] Setup Option Secret No. – – – – 4 5 Press a/b to select the desired language listed on the screen, and then press ENTER. Language Air/Cable CH Search English Español Français i.LINK Setup........................... Pages 58, 61 Digital Setup *PC input mode menu items List of PC menu items to help you with operations *When INPUT5 is set to PC. OPC ................................................ Page 34 Backlight ........................................ Page 33 Contrast ......................................... Page 33 Brightness ..................................... Page 33 Red ................................................. Page 33 Green.............................................. Page 33 Blue ................................................ Page 33 Advanced C.M.S. ................................... Page 34 Sharpness Enhancement... Page 35 Picture Audio Treble.............................................. Page 37 Bass ............................................... Page 37 Balance .......................................... Page 37 Dolby Virtual .................................. Page 37 29 Basic adjustment settings Antenna setting Make sure what kind of connection is made with your TV when selecting “Air” or “Cable” for ANALOG-A, B and DIGITAL. 6 7 Searching TV channels Press c/d to select “Air” or “Cable” for ANALOG-A, then press a/b to move down. Press c/d to select “Air” or “Cable” for ANALOG-B, then press a/b to move down. Press c/d to select “Air” or “Cable” for DIGITAL, then press a/b to move down. Press ENTER to enter the setting. • This operation makes the Channel search for ANALOG-A, B and DIGITAL. • There are 3 kinds of CATV system, including Standard, HRC and IRC. Select the one matches to your TV. Select Auto when you do not know which one to select for ANALOG antenna. Channel search Channel auto search makes the TV look for all channels viewable in the set area. MENU [Setup ... EZ Setup ... CH Search] ANALOG-A [ ] 25 Air [ ] 20 Found MENU [Setup ... EZ Setup ... CH Search] ANALOG-B [ ] 25 Air [ ] 20 Found Example NOTE • If no channel is found, make sure what kind of connection is made with your TV and try EZ setup again. • Make sure what kind of connection is made with your TV when selecting “Air” or “Cable” for ANALOG-A, B and DIGITAL. Press c/d to select “Yes” for ANALOG-A, then press a/b to move down. Press c/d to select “Yes” for ANALOG-B, then press a/b to move down. Press c/d to select “Yes” for DIGITAL (Air/ Cable), and press a/b to move down. Select “Search Start”, and then press ENTER. ANALOG-A Yes ANALOG-B No Yes No DIGITAL (Air) Yes No Search Start Language Air/Cable CH Search MENU [Setup ... EZ Setup ... CH Search] DIGITAL [ ] 25 Air [ ] 25 Found Channel Setup If initial setup does not memorize all the channels in your region, follow the instructions below to manually memorize the channels. Press MENU and the MENU screen displays. Press c/d to select “Setup”. 1 2 3 Press a/b to select “CH Setup”, and then press ENTER. • If you already set the Secret No., input the 4- digit secret number here. See page 78 for setting a secret number. Antenna setting Press c/d to select “Air” or “Cable” for ANALOG-A, then press a/b to move down. Press c/d to select “Air” or “Cable” for ANALOG-B, then press a/b to move down. Press c/d to select “Air” or “Cable” for DIGITAL, then press a/b to move down. Press ENTER to enter the setting. ANALOG-A ANALOG-B Air Air DIGITAL Air Air/Cable CH Search CH Memory Example 5 4 Press a/b to select “Air/Cable”, and then press ENTER. Air/Cable CH Search ANALOG-A ANALOG-B Air DIGITAL Air Air CH Memory NOTE • Make sure what kind of connection is made with your TV when selecting “Air” or “Cable” for ANALOG-A, B and DIGITAL. • There are 3 kinds of CATV system, including Standard, HRC and IRC. Select the one matches to your TV. Select Auto when you do not know which one to select for ANALOG antenna. 30 Basic adjustment settings Channel search Channel auto search makes the TV look for all channels viewable in the set area. Press MENU and the MENU screen displays. Press c/d to select “Setup”. 1 2 3 Press a/b to select “CH Search”, and then press ENTER. Air/Cable CH Search ANALOG-A Yes ANALOG-B No Yes No DIGITAL (Air) Yes No Search Start CH Memory Press c/d to select “Yes” for ANALOG-A, then press a/b to move down. Press c/d to select “Yes” for ANALOG-B, then press a/b to move down. Press c/d to select “Yes” for DIGITAL (Air/ Cable), and press a/b to move down. Select “Search Start”, and then press ENTER. 4 5 NOTE • Make sure what kind of connection is made with your TV when selecting “Air” or “Cable” for ANALOG-A, B and DIGITAL. Press a/b to select “CH Setup”, and then press ENTER. • If you already set the Secret No., input the 4- digit secret number here. See page 78 for setting a secret number. Example: CH Search MENU [Setup ... CH Setup ... CH Search] ANALOG-A [ ] 25 Air [ ] 20 Found MENU [Setup ... CH Setup ... CH Search] ANALOG-B [ ] 25 Air [ ] 20 Found MENU [Setup ... CH Setup ... CH Search] DIGITAL [ ] 25 Air [ ] 25 Found Channel memory setting Press MENU and the MENU screen displays. Press c/d to select “Setup”. 1 2 3 4 Press a/b to select “CH Setup”, and then press ENTER. • If you already set the Secret No., input the 4- digit secret number here. See page 78 for setting a secret number. Press a/b to select ANALOG-A, B or DIGITAL (Air), DIGITAL (Cable), CableCARD, and then press ENTER. 5 6 Press a/b to select “CH Memory”, and then press ENTER. Press a/b and press c/d to select the channel you want to skip or not. Press a/b to select “Skip”, and press c/d to select “On” or “Off”. • On: Skips channels. (Channel selection disabled using CHr r r r r/s s s s s.) • Off: Does not skip channels. (Channel selection enabled using CHr r r r r/s s s s s.) 7 NOTE • Make sure what kind of connection is made with your TV when selecting “Air” or “Cable” for ANALOG-A, B and DIGITAL. 31 Basic adjustment settings Antenna Setup – DIGITAL – Air In order to receive digital air broadcasts, you need a digital broadcast antenna. You can set the antenna configuration through the Antenna Setting screen. 1 2 Press MENU and the MENU screen displays. Press c/d to select “Setup”. Press a/b to select “Antenna Setup - DIGITAL”, and then press ENTER. • If you already set the Secret No., input the 4- digit secret number here. See page 78 for setting a secret number. 4 3 Press a/b to select “Signal Strength”. Press a/b to select “Channel Strength”, and then press ENTER. Adjust the direction of the antenna to obtain the maximum signal strength and then press ENTER. Signal Strength Channel Strength Signal Strength Current Max 0 0 Signal Strength Current CH Max 0 1 2 0 Signal Strength Channel Strength Antenna setting Make sure the signal strength of each channel received is correctly adjusted. 1 Input the channel number. (See page 22.) • This function is available for DIGITAL (Air) only. 4 3 Repeat steps 1 to 3 in Antenna setting. 2 32 Basic adjustment settings Favorite channel setting This function allows you to program 4 favorite channels, in 4 different categories. By setting the favorite channels in advance, you can select your favorite channels easily. Press EDIT. Press a/b to select “Register”, and then press ENTER. 2 3 Press EDIT and the favorite channel screen displays. Press a/b to select “1 Data Clear”, and then press ENTER. Press a/b/c/d to select the position in the area, and then press ENTER to register. Press a/b/c/d to select the channel you want to delete, and then press ENTER. 1 2 3 ANALOG-A 3 A B C D ANALOG-A 3 ANALOG-A 18 ANALOG-A 125 D-Air 10.1 ANALOG-B 33 ANALOG-B 51 A B C D Register All Data Clear 1 Data Clear Delete favorite channel ANALOG-A 3 ANALOG-A 125 ANALOG-B 33 ANALOG-B 51 A B C D D-Air 10.1 Yes No NOTE • You can delete all the favorite channels by selecting “All Data Clear” in step 2 in Delete favorite channel. Select the channel you want to register as a favorite channel. 1 4 4 Press c/d to select “Yes”, and then press ENTER. Language setting You can also select a language from the Setup menu. Select from among 3 languages: English, French and Spanish. 3 Press MENU and the MENU screen displays. 1 2 Press c/d to select “Setup”. Press a/b to select “Language”, and then press ENTER. 4 English Español Français Press a/b to select the desired language listed on the screen, and then press ENTER. 33 Adjustments for PC source Basic adjustment settings cbutton The screen dims For less contrast For less brightness For less color intensity Skin tones become purplish For less sharpness Selected item Backlight Contrast Brightness Color Tint Sharpness Adjustments for AV source MENU [Picture] Picture Audio Contrast OPC Brightness Reset [+30] [ 0] 0 –30 +40 +30 Backlight [+16] –16 +16 Off On Red Green Blue Advanced [ 0] [ 0] [ 0] –30 –30 –30 +30 +30 +30 On : Display MENU [Picture] Picture Audio Contrast OPC Brightness Color Tint Sharpness Advanced Reset [+30] [ 0] [ 0] [ 0] [ 0] 0 –30 –30 –30 –10 +40 +30 +30 +30 +10 Backlight [+16] –16 +16 Off On On : Display NOTE • Select “Advanced” and then press ENTER to set “C.M.S- Hue”, “C.M.S-Saturation”, “C.M.S-Value”, “Color Temp.”, “Sharpness Enhancement”, “Automatic Contrast”, “I/P Setting”, “Film Mode”, “3D-Y/C” or “Monochrome”. See pages 34 to 36. dbutton The screen brightens For more contrast For more brightness For more color intensity Skin tones become greenish For more sharpness cbutton The screen dims For less contrast For less brightness For weaker red For weaker green For weaker blue Selected item Backlight Contrast Brightness Red Green Blue dbutton The screen brightens For more contrast For more brightness For stronger red For stronger green For stronger blue Picture adjustments Adjusts the picture to your preference with the following picture settings. Press MENU and the MENU screen displays. 1 2 3 4 Press a/b to select a specific adjustment item. Press c/d to adjust the item to your desired position. Press c/d to select “Picture”. NOTE • For resetting all adjustment items to factory preset values, press a/b to select “Reset”, press ENTER, press c/d to select “Yes”, and then press ENTER. NOTE • Select “Advanced” and then press ENTER to set “C.M.S- Hue”, “C.M.S-Saturation”, “C.M.S-Value” and “Sharpness Enhancement”. 34 OPC setting Automatically adjusts the brightness of the screen. Press c/d to select “Picture”. 2 Press MENU and the MENU screen displays. 1 Press a/b to select “OPC”. Press c/d to select “On” or “On: Display”. 3 4 Basic adjustment settings Description The brightness is fixed at the value set in “Backlight” (see page 33). Automatically adjusts Displays the OPC effect on the screen while adjusting the brightness of the screen. Selected item Off On On: Display NOTE • When set to “On”, the OPC senses the surrounding light and automatically adjusts the backlight brightness. Make sure no object obstructs the OPC sensor, which could affect its ability to sense surrounding light. • When set to “On: Display”, OPC effect displays on the screen while OPC is adjusting the screen brightness. Contrast OPC Brightness Color Tint Sharpness Advanced Reset [+30] [ 0] [ 0] [ 0] [ 0] 0 –30 –30 –30 –10 +40 +30 +30 +30 +10 Backlight [+16] –16 +16 Off On On : Display C.M.S. (Color Management System) Color tone is managed using the six-color adjustment setting. Press MENU and the MENU screen displays. 1 2 Press c/d to select “Picture”. 3 Press a/b to select “Advanced”, and then press ENTER. 4 Press a/b to select “C.M.S-Hue”, and then press ENTER. 5 Press a/b to select a specific adjustment item. Press c/d to adjust the item to your desired position. C. M. S.-Hue R Y G C B M Reset [ 0] [ 0] [ 0] [ 0] –30 –30 –30 +30 –30 +30 +30 +30 [ 0] –30 +30 [ 0] –30 +30 Changing reds closer to magenta or yellow. C. M. S.-Saturation C. M. S.-Value NOTE • For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press ENTER. • You can select “C.M.S-Saturation” or “C.M.S- Value” here instead of selecting “C.M.S-Hue”. Description This is a standard to adjust the color either more reddish or more bluish in tone. Increases or decreases the saturation of a selected color. A higher value makes the image brighter. A lower value makes the image darker. Selected item C.M.S-Hue C.M.S- Saturation C.M.S- Value 35 Basic adjustment settings Color temperature For a better white balance, use color temperature correction. 4 5 Press a/b to select “Color Temp.”, and then press ENTER. Description White with Bluish tone White with Reddish tone Selected item High Mid-High Middle Mid-Low Low Press MENU and the MENU screen displays. 1 2 Press c/d to select “Picture”. 3 Press a/b to select “Advanced”, and then press ENTER. C. M. S-Hue C. M. S-Saturation C. M. S-Value Color Temp. Sharpness Enhancement Automatic Contrast I/P Setting Film Mode 3D-Y/C Monochrome High Mid-High Middle Mid-Low Low Automatic Contrast Adjusts black level and white level in images automatically as appropriate to a particular scene. Press a/b to select the desired level, and then press ENTER. Press a/b to select “Automatic Contrast”, and then press ENTER. Press c/d to select “On” or “Off”, and then press ENTER. Repeat steps 1 to 3 in Color temperature. 1 2 3 Description Automatically adjusts For normal images Selected item On Off Sharpness Enhancement Provides sharper images with more depth by adjusting background sharpness. Repeat steps 1 to 3 in Color temperature. 1 2 Press a/b to select “Sharpness Enhancement”, and then press ENTER. 3 Press c/d to select the desired level, and then press ENTER. • The higher the number of the level, the more sharpness and depth you will get in images. 36 Basic adjustment settings Monochrome For viewing a video in monochrome. Description Normal color For viewing in monochrome Selected item Off On Press a/b to select “Monochrome”, and then press ENTER. 4 Press c/d to select “On”, and then press ENTER. 5 Press MENU and the MENU screen displays. 1 2 Press c/d to select “Picture”. 3 Press a/b to select “Advanced”, and then press ENTER. C. M. S-Hue C. M. S-Saturation C. M. S-Value Color Temp. Sharpness Enhancement Automatic Contrast I/P Setting Film Mode 3D-Y/C Monochrome On Off Film Mode (3:2 pull-down) Automatically detects a film-based source (originally encoded at 24 or 30 frames/second), analyzes it then recreates each still film frame for high-definition picture quality. Description Normal viewing mode Detects, analyzes, converts film source Selected item Off On Press a/b to select “Film Mode”, and then press ENTER. Repeat steps 1 to 3 in I/P Setting. 1 2 3 Press c/d to select “On”, and then press ENTER. I/P Setting Converts input signals from interlace to progressive. Press a/b to select “I/P Setting”, and then press ENTER. Press c/d to select “Fast” or “Slow”, and then press ENTER. 2 3 NOTE • “I/P Setting” is not selectable when channel display shows an input resolution of 480P or 720P. 3D-Y/C Provides high quality images with minimal dot crawl and cross color noise. Description Normal adjustment For movie image For still image Selected item Standard Fast Slow Press a/b to select “3D-Y/C”, and then press ENTER. Repeat steps 1 to 3 in I/P Setting. 1 2 3 Press a/b to select the desired level, and then press ENTER. NOTE • 3D-Y/C is available only for Composite Video input. Repeat steps 1 to 3 in I/P Setting. 1 37 Basic adjustment settings Sound adjustment You can adjust the sound quality to your preference with the following settings. Press c/d to select “Audio”. Press a/b to select a specific adjustment item. Press c/d to adjust the item to your desired position. 2 3 4 cbutton For weaker treble For weaker bass Decrease audio from the right speaker Selected item Treble Bass Balance dbutton For stronger treble For stronger bass Decrease audio from the left speaker Press MENU and the MENU screen displays. 1 MENU [Audio] Audio Power Control Treble Bass Balance Dolby Virtual Reset [Off] –15 L +15 [ 0] [ 0] [ 0] –15 +15 R NOTE • Audio menu is grayed out when Output Select is set to “Variable” or when headphones are in use. • Balance and Audio Quality Control are grayed out when Dolby Virtual is set to “On”. • For resetting all adjustment items to factory preset values, press a/b to select “Reset”, press ENTER, press c/d to select “Yes”, and then press ENTER. Press c/d to select “Audio”. Press a/b to select “Dolby Virtual”, and then press ENTER. Press c/d to select “On”, and then press ENTER. 2 3 4 Press MENU and the MENU screen displays. 1 Dolby Virtual You can enjoy the SURROUND 2ch stereo with Dolby Pro Logic II technology. VIRTUAL DOLBY DIGITAL is a technology certified by Dolby Laboratories that creates a virtualized surround sound experience from two speakers using Dolby Pro Logic or Dolby Pro Logic II. VIRTUAL DOLBY DIGITAL retains all the original multi channel audio information and provides the listener with the sensation of being surrounded by additional speakers. MENU [Audio ... Dolby Virtual] Audio Power Control Treble Bass Balance Dolby Virtual Reset [Off] –15 L +15 –15 +15 R [ 0] [ 0] [ 0] NOTE • You can choose Dolby Virtual by pressing Virtual on the remote control unit. • Audio menu is grayed out when Output Select is set to “Variable” or when headphones are in use. • Balance and Audio Quality Control are grayed out when Dolby Virtual is set to “On”. • For some discs, setup may be required on your DVD. In this case, please refer to the operation manual of your DVD player. • You may not get the Dolby Virtual Surround effect if you adjust “Treble” or “Bass” setting. 38 Basic adjustment settings No signal off When set to “Enable”, the power will automatically shut down if no signal inputs for 15 minutes. Press a/b to select “No Signal Off”, and then press ENTER. Press c/d to select “Enable”, and then press ENTER. 3 4 • Five minutes before the power shuts down, remaining time displays every minute. NOTE • “Disable” is factory preset value. • When a TV program finishes, this function may not operate. • Does not function in conjunction with digital broadcasts. Press c/d to select “Power Control”. Press MENU and the MENU screen displays. No operation off When set to “Enable”, the power will automatically shut down if there is no operation for 3 hours. Press a/b to select “No Operation Off”, and then press ENTER. Press c/d to select “Enable”, and then press ENTER. • Five minutes before the power shuts down, remaining time displays every minute. NOTE • “Disable” is factory preset value. Repeat steps 1 and 2 in No signal off. 2 1 Disable Enable 3 2 1 Power control Power control setting allows you to save energy. Power control for AV source Power control for PC source Power control setting allows you to save energy. Power management When set, the power will automatically shut down. Press a/b to select “Power Management”, and then press ENTER. Press a/b to select “Mode1” or “Mode2”, and then press ENTER. Description • No power management • Factory preset value. • If no signal inputs for 8 minutes, the power shuts down. • Even if you start using the PC and the signal inputs again, the TV stays off. • The TV turns on again by pressing TV POWER on the remote control unit. (See page 20). • Pressing POWER on the display will have the same result. • If no signal inputs for 8 seconds, the TV enters standby mode. • When you start using the PC and the signal inputs again, the TV turns on. Selected item Off Mode1 Mode2 Repeat steps 1 and 2 in No signal off. 3 2 1 Off Mode1 Mode2 NOTE • If you turn off the power by disconnecting AC cord when setting “Mode2” in power management, the TV may not function properly after turning the power on again. In such case, press TV POWER on the remote control unit. • Pressing POWER on the display will have the same result. 39 Basic adjustment settings (DIGITAL) Digital Setup This setting allows you to set the image of Digital broadcasting. Video Setup You can adjust the settings for Digital image. 1 2 3 Press MENU and the MENU screen displays. Press c/d to select “Digital Setup”. Screen Size Set the format of image of Digital broadcasting. Press a/b to select “Video Setup”, and then press ENTER. 4 Press a/b to select “Screen Size”, and then press ENTER. NOTE • "Manual" is factory preset value. REC Picture Size Select the screen size to record on 16:9 video. Press MENU and the MENU screen displays. Press c/d to select “Digital Setup”. Press a/b to select “Video Setup”, and then press ENTER. Press a/b to select “REC Picture Size”, and then press ENTER. Press c/d to select the desired picture size, and then press ENTER. Selected item Description 4:3 TV 16:9 TV Bars may appear on the top and bottom with some programs Displays in full screen 1 2 3 4 5 Screen Size REC Picture Size 4 : 3 TV 16 : 9 TV Screen Size REC Picture Size Manual Auto Selected item Description Manual Auto Broadcasts in formats other than 480i will be converted and displayed in the 1080i format. With 480i broadcasts you can change the screen size to the size of your choice. All broadcasts will be converted and displayed in the 1080i format. Press c/d to select “Manual” or “Auto”. 5 41 Important notes on using memory card • We will not be liable for misuse of the LCD TV set, any troubles during use, or other problems, or any damages arising out of the use of the LCD TV set, except for the cases for which we are liable by statute. • If you or other people misuse the LCD TV set, or the LCD TV set is affected by static electricity or electrical noise, the recorded data may be in danger of being changed or lost. • If you are making a record of importance, run a test in advance to ensure that the recording would be performed correctly in terms of picture or sound quality. • We do not capture responsibility nor compensate even if pictures or sound could not be recorded correctly because of troubles. The recording formats Duplicating images and music by copying and/or editing from videocassettes and/or TV programs that are subject to copyrights is only permitted when the edited or copied versions are used for personal pleasure. With the exception of cases when the user personally is the owner of the copyrights of the object in question or when specific and written permission has been obtained from the owner(s) of the object in question, the user is not permitted to make copies and/or duplications and/or edited versions as this constitutes a violation of the copyright laws, possible exposing the user to demands for compensation for damages. Therefore, strictly adhere to the existing copyright laws. In addition when using image data that includes third parties, the use without prior permission of these images may constitute an intrusion on the privacy of third parties, so strictly refrain from such usage. Using memory card Copyright Still picture Recording/Playback file format Motion Picture JPEG (DCF compliant) Size of a captured still picture 640g480 dots SP/LP... ASF (Motion Picture: MPEG-4 compliant, Sound: WMA-compliant) EP........ ASF (Motion Picture: MPEG-4 compliant, Sound: G.726-compliant) Recording file format SP ... Size: 320g240 dots, Frame: approx. 30 frames/sec LP ... Size: 320g240 dots, Frame: approx. 30 frames/sec EP ... Size: 320g240 dots, Frame: approx. 15 frames/sec Size of a recorded motion picture/number of frames ASF (Motion Picture: MPEG-4 compliant, Sound: WMA-compliant) ASF (Motion Picture: MPEG-4 compliant, Sound: G.726-compliant) Playback file format Approximate number of recordable pictures/time Still Pictures Still picture Picture size Approx. 1000 pictures 32MB 640g480 128MB Approx. 300 pictures Memory card Recordable time Picture size 256MB 5GB Memory card capacity * Recordable numbers may vary depending on the receiving condition of the LCD TV set and/or content of images. Recording mode 320g240 320g240 320g240 SP LP EP Approx. 10 min. Approx. 30 min. Approx. 1h. Approx. 4h. Approx. 10h. Approx. 25h. Motion pictures • Recordable time may vary depending on receiving condition of the LCD TV set or content of images. • The maximum amount of data you can record on a memory card is 1,024 pictures in total including still and motion pictures. 42 Using memory card You can use memory cards (commercially available) for recording and playing back pictures. • Please use an appropriate PC card adapter (commercially available) for each memory card. • Following memory cards are available. (Note that names for memory cards vary depending on manufacturers.) Storage capacity SD Memory Card mini SD™ Card CompactFlash MultiMediaCard SmartMedia Memory Stick Memory Stick PRO Microdrive xD Picture Card PC Card Hard Disk 512 MB or less 32 MB or less 2 GB or less 128 MB or less 128 MB or less 128 MB or less 1 GB or less 2 GB or less 128 MB or less 5 GB or less Memory card name * Each memory card name is a trademark. * The capacity of memory card is approximate. The capacity varies depending on the manufacturer. • To read picture files recorded with digital cameras, use the PC card adapter recommended by the corresponding manufacturer. (The names for PC card adapters vary depending on manufacturers.) • For directions for use of digital cameras or PC card adapters, please refer to the operation manual provided for each product. You can playback DCF compliant JPEG pictures captured with other devices in the card playback mode. • DCF (Design rule for Camera File system) is a standard of the Japan Electronics and Information Technology Industries Association (JEITA). This standard specifies the image file format used for images shot with a digital camera. • Some motion pictures recorded with other devices may not be played back correctly. Commercially available memory cards SD Memory Card MultiMediaCard CompactFlash Memory Stick PC card adapter • Please use an appropriate PC card adapter (commercially available) for each memory card. Preparing a memory card Insert a memory card (commercially available) into a PC card adapter (commercially available). Example: Inserting the SD memory card into a PC card adapter. Please note the following when using memory cards and PC card adapters to avoid corruption of data or malfunction of the LCD TV set. • If you use memory cards other than those shown above, recording or playing back pictures are not guaranteed. • Some PC card adapters have restrictions of memory card capacity. Refer to the relevant operation manual for such restrictions. • Some pictures which have been created, modified, or copied on your PC may not be played back. • Do not bend, drop or apply a shock to memory cards or PC card adapters. • Keep memory cards or PC card adapters away from heat, water or direct sunlight. • Do not dismantle or modify memory cards or PC card adapters. • Refer to the appropriate operation manuals for details on using or keeping memory cards or PC card adapters. • Do not turn the LCD TV set off while a memory card is in operation (e.g. playing back, recording or displaying a slideshow). Notes on using memory cards and PC card adapter SmartMedia miniSD™ Card Memory Stick PRO xD Picture Card Microdrive PC Card Hard Disk 43 Using memory card Card Setup mode menu items Card Setup Still Setup Slide Show File Operation Video Setup Format Audio Select My Program Rec. Mode Repeat Play Pre Record Yes/No File Operation Interval Repeat Order Setup/Delete All Off/TV/Input1-Input5 Protect/Delete File/ Delete All SP/LP/EP On/Off Off/File/All Protect/Delete File/Delete All 1-10/15/20/25/30/ 45/60 Sec. 15/30/60 Min. Normal/Random/ My Program On/Off CARD - STILL 0001/0045 ORDER:NORMAL REPEAT:OFF PREV. NEXT SLIDE SHOW 1 3 4 5 6 2 CARD - VIDEO 0001/0045 REPEAT:OFF PLAY MODE : SP 0 0 : 1 5 : 2 5 PLAY 1 2 3 4 5 6 7 8 9 1011 12 13 1 Rotate the image 2 Pause 3 Go to previous image 4 Start slide show 5 Stop slide show 6 Go to next image 1 Action 2 Go back to the beginning of the file 3 Pause 4 Repeat playback setting 5 Go to the beginning of the next file 6 Recording mode 7 Counter 8 Current action 9 Reverse 10 Playback 11 Stop 12 Fast forward 13 Slow playback Slide show operation panel Motion picture operation panel Precautions when playing back PC image data on the LCD TV Recording formats of image data: When recording image data on the LCD TV, the recording formats are as follows. • When recording motion pictures: The SD_VIDEO folder is created and the data is stored in. When playing the card, the SD_VIDEO recording format is recognized. • When recording still pictures: The DCIM folder is created and the data is stored in. When playing the card, the DCIM recording format is recognized. When playing the card, record PC data in a recording format the LCD TV can recognize. 1. When copying motion pictures from a PC to a card recorded with the LCD TV, first place the pictures in the SD_VIDEO folder before playing them. 2. When copying still pictures from a PC to a card recorded with the LCD TV, first place the pictures in the DCIM folder before playing them. 3. When using a new card for copying motion pictures, first format the card and create an SD_VIDEO folder before placing the data in the folder for playback. 4. When using a new card for copying still pictures, first format the card and create a DCIM folder before placing the data in the folder for playback. When creating, revising, or copying images using your PC, the edited images may not playback correctly. 44 Using memory card Inserting a PC card adapter • Press in the EJECT button if it is popped out. • Insert a memory card to a PC card adapter beforehand. (See page 42.) • Insert the PC adapter card slowly. Ejecting the card • Make sure the card indicator lights up green. • CARD indicator lights up green when the card is inserted. PC CARD slot CARD indicator Press EJECT button. • EJECT button is popped up. 1 2 Press EJECT button again. EJECT button NOTE • Please do not insert a CableCARD in the PC Card slot. • When “Please insert a PC card” is displayed, eject the PC card adapter, and then insert the PC card adapter slowly all the way to the end. • When over a thousand files are in a card, it takes several minutes to load. (approx. 5 minutes.) • Even if the green light is on, you can not record on a card right after you inserted it. • Make sure the CARD indicator lights green when you take out a card. Never take out a card when the CARD indicator lights red. This may damage the card. Selecting Still and Video mode Press CARD and the card mode screen displays. Press c/d to select “Still” or “Video”, and then press ENTER. • When in CARD mode, press 0-9, CH r/s, FAVORITE CH or INPUT to switch either TV or AV input mode. Reverse side Opening the PC CARD slot cover Use your fingertip to slide the catch in the direction of the arrow. 1 2 45 Using memory card Recording a still image You can record a still image on the card. Press REC. 1 2 Press FREEZE. 3 Press ENTER to update the still image. Onion Tomato Potato x 1 x 1 x 1 Still Cooking Time Onion Tomato Potato x 1 x 1 x 1 Cooking Time Still Still image captured on card. Displaying a still image Press CARD and the card mode screen displays. 1 2 Press c/d to select “Still”, and then press ENTER. 3 Press a/b/c/d to select a file you want to display, and then press ENTER. Still Video File 1 File 2 File 3 File 4 File 5 File 6 File 7 File 8 File 9 Cooking Time Still • “Still image captured on card.” displays. • To display the files that are in the previous or next page, select c/d on the index screen and press ENTER. • When viewing a still image, by pressing VIEW MODE the image size changes. Normal – Full. This function does not work when displaying the index screen. Displaying Slide Show Repeat steps 1 to 3 in Displaying a still image above. • The operation panel displays. 1 2 Press a/b/c/d to select d, and then press ENTER. • Slide show starts. • Operate slide show with the operation panel appears on the screen. • To turn off the operation panel, press CARD on the remote control. CARD - STILL 0001/0045 ORDER:NORMAL PREV. SLIDE SHOW STOP NEXT REPEAT:OFF NOTE • See page 43 for operation panel function. • You can not rotate the image during slide show. Stop slide show to rotate the image. NOTE The input signals available for recording are S-Video and Composite Video, except for copy-guarded or V-chip blocked programs. 46 Using memory card Setting Slide Show You can adjust the interval, order and repeat settings. 4 5 Press a/b to select “Slide Show”, and then press ENTER. Press MENU and the MENU screen displays. 2 Press c/d to select “Card Setup”. 3 Press a/b to select “Still Setup”, and then press ENTER. Slide Show My Program Audio Select File Operation Interval Order 5 s. Repeat Normal Off On My Program You can select up to thirty-two pictures and specify the order for displaying in slide show. Press a/b/c/d to select the desired slide show setting, and then press ENTER. 4 Press a/b to select “My Program”, and then press ENTER. 2 3 Press c/d to select “Setup”, and then press ENTER. 6 Press a/b/c/d to select the files, and then press ENTER. To cancel My Program setting Perform steps 1 and 2 in My Program. 1 2 Press c/d to select “Delete All”, and then press ENTER. Description Set the frame interval for a slideshow. Set the frame order for a slideshow. See the right column for My Program setting. If set to On, the slideshow will play again after showing the last frame. Selected item Interval Order Repeat Press CARD and the card mode screen displays. 1 6 Repeat steps 1 to 4 in Setting Slide Show. 1 5 Repeat the operation in step 4. (You can select up to 32 files.) After selecting all the files you want, press RETURN to return to MENU. 3 Press c/d to select “Yes”, and then press ENTER. • All the registered numbers are cleared. Audio Select You can enjoy the audio from TV or other external equipment during the still image playback. Press a/b to select “Audio Select”, and then press ENTER. 2 3 Press a/b/c/d to select the desired sound output, and then press ENTER. Repeat steps 1 to 4 in Setting Slide Show. 1 47 Using memory card Protecting/unprotecting still image files You can protect any file you do not want to delete. 5 6 Press a/b to select “File Operation”, and then press ENTER. 2 3 4 Slide Show My Program Audio Select File Operation Protect Delete File Delete All Press a/b to select “Protect”, and then press ENTER. Press a/b/c/d to select the file you want to protect, and then press ENTER. • Protect mark ( ) displays. • Select the file with a protect mark and press ENTER to cancel file protect. Repeat steps 1 to 4 in Setting Slide Show. 1 Repeat the operation in step 4. After setting the files you want to protect, press RETURN to return to MENU. NOTE • You cannot delete a protected file on the card. Deleting a still image file 5 6 2 3 4 Press a/b to select “Delete File”, and then press ENTER. Repeat steps 1 to 4 in Setting Slide Show. 1 Press a/b/c/d to select the file you want to delete, and then press ENTER. Press c/d to select “Yes”, and then press ENTER. NOTE • You cannot delete a protected file on the card. • Do not turn off the power or take out a card when deleting a file. The card may malfunction. Repeat the operations in steps 4 and 5 above. After deleting the images you no longer need, press RETURN to return to MENU. Deleting all still image files 2 3 Press a/b to select “Delete All”, and then press ENTER. Press c/d to select “Yes”, and then press ENTER. Repeat steps 1 to 4 in Setting Slide Show. 1 NOTE • You cannot delete a protected file on the card. • Do not turn off the power or take out a card when deleting a file. The card may malfunction. Press a/b to select “File Operation”, and then press ENTER. Press a/b to select “File Operation”, and then press ENTER. 4 7 48 Using memory card Recording a motion picture Use this setting to record images you are currently watching. Record with the settings made in “Rec. Mode” and “Pre Record”. Press REC to start recording. • CARD indicator lights up red. • Recording information displays in the lower right corner of the screen. 1 2 Press H to stop recording. To display the remaining record time. Press DISPLAY while not recording. • Remaining record time displays in the lower right corner of the screen. NOTE • Do not remove the AC cord from the socket. • Recording stops if you press TV POWER on the remote control while recording. • When card has no capacity for recording, “Card is full” displays and stops recording. • You cannot change the channel or switch the input source while recording. Displaying a motion picture Press CARD and the card mode screen displays. 1 2 Press c/d to select “Video”, and then press ENTER. 3 Press a/b/c/d to select the file you want to play, and then press ENTER. • Video playback starts. 4 Press CARD again to display the operation panel. • See page 43 for the operation panel information. • When viewing a motion picture, by pressing VIEW MODE the picture size changes. Small – Medium – Large. NOTE The input signals available for recording are S-Video and Composite Video, except for copy-guarded or V-chip blocked programs. Rec. Mode Use this setting for recording images you are currently watching. You can select the recording mode (picture quality) for a motion picture. 5 6 Press a/b to select “Rec. Mode”, and then press ENTER. Press MENU and the MENU screen displays. 2 3 Press c/d to select “Card Setup”. 4 Press a/b to select “Video Setup” and then press ENTER. Rec. Mode Pre Record Repeat Play File Operation SP LP EP Press a/b to select the desired mode, and then press ENTER. Press CARD and the card mode screen displays. 1 49 Using memory card Pre Record You can record the picture slightly before the point where you pressed the record button, enabling you to record just the scene you wanted. Press a/b to select “Pre Record”, and then press ENTER. 2 3 Rec. Mode Pre Record Repeat Play File Operation On Off Press c/d to select “On”, and then press ENTER. Repeat steps 1 to 4 in Rec. Mode. 1 Repeat Play You can specify one file or all files to replay repeatedly. Press a/b to select “Repeat Play”, and then press ENTER. 2 3 Press a/b to select desired setting, and then press ENTER. Repeat steps 1 to 4 in Rec. Mode. 1 Description No playback or repeat. Plays back and repeats one file. Plays back all movie files on the card then repeats. Selected item Off File All Protecting/unprotecting motion picture files You can protect any file you do not want to delete. Press a/b to select “File Operation”, and then press ENTER. Rec. Mode Pre Record Repeat Play File Operation Protect Delete File Delete All Press a/b to select “Protect”, and then press ENTER. Press a/b/c/d to select the file you want to protect, and then press ENTER. • Protect mark ( ) displays. • Select the file with a protect mark and press ENTER to cancel file protect. Press CARD and the card mode screen displays. 1 5 6 Repeats the operation in step 7. After setting the files you want to protect, press RETURN to return to MENU. Press MENU and the MENU screen displays. 2 3 Press c/d to select “Card Setup”. 4 Press a/b to select “Video Setup”, and then press ENTER. 7 8 9 50 Using memory card Deleting a motion picture file 5 6 2 3 4 Press a/b to select “Delete File”, and then press ENTER. Press a/b/c/d to select the file you want to delete, and then press ENTER. Repeat steps 1 to 5 in Protecting/ unprotecting motion picture files. 1 Press c/d to select “Yes”, and then press ENTER. NOTE • You cannot delete a protected file on the card. • Do not turn off the power or take out a card when deleting a file. The card may malfunction. Repeat the operations in steps 3 and 4 above. After deleting the images you no longer need, press RETURN to return to MENU. Deleting all motion picture files Press a/b to select “Delete All”, and then press ENTER. Press c/d to select “Yes”, and then press ENTER. 2 3 Repeat steps 1 to 5 in Protecting/ unprotecting motion picture files. 1 NOTE • You cannot delete a protected file on the card. • Do not turn off the power or take out a card when deleting a file. The card may malfunction. Format 4 Press c/d to select “Yes”, and then press ENTER. Press MENU and the MENU screen displays. 1 2 Press c/d to select “Card Setup”. 3 Press a/b to select “Format” and then press ENTER. No Yes NOTE • Formatting a card deletes all files including the ones which set to protect. • Do not turn off the power or take out a card while it is being formatted. 51 Displaying an external equipment image Explanation here is for the setting when connecting DVD to INPUT1 terminal. INPUT button To watch a DVD image, select “INPUT1” from “INPUT SOURCE” menu using INPUT on the remote control unit or on the Display. (See page 67.) INPUT SOURCE TV INPUT1 INPUT2 INPUT3 INPUT4 INPUT5 i.LINK CARD 1 MENU [Option ... Input Select] Auto COMPONENT VIDEO For INPUT1 signal Select the desired signal type. The setting is stored and can be selected on the “INPUT SOURCE” menu. Press MENU and the MENU screen displays. 2 3 Press a/b to select “Input Select”, and then press ENTER. 4 Press c/d to select “Option”. MENU [Option ... Input Select] Option Input Select Digital Noise Reduction Output Select Audio Only Quick Shoot [Fixed] [Auto] [Low] [Off] Center Channel Input Caption Setup [Off] Title Display type [No] NOTE • If the image does not come in clearly, you may need to change the input signal type setting on the “Input Select” menu. Selecting the INPUT signal CAUTION • To protect all equipment, always turn off the TV before connecting to a DVD player, VCR, Digital TV tuner, PC, HDMI equipment, game console, camcorder or other external equipment. NOTE • See pages 52 to 57 for external equipment connection. • Please refer to the relevant operation manual (DVD player, PC, etc.) carefully before making connections. • Each time INPUT is pressed, the input source toggles. • Refer to your external equipment operation manual for the signal type. Using external equipment You can connect many types of external equipment to your TV, like a DVD player, VCR, Digital TV tuner, PC, HDMI equipment, game console and camcorder. To view external source images, select the input source from INPUT on the remote control unit or on the Display. 52 Using external equipment Connecting a DVD player You can use the INPUT 1, INPUT 2, INPUT 4 or INPUT 5 terminals when connecting to a DVD player and other audiovisual equipment. NOTE • See page 55 for connecting a DVD player with HDMI terminal. DVD player Component video cable (commercially available) Audio cable (commercially available) AV cable (commercially available) DVD player ø 3.5 mm stereo minijack cable (commercially available) DVI cable (Commercially available) When using component cable. When using composite cable. When using DVI cable. (INPUT 5) DVD player 53 Using external equipment VCR AV cable (commercially available) Connecting a VCR You can use the INPUT 3 terminal when connecting a VCR and other audiovisual equipment. Game console/Camcorder S-video cable (commercially available) Connecting a game console or camcorder A game console, camcorder and some other audiovisual equipment are conveniently connected using the INPUT 3 terminals. NOTE • The S-video terminal has priority over the video terminals. AV cable (commercially available) S-video cable (commercially available) NOTE • The S-video terminal has priority over the video terminals. 54 Using external equipment Connecting a Digital TV STB (Air or Cable) You can use the INPUT 1, INPUT 2, INPUT 4 or INPUT 5 terminals when connecting a Digital TV STB (Air or Cable) and other audiovisual equipment. Digital TV STB Component video cable (commercially available) Audio cable (commercially available) NOTE • See page 55 for connecting a Digital TV STB to HDMI terminal. AV cable (commercially available) Digital TV STB Digital TV STB ø 3.5 mm stereo minijack cable (commercially available) DVI cable (Commercially available) When using component cable. When using composite cable. When using DVI cable. (INPUT 5) NOTE • If your cable-TV company has CableCARD available, you can also use the CableCARD to receive HDTV programs. (See page 25.) 55 Using external equipment Connecting HDMI equipment Please use the INPUT 4 terminal when connecting HDMI equipment. HDMI cable (Commercially available) Displaying an image from HDMI equipment To watch an HDMI equipment image, select “INPUT4” from “INPUT SOURCE” menu using INPUT on the remote control unit or on the Display. (See page 67.) INPUT SOURCE TV INPUT1 INPUT2 INPUT3 INPUT4 INPUT5 INPUT5 CARD i.LINK 1 Press MENU and the MENU screen displays. 2 3 Press a/b to select “HDMI Setup”, and then press ENTER. 4 Press c/d to select “Option”. MENU [Option ... HDMI Setup] Option 3D Noise Reduction Mosquito Noise Reduction HDMI Setup [Off] [Low] 5 Press a/b to select the desired item and press ENTER. Press a/b/c/d to select the desired setting and press ENTER. 6 NOTE • Refer to your external equipment operation manual for the signal type. Selectable items Auto/RGB/YCbCr 4:4:4/YCbCr 4:2:2 Auto/ITU601/ ITU709 Standard/ Out of standard Enable/Disable HDMI Setup items Signal Type Color Matrix Dynamic Range Auto View Description Select the signal type from an HDMI terminal. Unless the image quality looks obviously poor, select Auto. Select the internal color space conversion method when an RGB signal is input. Normally, select Auto. Select the signal amplitude range. Normally, select Standard. Set whether or not to use VIEW MODE based on signal recognition, including an HDMI signal. 56 Using external equipment Connecting a PC Use the INPUT 5 terminal to connect a PC. NOTE • Refer to page 94 for a list of PC signals compatible with the TV. PC with DVI terminal ø 3.5 mm stereo minijack cable (commercially available) DVI cable (Commercially available) ø 3.5 mm stereo minijack cable (commercially available) PC with analog RGB terminal RGB/DVI conversion cable (Commercially available) 57 Connecting D-VHS Decks (i.LINK connection) Using external equipment About i.LINK i.LINK is an interface connection using a serial transfer system and is able to transfer multimedia data, such as digital images and digital sound, between devices that have i.LINK terminals. i.LINK is a term defined in the IEEE 1394 (Institute of Electrical and Electronics Engineers) standard. Currently, the transfer speeds are at 100 Mbps, 200 Mbps and 400 Mbps, each of them expressed as S100, S200 and S400 respectively. On this TV, the maximum speed is 400 Mbps. i. LINK devices that can be connected to this TV. Only D-VHS decks can be connected to this TV. Other devices such as DVD recorders, digital video cameras, computers or computer peripheral devices do not meet the specifications for this TV and therefore, cannot be connected. Materials that can be recorded with the i.LINK Only digital programs can be recorded by D-VHS decks connected to this TV using the i.LINK. i.LINK recording is not compatible with ground-wave broadcasts or external input signals (INPUT terminals 1 through 5). i.LINK connection Only an i.LINK cable is needed to connect the TV and the D-VHS deck. (VIDEO, S-VIDEO, and AUDIO terminals need not be connected.) D-VHS deck Connecting two or more D-VHS decks Up to 16 D-VHS decks can be connected using a daisy-chain connection with i.LINK cables. E.g. When only one D-VHS deck is connected: NOTE • Please make sure the shapes of the terminal and the plug match, and insert the plug into the terminal straight, not on an angle. • Use either one of the terminals. These two terminals do not differ in quality or function. When 3 or more D-VHS decks are connected, branch connection can be used. With branch connections, up to 62 D-VHS decks can be connected. Cautions regarding i.LINK connection • Please use S400 type i.LINK cables. • Some i.LINK devices may not relay data if their power is off. This TV can relay data during power off, by selecting “Active” in the “Standby Mode” option in “i.LINK Setup”. (See Page 58.) • Please do NOT use a loop connection as shown in the diagram. • When using the i.LINK, do not turn off the power of, or pull the cable from i.LINK devices, even if those i.LINK devices are not in use. This may affect the picture and the sound from a D-VHS deck in use. • If devices such as DVD recorders, digital video cameras, computers and computer peripheral devices which are not compatible with this TV, are connected to the TV using i.LINK, other i.LINK connections may be disrupted. 58 Using external equipment Setting the recording mode (i.LINK) • The function for automatically adjusting the recording mode of connected D-VHS decks can be turned on or off. • Since most of the currently available D-VHS decks automatically recognize the transfer rates of the pictures and sound being recorded and control the recording mode accordingly, you should always set this Mode to “Pass thru” in normal circumstances. • Depending on the D-VHS deck used and the type of broadcast being recorded, this TV may not adjust the recording mode properly. In this case, please set the “Recording Mode” to “Pass thru”. Press MENU and the MENU screen displays. Press c/d to select “Digital Setup”. Press a/b to select “i.LINK Setup”, and then press ENTER. 1 2 3 Press a/b to select “Recording Mode”, and then press ENTER. 4 Press c/d to select “Auto” or “Pass thru”, and then press ENTER. • Normally, this should be set to “Pass thru”. 5 Setting the Standby Mode (i.LINK) • Power consumption during standby mode can be minimized by changing the setting of the “Standby Mode” in “i.LINK Setup”. • When i.LINK is not in use, select “Inactive” in “Standby Mode”. Press MENU and the MENU screen displays. Press c/d to select “Digital Setup”. Press a/b to select “i.LINK Setup”, and then press ENTER. 1 2 3 Press a/b to select “Standby Mode”, and then press ENTER. 4 Press c/d to select “Active” or “Inactive”, and then press ENTER. 5 “Active”: Power continues to pass through the i.LINK circuit so data can be relayed. “Inactive”: Power consumption is minimized during standby mode. Data cannot be relayed at this setting. NOTE • When the main power of the TV is in standby mode (POWER indicator lights off), i.LINK control commands cannot be received from a D-VHS deck. This does not change even if the “Standby Mode” is set to “Active”. To control the TV from a D-VHS deck, turn the TV power on (POWER indicator lights up in blue). • Data cannot be relayed between i.LINK devices when all the following conditions are met: 1) More than one i.LINK device is connected to the TV with i.LINK cables, 2) “Standby Mode” is set to “Inactive”, and 3) The power of the TV is in standby mode (POWER indicator lights off). When the TV is connected between two i.LINK devices in series, select “Active” in “Standby Mode” or connect the TV at an end of the series as shown in the diagram. 59 Using external equipment Selecting a D-VHS deck (i.LINK) • In order to control a D-VHS deck from the TV, you must first choose the D-VHS deck to be controlled. • One D-VHS deck can be chosen from up to 16 i.LINK connected decks. • All D-VHS decks connected with i.LINK cables should automatically appear in the selection screen. Press i.LINK to display the i.LINK control panel. Press a/b/c/d to select “Model”, and press ENTER. • Selection screen appears. Press a/b to select a device, and then press ENTER. • The control panel for the D-VHS deck appears. 1 2 3 Disabling the TV’s operation of a D-VHS deck (i.LINK) • By disabling the TV’s operation of a D-VHS deck, the deck can be operated from another i.LINK device. Press i.LINK to display the i.LINK control panel. Press a/b/c/d to select “Model”, and press ENTER. • Selection screen appears. 1 2 3 NOTE • Devices that cannot be used with this TV will not appear in the selection screen. • When an item in the selection screen is grayed out, the item is not recognized by the TV and cannot be selected. (The item may not be connected properly.) • When there is no D-VHS deck connected, the message “No i.LINK model is available” appears. In this case, please connect a D-VHS deck. (See page 57.) • When there is no D-VHS deck selected, the selection screen appears. In this case, please go to step 3. • When there is no D-VHS deck connected, “No i.LINK model is available” appears. Please connect one. (See page 57.) • When there is no D-VHS deck selected, the selection screen appears. Please go to step 3. Press b to select “Cancel Connection” and press ENTER. • Operation of the D-VHS deck from the TV is disabled. Model Input PLAY PWR D-VHS STOP 1 0 0 : 0 0 : 0 0 Type Manufacturer Model Model Input PLAY PWR D-VHS STOP 1 0 0 : 0 0 : 0 0 Type Manufacturer Model Type Cancel Connection Manufacturer Model 60 Using external equipment Deleting a preset D-VHS deck (i.LINK) • Preset D-VHS decks can be selected from a list. • If a D-VHS deck is connected, it cannot be deleted from the list. Press i.LINK to display the i.LINK control panel. Press a/b/c/d to select “Model”, and then press ENTER. Press a/b to select a device to be deleted, and then press ENTER. 1 2 3 Controlling an i.LINK device • An i.LINK compatible D-VHS deck can be controlled from the TV using the i.LINK control panel on the screen. • The steps in “i.LINK Setup” on page 58 need to be completed beforehand. • Please also refer to the operation manual of the D- VHS deck to be used with this TV. Basic operation Press i.LINK to display the i.LINK control panel. • The i.LINK button is also used to exit the i.LINK control panel. Press a/b/c/d to select a function, and then press ENTER. 1 2 Press c to select “Delete”, and then press ENTER. • The selected D-VHS deck is deleted from the list. • Select “Cancel” to undelete a device. 4 i.LINK control panel NOTE • The input selection button is used to select either digital broadcasting or i.LINK input. Model Input PLAY PWR D-VHS STOP 1 0 0 : 0 0 : 0 0 Type Manufacturer Model Type Cancel Connection Manufacturer Model Model Input 1 D-VHS PLAY PWR PWR 0 0 : 0 0 : 0 0 PLAY Cassette inserted Type of Videotape/Tape Format Write Protect on (When the defeat tabs are broken recording is impossible) Function selected with the cursor Power On/Off STOP PLAY PAUSE REC START SKIP BACK REWIND FAST FORWARD SKIP FORWARD Timer Status (D-VHS recorder can not be operated when timer is set) Status Display i.LINK device number Manufacturer Model Go to Model Selection screen Select input Current operation Tape Counter 61 NOTE • Even when a connected D-VHS deck is playing, input signal can be switched to digital broadcasting by shifting the cursor to the input selection button and pressing ENTER. • This TV may not be able to operate some D-VHS decks using the control panel, or to display picture and/or sound input from some D-VHS decks. • Depending on the D-VHS deck, this TV’s i.LINK may not allow viewing of VHS and S-VHS tape or analog recorded D-VHS tape. In this case, connect the D-VHS deck’s analog output with the TV’s analog input, and switch the TV’s input mode to external input. • If a D-VHS deck is operated with the TV’s control panel during timer recording, the recording may fail. Do not use the TV’s control panel to operate the D-VHS deck during timer recording. • When the TV’s control panel is used to record a program, what is recorded with the D-VHS deck are the pictures and sound of the digital program that the TV is receiving. • To record the picture and sound of a digital program which the TV is receiving, use D-VHS tape. VHS or S-VHS tape will not record. • The i.LINK control panel cannot be used during timer recording. • There may be some programs which D-VHS decks cannot record. • With some D-VHS decks, the quality of the picture may be distorted during fast forwarding or rewinding. • IEEE 1394 is the IEEE’s international standard. • i.LINK and the i.LINK logo are registered trademarks of Sony Electronic, Inc. • A copy protection technology is used on D-VHS decks that incorporate copyright protection. This technology has received the approval of the Digital Transmission Licensing Administrator (DTLA), an organization that administers copyright protection technologies. Some picture and sound data have restrictions on duplication. Such data cannot be digitally copied using the i.LINK. Some picture and sound data may not be able to be sent back and forth between a D-VHS deck that has DTLA copyright protection technology and one that does not. Using external equipment Automatic input switching to i.LINK • Input mode can be set to automatically switch to i.LINK when a D-VHS deck connected to the TV is played. Press MENU to display the MENU screen. Press c/d to select “Digital Setup”, and then press ENTER. Press a/b select “i.LINK Autoswitch”, and then press ENTER. 1 2 4 Press c/d to select “Yes”, and then press ENTER. 5 i.LINK Autoswitch Standby Mode Recording Mode Yes No Press a/b to select “i.LINK setup”, and then press ENTER. 3 62 Using external equipment Recording digital programs with a D-VHS deck (i.LINK) • Before commencing this procedure, the steps in “i.LINK Setup” on page 58 need to be completed beforehand. • Please also refer to the operation manual of the D- VHS deck to be used with this TV. Select a digital program to be recorded. Press i.LINK to display the i.LINK control panel. Press a/b/c/d to select E, and then press ENTER. • Recording starts. • Select H and press ENTER to stop recording. 1 2 3 NOTE • Input mode cannot be switched to i.LINK during recording. • Some D-VHS decks may not be able to be operated using the TV’s i.LINK control panel. • When a D-VHS deck connected to the TV is under timer recording, the deck cannot be operated using the TV’s control panel. • When the TV’s control panel is used to record a program, what is recorded with the D-VHS deck are the pictures and sound of the digital program that the TV is receiving. • To record the picture and sound of a digital program which the TV is receiving, use D-VHS tape. VHS or S-VHS tape will not record. Model Input PLAY PWR D-VHS STOP 1 0 0 : 0 0 : 0 0 64 Rear view Useful adjustment settings Connecting external speakers Make sure to connect the speaker terminal and cable polarity (L, +) properly • The speaker terminals have plus (L) and minus (+) polarity. • Plus is red and minus is black. • The cables are also divided into plus and minus. • When connecting the left/right speakers, be sure to connect the plus/minus terminals with the correct cables. NOTE • Unplug the AC cord from the AC outlet before installing the speakers. CAUTION • Make sure external speakers have 4 ohm and 10 watt specifications. • Connect the plus/minus terminals with the correct cables. Incorrect connection may cause a short. How to connect the speaker cable Pull up the lid. Insert the end of the cable. 1 1 1 1 1 2 2 2 2 2 3 3 3 3 3 Put the lid back down. 65 Useful adjustment settings Audio Quality Control Audio Quality Control automatically optimizes the audio quality to suit internal (supplied) speakers. Press MENU and the MENU screen displays. Press c/d to select “Setup”. 1 2 Press c/d to select “Equalizer” or “Flat”, and then press ENTER. Press a/b to select “Speaker Setup”, and then press ENTER. 3 5 Description Sets the optimum Audio Quality Control for the attached speakers. When you are using your own speakers, output the original sound without using Audio Quality Control. Selected item Equalizer Flat NOTE • When DOLBY Virtual is on, Audio Quality Control automatically sets to Flat. Press ENTER. 4 66 Useful adjustment settings 1 2 Auto Sync. adjustment (PC input mode only) For automatically adjusting the PC image. Press MENU and the MENU screen displays. Press c/d to select “Setup”. 4 3 Press a/b to select “Auto Sync.”, and then press ENTER. Press c/d to select “Yes”, and then press ENTER. • Auto Sync. starts and “Now adjusting the image” displays. MENU [Setup ... Auto Sync.] No Yes NOTE • When Auto Sync. is successful, “Auto Sync completed successfully” displays. If not, Auto Sync. failed. • Auto Sync. may fail even if “Auto Sync completed successfully” displays. • Auto Sync. may fail if the computer image has low resolution, has unclear (black) edges, or is moved while executing Auto Sync. • Be sure to connect the PC to the TV and switch it on before starting Auto Sync. Fine Sync. adjustment (PC input mode only) Ordinarily you can easily adjust the picture as necessary to change image position using Auto Sync. In some cases, however, manual adjustment is needed to optimize the image. Press MENU and the MENU screen displays. Press c/d to select “Setup”. Press a/b to select “Fine Sync.”, and then press ENTER. Press c/d to adjust the item to your desired position. NOTE • For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press ENTER. 30% Reset H-Pos. [ 90] – + V-Pos. Clock Phase [ 39] [ 90] [ 20] – – – + + + 1 2 4 3 5 Press a/b to select the specific adjustment item. Description Centers the image by moving it to the left or right. Centers the image by moving it up or down. Adjust when the image flickers with vertical stripes. Adjust when characters have low contrast or when the image flickers. Selected item H-Pos. V-Pos. Clock Phase 67 Useful adjustment settings Input Select Press MENU and the MENU screen displays. 1 2 3 Press c/d to select “Option”. Press a/b to select “Input Select”, and then press ENTER. Press INPUT. • A list of selectable sources appears. Press INPUT again to select the input source. • An image from the selected source automatically displays. • You can also select the input source by pressing a/b. • If the corresponding input is not plugged in, you cannot change the input. Be sure to connect the equipment beforehand. 1 2 Selecting input signal type For setting the signal type of external equipment connected to INPUT 1 and Input 2 terminals. 4 Press a/b to select a signal type you want to set, and then press ENTER. • If the selected signal type is incorrect, images are not displayed or displayed without any color. NOTE • If you set INPUT1 and INPUT2 to Auto, the TV will automatically select the input signal. • Check the operation manual of the external equipment for the signal type. • Setting INPUT 1 and INPUT 2 signal selection to “Auto” when other equipment is connected will result in the following connectivity priority. Selecting input source Use this menu to select the input source. INPUT 1 and INPUT 2 1. COMPONENT VIDEO 2. VIDEO Press INPUT to select INPUT5. Press MENU and the MENU screen displays. Press a/b to select the equipment connected to INPUT 5 terminal, and then press ENTER. 1 2 4 3 5 Display INPUT button INPUT SOURCE TV INPUT1 INPUT2 INPUT3 INPUT4 INPUT5 INPUT5 i.LINK CARD Press c/d to select “Option”. Press a/b to select “Input Select”, and then press ENTER. MENU [Option ... Input Select] Option Input Select Output Select Audio Only Quick Shoot [Fixed] [ANALOG PC] [Off] Center Channel Input [Off] MENU [Option ... Input Select] DIGITAL PC ANALOG PC DIGITAL AV ANALOG AV DVI input signal setting 68 Useful adjustment settings Input Label Lets you set the input terminal displayed using the INPUT SOURCE menu or channel display. Press MENU and the MENU screen displays. 3 4 Press c/d to select “Setup”. Press a/b to select “Input Label”, and then press ENTER. 1 2 INPUT SOURCE TV DVD INPUT2 INPUT3 INPUT4 INPUT5 INPUT5 i.LINK CARD Press a/b/c/d to select the new name for the channel, and then press ENTER. (Example) NOTE • You cannot change labels if the INPUT SOURCE is TV, i.LINK or CARD. Repeat steps 1 and 2 in Input Label. 1 2 Press a/b to select the desired mode, and then press ENTER. Press a/b to select “Picture Flip”, and then press ENTER. 3 [Standard]: normal image. [Mirror]: mirror image. ABC ABC ABC ABC [Upside Down]: upside down image. [Rotate]: rotated image. Picture Flip You can set the orientation of the picture. 69 Useful adjustment settings AV MODE AV MODE gives you six viewing options to choose from to best match environment of the TV, which can vary due to factors like room brightness, type of program watched or the type of image input from external equipment. Description For a highly defined image in a normally bright room For a movie Lowers image brightness for easier viewing Allows the user to customize settings as desired. You can set the mode for each input source. Changing image and sound settings to factory preset values. No adjustments are allowed. For a clear-cut image emphasizing high contrast for sports viewing Selected item STANDARD MOVIE GAME USER DYNAMIC (Fixed) DYNAMIC Press AV MODE. • Present AV MODE displays. Press AV MODE again before the mode displayed on the screen disappears. • The mode changes as shown below. 1 2 Mode selection for TV, INPUT 1 to 5, i.LINK and CARD mode (Example) Mode selection for the PC terminal (Example) AV MODE: MOVIE AV MODE: STANDARD AV MODE: DYNAMIC AV MODE: GAME AV MODE: USER [ANALOG-A] AV MODE: DYNAMIC (Fixed) AV MODE: STANDARD AV MODE: USER [PC] View mode for 4:3 Programs Press VIEW MODE. • The View mode menu displays. • The menu lists the view mode options selectable for the type of video signal currently received. Side Bar: Suitable for viewing conventional 4:3 programs in their normal format. S.Stretch: Suitable for stretching 4:3 programs to fill the screen. Zoom: Suitable for viewing wide- screen 2.35:1 anamorphic DVDs in full screen. Stretch: This mode is useful for 1.78:1 DVDs. When viewing 1.85:1 DVDs, stretch mode will still show very thin black bands at the top and bottom of the screen. (Smart stretch) 1 2 Press VIEW MODE or a/b while the View mode menu is still on the screen. • You can sequentially select a view mode that has its own aspect ratio. View Mode Side Bar S. Stretch Zoom Stretch NOTE • You can select a different AV MODE item for each input mode. (For example, select STANDARD for TV input and DYNAMIC for VIDEO input.) View mode for HD Programs The following modes are available for HD programs. Suitable for viewing wide-screen 1.78:1 aspect- ratio programs. When viewing 1.85:1 programs, stretch mode will still show very thin black bands at the top and bottom of the screen. Stretch: Detects the resolution of the signal and displays an image with the same number of pixels on the screen. Dot by Dot: Suitable for stretching 4:3 programs to fill the screen. S.Stretch: (Smart stretch) Suitable for viewing wide-screen 2.35:1 aspect- ratio programs in full screen. Zoom: NOTE • When using Dot by Dot, it is possible to see noise or bars around different outer portions of the screen. Please change view mode to correct this. 70 Useful adjustment settings View mode (for PC input mode) You can select the screen size. a View Mode Normal Stretch Dot by Dot Zoom Input signal Normal Zoom Stretch Dot by Dot Keeps the original aspect ratio in a full screen display. Keeps the original aspect ratio in a full screen display. The top and bottom of the image is slightly cropped. An image fully fills the screen. Detects the resolution of the signal and displays an image with the same number of pixels on the screen. a Screen size images. NOTE • Connect the PC before making adjustments. (See page 56.) • Selectable screen size may vary with input signal type. Press VIEW MODE. • The View mode menu displays. 1 2 Press VIEW MODE or a/b to select a desired item on the menu. 72 Useful adjustment settings Description • Sound via speaker is adjusted with VOL k/l on the remote control unit or VOL l/ k on the Display. • Sound via the MONITOR OUTPUT terminal is not adjustable and constantly outputs. • Sound via the MONITOR OUTPUT terminal is adjusted with VOL k/l on the remote control unit or VOL l/k on the Display. • Sound via speaker is muted. Selected item Fixed Variable Output Select Allows you to select what controls the audio output. Press MENU and the MENU screen displays. 1 2 Press a/b to select “Output Select”, and then press ENTER. 3 Press c/d to select “Fixed” or “Variable”, and then press ENTER. 4 Press c/d to select “Option”. Quick Shoot Use Quick Shoot to view fast-action video more clearly. 1 2 3 Repeat steps 1 and 2 in Output Select. Press a/b to select “Quick Shoot”, and then press ENTER. Press c/d to select “On”, and then press ENTER. NOTE • If video noise occurs, turn the function “Off”. Sleep timer Allows you to set a time when the TV automatically switches to standby. Sleep Timer: Off 30 60 90 120 Sleep Timer: Sleep Timer: Sleep Timer: Sleep Timer: 1 2 Press SLEEP. • Remaining time displays when sleep timer has been set. Each time you press SLEEP, the remaining time switches as shown below. • When set, the time automatically starts counting down. • If you want to adjust the sleep timer, you can press SLEEP twice then change the time setting. • Five minutes before time expires, the remaining time displays each minute. NOTE • Select “Off” by pressing SLEEP to cancel the sleep timer. • If the sleep timer is activated when set to zero, the TV will enter STANDBY mode. Sleep Timer: Remaining 30 73 Title Display Type Select the CH display when changing channels for digital broadcasting. 1 2 4 3 Press MENU and the MENU screen displays. Press c/d to select “Option”. Press a/b to select “Title Display Type”, and then press ENTER. Press c/d to select “Yes” or “No”, and then press ENTER. Selected item Description Yes No “Program Info.” displays “Program Info.” does not display Useful adjustment settings 74 Useful adjustment settings Closed caption • Your TV is equipped with an internal closed caption decoder. Closed caption is the system which allows you to view conversations, narration, and sound effects in TV programs and home videos as subtitles on your Display. • Digital Closed Caption which is new service on Digital TV programs allow broadcaster to change caption size and font style and so on. “ENG”(English) or “SPA”(Spanish) or “FRA”(French) or other language codes will be displayed on the screen. • Not all programs and videos offer closed caption. Please look for the “N” symbol to ensure that captions will be shown. • “CC1” or “CC2” displays subtitles of TV dramas and news programs while allowing a full view of the picture. • “Text1” or “Text2” superimposes on the picture other information (e.g. TV guide, weather) that is independent of the TV in progress. 2 ANALOG-A Air Audio : MONO CC : 1/2 CC1 NOTE • See page 75 to 77 for the detailed closed caption settings. • When using Twin Picture functions (see page 87), Closed Caption on the program of the active screen will be displayed. • When using Freeze functions, closed caption will not be displayed on the right screen (still image). • When the program contains no closed caption, “- -” displays in the closed caption information. • If the language code, e.g.“ENG”, is not found on Digital TV programs, “- -” will be shown. • Four kinds of closed caption service(CC1, CC2, Text1, Text2) are available. However, selectable service(CC1, CC2, Text1, Text2) are depends on the programs contains. Closed caption information 1 2 Press CC. • Present Closed caption information displays. Press CC while the Closed caption information is still on the screen. • You can sequentially select a closed caption service which you prefer. • Depending on the signal, information such as 1/4 or 1/2 will appear. 1/2 shows the first of two services. Example: If a program has three services(Digital CC(ENG), CC1 and Text1), closed caption toggles like below. 1/3 ENG 2/3 CC1 3/3 Text1 OFF • If selected service has gone and there are the other services, the other service will be selected temporarily and service name on the screen will be displayed with round brackets “( )”. Examples: If digital CC has gone after a program has two services(Digital CC(ENG) and CC1), closed caption information will be change like below. 1/2 ENG 1/1 CC1 75 Useful adjustment settings Caption Size Select a caption size. 4 Press a/b to select “Caption Size”. Press MENU and the MENU screen displays. 1 2 Press c/d to select “Option”. 3 Press a/b to select “Caption Setup”, and then press ENTER. Caption Size Default Font Style Default Foreground Color Default Foreground Opacity Default Background Color Default Background Opacity Default Character Edge Default Reset A B C 1 2 3 Font Style Select a font style. Press a/b to select “Font Style”. 4 Press c/d to select the desired style. 5 Press MENU and the MENU screen displays. 1 2 Press c/d to select “Option”. 3 Press a/b to select “Caption Setup”, and then press ENTER. 5 Press c/d to select the desired size. Description The font specified by broadcasting station or default font. Proportional font used in the MENU screen. Monospaced with serifs. Proportionally spaced with serifs. Monospaced without serifs. Proportionally spaced without serifs. Casual font type. Cursive font type. Small capitals. Selected item Default Type 0 Type 1 Type 2 Type 3 Type 4 Type 5 Type 6 Type 7 NOTE • Default: The caption size specified by broadcasting station or default size. • For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press ENTER. NOTE • For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press ENTER. 76 Useful adjustment settings Foreground Color Select a character foreground color. 4 Press a/b to select “Foreground Color”. Press MENU and the MENU screen displays. 1 2 Press c/d to select “Option”. 3 Press a/b to select “Caption Setup”, and then press ENTER. Caption Size Default Font Style Default Foreground Color Default Foreground Opacity Default Background Color Default Background Opacity Default Character Edge Default Reset A B C 1 2 3 Foreground Opacity Select a foreground opacity value. Press a/b to select “Foreground Opacity”. Press c/d to select the desired value. Repeat steps 1 to 3 in Foreground Color. 1 2 3 5 Press c/d to select the desired color. NOTE • Default: The foreground color specified by broadcasting station or default color. • For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press ENTER. NOTE • Default: The foreground opacity value specified by broadcasting station or default opacity value. • For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press ENTER. Background Color Select a character background color. Press a/b to select “Background Color”. Repeat steps 1 to 3 in Foreground Color. 1 2 3 Press c/d to select the desired color. NOTE • Default: The background color specified by broadcasting station or default color. • For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press ENTER. 78 Useful adjustment settings Secret number setting for parental control (AV input mode only) Allows you to use a secret number to protect certain settings from being accidentally changed. IMPORTANT: Three conditions must be met to enable V-Chip (see pages 80 to 84): 1 Secret No. is registered. 2 V-Chip settings have been made. 3 “Status” is set to “On”. Press MENU and MENU screen displays. 1 2 Press c/d to select “Setup”. Press a/b to select “Parental CTRL”, and then press ENTER. 3 Press a/b to select “Secret No.”, and then press ENTER. 4 V-Chip Secret No. Status TV MENU [Setup ... Parental CTRL] Select “New Secret No.”, and then press ENTER. Input the new 4-digit secret number by using 0 – 9. 5 New Secret No. Secret No. Clear New Secret No. – – – – Input Secret No. – – – – Reconfirm – – – – Input the same 4-digit number on the “Reconfirm” screen as in step 5 to confirm. 6 New Secret No. Secret No. Clear New Secret No. * * * * Input Secret No. – – – – Reconfirm – – – – Setting parental control status Used to enable or disable the parental control function. Press a/b to select “Status”, and then press ENTER. Press c/d to select “On” or “Off”, and then press ENTER. • Select “On” to enable and “Off” to disable Parental CTRL. V-Chip Secret No. Status On Off Repeat steps 1 to 3 in Setting a secret number. • Secret number setting menu displays. 1 2 Input the 4-digit secret number by using 0 – 9. 3 4 Press RETURN to start configuring V-Chip settings. (See pages 81 and 83 for details.) 7 Setting a secret number NOTE • You can skip step 1 and 2 above while in Parental CTRL screen. 79 Useful adjustment settings Changing the secret number Allows you to change your current secret number. Repeat steps 1 to 3 in Setting a secret number. • Secret number setting menu displays. 1 3 Press a/b to select “New Secret No.”, and then press ENTER. Input the old 4-digit number you have set using 0 – 9. MENU [Setup ... Parental CTRL] New Secret No. Secret No. Clear New Secret No. – – – – Input Secret No. – – – – Reconfirm – – – – Input the new 4-digit number using 0 – 9. Input the same 4-digit number on the “Reconfirm” screen as in step 6 to confirm. Clearing the secret number Allows you to clear your secret number. Repeat steps 1 to 3 in Setting a secret number. • Secret number setting menu displays. 1 2 Input the 4-digit secret number by using 0 – 9. 3 5 4 Press a/b to select “Secret No.”, and then press ENTER. Press c/d to select “Yes”, and then press ENTER. • Your secret number is cleared. Press a/b to select “Secret No. Clear”, and then press ENTER. NOTE • See page 78 for re-registering with a new secret number after being cleared. • As a precautionary measure, make a note of your secret number and keep it in a familiar place. If you lose or forget your secret number, initialize the Liquid Crystal Television to return all settings except for the TV channel settings to factory preset values. (See page 99.) • If the secret number is cleared the Status setting automatically sets to “Off”. “V-Chip” and “Status” will not be selectable from the menu. New Secret No. Secret No. Clear Yes No Press a/b to select “Secret No.”, and then press ENTER. New Secret No. Secret No. Clear New Secret No. – – – – Input Secret No. – – – – Reconfirm – – – – 4 5 6 7 New Secret No. Secret No. Clear New Secret No. * * * * Input Secret No. – – – – Reconfirm – – – – 2 Input the 4-digit secret number by using 0 – 9. 80 Useful adjustment settings Parental control (setting V-CHIP level) V-CHIP is an electronic filtering device built into your TV. This tool gives parents a great degree of control over broadcasts accessed by their children. It allows parents to select programs judged suitable for child viewing while blocking ones judged not suitable. It does so automatically once you activate the V-CHIP feature in your Liquid Crystal Television. “V-Chip” and “Status” will not be selectable from the menu if you do not first configure your secret number. (See page 78 for Secret number setting for parental control.) • The U.S. has two rating systems for viewing content: TV Parental Guidelines and movie ratings. • The TV Parental Guidelines work in conjunction with the V-CHIP to help parents screen out inappropriate television shows from their children. • Movie ratings are used for original movies rated by the Motion Picture Association of America (MPAA) as watched on cable TV and not edited for television. The V-CHIP can also be set to block MPAA-rated movies. Voluntary movie rating system (MPAA) Rating Age G PG PG-13 R NC-17 X General audiences. All ages admitted. Parental guidance suggested. Some material may not be suitable for children. Parents strongly cautioned. Some material may be inappropriate for children under 13. Restricted. Under 17 requires accompanying parent or adult guardian (age varies in some jurisdictions). No one 17 and under admitted. X is an older rating that is unified with NC-17 but may be encoded in the data of older movies. Description X: Content rating can be set. TV Parental Guidelines TV-Y (All children) TV-Y7 (Directed to older children) TV-G (General audience) TV-PG (Parental Guidance suggested) TV-14 (Parents strongly cautioned) TV-MA (Mature audience only) Rating Suggested age Content FV (Fantasy violence) V (Violence) S (Sexual situation) L (Adult language) D (Sexually suggestive dialog) X X X X X X X X X X X X a • If you select “PG-13”, this will automatically block the higher ratings “R”, “NC-17” and “X”. NOTE • Voluntary movie rating system only uses an age-based rating. MENU [Setup ... Parental CTRL] MPAA TV Guidelines Can. English Ratings Can. French Ratings PG-13 R NC-17 X NONE PG G 81 Useful adjustment settings Voluntary movie rating system (MPAA) Press MENU and the MENU screen displays. 1 2 Press c/d to select “Setup”. Input the 4-digit secret number by using 0 – 9. 3 Press a/b to select “Parental CTRL”, and then press ENTER. • Secret number setting menu displays only when “Secret No.” is set. (See page 78.) • “V-Chip” and “Status” will not be selectable from the menu if you do not first configure your secret number. (See page 78.) 5 Press a/b to select “V-Chip”, and then press ENTER. 6 V-Chip Secret No. Status MENU [Setup ... Parental CTRL] Press a/b to select “MPAA”, and then press ENTER. Press a/b to adjust the item to your desired position. “ ” indicates the item is blocked. Press RETURN. • The setting automatically enters “Block” for any ratings below your selection. • If Status is not set to “On” the configuration settings will not work. (See page 78.) 7 MPAA TV Guidelines Can. English Ratings Can. French Ratings PG-13 R NC-17 X NONE PG G TV Parental Guidelines (TV Guidelines) Repeat steps 1 to 5 in Voluntary movie rating system (MPAA). 1 2 Press a/b to select “TV Guidelines”, and then press ENTER. Press a/b to adjust the item to your desired position. “ ” indicates the item is blocked. • The setting automatically enters “Block” for any ratings below your selection. 3 MPAA TV Guidelines Can. English Ratings Can. French Ratings L S V FV D TV-G TV-PG TV-14 TV-MA NONE TV-Y7 TV-Y When setting an individual content-based rating item, do as follows: 1 Press d to access block content items from the currently selected age-based rating item. 2 Press a/b to select an individual item, and then press ENTER to unblock (“ ” is removed). Repeat the same steps for other items. 3 Press c or RETURN to register after all individual content rating items are set. MPAA TV Guidelines Can. English Ratings Can. French Ratings L S V FV D TV-G TV-PG TV-14 TV-MA NONE TV-Y7 TV-Y 4 Example Example Example • If Status is not set to “On” the configuration settings will not work. (See page 78.) 82 Useful adjustment settings Canadian Rating Systems • The TV rating systems in Canada are based on the Canadian Radio-Television and Telecommunications Commission (CRTC) policy on violence in television programming. • While violence is the most important content element to be rated, the structure developed takes into consideration other program content like language, nudity, sexuality and mature themes. • When setting the V-CHIP on the Canadian system you can choose either the Canadian English ratings or the Canadian French ratings. Rating Age E C C8e G PG 14e 18e Exempt: Includes news, sports, documentaries and other information programming; talk shows, music videos, and variety programming. Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of security and well-being. Children over 8 years old: Contains no portrayal of violence as the preferred, acceptable, or only way to resolve conflict; nor encourage children to imitate dangerous acts which they may see on the screen. General: Considered acceptable for all age groups. Appropriate viewing for the entire family, contains very little violence, physical, verbal or emotional. Parental Guidance: Intended for a general audience, but may not be suitable for younger children (under the age of 8) because it could contain controversial themes or issues. Over 14 Years: Could contain themes where violence is one of the dominant elements of the storyline, but it must be integral to the development of plot or character. Language usage could be profane and nudity present within the context of the theme. Adults: Intended for viewers 18 years and older and might contain depictions of violence, which while related to the development of plot, character or themes, are intended for adult viewing. Could contain graphic language and portrayals of sex and nudity. Description Canadian English ratings Rating Age E G 8anse 13anse 16anse 18anse Exempt programming. General: All ages and children, contains minimal direct violence, but may be integrated into the plot in a humorous or unrealistic manner. General but inadvisable for young children: May be viewed by a wide public audience, but could contain scenes disturbing to children under 8 who cannot distinguish between imaginary and real situations. Recommended for viewing with parent. Over 13 years: Could contain frequent violent scenes and therefore recommended for viewing with parent. Over 16 years: Could contain frequent violent scenes and intense violence. Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence. Description Canadian French ratings 83 Useful adjustment settings Canadian English ratings Press a/b to select “Can. English Ratings”, and then press ENTER. Press a/b to adjust the item to your desired position. “ ” indicates the item is blocked. • The setting automatically enters “Block” for any ratings below your selection. • If Status is not set to “On” the configuration settings will not work. (See page 78.) MPAA TV Guidelines Can. English Ratings Can. French Ratings E C C8+ G PG 14+ 18+ NONE Canadian French ratings Repeat steps 1 to 5 in Canadian English ratings. 1 2 Press a/b to select “Can. French Ratings”, and then press ENTER. Press a/b to adjust the item to your desired position. “ ” indicates the item is blocked. • The setting automatically enters “Block” for any ratings below your selection. • If Status is not set to “On” the configuration settings will not work. (See page 78.) 3 MPAA TV Guidelines Can. English Ratings Can. French Ratings 8ans+ 13ans+ 16ans+ 18ans+ NONE G E Press MENU and the MENU screen displays. 1 2 Press c/d to select “Setup”. Input the 4-digit secret number by using 0 – 9. 3 MENU [Setup ... Parental CTRL] Setup Option Secret No. – – – – Press a/b to select “Parental CTRL”, and then press ENTER. • Secret number setting menu displays only when “Secret No.” is set. (See page 78.) • “V-Chip” and “Status” will not be selectable from the menu if you do not first configure your secret number. (See page 78.) 5 Press a/b to select “V-Chip”, and then press ENTER. 6 V-Chip Secret No. Status 4 Example Example 7 84 Useful adjustment settings How to temporarily release the V-CHIP BLOCK • The V-CHIP BLOCK is working and censors a broadcast, “V-CHIP HAS BEEN ACTIVATED.” displays. Reactivating the temporarily released V-CHIP BLOCK • You can reactivate the temporarily released V-CHIP BLOCK as shown below. Method 1: Select “Status” setting from the Parental CTRL menu to reactivate BLOCK. See page 78. Method 2: Select “V-Chip” setting (“MPAA”, “TV Guidelines”, “Can. English Ratings” or “Can. French Ratings”) from the Parental CTRL to reactivate BLOCK. See pages 81 and 83. Method 3: Switch off the TV power. NOTE • Performing any of the three above will activate the V-CHIP BLOCK. 1 2 Press ENTER while the V-CHIP is working and then the secret number setting menu displays. Enter your 4-digit secret number with 0 – 9 and then press ENTER. At this time V-CHIP BLOCK temporarily releases. 85 Useful adjustment settings Center Channel Input You can use the display speakers as center speaker when using 5.1ch surrounding sound system. 4 Press c/d to select “On” , and then press ENTER. Press MENU and the MENU screen displays. 1 2 Press c/d to select “Option”, and then press ENTER. 3 Press a/b to select “Center Channel Input”, and then press ENTER. Off On NOTE • Sound from Center Channel Input terminal is output from the display speaker. * Connect to external audio equipment which supports 5.1ch surround sound system. Refer to your external equipment operation manual for details. 87 Other viewing options Twin picture functions Allows you to display two pictures on the screen at one time. Twin picture in all cases You can display two same-sized pictures except when inputting from INPUT 4 (HDMI) and INPUT 5 (DVI-I) terminals and CARD. Press TWIN PICTURE. • Twin picture displays and a selected input source image displays. Press SELECT to set either screen to be active. • “z” displays on the active screen, which has sound output. Press TWIN PICTURE to exit twin picture. NOTE • This function does not work under the following input conditions: 1INPUT 4 (HDMI) 2INPUT 5 (DVI-I) 3CARD 4Two pictures from the same source (e.g. INPUT 1 and INPUT 1) 5An image will appear on the right side only if it is a 480i signal. *An SDTV image has a 480p signal, so it will not appear either. • When this function is not available, “No dual screen display available” will display. • Pressing ANALOG-A, B, DIGITAL while viewing in Twin Picture mode (TV image and video image) with TV selected will display the TV image of the other tuner. Picture and still image You can display two same-sized pictures – one moving and one still. Press FREEZE. • A moving image displays on the left screen and a still image displays on the right screen. The still image is one frame captured from a moving image at the moment you press FREEZE. Update the still image by pressing ENTER. • Each time you press ENTER, the image on the right screen updates. • If a PC card with enough capacity is inserted in the TV, a message will appear on the screen asking you whether to save the image. Press REC on the remote control if you want to save. (See page 45.) Press FREEZE to exit still image. NOTE • This function does not work in INPUT 4 (HDMI), INPUT 5 (DVI-I) and CARD. • When this function is not available, “No displaying still image available” will display. • Another image can be saved if a PC card with enough capacity is inserted in the TV. • The still image is automatically erased after 30 minutes. • If you are using FREEZE and a broadcast activates the V- CHIP BLOCK, FREEZE will cancel and a block message will appear. FREEZE 1 2 3 1 2 3 88 Other viewing options Presetting remote control function You can operate the connected AV products (AV Receiver, Cable Box, SAT tuner, DTV, VCR, DVD, LD) using the presetting manufacturer function for your remote control unit. Presetting manufacturer codes Press FUNCTION until the LED for your device lights up. After the LED for your device lights up, if you press FUNCTION for three seconds and enter the code registration mode, the LED will blink. Press 0 – 9 to enter the manufacturer code. (See page 89.) • Preset mode is finished once the LED no longer lights up. 1 2 3 After registering the code, the LED will stop blinking then turn off after one second. (If you perform an incorrect operation, the LED will blink quickly then turn off.) 4 89 Other viewing options Manufacturer codes Akai Audio Broksonic Canon Capehart Craig Curtis Mathis Daewoo DBX Dynatech Emerson Fisher Funai G.E. Goldstar Hitachi Instant Replay JC Penney JVC Kenwood Lloyds Magnavox Magnin Marantz Memorex Minolta Mitsubishi Montgomery Ward Multitech NEC Panasonic Pentax Philco Philips RCA Realistic Samsung Sanyo Scott Sears Sharp Shintom Sony Sound Design Sylvania Symphonic Tatung Teac Teknika Thomas TMK Toshiba Video Concepts Yamaha Zenith 25, 26, 37 15, 22, 30 32 04 34 10, 31 04 34 15, 22, 30 29 21, 32, 35 09, 10, 11 28, 29 04 24 06, 47 04 04, 06, 24, 30 15, 41, 42, 53 14, 15 29 04, 05, 08 31 30 04, 10, 24, 29 06 17, 18, 39, 40 02, 43 29 15, 22, 30 44, 45 05, 06 05 05, 08 06, 07, 33, 51 01, 02, 10, 24 23, 31 10, 14, 52 20 06, 11, 24 01, 02, 03 36 12, 13, 38 29 05, 08 29 15 15, 29 27, 29 29 21 19, 20 30 15, 29, 30 16 VCR BRAND REMOTE CONTROL CODE NUMBER Denon JVC Kenwood Magnavox Marantz Mitsubishi Panasonic Philips Pioneer Proscan RCA Samsung Sharp Sony Toshiba Yamaha Zenith 02 09, 13 21 04 04 06 02, 22 04, 23 08, 11, 20 03 03, 24 07, 12 01, 10 05, 25 04 02 04 DVD/LD BRAND REMOTE CONTROL CODE NUMBER Anvision Cable Star Eagle General Instrument Jerrold Magnavox Oak Sigma Panasonic Philips Pioneer Randtek RCA Scientific Atlanta Sony Viewstar Zenith 04, 05 04, 05 05 02, 03, 07, 12, 13, 14, 19, 22 02, 03, 07, 12, 13, 14, 19, 22, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40 04, 05, 09, 14, 17, 18, 20, 21, 24, 25 8 16, 23 04, 05, 09, 15, 17, 18, 20, 21, 24, 25 08, 10, 29, 30, 43*, 46 04, 05 16, 27, 44*, 45* 01, 26 28 04, 05, 09, 15, 17, 18, 20, 21, 24, 25 06, 14 CATV/SAT BRAND REMOTE CONTROL CODE NUMBER Sharp 01 AUDIO BRAND REMOTE CONTROL CODE NUMBER NOTE • Numbers marked with* are SAT codes, all others are CATV codes. 90 Other viewing options Cable control buttons When the FUNCTION is set to CBL/SAT the cable converter connected to the Display can operate using 1 to 4. 1 SOURCE POWER Turns the cable converter power on and off. 2 0 – 9 Press a button (or buttons) that corresponds to the channel that you wish to watch. 3 FLASHBACK * Press to switch between the current channel and the channel you were watching immediately before. 4 CH r/s Press CH r or CH s to tune in a higher or lower channel. * Some manufacturers do not preset FLASHBACK. NOTE • CABLE and SAT cannot be selected at the same time. 1 2 3 4 1 2 3 SAT control buttons 1 SOURCE POWER Turns the Satellite broadcast tuner power on and off. 2 0 – 9, • (DOT) Press a button (or buttons) that corresponds to the channel that you wish to watch. 3 ENTER, a/b/c/d ENTER: Press to activate the selected function. a/b/c/d: Press the button to select items on the SAT GUIDE screen or SAT MENU screen. NOTE • CABLE and SAT cannot be selected at the same time. 91 Other viewing options VCR control buttons The remote control unit button will function as follows when the FUNCTION of the remote control unit is set to VCR. • When the input selector button having the same number as the input terminal connecting the VCR is pressed, the VCR can operate using 1 to 8. 1 CH r/s Press to select the channel of the TV tuner on the VCR. 2 SOURCE POWER Turns the power of the VCR on and off. 3 F Sets pauses and still pictures. 4 G Rewinds the tape and allows picture search. 5 H Stops the tape transport. 6 REC Starts recording. 7 J Rapidly advances the tape and allows picture search. 8 I Starts playback. 2 4 6 5 7 8 3 1 DVD control buttons The remote control unit button will function as follows when the FUNCTION of the remote control unit is set to DVD. • When the input selector button having the same number as the input terminal connecting a DVD player is pressed, these players can operate using 1 to 10. 1 U Pressing quickly once takes you to the start of the next chapter. Each time you press it, you move ahead to the start of the next chapter. 2 T Pressing quickly once takes you to the start of the chapter currently playing. Each time you press it, you move back to the start of the previous chapter. 3 SOURCE POWER Turns the power of the DVD player on and off. 4 F Sets pauses and still pictures. 5 G Continue pressing to go backward. 6 H Playback stops when pressing once. With some DVD players, pressing the button twice may open the disc tray. 7 MENU When this button is pressed, the DVD menu will display. 8 ENTER, a/b/c/d ENTER: Press to activate the selected function. a/b/c/d: Press the button to select items on the DVD MENU screen. 9 J Continue pressing for fast forward. 10 I Starts playback. 3 10 5 6 2 8 1 7 4 9 92 Other viewing options Notice I When you change your address • If you change your address, please return the CableCARD to your Cable Provider Company. • You will need to request a new CableCARD from the cable provider at your new location. I About EAS(Emergency Alert System) • In the case of a national emergency, natural disaster, or other emergency situation, Cable MSO will broadcast an Emergency Alert System Message (EAS message). When this unit receives an EAS message, if the level of emergency is comparatively low, an alert text message will be displayed on screen. If the level of emergency is high, the receiver will be force tuned to a details channel. • Alert text messages will be displayed, and force tuning will occur, even during paid programming. Even when force tuning is active, the user can still change the channel. • If the unit is force tuned to a channel that has been blocked by Parental Control, the Parental Control setting will be given priority. NOTE • If you have a digital cable antenna connected, you can receive EAS messages whether CableCARD is inserted or not. • EAS messages may be broadcast not only via digital cable, but also via Analog Cable (ANALOG-A) or over- the-air Analog transmission (ANALOG-B). • When force tuning occurs, Video output from the MONITOR OUTPUT terminal will also be switched to the details channel. • An alert text message does not output from MONITOR OUTPUT terminal. • If force tuning occurs during twin picture mode, twin picture display will be automatically terminated and the details channel will be displayed on the full screen. 93 Appendix • No power • Unit cannot be operated. • Remote control unit does not operate. • Picture is cut off/with sidebar screen. • When playing back video in card mode, a part of the image is missing or the image is out of position. • Strange color, light color, or color misalignment • Power is suddenly turned off. • No picture • No sound • Upgrade is displayed continuously. Problem Possible Solution • Check if you pressed TV POWER on the remote control unit. (See page 20.) If the indicator on the Display lights up red or off, press POWER on the Display. • Is the AC cord disconnected? (See page 10.) • External influences such as lightning, static electricity, may cause improper operation. In this case, operate the unit after first turning on the power of the Display or unplugging the AC cord and replugging it in after 1 or 2 minutes. • Is the FUNCTION set correctly? Set it to the TV setting position. • Are batteries inserted with polarity (e, f) aligned? (See page 13.) • Are batteries worn out? (Replace with new batteries.) • Are you using it under strong or fluorescent lighting? • Is a fluorescent light illuminated near the remote control sensor? • Is the image position correct? (See page 63.) • Are screen mode adjustments such as picture size made correctly? (See pages 69 and 70) • The video playback setting has been affected as a result of moving the image position when playing back a still image in card mode. It is recommended not to move the image position when playing back images from a card. • Adjust the picture tone. (See pages 33 to 36.) • Is the room too bright? The picture may look dark in a room that is too bright. • Check the input signal setting. (See page 67.) • Is the sleep timer set? (See page 72.) • Check the power control settings. (See page 38.) • The unit’s internal temperature has increased. Remove any objects blocking vent or clean the vent. • Is connection to other components correct? (See pages 52 to 58.) • Is correct input signal source selected after connection? (See page 67.) • Is the correct input selected? (See page 67.) • Is a non-compatible signal being input? (See page 94.) • Is picture adjustment correct? (See pages 33 to 36.) • Is “On” selected in “Audio Only”? (See page 71.) • If, after inserting the CableCARD, you are unable to receive broadcast service, remove the CableCARD and reinsert. • Is the volume too low? (See page 23.) • Is “Variable” selected in “Output Select”? (See page 72.) • Is “On” selected in “Center Channel Input”? (See page 85.) • Verify your antenna cable is connected property. • Reinsert the CableCARD. If after reinserting the cableCARD and verifying the antenna cable, and the trouble still exists. Please contact your Cable Provider Company. Troubleshooting Cautions regarding use in high and low temperature environments • When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal. • Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the Liquid Crystal panel to malfunction. Storage temperature: –4°F to +140°F (–20°C to +60°C) 94 Appendix PC compatibility chart Apple and Macintosh are registered trademarks of Apple Computer, Inc. DDC is a registered trademark of Video Electronics Standards Association. Power Management is a registered trademark of Sun Microsystems, Inc. VGA and XGA are registered trademarks of International Business Machines Co., Inc. PC/MAC Resolution Horizontal Frequency Vertical Frequency VESA Standard PC 31.5 kHz 37.9 kHz 31.5 kHz 37.9 kHz 31.5 kHz 37.9 kHz 37.5 kHz 43.3 kHz 31.5 kHz 35.1 kHz 37.9 kHz 48.1 kHz 46.9 kHz 53.7 kHz 48.4 kHz 56.5 kHz 60.0 kHz 68.7 kHz 45.0 kHz 48.1 kHz 64.0 kHz 34.9 kHz 49.7 kHz 60.2 kHz 640 x 400 720 x 400 VGA 640 x 480 WVGA 848 x 480 SVGA 800 x 600 1024 x 768 XGA 1280 x 720 WXGA 1280 x 768 SXGA 1280 x 1024 VGA 640 x 480 MAC13" XGA 1024 x 768 MAC19" SVGA 832 x 624 MAC16" 60 Hz 85 Hz 60 Hz 85 Hz 60 Hz 72 Hz 75 Hz 85 Hz 60 Hz 56 Hz 60 Hz 72 Hz 75 Hz 85 Hz 60 Hz 70 Hz 75 Hz 85 Hz 60 Hz 60 Hz 60 Hz 67 Hz 75 Hz 75 Hz O O O O O O O O O O O O O O O O Attention about Digital broadcasting I The error message about reception of broadcast The example of an error message displayed on a screen Error code Possible Solution • Failed to receive broadcast. E202 • No broadcast now. E203 • Check the antenna cable. Check that the antenna is correctly setup. • Check the broadcast time in the program guide. I The cautions about i.LINK Possible Solution • Record/Playback may fail on the selected model. • Wrong connection or no i.LINK connection was found. Refer to Operation Manual on connection. • Displayed when you have selected a device that is not compatible with the TV, or that does not have DTLA copy protection technology installed. • Displayed when a problem is experienced with a connection using i.LINK cable. Check the connection, and re-connect the cable if necessary. Cautions sentence • The selected model is disable to Rec/PLAY. Check that no other model is used. • Displayed when the device you have selected is already being used by another i.LINK connected device. To operate the selected device from the TV, you will first have to override control from the other device. 95 RS-232C port specifications Return code Command 4-digits Parameter 4-digits PC Control of the TV • When a program is set, the Display can be controlled from the PC using the RS-232C terminal. The input signal (PC/AV) can be selected, the volume can be adjusted and various other adjustments and settings can be made, enabling automatic programmed playing. • Attach an RS-232C cable cross-type (commercially available) to the supplied Din/D-Sub RS-232C for the connections. NOTE • This operation system should be used by a person who is accustomed to using computers. Communication conditions Set the RS-232C communications settings on the PC to match the display’s communications conditions. The Display’s communications settings are as follows: Baud rate: Parity bit: Data length: Stop bit: Flow control: 9,600 bps 8 bits None 1 bit None Appendix Command format Communication procedure Send the control commands from the PC via the RS-232C connector. The display operates according to the received command and sends a response message to the PC. Do not send multiple commands at the same time. Wait until the PC receives the OK response before sending the next command. Eight ASCII codes e CR Command 4-digits:Command. The text of four characters. Parameter 4-digits:Parameter 0 – 9, x, blank, ? Parameter Input the parameter values, aligning left, and fill with blank(s) for the remainder. (Be sure that 4 values are input for the parameter.) When the input parameter is not within an adjustable range, “ERR” returns. (Refer to “Response code format”.) Any numerical value can replace the “x” on the table. When “?” is input for some commands, the present setting value responds. C1 C2 C3 C4 P1 P2 P3 P4 0 0 5 5 1 0 0 � 3 0 0 0 0 9 0 ? ? ? ? ? 96 Command table • Commands not indicated here are not guaranteed to operate. CONTROL ITEM COMMAND PARAMETER CONTROL CONTENTS POWER SETTING It shifts to standby. It input-switches by the toggle. (It is the same as an input change key) It input-switches to TV. (A channel remains as it is. (Last memory)) It input-switches to INPUT1~INPUT5. It input-switches to i.LINK. It shifts to CARD mode. An input change is also included. Although it can choose now, it is toggle operation in inside. Although it can choose now, it is toggle operation in inside. (Toggle) Input terminal number (1–5) AUTO VIDEO COMPONENT DIGITAL PC ANALOG PC DIGITAL AV ANALOG AV (Toggle) STANDARD MOVIE USER GAME DYNAMIC (Fixed) DYNAMIC Volume (0–60) AV mode. (�10) PC mode. (0–180) AV mode. (�20) PC mode. (0–100) Only PC mode. (0–180) Only PC mode. (0–40) (Toggle) [AV] An input change is included if it is not TV display. In Air, 2–69ch is effective. In Cable, 1–125ch is effective. If it is not TV display, it will input-switch to TV. same function as CHr If it is not TV display, it will input-switch to TV. same function as CHs Toggle operation of a closed caption. (Toggle) Side Bar [AV] S.Stretch [AV] Zoom [AV] Stretch [AV] Normal [PC] Zoom [PC] Stretch [PC] Dot by Dot [PC] [AV] On Off OFF OFF TIMER – 30 MIN. The channel number of TV The channel number of TV �1 The channel number of TV �1 (Toggle) (1–125) AUTO P O W R I T G D I T V D I A V D I C R D I N P 1 I N P 5 INPUT SELECTION A TOGGLE i.LINK INPUT SELECTION B AV MODE SELECTION VOLUME POSITION VIEWMODE Dolby Virtual SLEEP TIMER CHANNEL ANTENNA SELECT CC DIRECT (ANALOG) (DIGITAL) CH UP CH DOWN CHANNEL H-POSITION H-POSITION V-POSITION CLOCK PHASE INPUT 1 INPUT 5 A V M D V O L M H P O S V P O S C L C K P H S E A C D V O F T M D C C H C H U P C H D W C L C P W I D E 0 x 0 * x 0 5 6 7 8 1 2 0 * * * * * 0 0 * x x x 1 1 2 0 1 2 3 4 5 6 7 8 * * 1 2 3 4 5 6 * _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ * * * * * * * _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ * _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ * * * * * * _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ DIGITAL Air (Two-Part numbers, 2-digit plus 2-digit) (0100-9999) (1-999) (0-999) (0-9999) (0-6383) DIGITAL Cable (Two-Part numbers, 3-digit plus 3-digit) DIGITAL Cable (Two-Part numbers, 3-digit plus 3-digit) Front half of DIGITAL CABLE CHANNEL NO. (Designate major channel) Rear half of DIGITAL CABLE CHANNEL NO. (Designate minor channel) DIRECT CHANNEL D A 2 P * * * * D C 2 U * * * _ D C 2 L * * * _ DIGITAL Cable (One-Part numbers, 5-digit, less than 10,000) D C 1 0 * * * * DIGITAL Cable (One-Part numbers, 5-digit, more than 10,000) D C 1 1 * * * * _ _ ANALOG-A s ANALOG-B s DIGITAL (Toggle) A N T S 0 _ _ _ ANALOG-A 1 _ _ _ ANALOG-B 2 _ _ _ DIGITAL 3 _ _ _ _ _ (Toggle) AUDIO SELECTION A C H A x _ _ _ _ _ OFF TIMER – 60 MIN. OFF TIMER – 90 MIN. 2 3 _ _ _ _ _ _ OFF TIMER – 120 MIN. 4 _ _ _ _ _ (Toggle) On Off MUTE M U T E 0 1 2 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ INPUT5: AV mode. (�90) * * * _ _ _ _ _ INPUT5: AV mode. (�50) * * * _ _ _ _ _ _ _ L I N K x _ _ _ _ _ _ _ _ _ _ _ AUTO VIDEO COMPONENT AUTO I N P 2 INPUT 2 0 1 2 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ TV INPUT1-5 CARD Appendix NOTE • If an underbar (_) appears in the parameter column, enter a space. • If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL CONTENTS. • As long as that from which the parameter (g) in the table is a numerical value, it may write anything. Return code (0DH) Response code format Normal response Problem response (communication error or incorrect command) Return code (0DH) O K E R R 97 Appendix Item 45o LIQUID CRYSTAL TELEVISION, Model: LC-45GD6U TV Function American TV Standard ATSC/NTSC System VHF/UHF VHF 2-13ch, UHF 14-69ch CATV 1-125ch Audio multiplex BTSC System Terminals AV in, COMPONENT in INPUT 2 AV in, COMPONENT in INPUT 4 HDMI in (Type-A) with HDCP ANALOG ANTENNA 75 q Unbalance, F Type for VHF/UHF/CATV in m 2, out m 1 INPUT 3 S-VIDEO in, AV in OSD language English/French/Spanish Power Requirement AC 120 V, 60 Hz Power Consumption Weight Accessories See page 8 TV-standard (CCIR) Receiving Channel Rear INPUT 1 • As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units. Specifications LCD panel 45o Advanced Super View & BLACK TFT LCD Number of dots 6,220,800 dots (1920 m 1080 m 3 dots) Brightness 450 cd/m2 Backlight Life 60,000 hours (at Backlight Standard position) Viewing angles H : 170° V : 170° Audio amplifier 10W m 2 Speakers Ø 8cm 2pcs, Ø 2.5cm 2pcs MONITOR OUTPUT S-VIDEO out, AV out 330 W (13.4 W Standby with AC 120 V) CENTER CHANNEL INPUT RCA pin 4 q 10W (L/R) EXTERNAL SPEAKER Optional accessories The listed optional accessories are available for the AQUOS models. Please purchase it at your nearest shop. • Additional optional accessories may be available in the near future. When purchasing, please read the newest catalogue for compatibility and check the availability. INPUT 5 Audio in, DVI-I in with HDCP Digital Terrestrial Broadcast (8VSB) 2-69ch Digital cable (64/256 QAM) 1-135ch DIGITAL ANTENNA 75 q Unbalance, F Type for Digital Air/Cable in m 1 DIGITAL AUDIO OUTPUT Optical Digital audio output m 1 (PCM/Dolby Digital) i.LINK IEEE1394 m 2 with DTCP PC CARD slot 68 pin PCMCIA m 1 CableCARD slot 68 pin PCMCIA m 1 DC OUTPUT DC 9 V 7 W MAX 60.6 lbs./27.5 kg Display only 71.7 lbs./32.5 kg with Display and speaker 80.5 lbs./36.5 kg with Display, speaker and stand Tilting wall-mount bracket Part name Part number AN-37AG2 98 Dimensional drawings Unit: inch/(mm) 47/32 (107) 7 7/8 (200) 7 7/8 (200) 2621/32 (677) 297/32 (742) 31 37/64 (802) 25 25/64 (645) 18 31/32 (482.1) 18 31/32 (482.1) 4243/64 (1084) 3815/16 (989.1) 2129/32 (556.7) 439/64 (117) 715/32 (190) 99 HOW TO SET THE FACTORY PRESETS Check that the power indicator is not on. Remove the AC cord and switch off the power. Press and hold down RESET at the same time as you re-insert the AC Cord into the outlet and switch on the TV. All setting items (except TV channel) return to the factory presetting. NOTE • Running the factory presetting operation also clears the secret number. You can run the EZ Setup again by using the following steps. 1 Turn on the power of the TV. 2 Press MENU. (Make sure the menu screen displays.) 3 Press c/d to select “Setup”. 4 Press a/b to select “EZ Setup”. 5 Press ENTER. NOTE • If the secret number setting screen displays, you need to enter your secret number. • If you forget your secret number, refer to HOW TO SET THE FACTORY PRESETS above. NOTE • As a precautionary measure, make a note of your secret number above, scissor it from this manual, and keep it in a familiar place. The secret number is . 100 CONSUMER LIMITED WARRANTY SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction. In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer. The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp. The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. Model Specific Section Your Product Model Number & Description: Warranty Period for this Product: Additional Item(s) Excluded from Warranty Coverage (if any): Where to Obtain Service: What to do to Obtain Service: LC-45GD6U LCD Color Television (Be sure to have this information available when you need service for your Product.) One (1) year parts and labor from the date of purchase. Non-rechargeable batteries. From a Sharp Authorized Servicer located in the United States. To find the location of the nearest Sharp Authorized Servicer, call Sharp toll free at 1-800-BE-SHARP. Contact your Sharp Authorized Servicer to obtain in-home service for this Product. The Servicer will come to your home and if it is necessary to remove the Product, the Servicer will reinstall it. Be sure to have Proof of Purchase available. Calling for Service For location of the nearest Sharp Authorized Service, or to obtain product literature, accessories, supplies, or customer assistance, please call 1-800-BE-SHARP. LIMITED WARRANTY SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07430-2135 SHARP CORPORATION TO OBTAIN PRODUCT INFORMATION, CALL 1-800-BE-SHARP OR VISIT www.sharpusa.com 101 LIMITED WARRANTY Consumer Electronics Products Congratulations on your purchase! Sharp Electronics of Canada Ltd. (hereinafter called “Sharp”) gives the following express warranty to the first consumer purchaser for this Sharp brand product, when shipped in its original container and sold or distributed in Canada by Sharp or by an Authorized Sharp Dealer: Sharp warrants that this product is free, under normal use and maintenance, from any defects in material and workmanship. If any such defects should be found in this product within the applicable warranty period, Sharp shall, at its option, repair or replace the product as specified herein. This warranty shall not apply to: (a) Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installation or inappropriate use as outlined in the owner’s manual. (b) Any Sharp product tampered with, modified, adjusted or repaired by any party other than Sharp, Sharp’s Authorized Service Centres or Sharp’s Authorized Servicing Dealers. (c) Damage caused or repairs required as a result of the use with items not specified or approved by Sharp, including but not limited to head cleaning tapes and chemical cleaning agents. (d) Any replacement of accessories, glassware, consumable or peripheral items required through normal use of the product including but not limited to earphones, remote controls, AC adapters, batteries, temperature probe, stylus, trays, filters, belts, ribbons, cables and paper. (e) Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wear and tear. (f) Any damage caused by external or environmental conditions, including but not limited to transmission line/power line voltage or liquid spillage. (g) Any product received without appropriate model, serial number and CSA/cUL markings. (h) Any products used for rental or commercial purposes. (i) Any installation, setup and/or programming charges. Should this Sharp product fail to operate during the warranty period, warranty service may be obtained upon delivery of the Sharp product together with proof of purchase and a copy of this LIMITED WARRANTY statement to an Authorized Sharp Service Centre or an Authorized Sharp Servicing Dealer. In home warranty service may be provided at Sharp’s discretion on any Sharp television with the screen size of 27” or larger and on any Sharp Over-the-Range Microwave Oven. This warranty constitutes the entire express warranty granted by Sharp and no other dealer, service centre or their agent or employee is authorized to extend, enlarge or transfer this warranty on behalf of Sharp. To the extent the law permits, Sharp disclaims any and all liability for direct or indirect damages or losses or for any incidental, special or consequential damages or loss of profits resulting from a defect in material or workmanship relating to the product, including damages for the loss of time or use of this Sharp product or the loss of information. The purchaser will be responsible for any removal, reinstallation, transportation and insurance costs incurred. Correction of defects, in the manner and period of time described herein, constitute complete fulfillment of all obligations and responsibilities of Sharp to the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. WARRANTY PERIODS: Parts & Labour (exceptions noted) Audio Products 1 year Camcorder 1 year DVD Products 1 year Projector 1 year (lamp 90 days) LCD & Plasma Display TV 1 year Microwave Oven 1 year (magnetron component-4 additional years) Television Products 1 year (picture tube component-1 additional year) VCR Products 1 year Vacuum Cleaner 1 year To obtain the name and address of the nearest Authorized Sharp Service Centre or Dealer, please contact: SHARP ELECTRONICS OF CANADA LTD. 335 Britannia Road East, Mississauga, Ontario L4Z 1W9 For more information on this Warranty, Sharp Extended Warranty Offers, Sharp Canada Products, Accessory Sales, Dealer or Service Locations, please call (905) 568-7140 Visit our Web site: www.sharp.ca VALID IN CANADA ONLY Revision 04/22/03 SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07430-2135 SHARP CORPORATION Printed on 100% post-consumer recycled paper. Imprimé sur 100% de papier recyclé. Impreso en 100% de papel reciclado de postconsumo. Printed in Japan Imprimé au Japon Impreso en Japón TINS-B694WJZZ 04P09-JKG
