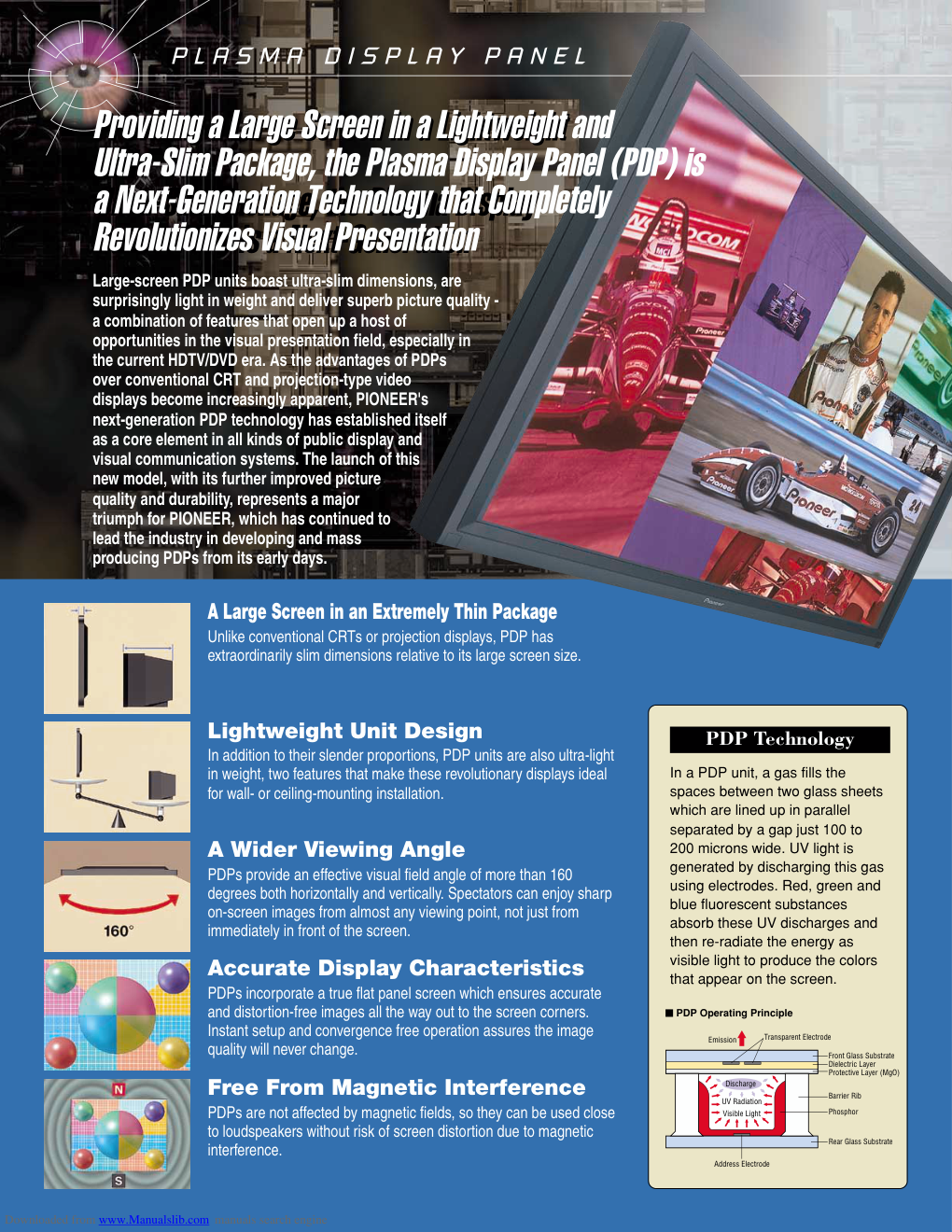

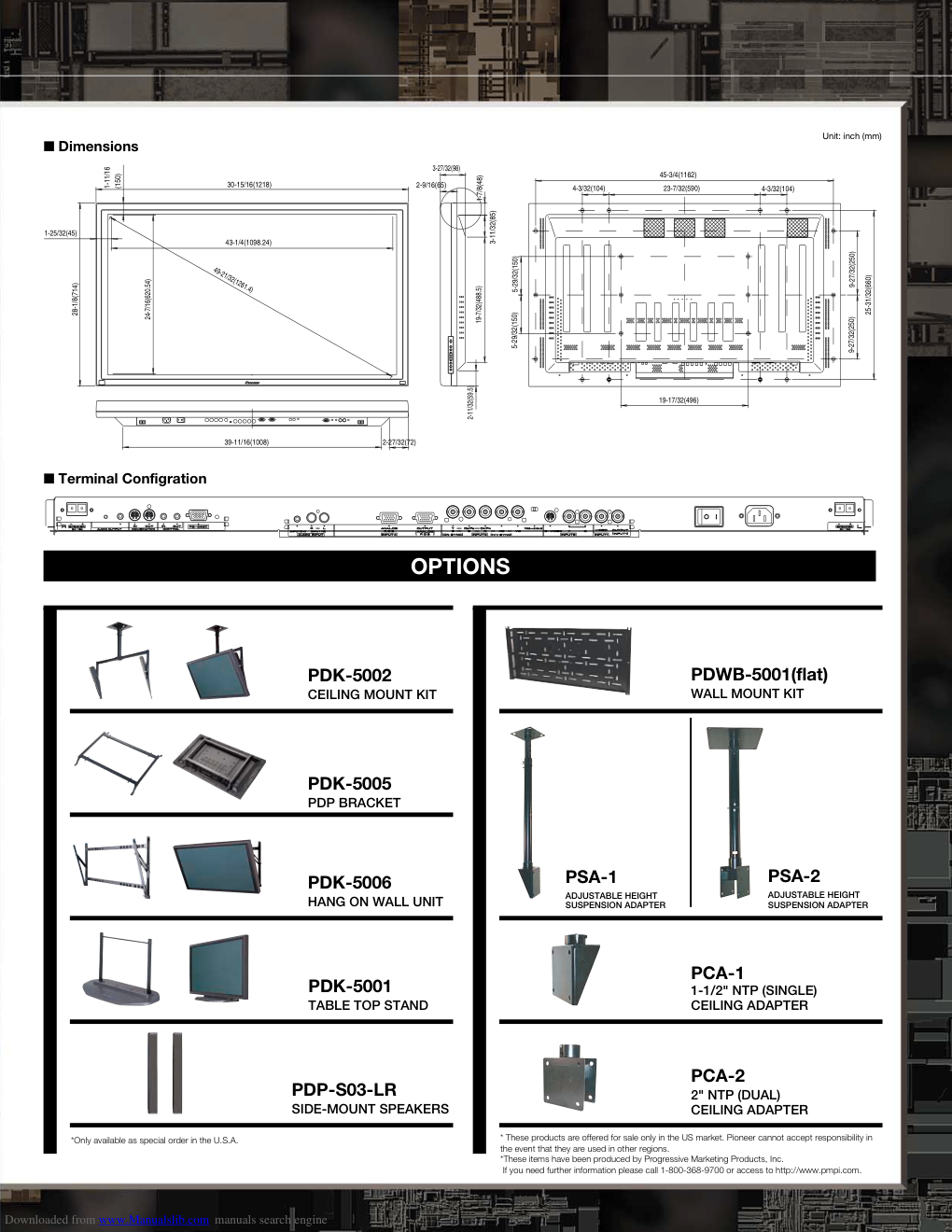

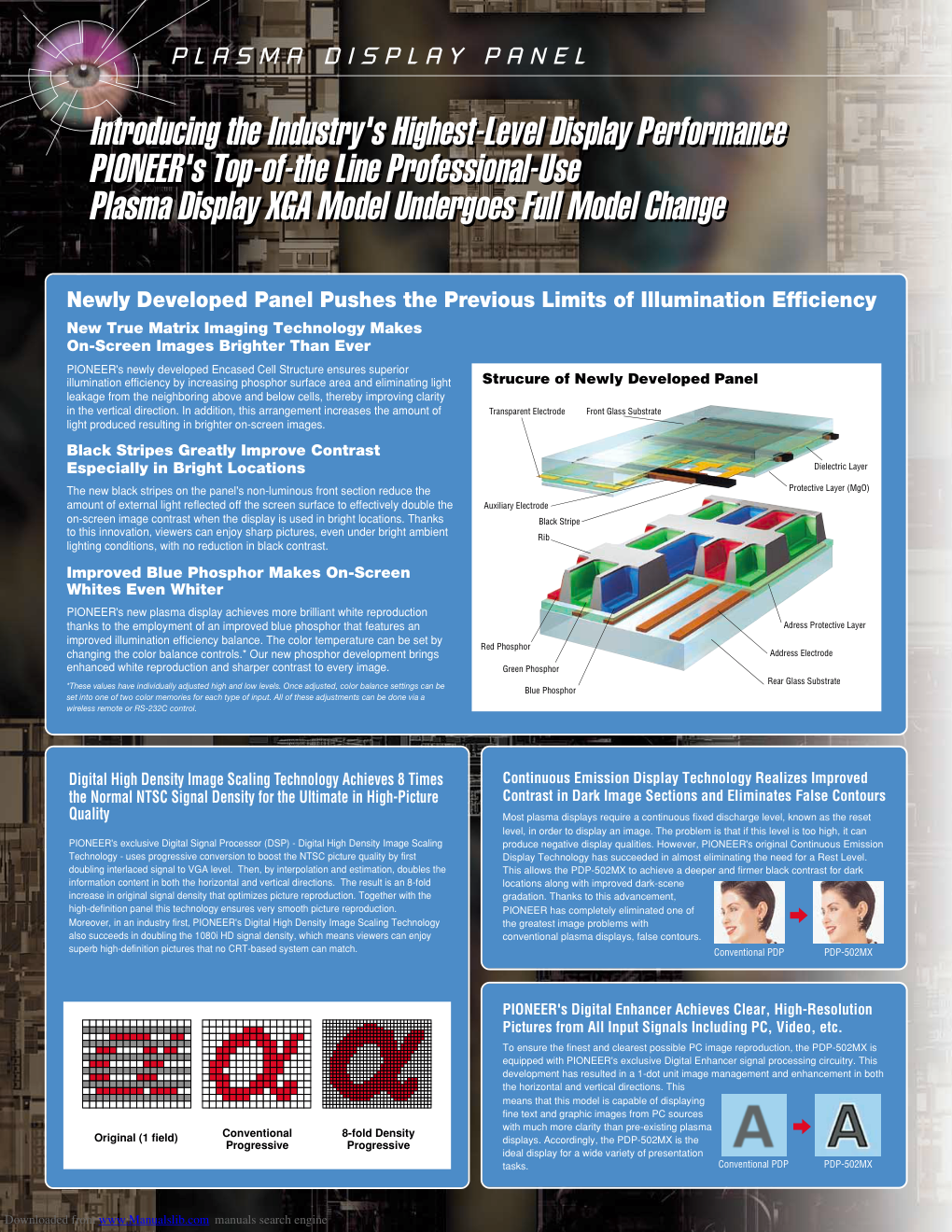

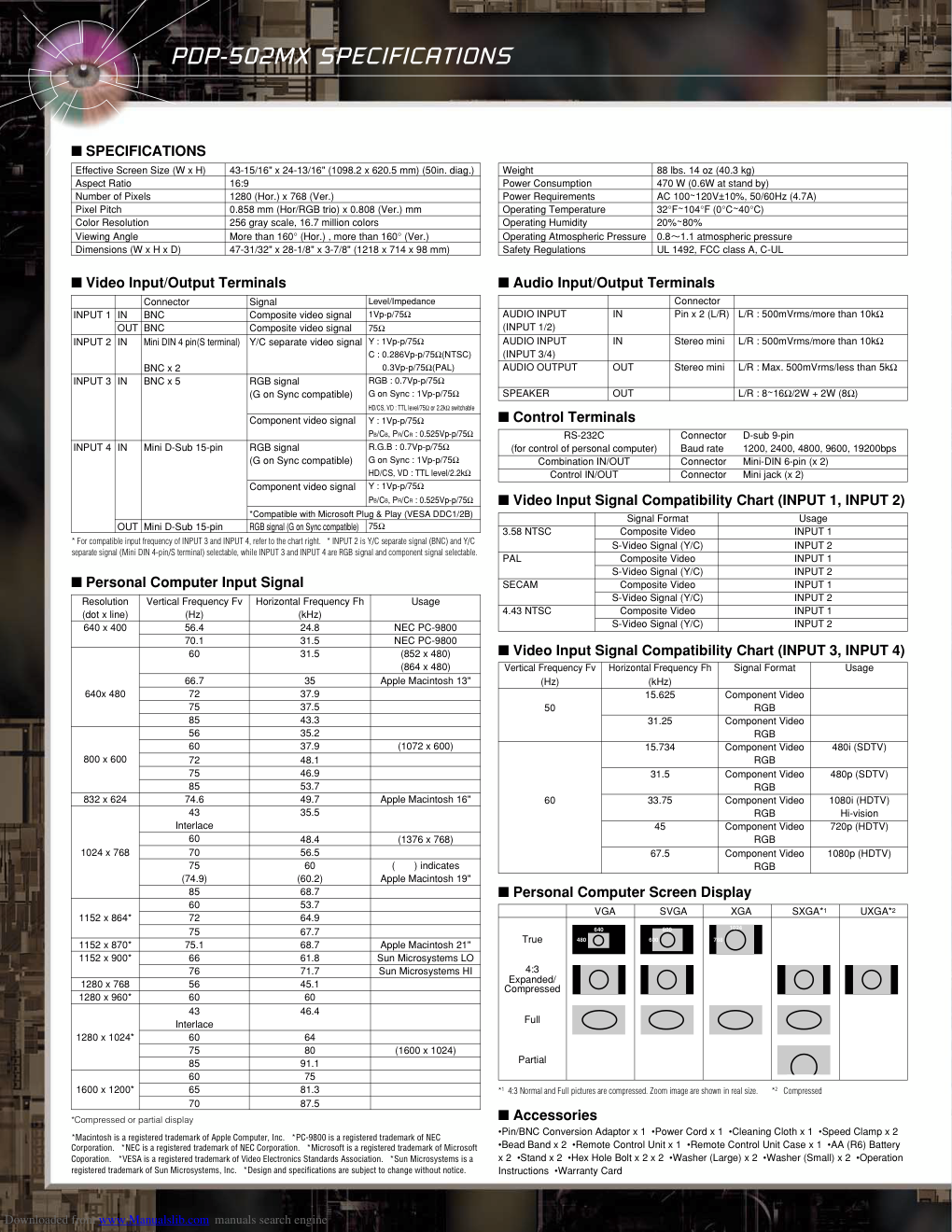

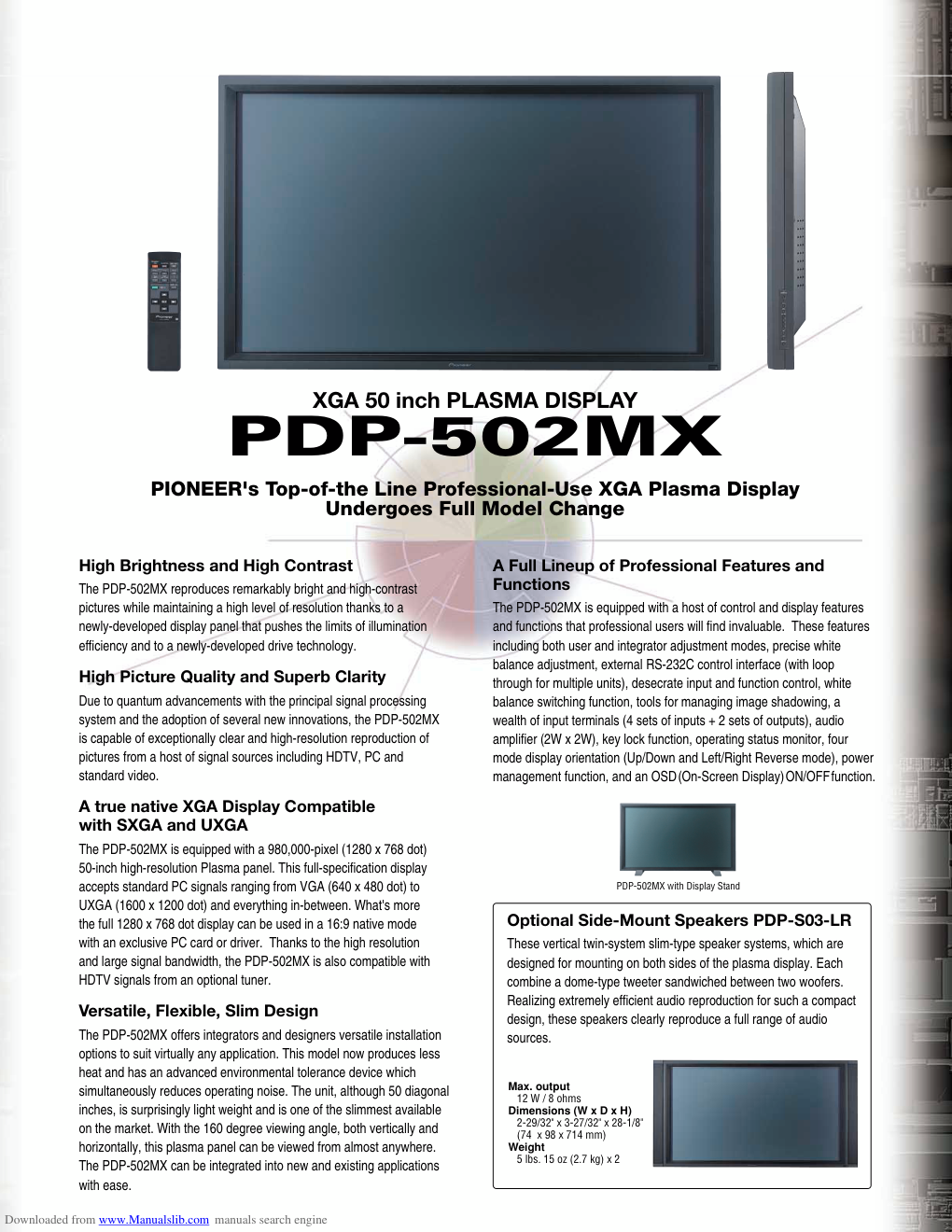

50inch XGA 50 inch PLASMA DISPLAY PDP-502MX XGA 50 inch PLASMA DISPLAY PDP-502MX Downloaded from www.Manualslib.com manuals search engine PDP Technology In a PDP unit, a gas fills the spaces between two glass sheets which are lined up in parallel separated by a gap just 100 to 200 microns wide. UV light is generated by discharging this gas using electrodes. Red, green and blue fluorescent substances absorb these UV discharges and then re-radiate the energy as visible light to produce the colors that appear on the screen. Lightweight Unit Design In addition to their slender proportions, PDP units are also ultra-light in weight, two features that make these revolutionary displays ideal for wall- or ceiling-mounting installation. A Wider Viewing Angle PDPs provide an effective visual field angle of more than 160 degrees both horizontally and vertically. Spectators can enjoy sharp on-screen images from almost any viewing point, not just from immediately in front of the screen. Accurate Display Characteristics PDPs incorporate a true flat panel screen which ensures accurate and distortion-free images all the way out to the screen corners. Instant setup and convergence free operation assures the image quality will never change. Free From Magnetic Interference PDPs are not affected by magnetic fields, so they can be used close to loudspeakers without risk of screen distortion due to magnetic interference. A Large Screen in an Extremely Thin Package Unlike conventional CRTs or projection displays, PDP has extraordinarily slim dimensions relative to its large screen size. UV Radiation Discharge Visible Light Front Glass Substrate Dielectric Layer Protective Layer (MgO) Barrier Rib Phosphor Rear Glass Substrate Address Electrode Emission Transparent Electrode PDP Operating Principle Providing a Large Screen in a Lightweight and Ultra-Slim Package, the Plasma Display Panel (PDP) is a Next-Generation Large-screen PDP units boast ultra-slim dimensions, are surprisingly light in weight and deliver superb picture quality - a combination of features that open up a host of opportunities in the visual presentation field, especially in the current HDTV/DVD era. As the advantages of PDPs over conventional CRT and projection-type video displays become increasingly apparent, PIONEER's next-generation PDP technology has established itself as a core element in all kinds of public display and visual communication systems. The launch of this new model, with its further improved picture quality and durability, represents a major triumph for PIONEER, which has continued to lead the industry in developing and mass producing PDPs from its early days. Providing a Large Screen in a Lightweight and Ultra-Slim Package, the Plasma Display Panel (PDP) is a Next-Generation Technology that Completely Revolutionizes Visual Presentation Downloaded from www.Manualslib.com manuals search engine PIONEER is the World Leader in the Manufacture of Industrial-Use Large-Screen Displays For decades, PIONEER has led the world in the development, production and sale of the display systems. One of our most notable successes has been the Multi-Projection CUBE Video Wall system. Cube has achieved unrivaled popularity worldwide as a display system for public and commercial-use facilities as well as for all kinds of exhibitions and shows. Over the years, we have also established much of the technology and know-how to provide the solid reliability so important in the industrial-use market. For the future, PIONEER is positioning PDP as one of the core businesses in its long-term development strategy. Making the most of our expertise in video display-related circuit and panel manufacturing technologies, we are determined to continue providing PDP products that lead this field. As we move deeper into the era of multimedia, professional demands in respect of more effective video display systems will steadily increase and PIONEER will continue to respond to these demands through technological improvement and innovative design. PIONEER's PDP Products are Created Totally in-House From Design to Assembly While some PDP manufactures are content to OEM major display components, PIONEER manufactures all major PDP display components in it's own fabrication facility. In order to realize an ideal display system, PIONEER performs all processes in-house from the initial screen design and development through final assembly. Only PIONEER Grasps Total Market Demands and Provides Products That Can be Installed Exactly as Desired Thanks to a wealth of experience in the sale and installation of industrial-use display systems, PIONEER is adept at satisfying diverse operating environment-related demands. We provide strong and secure installation fixtures that make possible versatile installation configurations. What's more, we provide comprehensive customer service and support backed by a long record of excellence. Downloaded from www.Manualslib.com manuals search engine Newly Developed Panel Pushes the Previous Limits of Illumination Efficiency New True Matrix Imaging Technology Makes On-Screen Images Brighter Than Ever PIONEER's newly developed Encased Cell Structure ensures superior illumination efficiency by increasing phosphor surface area and eliminating light leakage from the neighboring above and below cells, thereby improving clarity in the vertical direction. In addition, this arrangement increases the amount of light produced resulting in brighter on-screen images. Black Stripes Greatly Improve Contrast Especially in Bright Locations The new black stripes on the panel's non-luminous front section reduce the amount of external light reflected off the screen surface to effectively double the on-screen image contrast when the display is used in bright locations. Thanks to this innovation, viewers can enjoy sharp pictures, even under bright ambient lighting conditions, with no reduction in black contrast. Improved Blue Phosphor Makes On-Screen Whites Even Whiter PIONEER's new plasma display achieves more brilliant white reproduction thanks to the employment of an improved blue phosphor that features an improved illumination efficiency balance. The color temperature can be set by changing the color balance controls.* Our new phosphor development brings enhanced white reproduction and sharper contrast to every image. *These values have individually adjusted high and low levels. Once adjusted, color balance settings can be set into one of two color memories for each type of input. All of these adjustments can be done via a wireless remote or RS-232C control. Digital High Density Image Scaling Technology Achieves 8 Times the Normal NTSC Signal Density for the Ultimate in High-Picture Quality PIONEER's exclusive Digital Signal Processor (DSP) - Digital High Density Image Scaling Technology - uses progressive conversion to boost the NTSC picture quality by first doubling interlaced signal to VGA level. Then, by interpolation and estimation, doubles the information content in both the horizontal and vertical directions. The result is an 8-fold increase in original signal density that optimizes picture reproduction. Together with the high-definition panel this technology ensures very smooth picture reproduction. Moreover, in an industry first, PIONEER's Digital High Density Image Scaling Technology also succeeds in doubling the 1080i HD signal density, which means viewers can enjoy superb high-definition pictures that no CRT-based system can match. Continuous Emission Display Technology Realizes Improved Contrast in Dark Image Sections and Eliminates False Contours Most plasma displays require a continuous fixed discharge level, known as the reset level, in order to display an image. The problem is that if this level is too high, it can produce negative display qualities. However, PIONEER's original Continuous Emission Display Technology has succeeded in almost eliminating the need for a Rest Level. This allows the PDP-502MX to achieve a deeper and firmer black contrast for dark locations along with improved dark-scene gradation. Thanks to this advancement, PIONEER has completely eliminated one of the greatest image problems with conventional plasma displays, false contours. PIONEER's Digital Enhancer Achieves Clear, High-Resolution Pictures from All Input Signals Including PC, Video, etc. To ensure the finest and clearest possible PC image reproduction, the PDP-502MX is equipped with PIONEER's exclusive Digital Enhancer signal processing circuitry. This development has resulted in a 1-dot unit image management and enhancement in both the horizontal and vertical directions. This means that this model is capable of displaying fine text and graphic images from PC sources with much more clarity than pre-existing plasma displays. Accordingly, the PDP-502MX is the ideal display for a wide variety of presentation tasks. Introducing the Industry's Highest-Level Display Performance PIONEER's Top-of-the Line Professional-Use Plasma Display XGA Model Undergoes Full Model Change Introducing the Industry's Highest-Level Display Performance PIONEER's Top-of-the Line Professional-Use Plasma Display XGA Model Undergoes Full Model Change Strucure of Newly Developed Panel Original (1 field) Conventional Progressive 8-fold Density Progressive Conventional PDP PDP-502MX Conventional PDP PDP-502MX Transparent Electrode Front Glass Substrate Dielectric Layer Protective Layer (MgO) Auxiliary Electrode Black Stripe Rib Red Phosphor Green Phosphor Blue Phosphor Adress Protective Layer Address Electrode Rear Glass Substrate Downloaded from www.Manualslib.com manuals search engine XGA 50 inch PLASMA DISPLAY PDP-502MX PIONEER's Top-of-the Line Professional-Use XGA Plasma Display Undergoes Full Model Change High Brightness and High Contrast The PDP-502MX reproduces remarkably bright and high-contrast pictures while maintaining a high level of resolution thanks to a newly-developed display panel that pushes the limits of illumination efficiency and to a newly-developed drive technology. High Picture Quality and Superb Clarity Due to quantum advancements with the principal signal processing system and the adoption of several new innovations, the PDP-502MX is capable of exceptionally clear and high-resolution reproduction of pictures from a host of signal sources including HDTV, PC and standard video. A true native XGA Display Compatible with SXGA and UXGA The PDP-502MX is equipped with a 980,000-pixel (1280 x 768 dot) 50-inch high-resolution Plasma panel. This full-specification display accepts standard PC signals ranging from VGA (640 x 480 dot) to UXGA (1600 x 1200 dot) and everything in-between. What's more the full 1280 x 768 dot display can be used in a 16:9 native mode with an exclusive PC card or driver. Thanks to the high resolution and large signal bandwidth, the PDP-502MX is also compatible with HDTV signals from an optional tuner. Versatile, Flexible, Slim Design The PDP-502MX offers integrators and designers versatile installation options to suit virtually any application. This model now produces less heat and has an advanced environmental tolerance device which simultaneously reduces operating noise. The unit, although 50 diagonal inches, is surprisingly light weight and is one of the slimmest available on the market. With the 160 degree viewing angle, both vertically and horizontally, this plasma panel can be viewed from almost anywhere. The PDP-502MX can be integrated into new and existing applications with ease. A Full Lineup of Professional Features and Functions The PDP-502MX is equipped with a host of control and display features and functions that professional users will find invaluable. These features including both user and integrator adjustment modes, precise white balance adjustment, external RS-232C control interface (with loop through for multiple units), desecrate input and function control, white balance switching function, tools for managing image shadowing, a wealth of input terminals (4 sets of inputs + 2 sets of outputs), audio amplifier (2W x 2W), key lock function, operating status monitor, four mode display orientation (Up/Down and Left/Right Reverse mode), power management function, and an OSD(On-Screen Display)ON/OFFfunction. Max. output 12 W / 8 ohms Dimensions (W x D x H) 2-29/32" x 3-27/32" x 28-1/8" (74 x 98 x 714 mm) Weight 5 lbs. 15 oz (2.7 kg) x 2 Optional Side-Mount Speakers PDP-S03-LR These vertical twin-system slim-type speaker systems, which are designed for mounting on both sides of the plasma display. Each combine a dome-type tweeter sandwiched between two woofers. Realizing extremely efficient audio reproduction for such a compact design, these speakers clearly reproduce a full range of audio sources. PDP-502MX with Display Stand Downloaded from www.Manualslib.com manuals search engine I SPECIFICATIONS Effective Screen Size (W x H) Aspect Ratio Number of Pixels Pixel Pitch Color Resolution Viewing Angle Dimensions (W x H x D) Weight Power Consumption Power Requirements Operating Temperature Operating Humidity Operating Atmospheric Pressure Safety Regulations 43-15/16" x 24-13/16" (1098.2 x 620.5 mm) (50in. diag.) 16:9 1280 (Hor.) x 768 (Ver.) 0.858 mm (Hor/RGB trio) x 0.808 (Ver.) mm 256 gray scale, 16.7 million colors More than 160° (Hor.) , more than 160° (Ver.) 47-31/32" x 28-1/8" x 3-7/8" (1218 x 714 x 98 mm) 88 lbs. 14 oz (40.3 kg) 470 W (0.6W at stand by) AC 100~120V±10%, 50/60Hz (4.7A) 32°F~104°F (0°C~40°C) 20%~80% 0.8~1.1 atmospheric pressure UL 1492, FCC class A, C-UL Resolution (dot x line) 640 x 400 640x 480 800 x 600 832 x 624 1024 x 768 1152 x 864* 1152 x 870* 1152 x 900* 1280 x 768 1280 x 960* 1280 x 1024* 1600 x 1200* Vertical Frequency Fv (Hz) 56.4 70.1 60 66.7 72 75 85 56 60 72 75 85 74.6 43 Interlace 60 70 75 (74.9) 85 60 72 75 75.1 66 76 56 60 43 Interlace 60 75 85 60 65 70 Horizontal Frequency Fh (kHz) 24.8 31.5 31.5 35 37.9 37.5 43.3 35.2 37.9 48.1 46.9 53.7 49.7 35.5 48.4 56.5 60 (60.2) 68.7 53.7 64.9 67.7 68.7 61.8 71.7 45.1 60 46.4 64 80 91.1 75 81.3 87.5 Usage NEC PC-9800 NEC PC-9800 (852 x 480) (864 x 480) Apple Macintosh 13" (1072 x 600) Apple Macintosh 16" (1376 x 768) ( ) indicates Apple Macintosh 19" Apple Macintosh 21" Sun Microsystems LO Sun Microsystems HI (1600 x 1024) *Compressed or partial display I Personal Computer Input Signal IN OUT IN IN IN OUT Connector BNC BNC Mini DIN 4 pin(S terminal) BNC x 2 BNC x 5 Mini D-Sub 15-pin Mini D-Sub 15-pin Signal Composite video signal Composite video signal Y/C separate video signal RGB signal (G on Sync compatible) Component video signal RGB signal (G on Sync compatible) Component video signal *Compatible with Microsoft Plug & Play (VESA DDC1/2B) RGB signal (G on Sync compatible) Level/Impedance 1Vp-p/75Ω 75Ω Y : 1Vp-p/75Ω C : 0.286Vp-p/75Ω(NTSC) 0.3Vp-p/75Ω(PAL) RGB : 0.7Vp-p/75Ω G on Sync : 1Vp-p/75Ω HD/CS, VD : TTL level/75Ω or 2.2kΩ switchable Y : 1Vp-p/75Ω PB/CB, PR/CR : 0.525Vp-p/75Ω R.G.B : 0.7Vp-p/75Ω G on Sync : 1Vp-p/75Ω HD/CS, VD : TTL level/2.2kΩ Y : 1Vp-p/75Ω PB/CB, PR/CR : 0.525Vp-p/75Ω 75Ω INPUT 1 INPUT 2 INPUT 3 INPUT 4 I Video Input/Output Terminals * For compatible input frequency of INPUT 3 and INPUT 4, refer to the chart right. * INPUT 2 is Y/C separate signal (BNC) and Y/C separate signal (Mini DIN 4-pin/S terminal) selectable, while INPUT 3 and INPUT 4 are RGB signal and component signal selectable. I Audio Input/Output Terminals AUDIO INPUT (INPUT 1/2) AUDIO INPUT (INPUT 3/4) AUDIO OUTPUT SPEAKER L/R : 500mVrms/more than 10kΩ L/R : 500mVrms/more than 10kΩ L/R : Max. 500mVrms/less than 5kΩ L/R : 8~16Ω/2W + 2W (8Ω) IN IN OUT OUT Connector Pin x 2 (L/R) Stereo mini Stereo mini I Control Terminals RS-232C (for control of personal computer) Combination IN/OUT Control IN/OUT Connector D-sub 9-pin Baud rate 1200, 2400, 4800, 9600, 19200bps Connector Mini-DIN 6-pin (x 2) Connector Mini jack (x 2) I Video Input Signal Compatibility Chart (INPUT 1, INPUT 2) I Video Input Signal Compatibility Chart (INPUT 3, INPUT 4) 3.58 NTSC PAL SECAM 4.43 NTSC Signal Format Composite Video S-Video Signal (Y/C) Composite Video S-Video Signal (Y/C) Composite Video S-Video Signal (Y/C) Composite Video S-Video Signal (Y/C) Usage INPUT 1 INPUT 2 INPUT 1 INPUT 2 INPUT 1 INPUT 2 INPUT 1 INPUT 2 Vertical Frequency Fv (Hz) 50 60 Horizontal Frequency Fh (kHz) 15.625 31.25 15.734 31.5 33.75 45 67.5 Signal Format Component Video RGB Component Video RGB Component Video RGB Component Video RGB Component Video RGB Component Video RGB Component Video RGB Usage 480i (SDTV) 480p (SDTV) 1080i (HDTV) Hi-vision 720p (HDTV) 1080p (HDTV) True 4:3 Expanded/ Compressed Full Partial VGA SVGA XGA SXGA*1 UXGA*2 *1 4:3 Normal and Full pictures are compressed. Zoom image are shown in real size. *2 Compressed I Personal Computer Screen Display I Accessories •Pin/BNC Conversion Adaptor x 1 •Power Cord x 1 •Cleaning Cloth x 1 •Speed Clamp x 2 •Bead Band x 2 •Remote Control Unit x 1 •Remote Control Unit Case x 1 •AA (R6) Battery x 2 •Stand x 2 •Hex Hole Bolt x 2 x 2 •Washer (Large) x 2 •Washer (Small) x 2 •Operation Instructions •Warranty Card *Macintosh is a registered trademark of Apple Computer, Inc. *PC-9800 is a registered trademark of NEC Corporation. *NEC is a registered trademark of NEC Corporation. *Microsoft is a registered trademark of Microsoft Coporation. *VESA is a registered trademark of Video Electronics Standards Association. *Sun Microsystems is a registered trademark of Sun Microsystems, Inc. *Design and specifications are subject to change without notice. 640 480 600 768 800 1024 Downloaded from www.Manualslib.com manuals search engine OPTIONS PDK-5002 CEILING MOUNT KIT PDK-5005 PDP BRACKET PDK-5006 HANG ON WALL UNIT PDK-5001 TABLE TOP STAND PDP-S03-LR SIDE-MOUNT SPEAKERS PDWB-5001(flat) WALL MOUNT KIT PSA-2 ADJUSTABLE HEIGHT SUSPENSION ADAPTER PSA-1 ADJUSTABLE HEIGHT SUSPENSION ADAPTER PCA-1 1-1/2" NTP (SINGLE) CEILING ADAPTER PCA-2 2" NTP (DUAL) CEILING ADAPTER *Only available as special order in the U.S.A. * These products are offered for sale only in the US market. Pioneer cannot accept responsibility in the event that they are used in other regions. *These items have been produced by Progressive Marketing Products, Inc. If you need further information please call 1-800-368-9700 or access to http://www.pmpi.com. I Dimensions I Terminal Configration 19-17/32(496) 5-29/32(150) 2-27/32(72) 39-11/16(1008) 2-11/32(59.5) 19-7/32(488.5) 3-11/32(85) 1-7/8(48) 49-21/32(1261.4) 24-7/16(620.54) 43-1/4(1098.24) 30-15/16(1218) 28-1/8(714) 3-27/32(98) 2-9/16(65) 45-3/4(1162) 4-3/32(104) 4-3/32(104) 23-7/32(590) 1-11/16 (150) 25-31/32(660) 9-27/32(250) 1-25/32(45) 5-29/32(150) 9-27/32(250) Unit: inch (mm) Downloaded from www.Manualslib.com manuals search engine Providing Unlimited Possibilities for Visual Exhibition, Pioneer PDPs are Available for Installation Virtually Anywhere Providing Unlimited Possibilities for Visual Exhibition, Pioneer PDPs are Available for Installation Virtually Anywhere VGA 40-INCH PLASMA DISPLAY PDP-V402 The Industrial Plasma Standard Model Undergoes Further Evolution!! G 40" screen size G 4:3 aspect ratio G Black stripe screen for high contrast G High brightness G XGA compatible with optional down converter PIONEER CORPORATION 15-5, Ohmorinishi 4-chome, Ohta-ku, Tokyo 143-8564, Japan TEL: 81-3-3763-2369 FAX:81-3-3763-3104 PIONEER NEW MEDIA TECHNOLOGIES, INC. 2265 East 220th Street, Long Beach, CA 90810, USA TEL:310-952-2111 FAX:310-952-2990 PIONEER HIGH FIDELITY TAIWAN CO., LTD. 13FL No. 44 Chung Shan North Road Sec.2. Taipei, Taiwan TEL:886-2-2521-3588 FAX:886-2-2511-4888 CONTACT •PIONEER CORPORATION URL:http://www.pioneer co.jp/ •PIONEER NEW MEDIA TECHNOLOGIES, INC. URL:http://www.pioneerusa.com/ •For more details, contact one of the addresses below. •All product names and company names are registered trademarks of their respective owners. 5501T AB-FC(F)08-99 Printed in Japan Downloaded from www.Manualslib.com manuals search engine
