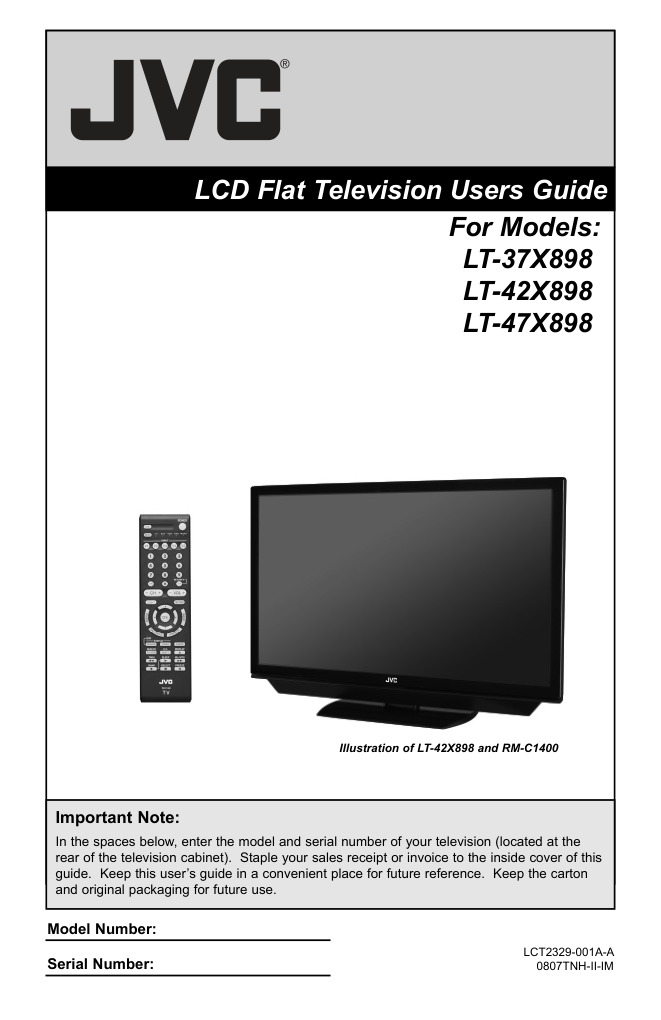

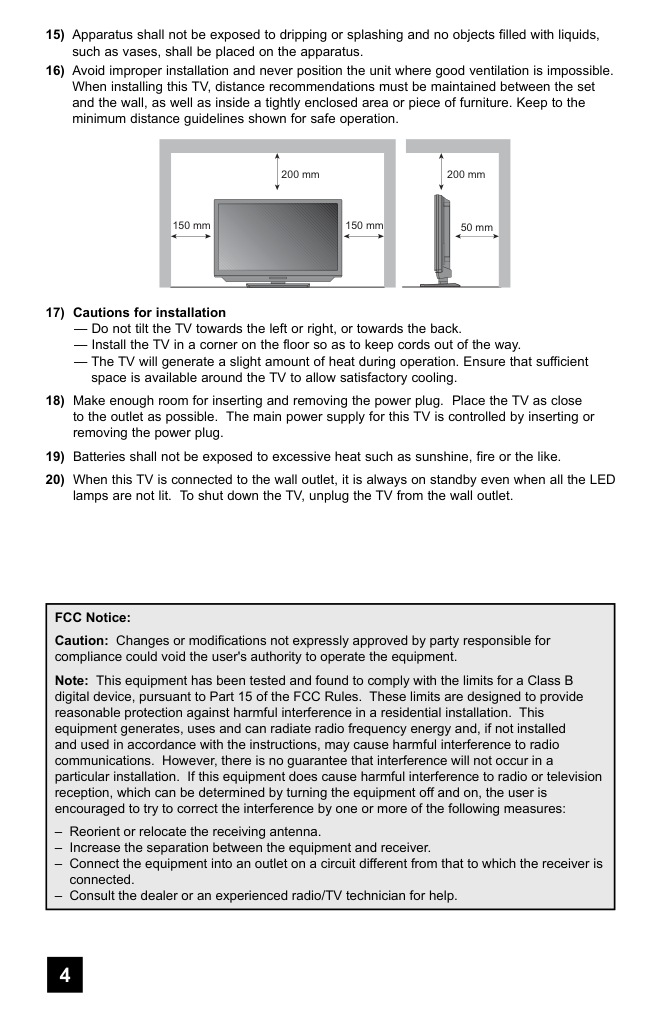

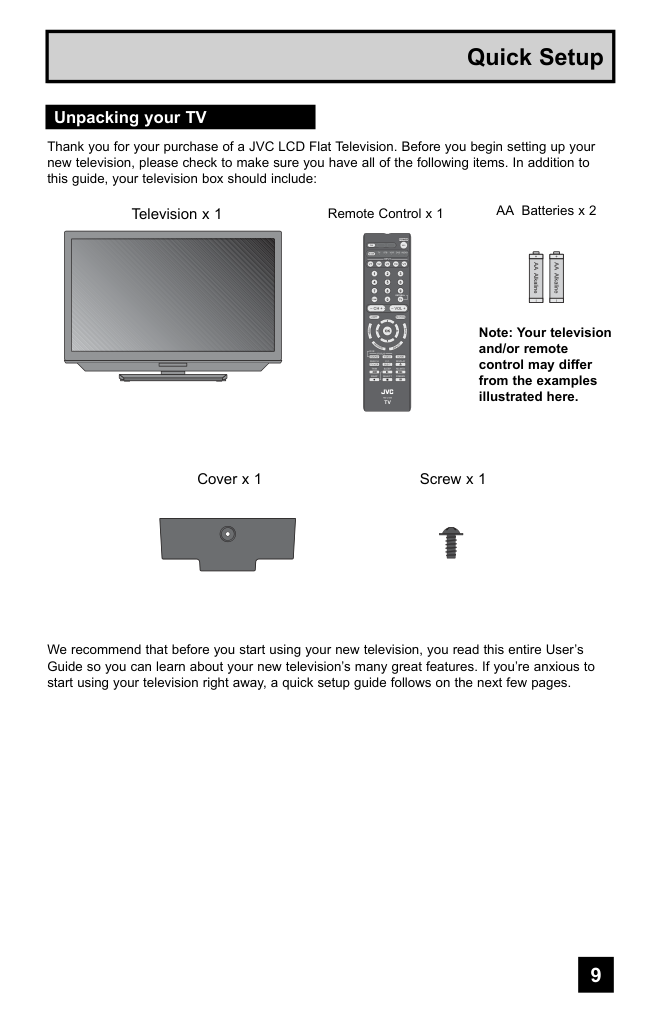

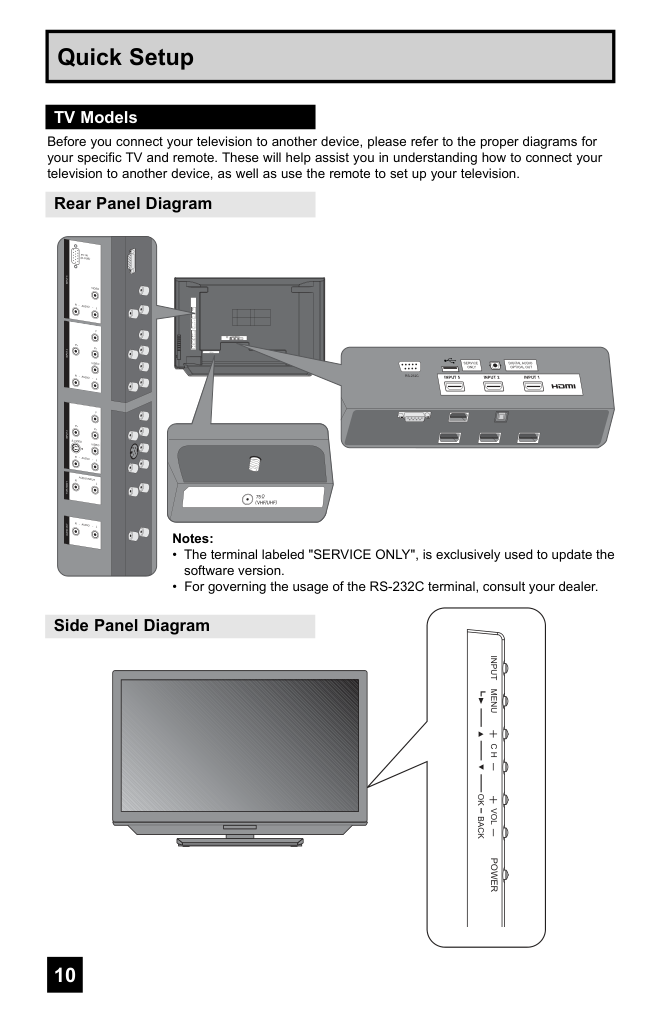

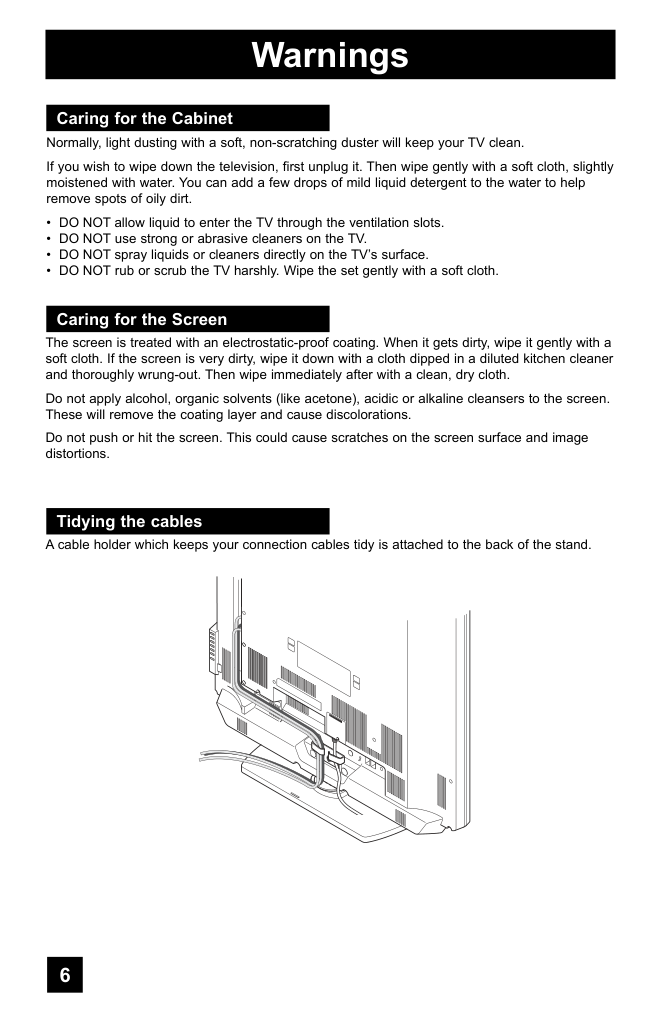

Important Note: In the spaces below, enter the model and serial number of your television (located at the rear of the television cabinet). Staple your sales receipt or invoice to the inside cover of this guide. Keep this user’s guide in a convenient place for future reference. Keep the carton and original packaging for future use. LCT2329-001A-A 0807TNH-II-IM Model Number: Serial Number: Illustration of LT-42X898 and RM-C1400 For Models: LT-37X898 LT-42X898 LT-47X898 LCD Flat Television Users Guide 2 Important Safety Precautions WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION: TO INSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES REGARDING THE USE OF THIS UNIT. 1. Operate only from the power source specified on the unit. 2. Avoid damaging the AC plug and power cord. 3. Avoid Improper installation and never position the unit where good ventilation is unattainable. 4. Do not allow objects or liquid into the cabinet openings. 5. In the event of trouble, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover. Changes or modifications not approved by JVC could void the warranty. * When you don’t use this TV set for a long period of time, be sure to disconnect both the power plug from the AC outlet and antenna for your safety. * To prevent electric shock do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. CAUTION: To reduce the risk of electric shock. Do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION • As an “ENERGY STAR®” partner, JVC has determined that this product or product model meets the “ENERGY STAR®” guidelines for energy efficiency. 3 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. IMPORTANT SAFETY INSTRUCTIONS IMPORTANT RECYCLING INFORMATION This product has a fluorescent lamp that contains mercury. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities or for USA, the Electronic Industries Alliance: http://www.eiae.org 4 15) Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. 16) Avoid improper installation and never position the unit where good ventilation is impossible. When installing this TV, distance recommendations must be maintained between the set and the wall, as well as inside a tightly enclosed area or piece of furniture. Keep to the minimum distance guidelines shown for safe operation. 17) Cautions for installation — Do not tilt the TV towards the left or right, or towards the back. — Install the TV in a corner on the floor so as to keep cords out of the way. — The TV will generate a slight amount of heat during operation. Ensure that sufficient space is available around the TV to allow satisfactory cooling. 18) Make enough room for inserting and removing the power plug. Place the TV as close to the outlet as possible. The main power supply for this TV is controlled by inserting or removing the power plug. 19) Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. 20) When this TV is connected to the wall outlet, it is always on standby even when all the LED lamps are not lit. To shut down the TV, unplug the TV from the wall outlet. 150 mm 200 mm 150 mm 200 mm 50 mm FCC Notice: Caution: Changes or modifi cations not expressly approved by party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. 5 Warnings Displaying fi xed images for extended periods of time can leave a subtle but temporary ghost image on your screen. To avoid this, mix your viewing pattern. Examples include, but are not limited to the following: Avoiding Ghost Images XYZ XYZ TV on TV off For example... • Stock-market report bars • Shopping channel logos and pricing displays • Video game patterns or scoreboards • Bright station logos • Internet web sites or other computer-style images • DVD discs, video tapes, laser discs • Broadcast, cable, satellite channels or digital television tuners/converters We have an important note for customers who subscribe to basic cable services (do not have a separate cable box) and plan to use their JVC TV remote control to select channels. Once you run the Auto Tuner Setup (which detects and programs all the channels your TV is receiving through the RF input), every channel number available from your cable company will appear in your television’s Channel Summary and they will all be marked as available for scanning. Even though every channel is detected and appears as available, you will only be able to view those that you specifi cally subscribe to from your cable company. This will likely mean there are blank channels between those channels you wish to scan or “surf”. We apologize for any inconvenience this may cause but it is important to note that this is not a malfunction of your television. If you want to sequentially scan those channels you subscribe to without blank ones in between, you can contact your cable company for their cable box and remote. 6 Warnings Caring for the Cabinet Caring for the Screen Normally, light dusting with a soft, non-scratching duster will keep your TV clean. If you wish to wipe down the television, first unplug it. Then wipe gently with a soft cloth, slightly moistened with water. You can add a few drops of mild liquid detergent to the water to help remove spots of oily dirt. • DO NOT allow liquid to enter the TV through the ventilation slots. • DO NOT use strong or abrasive cleaners on the TV. • DO NOT spray liquids or cleaners directly on the TV’s surface. • DO NOT rub or scrub the TV harshly. Wipe the set gently with a soft cloth. The screen is treated with an electrostatic-proof coating. When it gets dirty, wipe it gently with a soft cloth. If the screen is very dirty, wipe it down with a cloth dipped in a diluted kitchen cleaner and thoroughly wrung-out. Then wipe immediately after with a clean, dry cloth. Do not apply alcohol, organic solvents (like acetone), acidic or alkaline cleansers to the screen. These will remove the coating layer and cause discolorations. Do not push or hit the screen. This could cause scratches on the screen surface and image distortions. Tidying the cables A cable holder which keeps your connection cables tidy is attached to the back of the stand. 7 Warnings Disconnecting the stand If you disconnect the stand, attach the bottom cover and the screw (supplied) into the hole. 1) Place the TV face down on a soft cloth on a table. 2) Remove the four screws from the back of the TV. 3) Pull out the stand from the TV. 4) Cover the hole with a bottom cover and tighten the screw. Note: • To re-install the stand, reverse the procedure from 4) to 1). 8 Table of Contents Important Safety Precautions . . 2 Warnings . . . . . . . . . . . . . . . 5 Quick Setup . . . . . . . . . . . . . . 9 Unpacking your TV . . . . . . . . . . . . 9 TV Models . . . . . . . . . . . . . . . . 10 TV Remote Control . . . . . . . . . . . 11 Getting Started . . . . . . . . . . . . . 12 The Remote Control . . . . . . . . . . 12 Connecting Your Devices . . . . . . . 13 Interactive Plug In Menu . . . . . . . . 24 Onscreen Menus . . . . . . . . . 27 Using the Guide . . . . . . . . . . . . . 27 Onscreen Menu System . . . . . . . . . 28 Initial Setup . . . . . . . . . . . . . 30 HDMI Size . . . . . . . . . . . . . . . . . 30 Video-1 Audio . . . . . . . . . . . . . 30 Noise Muting . . . . . . . . . . . . . . 31 Front Panel Lock . . . . . . . . . . . . 31 Video Input Label . . . . . . . . . . . 32 Position Adjustment . . . . . . . . . . . . 33 Power Indicator . . . . . . . . . . . . . 33 Illumination . . . . . . . . . . . . . . . . 34 Language . . . . . . . . . . . . . . . . 34 Closed Caption . . . . . . . . . . . . . 34 Auto Shut Off . . . . . . . . . . . . . . 37 XDS ID . . . . . . . . . . . . . . . . . . 37 Auto Tuner Setup . . . . . . . . . . . . 37 Channel Summary . . . . . . . . . . . . 38 V-Chip . . . . . . . . . . . . . . . . . . 40 Set Lock Code . . . . . . . . . . . . . 46 Auto Demo . . . . . . . . . . . . . . . 47 Digital Setup . . . . . . . . . . . . . . . 47 V5 Input . . . . . . . . . . . . . . . . . 49 Picture Adjust . . . . . . . . . . . . . 50 Picture Settings . . . . . . . . . . . . . 50 Color Temperature . . . . . . . . . . . . 50 Color Management . . . . . . . . . . . . 51 Dynamic Gamma . . . . . . . . . . . . . 51 Smart Picture . . . . . . . . . . . . . . 51 Natural Cinema . . . . . . . . . . . . . . 52 Digital VNR . . . . . . . . . . . . . . . 52 MPEG NR . . . . . . . . . . . . . . . 53 Smart Sensor . . . . . . . . . . . . . . 53 Sensor Effect . . . . . . . . . . . . . . . 53 Theater Pro II . . . . . . . . . . . . . . . 53 Reset . . . . . . . . . . . . . . . . . . 54 Sound Adjust . . . . . . . . . . . . . 55 Sound Settings . . . . . . . . . . . . . 55 Turn On Volume . . . . . . . . . . . . . 55 Volume Limit . . . . . . . . . . . . . . 55 Reset . . . . . . . . . . . . . . . . . . 55 Clock/Timers . . . . . . . . . . . . . . . . 56 Set Clock . . . . . . . . . . . . . . . . 56 On/Off Timer . . . . . . . . . . . . . . . 57 Button Functions . . . . . . . . . . 58 Power . . . . . . . . . . . . . . . . . . 58 Number Buttons . . . . . . . . . . . . . 58 Tune . . . . . . . . . . . . . . . 58 Sub Channel . . . . . . . . . . . . . 58 Channel +/- . . . . . . . . . . . . . 58 Volume +/- . . . . . . . . . . . . . 59 Muting . . . . . . . . . . . . . . . . . . 59 D/A (Digital/Analog) . . . . . . . . . . . . 59 Input . . . . . . . . . . . . . . . . . . . 59 Return+/TV . . . . . . . . . . . . . . . 60 Light . . . . . . . . . . . . . . . . . . 60 Menu . . . . . . . . . . . . . . . . . . 60 OK . . . . . . . . . . . . . . . . . . . 60 Back . . . . . . . . . . . . . . . . . . . 60 Favorite . . . . . . . . . . . . . . . . 61 Aspect . . . . . . . . . . . . . . . . . 62 Guide . . . . . . . . . . . . . . . 63 Sound . . . . . . . . . . . . . . . . . . 64 ML/MTS . . . . . . . . . . . . . . . . . 64 Video Status . . . . . . . . . . . . . . . 65 C.C. . . . . . . . . . . . . . . . . . . . 65 Sleep Timer . . . . . . . . . . . . . . . 66 Display . . . . . . . . . . . . . . . . . 66 Twin . . . . . . . . . . . . . . . . . 67 Swap . . . . . . . . . . . . . . . . . 67 Select . . . . . . . . . . . . . . . . . 68 Freeze . . . . . . . . . . . . . . . . . 68 Mode . . . . . . . . . . . . . . . . . . 68 External device control buttons . . . . . 68 Remote Programming . . . . . . 69 OSD Information . . . . . . . . . . 75 Weak Signal . . . . . . . . . . . . . 75 No Program . . . . . . . . . . . . . . 75 Invalid Signal . . . . . . . . . . . . . 75 Troubleshooting . . . . . . . . . . 76 Specifications . . . . . . . . . . 78 Warranty . . . . . . . . . . . . . 79 Authorized Service Center . . . 80 Notes . . . . . . . . . . . . . . . 81 9 Quick Setup Thank you for your purchase of a JVC LCD Flat Television. Before you begin setting up your new television, please check to make sure you have all of the following items. In addition to this guide, your television box should include: POWER D/A MODE TV STB VCR DVD AUDIO INPUT 1 2 3 4 5 6 7 8 9 0 TUNE TV RETURN + LIGHT MUTING – CH + – VOL + RM-C1400 TV DVR STATUS VIDEO GUIDE TV/VCR SUB T. SUB CH C.C. DISPLAY TWIN SLEEP ML/MTS SWAP SELECT FREEZE SOUND OK M E N U F A V O R I T E A S P E C T B A C K V1 V2 V3 V4 V5 + AA Alkaline – + AA Alkaline – We recommend that before you start using your new television, you read this entire User’s Guide so you can learn about your new television’s many great features. If you’re anxious to start using your television right away, a quick setup guide follows on the next few pages. AA Batteries x 2 Television x 1 Remote Control x 1 Note: Your television and/or remote control may differ from the examples illustrated here. Cover x 1 Screw x 1 Unpacking your TV 10 INPUT 5 UDIO OUT FOR HDMI 1 R AUDIO INPUT L INPUT 4 Y VIDEO R - AUDIO - L VIDEO R - AUDIO - L PC IN (D-SUB) INPUT 3 Y PR PB VIDEO R - AUDIO - L S-VIDEO AUDIO OUT AUDIO OUT R - AUDIO - L PR PB RS-232C SERVICE ONLY DIGITAL AUDIO OPTICAL OUT INPUT 5 INPUT 2 INPUT 1 INPUT 5 UDIO OUT FOR HDMI 1 R AUDIO INPUT L INPUT 4 Y VIDEO R - AUDIO - L VIDEO R - AUDIO - L PC IN (D-SUB) INPUT 3 Y PR PB VIDEO R - AUDIO - L S-VIDEO UDIO OUT AUDIO OUT R - AUDIO - L PR PB RS-232C SERVICE ONLY DIGITAL AUDIO OPTICAL OUT INPUT 5 INPUT 2 INPUT 1 Quick Setup Before you connect your television to another device, please refer to the proper diagrams for your specific TV and remote. These will help assist you in understanding how to connect your television to another device, as well as use the remote to set up your television. Rear Panel Diagram Side Panel Diagram INPUT MENU C H VOL OK BACK POWER TV Models Notes: • The terminal labeled "SERVICE ONLY", is exclusively used to update the software version. • For governing the usage of the RS-232C terminal, consult your dealer. 11 Quick Setup Notes: • For information on remote control buttons, see pages 58 - 68. • SUB CHANNEL and GUIDE buttons are for digital channels. If your TV is connected to an ATSC antenna or Digital Cable, you can use these buttons. • This remote control is capable of operating many external device brands. See page 69 - 74 for how to program the remote control. RM-C1400 POWER D/A MODE TV STB VCR DVD AUDIO INPUT 1 2 3 4 5 6 7 8 9 0 TUNE TV RETURN + LIGHT MUTING – CH + – VOL + RM-C1400 TV DVR STATUS VIDEO GUIDE TV/VCR SUB T. SUB CH C.C. DISPLAY TWIN SLEEP ML/MTS SWAP SELECT FREEZE SOUND OK M E N U F A V O R I T E A S P E C T B A C K V1 V2 V3 V4 V5 TV Remote Control 12 Quick Setup These quick setup pages will provide you, in three easy steps, with the basic information you need to begin using your new television right away. If you have questions, or for more detailed information on any of these steps, please consult other sections of this manual. Before you can operate your remote control, you first need to install the batteries (included). Raise the latch on the remote's back cover to remove. Insert two batteries, carefully noting the "+" and "–" markings. Place the "–" end in the unit first. Snap the cover back into place. When you change the batteries, try to complete the task within three minutes. If you take longer than three minutes, the remote control codes (ex. VCR, DVD) may have to be reset. See pages 69 - 74. Getting Started Step 1 – The Remote Control Using Menu Buttons To use the menu functions, press the MENU button. Next, select a menu using the four arrow keys. The four arrow keys are used only for menu selections. DVR STATUS OK M E N U F A V O R I T E A S P E C T B A C K Basic Operation Turn the television on and off by pressing the POWER button at the top right corner of the remote. If this is the first time you are turning on the TV, the interactive plug in menu appears. • At first, to watch your TV, select the TV mode by pressing the MODE button on the remote control before you turn the TV power on. • See page 58 to 68 for details regarding the remote control buttons. POWER 13 Step 2 - Connecting your devices Quick Setup Notes: • The following connection diagrams are examples. • After you are finished connecting your devices, plug the power cord into the nearest power outlet and turn on the TV. • If you follow these diagrams and the television does not work properly, contact your local cable operator. • To connect a DVD player, see VCR Connection. • If you have a satellite television system, refer to the satellite TV manual. Used to connect an external antenna or cable TV system to your TV. Used to make video connections with S-Video VCRs, Camcorders and DVD players. Coaxial Cables S-Video Cable Used to connect audio/video devices like VCRs, DVD players, stereo amplifiers, game consoles, etc. Component Cables Composite Cables Audio Cables To make these connections, you will use plugs like the ones illustrated below. TV Rear Panel Cable or Antenna Output Coaxial Cable No VCR Connection 14 Quick Setup Notes: • Green, blue and red are the most common colors for DVD cables. Some models may vary colors. Please consult the user’s manual for your DVD player for more information. • Be careful not to confuse the red DVD cable with the red audio cable. It is best to complete one set of connections (DVD or audio output) before starting the other to avoid accidentally switching the cables. • You may also connect the DVD player to Input 1. INPUT 5 UDIO OUT FOR HDMI 1 R AUDIO INPUT L INPUT 4 Y VIDEO R - AUDIO - L VIDEO R - AUDIO - L PC IN (D-SUB) INPUT 3 Y PR PB VIDEO R - AUDIO - L S-VIDEO UDIO OUT AUDIO OUT R - AUDIO - L PR PB TV Rear Panel Cable or Antenna Output Coaxial Cable VCR DVD Player OR IN OUT IN OUT R L V Y PB PR OUT AUDIO OUT R L Green Blue Red TV Rear Panel VCR • DVD Connection Note: • If this connection setup does not work for you, try the connection setup on page 15. Diagram #1 15 Quick Setup Diagram #2 INPUT 5 UDIO OUT FOR HDMI 1 R AUDIO INPUT L INPUT 4 Y VIDEO R - AUDIO - L VIDEO R - AUDIO - L PC IN (D-SUB) INPUT 3 Y PR PB VIDEO R - AUDIO - L S-VIDEO UDIO OUT AUDIO OUT R - AUDIO - L PR PB TV Rear Panel Coaxial Cable VCR DVD Player OR IN OUT IN OUT R L V Y PB PR OUT AUDIO OUT R L Green Blue Red Two-Way Splitter (Not supplied) Cable or Antenna Output TV Rear Panel IN OUT OUT 16 Quick Setup 1) Connect a yellow composite cable from the camcorder VIDEO OUT to the VIDEO IN on the back of the TV. 2) Connect a white cable from the camcorder LEFT AUDIO OUT to the LEFT AUDIO IN on the back of the TV. 3) Connect a red cable from the camcorder RIGHT AUDIO OUT to the RIGHT AUDIO IN on the back of the TV. You can connect a camcorder to your television by using the input jacks located on the back of the TV. I INPUT 4 Y VIDEO R - AUDIO - L VIDEO R - AUDIO - L INPUT 3 Y PR PB VIDEO R - AUDIO - L S-VIDEO PR PB CAMCORDER TV Rear Panel Connecting to a Camcorder 17 Quick Setup UDIO OUT FOR HDMI 1 R AUDIO INPUT L INPUT 3 PR PB VIDEO R - AUDIO - L S-VIDEO UDIO OUT AUDIO OUT R - AUDIO - L Speaker Speaker Amplifier TV Rear Panel 1) Connect a white cable from the LEFT AUDIO OUTPUT on the back of the TV to the LEFT AUDIO INPUT on the amplifier. 2) Connect a red cable from the RIGHT AUDIO OUTPUT on the back of the TV to the RIGHT AUDIO INPUT on the amplifier. Notes: • Refer to your amplifier’s manual for more information. • You can use AUDIO OUTPUT for your home theater system. • If you have a device connected to INPUT-1, INPUT-2 or INPUT-5 (set "V5 INPUT" in the INITIAL SETUP menu to "HDMI"). You will not be able to hear any audio from the AUDIO OUT on the back of the TV. Connecting to an External Amplifier 18 Quick Setup By connecting a Digital TV Receiver, high definition pictures can be displayed on your TV in their digital form. RS-232C SERVICE ONLY DIGITAL AUDIO OPTICAL OUT INPUT 5 INPUT 2 INPUT 1 UDIO OUT FOR HDMI 1 R AUDIO INPUT L R - AUDIO - L UDIO OUT AUDIO OUT R - AUDIO - L DTV Decoder HDMI to DVI Cable After the connections have been made, tighten the screw to secure the cables. TV Rear Panel L R AUDIO OUT DIGITAL OUT TV Rear Panel Connecting to a Digital TV Receiver 1) Connect the HDMI to DVI Cable from the DIGITAL OUT on the back of your DTV decoder to the HDMI INPUT-1 on the back of the TV. 2) Connect a red cable from the DTV decoder RIGHT AUDIO OUT to the RIGHT AUDIO INPUT HDMI AUDIO IN "R" on the back of the TV. 3) Connect a white cable from the DTV decoder LEFT AUDIO OUT to the LEFT AUDIO INPUT HDMI AUDIO IN "L" on the back of the TV. • Personal computer compatibility cannot be guaranteed. • Use an HDMI to DVI cable (commercially available) in order to digitally connect the television with a DTV decoder. Notes: • If 480p signals (640x480 or 720x480) are displayed on the screen, the horizontal balance may be slightly shifted. Access the “HDMI SIZE” in the INITIAL SETUP menu to adjust it. (Refer to page 30.) • When you do the above connection, set "VIDEO-1 AUDIO" in the INITIAL SETUP menu to "ANALOG". See "VIDEO-1 AUDIO", page 30. • The Analog Audio input can only be used with the HDMI INPUT-1. • When setting the “VIDEO-1 AUDIO - ANALOG/DIGITAL” menu setting on the TV, please note that this setting only effects the HDMI INPUT-1 jack and that if you use a DVI to HDMI adapter this connection must be made to the HDMI INPUT-1 along with analog audio cables. 19 Quick Setup By connecting an HDMI compatible device, high definition pictures can be displayed on your TV in their digital form. Some HDMI devices can include DVD players, D-VHS or other HDMI compatible device. HDMI (High Definition Multimedia Interface) is the first industry supported, uncompressed, all digital audio/video interface. HDMI provides an interface between any audio/video source, such as a set-top box, DVD player, A/V receiver or an audio and/or video monitor, such as a digital television (DTV). HDMI Compatible Device HDMI Cable TV Rear Panel RS-232C SERVICE ONLY DIGITAL AUDIO OPTICAL OUT INPUT 5 INPUT 2 INPUT 1 L R AUDIO OUT DIGITAL OUT Connecting to an HDMI Compatible Device 1) Connect the HDMI Cable from the DIGITAL OUT on the back of your DTV or HDMI device to the HDMI INPUT-1 on the back of the TV. Notes: • When you do the above connection, set "VIDEO-1 AUDIO" in the INITIAL SETUP menu to "DIGITAL". See "VIDEO-1 AUDIO", page 30. • Some decoders may not respond depending on the equipment that is connected to the HDMI. • If the HDMI output device signal is changed (for example, 480i/60Hz is changed to 480p/60Hz), the screen may turn green and there may be some distortion for a short time until the signal becomes stable. • This TV can accept 480i, 480p, 720p, 1080i and 1080p signals via HDMI. • This JVC television can accept a variety of HD signals, including 720/60p, 1080/60i and 1080/60p. It does not accept a 1080/24p signal. Please note that in some cases, a Blu-ray or HD-DVD may only offer the choice of 1080/60i or 1080/24p. In this case, it is necessary to choose the 1080/60i output. Please refer to your Blu-ray/HD-DVD manual for complete details on choosing the correct output. 20 Quick Setup Connecting to an amplifier using your optical output You can connect an amplifier that has an optical digital input terminal by using an optical digital cable from the optical output. The signal that is output can be PCM or DOLBY DIGITAL. RS-232C SERVICE ONLY DIGITAL AUDIO OPTICAL OUT INPUT 5 INPUT 2 INPUT 1 TV Rear Panel Amplifier 1) Connect the optical cable from underneath the television to the back of the amplifier. Notes: • This terminal can only output digital audio. • In order to use the optical output connection, select PCM or DOLBY DIGITAL on Digital Sound in the DIGITAL SETUP Menu. See page 48. • Refer to your owners manual on using your amplifier. • You cannot output sound from your Optical Output connection if the audio source is from your HDMI device. 21 Quick Setup By connecting your AV Receiver to your television's V3 Smart Input, you can watch picture sources from many different devices, without having to change or use the other input connections on your TV. This allows you to free up the other input connections so you can connect more devices to your television. Connecting to an AV Receiver using your television's V3 Smart Input UDIO OUT FOR HDMI 1 R AUDIO INPUT L R - AUDIO - L INPUT 3 Y PR PB VIDEO R - AUDIO - L S-VIDEO UDIO OUT AUDIO OUT R - AUDIO - L TV Rear Panel AV Receiver MONITOR OUT MONITOR OUT PR PB Y 1) Connect an S-Video Cable from the AV Receiver's MONITOR OUT to the S-Video INPUT-3 on the back of the TV. 2) Connect a Yellow Composite Cable from the AV Receiver's MONITOR OUT to the VIDEO INPUT-3 on the back of the TV. 3) Connect a Green Component Cable from the AV Receiver's Y MONITOR OUT to the Y VIDEO INPUT-3 on the back of the TV. 4) Connect a Blue Component Cable from the AV Receiver's PB MONITOR OUT to the PB VIDEO INPUT-3 on the back of the TV. 5) Connect a Red Component Cable from the AV Receiver's PR MONITOR OUT to the PR VIDEO INPUT-3 on the back of the TV. Notes: • Please refer to your AV Receiver instruction manual for more information on connecting your speakers and other devices like a DVD player. • Use your AV Receiver's remote to switch to the different devices you have connected. • Some AV Receivers may not respond when the V3 Smart Input function is turned on. • If you have video connections for each input device connected to your AV Receiver, you should not connect them using both S-Video and Composite connection at the same time when you are using V3 Input as the V3 Smart Input. In this case we recommend using the S-Video connection. 22 Quick Setup This TV can be used as a computer screen. Use a commercially available D-SUB cable to connect the TV's PC INPUT terminal to the computer's analog RGB output terminal. If you want to listen to the sound from the computer, use a commercially available RCA cable to connect the INPUT-5 audio input terminal to the computer's audio output terminal. Connecting to the computer INPUT 5 INPUT 4 Y VIDEO R - AUDIO - L VIDEO R - AUDIO - L PC IN (D-SUB) INPUT 3 Y PR PB PR PB TV Rear Panel Computer Notes: • When you do the above connection, set "V5 INPUT" in the INITIAL SETUP menu to "PC". See page 49. • Refer to your computer manual for a detailed explanation of the connections concerning your computer. • Use cable with ferrite cores and no longer than of 3 m to avoid electromagnetic disturbance. • Make sure that the connectors are facing the correct way when connecting. • After connecting, tighten the two screws to fix the connectors in place. Looking at the images from a computer After starting the computer, press the V5 button on the remote control. You can listen to the sound when the sound from the computer is connected to the INPUT-5 AUDIO input terminal. 23 Quick Setup Table of signals for each type of computer Resolution 640 x 480 (VGA) 1024 x 768 (XGA) Vertical Frequency (Hz) 60.0 60.0 Horizontal Frequency (kHz) 31.5 48.4 When a picture is not displayed With some computers, some problems can be solved by changing the settings. Check the computer's refresh rate and set it to 60Hz. Computers that cannot set the refresh rate to 60 Hz, cannot be used with this TV. Refer to the computer's instruction manual. *Apple Macintosh is a registered trademark of Apple Inc. Note: • If you are inputting a PC signal that is invalid, "Invalid Signal" will appear on the TV screen. It appears when the input is PC and it is a single screen. • Only the above formats are supported. • Even with the above formats at 60 Hz, some problems may be experienced depending on the quality of the synchronous signal. (Depending on the quality, some pictures may not be displayed correctly). • Apple Macintosh* computers are not supported. 24 When you turn your television on for the first time the interactive plug in menu will appear. The plug in menu helps you to get your TV ready to use by letting you set your preferences for: • The language in which you want the onscreen menus to appear. • Setting the TV’s clock to the correct time so your timer functions will work properly. You can choose “AUTO” or “MANUAL” for setting the clock. • The auto tuner setup of which channels you wish to receive. We recommend you complete the interactive plug in items before you start using your television. Notes: • The interactive plug in menu setting does not appear if your TV has been turned on before. In this case use the onscreen menus to perform these settings. See pages 34, 56, 37. • If you press the Menu button while setting up the interactive plug in menu, it will skip over it. Step 3 – The Interactive Plug In Menu Quick Setup After the “JVC INTERACTIVE PLUG IN MENU” has been displayed, the TV automatically switches to the LANGUAGE settings. You can choose to view your onscreen menus in three languages: ENGLISH, FRANÇAIS (French) or ESPAÑOL (Spanish). √® To choose a language: ENGLISH, FRANÇAIS or ESPAÑOL † To NEXT (To set clock) Language (Continued...) LANGUAGE/LANGUE/IDIOMA ENGLISH NEXT SELECT OPERATE EXIT MENU 25 To set your clock manually (without using the XDS signal), choose MANUAL. If you choose AUTO, see auto clock set above. √® To choose MANUAL † To TIME √® To set the hour † To minute √® To set the minute † To TIME ZONE √® To select your time zone: (Atlantic, Eastern, Central, Mountain, Pacific, Alaska or Hawaii) † To move to D.S.T. (Daylight Savings Time) √® To turn D.S.T. ON or OFF † To START CLOCK Manual Clock Set Note: • You will have to reset the clock after a power interruption. You must set the clock before operating any timer functions. Quick Setup Before you use any of your TV’s timer functions, you must first set the clock. You may precisely set your clock using the XDS time signal broadcast by most public analog broadcasting stations. If you do not have this in your area, you will have to set the clock manually. See manual clock set below. To set the clock using the XDS signal: √® To choose AUTO † To TIME ZONE √® To select your time zone: (Atlantic, Eastern, Central, Mountain, Pacific, Alaska or Hawaii) † To move to D.S.T. (Daylight Savings Time) √® To turn D.S.T. ON or OFF † To NEXT (To Auto Tuner Setup) Notes: • D.S.T. can be used when it is set to ON in the SET CLOCK menu. • Only when the MODE is set to AUTO, the Daylight Saving Time feature automatically adjusts your TV’s clock for Daylight Saving. • The real time and D.S.T. may not be set correctly depending on the broadcasting signal and receiving conditions. In this case, set your clock manually and turn D.S.T. to OFF. • You will have to reset the clock after a power interruption. You must set the clock before operating any timer functions. Auto Clock Set (Continued...) SET CLOCK SELECT OPERATE EXIT MENU TIME MODE TIME ZONE D.S.T. MANUAL -- : -- -- ATLANTIC ON START CLOCK SET CLOCK NEXT SELECT OPERATE EXIT MENU TIME -- : -- -- MODE TIME ZONE D.S.T. AUTO ATLANTIC ON 26 Quick Setup When the setup is finished, "THANK YOU ! SETUP IS NOW COMPLETE" is displayed. Your quick setup is now complete. You can now begin watching your television, or you can continue on in this guide for more information on programming your remote control, or using the JVC onscreen menu system to customize your television viewing experience. Notes: • If you want to cancel the Auto Tuner Setup, press the MENU button. • Noise Muting will not work during Auto Tuner Setup. • If you choose SKIP, it finished without doing the Auto Tuner Setup. Cable Box and Satellite Users: After your auto tuner setup is complete, you may, (depending on the type of hookup), have only 1 channel, usually 3 or 4 in the auto tuner memory. This is normal. 48 NOW PROGRAMMING ! 20 Now Programming... In auto tuner setup, the TV automatically scans through all available channels, memorizing the active ones and skipping over blank ones or channels with weak signals. This means when you scan (using the CHANNEL +/– buttons) you will receive only clear, active channels. √® To choose CABLE or AIR (or SKIP when you skip Auto Tuner Setup) † To START After Analog Auto Tuner Setup is finished, Digital Auto Tuner Setup starts. Auto Tuner Setup AUTO TUNER SETUP SELECT OPERATE EXIT MENU AIR TUNER MODE START 27 To bring up the onscreen menu, press the MENU button on the remote control. The item that appears in green is the one currently selected. If you use the Menu button on the TV’s side panel instead of the remote, an additional menu screen showing VIDEO STATUS and ASPECT will appear between INITIAL SETUP and PICTURE ADJUST. The “INTERACTIVE PLUG IN MENU” will appear the first time the TV is plugged in. Note: • Menus shown in this book are illustrations, not exact replications of the television’s onscreen displays. Certain symbols are used throughout this guide to help you learn about the features of your new television. The ones you will see most frequently are: π† Up and Down arrows mean: • Move vertically in a main menu screen • Move through a submenu screen • Move to the next letter, number, or other choice in a submenu √® Left and right arrows mean: • Select a highlighted menu item • Select an item in a submenu • Select numbers in certain menu options The “press button” icon means you should press the button named on your remote control. (Button names appear in SMALL CAPITAL LETTERS.) The “helping arrow” icon points to the highlighted or selected item in a menu. Onscreen Menus Using the Guide INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (4/5) AUTO TUNER SETUP CHANNEL SUMMARY V-CHIP SET LOCK CODE AUTO DEMO ON 28 To open the onscreen menu system, press the MENU button on the remote control. You navigate within the onscreen menus by using the four directional arrow buttons on the remote control. The selected feature and option on a menu screen are highlighted in a different color. To move to a different feature use the π† arrows to move up or down the list. When you press the up arrow at the top of the list or the down arrow at the bottom, the next menu screen will appear. Use the arrows √ ® to select an option from the highlighted feature. Pressing MENU on the remote control will close the onscreen menu system and return you to normal television viewing. Each menu and its features will be discussed in the following pages of this guide. LANGUAGE CLOSED CAPTION ENG. FRAN. ESP. Your television comes with JVC’s onscreen menu system. The onscreen menus let you make adjustments to your television’s operation simply and quickly. Examples of the onscreen menus are shown on the next page. Detailed explanations on using each menu follow later in this guide. For information about the interactive plug in Menu, see pages 24 - 26. Onscreen Menus The Onscreen Menu System Notes: • If you do not press any buttons for about a minute, the onscreen menu will automatically shut off. • Button names in this guide are shown in SMALL CAPITAL LETTERS. • Menus may appear in different sizes onscreen depending on the aspect ratio selected. • Some menu items may not appear in menu screens when certain aspect ratios or inputs are selected. Selected Feature (Green) Selected Option (Blue) The Onscreen Menu System 29 Press the MENU button Onscreen Menus INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS OFF ON (3/5) ILLUMINATION LANGUAGE CLOSED CAPTION AUTO SHUT OFF XDS ID ENG. FRAN. ESP. LOW INITIAL SETUP 03 INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (4/5) AUTO TUNER SETUP CHANNEL SUMMARY V-CHIP SET LOCK CODE AUTO DEMO ON INITIAL SETUP 04 PICTURE ADJUST SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS STANDARD (1/3) TINT COLOR PICTURE BRIGHT DETAIL ENERGY SAVER MODE 00 00 00 00 00 PICTURE ADJUST 01 INITIAL SETUP 01 INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (1/5) HDMI SIZE VIDEO-1 AUDIO AUTO DIGITAL SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS STANDARD PICTURE ADJUST (3/3) DIGITAL VNR MPEG NR SMART SENSOR SENSOR EFFECT THEATER PRO II RESET AUTO ON OFF OFF PICTURE ADJUST 03 CLOCK / TIMERS SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS SET CLOCK ON / OFF TIMER CLOCK/TIMERS SOUND ADJUST 02 TURN ON VOLUME VOLUME LIMIT RESET SOUND ADJUST SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (2/2) 10 40 SOUND ADJUST 01 SOUND ADJUST SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (1/2) MaxxBass MaxxTreble MaxxStereo MaxxVolume BALANCE HIGH 05 05 05 00 OFF INITIAL SETUP 02 INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (2/5) OFF ON OFF NOISE MUTING FRONT PANEL LOCK VIDEO INPUT LABEL POSITION ADJUSTMENT POWER INDICATOR Notes: • The HDMI SIZE menu can only be displayed when a 480p picture signal is input to the HDMI terminal and the picture is being displayed on the screen. • SMART PICTURE menu cannot be selected when the Video Status mode is DYNAMIC. • DETAIL menu cannot be selected when the Video Status mode is THEATER. • When the Menu button on the TV side panel is pressed, the FRONT PANEL CONTROL menu between INITIAL SETUP 05 and PICTURE ADJUST 01 will appear. INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (5/5) DIGITAL SETUP V5 INPUT HDMI INITIAL SETUP 05 SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS STANDARD PICTURE ADJUST (2/3) HIGH OFF OFF ON AUTO COLOR TEMPERATURE COLOR MANAGEMENT DYNAMIC GAMMA SMART PICTURE NATURAL CINEMA PICTURE ADJUST 02 To INITIAL SETUP 01 To CLOCK/TIMERS 30 Initial Setup Menus This feature is used if you have a DVI or HDMI compatible component connected to your TV. Press the MENU button π† To VIDEO-1 AUDIO √® To select ANALOG, DIGITAL or AUTO Press the Menu button when fi nished Notes: • If your DVI or HDMI component is capable of digital audio and video, choose DIGITAL. If your DVI or HDMI component is capable of analog audio and digital video, choose ANALOG. • Refer to your DVI or HDMI component’s instruction manual for more information. • When you select AUTO, the television will select "ANALOG" or "DIGITAL" automatically, depending on the audio input from the HDMI. INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (1/5) HDMI SIZE VIDEO-1 AUDIO AUTO DIGITAL The HDMI SIZE option can only be selected in the INITIAL SETUP menu when an HDMI 480p picture signal is being input to the HDMI terminal. This option adjusts the position when an HDMI or DVI 480p picture signal is being displayed on the screen. There are two types of HDMI 480p picture signals: 640x480 and 720x480. If the displayed picture is slightly shifted, the position can be adjusted by selecting AUTO, SIZE1 or SIZE2. Press the MENU button π† To HDMI SIZE √® To enter π† To select AUTO, SIZE1 or SIZE2 Press the MENU button to finish HDMI Size Video-1 Audio Notes: • The HDMI SIZE menu can only be selected when a HDMI or DVI 480p picture signal is input to the HDMI terminal and the picture is being displayed on the screen. • You can select AUTO only when the signal is 480p for HDMI. When you select AUTO, the television will select "SIZE1" or "SIZE2" automatically. HDMI SIZE AUTO SIZE1 SIZE2 31 This feature inserts a blank gray screen over channels which are not broadcasting or are too weak to be received clearly. Press the MENU button π† To NOISE MUTING √® To turn ON or OFF Press the MENU button when finished Notes: • Noise muting will not work during auto tuner setup or when you operate channel summary. • Noise muting will not work when the digital TV is displayed. Noise Muting Initial Setup Menus This allows you to lock the keys on the side of the TV, so that a child may not accidentally change your viewing preferences. Press the MENU button π† To FRONT PANEL LOCK √® To turn ON or OFF Press the MENU button when finished Front Panel Lock You can turn off this feature in the following ways: – Use the remote control. – Press the MENU button on the side of the TV for more than 3 seconds. In this case, the OSD for FRONT PANEL LOCK will appear. – Unplug the power cord, and plug it back in. Do this if your batteries die or you lose your remote control. Note: • To turn ON/OFF the TV, press the POWER button for more than 3 seconds. This feature will remain ON. INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (2/5) OFF ON OFF NOISE MUTING FRONT PANEL LOCK VIDEO INPUT LABEL POSITION ADJUSTMENT POWER INDICATOR INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (2/5) OFF ON OFF NOISE MUTING FRONT PANEL LOCK VIDEO INPUT LABEL POSITION ADJUSTMENT POWER INDICATOR 32 Initial Setup Menus This function is used to label video input connections for the onscreen displays. Press the MENU button π† To VIDEO INPUT LABEL √® To enter π† To select the desired video input √® To select the desired preset input label (see chart below) Press the OK button to save Press the MENU button when finished Video Input Label Preset Labels VCR DVD PVR DVHS STB SAT AMP GAME CAM DISC You have a VCR connected to the video input You have a DVD connected to the video input You have a Personal Video recorder connected to the video input You have a Digital VCR connected to the video input You have a Set-top Box connected to the video input You have a Satellite Receiver connected to the video input You have an Amplifier connected to the video input You have a Video Game connected to the video input You have a Video Camera connected to the video input You have a Video Disc player connected to the video input Select when... VIDEO INPUT LABEL SELECT OPERATE EXIT MENU PRESS TO FINISH OK VCR DVD SAT GAME STB VIDEO-1 VIDEO-2 VIDEO-3 VIDEO-4 VIDEO-5 33 Initial Setup Menus Position adjustment allows you to adjust the position of the picture on the screen vertically when the aspect is set to panorama or cinema. Press the MENU button π† To POSITION ADJUSTMENT √® To enter π† √® To adjust the position Press the MENU button to finish Notes: • To reset the adjustment to the center, press the OK button. • When the arrow disappears, while you are adjusting the position, the position is at its maximum limit. • If you select REGULAR, SLIM, FULL or FULL NATIVE size with aspect or Multi Screen, position adjustment option is not selected. • When you change the screen size, perform the position adjustment again. • Position adjustment allows you to adjust the screen position vertically and horizontally when the aspect is set Panorama Zoom or Cinema Zoom for 1080i and 720p signals, or when PC mode is set. • It is also possible to use Position Adjustment when you are in PC Mode • When you are receiving a 1080p signal, Position Adjustment cannot be selected. Position Adjustment OPERATE RESET EXIT OK MENU Power indicator allows you to adjust the brightness of the power indicator. Press the MENU button π† To POWER INDICATOR √® To turn LOW, HIGH or OFF Press the MENU button to finish Notes : • When OFF is selected : The LED disappears if you have a TV signal. The LED is lit as “LOW” when there is no TV signal. • When the On Timer turns ON, the LED is lit as "LOW" when you turn the power off. • If you set a timer on the TV, the power indicator will light even if the TV is on stand by. Power Indicator INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (2/5) OFF ON OFF NOISE MUTING FRONT PANEL LOCK VIDEO INPUT LABEL POSITION ADJUSTMENT POWER INDICATOR 34 Initial Setup Menus The illumination feature allows you to adjust the brightness of the light on the front of the television. When you turn the power on the televison, the front panel light remains on when illumination is set to LOW or HIGH. Press the Menu button π† To ILLUMINATION √® To choose HIGH, LOW or OFF Press the MENU button when finished Illumination INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS OFF ON (3/5) ILLUMINATION LANGUAGE CLOSED CAPTION AUTO SHUT OFF XDS ID ENG. FRAN. ESP. LOW Press the MENU button π† To CLOSED CAPTION √® To enter π† To MODE √® To select CAPTION or TEXT in MODE π† To CAPTION or TEXT √® To select a caption (CC1 to CC4) or text channel (T1 to T4) Press the OK button to save Press the MENU button when finished Many broadcasts now include an onscreen display of dialog called closed captions. Some broadcasts may also include displays of additional information in text form. Your television can access and display this information using the closed caption feature. To activate the closed caption feature, follow the steps below. There are three methods. When you are watching analog channels, you can perform Analog Setting of closed caption. When you are watching digital channels, you can perform Digital Auto Setting or Digital Manual Setting. Closed Caption Analog Setting CLOSED CAPTION SELECT OPERATE EXIT MENU PRESS TO FINISH OK TEXT CC1 T1 MODE CAPTION TEXT The language function is described on page 24 as the interactive plug in menu. If you need to choose the language again, follow the steps below. Press the Menu button π† To LANGUAGE √® To choose a language: ENG. (English), FRAN. (French) or ESP. (Spanish) Press the MENU button when finished Language INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS OFF ON (3/5) ILLUMINATION LANGUAGE CLOSED CAPTION AUTO SHUT OFF XDS ID ENG. FRAN. ESP. LOW 35 Initial Setup Menus Digital Auto Setting Press the MENU button π† To CLOSED CAPTION √® To enter π† To Type √® To select Auto, Advanced or Basic Auto: Shows closed caption a priority for digital channels over analog channels. It is set automatically. Advanced: Shows only the digital closed caption. Basic: Shows only the analog closed caption. π† To Service √® To select 1, 2, 3, 4, 5 or 6 π† To Appearance √® To enter √® To select Auto ("Manual, see page 36) π† To Set Press the OK button to save The font/type and color are set automatically. π† To Set Press the OK button to save Press the MENU button when finished Note: • If you want to cancel the settings, select cancel. Digital Closed Caption Preview Select Back BACK Exit MENU Operate Closed Caption Sample 1 Cancel Set Auto Type Service Appearance Digital Closed Caption > Appearance Preview Select Back BACK Exit MENU Closed Caption Sample Auto Cancel Set Appearance Mode Font Colors Opacities Operate 36 Initial Setup Menus • Closed caption subtitles are usually found on closed caption channel CC1. Some programs may include additional text information which is usually found on text channel T1. The other channels are available for future use. • Closed captioning may not work correctly if the signal being received is weak or if you are playing a video tape. • Most broadcasts containing closed captioning will display a notice at the start of the program. • To select the mode, press the C.C. button. See page 65. • When ZOOM aspects like PANORAMA or CINEMA are selected, Digital Closed Captions may be cut off or distorted. Notes: Press the MENU button π† To CLOSED CAPTION √® To enter π† To Appearance √® To select Manual for Appearance Mode π† To Font √® To enter π† To select Font Size or Font Style √® To select the setting you like Font Size: Auto, Standard, Large or Small Font Style: Auto, Serif Mono, Serif, SanSerif Mono, SanSerif, Casual, Cursive or Small Capital π† To Set Press the OK button to save π† To Colors √® To enter π† To select Text, Edge or Background √® To select the setting you like Auto, White, Black, Red, Green, Blue, Yellow, Magenta or Cyan π† To Set Press the OK button to save π† To Opacities √® To enter π† To select Text/Edge or Background √® To select Auto, Transparent, Translucent, Solid or Flashing π† To Set Press the OK button to save π† To Set Press the OK button to save π† To Set Press the OK button to save Press the MENU button when finished Digital Manual Setting Digital Closed Caption > Appearance Preview Select Back BACK Exit MENU Closed Caption Sample Manual Cancel Set Appearance Mode Font Colors Opacities Operate Digital Closed Caption > Appearance Preview Select Back BACK Exit MENU Closed Caption Sample Manual Cancel Set Appearance Mode Font Colors Opacities Operate Cancel Set Standard Auto Font Size Font Style Digital Closed Caption > Appearance Preview Select Back BACK Exit MENU Closed Caption Sample Manual Cancel Set Appearance Mode Font Colors Opacities Operate Cancel Set Text Edge Background White White Black All fonts used for digital closed caption and digital menus are licensed from Monotype Imaging Inc. 37 Initial Setup Menus This function automatically shuts off your TV when there is no signal from the channel or no operation while the TV is on for 10 minutes. Press the MENU button π† To AUTO SHUT OFF √® To turn ON or OFF Press the MENU button when finished • If the channel that you have on does not receive a signal for more than one minute, the blinking text “NOT RECEIVING A SIGNAL AUTO SHUT OFF IN 9 MIN.” appears on the screen, and starts the countdown. If no signal is being received within 10 minutes, the TV shuts itself off. Auto Shut Off INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS OFF ON (3/5) ILLUMINATION LANGUAGE CLOSED CAPTION AUTO SHUT OFF XDS ID ENG. FRAN. ESP. LOW XDS ID Display provides a channel’s call letters, the network’s name, and even a program name. The XDS ID information is provided by the broadcaster. Press the MENU button π† To XDS ID √® To turn ON or OFF Press the MENU button when finished XDS ID INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS OFF ON (3/5) ILLUMINATION LANGUAGE CLOSED CAPTION AUTO SHUT OFF XDS ID ENG. FRAN. ESP. LOW Press the Menu button when finished Auto Tuner Setup The auto tuner setup function is described on page 26 as the interactive plug in menu. If you need to run the auto tuner setup again, follow the steps below. Press the MENU button π† To AUTO TUNER SETUP √® To operate √® To choose CABLE or AIR † To START √® To start the setup The auto tuner is finished when the message PROGRAMMING OVER! appears onscreen. AUTO TUNER SETUP SELECT OPERATE EXIT MENU TUNER MODE AIR START 38 Initial Setup Menus Channel Summary Channel summary allows you to customize the line-up of channels received by your TV. Regarding analog channels, you can add or delete channels from the line-up or prevent any unauthorized viewers from watching any or all 181 channels. Regarding digital channels, the only channels that will appear are the ones that are broadcasting. Press the MENU button π† To CHANNEL SUMMARY √® To operate The Channel summary screen will now be displayed with the channels set to scan marked with an “√”. Regarding analog channels, you can delete channels from the scan by removing the “√”. If any channels were missed during auto tuner setup and you wish to add them, you may by placing an “√” next to the channel number. • Digital channels cannot be added to the channel summary if the auto tuner setup did not find them. π† √® To the SCAN column Press the OK button to include or delete from scan Press the MENU button when finished CHANNEL SUMMARY 06 07 08 09 10 CHNO. SELECT OPERATE EXIT MENU 01 02 03 04 05 OK SCAN CHNO. SCAN ID ID MTV A&E E! HBO L Channel Summary Digital CH No. Scan FOX ABC CNN NBC BOX NHK Station Name D01 D02 D02 D10-1 D10-2 D12345 Select Back BACK Exit MENU Operate OK Analog Channels Digital Channels Note: • The number of a digital channel may change, depending on the time of some broadcastings. If this channel existed and now has disappeared, the lock channel or scanned channel mark by the channel summary for that channel will be cancelled. 39 Initial Setup Menus How to set the channel label. (This is only for analog broadcasting.) Press the MENU button π† To CHANNEL SUMMARY √® To operate √® To the ID column Press the OK button to enter √® To select the character you want π† To move to the next space ...continue to follow these directions for all four spaces Press the OK button to finish Your characters are now set Press the MENU button when finished If you want to reset the characters you set: Press the MENU button π† To CHANNEL SUMMARY √® To operate √® To the ID column Press the OK button to enter π† To select RESET Press the OK button to finish Your characters are now reset Notes: • You can use characters for: Alphabet, numbers, marks and spaces. • It is possible to set the maximum of 40 channel labels. • If you try to set more than the 40 maximum, the message "MEMORY OVERFLOW" will appear. You can block access to a channel by activating the channel lock. Press the MENU button π† To CHANNEL SUMMARY √® To operate π† √® To the Lock Column ( ) Press the ZERO button to lock or unlock that channel Press the MENU button when finished ID SELECT OPERATE EXIT MENU CHANNEL 09 RESET PRESS TO FINISH OK 40 Initial Setup Menus When a viewer attempts to watch a guarded channel, the following message appears: To watch a channel that you have locked, enter the Lock Code using the 10 key pad. If the wrong code is entered, the message “INVALID LOCK CODE!” will flash on the screen. The channel cannot be accessed until the correct code is entered. Notes: • Once a channel has been unlocked, it will remain unlocked until the television is turned off. • See also “Set Lock Code”, page 46. Channel Guard Message V-Chip THIS CHANNEL IS LOCKED BY CHANNEL GUARD. PLEASE ENTER LOCK CODE BY 10 KEY PAD TO UNLOCK IT. NO. - - - - You can customize the V-Chip settings of your television to match your personal tastes. The V-Chip menu below is the starting point for your V-Chip settings You can use US V-Chip settings (for programming broadcast from the United States), Canadian V-Chip settings (for programming broadcast from Canada), and movie ratings. You may use any or all of the settings (US V-Chip, Canada V-Chip, Movie ratings). Descriptions for setting each of the three V-Chip formats appear in the next six pages along with descriptions of the rating categories. To access the rating categories: Press the MENU button π† To V-CHIP √® To operate (Lock icon will appear) Press ZERO to access the V-Chip menu √® To turn V-Chip ON or OFF (V-Chip must be turned ON for rating settings to operate) π† To move to SET US TV RATINGS, SET MOVIE RATINGS, or SET CANADIAN RATINGS (see following pages for descriptions of each item) Your TV is equipped with V-Chip technology which enables you to block channels or content that you feel to be inappropriate for children, based on US and Canada rating guidelines. V-Chip has no effect on video signals from DVD discs or Camcorder connection. V-CHIP SELECT OPERATE EXIT MENU V-CHIP SET US TV RATINGS SET MOVIE RATINGS SET CANADIAN RATINGS ENG SET CANADIAN RATINGS FRE UNRATED OFF VIEW Note: Some programs, and movies are broadcast without a ratings signal. Even if you set up V-CHIP ratings limits, these programs will not be blocked. See page 41 for information on how to block unrated programs. Note (for Canadian viewers): The V-Chip function is based on specifications designed for the United States and therefore may not work properly in Canada. 41 Initial Setup Menus You can block programs that are not rated. Press the MENU button π† To V-CHIP √® To operate (The lock icon appears) Press ZERO to access V-Chip setup options π† To UNRATED √® To VIEW or BLOCK Press MENU when done Directions to Block Unrated Programs Unrated Programs Unrated programming refers to any programming which does not contain a rating signal. Programming on television stations which do not broadcast rating signals will be placed in the “Unrated Programming” category. Examples of Unrated programs: • Emergency Bulletins • Locally Originated Programming • News • Political Programs • Public Service Announcements • Religious Programs • Sports • Weather • Some Commercials Note: • TV programs or movies that do not have rating signals will be blocked if the unrated category is set to BLOCK. SELECT OPERATE EXIT MENU V-CHIP V-CHIP SET US TV RATINGS SET MOVIE RATINGS SET CANADIAN RATINGS ENG SET CANADIAN RATINGS FRE UNRATED OFF VIEW 42 Initial Setup Menus U.S. PARENTAL RATING SYSTEMS Programs with the following ratings are appropriate for children. ❒ TV Y is Appropriate for All Children Programs are created for very young viewers and should be suitable for all ages, including children ages 2 - 6. ❒ TV Y7 is for Older Children Most parents would find such programs suitable for children 7 and above. These programs may contain some mild fantasy violence or comedic violence, which children should be able to discern from reality. Programs with the following ratings are designed for the entire audience. ❒ TV G stands for General Audience Most parents would find these programs suitable for all age groups. They contain little or no violence, no strong language, and little or no sexual dialog or situations. ❒ TV PG Parental Guidance Suggested Programs may contain some, but not much, strong language, limited violence, and some suggestive sexual dialog or situations. It is recommended that parents watch these programs first, or with their children. ❒ TV 14 Parents Strongly Cautioned Programs contain some material that may be unsuitable for children under the age of 14 including possible intense violence, sexual situations, strong coarse language, or intensely suggestive dialog. Parents are cautioned against unattended viewing by children under 14. ❒ TV MA Mature Audiences Only These programs are specifically for adults and may be unsuitable for anyone under 17 years of age. TV MA programs may have extensive V, S, L, or D. US V-Chip Ratings Viewing Guidelines In addition to the ratings categories explained above, information on specific kinds of content are also supplied with the V-Chip rating. These types of content may also be blocked. The content types are: • V/FV is for VIOLENCE/FANTASY VIOLENCE • S stands for SEXUAL CONTENT • L stands for strong LANGUAGE • D stands for suggestive DIALOG 43 Initial Setup Menus Line up the cursor in the column (TV PG, TV G, etc.) with the content row (V/FV, S, etc.) and press the π† or √® to move the cursor to the correct location. Press OK to turn the locking feature on or off. An item is locked if the icon appears instead of a “—”. For example: To block viewing of all TV 14 shows, move the cursor to the top row of that column and add a lock icon. Once you’ve put a lock on the top row, everything in that column is automatically locked. π† √® To the TV 14 Column Press the OK button to lock Press the MENU button when finished Note: • If you want to change the setup, move the cursor to the top column and change the lock icon to “—” by pressing OK again. You may then select individual categories to block. Directions to set US V-Chip Ratings Press the MENU button π† To V-CHIP √® To operate (lock icon appears) Press ZERO to access the V-Chip menu √® To turn V-Chip ON or OFF π† To move to SET US TV RATINGS √® To operate Setting US V-Chip Ratings V/FV S L D SET US TV RATINGS SELECT OPERATE EXIT MENU TV MA TV 14 TV PG TV G TV Y7 TV Y OK V-CHIP SELECT OPERATE EXIT MENU V-CHIP SET US TV RATINGS SET MOVIE RATINGS SET CANADIAN RATINGS ENG SET CANADIAN RATINGS FRE UNRATED OFF VIEW 44 Initial Setup Menus ❒ NR – Not Rated This is a film which has no rating. In many cases these films were imported from countries which do not use the MPAA ratings system. Other NR films may be from amateur producers who didn’t intend to have their film widely released. NR (Not Rated) Programming may contain all types of programming including children’s programming, foreign programs, or adult material. ❒ G – General Audience In the opinion of the review board, these films contain nothing in the way of sexual content, violence, or language that would be unsuitable for audiences of any age. ❒ PG – Parental Guidance Parental Guidance means the movie may contain some contents such as mild violence, some brief nudity, and strong language. The contents are not deemed intense. ❒ PG-13 – Parents Strongly Cautioned Parents with children under 13 are cautioned that the content of movies with this rating may include more explicit sexual, language, and violence content than movies rated PG. ❒ R – Restricted These films contain material that is explicit in nature and is not recommended for unsupervised children under the age of 17. ❒ NC-17 – No One Under 17 These movies contain content which most parents would feel is too adult for their children to view. Content can consist of strong language, nudity, violence, and suggestive or explicit subject matter. ❒ X – No One under 18 Inappropriate material for anyone under 18. Movies Ratings Press the MENU button π† To V-CHIP √® To operate (Lock icon appears) Press ZERO to access V-Chip setup options π† To SET MOVIE RATINGS √® To enter movies menu For example: To block viewing of programming rated NC-17 shows, move the cursor to the NC-17 column and add a lock icon. Once you've put a lock on the NC-17 column, X column is automatically locked. π† √® To the NC-17 Column Press the OK button to lock Press the MENU button to finish • If you want to change the setup, move the cursor to the column and change the lock icon to “—” by pressing OK again. Directions to set Movie (MPAA) Ratings SET MOVIE RATINGS SELECT OPERATE EXIT MENU X NC17 R PG G PG13 NR OK 45 Initial Setup Menus Press the MENU button π† To V-CHIP √® To operate (lock icon appears) Press ZERO to access V-Chip setup options π† To SET CANADIAN RATINGS ENG (for English) √® To enter ratings menu For example: To block viewing of programming rated 14+ shows, move the cursor to the 14+ column and add a lock icon. Once you've put a lock on the 14+ column, 18+ column is automatically locked. √® To the 14+ Column Press the OK button to lock Press the MENU button to finish Notes: • If you want to change the setup, move the cursor to the column and change the lock icon to “—” by pressing OK again. • For instructions on “SET CANADIAN RATINGS FRE (in French)”, please see page 45 in the French user’s guide. Directions to set Canadian V-Chip Ratings ❒ E – Exempt Exempt programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming. ❒ C – Programming Intended for Children Violence Guidelines: There will be no realistic scenes of violence. Depictions of aggressive behavior will be infrequent and limited to portrayals that are clearly imaginary, comedic or unrealistic in nature. ❒ C8+ – Programming Intended for Children 8 and Over Violence Guidelines: Any realistic depictions of violence will be infrequent, discreet, of low intensity and will show the consequences of the acts. There will be no offensive language, nudity or sexual content. ❒ G – General Audience Programming will contain little violence and will be sensitive to themes which could affect younger children. ❒ PG – Parental Guidance Programming intended for a general audience, but which may not be suitable for younger children. Parents may consider some content not appropriate for children aged 8-13. ❒ 14+ – 14 Years and Older Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens. Programming may contain mature themes and scenes of intense violence. ❒ 18+ – Adult Material intended for mature audiences only. Canadian V-Chip Ratings 14+ 18+ PG G C C8 SET CANADIAN RATINGS ENG SELECT OPERATE EXIT MENU OK 46 Initial Setup Menus Channel guard and V-Chip settings are protected by a four-digit lock code. Your TV comes preset with a lock code of “0000”. You may change the code to any four-digit number you wish. To change the lock code, follow the steps below. Press the MENU button π† To SET LOCK CODE √® To operate (lock icon appears) Press ZERO to access the lock code The first digit will be highlighted √® To select the number π† To move to the next digit Continue to follow these directions for all four numbers Press the OK button to finish (your lock code is now set) Press the Menu button when finished • After a power interruption you must reset the lock code. • Write your lock code number down and keep it hidden from potential viewers. • If you forget the lock code, a new code may be set using the steps listed above. Notes: When a viewer attempts to watch a blocked channel, this message appears: The channel will remain blocked until the correct lock code is entered (see above for information on setting your lock code). Set Lock Code SET LOCK CODE SELECT OPERATE EXIT MENU LOCK CODE 0000 PRESS TO FINISH OK THIS PROGRAMMING EXCEEDS YOUR RATING LIMITS. PLEASE ENTER LOCK CODE BY 10 KEY PAD TO UNLOCK IT. NO. - - - - 47 Initial Setup Menus Auto Demo Use this function when you are receiving a digital broadcast. Press the MENU button π† To DIGITAL SETUP √® To enter The onscreen will appear Notes: • Software Update will only appear when the USB memory is inserted into the USB connector. • If you are watching an analog channel, you can still access the digital setup menu at anytime, while you are doing this, the background screen will turn blank. In this case, the tuner will switch to digital, since you are accessing the digital setup menu. Digital Setup Digital Setup Select Back BACK Exit MENU Operate PCM Antenna Level Digital Sound Software Version Software Update Confirms the present antenna level. Press the MENU button π† To DIGITAL SETUP √® To enter π† To Antenna Level √® To enter The onscreen will appear Antenna Level Back BACK Exit MENU 75 Antenna Level Auto Demo allows you to start the High Speed response Demonstration automatically or not. Press the MENU button π† To AUTO DEMO √® To turn ON or OFF Press the MENU button when finished Note: • This demo is set to ON by default until you turn it OFF in the main menu system. INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (4/5) ON AUTO TUNER SETUP CHANNEL SUMMARY V-CHIP SET LOCK CODE AUTO DEMO 48 Initial Setup Menus Digital Sound Manufactured under license from Dolby Laboratories. "Dolby", and the double-D symbol are trademarks of Dolby Laboratories. You can select the optical digital sound output, either PCM or DOLBY DIGITAL when your TV is connected to an amplifier that has DOLBY DIGITAL decoder. If you select DOLBY DIGITAL, you can enjoy listening in 5.1ch sound when watching digital broadcasts. Press the MENU button π† To DIGITAL SETUP √® To enter π† To Digital Sound √® To select PCM or DOLBY DIGITAL Press the MENU button when finished Notes: • If your amplifier does not have DOLBY DIGITAL decoder, select PCM. If you don't select PCM, it cannot output the sound from the speakers. • For connecting an amplifier using the optical output, see page 20. You can confirm the Software Version. Press the MENU button π† To DIGITAL SETUP √® To enter π† To Software Version √® To enter Press the OK button when you are finished confirming your software version Press the MENU button when finished Software Version 49 Initial Setup Menus At first, connect the USB memory into the USB connector. This function will appear only when the USB memory is inserted into the USB connector. Press the MENU button π† To DIGITAL SETUP √® To enter π† To Software Update √® To enter π† Checks if it needs an update or not Press the MENU button when finished Software Update V5 INPUT The Video-5 input allows you to choose the signal type you wish to receive that you have connected to Video-5 Input. Press the MENU button π† To V5 INPUT √® To enter π† To select HDMI, PC or Composite Press the Ok button to decide V5 INPUT HDMI PC COMPOSITE 50 Picture Adjust Menus Press the MENU button π† To TINT, COLOR, PICTURE, BRIGHT, DETAIL or ENERGY SAVER MODE √® To enter √® To adjust the setting π† To back to the picture main menu π† To move to the next setting Press the MENU button when finished Notes: • DETAIL menu cannot be selected when the Video Status mode is THEATER. • There are six video status settings: Dynamic, Standard, Theater, Game, Memory-1 and Memory-2. Each video status setting has a separate memory for HD (1080i/1080p/720p) and SD (480p/480i) video signal. Each video status can be chosen along with your favorite picture settings (Tint, Color, Picture, Bright, Detail, etc.) See page 65 for details. These settings allow you to change and adjust the way the picture appears on your television. TINT Tint allows you to adjust the levels of red and green in your TV picture. COLOR The color function lets you make all the colors in the TV picture appear either more vivid or subtle. PICTURE Picture allows you to adjust the levels of black and white on the TV screen, giving you a darker or brighter picture overall. BRIGHT You can adjust the overall brightness of the TV picture with the Bright control. DETAIL The Detail feature adjusts the level of fine detail displayed in the picture. ENERGY SAVER MODE The energy saver mode adjusts the level of brightness on the TV screen. Picture Settings Adjust the Picture Settings Color Temperature You can decide how strong or dull the colors appear on the TV screen. Press the MENU button π† To COLOR TEMPERATURE √® To enter π† To set LOW or HIGH Press the MENU button when finished TINT +02 PICTURE ADJUST SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS STANDARD (1/3) TINT COLOR PICTURE BRIGHT DETAIL ENERGY SAVER MODE 00 00 00 00 00 COLOR TEMPERATURE LOW HIGH 51 Picture Adjust Menus Color Management This TV supports the COLOR MANAGEMENT function to ensure dull colors are compensated to produce natural hues. Press the MENU button π† To COLOR MANAGEMENT √® To enter π† To turn ON or OFF Press the MENU button when finished COLOR MANAGEMENT ON OFF Dynamic Gamma JVC's Dynamic Gamma Circuitry (DGC) makes it easier to see dark areas when a picture has many dark areas, and makes it easier to see the bright areas when a picture has many bright areas. DGC is turned on, DGC analyzes and adjusts the total level of picture brightness balance, especially in dark areas where the level of grayscale is often lost, turning completely to black DGC automatically enhances the detail in these dark areas providing a more dynamic image with fi ner detail, so the optimum picture settings are automatically set for each picture. Normally use with DGC on. Press the MENU button π† To DYNAMIC GAMMA √® To enter π† To turn ON or OFF Press the MENU button when finished DYNAMIC GAMMA ON OFF Smart Picture Smart Picture detects the APL (Average Picture Level) and adjusts the level of brightness on the TV screen suitable for what you are watching. Press the MENU button π† To SMART PICTURE √® To enter π† To turn ON or OFF Press the MENU button when finished Note: • When you have "DYNAMIC" selected in the "VIDEO STATUS", Smart Picture is not selected. SMART PICTURE ON OFF 52 Picture Adjust Menus Natural Cinema Natural cinema corrects the problem of blurred edges which may occur when viewing a program originally shot on film (such as motion pictures) or animation. If you notice blurring at the edges of these programs, choose NATURAL CINEMA and set it to AUTO. Natural Cinema helps correct conversion errors that occur when film, which is shot at 24 frames-per-second, is broadcast at the television rate of 30 frames-per-second. Press the MENU button π† To NATURAL CINEMA √® To enter π† To select the mode AUTO, ON or OFF Press the MENU button when finished Notes: • When you are receiving a 1080p signal, Natural Cinema cannot be selected. • The natural cinema mode is automatically set to “AUTO” in the following cases: - Turning on or off - Changing the channel or input mode • If you are in PC mode, Natural Cinema cannot be used. • Natural Cinema is only applied for SD 480i and HD 1080i signals. NATURAL CINEMA AUTO ON OFF This function can be selected to change the effect of Digital VNR (Video Noise Reduction). Press the MENU button π† To DIGITAL VNR √® To enter π† To select the effect you like. AUTO: adjusts the effect of VNR automatically. MIN: adjusts the effect of VNR to minimum. MAX: adjusts the effect of VNR to maximum. OFF: turns the effect of VNR off. Press the MENU button when finished Notes: • If it is in PC, Digital VNR will not be displayed. • When you are receiving a 1080p signal, Digital VNR cannot be selected. DIGITAL VNR AUTO MIN MAX OFF Digital VNR 53 Picture Adjust Menus This function effects the block noise removal and mosquito NR (Noise Reduction) simultaneously. Press the MENU button π† To MPEG NR √® To enter π† To turn ON or OFF Press the MENU button when finished Notes: • When you are receiving digital channels, block noise removal will have no effect. • When you are receiving a 1080p signal, MPEG NR cannot be selected. MPEG NR MPEG NR ON OFF Smart Sensor This function automatically adjusts the brightness on your TV according to the amount of light in the room. Press the MENU button π† To SMART SENSOR √® To enter π† To turn ON or OFF Press the MENU button when finished SMART SENSOR ON OFF Sensor Effect With Sensor Effect ON, a "leaf" icon will appear on your TV screen when Smart Sensor brightness adjustment occurs. The leaf icon will appear a maximum of 6 leaves. With each appearance indicates the level of ambient light is getting darker. Press the MENU button π† To SENSOR EFFECT √® To turn ON or OFF Press the MENU button when finished Note: • The leaves of Sensor Effect cannot be displayed when Closed Caption is ON. SENSOR EFFECT LOW HIGH 54 Reset Reset resets all picture adjustments except for Natural Cinema at once to the default settings. Press the MENU button π† To RESET Press the OK button The onscreen menu disappears for a moment, and then the settings are reset to the default setting for all the picture adjustments except for NATURAL CINEMA. Press the MENU button when finished SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS STANDARD PICTURE ADJUST (3/3) DIGITAL VNR MPEG NR SMART SENSOR SENSOR EFFECT THEATER PRO II RESET AUTO ON OFF OFF Picture Adjust Menus Theater Pro II It is possible to use Theater Pro II menu only when the Video Status mode is set to THEATER. It adjusts the detailed picture settings. Press the MENU button π† To THEATER PRO II √® To enter π† Select a Theater Pro II menu √® To adjust the settings Press the MENU button when finished DSD Detail H.SHARP V.SHARP DSD NOISE CONTROL COLOR TEMPERATURE (RED, BLUE, GREEN) COLOR BALANCE *COLOR MNGMT. (RED, YELLOW, GREEN, CYAN) AXIS *COLOR MNGMT. (RED, YELLOW, GREEN, CYAN) TINT *COLOR MNGMT. (RED, YELLOW, GREEN, CYAN) COLOR *COLOR:BRIGHT AREA *COLOR:DARK AREA Shows the edge of the picture clearly Emphasizes the edge of the picture horizontally Emphasizes the edge of the picture vertically Reduces picture noise Adjusts the screen (red, blue or green) color Adjust the blue color naturally Select a corrected color Adjusts the tints of (red, yellow, green or cyan) Adjusts the color of (red, yellow, green or cyan) Adjusts the picture color of the bright areas Adjusts the picture color of the dark areas Theater Pro II Menu Settings * These Theater Pro II menus cannot be selected when Color Management is OFF. See page 51. 55 Sound Adjust Menus These settings allow you to change and adjust the sound on your television. Four sound settings (MaxxBass, MaxxTreble, MaxxStereo and MaxxVolume) are referred as "MaxxAudio". See page 64. MaxxBass – Compensates for low frequencies and widens the frequency band. MaxxTreble – Compensates for high frequencies and widens the frequency band. MaxxStereo – Expands the stereo sound naturally. MaxxVolume – Maintains a uniform sound volume even if the sound becomes too loud all of the sudden (during commercial breaks, etc.). BALANCE – Adjust the level of sound between the TV’s left and right speakers with the balance setting. Press the MENU button π† To MaxxBass, MaxxTreble, MaxxStereo, MaxxVolume or BALANCE √ ® To adjust the setting π† To move to the next setting Press the MENU button when finished Note: • You can reset all sound adjustments you set at once as the default setting when you select reset. Sound Settings Adjust the Sound Settings SOUND ADJUST SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (1/2) MaxxBass MaxxTreble MaxxStereo MaxxVolume BALANCE HIGH 05 05 05 00 OFF Reset Reset resets all Sound Adjustments at once to the default settings. TURN ON VOLUME resets to CURRENT and VOLUME LIMIT resets to 50. See page 54 on how to use reset. Turn On Volume Volume Limit Turn On Volume allows you to set the volume level when you turn the TV on. Press the MENU button π† To TURN ON VOLUME √® To set Press the MENU button to finish CURRENT 00 01 02 03 48 49 50 Volume Limit allows you to set the maximum volume level. Press the MENU button π† To VOLUME LIMIT √® To set the maximum volume level Press the MENU button to finish 00 01 02 03 48 49 50 56 Clock/Timers Menus Set Clock The set clock function is described on page 25 as the interactive plug in menu. You can choose to set the clock automatically or manually. If you need to set the clock again, follow the steps below. Press the MENU button π† To SET CLOCK √® To enter When you set the clock automatically, choose AUTO by pressing the √ or ® arrows. π† To TIME ZONE √® To select your time zone: π† To D.S.T. (daylight savings time) √® To turn D.S.T. ON or OFF Press OK to finish Press the MENU button when finished When you set the clock manually, choose MANUAL by pressing the √ or ® arrows. π† To move to the hours √® To set the hours π† To move to minutes √® To set the minutes π† To TIME ZONE √® To select your time zone: π† To D.S.T. (daylight savings time) √® To turn D.S.T. ON or OFF Press OK to start clock Press the MENU button when finished SET CLOCK SELECT OPERATE EXIT MENU MODE TIME TIME ZONE D.S.T PRESS TO FINISH OK -- : -- -- MANUAL ATLANTIC ON SET CLOCK SELECT OPERATE EXIT MENU MODE TIME TIME ZONE D.S.T PRESS TO FINISH OK -- : -- -- AUTO ATLANTIC ON THANK YOU !! ATLANTIC EASTERN CENTRAL MOUNTAIN HAWAII ALASKA PACIFIC Notes: • D.S.T. can be used when it is set to ON in the SET CLOCK menu. • Only when the MODE is set to AUTO, the Daylight Saving Time feature automatically adjusts your TV’s clock for Daylight Saving. • The real time and D.S.T. may not be set correctly depending on the broadcasting signal and receiving conditions. In this case, set your clock manually and turn D.S.T. to OFF. • You will have to reset the clock after a power interruption. You must set the clock before operating any timer functions. ATLANTIC EASTERN CENTRAL MOUNTAIN HAWAII ALASKA PACIFIC 57 Clock/Timers Menus The on/off timer lets you program your television to turn itself on or off. You can use it as an alarm to wake up, to help you remember important programs, or as a decoy when you’re not home. Press the MENU button π† To ON/OFF TIMER √® To enter (begins with ON TIME) √® To set the hour (AM/PM) you want the TV to turn on π† To move to minutes √® To set the minutes π† To accept ON TIME and move to OFF TIME (the time the TV will turn off). Set the OFF TIME the same way as ON TIME π† To accept OFF TIME and move to CHANNEL √® To select channel π† To ON VOLUME √® To set the volume level π† To move to MODE √® To select ONCE or EVERYDAY π† To ON/OFF TIMER √® Choose YES to accept the timer setting, choose NO if you don’t wish to accept Press the OK button to finish Press the MENU button to exit the menu • The on/off timer cannot be set to locked or guarded channels in the channel summary menu. • In order for the on/off timer to work, the clock must be set. • After a power interruption, the timer settings must be reset. • If your clock is not set, "PLEASE SET CLOCK FIRST !!" will appear on the screen. See Set Clock (choose MANUAL) on page 56 to set the clock. Notes: On/Off Timer ON/OFF TIMER SELECT OPERATE EXIT MENU ON TIME OFF TIME CHANNEL ON VOLUME MODE ON/OFF TIMER PRESS TO FINISH OK 7:00 PM 10:00 PM 03 CURRENT EVERYDAY NO 58 Button Functions Turns the TV on or off. Press the POWER button Use the number buttons on the remote control to move directly to a specific channel. For example, to move to channel 12: 1 (One) 2 (Two) Tune Lets you decide the input channel and select it. After you press the number buttons on the remote, press the TUNE button. For example, to move to channel 12: 1 (One) 2 (Two) Press the TUNE button Number Buttons - 10Key Pad Power Sub Channel The main channel sometimes has minor channels (Sub Channels). By using the SUB CH button, you can select a sub channel easily. At first, select TV or STB mode to use the Sub channel function. See page 68. For example, to move to sub channel 123-45: Press 1, 2 and 3 in order Press the SUB CH button Press 4 and 5 in order Press the TUNE button Note: • If there are more than 2 major channels, select the digital channel by using the π† buttons and then press the OK button. To watch sub channels Use these buttons to move up or down all the available channels your TV is able to receive. To move rapidly through the channels using JVC’s Hyperscan feature, press and hold CH+ or CH –. Channel +/– 59 Button Functions Use these buttons to raise or lower the TV’s volume level. The maximum is the level you set in Volume Limit. See page 55. The MUTING button instantly turns the volume down completely when you press it. Press MUTING and the volume level will instantly go to zero. To restore the volume to its previous level, press MUTING again. Muting Volume +/– D/A (Digital/Analog) The D/A button changes the analog and digital channel. Digital channels have a "D" in front of the channel number. Press the D/A button By every press of the D/A button, you can switch between analog and digital channels. For example, to move to channel D23: Press 2 (Two) Press 3 (Three) Press the TUNE button To watch digital channels Selects the signal input source for the television: VIDEO-1, 2, 3, 4 or 5 for video devices like VCRs, DVD players or camcorders. Press the V1, V2, V3, V4 or V5 button Notes: • When you return to TV mode, press the RETURN +/TV button or direct 10 key pad or CHANNEL +/– button. • You can also access by pressing the INPUT button on the side of the TV instead of the remote control. • VIDEO-5 (V5) can be used for HDMI, PC and Composite Input. You can select the input in V5 INPUT in INITIAL SETUP menu. Input 60 Button Functions The RETURN+/TV button has three functions: Return - Returns to the channel viewed just before the channel currently onscreen. Return+ - Lets you program a specific channel to return to while scanning through the channels using the CH+ and CH– buttons. TV - Returns to the TV mode. Press the RETURN+/TV and hold for three seconds The channel currently active has been programmed as your return+ channel. Now scan through the channels using the CHANNEL+/– buttons. Press the RETURN+/TV You will return to your programmed channel. • To cancel your return+ channel, press and hold the RETURN+/TV button for three seconds. The message “RETURN CHANNEL CANCELLED!” will appear. • Return+ works only with the Channel+/– buttons. Pressing any number key will cancel return+. Return +/TV RETURN CHANNEL PROGRAMMED! The MENU button allows you to access JVC’s onscreen menu system. Press MENU to activate the onscreen menu system. When a menu is displayed, press the MENU button to exit. • See individual topics like “Sound Adjust” for specific information on using menus. Menu All remote control buttons are illuminated, except for the Light button. Press the LIGHT button to turn the illumination on for 5 seconds. Light Back OK This button allows you to go back in the menu to change a selection or correct a mistake. This button confirms your selection when you are in one of the onscreen menus. 61 Button Functions The Favorite button allows you to select your favorite channels easily. First, you must register the channels that you like. See how to register below. Press the FAVORITE button The favorite channel list will appear. π† To select the channel you want to watch Press the OK button It will change to the channel you have selected. Favorite Press the channel number you want to register The channel program will change. Press the FAVORITE button for three seconds The channel will be registered in the favorite channel list. Notes: • Both analog and digital channels can be registered. The digital channels have a "D" in front of the channel number. • The maximum number of channels you can register is 24. • If you have registered the maximum number of channels, and try to register more channels, the oldest channel you registered will be deleted. • Sub channels cannot be registered. • The newest channel you registered will appear at the top of the list. Press the FAVORITE button The favorite channel list will appear. π† To select the channel you want to delete √® To enter Press the FAVORITE button The channel was deleted. FAVORITE NEXT PREVIOUS 101 102 D103 < D107 8 CBS FOX PBS2 > HBO ABC Register the favorite channel Delete the favorite channel Note: • Before pressing the FAVORITE button when you are finished, press the √® button again, and you can return to the deleted channel. 62 Button Functions This feature will help you adjust the picture you are watching to give you the best possible picture quality. Aspect FULL NATIVE - This ratio displays 100% of the ratio. Normally, all aspects except for Full Native display about 95%. Aspect Ratios PANORAMA - With this ratio a normal 4:3 aspect picture is stretched to fit the dimensions of the 16:9 aspect screen. CINEMA - This ratio “zooms in” on the center part of a 4:3 aspect picture, blowing it up to fill the 16:9 screen. FULL - This is the ratio to use when watching 16:9 High-Definition broadcasts. PANORAMA ZOOM - This ratio stretches the High-Definition 16:9 aspect image to eliminate the black side bars. CINEMA ZOOM - This ratio stretches the High-Definition 16:9 aspect image to eliminate the black surrounding bars. SLIM - This aspect mode shrinks the screen of 16:9 to 4:3. There are some programming that is already stretched by mistake at broadcasting companies, so this mode corrects it. Black side bars will appear. REGULAR - The regular ratio is used when you want to watch a 4:3 broadcast or recorded program without modifying the original picture to fit the dimensions of your 16:9 screen. The 4:3 picture will fill the screen from top to bottom, while black bars will appear to fill up the remaining space along the picture’s sides. The 4:3 picture will be centered within the boundaries of the 16:9 screen. Aspect Ratios in PC Mode REGULAR - This is the original aspect mode. FULL - This aspect mode stretches the image to fit the dimensions of the 16:9 aspect screen. 63 Button Functions When you change the aspect ratios, it is different from their broadcast or recorded program. Aspect Ratios (Continued) Press the ASPECT button • By pressing the ASPECT button, you can change the size. ASPECT PANORAMA CINEMA FULL REGULAR ASPECT PANORAMA ZOOM CINEMA ZOOM FULL SLIM Notes: • You can also choose the size by pressing the π† buttons. • When you change the aspect ratio or signal, reset the picture position to center. • You can also access the FRONT PANEL CONTROL screen by using the MENU button on the side of the TV instead of the remote control. It appears between INITIAL SETUP and PICTURE ADJUST screen, and it has VIDEO STATUS and ASPECT menus. Choose ASPECT by pressing Menu† on the side panel and choose a mode by using the CHANNEL +/- buttons. • SLIM can only be displayed when the signal is ATSC (480i, 480p, 720p, 1080i) or HD (720p, 1080i). • If the television receives a 16:9 signal from your HDMI device, the aspect mode will turn to FULL automatically. If the television receives a 4:3 signal from your HDMI device when you are in FULL aspect mode, it will return to REGULAR aspect mode. If you change the aspect mode after the television changed it to FULL automatically, the television will change to the aspect mode you choose. It also turns to FULL automatically when the TV receives an HD (1080i or 720p) signal. • When you are receiving an HDMI 1080p signal in FULL NATIVE mode, you are unable to change the aspect mode. HD (720p) ATSC (480i, 480p, 720p) SD (480i, 480p) NTSC ASPECT PANORAMA ZOOM CINEMA ZOOM FULL FULL NATIVE SLIM HD (1080i) ATSC (1080i) ASPECT FULL REGULAR PC (XGA, VGA) You can view the program information from the GUIDE. Notes: • The GUIDE function will work when you are receiving digital program only. • The GUIDE will not show the correct time and date if you have not performed the set clock function on your television. See page 56. • When the program information is not being broadcasted, it will not show the correct information. Guide 64 Button Functions By pressing the SOUND button, you can change the sound mode of the MaxxAudio function. The sound mode has four settings (HIGH, MID, LOW and OFF). Press the SOUND button π† To MaxxAudio √® To choose HIGH, MID, LOW or OFF Press the MENU when finished Sound SOUND EFFECT OPERATE EXIT MENU MaxxAudio MID Note: • To set MaxxAudio (MaxxBass, MaxxTreble, MaxxStereo and MaxxVolume) individually for each sound mode, see page 55. ML/MTS MTS technology allows several audio signals to be broadcast in analog at once, giving you a choice in what you wish to hear with a TV program. In addition to mono or stereo sound, an MTS broadcast may also include a second audio program (SAP). At first, select TV mode to use the multi-language/MTS function. Press the ML/MTS button By every press of the ML/MTS button, you change the mode Notes: • When you are receiving a digital broadcast, if there are other languages, you can change the language by pressing the ML/MTS button. • Keep the TV in stereo mode to get the best sound quality. The sound will work in stereo mode even if a certain broadcast is in mono sound only. • Choose the mono setting to reduce excessive noise on a certain channel or broadcast. • Selecting SAP will allow you to hear an alternative soundtrack, if one is available. • MTS unavailable if your television’s Input source is in VIDEO-1, 2, 3, 4 or 5 mode, as described on page 59. • ML/MTS will not work when you are using the HDMI. • You can also change the mode by pressing the π† buttons. MTS STEREO SAP MONO ON AIR ON AIR MaxxAudio is a registered trademark of Waves Audio Ltd. in the USA, Japan and other countries. 65 Button Functions The VIDEO STATUS button gives you a choice of TV picture display settings, including a display of your own preferences. Every input (TV, V1 - V5) can use the Video Status Mode. STANDARD - Resets the picture display to the factory settings. DYNAMIC - Gives a vivid picture with better contrast when viewing in a brightly lit room. THEATER - Gives a rich, film-like look to video when viewing in a dimly lit room. GAME - Used for when you are playing video games connected to your TV. MEMORY-1, MEMORY-2 - Default setting is the same as STANDARD mode. Press the VIDEO STATUS button By every press of the VIDEO STATUS button, you change the mode. Notes: • You can also change the mode by pressing the π† buttons. • Each mode is memorized for each input connected to the TV. • You can also access the FRONT PANEL CONTROL screen by using the MENU button on the side of the TV instead of the remote control. It appears between INITIAL SETUP and PICTURE ADJUST screen, and it has VIDEO STATUS and ASPECT menus. Choose VIDEO STATUS by pressing MENU† on the side panel and choose a mode by using the CHANNEL +/- buttons. • There are six video status settings: DYNAMIC, STANDARD, THEATER, GAME, MEMORY-1 and MEMORY-2. Each video status setting has a separate memory for HD (1080i/1080p/720p) and SD (480p/480i) video signal. Each video status can be chosen along with your favorite picture settings (Tint, Color, Picture, Bright, Detail, etc.) – When an HD signal is displayed: Your HD settings are recalled for the video status you are using. – When an SD signal is displayed: Your SD settings are recalled for the video status you are using. – The input you are using (Input-1, Input-2, etc.) does not affect the setting that is recalled, just the signal type. – This function considers PC input as an HD signal and TWIN screens as an SD signal. Video Status VIDEO STATUS STANDARD DYNAMIC THEATER GAME MEMORY-1 MEMORY-2 C.C. (Closed Caption) Use the C.C. (Closed Caption) button to select the mode of closed caption. At first, select TV, STB or VCR mode to use the closed caption function. See page 68. Press the C.C. button Notes: • SMART CAPTION will appear when you press the MUTING button only on channels where the broadcast contains closed captioning. • When you select ON, it will be the mode selected in the Closed Caption Menu. • See page 34 when you set the caption/text mode. • You can also change the mode by pressing the π† buttons. • If you are in PC mode, C.C. cannot be used. CLOSED CAPTION OFF SMART CAPTION ON 66 Button Functions The Sleep Timer can turn the TV off for you after you fall asleep. Program it to work for a total time of up to 180 minutes. At first, select TV mode to use the sleep timer function. Press the SLEEP button Sleep Timer Message 60 seconds before the automatic shutoff, this message will appear: You then have 60 seconds to press the SLEEP button to delay the shut off. Sleep Timer GOOD NIGHT ! PUSH SLEEP TIMER BUTTON TO EXTEND 0 15 30 45 60 90 120 180 The display screen shows the current status of timers, inputs and XDS ID. At first, select TV or STB mode to use the display function. See page 68. Press the DISPLAY button The screen to the right shows the following information: • The current channel or AV input (Channel 05) • The current time (12:20 pm) • Sleep timer status/minutes remaining (The Sleep Timer is off) • On/off timer status (Set to turn on everyday at 7:00 PM, off at 10:00 PM) • Each Press of the DISPLAY button changes the display mode: Display - Full screen shown above Time - Shows the current time only Channel - Shows the current channel Off - Turns display off Notes: • You may also turn off the display at any step by pressing MENU. • If the clock, sleep timer or on/off timer are not set, the display screen will show: “CLOCK NOT SET”, “SLEEP TIMER OFF”, and “ON/OFF TIMER OFF” respectively. Display 05 KLVX PBS JAZZ FESTIVAL NOW SLEEP TIMER ON/OFF TIMER ON TIME OFF TIME 12:20 PM OFF EVERYDAY 7:00 PM 10:00 PM Display Time Channel Off 67 Button Functions Twin Activate the split-screen option by pressing TWIN on the remote control. The channel (or input) you were watching before pressing TWIN will appear on the left, the new channel will appear on the right. The sound will continue to come from the main screen channel (or input). To turn split-screen off and return to normal television viewing, press TWIN again or press the BACK button. 07 MAIN SCREEN PICTURE V-1 SPLIT SCREEN PICTURE Notes: • Main Screen and Split Screen will not display the same channel or input at the same time. • You can enter the TWIN mode when the screen is in NORMAL mode. • Split screen picture will not display digital channels and HDMI. • Split-screen functions will not work with locked channels or channels blocked by V-Chip ratings limits. A gray screen will display instead. • Split screen picture will not display the picture from the component terminal and the HDMI terminal. • The aspect of Main Screen Picture becomes 16:9 when you input the picture of 480p, 720p and 1080i from the component terminal and HDMI terminal. • After you press the SELECT button, and select split screen picture when you press the OK button, select normal screen. If you don’t operate, the Main Screen Picture will be automatically selected about 8 seconds later. • When you are in TWIN or FREEZE mode, you cannot change the aspect ratio. • When you press the Menu button in Twin mode, it appears only as Picture Adjust menu. • When you are in PC mode or 1080p mode, TWIN, SWAP, SELECT and FREEZE cannot be used. You can exchange the channel (or input) displayed in the split screen window for the main screen image by pressing the SWAP button. At first, select TV mode to use the SWAP function. Notes: • It will only work in TWIN mode. • If the signal that you are watching is coming from the HDMI input, you cannot enter the SWAP mode. Swap At first, select TV mode to use the TWIN function. 68 Button Function Freeze With SELECT, you can select the picture (channel) while viewing TWIN screen. When you press SELECT button, the channel number on the top will be highlighted. Each press of SELECT will shift the channel. At first, select TV mode to use the Select function. Select Pressing the FREEZE button causes the screen to change to the split-screen display with the still picture displayed on the right. In order to return to the normal display, press the FREEZE button once again. At first, select TV mode to use the Freeze function. You can use this remote control to operate the basic functions of your external devices. See page 69 on how to program the remote control to operate your other devices. Note: • The remote is preset to control JVC-brand devices. External device control buttons Mode Your remote control can be used to operate some basic functions of your external devices. To use your device, select the proper mode. Press the MODE button By every press of the Mode button, you can select the mode. • The mode LED indicator on the remote control lights for 3 seconds each time the remote control is operated. TV STB VCR DVD AUDIO MODE TV STB VCR DVD AUDIO Device TV STB/DVR (Cable Satellite) VCR/DVR DVD Player (DVD Recorder) Amplifier/Home Theater in Box 69 Remote Programming Cable Set Top Box Cable/PVR Combination Satellite Set Top Box DBS/PVR Combination VCR, DBS/PVR Combination PVR, DVD/PVR Combination DVD Player, DVD Recorder Home Theater in Box Amplifier, Home Theater in Box, Receiver Power on/off, Channel up/down, Volume up/down, Number 0 - 9, Tune, Return+/ TV, Muting, Favorite Channel, Menu on/off, Arrow buttons, OK/Enter, Back, DVR (JVC Only)*, Guide (EPG), Sub Channel, Closed Caption, Display (Recall), Rewind ( ), Playback ( ), Forward ( ), Record ( ), Stop ( ), Pause ( ). Power on/off, Channel up/down, Menu on/off, Arrow buttons, OK/Enter, Back, Guide (EPG), TV/VCR, Closed Caption, Eject ( ), Rewind ( ), Playback ( ), Forward ( ), Record ( ), Stop ( ), Pause ( ). Power on/off, Channel up/down, Menu on/off, Arrow buttons, OK/Enter, Back, Guide (EPG), TV/DVD (TV/VCR button), Sub Title (Sub T.), Open/Close ( ), Rewind ( ), Playback ( ), Forward ( ), Record ( ), Stop ( ), Still ( ). Power on/off, Volume up/down, Muting, DVD operation buttons: Menu on/off, Arrow buttons, OK/Enter, Back, Sub Title (Sub T.), Open/Close ( ), Rewind ( ), Playback ( ), Forward ( ), Stop ( ), Still ( ). STB VCR DVD AUDIO Device Mode Applied for these functions Page * DVR button only applies to JVC DVR (Dish Satellite STB). 70 71, 72 73 74 You can program your remote control to operate your external devices, using the instructions and codes on pages 70 - 74. The following external devices can be operated using your remote control. Remote programming Notes: • To record to your VCR or DVD, hold the record ( l ) button on the remote control and press play ( ® ). • If the code you programmed doesn't work, try the next one. If no codes work, refer to "Search Code Function" on page 69. If your remote does not work after using the "Search Code Function", use the remote that came with your device. Your TV remote cannot be guaranteed to work with all models, brands or operations. • When the television remote control does not operate, for a model that allows you to switch the remote control code on the device side, you can try switching the setting to default or something else on the device side. 1) Find your device and device's brand from the code list. See page 70 - 74. 2) Select the mode of your device by pressing the MODE button. Then confirm the mode LED on the remote control. 3) Press and hold the TUNE button, then enter the first four digit code number listed using the number buttons. When the code is set, the mode LED goes out for a second, then it lights. 4) After confirming the proper mode LED, release the TUNE button, and confirm the operation of your device. 5) If your device does not respond, try and enter the next code. 1) Select a mode of your device by pressing the MODE button. 2) Press the POWER and RETURN+/TV buttons. Hold for at least 3 seconds and release. Then confirm the mode LED blinks. 3) Press any button* on the remote, and see if the selected device responds. *Use the applied buttons except for √ ® cursors, Return+/TV and Rec ( l ) on the above chart. 4) If there was a response, press RETURN+/TV. The codes are now set. Then confirm the mode LED goes out. 5) If there was no response, try to select the previous code or the next code by using √ or ® . If you repeat a total of 65 times for the STB (90 times for the VCR, 120 times for the DVD and 132 times for the AUDIO) without a response, use the remote control that came with your equipment. Press RETURN+/TV to exit. Then confirm the mode LED goes out. Search Code Function How to set the codes 70 Remote Programming ABC Americast Bell South Digeo Director General Instrument GoldStar Hamlin Jerrold Memorex Motorola Pace Panasonic Paragon Philips Pioneer Pulsar Quasar Regal Runco Samsung Scientific Atlanta Sony Starcom Supercable Torx Toshiba Zenith Americast Digeo General Instrument Jerrold Motorola Pace Pioneer Scientific Atlanta Sony Supercable Zenith 0003, 0008 0899 0899 1187 0476 0476, 0810, 0276, 0003 0144 0009, 0273 0476, 0810, 0276, 0003 0000 1376, 0476, 0810, 0276, 1187 1877, 0237, 0008 0000, 0008, 0107 0000 1305, 0317, 0025 1877, 0877, 0144, 0533 0000 0000 0279, 0273 0000 0000, 0144 1877, 0877, 0477, 0008 1006 0003 0276 0003 0000 0000, 0525, 0899 0899 1187 0810 0810 1376, 0810, 1187 1877, 0237 1877, 0877 1877, 0877 1006 0276 0899 Cable Set Top Box AlphaStar Chaparral Coolsat Crossdigital DirecTV Dish Network System Dishpro Echostar Expressvu GE General Instrument GOI Hisense Hitachi HTS Hughes Network Systems Humax iLo JVC LG Magnavox Memorex Mitsubishi Motorola Next Level Panasonic Pansat Paysat Philips Proscan Proton RadioShack RCA 0772 0216 1806 1109 1377, 0392, 0566, 0639, 1639, 1142, 0247, 0749, 1749, 0724, 0819, 1856, 1076, 1108, 0099, 1109, 1414, 1442, 1609, 1392, 1640 1505, 1005, 0775, 1170, 1775 1505, 1005, 0775, 1775 1505, 1005, 0775, 1170, 1775 0775, 1775 0566 0869 0775, 1775 1535 0819 0775, 1775 1142, 0749, 1749, 1442 1790 1535 0775, 1170, 1775 1414 0724, 0722 0724 0749 0869 0869 0247, 0701 1807 0724 1142, 0749, 1749, 0724, 1076, 0722, 0099, 1442 0392, 0566 1535 0869 0566, 0855, 0143, 1392 Cable/PVR Combination Satellite Set Top Box DBS/PVR Combination STB mode Satellite Set Top Box 1377, 1276, 1108, 1109, 1442, 1609 0856 0639, 1639, 1640 0869 1142, 1442 0749, 1749, 0790, 1285 1392, 1640 1806 0724, 0722 1535 1535 0869 0856, 1856 1377, 0392, 0639, 1142, 1076, 0099, 1392, 1442, 1640 1505, 0775 1505, 0775 1505, 0775, 1170 0775 1142, 1442 1170 0869 1142, 0099, 1442 0392 1392 1442 0639, 1640 0869 Samsung SKY Sony Star Choice Tivo Toshiba UltimateTV Ultrasat Uniden US Digital USDTV Voom Zenith DirecTV Dish Network System Dishpro Echostar Expressvu Hughes Network Systems JVC Motorola Philips Proscan RCA Samsung Sony Star Choice Programming Codes 71 Remote Programming ABS Admiral Adventura Aiko Aiwa Akai Alienware America Action American High Asha Audiovox Beaumark Bell & Howell Broksonic Calix Canon Capehart Carver CCE Citizen Colt Craig Curtis Mathes Cybernex CyberPower Daewoo Daytron Dell Denon DirecTV Durabrand Dynatech Electrohome Electrophonic Emerex Emerson 1972 0048, 0209 0000 0278 0037, 0000, 0307, 0479 0041, 0061, 0106 1972 0278 0035 0240 0037, 0278 0240 0104 0184, 0121, 0209, 0002, 0479, 1479 0037 0035 0020 0081 0072, 0278 0037, 0278, 1278 0072 0037, 0047, 0240, 0072, 0271 0060, 0035, 0162, 0041, 0760, 1035 0240 1972 0045, 0104, 0278, 0020, 0046, 0561, 1278 0020 1972 0042 0739 0039, 0038 0000 0037 0037 0032 0035, 0037, 0184, 0240, 0045, 0000, 0121, 0043, 0209, 0002, 0278, 1593, 1479, 1278, 0593, 0561, 0479, 0208, 0061 VCR Fisher Fuji Funai Garrard Gateway GE Go Video GoldStar Gradiente Harley Davidson Harman/Kardon Harwood Headquarter Hewlett Packard HI-Q Hitachi Howard Computers HP Hughes Network Systems Humax Hush iBUYPOWER Jensen JVC KEC Kenwood KLH Kodak LG Linksys Lloyd's Logik LXI Magnasonic Magnavox Magnin Marantz 0047, 0104, 0046 0035, 0033 0000, 0593, 1593 0000 1972 0060, 0035, 0240, 0202, 0760, 0761, 0807, 1035, 1060 0432, 0526 0037, 0209, 0038, 0225, 1237 0000 0000 0081, 0038 0072 0046 1972 0047 0037, 0240, 0000, 0042, 0041, 0105, 1037 1972 1972 0042, 0739 0739 1972 1972 0041 0045, 0067, 0041, 0008, 0366, 1707, 1945, 1774, 1775, 1776, 1777 0037, 0278 0067, 0041, 0038 0072 0035, 0037 0037, 0045, 0042, 0209, 0038, 1037 1972 0000, 0208 0240, 0072 0037 0593, 1278 0035, 0039, 0081, 0000, 0149, 0563, 0593, 1593, 1781 0240 0035, 0081 VCR VCR mode VCR 0037 0035, 0162, 0227, 1162 1972 0035 0035, 0162, 0037, 0048, 0039, 0047, 0240, 0000, 0104, 0209, 0046, 0307, 0479, 1037, 1048, 1162, 1237, 1262 0240, 0043, 0061 0240 1972 1972 0042, 0105 0081, 0067, 0043, 0041, 0061, 0173, 0807 0035, 0048 0240, 0000 0000, 0072 0035, 0037, 0048, 0104, 0067, 0041, 0038, 0008 0037 1972 0240 1972 0035 1062, 0162, 0037, 0048, 0104, 0432, 0593, 1048, 1162, 1262 0184, 0121, 0209, 0002, 0208, 0479, 1479 1062, 0035, 0162, 0225, 0227, 0616, 1035, 1162, 1262 0035, 0037, 0240, 0042, 0038, 1035, 1237 0042, 0105 0035, 0000, 0038 Marta Matsushita Media Center PC MEI Memorex MGA MGN Technology Microsoft Mind Minolta Mitsubishi Motorola MTC Multitech NEC Nikko Niveus Media Noblex Northgate Olympus Optimus Orion Panasonic Penney Pentax Philco 72 Remote Programming VCR VCR VCR mode Philips Pilot Pioneer Polk Audio Portland Presidian Profitronic Proscan Protec Pulsar Quarter Quartz Quasar RadioShack Radix Randex RCA Realistic ReplayTV Ricavision Runco Samsung Sanky Sansui Sanyo Scott Sears Sharp Shintom Shogun Singer Sonic Blue Sony Stack 9 STS Sylvania 0035, 0081, 0000, 0563, 0593, 0618, 0739, 1081, 1181, 1266 0037 0081, 0042, 0067 0081 0020 1593 0240 0060, 0202, 0760, 0761, 1060 0072 0039 0046 0046 0035, 0162, 1035, 1162 0000, 1037 0037 0037 0060, 0035, 0240, 0000, 0042, 0149, 0105, 0106, 0202, 0760, 0761, 0807, 0880, 1035, 1060 0035, 0037, 0048, 0047, 0000, 0104, 0046 0614, 0616 1972 0039 0240, 0045, 0432, 0739, 0760, 1014 0048, 0039 0000, 0067, 0209, 0041, 0271, 0479, 1479 0047, 0240, 0104, 0046 0184, 0045, 0121, 0043 0035, 0037, 0047, 0000, 0042, 0104, 0046, 0057, 0105, 1237 0048, 0209, 0807, 0848, 1048 0104, 0072 0240 0045, 0072 0614, 0616 0035, 0032, 0033, 0000, 0034, 0636, 0639, 0640, 1032, 1232, 1972 1972 0042 0035, 0081, 0000, 0043, 0593, 1593, 1781 Symphonic Systemax Tagar Systems Tatung Teac Technics Teknika Thomas Tivo TMK Toshiba Totevision Touch Unitech Vector Vector Research Video Concepts Videomagic Videosonic Viewsonic Villain Voodoo Wards White Westinghouse XR-1000 Yamaha Zenith ZT Group Echostar Hughes Network Systems JVC Philips Samsung ABS Alienware CyberPower Dell DirecTV Dish Network System Echostar Gateway Hewlett Packard 0000, 0593, 1593 1972 1972 0081, 0045, 0000, 0067, 0041, 0008, 0366 0000, 0041 0035, 0162 0035, 0037, 0000 0000 0618, 0636, 0739, 1996 0240, 0208 0081, 0045, 0042, 0067, 0043, 0041, 0008, 0057, 0366, 0845, 1008, 1145, 1972, 1996 0037, 0240 1972 0240 0045 0038 0045, 0061 0037 0240 1972 0000 1972 0060, 0035, 0048, 0047, 0081, 0240, 0000, 0042, 0072, 0149, 0760 0209, 0072 0035, 0000, 0072 0041, 0038 0039, 0033, 0000, 0209, 0034, 0479, 1139, 1479 1972 1945 0739 1945 0739 0739 1972 1972 1972 1972 0739 1945 1945 1972 1972 DBS/PVR Combination PVR Howard Computers HP Hughes Network Systems Humax Hush iBUYPOWER JVC Linksys Media Center PC Microsoft Mind Niveus Media Northgate Panasonic Philips RCA ReplayTV Samsung Sonic Blue Sony Stack 9 Systemax Tagar Systems Tivo Toshiba Touch Viewsonic Voodoo ZT Group Emerson 1972 1972 0739 0739 1972 1972 1945 1972 1972 1972 1972 1972 1972 0616, 1777 0618, 0739 0880 0614, 0616 0739 0614, 0616 0636, 1972 1972 1972 1972 0618, 0636, 0739 1008, 1972, 1996 1972 1972 1972 1972 0000 DVD/PVR Combination PVR 73 Remote Programming DVD DVD DVD mode Accurian Advent Aiwa Akai Alco Allegro Apex Digital Arrgo Aspire Digital Audiovox Blaupunkt Blue Parade Broksonic Cinea Cine Vision Citizen Coby Craig Curtis Mathes CyberHome Daewoo Denon Disney Durabrand DVD2000 Emerson Enterprise ESA Fisher Funai Gateway GE Go Video GoldStar Greenhill Harman/Kardon Hitachi Hiteker Humax iLo Initial Insignia Integra JBL Jensen JVC Kawasaki Kenwood KLH Koss Lasonic Lenoxx LG LiteOn 1416 1016 0641 0695, 0770, 0899 0790 0869 0672, 0717, 0755, 0830, 1056, 1061 1023 1168 0790 0717 0571 0695 0831 0876, 0833, 0869 1277 0778, 1107 0831 1087 0816, 0874, 1023, 1024, 1117, 1129 0784, 0705, 0770, 0833, 0869, 1169, 1172 0490, 0634 0675, 1270 1127 0521 0591, 0675, 0821, 1268 0591 0821, 1268 0670 0675, 1268, 1334 1158 0522, 0815, 0717 0744, 0715, 0741, 0783, 0833, 0869, 1044, 1075, 1099, 1158, 1304, 1730 0741 0717 0582, 0702 0573, 0664, 1247 0672 1500, 1588 1348 0717 1268 0627 0702 1016 0558, 0623, 0867, 1164, 1602, 1770, 1771, 1772, 1773 0790 0490, 0534 0717, 0790, 1149 0651 0798 1127 0591, 0741, 0869 1058, 1158, 1416, 1440 Magnavox Marantz Memorex Microsoft Mintek Mitsubishi NAD NEC Nesa NexxTech Norcent Onkyo Oritron Panasonic Philips Pioneer Polaroid Polk Audio Portland Presidian Prima Proscan Pro Vision Qwestar RCA Rio Rotel Sampo Samsung Sansui Sanyo Sensory Science Sharp Sharper Image Sherwood Shinsonic Sonic Blue Sony Superscan Sylvania Symphonic Teac Technics Theta Digital Tivo Toshiba Urban Concepts US Logic Venturer Xbox Yamaha Zenith 0503, 0539, 0646, 0675, 0821, 1268 0539 0695, 0831, 1270 0522, 1708 0839, 0717 1521, 0521 0741 0785 0717 1402 1003, 1107 0503, 0627 0651 0490, 0703, 1362, 1462, 1490, 1762 0503, 0539, 0646, 0675, 0854, 1158, 1260, 1267, 1354 0525, 0571, 0631 1061 0539 0770 0675 1016 0522 0778 0651 0522, 0571, 0717, 0790, 0822, 1022, 1132 0869 0623 0752 0490, 0573, 0744, 0820, 0899, 1044, 1075, 1470 0695 0670, 0695, 0873 1158 0630, 0675, 0752, 1256 1117 0770 0533, 0839 0869, 1099 0533, 1533, 0864, 1033, 1431, 1536 0821 0675, 0821, 1268 0675, 0821 0717, 0790 0490, 0703 0571 1503 0503, 0695, 1045, 1154, 1503, 1515, 1588 0503 0839 0790 0522, 1708 0490, 0539, 0545 0503, 0591, 0741, 0869 DVD Recorder Accurian Apex Digital Aspire Digital CyberHome Denon Funai Gateway Go Video iLo JVC LG LiteOn Magnavox Panasonic Philips Pioneer RCA Samsung Sensory Science Sharp Sony Sylvania Zenith Aiwa Audiovox JVC KLH Koss Oritron Polk Audio RCA Rio Sonic Blue Teac Venturer 1416 1056 1168 1129 0490 0675, 1334 1158 0741, 1158, 1304, 1730 1348 1164 0741 1158, 1416, 1440 0646, 0675 0490 0646, 1158 0631 0522 0490, 1470 1158 0630, 0675 1033, 1431 0675 0741 0641 0790 1770, 1771, 1772, 1773 0790 0651 0651 0539 0790 0869 0869 0790 0790 Home Theater in Box 74 Remote Programming Amstrad Bose Curtis Mathes Durabrand GE Harman/Kardon JVC Left Coast Lenoxx Linn Marantz NEC Optimus Philips Pioneer Polk Audio RCA Shure Sony Soundesign Victor Wards Yamaha ADC Aiwa Akai Alco Amphion Media Works AMW Anam Apex Digital Audiotronic Audiovox Bose Brix Cambridge Soundworks Capetronic Carver Classic Coby Criterion Daewoo Delphi Denon Garrard Gateway Go Video Harman/Kardon Initial Insignia Integra JBL JVC Kenwood KLH 0078 0674 0300 1561 0078 0892 0331 0892 1561 0269, 0282, 0829 0892, 0269 0264 0300, 0823 0892, 0269 0013, 0300, 0823 0892, 0269 0300, 0823 0264 0689, 0815, 1126 0078 0331 0078, 0013 0354, 0133 0531 1405, 0121, 1243, 1388, 1641 1512 1390 1563, 1615 1563, 1615 1609, 1074 1257, 1430 1189 1390 1229, 0639, 1841, 1933 1602 1370 0531 1189 1352 1389 1420 1250 1414 1360, 0771, 1142, 1660, 2832 0463 1517 1532 0110, 0891, 1304, 1306 1426 1751 0135, 1298, 1320 0110, 1306 0531, 1374, 1495, 1560, 1676, 1871, 1894 1313, 1570, 1569 1390, 1412 Amplifier Koss Lasonic Lenoxx LG Liquid Video Magnavox Marantz Mitsubishi NexxTech Norcent Nova Onkyo Optimus Oritron Panasonic Philips Pioneer Polaroid Polk Audio Proscan RCA Regent Rio Saba Samsung Sansui Sanyo Sharp Sharper Image Sherwood Shinsonic Sirius Sonic Blue Sony Stereophonics Sunfire Teac Technics Thorens Toshiba Venturer Wards XM Yamaha Zenith 1366, 1497 1798 1437 1293, 1869 1497 1189, 1269, 0531, 1514 1189, 1269, 0891, 1289 1393 1751 1389, 1751 1389 0135, 0842, 1298, 1320, 1531 1023, 0531, 1074 1366, 1497 1308, 1518, 0367, 1288, 1316, 1548, 1633, 1763, 1764 1189, 1269, 0891, 1266, 1289, 1673 1023, 0014, 0150, 0531, 0630, 1123, 1384, 1823 1508 1289, 1414 1254 1023, 1609, 1254, 0531, 1074, 1123, 1390, 1511 1437 1869 0531, 1519 1295, 1500 1764 1251, 1469 0771, 1286 1556 1517, 1653 1426 1602 1532, 1869 1058, 1441, 1258, 1759, 1622, 0474, 1406, 1558, 1658, 1758, 1858, 1958 1023 1313 0463, 1074, 1390, 1528 1308, 1518, 1384 1189 1788 1390 0014 1406, 1414 0176, 1176, 1276, 1331, 1375, 1476 0857, 1293 Receiver Audio mode Home Theater in Box 1388, 1641 1563, 1615 1563, 1615 1609 1257, 1430 1390 1229, 1933 1370 1352 1389 1420 1250 2832 1561 1517 1532 1426 1751 1298 1306 1374, 1495, 1676, 1871 1390, 1412 1366, 1497 1798 1561 1293, 1869 1497 1514 1751 1389, 1751 1389 1298, 1531 1366, 1497 1288, 1316, 1548, 1633, 1763, 1764 1266, 1673 1384 1508 1289 1609, 1390, 1511 1437 1869 1519 1295, 1500 1469 1556 1517 1426 1532, 1869 0689, 1622, 1558, 1658, 1758, 1858, 1958 1390, 1528 1788 1390 1331, 1375 1293 Aiwa Amphion Media Works AMW Anam Apex Digital Audiovox Bose Cambridge Soundworks Classic Coby Criterion Daewoo Denon Durabrand Gateway Go Video Initial Insignia Integra JBL JVC KLH Koss Lasonic Lenoxx LG Liquid Video Magnavox NexxTech Norcent Nova Onkyo Oritron Panasonic Philips Pioneer Polaroid Polk Audio RCA Regent Rio Saba Samsung Sanyo Sharper Image Sherwood Shinsonic Sonic Blue Sony Teac Toshiba Venturer Yamaha Zenith Receiver 75 OSD Information This OSD appears when the digital channel that you have selected is too weak to receive or no signal is being detected for that channel. Weak Signal Weak Signal 0 It appears when that channel is not receiving a signal and you have the Noise Muting function OFF and you have a single screen. It moves automatically every two seconds to prevent the screen from burn-in. Notes: • Even if "NO PROGRAM" appears on the screen, your timer functions and auto shut off functions that you set, are still active. • If you are watching an analog channel, NO PROGRAM does not appear. No Program Invalid Signal If you are inputting a PC signal that is invalid, "Invalid Signal" will appear on the TV screen. It appears when the input is PC and it is a single screen. 76 Troubleshooting Refer to the table below to check the condition. If you think that there is a problem, contact the JVC Service Center where you purchased the television. There is no power There is no picture or sound You cannot select a certain channel The power turns off by itself The clock is wrong The color quality is poor There are lines across the picture The picture is spotted There are double pictures (ghosts) Picture is snowy (image noise) Remote control is not operating properly or at all • See if the power cord became unplugged. • Check for a blown fuse or circuit breaker or a power outage. • The antenna could be disconnected. • The input mode could be set improperly. See page 59. • The tuner (Auto Tuner Setup) could be set improperly. See page 37. • The TV station may be having difficulties. Check to see if other stations are working. • Use the HDMI cable with HDMI logo . See page 19. • If you have a device connected to INPUT-1, INPUT-2 or INPUT-5 (set "V5 INPUT" in the INITIAL SETUP menu to "HDMI"). You will not be able to hear any audio from the AUDIO OUT on the back of the TV. • You cannot output audio using the OPTICAL OUTPUT when you have digital sound from an HDMI device connected to the INPUT-1, INPUT-2 or INPUT-5 (set "V5 INPUT" in the INITIAL SETUP menu to "HDMI") connection on the back of the TV. (See page 18). • This TV can accept 480i (Composite / S / HDMI / Component), 480p, 720p and 1080i signals. Please check your settings. • Check to see that the batteries are still working and properly installed. • Make sure the remote has a clear sight path to the TV. • You may be too far from the TV. You must be within 23 feet (7 meters). • Make sure the channels have been programmed. See "Channel Summary", page 38. • Check to see if the channel is locked. See "Channel Summary - Lock" page 39. • Make sure the set did not become unplugged. • Perhaps the On/Off Timer is set. See page 57. • Check to see if the Sleep Timer was set. See page 66. • The power was interrupted and the clock was not reset. See page 56. • Tint and Color may be improperly adjusted. See page 50. • The Video Status mode may be turned to the wrong setting. See page 65. • There could be interference from another electrical appliance, such as a computer, another TV or VCR. Move any such appliances further away from the TV. • There could be interference from a high-wattage appliance, like a hairdryer or vacuum, operating nearby. Move the antenna away from the appliance or change to a coaxial cable connection which is less prone to interference. • A building or passing airplane can reflect the original signal and produce a second, slightly delayed one. Adjust your antenna position. • Your antenna may be damaged, disconnected or turned. Check the antenna connection. If the antenna is damaged, replace it. PROBLEMS CHECK It does not operate correctly • This television is operated by a microprocessor. It is possible that external noise or interference is causing the problem. If the television does not function correctly, remove the electrical plug from the wall outlet and wait a while before inserting it into the wall outlet again and operating the television. 77 Troubleshooting PROBLEMS CHECK Static electricity You hear occasional crackling sounds • It is normal to feel static electricity if you brush or touch the screen. • It is normal for the TV to make crackling sounds when first turned on or off. Unless the sound or picture become abnormal, this is fine. It does not operate correctly • Press the CHANNEL- and VOLUME- buttons on the side panel of the TV simultaneously for a few seconds. The Digital Tuner will be reset. If this does not reset it correctly, unplug the power cord and plug it back in. The picture is slightly cut off when you use 1080p format only • Change the picture format setting on your external device to 1080i or other resolution. The screen disappears except for the menu screen • This occurs when you select a digital menu when your input source is from the HDMI connection. Press the menu button. • This JVC television can accept a variety of HD signals, including 720/60p, 1080/60i and 1080/60p. It does not accept a 1080/24p signal. Please note that in some cases, a Blu-ray or HD-DVD may only offer the choice of 1080/60i or 1080/24p. In this case, it is necessary to choose the 1080/60i output. Please refer to your Blu-ray/HD-DVD manual for complete details on choosing the correct output. My HDMI device doesn’t work or doesn’t work properly Screen is 80% black Stereo or bilingual programs can't be heard • The Closed Caption Text mode is on. Turn it off in the Closed Caption Menu, page 34. • Make sure the MTS settings are correct. See page 64. The following are not malfunctions. • The television may make a creaking sound if the temperature of the room or the temperature of the inside of the television changes. If there is no problem with the screen or sound, then there is no need to worry. • Although the picture may be temporarily disturbed and noise may be seen on the screen if the power is turned on immediately after it has been turned off, this is not a malfunction. 78 Specifications LCD Flat Television Type Reception Format Power Source Power Consumption Model NTSC, BTSC System (Multi-Channel Sound) ATSC Terrestrial, Digital Cable AC 120V, 60 Hz Screen Size Speakers Audio Output 10W + 10W Antenna Terminal (VHF/UHF, ATSC/DIGITAL CABLE IN) 75 ohms (VHF/UHF)(F-type connector) Refer to "unpacking your TV", page 9 Dimensions (inch/cm) W X H X D Weight (lbs / kg) Accessories Optical Output Digital Audio Digital Out (optical) x 1 Reception Range VHF 2 to 13, UHF 14 to 69 CATV 125 Sub, Mid, Super, Hyper and Ultra bands (191 channel frequency synthesizer system) at Analog • Reception of channel A-5 ("95" of the TV set's on-screen cable channel numbers) is not recommended for your TV set. VHF 2 to 13, UHF 14 to 69 at ATSC, CATV 135 Sub, Mid, Super, Hyper and Ultra bands at Digital Cable Audio Output Jacks (FIX) FIX : 500mVrms (-4dBs), Low Impedance Input 3, 4, 5 Terminal 480i S (Input 3) Y: 1 Vp-p positive, 75 ohms (negative sync provided) C: 0.286 Vp-p (burst signal), 75 ohms Video: 1 Vp-p, 75 ohms Audio: 500 mVrms (-4dBs) high impedance Input 3, 4 Terminal (Component Terminal) 1080i / 720p / 480p / 480i Y: 1 Vp-p positive, 75 ohms (negative sync provided) PB/PR: 0.7 Vp-p 75 ohms Input 1, 2, 5 Terminal (HDMI Input Terminal) Video: 1080p / 1080i / 720p / 480p / 480i Audio: 2ch PCM, 32 / 44.1 / 48 KHz 16 / 20 / 24 bit • Personal computer compatibility cannot be guaranteed. 4.5 x 16cm Twin Oblique Cone x 2 LT-42X898 280W 42 inch / 106.7 cm measured diagonally, 16:9 ratio LT-37X898 37 inch / 94 cm measured diagonally, 16:9 ratio LT-47X898 Input 5 (PC Input Jacks) Analog RGB D-SUB (15 pin) x 1, RS-232C (9 pin) x 1 • PC signal is available. Refer to page 23 for details on the signals which can be input. 355W 240W 35 1/2 x 25 3/4 x 9 1/8 (with stand) 90.1 x 65.1 x 23 (with stand) 39 3/4 x 27 7/8 x 11 3/4 (with stand) 100.7 x 70.8 x 29.6 (with stand) 44 1/4 x 30 1/2 x 11 3/4 (with stand) 112.1 x 77.4 x 29.6 (with stand) 35 1/2 x 23 3/4 x 5 1/2 (without stand) 90.1 x 60.1 x 13.9 (without stand) 39 3/4 x 26 x 5 1/8 (without stand) 100.7 x 66 x 13 (without stand) 44 1/4 x 28 5/8 x 5 1/8 (without stand) 112.1 x 72.7 x 13 (without stand) 52.8 / 24 (with stand) 48.4 / 22 (without stand) 61.6 / 28 (with stand) 52.8 / 24 (without stand) 77 / 35 (with stand) 68.2 / 31 (without stand) 47 inch / 119.4 cm measured diagonally, 16:9 ratio Specifications subject to change without notice. • The open source software is embedded in this product. For more information, please go to: http://software.jvc.com/opensource/lnx/DP/05_AtscQam/download.html 79 80 81 Notes 82 Notes 83 Notes 84 Notes 85 Notes 86 Notes 87 Notes JVC COMPANY OF AMERICA Division of JVC Americas Corp. 1700 Valley Road Wayne, New Jersey, 07470 JVC CANADA, INC. 21 Finchdene Square Scarborough, Ontario Canada, M1X 1A7
