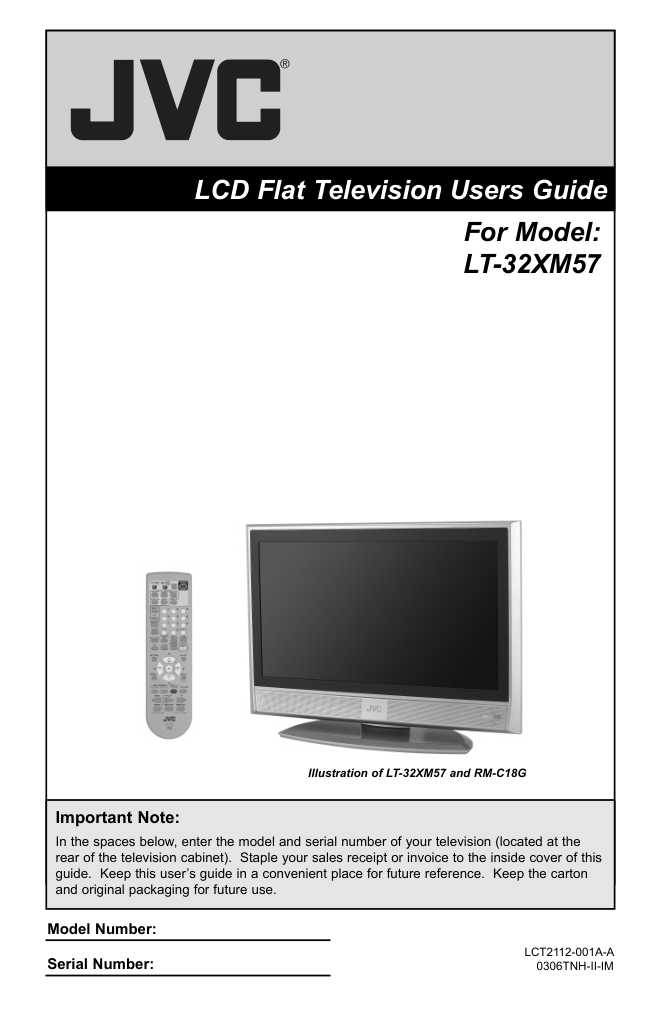

Important Note: In the spaces below, enter the model and serial number of your television (located at the rear of the television cabinet). Staple your sales receipt or invoice to the inside cover of this guide. Keep this user’s guide in a convenient place for future reference. Keep the carton and original packaging for future use. LCT2112-001A-A 0306TNH-II-IM Model Number: Serial Number: Illustration of LT-32XM57 and RM-C18G For Model: LT-32XM57 LCD Flat Television Users Guide 2 Important Safety Precautions WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION: TO INSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES REGARDING THE USE OF THIS UNIT. 1. Operate only from the power source specified on the unit. 2. Avoid damaging the AC plug and power cord. 3. Avoid Improper installation and never position the unit where good ventilation is unattainable. 4. Do not allow objects or liquid into the cabinet openings. 5. In the event of trouble, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover. Changes or modifications not approved by JVC could void the warranty. * When you don’t use this TV set for a long period of time, be sure to disconnect both the power plug from the AC outlet and antenna for your safety. * To prevent electric shock do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. CAUTION: To reduce the risk of electric shock. Do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION IMPORTANT RECYCLING INFORMATION This product has a fluorescent lamp that contains a small amount of mercury. It also contains lead in some components. Disposal of the materials may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities, or the Electronic Industries Alliance: http://www.eiae.org 3 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. IMPORTANT SAFETY INSTRUCTIONS • As an “ENERGY STAR®” partner, JVC has determined that this product or product model meets the “ENERGY STAR®” guidelines for energy efficiency. 4 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15) Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. 16) Avoid improper installation and never position the unit where good ventilation is impossible. When installing this TV, distance recommendations must be maintained between the set and the wall, as well as inside a tightly enclosed area or piece of furniture. Keep to the minimum distance guidelines shown for safe operation. 17) Cautions for installation — Do not tilt the TV towards the left or right, or towards the back. — Install the TV in a corner on the floor so as to keep cords out of the way. — The TV will generate a slight amount of heat during operation. Ensure that sufficient space is available around the TV to allow satisfactory cooling. 18) Make enough room for inserting and removing the power plug. Place the TV as close to the outlet as possible. The main power supply for this TV is controlled by inserting or removing the power plug. 150 mm 200 mm 150 mm 200 mm 50 mm 5 Warnings Displaying fi xed images for extended periods of time can leave a subtle but temporary ghost image on your screen. To avoid this, mix your viewing pattern. Examples include, but are not limited to the following: Avoiding Ghost Images XYZ XYZ TV on TV off For example... • Stock-market report bars • Shopping channel logos and pricing displays • Video game patterns or scoreboards • Bright station logos • Internet web sites or other computer-style images. • DVD discs, video tapes, laser discs • Broadcast, cable, satellite channels or digital television tuners/converters. We have an important note for customers who subscribe to basic cable services (do not have a separate cable box) and plan to use their JVC TV remote control to select channels. Once you run the Auto Tuner Setup (which detects and programs all the channels your TV is receiving through the RF input), every channel number available from your cable company will appear in your television’s Channel Summary and they will all be marked as available for scanning. Even though every channel is detected and appears as available, you will only be able to view those that you specifi cally subscribe to from your cable company. This will likely mean there are blank channels between those channels you wish to scan or “surf”. We apologize for any inconvenience this may cause but it is important to note that this is not a malfunction of your television. If you want to sequentially scan those channels you subscribe to without blank ones in between, you can contact your cable company for their cable box and remote. 6 Warnings (Continued...) Caring for the Cabinet Caring for the Screen Normally, light dusting with a soft, non-scratching duster will keep your TV clean. If you wish to wipe down the television, first unplug it. Then wipe gently with a soft cloth, slightly moistened with water. You can add a few drops of mild liquid detergent to the water to help remove spots of oily dirt. • DO NOT allow liquid to enter the TV through the ventilation slots. • DO NOT use strong or abrasive cleaners on the TV. • DO NOT spray liquids or cleaners directly on the TV’s surface. • DO NOT rub or scrub the TV harshly. Wipe the set gently with a soft cloth. The screen is treated with an electrostatic-proof coating. When it gets dirty, wipe it gently with a soft cloth. If the screen is very dirty, wipe it down with a cloth dipped in a diluted kitchen cleaner and thoroughly wrung-out. Then wipe immediately after with a clean, dry cloth. Do not apply alcohol, organic solvents (like acetone), acidic or alkaline cleansers to the screen. These will remove the coating layer and cause discolorations. Do not push or hit the screen. This could cause scratches on the screen surface and image distortions. 7 Table of Contents Important Safety Precautions . . 2 Warnings . . . . . . . . . . . . . . . 5 Quick Setup . . . . . . . . . . . . . . 8 Unpacking your TV . . . . . . . . . . . . 8 TV Models . . . . . . . . . . . . . . . . 9 TV Remote Control . . . . . . . . . . . 10 Getting Started . . . . . . . . . . . . . 11 The Remote Control . . . . . . . . . . 11 Connecting Your Devices . . . . . . . 12 Interactive Plug In Menu . . . . . . . . 21 Programming your remote . . . . . . . 24 Onscreen Menus . . . . . . . . . 28 Using the Guide . . . . . . . . . . . . . 28 Onscreen Menu System . . . . . . . . . 29 Initial Setup . . . . . . . . . . . . . 31 Auto Tuner Setup . . . . . . . . . . . . 31 Channel Summary . . . . . . . . . . . . 32 Channel Label . . . . . . . . . . . . . 33 V-Chip . . . . . . . . . . . . . . . . . . 34 Set Lock Code . . . . . . . . . . . . . 40 Language . . . . . . . . . . . . . . . . 41 Closed Caption . . . . . . . . . . . . . 42 Auto Shut Off . . . . . . . . . . . . . . 44 XDS ID . . . . . . . . . . . . . . . . . 44 Noise Muting . . . . . . . . . . . . . . 45 Front Panel Lock . . . . . . . . . . . . 45 Video Input Label . . . . . . . . . . . 46 Position Adjustment . . . . . . . . . . . 47 Power Indicator . . . . . . . . . . . . . 47 Digital-In . . . . . . . . . . . . . . . 48 Digital-In1 Audio . . . . . . . . . . . 48 Digital Setup . . . . . . . . . . . . . 49 Picture Adjust . . . . . . . . . . . . . 51 Picture Settings . . . . . . . . . . . . . 51 Color Temperature . . . . . . . . . . . . 51 Color Management . . . . . . . . . . . . 52 Dynamic Gamma . . . . . . . . . . . . . 52 Smart Picture . . . . . . . . . . . . . . . 52 Digital VNR . . . . . . . . . . . . . . . . 53 MPEG NR . . . . . . . . . . . . . . . 53 Reset . . . . . . . . . . . . . . . . . . 53 Sound Adjust . . . . . . . . . . . . . 54 Sound Settings . . . . . . . . . . . . . 54 Turn On Volume . . . . . . . . . . . . . 54 Volume Limit . . . . . . . . . . . . . . 54 Reset . . . . . . . . . . . . . . . . . . 54 Clock/Timers . . . . . . . . . . . . . . . . 55 Set Clock . . . . . . . . . . . . . . . . 55 On/Off Timer . . . . . . . . . . . . . . . 56 Button Functions . . . . . . . . . . 57 Multi Screen Function . . . . . . . . . . 57 Split . . . . . . . . . . . . . . . . . . 57 Index . . . . . . . . . . . . . . . . . 58 Freeze . . . . . . . . . . . . . . . . . 58 Swap . . . . . . . . . . . . . . . . . 58 Select . . . . . . . . . . . . . . . . . . 58 Menu . . . . . . . . . . . . . . . . . . 58 OK . . . . . . . . . . . . . . . . . . . 58 Back . . . . . . . . . . . . . . . . . . . 58 Power . . . . . . . . . . . . . . . . . . 59 Number Buttons . . . . . . . . . . . . . 59 Tune . . . . . . . . . . . . . . . 59 Input . . . . . . . . . . . . . . . . . . . 59 TheaterPro . . . . . . . . . . . . . . . 59 Return+/TV . . . . . . . . . . . . . . . 60 Sound . . . . . . . . . . . . . . . . . . 60 Video Status . . . . . . . . . . . . . . . 61 Natural Cinema . . . . . . . . . . . . . 61 Sleep Timer . . . . . . . . . . . . . . . 62 ML/MTS . . . . . . . . . . . . . . . . . 62 Muting . . . . . . . . . . . . . . . . . . 62 Display . . . . . . . . . . . . . . . . . 63 C.C. . . . . . . . . . . . . . . . . . . . 63 Channel +/- . . . . . . . . . . . . . 63 Volume +/- . . . . . . . . . . . . . 63 Favorite . . . . . . . . . . . . . . . . 64 Aspect . . . . . . . . . . . . . . . . . 65 Aspect Ratios . . . . . . . . . . . . . 65 TV/CATV Slide Switch . . . . . . . . . . 67 VCR/DVD Slide Switch . . . . . . . . . 67 VCR Buttons . . . . . . . . . . . . . . . 67 DVD Buttons . . . . . . . . . . . . . . . 67 Light . . . . . . . . . . . . . . . . . . 67 D/A (Digital/Analog) . . . . . . . . . 68 Sub Channel . . . . . . . . . . . . . 68 Guide . . . . . . . . . . . . . . . 68 OSD Information . . . . . . . . . . 69 Weak Signal . . . . . . . . . . . . . 69 No Program . . . . . . . . . . . . . 69 Troubleshooting . . . . . . . . . . 70 Specifications . . . . . . . . . . 72 Warranty . . . . . . . . . . . . . 73 Authorized Service Center . . . 74 Notes . . . . . . . . . . . . . 75 8 Two AA Batteries 1 Television 1 Remote Control Quick Setup Thank you for your purchase of a JVC LCD Flat Television. Before you begin setting up your new television, please check to make sure you have all of the following items. In addition to this guide, your television box should include: Note: Your television and/or remote control may differ from the examples illustrated here. Unpacking your TV INPUT INDEX ASPECT FREEZE SWAP SELECT RETURN+/TV FAVORITE THEATER PRO NATURAL CINEMA VIDEO STATUS SOUND TV CATV VCR DVD MUTING MENU BACK GUIDE RM-C18G REW VCR CHANNEL PREV NEXT VCR DVD POWER TV VCR FF PLAY REC PAUSE OPEN CLOSE STILL PAUSE STOP CH CH VOL VOL OK MULTI SCREEN SPLIT POWER SUB CHANNEL ML/MTS SLEEP DISPLAY D/A C.C. TUNE 1 4 7 2 5 8 0 3 6 9 LIGHT + AA Alkaline – + AA Alkaline – 9 Quick Setup Before you connect your television to another device, please refer to the proper diagrams for your specific TV and remote. These will help assist you in understanding how to connect your television to another device, as well as use the remote to set up your television. TV Models INPUT 2 INPUT 3 INPUT 1 FOR HDMI 1 AUDIO OUT Y Pr Pb Y Pr Pb AUDIO OUT VIDEO R - AUDIO - L AUDIO INPUT R L R - AUDIO - L S-VIDEO OVER VIDEO VIDEO R - AUDIO - L R - AUDIO - L S-VIDEO OVER INPUT 2 I NPUT 3 INPUT 1 FOR HDMI 1 AUDIO OUT Y Pr Pb Y Pr Pb AUDIO OUT T VIDEO R - AUDIO - L AUDIO INPUT R L R - AUDIO - L S-VIDEO OVER VIDEO VIDEO R - AUDIO - L R - AUDIO - L EO OVER Rear Panel Diagram Side Panel Diagram INPUT MENU POWER CHANNEL VOLUME + - + - POWER 10 Quick Setup Notes: • For information on remote control buttons, see pages 57 - 68. • SUB CHANNEL and GUIDE buttons are for digital channels. If your TV is connected to an ATSC antenna or Digital Cable, you can use these buttons. RM-C18G INPUT INDEX ASPECT FREEZE SWAP SELECT RETURN+/TV FAVORITE THEATER PRO NATURAL CINEMA VIDEO STATUS SOUND TV CATV VCR DVD MUTING MENU BACK GUIDE RM-C18G REW VCR CHANNEL PREV NEXT VCR DVD POWER TV VCR FF PLAY REC PAUSE OPEN CLOSE STILL PAUSE STOP CH CH VOL VOL OK MULTI SCREEN SPLIT POWER SUB CHANNEL ML/MTS SLEEP DISPLAY D/A C.C. TUNE 1 4 7 2 5 8 0 3 6 9 LIGHT Remote Control 11 These quick setup pages will provide you, in three easy steps, with the basic information you need to begin using your new television right away. If you have questions, or for more detailed information on any of these steps, please consult other sections of this manual. Quick Setup Getting Started Before you can operate your remote control, you first need to install the batteries (included). Slide the cover on the back of the remote down towards the bottom of the remote control. Insert two batteries (included) carefully noting the “+” and “–” markings, placing the “–” end in the unit first. Slide the cover back into place. When you change the batteries, try to complete the task within three minutes. If you take longer than three minutes, the remote control codes for your VCR, DVD, and/or cable box/satellite receiver may have to be reset. See pages 24 - 27. Step 1 – The Remote Control Key Feature Buttons The four key feature buttons at the center of the remote can be used for basic operation of the television. The top and bottom buttons will scan forward and back through the available channels. To move rapidly through the channels using JVC’s Hyperscan feature, press and hold CH+ or CH –. The channels will zip by at a rate of five channels per second. The right and left buttons will turn the volume up or down. These buttons are also marked with four arrows and are used with JVC’s onscreen menu system. To use the onscreen menus, press the MENU button. MUTING MENU BACK GUIDE VCR CHANNEL VCR DVD CH CH VOL VOL OK Basic Operation Turn the television on and off by pressing the POWER button at the top right corner of the remote. If this is the first time you are turning on the TV, the interactive plug-in menu appears. • Make sure the TV/CATV switch is set to TV. Move the switch to CATV only if you need to operate a cable box. • Slide the VCR/DVD selector switch to VCR to control a VCR. Slide to DVD to control a DVD player. Please see pages 24 to 27 for instructions on programming your remote control to operate a cable box, VCR or DVD player. T POWER TV CATV MUL A VCR DVD LTI SCREEN 12 Step 2 - Connecting your devices Quick Setup Notes: • These connections are examples. • After you are finished connecting your devices, plug the power cord into the nearest power outlet and turn on the TV. • If you follow these diagrams and the television does not work properly, contact your local cable operator. • To connect a DVD player, see VCR Connection. A DVD player is optional • If you have a satellite television system, refer to the satellite TV manual. Used to connect an external antenna or cable TV system to your TV. Used to make video connections with S-Video VCRs, Camcorders and DVD players. Coaxial Cables S-Video Cable Used to connect audio/video devices like VCRs, DVD players, stereo amplifiers, game consoles, etc. Component Cables Composite Cables Audio Cables To make these connections, you will use plugs like the ones illustrated below. 13 Cable Holder A cable holder which keeps your connection cables tidy is attached on the back of the stand. To open, loosen the screws with you fingers. After putting the cables in the cable holder, attach it to the back of the stand again by tightening the screws with your fingers. Remove the terminal cover There are connection terminals behind the cover on the left in the back of the TV. Remove the cover before connecting an antenna or other devices. The cover can be removed by removing the hooks. When replacing the cover, place the side of the cover against the TV and insert the hooks. Note: • Leave the terminal cover off if they do not fit properly. Do not force to replace the cover. Doing so may damage the connection cables and cover. Quick Setup No VCR Connection TV Rear Panel Cable or Antenna Output Coaxial Cable (Attachment) 14 Quick Setup Notes: • Green, blue and red are the most common colors for DVD cables. Some models may vary colors. Please consult the user’s manual for your DVD player for more information. • Be careful not to confuse the red DVD cable with the red audio cable. It is best to complete one set of connections (DVD or audio output) before starting the other to avoid accidentally switching the cables. • You may also connect the DVD player to Input 1. VCR Connection Note: • If this connection setup does not work for you, try the connection setup on page 15. Diagram #1 TV Rear Panel Cable or Antenna Output Coaxial Cable (Attachment) VCR DVD Player (OPTIONAL) OR INPUT 2 INPUT 3 INPUT 1 DIO Y Pr Pb Y Pr Pb VIDEO INPUT R R - AUDIO - L S-VIDEO OVER VIDEO VIDEO R - AUDIO - L R - AUDIO - L S-VIDEO OVER IN OUT IN OUT V L R Y PB PR OUT AUDIO OUT R L Green Blue Red 15 Quick Setup Diagram #2 INPUT 2 INPUT 3 INPUT 1 DIO Y Pr Pb Y Pr Pb VIDEO INPUT R R - AUDIO - L S-VIDEO OVER VIDEO VIDEO R - AUDIO - L R - AUDIO - L S-VIDEO OVER Y PB PR OUT AUDIO OUT R L Two-Way Splitter Cable or Antenna Output TV Rear Panel Coaxial Cable (Attachment) VCR DVD Player (OPTIONAL) OR IN OUT IN OUT V L R Green Blue Red IN OUT OUT 16 Quick Setup 1) Connect a yellow composite cable from the camcorder VIDEO OUT, into the VIDEO IN on the back of the TV, OR connect an S-Video cable from the camcorder to the back of the TV. 2) Connect a white cable from the camcorder LEFT AUDIO OUT, into the LEFT AUDIO IN on the back of the TV. 3) Connect a red cable from the camcorder RIGHT AUDIO OUT, into the RIGHT AUDIO IN on the back of the TV. Note: • If your camcorder is a mono sound model it will have only one AUDIO OUT. Connect it to the LEFT AUDIO IN on the back of the TV. You can connect a camcorder to you televison by using the input jacks located on the back of the television. INPUT 2 VIDEO R - AUDIO - L S-VIDEO OVER CAMCORDER OR TV Rear Panel Connecting to a Camcorder Headphone Connection You can connect a pair of headphones to the television using the headphone jack located on the side of the television. 1) Plug a headphone jack into the headphone jack on the television’s side panel. POWER TV Side Panel 17 Quick Setup 1) Connect a white cable from the LEFT AUDIO OUTPUT on the back of the TV to the LEFT AUDIO INPUT on the amplifier. 2) Connect a red cable from the RIGHT AUDIO OUTPUT on the back of the TV to the RIGHT AUDIO INPUT on the amplifier. Notes: • Refer to your amplifier’s manual for more information. • You can use AUDIO OUTPUT for your home theater system. • You can not output audio using the AUDIO OUTPUT under the following conditions: 1) When you have digital sound from an HDMI device connected to the HDMI 1 or HDMI 2 connection on the back of your TV. (See page 19). 2) When you have analog sound from a DVI device connected to the AUDIO IN "FOR HDMI 1" connection. (See page 18). Connecting to an External Amplifier AUDIO OUT AUDIO OUT R - AUDIO - L TV Rear Panel Speaker Speaker Amplifier 18 Quick Setup By connecting a Digital TV Receiver, high definition pictures can be displayed on your TV in their digital form. FOR HDMI 1 REC OUT S-VIDEO VIDEO AUDIO INPUT R L TV Rear Panel DTV Decoder L R AUDIO OUT DIGITAL OUT HDMI to DVI Cable After the connections have been made, tighten the screw to secure the cables. TV Rear Panel Connecting to a Digital TV Receiver 1) Connect the HDMI to DVI Cable from the DIGITAL OUT on the back of your DTV decoder, to the DIGITAL-IN on the back of your television. 2) Connect a red cable from the DTV decoder RIGHT AUDIO OUT, to the RIGHT AUDIO INPUT "FOR HDMI 1" on the back of your television. 3) Connect a white cable from the DTV decoder LEFT AUDIO OUT, to the LEFT AUDIO INPUT "FOR HDMI 1" on the back of your television. • The digital-in terminal is not compatible with the picture signal of a personal computer. • Use a HDMI to DVI cable (commercially available) in order to digitally connect the television with a DTV decoder. Notes: • If 480p signals (640x480 or 720x480) are displayed on the screen, the horizontal balance may be slightly shifted. Access the “DIGITAL-IN” in the initial setup menu to adjust it. (Refer to page 48.) • When you do the above connection, set DIGITAL-IN1 AUDIO in the Initial Setup menu to ANALOG. See "DIGITAL-IN1 AUDIO", page 48. • The Analog Audio input can only be used with the HDMI 1 input. • When setting the “DIGITAL AUDIO – ANALOG / DIGITAL” menu setting on the TV, please note that this setting only effects the HDMI 1 jack and that if you use a DVI to HDMI adapter this connection must be made to the HDMI 1 along with analog audio cables. 19 Quick Setup By connecting a HDMI compatible device, high definition pictures can be displayed on your TV in their digital form. Some HDMI devices can include DVD players, D-VHS or any HDMI compatible device. HDMI (High Definition Multimedia Interface) is the first industry supported, uncompressed, all digital audio/video interface. HDMI provides and interface between any audio/video source, such as a set-top box, DVD player, A/V receiver or an audio and/or video monitor, such as a digital television (DTV). TV Rear Panel HDMI Compatible Device HDMI Cable L R AUDIO OUT DIGITAL OUT Connecting to a HDMI Compatible Device 1) Connect the HDMI Cable from the DIGITAL OUT on the back of your DTV or HDMI device, to the DIGITAL-IN on the back of your television. Notes: • When you do the above connection, set DIGITAL-IN1 AUDIO in the Initial Setup menu to DIGITAL. See "DIGITAL-IN1 AUDIO", page 48. • Some decoders may not respond depending on the equipment that you have connected when it is connected to the HDMI. • If the HDMI output device signal is changed (for example, 480i/60Hz is changed to 480p/60Hz), the screen may turn green and there may be some distortion for a short time until the signal becomes stable. • When you have an HDMI device connected to the HDMI 1 connection on the back of your TV, your TV detects it, and blocks the analog audio signal coming into the "FOR HDMI 1" jacks. Therefore, you can not hear any analog sound from the other device conected to the "FOR HDMI 1" jacks, while you are viewing the images from the HDMI device. 20 Quick Setup Connecting to an amplifier using your optical output You can connect an amplifier that has an optical digital input terminal by using an optical digital cable from the optical output. The signal that is output can be PCM or Dolby Digital. Television Rear Panel Amplifier 1) Connect the optical cable from underneath the television to the back of the amplifier. Notes: • This terminal can only output digital audio. • In order to use the optical output connection, select PCM or Dolby Digital on Digital Sound in the Digital Setup Menu. See page 50. • Refer to your owners manual on using your amplifier. 21 Step 3 – The Interactive Plug In Menu Quick Setup When you turn your television on for the first time the interactive plug-in menu will appear. The plug-in menu helps you to get your TV ready to use by letting you set your preferences for: • The language in which you want the onscreen menus to appear. • Setting the TV’s clock to the correct time so your timer functions will work properly. You can choose “AUTO” or “MANUAL” for setting the clock. • The auto tuner setup of which channels you wish to receive. We recommend you complete the interactive plug-in items before you start using your television. Notes: • The interactive plug-in menu setting does not appear if your TV has been turned on before. In this case use the onscreen menus to perform these settings. See pages 41, 55 and 31. • If you press the Menu button while setting up the interactive plug-in menu, it will skip over it. After the “JVC INTERACTIVE PLUG IN MENU” has been displayed, the TV automatically switches to the LANGUAGE settings. You can choose to view your onscreen menus in three languages: English, French (Français) or Spanish (Español). √® To choose a language: (English, Français or Español) † To NEXT (To set clock) Language (To be continued...) LANGUAGE/LANGUE/IDIOMA ENGLISH NEXT SELECT OPERATE EXIT MENU 22 Quick Setup To set your clock manually (without using the XDS signal), choose MANUAL. If you choose AUTO, see auto clock set above. √® To choose MANUAL † To TIME √® To set the hour † To minute √® To set the minute † To TIME ZONE √® To select your time zone: (Atlantic, Eastern, Central, Mountain, Pacific, Alaska or Hawaii) † To move to D.S.T. (Daylight Savings Time) √® To turn D.S.T. ON or OFF † To START CLOCK Manual Clock Set Note: • You will have to reset the clock after a power interruption. You must set the clock before operating any timer functions. Before you use any of your TV’s timer functions, you must first set the clock. You may precisely set your clock using the XDS time signal broadcast by most public analog broadcasting stations. If you do not have this in your area, you will have to set the clock manually. See manual clock set below. To set the clock using the XDS signal: √® To choose AUTO † To TIME ZONE √® To select your time zone: (Atlantic, Eastern, Central, Mountain, Pacific, Alaska or Hawaii) † To move to D.S.T. (Daylight Savings Time) √® To turn D.S.T. ON or OFF † To NEXT (To Auto Tuner Setup) Notes: • D.S.T. can be used when it is set to ON in the SET CLOCK menu. • Only when the MODE is set to AUTO, the Daylight Savings Time feature automatically adjusts your TV’s clock for Daylight Savings. The clock will move forward one hour at 2:00 am on the first Sunday in April. The clock will move back one hour at 2:00 am on the last Sunday in October. • You will have to reset the clock after a power interruption. You must set the clock before operating any timer functions. Auto Clock Set (To be continued...) SET CLOCK SELECT OPERATE EXIT MENU TIME MODE TIME ZONE D.S.T. MANUAL -- : -- -- ATLANTIC ON START CLOCK SET CLOCK NEXT SELECT OPERATE EXIT MENU TIME -- : -- -- MODE TIME ZONE D.S.T. AUTO ATLANTIC ON 23 Quick Setup In auto tuner setup, the TV automatically scans through all available channels, memorizing the active ones and skipping over blank ones or channels with weak signals. This means when you scan (using the CHANNEL +/– buttons) you will receive only clear, active channels. √® To choose CABLE or AIR (or SKIP when you skip Analog Auto Tuner Setup) † To START After Analog Auto Tuner Setup is finished, Digital Auto Tuner Setup starts. Auto Tuner Setup When the setup is finished, "THANK YOU ! SETUP IS NOW COMPLETE" is displayed. Your quick setup is now complete. You can now begin watching your television, or you can continue on in this guide for more information on programming your remote control, or using the JVC onscreen menu system to customize your television viewing experience. Notes: • If you want to cancel the Auto Tuner Setup, press the MENU button. • Noise muting will not work during Auto Tuner Setup. • If you choose SKIP, it finished without doing the Auto Tuner Setup. Cable Box and Satellite Users: After your auto tuner setup is complete, you may, (depending on the type of hookup), have only 1 channel, usually 3 or 4 in the auto tuner memory. This is normal. AUTO TUNER SETUP SELECT OPERATE EXIT MENU AIR TUNER MODE START 48 NOW PROGRAMMING ! 20 Now Programming... 24 You can program your remote to operate your cable box, satellite receiver, VCR or DVD player by using the instructions and codes listed below. If the equipment does not respond to any of the codes listed below or to the code search function, use the remote control supplied by the manufacturer. The remote control is programmed with cable box and satellite codes for power on/off, channel up/down, and 10 key operation. 1) Find the cable box or satellite brand from the list of codes shown below. 2) Slide the 2-way selector switch to “CATV”. 3) Press and hold down the DISPLAY button, then enter the first code number listed with the 10 key pad. 4) Release the DISPLAY button, and confirm the operation of the cable box/satellite receiver. • If your cable or satellite box does not respond to the first code, try the others listed. If it does not respond to any code, try the search codes function, on page 27. Cable Box or Satellite Codes ABC Archer Cableview Citizen Curtis Diamond Eagle Eastern GC Brand Gemini General Instrument/Jerrold Hamlin Hitachi Macom Magnavox Memorex Movietime Oak Paragon Panasonic Philips Pioneer 024 032, 025 051, 032 022, 051 058, 059 024, 032, 025 029 034 032, 051 022, 043 065, 024, 025, 026, 027, 020, 021, 022, 057, 023, 072, 074 040, 041, 042, 045, 058, 064 049, 024 049, 050, 051, 054 033 030 032, 051 039, 037, 048 055, 056, 060, 071, 073 063 028, 029, 030, 052, 053, 031, 069 047, 062 Pulsar 051, 032 Cable Box Codes Puser RCA Realistic Regal Regency Rembrandt Samsung Scientific Atlanta SLMark Sprucer Stargate Telecaption Teleview Texscan Tocom Toshiba Unika Universal Videoway Viewstar 032 061, 070 032 058, 064, 040, 041, 042, 045, 068 034 037, 032, 051, 038 051 057, 058, 059 051, 047 051, 056 032, 051 067 047, 051 044 035, 036, 066, 074 050, 048 032, 025 022, 032 052 029, 030 Zenith 063, 046 Zenith/Drake Satellite 046 Echostar (Dish Network) Express VU G.E. G.I. Gradiente Panasonic Philips Primestar RCA Proscan Sony Star Choice Toshiba Uniden 100, 113, 114, 115 100, 113 106 108, 120, 121, 122 112 Hitachi HNS (Hughes) 104, 111 104 105 102, 103, 116 108 106, 109, 110 106, 109, 110 107 104, 108 101, 104, 117, 118, 119 102, 103 Digital Satellite Systems Codes Magnavox 102, 103 Cable Box Codes Programming your remote control Quick Setup 25 The remote control is programmed with VCR codes for power on/off, play, stop, fast-forward, rewind, pause, record, channel up/down operation. 1) Find the VCR brand from the list of codes shown below. 2) Slide the first 2-way selector switch to “TV” and the other 2-way selector switch to “VCR”. 3) Press and hold down the DISPLAY button, then enter the first code number listed with the 10 key pad. 4) Release the DISPLAY button, and confirm the operation of the VCR. • If your VCR does not respond to the first code, try the others listed. If it does not respond to any of the codes, try the search codes function on page 27. • After you program your remote, some VCR buttons may not work properly. If so, use the VCR’s remote. • To record, hold down the REC button on the remote and press PLAY. VCR Codes Admiral Aiwa Akai Audio Dynamic Bell & Howell Broksonic Canon CCE Citizen Craig Curtis Mathes Daewoo DBX Dimensia Emerson Fisher Funai G.E. Go Video Goldstar Hitachi Gradiente Instant Replay Jensen 035 027, 032, 095 029, 072, 073, 074 003, 005 063, 071 020, 026, 094 023, 025 043 064 063, 029, 064 045, 024, 027, 093 043, 059, 024, 092 003, 004, 005 045, 093 043, 026, 077, 061, 025, 042, 020, 076 063, 066, 067, 065, 071, 091 027, 026, 020, 000 033, 045, 024 037, 051, 049, 050, 089 064 083, 084, 081, 000, 001 023, 045, 058, 093, 027, 081 024, 023 003 JVC Kenwood 003, 004, 005, 000, 001, 002, 006, 007 003, 004, 064, 005 LXI 027, 064, 058, 065, 066, 063, 067 VCR Codes Magnavox Marantz Marta Memorex MGA Minolta Mitsubishi Multitech NEC Olympic Optimus Orion Panasonic Penney Pentax Philco Philips Pioneer Proscan Quasar Radio Shack 031, 023, 024, 086 003, 004, 005 064 024, 067 038, 040, 047, 048, 041, 042 058, 045, 093 038, 040, 047, 048, 041, 042, 078, 090 047, 027, 062 003, 004, 005, 000 024, 023 028, 021, 035, 064 026, 020 023, 024, 021, 022 024, 058, 045, 063, 003, 004, 005, 093 058, 005, 045, 093 031, 024, 027, 023, 026, 020, 043 031, 023, 024, 086 023 045, 058, 023, 024, 031, 046, 059, 060, 093, 033, 087 021, 022, 023, 024 033, 024, 063, 036, 067, 040, 027 RCA 033, 045, 058, 023, 024, 031, 046, 059, 060, 083, 084, 085, 087, 093, 096 Realistic 024, 063, 036, 067, 040, 027 Codes Samsung Samtron Sansui Sanyo Scott Sears Sharp Signature 2000 Sony Singer SV 2000 Sylvania Symphonic Tashiro Tatung Teac Technics Teknika Toshiba Vector Research Wards 037, 060, 062, 033, 089 089 003, 026, 020, 052 063, 067, 091, 071 059, 060, 062, 067, 038, 040, 047, 048, 026, 020 063, 064, 065, 066, 058 Shintom 075 035, 036, 080, 088 027, 035 075 028, 029, 030, 053, 054, 055 027 031, 023, 024, 027 027, 081 064 003, 004, 005 003, 004, 027, 005 021, 022, 023, 024 024, 027, 070 059, 046, 079 005 035, 036, 067, 044, 064 Yamaha 063, 003, 004, 005 Zenith 044, 082, 064, 094 Codes LG 064 Thomson 033, 096 VCR VCR Quick Setup 26 The remote control is programmed with DVD codes for power on/off, play, stop, fast-forward, rewind, previous/next chapter, tray open/close, and still/pause operation. 1) Find the DVD player brand from the list of codes shown below. 2) Slide the first 2-way selector switch to “TV” and the other 2-way selector switch to “DVD”. 3) Press and hold down the DISPLAY button, then enter the first code number listed with the 10 key pad. 4) Release the DISPLAY button, and confirm the operation of the DVD player. • If your DVD player does not respond to the first code, try the others listed. If it does not respond to any of the codes, try the search codes function on page 27. • After you program your remote, some DVD buttons may not work properly. If so, use the DVD player’s remote. DVD Codes Codes DVD Player Codes Codes Aiwa 043 Apex 040, 054, 055 Denon 020, 037 Hitachi 031 JVC 000 Kenwood 035, 020 Konka 039 Mitsubishi 025 Onkyo 041, 052 Oritron 044 Panasonic 020 Philips 023, 036 Pioneer 022 Raite 033 RCA 021, 026 Sampo 034 Samsung 030 Sharp 028 Silvania 038 Sony 024, 045, 046, 047 Technics 020 Toshiba 023 Wave 042 Yamaha 020, 049 Zenith 027, 032 Vialta 050 Bose 058 Funai 038 Go–Video 032 Harman Kardon 053 KLH 051 Koss 050 Mintek 057 Next Base 056 Polk Audio 036 SMC 048 Thomson 021 Venturer 051 DVD Player DVD Player Quick Setup 27 Cable/Satellite Search Codes Function 1) Slide the first 2-Way Mode Selector switch to CATV. 2) Press the POWER and RETURN+/TV buttons. Hold for at least three seconds and release. 3) Press the POWER button on the remote, and see if the cable or satellite box responds. 4) If there was a response, press RETURN+/TV. The codes are now set. If there was no response, repeat Step 3. If you repeat Step 3 a total of 80 times without a response, use the remote control that came with your equipment. 5) Press RETURN+/TV to exit. VCR/DVD Search Codes Function 1) Slide the first 2-way selector switch to “TV” and the other 2-way selector switch to “VCR” or “DVD”. 2) Press the VCR or DVD POWER and RETURN+/TV buttons. Hold for at least three seconds and release. 3) Press the VCR or DVD POWER button, and see if the VCR or DVD responds. 4) If there was a response, press RETURN+/TV. The codes are now set. If there was no response, repeat Step 3. If you repeat Step 3 a total of 80 times for the VCR (40 times for the DVD player), and there is no response, use the remote control that came with your equipment. 5) Press RETURN+/TV to exit. Search Codes Quick Setup 28 Onscreen Menus To bring up the onscreen menu, press the MENU button on the remote control. The item that appears in green is the one currently selected. If you use the Menu button on the TV’s side panel instead of the remote, an additional menu screen showing VIDEO STATUS and ASPECT will appear between INITIAL SETUP and PICTURE ADJUST. The “interactive plug-in menu” will appear the first time the TV is plugged in. Note: • Menus shown in this book are illustrations, not exact replications of the television’s onscreen displays. Certain symbols are used throughout this guide to help you learn about the features of your new television. The ones you will see most frequently are: π† Up and Down arrows mean press the CH+ or CH– buttons. Pressing the CH+ or CH– buttons let you: • Move vertically in a main menu screen • Move through a submenu screen • Move to the next letter, number, or other choice in a submenu • Back up to correct an error • Scan through TV channels (when not in a menu screen) √® Left and right arrows mean press the VOLUME+ or VOLUME- buttons to move left or right to: • Select a highlighted menu item • Select an item in a submenu • Select numbers in certain menu options • Turn the volume up or down (when not in a menu screen) The “press button” icon means you should press the button named on your remote control. (Button names appear in SMALL CAPITAL LETTERS.) The “helping arrow” icon points to the highlighted or selected item in a menu. Using the Guide INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (4/5) AUTO TUNER SETUP CHANNEL SUMMARY V-CHIP SET LOCK CODE 29 Your television comes with JVC’s onscreen menu system. The onscreen menus let you make adjustments to your television’s operation simply and quickly. Examples of the onscreen menus are shown on the next page. Detailed explanations on using each menu follow later in this guide. For information about the interactive plug-in Menu, see pages 21 - 23. Onscreen Menus The Onscreen Menu System To open the onscreen menu system, press the MENU button on the remote control. You navigate within the onscreen menus by using the four directional arrow buttons on the remote control. (These buttons are also the CH +/– and VOL +/– buttons. Channel and volume functions will not operate when the onscreen menu is active). The selected feature and option on a menu screen are highlighted in a different color. To move to a different feature use the π† arrows to move up or down the list. When you press the up arrow at the top of the list or the down arrow at the bottom, the next menu screen will appear. Use the arrows √ ® to select an option from the highlighted feature. Pressing MENU on the remote control will close the onscreen menu system and return you to normal television viewing. Each menu and its features will be discussed in the following pages of this guide. Notes: • If you do not press any buttons for about a minute, the onscreen menu will automatically shut off. • Button names in this guide are shown in SMALL CAPITAL LETTERS. • Menus may appear in different sizes onscreen depending on the aspect ratio selected. • Some menu items may not appear in menu screens when certain aspect ratios or inputs are selected. Selected Option (Green) Selected Option (Blue) The Onscreen Menu System LANGUAGE CLOSED CAPTION ENG. FRAN. ESP. 30 TINT COLOR PICTURE BRIGHT DETAIL ENERGY SAVER MODE PICTURE ADJUST SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS 00 00 00 00 00 STANDARD (1/3) PICTURE ADJUST 01 SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS STANDARD PICTURE ADJUST (2/3) LOW ON ON ON COLOR TEMPERATURE COLOR MANAGEMENT DYNAMIC GAMMA SMART PICTURE PICTURE ADJUST 02 BASS TREBLE BALANCE SOUND ADJUST SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS 00 00 00 (1/2) SOUND ADJUST 01 INITIAL SETUP 05 INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (5/5) DIGITAL SETUP CLOCK / TIMERS SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS SET CLOCK ON / OFF TIMER CLOCK/TIMERS INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (4/5) AUTO TUNER SETUP CHANNEL SUMMARY V-CHIP SET LOCK CODE INITIAL SETUP 04 INITIAL SETUP 03 INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (3/5) LANGUAGE CLOSED CAPTION AUTO SHUT OFF XDS ID ENG. FRAN. ESP. OFF ON INITIAL SETUP 02 INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (2/5) NOISE MUTING FRONT PANEL LOCK VIDEO INPUT LABEL POSITION ADJUSTMENT POWER INDICATOR ON OFF LOW SOUND ADJUST 02 TURN ON VOLUME VOLUME LIMIT RESET SOUND ADJUST SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (2/2) 10 40 SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS STANDARD PICTURE ADJUST (3/3) DIGITAL VNR MPEG NR RESET AUTO ON PICTURE ADJUST 03 Press the MENU button Onscreen Menus • The DIGITAL-IN menu can only be displayed when a 480p picture signal is input to the digital-in terminal and the picture is being displayed on the screen. • When the Menu button on the TV side panel is pressed, the FRONT PANEL CONTROL menu between INITIAL SETUP 05 and PICTURE ADJUST 01 will appear. INITIAL SETUP 01 INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (1/5) DIGITAL-IN DIGITAL-IN1 AUDIO SIZE1 DIGITAL 31 Onscreen Menus Auto Tuner Setup The auto tuner setup function is described on page 23 as the interactive plug-in menu. If you need to run the auto tuner setup again, follow the steps below. Press the MENU button π† To AUTO TUNER SETUP √® To operate √® To choose CABLE or AIR Press the OK button to start The auto tuner is finished when the message PROGRAMMING OVER! appears onscreen. AUTO TUNER SETUP OPERATE EXIT MENU AIR TUNER MODE PRESS OK TO START Note: • Auto Tuner Setup in Digital Cable will take approximately 14 minutes. 32 Channel Summary Channel summary allows you to customize the line-up of channels received by your TV. Regarding analog channels, you can add or delete channels from the line-up or prevent any unauthorized viewers from watching any or all 181 channels. Regarding digital channels, the only channels that will appear are the ones that are broadcasting. Press the MENU button π† To CHANNEL SUMMARY √® To operate The Channel summary screen will now be displayed with the channels set to scan marked with an “√”. Regarding analog channels, you can delete channels from the scan by removing the “√”. If any channels were missed during auto tuner setup and you wish to add them, you may by placing an “√” next to the channel number. • Digital channels can not be added to the channel summary if the auto tuner setup did not find them. π† √® To the SCAN column Press the OK button to include or delete from scan Press the MENU button when finished CHANNEL SUMMARY 06 07 08 09 10 CHNO. SELECT OPERATE EXIT MENU 01 02 03 04 05 OK SCAN CHNO. SCAN ID ID MTV A&E E! HBO L Channel Summary Digital CH No. Select Back BACK Exit MENU Scan CH-1 CH-2 CH-3 CH-1 Station Name D3-1 D3-2 D3-3 D22-1 Operate OK Analog Channels Digital Channels Note: • The number of a digital channel may change, depending on the time of some broadcastings. If this channel existed and now had disappeared, the lock channel or scanned channel by the channel summary for that channel will be cancelled. Onscreen Menus 33 How to set the channel label. (This is only for analog broadcasting.) Press the MENU button π† To CHANNEL SUMMARY √® To operate π† To the ID column Press the OK button to enter √® To select the character you want π† To move to the next space ...continue to follow these directions for all four spaces Press the OK button to finish Your characters are now set Press the MENU button when finished If you want to reset the characters you set: Press the MENU button π† To CHANNEL SUMMARY √® To operate π† To the ID column Press the OK button to enter π† To select RESET Press the OK button to finish Your characters are now reset Notes: • You can use characters for: Alphabet, numbers, marks and spaces. • It is possible to set the maximum of 40 channel labels. • If you try to set more than the 40 maximum, the message "MEMORY OVERFLOW" will appear. You can block access to a channel by activating the channel lock. Press the MENU button π† To CHANNEL SUMMARY √® To operate π† √® To the Lock Column ( ) Press the ZERO button to lock or unlock that channel Press the MENU button when finished ID PRESS TO FINISH SELECT OPERATE EXIT MENU OK CHANNEL 09 RESET Onscreen Menus 34 When a viewer attempts to watch a guarded channel, the following message appears: To watch a channel that you have locked, enter the Lock Code using the 10 key pad. If the wrong code is entered, the message “INVALID LOCK CODE!” will flash on the screen. The channel cannot be accessed until the correct code is entered. Notes: • Once a channel has been unlocked, it will remain unlocked until the television is turned off. • See also “Set Lock Code”, page 40. Onscreen Menus Channel Guard Message V-Chip THIS CHANNEL IS LOCKED BY CHANNEL GUARD. PLEASE ENTER LOCK CODE BY 10 KEY PAD TO UNLOCK IT. NO. - - - - You can customize the V-Chip settings of your television to match your personal tastes. The V-Chip menu below is the starting point for your V-Chip settings You can use US V-Chip settings (for programming broadcast from the United States), Canadian V-Chip settings (for programming broadcast from Canada), and movie ratings. You may use any or all of the settings (US V-Chip, Canada V-Chip, Movie ratings). Descriptions for setting each of the three V-Chip formats appear in the next six pages along with descriptions of the rating categories. To access the rating categories: Press the MENU button π† To V-CHIP √® To operate (Lock icon will appear) Press ZERO to access the V-Chip menu √® To turn V-Chip ON or OFF (V-Chip must be turned ON for rating settings to operate) π† To move to SET US TV RATINGS, SET MOVIE RATINGS, or SET CANADIAN RATINGS (see following pages for descriptions of each item) Your TV is equipped with V-Chip technology which enables you to block channels or content that you feel to be inappropriate for children, based on US and Canada rating guidelines. V-Chip has no effect on video signals from DVD discs or Camcorder connection. V-CHIP SET US TV RATINGS SET MOVIE RATINGS SET CANADIAN RATINGS ENG SET CANADIAN RATINGS FRE UNRATED V-CHIP SELECT OPERATE EXIT MENU VIEW OFF Note: Some programs, and movies are broadcast without a ratings signal. Even if you set up V-CHIP ratings limits, these programs will not be blocked. See page 35 for information on how to block unrated programs. Note (for Canadian viewers): The V-Chip function is based on specifications designed for the United States and therefore may not work properly in Canada. 35 You can block programs that are not rated. Press the MENU button π† To V-CHIP √® To operate (The lock icon appears) Press ZERO to access V-Chip setup options π† To UNRATED √® To VIEW or BLOCK Press MENU when done Directions to Block Unrated Programs Onscreen Menus Unrated Programs Unrated programming refers to any programming which does not contain a rating signal. Programming on television stations which do not broadcast rating signals will be placed in the “Unrated Programming” category. Examples of Unrated programs: • Emergency Bulletins • Locally Originated Programming • News • Political Programs • Public Service Announcements • Religious Programs • Sports • Weather • Some Commercials Note: • TV programs or movies that do not have rating signals will be blocked if the unrated category is set to BLOCK. V-CHIP SET US TV RATINGS SET MOVIE RATINGS SET CANADIAN RATINGS ENG SET CANADIAN RATINGS FRE UNRATED V-CHIP SELECT OPERATE EXIT MENU VIEW OFF 36 U.S. PARENTAL RATING SYSTEMS Programs with the following ratings are appropriate for children. ❒ TV Y is Appropriate for All Children Programs are created for very young viewers and should be suitable for all ages, including children ages 2 - 6. ❒ TV Y7 is for Older Children Most parents would find such programs suitable for children 7 and above. These programs may contain some mild fantasy violence or comedic violence, which children should be able to discern from reality. Programs with the following ratings are designed for the entire audience. ❒ TV G stands for General Audience Most parents would find these programs suitable for all age groups. They contain little or no violence, no strong language, and little or no sexual dialog or situations. ❒ TV PG Parental Guidance Suggested May contain some, but not much, strong language, limited violence, and some suggestive sexual dialog or situations. It is recommended that parents watch these programs first, or with their children. ❒ TV 14 Parents Strongly Cautioned Programs contain some material that may be unsuitable for children under the age of 14 including possible intense violence, sexual situations, strong coarse language, or intensely suggestive dialog. Parents are cautioned against unattended viewing by children under 14. ❒ TV MA Mature Audiences Only These programs are specifically for adults and may be unsuitable for anyone under 17 years of age. TV MA programs may have extensive V, S, L, or D. US V-Chip Ratings Onscreen Menus Viewing Guidelines In addition to the ratings categories explained above, information on specific kinds of content are also supplied with the V-Chip rating. These types of content may also be blocked. The content types are: • V/FV is for VIOLENCE/FANTASY VIOLENCE • S stands for SEXUAL CONTENT • L stands for strong LANGUAGE • D stands for suggestive DIALOG 37 Onscreen Menus Line up the cursor in the column (TV PG, TV G, etc.) with the content row (V/FV, S, etc.) and press the π† or √® to move the cursor to the correct location. Press OK to turn the locking feature on or off. An item is locked if the icon appears instead of a “—”. For example. To block viewing of all TV 14 shows, move the cursor to the top row of that column and add a lock icon. Once you’ve put a lock on the top row, everything in that column is automatically locked. π† √® To the TV 14 Column Press the OK button to lock Press the MENU button when finished Note: • If you want to change the setup, move the cursor to the top column and change the lock icon to “—” by pressing OK again. You may then select individual categories to block. Directions to set US V-Chip Ratings Press the MENU button π† To V-CHIP √® To operate (lock icon appears) Press ZERO to access the V-Chip menu √® To turn V-Chip ON or OFF π† To move to SET US TV RATINGS √® To operate Setting US V-Chip Ratings V/FV S L D SET US TV RATINGS SELECT OPERATE EXIT MENU TV MA TV 14 TV PG TV G TV Y7 TV Y OK V-CHIP SET US TV RATINGS SET MOVIE RATINGS SET CANADIAN RATINGS ENG SET CANADIAN RATINGS FRE UNRATED V-CHIP SELECT OPERATE EXIT MENU VIEW OFF 38 Onscreen Menus ❒ NR – Not Rated This is a film which has no rating. In many cases these films were imported from countries which do not use the MPAA ratings system. Other NR films may be from amateur producers who didn’t intend to have their film widely released. NR (Not Rated) Programming may contain all types of programming including children’s programming, foreign programs, or adult material. ❒ G – General Audience In the opinion of the review board, these films contain nothing in the way of sexual content, violence, or language that would be unsuitable for audiences of any age. ❒ PG – Parental Guidance Parental Guidance means the movie may contain some contents such as mild violence, some brief nudity, and strong language. The contents are not deemed intense. ❒ PG-13 – Parents Strongly Cautioned Parents with children under 13 are cautioned that the content of movies with this rating may include more explicit sexual, language, and violence content than movies rated PG. ❒ R – Restricted These films contain material that is explicit in nature and is not recommended for unsupervised children under the age of 17. ❒ NC-17 – No One Under 17 These movies contain content which most parents would feel is too adult for their children to view. Content can consist of strong language, nudity, violence, and suggestive or explicit subject matter. ❒ X – No One under 18 Inappropriate material for anyone under 18. Movies Ratings Press the MENU button π† To V-CHIP √® To operate (Lock icon appears) Press ZERO to access V-Chip setup options π† To SET MOVIE RATINGS √® To enter movies menu For example: To block viewing of programming rated NC-17 shows, move the cursor to the NC-17 column and add a lock icon. Once you've put a lock on the NC-17 column, X column is automatically locked. π† √® To the NC-17 Column Press the OK button to lock Press the MENU button to finish • If you want to change the setup, move the cursor to the column and change the lock icon to “—” by pressing OK again. Directions to set Movie (MPAA) Ratings SET MOVIE RATINGS SELECT OPERATE EXIT MENU X NC17 R PG G PG13 NR OK 39 Press the MENU button π† To V-CHIP √® To operate (lock icon appears) Press ZERO to access V-Chip setup options π† To SET CANADIAN RATINGS ENG (for English) √® To enter ratings menu For example: To block viewing of programming rated 14+ shows, move the cursor to the 14+ column and add a lock icon. Once you've put a lock on the 14+ column, 18+ column is automatically locked. √® To the 14+ Column Press the OK button to lock Press the MENU button to finish Notes: • If you want to change the setup, move the cursor to the column and change the lock icon to “—” by pressing OK again. • For instructions on “SET CANADIAN RATINGS FRE (in French)”, please see page 39 in the French side of this user’s guide. Directions to set Canadian V-Chip Ratings ❒ E – Exempt Exempt programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming. ❒ C – Programming Intended for Children Violence Guidelines: There will be no realistic scenes of violence. Depictions of aggressive behavior will be infrequent and limited to portrayals that are clearly imaginary, comedic or unrealistic in nature. ❒ C8+ – Programming Intended for Children 8 and Over Violence Guidelines: Any realistic depictions of violence will be infrequent, discreet, of low intensity and will show the consequences of the acts. There will be no offensive language, nudity or sexual content. ❒ G – General Audience Programming will contain little violence and will be sensitive to themes which could affect younger children. ❒ PG – Parental Guidance Programming intended for a general audience, but which may not be suitable for younger children. Parents may consider some content not appropriate for children aged 8-13. ❒ 14+ – 14 Years and Older Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens. Programming may contain mature themes and scenes of intense violence. ❒ 18+ – Adult Material intended for mature audiences only. Canadian V-Chip Ratings Onscreen Menus 14+ 18+ PG G C C8 SET CANADIAN RATINGS ENG SELECT OPERATE EXIT MENU OK 40 Channel guard and V-Chip settings are protected by a four-digit lock code. Your TV comes preset with a lock code of “0000”. You may change the code to any four-digit number you wish. To change the lock code, follow the steps below. Press the MENU button π† To SET LOCK CODE √® To operate (lock icon appears) Press ZERO to access the lock code The first digit will be highlighted √® To select the number π† To move to the next digit Continue to follow these directions for all four numbers Press the OK button to finish (your lock code is now set) Press the Menu button when finished • After a power interruption you must reset the lock code. • Write your lock code number down and keep it hidden from potential viewers. • If you forget the lock code, a new code may be set using the steps listed above. Notes: When a viewer attempts to watch a blocked channel, this message appears: The channel will remain blocked until the correct lock code is entered (see above for information on setting your lock code). Onscreen Menus Set Lock Code LOCK CODE SET LOCK CODE SELECT OPERATE EXIT MENU PRESS TO FINISH 0000 OK THIS PROGRAMMING EXCEEDS YOUR RATING LIMITS. PLEASE ENTER LOCK CODE BY 10 KEY PAD TO UNLOCK IT. NO. - - - - 41 Onscreen Menus The language function is described on page 21 as the interactive plug-in menu. If you need to choose the language again, follow the steps below. Press the Menu button π† To LANGUAGE √® To choose a language: ENG. (English), FRAN. (French) or ESP. (Spanish) Press the MENU button when finished Language INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (3/5) LANGUAGE CLOSED CAPTION AUTO SHUT OFF XDS ID ENG. FRAN. ESP. OFF ON 42 Onscreen Menus Press the MENU button π† To CLOSED CAPTION √® To enter π† To MODE √® To select CAPTION or TEXT in MODE π† To CAPTION or TEXT √® To select a caption (CC1 to CC4) or text channel (T1 to T4) Press the OK button to save Press the MENU button when finished Many broadcasts now include an onscreen display of dialog called closed captions. Some broadcasts may also include displays of additional information in text form. Your television can access and display this information using the closed caption feature. To activate the closed caption feature, follow the steps below. There are three methods. When you are watching analog channels, you can perform Analog Setting of closed caption. When you are watching digital channels, you can perform Digital Auto Setting or Digital Manual Setting. Closed Caption Analog Setting Digital Auto Setting Press the MENU button π† To CLOSED CAPTION √® To enter π† To Type √® To select Auto, Advanced or Basic Auto: Shows closed caption a priority for digital channels over analog channels. It is set automatically. Advanced: Shows only the digital closed caption. Basic: Shows only the analog closed caption. π† To Service √® To select 1, 2, 3, 4, 5 or 6 π† To Appearance √® To enter √® To select Auto π† To Set Press the OK button to save The font/type and color are set automatically. Press the MENU button when finished Note: • If you want to cancel the settings, select cancel. CLOSED CAPTION SELECT OPERATE EXIT MENU PRESS TO FINISH OK TEXT MODE CAPTION TEXT CC1 T1 Digital Closed Caption Preview Select Back BACK Exit MENU Operate Closed Caption Sample 1 Cancel Set AUTO Type Service Appearance Digital Closed Caption > Appearance Preview Select Back BACK Exit MENU Closed Caption Sample Auto Cancel Set Appearance Mode Font Colors Opacities Operate 43 • Closed caption subtitles are usually found on closed caption channel CC1. Some programs may include additional text information which is usually found on text channel T1. The other channels are available for future use. • Closed captioning may not work correctly if the signal being received is weak or if you are playing a video tape. • Most broadcasts containing closed captioning will display a notice at the start of the program. • To select the mode, press the C.C. button. See page 63. • When ZOOM aspects like PANORAMA or CINEMA are selected, Digital Closed Captions may be cut off or distorted. Notes: Press the MENU button π† To CLOSED CAPTION √® To enter π† To Type √® To select Auto, Advanced or Basic π† To Service √® To select 1, 2, 3, 4, 5 or 6 π† To Appearance √® To enter √® To select Manual π† To Font √® To enter π† To select Font Size or Font Style √® To select the setting you like Font Size: Auto, Standard, Large or Small Font Style: Auto, Serif Mono, Serif, Sanserif mono, Sanserif, Casual, Cursive or Small Capital π† To Set Press the OK button to save π† To Colors √® To enter π† To select Text, Edge or Background √® To select the setting you like Auto, White, Black, Red, Green, Blue, Yellow, Magenta or Cyan π† To Set Press the OK button to save π† To Opacities √® To enter π† To select Text/Edge or Background √® To select Auto, Transparent, Translucent, Solid or Flashing π† To Set Press the OK button to save Press the MENU button when finished Digital Manual Setting Digital Closed Caption > Appearance Preview Select Back BACK Exit MENU Closed Caption Sample Manual Cancel Set Appearance Mode Font Colors Opacities Operate Digital Closed Caption > Appearance Preview Select Back BACK Exit MENU Closed Caption Sample Manual Cancel Set Appearance Mode Font Colors Opacities Operate Cancel Set Standard Auto Font Size Font Style Digital Closed Caption > Appearance Preview Select Back BACK Exit MENU Closed Caption Sample Manual Cancel Set Appearance Mode Font Colors Opacities Operate Cancel Set Text Edge Background White White Black Onscreen Menus All fonts used for digital closed caption and digital menus are licensed from Monotype Imaging Inc. 44 Onscreen Menus This function automatically shuts off your TV when there is no signal from the channel the TV is on. Press the MENU button π† To AUTO SHUT OFF √® To turn ON or OFF Press the MENU button when finished • If the channel that you have on does not receive a signal for more than one minute, the blinking text “NOT RECEIVING A SIGNAL AUTO SHUT OFF IN 9 MIN.” appears on the screen, and starts the countdown. If no signal is being received within 10 minutes, the TV shuts itself off. Auto Shut Off INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (3/5) LANGUAGE CLOSED CAPTION AUTO SHUT OFF XDS ID ENG. FRAN. ESP. OFF ON XDS ID Display provides a channel’s call letters, the network’s name, and even a program name. The XDS ID information is provided by the broadcaster. Press the MENU button π† To XDS ID √® To turn ON or OFF Press the MENU button when finished XDS ID INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (3/5) LANGUAGE CLOSED CAPTION AUTO SHUT OFF XDS ID ENG. FRAN. ESP. OFF ON 45 Onscreen Menu This allows you to lock the keys on the side of the TV, so that a child may not accidentally change your viewing preferences. Press the MENU button π† To FRONT PANEL LOCK √® To turn ON or OFF Press the MENU button when finished Front Panel Lock You can turn off this feature in the following ways: • Unplug the power cord, and plug it back in. Do this if your batteries die, or you lose your remote control. • Use the remote control. • Press the MENU button on the side of the TV for more than 3 seconds. In this case, the OSD for FRONT PANEL LOCK will appear. Note: • To turn ON/OFF the TV, press the power button for more than 3 seconds. This feature will remain ON. INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (2/5) NOISE MUTING FRONT PANEL LOCK VIDEO INPUT LABEL POSITION ADJUSTMENT POWER INDICATOR ON OFF LOW This feature inserts a blank gray screen over channels which are not broadcasting or are too weak to be received clearly. Press the MENU button π† To NOISE MUTING √® To turn noise muting ON or OFF Press the MENU button when finished Notes: • Noise muting will not work during auto tuner setup or when you operate channel summary. • Noise muting will not work when the digital TV is displayed. INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (2/5) NOISE MUTING FRONT PANEL LOCK VIDEO INPUT LABEL POSITION ADJUSTMENT POWER INDICATOR ON OFF LOW Noise Muting 46 Onscreen Menus This function is used to label video input connections for the onscreen displays. Press the MENU button π† To VIDEO INPUT LABEL √® To enter π† To select the desired video input √® To select the desired preset input label (see chart below) Press the OK button to save Press the MENU button when finished INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (2/5) NOISE MUTING FRONT PANEL LOCK VIDEO INPUT LABEL POSITION ADJUSTMENT POWER INDICATOR ON OFF LOW Video Input Label Preset Labels VCR DVD PVR DVHS STB SAT AMP GAME CAM DISC You have a VCR connected to the video input You have a DVD connected to the video input You have a Personal Video recorder connected to the video input You have a Digital VCR connected to the video input You have a Set-top Box connected to the video input You have a Satellite Receiver connected to the video input You have an Amplifier connected to the video input You have a Video Game connected to the video input You have a Video Camera connected to the video input You have a Video Disc player connected to the video input Select when... VIDEO INPUT LABEL SELECT OPERATE EXIT MENU PRESS TO FINISH OK VCR DVD SAT STB STB VIDEO-1 VIDEO-2 VIDEO-3 DIGITAL-IN1 DIGITAL-IN2 47 Onscreen Menus Position adjustment allows you to adjust the position of the picture on the screen vertically when the aspect is set to panorama or cinema. Press the MENU button π† To POSITION ADJUSTMENT √® To enter π† To adjust the position Press the MENU button to finish Notes: • To reset the adjustment to the center, press the OK button. • When the arrow disappears, while you are adjusting the position, the position is at its maximum limit. • If you select Regular size, Slim size and Full size with aspect or Multi Screen, position adjustment option is not seen. • When you change the screen size, perform the position adjustment again. • Position adjustment allows you to adjust the screen position vertically and horizontally when the aspect is set Panorama Zoom or Cinema Zoom for 1080i and 720p signals. Position Adjustment OPERATE RESET EXIT OK MENU Power indicator allows you to adjust the brightness of the power indicator Press the MENU button π† To POWER INDICATOR √® To adjust POWER INDICATOR LOW, HIGH or OFF Notes : • When OFF is selected : The LED disappears if you have a TV signal. The LED is lit as “LOW” when there is no TV signal. • When the On Timer turns ON, the LED is lit as "LOW" when you turn the power off. • If you set a timer on the TV, the power indicator will light even if the TV is on stand by. Power Indicator INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (2/5) NOISE MUTING FRONT PANEL LOCK VIDEO INPUT LABEL POSITION ADJUSTMENT POWER INDICATOR ON OFF LOW 48 Onscreen Menus This feature is used if you have a DTV or HDMI compatible component connected to your TV. Press the MENU button π† To DIGITAL-IN1 AUDIO √® To select ANALOG, DIGITAL or AUTO Press the Menu button when fi nished Notes: • If you connect the HDMI device to the HDMI 1, choose DIGITAL. If you connect the DVI device to the HDMI 1, choose ANALOG. • Refer to your DTV or HDMI component’s instruction manual for more information. • When you select AUTO, the television will select "ANALOG" or "DIGITAL" automatically, depending on the audio input from the HDMI. • When you select DIGITAL, select PCM on Digital Sound menu. See page 50. INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (1/5) DIGITAL-IN DIGITAL-IN1 AUDIO SIZE1 DIGITAL The DIGITAL-IN option can only be displayed in the INITIAL SETUP menu when an HDMI480p picture signal is being input to the DIGITAL-IN terminal. This option adjusts the position when an HDMI or DVI 480p picture signal is being displayed on the screen. There are two types of HDMI480p picture signals: 640x480 and 720x480. If the displayed picture is slightly shifted, the position can be adjusted by selecting either SIZE1 or SIZE2. Press the MENU button π† To DIGITAL-IN √® To enter π† To select AUTO, SIZE1 or SIZE2 Press the MENU button to finish Digital-In Digital-in1 Audio INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (1/5) DIGITAL-IN DIGITAL-IN1 AUDIO SIZE1 DIGITAL Notes: • The DIGITAL-IN menu can only be displayed when a HDMI or DVI 480p picture signal is input to the Digital-In terminal and the picture is being displayed on the screen. • You can select AUTO only when the signal is 480p for HDMI. When you select AUTO, the televison will select "SIZE1" or "SIZE2" automatically. 49 Use this function when you are receiving a digital broadcast. Press the MENU button π† To DIGITAL SETUP √® To enter The onscreen will appear Notes: • Software Update will only appear when the SD Card is inserted. • If you are watching an analog channel, you can still access the digital setup menu at anytime, while you are doing this, the background screen will turn blank. In this case, the tuner will switch to digital, since you are accessing the digital setup menu. Digital Setup Select Back BACK Exit MENU Operate PCM Antenna Level Digital Sound Software Version Software Update Confirms the present antenna level. Press the MENU button π† To DIGITAL SETUP √® To enter π† To Antenna Level √® To enter Antenna Level Back BACK Exit MENU 75 Antenna Level Digital Setup Onscreen Menus 50 You can confirm the Software Version. Press the MENU button π† To DIGITAL SETUP √® To enter π† To Software Version √® To enter √® Select close when you are finished confirming your software version Press the MENU button when finished Software Version Digital Sound Manufactured under license from Dolby Laboratories. "Dolby", and the double-D symbol are trademarks of Dolby Laboratories. You can select the optical digital sound output, either PCM or Dolby Digital when your TV is connected to an amplifier that has Dolby Digital decoder. If you select Dolby Digital, you can enjoy listening in 5.1ch sound when watching digital broadcasts. Press the MENU button π† To DIGITAL SETUP √® To enter π† To Digital Sound √® To select PCM or DOLBY DIGITAL Press the MENU button when finished Notes: • If your amplifier does not have Dolby Digital decoder, select PCM. If you don't select PCM, it cannot output the sound from the speakers. • For connecting an amplifier using the optical output, see page 20. Onscreen Menus At first, insert the SD(Multi-media) card into the memory card slot. This function will appear only when you insert an SD Card. Press the MENU button π† To DIGITAL SETUP √® To enter π† To Software Update √® To enter π† Checks the card if it needs an update or not Press the MENU button when finished Software Update 51 Press the MENU button π† To TINT, COLOR, PICTURE, BRIGHT, DETAIL or ENERGY SAVER MODE √ ® To enter √ ® To adjust the setting π† To move to the next setting Press the MENU button when finished These settings allow you to change and adjust the way the picture appears on your television. TINT Tint allows you to adjust the levels of red and green in your TV picture. COLOR The color function lets you make all the colors in the TV picture appear either more vivid or subtle. PICTURE Picture allows you to adjust the levels of black and white on the TV screen, giving you a darker or brighter picture overall. BRIGHT You can adjust the overall brightness of the TV picture with the Bright control. DETAIL The Detail feature adjusts the level of fine detail displayed in the picture. ENERGY SAVER MODE The energy saver mode adjusts the level of brightness on the TV screen. Picture Settings Adjust the Picture Settings Color Temperature You can decide how strong or dull the colors appear on the TV screen. Press the MENU button π† To COLOR TEMPERATURE √® To enter π† To set LOW or HIGH Press the MENU button when finished TINT COLOR PICTURE BRIGHT DETAIL ENERGY SAVER MODE PICTURE ADJUST SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS 00 00 00 00 00 STANDARD (1/3) TINT +02 COLOR TEMPERATURE LOW HIGH Onscreen Menus 52 Onscreen Menus Color Management This TV supports the COLOR MANAGEMENT function to ensure dull colors are compensated to produce natural hues. Press the MENU button π† To COLOR MANAGEMENT √® To enter π† To select the mode “ON" or "OFF" Press the MENU button when finished COLOR MANAGEMENT ON OFF Dynamic Gamma JVC's Dynamic Gamma Circuitry (DGC makes it easier to see dark areas when a picture has many dark areas, and makes it easier to see the bright areas when a picture has many bright areas. DGC is turned on, DGC analyzes and adjusts the total level of picture brightness balance, especially in dark areas where the level of grayscale is often lost, turning completely to black DGC automatically enhances the detail in these dark areas providing a more dynamic image with fi ner detail, so the optimum picture settings are automatically set for each picture. Normally use with DGC on. Press the MENU button π† To DYNAMIC GAMMA √® To enter π† To turn ON or OFF Press the MENU button when finished DYNAMIC GAMMA ON OFF Smart Picture Smart Picture detects the APL (Average Picture Level) and adjusts the contrast suitable for what you are watching. Press the MENU button π† To SMART PICTURE √® To enter π† To select the mode "ON" or "OFF" Press the MENU button when finished Note: • When you have "DYNAMIC" selected in the "VIDEO STATUS", Smart Picture is not selected. SMART PICTURE ON OFF 53 Onscreen Menus This function effects the block noise removal and mosquito NR (Noise Reduction) simultaneously. Press the MENU button π† To MPEG NR √® To enter π† To select ON or OFF Press the MENU button when finished Note: • When you are receiving digital channels, block noise removal will have no effect. This function can be selected to change the effect of Digital VNR (Video Noise Reduction). Press the MENU button π† To DIGITAL VNR √® To enter π† To select the effect you like. AUTO: adjusts the effect of VNR automatically. MIN: adjusts the effect of VNR to minimum. MAX: adjusts the effect of VNR to Maximum. OFF: turns the effect of VNR off. Press the MENU button when finished DIGITAL VNR AUTO MIN MAX OFF Digital VNR MPEG NR MPEG NR ON OFF Reset Reset resets all picture adjustments (tint, color, picture, bright, detail, color temperature, dig. noise clear, Color Management, Dynamic Gamma and Smart Picture) at once to the default settings. Press the MENU button π† To RESET √® To enter The onscreen menu disappears for a moment, and then the settings are reset to the default setting for all the picture adjustments. Press the MENU button when finished SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS STANDARD PICTURE ADJUST (3/3) DIGITAL VNR MPEG NR RESET AUTO ON 54 These settings allow you to change and adjust the sound on your television. BASS – You can increase or decrease the level of low-frequency sound in the TV’s audio with the bass adjustment. TREBLE – Use treble to adjust the level of high-frequency sound in your TV’s audio. BALANCE – Adjust the level of sound between the TV’s left and right speakers with the balance setting. Press the MENU button π† To BASS, TREBLE or BALANCE √ ® To adjust the setting π† To move to the next setting Press the MENU button when finished Note: • You can reset the sound adjustments (BASS, TREBLE and BALANCE) you set at once as the default setting when you select reset. See page 53. • You can adjust BALANCE only when A.H.S.+ is off. See page 60. Onscreen Menus Sound Settings Adjust the Sound Settings BASS TREBLE BALANCE SOUND ADJUST SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS 00 00 00 (1/2) Reset Reset resets all Sound Adjustments (Bass, Treble and Balance) at once to the default settings. See page 53 on how to use reset. Turn On Volume Volume Limit Turn On Volume allows you to set the volume level when you turn the TV on. Press the MENU button π† To TURN ON VOLUME √® To set Press the MENU button to finish Volume Limit allows you to set the maximum volume level. Press the MENU button π† To VOLUME LIMIT √® To set the maximum volume level Press the MENU button to finish Current 00 01 02 03 48 49 50 00 01 02 03 48 49 50 55 Onscreen Menus Set Clock The set clock function is described on page 22 as the interactive plug-in menu. You can choose to set the clock automatically or manually. If you need to set the clock again, follow the steps below. Press the MENU button π† To SET CLOCK √® To enter When you set the clock automatically, choose AUTO by pressing the √ or ® arrows. π† To TIME ZONE √® To select your time zone π† To D.S.T. (daylight savings time) √® To turn D.S.T. ON or OFF Press OK to finish Press the MENU button when finished When you set the clock manually, choose MANUAL by pressing the √ or ® arrows. π† To move to the hours √® To set the hours π† To move to minutes √® To set the minutes π† To TIME ZONE √® To select your time zone: (Atlantic, Eastern, Central, Mountain, Pacific, Alaska or Hawaii) π† To D.S.T. (daylight savings time) √® To turn D.S.T. ON or OFF Press OK to start clock Press the MENU button when finished SET CLOCK PRESS TO START CLOCK SELECT OPERATE EXIT MENU OK TIME -- : -- -- MODE TIME ZONE D.S.T. MANUAL ATLANTIC ON SET CLOCK PRESS TO FINISH SELECT OPERATE EXIT MENU OK TIME -- : -- -- MODE TIME ZONE D.S.T. AUTO ATLANTIC ON THANK YOU !! ATLANTIC EASTERN CENTRAL MOUNTAIN HAWAII ALASKA PACIFIC Notes: • D.S.T. can be used when it is set to ON in the SET CLOCK menu. • Only when the MODE set to AUTO, the Daylight Savings Time feature automatically adjusts your TV’s clock for Daylight Savings. The clock will move forward one hour at 2:00 am on the first Sunday in April. The clock will move back one hour at 2:00 am on the last Sunday in October. • You will have to reset the clock after a power interruption. You must set the clock before operating any timer functions. 56 The on/off timer lets you program your television to turn itself on or off. You can use it as an alarm to wake up, to help you remember important programs, or as a decoy when you’re not home. Press the MENU button π† To ON/OFF TIMER √® To enter (begins with ON TIME) √® To set the hour (AM/PM) you want the TV to turn on † To move to minutes √® To set the minutes † To accept ON TIME and move to OFF TIME (the time the TV will turn off). Set the OFF TIME the same way as ON TIME † To accept OFF TIME and move to CHANNEL √® To select channel † To ON VOLUME √® To set the volume level † To move to MODE √® Choose ONCE or EVERYDAY † To ON/OFF TIMER √® Choose YES to accept the timer setting, choose NO if you don’t wish to accept Press the OK button to finish Press the MENU button to exit the menu • The on/off time cannot be set to locked or guarded channels. • In order for the on/off timer to work, the clock must be set. • After a power interruption, the timer settings must be reset. • The digital channel is set only set to the marked channel in channel summary. • The blocked channel cannot be set. Notes: Onscreen Menus On/Off Timer ON TIME OFF TIME CHANNEL ON VOLUME MODE ON/OFF TIMER 7:00 PM 10:00 PM 03 CURRENT EVERYDAY NO ON/OFF TIMER SELECT OPERATE EXIT MENU PRESS TO FINISH OK 57 Button Functions Your television has two kinds of screen: SPLIT (2 channels) and INDEX (12 channels). Multi Screen Function Note: After you press any multiscreen buttons, if you press the menu button, only the picture adjust screen will appear. Split Activate the split-screen option by pressing SPLIT on the remote control. The channel (or input) you were watching before pressing SPLIT will appear on the left, the new channel will appear on the right. The sound will continue to come from the main screen channel (or input). To turn split-screen off and return to normal television viewing, press SPLIT again or press the BACK button. 07 MAIN SCREEN PICTURE V-1 SPLIT SCREEN PICTURE Notes: • If the signal that you are watching is coming from the HDMI input, you cannot enter the SWAP or INDEX mode. • Main Screen and Split Screen will not display the same channel or input at the same time. • Split screen will not display digital channel. • You can enter the SPLIT mode when the screen is in NORMAL or INDEX mode. • Split-screen functions will not work with locked channels or channels blocked by V-Chip ratings limits. A gray screen will display instead. • With split screen, the picture from the component terminal and DIGITAL-IN terminal will not be displayed. • The aspect of MAIN CHANNEL PICTURE becomes 16:9 when you input the picture of 480p, 720p and 1080i from the component terminal and DIGITAL-IN terminal. • After you press the SELECT button, and select SPLIT SCREEN when you press the OK button, select normal screen. If you don’t operate, the MAIN CHANNEL SCREEN will be automatically selected about 8 seconds later. • Aspect does not work in SPLIT mode. • When you press the Menu button in SPLIT mode, it appears only as Picture Adjust menu. 58 Button Functions This allows you to quickly look at up to 12 channels at a time so that you can decide which one to watch. Notes: • Only analog channel input signal will be displayed. • You can watch the channel added in channel summary. See page 32. Index 1 5 9 2 6 10 3 7 11 4 8 12 You can exchange the channel (or input) displayed in the split screen window for the main screen image by pressing the SWAP button. Note: • It will only work in SPLIT mode. Freeze Swap With SELECT, you can select the picture (channel) while viewing SPLIT screen. When you press SELECT button, the channel number on the top will be highlighted. Each press of SELECT will shift the channel. Select Pressing the FREEZE button causes the screen to change to the split-screen display with the still picture displayed on the right. In order to return to the normal display, press the FREEZE button once again. The MENU button allows you to access JVC’s onscreen menu system. Press MENU to activate the onscreen menu system. • See individual topics like “Sound Adjust” for specific information on using menus. Menu Back OK This button allows you to go back in the menu to change a selection or correct a mistake. This button confirms your selection when you are in one of the onscreen menus. 59 Button Functions Turns the TV on or off. Press the POWER button Note: • After turning the power on, you can not turn the power off for about one minute. Power Use the number buttons on the remote control to move directly to a specific channel. For example, to move to channel 12: 0 (Zero) 1 (One) 2 (Two) Number Buttons - 10Key Pad Tune Selects the signal input source for the television: VIDEO-1, 2, 3, DIGITAL-IN1 or DIGITAL-IN2 for video devices like VCRs, DVD players or camcorders. Press the INPUT button By every press of the INPUT button, you can change the input mode. Notes: • When you return to TV mode, press the RETURN +/TV button or direct 10 key pad or CHANNEL +/– button. • You can also access by pressing the INPUT button on the side of the TV instead of the remote control. Input Lets you decide the input channel and select it. After you press the number buttons on the remote, press the TUNE button. For example, to move to channel 12: 1 (One) 2 (Two) Press the TUNE button The TheaterPro D6500K color temperature technology function makes sure that the video you watch is set to the standard color temperature, so that what you see is as true to what the film to video editors intended it to be. Press the THEATERPRO button TheaterPro D6500K 60 Button Functions The RETURN+/TV button has three functions: Return - Returns to the channel viewed just before the channel currently onscreen. Return+ - Lets you program a specific channel to return to while scanning through the channels using the CH+ and CH– buttons. TV - Returns to the TV mode. Press the RETURN+/TV and hold for three seconds The channel currently active has been programmed as your return+ channel. Now scan through the channels using the CHANNEL+/– buttons. Press the RETURN+/TV You will return to your programmed channel. • To cancel your return+ channel, press and hold the RETURN+ button for three seconds. The message “RETURN CHANNEL CANCELLED!” will appear. • Return+ works only with the Channel+/– buttons. Pressing any number key will cancel return+. Return +/TV RETURN CHANNEL PROGRAMMED! By pressing the SOUND button, you can change the A.H.S.+ (Advanced Hyper Surround plus) mode, A.T.C. (Advanced Tone Correction), SMART SOUND or HYPER BASS on or off. A.H.S.+ - Adds a more spacious surround sound. Music gives basic effect and movie for more effect. A.T.C. - Reproduces distinctive sounds with tone correction. SMART SOUND - Decreases high sound levels, giving a regulated sound level. HYPER BASS - Increases bass levels, giving a richer, deeper bass. Press the SOUND button π† To select A.H.S.+, A.T.C., SMART SOUND or HYPER BASS √® To choose the setting Press the MENU when finished Sound Notes: • Smart Sound may become an unnatural effect, depending on the signal source. • You can adjust BALANCE only when A.H.S.+ is off. • When headphones are being used, HYPER BASS can not be selected. SOUND EFFECT SELECT OPERATE EXIT MENU A.H.S.+ A.T.C. SMART SOUND HYPER BASS MOVIE MUSIC OFF ON OFF ON OFF ON OFF 61 Button Functions The VIDEO STATUS button gives you a choice of four TV picture display settings, including a display of your own preferences. Standard - Resets the picture display to the factory settings. Dynamic - Gives a vivid picture with better contrast when viewing in a brightly lit room. Theater - Gives a rich, film-like look to video when viewing in a dimly lit room. Game - Used for when you are playing video games connected to your TV. Press the VIDEO STATUS button By every press of the VIDEO STATUS button, you change the mode. Note: • You can also change the mode by pressing the π† buttons. • Each mode is memorized for each input connected to the TV. • You can also access the FRONT CONTROL PANEL screen by using the MENU button on the side of the TV instead of the remote control. It appears between INITIAL SETUP and PICTURE ADJUST screen, and it has VIDEO STATUS and ASPECT menus. Choose VIDEO STATUS by pressing MENU† on the side panel and choose a mode by using the CHANNEL +/- buttons ( √ OPERATE ® ). • There are four video status settings: Dynamic, Standard, Theater and Game. Each video status setting has a separate memory for HD (1080i/720p) and SD (480p/480i) video signal. Each video status can be chosen along with your favorite picture settings (Tint, Color, Picture, Bright, Detail, etc.) – When an HD signal is displayed: Your HD settings are recalled for the video status you are using. – When an SD signal is displayed: Your SD settings are recalled for the video status you are using. – This function considers PIP and SPLIT screens as an SD signal. Video Status Natural cinema corrects the problem of blurred edges which may occur when viewing a program originally shot on film (such as motion pictures) or animation. If you notice blurring at the edges of these programs, press NATURAL CINEMA and set it to AUTO. Natural Cinema helps correct conversion errors that occur when film, which is shot at 24 frames-per-second, is broadcast at the television rate of 30 frames-per-second. Press the NATURAL CINEMA button Notes: The natural cinema mode is automatically set to “AUTO” in the following cases: • Turning on or off • Changing the channel or input mode • Using multi-screen functions Natural Cinema VIDEO STATUS STANDARD DYNAMIC THEATER GAME NATURAL CINEMA AUTO ON OFF 62 Button Functions The Sleep Timer can turn the TV off for you after you fall asleep. Program it to work in intervals of 15 minutes, for a total time of up to 180 minutes. Press the SLEEP button Sleep Timer Message 60 seconds before the automatic shutoff, this message will appear: You then have 60 seconds to press the SLEEP button to delay the shut off for another 15 minutes. Sleep Timer GOOD NIGHT!! PUSH SLEEP TIMER BUTTON TO EXTEND 0 15 30 45 60 75 90 105 120 135 150 165 180 ML/MTS MTS technology allows several audio signals to be broadcast in analog at once, giving you a choice in what you wish to hear with a TV program. In addition to mono or stereo sound, an MTS broadcast may also include a second audio program (SAP). Press the ML/MTS button By every press of the ML/MTS button, you change the mode Notes: • When you are receiving a digital broadcast, if there are other languages, you can change the language by pressing the ML/MTS button. • Keep the TV in stereo mode to get the best sound quality. The sound will work in stereo mode even if a certain broadcast is in mono sound only. • Choose the mono setting to reduce excessive noise on a certain channel or broadcast. • Selecting SAP will allow you to hear an alternative soundtrack, if one is available. • MTS unavailable if your television’s Input source is in input 1, 2 or 3 mode, as described on page 59. • ML/MTS will not work when you are using the Digital-In. • You can also change the mode by pressing the π† buttons. MTS STEREO SAP MONO ON AIR ON AIR The MUTING button instantly turns the volume down completely when you press it. Press MUTING and the volume level will instantly go to zero. To restore the volume to its previous level, press MUTING again. Muting 63 Button Functions The display screen shows the current status of timers, inputs and XDS ID. Press the DISPLAY button The screen to the right shows the following information: • The current channel or AV input (Channel 05) • The current time (12:20 pm) • Sleep timer status/minutes remaining (The Sleep Timer is off) • On/off timer status (Set to turn on everyday at 7:00 PM, off at 10:00 PM) • Each Press of the DISPLAY button changes the display mode: Display - Full screen shown above Time - Shows the current time only Channel - Shows the current channel Off - Turns display off Notes: • You may also turn off the display at any step by pressing MENU. • If the clock, sleep timer or on/off timer are not set, the display screen will show: “CLOCK NOT SET”, “SLEEP TIMER OFF”, and “ON/OFF TIMER OFF” respectively. Display 05 KLVX PBS JAZZ FESTIVAL NOW SLEEP TIMER ON/OFF TIMER ON TIME OFF TIME 12:20 PM OFF EVERYDAY 7:00 PM 10:00 PM Display Time Channel Off C.C. (Closed Caption) Use the C.C. (Closed Caption) button to select the mode of closed caption. Press the C.C. button Notes: • SMART CAPTION will appear when you press the MUTING button, only on channels where the broadcast contains closed captioning. • When you select ON, it will be the mode selected in the Closed Caption Menu. • See page 42 when you set the caption/text mode. • You can also change the mode by pressing the π† buttons. Use these buttons to move up or down all the available channels your TV is able to receive. Channel +/– Use these buttons to raise or lower the TV’s volume level. The maximum is the level you set in Volume Limit. See page 54. Volume +/– CLOSED CAPTION OFF SMART CAPTION ON 64 Button Functions The Favorite button allows you to select your favorite channels easily. First, you must register the channels that you like. See how to register below. Press the FAVORITE button The favorite channel list will appear. π† To select the channel you want to watch Press the OK button It will change to the channel you have selected. Favorite Register the favorite channel Press the channel number you want to register The channel program will change. Press the FAVORITE button for three seconds The channel will be registered in the favorite channel list. Notes: • Both analog and digital channels can be registered. The digital channels have a "D" in front of the channel number. • The maximum number of channels you can register is 24. • If you have registered the maximum number of channels, and try to register more channels, the oldest channel you registered will be deleted. • Sub channels can not be registered. • The newest channel you registered will appear at the top of the list. Delete the favorite channel Press the FAVORITE button The favorite channel list will appear. π† To select the channel you want to delete √® To enter Press the OK button The channel was deleted. Press the FAVORITE button when finished Note: • Before pressing the FAVORITE button when you are finished, press the √® button again, and you can return to the deleted channel. FAVORITE NEXT 101 102 D103 < D107 8 CBS FOX PBS2 > HBO ABC PREVIOUS 65 Button Functions This feature will help you adjust the picture you are watching to give you the best possible picture quality. REGULAR - The regular ratio is used when you want to watch a 4:3 broadcast or recorded program without modifying the original picture to fit the dimensions of your 16:9 screen. The 4:3 picture will fill the screen from top to bottom, while black bars will appear to fill up the remaining space along the picture’s sides. The 4:3 picture will be centered within the boundaries of the 16:9 screen. Aspect Aspect Ratios PANORAMA - With this ratio a normal 4:3 aspect picture is stretched to fit the dimensions of the 16:9 aspect screen. CINEMA - This ratio “zooms in” on the center part of a 4:3 aspect picture, blowing it up to fill the 16:9 screen. FULL - This is the ratio to use when watching 16:9 High-Definition broadcasts. PANORAMA ZOOM - This ratio stretches the High-Definition 16:9 aspect image to eliminate the black side bars. CINEMA ZOOM - This ratio stretches the High-Definition 16:9 aspect image to eliminate the black surrounding bars. SLIM - This aspect mode shrinks the screen of 16:9 to 4:3. There are some programming that is already stretched by mistake at broadcasting companies, so this mode corrects it. Black side bars will appear. 66 Button Functions When you change the aspect ratios, it is different from their broadcast or recorded program. Aspect Ratios (Continued) Press the ASPECT button • By pressing the ASPECT button, you can change the size. ASPECT PANORAMA CINEMA FULL REGULAR ASPECT PANORAMA ZOOM CINEMA ZOOM FULL Notes: • You can also choose the size by pressing the π† buttons. • When you change the aspect ratio or signal, reset the picture position to center. • You can also access the FRONT PANEL CONTROL screen by using the MENU button on the side of the TV instead of the remote control. It appears between INITIAL SETUP and PICTURE ADJUST screen, and it has VIDEO STATUS and ASPECT menus. Choose ASPECT by pressing Menu† on the side panel and choose a mode by using the CHANNEL +/- buttons ( √ OPERATE ® ). • "SLIM" can only be dispalyed when the signal is ATSC (480i or 480p). • If the televison receives a 16:9 signal from your HDMI device, the aspect mode will turn to FULL automatically. If the television receives a 4:3 signal from your HDMI device when you are in FULL aspect mode, it will return to REGULAR aspect mode. If you change the aspect mode after the televison changed it to FULL automatically, the televison will change to the aspect mode you choosed. HD (1080i, 720p) ATSC (1080i, 720p) SD (480i, 480p) NTSC, 480i, 480p ASPECT PANORAMA ZOOM CINEMA ZOOM FULL SLIM ATSC (480i, 480p) 67 Button Functions Use either the television’s own tuner or a cable box to select channels. Set this switch to TV to operate the television’s built-in tuner. Move the switch to CATV to operate a cable box. Note: • See page 24 for information on programming your remote for cable box operation. You can control a VCR or DVD player with the buttons on the lower part of the remote control. Move the slide switch to VCR or DVD to operate. Notes: • The remote is preset with the code 000 to control JVC-brand VCR’s. For any other manufacturer’s brand VCR, please see the code chart and instructions on page 25. • The remote is preset with the code 000 to control JVC-brand DVD players. For any other manufacturer’s brand DVD player, please see the code chart and instructions on page 26. TV/CATV Slide Switch VCR/DVD Slide Switch You can also use this remote control to operate the basic functions of your DVD player. These functions include: play, rewind, fast-forward, stop, still/pause, previous/next, tray open/close, power on and power off. Move the selector switch to DVD to operate. • The remote is preset with the code 000 to control JVC-brand DVD players. For any other manufacturer’s brand DVD player, please see the code chart and instructions on page 26. You can use this remote control to operate the basic functions of your VCR. These functions include: play, record, rewind, fast-forward, stop, pause, channel scan, TV/VCR, power on and power off. Move the selector switch to VCR to operate. • The remote is preset with the code 000 to control JVC-brand VCR’s. For any other manufacturer’s brand VCR, please see the code chart and instructions on page 25. VCR Buttons DVD Buttons Your remote control includes illuminated buttons for key features like CHANNEL +/- and VOLUME +/-. Press the LIGHT button to turn the illumination on for 5 seconds. Light 68 Button Functions Sub Channel D/A (Digital/Analog) The D/A button changes the analog and digital channel. Each time you press the D/A button, you can switch back and forth the analog and digital channels. Digital channels have a "D" in front of the channel number. Press the D/A button To watch digital channels For example, to move to channel D23: Press 2 (Two) Press 3 (Three) Press the TUNE button The main channel sometimes has minor channels (Sub Channels). By using the SUB CHANNEL button, you can select a sub channel easily. For example, to move to sub channel 123-45: Press 1, 2 and 3 in order Press the SUB CHANNEL button Press 4 and 5 in order Press the TUNE button Note: • If there are more than 2 major channels, select the digital channel by using the π† buttons and then press the OK button. You can view the program from the GUIDE. Notes: • The GUIDE function will only work when you are receiving digital programming only. • The GUIDE will not show the correct time and date if you have not performed the set clock function on your television. See page 55. Guide 69 OSD Information This OSD warning appears when the digital channel that you have selected is too weak to receive or no signal is being detected for that channel. Weak Signal Weak Signal 15 If the TV channel you selected, or were watching is not receiving a signal, "NO PROGRAM" appears on the television screen. It appears when that channel is not receiving a signal and you have the Noise Muting function OFF and you have a single screen. It moves automatically every two seconds to prevent the screen from burn-in. Note: • Even if "NO PROGRAM" appears on the screen, your timer functions and auto shut off functions that you set, are still active. No Program 70 Troubleshooting Refer to the table below to check the condition. If you think that there is a problem, contact the JVC Service Center where you purchased the television. There is no power There is no picture or sound You cannot select a certain channel The power turns off by itself The clock is wrong The color quality is poor There are lines across the picture The picture is spotted There are double pictures (ghosts) Picture is snowy (image noise) Screen is 80% black Stereo or bilingual programs can't be heard Remote control is not operating properly or at all • See if the power cord became unplugged. • Check for a blown fuse or circuit breaker or a power outage. • The antenna could be disconnected. • The input mode could be set improperly. See page 59. • The tuner (Auto Tuner Setup) could be set improperly. See page 31. • The TV station may be having difficulties. Check to see if other stations are working. • Use the HDMI cable with HDMI logo . See page 19. • You can not output audio using the AUDIO OUTPUT under the following conditions: 1) When you have digital sound from an HDMI device connected to the HDMI 1 or HDMI 2 connection on the back of your TV. (See page 19). 2) When you have analog sound from a DVI device connected to the AUDIO IN "FOR HDMI 1" connection. (See page 18). • When you have an HDMI device connected to the HDMI 1 connection on the back of your TV, your TV detects it, and blocks the analog audio signal coming into the "FOR HDMI 1” jacks. Therefore, you can not hear any analog sound from the other device conected to the "FOR HDMI 1" jacks, while you are viewing the images from the HDMI device. (See page 19). • Check to see that the batteries are still working and properly installed. • Make sure the remote has a clear sight path to the TV. • Check that the TV/CATV switch is in the proper position. • You may be too far from the TV. You must be within 23 feet (7 meters). • Make sure the channels have been programmed. See "Channel Summary", page 32. • Check to see if the channel is locked. See "Channel Summary - Lock" page 33. • Make sure the set did not become unplugged. • Perhaps the On/Off Timer is set. See page 56. • Check to see if the Sleep Timer was set. See page 62. • The power was interrupted and the clock was not reset. See page 55. • Tint and Color may be improperly adjusted. See page 51. • The Video Status mode may be turned to the wrong setting. See page 61. • There could be interference from another electrical appliance, such as a computer, another TV or VCR. Move any such appliances further away from the TV. • There could be interference from a high-wattage appliance, like a hairdryer or vacuum, operating nearby. Move the antenna away from the appliance or change to a coaxial cable connection which is less prone to interference. • A building or passing airplane can reflect the original signal and produce a second, slightly delayed one. Adjust your antenna position. • Your antenna may be damaged, disconnected or turned. Check the antenna connection. If the antenna is damaged, replace it. • The Closed Caption Text mode is on. Turn it off in the Closed Caption Menu, page 42. • Make sure the MTS settings are correct. See page 62. PROBLEMS CHECK It does not operate correctly • This television is operated by a microprocessor. It is possible that external noise or interference is causing the problem. If the television does not function correctly, remove the electrical plug from the wall outlet and wait a while before inserting it into the wall outlet again and operating the television. 71 Troubleshooting PROBLEMS CHECK Static electricity You hear occasional crackling sounds • It is normal to feel static electricity if you brush or touch the screen. • It is normal for the TV to make crackling sounds when first turned on or off. Unless the sound or picture become abnormal, this is fine. It does not operate correctly • Press the CHANNEL- and VOLUME- buttons on the side panel of the TV simultaneously for a few seconds. The Digital Tuner will be reset. If this does not reset it correctly, unplug the power cord and plug it back in. The following are not malfunctions. • The television may make a creaking sound if the temperature of the room or the temperature of the inside of the television changes. If there is no problem with the screen or sound, then there is no need to worry. • Although the picture may be temporarily disturbed and noise may be seen on the screen if the power is turned on immediately after it has been turned off, this is not a malfunction. 72 LCD Flat Television Type Reception Format Power Source Power Consumption Model NTSC, BTSC System (Multi-Channel Sound) ATSC Terrestrial, Digital Cable AC 120V, 60 Hz Screen Size Speakers Audio Output 10W + 10W Antenna Terminal (VHF/UHF, ATSC/DIGITAL CABLE IN) 75 ohms (VHF/UHF)(F-type connector) External Input Jacks Video: 1 Vp-p, 75 ohms Audio: 500 mVrms (-4dBvfs) high impedance Component Input Jack Y: 1Vp-p positive, 75 ohms (negative sync provided) Pb/Pr: 0.7 Vp-p 75 ohms S-Video Input Jacks Y: 1Vp-p positive, 75 ohms (negative sync provided) C: 0.286 Vp-p (burst signal), 75 ohms Digital–In HDMI jack x 2 Note: The Digital–In terminal is not compatible with picture signals of a personal computer Refer to "unpacking your TV", page 8 Dimensions (inch/cm) W X H X D Weight (lbs / kg) Accessories Optical Output Digital Audio Digital Out (optical) x 1 160W Reception Range VHF 2 to 13, UHF 14 to 69 CATV 125 Sub, Mid, Super, Hyper and Ultra bands (191 channel frequency synthesizer system) at Analog • Reception of channel A-5 ("95" of the TV set's on-screen cable channel numbers) is not recommended for your TV set. VHF 2 to 13, UHF 14 to 69 at ATSC, CATV 135 Sub, Mid, Super, Hyper and Ultra bands at Digital Cable LT-32XM57 5.5cm x 15cm oblique x 2 32 inch / 80.0 cm measured diagonally, 16:9 ratio 31 1/2 x 23 1/4 x 10 5/8 (with stand) 80 x 58.9 x 26.8 (with stand) 31 1/2 x 21 5/8 x 5 1/2 (without stand) 80 x 54.5 x 13.8 (without stand) 38.3 / 17.4 (with stand) 35 / 15.9 (without stand) Audio Output Jacks (FIX) FIX : 250mVrms (-10dBvfs), Fs-18dB Low Impedance Specifications subject to change without notice. • The open source software is embedded in this product. For more information, please go to: http://software.jvc.com/opensource/lnx/DP/05_AtscQam/download.html Specifications 73 74 75 Notes 76 Notes 77 Notes 78 Notes 79 Notes JVC COMPANY OF AMERICA Division of JVC Americas Corp. 1700 Valley Road Wayne, New Jersey, 07470 JVC CANADA, INC. 21 Finchdene Square Scarborough, Ontario Canada, M1X 1A7
