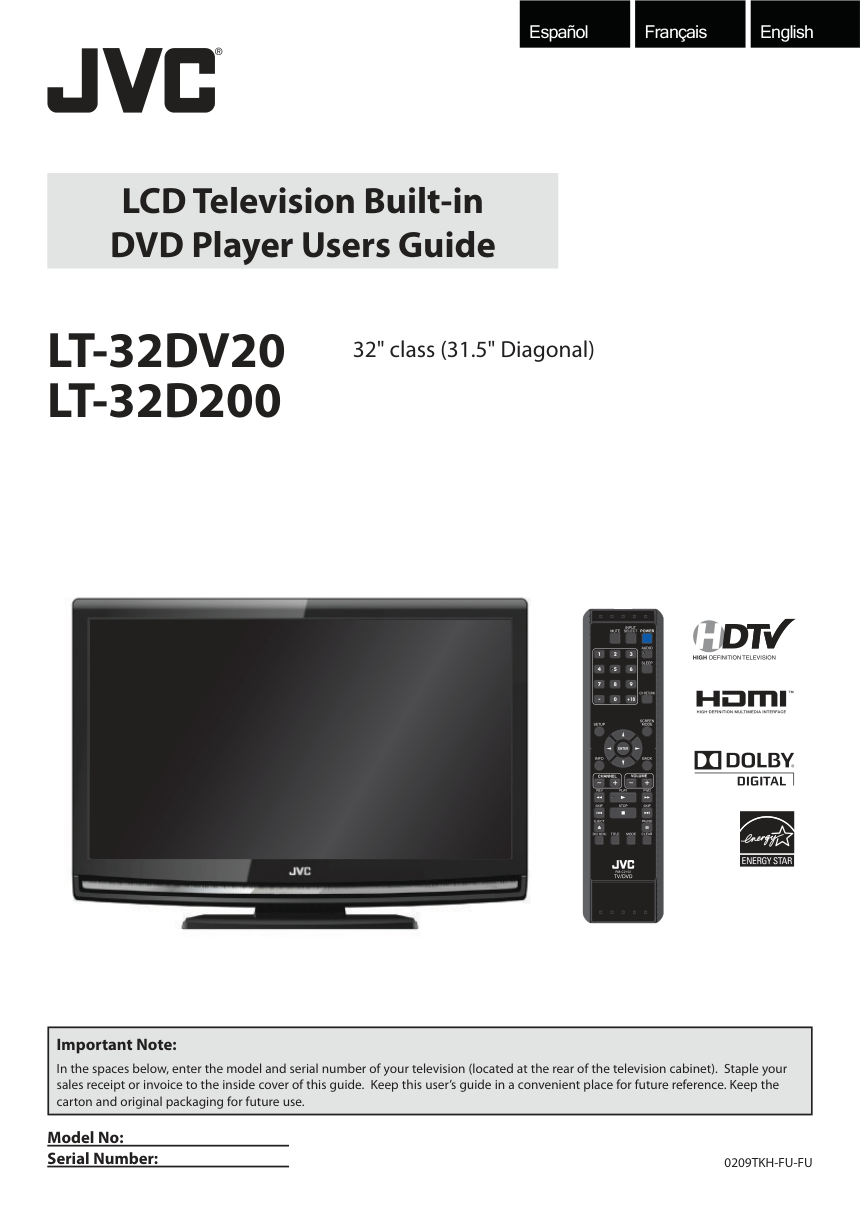

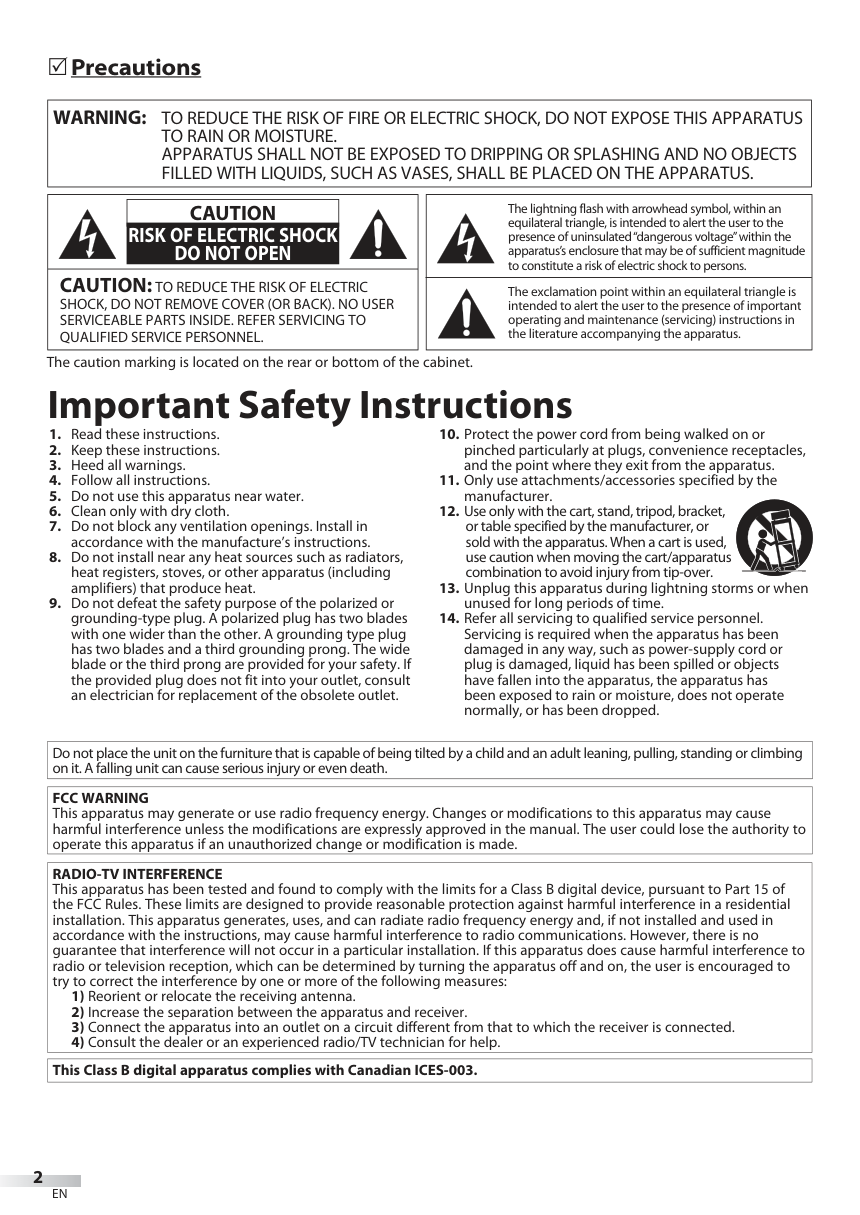

English Español Français LCD Television Built-in DVD Player Users Guide LT-32DV20 LT-32D200 32" class (31.5" Diagonal) 0209TKH-FU-FU Important Note: In the spaces below, enter the model and serial number of your television (located at the rear of the television cabinet). Staple your sales receipt or invoice to the inside cover of this guide. Keep this user’s guide in a convenient place for future reference. Keep the carton and original packaging for future use. HIGH DEFINITION TELEVISION Serial Number: Model No: 2 EN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacture’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. �Precautions FCC WARNING This apparatus may generate or use radio frequency energy. Changes or modifications to this apparatus may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this apparatus if an unauthorized change or modification is made. RADIO-TV INTERFERENCE This apparatus has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This apparatus generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this apparatus does cause harmful interference to radio or television reception, which can be determined by turning the apparatus off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) Reorient or relocate the receiving antenna. 2) Increase the separation between the apparatus and receiver. 3) Connect the apparatus into an outlet on a circuit different from that to which the receiver is connected. 4) Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003. The caution marking is located on the rear or bottom of the cabinet. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the apparatus’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death. 3 EN English CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING: Batteries (battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Disconnect the mains plug to shut off when find trouble or not in use. The mains plug shall remain readily operable. LAMP IN LCD CONTAINS MERCURY, DISPOSE ACCORDING TO LOCAL, STATE OR FEDERAL LAW. This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 3.2 inches (8cm) or more around this apparatus. TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE • Do not handle the AC power cord with wet hands. • Do not remove this unit’s cabinet. Touching parts inside the cabinet could result in electric shock and/or damage to this unit. For service and adjustment inside the cabinet, call a qualified dealer or an authorized service center. • Do not pull on the AC power cord when disconnecting it from an AC outlet. Grasp it by the plug. • Do not put your fingers or objects into the unit. LOCATION AND HANDLING • The openings should not be blocked by placing the unit on a bed, sofa, carpet, rug, or other similar surface. • Do not install the unit near or over a radiator or heat register. • Do not install the unit in direct sunlight, near strong magnetic fields, or in a place subject to dust or strong vibration. • Avoid a place with drastic temperature changes. • Install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit. Depending on your external devices, noise or disturbance of the picture and/or sound may be generated if the unit is placed too close to them. In this case, please ensure enough space between the external devices and the unit. • Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction. DEW CONDENSATION WARNING • Dew condensation may form inside the unit in the following conditions. If so, do not use this unit at least for a few hours until its inside gets dry. - The unit is moved from a cold place to a warm place. - Under conditions of high humidity. - After heating a cold room. NOTE ABOUT RECYCLING • This unit’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations. • Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes. WHEN CARRYING THIS UNIT • At least two people are required when carrying this unit. • Make sure to hold the upper and bottom frames of the unit firmly as illustrated. WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the instructions. �Trademark Information • HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. • Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. • Products that have earned ENERGY STAR® are designed to protect the environment through superior energy efficiency. • is a trademark of DVD Format/Logo Licensing Corporation. LASER SAFETY This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury. CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM. LOCATION:INSIDE, NEAR THE DECK MECHANISM. IMPORTANT COPYRIGHT INFORMATION Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. 4 EN INTRODUCTION �Supplied Accessories �Attaching the Stand You must attach the stand to the unit to have it as a table top unit. Be sure the front and rear of the stand match the proper direction. Note: • When attaching the stand, ensure that all screws are tightly fastened. If the stand is not properly attached, it could cause the unit to fall, resulting in injuries as well as damage to the unit. • Make sure to use a table which can support the weight of this unit and is larger than this unit. • Make sure the table is in a stable location. 1 Spread a thick and soft cloth over a table as shown below. Place the main unit face down onto it. Make sure not to damage the screen. At least two people are required at this step. 2 Align the 2 stand hooks with the two hooks under the bottom of the main unit (shown by arrow ➀), then slide the stand in the direction as shown by arrow ➁) until it stops and the 4 mounting holes are aligned. Make sure not to put the AC power cord between the stand and the unit. 3 Drive screws in the 4 threaded holes at the bottom of the stand until they are tight. To remove the stand from this unit Unscrew the screws indicated by above “➂”. screw holes. After the screws are removed pull the stand up toward the rear of the unit. Be careful not to drop the stand when you remove it. • If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free customer support line found on the cover of this manual. f r o n t s i d e f r o n t s i d e � � � screw holes � �Symbols Used in this Manual The following is the description for the symbols used in this manual. Description refers to: TV FUNCTIONS DVD FUNCTIONS TV : Analog TV operation DVD : Playback of DVD-video DTV : Digital TV operation CD : Playback of audio CD • If neither symbol appears under the function heading, operation is applicable to both. • If neither symbol appears under the function heading, operation is applicable to both. AA AA remote control (RM-C-2152) batteries (AA x 2) Screw for attaching the stand x 4 (FPH34200) 5 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English • DTV/TV/CATV - You can use your remote control to select channels which are broadcast in digital format and conventional analog format. Also, cable subscribers can access their cable TV channels. • Information Display (DTV only) - You can display the title, contents and other information of the current DTV program on the TV screen. • Autoscan - This unit automatically scans and memorizes channels available in your area, eliminating difficult setup procedures. • Child Lock - This feature allows you to block children’s access to inappropriate programs. • Closed Caption Decoder - Built-in closed caption decoder displays text for closed caption supported programs. • MTS/SAP Tuner - Audio can be selected from the remote control. • Auto Shut Off Function - If there is no signal input from the antenna terminal and no operation for 15 minutes, the unit will turn off automatically. • Sleep Timer - This feature will automatically turn off the power of the unit at a specific time. • Choices for On-screen Language - Select your on-screen language: English, Spanish or French. • Stereo Sound Function • PLL Frequency Synthesized Tuning - Provides free and easy channel selection and lets you tune directly to any channel using the number buttons on the remote control. • Various Adjustment for Picture and Sound - Customizes image quality to suitable for your room and sets the sound as your preference. • HDMI Input - When using HDMI1 input, you can enjoy this unit as a PC monitor if your PC has DVI output terminal. • Component Video Input • S-video Input • AV Input • Digital Audio Output • Analog Audio Output �Features TV DVD • Dolby Digital Sound - Enjoy Dolby Digital multi-channel surround sound when you connect the unit to your Dolby Digital decoder. • Still / Fast / Slow / Step Playback - Various playback modes are available including still pictures, fast forward/reverse, slow motion and step frames. • DVD Menus in a Desired Language - You can display DVD menus in a desired language, if available on a DVD-video. • Auto Power Off - If there is no operation for 20 minutes, the unit will turn itself off automatically. • Parental Lock - Block the viewing of DVD-video unsuitable for children. • Resume Playback - Lets you resume playback from the point at which playback was stopped. • Bit Rate Indication • DRC (dynamic range control) - You can control the range of sound volume. Accessing from [MODE] button During playback • Subtitles in a Desired Language - You can select a desired language for displaying subtitle, if that language is available on a DVD-video. • Selecting a Camera Angle - You can select the desired camera angle, if a DVD contains sequences recorded from different angles. • Zoom - Allows you to enlarge the size of picture image. • Black Level Adjustment • Virtual Surround • Search - chapter search / title search / track search / time search • Marker - The part on the disc designated by user can be called back. • Repeat - chapter / title / track / all / A-B Accessing from [MODE] button In Stop mode • Program Playback for audio CD - You can program the order of tracks to play them back in designated order. • Random Playback for audio CD - This unit can shuffle the order of tracks to play them back in randomly. Accessing from [AUDIO] button During playback • Choices for Audio Language and Stereo Sound Function - Select your desired languages or stereo sound function when different options are available on your disc. 6 EN INTRODUCTION �Contents Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Trademark Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 INTRODUCTION Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Symbols Used in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Remote Control Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Installing the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 PREPARATION Antenna Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Connection to Cable Receiver or Satellite Box . . . . . . . . . .10 External Device Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Cable Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Plug In the AC Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 TV Functions Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 WATCHING TV Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Still Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Switching Each Input Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Switching Audio Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 TV Screen Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 TV Screen Display Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 OPTIONAL SETTING Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Autoscan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Channel List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Manual Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Antenna Confirmation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Picture Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 Sound Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 Closed Caption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 Child Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 PC Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Energy Saving Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 Current Software Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 DVD Functions OPERATING DVD Playable Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 Unplayable Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 Disc Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 Resume Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36 Paused and Step-by-step Playback . . . . . . . . . . . . . . . . . . . . .36 Fast Forward / Fast Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 Slow Forward / Slow Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . .37 Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37 Search Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 Repeat Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39 Repeat A-B Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Random Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Programmed Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 On-screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 Special Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 DVD SETTING DVD Language Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44 DVD Audio Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45 Parental Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46 Others. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47 Reset to the Default Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 Language Code List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48 TROUBLESHOOTING FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49 Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 INFORMATION Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52 Cable Channel Designations . . . . . . . . . . . . . . . . . . . . . . . . . . .53 General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53 Electrical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53 Other Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover 7 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English 1. y (power) (p. 15) Press to turn the unit on and off. 2. B (play) (p. 36) Press to begin the disc playback. 3. C (stop) (p. 36) Press to stop the disc playback. 4. A (eject) (p. 36) Press to eject the disc. 5. CH -/ + (p. 16 / p. 17) Press to select channels or move up (+) / down (-) through the main menu items. 6. SETUP (p. 15 / p. 44) Press to display the main menu. 7. VOL -/ + (p. 16) Press to adjust the volume or move right (+) / left (-) through the main menu items. 8. infrared sensor window Receives infrared rays transmitted from the remote control. 9. POWER ON indicator Lights up blue when power is on. 10. STAND BY indicator Lights up red when power is off. 11. DVD indicator Lights up orange when the disc is inserted. [Side Panel] 12. disc loading slot (p. 36) Insert the disc with the label side facing forward. 13. S-video input jack (p. 12) S-video cable connection from an external device. 14. video input jack (p. 13) RCA video cable connection from an external device. 15. audio input jack (p. 12 / p. 13) RCA audio cable connection from an external device. 16. HDMI 2 input jack (p. 10 / p. 11) HDMI connection from HDMI device. [Rear Panel] 17. AC power cord (p. 14) Connect to a standard AC outlet to supply power to this unit. 18.cable management (p. 14) Use this holder to bundle the cables. 19. component video and audio input jack (p. 10 / p. 12) RCA component video cable and RCA audio cable connection from an external device. 20. audio output jack (p. 13) RCA audio cable connection for an external device. 21. audio input jack for HDMI 1 (p. 11 / p. 14) RCA audio cable connection from a DVI device. When you connect your PC that has a DVI terminal, use a stereo mini plug-RCA conversion cable as well. (For HDMI 1 input jack only) 22. digital audio output jack (p. 13) Coaxial digital cable connection for a decoder or an audio receiver. 23. antenna input jack (p. 10) RF coaxial cable connection for your antenna or cable/ TV signal. 24. HDMI 1 input jack (p. 10 / p. 11 / p. 14) HDMI connection for HDMI or DVI device. When you connect your PC that has a DVI terminal, you can enjoy this unit as a PC monitor. �Terminals 24 20 21 22 12 23 18 17 15 13 14 16 * 19 Note: * service terminal (service use only) • User should not connect any devices to the service terminal such as digital camera, keyboard, mouse, etc. (because these will not work). �Control Panel 7 5 1 6 4 3 2 8 9 11 10 8 EN INTRODUCTION �Remote Control Function 1. MUTE (p. 16) Press to turn the sound on and off. 2. Number buttons (p. 16) • Press to select channels. • Press to select chapter, title (DVD), or track (CD) directly. - (hyphen) • Press to shift the subchannel from the main channel. +10 button • Press to select 10 or higher number of chapters. 3. SETUP (p. 15 / p. 44) Press to display the main menu. 4. s / B / K / L (p. 15) Press to move left / right / up / down through the items. 5. ENTER (p. 15) Press to decide the command of setting when the main menu is displayed. 6. INFO (p. 18 / p. 41) Digital mode (DTV) • Press to display the channel information, signal type and TV setting. Analog mode (TV) • Press to display the channel number, signal type and TV setting. External input mode • Press to display the external input mode, signal type and TV setting. DVD mode • Press to display the current status. 7. CHANNEL -/ + (p. 16 / p. 17) Press to select channels and the external input mode. 8. REV E / FWD D (p. 37) Press to begin slow forward or slow reverse playback during the pause mode (DVD) and search forward or backward through the disc. 9. SKIP H / G (p. 38) Press to skip forward or backward chapters, titles (DVD) or tracks (CD). 21 20 13 14 15 16 17 18 19 8 9 23 24 22 25 1 2 3 4 5 6 8 12 11 7 9 10 9 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English Battery Precautions: • Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device. • Do not mix different types of batteries together (e.g., Alkaline and Carbon-Zinc, or rechargeable batteries like ni-cad, ni-mh, etc) or old batteries with fresh ones. • If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage. • Do not try to recharge batteries; they can overheat and rupture. �Installing the Batteries Install the batteries (AA x 2) matching the polarity indicated inside battery compartment of the remote control. 10. EJECT A (p. 36) Press to eject the disc. 11. DISC MENU (p. 36) Press to display the menu on the disc. 12. TITLE (p. 36) Press to display the title menu (DVD). 13. INPUT SELECT (p. 17) Press to access connected external devices like a BD/DVD recorder. 14. POWER (p. 15) Press to turn the unit on and off. 15. AUDIO (p. 17 / p. 42) Digital mode (DTV) • Press to select the audio language. Analog mode (TV) • Press to select the audio mode. DVD mode • Press to select the audio language (DVD), or sound mode (CD). 16. SLEEP (p. 16) Press to activate the sleep timer. 17. CH RETURN (p. 16) Press to return to previously viewed channel. 18. SCREEN MODE (p. 19) Press to select aspect ratio available for the TV screen. 19. BACK (p. 18) Press to return to the previous menu operation. 20. VOLUME -/ + (p. 16) Press to adjust the volume. 21. PLAY B (p. 36) Press to begin the disc playback. 22. STOP C (p. 36) Press to stop the disc playback. 23. PAUSE F (p. 17) TV mode • Press to pause screen image. DVD mode • Press to pause the disc playback. 24. CLEAR (p. 39) • Press to clear the numbers entered incorrectly. • Press to cancel the point A for A-B repeat. • Press to remove the track number in program input (CD). 25. MODE (p. 5) • Press to arrange the playing order or playback randomly (CD). • Press to set the black level (DVD) and the virtual surround on or off. • Press to change the camera angle to see the sequence being played back from different angle (DVD). • Press to search chapter, title (DVD), track (CD) or time. • Press to set the marker. • Press to repeat playback chapter, title (DVD), track, disc (CD) repeatedly or between designated point A and B. • Press to magnify the part of picture (2x and 4x : DVD). • Press to select the subtitles on the disc (DVD). 10 EN PREPARATION Before you connect... Be sure your antenna or other device is connected properly before plugging in the AC power cord. �Antenna Connection Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit. * Once connections are completed, turn on the unit and begin initial setup. Channel scanning is necessary for the unit to memorize all available channels in your area. (Refer to “Initial Setup” on page 15.) Note: • If you have any question about the DTV’s antenna, visit www.antennaweb.org for further information. • Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters). Contact your local electronics store for these items. • For your safety and to avoid damage to this unit, please unplug the RF coaxial cable from the antenna input jack before moving the unit. • If you use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be more effective than settop versions. • To switch your reception source easily between antenna and cable, install an antenna selector. • If you connect to the cable system directly, contact the CATV installer. �Connection to Cable Receiver or Satellite Box Use an HDMI or an RCA component video cable to connect the HDMI or the component video input jack of the unit to the HDMI or the component video output jack of the cable receiver / satellite box. If you connect to the unit’s component Video Input jack, connect RCA audio cables to the Audio L/R jacks below the Component Video connector. COMPONENT VIDEO OUT Pr/Cr Pb/Cb Y AUDIO OUT R L S ER O CM HDMI OUT ANT IN * You can also connect this unit to the cable receiver or satellite box other than the HDMI or the component video output jack because they might have different output jacks. * Required cables and connecting methods of the cable receiver / satellite box, or the availability channel for the clear QAM may differ depending on the cable / satellite provider. For more information, please contact your cable / satellite provider. No supplied cables are used in this connection: Please purchase the necessary cables at your local store. High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for the better compatibility. VHF / UHF antenna RF coaxial cable cable TV signal rear of this unit e.g.) or or satellite dish (red) (red) (blue) (blue) (gre ) (green) cable receiver / satellite box cable TV signal including PPV or side or rear of this unit HDMI cable or RCA component video cable and RCA audio cable RF coaxial cable e.g.) red (red) (red) b u (blue) (blue) ree (green) (green) (red) (blue) (green) 11 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English �External Device Connection [HDMI Connection] HDMI connection offers the highest picture quality. HDMI (High-Definition Multimedia Interface) transports high definition video and multi-channel digital audio through a single cable. HDMI CEC (Consumer Electronics Control) allows the TV to connect and control multiple HDMI CEC enabled devices with a single remote. CEC (Consumer Electronics Control) is an optional protocol used in HDMI. HDMI CEC on this TV is compliant with “High-Definition Multimedia Interface Specification”. The TV does not support HDMI CEC functions that are not listed below. The TV does not guarantee to support use of all HDMI CEC enabled devices. Devices that are not enabled to HDMI CEC cannot be controlled with this TV. Control the TV using the HDMI CEC enabled device Turn the TV on and switch to the video source of the operating device. Switch to the video source of the operating device. Control the HDMI CEC enabled device using the TV Turn off the operating device by pressing the power button for three seconds or more, and turning off the TV. * Some device may not support this function. For more details refer to the device’s manual. Send status of the TV to the HDMI CEC enabled device When switching the TV’s external input or channel. When switching the TV’s menu language. * Information regarding behaviour of the device when status is received, refer to the external device’s manual. HDMI OUT CHAPT R 5 REPEAT -B T TLE 5 Note: • This unit accepts 480i / 480p / 720p / 1080i video signals, and 32kHz / 44.1kHz / 48kHz audio signals. • This unit accepts only 2 channel audio signal (LPCM). • You need to select “PCM” for the digital audio output of the device you connected or check the HDMI audio setting. There may be no audio output if you select “Bitstream”, etc. • This unit only accepts signals in compliance with EIA861. [HDMI-DVI Connection] Use an HDMI-DVI conversion cable to connect the unit to external video devices equipped with DVI output jack. S ER O P M DVI OUT AUDIO OUT R L Note: • This unit accepts 480i / 480p / 720p / 1080i video signals. • HDMI-DVI connection requires separate RCA audio connections as well. • Audio signals are converted from digital to analog for this connection. • DVI does not display 480i image that is not in compliance with EIA/CEA-861/861B. No supplied cables are used in this connection: Please purchase the necessary cables at your local store. High Speed HDMI cable (also known as HDMI category 2 cable) is recommended for the better compatibility. To HDMI1 input jack only HDMI-DVI conversion cable cable receiver or satellite box with the DVI output jack RCA audio cable rear of this unit HDMI cable BD/DVD recorder with the HDMI output jack side or rear of this unit or e.g.) e.g.) 12 EN PREPARATION [Component Video Connection] RCA component video connection offers better picture quality for video devices connected to the unit. If you connect to the unit’s component Video Input jack, connect RCA audio cables to the Audio L/R jacks below the Component Video connector. e.g.) COMPONENT VIDEO OUT Pr/Cr Pb/Cb Y AUDIO OUT R L CHA TER 15 RE EAT A B T T E 5 Note: • This unit accepts 480i / 480p / 720p / 1080i video signals. [S-video Connection] S-video connection offers good picture quality for video devices connected to the unit. If you connect to the unit’s S-Video Input jack, connect RCA audio cables to the Audio L/R jacks below the Video connector. e.g.) CHAP ER 15 REPE T -B T TLE 5 AUDIO OUT R L S-VIDEO OUT Note: • If you connect to the S-video input jack and the video input jack at the same time, the S-video connection will have priority. No supplied cables are used in this connection: Please purchase the necessary cables at your local store. (red) (blue) (green) BD/DVD recorder with the component video output jack RCA component video cable RCA audio cable rear of this unit (green) (blue) (red) BD/DVD recorder with the S-Video output jack S-video cable RCA audio cable side of this unit 13 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English [Video Connection] RCA video connection offers standard picture quality for video devices connected to the unit. If you connect to the unit’s Video Input jack, connect RCA audio cables to the Audio L/R jacks below the Video connector. When the audio jack of the video device is monaural, connect an RCA audio cable to the audio L input jack. e.g.) AUDIO OUT R L VIDEO OUT ST REO STAND BY Note: • If you connect to the S-video input jack and the video input jack at the same time, the S-video connection will have priority. [Audio Output Connection] � Digital (for digital broadcasting only) If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital broadcasting sound. Use a digital audio coaxial cable to connect the unit to external digital audio devices. � Analog (for both analog and digital broadcasting) If you connect this unit to an external analog audio device, you can enjoy stereo (2-channel) audio. Use an RCA audio cable to connect the unit to external analog audio devices. e.g.) DIGITAL AUDIO COAXIAL IN AUDIO IN R L No supplied cables are used in this connection: Please purchase the necessary cables at your local store. camcorder video game VCR RCA video cable RCA audio cable side of this unit Dolby Digital decoder digital audio coaxial cable rear of this unit stereo system or RCA audio cable 14 EN PREPARATION [PC Connection] This unit can be connected to your PC that has a DVI terminal. Use an HDMI-DVI conversion cable for this connection and it requires stereo mini plug-RCA conversion cable as well. If you connect this unit to your PC, you can use this unit as a PC monitor. e.g.) DVI OUT The following signals can be displayed: Format Resolution Refresh rate Format Resolution Refresh rate VGA 640 x 480 60Hz WXGA 1,280 x 768 60Hz SVGA 800 x 600 60Hz 1,360 x 768 60Hz XGA 1,024 x 768 60Hz Other formats or non-standard signals will not be displayed correctly. Note: • Please purchase the HDMI-DVI conversion cable that has a ferrite core. • The following operations may reduce noise. - Attach a ferrite core to the AC power cord of your PC. - Unplug the AC power cord and use the built-in battery of your PC. �Cable Management Keep the cables through this holder to avoid tangle them. �Plug In the AC Power Cord Make sure that the AC power cord must be plugged to an AC outlet after all the necessary connections are completed. Caution: • Do not connect the AC power cord to a power supply outside the indicated voltage of this unit (AC 120V). Connecting the AC power cord to a power supply outside of this range may result in fire or electrical shocks. Note: • Each time you plugged in the AC power cord, any operations will not be performed for a few seconds. This is not a malfunction. No supplied cables are used in this connection: Please purchase the necessary cables at your local store. rear of this unit rear of this unit AC power cord AC outlet stereo mini plug-RCA conversion cable rear of this unit 1 To HDMI1 k only input jack only HDMI-DVI conversion cable should be with ferrite core. DVI HDMI-DVI rsion cable conversion cable personal computer 15 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English �Initial Setup This section will guide you through the unit’s initial setting which includes selecting a language for your on-screen menu and autoscan, which automatically scans and memorizes viewable channels. Before you begin: Make sure the unit is connected to antenna or cable. 1 After making all the necessary connections, press [POWER] to turn on the unit. • This operation may take a few moments. 2 Use [Cursor K / L] to select the on-screen language from the choices on the right side of the TV screen. (English / Español / Français) it p Initial Setup Select the language for setup display Elija el idioma de ajuste Sélect onner langue écran config Español Français Engl sh Select Enter E TER Skip SETUP • “Initial Setup” menu on step 3 will be displayed in the selected language after you press [ENTER]. 3 Use [Cursor K / L] to select “Antenna” for TV channels or “Cable” for CATV channels, then press [ENTER]. Initial Setup Initial Setup Antenna Cable Skip Select Enter ENT R Cab e Antenna Or Make sure the antenna is connected o“ANT IN” jack Se ect he dest nation of “ANT IN” jack ANT IN Skip SETUP Back BACK • “Autoscan” will begin. it p Initial Setup Now the system s scanning for channels p ease wait Autoscan w ll take up to 20 m nu es to complete 0% Analog channels 0ch Digital channels 0ch Skip SETUP 4 Use [Cursor s / B] to select the desired location setting, then press [ENTER]. i l S Initial Setup Home Retail Select “Retail” or “Home” for your ocation Select Enter NTER • Select ”Retail”, the unit will be set up with predefined setting for retail displays. In this setting, the power consumption may possibly exceed the limited requirement of the ENERGY STAR® qualification. • Select ”Home”, the unit is set to maximize the energy efficiency for home setting and it can be adjusted through a choice of picture and sound quality according to your preference. • When the initial setup is completed, the lowest memorized channel with the confirmation message of the location setting will be displayed on the TV screen. Note: • If you connect the cable system directly, contact the CATV installer. • If you press [POWER] or [SETUP] during autoscan, this setting will be canceled. • The initial autoscan function can be executed for either “Antenna” or “Cable” only once. When you change the connection (Antenna / Cable), set autoscan again. (Refer to page 20.) • If there is no signal input from the antenna terminal and no operation for several seconds after you turn on the unit, “Helpful Hints” appears. Follow the instructions listed on the TV screen. In p Initial Setup Retry Later Select No channel s registered Try Autoscan again? Ver fy that you have a cable connected o he "ANT IN" jack on he back of the TV the channel nstallation p ocess searches this connection If you are using a cable or satel ite box please conf rm the input which you have connec ed the box and press the “INPUT SELECT” key on the remote con rol to se ect he appropr ate source input Enter EN ER Skip SETUP • You must set ”Home” in step 4. Otherwise, the settings of picture and sound quality you adjusted will not be memorized after you turn off the unit. After an initial setup is completed... • If you want to scan the channels automatically again, refer to “Autoscan” on page 20. • You can add the desired channels unmemorized by “Autoscan”. Refer to “Manual Register” on page 21. • If you want to change to another language, refer to “Language Selection” on page 22. • If you want to change the Location setting, refer to “Location” on page 33. These operations are accessible by remote control. Some may also be accessible by controls on the main unit. TV Functions 16 EN WATCHING TV �Channel Selection Select channels by using [CHANNEL -/ +] or [the Number buttons]. • To select the memorized channels, use [CHANNEL -/ +] or [the Number buttons]. • To select the non-memorized channels, use [the Number buttons]. To Use [the Number buttons] TV - When selecting channel 11 DTV - When selecting digital channel 11-1 Be sure to press [-] before entering the subchannel number. • Press [CH RETURN] to return to the previously channel. About digital TV broadcasting: With its high definition broadcast, digital broadcasting far surpasses analog broadcasting in both its picture and sound quality. Not all digital TV broadcasts are high definition (HD). To confirm whether your watching TV program is in HD, refer to the program guide, contact your cable / satellite provider or local TV stations. NTSC (analog mode) ATSC (digital mode) 6:00pm 6:30pm 7:30pm 7:00pm 8:00pm CH4-1 (Soccer) CH4-2 (News) CH4-3 (Tennis) CH4-1 (Soccer) CH4 (Soccer) CH4 (Soccer) CH4-1 (Soccer) CH4-2 (News) CH4 (Soccer) CH4 (Soccer) CH4-1 (Soccer) Air time subchannel subchannel main channel main channel main channel main channel subchannel What is the subchannel? By using high compression technology, digital broadcasting offers a service that enables multiple signals to send simultaneously. Therefore, you can select more than one program per main channel since digital broadcasting technology distinguishes between multiple channels broadcast by a single network. Note: • “No Signal” will appear on the TV screen after the subchannel broadcast is over. • “Audio only program“ message will appear on the TV screen, when you receive only sound signal. �Volume Adjustment This section describes how to adjust the volume. The mute function, which turns the sound off and on, is also described. Use [VOLUME -/ +] to adjust the audio volume. Volume 30 The volume bar will be displayed at the bottom of the TV screen when adjusting the volume. • The volume bar will automatically disappear in a few seconds. Press [MUTE] to turn off and on the sound. Mute “Mute” is displayed on the TV screen for a few seconds. Press [MUTE] again or [VOLUME -/ +] to recover the original volume. �Sleep Timer The sleep timer can be set to automatically turn off the unit after an incremental period of time. 1 Press [SLEEP] to set the sleep timer. Sleep Off Sleep timer display appears on the TV screen. 2 Press [SLEEP] repeatedly to change the amount of time until shut off. Sleep 120min. You can set your unit to turn off after a set period of time (from 30 to 120 minutes). • Each press of [SLEEP] will increase the time by 30 minutes. • After setup, the sleep timer display can be called up for checking by pressing [SLEEP]. To cancel the sleep timer Press [SLEEP] repeatedly until “Sleep Off” is displayed on the TV screen. Note: • The sleep timer display will automatically disappear in a few seconds. • When you disconnect the unit from the AC outlet or when a power failure occurs, the sleep timer setting will be canceled. can be changed by using [CHANNEL -/ +]. 17 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English �Still Mode You can pause the image shown on the TV screen. Press [PAUSE F] to pause the image shown on the TV screen. Still • The sound output will not be paused. • If no signal is detected or protected signal is received during still mode, the image remains paused and the sound output will be muted. • The still function will be released after 5 minutes. To cancel still mode, press any button except [POWER]. �Switching Each Input Mode You can easily switch with the remote control to the DTV (ATSC) and TV (NTSC) or to access external devices when they are connected to the unit. Press [INPUT SELECT] or [CHANNEL ] repeatedly to cycle through the input modes. or Video Component HDMI1 HDMI2 DTV/TV channel (or PC input) • Pressing [CHANNEL ] reverses the direction of the input modes. �Switching Audio Mode This section describes how to switch the audio in the analog mode and how to switch the audio language in the digital mode. TV Press [AUDIO] to display the currently selected audio mode. While receiving an MTS broadcast, press repeatedly to cycle through the available audio channel. 11 SAP / STEREO When all audio are available SAP / STEREO SAP / MONO SAP / STEREO When stereo and monaural audio are available MONO / STEREO MONO / STEREO When SAP and monaural audio are available SAP / MONO SAP / MONO When only monaural audio is available MONO STEREO : Outputs stereo-audio SAP : Outputs second audio program MONO : Outputs mono-audio DTV 1 Press [AUDIO] to display the currently selected language and the number of available languages. 11-1 English 1/3 2 Press [AUDIO] repeatedly to cycle through the available audio languages. • Available languages differ depending on the broadcast. “Other” is displayed when the audio language cannot be acquired, or the acquired languages are other than English, Spanish or French. Note: • [AUDIO] does not control external audio devices. • The information display will automatically disappear in a few seconds. (cannot be switched) 18 EN WATCHING TV �TV Screen Information You can display the currently selected channel or other information such as the audio mode on the TV screen. TV In the analog mode, the current channel number and the audio mode are displayed. Press [INFO]. 11 SAP / STEREO TV-PG DLSV 80 480i 4 3 4:3 D SD C CC • The current channel number, audio mode, type of resolutions for video signal, TV aspect ratio, CC and TV program rating are displayed on the top-right corner of the TV screen. • To clear the display, press [INFO] again. You can also press [BACK]. DTV In the digital mode, the detailed broadcasting information for the current channel such as program title, program guides are displayed. Press [INFO] to display the details of the currently selected program. Broadcasting information The following information is displayed. 11-1 English 1/2 TV: TV-14 Rating 08 1080i 116:9 HD C CC Da M m ie A Day of Memories C KABC A quarter-century ago,which may now qualify as the good old days of newspapering,run-of-paper sales accounted for 80 percent of the industry's advertising revenues. Department stores and supermarket were 1 2 3 4 5 6, 7, 8 9 10 1 program title 2 program guide (The program guide added to broadcasting information is displayed to a maximum of 4 lines.) 3 broadcast station 4 channel number 5 audio language (Refer to “Switching Audio Mode” on page 17.) 6 effective scanning lines and scan mode 7 digital TV format 8 program aspect ratio 9 CC (not available if closed caption is set to “Off”) 10 child lock rating Note: • When the program guide consists of more than 4 lines, use [Cursor K/ L] to scroll. • “No description provided.” is displayed when the program guide is not provided. • While the program guide is displayed, the closed caption function is interrupted. • In external input mode, the following screen is displayed; e.g.) When an external device is connected to VIDEO input jack. Video TV-PG DLSV 480i 480i SD SD C CC • The information display will automatically disappear in 1 minute. 19 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English �TV Screen Display Mode 4 types of display modes can be selected when the broadcasting station is sending 4:3 or 16:9 video signal. And 3 types of display modes can be selected for PC input signal. Press [SCREEN MODE] repeatedly to switch the TV aspect ratio. For 4:3 video signal Sidebar Display a 4:3 picture at its original size. Sidebars appear on both edges of the screen. Full Display a 4:3 picture at a 16:9 size; the picture is stretched horizontally to fill the screen. Cinema Display a 4:3 picture at a 16:9 size; the picture is stretched horizontally and vertically to fill the screen. This crops out the top and bottom of the picture. Wide Display the picture with its center at the original size and the edges stretched horizontally to fill the screen. For 16:9 video signal Full Display a 16:9 picture at its original size. Zoom Display a 16:9 picture at its maximum size without changing its horizontal and vertical ratio. Cinema Display a vertically stretched picture. Expand Display a horizontally stretched picture. For PC input signal through HDMI1 input mode Normal Full Dot By Dot Normal Display a proportionately stretched picture. Sidebars appear on both edges of the screen. Full Display a picture that is stretched out of proportion to fill the screen. Dot By Dot Display a picture in its original size. Full Zoom Expand Cinema Sidebar Full Wide Cinema 20 EN OPTIONAL SETTING �Main Menu This section describes the overview of the main menu displayed when you press [SETUP]. For more details, see the reference page for each item. The main menu consists of the function setting items below. Press [SETUP]. PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD PICTURE You can adjust the picture quality. (Refer to “Picture Adjustment” on page 23.) SOUND You can adjust the sound quality. (Refer to “Sound Adjustment” on page 24.) CHANNEL • You can automatically scan the viewable channels. (Refer to “Autoscan” on page 20.) • You can skip the undesired channels when selecting the channels using [CHANNEL -/ +]. (Refer to “Channel List” on page 21.) • You can add the channels that were not scanned by the autoscan. (Refer to “Manual Register” on page 21.) DETAIL • You can change the display format for closed caption, which displays the dialogue of a TV program or other information across the TV screen. (Refer to “Closed Caption” on page 25.) • You can set the viewing limitations. (Refer to ‘‘Child Lock” on page 28.) • You can adjust the position, stability and clarity of the PC screen. (Refer to “PC Settings” on page 32.) • You can select the energy saving mode. (Refer to “Energy Saving Mode” on page 33.) • When you adjust the desired “PICTURE” and “SOUND” mode, you must switch the setting from “Retail” to “Home”. (Refer to “Location” on page 33.) • You can confirm the version of the software currently used in this unit. (Refer to ”Current Software Info” on page 34.) LANGUAGE You can change the language (English, Spanish, French) displayed on the main menu. (Refer to “Language Selection” on page 22.) DVD You can customize some functions for the disc playback. Make sure the player is in stop mode. (Refer to “DVD SETTING“ section on page 44.) �Autoscan If you switch wires (e.g., between antenna and CATV) or if you move the unit to a different area after the initial setting, or if you restore the DTV channel you deleted, you will need to perform autoscan. Before you begin: Make sure the unit is connected to antenna or cable. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “CHANNEL” , then press [ENTER]. PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 3 Use [Cursor K / L] to select “Autoscan”, then press [ENTER]. l Channel Autoscan Channel List Manual Reg ster Antenna PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Use [Cursor K / L] to select an appropriate option, then press [ENTER]. o Autoscan Autoscan will rescan all channels Autoscan will take up to 20 minutes to complete Select the destination of "ANT IN" jack Back Antenna Cable Antenna Cable Or ANTIN PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD • When aerial antenna is connected, select “Antenna”. • When connected to CATV, select “Cable”. • “Autoscan” will begin. Now the system is scanning for Channe s please wait Autoscan w ll take up to 20 minutes to complete 75% Analog channels 10ch Digital channels 6ch Exit SETUP • When the scanning and memorizing are completed, the lowest memorized channel will be displayed. Note: • After setting “Autoscan”, using [CHANNEL - / +] on the remote control skips unavailable programs automatically. • If you connect the cable system directly, contact the CATV installer. • If you press [POWER] or [SETUP] during autoscan, the setting will be canceled. • Even if “Autoscan“ is completed, the channel setting will be lost if the AC power cord is unplugged before turning off the unit by pressing [POWER]. • The PIN Code will be required once you set a PIN Code in the “Child Lock“ (Refer to page 28). • If you want to change your PIN Code, follow the instruction of “New Password” (Refer to page 31). 21 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English �Channel List The channels selected here can be skipped when selecting the channels using [CHANNEL -/ +]. Those channels can still be selected with [the Number buttons]. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “CHANNEL”, then press [ENTER]. PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 3 Use [Cursor K / L] to select “Channel List”, then press [ENTER]. h Channel Autoscan Channel List Manual Register Antenna PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 4 Use [Cursor K / L] to select the channel you want to remove, then press [ENTER]. h i Channel List DTV 8 DTV 8 9 DTV 48 58 DTV 6 27 DTV 67 Ch Select Watch/Skip E TER Highlight channe s for Ch Up/Down key selection Back BACK PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD • The channel display for the removed channel darkens. You will not be able to select the channel again using [CHANNEL / ]. • To reactivate a removed channel, use [Cursor K / L] and press [ENTER]. The registered channels are highlighted. • When you remove a main channel, its subchannels are removed as well. Note: • The channel with the “DTV” indicated on the display is ATSC. Otherwise the channel is NTSC. 5 Press [SETUP] to exit. �Manual Register This function lets you add the channels that were not added by the autoscan due to the receptible condition at the initial setting. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “CHANNEL”, then press [ENTER]. PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 3 Use [Cursor K / L] to select “Manual Register”, then press [ENTER]. Channel Channel Autoscan Channel List Manual Register Antenna PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 4 Use [the Number buttons] to enter the number of the channel you want to add, then press [ENTER]. g Manual Register Reg ster Ch Change 11 For analog channels select a channel to register using number keys For digital channe s you must perform Autoscan function PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Back BACK 5 Press [SETUP] to exit. Note: • If setup completes successfully, “Added to the channel list” is displayed. • If external input is used, it is not possible to register the channel and “Unavailable” will be displayed on the TV screen. • By using [CHANNEL - / + ], you can select the memorized channels only. 22 EN OPTIONAL SETTING �Antenna Confirmation DTV This function lets you check the digital signal strength of each channel. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “CHANNEL”, then press [ENTER]. PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 3 Use [Cursor K / L] to select “Antenna”, then press [ENTER]. Channel Channel Autoscan Channel List Manual Register Antenna PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 4 Use [the Number buttons] or [CHANNEL / ] to select the channel for which you want to check the digital signal strength. n a Antenna Back Ch Change 11-1 Current50 50 Max PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD CH - + • If the channel is set to analog channel or external input, you cannot confirm the antenna condition. n a Antenna Back Indicator s available for digital broadcasting only Video PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Ch Change CH - + 5 Press [SETUP] to exit. �Language Selection You can choose English, Spanish, or French as your on-screen language. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “LANGUAGE”, then press [ENTER]. PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 3 Use [Cursor K / L] to select “English”, “Español” or “Français”, then press [ENTER]. Language Language Se ect the language for setup disp ay Elija el idioma de ajuste Sélect onner langue écran config Español França s English PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 4 Press [SETUP] to exit. Note: • If you need the English menus instead of the Spanish or French menus, press [SETUP]. Use [Cursor K / L] to select “IDIOMA” or “LANGUE”, then press [ENTER]. Use [Cursor K / L] to select “English”, then press [ENTER]. Press [SETUP] to exit the main menu. 23 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English �Picture Adjustment You can adjust brightness, contrast, color, tint, sharpness and color temperature. Before you begin: You must set ”Home” in ”Location” (Refer to page 33). Otherwise, the settings you adjusted will not be memorized after you turn off the unit. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “PICTURE”, then press [ENTER]. PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 3 Use [Cursor K / L] to select the item you want to adjust, then press [ENTER]. i u Picture Picture Mode Brightness Contrast Color Tint Sharpness Color Temperature Personal 30 60 36 0 0 Normal PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 4 Adjust the picture quality. Picture Mode Use [Cursor K / L] to select the desired setting, then press [ENTER]. (‘‘Personal“, ‘‘Standard“, ‘‘Sports“, ‘‘Movie“ and ‘‘Game“) Picture Picture Picture Mode Brightness Contrast Color Tint Sharpness Color Temperature Personal Standard Sports Movie Game PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Brightness, Contrast, Color, Tint, Sharpness, Color Temperature Use [Cursor K / L] to select the desired setting, then use [Cursor s / B] to adjust. Cursor s Cursor B Brightness Adjust Brightness 30 Move Enter ENT R to decrease brightness to increase brightness Contrast Contrast 60 Adjust Move Enter ENTER to decrease contrast to increase contrast Color Adjust Move Enter ENTER Color 36 to decrease color intensity to increase color intensity Tint Tint 0 Adjust Move Enter ENTER to add red to add green Sharpness 0 Sharpness Adjust Move Enter ENTER to soften to sharpen Color Temperature Color Temp. Normal Adjust Move Enter ENTER to add warm colors to add cool colors 5 Press [SETUP] to exit. Note: • To cancel picture adjustment, press [SETUP]. • Only the “Personal” setting can be adjusted. 24 EN OPTIONAL SETTING �Sound Adjustment You can adjust the sound mode, equalizer and some other sound functions. Before you begin: You must set ”Home” in ”Location” (Refer to page 33). Otherwise, the settings you adjusted will not be memorized after you turn off the unit. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “SOUND”, then press [ENTER]. PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 3 Use [Cursor K / L] to select the sound type you want to adjust, then press [ENTER]. Standard Off Ext Amp Sound Mode Equalizer Auto Volume Level ng TV Speakers u Sound PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 4 Adjust the following items. Sound Mode Use [Cursor K / L] to select the desired setting, then press [ENTER]. (“Personal “, “Standard “, “Movie “, “Music “and “News “) Equalizer Auto Volume Leveling TV Speakers Sound Mode Movie Music News Standard Personal Sound Sound PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Equalizer Adjust tonal quality for each frequencies. Use [Cursor s / B] to select the specific frequency and use [Cursor K / L] to adjust the level, then press [ENTER]. Equalizer Equalizer 0 120Hz 0 500Hz 0 1 5kHz 0 5kHz 0 10kHz PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Auto Volume Leveling This function keeps a constant loudness differential between the TV commercials and the programs. Use [Cursor K / L] to select the desired option, then press [ENTER]. Off On o Vo g Auto Volume Leveling Auto Volume Leveling reduces volume d fferences between channels and programs, providing a consistent audio level PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD On Select if you want to reduce volume differences between the TV commercials and the programs. Off Select if you want to remove the auto volume leveling. TV Speakers Select the audio output from the unit’s speakers, or not. If your amplifier compatible with the CEC function is connected to this unit using an HDMI cable, some part of the sound operations such as volume up can access synchronized by using this unit’s remote control. Use [Cursor K / L] to select the desired option, then press [ENTER]. On TV Speakers Ext Amp "On": Sound will be output from he TV speakers "Off": Sound will not be output from he TV speakers "Ext Amp": Operation s possib e by connecting to the HDMI CEC compa ible amp with a HDMI cable For deta ls look in the user manual Off PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD On The sound will be output from the unit’s speakers. Off The sound will not be output from the unit’s speakers. Ext. Amp This function allows you to control audio output from CEC-compatible devices with the unit’s remote control. 5 Press [SETUP] to exit. Note: • To cancel sound adjustment, press [SETUP]. • We do not guarantee 100% interoperability with other brands of CEC compliant devices. 25 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English �Closed Caption You can view closed captioning (CC) for TV programs, movies and news. Closed caption refers to text of dialogue or descriptions displayed on- screen. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “DETAIL”, then press [ENTER]. PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 3 Use [Cursor K / L] to select “Closed Caption”, then press [ENTER]. Detail Detail On Closed Caption Child Lock PC Sett ngs Energy Sav ng Mode Location Current Software Info Home PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD See the following description for setting each item. lo p Closed Caption Off Off Caption Service Digital Caption Service Caption Style A C B PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD A... “A. Caption Service” B... “B. Digital Caption Service” C... “C. Caption Style” � page 25 � page 26 � page 26 A. Caption Service A. Caption Service 4 Use [Cursor K / L] to select “Caption Service”, then press [ENTER]. d C io Closed Caption Off Off Caption Service Digital Caption Service Caption Style PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 5 Use [Cursor K / L] to select the desired closed caption, then press [ENTER]. Closed Caption Closed Caption Digital Caption Service Caption Style Caption Service Off CC1 CC2 CC3 CC4 Text1 Text2 Text3 Text4 PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Caption mode CC1 and Text1; are the primary caption and text services. The captioning or text is displayed in the same language as the program’s dialogue (up to 4 lines of script on the TV screen, where it does not obstruct relevant parts of the picture). CC3 and Text3; serve as the preferred data channels. The captioning or text is often a secondary language. CC2, CC4, Text2 and Text4; are rarely available and broadcasters use them only in special conditions, such as when “CC1” and “CC3” or “Text1” and “Text3” are not available. • There are 3 display modes according to programs: Paint-on mode: Displays input characters on the TV screen immediately. Pop-on mode: Once characters are stored in memory, they are displayed all at once. Roll-up mode: Displays the characters continuously by scrolling (max. 4 lines). 6 Press [SETUP] to exit. 26 EN OPTIONAL SETTING B. Digital Caption Service B. Digital Caption Service DTV In addition to the basic closed caption described on page 25, DTV has its own closed caption called digital caption service. Use this menu to change the settings for digital caption service. 4 Use [Cursor K / L] to select “Digital Caption Service”, then press [ENTER]. lo p Closed Caption Off Off Caption Service Digital Caption Service Caption Style PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 5 Use [Cursor K / L] to select the desired digital caption service, then press [ENTER]. Closed Caption Closed Caption Off Service1 Service2 Service3 Service4 Service5 Service6 Caption Service Digital Caption Service Caption Style PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Off Select if you do not want digital caption service. This is the default. Service 1~6 Select one of these before changing any other item in “Closed Caption” menu. Choose “Service1” under normal circumstances. 6 Press [SETUP] to exit. Note: • “Digital Caption Service” that you can switch differs depending on the broadcast description. C. Caption Style C. Caption Style DTV You can change the caption style such as font, color or size, etc. 4 Use [Cursor K / L] to select “Caption Style”, then press [ENTER]. Closed Caption Off Off Caption Service D gital Caption Service Caption Style PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 5 Use [Cursor K / L] to select “User Setting”, then press [ENTER]. n S Caption Style Off Middle Wh te So id Black Black None So id User Setting Font Sty e Font Size Font Color Font Opacity Background Color Background Opacity Edge Color Edge Type Font0 PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 6 Use [Cursor K / L] to select “On”, then press [ENTER]. Font Style Font Size Font Color Font Opacity Background Color Background Opacity Edge Color Edge Type User Setting Off t yle Caption Style On PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 7 Use [Cursor K / L] to select an item, then press [ENTER]. Then use [Cursor K / L] to select the desired setting and press [ENTER]. ABCDEFGHIJKL ABCDEFGHIJKL • The setting description for each item is shown on the next page. • Review your setting choice made on the next page by looking in the upper right corner of the displayed setting box (not all selections show the differences selected). Background (Background Color and Background Opacity or Transparency) Picture display Edge (Edge Color and Edge Type) Font (Font Style, Font Size, Font Color and Font Opacity or Transparency) 27 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English Font Style Closed Captioning font style can be changed as below. User Setting Font Size Font Color Font Opacity Background Color Background Opacity Edge Co or Edge Type Font Style Closed Caption p S Caption Style PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Font Size Font size of the displayed caption can be switched as below. Small Large Middle Closed Caption User Setting Font Style Font Color Font Opacity Background Color Background Opacity Edge Co or Edge Type Font Size p S Caption Style PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Font Color Font color of the displayed caption can be switched as below. White Black Red Green Blue Yellow Magenta Cyan Closed Caption User Setting Font Style Font Size Font Opacity Background Color Background Opacity Edge Co or Edge Type Font Color p S Caption Style PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Font Opacity Font opacity of the displayed caption can be switched as below. Flash Translucent Transparent Solid Closed Caption User Setting Font Style Font Size Font Color Background Color Background Opacity Edge Co or Edge Type Font Opacity p S Caption Style PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Background Color Background color of the displayed caption can be switched as below. White B ack Red Green Blue Yellow Magenta Cyan Closed Caption User Setting Font Style Font Size Font Color Font Opacity Background Opacity Edge Color Edge Type Background Color p S Caption Style PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Background Opacity Background opacity of the displayed caption can be switched as below. Flash Translucent Transparent Solid Closed Caption User Setting Font Style Font Color Font Opacity Background Color Edge Co or Edge Type Font Size Background Opacity p S Caption Style PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Edge Color Edge color of the displayed caption can be switched as below. White Black Red Green Blue Yel ow Magenta Cyan Closed Caption User Setting Font Style Font Size Font Color Font Opacity Background Color Background Opacity Edge Type t yle Caption Style Edge Color PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Edge Type Edge type of the displayed caption can be switched as below. Raised Depressed Uniform L Shadow R Shadow None Closed Caption User Setting Font Style Font Color Font Opacity Background Color Edge Color Font Size Background Opacity Edge Type t yle Caption Style PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 8 Press [SETUP] to exit. Note: • To show the closed caption on your TV screen, broadcast signal must contain the closed caption data. • Not all TV programs and commercials have the closed caption or all types of the closed caption. • Captions and texts may not match the TV voice exactly. • Changing channels may delay the closed caption for a few seconds. • Adjusting or muting the volume may delay the closed caption for a few seconds. • Abbreviations, symbols and other grammatical shortcuts may be used in order to keep pace with the on-screen action. This is not a malfunction. • The caption or text characters will not be displayed while the main menu or functions display is shown. • If a black box appears on the TV screen, this means that the closed caption is set to the text mode. To clear the box, select “CC1”, “CC2”, “CC3”, “CC4” or “Off”. • If the unit receives poor quality television signals, the captions may contain errors, or there might be no captions at all. Some possible causes of poor quality signals are: - Automobile ignition noise - Electric motor noise - Weak signal reception - Multiplex signal reception (ghosts or screen flutter) • The unit retains the closed caption setting if the power fails. • Closed caption will not be displayed when you are using an HDMI connection. • When the unit receives special effects playback signal (i.e., Search, Slow and Still) from a VCR’s video output channel (CH3 or CH4), the unit may not display the correct caption or text. 28 EN OPTIONAL SETTING �Child Lock Child lock reads the ratings for programs, then denies access to the programs which exceed the rating level you set. With this function, you can block certain programs inappropriate for children and any channels or external input modes can be invisible. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “DETAIL”, then press [ENTER]. PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 3 Use [Cursor K / L] to select “Child Lock”, then press [ENTER]. On Closed Caption Child Lock PC Sett ngs Energy Saving Mode Location Current Software Info t Detail Home PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 4 Use [the Number buttons] to enter the 4-digit numbers for your PIN Code. PIN Code Enter password. h Child Lock - - - - PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Back BACK • When you have not set up your PIN Code, enter 0000. • When the PIN Code is correct, “Child Lock” menu is displayed. See the following description for setting each item. Channel Lock MPAA Rating TV Rating Canadian Eng ish Rating Canadian French Rating Downloadable Rating Clear Downloadable Rating New Password ld Child Lock A D C B PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD A... “A. Channel Lock” B... “B. MPAA Rating” C... “C. TV Rating” D... “D. New Password” � page 29 � page 29 � page 30 � page 31 Note: • When you select a rating and set it to “Block”, the higher ratings will be blocked automatically. The lower ratings will be available for viewing. • When you set the highest rating to “View”, all ratings turn to “View” automatically. • To block any inappropriate programs, set your limits in “MPAA Rating”, “TV Rating” and “Downloadable Rating”. • The child lock setting will be retained after a power failure (except the access code reverts to 0000). • If the rating is blocked, will appear. • “Downloadable Rating” will be available when the unit receives a digital broadcast using the new rating system. • If the broadcasting signal does not have the Downloadable Rating information, “Downloadable Rating is currently not available.” will appear. This message will also appear when you try to access “Downloadable Rating” after you have cleared the Downloadable Rating information, and the new information has not been downloaded since. • The Canadian rating systems on this unit based on CEA-766-A and the Canadian Radio-Television and Telecommunications Commission (CRTC) policy. 29 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English A. Channel Lock A. Channel Lock Particular channels or external input modes can be invisible in this function. 5 Use [Cursor K / L] to select “Channel Lock”, then press [ENTER]. Cannel Lock MPAA Rat ng TV Rating Canadian English Rat ng Canadian French Rating Downloadable Rating C ear Downloadable Rating New Password h Child Lock PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 6 Use [Cursor K / L] to select the desired rating, then press [ENTER] repeatedly to switch between “View” and “Block”. h k Channel Lock Video Component HDMI 1 HDMI 2 DVD 11.1 DTV Select View/B ock E TER PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Back BACK 7 Press [SETUP] to exit. B. MPAA Rating B. MPAA Rating MPAA Rating is the rating system created by MPAA (Motion Picture Association of America). 5 Use [Cursor K / L] to select “MPAA Rating”, then press [ENTER]. Cannel Lock MPAA Rating TV Rating Canadian Eng ish Rating Canadian French Rating Downloadable Rating Clear Downloadable Rating New Password Child Lock Child Lock PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 6 Use [Cursor K / L] to select the desired rating, then press [ENTER] repeatedly to switch between “View” and “Block”. X NC 17 R PG 13 PG G NR in MPAA Rating Select View/Block EN ER PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Back BACK Rating Category X Mature audience only NC-17 No one under 17 admitted R Restricted; under 17 requires accompanying parent or adult guardian PG-13 Unsuitable for children under 13 PG Parental guidance suggested G General audience NR No rating 7 Press [SETUP] to exit. 30 EN OPTIONAL SETTING C. TV Rating C. TV Rating 5 Use [Cursor K / L] to select “TV Rating”, then press [ENTER]. Cannel Lock MPAA Rat ng TV Rating Canadian English Rat ng Canadian French Rating Downloadable Rating C ear Downloadable Rating New Password h Child Lock PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 6 Use [Cursor K / L / s / B] to select the desired rating, then press [ENTER] repeatedly to switch between “View” and “Block”. TV MA TV 14 TV PG TV G TV Y7 TV Y FV V S L D TV Rating Select View/Block ENT R PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Back BACK 7 Press [SETUP] to exit. To set the sub ratings As for TV-MA, TV-14, TV-PG, or TV-Y7, you can further set the sub ratings to block specific elements of programming. To set the sub ratings, follow the step below. Use [Cursor K / L / s / B] to select the desired rating, then press [ENTER] repeatedly to switch between “View” and “Block”. TV MA TV 14 TV PG TV G TV Y7 TV Y FV V S L D R i g TV Rating Select View/Block NTER PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Back BACK Rating Category TV-MA Mature audience only higher TV-14 Unsuitable for children under 14 TV-PG Parental guidance suggested TV-G General audience TV-Y7 Appropriate for all children 7 and older TV-Y Appropriate for all children lower Sub Rating Category Rating FV Fantasy Violence TV-Y7 V Violence TV-PG TV-14 TV-MA S Sexual Situation L Coarse Language D Suggestive Dialogue TV-PG, TV-14 Note: • Blocked sub rating will appear beside the main rating category in “TV Rating” menu. • You cannot block a sub rating (D, L, S or V) if the main rating is set to “View”. • Changing the category to “Block” or “View” automatically changes all its sub ratings to the same (“Block” or “View”). 31 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English D. New Password D. New Password Although the default code “0000” is supplied with the unit, you can set your own PIN Code. 5 Use [Cursor K / L] to select “New Password”, then press [ENTER]. Channel Lock MPAA Rat ng TV Rating Canadian English Rat ng Canadian French Rating Downloadable Rating C ear Downloadable Rating New Password h Child Lock PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 6 Press [the Number buttons] to enter the new 4-digit PIN Code. • Enter PIN Code again in “Confirm password.” entry field. w w r New Password Confirm password. Enter password. - - - - - - - - PIN Code PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD Back BACK 7 Press [SETUP] to exit. Note: • Make sure new PIN Code and confirm PIN Code must be exactly the same. If they are different, the space is cleared for reentering. • Your PIN Code will be erased and return to the default (0000) when a power failure occurs. If you forget the PIN Code, unplug the AC power cord for 10 seconds to restore the PIN Code to 0000. 32 EN OPTIONAL SETTING �PC Settings This function lets you adjust the PC screen position during PC input through the HDMI 1 input jack. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “DETAIL”, then press [ENTER]. PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 3 Use [Cursor K / L] to select “PC Settings”, then press [ENTER]. Detail Detail On Closed Caption Child Lock PC Sett ngs Energy Sav ng Mode Location Current Software Info Home PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 4 Use [Cursor K / L] to select the setting you want to adjust, then press [ENTER]. C in PC Settings Position Reset Hor zontal Pos t on Vertical Position 0 0 PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 5 Adjust the setting. Position Reset Use [Cursor K / L] to select “Reset”, then press [ENTER]. Cancel Reset i n Position Reset Resets the d splay position of the p cture PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD • The horizontal/vertical position of the PC screen are automatically adjusted. Horizontal Position, Vertical Position Use [Cursor s / B] to adjust. Cursor s Cursor B Horizontal Position H. Position 0 + Adjust Move Enter EN ER to move PC screen left to move PC screen right Vertical Position V. Position 0 Adjust Move Enter EN ER + to move PC screen down to move PC screen up 6 Press [SETUP] to exit. Note: • You may not obtain an appropriate screen with “Position Reset” for some signals. In this case, adjust the settings manually. 33 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English �Energy Saving Mode You can set whether the power consumption is saved or not. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “DETAIL”, then press [ENTER]. PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 3 Use [Cursor K / L] to select “Energy Saving Mode”, then press [ENTER]. On Home Closed Caption Child Lock PC Sett ngs Energy Saving Mode Location Current Software Info t Detail PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 4 Use [Cursor K / L] to select the desired mode, then press [ENTER]. When set to “On”, power consumption is reduced by decreasing backl ght brightness On Off r i g Energy Saving Mode PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD On Select if you want to reduce the power consumption. Off The power consumption may possibly exceed the limited requirement of the ENERGY STAR® qualification. 5 Press [SETUP] to exit. �Location When you select ”Retail”, the power consumption may possibly exceed the limited requirement of the ENERGY STAR® qualification. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “DETAIL”, then press [ENTER]. PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 3 Use [Cursor K / L] to select “Location”, then press [ENTER]. On Home Closed Caption Child Lock PC Settings Energy Saving Mode Location Current Software Info Detail PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 4 Use [Cursor K / L] to select the desired location, then press [ENTER]. io Location Location Home is recommended for normal home use In the Retail Store mode, all settings are fixed Retail Home PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 5 Press [SETUP] to exit. 34 EN OPTIONAL SETTING �Current Software Info This function shows what version of the software currently used. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “DETAIL”, then press [ENTER]. PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 3 Use [Cursor K / L] to select “Current Software Info”, then press [ENTER]. On Home Closed Caption Child Lock PC Sett ngs Energy Saving Mode Location Current Software Info t Detail PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 4 Confirm the version of the software currently used. u n f r Current Software Info Release Vers on: CJ32OD 1 0 Back PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 5 Press [SETUP] to exit. 35 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION OPERATING DVD English �Playable Media Media Type DVD-VIDEO DVD-RW DVD-R CD-DA CD-RW CD-R Logo Recorded Signal digital video (MPEG2) digital audio Media Size 5 inches (12 cm) �Unplayable Media NEVER play back the following discs. Otherwise, malfunction may result! 3 inch (8 cm) disc, DVD-RAM, DVD-audio, CD-i, photo CD, Video CD, DVD with region codes other than 1 or ALL, DTS-CD, DVD-ROM for personal computers, CD-ROM for personal computers, the discs with labels, scratches, stains, blemishes, etc., HD DVD, Blu-ray Disc, CD-RW/-R with MP3 files and CD-RW/-R with JPEG files including Kodak Picture CD. On the following disc, the sound MAY NOT be heard. super audio CD Any other discs without compatibility indications Note: • Unfinalized discs cannot be played back. • For DVD-RW/R, discs recorded in the VR (video recording) format cannot be played back. Only the finalized video format discs can be played back. • Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special properties of discs. • Only the sound recorded on the normal CD layer can be delivered. The sound recorded on the high density super audio CD layer cannot be delivered. • Do not use a single CD adaptor which makes 3 inch (8 cm) to 5 inch (12 cm) disc. • You can play back discs with the marks listed in “Playable Media”. If you use non-standardized discs, this unit may not play them back or the sound and video quality will be compromised. • If the recorded portion of the disc is too small (less than 2-3/16 inches (55 mm) across), it may not play back properly. DVD Functions Region Codes This unit has been designed to play back DVD with region 1. DVD must be labeled for ALL regions or for region 1 in order to play back on the unit. You cannot play back DVD that are labeled for other regions. Look for the symbols on your DVD. If these region symbols are not on your DVD, you cannot play back the DVD in this unit. The number inside the globe refers to region of the world. A DVD labeled for a specific region can only be played back on the unit with the same region code. Color Systems DVD is recorded in different color systems throughout the world. The most common color system is NTSC (which is used primarily in the United States and Canada). This unit uses NTSC, so DVD you play back must be recorded in the NTSC system. You cannot play back DVD recorded in PAL color systems. 36 EN OPERATING DVD �Playback Before you begin: Turn on the amplifier and any other equipment which is connected to this unit. Make sure the external audio receiver (not included) are set to the correct channel. 1 Press [POWER] to turn on the unit. 2 Insert a disc with label facing forward. label • In case the DVD was recorded on both sides, make sure the label of the side you want to play back is facing forward. 3 The unit switches to the DVD mode when the unit was in TV mode and detects the type of disc. e.g.) DVD DVD • Press [PLAY B] if the unit does not go to the DVD mode. 4 The unit starts playback. • If playback does not start automatically, press [PLAY B] again. 5 Press [STOP C] to stop playback temporarily. • If playback remains stopped for 20 minutes, the unit will turn itself off automatically when “AUTO POWER OFF“ is set to “ON“. 6 Press [EJECT A] to eject the disc. Note: • “ ” may appear at the top-right on the TV screen when the operation is prohibited by the disc or this unit. • Some DVD may start playback from title 2 or 3 due to specific programs. • During the playback of a 2-layered disc, pictures may stop for a moment. This happens while the 1st layer is being switched to the 2nd layer. This is not a malfunction. • When you cannot remove the disc, you may try either following operations. - Press and hold [EJECT A] on the unit for more than 5 seconds. - Unplug the AC power cord and plug it in again, then press [EJECT A]. It will take about 10 seconds to eject the disc, while that the unit will not respond to any key commands. �Disc Menu DVD Some discs contain disc menus which describe the contents of the disc or allow you to customize disc playback, or title menu which lists the titles available on the DVD. To display the DVD menu, press [DISC MENU] and use [Cursor K / L / s / B] to select an item, then press [ENTER] (or [PLAY B]). To display the top menu, press [TITLE] and use [Cursor K / L / s / B] to select an item, then press [ENTER] (or [PLAY B]). Note: • Menu operations may vary depending on the disc. Refer to the manual accompanying the disc for more details. �Resume Playback Press [STOP C] during playback. Resume message will appear on the TV screen. Press [PLAY B]. Playback will resume from the point at which playback was stopped. Press 'PLAY' to play from here. To play the beginning, press 'STOP' first and then 'PLAY'. Resume ON Note: • To cancel resume, press [STOP C] one more time in the stop mode. On some discs, [STOP C] will not work while the resume message appears. Please wait until the message disappears. • The resume information will be kept even when the unit is turned off. However, ejecting the disc will cancel the resume feature. Playback will start at the beginning the next time you insert the disc. � Paused and Step-by-step Playback Press [PAUSE F] during playback. • Playback will be paused and sound will be muted. To continue playback, press [PLAY B]. DVD Each time you press [PAUSE F] in the pause mode, the disc goes forward one frame at a time. To continue playback, press [PLAY B]. Note: • Set “STILL MODE” to “FIELD” in the “OTHERS” menu if pictures in the pause mode are blurred. (Refer to page 47.) These operations are accessible by remote control. Some may also be accessible by controls on the main unit. 37 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English �Fast Forward / Fast Reverse Press [FWD D] or [REV E] repeatedly during playback to select the desired forward or reverse speed. To continue playback, press [PLAY B]. E 1 Note: • Set “STILL MODE” to “FIELD” in the “OTHERS” menu if pictures in the fast playback mode are blurred. (Refer to page 47.) • Fast forward / fast reverse speed varies with disc. Approximate speed is 1(2x), 2(8x), 3(20x), 4(50x) and 5(100x) on DVD and 1(2x), 2(8x) and 3(30x) on audio CD. • For DVD, sound will be muted during this function. • For audio CD, sound will be intermittent during the search. �Slow Forward / Slow Reverse DVD Press [FWD D] or [REV E] repeatedly during the paused mode to select the desired forward or reverse speed. To continue playback, press [PLAY B]. 1 Note: • Set “STILL MODE” to “FIELD” in the “OTHERS” menu if pictures in the slow playback mode are blurred. (Refer to page 47.) • Slow forward / slow reverse speed varies with disc. Approximate speed is 1(1/16x), 2(1/8x) and 3(1/2x). • The sound will be muted during this function. �Zoom DVD The zoom function allows you to enlarge the video image and to pan through the enlarged image. 1 During playback, press [MODE] repeatedly until “ ” appears. OFF (ZOOM) • The picture becomes twice as large. 2 Press [ENTER] repeatedly to change the zoom factor, “2x” or “4x”. 4x (ZOOM) 3 Once a desired zoom factor is set, use [Cursor K / L / s / B] to slide the zoomed picture across the TV screen. 4 To exit zoom, repeat steps 1 to 2 above and press [ENTER] repeatedly until “OFF“ appears. Note: • The gray box with an inner blue box that shows during zoomed playback is the position guide indicates the position of the zoomed image within the overall image. Position guide stays on the TV screen until you press [ENTER]. Press [ENTER] one more time to recall the position guide when disappears. • Zoom function does not work while the disc menu is displayed. • 4x zoom is not available on some discs. • Zoom function is also available during pause mode. 38 EN OPERATING DVD �Search Functions Chapter / Title / Track Search Chapter / Title / Track Search You can select chapters, titles or tracks on the disc. 1 During playback, press [MODE] repeatedly until “ “ / “ “ appears. • If you want to perform the title search, use [Cursor K / L] repeatedly until “ “ appears. e.g.) DVD /12 (SEARCH) 2 Press [the Number buttons] to select your desired chapter, title or track within 60 seconds. /12 (SEARCH) To play back a single-digit chapter, title or track when there are more than 10 chapters, titles or tracks, press [ENTER] after entering the chapter, title or track number. 3 Playback will start automatically from the chapter, title or track you selected. Note: • Chapter, title or track search can only be performed during playback or when the unit has kept the resume information. It cannot be performed in the stop mode. • The total number of chapters / titles / tracks in your disc; with less than 10 chapters / titles / tracks, press the chapter / title / track number directly. To play a double-digit chapter / title / track, press the chapter / title / track number. • Track search is not available for programmed or random playback. Using [SKIP H / G] 1 During playback, press [SKIP H / G] repeatedly until a desired chapter, title or track will be selected. or CH/TR 1 CH/TR 2 CH/TR 3 CH/TR 4 [SKIP H] [SKIP G] TT 1 TT 2 TT 3 TT 4 [SKIP H] [SKIP G] 2 Playback will start automatically from the chapter, title or track you selected. Note: • [SKIP H / G] are not available when playback is stopped. current chapter/track (CH) current title (TT) (If the disc has no chapter.) or (TR) 39 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English Time Search Time Search You can select the desired time which the disc is played back from. 1During playback, press [MODE] repeatedly until “ “ / “ “ appears. e.g.) DVD /12 (SEARCH) 2 Use [Cursor K / L] repeatedly until “ “ appears. 1:29:00 TOTAL 3 Press [the Number buttons] to select your desired time lapse within 60 seconds. 1:29:00 TOTAL 4 Playback will start automatically from the time you selected. Note: • When there is no need to enter a number, “0” appears automatically. For example, “0: 0_: _ _” appears in the time search menu if the total time of the title or track is less than 10 minutes. • Press [CLEAR] to erase the incorrect input at step 3. • Time search can only be performed during playback or when the unit has kept the resume information. It cannot be performed in the stop mode. Direct Search Direct Search Press [the Number buttons] to select your desired chapter, title or track. Note: • To select a single-digit chapter, title or track number, press the number directly. • To select double digit chapter, title or track number: - If the disc contains more than 9 and less than 100 chapter, title or track, press [+10] first, then enter the double digit chapter, title or track number. (e.g., for track 26, press [+10], [2] and [6].) �Repeat Playback Repeat function is available only during playback. 1 During playback, press [MODE] repeatedly until “ ” appears. OFF (REPEAT) 2 Press [Cursor K / L] to change the repeat mode. DVD CD 3 Press [BACK] to exit. OFF (repeat off) CHAPTER (current chapter repeat) TITLE (current title repeat) OFF (repeat off) TRACK (current track repeat) ALL (entire disc repeat) 40 EN OPERATING DVD �Repeat A-B Playback You can repeat playback between A and B on a disc. 1 During playback, press [MODE] repeatedly until “ A B ” appears. OFF (A B REPEAT) A B 2 Press [ENTER] at your desired starting point (A). A- (A B REPEAT) A B A B 3 Press [ENTER] at your desired ending point (B). A-B (A B REPEAT) A B • Point B should be in the same title or track as point A. • Within a few seconds, the section A-B will begin to play back repeatedly. 4 To cancel repeat A-B playback, press [MODE] repeatedly until “ A B A B “ appears. Press [ENTER] so “OFF” appears. Note: • Repeat setting (except “ALL”) will be cleared when moving to another title or chapter, track. • During programmed playback, repeat setting will be effective for the tracks in the program. • Repeat playback or repeat A-B playback may not available with some discs. • Repeat A-B playback does not function during other repeat mode. • To cancel point A, press [CLEAR] at step 2 in “Repeat A-B Playback”. • Stopping playback will cancel repeat A-B playback. �Random Playback CD This function shuffles the playing order of tracks instead of playback in the sequence. 1 In stop mode, press [MODE] repeatedly until “RANDOM” menu appears. PLAY CD DA TOTAL 0 45 55 RANDOM PROGRAM no ndication RANDOM 2 Press [PLAY B] to start random playback. Note: • To repeat the current track in the random mode, follow the steps 1 and 2 in “Repeat Playback” on page 39 and select “ TRACK”. • To repeat the entire random selections, follow the steps 1 and 2 in “Repeat Playback” on page 39 and select “ ALL”. �Programmed Playback CD You may determine the order in which tracks will play back. 1 In stop mode, press [MODE] repeatedly until “PROGRAM” menu appears. PROGRAM ENTER OK PLAY CLEAR CD DA TOTAL 0 00 00 1/ 1 1/ 3 T 1 3:31 T 2 4:28 T 3 4:19 T 4 3:58 T 5 4:12 T 6 4:02 T 7 3:55 T 1 3:31 2 Use [Cursor K / L] to select a desired track, then press [ENTER] to store. • Additional tracks may be on other screens. Use [Cursor K / L] to go on to the next / previous pages. • Repeat this step until you have selected all the tracks you wish to play back in the program. or PROGRAM PLAY CLEAR CD DA TOTAL 0 08 22 1/ 1 3/ 3 T 15 3:18 T 16 4:24 ALL CLEAR T 4 3:58 T 16 4:24 T 16 4:24 EN ER/OK • Up to 99 tracks can be ordered. • If 8 or more tracks were in a program, use [SKIP H / G] to see all the tracks. 3 Press [PLAY B] to start programmed playback. Note: • Press [CLEAR] to erase the last track in the program if you make an error. • To erase all programmed tracks at once, select “ALL CLEAR” and press [ENTER] at step 2. • While a program is being played back, [STOP C] works as follows: - Pressing [STOP C] once: The track will be in the resume standby mode. Next time you press [PLAY B], the playback will resume from the point where it is stopped in the programmed playback. - Pressing [STOP C] twice: Resume mode will be canceled. Next time you press [PLAY B], playback will restart from the first track in the original order. However, your programmed playback can be restarted when you follow the above steps. (Your programs are still stored until either the disc is ejected or the unit is turned off.) - On some discs, [STOP C] will not work while the resume message appears. Please wait until the message disappears. • To repeat the current track in the program, follow the steps 1 and 2 in “Repeat Playback” on page 39 and select “TRACK”. • To repeat the entire program, follow the steps 1 and 2 in “Repeat Playback” on page 39 and select “ALL”. • Turning off the unit or ejecting the disc will erase the program. • You cannot use [the Number buttons] to select another track during programmed playback. Use [SKIP H / G] to select other tracks in the program. • You cannot combine random playback with programmed playback. • You cannot alter a programmed order during playback. • You can start programmed playback only while in “PROGRAM” menu. 40 EN English �On-screen Display You can check the information about the current disc by pressing [INFO] on the remote control. DVD T L1 3 11/16 0:00:00 - 0:03:30 1 4 1/3 0:00:00 - 1:23:45 2 Note: • When you are playing back an audio CD in program or random mode, “ PROGRAM” (or “ RANDOM”) will be displayed instead of 2 . �Special Settings Subtitle Language Subtitle Language DVD This unit allows you to select a subtitle language (if available) during DVD playback. 1 During playback, press [MODE] repeatedly until “ “ appears. 2 Use [Cursor K / L] repeatedly until your desired language appears. subtitles can be varied on the displayed number. current subtitles language. 1.ENG / 6 (SUBTITLE) • Each time you press [Cursor K / L], the subtitle language changes as shown on the next page. current repeat setting appears only when the repeat setting is active C : Chapter repeat T : Title repeat A B : A-B repeat bit rate indication for the amount of audio and video data currently being read layer number, appears only when playing a 2-layered disc L0 : Layer 0 is playing L1 : Layer 1 is playing CH (Chapter): current chapter number / total chapters elapsed time of the current chapter remaining time of the current chapter current playback status appears only when multi- angle is available on the DVD TT (Title): current title number / total titles elapsed time of the current title remaining time of the current title TR (Track): current track number / total tracks elapsed time of the current track remaining time of the current track current playback status current repeat setting appears only when the repeat setting is active T : Track repeat A : All tracks repeat A B : A-B repeat ALL: current track number / total tracks elapsed time of the entire disc remaining time of the entire disc 41 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION CD 4/12 0:03:21 - 0:02:15 T 1 3 4/12 0:13:45 - 0:45:40 T 2 42 EN OPERATING DVD ... OFF (no subtitles) ENG (English subtitles) FRE (French subtitles) 3 Press [BACK] to exit. Note: • To cancel the subtitle, select “OFF” at step 2. • If your language is not shown after pressing [Cursor K / L] several times, the disc may not have that language. However, some discs allow you to change subtitle languages setting in the disc menu. (Operation varies depending on the disc, so refer to the manual along with the disc.) • When “NOT AVAILABLE” appears on the TV screen, it means no subtitle is recorded on the scene. • If you choose a language that has 3-letter-language code, the code will be displayed every time you change the subtitle language setting. If you choose any other languages, “---” will be displayed instead. (Refer to page 48.) • Ejecting the disc will cancel your subtitle setting. Audio Language Audio Language DVD This unit allows you to select an audio language (if multiple languages are available) during DVD playback. During playback, press [AUDIO] repeatedly until the desired language appears. 1 ENG Do by D 3/2 1ch 48k/3 • Each time you press [AUDIO], the audio language changes as example below. ... ENG (English audio) SPA (Spanish audio) FRE (French audio) Note: • Some discs will only allow you to change the audio setting from the disc menu. Refer to the manual accompanying the discs for details. • If your language is not shown after pressing [AUDIO] several times, the disc may not have that language. However, some discs allow you to change multiple audio languages setting in the disc menu. (Operation varies depending on the disc, so refer to the manual along with the disc.) • When “NOT AVAILABLE” appears on the TV screen, it means audio language is not available. Camera Angles Camera Angles DVD Some DVD may contain scenes which have been shot simultaneously from various angles. You can change the camera angle if “ ” appears on the screen. If “ANGLE ICON” is set to “OFF” in “OTHERS” menu, “ ” will not appear. (Refer to page 47.) 1 During playback, press [MODE] repeatedly until “ “ appears. 2 Use [Cursor K / L] repeatedly until your desired camera angle appears. angles can be varied on the displayed number. 1 / 8 (ANGLE) 3 Press [BACK] to exit. Black Level Setting Black Level Setting DVD Adjust the black level to make the dark areas of the TV picture brighter. 1 During playback, press [MODE] repeatedly until “ ” appears. OFF (BLACK LEVEL) 2 Press [Cursor K / L] to adjust the black level. ON (BLACK LEVEL) ON : Makes the dark areas brighter. OFF : Shows the original picture as recorded. 3 Press [BACK] to exit. Note: • The setting will be kept even if the unit is turned off. audio can be varied on the displayed number. current audio language. 43 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English Stereo Sound Mode Stereo Sound Mode CD This unit allows you to select a sound mode during CD playback. During playback, press [AUDIO] repeatedly until the desired sound mode appears. STEREO • Each time you press [AUDIO], the sound mode changes as example below. STEREO (stereo sound with left and right channels) L-ch (left channel sound only) R-ch (right channel sound only) Note: • Virtual surround cannot be changed when the sound mode is set to either “L-ch” or “R-ch”. Virtual Surround Virtual Surround You can enjoy virtual surround on your 2 channel stereo system. 1 During playback, press [MODE] repeatedly until “ ” appears. OFF (SURROUND) 2 Press [Cursor K / L] to select the sound level. 1 (SURROUND) 1 : Natural effect. 2 : Emphasized effect. OFF : No effects (original sound). 3 Press [BACK] to exit. Note: • The setting will be kept even if the unit is turned off. • For audio CD, virtual surround will not be effective if the sound mode is set to something other than “STEREO”. (Refer to “Stereo Sound Mode” on page 43.) • Turn down the level or select “OFF” if the sound is distorted. Marker Setup Marker Setup This feature allows you to assign a specific point on a disc to be called back later. To set a marker 1 During playback, press [MODE] repeatedly until “ ” / “ ” appears. e.g.) DVD _ _ /12 (SEARCH) 2 Use [Cursor K / L] repeatedly until marker search menu appears. 1 2 3 4 5 6 7 8 9 10 AC 3 Use [Cursor s / B] to select an available marker within 60 seconds. 1 2 3 4 5 6 7 8 9 10 AC 4 When the playback reaches the point at which you want to set a marker, press [ENTER]. • Marker is now set. 2 3 4 5 6 7 8 9 10 AC 5 Press [BACK] to exit. To return to the marker later 1 Repeat steps 1-2 in “To set a marker”. Use [Cursor s / B] to select the desired marker. e.g.) DVD 2 3 4 5 6 7 8 9 10 AC 2 Press [ENTER] at the desired marker to restart playback from the specific point which you set. 2 3 4 5 6 7 8 9 10 AC Note: • Marker search menu will disappear in about 60 seconds when there is no input. • You can mark up to 10 points. • To clear a marker, select the marker to be cleared, and then press [CLEAR]. • Ejecting the disc or turning off the power will erase all markers. • Selecting “ ” at step 3 in the section “To set a marker” will also erase all markers. DVD SETTING 44 EN �DVD Language Setting You can change the desired language when playing back the disc. 1 Press [SETUP] to display the main menu. PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 2 Use [Cursor K / L] to select “DVD”, then press [ENTER]. t Setup Press “ENTER” key to move to DVD Setup PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 3 Use [Cursor s / B] to select “ ”, then press [ENTER]. LANGUAGE AUDIO ORIGINAL SUBTITLE OFF DISC MENU ENGLISH ENTER/OK 4 Use [Cursor K / L] to select the desired item, then press [ENTER]. LANGUAGE ENTER/OK AUDIO ORIGINAL SUBTITLE OFF DISC MENU ENGLISH 5 Use [Cursor K / L] to select the desired item, then press [ENTER]. AUDIO *1, *2 (Default: ORIGINAL) Select the desired audio language. LANGUAGE ENTER/OK ORIGINAL ENGLISH FRENCH SPANISH GERMAN ITALIAN SWEDISH AUDIO SUBTITLE *1, *2 (Default: OFF) Select the desired subtitle language. LANGUAGE ENTER/OK OFF ENGLISH FRENCH SPANISH GERMAN ITALIAN SWEDISH SUBTITLE DISC MENU *1 (Default: ENGLISH) Select the desired language in DVD menu. LANGUAGE ENTER/OK ENGLISH FRENCH SPANISH GERMAN ITALIAN SWEDISH DUTCH DISC MENU Note: • To change the on-screen language, call up “LANGUAGE” from the main menu and set the desired language. (Refer to “Language Selection” on page 22.) *1 • Language options are not available with some discs. • If “OTHER” is selected in “AUDIO”, “SUBTITLE” or “DISC MENU” menu, press 4-digit number to enter the code for the desired language. (Refer to “Language Code List” on page 48.) • Only the languages supported by the disc can be selected. *2 • Language setting for Audio and Subtitle are not available with some discs. - Use [MODE] to select subtitles available on the DVD. - Use [AUDIO] to select audio available on the DVD. • If the DVD’s default settings for audio and subtitle are the same language, the subtitles may not show unless you turn them on. 6 Press [SETUP] to exit. Settings are only effective when the unit is in DVD mode and any discs should not be played back. 45 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English �DVD Audio Setting Choose the appropriate audio settings for your equipment. It only affects during the playback of DVD. 1 Press [SETUP] to display the main menu. PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 2 Use [Cursor K / L] to select “DVD”, then press [ENTER]. t Setup Press “ENTER” key to move to DVD Setup PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 3 Use [Cursor s / B] to select “ ”, then press [ENTER]. AUDIO ENTER/OK DRC ON DOWN SAMPLING ON DOLBY DIGITAL BITSTREAM 4 Use [Cursor K / L] to select the desired item, then press [ENTER]. DRC (dynamic range control) (Default: ON) This function is available only on the discs which are recorded in the Dolby Digital format. AUDIO ENTER/OK DRC ON DOWN SAMPLING ON DOLBY DIGITAL BITSTREAM ON : Compress the range between soft and loud sounds. OFF : No effects (original sound). DOWN SAMPLING (Default: ON) This function is available only on digital outputting of a disc recorded in 96kHz. AUDIO ENTER/OK DRC ON DOWN SAMPLING ON DOLBY DIGITAL BITSTREAM ON : When outputting in 48kHz. OFF : When outputting the original sound. Note: • When playing back a 96 kHz disc with the copyright protection or when ‘‘Virtual Surround” is set to “1” or “2”, the sound will be down sampled at 48 kHz even if the “DOWN SAMPLING” is set to “OFF”. (Refer to “Virtual Surround” on page 43.) DOLBY DIGITAL (Default: BITSTREAM) Set to “BITSTREAM“ when this unit is connected to a Dolby Digital decoder. AUDIO ENTER/OK DRC ON DOWN SAMPLING ON DOLBY DIGITAL BITSTREAM BITSTREAM : Outputs Dolby Digital signals. PCM : Converts the Dolby Digital into PCM. (2 channel) 5 Press [SETUP] to exit. DVD SETTING 46 EN �Parental Setting Parental setting prevents your children from viewing inappropriate materials. (password protected.) Playback will stop if the ratings exceed the levels you set. 1 Press [SETUP] to display the main menu. PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 2 Use [Cursor K / L] to select “DVD”, then press [ENTER]. t Setup Press “ENTER” key to move to DVD Setup PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 3 Use [Cursor s / B] to select “ ”, then press [ENTER]. PARENTAL ENTER/OK PARENTAL LEVEL ALL 4 Use [the Number buttons] to enter the 4-digit numbers for your password, then press [ENTER]. PARENTAL ENTER/OK Enter current password • If you have set password already, use [the Number buttons] to enter the current 4-digit password. • You cannot use the default password (4737) to play back a DVD. 5 Use [Cursor K / L] to select the “PARENTAL LEVEL”, then press [ENTER]. PARENTAL ENTER/OK PARENTAL LEVEL ALL PASSWORD CHANGE 6 Use [Cursor K / L] to select the desired item, then press [ENTER]. PARENTAL ENTER/OK ALL 8 [ ADULT ] 7 [ NC 17 ] 6 [ R ] 5 [ PGR ] 4 [ PG13 ] 3 [ PG ] PARENTAL LEVEL PARENTAL LEVEL ALL : All parental locks are cancelled. 8 [ADULT] : All ratings (adult / general / children) can be played back. 7 [NC-17]-2 [G] : Only DVD intended for general use and children can be played back. 1 [KID SAFE] : Only DVD intended for children can be played back. 7 Press [SETUP] to exit. To change the password 5 Follow steps 1 to 4. Use [Cursor K / L] to select “PASSWORD CHANGE”, then press [ENTER]. PARENTAL ENTER/OK PARENTAL LEVEL ALL PASSWORD CHANGE 6 Use [the Number buttons] to enter the new 4-digit password. PARENTAL ENTER/OK PASSWORD Please enter a 4 digit password 0 0 0 0 Don’t forget the password Press ‘ENTER/OK’ to activate password Note: • DVD-video may not respond to parental lock settings. Make sure this function works with your DVD-video. • Record the password in case you forget it. • If you forget the password, press [4], [7], [3], [7], then enter your new password. Password will be cleared and parental levels will be set to “ALL”. • A power failure will not erase your password. 7 Press [SETUP] to exit. 47 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English �Others You can change the other functions. 1 Press [SETUP] to display the main menu. PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 2 Use [Cursor K / L] to select “DVD”, then press [ENTER]. t Setup Press “ENTER” key to move to DVD Setup PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 3 Use [Cursor s / B] to select “ ”, then press [ENTER]. OTHERS ENTER/OK ANGLE ICON ON STILL MODE AUTO AUTO POWER OFF ON 4 Use [Cursor K / L] to select the desired item, then press [ENTER]. ANGLE ICON (Default: ON) Set to “ON” to show the angle icon when multiple camera angles are available during DVD playback. OTHERS ENTER/OK ANGLE ICON ON STILL MODE AUTO AUTO POWER OFF ON STILL MODE (Default: AUTO) Set the picture quality in the still mode. If you select “AUTO”, it automatically selects the best resolution setting (“FRAME” or “FIELD”) based on the date characteristics of the pictures. FIELD : The picture in the still mode will be stabilized. FRAME : The picture in the still mode will be highly defined. OTHERS ENTEROK ANGLE ICON ON STILL MODE AUTO AUTO POWER OFF ON AUTO POWER OFF (Default: ON) Set to “ON” to turn this unit off automatically after 20 minutes of no use. OTHERS ENTEROK ANGLE ICON ON STILL MODE AUTO AUTO POWER OFF ON 5 Press [SETUP] to exit. DVD SETTING 48 EN �Language Code List You can reset all the settings except for the parental setting and on-screen menu language. 1 Press [SETUP] to display the main menu. PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 2 Use [Cursor K / L] to select “DVD”, then press [ENTER]. Setup Setup Press “ENTER” key to move to DVD Setup PICTURE SOUND CHANNEL DETAIL LANGUAGE DVD 3 Use [Cursor s / B] to select “ ”, then press [ENTER]. INITIALIZE ENTER/OK Initialize? NO YES 4 Use [Cursor K / L] to select “YES”, then press [ENTER]. INITIALIZE ENTER/OK Initialize? NO YES Note: • When you want to cancel the initialization, select “NO” at step 4, then press [ENTER]. 5 Press [SETUP] to exit. �Reset to the Default Setting Note: • If you choose a language that has a 3-letter abbreviation, the code will be displayed every time you change the audio or subtitle language setting above. If you choose any other language, ‘---’ will be displayed instead. (3-letter abbreviation is written in bracket.) Language Code A-B Abkhazian 4748 Afar 4747 Afrikaans 4752 Albanian 6563 Amharic 4759 Arabic 4764 Armenian 5471 Assamese 4765 Aymara 4771 Azerbaijani 4772 Bashkir 4847 Basque 5167 Bengali;Bangla 4860 Bhutani 5072 Bihari 4854 Bislama 4855 Breton 4864 Bulgarian 4853 Burmese 5971 Byelorussian 4851 C-E Cambodian 5759 Catalan 4947 Chinese [CHI] 7254 Corsican 4961 Croatian 5464 Czech [CZE] 4965 Danish [DAN] 5047 Dutch [DUT] 6058 English [ENG] 5160 Esperanto 5161 Estonian 5166 F-H Faroese 5261 Fiji 5256 Finnish [FIN] 5255 French [FRE] 5264 Frisian 5271 Galician 5358 Georgian 5747 German [GER] 5051 Greek [GRE] 5158 Greenlandic 5758 Guarani 5360 Gujarati 5367 Hausa 5447 Hebrew 5569 Hindi 5455 Hungarian [HUN] 5467 I-K Icelandic [ICE] 5565 Indonesian 5560 Interlingua 5547 Interlingue 5551 Inupiak 5557 Irish [IRI] 5347 Italian [ITA] 5566 Japanese [JPN] 5647 Javanese 5669 Kannada 5760 Kashmiri 5765 Kazakh 5757 Kinyarwanda 6469 Kirghiz 5771 Kirundi 6460 Korean [KOR] 5761 Kurdish 5767 L-N Laothian 5861 Latin 5847 Latvian;Lettish 5868 Lingala 5860 Lithuanian 5866 Macedonian 5957 Malagasy 5953 Malay 5965 Malayalam 5958 Maltese 5966 Maori 5955 Language Code Marathi 5964 Moldavian 5961 Mongolian 5960 Nauru 6047 Nepali 6051 Norwegian [NOR] 6061 O-R Occitan 6149 Oriya 6164 Oromo(Afan) 6159 Panjabi 6247 Pashto;Pushto 6265 Persian 5247 Polish [POL] 6258 Portuguese [POR] 6266 Quechua 6367 Rhaeto-Romance 6459 Romanian [RUM] 6461 Russian [RUS] 6467 S Samoan 6559 Sangho 6553 Sanskrit 6547 Scots Gaelic 5350 Serbian 6564 Serbo-Croatian 6554 Sesotho 6566 Setswana 6660 Shona 6560 Sindhi 6550 Singhalese 6555 Siswat 6565 Slovak 6557 Slovenian 6558 Somali 6561 Spanish [SPA] 5165 Sundanese 6567 Swahili 6569 Swedish [SWE] 6568 T Tagalog 6658 Tajik 6653 Tamil 6647 Tatar 6666 Telugu 6651 Thai 6654 Tibetan 4861 Tigrinya 6655 Tonga 6661 Tsonga 6665 Turkish [TUR] 6664 Turkmen 6657 Twi 6669 U-Z Ukrainian 6757 Urdu 6764 Uzbek 6772 Vietnamese 6855 Volapuk 6861 Welsh 4971 Wolof 6961 Xhosa 7054 Yiddish 5655 Yoruba 7161 Zulu 7267 49 EN TROUBLESHOOTING INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English Question Answer My remote control does not work. What should I do? • Check the antenna or cable connection to the main unit. • Check the batteries of the remote control. • Check if there is an obstacle between the infrared sensor window and the remote control. • Test the signal output. If OK, then possible infrared sensor trouble. (Refer to “IR Signal Check” on page 52.) • Aim the remote control directly at the infrared sensor window on the front of the unit. • Reduce the distance to the unit. • Re-insert the batteries with their polarities (+/– signs) as indicated. • When there is an infrared-equipped device such as PC near this unit, it may interrupt the remote control signal of this unit. • Move the infrared-equipped device away from this unit, change the angle of the infrared sensor or turn off the infrared communication function. How come the Initial setup appears every time I turn on this unit? • Connect the RF coaxial cable to the unit directly and run the initial setup. • Make sure to complete the channel scan before turning off the unit. Why I cannot watch some TV programs? • Make sure autoscan has been completed. (Refer to “Autoscan” on page 20.) • Autoscan must be completed when you set up the unit for the first time or move it to a location where previously unavailable channels are broadcast. • The selected channel may not be broadcasting. • When autoscan is interrupted and not completed, some channels will not be received. Make sure to complete. (Refer to “Autoscan” on page 20.) • The selected channel cannot be viewed by the “Child Lock” setting. (Refer to ‘‘Child Lock” on page 28.) • The unit requires some kind of antenna input. An indoor antenna (VHF / UHF), an external antenna (VHF /UHF) or an RF coaxial cable from your wall cable/satellite box needs to be plugged into the unit. How come there is no image from the connected external devices? • Check if the right input mode is selected by pressing [INPUT SELECT] or using [CHANNEL - / +]. (Refer to “Switching Each Input Mode” on page 17.) • Check the antenna or cable connection to the unit. • When using the Composite Video Connection check that the Green (Y), Blue (Pb/Cb) and Red (Pr/Cr) connectors are connected to their corresponding colored jacks on the unit. Whenever I entered channel number, it changes automatically. • Many digital channels have alternate channel numbers. The unit changes the numbers automatically to the ones signifying the broadcasting stations. These are the numbers used for analog broadcasts. My disc cannot be played back. Is there any way I can play my disc? • Clean the disc. • Ensure the disc is correctly inserted. • Check if the disc is defective by trying another disc. • Cancel the parental lock or change the control level. • Insert a correct disc that plays back on this unit. • Handle a disc with special care so that it does not have fingerprints, scratches or dusts on its surface. Why are captions not displayed entirely? Or, captions are delayed behind the dialogue. • Captions that are delayed a few seconds behind the actual dialogue are common for live broadcasts. Most captioning production companies can display a dialogue to maximum of 220 words per minute. If a dialogue exceeds that rate, selective editing is used to insure that the captions remain up-to date with the current TV screen dialogue. How can I set the clock ? • There is no clock function on this unit. �FAQ 50 EN TROUBLESHOOTING �Troubleshooting Guide If the unit does not perform properly when operated as instructed in this manual, check the following chart and all connections once before calling for service. Symptom Remedy T V No power • Make sure the AC power cord is plugged in. • Make sure that the AC outlet supplies the proper voltage, plug another electrical appliance into the AC outlet. • If a power failure occurs, unplug the AC power cord for 1 minute to allow the unit to reset itself. Control button does not work. • Press only one button at a time. Do NOT press more than one buttons at the same time. Power is ON but no screen image. • Check whether the connection of the antenna, cable receiver or satellite box is connected correctly. • Check whether all the cables to the unit are connected to the correct output jack of your device like BD/DVD recorder. • Make sure that the selected input mode is connected to the working input jack. • Check if your computer is NOT in sleep mode when the input mode of this unit is in PC mode. Tap any key on the keyboard to wake up your computer. No picture or sound • Check if the power is on. • Check if the right input mode is selected. • Check whether all the cables to the unit are connected to the correct output jack of your device like BD/DVD recorder. • View other TV channels. The problem might be limited to the broadcasting station. • Turn off the unit and wait for about 1 minute, then turn on the unit again. • Check whether the connection of the antenna, cable receiver or satellite box is connected correctly. • Make sure that the selected input mode is connected to the working input jack. • Check if your computer is NOT in sleep mode when the input mode of this unit is in PC mode. Tap any key on the keyboard to wake up your computer. • Make sure that the sound is not muted. Press [MUTE] so that the volume bar and current volume level will appear on the TV screen. • Make sure that the volume is NOT set to “0” or “Mute”. If so, use [VOLUME - / +] to adjust the desired volume. No color • View other TV channels. The problem might be limited to the broadcasting station. • Adjust “Color” in the main menu. Adjusted ‘‘PICTURE” or ‘‘SOUND” is not effective every time turn on the unit. • You must set ”Home” in ”Location” (Refer to page 33). Otherwise, the settings you adjusted will not be memorized after you turn off the unit. Sound OK, picture poor • Electrical interference from nearby appliances may affect picture quality. • Adjust “Contrast” and “Brightness” in the main menu. • View other TV channels. The problem might be limited to the broadcasting station. • For the best picture quality, watch “high definition” wide screen programs. If the HD content is not available, watch “standard definition” programs instead. Picture OK, sound poor • View other TV channels. The problem might be limited to the broadcasting station. • Check if the audio cable is connected in correctly . You see a distorted picture or hear an unusual sound. • You may be getting interference from electrical appliances, automobiles, motorcycles or fl uorescent lights. • Try moving the unit to another location to see if this is the cause of the problem. Ghosts, lines or streaks in picture • Electrical interference from nearby appliances may affect picture quality. • View other TV channels. The problem might be limited to the broadcasting station. You see “noise” or “trash” on the screen. • When the capabilities of the unit exceed the capabilities of the digital broadcasting, the signal will be increased to match the capabilities of the display of the unit. This may cause noise or trash. Different color marks on the TV screen • View other TV channels. The problem might be limited to the broadcasting station. 51 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English Symptom Remedy T V You switch to a different input and the volume. • This unit will memorize the volume level from the last time you adjusted it. • If the volume of the sound from another device is higher or lower, then the loudness will change. You switch to a different input and the screen size changes. • This unit will memorize the viewing mode from the last time you used the particular input modes. The display image does not cover the entire screen. • If you are using the unit as a PC monitor, make sure that “Horizontal Position” and “Vertical Position” in “PC Settings” are set correctly. • If you are watching TV or using the video, S-video, component video or HDMI with 480i input, press [SCREEN MODE] repeatedly to switch various screen modes. Captions are displayed as a white box. No caption is displayed in the Closed Caption-supported program. • Interference from buildings or weather conditions may cause captioning to be incomplete. • Broadcasting station may shorten the program to insert advertisement. The closed caption decoder cannot read the information of the shortened program. No caption is displayed when playing back a disc or a cassette tape containing captions. • The disc or cassette tape may be illegally copied, or the caption signal might not have been read during copying. Black box is displayed on the TV screen. • The text mode is selected for caption. Select “CC1”, “CC2”, “CC3”, “CC4” or “Off”. D V D Completely distorted picture or black/white picture with DVD. • Make sure the disc is compatible with the unit. Picture freezes momentarily during playback. • Check the disc for finger prints/scratches and clean with a soft cloth wiping from center to edge. Disc cannot be played. • Clean the disc. • Ensure the disc is correctly inserted. • Check if the disc is defective by trying another disc. • Cancel the parental lock or change the control level. • Insert a correct disc that plays on this unit. • Handle a disc with special care so that it does not have fingerprints, scratches, or dusts on its surface. Buttons do not work or the unit stops responding. • To completely reset the unit, unplug the AC power cord from the power outlet for 5-10 seconds. The unit does not respond to some operating commands during playback. • Operations may not be permitted by the disc. Refer to the instructions of the disc. Angle does not switch. • The angle cannot be switched for DVD which do not contain multiple angles. In some cases multiple angles are only recorded for specific scenes. Playback does not start when the title is selected. • Check the “PARENTAL” setting. The password for rating level has been forgotten. • Enter the default password “4737”, then your forgotten password will be cleared. Note: • The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a fixed point of blue, green or red. This is not to be considered a defect in the LCD screen. • Some functions are not available in specific modes, but this is not a malfunction. Read the description in this manual for more details on correct operations. • Some functions are prohibited on some discs. 52 EN INFORMATION ATSC Acronym that stands for Advanced Television Systems Committee and the name of the digital broadcasting standards. Aspect Ratio The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the TV screen is almost square); widescreen models are 16:9 (the TV screen is almost twice as wide as its height). CEC (Consumer Electronics Control) This allows you to operate the linked functions between our brand devices with CEC feature and this unit. Component Video This is a video signal format that conveys each of 3 principal colors of light (red, blue and green) through different signal lines. This allows the viewers to experience picture colors as original as it is. There are several signal formats, including Y / Pb / Pr and Y / Cb / Cr. Dolby Digital The system developed by Dolby Laboratories to compress digital sound. It offers stereo sound (2ch) or multi-channel audio. HDMI (High-Definition Multimedia Interface) Interface that supports all uncompressed, digital audio/video formats including set-top box, BD/DVD recorder or digital television, over a single cable. HDTV (High Definition TV) Ultimate digital format that produces high resolution and high picture quality. NTSC Acronym that stands for National Television Systems Committee and the name of the current analog broadcasting standards. Off the air NTSC signals will no longer be sent by broadcasting stations after Feb 17, 2009. Password / PIN Code A stored 4-digit number that allows access to parental control features. Region Code Regions associate discs and players with particular areas of the world. This unit will only play back discs that have compatible region codes. You can find the region code of your unit by looking on the rear panel. Some discs are compatible with more than one region (or all regions). SAP (Secondary Audio Program) Second-audio channel delivered separately from main-audio channel. This audio channel is used as an alternate in bilingual broadcasting. SDTV (Standard Definition TV) Standard digital format that is similar to the NTSC picture quality. S-video Offers higher quality images by delivering each signal, color (c) and luminance (y) independently of each other through a separate cable. �Glossary �Maintenance Cabinet Cleaning • Wipe the front panel and other exterior surfaces of the unit with a soft cloth immersed in lukewarm water and wrung dry. • Never use a solvent or alcohol. Do not spray insecticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed surfaces. Panel Cleaning Wipe the panel of the unit with a soft cloth. Before cleaning the panel, disconnect the AC power cord. Disc Handling Handle the discs so that fingerprints and dust do not adhere to the surfaces of the discs. • Always store the disc in its protective case when it is not used. • To clean-off, use a soft cloth. • Do not use a hard cloth since this will mar the disc. • Wipe the disc in a straight line form center to edge. • Never wipe with a circular motion. • Do not use detergent or abrasive cleaning agents. Servicing Should your unit become inoperative, do not try to correct the problem yourself. There are no user serviceable parts inside. Turn off the unit, unplug the AC power cord and call our toll free customer support line found on the cover of this manual to locate an authorized service center. If the Laser Optical Pickup Unit is Dirty If the unit still does not perform properly when it is operated, while referring to the relevant sections and to "Troubleshooting Guide" in this owner’s manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit. IR Signal Check If the remote control is not working properly, you can use a digital camera (including a cellular phone with built-in camera) to see if it is sending out an infrared signal. • With a digital camera (including built-in cell phone cameras): Point the Digital Camera towards the remote control infrared diode at the front of the remote control. Press any button on the remote control and look through the camera display. If the infrared pulsating light appears through the camera, the remote control is sending out an IR signal. 53 EN INTRODUCTION PREPARATION WATCHING TV OPTIONAL SETTING OPERATING DVD DVD SETTING TROUBLESHOOTING INFORMATION English �General Specifications TV TV format: ATSC / NTSC-M TV standard Closed caption system: §15.122/FCC (digital CC) §15.119/FCC (analog CC) Channel coverage (ATSC/NTSC): Terrestrial VHF: 2~13 UHF: 14~69 CATV 2~13, A~W, W+1~W+94 (analog W+1~W+84), A-5~A-1, 5A Tuning system: Channel frequency synthesized tuning system Channel access: Direct access keyboard, Programmable scan, and up/down DVD Discs (playback compatibility): DVD-video, DVD-RW/-R, audio CD, CD-RW/-R Frequency response: DVD (linear sound): 20 Hz to 20 kHz (sample rate: 48 kHz) 20 Hz to 44 kHz (sample rate: 96 kHz) CD: 20 Hz to 20 kHz Signal-to-noise ratio (S/N ratio): CD: 90 dB (JEITA) Total distortion factor: DVD: 1 KHz 0.007% (JEITA) CD: 1 KHz 0.007% (JEITA) �Electrical Specification Sound Output: 10W, 8Ω x 2 • Designs and specifi cations are subject to change without notice and without our legal obligation. • If there is a discrepancy between languages, the default language will be English. �Other Specifications Terminals: Antenna input: VHF/UHF/CATV 75Ω unbalanced (F-type) Audio input: RCA jack (L/R) x 6 500mV rms Video input: RCA jack x 1 1V p-p (75Ω) S-video input: Mini DIN 4-pin jack x 1 Y: 1V p-p (75Ω) C: 286mV p-p (75Ω) Component video input: RCA jack x 3 Y: 1V p-p (75Ω) Pb/Cb:700mV p-p (75Ω) Pr/Cr: 700mV p-p (75Ω) HDMI input: HDMI 19pin x 2 Coaxial digital audio output: RCA jack x1 500mV p-p (75Ω) Audio output: RCA jack (L/R) x 2 500mV rms Remote control: Digital encoded infrared light system Operating temperature: 41°F (5°C) to 104°F (40°C) Power requirements: 120V~ AC +/- 10%, 60Hz +/- 0.5% Power consumption (maximum): 160W LCD: 32 inches class (31.5 inches measured diagonally) Dimensions: W: 30.0 inches (760.0mm) 30.0 inches (760.0mm) H: 20.5 inches (519.3mm) 22.2 inches (563.0mm) D: 5.1 inches (127.5mm) 9.3 inches (234.0mm) Weight: 20.6 lbs. (9.3kg) 21.7 lbs. (9.8kg) If you subscribe to cable TV, the channels are displayed as 1-135. Cable companies often designate channels with letters or letter-number combinations. Please check with your local cable company. The following is a chart of common cable channel designations. 5A 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 A 14 B 15 C 16 D 17 E 18 F 19 G 20 H 21 I 22 J 23 K 24 L 25 M 26 N 27 O 28 P 29 Q 30 R 31 S 32 T 33 U 34 V 35 W 36 W+1 37 38 W+2 W+3 39 W+4 40 W+5 41 W+6 42 W+7 43 W+8 44 W+9 45 W+10 46 W+11 47 W+12 48 W+13 49 W+14 50 W+15 51 W+16 52 W+17 53 W+18 54 W+19 55 W+20 56 W+21 57 W+22 58 W+23 59 W+24 60 W+25 61 W+26 62 W+27 63 W+28 64 W+29 65 W+30 66 W+31 67 W+32 68 W+33 69 W+34 70 W+35 71 W+36 72 W+37 73 W+38 74 W+39 75 W+40 76 W+41 77 W+42 78 W+43 79 W+44 80 W+45 81 W+46 82 W+47 83 W+48 84 W+49 85 W+50 86 W+51 87 W+52 88 W+53 89 W+54 90 W+55 91 W+56 92 W+57 93 W+58 94 A-5 95 A-4 96 A-3 97 A-2 98 A-1 99 W+59 100 W+60 101 W+61 102 W+62 103 W+63 104 W+64 105 W+85 126 W+65 106 W+66 107 W+67 108 W+68 109 W+69 110 W+70 111 W+71 112 W+72 113 W+73 114 W+74 115 W+75 116 W+76 117 W+77 118 W+78 119 W+79 120 W+80 121 W+81 122 W+82 123 W+83 124 W+84 125 W+86 127 W+87 128 W+88 129 W+89 130 W+90 131 W+91 132 W+92 133 W+93 134 W+94 135 �Cable Channel Designations CATV channel TV Display CATV channel TV Display CATV channel TV Display CATV channel TV Display CATV channel TV Display CATV channel TV Display CATV channel TV Display Do not attempt to service the product yourself JVC COMPANY OF AMERICA Division of JVC Americas Corp. 1700 Valley Road Wayne, New Jersey, 07470 JVC Loves the Earth A94F5UH/A94F6UH 1EMN24860 ★★★★★ Printed in China
