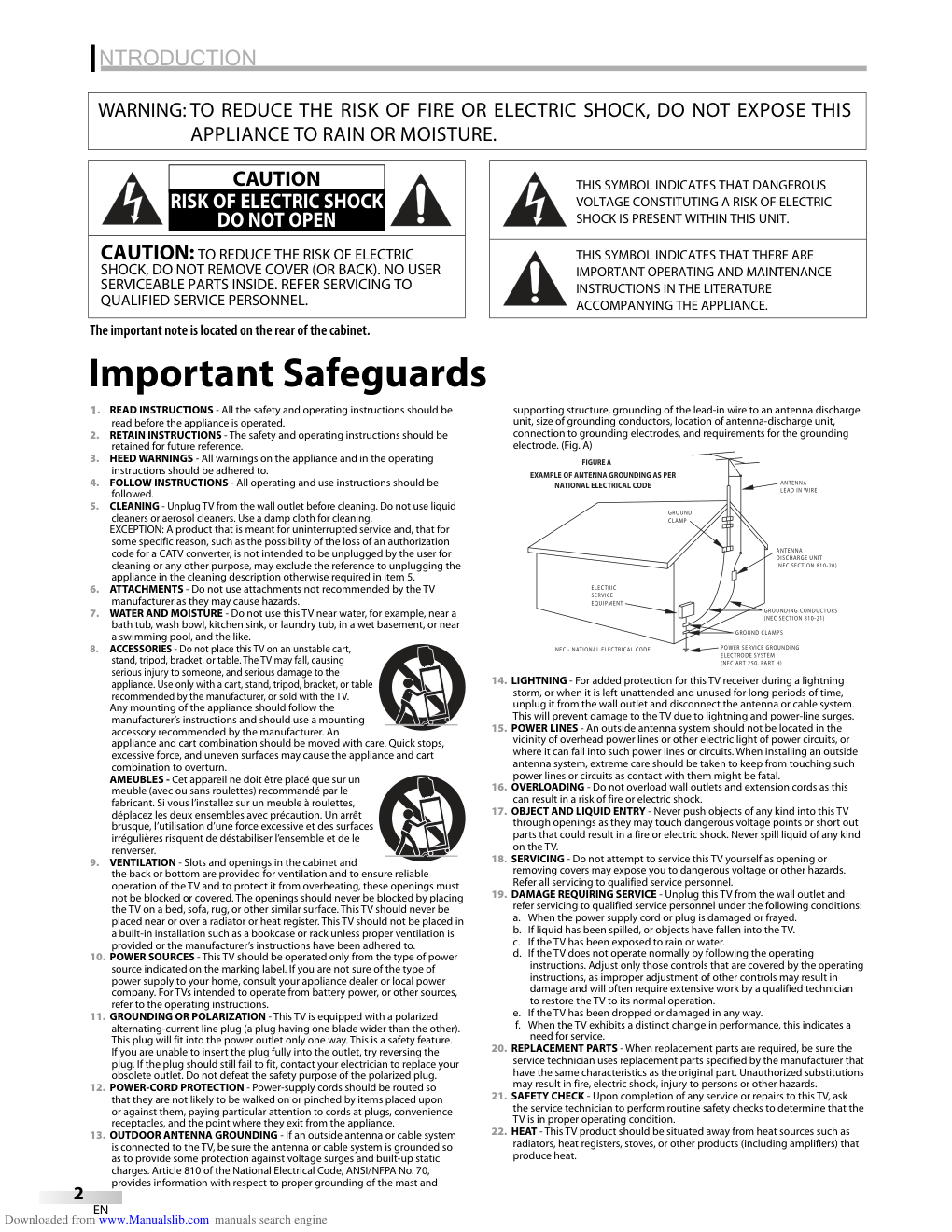

WATCHING TV CONNECTION INITIAL SETTING OPTIONAL SETTING SETTING DVD TROUBLESHOOTING INFORMATION OPERATING DVD INTRODUCTION LCD Television Built-in DVD Player Users Guide LT-32DM20 32" class (31.5" Diagonal) 0808TKH-FU-FU Important Note: In the spaces below, enter the model and serial number of your television (located at the rear of the television cabinet). Staple your sales receipt or invoice to the inside cover of this guide. Keep this user’s guide in a convenient place for future reference. Keep the carton and original packaging for future use. HIGH-DEFINITION TELEVISION Serial Number: Model No: Downloaded from www.Manualslib.com manuals search engine INTRODUCTION 2 EN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT. THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE. The important note is located on the rear of the cabinet. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. 1. READ INSTRUCTIONS - All the safety and operating instructions should be read before the appliance is operated. 2. RETAIN INSTRUCTIONS - The safety and operating instructions should be retained for future reference. 3. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to. 4. FOLLOW INSTRUCTIONS - All operating and use instructions should be followed. 5. CLEANING - Unplug TV from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5. 6. ATTACHMENTS - Do not use attachments not recommended by the TV manufacturer as they may cause hazards. 7. WATER AND MOISTURE - Do not use this TV near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like. 8. ACCESSORIES - Do not place this TV on an unstable cart, stand, tripod, bracket, or table. The TV may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the TV. Any mounting of the appliance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. AMEUBLES - Cet appareil ne doit être placé que sur un meuble (avec ou sans roulettes) recommandé par le fabricant. Si vous l’installez sur un meuble à roulettes, déplacez les deux ensembles avec précaution. Un arrêt brusque, l’utilisation d’une force excessive et des surfaces irrégulières risquent de déstabiliser l’ensemble et de le renverser. 9. VENTILATION - Slots and openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the TV on a bed, sofa, rug, or other similar surface. This TV should never be placed near or over a radiator or heat register. This TV should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to. 10. POWER SOURCES - This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TVs intended to operate from battery power, or other sources, refer to the operating instructions. 11. GROUNDING OR POLARIZATION - This TV is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. 12. POWER-CORD PROTECTION - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance. 13. OUTDOOR ANTENNA GROUNDING - If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A) FIGURE A EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE ELECTRIC SERVICE EQUIPMENT GROUND CLAMP NEC - NATIONAL ELECTRICAL CODE POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) S2898A GROUND CLAMPS GROUNDING CONDUCTORS (NEC SECTION 810-21) ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) ANTENNA LEAD IN WIRE 14. LIGHTNING - For added protection for this TV receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV due to lightning and power-line surges. 15. POWER LINES - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light of power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. 16. OVERLOADING - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. 17. OBJECT AND LIQUID ENTRY - Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV. 18. SERVICING - Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 19. DAMAGE REQUIRING SERVICE - Unplug this TV from the wall outlet and refer servicing to qualified service personnel under the following conditions: a. When the power supply cord or plug is damaged or frayed. b. If liquid has been spilled, or objects have fallen into the TV. c. If the TV has been exposed to rain or water. d. If the TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV to its normal operation. e. If the TV has been dropped or damaged in any way. f. When the TV exhibits a distinct change in performance, this indicates a need for service. 20. REPLACEMENT PARTS - When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards. 21. SAFETY CHECK - Upon completion of any service or repairs to this TV, ask the service technician to perform routine safety checks to determine that the TV is in proper operating condition. 22. HEAT - This TV product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. Important Safeguards Downloaded from www.Manualslib.com manuals search engine 3 EN INTRODUCTION CONNECTION INITIAL SETTING OPTIONAL SETTING WATCHING TV OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION Precautions Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death. LAMP IN LCD CONTAINS MERCURY, DISPOSE ACCORDING TO LOCAL, STATE OR FEDERAL LAW. CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND. FCC WARNING This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. RADIO-TV INTERFERENCE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) Reorient or relocate the receiving antenna. 2) Increase the separation between the equipment and receiver. 3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4) Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground should be connected to the grounding system of the building as close to the point of cable entry as practical. LASER SAFETY This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury. CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM. LOCATION: INSIDE, NEAR THE DECK MECHANISM. IMPORTANT COPYRIGHT INFORMATION Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. “HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.” Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. “Kodak Picture CD COMPATIBLE” is a trademark of Eastman Kodak Company. � Downloaded from www.Manualslib.com manuals search engine INTRODUCTION 4 EN If you need to replace these accessories, please refer to the part No. with the illustrations and call our toll free customer support line found on the cover of this manual. Depending on your antenna system, you may need different types of combiners (mixers) or separators (splitters). Contact your local electronics store for these items. • • Symbols Used in this Manual The following is the description for the symbols used in this manual. Description refers to: � Note about recycling: This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations. Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes. LOCATION For safe operation and satisfactory performance of the unit, keep the following in mind when selecting a place for its installation: Shield it from direct sunlight and keep it away from sources of intense heat. Avoid dusty or humid places. Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes at the top and bottom of the unit. Do not place the unit on a carpet because this will block the ventilation holes. Install the unit in a horizontal position. Avoid locations subject to strong vibration. Do not place the unit near strong magnetic fields. Avoid moving the unit to locations where temperature differences are extreme. Be sure to unplug the AC power cord from the outlet before carrying the unit. TO AVOID THE HAZARDS OF ELECTRICAL SHOCK AND FIRE Do not handle the power cord with wet hands. Do not pull on the power cord when disconnecting it from an AC outlet. Grasp it by the plug. If, by accident, water is spilled on the unit, unplug the power cord immediately and take the unit to our authorized service center for servicing. Do not place anything directly on top of the unit. MOISTURE WARNING Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. When the condensation occurs inside the unit, turn the unit on and leave it at least 2 hours to dry out. • • • • • • • • • • • • • Supplied Accessories remote control batteries (AA x 2) � TV FUNCTIONS DVD FUNCTIONS DVD : Playback of DVD-video CD : Playback of audio CD TV : Analog TV operation VCD : Playback of video CD DTV : Digital TV operation VCD w/o PBC : Playback of video CD without PBC function MP3 : Playback of CD-RW/-R with MP3 files JPEG : Playback of CD-RW/-R with JPEG files • If neither symbol appears under the function heading, operation is applicable to both. • If none of symbol appears under the function heading, operation is applicable to all. Downloaded from www.Manualslib.com manuals search engine 5 EN INTRODUCTION CONNECTION INITIAL SETTING OPTIONAL SETTING WATCHING TV OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION DTV/TV/CATV You can use your remote control to select channels which are broadcast in digital, conventional analog, standard definition, and high definition formats. Also, cable subscribers can access their cable TV channels. Program Information Display (DTV only) You can display the title, contents and other information of the current DTV program on the TV screen. Auto Channel Scan This unit automatically scans and memorizes channels available in your area, eliminating difficult setup procedures. V-chip This feature allows you to block children’s access to inappropriate programs. Closed Caption Decoder Built-in closed caption decoder displays text for closed caption supported programming. MTS/SAP Tuner Audio can be selected from the remote control. Auto Shut Off Function If there is no signal input from the antenna terminal and no operation for 15 minutes, the unit will turn off automatically. Sleep Timer This feature will automatically turned off the power of the unit at a specific time. Choices for On-screen Language Select your on-screen language: English, Spanish or French. Stereo Sound Function PLL Frequency Synthesized Tuning Provides free and easy channel selection and lets you tune directly to any channel using the channel number buttons on the remote control. Resume This unit automatically memorizes settings if a power failure occurs. HDMI Input PC Input Component Video Input S-video Input AV Input Digital Audio Coaxial Output • - • - • - • - • - • - • - • - • - • • - • - • • • • • • • Dolby Digital Sound - Enjoy Dolby Digital multi-channel surround sound when you connect the unit to your Dolby Digital decoder. • Still / Fast / Slow / Step Playback - Various playback modes are available including still pictures, fast forward/reverse, slow motion and step frames. • DVD Menus in a Desired Language - You can display DVD menus in a desired language, if available on a DVD-video. • Screen Saver - If there is no operation for 5 minutes, the screen saver program starts. The unit will turn itself off automatically. • Parental Lock - Block the viewing of DVD-video unsuitable for children. • Resume Playback - Lets you resume playback from the point at which playback was stopped. • Bit Rate Indication • DRC (dynamic range control) - You can control the range of sound volume. • Selecting a Camera Angle - You can select the desired camera angle, if a DVD contains sequences recorded from different angles. • Zoom - Allows you to enlarge the size of picture image. • Black Level Adjustment • Virtual Surround • Search - chapter search / title search / track search / time search • Marker - The part on the disc designated by user can be called back. • Repeat - chapter / title / track / group / all / A-B • Program Playback for audio CD, MP3, JPEG and Picture CD - You can program the order of tracks/files to play them back in designated order. • Random Playback for audio CD, MP3, JPEG and Picture CD - This unit can shuffle the order of tracks/files to play them back in randomly. � Accessing from [AUDIO] button During playback • Choices for Audio Language and Stereo Sound Function - Select your desired languages or stereo sound function when different options are available on your disc. � Accessing from [SUBTITLE] button During playback • Subtitles in a Desired Language - You can select a desired language for displaying subtitle, if that language is available on a DVD-video. TV DVD Features � Downloaded from www.Manualslib.com manuals search engine INTRODUCTION 6 EN Contents INTRODUCTION Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Symbols Used in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Remote Control Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Installing the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 CONNECTION Basic Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 External Device Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 TV Functions INITIAL SETTING Initial Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Auto Channel Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 WATCHING TV Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Still Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Switching Each Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Switching Audio Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Screen Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 TV Screen Display Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 OPTIONAL SETTING Channel List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Manual Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Antenna Confirmation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Picture Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Sound Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Closed Caption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 DTV Closed Caption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 CC Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 V-chip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 PC Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 HDMI Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Blue LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 � DVD Functions OPERATING DVD Playable Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 About the PBC Function of Video CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Unplayable Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Disc Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Resume Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Paused and Step-by-step Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Fast Forward / Fast Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Slow Forward / Slow Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 MP3, JPEG Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Kodak Picture CD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Dual Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Folder Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Transition Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Adjustment of Picture Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Search Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Repeat A-B Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Random Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Programmed Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 On-screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Special Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 SETTING DVD DVD Language Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 DVD Audio Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Parental Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Reset to the Default Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Language Code List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 TROUBLESHOOTING Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 INFORMATION Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Cable Channel Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Electrical Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Other Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover Downloaded from www.Manualslib.com manuals search engine 7 EN INTRODUCTION CONNECTION INITIAL SETTING OPTIONAL SETTING WATCHING TV OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION Remote Control Function � 24 23 16 17 18 19 20 21 22 8 9 26 28 30 25 31 29 27 1 2 3 4 5 6 8 15 13 11 12 14 7 9 10 Installing the Batteries Install the batteries (AA x 2) matching the polarity indicated inside battery compartment of the remote control. � Battery Precautions: • Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device. • Do not mix different types of batteries together (e.g., Alkaline and Carbon-Zinc) or old batteries with fresh ones. • If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage. • Do not try to recharge batteries; they can overheat and rupture. 1. MUTE button (p15) Press to turn the sound on and off. 2. Number buttons (p15) Press to select channels. Press to select chapter, title (DVD), track (CD, VCD) or file (MP3, JPEG) directly. - button Press to shift the minor channel from the major channel. +10 button Press to select 10 or higher number of chapters. 3. SETUP button (p13) Press to display the main menu. 4. s / B / K / L buttons (p13) Press to move left/right/up/down through the items. 5. ENTER button (p13) Press to decide the command of setting when the main menu is displayed. 6. INFO button (p17 / p36) Digital mode (DTV) Press to display the channel information, signal type and TV setting. Analog mode (TV) Press to display the channel number, signal type and TV setting. External Input Mode Press to display the external input mode, signal type and TV setting. DVD mode Press to display the current status (DVD, CD, VCD, MP3, JPEG). 7. CHANNEL / buttons (p15) Press to select channels and the external input mode. 8. REV E / FWD D buttons (p30) Press to begin slow forward or slow reverse playback during the pause mode (DVD, VCD) and search forward or backward through a disc (DVD, CD, VCD, MP3). 9. SKIP H / G buttons (p33) Press to skip forward or backward chapters, titles (DVD), tracks (CD, VCD) or files (MP3, JPEG). 10. EJECT A button (p29) Press to eject the disc. 11. DISC MENU button (p29) Press to call up the menu on a disc. Press to call up the file list (MP3/JPEG). 12. MODE button (p35) Press to call up the folder list on a disc when “DUAL PLAYBACK“ is “ON“ (MP3, JPEG). Press to arrange the playing order or play randomly (CD, MP3, JPEG). Press to set black level (DVD, VCD) and virtual surround (DVD, CD, VCD, MP3) on or off. 13. SEARCH MODE button (p33) Press to search chapter, title (DVD), time (DVD, CD, VCD) or track/file (CD, VCD, MP3, JPEG). • • • • • • • • • • • • • 14. SUBTITLE button (p37) Press to select subtitles on a disc (DVD). 15. ANGLE button (p37) Press to change the camera angle to see the sequence being played back from different angle (DVD). Press to rotate a picture (JPEG). 16. INPUT SELECT button (p16) Press to access connected external devices like a DVD recorder or VCR. 17. POWER button (p13) Press to turn the unit on and off. 18. AUDIO button (p16 / p37) Digital mode (DTV) Press to select the audio language. Analog mode (TV) Press to select audio mode. DVD mode Press to select audio language (DVD) or sound mode (CD, VCD). 19. SLEEP button (p15) Press to activate the sleep timer. 20. CH RETURN button (p15) Press to return to previous channel. 21. SCREEN MODE button (p18) Press to select aspect ratios available for the TV screen. 22. BACK/RETURN button (p17) Press to return to previous menu operation. 23. VOLUME / buttons (p15) Press to adjust the volume. 24. PLAY B button (p29) Press to begin disc playback. 25. STOP C button (p29) Press to stop disc playback. 26. PAUSE F button (p15 / p29) TV mode Press to pause screen image. DVD mode Press to pause disc playback. 27. TITLE button (p30) Press to call up the title menu (DVD). 28. REPEAT button (p34) Press to play a chapter or title (DVD), track, disc (CD, VCD, MP3, JPEG) or group (MP3, JPEG) repeatedly. 29. A-B button (p35) Press to repeat between your designated point A and B (DVD, CD, VCD). 30. CLEAR button (p34) Press to clear the numbers entered incorrectly. Press to cancel the point A for A-B repeat (DVD, CD, VCD). Press to remove track/file number in program input (CD, MP3, JPEG). 31. ZOOM button (p30) Press to magnify a part of picture (2x and 4x: DVD, 2x: VCD, JPEG). • • • • • • • • • • Downloaded from www.Manualslib.com manuals search engine INTRODUCTION 8 EN 1. POWER button (p13) Press to turn the unit on and off. 2. INPUT SELECT button (p16) Press to access connected an external devices like a DVD recorder or VCR. Press to decide the command of setting when the menu is displayed. 3. CHANNEL K / L buttons (p15) Press to select channels or move up/down through the main menu items. 4. VOLUME X / Y buttons (p15) Press to adjust the volume or move right (X) / left (Y) through the main menu items. 5. SETUP button (p13) Press to display the main menu. 6. PLAY B button (p29) Press to begin disc playback. 7. STOP C button (p29) Press to stop disc playback. 8. SKIP H / G buttons (p33) Press to skip forward or backward chapters, titles (DVD) or tracks/files (CD, VCD, MP3, JPEG). SEARCH E / D buttons (p30) Press and hold to begin slow forward or slow reverse playback during the pause mode (DVD, VCD) and search forward or backward through a disc (DVD, CD, VCD, MP3). 9. Infrared Sensor Window Receives infrared rays transmitted from the remote control. 10. Blue LED (p27) Lights up when the unit is turned on or a disc is inserted. 11. Disc Loading Slot (p29) Insert the disc with label facing up. • • Control Panel � 9 10 11 5 6 7 8 2 3 4 1 side of this unit Rear Panel � 12. PC-IN jack (p12) VGA cable connection for PC. 13. HDMI IN jacks (p9) HDMI connection for an HDMI device. 14. AUDIO IN jacks (p10) RCA audio cable connection for a DVI device. (For HDMI 1-IN jack only) 15. AUDIO OUT jacks (p12) RCA audio cable connection for an external device. Use analog audio input jack of an external device. 16. DIGITAL AUDIO OUT (COAXIAL) jack (p12) Digital audio coaxial cable connection for a decoder or an audio receiver. Use digital audio input jack of an external device. 17. ANT. IN jack (p9) RF coaxial cable connection for your antenna or cable TV signal. 18. AC Power Cord Connect to a standard AC outlet to supply power to this unit. 19. PC-IN AUDIO jack (p12) Mini-plug audio cable connection for PC. Use line out jack of a PC. 20. AUDIO input jacks (p9) RCA audio cable connection for an external device. 21. VIDEO input jack (p11) RCA video cable connection for an external device. 22. S-VIDEO input jack (p11) S-video cable connection for an external device. 23. COMPONENT and AUDIO input jacks (p10) Component video cable and RCA audio cable connection for an external device. Use component video and audio output jack of an external device. VIDEO 2 AUDIO VIDEO S-VIDEO R L COMPONENT 1 PC-IN COMPONENT 2 VIDEO 1 COMPONENT 1 VIDEO 1 PC-IN AUDIO AUDIO Y R Pb Pr L AUDIO S VIDEO VIDEO R L COMPONENT 2 AUDIO Y R Pb Pr L 18 20 19 21 23 22 16 17 15 14 13 12 rear of this unit rear of this unit side of this unit Downloaded from www.Manualslib.com manuals search engine 9 EN INTRODUCTION CONNECTION INITIAL SETTING WATCHING TV CONNECTION OPTIONAL SETTING OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION Basic Connection This section describes how to connect the unit to an antenna, cable receiver or satellite box. Note: • Be sure your antenna or other device is connected properly before plugging in the AC power cord. [Antenna Cable Connection] Connect the RF coaxial cable on your home outlet to the antenna input jack of this unit. Once connections are completed, turn on the unit and begin initial setup.Channel scanning is necessary for the unitto memorize all available channels in your area. (Refer to “Initial Setup” on page 13.) Note: • If you have any question about the DTV’s antenna, visit www.antennaweb.org for further information. • For your safety and to avoid damage to device, please unplug the RF coaxial cable from the antenna input jack before moving the unit. • If you use an antenna to receive analog TV, it should also work for DTV reception. Outdoor or attic antennas will be more effective than settop versions. • To easily switch your reception source between antenna and cable, install an antenna selector. • If you connect to the cable system directly, contact the CATV installer. [Connection to Cable Receiver or Satellite Box] Use an HDMI or an RCA component video cable to connect the HDMI or the component video input jack of the unit to the HDMI or the component video output jack of the cable receiver / satellite box. If you connect to the unit’s COMPONENT1 or COMPONENT2 video input jack, connect an RCA audio cable to the audio L/R jack of COMPONENT1 or COMPONENT2 accordingly. COMPONENT 1 VIDEO 1 PC-IN AUDIO AUDIO Y R Pb Pr L AUDIO S VIDEO VIDEO R L COMPONENT 2 AUDIO Y R COMPONENT VIDEO OUT Pr/Cr Pb/Cb Y AUDIO OUT R L STEREO PCM HDMI OUT ANT IN You can also connect this unit to the cable receiver or satellite box other than the HDMI or the component video output jack because they might have different output jacks. Required cables and connecting methods of the cable receiver / satellite box, or the availability channel for the clear QAM may differ depending on the cable/satellite provider. For more information, please contact your cable/satellite provider. � * * * Cables not included. Please purchase the necessary cables at your local store. satellite dish (red) (red) (blue) (blue) (green) (green) (red) (red) (blue) (blue) (green) (green) cable receiver / satellite box cable TV signal including PPV or rear of this unit HDMI cable or RF coaxial cable e.g.) (red) (blue) (green) (red) (blue) (green) RCA audio cable rear of this unit e.g.) VHF / UHF antenna RF coaxial cable rear of this unit or cable TV signal Downloaded from www.Manualslib.com manuals search engine 10 EN CONNECTION External Device Connection [HDMI Connection] HDMI (High Definition Multimedia Interface) transports high definition video and multi-channel digital audio through a single cable. It ensures that the content sent from the source to this unit is of the highest possible resolution. HDMI OUT Note: • This unit accepts 480i / 480p / 720p / 1080i video signals, and 32kHz / 44.1kHz / 48kHz audio signals compliant with EIA-861. • This unit accepts only 2 channel audio signal (LPCM). • You need to select “PCM” for the digital audio output of the device connected or the HDMI audio setting. There may be no audio output if you select “Bitstream”, etc. [HDMI-DVI Connection] If your video device has a DVI output jack, connect using an HDMI-DVI conversion cable. An HDMI-DVI conversion cable requires a separate audio cable connection as well. As such, only the HDMI 1-IN jack can be used. DVI OUT AUDIO OUT R L rear of this unit To HDMI 1-IN jack HDMI-DVI conversion cable To AUDIO IN jack e.g.) Cable box or satellite box with the DVI output jack RCA audio cable Note: • This unit accepts 480i / 480p / 720p / 1080i video signals. DVI does not display 480i image that is not compliant with EIA/CEA-861/861B. • Audio signals are converted from digital to analog for this connection. [Component Video Cable Connection] Component video connection offers better picture quality for video devices connected to the unit. Use a component video cable to connect the unit to external video devices equipped with component video output jack. If you connect to the unit’s COMPONENT 1 or COMPONENT 2 video input jack, connect RCA audio cable to the audio L/R jacks of COMPONENT 1 or COMPONENT 2 accordingly. COMPONENT VIDEO OUT Pr Pb Y AUDIO OUT R L COMPONENT 1 VIDEO 1 PC-IN AUDIO AUDIO Y R Pb Pr L AUDIO S VIDEO VIDEO R L COMPONENT 2 AUDIO Y R � Cables not included. Please purchase the necessary cables at your local store. rear of this unit To HDMI 1-IN or HDMI 2-IN jack HDMI cable DVD recorder with the HDMI output jack e.g.) e.g.) DVD recorder with the component video output jacks component video cable RCA audio cable rear of this unit (red) (blue) (green) (red) (blue) (green) Downloaded from www.Manualslib.com manuals search engine 11 EN INTRODUCTION CONNECTION INITIAL SETTING WATCHING TV OPTIONAL SETTING OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION Note: • This unit accepts 480i / 480p / 720p / 1080i video signals. [S-video Cable Connection] S-video connection offers good picture quality for video devices connected to the unit. Use an S-video cable to connect the unit to external video devices equipped with S-video output jack. If you connect to the unit’s VIDEO 1or VIDEO 2 S-video input jack, connect RCA audio cable to the audio L/R jack of VIDEO 1 or VIDEO 2 accordingly. AUDIO OUT R L S-VIDEO OUT COMPONENT 1 VIDEO 1 PC-IN AUDIO AUDIO Y R Pb Pr L AUDIO S VIDEO VIDEO R L COMPONENT 2 AUDIO Y R Note: • If you connect to the S-video jack and the video jack at the same time, the S-video connection will have priority. [Video Connection] Video connection offers standard picture quality for video devices connected to the unit. If you connect to the unit’s VIDEO 1 or VIDEO 2 input jack, connect RCA audio cable to the audio L/R jack of VIDEO 1 or VIDEO 2 accordingly. When the audio jack of the video device is monaural, connect the RCA audio cable to the audio L input jack. COMPONENT 1 VIDEO 1 PC-IN AUDIO AUDIO Y R Pb Pr L AUDIO S VIDEO VIDEO R L COMPONENT 2 AUDIO Y R AUDIO OUT R L VIDEO OUT Note: • If you connect to the S-video jack and the video jack at the same time, the S-video connection will have priority. Cables not included. Please purchase the necessary cables at your local store. e.g.) DVD recorder with the S-video output jack rear of this unit S-video cable RCA audio cable e.g.) camcorder video game VCR RCA video cable RCA audio cable rear of this unit Downloaded from www.Manualslib.com manuals search engine 12 EN CONNECTION [Audio Output Connection] [Digital] If you connect this unit to an external digital audio device, you can enjoy multi-channel audio like 5.1ch digital broadcasting sound. [Analog] If you connect this unit to an external analog audio device, you can enjoy stereo (2 channel) audio. DIGITAL AUDIO COAXIAL IN AUDIO IN R L [PC Connection] This unit is equipped with a PC-IN jack. If you connect this unit to your PC, you can use this unit as a computer monitor. Note: • Please purchase the VGA that has a ferrite core. Cables not included. Please purchase the necessary cables at your local store. e.g.) Stereo system e.g.) Dolby Digital decoder RCA audio cable To AUDIO OUT jack digital audio coaxial cable To DIGITAL AUDIO OUT jack rear of this unit e.g.) PC To monitor jack To audio line out jack VGA cable To PC-IN jack mini-plug audio cable To PC-IN AUDIO jack rear of this unit VGA cable should be with ferrite core. Downloaded from www.Manualslib.com manuals search engine 13 EN INTRODUCTION CONNECTION INITIAL SETTING WATCHING TV INTIAL SETTING OPTIONAL SETTING OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION Initial Setup This section will guide you through the unit’s initial setting which includes selecting a language for your on-screen menu and auto channel scan, which automatically scans and memorizes viewable channels. Before you begin: Make sure if the unit is connected to antenna or cable. When you plug the AC power cord into the wall outlet, or after a power failure, the unit will not accept discs nor will it respond to any key commands about 10 seconds. 1 After making all the necessary connections, press [POWER] to turn on the unit. Starting up the unit take a few moments. Meanwhile, any key input is invalid. 2 Use [Cursor K / L] to select the on-screen language from the choices on the right side of the TV screen. (English / Español / Français) Initial Setup Initial Setup Select the language for setup display. Elija el idioma de ajuste. Sélectionner langue écran config. Select Enter Exit SETUP Español Français ENTER English “Initial Setup” menu on step 3 will be displayed in the selected language after you press [ENTER]. 3 Use [Cursor K / L] to select “Air” for TV channels or “Cable” for CATV channels, then press [ENTER]. Initial Setup Initial Setup Air Cable Select Enter Exit SETUP Back BACK ENTER Make sure the antenna is connected to "ANT.IN" jack. Select the destination of "ANT.IN" jack. Air Cable Or ANT.IN Scanning and memorizing of channels start automatically. Initial Setup Initial Setup Now the system is scanning for channels,please wait. Exit SETUP 5% Analog channels 1ch Digital channels 0ch When the scanning and memorizing are completed, the lowest memorized channel in the broadcasting will be displayed. � • • • • Note: • If you connect the cable system directly, contact the CATV installer. • If you press [POWER] or [SETUP] during auto channel scan, this setting will be canceled. • The initial auto channel scan function can be executed for either “Air” or “Cable” only once. When you change the connection (Air/Cable), set auto channel scan again. (Refer to page 14.) • You can cancel or exit the initial auto channel scan menu by pressing [SETUP]. • If there is no signal input from the antenna terminal and no operation for several seconds after you turn on the unit, “Helpful Hints” appears. Follow the instructions listed on the TV screen. No channel is registered. Press and hold "ENTER" key on the remote control for 3 seconds. Contact support hotline provided on manual or back of unit. Sin canal registrado. Pulse durante 3 segundos la tecla "ENTER" en el control remoto. Llame teléfono de apoyo en manual o atrás de TV. Pas de chaîne consign. Enfoncez "ENTER" 3 secondes sur la télécommande. Contacter numero d'urgence dans manuel ou arrière appareil. 2-2 Main Menu This section describes the overview of the main menu displayed when you press [SETUP]. For more details, see the reference page for each item. The main menu consists of the function setting items below. Press [SETUP]. EXIT To exit settings. PICTURE You can adjust the picture quality. (Refer to “Picture Adjustment” on page 20.) SOUND You can adjust the sound quality. (Refer to “Sound Adjustment” on page 21.) CHANNEL You can automatically scan the viewable channels and remove those that are undesired. (Refer to “Auto Channel Scan” on page 14.) DETAIL You can change the display format for closed caption, which displays the dialogue of a TV program or other information across the TV screen. (Refer to “Closed Caption” on page 22.) Set the viewing limitations. (Refer to “V-chip” on page 24.) Adjust the position, stability and clarity of the PC screen. (Refer to “PC Settings” on page 26.) � • • • • • These operations are accessible by remote control. Some may also be accessible by controls on the main unit. TV Functions Downloaded from www.Manualslib.com manuals search engine INITIAL SETTING 14 EN And select the sound input for the HDMI jack if your TV is connected to a HDMI device. (Refer to “HDMI Audio” on page 27.) LANGUAGE You can change the language (English, Spanish, French) displayed on the main menu. (Refer to “Language Selection” on page 14.) DVD You can customize some functions for the disc playback. Make sure the player is in stop mode. (Refer to “SETTING DVD“ section on page 39.) Auto Channel Scan If you switch wires (e.g., between antenna and CATV) or if you move the TV to a different area after the initial setting, or if you restore the DTV channel you deleted, you will need to perform auto channel scan. Before you begin: Make sure if the unit is connected to antenna or cable. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “CHANNEL” , then press [ENTER]. 3 Use [Cursor K / L] to select “Autoscan”, then press [ENTER]. Channel Channel Autoscan Channel List Manual Register Antenna Use [Cursor K / L] to select an appropriate option, then press [ENTER]. Autoscan Autoscan Autoscan will rescan all channels. This may take a while to complete. Select the destination of "ANT.IN" jack. Back Air Cable Cable 1hour Air Cable Or ANT.IN • • � When aerial antenna is connected, select “Air”. When connected to CATV (analog) signals, select “Cable”. When connected to CATV (digital) signals, select “Cable 1 hour”. “Cable 1 hour” may take an hour to memorize all digital channels. Scanning and memorizing of channels start automatically. Now the system is scanning for channels, please wait. Exit SETUP 72% Analog channels 10ch Digital channels 6ch When the scanning and memorizing are completed, the lowest memorized channel will be displayed. Note: • If you connect the cable system directly, contact the CATV installer. • If you press [POWER] or [SETUP] during auto channel scan, the setting will be canceled. • Channel settings will be saved even if the power fails. • If you need the English menus instead of the Spanish or French menus you are having, press [SETUP]. Use [Cursor K / L] to select “IDIOMA” or “LANGAGE”, then press [ENTER]. Use [Cursor K / L] to select “English”, then press [ENTER]. Press [SETUP] to exit the main menu. • With regard only to the digital channel, even after the scanning is complete if you unplug the AC power cord before turning off the unit by pressing [POWER], the channel setting may be lost. Language Selection You can choose English, Spanish, or French as your on-screen language. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “LANGUAGE”, then press [ENTER]. 3 Use [Cursor K / L] to select “English”, “Español” or “Français”, then press [ENTER]. Language Language Select the language for setup display. Elija el idioma de ajuste. Sélectionner langue écran config. Español Français English 4 Press [SETUP] to exit. • • • • • � Downloaded from www.Manualslib.com manuals search engine 15 EN INTRODUCTION INITIAL SETTING WATCHING TV WATCHING TV CONNECTION OPTIONAL SETTING OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION Channel Selection Select channels by pressing [CHANNEL / ] or [the Number buttons]. To select the memorized channels, use [CHANNEL / ] or [the Number buttons]. To select the non-memorized channels use [the Number buttons]. To Use [the Number buttons] TV When selecting analog channel 12 DTV When selecting digital channel 12-1 Be sure to press [–] before entering the minor channel number. Press [CH RETURN] to return to the previously viewed channel. About digital TV broadcasting: With its high definition broadcast, digital broadcasting far surpasses analog broadcasting in both its picture and sound quality. What is the minor channel? By using high compression technology, digital broadcasting offers a service that enables multiple signals to send simultaneously. Therefore, you can select more than one program per major channel since digital broadcasting technology distinguishes between multiple channels broadcast by a single network. 18:00 18:30 19:00 19:30 20:00 20:30 Note: • “No Signal” will appear on the TV screen after the minor channel broadcast is over. � • • - - • Volume Adjustment This section describes how to adjust the volume. The mute function, which turns the sound off and on, is also described. Use [VOLUME / ] to adjust the audio volume. Volume 20 The volume bar will be displayed at the bottom of the TV screen when adjusting the volume. The volume bar display will automatically disappear in a few seconds. Press [MUTE] to turn off and on the sound. Mute “Mute” is displayed on the TV screen for a few seconds. Press [MUTE] again or [VOLUME / ] to recover the original volume. Still Mode You can freeze the image shown on the TV screen. Press [PAUSE F] to pause the image shown on the screen. Still The sound output will not be paused. If no signal is detected or protected signal is received during still mode, the image remains paused and the sound output will be muted. The still function will be released after 5 minutes. To cancel still mode, press any button except [POWER]. Sleep Timer The sleep timer can be set to automatically turn off the unit after an incremental period of time. 1 Press [SLEEP] to set the sleep timer. Sleep Off Sleep timer display appears on the TV screen. 2 Press [SLEEP] repeatedly to change the amount of time until shut off. Sleep 120min. You can set your unit to turn off after a set period of time (from 30 to 120 minutes). Each press of [SLEEP] will increase the time by 30 minutes. After set up, the sleep timer display can be called up for checking by pressing [SLEEP]. � • • • � • • • � • • • • NTSC (analog mode) [Air Time] ATSC (digital mode) major channel minor channel : change automatically : change manually by using [CHANNEL / ] CH4 CH4 CH4 CH4 CH4 No signal No signal No signal CH4-1 CH4-2 CH4-2 No signal CH4 (high definition TV) CH4-1 Downloaded from www.Manualslib.com manuals search engine 16 EN WATCHING TV To Cancel the Sleep Timer Press [SLEEP] repeatedly until “Sleep Off” is displayed on the TV screen. Note: • The sleep timer setting display will automatically disappear in 4 seconds. • When you disconnect the unit from the AC outlet or when a power failure occurs, the sleep timer setting will be canceled. Switching Each Mode You can easily switch with the remote control to the DTV (ATSC) and TV (NTSC) or to access an external device when they are connected to the unit. Press [INPUT SELECT] or [CHANNEL ] repeatedly to cycle through the input modes. or Video1 Video2 Component1 Component2 HDMI1 HDMI2 PC Pressing [CHANNEL ] reverses the direction of the mode. To use the video or S-video input jack of VIDEO 1 on the unit, select “Video1”. To use the video or S-video input jack of VIDEO 2 on the unit, select “Video2”. To use the component video input jack of COMPONENT 1 on the unit, select “Component1”. To use the component video input jack of COMPONENT 2 on the unit, select “Component2”. To use the HDMI 1-IN jack on the unit, select “HDMI1”. To use the HDMI 2-IN jack on the unit, select “HDMI2”. To use the PC-IN jack on the unit, select “PC”. � • • • • • • • • Switching Audio Mode This section describes how to switch the audio language. TV 1 Press [AUDIO] to display the currently selected audio mode. While receiving an MTS broadcast, press repeatedly to cycle through the available audio channel. 6 SAP / STEREO When all audio are available SAP / STEREO SAP / MONO SAP / STEREO When stereo and monaural audio are available MONO / STEREO MONO / STEREO When SAP and monaural audio are available SAP / MONO SAP / MONO When only monaural audio is available MONO STEREO : Outputs stereo-audio SAP : Outputs second audio program MONO : Outputs mono-audio The current mode will automatically disappear in 4 seconds. DTV 1 Press [AUDIO] to display the currently selected language and the number of available languages. 6-1 English 1/3 2 Press [AUDIO] repeatedly to cycle through the available audio languages. English 1/3 Spanish 2/3 Other 3/3 Available languages differ depending on the broadcast. “Other” is displayed when the audio language cannot be acquired, or the acquired languages are other than English, Spanish or French. The current mode will automatically disappear in 4 seconds. Note: • Pressing [AUDIO] does not control external audio device. � • • • TV/DTV channel (Cannot be switched) Downloaded from www.Manualslib.com manuals search engine 17 EN INTRODUCTION CONNECTION INITIAL SETTING WATCHING TV OPTIONAL SETTING OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION Screen Information You can display the currently selected channel or other information such as the audio mode on the TV screen. TV In the analog mode, the current channel number and the audio mode are displayed. Press [INFO]. 6 SAP / STEREO TV-PG DLSV 480i 480i 4:3 4:3 SD SD CC CC The current channel number, audio mode, type of resolutions for video signal, TV aspect ratio, CC and TV rating are displayed at the top-right corner of the TV screen. To clear the display, press [INFO] again. You can also press [BACK/RETURN]. DTV In the digital mode, the detailed broadcasting information for the current channel such as program title, program guides are displayed. Press [INFO] to display the details of the currently selected program. [Broadcasting Information] The following information is displayed. 1 program title 2 broadcast station 3 program guide (The program guide added to broadcasting information is displayed. Maximum display of 4 lines.) 4 channel number 5 audio language (Refer to “Switching Audio Mode” on page 16.) 6 effective scanning lines and scan mode 7 program format 8 program aspect ratio 9 program rating 10 CC (not available if CC is set to “Off”) 6-1 English 1/2 TV-PG DLSV 1080i 1080i 16:9 16:9 HD HD CC CC A Day of Memories A Day of Memories KABC KABC A quarter-century ago,which may now qualify as the good old days of newspapering,run-of-paper sales accounted for 80 percent of the industry's advertising revenues.Department stores and supermarket were 1 2 4 3 9 5 6, 7, 8 10 � • • Note: • When the program guide consists of more than 4 lines, use [Cursor K/ L] to scroll. • “No description provided” is displayed when the program guide is not provided. • While the program guide is displayed, the closed caption function is interrupted. • In external input mode, the following screen is displayed; e.g.) When an external device is connected to VIDEO 1 input jack. Video1 TV-PG DLSV 480i 480i SD SD CC CC • The TV screen displays whether the disc is in. e.g.) when the disc is inside: Disc Inside Downloaded from www.Manualslib.com manuals search engine 18 EN WATCHING TV TV Screen Display Mode 4 types of display modes can be selected when the broadcasting station is sending 4:3 or 16:9 video signal. And 3 types of display modes can be selected for PC input signal. Press [SCREEN MODE] repeatedly to switch the TV aspect ratio. For 4:3 video signal [Sidebar] Display a 4:3 picture at its original size. Sidebars appear on both edges of the screen. [Full] Display a 4:3 picture at a 16:9 size; the picture is stretched horizontally to fill the screen. [Cinema] Display a 4:3 picture at a 16:9 size; the picture is stretched horizontally and vertically to fill the screen. This crops out the top and bottom of the picture. [Wide] Display the picture with its center at the original size and the edges stretched horizontally. � For 16:9 video signal [Full] Display a 16:9 picture at its original size. [Zoom] Display a 16:9 picture at its maximum size without changing its horizontal and vertical ratio. [Cinema] Display a vertically stretched picture. [Expand] Display a horizontally stretched picture. For PC input signal [Sidebar] Display a proportionately stretched picture. Sidebars appear on both edges of the screen. [Full] Display a picture that is stretched out of proportion to fill the screen. [Dot By Dot] Display a picture in its original size. Note: • You may not switch the display mode depending on the program. • For PC input signal, “Sidebar” may not be selectable depending on the aspect ratio of the input signal. Sidebar Full Dot By Dot (normal) Full (normal) Zoom Expand Cinema Sidebar (normal) Full Wide Cinema Downloaded from www.Manualslib.com manuals search engine 19 EN INTRODUCTION CONNECTION INITIAL SETTING WATCHING TV OPTIONAL SETTING OPTIONAL SETTING OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION Channel List The channel list function lets you remove undesired channels from the channel registration list. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “CHANNEL”, then press [ENTER]. 3 Use [Cursor K / L] to select “Channel List”, then press [ENTER]. Channel Channel Autoscan Channel List Manual Register Antenna 4 Use [Cursor K / L] to select the channel you want to remove, then press [ENTER]. Channel List Channel List DTV 8 DTV 8 99 DTV 48 DTV 48 58 58 DTV 6 DTV 6 27 DTV 67 Ch Select Watch/Skip Back BACK ENTER Highlight channels for Ch Up/Down key selection. The channel display for the removed channel darkens. You will not be able to select the channel again using [CHANNEL / ]. To reactivate a removed channel, highlight it using [Cursor K / L] and press [ENTER]. The channel display lightens. When you remove a major channel, its minor channels are removed as well. Note: • The channel with the “DTV” indicated on the display is ATSC. Otherwise the channel is NTSC. 5 Press [SETUP] to exit. � • • • Manual Register The manual register function lets you add the channels that were not added by the auto channel scan due to the reception condition at the initial setting. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “CHANNEL”, then press [ENTER]. 3 Use [Cursor K / L] to select “Manual Register”, then press [ENTER]. Channel Channel Autoscan Channel List Manual Register Antenna 4 Use [the Number buttons] to enter the number of the channel you want to add, then press [ENTER]. Manual Register Manual Register For analog channels, select a channel to register using number keys. For digital channels, you must perform Autoscan function. Register Ch Change 11 Back BACK 5 Press [SETUP] to exit. Note: • If set up completes successfully, “Registered to the Channel List” is displayed. • If external input is used, it is not possible to register the channel and “Unavailable” will be displayed on the TV screen. � Downloaded from www.Manualslib.com manuals search engine OPTIONAL SETTING 20 EN Antenna Confirmation This function lets you check the signal strength of each channel. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “CHANNEL”, then press [ENTER]. 3 Use [Cursor K / L] to select “Antenna”, then press [ENTER]. Channel Channel Autoscan Channel List Manual Register Antenna 4 Use [the Number buttons] or [CHANNEL / ] to select the channel for which you want to check the signal strength. Antenna Antenna Back Ch Change 11-1 CH Now 70 80 Peak If the channel is set to external input, you cannot confirm the antenna condition. Antenna Antenna Back Ch Change Video1 CH Indicator is available for antenna signal only. 5 Press [SETUP] to exit. � • Picture Adjustment You can adjust brightness, contrast, color, tint and sharpness. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “PICTURE”, then press [ENTER]. 3 Use [Cursor K / L] to select the item you want to adjust, then press [ENTER]. Picture Picture Picture Mode Brightness Contrast Color Tint Sharpness Reset Settings Color Temp. Energy Saving Dynamic 30 Neutral Off 60 36 0 0 4 Adjust the picture quality. Picture Mode Use [Cursor K / L] to select the desired setting, then press [ENTER]. (Standard, Dynamic, Movie and News) Picture Picture Picture Mode Brightness Contrast Color Tint Sharpness Reset Settings Color Temp. Energy Saving Standard Dynamic Movie News Brightness, Contrast, Color, Tint, Sharpness Use [Cursor s / B] to adjust. Cursor s Cursor B Brightness Adjust Brightness 30 Move Enter ENTER to decrease brightness to increase brightness Contrast Adjust Move Enter ENTER Contrast 60 to decrease contrast to increase contrast Color Adjust Move Enter ENTER Color 36 to decrease color to brighten color Tint Adjust Move Enter ENTER Tint 0 to add red to add green Sharpness Adjust Move Enter ENTER 0 Sharpness to make soft to make clear � Downloaded from www.Manualslib.com manuals search engine 21 EN INTRODUCTION CONNECTION INITIAL SETTING OPTIONAL SETTING WATCHING TV OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION Reset Settings Use [Cursor K / L] to select “Reset”, then press [ENTER] to restore the “Picture Mode” setting to default. Reset Settings Reset Settings This function resets the "Dynamic" setting for Picture Mode to factory default. Cancel Reset Color Temp. Use [Cursor K / L] to select the desired setting, then press [ENTER]. (Cool, Neutral and Warm) Picture Picture Picture Mode Brightness Contrast Color Tint Sharpness Reset Settings Color Temp. Energy Saving Cool Neutral Warm Energy Saving Use [Cursor s / B] to adjust the brightness of the backlight. Adjust Energy Saving Off Enter ENTER Note: • To cancel picture adjustment, press [SETUP]. 5 Press [SETUP] to exit. Sound Adjustment You can adjust treble, bass and surround. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “SOUND”, then press [ENTER]. � 3 Use [Cursor K / L] to select the sound type you want to adjust, then press [ENTER]. Sound Sound Treble Bass Surround Reset Settings 0 0 Off 4 Adjust the sound setting. Treble, Bass Use [Cursor s / B] to adjust. Cursor s Cursor B Treble ENTER Adjust Treble Move Enter 0 to decrease higher-pitched sounds to increase higher-pitched sounds Bass ENTER Adjust Bass Move Enter 0 to decrease lower-pitched sounds to increase lower-pitched sounds Surround Use [Cursor K / L] to turn on or off the surround function, then press [ENTER]. Sound Sound Treble Bass Surround Reset Settings Off On Reset Settings Use [Cursor K / L] to select “Reset”, then press [ENTER] to restore the “Sound” settings to default. Reset Settings Reset Settings This function resets the Sound settings to factory default. Cancel Reset Note: • To cancel sound adjustment, press [SETUP]. 5 Press [SETUP] to exit. : To brighten : To darken Downloaded from www.Manualslib.com manuals search engine OPTIONAL SETTING 22 EN Closed Caption You can view closed captioning (cc) for TV programs, movies and news. Closed caption refer to text of dialogue or descriptions displayed on-screen for the hearing impaired. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “DETAIL”, then press [ENTER]. 3 Use [Cursor K / L] to select “Closed Caption”, then press [ENTER]. Detail Detail Auto Power on Closed Caption V–chip PC Settings HDMI1 Audio Blue LED 4 Use [Cursor K / L] to select “Conventional CC”, then press [ENTER]. Closed Caption Closed Caption Off Off Conventional CC DTV CC CC Style 5 Use [Cursor K / L] to select the desired closed caption, then press [ENTER]. Closed Caption Closed Caption DTV CC CC Style Conventional CC Off CC1 CC2 CC3 CC4 Text1 Text2 Text3 Text4 [Caption Mode] CC1 and Text1; are the primary caption and text services. The captioning or text is displayed in the same language as the program’s dialogue (up to 4 lines of script on the TV screen, where it does not obstruct relevant parts of the picture). CC3 and Text3; serve as the preferred data channels. The captioning or text is often a secondary language. � CC2, CC4, Text2 and Text4; are rarely available and broadcasters use them only in special conditions, such as when “CC1” and “CC3” or “Text1” and “Text3” are not available. There are 3 display modes according to programs: Paint-on mode: Displays input characters on the TV screen immediately. Pop-on mode: Once characters are stored in memory, they are displayed all at once. Roll-up mode: Displays the characters continuously by scrolling (max. 4 lines). 6 Press [SETUP] to exit. Note: • To show the closed caption on your TV screen, broadcast signal must contain the closed caption data. • Not all TV programs and commercials have the closed caption or all types of the closed caption. • Captions and texts may not match the TV voice exactly. • Changing channels may delay the closed caption for a few seconds. • Adjusting or muting the volume may delay the closed caption for a few seconds. • Abbreviations, symbols and other grammatical shortcuts may be used in order to keep pace with the on-screen action. This is not a problem with the unit. • The caption or text characters will not be displayed while the main menu or functions display is shown. • If a black box appears on the TV screen, this means that the closed caption is set to TEXT mode. To clear the box, select “CC1”, “CC2”, “CC3”, “CC4” or “Off”. • If the unit receives poor quality television signals, the captions may contain errors, or there might be no captions at all. Some possible causes of poor quality signals are: - Automobile ignition noise - Electric motor noise - Weak signal reception - Multiplex signal reception (ghosts or screen flutter) • The unit retains the closed caption setting if the power fails. • Closed caption will not be displayed when you are using an HDMI connection. • When the unit receives a special effects playback signal (i.e., Search, Slow and Still) from a VCR’s video output channel (CH3 or CH4), the unit may not display the correct caption or text. • Downloaded from www.Manualslib.com manuals search engine 23 EN INTRODUCTION CONNECTION INITIAL SETTING OPTIONAL SETTING WATCHING TV OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION DTV Closed Caption DTV In addition to the basic closed caption described on page 22, DTV has its own closed caption called DTV CC. Use this menu to change the settings for DTV CC. 1 Repeat steps 1 and 2 in “Closed Caption”on page 22. 2 Use [Cursor K / L] to select “Closed Caption”, then press [ENTER]. Detail Detail Auto Closed Caption V–chip PC Settings HDMI1 Audio Blue LED Power on 3 Use [Cursor K / L] to select “DTV CC”, then press [ENTER]. Closed Caption Closed Caption Off Off Conventional CC DTV CC CC Style 4 Use [Cursor K / L] to select the desired DTV closed caption, then press [ENTER]. Closed Caption Closed Caption Off Conventional CC Service1 Service2 Service3 Service4 Service5 Service6 DTV CC CC Style DTV CC Off Select if you do not want DTV CC. This is the default. Service1~6 Select one of these before changing any other item in “Closed Caption” menu. Choose “Service1” under normal circumstances. 5 Press [SETUP] to exit. Note: • “DTV CC” that you can switch differs depending on the broadcast description. CC Style You can change the style of CC such as font, color or size, etc. 1 Repeat steps 1 and 2 in “Closed Caption”on page 22. � � 2 Use [Cursor K / L] to select “Closed Caption”, then press [ENTER]. Detail Detail Auto Closed Caption V–chip PC Settings HDMI1 Audio Blue LED Power on 3 Use [Cursor K / L] to select “CC Style”, then press [ENTER]. Closed Caption Closed Caption Off Off Conventional CC DTV CC CC Style 4 Use [Cursor K / L] to select “User Setting”, then press [ENTER]. CC Style CC Style Off Font0 Middle White Solid Black Black None Solid User Setting Font Style Font Size Font Color Font Opacity Back Color Back Opacity Edge Color Edge Type 5 Use [Cursor K / L] to select “On”, then press [ENTER]. CC Style CC Style Font Style Font Size Font Color Font Opacity Back Color Back Opacity Edge Color Edge Type User Setting Closed Caption Off On 6 Use [Cursor K / L] to select an item, then press [ENTER]. Then use [Cursor K / L] to select the desired setting and press [ENTER]. ABCDEFGHIJKL ABCDEFGHIJKL The setting description for each item is shown below. [Font Style] Closed Captioning font style can be changed as below. CC Style CC Style User Setting Font Size Font Color Font Opacity Back Color Back Opacity Edge Color Edge Type Font Style Closed Caption • Back (Back Color and Back Opacity) Picture display Edge (Edge Color and Edge Type) Font (Font Style, Font Size, Font Color and Font Opacity) Downloaded from www.Manualslib.com manuals search engine OPTIONAL SETTING 24 EN [Font Size] Font size of the displayed caption can be switched as below. CC Style CC Style Small Large Middle Closed Caption User Setting Font Style Font Color Font Opacity Back Color Back Opacity Edge Color Edge Type Font Size [Font Color] Font color of the displayed caption can be switched as below. CC Style CC Style White Black Red Green Blue Yellow Magenta Cyan Closed Caption User Setting Font Style Font Size Font Opacity Back Color Back Opacity Edge Color Edge Type Font Color [Font Opacity] Font opacity of the displayed caption can be switched as below. CC Style CC Style Flash Translucent Transparent Solid Closed Caption User Setting Font Style Font Size Font Color Back Color Back Opacity Edge Color Edge Type Font Opacity [Back Color] Background color of the displayed caption can be switched as below. CC Style CC Style White Black Red Green Blue Yellow Magenta Cyan Closed Caption User Setting Font Style Font Size Font Color Font Opacity Back Opacity Edge Color Edge Type Back Color [Back Opacity] Background opacity of the displayed caption can be switched as below. CC Style CC Style Flash Translucent Transparent Solid Closed Caption User Setting Font Style Font Color Font Opacity Back Color Edge Color Edge Type Font Size Back Opacity [Edge Color] Edge color of the displayed caption can be switched as below. CC Style CC Style White Black Red Green Blue Yellow Magenta Cyan Closed Caption User Setting Font Style Font Size Font Opacity Back Color Back Opacity Edge Type Font Color Edge Color [Edge Type] Edge type of the displayed caption can be switched as below. CC Style CC Style Raised Depressed Uniform L.Shadow R.Shadow None Closed Caption User Setting Font Style Font Color Font Opacity Back Color Edge Color Font Size Back Opacity Edge Type 7 Press [SETUP] to exit. V-chip V-chip reads the ratings for programs, then denies access to the programs which exceed the rating level you set. With this function, you can block certain programming inappropriate for children. 1 Repeat steps 1 and 2 in “Closed Caption”on page 22. 2 Use [Cursor K / L] to select “V-chip”, then press [ENTER]. Power on Auto Closed Caption V–chip PC Settings HDMI1 Audio Blue LED Detail Detail 3 Use [the Number buttons] to enter the 4-digit numbers for your password. PIN Code Back BACK Enter password. V-chip V-chip - When you have not set up your password, enter 0000. When the password is correct, the “V-chip” menu is displayed. See the following description for setting each item. MPAA Rating TV Rating Downloadable Rating Clear Downloadable Rating New Password V-chip V-chip A C B A... “A. MPAA Rating”� page 25 B... “B. TV Rating”� page 25. C... “C. New Password” � page 26 � • • Downloaded from www.Manualslib.com manuals search engine 25 EN INTRODUCTION CONNECTION INITIAL SETTING OPTIONAL SETTING WATCHING TV OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION Note: • When you select a rating and set it to “Block”, the higher ratings will be blocked automatically. The lower ratings will be available for viewing. • When you set the highest rating to “View”, all ratings turn to “View” automatically. • To block any inappropriate programming, set your limits in “MPAA Rating”, “TV Rating” and “Downloadable Rating”. • The V-chip setting will be retained after a power failure (except the access code reverts to 0000). • If the rating is blocked, will appear. • “Downloadable Rating” will be available when the unit receives a digital broadcast using the new rating system. • If the broadcasting signal does not have the downloadable rating information, “Downloadable Rating is currently not available.” will appear. This message will also appear when you try to access “Downloadable Rating” after you have cleared the downloadable rating information, and the new information has not been downloaded since. • To clear the downloadable rating information and its setting, select “Clear Downloadable Rating”. A. MPAA Rating A. MPAA Rating MPAA Rating is the rating system created by MPAA (Motion Picture Association of America). 4 Use [Cursor K / L] to select “MPAA Rating”, then press [ENTER]. MPAA Rating TV Rating Downloadable Rating Clear Downloadable Rating New Password V-chip V-chip 5 Use [Cursor K / L] to select the desired rating, then press [ENTER] repeatedly to switch between “View” and “Block”. Select View/Block Back BACK ENTER X NC-17 R PG-13 PG G NR V-chip V-chip Rating Category X Mature audience only NC-17 No one under 17 admitted R Restricted; under 17 requires accompanying parent or adult guardian PG-13 Unsuitable for children under 13 PG Parental guidance suggested G General audience NR No rating 6 Press [SETUP] to exit. Note: • Changing the category to “Block” or “View” automatically changes all its sub ratings to the same (“Block” or “View”). B. TV Rating B. TV Rating 4 Use [Cursor K / L] to select “TV Rating”, then press [ENTER]. MPAA Rating TV Rating Downloadable Rating Clear Downloadable Rating New Password V-chip V-chip 5 Use [Cursor K / L / s / B] to select the desired rating, then press [ENTER] repeatedly to switch between “View” and “Block”. Select View/Block Back BACK ENTER TV-MA TV-14 TV-PG TV-G TV-Y7 TV-Y FV V S L D V-chip V-chip 6 Press [SETUP] to exit. [To Set the Sub Ratings] As for TV-MA, TV-14, TV-PG, or TV-Y7, you can further set the sub ratings to block specific elements of programming. To set the sub ratings, follow the step below. Use [Cursor K / L / s / B] to select the desired rating, then press [ENTER] repeatedly to switch between “View” and “Block”. Select View/Block Back BACK ENTER TV-MA TV-14 TV-PG TV-G TV-Y7 TV-Y FV V S L D V-chip V-chip Rating Category TV-MA Mature audience only higher TV-14 Unsuitable for children under 14 TV-PG Parental guidance suggested TV-G General audience TV-Y7 Appropriate for all children 7 and older TV-Y Appropriate for all children lower Downloaded from www.Manualslib.com manuals search engine OPTIONAL SETTING 26 EN Sub Rating Category Rating FV Fantasy Violence TV-Y7 V Violence TV-PG TV-14 TV-MA S Sexual Situation L Coarse Language D Suggestive Dialogue TV-PG, TV-14 Note: • Blocked sub rating will appear beside the main rating category in “TV Rating” menu. • You cannot block a sub rating (D, L, S or V) if the main rating is set to “View”. • Changing the category to “Block” or “View” automatically changes all its sub ratings to the same (“Block” or “View”). C. New Password C. New Password Although the default code “0000” is supplied with the unit, you can set your own password. 4 Use [Cursor K / L] to select “New Password”, then press [ENTER]. MPAA Rating TV Rating Downloadable Rating Clear Downloadable Rating New Password V-chip V-chip 5 Press [the Number buttons] to enter the new 4-digit password. Enter password again in “Confirm password.” entry field.w V-chip V-chip PIN Code Back BACK Confirm password. Enter password. - - - - - - - - 6 Press [SETUP] to exit. Note: • Make sure new password and confirm password must be exactly the same. If they are different, the space is cleared for reentering. • Your password will be erased and return to the default (0000) when a power failure occurs. If you forget the password, unplug the power cord for 10 seconds to restore the password to 0000. • PC Settings This function lets you adjust the PC screen position, clock and phase during PC input. 1 Repeat steps 1 and 2 in “Closed Caption”on page 22. 2 Use [Cursor K / L] to select “PC Settings”, then press [ENTER]. Detail Detail Power on Auto Closed Caption V–chip PC Settings HDMI1 Audio Blue LED 3 Use [Cursor K / L] to select the setting you want to adjust, then press [ENTER]. PC Settings PC Settings Auto Adjustment Horizontal Position Vertical Position Clock Phase - - - - - - - - 4 Adjust the setting. Auto Adjustment Use [Cursor K / L] to select “Adjust”, then press [ENTER]. Cancel Adjust Auto Adjustment Auto Adjustment This function automatically adjusts the position, clock and phase of the picture element. The Horizontal/Vertical position, clock and phase of the PC screen are automatically adjusted. Horizontal Position, Vertical Position Use [Cursor s / B] to adjust. Cursor s Cursor B Horizontal Position ENTER H. Position Adjust Move Enter 0 to move PC screen left to move PC screen right Vertical Position ENTER V. Position Adjust Move Enter 0 to move PC screen down to move PC screen up Clock, Phase Use [Cursor { / B] to adjust the “Clock” setting to stabilize the PC screen and the “Phase” setting to improve the clarity of the PC screen. Cursor s Cursor B Clock ENTER Clock Adjust Move Enter 0 to decrease setting value to increase setting value Phase ENTER Adjust Phase Move Enter 0 � • Downloaded from www.Manualslib.com manuals search engine 27 EN INTRODUCTION CONNECTION INITIAL SETTING OPTIONAL SETTING WATCHING TV OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION 5 Press [SETUP] to exit. Note: • Adjust the “Phase” setting after the “Clock” setting has been properly adjusted. • You may not obtain an appropriate screen with auto adjustment for some signals. In this case, adjust the settings manually. HDMI Audio You can set the method of sound input for the HDMI 1-IN jack. 1 Repeat steps 1 and 2 in “Closed Caption”on page 22. 2 Use [Cursor K / L] to select “HDMI1 Audio”, then press [ENTER]. Power on Auto Closed Caption V–chip PC Settings HDMI1 Audio Blue LED Detail Detail 3 Use [Cursor K / L] to select the desired sound input, then press [ENTER]. Detail Detail Closed Caption Auto Digital Analog V–chip PC Settings HDMI1 Audio Blue LED HDMI1 Audio Auto Select if you have connected both digital device to the HDMI 1-IN jack and analog device to the audio sources. Digital audio input signal will have priority. Digital Select if you have connected digital device to the HDMI 1-IN jack for digital audio input signal. Analog Select if you have connected analog device to the analog audio jacks for analog audio input signal. 4 Press [SETUP] to exit. � Blue LED You can set the blue LED on the front panel to light up when the unit is turned on or when a disc is inserted. 1 Repeat steps 1 and 2 in “Closed Caption”on page 22. 2 Use [Cursor K / L] to select “Blue LED”, then press [ENTER]. Power on Auto Closed Caption V–chip PC Settings HDMI1 Audio Blue LED Detail Detail 3 Use [Cursor K / L] to select the desired setting, then press [ENTER]. Disc in Power on Off Blue LED Blue LED This function sets the Blue LED. When TV is on, Power on: LED is always on. Disc in: When disc is inserted, LED is on. When disc is not inserted, LED is off. Off: LED is always off. Blue LED Power on Lights up while the unit is turned on. Disc in Lights up when a disc is inserted. Lights off when there is no disc. Off Turns off the Blue LED. 4 Press [SETUP] to exit. � Downloaded from www.Manualslib.com manuals search engine 28 EN OPERATING DVD Playable Media Type of media Mark (logo) Region code Recorded signals Media size Disc types DVD-video *1, 2, 4, 6, 10, 11 or 1 ALL ALL digital video (MPEG2) 5 inches (12 cm) DVD-RW DVD-R * 1, 3, 4, 5, 6, 7, 8, 9, 10 - DVD+RW DVD+R * 1, 4, 5, 6, 9, 10 - audio CD * 4, 6, 10 - digital audio video CD * 4, 6, 10 - digital video (MPEG1) CD-RW CD-R * 4, 5, 6, 9,10 - digital audio or MP3 or JPEG or digital video (MPEG1) Kodak Picture CD * 4, 5, 6, 9, 10 - JPEG is a trademark of DVD Format/Logo Licensing Corporation. If you cannot play back a disc which bears one of the marks above, check the following notes. *1: This unit conforms to the NTSC color system. Discs recorded in other color system such as PAL cannot be played back. *2: Certain DVD-video do not operate as described in this manual due to the intentions of the disc’s producers. *3: Discs recorded in VR (video recording) format cannot be played back. *4: Scratched or stained discs may not be played back. *5: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special properties of discs. *6: You can play back discs which bear the marks above. If you use non-standardized discs, this unit may not play them back. Even if they are played back, the sound or video quality will be compromised. *7: You may playback the unfinalized DVD-RW/-R recorded in the video format on our brand’s DVD recorder. However, depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may not be smooth, etc.). In this case, you need to finalize the disc with the DVD recorder. Refer to the manual accompanying the DVD recorder. *8: Only the discs recorded in the video mode and finalized can be played back. Unfinalized discs cannot be played back. Depending on the recording status of a disc, the disc may not be played back at all or the picture or sound may not be smooth, etc. *9: If the recorded portion of the disc is too small (less than 55 mm across), it may not play back properly. *10: Do not glue paper or put stickers on to the disc. These may damage the disc, and the unit may not read it correctly. *11: The number inside the symbol refers to a region of the world and a disc encoded in a specific region format can only be played back on unit with the same region code. About the PBC Function of Video CD This unit conforms to ver.1.1 and ver.2.0 of video CD standard, with PBC function. Ver.1.1 (without PBC function): You can enjoy playback picture as well as music CD. Ver.2.0 (with PBC function): When using a video CD with PBC function, “PBC” appears on the TV screen. Unplayable Media NEVER play back the following discs. Otherwise, malfunction may result! 3 inch (8 cm) disc, Blu-ray disc, HD DVD, DVD-RAM, DVD-audio, CD-i, photo CD, DVD with region codes other than 1 or ALL, DTS-CD, DVD-ROM for personal computers, CD-ROM for personal computers On the following disc, the sound MAY NOT be heard. super audio CD Note: Never insert a disc which is broken or abnormal shape (other than 5 inch(12 cm) round disc) Do not use a single CD adaptor which make 3 inch (8 cm) to 5 inch (12 cm) disc. For super audio CD, only the sound recorded on the normal CD layer can be delivered. The sound recorded on the high density super audio CD layer cannot be delivered. • • • Any other discs without compatibility indications � � � • • • DVD Functions e.g.) title1 title2 chapter 1 chapter 2 chapter 3 chapter 4 chapter 1 chapter 2 track 1 track 2 track 3 track 4 track 5 track 6 e.g.) e.g.) folder1 folder2 file 1 file 2 file 3 file 4 file 5 file 6 audio CD or video CD MP3 or JPEG Downloaded from www.Manualslib.com manuals search engine 29 EN INTRODUCTION CONNECTION INITIAL SETTING OPTIONAL SETTING WATCHING TV OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION Playback DVD CD VCD ( MP3 JPEG on page 30) Before you begin: Turn on the amplifier and any other equipment which is connected to this unit. Make sure the external audio receiver (not included) are set to the correct channel. 1 Press [POWER] to turn on the unit. 2 Insert a disc with label facing up. label In case the DVD was recorded on both sides, make sure the label of the side you want to play back is facing up. 3 The unit switches to the DVD mode when the unit was in TV mode and detects the type of disc. e.g.) DVD DVD Press [PLAY B] if the unit does not go to the DVD mode. 4 The disc starts playback. If playback does not start automatically, press [PLAY B] again. 5 Press [STOP C] to stop playback temporarily. If playback remains stopped for 5 minutes, the screen saver program will activate automatically. 6 Press [EJECT A] to eject the disc. Note: When you play back CD-RW/-R with MP3 or JPEG files, details on page 30. • A “ ” may appear at the top-right on the TV screen when the operation is prohibited by the disc or this unit. • Some DVD may start playback from title 2 or 3 due to specific programs. During the playback of a 2-layered disc, pictures may stop for a moment. This happens while the 1st layer is being switched to the 2nd layer. This is not a malfunction. • • � • • • • Disc Menu DVD VCD Some discs contain disc menus which describe the contents of the disc or allow you to customize disc playback, or title menu which lists the titles available on the DVD. Press [DISC MENU] and, use [Cursor K / L / s / B] to select an item, then press [ENTER] (or [PLAY B]). Note: Menu operations may vary depending on the disc. Refer to the manual accompanying the disc for more details. • Cancelling the PBC (for playback of a video CD) 1 Insert a video CD. (Playback will start automatically.) 2 Press [STOP C]. 3 Enter track number of your choice with [the Number buttons]. 4 PBC is now cancelled and the playback of the video CD will start. To call back PBC function, press [STOP C] twice, and then press [PLAY B]. The title menu will appear. Resume Playback DVD CD VCD w/o PBC MP3 JPEG Press [STOP C] during playback. Resume message will appear on the TV screen. Press [PLAY B]. Playback will resume from the point at which playback was stopped. e.g.) DVD Press 'PLAY' to play from here. To play the beginning, press 'STOP' first and then 'PLAY'. Resume ON Note: To cancel resume information, press [STOP C] again in the stop mode. The resume information will be kept even when unit is in standby mode. For MP3 and JPEG, playback will resume from the beginning of the file at which playback was stopped. • • Paused and Step-by-step Playback DVD CD VCD MP3 JPEG Press [PAUSE F] during playback. Playback will be paused and sound will be muted. Press [PAUSE F] once during dual/folder playback to pause a JPEG file only. Press [PAUSE F] one more time to pause an MP3 file. To continue playback, press [PLAY B]. • • DVD VCD Each time you press [PAUSE F] in the pause mode, the disc goes forward one frame at a time. To continue playback, press [PLAY B]. Note: Set “STILL MODE” to “FIELD” in the “OTHERS” menu if pictures in the pause mode are blurred. (Refer to page 42.) • � • � � These operations are accessible by remote control. Some may also be accessible by controls on the main unit. Downloaded from www.Manualslib.com manuals search engine OPERATING DVD 30 EN Fast Forward / Fast Reverse DVD CD VCD MP3 Press [FWD D] or [REV E] repeatedly during playback to select the required forward or reverse speed. To continue playback, press [PLAY B]. E 1 Note: Set “STILL MODE” to “FIELD” in the “OTHERS” menu if pictures in the fast playback mode are blurred. (Refer to page 42.) Fast forward / fast reverse speed is varies with disc. Approximate speed is 1(2x), 2(8x), 3(20x), 4(50x) and 5(100x) on DVD and 1(2x), 2(8x) and 3(30x) on audio CD, video CD and MP3. For DVD and video CD, sound will be muted during the search. For audio CD and MP3, sound will be intermittent during the search. • • • • Slow Forward / Slow Reverse DVD VCD Press [FWD D] or [REV E] repeatedly during the paused mode to select the required forward or reverse speed. To continue playback, press [PLAY B]. 1 Note: Slow forward/slow reverse speed varies with disc. Approximate speed is 1(1/16x), 2(1/8x) and 3(1/2x). Set “STILL MODE” to “FIELD” in the “OTHERS” menu if pictures in the slow playback mode are blurred. (Refer to page 42.) You cannot playback video CD in reverse slow motion. • • • Zoom DVD VCD JPEG The zoom function allows you to enlarge the video image and to pan through the enlarged image. 1 During playback, press [ZOOM]. The picture becomes twice as large. 2 Press [ZOOM] repeatedly to change the zoom factor, “2x” or “4x”. � � � • 3 Once a desired zoom factor is set, use [Cursor K / L / s / B] to slide the zoomed picture across the TV screen. 4 Press [ZOOM] repeatedly to exit zoom mode. Note: Zoom function does not work while the disc menu is displayed. 4x zoom is not available on some discs. Only 2x zoom is available on video CD and JPEG files. Zoom function is also available during pause mode. Position guide is not available for JPEG files. • • • • • MP3, JPEG Playback MP3 JPEG MP3 or JPEG is a method of compressing files. You can copy MP3 or JPEG files on CD-RW/-R from the personal computer and play back the files on this unit. 1 Insert an CD-RW/-R with MP3 or JPEG files, playback starts automatically. Press [PLAY B] if the disc is already inserted. Press [DISC MENU] when you want to call up the file list. When selecting the folder: Press [Cursor B] when you want to go to the next hierarchy. or folder name 4 folder name 1 folder name 3 folder name 2 folder name 1 DISC NAME FILE LIST FOLDER MP3 ENTER PLAY file name 1 file name 2 file name 1 1/ 2 JPEG Press [Cursor s] when you want to go back to the previous hierarchy (except for the top hierarchy). If [TITLE] is pressed when a file list is displayed, the 1st item in the top hierarchy will be highlighted. Press [DISC MENU] or [BACK/RETURN] to go back to playback display. 2 Press [STOP C] once to stop playback temporarily. Refer to “Resume Playback” on page 29. � • • • • • • • Downloaded from www.Manualslib.com manuals search engine 31 EN INTRODUCTION CONNECTION INITIAL SETTING OPTIONAL SETTING WATCHING TV OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION Note: A file with an extension of “.mp3 (MP3)” is called an “MP3 file”. A file with an extension of “.jpg (JPG)” or “.jpeg (JPEG)” is called a “JPEG file”. Some selections may take a while to be recognized. Folders are known as Groups; files are known as Tracks. Folders, MP3 files and JPEG files are displayed respectively as , and . A maximum of 255 folders or 999 files may be recognized in one disc. Up to 8 hierarchies can be recognized in one folder. Files in the 9th or deeper hierarchies cannot be played back. This unit can play back images and sounds from data recorded in MP3 and JPEG files on CD-RW/-R. The unit can run an image file conforming to the Exif specification. Exif is a file format, Exchangeable Image File format established by Japanese Electronic Industry Development Association (JEIDA). Files whose extension is other than “.mp3 (MP3)”, “.jpg (JPG)” and “.jpeg (JPEG)” will not be listed in the file list. If the file is not recorded in MP3 or JPEG format, noise may be produced even if the file extension is either “.mp3 (MP3)”, “.jpg (JPG)” or “.jpeg (JPEG)”. The name of folder and file can be displayed in up to 25 characters. Unrecognizable characters will be replaced with asterisks. Unplayable folders or files may be displayed depending on the recording conditions. Progressive JPEGs (JPEG files saved in the progressive format) will not be played back on this unit. If a folder is selected, press [Cursor K // L] to select a desired folder, then press [Cursor B], [PLAY B] or [ENTER] to select a file. • • • • • • • • • • • • • • • This unit recommends the files recorded under the following circumstances: Applicable MP3 file Remarks Sampling frequency: 44.1 kHz or 48 kHz For MP3 file recorded in variable bit rate (VBR), the unit may not display the actual elapsed time. Constant bit rate: 32 kbps ~ 320 kbps Applicable JPEG file Remarks Normal playback Upper limit: 6,300 x 5,100 dots Lower limit: 32 x 32 dots File size: Max. 7 MB A JPEG image that extends beyond the TV screen is reduced so that it will be displayed within the TV screen. Dual playback Upper limit: 5,000 x 5,000 dots Lower limit: 32 x 32 dots File size: Max. 5 MB Kodak Picture CD JPEG The unit can also run JPEG files stored on Kodak Picture CD. The Picture CD is a service to convert photographs taken by a conventional film camera into digital data and write the data on a CD. The user can enjoy picture images on the television set by playing back the Picture CD. For details of Kodak Picture CD, contact a shop that deal with developing service of Kodak Inc. 1 Press [DISC MENU], when you want to call up the file. 1/32 If all menu items cannot be displayed in the screen scope, “G” appears at the right bottom of the screen, indicating that the user can view remaining items on the next page. “H” appears, it indicates that the user can view other items on the previous page. The file number of the currently highlighted item and the total files are shown at the center bottom of the screen. If “G” is shown at the right bottom, press [SKIP G] to view the next page. If “H” is shown at the left bottom, press [SKIP H] to view the previous page. It may take some time until all menu items are displayed on the menu screen. 2 Use [Cursor K / L / s / B] to select a desired file, then press [ENTER] (or [PLAY B]). or If a Kodak Picture CD file is selected, an image will be played back from the selected file and go to the next one in turn. Note: A file is displayed for 5 seconds and then the next file is displayed. Every press on [ANGLE] will turn the image clockwise by 90 degrees when an image is displayed. • • � • • • • Current file number / the number of total files Picture 1 Picture 2 Picture 3 Picture 4 Picture 5 Picture 6 Downloaded from www.Manualslib.com manuals search engine OPERATING DVD 32 EN Dual Playback MP3 JPEG This function lets you play back MP3 and JPEG files simultaneously. Available only when “DUAL PLAYBACK” is “ON”. See page 42 on how to set “DUAL PLAYBACK” “ON” or “OFF”. 1 Press [PLAY B], then press [DISC MENU]. folder name 4 folder name 1 folder name 3 folder name 2 folder name 1 DISC NAME FILE LIST FOLDER MP3 ENTER PLAY file name 1 file name 2 file name 1 1/ 2 JPEG 2 When playing back an MP3 file, use [Cursor K / L] to select a desired JPEG file from the file list, then press [ENTER] (or [PLAY B]). or or When playing back a JPEG file, select an MP3 file. Note: To cancel dual playback, press [DISC MENU] again at step 1. If you press [PLAY B] directly after you inserted a disc which contains both MP3 and JPEG files and if “DUAL PLAYBACK” is set to“ON”, dual playback will start automatically. If you press [FWD D] or [REV E] during dual playback, a JPEG file will be paused. Zooming or rotating a JPEG file during dual playback may cause an intermittent sound. Depending on the data size of each file, dual playback may not function properly. (Refer to “Applicable JPEG file” on page 31.) • • • • • Folder Playback MP3 JPEG This function lets you play back all the files and tracks contained in one selected folder automatically. Available only when “DUAL PLAYBACK” is “ON”. If the folder contains both MP3 and JPEG files, dual playback will begin automatically within that folder. See page 42 on how to set “DUAL PLAYBACK” “ON” or “OFF”. 1 Press [STOP C], then press [MODE]. folder name 4 folder name 1 folder name 3 folder name 2 folder name 1 DISC NAME FOLDER LIST FOLDER ENTER PLAY ALL 1/ 1 2 Use [Cursor K / L] to select a desired folder from the folder list, then press [ENTER] (or [PLAY B]). or or � • � Note: To cancel folder playback, press [MODE] again at step 1. If you press [FWD D] or [REV E] during folder playback, a JPEG file will be paused. Zooming or rotating a JPEG file during folder playback may cause an intermittent sound. Depending on the data size of each file, folder playback may not function properly. (Refer to “Applicable JPEG file” on page 31.) • • • • Transition Mode JPEG You can switch to the transition mode for JPEG files during playback. 1 Press [PLAY B], then press [MODE] repeatedly until “ ” appears. CUT IN/OUT 2 Use [ENTER] or [Cursor s / B] to select a desired setting. or or FADE IN/OUT CUT IN/OUT : The entire image appears in one time. FADE IN/OUT : The image appears gradually and then disappears. 3 Press [BACK/RETURN] to exit. Note: The transition mode cannot be switched when it is stopped, or from the file list. The default setting is “CUT IN/OUT”. • • Adjustment of Picture Size JPEG When the overall picture cannot be displayed and the edge of the picture is cut off, you can adjust the size of the JPEG playback image on TV screen. 1 Press [PLAY B], then press [MODE] repeatedly until “ ” appears. NORMAL 2 Use [ENTER] or [Cursor s / B] to select a desired setting. or or SMALL NORMAL : To display the image at 100% of the picture size. SMALL : To display the image at 95% of the picture size. � � Downloaded from www.Manualslib.com manuals search engine 33 EN INTRODUCTION CONNECTION INITIAL SETTING OPTIONAL SETTING WATCHING TV OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION 3 Press [BACK/RETURN] to exit. Note: Picture adjustment menu will not be displayed while in the stop mode or from the file list. This feature may have no effect on some files (e.g. Files with a small picture size). The default setting is “NORMAL”. • • • Search Functions Chapter / Title Search Chapter / Title Search DVD Using [SEARCH MODE] 1 Press [SEARCH MODE] repeatedly until “ ” appears. If you want to perform the title search, press [SEARCH MODE] repeatedly until “ ” appears. /12 2 Press [the Number buttons] to select your desired chapter or title within 30 seconds. /12 To play back a single-digit chapter or title when there are more than 10 chapters or titles, press [ENTER] after entering the chapter or title number. 3 Playback will start automatically from the chapter or title you selected. Note: The total number of chapters/titles in your disc; with less than 10 chapters/titles, press the chapter/title number directly. With 10 or more chapters/titles, to play a single digit chapter/title, press [0] first, then the chapter/title number. (e.g., for chapter 3, press [0] and [3].) To play a double-digit chapter/title, press the chapter/title number. • � • Using [SKIP H , G] 1 During playback, press [SKIP H, G] repeatedly until a desired chapter or title will be selected. or CH 1 CH 2 CH 3 CH 4 [SKIP H] [SKIP G] [SKIP H] [SKIP G] TT 1 TT 2 TT 3 TT 4 2 Playback will start automatically from the chapter or title you selected. Note: [SKIP H / G] are not available when playback is stopped. Chapter or title search can only be performed during playback or when the unit has kept the resume information. It cannot be performed in the stop mode. • • Track Search Track Search CD VCD w/o PBC MP3 JPEG Using [SEARCH MODE] 1 Press [SEARCH MODE] repeatedly until “ ” appears. /29 2 Press [the Number buttons] to select your desired track/file within 30 seconds. /29 To play back a single-digit track/file when there are more than 10 tracks/files, press [ENTER] after entering the track/file number. 3 Playback will start automatically from the track/file you selected. Note: The total number of tracks/files in your disc; With less than 10 tracks/files, press the track/file number directly. With 10 or more tracks/files, to play a single digit track/file, press [0] first, then the track/file number. (e.g., for track 3, press [0] and [3].) To play a double-digit track/file, press the track/file number. With 100 or more files, to play a single or double digit file, press [0] first, then the file number directly. (e.g., for file 3, press [0], [0] and [3]. For file 26, press [0], [2] and [6]). To play a triple digit file, press the file number. Track search is not available for programmed or random playback. • • current chapter (CH) current title (TT) (If the disc has no chapter.) or Downloaded from www.Manualslib.com manuals search engine OPERATING DVD 34 EN Using [SKIP H , G] 1 During playback, press [SKIP H, G] repeatedly until a desired track/file will be selected. or [SKIP H] [SKIP G] TR 1 TR 2 TR 3 TR 4 2 Playback will start automatically from the track/file you selected. Note: [SKIP H / G] are not available when playback is stopped. Track search can only be performed during playback or when the unit has kept the resume information. It cannot be performed in the stop mode. • • Time Search Time Search DVD CD VCD w/o PBC 1 During playback, press [SEARCH MODE] repeatedly until “ ” appears. 1:29:00 TOTAL 2 Press [the Number buttons] to select your desired time lapse within 30 seconds. 1:29:00 TOTAL 3 Playback will start automatically from the time you selected. Note: When there is no need to enter a number, “0” appears automatically. For example, “0: 0_: _ _” appears in the time search menu if the total time of the title or track is less than 10 minutes. Press [CLEAR] to erase the incorrect input at step 2. Time search can only be performed during playback or when the unit has kept the resume information. It cannot be performed in the stop mode. • • • Direct Search Direct Search DVD CD VCD w/o PBC MP3 JPEG Press [the Number buttons] to select your desired chapter, title, track/file. Note: To select a single-digit chapter, title, track/file number, press the number directly. To select double digit chapter, title, track/file number: If the disc contains more than 9 and less than 100 chapter, title, tracks/files, press [+10] first, then enter the double digit chapter, title, track/file number. (e.g., for track 26, press [+10], [2] and [6].) • • - Repeat Playback DVD CD VCD w/o PBC MP3 JPEG Repeat function is available only during playback. 1 During playback, press [REPEAT] repeatedly until “ ” appears. 2 Press [REPEAT] to change the repeat mode. DVD CD VCD w/o PBC MP3 JPEG 3 Press [BACK/RETURN] to exit. � (TR) current track/file OFF (repeat off) CHAPTER (current chapter repeat) TITLE (current title repeat) OFF (repeat off) TRACK (current track repeat) ALL (entire disc repeat) OFF (repeat off) TRACK (current file repeat) GROUP (current folder repeat) ALL (entire disc repeat) Downloaded from www.Manualslib.com manuals search engine 35 EN INTRODUCTION CONNECTION INITIAL SETTING OPTIONAL SETTING WATCHING TV OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION Repeat A-B Playback DVD CD VCD You can repeat playback between A and B on a disc. 1 During playback, press [A-B] at your desired starting point (A). A- 2 Press [A-B] at your desired ending point (B). A-B Point B should be in the same title or track as point A. Within a few seconds, the section A-B will begin to play back repeatedly. 3 To cancel repeat A-B playback, press [A-B] repeatedly until “ OFF” appears. Note: Repeat setting (except “ALL”) will be cleared when moving to another title, chapter, track/file or folder. During programmed playback, repeat setting will be effective for the tracks/files in the program. Repeat playback or repeat A-B playback may not available with some discs. Repeat A-B playback does not function during other repeat mode. To cancel point A, press [CLEAR] at step 1 in “Repeat A-B Playback”. Stopping playback will cancel repeat A-B playback. • • • • • • Random Playback CD MP3 JPEG This function shuffles the playing order of tracks instead of playback in the sequence. 1 In stop mode, press [MODE] repeatedly until “RANDOM” menu appears. e.g.) audio CD PLAY CD-DA TOTAL 0:45:55 RANDOM PROGRAM --no indication-- RANDOM 2 Press [PLAY B] to start random playback. Note: To repeat the current track/file in the random mode, follow the steps 1 and 2 in “Repeat Playback” on page 34 and select “ TRACK”. To repeat the entire random selections, follow the steps 1 and 2 in “Repeat Playback” on page 34 and select “ ALL”. Random playback of MP3 or JPEG is not available while “DUAL PLAYBACK” is “ON”. Random playback will be kept until you press [STOP C]. • • • • � • • � Programmed Playback CD MP3 JPEG You may determine the order in which tracks will play back. 1 In stop mode, press [MODE] repeatedly until “PROGRAM” menu appears. e.g.) audio CD PROGRAM ENTER PLAY CLEAR CD-DA TOTAL 0:00:00 1/ 1 1/ 3 T 1 3:31 T 2 4:28 T 3 4:19 T 4 3:58 T 5 4:12 T 6 4:02 T 7 3:55 T 1 3:31 2 Use [Cursor K / L] to select a desired track/file, then press [ENTER] to store. Additional tracks/files may be on other screens. Use [Cursor K / L] to go on to the next / previous pages. Repeat this step until you have selected all the tracks/ files you wish to play back in the program. or PROGRAM ENTER PLAY CLEAR CD-DA TOTAL 0:08:22 1/ 1 3/ 3 T 15 3:18 T 16 4:24 ALL CLEAR T 4 3:58 T 16 4:24 T 16 4:24 Up to 99 tracks/files can be ordered. If 8 or more tracks/files were in a program, use [SKIP H / G] to see all the tracks/files. While an MP3 or a JPEG folder is open: Press [Cursor B] when you want to go to the next hierarchy. Press [Cursor s] when you want to go back to the previous hierarchy (except for the top hierarchy). Press [TITLE] when you want to go back to the item in the top hierarchy. 3 Press [PLAY B] to start programmed playback. Note: Press [CLEAR] to erase the last track/file in the program if you make an error. To erase all programmed tracks/files at once, select “ALL CLEAR” and press [ENTER] at step 2. While a program is being played back, [STOP C] works as follows: - Pressing [STOP C] once: The track/file will be in the resume standby mode. Next time you press [PLAY B], the playback will resume from the point where it is stopped in the programmed playback. (For MP3 file, playback will resume from the beginning of the current file.) - Pressing [STOP C] twice: Resume mode will be canceled. Next time you press [PLAY B], playback will restart from the first track/file in the original order. However, your programmed playback can be restarted when you follow the above steps. (Your programs are still stored until either the disc is ejected or the unit is turned off.) On some discs, [STOP C] will not work while the resume message appears. Please wait until the message disappears. To repeat the current track/file in the program, follow the steps 1 and 2 in “Repeat Playback” on page 34 and select “TRACK”. To repeat the entire program, follow the steps 1 and 2 in “Repeat Playback” on page 34 and select “ALL”. Turning off the unit or ejecting the disc will erase the program. You cannot use [the Number buttons] to select another track/file during programmed playback. Use [SKIP H / G] to select other tracks/files in the program. You cannot combine random playback with programmed playback. You cannot alter a programmed order during playback. You can start programmed playback only while in “PROGRAM” menu. • • • • • • • • • • � • • • • - - - Downloaded from www.Manualslib.com manuals search engine OPERATING DVD 36 EN On-screen Display You can check the information about the current disc by pressing [INFO] on the remote control. DVD T L1 3 11/16 0:00:00 - 0:03:30 1 4 1/3 0:00:00 - 1:23:45 2 � CD VCD w/o PBC 4/12 0:03:21 - 0:02:15 T 1 3 4/12 0:13:45 - 0:45:40 T 2 Note: When you are playing back an audio CD in program or random mode, “ PROGRAM” (or “ RANDOM”) will be displayed instead of 2 . • MP3 JPEG TRACK 01 1 PROGRAM RANDOM 3 4 1/36 0:01:15 T 2 Note: When “DUAL PLAYBACK” is “ON”, MP3 and JPEG file name will be displayed. • current repeat setting appears only when the repeat setting is active C : Chapter repeat T : Title repeat A B : A-B repeat bit rate indication for the amount of audio and video data currently being read layer number, appears only when playing a 2-layered disc L0 : Layer 0 is playing L1 : Layer 1 is playing CH (Chapter): current chapter number / total chapters elapsed time of the current chapter remaining time of the current chapter current playback status appears only when multi- angle is available on the DVD TT (Title): current title number / total titles elapsed time of the current title remaining time of the current title TR (Track): current track number / total tracks elapsed time of the current track remaining time of the current track current playback status current repeat setting appears only when the repeat setting is active T : Track repeat A : All tracks repeat A B : A-B repeat ALL: current track number / total tracks elapsed time of the entire disc remaining time of the entire disc the name of the file currently in playback will be displayed current playback status * Only when you are playing a disc in program or random mode. current repeat setting, if active T : Track repeat G : Group (folder) repeat A : All files repeat TR (Track): current file number / total files elapsed playing time of the current file Downloaded from www.Manualslib.com manuals search engine 37 EN INTRODUCTION CONNECTION INITIAL SETTING OPTIONAL SETTING WATCHING TV OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION Special Settings Subtitle Language Subtitle Language DVD This unit allows you to select a subtitle language (if available) during DVD playback. During playback, press [SUBTITLE] repeatedly until the desired language appears. 1.ENG/6 Each time you press [SUBTITLE], the subtitle language changes as example below. ... OFF (no subtitles) ENG (English subtitles) FRE (French subtitles) To cancel the subtitle 1 During playback, press [SUBTITLE] to display the subtitle display. 1.ENG/6 2 Press [Cursor B] to set “OFF”. OFF Note: If your language is not shown after pressing [SUBTITLE] several times, the disc may not have that language. However, some discs allow you to change subtitle languages setting in the disc menu. (Operation varies depending on the disc, so refer to the manual along with the disc.) When “NOT AVAILABLE” appears on the TV screen, it means no subtitle is recorded on the scene. If you choose a language that has 3-letter-language code, the code will be displayed every time you change the subtitle language setting. If you choose any other languages, “---” will be displayed instead. (Refer to page 43.) • • • Audio Language Audio Language DVD This unit allows you to select an audio language (if multiple languages are available) during DVD playback. During playback, press [AUDIO] repeatedly until the desired language appears. 1.ENG Dolby D 3/2.1ch 48k/3 � • Each time you press [AUDIO], the audio language changes as example below. ... ENG (English audio) SPA (Spanish audio) FRE (French audio) Note: Some discs will only allow you to change the audio setting from the disc menu. Refer to the manual accompanying the discs for details. If your language is not shown after pressing [AUDIO] several times, the disc may not have that language. However, some discs allow you to change multiple audio languages setting in the disc menu. (Operation varies depending on the disc, so refer to the manual along with the disc.) When “NOT AVAILABLE” appears on the TV screen, it means audio language is not available. • • • Camera Angles Camera Angles DVD Some DVD may contain scenes which have been shot simultaneously from various angles. You can change the camera angle if “ ” appears on the screen. If “ANGLE ICON” is set to “OFF” in “OTHERS” menu, “ ” will not appear. (Refer to page 42.) During playback, press [ANGLE] repeatedly until the desired camera angle appears. 1 / 8 Black Level Setting Black Level Setting DVD VCD Adjust the black level to make the dark areas of the TV picture brighter. 1 During playback, press [MODE] repeatedly until “ ” appears. OFF 2 Press [ENTER] to adjust the black level. ON ON : Makes the dark areas brighter. OFF : Shows the original picture as recorded. 3 Press [BACK/RETURN] to exit. Note: The setting will be kept even if the unit is turned off. • • audio can be varied on the displayed number. current audio language. subtitles can be varied on the displayed number. current subtitles language. angles can be varied on the displayed number. Downloaded from www.Manualslib.com manuals search engine OPERATING DVD 38 EN Stereo Sound Mode Stereo Sound Mode CD VCD This unit allows you to select a sound mode during CD playback. During playback, press [AUDIO] repeatedly until the desired sound mode appears. STEREO Each time you press [AUDIO], the sound mode changes as example below. STEREO (stereo sound with left and right channels) L-ch (left channel sound only) R-ch (right channel sound only) Note: Virtual surround cannot be changed when the sound mode is set to either “L-ch” or “R-ch”. • Virtual Surround Virtual Surround DVD CD VCD MP3 You can enjoy virtual surround on your existing 2 channel stereo system. 1 During playback, press [MODE] repeatedly until “ ” appears. OFF 2 Press [ENTER] to select the sound level. 1 1 : Natural effect. 2 : Emphasized effect. OFF : No effects (original sound). 3 Press [BACK/RETURN] to exit. Note: The setting will be kept even if the unit is turned off. For audio CD and video CD, virtual surround will not be effective if the sound mode is set to something other than “STEREO”. Refer to “Stereo Sound Mode”. Turn down the level or select “OFF” if the sound is distorted. • • • • Marker Setup Marker Setup DVD CD VCD w/o PBC This feature allows you to assign a specific point on a disc to be called back later. To set a marker 1 During playback, press [SEARCH MODE] repeatedly until “ ” appears. e.g.) DVD 2 Use [Cursor s / B] to select an available marker within 30 seconds. 3 When the playback reaches the point at which you want to set a marker, press [ENTER]. Marker is now set. 4 Press [BACK/RETURN] to exit. To return to the marker later 1 To select a desired marker, repeat steps 1-2 in “To set a marker”. e.g.) DVD 2 Press [ENTER] at the desired marker to restart playback from the specific point which you set. Note: Marker search menu will disappear in about 30 seconds when there is no input. You can mark up to 10 points. To clear a marker, select the marker to be cleared at step 2 in the section “To set a marker” or “To return to the marker later”, and then press [CLEAR]. Ejecting the disc or turning off the power will erase all markers. Selecting “ ” at step 2 in the section “To set a marker” or “To return to the marker later” will also erase all markers. • • • • • • Downloaded from www.Manualslib.com manuals search engine 39 EN INTRODUCTION CONNECTION INITIAL SETTING WATCHING TV SETTING DVD OPTIONAL SETTING OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION DVD Language Setting You can change the desired language when playing back the disc. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “DVD”, then press [ENTER]. Setup Setup Press “ENTER” key to move to DVD Setup. 3 Use [Cursor s / B] to select “ ”, then press [ENTER]. LANGUAGE AUDIO ORIGINAL SUBTITLE OFF DISC MENU ENGLISH ENTER 4 Use [Cursor K / L] to select the desired item, then press [ENTER]. LANGUAGE ENTER AUDIO ORIGINAL SUBTITLE OFF DISC MENU ENGLISH 5 Use [Cursor K / L] to select the desired item, then press [ENTER]. [AUDIO] *1, *2 (Default: ORIGINAL) Select the desired audio language. LANGUAGE ENTER ORIGINAL ENGLISH FRENCH SPANISH GERMAN ITALIAN SWEDISH AUDIO � [SUBTITLE] *1, *2 (Default: OFF) Select the desired subtitle language. LANGUAGE ENTER OFF ENGLISH FRENCH SPANISH GERMAN ITALIAN SWEDISH SUBTITLE [DISC MENU] *1 (Default: ENGLISH) Select the desired language in DVD menu. LANGUAGE ENTER ENGLISH FRENCH SPANISH GERMAN ITALIAN SWEDISH DUTCH DISC MENU Note: To change the on-screen language, call up “LANGUAGE” from the main menu and set the desired language. (Refer to “Language Selection” on page 14.) *1 Language options are not available with some discs. If “OTHER” is selected in “AUDIO”, “SUBTITLE” or “DISC MENU” menu, press 4-digit number to enter the code for the desired language. (Refer to “Language Code List” on page 43.) Only the languages supported by the disc can be selected. *2 Language setting for Audio and Subtitle are not available with some discs. Then press [AUDIO] and [SUBTITLE]. Details are on page 37. If the DVD’s default settings for audio and subtitle are the same language, the subtitles may not show unless you turn them on. • • • • • • • 6 Press [SETUP] to exit. Settings are only effective when the unit is in DVD mode and any discs should not be played back. Downloaded from www.Manualslib.com manuals search engine SETTING DVD 40 EN DVD Audio Setting Choose the appropriate audio settings for your equipment. It only affects during the playback of DVD. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “DVD”, then press [ENTER]. Setup Setup Press “ENTER” key to move to DVD Setup. 3 Use [Cursor s / B] to select “ ”, then press [ENTER]. AUDIO ENTER DRC ON DOWN SAMPLING ON DOLBY DIGITAL BITSTREAM 4 Use [Cursor K / L] to select the desired item, then press [ENTER]. AUDIO ENTER DRC ON DOWN SAMPLING ON DOLBY DIGITAL BITSTREAM 5 Use [Cursor K / L] to select the desired item, then press [ENTER]. [DRC] (dynamic range control) (Default: ON) Set “DRC”. This function is available only on the discs which are recorded in the Dolby Digital format. AUDIO ENTER DRC ON DOWN SAMPLING ON DOLBY DIGITAL BITSTREAM ON : Compress the range between soft and loud sounds. OFF : No effects (original sound). � [DOWN SAMPLING] (Default: ON) Set “DOWN SAMPLING”. This function is available only on digital outputting of a disc recorded in 96kHz. AUDIO ENTER DRC ON DOWN SAMPLING ON DOLBY DIGITAL BITSTREAM ON : When outputting in 48kHz. OFF : When outputting the original sound. Note: When playing back a 96 kHz disc with the copyright protection or when virtual surround is set to “1” or “2”, the sound will be down sampled at 48 kHz even if the “DOWN SAMPLING” is set to “OFF”. • [DOLBY DIGITAL] (Default: BITSTREAM) Set to “BITSTREAM“ when this unit is connected to a Dolby Digital decoder. Available on DVD only. AUDIO ENTER DRC ON DOWN SAMPLING ON DOLBY DIGITAL BITSTREAM BITSTREAM : Outputs Dolby Digital signals. PCM : Converts the Dolby Digital into PCM. (2 channel) 6 Press [SETUP] to exit. Downloaded from www.Manualslib.com manuals search engine 41 EN INTRODUCTION CONNECTION INITIAL SETTING OPTIONAL SETTING WATCHING TV OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION Parental Setting Parental setting prevents your children from viewing inappropriate materials. (password protected.) Playback will stop if the ratings exceed the levels you set. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “DVD”, then press [ENTER]. Setup Setup Press “ENTER” key to move to DVD Setup. 3 Use [Cursor s / B] to select “ ”, then press [ENTER]. PARENTAL ENTER PARENTAL LEVEL ALL 4 Use [the Number buttons] to enter the 4-digit numbers for your password, then press [ENTER]. PARENTAL ENTER PASSWORD Please enter a 4-digit password. 0 0 0 0 Don’t forget the password. Press ‘ENTER’ to activate password. If you have set password already, use [the Number buttons] to enter the current 4-digit password. You cannot use the default password (4737) to play back a DVD. 5 Use [Cursor K / L] to select the “PARENTAL LEVEL”, then press [ENTER]. PARENTAL ENTER PARENTAL LEVEL ALL PASSWORD CHANGE � • • 6 Use [Cursor K / L] to select the desired item, then press [ENTER]. PARENTAL ENTER ALL 8 [ ADULT ] 7 [ NC-17 ] 6 [ R ] 5 [ PGR ] 4 [ PG13 ] 3 [ PG ] PARENTAL LEVEL PARENTAL LEVEL ALL : All parental locks are cancelled. 8 [ADULT] : All ratings (adult/general/children) can be played back. 7 [NC-17]-2 [G] : Only DVD intended for general use and children can be played back. 1 [KID SAFE] : Only DVD intended for children can be played back. 7 Press [SETUP] to exit. To change the password 5 Follow steps 1 to 4. Use [Cursor K / L] to select “PASSWORD CHANGE”, then press [ENTER]. PARENTAL ENTER PARENTAL LEVEL ALL PASSWORD CHANGE 6 Use [the Number buttons] to enter the new 4-digit password. PARENTAL ENTER Enter current password. Note: DVD-video may not respond to parental lock settings. Make sure this function works with your DVD-video. Record the password in case you forget it. If you forget the password, press [4], [7], [3], [7], then enter your new password. Password will be cleared and parental levels will be set to “ALL”. A power failure will not erase your password. • • • • 7 Press [SETUP] to exit. Downloaded from www.Manualslib.com manuals search engine SETTING DVD 42 EN Others You can change the other functions. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “DVD”, then press [ENTER]. Setup Setup Press “ENTER” key to move to DVD Setup. 3 Use [Cursor s / B] to select “ ”, then press [ENTER]. OTHERS ENTER ANGLE ICON ON STILL MODE AUTO AUTO POWER OFF ON PROGRESSIVE OFF DUAL PLAYBACK OFF SLIDE SHOW 5sec 4 Use [Cursor K / L] to select the desired item, then press [ENTER]. OTHERS ENTER ANGLE ICON ON STILL MODE AUTO AUTO POWER OFF ON PROGRESSIVE OFF DUAL PLAYBACK OFF SLIDE SHOW 5sec 5 Use [Cursor K / L] to select the desired item, then press [ENTER]. [ANGLE ICON] (Default: ON) Set to “ON” to show the angle icon when multiple camera angles are available during DVD playback. OTHERS ENTER ANGLE ICON ON STILL MODE AUTO AUTO POWER OFF ON PROGRESSIVE OFF DUAL PLAYBACK OFF SLIDE SHOW 5sec [STILL MODE] (Default: AUTO) Set the picture quality in the still mode. If you select “AUTO”, it automatically selects the best resolution setting (“FRAME”or “FIELD”) based on the date characteristics of the pictures. � FIELD : the picture in the still mode will be stabilized. FRAME : the picture in the still mode will be highly defined. OTHERS ENTER ANGLE ICON ON STILL MODE AUTO AUTO POWER OFF ON PROGRESSIVE OFF DUAL PLAYBACK OFF SLIDE SHOW 5sec [AUTO POWER OFF] (Default: ON) Set to “ON” to turn this unit off automatically after 20 minutes of no use. OTHERS ENTER ANGLE ICON ON STILL MODE AUTO AUTO POWER OFF ON PROGRESSIVE OFF DUAL PLAYBACK OFF SLIDE SHOW 5sec [PROGRESSIVE] (Default: OFF) Set to “ON” to play back in progressive mode. OTHERS ENTER ANGLE ICON ON STILL MODE AUTO AUTO POWER OFF ON PROGRESSIVE OFF DUAL PLAYBACK OFF SLIDE SHOW 5sec [DUAL PLAYBACK] (Default: OFF) Set to “ON” to play back MP3 and JPEG files simultaneously. OTHERS ENTER ANGLE ICON ON STILL MODE AUTO AUTO POWER OFF ON PROGRESSIVE OFF DUAL PLAYBACK OFF SLIDE SHOW 5sec [SLIDE SHOW] (Default: 5sec) Set the length of displayed JPEG picture. 5sec : The picture changes every 5 seconds. 10sec : The picture changes every 10 seconds. OTHERS ENTER ANGLE ICON ON STILL MODE AUTO AUTO POWER OFF ON PROGRESSIVE OFF DUAL PLAYBACK OFF SLIDE SHOW 5sec 6 Press [SETUP] to exit. Downloaded from www.Manualslib.com manuals search engine 43 EN INTRODUCTION CONNECTION INITIAL SETTING OPTIONAL SETTING WATCHING TV OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION Language Code A-B Abkhazian 4748 Afar 4747 Afrikaans 4752 Albanian 6563 Amharic 4759 Arabic 4764 Armenian 5471 Assamese 4765 Aymara 4771 Azerbaijani 4772 Bashkir 4847 Basque 5167 Bengali;Bangla 4860 Bhutani 5072 Bihari 4854 Bislama 4855 Breton 4864 Bulgarian 4853 Burmese 5971 Byelorussian 4851 C-E Cambodian 5759 Catalan 4947 Chinese [CHI] 7254 Corsican 4961 Croatian 5464 Czech [CZE] 4965 Danish [DAN] 5047 Dutch [DUT] 6058 English [ENG] 5160 Esperanto 5161 Estonian 5166 F-H Faroese 5261 Fiji 5256 Finnish [FIN] 5255 French [FRE] 5264 Frisian 5271 Galician 5358 Georgian 5747 German [GER] 5051 Greek [GRE] 5158 Greenlandic 5758 Guarani 5360 Gujarati 5367 Hausa 5447 Hebrew 5569 Hindi 5455 Hungarian [HUN] 5467 I-K Icelandic [ICE] 5565 Indonesian 5560 Interlingua 5547 Interlingue 5551 Inupiak 5557 Irish [IRI] 5347 Italian [ITA] 5566 Japanese [JPN] 5647 Javanese 5669 Kannada 5760 Kashmiri 5765 Kazakh 5757 Kinyarwanda 6469 Kirghiz 5771 Kirundi 6460 Korean [KOR] 5761 Kurdish 5767 L-N Laothian 5861 Latin 5847 Latvian;Lettish 5868 Lingala 5860 Lithuanian 5866 Macedonian 5957 Malagasy 5953 Malay 5965 Malayalam 5958 Maltese 5966 Maori 5955 Language Code Marathi 5964 Moldavian 5961 Mongolian 5960 Nauru 6047 Nepali 6051 Norwegian [NOR] 6061 O-R Occitan 6149 Oriya 6164 Oromo(Afan) 6159 Panjabi 6247 Pashto;Pushto 6265 Persian 5247 Polish [POL] 6258 Portuguese [POR] 6266 Quechua 6367 Rhaeto-Romance 6459 Romanian [RUM] 6461 Russian [RUS] 6467 S Samoan 6559 Sangho 6553 Sanskrit 6547 Scots Gaelic 5350 Serbian 6564 Serbo-Croatian 6554 Sesotho 6566 Setswana 6660 Shona 6560 Sindhi 6550 Singhalese 6555 Siswat 6565 Slovak 6557 Slovenian 6558 Somali 6561 Spanish [SPA] 5165 Sundanese 6567 Swahili 6569 Swedish [SWE] 6568 T Tagalog 6658 Tajik 6653 Tamil 6647 Tatar 6666 Telugu 6651 Thai 6654 Tibetan 4861 Tigrinya 6655 Tonga 6661 Tsonga 6665 Turkish [TUR] 6664 Turkmen 6657 Twi 6669 U-Z Ukrainian 6757 Urdu 6764 Uzbek 6772 Vietnamese 6855 Volapuk 6861 Welsh 4971 Wolof 6961 Xhosa 7054 Yiddish 5655 Yoruba 7161 Zulu 7267 Language Code List � You can reset all the settings except for the parental setting and on-screen menu language. 1 Press [SETUP] to display the main menu. 2 Use [Cursor K / L] to select “DVD”, then press [ENTER]. Setup Setup Press “ENTER” key to move to DVD Setup. 3 Use [Cursor s / B] to select “ ”, then press [ENTER]. INITIALIZE ENTER Initialize? NO YES 4 Use [Cursor K / L] to select “YES”, then press [ENTER]. INITIALIZE ENTER Initialize? NO YES Note: When you want to cancel the initialization, select “NO” at step 4, then press [SETUP]. • 5 Press [SETUP] to exit. Reset to the Default Setting � Note: If you choose a language that has a 3-letter language code, the code will be displayed every time you change the audio or subtitle language setting above. If you choose any other language, ‘---’ will be displayed instead. (3-letter language code is written in bracket.) • Downloaded from www.Manualslib.com manuals search engine 44 EN TROUBLESHOOTING Troubleshooting Guide If the unit does not perform properly when operated as instructed in this user’s guide, check the following chart once before calling for service. � Symptom Remedy T V No power Be sure the power cord is plugged in. If a power failure occurs, unplug the power cord for 30 minutes to allow the unit to reset itself. • • No picture or sound Check if the power is on. Check the outlet connection. Check the antenna or cable connection to the main unit. When the outside antenna is used, check the wire condition and connection. View other TV channels. The problem might be limited to the broadcasting station. Turn off the power and wait for about 1 minute, then turn it on again. • • • • • • No color Check the antenna or cable connection to the main unit. When the outside antenna is used, check the wire condition and connection. View other TV channels. The problem might be limited to the broadcasting station. Adjust the Color in the setup screen. • • • • Sound OK, picture poor Check the antenna or cable connection to the main unit. When the outside antenna is used, check the wire condition and connection. Electrical interference from nearby appliances may affect picture quality. Adjust Contrast and Brightness in the setup screen. View other TV channels. The problem might be limited to the broadcasting station. • • • • • Picture distorted When the outside antenna is used, check the wire condition and connection. View other TV channels. The problem might be limited to the broadcasting station. • • Weak picture Check the antenna or cable connection to the main unit. When the outside antenna is used, check the wire condition and connection. Adjust Contrast and Brightness in the setup screen. View other TV channels. The problem might be limited to the broadcasting station. • • • • Lines or streaks in picture When the outside antenna is used, check the wire condition and connection. Electrical interference from nearby appliances may affect picture quality. View other TV channels. The problem might be limited to the broadcasting station. • • • Picture blurred When the outside antenna is used, check the wire condition and connection. View other TV channels. The problem might be limited to the broadcasting station. • • Ghosts in picture Check the antenna or cable connection to the main unit. When the outside antenna is used, check the wire condition and connection. Electrical interference from nearby appliances may affect picture quality. View other TV channels. The problem might be limited to the broadcasting station. • • • • Bars on TV screen When the outside antenna is used, check the wire condition and connection. Electrical interference from nearby appliances may affect picture quality. • • Picture rolls vertically When the outside antenna is used, check the wire condition and connection. Electrical interference from nearby appliances may affect picture quality. View other TV channels. The problem might be limited to the broadcasting station. • • • Different color marks on TV screen Move your TV away from nearby electric appliances. Turn off the power and wait 30 minutes before turning it back on. View other TV channels. The problem might be limited to the broadcasting station. • • Poor reception on some channels Check the antenna or cable connection to the main unit. When the outside antenna is used, check the wire condition and connection. Electrical interference from nearby appliances may affect picture quality. View other TV channels. The problem might be limited to the broadcasting station. • • • • Picture OK, sound poor View other TV channels. The problem might be limited to the broadcasting station. • No reception of digital signals Make sure Autoscan has been completed (Refer to “Auto Channel Scan” on page 14). Autoscan must be completed when you set up your TV for the first time or move it to a location where previously unavailable channels are broadcast. The selected channel may not be broadcasting. When Autoscan is interrupted and not completed, some channels will not be received. Make sure to complete Autoscan in the setup screen. • • • Downloaded from www.Manualslib.com manuals search engine 45 EN INTRODUCTION CONNECTION INITIAL SETTING OPTIONAL SETTING WATCHING TV OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION Symptom Remedy T V The entered channel number changes automatically Many digital channels have alternate channel numbers. TV changes the numbers automatically to the ones signifying the broadcasting stations. These are the numbers used for analog broadcasts. • Remote control does not work Check the antenna or cable connection to the main unit. Check the batteries of the remote control. Check if there is an obstacle between the sensor and the remote control. Test the signal output. If OK, then possible remote sensor trouble. (Refer to “IR Signal Check” on page 46.) Aim the remote control directly at the sensor on the front of the unit. Reduce the distance to the unit. Re-insert the batteries with their polarities (+/– signs) as indicated. When there is an infrared-equipped device such as PC near this unit, it may interrupt the remote control signal of this unit. Move the infrared-equipped device away from this unit, change the angle of the infrared sensor or turn off the infrared communication function. • • • • • • • • Problems with Closed Caption Feature Misspelled captions are displayed. Closed captioning production companies may broadcast programs without correcting the misspelling in a live broadcast. • Captions are not entirely displayed, or captions are delayed behind the dialogue. Captions that are delayed a few seconds behind the actual dialogue are common for live broadcasts. Most captioning production companies can display a dialogue to a maximum of 220 words per minute. If a dialogue exceeds that rate, selective editing is used to insure that the captions remain up-to-date with the current TV screen dialogue. • Captions are displayed as a white box. No caption is displayed in the Closed Caption-supported program. Interference from buildings or weather conditions may cause captioning to be incomplete. Broadcasting station may shorten the program to insert advertisement. The closed caption decoder cannot read the information of the shortened program. • • No caption is displayed when playing the videotape containing captions. The videotape may be illegally copied, or the caption signal might not have been read during copying. • Black box is displayed in the screen. “Text” mode is selected for caption. Select “CC1”, “CC2”, “CC3”, “CC4” or “Off”. • D V D Completely distorted picture or black/white picture with DVD Make sure the disc is compatible with the unit. • Picture freezes momentarily during playback. Check the disc for finger prints/scratches and clean with a soft cloth wiping from center to edge. • Disc cannot be played. Clean the disc. Ensure the disc is correctly inserted. Check if the disc is defective by trying another disc. Cancel the parental lock or change the control level. Insert a correct disc that plays on this unit. Handle a disc with special care so that it does not have fingerprints, scratches, or dusts on its surface. • • • • • • Buttons do not work or the unit stops responding. To completely reset the unit, unplug the power cord from the power outlet for 5-10 seconds. • The unit does not respond to some operating commands during playback. Operations may not be permitted by the disc. Refer to the instructions of the disc. • Angle does not switch. The angle cannot be switched for DVD which do not contain multiple angles. In some cases multiple angles are only recorded for specific scenes. • Playback does not start when the title is selected. Check the “PARENTAL” setting. • The password for rating level has been forgotten. Enter the default password “4737”, then your forgotten password will be cleared. • Note: The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a fixed point of blue, green or red. This is not to be considered a defect in the LCD screen. Some functions are not available in specific modes, but this is not a malfunction. Read the description in this user’s guide for more details on correct operations. Playback from a desired track and random playback are not available during program playback. Some functions are prohibited on some discs. • • • • Downloaded from www.Manualslib.com manuals search engine 46 EN INFORMATION Cabinet Cleaning Wipe the front panel and other exterior surfaces of the unit with a soft cloth immersed in lukewarm water and wrung dry. Never use a solvent or alcohol. Do not spray insecticide liquid near the unit. Such chemicals may cause damage and discoloration to the exposed surfaces. Panel Cleaning Wipe the panel of the unit with a soft cloth. Before cleaning the panel, disconnect the power cord. Disc Handling Handle the discs so that fingerprints and dust do not adhere to the surfaces of the discs. Always store the disc in its protective case when it is not used. To clean-off, use a soft cloth. Do not use a hard cloth since this will mar the disc. Wipe the disc in a straight line form center to edge. Never wipe with a circular motion. Do not use detergent or abrasive cleaning agents. • • • • • • • • Maintenance � ATSC Acronym that stands for Advanced Television Systems Committee and the name of the digital broadcasting standards. Aspect Ratio The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the TV screen is almost square); widescreen models are 16:9 (the TV screen is almost twice as wide as its height). Component Video This is a video signal format that conveys each of 3 principal colors of light (red, blue and green) through different signal lines. This allows the viewers to experience picture colors as original as it is. There are several signal formats, including Y / Pb / Pr and Y / Cb / Cr. Dolby Digital The system developed by Dolby Laboratories to compress digital sound. It offers stereo sound (2ch) or multi-channel audio. HDMI (high-definition multimedia interface) Interface that supports all uncompressed, digital audio/video formats including set- top box, DVD player or digital television, over a single cable. HDTV (high definition TV) Ultimate digital format that produces high resolution and high picture quality. NTSC Acronym that stands for National Television Systems Committee and the name of the current analog broadcasting standards. Password A stored 4-digit number that allows access to parental control features. PBC(playback control) An interactive software which has the selectable images or information in the menu screen to playback video CD. Region Code Regions associate discs and players with particular areas of the world. This unit will only play back discs that have compatible region codes. You can find the region code of your unit by looking on the rear panel. Some discs are compatible with more than one region (or all regions). SAP (secondary audio program) Second-audio channel delivered separately from main-audio channel. This audio channel is used as an alternate in bilingual broadcasting. SDTV (standard definition TV) Standard digital format that is similar to the NTSC picture quality. S-video Offers higher quality images by delivering each signal, color (c) and luminance (y) independently of each other through separate cables. Glossary � Servicing Should your unit become inoperative, do not try to correct the problem yourself. There are no user serviceable parts inside. Turn off the unit, unplug the power cord and call our toll free customer support line found on the cover of this manual to locate an authorized service center. If the Laser Optical Pickup Unit is Dirty If the unit still does not perform properly when it is operated, while referring to the relevant sections and to "Troubleshooting Guide" in this user’s guide, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit. IR Signal Check If the remote control is not working properly, you can use an AM radio or digital camera (including a cellular phone with built-in camera) to see if it is sending out an infrared signal. With an AM radio: Tune the AM radio station to a non- broadcasting frequency. Point the remote control towards it, push any button and listen. If the sound from the radio flutters, it is receiving the remote control’s infrared signal. • With a digital camera (including built-in cell phone cameras): Point a digital camera towards the remote control. Push any button on the remote control and look through the digital camera. If the infrared light appears through the camera, the remote control is working. • Downloaded from www.Manualslib.com manuals search engine 47 EN INTRODUCTION CONNECTION INITIAL SETTING OPTIONAL SETTING WATCHING TV OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION Cable Channel Designations � General Specifications TV TV format: ATSC / NTSC-M TV standard Closed caption system: §15.122/FCC (digital CC) §15.119/FCC (analog CC) Channel coverage (ATSC/NTSC): Terrestrial VHF: 2~13 UHF: 14~69 CATV 2~13, A~W, W+1~W+94 (analog W+1~W+84), A-5~A-1, 5A Tuning system: Channel frequency synthesized tuning system Channel access: Direct access keyboard, Programmable scan, and up/down DVD Discs (Playback compatibility): DVD video, DVD-RW/-R, DVD+RW/+R, audio CD, video CD, CD-RW/-R Frequency response: DVD (linear sound): 20 Hz to 20 kHz (sample rate: 48 kHz) 20 Hz to 44 kHz (sample rate: 96 kHz) CD: 20 Hz to 20 kHz Signal-to-noise ratio (S/N ratio): CD: 90 dB (JEITA) Total distortion factor: DVD: 1 KHz 0.007% (JEITA) CD: 1 KHz 0.007% (JEITA) Electrical Specification Sound Output: 10W, 8 Ω x 2 � � Other Specifications Terminals: Antenna input: VHF/UHF/CATV 75Ω unbalanced (F-type) S-video input: Mini DIN 4-pin jack x 2 Y: 1Vp-p (75Ω) C: 286mVp-p (75Ω) Video input: RCA jack x 2 1Vp-p (75Ω) Audio input: RCA jack (L/R) x 10 2V rms Component video input: RCA jack x 6 Y: 1Vp-p (75Ω) Pb: 700mVp-p (75Ω) Pr: 700mVp-p (75Ω) HDMI input: HDMI 19pin x 2 PC input: D-Sub 15pin x 1 (RGB) Mini jack ø3.5mm x 1 (audio) Coaxial digital audio output: RCA jack x1 500mVp-p (75Ω) Analog audio output: RCA jack x2 Remote Control: Digital encoded infrared light system Operating Temperature: 41°F (5°C) to 104°F (40°C) Power Requirements: 120 V AC +/- 10%, 60 Hz +/- 0.5% Power Consumption (Maximum): 180W LCD: 32 inches class (31.5 inches measured diagonally) Dimensions: H : 24.5 inches (620mm) W : 31.6 inches (802mm) D : 10.3 inches (260mm) Weight: 34.7 lbs. (15.7kg) Designs and specifications are subject to change without notice and without our legal obligation. If there is a discrepancy between languages, the default language will be English. � • • If you subscribe to cable TV, the channels are displayed as 1-135. Cable companies often designate channels with letters or letter-number combinations. Please check with your local cable company. The following is a chart of common cable channel designations. 5A 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 A 14 B 15 C 16 D 17 E 18 F 19 G 20 H 21 I 22 J 23 K 24 L 25 M 26 N 27 O 28 P 29 Q 30 R 31 S 32 T 33 U 34 V 35 W 36 W+1 37 38 W+2 W+3 39 W+4 40 W+5 41 W+6 42 W+7 43 W+8 44 W+9 45 W+10 46 W+11 47 W+12 48 W+13 49 W+14 50 W+15 51 W+16 52 W+17 53 W+18 54 W+19 55 W+20 56 W+21 57 W+22 58 W+23 59 W+24 60 W+25 61 W+26 62 W+27 63 W+28 64 W+29 65 W+30 66 W+31 67 W+32 68 W+33 69 W+34 70 W+35 71 W+36 72 W+37 73 W+38 74 W+39 75 W+40 76 W+41 77 W+42 78 W+43 79 W+44 80 W+45 81 W+46 82 W+47 83 W+48 84 W+49 85 W+50 86 W+51 87 W+52 88 W+53 89 W+54 90 W+55 91 W+56 92 W+57 93 W+58 94 A-5 95 A-4 96 A-3 97 A-2 98 A-1 99 W+59 100 W+60 101 W+61 102 W+62 103 W+63 104 W+64 105 W+85 126 W+65 106 W+66 107 W+67 108 W+68 109 W+69 110 W+70 111 W+71 112 W+72 113 W+73 114 W+74 115 W+75 116 W+76 117 W+77 118 W+78 119 W+79 120 W+80 121 W+81 122 W+82 123 W+83 124 W+84 125 W+86 127 W+87 128 W+88 129 W+89 130 W+90 131 W+91 132 W+92 133 W+93 134 W+94 135 CATV channel TV Display CATV channel TV Display CATV channel TV Display CATV channel TV Display CATV channel TV Display CATV channel TV Display CATV channel TV Display Downloaded from www.Manualslib.com manuals search engine 48 EN MEMO Downloaded from www.Manualslib.com manuals search engine 49 EN INTRODUCTION CONNECTION INITIAL SETTING OPTIONAL SETTING WATCHING TV OPERATING DVD SETTING DVD TROUBLESHOOTING INFORMATION Downloaded from www.Manualslib.com manuals search engine Downloaded from www.Manualslib.com manuals search engine Downloaded from www.Manualslib.com manuals search engine JVC COMPANY OF AMERICA Division of JVC Americas Corp. 1700 Valley Road Wayne, New Jersey, 07470 JVC Loves the Earth Printed in China A74F3UH 1EMN24159 ★★★★★ Downloaded from www.Manualslib.com manuals search engine
