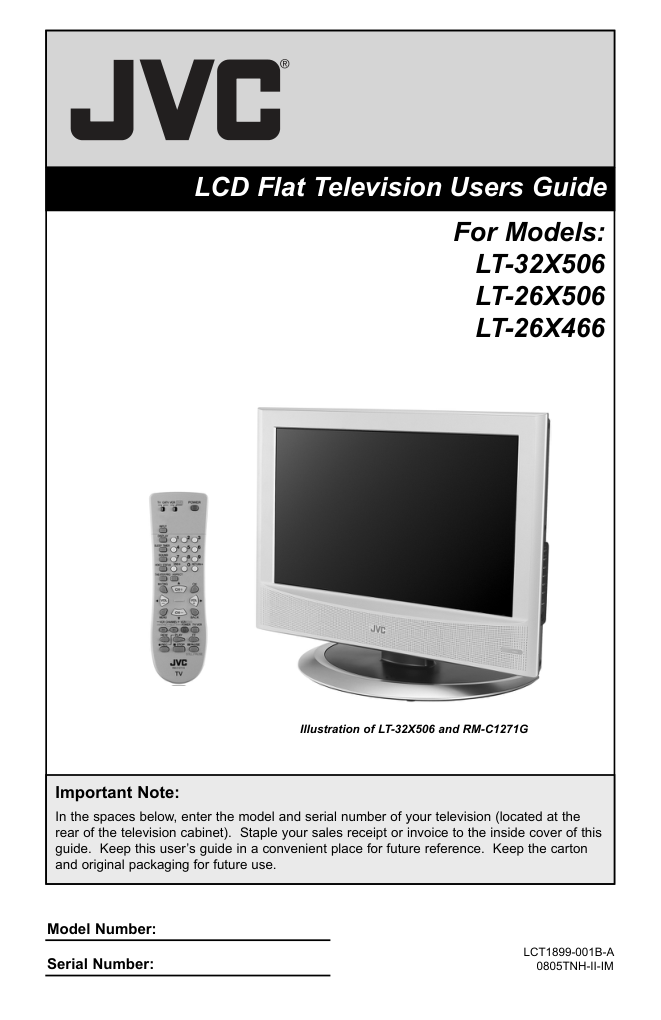

Important Note: In the spaces below, enter the model and serial number of your television (located at the rear of the television cabinet). Staple your sales receipt or invoice to the inside cover of this guide. Keep this user’s guide in a convenient place for future reference. Keep the carton and original packaging for future use. LCT1899-001B-A 0805TNH-II-IM Model Number: Serial Number: Illustration of LT-32X506 and RM-C1271G For Models: LT-32X506 LT-26X506 LT-26X466 LCD Flat Television Users Guide 2 Important Safety Precautions WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS TV SET TO RAIN OR MOISTURE. CAUTION: TO INSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES REGARDING THE USE OF THIS UNIT. 1. Operate only from the power source specified on the unit. 2. Avoid damaging the AC plug and power cord. 3. Avoid Improper installation and never position the unit where good ventilation is unattainable. 4. Do not allow objects or liquid into the cabinet openings. 5. In the event of trouble, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover. Changes or modifications not approved by JVC could void the warranty. * When you don’t use this TV set for a long period of time, be sure to disconnect both the power plug from the AC outlet and antenna for your safety. * To prevent electric shock do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure. CAUTION: To reduce the risk of electric shock. Do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION IMPORTANT RECYCLING INFORMATION This product has a fluorescent lamp that contains a small amount of mercury. It also contains lead in some components. Disposal of the materials may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities, or the Electronic Industries Alliance: http://www.eiae.org 3 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. IMPORTANT SAFETY INSTRUCTIONS • As an “ENERGY STAR®” partner, JVC has determined that this product or product model meets the “ENERGY STAR®” guidelines for energy efficiency. 4 13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15) Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. 16) Avoid improper installation and never position the unit where good ventilation is impossible. When installing this TV, distance recommendations must be maintained between the set and the wall, as well as inside a tightly enclosed area or piece of furniture. Keep to the minimum distance guidelines shown for safe operation. 17) Cautions for installation — Do not tilt the TV towards the left or right, or towards the back. — Install the TV in a corner on the floor so as to keep cords out of the way. — The TV will generate a slight amount of heat during operation. Ensure that sufficient space is available around the TV to allow satisfactory cooling. 150 mm 200 mm 150 mm 200 mm 50 mm MENU INPUT + CHANNEL – + VOLUME – POWER OPERATE 5 Warnings Displaying fi xed images for extended periods of time can leave a subtle but temporary ghost image on your screen. To avoid this, mix your viewing pattern. Examples include, but are not limited to the following: Caring for the Cabinet Caring for the Screen Avoiding Ghost Images XYZ XYZ TV on TV off Normally, light dusting with a soft, non-scratching duster will keep your TV clean. If you wish to wipe down the television, first unplug it. Then wipe gently with a soft cloth, slightly moistened with water. You can add a few drops of mild liquid detergent to the water to help remove spots of oily dirt. • DO NOT allow liquid to enter the TV through the ventilation slots. • DO NOT use strong or abrasive cleaners on the TV. • DO NOT spray liquids or cleaners directly on the TV’s surface. • DO NOT rub or scrub the TV harshly. Wipe the set gently with a soft cloth. For example... The screen is treated with an electrostatic-proof coating. When it gets dirty, wipe it gently with a soft cloth. If the screen is very dirty, wipe it down with a cloth dipped in a diluted kitchen cleaner and thoroughly wrung-out. Then wipe immediately after with a clean, dry cloth. Do not apply alcohol, organic solvents (like acetone), acidic or alkaline cleansers to the screen. These will remove the coating layer and cause discolorations. Do not push or hit the screen. This could cause scratches on the screen surface and image distortions. • Stock-market report bars • Shopping channel logos and pricing displays • Video game patterns or scoreboards • Bright station logos • Internet web sites or other computer-style images. • DVD discs, video tapes, laser discs • Broadcast, cable, satellite channels or digital television tuners/converters. 6 Warnings (Continued...) Your fingers may become trapped under the TV, causing injuries. Hold the TV at the bottom in the middle, and do not allow the TV to tilt up or down. The TV may fall causing injuries. Hold the bottom of the stand with your hand and tilt the TV up or down. How to move the cabinet 7 Table of Contents Unpacking your TV . . . . . . . . . . . . 8 TV Model . . . . . . . . . . . . . . . . 9 TV Remote Control . . . . . . . . . . . 10 Getting Started . . . . . . . . . . . . . 11 Using the Stand . . . . . . . . . . 11 The Remote Control . . . . . . . 12 Connecting Your Devices . . . . . . 13 Auto Tuner Setup . . . . . . . . . 18 Setting CATV, VCR and DVD Codes . . . 19 CATV or Satellite Codes . . . . . . . . 19 VCR Codes . . . . . . . . . . . . . . 20 DVD Codes . . . . . . . . . . . . . . 21 Search Codes . . . . . . . . . . . . . 22 Using the Guide . . . . . . . . . . . . . 23 Onscreen Menu System . . . . . . . . . 24 Auto Tuner Setup . . . . . . . . . . . . 26 Channel Summary . . . . . . . . . . . . 26 V-Chip . . . . . . . . . . . . . . . . . . 27 Set Lock Code . . . . . . . . . . . . . 33 Language . . . . . . . . . . . . . . . . 34 Closed Caption . . . . . . . . . . . . . 34 Auto Shut Off . . . . . . . . . . . . . . 35 XDS ID . . . . . . . . . . . . . . . . . 35 Noise Muting . . . . . . . . . . . . . . 35 Front Panel Lock . . . . . . . . . . . . 36 Position Adjustment . . . . . . . . . . . 36 Power Indicator . . . . . . . . . . . . . 37 Picture Settings . . . . . . . . . . . . . 38 Adjust Picture Settings . . . . . . . . . 38 Color Temperature . . . . . . . . . . . . 39 Digital Noise Clear . . . . . . . . . . . . 39 Natural Cinema . . . . . . . . . . . . 39 Reset . . . . . . . . . . . . . . . . . . 40 Sound Settings . . . . . . . . . . . . . 41 Adjust Sound Settings . . . . . . . . . 41 MTS (Multi-channel Sound) . . . . . . . 41 Reset . . . . . . . . . . . . . . . 41 Set Clock . . . . . . . . . . . . . . . . 42 On/Off Timer . . . . . . . . . . . . . . . 43 Power . . . . . . . . . . . . . . . . . . 44 Number Buttons . . . . . . . . . . . . . 44 100+ . . . . . . . . . . . . . . . . . 44 Channel +/- . . . . . . . . . . . . . 44 Volume +/- . . . . . . . . . . . . . 44 Muting . . . . . . . . . . . . . . . . . . 44 Menu . . . . . . . . . . . . . . . . . . 44 Return + . . . . . . . . . . . . . . . . 45 Input . . . . . . . . . . . . . . . . . . . 45 Display . . . . . . . . . . . . . . . . . 46 Sleep Timer . . . . . . . . . . . . . . . 46 Sound . . . . . . . . . . . . . . . . . . 47 Video Status . . . . . . . . . . . . . . . 47 TheaterPro D6500K . . . . . . . . . . . 47 OK . . . . . . . . . . . . . . . . . . . 47 Back . . . . . . . . . . . . . . . . . . . 47 Aspect . . . . . . . . . . . . . . . . . 48 Aspect Ratios . . . . . . . . . . . . . 48 TV/CATV Slide Switch . . . . . . . . . . 49 VCR/DVD Slide Switch . . . . . . . . . 49 VCR Buttons . . . . . . . . . . . . . . . 49 DVD Buttons . . . . . . . . . . . . . . . 49 No Program . . . . . . . . . . . . . . . 50 Troubleshooting . . . . . . . . . . . . . 51 Warranty . . . . . . . . . . . . . . . . . 52 Authorized Service Centers . . . . . . . 53 Specifications . . . . . . . . . . . . . . . 54 Notes . . . . . . . . . . . . . . . . . . 55 Quick Setup . . . . . . . . . . . 8 Remote Programming . . . . . 19 Onscreen Menus . . . . . . . . 23 Button Functions . . . . . . . 44 Appendices . . . . . . . . . . 50 Initial Setup . . . . . . . . . . 26 Clock Timers . . . . . . . . . . 42 Picture Adjust . . . . . . . . . 38 Sound Adjust . . . . . . . . . 41 Important Safety Precautions . . 2 Warnings . . . . . . . . . . . . . 5 8 Two AA Batteries 1 Television 1 Remote Control Used to connect an external antenna or cable TV system to your TV. Used to make video connections with S-Video VCRs, Camcorders and DVD players. We recommend that before you start using your new television, you read your entire User’s Guide so you can learn about your new television’s many great features. If you’re anxious to start using your television right away, a quick setup guide follows on the next few pages. Quick Setup Unpacking your TV Thank you for your purchase of a JVC LCD Flat Television. Before you begin setting up your new television, please check to make sure you have all of the following items. In addition to this guide, your television box should include: Once you have unpacked your television, the next step is to connect it to your antenna/ cable or satellite system and to connect the audio/video devices you want to use with your television. To make these connections you will use plugs like the ones illustrated below. Coaxial Cables S-Video Cable Used to connect audio/ video devices like VCRs, DVD players, stereo amplifiers, game consoles, etc. Component Cables Composite Cables Audio Cables POWER DISPLAY SLEEP TIMER INPUT THEATER PRO VIDEO STATUS 1 7 4 100+ 3 9 6 RETURN+ MUTING MENU OK BACK 2 8 0 5 CH + VOL – VOL + REC STILL/PAUSE STOP PAUSE PLAY FF REW TV CATV VCR DVD VCR CHANNEL PREV NEXT TV/VCR VCR/DVD POWER SOUND CH – TV RM-C1271G ASPECT AA Alkaline AA Alkaline 9 In the rear cover L I AUDIO I R L - AUDIO - R VIDEO INPUT 3 AUDIO OUT L I AUDIO I R VIDEO INPUT 2 S- VIDEO L I AUDIO I R VIDEO S- VIDEO Y Pb Pr 75Ω (VHF/UHF) INPUT 1 Quick Setup TV Model NOTE: Before you connect your television to another device, please refer to the proper diagrams for your specific TV and remote. These will help assist you in understanding how to connect your television to another device, as well as use the remote to set up your television. Rear Panel Diagram Side Panel Diagram MENU INPUT + CHANNEL - + VOLUME - POWER OPERATE 10 POWER DISPLAY SLEEP TIMER INPUT THEATER PRO VIDEO STATUS 1 7 4 100+ 3 9 6 RETURN+ MUTING MENU OK BACK 2 8 0 5 CH + VOL – VOL + REC STILL/PAUSE STOP PAUSE PLAY FF REW TV CATV VCR DVD VCR CHANNEL PREV NEXT TV/VCR VCR/DVD POWER SOUND CH – TV RM-C1271G ASPECT Quick Setup TV Remote Control RM-C1271G Note: • For information on remote control buttons, see pages 44 - 49. 11 These quick setup pages will provide you, in three easy steps, with the basic information you need to begin using your new television right away. If you have questions, or for more detailed information on any of these steps, please consult other sections of this manual. Quick Setup Getting Started Getting Started This TV comes with a Table Top Stand already attached. This stand can be used to adjust the direction of the TV screen 5° up, 10° down and 20° to the left or right. Step 1 - Using the stand Tilt the TV up or down While holding the bottom of the stand with one hand, use your other hand to hold the middle of the top of the TV, and slowly tilt the TV up or down. • As a safety measure, the stand is constructed so that it requires a certain amount of force to tilt the TV. Rotate the TV left or right While holding the bottom of the stand with one hand, use your other hand to hold the edge of the panel and slowly adjust the direction of the TV stand. 12 Before you can operate your remote control, you first need to install the batteries (included). Lift and pull the latch on the back of the remote control to open. Insert two batteries (included) carefully noting the “+” and “–” markings, placing the “–” end in the unit first. Snap the cover back into place. When you change the batteries, try to complete the task within three minutes. If you take longer than three minutes, the remote control codes for your VCR, DVD, and/or cable box/satellite receiver may have to be reset. See pages 19 - 22. Quick Setup Getting Started Step 2 – The Remote Control Key Feature Buttons The four key feature buttons at the center of the remote can be used for basic operation of the television. The top and bottom buttons will scan forward and back through the available channels. To move rapidly through the channels using JVC’s Hyperscan feature, press and hold CH+ or CH –. The channels will zip by at a rate of five channels per second. The right and left buttons will turn the volume up or down. These buttons are also marked with four arrows and are used with JVC’s onscreen menu system. To use the onscreen menus, press the MENU button. MUTING MENU OK BACK CH + VOL – VOL + VCR CHANNEL VCR/DVD CH – Basic Operation Turn the television on and off by pressing the POWER button at the top right corner of the remote. • Make sure the TV/CATV switch is set to TV. Move the switch to CATV only if you need to operate a cable box. • Slide the VCR/DVD selector switch to VCR to control a VCR. Slide to DVD to control a DVD player. Please see pages 19 to 22 for instructions on programming your remote control to operate a cable box, VCR or DVD player. POWER V VCR DVD TV CATV V 13 Quick Setup Connections Connections Please follow the flow chart below to determine which connection setup is right for you. Then, refer to the appropriate diagrams to connect your television to other devices that you may have. After you are finished connecting your devices, plug the power cord into the nearest power outlet and turn on the TV. A VCR is not necessary for operation of the television. If you follow these diagrams and the television does not work properly, contact your local cable operator. • To connect a DVD player, see Diagram #3. A DVD player is optional. • If you have a satellite television system, please refer to the satellite TV manual. Remove the terminal cover There are connection terminals behind the cover on the rear of the TV. Remove the cover before connecting an antenna or other devices. The cover can be removed by removing the hooks. When replacing the cover, place the bottom of the cover against the TV and insert the hooks. Note: • Leave the terminal covers off if they do not fit properly. Do not force to replace the covers. Doing so may damage the connection cables and covers. Step 3 - Connecting your devices Diagram #2 Do you use a Cable TV Box? Do you have a VCR? Do you have a VCR? Diagram #1 Diagram #3 Diagram #1 Yes No Yes No Yes No 14 L I AUDIO I R DEO L I AUDIO I R VIDEO INPUT 2 S- VIDEO L I AUDIO I R VIDEO S- VIDEO Y Pb Pr 75Ω (VHF/UHF) INPUT 1 75Ω (VHF/UHF) IN OUT IN OUT V L R OUT IN IN OUT OUT Coaxial Cable Cable or Antenna Output OR VCR Two-Way Splitter Cable Box TV Rear Panel TV Rear Panel Quick Setup Connections Notes: • If your VCR is a mono sound unit, it will have only one audio out jack. Connect it to the LEFT AUDIO INPUT on the rear of the TV. • Use the S-Video connection if possible for superior picture quality. • Your VCR must be turned on to view premium cable channels. Diagram #2 Note: • If you do not have a cable box, connect the cable wire from the wall outlet into the back of the TV. Cable or Antenna Output OR TV Rear Panel 75Ω (VHF/UHF) IN OUT Coaxial Cable Cable Box Diagram #1 15 Quick Setup Connections Notes: • Green, blue and red are the most common colors for DVD cables. Some models may vary colors. Please consult the user’s manual for your DVD player for more information. • Be careful not to confuse the red DVD cable with the red audio cable. It is best to complete one set of connections (DVD or audio output) before starting the other to avoid accidentally switching the cables. • You may also connect the DVD player to Input 1. TV Rear Panel Cable or Antenna Output Coaxial Cable Two-Way Splitter Green Blue Red DVD Player (OPTIONAL) VCR L I AUDIO I R L I AUDIO I R VIDEO INPUT 2 S- VIDEO L I AUDIO I R VIDEO S- VIDEO Y Pb Pr 75Ω (VHF/UHF) INPUT 1 OUT Y PB PR L R AUDIO OUT 75Ω (VHF/UHF) OR IN OUT IN OUT V L R IN OUT OUT TV Rear Panel Diagram #3 16 Quick Setup Connections 1) Connect a yellow composite cable from the camcorder VIDEO OUT, into the VIDEO IN on the back of the TV, OR connect an S-Video cable from the camcorder to the back of the TV. 2) Connect a white cable from the camcorder LEFT AUDIO OUT, into the LEFT AUDIO IN on the back of the TV. 3) Connect a red cable from the camcorder RIGHT AUDIO OUT, into the RIGHT AUDIO IN on the back of the TV. Note: • If your camcorder is a mono sound model it will have only one AUDIO OUT. Connect it to the LEFT AUDIO IN on the back of the TV. You can connect a camcorder to you televison by using the input jacks located on the back of the television. TV Rear Panel L I AUDIO I R L - AUDIO - R VIDEO INPUT 3 AUDIO OUT L I AUDIO I R VIDEO INPUT 2 S- VIDEO L I AUDIO I R VIDEO S- VIDEO Y Pb Pr INPUT 1 OR CAMCORDER Connecting to a Camcorder Headphone Connection You can connect a pair of headphones to the television using the headphone jack located on the side of the television. 1) Plug a headphone jack into the headphone jack on the television’s side panel. UME - POWER 17 Quick Setup Connections 1) Connect a white cable from the LEFT AUDIO OUTPUT on the back of the TV to the LEFT AUDIO INPUT on the amplifier. 2) Connect a red cable from the RIGHT AUDIO OUTPUT on the back of the TV to the RIGHT AUDIO INPUT on the amplifier. Notes: • Refer to your amplifier’s manual for more information. • You can use AUDIO OUTPUT for your home theater system. Connecting to an External Amplifier TV Rear Panel L I AUDIO I R L - AUDIO - R VIDEO INPUT 3 AUDIO OUT L I AUDIO I R VIDEO INPUT 2 S- VIDEO L I AUDIO I R VIDEO S- VIDEO Y Pb Pr 75Ω (VHF/UHF) INPUT 1 Speaker Speaker Amplifier 18 Press the MENU button on the remote control π† To AUTO TUNER SETUP √® To operate √® To choose CABLE (if you are connected to a cable system) or AIR (if you use an antenna) Press the OK button The Auto Tuner will now memorize all of the clear, active channels your television can receive. This will take one or two minutes. Quick Setup Auto Tuner Setup AUTO TUNER SETUP CABLE PRESS TO START SELECT OPERATE EXIT MENU TUNER MODE OK STOP 48 NOW PROGRAMMING ! Step 4 – Auto Tuner Setup The Quick Setup is complete When the setup is finished, PROGRAMMING OVER ! is displayed. Your quick setup is now complete. You can now begin watching your television, or you can continue on in this guide for more information on programming your remote control, or using the JVC onscreen menu system to customize your television viewing experience. Cable Box and Satellite Users: After your auto tuner setup is complete, you may, (depending on the type of hookup), have only 1 channel, usually 3 or 4 in the auto tuner memory. This is normal. JVC’s onscreen menu system lets you set your television up to meet your own personal viewing preferences. The menu screens and their features are discussed in detail in this book. The menu settings are optional, you can set as many or as few of them as you wish. But to begin watching your television right away you will need to run the Auto Tuner Setup. This lets your television learn the channels it is able to receive. To run the Auto Tuner Setup follow the steps below. 19 Remote Programming ABC Archer Cableview Citizen Curtis Diamond Eagle Eastern GC Brand Gemini General Instrument Hamlin Hitachi Jerrold Macom Magnavox Memorex Movietime Oak Paragon Panasonic Philips Pioneer 024 032, 025 051, 032 022, 051 058, 059 024, 032, 025 029 034 032, 051 022, 043 065, 024, 025, 026, 027, 020, 021, 022, 057, 023 040, 041, 042, 045, 058, 064 049, 024 065, 024, 025, 026, 027, 020, 021, 022, 057, 023 049, 050, 051, 054 033 030 032, 051 039, 037, 048 055, 056, 060, 071, 073 063 028, 029, 030, 052, 053, 031, 069 047, 062 Pulsar 051, 032 Cable Box CODES Puser RCA Realistic Regal Regency Rembrandt Samsung Scientific Atlanta SLMark Sprucer Stargate Telecaption Teleview Texscan Tocom Toshiba Unika Universal Videoway Viewstar 032 061, 070 032 058, 064, 040, 041, 042, 045, 068 034 037, 032, 051, 038 051 057, 058, 059 051, 047 051, 056 032, 051 067 047, 051 044 035, 036, 066 050 032, 025 022, 032 052 029, 030 Zenith 063, 046 Zenith/Drake Satellite 046 Cable Box CODES Echostar Express VU G.E. G.I. Gradiente Panasonic Philips Primestar RCA Proscan Sony Star Choice Toshiba Uniden 100, 113, 114, 115 100, 113 106 108 112 Hitachi HNS (Hughes) 104, 111 104 105 102, 103 108 106, 109, 110 106, 109, 110 107 104, 108 101 102, 103 Digital Satellite Systems CODES You can program your remote to operate your cable box, satellite receiver, VCR or DVD player by using the instructions and codes listed below. If the equipment does not respond to any of the codes listed below or to the code search function, use the remote control supplied by the manufacturer. The remote control is programmed with cable box and satellite codes for power on/off, channel up/down, and 10 key operation. 1) Find the cable box or satellite brand from the list of codes shown below. 2) Slide the 2-way selector switch to “CATV”. 3) Press and hold down the DISPLAY button, then enter the first code number listed with the 10 key pad. 4) Release the DISPLAY button, and confirm the operation of the cable box/satellite receiver. • If your cable or satellite box does not respond to the first code, try the others listed. If it does not respond to any code, try the search codes function, on page 22. Setting the CATV, VCR and DVD Codes Cable Box or Satellite Codes 20 Remote Programming The remote control is programmed with VCR codes for power on/off, play, stop, fast-forward, rewind, pause, record, channel up/down operation. 1) Find the VCR brand from the list of codes shown below. 2) Slide the first 2-way selector switch to “TV” and the other 2-way selector switch to “VCR”. 3) Press and hold down the DISPLAY button, then enter the first code number listed with the 10 key pad. 4) Release the DISPLAY button, and confirm the operation of the VCR. • If your VCR does not respond to the first code, try the others listed. If it does not respond to any of the codes, try the search codes function on page 22. • After you program your remote, some VCR buttons may not work properly. If so, use the VCR’s remote. • To record, hold down the REC button on the remote and press PLAY. VCR Codes Admiral Aiwa Akai Audio Dynamic Bell & Howell Broksonic Canon CCE Citizen Craig Curtis Mathes Daewoo DBX Dimensia Emerson Fisher Funai G.E. Go Video Goldstar Hitachi Gradiente Instant Replay Jensen 035 027, 032, 095 029, 072, 073, 074 003, 005 063, 071 020, 026, 094 023, 025 043 064 063, 029, 064 045, 024, 027, 093 043, 059, 024, 092 003, 004, 005 045, 093 043, 026, 077, 061, 025, 042, 020, 076 063, 066, 067, 065, 071, 091 027, 026, 020, 000 033, 045, 024 037, 051, 049, 050, 089 064 083, 084, 081, 000, 001 023, 045, 058, 027, 081, 093 024, 023 003 JVC Kenwood 000, 001, 002, 003, 004, 005 003, 004, 064, 005 LXI 027, 064, 058, 065, 066, 063, 067 VCRs CODES Magnavox Marantz Marta Memorex MGA Minolta Mitsubishi Multitech NEC Olympic Optimus Orion Panasonic Penney Pentax Philco Philips Pioneer Proscan Quasar Radio Shack 031, 023, 024, 086 003, 004, 005 064 024, 067 038, 040, 047, 048, 041, 042 058, 045, 093 038, 040, 047, 048, 041, 042, 078, 090 047, 027, 062 003, 004, 005, 000 024, 023 028, 021, 035, 064 026, 020 023, 024, 021, 022 024, 058, 045, 063, 003, 004, 005, 093 058, 005, 045, 093 031, 024, 027, 023, 026, 020, 043 031, 023, 024, 086 023 045, 058, 023, 024, 031, 046, 059, 060, 033, 087, 093 021, 022, 023, 024 033, 024, 063, 036, 067, 040, 027 RCA 033, 045, 058, 023, 024, 031, 046, 059, 060, 083, 084, 085, 087, 093 Realistic 024, 063, 036, 067, 040, 027 VCRs CODES Samsung Samtron Sansui Sanyo Scott Sears Shintom Sharp Signature 2000 Sony Singer SV 2000 Sylvania Symphonic Tashiro Tatung Teac Technics Teknika Toshiba Vector Research Wards 037, 060, 062, 033, 089 089 003, 026, 020, 052 063, 067, 091, 071 059, 060, 062, 067, 038, 040, 047, 048, 026, 020 063, 064, 065, 066, 058, 000, 001 075 035, 036, 080, 088 027, 035 075 028, 029, 030, 053, 054, 055 027 031, 023, 024, 027 027, 081 064 003, 004, 005 003, 004, 027, 005 021, 022, 023, 024 024, 027, 070 059, 046, 079 005 035, 036, 067, 044, 064 Yamaha 063, 003, 004, 005 Zenith 044, 082, 064, 094 VCRs CODES 21 Remote Programming The remote control is programmed with DVD codes for power on/off, play, stop, fast-forward, rewind, previous/next chapter, tray open/close, and still/pause operation. 1) Find the DVD player brand from the list of codes shown below. 2) Slide the first 2-way selector switch to “TV” and the other 2-way selector switch to “DVD”. 3) Press and hold down the DISPLAY button, then enter the first code number listed with the 10 key pad. 4) Release the DISPLAY button, and confirm the operation of the DVD player. • If your DVD player does not respond to the first code, try the others listed. If it does not respond to any of the codes, try the search codes function on page 22. • After you program your remote, some DVD buttons may not work properly. If so, use the DVD player’s remote. DVD Codes Aiwa Apex Denon Hitachi JVC Kenwood Konka Mitsubishi Onkyo Oritron Panasonic Philips Pioneer 043 040 020, 037 030, 031 000 035 039 025 041 044 020 023, 036 022 DVD Player CODES Raite RCA Sampo Samsung Sharp Silvania Sony Technics Toshiba Wave Yamaha Zenith 033 021, 026 034 030 028 038 024, 045, 046, 047 020 023 042 020 027, 032 DVD Player CODES Vialta 050 22 Remote Programming Cable/Satellite Search Codes Function 1) Slide the first 2-Way Mode Selector switch to CATV. 2) Press the POWER and RETURN+ buttons. Hold for at least three seconds and release. 3) Press the POWER button on the remote, and see if the cable or satellite box responds. 4) If there was a response, press RETURN+. The codes are now set. If there was no response, repeat Step 3. If you repeat Step 3 a total of 80 times without a response, use the remote control that came with your equipment. 5) Press RETURN+ to exit. VCR/DVD Search Codes Function 1) Slide the first 2-way selector switch to “TV” and the other 2-way selector switch to “VCR” or “DVD”. 2) Press the VCR or DVD POWER and RETURN+ buttons. Hold for at least three seconds and release. 3) Press the VCR or DVD POWER button, and see if the VCR or DVD responds. 4) If there was a response, press RETURN+. The codes are now set. If there was no response, repeat Step 3. If you repeat Step 3 a total of 80 times for the VCR (40 times for the DVD player), and there is no response, use the remote control that came with your equipment. 5) Press RETURN+ to exit. Search Codes 23 Onscreen Menus To bring up the onscreen menu, press the MENU button on the remote control. The item that appears in green is the one currently selected. If you use the Menu button on the TV’s front panel instead of the remote, an additional menu screen showing INPUT, VIDEO STATUS and ASPECT will appear between INITIAL SETUP and PICTURE ADJUST. Note: • Menus shown in this book are illustrations, not exact replications of the television’s onscreen displays. Certain symbols are used throughout this guide to help you learn about the features of your new television. The ones you will see most frequently are: π† Up and Down arrows mean press the CH+ or CH– buttons. Pressing the CH+ or CH– buttons let you: • Move vertically in a main menu screen • Move through a submenu screen • Move to the next letter, number, or other choice in a submenu • Back up to correct an error • Scan through TV channels (when not in a menu screen) √® Left and right arrows mean press the VOLUME+ or VOLUME- buttons to move left or right to: • Select a highlighted menu item • Select an item in a submenu • Select numbers in certain menu options • Turn the volume up or down (when not in a menu screen) The “press button” icon means you should press the button named on your remote control. (Button names appear in SMALL CAPITAL LETTERS.) Using the Guide INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS AUTO TUNER SETUP CHANNEL SUMMARY V-CHIP SET LOCK CODE (3/3) 24 Onscreen Menus Your television comes with JVC’s onscreen menu system. The onscreen menus let you make adjustments to your television’s operation simply and quickly. Examples of the onscreen menus are shown on the next page. Detailed explanations on using each menu follow later in this guide The Onscreen Menu System To open the onscreen menu system, press the MENU button on the remote control. You navigate within the onscreen menus by using the four directional arrow buttons on the remote control. (These buttons are also the CH +/– and VOL +/– buttons. Channel and volume functions will not operate when the onscreen menu is active). The selected feature and option on a menu screen are highlighted in a different color. To move to a different feature use the π† arrows to move up or down the list. When you press the up arrow at the top of the list or the down arrow at the bottom, the next menu screen will appear. Use the arrows √ ® to select an option from the highlighted feature. Pressing MENU on the remote control will close the onscreen menu system and return you to normal television viewing. Each menu and its features will be discussed in the following pages of this guide. Notes: • If you do not press any buttons for a few seconds, the onscreen menu will automatically shut off. • Button names in this guide are shown in SMALL CAPITAL LETTERS. • Menus may appear in different sizes onscreen depending on the aspect ratio selected. • Some menu items may not appear in menu screens when certain aspect ratios or inputs are selected. Selected Option (Green) Selected Option (Blue) The Onscreen Menu System LANGUAGE CLOSED CAPTION ENG. FRAN. ESP. 25 Onscreen Menus Press the MENU button Note: • When the Menu button on the TV side panel is pressed, the FRONT PANEL CONTROL menu between INITIAL SETUP 03 and PICTURE ADJUST will appear. TINT COLOR PICTURE BRIGHT DETAIL ENERGY SAVER MODE PICTURE ADJUST SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS 00 00 00 00 00 STANDARD (1/2) SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS STANDARD PICTURE ADJUST (2/2) COLOR TEMPERATURE DIG. NOISE CLEAR NATURAL CINEMA RESET LOW OFF AUTO BASS TREBLE BALANCE MTS RESET STEREO SAP MONO SOUND ADJUST SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS 00 00 00 INITIAL SETUP 03 PICTURE ADJUST 01 PICTURE ADJUST 02 SOUND ADJUST INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS AUTO TUNER SETUP CHANNEL SUMMARY V-CHIP SET LOCK CODE (3/3) CLOCK / TIMERS SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS SET CLOCK ON / OFF TIMER CLOCK/TIMERS INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS ENG. FRAN. ESP. LANGUAGE CLOSED CAPTION AUTO SHUT OFF XDS ID OFF ON (2/3) INITIAL SETUP 02 INITIAL SETUP 01 INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (1/3) NOISE MUTING FRONT PANEL LOCK POSITION ADJUSTMENT POWER INDICATOR ON OFF OFF 26 Initial Setup Auto Tuner Setup If you have already run the Auto Tuner as part of the quick setup earlier in this guide, please skip ahead to “Channel Summary” to continue setting up your television. Press the MENU button π† To AUTO TUNER SETUP √® To operate √® To choose CABLE or AIR Press the OK button to start Programming will take approximately 1 to 2 minutes. The auto tuner is finished when the message PROGRAMMING OVER! appears onscreen. Channel Summary Channel summary allows you to customize the line-up of channels received by your TV. You can add or delete channels from the line-up as you like or prevent any unauthorized viewers from watching any or all 181 channels. Press the MENU button π† To CHANNEL SUMMARY √® To operate The Channel summary screen will now be displayed with the channels set to scan marked with an “√”. You can delete channels from the scan by removing the “√”. If any channels were missed during auto tuner setup and you wish to add them, you may by placing an “√” next to the channel number. π† √® To the SCAN column Press the OK button to include or delete from scan Press the MENU button when finished Press the Menu button when finished AUTO TUNER SETUP CABLE PRESS TO START SELECT OPERATE EXIT MENU TUNER MODE OK CHANNEL SUMMARY 06 07 08 09 10 CHNO. SELECT OPERATE EXIT MENU 01 02 03 04 05 OK SCAN CHNO. SCAN You can block access to a channel by activating the channel lock. Press the MENU button π† To CHANNEL SUMMARY √® To operate π† √® To the Lock Column ( ) Press the ZERO button to lock or unlock that channel Press the MENU button when finished 27 Initial Setup When a viewer attempts to watch a guarded channel, the following message appears: To watch a channel that you have locked, enter the Lock Code using the 10 key pad. If the wrong code is entered, the message “INVALID LOCK CODE!” will flash on the screen. The channel cannot be accessed until the correct code is entered. Notes: • Once a channel has been unlocked, it will remain unlocked until the television is turned off. • See also “Set Lock Code”, page 33. Channel Guard Message You can customize the V-Chip settings of your television to match your personal tastes. The V-Chip menu below is the starting point for your V-Chip settings You can use US V-Chip settings (for programming broadcast from the United States), Canadian V-Chip settings (for programming broadcast from Canada), and movie ratings. You may use any or all of the settings (US V-Chip, Canada V-Chip, Movie ratings). Descriptions for setting each of the three V-Chip formats appear in the next six pages along with descriptions of the rating categories. To access the rating categories: Press the MENU button π† To V-CHIP √® To operate (Lock icon will appear) Press ZERO to access the V-Chip menu √® To turn V-Chip ON or OFF (V-Chip must be turned ON for rating settings to operate) π† To move to SET US TV RATINGS, SET MOVIE RATINGS, or SET CANADIAN RATINGS (see following pages for descriptions of each item) V-Chip Your TV is equipped with V-Chip technology which enables you to block channels or content that you feel to be inappropriate for children, based on US and Canada rating guidelines. V-Chip has no effect on video signals from DVD discs or Camcorder connection. Note: Some programs, and movies are broadcast without a ratings signal. Even if you set up V-CHIP ratings limits, these programs will not be blocked. See page 28 for information on how to block unrated programs. Note (for Canadian viewers): The V-Chip function is based on specifications designed for the United States and therefore may not work properly in Canada. V-CHIP SET US TV RATINGS SET MOVIE RATINGS SET CANADIAN RATINGS ENG SET CANADIAN RATINGS FRE UNRATED V-CHIP SELECT OPERATE EXIT MENU VIEW OFF THIS CHANNEL IS LOCKED BY CHANNEL GUARD. PLEASE ENTER LOCK CODE BY 10 KEY PAD TO UNLOCK IT. NO. - - - - 28 Initial Setup You can block programs that are not rated. Press the MENU button π† To V-CHIP √® To operate (The lock icon appears) Press ZERO to access V-Chip setup options π† To UNRATED √® To VIEW or BLOCK Press MENU when done Directions to Block Unrated Programs Unrated Programs Unrated programming refers to any programming which does not contain a rating signal. Programming on television stations which do not broadcast rating signals will be placed in the “Unrated Programming” category. Examples of Unrated programs: • Emergency Bulletins • Locally Originated Programming • News • Political Programs • Public Service Announcements • Religious Programs • Sports • Weather • Some Commercials Note: • TV programs or movies that do not have rating signals will be blocked if the unrated category is set to BLOCK. V-CHIP SET US TV RATINGS SET MOVIE RATINGS SET CANADIAN RATINGS ENG SET CANADIAN RATINGS FRE UNRATED V-CHIP SELECT OPERATE EXIT MENU VIEW OFF 29 U.S. PARENTAL RATING SYSTEMS Programs with the following ratings are appropriate for children. ❏ TV Y is Appropriate for All Children Programs are created for very young viewers and should be suitable for all ages, including children ages 2 - 6. ❏ TV Y7 is for Older Children Most parents would find such programs suitable for children 7 and above. These programs may contain some mild fantasy violence or comedic violence, which children should be able to discern from reality. Programs with the following ratings are designed for the entire audience. ❏ TV G stands for General Audience Most parents would find these programs suitable for all age groups. They contain little or no violence, no strong language, and little or no sexual dialog or situations. ❏ TV PG Parental Guidance Suggested May contain some, but not much, strong language, limited violence, and some suggestive sexual dialog or situations. It is recommended that parents watch these programs first, or with their children. ❏ TV 14 Parents Strongly Cautioned Programs contain some material that may be unsuitable for children under the age of 14 including possible intense violence, sexual situations, strong coarse language, or intensely suggestive dialog. Parents are cautioned against unattended viewing by children under 14. ❏ TV MA Mature Audiences Only These programs are specifically for adults and may be unsuitable for anyone under 17 years of age. TV MA programs may have extensive V, S, L, or D. US V-Chip Ratings Initial Setup Viewing Guidelines In addition to the ratings categories explained above, information on specific kinds of content are also supplied with the V-Chip rating. These types of content may also be blocked. The content types are: • V/FV is for VIOLENCE/FANTASY VIOLENCE • S stands for SEXUAL CONTENT • L stands for strong LANGUAGE • D stands for suggestive DIALOG 30 Initial Setup Line up the cursor in the column (TV PG, TV G, etc.) with the content row (V/FV, S, etc.) and press the π† or √® to move the cursor to the correct location. Press OK to turn the locking feature on or off. An item is locked if the icon appears instead of a “—”. For example. To block viewing of all TV 14 shows, move the cursor to the top row of that column and add a lock icon. Once you’ve put a lock on the top row, everything in that column is automatically locked. π† √® To the TV 14 Column Press the OK button to lock Press the MENU button when finished Note: • If you want to change the setup, move the cursor to the top column and change the lock icon to “—” by pressing OK again. You may then select individual categories to block. Directions to set US V-Chip Ratings Press the MENU button π† To V-CHIP √® To operate (lock icon appears) Press ZERO to access the V-Chip menu √® To turn V-Chip ON or OFF π† To move to SET US TV RATINGS √® To operate Setting US V-Chip Ratings V/FV S L D SET US TV RATINGS SELECT OPERATE EXIT MENU TV MA TV 14 TV PG TV G TV Y7 TV Y OK V-CHIP SET US TV RATINGS SET MOVIE RATINGS SET CANADIAN RATINGS ENG SET CANADIAN RATINGS FRE UNRATED V-CHIP SELECT OPERATE EXIT MENU VIEW OFF 31 Initial Setup ❒ NR – Not Rated This is a film which has no rating. In many cases these films were imported from countries which do not use the MPAA ratings system. Other NR films may be from amateur producers who didn’t intend to have their film widely released. NR (Not Rated) Programming may contain all types of programming including children’s programming, foreign programs, or adult material. ❒ G – General Audience In the opinion of the review board, these films contain nothing in the way of sexual content, violence, or language that would be unsuitable for audiences of any age. ❒ PG – Parental Guidance Parental Guidance means the movie may contain some contents such as mild violence, some brief nudity, and strong language. The contents are not deemed intense. ❒ PG-13 – Parents Strongly Cautioned Parents with children under 13 are cautioned that the content of movies with this rating may include more explicit sexual, language, and violence content than movies rated PG. ❒ R – Restricted These films contain material that is explicit in nature and is not recommended for unsupervised children under the age of 17. ❒ NC-17 – No One Under 17 These movies contain content which most parents would feel is too adult for their children to view. Content can consist of strong language, nudity, violence, and suggestive or explicit subject matter. ❒ X – No One under 18 Inappropriate material for anyone under 18. Movies Ratings Press the MENU button π† To V-CHIP √® To operate (Lock icon appears) Press ZERO to access V-Chip setup options π† To SET MOVIE RATINGS √® To enter movies menu For example: To block viewing of X and NC-17 rated from shows: π† √® To the X Column Press the OK button to lock π† √® To the NC-17 Column Press the OK button to lock Press the MENU button to finish Directions to set Movie (MPAA) Ratings SET MOVIE RATINGS SELECT OPERATE EXIT MENU X NC17 R PG G PG13 NR OK 32 Initial Setup Press the MENU button π† To V-CHIP √® To operate (lock icon appears) Press ZERO to access V-Chip setup options π† To SET CANADIAN RATINGS ENG (for English) √® To enter ratings menu For example: To block viewing of programming rated 14+ and 18+: √® To the 18+ Column Press the OK button to lock √® To the 14+ Column Press the OK button to lock Press the MENU button to finish Note: • For instructions on “SET CANADIAN RATINGS FRE (in French)”, please see page 32 in the French side of this user’s guide. Directions to set Canadian V-Chip Ratings ❒ E – Exempt Exempt programming includes: news, sports, documentaries and other information programming, talk shows, music videos, and variety programming. ❒ C – Programming Intended for Children Violence Guidelines: There will be no realistic scenes of violence. Depictions of aggressive behavior will be infrequent and limited to portrayals that are clearly imaginary, comedic or unrealistic in nature. ❒ C8+ – Programming Intended for Children 8 and Over Violence Guidelines: Any realistic depictions of violence will be infrequent, discreet, of low intensity and will show the consequences of the acts. There will be no offensive language, nudity or sexual content. ❒ G – General Audience Programming will contain little violence and will be sensitive to themes which could affect younger children. ❒ PG – Parental Guidance Programming intended for a general audience, but which may not be suitable for younger children. Parents may consider some content not appropriate for children aged 8-13. ❒ 14+ – 14 Years and Older Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens. Programming may contain mature themes and scenes of intense violence. ❒ 18+ – Adult Material intended for mature audiences only. Canadian V-Chip Ratings 14+ 18+ PG G C C8 SET CANADIAN RATINGS ENG SELECT OPERATE EXIT MENU OK 33 Initial Setup Channel guard and V-Chip settings are protected by a four-digit lock code. Your TV comes preset with a lock code of “0000”. You may change the code to any four-digit number you wish. To change the lock code, follow the steps below. Press the MENU button π† To SET LOCK CODE √® To operate (lock icon appears) Press ZERO to access the lock code The first digit will be highlighted √® To select the number π† To move to the next digit Continue to follow these directions for all four numbers Press the OK button to finish (your lock code is now set) Press the Menu button when finished • After a power interruption you must reset the lock code. • Write your lock code number down and keep it hidden from potential viewers. • If you forget the lock code, a new code may be set using the steps listed above. Notes: When a viewer attempts to watch a blocked channel, this message appears: The channel will remain blocked until the correct lock code is entered (see above for information on setting your lock code). Set Lock Code LOCK CODE SET LOCK CODE SELECT OPERATE EXIT MENU PRESS TO FINISH 0000 OK THIS PROGRAMMING EXCEEDS YOUR RATING LIMITS. PLEASE ENTER LOCK CODE BY 10 KEY PAD TO UNLOCK IT. NO. - - - - 34 Initial Setup You can choose to view your onscreen menus in three languages: English, French (Français) or Spanish (Español). Press the Menu button π† To LANGUAGE √® To choose a language: ENG. (English), FRAN. (French) or ESP. (Spanish) Press the MENU button when finished Language INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS ENG. FRAN. ESP. LANGUAGE CLOSED CAPTION AUTO SHUT OFF XDS ID OFF ON (2/3) Many broadcasts now include an onscreen display of dialog called closed captions. Some broadcasts may also include displays of additional information in text form. Your television can access and display this information using the closed caption feature. To activate the closed caption feature, follow the steps below. Press the MENU button π† To CLOSED CAPTION √® To operate √® To select CAPTION, TEXT or OFF in MODE π† To select CAPTION or TEXT √® To select a caption (CC1 to CC4) or text channel (T1 to T4) Press the OK button to save Press the MENU button when finished • Closed caption subtitles are usually found on closed caption channel CC1. Some programs may include additional text information which is usually found on text channel T1. The other channels are available for future use. • Closed captioning may not work correctly if the signal being received is weak or if you are playing a video tape. • Most broadcasts containing closed captioning will display a notice at the start of the program. • If you connect an external device and want to use closed caption, closed caption can not be displayed if you have connected your device using "Component" or "S-Video" input. If you want to be able to view closed caption, connect your device using the "Video (composite video)" input. • Closed Caption may not fit on the screen at the top or bottom if you are watching a program in CINEMA aspect mode, or depending on the format of the software (DVD, VHS, etc.) Notes: Closed Caption CLOSED CAPTION SELECT OPERATE EXIT MENU PRESS TO FINISH OK TEXT MODE CAPTION TEXT CC1 T1 35 Initial Setup This function automatically shuts off your TV when there is no signal from the channel the TV is on. Press the MENU button π† To AUTO SHUT OFF √® To turn ON or OFF Press the MENU button when finished • If the channel that you have on does not receive a signal for more than one minute, the blinking text “NOT RECEIVING A SIGNAL AUTO SHUT OFF IN 9 MIN.” appears on the screen, and starts the countdown. If no signal is being received within 10 minutes, the TV shuts itself off. Auto Shut Off INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (2/3) ENG. FRAN. ESP. LANGUAGE CLOSED CAPTION AUTO SHUT OFF XDS ID OFF ON XDS ID Display provides a channel’s call letters, the network’s name, and even a program name. The XDS ID information is provided by the broadcaster. Press the MENU button π† To XDS ID √® To turn ON or OFF Press the MENU button when finished XDS ID INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (2/3) ENG. FRAN. ESP. LANGUAGE CLOSED CAPTION AUTO SHUT OFF XDS ID OFF ON This feature inserts a blank gray screen over channels which are not broadcasting or are too weak to be received clearly. Press the MENU button π† To NOISE MUTING √® To turn noise muting ON or OFF Press the MENU button when finished Note: • Noise muting will not work during auto tuner setup or when you operate channel summary. INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (1/3) NOISE MUTING FRONT PANEL LOCK POSITION ADJUSTMENT POWER INDICATOR ON OFF OFF Noise Muting 36 Initial Setup This allows you to lock the keys on the front of the TV, so that a child may not accidentally change your viewing preferences. Press the MENU button π† To FRONT PANEL LOCK √® To turn ON or OFF Press the MENU button when finished Front Panel Lock You can turn off this feature in the following ways: • Unplug the power cord, and plug it back in. Do this if your batteries die, or you lose your remote control. • Use the remote control. • Press the MENU button on the front of the TV for more than 3 seconds. In this case, the OSD for FRONT PANEL LOCK will appear. Note: • To turn ON/OFF the TV, press the power button for more than 3 seconds. This feature will remain ON. INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (1/3) ON OFF NOISE MUTING FRONT PANEL LOCK POSITION ADJUSTMENT POWER INDICATOR OFF Position adjustment allows you to adjust the position of the picture on the screen vertically when the aspect is set to panorama, cinema, or full. Press the MENU button π† To POSITION ADJUSTMENT √® To enter π† √® To adjust the position Press the MENU button to finish Notes: • To reset the adjustment to the center, press the OK button. • When the arrow disappears, while you are adjusting the position, the position is at it’s maximum limit. • If you select regular size with aspect, position adjustment option is not seen. • When you change the screen size, perform the position adjustment again. Position Adjustment OPERATE RESET EXIT OK MENU 37 Initial Setup Power indicator allows you to adjust the brightness of the power indicator Press the MENU button π† To POWER INDICATOR √® To adjust POWER INDICATOR LOW, HIGH or OFF Notes : • When OFF is selected : The LED disappears if you have a TV signal. The LED is lit as “LOW” when there is no TV signal. • When the On Timer turns ON, the LED is lit as "LOW" when you turn the power off. Power Indicator INITIAL SETUP SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS (1/3) ON OFF NOISE MUTING FRONT PANEL LOCK POSITION ADJUSTMENT POWER INDICATOR OFF 38 These settings allow you to change and adjust the way the picture appears on your television. TINT Tint allows you to adjust the levels of red and green in your TV picture. COLOR The color function lets you make all the colors in the TV picture appear either more vivid or subtle. PICTURE Picture allows you to adjust the levels of black and white on the TV screen, giving you a darker or brighter picture overall. BRIGHT You can adjust the overall brightness of the TV picture with the Bright control. DETAIL The Detail feature adjusts the level of fine detail displayed in the picture. ENERGY SAVER MODE The energy saver mode adjusts the level of brightness on the TV screen. Picture Adjust Picture Settings Press the MENU button π† To TINT, COLOR, PICTURE, BRIGHT, DETAIL or ENERGY SAVER MODE √ ® To enter √ ® To adjust the setting π† To move to the next setting Press the MENU button when finished Adjust the Picture Settings TINT +02 TINT COLOR PICTURE BRIGHT DETAIL ENERGY SAVER MODE PICTURE ADJUST SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS 00 00 00 00 00 STANDARD (1/2) 39 Picture Adjust Color Temperature You can decide how strong or dull the colors appear on the TV screen. Press the MENU button π† To COLOR TEMPERATURE √® To enter √® To set LOW or HIGH Press the MENU button when finished SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS STANDARD PICTURE ADJUST (2/2) COLOR TEMPERATURE DIG. NOISE CLEAR NATURAL CINEMA RESET LOW OFF AUTO COLOR TEMPERATURE LOW HIGH With digital noise clear, this helps take our static or noise from a channel that may not be coming in clearly. Press the MENU button π† To DIG. NOISE CLEAR √® To enter π† To select the mode “LOW”, “HIGH” or “OFF” Press the MENU button when finished Digital Noise Clear Natural Cinema Natural cinema corrects the problem of blurred edges which may occur when viewing a program originally shot on film (such as motion pictures) or animation. If you notice blurring at the edges of these programs, choose NATURAL CINEMA and set it to AUTO. Natural Cinema helps correct conversion errors that occur when film, which is shot at 24 frames-per-second, is broadcast at the television rate of 30 frames-per-second. Press the MENU button π† To NATURAL CINEMA √® To enter π† To select the mode “AUTO" or "OFF” Press the MENU button when finished NATURAL CINEMA AUTO OFF DIG. NOISE CLEAR OFF LOW HIGH 40 Picture Adjust Reset Reset resets all picture adjustments (tint, color, picture, bright, detail, color temperature and dig. noise clear) at once to the default settings. Press the MENU button π† To RESET √® To enter The onscreen menu disappears for a moment, and then the settings are reset to the default setting for all the picture adjustments. Press the MENU button when finished SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS STANDARD PICTURE ADJUST (2/2) COLOR TEMPERATURE DIG. NOISE CLEAR NATURAL CINEMA RESET LOW OFF AUTO 41 Sound Adjust MTS technology allows several audio signals to be broadcast at once, giving you a choice in what you wish to hear with a TV program. In addition to mono or stereo sound, an MTS broadcast may also include a second audio program (SAP). Press the MENU button π† To MTS √® Select the mode (The ON AIR arrow tells you if a broadcast is in stereo and/or contains an SAP). Press the MENU button when finished Notes: • Keep the TV in stereo mode to get the best sound quality. The sound will work in stereo mode even if a certain broadcast is in mono sound only. • Choose the mono setting to reduce excessive noise on a certain channel or broadcast. • Selecting SAP will allow you to hear an alternative soundtrack, if one is available. • MTS unavailable if your television’s input source is in input 1, 2, 3 or 4 mode, as described on page 45. These settings allow you to change and adjust the sound on your television. BASS – You can increase or decrease the level of low-frequency sound in the TV’s audio with the bass adjustment. TREBLE – Use treble to adjust the level of high-frequency sound in your TV’s audio. BALANCE – Adjust the level of sound between the TV’s left and right speakers with the balance setting. Press the MENU button π† To BASS, TREBLE or BALANCE √ ® To adjust the setting π† To move to the next setting Press the MENU button when finished Note: • You can reset the sound adjustments (BASS, TREBLE and BALANCE) you set at once as the default setting when you select reset. See page 40. Sound Settings MTS (Multi-Channel Television Sound) Adjust the Sound Settings STEREO SAP MONO SOUND ADJUST SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS BASS TREBLE BALANCE MTS RESET 00 00 00 BASS TREBLE BALANCE MTS RESET STEREO SAP MONO SOUND ADJUST SELECT OPERATE EXIT MENU NEXT PAGE PREVIOUS 00 00 00 Reset Reset resets all Sound Adjustments (Bass, Treble and Balance) at once to the default settings. See page 40 on how to use reset. 42 Clock/Timers Set Clock Before you use any of your TV’s timer functions, you must first set the clock. You may precisely set your clock using the XDS time signal broadcast by most public broadcasting stations. If you do not have this in your area, you will have to set the clock manually. See manual clock set below. To set the clock using the XDS signal: Press the MENU button π† To SET CLOCK √® To operate When you set the clock automatically, choose AUTO by pressing the √ or ® arrows. π† To TIME ZONE √® To select your time zone π† To D.S.T. (daylight savings time) √® To turn D.S.T. ON or OFF Press OK to finish Press the MENU button when finished When you set the clock manually, choose MANUAL by pressing the √ or ® arrows. π† To move to the hour √® To set the hour π† To move to minutes √® To set the minutes Press OK to start clock Press the MENU button when finished SET CLOCK PRESS TO START CLOCK SELECT OPERATE EXIT MENU OK TIME -- : -- -- MODE TIME ZONE D.S.T. MANUAL ATLANTIC ON SET CLOCK PRESS TO FINISH SELECT OPERATE EXIT MENU OK MODE TIME ZONE D.S.T. AUTO ATLANTIC ON TIME -- : -- -- THANK YOU !! ATLANTIC EASTERN CENTRAL MOUNTAIN HAWAII ALASKA PACIFIC Notes: • D.S.T. can be used only for US and Canada when it is set to ON in the SET CLOCK menu. • Only when the MODE set to AUTO, the Daylight Savings Time feature automatically adjusts your TV’s clock for Daylight Savings. The clock will move forward one hour at 2:00 am on the first Sunday in April. The clock will move back one hour at 2:00 am on the last Sunday in October. • You will have to reset the clock after a power interruption. You must set the clock before operating any timer functions. 43 Clock/Timers The on/off timer lets you program your television to turn itself on or off. You can use it as an alarm to wake up, to help you remember important programs, or as a decoy when you’re not home. Press the MENU button π† To ON/OFF TIMER √® To operate (begins with ON TIME) √® To set the hour (AM/PM) you want the TV to turn on † To move to minutes √® To set the minutes † To accept ON TIME and move to OFF TIME (the time the TV will turn off). Set the OFF TIME the same way as ON TIME † To accept OFF TIME and move to CHANNEL √® To select channel † To ON VOLUME √® To set the volume level † To move to MODE √® Choose ONCE or EVERYDAY † To ON/OFF TIMER √® Choose YES to accept the timer setting, choose NO if you don’t wish to accept Press the OK button to finish Press the MENU button to exit the menu • The on/off time cannot be set to locked or guarded channels. • In order for the on/off timer to work, the clock must be set. • After a power interruption, the timer settings must be reset. Notes: On/Off Timer ON TIME OFF TIME CHANNEL ON VOLUME MODE ON/OFF TIMER 7:00 PM 10:00 PM 03 CURRENT EVERYDAY NO ON/OFF TIMER SELECT OPERATE EXIT MENU PRESS TO FINISH OK 44 Button Functions Turns the TV on or off. Press the POWER button Use the number buttons on the remote control to move directly to a specific channel. For example, to move to channel 12: 1 (One) 2 (Two) Power Number Buttons - 10Key Pad Use these buttons to move up or down all the available channels your TV is able to receive. Channel +/– Use these buttons to raise or lower the TV’s volume level. Volume +/– The MUTING button instantly turns the volume down completely when you press it. Press MUTING and the volume level will instantly go to zero. To restore the volume to its previous level, press MUTING again. Muting The MENU button allows you to access JVC’s onscreen menu system. Press MENU to activate the onscreen menu system. • See individual topics like “Sound Adjust” for specific information on using menus. Menu Use the 100+ button to directly access channels above channel 99. For example, to move to channel 124, press 100+, 2 (Two), 4 (Four). 100+ Button 45 Button Functions Selects the signal input source for the television: VIDEO-1, VIDEO-2 or VIDEO-3 for video devices like VCRs, DVD players, or camcorders. Press the INPUT button Notes: • You can also select the input by pressing the INPUT button on the side of the TV instead of the remote control. Input The RETURN+ button has two functions: Return - Returns to the channel viewed just before the channel currently onscreen. Return+ - Lets you program a specific channel to return to while scanning through the channels using the CH+ and CH– buttons. RETURN+ and hold for three seconds The channel currently active has been programmed as your return+ channel. Now scan through the channels using the CHANNEL+/– buttons. RETURN+ You will return to your programmed channel. • To cancel your return+ channel, press and hold the RETURN+ button for three seconds. The message “RETURN CHANNEL CANCELLED!” will appear. • Return+ works only with the Channel+/– buttons. Pressing any number key will cancel return+. Return + RETURN CHANNEL PROGRAMMED! 46 Button Functions The display screen shows the current status of timers, inputs, and XDS ID. Press the DISPLAY button The screen to the right shows the following information: • The current channel or AV input (Channel 05) • The current time (12:20 pm) • Sleep timer status/minutes remaining (The Sleep Timer is off) • On/off timer status (Set to turn on everyday at 7:00 PM, off at 10:00 PM) • Each Press of the DISPLAY button changes the display mode: Display - Full screen shown above Time - Shows the current time only Channel - Shows the current channel Off - Turns display off Notes: • You may also turn off the display at any step by pressing MENU. • If the clock, sleep timer or on/off timer are not set, the display screen will show: “CLOCK NOT SET”, “SLEEP TIMER OFF”, and “ON/OFF TIMER OFF” respectively. Display 05 KLVX PBS JAZZ FESTIVAL NOW SLEEP TIMER ON/OFF TIMER ON TIME OFF TIME 12:20 PM OFF EVERYDAY 7:00 PM 10:00 PM Display Time Channel Off The Sleep Timer can turn the TV off for you after you fall asleep. Program it to work in intervals of 15 minutes, for a total time of up to 180 minutes. Press the SLEEP TIMER button Sleep Timer Message 60 seconds before the automatic shutoff, this message will appear: You then have 60 seconds to press the SLEEP TIMER button to delay the shut off for another 15 minutes. Sleep Timer GOOD NIGHT! PUSH SLEEP TIMER BUTTON TO EXTEND. 0 15 30 45 60 75 90 105 120 135 150 165 180 47 Button Functions Hyper Surround - Creates a deep, three-dimensional sound effect by channeling the audio through the TV’s front-firing speakers. Press the SOUND button π† To select HYPER SURROUND √® To choose the setting Press the MENU when finished Sound SOUND EFFECT SELECT OPERATE EXIT MENU HYPER SURROUND ON OFF The VIDEO STATUS button gives you a choice of four TV picture display settings, including a display of your own preferences. Standard - Resets the picture display to the factory settings. Dynamic - Gives a vivid picture with better contrast when viewing in a brightly lit room. Theater - Gives a rich, film-like look to video when viewing in a dimly lit room. Game - Used for when you are playing video games connected to your TV. Press the VIDEO STATUS button By every press of the VIDEO STATUS button, you change the mode. Note: • You can also change the mode by pressing the π† buttons. • You can also access the FRONT PANEL CONTROL screen by using the MENU button on the side of the TV instead of the remote control. It appears between INITIAL SETUP and PICTURE ADJUST screen, and it has VIDEO STATUS and ASPECT menus. Choose VIDEO STATUS by pressing MENU† on the side panel and choose a mode by using the CHANNEL +/- buttons ( √ OPERATE ® ). Video Status The TheaterPro D6500K color temperature technology function makes sure that the video you watch is set to the standard color temperature, so that what you see is as true to what the film to video editors intended it to be. Press the THEATERPRO button TheaterPro D6500K VIDEO STATUS STANDARD DYNAMIC THEATER GAME Back OK This button allows you to go back in the menu to change a selection or correct a mistake. This button confirms your selection when you are in one of the onscreen menus. 48 Button Functions This feature will help you adjust the picture you are watching to give you the best possible picture quality. REGULAR - The regular ratio is used when you want to watch a 4:3 broadcast or recorded program without modifying the original picture to fit the dimensions of your 16:9 screen. The 4:3 picture will fill the screen from top to bottom, while black bars will appear to fill up the remaining space along the picture’s sides. The 4:3 picture will be centered within the boundaries of the 16:9 screen. Aspect Aspect Ratios PANORAMA - With this ratio a normal 4:3 aspect picture is stretched to fit the dimensions of the 16:9 aspect screen. CINEMA - This ratio “zooms in” on the center part of a 4:3 aspect picture, blowing it up to fill the 16:9 screen. FULL - This is the ratio to use when watching 16:9 High-Definition broadcasts. When you change the aspect ratios, it is different from their broadcast or recorded program. Press the ASPECT button • By pressing the ASPECT button, you can change the size. Notes: • You can also access the FRONT PANEL CONTROL screen by using the MENU button on the side of the TV instead of the remote control. It appears between INITIAL SETUP and PICTURE ADJUST screen, and it has VIDEO STATUS and ASPECT menus. Choose ASPECT by pressing MENU† on the side panel and choose a mode by using the CHANNEL +/- buttons ( √ OPERATE ® ). PANORAMA CINEMA FULL REGULAR 49 Use either the television’s own tuner or a cable box to select channels. Set this switch to TV to operate the television’s built-in tuner. Move the switch to CATV to operate a cable box. Note: • See page 19 for information on programming your remote for cable box operation. You can control a VCR or DVD player with the buttons on the lower part of the remote control. Move the slide switch to VCR or DVD to operate. Notes: • The remote is preset with the code 000 to control JVC-brand VCR’s. For any other manufacturer’s brand VCR, please see the code chart and instructions on page 20. • The remote is preset with the code 000 to control JVC-brand DVD players. For any other manufacturer’s brand DVD player, please see the code chart and instructions on page 21. TV/CATV Slide Switch VCR/DVD Slide Switch You can also use this remote control to operate the basic functions of your DVD player. These functions include: play, rewind, fast-forward, stop, still/pause, previous/next, tray open/close, power on, and power off. Move the selector switch to DVD to operate. • The remote is preset with the code 000 to control JVC-brand DVD players. For any other manufacturer’s brand DVD player, please see the code chart and instructions on page 21. You can use this remote control to operate the basic functions of your VCR. These functions include: play, record, rewind, fast-forward, stop, pause, channel scan, TV/VCR, power on, and power off. Move the selector switch to VCR to operate. • The remote is preset with the code 000 to control JVC-brand VCR’s. For any other manufacturer’s brand VCR, please see the code chart and instructions on page 20. Button Functions VCR Buttons DVD Buttons 50 No Program If the TV channel you selected, or were watching is not receiving a signal, "NO PROGRAM" appears on the television screen. It appears when that channel is not receiving a signal and you have the Noise Muting function OFF and you have a single screen. It moves automatically every two seconds. Note: • Even if "NO PROGRAM" appears on the screen, your timer functions and auto shut off functions that you set, are still active. 51 Troubleshooting There is no power There is no picture or sound You cannot select a certain channel The power turns off by itself The clock is wrong The color quality is poor There are lines across the picture The picture is spotted There are double pictures (ghosts) Picture is snowy (image noise) Screen is 40% black Stereo or bilingual programs can't be heard Static electricity You hear occasional crackling sounds Remote control is not operating properly or at all • See if the power cord became unplugged. • Check for a blown fuse or circuit breaker or a power outage. • The antenna could be disconnected. • The input mode could be set improperly. See page 45. • The tuner (Auto Tuner Setup) could be set improperly. See page 26. • The TV station may be having difficulties. Check to see if other stations are working. • Check to see that the batteries are still working and properly installed. • Make sure the remote has a clear sight path to the TV. • Check that the TV/CATV switch is in the proper position. • You may be too far from the TV. You must be within 23 feet (7 meters). • Make sure the channels have been programmed. See "Channel Summary", page 26. • Check to see if the channel is locked. See "Channel Summary - Lock" page 27. • Make sure the set did not become unplugged. • Perhaps the On/Off Timer is set. See page 43. • Check to see if the Sleep Timer was set. See page 46. • The power was interrupted and the clock was not reset. See page 42. • Tint and Color may be improperly adjusted. See page 38. • The Video Status mode may be turned to the wrong setting. See page 47. • There could be interference from another electrical appliance, such as a computer, another TV or VCR. Move any such appliances further away from the TV. • There could be interference from a high-wattage appliance, like a hairdryer or vacuum, operating nearby. Move the antenna away from the appliance or change to a coaxial cable connection which is less prone to interference. • A building or passing airplane can reflect the original signal and produce a second, slightly delayed one. Adjust your antenna position. • Your antenna may be damaged, disconnected or turned. Check the antenna connection. If the antenna is damaged, replace it. • The Closed Caption Text mode is on. Turn it off in the Closed Caption Menu, page 34. • Make sure the MTS settings are correct. See "MTS" on page 41. • It is normal to feel static electricity if you brush or touch the screen. • It is normal for the TV to make crackling sounds when first turned on or off. Unless the sound or picture become abnormal, this is fine. PROBLEMS CHECK 52 53 54 LCD Flat Television Type Reception Format Reception Range Power Source Power Consumption Model LT-26X506 LT-26X466 NTSC, BTSC System (Multi-Channel Sound) VHF 2 to 13, UHF 14 to 69 Sub, Mid, Super, Hyper and Ultra bands (180 channel frequency synthesizer system) AC 120V, 60 Hz 186W Screen Size 32 inch / 80 cm measured diagonally, 16:9 ratio Speakers 6.6 cm round X 2 Audio Output Full Range - 5W + 5W Antenna Terminal 75 ohms (VHF/UHF) (F-type connector) External Input Jacks Video: 1 Vp-p, 75 ohms Audio: 500 mVrms (-4dBs) high impedance Conponent Input Jack Y: 1Vp-p positive, 75 ohms (negative sync provided) Pb/Pr: 0.7 Vp-p 75 ohms S-Video Input Jacks Y: 1Vp-p positive, 75 ohms (negative sync provided) C: 0.286 Vp-p (burst signal), 75 ohms Headphone Jack Ø 3.5 mm X 1 32 3/8 x 23 7/8 x 12 1/4 (With Stand) 82.0 x 60.4 x 30.8 (With Stand) 32 3/8 x 21 3/4 x 5 (Without Stand) 82.0 x 55.1 x 12.7 (Without Stand) Remote control unit / AA batteries X 2 Dimensions (inch) W x H x D (cm) Weight (lbs / kg) Accessories Audio Output Jacks (FIX) FIX: 500mVrms (-4dBs) Low impedance (1000 Hz when modulated 100%) 44.0 / 20 (With Stand) 36.3 / 16.5 (Without Stand) LT-32X506 26 inch / 65 cm measured diagonally, 16:9 ratio 124W 27 1/8 x 20 3/4 x 12 1/4 (With Stand) 68.6 x 52.7 x 30.8 (With Stand) 27 1/8 x 18 3/4 x 4 7/8 (Without Stand) 68.6 x 47.4 x 12.2 (Without Stand) 35.2 / 16 (With Stand) 27.5 / 12.5 (Without Stand) Specifications Specifications subject to change without notice. Note: • Reception of channel A-5 ("95" of the TV set's on-screen cable channel numbers) is not recommended for your TV set. 55 Notes JVC COMPANY OF AMERICA Division of JVC Americas Corp. 1700 Valley Road Wayne, New Jersey, 07470 JVC CANADA, INC. 21 Finchdene Square Scarborough, Ontario Canada, M1X 1A7
