1
维 修 手 册
品牌
机种
Philips
32PFL1200/T3
42PFL1300/T3
2

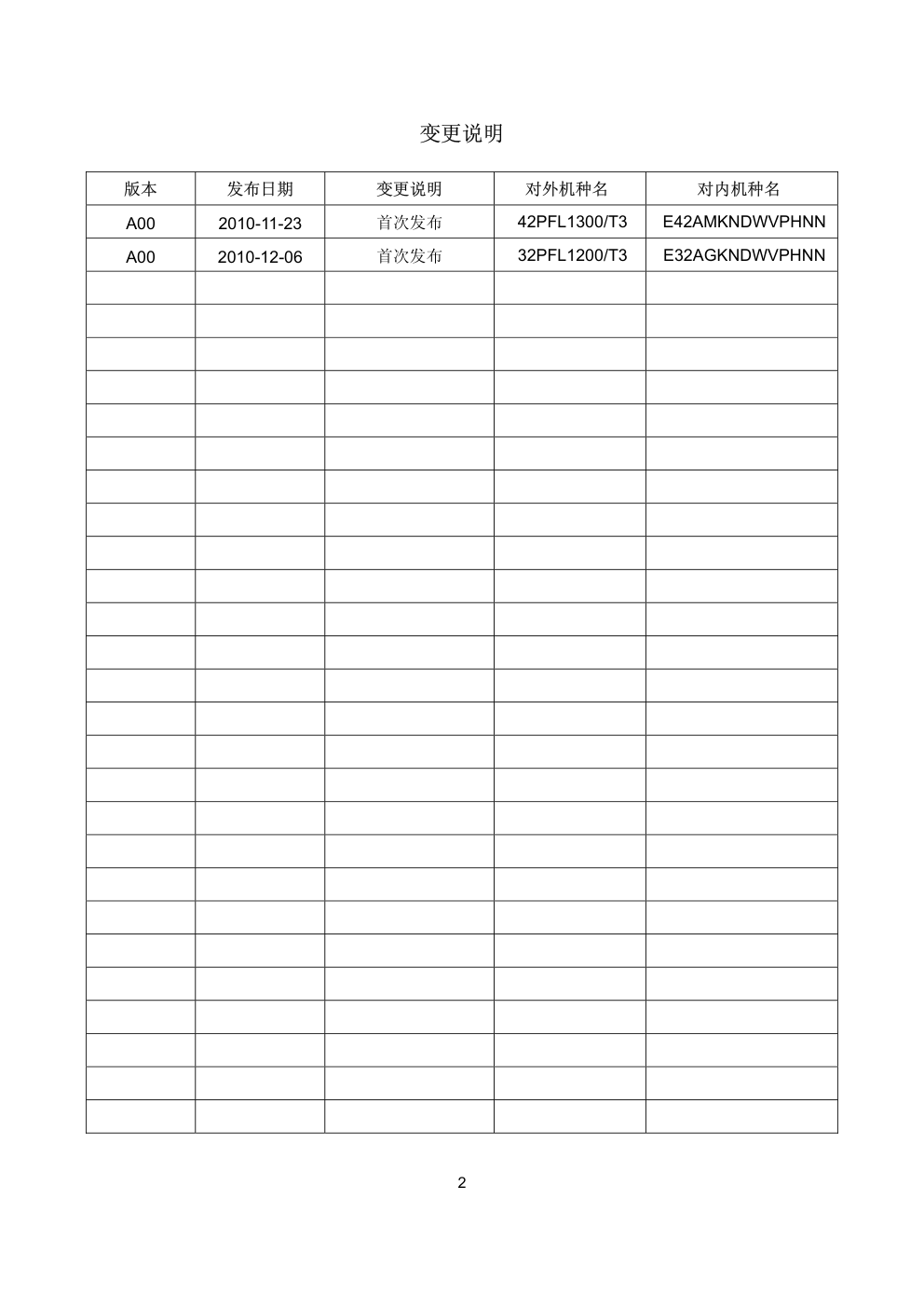

变更说明
版本
发布日期
变更说明
对外机种名
对内机种名
A00
2010-11-23
首次发布
42PFL1300/T3
E42AMKNDWVPHNN
A00
2010-12-06
首次发布
32PFL1200/T3
E32AGKNDWVPHNN
3

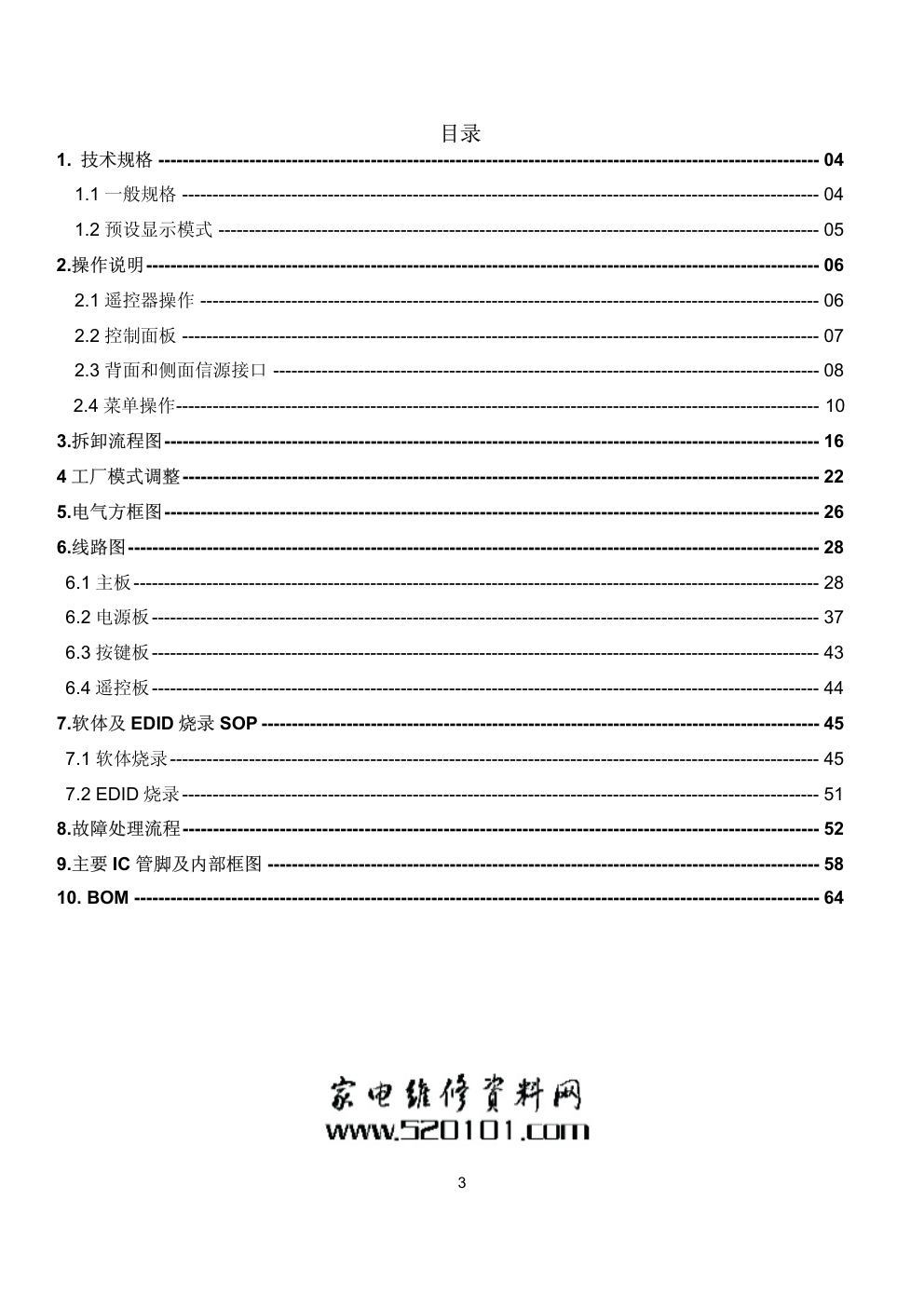

目录
1. 技术规格 ------------------------------------------------------------------------------------------------------------- 04
1.1 一般规格 --------------------------------------------------------------------------------------------------------- 04
1.2 预设显示模式 --------------------------------------------------------------------------------------------------- 05
2.操作说明 --------------------------------------------------------------------------------------------------------------- 06
2.1 遥控器操作 ------------------------------------------------------------------------------------------------------ 06
2.2 控制面板 --------------------------------------------------------------------------------------------------------- 07

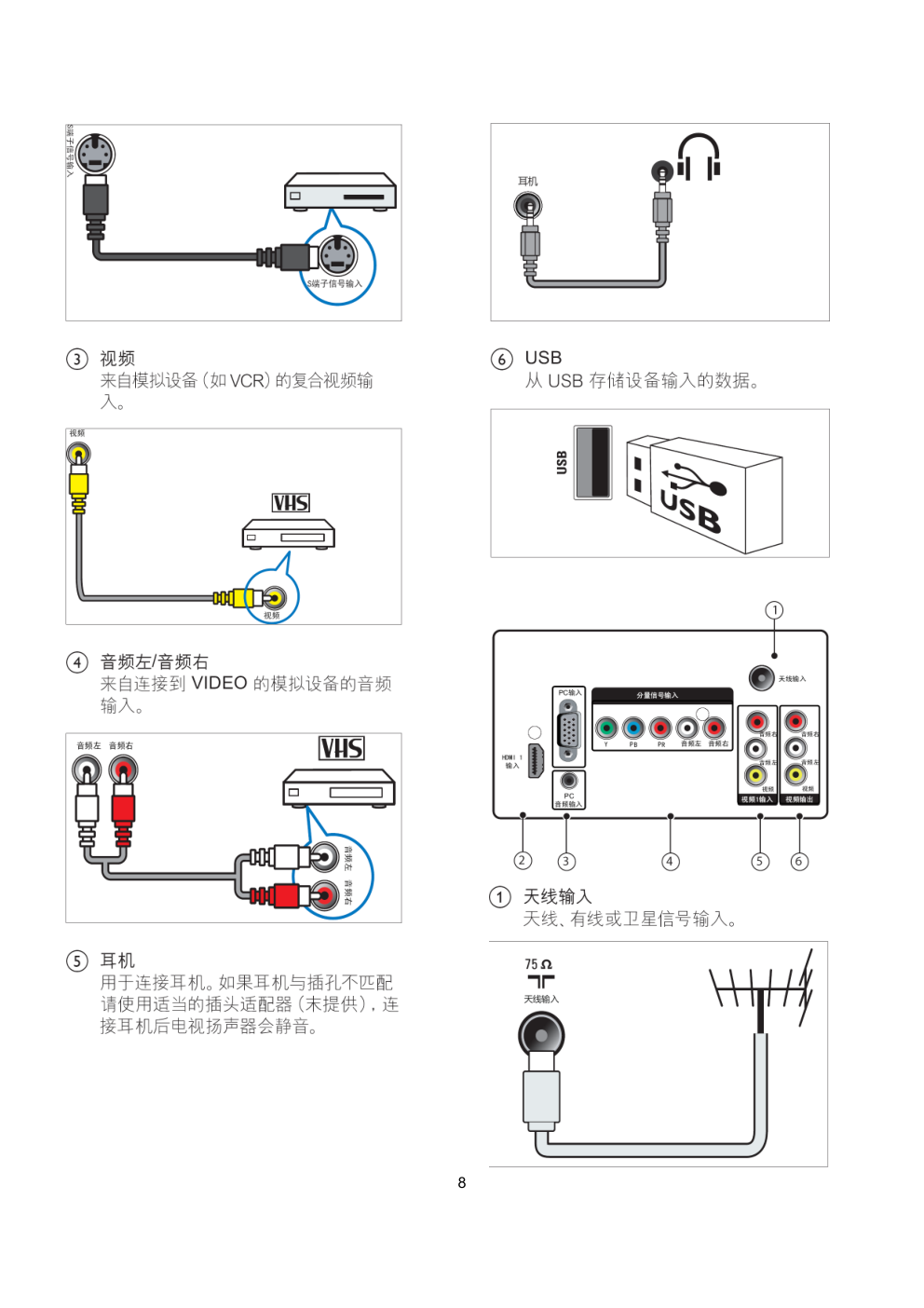

2.3 背面和侧面信源接口 ------------------------------------------------------------------------------------------ 08
2.4 菜单操作 ---------------------------------------------------------------------------------------------------------- 10
3.拆卸流程图 ------------------------------------------------------------------------------------------------------------ 16
4 工厂模式调整 --------------------------------------------------------------------------------------------------------- 22
5.电气方框图 ------------------------------------------------------------------------------------------------------------ 26
6.线路图 ------------------------------------------------------------------------------------------------------------------ 28
6.1 主板 ----------------------------------------------------------------------------------------------------------------- 28
6.2 电源板 -------------------------------------------------------------------------------------------------------------- 37
6.3 按键板 -------------------------------------------------------------------------------------------------------------- 43
6.4 遥控板 -------------------------------------------------------------------------------------------------------------- 44
7.软体及 EDID 烧录 SOP -------------------------------------------------------------------------------------------- 45
7.1 软体烧录 ----------------------------------------------------------------------------------------------------------- 45
7.2 EDID 烧录 --------------------------------------------------------------------------------------------------------- 51
8.故障处理流程 --------------------------------------------------------------------------------------------------------- 52
9.主要 IC 管脚及内部框图 ------------------------------------------------------------------------------------------- 58
10. BOM ----------------------------------------------------------------------------------------------------------------- 64
4
1.技术规格
1.1 一般规格
5
1.2 预设显示模式
6
2.操作说明
2.1 遥控器操作
7

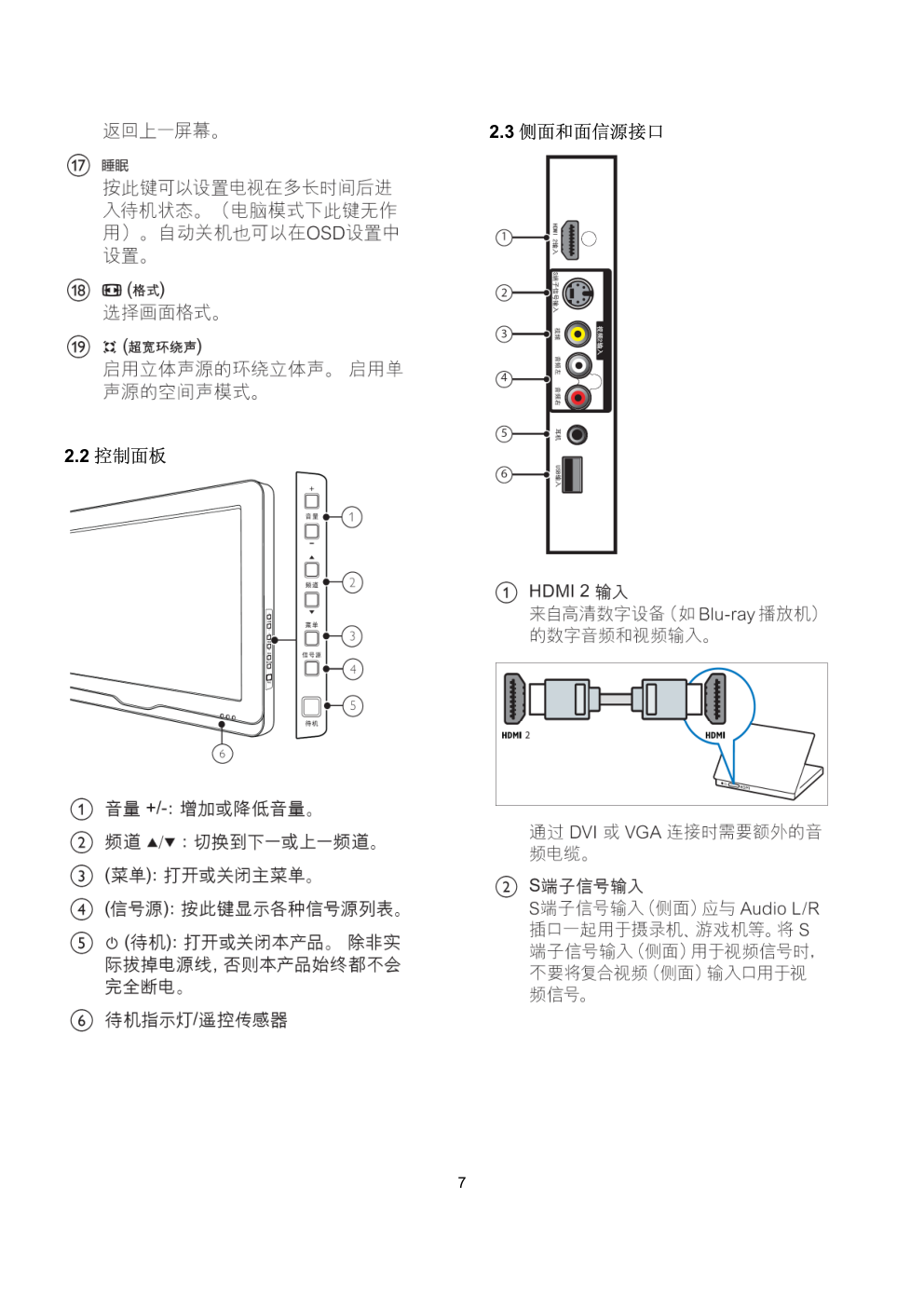

2.2 控制面板
2.3 侧面和面信源接口
8
9
10
2.4 菜单操作
11
12
13
14
15
16
3.拆卸流程图
32PFL1200/T3
第一步：旋开红色标示的螺丝移除底座。
第二步：旋开红色标示的螺丝移除后壳。
17
第三步：拔掉蓝色标示的 PIN，旋开红色标示的螺丝移除板子和支架铁片。
18
第四步: 旋开红色标示的螺丝移除铁件和 panel。
第五步：前框组件。
19
42PFL1300/T3
第一步：旋开红色标示的螺丝移除底座。
第二步：旋开红色标示的螺丝移除后壳。
20
第三步：拔掉蓝色标示的 PIN，旋开红色标示的螺丝移除板子。
第四步：旋开红色标示的螺丝移除铰链。
21
第五步：旋开红色标示的螺丝移除铁件。
第五步：前框组件。
22
4.工厂模式调整
一、ADC 调整
在 TV 模式下，将声音调至 0，按菜单和 1� 9 � 9 � 9.进入工厂模式。
以其他机种的工厂模式图片为例，如下：
1. 将“Current Source”切换到“component”模式并切换信号到 Component Timing 311（576i/50Hz）,Pattern
185(COLOR BAR), 按“Auto Color”.
2. 将“Current Source”切换到“component”模式并切换信号到 Component Timing 314（720p/60Hz）,Pattern
185(COLOR BAR), 按“Auto Color”.
3. 将“Current Source”切换到“电脑”模式并切换信号到电脑 TIMING 137(1024 x 768), Pattern 42 (5
MOSAIC) 按“Auto Color”.
二、 白平衡调整:
备注: 调整白平衡之前应先将机器先加温至少 30 分钟，需将 CA210 设置到 05 通道并设为 x, y, Y 模式。
以下为白平衡调整的步骤：
Color temp
x
y
Y(cd/m2)
PC mode
YPbPr mode
Normal (9300K)
0.285
0.293
> 250
> 350
Warm (6500K)
0.313
0.329
> 250
> 350
Cool (12000K)
0.272
0.278
> 250
> 350
备注: 1. 白平衡调整 VGA 和 YPbPr 两个 source 的 Normal, Cool, Warm 三个色温；
2. x, y 的值误差为±0.020；
3. 亮度和对比度均设为最大。
23
YPbPr 调整：
首先，按菜单和 1� 9 � 9 � 9.进入工厂模式，并将“Current source”切换到“YPbPr”模式；
其次，按“Reset”复位工厂模式里的白平衡；
再次，Gain(增益)调整：
调整 Cool 色温:
1. 通过在 80 IRE (TIMING 314, Pattern 141)信号下调整 R, G, B 的值来调整白平衡；
2. 通过“Color temp”选中其他的色温并调整。
调整 Normal 色温:
1. 通过在 80 IRE (TIMING 314, Pattern 141) 信号下调整 R, G, B 的值来调整白平衡；
2. 通过“Color temp”选中其他的色温并调整。
调整 Warm 色温:
通过在 80 IRE (TIMING 314, Pattern 141)信号下调整 R, G, B 的值来调整白平衡；
选中并按“Exit”退出工厂模式。
VGA 调整
首先，按菜单和 1� 9 � 9 � 9.进入工厂模式，并将“Current source”切换到“电脑”模式；
其次，按“Reset”复位工厂模式里的白平衡；
再次，Gain(增益)调整：
调整 Cool 色温:
1. 通过在 80 IRE (TIMING 137, Pattern 141)信号下调整 R, G, B 的值来调整白平衡；
2. 通过“Color temp”选中其他的色温并调整。
调整 Normal 色温:
1. 通过在 80 IRE (TIMING 137, Pattern 141) 信号下调整 R, G, B 的值来调整白平衡；
2. 通过“Color temp”选中其他的色温并调整。
调整 Warm 色温:
通过在 80 IRE (TIMING 137, Pattern 141)信号下调整 R, G, B 的值来调整白平衡；
选中并按“Exit”退出工厂模式。
注: 下页是关于一般工厂菜单的说明(和本机并非完全相同)，仅供参考！
24
工厂菜单说明
选项名称
调整范围
TV
AV/S
Comp
HD
PC
注释
Brand
不可调整
o
o
o
o
o
客户名称
Main-MCU ver
不可调整
o
o
o
o
o
发布软体 Main-MCU 版本
Bootloader ver
不可调整
o
o
o
o
o
发布软体 Bootloader 版本
Sub-MCU ver
不可调整
o
o
o
o
o
发布软体 Sub-MCU ver 版本
EEPROM ver
不可调整
o
o
o
o
o
发布软体 EEPROM 版本
Date
不可调整
o
o
o
o
o
软体发布日期
Model name
不可调整
o
o
o
o
o
对外机种名
Scaler
不可调整
o
o
o
o
o
Scaler 型号
Panel type
不可调整
o
o
o
o
o
屏的型号
Current source
支持输入源
√
√
√
√
√
当前进工厂时的输入源，该项可切换输入源，对应输入源的 ADC，色温，
Scaler 等相关信息同步更新。
Auto color
执行动作
√
√
√
√
√
Auto color 项只对需要做自动校正输入源时有效，否则它不动作。Auto
color 会对输入的 ADC 做自动矫正，调整 ADC Gain 和 Offset RGB 值。
ADC Gain
根据 IC SPEC
√
√
√
√
√
在 Auto Color 做完立即更新，并可手动调整。
ADC Offset
根据 IC SPEC
√
√
√
√
√
在 Auto Color 做完立即更新，并可手动调整。
Color temp.
支持色温
√
√
√
√
√
当前设置的色温，该项可切换色温模式，并正确显示色温名称，对应色温
的 Scaler Gain & Offset RGB 值等相关信息同步更新。
Scaler Gain
根据 IC SPEC
√
√
√
√
√
Scaler Gain 值在白平衡调整时立即更新，并可手动调整。
Scaler Offset
根据 IC SPEC
√
√
√
√
√
Offset RGB 值在白平衡调整时立即更新，并可手动调整。
Burn in
On/Off
√
√
√
√
√
打开或关闭 Burn in 模式。当 Burn in 设置为 On 时它将响应工厂遥控器功
能；EEPROM Init 后默认为 On 状态；Reset 后默认为 Off。
EEPROM Init
执行动作
√
√
√
√
√
实现的是初始化除了 HDCP key 和产品序列号以外的全部 EEPROM，如
主菜单的 OSD 默认值，工厂菜单的 ADC 数据，白平衡设定值，Black light
和 Language 等，同时把 Burn in 设置为 On，响应工厂遥控器功能，设置
输入源为 TV。
25
Back LIT time
不可调整
o
o
o
o
o
背光打开总计时，在 EEPROM Initial 或 Factory reset 后都清为 0，显示
值用十进制表示，当时间到达显示最大值时就不再变化。
Total time
不可调整
o
o
o
o
o
AC ON 主电源供电总计时，在 EEPROM Initial 或 Factory reset 后都清为
0，显示值用十进制表示，当时间到达显示最大值时就不再变化。
Black light
根据 IC SPEC
*
*
*
*
*
设置背光灯的亮度
Language
支持语言
*
*
*
*
*
设置出厂时用户模式菜单语言，当在工厂菜单中更改此项值时，用户模式
的 OSD 中的菜单语言也做相应的更改并将该值保存（仅北美向可选）
Energy LOGO
On/Off
*
*
*
*
*
仅中国向有该项
Reset
执行动作
√
√
√
√
√
实现的是复位除了 HDCP 和产品序列号，工厂菜单的 ADC 数据，白平衡
设定值，Black light，Language 和 Energy Logo 以外的全部 EEPROM 数
据，如主菜单的 OSD 默认值，并把用户菜单 Language 设置为工厂
Language，同时把 Burn in 设置为 Off，禁止响应工厂遥控器功能，设置
输入源为 TV。
Exit
执行动作
√
√
√
√
√
退出工厂模式
备注：
1. √表示该项有效, ×表示该项不存在，o 表示存在但选不到，*表示可选；
2. 不同机型工厂模式项目略有增删；
3. 进工厂模式时 Burn in 自动关闭。
26
5.电气方框图
主板方框图
TUNER
COMPONENT1
COMPONENT2
AV1
AV2
PC/AUDIO
USB
HDMI1
HDMI2
IF
IF
KEY
IR
PANEL
EARPHONE
AV-OUT1
S-VIDO
SPEAKER
LVDS
SAW
FLASH
DDR
AMP
REALTEK
RTD2674U-GR
S-VIDEO
27
电源框图
+12V
+5VSB
+5VSW
+3V3
+24V
U104
AMP
USB VCC
BB3_3V
A3_3V
D3_3V
TUN_5V
A1_2V
D1_2V
STB1_2V
DDR2_5V
PANEL_VCC
U701
U703
U105
U704
U702
Q702
Q404
TMDS3_3V
28
6.线路图
6.1 主板
715G3934M03000004F
R101
2.2K 1/10W
USB_DM
ZD101
MLVG0402
1
2
C134
NC
U101
MSEA53025V06B0
1
2
3
4
5
6
I/O1
GND
I/O2 I/O3
VDD
I/O4
ZD105
MLVG0402
1
2
VGA_DDC_SCL
BIN+
U102
MSEA53025V06B0
1
2
3
4
5
6
I/O1
GND
I/O2 I/O3
VDD
I/O4
VGA_IN_L
DGND
DGND
DGND
+5VSB
CN101
DB15
1
6
2
7
3
8
4
9
5
11
12
13
14
15
10
17
16
USB_DM
6
RIN+
USB_PWR_FLAG
GIN+
6
RIN+
6
USB
USB
ZD102
MLVG0402
1
2
VGA_IN_L
6
URAT_TX
R122
BEAD 60ohm 600mA
C136
NC
+5VSB
DGND
GIN+
RIN
UART(VGA Pin4 & Pin11 Share)
DGND
BIN
HS
R124
NC
USB_Shield_GND
+5VSB
VS
DGND
USB_PWR_FLAG
6
C106
4P7 50V
+3V3
DGND
VGA_DDC_SDA
6
AHS0
Q101
NC
USB_PWR_FLAG
ZD103
MLVG0402
1
2
VGA_DDC_SDA#
R130
NC
+
C105
100uF/16V
DGND
DGND
VGA_IN_R
R109
75OHM +-5% 1/10W
VGA_DDC_SDA
RX
VGA_DDC_SDA#
DGND
USB_Shield_GND
DGND
FB101
300 OHM
1
2
C103
22pF 50V
CN104
NC
1
2
3
4
BIN
VGA_DDC_SCL#
AVS0
ZD104
MLVG0402
1
2
R119
0R05 1/10W
R177
BEAD 60ohm 600mA
DGND
USB_DP
6
TX
R127
NC
CN101S
NC
NC
1
6
2
7
3
8
4
9
5
11
12
13
14
15
10
17
16
18
19
VGA_DDC_SDA
VGA
DGND
USB_Shield_GND
USB_PWR_CTRL
DGND
VGA_IN_R
R112
10K 1/10W
R107
75OHM +-5% 1/10W
R129
NC
DGND
URAT_RX
1 2 3 4
CN103
CONNNECTOR
1
2
3
4
6
5
URAT_TX
6
GIN+
BIN+
6
VGA_DDC_SCL
VGA_DDC_SCL#
VGA_DDC_SCL
6
RIN
CN102S
NC
1
2
3
C102
22pF 50V
VGA_IN_R
6
R114
10K 1/10W
CN102
PHONEJACK
1
2
3
DGND
R113
27K 1/10W
URAT_TX
USB_DP
AHS0
R104
1K 1/10W
U104
BD8012FVJ
1
2
3
4
5
6
7
8
GND
VIN
VIN
EN
OC
OUT
OUT
OUT
R128
1K 1/10W
VGA_DDC_SDA#
HS
VS
C101
100nF 50V
VGA
AVS0
BIN+
USB_DM
R115
100K 1/10W
DGND
C135
NC
USB_DP
C107
4P7 50V
URAT_RX
6
USB_PWR_CTRL
+5VSB
VGA_IN_L
R108
2.2K 1/10W
DGND
R120
0R05 1/10W
C118
1U25V
URAT_TX
GIN
URAT_RX
VGA_DDC_SCL#
RX
USB_PWR_CTRL
6
R123
10K 1/10W
R110
27K 1/10W
R106
75OHM +-5% 1/10W
TX
R103
1K 1/10W
R125
1K 1/10W
AVS0
6
R105
100 OHM +-5% 1/10W
R126
BEAD 60ohm 600mA
+5VSB
URAT_RX
DGND
GIN
2K10 42 AOC
A
*
A3
2
10
Wednesday , Nov ember 10, 2010
715G3934M0A0000040
<称爹>
01) VGA/USB/UART
G3934-1D-X-X-17-101110
OEM MODEL
Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
L101
90OHM
3
2
4
1
R102
100 OHM +-5% 1/10W
DGND
R116
100K 1/10W
UART
R121
0R05 1/10W
DGND
AHS0
6
RIN+
29
SV0-
Q103
PMBS3906
1
2
3
ZD117
NC
1
2
R171
NC
CN112SA
NC
2
1
4
3
6
5
YPBPR0_IN_L
6
CVBS0+
YPBPR1_IN_R
A
B
C
CN123
JACK
2
1
4
3
5
6
DGND
R148
27K 1/10W
AVOUT_L
SIDE AV/S-VIDEO INPUT(AUDIO SHARE)
YPBPR1_PB
6
CVBS0+
R151
0R05 1/10W
SV0_Y+
6
SV0_Y+
YPBPR1_PB
R158
75K +-5% 1/10W
R143
100K 1/10W
SV0-
6
YPBPR1_IN_R
6
YPBPR0_PB
R153
NC
CVBS_OUT
6
ZD111
MLVG0402
1
2
AV OUT
DGND
R137
100K 1/10W
R149
100K 1/10W
CVBS0-
6
CN121S
NC
2
1
4
3
6
5
CVBS1-
YPBPR1_L
SV0_Y+
C114
4U7 10V
R166
0R05 1/10W
YPBPR0_L
DGND
SV0_C+
6
ZD123
MLVG0402
1
2
CN111SB
NC
8
7
10
9
YPbPr INPUT
YPBPR1_R
NC-1
JACK
6
5
4
3
2
1
YPBPR0_PB
YPBPR0_Y
6
YPBPR0_IN_R
DGND
YPBPR0_PR
YPBPR0_R
DGND
+5VSW
MUTE_AVOUT
R167
0R05 1/10W
R132
27K 1/10W
ZD120
NC
1
2
ZD115
MLVG0402
1
2
YPBPR1_PB
DGND
G
G
C
Y
CN122A
JACK
7
8
9
10
11
12
13
CVBS_OUT
ZD107
MLVG0402
1
2
ZD116
MLVG0402
1
2
DGND
DGND
CVBS1+
6
YPBPR1_Y
R134
27K 1/10W
C116
470P 50V
YPbPr
DGND
DGND
AV1_IN_R
R173
NC
DGND
DGND
YPBPR1_IN_L
Q104
PMBS3904
C111
NC
R163
75OHM +-5% 1/10W
DGND
YPBPR1_L
YPBPR1_Y
6
R170
4.7K 1/10W
MUTE_AVOUT
6
R135
5.1K 1/10W
YPBPR1_IN_L
6
R169
NC
DGND
AV0_IN_R
YPBPR0_R
YPBPR1_R
ZD113
MLVG0402
1
2
DGND
CN122B
JACK
2
1
4
3
6
5
DGND
ZD124
MLVG0402
1
2
YPBPR1_PR
6
YPBPR1_IN_R
ZD112
MLVG0402
1
2
SV0_C+
AV1_IN_R
SV0_C+
ZD109
MLVG0402
1
2
ZD106
MLVG0402
1
2
AV0_IN_R
6
R159
75OHM +-5% 1/10W
ZD114
MLVG0402
1
2
R136
100K 1/10W
YPBPR0_PB
DGND
R133
75OHM +-5% 1/10W
AV1_IN_L
ZD110
MLVG0402
1
2
FB102
600 OHM
DGND
E
A
B
C
D
CN112
NC
1
2
3
4
5
6
7
8
9
10
11
YPBPR1_PR
+
C108
100uF/25V
R131
NC
DGND
R138
0R05 1/10W
YPBPR0_PB
6
CVBS OUT
DGND
DGND
R161
220 OHM 1/10W
YPBPR0_Y
R140
75OHM +-5% 1/10W
C112
NC
C113
4U7 10V
C110
NC
YPBPR0_IN_L
R141
75OHM +-5% 1/10W
SIDE AV IN
CVBS0-
AV1_IN_L
DGND
R156
NC
R147
NC
2K10 42 AOC
A
*
A3
3
10
Wednesday , Nov ember 10, 2010
715G3934M0A0000040
<称爹>
02) YPbPr/AV/CVBS OUT
G3934-1D-X-X-17-101110
OEM MODEL
Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
YPBPR1_PR
AV INPUT
YPBPR0_IN_R
R168
NC
R157
330OHM 1/10W
A
B
C
CN121
JACK
2
1
4
3
5
6
AV IN
DGND
DGND
YPBPR1_Y
ZD125
MLVG0402
1
2
E
A
B
C
D
CN111
JACK
1
2
3
4
5
6
7
8
9
10
11
R146
75OHM +-5% 1/10W
CN112SB
NC
8
7
10
9
R144
100K 1/10W
DGND
CVBS1+
R152
NC
YPBPR0_IN_R
6
AV1_IN_L
6
CVBS_OUT
CVBS0-
YPBPR0_L
Q105
PMBS3904
SV IN
CVBS0+
6
CVBS1+
YPBPR0_Y
AV0_IN_R
DGND
DGND
YPBPR1_PB
ZD121
NC
1
2
MUTE_AVOUT
ZD119
NC
1
2
DGND
YPBPR0_IN_L
YPBPR0_PR
DGND
FB103
121 OHM
1
2
R172
4.7K 1/10W
R162
100K 1/10W
R164
75OHM +-5% 1/10W
DGND
FB104
600 OHM
CVBS1-
6
AVOUT_R
6
YPBPR1_Y
R139
5.1K 1/10W
AV1_IN_R
6
AVOUT_R
ZD126
MLVG0402
1
2
ZD118
NC
1
2
CN111SA
NC
2
1
4
3
6
5
YPBPR1_PR
ZD122
MLVG0402
1
2
R142
75OHM +-5% 1/10W
AVOUT_L
R150
100K 1/10W
DGND
DGND
CVBS1-
AV0_IN_L
6
AV0_IN_L
R155
NC
DGND
DGND
R165
0R05 1/10W
DGND
DGND
YPBPR1_IN_L
R145
27K 1/10W
CN123S
NC
2
1
4
3
6
5
Q102
PMBS3904
YPBPR0_Y
SV0-
C115
470P 50V
AV0_IN_L
AVOUT_R
R160
220 OHM 1/10W
DGND
YPBPR0_PR
ZD108
MLVG0402
1
2
R154
NC
AVOUT_L
6
C109
100nF 50V
YPBPR0_PR
6
30
U106
HDBF35A3DdA
1
2
3
5
4
INPUT
INPUT
GND
OUTPUT
OUTPUT
DGND
DGND
+ C131
47uF 25V
C137
10N 50V
RF_AGC
Tuner5V
5V For TUNER
DGND
R190
2.2 OHM 1/10W
DGND
R191
1K 1/10W
Q107
2SC2216
TUNER_SCL
FB106
220R/2000mA
1
2
RF_AGC#
DGND
R178
10K 1/16W 5%(NC)
R188
38.3KOHM +-1% 1/8W
C141
10uF 16V
R199
680OHM +-5% 1/10W
R175
NC
IF1N
AS
R201
0R05OHM1/16W
+
C121
100uF/16V
DGND
TUNER_SCL
+
C143
100uF/16V
TUN_GND
TUNER
TUN_5V
C119
1U25V
+5VSW
Tuner5V
TUN_5V
TUN_GND
+
C127
10uF/50V
R176
0R05 1/10W
C142
10N 50V
DGND
DGND
IF1P
6
DGND
R194
4.7K 1/10W
C125
100nF 50V
IF1P
C126
100nF 50V
R187
510 +-5% 1/10W
TUNER_IFT
L103
0.33uH 10%
IF1P
C129
100nF 50V
I2C_M0_SDA
6
RF_AGC
TUNER_IFT
TUN_GND
+12V
BYPASS IF preamp
R197
1K 1/10W 5%
AS
CLOSE TO RTD2674
I2C_M0_SDA
IF_OUT
R195
6.8kOHM +-5% 1/10W
R193
4.7K 1/10W
R181
10 OHM 1/10W
TUN_GND
+
C130
330UF 16V
R174
10 OHM 1/10W
R186
300 OHM 1/4W
TUN_GND
I2C_M0_SCL
6
TUN_GND
R198
1K2 1/10W 5%
ANT IN
TU101
F41CT-2-E
3
4
5
8
9
2
11
1
7
10
6
12
13
14
15
AS
SDA
SCL
AGC
NC
NC
NC
IF
VCC
NC
NC
TH1
TH2
TH3
TH4
R185
0R05 1/10W
+5VSW
TUN_5V
I2C_M0_SCL
TUN_GND
DGND
L104
10uH +-10%
1
2
R180
300 OHM 1/4W
2K10 42 AOC
A
*
A3
4
10
Wednesday , Nov ember 10, 2010
715G3934M0A0000040
<称爹>
03) TUNER
G3934-1D-X-X-17-101110
OEM MODEL
Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
I2C_M0_SCL
Q106
PMBS3906
1
2
3
TUN_GND
TUNER_SDA
RF_AGC#
C122
100nF 50V
L102
2.2uH
FB107
300 OHM
1
2
R189
12K1/10W
DGND
TUNER_SDA
DGND
TUN_GND
TUN_GND
DGND
IF_12V
C139
10N 50V
IF1N
C128
10uF 16V
IF1N
6
L105
0.82uH
R183
0R05OHM1/8W
DGND
R200
20R 1%
IF_OUT
FB105
300 OHM
1
2
R182
1K 1/10W
R179
0R05 1/16W(NC)
RF_AGC
6
C140
10N 50V
U105
G965-25ADJPIUF
1
2
3
4
5
6
7
8
VEN
VIN
VO
ADJ GND
GND
GND
GND
IF_12V
C138
1U25V
C123
56P 50V
I2C_M0_SDA
TUN_5V
TUN_GND
R192
1K 1/10W
R184
NC
C120
1U25V
TUN_GND
C124
56P 50V
R196
47 OHM 1/16W
31
MHDMI_SCL
HDMI1_D1+
ZD503
MLVG0402
1
2
R550
1K 1/10W
+5VSB
MHDMI_D0+
R517
10K 1/10W
R557
10K 1/10W
HDMI1_SDA#
R516
10K 1/10W
HDMI1_D0-
HDMI1_5V
HDMI2_CLK+
MHDMI_HPD
MHDMI_D2+
MHDMI_SCL
6
R523
100 OHM 1/10W
MHDMI_SDA
6
HDMI1_D2+
HDMI2_HPD#
HDMI1_5V
MHDMI_D1-
R534
10K 1/10W
DGND
HDMI1_HPD#
MHDMI_D1-
6
+5VSB
Q504
PMBS3904
2K10 42 AOC
A
*
A3
5
10
Thursday , Nov ember 11, 2010
715G3934M0A0000040
<称爹>
04) HDMI
G3934-1D-X-X-17-101110
OEM MODEL
Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
MHDMI_D2-
6
HDMI1_D0+
MHDMI_CLK+
6
MHDMI_D0-
HDMI2_D2+
HDMI1_SCL
HDMI1_SDA
HDMI_CEC
U506
NC RClamp0524P.TCT
1
2
3
4
5
6
7
8
9
10
IN1
IN2
GND
IN3
IN4
OUT4
OUT3
GND
OUT2
OUT1
HDMI2_D2-
+5VSB
DGND
MHDMI_HPD
6
HDMI2_5V
HDMI1_CLK+
R513
100K 1/10W
HDMI1_D1-
R518
NC
L501
NC
3
2
4
1
MHDMI_D0+
6
MHDMI_D1-
HDMI1_CLK-
DGND
HDMI2_SCL
6
HDMI1_CLK-
MHDMI_CLK+
HDMI_CEC#
R536
0R05 1/10W
R552
100K 1/10W
U510
NC RClamp0524P.TCT
1
2
3
4
5
6
7
8
9
10
IN1
IN2
GND
IN3
IN4
OUT4
OUT3
GND
OUT2
OUT1
HDMI2_HPD#
HDMI1_CLK+
HDMI_CEC#
L504
NC
3
2
4
1
HDMI2_SCL#
CN502
HDMI
20
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
22
23
24
TH1
TH2
D2+
D2 Shield
D2-
D1+
D1 Shield
D1-
D0+
D0 Shield
D0-
CK+
CK Shield
CK-
CE Remote
NC
DDC CLK
DDC DATA
GND
+5V
HP DET
TH3
TH4
TH5
MHDMI_D0+
HDMI1_D1+
MHDMI_HPD
HDMI2_D0+
DGND
HDMI2_SDA#
MHDMI_D1+
HDMI1_D2-
R542
NC
HDMI1_5V
HDMI_CEC
HDMI2_CLK+
HDMI2_SDA
HDMI1_D0+
HDMI_CEC#
HDMI2_D1+
HDMI1_SDA#
R514
4.7K 1/10W
ZD502
MLVG0402
1
2
MHDMI_D0-
6
HDMI1_5V
R525
NC
HDMI1_HPD
HDMI2_CLK-
DGND
HDMI1_SCL#
MHDMI_D1+
HDMI2_D0+
HDMI2_CLK+
CN506
HDMI
20
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
23
22
SHELL1
SHELL2
D2+
D2 Shield
D2-
D1+
D1 Shield
D1-
D0+
D0 Shield
D0-
CK+
CK Shield
CK-
CE Remote
NC
DDC CLK
DDC DATA
GND
+5V
HP DET
SHELL4
SHELL3
HDMI2_D2+
HDMI2_SDA
6
HDMI1_D2-
HDMI2
HDMI2_D0-
6
HDMI1_SCL
HDMI2_D0-
Q506
2N7002 / NC
MHDMI_D1+
6
HDMI1_CLK+
HDMI1_CLK-
HDMI2_D0-
MHDMI_D2-
R522
100 OHM 1/10W
HDMI2_SDA#
D503
BAT54C
3
1
2
DGND
HDMI1_CLK-
R541
1K 1/10W NC
MHDMI_SDA
R556
10K 1/10W
R526
100 OHM 1/10W
MHDMI_D0-
R524
100 OHM 1/10W
DGND
DGND
L502
NC
3
2
4
1
MHDMI_CLK+
HDMI2_CLK-
HDMI2_D1+
6
DGND
DGND
HDMI2_HPD
HDMI1_SCL#
R544
1M 1/10W NC
MHDMI_CLK-
HDMI1_D0+
HDMI2_SCL#
HDMI1_HPD#
U507
NC RClamp0524P.TCT
1
2
3
4
5
6
7
8
9
10
IN1
IN2
GND
IN3
IN4
OUT4
OUT3
GND
OUT2
OUT1
HDMI1_CE
HDMI2_D1-
6
HDMI1_D0-
HDMI2_HPD
6
HDMI1_D1-
HDMI2_CLK+
6
HDMI2_SCL
HDMI1_SDA
HDMI1_D2+
CN502S NC
7
9
4
6
1
3
15
5
18
11
19
14
2
13
16
17
8
10
12
20
21
22
23
24
25
26
TMDSD0+
TMDSD0-
TMDSD1+
TMDSD1-
TMDSD2+
TMDSD2-
SCL
DSHLD1
VCC5
CSHLD0
HPD
NC
DSHLD0
CEC
SDA
DDC_GND
DSHLD2
TMDSC+
TMDSC-
SHLD_GND1
SHLD_GND2
SHLD1
SHLD2
SHLD3
SHLD4
SHLD5
HDMI1_D2-
R511
NC
HDMI2_SCL
HDMI1_SDA#
DGND
L503
NC
3
2
4
1
U512
NC RClamp0524P.TCT
1
2
3
4
5
6
7
8
9
10
IN1
IN2
GND
IN3
IN4
OUT4
OUT3
GND
OUT2
OUT1
D501
BAT54C
3
1
2
HDMI2_5V
HDMI1_D2+
DGND
MHDMI_CLK-
6
C511
100nF 50V
HDMI2_5V
MHDMI_CLK-
HDMI1_HPD#
HDMI2_D2-
6
HDMI2_SDA
HDMI2_D1+
R507
NC
HDMI1_D0-
R551
0R05 1/10W
DGND
MHDMI_D2+
MHDMI_SDA
MHDMI（HDMI Mux）
HDMI2_HPD
DGND
HDMI1_CLK+
HDMI_CEC
6
HDMI2_CLK-
6
MHDMI_D2-
HDMI1_CE
R529
0R05 1/10W
+3V3
HDMI2_D2+
6
R512
1K 1/10W
HDMI2_D1-
HDMI1_D1+
MHDMI_SCL
U513
NC RClamp0524P.TCT
1
2
3
4
5
6
7
8
9
10
IN1
IN2
GND
IN3
IN4
OUT4
OUT3
GND
OUT2
OUT1
R553
4.7K 1/10W
C512
100nF 50V
DGND
HDMI2_D0+
6
HDMI2_D2-
Q507
PMBS3904
HDMI2_D1-
HDMI1_D1-
R558
0R05 1/10W
HDMI1_HPD
DGND
MHDMI_D2+
6
HDMI1_SCL#
R531
10K 1/10W
U509
NC RClamp0524P.TCT
1
2
3
4
5
6
7
8
9
10
IN1
IN2
GND
IN3
IN4
OUT4
OUT3
GND
OUT2
OUT1
HDMI2_CLK-
32
DGND
VGA_DDC_SDA
2
LSADC_REF
DDR_ADD1
DDR_DQ15
VGA_IN_L
R4119
100 OHM 1/10W
CVBS OUT
DGND
MHDMI_CLK-
5
DDR_DQ[15:0]
7
DDR_ADD7
USB_DM
FB415
300 OHM
1
2
R4154
NC
A1_2V
DDR_BA[1:0]
7
DDR_ADD11
DDR_ADD[12:0]
MUTE_AVOUT
LEDY
C4165
100nF 50V
C4117
47nF 50V
C4117
D3_3V
DGND
A3_3V
AIO_2R
TOAN
D1_2V
D1_2V
YPBPR0_IN_R
3
RIN+
VGA_R-
TECLKN
HDMI2_D1+
R4142
NC
R4138
0R05 1/10W
DDR
HEAD PHONE OUT
CS FB410,改接D3_3V
D1_2V
DGND
DGND
DGND
HDMI2_D2-
5
COM_Y0-
AV1_IN_L
AIN_4L
C4164
100nF 50V
C4144
47nF 50V
C4144
AMP_STB
9
DDR_ADD4
I2C_M0_SDA
TECLKP
TECLKP
R4100
10K OHM +-5% 1/10W
C4189
100nF 50V
C4163
100nF 50V
1 : Normal Mode (default)
0 : Test Mode
GIN+
2
MHDMI_D2+
5
HDMI_REXT
YPBPR0_Y
Y2+
VGA_IN_R
TEDN
RESET#
R4115
100 OHM 1/10W
R4126
0R05 1/10W
C4121
270PF50V
C4121
C4102
4U7 10V
R4110
NC
URAT_RX
2
AV1_IN_R
3
VIN14P
SPI_DO
R4156
NC
HDMI_CEC
5
DDR_WE#
7
SV0_C+
CVBS_OUT
AMP_STB
C4168
100nF 50V
VGA_G-
GIN+
PR1+
DDR_ADD0
DDR_DQ14
USB_PWR_CTRL
YPBPR1_IN_R
MHDMI_CLK+
USB_PWR_CTRL
R4153
100 OHM 1/10W
HDMI2_HPD
PLL3_3V
C4176
100nF 50V
C4179
100nF 50V
TMDS1_2V
STB1_2V
TECN
8
AIO_1L
AIO_2L
HPOUT_R
XIN
SPI_SCK
TODP
C4155
NC
C4155
TMDS1_2V
CVBS_OUT
3
YPBPR1_Y
YPBPR0_Y
CVBS0+
TOAN
C4110
47nF 50V
C4110
DGND
D3_3V
DDR_IO_2.5V
VGA_B-
MHDMI_D0-
C4101
47nF 50V
C4101
C4183
100nF 50V
R4136
0R05 1/10W
MUTE_AMP
9
AV0_IN_L
3
URAT_TX
FB403 300 OHM
1
2
D3_3V
D3_3V
AVDD_BB0
XOUT
YPBPR0_PB
YPBPR1_PB
POWER_KEY
FB407
300 OHM
1
2
DGND
TODN
8
PANEL_ON
8
BIN+
DDR_DQ0
DDR_BA[1:0]
USB_DM
TOCN
YPBPR0_IN_R
MHDMI_D1-
HDMI2_SCL
TEBP
L402
CHIP INDUCTOR 1.0uH +-10%
C4125
5pF 50V
C4125
C4190
100nF 50V
DGND
BB3_3V
MHDMI_HPD
DDR_CKE
YPBPR0_PR
HDMI2_D1-
TEDN
R4143
0R05 1/10W
DGND
HDMI2_D1+
5
BIN+
2
USB_PWR_CTRL
2
POWER_ON_LV2
10
DDR_CAS#
YPP3_3V0
YPP3_3V1
TEAN
C4158
100nF 50V
A1_2V
TEAP
8
AHS0
2
CVBS0-
HDMI2_CLK-
YPBPR0_IN_L
IF1P
MHDMI_D2+
RTD2674U
LQFP-216
E-PAD
U401
RTD2674U
216
1
5
6
7
2
3
10
11
12
13
14
15
16
17
19
18
20
22
23
24
25
26
27
28
29
30
31
32
33
34
21
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
140
141
142
143
144
145
146
147
148
149
150
151
152
153
138
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
217
4
8
9
139
AGND_BB1
VCM_BB
AIO_2L
AIO_1R
AIO_1L
AVDD_BB0_3.3V
AIN_5L/LSADC6
AIN_3R
AIN_3L
AIN_2R
AIN_2L
AIN_1R
AIN_1L
AOUT_R
AOUT_L
HPOUT_R
HPOUT_L
SCART_FSW_0
DAC_VDD_3.3V
AVOUT_1
AVOUT_2
DAC_GND
ADC2X_GND_3.3V
IF_N
IF_P
ADC2X_VDD
PLL_GND
XIN
XOUT
PLL_VDD_3.3V
CORE_1.2V
SCART_FSW_1
USB_AVDD_3.3V
HSDM
HSDP
USB_AVDD_1.2V
I2C0_SCL
I2C0_SDA
IO_3.3V
GPIO_A0/RF_AGC
GPIO_A1/IF_AGC
CORE_1.2V
O_FP
O_FN
O_EP
O_EN
O_DP
O_DN
O_CP
O_CN
O_BP
O_BN
ADDR5
ADDR6
ADDR7
ADDR8
ADDR9
ADDR11
ADDR12
CKE
DDR_IO_2.5V
CK
CK#
DM1
DDR_IO_2.5V
DDR_VREF
DQ_15
DQ_14
DQ_13
DQ_12
DQ_11
DQ_10
DDR_IO_2.5V
DQ_9
DQ_8
DQS1
CORE_1.2V
IO_3.3V
LSADC_REF
LSADC0/GPIO
LSADC1/GPIO
STBY_CORE_1.2V
GPIO_C0
GPIO_C1
GPIO_C2
GPIO_C3
GPIO_C4
RESET_IN
SPI_CS_N
SPI_SCK
SPI_DO
SPI_DI
STBY_CORE_1.2V
GPIO_C5
GPIO_C6
LSADC2/GPIO
GPIO_C8
IO_3.3V
VGA_DDC_SDA
VGA_DDC_SCL
HDDC1_SDA
HDDC1_SCL
HDDC0_SDA
HDDC0_SCL
CEC
TMDS_1.2V
TMDS_3.3V
P1_RX3N/HDMI_CLKN_1
P1_RX3P/HDMI_CLKP_1
P1_RX2N/HDMI_0N_1
P1_RX2P/HDMI_0P_1
P1_RX1N/HDMI_1N_1
P1_RX1P/HDMI_1P_1
P1_RX0N/HDMI_2N_1
P1_RX0P/HDMI_2P_1
P0_RX3N/HDMI_CLKN_0
P0_RX3P/HDMI_CLKP_0
P0_RX2N/HDMI_0N_0
P0_RX2P/HDMI_0P_0
P0_RX1N/HDMI_1N_0
P0_RX1P/HDMI_1P_0
P0_RX0N/HDMI_2N_0
P0_RX0P/HDMI_2P_0
TMDS_REXT
TMDS_1.2V
APLL_VDD_3.3V
APLL_GND
HSYNC
VSYNC
ADC_VDD_3.3V
VD_VDD_3.3V
(VGA_B)VIN_0P
VIN_0N
(VGA_G)VIN_1P
VIN1_N
(VGA_R)VIN_2P
VIN_2N
(Pb)VIN_3P
VIN_Y0N
(Y)VIN_4P
(Pr)VIN_5P
(FSC_B/Pb)VIN_6P
VIN_Y1N
(FSC_G/Pr)VIN_7P
(FSC_R/Y)VIN_8P
ADC_VDD_1.2V
VD_VDD_1.2V
VD_GND
(SV-C/FSC_CVBS)VIN_11P
VIN_A0N
(SV-Y)VIN_9P
(SV-C)VIN_12P
VIN_A1N
(CVBS/SV-Y)VIN_10P
(CVBS/SV-C)VIN_13P
VIN_A2N
(CVBS)VIN_14P
AVDD_BB1_3.3V
O_AP
O_AN
IO_3.3V
E_FP
E_FN
E_EP
E_EN
E_DP
E_DN
E_CP
E_CN
E_BP
E_BN
E_AP
E_AN
CORE_1.2V
TCON/GPIO_B0
TCON/GPIO_B2
TCON/GPIO_B3
TCON/GPIO_B4
TCON/GPIO_B5
TCON/GPIO_B6
TCON/GPIO_B7
TCON/GPIO_B8
IO_3.3V
TCON/GPIO_B9
TCON/GPIO_B10
TCON/GPIO_B12
CORE_1.2V
DQS0
DQ_7
DQ_6
DDR_IO_2.5V
DQ_5
DQ_4
DQ_3
DQ_2
DQ_1
DQ_0
DDR_IO_2.5V
DM0
WE#
CAS#
RAS#
CORE_1.2V
BA0
BA1
ADDR10
ADDR0
ADDR1
ADDR2
ADDR3
DDR_IO_2.5V
ADDR4
E-PAD
AIO_2R
AIN_4R
AIN_4L
LSADC4/GPIO
R4148
NC
RP413
60R 1/16W 5%
1
2
3
4
8
7
6
5
PANEL LVDS
D3_3V
YPBPR0_Y
3
VGA_R+
SV_Y+
DDR_CK
TECN
USB_PWR_FLAG
TECN
DGND
URAT_TX
2
YPBPR1_IN_L
3
AIO_1L
AVDD_BB0
TEBN
FB402
300 OHM
1
2
C4143
2.2UF K 25V
C4153
100nF 50V
HDMI2_D2+
5
CVBS0+
3
AIN_3R
DDR_DQ6
IF1N
YPBPR1_IN_R
A1_2V1
BL_ON_OFF
MHDMI_SDA
C4115
47nF 50V
C4115
R4149
NC
C4137
47nF 50V
C4137
C4195
22pF 50V
BB3_3V
DGND
SPI_SCK
7
DDR_DQS[1:0]
7
A1_2V0
DDR_CAS#
TOCLKP
GIN+
MHDMI_SCL
C4149
NC
C4149
R4127
100 OHM 1/10W
C4160
NC
C4160
C4109
270PF50V
C4109
SPI_CLK(TEST
mode Enable)
YPBPR0_PB
3
SV0_Y+
DDR_DM1
BL_ON_OFF
TEDP
R4108
NC
R4146
NC
R4151
10K OHM +-5% 1/10W
R4159
NC
AVOUT_R
3
DDR_RAS#
AIN_2L
VIN14P
C4145
100nF 50V
C4128
47nF 50V
C4128
C4108
NC
STB1_2V
POWER_ON_LV1
10
LEDG
C4147
5pF 50V
C4147
R4163
4.7K 1/10W
DGND
D3_3V
TOAP
8
AHS0
HDMI_CEC
HPOUT_L
R4129
100 OHM 1/10W
C4182
100nF 50V
DGND
MHDMI_HPD
5
SV0-
3
AVS0
AMP_STB
FB408
300 OHM
1
2
C4107
47nF 50V
C4107
DGND
R4128
0R05 1/10W
C4154
NC
C4154
C4157
100nF 50V
C4134
47nF 50V
C4134
C4167
100nF 50V
DGND
TMDS1_2V
USB_DM
2
LSADC1
8
DDR_DQ4
DDR_ADD12
I2C_M0_SCL
FB401
300 OHM
1
2
C4171
100nF 50V
CVBS & SV IN
MHDMI_D1-
5
DDR_RAS#
7
VGA_B-
XOUT
MUTE_AMP
HPOUT_R
DDR_CKE
R4103
NC
C4126
47nF 50V
C4126
Component Video
A3_3V
USB_PWR_FLAG
2
HDMI2_D2-
HDMI_SEL
TOBP
L404
CHIP INDUCTOR 1.0uH +-10%
C4184
100nF 50V
C4170
100nF 50V
R4166
4.7K 1/10W
VGA_G+
AIN_4R
POWER_ON_LV1
VDAC3_3V1
FB422
300 OHM
1
2
1 : Disable (default)
0 : Enable
D3_3V
MHDMI_D2-
5
MHDMI_CLK+
5
SV0_C+
3
AIO_2R
TODN
TOBN
8
VIN10P
POWER_KEY
AV1_IN_L
CVBS1-
PANEL_ON
R4165
4.7K 1/10W
Power On Latch (POL)
DDR_DQ5
TODP
SV0_Y+
SPI_WP
U405
NC
1
2
3
GND
RESET
Vcc
DGND
YPBPR0_PR
3
LEDY
8
L_SEN
8
AV0_IN_L
Y2+
DDR_BA0
TOCP
TEBN
FB416
300 OHM
1
2
I2C
DGND
DGND
DDR_IO_2.5V
VGA_B+
VGA_G+
DDR_DQ7
SPI_DI
VDAC3_3V0
URAT_TX
R4162
NC
C4177
100nF 50V
DDR_DM[1:0]
MHDMI_D2-
TOCP
DGND
HDMI2_D0+
5
SPI_SCK
AOUT_L
X401
27MHz
1
2
SPI FLASH
DDR_IO_2.5V
SPI_DI
7
AVOUT_L
MHDMI_CLK+
HPOUT_R
9
TOCP
8
Y1+
VIN13P
AVDD_BB1
PB2+
HPOUT_JD
R4152
0R05 1/10W
DGND
HPOUT_L
9
DDR_ADD2
PB2+
DDR_DQ10
BL_ON_OFF
BIN+
AV0_IN_L
R4150
4.7K 1/10W
RP414
60R 1/16W 5%
1
2
3
4
8
7
6
5
YPBPR1_IN_R
3
YPP3_3V0
URAT_RX
AHS0
HDMI2_D0-
AV1_IN_R
UART
IRRX
CVBS1+
3
AIN_4R
LEDY
SPI_WP
C4106
47nF 50V
C4106
POWER_KEY
8
USB_1V2
VIN13P
I2C_M0_SCL
R4122
0R05 1/10W
R4145
NC
C4150
NC
C4150
2K10 42 AOC
A
*
A2
6
10
Wednesday , Nov ember 10, 2010
715G3934M0A0000040
<称爹>
05) RTD2674
G3934-1D-X-X-17-101110
OEM MODEL
Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
DDR_CK
7
I2C_M0_SCL
4
AIN_1R
DDR_ADD3
C4130
5pF 50V
C4130
R4191
NC
SPI_DO(PLL Enable)
D1_2V
TOCLKN
8
AVS0
2
HDMI2_SCL
5
R4158
NC
RIN+
2
YPBPR1_PR
FB406
300 OHM
1
2
C4104
270PF50V
C4104
A3_3V
LEDG
R4161
NC
C4152
NC
C4152
R4192
4.7K 1/10W
C4191
1U25V
DGND
DDR_IO_2.5V
MHDMI_D1+
5
COM_A2-
HDMI_CEC
DDR_DQ13
AIN_1R
Pr1+
VGA_DDC_SDA
LSADC1
DDR_CK
AOUT_L
MHDMI_D2+
C4156
100nF 50V
LSADC
IF DEMOD
SPI_DO
SPI_DI
AMP_STB
HDMI2_D0+
R4123
0R05 1/10W
R4212
4.7K 1/10W
C4161
100nF 50V
Close to RTD2674
DGND
BB3_3V
LEDG
DDR_DQ2
RP412
60R 1/16W 5%
1
2
3
4
8
7
6
5
R4133
100 OHM 1/10W
C4139
47nF 50V
C4139
CVBS0-
3
VIN11P
AVOUT_R
HDMI2_D2+
TECLKN
TOCLKP
R4130
NC
C4123
4U7 10V
DGND
STB1_2V
PB1+
PLL3_3V
PB1+
SV0_Y+
3
RP411
60R 1/16W 5%
1
2
3
4
8
7
6
5
DGND
A3_3V
TECP
8
TOCN
8
DDR_BA0
LSADC1
C4166
100nF 50V
C4141
5pF 50V
C4141
FB417
300 OHM
1
2
C4133
5pF 50V
C4133
R4147
NC
AVOUT_L
3
CVBS1+
AV0_IN_R
CVBS_OUT
VGA_DDC_SDA
TEAP
RIN+
YPBPR1_Y
R4106
NC
C4124
47nF 50V
C4124
C4122
4U7 10V
FB409
300 OHM
1
2
SPI_CS#
7
IRRX
8
YPBPR1_PR
3
TOAP
C4100
100nF 50V
C4103
NC
DGND
DGND
FB414
300 OHM
1
2
DDR_IO_2.5V
DDR_ADD[12:0]
7
SPI_WP
7
MHDMI_SDA
C4175
100nF 50V
C4114
270PF50V
C4114
FB405
300 OHM
1
2
MUTE_AVOUT
3
VGA_B+
RESET#
DDR_DQ[15:0]
HPOUT_JD
FB412
300 OHM
1
2
C4140
47nF 50V
C4140
C4135
4U7 10V
DGND
A3_3V
MHDMI_SDA
5
IF1N
4
AIN_3L
COM_A1-
SPI_SCK
LSADC_REF
DDR_DQ11
SV0-
R4120
0R05 1/10W
DGND
DDR_ADD9
AIN_3L
YPP3_3V2
MHDMI_HPD
YPBPR1_PB
POWER_ON_LV2
L_SEN
HDMI2_D1-
5
MHDMI_D0-
5
YPBPR0_IN_L
COM_A1-
TEBP
C4172
100nF 50V
RESET Cir.
DGND
BL_ON_OFF
10
AIO_1R
TODN
VGA_IN_R
2
VGA_G-
AIN_1L
YPBPR1_IN_L
R4107
49.9 OHM +-1% 1/10W
R4160
10K 1/10W
C4116
47nF 50V
C4116
L401CHIP INDUCTOR 1.0uH +-10%
R4121
100 OHM 1/10W
DGND
DGND
I2C_M0_SDA
4
SPI_CS#
AVOUT_L
R4134
0R05 1/10W
FB404 300 OHM
1
2
HDMI
DGND
USB_DP
2
TECLKP
8
SPI_DO
7
HDMI2_CLK-
5
MHDMI_D2-
DGND
DGND
IF1P
4
AVOUT_R
VDAC3_3V1
BL_PWM
DDR_RAS#
URAT_RX
MHDMI_D0+
MHDMI_D0+
PANEL_ON
TEDN
8
HDMI_SEL
DDR_ADD6
VGA_DDC_SCL
SV0_C+
MHDMI_D1+
HDMI2_SDA
C4185
100nF 50V
R4155
NC
C4181
100nF 50V
DDR_CKE
7
COM_A2-
SPI_CS#
IRRX
C4146
NC
R4104
NC
R4111
NC
TMDS3_3V
AOUT_R
9
LEDG
8
VGA_R-
YPBPR0_IN_R
HDMI2_SCL
L_SEN1
R4167
10 OHM 1/10W
IF1P
YPP3_3V2
L_SEN1
R4140
NC
C4174
100nF 50V
A3_3V
DDR_DQS0
AIO_2L
C4178
100nF 50V
DGND
DDR_DQ12
TOBP
VGA_IN_R
CVBS0-
C4193
100nF 50V
R4137
100 OHM 1/10W
SPI_CS#(SPI_EJTAG_EN)
DGND
BL_PWM
10
AV1_IN_R
AIN_1L
TOAP
YPBPR0_PB
YPBPR1_PR
C4194
22pF 50V
TMDS3_3V
MUTE_AVOUT
DDR_ADD5
AIN_3R
MHDMI_D1-
HDMI2_D1-
R4164
4.7K 1/10W
C4188
100nF 50V
C4112
4U7 10V
R4131
NC
L403
CHIP INDUCTOR 1.0uH +-10%
DGND
DGND
DDR_IO_2.5V
VIN14P
DDR_WE#
D1_2V
HDMI2_HPD
5
AOUT_L
9
SV_Y+
COM_A0-
HDMI2_D0+
TOBN
USB_DP
MHDMI_D0-
R4170
NC
Pin 154 (Boot mode)
VGA_DDC_SCL
2
DDR_CK#
7
DDR_DQ9
TEDP
R4114
0R05 1/10W
C4187
10uF 16V
TMDS3_3V
D1_2V
DDR_DQ8
HDMI2_D2-
C4162
100nF 50V
D3_3V
TOAN
8
URAT_TX
DDR_VREF
DDR_ADD8
RF_AGC
TOCN
R4139
100 OHM 1/10W
C4131
47nF 50V
C4131
R4118
0R05 1/10W
FB413300 OHM
1
2
C4192
1U25V
1 : Flash boot
0 : ROM boot (default)
HDMI_REXT
PR2+
DDR_BA1
SPI_DO
DDR_CK#
BL_PWM
USB_PWR_FLAG
HDMI2_D0-
C4119
NC
USB
RF_AGC
4
AIN_4L
I2C_M0_SDA
AVS0
C4113
4U7 10V
C4129
4U7 10V
R4168
6.2K 1/10W
+3V3
MUTE_AMP
AIN_2R
VIN10P
VGA_IN_L
HDMI2_HPD
C4142
1U25V
GPIO
TOCLKP
8
SV_C+
XIN
USB_DP
AOUT_R
HDMI2_D2+
C4120
NC
R4125
100 OHM 1/10W
DGND
DGND
USB_3V3
USB_1V2
C4132
47nF 50V
C4132
R4102
NC
DDR_ADD10
SPI_CS#
MUTE_AVOUT
R4144
100 OHM 1/10W
C4196
4U7 10V
MHDMI_D0+
5
HDMI2_D0-
5
AV1_IN_L
3
DDR_DQ3
CVBS0+
DDR_CK#
HDMI2_CLK+
TEAN
R4124
0R05 1/10W
C4169
100nF 50V
CVBS OUT AUDIO OUT
HDMI2_CLK+
5
TOBP
8
TECLKN
8
VGA_R+
SV_C+
COM_A0-
HDMI2_D1+
HDMI2_CLK-
C4111
47nF 50V
C4111
R4216
4.7K 1/10W
C4105
4U7 10V
TEBN
8
TODP
8
DDR_CAS#
7
CVBS1-
3
COM_Y0-
MHDMI_D1+
TOBN
R4215
4.7K 1/10W
R4112
0R05 1/10W
RP415
60R 1/16W 5%
1
2
3
4
8
7
6
5
R4101
49.9 OHM +-1% 1/10W
DGND
DGND
HPOUT_JD
9
DDR_WE#
AVDD_BB1
TEAP
TOCLKN
R4109
49.9 OHM +-1% 1/10W
C4118
47nF 50V
C4118
FB411
300 OHM
1
2
D3_3V
MHDMI_SCL
5
HDMI2_SDA
5
RF_AGC
A1_2V0
LEDY
C4127
4U7 10V
R4105
49.9 OHM +-1% 1/10W
DDR_IO_2.5V
AIO_1R
PR2+
MHDMI_CLK-
C4186
100nF 50V
VGA_IN_L
2
AV0_IN_R
3
YPBPR1_PB
3
YPBPR0_IN_L
3
CVBS1-
DDR_DQ1
TOCLKN
YPBPR1_IN_L
PANEL_ON
PANEL_ON_LV1
MHDMI_CLK-
L_SEN
C4180
100nF 50V
AUDIO OUTPUT For AV OUT
TEDP
8
DDR_DM[1:0]
7
COM_Y1-
DDR_DQS1
IRRX
POWER_ON_LV1
AIN_2R
AV0_IN_R
MUTE_AMP
PANEL_ON_LV2
L_SEN1
C4151
47nF 50V
C4151
R4132
0R05 1/10W
CLASS D AMP
DDR2_5V
A1_2V1
TEAN
8
VIN11P
SV0-
URAT_RX
AOUT_R
DDR_DQS[1:0]
HDMI2_CLK+
YPBPR0_PR
CVBS1+
C4173
100nF 50V
R4157
NC
A1_2V
DGND
AIN_2L
YPP3_3V1
USB_3V3
VDAC3_3V0
TECP
MHDMI_SCL
POWER_ON_LV2
R4135
100 OHM 1/10W
C4138
5pF 50V
C4138
D1_2V
YPBPR1_Y
3
HPOUT_L
C4136
4U7 10V
1 : Enable (default)
0 : Disable
DDR_VREF
DGND
COM_Y1-
R4113
100 OHM 1/10W
TEBP
8
DDR_DM0
Y1+
VGA_DDC_SCL
HDMI2_SDA
IF1N
TECP
R4169
15K +-1% 1/10W
BB AUDIO
33
DDR_DM0_
DDR_DQ4
DDR_WE#
DDR_ADD4_
R4179
120OHM 1/10W
SPI FLASH
D3_3V
DDR_DQS[1:0]
6
DDR_ADD8
SPI_WP
DDR_DQ2_
SPI_SCK
DDR_DQ15_
DDR_ADD12_
DDR_DQ15_
DDR2_5V
DDR_CK#_
SPI_CS#
6
DDR_ADD5
DDR_ADD10
SPI_DI
DDR_CK#
DDR_ADD3
EEPROM
2K10 42 AOC
A
*
A3
7
10
Wednesday , Nov ember 10, 2010
715G3934M0A0000040
<称爹>
06) DDR/SPI FLASH/EEPROM
G3934-1D-X-X-17-101110
OEM MODEL
Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
DDR_CK
DDR_ADD4_
DDR_BA0_
DDR_ADD10_
DDR_DQ10_
RP403
22 OHM +-5% 1/16W
1
2
3
4
8
7
6
5
R4174
22 OHM 1/10W
DGND
DGND
SPI_DI
6
DDR_CK_
/CS
SPI_WP
C4200
100nF 50V
C4209
10uF 16V
R4182
22 OHM +-1% 1/10W
DDR_CAS#
DDR_DQ10_
DDR_DM[1:0]
DDR_ADD6
DDR_DQ7
DDR_BA0
DDR_DQS1_
DDR_ADD[12:0]
6
DDR_BA[1:0]
6
SPI_HOLD
DDR_RAS#
RP408
22 OHM +-5% 1/16W
1
2
3
4
8
7
6
5
DDR_DQ8_
SPI_HOLD
C4203
100nF 50V
DDR_DQS0_
DDR_WE#
6
DDR_DQ8
DDR_ADD2_
DDR_RAS#_
DDR_CKE
6
R4171 22 OHM 1/10W
EEPROM(NC)
DDR_ADD12
DDR_ADD2
DDR_ADD5_
DDR_DQ4_
DDR_DQ9_
DDR_DQ2_
DGND
DDR_CK
C4199
100nF 50V
DDR_DQ4_
SPI FLASH
DGND
DDR_DQ6
U402
IC H5DU2562GTR-FAC TSOPII-66
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
VDD
DQ0
VDDQ
DQ1
DQ2
VSSQ
DQ3
DQ4
VDDQ
DQ5
DQ6
VSSQ
DQ7
NC
VDDQ
LDQS
NC
VDD
NC
LDM
WE
CAS
RAS
CS
NC
BA0
BA1
AP/A10
A0
A1
A2
A3
VDD
VSS
A4
A5
A6
A7
A8
A9
A11
A12
NC
CKE
CLK
CLK
UDM
VSS
VREF
NC
UDQS
VSSQ
NC
DQ8
VDDQ
DQ9
DQ10
VSSQ
DQ11
DQ12
VDDQ
DQ13
DQ14
VSSQ
DQ15
VSS
DDR_DQS1
DDR_ADD11_
DDR_ADD9_
DDR_WE#
DDR_ADD11_
DDR_BA0_
DGND
DDR_BA[1:0]
DDR_RAS#_
DDR_CAS#_
DDR_CKE_
SPI_DO
DDR_DQ8_
DDR_ADD9
DDR_DQ7_
DDR_ADD9_
DDR_DQ3
DGND
DDR2_5V
C4210
10uF 16V
C4201
100nF 50V
DDR_DM1
DDR_DQ13_
SPI_WP
SO
DDR_DQ11
DDR_DQ0
DDR_BA1_
U403
MX25L3205DMI-12G
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
HOLD
VCC
NC
NC
NC
NC
CS
SO/SIO1
WP
GND
NC
NC
NC
NC
SI/SIO0
SCLK
DGND
SI
R4178
4.7K 1/10W
D3_3V
RP405
22 OHM +-5% 1/16W
1
2
3
4
8
7
6
5
DDR_VREF
SPI_DO
6
SPI_SCK
DDR_DQ6_
DDR_DQ14_
RP410
22 OHM +-5% 1/16W
1
2
3
4
8
7
6
5
DGND
DDR_RAS#
DDR_BA1
DDR_ADD4
SPI_DO
R4177 22 OHM 1/10W
DDR_ADD0
R4172
22 OHM +-1% 1/10W
DDR_ADD3_
DDR_CK_
DDR_DQ12_
DDR_CKE
DDR_DQ10
DDR_CKE
DDR_DQ14
R4180
1K 1/10W
DDR
DDR_DQ1_
U404
NC
1
2
3
4
8
7
6
5
/CS
DO
/WP
GND
VCC
/HOLD
CLK
DI
C4204
100nF 50V
DDR_DQ2
DDR_ADD[12:0]
DDR_WE#_
DDR_DQ9
DDR_DQ13
CL
DDR_ADD7_
CL
DDR_ADD1
DDR_DQ11_
SPI_WP
6
DDR_DQ5_
RP409
22 OHM +-5% 1/16W
1
2
3
4
8
7
6
5
DDR_DQ15
RP407
22 OHM +-5% 1/16W
1
2
3
4
8
7
6
5
DDR_DQ0_
DDR_BA1_
DDR_DQ5
SPI_SCK
6
DDR_DQS1_
DDR2_5V
DDR_RAS#
6
DDR_CKE_
DDR_DM0_
DDR_ADD8_
DDR_DQ[15:0]
DDR_ADD0_
SPI_CS#
DDR_DQ5_
DDR_DQS[1:0]
DDR_DQ11_
DDR_DQ13_
DDR_WE#_
DDR_ADD1_
DDR_ADD8_
DDR_DQ12
DDR_ADD12_
C4207
100nF 50V
DGND
DDR_DQ14_
DDR_DQ1_
DDR_CK#
6
SPI_CS#
R4176
1K 1/10W
DDR_CK
6
DDR_DM0
DDR_ADD6_
RP404
22 OHM +-5% 1/16W
1
2
3
4
8
7
6
5
DDR_CAS#
6
DDR_DQ6_
C4206
1U25V
DDR_DM[1:0]
6
DDR_ADD3_
RP401
22 OHM +-5% 1/16W
1
2
3
4
8
7
6
5
RP402
22 OHM +-5% 1/16W
1
2
3
4
8
7
6
5
DDR_DQ3_
SPI_DI
SI
C4211
100nF 50V
DDR_DQS0
DDR_DQ0_
+
C4205
100uF/16V
D3_3V
DDR_ADD6_
C4202
100nF 50V
DDR_DQ[15:0]
6
DDR_ADD7
DDR_ADD10_
预留
DDR_ADD7_
DDR_CAS#_
DDR_ADD2_
SO
C4198
100nF 50V
C4197
100nF 50V
DDR_CAS#
DDR_DQ9_
DDR_ADD0_
DDR_DM1_
DDR_DQ1
DDR_ADD1_
DDR_DQS0_
R4173
4.7K 1/10W
R4175
22 OHM 1/10W
DDR2_5V
DDR_DQ3_
DDR_DQ12_
DDR_ADD5_
DDR_CK#
DDR_DQ7_
/CS
DDR_DM1_
DDR_ADD11
C4208
100nF 50V
DDR_CK#_
RP406
22 OHM +-5% 1/16W
1
2
3
4
8
7
6
5
34
LEDY
LEDG
IRRX1
POWERKEY
C4214 100pF 50V
LED-Y
TEDP
TECLKP
TEAP
TECP
TEBP
1
2
FB418
300 OHM
DGND
LSADC1
R4195
4.7K 1/10W
POWER
R4194
4.7K 1/10W
C4215 100pF 50V
C4217 100pF 50V
C4216 100pF 50V
C4213 100pF 50V
C4218 100pF 50V
TOCP
TOBP
TOAP
TODP
TOCLKP
DGND
PANEL POWER:
1: OFF
0: ON
Wednesday , Nov ember.10,2010
1
2
FB424
NC
D3_3V
LVDS
C4221
100nF 50V
+5VSB
1
2
ZD401
RLZ5.6B
POWER_KEY
LEDY
6
IRRX
6
LSADC1
6
LSADC1
IR/KEY
LEDY
IRRX
DGND
PANEL_VCC
D3_3V
1
2
3
Q401
PMBS3906
D3_3V
POWER
1
2
FB425 300 OHM
DGND
DGND
R4200
NC
TECN
TEBN
TECLKN
TEDN
TEAN
LED-G
R4201
NC
L_SEN
1
2
FB426 300 OHM
1
2
3
Q402
PMBS3906
1
2
ZD402
RLZ5.6B
PANEL_ON
R4202
10K 1/10W
DGND
R4205
120K +-5% 1/10W
1
2
3
4
5
6
7
8
9
10
11
12
13
CN401
CONN
R4116
0R05 1/10W
R4203
100K 1/10W
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
CN405
CONN
PANEL_ON
TOAN
PANEL
TEBN
TOBN
TEDP
TOCLKP
TODN
TECP
TOAP
TOCLKN
TOBP
TOCP
TECN
TOCN
TEAN
TEAP
TEDN
TECLKP
TEBP
TODP
TECLKN
TEAN
6
TEAP
6
TEBP
6
TOCLKN
6
TECLKP
6
Pin01: LED-G
Pin02: LED-Y
Pin03: IRRX1
Pin04/7: GND
Pin05: POWER
Pin06/08/11/13: NC
Pin09: KEY1
Pin10: POWERKEY
Pin12: L_SEN
TOBP
6
TECN
6
TECLKN
6
TOCN
6
TEDN
6
TOCLKP
6
TEBN
6
TOAP
6
TODN
6
TOAN
6
+5VSB
TECP
6
TOCP
6
TOBN
6
TEDP
6
TODP
6
R4207
4.7K 1/10W
Q405
PMBS3904
R4208
4.7K 1/10W
S
1
S
2
S
3
G
4
D
8
D
7
D
6
D
5
Q404
AO4449 -7A/-30V
+5VSB
Q406
PMBS3904
+12V
R4206
NC
LEDG
6
LEDG
1
2
ZD403
RLZ5.6B
1
2
FB419
NC
IR & KEYPAD CONNECTOR:
PANEL_VCC
TOCLKN
TOCN
TOBN
TOAN
TODN
R4188 1K 1/10W
DGND
C4224
100nF 50V
DGND
DGND
D3_3V
1
2
FB427 300 OHM
1
2
FB423
120R/6000mA
POWER_KEY
6
LED-Y
L_SEN
6
L_SEN
KEY1
R4189
2.2K 1/10W
+
C4222
100uF/25V
PANEL_ON
6
R4190
4.7K 1/8W
R4117 0R05 1/10W
C4223
100nF 50V
R4193 1K 1/10W
IR & KEYPAD CONNECTOR
POWERKEY
KEY1
1
2
FB420
120R/6000mA
IRRX
POWER_KEY
PANEL_VCC
R4209
NC
R4204
47K +-5% 1/10W
R4210
NC
IRRX1
DGND
PANEL_VCC
C4219
NC
1
2
ZD404
NC
LED-G
1
2
FB421
NC
OEM MODEL
Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
2K10 42 AOC
A
*
A3
8
10
715G3934M0A0000040
<称爹>
07) LVDS/IR/KEY
G3934-1D-X-X-17-101110
35
C610
10uF 25V
SH603
R613
10K 1/10W
SGND
HPOUT_JD
6
SGND
R617
1K 1/10W
C608
1U25V
R614
10K 1/10W
AMP_STB
6
C621
0.47uF 50V
AMP
DGND
PGND
SH602
+
C602
470UF35V
SGND
SGND
AOUT_R
AMP_STB
C603
100nF 50V
C612
NC
�I2732797000031
22uH +-25%
R612
10K 1/10W
PGND
SGND
SGND
AOUT_L
R615
27K 1/10W
HPOUT_R
ZD601
MLVG0402
1
2
2K10 42 AOC
A
*
A3
9
10
Wednesday , Nov ember 10, 2010
715G3934M0A0000040
<称爹>
08) AMP/HP
G3934-1D-X-X-17-101110
OEM MODEL
Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
SGND
PGND
C617
100nF 50V
CN602
PHONEJACK
1
7
6
2
3
4
5
C627 100nF 50V
MUTE5V
SGND
HPOUT_R
6
C604
100nF 50V
C607
0.47uF 50V
SGND
R604
1K 1/10W
R601
270K 1/10W
SGND
SGND
C628 100nF 50V
R610
47K +-5% 1/10W
R618
1K 1/10W
SGND
DGND
HEADPHONE
R611
10K 1/10W
+
C624
100uF/16V
MUTE_AMP
6
AMP_STB
MUTE5V
SGND
24V_AMP
R606
16.2K1/10W
AOUT_R
C614
10uF 25V
DGND
SGND
AOUT_L
6
C605
100nF 50V
24V_AMP
SGND
R605
NC
DGND
HPOUT_L
6
L601
22uH +-25%
C620
100nF 50V
C613
NC
SGND
Q602
PMBS3904
SGND
PGND
AOUT_R
6
R607
33KOHM 1/10W
C601
100nF 50V
C618
1U25V
MUTE_AMP
HPOUT_L
+
C625
100uF/16V
+
C619
470UF25V
C611
100nF 50V
HEADPHONE
AOUT_L
C622
100nF 50V
+5VSB
C609
10uF 25V
ZD603
MLVG0402
1
2
SGND
SGND
SGND
MUTE_AMP
R602
4.7K 1/10W
C616
1uF 50V
SGND
R608
16.2K1/10W
C615
10uF 25V
Q603
PMBS3904
Q601
PMBS3906
1
2
3
SGND
R616
10K 1/10W
R609
NC
+
C606
470UF25V
SGND
HPOUT_R
HPOUT_JD
+24V
SGND
SGND
U602
R2A15112FP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
OUT1
OUT1
NC
VD1
VD1
NC
NC
NC
NC
STBYL
GAIN1
IN1
CBIAS
ROSC
AVCC
GND
NC
NC
NC
NC
NC
CLOCK
VREF
PROT
IN2
GAIN2
MUTEL
NC
NC
NC
NC
VD2
VD2
NC
OUT2
OUT2
NC
VS2
VS2
NC
HB2
DVDD
NC
HB1
NC
VS1
VS1
NC
TGND
SGND
SGND
HPOUT_L
+
C623
100uF/16V
CN601
CONN
1
2
3
4
ZD602
RLZ18B
1
2
D3_3V
SGND
SH601
HPOUT_JD
C626
1U25V
DGND
R603
47K +-5% 1/10W
SGND
36
Q703
PMBS3904
FB716
120R/6000mA
1
2
+12V
+3V3
DGND
DGND
R704
100K 1/10W
POWER/BL CONNECTOR:
POWER_ON_LV2
POWER
C719
100nF 50V
DGND
DGND
R707
47K +-5% 1/10W
C704
100nF 50V
+5VSB
DGND
DGND
C737
4.7UF 10V
R727
47KOHM +-1% 1/10W
DGND
R710
1K 1/10W
5V SWITCHER FOR STB CUT OFF
R722
NC
TMDS3_3V
DGND
C741
1N 50V
R719
4.7K 1/10W
C744
22uF 10V
DGND
DGND
Q701
PMBS3904
+
C747
220uF/16V
DGND
BL_PWM
DGND
POWER_ON_LV2
6
C717
100nF 50V
DGND
DDR2_5V
FB717
120R/6000mA
1
2
BL_PWM
L702
4.7uH
DGND
+24V
FB714
120R/6000mA
1
2
FB719
120R/6000mA
1
2
C752
22uF 10V
C706
2.2UF
R705
NC
12V
DGND
BL_ON_OFF
6
R711
4.7K 1/10W
R706
4.7K 1/10W
DGND
R713
NC
R721
10 OHM 1/10W
Pin01: BACKLIGHT ON/OFF
Pin02: BACKLIGHT PWM
Pin03: +12V
Pin04: +12V
Pin05: GND
Pin06: GND
Pin07: GND
Pin08: +24V
Pin09: +24V
Pin10: POWER ON/OFF
Pin11: +5VSTB
Pin12: +5VSTB
FB708
120R/6000mA
1
2
+
C715
220uF/16V
R732
10 OHM 1/10W
+5VSB
D3_3V
BL_PWM
6
FB707
120R/6000mA
1
2
C720
100nF 50V
+ C735
220uF/16V
C739
NC
DGND
实为1.3V
POWER_ON_LV2
R1
CN701
CONN
1
2
3
4
5
6
7
8
9
10
11
12
C742
100nF 50V
U701
G5627F11U
1
2
3
4
5
6
7
8
VCC
REF
GND
FB
EN
PGND
LX
VIN
R728
0R05 1/10W
+ C745
220uF/16V
DGND
DGND
C723
100nF 50V
FB713
120R/6000mA
1
2
POWER_ON_LV1
6
R716
NC
2K10 42 AOC
A
*
A3
10
10
Wednesday , Nov ember 10, 2010
715G3934M0A0000040
<称爹>
09) POWER
G3934-1D-X-X-17-101110
OEM MODEL
Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
POWER_ON_LV1
DGND
+
C702
100uF/25V
FB702
120R/6000mA
1
2
+5VSB
C758
1N 50V
DGND
DGND
FB718
120R/6000mA
1
2
C743
100nF 50V
C751
100nF 50V
C757
4.7UF 10V
L701
4.7uH
R715
NC
R709
4.7K 1/10W
DGND
C710
100nF 50V
C738
100nF 50V
C736
100nF 50V
U704
G1084T43Uf
2
3
1
VOUT
VIN
ADJ
+5VSW
R724
16.2K1/10W
C734
100nF 50V
C753
100nF 50V
C749
100nF 50V
Q702
AO4449 -7A/-30V
1
2
3
4
8
7
6
5
S
S
S
G
D
D
D
D
R2
Vout = 0.8x(R1+R2)/R2
+3V3
DGND
FB709
120R/6000mA
1
2
Q704
PMBS3904
DGND
C716
100nF 50V
R702
10K 1/10W
DGND
C748
100nF 50V
+ C750
220uF/16V
C703
100nF 50V
DGND
+ C718
470UF35V
BB3_3V
Q706
PMBS3904
R2
FB712
120R/6000mA
1
2
FB701
120R/6000mA
1
2
+ C701
220uF/16V
C712
100nF 50V
CLOSE TO RTD2674
+5VSB
R701
100R 1/10W 1%
C726
10uF 16V
DGND
STB1_2V
DGND
R725
NC
FB705
120R/6000mA
1
2
R712
1K 1/10W
FB715
120R/6000mA
1
2
R1
R714
4.7K 1/10W
+5VSB
FB711
120R/6000mA
1
2
+5VSW
Vout = 0.8x(R1+R2)/R2
C705
100nF 50V
1073 POWER
+5VSW
Q705
PMBS3904
+ C721
100uF/16V
U702
G5627F11U
1
2
3
4
5
6
7
8
VCC
REF
GND
FB
EN
PGND
LX
VIN
DGND
A3_3V
DGND
D1_2V
DGND
FB704
120R/6000mA
1
2
DGND
R723
51K 1/10W
FB710
120R/6000mA
1
2
R720
100R 1/10W 1%
+5VSB
A1_2V
U703
3
2
1
VIN
VOUT
GND/ADJ
R708
47K +-5% 1/10W
+5VSB
DGND
BL_ON_OFF
+ C714
100uF/16V
+3V3
A3_3V
R726
30K 1/10W 1%
+ C707
470UF16V
C713
100nF 50V
R703
10K 1/10W
R718
NC
DGND
BL_ON_OFF
POWER_ON_LV1
C732
10uF 16V
C725
100nF 50V
DGND
R717
10K 1/10W
37
6.2 电源板
32PFL1200/T3 715G3770P02W20003S
C943
47N 50V
R915
470 OHM 1/4W
D901
1N4007-E3/73
C949
100N 50V
+
C973
470uF 35V
R909
1M5 1/4W 1%
+
C933
10uF/50V
R943
10OHM +-5% 1/8W
R948
0.1 ohm
R973
100 OHM 1/4W
C976
330N 50V
1
2
t
NR901
NTCR
INV
1
COMP
2
MOT
3
CS
4
ZCD
5
GND
6
GATE
7
VCC
8
IC901
FAN6961SZ
R951
100 OHM 1/4W
R918
10KOHM +-5% 1/8W
D940
PR1007
D903
1N4148
2
1
3
4
-
+
BD901
KBJ608G
C902
680pF
R972
1.8K 1/4W
R988
1.8K 1/4W
R908
2.2 OHM 1/4W
D906
1N4148
RV901
v aristor
R9103
1M5 1/4W 1%
R9106
51K +-5% 1/8W
Q9101
2N3904S-RTK/PS
C955
220N 50V
L951
L
R916
0R12 5% 2W
C932
0.1NF2KV
D951
1N4148
C935
0.1NF2KV
R919
NC
1
2
3
4
IC950
EL817M(X)
R965
1.8K 1/4W
C912
56P 50V
R932
10OHM +-5% 1/8W
C903
680pF
1
2
4
3 L901
13mH
1
2
4
3 L902
13mH
C951
1N 500V
R926
1M 1/4W 1%
4
5
3
8
9
10
11
T902
POWER X'FMR
L980
L
R952
47 OHM 1/4W
C919
NC
R966
6.8K 1/4W
Q970
PMBS3904
R974
1K 1/4W
R987
27K 1/8W 1%
R959
NC
1
2
FB901
BEAD
R914
10KOHM +-5% 1/8W
R998
100K 1/4W
R992
100K 1/4W
R976
10K 1/4W
R9105
10KOHM +-5% 1/8W
C909
1N 50V
C957
1N 500V
+
C941
10uF/50V
R955
1K 1/8W
C921
0.1uF 50V
R9110
16.2K +-1% 1/4W
+
C937
10uF/50V
R970
100 OHM 1/4W
R993
100K 1/4W
C910
1uF/520V
1
2
3
D972
YG865C10RSC
8
7
1
2
6
5
L906
310uH
R983
1K 1/8W
R963
10KOHM +-5% 1/8W
C944
220P 50V
R923
13K 1/8W 1%
R980
NC
+
C931
R913
10 OHM +-5% 1/6W
1
2
3
D973
YG865C10RSC
R961
10KOHM +-5% 1/8W
R947
10KOHM +-5% 1/8W
BNO
1
COMP
2
NC
3
CS
4
GND
5
OUT
6
VCC
7
OVP
8
IC903
LD7523GS
+
C945
470uF 35V
C917
47N 50V
Q950
PMBS3904
R979
2KOHM +-1% 1/8W
R967
1.8K 1/4W
R933
1R 1/4W 5%
R956
1K 1/4W
R944
10KOHM +-5% 1/8W
+
C914
47uF/50V
R957
8K2 1/8W 1%
S/OCP
1
BR
2
GND
3
FB/OLP
4
VCC
5
D/ST
7
D/ST
8
IC902
A6069H
1
2
FB902
BEAD
R960
1K 1/4W
IC971
AS431AZTR-E1
R903
330K 1/4W
R996
100K 1/4W
1
2
ZD970
MTZJ T-72 30B
R971
1.8K 1/4W
C950
1N 500V
R958
7K5 1/8W +/-1%
1
2
3
4
IC951
EL817M(X)
R904
1M5 1/4W 1%
C905
470pF/250V
D905
1N4148
R921
680K OHM +-1% 1/4W
D907
IN5408
R902
330K 1/4W
R924
1MOHM +-1% 1/4W
C947
100N 50V
R912
NC
R9101
1M5 1/4W 1%
C924
0.001uF/250V
1
2
ZD9101
MTZJ T-72
C942
100N 50V
R920
680K OHM +-1% 1/4W
R981
100OHM +-5% 1/8W
C918
0.47uF 50V
1
2
3
4
5
6
7
8
9
10
11
12
13
CN902
CONN
D931
AU02Z
R945
1K 1/4W
C948
100N 50V
R906
560K 1/8W 1%
Q903
2SK4101LS
R9107
10KOHM +-5% 1/8W
1
2
ZD952
MTZJ T-72 15B
R982
1K 1/8W
R922
680K OHM +-1% 1/4W
R925
1M 1/4W 1%
R962
4.7M OHM +-5% 1/4W
R977
100 OHM 1/4W
R941
NC
C978
100N 50V
+
C953
330uF 16V
C925
470PF1KV
Q921
KTD1691/P
C913
0.1uF 50V
L
1
N
2
CN903
CONN
R984
6.8K 1/4W
L950
L
1
2
ZD930
MTZJ T-72 16B
R939
10K 1/4W
IC952
AS431AZTR-E1
R997
100K 1/4W
R969
6.8K 1/4W
R9102
1M5 1/4W 1%
R9109
100K 1/8W
R942
NC
C916
NC
D902
FMNS-1106S
C972
1N 500V
1
2
3
D950
MBRF1560CT
1
2
3
4
IC970
EL817M(X)
C907
100N 50V
C908
100N 50V
C934
100N 50V
R901
330K 1/4W
R991
100K 1/4W
+
C954
470uF 16V
+
C920
100uF M 450V
1
2
3
CN901
SOCKET
C939
10N 50V
R910
NC
F901
5A 250V
ALL NC
Q9102
2N3906S-RTK/PS
C952
1N 500V
R968
6.8K 1/4W
R978
+
C975
470uF 35V
1
2
3
4
IC9101
EL817M(X)
C904
Q901
2SK4086LS
R954
100 OHM 1/4W
1
2
3
5
4
7
6
9
10
T901
POWER X'FMR
D971
1N4148
C906
470pF/250V
R907
2.2 OHM 1/4W
R905
1M5 1/4W 1%
R994
100K 1/4W
+
C946
R946
0R36 5% 2W
R975
3K9 +-5% 1/8W
D930
PR1007
D904
IN5408
R931
2.2 OHM 1/4W
C901
C970
1N 500V
R985
13K 1/8W 1%
R9108
10KOHM +-5% 1/8W
R9111
33K +-1% 1/4W
R9104
82K 5%
R917
15K 1/8W
R950
47 OHM 1/4W
C956
100N 50V
R911
20K 1/4W
R986
1.8K 1/4W
R999
100K 1/4W
C915
220P 50V
B+_390V
+5V
VCC
B+
ACD
VCC
+5V
ACD
PS_ON
FB
FB
+24V
B+_390V
R801
B+
A5V
B+
+24V
+5V
VCC
A5V
B+_390V
VCC
PS_ON
+24V
ON/OFF
+12V
+12V
PDIM
+12V
1
2
FB903
NC
ACD
OEM MODEL
Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
PWTV9LE1GAAW
1
Custom
1
2
Tuesday , March 02, 2010
715G3770-P0D
01. POWER
G3770-POD-X-X-2-100302
38
C820
1.2nF 50V
Q805
PMBS3904
R847
1M5 +-1% 1/8W
R846
NC
R816
10K 1/8W
R817
10K 1/8W
R801
0.1 ohm
B+_390V
VS1
VS2
ZCS
ISEN
IS1
IS2
3
1
2
D808
BAV70
IS1
IS2
ZCS
VS2
VS1
IS2
VREF
VREF
IS1
R806
33KOHM +-1% 1/8W
C815
47N 50V
C808
15PF/3KV
ON/OFF
PDIM
1
2
CN802
CONN
D803
SCS0520P
D804
SCS0520P
R811
R812
1
2
CN801
CONN
10
7
5
4
1
9
T802
POWER X'FMR
R813
R808
33KOHM +-1% 1/8W
R843 680 OHM 1% for HD
R843 470 OHM 1% for FHD
Q802
AOTF12N50
Q804
PMBS3904
VP1
ENA
2
6
4
7
T801
POWER X'FMR
OEM MODEL
Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
PWTV9LE1GAAW
1
A3
2
2
Tuesday , March 02, 2010
715G3770-P0D
02.INVERTER BOARD
G3770-POD-X-X-2-100302
R801
R810
680K
C801
1uF/450V
R802
100 OHM 1/8W
R831
NC
R833
3.3MOHM +-1% 1/4W
R838
10K 1/4W
3
1
2
D807
BAV70
C812
1N 50V
R837
100K 1/8W
R836
1K 1/4W
R832
75K 1/4W
C802
1uF/450V
R841
51K +-5% 1/8W
C807
1N5 50V
C817
0.22uF 50V
D805
1N4148
D806
1N4148
D801
SCS0520P
C811
0.1uF 50V
R822
10KOHM +-5% 1/8W
D802
SCS0520P
R825
10KOHM +-5% 1/8W
1
2
4
3
T803
3mH
C819
2.2U25V
R820
51K +-5% 1/8W
R840
1M 1/8W
R835
75K 1/4W
R843
470 OHM 1/4W
R839
150K 1/4W 5%
C806
15PF/3KV
R844
10KOHM +-5% 1/8W
R807
51K +-5% 1/8W
R805
51K +-5% 1/8W
Q803
RK7002FD5T116
R804
51K +-5% 1/8W
R809
51K +-5% 1/8W
R830
10KOHM +-5% 1/8W
C804
0.001uF/1KV
C831
1uF 25V
C821
15N 50V
C830
1uF 25V
R834
DRV1
1
GND
2
ZCS
3
RT1
4
CT
5
LCT
6
PDIM
7
VSEN
8
ISEN
9
SSTCMP
10
TIMER
11
ADIM
12
ENA
13
VREF
14
VIN
15
DRV2
16
IC801
OZ9976GN-C-0-TR
R842
75k+/-5%
Q801
AOTF12N50
R821
2K 1/8W
R803
100 OHM 1/8W
C818
4N7 50V
C805
2.2U25V
ISEN
R824
2K 1/8W
C813
330P 50V
R826
1M 1/8W
R814
100 OHM 1/8W
+
C810
100uF 50V
C814
NC
C809
1N5 50V
R823
1M 1/8W
C816
2U2 25V
R815
NC
+12V
DR2
DR1
C803
0.001uF/1KV
VREF
DR2
DR1
R810 R811 R812 R813 33R 1% 1206 FOR HD
R810 R811 R812 R813 27R 1% 1206 FOR FHD
R845
NC
39
42PFL1300/T3 715G3760P01W20003M
!
L950
3.5uH
Vcc_2
IC971
AS431AZTR-E1
Q950
PMBS3904
PWTV9QCCMAAN
D
Custom
1
2
Monday , March 01, 2010
715G3760P01W20003M
ODM MODEL
01.POWER
G3760-P0D-W30-X-1-100301
OEM MODEL
Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
R979
NC
D955
1N4148
R9404
100K 1/4W
!
R970
100 OHM 1/4W
!
L_1
+24V
1.5A
C903
680pF
L901
20.0MH
1
4
2
3
T902
POWER X'FMR
4
5
3
7
8
9
10
11
12
+
C954
470uF/16V
D904
1N5408-P
R975
3.9K 1/8W
FB902
BEAD
1
2
C909
1N 50V
D950
SBT15006JST
1
2
3
3 OHM 7A
R949
5.1K 1/4W
ZCD
Vcc_1
C950
1N 50V
L_1
R954
100 OHM 1/8W
R9211
100K 1/4W
L904A
NC
1
2
3
5
6
7
8
9
10
11
12
R9909
NC
R955
1K 1/8W
R942
51K 1/8W
D903
1N4148
Vcc
+12V
R988
NC
+
C953
330uF 16V
D902
FMN-1106S
R915
470 OHM 1/8W
2.5A
R960
1K 1/8W
C908
0.1uF 50V
Q903
2SK4101LS
L951
3.5uH
!
C977
0.1uF 50V
HS1
HEAT SINK
1
2
L903
20.0MH
1
4
2
3
+24V
C919
NC
C942
0.1uF 50V
R9211,R9212,R9213,R9214
100K 1/4W
R983
1K 1/8W
R929
10K OHM
R974
1K 1/4W
Q970
PMBS3904
!
D930
PR1007
IC901
FAN6961
1
2
3
4
5
6
7
8
INV
COMP
MOT
CS
ZCD
GND
OUT
VCC
!
D951
FMEN210A
1
2
3
R920,R921,R922
680K 1% 1/4W
R9212
100K 1/4W
C979
0.1uF 50V
D935
PR1007
R952
100 OHM 1/4W
R901
300K 1/4W
IC970
PC123X8YFZOF
1
2
4
3
R919
NC
!
R947
5.1K 1/4W
!
R9403
100K 1/4W
R957
10KOHM +-1% 1/8W
+
C914
47uF/50V
R925
1M5 1/4W 1%
R989
NC
PS_ON
R950
100 OHM 1/4W
C943
0.1uF 50V
!
A5V
+5VS
C956
0.1uF 50V
IC951
PC123X8YFZOF
1
2
4
3
R941
NC
+
C973
470uF 35V
R943
22 OHM 1/8W
2A
R980
2KOHM +-1% 1/8W
R937
4.7 MOHM +-5% 1/4W
R924
1M5 1/4W 1%
C951
1N 50V
R904,R905,R909
1.5M 1% 1/4W
R924,R925,R926
1.5M 1% 1/4W
R903
300K 1/4W
C901
0.47UF
D901
PR1007
R971
100 OHM 1/4W
R916
0.2OHM2W
ZD902
MTZJ T-72
1
2
R958
10KOHM +-1% 1/8W
R906
510K 1/8W
+
C972
470uF 35V
R902
300K 1/4W
HS21
HEAT SINK
1
2
R972
2.2K 1/4W
R933
10 OHM 1/8W
R951
100 OHM 1/4W
C944
220pF 50V
C927
470pF/250V
C970
1N 50V
Q901
STW26NM60
2
1
3
R981
1K 1/8W
R9402
100K 1/4W
HS9
HEAT SINK
1
2
+
C959
470uF/25V
R910
NC
R944
10K 1/8W
+5VS
ZCD
R968,R969,R972,R973 2.2K 1/4W
R965,R966,r967 5.1K 1/4W
+12V
R966
5.1K 1/4W
C929
0.001uF/1KV
C910
1UF450V
!
R9907
NC
ZD951
MTZJ T-72 16B
1
2
B+_390V
R978
24KOHM +-1% 1/8W
Q921
KTD1691/P
IC902
A6069H
1
2
3
4
5
7
8
S/OCP
BR
GND
FB/OLP VCC
D/ST
D/ST
R928
100KOHM +-1% 1/8W
FB903
BEAD
1
2
C915
220pF 50V
R931
2.4 OHM 1/4W
C926
10nF
C939
0.001uF/1KV
D905
RB551V-30
1
2
C917
47N 50V
L980
3.5uH
FB_1
!
Vcc_2
Vcc_1
+
C941
10uF/50V
Q911
NC
R939
10K 1/8W
R938
10K 1/8W
+24V
+5V
R976
10K 1/8W
!
!
FB_1
+24V
C976
0.33uF 50V
!
R973
2.2K 1/4W
2
T901
POWER X'FMR
1
3
5
4
7
6
9
10
!
R970,R971 100OHM 1/4W
C970,C971 0.001uF
C913
0.1uF 50V
Vcc_1
B+
C971
1N 50V
R982
10K 1/8W
C907
0.1uF 50V
D906
RB551V-30
1
2
CN903
NC
1
2
L
N
CN902
CONN
1
2
3
4
5
6
7
8
9
10
11
12
13
R950,R951 100OHM 1/4W
C950,C951 0.001uF
R932
10 OHM 1/8W
R909
1M5 1/4W 1%
R905
1M5 1/4W 1%
+
C957
1000uF 25V
C928
0.001uF/250V
L904
170 UH
1
2
11
12
8
7
+
C975
470uF 35V
!
R961
1K 1/8W
R940
1K 1/8W
IC952
AS431AZTR-E1
R9906
51K 1/8W
R926
1M5 1/4W 1%
IC903
LD7523A
1
2
3
4
5
6
7
8
BNO
COMP
(-)LATCH
CS
GND
OUT
VCC
OVP
R917
20K 1/8W
R9905
1K 1/8W
!
R969
2.2K 1/4W
R920
680K OHM +-1% 1/4W
R912
0.2OHM2W
!
HS20
HEAT SINK
1
2
D952
FME-210B
1
2
3
IC950
PC123X8YFZOF
1
2
4
3
R987
27K +-1% 1/8W
Q905
KTA1273-Y- AT/ P
!
+
C924
100uF M 450V
ZD952
TZJ T-72 30B
1
2
D954
1N4148
R907
2.4 OHM 1/4W
ZD901
MTZJ T-72 16B
1
2
PDIM
+
C925
100uF M 450V
!
C955
220N 50V
+
C931
100uF 50V
R9214
100K 1/4W
R921
680K OHM +-1% 1/4W
R968
2.2K 1/4W
R9401
100K 1/4W
R923
13KOHM +-1% 1/8W
R946
0.33 OHM 2W
R904
1M5 1/4W 1%
F901
5A 250V
C920
10nF 50V
L_2
R953
100 OHM 1/4W
R9213
100K 1/4W
R914
10K 1/8W
Vcc
RV904
NC
R908
2.4 OHM 1/4W
C911
10NF1KV
t
NR901
NTCR
1
2
FB
RV901
NC
Vcc_1
+12V
R913
33 OHM 1/8W
IC954
NC
1
2
4
3
HS8
HEAT SINK
1
2
C912
56P 50V
R9908
NC
B+_390V
R959
150K 1/8W
R948
0.1 ohm
ACD
R930
3.9K 1/8W
FB907
BEAD
1
2
R963
10K 1/8W
FB901
BEAD
1
2
R934
1K 1/8W
R911
47K 1/8W
C978
0.1uF 50V
PS_ON
5.6B
!
C918
470N 50V
HS5
HEAT SINK
1
2
A5V
R9401,R9402,R9403,R9404
100K 1/4W
HS6
HEAT SINK
1
2
C961
1N 50V
ACD
R965
5.1K 1/4W
R945
470 OHM 1/8W
+5V
C960
1N 50V
B+
+
C933
22uF/50V
D940
PR1007
+5VS
ACD
R9907,R9908 10K
R9909 100K
R988 16.9K
R989 33K
C902
680pF
C921
0.1uF 50V
C904
0.47UF
R922
680K OHM +-1% 1/4W
ON/OFF
FB
+12V
R956
1K 1/8W
-
+
BD901
GBJ1008
2
1
3
4
C916
NC
Q910
PMBS3904
C974
0.1uF 50V
R918
10K 1/8W
+
C937
10uF/50V
+5V
L_2
C922
0.1uF 50V
CN901
SOCKET
1
2
3
40
ZCS
R806
3.3 MOHM +-5%
ON/OFF
!
D805
BAV70
3
1
2
R832
10K 1/4W
R807
240K 1/8W
!
R809
NC
R824
200 OHM 1/8W
R831
1M 1/8W
Q804
PMBS3904
DR1
R804
10K 1/8W
DR1
R814
51K 1/8W
C802
2.2U25V
IS1
C819
NC
R808
1M 1/8W
IS2
C828
680P 50V
T801
POWER X'FMR
1
4
5
6
7
9
10
R820
100K 1/8W
C923
10NF1KV
VREF
R828
68K 1/8W
R801
0.1 ohm
ISEN
!
D803
SCS0520P
1
2
R812
150K 1/8W
D804
SCS0520P
1
2
D806
1N4148
ISEN
R815
51K 1/8W
C813
4N7 50V
+
C805
100uF 50V
R833
10K 1/4W
R805
62K 1/8W
PWTV9QCCMAAN
D
B
2
2
Monday , March 01, 2010
715G3760P01W20003M
ODM MODEL
02. Inv erter Control
G3760-P0D-W30-X-1-100301
OEM MODEL
Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
C803
0.001uF/1KV
ENA
ZCS
R834
NC
C822
0.001uF/1KV
+12V
B+_390V
D802
SCS0520P
1
2
IS1
VS
R822
200 OHM 1/8W
VREF
TB
PDIM
PDIM
R818
1.2K 1/8W
Q802
AOTF12N50
CN803
CONN
1
2
T802
POWER X'FMR
1
2
3
5
6
7
8
9
10
11
12
C817
47N 50V
IC801
OZ9976GN-C-0-TR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
DRV1
GND
ZCS
RT1
CT
LCT
PDIM
VSEN
ISEN
SSTCMP
TIMER
ADIM
ENA
VREF
VIN
DRV2
FB905
BEAD
1
2
C814
2.2U25V
VS
R825
330 OHM 1/8W
C815
1.5nF 50V
Q801
AOTF12N50
Q805
PMBS3904
D801
SCS0520P
1
2
CN801
CONN
1
2
Q803
2N7002
C804
1UF450V
R811
1M5 1/4W 1%
VREF
R802
100 OHM 1/8W
TA
CN802
CONN
1
2
3
4
5
C826
680P 50V
C812
22nF 50V
R827
510 OHM +-1% 1/8W
C818
47N 50V
R810
100K 1/8W
DR2
R830
68K 1/8W
C810
4N7 50V
R829
1M 1/8W
C906
0.001uF/250V
IS2
C811
1uF 10V
C808
1N 50V
IS1
D808
R813
NC
ZCS
R803
100 OHM 1/8W
R817
1K 1/8W
R816
100 OHM 1/4W
R843
NC
C809
1uF 10V
R826
510 OHM +-1% 1/8W
IS2
C816
10nF 50V
R823
330 OHM 1/8W
C806
0.1uF 50V
TB
C801
1UF450V
TA
D807
1N4148
D809
R822,R823,R824,R825
240R 1/8W
C807
330P 50V
DR2
R819
1M 1/8W
FB904
BEAD
1
2
!
R821
10K 1/8W
41
42PFL1300/T3 715G3966P01000003H
1
2
CN8811
CONN
6
2
1
4
T8802
VS
TA
IS1
D8821
1N4148
D8820
1N4148
L
G3966-P0B-00-X-1-100121
B
C8805
330P 50V
IS2
P1
R8801
R8802
P2
D8801 1N4148
C
6
2
1
4
T8806
C8812
5pF/6KV
R8811 R8812
A
VS
C8811
5pF/6KV
6
2
1
4
T8804
6
2
1
4
T8805
6
2
1
4
T8803
IS2
C8809
6N8 50V
C8806
330P 50V
C8813
6N8 50V
C8804
5pF/6KV
D8802 1N4148
1
2
3
CN8805
CONN
C8808
5pF/6KV
3
1
2
D8819
3
1
2
D8813
C8807
5pF/6KV
P2
C
B
A
R8803
22KOHM +-1% 1/8W
R8816
22KOHM +-1% 1/8W
1
2
CN8807
CONN
L
C8810
6N8 50V
C8814
6N8 50V
R8807
1K 1/8W
IS1
C8802
220P 50V
R8813
3K6 1/8W 1%
C8803
5pF/6KV
R8817
3K6 1/8W 1%
TA
P1
OEM MODEL
Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
C
B
1
1
Wednesday , Nov ember 11, 2009
01.INVERTER
R8804
10KOHM +-5% 1/8W
R8805
100K OHM 1/8W
C8801
1N 50V
R8808
100KOHM +-5% 1/8W
ZD8801
MTZJ T-72 5.1B
VS
BAV99
100 OHM 1/8W
510 OHM 1/8W
1
2
3
4
5
CN8801
CONN
1
2
CN8803
CONN
3
1
2
D8809
3
1
2
D8815
1
2
CN8813
CONN
1
2
CN8812
CONN
6
2
1
4
T8801
42
42PFL1300/T3 715G3967P01000003S
R8853
R8856
L
B
R8855
R8851
R8854
R8852
D8851 1N4148
TB
D8852 1N4148
C
6
2
1
4
T8851
A
TB
6
2
1
4
T8852
D8853 1N4148
C8852
5pF/6KV
C8851
5pF/6KV
1
2
3
4
CN8806
CONN
A
C
B
C8858
6N8 50V
3
1
2
D8857
3
1
2
D8856
C8856
5pF/6KV
6
2
1
4
T8853
P4
6
2
1
4
T8854
C8857
6N8 50V
C8855
5pF/6KV
1
2
3
CN8808
CONN
L
C8853
6N8 50V
C8854
6N8 50V
3
1
2
D8859
6
2
1
4
T8856
P5
C8859
5pF/6KV
C8862
6N8 50V
C8860
5pF/6KV
C8861
6N8 50V
3
1
2
D8858
6
2
1
4
T8855
P5
P3
OEM MODEL
Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
C
B
1
1
Wednesday , Nov ember 11, 2009
G3967-P0B-00-X-1-100121
02.INVERTER
1
2
CN8802
CONN
1
2
CN8814
CONN
1
2
CN8815
CONN
1
2
CN8816
CONN
3
1
2
D8855
P3
P4
3
1
2
D8854
43
6.3 按键板
715G3814K02000003S
FUNC_KEY
VOL-
Power ON/OFF
77G 607 2 FD
0.47V~0.63V
C07
NC
PWR-SW
R01
7K5 1/8W +/-1%
SW03
TACT SW FWRD H1.5MM
FUNC_KEY
SW01
TACT SW FWRD H1.5MM
MENU
R03
1K8 +/-1% 1/8W
SW02
TACT SW FWRD H1.5MM
SW06
TACT SW FWRD H1.5MM
R05
750OHM +-1% 1/8W
C04
NC
C02
NC
0.85V~1.02V
C01
NC
CH-
R04
1K 1/8W 1%
SW04
TACT SW FWRD H1.5MM
R08
750OHM +-1% 1/8W
C06
NC
VOL+
CN01
CONN
1
2
3
4
6
5
1.58V~1.79V
R07
750OHM +-1% 1/8W
PWR-SW
C05
NC
Source Select
33G8032 4F HR
R02
2K7 +-1% 1/8W
SW05
TACT SW FWRD H1.5MM
1.24~1.45V
42LCD TV
A
X
Custom
2
2
Friday , January 29, 2010
715GXXXX
<称爹>
02-Keypad
G3814-1-X-X-3-100127
OEM MODEL
Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
C03
NC
CH+
2.04V~2.22V
SW07
TACT SW FWRD H1.5MM
2.48V~2.72V
44
6.4 遥控板
715G3821R02000004S
GND PIN
GND PIN
1
LED_B
ZD04
RLZ5.6B(NC)
1
2
RED
C02
NC/4.7uF/16V
R001
15K 1/10W
ZD02
RLZ5.6B
1
2
RC6 code IR receiver for Philips 32/42 Ebony
33G8032 5F HR
CN01
CONN
1
2
3
4
5
RED
BLUE
LED01
LED
1
2
3
4
LED_R
IRRV
VCC
U01 TSOP34336SB1
3
1
2
VS
OUT
GND
32 Inch TV
0.2
X
Custom
2
2
Thursday , Nov ember 11, 2010
715G3821
<称爹>
02-IR&LED
G3821-D-X-X-8-101111
OEM MODEL
Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
BLUE
ZD03
RLZ5.6B
1
2
C01
100N 50V
45
7.软体及 EDID 烧录 SOP
7.1 软体烧录 SOP
一、采用 U 盘烧录
1. 准备工作
1.1 工具：U 盘（FAT 格式为佳）；
1.2 待烧录软体，需将软体文件名更改为“fw.spi”；
2. 烧录
2.1 将待烧录文件的文件命名重命名为“fw.spi”，并拷贝到 U 盘根目录下 ；
2.2 TV AC 断电，将 U 盘插到 TV USB 接口，再插上电源线。
2.3 TV 开始升级软体，TV 为 off 状态无升级过程提示（U 盘灯闪烁表示正在升级软体），升级完后 TV 自
动开机 ，整个过程大约需要 3 分钟。
3. 进入工厂模式确认软体版本。
二、采用 PC 烧入方法
注: 仅以其他相似机种的烧录为例 (烧录方法相同)!
1、准备工作
1.1、工具：715GT0051-1-A， USB 线与 VGA 线
图 1.1
1.2、安装 USB 驱动：解压“PL-2303.zip”文件夹，安装“PL-2303 Driver Installer.exe”。
备注：此驱动只支持 Windows XP 系统，不支持 Vista、Win 7。
1.3、按图 1.1 连接烧录板，查看“我的电脑”——“属性”——“设备管理器”，确认 USB 驱动是否安装 OK，如
“ports”有下红色框提示内容，代表 USB 数据线连接 OK，记下该串口的 COM 口号；如无此提示内容，
请重新安装“PL-2303 Driver Installer.exe”。
46
图 1.3
2、烧录
2.1、解压“ISP&Debug.zip”，运行“RTICE_FLASH_ONLY.exe”，出现如图 2.1.1 提示，点击“确定”，进入图
2.1.2 界面；
图 2.1.1
图 2.1.2
47
2.2、点击如下红色“broswe”图标，加载“boot_0911.img”文件
图 2.2
2.3、点击如图 2.2 “setting”，进入如下设置界面，“COM Port Selection”选择 1.3 所记之 COM 口号，点击“OK”
确定；
图 2.3
Browse
Setting
48
2.4、插入 TV 电源，单击“TV Firmware”，当进度条上方出现“Connect……”，在进度条未跑完时拔插电源
图 2.4
2.5、TV 重现上电后，自动开始烧录 Bootcode ，烧录进度过程如下图。
图 2.5
2.6、创建超级终端：
2.6.1、到 C:\Program Files\Windows NT ，运行“hypertrm.exe”；
图 2.6.1
2.4.2 在进度条未跑完
时拔插电源
2.4.1 点击 TV
Firmware
49
2.6.2、创建“SPI 烧录”，点击“OK”；
图 2.6.2
2.6.3、进入“connect to”界面，“connect using” 选择 1.3 所记之 COM 口号，点击“OK”；
图 2.6.3
选择 1.3 所记之
COM 口号
50
2.6.4、进入“SPI 烧录 HyperTerminal”界面，“每秒位数（B）”选择“115200”，数据流控制（F）选择“无”，
具体设如下图,设置 OK 后点击“确定”完成创建
图 2.6.4
2.7、将所要烧录的软体 SPI 档命名为“fw.spi”后放置于 U 盘根目录下 ，并将 U 盘插入 TV USB 端口；
2.8、按住 PC 键盘“Esc”键，插入 TV 电源，出现如下界面：
图 2.8
51
2.9、在“”后输入命令“uu fw.spi”，然后回车；
图 2.9
2.10、在“”后输入命令“fl loader”，然后回车；
图 2.10
2.11、 当再次出现””，拔出 TV 电源线和 U 盘，软体烧录完成。
3. 进入工厂模式确认软体版本；
7.2 EDID 烧录 SOP
此机种 EDID 数据包含于 flash 软体中，无需进行单独的 EDID 烧录。
52
8.故障处理流程
无电（LED 不亮）
检测电源板 CN902 的 PIN11/12 是否有 5V 电压输出
无
有
更换电源板
检测 IR 板及 LED 灯
检测插座是否有电或硬开关是否打开
有
无
重插电源插座或开启硬开关
更换 IR 板
无法启动（LED红色）
检测电源板 CN902 的 PIN8/9 是否有 24V 电压输出
有
无
更换电源板
检测按键板的POWER键是否失灵
是
更换按键板
否
检测IR板的红外接收器U01是否失灵
是
否
更换IR板
更换主板
53
无画（LED蓝色）
检测TV是否受控，能否用遥控器或按键板开关机
是
否
更换主板
检测是否有背光
是
否
检测LVDS线是否良好
是
否
检测主板上CN405的
PIN5/6/7/8是否有12V供电
重插或更换LVDS线
是
否
更换主板
先更换主板
检测是否OK
否
更换Panel
检测主板CN701是否有BL信号
是
否
更换主板
检测电源板 CN902 的 PIN8/9 是否有 24V 电压输出
是
否
更换电源板
更换Panel
54
彩条、水波纹、画抖、画闪、
鬼影、残影、拖影等干扰
检测信号源出
信号是否正常
重新设置
信号源
是
否
检测信号线
是否良好
更换信号线
画异
是
否
检测附近是否有干扰源
是
否
排除干扰源
先更换主板
检测是否OK
否
更换Panel
TV画面雪花点、重
影、细线、条纹干扰
检测TV信号线
是否接触不良
是
否
重新连接
TV信号线
检测附近是否
有高频干扰源
是
否
排除干扰源
用场强仪检测信号强度
是否在45-100db之间，
65db左右为最佳值
是
否
更换主板
太弱：加装信号放大器
太强：减少信号放大器
或加装信号衰减器
间歇性画异加温
画异冷开机画异
检测软体版本是
否需要更新
是
否
升级软体
先更换主板
检测是否OK
否
取回站内
加温检测
55
无声或声音异常
检测信号源音频接口是否正确，或TV制式是否为DK制
是
否
重插音频接口或设置TV制式
检测TV是否被静音，调整音量大小，
或进入菜单进行复位看是否OK
否
检测主板到喇叭的连接线是否断路
是
否
更换连接线
检测喇叭阻抗是否变质
（喇叭阻抗值标在喇叭上）
是
否
更换喇叭
更换主板
收不到台或收台不全
检测软体版本是否需要更新
升级软体
是
否
用场强仪检测信号强度是否在
45-100db之间，65db左右为最佳
是
否
用别的TV测试是否能收到此台
太弱：加装信号放大器
太强：减少信号放大器或加装信号衰减
和客户说明当地TV信号未转播此台
检测此频道是否发生频
偏，尤其是使用卫星信号
是
否
是
否
建议客户重新
设置信号源
更换主板
56
异响
喇叭异响
（破音，滋滋声）
电源板，PANEL异响
检测喇叭是否变质
更换喇叭
主板功放异常
更换主板
是
否
更换电源板/PANEL
遥控失灵
检查遥控器电池是否未安置好或没电
重新安置或更换电池
用别的遥控器测试是否可用
是
否
是
否
更换遥控器
检测IR板是否异常
是
否
更换IR板
更换主板
57
OSD 不稳定或无法正常工作
按键板连接正常吗？
接好按键板
按键正常吗？
更换按键
是
否
按键板有无故障？
更换按键板
检查主板
否
是
否
是
58
9. 主要 IC 管脚及内部框图
主板 Scaler IC RTD2674U-GR
Block Diagram
59
Pin Configuration
60
功放 IC R2A15112FP
Block Diagram
Pin Configuration
61
电源板
FAN6961SZ
62
PWM IC STR- A6069H
Block Diagram
Pin Configuration
63
LD7523GS
Block Diagram
Pin Configuration
64
10. BOM
注意: 以下料件信息仅供参考，如有变更，恕不另行通知，请到 http://cs.tpv.com.cn 获取最新信息。
32PFL1200/T3 E32AGKNDWVPHNN
点位
组件
对象描述
备注
052G 1185 1
BIG TAPE(Y1200141)
052G 1186
SMALL TAPE
052G 1211 A
TASMA ALUMINIOWA
052G 1211 B
CONDUCTIVE TAPE 85MM *40MM *0.09MM
052G 2191 A
PAPER TAPE
ECN701
095G801313D906
HARNESS 13P-12P 100MM FQ91572I
ECN701
095G801313X906
HARNESS 13P-12P 100MM LCDXXTF0384
2nd source
ECN405
095G8018 3DJ75
HARNESS 30P-30P(2004) 350MM
ECN802
095G8019 3D919
HARNESS 3P-2P 300MM FQE92029I
2nd source
ECN801
095G8019 3D920
HARNESS 3P-2P 1000MM FQE92030I
2nd source
ECN802
095G8019 3X919
HARNESS 3P-2P 300MM PANELTF0016
ECN801
095G8019 3X920
HARNESS 3P-2P 1000MM PANELTF0014
098GR7BD4NCPHT
REMOTE CONTROL PHILIPS YKF230-029
0M1G 930 8 47 CR3
SCREW
0M1G 940 6120
SCREW (M4X6)
0M1G 940 10 47 CR3
SCREW
0M1G1730 6120
SCREW,42-D020523
0M1G1740 6125
SCREW 4.0X6.0
0M1G1740 8125
SCREW
0M1G1830 8120
SCREW
0Q1G 930 8 47 CR3
SCREW
0Q1G 940 14 47 CR3
SCREW
0Q1G 940 16 47 CR3
SCREW
705TQ949001
COMSUPTIVE ASS'Y-A4
705TQA34JB4
BEZEL ASS'Y 32
001G6021 1
SCREW
SP01
078G0120 9 Y
SPEAKER 6 OHM 12W 125X32MM
ECN601
095G8014 4D625
HARNESS 4P-B&R+B&W 750/550
ECN601
095G8014 4X625
HARNESS 4P-B&R+B&W 750/550
2nd source
ECN401
095G801413DH21
HARNESS 13P-5P+4P 700/750
ECN401
095G801413WH21
HARNESS 13P-5P+4P 700/750
2nd source
0Q1G1030 6120
SCREW
A33E0807 1 1C0100
LED LENS_A2
A33T1043ABV 1X0100
IR LENS
IRPFAQB2
IR BOARD G3821-D-X-X-8-101111
U01
056T 627905
IC TSOP34336SB1
CN01
033G8032 5F HR
CONNECTOR
R001
061G0603153 JY
RST CHIPR 15KOHM 1/10W YAGEO
C01
065G060310432K Y
CAP 0603 100NF 10% 50V X7R
LED01
081G 14 24 EL
CHIP LED BLUE/DARK RED
ZD02
093G 39S 24 T
RLZ 5.6B LLDS
65
ZD03
093G 39S 24 T
RLZ 5.6B LLDS
E715
715G3821R02000004M
TV IR-PCB 25X27X1.6MM FR4 1OZ DS
E715
715G3821R02000004S
TV IR-PCB 25X27X1.6MM FR4 1OZ DS
2nd source
Q34E7081AFLH7L0130
BEZEL_TV32W-10A-A7-A1
Q44T3231 21 27
EVA WASHER
Q44T3231 21 28
EVA WASHER
705TQA34JB5
REAR COVER ASS'Y_32"
A15T0282201
BKT-VESA-BTM
A34E1580ADT 6L0230
REAR COVER_32
Q12G6300253
AIO-215W-VESA RUBBER
Q36T 600 35 2 GP
NONWOVEN FABRIC
Q40G2010 42101
I/O LABLE
Q52G6025 13 20
MYLAR
705TQA34JB6
STAND ASS'Y_32"
A15T1296201
BRACKET_BASE
A34E1581ADT 1L0100
STAND HINGE -A2_32
A34E1969AFL 1L0120
BASE 32" -- -- --
Q12G6300 25 1
RUBBER FOOT
Q37T0177012ADT
2K10-32 HINGE
705TQA34JB7
KEY ASS'Y_32"
A33E0788ADTD1L0100
KEY COVER
A33E0789AFL 1L0100
KEY BUTTON
KEPFAAA2
KEY BOARD G3814-1-X-X-3-100127
CN01
033G8032 4F HR
CONNECTOR 4P 1.25
R04
061G08051001FT
RST CHIP 1K 1/8W 1%
R03
061G08051801FY
RST CHIP R 1K8 +/-1% 1/8W
R02
061G08052701FY
RST CHIP 2K7 1/8W 1%
R08
061G08057500FF
RST CHIPR 750 OHM +-1% 1/8W FENGHUA
R07
061G08057500FF
RST CHIPR 750 OHM +-1% 1/8W FENGHUA
R05
061G08057500FF
RST CHIPR 750 OHM +-1% 1/8W FENGHUA
R01
061G08057501FF
RST CHIPR 7.5KOHM +-1% 1/8W FENGHUA
SW04
077G 607 2 FD
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
SW03
077G 607 2 FD
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
SW02
077G 607 2 FD
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
SW01
077G 607 2 FD
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
SW06
077G 607 2 FD
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
SW05
077G 607 2 FD
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
SW07
077G 607 2 FD
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
715G3814K02000003S
KEY PCB CEM1 SS 133.5*13.3*1.0MM
Q12G6082 1
FOOT PAD
66
E750
750TVG320ECC13N000 LCD LC320WXE-SCC1 GZ LGD
756TQACB KD080 00
MAIN BOARD-CBPFAK1DQB
U403
056T1133935
IC MX25L3205DMI-12G SOP-16
SMTF-U403 100TPRGK001DT1
MCU ASS'Y-056T1133935
040G 45762412B
CBPC LABEL
CN701
033G327812D
WAFER 12P PLUG
CN601
033G3802 4B Y
WAFER 2.0MM 4P
CN401
033T380213B Y L
CONNECTOR 13P 2.0
U106
053T 44501 HD
SAW FILTER HD-BF35 A3 DC
C619
067G215P4714PV
CAP 105C 470UF M 25V
C606
067G215P4714PV
CAP 105C 470UF M 25V
C602
067G215P4716AV
CAP 105C 470UF M 35V
C718
067G215V471 6N
CAP 105C 470UF M 35V
L601
073G 253158 H
CHOKE COIL 22UH+/-25%
L602
073G 253158 H
CHOKE COIL 22UH+/-25%
CN111
088G 78 1377C
RCA JACK 1*5 G/B/R/W/R WITH SW 10.5MM
CN121
088G 78 1378C
RCA JACK 1*3 Y/W/R V/T 10.5MM
CN123
088G 78 1378C
RCA JACK 1*3 Y/W/R V/T 10.5MM
CN602
088G 30211K
PHONE JACK 7PIN
CN102
088G 30269C
PHONE JACK 3.5MM 3P GREEN V/T 10.5MM
CN103
088G 352 2 YG
USB CONNECTOR USB4-01
CN103
088G 352 21CL
USB CONN TYPE A
CN101
088G353A15FASC
D-SUB 15PIN FEMALE VERTICAL SCREWED
CN122
088T 78 13A39 YG
S JACK + RCA JACK 1*3 Y/W/R RCA-333S-010
TU101
094G PALALL20L
TUNER PAL F41CT-2-E
CN405
311GW200C30AAL
WAFER 2.0MM 2*15P
Q107
057G 419509 T
SMALLTRAN 2SC2216 50MA 45V TO-92
C127
067G 3051007CT
EC 10UF/50V KM 5*11MM
C127
067G 3051007KT
EC 10UF/50V PF 5*11MM
C4205
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C143
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C108
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C721
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C714
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C625
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C624
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C623
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C121
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C105
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C4222
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C702
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C108
067G 3051014KT
EC 100UF 25V PF 6.3X11MM
C4222
067G 3051014KT
EC 100UF 25V PF 6.3X11MM
C702
067G 3051014KT
EC 100UF 25V PF 6.3X11MM
C143
067G 3051014PT
EC 100UF 20% 25V 6.3*11
C4205
067G 3051014PT
EC 100UF 20% 25V 6.3*11
C750
067G 3052213PT
EC 220UF 16V 6.3¦µ*11MM
67
C747
067G 3052213PT
EC 220UF 16V 6.3¦µ*11MM
C745
067G 3052213PT
EC 220UF 16V 6.3¦µ*11MM
C735
067G 3052213PT
EC 220UF 16V 6.3¦µ*11MM
C715
067G 3052213PT
EC 220UF 16V 6.3¦µ*11MM
C701
067G 3052213PT
EC 220UF 16V 6.3¦µ*11MM
C701
067G 3052213XT
EC 220UF 20% 16V 6.3*11
C750
067G 3052213XT
EC 220UF 20% 16V 6.3*11
C745
067G 3052213XT
EC 220UF 20% 16V 6.3*11
C747
067G 3052213XT
EC 220UF 20% 16V 6.3*11
C735
067G 3052213XT
EC 220UF 20% 16V 6.3*11
C715
067G 3052213XT
EC 220UF 20% 16V 6.3*11
C131
067G 3054704CT
EC 47UF 25V KM 5X11MM
C707
067G 3054713PT
NO-SUGGEST CAP 105C 470UF M 16V 8*12
C130
067G 5153313CT
EC 330UF 16V GF 8*12MM
U701
056G 379 92
IC G5627F11U SOP-8(FD)
U702
056G 379 92
IC G5627F11U SOP-8(FD)
U401
056G 562F09
SCALER RTD2674U-GR LQFP216
U704
056G 563143
IC G1084T43UF TO-252
U703
056G 563152
IC G1117T43UF TO-252
U105
056G 563519
IC G965-25ADJPIUF 1.8A SOP-8
U402
056G 615921 G
IC H5DU2562GTR-FAC TSOPII-66
U602
056G 616518
IC R2A15112FP HTQFP48
U104
056G 659501
USB IC BD8012FVJ TSSOP-B8J
U101
056G 662502
IC ESD AZC199-04S.R7G SOT23-6L
U102
056G 662502
IC ESD AZC199-04S.R7G SOT23-6L
U403
056T1133935
IC MX25L3205DMI-12G SOP-16
REL-HDCP
Q102
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q104
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q105
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q405
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q406
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q504
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q507
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q602
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q603
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q701
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q703
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q704
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q705
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q706
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q601
057G 417 6
PMBS3906/PHILIPS-SMT(06)
Q402
057G 417 6
PMBS3906/PHILIPS-SMT(06)
Q401
057G 417 6
PMBS3906/PHILIPS-SMT(06)
Q106
057G 417 6
PMBS3906/PHILIPS-SMT(06)
Q103
057G 417 6
PMBS3906/PHILIPS-SMT(06)
Q404
057G 763 79
FET AO4449 -7A/-30V SOIC-8
Q702
057G 763 79
FET AO4449 -7A/-30V SOIC-8
68
RP410
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP409
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP408
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP407
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP406
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP405
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP404
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP403
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP402
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP401
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
R201
061G0402000 JY
RST CHIPR MAX 0R05 OHM 1/16W
R196
061G0402470 JF
RST CHIPR 47 OHM 5% 1/16W FENGHUA
R119
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R120
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4123
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4124
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4126
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4128
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4132
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4134
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4136
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4138
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4143
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4152
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R728
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R551
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R536
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R558
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R529
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R121
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R138
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R151
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R165
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R166
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R167
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R176
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R185
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4122
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4120
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4118
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4117
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4116
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4114
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4112
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R536
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R551
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R728
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
69
R4152
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4143
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4138
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4136
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4134
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4132
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4128
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4126
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4124
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4123
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4122
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4120
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4118
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4117
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4116
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4114
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4112
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R185
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R176
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R167
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R166
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R165
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R151
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R138
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R121
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R120
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R119
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R529
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R558
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R732
061G0603100 JF
RST CHIPR 10 OHM 5% 1/10W FENGHUA
R721
061G0603100 JF
RST CHIPR 10 OHM 5% 1/10W FENGHUA
R4167
061G0603100 JF
RST CHIPR 10 OHM 5% 1/10W FENGHUA
R181
061G0603100 JF
RST CHIPR 10 OHM 5% 1/10W FENGHUA
R174
061G0603100 JF
RST CHIPR 10 OHM 5% 1/10W FENGHUA
R701
061G06031000FY
RST CHIP 100R 1% 1/10W
R720
061G06031000FY
RST CHIP 100R 1% 1/10W
R4135
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4137
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4139
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4144
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4153
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R522
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R523
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R524
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R526
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4133
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4129
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
70
R4127
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4125
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4121
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4119
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4115
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4113
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R105
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R102
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4135
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4137
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4139
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4144
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4153
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R522
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R523
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R524
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R526
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4133
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R102
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R105
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4113
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4115
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4119
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4121
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4125
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4127
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4129
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R710
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R618
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R617
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R604
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R550
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R512
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R4193
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R4188
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R4180
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R4176
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R192
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R191
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R182
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R128
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R125
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R104
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R103
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R712
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R103
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R104
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
71
R125
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R128
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R182
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R191
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R192
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R4176
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R4180
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R4188
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R4193
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R512
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R550
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R604
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R617
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R618
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R710
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R712
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R197
061G0603102 JT
RST CHIP 1K 1/10W 5% TZAI YUAN
R112
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R114
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R123
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R717
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R703
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R702
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R616
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R614
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R613
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R612
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R611
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R557
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R4100
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R4151
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R4160
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R4202
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R516
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R517
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R531
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R534
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R556
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R611
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R612
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R613
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R614
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R616
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R702
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R703
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R717
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R557
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
72
R531
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R517
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R516
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R4202
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R4160
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R4151
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R4100
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R123
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R114
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R112
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R534
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R556
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R704
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R552
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R513
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R4203
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R162
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R150
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R149
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R144
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R143
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R137
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R136
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R116
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R115
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R144
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R143
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R137
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R136
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R116
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R115
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R149
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R150
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R162
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R4203
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R513
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R552
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R704
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R189
061G06031202FY
RST CHIP 12K 1/10W 1%
R4179
061G0603121 JT
RST CHIPR 120OHM 1/10W TZAI YUAN
R198
061G0603122 JT
RST CHIP 1K2 1/10W 5% TZAI YUAN
R4205
061G0603124 JF
RST CHIPR 120KOHM 5% 1/10W FENGHUA
R4169
061G06031502FF
RST CHIPR 15KOHM +-1% 1/10W FENGHUA
R724
061G06031622FF
RST CHIPR 16.2KOHM +-1% 1/10W FENGHUA
R608
061G06031622FF
RST CHIPR 16.2KOHM +-1% 1/10W FENGHUA
R606
061G06031622FF
RST CHIPR 16.2KOHM +-1% 1/10W FENGHUA
R4177
061G0603220 JF
ST CHIPR 22 OHM +-5% 1/10W FENGHUA
73
R4175
061G0603220 JF
ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R4174
061G0603220 JF
ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R4171
061G0603220 JF
ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R160
061G0603221 JF
ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R161
061G0603221 JF
ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R101
061G0603222 JF
RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA
R108
061G0603222 JF
RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA
R4189
061G0603222 JF
RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA
R4189
061G0603222 JI
RST 0603 2.2K 5% 1/10W
R108
061G0603222 JI
RST 0603 2.2K 5% 1/10W
R101
061G0603222 JI
RST 0603 2.2K 5% 1/10W
R190
061G0603229 JF
RST CHIPR 2.2 OHM 5% 1/10W FENGHUA
R145
061G0603273 JF
RST CHIPR 27KOHM 5% 1/10W FENGHUA
R148
061G0603273 JF
RST CHIPR 27KOHM 5% 1/10W FENGHUA
R615
061G0603273 JF
RST CHIPR 27KOHM 5% 1/10W FENGHUA
R134
061G0603273 JF
RST CHIPR 27KOHM 5% 1/10W FENGHUA
R110
061G0603273 JF
RST CHIPR 27KOHM 5% 1/10W FENGHUA
R113
061G0603273 JF
RST CHIPR 27KOHM 5% 1/10W FENGHUA
R132
061G0603273 JF
RST CHIPR 27KOHM 5% 1/10W FENGHUA
R110
061G0603273 JI
RST 0603 27K 5% 1/10W
R113
061G0603273 JI
RST 0603 27K 5% 1/10W
R132
061G0603273 JI
RST 0603 27K 5% 1/10W
R134
061G0603273 JI
RST 0603 27K 5% 1/10W
R145
061G0603273 JI
RST 0603 27K 5% 1/10W
R148
061G0603273 JI
RST 0603 27K 5% 1/10W
R615
061G0603273 JI
RST 0603 27K 5% 1/10W
R601
061G0603274 JF
RST CHIPR 270KOHM 5% 1/10W FENGHUA
R726
061G06033002FY
RST CHIP 30K 1/10W 1%
R157
061G0603331 JT
RST CHIPR 330OHM 1/10W TZAI YUAN
R607
061G0603333 JF
RST CHIPR 33KOHM 1/10W FENGHUA
R607
061G0603333 JI
RST 0603 33K 5% 1/10W
R727
061G06034702FF
RST CHIPR 47KOHM +-1% 1/10W FENGHUA
R4208
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4212
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R194
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4150
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4163
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4164
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4165
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4166
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4173
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4178
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4192
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4194
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4195
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4207
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R193
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
74
R4215
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4216
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R514
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R553
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R602
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R706
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R709
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R711
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R714
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R719
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R170
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R172
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4212
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4215
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4216
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R514
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R553
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R602
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R706
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R709
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R711
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R714
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R719
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4195
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4194
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4208
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4166
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4173
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4178
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4192
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R170
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R172
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R193
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R194
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4150
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4163
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4164
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4165
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4207
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R708
061G0603473 JF
RST CHIPR 47KOHM +-5% 1/10W FENGHUA
R707
061G0603473 JF
RST CHIPR 47KOHM +-5% 1/10W FENGHUA
R610
061G0603473 JF
RST CHIPR 47KOHM +-5% 1/10W FENGHUA
R603
061G0603473 JF
RST CHIPR 47KOHM +-5% 1/10W FENGHUA
R4204
061G0603473 JF
RST CHIPR 47KOHM +-5% 1/10W FENGHUA
R4101
061G06034999FF
RST CHIPR 49.9 OHM +-1% 1/10W FENGHUA
R4105
061G06034999FF
RST CHIPR 49.9 OHM +-1% 1/10W FENGHUA
R4107
061G06034999FF
RST CHIPR 49.9 OHM +-1% 1/10W FENGHUA
75
R4109
061G06034999FF
RST CHIPR 49.9 OHM +-1% 1/10W FENGHUA
R4172
061G06034999FF
RST CHIPR 49.9 OHM +-1% 1/10W FENGHUA
R4182
061G06034999FF
RST CHIPR 49.9 OHM +-1% 1/10W FENGHUA
R187
061G0603511 JY
RST CHIPR 510OHM +-5% 1/10W YAGEO
R135
061G0603512 JY
RST CHIPR 5.1KOHM +-5% 1/10W
R139
061G0603512 JY
RST CHIPR 5.1KOHM +-5% 1/10W
R723
061G0603513 JF
RST CHIPR 51K OHM +-5% 1/10W FENGHUA
R4168
061G0603622 JF
RST CHIPR 6.2KOHM +-5% 1/10W FENGHUA
R199
061G0603681 JT
RST CHIPR 680OHM +-5% 1/10W TZAI YUAN
R195
061G0603682 JF
RST CHIPR 6.8KOHM +-5% 1/10W
FENGHUA
R106
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R107
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R109
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R133
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R140
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R141
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R142
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R146
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R159
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R163
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R164
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R106
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R107
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R109
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R133
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R140
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R141
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R142
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R146
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R159
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R163
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R164
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R158
061G0603753 JY
RST CHIPR 75KOHM +-5% 1/10W YAGEO
R183
061G0805000 JF
RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R183
061G0805000 JI
RST 0805 MAX0.05R 5% 1/8W TA-I
R188
061G08053832FF
RST CHIPR 38.3KOHM +-1% 1/8W FENGHUA
R4190
061G0805472 JF
RST CHIPR 4.7KOHM +-5% 1/8W FENGHUA
R200
061G12062009FI
RST 1206 20R 1% 1/4W TA-I
R180
061G1206301 JT
RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN
R186
061G1206301 JT
RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN
C4218q
065G060310131J A
CAP CHIP 0603 100PF J 50V NPO SAMSUNG
C4217
065G060310131J A
CAP CHIP 0603 100PF J 50V NPO SAMSUNG
C4216
065G060310131J A
CAP CHIP 0603 100PF J 50V NPO SAMSUNG
C4215
065G060310131J A
CAP CHIP 0603 100PF J 50V NPO SAMSUNG
C4214
065G060310131J A
CAP CHIP 0603 100PF J 50V NPO SAMSUNG
C4213
065G060310131J A
CAP CHIP 0603 100PF J 50V NPO SAMSUNG
76
C741
065G060310232K Y
CAP CHIP 0603 1N 50V X7R +/-10%
C758
065G060310232K Y
CAP CHIP 0603 1N 50V X7R +/-10%
C137
065G060310332K Y
CAP CHIP 0603 10N 50V X7R +/-10%
C139
065G060310332K Y
CAP CHIP 0603 10N 50V X7R +/-10%
C140
065G060310332K Y
CAP CHIP 0603 10N 50V X7R +/-10%
C142
065G060310332K Y
CAP CHIP 0603 10N 50V X7R +/-10%
C4188
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4186
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4185
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4184
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4183
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4182
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4181
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4180
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4165
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4166
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4167
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4168
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4169
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4170
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4171
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4172
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4173
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4174
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4175
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4176
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4179
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4178
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4177
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4189
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C601
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C603
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C604
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C605
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C611
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C617
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C620
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C622
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C627
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C628
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C703
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C704
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C705
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C710
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C712
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C713
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C716
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
77
C512
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4190
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4193
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4197
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4198
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4199
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4200
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4201
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4202
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4203
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4204
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4207
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4208
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4211
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4221
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4223
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4224
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C511
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4164
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C717
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C719
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C720
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C723
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C725
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C734
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C736
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C738
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C742
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C743
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C748
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C749
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C751
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C753
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C101
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4163
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4162
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4161
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4158
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4157
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4156
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4153
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4145
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4100
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C129
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C126
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C125
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C122
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
78
C109
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4195
065G060322031J F
CAP CHIP 0603 22PF J 50V NPO
C4194
065G060322031J F
CAP CHIP 0603 22PF J 50V NPO
C103
065G060322031J F
CAP CHIP 0603 22PF J 50V NPO
C102
065G060322031J F
CAP CHIP 0603 22PF J 50V NPO
C4104
065G060327131J F
CAP CHIP 0603 270PF J 50V NPO
C4109
065G060327131J F
CAP CHIP 0603 270PF J 50V NPO
C4114
065G060327131J F
CAP CHIP 0603 270PF J 50V NPO
C4121
065G060327131J F
CAP CHIP 0603 270PF J 50V NPO
C116
065G060347131J Y
CAP CHIP 0603 470P 50V NPO +/-5%
C115
065G060347131J Y
CAP CHIP 0603 470P 50V NPO +/-5%
C4126
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4128
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4131
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4132
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4134
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4137
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4139
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4140
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4144
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4151
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4124
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4118
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4117
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4116
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4115
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4111
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4110
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4107
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4106
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4101
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C106
065G060347931C Y
CAP 0603 4.7PF 0.25PF 50V NPO
C107
065G060347931C Y
CAP 0603 4.7PF 0.25PF 50V NPO
C4125
065G060350931D F
NO-SUGGEST 0603 5PF D 50V NPO
C4130
065G060350931D F
NO-SUGGEST 0603 5PF D 50V NPO
C4133
065G060350931D F
NO-SUGGEST 0603 5PF D 50V NPO
C4138
065G060350931D F
NO-SUGGEST 0603 5PF D 50V NPO
C4141
065G060350931D F
NO-SUGGEST 0603 5PF D 50V NPO
C4147
065G060350931D F
NO-SUGGEST 0603 5PF D 50V NPO
C123
065G060356031J Y
CAP CHIP 0603 56P 50V NPO +/-5%
C124
065G060356031J Y
CAP CHIP 0603 56P 50V NPO +/-5%
C626
065G080510522K M
CAP 0805 1UF 10% 25V X7R
C618
065G080510522K M
CAP 0805 1UF 10% 25V X7R
C608
065G080510522K M
CAP 0805 1UF 10% 25V X7R
C4206
065G080510522K M
CAP 0805 1UF 10% 25V X7R
C118
065G080510522K M
CAP 0805 1UF 10% 25V X7R
C119
065G080510522K M
CAP 0805 1UF 10% 25V X7R
79
C120
065G080510522K M
CAP 0805 1UF 10% 25V X7R
C4142
065G080510522K M
CAP 0805 1UF 10% 25V X7R
C4191
065G080510522K M
CAP 0805 1UF 10% 25V X7R
C4192
065G080510522K M
CAP 0805 1UF 10% 25V X7R
C626
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C618
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C608
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C4206
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C4192
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C4191
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C4142
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C120
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C119
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C118
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C138
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C141
065G080510615K T
CHIP 10UF 16V X5R 0805
C4143
065G080522522K T
CAP 0805 2.2UF 10% 25V X7R
C607
065G080547432K A
CAP CHIP 0805 0.47UF K 50V X7R
C621
065G080547432K A
CAP CHIP 0805 0.47UF K 50V X7R
C607
065G080547432K T
CAP CHIP 0805 0.47UF K 50V X7R
C621
065G080547432K T
CAP CHIP 0805 0.47UF K 50V X7R
C4196
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4136
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4135
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4129
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4127
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4123
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4122
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4113
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4112
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4105
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4102
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C114
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C113
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C757
065G0805475A7Z Y
CAP CHIP 4.7UF 10V Y5V -20%~+80%
C737
065G0805475A7Z Y
CAP CHIP 4.7UF 10V Y5V -20%~+80%
C616
065G120610532K 3
CAP CHIP 1UF 50V X7R
C616
065G120610532K T
CAP CHIP 1206 1UF K 50V X7R
C732
065G120610612K T
CAP CHIP 1206 10UF K 16V X7R
C726
065G120610612K T
CAP CHIP 1206 10UF K 16V X7R
C4210
065G120610612K T
CAP CHIP 1206 10UF K 16V X7R
C4209
065G120610612K T
CAP CHIP 1206 10UF K 16V X7R
C4187
065G120610612K T
CAP CHIP 1206 10UF K 16V X7R
C128
065G120610612K T
CAP CHIP 1206 10UF K 16V X7R
C609
065G120610625K 3
CAP CHIP 1206 10UF K 25V X5R
C610
065G120610625K 3
CAP CHIP 1206 10UF K 25V X5R
C614
065G120610625K 3
CAP CHIP 1206 10UF K 25V X5R
80
C615
065G120610625K 3
CAP CHIP 1206 10UF K 25V X5R
C609
065G120610625K T
CAP CHIP 1206 10UF K 25V X5R
C610
065G120610625K T
CAP CHIP 1206 10UF K 25V X5R
C614
065G120610625K T
CAP CHIP 1206 10UF K 25V X5R
C615
065G120610625K T
CAP CHIP 1206 10UF K 25V X5R
C752
065G1206226A5K T
CAP CHIP1206 22UF K 10V X5R
C744
065G1206226A5K T
CAP CHIP1206 22UF K 10V X5R
U403
070GHDCP500HDC
NO-SUGGEST HDCP CODE
REL-HDCP
FB106
071G 56A221 TA
IND FXD 0805 EMI 100MHZ 220R R
FB408
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB409
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB411
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB412
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB413
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB414
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB415
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB416
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB417
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB407
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB406
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB405
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB404
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB403
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB402
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB401
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB107
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB105
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB101
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB418
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB422
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB425
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB426
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB427
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB711
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB712
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB713
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB714
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB715
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB716
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB717
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB718
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB719
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB710
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB709
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB708
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB707
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB705
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
81
FB704
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB702
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB701
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB423
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB420
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
RP415
071G 57U600 M
CHIP BEAD ARRAY 1206 60 OHM
RP414
071G 57U600 M
CHIP BEAD ARRAY 1206 60 OHM
RP413
071G 57U600 M
CHIP BEAD ARRAY 1206 60 OHM
RP412
071G 57U600 M
CHIP BEAD ARRAY 1206 60 OHM
RP411
071G 57U600 M
CHIP BEAD ARRAY 1206 60 OHM
FB103
071G 59B121 J
CHIP BEAD 121 OHM
FB104
071G 59B601 MA
CHIP BEAD
FB102
071G 59B601 MA
CHIP BEAD
R126
071G 59C600 TA
CHIP BEAD 60OHM 600MA
FCM1608CF-600T06
R177
071G 59C600 TA
CHIP BEAD 60OHM 600MA
FCM1608CF-600T06
R122
071G 59C600 TA
CHIP BEAD 60OHM 600MA
FCM1608CF-600T06
L103
073G 6333810M
CHIP INDUCTOR 0603 0.33UH +-10% 35MA
L105
073G 63828 TA
CHIP INDUCTOR 0603 0.82UH 10%
L702
073G253S 46 H
SMD CHOKE 4.7UH
L701
073G253S 46 H
SMD CHOKE 4.7UH
L104
073T 6310010M
CHIP INDUCTOR 10UH +-10%
MICROGATE
L401
073T 6310910M
CHIP INDUCTOR 1.0UH +-10% 25MA
L402
073T 6310910M
CHIP INDUCTOR 1.0UH +-10% 25MA
L403
073T 6310910M
CHIP INDUCTOR 1.0UH +-10% 25MA
L404
073T 6310910M
CHIP INDUCTOR 1.0UH +-10% 25MA
L102
073T 6322910K
CHIP INDUCTOR 0603 2.2UH 10%
L101
073T253S505 Y
SMD COMMON CHOKE 0504 90 OHM
CN506
088G 34019E AT
DMI HEADER 19P H:11.38MM
CN506
088G 34019E AV
HDMI HEADER 19P BLACK -
CN506
088G 34019E VD
HDMI HEADER 19P HDM24A-19BM4YN10
CN502
088G 34019H VT
HDMI HEADER 19P BLACK -
D501
093G 60505
DIO SIG SM BAT54C(PHSE)R
D503
093G 60505
DIO SIG SM BAT54C(PHSE)R
X401
093G 22S515 YC
CRYSTAL 27MHZ 27MHZ 30PPM 20PF
ZD403
093G 39S 24 T
RLZ 5.6B LLDS
ZD402
093G 39S 24 T
RLZ 5.6B LLDS
ZD401
093G 39S 24 T
RLZ 5.6B LLDS
ZD602
093G 39S 44 T
RLZ18B LLDS
ZD111
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD112
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD113
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD114
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD115
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
82
ZD116
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD122
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD123
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD124
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD110
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD109
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD108
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD107
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD106
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD105
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD104
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD103
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD102
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD101
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD125
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD126
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD502
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD503
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD601
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD603
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
X401
093T 22S920 C
CRYSTAL 27MHZ 20P SMD-49
E715
715G3934M03000004F
MAIN PCB FR4 DS 193*186*1.6MM
P90T0051301
HEAT SINK
FOR U401
P40GA00081334A
PASS CARD LABEL
PWTVALE1GQD5
POWER BOARD
040G 45762412B
CBPC LABEL
009G6005 1 GP
GROUND TERMINAL
CN902
033G327813D
CONNECTOR
CN801
033G8021 2E XY
CONNECTOR
CN802
033G8021 2E XY
CONNECTOR
IC970
056G 139 9
IC EL817M(X) PHOTOCOUPLER DIP-4
IC951
056G 139 9
IC EL817M(X) PHOTOCOUPLER DIP-4
IC950
056G 139 9
IC EL817M(X) PHOTOCOUPLER DIP-4
IC950
056G 139 10
IC TLP781F PHOTOCOUPLER DIP-4
IC951
056G 139 10
IC TLP781F PHOTOCOUPLER DIP-4
IC970
056G 139 10
IC TLP781F PHOTOCOUPLER DIP-4
IC950
056G 139 3B
IC PC123Y82FZ0F
IC951
056G 139 3B
IC PC123Y82FZ0F
IC970
056G 139 3B
IC PC123Y82FZ0F
IC902
056G 379121
IC STR- A6069H DIP-8
Q921
057G 761 7
KTD1691P
Q921
057G 761502
SMALLTRAN BTD1805AD3 5A 60V TO-126ML
Q921
057G 761909 T
SMALLTRAN KSD1691YSTU 5A 60V TO-126
C904
063G 10747410V
NO-SUGGEST 0.47UF 275VAC ARCO
C901
063G 10747410V
NO-SUGGEST 0.47UF 275VAC ARCO
C901
063G107K474 EM
CAP X2 470NF 10% 305V BULK ( B )
C904
063G107K474 EM
CAP X2 470NF 10% 305V BULK ( B )
83
C901
063G107K474 UM
CAP X2 470NF 10% 275VAC MPX
C904
063G107K474 UM
CAP X2 470NF 10% 275VAC MPX
C910
063G210K105BCE
CAP MPP 1UF 10% 520V BULK ( B )
C910
063G210K105BCN
MPP CAP 1UF 520V P=15MM
C801
063G213J105GFC
CAP MPE 1UF J 450V
C802
063G213J105GFC
CAP MPE 1UF J 450V
C801
063G213J105GHE
CAP MPP 1UF 5% 450V BULK ( B )
C802
063G213J105GHE
CAP MPP 1UF 5% 450V BULK ( B )
C803
065G 1K1021AT
CK45-R3AD102K-NR 1000PF / 1KV R-TYPE P
C804
065G 1K1021AT
CK45-R3AD102K-NR 1000PF / 1KV R-TYPE P
C806
065G 3J1506ET
15PF 5% CC45SL 3KV TDK
C808
065G 3J1506ET
15PF 5% CC45SL 3KV TDK
C905
065G306K4712B3
Y1 CAP 470PF +-10% 250VAC CD SERIES
C906
065G306K4712B3
Y1 CAP 470PF +-10% 250VAC CD SERIES
C905
065G306K4712BM
Y1 CAP 470PF +-10% 250V AC KX
C906
065G306K4712BM
Y1 CAP 470PF +-10% 250V AC KX
C903
065G306K6812BM
Y1 CAP 680PF 10% 250VAC KX
C902
065G306K6812BM
Y1 CAP 680PF 10% 250VAC KX
C924
065G306M1022B3
Y1 CAP 1000PF M 250VAC TDK
C922
065G306M1022B3
Y1 CAP 1000PF M 250VAC TDK
C911
065G306M1022B3
Y1 CAP 1000PF M 250VAC TDK
C924
065G306M1022BM
Y1.CAP.001UF 250VAC MURATA
C902
065G306M6812B3
Y1 CAP 680PF +-20% 250VAC CD SERIES
C903
065G306M6812B3
Y1 CAP 680PF +-20% 250VAC CD SERIES
C920
067G 42Z10115H
EC 100UF M 450V 18*40MM
C920
067G 42Z10115K
EC 100UF M 450V 18*40MM
C953
067G204V331 3K
CS CAP 330UF 16V 10*12 MM
C954
067G215A4713KV
EC 470UF 16V M 10*12MM
C946
067G215A4714KV
EC 470UF 25V 10*16MM
C945
067G215A4716KV
EC 470UF 35V M 10*16MM
C973
067G215A4716KV
EC 470UF 35V M 10*16MM
C975
067G215A4716KV
EC 470UF 35V M 10*16MM
L902
073G 174106 L
LINE FILTER 13MH LF-1008108
L901
073G 174106 L
LINE FILTER 13MH LF-1008108
L902
073G 174106 DN
LINE FILTER 13MH LK.TF032.A20
L901
073G 174106 DN
LINE FILTER 13MH LK.TF032.A20
L906
073G 174160 L
PFC CHOKE 253UH 5% CC-012523-1
L906
073G 174160 N
PFC CHOKE 253UH 5% YUVA-1253
T803
073G 174180 YS
COMMON FILTER CHOKE 3MH 25%
L950
073G 253 91 L
CHOKE BY LI TA
L951
073G 253 91 L
CHOKE BY LI TA
L980
073G 253 91 L
CHOKE BY LI TA
T802
080GL26T 15 L
X'FMR 840UH MIN 8.4UH PT-011699
T802
080GL26T 15 N
X'FMR 840UH MIN 8.4UH YUVA-1094
T801
080GL32T 30 CP
TEST ONLY 11.3MH 30% 70MH T010153-6
T801
080GL32T 30 YS
INVERTER 11.3MH 30% 70MH YS04170464
T902
080GL37T 19 L
X'FMR 550UH 5% PT-010923-3
84
T902
080GL37T 19 N
X'FMR 550UH 5% YUVA-1089
T901
080GL52T 5 L2
X'FMR 1.0MH
T901
080GL52T 5 N2
X'FMR 1.0MH 10%
F901
084G 41 11 B
FUSE 5A 250V LEAD TYPE
F901
084G 41 11 C
FUSE 5A 250V UDA-A 005(PF)
F901
084G 41 11 L
FUSE 5A 250V
CN901
087G 501 47 S
AC SOCKET 2PIN + 2 SCREW HOLE
CN901
087G 501 47 DL
AC SOCKET 2PIN + 3 SCREW HOLE
D904
093G 52 70 1
1N5408-E(SHORT PIN) 3A/1000V DO-201AD
0Q1G 340 8106 CR3
SCREW
705TQ957079
Q901 ASS'Y
Q901
057G 667 49
FET 2SK4086LS-MG5 TO-220FI(LS)
0M1G1730 8120
SCREW
Q90T0206 1
HEAT SINK
705TQ957080
Q903 ASS'Y
Q903
057G 667 51
MOSFET 2SK4101LS-MG5/FS 7A 650V
TO-220FI
0M1G1730 8120
SCREW
Q90G6084 1
HEAT SINK
705TQ957081
Q801/Q802 ASS'Y
Q801
057G 611901
MOSFET 12A/500V FMA12N50E TO-220F
Q802
057G 611901
MOSFET 12A/500V FMA12N50E TO-220F
Q802
057G 611903
MOSFET AOTF12N50 TO-220F
Q801
057G 611903
MOSFET AOTF12N50 TO-220F
0M1G1730 8120
SCREW
P90T0027201
HEAT SINK
705TQ961011
NR901 ASS'Y
NR901
061G 58030 WL
RST NTCR 3 OHM +-20% 5A THINKING
Q09T 203 8
PIN FOR NR901
705TQ993102
D902 ASS'Y
D902
093G 52 56
DIODE FMN-1106S 10A/600V TO-220
D902
093G 52905
DIODE FMNS-1106S TO-220
0M1G1730 8120
SCREW
Q90G6084 1
HEAT SINK
705TQ993103
D950 ASS'Y
D950
093G 60931
DIODE MBRF1560CT ITO-220AB
D950
093G1506 2
FMW-2156
0M1G1730 8120
SCREW
Q90G6084 1
HEAT SINK
705TQ993104
D972/D973 ASS'Y
090G6064 1
HEAT SINK
D972
093G 60331
SCHOTTKY YG865C10RSC 20A 100V TO-220F
D973
093G 60331
SCHOTTKY YG865C10RSC 20A 100V TO-220F
0M1G1730 8120
SCREW
705TQ993105
BD901 ASS'Y
BD901
093G 50460 34
BRIDGE KBJ608G 6A/800V KBJ
BD901
093G 50460925
BRIDGE DIODE TS6B06G-01 KBJ
85
0M1G1730 10120
SCREW 42A9930016
P90T0027301
HEAT SINK
709T3770 QM001
COMSUPTIVE ASS'Y
055G 23520
IPA
055G 23524
WELDING FLUX WITHOUT PB
Q49G 51100
CLEANER
Q55G 100625
TIN STICK_LOW ARGENTUM
IC901
056G 379164
IC FAN6961SZ SOP-8
IC903
056G 379175
IC LD7523GS SOP-8
IC801
056T 379122
IC OZ9976GN-C-0-TR SOP-16
Q970
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q950
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q804
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q805
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q803
057G 759 2
RK7002FD5T116 SOT-23 BY ROHM
R943
061G0805100 JF
RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R932
061G0805100 JF
RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R932
061G0805100 JY
RST CHIPR 10OHM +- 5% 1/8W YEGAO
R943
061G0805100 JY
RST CHIPR 10OHM +- 5% 1/8W YEGAO
R802
061G08051000FF
RST CHIPR 100 OHM +-1% 1/8W FENGHUA
R803
061G08051000FF
RST CHIPR 100 OHM +-1% 1/8W FENGHUA
R814
061G08051000FF
RST CHIPR 100 OHM +-1% 1/8W FENGHUA
R981
061G08051000FF
RST CHIPR 100 OHM +-1% 1/8W FENGHUA
R802
061G08051000FT
RST CHIPR 100 OHM +-1% 1/8W
R803
061G08051000FT
RST CHIPR 100 OHM +-1% 1/8W
R814
061G08051000FT
RST CHIPR 100 OHM +-1% 1/8W
R981
061G08051000FT
RST CHIPR 100 OHM +-1% 1/8W
R802
061G08051000FW
RST CHIPR 100OHM +-1% 1/8W WALSIN
R803
061G08051000FW
RST CHIPR 100OHM +-1% 1/8W WALSIN
R814
061G08051000FW
RST CHIPR 100OHM +-1% 1/8W WALSIN
R981
061G08051000FW
RST CHIPR 100OHM +-1% 1/8W WALSIN
R955
061G08051001FT
RST CHIP 1K 1/8W 1%
R982
061G08051001FT
RST CHIP 1K 1/8W 1%
R983
061G08051001FT
RST CHIP 1K 1/8W 1%
R955
061G08051001FY
RST CHIP 1K 1/8W 1%
R982
061G08051001FY
RST CHIP 1K 1/8W 1%
R983
061G08051001FY
RST CHIP 1K 1/8W 1%
R914
061G08051002FF
RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R844
061G08051002FF
RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R830
061G08051002FF
RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R825
061G08051002FF
RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R822
061G08051002FF
RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R817
061G08051002FF
RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R816
061G08051002FF
RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R918
061G08051002FF
RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R944
061G08051002FF
RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R947
061G08051002FF
RST CHIPR 10KOHM +-1% 1/8W FENGHUA
86
R961
061G08051002FF
RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R963
061G08051002FF
RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R914
061G08051002FT
RST CHIP 10K 1/8W 1%
R844
061G08051002FT
RST CHIP 10K 1/8W 1%
R825
061G08051002FT
RST CHIP 10K 1/8W 1%
R822
061G08051002FT
RST CHIP 10K 1/8W 1%
R817
061G08051002FT
RST CHIP 10K 1/8W 1%
R816
061G08051002FT
RST CHIP 10K 1/8W 1%
R830
061G08051002FT
RST CHIP 10K 1/8W 1%
R963
061G08051002FT
RST CHIP 10K 1/8W 1%
R947
061G08051002FT
RST CHIP 10K 1/8W 1%
R961
061G08051002FT
RST CHIP 10K 1/8W 1%
R944
061G08051002FT
RST CHIP 10K 1/8W 1%
R918
061G08051002FT
RST CHIP 10K 1/8W 1%
R963
061G08051002FY
RST CHIP 10K 1/8W 1%
R961
061G08051002FY
RST CHIP 10K 1/8W 1%
R947
061G08051002FY
RST CHIP 10K 1/8W 1%
R944
061G08051002FY
RST CHIP 10K 1/8W 1%
R918
061G08051002FY
RST CHIP 10K 1/8W 1%
R914
061G08051002FY
RST CHIP 10K 1/8W 1%
R844
061G08051002FY
RST CHIP 10K 1/8W 1%
R830
061G08051002FY
RST CHIP 10K 1/8W 1%
R825
061G08051002FY
RST CHIP 10K 1/8W 1%
R822
061G08051002FY
RST CHIP 10K 1/8W 1%
R817
061G08051002FY
RST CHIP 10K 1/8W 1%
R816
061G08051002FY
RST CHIP 10K 1/8W 1%
R837
061G08051003FF
RST CHIPR 100KOHM +-1% 1/8W FENGHUA
R837
061G08051003FI
RST 0805 100K 1% 1/8W
R837
061G08051003FY
RST CHIP 100K 1/8W 1%
R823
061G08051004FT
RST CHIP R 1 MOHM +-1% 1/8W
R826
061G08051004FT
RST CHIP R 1 MOHM +-1% 1/8W
R840
061G08051004FT
RST CHIP R 1 MOHM +-1% 1/8W
R823
061G08051004FY
RST CHIP 1M 1/8W 1%
R826
061G08051004FY
RST CHIP 1M 1/8W 1%
R840
061G08051004FY
RST CHIP 1M 1/8W 1%
R923
061G08051302FF
RST CHIPR 13KOHM +-1% 1/8W FENGHUA
R985
061G08051302FF
RST CHIPR 13KOHM +-1% 1/8W FENGHUA
R923
061G08051302FY
RST CHIP 13K 1/8W 1%
R985
061G08051302FY
RST CHIP 13K 1/8W 1%
R917
061G08051502FF
RST CHIPR 15KOHM +-1% 1/8W FENGHUA
R917
061G08051502FT
RST CHIP 15K 1/8W 1%
R847
061G08051504FF
RST CHIPR 1M5 +-1% 1/8W FENGHUA
R847
061G08051504FT
RST CHIPR 1M5 +-1% 1/8W TZAI YUAN
R979
061G08052001FF
RST CHIPR 2KOHM +-1% 1/8W FENGHUA
R824
061G08052001FF
RST CHIPR 2KOHM +-1% 1/8W FENGHUA
R821
061G08052001FF
RST CHIPR 2KOHM +-1% 1/8W FENGHUA
R821
061G08052001FT
RST CHIP 2K 1/8W 1%
87
R824
061G08052001FT
RST CHIP 2K 1/8W 1%
R979
061G08052001FT
RST CHIP 2K 1/8W 1%
R978
061G08052402FF
RST CHIPR 24KOHM +-1% 1/8W FENGHUA
R978
061G08052402FT
RST CHIP 24K 1/8W 1%
R978
061G08052402FT
RST CHIP 24K 1/8W 1%
R987
061G08052702FF
RST CHIPR 27KOHM +-1% 1/8W FENGHUA
R987
061G08052702FY
RST CHIP 27K 1/8W 1%
R808
061G08053902FI
RST CHIPR 39 KOHM +-1% 1/8W
R806
061G08053902FI
RST CHIPR 39 KOHM +-1% 1/8W
R806
061G08053902FT
RST CHIP 39K 1/8W 1%
R808
061G08053902FT
RST CHIP 39K 1/8W 1%
R806
061G08053902FY
RST CHIP 39K 1/8W 1%
R808
061G08053902FY
RST CHIP 39K 1/8W 1%
R975
061G0805392 JF
RST CHIPR 3.9KOHM +-5% 1/8W FENGHUA
R975
061G0805392 JY
RST CHIPR 3K9 +-5% 1/8W YAGEO
R841
061G0805513 JF
RST CHIPR 51KOHM +-5% 1/8W FENGHUA
R820
061G0805513 JF
RST CHIPR 51KOHM +-5% 1/8W FENGHUA
R809
061G0805513 JF
RST CHIPR 51KOHM +-5% 1/8W FENGHUA
R807
061G0805513 JF
RST CHIPR 51KOHM +-5% 1/8W FENGHUA
R805
061G0805513 JF
RST CHIPR 51KOHM +-5% 1/8W FENGHUA
R804
061G0805513 JF
RST CHIPR 51KOHM +-5% 1/8W FENGHUA
R841
061G0805513 JT
RST CHIPR 51K +-5% 1/8W TZAI YUAN
R820
061G0805513 JT
RST CHIPR 51K +-5% 1/8W TZAI YUAN
R809
061G0805513 JT
RST CHIPR 51K +-5% 1/8W TZAI YUAN
R807
061G0805513 JT
RST CHIPR 51K +-5% 1/8W TZAI YUAN
R805
061G0805513 JT
RST CHIPR 51K +-5% 1/8W TZAI YUAN
R804
061G0805513 JT
RST CHIPR 51K +-5% 1/8W TZAI YUAN
R804
061G0805513 JY
RST CHIPR 51K +-5% 1/8W YAGEO
R805
061G0805513 JY
RST CHIPR 51K +-5% 1/8W YAGEO
R807
061G0805513 JY
RST CHIPR 51K +-5% 1/8W YAGEO
R809
061G0805513 JY
RST CHIPR 51K +-5% 1/8W YAGEO
R820
061G0805513 JY
RST CHIPR 51K +-5% 1/8W YAGEO
R841
061G0805513 JY
RST CHIPR 51K +-5% 1/8W YAGEO
R906
061G08055603FF
RST CHIPR 560KOHM +-1% 1/8W FENGHUA
R906
061G08055603FY
RST CHIP 560K 1/8W 1%
R834
061G0805684 JT
RST CHIPR 680K +-5% 1/8W TZAI YUAN
R958
061G08057501FT
RST CHIP R 7K5 1/8W +/-1%
R958
061G08057501FY
RST CHIP R 7K5 1/8W +/-1%
R842
061G0805753 JF
RST CHIPR 75KOHM +-5% 1/8W FENGHUA
R842
061G0805753 JT
RST CHIPR 75K +-5% 1/8W TZAI YUAN
R957
061G08058201FT
RST CHIP 8K2 1/8W 1%
R957
061G08058201FY
RST CHIP 8K2 1/8W 1%
JR801
061G1206000 JF
RST CHIPR MAX0R05 1/4W FENGHUA
JR902
061G1206000 JF
RST CHIPR MAX0R05 1/4W FENGHUA
JR903
061G1206000 JF
RST CHIPR MAX0R05 1/4W FENGHUA
JR904
061G1206000 JF
RST CHIPR MAX0R05 1/4W FENGHUA
JR905
061G1206000 JF
RST CHIPR MAX0R05 1/4W FENGHUA
88
JR801
061G1206000 JI
RST 1206 MAX0R05 5% 1/4W
JR902
061G1206000 JI
RST 1206 MAX0R05 5% 1/4W
JR903
061G1206000 JI
RST 1206 MAX0R05 5% 1/4W
JR904
061G1206000 JI
RST 1206 MAX0R05 5% 1/4W
JR905
061G1206000 JI
RST 1206 MAX0R05 5% 1/4W
R974
061G12061001FF
RST CHIPR 1KOHM +-1% 1/4W FENGHUA
R960
061G12061001FF
RST CHIPR 1KOHM +-1% 1/4W FENGHUA
R956
061G12061001FF
RST CHIPR 1KOHM +-1% 1/4W FENGHUA
R945
061G12061001FF
RST CHIPR 1KOHM +-1% 1/4W FENGHUA
R836
061G12061001FF
RST CHIPR 1KOHM +-1% 1/4W FENGHUA
R836
061G12061001FT
RST CHIP R 1KOHM +-1% 1/4W
R945
061G12061001FT
RST CHIP R 1KOHM +-1% 1/4W
R956
061G12061001FT
RST CHIP R 1KOHM +-1% 1/4W
R960
061G12061001FT
RST CHIP R 1KOHM +-1% 1/4W
R974
061G12061001FT
RST CHIP R 1KOHM +-1% 1/4W
R974
061G12061001FT
RST CHIP R 1KOHM +-1% 1/4W
R960
061G12061001FT
RST CHIP R 1KOHM +-1% 1/4W
R956
061G12061001FT
RST CHIP R 1KOHM +-1% 1/4W
R945
061G12061001FT
RST CHIP R 1KOHM +-1% 1/4W
R836
061G12061001FT
RST CHIP R 1KOHM +-1% 1/4W
R838
061G12061002FF
RST CHIPR 10KOHM +-1% 1/4W FENGHUA
R939
061G12061002FF
RST CHIPR 10KOHM +-1% 1/4W FENGHUA
R976
061G12061002FF
RST CHIPR 10KOHM +-1% 1/4W FENGHUA
R976
061G12061002FW
RST CHIPR 10KOHM +-1% 1/4W WA
R939
061G12061002FW
RST CHIPR 10KOHM +-1% 1/4W WA
R838
061G12061002FW
RST CHIPR 10KOHM +-1% 1/4W WA
R999
061G12061003FY
RST CHIPR 100KOHM +-1% 1/4W YAGEO
R998
061G12061003FY
RST CHIPR 100KOHM +-1% 1/4W YAGEO
R997
061G12061003FY
RST CHIPR 100KOHM +-1% 1/4W YAGEO
R996
061G12061003FY
RST CHIPR 100KOHM +-1% 1/4W YAGEO
R994
061G12061003FY
RST CHIPR 100KOHM +-1% 1/4W YAGEO
R993
061G12061003FY
RST CHIPR 100KOHM +-1% 1/4W YAGEO
R992
061G12061003FY
RST CHIPR 100KOHM +-1% 1/4W YAGEO
R991
061G12061003FY
RST CHIPR 100KOHM +-1% 1/4W YAGEO
R926
061G12061004FT
RST CHIP R 1 MOHM +-1% 1/4W
R925
061G12061004FT
RST CHIP R 1 MOHM +-1% 1/4W
R924
061G12061004FT
RST CHIP R 1 MOHM +-1% 1/4W
R926
061G12061004FY
RST CHIP 1M 1/4W 1%
R925
061G12061004FY
RST CHIP 1M 1/4W 1%
R924
061G12061004FY
RST CHIP 1M 1/4W 1%
R977
061G1206101 JF
RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R973
061G1206101 JF
RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R970
061G1206101 JF
RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R954
061G1206101 JF
RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R951
061G1206101 JF
RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R951
061G1206101 JT
RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R954
061G1206101 JT
RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
89
R970
061G1206101 JT
RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R973
061G1206101 JT
RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R977
061G1206101 JT
RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R999
061G1206104 JY
RST CHIPR 100KOHM 5% 1/4W YAG
R998
061G1206104 JY
RST CHIPR 100KOHM 5% 1/4W YAG
R997
061G1206104 JY
RST CHIPR 100KOHM 5% 1/4W YAG
R996
061G1206104 JY
RST CHIPR 100KOHM 5% 1/4W YAG
R994
061G1206104 JY
RST CHIPR 100KOHM 5% 1/4W YAG
R993
061G1206104 JY
RST CHIPR 100KOHM 5% 1/4W YAG
R992
061G1206104 JY
RST CHIPR 100KOHM 5% 1/4W YAG
R991
061G1206104 JY
RST CHIPR 100KOHM 5% 1/4W YAG
R933
061G1206109 JT
RST CHIPR 1 OHM +-5% 1/4W TZAI YUAN
R933
061G1206109 JY
RST CHIP 1R 1/4W 5% YAGEO
R905
061G12061504FF
RST CHIPR 1.5MOHM 1% 1/4W FENGHUA
R909
061G12061504FF
RST CHIPR 1.5MOHM 1% 1/4W FENGHUA
R904
061G12061504FF
RST CHIPR 1.5MOHM 1% 1/4W FENGHUA
R909
061G12061504FY
RST CHIP 1M5 1/4W 1%
R905
061G12061504FY
RST CHIP 1M5 1/4W 1%
R904
061G12061504FY
RST CHIP 1M5 1/4W 1%
R839
061G1206154 JF
RST CHIPR 150KOHM +-5% 1/4W FENGHUA
R839
061G1206154 JT
RST CHIPR 150KOHM +-5% 1/4W TZAI YUAN
R988
061G1206182 JF
RST CHIPR 1.8KOHM +-5% 1/4W FENGHUA
R986
061G1206182 JF
RST CHIPR 1.8KOHM +-5% 1/4W FENGHUA
R972
061G1206182 JF
RST CHIPR 1.8KOHM +-5% 1/4W FENGHUA
R971
061G1206182 JF
RST CHIPR 1.8KOHM +-5% 1/4W FENGHUA
R967
061G1206182 JF
RST CHIPR 1.8KOHM +-5% 1/4W FENGHUA
R965
061G1206182 JF
RST CHIPR 1.8KOHM +-5% 1/4W FENGHUA
R988
061G1206182 JT
RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN
R986
061G1206182 JT
RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN
R972
061G1206182 JT
RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN
R971
061G1206182 JT
RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN
R967
061G1206182 JT
RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN
R965
061G1206182 JT
RST CHIPR 1.8KOHM +-5% 1/4W TZAI YUAN
R911
061G1206203 JF
RST CHIPR 20KOHM +-5% 1/4W FENGHUA
R911
061G1206203 JT
RST CHIPR 20KOHM +-5% 1/4W TZAI YUAN
R907
061G1206229 JF
RST CHIPR 2.2 OHM +-5% 1/4W FENGHUA
R908
061G1206229 JF
RST CHIPR 2.2 OHM +-5% 1/4W FENGHUA
R931
061G1206229 JF
RST CHIPR 2.2 OHM +-5% 1/4W FENGHUA
R931
061G1206229 JY
RST 1206 2.2R 5% 1/4W
R908
061G1206229 JY
RST 1206 2.2R 5% 1/4W
R907
061G1206229 JY
RST 1206 2.2R 5% 1/4W
R833
061G12063304FF
RST CHIPR 3.3MOHM +-1% 1/4W FENGHUA
R813
061G12063309FF
RST 1206 33R 1% 1/4W FENGHUA
R811
061G12063309FF
RST 1206 33R 1% 1/4W FENGHUA
R811
061G12063309FI
RST 1206 33R 1% 1/4W TA-I
R813
061G12063309FI
RST 1206 33R 1% 1/4W TA-I
R901
061G1206334 JF
RST CHIPR 330KOHM +-5% 1/4W FENGHUA
90
R902
061G1206334 JF
RST CHIPR 330KOHM +-5% 1/4W FENGHUA
R903
061G1206334 JF
RST CHIPR 330KOHM +-5% 1/4W FENGHUA
R903
061G1206334 JT
RST CHIPR 330 KOHM +-5% 1/4W TZAI YUAN
R902
061G1206334 JT
RST CHIPR 330 KOHM +-5% 1/4W TZAI YUAN
R901
061G1206334 JT
RST CHIPR 330 KOHM +-5% 1/4W TZAI YUAN
R810
061G12063579FF
RST 1206 35.7R 1% 1/4W
R812
061G12063579FF
RST 1206 35.7R 1% 1/4W
R835
061G12063902FI
RST 1206 39K 1% 1/4W
R950
061G1206470 JF
RST CHIPR 47 OHM +-5% 1/4W FENGHUA
R952
061G1206470 JF
RST CHIPR 47 OHM +-5% 1/4W FENGHUA
R950
061G1206470 JT
RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN
R952
061G1206470 JT
RST CHIPR 47 OHM +-5% 1/4W TZAI YUAN
R915
061G1206471 JF
RST CHIPR 470 OHM +-5% 1/4W FENGHUA
R915
061G1206471 JT
RST CHIPR 470 OHM +-5% 1/4W TZAI YUAN
R962
061G1206475 JF
RST CHIPR 4.7 MOHM +-5% 1/4W FENGHUA
R962
061G1206475 JT
RST CHIPR 4.7 MOHM +-5% 1/4W TZAI YUAN
R920
061G12066803FF
RST CHIPR 680KOHM +-1% 1/4W FENGHUA
R921
061G12066803FF
RST CHIPR 680KOHM +-1% 1/4W FENGHUA
R922
061G12066803FF
RST CHIPR 680KOHM +-1% 1/4W FENGHUA
R920
061G12066803FT
RST CHIP 680K 1/4W 1%
R921
061G12066803FT
RST CHIP 680K 1/4W 1%
R922
061G12066803FT
RST CHIP 680K 1/4W 1%
R843
061G1206681 JF
RST 1206 680R 5% 1/4W FENGHUA
R843
061G1206681 JT
RST CHIPR 680 OHM +-5% 1/4W TZAI YUAN
R966
061G1206682 JF
RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA
R968
061G1206682 JF
RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA
R969
061G1206682 JF
RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA
R984
061G1206682 JF
RST CHIPR 6.8KOHM +-5% 1/4W FENGHUA
R966
061G1206682 JT
RST CHIPR 6.8 KOHM +-5% 1/4W TZAI YUAN
R968
061G1206682 JT
RST CHIPR 6.8 KOHM +-5% 1/4W TZAI YUAN
R969
061G1206682 JT
RST CHIPR 6.8 KOHM +-5% 1/4W TZAI YUAN
R984
061G1206682 JT
RST CHIPR 6.8 KOHM +-5% 1/4W TZAI YUAN
R832
061G1206753 JF
RST CHIPR 75KOHM +-5% 1/4W FENGHUA
R832
061G1206753 JY
RST CHIPR 75 KOHM +-5% 1/4W
C812
065G080510231J F
CAP 0805 1NF 5% 50V NPO
C812
065G080510231J Y
CAP CHIP 0805 1N 50V NPO +/-5%
C909
065G080510232K F
CAP 0805 1000PF 10% 50V X7R
C909
065G080510232K Y
CAP CHIP 0805 1N 50V X7R +/-10%
C939
065G080510332K F
CAP 0805 10NF K 50V X7R
C939
065G080510332K Y
CAP CHIP 0805 10N 50V X7R +/-10%
C913
065G080510432K A
CAP CHIP 0805 0.1UF K 50V X7R
C921
065G080510432K A
CAP CHIP 0805 0.1UF K 50V X7R
C811
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C907
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C908
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C934
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C942
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
91
C947
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C948
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C949
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C956
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C978
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C921
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C913
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C978
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C956
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C949
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C948
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C947
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C942
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C934
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C908
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C907
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C811
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C830
065G080510522K 3
CAP CHIP 0805 1U 25V X7R +/-10%
C831
065G080510522K 3
CAP CHIP 0805 1U 25V X7R +/-10%
C830
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C831
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C830
065G080510522K Y
CAP CHIP 0805 1U 25V X7R +/-10%
C831
065G080510522K Y
CAP CHIP 0805 1U 25V X7R +/-10%
C820
065G080512232K Y
CAP 0805 1.2NF 10% 50V X7R
C807
065G080515232K F
CAP CHIP 0805 1500PF K 50V X7R
C809
065G080515232K F
CAP CHIP 0805 1500PF K 50V X7R
C807
065G080515232K Y
CAP CHIP 0805 1N5 50V X7R +/-10%
C809
065G080515232K Y
CAP CHIP 0805 1N5 50V X7R +/-10%
C821
065G080515332K Y
CAP CHIP 0805 15N 50V X7R +/-10%
C944
065G080522132K A
NO-SUGGEST 0805 220PF K 50V X7R
C915
065G080522132K A
NO-SUGGEST 0805 220PF K 50V X7R
C944
065G080522132K Y
CAP CHIP 0805 220P 50V X7R +/-10%
C915
065G080522132K Y
CAP CHIP 0805 220P 50V X7R +/-10%
C955
065G080522432K F
CAP 0805 220NF 10% 50V X7R
C817
065G080522432K F
CAP 0805 220NF 10% 50V X7R
C955
065G080522432K Y
CAP CHIP 0805 220N 50V X7R +/-10%
C817
065G080522432K Y
CAP CHIP 0805 220N 50V X7R +/-10%
C819
065G080522522K A
CAP CHIP 0805 2.2UF K 25V X7R
C805
065G080522522K A
CAP CHIP 0805 2.2UF K 25V X7R
C819
065G080522522K T
CAP 0805 2.2UF 10% 25V X7R
C805
065G080522522K T
CAP 0805 2.2UF 10% 25V X7R
C816
065G080522522K Y
CAP CHIP 0805 2U2 25V X7R +/-10%
C813
065G080533131J F
CAP CHIP 0805 330PF J 50V NPO
C813
065G080533131J Y
CAP CHIP 0805 330P 50V NPO +/-5%
C976
065G080533432K 3
CAP CHIP 0805 330N 50V X7R +/-10%
C976
065G080533432K Y
CAP CHIP 0805 330N 50V X7R +/-10%
C814
065G080547232K A
NO-SUGGEST 0805 4700PF K 50V X7R
92
C818
065G080547232K A
NO-SUGGEST 0805 4700PF K 50V X7R
C818
065G080547232K Y
CAP CHIP 0805 4N7 50V X7R +/-10%
C814
065G080547232K Y
CAP CHIP 0805 4N7 50V X7R +/-10%
C917
065G080547332K F
CAP CHIP 0805 47NF K 50V X7R
C943
065G080547332K F
CAP CHIP 0805 47NF K 50V X7R
C815
065G080547332K F
CAP CHIP 0805 47NF K 50V X7R
C815
065G080547332K Y
CAP CHIP 0805 47N 50V X7R +/-10%
C917
065G080547332K Y
CAP CHIP 0805 47N 50V X7R +/-10%
C943
065G080547332K Y
CAP CHIP 0805 47N 50V X7R +/-10%
C918
065G080547432K A
CAP CHIP 0805 0.47UF K 50V X7R
C918
065G080547432K F
NO-SUGGEST 0805 0.47UF K 50V X7R
C918
065G080547432K T
CAP CHIP 0805 0.47UF K 50V X7R
C912
065G080556031J F
CAP CHIP 0805 56PF J 50V NPO
C912
065G080556031J Y
CAP CHIP 0805 56PF J 50V NPO
C970
065G120610272K F
CAP 1206 1NF 10% 500V X7R
C957
065G120610272K F
CAP 1206 1NF 10% 500V X7R
C972
065G120610272K F
CAP 1206 1NF 10% 500V X7R
C951
065G120610272K F
CAP 1206 1NF 10% 500V X7R
C950
065G120610272K F
CAP 1206 1NF 10% 500V X7R
C952
065G120610272K F
CAP 1206 1NF 10% 500V X7R
C972
065G120610272K Y
CAP CHIP 1206 1NF K 500V X7R
C970
065G120610272K Y
CAP CHIP 1206 1NF K 500V X7R
C957
065G120610272K Y
CAP CHIP 1206 1NF K 500V X7R
C952
065G120610272K Y
CAP CHIP 1206 1NF K 500V X7R
C951
065G120610272K Y
CAP CHIP 1206 1NF K 500V X7R
C950
065G120610272K Y
CAP CHIP 1206 1NF K 500V X7R
D808
093G 64 42 PP
BAV70 SOT-23
D807
093G 64 42 PP
BAV70 SOT-23
D804
093G 60S 5 T
SCHOTTKY SCS0520P 0.5A 20V SOD-123
D803
093G 60S 5 T
SCHOTTKY SCS0520P 0.5A 20V SOD-123
D802
093G 60S 5 T
SCHOTTKY SCS0520P 0.5A 20V SOD-123
D801
093G 60S 5 T
SCHOTTKY SCS0520P 0.5A 20V SOD-123
709T3770 QS001
COMSUPTIVE ASS'Y
CN901
006G 31500 GP
EYELET
T801
006G 31502
1.5MM RIVET
IC952
056G 158 10 T
IC AS431AZTR-E1 TO-92 BY AAC
IC971
056G 158 10 T
IC AS431AZTR-E1 TO-92 BY AAC
R801
061G 30310852T GP
FUSE RESISTOR
R948
061G 30310852T GP
FUSE RESISTOR
R913
061G 60210052T TZ
RST CFR 10R 1/6W 5%
R913
061G 60210052T XZ
RST CF 10R 5% 1/6W
R916
061G152M12852T SY
RST MOF 0R12 5% 2W
R946
061G152M36852T
RST MOF 0R36 5% 2W
C925
065G 1K471 2T6921
CAP CER 470PF 1KV K Y5P
C932
065G 2K102 2T6921
CAP CER 1000PF 2KV K Y5P
C935
065G 2K102 2T6921
CAP CER 1000PF 2KV K Y5P
C931
067G215A1017KT
EC 100UF 50V 8*12MM
93
C810
067G215A1017KT
EC 100UF 50V 8*12MM
C941
067G215Y1007KT
KY50VB10M-TP5 5*11.5
C937
067G215Y1007KT
KY50VB10M-TP5 5*11.5
C933
067G215Y1007KT
KY50VB10M-TP5 5*11.5
C914
067G215Y4707KT
EC 47UF 20% 50V 6.3*11MM
FB902
071G 55 23 S
FERRITE BEAD LB 3.5*0.8*7.5A
FB901
071G 55 26 S
BEAD 3.5*6MM 127 OHM 25% LB3.5¡Á0.8¡Á6-2
FB903
071G 55 29
FERRITE BEAD
FB901
071T 55 26 H
FERRITE BEAD 3.5*6.0*0.8
ZD952
093G 3916652T
MTZJ15B (13.89-14.62)
ZD930
093G 3916752T
MTZJ T-72 16B
ZD970
093G 3917152T
TZJ T-72 30B
D901
093G 52 1552T
DIODE 1N4007-E3/73 1A/1000V DO-41
D931
093G 5250S52T
DIODE AU02Z-V1 SANKEN
D805
093G 64 1152T PH
SWITCH DIODE 1N4148 BY NXP
D806
093G 64 1152T PH
SWITCH DIODE 1N4148 BY NXP
D903
093G 64 1152T PH
SWITCH DIODE 1N4148 BY NXP
D905
093G 64 1152T PH
SWITCH DIODE 1N4148 BY NXP
D906
093G 64 1152T PH
SWITCH DIODE 1N4148 BY NXP
D951
093G 64 1152T PH
SWITCH DIODE 1N4148 BY NXP
D971
093G 64 1152T PH
SWITCH DIODE 1N4148 BY NXP
D930
093G110050152T
DIODE PR1007 1A/1000V 500NS DO-41
D940
093G110050152T
DIODE PR1007 1A/1000V 500NS DO-41
J924
095G 90 23
JUMPER WIRE
J919
095G 90 23
JUMPER WIRE
J920
095G 90 23
JUMPER WIRE
J907
095G 90 23
JUMPER WIRE
J906
095G 90 23
JUMPER WIRE
J905
095G 90 23
JUMPER WIRE
J904
095G 90 23
JUMPER WIRE
J903
095G 90 23
JUMPER WIRE
J902
095G 90 23
JUMPER WIRE
J901
095G 90 23
JUMPER WIRE
J807
095G 90 23
JUMPER WIRE
J806
095G 90 23
JUMPER WIRE
J805
095G 90 23
JUMPER WIRE
J908
095G 90 23
JUMPER WIRE
J913
095G 90 23
JUMPER WIRE
J912
095G 90 23
JUMPER WIRE
J911
095G 90 23
JUMPER WIRE
J910
095G 90 23
JUMPER WIRE
J804
095G 90 23
JUMPER WIRE
J803
095G 90 23
JUMPER WIRE
J802
095G 90 23
JUMPER WIRE
J801
095G 90 23
JUMPER WIRE
J914
095G 90 23
JUMPER WIRE
J915
095G 90 23
JUMPER WIRE
94
J917
095G 90 23
JUMPER WIRE
J921
095G 90 23
JUMPER WIRE
J922
095G 90 23
JUMPER WIRE
J923
095G 90 23
JUMPER WIRE
709T3770 QA001
COMSUPTIVE ASS'Y
E715
715G3770P02W20003S
PWR PCB CEM1 SS 170X200X1.6MM
T901
S80GL52T5V2
TRANSFORMER ASS'Y
Q02G7021 2
BOLT
Q02G7022 3
SCREW-STOPPER
Q11G5061 1
PCB SUPPORT
Q12G6300 26 1
RUBBER PAD
Q15T0715301
BRACKET_AC_INLET --
Q15T0716301
BRACKET_AC_INLET --
Q15T0717301
BASE SUPPORT BKT UDM
Q15T0720101
32_VESA_BKT_TOP
Q44GJ093813 1A
32'' PHILIPS CARTON 32PFL1200/T3
Q45G 99626 36
PE BAG
Q45T 99609 61
EPE COVER FOR MONITOR
Q50G 4 10
TIE (Y1900221)
Q50G 500523
CABLE TIE
Q52G 1150523
TAPE_INSULATING
ECN405
S95G80183J75
LVDS CABLE 30P-30(A2400) 350MM
2nd source
033F303SM24K30
PK2407P30/TD00-30LH
033F303TTD1
TD00-T 2407PS-00
033F204H 30
A2004H-2*15P
033F206T 24
DF11-2428SCF
089G214A18N IS
POWER CORD 1.8M FA37B201312180TP
092TB1JX1A3NGM
BATTERY FOR ALL CHINA MODE
0Q1G 940 14 47 CR3
SCREW
Q41G32MV813 3A
MANUAL
Q41G78DV813 6A
WARRANTY CARD FOR CHINA
Q45G 76 28NV2 R
PE BAG FOR BASE SCREW SZ02742
Q45G2010M0101A
PE BAG FOR MANUAL
026G 800700 1A
BARCODE LABEL
040G 58162435A
P/N LABEL FOR MANUAL PE BAG
Q40G 320813 2A
RATING LABEL
Q40G000181328A
CARTON LABEL
0M1G 930 8 47 CR3
SCREW
0Q1G 930 8 47 CR3
SCREW
A15T1023101
42-BKT-IO_SIDE-OTS
Q40G2010 42010
SIDE LABEL
Q52G1001 TV001
AL TAPE
0Q1G 130 8 47 CR3
SCREW
Q44GJ094201EPE
CUSHION-B EPE
95
42PFL1300/T3 E42AMKNDWVPHNN
点位
组件
对象描述
备注
052G 1185 1
BIG TAPE(Y1200141)
052G 1186
SMALL TAPE
052G 1211 B
CONDUCTIVE TAPE 85MM *40MM *0.09MM
052G 2191 A
PAPER TAPE
ECN701
095G801312D665
HARNESS 12P-12P 230
2nd source
ECN701
095G801312X665
HARNESS 12P-12P 230
ECN803
095G8014 2D908
HARNESS 2P-2P 400MM FQE92064I
ECN801
095G8014 2D908
HARNESS 2P-2P 400MM FQE92064I
ECN801
095G8014 2X908
HARNESS 2P-2P 400MM LCDXXTF0418
2nd source
ECN803
095G8014 2X908
HARNESS 2P-2P 400MM LCDXXTF0418
2nd source
ECN802
095G8014 5D924
HARNESS 5P-5P 400MM FQE92063I
ECN802
095G8014 5X924
HARNESS 5P-5P 400MM LCDXXTF0419
2nd source
ECN405
095G801851D542
HARNESS 51P-30P 570
098GR7BD4NCPHT
REMOTE CONTROL PHILIPS YKF230-029
0M1G 930 6 47 CR3
SCREW
0M1G 940 8 47 CR3
SCREW
0M1G 940 8 47 CR3
SCREW
0M1G 940 8120
SCREW
0M1G1730 6120
SCREW,42-D020523
0M1G1730 6120
SCREW,42-D020523
0M1G1730 8120
SCREW
0M1G1740 10125
SCREW 4.0X10.0
0M1G1740 14125
SCREW
0Q1G 930 8 47 CR3
SCREW
0Q1G 930 8 47 CR3
SCREW
0Q1G 940 16 47 CR3
SCREW
0Q1G 940 16 47 CR3
SCREW
0Q1G 940 30 47 CR3
SCREW
705TQ949001
COMSUPTIVE ASS'Y-A4
705TQA34N58
BEZEL ASS`Y 42
001G6021 1
SCREW
078T 522 2 Y
SPEAKER 6 OHM 15W 160X40MM
ECN601
095G8014 4X 54
HARNESS 4P 850/550MM
0Q1G1030 6120
SCREW
A33E0807 1 1C0100
LED LENS_A2
A33E1043ABV 1X0100
IR_LENS
A34E1614ADTG7L0130
BEZEL TV42W
IRPFAQB2
IR BOARD G3821-D-X-X-8-101111
U01
056T 627905
IC TSOP34336SB1
CN01
033G8032 5F HR
CONNECTOR
R001
061G0603153 JY
RST CHIPR 15KOHM 1/10W YAGEO
C01
065G060310432K Y
CAP 0603 100NF 10% 50V X7R
LED01
081G 14 24 EL
CHIP LED BLUE/DARK RED
ZD02
093G 39S 24 T
RLZ 5.6B LLDS
ZD03
093G 39S 24 T
RLZ 5.6B LLDS
96
E715
715G3821R02000004M
TV IR-PCB 25X27X1.6MM FR4 1OZ DS
E715
715G3821R02000004S
TV IR-PCB 25X27X1.6MM FR4 1OZ DS
2nd source
Q16G0001 10 4
EVA WASHER
Q16G0001 10 7
EVA
705TQA34N59
REAR COVER ASS'Y 42"
036T 600 18117
HEMIRON
A15T0282201
BKT-VESA-BTM
A34E1574ADT 2L0130
REAR COVER_42
Q36T 600 35 3 GP
NONWOVEN FABRIC
Q36T 600 37 24 GP
NONWOVEN FABRIC
Q40G2010 42101
I/O LABLE
705TQA34N60
STAND ASS"Y 42"
0Q1G 130 8 47 CR3
SCREW
A15T1295201
PLATE --
A34E1575 GM 1A0100
HINGE COVER-A2_42
A34E1576AFL 1L0100
STAND-A1_42
A34E1966AFL 1L0100
BASE_TV42W-A1
Q12G6300 25 1
RUBBER FOOT
705TQA34N61
KEY ASS'Y 42"
ECN401
095G801413X686
HARNESS 13P-5P+4P 850+900
A33E0788ADTD1L0100
KEY COVER
A33E0789AFL 1L0100
KEY BUTTON
KEPFAAA2
KEY BOARD G3814-1-X-X-3-100127
CN01
033G8032 4F HR
CONNECTOR 4P 1.25
R04
061G08051001FT
RST CHIP 1K 1/8W 1%
R03
061G08051801FY
RST CHIP R 1K8 +/-1% 1/8W
R02
061G08052701FY
RST CHIP 2K7 1/8W 1%
R08
061G08057500FF
RST CHIPR 750 OHM +-1% 1/8W FENGHUA
R07
061G08057500FF
RST CHIPR 750 OHM +-1% 1/8W FENGHUA
R05
061G08057500FF
RST CHIPR 750 OHM +-1% 1/8W FENGHUA
R01
061G08057501FF
RST CHIPR 7.5KOHM +-1% 1/8W FENGHUA
SW05
077G 607 2 FD
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
SW04
077G 607 2 FD
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
SW03
077G 607 2 FD
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
SW02
077G 607 2 FD
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
SW07
077G 607 2 FD
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
SW06
077G 607 2 FD
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
SW01
077G 607 2 FD
CHIP TACT SW BY FORWARD
SFKQGMA2125T-PL
715G3814K02000003S
KEY PCB CEM1 SS 133.5*13.3*1.0MM
Q12G7057 1
RUBBER
97
ECN401
S95G801413686
HARNESS 13P-5P+4P 850/900
2nd source
033F206H13PH06
A2006H13P
033F206H05P253
A1253HA-5P
033F206H04P253
A1253HA-4P
033F206T 24
DF11-2428SCF
033F206THR2253
A1253TPE-A
E750
750TVM4202N113N000
PANEL V420H2-LN1 NH CMO
756TQACB KD079 00
MAIN BOARD-CBPFAK1DQA
U403
056T1133935
IC MX25L3205DMI-12G SOP-16
SMTF-U403 100TPRGM001DT1
MCU ASS'Y-056T1133935
A15T0944101
42-BKT-VESA
A37T0142011
42-HINGE-A'SSY
040G 45762412B
CBPC LABEL
CN701
033G327812D
WAFER 12P PLUG
CN601
033G3802 4B Y
WAFER 2.0MM 4P
CN401
033T380213B Y L
CONNECTOR 13P 2.0
U106
053T 44501 HD
SAW FILTER HD-BF35 A3 DC
C619
067G215P4714PV
CAP 105C 470UF M 25V
C606
067G215P4714PV
CAP 105C 470UF M 25V
C602
067G215P4716AV
CAP 105C 470UF M 35V
C718
067G215V471 6N
CAP 105C 470UF M 35V
L601
073G 253158 H
CHOKE COIL 22UH+/-25%
L602
073G 253158 H
CHOKE COIL 22UH+/-25%
CN111
088G 78 1377C
RCA JACK 1*5 G/B/R/W/R WITH SW 10.5MM
CN121
088G 78 1378C
RCA JACK 1*3 Y/W/R V/T 10.5MM
CN123
088G 78 1378C
RCA JACK 1*3 Y/W/R V/T 10.5MM
CN602
088G 30211K
PHONE JACK 7PIN
CN102
088G 30269C
PHONE JACK 3.5MM 3P GREEN V/T 10.5MM
CN103
088G 352 2 YG
USB CONNECTOR USB4-01
CN103
088G 352 21CL
USB CONN TYPE A
CN101
088G353A15FASC
D-SUB 15PIN FEMALE VERTICAL SCREWED
CN122
088T 78 13A39 YG
S JACK + RCA JACK 1*3 Y/W/R RCA-333S-010
TU101
094G PALALL20L
TUNER PAL F41CT-2-E
CN405
311GW200C30AAL
WAFER 2.0MM 2*15P
Q107
057G 419509 T
SMALLTRAN 2SC2216 50MA 45V TO-92
C127
067G 3051007CT
EC 10UF/50V KM 5*11MM
C127
067G 3051007KT
EC 10UF/50V PF 5*11MM
C4205
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C143
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C108
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C721
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C714
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C625
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C624
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C623
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C121
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C105
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
98
C4222
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C702
067G 3051014CT
EC 100UF 25V KM 6.3X11MM
C108
067G 3051014KT
EC 100UF 25V PF 6.3X11MM
C4222
067G 3051014KT
EC 100UF 25V PF 6.3X11MM
C702
067G 3051014KT
EC 100UF 25V PF 6.3X11MM
C143
067G 3051014PT
EC 100UF 20% 25V 6.3*11
C4205
067G 3051014PT
EC 100UF 20% 25V 6.3*11
C747
067G 3052213PT
EC 220UF 16V 6.3¦µ*11MM
C750
067G 3052213PT
EC 220UF 16V 6.3¦µ*11MM
C745
067G 3052213PT
EC 220UF 16V 6.3¦µ*11MM
C735
067G 3052213PT
EC 220UF 16V 6.3¦µ*11MM
C715
067G 3052213PT
EC 220UF 16V 6.3¦µ*11MM
C701
067G 3052213PT
EC 220UF 16V 6.3¦µ*11MM
C701
067G 3052213XT
EC 220UF 20% 16V 6.3*11
C747
067G 3052213XT
EC 220UF 20% 16V 6.3*11
C745
067G 3052213XT
EC 220UF 20% 16V 6.3*11
C750
067G 3052213XT
EC 220UF 20% 16V 6.3*11
C735
067G 3052213XT
EC 220UF 20% 16V 6.3*11
C715
067G 3052213XT
EC 220UF 20% 16V 6.3*11
C131
067G 3054704CT
EC 47UF 25V KM 5X11MM
C707
067G 3054713PT
NO-SUGGEST CAP 105C 470UF M 16V 8*12
C130
067G 5153313CT
EC 330UF 16V GF 8*12MM
U701
056G 379 92
IC G5627F11U SOP-8(FD)
U702
056G 379 92
IC G5627F11U SOP-8(FD)
U401
056G 562F09
SCALER RTD2674U-GR LQFP216
U704
056G 563143
IC G1084T43UF TO-252
U703
056G 563152
IC G1117T43UF TO-252
U105
056G 563519
IC G965-25ADJPIUF 1.8A SOP-8
U402
056G 615921 G
IC H5DU2562GTR-FAC TSOPII-66
U602
056G 616518
IC R2A15112FP HTQFP48
U104
056G 659501
USB IC BD8012FVJ TSSOP-B8J
U101
056G 662 39
ESD PROTECT MSEA53025V06B0 SOT23-6
U102
056G 662 39
ESD PROTECT MSEA53025V06B0 SOT23-6
U403
056T1133935
IC MX25L3205DMI-12G SOP-16
REL-HDCP
Q102
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q104
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q105
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q405
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q406
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q504
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q507
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q602
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q603
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q701
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q703
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q704
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q705
057G 417 4
PMBS3904/PHILIPS-SMT(04)
99
Q706
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q601
057G 417 6
PMBS3906/PHILIPS-SMT(06)
Q402
057G 417 6
PMBS3906/PHILIPS-SMT(06)
Q401
057G 417 6
PMBS3906/PHILIPS-SMT(06)
Q106
057G 417 6
PMBS3906/PHILIPS-SMT(06)
Q103
057G 417 6
PMBS3906/PHILIPS-SMT(06)
Q404
057G 763 79
FET AO4449 -7A/-30V SOIC-8
Q702
057G 763 79
FET AO4449 -7A/-30V SOIC-8
RP410
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP409
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP408
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP407
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP406
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP405
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP404
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP403
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP402
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
RP401
061G 1262208JY
RST CHIP AR 8P4R 22 OHM +-5% 1/16W
R201
061G0402000 JY
RST CHIPR MAX 0R05 OHM 1/16W
R196
061G0402470 JF
RST CHIPR 47 OHM 5% 1/16W FENGHUA
R119
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R120
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4123
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4124
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4126
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4128
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4132
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4134
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4136
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4138
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4143
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4152
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R728
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R551
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R536
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R529
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R558
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R121
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R138
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R151
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R165
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R166
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R167
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R176
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R185
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4122
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4120
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
100
R4118
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4117
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4116
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4114
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R4112
061G0603000 JF
RST CHIPR MAX 0R05 1/10W FENGHUA
R536
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R551
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R728
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4152
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4143
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4138
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4136
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4134
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4132
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4128
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4126
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4124
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4123
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4122
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4120
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4118
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4117
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4116
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4114
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R4112
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R185
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R176
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R167
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R166
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R165
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R151
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R138
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R121
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R120
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R119
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R558
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R529
061G0603000 JI
TEST ONLY RST 0603 0.05R MAX 1/16W TA-I
R732
061G0603100 JF
RST CHIPR 10 OHM 5% 1/10W FENGHUA
R721
061G0603100 JF
RST CHIPR 10 OHM 5% 1/10W FENGHUA
R4167
061G0603100 JF
RST CHIPR 10 OHM 5% 1/10W FENGHUA
R181
061G0603100 JF
RST CHIPR 10 OHM 5% 1/10W FENGHUA
R174
061G0603100 JF
RST CHIPR 10 OHM 5% 1/10W FENGHUA
R701
061G06031000FY
RST CHIP 100R 1% 1/10W
R720
061G06031000FY
RST CHIP 100R 1% 1/10W
R4135
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4137
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4139
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
101
R4144
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4153
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R522
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R523
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R524
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R526
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4133
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4129
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4127
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4125
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4121
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4119
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4115
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4113
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R105
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R102
061G0603101 JF
RST CHIPR 100 OHM +-5% 1/10W FENGHUA
R4135
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4137
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4139
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4144
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4153
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R522
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R523
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R524
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R526
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4133
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R102
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R105
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4113
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4115
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4119
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4121
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4125
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4127
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R4129
061G0603101 JI
TEST ONLY RST 0603 100R 5% 1/16W TA-I
R710
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R618
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R617
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R604
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R550
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R512
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R4193
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R4188
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R4180
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R4176
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R192
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R191
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
102
R182
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R128
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R125
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R104
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R103
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R712
061G0603102 JF
RST CHIPR 1K OHM +-5% 1/10W FENGHUA
R103
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R104
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R125
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R128
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R182
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R191
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R192
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R4176
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R4180
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R4188
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R4193
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R512
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R550
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R604
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R617
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R618
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R710
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R712
061G0603102 JI
TEST ONLY RST 0603 1K 5% 1/10W TA-I
R197
061G0603102 JT
RST CHIP 1K 1/10W 5% TZAI YUAN
R112
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R114
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R123
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R717
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R703
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R702
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R616
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R614
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R613
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R612
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R611
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R557
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R4100
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R4151
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R4160
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R4202
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R516
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R517
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R531
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R534
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R556
061G0603103 JF
RST CHIPR 10K OHM +-5% 1/10W FENGHUA
R611
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
103
R612
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R613
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R614
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R616
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R702
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R703
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R717
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R557
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R531
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R517
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R516
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R4202
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R4160
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R4151
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R4100
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R123
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R114
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R112
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R534
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R556
061G0603103 JI
RST 0603 10K 5% 1/10W TA-I
R704
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R552
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R513
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R4203
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R162
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R150
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R149
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R144
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R143
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R137
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R136
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R116
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R115
061G0603104 JF
RST CHIPR 100KOHM 5% 1/10W FENGHUA
R144
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R143
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R137
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R136
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R116
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R115
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R149
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R150
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R162
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R4203
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R513
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R552
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R704
061G0603104 JI
TEST ONLY RST 0603 100K 5% 1/16W TA-I
R189
061G06031202FY
RST CHIP 12K 1/10W 1%
104
R4179
061G0603121 JT
RST CHIPR 120OHM 1/10W TZAI YUAN
R198
061G0603122 JT
RST CHIP 1K2 1/10W 5% TZAI YUAN
R4205
061G0603124 JF
RST CHIPR 120KOHM 5% 1/10W FENGHUA
R4169
061G06031502FF
RST CHIPR 15KOHM +-1% 1/10W FENGHUA
R724
061G06031622FF
RST CHIPR 16.2KOHM +-1% 1/10W FENGHUA
R608
061G06031622FF
RST CHIPR 16.2KOHM +-1% 1/10W FENGHUA
R606
061G06031622FF
RST CHIPR 16.2KOHM +-1% 1/10W FENGHUA
R4177
061G0603220 JF
ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R4175
061G0603220 JF
ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R4174
061G0603220 JF
ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R4171
061G0603220 JF
ST CHIPR 22 OHM +-5% 1/10W FENGHUA
R160
061G0603221 JF
ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R161
061G0603221 JF
ST CHIPR 220 OHM +-5% 1/10W FENGHUA
R101
061G0603222 JF
RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA
R108
061G0603222 JF
RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA
R4189
061G0603222 JF
RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA
R4189
061G0603222 JI
RST 0603 2.2K 5% 1/10W
R108
061G0603222 JI
RST 0603 2.2K 5% 1/10W
R101
061G0603222 JI
RST 0603 2.2K 5% 1/10W
R190
061G0603229 JF
RST CHIPR 2.2 OHM 5% 1/10W FENGHUA
R145
061G0603273 JF
RST CHIPR 27KOHM 5% 1/10W FENGHUA
R148
061G0603273 JF
RST CHIPR 27KOHM 5% 1/10W FENGHUA
R615
061G0603273 JF
RST CHIPR 27KOHM 5% 1/10W FENGHUA
R134
061G0603273 JF
RST CHIPR 27KOHM 5% 1/10W FENGHUA
R110
061G0603273 JF
RST CHIPR 27KOHM 5% 1/10W FENGHUA
R113
061G0603273 JF
RST CHIPR 27KOHM 5% 1/10W FENGHUA
R132
061G0603273 JF
RST CHIPR 27KOHM 5% 1/10W FENGHUA
R110
061G0603273 JI
RST 0603 27K 5% 1/10W
R113
061G0603273 JI
RST 0603 27K 5% 1/10W
R132
061G0603273 JI
RST 0603 27K 5% 1/10W
R134
061G0603273 JI
RST 0603 27K 5% 1/10W
R145
061G0603273 JI
RST 0603 27K 5% 1/10W
R148
061G0603273 JI
RST 0603 27K 5% 1/10W
R615
061G0603273 JI
RST 0603 27K 5% 1/10W
R601
061G0603274 JF
RST CHIPR 270KOHM 5% 1/10W FENGHUA
R726
061G06033002FY
RST CHIP 30K 1/10W 1%
R157
061G0603331 JT
RST CHIPR 330OHM 1/10W TZAI YUAN
R607
061G0603333 JF
RST CHIPR 33KOHM 1/10W FENGHUA
R607
061G0603333 JI
RST 0603 33K 5% 1/10W
R727
061G06034702FF
RST CHIPR 47KOHM +-1% 1/10W FENGHUA
R4208
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4212
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R194
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4150
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4163
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4164
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4165
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
105
R4166
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4173
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4178
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4192
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4194
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4195
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4207
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R193
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4215
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4216
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R514
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R553
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R602
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R706
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R709
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R711
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R714
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R719
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R170
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R172
061G0603472 JF
RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA
R4212
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4215
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4216
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R514
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R553
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R602
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R706
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R709
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R711
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R714
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R719
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4195
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4194
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4208
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4166
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4173
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4178
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4192
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R170
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R172
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R193
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R194
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4150
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4163
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4164
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4165
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
R4207
061G0603472 JI
TEST ONLY RST 0603 4.7K 5% 1/16W TA-I
106
R708
061G0603473 JF
RST CHIPR 47KOHM +-5% 1/10W
FENGHUA
R707
061G0603473 JF
RST CHIPR 47KOHM +-5% 1/10W
FENGHUA
R610
061G0603473 JF
RST CHIPR 47KOHM +-5% 1/10W
FENGHUA
R603
061G0603473 JF
RST CHIPR 47KOHM +-5% 1/10W
FENGHUA
R4204
061G0603473 JF
RST CHIPR 47KOHM +-5% 1/10W
FENGHUA
R4101
061G06034999FF
RST CHIPR 49.9 OHM +-1% 1/10W FENGHUA
R4105
061G06034999FF
RST CHIPR 49.9 OHM +-1% 1/10W FENGHUA
R4107
061G06034999FF
RST CHIPR 49.9 OHM +-1% 1/10W FENGHUA
R4109
061G06034999FF
RST CHIPR 49.9 OHM +-1% 1/10W FENGHUA
R4172
061G06034999FF
RST CHIPR 49.9 OHM +-1% 1/10W FENGHUA
R4182
061G06034999FF
RST CHIPR 49.9 OHM +-1% 1/10W FENGHUA
R187
061G0603511 JY
RST CHIPR 510OHM +-5% 1/10W YAGEO
R135
061G0603512 JY
RST CHIPR 5.1KOHM +-5% 1/10W
R139
061G0603512 JY
RST CHIPR 5.1KOHM +-5% 1/10W
R723
061G0603513 JF
RST CHIPR 51K OHM +-5% 1/10W FENGHUA
R4168
061G0603622 JF
RST CHIPR 6.2KOHM +-5% 1/10W FENGHUA
R199
061G0603681 JT
RST CHIPR 680OHM +-5% 1/10W TZAI YUAN
R195
061G0603682 JF
RST CHIPR 6.8KOHM +-5% 1/10W
FENGHUA
R106
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R107
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R109
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R133
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R140
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R141
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R142
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R146
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R159
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R163
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R164
061G0603750 JF
RST CHIPR 75OHM +- 5% 1/10W FENGHUA
R106
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R107
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R109
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R133
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R140
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R141
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R142
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R146
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R159
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R163
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R164
061G0603750 JI
RST 0603 75R 5% 1/16W TA-I
R158
061G0603753 JY
RST CHIPR 75KOHM +-5% 1/10W YAGEO
107
R183
061G0805000 JF
RST CHIPR 0 OHM +-5% 1/8W FENGHUA
R183
061G0805000 JI
RST 0805 MAX0.05R 5% 1/8W TA-I
R188
061G08053832FF
RST CHIPR 38.3KOHM +-1% 1/8W FENGHUA
R4190
061G0805472 JF
RST CHIPR 4.7KOHM +-5% 1/8W FENGHUA
R200
061G12062009FI
RST 1206 20R 1% 1/4W TA-I
R180
061G1206301 JT
RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN
R186
061G1206301 JT
RST CHIPR 300 OHM +-5% 1/4W TZAI YUAN
C4218
065G060310131J A
CAP CHIP 0603 100PF J 50V NPO SAMSUNG
C4217
065G060310131J A
CAP CHIP 0603 100PF J 50V NPO SAMSUNG
C4216
065G060310131J A
CAP CHIP 0603 100PF J 50V NPO SAMSUNG
C4215
065G060310131J A
CAP CHIP 0603 100PF J 50V NPO SAMSUNG
C4214
065G060310131J A
CAP CHIP 0603 100PF J 50V NPO SAMSUNG
C4213
065G060310131J A
CAP CHIP 0603 100PF J 50V NPO SAMSUNG
C741
065G060310232K Y
CAP CHIP 0603 1N 50V X7R +/-10%
C758
065G060310232K Y
CAP CHIP 0603 1N 50V X7R +/-10%
C137
065G060310332K Y
CAP CHIP 0603 10N 50V X7R +/-10%
C139
065G060310332K Y
CAP CHIP 0603 10N 50V X7R +/-10%
C140
065G060310332K Y
CAP CHIP 0603 10N 50V X7R +/-10%
C142
065G060310332K Y
CAP CHIP 0603 10N 50V X7R +/-10%
C4188
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4186
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4185
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4184
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4183
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4182
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4181
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4180
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4165
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4166
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4167
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4168
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4169
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4170
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4171
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4172
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4173
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4174
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4175
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4176
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4179
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4178
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4177
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4189
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C601
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C603
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C604
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C605
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
108
C611
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C617
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C620
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C622
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C627
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C628
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C703
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C704
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C705
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C710
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C712
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C713
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C716
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C512
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4190
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4193
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4197
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4198
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4199
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4200
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4201
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4202
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4203
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4204
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4207
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4208
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4211
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4221
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4223
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4224
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C511
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4164
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C717
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C719
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C720
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C723
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C725
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C734
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C736
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C738
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C742
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C743
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C748
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C749
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C751
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C753
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C101
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
109
C4163
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4162
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4161
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4158
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4157
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4156
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4153
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4145
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4100
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C129
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C126
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C125
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C122
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C109
065G060310432K A
CAP CHIP 0603 100NF K 50V X7R
C4195
065G060322031J F
CAP CHIP 0603 22PF J 50V NPO
C4194
065G060322031J F
CAP CHIP 0603 22PF J 50V NPO
C103
065G060322031J F
CAP CHIP 0603 22PF J 50V NPO
C102
065G060322031J F
CAP CHIP 0603 22PF J 50V NPO
C4104
065G060327131J F
CAP CHIP 0603 270PF J 50V NPO
C4109
065G060327131J F
CAP CHIP 0603 270PF J 50V NPO
C4114
065G060327131J F
CAP CHIP 0603 270PF J 50V NPO
C4121
065G060327131J F
CAP CHIP 0603 270PF J 50V NPO
C116
065G060347131J Y
CAP CHIP 0603 470P 50V NPO +/-5%
C115
065G060347131J Y
CAP CHIP 0603 470P 50V NPO +/-5%
C4126
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4128
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4131
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4132
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4134
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4137
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4139
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4140
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4144
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4151
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4124
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4118
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4117
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4116
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4115
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4111
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4110
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4107
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4106
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C4101
065G060347332K F
CAP CHIP 0603 47NF K 50V X7R
C106
065G060347931C Y
CAP 0603 4.7PF 0.25PF 50V NPO
C107
065G060347931C Y
CAP 0603 4.7PF 0.25PF 50V NPO
C4125
065G060350931D F
NO-SUGGEST 0603 5PF D 50V NPO
110
C4130
065G060350931D F
NO-SUGGEST 0603 5PF D 50V NPO
C4133
065G060350931D F
NO-SUGGEST 0603 5PF D 50V NPO
C4138
065G060350931D F
NO-SUGGEST 0603 5PF D 50V NPO
C4141
065G060350931D F
NO-SUGGEST 0603 5PF D 50V NPO
C4147
065G060350931D F
NO-SUGGEST 0603 5PF D 50V NPO
C123
065G060356031J Y
CAP CHIP 0603 56P 50V NPO +/-5%
C124
065G060356031J Y
CAP CHIP 0603 56P 50V NPO +/-5%
C626
065G080510522K M
CAP 0805 1UF 10% 25V X7R
C618
065G080510522K M
CAP 0805 1UF 10% 25V X7R
C608
065G080510522K M
CAP 0805 1UF 10% 25V X7R
C4206
065G080510522K M
CAP 0805 1UF 10% 25V X7R
C4192
065G080510522K M
CAP 0805 1UF 10% 25V X7R
C118
065G080510522K M
CAP 0805 1UF 10% 25V X7R
C119
065G080510522K M
CAP 0805 1UF 10% 25V X7R
C120
065G080510522K M
CAP 0805 1UF 10% 25V X7R
C4142
065G080510522K M
CAP 0805 1UF 10% 25V X7R
C4191
065G080510522K M
CAP 0805 1UF 10% 25V X7R
C626
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C618
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C608
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C4206
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C4192
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C4191
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C4142
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C120
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C119
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C118
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C138
065G080510522K T
CAP 0805 1UF 10% 25V X7R
C141
065G080510615K T
CHIP 10UF 16V X5R 0805
C4143
065G080522522K T
CAP 0805 2.2UF 10% 25V X7R
C706
065G080522522K T
CAP 0805 2.2UF 10% 25V X7R
C607
065G080547432K A
CAP CHIP 0805 0.47UF K 50V X7R
C621
065G080547432K A
CAP CHIP 0805 0.47UF K 50V X7R
C607
065G080547432K T
CAP CHIP 0805 0.47UF K 50V X7R
C621
065G080547432K T
CAP CHIP 0805 0.47UF K 50V X7R
C4196
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4136
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4135
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4129
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4127
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4123
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4122
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4113
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4112
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4105
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C4102
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C114
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
111
C113
065G0805475A2K Y
CAP CHIP 0805 4.7UF K 10V X7R
C757
065G0805475A7Z Y
CAP CHIP 4.7UF 10V Y5V -20%~+80%
C737
065G0805475A7Z Y
CAP CHIP 4.7UF 10V Y5V -20%~+80%
C616
065G120610532K 3
CAP CHIP 1UF 50V X7R
C616
065G120610532K T
CAP CHIP 1206 1UF K 50V X7R
C732
065G120610612K T
CAP CHIP 1206 10UF K 16V X7R
C726
065G120610612K T
CAP CHIP 1206 10UF K 16V X7R
C4210
065G120610612K T
CAP CHIP 1206 10UF K 16V X7R
C4209
065G120610612K T
CAP CHIP 1206 10UF K 16V X7R
C4187
065G120610612K T
CAP CHIP 1206 10UF K 16V X7R
C128
065G120610612K T
CAP CHIP 1206 10UF K 16V X7R
C609
065G120610625K 3
CAP CHIP 1206 10UF K 25V X5R
C610
065G120610625K 3
CAP CHIP 1206 10UF K 25V X5R
C614
065G120610625K 3
CAP CHIP 1206 10UF K 25V X5R
C615
065G120610625K 3
CAP CHIP 1206 10UF K 25V X5R
C609
065G120610625K T
CAP CHIP 1206 10UF K 25V X5R
C610
065G120610625K T
CAP CHIP 1206 10UF K 25V X5R
C614
065G120610625K T
CAP CHIP 1206 10UF K 25V X5R
C615
065G120610625K T
CAP CHIP 1206 10UF K 25V X5R
C752
065G1206226A5K T
CAP CHIP1206 22UF K 10V X5R
C744
065G1206226A5K T
CAP CHIP1206 22UF K 10V X5R
U403
070GHDCP500HDC
NO-SUGGEST HDCP CODE
REL-HDCP
FB106
071G 56A221 TA
IND FXD 0805 EMI 100MHZ 220R R
FB408
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB409
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB411
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB412
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB413
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB414
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB415
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB416
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB417
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB407
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB406
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB405
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB404
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB403
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB402
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB401
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB107
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB105
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB101
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB418
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB422
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB425
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB426
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
FB427
071G 56G301 EA
CHIP BEAD 0805 300R 25% 4000MA
112
FB711
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB712
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB713
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB714
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB715
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB716
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB717
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB718
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB719
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB710
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB709
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB708
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB707
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB705
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB704
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB702
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB701
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB423
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB420
071G 56K121 TA
CHIP BEAD 120R/6000MA HCB2012KF-121T60
RP415
071G 57U600 M
CHIP BEAD ARRAY 1206 60 OHM
RP414
071G 57U600 M
CHIP BEAD ARRAY 1206 60 OHM
RP413
071G 57U600 M
CHIP BEAD ARRAY 1206 60 OHM
RP412
071G 57U600 M
CHIP BEAD ARRAY 1206 60 OHM
RP411
071G 57U600 M
CHIP BEAD ARRAY 1206 60 OHM
FB103
071G 59B121 J
CHIP BEAD 121 OHM
FB104
071G 59B601 MA
CHIP BEAD
FB102
071G 59B601 MA
CHIP BEAD
R126
071G 59C600 TA
CHIP BEAD 60OHM 600MA
FCM1608CF-600T06
R177
071G 59C600 TA
CHIP BEAD 60OHM 600MA
FCM1608CF-600T06
R122
071G 59C600 TA
CHIP BEAD 60OHM 600MA
FCM1608CF-600T06
L103
073G 6333810M
CHIP INDUCTOR 0603 0.33UH +-10% 35MA
L105
073G 63828 TA
CHIP INDUCTOR 0603 0.82UH 10%
L702
073G253S 46 H
SMD CHOKE 4.7UH
L701
073G253S 46 H
SMD CHOKE 4.7UH
L104
073T 6310010M
CHIP INDUCTOR 10UH +-10%
MICROGATE
L401
073T 6310910M
CHIP INDUCTOR 1.0UH +-10% 25MA
L402
073T 6310910M
CHIP INDUCTOR 1.0UH +-10% 25MA
L403
073T 6310910M
CHIP INDUCTOR 1.0UH +-10% 25MA
L404
073T 6310910M
CHIP INDUCTOR 1.0UH +-10% 25MA
L102
073T 6322910K
CHIP INDUCTOR 0603 2.2UH 10%
L101
073T253S505 Y
SMD COMMON CHOKE 0504 90 OHM
CN506
088G 34019E AT
DMI HEADER 19P H:11.38MM
CN506
088G 34019E AV
HDMI HEADER 19P BLACK -
113
CN506
088G 34019E VD
HDMI HEADER 19P HDM24A-19BM4YN10
CN502
088G 34019H VT
HDMI HEADER 19P BLACK -
D501
093G 60505
DIO SIG SM BAT54C(PHSE)R
D503
093G 60505
DIO SIG SM BAT54C(PHSE)R
X401
093G 22S515 YC
CRYSTAL 27MHZ 27MHZ 30PPM 20PF
ZD403
093G 39S 24 T
RLZ 5.6B LLDS
ZD402
093G 39S 24 T
RLZ 5.6B LLDS
ZD401
093G 39S 24 T
RLZ 5.6B LLDS
ZD602
093G 39S 44 T
RLZ18B LLDS
ZD111
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD112
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD113
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD114
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD115
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD116
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD122
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD123
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD124
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD110
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD109
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD108
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD107
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD106
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD105
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD104
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD103
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD102
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD101
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD125
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD126
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD502
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD503
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD601
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
ZD603
093G 64S500 SU
ESD MLVG04025R0QV05BP INPAQ
X401
093T 22S920 C
CRYSTAL 27MHZ 20P SMD-49
E715
715G3934M03000004F
MAIN PCB FR4 DS 193*186*1.6MM
P90T0051301
HEAT SINK
FOR U401
INTV9QCCMAN4
INVERTER G3966-P0B-00-X-1-100121
040G 45762412B
CBPC LABEL
CN8807
033G3802 2B Y
CONNECTOR
CN8803
033G3802 2B Y
CONNECTOR
CN8807
033G3802 2B Y W
CONNECTOR
CN8803
033G3802 2B Y W
CONNECTOR
CN8805
033G3802 3B Y L
CONNECTOR 3P 2.0PITCH
CN8805
033G3802 3B Y W
CONNECTOR
CN8801
033G3802 5B Y L
CONNECTOR 5P 2.0
CN8801
033G3802 5B Y W
WEAFER
114
CN8811
033G8021 2A F
INVTER CONN. 13MM 2P
CN8812
033G8021 2A F
INVTER CONN. 13MM 2P
CN8813
033G8021 2A F
INVTER CONN. 13MM 2P
CN8805
033T3802 3B Y
CONNECTOR
CN8811
033T8021 2A U
CONN 13.0MM 2P R/A
CN8812
033T8021 2A U
CONN 13.0MM 2P R/A
CN8813
033T8021 2A U
CONN 13.0MM 2P R/A
C8804
065G 6J5096ET
CAP CER 5PF J 6KV
C8803
065G 6J5096ET
CAP CER 5PF J 6KV
C8812
065G 6J5096ET
CAP CER 5PF J 6KV
C8811
065G 6J5096ET
CAP CER 5PF J 6KV
C8808
065G 6J5096ET
CAP CER 5PF J 6KV
C8807
065G 6J5096ET
CAP CER 5PF J 6KV
T8806
080GL52T 8 DN
INVERTER X'FMR 141UH 12% TK.6514.101
T8805
080GL52T 8 DN
INVERTER X'FMR 141UH 12% TK.6514.101
T8804
080GL52T 8 DN
INVERTER X'FMR 141UH 12% TK.6514.101
T8803
080GL52T 8 DN
INVERTER X'FMR 141UH 12% TK.6514.101
T8802
080GL52T 8 DN
INVERTER X'FMR 141UH 12% TK.6514.101
T8801
080GL52T 8 DN
INVERTER X'FMR 141UH 12% TK.6514.101
R8804
061G08051002FF
RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R8804
061G08051002FT
RST CHIP 10K 1/8W 1%
R8804
061G08051002FY
RST CHIP 10K 1/8W 1%
R8805
061G08051003FF
RST CHIPR 100KOHM +-1% 1/8W FENGHUA
R8808
061G08051003FF
RST CHIPR 100KOHM +-1% 1/8W FENGHUA
R8805
061G08051003FI
RST 0805 100K 1% 1/8W
R8808
061G08051003FI
RST 0805 100K 1% 1/8W
R8805
061G08051003FY
RST CHIP 100K 1/8W 1%
R8808
061G08051003FY
RST CHIP 100K 1/8W 1%
R8801
061G0805101 Y
RST CHIPR 100 OHM +-5% 1/8W Y
R8802
061G0805101 Y
RST CHIPR 100 OHM +-5% 1/8W Y
R8802
061G0805101 JF
RST 0805 100R 5% 1/8W
R8801
061G0805101 JF
RST 0805 100R 5% 1/8W
R8802
061G0805101 JT
RST CHIP 100R 1/8W 5% TZAI YUAN
R8801
061G0805101 JT
RST CHIP 100R 1/8W 5% TZAI YUAN
R8807
061G0805102 JF
RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R8807
061G0805102 JT
RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R8807
061G0805102 JY
RST CHIPR 1K OHM 5% 1/8W YAGE
R8804
061G0805103 Y
RST CHIPR 10KOHM +-5% 1/8W YA
R8816
061G08052202FF
RST CHIPR 22KOHM +-1% 1/8W FENGHUA
R8803
061G08052202FF
RST CHIPR 22KOHM +-1% 1/8W FENGHUA
R8816
061G08052202FT
RST CHIP 22K 1/8W 1%
R8803
061G08052202FT
RST CHIP 22K 1/8W 1%
R8816
061G08052202FY
RST CHIPR 22 KOHM +-1% 1/8W
R8803
061G08052202FY
RST CHIPR 22 KOHM +-1% 1/8W
R8813
061G08053601FF
RST CHIPR 3.6KOHM +-1% 1/8W FENGHUA
R8817
061G08053601FF
RST CHIPR 3.6KOHM +-1% 1/8W FENGHUA
R8813
061G08053601FT
RST CHIP 3K6 1/8W 1%
115
R8817
061G08053601FT
RST CHIP 3K6 1/8W 1%
R8811
061G0805511 T
RST CHIP 510R 1/8W 5%
R8812
061G0805511 T
RST CHIP 510R 1/8W 5%
R8812
061G0805511 Y
RST CHIPR 510 OHM +-5% 1/8W Y
R8811
061G0805511 Y
RST CHIPR 510 OHM +-5% 1/8W Y
JR8801
061G1206000 JF
RST CHIPR MAX0R05 1/4W FENGHUA
JR8801
061G1206000 JT
RST CHIPR MAX0R05 1/4W TZAI YUAN
JR8801
061G1206000 JY
RST CHIPR MAX0R05 1/4W YAGEO
C8802
065G080522131J F
CAP CHIP 0805 220PF J 50V NPO
C8802
065G080522131J Y
CAP CHIP 0805 220P 50V NPO +/-5%
C8801
065G080522432K A
CAP CHIP 0805 0.22UF K 50V X7R
C8801
065G080522432K T
CAP 0805 220NF K 50V X7R
C8801
065G080522432K Y
CAP CHIP 0805 220N 50V X7R +/-10%
C8806
065G080533131J T
CAP 0805 330PF J 50V NPO TAIYO YUDEN
C8805
065G080533131J T
CAP 0805 330PF J 50V NPO TAIYO YUDEN
C8805
065G080533131J Y
CAP CHIP 0805 330P 50V NPO +/-5%
C8806
065G080533131J Y
CAP CHIP 0805 330P 50V NPO +/-5%
C8814
065G080568231J 3
CAP CHIP 0805 6N8 50V NPO +/-5%
C8813
065G080568231J 3
CAP CHIP 0805 6N8 50V NPO +/-5%
C8810
065G080568231J 3
CAP CHIP 0805 6N8 50V NPO +/-5%
C8809
065G080568231J 3
CAP CHIP 0805 6N8 50V NPO +/-5%
C8809
065G080568231J F
CAP CHIP 0805 6.8NF 50V J NP
C8810
065G080568231J F
CAP CHIP 0805 6.8NF 50V J NP
C8813
065G080568231J F
CAP CHIP 0805 6.8NF 50V J NP
C8814
065G080568231J F
CAP CHIP 0805 6.8NF 50V J NP
D8819
093G 6433L
DIODE LBAV99LT1G SOT-23 LRC
D8815
093G 6433L
DIODE LBAV99LT1G SOT-23 LRC
D8813
093G 6433L
DIODE LBAV99LT1G SOT-23 LRC
D8809
093G 6433L
DIODE LBAV99LT1G SOT-23 LRC
D8819
093G 6433P
BAV99
D8815
093G 6433P
BAV99
D8813
093G 6433P
BAV99
D8809
093G 6433P
BAV99
D8813
093G 64S 5 1
D-BAV99-7-F SOT-23
D8815
093G 64S 5 1
D-BAV99-7-F SOT-23
D8819
093G 64S 5 1
D-BAV99-7-F SOT-23
D8809
093G 64S 5 1
D-BAV99-7-F SOT-23
ZD8801
093G 3919552T
DIODE MTZJ T-72 5.1B 500MW/5.1V DO-34
D8820
093G 64 1152T PH
SWITCH DIODE 1N4148 BY NXP
D8821
093G 64 1152T PH
SWITCH DIODE 1N4148 BY NXP
D8802
093G 64 1152T PH
SWITCH DIODE 1N4148 BY NXP
D8801
093G 64 1152T PH
SWITCH DIODE 1N4148 BY NXP
D8802
093G 64 1152T RE
SWITCH DIODE 1N4148 BY RENESAS
D8820
093G 64 1152T RE
SWITCH DIODE 1N4148 BY RENESAS
D8821
093G 64 1152T RE
SWITCH DIODE 1N4148 BY RENESAS
D8801
093G 64 1152T RE
SWITCH DIODE 1N4148 BY RENESAS
D8802
093G 6452452T
SWITCHING 1N4148-B4006 0.2A 100V DO-35
116
D8820
093G 6452452T
SWITCHING 1N4148-B4006 0.2A 100V DO-35
D8821
093G 6452452T
SWITCHING 1N4148-B4006 0.2A 100V DO-35
D8801
093G 6452452T
SWITCHING 1N4148-B4006 0.2A 100V DO-35
J8807
095G 90 23
JUMPER WIRE
J8806
095G 90 23
JUMPER WIRE
J8805
095G 90 23
JUMPER WIRE
J8804
095G 90 23
JUMPER WIRE
J8803
095G 90 23
JUMPER WIRE
J8802
095G 90 23
JUMPER WIRE
J8801
095G 90 23
JUMPER WIRE
E715
715G3966P01000003D
TV POWER PCB SS CEM-1 90*249.5*1.6MM
E715
715G3966P01000003H
TV POWER PCB SS CEM-1 90*249.5*1.6MM
INTV9QCCMAN5
INVERTER G3967-P0B-00-X-1-100121
040G 45762412B
CBPC LABEL
CN8802
033G3802 2B Y
CONNECTOR
CN8802
033G3802 2B Y W
CONNECTOR
CN8815
033G8021 2A F
INVTER CONN. 13MM 2P
CN8816
033G8021 2A F
INVTER CONN. 13MM 2P
CN8814
033G8021 2A F
INVTER CONN. 13MM 2P
CN8816
033T8021 2A U
CONN 13.0MM 2P R/A
CN8815
033T8021 2A U
CONN 13.0MM 2P R/A
CN8814
033T8021 2A U
CONN 13.0MM 2P R/A
C8851
065G 6J5096ET
CAP CER 5PF J 6KV
C8860
065G 6J5096ET
CAP CER 5PF J 6KV
C8856
065G 6J5096ET
CAP CER 5PF J 6KV
C8859
065G 6J5096ET
CAP CER 5PF J 6KV
C8855
065G 6J5096ET
CAP CER 5PF J 6KV
C8852
065G 6J5096ET
CAP CER 5PF J 6KV
T8851
080GL52T 8 DN
INVERTER X'FMR 141UH 12% TK.6514.101
T8852
080GL52T 8 DN
INVERTER X'FMR 141UH 12% TK.6514.101
T8853
080GL52T 8 DN
INVERTER X'FMR 141UH 12% TK.6514.101
T8856
080GL52T 8 DN
INVERTER X'FMR 141UH 12% TK.6514.101
T8855
080GL52T 8 DN
INVERTER X'FMR 141UH 12% TK.6514.101
T8854
080GL52T 8 DN
INVERTER X'FMR 141UH 12% TK.6514.101
CN8808
095G 820 3D901
HARNESS 3P(SAN)-2P 60MM FQE92062I
CN8808
095G 820 3X901
HARNESS 3P(SAN)-2P 60MM LCDXXTF0422
CN8806
095G 820 4D901
HARNESS 4P(SAN)-3P 60MM FQE91658I
CN8806
095G 820 4X901
HARNESS 4P(SAN)-3P 60MM LCDXXTF0421
R8851
061G0805101 Y
RST CHIPR 100 OHM +-5% 1/8W Y
R8852
061G0805101 Y
RST CHIPR 100 OHM +-5% 1/8W Y
R8853
061G0805101 Y
RST CHIPR 100 OHM +-5% 1/8W Y
R8856
061G0805511 T
RST CHIP 510R 1/8W 5%
R8855
061G0805511 T
RST CHIP 510R 1/8W 5%
R8854
061G0805511 T
RST CHIP 510R 1/8W 5%
R8854
061G0805511 Y
RST CHIPR 510 OHM +-5% 1/8W Y
R8855
061G0805511 Y
RST CHIPR 510 OHM +-5% 1/8W Y
R8856
061G0805511 Y
RST CHIPR 510 OHM +-5% 1/8W Y
117
C8862
065G080568231J 3
CAP CHIP 0805 6N8 50V NPO +/-5%
C8861
065G080568231J 3
CAP CHIP 0805 6N8 50V NPO +/-5%
C8858
065G080568231J 3
CAP CHIP 0805 6N8 50V NPO +/-5%
C8857
065G080568231J 3
CAP CHIP 0805 6N8 50V NPO +/-5%
C8854
065G080568231J 3
CAP CHIP 0805 6N8 50V NPO +/-5%
C8853
065G080568231J 3
CAP CHIP 0805 6N8 50V NPO +/-5%
C8853
065G080568231J F
CAP CHIP 0805 6.8NF 50V J NP
C8854
065G080568231J F
CAP CHIP 0805 6.8NF 50V J NP
C8857
065G080568231J F
CAP CHIP 0805 6.8NF 50V J NP
C8858
065G080568231J F
CAP CHIP 0805 6.8NF 50V J NP
C8861
065G080568231J F
CAP CHIP 0805 6.8NF 50V J NP
C8862
065G080568231J F
CAP CHIP 0805 6.8NF 50V J NP
D8854
093G 6433L
DIODE LBAV99LT1G SOT-23 LRC
D8855
093G 6433L
DIODE LBAV99LT1G SOT-23 LRC
D8856
093G 6433L
DIODE LBAV99LT1G SOT-23 LRC
D8857
093G 6433L
DIODE LBAV99LT1G SOT-23 LRC
D8858
093G 6433L
DIODE LBAV99LT1G SOT-23 LRC
D8859
093G 6433L
DIODE LBAV99LT1G SOT-23 LRC
D8859
093G 6433P
BAV99
D8858
093G 6433P
BAV99
D8857
093G 6433P
BAV99
D8856
093G 6433P
BAV99
D8855
093G 6433P
BAV99
D8854
093G 6433P
BAV99
D8854
093G 64S 5 1
D-BAV99-7-F SOT-23
D8855
093G 64S 5 1
D-BAV99-7-F SOT-23
D8856
093G 64S 5 1
D-BAV99-7-F SOT-23
D8857
093G 64S 5 1
D-BAV99-7-F SOT-23
D8858
093G 64S 5 1
D-BAV99-7-F SOT-23
D8859
093G 64S 5 1
D-BAV99-7-F SOT-23
D8851
093G 64 1152T PH
SWITCH DIODE 1N4148 BY NXP
D8852
093G 64 1152T PH
SWITCH DIODE 1N4148 BY NXP
D8853
093G 64 1152T PH
SWITCH DIODE 1N4148 BY NXP
D8851
093G 64 1152T RE
SWITCH DIODE 1N4148 BY RENESAS
D8852
093G 64 1152T RE
SWITCH DIODE 1N4148 BY RENESAS
D8853
093G 64 1152T RE
SWITCH DIODE 1N4148 BY RENESAS
D8851
093G 6452452T
SWITCHING 1N4148-B4006 0.2A 100V DO-35
D8853
093G 6452452T
SWITCHING 1N4148-B4006 0.2A 100V DO-35
D8852
093G 6452452T
SWITCHING 1N4148-B4006 0.2A 100V DO-35
J8801
095G 90 23
JUMPER WIRE
J8803
095G 90 23
JUMPER WIRE
J8802
095G 90 23
JUMPER WIRE
J8805
095G 90 23
JUMPER WIRE
E715
715G3967P01000003D
TV POWER PCB SS CEM-1 90*249.5*1.6MM
E715
715G3967P01000003S
TV POWER PCB SS CEM-1 90*249.5*1.6MM
P40GA00081334A
PASS CARD LABEL
PWTV9QCCMAAN
POWER BOARD G3760-P0D-W30-X-1-100301
118
040G 45762412B
CBPC LABEL
009G6005 1 GP
GROUND TERMINAL
CN902
033G327812D
WAFER 12P PLUG
CN801
033G3802 2B Y
CONNECTOR
CN803
033G3802 2B Y
CONNECTOR
CN801
033G3802 2B Y W
CONNECTOR
CN803
033G3802 2B Y W
CONNECTOR
CN802
033G3802 5B Y L
CONNECTOR 5P 2.0
CN802
033G3802 5B Y W
WEAFER
051G 6 4503
GLUE_RTV
IC950
056G 139 9
IC EL817M(X) PHOTOCOUPLER DIP-4
IC951
056G 139 9
IC EL817M(X) PHOTOCOUPLER DIP-4
IC970
056G 139 9
IC EL817M(X) PHOTOCOUPLER DIP-4
IC950
056G 139 10
IC TLP781F PHOTOCOUPLER DIP-4
IC951
056G 139 10
IC TLP781F PHOTOCOUPLER DIP-4
IC970
056G 139 10
IC TLP781F PHOTOCOUPLER DIP-4
IC950
056G 139 3B
IC PC123Y82FZ0F
IC951
056G 139 3B
IC PC123Y82FZ0F
IC970
056G 139 3B
IC PC123Y82FZ0F
IC902
056G 379121
IC STR- A6069H DIP-8
Q921
057G 761 7
KTD1691P
Q921
057G 761502
SMALLTRAN BTD1805AD3 5A 60V TO-126ML
Q921
057G 761909 T
SMALLTRAN KSD1691YSTU 5A 60V TO-126
C901
063G107K474 6S
0.47UF +-10%
C904
063G107K474 6S
0.47UF +-10%
C901
063G107K474 EM
CAP X2 470NF 10% 305V BULK ( B )
C904
063G107K474 EM
CAP X2 470NF 10% 305V BULK ( B )
C901
063G107K474 US
NO-SUGGEST 0.47UF +-10%
C904
063G107K474 US
NO-SUGGEST 0.47UF +-10%
C910
063G213J105GFA
CAP MPF 1UF 5% 450V
C804
063G213J105GFA
CAP MPF 1UF 5% 450V
C801
063G213J105GFA
CAP MPF 1UF 5% 450V
C801
063T213J105GCC
NO-SUGGEST CAP MPE 1UF J 450V
C804
063T213J105GCC
NO-SUGGEST CAP MPE 1UF J 450V
C910
063T213J105GCC
NO-SUGGEST CAP MPE 1UF J 450V
C803
065G 1K1021AT GP
CK45-R3AD102K-NR? 1000PF?/ 1KV
C822
065G 1K1021AT GP
CK45-R3AD102K-NR? 1000PF?/ 1KV
C929
065G 1K1021AT GP
CK45-R3AD102K-NR? 1000PF?/ 1KV
C939
065G 1K1021AT GP
CK45-R3AD102K-NR? 1000PF?/ 1KV
C823
065G 1K103 2E6213
CAP CER 10NF K 1KV
C911
065G 1K103 2E6213
CAP CER 10NF K 1KV
C823
065G 1K103 2E6921
CAP CER 10NF K 1KV Y5U
C911
065G 1K103 2E6921
CAP CER 10NF K 1KV Y5U
C927
065G306K4712B3
Y1 CAP 470PF +-10% 250VAC CD SERIES
C906
065G306M1022B3
Y1 CAP 1000PF M 250VAC TDK
C928
065G306M1022B3
Y1 CAP 1000PF M 250VAC TDK
C902
065G306M6812B3
Y1 CAP 680PF +-20% 250VAC CD SERIES
119
C903
065G306M6812B3
Y1 CAP 680PF +-20% 250VAC CD SERIES
C924
067G 42Z10115H
EC 100UF M 450V 18*40MM
C925
067G 42Z10115H
EC 100UF M 450V 18*40MM
C924
067G 42Z10115K
EC 100UF M 450V 18*40MM
C925
067G 42Z10115K
EC 100UF M 450V 18*40MM
C953
067G204V331 3K
CS CAP 330UF 16V 10*12 MM
C953
067G204V331 3R
CS CAP 330UF 16V 10*12.5 MM
C957
067G215A1024HT
EC 1000UF M 25V 10*25MM
C954
067G215A4713HV
EC 470UF M 16V 10*13MM
C954
067G215A4713KV
EC 470UF 16V M 10*12MM
C959
067G215A4714HV
EC 470UF M 25V 10*16MM
C975
067G215A4716HV
EC 470UF M 35V 10*21MM
C973
067G215A4716HV
EC 470UF M 35V 10*21MM
C972
067G215A4716HV
EC 470UF M 35V 10*21MM
C957
067G215D1024KV
LOW ESR EC 1000UF 25V M 12.5*20MM
C959
067G215P471 4K
LOW ESR EC 470UF 25V
C954
067G215P4713XV
CAP 105C 470UF M 16V
C959
067G215P4714XV
CAP 105C 470UF M 25V
C975
067G215P4716KV
LOW ESR EC 470UF M 35V 10*20MM
C973
067G215P4716KV
LOW ESR EC 470UF M 35V 10*20MM
C972
067G215P4716KV
LOW ESR EC 470UF M 35V 10*20MM
C925
067G215S10115N
NO-SUGGEST 100UF 20% 450V 18*35.5
C924
067G215S10115N
NO-SUGGEST 100UF 20% 450V 18*35.5
C925
067G215Z10115X
CD288H 100UF 450V
C924
067G215Z10115X
CD288H 100UF 450V
L904
073G 174161 L
PFC CHOKE 170UH 5%
L904
073G 174161 N
PFC CHOKE 170UH 5% YUVA-1234
L980
073G 253 91 L
CHOKE BY LI TA
L951
073G 253 91 L
CHOKE BY LI TA
L950
073G 253 91 L
CHOKE BY LI TA
L950
073G 253 91 S
CHOKE COIL
L951
073G 253 91 S
CHOKE COIL
L980
073G 253 91 S
CHOKE COIL
L950
073G 253 91 HP
CHOKE COIL 3.5UH VOC
L951
073G 253 91 HP
CHOKE COIL 3.5UH VOC
L980
073G 253 91 HP
CHOKE COIL 3.5UH VOC
L903
073L 174 49 LG
LINE FILTER 20.0MH MIN
L901
073L 174 49 LG
LINE FILTER 20.0MH MIN
L901
073L 174 49LSG
LINE FILTER 20.0MH
L903
073L 174 49LSG
LINE FILTER 20.0MH
T801
080GL26T 15 L
X'FMR 840UH MIN 8.4UH PT-011699
T801
080GL26T 15 N
X'FMR 840UH MIN 8.4UH YUVA-1094
T902
080GL52P 5 L
X'FMR 500UH 5% PT-012612-1
T902
080GL52P 5 N
X'FMR 500UH 5%
T802
080GL52P 15 N
X'FMR 1.9MH 7% YUVA-1395
T901
080GL52T 5 L2
X'FMR 1.0MH
T901
080GL52T 5 N2
X'FMR 1.0MH 10%
120
F901
084G 41 11 B
FUSE 5A 250V LEAD TYPE
F901
084G 41 11 L
FUSE 5A 250V
CN901
087G 501 47 S
AC SOCKET 2PIN + 2 SCREW HOLE
CN901
087G 501 47 DL
AC SOCKET 2PIN + 3 SCREW HOLE
D904
093G 52 70
RECTIFIER 1N5408-P 3A 1000V DO-201AD
0Q1G 340 8106 CR3
SCREW
705TQ861011
NR901 ASS'Y
NR901
061G 58030 WL
RST NTCR 3 OHM +-20% 5A THINKING
Q09T 203 8
PIN FOR NR901
705TQ957074
Q801/Q802 ASS'Y
Q802
057G 611901
MOSFET 12A/500V FMA12N50E TO-220F
Q801
057G 611901
MOSFET 12A/500V FMA12N50E TO-220F
Q801
057G 611903
MOSFET AOTF12N50 TO-220F
Q802
057G 611903
MOSFET AOTF12N50 TO-220F
0M1G1730 8120
SCREW
HS3
Q90T0095 2
HEAT SINK
705TQ957075
Q903 ASS'Y
Q903
057G 667 51
MOSFET 2SK4101LS-MG5/FS 7A 650V
TO-220FI
Q903
057G 724 11
MOSFET STP9NK65ZFP 7 650 TO-220FP
HS20
090G6064 1
HEAT SINK
0M1G1730 8120
SCREW
705TQ957076
Q901 ASS'Y
Q901
057G 667925
MOSFET STW26NM60N 20A 600V TO-247
0M1G1730 12120
SCREW
Q12G 372 8
SILICON
HS8
Q90T0087 2
HEAT SINK
705TQ993096
BD901 ASS'Y
BD901
093G 50460 35
BRIDGE GBJ1008 10A/800V GBJ
0M1G1730 10120
SCREW 42A9930016
HS6
Q90T0095 2
HEAT SINK
705TQ993097
D951 ASS'Y
HS1
090G6084 1
HEAT SINK
D951
093G 60250
FCH10U10
D951
093G 60500
FMEN210A TO-220 SANKEN
0M1G1730 8120
SCREW
705TQ993098
D902 ASS'Y
HS5
090G6084 1
HEAT SINK
D902
093G 52 56
DIODE FMN-1106S 10A/600V TO-220
0M1G1730 8120
SCREW
705TQ993106
D952 ASS'Y
HS21
090G6064 1
HEAT SINK
D952
093G 60300
DIODE SBR20010JST 20A/100V TO-220ML(LS)
D952
093G 60329
DIODE FMEN-220A 20A/100V TO-220
D952
093G 60331
SCHOTTKY YG865C10RSC 20A 100V TO-220F
0M1G1730 8120
SCREW
705TQ993107
D950 ASS'Y
121
HS2
090G6084 1
HEAT SINK
D950
093G 60298
DIODE SBT15006JST 15A/60V TO-220ML(LS)
D950
093G1506 2
FMW-2156
0M1G1730 8120
SCREW
IC901
056G 379164
IC FAN6961SZ SOP-8
IC903
056G 379175
IC LD7523GS SOP-8
IC801
056T 379122
IC OZ9976GN-C-0-TR SOP-16
Q970
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q950
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q910
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q804
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q805
057G 417 4
PMBS3904/PHILIPS-SMT(04)
Q950
057G 417 12 T
KEC 2N3904S-RTK/PS
Q970
057G 417 12 T
KEC 2N3904S-RTK/PS
Q910
057G 417 12 T
KEC 2N3904S-RTK/PS
Q805
057G 417 12 T
KEC 2N3904S-RTK/PS
Q804
057G 417 12 T
KEC 2N3904S-RTK/PS
Q805
057G 417518
TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q804
057G 417518
TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q910
057G 417518
TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q950
057G 417518
TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q970
057G 417518
TRA LMBT3904LT1G 200MA/40V SOT-23 LRC
Q803
057G 759 2A
TANSISTOR 2N7002 SOT-23
Q803
057G 763904
TRA FET 2N7002 SOT-23 PHILIPS
R932
061G0805100 JF
RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R933
061G0805100 JF
RST CHIPR 10 OHM +-5% 1/8W FENGHUA
R932
061G0805100 JI
RST 0805 10R 5% 1/8W TA-I
R933
061G0805100 JI
RST 0805 10R 5% 1/8W TA-I
R933
061G0805100 JT
RST CHIP 10R 1/8W 5% TZAI YUAN
R932
061G0805100 JT
RST CHIP 10R 1/8W 5% TZAI YUAN
R932
061G0805100 JY
RST CHIPR 10OHM +- 5% 1/8W YEGAO
R933
061G0805100 JY
RST CHIPR 10OHM +- 5% 1/8W YEGAO
R957
061G08051002FF
RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R958
061G08051002FF
RST CHIPR 10KOHM +-1% 1/8W FENGHUA
R957
061G08051002FT
RST CHIP 10K 1/8W 1%
R958
061G08051002FT
RST CHIP 10K 1/8W 1%
R957
061G08051002FY
RST CHIP 10K 1/8W 1%
R958
061G08051002FY
RST CHIP 10K 1/8W 1%
R810
061G08051003FF
RST CHIPR 100KOHM +-1% 1/8W FENGHUA
R820
061G08051003FF
RST CHIPR 100KOHM +-1% 1/8W FENGHUA
R928
061G08051003FF
RST CHIPR 100KOHM +-1% 1/8W FENGHUA
R928
061G08051003FI
RST 0805 100K 1% 1/8W
R928
061G08051003FT
RST CHIP 100K 1/8W 1%
R810
061G08051003FY
RST CHIP 100K 1/8W 1%
R820
061G08051003FY
RST CHIP 100K 1/8W 1%
R928
061G08051003FY
RST CHIP 100K 1/8W 1%
R831
061G08051004FF
RST CHIPR 1 MOHM +-1% 1/8W FENGHUA
122
R829
061G08051004FF
RST CHIPR 1 MOHM +-1% 1/8W FENGHUA
R808
061G08051004FF
RST CHIPR 1 MOHM +-1% 1/8W FENGHUA
R831
061G08051004FF
RST CHIPR 1 MOHM +-1% 1/8W FENGHUA
R829
061G08051004FF
RST CHIPR 1 MOHM +-1% 1/8W FENGHUA
R808
061G08051004FF
RST CHIPR 1 MOHM +-1% 1/8W FENGHUA
R831
061G08051004FT
RST CHIP R 1 MOHM +-1% 1/8W
R829
061G08051004FT
RST CHIP R 1 MOHM +-1% 1/8W
R808
061G08051004FT
RST CHIP R 1 MOHM +-1% 1/8W
R831
061G08051004FT
RST CHIP R 1 MOHM +-1% 1/8W
R829
061G08051004FT
RST CHIP R 1 MOHM +-1% 1/8W
R808
061G08051004FT
RST CHIP R 1 MOHM +-1% 1/8W
R802
061G0805101 JF
RST 0805 100R 5% 1/8W
R803
061G0805101 JF
RST 0805 100R 5% 1/8W
R954
061G0805101 JF
RST 0805 100R 5% 1/8W
R954
061G0805101 JT
RST CHIP 100R 1/8W 5% TZAI YUAN
R803
061G0805101 JT
RST CHIP 100R 1/8W 5% TZAI YUAN
R802
061G0805101 JT
RST CHIP 100R 1/8W 5% TZAI YUAN
R802
061G0805101 JY
RST CHIPR 100OHM +- 5% 1/8W YEGAO
R803
061G0805101 JY
RST CHIPR 100OHM +- 5% 1/8W YEGAO
R954
061G0805101 JY
RST CHIPR 100OHM +- 5% 1/8W YEGAO
R817
061G0805102 JF
RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R934
061G0805102 JF
RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R940
061G0805102 JF
RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R955
061G0805102 JF
RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R956
061G0805102 JF
RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R960
061G0805102 JF
RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R961
061G0805102 JF
RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R981
061G0805102 JF
RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R983
061G0805102 JF
RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R9905
061G0805102 JF
RST CHIPR 1K OHM +-5% 1/8W FENGHUA
R9905
061G0805102 JT
RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R983
061G0805102 JT
RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R981
061G0805102 JT
RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R961
061G0805102 JT
RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R960
061G0805102 JT
RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R956
061G0805102 JT
RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R955
061G0805102 JT
RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R940
061G0805102 JT
RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R934
061G0805102 JT
RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R817
061G0805102 JT
RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN
R9905
061G0805102 JY
RST CHIPR 1K OHM 5% 1/8W YAGE
R983
061G0805102 JY
RST CHIPR 1K OHM 5% 1/8W YAGE
R981
061G0805102 JY
RST CHIPR 1K OHM 5% 1/8W YAGE
R961
061G0805102 JY
RST CHIPR 1K OHM 5% 1/8W YAGE
R960
061G0805102 JY
RST CHIPR 1K OHM 5% 1/8W YAGE
R956
061G0805102 JY
RST CHIPR 1K OHM 5% 1/8W YAGE
R955
061G0805102 JY
RST CHIPR 1K OHM 5% 1/8W YAGE
123
R940
061G0805102 JY
RST CHIPR 1K OHM 5% 1/8W YAGE
R934
061G0805102 JY
RST CHIPR 1K OHM 5% 1/8W YAGE
R817
061G0805102 JY
RST CHIPR 1K OHM 5% 1/8W YAGE
R982
061G0805103 JF
RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R976
061G0805103 JF
RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R963
061G0805103 JF
RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R944
061G0805103 JF
RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R939
061G0805103 JF
RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R938
061G0805103 JF
RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R918
061G0805103 JF
RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R914
061G0805103 JF
RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R821
061G0805103 JF
RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R804
061G0805103 JF
RST CHIPR 10K OHM +-5% 1/8W FENGHUA
R982
061G0805103 JI
RST 0805 10K 5% 1/8W
R976
061G0805103 JI
RST 0805 10K 5% 1/8W
R963
061G0805103 JI
RST 0805 10K 5% 1/8W
R944
061G0805103 JI
RST 0805 10K 5% 1/8W
R939
061G0805103 JI
RST 0805 10K 5% 1/8W
R938
061G0805103 JI
RST 0805 10K 5% 1/8W
R918
061G0805103 JI
RST 0805 10K 5% 1/8W
R914
061G0805103 JI
RST 0805 10K 5% 1/8W
R821
061G0805103 JI
RST 0805 10K 5% 1/8W
R804
061G0805103 JI
RST 0805 10K 5% 1/8W
R982
061G0805103 JT
RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R976
061G0805103 JT
RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R963
061G0805103 JT
RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R944
061G0805103 JT
RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R939
061G0805103 JT
RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R938
061G0805103 JT
RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R918
061G0805103 JT
RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R914
061G0805103 JT
RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R821
061G0805103 JT
RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R804
061G0805103 JT
RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN
R982
061G0805103 JY
RST CHIPR 10KOHM +-5% 1/8W YAGEO
R976
061G0805103 JY
RST CHIPR 10KOHM +-5% 1/8W YAGEO
R963
061G0805103 JY
RST CHIPR 10KOHM +-5% 1/8W YAGEO
R944
061G0805103 JY
RST CHIPR 10KOHM +-5% 1/8W YAGEO
R939
061G0805103 JY
RST CHIPR 10KOHM +-5% 1/8W YAGEO
R938
061G0805103 JY
RST CHIPR 10KOHM +-5% 1/8W YAGEO
R918
061G0805103 JY
RST CHIPR 10KOHM +-5% 1/8W YAGEO
R914
061G0805103 JY
RST CHIPR 10KOHM +-5% 1/8W YAGEO
R821
061G0805103 JY
RST CHIPR 10KOHM +-5% 1/8W YAGEO
R804
061G0805103 JY
RST CHIPR 10KOHM +-5% 1/8W YAGEO
R810
061G0805104 JT
RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN
R820
061G0805104 JT
RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN
R810
061G0805104 JY
RST CHIPR 100KOHM 1/8W YAGEO
R820
061G0805104 JY
RST CHIPR 100KOHM 1/8W YAGEO
124
R831
061G0805105 JT
RST CHIP 1M 1/8W 5% TZAI YUAN
R829
061G0805105 JT
RST CHIP 1M 1/8W 5% TZAI YUAN
R808
061G0805105 JT
RST CHIP 1M 1/8W 5% TZAI YUAN
R923
061G08051302FF
RST CHIPR 13KOHM +-1% 1/8W FENGHUA
R923
061G08051302FT
RST CHIP 13K 1/8W 1%
R923
061G08051302FY
RST CHIP 13K 1/8W 1%
R812
061G0805154 JF
RST CHIPR 150KOHM +-5% 1/8W FENGHUA
R959
061G0805154 JF
RST CHIPR 150KOHM +-5% 1/8W FENGHUA
R812
061G0805154 JT
RST CHIP 150K 1/8W 5% TZAI YUAN
R959
061G0805154 JT
RST CHIP 150K 1/8W 5% TZAI YUAN
R959
061G0805154 JW
RST CHIPR 150K +-5% 1/8W WALSIN
R812
061G0805154 JW
RST CHIPR 150K +-5% 1/8W WALSIN
R818
061G08052001FF
RST CHIPR 2KOHM +-1% 1/8W FENGHUA
R980
061G08052001FF
RST CHIPR 2KOHM +-1% 1/8W FENGHUA
R818
061G08052001FT
RST CHIP 2K 1/8W 1%
R980
061G08052001FT
RST CHIP 2K 1/8W 1%
R818
061G08052001FY
RST CHIP 2K 1/8W 1%
R980
061G08052001FY
RST CHIP 2K 1/8W 1%
R824
061G0805201 JF
RST CHIPR 200OHM +-5% 1/8W FENGHUA
R822
061G0805201 JF
RST CHIPR 200OHM +-5% 1/8W FENGHUA
R824
061G0805201 JT
RST CHIPR 200OHM +-5% 1/8W TZAI YUAN
R822
061G0805201 JT
RST CHIPR 200OHM +-5% 1/8W TZAI YUAN
R824
061G0805201 JY
RST CHIPR 200R +-5% 1/8W YAGEO
R822
061G0805201 JY
RST CHIPR 200R +-5% 1/8W YAGEO
R917
061G0805203 JF
RST CHIPR 20KOHM +-5% 1/8W FENGHUA
R917
061G0805203 JT
RST CHIPR 20K +-5% 1/8W TZAI YUAN
R819
061G0805204 JF
RST CHIPR 200KOHM +-5% 1/8W FENGHUA
R819
061G0805204 JT
RST CHIP R 200KOHM 1/8W +/-5% TZAI YUAN
R943
061G0805220 JF
RST CHIPR 22 OHM +-5% 1/8W FENGHUA
R943
061G0805220 JI
RST 0805 22R 5% 1/8W
R943
061G0805220 JT
RST CHIPR 22OHM +-5% 1/8W TZAI YUAN
R943
061G0805220 JY
RST CHIPR 22R +-5% 1/8W YAGEO
R978
061G08052402FF
RST CHIPR 24KOHM +-1% 1/8W FENGHUA
R978
061G08052402FT
RST CHIP 24K 1/8W 1%
R978
061G08052402FT
RST CHIP 24K 1/8W 1%
R807
061G0805244 JF
RST CHIPR 240KOHM +-5% 1/8W FENGHUA
R807
061G0805244 JT
RST CHIP 240K 1/8W 5% TZAI YUAN
R807
061G0805244 JW
RST CHIPR 240K +-5% 1/8W WALSIN
R987
061G08052702FF
RST CHIPR 27KOHM +-1% 1/8W FENGHUA
R987
061G08052702FT
RST CHIP 27K 1/8W 1%
R987
061G08052702FY
RST CHIP 27K 1/8W 1%
R823
061G0805302 JF
RST CHIPR 3KOHM +-5% 1/8W FENGHUA
R825
061G0805302 JF
RST CHIPR 3KOHM +-5% 1/8W FENGHUA
R823
061G0805302 JI
RST CHIPR 3K OHM +-5% 1/8W
R825
061G0805302 JI
RST CHIPR 3K OHM +-5% 1/8W
R823
061G0805302 JT
RST CHIP 3K 1/8W 5% TZAI YUAN
R825
061G0805302 JT
RST CHIP 3K 1/8W 5% TZAI YUAN
125
R823
061G0805302 JY
RST CHIPR 3K +-5% 1/8W YAGEO
R825
061G0805302 JY
RST CHIPR 3K +-5% 1/8W YAGEO
R913
061G0805330 JF
RST CHIPR 33 OHM +-5% 1/8W FENGHUA
R913
061G0805330 JT
RST CHIP 33R 1/8W 5% TZAI YUAN
R913
061G0805330 JY
RST CHIPR 33OHM +-5% 1/8W YAGEO
R806
061G0805335 JF
RST CHIPR 3.3 MOHM +-5% 1/8W
R806
061G0805335 JT
RST CHIPR 3M3 +-5% 1/8W TZAI YUAN
R930
061G0805392 JF
RST CHIPR 3.9KOHM +-5% 1/8W FENGHUA
R975
061G0805392 JF
RST CHIPR 3.9KOHM +-5% 1/8W FENGHUA
R930
061G0805392 JT
RST CHIP 3K9 1/8W 5% TZAI YUAN
R975
061G0805392 JT
RST CHIP 3K9 1/8W 5% TZAI YUAN
R975
061G0805392 JY
RST CHIPR 3K9 +-5% 1/8W YAGEO
R930
061G0805392 JY
RST CHIPR 3K9 +-5% 1/8W YAGEO
R915
061G0805471 JF
RST CHIPR 470 OHM +-5% 1/8W FENGHUA
R945
061G0805471 JF
RST CHIPR 470 OHM +-5% 1/8W FENGHUA
R915
061G0805471 JI
RST 0805 470R 5% 1/8W
R945
061G0805471 JI
RST 0805 470R 5% 1/8W
R915
061G0805471 JT
RST CHIPR 470OHM +-5% 1/8W TZAI YUAN
R945
061G0805471 JT
RST CHIPR 470OHM +-5% 1/8W TZAI YUAN
R915
061G0805471 JY
RST CHIPR 470OHM +-5% 1/8W YAGEO
R945
061G0805471 JY
RST CHIPR 470OHM +-5% 1/8W YAGEO
R911
061G0805473 JF
RST CHIPR 47K OHM +-5% 1/8W FENGHUA
R911
061G0805473 JY
RST CHIPR 47K +-5% 1/8W YAGEO
R827
061G08055100FF
RST CHIPR 510 OHM +-1% 1/8W FENGHUA
R826
061G08055100FF
RST CHIPR 510 OHM +-1% 1/8W FENGHUA
R827
061G08055100FT
RST CHIP R 510 OHM +-1% 1/8W
R826
061G08055100FT
RST CHIP R 510 OHM +-1% 1/8W
R9906
061G0805513 JF
RST CHIPR 51KOHM +-5% 1/8W FENGHUA
R942
061G0805513 JF
RST CHIPR 51KOHM +-5% 1/8W FENGHUA
R815
061G0805513 JF
RST CHIPR 51KOHM +-5% 1/8W FENGHUA
R814
061G0805513 JF
RST CHIPR 51KOHM +-5% 1/8W FENGHUA
R814
061G0805513 JT
RST CHIPR 51K +-5% 1/8W TZAI YUAN
R942
061G0805513 JT
RST CHIPR 51K +-5% 1/8W TZAI YUAN
R9906
061G0805513 JT
RST CHIPR 51K +-5% 1/8W TZAI YUAN
R815
061G0805513 JT
RST CHIPR 51K +-5% 1/8W TZAI YUAN
R9906
061G0805513 JY
RST CHIPR 51K +-5% 1/8W YAGEO
R942
061G0805513 JY
RST CHIPR 51K +-5% 1/8W YAGEO
R815
061G0805513 JY
RST CHIPR 51K +-5% 1/8W YAGEO
R814
061G0805513 JY
RST CHIPR 51K +-5% 1/8W YAGEO
R906
061G0805514 JF
RST CHIPR 510KOHM +-5% 1/8W FENGHUA
R906
061G0805514 JY
RST CHIPR 510K +-5% 1/8W YAGEO
R805
061G08056202FF
RST CHIPR 62KOHM +-1% 1/8W FENGHUA
R805
061G08056202FT
RST CHIP 62K 1/8W 1%
R828
061G0805683 JF
RST CHIPR 68KOHM +-5% 1/8W FENGHUA
R830
061G0805683 JF
RST CHIPR 68KOHM +-5% 1/8W FENGHUA
R828
061G0805683 JI
RST 0805 68K 5% 1/8W
R830
061G0805683 JI
RST 0805 68K 5% 1/8W
126
R828
061G0805683 JT
RST CHIPR 68K +-5% 1/8W TZAI YUAN
R830
061G0805683 JT
RST CHIPR 68K +-5% 1/8W TZAI YUAN
JR803
061G1206000 JF
RST CHIPR MAX0R05 1/4W FENGHUA
JR804
061G1206000 JF
RST CHIPR MAX0R05 1/4W FENGHUA
JR805
061G1206000 JF
RST CHIPR MAX0R05 1/4W FENGHUA
JR901
061G1206000 JF
RST CHIPR MAX0R05 1/4W FENGHUA
JR902
061G1206000 JF
RST CHIPR MAX0R05 1/4W FENGHUA
JR802
061G1206000 JF
RST CHIPR MAX0R05 1/4W FENGHUA
JR801
061G1206000 JF
RST CHIPR MAX0R05 1/4W FENGHUA
JR803
061G1206000 JT
RST CHIPR MAX0R05 1/4W TZAI YUAN
JR804
061G1206000 JT
RST CHIPR MAX0R05 1/4W TZAI YUAN
JR805
061G1206000 JT
RST CHIPR MAX0R05 1/4W TZAI YUAN
JR901
061G1206000 JT
RST CHIPR MAX0R05 1/4W TZAI YUAN
JR902
061G1206000 JT
RST CHIPR MAX0R05 1/4W TZAI YUAN
JR801
061G1206000 JT
RST CHIPR MAX0R05 1/4W TZAI YUAN
JR802
061G1206000 JT
RST CHIPR MAX0R05 1/4W TZAI YUAN
JR801
061G1206000 JY
RST CHIPR MAX0R05 1/4W YAGEO
JR802
061G1206000 JY
RST CHIPR MAX0R05 1/4W YAGEO
JR902
061G1206000 JY
RST CHIPR MAX0R05 1/4W YAGEO
JR901
061G1206000 JY
RST CHIPR MAX0R05 1/4W YAGEO
JR805
061G1206000 JY
RST CHIPR MAX0R05 1/4W YAGEO
JR804
061G1206000 JY
RST CHIPR MAX0R05 1/4W YAGEO
JR803
061G1206000 JY
RST CHIPR MAX0R05 1/4W YAGEO
R816
061G1206101 JF
RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R950
061G1206101 JF
RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R951
061G1206101 JF
RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R952
061G1206101 JF
RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R953
061G1206101 JF
RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R970
061G1206101 JF
RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R971
061G1206101 JF
RST CHIPR 100 OHM +-5% 1/4W FENGHUA
R816
061G1206101 JI
RST 1206 100R 5% 1/4W
R950
061G1206101 JI
RST 1206 100R 5% 1/4W
R951
061G1206101 JI
RST 1206 100R 5% 1/4W
R952
061G1206101 JI
RST 1206 100R 5% 1/4W
R953
061G1206101 JI
RST 1206 100R 5% 1/4W
R970
061G1206101 JI
RST 1206 100R 5% 1/4W
R971
061G1206101 JI
RST 1206 100R 5% 1/4W
R816
061G1206101 JT
RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R950
061G1206101 JT
RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R951
061G1206101 JT
RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R952
061G1206101 JT
RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R953
061G1206101 JT
RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R970
061G1206101 JT
RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R971
061G1206101 JT
RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN
R816
061G1206101 JY
RST CHIPR 100R +-5% 1/4W YAGEO
R950
061G1206101 JY
RST CHIPR 100R +-5% 1/4W YAGEO
R951
061G1206101 JY
RST CHIPR 100R +-5% 1/4W YAGEO
127
R952
061G1206101 JY
RST CHIPR 100R +-5% 1/4W YAGEO
R953
061G1206101 JY
RST CHIPR 100R +-5% 1/4W YAGEO
R970
061G1206101 JY
RST CHIPR 100R +-5% 1/4W YAGEO
R971
061G1206101 JY
RST CHIPR 100R +-5% 1/4W YAGEO
R974
061G1206102 JF
RST CHIPR 1KOHM +-5% 1/4W FENGHUA
R974
061G1206102 JT
RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN
R974
061G1206102 JY
RST CHIPR 1KOHM 5% 1/4W YAGEO
R832
061G1206103 JF
RST CHIPR 10KOHM +-5% 1/4W FENGHUA
R833
061G1206103 JF
RST CHIPR 10KOHM +-5% 1/4W FENGHUA
R832
061G1206103 JT
RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R833
061G1206103 JT
RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN
R832
061G1206103 JY
RST CHIPR 10K +-5% 1/4W YAGEO
R833
061G1206103 JY
RST CHIPR 10K +-5% 1/4W YAGEO
R9211
061G1206104 JF
RST CHIPR 100KOHM +-5% 1/4W FENGHUA
R9212
061G1206104 JF
RST CHIPR 100KOHM +-5% 1/4W FENGHUA
R9213
061G1206104 JF
RST CHIPR 100KOHM +-5% 1/4W FENGHUA
R9214
061G1206104 JF
RST CHIPR 100KOHM +-5% 1/4W FENGHUA
R9401
061G1206104 JF
RST CHIPR 100KOHM +-5% 1/4W FENGHUA
R9402
061G1206104 JF
RST CHIPR 100KOHM +-5% 1/4W FENGHUA
R9403
061G1206104 JF
RST CHIPR 100KOHM +-5% 1/4W FENGHUA
R9404
061G1206104 JF
RST CHIPR 100KOHM +-5% 1/4W FENGHUA
R9211
061G1206104 JT
RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9212
061G1206104 JT
RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9213
061G1206104 JT
RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9214
061G1206104 JT
RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9401
061G1206104 JT
RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9402
061G1206104 JT
RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9403
061G1206104 JT
RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9404
061G1206104 JT
RST CHIPR 100KOHM +-5% 1/4W TZAI YUAN
R9404
061G1206104 JY
RST CHIPR 100KOHM 5% 1/4W YAG
R9403
061G1206104 JY
RST CHIPR 100KOHM 5% 1/4W YAG
R9402
061G1206104 JY
RST CHIPR 100KOHM 5% 1/4W YAG
R9401
061G1206104 JY
RST CHIPR 100KOHM 5% 1/4W YAG
R9214
061G1206104 JY
RST CHIPR 100KOHM 5% 1/4W YAG
R9213
061G1206104 JY
RST CHIPR 100KOHM 5% 1/4W YAG
R9212
061G1206104 JY
RST CHIPR 100KOHM 5% 1/4W YAG
R9211
061G1206104 JY
RST CHIPR 100KOHM 5% 1/4W YAG
R811
061G12061504FF
RST CHIPR 1.5MOHM 1% 1/4W FENGHUA
R905
061G12061504FF
RST CHIPR 1.5MOHM 1% 1/4W FENGHUA
R904
061G12061504FF
RST CHIPR 1.5MOHM 1% 1/4W FENGHUA
R926
061G12061504FF
RST CHIPR 1.5MOHM 1% 1/4W FENGHUA
R925
061G12061504FF
RST CHIPR 1.5MOHM 1% 1/4W FENGHUA
R924
061G12061504FF
RST CHIPR 1.5MOHM 1% 1/4W FENGHUA
R909
061G12061504FF
RST CHIPR 1.5MOHM 1% 1/4W FENGHUA
R811
061G12061504FT
RST CHIP 1M5 1/4W 1%
R904
061G12061504FT
RST CHIP 1M5 1/4W 1%
R905
061G12061504FT
RST CHIP 1M5 1/4W 1%
128
R909
061G12061504FT
RST CHIP 1M5 1/4W 1%
R924
061G12061504FT
RST CHIP 1M5 1/4W 1%
R925
061G12061504FT
RST CHIP 1M5 1/4W 1%
R926
061G12061504FT
RST CHIP 1M5 1/4W 1%
R926
061G12061504FY
RST CHIP 1M5 1/4W 1%
R925
061G12061504FY
RST CHIP 1M5 1/4W 1%
R924
061G12061504FY
RST CHIP 1M5 1/4W 1%
R909
061G12061504FY
RST CHIP 1M5 1/4W 1%
R905
061G12061504FY
RST CHIP 1M5 1/4W 1%
R904
061G12061504FY
RST CHIP 1M5 1/4W 1%
R811
061G12061504FY
RST CHIP 1M5 1/4W 1%
R968
061G1206222 JT
RST CHIPR 2.2KOHM +-5% 1/4W TZAI YUAN
R969
061G1206222 JT
RST CHIPR 2.2KOHM +-5% 1/4W TZAI YUAN
R972
061G1206222 JT
RST CHIPR 2.2KOHM +-5% 1/4W TZAI YUAN
R973
061G1206222 JT
RST CHIPR 2.2KOHM +-5% 1/4W TZAI YUAN
R931
061G1206249 JT
RST CHIPR 2.4 OHM +-5% 1/4W TZAI YUAN
R908
061G1206249 JT
RST CHIPR 2.4 OHM +-5% 1/4W TZAI YUAN
R907
061G1206249 JT
RST CHIPR 2.4 OHM +-5% 1/4W TZAI YUAN
R907
061G1206249 JW
RST CHIPR 2.4 OHM +-5% 1/4W W
R908
061G1206249 JW
RST CHIPR 2.4 OHM +-5% 1/4W W
R931
061G1206249 JW
RST CHIPR 2.4 OHM +-5% 1/4W W
R903
061G1206304 JF
RST CHIPR 300KOHM +-5% 1/4W FENGHUA
R902
061G1206304 JF
RST CHIPR 300KOHM +-5% 1/4W FENGHUA
R901
061G1206304 JF
RST CHIPR 300KOHM +-5% 1/4W FENGHUA
R903
061G1206304 JI
RST 1206 300K 5% 1/4W
R902
061G1206304 JI
RST 1206 300K 5% 1/4W
R901
061G1206304 JI
RST 1206 300K 5% 1/4W
R901
061G1206304 JT
RST CHIPR 300 KOHM +-5% 1/4W TZAI YUAN
R902
061G1206304 JT
RST CHIPR 300 KOHM +-5% 1/4W TZAI YUAN
R903
061G1206304 JT
RST CHIPR 300 KOHM +-5% 1/4W TZAI YUAN
R937
061G1206475 JF
RST CHIPR 4.7 MOHM +-5% 1/4W FENGHUA
R937
061G1206475 JT
RST CHIPR 4.7 MOHM +-5% 1/4W TZAI YUAN
R937
061G1206475 JY
RST CHIPR 4M7 +-5% 1/4W YAGEO
R966
061G1206512 JF
RST CHIPR 5.1KOHM +-5% 1/4W FENGHUA
R965
061G1206512 JF
RST CHIPR 5.1KOHM +-5% 1/4W FENGHUA
R949
061G1206512 JF
RST CHIPR 5.1KOHM +-5% 1/4W FENGHUA
R947
061G1206512 JF
RST CHIPR 5.1KOHM +-5% 1/4W FENGHUA
R966
061G1206512 JT
RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN
R965
061G1206512 JT
RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN
R949
061G1206512 JT
RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN
R947
061G1206512 JT
RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN
R947
061G1206512 JY
RST CHIPR 5.1 KOHM +-5% 1/4W
R949
061G1206512 JY
RST CHIPR 5.1 KOHM +-5% 1/4W
R965
061G1206512 JY
RST CHIPR 5.1 KOHM +-5% 1/4W
R966
061G1206512 JY
RST CHIPR 5.1 KOHM +-5% 1/4W
R922
061G12066803FF
RST CHIPR 680KOHM +-1% 1/4W FENGHUA
R921
061G12066803FF
RST CHIPR 680KOHM +-1% 1/4W FENGHUA
129
R920
061G12066803FF
RST CHIPR 680KOHM +-1% 1/4W FENGHUA
R920
061G12066803FT
RST CHIP 680K 1/4W 1%
R921
061G12066803FT
RST CHIP 680K 1/4W 1%
R922
061G12066803FT
RST CHIP 680K 1/4W 1%
R920
061G12066803FY
RST CHIPR 680KOHM +-1% 1/4W YAGEO
R921
061G12066803FY
RST CHIPR 680KOHM +-1% 1/4W YAGEO
R922
061G12066803FY
RST CHIPR 680KOHM +-1% 1/4W YAGEO
C808
065G080510232K 3
CAP CHIP 0805 1N 50V X7R +/-10%
C909
065G080510232K 3
CAP CHIP 0805 1N 50V X7R +/-10%
C950
065G080510232K 3
CAP CHIP 0805 1N 50V X7R +/-10%
C951
065G080510232K 3
CAP CHIP 0805 1N 50V X7R +/-10%
C960
065G080510232K 3
CAP CHIP 0805 1N 50V X7R +/-10%
C961
065G080510232K 3
CAP CHIP 0805 1N 50V X7R +/-10%
C970
065G080510232K 3
CAP CHIP 0805 1N 50V X7R +/-10%
C971
065G080510232K 3
CAP CHIP 0805 1N 50V X7R +/-10%
C971
065G080510232K F
CAP 0805 1000PF 10% 50V X7R
C970
065G080510232K F
CAP 0805 1000PF 10% 50V X7R
C961
065G080510232K F
CAP 0805 1000PF 10% 50V X7R
C960
065G080510232K F
CAP 0805 1000PF 10% 50V X7R
C951
065G080510232K F
CAP 0805 1000PF 10% 50V X7R
C950
065G080510232K F
CAP 0805 1000PF 10% 50V X7R
C909
065G080510232K F
CAP 0805 1000PF 10% 50V X7R
C808
065G080510232K F
CAP 0805 1000PF 10% 50V X7R
C971
065G080510232K Y
CAP CHIP 0805 1N 50V X7R +/-10%
C970
065G080510232K Y
CAP CHIP 0805 1N 50V X7R +/-10%
C961
065G080510232K Y
CAP CHIP 0805 1N 50V X7R +/-10%
C960
065G080510232K Y
CAP CHIP 0805 1N 50V X7R +/-10%
C951
065G080510232K Y
CAP CHIP 0805 1N 50V X7R +/-10%
C950
065G080510232K Y
CAP CHIP 0805 1N 50V X7R +/-10%
C909
065G080510232K Y
CAP CHIP 0805 1N 50V X7R +/-10%
C808
065G080510232K Y
CAP CHIP 0805 1N 50V X7R +/-10%
C816
065G080510332K F
CAP 0805 10NF K 50V X7R
C920
065G080510332K F
CAP 0805 10NF K 50V X7R
C816
065G080510332K W
NO-SUGGEST CHIP 0805 10NF 50V X7R
C920
065G080510332K W
NO-SUGGEST CHIP 0805 10NF 50V X7R
C816
065G080510332K Y
CAP CHIP 0805 10N 50V X7R +/-10%
C920
065G080510332K Y
CAP CHIP 0805 10N 50V X7R +/-10%
C979
065G080510432K A
CAP CHIP 0805 0.1UF K 50V X7R
C978
065G080510432K A
CAP CHIP 0805 0.1UF K 50V X7R
C977
065G080510432K A
CAP CHIP 0805 0.1UF K 50V X7R
C974
065G080510432K A
CAP CHIP 0805 0.1UF K 50V X7R
C956
065G080510432K A
CAP CHIP 0805 0.1UF K 50V X7R
C943
065G080510432K A
CAP CHIP 0805 0.1UF K 50V X7R
C942
065G080510432K A
CAP CHIP 0805 0.1UF K 50V X7R
C806
065G080510432K A
CAP CHIP 0805 0.1UF K 50V X7R
C907
065G080510432K A
CAP CHIP 0805 0.1UF K 50V X7R
C908
065G080510432K A
CAP CHIP 0805 0.1UF K 50V X7R
130
C913
065G080510432K A
CAP CHIP 0805 0.1UF K 50V X7R
C921
065G080510432K A
CAP CHIP 0805 0.1UF K 50V X7R
C922
065G080510432K A
CAP CHIP 0805 0.1UF K 50V X7R
C979
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C978
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C977
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C974
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C956
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C943
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C942
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C922
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C921
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C913
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C908
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C907
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C806
065G080510432K F
CAP CHIP 0805 0.1UF K 50V X7R
C806
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C907
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C908
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C913
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C921
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C922
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C942
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C943
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C956
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C974
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C977
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C978
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C979
065G080510432K Y
CAP CHIP 0805 100N 50V X7R +/-10%
C809
065G080510512K T
CAP CHIP 0805 1UF K 16V X7R
C811
065G080510512K T
CAP CHIP 0805 1UF K 16V X7R
C815
065G080515232K A
NO-SUGGEST 0805 1500PF K 50V X7R
C815
065G080515232K Y
CAP CHIP 0805 1N5 50V X7R +/-10%
C915
065G080522131J F
CAP CHIP 0805 220PF J 50V NPO
C944
065G080522131J F
CAP CHIP 0805 220PF J 50V NPO
C915
065G080522131J Y
CAP CHIP 0805 220P 50V NPO +/-5%
C944
065G080522131J Y
CAP CHIP 0805 220P 50V NPO +/-5%
C826
065G080522231J F
NO-SUGGEST 0805 2.2NF J 50V NPO
C828
065G080522231J F
NO-SUGGEST 0805 2.2NF J 50V NPO
C826
065G080522231J Y
NO-SUGGEST 0805 2.2NF J 50V NPO
C828
065G080522231J Y
NO-SUGGEST 0805 2.2NF J 50V NPO
C812
065G080522332K A
CAP CHIP 0805 22NF K 50V X7R
C812
065G080522332K Y
CAP CHIP 0805 22N 50V X7R +/-10%
C955
065G080522432K A
CAP CHIP 0805 0.22UF K 50V X7R
C955
065G080522432K Y
CAP CHIP 0805 220N 50V X7R +/-10%
C802
065G080522522K M
CAP 0805 2.2UF 10% 25V X7R
C814
065G080522522K M
CAP 0805 2.2UF 10% 25V X7R
131
C802
065G080522522K T
CAP 0805 2.2UF 10% 25V X7R
C814
065G080522522K T
CAP 0805 2.2UF 10% 25V X7R
C814
065G080522522K Y
CAP CHIP 0805 2U2 25V X7R +/-10%
C802
065G080522522K Y
CAP CHIP 0805 2U2 25V X7R +/-10%
C814
065G080522522K Y
CAP CHIP 0805 2U2 25V X7R +/-10%
C802
065G080522522K Y
CAP CHIP 0805 2U2 25V X7R +/-10%
C807
065G080533131G A
NO-SUGGEST 0805 330PF J 50V NPO
C807
065G080533131G F
CAP CHIP 0805 330PF 50V G NPO
C807
065G080533131G W
CAP CHIP 0805 330PF G 50V NPO
C976
065G080533432K 3
CAP CHIP 0805 330N 50V X7R +/-10%
C976
065G080533432K A
CAP 0805 330NF 10% 50V X7R
C976
065G080533432K F
CAP 0805 330NF 10% 50V X7R
C976
065G080533432K M
CAP 0805 330NF 10% 50V X7R
C976
065G080533432K Y
CAP CHIP 0805 330N 50V X7R +/-10%
C976
065G080533432K Y
CAP CHIP 0805 330N 50V X7R +/-10%
C810
065G080547232K A
NO-SUGGEST 0805 4700PF K 50V X7R
C813
065G080547232K A
NO-SUGGEST 0805 4700PF K 50V X7R
C813
065G080547232K F
CAP 0805 4.7NF 10% 50V X7R
C810
065G080547232K F
CAP 0805 4.7NF 10% 50V X7R
C813
065G080547232K Y
CAP CHIP 0805 4N7 50V X7R +/-10%
C810
065G080547232K Y
CAP CHIP 0805 4N7 50V X7R +/-10%
C917
065G080547332K A
CAP CHIP 0805 47NF K 50V X7R
C818
065G080547332K A
CAP CHIP 0805 47NF K 50V X7R
C817
065G080547332K A
CAP CHIP 0805 47NF K 50V X7R
C817
065G080547332K F
CAP CHIP 0805 47NF K 50V X7R
C818
065G080547332K F
CAP CHIP 0805 47NF K 50V X7R
C917
065G080547332K F
CAP CHIP 0805 47NF K 50V X7R
C917
065G080547332K Y
CAP CHIP 0805 47N 50V X7R +/-10%
C818
065G080547332K Y
CAP CHIP 0805 47N 50V X7R +/-10%
C817
065G080547332K Y
CAP CHIP 0805 47N 50V X7R +/-10%
C918
065G080547437Z M
NO-SUGGEST MLCC 0805 0.47UF 50V Y5V
C918
065G080547437Z Y
CAP CHIP 0805 0.47UF Z 50V Y5V
C912
065G080556031J A
NO-SUGGEST 0805 56PF J 50V NPO
C912
065G080556031J F
CAP CHIP 0805 56PF J 50V NPO
C912
065G080556031J Y
CAP CHIP 0805 56PF J 50V NPO
D805
093G 64 42 L
DIODE LBAV70LT1G SOT-23 LRC
D805
093G 64 42 P
BAV70 SOT23 BY PAN JIT
D805
093G 64 42 PP
BAV70 SOT-23
D801
093G 60S931 T
DIODE B0520LW SOD-123
D802
093G 60S931 T
DIODE B0520LW SOD-123
D803
093G 60S931 T
DIODE B0520LW SOD-123
D804
093G 60S931 T
DIODE B0520LW SOD-123
D905
093G 60S931 T
DIODE B0520LW SOD-123
D906
093G 60S931 T
DIODE B0520LW SOD-123
D906
093G 60S934 T
DIODE SS0520 SOD-123
D905
093G 60S934 T
DIODE SS0520 SOD-123
D804
093G 60S934 T
DIODE SS0520 SOD-123
132
D803
093G 60S934 T
DIODE SS0520 SOD-123
D802
093G 60S934 T
DIODE SS0520 SOD-123
D801
093G 60S934 T
DIODE SS0520 SOD-123
CN901
006G 31500
EYELET
L904
006G 31502
1.5MM RIVET
T802
006G 31502
1.5MM RIVET
IC952
056G 158 10 T
IC AS431AZTR-E1 TO-92 BY AAC
IC971
056G 158 10 T
IC AS431AZTR-E1 TO-92 BY AAC
IC952
056G 158 12
SHUNT REGULATOR KIA431A-AT/P TO-92
IC971
056G 158 12
SHUNT REGULATOR KIA431A-AT/P TO-92
IC952
056G 158900
TL431CZ-AP 0.1A ADJ TO92
IC971
056G 158900
TL431CZ-AP 0.1A ADJ TO92
Q905
057G 420 3 T
TRA KTA1273-Y- AT/ P_TO-92L KEC
R948
061G 30310852T GP
FUSE RESISTOR
R801
061G 30310852T GP
FUSE RESISTOR
R929
061G 60210352T
CFR 10KOHM +-5% 1/6W
R912
061G152M20852T
RST MOFR 0.2 OHM +-5% 2WS
R916
061G152M20852T
RST MOFR 0.2 OHM +-5% 2WS
R946
061G152M33852T
RST MOFR 0.33 OHM +-5% 2WS
C937
067G 2151007NT
EC 10UF 20% 50V 5*11
C941
067G 2151007NT
EC 10UF 20% 50V 5*11
C933
067G 2152207NT
KY50VB22M-TP5 5*11
C937
067G215A1007HT
EC 10UF M 50V 5*11MM
C941
067G215A1007HT
EC 10UF M 50V 5*11MM
C805
067G215A1017HT
EC 100UF M 50V 8*11MM
C931
067G215A1017HT
EC 100UF M 50V 8*11MM
C805
067G215A1017KT
EC 100UF 50V 8*12MM
C931
067G215A1017KT
EC 100UF 50V 8*12MM
C914
067G215A4707HT
EC 47UF M 50V 6.3*11MM
C937
067G215Y1007KT
KY50VB10M-TP5 5*11.5
C941
067G215Y1007KT
KY50VB10M-TP5 5*11.5
C933
067G215Y2207KT
CAP 105℃ 22UF M 50V KINGNICHI
C933
067G215Y2207LT
LOW ESR EC 22UF 50V M 5*11MM
C914
067G215Y4707KT
EC 47UF 20% 50V 6.3*11MM
C914
067G215Y4707LT
LOW ESR EC 47UF 50V M 6.3*11MM
FB904
071G 55 9 T
BEAD 3.5*0.8*6.0MM 110R 25% HF
FB901
071G 55 26 S
BEAD 3.5*6MM 127 OHM 25% LB3.5¡Á0.8¡Á6-2
FB902
071G 55 26 S
BEAD 3.5*6MM 127 OHM 25% LB3.5¡Á0.8¡Á6-2
FB907
071G 55 26 S
BEAD 3.5*6MM 127 OHM 25% LB3.5¡Á0.8¡Á6-2
FB903
071G 55 29
FERRITE BEAD
FB905
071G 55 29
FERRITE BEAD
FB901
071T 55 26 H
FERRITE BEAD 3.5*6.0*0.8
FB902
071T 55 26 H
FERRITE BEAD 3.5*6.0*0.8
FB907
071T 55 26 H
FERRITE BEAD 3.5*6.0*0.8
ZD901
093G 3916752T
MTZJ T-72 16B
ZD951
093G 3916752T
MTZJ T-72 16B
ZD952
093G 3917152T
TZJ T-72 30B
133
ZD902
093G 3919652T
DIODE MTZJ T-72 5.6B 500MW/5.6V DO-34
D930
093G 6026T52T
CTIFIER DIODE FR107
D935
093G 6026T52T
CTIFIER DIODE FR107
D940
093G 6026T52T
CTIFIER DIODE FR107
D901
093G 6026T52T
CTIFIER DIODE FR107
D806
093G 64 1152T PH
SWITCH DIODE 1N4148 BY NXP
D807
093G 64 1152T PH
SWITCH DIODE 1N4148 BY NXP
D903
093G 64 1152T PH
SWITCH DIODE 1N4148 BY NXP
D954
093G 64 1152T PH
SWITCH DIODE 1N4148 BY NXP
D955
093G 64 1152T PH
SWITCH DIODE 1N4148 BY NXP
D806
093G 64 1152T RE
SWITCH DIODE 1N4148 BY RENESAS
D807
093G 64 1152T RE
SWITCH DIODE 1N4148 BY RENESAS
D903
093G 64 1152T RE
SWITCH DIODE 1N4148 BY RENESAS
D954
093G 64 1152T RE
SWITCH DIODE 1N4148 BY RENESAS
D955
093G 64 1152T RE
SWITCH DIODE 1N4148 BY RENESAS
D806
093G 6452452T
SWITCHING 1N4148-B4006 0.2A 100V DO-35
D807
093G 6452452T
SWITCHING 1N4148-B4006 0.2A 100V DO-35
D903
093G 6452452T
SWITCHING 1N4148-B4006 0.2A 100V DO-35
D954
093G 6452452T
SWITCHING 1N4148-B4006 0.2A 100V DO-35
D955
093G 6452452T
SWITCHING 1N4148-B4006 0.2A 100V DO-35
ZD952
093G 39G 9
DIODE MTZJ30B DO-34
D930
093G110050152T
DIODE PR1007 1A/1000V 500NS DO-41
D935
093G110050152T
DIODE PR1007 1A/1000V 500NS DO-41
D940
093G110050152T
DIODE PR1007 1A/1000V 500NS DO-41
D901
093G110050152T
DIODE PR1007 1A/1000V 500NS DO-41
J928
095G 90 23
JUMPER WIRE
J929
095G 90 23
JUMPER WIRE
J930
095G 90 23
JUMPER WIRE
J932
095G 90 23
JUMPER WIRE
J933
095G 90 23
JUMPER WIRE
J934
095G 90 23
JUMPER WIRE
J927
095G 90 23
JUMPER WIRE
J926
095G 90 23
JUMPER WIRE
J925
095G 90 23
JUMPER WIRE
J924
095G 90 23
JUMPER WIRE
J923
095G 90 23
JUMPER WIRE
J922
095G 90 23
JUMPER WIRE
J921
095G 90 23
JUMPER WIRE
J920
095G 90 23
JUMPER WIRE
J918
095G 90 23
JUMPER WIRE
J912
095G 90 23
JUMPER WIRE
J909
095G 90 23
JUMPER WIRE
J908
095G 90 23
JUMPER WIRE
J905
095G 90 23
JUMPER WIRE
J903
095G 90 23
JUMPER WIRE
J935
095G 90 23
JUMPER WIRE
J809
095G 90 23
JUMPER WIRE
134
J810
095G 90 23
JUMPER WIRE
J906
095G 90 23
JUMPER WIRE
J907
095G 90 23
JUMPER WIRE
J910
095G 90 23
JUMPER WIRE
J911
095G 90 23
JUMPER WIRE
J913
095G 90 23
JUMPER WIRE
J914
095G 90 23
JUMPER WIRE
J915
095G 90 23
JUMPER WIRE
J916
095G 90 23
JUMPER WIRE
J919
095G 90 23
JUMPER WIRE
J917
095G 90 23
JUMPER WIRE
J808
095G 90 23
JUMPER WIRE
J937
095G 90 23
JUMPER WIRE
J938
095G 90 23
JUMPER WIRE
J939
095G 90 23
JUMPER WIRE
J940
095G 90 23
JUMPER WIRE
J941
095G 90 23
JUMPER WIRE
J942
095G 90 23
JUMPER WIRE
J901
095G 90 23
JUMPER WIRE
J904
095G 90 23
JUMPER WIRE
J936
095G 90 23
JUMPER WIRE
J805
095G 90 23
JUMPER WIRE
J806
095G 90 23
JUMPER WIRE
J807
095G 90 23
JUMPER WIRE
J902
095G 90 23
JUMPER WIRE
J811
095G 90 23
JUMPER WIRE
J804
095G 90 23
JUMPER WIRE
J803
095G 90 23
JUMPER WIRE
J802
095G 90 23
JUMPER WIRE
J801
095G 90 23
JUMPER WIRE
E715
715G3760P01W20003H
TV POWER-PCB CEM-1 SS 230X200X1.6MM
2nd source
E715
715G3760P01W20003M TV POWER-PCB CEM-1 SS 230X200X1.6MM
L904
S73G174161V
PFC CHOKE 170UH 5%
T902
S80GL52P5V
X'FMR 500UH 5%
Q02G7021 2
BOLT
Q02G7022 3
SCREW-STOPPER
Q11G5061 1
PCB SUPPORT
Q15T0419101
BKT FIX PANEL
Q44GN041813 1A
CARTON 42PFL1300/T3
Q44GN058101
CUSHION-TL EPS
Q44GN058201
CUSHION-TR EPS
Q44GN058301
CUSHION-BL EPS
Q44GN058401
CUSHION-BR EPS
Q44GN058501
CUSHION-TM EPS
Q44GN058601
CUSHION-BM EPS
Q45G 99626 36
PE BAG
Q45G9901 TV012
P.E. BAGX1200X900X0.02+0.5 0.02
135
Q50G 4 10
TIE (Y1900221)
Q50T 500523
CABLE TIE
Q52G 1150523
TAPE_INSULATING
ECN405
S95G801851542
LVDS CABLE 51P-30P 570MM
2nd source
033F 30351EJAE
FI-RE51HL
033F204H 30
A2004H-2*15P
033F303TR3AJAE
FI-RC3A-1-15000
033F303TR3BJAE
FI-RC3B-1-15000
033F204T 24
A2004-T
089G214A18N IS
POWER CORD 1.8M FA37B201312180TP
092TB1JX1A3NGM
BATTERY FOR ALL CHINA MODE
Q01G6145 1
SCREW
Q41G32MV813 3A
MANUAL
Q41G78DV813 6A
WARRANTY CARD FOR CHINA
Q45G 76 28NV2 R
PE BAG FOR BASE SCREW SZ02742
Q45G2010M0101A
PE BAG FOR MANUAL
026G 800700 1A
BARCODE LABEL
040G 58162435A
P/N LABEL FOR MANUAL PE BAG
Q40G 420813 2A
RATING LABEL 42PFL1300/T3
Q40G000181328A
CARTON LABEL
0M1G 930 6 47 CR3
SCREW
0Q1G 930 8 47 CR3
SCREW
A15T1023101
42-BKT-IO_SIDE-OTS
Q40G2010 42010
SIDE LABEL
Q52G1001 TV001
AL TAPE
立即购买
下载本素材需消耗 50 积分
无法下载？立即反馈
版权声明
1. 本站所有素材，仅限学习交流，仅展示部分内容，如需查看完整内容，请下载原文件。
2. 会员在本站下载的所有素材，只拥有使用权，著作权归原作者所有。
3. 所有素材，未经合法授权，请勿用于商业用途，会员不得以任何形式发布、传播、复制、转售该素材，否则一律封号处理。
4. 如果素材损害你的权益请联系客服QQ：77594475 处理。
