胜利GR-D91摄像机图纸

分类：电子电工 日期： 点击：0
胜利GR-D91摄像机图纸-0 胜利GR-D91摄像机图纸-1 胜利GR-D91摄像机图纸-2 胜利GR-D91摄像机图纸-3 胜利GR-D91摄像机图纸-4 胜利GR-D91摄像机图纸-5 胜利GR-D91摄像机图纸-6 胜利GR-D91摄像机图纸-7 胜利GR-D91摄像机图纸-8 胜利GR-D91摄像机图纸-9

SERVICE MANUAL COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD. No.86722 2003/04 DIGITAL VIDEO CAMERA 86722 2003 04 GR-D30UB,GR-D30US,GR-D31US, GR-D70US,GR-D90UB,GR-D90US,GR-D91US SPECIFICATION (The specifications shown pertain specifically to the model GR-D30US, GR-D70US, GR-D90US) Camcorder General Digital Video Camera Digital Still Camera Function Connectors AC Adapter For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL No.86700 (MECHANISM ASSEMBLY). Power supply : DC 11.0 V (Using AC Adapter) DC 7.2 V (Using battery pack) Power consumption LCD monitor off, viewfinder on : Approx. 3.4 W LCD monitor on, viewfinder off : Approx. 4.7 W Dimensions (W x H x D) : 76 mm x 94 mm x 143 mm (3" x 3-3/4" x 5-11/16") (GR-D90) 69 mm x 94 mm x 143 mm (2-3/4" x 3-3/4" x 5-11/16") (GR-D70/D30) (with the LCD monitor closed and the viewfinder pushed back in) Weight : Approx. 550 g (1.3 lbs) (GR-D90) Approx. 525 g (1.2 lbs) (GR-D70/D30) Operating temperature : 0°C to 40°C (32°F to 104°F) Operating humidity : 35% to 80% Storage temperature : -20°C to 50°C (-4°F to 122°F) Pickup : 1/6" CCD Lens : F 1.6, f = 2.7 mm to 43.2 mm, 16:1 power zoom lens Filter diameter : Ø37 mm LCD monitor : 3.5" diagonally measured, LCD panel/TFT active matrix system (GR-D90) 2.5" diagonally measured, LCD panel/TFT active matrix system (GR-D70/D30) Viewfinder : Electronic viewfinder with 0.24" black/white LCD Speaker : Monaural Format : DV format (SD mode) Signal format : NTSC standard Recording/Playback format : Video: Digital component recording : Audio: PCM digital recording, 32 kHz 4-channel (12-bit), 48 kHz 2-channel (16-bit) Cassette : Mini DV cassette Tape speed : SP : 18.8 mm/s LP : 12.5 mm/s Maximum recording time : SP : 80 min. (using 80 min. cassette) LP : 120 min. Storage media : SD Memory Card/MultiMediaCard Compression system : JPEG (compatible) File size : 2 modes (1024 x 768 pixels, 640 x 480 pixels) Picture quality : 2 modes (FINE/STANDARD) Approximate number of storable images : pg. 18. S-Video Output : Y : 1 V (p-p), 75 Ω, analog C : 0.29 V (p-p), 75 Ω, analog Input* : Y : 0.8 V (p-p) -1.2 V (p-p), 75 Ω, analog C : 0.2 V (p-p) -0.4 V (p-p), 75 Ω, analog AV Video output : 1 V (p-p), 75 Ω, analog Video input* : 0.8 V (p-p) -1.2 V (p-p), 75 Ω, analog Audio output : 300 mV (rms), 1 kΩ, analog, stereo Audio input* : 300 mV (rms), 50 kΩ, analog, stereo DV Output : 4-pin, IEEE 1394 compliant Input : 4-pin, IEEE 1394 compliant USB* : 5-pin * GR-D90/D70 only Power requirement U.S.A and Canada : AC 120 V ~, 60 Hz Other countries : AC 110 V to 240 V ~, 50 Hz/60 Hz Output : DC 11 V , 1 A Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject to change without notice. GR-D30UB,GR-D30US,GR-D31US,GR-D70US,GR-D90UB,GR-D90US,GR-D91US M3D123,M3D143,M3D127,M3D147 1-2 (No.86722) TABLE OF CONTENTS 1 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3 1.1 SAFTY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3 2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5 2.1 BEFORE ASSEMBLY AND DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5 2.2 ASSEMBLY AND DISASSEMBLY OF CABINET PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6 2.3 ASSEMBLY AND DISASSEMBLY OF CAMERA SECTION AND BOARD ASSEMBLY . . . . . . . . . .1-10 2.4 ASSEMBLY AND DISASSEMBLY OF [8]VF ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-12 2.5 ASSEMBLY AND DISASSEMBLY OF [10]MONITOR ASSEMBLY (CABINET PARTS) . . . . . . . . . .1-13 2.6 ASSEMBLY AND DISASSEMBLY OF [2]OP BLOCK ASSEMBLY / CCD BOARD ASSEMBLY (CAMERA SECTION AND BOARD ASSEMBLY) . . . . . . . . . . . . . . . . .1-15 2.7 SERVICE NOTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-16 2.8 TAKE OUT CASSETTE TAPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-17 2.9 EMERGENCY DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-18 3 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-19 3.1 PREPARATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-19 3.2 TOOLS REQUIRED FOR ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-19 3.3 JIG CONNECTOR CABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-21 3.4 MECHANISM ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-22 3.5 ELECTRICAL ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-23 MODEL NUMBER GR-D30UB GR-D30US GR-D31US GR-D70US GR-D90UB GR-D90US GR-D91US LCD MONITOR 2.5 INCH 2.5 INCH 3.5 INCH 2.5 INCH 3.5 INCH 3.5 INCH 3.5 INCH REMOTE CONTROL UNIT NO NO NO RM-V718U NO RM-V718U RM-V717U BATTERY (for REMOTE CONTROL UNIT) NO NO NO CR2025 NO CR2025 AAA x2 DIGITAL INTERFACE NO NO NO USB USB USB USB ANALOG INPUT NO NO NO YES YES YES YES DSC FLASH MEMORY(MEMORY CARD) NO NO NO YES (CARD Slot only) YES (MMC 8MB) YES (MMC 8MB) YES (MMC 8MB) EDITING CABLE NO NO NO NO NO NO YES USB CAULE NO NO NO NO YES YES YES MEMORY CARD NO NO NO NO YES (MMC 8MB) YES (MMC 8MB) YES (MMC 8MB) CD-ROM NO NO NO YES YES YES YES EDITING CABLE NO NO NO NO NO NO YES USB NO NO NO YES YES YES YES CHARTS AND DIAGRAMS BOARD INTERCONNECTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3 MAIN IF SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5 CPU SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-7 AUDIO SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-9 DV_MAIN SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-11 VIDEO I/O SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13 CAMERA DSP SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15 OP DRIVER SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-17 TG SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19 REG SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-21 DSC SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-23 MONI-BW SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-25 BL-2.5/BL-3.5 SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-27 CCD SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-29 JACK SCHEMATIC DIAGRAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-30 PREMDA IF SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-31 MDA SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-33 PRE/REC SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-35 B/W-VF SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-37 ZOOM UNIT SCHEMATIC DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-38 MAIN CIRCUIT BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-39 COMPONENT PARTS LOCATION GUIDE

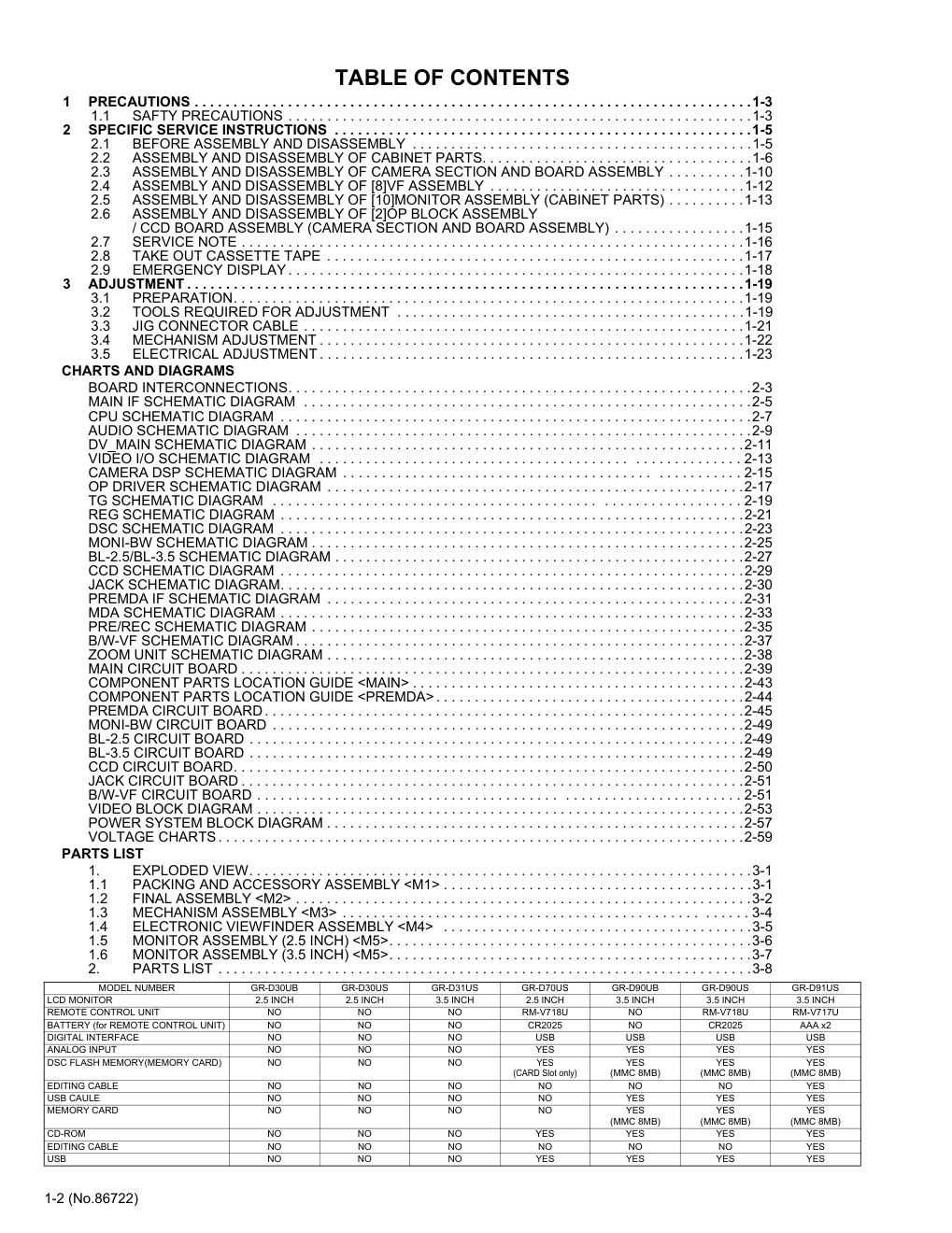

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-43 COMPONENT PARTS LOCATION GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-44 PREMDA CIRCUIT BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-45 MONI-BW CIRCUIT BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-49 BL-2.5 CIRCUIT BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-49 BL-3.5 CIRCUIT BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-49 CCD CIRCUIT BOARD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-50 JACK CIRCUIT BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-51 B/W-VF CIRCUIT BOARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-51 VIDEO BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-53 POWER SYSTEM BLOCK DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-57 VOLTAGE CHARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-59 PARTS LIST 1. EXPLODED VIEW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1 1.1 PACKING AND ACCESSORY ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1 1.2 FINAL ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2 1.3 MECHANISM ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 1.4 ELECTRONIC VIEWFINDER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5 1.5 MONITOR ASSEMBLY (2.5 INCH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6 1.6 MONITOR ASSEMBLY (3.5 INCH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7 2. PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-8 (No.86722)1-3 SECTION 1 PRECAUTIONS 1.1 SAFTY PRECAUTIONS Prior to shipment from the factory, JVC products are strictly in- spected to conform with the recognized product safety and elec- trical codes of the countries in which they are to be sold.However,in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced. 1.1.1 Precautions during Servicing (1) Locations requiring special caution are denoted by labels and inscriptions on the cabinet, chassis and certain parts of the product.When performing service, be sure to read and comply with these and other cautionary notices appearing in the operation and service manuals. (2) Parts identified by the symbol and shaded ( ) parts are critical for safety. Replace only with specified part numbers. NOTE : Parts in this category also include those specified to comply with X-ray emission standards for products using cathode ray tubes and those specified for com- pliance with various regulations regarding spurious radiation emission. (3) Fuse replacement caution notice. Caution for continued protection against fire hazard. Replace only with same type and rated fuse(s) as specified. (4) Use specified internal wiring. Note especially: • Wires covered with PVC tubing • Double insulated wires • High voltage leads (5) Use specified insulating materials for hazardous live parts. Note especially: • Insulation Tape • PVC tubing • Spacers • Insulation sheets for transistors • Barrier (6) When replacing AC primary side components (transformers, power cords, noise blocking capacitors, etc.) wrap ends of wires securely about the terminals before soldering. Fig.1-1-1 (7) Observe that wires do not contact heat producing parts (heatsinks, oxide metal film resistors, fusible resistors, etc.) (8) Check that replaced wires do not contact sharp edged or pointed parts. (9) When a power cord has been replaced, check that 10-15 kg of force in any direction will not loosen it. Fig.1-1-2 (10) Also check areas surrounding repaired locations. (11) Products using cathode ray tubes (CRTs)In regard to such products, the cathode ray tubes themselves, the high volt- age circuits, and related circuits are specified for compliance with recognized codes pertaining to X-ray emission. Conse- quently, when servicing these products, replace the cathode ray tubes and other parts with only the specified parts. Under no circumstances attempt to modify these circuits.Unautho- rized modification can increase the high voltage value and cause X-ray emission from the cathode ray tube. (12) Crimp type wire connector In such cases as when replacing the power transformer in sets where the connections between the power cord and power trans former primary lead wires are performed using crimp type connectors, if replacing the connectors is un- avoidable, in order to prevent safety hazards, perform care- fully and precisely according to the following steps. • Connector part number :E03830-001 • Required tool : Connector crimping tool of the proper type which will not damage insulated parts. • Replacement procedure a) Remove the old connector by cutting the wires at a point close to the connector. Important : Do not reuse a connector (discard it). Fig.1-1-3 b) Strip about 15 mm of the insulation from the ends of the wires. If the wires are stranded, twist the strands to avoid frayed conductors. Fig.1-1-4 c) Align the lengths of the wires to be connected. Insert the wires fully into the connector. Fig.1-1-5 d) As shown in Fig.1-1-6, use the crimping tool to crimp the metal sleeve at the center position. Be sure to crimp fully to the complete closure of the tool. Fig.1-1-6 e) Check the four points noted in Fig.1-1-7. Fig.1-1-7 Power cord cut close to connector 15 mm Connector Metal sleeve 1.25 2.0 5.5 Crimping tool Not easily pulled free Crimped at approx. center of metal sleeve Conductors extended Wire insulation recessed more than 4 mm 1-4 (No.86722) 1.1.2 Safety Check after Servicing Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions, Afterwards, perform the following tests and confirm the specified values in order to verify compli- ance with safety standards. (1) Insulation resistance test Confirm the specified insulation resistance or greater be- tween power cord plug prongs and externally exposed parts of the set (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, ear- phone jacks, etc.). See table 1 below. (2) Dielectric strength test Confirm specified dielectric strength or greater between power cord plug prongs and exposed accessible parts of the set (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.). See Fig.1-1-11 below. (3) Clearance distance When replacing primary circuit components, confirm spec- ified clearance distance (d), (d') between soldered termi- nals, and between terminals and surrounding metallic parts. See Fig.1-1-11 below. Fig.1-1-8 (4) Leakage current test Confirm specified or lower leakage current between earth ground/power cord plug prongs and externally exposed ac- cessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, ear- phone jacks, etc.). Measuring Method : (Power ON) Insert load Z between earth ground/power cord plug prongs and externally exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig.1-1-9 and following Fig.1-1-12. Fig.1-1-9 (5) Grounding (Class 1 model only) Confirm specified or lower grounding impedance between earth pin in AC inlet and externally exposed accessible parts (Video in, Video out, Audio in, Audio out or Fixing screw etc.). Measuring Method: Connect milli ohm meter between earth pin in AC inlet and exposed accessible parts. See Fig.1-1-10 and grounding specifications. Fig.1-1-10 Fig.1-1-11 Fig.1-1-12 NOTE : These tables are unofficial and for reference only. Be sure to confirm the precise values for your particular country and locality. a b c V A Externally exposed accessible part Z (No.86722)1-5 SECTION 2 SPECIFIC SERVICE INSTRUCTIONS 2.1 BEFORE ASSEMBLY AND DISASSEMBLY 2.1.1 Precautions 1. Be sure to disconnect the power supply unit prior to mount- ing and soldering of parts. 2. Prior to removing a component part that needs to disconnect its connector(s) and its screw(s), first disconnect the wire(s) from the connector(s), and then remove the screw(s). 3. When connecting/disconnecting wires, pay enough atten- tion not to damage the connectors. 4. Be careful in removing or handling the part to which some spacer or shield is attached for reinforcement or insulation. 5. When replacing chip parts (especially IC parts), first remove the solder completely to prevent peeling of the pattern. 6. Tighten screws properly during the procedures. Unless specified otherwise, tighten screws at a torque of 0.088N•m (0.9kgf•cm). 2.1.2 Assembly and disassembly (1) Order of steps in Procedure When reassembling, preform the step(s) in the reverse order. These numbers are also used as the identification (location) No. of parts Figures. (2) Part to be removed or installed. (3) Fig. No. showing Procedure or Part Location. (4) Identification of part to be removed, unhooked, unlocked, released, unplugged, unclamped or unsoldered. (5) Adjustment information for installation. 2.1.3 Destination of connectors 2.1.4 Disconnection of connectors (Wires) Pull both ends of the connector in the arrow direction, remove the lock and disconnect the flat wire. Fig.2-1-1 Extend the locks in the direction of the arrow for unlocking and then pull out the wire. After removing the wire, immediately re- store the locks to their original positions because the locks are apt to come off the connector. Fig.2-1-2 2.1.5 Tools required for disassembly and assembly Fig.2-1-3 C = CABINET D = CAMERA AND BOARD ASSEMBLY P = Spring W = Washer S = Screw * = Unhook, unlock, release, unplug or unsolder. 2(S3) = 2 Screws (S3) CN = Connector (4) (5) (2) (3) (1) [Example] TOP COVER ASSEMBLY UPPER ASSEMBLY (Inc. VF ASSEMBLY, SPEAKER/MONITOR) VF ASSEMBLY Fig.C1 Fig.C2-1 Fig.C2-2 S1,2(L1) S2a,2(S2b),3(S2c) 2(S2d),S2e,S2c L2,CN2a,b 2(S8),L8,CN8a - - NOTE 8a NOTE 8b [1] [2] [8] STEP No. PART NOTE Fig. No. POINT CN2a CN2b MAIN CN101 MAIN CN103 40 10 CONN. No. Pin No. CONNECTOR Remove the parts marked in . [Example] Two kinds of double-arrows in connection tables respectively show kinds of connector/wires. : Flat wire : Wire MONI BW CN761 MINI BW CN762 Connector Flat wire Connector Flat wire Torque driver YTU94088 1 2 3 4 Bit YTU94088-003 Tweezers P-895 Chip IC replacement jig PTS40844-2 5 Cleaning cloth KSMM-01 1-6 (No.86722) 1.Torque driver Be sure to use to fastening the mechanism and exterior parts because those parts must strictly be controlled for tightening torque. 2.Bit This bit is slightly longer than those set in conventional torque drivers. 3.Tweezers To be used for removing and installing parts and wires. 4.Chip IC replacement jig To be used for replacement of IC. 5.Cleaning cloth Recommended cleaning cloth to wipe down the video heads, mechanism (tape transport system), optical lens surface. 2.2 ASSEMBLY AND DISASSEMBLY OF CABINET PARTS 2.2.1 Disassembly flow chart This flowchart indicates the disassembly step for the cabinet parts and board assembly in order to gain access to item(s) to be serviced. When reassembling, perform the step(s) in reverse or- der. 2.2.2 Disassembly method NOTE 8a: Take care not to cut the FPC wire when and after removing the VF ASSEMBLY. NOTE 8b: As for disassembly/assembly of [8]VF ASSEMBLY, see 2.4 ASSEMBLY AND DISASSEMBLY OF [8] VF ASSEMBLY. NOTE 10a: Take care not to cut the FPC when and after removing the MONITOR ASSEMBLY. NOTE 10b: As for disassembly/assembly of [10] MONITOR ASSEMBLY, see 2.5 ASSEMBLY AND DISASSEMBLY OF [10] MONITOR ASSEMBLY. NOTE 11a: Before removing the MONI-BW BOARD ASSEMBLY, check whether MEMORY CARD is inserted or not. If MEMORY CARD is inserted, pull out the MEMORY CARD before remov- ing the MONI-BW BOARD ASSEMBLY. NOTE 11b: Since the SPEAKER is soldered to the MONI-BW BOARD AS- SEMBLY, the SPEAKER should not be separated from the MONI-BW BOARD ASSEMBLY except when replacing the SPEAKER. NOTE 11c: Take care not to lose the KNOB(SLIDE). When attaching the KNOB(SLIDE), attach the KNOB(SLIDE) in a proper position. NOTE 3: After removing the FRONT COVER ASSEMBLY, OP BLOCK ASSEMBLY is not covered with anything. Take care not to damage the OP BLOCK ASSEMBLY when and after removing the FRONT COVER ASSEMBLY. [1] [2] TOP COVER ASSEMBLY UPPER ASSEMBLY (Inc. VF ASSEMBLY, SPEAKER/MONITOR) [8] VF ASSEMBLY [9] COVER(UPPER) [10] MONITOR ASSEMBLY [11] MONI-BW BOARD ASSEMBLY [12] SPEAKER [3] FRONT COVER ASSEMBLY (Inc.MIC) [4] [5] [6] [7] MIC COVER(ZOOM) REAR UNIT LOWER ASSEMBLY TOP COVER ASSEMBLY UPPER ASSEMBLY (Inc. VF ASSEMBLY, SPEAKER/MONITOR) VF ASSEMBLY COVER(UPPER) MONITOR ASSEMBLY MONI-BW BOARD ASSEMBLY SPEAKER FRONT COVER ASSEMBLY (Inc.MIC) MIC COVER(ZOOM) REAR UNIT LOWER ASSEMBLY MAIN CN101 MAIN CN103 MONI-BW CN763 MONI-BW CN765 MAIN CN106 MAIN CN104 MAIN CN102 MAIN CN109 MONI-BW CN761 MONI-BW CN762 VF ASSEMBLY - BL-2.5/3.5 - MIC - REAR UNIT - JACK CN501 ZOOM UNIT - Fig.C1 Fig.C2-1 Fig.C2-2 Fig.C2-3 Fig.C2-4 Fig.C3 Fig.C4 S1,2(L1) S2a,2(S2b),3(S2c) 2(S2d),S2e,S2c L2,CN2a,b 2(S8),L8,CN8a 2(S9),L9 2(S10a),CN10a,2(S10b),L10 2(S11a),2(S11b),4(S11c) BKT(HINGE),KNOB(SLIDE) COVER(JACK),S3,L3a,L3b CN4 S4 S5a,3(S5b),2(L5) CN6,S6 CN7a,b,S7a,3(S7b) - - NOTE 8a NOTE 8b - NOTE 10a NOTE 10b NOTE 11a NOTE 11b NOTE 11c NOTE 3 - [1] [2] [8] [9] /[10] [11] /[12] [3] / [4] [5] /[6] /[7] CN2a CN2b CN8a CN10a CN4 CN6 CN7a CN7b 40 10 20 32 5 11 22 16 STEP No. PART CONN. No. Pin No. CONNECTOR NOTE Fig. No. POINT Remove the parts marked in . (No.86722)1-7 Fig.C1 Fig.C2-2 Fig.C2-1 L1 (S1) 1 [1] c NOTE 8a NOTE 8b 13 (S8) 12 (S8) [8] c L8 CN8a a b b a 7 [2] ([8]-[12]) (S2c) 2 (S2a) 3 (S2b) 8 (S2d) 10 (S2e) 11 (S2c) 9 (S2d) 4 (S2b) 5 (S2c) 6 (S2c) CN2a CN2b L2 TOP SIDE REAR SIDE BOTTOM SIDE c 1-8 (No.86722) Fig.C2-3 Fig.C3 Fig.C2-4 16 (S10a) NOTE 10a d d 17 (S10a) 14 (S9) 15 (S9) 0.147N.m(1.5kgf.cm) L10 [10] [9] L9 CN10a 18 (S10b) 19 (S10b) NOTE 10b L.CASE SIDE 28 (S3) CN4 L3a OP BLOCK ASSEMBLY NOTE 3 L3b [4] [3]([4]) 29 (S4) 28 (S3) COVER (JACK) e e 20 (S11a) 22 (S11b) 21 (S11a) 23 (S11b) [12] NOTE11b BKT(HINGE) [11] NOTE11c KNOB(SLIDE) 24 (S11c) 25 (S11c) 27 (S11c) 26(S11c) NOTE 11a (No.86722)1-9 Fig.C4 [6] 34 (S6) h g h g 35 (S7a) 38 (S7b) 32 (S5b) 31 (S5b) 33 (S5b) 37 (S7b) 36 (S7b) 30 (S5a) CN7a CN7b CN6 [5] [7] L5 f f 1-10 (No.86722) 2.3 ASSEMBLY AND DISASSEMBLY OF CAMERA SECTION AND BOARD ASSEMBLY 2.3.1 Disassembly flow chart This flowchart indicates the disassembly step for the cabinet parts and board assembly in order to gain access to item(s) to be serviced. When reassembling, perform the step(s) in reverse or- der. NOTE: Please see Service Manual No. 86700 (MECHANISM ASSY). 2.3.2 Disassembly method NOTE 2: As for disassembly/assembly of [2] OP BLOCK ASSEMBLY, see 2.6 ASSEMBLY AND DISASSEMBLY OF [2] OP BLOCK ASSEMBLY. Fig.D1 Fig.D2 [1] [2] MAIN BOARD ASSEMBLY [5] CCD BOARD ASSEMBLY [3] [4] PREMDA BOARD ASSEMBLY MECHANISM ASSEMBLY OP BLOCK ASSEMBLY MAIN BOARD ASSEMBLY OP BLOCK ASSEMBLY / CCD BOARD ASSEMBLY PREMDA BOARD ASSEMBLY MAIN CN108 MAIN CN107 MAIN CN111 MAIN CN110 PREMDA CN406 PREMDA CN405 PREMDA CN404 PREMDA CN402 PREMDA CN403 PREMDA CN407 OP BLOCK ASSEMBLY CN501 CCD CN5001 PREMDA CN408 PREMDA CN401 SENSOR - CAPSTAN MOTOR - DRUM MOTOR - HEAD - LOADING MOTOR - ROTARY ENCODER - Fig.D1 Fig.D2 Fig.D3 CN1a,b,2(S1),CN1c,d S2,L2 2(S3a),L3,SHIELD COVER(PR) CN3a,b,c,d,e,f,2(S3b) 3(S3c),BKT(MECHA) - NOTE 2 - [1] [2]/[5] [3] CN1a CN1b CN1c CN1d CN3a CN3b CN3c CN3d CN3e CN3f 24 20 40 40 16 18 11 8 6 6 STEP No. PART CONN. No. Pin No. CONNECTOR NOTE Fig. No. POINT Remove the parts marked in . 1 (S1) 2 (S1) CN1c CN1d CN1a CN1b [1] 3 (S2) L2 [2] ([5]) NOTE[2] (No.86722)1-11 Fig.D3 4 (S3a) 5 (S3a) L3 PREMDA BOARD ASSEMBLY 6 (S3b) 7 (S3b) 9 (S3c) 0.069N.m (0.7kgf.cm) 0.078N.m (0.8kgf.cm) 8 (S3c) (PR) SHIELD COVER [4] BKT(MECHA) CN3a CN3b CN3c CN3e CN3f CN3d [3] 10 (S3c) 1-12 (No.86722) 2.4 ASSEMBLY AND DISASSEMBLY OF [8]VF ASSEMBLY 2.4.1 Disassembly of VF ASSEMBLY (1) Remove the EYE CUP. (2) Remove the four screws (1 to 4) and then remove the COV- ER (VF). (3) Remove the two screws (5 and 6) and then remove the FPC BOARD from the hook attaching the FPC BOARD. NOTE 8a: During the procedure, be careful not to damage the FPC. When attaching the SW BOARD ASSEMBLY, attach the SW BOARD ASSEMBLY so that the SW BOARD AS- SEMBLY comes upwards. (4) Remove the four screws (7 to 10), and then pull out and re- move the FPC from the VF HINGE ASSEMBLY. NOTE 8b: During the procedure, be careful not to damage the FPC and the SWITCH. (5) Remove the five screws (11 to 15). (6) Remove the UPPER CASE(VF) R. (7) Remove the UPPER CASE(VF) F and then pull out the LENS SA and the LCD UNIT ASSEMBLY with the FPC. NOTE 8c: In attaching the LCD UNIT ASSEMBLY, put the projec- tions of the LCD UNIT ASSEMBLY in the slots of the BOTTOM CASE(VF). Put the STOPPER of the FPC in- side the BOTTOM CASE(VF). In attaching the UPPER CASE(VF) F and the UPPER CASE(VF) R, attach the UPPER CASE(VF) F first and then the UPPER CASE(VF) R and be careful to keep the FPC inside the BOTTOM CASE(VF). 2.4.2 Disassembly of the LENS SA (1) Remove the LEVER(LENS). (2) Remove the SHEET(LENS). (3) Remove the LENS ASSEMBLY from the GUIDE LENS(VF). NOTE 8d: Be careful not to lose the SPRING(LENS). Fig.2-4-2 Fig.2-4-1 SHEET(LENS) LENS ASSEMBLY LEVER(LENS) SPRING(LENS) NOTE8d: GUIDE LENS(VF) LCD UNIT ASSEMBLY FPC (L8a) 5 (S8b) 6 (S8b) NOTE8a FPC EYE CUP 2 (S8a) 4 (S8a) 3 (S8a) 1 (S8a) COVER(VF) EYE CUP 8 (S8a) 7 (S8a) 10 (S8c) VF HINGE ASSEMBLY 9 (S8c) FPC NOTE8b 12 (S8c) 13 (S8c) 11 (S8c) 15 (S8c) 14 (S8c) UPPER CASE(VF)F UPPER CASE(VF)R LCD UNIT L8c ASSEMBLY NOTE8c NOTE8c BOTTOM CASE(VF) L8b LENS SA FPC (No.86722)1-13 2.5 ASSEMBLY AND DISASSEMBLY OF [10]MONITOR ASSEMBLY (CABINET PARTS) 2.5.1 Disassembly of MONITOR ASSEMBLY (2.5 INCH) NOTE: Be careful in removing or handling the monitor assembly, es- pecially not to soil or scratch the monitor screen during the dis- assembly procedure. (1) While removing the four screws (1 to 4) in numerical order and then disengaging the four hooks (L10a-L10d) in alpha- betical order, open and remove the MONITOR COVER ASSEMBLY. (2) Remove the SENSOR BOARD ASSEMBLY from the MONITOR CASE. (3) Disconnect the FPC in the connectors CN10a and CN10b in this order, and then remove the MONI.HINGE ASSEM- BLY. (4) Disconnect the FPC of the LCD MODULE from the connec- tor CN10c. (5) Remove one screw (5) and then remove the BL BOARD ASSEMBLY together with the BACK LIGHT ASSEMBLY. NOTE 10a: It depends on the inch size of the monitor assembly whether the backlight is supplied as an assembly or as separated parts. In replacing the backlight assembly, see the Parts List. NOTE 10b: Since the BACK LIGHT ASSEMBLY is soldered to the BL BOARD ASSEMBLY, the BACK LIGHT should not be separated from the BL BOARD ASSEMBLY except when replacing them. (6) Remove the DIFF.SHEET. (7) Remove the LCD FRAME together with the LCD MODULE. (8) Remove the SHIELD CASE. Fig.2-5-1 DIFF. SHEET NOTE10a BACK LIGHT NOTE10b BL-2.5 BOARD ASSEMBLY MONITOR CASE L10g SHIELD CASE L10f 5 (S10a) L10b CN10b SD10b SD10a L10e CN10a CN10c L10a L10d L10c MONITOR COVER ASSEMBLY 4 (S10b) 3 (S10b) 1 (S10a) 2 (S10a) b LCD FRAME LCD MODULE c b MONI.HINGE ASSEMBLY SENSOR BOARD ASSEMBLY :0.069N.m (0.7kgf.cm) :0.098N.m (1.0kgf.cm) a a c 1-14 (No.86722) 2.5.2 Disassembly of MONITOR ASSEMBLY (3.5 INCH) NOTE: Be careful in removing or handling the monitor assembly, es- pecially not to soil or scratch the monitor screen during the dis- assembly procedure. (1) While removing the four screws (1 to 4) in numerical order and then disengaging the four hooks (L10a-L10d) in alpha- betical order, open and remove the MONITOR COVER ASSEMBLY. (2) Remove the SENSOR BOARD ASSEMBLY from the MONITOR CASE. (3) Disconnect the FPC in the connectors CN10a and CN10b in this order, and then remove the MONI.HINGE ASSEM- BLY. (4) Disconnect the FPC of the LCD MODULE from the connec- tor CN10c. (5) Remove one screw (5) and then remove the BL BOARD ASSEMBLY together with the BACK LIGHT. NOTE 10: Since the BACK LIGHT is soldered to the BL BOARD ASSEMBLY, the BACK LIGHT should not be separated from the BL BOARD ASSEMBLY except when replacing them. (6) While removing the five hooks (L10e-L10i) in alphabetical order, remove the LCD FRAME together with the LCD MODULE. (7) Remove the SHIELD CASE. Fig.2-5-2 L10a L10d L10b L10c CN10b CN10c L10i CN10a L10h L10g L10e L10f 2 (S10a) a b MONI.HINGE ASSEMBLY SENSOR BOARD ASSEMBLY a 1 (S10a) 3 (S10b) 4 (S10b) 5 (S10a) BACK LIGHT NOTE10 SHIELD CASE MONITOR CASE LCD MODULE BL-3.5 BOARD ASSEMBLY MONITOR COVER ASSEMBLY LCD FRAME b :0.069N.m (0.7kgf.cm) :0.098N.m (1.0kgf.cm) (No.86722)1-15 2.6 ASSEMBLY AND DISASSEMBLY OF [2]OP BLOCK ASSEMBLY / CCD BOARD ASSEMBLY (CAMERA SECTION AND BOARD ASSEMBLY) 2.6.1 Precautions (1) Take care in handling the CCD IMAGE SENSOR, OP LPF and lens components when performing maintenance etc., especially with regard to surface contamination, attached dust or scratching. If fingerprints are present on the surface they should be wiped away using either a silicon paper, clean chamois or the cleaning cloth. (2) The CCD IMAGE SENSOR may have been shipped with a protective sheet attached to the transmitting glass. When replacing the CCD IMAGE SENSOR, do not peel off this sheet from the new part until immediately before it is mounted in the OP BLOCK ASSEMBLY. (3) The orientation of the OP LPF is an important factor for installation. If there is some marking on the OP LPF, be sure to note it down before removing and to reassemble it very carefully as it was referring to the marking. 2.6.2 Disassembly of CCD BOARD ASSEMBLY and CCD BASE ASSEMBLY (1) Unsolder the CCD BOARD ASSEMBLY by the 14 points (SD2) and then remove it. (2) Remove the two screws (1, 2) and remove the CCD BASE ASSEMBLY. (3) Remove the SPACER. (4) Remove the SHEET. (5) Remove the OP LPF. 2.6.3 Assembly of CCD BASE ASSEMBLY and CCD BOARD ASSEMBLY (1) Set the OP LPF to the OP BLOCK ASSEMBLY so that the OP side touches the OP BLOCK ASSEMBLY. NOTE 2a: Pay careful attention to the orientation of the OP LPF. (2) Set the SHEET to the OP LPF not to come off the right position. (3) Attach the SPACER to the OP BLOCK ASSEMBLY. (4) Fasten them together with the two screws (1, 2). (5) Set the CCD BOARD ASSEMBLY in the CCD BASE ASSEMBLY, and then solder it by the 14 points (SD2). 2.6.4 Replacement of service repair parts The service repair parts for the OP BLOCK ASSEMBLY are as listed below. Before replacement of these parts, remove the BRACKET (OP BLOCK ASSEMBLY) as required. Take special care not to disconnect any of the FPC wires or cause any damage due to soldering (excessive heating). (1) FOCUS MOTOR (2) ZOOM MOTOR (3) IRIS MOTOR UNIT NOTE 2b: When replacing the FOCUS MOTOR or the ZOOM MOTOR, solder the FPC at a space of about 1 mm above the terminal pin. NOTE 2c: The IRIS MOTOR UNIT includes the FPC ASSEMBLY and two sensors. Fig.2-6-1 2 (S2a) 1 (S2a) (SD2) OP side CCD side Blue OP LPF OP BLOCK ZOOM MOTOR SHEET OP LPF SPACER CCD BASE ASSEMBLY CCD BAORD ASSEMBLY SENSOR IRIS MOTOR UNIT FOCUS MOTOR 0.078N.m (0.8kgf.cm) 0.118N.m (1.2kgf.cm) 4 (S2b) 3 (S2b) 6 (S2b) 5 (S2b) 10 (S2b) 11 (S2b) 9 (S2b) 7 (S2c) 8 (S2c) 1-16 (No.86722) 2.7 SERVICE NOTE Use the following chart to manage screws [1] 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 C1 C2-4 C2-1 2-4-1 2-5-1,2 2-6-1 C2-2 C2-3 [11] ([12]) [2] ([8]-[12]) [8] [10] [9] 28 29 30 31 32 33 34 35 36 37 38 C4 [3] [4] [5] [6] [7] C3 [2] 1 2 3 4 5 6 7 8 9 10 D2 D3 [1] [3] [4] D1 [8] 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 [2]/[5] 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 [10] Symbol No. Removing order of screw Place to stick screw Screw tightening torque Reference drawing (Fig.No.) Screw tightening torque Reference drawing (Fig.No.) Reference drawing (Fig.No.) Reference drawing (Fig.No.) Screw tightening torque Screw tightening torque Symbol No. Removing order of screw Place to stick screw Symbol No. Symbol No. Removing order of screw Place to stick screw Reference drawing (Fig.No.) Screw tightening torque Symbol No. Removing order of screw Place to stick screw Removing order of screw Place to stick screw Reference drawing (Fig.No.) Screw tightening torque Symbol No. Removing order of screw Place to stick screw : 0.088N.m (0.9kgf.cm) : 0.147N.m (1.5kgf.cm) � : 0.078N.m (0.8kgf.cm) : 0.098N.m (1.0kgf.cm) : 0.069N.m (0.7kgf.cm) : 0.118N.m (1.2kgf.cm) � (No.86722)1-17 2.8 TAKE OUT CASSETTE TAPE NOTE : The following procedure describes a simplified method of ejecting the cassette tape in case it is not possible to eject it, due to an electrical failure. Be careful not to damage any of the parts or the tape when per- forming repairs or maintenance work. (1) Remove the Power Unit (battery, DC code, etc.) from the set. (2) Open the CASSETTE COVER. (3) Attach a piece of PVC TAPE at the front of the CASSETTE HOUSING ASSEMBLY. NOTE: This helps prevent the tape from being damaged when the CASSETTE HOUSING ASSEMBLY is moved up- ward at the unloading end. (4) Apply DC 3V to the electrode on the top surface of the LOADING MOTOR ASSEMBLY to set the MECHANISM ASSEMBLY to the EJECT mode. Unloading end is EJECT mode. (5) If there is any slack tape in the tape transport system, wind it inside the DVC CASSETTE TAPE by turning the REEL DISK ASSEMBLY (SUP) from the backside of the SLIDE DECK ASSEMBLY. (6) Peel off the PVC TAPE and take out the DVC CASSETTE TAPE from the CASSETTE HOUSING ASSEMBLY. NOTE: Make sure that grease or a similar substance is not at- tached to the surface of the tape. Similarly, also make sure that grease or a similar sub- stance is not attached on the MECHANISM ASSEMBLY. Fig.2-8-1 REEL DISK ASSEMBLY (SUP) (DC3V) PVC T LOADING MOTOR ASSEMBLY APE CASSETTE HOUSING ASSEMBLY CASSETTE COVER 1-18 (No.86722) 2.9 EMERGENCY DISPLAY Whenever some abnormal signal is input to the syscon CPU, an error number (E01, as an example) is displayed on the LCD mon- itor or (in the electronic view finder). In every error status, such the message as shown below alter nately appear over and over. • In an emergency mode, all operations except turning on/off the POWER switch are ineffectual. Example (in case of the error number E01): Fig.2-9-1 E01 UNIT IN SAFEGUARD MODE E01 REMOVE AND REATTACH BATTERY LCD display Emergency mode Details Possible cause E01 LOADING In the case the encoder posi- tion is not shifted to the next point though the loading motor has rotated in the loading direc- tion for 4 seconds or more. This error is defined as [E01]. 1. The mechanism is locked during mode shift. 2. The mechanism is locked at the mechanism loading end, because the encoder position is skipped during mechanism mode shift. 3. No power is supplied to the loading MDA. E02 UNLOADING In the case the encoder posi- tion is not shifted to the next point though the loading motor has rotated in the unloading di- rection for 4 seconds or more. This error is defined as [E02]. 1. The mechanism is locked during mode shift. 2. The mechanism is locked at the mechanism loading end, because the encoder position is skipped during mechanism mode shift. E03 TU & SUP REEL FG In the case no REEL FG is pro- duced for 4 seconds or more in the capstan rotation mode after loading was complete, the mechanism mode is shifted to STOP with the pinch roller set off. This error is defined as [E03]. However, no REEL EMG is de- tected in the SLW/STILL mode. 1. The idler gear does not engage with the reel disk well. 2. Though the idler gear and reel disk are engaged with each other, the tape is not wound because of overload to the mechanism. 3. No FG pulse is output from the reel sensor. 4. No power is supplied to the reel sensor. 5. Tape transport operation takes place with a cassette having no tape inside. 6. The tape slackens and no pulse is produced until the slack is taken up and the tape comes into the normal status. E04 DRUM FG In the case there is no DRUM FG input in the drum rotation mode for 4 seconds or more. This error is defined as [E04], and the mechanism mode is shifted to STOP with the pinch roller set off. 1. The drum cannot be started or drum rotation is stopped be- cause tape transport load is too high. 1) Tape tension is extremely high. 2) The tape is damaged or soiled with grease, etc. 2. The DRUM FG signal is not received by the syscon CPU. 1) Disconnection in the middle of the signal line. 2) Failure of the DRUM FG pulse generator (hall element). 3. No drum control voltage is supplied to the MDA. 4. No power is supplied to the DRUM MDA. E05 - - - E06 CAPSTAN FG In the case no CAPSTAN FG is produced in the capstan rota- tion mode for 2 seconds or more. This error is defined as [E06], and the mechanism mode is shifted to STOP with the pinch roller set off. However, no CAPSTAN EMG is detected in the STILL/FF/ REW mode. 1. The CAPSTAN FG signal is not received by the syscon CPU. 1) Disconnection in the middle of the signal line. 2) Failure of the CAPSTAN FG pulse generator (MR ele- ment). 2. No capstan control voltage is supplied to the MDA. 4. The capstan cannot be started or capstan rotation is stopped because tape transport load is too high. 1) Tape tension is extremely high. (Mechanical locking) 2) The tape is damaged or soiled with grease, etc. (Tape tangling occurs, etc.) (No.86722)1-19 SECTION 3 ADJUSTMENT 3.1 PREPARATION (1) Precaution This model does not contain adjustment controls (VR). General deck system, camera system and monitor system adjustment are not required. However, if MAIN board need replacement, please use original EEP ROM on to new board. Then adjustment are not required. And if parts such as the following need replacement, special computerized adjustment are required. 3.5.1 Electrical adjustment with personal computer is setup and it adjusts using a service support system. Please contact to JVC Service for detail in- formation. • OP BLOCK ASSEMBLY • EEP ROM (IC1005 of MAIN board) • MONITOR / VF ASSEMBLY In the event of malfunction with electrical circuits, trouble- shooting with the aid of proper test instruments most be done first, and then commence necessary repair, replace- ment and adjustment, etc. a) In case of wiring to chip test points for measurement, use IC clips, etc. to avoid any stress. b) Since connectors are fragile, carefully handle them in disconnecting and connecting. c) Short circuit between operation unit and DECK chas- sis. (2) Required test equipment a) Color TV monitor. b) AC power adapter c) Oscilloscope (dual-trace type, observable 100 MHz or higher frequency) • It is recommended to use one observable 300 MHz or higher frequency. d) Digital voltmeter e) Frequency counter (with threshold level adjuster) f) Personal computer 3.2 TOOLS REQUIRED FOR ADJUSTMENT Fig.3-2-1 1 Alignment tape MC-1 3 INF adjustment lens YTU92001B 7 Gray scale chart YTU94133A 8 Color bar chart YTU94133C 4 INF lens holder YTU94087 6 Light box assembly YTU93096A 5 Camera stand YTU93079 13 Service support system YTU94057-67 14 Cleaning cloth KSMM-01 12 PC cable QAM0099-002 11 Communication cable YTU93107A 9 Jig connector cable YTU93106B 10 Extension connector YTU94145C-30 2 Guide driver (Hexagonal) D-770-1.27 1-20 (No.86722) 1. Alignment tape To be used for check and adjustment of interchangeability of the mechanism. 2. Guide driver (Hexagonal) To be used to turn the guide roller to adjustment of the linarity of playback envelope. 3.INF adjustment lens To be used for adjustment of the camera system. For the us- age of the INF adjustment lens, refer to the Service Bulletin No. YA-SB-10035. 4.INF lens holder To be used together with the Camera stand (6) for operating the Videocamera in the stripped-down condition such as the status without the exterior parts or for using commodities that are not yet conformable to the interchangeable ring. For the usage of the INF lens holder, refer to the Service Bulletin No. YA-SB-10035. 5.Camera stand To be used together with the INF adjustment lens holder. For the usage of the Camera stand, refer to the Service Bulletin No. YA-SB-10035. 6.Light box assembly To be used for adjustment of the camera system. For the us- age of the Light box assembly, refer to the Service Bulletin No. YA-SB-10035. 7.Gray scale chart To be used for adjustment of the camera system. For the us- age of the INF adjustment lens, refer to the Service Bulletin No. YA-SB-10035. 8.Color bar chart To be used for adjustment of the camera system. For the us- age of the INF adjustment lens, refer to the Service Bulletin No. YA-SB-10035. 9. Jig connector cable Connected to CN105 of the main board and used for electrical adjustment, etc. NOTE: Only some of the connectors in the JIG connector (YTU93106B) are soldered to wires. It is desirable that you solder all the connectors to wires before using the JIG connector (YTU93106B), but you should solder only the connectors shown in the following JIG connector schematic diagram to wires because they are used in this model. As for the details, see 3.3 JIG CONNECTOR CABLE. 10.Extension connector Connect this extension connector to the connector of the jig connector cable for extending the cable connector. NOTE: removing the cover (for jig), use this extension connector triple for connecting the jig connector cable. 11.Communication Cable Connect the Communication cable between the PC cable and Jig connector cable when performing a PC adjustment. 12.PC cable To be used to connect the Videocamera and a personal com- puter with each other when a personal computer issued for ad- justment. 13.Service support system To be used for adjustment with a personal computer. Software can be downloaded also from JS-net. 14.Cleaning cloth Recommended the Cleaning cloth to wipe down the video heads, mechanism (tape transport system), optical lens sur- face. (No.86722)1-21 3.3 JIG CONNECTOR CABLE Nine wires have been soldered to the JIG CONNECTOR CABLE (YTU93106B). Solder another nine wires to the JIG CONNECTOR CABLE (YTU93106B) to use in this set. See the JIG CONNECTOR SCHEMATIC DIAGRAM and JIG CONNECTOR BOARD to solder the nine wires. 3.3.1 JIG CONNECTOR SCHEMATIC DIAGRAM Fig.3-3-1 3.3.2 JIG CONNECTOR BOARD Fig.3-3-2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 AL_3VSYS CJIG_RST VIDL VCOM STH1 CVF_R CVF_B V_OUT GND MON_R MON_G CVF_G MON_B MONI_CHG JLIP_RX GND JLIP_TX PB_CLK HID1 GND ATFI ENV_OUT MAIN_VCO DISCRI I_MTR IF_TX EXMOD_0 FS_PLL MMOD_0 MMOD_1 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 NC NC NC NC GND NC NC JLIP_RX JLIP_TX HID1 NC MAIN_VCO NC NC NC NC NC NC NC NC NC MONI_CHG GND NC NC ENV_OUT NC NC FS_PLL NC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 AL_3VSYS CJIG_RST VIDL VCOM STH1 CVF_R CVF_B V_OUT GND MON_R MON_G CVF_G MON_B MONI_CHG JLIP_RX GND JLIP_TX PB_CLK HID1 GND ATFI ENV_OUT MAIN_VCO DISCRI I_MTR IF_TX EXMOD_0 FS_PLL MMOD_0 MMOD_1 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 NC VIDL STH1 CVF_B GND MON_G MON_B JLIP_RX JLIP_TX HID1 NC MAIN_VCO NC NC NC NC VCOM CVF_R NC MON_R CVF_G MONI_CHG GND NC NC ENV_OUT NC NC FS_PLL NC BEFORE AFTER MAIN CN105 / JIG CONNECTOR JIG CONNECTOR BOARD MAIN CN105 / JIG CONNECTOR JIG CONNECTOR BOARD The wires shown as are already soldered. Solder the wires shown as . NOTE: FOIL SIDE 1 2 6 YTU 9 4 YTU94113-30 COMPONENT SIDE 1 30 2 FOIL SIDE 3 4 6 7 10 1718 20 21 COMPONENT SIDE NOTE: Solder wires to 17, 18, 20 and 21. NOTE: Solder wires to 2, 3, 4, 6 and 7. FOIL SIDE 17 21 18 20 6 2 4 7 3 1-22 (No.86722) 3.4 MECHANISM COMPATIBILITY ADJUSTMENT 3.4.1 Tape pattern check (1) Connect the JIG CONNECTOR CABLE to the set. As for the connection procedure, JIG CONNECTOR BOARD and see 3.5 ELECTRICAL ADJUSTMENT. (2) Remove the COVER(ADJUST) (3) Play back the compatibility adjustment tape. (4) While triggering the HID1, observe the waveform of ENV_OUT. (5) Confirm that the waveform is free from remarkable level- down, and entirely parallel and straight. (6) In case any level-down is observed on the left hand side, straighten the level by turning the GUIDE ROLLER (SUP) of the POLE BASE ASSEMBLY. In case any level-down is observed on the right hand side, however, straighten the level by turning the GUIDE ROLL- ER(TU) of the POLE BASE ASSEMBLY. (7) After adjustment, try the unloading motion once, and con- firm that the waveform is flat (straight) when the tape has been played back again. Moreover, perform readjustment as required. (8) When the recording has been played back again, play back the self-recording to confirm that the waveform is flat. Fig.3-4-1 Fig.3-4-2 Fig.3-4-3 ENV_OUT HID1 Flatten the waveform. Misalignment of guide roller height on the take-up side Misalignment of guide roller height on the supply side Refer To 3.3 JIG CONNECTOR CABLE COVER (ADJUST) GUIDE ROLLER (TU) GUIDE ROLLER (SUP) COMMUNICATION CABLE JIG CONNECTOR RED TO JLIP_RX WHITE BLACK TO JLIP_TX TO GND OSCILLOSCOPE JIG CONNECTOR TO ENV_OUT TO HID1 (No.86722)1-23 3.5 ELECTRICAL ADJUSTMENT 3.5.1 Electrical adjustment with personal computer • Electrical adjustmentis performed by using PERSONAL COMPUTER. As for the connection of cables, see Fig. 3-5-1. Read README.TXT file to use the software for SERVICE SUPPORT SYSTEM properly. • Remove the COVER (JIG) to perform adjustment. Fig.3-5-1 RED TO JLIP_RX WHITE BLACK TO JLIP_TX TO GND COMMUNICATION CABLE JIG CONNECTOR EXTENSION CONNECTOR Removing the cover (for jig), use this extension connector triple for connecting the jig connector cable. NOTE: JIG CONNECTOR CABLE COMMUNICATION CABLE CN105 COVER (JIG) SERVICE SUPPORT SYSTEM RS232C COM PORT PC CABLE PERSONAL COMPUTER MENU (No.86722) 200304WPC Printed in Japan JVC SERVICE & ENGINEERING COMPANY OF AMERICA DIVISION OF JVC AMERICAS CORP. www.jvcservice.com(US Only) JVC CANADA INC. Head office : 21 Finchdene Square Scarborough, Ontario M1X 1A7 (416)293-1311 SCHEMATIC DIAGRAMS COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD. No.86722SCH 2003/04 DIGITAL VIDEO CAMERA GR-D30UB,GR-D30US,GR-D31US, GR-D70US,GR-D90UB,GR-D90US,GR-D91US SPECIFICATION (The specifications shown pertain specifically to the model GR-D30US, GR-D70US, GR-D90US) Camcorder General Digital Video Camera Digital Still Camera Function Connectors AC Adapter For disassembling and assembling of MECHANISM ASSEMBLY, refer to the SERVICE MANUAL No.86700 (MECHANISM ASSEMBLY). Power supply : DC 11.0 V (Using AC Adapter) DC 7.2 V (Using battery pack) Power consumption LCD monitor off, viewfinder on : Approx. 3.4 W LCD monitor on, viewfinder off : Approx. 4.7 W Dimensions (W x H x D) : 76 mm x 94 mm x 143 mm (3" x 3-3/4" x 5-11/16") (GR-D90) 69 mm x 94 mm x 143 mm (2-3/4" x 3-3/4" x 5-11/16") (GR-D70/D30) (with the LCD monitor closed and the viewfinder pushed back in) Weight : Approx. 550 g (1.3 lbs) (GR-D90) Approx. 525 g (1.2 lbs) (GR-D70/D30) Operating temperature : 0°C to 40°C (32°F to 104°F) Operating humidity : 35% to 80% Storage temperature : -20°C to 50°C (-4°F to 122°F) Pickup : 1/6" CCD Lens : F 1.6, f = 2.7 mm to 43.2 mm, 16:1 power zoom lens Filter diameter : Ø37 mm LCD monitor : 3.5" diagonally measured, LCD panel/TFT active matrix system (GR-D90) 2.5" diagonally measured, LCD panel/TFT active matrix system (GR-D70/D30) Viewfinder : Electronic viewfinder with 0.24" black/white LCD Speaker : Monaural Format : DV format (SD mode) Signal format : NTSC standard Recording/Playback format : Video: Digital component recording : Audio: PCM digital recording, 32 kHz 4-channel (12-bit), 48 kHz 2-channel (16-bit) Cassette : Mini DV cassette Tape speed : SP : 18.8 mm/s LP : 12.5 mm/s Maximum recording time : SP : 80 min. (using 80 min. cassette) LP : 120 min. Storage media : SD Memory Card/MultiMediaCard Compression system : JPEG (compatible) File size : 2 modes (1024 x 768 pixels, 640 x 480 pixels) Picture quality : 2 modes (FINE/STANDARD) Approximate number of storable images : pg. 18. S-Video Output : Y : 1 V (p-p), 75 � , analog C : 0.29 V (p-p), 75 � , analog Input* : Y : 0.8 V (p-p) -1.2 V (p-p), 75 � , analog C : 0.2 V (p-p) -0.4 V (p-p), 75 � , analog AV Video output : 1 V (p-p), 75 � , analog Video input* : 0.8 V (p-p) -1.2 V (p-p), 75 � , analog Audio output : 300 mV (rms), 1 k� , analog, stereo Audio input* : 300 mV (rms), 50 k� , analog, stereo DV Output : 4-pin, IEEE 1394 compliant Input : 4-pin, IEEE 1394 compliant USB* : 5-pin * GR-D90/D70 only Power requirement U.S.A and Canada : AC 120 V ~, 60 Hz Other countries : AC 110 V to 240 V ~, 50 Hz/60 Hz Output : DC 11 V , 1 A Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject to change without notice. GR-D30UB,GR-D30US,GR-D31US,GR-D70US,GR-D90UB,GR-D90US,GR-D91US M3D123,M3D143,M3D127,M3D147 CD-ROM No.SML200304 2-1 CHARTS AND DIAGRAMS NOTES OF SCHEMATIC DIAGRAM Safety precautions The Components identified by the symbol are critical for safety. For continued safety, replace safety critical components only with manufacturer's recom- mended parts. 1. Units of components on the schematic diagram Unless otherwise specified. 1) All resistance values are in ohm. 1/6 W, 1/8 W (refer to parts list). Chip resistors are 1/16 W. K: KΩ (1000Ω), M: MΩ (1000KΩ) 2) All capacitance values are in µF, (P: PF). 3) All inductance values are in µH, (m: mH). 4) All diodes are 1SS133, MA165 or 1N4148M (refer to parts list). 2. Indications of control voltage AUX : Active at high. AUX or AUX(L) : Active at low. 3. Interpreting Connector indications Note: If the voltages are not indicated on the schematic diagram, refer to the voltage charts. 1 2 3 2.5 (5.0) 1.8 PB and REC modes (Voltage of PB and REC modes are the same) PB mode REC mode 4. Voltage measurement 1) Regulator (DC/DC CONV) circuits REC : Colour bar signal. PB : Alignment tape (Colour bar). — : Unmeasurable or unnecessary to measure. 4) Indication on schematic diagram Voltage Indications for REC and PB mode on the sche- matic diagram are as shown below. 5. Signal path Symbols The arrows indicate the signal path as follows. NOTE : The arrow is DVC unique object. Playback signal path Playback and recording signal path Recording signal path (including E-E signal path) Capstan servo path Drum servo path (Example) R-Y Y Playback R-Y signal path Recording Y signal path 6. Indication of the parts for adjustments The parts for the adjustments are surrounded with the circle as shown below. 7. Indication of the parts not mounted on the circuit board “OPEN” is indicated by the parts not mounted on the circuit board. R216 OPEN 1 2 3 1 2 3 1 2 3 1 4 2 3 Removable connector Wire soldered directly on board Non-removable Board connector Board to Board Connected pattern on board The arrows indicate signal path Note: The Parts Number, value and rated voltage etc. in the Schematic Diagram are for references only. When replacing the parts, refer to the Parts List. Note: For the destination of each signal and further line connections that are cut off from the diagram, refer to "BOARD INTERCONNECTIONS" 2-2 CIRCUIT BOARD NOTES 1. Foil and Component sides 1) Foil side (B side) : Parts on the foil side seen from foil face (pattern face) are indicated. 2) Component side (A side) : Parts on the component side seen from component face (parts face) indicated. 2. Parts location guides Parts location are indicated by guide scale on the circuit board. Note: For general information in service manual, please refer to the Service Manual of GENERAL INFORMA- TION Edition 4 No. 82054D (January 1994). LOCATION REF No. IC101 B C 6 A IC Category : IC Horizontal “A” zone Vertical “6” zone B : Foil side (A : Component side) C : Chip component D : Discrete component) 5 4 3 2 1 A B C D CN405 CN108 MON_B MOM_R STH1 VIDL CN761 CVF_R CN106 REG_4.8V CN406 MON_G CVF_G LV_CLK VF_LCD CAPT_REQ CN763 VF_SW GND CN765 IRIS_PWM MONI_SW CN766 CN7001 S_SHUT USB_DP DOBCK2 CN7001 CN7002 CN101 CN763 CN7002 DOMCK2 DOLRCK2 DOBCK3 DOMCK3 DOLRCK3 USB_DN GI03 REG_3.1V F/Z_CS M_REG4.8 STV1 CAM_VD CLK4M5 AIDAT3 SD_DATA2 MMC_CS Dat2MMC VSS( GND) VDD( DSC_3V) MMC_CLK VSS2/CD Dat2Host SD_DATA1 STV2 Q2H CLK1 CPV M32_MMC_CS MMC_CMD DSC_GND CLK2 DSC_3V CLK3 MMC_CLK LCD_RVS MMC_CD MMC_DATA OEH BL_4.8V GI06 OEV STH1 STH2 MON_R MON_G MON_B CN107 AIDAT2 DSCRST M_CS LV_OUT MXDT_OUT LCD_CTL M_RVS P_MEDIA EM_CS2 KEY_B KEY_A MONI_SW A10 HALL_AD IRIS_O/C OP_THRMO F_PTR_AD VFREG4.8 Z_PTR_AD TG_RST VFREG4.8 REG_12V CAM_OUT CAM_CLK DSC_STS FLSH_RST DSC_RST DSC_CS DSC_DT_IN REG_3.1V GND DSC_DT_OUT DSC_CLK DSC_WKUP USBDOWN VGL MMC_CD LCD_COM GND GI015 VB LCD_VEE VGH VDD VSS UD CN762 CN103 USBSENS PIX_ACLK AIDAT3 DOLRCK3 FLSH_WE FLSH_OE DOMCK3 DOBCK3 REG_4.8V REG_15V REG_-15V D[0-15] A0 OUT_Y[0-3] OUT_C[0-3] IRIS_C CLK27A CVF_B LV_CLK CLK27B OUT_VS OUT_HS USB_STS DSP_RST USB_CS USB_CLK USB_OUT USB_IN VF_LCD USBDOWN USBSENS ROM_CS LV_OUT M_CS LCD_B VDCVF HDCVF LCD_R REG_3.1V LCD_G USB_DP USB_DN GND HRP HG_U[+] HG_W[-] HG_BS[-] HG_W[+] HG_BS[+] HG_U[-] HG_V[+] HG_V[-] C_COIL_U C_COIL_W C_FG[+] C_FG[-] C_COIL_V MDA_PS Z_VCC CLK54 PBLK SHP INV CAM_CLK CAM_OUT CN408 XAHD CLK18 DRUM_ERR CN7602 SHD HLTOR S_REEL M_REG4.8 SHIELD CN5001 HODL REG_1.8V CCD_CTL XAVD ZOOM01 ZOOM04 F_PTR_AD F_VCC F_LED ZOOM03 ZOOM02 DAMP+ HGout+ DAMP- OP_THRMO HGout- HGVss- HGVcc+ DRIVE+ Z_PTR_AD CN7601 CLK27 M_UNREG OBCLP OSD_VD ID OUT_Y[0-3] D GAIN REG_3.1V TG_CS EM_AU/L OUT_C[0-3] V_BATT VF_CTL I_MTR AREG_SO AREG_CLK REG_CS LD_ON VPLN CLK27B FOCUS04 FOCUS03 FOCUS02 FOCUS01 HALL_AD IRIS_O/C F/Z_CS CAM_OUT CAM_CLK TG_RST OP_THRMO H_GAIN EM_AU/R H_OFFSET INH REG-CCD CARD_DET SW_GND SD_WP CHRG_EVR REG_15V TG_RST H2 H1 RG CCD-7V SUB VFREG4.8 CAP_PWR DRUM_REF DRUM_PG CCD_15V C_FRB COIL_COM D_PFG[+] D COIL W CAP_ERR GND DRUM_PWR CAP_REF CAP_FG DRUM_FG P_MEDIA HPLN KEY_B KEY_A GND V1 V2 V3 V4 HCLKN GND Z_PTR_AD F_PTR_AD DCO[0-3] SPK- SPK+ CLK27A MIC/L MIC/R S_SHUT CLK27B PD_L AU CLK T_REEL TBCCTL Z_LED OUT_Y[0-3] OUT_C[0-3] OUT_VS OUT_HS DYO[0-3] MIC_GND CAM_CS HDDSC VDDSC FLDDSC VF_COM CVF_G CVF_R CVF_B HCK1 HCK2 HST VDD VCK VST EN VREF BW_VEE BW_COM PDR REG_3.1V OUT_VS OUT_HS GND REG_4.8V CN7603 L_FRB CLK18 DSCIO[0-7] CLKDSC CDDSTB CDWE DSP_RST FLSH_RST DSC_RST CLK27 ID CLK54 PBLK REG_4.8V CLK27A IRIS_C XAVD OBCLP DSYO[0-7] DSCO[0-7] SHD SHP XAHD CLK27B DSYIO[0-7] AIDAT2 CCD_CTL REG_12V CCD_OUT CDS_CS CAM_CLK CAM_OUT DSC_CLK IRIS_PWM DSC_DT_OUT DSC_DT_IN DSC_CS USBDOWN MXDT_OUT DSC_STS CAPT_REQ ADDT[0-15] CAM_VD CLK4M5 MMC_CD DSC_WKUP CDALE OMT MFLD OUTH OUTV DYI[0-3] MVD DCI[0-3] MMC_CLK MMC_DATA MMC_CMD M32_MMC_CS MMC_CD SD_WP DSCIO[0-7] VDDSC DSYIO[0-7] DSCO[0-7] DSYO[0-7] FLDDSC HDDSC CLKDSC CLK27B REG_1.8V REG_3.1V REG_4.8V GND D[0-15] A0 A10 EM_CS2 FLSH_OE FLSH_WE USBSENS USB_DP USB_STS USB_DN GI03 GI06 GI015 RENEN REG_3.1V VCKN GND VIDHI RENON VIDLO DSP_RST USB_CS USB_CLK USB_OUT USB IN DOBCK2 DOMCK2 DOLRCK2 CN111 MDA_2.9V T_RL[+] T_RL[-] S_RL[+] S_RL[-] MODULE MODULE MODULE TL7501 TL7502 BL_4.8V BL_4.8V A_REG3V REV_SW TV THH THL BL_GND BL_GND BL_GND LV_IN YTU94074-24 YTU94077-24 YTU94074-20 YTU94077-20 YTU94105-40 YTU94077-40 YTU94074-20 YTU94077-20 YUJ40095A-5 CAMERA_DSP OP_DRIVER (NC) YTU94074-10 YTU94077-10 (Page 2-29) (Page 2-17) (Page 2-15) (Page 2-27) (Page 2-25) (Page 2-23) (Page 2-19) (P (Page 2-37) (Page 2-33) NOTE)�:The number of patch cords are indicated by inter connected. YTU94105-40 YTU94077-40 USB/J502 USB/J502 MONI-BW /CN103 MONI-BW /CN101 NOMI-BW/CN101 (NC) (NC) (NC) BOARD INTERCONNECTIONS 2-3 D E F G y10331001a_rev0.1 CN407 CN403 CN404 REG_3.1V CN501 CN105 CJIG_RST P/R_GND 6 REG_3.1V REG_2.5V REG_4.8V ENV_OUT CN402 LITHIUM REG_1.8V I_MTR EM_AU/L DISCRI TDB FS_PLL MAIN_VCO PB_CLK GND DCO[0-3] REG_2.5V DYO[0-3] DCI[0-3] HID1 SPA FRP TSR SRV_TRK CLK27SEL DV_RST ADDT[00-15] DV_WAIT EM_AU/R PWAD2 ATFI INV INH OUTV OUTH J501 DYI[0-3] AIDAT AODAT AILRCK AIBCK AIMCK CLK27A TPA+ TPA- TPB+ TPB- J554 CN102 CN109 2 3 BATT_+ BATT_CHK ADP_DC CDDSTB D_GAIN V_BATT I_MTR AREG_SO AREG_CLK REG_CS VF_CTL CHRG_EVR H_GAIN H_OFFSET LOAD_FWD LOAD_REV REG_3.1V GND CDALE REG_3.1V REG_4.8V GND AILRCK AIMCK AIBCK AODAT AIDAT CDWE XINT J502 DV_CS PIX_ACLK VIFO_OUT VIFO_CLK DAC_CS DRWSEL C_FRB CN110 RECH PBH HID3 DUMP_CTL PBH NOSIG_LV ATF_GAIN RECCADJ ATFI REF_CLK REC_DATA REC_CTL MONI_CHG HID3 L_FRB HID1 REC_CLK VRB_AGC VRB_ATF AGC_OUT CAM_SW_C CN104 DRUM_ERR CAM_SW_B V_OUT VREF_1.1 2S 2F 1S M_REG4.8 1F GND CAM_SW_A SHIELD HID1 AGC_OUT VRB_AGC ATFI VRB_ATF REC_DATA REC_CTL REF_CLK VREF_1.1 HID1 EXMOD_1 IR_RMC XINT TAPE_LED E_SENS REEL_VCC EXT_IN_L S_SENS MIC_1 MIC_2 MIC_3 REC_SAFE DEW_SENS MDA_PS CAP_REF CAP_FG DRUM_REF DRUM_PG DRUM_FG M_UNREG LD_ON MONI_CHG S_IN_L TG_RST VENC_CS VIFO_CLK VIFO_OUT VIFO_IN HID1 DV_CS PHOTO_SW DUMP_CTL VC[0-3] MMOD_0 NOSIG_LV MMOD_1 D_GAIN S2_DET REC_CLK MONI_CHG ADDT[00-15] CLK27A JRIP_RX REH CJIG_RST AU_CLK DV_WAIT ATF_GAIN DRWSEL CDDSTB CDWE CDALE BLK[A-C] MENU_P_A MENU_P_B EM_AU/L MENU_SET DIAL_PB DIAL_OFF TBCCTL OSD_HD OSD_VD DOT_CLK RECCADJ DIAL_AUTO VIFO_OUT DIAL_MANU OUT_Y[0-3] TRIG_SW TSR FRP VIFO_CLK DV_RST SPA FOCUS_SW POW_LED ZOOM_SW IF_TX S_REEL AL_3VSYS DCO[0-3] JLIP_TX JLIP_RX T_BATT ADP_H JLIP_TX V_BATT T_REEL VF_CTL I_MTR S_DET CLK27SEL AREG_SO AREG_CLK SRV_TRK DAC_CS REG_CS ASPECT2 ASPECT1 DYO[0-3] INV HDCVF P_DET DRUM_PWR DRUM_ERR CAP_PWR CAP_ERR IR_AMP REG_15V IR_OUT M_UNREG INH OUT_C[0-3] OUT_VS OUT_HS REG_3.1V REG_2.5V GND REG_1.8V M_REG4.8 REG_4.8V VFREG4.8 REG_12V REG-CCD REG_-15V LIT_3V AL_3.1V EXT_IN_L S_IN_L EM_AU/R LCD_G LCD_B LCD_R ASPECT1 VDCVF REG_4.8V REG_3.1V REG_1.8V GND ASPECT2 CHRG_EVR COIL_COM D_PFG[+] D_COIL_W D_COIL_V D_COIL_U D_PG[-] D_FG[-] DRUM_PWR L_MUTE L_MUTE MIC/L MIC/R PD_L AUDIO_CS AU_DATA A_MUTE BUZZER AU_SIG/R AU_SIG/L PD_L AU_CLK AUDIO_CS AU_DATA A_MUTE BUZZER TALLY PWAD2 HRP MIC_GND HD_SEL OSD_VD REG_3.1V AL_3.1V C_OUT TG_RST Y_OUT VIFO_IN LIT_3V GND REG_3.1V CLK_OUT DATA_OUT DSP_RST CDS_CS OMT BLK[A-C] OSD_HD OSD_VD DOT_CLK VC[0-3] MVD MFLD USB_STS VIFO_OUT VIFO_CLK VENC_CS DSP_RST CLK27B USB_CS USB_CLK USB_OUT USB_IN S2_DET USBDOWN CAM_CS CDALE CDDSTB CDWE ADDT[0-15] CN401 T_RL[+] T_RL[-] S_RL[+] _ [ ] CCD_CTL EJT_SW CAS_SW CAM_CLK CAM_OUT TG_RST TG_CS P/R_GND P/R_GND P/R_GND P/R_GND P/R_GND P/R_GND P/R_GND P/R_GND P/R_GND P/R_GND AV_GND AV_GND YTU94105-40 YTU94077-40 YTU94074-22 YTU94077-22 YTU94074-16 YTU94077-16 YTU93106B YTU94145C-30,x3 (Page 2-9) (Page 2-13) (Page 2-21) (Page 2-7) (MAIN IF Page 2-5) (Page 2-11) ZOOM UNIT (Page 2-38) (Page 2-35) PREMDA IF (Page 2-31) (Page 2-30) JIG CONN DV IN/OUT/J501 MONI-BW /CN101 REAR UNIT JIG CONN REAR UNIT ZOOM UNIT JIG CONN /CN101 PREMDA /CN111 PREMDA /CN110 (NC) 2-4 5 4 3 2 1 A B C D CN110 CN110 CN107 GND MIC/L GND CN102 GND CN106 MIC/R GND JLIP_TX S_DET SHIELD C_OUT EJT_SW Y_OUT GND GND V_OUT JLIP_RX AU_SIG/L AU_SIG/R P_DET GND GND IR_RMC REG_4.8V IR_OUT TALLY TP110 CN108 DIAL_AUTO DIAL_OFF DIAL_MANU DIAL_PB TRIG_SW PHOTO_SW R20 R20 R20 R2 R2 R2 IR_AMP MONI_SW F_VCC HGout+ DRIVE+ GND DAMP+ HGVss- HGout- HGVcc+ DAMP- ZOOM01 ZOOM04 ZOOM03 ZOOM02 F_PTR_AD V1 Z_LED FOCUS01 FOCUS04 FOCUS03 FOCUS02 V2 V3 V4 CCD_15V CCD_15V GND GND GND GND GND CCD_OUT REG_3.1V GND GND CAP PWR M_UNREG DRUM_PWR DRUM_PWR DRUM_PWR ENV_OUT ATFI REG_3.1V REG_3.1V GND GND GND GND RG H1 H2 CCD_-7V SUB M_RVS SPK- SPK+ VF_SW VCOM GND GND GND LCD_CTL M_REG4.8 M_REG4.8 LCD_B LCD_G LCD R M_REG4.8 M_REG4.8 CAM_SW_A F_LED Z_VCC M_REG4.8 CCD_CTL OP_THRMO Z_PTR_AD REG_3.1V CAM_SW_B CAM_SW_C DRUM_ERR AGC_OUT VRB_AGC DEW_SENS VREF_1.1 MONI_CHG VRB_ATF GND GND DUMP_CTL GND HID3 HID1 PBH RECH REC_CTL GND GND ATF_GAIN GND GND REF_CLK REC_CLK REC_DATA REG_3.1V NOSIG_LV REG_2.5V RECCADJ REG_4.8V REG_4.8V REG_4.8V REG_4.8V GND GND GND QGF0528F1-40X QGF0528F1-40X QGF0503C1-20X QGF0505F1-22X QGA1201C2-05X QGF0503C1-24V TO OP BLOCK TO JACK CN501 TO CCD CN5001 TO PREMDA CN401 NOTE: The parts with marked ( ) is not used. MAIN IF SCHEMATIC DIAGRAM 0 1 MAIN(MAIN IF) 2-5 D E F G y20231001a_rev0.1 CN111 CN105 CN111 CN101 CN101 P-SW_MANU BATT_CHK LITHIUM CN104 CN109 GND USB_DP USB_DN USBSENS GND CN103 R8716 M32_MMC_CS EL_CTL MMC_CMD GND MMC_CLK REG_3.1V MMC_DATA P_MEDIA MMC_CD R8717 SD_WP T_BATT ADP_H BATT_+ BATT_+ ADP_DC ADP_DC GND GND GND L8703 J502 J502 J502 J502 J502 J502 J502 L8703 L8703 L8703 AL_3VSYS Q2002 D8703 D8702 Q2001 Q2004 Q2003 Q2006 Q2005 GND P-SW_AUTO P-SW_OFF P-SW_PB P-TRIG_SW P-PHOTO_SW R2013 R2014 R2015 R2016 R2017 R2018 C8717 C8718 MMOD_1 CJIG_RST MMOD_0 FS_PLL IF_TX DISCRI JLIP_TX ATFI ENV_OUT GND PB_CLK MAIN_VCO EXMOD_1 MON_B I_MTR CVF_B MON_R GND CVF_G MON_G STH1 CVF_R VIDL VCOM V_OUT JLIP_RX MONI_CHG GND HID1 GND S_REEL AL_3VSYS TAPE_LED CAS_SW REEL_VCC S_SENS REC_SAFE MIC1 MIC2 E_SENS CAP_PWR CAP_PWR CAP_PWR DRUM_FG C_FRB DRUM_PG DRUM_REF L_FRB T_REEL MDA_PS LD_ON DRUM_PWR DRUM_PWR DRUM_PWR CAP_ERR SUB VCOM MON_B LCD_B LCD_G LCD_R MON_G CAP_REF MON_R VIDL CVF_B CVF_G CVF_R STH1 REG_4.8V HDCVF REG_3.1V LV_OUT LV_CLK M_CS VDCVF KEY_A HRP REG_12V REG_15V VF_LCD REG_-15V GND GND VFREG4.8 KEY_B GND CAP_FG MIC3 PWR_LED REG_3.1V GND FOCUS_SW MENU_P_A P-TRIG_SW MENU_SET MENU_P_B GND P-SW_PB P-SW_OFF P-SW_AUTO P-SW_MANU P-PHOTO_SW ZOOM_SW GND R2001 R2002 R2003 R2004 R2005 R2006 R2007 R2008 R2009 R2010 R2011 R2012 QGF0528F1-40X QGB0509M1-30X QGF0528F1-40X QGF0528F1-40X QGF0528F1-40X QGA1002C1-11X QGF0503F1-16X QGF0503F3-10X # # # QNZ0497-001 # UMX1N-W # # UMX1N-W UMX1N-W UMX1N-W UMX1N-W UMX1N-W 470k 470k 470k 470k 470k 470k 470k 470k 470k 470k 470k 470k TO ZOOM UNIT TO REAR UNIT JIG CONN TO PREMDA CN408 TO MONI-BW CN761 2-6 5 4 3 2 1 A B C D NOTE: The parts with marked ( ) is not used. TG_RST C1030 C1032 R1037 TL1034 R1094 C1035 P_MEDIA CCD_CTL MONI_SW TL1001 PWR_LED MMOD_1 MMOD_0 R1058 OP_THRMO R1059 AL_3VSYS GND R1060 R1054 R1092 VF_LCD F_PTR_AD CAS_SW LCD_CTL RA1002 R1081 RA1004 F/Z_CS IRIS_O/C Z_PTR_AD HALL_AD TG_CS CDS_CS KEY_A R1082 R1080 IC10 M_CS M_RVS BUZZER Q1007 Q1008 R1073 R1074 R1070 R1071 R1072 C1046 D1001 RA1005 R1089 VF_CTL R1096 Q1006 L_FRB DIAL_PB DIAL_OFF DIAL_AUTO DIAL_MANU ZOOM_SW TRIG_SW PHOTO_SW R1084 MENU_SET MENU_P_A MENU_P_B R1088 EJT_SW R1087 R1086 C1054 D_GAIN Q1004 C1053 C1052 C1051 KEY_B LV_CLK OUTV Q1005 R1097 R1057 R1028 TSR IC1001 HID1 SPA SRV_TRK CAP_FG DRUM_PG DRUM_FG DRUM_REF CAP_REF C_FRB MDA_PS TL1036 LD_ON JLIP_TX FRP TL1026 C1064 L1002 R1035 C1042 EXMOD_1 GND V_BATT R1083 VF_SW R1085 C1060 C1061 C1063 C1062 TALLY FOCUS_SW REG_3.1V JLIP_RX CAM_CLK CAM_OUT R1053 R1061 LV_OUT AL_3.1V CJIG_RST L1001 C1040 IF_TX IC1006 C1041 X1002 LIT_3V IR_OUT R1064 IR_RMC IR_AMP R1063 R1062 R1069 IC1007 R1027 TL1023 TL1024 TL1022 TL1025 R1025 TL1021 Q1009 R1029 C1024 C1025 C1022 C1029 R1052 R1011 R1038 R1040 R1099 R1056 R1055 C1044 C1045 R1093 R1091 TL1029 R1003 R1079 R1078 R1077 C1048 C1049 C1050 R1002 C1043 R1076 C1047 R1075 RA1006 R1006 C1057 C1058 C1059 R1051 R1068 C1056 C1039 R1065 R1066 R1067 R1004 R1005 R1024 6.3 D_REF MP_MUTE A_MUTE RTC_INT MD_DEM1 RSV CAP_FG DRUM_FG PWDA2 PWAD2 JLIP_INT CHG_WKUP DSC_CS OMT OUTV VD CHRG_EVR EEP_CLK EEP_OUT EEP_IN TXD RXD AU_CLK AU_DATA AU_CS SCL SDA MIC_CTL TALLY MXDT_OUT MMC_L USBDOWN DSC_STS CAPT_REQ FLSH_RST DSC_WKUP DSC_RST EEP_CS REG_CS FZ_CS CDS_CS TG_CS RTC_CS ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND C_REF USB_STS USB_CLK USB_OUT USB_IN RSV P_MEDIA SHOE_PWM XINT 2SC4617/QR/-X DTC124EE-X PDTC124EE-X DA221-X UMC3N-W UMC3N-W DTC143XE-X PVDD VOUT VOUT VDD VDD VDD VDD VDD VDDF VDDF VDD2 VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS 6.3V X2 VSS VDD SIO CLK CS Xin Xout INTR RS5C314-X NAX0564-001X IC-PST3423U-X D G S 2SJ347-X OSD_CS NMIRQ L_FRB2 L_FRB1 CAM_SW_A CAM_SW_B CAM_SW_C DSC_OUT DSC_IN VF_SW MONI_SW EJECT_SW CAS_SW DIAL_OFF DIAL_PB MDA_PS C_FRB2 LD_ON TAPE_LED OSD_CLK OSD_OUT LON DSC_CLK DIAL_MANU DIAL_AUTO C_FRB1 VIF_DAC_OUT VIF_IN EXT_IN_L TG_RST CCD_CTL DAC_CS AVREFOFF DSP_RST IRIS_O/C S_IN_L RSV REG_RTC_CLK REG_RTC_OUT RTC_IN LV_CLK LV_OUT LV_IN MFLD FRP TSR SRV_TRK SPA DRUM_FG PD_L S_REEL T_REEL ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND RSV SHOE_VON ND PVSS AVSS AVDD AVREFH VREFL VDDH VDDH VDDH VDDH VDDH VDDH VDDB VDDB VDDB VDD2 VDD2 VSS VSS VSS VSS VSS VSS VSS VSS VSS VSS 10 0.01 10K 0.01 1K 1K 100K 10K 100k 10k 100K 12k 8.2k 10K 4.7K 150K 2.7K 18K 1 10K 3.3K 100k 1K 3.3K 3.3K 3.3K 0.022 0.022 0.022 0.022 100k 1K 22/ 10µ 1K 0.1 1K 1K 2.2K 560 10µ 10p 0.1 10K 4.7K 220K 100K 0 100K 0.01 0.01 0.01 0.01 100K 100k 100k 100k 100k 330K 330K 47p 47p 10K 10K 100K 22k 39k 100k 0.01 0.01 0.01 100K 0.1 47K 0.01 47K 1K 1K 47K 1K 0.01 15K 10K 330K 100K XINT LV_IN BZ_FREQ RTC_INTR RTC_INTR IF_RX FOCUS_SW ZOOM_SW BZ_ENV MMOD1 MMOD0 KEY_A IF__TX TALY_LED MENU_P_A MENU_P_B USB_STS EJT_SW AVREFOFF P_MEDIA MONI_SW TALY_LED KEY_B F/Z_CS IRIS_O/C LV_OUT D_REF DRUM_FG C_REF DRUM_PG L_FRB2 CAP_FG D_GAIN MDA_PS IF__TX C_FRB2 C_FRB1 LD_ON MD_DEM1 LV_CLK CAP_FG DRUM_FG PWDA2 VF_CTL LCD_CTL VF_LCD M_RVS PWAD2 ROM_CS CAM_CLK CAM_OUT M_CS L_MUTE IF_RX CDS_CS TG_CS TG_RST IF_RX PHOTO_SW A_MUTE RSTL CHG_WKUP DSC_CS OMT OUTV MVD P_MEDIA CHRG_EVR C_REF D_REF EEP_CLK EEP_OUT EEP_IN AU_DATA AU_CLK AUDIO_CS MIC3 MIC2 MIC_CTL USB_CLK USB_OUT USB_IN MMC_CD DSC_STS CAPT_REQ FLSH_RST DSC_WKUP DSC_RST EEP_CS CHRG_LON OUTV REG_CS HID1 F/Z_CS SRV_TRK CDS_CS TG_CS SPA RTC_CS FRP TSR V_BATT TRIG_SW RSTL ASPECT2 MENU_SET VF_SW L_FRB1 CCD_CTL DIAL_MANU DIAL_AUTO DIAL_OFF DIAL_PB CAS_SW Z_PTR_LV F_PTR_LV OP_THRMO HALL_LV IW_WB IR_DET REMOTE RTC_IN RTC_OUT RTC_CLK RTC_CS EEP_CS EEP_IN EEP_OUT EEP_CLK MXDT_OUT USBDOWN AVREFOFF VIFD CLK VIFD_OUT VIFD_IN EXT_IN_L TG_RST HID1 DAC_CS DSP_RST IRIS_O/C S_IN_L RTC_CLK RTC_OUT RTC_IN LV_CLK LV_OUT LV_IN MFLD FRP TSR SRV_TRK SPA L_FRB2 DRUM_PG PD_L S_REEL T_REEL L_FRB1 CAM_SW_C CAM_SW_B CAM_SW_A OSD_CLK OSD_OUT OSD_CS DSC_CLK DSC_DT_OUT DSC_DT_IN MONI_SW CCD_CTL EJT_SW CAS_SW DIAL_MANU DIAL_AUTO DIAL_OFF DIAL_PB MDA_PS C_FRB1 C_FRB2 LD_ON TLED_ON VF_SW TO MONI-BW TO TG TO JACK TO DV_MAIN TO JIG CONN TO TG TO MONI-BW TO REG TO CDS TO JACK TO JACK TO JIG CONN TO PREMDA TO PREMDA TO MONI-BW TO ZOOM UNIT TO ZOOM UNIT TO OP_DRIVER TO MONI_BW TO REG TO PREMDA TO MONI-BW TO AUDIO TO JACK TO REG TO JIG CONN TO ZOOM UNIT MN103S CPU SCHEMATIC DIAGRAM 0 1 MAIN(CPU) 2-7 D E F G L_MUTE R1039 C1055 RA1008 R1013 R1012 DSC_WKUP EXT_IN_L R1095 S_IN_L USB_CLK USB_IN USB_OUT USB_CS S2_DET IC1001 RA1007 REC_SAFE MIC1 MIC2 MIC3 E_SENS S_SENS S_REEL MONI_CHG CAM_SW_B CAM_SW_A CAM_SW_C T_REEL DEW_SENS Q1003 Q1002 C1065 TAPE_LED REEL_VCC GND C1002 R1001 X1001 C1001 GND ADDT06 ADDT07 ADDT08 ADDT09 ADDT10 ADDT11 ADDT12 ADDT13 ADDT14 ADDT15 ADDT00 ADDT01 ADDT02 ADDT03 ADDT04 ADDT05 CDDSTB REG_3.1V M_REG4.8 M_UNREG RA1001 REG_3.1V M_REG4.8 M_UNREG DRWSEL CDALE CDWE Q1001 CLK27SEL DV_RST HID3 RECH PBH DV_WAIT TL1037 USB_STS TL1038 XINT DSC_CLK BLKC TL1004 TL1003 DV_CS CAM_CS TL1005 TL1006 C1018 C1017 C1016 DSP_RST MFLD IC1003 DSC_DT_OUT DSC_STS A_MUTE OSD_VD T_BATT DSC_DT_IN OMT OSD_HD MVD I_MTR IC1005 IC1002 DSC_CS P_DET AREG_SO AREG_CLK VENC_CS ASPECT1 ASPECT2 AUDIO_CS VIFD_CLK VIFD_OUT PWAD2 VIFD_IN S_DET BLKA VC3 BLKB VC2 VC1 VC0 DOT_CLK USBDOWN DSC_RST MMC_CD PD_L REG_CS FLSH_RST CAPT_REQ MXDT_OUT C1037 R1045 ADP_H R1043 CHRG_EVR C1003 C1004 C1005 C1006 C1007 C1008 C1009 C1010 C1011 C1012 C1013 C1014 C1015 C1019 C1020 C1021 DAC_CS AU_CLK AU_DATA R1036 R1007 R1008 R1009 R1010 R1016 TL1029 TL1030 R1031 R1030 R1014 R1015 C1057 R1032 R1033 R1034 TL1002 R1017 R1018 R1019 IC1004 R1051 R1048 R1047 R1046 TL1014 R1020 R1021 C1036 C1039 R1023 R1022 R1050 R1049 C1038 R1044 ADM10 ADM9 ADM8 ADM7 ADM6 ADM5 ADM4 ADM3 ADM2 ADM1 ADM0 CDALE DV_WAIT CDDSTB KENTO1 KENTO2 CDWE DRWSEL DV_CS RSV RSV CAM_CS TRIG_SW MENU_SET FOCUS_SW S2_DET RSV I_MTR T_BATT KEY_B KEY_A ZOOM_SW IR_DET F_PTR_AD Z_PTR_AD HALL_AD V_BATT MIC1 MIC2 MIC3 DEW_SENS E_SENS S_SENS REL_ON CAM_CLK CAM_OUT REC_SAFE ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND RSV OP_THRMO PHOTO_SW SHOE_DET USB_CS UMC3N-W UMC3N-W DTA114EE-X RN2102-X PDTA114EE-X SN74AHC1G00K-X VCC HOLD SCK SI CS SO WP VSS X25330S8I-2.5-X SCLK CS DATA RST VDD SDR XD EXD TEST VSS BLKC TST0 BLKB VC3 VD HD VC0 VC1 VC2 BLKA MB90097PFVXXX DIAL_PB MDA_PS C_FRB2 LD_ON TAPE_LED RVS IR_WB D_GAIN MONI_CHG CLK27SEL DV_RST PBH RECH HID3 BZ_ENV OSCO FRQS MMOD1 MMOD0 RESET CKSEL ADM15 ADM14 ADM13 ASPECT1/EXMOD0 C_FRB1 OSCI BZ_FREQ ADM12 ADM11 TDO TCK TMS TDI TRSTL S_DET P_DET ADP_H BATT_H CHRG_LED RSV RSV RSV MENU_P_B MENU_P_A REMOTE ROM_CS M_CS VF_LCD LCD_CTL VF_CTL M_RVS VENC_CS VIF_DAC_CLK VIF_DAC_OUT VIF_IN EXT_IN_L TG_RST CCD_CTL DAC_CS ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND ND RSV RSV ASPECT2/EXMOD1 SHOE_VON S-89220ACNC-W 1.5K 0.1 100K 1K 1K 1K 1K 10p 1M 8p 47k 0.01 1M 1k 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.01 0.0068 0.0068 0 10K 10K 0 10K 330k 75k 1K 1K 3.3k 3.3k 3.3k 470K 470K 1K 47K 10k 100k 100k 100K 100K 0.1 0.01 1K 1K 82k 62k 0.01 100k REEL_ON DSC_WKUP REC_SAFE E_SENS DSC_RST DSC_CS DSC_DT_IN DSC_DT_OUT DSC_CLK DSC_STS USBDOWN FLSH_RST CAPT_REQ MXDT_OUT MMC_CD T_REEL S_REEL ASPECT1 REC_SAFE ASPECT2 P_DET S_DET EXT_IN_L DSP_RST MVD MFLD OMT DAC_CS ADP_H T_BATT I_MTR CHRG_EVR E_SENS REG_CS S_IN_L PWDA2 MD_DEM1 PWAD2 A_MUTE L_MUTE PD_L AUDIO_CS AU_CLK AU_DATA CAM_SW_C OP_THRMO MIC2 CAM_SW_B MIC3 S_SENS OSD_CLK OSD_CS CAM_SW_A VENC_CS CAM_OUT CAM_CLK CAM_CS DV_CS PHOTO_SW ADDT15 ADDT14 ADDT13 RECH PBH MONI_CHG HID3 DV_RST CLK27SEL DV_WAIT FOCUS_SW CDWE MENU_SET CDALE DRWSEL CDDSTB ADDT00 ADDT01 ADDT02 ADDT03 TRIG_SW ADDT04 ADDT05 ADDT06 XINT ADDT07 ADDT08 OSD_OUT ADDT09 DV_CS ADDT10 MIC1 USB_CS ADDT11 ADDT12 CAM_CS DRWSEL CDWE MIC_CTL USB_STS CDDSTB DV_WAIT CDALE ADDT00 ADDT01 ADDT02 ADDT03 ADDT04 ADDT05 ADDT06 ADDT07 ADDT08 ADDT09 ADDT10 T_BATT S2_DET S2_DET USB_CLK USB_IN USB_OUT USB_CS RTC_CLK RTC_OUT S_SENS DEW_SENS MIC3 MIC2 MIC1 V_BATT HALL_LV Z_PTR_LV F_PTR_LV IR_DET ZOOM_SW KEY_A KEY_B I_MTR TG_RST DEW_SENS REEL_ON TLED_ON VIFD_CLK VIFD_OUT VIFD_IN EP_CS EP_IN EP_OUT EP_CLK BATT_H CHRG_LON ASPECT2 ASPECT1 REMOTE ROM_CS M_CS VF_LCD MMOD1 MMOD0 LCD_CTL VF_CTL M_RVS VENC_CS VIFD_CLK VIFD_OUT VIFD_IN EXT_IN_L TG_RST HID1 T_BATT CCD_CTL MDA_PS C_FRB1 C_FRB2 LD_ON TLED_ON IW_WB D_GAIN MONI_CHG CLK27SEL DV_RST PBH RECH HID3 BZ_ENV BZ_FREQ RSTL ADDT15 ADDT14 ADDT13 ADDT12 ADDT11 MENU_P_B BATT_H S_DET P_DET ADP_H ADP_H MENU_P_A CHG_WKUP TO VIDEO_I/O TO REG TO DSC TO AV_STRM TO AUDIO TO VIDEO_I/O TO PREMDA TO REAR TO REG TO CAM_DSP TO PREMDA TO PREMDA TO PREMDA TO JACK TO VIDEO_I/O TO AUDIO_AD TO JIG CONN TO DV_MAIN TO PREMDA TO DV_MAIN MN103S33NJA y10332001a_rev0.1 2-8 5 4 3 2 1 A B C D 2-9 IC2201 MIC_GND C2617 C2616 C2618 R2602 R2601 C2602 C2601 C2608 C2604 C2603 C2607 SHIELD C2606 C2605 C2613 R2610 R2609 R2607 R2608 C2611 C2612 R2201 R2203 C2201 C2223 L2604 C2202 R2202 C2619 R2612 R2611 C2401 Q2401 R2401 C2405 R2614 R2613 C2203 C2219 C2220 C2221 R2212 C2217 MIC/R C2614 C2615 SPK+ SPK- MIC_GND MIC/L C2205 C2204 R2213 C2218 AK4564VQ /6.3 T 2SC4617/QR/-X 1.8k 1.8k 0.001 0.015 0.015 0.001 0.0047 0.0047 1.0 22k 22k 2.2k 2.2k 1.0 1.0 680k 39k 0.1 0.1 0Ω 1.0 560k 10 4.7k 0.1 1.0 2.7 0.1 100p 100p 1.0 1.0 2.7 0.1 TO MIC TO MONI-BW NOTE: The parts with marked ( ) is not used. AUDIO SCHEMATIC DIAGRAM 0 1 MAIN(AUDIO) D E F G 2-10 PD_L S_SHUT REG_3.1V AODAT AU_DATA AIMCK REG_4.8V BUZZER AIBCK AU_CLK AUDIO_CS AIDAT AILRCK AU_SIG/L AU_SIG/R 203 23 C2224 R2204 L_MUTE R2202 R2404 R2405 R2406 R2402 R2403 C2402 L2401 C2404 R2407 L2402 C2403 C2406 Q2402 R2224 R2223 R2222 R2221 R2220 R2219 R2218 R2217 C2222 C2210 C2214 C2209 C2213 R2207 R2206 R2211 R2210 R2209 R2208 C2212 C2216 C2211 C2215 EM_AU/R EM_AU/L D2202 GND R2225 R2226 Q2202 R2230 R2229 R2231 A_MUTE Q2403 /6.3 T NQL402M-100X /6.3 T NQL402M-100X /6.3 T /6.3 UMX1N-W 2SC4617/QR/-X T 10 k 0.1 150k 560k 0Ω 4.7k 18k 10 10 10 10 10 10 10 0Ω 0Ω 0Ω 10 10 1.0 0.1 1.0 0.1 33k 33k 0Ω 0Ω 22k 22k 0.1 0.1 0.1 0.1 0Ω 0Ω 560k 560k 3.3k TO AUDIO_AD TO JACK TO CPU TO DV_MAIN TO CPU TO CPU TO CAM_DSP TO CPU TO DV_MAIN y20233001a_rev0.1 5 4 3 2 1 A B C D 2-11 IC3001 GND REG_2.5V REG_3.1V L3002 L3004 C3005 R3026 AGC_OUT TL3007 VRB_AGC ATFI VRB_ATF REC_DATA REC_CTL L3005 TL3008 TL3009 C3008 C3007 C3011 C3043 C3045 C3003 C3056 Q3001 RA3004 REF_CLK TL3011 L3001 C3001 VREF_1.1 R3072 R3025 Q3002 C3006 R3071 C3047 REG_1.8V C3042 L3012 R3074 R3073 C3044 C3070 D3004 L3015 C3009 C3046 REC_CLK C3067 R3068 C3068 C3069 C3017 C3015 C3013 C3016 C3020 R3057 R3002 R3007 R3008 C3012 R3004 C3066 R3067 R3066 IC3005 R3069 VDDI MON2 MON5 N.C VDDE MON3 N.C MON0 MON1 MON4 VSS MON6 MON9 MON11 VDDE MON14 MON16 MON7 MON8 MON12 VDDI MON13 MON17 MON10 MON15 MON27 N.C MON18 MON19 MON21 VDDE VSS MON20 MON22 MON23 VDDE MON24 MON25 MON26 VDDE VSS N.C VSS VDDE VDDP VSSP VDDA N.C VDDE VSS VSS VDDI VDDE VDDI VSS VSS MTEST PHYAVD2 BUSRST PMODE VDDI PHYAVD3 PWR3 PHYAVS2 PWR1 PWR2 PHYAVS1 PHYAVD1 VSS VSS VDDE VDDI JCY0152 NQR0129-002X NQR0006-001X /6.3 T NQR0006-001X /6.3 T 2SC4617 NQR0129-002X /6.3 T 2SC4617 NQR0129-002X RB751V-40-X NQR0006-001X ADVIN0 ADAVD0 ADAVS0 ADVRH0 ADVRL0 EXDATAI7 EXDATAI6 EXDATAI5 EXDATAI4 EXDATAI3 EXDATAI2 EXDATAI1 EXDATAI0 PBCLKO PBCLKI VSSP VCI4185 VDDP DAAOUT0 DAVRO0 DAVREF0 DAAVS0 DAAVD0 DAAOUT1 DAVRO1 DAVREF1 DAAVS1 DAAVD1 SBE HID HSP RECDATA RECCLK RECCTL SPA VSS VDDE VSS OSC4185I OSC4185O DISCRI REFCLK ADVIN1 ADAVD1 ADAVS1 ADVRH1 VDDI BUSCLK VSS ADRS5 ADRS6 ADRS7 ADRS10 ADRS8 ADRS9 VSS VDDI VSS EXTFRP EXTREQ EXTACCESS EXTDATA0 EXTDATA2 VDDE EXTDATA5 VSS EXTDATA6 N.C N.C EXTDATA1 VSS EXTDATA3 EXTDATA4 EXTDATA7 N.C N.C TTST VPD N.C N.C N.C PBI TBST N.C DCTEST0 VSS TDI DCTEST1 TRST TCK TMS TDO JCY0136-X 10 OPEN 10 10 0.1 0.01 0.1 1 OPEN 10k 10 OPEN 1K 1 0 0.1 0.01 10K OPEN 0.1 OPEN 1 0.01 1000P 180 OPEN 0.1 0.1 0.01 0.01 0.1 0.1 150 10k 5.6k 2.2k 0.1 10k 1 560 560 4.7K TDBI TDO TMS TCMK TRST TRST TDBI TCMK TMS TDO TO DSC TO REG TO PREMDA TO CAM_DSP NOTE: The parts with marked ( ) is not used. DV_MAIN SCHEMATIC DIAGRAM MAIN(DV_MAIN) D E F G 2-12 CLK27SEL ADDT15 ADDT07 C3040 ADDT06 RA3001 ADDT05 ADDT04 ADDT03 ADDT02 ADDT01 ADDT00 ADDT08 ADDT09 ADDT10 ADDT11 ADDT12 ADDT13 ADDT14 C3037 IC3002 DV_WAIT RA3002 DRWSEL CDDSTB CDWE CDALE INV INH OUTV OUTH DCO3 DCO2 DCO1 DCO0 DYO3 DYO2 DYO1 DYO0 DCI3 DCI2 DCI1 DCI0 DYI3 DYI2 DYI1 DYI0 AIDAT AODAT AILRCK AIBCK AIMCK C3059 C3030 J501 L3014 PB_CLK C3031 RECCADJ R3010 FS_PLL MAIN_VCO ATF_GAIN TSR DV_CS NOSIG_LV R3036 DUMP_CTL SPA TL3001 HID1 CLK27A DV_RST C3049 R3009 X3002 FRP RA3003 H_GAIN H_OFFSET C3029 C3048 C3038 C3036 R3083 R3082 RA3005 R3021 R3022 XINT R3081 PIX_ACLK TL3006 DAC_CS VIFD_CLK VIFD_OUT C3050 DISCRI R3034 R3029 R3037 R3075 R3027 R3005 R3006 SRV_TRK C3033 L3007 L3008 C3032 R3020 C3060 C3028 R3015 C3027 R3013 R3014 R3018 R3019 R3016 R3017 C3026 R3032 C3024 C3023 C3025 C3020 R3007 R3008 R3030 D3002 C3039 D3001 R3011 C3021 C3064 C3055 C3022 D3003 R3031 LPFIN LPFOUT PHYVDA PHYVDR PHYVSA PHYVSR PHYAVS3 VDDE N.C VDDE VSS PWMAUDIO VDDE VSSP VCIAUD VDDP VCXO11I VCXO11O VCXO12I VCXO12O OSC24I OSC24O OSC11I OSC11O DILRCK DIBCK DIMCK DIDAT AILRCK AIBCK AIMCK AIDAT1 AIDAT0 DOLRCK DOBCK VDDI DODAT AOLRCK AOBCK VSS AODAT1 AODAT0 YSO0 YSO1 YSO2 YSO3 BRSO0 BRSO1 BRSO2 BRSO3 YSI0 YSI1 YSI2 YSI3 BRSI0 BRSI1 BRSI2 BRSI3 OUTH OUTV INH INV CPUALE XCPUDSTB0 XCPUDSTB1 XCPURW XCPUCS XINT CPUWAIT CPUWAITLOGIC CPUDSLOGIC CPUBUSTYPE BU2501FV-X /4 T CH CH [NAX0480-001X] NRZ0040-0R0X CH DISCRI REFCLK ADVIN1 ADAVD1 ADAVS1 ADVRH1 ADVRL1 VSS PWM27O VDDE OSC27I OSC27O CLK27I CLK27O CLK27SEL VSS CLK135O VDDI FRRES FRREF TRKREF SERVOFRREF SERVOTRKREF PHYTPA PHYTPB PHYTPBIAS PHYXTPA PHYXTPB PHYRO PHYRF PHYFIL XRESET AD0 AD1 AD2 AD3 AD4 AD5 AD6 AD7 AD8 AD9 AD10 AD11 AD12 AD13 AD14 AD15 VSS VDDE VDDI VSS ADRS0 ADRS1 ADRS2 ADRS3 ADRS4 VDDE VDDI BUSCLK VSS ADRS5 ADRS6 ADRS7 CH AO1 AO2 GND DI CLK LD DO AO12 AO11 VCC VREFU AO10 AO9 AO8 AO7 AO6 AO5 AO4 AO3 VREFL CH EC2C01C-X EC2C01C-X EC2C01C-X OPEN 47 8P 47 22 0.1 10µ 0.1 10k 10K 2200P 10k 10 0.01 0.047 0.1 8P * * 0Ω 0 OPEN * 0.01 2.2k 15K 680 OPEN 10k 10 10 12P 2.2µ 12µ 0.001 5.1k 0.01 270p 3.9k 0.0047 2.4k 3.9k 56 56 56 56 1 1M 0.001 33p 0.1 0.1 5.6k 2.2k 220k 0.1 220k 0.1 1000P 0.01 0.1 220k ADDT00 ADDT01 ADDT02 ADDT03 ADDT15 ADDT14 ADDT13 ADDT12 ADDT11 ADDT10 ADDT09 ADDT08 ADDT07 ADDT06 ADDT05 ADDT04 ADDT00 ADDT01 ADDT02 ADDT03 ADDT04 ADDT05 ADDT06 ADDT07 ADDT08 ADDT09 ADDT10 ADDT11 ADDT12 ADDT13 ADDT14 ADDT15 TO CPU TO CAM_DSP TO AV_STRM TO AUDIO TO CPU TO JIG CONN TO DV_IN/OUT TO PREMDA TO CPU TO OP_DRIVER y10333001a_rev0.1 5 4 3 2 1 A B C D 2-13 TL3805 R3809 BLKC IC3801 L3803 L3804 C3803 C3804 L3801 L3802 C3801 C3802 R3806 R3807 CLK27A REG_3.1V GND REG_4.8V REG_1.8V TBCCTL DYO3 DYO2 DYO1 DYO0 DCO3 DCO2 DCO1 DCO0 INV INH OUT_HS OUT_VS OUT_C0 OUT_C1 OUT_C2 OUT_C3 OUT_Y0 OUT_Y1 OUT_Y2 OUT_Y3 VIFD_IN VIFD_OUT VIFD_CLK VENC_CS CLK27B ASPECT1 S_IN_L EXT_IN_L TG_RST VC3 VC2 VC1 VC0 BLKB OSD_HD OSD_VD DOT_CLK BLKA ASPECT2 S2_DET TL3801 TL3802 IC3802 C3820 R3808 C3805 C3806 R3805 C3809 C3812 C3810 C3811 C3813 C3814 C3815 C3816 C3817 C3818 R3803 R3804 BLKC OUT_HS OUT_VS OUT_C0 OUT_C1 OUT_C2 OUT_C3 OUT_Y0 OUT_Y1 OUT_Y2 OUT_Y3 VIFD_IN VIFD_OUT VIFD_CLK VENC_CS TG_RST VC3 VC2 VC1 VC0 BLKB OSD_HD OSD_VD DOT_CLK BLKA VDCVF HDCVF C3851 C3852 R3855 C3855 C3858 C3856 C3857 C3859 C3860 R3853 R3854 IC3851 R3801 R3802 C3807 C3819 C3808 R3851 R3852 C3853 C3861 C3854 CSO0 CSO1 CSO2 CSO3 YSO0 YSO1 YSO2 YSO3 OUTH VDD( C) VSS OUTV ZCNT RESVD RESHD MONI1 MONI2 SDOUT SDIN SCLK CS VDD( I) VSS RST ABAR2 COMP2 CBOUT VREF2 COUT AVDD[DA] AVSS IREF1 YCOUT ABAR1 COMP1 YSOUT VREF1 AVSS AVDD[DA] CLPY VYIN AVSS AVDD[AD] VRM VRL VRH CIN AVDD[AD] JCP8045 NQR0006-001X /6.3 T /4 T NQR0129-002X NQR0129-002X HDCVF VDCVF CSYNC VDOUT SCANMODE VDD( C) VSS RESVD RESHD SDOUT SDIN SCLK CS VDD( I) VSS RST ABAR2 COMP2 CBOUT VREF2 COUT AVDD AVSS IREF1 YCOUT ABAR1 COMP1 YSOUT VREF1 AVSS AVDD SCANEN JCP8055FP CLK VC0 VC1 VC2 VC3 BLK1 BLK2 BLK3 HDCVF VDCVF CSYNC HDOUT VDOUT VSS VDD( I) CLKOSD SCANMODE SCANEN ADDATEST RAMTEST AVSS AVDD[DA] IREF2 CROUT AVSS AMUTE HRP1 HRP2 CSI0 CSI1 CSI2 CSI3 CSI4 CSI5 CSI6 CSI7 VDD( C) VSS YSI0 YSI1 YSI2 YSI3 YSI4 YSI5 YSI6 YSI7 INH INV CLK VC0 VC1 VC2 VC3 BLK1 BLK2 BLK3 HDOUT VSS VDD( I) CLKOSD AVSS AVDD IREF2 CROUT AMUTE HRP1 HRP2 CSI0 CSI1 CSI2 CSI3 ADDATEST VDD( C) VSS YSI0 YSI1 YSI2 YSI3 INH INV 10µ 10 47 1 1 0Ω 0.01 0.01 820 0.1 0.1 0.01 0.1 0.1 0.01 0.1 0.1 0.1 0.1 27k 15k 0.01 0.01 820 0.1 0.1 0.01 0.1 0.01 0.1 27k 15k 100 820 0.01 0.01 0.01 100 820 0.01 0.01 0.01 TO CAM_DSP TO CPU TO CPU TO TG TO CPU TO CAM_DSP TO DV_MAIN TO REG NOTE: The parts with marked ( ) is not used. VIDEO I/O SCHEMATIC DIAGRAM D E F G 2-14 Q3701 IC3701 Q3701 R3712 Q3705 C3713 R3704 R3701 C3712 C3714 C3740 D3701 R3702 R3705 C3702 C3704 C3703 C3705 C3707 R3706 R3703 C3741 R3726 R3742 R3743 R3728 R3725 C3706 R3711 Q3702 R3710 L3701 C3701 R3709 R3708 R3707 Q3731 R3732 R3713 R3714 R3715 C3709 R3731 R3730 C3731 C_OUT HRP C3715 C3708 R3741 R3739 R3740 R3738 R3736 R3737 R3735 R3734 R3733 R3744 R3745 R3746 R3747 R3748 R3727 R3722 R3724 IC3731 LCD_R LCD_B LCD_G Y_OUT V_OUT VDCVF HDCVF 804 L3732 C3746 C3742 Q3735 C3744 C3747 C3743 C3745 C3732 L3731 C3738 Q3732 C3733 C3735 Q3733 C3736 C3737 C3734 C3739 5 5 8 6 7 9 R3854 Q3704 Q3734 UMT1N-W BA7665FS-X UMT1N-W /4 /4 # # # # UMZ1N-W /6.3 T 2SC4617/RS/-X # # # # # # # # # # # # # # # # # # MM1504XN-X IN2[H] IN1[L] GND VCC OUT SW # # # # UMZ1N-W # # # CH # CH # # # # DTC144EE-X # CH # CH # UMZ1N-W # # # # CH 2SA1774/RS/-X CH 2SC4617/RS/-X # CH CH 1M 330 300 270 330 1 270 300 56p 68p 27p 27p 0.01 3.3k 3.3k 1 4.7k 100k 100k 130 130 1 10k 10k 10µ 10 68 68 68 100 100k 82k 10k 0.01 4.7k 4.7k 0.01 0.01 0.1 1k 820 820 680 18k 18k 1.8k 8.2k 560 560 1.5k 2.2k 1k 470k 4.7k 130 4.7k 820 0.1 0.1 0.01 0.1 0.1 0.01 0.1 0.1 0.1 5k 6.8µ 4.7 0.1 5p 0.01 3p 33p 0.001 6.8µ 0.01 3p 33p 0.001 5p 0.01 820 0.1 0.1 0.01 0.1 0.01 15k TO JACK TO MONI-BW MAIN (VIDEO I/O) y10334001a_rev0.1 5 4 3 2 1 A B C D 2-15 NOTE: The parts with marked ( ) is not used. IC4201 C4212 C4213 C4214 XAVD OBCLP PBLK ID CLK54 CLK27 SHD CLK18 XAHD SHP R4202 R4203 R4204 CAM_CLK CAM_OUT CDS_CS C4204 C4205 C4216 C4211 C4210 C4207 R4201 C4209 C4208 C4318 CCD_OUT C4206 C4202 IC4202 TL4201 C4201 L4201 REG_4.8V C4203 R4304 R4305 R4306 CAM_CS ADDT15 ADDT14 ADDT13 ADDT12 ADDT11 ADDT10 ADDT09 ADDT08 ADDT07 ADDT06 ADDT05 ADDT04 ADDT03 ADDT02 ADDT01 ADDT00 CDWE CDDSTB CDALE TL4301 TL4302 MVD MFLD OMT DSP_RST C4301 C4302 R4301 IRIS_C CAM_VD IRIS_PWM CLK4M5 C4303 C4304 C4305 C4312 S_SHUT OSD_VD CLK27B CLK27A R4310 R4311 R4312 R4343 R4342 IC4303 C4317 R4339 R4341 R4340 C4316 R4326 R4346 R4345 R4344 R4205 R4347 R4349 R4351 R4354 D1 D2 D3 D4 D5 D6 D7 D8 D9 AVDD BLKSH CDSIN BLKFB BLKC BIAS AVDD AVSS ADCIN HD49340ANP-X ADIN6 ADIN7 ADIN8 ADIN9 ADIN5 ADIN4 ADIN3 ADIN2 ADIN1 ADIN0 CLK18 CLK27 CLK54 HDTG VDTG OBCP OBLK ID NC NC NC VSS NC BUS15 BUS14 BUS13 BUS12 BUS11 BUS10 BUS9 BUS8 BUS7 BUS6 BUS5 BUS4 BUS3 BUS2 BUS1 BUS0 WE RE AS CS HDCPU VDCPU FLDCPU FRP OMT CLR NC VDDS VSS VDDS NC NC SDRV MDRV VDMDA PWM CLK45 MM1613AN-X /6.3 T NQR0129-002X CK D GND VCC PR CLR Q Q DRDVDD DVSS ADCLK DVDD PBLK OBP SPBLK SPSIG AVSS VRM VRT VRB DVDD DVSS CS SDATA SCK D0 VDDS VSS VDDS VDDS VDDS VDDS VDDS VSS VSS VSS VSS VSS NC VDDC VGND DSYO0 DSYO1 DSYO2 DSYO3 DSYO4 DSYO5 DSYO6 DSYO7 NC DSCO0 DSCO1 DSCO3 DSCO2 DSCO4 SCO KO NC VDANA GND NOISE VIN CONT VOUT 0.1 0.1 0.1 0Ω 0Ω 0Ω 0.1 0.1 0.1 0.1 0.1 0.1 33k 0.1 1 1 0.1 10 1 0Ω 0Ω 0.1 0.1 22 0.1 0.1 0.1 0.1 0Ω 0Ω 0Ω 0.1 0Ω 0Ω 0.01 47 0Ω 0Ω 0Ω 0Ω 0Ω 0Ω BUS15 BUS14 BUS13 BUS12 BUS11 BUS10 BUS9 BUS8 BUS7 BUS6 BUS5 BUS4 BUS3 BUS2 BUS1 BUS0 CDWE CALE CAM_CS MFLD OMT DSP_RST BUS15 BUS14 BUS13 BUS12 BUS11 BUS10 BUS9 BUS8 BUS7 BUS6 BUS5 BUS4 BUS3 BUS2 BUS1 BUS0 CDWE CALE CAM_CS MFLD OMT DSP_RST IRIS_C CAM_VD CLK4M5 IRIS_PWM IRIS_C CAM_VD IRIS_PWM CLK4M5 DSYO0 DSYO1 DSYO2 DSYO3 DSYO4 DSYO5 DSYO6 DSYO7 DSCO0 DSCO1 DSCO2 DSCO3 DSCO4 DSCO5 TO TG TO CCD TO CPU TO OP_DRIVER TO AUDIO TO CPU TO VIDEO_I/O CAMERA DSP SCHEMATIC DIAGRAM 0 1 MAIN(CAMERA DSP) D E F G 2-16 IC4301 TL4312 TL4313 TL4314 TL4315 R4320 C4311 C4310 C4309 OUT_HS OUT_VS TBCCTL OUT_Y3 OUT_Y2 OUT_Y1 OUT_Y0 OUT_C3 OUT_C2 OUT_C1 OUT_C0 DSYO7 DSYIO7 DSYO6 DSYO5 DSYO4 DSYO3 DSYO2 DSYO1 DSYO0 DSCO7 DSCO6 DSCO5 DSCO4 DSCO3 DSCO2 DSCO1 DSCO0 CLKDSC HDDSC VDDSC FLDDSC DSYIO6 DSYIO5 DSYIO4 DSYIO3 DSYIO2 DSYIO1 DSYIO0 DSCIO7 DSCIO6 DSCIO5 DSCIO4 DSCIO3 DSCIO2 DSCIO1 DSCIO0 OUTV OUTH DYI0 DYI1 DYI2 DYI3 DCI0 DCI1 DCI2 DCI3 INV INH DYO0 DYO1 DYO2 DYO3 DCO0 DCO1 DCO2 DCO3 IC4302 C4315 REG_1.8V REG_3.1V GND R4308 R4307 C4306 C4313 C4314 R4355 R4352 R4331 TL4303 R4350 R4356 R4309 R4303 R4302 R4314 R4315 R4316 R4318 R4317 R4319 L4301 L4302 C4307 C4308 R4321 R4335 R4336 R4337 R4338 4316 4326 R4327 R4330 R4334 R4333 R4329 R4328 R4332 R4353 R4347 R4348 R4349 1 VDDC VDDC VGND AY00 AY01 AY03 AY02 AC00 AC01 AC02 AC03 INHA INVA ANACTL VDDC VDDC VGND OUTV OUTH DYI0 DYI1 DYI2 DYI3 DCI1 DCI0 DCI3 DCI2 INV INH DYO0 DYO2 DYO3 DCO0 DCO1 DCO2 DCO3 DYO1 VDDC VDDC VDDC VDDC VDDC VGND VGND VGND NC NC NC NC NC NC JCY0200 EC CE GND VOUT VDD R1160N151B-X /6.3 T NQR0129-002X NQR0129-002X DSCO1 DSCO3 DSCO2 DSCO4 DSCO5 DSCO6 DSCO7 VDDC NC NC DSYIO0 DSYIO1 DSYIO2 DSYIO3 DSYIO4 DSYIO5 DSYIO6 DSYIO7 NC DSCIO0 DSCIO1 DSCIO2 DSCIO3 DSCIO4 DSCIO5 DSCIO6 DSCIO7 VDDC VDDC VGND NC NC NC CLKDSC HDDSC VDDSC FLDDSC NC NC NC VDDC VDDC VGND NC VDDC VDDC VGND KO NC VDANA CLK27AO CLK27BO CTRI TDO TDI TRST TMS TCK JTEST0 JTEST1 JTEST2 JTEST3 JTEST4 JTEST5 JTEST6 JTEST7 TSEL0 TSEL1 TSEL2 TCLK TBTM TBTCLK TBTRST TMC1 TMC2 CKSEL0 CKSEL1 CKSEL2 USEL TVSEL NC NC NC NC NC NC NC NC NC 0.1 0 .1 0.1 0.1 47 47 0.1 10 0.1 0Ω 0Ω 0Ω 0Ω 0Ω 0Ω 0Ω 0Ω 0Ω 0.1 0.1 0Ω 0Ω 0Ω 0Ω 0Ω .01 47 0Ω 0Ω 0Ω 0Ω 0Ω 0Ω 0Ω 0Ω 0Ω 0Ω 0Ω TBCCTL OUT_VS OUT_HS OUT_C3 OUT_C2 OUT_C1 OUT_C0 OUT_Y3 OUT_Y2 OUT_Y1 OUT_Y0 OUT_HS OUT_VS TBCCTL OUT_Y3 OUT_Y2 OUT_Y1 OUT_Y0 OUT_C3 OUT_C2 OUT_C1 OUT_C0 DSYO7 DSYO6 DSYO5 DSYO4 DSYO3 DSYO2 DSYO1 DSYO0 DSCO7 DSCO4 DSCO3 CLKDSC HDDSC DSCIO1 DSCIO0 DSCIO7 DSYIO1 DSYIO3 DSYIO4 DSYIO6 DSYIO7 FLDDSC VDDSC DSCO0 DSCO1 DSCO2 DSCO5 DSCO6 DSYIO2 DSCIO6 DSCIO5 DSCIO4 DSCIO3 DSCIO2 DSYIO0 DSYIO5 OUTV OUTH DCI0 DCI2 DYI0 DYI1 DYI3 DYI2 DCI3 DCI1 INV DYO0 DYO1 DYO2 DYO3 DCO0 DCO1 DCO2 DCO3 INH OUTV OUTH DYI0 DYI1 DYI2 DYI3 DCI0 DCI1 DCI2 DCI3 INV INH DYO0 DYO1 DYO2 DYO3 DCO0 DCO1 DCO2 DCO3 DSCO1 DSCO2 DSCO3 DSCO4 DSCO5 DSCO6 DSCO7 DSYIO0 DSYIO1 DSYIO2 DSYIO3 DSYIO4 DSYIO5 DSYIO6 DSYIO7 DSCIO1 DSCIO0 DSCIO2 DSCIO3 DSCIO4 DSCIO6 DSCIO5 DSCIO7 CLKDSC HDDSC VDDSC FLDDSC TO DV_MAIN TO AV STRM TO DSC y10335001a_rev0.1 5 4 3 2 1 A B C D 2-17 H_GAIN L4802 H_OFFSET M_REG4.8 I SN74A C4855 R4809 C4807 C4854 R4812 R4813 R4808 C4804 C4811 IRIS_PWM GND M_REG4.8 C4866 HALL_AD R4876 R4826 R4825 R4842 REG_4.8V C4812 C4809 R4806 R4807 C4808 IRIS_O/C C4853 R4862 R4864 R4863 R4865 R4866 R4867 R4868 TG_RST CAM_VD F/Z_CS L4852 CAM_OUT CAM_CLK CLK4M5 C4803 REG_3.1V C4820 R4816 L4853 C4865 Q4802 C4864 IRIS_C R4846 Z_PTR_AD R4875 R4873 R4871 R4852 F_PTR_AD OP_THRMO IC4802 IC4803 R4814 R4811 R4805 R4810 R4815 C4806 C4810 Q4801 /10 T /10 T /6.3 T /6.3 T BA10358FVM-W BA10358FVM-W 2SC4655/BC/-X 10µ 0.1 560 10 15k 24k 0.1 0.01 0 0.1 0.1 68k 56K 1 3.3 6.8 1k 6.8 1k 1k 1k 0Ω 10µ 10 1M 10µ 0.1 10 0R0 0Ω 1M 680K 10k 10k 4.7k 0.1 0.01 TG_RST FOCUS01 FOCUS03 CLK4M5 FOCUS02 FOCUS04 CAM_VD CAM_VD F/Z_CS DATA_OUT CLK_OUT CLK4M5 DATA_OUT F/Z_CS TG_RST CLK_OUT Z_PTR_AD F_PTR_AD OP_THRMO HGout+ HGVcc+ HGVss- HGout- TO CAM_DSP TO CPU TO CPU TO DV_MAIN TO CPU TO CAM_DSP NOTE: The parts with marked ( ) is not used. OP DRIVER SCHEMATIC DIAGRAM 0 1 MAIN(OP DRIVER) D E F G 2-18 R4804 GND R4817 R4820 IC4807 SN74AHC2G66U-X OP_THRMO R4831 R4819 C4813 C4815 FOCUS02 66 Q4806 R4843 R4849 IC4851 62 63 R4865 C4814 R4874 R4840 R4839 R4867 C4858 C4859 C4860 C4861 C4862 R4855 R4854 C4863 R4857 R4856 R4858 R4859 R4860 R4844 R4847 L4851 R4841 FOCUS03 FOCUS04 FOCUS01 C4851 C4852 F_LED F_VCC R4823 R4833 F_PTR_AD ZOOM02 ZOOM03 ZOOM04 R4836 ZOOM01 DAMP+ DRIVE+ HGVss- HGout- HGVcc+ GND C4823 Q4851 DAMP- R4870 HGout+ Z_VCC Z_PTR_AD Z_LED R4830 Q4805 Q4804 Q4803 R4837 R4873 R4850 71 R4852 R4872 R4821 IC4804 R4818 R4827 R4828 R4829 C4822 R4824 R4822 C4819 R4845 2SC4617/RS/-X LGND Cosc FILa FILb FILc FILd Vref Vdd Vm3 D2 FBd D1 Vm4 C2 FBc C1 EXP0 EXP1 VREFSEL PGND EXTa Vm1 A1 FBa A2 Vm2 B1 FBb B2 LATCH SDATA SCLK OSCin OSCout RESET EXTb VD UPD16879GS-X NQR0129-002X /6.3 T 2SC4617/RS/-X LM358DR2-X 680 330k 100k 10k 0.1 1500P 0Ω 1k 0.1 0Ω 1k 68p 0.022 0.022 1000p 1000p 0Ω 6.8 6.8 33k 0Ω 0Ω 150 0 10 0.1 1k 100k 0Ω 270 0 0Ω 100k 150k 0Ω 0Ω 4.7k 33k 0.1 ZOOM01 ZOOM03 ZOOM02 ZOOM04 F_LED Z_LED Z_VCC DAMP+ ZOOM01 ZOOM04 ZOOM03 ZOOM02 FOCUS02 FOCUS04 FOCUS03 FOCUS01 HGout+ HGVcc+ HGVss- HGout- DAMP- Z_PTR_AD F_PTR_AD OP_THRMO DAMP- TO OP BLOCK y20235001a_rev0.1 5 4 3 2 1 A B C D 2-19 IC5501 H2 R5503 C5510 D5501 R5509 L5505 L5506 C5511 R5512 R5513 R5514 C5512 C5514 C5519 C5517 C5513 C5509 C5501 H1 RG CCD_-7V CCD_15V SUB V1 V2 V3 V4 RST Vss6 SUB VL VH V4 V3 V1 VM V2 TEST CLK13/CL JCY0185 /35 1SS355-X T /20 T /10 CS/SEN CLK/SSK DATA/SSI Vdd1 VGAT DSGAT HCLR RG Vdd6 CLK27/CLK1716 ID WEN OBCLP XAVD XAHD Vss5 C T 22 1 47 10µ 10µ 4.7 1K 1K 1K 10 0.1 0.1 0.1 0.1 0.1 0.1 ID OBCLP XAVD XAHD TO CCD NOTE: The parts with marked ( ) is not used. TG SCHEMATIC DIAGRAM 0 1 MAIN(TG) D E F G 2-20 R5504 R5505 03 X5501 C5515 R5501 C5518 R5506 R5507 R5511 SHP SHD CLK18 CLK54 CLK27 R5502 PBLK ID 17 OBCLP C5508 C5507 C5504 C5503 L5502 L5503 L5504 CAM_OUT REG-CCD REG_15V C5506 L5501 C5516 CAM_CLK REG_3.1V TG_CS TG_RST XAVD XAHD GND Vss2 H2 Vss3 Vdd4 SHP SHD XRS DCC Vss4 CLK18/MCK CAM/VTR Vdd5 CTL GND VDD OUT NAX0587-001X NQR0129-002X NQR0129-002X NQR0129-002X /4 T RG Vdd2 Vss1 H1 Vdd3 Vss5 CLPDM PBLK SSGCTL CK 22 22 2 0.1 0Ω 0.1 0Ω 0Ω 47 0.1 0.1 0.1 0.1 47 10µ 0.1 ID OBCLP XAVD XAHD PBLK PBLK TO CAM_DSP TO CPU y30213001a_rev0.1 5 4 3 2 1 A B C D 2-21 ADP_DC GND R6043 L6001 L6002 F6001 R6032 IC6001 R6033 C6027 C6029 C6030 C6031 C6032 C6033 R6034 C6034 C6045 BATT_+ C6044 R6039 R6040 R6021 R6022 R6023 R6024 C6021 R6035 C6028 BATT_CHK R6 C6002 C6004 C6003 C6026 C6025 C6024 C6023 C6035 C6036 C6037 C6038 C6039 C6040 C6041 C6042 C6043 R6037 F6801 R6044 R6038 C6022 R6030 R6027 R6028 R6029 R6036 R6026 R6025 R6031 NMFZ007 FA3698F 4.7µ 4.7µ 2R0 * 5.6K 0.0047 0.001 0.001 0.001 0.001 0.01 4.7K 0.1 1 0.01 100K 10K 1K 1K 1K 1K 0.1 100K * * 1 1 10 1 1 1 1 0.1 100p 0.047 0.01 0.1 0.047 0.01 0.01 0.022 15K 0.5A 220K 0Ω 0.1 33K 10K 750Ω 10K 100K 0Ω 0Ω 4.7K TO REAR UNIT NOTE: The parts with marked ( ) is not used. REG SCHEMATIC DIAGRAM 0 1 MAIN(REG) D E F G 2-22 D6601 Q6101 VF_CTL D6602 D6702 Q6501 REG_3.1V L6101 REG_15V REG_-15V Q6201 L6201 Q6301 REG_4.8V REG_1.8V L6301 Q6401 V_BATT R6042 AL_3.1V L6401 F6701 Q6602 DRUM_PWR CAP_PWR L6501 CAP_ERR DRUM_ERR AREG_CLK D_GAIN AREG_SO REG_CS R6505 C6505 R6109 CJIG_RST Q6102 R6619 Q6804 Q6606 L6801 IC6801 F6301 REG-CCD R6309 Q6701 L6701 Q6601 R6106 CHRG_EVR R6701 REG_2.5V M_UNREG Q6302 R6305 R6306 Q6605 Q6303 R6815 C6809 R6308 R6618 L6302 Q6801 LIT_3V LITHIUM D6801 VFREG4.8 R6805 IC6802 Q6802 I_MTR R6806 GND R6807 R6809 R6810 R6808 Q6803 Q6604 M_REG4.8 R6801 R6611 REG_12V Q6805 R6811 R6812 R6041 R6813 D6701 C6405 C6703 R6602 C6103 C6104 R6603 C6607 C6101 R6103 R6102 C6704 C6604 C6701 C6203 C6204 C6201 R6203 R6202 C6601 C6303 C6304 C6301 C6503 R6303 R6302 C6403 C6404 C6401 C6504 R6406 R6403 R6402 R6407 C6603 C6501 R6503 R6502 R6604 C6606 R6614 R6405 R6705 R6506 R6804 R6703 C6802 C6801 F6801 R6803 C6105 R6107 R6702 R6108 R6105 C6106 R6104 C6602 R6704 R6307 R6044 C6305 R6616 R6617 R6615 R6802 R6706 R6707 L6601 C6803 R6606 R6605 R6612 R6613 C6609 R6607 R6608 C6608 R6609 R6610 C6605 Q6603 D6603 C6804 C6805 C6806 C6807 RB481K-X G S A D Ca SSM5G01TU-X RB480Y-W RB160M-30 G S A D Ca SSM5G01TU-X G S A D Ca SSM5G01TU-X G S A D Ca SSM5G01TU-X G S A D Ca SSM5G01TU-X HN1c01FU A1577 2SC4617 CE G Vout EXT Vin R1224N102G-X CPH3314 CPH3314 0.5W A1577 HN1A01FU C4617 A Ca C E B FML9 RB715F S1 G1 D2 D1 G2 S2 DTC144EE RB160M-30 D G S D G S OUT VDD VSS 2SA1577 39µ 39µ 39µ 0Ω 47µ 1.25A 47µ 47K 0.22 0Ω 0Ω 47 1.25A 0Ω 10µ 27K 0.2Ω 220K 27K 680Ω 150p 47K 0Ω 22µ 1K * * * * 0Ω 68K * * 27K 0.068 1 110K 10 0.001 3.9K 1 1 10K 22K * * 1 10 0.0047 1 15K 12K 1 10 0.001 1 1 4.7K 18K 1 * 1 * 10K 3K 24K 100K 1 1 5.6K 47K 110K 1 100K 12K * 47K 56K 15K 47 1 0.5A 0Ω 560p 18K 110K 12K 220K 1 470K 1 220K * 220K * 10K 33K 100K * 82K 33K 220µ * * 100K 2.2K 100K 82K 1 47K 27K 0.1 8.2K 47K 1 1 * * 10 TO PREMDA TO MDA TO CPU TO CPU TO CPU TO REAR UNIT TO CPU TO JIG CONN y10336001a_rev0.1 5 4 3 2 1 A B C D 2-23 IC8003 REG_3.1V GND IC8002 TL8013 USB_DP USB_DN R8004 Q8001 X8002 R8036 R8001 IC8007 R8002 R8063 R8057 R8056 IC8004 USBSENS C8027 R8005 REG_1.8V R8003 A10 C8028 D8001 R8020 TL8020 R8059 GND R8027 R8072 REG_3.1V C8029 REG_4.8V TL8018 C8030 R8028 R8029 L8004 C8006 D0 D1 D2 D3 D4 D5 D6 D7 D8 R8008 D9 D10 D11 D12 D13 D14 D15 A0 L8001 C8001 L8003 C8003 C8007 C8008 C8004 C8005 EM_CS2 FLSH_OE FLSH_WE R8017 GIO3 GIO15 GIO6 R8009 R8007 R8010 R8006 TL8007 R8031 R8030 TL8002 R8046 C8017 C8018 C8010 MBV160TE90PTA45 VDD VDD VDDQ VDDQ VDDQ VDDQ VSSQ VSSQ VSSQ VSSQ DQ0 DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 NC DQM0 WE CAS RAS CS NC NC NC NC BA0 BA1 VSS VSS A7 A8 A9 CKE CLK DQM1 DQ8 DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 K4S643232F-TC60 # # Vout Vin # # S-80842CNNB-W # # RB751V-40-X # VDD VDD VDDQ VDDQ VDDQ VDDQ VSSQ VSSQ VSSQ VSSQ NC A10 A0 A1 A2 DQM2 NC DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 VSS VSS DQ24 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31 DQM3 A3 A4 A5 A6 # T # # # NQR0129-002X /6.3 T NQR0129-002X SDR_CLK SDR_RAS SDR_CAS SDR_CS SDR_CKE SDR_WE SDR_DQMLL SDR_DQMLH SDR_DQMHL SDR_DQMHH SDR_DQ0 SDR_DQ1 SDR_DQ3 SDR_DQ2 SDR_DQ4 SDR_DQ5 SDR_DQ7 SDR_DQ6 SDR_DQ8 SDR_DQ9 SDR_DQ10 SDR_DQ12 SDR_DQ11 SDR_DQ13 SDR_DQ14 SDR_DQ15 SDR_DQ16 SDR_DQ17 SDR_DQ18 SDR_DQ19 SDR_DQ20 SDR_DQ21 SDR_DQ22 SDR_DQ23 SDR_DQ24 SDR_DQ25 SDR_DQ26 SDR_DQ27 SDR_DQ28 SDR_DQ29 SDR_DQ30 SDR_DQ31 SDR_A0 SDR_A1 SDR_A2 SDR_A3 SDR_A4 SDR_A5 SDR_A6 SDR_A7 SDR_A8 SDR_A9 SDR_A10 SDR_A11 SDR_A12 SDR_A13 SDR_A14 EMU1 EMU0 TRST TDO TDI TCK TMS /6.3 T NQR0129-002X /6.3 T A1 A2 A3 A4 A5 A6 A7 A17 A18 RY/BY NC NC RESET FLSH_WE NC A19 A8 A9 A10 A11 A12 A13 A14 A15 A0 FLSH_CE Vss FLSH_OE DQ0 DQ8 DQ1 DQ9 DQ2 DQ10 DQ3 DQ11 Vcc DQ4 DQ12 DQ5 DQ13 DQ6 DQ14 DQ7 DQ15/A-1 Vss BYTE A16 CONT GND NOISE # # EM_WIDTH EM_CS0 EM_CS1 EM_CS2 EM_CS3 EM_CS4 EM_BEL EM_BEH EM_WE EM_OE EM_RNW ARM_A0 ARM_A1 ARM_A2 ARM_A3 ARM_A4 ARM_A5 ARM_A6 ARM_A7 RESET PWDN USB_DP USB_DN M48XI M48XO USB_VDD DGND9 DGND8 DGND7 DGND6 DGND5 DGND4 DGND3 DGND2 DGND1 DVDD10 DVDD9 DVDD8 DVDD7 DVDD6 DVDD11 DVDD12 0 10k 10k 22 0R0 10k 47k 0.01 10 10 10 0.1 0.1 0.1 0 .1 10k 4.7K 4.7K 15K 0 0.1 0 1 0.1 SDR_CLK DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 SDR_RAS SDR_CAS SDR_CS0 SDR_CKE SDR_DQMLH SDR_DQMHH DQ1 D0 DQ22 DQ23 DQ2 DQ24 DQ7 DQ3 SDR_CLK SDR_DQMHH DQ4 DQ5 DQ8 DQ10 DQ11 DQ12 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31 SDR_A0 DQ31 DQ30 SDR_A1 SDR_A2 SDR_A3 SDR_A4 SDR_RAS SDR_CS0 SDR_CKE DQ6 SDR_A5 SDR_A6 SDR_A7 SDR_A8 D1 SDR_A9 SDR_A10 SDR_A13 SDR_A14 DQ9 A10 SDR_WE SDR_DQMLL SDR_DQMHL DQ0 D2 DQ13 DQ14 DQ15 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 A0 EM_CS2 FLSH_OE FLSH_WE DQ5 DQ6 DQ7 DQ8 DQ9 DQ10 DQ11 DQ12 DQ29 SDR_A3 SDR_A10 SDR_A0 DQ28 SDR_A1 SDR_A2 DQ27 SDR_A4 SDR_A5 SDR_A6 SDR_A7 SDR_A8 SDR_A9 SDR_A14 SDR_A13 DQ0 DQ1 DQ2 DQ3 DQ4 DQ13 DQ14 DQ15 SDR_DQMLH SDR_DQMLL SDR_CAS SDR_WE DQ26 DQ25 DQ24 SDR_DQMHL DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 A0 FLSH_CE FLSH_CE EM_CS2 FLSH_WE FLSH_OE A0 A1 A2 A3 A4 A5 A6 A18 A7 A8 A14 A13 A12 A11 A10 A9 A8 A7 A17 A15 A6 A5 A4 A3 A2 A1 D15 D7 D14 D6 D13 D5 D12 D4 D11 D10 D2 D9 D1 D8 D0 A16 D3 FLSH_OE FLSH_WE A19 TO REG TO USB NOTE: The parts with marked ( ) is not used. DSC SCHEMATIC DIAGRAM 0 1 MAIN(DSC) D E F G 2-24 R8022 R8025 R8051 TL8008 IC8006 CAPT_REQ MXDT_OUT DSC_WKUP CLK27B DSCO4 R8026 L8006 R8067 TL8017 L8002 L8005 C8012 R8054 R8055 R8058 DOLRCK2 TL8005 TL8006 MMC_CD R8064 C8013 USBDOWN TL8014 RA8001 RA8002 RA8003 R8066 RA8004 C8021 C8020 C8022 C8023 C8024 C8025 DSC_RST FLSH_RST C8026 R8068 R8069 R8070 R8071 Q8002 R8037 R8074 R8075 DSC_STS DSC_DT_OUT DSCO3 DSCO2 AIDAT2 DSCO1 DSCO0 DOMCK2 DSYO7 DSYO6 DSYO3 DSYO5 DSYO4 DSYO2 DSYO1 FLDDSC HDDSC VDDSC DSYIO4 DSYIO3 DSYIO2 DSYIO1 DSCIO6 DSYIO0 DSCIO7 DSCIO3 DSCIO5 DSCIO4 DSCIO2 DSCIO1 DSYIO5 DSYIO6 DSYIO7 DSYO0 DSCO5 DSCO6 DSCO7 DSCIO0 IC8001 DOBCK2 CLKDSC C8002 DSC_CS DSC_CLK DSC_DT_IN R8032 SD_WP MMC_DATA MMC_CD MMC_CLK MMC_CMD M32_MMC_CS TL8016 TL8001 R8060 TL8021 R8065 TL8003 R8043 R8038 C8014 C8015 C8016 C8018 C8019 C8010 C8011 TL8004 R8016 VDD2 VSS2 27M TEST AVDD AVSS XO XI CLKA 512FS DVSS DVDD 16M FSEL 33M OE # # NQR0129-002X NQR0129-002X /6.3 # # # # # # # # MXO CLKIN2 CLKIN1 GIO20 GIO19 GIO18 GIO17 GIO16 GIO15 GIO14 GIO13 GIO12 GIO11 GIO10 GIO9 GIO8 GIO7 GIO6 GIO5 GIO4 GIO3 GIO2 GIO1 GIO0 RXD2 TXD2 RXD1 TXD1 RESERVE VDIN HDIN FID YIN7 YIN6 YIN5 YIN4 YIN3 YIN2 YIN1 YIN0 CIN7 CIN6 CIN5 CIN4 CIN3 CIN2 CIN1 CIN0 YIO7 YIO6 YIO5 YIO4 YIO3 YIO2 YIO1 YIO0 CIO7 CIO6 CIO5 CIO4 CIO3 CIO2 CIO1 CIO0 TMS320DSC24GHKL /6.3 T # T RESERVE NC ARM_A2 ARM_A3 ARM_A4 ARM_A5 ARM_A6 ARM_A7 ARM_A8 ARM_A9 ARM_A10 ARM_A11 ARM_A12 ARM_A13 ARM_A14 ARM_A15 ARM_A16 ARM_A17 ARM_A18 ARM_A19 ARM_A20 ARM_A21 ARM_A22 ARM_D0 ARM_D1 ARM_D2 ARM_D3 ARM_D4 ARM_D5 ARM_D6 ARM_D7 ARM_D8 ARM_D9 ARM_D10 ARM_D11 ARM_D12 ARM_D13 ARM_D14 ARM_D15 SDEN3 SCLK3 SDI3 SDO3 SCLK2 SDI2 SDO2 SCLK1 SDI1 SDO1 TEST0 TEST1 TEST2 TEST4 TEST3 MXI PLL_VDD1 PLL_GND1 PLL_VDD2 PLL_GND2 DSP_CLKS DSP_BFSR DSP_BFSX DSP_BCLKR DSP_BCLKX DSP_BDR DSP_BDX DVDD10 DVDD9 DVDD8 DVDD7 DVDD6 DVDD5 DVDD4 DVDD3 DVDD2 DVDD1 CGND9 CGND8 CGND7 CGND6 CGND5 CGND4 CGND3 CGND2 CGND1 CVDD11 CVDD10 CVDD9 CVDD8 CVDD7 CVDD6 CVDD5 CVDD4 CVDD3 CVDD2 CVDD1 DVDD11 SCAN 1M 0 0 0 0 0 0 100 100 100 47K 100 10 0.1 0.1 560 10k 10 0 0 22 22 0.1 0.1 0.1 0.1 0.1 0.1 0.1 10k CIO0 CIO1 CIO2 CIO3 CIO4 CIO5 CIO6 CIO7 YIO0 YIO1 YIO3 YIO4 YIO2 YIO5 YIO6 YIO7 DSCO0 DSCO1 DSCO2 DSCO3 DSCO4 DSCO5 DSCO6 DSCO7 DSYO0 DSYO1 DSYO2 DSYO3 DSYO4 DSYO5 DSYO6 DSYO7 FLDDSC HDDSC VDDSC A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 TO CPU TO MONI-BW TO CAM_DSP TO AUDIO_AD y10339001a_rev0.1 5 4 3 2 1 A B C D 2-25 NOTE: The parts with marked ( ) is not used. C7601 C7608 C7622 C7621 R7601 CN761 C7644 C7643 R7631 IC7601 IC7606 L7601 D7601 C7607 TP7601 TP7602 C7646 C7618 C7620 C7619 C7617 R4 L7603 L7602 C7654 R5 C7635 C7634 L7607 L7606 C7632 C7633 C7655 R6 R7662 SW6 R3 C1 R76 C7641 R7633 L7604 C7630 C7631 R CN762 C7668 R7670 R7 R8 R7636 R7637 C7667 R7638 L7605 C7616 R7661 C7603 C7604 C7605 C7606 C7614 C7613 R7602 C7651 SW2 C7609 C7602 SW3 SW4 SW5 C7661 SW7 SW8 QGF0508F1-40X VEE( 2V) VC( 5.8V) VDD( 9V) VREF VCOM COMDC VSS3 PDR RENE CPH3 RENO CPH2 HCK CPH1 VDD3( 3V) VCC4( 3V) VMC HMC HODL FRP Vsync Hsync VSS12 LOAD SCLK SDATA VDD1( 3V) NC VCC1( 3V) Rin Gin/Yin GND1 AN12550A SP- SP+ /25 T NSW0099-001X # /25 T QGF0508F1-10X Bin VCC2( 7.5V) Bout Gout Rout D-Vref1 GND23 NC D-Vref2 VIDL VIDFB VIDH VCC3( 12V) VCO GND4 PH_DET VDD2( 3V) HLTOR HPL OEH STH2 STH1 STV1 STV2 CPV VPL OEV VCK QH NSW0145-001X NSW0145-001X NSW0145-001X NSW0145-001X NSW0145-001X NSW0145-001X 1 0.01 1 1 6.2K 10µ 10 0.01 10 0.01 10 0.01 3.3K 47µ 47µ 6.8K 0.01 2.2 10µ 4.7 0.01 22K 0 10K 0.01 0Ω 10µ 4.7 0.01 10K 3.3K 10µ 0.01 0Ω 2.2 2.2 2.2 0.1 1500p 2.2 15K 2.2 0.1 0.01 0 1 LV_IN LV_CLK M_CS HDCVF VDCVF HODL HRP HRP VDCVF MON_B MON_G MON_R STH2 HDCVF M_CS LV_CLK LV_IN STH1 MON_B MON_G STV1 MON_R OEH VIDL HPL STH2 VPL VCK VIDH STV2 CPV OEV QH LCD_RVS KEY_A KEY_B VFREG4.8 GND GND REG_-15V VF_LCD REG_15V REG_12V HRP VDCVF HDCVF M_CS LV_CLK LV_IN REG_3.1V STH1 REG_4.8V CVF_R HPL/CVF_B VIDL MON_R MON_G MON_B LCD_R LCD_G LCD_B VCOM M_REG4.8 M_REG4.8 LCD_CTL BL_GND BL_GND BL_GND VF_SW M_RVS SPK+ SPK- MONI_SW CVF_G TO CPU TO MAIN TO CPU TO AUDIO TO JIG CONN TO VIDEO_I/O TO DSC TO VIDEO_I/O TO CPU TO CPU TO JIG CONN TO CPU TO DSC TO MAIN TO CPU TO DSC TO CPU TO CPU SD_WP MMC_DATA MMC_CD DSC_3V MMC_CLK DSC_GND MMC_CMD P_MEDIA M32_MMC_CS EL_CTL MONI-BW SCHEMATIC DIAGRAM 0 2 MONI-BW(MONI-BW) D E F G 2-26 y10337001a_rev0.1 Q7608 CN766 C7608 CN766 CN765 601 R7619 R7617 IC7602 R7630 C7624 R7609 R7610 R7611 R7608 607 R7612 R7613 R7614 C7628 C7629 D7603 R7603 R7620 Q7609 C7626 R7625 Q7605 6 R7634 D7602 SW7601 C7641 R7633 C7615 C7637 CN764 R7665 R7666 R7668 R7669 C7665 Q7610 CN763 CN766 R7674 C7647 R7673 R7676 Q7611 Q7612 R7636 R7637 C7667 R7639 R7672 SW7602 R7638 C7669 Q7613 C7623 R7615 R7616 Q7606 R7621 R29 R30 R31 R32 R33 R7663 R18 R19 R20 R21 R22 L10 C10 C11 Q10 R26 R25 D10 R28 R23 C7645 Q7603 Q7604 R7618 C7627 R7624 C7636 R7622 C7661 C7662 C7663 C7664 D11 R7667 C7666 R7675 Q7601 Q7602 R7623 DTC144EE-X SD_DATA2 MMC_CS Dat2MMC VSS( GND) VDD( DSC_3V) MMC_CLK VSS2/CD Dat2Host SD_DATA1 # CARD_DET SD_WP VSS( GND) # REV_SW BL_GND BL_GND LCD_CTL BL_4.8V BL_4.8V A_REG_3V CPV OEV STV1 VDD VGH LCD_COM LCD_VEE STH2 LCD_RVS VB MON_R MON_G MON_B GND CLK3 CLK2 GND CLK1 Q2H OEH STH1 TO BL-2.5 BL-3.5 TO MULTI MEDIA CARD TO C-VF (NC) TO B/W-VF QGF0506F2-32X # BA4558F-X UD STV2 VSS VGL E( 2V) .8V) D( 9V) VREF VCOM COMDC VSS3 PDR RENE CPH3 RENO CPH2 HCK CPH1 3( 3V) 4( 3V) /25 /16 # 2SC4617/QR/-X 001X 1SS355-X # VF_SW GND GND VFREG4.8 VIDLO RENON RENEN HCLKN HPLN VREF GND BW_VDD BW_VEE BW_COM HLTOR HODL VPLN VCKN VIDHI PDR # /16 T DTA114EE-X VIDLO RENON RENEN HCLKN HPLN VREF GND BW_VDD BW_VEE BW_COM HLTOR HODL VPLN VCKN VIDHI PDR GND VF_SW GND VFREG4.8 # # DTC144EE-X DTA144EE-X # # # T # /10 T # # # # # # # # # # T # # # 2SC4617/QR/-X 2SA1774/QR/-X T T # GND GND # 2SC4617/QR/-X 2SA1774/QR/-X 0.01 2K 560 22K 0.01 22K 43K 820 15k 10 22k 22k 22k 4.7 3.3 3.3M 0.1 0Ω 0.01 0.01 15K 27K 3.9K 10 47K 0.01 47K 100 100 100 10 22K 22K 0Ω 10K 560 0.1 0.1 0.1 0.1 0.1 27K 0.1 MON_B STH1 CLK1 CLK2 CLK3 STV1 RENO RENE HCK VREF VDD VC VEE PDR VIDL RENO RENE HCK HPL VREF VDD VEE VC HODL CLK1 VPL STH2 QH VCK VIDH MON_R MON_G CLK3 CLK2 OEH PDR STV2 CPV OEV LCD_RVS VDD VIDL RENO RENE HCK HPL VREF VEE VC HODL VPL VCK VIDH PDR 5 4 3 2 1 A B C D 2-27 TO MONITOR TO MONITOR TO IC7604 CN7602 IC7501 R7511 R7512 F7501 Q7504 R7513 C7511 CN7601 TL7503 C75 TL7504 TL7505 R7504 L7502 Q7 STH1 OEH Q2H CLK1 CLK2 CLK3 GND GND MON_B M_RVS A_REG3V BL_GND BL_GND LCD_CTL BL_4.8V BL_4.8V QGF0507F3-16X NMFZ007-R40X-K DTC144EE-X MON_G MON_R VB LCD_RVS STH2 LCD_VEE LCD_COM VGH LCD_VDD STV1 OEV CPV UD STV2 VSS VGL QGF0507F3-16X OUT VCC GND NQL03BK-100X DT 0Ω 0Ω 0Ω 10 NOTE: The parts with marked ( ) is not used. BL-2.5/BL-3.5 SCHEMATIC DIAGRAM 0 3 BL-2.5/BL-3.5 D E F G 2-28 CN7603 TO LCD MODULE TO BL C7504 TL7501 TL7502 C7502 T7501 C7501 L7501 R7502 R7503 Q7503 C7503 R7501 Q7501 Q7502 VGL VSS STV1 UD CPV OEV STV2 VDD VGH VCOM VEE STH2 RL VB R G B SIG_GND CLK3 CLK2 CLK1 Q2H OEH STH1 QGF0508F1-24X NQS0056-001X DTA144EE-X 2SD1664/QR/-W 2SD1664/QR/-W 10 0.027 12p 68µ 1k 1k 0.01 1k y30214001a_rev0.1 5 4 3 2 1 A B C D 2-29 0 4 CCD y40106001a_rev0.1 CCD SCHEMATIC DIAGRAM IC5001 CN5001 TO MAIN Q5001 R5001 C5002 C5006 C5001 C5007 C5004 C5003 R5003 C5005 R5002 L5002 L5001 R5004 Q5002 R5005 V1 V2 V3 V4 CCD_CTL CCD_15V CCD_15V GND GND GND GND GND GND GND RG H1 H2 CCD_-7.5V SUB CCD_OUT 2SC3931/CD/-X /20 T /10 T # # V4 V3 V2 V1 GND GND VOUT VDD RG SUB VL H1 H2 TEST 4.7K 0.1 0.1 4.7 2200p 0.1 10 0.1 100K 10µ 10µ NOTES : IC5001 is incorporated in the CCD base assembly. When IC 5001 needs replacement, replace the CCD base assembly in whole because it cannot be replaced alone. NOTE: The parts with marked ( ) is not used. DSC MODEL NON DSC MODEL 5 4 3 2 1 A B C D 2-30 y40103001a_rev0.1 JACK SCHEMATIC DIAGRAM J501 L501 IC501 C502 C501 R501 J502 J503 R502 R503 R504 R505 R506 C504 L502 R517 R508 C503 R509 R510 D506 C505 C506 R515 R516 C507 R511 R507 R519 CN501 R522 R518 R523 Q501 R520 R521 D503 SW501 TL502 R512 C509 C508 L503 R513 R514 D507 C512 C510 C513 C511 D504 D505 TL501 IC502 D501 NQR0251-004X BA10358F-XE /10 QND0004-001 # NQR0251-004X MA8068-X /10 T QNS0078-001 TALLY NC IR_AMP REG_4.8V IR_OUT GND GND IR_RMC AU_SIG/R AU_SIG/L P_DET V_OUT AV_GND AV_GND Y_OUT S_DET C_OUT JLIP_RX JLIP_TX GND EJT_SW GND QGF0503C1-22X TO MAIN # # RPM-22PB MA8068-X NSW0122-001X /6.3 T NQR0251-004X # RPM7138-V4 SML-010LT-X T T 0.1 3.3 10k 680k 1.8k 2.2k 10k 820k 0.015 0Ω 68k 0.015 8.2k 0Ω 10 0Ω 0Ω 3k 100k 47 22 100 100 0.01 0.01 (EJECT) (TALLY) NOTE: The parts with marked ( ) is not used. 5 4 3 2 1 A B C D CN401 CN401 CN403 CN407 CN404 P/R_GND LOAD_FWD LOAD_FWD LOAD_REV DEW_SENS LOAD_REV P/R_GND DUMP_CTL HID3 HID1 PBH RECH CAM_SW_B CAM_SW_C P/R_GND CAM_SW_A VREF_1.1 VRB_AGC REG_3.1V REG_3.1V REC_CTL P/R_GND ATF_GAIN P/R_GND P/R_GND NOSIG_LV REG_2.5V REF_CLK RECCADJ REC_DATA P/R_GND P/R_GND P/R_GND P/R_GND REG_3.1V REG_4.8V REG_4.8V REG_4.8V REG_4.8V REC_CLK P/R_GND ENV_OUT AGC_OUT VRB_ATF ATFI MONI_CHG CAM_SW_C CAM_SW_B CAM_SW_A DEW_SENS QGF0508F1-40X QGF0505F2-X QGF0508F1-06X QGF0507F1- (PREMDA IF) CN110 PREMDA IF SCHEMATIC DIAGRAM 2-31 D E F G CN408 CN408 404 CN405 CN406 D_PFG[+] D_FG[-] D_COIL_U D_COIL_U D_COIL_V D_COIL_V D_COIL_W D_COIL_W COIL_COM D_PG[-] GND HG_U[-] HG_V[-] HG_W[-] HG_BS[-] HG_BS[+] HG_W[+] HG_V[+] HG_U[+] C_COIL_V C_COIL_V C_COIL_U C_COIL_U C_COIL_W C_COIL_W MDA_2.9V C_FG[-] GND C_FG[+] MIC3 GND E_SENS MDA_2.9V MIC2 MIC1 REC_SAFE S_SENS CAS_SW S_RL[-] TAPE_LED S_RL[+] REEL_VCC T_RL[-] GND T_RL[+] DRUM_PWR T_REEL REEL_VCC S_REEL REC_SAFE TAPE_LED E_SENS MIC1 MIC2 MIC3 M_REG3V S_SENS GND GND CAP_PWR CAP_PWR GND CAP_ERR DRUM_PG DRUM_FG M_REG3V CAS_SW DRUM_REF CAP_FG LD_ON L_FRB DRUM_PWR CAP_PWR DRUM_PWR DRUM_ERR M_REG4.8 M_REG4.8 M_REG4.8 UNREG GND MDA_PS GND GND CAP_REF C_FRB QGF0508F1-40X F0507F1-11X QGF0507F1-18X QGF0505F2-16X IF) CN111 y30236001a_rev0.1 TO SENSOR 2-32 5 4 3 2 1 A B C D 2-33 NOTE: The parts with marked ( ) is not used. IC1601 Q1601 LOAD_FWD C1629 TL1608 TL1605 D_FG[-] R1604 R1641 R1612 LOAD_REV C1614 C1601 C1607 D_PG[-] D_PFG[+] R1631 R1630 COIL_COM D_COIL_U D_COIL_V D_COIL_W R1639 DRUM_FG DRUM_PG CAP_FG GND MDA_PS L_FRB C_FRB R1640 CAP_REF TL1618 LD_ON UNREG DRUM_REF TL1613 C1606 TL1609 TL1606 TL1619 TL1617 TL1612 R1615 D1602 R1636 R1635 R1614 P/R_GND C1624 C1625 C1627 R1625 C1626 C1628 C1630 C1622 R1616 C1623 R1624 C1621 R1622 R1620 R1603 R1613 R1642 C1644 C1645 C1643 C1602 C1605 F1601 R1648 R1638 C.U C.V C.RNF C.W C.HU+ C.HU- C.HV+ C.HV- C.HW+ C.HW- D.PGSMT D.PGAMP D.PGIN- D.FGPGIN+ D.FGIN- D.FGAMP D.COM D.U D.V D.RNF D.W L.FRB L.REF L.FWD L.GND L.REV L.VM C.FGIN+ C.FGIN- C.FGAMP C.FGSMT BD6637KS UMC3N-W /20 T /6.3 T DAP222-X D.FGSMT VCC D.DETECT D.ISET D.SL1 D.SL2 UNREG D.VM D.VS D.EC D.PCI D.PCV VG CP1 CP2 GND GDX PS C.RCC C.FRB C.VM C.VS C.EC C.PCI C.PCV /6.3 NMFZ007-R20X-K 10µ 100k 0 100k 10µ 0.01 0.047 0 0 0 0 0.0015 12k 3.3k 0.33 0.01 100p 0.0082 360 0.0082 0.22 0.33 0.022 3.3k 0.047 18k 1 10k 10k 4.7k 1k 0 10µ 0.1 R20 0 0 TO CPU TO CPU TO LOADING MOTOR TO DRUM MOTOR MDA SCHEMATIC DIAGRAM 0 5 PREMDA(MDA) D E F G 2-34 y20232001a_rev0.1 DRUM_ERR C1641 MDA_2.9V TL1620 F1602 D1604 CAP_ERR M_REG4.8 DRUM_PWR CAP_PWR M_REG3V C1618 GND R1611 R1610 C1619 C1620 C_COIL_V C_FG[-] C1603 C_FG[+] C_COIL_W C_COIL_U HG_V[-] C1631 HG_V[+] HG_U[-] HG_BS[+] HG_W[+] HG_BS[-] HG_W[-] HG_U[+] TL1601 TL1607 TL1610 C1632 R1637 R1636 R1635 C1633 D1603 TL1602 IC1702 IC1701 R1707 R1706 R1701 R1709 S_RL[+] T_RL[-] S_RL[-] T_RL[+] T_REEL S_REEL R1603 R1617 C1615 R1618 R1629 R1601 C1616 R1602 C1617 R1632 R1621 R1633 R1634 C1602 C1605 C1701 C1702 R1708 R1705 R1704 R1703 R1702 R1711 R1710 R1712 U V F W + + T P N- NMFZ007-R50X-K DAP222-X /6.3 T /6.3 T DAP222-X LM393DMR2-X LM358DMR2-X /6.3 0.47 R50 0.0022 470 470 0.0022 0.0022 10µ 10 150K 12k 3.3k 0.47 10K 82K 82K 10K 4.7k 0.33 560k 680 120k 10k 10µ 0.1 0.1 0.1 120K 2.2K 2.2K 2.2K 2.2K 1K 120K 1K TO CPU TO CPU TO CPU TO SENSOR TO CAPSTAN MOTOR 5 4 3 2 1 A B C D 2-35 C35 R3509 C3527 C3503 C3502 TL3501 P/R_GND L3505 L3504 L3503 REG_2.5V REG_3.1V REG_4.8V ATFI R3510 REF_CLK REC_DATA C3530 IC3502 ENV_OUT R3512 R3511 REC_CTL MONI_CHG RECH PBH HID1 HID3 DUMP_CTL ATFI L3501 REC_CLK C3517 C3518 C3519 C3501 C3520 L3502 C3521 C3523 C3524 C3522 C3525 NOSIG_LV C3528 ATF_GAIN RECCADJ VRB_AGC VRB_ATF VREF_1.1 AGC_OUT /6.3 T /6.3 T NQR0006-001X NQR0006-001X NQR0006-001X SN74AHC1G04K-X NQR0006-001X /6.3 T CH 0.04 220p 10 10 OPEN 100 0.01 0.01 0.001 10 0.01 10µ 0.1 0.01 0.01 4.7 4.7 0.01 TO CPU TO JIG CONN TO DV_MAIN TO DV_MAIN TO REG NOTE: The parts with marked ( ) is not used. PRE/REC SCHEMATIC DIAGRAM D E F G 2-36 IC3501 C3516 R3507 R3506 R3505 R3504 C3515 C3514 R3501 C3504 C3526 R3503 C3508 C3505 C3510 C3509 C3506 R3508 C3511 C3512 C3507 C3513 R3502 JCY0132 GND[P/R_GND] GND[P/R_GND] GND[P/R_GND] GND[P/R_GND] 2S 2F 1S 1F 0.047 240 240 240 240 0.047 0.047 470 0.047 0.01 1k 0.01 0.022 0.1 0.01 1 22k 0.01 0.1 0.01 0.1 100k TO HEAD CN402 y20234001a_rev0.1 5 4 3 2 1 A B C D 2-37 0 7 B/W-VF y40104001a_rev0.1 CN7002 TO LCD MODULE TO MONI-BW THH PDR VIDHI VCKN VPLN HODL HLTOR BW_COM BW_VEE BW_VDD GND VREF HPLN HCLKN RENEN RENON VIDLO TCL THL TV QGF0507F3-20X CN7001 PDR VIDHI VCKN VPLN HODL HLTOR BW_COM BW_VEE BW_VDD GND VREF HPLN HCLKN RENEN RENON VIDLO GND VFREG4.8 QGF0532F1-18X B/W-VF SCHEMATIC DIAGRAM C7001 D7001 R7001 R7002 R7003 R7004 Q7001 C7002 C7003 C7004 C7005 D7002 E1S35AW0C501-X PUMX1-W 0.1 3.3k 560 47 1k 0.1 0.1 0.1 NOTE: The parts with marked ( ) is not used. 5 4 3 2 1 A B C D 2-36 ZOOM UNIT ZOOM UNIT SCHEMATIC DIAGRAM 16 15 14 13 12 11 9 8 7 10 6 5 1 2 3 4 DIAL SW MULTI FUNCTION SW (MENU/A,B PHASE) LED (POWER/CHAGE) FOCUS SW TRIG SW PHOTO SW ZOOM SW (W/T) LED CATHODE LED ANODE DIAL MN DIAL AT DIAL OFF DIAL PB MENU SW B_PHASE A_PHASE TRIG SW FOCUS SW PHOTO SW GND GND ZOOM SW REG 3.2V 16PIN CN001 NOTES : The schematic diagram is only for reference. Avoid replacing individual parts. Replace the entire unit only. TO MAIN 2-53 VIDEO BLOCK DIAGRAM (1/2) MAIN ADIN0~ADIN9 J503 0 6 JACK 75 (Y_OUT) AMP 9 11 C3712 12 14 75 DRV 6dB 75 6dB DRV DRV 7 4 + Q3701 AMP 5 (C_OUT) DV_C C3713 15 IC3701 6dB CN502 JLIP_RX JLIP_TX CN102 DRIVE+ GND DAMP+ DAMP- AMP MOTOR DRIVE 2 1 Q3701 2 DV_Y BLKB (BLK1) BLKA (VBLK) (ON SCREEN) VC1 (VF_G) 17 13 14 VC3 (VC1) 11 BLKC 15 16 VC2 (VF_R) VF_B 18 VC0 DOT_CLK OSD_HD OSD_CS OSD_VD VD EXD HD 19 8 20 SCLK DATA CS 1 2 3 17 SERIAL- DECODER PARARELLE ZOOM04 ZOOM01 ZOOM03 HG_Vss- HG_out+ HG_out- HG_Vcc+ 16 14 ZOOM02 FOCUS02 FOCUS04 FOCUS01 FOCUS03 CN108 26 24 DRIVER IC4802 IC4804 AMP HALL DRIVER BRIDGE GENERATOR BRIDGE BRIDGE DRIVER DRIVER BRIDGE PULSE V4 41 IRIS CTL CN107 V1 V3 V2 40 42 44 V2 V1 V3 (TG & V.Driver) H2 RG SUB V4 H1 45 RG SUB H2 H1 IRIS_C IRIS_O/C HALL_AD TG_RST F/Z_CS CAM_VD CLK4M5 33 LATCH RESET IC4851 38 OSCin SCLK SDATA 34 35 36 32 VD TG_RST 25 SEN(TG_CS) DATA_OUT 18 SHD SHP CLK_OUT CDS_CS ADCLK CN107 1 CCD BLOCK OP 3 4 V1 2 V3 V2 0 4 Q5001 H2 SUB RG V4 H1 CCD_CTL (CCD) Vout 8 Q5002 BUF OUT CCD IC4201(CDS/AGC/AD) OBP CDSIN SPBLK CS SPSIG SCK ADCLK PBLK SDATA PBLK D0 D9 0 1 BUF JLIP_INT IF_RX HALL_AD IRIS_O/C 20MHz OSCI X1001 CDS_CS OSCO (CPU TG_CS CCD_CTL VD 32kHz X1002 Xout Xin IC100 (RTC (EEPR SW CCD_CTL SW Q4802 SW Q4803 Q4805 ~ IRIS_PWM TO CDS TG Q3735 Q3735 BUF Q3734 AMP Q3733 C_IN EXT_V_IN EXT_Y_IN 4 6 IC3731 2 54 21 27 25 YSOUT COUT CIN VYIN 11 70 45 12 71 46 13 90 47 48 VC0 VC1 VC2 VC3 BLK1 BLK2 BLK3 CLKOSD HDOUT VDOUT 69 8 SDIN SCLK BLKA BLKB BLKC DOT_CLK OSD_HD OSD_VD IC3801 *1 (A/D, D/A CONV) 34, 63, 83, 96 30, 31, 60, 81 YSI0 YSI3 CSI0 CSI3 3, 4, 39, 66 1, 2, 38, 65 YSO0 YSO3 CSO0 CSO3 OUTH 86 INH OUTV 40 INV CLK 10 INH 36 OUT_HS INV 37 OUT_VS ZCNT 41 TBCCTL 92 YCOUT 75 CBOUT 51 CROUT TO AV OUT J501 0 6 JACK V_OUT Y_OUT CN102 1 S OUT 3 2 4 C_OUT NC 3 2 REG_3.1V X5501 54MHz CXO SSCK(CAM_CLK) SSI (CAM_OUT) CAM/VTR CK PBLK CLK27 CLK18 XAHD ID XAVD SHP OBCLP SHD 32 IC5501 2 48 3 23 1 27 35 22 34 30 31 36 9 OBCLP 34 15 17 16 35 33 12 14 11 11 CN5001 22 IC5001 TEST 9 10 12 13 14 1 2 3 18 16 4 20 17 5 CN5001 8 11 14 1 2 3 18 4 20 16 17 5 IC4301_119Pin OP DRV CAM_OUT CAM_CLK 12 10 30 28 21 14 19 13 10 16 17 15 18 11 9 8 1 3 4 2 J502 USB USB_DP USE_DN USBDOWN 6 4 17 11 12 19 CN501 J502 *3 EDIT 8 7 15 16 TO CPU TG_RSTO TO IC8001 TO CAMERA DSP 16 CLK27A17 32 35 41 18 CLK YC_OUT VC0 YSI0 YSI3 CSI0 CSI3 CB_OUT CR_OUT SD OUT SD CLK SD IN COUT YSOUT RST IC3851 (AD/DA CONV) CLK27A 44 TO CPU TG_RSTO RST F/Z_CS CAM_OUT 76 164 CAM_CLK 105 25 42 19 VC1 20 VC2 63 OUT_HS INH 64 OUT_VS INV 21 VC3 22 BLKA BLK1 23 BLKB BLK2 24 BLKC BLK3 28 DOT_CLK CLKOSD 25 OSD_HD HDOUT 4 OSD_VD VDOUT 59~62 52~55 TO CAMERA DSP DVMAIN OSD_OUT IC1002 10 12 11 37 44 27 255 28 VIFD_CLK VIFD_OUT VIFD_IN JLIP_RX 81 Q1005 IF_TX TO JIG CONN JLIP_TX 68 OSD_CLK OSD_CS OSD_OUT 42 SDOUT TG_RST IC10 IC10 IF_TX 62 242 61 248 96 4 158 6 7 OSD_CLK 144 201 192 239 *2 *4 *4 *4 *4 *1 2-54 IN IN9 MON_B SD/MMC CARD V_REF BL-2.5/BL-3.5 LCD MODULE 4 SCLK LCD_B LCD_R LCD_G DSC_RST CAPT_REQ JLIP_INT IF_RX PD_L AUDIO_CS DSC_DT_IN USBDOWN DSC_STS MXDT_OUT DSC_CLK FLSH_RST DSC_CS DSC_DT_OUT 0 CN7001 VREF IC7601 1 Rin Bin Gin 8 6 CN763 BW-Y 7 1 6 5 0 3 MON_R MON_G CN766 2 9 6 8 CN762 0 7 B/W-VF CN7002 MONI-BW 2 LCD MODULE TO DSC B G R SSG GEN CLK HALL_AD IRIS_O/C 20MHz OSCI X1001 CDS_CS OSCO BUS15 BUS0 FLD DSP_RST KO 16 BUS15 FLDCPU (MFLD) BUS0 CLR (CPU) TG_CS CCD_CTL VD 32kHz X1002 Xout Xin OMT IC1001 (RTC) 2 CLK SIO 3 (EEPROM) SCK SI SO 2 6 5 PBLK CAM_VD CLK4M5 IRIS_PWM MVD VDMDA PBLK OMT IRIS_C MDRV PWM CLK45 EEP_IN IF CPU AUTO NR YC IF ANA DSC IF IC4301 (CAMERA DSP) 10 ADIN0 ADIN9 KIZU DVMAIN TBCCTL CLK27B CLK27BO ANACTL ACO0 ACO3 FLDDSC HDDSC AYO0 AYO3 IF DVC PROCESS DYI0 DYI3 DCI0 DCI3 TO c d TO DSC TO DVMAIN CLKDSC VDDSC DSCIO0 DSCIO7 CLK27AO DSYIO7 DSYIO0 DSCO0 DSCO7 DSYO7 DSYO0 DYO0 DYO3 DCO3 DCO0 INV INH b a 69 8 SDIN SCLK 34, 63, 83, 96 30, 31, 60, 81 YSI0 YSI3 CSI0 CSI3 3, 4, 39, 66 1, 2, 38, 65 YSO0 YSO3 CSO0 CSO3 OUTH 86 INH OUTV 40 INV CLK 10 INH 36 OUT_HS INV 37 OUT_VS ZCNT 41 TBCCTL 92 YCOUT 75 CBOUT 51 CROUT TO CAMERA DSP TO CAMERA DSP DVMAIN BUF Q3704 BUF Q3705 YCOUT B-Y_OUT R-Y_OUT BUF Q3705 4 5 1 2 S_SHUT TO DSC (TO AUDIO) *1 WITH ANALOG INPUT MODEL *2 WITHOUT ANALOG INPUT MODEL *3 WITH EDIT MODEL *4 WITH DSC MODEL LCD MODULE CN7001 BW-Y 0 7 B/W-VF CN7002 CLK27A F/Z_CS CAM_OUT 76 164 CAM_CLK 105 25 42 27 255 28 VIFD_CLK VIFD_OUT VIFD_IN _RX 81 5 68 OSD_CLK OSD_CS OSD_OUT 42 SDOUT TG_RST IC1006 IC1005 RTC_OUT RTC_OUT RTC_CLK EEP_OUT EEP_CLK IF_TX DSC_WKUP 77 237 243 75 78 197 132 6 84 244 134 CN101 CN761 LV_OUT LV_CLK 13 14 28 27 15 26 26 27 15 14 20 11 10 9 2.5inchi MONITOR MODEL 3.5inchi MONITOR MODEL V_REF 9 11 10 CN764 9 CN765 9 17 18 CN7601 CN7602 CN7603 17 16 15 CN103 58 57 62 SDATA Bout Rout Gout 63 JTEST7 206 165 215 173 107 113 54 CLK27 ID XAHD XAVD 62 247 148 11 120 115 214 116 CLK18 OBCLP HDTG CLK27 ID EEP_OUT EEP_IN EEP_CLK VDTG OBCP CLK18 24 OUT_HS OUT_VS 193 153 98 202 203 101 155 8 185 136 182 74 224 130 74 10 6 4 INHA INVA 246 255 28 10 207 253 202 155 94 49 124 224 226 177 CDDSTB CDALE CAM_CS CDWE 114 158 171 102 157 AU_CLK AU_DATA VIFD_OUT VIFD_CLK CAM_CS CDALE CDDSTB CDWE WE VDANA AS CS 90 A_MUTE 24 LV_CLK 210 MID1 183 MONI_CHG 127 HID3 234 PBH 275 RECH 252 LV_OUT 152 9 62 242 61 248 96 4 158 1 2 119 169 145 172 92 197 28 83 81 85 192 26 188 189 138 139 OUTV OUTH 87 144 191 80 182 RTC_CLK RTC_OUT 149 6 7 144 201 192 239 *4 2-55 *4 VIDEO BLOCK DIAGRAM (2/2) TO PHYXTPA 16 20 IC8001 156 82 PHYTPB PHYTPA 226 286 PHYXTPB 185 109 108 AIMCK AIBCK AILRCK TPB- TPA- TPB+ TPA+ AIDAT AODAT AILRCK AIBCK 246 AIDAT1 AODAT0 AIMCK AIDAT0 248 112 OSC27I CPUWAIT XCPURW XCPUDSTB1 XCPUDSTB0 CPUALE BRSO0 BRSO3 142 DALE DV_WATT 66 DRWSEL 213 143 212 150 67 DV_RST ADDT15 ADDTO0 AD0 64 AD15 XRST CLK27 38 191 255 119 39 INV INH BRSI3 BRSI0 117 YSI0 YSI3 43 122 OUTH OUTV MAIN 0 1 257 193 194 258 YSO3 YSO0 242 Sync Detect IEE1394 LINK (ISO/ ASYNC FIFO) D-RAM I/F HOST CPU I/F (DECK_DSP) CONV) (CLOCK RAM CONV) (CLOCK RAM CONV) RAM (CLOCK CORE) RISC RAM PROGRAM AUDIO (WORK ID Protect De-formatting) (CLOCK CONV) RAM SPA HSP HID TRKREF FRREF 98 101 243 240 TSR FRP RAM (SUB/AUX) IC3001(DVMAIN) RAM) (VBID DET VIDEO I/F (ENC/DET) RAM) VLD WORK COMPRESS (DCT,VLC OUTER ECC FORMATTER (Formatting INNER ECC (ENC/DEC) PWMAUDIO RECDATA RECCTL RECCLK 173 174 100 182 DAAOUT0 DAAOUT1 DISCRI OSC27I OSC27O PWM27O 11 237 106 IC3005 AMP+ AMP- AMPO 4 1 2 A0~A19 DQ0~DQ15 IC8003 (16M_FLASH RAM) 9 45 25 29 DSC R/D_DATA DSC R/D_ADRESS 39 108 7 20 HDDSC CLKDSC DSYO7 DSCO0 VDDSC FLDDSC DSC_WKUP DSC_CS FLSH_RST DSC_CLK DSC_DT_OUT DSC_DT_IN USBDOWN DSC_RST MXDT_OUT CAPT_REQ DSC_STS DSYO0 DSCO7 DSCIO0 DSCIO7 DSYIO7 CN111 DSYIO0 CN8001 176 246 244 188 247 191 190 237 235 172 249 199 212 219 157 125 206 184 135 205 182 127 138 204 221 IC8004 TO IC8003-12PIN 1 3 YIO0 YIO7 CIO0 CIO7 YIN0 YIN7 CIN0 CIN7 CLKIN1 HDIN VDIN FID MXI CLKIN2 GIO0 GIO18 SCLK1 SDI1 26 28 11 12 FLSH_CE FLSH_OE FLSH_WE RESET SDO1 GIO13 RESET GIO16 GIO7 GIO11 USB_DN USB_DP FROM RAS WE CS CAS CKE CLK A0 2 DQ0 16 159 51 2 3 49 30 177 201 160 200 193 180 SDRAM_DATA SDRAM_ADRESS IC8002 SDRAM CXO X8002 48MHz 2 MMC_CLK 5 7 9 174 173 250 117 SDI3 SCK3 SDO3 GIO20 ARM_D15 ARM_D0 ARM_A19 ARM_A0 EM_CS_O EM_OE EM_WE M48XI M48XO SDR_DQ0 SDR_A0 SDR_CKE SDR_CLK SDR_CS SDR_CAS SDR_DQMLH SDR_RAS SDR_WE SDR_DQMLL DSC TO TG 11 85 9 D8001 R8068 R3034 FSPLLCTL R3010 R3009 C3024 L3007 C3023 R3011 D3001 23 104 105 24 116 b a c TO CAMERA DSP TO CAMERA DSP d TO CPU TO CAMERA DSP TO CAMERA DSP CDDSTB CDWE CLK27BO CPU HID1 ADVIN0 168 TO SD/MMC SOCKET CN103 MMC_DATA M32_MMC MMC_CMD IC1001-6PIN 146 SDR_DQ31 C8026 239 R8022 R8032 TO CPU TO J502 TO CAMERA DSP CLK27B 64M DQMO DQM1 A10 DQ31 19 17 16 20 18 71 67 68 25 24 56 151 129 122 SDR_A10 TO CPU 2-56 TO 242 98 101 243 240 TSR FRP 173 174 100 182 AUDIO_CS S_SHUT PD_L DV IN/OUT TPB+ TPB- TPA- DV TPA+ TO IC3001 AIDAT AODAT AIBCK AILRCK AIMCK AUDIO TO AUDIO TO SPA RECCTL RECDATA RECCLK FSPLLCTL 11 237 106 IC3005 AMP+ AMP- AMPO 4 1 2 R3010 R3009 C3024 M_VCOCTL L3007 C3023 R3011 D3001 23 104 105 24 (PRE/REC) 48 AGC_BUFF_OUT 10 REC_GAIN 57 PB_MONI 12 44 7 MONI_CHG R_CTL REC_DATA 9 REC_CLK Y1 19 X2 25 X1 20 HID3 40 42 41 HID1 REC_H PB_H 38 Y2 24 IC3501 2 4 IC3502 HEAD 2 1F 7 3 6 2S 1S 2F CPU HID1 AO5 FSPLLCTL RECCADJ ATF_GAIN 4 18 19 5 AO1 AO2 AO6 IC3002 (DVMAIN) VIPD_OUT VIFD_OUT 17 DI CLK 16 AGC_OUT 168 J501 AU_DATA AU_CLK ENV_OUT RECCADJ GC_OUT MONI_CHG REC_DATA REC_CTL REC_CLK HID1 RECH PBH HID3 ENV_OUT RECCADJ GC_OUT ATF_GAIN ATF_GAIN MONI_CHG REC_DATA REC_CTL REC_CLK HID1 RECH PBH HID3 TO CPU TO JIG CONN (CN105) 3 5 6 4 25 7 33 8 11 14 22 23 38 36 35 37 16 34 8 33 30 27 19 18 CN110 CN401 60 PREMDA 0 5 CN402 *1 WITH ANALOG INPUT MODEL *2 WITHOUT ANALOG INPUT MODEL *3 WITH EDIT MODEL *4 WITH DSC MODEL 2-57 *4 POWER SYSTEM BLOCK DIAGRAM AL_3VSYS ADP_H LIT_3V IC7601 MONI-BW Q7602 IC7602 LCD MODULE 9 VGH VGL VEE 11 Q7503 SW L7501 F7501 0 3 1 0 2 LCD_VEE VSS BL_4.8V VGH REG_12V BL T7501 VDD VSS 2 Q7502 8 SPEAKER Q7501 SPK+ SPK- REG_-15V REG_4.8V M_REG4.8 M_REG4.8 REG_15V REG_12V REG AL REG-CCD REG_-15V REG -CCD LIT_3V BW_VDD LCD MODULE REG_12V VFREG4.8 VDD VDD VDD VFREG4.8 CN761 CN101 VFREG4.8 B/W-VF 7 0 SW REG VCC2 REG_12V REG 12V M_REG4.8 REG_15V VFREG4.8 REG_4.8V REG4.8 VF VCC1 1.8V REG REG 3V PWR CAPSTAN DRUM PWR REG_2.5V REG_1.8V REG 2.5V CAP_PWR DRUM_PWR M_UNREG REG 0 1 MAIN REG_12V VDD ADP_DC IN REAR UNIT TERM BATT. ADP_DC ADP_DC ADP_H GND GND GND BATT_ BATT_ CN104 CN1 4.8V REG M_REG4.8 VREF_1.1 REG_4.8V REG_4.8V REG_2.5V REG_1.8V D 4 REG_1.8V REG_4.8V IC8002 IC8003 IC8007 IC8001 VI Q8002 L8006 IC8006 REG_4.8V REG_4.8V REG_1.8V DSC REG_3.1V REG_3.1V REG_3.1V REG_3.1V 1 1 REG_1.8V REG_3.1V REG_4.8V CA OP REG_3.1V CP REG_3.1V AL_3.1V DSC_3.1V CN103 CN7603 BL-2.5/BL-3.5 CN7601 CN7602 16 15 16 8 6 9 15 VGH VGL BL_4.8V BL_4.8V LCD_VEE VDD VSS CN765 25 31 REG_3.1V 39 38 6 18 16 31 8 9 2 3 35 23 25 32 11 10 33 32 3 38 /CN764 CN763 CN7001 14 11 9 12 5 16 9 11 CN7002 LITHUN Q6701 F6701 Q6401 L6001 Q6210 IC6001 Q6101 Q6102 L6302 Q6302 Q201 D6601 Q6601 Q6602, Q6603 3.1V D6602 D6801 IC6801 Q6605, Q6606 AL_3.1V F6801 SD/MMC CARD (With DSC MODEL) 32 15 16 22 24 BT1 L6002 F6001 11 10 9 5 6 11 10 5 6 9 8 7 4 8 7 4 POWER CTL BATT REG_3.1V Q4801 F6301 2-58 AL_3VSYS ADP_H LIT_3V CD 5V V 2V 4.8 5V 4.8 .8V .5V .8V WR PWR EG UNREG DET DRUM_PWR REG_4.8V 19 CN502 0 6 JACK Q501 IC502 REG_4.8V IC501 IC4301 PREREC ADP_H L1002 RST RST 1 2 IC1001 M_REG4.8 CAP_PWR VREF_1.1 IC4201 IC4202 3V REG 5 1 4 REG_2.5V REG_4.8V IC1601 SW MDA Q1601 IC3501 M DRUM MOTOR LOADING M MOTOR M MOTOR CAPSTAN IC1701 IC1702 IC3502 M_REG4.8 VREF_1.1 REG_4.8V REG_4.8V REG_2.5V REG_1.8V IC3002,IC3005, Q3002 IC3001 DVMAIN AUDIO SPK+ SPK- CN109 Q4851 IC4851 L4851 L4852 L4853 REG-CCD REG_15V 12 CN108 TG CN5001 CCD_15V CCD_15V CN107 0 4 CCD OP BLOCK Q3001 VIDEO I/O IC3731 IC3801 REG_4.8V REG_4.8V REG_1.8V Q2401 Q2403 IC2201 REG_3.1V REG_3.1V Q3731~Q3735 REG_3.1V IC3701 Q3701 Q3702 Q3704 Q3075 *2 *1 *1 REG_3.1V IC5501 X5501 REG_1.8V REG_3.1V REG_4.8V REG_3.1V CAMERA DSP OP DRIVER FF_VCC L4802 IC4807 Q4803 Q4804 IC4802~IC4804 Q4801,Q4806 REG_3.1V CPU REG_3.1V AL_3.1V Q1009 AL_3.1V IC1004 IC1005 Q1004 Q1009 IC1008 IC1002 Q1001~Q1003 Q1006,Q1007 IC1003 AL_3.1V L1001 AL_3.1V IC1006 IC3851 ZOOM UNIT REG_3.1V REG_3.1V 4 CN102 4 7 7 CCD_7V 19 19 IC5001 6 6 Q5001 M_REG3V REG_3.1V REG_3.1V REG_2.5V VREF_1.1V M_REG4.8 M_REG4.8 M_UNREG REG_3.1V DRUM_PWR DRUM_PWR CAP_PWR CAP_PWR REG_3.1V REG_4.8/V REG_4.8V REG_3.1V F1601 F1602 CN401 31 32 CN110 CN408 CN111 10 9 11 13 12 15 14 21 32 2 1 3 4 6 5 13 12 14 16 15 17 30 28 29 26 27 9 20 39 40 38 37 35 36 28 29 27 25 26 24 CN403 CN405 15 - - CN404 IC4302 1V 3.1V OP_VCC 0 5 PREMDA *1 WITH ANALOG INPUT MODEL *2 WITHOUT ANALOG INPUT MODEL *3 WITH EDIT MODEL *4 WITH DSC MODEL (No.86722) 200304WPC Printed in Japan JVC SERVICE & ENGINEERING COMPANY OF AMERICA DIVISION OF JVC AMERICAS CORP. www.jvcservice.com(US Only) JVC CANADA INC. Head office : 21 Finchdene Square Scarborough, Ontario M1X 1A7 (416)293-1311 3-1 PARTS LIST SAFETY PRECAUTION Parts identified by the  symbol are critical for safety. Replace only with specified part numbers. BEWARE OF BOGUS PARTS Parts that do not meet specifications may cause trouble in regard to safety and performance. We recommend that genuine JVC parts be used. 1. EXPLODED VIEW 1.1 PACKING AND ACCESSORY ASSEMBLY The instruction manual to be provided with this product will differ according to the destination. 16 7 8 10 6 4 3 39 5 FINAL ASSEMBLY 35 34 21 22 24 25 26 20 2 30 32 31 33 23 28 27 36 1 LABEL (SERIAL) 37 38 29 3-2 1.2 FINAL ASSEMBLY 200 201 200 173 174 174 174 145 146 178 176 175 177 147 147 148 146 137 136 135A 135C 135B 135G135F 135G135D 135E 135 135G MECHANISM 191 193 192 192 192 PREMDA BOARD 193 197 217 202 OP BLOCK SECTION 216 216 198 F7 199 199 h F6 F6 j j W1 156 157 259 158 160 JACK BOARD 155 166 166 159 159 168 162 161 164 163 g 171 169 170 170 196 215 ASSEMBLY<04> 203 198 MAIN BOARD ASSEMBLY<06> 194 195 219 RATING LABEL 252 253 254255 256 256 258 W1 155B 156A 156A 156B 215A 215B 215D 215C 215C 191A 191A 191A 167 167 168/179 165 155A 172 165H 165C 165G 165A 165B 165D 165K 165F 165J f 165L W2 W2 F5 F4 F1 F1 h F8 F9 F9 F8 155B 165L 165E � b f 165J 165H 160 g 117 e a d F6 a b c d F1 k F15 ASSEMBLY F14 F10 F12 F13 F11 F11 F12 F13F14 F15 F10 197 k 257 F7 251C 251B 251C 251A 251C 251C 251C 251E 251C 251C 251D 251D 218 251 r r ASSEMBLY<05> ASSEMBLY<01> CCD BOARD 3-3 F4 118 122 121 120 116 112 123 120A 119 116 118 F5 F4 F5 TOP SIDE BOTTOM SIDE REAR SIDE L.CASE SIDE 178 119 147 148 146 117 118 116 118 116 147 109 113 F2 o MONITOR 104 101 102 102 106 104 m 110 106 n q 114 107 127 126 F3 108 n 105 115 125 F2 m ELECTRONIC VIEW 125 o F3 ASSEMBLY FINDER ASSEMBLY MONITOR BOARD ASSEMBLY<02> 101B 101C 101D 101A 101E 101A F5 F4 110 p 111 111 q 108 108 108 107 115 103 111 p e 3-4 1.3 MECHANISM ASSEMBLY 900A 900 Classification Part No. Symbol in drawing Grease KYODO-SH-JB AA Oil YTU94027 BB Grease (HANARL) RX-410R CC NOTE1: The section marked in AA and BB, CC indicate lubrication and greasing areas. NOTE2: Mark is not contained in 900A. 940 940 938 949 956 950 951 942 943 951 939 901 902 902 907 906 906 902 920 904 903 905 917 963 918 919 921 921 922 913 913 914 912 909 978 911 916 915 977 910 908 963 962 964 933 932 947 948 946 966 945 944 959 958 960 941 957 955 952 953 953 931 936 937 937 925 924 937 936B 936A 936B 928 929 954 934 935 961 963 965 BB AA AA AA CC AA CC CC CC CC AA AA 930 AA 976 979 3-5 1.4 ELECTRONIC VIEWFINDER ASSEMBLY 308 310 317 309 310 319 319 319 319 319 319 319 318 301 b a 304 316 316 a b 300 306 302 303 305 307 312 314 314 316 316 316 315 313 311 316 318B 318A B/W-VF BOARD ASSEMBLY<07> 3-6 1.5 MONITOR ASSEMBLY (2.5 INCH) [A,B,D] 513 502 510 512 BL-2.5 BOARD 504 504 503 501 500 503 b a 508 506 507 � � 501C 501B 501A 501D 501D 501E d d 515A 515C 515C b a 515 515B ASSEMBLY<03> 518 516 516 514 517 MODEL MARK GR-D30UB A GR-D31US C GR-D70US D MODEL MARK GR-D90UB E GR-D91US G GR-D30US B GR-D90US F 3-7 1.6 MONITOR ASSEMBLY (3.5 INCH) [C,E,F,G] 504 504 503 501 503 500 502 507 508 520 508 513 510 c 510 510A 501A 501D 501D 501C 501B 515 b a 512 505 511 511 511 519 c BL-3.5 BOARD ASSEMBLY<03> 506 509 515A 515C a b 515C 515B MODEL MARK GR-D30UB A GR-D31US C GR-D70US D MODEL MARK GR-D90UB E GR-D91US G GR-D30US B GR-D90US F 3-8 2. PARTS LIST PACKING AND ACCESSORY ASSEMBLY FINAL ASSEMBLY  Symbol No. Part No. Part Name Description Local 1 LY33063-001B PACKING CASE B 1 LY33063-002A PACKING CASE F 1 LY33063-002B PACKING CASE G 1 LY33063-005A PACKING CASE D 1 LY33063-008B PACKING CASE C 2 LY33065-001B CUSHION F 2 LY33065-001C CUSHION A,B,C,D,E,G 3 LY30023-027A POLY BAG 4 QPA02003506 POLY BAG 20cm x 35cm  5 LYT1069-001A INST BOOK (ENGLISH) F  5 LYT1069-001B INST BOOK (ENGLISH) B,D  5 LYT1069-002A INST BOOK (FRENCH) F  5 LYT1069-002B INST BOOK (FRENCH) B,D  5 LYT1069-003A INST BOOK (SPANISH) B,D,F  5 LYT1072-001B INST BOOK (ENGLISH) G  5 LYT1072-002B INST BOOK (FRENCH) G  5 LYT1072-003A INST BOOK (SPANISH) G  5 LYT1113-001A INST BOOK (ENGLISH) C  5 LYT1113-002A INST BOOK (FRENCH) C  5 LYT1113-003A INST BOOK (SPANISH) C  5 LYT1136-001A INST BOOK (PORTUGUESE) A,E 6 LYT1070-004A INST BOOK (SOFT.PORTUGUESE) E 6 LYT1070-001B INST BOOK (SOFT.ENGLISH) D,F,G 6 LYT1070-002B INST BOOK (SOFT.FRENCH) D,F,G 6 LYT1070-003B INST BOOK (SOFT.SPANISH) D,F,G 7 BT-51005-5 WARRANTY INF. F 7 BT-51005-6 WARRANTY INF. B,C,D,G 8 BT-51028-2 REGIST.CARD B,C,D,F,G 10 BT-52006-2 WARRANTY CARD B,C,D,G 16 LYT0966-014A INST BOOK (P.NAVI.PORTUGUESE) E 20 QPA01703005 POLY BAG 17cm x 30cm 21 PEAC0428-150 CABLE ASSY G 22 QQR0491-002 FERRITE CORE TDK (BLACK) G 23 QAM0451-001 USB CABLE D,E,F,G 24 QQR0491-002 FERRITE CORE TDK (BLACK) D,E,F,G 25 QAM0211-001 A/V CABLE 26 QQR0918-002 CORE FILTER  27 LY20955-001C AC ADAPTER AP-V13E A,E  27 LY20968-001B AC ADAPTER AP-V13U B,C,D,F,G  27 or LY20790-001A AC ADAPTER AP-V11U B,C,D,F,G 28 QQR0917-002 CORE FILTER  29 QMPS110-190-JR POWER CORD 1.9m BLACK A,E 30 QPA02503505P POLY BAG 25cm x 35cm  31 LY32566-001A BATT.PACK ASSY BN-V408U-B 32 LY20186-004A SHOULDER STRAP 33 LY20750-001A REMOCON RM-V717U G 33 LY21020-001A REMOCON RM-V718U D,F 33A PTY20543-011 BATTERY COVER G 34 QQR0491-002 FERRITE CORE TDK (BLACK) 35 ------------ BATTERY AAA(R03)(x2) G 36 LY44002-001B CAP(HOOD)ASSY 37 LY32210-045A CD ROM ASSY D,E,F,G 38 LY32210-043A CD ROM ASSY B,C,D,F, G 39 QAM0404-002 MEMORY CARD* E,F,G *NOTE: DATA FILE is not contained in MEMORY CARD of the service part.  Symbol No. Part No. Part Name Description Local 101 LY20941-001H U.CASE(2.5)ASSY A,B 101 LY20941-002K U.CASE(2.5)ASSY D 101 LY20942-001B U.CASE(3.5)ASSY F 101 LY20942-001H U.CASE(3.5)ASSY E,G 101 LY20942-004G U.CASE(3.5)ASSY C 101A LY40664-001A SPACER (x2) 101B LY33051-001D COVER(SD) D,E,F,G 101C LY43977-001A SHAFT D,E,F,G 101D LY43978-001A SPRING D,E,F,G 101E LY33042-001A C.LABEL(VF) 102 LY30018-0D6A SPECIAL SCREW (x2) 103 LY33044-001D BKT(HINGE2.5) A,B,D 103 LY33054-001C BKT(HINGE3.5) C,E,F,G 104 LY30018-096A SPECIAL SCREW (x2) 105 QAS0126-001 SPEAKER 106 LY30018-017A SPECIAL SCREW (x2) 107 LY33048-001A KNOB(SLIDE) D,E,F,G 108 LY30018-059A SPECIAL SCREW (x4) 109 LY33049-001A COVER(UPPER2.5) A,B,D 109 LY33055-001A COVER(UPPER3.5) C,E,F,G 110 LY30018-056A SPECIAL SCREW (x2) 111 LY30018-0E6A SPECIAL SCREW (x2) 112 LY33050-001C COVER(JIG) 113 QUQ105-1007AA FFC WIRE MONI CN762-MAIN CN103 D,E,F,G 114 QUQ105-4007AA FFC WIRE MONI CN761-MAIN CN101 115 LY33360-001B ORNAMENT(2.5) A,B,D 115 LY33361-001B ORNAMENT(3.5) C,E,F,G 116 LY30018-0E6A SPECIAL SCREW (x2) 117 LY30018-0A1A SPECIAL SCREW 118 LY30018-096A SPECIAL SCREW (x2) 119 LY30018-096A SPECIAL SCREW 120 LY33025-001B TOP COVER ASSY 120A LY40162-001A BKT 121 LY30018-096A SPECIAL SCREW 122 LY30018-096A SPECIAL SCREW 123 LY44187-001A STICKER(2) D 123 LY44187-002A STICKER(2) A,B 123 LY44188-001A STICKER(3) E,F,G 123 LY44188-004A STICKER(3) C 125 LY30018-0E6A SPECIAL SCREW (x2) 126 LY30030-0E3A SPACER(A) F 126 LY30030-0E3B SPACER(A) A,B,C,D,E,G 127 LY30030-0E5A SPACER(A) A,B,C,D,E,G 135 LY20943-001D F.COVER ASSY F 135 LY20943-001E F.COVER ASSY A,B,C,D,E,G 135A LY33056-001B HOOD 135B LY33057-001A RING 135C LY33058-001A HOOD(SCREW) 135D LY33059-001B BKT(FRONT) 135E LY44186-001A STICKER(1) 135F LY30018-0E6A SPECIAL SCREW 135G LY30018-052A SPECIAL SCREW (x3) 136 LY20944-001A MIC F 136 LY20944-001B MIC A,B,C,D,E,G 137 LY30018-084A SPECIAL SCREW F 137 LY30018-0G6A SPECIAL SCREW A,B,C,D,E,G  145 LY20938-001C REAR UNIT F  145 LY20938-001E REAR UNIT A,B,C,D,E,G 146 LY30018-0G6A SPECIAL SCREW (x2) 147 LY30018-0J1A SPECIAL SCREW (x2) 148 LY30018-0H3A SPECIAL SCREW 155 LY20935-001E LOWER CASE ASSY A,B,C,D,E,F 155 LY20935-002E LOWER CASE ASSY G 155A LY33402-001A COVER(LOWER) 155B LY30018-0E6A SPECIAL SCREW (x2) 156 LY20939-001F ARM ASSY 156A LY30002-046B COMPRES. SPRING (x2) 156B LY43973-001A TENSION SPRING 157 QUQ105-2203AA FFC WIRE JACK CN501-MAIN CN102 158 LY30018-096A SPECIAL SCREW 159 LY30018-059A SPECIAL SCREW (x2) 160 LY30018-096A SPECIAL SCREW (x2) 161 LY10453-001E ZOOM UNIT 162 LY30018-0E6A SPECIAL SCREW 163 LY33395-001A BRACKET(ZOOM) 164 LY30018-059A SPECIAL SCREW 165 LY20937-001D C.COVER ASSY B 165 LY20937-001E C.COVER ASSY A,C,D,E,F,G 165A LY33027-001B KNOB(LOCK) 165B LY33028-001A HOLDER(LOCK) 165C LY33397-001A HOOK(G.B) 165D LY33039-001A BKT(G.BELT) 165E LY20945-001A GRIP BELT 165F LY44178-001A SHEET(C.COV) 165G LY30018-0E6A SPECIAL SCREW 165H QYSLSF2040D TAP SCREW 2mm x 4mm(x2)  Symbol No. Part No. Part Name Description Local MODEL MARK GR-D30UB A GR-D31US C GR-D70US D MODEL MARK GR-D90UB E GR-D91US G GR-D30US B GR-D90US F 3-9 MECHANISM ASSEMBLY ELECTRONIC VIEWFINDER ASSEMBLY 165J QYSLSF2040D TAP SCREW 2mm x 4mm(x2) 165K QYSLSF2040D TAP SCREW 2mm x 4mm 165L LY30018-0H1A SPECIAL SCREW (x2) 166 LY30018-0K3A SPECIAL SCREW (x2) 167 LY30018-096A SPECIAL SCREW (x2) 168 LY30018-059A SPECIAL SCREW C 168 LY30018-059A SPECIAL SCREW (x2) A,B,D,E,F,G 169 LY31019-001A BASE 170 LY30018-0E6A SPECIAL SCREW (x2) 171 LY33396-001B HOLDER(JACK) 172 LY30018-0E6A SPECIAL SCREW 173 LY33037-001B COVER(ZOOM) 174 LY30018-084A SPECIAL SCREW (x3) 175 LY33029-001B COVER(ADJUST) 176 LY33024-001C COVER(JACK) 177 LY44189-001A STICKER(4) D,E,F,G 178 LY30018-017A SPECIAL SCREW 179 LY30018-0E6A SPECIAL SCREW C 191 LY33019-001B BKT(MECHA)ASSY 191A LY42796-003A BUSH (x3) 192 LY30019-028A SPECIAL SCREW (x3) 193 LY30018-056A SPECIAL SCREW (x2) 194 LY40699-002A LABEL(PUSH) 195 LY32001-002A LABEL(HOUSING) 196 LY33388-001A SHIELD COVER(PR) F 196 LY33388-001C SHIELD COVER(PR) A,B,C,D,E,G 197 QYSPSPT1414M SCREW 1.4mm x 1.4mm(x2) 198 LY30018-096A SPECIAL SCREW (x2) 199 LY30019-038A SPECIAL SCREW (x2) 200 LY30018-096A SPECIAL SCREW (x2) 201 LY30018-017A SPECIAL SCREW 202 QUQ105-24X8AA FPC WIRE OP BLOCK-MAIN CN108 203 QAL0465-001 FPC CCD CN501-MAIN CN107 A,B,D 215 LY43965-001C BKT(OP)ASSY F 215 LY43965-001D BKT(OP)ASSY A,B,C,D,E,G 215A LY30030-095A SPACER(A) 215B LY30030-096A SPACER(A) 215C LY43966-001A RUBBER(OP) (x2) 215D LY30030-0E5A SPACER(A) 216 LY30018-0G9A SPECIAL SCREW (x2) 217 LY30030-057A SPACER(A) 218 LY30030-050A SPACER(A) 219 LY30030-060A SPACER(A) 251 LY33085-001B OP BLOCK ASSY F 251 LY33085-001D OP BLOCK ASSY A,B,C,D,E,G 251A LY30724-001B FOCUS MOTOR 251B LY30723-001B ZOOM MOTOR 251C PTY33085-001 SCREW (x7) 251D PTY31727-116 SCREW (x2) 251E PTY33085-007 IRIS MOTOR UNIT 252 LY44120-001A OP LPF 253 LY44005-001A SHEET 254 LY33288-001A SPACER 255 LYH30446-001A CCD BASE ASSY 256 LY30018-011A SPECIAL SCREW (x2) F 256 LY30018-0E7A SPECIAL SCREW (x2) A,B,C,D,E,G 257 LY30030-093A SPACER(A) 258 LY30030-094A SPACER(A) 259 LY30029-0Q7A SPACER(A) A,B,C,D,E,G  Symbol No. Part No. Part Name Description Local 900 YMA0029H MECHA(A)ASSY 900A YMA0029D MECHA(A)ASSY 901 LY32870-001G CASSETTE HOUSING ASSY 902 YQ43893-8 MINI SCREW (x3) 903 LYH30420-001A UPPER BASE ASSY 904 QYSPSPU1425M SCREW 905 YDV2102B DRUM ASSY 906 LY42820-001A DAMP.SCREW ASSY (x2) 907 LY42820-002A DAMP.SCREW ASSY 908 LY31538-001F REEL DISK ASSY 909 LY31538-002H REEL DISK ASSY 910 YQ44246 SLIT WASHER  Symbol No. Part No. Part Name Description Local 911 LY10372-001D REEL COVER ASSY 912 LY42120-002A MINI SCREW 913 LY41945-003A MINI SCREW (x2) 914 YQ44246 SLIT WASHER 915 LY43725-001D TENSION ARM ASSY 916 LYH40269-001A SLANT POLE ARM ASSY 917 LY43731-001F TU ARM ASSY 918 LY31531-001D SWING ARM ASSY 919 YQ43893 MINI SCREW 920 LYH30424-001A SLIDE DECK FINAL ASSY 921 YQ43893 MINI SCREW (x2) 922 LY43023-001A MINI SCREW 924 LYH30419-001A PAD ARM ASSY 925 YQ44246 SLIT WASHER 928 LYH40270-001A TU BRAKE ASSY 929 YQ44246 SLIT WASHER 930 LY43684-001A TENSION CONTROL LEVER ASSY 931 LY32861-001A CENTER GEAR 932 LY31516-001F PINCH ROLLER ARM FINAL ASSY 933 YQ44246 SLIT WASHER 934 LY43681-001A TENSION CONTROL PLATE ASSY 935 LY43687-001A BRAKE CONTROL LEVER ASSY 936 LYH30421-001A MOTOR BRACKET ASSY 936A QAR0138-001 LOADING MOTOR 936B LY41940-001A TAPPING SCREW (x2) 937 YQ43893 MINI SCREW (x3) 938 LYH30422-001A GUIDE RAIL ASSY 939 YQ43893 MINI SCREW 940 YQ44246 SLIT WASHER (x2) 941 LY32843-001A SLIDE LEVER2 ASSY 942 LY43690-001A LOADING PLATE ASSY 943 YQ44246 SLIT WASHER 944 LY32858-001A EJECT LEVER 945 YQ44246 SLIT WASHER 946 LYH40271-001A BASE R ASSY 947 YQ43893 MINI SCREW 948 LY41945-001B MINI SCREW 949 LY43665-001A MODE GEAR 950 QSW0876-003 ROTARY ENCODER 951 YQ43893 MINI SCREW (x2) 952 LY32860-001A GEAR COVER ASSY 953 YQ43893 MINI SCREW (x2) 954 YQ43893-4 MINI SCREW 955 LY43676-001A MAIN CAM ASSY 956 LY41941-001B SLIDE ARM ASSY 957 LY43678-001A CONNECT GEAR 2 958 LY41954-001C SUB CAM ASSY 959 LY42120-001A MINI SCREW 960 LY43692-001A CONTROL ARM ASSY 961 LY32859-001A REEL GEAR 1 962 LY31508-002B DRUM BASE ASSY 963 QYSPSPU1425M SCREW 1.4mm x 2.5mm(x3) 964 QAR0142-001 CAPSTAN MOTOR 965 YQ43893 MINI SCREW 966 LY10367-001D MAIN DECK ASSY 976 YQ44246 SLIT WASHER 977 YQ44246-6 SLIT WASHER 978 LY42047-005A WASHER 979 LY43987-001B SPACER  Symbol No. Part No. Part Name Description Local 300 LY21043-001E VF ASSY 301 LY32995-001B EYE CUP 302 LY43961-001B SHEET(LENS) 303 LY32472-001A LENS ASSY 304 LY43868-001A SPRING(LENS) 305 LY32993-001C GUIDE LENS(VF) 306 LY33006-001C LEVER(LENS) 307 LY33442-001B LCD UNIT ASSY 308 LY20931-001B U.CASE(VF)R 309 LY20930-001B U.CASE(VF)F 310 LY33083-001A PROTECTOR(VF) (x2)  Symbol No. Part No. Part Name Description Local MODEL MARK GR-D30UB A GR-D31US C GR-D70US D MODEL MARK GR-D90UB E GR-D91US G GR-D30US B GR-D90US F 3-10 MONITOR ASSEMBLY (2.5 INCH) MONITOR ASSEMBLY (3.5 INCH) MAIN BOARD ASSEMBLY <01> 311 QAL0466-002 FPC 312 NSW0200-001X LEVER SWITCH VF SW 313 LY30030-059B SPACER(A) 314 LY30018-031A SPECIAL SCREW (x2) 315 LY32996-001B COVER(VF) 316 LY30018-022A SPECIAL SCREW (x6) 317 LY20929-001C B.CASE(VF) 318 LY33076-001E VF HINGE ASSY 318A LY43962-001C TOR.SPRING 318B LY30019-048A SPECIAL SCREW 319 LY30018-084A SPECIAL SCREW (x7)  Symbol No. Part No. Part Name Description Local 500 LY21042-001B MONITOR ASSY A,B 500 LY21042-002B MONITOR ASSY D 501 LY20932-001E M.COVER(2.5)ASSY A,B 501 LY20932-002E M.COVER(2.5)ASSY D 501A LY33007-001C KNOB(LOCK)M A,B,D 501B LY33008-001A HOLDER(LOCK)M A,B,D 501C LY30002-047A COMPRES. SPRING A,B,D 501D LY30018-0C8A SPECIAL SCREW (x2) A,B,D 501E LY30030-0E5A SPACER(A) A,B,D 502 LY10407-001C MONI.CASE(2.5) A,B,D 503 QYSPSPT1730R SCREW 1.7mm x 3mm(x2) A,B,D 504 LY30018-0K9A SPECIAL SCREW (x2) A,B,D 506 LY33011-001C LCD FRAME(2.5) A,B,D 507 QLD0262-001 LCD MODULE A,B,D 508 LY30029-0R5A SPACER(A) (x3) A,B,D 510 LY33010-001A SHIELD CASE(2.5) A,B,D 512 QYSPSPT1720R SCREW 1.7mm x 2mm A,B,D 513 LY33012-001A DIFF.SHEET(2.5) A,B,D 514 LY43938-001A LIGHT SCREEN A,B,D 515 LY33013-001B MONI.HINGE ASSY A,B,D 515A LY33015-001A HINGE COVER(U) A,B,D 515B LY32969-002A HINGE COVER(L) A,B,D 515C LY30018-0K1A SPECIAL SCREW (x2) A,B,D 516 LY43936-001A HOLDER(LAMP) (x2) A,B,D 517 LY43396-001A SHEET(REFLECT) A,B,D 518 QLL0142-001 LAMP A,B,D  Symbol No. Part No. Part Name Description Local  500 LY21042-007B MONITOR ASSY C  500 LY21042-003B MONITOR ASSY E,F,G  501 LY20933-003B M.COVER(3.5)ASSY C  501 LY20933-001B M.COVER(3.5)ASSY E,F,G 501A LY31620-006A KNOB(LOCK 1) C,E,F,G 501B LY42180-003A KNOB(LOCK 2) C,E,F,G 501C LY30002-044A COMPRES. SPRING C,E,F,G 501D LY30018-084A SPECIAL SCREW (x2) C,E,F,G 502 LY10409-001A MONI.CASE(3.5) C,E,F,G 503 QYSPSPT1730R SCREW 1.7mm x 3mm(x2) C,E,F,G 504 LY30018-0K9A SPECIAL SCREW (x2) C,E,F,G 505 QLL0141-001 BACK LIGHT C,E,F,G 506 LY32335-001A LCD FRAME(3.5) C,E,F,G 507 QLD0263-001 LCD MODULE C,E,F,G 508 LY30029-0R5A SPACER(A) (x2) C,E,F,G 509 LY30030-048A SPACER(A) C,E,F,G 510 LY32334-001A S.CASE(3.5) F 510 LY44217-001A S.CASE(3.5)ASSY C,E,G 510A LY30030-081A SPACER(A) C,E,G 511 LY30030-049A SPACER(A) (x3) F 511 LY30030-049A SPACER(A) (x2) C,E,G 512 QYSPSPT1720R SCREW 1.7mm x 2mm C,E,F,G 513 LY30030-081A SPACER(A) F 515 LY33013-002B MONI.HINGE ASSY C,E,F,G 515A LY32968-004A HINGE COVER(U) C,E,F,G  Symbol No. Part No. Part Name Description Local 515B LY32969-002A HINGE COVER(L) C,E,F,G 515C LY30018-0K1A SPECIAL SCREW (x2) C,E,F,G 519 LY30030-0F5B SPACER(A) C,E,G 520 LY30030-082A SPACER(A) F  Symbol No. Part No. Part Name Description Local PW1 YB10404A-02 MAIN BOARD ASSY A,B,C PW1 YB10404B-01 MAIN BOARD ASSY F PW1 YB10404B-03 MAIN BOARD ASSY D,E,G IC1001 MN103S33NJA IC(MICRO C ROM) IC1001 or MN103SF33NY4JA IC(MICRO C ROM) IC1002 MB90097PFV149-X IC(MICRO C ROM) IC1003 SN74AHC1G00K-X IC IC1003 or SN74AHC1G00DC-X IC A,B,C,D,E,G IC1004 S-89220ACNC-W IC IC1005 X25330S8I-2.5-X IC IC1005 or AT25320N-10SI-X IC IC1005 or M95320-WMN6-X IC IC1005 or 25LC320-I/SN-X IC IC1005 or CAT25C32SI-X IC IC1006 RS5C314-X IC IC1007 IC-PST3423U-X IC IC1007 or S-80823CNNB-X IC IC2201 AK4564VQ IC IC3001 JCY0152 IC IC3002 BU2501FV-X IC IC3005 JCY0136-X IC IC3701 BA7665FS-X IC IC3731 MM1504XN-X IC D,E,F,G IC3801 JCP8045 IC D,E,F,G IC3851 JCP8055FP IC A,B,C IC4201 HD49340NP-X IC IC4202 MM1613AN-X IC IC4301 JCY0200 IC IC4302 R1160N151B-X IC IC4802 BA10358FVM-W IC IC4803 BA10358FVM-W IC IC4804 LM358DR2-X IC IC4807 SN74AHC2G66U-X IC D,E,F,G IC4851 UPD16879GS-X IC IC5501 JCY0185 IC IC6001 FA3698F IC IC6801 R1224N102G-X IC IC8001 TMS320DSC24GHKL IC D,E,F,G IC8002 K4S643232F-TC60 IC D,E,F,G IC8002 or HY57643220CT55 IC D,E,F,G IC8002 or HY57643220CT7 IC D,E,F,G IC8003 MBV160TE90PTA45 IC(MICRO C ROM) F IC8003 or MBV160T90PTA45 IC(MICRO C ROM) F IC8003 MBV160TE90PTA47 IC(MICRO C ROM) D,E,G IC8003 or MBV160T90PTA47 IC(MICRO C ROM) D,E,G IC8003 or MR27T1602F163TN IC(MICRO C ROM) D,E,G IC8004 S-80842CNNB-W IC D,E,F,G IC8007 MM1613DN-X IC D,E,F,G Q1001 DTA114EE-X DIGI TRANSISTOR Q1001 or PDTA114EE-X DIGI TRANSISTOR Q1001 or RN2102-X DIGI TRANSISTOR Q1001 or BCR183T-X DIGI TRANSISTOR Q1002 UMC3N-W DIGI TRANSISTOR Q1003 UMC3N-W DIGI TRANSISTOR Q1004 UMC3N-W DIGI TRANSISTOR Q1005 DTC143XE-X DIGI TRANSISTOR Q1006 UMC3N-W DIGI TRANSISTOR Q1007 2SC4617/QR/-X TRANSISTOR Q1007 or BC847BT-X TRANSISTOR Q1008 DTC124EE-X DIGI TRANSISTOR Q1008 or PDTC124EE-X DIGI TRANSISTOR Q1008 or BCR141T-X DIGI TRANSISTOR Q1009 2SJ347-X MOS FET Q2001 UMX1N-W PAIR TRANSISTOR  Symbol No. Part No. Part Name Description Local MODEL MARK GR-D30UB A GR-D31US C GR-D70US D MODEL MARK GR-D90UB E GR-D91US G GR-D30US B GR-D90US F 3-11 Q2001 or BC847S-X PAIR TRANSISTOR Q2002 UMX1N-W PAIR TRANSISTOR Q2002 or BC847S-X PAIR TRANSISTOR Q2003 UMX1N-W PAIR TRANSISTOR Q2003 or BC847S-X PAIR TRANSISTOR Q2004 UMX1N-W PAIR TRANSISTOR Q2004 or BC847S-X PAIR TRANSISTOR Q2005 UMX1N-W PAIR TRANSISTOR Q2005 or BC847S-X PAIR TRANSISTOR Q2006 UMX1N-W PAIR TRANSISTOR Q2006 or BC847S-X PAIR TRANSISTOR Q2202 UMX1N-W PAIR TRANSISTOR Q2202 or BC847S-X PAIR TRANSISTOR Q2401 2SC4617/QR/-X TRANSISTOR Q2401 or BC847BT-X TRANSISTOR Q2403 2SC4617/QR/-X TRANSISTOR Q2403 or BC847BT-X TRANSISTOR Q3001 2SC4617/RS/-X TRANSISTOR Q3001 or BC847BT-X TRANSISTOR Q3002 2SC4617/RS/-X TRANSISTOR Q3002 or BC847BT-X TRANSISTOR Q3701 UMT1N-W PAIR TRANSISTOR Q3701 or XP4401-W TRANSISTOR Q3701 or BC856S-X PAIR TRANSISTOR Q3702 UMZ1N-W PAIR TRANSISTOR Q3702 or XP4601-W TRANSISTOR Q3704 2SA1774/RS/-X TRANSISTOR Q3704 or BC857BT-X TRANSISTOR Q3705 UMT1N-W PAIR TRANSISTOR Q3705 or XP4401-W TRANSISTOR Q3705 or BC856S-X PAIR TRANSISTOR Q3731 2SC4617/RS/-X TRANSISTOR D,E,F,G Q3731 or 2SD2216J/RS/-X TRANSISTOR D,E,F,G Q3731 or BC847BT-X TRANSISTOR D,E,F,G Q3732 DTC144EE-X DIGI TRANSISTOR D,E,F,G Q3732 or UN9213J-X DIGI TRANSISTOR D,E,F,G Q3732 or BCR148T-X DIGI TRANSISTOR D,E,F,G Q3733 UMZ1N-W PAIR TRANSISTOR D,E,F,G Q3733 or XP4601-W TRANSISTOR D,E,F,G Q3734 2SC4617/RS/-X TRANSISTOR D,E,F,G Q3734 or 2SD2216J/RS/-X TRANSISTOR D,E,F,G Q3734 or BC847BT-X TRANSISTOR D,E,F,G Q3735 UMZ1N-W PAIR TRANSISTOR D,E,F,G Q3735 or XP4601-W TRANSISTOR D,E,F,G Q4801 2SC4655/BC/-X TRANSISTOR Q4802 2SC4617/RS/-X TRANSISTOR D,E,F,G Q4802 or BC847BT-X TRANSISTOR D,E,F,G Q4803 DTC144EE-X DIGI TRANSISTOR D,E,F,G Q4803 or BCR148T-X DIGI TRANSISTOR D,E,F,G Q4804 DTA144EE-X DIGI TRANSISTOR D,E,F,G Q4804 or BCR198T-X DIGI TRANSISTOR D,E,F,G Q4805 DTA143EE-X DIGI TRANSISTOR D,E,F,G Q4805 or BCR162T-X DIGI TRANSISTOR D,E,G Q4806 2SC4617/QR/-X TRANSISTOR Q4806 or BC847BT-X TRANSISTOR Q4851 2SC4617/RS/-X TRANSISTOR Q4851 or BC847BT-X TRANSISTOR Q6101 SSM5G01TU-X MOS FET Q6102 2SA1577/QR/-X TRANSISTOR Q6102 or BC807-25W-X TRANSISTOR A,B,C,D,E,G Q6201 SSM5G01TU-X MOS FET Q6301 SSM5G01TU-X MOS FET Q6302 2SA1577/QR/-X TRANSISTOR Q6302 or BC807-25W-X TRANSISTOR A,B,C,D,E,G Q6303 2SC4617/QR/-X TRANSISTOR Q6303 or BC847BT-X TRANSISTOR Q6401 SSM5G01TU-X MOS FET Q6501 SSM5G01TU-X MOS FET Q6601 CPH3314-X MOS FET Q6602 UMX1N-W PAIR TRANSISTOR Q6602 or HN1C01FU/G/-X PAIR TRANSISTOR Q6602 or BC847S-X PAIR TRANSISTOR Q6603 2SA1577/QR/-X TRANSISTOR Q6603 or BC807-25W-X TRANSISTOR A,B,C,D,E,G Q6604 DTC144EE-X DIGI TRANSISTOR Q6604 or BCR148T-X DIGI TRANSISTOR Q6605 UMT1N-W PAIR TRANSISTOR Q6605 or HN1A01FU/G/-X PAIR TRANSISTOR  Symbol No. Part No. Part Name Description Local Q6605 or BC856S-X PAIR TRANSISTOR Q6606 2SC4617/QR/-X TRANSISTOR Q6606 or BC847BT-X TRANSISTOR Q6701 CPH3314-X MOS FET Q6801 FML9-W TRANSISTOR Q8001 DTA114EE-X DIGI TRANSISTOR D,E,F,G Q8001 or BCR183T-X DIGI TRANSISTOR D,E,F,G D1001 DA221-X DIODE ARRAY D3001 EC2C01C-X VARI CAP DIODE D3002 EC2C01C-X VARI CAP DIODE D3003 EC2C01C-X VARI CAP DIODE D3004 MA2Z720-X SB DIODE D5501 1SS355-X SI DIODE D6601 RB481K-X SB DIODE D6602 RB480Y-W SB DIODE D6701 RB160M-30-X SB DIODE D6702 RB160M-30-X SB DIODE  D6801 RB715F-X SB DIODE D8001 RB751V-40-X SB DIODE D,E,F,G C1001 NDCA1HJ-8R0W C CAPACITOR 8pF 50V J C1002 NDCA1HJ-100W C CAPACITOR 10pF 50V J C1004 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C1005 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C1007 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C1008 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C1009 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C1010 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C1011 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C1012 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C1013 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C1014 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C1015 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C1019 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z C1020 NCBA1EK-682W C CAPACITOR 6800pF 25V K C1021 NCBA1EK-682W C CAPACITOR 6800pF 25V K C1022 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z C1024 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z C1025 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z C1029 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z C1030 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C1032 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z C1035 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z C1036 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C1037 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z C1038 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z C1039 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z C1040 NDCA1HJ-100W C CAPACITOR 10pF 50V J C1041 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C1042 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C1043 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C1044 NDCA1HJ-470W C CAPACITOR 47pF 50V J C1045 NDCA1HJ-470W C CAPACITOR 47pF 50V J C1046 NCF31AZ-105X C CAPACITOR 1uF 10V Z C1047 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z C1048 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z C1049 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z C1050 NCFA1HZ-103W C CAPACITOR 0.01uF 50V Z C1051 NCB31CK-223X C CAPACITOR 0.022uF 16V K C1052 NCB31CK-223X C CAPACITOR 0.022uF 16V K C1053 NCB31CK-223X C CAPACITOR 0.022uF 16V K C1054 NCB31CK-223X C CAPACITOR 0.022uF 16V K C1055 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C1064 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M C2201 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C2202 NCB30JK-105X C CAPACITOR 1uF 6.3V K C2203 NCB30JK-105X C CAPACITOR 1uF 6.3V K C2204 NCB30JK-105X C CAPACITOR 1uF 6.3V K C2205 NCB30JK-105X C CAPACITOR 1uF 6.3V K C2209 NCB30JK-105X C CAPACITOR 1uF 6.3V K C2210 NCB30JK-105X C CAPACITOR 1uF 6.3V K C2211 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C2212 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C2213 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C2214 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C2215 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C2216 NCBA1AK-104W C CAPACITOR 0.1uF 10V K  Symbol No. Part No. Part Name Description Local MODEL MARK GR-D30UB A GR-D31US C GR-D70US D MODEL MARK GR-D90UB E GR-D91US G GR-D30US B GR-D90US F 3-12 C2217 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C2218 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C2223 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C2224 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C2401 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C2402 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C2403 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C2404 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C2405 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C2406 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C2603 NCBA1CK-153W C CAPACITOR 0.015uF 16V K C2604 NCBA1CK-153W C CAPACITOR 0.015uF 16V K C2605 NCBA1EK-472W C CAPACITOR 4700pF 25V K C2606 NCBA1EK-472W C CAPACITOR 4700pF 25V K C2607 NCBA1HK-102W C CAPACITOR 1000pF 50V K C2608 NCBA1HK-102W C CAPACITOR 1000pF 50V K C2611 NCB30JK-105X C CAPACITOR 1uF 6.3V K C2612 NCB30JK-105X C CAPACITOR 1uF 6.3V K C2613 NCB30JK-105X C CAPACITOR 1uF 6.3V K C2614 NDCA1HJ-101W C CAPACITOR 100pF 50V J C2615 NDCA1HJ-101W C CAPACITOR 100pF 50V J C3001 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C3003 NCB30JK-105X C CAPACITOR 1uF 6.3V K C3005 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C3006 NCB30JK-105X C CAPACITOR 1uF 6.3V K C3007 NCB10JK-106X C CAPACITOR 10uF 6.3V K C3008 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C3009 NCB30JK-105X C CAPACITOR 1uF 6.3V K C3011 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C3012 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C3013 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C3015 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C3016 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C3017 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C3020 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C3021 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C3022 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C3023 NDCA1HJ-330W C CAPACITOR 33pF 50V J C3024 NCBA1HK-102W C CAPACITOR 1000pF 50V K C3025 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C3026 NCB30JK-105X C CAPACITOR 1uF 6.3V K C3027 NCBA1EK-472W C CAPACITOR 4700pF 25V K C3028 NDCA1EJ-271W C CAPACITOR 270pF 25V J C3029 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C3030 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C3031 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C3032 NCBA1HK-102W C CAPACITOR 1000pF 50V K C3033 NDCA1HJ-220W C CAPACITOR 22pF 50V J C3036 NDCA1HJ-8R0W C CAPACITOR 8pF 50V J C3037 NDCA1HJ-8R0W C CAPACITOR 8pF 50V J C3038 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C3039 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C3042 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C3043 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C3044 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C3045 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C3046 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C3047 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C3048 NCB31CK-473X C CAPACITOR 0.047uF 16V K C3049 NCBA1HK-222W C CAPACITOR 2200pF 50V K C3050 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C3055 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C3059 NBE20GM-226X TA E CAPACITOR 22uF 4V M C3060 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C3064 NCBA1HK-102W C CAPACITOR 1000pF 50V K C3066 NCB30JK-105X C CAPACITOR 1uF 6.3V K C3067 NCBA1HK-102W C CAPACITOR 1000pF 50V K C3069 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C3701 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C3702 NDCA1HJ-560W C CAPACITOR 56pF 50V J C3703 NDCA1HJ-270W C CAPACITOR 27pF 50V J C3704 NDCA1HJ-680W C CAPACITOR 68pF 50V J C3705 NDCA1HJ-270W C CAPACITOR 27pF 50V J C3706 NCB30JK-105X C CAPACITOR 1uF 6.3V K C3707 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C3708 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C3709 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C3712 NEA70GM-337X E CAPACITOR 330uF 4V M  Symbol No. Part No. Part Name Description Local C3713 NEA70GM-337X E CAPACITOR 330uF 4V M C3715 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C3731 NCBA1CK-103W C CAPACITOR 0.01uF 16V K D,E,F,G C3732 NCBA1HK-102W C CAPACITOR 1000pF 50V K D,E,F,G C3733 NDCA1HJ-3R0W C CAPACITOR 3pF 50V J D,E,F,G C3734 NDCA1HJ-5R0W C CAPACITOR 5pF 50V J D,E,F,G C3735 NDCA1HJ-330W C CAPACITOR 33pF 50V J D,E,F,G C3736 NCBA1HK-102W C CAPACITOR 1000pF 50V K D,E,F,G C3738 NCBA1CK-103W C CAPACITOR 0.01uF 16V K D,E,F,G C3739 NCBA1CK-103W C CAPACITOR 0.01uF 16V K D,E,F,G C3740 NCB30JK-105X C CAPACITOR 1uF 6.3V K D,E,F,G C3741 NCB30JK-105X C CAPACITOR 1uF 6.3V K D,E,F,G C3742 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C3743 NDCA1HJ-3R0W C CAPACITOR 3pF 50V J D,E,F,G C3744 NDCA1HJ-5R0W C CAPACITOR 5pF 50V J D,E,F,G C3745 NDCA1HJ-330W C CAPACITOR 33pF 50V J D,E,F,G C3746 NCB20JM-475X C CAPACITOR 4.7uF 6.3V M D,E,F,G C3747 NCBA1CK-103W C CAPACITOR 0.01uF 16V K D,E,F,G C3801 NCB21AK-105X C CAPACITOR 1uF 10V K C3802 NCB21AK-105X C CAPACITOR 1uF 10V K C3803 NBE20GM-476X TA E CAPACITOR 47uF 4V M C3804 NBE20GM-476X TA E CAPACITOR 47uF 4V M C3805 NCBA1CK-103W C CAPACITOR 0.01uF 16V K D,E,F,G C3806 NCBA1CK-103W C CAPACITOR 0.01uF 16V K D,E,F,G C3807 NCBA1CK-103W C CAPACITOR 0.01uF 16V K D,E,F,G C3808 NCBA1CK-103W C CAPACITOR 0.01uF 16V K D,E,F,G C3809 NCB31CK-104X C CAPACITOR 0.1uF 16V K D,E,F,G C3810 NCBA1CK-103W C CAPACITOR 0.01uF 16V K D,E,F,G C3811 NCB31CK-104X C CAPACITOR 0.1uF 16V K D,E,F,G C3812 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C3813 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C3814 NCBA1CK-103W C CAPACITOR 0.01uF 16V K D,E,F,G C3815 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C3816 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C3817 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C3818 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C3819 NCBA1CK-103W C CAPACITOR 0.01uF 16V K D,E,F,G C3851 NCBA1CK-103W C CAPACITOR 0.01uF 16V K A,B,C C3852 NCBA1CK-103W C CAPACITOR 0.01uF 16V K A,B,C C3853 NCBA1CK-103W C CAPACITOR 0.01uF 16V K A,B,C C3854 NCBA1CK-103W C CAPACITOR 0.01uF 16V K A,B,C C3855 NCBA1AK-104W C CAPACITOR 0.1uF 10V K A,B,C C3856 NCBA1CK-103W C CAPACITOR 0.01uF 16V K A,B,C C3857 NCBA1AK-104W C CAPACITOR 0.1uF 10V K A,B,C C3858 NCBA1AK-104W C CAPACITOR 0.1uF 10V K A,B,C C3859 NCBA1CK-103W C CAPACITOR 0.01uF 16V K A,B,C C3860 NCBA1AK-104W C CAPACITOR 0.1uF 10V K A,B,C C3861 NCBA1CK-103W C CAPACITOR 0.01uF 16V K A,B,C C4201 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C4202 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4203 NCB21AK-105X C CAPACITOR 1uF 10V K C4204 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4205 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4206 NCB21CK-105X C CAPACITOR 1uF 16V K C4207 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4208 NCB30JK-105X C CAPACITOR 1uF 6.3V K C4209 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4210 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4211 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4212 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4213 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4214 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4216 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4301 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4302 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4303 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4304 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4305 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4306 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4307 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4308 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4309 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4310 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4311 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4312 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4313 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C4314 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4315 NCBA1AK-104W C CAPACITOR 0.1uF 10V K  Symbol No. Part No. Part Name Description Local MODEL MARK GR-D30UB A GR-D31US C GR-D70US D MODEL MARK GR-D90UB E GR-D91US G GR-D30US B GR-D90US F 3-13 C4316 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C4317 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C4803 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C4804 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C4806 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C4808 NCB30JK-105X C CAPACITOR 1uF 6.3V K C4809 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C4810 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C4811 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C4812 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C4813 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C4814 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C4815 NCB31HK-152X C CAPACITOR 1500pF 50V K C4819 NCB31CK-104X C CAPACITOR 0.1uF 16V K C4851 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C4852 NCFA1AZ-104W C CAPACITOR 0.1uF 10V Z C4853 NBE21AM-335X TA E CAPACITOR 3.3uF 10V M C4854 NBE21AM-106X TA E CAPACITOR 10uF 10V M C4855 NCB31CK-104X C CAPACITOR 0.1uF 16V K C4858 NDCA1HJ-330W C CAPACITOR 33pF 50V J C4859 NCBA1CK-223W C CAPACITOR 0.022uF 16V K C4860 NCBA1CK-223W C CAPACITOR 0.022uF 16V K C4861 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C4862 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C4864 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C4865 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C5501 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C5503 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C5504 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C5506 NBE40GM-476X TA E CAPACITOR 47uF 4V M C5507 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C5508 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C5509 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C5510 NBP21VM-105X TA E CAPACITOR 1uF 35V M C5511 NBP21DM-475X TA E CAPACITOR 4.7uF 20V M F C5511 NBZ0003-475X TA E CAPACITOR 4.7uF 20V M A,B,C,D,E,G C5512 NBE21AM-106X TA E CAPACITOR 10uF 10V M C5513 NCB31CK-104X C CAPACITOR 0.1uF 16V K C5514 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C5515 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C5516 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C5517 NCB31CK-104X C CAPACITOR 0.1uF 16V K C5518 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C5519 NCBA1AK-104W C CAPACITOR 0.1uF 10V K C6002 NCB21CK-105X C CAPACITOR 1uF 16V K C6003 NEA71CM-106X E CAPACITOR 10uF 16V M C6004 NCB21CK-105X C CAPACITOR 1uF 16V K C6021 NCB21CK-104X C CAPACITOR 0.1uF 16V K C6022 NCB21CK-104X C CAPACITOR 0.1uF 16V K C6023 NCB21CK-105X C CAPACITOR 1uF 16V K C6024 NCB21CK-105X C CAPACITOR 1uF 16V K C6025 NCB21CK-105X C CAPACITOR 1uF 16V K C6026 NCB21CK-105X C CAPACITOR 1uF 16V K C6027 NCBA1EK-472W C CAPACITOR 4700pF 25V K C6029 NCBA1HK-102W C CAPACITOR 1000pF 50V K C6030 NCBA1HK-102W C CAPACITOR 1000pF 50V K C6031 NCBA1HK-102W C CAPACITOR 1000pF 50V K C6032 NCBA1HK-102W C CAPACITOR 1000pF 50V K C6033 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C6034 NCB31CK-104X C CAPACITOR 0.1uF 16V K C6035 NCB31CK-104X C CAPACITOR 0.1uF 16V K C6036 NDCA1HJ-101W C CAPACITOR 100pF 50V J C6037 NCB21CK-473X C CAPACITOR 0.047uF 16V K C6038 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C6039 NCB31CK-104X C CAPACITOR 0.1uF 16V K C6040 NCB31CK-473X C CAPACITOR 0.047uF 16V K C6041 NCB31EK-103X C CAPACITOR 0.01uF 25V K C6042 NCB31EK-103X C CAPACITOR 0.01uF 25V K C6043 NCB31CK-223X C CAPACITOR 0.022uF 16V K C6044 NCBA1CK-103W C CAPACITOR 0.01uF 16V K C6045 NCB21CK-105X C CAPACITOR 1uF 16V K C6101 NCB21CK-105X C CAPACITOR 1uF 16V K C6103 NCB10JK-106X C CAPACITOR 10uF 6.3V K C6104 NCBA1HK-102W C CAPACITOR 1000pF 50V K C6105 NCBA1HK-561W C CAPACITOR 560pF 50V K C6106 NCB21CK-105X C CAPACITOR 1uF 16V K C6201 NCB21CK-105X C CAPACITOR 1uF 16V K C6203 NCB10JK-106X C CAPACITOR 10uF 6.3V K  Symbol No. Part No. Part Name Description Local C6204 NCBA1EK-472W C CAPACITOR 4700pF 25V K C6301 NCB21CK-105X C CAPACITOR 1uF 16V K C6303 NCB10JK-106X C CAPACITOR 10uF 6.3V K C6304 NCBA1HK-102W C CAPACITOR 1000pF 50V K C6401 NCB21CK-105X C CAPACITOR 1uF 16V K C6403 NCB21CK-105X C CAPACITOR 1uF 16V K C6405 NCB31CK-683X C CAPACITOR 0.068uF 16V K C6501 NCB21CK-105X C CAPACITOR 1uF 16V K C6503 NCB21CK-105X C CAPACITOR 1uF 16V K C6505 NCB21CK-224X C CAPACITOR 0.22uF 16V K F C6505 NCB21CK-105X C CAPACITOR 1uF 16V K A,B,C,D,E,G C6601 NCB21CK-105X C CAPACITOR 1uF 16V K C6602 NCB21CK-105X C CAPACITOR 1uF 16V K C6603 NCB11EK-105X C CAPACITOR 1uF 25V K C6605 NCB21CK-105X C CAPACITOR 1uF 16V K C6606 NCB21CK-105X C CAPACITOR 1uF 16V K C6607 NCB11EK-105X C CAPACITOR 1uF 25V K C6608 NCB31CK-104X C CAPACITOR 0.1uF 16V K C6609 NCB21CK-105X C CAPACITOR 1uF 16V K C6701 NCB21CK-105X C CAPACITOR 1uF 16V K C6703 NCB21CK-105X C CAPACITOR 1uF 16V K C6801 NCB21CK-105X C CAPACITOR 1uF 16V K C6802 NBE40JM-476X TA E CAPACITOR 47uF 6.3V M C6804 NCB21CK-105X C CAPACITOR 1uF 16V K C6807 NCB10JK-106X C CAPACITOR 10uF 6.3V K C6809 NDCA1HJ-151W C CAPACITOR 150pF 50V J C8001 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M D,E,F,G C8002 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M D,E,F,G C8003 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M D,E,F,G C8004 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C8005 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C8006 NBE20JM-476X TA E CAPACITOR 47uF 6.3V M D,E,F,G C8007 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C8008 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C8010 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C8011 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C8014 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C8015 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C8016 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C8017 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C8018 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C8019 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C8020 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C8021 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M D,E,F,G C8026 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C8027 NCB30JK-105X C CAPACITOR 1uF 6.3V K D,E,F,G C8028 NCBA1AK-104W C CAPACITOR 0.1uF 10V K D,E,F,G C8029 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M D,E,F,G C8030 NCBA1CK-103W C CAPACITOR 0.01uF 16V K D,E,F,G R1001 NRSA6AJ-105W MG RESISTOR 1MΩ 1/16W J R1002 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R1003 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R1006 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R1007 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R1008 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R1009 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R1010 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R1011 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R1012 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R1013 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R1014 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R1015 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R1016 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R1017 NRSA6AJ-474W MG RESISTOR 470kΩ 1/16W J R1018 NRSA6AJ-474W MG RESISTOR 470kΩ 1/16W J R1019 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R1020 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R1021 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R1022 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R1023 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R1024 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R1025 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R1027 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R1030 NRSA6AJ-753W MG RESISTOR 75kΩ 1/16W J R1031 NRSA6AJ-334W MG RESISTOR 330kΩ 1/16W J R1032 NRSA6AJ-332W MG RESISTOR 3.3kΩ 1/16W J R1033 NRSA6AJ-332W MG RESISTOR 3.3kΩ 1/16W J  Symbol No. Part No. Part Name Description Local MODEL MARK GR-D30UB A GR-D31US C GR-D70US D MODEL MARK GR-D90UB E GR-D91US G GR-D30US B GR-D90US F 3-14 R1034 NRSA6AJ-332W MG RESISTOR 3.3kΩ 1/16W J R1035 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R1037 NRSA6AJ-561W MG RESISTOR 560Ω 1/16W J R1038 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R1039 NRSA6AJ-152W MG RESISTOR 1.5kΩ 1/16W J R1040 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R1041 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R1042 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R1043 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R1044 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R1045 NRSA6AJ-105W MG RESISTOR 1MΩ 1/16W J R1046 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R1047 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R1048 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R1049 NRSA6AJ-623W MG RESISTOR 62kΩ 1/16W J R1050 NRSA6AJ-823W MG RESISTOR 82kΩ 1/16W J R1051 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J R1052 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R1053 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J R1054 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R1055 NRSA6AJ-334W MG RESISTOR 330kΩ 1/16W J R1056 NRSA6AJ-334W MG RESISTOR 330kΩ 1/16W J R1057 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R1058 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R1059 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R1060 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R1061 NRSA6AJ-561W MG RESISTOR 560Ω 1/16W J R1062 NRSA6AJ-224W MG RESISTOR 220kΩ 1/16W J R1063 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J R1064 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R1065 NRSA6AJ-153W MG RESISTOR 15kΩ 1/16W J R1066 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R1067 NRSA6AJ-334W MG RESISTOR 330kΩ 1/16W J R1068 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R1069 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R1070 NRSA6AJ-154W MG RESISTOR 150kΩ 1/16W J R1071 NRSA6AJ-272W MG RESISTOR 2.7kΩ 1/16W J R1072 NRSA6AJ-183W MG RESISTOR 18kΩ 1/16W J R1073 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R1074 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J R1075 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J R1076 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J R1077 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R1078 NRSA6AJ-393W MG RESISTOR 39kΩ 1/16W J R1079 NRSA6AJ-223W MG RESISTOR 22kΩ 1/16W J R1080 NRSA6AJ-822W MG RESISTOR 8.2kΩ 1/16W J R1081 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R1082 NRSA6AJ-123W MG RESISTOR 12kΩ 1/16W J R1083 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R1084 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R1085 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R1086 NRSA6AJ-332W MG RESISTOR 3.3kΩ 1/16W J R1087 NRSA6AJ-332W MG RESISTOR 3.3kΩ 1/16W J R1088 NRSA6AJ-332W MG RESISTOR 3.3kΩ 1/16W J R1089 NRSA6AJ-332W MG RESISTOR 3.3kΩ 1/16W J R1091 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R1092 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R1093 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R1094 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R1095 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R1096 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R1097 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R1099 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R2001 NRSA6AJ-474W MG RESISTOR 470kΩ 1/16W J R2002 NRSA6AJ-474W MG RESISTOR 470kΩ 1/16W J R2003 NRSA6AJ-474W MG RESISTOR 470kΩ 1/16W J R2004 NRSA6AJ-474W MG RESISTOR 470kΩ 1/16W J R2005 NRSA6AJ-474W MG RESISTOR 470kΩ 1/16W J R2006 NRSA6AJ-474W MG RESISTOR 470kΩ 1/16W J R2007 NRSA6AJ-474W MG RESISTOR 470kΩ 1/16W J R2008 NRSA6AJ-474W MG RESISTOR 470kΩ 1/16W J R2009 NRSA6AJ-474W MG RESISTOR 470kΩ 1/16W J R2010 NRSA6AJ-474W MG RESISTOR 470kΩ 1/16W J R2011 NRSA6AJ-474W MG RESISTOR 470kΩ 1/16W J R2012 NRSA6AJ-474W MG RESISTOR 470kΩ 1/16W J R2201 NRSA6AJ-684W MG RESISTOR 680kΩ 1/16W J R2202 NRSA6AJ-564W MG RESISTOR 560kΩ 1/16W J R2203 NRSA6AJ-393W MG RESISTOR 39kΩ 1/16W J  Symbol No. Part No. Part Name Description Local R2204 NRSA6AJ-154W MG RESISTOR 150kΩ 1/16W J R2206 NRSA6AJ-333W MG RESISTOR 33kΩ 1/16W J R2207 NRSA6AJ-333W MG RESISTOR 33kΩ 1/16W J R2208 NRSA6AJ-223W MG RESISTOR 22kΩ 1/16W J R2209 NRSA6AJ-223W MG RESISTOR 22kΩ 1/16W J R2210 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R2211 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R2212 NRSA6AJ-2R7W MG RESISTOR 2.7Ω 1/16W J R2213 NRSA6AJ-2R7W MG RESISTOR 2.7Ω 1/16W J R2217 NRSA6AJ-100W MG RESISTOR 10Ω 1/16W J R2218 NRSA6AJ-100W MG RESISTOR 10Ω 1/16W J R2219 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R2220 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R2221 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R2222 NRSA6AJ-100W MG RESISTOR 10Ω 1/16W J R2223 NRSA6AJ-100W MG RESISTOR 10Ω 1/16W J R2224 NRSA6AJ-100W MG RESISTOR 10Ω 1/16W J R2225 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R2226 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R2229 NRSA6AJ-564W MG RESISTOR 560kΩ 1/16W J R2230 NRSA6AJ-564W MG RESISTOR 560kΩ 1/16W J R2231 NRSA6AJ-332W MG RESISTOR 3.3kΩ 1/16W J R2401 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J R2402 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J R2403 NRSA6AJ-183W MG RESISTOR 18kΩ 1/16W J R2406 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R2407 NRSA6AJ-100W MG RESISTOR 10Ω 1/16W J R2601 NRSA6AJ-182W MG RESISTOR 1.8kΩ 1/16W J R2602 NRSA6AJ-182W MG RESISTOR 1.8kΩ 1/16W J R2607 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J R2608 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J R2609 NRSA6AJ-223W MG RESISTOR 22kΩ 1/16W J R2610 NRSA6AJ-223W MG RESISTOR 22kΩ 1/16W J R3002 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R3004 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R3005 NRSA6AJ-100W MG RESISTOR 10Ω 1/16W J R3006 NRSA6AJ-100W MG RESISTOR 10Ω 1/16W J R3007 NRSA6AJ-562W MG RESISTOR 5.6kΩ 1/16W J R3008 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J R3009 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R3010 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R3011 NRSA6AJ-224W MG RESISTOR 220kΩ 1/16W J R3013 NRSA6AJ-242W MG RESISTOR 2.4kΩ 1/16W J R3014 NRSA6AJ-392W MG RESISTOR 3.9kΩ 1/16W J R3015 NRSA6AJ-392W MG RESISTOR 3.9kΩ 1/16W J R3016 NRVA6AD-560W CMF RESISTOR 56Ω 1/16W D R3017 NRVA6AD-560W CMF RESISTOR 56Ω 1/16W D R3018 NRVA6AD-560W CMF RESISTOR 56Ω 1/16W D R3019 NRVA6AD-560W CMF RESISTOR 56Ω 1/16W D R3020 NRVA6AD-512W CMF RESISTOR 5.1kΩ 1/16W D R3021 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R3025 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R3027 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R3029 NRSA6AJ-822W MG RESISTOR 8.2kΩ 1/16W J R3030 NRSA6AJ-224W MG RESISTOR 220kΩ 1/16W J R3031 NRSA6AJ-224W MG RESISTOR 220kΩ 1/16W J R3032 NRSA6AJ-105W MG RESISTOR 1MΩ 1/16W J R3034 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J R3036 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R3037 NRSA6AJ-681W MG RESISTOR 680Ω 1/16W J R3057 NRSA6AJ-151W MG RESISTOR 150Ω 1/16W J R3066 NRSA6AJ-561W MG RESISTOR 560Ω 1/16W J R3067 NRSA6AJ-561W MG RESISTOR 560Ω 1/16W J R3068 NRSA6AJ-181W MG RESISTOR 180Ω 1/16W J R3069 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J R3071 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R3074 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R3082 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R3701 NRSA6AD-271W MG RESISTOR 270Ω 1/16W D R3702 NRSA6AD-271W MG RESISTOR 270Ω 1/16W D R3703 NRSA6AJ-332W MG RESISTOR 3.3kΩ 1/16W J R3704 NRSA6AD-301W MG RESISTOR 300Ω 1/16W D R3705 NRSA6AD-301W MG RESISTOR 300Ω 1/16W D R3706 NRSA6AJ-332W MG RESISTOR 3.3kΩ 1/16W J R3707 NRSA6AD-680W MG RESISTOR 68Ω 1/16W D R3708 NRSA6AD-680W MG RESISTOR 68Ω 1/16W D R3709 NRSA6AD-680W MG RESISTOR 68Ω 1/16W D R3710 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J  Symbol No. Part No. Part Name Description Local MODEL MARK GR-D30UB A GR-D31US C GR-D70US D MODEL MARK GR-D90UB E GR-D91US G GR-D30US B GR-D90US F 3-15 R3711 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R3712 NRSA6AJ-105W MG RESISTOR 1MΩ 1/16W J R3713 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R3714 NRSA6AJ-823W MG RESISTOR 82kΩ 1/16W J R3715 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R3722 NRSA6AD-131W MG RESISTOR 130Ω 1/16W D R3724 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J R3725 NRSA6AD-131W MG RESISTOR 130Ω 1/16W D R3726 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J R3727 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J R3728 NRSA6AD-131W MG RESISTOR 130Ω 1/16W D R3730 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J R3731 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J D,E,F,G R3732 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J D,E,F,G R3733 NRSA6AD-561W MG RESISTOR 560Ω 1/16W D D,E,F,G R3734 NRSA6AJ-822W MG RESISTOR 8.2kΩ 1/16W J D,E,F,G R3735 NRSA6AD-182W MG RESISTOR 1.8kΩ 1/16W D D,E,F,G R3736 NRSA6AJ-183W MG RESISTOR 18kΩ 1/16W J D,E,F,G R3737 NRSA6AJ-183W MG RESISTOR 18kΩ 1/16W J D,E,F,G R3738 NRSA6AJ-681W MG RESISTOR 680Ω 1/16W J D,E,F,G R3739 NRSA6AJ-821W MG RESISTOR 820Ω 1/16W J D,E,F,G R3740 NRSA6AJ-821W MG RESISTOR 820Ω 1/16W J D,E,F,G R3741 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J D,E,F,G R3742 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J D,E,F,G R3743 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J D,E,F,G R3744 NRSA6AD-561W MG RESISTOR 560Ω 1/16W D D,E,F,G R3745 NRSA6AD-152W MG RESISTOR 1.5kΩ 1/16W D D,E,F,G R3746 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J D,E,F,G R3747 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J D,E,F,G R3748 NRSA6AJ-474W MG RESISTOR 470kΩ 1/16W J D,E,F,G R3801 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J D,E,F,G R3802 NRSA6AD-821W MG RESISTOR 820Ω 1/16W D D,E,F,G R3803 NRSA6AD-273W MG RESISTOR 27kΩ 1/16W D D,E,F,G R3804 NRSA6AD-153W MG RESISTOR 15kΩ 1/16W D D,E,F,G R3805 NRSA6AD-821W MG RESISTOR 820Ω 1/16W D D,E,F,G R3807 NRSA6AJ-220W MG RESISTOR 22Ω 1/16W J R3851 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J A,B,C R3852 NRSA6AD-821W MG RESISTOR 820Ω 1/16W D A,B,C R3853 NRSA6AD-273W MG RESISTOR 27kΩ 1/16W D A,B,C R3854 NRSA6AD-153W MG RESISTOR 15kΩ 1/16W D A,B,C R3855 NRSA6AD-821W MG RESISTOR 820Ω 1/16W D A,B,C R4201 NRSA6AJ-333W MG RESISTOR 33kΩ 1/16W J R4202 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4203 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4204 NRSA6AJ-220W MG RESISTOR 22Ω 1/16W J R4205 NRSA6AJ-220W MG RESISTOR 22Ω 1/16W J R4301 NRSA6AJ-220W MG RESISTOR 22Ω 1/16W J R4302 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4304 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4306 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4307 NRSA6AJ-470W MG RESISTOR 47Ω 1/16W J R4308 NRSA6AJ-470W MG RESISTOR 47Ω 1/16W J R4309 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4310 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4315 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4317 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4319 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4321 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4326 NRSA6AJ-470W MG RESISTOR 47Ω 1/16W J R4327 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4328 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4329 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4330 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4331 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4332 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4333 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4334 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4335 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4336 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4337 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4338 NRSA6AJ-220W MG RESISTOR 22Ω 1/16W J R4339 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4341 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4342 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4343 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4344 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4345 NRSA6AJ-220W MG RESISTOR 22Ω 1/16W J R4346 NRSA6AJ-220W MG RESISTOR 22Ω 1/16W J  Symbol No. Part No. Part Name Description Local R4348 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4349 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4350 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4351 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4352 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4353 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4354 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4355 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4356 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4804 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R4805 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R4806 NRSA6AJ-683W MG RESISTOR 68kΩ 1/16W J R4807 NRSA6AJ-823W MG RESISTOR 82kΩ 1/16W J R4808 NRSA6AJ-243W MG RESISTOR 24kΩ 1/16W J R4809 NRSA6AJ-681W MG RESISTOR 680Ω 1/16W J R4810 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R4811 NRSA6AJ-824W MG RESISTOR 820kΩ 1/16W J R4812 NRSA6AJ-153W MG RESISTOR 15kΩ 1/16W J R4814 NRSA6AJ-105W MG RESISTOR 1MΩ 1/16W J R4815 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J R4816 NRSA6AJ-105W MG RESISTOR 1MΩ 1/16W J R4817 NRSA6AJ-334W MG RESISTOR 330kΩ 1/16W J R4818 NRSA6AJ-154W MG RESISTOR 150kΩ 1/16W J R4819 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R4820 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R4821 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R4822 NRSA6AJ-333W MG RESISTOR 33kΩ 1/16W J R4823 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R4824 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J R4825 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J D,E,F,G R4826 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J D,E,F,G R4827 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4828 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4833 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R4836 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R4837 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R4839 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R4840 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R4841 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J A,B,C R4842 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J A,B,C R4843 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4844 NRSA6AJ-151W MG RESISTOR 150Ω 1/16W J R4846 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R4849 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R4854 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4856 NRSA6AJ-6R8W MG RESISTOR 6.8Ω 1/16W J R4857 NRSA6AJ-6R8W MG RESISTOR 6.8Ω 1/16W J R4858 NRSA6AJ-333W MG RESISTOR 33kΩ 1/16W J R4859 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4860 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4862 NRSA6AJ-6R8W MG RESISTOR 6.8Ω 1/16W J R4863 NRSA6AJ-6R8W MG RESISTOR 6.8Ω 1/16W J R4864 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R4865 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R4866 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R4867 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R4868 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4870 NRSA6AJ-271W MG RESISTOR 270Ω 1/16W J R4871 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4874 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R4875 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R5501 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R5503 NRSA6AJ-220W MG RESISTOR 22Ω 1/16W J R5504 NRSA6AJ-220W MG RESISTOR 22Ω 1/16W J R5505 NRSA6AJ-220W MG RESISTOR 22Ω 1/16W J R5506 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R5507 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R5509 NRSA6AJ-470W MG RESISTOR 47Ω 1/16W J R5511 NRSA6AJ-470W MG RESISTOR 47Ω 1/16W J R5512 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R5513 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R5514 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R6021 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R6022 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R6023 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R6024 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R6025 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R6026 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J  Symbol No. Part No. Part Name Description Local MODEL MARK GR-D30UB A GR-D31US C GR-D70US D MODEL MARK GR-D90UB E GR-D91US G GR-D30US B GR-D90US F 3-16 R6027 NRSA6AD-103W MG RESISTOR 10kΩ 1/16W D R6028 NRSA6AD-751W MG RESISTOR 750Ω 1/16W D R6029 NRSA6AD-103W MG RESISTOR 10kΩ 1/16W D R6030 NRSA6AJ-333W MG RESISTOR 33kΩ 1/16W J R6031 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J R6033 NRSA6AJ-562W MG RESISTOR 5.6kΩ 1/16W J R6034 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J F R6034 NRSA6AJ-153W MG RESISTOR 15kΩ 1/16W J A,B,C,D,E,G R6035 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R6036 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R6037 NRSA6AD-153W MG RESISTOR 15kΩ 1/16W D R6038 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R6039 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R6040 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R6042 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R6044 NRSA6AJ-224W MG RESISTOR 220kΩ 1/16W J R6102 NRVA6AD-223W CMF RESISTOR 22kΩ 1/16W D R6103 NRVA6AD-103W CMF RESISTOR 10kΩ 1/16W D R6104 NRSA6AJ-474W MG RESISTOR 470kΩ 1/16W J R6105 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R6106 NRSA6AJ-332W MG RESISTOR 3.3kΩ 1/16W J R6107 NRSA6AD-183W MG RESISTOR 18kΩ 1/16W D R6108 NRSA6AD-123W MG RESISTOR 12kΩ 1/16W D R6109 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R6202 NRSA6AD-123W MG RESISTOR 12kΩ 1/16W D R6203 NRSA6AD-153W MG RESISTOR 15kΩ 1/16W D R6302 NRSA6AD-183W MG RESISTOR 18kΩ 1/16W D R6303 NRSA6AD-472W MG RESISTOR 4.7kΩ 1/16W D R6305 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R6306 NRSA6AJ-123W MG RESISTOR 12kΩ 1/16W J R6308 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J R6309 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R6402 NRSA6AD-243W MG RESISTOR 24kΩ 1/16W D R6403 NRSA6AD-302W MG RESISTOR 3kΩ 1/16W D R6405 NRSA6AJ-123W MG RESISTOR 12kΩ 1/16W J R6406 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R6407 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R6502 NRSA6AD-473W MG RESISTOR 47kΩ 1/16W D R6503 NRSA6AD-562W MG RESISTOR 5.6kΩ 1/16W D R6505 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J R6506 NRSA6AJ-273W MG RESISTOR 27kΩ 1/16W J R6602 NRSA6AD-114W MG RESISTOR 110kΩ 1/16W D R6603 NRSA6AD-392W MG RESISTOR 3.9kΩ 1/16W D R6604 NRSA6AD-114W MG RESISTOR 110kΩ 1/16W D R6605 NRSA6AJ-222W MG RESISTOR 2.2kΩ 1/16W J R6606 NRSA6AD-104W MG RESISTOR 100kΩ 1/16W D R6607 NRSA6AD-473W MG RESISTOR 47kΩ 1/16W D R6608 NRSA6AJ-273W MG RESISTOR 27kΩ 1/16W J R6609 NRSA6AJ-822W MG RESISTOR 8.2kΩ 1/16W J R6610 NRSA6AD-473W MG RESISTOR 47kΩ 1/16W D R6611 NRSA6AD-683W MG RESISTOR 68kΩ 1/16W D R6612 NRSA6AJ-104W MG RESISTOR 100kΩ 1/16W J R6613 NRSA6AJ-823W MG RESISTOR 82kΩ 1/16W J R6614 NRSA6AD-104W MG RESISTOR 100kΩ 1/16W D R6615 NRSA6AD-104W MG RESISTOR 100kΩ 1/16W D R6616 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J R6617 NRSA6AJ-333W MG RESISTOR 33kΩ 1/16W J R6618 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R6619 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R6701 NRZ0058-R20X MG RESISTOR 0.2Ω 1/2W J R6702 NRSA6AD-114W MG RESISTOR 110kΩ 1/16W D R6703 NRSA6AD-153W MG RESISTOR 15kΩ 1/16W D R6704 NRSA6AJ-224W MG RESISTOR 220kΩ 1/16W J R6706 NRSA6AD-823W MG RESISTOR 82kΩ 1/16W D R6707 NRSA6AD-333W MG RESISTOR 33kΩ 1/16W D R6801 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R6803 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J R6804 NRVA6AD-563W CMF RESISTOR 56kΩ 1/16W D  R6805 NRSA6AJ-102W MG RESISTOR 1kΩ 1/16W J R6813 NRVA6AD-273W CMF RESISTOR 27kΩ 1/16W D R6815 NRSA6AJ-681W MG RESISTOR 680Ω 1/16W J R8001 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J D,E,F,G R8002 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J D,E,F,G R8003 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J D,E,F,G R8004 NQL402M-100X COIL 10uH M D,E,F,G R8005 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R8006 NRSA6AJ-153W MG RESISTOR 15kΩ 1/16W J D,E,F,G R8007 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J D,E,F,G  Symbol No. Part No. Part Name Description Local R8009 NRSA6AJ-472W MG RESISTOR 4.7kΩ 1/16W J D,E,F,G R8016 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J D,E,F,G R8017 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J D,E,F,G R8020 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R8022 NRSA6AJ-105W MG RESISTOR 1MΩ 1/16W J D,E,F,G R8025 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R8026 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R8027 NRSA6AJ-152W MG RESISTOR 1.5kΩ 1/16W J D,E,F,G R8028 NRS181J-220X MG RESISTOR 22Ω 1/8W J D,E,F,G R8029 NRS181J-220X MG RESISTOR 22Ω 1/8W J D,E,F,G R8030 NRSA6AJ-105W MG RESISTOR 1MΩ 1/16W J D,E,F,G R8031 NRSA6AJ-105W MG RESISTOR 1MΩ 1/16W J D,E,F,G R8032 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R8036 NRSA6AJ-105W MG RESISTOR 1MΩ 1/16W J D,E,F,G R8037 NRSA6AJ-103W MG RESISTOR 10kΩ 1/16W J D,E,F,G R8038 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R8043 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R8046 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R8051 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R8054 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R8055 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R8058 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R8059 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J R8060 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R8063 NRSA6AJ-220W MG RESISTOR 22Ω 1/16W J D,E,F,G R8065 NRSA6AJ-101W MG RESISTOR 100Ω 1/16W J D,E,F,G R8066 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J D,E,F,G R8067 NDCA1HJ-100W C CAPACITOR 10pF 50V J D,E,F,G R8068 NRSA6AJ-561W MG RESISTOR 560Ω 1/16W J D,E,F,G R8071 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R8074 NRSA6AJ-473W MG RESISTOR 47kΩ 1/16W J D,E,F,G R8716 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G R8717 NRSA6AJ-0R0W MG RESISTOR 0Ω 1/16W J D,E,F,G RA1001 NRZ0034-473W NET RESISTOR 47kΩ 1/32W J RA1002 NRZ0034-104W NET RESISTOR 100kΩ 1/32W J RA1004 NRZ0034-104W NET RESISTOR 100kΩ 1/32W J RA1005 NRZ0034-103W NET RESISTOR 10kΩ 1/32W J RA1006 NRZ0034-102W NET RESISTOR 1kΩ 1/32W J RA1007 NRZ0034-102W NET RESISTOR 1kΩ 1/32W J RA1008 NRZ0034-104W NET RESISTOR 100kΩ 1/32W J RA3001 NRZ0034-560W NET RESISTOR 56Ω 1/32W J RA3002 NRZ0034-560W NET RESISTOR 56Ω 1/32W J RA3003 NRZ0034-100W NET RESISTOR 10Ω 1/32W J RA3004 NRZ0034-103W NET RESISTOR 10kΩ 1/32W J RA3005 NRZ0040-0R0X NET RESISTOR 0Ω 1/16W J RA8001 NRZ0034-101W NET RESISTOR 100Ω 1/32W J D,E,F,G RA8002 NRZ0034-101W NET RESISTOR 100Ω 1/32W J D,E,F,G RA8003 NRZ0034-101W NET RESISTOR 100Ω 1/32W J D,E,F,G RA8004 NRZ0034-101W NET RESISTOR 100Ω 1/32W J D,E,F,G L1001 NQL402M-100X COIL 10uH M L1002 NQL402M-100X COIL 10uH M L2401 NQL402M-100X COIL 10uH M L2402 NQL402M-100X COIL 10uH M L2604 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J L3001 NQR0129-002X FERRITE BEADS L3002 NQR0129-002X FERRITE BEADS L3004 NQR0006-001X FERRITE BEADS L3005 NQR0006-001X FERRITE BEADS L3007 NQL085J-2R2X COIL 2.2uH J L3008 NQL085J-120X COIL 12uH J L3012 NQR0129-002X FERRITE BEADS L3014 NQL38DK-100X P COIL 10uH K L3015 NQR0006-001X FERRITE BEADS L3701 NQL38DK-100X P COIL 10uH K L3731 NQL085J-6R8X COIL 6.8uH J D,E,F,G L3732 NQL085J-6R8X COIL 6.8uH J D,E,F,G L3801 NQR0129-002X FERRITE BEADS L3802 NQR0129-002X FERRITE BEADS L3803 NQR0006-001X FERRITE BEADS L3804 NQL38DK-100X P COIL 10uH K L4201 NQR0129-002X FERRITE BEADS L4301 NQR0129-002X FERRITE BEADS L4302 NQR0129-002X FERRITE BEADS L4802 NQL302N-100X COIL 10uH N L4851 NQR0129-002X FERRITE BEADS L4852 NQL315K-100X COIL 10uH K L4853 NQL315K-100X COIL 10uH K  Symbol No. Part No. Part Name Description Local MODEL MARK GR-D30UB A GR-D31US C GR-D70US D MODEL MARK GR-D90UB E GR-D91US G GR-D30US B GR-D90US F 3-17 MONI-BW BOARD ASSEMBLY <02> L5501 NQL315K-100X COIL 10uH K L5502 NQR0129-002X FERRITE BEADS L5503 NQR0129-002X FERRITE BEADS L5504 NQR0129-002X FERRITE BEADS L5505 NQL315K-100X COIL 10uH K L5506 NQL315K-100X COIL 10uH K L6001 NQLZ011-4R7X COIL 4.7uH N L6002 NQLZ011-4R7X COIL 4.7uH N L6101 NQL52EM-390X COIL 39uH M L6201 NQL52EM-390X COIL 39uH M L6301 NQL52EM-390X COIL 39uH M L6302 NQL144K-220X P COIL 22uH K L6401 NQL52EM-470X COIL 47uH M L6501 NQL52EM-470X COIL 47uH M L6601 NQL52EM-221X COIL 220uH M L6701 NQL73EM-100X COIL 10uH M L6801 NQL034K-470X P COIL 47uH K L8001 NQR0129-002X FERRITE BEADS D,E,F,G L8002 NQR0129-002X FERRITE BEADS D,E,F,G L8003 NQR0129-002X FERRITE BEADS D,E,F,G L8004 NQR0129-002X FERRITE BEADS D,E,F,G L8005 NQR0129-002X FERRITE BEADS D,E,F,G CN101 QGF0528F1-40X CONNECTOR FFC/FPC (1-40) CN102 QGF0505F1-22X CONNECTOR FFC/FPC (1-22) CN103 QGF0507F3-10X CONNECTOR FFC/FPC (1-10) D,E,F,G CN104 QGA1002C1-11X CONNECTOR W-B (1-11) CN105 QGB0509M1-30X CONNECTOR B-B (1-30) CN106 QGA1201C2-05X CONNECTOR W-B (1-5) CN107 QGF0503C1-20X CONNECTOR FFC/FPC (1-20) CN108 QGF0503C1-24V CONNECTOR FFC/FPC (1-24) CN109 QGF0503F1-16X CONNECTOR FFC/FPC (1-16) CN110 QGF0528F1-40X CONNECTOR FFC/FPC (1-40) CN111 QGF0528F1-40X CONNECTOR FFC/FPC (1-40)  F6001 NMFZ007-2R0X-K FUSE 2A 32V  F6301 NMFZ007-1R25X-K FUSE 1.25A 32V  F6701 NMFZ007-1R25X-K FUSE 1.25A 32V  F6801 NMFZ007-R50X-K FUSE 0.5A 50V J501 NNZ0041-001X D CONNECTOR IEEE1394(4pin) J502 QNZ0616-001 USB CONNECTOR D,E,F,G X1001 NAX0578-001X CRYSTAL X1002 NAX0564-001X CRYSTAL X3002 NAX0480-001X CRYSTAL 24.576MHz X5501 NAX0587-001X CXO X8002 NAX0398-001X C OSCILLATOR D,E,F,G OT1 LY30030-069A SPACER(A) A,B,C OT1 LY30030-071A SPACER(A) D,E,F,G OT2 LY44158-001A SHEET(SHIELD) WR1 QAL0474-001 FPC MAIN-PREMDA CN401 WR2 QAL0474-001 FPC MAIN-PREMDA CN408  Symbol No. Part No. Part Name Description Local PW1 YB10402A-01 MONI-BW BOARD ASSY A,B PW1 YB10402B-01 MONI-BW BOARD ASSY D PW1 YB10402C-01 MONI-BW BOARD ASSY E,F,G PW1 YB10402D-01 MONI-BW BOARD ASSY C IC7601 AN12550A IC IC7602 BA4558F-X IC Q7601 2SC4617/QR/-X TRANSISTOR Q7601 or 2SC4738/YG/-X TRANSISTOR Q7601 or 2SD2216J/QR/-X TRANSISTOR Q7601 or BC847BT-X TRANSISTOR Q7602 2SA1774/QR/-X TRANSISTOR Q7602 or 2SA1832/YG/-X TRANSISTOR Q7602 or BC857BT-X TRANSISTOR Q7603 2SC4617/QR/-X TRANSISTOR Q7603 or 2SC4738/YG/-X TRANSISTOR Q7603 or 2SD2216J/QR/-X TRANSISTOR Q7603 or BC847BT-X TRANSISTOR Q7604 2SA1774/QR/-X TRANSISTOR  Symbol No. Part No. Part Name Description Local Q7604 or 2SA1832/YG/-X TRANSISTOR Q7604 or BC857BT-X TRANSISTOR Q7608 DTC144EE-X DIGI TRANSISTOR Q7608 or UN9213J-X DIGI TRANSISTOR Q7608 or RN1104-X DIGI TRANSISTOR Q7608 or BCR148T-X DIGI TRANSISTOR Q7609 or BC847BT-X TRANSISTOR E Q7609 DTC144EE-X DIGI TRANSISTOR Q7609 or UN9213J-X DIGI TRANSISTOR Q7609 or RN1104-X DIGI TRANSISTOR Q7610 DTA114EE-X DIGI TRANSISTOR Q7610 or BCR183T-X DIGI TRANSISTOR Q7611 DTC144EE-X DIGI TRANSISTOR Q7611 or UN9213J-X DIGI TRANSISTOR Q7611 or RN1104-X DIGI TRANSISTOR Q7611 or BCR148T-X DIGI TRANSISTOR Q7612 DTA144EE-X DIGI TRANSISTOR Q7612 or UN9113J-X DIGI TRANSISTOR Q7612 or RN2104-X DIGI TRANSISTOR Q7612 or BCR198T-X DIGI TRANSISTOR D11 RSA6.1J4-W SI DIODE D,E,F,G D7602 1SS355-X SI DIODE C1 NCB31EK-103X C CAPACITOR 0.01uF 25V K C10 NCB31CK-104X C CAPACITOR 0.1uF 16V K C11 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M D,E,F,G C7601 NCB21CK-105X C CAPACITOR 1uF 16V K C7602 NCB31EK-103X C CAPACITOR 0.01uF 25V K C7603 NCB11CK-225X C CAPACITOR 2.2uF 16V K C7604 NCB11CK-225X C CAPACITOR 2.2uF 16V K C7605 NCB11CK-225X C CAPACITOR 2.2uF 16V K C7606 NCB31CK-104X C CAPACITOR 0.1uF 16V K C7607 NCB41CK-106X C CAPACITOR 10uF 16V K C7608 NCB31EK-103X C CAPACITOR 0.01uF 25V K C7609 NCB31CK-104X C CAPACITOR 0.1uF 16V K C7613 NCB11CK-225X C CAPACITOR 2.2uF 16V K C7614 NCB31HK-152X C CAPACITOR 1500pF 50V K C7615 NCB31EK-103X C CAPACITOR 0.01uF 25V K C7616 NCB31EK-103X C CAPACITOR 0.01uF 25V K C7617 NCB31EK-103X C CAPACITOR 0.01uF 25V K C7618 NCB10JK-106X C CAPACITOR 10uF 6.3V K C7619 NCB10JK-106X C CAPACITOR 10uF 6.3V K C7620 NCB31EK-103X C CAPACITOR 0.01uF 25V K C7621 NCB21CK-105X C CAPACITOR 1uF 16V K C7622 NCB21CK-105X C CAPACITOR 1uF 16V K C7623 NBE21AM-106X TA E CAPACITOR 10uF 10V M C7624 NCB31EK-103X C CAPACITOR 0.01uF 25V K C7626 NCB31CK-104X C CAPACITOR 0.1uF 16V K C7627 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C7628 NBP41EM-475X TA E CAPACITOR 4.7uF 25V M C7629 NBP21CM-335X TA E CAPACITOR 3.3uF 16V M C7630 NBP41EM-475X TA E CAPACITOR 4.7uF 25V M C7631 NCB31EK-103X C CAPACITOR 0.01uF 25V K C7632 NBP41EM-475X TA E CAPACITOR 4.7uF 25V M C7633 NCB31EK-103X C CAPACITOR 0.01uF 25V K C7634 NCB11CK-225X C CAPACITOR 2.2uF 16V K C7635 NCB31EK-103X C CAPACITOR 0.01uF 25V K C7637 NCB31EK-103X C CAPACITOR 0.01uF 25V K C7646 NCB31EK-103X C CAPACITOR 0.01uF 25V K C7647 NCB31EK-103X C CAPACITOR 0.01uF 25V K C7651 NCB11CK-225X C CAPACITOR 2.2uF 16V K C7661 NCB31CK-104X C CAPACITOR 0.1uF 16V K C7662 NCB31CK-104X C CAPACITOR 0.1uF 16V K C7663 NCB31CK-104X C CAPACITOR 0.1uF 16V K C7664 NCB31CK-104X C CAPACITOR 0.1uF 16V K C7665 NBP41CM-226X TA E CAPACITOR 22uF 16V M C7666 NCB31CK-104X C CAPACITOR 0.1uF 16V K R3 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R4 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R5 NRSA63J-682X MG RESISTOR 6.8kΩ 1/16W J R6 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R7 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R8 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R18 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J D,E,F,G R19 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J D,E,F,G R21 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J D,E,F,G  Symbol No. Part No. Part Name Description Local MODEL MARK GR-D30UB A GR-D31US C GR-D70US D MODEL MARK GR-D90UB E GR-D91US G GR-D30US B GR-D90US F 3-18 BL-2.5/BL-3.5 BOARD ASSEMBLY <03> CCD BOARD ASSEMBLY <04> PREMDA BOARD ASSEMBLY <05> R22 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J D,E,F,G R23 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J D,E,F,G R25 NRSA63J-473X MG RESISTOR 47kΩ 1/16W J D,E,F,G R7601 NRVA63D-622X CMF RESISTOR 6.2kΩ 1/16W D R7602 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R7603 NRSA63J-683X MG RESISTOR 68kΩ 1/16W J A,B,D R7608 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R7609 NRVA63D-223X CMF RESISTOR 22kΩ 1/16W D R7610 NRVA63D-433X CMF RESISTOR 43kΩ 1/16W D R7611 NRVA63D-821X CMF RESISTOR 820Ω 1/16W D R7612 NRVA63D-223X CMF RESISTOR 22kΩ 1/16W D R7613 NRVA63D-223X CMF RESISTOR 22kΩ 1/16W D R7614 NRVA63D-223X CMF RESISTOR 22kΩ 1/16W D R7615 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R7616 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R7617 NRSA02J-561X MG RESISTOR 560Ω 1/10W J R7618 NRSA02J-561X MG RESISTOR 560Ω 1/10W J R7619 NRVA63D-153X CMF RESISTOR 15kΩ 1/16W D C,E,F,G R7620 NRSA63J-335X MG RESISTOR 3.3MΩ 1/16W J R7621 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R7630 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R7634 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R7636 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R7637 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R7638 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R7639 NRVA63D-183X CMF RESISTOR 18kΩ 1/16W D C,E,F,G R7661 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R7662 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R7663 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R7666 NRSA63J-153X MG RESISTOR 15kΩ 1/16W J R7667 NRVA63D-273X CMF RESISTOR 27kΩ 1/16W D R7668 NRVA63D-273X CMF RESISTOR 27kΩ 1/16W D R7669 NRVA63D-392X CMF RESISTOR 3.9kΩ 1/16W D L10 NQR0129-002X FERRITE BEADS D,E,F,G L7601 NQL365K-100X COIL 10uH K L7602 NQL365K-470X COIL 47uH K L7603 NQL365K-470X COIL 47uH K L7604 NQL365K-100X COIL 10uH K L7605 NQL365K-100X COIL 10uH K L7607 NQL365K-100X COIL 10uH K CN761 QGF0508F1-40X CONNECTOR FFC/FPC (1-40) CN762 QGF0508F1-10X CONNECTOR FFC/FPC (1-10) D,E,F,G CN763 QGF0507F3-20X CONNECTOR FFC/FPC (1-20) A,B,D CN764 QGF0503C1-20X CONNECTOR FFC/FPC (1-20) C,E,F,G CN765 QGF0506F2-32X CONNECTOR FFC/FPC (1-32) CN766 NNZ0058-001X SD CARD CONNECTOR D,E,F,G SW2 NSW0145-001X TACT SWITCH STOP SW3 NSW0145-001X TACT SWITCH REW SW4 NSW0145-001X TACT SWITCH FF SW5 NSW0145-001X TACT SWITCH PLAY/PAUSE SW6 NSW0099-001X SLIDE SWITCH DSC/VIDEO D,E,F,G SW7 NSW0145-001X TACT SWITCH INDEX SW8 NSW0145-001X TACT SWITCH SELECT SW7601 NSW0200-001X LEVER SWITCH MONI SW A,B,D SW7602 NSW0200-001X LEVER SWITCH MONI SW C,E,F,G  Symbol No. Part No. Part Name Description Local PW1 YB20938A BL-2.5 BOARD ASSY A,B,D PW1 YB20939A BL-3.5 BOARD ASSY C,E,F,G IC7604 DN8797MS-X IC Q7501 2SD1664/QR/-W TRANSISTOR Q7502 2SD1664/QR/-W TRANSISTOR Q7503 DTA144EE-X DIGI TRANSISTOR Q7503 or UN9113J-X DIGI TRANSISTOR Q7503 or RN2104-X DIGI TRANSISTOR Q7503 or BCR198T-X DIGI TRANSISTOR Q7504 DTC144EE-X DIGI TRANSISTOR Q7504 or UN9213J-X DIGI TRANSISTOR  Symbol No. Part No. Part Name Description Local Q7504 or RN1104-X DIGI TRANSISTOR Q7504 or BCR148T-X DIGI TRANSISTOR C7501 NCZ1016-120X C CAPACITOR 12pF 2kV J C7502 NCB21EK-273X C CAPACITOR 0.027uF 25V K C7503 NCB31EK-103X C CAPACITOR 0.01uF 25V K C7504 NCB10JK-106X C CAPACITOR 10uF 6.3V K R7501 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R7502 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R7503 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R7504 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R7511 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R7512 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R7513 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J L7501 NQLZ010-680X COIL 68uH M  T7501 NQS0056-001X SW TARNSF CN7601 QGF0507F3-16X CONNECTOR FFC/FPC (1-16) CN7602 QGF0507F3-16X CONNECTOR FFC/FPC (1-16) CN7603 QGF0508F1-24X CONNECTOR FFC/FPC (1-24)  F7501 NMFZ007-R40X-K FUSE 0.4A 50V WR1 QAL0464-001 FPC  Symbol No. Part No. Part Name Description Local PW1 YB10406A-01-SS CCD BOARD ASSY E,F,G PW1 YB10406B-01-SS CCD BOARD ASSY C PW1 YB20942A-SS CCD BOARD ASSY A,B PW1 YB20942B-SS CCD BOARD ASSY D Q5001 2SC3931/CD/-X TRANSISTOR Q5002 2SC4081/QR/-X TRANSISTOR D,E,F,G Q5002 or BC847BW-X TRANSISTOR D,E,G C5001 NBP41DM-475X TA E CAPACITOR 4.7uF 20V M F C5001 NBP41EM-475X TA E CAPACITOR 4.7uF 25V M A,B,C,D,E,G C5002 NCB31CK-104X C CAPACITOR 0.1uF 16V K C5003 NBE21AM-106X TA E CAPACITOR 10uF 10V M C5004 NCB31CK-104X C CAPACITOR 0.1uF 16V K C5005 NCB31CK-104X C CAPACITOR 0.1uF 16V K C5006 NCB31CK-104X C CAPACITOR 0.1uF 16V K C5007 NCB31EK-222X C CAPACITOR 2200pF 25V K R5001 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R5002 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R5005 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J D R5005 NRS181J-472X MG RESISTOR 4.7kΩ 1/8W J E,F,G L5001 NQL315K-100X COIL 10uH K A,B,D L5001 NQL144K-100X P COIL 10uH K C,E,F,G L5002 NQL315K-100X COIL 10uH K CN5001 QGF0517F2-20X CONNECTOR FFC/FPC (1-20) A,B,D  Symbol No. Part No. Part Name Description Local PW1 YB10405A-01 PREMDA BOARD ASSY IC1601 BD6637KS IC IC1701 LM358DMR2-X IC IC1702 LM393DMR2-X IC IC3501 JCY0132 IC IC3502 SN74AHC1G04K-X IC Q1601 UMC3N-W DIGI TRANSISTOR  Symbol No. Part No. Part Name Description Local MODEL MARK GR-D30UB A GR-D31US C GR-D70US D MODEL MARK GR-D90UB E GR-D91US G GR-D30US B GR-D90US F 3-19 JACK BOARD ASSEMBLY <06> D1602 DAP222-X DIODE ARRAY D1602 or MA132WA-X SI DIODE D1603 DAP222-X DIODE ARRAY D1603 or MA132WA-X SI DIODE D1604 DAP222-X DIODE ARRAY D1604 or MA132WA-X SI DIODE C1601 NCB31EK-103X C CAPACITOR 0.01uF 25V K C1602 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C1603 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C1605 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1606 NCB31HK-152X C CAPACITOR 1500pF 50V K C1607 NCB31CK-473X C CAPACITOR 0.047uF 16V K C1614 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C1618 NCB31HK-222X C CAPACITOR 2200pF 50V K C1619 NCB31HK-222X C CAPACITOR 2200pF 50V K C1620 NCB31HK-222X C CAPACITOR 2200pF 50V K C1621 NCB30JK-105X C CAPACITOR 1uF 6.3V K C1622 NCB31CK-223X C CAPACITOR 0.022uF 16V K C1623 NCB31CK-473X C CAPACITOR 0.047uF 16V K C1624 NCB31EK-103X C CAPACITOR 0.01uF 25V K C1625 NCS31HJ-101X C CAPACITOR 100pF 50V J C1626 NCB31HK-822X C CAPACITOR 8200pF 50V K C1627 NCB31HK-822X C CAPACITOR 8200pF 50V K C1628 NCB21CK-224X C CAPACITOR 0.22uF 16V K C1629 NBP41DM-106X TA E CAPACITOR 10uF 20V M C1630 NCB21CK-334X C CAPACITOR 0.33uF 16V K C1632 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C1633 NCB21CK-474X C CAPACITOR 0.47uF 16V K C1641 NCB21CK-474X C CAPACITOR 0.47uF 16V K C1701 NCB31CK-104X C CAPACITOR 0.1uF 16V K C1702 NCB31CK-104X C CAPACITOR 0.1uF 16V K C3501 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C3502 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C3503 NBE20JM-106X TA E CAPACITOR 10uF 6.3V M C3504 NCB31CK-473X C CAPACITOR 0.047uF 16V K C3505 NCB31CK-223X C CAPACITOR 0.022uF 16V K C3506 NCB21AK-105X C CAPACITOR 1uF 10V K C3507 NCB31EK-103X C CAPACITOR 0.01uF 25V K C3508 NCB31EK-103X C CAPACITOR 0.01uF 25V K C3509 NCB31EK-103X C CAPACITOR 0.01uF 25V K C3510 NCB31CK-104X C CAPACITOR 0.1uF 16V K C3511 NCB31EK-103X C CAPACITOR 0.01uF 25V K C3512 NCB31CK-104X C CAPACITOR 0.1uF 16V K C3513 NCB31CK-104X C CAPACITOR 0.1uF 16V K C3514 NCB31CK-473X C CAPACITOR 0.047uF 16V K C3515 NCB31CK-473X C CAPACITOR 0.047uF 16V K C3516 NCB31CK-473X C CAPACITOR 0.047uF 16V K C3517 NCB31EK-103X C CAPACITOR 0.01uF 25V K C3518 NCB31EK-103X C CAPACITOR 0.01uF 25V K C3519 NCB31HK-102X C CAPACITOR 1000pF 50V K C3520 NCB31EK-103X C CAPACITOR 0.01uF 25V K C3521 NCB31CK-104X C CAPACITOR 0.1uF 16V K C3522 NCB20JM-475X C CAPACITOR 4.7uF 6.3V M C3523 NCB31EK-103X C CAPACITOR 0.01uF 25V K C3524 NCB31EK-103X C CAPACITOR 0.01uF 25V K C3525 NCB20JM-475X C CAPACITOR 4.7uF 6.3V M C3526 NCB31EK-103X C CAPACITOR 0.01uF 25V K C3527 NDC31HJ-221X C CAPACITOR 220pF 50V J C3528 NCB31EK-103X C CAPACITOR 0.01uF 25V K R1601 NRSA63J-681X MG RESISTOR 680Ω 1/16W J R1602 NRSA63J-124X MG RESISTOR 120kΩ 1/16W J R1603 NRSA63J-472X MG RESISTOR 4.7kΩ 1/16W J R1604 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R1610 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R1611 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R1612 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R1613 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1614 NRZ0072-R330X MG RESISTOR 0.33Ω 1/4W F R1616 NRSA63D-332X MG RESISTOR 3.3kΩ 1/16W D R1617 NRZ0072-R330X MG RESISTOR 0.33Ω 1/4W F R1620 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1621 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1622 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1624 NRSA63D-183X MG RESISTOR 18kΩ 1/16W D R1625 NRSA63D-361X MG RESISTOR 360Ω 1/16W D  Symbol No. Part No. Part Name Description Local R1629 NRSA63J-564X MG RESISTOR 560kΩ 1/16W J R1630 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1631 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1635 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R1636 NRSA63J-123X MG RESISTOR 12kΩ 1/16W J R1637 NRSA63J-154X MG RESISTOR 150kΩ 1/16W J R1638 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1639 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1640 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1641 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1642 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1648 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R1701 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J R1702 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1703 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1704 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1705 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R1706 NRSA63J-823X MG RESISTOR 82kΩ 1/16W J R1707 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1708 NRSA63J-124X MG RESISTOR 120kΩ 1/16W J R1709 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R1710 NRSA63J-124X MG RESISTOR 120kΩ 1/16W J R1711 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R1712 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3501 NRSA63J-471X MG RESISTOR 470Ω 1/16W J R3502 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R3503 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J R3504 NRSA63D-241X MG RESISTOR 240Ω 1/16W D R3505 NRSA63D-241X MG RESISTOR 240Ω 1/16W D R3506 NRSA63D-241X MG RESISTOR 240Ω 1/16W D R3507 NRSA63D-241X MG RESISTOR 240Ω 1/16W D R3508 NRSA63J-223X MG RESISTOR 22kΩ 1/16W J R3511 NRSA63J-101X MG RESISTOR 100Ω 1/16W J L3501 NQR0006-001X FERRITE BEADS L3502 NQL402M-100X COIL 10uH M L3503 NQR0006-001X FERRITE BEADS L3504 NQR0006-001X FERRITE BEADS L3505 NQR0006-001X FERRITE BEADS CN401 QGF0528F1-40X CONNECTOR FFC/FPC (1-40) CN402 QGF0517F1-08X CONNECTOR FFC/FPC (1-8) CN403 QGF0505F2-06X CONNECTOR FFC/FPC (1-6) CN404 QGF0507F3-11X CONNECTOR FFC/FPC (1-11) CN405 QGF0507F3-18X CONNECTOR FFC/FPC (1-18) CN406 QGF0503F4-16X CONNECTOR FFC/FPC (1-16) CN407 QGF0508F1-06X CONNECTOR FFC/FPC (1-6) CN408 QGF0528F1-40X CONNECTOR FFC/FPC (1-40)  F1601 NMFZ007-R20X-K FUSE 0.2A 50V  F1602 NMFZ007-R50X-K FUSE 0.5A 50V OT1 LY33021-001A S.COVER(P/R)  Symbol No. Part No. Part Name Description Local PW1 YB20943A-01 JACK BOARD ASSY A,B,C,D,E,F PW1 YB20943B-01 JACK BOARD ASSY G IC501 BA10358F-XE IC IC502 RPM7138-V4 IR DETECT UNIT Q501 RPM-22PB PHOTO TRANSISTOR D501 SML-010LT-X LED D503 MA8068-X Z DIODE D506 MA8068-X Z DIODE D507 EMZ6.8N-X Z DIODE G C501 NBE21AM-335X TA E CAPACITOR 3.3uF 10V M C502 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z C503 NCB31EK-153X C CAPACITOR 0.015uF 25V K C504 NCB31EK-153X C CAPACITOR 0.015uF 25V K C506 NBE21AM-106X TA E CAPACITOR 10uF 10V M C509 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M  Symbol No. Part No. Part Name Description Local MODEL MARK GR-D30UB A GR-D31US C GR-D70US D MODEL MARK GR-D90UB E GR-D91US G GR-D30US B GR-D90US F 3-20 B/W-VF BOARD ASSEMBLY <07> C512 NCB31HK-103X C CAPACITOR 0.01uF 50V K C513 NCB31HK-103X C CAPACITOR 0.01uF 50V K R501 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R502 NRSA63J-684X MG RESISTOR 680kΩ 1/16W J R503 NRSA63J-182X MG RESISTOR 1.8kΩ 1/16W J R504 NRSA63J-222X MG RESISTOR 2.2kΩ 1/16W J R505 NRSA63J-103X MG RESISTOR 10kΩ 1/16W J R506 NRSA63J-824X MG RESISTOR 820kΩ 1/16W J R507 NRSA63J-104X MG RESISTOR 100kΩ 1/16W J R508 NRSA63J-683X MG RESISTOR 68kΩ 1/16W J R509 NRSA63J-822X MG RESISTOR 8.2kΩ 1/16W J R510 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R511 NRSA63J-302X MG RESISTOR 3kΩ 1/16W J R512 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R513 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R514 NRSA63J-101X MG RESISTOR 100Ω 1/16W J R515 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R516 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R517 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R518 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R519 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R520 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R521 NRSA63J-0R0X MG RESISTOR 0Ω 1/16W J R522 NRSA63J-221X MG RESISTOR 220Ω 1/16W J G R523 NRSA63J-331X MG RESISTOR 330Ω 1/16W J G L501 NQR0251-004X FERRITE BEADS L502 NQR0251-004X FERRITE BEADS L503 NQR0251-004X FERRITE BEADS CN501 QGF0503C1-22X CONNECTOR FFC/FPC (1-22) J501 QNS0078-001 3.5 JACK J502 QND0004-001 S JACK J503 PEMC1203 MINI JACK G SW501 NSW0122-001X DETECT SWITCH EJECT SW  Symbol No. Part No. Part Name Description Local PW1 YB20940A B/W-VF BOARD ASSY Q7001 PUMX1-W PAIR TRANSISTOR Q7001 or BC847S-X PAIR TRANSISTOR D7001 E1S35AW0C501-X LED C7001 NCB31CK-104X C CAPACITOR 0.1uF 16V K C7002 NCB31CK-104X C CAPACITOR 0.1uF 16V K C7003 NCB31CK-104X C CAPACITOR 0.1uF 16V K C7004 NCB31CK-104X C CAPACITOR 0.1uF 16V K R7001 NRSA63J-332X MG RESISTOR 3.3kΩ 1/16W J R7002 NRSA63J-561X MG RESISTOR 560Ω 1/16W J R7003 NRSA63J-470X MG RESISTOR 47Ω 1/16W J R7004 NRSA63J-102X MG RESISTOR 1kΩ 1/16W J CN7001 QGF0532F1-18X CONNECTOR FFC/FPC (1-18) CN7002 QGF0507F3-20X CONNECTOR FFC/FPC (1-20)  Symbol No. Part No. Part Name Description Local (WPC)-M3D123,M3D143,M3D127,M3D147 GR-D30UB,GR-D30US,GR-D31US,GR-D70US,GR-D90UB,GR-D90US,GR-D91US MODEL MARK GR-D30UB A GR-D31US C GR-D70US D MODEL MARK GR-D90UB E GR-D91US G GR-D30US B GR-D90US F
