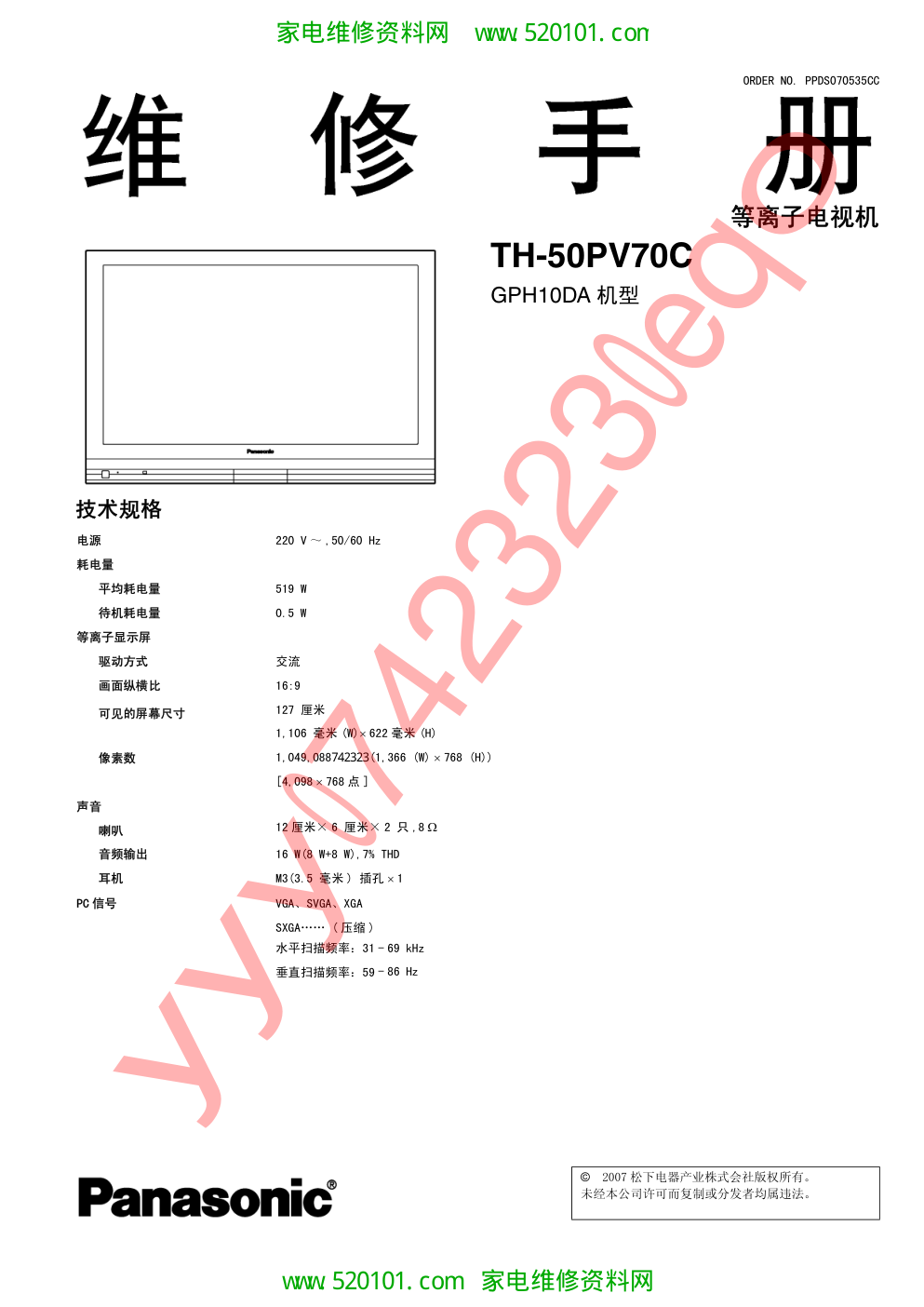

© 2007 松下电器产业株式会社版权所有。 未经本公司许可而复制或分发者均属违法。 ORDER NO. PPDS070535CC 等离子电视机 TH-50PV70C GPH10DA 机型 技术规格 电源 220 V ～ ,50/60 Hz 耗电量 平均耗电量 519 W 待机耗电量 0.5 W 等离子显示屏 驱动方式 交流 画面纵横比 16:9 可见的屏幕尺寸 127 厘米 1,106 毫米 (W)× 622 毫米 (H) 像素数 1,049,088������(1,366 (W) × 768 (H)) [4,098 × 768 点 ] 声音 喇叭 12 厘米× 6 厘米× 2 只 ,8 Ω 音频输出 16 W(8 W+8 W),7% THD 耳机 M3(3.5 毫米 ) 插孔 × 1 PC 信号 VGA、SVGA、XGA SXGA…… ( 压缩 ) 水平扫描频率：31 - 69 kHz 垂直扫描频率：59 - 86 Hz �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 2 接收系统 / 频带名称 接收频道 VHF BAND ( 普通电视 ) 2-12 (PAL/SECAM B, K1) 0-12 (PAL B AUST.) 1-9 (PAL B N.Z.) 1-12 (PAL/SECAM D) 1-12 (NTSC M 日本 ) 2-13 (NTSC M 美国 ) UHF BAND 21-69 (PAL G,H,I/SECAM G,SECAM G,K,K1) 28-69 (PAL B AUST.) 13-57 (PAL D,K) 13-62 (NTSC M 日本 ) 14-69 (NTSC M 美国 ) CATV S1-S20 (OSCAR) 1-125 ( 美国 CATV) C13-C49( 日本 ) S21-S41(HYPER) Z1-Z37( 中国 ) 5A,9A (AUST.) 天线 - 背部 VHF / UHF 使用环境 温度：0 °C - 40 °C 湿度：20% - 80% 相对湿度 ( 无结露 ) 连接端子 AV1 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75 Ω) S 视频 Mini DIN 4 针 Y:1.0 V[p-p](75 Ω) C:0.286 V[p-p](75 Ω) AV2 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75 Ω) 色差 Y PB / CB ,PR / CR 1.0 V[p-p]( 包括同步化在内 ) ± 0.35 V[p-p] AV3 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75 Ω) 色差 Y PB / CB ,PR / CR 1.0 V[p-p]( 包括同步化在内 ) ± 0.35 V[p-p] AV4 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75 Ω) S 视频 Mini DIN 4 针 Y:1.0 V[p-p](75 Ω) C:0.286 V[p-p](75 Ω) 其他 HDMI1/2 输入 A 型接头 电脑输入 高密度 D-SUB15 针 R,G,B /0.7V[p-p](75 Ω) HD,VD/TTL 水平 2.0 - 5.0 V[p-p]( 高阻抗 ) 音频输入 RCA 针式 × 2 0.5 V[rms] 输出 音频 L- R RCA 针式 × 2 0.5 V[rms]( 高阻抗 ) 视频 RCA 针式 × 1 1.0 V[p-p](75 Ω) 尺寸 ( 宽 × 高 × 厚 ) 1,210 毫米 × 864 毫米 × 370 毫米 ( 带底座 ) 1,210 毫米 × 818 毫米 × 97 毫米 ( 仅电视机 ) 重量 净重 40 千克 ( 带底座 ) 净重 38 千克 ( 仅电视机 ) 执行标准 Q/YXNS3-2005 TH 彩色等离子电视机系列 说明： • 设计和技规格如有变更，恕不另行通知。所示尺寸和质量均为近似值。 • 本设备符合下述所列标准。 GB13837-2003, GB17625.1-2003, GB8898-2001 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 3 目录 页数 页数 1 适用信号----------------------------------------- 5 2 安全警告----------------------------------------- 6 2.1. 一般准则 ----------------------------------- 6 2.2. 漏电检查 ----------------------------------- 6 3 静电敏感设备 (ES) 的静电放电保护 (ESD) ------------ 7 4 关于无铅焊接 (PbF) ------------------------------- 8 5 维修提示----------------------------------------- 9 6 等离子显示屏更换方式---------------------------- 10 6.1. 取下后盖 ---------------------------------- 10 6.2. 取下后部端子盖 ---------------------------- 10 6.3. 取下 P 电路板 ------------------------------ 10 6.4. 取下 PA 电路板 ----------------------------- 11 6.5. 取下调谐器组件 ---------------------------- 11 6.6. 取下 DG 电路板 ----------------------------- 11 6.7. 取下 H 电路板 ------------------------------ 12 6.8. 取下 D 电路板 ------------------------------ 12 6.9. 取下 SU 电路板 ----------------------------- 12 6.10. 取下 SD 电路板 ----------------------------- 12 6.11. 取下 SC 电路板 ----------------------------- 13 6.12. 取下 SS2 电路板 ---------------------------- 13 6.13. 取下 SS3 电路板 ---------------------------- 13 6.14. 取下 SS 电路板 ----------------------------- 13 6.15. 取下支架 ---------------------------------- 14 6.16. 取下 C1 电路板 ----------------------------- 14 6.17. 取下 C2 电路板 ----------------------------- 14 6.18. 取下 C3 电路板 ----------------------------- 14 6.19. 取下前支架 -------------------------------- 14 6.20. 取下 G 电路板 ------------------------------ 15 6.21. 取下左、右扬声器 -------------------------- 15 6.22. 取下 S 电路板 ------------------------------ 15 6.23. 取下 K 电路板 ------------------------------ 15 6.24. 取下前面框 （玻璃）上的等离子显示屏部件 --- 16 6.25. 安装等离子显示屏 （完成）------------------ 17 7 注意事项声明------------------------------------ 18 7.1. 注意事项声明 ------------------------------ 18 8 导线布置---------------------------------------- 19 8.1. 导线 （1）--------------------------------- 19 8.2. 导线 （2）--------------------------------- 20 8.3. 导线 （3）--------------------------------- 20 9 自检功能---------------------------------------- 21 9.1. IIC 总线的检查 ---------------------------- 21 9.2. 电源 LED 闪烁次数图 ------------------------ 22 9.3. 无电源 ------------------------------------ 23 9.4. 无图像 ------------------------------------ 24 9.5. 显示器局部故障 ---------------------------- 25 10 维修模式---------------------------------------- 26 10.1. 如何进入维修模式 1 ------------------------ 26 10.2. 维修工具模式 ------------------------------ 28 11 调整步骤---------------------------------------- 29 11.1. 驱动器设置 -------------------------------- 29 11.2. 初始化脉冲调整 ---------------------------- 30 11.3. P.C.B. （印刷电路版）更换 ----------------- 30 11.4. 调整点位置 -------------------------------- 31 11.5. 测试点位置---------------------------------31 12 调整 --------------------------------------------32 12.1. 副对比度调整-------------------------------32 12.2. PAL 显示屏白平衡调整 -----------------------33 12.3. HD 白平衡调整 ------------------------------34 13 旅馆模式 ----------------------------------------35 14 导线图 ------------------------------------------37 14.1. P 电路板 -----------------------------------37 14.2. PA 电路板 ----------------------------------40 14.3. H 电路板 -----------------------------------41 14.4. DG 电路板 ----------------------------------43 14.5. D 电路板 -----------------------------------46 14.6. C1 电路板 ----------------------------------48 14.7. C2 电路板 ----------------------------------49 14.8. C3 电路板 ----------------------------------50 14.9. SC 电路板 ----------------------------------51 14.10. SU 电路板 ----------------------------------54 14.11. SD 电路板 ----------------------------------55 14.12. SS 电路板 ----------------------------------56 14.13. SS2，SS3 电路板 ----------------------------58 14.14. K，S 电路板 --------------------------------59 14.15. G 电路板 -----------------------------------60 15 方框图和线路图 ----------------------------------61 15.1. 线路图注意事项-----------------------------61 15.2. 主要集成电路方框图-------------------------62 15.3. P 电路板方框图 -----------------------------63 15.4. P 电路板 (1/2) 线路图 -----------------------64 15.5. P 电路板 (2/2) 线路图 -----------------------65 15.6. PA 电路板方框图 ----------------------------66 15.7. PA 电路板线路图 ----------------------------67 15.8. H 电路板 (1/2) 方框图 -----------------------68 15.9. H 电路板 (2/2) 方框图 -----------------------69 15.10. H 电路板 (1/5) 线路图 -----------------------70 15.11. H 电路板 (2/5) 线路图 -----------------------71 15.12. H 电路板 (3/5) 线路图 -----------------------72 15.13. H 电路板 (4/5) 线路图 -----------------------73 15.14. H 电路板 (5/5) 线路图 -----------------------74 15.15. DG 电路板 (1/3) 方框图 ----------------------75 15.16. DG 电路板 (2/3) 方框图 ----------------------76 15.17. DG 电路板 (3/3) 方框图 ----------------------77 15.18. DG 电路板 (1/9) 线路图 ----------------------78 15.19. DG 电路板 (2/9) 线路图 ----------------------79 15.20. DG 电路板 (3/9) 线路图 ----------------------80 15.21. DG 电路板 (4/9) 线路图 ----------------------81 15.22. DG 电路板 (5/9) 线路图 ----------------------82 15.23. DG 电路板 (6/9) 线路图 ----------------------83 15.24. DG 电路板 (7/9) 线路图 ----------------------84 15.25. DG 电路板 (8/9) 线路图 ----------------------85 15.26. DG 电路板 (9/9) 线路图 ----------------------86 15.27. D 电路板方框图 -----------------------------87 15.28. D 电路板 (1/6) 线路图 -----------------------88 15.29. D 电路板 (2/6) 线路图 -----------------------89 15.30. D 电路板 (3/6) 线路图 -----------------------90 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 4 15.31. D 电路板 (4/6) 线路图----------------------- 91 15.32. D 电路板 (5/6) 线路图----------------------- 92 15.33. D 电路板 (6/6) 线路图----------------------- 93 15.34. C1,C2 和 C3 电路板方框图-------------------- 94 15.35. C1 电路板 (1/3) 线路图---------------------- 95 15.36. C1 电路板 (2/3) 线路图---------------------- 96 15.37. C1 电路板 (3/3) 线路图---------------------- 97 15.38. C2 电路板 (1/2) 线路图---------------------- 98 15.39. C2 电路板 (2/2) 线路图---------------------- 99 15.40. C3 电路板 (1/2) 线路图--------------------- 100 15.41. C3 电路板 (2/2) 线路图--------------------- 101 15.42. SC，SU 和 SD 电路板方框图------------------ 102 15.43. SC 电路板 (1/3) 线路图--------------------- 103 15.44. SC 电路板 (2/3) 线路图--------------------- 104 15.45. SC 电路板 (3/3) 线路图--------------------- 105 15.46. SU 电路板 (1/2) 线路图--------------------- 106 15.47. SU 电路板 (2/2) 线路图 ---------------------107 15.48. SD 电路板 (1/2) 线路图 ---------------------108 15.49. SD 电路板 (2/2) 线路图 ---------------------109 15.50. SS，SS2 和 SS3 电路板方框图 ----------------110 15.51. SS 电路板 (1/2) 线路图 ---------------------111 15.52. SS 电路板 (1/2)，SS2 和 SS3 电路板线路图 ----112 15.53. GK，K 和 S 电路板方框图和线路图 ------------113 16 部件布置及机械部件更换清单 ---------------------115 16.1. 部件布置 ----------------------------------115 16.2. 包装分解图 (1) ----------------------------116 16.3. 包装分解图 (2) ----------------------------117 16.4. 包装分解图 (3) ----------------------------118 16.5. 附件 --------------------------------------119 16.6. 更换部件清单注意事项 ----------------------120 16.7. 机械部件更换清单 --------------------------121 16.8. 电器部件更换清单 --------------------------122 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 5 1 适用信号 分量 （Y，PB，PR），HDMI * 标记：适用输入信号 PC （D-sub 15 针） 注： • 不属于上述规格的信号可能无法正确显示。 • 上述信号均经重新格式化，以达到最佳观看效果。 • PC 的适用输入信号通常与 VESA 标准时序相兼容。 • 用于显示的 PC 信号都经过放大和压缩，因此其可能无法以足够的清晰度显示精细的细节。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 6 2 安全警告 2.1. 一般准则 1. 维修时，请勿试图更改设备及其部件或其材料。 2. 维修配线装置（带有电缆、柔性电缆或导线）时，当仅有一条导线或几条导线损坏或断开时，请勿试图维修或重新为其配线。请 更换整个配线装置。 3. 维修时，应直接拉出或插入固定连接器，而不应将其拧紧。 4. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 5. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸、屏蔽等安装正确。 6. 维修后，进行以下漏电检查，以免用户遭受触电危险。 2.2. 漏电检查 1. 将 AC 电源线直接插入 AC 电源插座。进行检查时，请勿使用隔离变压器。 2. 在设备上各外露金属部分和良好接地 （如水管）之间连接一个电流测量装置，如图 1 所示。 3. 用漏电测试仪 （Simpson 228 或类似型号）测量通过该装置的电势。 4. 检查各外露金属部件，并测量各点电压。 5. 变换 AC 插座中的 AC 插头，并重复上述各项测量。 6. 各点 （漏电）的电势表示为电压 U1 和 U2，并且不能超过以下各值： 交流：U1=35V （峰值） U2=0.35V （峰值）； 直流：U1=1.0V， 注： 与交流的 U2 限定峰值 0.35V 和直流的 U1 限定峰值 1.0V 相对应的电流峰值分别为 0.7mA 和 2.0mA。 与交流的 U1 限定峰值 35V 相对应的 100kHz 以上的电流峰值为 70mA。 7. 当测量值超出规定的限制时，可能会引起触电。所以必须在机器返回用户手中之前对其进行修理和再检测。 漏电测量电路 电阻值 （Ω） V：电压表或示波器 （r.m.s. 或峰值） 输入电阻：≥ 1MΩ 输入电容：≤ 200pF 频率范围：分别为直流 15Hz 到 1MHz 注：必须使用合适的测量设备，以便在非正弦波形时测量准确。 图 1 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 7 3 静电敏感设备 (ES) 的静电放电保护 (ESD) 一些半导体（固态）装置很容易被静电损坏。这些装置通称为静电敏感装置（ES）。典型的 ES 装置有集成电路和一些场效应晶体管以 及半导体 “芯片”组件。以下方法通常被用来减少由于静电释放 （ESD） 所造成的组件损坏。 1. 在处理任何半导体组件或是配备有半导体组件的设备之前，接触已知地线以排除身体上的静电。或者戴上市面上可购买到的抗静 电腕带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 在拆卸配有静电敏感装置的电气组件后，请将组件放置于导体表面上 （如铝箔），以防止聚集静电或组件外露。 3. 仅使用末端接地的烙铁焊接或拆焊静电敏感装置。 4. 仅使用防静电拆焊装置。不属于 “防静电 （静电释放保护）”的拆焊装置可能会产生足以损坏静电敏感装置的电荷。 5. 禁止使用氟里昂驱动化学物质。它们能产生足以损坏静电敏感装置的电荷。 6. 在准备立即安装之前，才能拆开静电敏感备换装置的保护性包装，取出备换静电敏感装置。（大多数备换静电敏感装置都使用导 电泡沫、铝箔或类似导电性材料包装，其导线被短接。） 7. 从备换静电敏感装置导线上取下防护性材料前，使防护性材料接触机芯或即将安装的电路组件。 注意 确定机芯或电路无电源，并遵守其它所有安全注意事项。 8. 在处理未包装的备换静电敏感装置时，尽量减少身体活动。（否则，如衣物纤维的摩擦或从铺有地毯的地面抬起脚等动作都会产 生足以损坏静电敏感装置的静电 （静电释放））。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 8 4 关于无铅焊接 (PbF) 注：在元素周期表中，铅用 Pb 表示。 在下文中，Pb 表示有铅焊接，PbF 表示无铅焊接。 在制造流程中使用和下文中介绍的无铅焊接 （Sn+Ag+Cu）。 即：锡 （Sn），银 （Ag）和铜 （Cu），其他类型也可使用。 出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维修和修理工作中最好使用无铅焊接，不过也允许使用有铅焊 接。 使用无铅焊接工艺制造的印刷电路板背面的树叶形符号 内有 PbF 字样。 注意： • 无铅焊接的熔点比标准焊接的熔点高。通常熔点超过 50-70°F （30-40°C）。 请使用高温烙铁，并将其温度设为 700±20°F （370±10°C）。 • 当温度过高 （约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。 如果必须使用有铅焊接，请在焊接前先全部去除焊脚或焊区上的无铅焊料。如果做到这点实际操作困难，则确保无铅焊料加热到熔 化后再进行有铅焊接。 • 在对双面电路板进行无铅焊接后，请检查部件侧部是否有过量焊料，否则会流到另一侧。（见下图） 推荐的无铅焊料 有几种无铅焊料可供选购。本产品使用 Sn+Ag+Cu( 锡 + 银 + 铜 ) 焊料。 也可使用 Sn+Cu （锡，铜），Sn+Zn+Bi( 锡，锌，铋 ) 焊料。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 9 5 维修提示 取下后盖 电路板名称 功能 电路板名称 功能 P 电源 C1 数据驱动 ( 下右 ) DG 数字信号处理器、Micom、HDMI 接口 C2 数据驱动 ( 下中 ) K 遥控接收器，电源指示灯 C3 数据驱动 ( 下左 ) S 电源开关 SC 扫描驱动 H 扬声器输出、声音处理器、AV 端子、AV 切换 SU 扫描输出 ( 上 ) PA DC-DC 转换器 SD 扫描输出 ( 下 ) G 按键开关、前端子 SS 维持驱动 D 格式转换，等离子 AI， 子场处理器 SS2 维持输出 ( 上 ) SS3 维持输出 ( 下 ) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 10 6 等离子显示屏更换方式 6.1. 取下后盖 1. 参见维修提示 （第 5 章节） 6.2. 取下后部端子盖 1. 松开螺丝 （×8 , ×4 , ×2 , ×2 ）。 2. 取下后部端子盖。 6.3. 取下 P 电路板 注意： 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.C.B.。 1. 断开连接件 (P2, P6, P7, P9, P11, P12, 和 P25)。 2. 松开螺丝 （×6 ）并取下 P 电路板组件。 3. 取下后侧的螺丝 （×20 ）。 4. 取下螺丝 （×5 ）。 5. 取下铸件 （×9 ）。 6. 取下 P 电路板。 注： 安装 P 电路板时，将绝缘纸 （A 和 B）的每个孔的位置放置在 P 电路板上每个孔的位置，然后进行安装。（ 标记指示放 置位置。） �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 11 6.4. 取下 PA 电路板 1. 松开线夹，取下电缆。 2. 断开连接件 （PA3, PA4, PA6 和 PA7）。 3. 松开螺丝 （×3 ），并取下 PA 电路板。 6.5. 取下调谐器组件 1. 松开线夹，取下电缆。 2. 断开连接件 （H3, H4, H12, H51, DG1 和 DG5）。 3. 松开螺丝 （×4 ），取下调谐器组件。 6.6. 取下 DG 电路板 1. 取下调谐器组件。 （请参见 6.5 章节） 2. 取下螺丝 （x1 ），然后取下 SD 卡支架。 3. 断开连接件 （DG2，DG5 和 DG6）。 4. 松开螺丝 （×7 ），并取下 DG 电路板。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 12 6.7. 取下 H 电路板 1. 取下调谐器组件。 （请参见 6.5 章节） 2. 松开螺丝 （×1 ）并取下调谐器固定金属。 3. 松开螺丝 （×7 ）并取下 H 电路板。 6.8. 取下 D 电路板 1. 取下调谐器组件。 （请参见 6.5 章节） 2. 断开连接件 （D5 和 D25）。 3. 断开柔性电缆 （D20，D31 和 D32）。 4. 松开螺丝 （×4 ）并取下 D 电路板。 6.9. 取下 SU 电路板 1. 松开螺丝 （×3 ）。 2. 断开连接至 SU 电路板的柔性电缆（SU1，SU2，SU3 和 SU4）， 并取下桥接器 （SC45-SU45）。 3. 将 SU 电路板移到左边，并与 SC 板的连接件 （SC41-SU41） 断开，取下 SU 电路板。 6.10. 取下 SD 电路板 1. 松开螺丝 （×3 ）。 2. 断开连接至 SD 电路板的柔性电缆（SD1，SD2，SD3 和 SD4）， 并取下桥接器 （SC46-SU46）。 3. 将 SD 电路板移到左边，并与 SC 板的连接件 （SC42-SD42） 断开，取下 SD 电路板。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 13 6.11. 取下 SC 电路板 1. 取下 SU 电路板和 SD 电路板。 （请参见第 6.9 章节和第 6.10 章节） 2. 松开线夹，取下电缆。 3. 断开连接件 （SC2）。 4. 断开柔性电缆 （SC20）。 5. 松开螺丝 （×9 ）并取下 SC 电路板。 6.12. 取下 SS2 电路板 1. 断开连接件 （SS23），并断开柔性电缆 （SS52）。 2. 松开螺丝 （×2 ）并取下 SS2 电路板。 6.13. 取下 SS3 电路板 1. 断开连接件 （SS24），并断开柔性电缆 （SS57）。 2. 松开螺丝 （×2 ）并取下 SS3 电路板。 6.14. 取下 SS 电路板 1. 断开连接件 （SS11，SS12，SS23，SS24，SS33，SS34 和 SS35）。 2. 断开柔性电缆 （SS54 和 SS55）。 3. 松开螺丝 （×7 ）并取下 SS 电路板。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 14 6.15. 取下支架 1. 将等离子显示屏从维修支架上取下，将显示屏朝下放置在 类似桌子 （铺有软布）的表面上。 2. 松开支架 （左、右）固定螺丝 （各 ×5 ），并取下支架 （左、右）。 6.16. 取下 C1 电路板 1. 取下调谐器组件。（请参见 6.5 章节） 2. 取下支架 （左）。（请参见 6.15 章节） 3. 取下柔性电缆固定器的固定螺丝 （×10 ）。 4. 断开柔性电缆 （CB1, CB2, CB3, CB4 和 CB5）。 5. 断开柔性电缆 （C10 和 C11）。 6. 松开螺丝 （×5 ），并取下 C1 电路板。 6.17. 取下 C2 电路板 1. 取下调谐器组件。 （请参见 6.5 章节） 2. 取下柔性电缆固定器的固定螺丝 （×6 ）。 3. 断开柔性电缆 （CB6，CB7 和 CB8）。 4. 断开柔性电缆 （C20, C21 和 C22）。 5. 松开螺丝 （×4 ），并取下 C2 电路板。 6.18. 取下 C3 电路板 1. 取下调谐器组件。（请参见 6.5 章节） 2. 取下支架 （右）。（请参见 6.15 章节） 3. 取下柔性电缆固定器的固定螺丝 （×6 ）。 4. 断开柔性电缆 （CB9，CB10 和 CB11）。 5. 断开柔性电缆 （C32）。 6. 断开连接件 （C33 和 C35）。 7. 松开螺丝 （×4 ），并取下 C3 电路板。 6.19. 取下前支架 1. 断开连接件 （H51）。（请参见 6.5 章节） 2. 松开螺丝 （×5 ），并取下前支架。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 15 6.20. 取下 G 电路板 1. 取下前支架。 （请参见第 6.19 章节） 2. 松开螺丝 （×2 ），并取下控制按钮。 3. 松开螺丝 （×2 ），并断开连接件 （G51）。 4. 取下 G 电路板。 6.21. 取下左、右扬声器 1. 断开连接件 （H12）。（请参见 6.5 章节） 2. 松开螺丝 （各 ×4 ），并取下左、右扬声器。 6.22. 取下 S 电路板 1. 松开螺丝 （×2 ）并取下 S 电路板金属框。 2. 断开连接件 （S1）。 3. 松开螺丝 （×2 ）并取下 S 电路板。 6.23. 取下 K 电路板 1. 松开线夹，取下电缆。 2. 断开连接件 （DG1）。 （请参见第 6.5 章节） 3. 松开螺丝 （×2 ）并取下 K 电路板。 4. 断开连接件 （K1），并取下 K 电路板。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 16 6.24. 取下前面框（玻璃）上的等离子显 示屏部件 1. 取下支架 （左，右）固定螺丝 （各 ×2 ）。 2. 取 下前 面框 组件 和等 离 子显 示屏 固定 螺丝 （×5 ， ×2 ）。 3. 将等离子显示屏从前面框上取下时，拉住前面框底部，抬 起，并向前拉出。 4. 取下垫片和垫片环 （×6 ）。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 17 6.25. 安装等离子显示屏 （完成） 1. 将新的等离子显示屏（完成）放置在类似桌子（铺有软布） 等的表面上，并且等离子显示屏表面朝下。 2. 安装 C1, C2 和 C3 电路板，用柔性电缆 ( × 11) 将等离子显 示屏与 C1, C2 和 C3 电路板连接，并固定柔性电缆固定器。 3. 安装卡钩 （左，右） ，并将支架 （左，右）安装到新的等 离子显示屏上。 4. 将等离子显示屏放置到维修架上。 5. 将前面框和 P.C. 板等安装到新的等离子显示屏上。 * 安装前面框时，注意前玻璃和等离子显示屏之间不要有碎屑、 灰尘或杂质存在。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 18 7 注意事项声明 7.1. 注意事项声明 注意事项： 请确保所有柔性电缆都装配正确。 并确保将其都固定在连接件内。 通过轻拉柔性电缆确认其是否装配正确。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 19 8 导线布置 8.1. 导线 （1） 如下图所示布置导线。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 20 8.2. 导线 （2） 如下图所示布置导线。 8.3. 导线 （3） 如下图所示布置导线。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 21 9 自检功能 应用自检功能测试本机。 1. 检查 IIC 总线 2. 电源 LED 闪烁次数 9.1. IIC 总线的检查 9.1.1. 如何进入 仅自检指示： 进入 TV 接收屏幕，然后按主机 按钮的同时按下遥控器上的 [ 确定 ] 按钮 3 秒钟以上。 自检指示和恢复出厂设置： 进入 TV 接收屏幕，然后按主机 按钮的同时按下遥控器上的 [ 菜单 ] 按钮 3 秒钟以上。 9.1.2. 屏幕显示 9.1.3. 检查点 如果显示 NG，请确认检查下列部件。 9.1.4. 退出 从墙面插座上拔下 AC 电源线。 显示 参考号 描述 P.C.B. ADV IC4510 AD/HDMI DG 板 VSW IC3001 视频开关 H 板 ADAV IC2106 声音处理器 H 板 ASW IC3101 音频开关 H 板 GEN IC1100 GenX （STB MCU） DG 板 MEM1 IC1101 EEPROM （GenX） DG 板 MEM2 IC8601 EEPROM （Peaks） DG 板 TUN1 TU3200 调谐器 H 板 PDP.PANEL IC9003 MICOM D 板 TEMP IC4800 Temp 传感器 DG 板 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 22 9.2. 电源 LED 闪烁次数图 1. 主题 发光二极管闪烁时间图信息。 2. 内容 当设备出现异常时，保护电路将运行并将设备复位到待机状态。此时，通过本机前端的 LED 电源闪烁次数便可识别出故障部位。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 23 9.3. 无电源 第一检测点 LED 无电源指示有二种情况： 1. 不亮 2. 红灯亮，几秒钟后转为红灯闪烁。（请参见第 9.2 章节） �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 24 9.4. 无图像 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 25 9.5. 显示器局部故障 等离子显示器屏幕上可能会出现局部故障。图 1 是各局部可能会出现故障的印刷电路板。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 26 10 维修模式 10.1. 如何进入维修模式 按主机 按钮的同时，在 2 秒钟内按遥控器上的 [ ] 按钮三次。 10.1.1. 主要指令 “1”按钮…正向选择主项目 “2”按钮…反向选择主项目 “3”按钮…正向选择副项目 “4”按钮…反向选择副项目 “VOL”按钮…正向 （+）或反向 （-）更改副项目的数据。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 27 10.1.2. 调整模式内容 • 按十六进制显示数值。 • 预设值根据型号的不同而不同。 • 进入调整模式后，在开始调整前请记录各项目的值。 10.1.3. 如何退出 使用主机或遥控器上的 [POWER] 按钮关闭电源。 主项目 副项目 示例数据 备注 ADJUST CONTRAST 25B COLOR 2B TINT 00 SUB-BRT 810 H-POS 0 H-AMP 0 V-POS 0 V-AMP 0 WB-ADJ R-CUT 80 G-CUT 80 B-CUT 80 R-DRV F0 G-DRV EC B-DRV FC ALL-CUT 80 ALL-DRV FC OPTION Panel-Type 50HD 出厂预设 Boot ROM STBY-SET 00 Emergency ON Y/C Delay -1 OPT 1 00101000 OPT 2 11100010 OPT 3 01101111 AGING RGBW All white (COUNTER) All white All red All green All blue ON/OFF Diagonal lamp W Diagonal lamp R Diagonal lamp G Diagonal lamp B 1% WINDOW COLOR BAR A B zone/checkerd 4 trio SCROLL BAR 2dot width border SRV-TOOL 参见下页 销售地区 C 中国 选项 1 28 选项 2 E2 选项 3 6F �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 28 10.2. 维修工具模式 10.2.1. 如何进入 1. 选择维修模式下的 “SRV-TOOL”。 2. 按遥控器上的 [ 确定 ] 按钮。 10.2.2. 显示 SOS 历史纪录 SOS 历史纪录 （LED 闪烁次数）指示。 从左侧开始依次为：最后一次 SOS、倒数第二次、倒数第三次、出厂后第二次、出厂后第一次。 通过 “自检指示和恢复出厂设置”即可清除该指示。 10.2.3. 开启 TIME/COUNT TIME （计时）：累计开启时间，显示小时：十进制分钟 COUNT （计数）：十进制开启次数 注意：无法通过自检或任何指令清除该指示。 10.2.4. 退出 1. 从墙面插座上拔下 AC 电源线。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 29 11 调整步骤 11.1. 驱动器设置 11.1.1. 项目 / 准备 1. 输入白色信号到等离子显示屏视频。 2. 如下设定图像控制： 图像菜单：最佳 PNR：关闭 宽高比：16:9 注意 1. 首先进行 Vsus 调整。 2. Vad 调整确认后，再确定 Vscn 电压。 当 Vad = -105V 时，Vscn 的电压为 40V ± 4V。 11.1.2. 调整 参照显示屏数据标牌上的显示屏数据，调整驱动器各部分的电 压。 使用万用表检查或调整下列电压。 * 见显示屏标签。 名称 测试点 电压 调整点 备注 Vsus TPVSUS(SS) Vsus±2V VR251(P) * Ve TPVE(SS) Ve±1V VR6000(SS) * Vset TPVSET(SC) 330V±7V 固定 Vad TPVAD(SC) -105V±1V VR6600(SC) Vscn TPVSCN(SC) Vad+145V±4V 固定 Vda TPVDA(SS) 75V±1V, -2V 固定 Vbk TPVBK(SC) 155V±1V VR6604(SC) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 30 11.2. 初始化脉冲调整 1. 输入白色信号到等离子显示屏视频。 2. 如下设定图像控制： 图像菜单：最佳 PNR：关闭 宽高比：16:9 3. 连接示波器至测试点 TPSC1 （SC）。 检查并将每个短时脉冲 （T2）时长调整至规格范围之内。 11.3. P.C.B. （印刷电路版）更换 11.3.1. 注意 1. 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.C.B.。 11.3.2. P.C.B. 更换后进行快速调整 使用万用表调整下列电压。 * 见显示屏标牌签。 注意： 请勿将 Vsus 设置到 Ve 以下，以防损坏 P.C.B.。 测试点 调整点 等级 T2 TPSC1(SC) VR6602 (SC) 185 ± 10μ Sec P.C.B. 名称 测试点 电压 调整点 备注 P 电路板 Vsus TPVSUS (SS) Vsus ± 2V VR251 (P) * SC 电路板 Vad TPVAD (SC) -105V ± 1V VR6600 (SC) SC 电路板 Vbk TPVBK (SC) 155V ± 1V VR6604 (SC) Ve TPVE (SS) Ve ± 1V VR6000 (SS) * D,DG 电路板 NTSC, PAL, HD, PC 和 625i 信号的白平衡和副亮度。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 31 11.4. 调整点位置 11.5. 测试点位置 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 32 12 调整 12.1. 副对比度调整 仪器名称 连接 备注 RF 发生器 基带发生器 准备 （AV） 备注 1. 接收 AV1 ( 如下所示 PAL 100% 全白或彩条，如下图 )。 2. 进入维修模式。 3. 按 “1”或 “2”键，进入 “副对比度”维修模式。 AV 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为黑色。 4. 结束。 准备 （RF） 备注 1. 接收 RF (PAL 100% 全白或彩条，如下图 )。 2. 进入维修模式。 3. 按 “1”或 “2”键，进入 “副对比度”维修模式。 RF 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为黑色。 4. 结束。 准备 （HD） 备注 1. 接收分量。 (1080i/ 60Hz 或 1080i/ 50Hz, 100% 全白或彩条，如下图。) 2. 进入维修模式。 3. 按 “1”或 “2”键，进入 “副对比度”维修模式。 HD 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为黑色。 4. 结束。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 33 12.2. PAL 显示屏白平衡调整 仪器名称 连接 备注 • 黑白模式 • 彩色分析仪 （Minolta CA-100 或同等产品） RF 输入 显示屏表面 用户设定：正常 步骤 备注 • 确保充分老练 15 分钟以上。 • 确保前面板已经安装在整机上。 • 确认调整之前无彩色信号显示。 • 将彩色分析仪放置在有轻微色差的地方。 通电后 10 分钟内完成调整。 通过老练等不能完成调整时，重新打开电源。 1. 显示白平衡图像。 2. 进入维修模式。 3. 操作数字键 “1”和 “2”，然后显示 “WB-ADJ”。 查看确保色彩平衡为 “高”。 4. 使用数字键 “3”或 “4”选择 “G-CUTOFF”项目，使用音量 “+”或 “-”键将其设置 为 “80”。 并将 “B-CUTOFF”和 “R-CUTOFF”也设置为 “80”。 5. 将 “G-DRIVE”设置为 “D0”。 6. 将彩色分析仪的信号接收器放到高亮窗口的中间位置，然后调整 B-DRIVE 和 R-DRIVE，将 x, y 的值调整为下表中的 “色温 - 高”的值。 7. 将 “ALL-DRIVE”设置为 “FC”。 8. 使用 “7”键将色彩平衡设置为 “中”。 9. 将 G-CUTOFF、 B-CUTOFF 和 R-CUTOFF 固定为 “80”。 10. 将 G-DRIVE 固定为 “D0”。 11. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 中”的值。 12. 将 “ALL-DRIVE”设置为 “FC”。 13. 使用 “7”键将色彩平衡设置为 “低”。 14. 将 G-CUTOFF、 B-CUTOFF 和 R-CUTOFF 固定为 “80”。 15. 将 G-DRIVE 固定为 “D0”。 16. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 低”的值。 17. 将 “ALL-DRIVE”设置为 “FC”。 图像菜单：最佳 宽高比：16:9 • 高亮显示部分 信号振幅 75% �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 34 12.3. HD 白平衡调整 仪器名称 连接 备注 • 1080i 黑白模式 • 彩色分析仪 （Minolta CA-100 或同等产品） RF 输入 显示屏表面 用户设定：标准 步骤 备注 • 确保充分老练 15 分钟以上。 • 确保前面板已经安装在整机上。 • 确认调整之前无彩色信号显示。 • 将彩色分析仪放置在有轻微色差的地方。 通电后 10 分钟内完成调整。 通过老练等不能完成调整时，重新打开电源。 1. 显示白平衡图像。 2. 进入维修模式。 3. 操作数字键 “1”和 “2”，然后显示 “WB-ADJ”。 查看确保色彩平衡为 “高”。 4. 使用数字键 “3”或 “4”选择 “G-CUTOFF”项目，使用音量 “+”或 “-”键将其设置 为 “80”。 并将 “B-CUTOFF”和 “R-CUTOFF”也设置为 “80”。 5. 将 “G-DRIVE”设置为 “D0”。 6. 将彩色分析仪的信号接收器放到高亮窗口的中间位置，然后调整 B-DRIVE 和 R-DRIVE，将 x, y 的值调整为下表中的 “色温 - 高”的值。 7. 将 “ALL-DRIVE”设置为 “FC”。 8. 使用 “7”键将色彩平衡设置为 “中”。 9. 将 G-CUTOFF、 B-CUTOFF 和 R-CUTOFF 固定为 “80”。 10. 将 G-DRIVE 固定为 “D0”。 11. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 中”的值。 12. 将 “ALL-DRIVE”设置为 “FC”。 13. 将色彩平衡设置为 “低”。 14. 将 G-CUTOFF、 B-CUTOFF 和 R-CUTOFF 固定为 “80”。 15. 将 G-DRIVE 固定为 “D0”。 16. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 低”的值。 17. 将 “ALL-DRIVE”设置为 “FC”。 图像菜单：最佳 宽高比：16:9 • 高亮部分 信号振幅 75% ﹡色彩平衡 COOL 与日本型号的值不同。 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 35 13 旅馆模式 1. 目的 设置旅馆功能。 2. 进入旅馆模式设置菜单指令 为了显示旅馆模式设置菜单，请输入以下指令 （在 2 秒钟 内）。 随后将显示旅馆模式设置菜单。 3. 若要退出旅馆模式设置菜单 从墙面插座上拔下 AC 电源线。 4. 旅馆模式设置菜单说明 项目 功能 旅馆模式 选择旅馆模式开启 / 关闭。 初始输入 选择输入信号模式。 每次接通电源后都设置此输入。 选项： Off/TV/AV1/AV2/AV3/AV4/PC/HDMI1/HDMI2 • Off：以最后一次存储为准。 • PC: VGA 可选 初始位置 选择频道号。 选项： Off/0 到 99 • Off: 以最后一次存储为准。 初始音量等级 每次接通电源后都设置音量。 选项 / 范围： Off/0 到 100 • Off: 以最后一次储存为准。 最大音量等级 调节最大音量。 范围： 0 到 100 键锁定 选择按键键入条件。 选项： Off/SETUP/MENU/All • Off: 所有按键有效 • SETUP：只有 F 键无效 （菜单中调谐状态无） • MENU：只有 F 键无效 （只可选择音量 / 静音。） • All：所有按键全部无效。 遥控锁定 选择遥控键入条件。 选项： Off/SETUP/MENU • Off: 所有按键有效 • SETUP：只有设置菜单无效 • MENU：图像 / 声音 / 设置菜单无效 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 36 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 37 14 导线图 14.1. P 电路板 A E C D B F G H I 1 2 3 4 5 6 P-BOARD (FOIL SIDE) ETXMM655MEH TH-50PV70C P-BOARD ETXMM655MEH TH-50PV70C P-BOARD ETXMM655MEH �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 38 TH-50PV70C P-BOARD PARTS LOCATION TH-50PV70C P-BOARD PARTS LOCATION Parts Location P-BOARD (FOIL SIDE) IC251 C-4 IC351 F-4 IC401 F-4 IC451 F-5 IC501 B-3 IC551 B-5 MC201 C-3 MC202 C-3 MC203 D-3 MC301 E-3 MC351 F-5 MC401 E-5 MC501 C-4 MC502 B-3 MC601 H-3 MC602 F-2 MC603 F-2 MC701 H-5 IC MODULE Q301 F-3 Q302 F-4 Q351 G-5 Q352 G-5 Q401 E-4 Q402 F-4 Q403 F-4 Q551 E-5 Q552 G-6 Q602 G-3 Q603 G-2 Q701 H-4 Q702 H-4 Q704 H-5 TRANSISTOR PC201 C-4 PC202 D-4 PC301 E-4 PC302 E-4 PC401 F-5 PC501 B-4 PC502 C-4 VR251 B-5 VR351 F-4 VR401 F-4 PHOTO COUPLER VOLUME Parts Location P-BOARD (COMPONENT SIDE) IC501 H-3 MC201 G-3 MC202 G-3 MC203 F-3 MC301 E-3 MC351 C-5 MC401 D-5 MC501 G-4 MC502 G-3 MC601 B-3 MC602 E-2 MC603 C-2 MC701 B-5 IC MODULE Q301 D-4 Q302 C-4 Q351 C-5 Q352 C-5 Q401 E-5 Q402 D-4 Q403 D-4 TRANSISTOR PC201 G-4 PC202 E-4 PC301 E-4 PC302 E-4 PC401 D-5 PC501 H-4 PC502 G-4 VR251 H-5 VR351 C-4 VR401 D-4 PHOTO COUPLER VOLUME P �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 39 A B C D E F G H I 1 2 3 4 5 6 TH-50PV70C P-BOARD ETXMM655MEH TH-50PV70C P-BOARD ETXMM655MEH P-BOARD (COMPONENT SIDE) ETXMM655MEH �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 40 14.2. PA 电路板 A B C D E F G H I 1 2 3 4 5 6 J124 J125 J126 J127 IC5550 C5589 C5592 C5595 C5596 PA3 PA4 PA5 PA6 PA7 C5410 C5418 C5419 ZA5501 ZA5502 ZA5503 PA32 PA33 PA34 JS5568 JS5569 PA35 J201 J202 J203 J204 J205 J206 J207 J208 J209 J1 J2 J3 J210 J4 J211 J5 J212 J6 J213 J214 L5550 L5551 L5552 L5564 L5565 L5566 C5501 C5503 D5517 D5518 D5519 L5400 L5401 J101 C5551 J103 J104 J105 J106 J107 J108 J109 J110 J111 J112 J113 J114 J115 J116 J117 J118 J119 J120 J121 J122 J123 DIP PAMM2 PAMM3 PAMM1 PAMM4 PAMM6 PAMM5 TNPA4178 PA 1 PAMM7 PbF 1 16 23 22 1 2 23 22 1 2 1 2 22 23 1 12 11 1 3 1 3 1 3 1 3 1 REVERSE FOR SUFFIX. SEE R5550 R5554 R5555 R5556 R5557 R5558 IC5550 R5559 R5560 C5589 R5561 C5591 C5592 C5593 C5595 D5571 JA2 C5596 JA3 D5573 C5597 JA4 R5570 C5598 JA5 R5571 JA6 R5572 JA7 R5573 JA8 PA3 PA4 PA5 PA6 PA7 C5402 C5403 C5404 C5405 Q5401 C5409 C5410 C5411 C5412 C5413 C5414 C5415 C5416 C5417 C5418 C5419 ZA5501 ZA5502 ZA5503 C5420 D5402 D5403 D5404 D5405 R5402 R5403 R5404 R5405 D5409 IC5400 D5410 D5411 D5412 D5413 R5410 R5411 PA32 R5412 PA33 R5413 PA34 R5414 PA35 R5415 R5416 R5417 R5418 R5419 TPC0F R5420 R5421 R5422 R5423 R5424 R5425 TPS15V TPFA9 TPM0N L5550 L5551 TPS0F L5552 R5480 R5481 R5482 TPS0N R5483 R5484 R5485 R5486 TPS0S L5564 L5565 L5566 TPST5 C5501 C5502 TPS5V C5503 C5504 Q5501 TPM9V C5521 C5522 Q5521 D5501 Q5522 Q5523 Q5524 R5506 R5507 R5508 R5509 D5517 D5518 D5519 TPS9V L5400 D5521 L5401 D5522 D5526 D5528 D5529 TPFA15 C5551 TPAC1 C5552 C5553 D5530 C5554 Q5551 R5531 R5532 R5533 TPF0S R5534 R5535 R5536 R5537 R5538 TP5400 R5539 Q5561 Q5562 TPEC0 R5540 R5541 R5542 R5543 R5544 R5545 R5546 R5547 R5548 R5549 PA 1 TNPA4178 AB AC AE AF AG PAMM12 PAMM13 PAMM15 PAMM14 AH AD PAMM11 PAMM16 R5487 R5489 R5490 R5488 R5491 AJ AK AL AM AN PbF 16 1 23 22 1 2 22 1 2 23 1 2 22 23 1 12 1 11 1 5 1 3 1 3 1 3 1 3 SUFFIX. TH-50PV70C PA-BOARD TNPA4178AG TH-50PV70C PA-BOARD TNPA4178AG PA-BOARD (FOIL SIDE) TNPA4178AG PA-BOARD (COMPONENT SIDE) TNPA4178AG PA Parts Location PA-BOARD IC TRANSISTOR TP TP5400 B-3 TPAC1 B-1 TPC0F C-3 TPECO A-2 TPF0S C-4 TPFA9 B-4 TPFA15 B-3 TPM9V D-1 TPMON A-1 TPS0F D-2 TPS15V C-1 TPS5V D-1 TPS9V C-2 TPSON A-2 TPSOS A-2 TPST5 B-1 Q5401 B-4 Q5501 D-2 Q5521 B-2 Q5522 B-2 Q5523 B-3 Q5524 C-2 Q5551 D-2 Q5561 D-1 Q5562 D-1 IC5400 B-3 IC5550 D-2 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 41 14.3. H 电路板 A B C D E F G H I 1 2 3 4 5 6 D3034 C3059 D3035 R3032 D3036 D3037 D3038 R288 R289 D3039 R867 R868 C3060 C3062 C3064 D3040 D3041 D3042 D3043 C3068 D3045 R296 D3046 R297 D3047 D3048 R3044 R3239 D3049 R3045 C3263 R3048 C3265 R3049 C3266 R3240 C3269 R3244 C3078 R3246 R3052 R3054 R3249 C3274 C3275 C3276 C3277 R3250 C3278 R3251 R3252 R3253 R3254 R3255 R3256 C3280 R3259 C3281 R3065 C3283 R3067 C3284 C3287 C3288 R3260 JS031 R3266 JS032 JS033 R3073 R3268 C3291 R3269 C101 R3270 C3299 Q103 JK3100 R3274 R3275 R3276 JS044 JS045 R3086 JS047 JS052 JS053 JS054 JS055 JS056 JS057 JS059 C317 C318 C319 C128 JS061 JS062 JS063 C320 C321 JS065 C322 JS066 R106 C323 JS067 C324 JS068 C325 JS069 C326 R303 R304 R110 JS3010 R111 JS3011 R112 JS3012 JS3207 JS3013 R308 JS3014 C331 R309 JS3209 JS3015 C332 R116 C333 R117 C334 C335 C336 C337 C144 C338 JS3210 D120 R311 C339 L001 R312 JS3212 L002 R313 JS3213 L003 R314 C148 L004 C149 R315 R316 L007 C340 L008 JS3024 C341 JS279 C342 R126 C343 C344 C150 C345 C346 C152 C347 C348 L011 L012 L015 R132 L016 JS3032 R327 JS098 C3106 L022 C3107 JS3040 C3108 C3109 C3301 C3302 C3303 C3304 C3110 C3305 R149 C3111 C3306 C3112 TP012 C173 C3308 C174 TP014 TP015 C3115 TP016 R152 L036 R154 C180 C375 C181 C376 C182 H2 C377 H3 C183 C378 C184 D3100 C3124 H4 L040 C379 C185 H8 R3102 TP606 R3103 R3104 C380 TP608 C381 TP609 R165 R3105 C382 R3106 C383 C384 R3108 C385 D3301 C386 D3302 C387 C388 TP610 C389 C195 TP611 TP612 C197 C198 R3112 R3306 R3113 TP617 R3307 C390 R3308 R3309 JK003 L3001 L3002 L3003 R184 R3124 R185 R3125 D189 R186 R187 R3127 R188 R3128 L3201 R189 L3010 L3207 L3013 L3208 R190 L3209 R191 R192 R193 R3134 R195 R196 L3211 H11 L3212 H12 R3141 R3142 R3143 R3144 R3145 R3146 L3220 R3149 L3222 L3223 JS300 L3224 JS301 L3225 L3226 R3350 R3160 R3168 C003 C004 C005 C006 Q002 Q003 JK3001 R3177 H51 C202 C010 C205 C011 C206 C013 R3180 C014 C016 C017 R3186 R3188 C021 C022 C219 C802 C803 C805 C806 C807 D015 D016 D017 C237 C238 C814 D020 C817 R214 R215 D025 C049 R602 R603 C050 R029 C052 C246 C053 R223 R030 D035 R031 D036 R032 R033 R034 L308 C068 R235 R236 R237 R238 R239 C3201 R047 Q3200 R048 R624 Q3201 R049 R625 R242 R050 R051 TP302 R052 TP303 R053 TP304 R054 TP305 TP306 C272 R056 TP307 R057 TP308 TP309 C3216 C3022 C3023 D3003 TP310 C088 D3005 R3001 C3029 D3006 R3002 R062 R3003 R063 Q3027 TU3200 C280 R3004 TU3201 R3005 R3006 R3007 C3030 R3008 R3009 C3226 C3227 C288 C3228 C289 R3202 R263 R3010 R3205 R265 R3206 R3012 R074 C291 C3040 C3042 C298 R3213 R3020 R3214 R3215 R3021 R3216 R3022 R277 R084 R278 R279 R280 R281 R282 R3222 CR NO.2 TNPA4179 H 1 PbF AV3 COMPONENT AV3 AV2 COMPONENT MONITOR OUT AV1 AV2 REVERSE FOR SUFFIX. SEE 1 2 22 23 1 2 22 23 1 2 22 23 1 10 L R 1 2 3 4 1 5 1 2 3 4 1 4 23 22 1 2 1 5 6 10 11 15 1 2 19 20 23 22 1 2 VIDEOOUT AFTOUT BTL VB RFAGC SDA SCL BB SIFOUT AUDIOOUT +B SW1 SW2 VIDEOOUT AFTOUT SCL SDA RFAGC VB BTL +B SW2 SW1 TH-50PV70C H-BOARD TXN/H1HMTC (TNPA4179AH) TH-50PV70C H-BOARD TXN/H1HMTC (TNPA4179AH) H-BOARD (FOIL SIDE) TXN/H1HMTC (TNPA4179AH) H Parts Location H-BOARD (FOIL SIDE) Q2002 C-4 Q2003 C-4 Q2004 A-3 Q2005 A-3 Q2006 A-4 Q2007 A-4 Q2008 A-4 Q2009 A-4 Q2103 C-3 Q3027 C-3 Q3028 D-4 Q3029 C-4 Q3200 F-2 TRANSISTOR TP2012 C-5 TP2014 D-5 TP2015 D-5 TP2016 D-5 TP2017 D-5 TP2018 D-5 TP2019 D-5 TP2020 C-5 TP2021 B-2 TP2022 A-2 TP2023 A-2 TP2024 A-2 TP2302 B-2 TP2303 B-1 TP2304 C-2 TP2305 B-1 TP2306 C-2 TP2307 B-2 TP2308 C-1 TP2309 C-1 TP2310 B-2 TP2606 F-4 TP2608 F-2 TP2609 F-3 TP2610 F-3 TP2611 H-4 TP2612 F-4 TP2613 E-5 TP2614 E-5 TP2615 D-5 TP2616 D-5 TP2617 F-2 TP TP3001 B-5 TP3003 B-5 TP3004 A-2 TP3004 C-5 TP3005 B-5 TP3006 C-5 TP3007 B-5 TP3008 C-5 TP3009 C-5 TP3010 C-5 TP3011 B-5 TP3012 C-5 TP3013 B-5 TP3014 C-5 TP3015 C-5 TP3016 B-5 TP3017 C-5 TP3020 C-5 TP3021 B-5 TP3022 C-5 TP3023 C-5 TP3024 C-5 TP3025 C-5 TP3031 A-2 TP3032 A-2 TP3033 A-2 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 42 A B C D E F G H I 1 2 3 4 5 6 R284 R860 R090 R285 R091 R861 R286 R092 R862 R3227 R287 R863 R093 R3228 R094 R864 R3229 R865 R095 R866 R096 R3037 R097 R3038 R098 R3039 R869 R099 C3063 R290 R291 C3066 R292 R3233 R293 R3040 D3044 R3234 R294 R3041 R871 R295 R3236 R872 R3237 R873 R3238 R299 C3264 C3070 C3267 C3268 C3075 C3076 R3243 R3247 C3270 C3271 C3272 C3273 C3081 R3059 C3082 C3083 C3084 C3279 C3085 C3086 C3087 R890 R3062 R3063 R3064 C3282 R3068 C3285 R3069 FL3001 C3286 FL3002 FL3003 FL3004 C3289 FL3005 FL3006 FL3007 FL3008 R3070 R3072 C3290 JS034 R3074 JS035 C3292 C3293 C100 C3296 C102 C3298 Q101 C105 Q102 C106 C107 JK3100 C108 C109 R3277 R3278 C301 JS046 C302 C303 R3087 JS048 C304 C110 X010 R3088 C305 JS049 Q301 R3089 C111 C306 C112 C307 C113 C308 C114 C309 C115 C116 C117 JS050 C118 R3090 JS051 C119 C310 C311 C312 R3096 C313 R3097 C314 C120 JS058 R3098 C315 C121 R3099 C316 C124 C126 C127 JS060 R100 C129 JS064 R104 R108 C130 R109 D301 C131 D302 C132 C327 D303 C133 C328 D304 C134 C135 IC105 C329 R301 C136 R302 IC106 IC107 C137 C138 R305 R306 JS3206 R307 R113 C330 JS3208 R114 D119 IC301 R115 IC302 IC303 R118 R119 C143 C145 C146 C147 R122 R317 JS3023 R123 R318 R124 R319 R125 R127 R128 R129 C151 C153 C154 R320 C155 R321 C349 R322 C157 R323 R324 R130 C159 R325 R131 R326 R133 R134 C350 R328 JS3034 R135 C351 JS3035 C352 R136 JS096 JS3036 C353 R137 JS3037 JS097 R138 C160 C354 JS3038 C3100 C355 C161 C3101 JS3039 C162 C356 C3102 C357 C163 C3103 C358 C164 R330 C165 C359 R331 L021 C166 C167 L023 C168 R140 C169 R141 R142 L026 R143 L027 C360 C3300 L028 R144 C361 ZA3001 L029 R145 ZA3002 C362 R146 C363 ZA3003 C364 ZA3004 C170 C365 ZA3005 C171 C172 ZA3006 C3113 ZA3007 ZA3008 C175 C176 C3116 C3117 L034 R150 C3118 C3119 C179 R151 L035 L038 L039 R156 C3120 H2 H3 H4 D3101 C3125 C186 H6 C3126 D3102 C187 R160 H8 C188 R3100 C189 R3101 R162 TP607 R164 R166 R3107 R167 R168 C190 C191 R3109 R169 C192 C193 C194 R3301 C196 R3302 R3303 R170 R3110 R171 R3305 R3111 C199 R172 R173 R174 R175 R3115 IC3302 R3116 R3117 JK003 R3118 R178 R179 R3119 L3000 R3310 R3311 R3313 R180 R3120 L3004 R3121 R181 R182 R3316 R3122 R3123 R183 R3318 R3319 R3126 L647 L648 L3201 L649 R3129 L3206 L650 R3130 R3131 R3133 R194 R3135 R197 R3137 R198 R3138 H11 R3139 L3212 H12 D3334 H15 D3335 D3336 D3337 R3140 D3338 JS101 L3219 JS102 JS103 R3147 R3148 L3227 R3348 R3349 R3351 R3352 R3353 R3161 R3162 R3164 R3165 R3166 R3167 R3174 JK3001 R3175 R3176 C200 H51 C201 C203 C204 ZA101 Q015 Q016 ZA102 ZA103 Q017 ZA104 ZA105 ZA106 ZA107 C213 ZA108 C216 C023 C218 C601 Q021 R3191 C602 Q023 Q024 Q025 Q026 Q027 Q028 Q029 C224 C801 IC002 IC003 Q030 C804 Q031 IC006 Q033 IC007 R203 IC008 Q034 R204 R205 Q035 R206 R207 R208 R209 Q039 IC010 IC011 C812 IC012 IC013 C813 R210 Q040 Q041 C815 C816 Q042 C818 C048 C819 D025 R216 D026 R217 R218 D028 R601 D029 R219 C244 C245 R220 C054 IC601 R221 C055 D031 R222 C056 D032 D033 C057 C058 D034 R224 R225 C059 R226 R227 L300 R228 L301 C251 R229 Q635 L302 C252 Q636 L303 C253 Q637 L304 C254 C060 Q638 L305 Q639 C255 C061 L306 C062 C256 L307 C063 C257 IC610 C258 C064 R230 L309 C259 R231 C065 C066 R232 C067 R233 R234 Q640 C069 Q641 L310 C3202 C263 C070 C264 C071 C265 C072 C266 C073 C267 R240 R628 C268 R241 R629 Q3011 Q3012 Q3013 R243 Q3014 R244 TP301 Q3015 D632 D633 Q3017 D634 Q3018 C270 C271 D635 D636 D637 C273 D638 R058 C274 C3214 C3021 R059 C276 C3024 C279 C3025 C3026 R252 R253 C3027 C3028 R254 C089 R257 TU3200 R064 TU3201 R065 C281 R066 R067 R068 R069 IC3001 FL001 C3031 C091 FL002 C092 FL003 C093 C3033 FL004 C094 Q3030 Q3031 FL005 C3035 C095 Q3032 FL006 C096 C097 R070 C098 R071 C099 R266 R072 R073 C3230 C290 R075 C292 C293 C294 C295 C296 C297 C3043 R270 R271 C3047 R275 C3049 R276 R853 R854 R085 R855 R856 R086 R857 R088 R858 C3050 R089 C3051 R859 C3052 C3053 C3054 C3055 C3056 R283 B DIP A AB AD AE AF A B D D E E F C F C AG AH AJ AK AL AM AN AP AQ AR AS DA DB DC DD 1 HMM1 HMM2 HMM3 HMM5 HMM4 HMM8 HMM11 CR NO.2 HMM9 G G AC H HMM13 HMM14 HMM6 HMM15 TNPA4179 HMM7 HMM10 HMM12 H H PbF 1 1 AV3 COMPONENT AV3 COMPONENT AV1 AV2 AV2 MONITOR OUT 1 11 12 22 23 33 34 44 1 20 21 40 41 60 61 80 1 4 5 7 1 22 23 44 1 22 23 44 SUFFIX. 1 2 22 23 1 2 22 23 1 2 22 23 2 79 80 1 1 10 1 4 5 8 L R 1 2 3 4 1 5 2 3 4 1 1 4 1 4 23 22 1 2 1 5 6 10 11 15 1 2 19 20 23 22 1 2 1 8 9 16 1 4 5 8 1 4 5 8 1 4 5 7 1 3 4 5 1 4 5 8 1 4 5 8 1 3 4 5 1 4 5 8 1 3 4 5 SCL SDA RFAGC VB BTL AUDIOOUT SIFOUT BB +B SW1 SW2 VIDEOOUT AFTOUT VB AFTOUT VIDEOOUT SW1 SW2 +B SCL SDA RFAGC BTL 1 25 26 50 51 75 76 100 TH-50PV70C H-BOARD TXN/H1HMTC (TNPA4179AH) TH-50PV70C H-BOARD TXN/H1HMTC (TNPA4179AH) H-BOARD (COMPONENT SIDE) TXN/H1HMTC (TNPA4179AH) H Parts Location H-BOARD (COMPONENT SIDE) IC2002 B-2 IC2003 B-1 IC2006 B-1 IC2007 B-5 IC2008 B-3 IC2010 B-4 IC2011 C-5 IC2012 C-2 IC2013 C-2 IC2106 B-4 IC2107 B-3 IC2301 E-2 IC2302 D-2 IC2303 D-1 IC2601 B-5 IC2610 B-2 IC3001 C-4 IC3002 C-5 IC3101 F-2 IC Q2015 C-5 Q2016 B-5 Q2017 B-5 Q2021 C-5 Q2023 B-1 Q2024 B-1 Q2025 B-1 Q2026 B-1 Q2027 C-2 Q2028 C-1 Q2029 C-2 Q2030 C-1 Q2031 F-5 Q2033 F-5 Q2034 F-5 Q2035 F-5 Q2039 F-5 Q2040 F-5 Q2041 F-5 Q2042 F-5 Q2101 B-4 Q2102 B-4 Q2301 D-2 Q2635 A-4 Q2636 A-4 Q2637 A-5 Q2638 A-4 Q2639 B-2 Q2640 B-5 Q2641 B-5 Q3011 C-5 Q3012 D-5 Q3013 D-5 Q3014 C-5 Q3015 A-5 Q3017 C-5 Q3018 D-5 Q3030 C-5 Q3031 B-5 Q3032 B-5 TRANSISTOR TP TP2301 D-1 TP2607 A-2 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 43 14.4. DG 电路板 A B C D E F G H I 1 2 3 4 5 6 TP5608 Q4000 Q4001 Q4002 Q4200 Q8850 Q4201 Q8851 Q8852 Q8853 IC4000 IC4002 IC4003 IC4004 Q4800 IC4005 Q4801 Q4802 Q4803 Q4805 TP5670 TP8745 TP4504 TP4505 JK8731 TP4506 TP4507 TP4508 TP4512 TP4513 TP4514 TP4515 TP4517 TP4518 Q8301 TP2002 TP2003 TP2004 TP2010 IC5600 IC5601 TU8301 TP2024 IC8301 Q8913 TP5707 TP8404 TP8601 TP8602 TP8603 TP8604 TP8605 Q5694 Q4500 Q4501 Q4502 Q4503 TP8037 IC5670 IC8551 Q4509 IC8552 Q4511 Q4512 Q4513 Q4514 Q4515 Q4516 Q4517 Q4518 Q4519 Q4521 TP1100 TP1101 JK8401 TP1102 TP1103 TP1104 TP1105 IC4501 IC4504 IC4506 IC4507 IC4508 IC4509 IC4513 IC4514 IC4515 IC2000 TP4200 TP4201 TP8851 TP8852 TP8853 TP8854 TP4800 TP4801 TP4802 TP4803 TP4804 TP4805 TP4806 TP4807 TP4808 TP4809 Q8403 TP4810 TP4811 TP4812 TP4818 IC8004 Q8801 Q8802 TP4451 IC8408 IC8409 IC8601 Q1100 Q1101 Q1102 Q1103 Q1104 Q1105 Q1106 Q1107 Q1108 IC8801 Q1109 TP5600 TP5601 TP5602 Q1110 Q1111 TNPA4226 1 DG Q8404 PbF 1 3 4 5 1 3 4 5 1 3 4 5 1 3 4 5 REVERSE FOR SUFFIX. SEE 1 2 16 15 12 13 24 1 1 15 16 30 ACTIVE ANTENNA DC/DC TU BM SCL IFD2 IFD1 SDA IFA1 BB IFAGC RFAGC MON 1 16 17 32 33 48 49 64 1 3 4 5 25 48 24 25 1 48 34 33 68 67 1 2 35 36 1 4 5 8 1 4 5 8 1 4 5 7 1 3 4 5 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 8 9 16 + 1 10 11 20 1 10 11 20 1 4 5 8 1 4 5 7 TNPA4226 B CL8461 C8009 TP4201 R8737 CL4522 D5604 L5694 L8551 TP8704 R8056 R8603 C8026 C4557 CL8417 C4511 TP8602 R8904 R5612 R8875 R8092 R4200 TP8706 JS4501 IC8408 C8034 C4543 R4311 R1222 C5690 R8710 R5624 R8886 CL8303 Q4801 TP8707 CL8886 R8029 Q8802 R4531 L4004 Q4512 CL4528 L8001 R4674 D5607 C5617 L4503 CL8305 C4806 C8047 CL4000 R4543 R4527 TP8403 TP2019 R4850 C4585 C4569 D4528 R1249 R4693 R4870 TP2018 TP8714 R8023 CL4003 C4554 R4502 R8900 R4874 R4838 TP8760 L5692 TP8701 ZA0022 CL8427 CL8412 R4697 R5620 R8107 TP2009 R4837 L5691 TP8726 R1114 C8804 CL8459 C4538 L5690 TP8737 TP8724 R1111 D1102 L8503 C8043 C8802 CL8822 R4703 R4307 R8746 R8916 R8510 CL8511 CL8501 R8811 C8040 C4597 C4580 C4562 R4318 R1230 R5670 R4292 R4283 TP2003 TP4506 TP8759 R8088 R8448 C8056 FL4506 C5713 R4538 R8951 R4291 C5632 CL8330 R4612 R4603 R8470 R8655 CL8877 ZA0014 R4533 C4531 TP2012 CL8309 Q4805 C4001 CL8879 FL4504 C8015 L4801 C4532 CL4533 L8007 R4668 R4848 TP4504 R8099 R8086 TP8710 R8437 R4568 CL8834 R8564 R8935 TP5701 R8301 D5608 C4626 R8083 R1108 C8067 R8015 R8002 ZA0013 R8950 R1212 C5671 L8004 TP2022 R4665 R4846 R8098 R4011 Q4201 R8435 TP5608 C8049 CL4002 R4709 IC5670 R8926 R4873 R4851 TP8749 TP8738 C4042 TP8700 D1104 L8302 CL8414 IC8551 R4680 R8883 C4044 R8069 R1101 R8048 C1105 CL8808 R5673 R8920 C5622 R8020 CL1103 CL8424 C4509 R8924 CL8961 C8062 CL4801 C8806 C4559 C4545 CL8404 R8908 R8505 TP8764 Q4802 C4601 C8852 Q1109 IC8004 IC4513 CL8402 TP8604 R8905 R4661 R4812 C4623 C4035 C4023 C8080 R8038 CL8462 CL8813 R4505 R1221 TP8601 R8903 TP8762 L4501 CL8508 TP8718 R8440 CL8884 L5606 CL4005 CL8812 R4504 R8944 R1207 R8902 C8336 R5600 TP4511 L4500 CL8507 R8091 C4804 C4020 R1103 C8029 C8012 Q4517 TP5705 R8508 TP2011 TP8730 TP8501 C8074 R8044 TP5601 C8038 C4590 TP4800 Q4514 R1211 TP5702 R5627 C8329 TP4518 C5600 R8876 C4604 C8054 C4594 ZA0015 CL8818 C4547 CL8406 R5618 L4520 TP8754 R8879 C8076 R4593 C8413 CL8802 TP5706 R5607 C8307 TP4503 TP8740 C8075 R8810 C4560 CL8408 CL004 R1213 C5641 TP2015 R1199 CL8702 TP8733 R8079 R8446 C8069 Q1100 R8019 R8007 ZA0018 IC4504 R1214 C5643 TP2017 C5620 R1182 R1157 R4208 R8463 C4014 CL8867 CL8456 R2022 TP8801 R8704 R4244 R4615 R1136 R8832 R4585 C5730 R4541 CL8420 IC4508 R8553 L8802 R5633 X8001 CL8514 R8474 Q4002 R4579 C8028 C8010 R1229 R8313 R4858 R4802 CL8307 C8072 TP5602 R8001 TP4802 CL003 R8911 TP4501 TP8752 R1144 R8084 R8075 R1109 C8412 TP4803 R4532 IC4515 R4688 R4676 R5606 TP4502 C4628 R4535 CL8804 R8966 R4290 TP2014 R1198 TP8755 R4611 R8481 R8856 C4608 C4003 CL8854 C8018 C4563 CL8409 D5690 Q4500 C5634 C5607 R4241 R4808 C4050 R8859 TP8713 R8016 ZA0017 CL8434 R1243 C2000 R8937 R4281 CL5671 TP8757 TP8711 C8856 R4584 C4584 CL8824 D4501 R8747 TP4509 R8486 R1110 TP5607 C8813 D4526 D4513 D4500 CL4537 R5631 TP4508 CL8335 CL8512 R4606 R1137 R5732 C8023 C8007 TP4200 R8735 R5621 C4620 C8070 L8301 C8021 R1262 R4501 R8940 R5637 CL8515 R8475 R8450 R8053 Q1102 ZA0020 CL8422 R8923 R4285 TP8715 C8045 IC2000 C4539 R8748 TP8401 R5634 C8321 C5623 R5735 TP8854 CL8800 R1223 R5613 TP8763 CL8326 C4047 IC4005 C5732 D4535 CL8419 R8964 C4515 L4518 R4813 R8094 R8852 TP8709 R8829 R5733 R8601 ZA0024 C4555 R4325 R8943 R5622 TP4510 TP8761 R4810 CL8506 C4803 R8454 R1102 CL8874 TP4816 CL8831 D4533 R8946 CL4524 R4683 C8315 TP4514 CL8519 R8863 C4805 D1108 C8032 R1259 D5693 C4506 R4690 L4524 TP8746 R8485 TP8722 R8821 C8044 R4574 C8001 CL8807 Q4521 Q4503 R8706 TP8748 R1138 R8822 TP5603 C8016 CL8433 C4533 Q4518 R8743 R8101 TP4505 R4627 R4806 R4026 R8087 R1125 Q8852 R8041 R8401 C4598 TP4808 C4504 CL4503 C8320 TP2004 TP8744 TP8734 CL4805 TP4805 CL8819 R1257 R4316 C5673 C8340 R8100 CL5670 R4805 C4629 R1124 C8052 C4592 C8013 CL8817 C4546 R5629 R5617 C5603 TP8753 R4804 R8480 C4615 C8066 R4569 R4552 R8567 C4502 TP5704 R5628 TP2021 R4859 R1195 R4803 R4600 R8651 C1118 C8809 CL8658 D5671 TP5703 TP2010 TP4500 CL8316 R1143 R8074 Q4200 R8433 CL8885 CL8656 TP8853 TP1105 R8945 TP8603 R8328 R8503 C8326 R4840 C4622 R8080 R1104 R8037 R8025 TP4814 TP1104 R8326 JS4006 R4648 TP8729 TP8717 JS4502 IC8409 R4576 IC4514 R4507 R1225 R8907 C8339 TP4516 CL8327 C4048 R8059 R8039 R8604 R4575 D4534 R4506 R8948 R8711 C8338 R4279 C8301 R8093 R8469 X4500 C8851 R4524 C4526 TP8803 R8921 C5635 TP2006 IC4000 R8032 R4587 R2027 R4706 C4527 TP8804 CL4543 L8010 R8105 CL8881 R4589 TP4811 TP8807 CL4507 C5637 C8505 R4836 R8067 R8823 Q1106 CL8870 TP4813 R1264 TP1103 C8335 C5627 R4839 CL8517 TP8739 L5670 R8040 R4580 R4539 L4008 R4302 C5633 TP2002 R8891 R4807 R4014 TP8712 R8447 Q1111 C8058 R4581 R8008 CL8820 R4701 R8745 C8330 R4242 CL5600 R8060 C4581 C4565 TP4000 IC4506 R4305 R5671 L8009 R4605 R8089 D1100 C8033 CL8458 R2024 D4527 R4308 TP8802 R8919 R5632 C4018 R8012 FL4501 TP4801 R8742 C5670 R4687 C5601 R4816 R8868 Q8851 TP5600 C8808 C8027 C4577 Q4513 R1210 R5643 R8506 C8318 R4844 TP8766 R1151 CL8306 Q4803 C4603 R8819 R4595 C8415 L4007 TP5707 L8008 TP2024 IC5601 C5605 CL8701 R8078 C8077 R4594 C8414 R2018 L4006 C5640 C5630 R4653 C4002 R5737 R8412 R4577 R2016 C4530 CL8002 D5670 CL4529 R5626 TP4517 TP8765 C4049 R4202 C4602 R8443 IC8801 C8050 C5731 R8963 R8906 D5606 C5616 L4517 CL8304 C4611 C4600 Q1108 R4565 C4541 L4000 R1220 R8738 CL8955 C8314 C4621 Q4800 Q1107 L5605 C8024 R2011 CL8415 CL8400 R8736 R4681 R5611 C5610 R4631 CL8324 CL8312 CL8301 TP8703 TP4451 ZA0021 C8004 R1261 CL8411 C4529 R8557 R8925 R5636 R4872 R4246 R8487 TP8725 Q1105 C8022 CL8428 CL5712 TP8808 R8927 CL8964 R5610 C5626 R8882 C4043 C4210 R8031 R4330 IC4509 R1236 R8554 R8320 IC8301 CL5601 R8034 C8048 TP1100 TP8805 R1201 IC4002 CL8803 R8965 C8552 L8006 R8110 IC5600 R4012 IC8601 FL4505 C5712 CL8431 CL8407 R8914 R8319 R4678 TP2000 R4229 R1146 C8037 CL8463 C4576 R1227 C4500 TP2020 R5604 C4203 C4591 CL002 R8936 Q8913 TP4519 R4622 R8877 CL8308 C4614 C8855 C4000 C8814 C8803 C4583 R8552 R8918 C5609 CL8513 TP8736 TP8723 R8834 C8079 R4582 C8031 ZA0019 R2021 R1258 R4702 C4505 R8915 TP8745 TP8735 R4209 R8061 C1124 TP5605 L5610 C8030 R4304 Q5694 JS4000 C5621 R1135 TP5604 C8057 C5714 R4303 R8938 TP8743 R4604 R1126 C4013 CL8880 R4588 Q8404 R1260 R4320 R4500 R8555 C8332 R8106 TP2008 C4802 C8002 D4515 R8922 TP2007 C1109 CL5711 JS4004 C8506 R8870 R8476 R8068 R1100 CL8426 TP1101 TP8037 R4696 C8333 R8881 D4800 R1139 R1113 D1103 R8045 R4564 C8008 TP8851 R1250 R8901 R4875 R8478 IC4003 R8602 C8601 TP8852 CL8416 R8479 C8061 R8028 C8805 R4530 C4544 R1224 TP8605 CL4525 R4673 TP4515 L4502 TP8719 C4024 R8441 R4592 D4536 CL8801 L4005 R8563 R8095 R8082 R1107 R4586 C4587 R2026 CL8421 R4705 R8033 R8408 TP4810 C4550 CL8410 R1219 TP8404 R8709 JS4002 R4274 CL4001 R2028 R8556 R4286 C5625 R4835 L4512 C4053 C4041 CL8882 ZA0023 TP1102 Q4509 C8312 CL8516 R8871 R8477 R8824 R8818 C8025 C4556 C4542 CL8401 R8327 R4682 R8109 TP4512 R4811 CL8302 C4610 TP8705 D1107 CL4004 CL8429 C4540 CL5713 IC8552 R4288 C8313 R8872 R8090 R2087 C8051 C8036 R8740 R4685 C8303 C4036 R8071 R1106 L8306 CL8875 C8035 CL8403 Q4511 C8302 R8887 R8081 C4595 ZA0016 CL8432 R8967 CL4534 C8341 R8111 C5631 R4654 L4521 TP8756 R1133 R8438 CL8878 FL4503 C8014 L4800 R1256 R4315 CL4532 R4689 R4677 TP2013 R1197 R4818 R8077 R5739 C8039 TP4818 C4579 Q4515 L8003 R5605 TP8751 R1152 R8854 R4578 R1228 R8741 R4686 R5615 TP8767 R8889 R8096 C4028 Q8850 R8049 TP5606 C8042 C8019 CL8821 R4306 R8551 R8703 C5608 L4510 R4809 R1149 R8472 Q4000 CL8868 R4540 CL8806 IC4507 Q4502 TP8747 D1101 Q1110 C8017 CL8435 R4700 Q4519 D5673 R4679 TP2001 C5606 TP8758 TP8720 Q1101 X8301 Q4501 R4284 TP2005 TP4507 R8894 R8831 Q8801 L4003 R8949 C5691 R5625 C8316 R1140 TP8708 R1105 C8807 CL8816 R4329 R1226 R8909 C8317 L4519 R4814 R1141 C4612 C4026 C8853 CL8883 R8024 CL8460 CL8811 R4324 R4503 R8942 R8325 R8108 D5603 R8884 TP8728 TP8716 TP8702 R8825 TP4815 R2012 R4326 CL4523 R5623 R4289 TP4513 L4516 CL8325 C4046 IC4004 R8035 TP4812 C8006 CL8413 R8941 R1204 C8334 C5638 R8488 TP8727 R8451 Q1104 C4589 R4708 TP8806 C8311 R8896 R1112 R8052 Q1103 C8020 C8003 R4528 R4707 C4528 R1200 C8322 C8046 Q8403 R4542 R4525 R1237 R1218 TP8402 R4694 C5624 C4801 R8812 R8030 C8041 CL8855 C5715 C4564 R4319 D5691 R8939 R8104 R8893 TP5670 R8484 TP8721 C4800 R8449 C8068 R8006 TP4807 C4561 R8952 C4503 TP2016 R8890 TP8742 R1147 C4618 Q8853 R4583 CL8457 CL8823 R8917 R8705 C4052 Q4001 R8813 C8812 TP4809 C4566 CL8805 R1215 R5630 R4029 C8078 R5738 C5734 TP4817 TP5700 L8002 R4664 C8304 TP8750 C4613 C8854 C8071 C8065 R8011 C8411 C8011 Q4516 C4501 R8910 R8507 C8319 Q8301 TP8768 CL8329 C4627 C8073 C8053 C4593 TP4804 R2017 IC4501 C5672 R8509 TP2023 R4667 R4847 C5604 CL8700 TP8731 C4607 R8436 C8055 TP4806 R4317 R8701 R5619 R4669 C8309 R4626 TP8741 TP8732 C4609 R8820 TU8301 JK8401 JK8731 DG-BOARD (FOIL SIDE) TXNDG1HMTC (TNPA4226AE) TH-50PV70C DG-BOARD TXNDG1HMTC (TNPA4226AE) TH-50PV70C DG-BOARD TXNDG1HMTC (TNPA4226AE) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 44 TH-50PV70C DG-BOARD PARTS LOCATION TH-50PV70C DG-BOARD PARTS LOCATION Parts Location DG-BOARD (FOIL SIDE) IC2000 E-5 IC4000 E-4 IC4002 E-4 IC4003 D-5 IC4004 E-4 IC4005 E-4 IC4501 G-5 IC4504 H-4 IC4506 G-5 IC4507 G-3 IC4508 F-5 IC4509 E-4 IC4513 F-5 IC4514 G-5 IC4515 G-4 IC5600 C-3 IC5601 B-3 IC5670 H-4 IC8004 B-4 IC8301 C-2 IC8408 C-3 IC8409 C-2 IC8551 H-2 IC8552 G-2 IC8601 F-3 IC8801 H-3 IC Q1100 G-3 Q1101 G-3 Q1102 G-3 Q1103 G-2 Q1104 G-3 Q1105 G-3 Q1106 G-2 Q1107 G-3 Q1108 G-3 Q1109 G-3 Q1110 G-3 Q1111 G-3 Q4000 E-5 Q4001 E-5 Q4002 E-4 Q4200 B-6 Q4201 B-5 Q4500 H-4 Q4501 H-5 Q4502 G-5 Q4503 G-5 Q4509 H-3 Q4511 F-5 Q4512 F-5 Q4513 F-5 Q4514 F-5 Q4515 E-5 Q4516 F-5 Q4517 F-5 Q4518 E-5 Q4519 E-5 Q4521 H-5 Q4800 B-2 Q4801 A-3 Q4802 A-2 Q4803 A-3 Q4805 C-5 Q5694 F-3 Q8301 E-2 Q8403 D-3 Q8404 E-3 Q8801 H-3 Q8802 H-2 Q8850 D-4 Q8851 E-4 Q8852 E-4 Q8853 D-4 Q8913 G-4 TRANSISTOR TP Parts Location DG-BOARD (COMPONENT SIDE) IC1100 B-3 IC1101 B-4 IC4001 E-4 IC4500 C-4 IC4510 C-4 IC4800 A-3 IC5660 H-3 IC5671 B-4 IC5672 D-3 IC8001 F-4 IC8002 G-4 IC8003 G-3 IC8302 H-2 IC8401 E-3 IC8402 F-3 IC8403 E-2 IC8404 F-3 IC8405 F-2 IC8406 E-3 IC8407 E-3 IC8553 B-2 IC8554 C-2 IC8621 C-2 IC8622 C-2 IC Q2000 B-3 Q2001 B-3 Q4504 B-6 Q4505 B-5 Q5600 G-3 Q5601 H-3 Q5602 H-3 Q5603 H-3 Q5604 H-3 Q5690 C-3 Q5691 C-3 Q5692 C-3 Q5693 D-3 Q8401 E-2 Q8402 E-2 Q8501 F-5 Q8911 B-4 Q8912 B-4 TRANSISTOR TP1100 H-4 TP1101 G-4 TP1102 G-4 TP1103 H-1 TP1104 H-3 TP1105 G-3 TP2002 E-5 TP2003 D-5 TP2004 E-5 TP2010 E-6 TP2024 E-6 TP4200 C-6 TP4201 C-6 TP4451 A-5 TP4504 G-4 TP4505 G-5 TP4506 G-4 TP4507 G-5 TP4508 G-5 TP4513 F-4 TP4514 G-5 TP4515 F-4 TP4517 H-3 TP4518 F-4 TP4800 B-4 TP4801 B-4 TP4801 B-4 TP4802 B-4 TP4803 B-4 TP4804 B-5 TP4805 B-4 TP4806 B-4 TP4807 B-4 TP4808 B-5 TP4809 B-4 TP4810 B-4 TP4811 B-4 TP4812 B-5 TP4818 A-2 TP5600 C-3 TP5601 B-3 TP5602 B-3 TP5670 H-4 TP5707 D-6 TP5808 H-4 TP8037 B-4 TP8404 E-2 TP8601 F-3 TP8602 F-3 TP8603 F-3 TP8604 G-3 TP8605 F-3 TP8745 B-2 TP8852 G-3 TP8853 H-4 TP8854 E-3 DG �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 45 A B C D E F G H I 1 2 3 4 5 6 IC8621 IC8622 IC1100 IC1101 DG23 DG25 IC4001 DG26 DG31 DG32 DG33 DG34 DG35 DG1 DG2 DG5 JK8701 JK8702 DG6 DG7 DG52 IC4800 Q5600 JK8731 Q5601 Q5602 Q5603 Q5604 Q8501 TU8301 JK4500 JK4501 IC8302 Q8911 Q8912 IC5660 Q5690 Q5691 Q5692 Q5693 Q4504 Q4505 IC5671 IC5672 IC8553 IC8554 Q2000 Q2001 JK8401 IC4500 IC4510 JK8801 Q8401 Q8402 IC8001 IC8002 IC8003 IC8401 IC8402 IC8403 IC8404 IC8405 IC8406 IC8407 BE CF DG H J K L N M WV Q R U ( AA A B BA C D E CA DA EA FA () )F () () () ( ) P YX T S 1 DG TNPA4226 PbF 1 10 11 20 1 10 11 20 1 32 33 64 65 96 97 128 1 4 5 8 + 1 9 110 56 55 1 1 20 21 40 41 60 61 80 1 6 1 2 19 20 71 1 11 1 2 29 30 1 2 29 30 3 7 1 6 2 10 1 12 1 23 22 2 1 31 1 55 56 110 1 4 2 79 80 1 1 4 1 14 1 3 4 6 SUFFIX. + 1 2 16 15 + + ACTIVE ANTENNA BB DC/DC TU BM IFA1 SDA SCL IFD2 IFD1 IFAGC RFAGC MON 1 19 1 1 19 1 1 1 4 8 5 1 5 3 4 1 3 4 5 1 24 25 48 28 56 29 1 67 68 33 34 2 35 1 36 1 4 5 8 1 36 37 72 73 108 109 144 10 12 9 1 8 + A 1 A 1 1 A 1 12 13 24 1 11 20 10 1 4 6 3 1 10 11 20 1 10 11 20 10 1 11 20 1 10 11 20 TNPA4226 A L8304 CL8872 C5611 R8468 CL8313 R4671 R4876 CL5714 R4519 R8421 D5605 R4632 R8634 JS1127 L4001 CL8449 R8828 JS1116 R2013 R8636 C4025 R8933 D4521 C1107 DG25 R4871 IC8003-A R8749 D4504 R4513 R4599 C8815 C8502 CL4540 R1217 R4309 R8806 R8624 R8631 R8860 CL8311 R4670 R5660 IC5671 R4323 CL8443 R5731 IC8402 R8897 R8623 C4008 FL5734 R8733 L1100 D4505 CL8442 CL8869 R8512 L8801 C4507 C4525 R4523 CL1101 R4640 R4820 C4005 R8062 R4016 C4549 C8402 R8418 R4613 DG23 R4028 C1114 R8017 C4012 Q5693 D4510 FL4502 R4652 CL8343 R1167 CL8318 R4003 R8303 R8315 R8912 D4522 CL8319 R8304 R2003 C8064 R8010 R4650 R4637 R8432 R1120 Q8912 CL8342 DG7 C4606 R8805 R4643 R1173 R8046 R4863 R8323 R1239 R1263 C8005 IC8404 JS1102 R1174 DG1 R8518 R8928 D4506 D4530 R4547 R4563 R8405 R4860 R1128 JS1120 R8707 R5691 R1248 R2025 Q8401 R8803 C5636 JS1100 C4032 R5635 R1238 D4517 C8408 R4856 R8865 JK4500 C5693 R8561 R8410 R4841 R4866 R8310 R8947 CL8814 IC8407 R4854 R8456 R8862 C8337 R1252 C4574 R1175 JS1115 JK8801 CL8446 R8427 CL8861 C8306 C5602 L4506 R1153 R4002 R4204 FL4802 Q5692 R4815 R8626 IC1100 R8853 R8867 R5608 C8308 R8460 R1132 R8869 R8317 L4507 R1123 R8855 R4025 CL5693 L8005 R1241 D4537 CL8450 R4596 CL8863 CL8852 R4628 R8858 CL8453 R4629 FL5730 Q2000 CL8437 C1117 CL8856 CL8348 R8050 C4051 C5675 R1233 D4512 R4521 R1172 C4019 R4607 R1235 C8405 R8425 CL8340 L4505 C4204 R4000 C4807 CL5691 R5646 Q5691 R8014 D5609 CL8317 R8814 C1120 CL5692 R8314 D5672 CL4802 R4817 R8878 R8629 R1122 C4039 C8551 CL8405 D8801 R8004 Q5601 R8318 C8553 C5711 L8501 R4598 CL8865 R4658 D1110 R8307 R8428 C1102 C8416 R1181 R1156 R4207 R8482 CL4501 CL8858 CL8336 CL8320 C4006 DG34 R4692 CL4539 R4704 R2007 IC8002 C1125 C4017 R5672 C4567 C5716 L5604 R4852 R1189 R4630 CL8323 C4009 R8452 R4609 JS1114 R5638 R5697 IC4510 R8021 Q8501 R8816 R4608 R4287 JS1123 CL4546 D4519 ZA0005 R8407 C8310 CL4505 R8514 R5674 D4503 D4516 CL8826 R8419 R8465 R5692 ZA0001 C8406 CL4800 CL8859 JS1105 C5615 R8058 R8458 FL4810 R8329 CL4550 L4002 R5736 R8411 JS1106 R1192 C8328 FL4811 CL4527 R8932 R4853 C4045 C5639 C5662 R5662 D4508 C4571 R8809 R1176 JK8701 R8457 R4672 IC5660 CL5715 R4327 R8043 R8403 R8833 C5676 C4537 R2023 C4582 R4641 R8064 FL5733 SW5660 R4510 C8404 R8416 CL8862 R8005 R4655 R8305 C1104 R4833 R8892 R8830 R1127 R8471 R8954 D4511 CL8438 CL8850 L4509 C1123 R4206 CL4500 R4666 R1196 IC8621 R8076 CL4531 R4509 CL8860 R4639 R1166 R8628 IC1101 R1130 C1111 C5619 R1165 C4808 R4675 FL4813 R8565 ZA0011 R8027 C5629 R1161 CL8315 C4022 R1253 C4575 C5628 L4515 R1160 R8826 R1118 R8873 C8325 R1206 IC8553 R1251 D4531 ZA0009 R1178 R8459 R4201 C5692 CL8815 R1177 R1162 C8327 R8930 D4520 L5611 C8621 C5644 R8513 R4511 CL8825 Q8402 R1129 JS1121 R4526 C4588 L4513 CL8321 R8622 R4019 CL8310 R8516 R1202 R5695 R4515 C4552 R4545 R8898 R8431 D1105 R1116 R4864 C5661 R1205 R8559 R4518 CL8444 C1103 C8417 CL8346 R8483 C5642 R8744 CL8454 JS1110 R4659 R4614 DG31 R1148 Q2001 C8401 L8502 CL8866 C8801 Q5603 CL8334 IC4800 C4015 C5674 R8404 R1185 R8895 R4617 R8051 C4040 CL8502 D4514 R8426 R4651 JK8702 R8434 R1121 R4010 R4869 R8566 C4010 R1169 R8857 FL8802 C4548 R2019 CL8452 R1180 R4624 R4610 R4004 C4616 R4601 R8913 D4523 CL8451 JS1107 CL8328 R4868 R2001 D1109 JS1117 R8504 L8621 R8560 R1254 CL8620 IC8406 R4649 R8827 R8455 R8874 JS1126 C5663 D4532 C4572 JS1103 R8632 R8467 R8519 IC5672 CL8445 R8804 R4642 R4618 R8621 C4007 R8066 C8323 R8022 R4247 R8047 R8630 CL8504 C5660 R4516 R4546 R8406 TU8301 C8503 CL4541 ZA0002 C4586 D5601 R4862 IC8302 R4695 R4514 CL8425 R4544 C8409 R8414 R8003 CL8344 R4034 IC8622 R8653 FL8801 CL8430 C5710 R5609 CL8345 R4819 C4004 R8461 C4617 R4520 R8424 C5618 R1164 R4801 R8625 C4027 C4037 R8866 R8312 R5642 C1112 R8013 JS1109 CL8341 C4605 FL4801 CL4530 ZA0012 R8511 R8958 CL8600 R2006 C4568 R8042 R1170 R8702 R1232 C8811 CL8347 CL8332 R1158 C4208 R4007 CL8500 R1245 R2020 CL8455 R8018 CL8853 R8103 R4657 R4832 CL8331 R1134 CL4502 R1244 CL8436 C8731 CL4545 ZA0004 C8059 C8622 C4031 R8708 C4508 D4502 CL8809 C8407 L5602 CL5660 R4619 R8817 R8517 R1203 R8558 R4322 C4553 ZA0006 R4562 R5730 IC8401 JS1101 R1186 CL8337 JS1113 R8732 R4321 CL8441 R4561 R8807 CL8871 R4647 CL8339 C4450 D1106 R1117 DG2 CL4549 D4507 R5734 R4660 C5612 R4249 R8885 R8633 R1119 C4034 CL8314 R4865 R8502 R1208 IC8554 R4310 CL8447 R4855 R4633 R8864 R4684 R4312 C8063 C5733 R4857 R4635 L4504 R8072 FL4800 FL4812 R5641 C5694 C1106 JS1111 D5600 IC4001 R8309 X1100 CL4542 Q4504 R5693 DG26 JS1112 R5694 CL8440 C1108 R8409 R8880 R8815 C1126 R8065 CL4506 R8515 R8731 CL5710 D4518 C4551 IC8403 R4644 R1115 C8324 JS1124 R4698 R8734 R4517 R2010 ZA0007 R8808 R8026 R1150 R8739 C4573 L8303 IC8405 R4646 R8899 CL8518 R8055 R8453 C4033 R8501 R4699 R5661 ZA0008 R1179 R8888 C4625 CL5690 R5640 R8562 R4508 R1255 R2015 R4662 R8635 R8070 C4624 CL8957 R8311 R8712 R8931 R2000 C4558 IC8002-A R1155 R4005 R4602 R2004 Q5600 R1154 C1122 R1131 R1145 R4845 R4638 R8627 R8445 C4029 R8097 JK4501 R5647 C5695 C1110 C8410 JS1108 R1194 DG5 R4203 R5644 C4578 IC8001 D1112 CL4535 C4536 D4525 IC8003 Q5604 L4511 R8063 R4017 FL5732 R4691 CL4538 R1234 C8403 R8417 CL8864 C4596 R8102 DG52 C4206 R4006 R4027 C1116 R8402 C4599 CL8510 C4030 C4619 FL5731 CL4504 R1231 C4535 CL8439 R8422 R8605 R4842 R1163 R8851 R4867 CL4526 R4328 R2014 R8423 CL8876 R1193 JS1118 Q8911 Q5690 IC4500 R4645 CL8505 JS1125 R8929 C4570 C8060 CL8873 JS1104 R8057 C4021 R4800 R1209 C4510 D4509 CL8448 L5603 D5602 R1188 CL8338 CL8322 R8430 R8054 R8324 R5696 CL8810 L5601 R4230 C1119 DG35 CL8503 JS1122 R8322 L5735 JK8401 R4529 CL1104 L5600 C8504 R8466 C5645 R8321 Q4505 R8802 R4861 C8331 R4512 C8501 R1183 R8308 R4597 C8810 R4656 Q5602 R8462 R8306 C4534 CL8857 R1184 R1171 R4616 D1113 DG33 R1216 R5690 R1247 R4522 R8009 R4834 R1159 C4016 DG32 C8555 D5692 R1246 R4636 CL8509 R8073 R1142 R8934 CL8003 ZA0010 DG6 C4011 R4001 C4038 JS1119 R4205 R2002 CL8851 JK8731 R4013 C8554 D4524 R4536 DG-BOARD (COMPONENT SIDE) TXNDG1HMTC (TNPA4226AE) TH-50PV70C DG-BOARD TXNDG1HMTC (TNPA4226AE) TH-50PV70C DG-BOARD TXNDG1HMTC (TNPA4226AE) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 46 14.5. D 电路板 A B C D E F G H I 1 2 3 4 5 6 C028 C029 IC001 C032 IC002 IC007 R203 R205 Q805 R206 Q806 R207 D017 R400 D020 C044 C045 Q044 C048 R215 Q046 R217 R218 R219 C050 C051 C052 R220 Q050 C825 R221 Q051 D802 R222 C056 C057 Q053 D804 C058 D807 D808 C062 C832 C063 D811 IC805 IC806 D813 D814 C838 L501 D815 L502 L504 L505 C840 C843 C844 C846 R827 R828 C856 C860 R839 C861 C862 C863 C864 R070 R840 R845 R846 R847 R848 R849 C874 C877 C878 R850 C879 C880 R859 C881 C882 C883 C884 C885 C886 C887 C888 R861 R862 R863 R868 R869 FL806 R870 R871 R872 R875 R878 R879 R886 R887 R888 R889 R890 R891 R892 R893 R894 R895 R896 R897 R898 R899 C507 C511 R101 C512 C513 R105 C516 C517 C900 C518 R108 C901 C519 R109 C902 C903 C904 C905 C906 C907 C908 C520 R110 C521 C909 C522 R112 C523 C524 C525 C526 C527 C910 C528 C911 R501 C912 R503 C913 C914 R504 R505 C915 C916 R507 C917 C918 C919 C531 IC502 R122 R317 R123 R127 C920 R511 R129 C921 C922 C923 C924 R514 C925 R515 R516 C927 C928 R519 R901 C929 R902 R132 R903 R134 R904 R906 R907 R520 C930 R908 R521 C931 C932 C933 C934 C935 R526 C936 C937 R910 C938 R141 C939 R911 R142 R915 R918 TP010 R530 C940 C559 R919 C941 C942 C943 C944 C945 C946 R537 C947 C560 R538 C561 R539 C949 C562 C563 C564 C565 R925 C566 R926 R927 R928 C950 R540 R541 C952 R543 R544 C954 C955 R545 C956 C957 C958 C959 R936 R166 R937 C960 R552 C966 C967 R557 R558 R364 R365 R941 R171 R172 R943 R174 FL300 R945 FL301 R175 R946 R949 R568 R950 R957 R959 R189 R382 R383 R384 R385 R193 FL900 R199 FL902 R394 3 CR NO.9 TNPA4134 D 2 1 1 PbF 8 5 4 1 6 4 3 1 8 5 4 1 30 16 15 1 12 13 24 1 SEE REVERSE FOR ORDER NO. 5 4 3 1 + + TH-50PV70C D-BOARD TZTNP01HMTC (TNPA4134AG) TH-50PV70C D-BOARD TZTNP01HMTC (TNPA4134AG) D-BOARD (FOIL SIDE) TZTNP01HMTC (TNPA4134AG) Parts Location D-BOARD (FOIL SIDE) IC TEST POINT IC9001 E-5 IC9002 E-5 IC9007 D-5 IC9502 C-3 IC9805 E-2 IC9806 E-3 TP010 D-2 Q9044 C-5 Q9046 D-5 Q9050 D-4 Q9051 E-3 Q9053 E-4 Q9805 F-4 Q9806 F-4 TRANSISTOR D �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 47 A B C D E F G H I 1 2 3 4 5 6 Q010 C033 IC003 C034 R200 C035 R201 C036 C037 C038 PA800 C039 Q807 IC200 Q808 D018 Q809 D019 C040 IC011 C041 R402 C042 R403 IC013 C046 C047 C049 C823 C053 C055 Q052 R223 Q054 R225 C061 IC802 IC803 IC804 D812 C837 L500 D816 D817 R237 C841 C842 R240 C845 R242 R243 R244 R245 R824 R825 R826 C468 C469 C853 C854 C855 C858 C859 R062 R063 R064 R065 R066 R067 C865 C866 C867 C868 C869 D5 D6 D9 C870 C871 C872 C873 C875 C876 R854 R099 FL803 FL805 R874 R885 X9000 X200 D20 ZA001 D25 Q301 Q302 C500 C505 D31 D32 C508 C509 C510 R102 R103 R104 R107 D110 D111 PA900 R113 R115 R116 IC303 R500 R119 R502 R506 IC500 R508 R120 R121 C532 C533 C534 C536 R126 C537 R128 R512 R513 R517 R518 R131 R133 R905 R135 IC900 R909 IC901 R523 R524 R525 R912 R143 R144 R145 R916 R917 R531 R149 R532 R533 R534 L800 R535 L801 R536 L802 R920 C948 R150 R921 R151 R922 R347 R154 R348 R155 R349 R156 C567 R158 R929 R159 C951 R542 C953 R350 R351 R352 R353 R354 R548 R160 R549 R355 R161 R356 R357 R164 R358 R165 R359 R167 R550 R938 R939 C961 C962 R553 C963 R554 C964 R555 C965 R361 R362 R556 R363 R940 R170 R942 R173 R944 R369 R947 R177 R948 R561 R562 R563 R564 R370 R565 R371 R566 R567 FL500 R569 R181 R951 R952 R182 R953 R183 FL504 R184 R954 R379 R185 R955 R956 R186 R187 R958 R188 R380 R381 R960 R190 R961 R194 R196 R197 FL901 FL903 FL904 R391 R392 R393 R396 R397 R398 R399 D 1 TP_VD TP_HD CR NO.9 TNPA4134 PbF 1 25 26 50 51 75 76 100 20 11 10 1 6 4 3 1 1 7 8 14 20 11 10 1 20 11 10 1 5 4 3 1 + + 31 1 21 1 1 7 ORDER NO. + 1 55 1 30 13 1 68 1 48 25 24 1 A 1 A 1 C E G J L NM K H F D B 2 4 6 8 10 12 3 5 7 9 11 13 + + TH-50PV70C D-BOARD TZTNP01HMTC (TNPA4134AG) TH-50PV70C D-BOARD TZTNP01HMTC (TNPA4134AG) D-BOARD (COMPONENT SIDE) TZTNP01HMTC (TNPA4134AG) Parts Location D-BOARD (COMPONENT SIDE) IC IC9003 C-4 IC9011 C-5 IC9013 B-5 IC9200 E-5 IC9303 F-3 IC9500 D-5 IC9802 D-5 IC9803 D-4 IC9804 F-5 IC9900 D-2 IC9901 C-3 TP-HD D-4 TP-VD D-4 TP Q9010 B-5 Q9052 C-3 Q9054 B-4 Q9301 A-2 Q9302 C-1 Q9807 B-3 Q9808 B-3 Q9809 B-3 TRANSISTOR D �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 48 14.6. C1 电路板 A B C D E F G H I 1 2 3 4 5 6 C102 C103 C104 C105 C106 C107 C108 C109 C110 C111 C112 C113 C114 C115 C116 C117 C118 C119 C120 C121 C122 C123 C124 D101 C125 D102 C126 D103 C127 D104 C128 D105 C129 D106 R103 D107 D108 D109 R108 C130 IC101 C131 IC102 C132 C133 D110 C134 C135 C136 C137 R110 C138 C139 R113 R115 R116 R117 R118 C140 C141 R122 R123 R124 R125 R127 R130 R131 R132 R133 R139 R140 R141 R142 R143 R144 R145 R146 R147 R148 R149 R150 R152 R154 R155 R156 R157 R158 R160 R165 R166 R167 R168 FL101 R169 R170 R171 R172 R173 R179 R183 R184 R191 R192 R193 R194 R195 CB1 CB2 CB3 CB4 CB5 ZA101 ZA102 ZA103 ZA104 ZA105 ZA106 C10 C11 C1MM1 CR NO.7 1 C1 TNPA4169 R105 R106 R111 R112 R135 R136 R199 R198 R138 R137 C144 C145 C142 C143 C146 C147 C148 C149 C150 C151 PbF 1 10 11 20 1 10 11 20 ORDER NO. 1 68 1 1 68 1 1 68 68 68 55 1 1 20 C1 TNPA4169 1 2 3 1 PbF SEE REVERSE FOR ORDER NO. TH-50PV70C C1-BOARD TNPA4169 TH-50PV70C C1-BOARD TNPA4169 C1-BOARD (FOIL SIDE) TNPA4169 C1-BOARD (COMPONENT SIDE) TNPA4169 Parts Location C1-BOARD IC7101 H-2 IC7102 I-2 IC C1 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 49 14.7. C2 电路板 A B C D E F G H I 1 2 3 4 5 6 C20 C21 C22 ZA201 ZA202 ZA203 ZA204 CB6 CB7 CB8 C201 C202 C203 C204 C206 C209 C210 C211 C212 C213 C214 C215 C216 C217 C218 C219 C220 C221 C222 C223 C224 C225 D201 C226 D202 C227 D203 D204 C228 R201 C229 D205 R202 D206 R205 C230 IC201 C231 C232 IC202 C233 IC203 C234 C235 C236 C237 C238 R210 R211 R212 R213 R214 R215 R217 R219 R220 R221 R222 R223 R224 R225 R226 R227 R229 R230 R231 R232 R236 R237 R238 R239 R240 R241 R242 R243 R244 R245 R246 R247 R250 R251 R252 R253 R254 R255 R256 R257 R258 R259 FL201 FL202 TNPA4170 C2MM1 1 C2 CR NO.7 PbF 1 20 1 1 68 ORDER NO. 1 1 68 68 1 10 11 20 68 1 10 11 20 1 10 11 20 1 68 TNPA4170 1 C2 2 3 1 PbF SEE REVERSE FOR ORDER NO. TH-50PV70C C2-BOARD TNPA4170 TH-50PV70C C2-BOARD TNPA4170 C2-BOARD (FOIL SIDE) TNPA4170 C2-BOARD (COMPONENT SIDE) TNPA4170 Parts Location C2-BOARD IC7201 B-1 IC7202 C-2 IC7203 C-2 IC C2 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 50 14.8. C3 电路板 A B C D E F G H I 1 2 3 4 5 6 C32 C33 C35 C301 C305 C306 C307 C308 C309 C310 C311 C312 C313 C314 C315 C316 C317 C318 C319 C320 C321 C322 C323 C324 D301 C325 D302 C326 D303 C327 D304 C328 R301 D305 C329 R302 D306 R303 R304 R305 R307 C330 R309 C331 C332 C333 C334 R310 R311 R312 R313 R315 R317 R318 R319 R320 R321 R323 R325 R326 R327 R330 R334 R335 R336 R337 CB10 R338 CB11 R339 R341 R342 R343 R344 R345 R346 R347 R348 R349 R350 R351 R352 R353 R354 R361 R364 R365 R366 FL301 CB9 ZA301 ZA302 ZA303 ZA304 C3MM1 C3MM2 C3MM3 TNPA4171 1 C3 CR NO.7 IC304 IC303 IC302 IC301 R367 R368 R369 R370 R371 R372 C335 C336 C337 C338 C339 C340 PbF 1 10 1 1 4 ORDER NO. 1 68 1 68 1 68 68 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 TNPA4171 1 1 2 3 C3 PbF SEE REVERSE FOR ORDER NO. TH-50PV70C C3-BOARD TNPA4171 TH-50PV70C C3-BOARD TNPA4171 C3-BOARD (FOIL SIDE) TNPA4171 C3-BOARD (COMPONENT SIDE) TNPA4171 Parts Location C3-BOARD IC7301 B-2 IC7302 C-2 IC7303 E-2 IC7304 F-2 IC C3 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 51 14.9. SC 电路板 A B C D E F G H I 1 2 3 4 5 6 SC41 SC43 SC45 SC46 C721 C531 C532 C533 C534 L401 L402 L403 L404 L405 L601 L602 L411 L412 L413 L414 L415 C561 C563 C578 C579 C592 C594 C791 C795 C796 L461 L462 L463 D583 L464 L465 L466 L472 L473 L474 L481 L482 L483 L484 L485 L486 IC791 L881 L690 Q401 Q402 Q403 Q404 C411 C412 C413 C414 C415 C416 C802 C803 C804 Q801 C806 C808 Q805 Q806 Q421 D401 Q422 D402 Q423 D403 Q424 C813 C620 C814 C621 C431 C822 Q821 Q822 R800 C440 R802 R803 R804 Q441 D421 R806 Q442 D422 R807 Q443 IC803 C641 C450 Q451 Q452 Q453 VR600 C841 VR602 C842 VR604 Q841 R629 Q842 C460 R821 R823 TP1 TP2 R446 TP4 Q661 TP5 TP6 TP7 TP8 TP9 T602 R840 R844 D461 D462 D463 TP036 TP037 R658 SC2 D471 TP042 R856 TP043 TP10 TP044 TP11 TP045 TP12 TP046 TP13 TP047 TP14 C691 TP15 TP049 Q881 TP16 Q882 C692 TP17 Q883 C693 R860 TP18 C888 Q690 TP19 C889 TP050 D481 TP051 D482 TP052 TP053 D483 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 D491 TP062 TP063 TP30 TP31 TP065 TP32 TP066 TP33 TP067 TP34 TP068 TP35 TP069 TP36 TP37 TP38 R880 TP39 R881 TP40 R889 TP41 R696 TP42 R697 TP43 TP45 TP46 TP47 TP48 TP49 TP50 TP51 TP52 TP53 L591 L592 TP64 SC23 SC30 SC31 PbF TNPA4186 1 SC 1 2 3 4 5 6 CRNo.6 A1 A2 B2 B1 B40 B39 A40 A39 A1 A2 B2 B1 B40 B39 A40 A39 2 8 9 1 2 8 9 1 E C B SEE REVERSE FOR ORDER NO. 1 1 2 G C E G C E G C E G C E E B C E C B E B C G C E A A K G C E A A K G C E A A K G C E B C E E C B G C E A A K G C E A A K G C E 1 2 3 4 5 G C E G C E G C E B C E C B E G D S S5 V2 S4 S3 S2 S1 V1 P1 P2 A A K A A K A A K 1 3 A A K E C B E C B E B C B C E A A K A A K A A K A A K 1 3 1 10 1 6 TH-50PV70C SC-BOARD TNPA4186 TH-50PV70C SC-BOARD TNPA4186 SC-BOARD (FOIL SIDE) TNPA4186 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 52 TH-50PV70C SC-BOARD PARTS LOCATION TH-50PV70C SC-BOARD PARTS LOCATION Parts Location SC-BOARD (FOIL SIDE) IC6791 G-2 IC6803 H-3 Q6401 E-4 Q6402 E-4 Q6403 F-4 Q6404 F-4 Q6421 B-4 Q6422 B-4 Q6423 C-4 Q6424 C-4 Q6441 E-2 Q6442 E-2 Q6443 F-2 Q6451 D-2 Q6452 D-2 Q6453 E-2 Q6661 G-4 Q6690 H-5 Q6801 I-3 Q6805 H-5 Q6806 H-5 Q6821 G-3 Q6822 G-3 Q6841 G-3 Q6842 G-4 Q6881 B-3 Q6882 B-3 Q6883 B-3 TRANSISTOR TRANSISTOR TP1 B-1 TP2 B-1 TP4 B-1 TP5 B-1 TP6 B-1 TP7 B-1 TP8 C-1 TP9 B-1 TP10 H-1 TP11 H-1 TP12 G-1 TP13 G-1 TP14 H-1 TP15 H-1 TP16 G-1 TP17 G-1 TP18 G-1 TP19 G-1 TP20 H-1 TP21 G-1 TP22 H-1 TP23 H-1 TP24 H-1 TP25 H-1 TP26 H-1 TP27 G-1 TP28 I-1 TP29 H-6 TP30 E-6 TP31 B-6 TP32 A-1 TP33 D-1 TP34 G-3 TP35 C-3 TP36 G-1 TP37 H-2 TP38 G-1 TP39 G-1 TP40 D-6 TP VOLUME Parts Location SC-BOARD (COMPONENT SIDE) IC6471 B-5 IC6472 B-4 IC6481 G-3 IC6500 G-4 IC6501 F-4 IC6521 F-1 IC6561 B-1 IC6562 C-1 IC6581 E-1 IC6671 C-5 IC6721 A-5 IC6722 A-5 IC6724 B-5 IC6725 B-5 IC6752 D-4 IC6771 C-4 IC6772 D-5 IC6773 C-5 IC6774 C-5 IC6791 C-1 IC6801 B-3 IC6802 B-3 IC6803 B-3 IC6821 C-3 IC6841 C-4 IC6861 B-5 IC6871 A-2 IC6881 H-4 IC PC6480 B-4 PC6701 A-4 PC6702 B-4 PC6703 B-4 PC6704 A-4 PC6705 C-4 PC6801 B-3 PC6861 B-4 PC6871 A-2 Q6401 E-4 Q6402 E-4 Q6403 D-4 Q6404 D-4 Q6421 H-4 Q6422 H-4 Q6423 G-4 Q6424 G-4 Q6441 E-2 Q6442 E-2 Q6443 D-2 Q6451 F-2 Q6452 F-2 Q6453 E-2 Q6500 G-3 Q6501 E-4 Q6502 F-4 Q6521 F-4 Q6522 G-4 Q6531 E-2 Q6532 E-2 Q6551 F-2 Q6552 F-2 Q6561 G-3 Q6562 G-3 PHOTO COUPLER TRANSISTOR TP15V A-3 TPSC1 C-5 TPSOS6 I-4 TPSOS7 A-3 TPVAD B-3 TPVBK G-3 TPVSCN B-4 TPVSET D-4 TPVSET2 B-4 TPVSUS H-2 Q6801 A-3 Q6803 B-3 Q6805 B-5 Q6806 B-5 Q6821 C-3 Q6822 C-3 Q6824 D-3 Q6841 C-4 Q6842 C-4 Q6881 H-3 Q6882 H-3 Q6883 H-3 TP VR6600 B-3 VR6602 C-5 VR6604 H-3 VOLUME TP41 D-6 TP42 D-6 TP43 D-6 TP45 B-6 TP46 F-6 TP47 F-6 TP48 F-6 TP49 F-6 TP50 F-6 TP51 G-1 TP52 G-1 TP53 H-4 TP64 G-3 TP036 B-6 TP037 C-6 TP042 H-6 TP043 G-6 TP044 C-6 TP045 B-6 TP046 B-6 TP047 B-6 TP049 H-6 TP050 H-6 TP051 H-6 TP052 G-6 TP053 G-6 TP062 C-6 TP063 G-6 TP065 B-2 TP066 B-3 TP067 B-3 TP068 B-3 TP069 B-3 VR6600 H-3 VR6602 F-5 VR6604 B-3 Q6571 G-3 Q6572 G-3 Q6573 F-3 Q6574 F-3 Q6581 E-1 Q6601 E-5 Q6602 D-5 Q6603 D-5 Q6621 E-5 Q6622 F-5 Q6623 G-5 Q6624 H-5 Q6641 E-5 Q6642 F-5 Q6643 F-5 Q6645 F-5 Q6646 G-5 Q6647 G-5 Q6648 H-5 Q6649 H-5 Q6651 I-5 Q6661 C-4 Q6662 D-5 Q6665 C-5 Q6671 C-4 Q6672 C-5 Q6673 C-5 Q6674 C-5 Q6679 C-5 Q6680 C-5 Q6690 B-5 Q6742 A-4 Q6743 B-5 Q6763 E-4 Q6781 E-5 Q6782 E-5 Q6791 A-2 SC �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 53 A B C D E F G H I 1 2 3 4 5 6 C708 SC41 SC43 SC45 SC46 C521 C522 C523 C524 D500 D501 C525 Q521 Q522 C526 D503 C527 R500 R501 R502 R503 R504 R505 C721 R506 C722 C723 R507 C724 R508 IC500 D701 IC501 C725 R509 C531 C726 C532 C727 C533 R700 C728 C534 R701 Q531 R702 Q532 R703 R704 R705 R511 R706 R512 R707 R708 R709 R516 R517 R710 D521 L401 R711 D522 L402 R712 D523 L403 R713 D524 R714 L404 R715 R521 L405 R522 R716 R523 R717 R718 IC521 L601 D721 Q742 L602 D722 D723 Q743 D724 Q551 D725 R721 L411 Q552 D726 R722 L412 D727 L413 R723 D728 L414 D729 R531 L415 R725 R532 R726 R533 R727 R728 PC701 IC721 L801 C752 PC702 IC722 L802 C753 PC703 D730 IC724 C754 PC704 D731 C561 IC725 PC705 C755 D732 C756 C562 D733 C563 C564 C565 R731 Q561 C566 Q562 R732 R733 R734 C571 D742 C572 D743 Q763 Q571 R742 Q572 C577 R743 Q573 C578 Q574 R551 R745 C579 R552 R746 R553 R747 C771 C772 C773 R558 C581 C775 R559 C582 C776 C777 Q581 D561 D562 R560 R561 R562 R563 R564 R565 R566 IC752 R567 R568 Q781 D761 IC561 Q782 C592 IC562 C593 D764 C594 R761 D765 D571 R762 D766 D572 D573 D767 D574 R570 R765 R571 R766 R572 R573 R768 R574 L841 C791 R769 Q791 D771 C795 R579 C796 D773 L461 L462 L463 D583 R580 D584 L464 L465 D585 R775 L466 R776 R582 R777 R583 R584 R585 IC771 R586 IC772 R587 IC773 R588 IC774 R589 IC581 R781 R782 L472 L473 R590 L474 R785 R591 R786 R592 R593 D791 R791 L481 R792 L482 R793 L483 L484 L485 R796 L486 R797 R798 R799 IC791 L881 L690 C401 C402 C403 C404 Q401 Q402 Q403 Q404 C603 C604 Q601 C411 C605 Q602 C412 C606 Q603 C413 C414 C415 C416 C802 C803 C804 Q801 C805 C806 Q803 C807 C808 C421 Q805 C422 Q806 C423 C424 Q421 D401 Q422 D402 Q423 D403 Q424 C811 R401 C812 R402 R403 C813 C620 R404 C814 C815 C621 C816 C431 D601 Q621 Q622 D602 Q623 D604 Q624 D605 D606 D607 R605 C822 C823 R607 R608 C824 Q821 D801 R609 Q822 D802 D803 Q824 D804 R800 C440 D805 R802 D806 R803 D807 R610 R804 D808 Q441 R805 D809 D421 R806 R612 Q442 D422 R807 Q443 R808 R809 IC801 R421 D619 IC802 R422 C832 R423 IC803 R424 D810 D811 C641 R810 C450 D621 R811 Q641 D622 R812 Q642 D816 D623 R813 Q643 D817 D624 R814 R815 Q645 R621 Q451 D625 Q452 R816 Q646 R622 R817 Q647 Q453 R623 VR600 Q648 R624 C841 R819 Q649 VR602 C842 C843 D820 VR604 C845 Q841 D821 R629 D822 Q842 D823 R820 D824 C460 D631 R821 D825 Q651 D632 R822 D826 D633 R823 D827 D634 R824 D828 R631 R825 R632 R826 D442 R633 R827 R634 R828 R829 IC821 PC801 R441 R442 R443 R638 D830 R639 C661 C662 R446 C663 R830 R831 C471 D641 Q661 C472 Q662 D642 R832 D836 D643 R833 D837 R834 D644 D838 R835 R641 Q665 D839 R836 R642 D452 R643 R837 R838 C861 R451 R645 R839 C862 R452 R646 C863 R453 R647 R648 D841 C671 R649 D842 T602 D843 C480 R840 Q671 R841 C481 Q672 R842 C482 C483 R843 Q673 Q674 R844 C484 R845 D461 R651 C485 D462 R846 R847 D463 R848 D465 C871 R849 IC841 Q679 C872 D466 C873 R658 R465 R659 R466 R467 R468 R850 Q680 R851 D661 C491 R852 D662 SC2 R853 D663 R660 D664 D859 R661 D665 D471 R855 D472 R662 D666 R856 R663 D667 R857 R858 R664 R471 R665 C881 C499 R666 R472 C882 R473 R667 D477 C883 R474 R668 D860 D478 C884 R475 D861 C691 Q881 R476 D862 Q882 C692 R477 Q883 C693 R860 C888 Q690 C694 IC471 R861 C889 C695 R479 R862 IC472 R863 R864 D480 R865 R671 D481 R866 R672 D482 R867 R673 D483 R480 R868 R674 R869 IC861 R675 R481 R676 R482 R483 R484 D871 IC671 R485 D872 R487 R870 R488 R871 IC481 R489 R872 R873 R874 R875 D491 R876 R877 R878 R490 R879 IC871 R493 D497 R494 D881 R495 D499 D882 R496 D883 R497 R880 D884 D690 R498 D691 L571 R881 D885 R499 D692 R882 L572 D886 L573 R883 D887 R884 L574 R885 R886 R692 R887 R693 R888 R694 PC861 IC881 R889 R695 R696 R697 PC480 R890 R891 R892 R893 R894 R895 R896 R897 R898 PC871 R899 L591 L592 SC20 SC23 C500 C502 C503 C504 Q500 SC30 C505 Q501 SC31 Q502 C506 C507 C701 ZA401 C702 ZA402 C703 ZA403 C704 C705 C706 C707 TPVAD TPVSUS TP15V TPVSCN TPVSET DIP TPSOS7 TPSOS6 SCMM1 SCMM2 SCMM3 TPVSET2 TPVBK TPSC1 SCMM4 PbF 1 CRNo.6 SC TNPA4186 Discharge A1 A2 B1 B2 A40 A39 B40 B39 A1 A2 B1 B2 A40 A39 B40 B39 1 2 8 9 1 2 8 9 1 4 5 8 1 8 9 16 1 8 16 9 1 7 8 14 1 7 8 14 G S D G S D G S D G S D B C E 1 8 9 16 1 10 11 20 1 10 11 20 ORDER NO. 1 4 5 8 3 4 5 1 1 3 4 5 1 4 5 8 1 12 C G E C G E C G E C G E G S D B C E B C E B C E C G E A A K C G E A A K C G E A A K C G E D G S D G S D G S D G S B E C B C E C G E A A K C G E A A K C G E 1 2 3 4 5 D G S D G S D G S D G S C G E C G E D G S D G S C G E D G S D G S B C E B C E D G S 1 2 3 4 G S D S5 V2 S4 S3 S2 V1 P1 P2 S1 D G S D G S D G S D G S A A K A A K A A K 1 3 A A K B C E B C E B C E B C E 1 3 4 5 1 3 4 5 A A K A A K A A K 1 4 5 8 1 4 5 8 1 8 9 16 A A K 1 4 5 8 1 2 3 4 1 2 3 4 1 2 3 4 1 30 1 3 1 10 1 6 TH-50PV70C SC-BOARD TNPA4186 TH-50PV70C SC-BOARD TNPA4186 SC-BOARD (COMPONENT SIDE) TNPA4186 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 54 14.10.SU 电路板 A B C D E F G H I 1 2 3 4 5 6 C6901 C6902 C6903 C6904 C6905 C6906 C6907 C6908 C6909 C6910 C6911 C6912 C6913 C6914 C6915 C6916 C6917 C6918 C41 C6922 C6923 C6924 D6901 C6925 D6902 C6926 D6903 C6927 D6904 C6928 R6901 D6905 C6929 R6902 D6906 R6903 D6907 R6904 D6908 R6905 C6930 C6931 IC6901 R6909 C6932 IC6902 IC6903 C6933 C6934 IC6904 C6935 IC6905 IC6906 C6936 C6937 R6913 R6917 IC6910 C6940 IC6911 C6941 C6942 C6943 C6944 C6945 C6946 C6947 C6948 C6949 R6924 R6925 R6926 R6927 R6928 R6931 R6932 R6933 C80 R6934 R6935 R6936 R6938 SU45 SU1 SU2 SU3 SU4 L6901 TPSU1 TPSU2 TPSU3 TPSU4 PbF 1 SU TNPA4188 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 51 75 76 100 50 1 3 4 5 1 3 4 5 A1 A48 B48 B1 A1 A48 B48 A1 B1 A48 B48 1 9 8 2 A1 B1 A48 B48 ORDER NO. B48 A1 A48 B1 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 A48 A1 B48 A48 B1 A1 B48 A48 B1 A1 B48 A48 B1 A1 B48 A48 B1 A1 C40 C1 PbF SU 1 TNPA4188 1 2 3 SEE REVERSE FOR ORDER NO. TH-50PV70C SU-BOARD TNPA4188 TH-50PV70C SU-BOARD TNPA4188 SU-BOARD (COMPONENT SIDE) TNPA4188 SU-BOARD (FOIL SIDE) TNPA4188 Parts Location SU-BOARD IC6901 H-2 IC6902 G-2 IC6903 E-2 IC6904 D-2 IC6905 C-2 IC6906 B-2 IC6910 C-2 IC6911 B-2 TPSU1 D-2 TPSU2 F-2 TPSU3 D-1 TPSU4 F-1 IC TEST POINT SU �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 55 14.11.SD 电路板 A B C D E F G H I 1 2 3 4 5 6 A41 A80 SD46 SD1 SD2 SD3 SD4 TPSD2 TPSD1 TPSD4 TPSD3 L6951 IC6952 IC6951 IC6954 IC6960 IC6955 IC6956 IC6961 IC6953 D6955 D6952 D6953 D6954 D6951 D6957 D6956 D6958 R6975 R6955 R6984 R6982 R6981 R6967 R6951 R6983 R6976 R6985 R6974 R6977 R6963 R6972 R6989 R6971 R6978 R6959 R6973 R6986 C6997 C6986 C6973 C6953 C6982 C6962 C6979 C6965 C6957 C6981 C6976 C6960 C6992 C6984 C6966 C6990 C6977 C6961 C6956 C6998 C6987 C6974 C6954 C6978 C6963 C6996 C6972 C6959 C6952 C6999 C6975 C6994 C6985 C6968 C6958 C6993 C6967 C6980 C6955 C6995 C6951 C6991 C6983 C6964 PbF SD 1 TNPA4189 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 50 51 100 75 76 26 1 25 26 50 51 75 100 76 A1 B1 A48 B48 A1 B1 A48 B48 A1 B1 A48 B48 A1 B1 A48 B48 ORDER NO. 1 3 4 5 1 3 4 5 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 1 9 8 2 B48 A48 B1 A1 B48 A48 B1 A1 B48 A48 B1 A1 B48 A48 B1 A1 A40 A1 PbF 1 TNPA4189 1 2 3 SD SEE REVERSE FOR ORDER NO. TH-50PV70C SD-BOARD TNPA4189 TH-50PV70C SD-BOARD TNPA4189 SD-BOARD (COMPONENT SIDE) TNPA4189 SD-BOARD (FOIL SIDE) TNPA4189 Parts Location SD-BOARD IC6951 H-2 IC6952 G-2 IC6953 F-2 IC6954 D-2 IC6955 C-2 IC6956 B-2 IC6960 G-2 IC6961 G-1 TPSD1 D-2 TPSD2 F-2 TPSD3 D-1 TPSD4 F-1 IC TEST POINT SD �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 56 14.12.SS 电路板 A B C D E F G H I 1 2 3 4 5 6 L001 L002 L003 L004 L005 L011 CF281 L012 L013 L014 L015 SS11 SS12 SS21 SS22 L221 SS34 SS35 L241 SS53 SS54 SS55 SS56 L061 L062 L063 L064 L065 L066 L262 L071 L072 L073 L074 L075 L076 L271 L272 L081 L082 L083 L084 L085 L086 L091 L092 L093 L094 L095 L096 Q001 Q002 Q003 Q004 C201 C202 C203 C204 C011 C012 C013 C014 C015 C016 C213 D001 Q021 Q022 D002 Q023 Q024 C223 C031 Q222 Q041 D021 D022 Q042 Q043 R020 VR000 C241 L103 Q051 R222 Q052 Q053 R223 Q256 C261 C262 C263 C264 C272 C273 D253 TP1 D061 TP2 D062 TP3 D063 TP4 TP5 TP6 TP7 TP8 TP9 D071 D072 TP036 D081 D082 D083 TP10 TP11 TP12 TP13 TP14 TP15 D091 TP16 R282 TP17 TP18 TP19 TP20 TP21 TP22 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 TP33 TP34 TPVe2 C111 C112 C113 1 SS 1 2 3 TNPA4187 6 5 4 CRNo.6 PbF 1 3 1 10 E B C 1 7 6 2 1 7 6 2 1 3 1 4 1 13 1 13 1 13 1 13 SEE REVERSE FOR ORDER NO. G C E G C E G C E G C E A A K G C E G C E A A K G C E G C E E C B G E C A A K A A K G E C G C E G E C G C E G C E E C B A A K A A K A A K A A K A A K A A K A A K A A K A A K 1 13 1 13 1 13 13 1 TH-50PV70C SS-BOARD TNPA4187 TH-50PV70C SS-BOARD TNPA4187 SS-BOARD (FOIL SIDE) TNPA4187 Parts Location SS-BOARD (FOIL SIDE) TRANSISTOR Q6001 C-2 Q6002 C-2 Q6003 C-2 Q6004 B-2 Q6021 G-2 Q6022 F-2 Q6023 F-2 Q6024 E-2 Q6041 D-3 Q6042 D-3 Q6043 C-3 Q6051 D-3 Q6052 E-3 Q6053 E-3 Q6222 H-2 Q6256 H-1 TP19 H-4 TP20 H-4 TP21 H-4 TP22 H-4 TP24 H-1 TP25 G-1 TP26 F-1 TP27 E-1 TP28 D-1 TP29 D-1 TP30 C-1 TP31 B-1 TP33 H-4 TP34 H-4 TP036 G-1 TPVe2 F-4 TP1 B-4 TP2 B-4 TP3 B-4 TP4 B-4 TP5 B-4 TP6 B-4 TP7 B-4 TP8 B-4 TP9 A-4 TP10 C-4 TP11 C-4 TP12 H-3 TP13 H-4 TP14 H-4 TP15 H-4 TP16 H-4 TP17 H-4 TP18 H-4 TRANSISTOR TP VR6000 H-2 VOLUME SS �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 57 A B C D E F G H I 1 2 3 4 5 6 R104 R106 R108 R109 C131 C132 C133 C134 D110 C135 D111 D112 C136 D113 R110 D114 R111 R112 R113 R114 R116 L000 Q141 L001 L002 Q142 L003 L004 L005 R121 Q146 Q147 R125 R126 R127 R128 C151 R129 C152 C153 L010 C154 L011 D131 C155 CF281 L012 D132 C156 L013 L014 R130 R131 L015 R132 R134 R135 SS11 R136 SS12 IC131 R141 R142 SS21 R145 SS22 R146 R147 L221 D151 Q171 D152 Q172 D153 R150 R151 R152 R154 SS33 R157 R158 SS34 R159 IC151 SS35 Q181 R160 R161 R162 R163 L241 C193 C194 C195 C196 C197 R171 R172 R173 SS53 SS54 SS55 SS56 L061 L062 L063 L064 L065 R181 L066 R182 R183 L262 L071 D191 L072 L073 D193 L074 L075 R191 L076 R192 R193 R194 L271 IC191 L272 L081 L082 L083 L084 L085 L086 L091 L092 L093 L094 L095 L096 C001 C002 C003 C004 Q001 Q002 Q003 Q004 C201 C202 C203 C204 C011 C012 C013 C014 C015 C016 C210 C211 C212 C213 C021 C022 C216 C023 C217 C024 D001 Q021 Q022 D002 Q023 Q024 R001 R003 C220 R005 C221 R007 C223 C031 Q222 C033 D010 C034 Q031 C037 D211 R210 Q041 D021 D022 Q042 Q043 R213 R020 R214 D024 R021 D025 D028 R024 VR000 C241 IC211 R026 C242 C243 R028 L101 D221 C246 L102 D222 C247 D223 L103 C248 Q051 D031 L105 D225 R222 D032 Q052 L106 Q053 R223 R225 R031 R226 R032 R033 R227 R034 IC221 C251 C252 Q251 R232 Q256 R233 R234 R041 R043 R045 C261 C262 C263 C264 C071 C072 R241 R242 R243 R244 R051 R246 R053 R247 R248 R055 IC241 R249 C272 C273 Q271 C276 D253 D254 C278 D061 D255 R252 D062 R253 D063 R254 R255 R256 R257 R258 R259 IC251 C281 C282 C283 C284 C091 Q281 Q282 C286 C092 C287 C288 R261 D071 D072 D073 R263 R077 D270 D271 D272 D273 D275 D081 D276 D082 R272 D277 R273 D083 D278 R274 R275 R276 R277 R278 R279 D280 D281 D282 R280 D091 D092 R282 R283 R284 R285 R286 R288 IC281 R289 R290 R291 R292 R293 Q101 Q102 Q103 Q104 Q105 Q106 ZA001 ZA002 ZA003 C111 C112 C113 Q111 Q112 Q113 Q114 Q115 D101 D102 D103 D104 R102 TPVSUS TPSS1 DIP SS 1 TPSOS8 CRNo.6 TNPA4187 TPVDA TPVe Discharge Discharge SSMM1 PbF 1 3 1 10 1 8 9 16 B C E 1 7 6 2 1 7 6 2 1 10 1 3 1 8 9 16 1 4 13 1 13 1 13 1 13 1 ORDER NO. 1 8 9 16 C G E C G E C G E C G E A A K C G E C G E A A K C G E C G E B C E C G E A A K A A K C G E C G E 1 4 5 8 C G E C G E C G E B C E 1 10 11 20 A A K A A K A A K 1 4 5 8 A A K A A K A A K A A K A A K A A K 1 13 1 13 1 13 1 13 G S D G S D G S D G S D G D S G S D G S D G S D TH-50PV70C SS-BOARD TNPA4187 TH-50PV70C SS-BOARD TNPA4187 SS-BOARD (COMPONENT SIDE) TNPA4187 Parts Location SS-BOARD (COMPONENT SIDE) Q6001 F-2 Q6002 G-2 Q6003 G-2 Q6004 G-2 Q6021 C-2 Q6022 C-2 Q6023 D-2 Q6024 D-2 Q6031 F-4 Q6041 F-3 Q6042 F-3 Q6043 F-3 Q6051 E-3 Q6052 E-3 Q6053 E-3 IC IC6131 E-2 IC6151 F-4 IC6191 B-2 IC6211 B-4 IC6221 B-2 IC6241 B-4 IC6251 E-4 IC6281 B-4 Q6101 B-2 Q6102 B-3 Q6103 B-3 Q6104 B-2 Q6105 C-2 Q6106 C-2 Q6111 C-4 Q6112 B-4 Q6113 C-4 Q6114 B-3 Q6115 A-2 Q6141 F-2 Q6142 F-2 Q6146 D-2 Q6147 E-2 Q6171 F-4 Q6172 F-4 Q6181 F-4 Q6222 B-2 Q6251 E-4 Q6256 B-1 Q6271 C-1 Q6281 C-4 Q6282 C-4 TRANSISTOR IC TPSOS8 B-4 TPSS1 C-2 TPVDA G-4 TPVe B-2 TPVSUS H-4 TRANSISTOR TP VR6000 B-2 VOLUME SS �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 58 14.13.SS2，SS3 电路板 A B C D E F G H I 1 2 3 4 5 6 SS23 SS52 TNPA4202 1 SS2 TNPA4203 SS3 1 SS24 SS57 PbF PbF 7 1 2 6 13 1 ORDER NO. 1 13 13 1 13 7 1 2 6 ORDER NO. SS23 SS52 TNPA4202 1 SS2 TNPA4203 1 SS3 SS24 SS57 PbF PbF 7 1 2 6 1 13 SEE REVERSE FOR ORDER NO. 1 13 SEE REVERSE FOR ORDER NO. 1 13 1 13 7 1 2 6 SS2 SS3 TH-50PV70C SS2-BOARD TNPA4202 SS3-BOARD TNPA4203 TH-50PV70C SS2-BOARD TNPA4202 SS3-BOARD TNPA4203 SS2-BOARD (FOIL SIDE) TNPA4202 SS2-BOARD (COMPONENT SIDE) TNPA4202 SS3-BOARD (FOIL SIDE) TNPA4203 SS3-BOARD (COMPONENT SIDE) TNPA4203 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 59 14.14.K，S 电路板 A B C D E F G H I 1 2 3 4 5 6 C2510 C2513 C2515 C2522 C2523 C2524 C2525 C2526 C2527 D2510 R2512 D2520 D2524 D2525 R2524 R2530 R2531 RM2501 R2538 PC2511 R2539 R2540 R2554 R2556 R2557 R2569 R2570 R2571 K1 R2572 K2 R2573 R2575 R2576 R2577 R2578 R2579 PbF K 1 TNPA4137 AB AC AD AE AF AG AH AJ SUFFIX. 1 2 11 12 1 2 C2511 C2512 Q2510 Q2511 C2516 Q2513 C2517 Q2518 Q2519 C2520 C2521 Q2520 Q2521 Q2522 D2511 D2512 R2516 R2517 R2519 R2520 R2521 D2526 D2528 R2525 D2530 RM2501 R2537 R2542 R2558 R2559 R2560 R2561 R2562 R2563 R2564 R2565 R2566 R2567 R2568 K1 K2 PbF K1 TNPA4137 REVERSEFORSUFFIX. SEE 1 2 11 12 1 2 SW2500 S1 TNPA4138 1 S PbF ORDER NO. 1 3 C2502 C2503 SW2500 R2506 R2507 S1 TNPA4138 1 S PbF SEE REVERSE FOR ORDER NO. 1 3 TH-50PV70C K-BOARD TNPA4137AJ S-BOARD TNPA4138AD TH-50PV70C K-BOARD TNPA4137AJ S-BOARD TNPA4138AD K-BOARD (FOIL SIDE) TNPA4137AJ K-BOARD (COMPONENT SIDE) TNPA4137AJ S-BOARD (FOIL SIDE) TNPA4138AD S-BOARD (COMPONENT SIDE) TNPA4138AD Parts Location K-BOARD Q2510 B-3 Q2511 D-3 Q2513 D-3 Q2518 C-3 Q2519 B-4 Q2520 B-3 Q2521 C-4 Q2522 D-3 TRANSISTOR K S �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 60 14.15.G 电路板 A B C D E F G H I 1 2 3 4 5 6 L3700 L3701 L3704 L3705 L3706 L3707 L3708 L3713 JK3701 C3701 C3702 C3703 C3704 C3705 C3706 C3707 C3708 C3711 C3712 C3713 C3714 C3715 D3701 D3702 D3703 D3704 D3705 D3706 D3707 D3708 R3705 D3709 R3706 R3709 D3710 D3711 R3710 R3711 R3712 R3713 R3714 R3716 R3717 R3718 R3719 R3720 R3721 R3732 R3736 R3737 R3738 R3739 R3740 R3741 SW3751 R3746 R3747 SW3753 R3748 SW3754 R3749 SW3755 SW3757 SW3758 FL3713 FL3714 FL3715 FL3716 FL3717 JS3700 JS3701 JS3702 JS3704 JS3705 JS3707 JS3708 JS3711 JS3712 JS3713 JS3714 JS3715 JS3716 JS3717 ZA3701 ZA3702 AB AC AD AE AF AG R3724 R3722 R3723 R3725 SW3756 PbF 1 TNPA4262 CH.UP CH.UP CH.DN CH.DN VOL.UP VOL.UP -/ VOL.DN VOL.DN TV/VTR TV/VTR F ASPECT STR OK MENU JAPAN USA EURO +/ TV/AV G L V R L V R SUFFIX. 1 2 3 4 1 2 3 4 2 3 4 1 1 2 3 4 1 2 3 4 R L V G51 JK3701 C3750 SW3751 SW3753 SW3754 SW3755 SW3757 D3750 SW3758 R3750 R3751 R3752 R3753 R3754 R3755 R3756 R3758 R3765 R3766 R3767 R3768 FL3710 FL3711 FL3712 ZA3701 TNPA4262 1 G G52 SW3756 PbF CH.UP CH.UP CH.DN TV/AV CH.DN VOL.UP +/ VOL.UP VOL.DN -/ VOL.DN TV/VTR F TV/VTR ASPECT STR OK MENU USA EURO JAPAN R L V R L V REVERSE FOR SUFFIX. SEE 1 19 20 2 1 2 R L V G-BOARD (FOIL SIDE) TNPA4262AB G-BOARD (COMPONENT SIDE) TNPA4262AB TH-50PV70C G-BOARD TNPA4262AB TH-50PV70C G-BOARD TNPA4262AB G �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 61 15 方框图和线路图 15.1. 线路图注意事项 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 62 15.2. 主要集成电路方框图 SC LVDS format POWER PULSE PULSE H3 64 H2 SOS1 *Sub Filed Processor P5V S.R SCAN OUT SU 64 64 K S.R *CLK CONTROL DC/DC CONVERTER REMOTE/LED 64 D31 S.R FORMAT CONVERTER, P3.3V PLASMA AI PROCESSOR GENERATOR RESET IC L/R ASDIO DATA0 L/R DRVRST V,Y,PB,PR SUSTAIN DCLK INPUT PULSE DC/DC 3.3V V,Y,C DC/DC 1.8V K1 MICOM *RGB:10bit(or8bit) NOR FLASH AUDIO DCK DG1 PROM D-LATCH EEPROM LATCH,SFVRST,SFRST VIDEO S-VIDEO IN SOS2 AV1 P5V OUT 16/32Mbit Flash-ROM DC POWER S.R FCLK,FPDATA[1:0] P_ON/OFF R[9:0] *VD,HD D5 XRST 64 BOOT ROM 32k IIC2 H SWITCH B[9:0],HD,VD D32 SELECT G[9:0] 64 64 L/R AV2 AV SWITCH,MSP DISPEN DC/DC 1.2V MAIN INPUT D20 MCU WRITE PROTECT L/R 64 FLASH CONTROL MONITOR VOLTAGE HDMI 1 SC2 MSP KEY SW AUDIO DG2 TUNER 64 FPGA VIDEO IN REMOTE RECEIVER H6 Discharge Control(SC) PC IN OSD DG6 THERMAL R,G,B S.R SPEAKER AV3 D IN L *Discharge Control H51 AMP PCLK/NCLK *H,V Snyc Control H12 Data Driver Control SIF AV TERMINAL, SCAN DRIVE L/R *LVDS receiver REG RESET S.R S.R H4 STB3.3V L/R SD SELECT S.R DDR2x2 S.R TV-V DC POWER AV4 IN MEM Peaks-Lite 2 VCXO S1 PD1-M plus DG5 HDMI 2 DG DIGITAL SIGNAL PROCESSOR S.R P1.2V 64 *Plasma AI TV_L/R 64 Discharge Control(SS) HEADPHONE R P2.5V HP_L/R SC20 G51 AI SENSOR S.R POWER LED AV4 IN SENSOR AUDIO IN RESET X'tal SCAN (4MByte) [27MHz] S.R CLOCK KEY SCAN POWER SW 128Mbit DDR STB12V S GENERATOR STB_PS SCAN OUT 64 G C22 SUSTAIN C20 VOLTAGE C33 PA7 FACTOR 15V STANDBY RELAY,PFC VOLTAGE F_STB_14V LINE F_STBY_15V FILTER POWER SOS P25 15Vc PFC_ON/OFF AC CORD +15V RECTIFIER DC-DC CONVERTER P7 DATA DRIVER(CENTER) P6 PA STB5V RELAY C3 S.R. DATA DRIVER(LEFT) S.R. DATA DRIVER(RIGHT) VOLTAGE C10 +5Vc S.R. PA3 VDA RECTIFIER C2 S.R. S.R. CONTROL PROCESS CONTROL P2 RECTIFIER PS_SOS P VOLTAGE VDA Vda CONTROL C21 +5V VDA PROCESS PA4 S.R. STANDBY DC/DC P11 S.R. 15Vd S.R. RUSH/MAIN_ON/OFF C1 VDA C35 +15V S.R. S.R. CONVERTER STB5V STBY5V_M P12 CORRECTOR D25 P9 PROTECTION(SOS) VSUS POWER PA6 VSUS C11 S.R. RECTIFIER SUSTAIN CONTROL VOLTAGE SUSTAIN S.R. VDA SS SOS POWER SUPPLY RECTIFIER C32 CONTROL VOLTAGE +15V ADDRESS +15V PULSE ERASE SS3 VDA SUSTAIN SS22 SS21 SS24 VOLTAGE SS SS11 SS34 SS23 SS_SOS8 PULSE SS12 (VE) VSUS SS33 SS35 SS2 SUSTAIN DRIVE STB12V STB_PS/ SD CARD SLOT ADV/HDMI L SPEAKER R SPEAKER V,Y,PB,PR TH-50PV70C Main Block Diagram TH-50PV70C Main Block Diagram �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 63 15.3. P 电路板方框图 VDD VDD VDD VDD VDD COLD HOT COLD HOT 19 20 FVc 3 GND GATE VCC 2 MC601 P23 VR251 2 L602 K601 PANEL_ON TO PA6 VSUS 1 AC IN Q602 Q603 VSUS 2 5 8 15Vd 11 L=OK VDA 12 VDA 3 H=SOS 2 1 P12 15Vd MAIN_SW 15Vd 1 NO USE TO SS12 15Vs 8 6 1 11 B1 4 5 4 7 8 P25 4 GND 9 B4 NEUTRAL +5VC 7 +5VC TO D25 AC+ TO SC2 6 AC- VSUS 15Vc P2 MC602 LIVE 2 STBY5V 3 RECTIFIER 9 1 P9 1 2 MC501 P11 12 3 PS_SOS 3 1 GND TO SS11 RF601 3A P POWER SUPPLY RLY_RUSH PFC MODULE POWER CONTROL Vsus POWER SUPPLY P1 P2 S1 F601 F602 L601 AC- AC+ D501 PG- STB RECTIFIER (STB) B2 L502 D505 2 4 3 GND_OCL OCL 10 11 BIAS_G S+ 1 7 VIN A K D3 D2 L603 D605 D1 G1 S1 G2 S2 G3 S3 PFC F201 MC203 P1A P2A PC302 18 AC DET Vo GND 6 D506 GND VBias PG_STB P2 P1 BIAS GND T501 S1B S1A S2B S2A D551 D353 S5 S4B S3 S4A D352 15Vc 10 STB_PS MAIN SW PFC_ON/OFF PC301 S6 9 FVc FVc 15Vs 15Vs 13 Vda_Low(Vda_DET) Q302 BIAS Q301 Vsus 180V K602 3 2 F301 B3 3 AC_N 4 7 D504 IC501 F501 MODULE 5 5 AC_L DISCHG D252 6 7 3 5 1 8 9 PFC SUS PFC MULTI ON MULTI SUS ON BIAS OUT ON/OFF BIAS IN Q501 PG D502 D503 AC 4 1 AC+ AC AC- + - + - 8 7 6 5 6 PG 10 (VDET) AC_ON (PFC_ON) (IDET) PFC/BIAS CONTROL MODULE MC502 BIAS1 ON PC501 STB5V PC502 7 CONTROL 4 BIAS 1 12 GH 2 SH 7 Vref PC 8 9 6 GH SH Vref IRS GL I+ GL I+ 13 ON/OFF 14 VDD VDD Vda POWER CONTROL MODULE MC301 13 2 BIAS MC201 SH I+ IRS ON/OFF VDD Vsus POWER CONTROL 1 14 12 VDD SH I+ 9 8 PC 1 GH GH 7 Vref Vref 6 GL GL 5 P SL GND G S D 4 6 5 2 1 3 D G S 9 10 3 2 1 7 8 Vsus POWER CONTROL 2 MC202 MULTI_ON/OFF SUS ON PC202 PC201 SUS STOP S1A S2A AC+ AC- STB5V DET IC551 F_STB_ON PS_SOS POWER MCU MODULE P16 P42 P01 P41 P17 P15 POWER MCU 3 MC701 27 15V_IN P22 P00 28 MULTI_ON 29 Vda_ON 5VC_ON 18 Vda_LOW 19 P34 1 12 P13 5VC_OUT P30 P12 15 15V_ON 13 STB_ON 20 P10 P32 STB_OUT SUS_OUT 9 Vda_OUT 11 4 8 10 SUS_ON P21 P40 BIAS1 ON 30 SUS_STOP 5 16 P45 P31 PANEL_ON 15V_OUT ALL_OFF (H=LOW) (H=SOS) (L=ON) ECO_ON (L=ON) 31 P20 (L=ON) 7 SW_MAIN1 P35 (AIN1) (L=STOP) (L=ON) (AIN5) (AIN2) 6 P36 FV_OUT (AIN6) P33 (AIN3) (H=ON) P11 14 FV_ON (L=ON) (AIN4) P05 RLY_MAIN 23 P06 22 RLY_RUSH STB_IN 32 (VDD) AC_DET 21 (L=ON) (L=ON) (L=ON) P07 (L=ON) 33 D702 Q701 Q702 R256 R257 R280 R285 AC+ AC- D251 RECTIFIER D401 RECTIFIER 14 VIN REM 13 FB 4 6 SG PG 8 OCL 5 9 Vout 12 GND VR401 Vda P6 Q401 L402 MC401 Vda CONTROL MODULE 11 10 VCC1 VCC2 Q403 Q402 6 7 4 8 9 5 2 1 ZD403 ZD404 ZD405 L401 D402 Vda_ON/OFF PC401 TO PA7 STBY5V 15Vs 5 6 7 1 P7 8 F_STBY_ON ECO_ON 2 ALL_OFF 15Vs STBY5V_SW 5Vc 9 10 Q351 Q352 15Vc ON/OFF FV ON/OFF PFC VR351 x8 270k 5 3 4 2 1 IC451 Q451 IC351 L451 MC351 15V/FV ON/OFF Q551 Q704 PG STB_IN RLY_MAIN PFC MC603 T301 T201 VCC GATE_H SOURCE_H GATE_L SOURCE_L GH_IN VDD GL_IN (L=ON) (L=ON) (H=ON) (H=ON) (AIN0) Vout ON/OFF IC401 IC251 VSUS DET D351 IPD AC_L TH-50PV70C P-Board Block Diagram TH-50PV70C P-Board Block Diagram �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 64 15.4. P 电路板 (1/2) 线路图 C 3 4 2 B A E 6 7 5 D 1 F 8 9 ! P-BOARD ETXMM655MEH (1/2) TH-50PV70C P-Board (1 of 2) Schematic Diagram TH-50PV70C P-Board (1 of 2) Schematic Diagram RECTIFIER PFC MODULE PFC MODULE �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 65 15.5. P 电路板 (2/2) 线路图 C 3 4 2 B A E 6 7 5 D 1 F 8 9 TH-50PV70C P-Board (2 of 2) Schematic Diagram TH-50PV70C P-Board (2 of 2) Schematic Diagram TO D-BOARD (D25) TO PA-BOARD (PA6) TO PA-BOARD (PA7) TO SS-BOARD (SS12) NO USE TO SS-BOARD (SS11) TO SC-BOARD (SC2) ! P-BOARD ETXMM655MEH (2/2) PFC/BIAS CONTROL MODULE IPD Vsus POWER CONTROL 2 Vsus POWER CONTROL 1 Vda CONTROL MODULE POWER CONTROL MODULE POWER MCU MODULE 15V/FV ON/OFF Vda POWER CONTROL MODULE Vsus POWER SUPPLY HOT COLD HOT COLD HOT COLD �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 66 15.6. PA 电路板方框图 TPS0S TPST5 TPAC1 R5533 D5530 R5534 Q5562 R5532 R5536 R5531 R5535 R5537 Q5521 R5538 Q5523 Q5522 C5521 C5522 Q5561 D5528 D5521 R5540 D5529 R5544 R5542 D5526 R5549 D5522 R5548 Q5524 R5546 R5547 TPM9V TPS15V TPS5V TPS9V TPEC0 TPS0N Q5501 D5501 OVER VOLTAGE DET SUB+5V SUB+9V (+6.8V) (+12V) SUB+5V/SUB+9V SHORT DET F STB+15V (+10V) +15V_S F+15V F+15V F+15V +15V_S +15V_S STB5V TUNER_SUB_ON ALL_OFF ECO_ON 5 6 7 8 9 8 7 3 2 1 SUB+5V/SUB+9V TV_ON OFF MAIN9V SUB9V SUB9V SUB5V 23 22 21 +15V_S +15V_S AC_GOOD H3 18 +15V_S PA3 7 1 3 6 2 SUB5V PA6 PA7 TUNER_SUB_ON PA4 TUNER_SUB_ON 23 ALL_OFF SOS STB5V TUNER_MAIN_ON ECO_ON H4 11 21 16 17 18 SUB+9V SUB+5V 9 3 13 15 1 IC5550 SOS DET ERROR DET MAIN+9V F STB+15V DET SUB+9V DET SUB+5V DET P7 P6 PA DC-DC CONVERTER 9 AC GOOD TH-50PV70C PA-Board Block Diagram TH-50PV70C PA-Board Block Diagram �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 67 15.7. PA 电路板线路图 + + + + C5595 50V 22u C5552 25V 0.1u C5501 470u 16V R5542 470 C5551 330u 50V R5546 10k TPM0N TPEC0 L5566 2.7u LHL08TB2R7M D5530 MA2J11100L D5519 B0BA6R600008 R5535 2.2k R5534 47k R5536 4.7k D5521 MA2J11100L 1% R5554 2.61k Q5562 2SD0601ASL D5517 B0BA9R600002 Q5523 2SD0601ASL PA4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 TPS0S R5538 2.2k EHMDD9851 IC5550 1 ON/OFF2 2 VAR2 3 VOUT2 4 SW-Node2 6 GND 7 N.C. 8 GND 9 VIN 10 N.C. 11 GND 12 SW-Node1 13 VOUT1 14 VAR1 15 ON/OFF1 16 N.C. R5532 4.7k L5551 G0C150MA0056 L5565 22u LHL08TB220K L5552 G0C150MA0056 TPST5 *PA6 1 2 3 4 5 6 7 8 9 10 11 12 TPS9V ZA5501 K4CZ01000027 *R5485 0 C5503 470u 16V D5526 MA3X152E0L PA3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 D5528 MAZ81200ML TPS0N ZA5502 K4CZ01000027 TPS15V R5537 680 R5572 2.2k C5521 16V 0.1u Q5561 B1DHDC000028 R5547 10k R5531 2.2k ZA5503 K4CZ01000027 Q5521 2SA207700L R5549 4.7k TPM9V R5573 4.7k TPAC1 C5522 16V 0.1u TPC0F R5506 10k R5540 470 Q5522 2SA207700L R5571 47k 1% R5555 1.27k JS5568 TPS0F R5507 10k D5522 MA3X152D0L R5548 4.7k Q5524 2SD0601ASL R5570 10k JS5569 *PA7 1 2 3 4 5 6 7 8 9 10 11 Q5501 2SD0601ASL D5529 MAZ80680LL L5564 2.7u LHL08TB2R7M C5502 16V 0.1u C5504 16V 0.1u R5509 0 L5550 2.7u LHL08TB2R7M TPS5V R5508 47k D5518 B0BA01100004 R5544 220 R5533 10k < S_GND GND GND N.C.(BT_30V) ODU GND S_GND GND SUB5V MAIN9V SUB9V SUB9V +15V_S +15V_S GND SUB5V N.C. FAN_SOS FAN_CONT SUB5V/9V AG SUFFIX JW GND GND +15Vc +15Vc GND GND GND GND F+15V F+15V F+15V +15V_S N.C. +15V_S S_GND S_GND STB5V TO P-BOARD (P7) AC_GOOD/KEY TUNER_SUB_ON ALL_OFF ECO_ON +15V_S FAN_SOS TUNER_SUB_ON GND GND SOS STB5V TUNER_MAIN_ON GND ECO_ON GND N.C. N.C. GND N.C./KEY ALL_OFF FAN_CONT ODU_ON +15V_S S_GND GND AC_GOOD TV_ON OFF GND GND N.C. SUB9V(H264)/HQ3.3V SUB9V(H264)/HQ3.3V SUB9V(FHD)/P12V SUB9V(FHD)/P12V P5V(MON)/P12V-ON N.C. MAIN_9V 2 F B E 7 A 8 4 1 5 6 9 D C 3 TO P-BOARD (P6) TO H-BOARD (H3) TO H-BOARD (H4) SOS DET PA-BOARD TNPA4178AG ! TH-50PV70C PA-Board Schematic Diagram TH-50PV70C PA-Board Schematic Diagram Diagram �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 68 15.8. H 电路板 (1/2) 方框图 COMPONENT COMPONENT AV1 AV1S AV2 AV3 AV2 AV3 PR PB Y PR V L C R R L Y R L V R V V L MONITOR OUT PB Y + PC_B PC_H_IN PC_V PC_H RGB_CVBS AV1_Y AV3_V PC_H_IN PC_V_IN PC_LIN PC_RIN PC_R PC_G AV1_L AV1_R AV2_L AV2_R AV3_L AV3_R PC_LIN PC_RIN AV4_R AV4_L TV_R TV_L AV_R AV_L SCL0B_5V SDA0B_5V AV3C_Y AV3C_PB AV3C_PR AV4_V AV4_S AV4_Y AV4_C PC_R PC_B PC_G PC_V_IN AV2C_YSW AV2C-PR AV2C_PB AV2_V AV1_C MAIN_Y_OUT MAIN_PB_OUT MAIN_PR_OUT VOUT AV1_S AV1_V MAIN_RF_CVBS VIDEO_STATUS SCL0B_5V SDA0B_5V AV3C_YSW AV3_R AV2C_Y AV2C_YSW AV2_R AV3_L AV1_Y AV1_V AV1_R AV2C_PB AV1_C AV2_V AV3C_YSW AUDIOOUT_L AV2C_PR AV1_S AV2_L AV3C_PR AV3C_PB AV1_L AV3_V VOUT VOUT_FEED_B AUDIOOUT_R AV2C-Y VOUT_FEED_B TUNER_MAIN_ON MON_MUTE DTV9V *Q2003 *Q2002 JK2003 L L-G R R-G *JK3001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 DTV9V JK3100 Y-SW Y G PB PR V L R-SW R G Y-SW Y G PB PR V L R-SW R G C Y G Y-G C-G G V L R-SW R G V L R G Q3032 Q3032 AV1 PC AUDIO IN B G AV2 AV3 PC IN HD R VD AV SW1 Video SW L8 17 13 L6 16 R6 R8 14 R7 L7 15 11 L5 R5 12 10 6 L3 7 R3 R12 41 L12 42 LOUT1 33 32 ROUT1 35 SDA SCL 36 IC3001 V7 91 V2 14 G3 63 B3 65 R3 67 V5 95 S13 96 Y5 97 S23 98 C5 99 R4 75 B4 73 G4 71 HIN2 60 VIN2 58 LP2 78 G5 77 R5 81 V3 8 B5 79 5 C4 3 Y4 VOUT7 44 HOUT 42 VOUT 41 OUT1(CY) 40 OUT1(Pb) 39 OUT1(Pr) 38 33 VOUT3 VCC4 45 HVOE 43 VCC3 25 VCC2 6 69 VCC1 V4 1 S12 2 84 SDA SCL 83 FLAG 85 AV3 AV2 AV1 PC LP3 19 AV4 TV 5 VCC AV SW2 (AUDIO SW) IC2105 TV PC AV2 AV1 AV3 AV4 7 2 6 5 4 3 1 AV TERMINAL, H MONITOR OUT 32 VOUT3FB TH-50PV70C H-Board (1 of 2) Block Diagram TH-50PV70C H-Board (1 of 2) Block Diagram �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 69 15.9. H 电路板 (2/2) 方框图 MAIN_PR_OUT MAIN_PB_OUT MAIN_Y_OUT SDA0B TUNER_MAIN_ON AUDIO_MUTE AUDIO_XRST SP_MUTE SOUND_SOS AFC1 TUNER_SUB_ON PANEL_STBY_ON AC_GOOD AV_L HDMI_SDIN HDMI_LRCK HDMI_BCLK SCL0B_5V RGB_CVBS TV_SUB_ON_DELAY FAN_CONT FAN_SOS KEY HDMI_INT2 ECO_ON ALL_OFF VIDEO_STATUS SQ_R- SQ_R+ SQ_L+ SQ_L- SQ_R+ SQ_L+ SQ_L- AV_R SDA0B SCL0B HDMI_SDIN HDMI_LRCK HDMI_BCLK TV_R TV_L SQ_R- HP_LOUT HP_ROUT AUDIOOUT_R AUDIOOUT_L A_MUTE SOUND_SOS SDA0B_5V AFC1 MAIN_RF_CVBS AUDIO_MUTE SOUND_SOS AUDIO_XRST FB PC_H PC_V TV_SUB_ON_DELAY ALL_OFF TUNER_SUB_ON ECO_ON FAN_CONT SOS TUNER_MAIN_ON AV4_S AV4_C AV4_Y AV4_V FAN_SOS AC_GOOD KEY HP_LOUT HP_ROUT AGC1 AGC1 AV4_R AV4_L KEY A_MUTE MON_MUTE HDMI_INT2 SP_MUTE AUDIO_MUTE SOS SCL0B_5V SDA0B_5V SCL0B MAIN9V Q2636 BT30V Q2635 D2632 Q2301 SUB5V D2635 SUB3.3V D2637 SOUND12V SOUND15V STB+5V DVDD1.8V Q2638 D2301 Q2637 D2633 BT30V Q2639 DTV9V STB+5V SUB5V SOUND12V SOUND15V SUB3.3V DTV9V BT30V DTV9V D2636 AUD3.3V Q2101 Q2102 MAIN9V D2303 D2304 X2010 SOUND15V SUB3.3V STB+5V SUB5V MAIN9V SUB9V_H264 DTV9V SUB5V DTV9V MAIN9V SUB3.3V SUB5V MAIN_Y/CVBS/G PC_V RGB_FB SCL0B_3.3V ALL_OFF AUDIO_MUTE SOS VIDEO_STATUS AFC1 RGB_CVBS SP_MUTE SDA0B_3.3V PC_H SOUND PROCESSOR RESET MUTE(ES2-) HDMI_SDIN HDMI_LRCK HDMI_BCLK ECO_ON SUB_3.3V SHORT DET To SOS L+ R+ R- L- MAIN_PB/C/B MAIN_PR/R AUDIO_XRST SOUND_SOS TUNER_MAIN_ON TUNER_SUB_ON FAN_CONT FAN_SOS KEY HDMI_INT2 PANEL_STBY_ON OPERATE RESET AC_GOOD TV_SUB_ON_DELAY BT+30V DC-DC Q2031,Q2033-Q2035 MUTE SW MUTE DTV+9V Q2039-Q2040 MONITOR MUTE HDMI INT AUDIO MUTE SPEAKER STB+5V BT30V SHORT DET 3 5 7 10 12 14 16 28 30 32 33 34 35 38 39 41 48 49 51 52 54 55 56 66 68 70 74 76 77 79 AVR+3.3V IC2010 AUD3.3V IC2008 IC2610 SOUND12V IC2303 3 AVR 1 AMP 36 31 +15V +12V AUDIO AMP 28 5 7 SOS RESET 39 AMP IC2301 8 6 18 16 17 RESET AMP 5 2 6 7 L R 3 1 HPOUTR1 58 HPOUTL1 57 PWM2B 45 PWM2A 44 PWM1B 43 PWM1A 42 AINL1 78 AINR1 79 SIF_IN1 8 SDA 16 MUTE 15 SCL 17 SDIN0 22 LRCLK0 26 BCLK0 27 AUXOUTL1 72 AUXOUTR1 73 AUXOUTR2 75 AUXOUTL2 74 IC2107 DVDD1.8VV 2 5 7 MUTE 1 3 HP AMP IC2012 Q2021 Q2015 SOS OPERATE AUDIO MUTE 8 5 9 13 14 16 15 18 20 21 11 BB +B SIF_OUT SCL SDA RF_AGC VB BTL AFT_OUT VIDEO_OUT Q3200 TUNER TU3200 4 3 2 1 H12 Q2017 Q2016 1 3 5 AVR 1 AVR 7 5 AUD3.3V SIF3.3V DVDD1.8V 7 5 1 AVR IC2106 50 4 3 5 AVR5V IC2013 AVR 8 VCC SUB_3.3V OVER VOLTAGE XIN 33 XOUT 34 1 2 AC_GOOD SUB9V_H264 7 8 11 16 17 18 +15V_S +15V_S 21 +15V_S 22 23 FAN_SOS H3 SUB5V H4 SUB5V MAIN9V SOS 8 14 12 9 13 STB5V MAIN9V TUNER_MAIN_ON ALL_OFF SUB3.3V TUNER_SUB_ON SUB5V SUB3.3V ECO_ON SUB5V SUB5V 2 DTV9V STB5V DTV9V 23 1 DTV9V DTV9V 18 21 17 FAN_CONT FHD9V FHD9V H2 FHD9V 5 FHD9V 6 7 9 18 21 23 1 2 3 SUB9V_H264 10 8 15 17 19 1 H51 G51 AV4_R AV4_Y HP_L AV4_S AV4_V AV4_L KEY AV4_C HP_R 9 7 12 IC2011 H6 DG6 AGC1 1 H15 DG2 6 7 1 5 3 2 AV TERMINAL, H AV SWITCH,MSP 4 SUB3.3V AP4 AP3 10 KEY SPEAKER 8 7 SCLB SDAB 2 3 SDAA SCLA 8 VCCA 1 VCCB IC2601 LEVEL CHANGE 5V<->3.3V TH-50PV70C H-Board (2 of 2) Block Diagram TH-50PV70C H-Board (2 of 2) Block Diagram �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 70 15.10.H 电路板 (1/5) 线路图 + + + COMPONENT COMPONENT AV1 AV1S AV2 AV3 AV2 AV3 PR PB Y PR V L C R R L Y R L V R V V L MONITOR OUT PB Y + AV_L AV3_R SDA0B_5V SCL0B_5V AV4_L AV2_R AV1_R AV3_L AV1_L AV2_L AV4_R AV_R PC_RIN PC_LIN TV_L TV_R PC_B DAC_PD PC_H_IN PC_V_IN PC_G PC_R PC_LIN PC_RIN A_AV1_R AV1_V AV1_S A_AV2_RSW AV3C_YSW A_AV3_RSW AV3C_PR A_AV1_R AV2_V AV1_C AV1_Y A_AV1_L A_AV3_L A_AV2_R A_LOUT A_AV2_L A_AV2_L A_AV1_RSW AV2C_YSW AV3C_Y AV2C_PB A_AV3_L A_AV2_RSW A_AV1_RSW A_AV1_L AV3C_PB A_AV2_R AV3_V A_AV3_R AV2C_PR A_ROUT A_AV3_R A_AV3_RSW A_LOUT AV2C_Y A_ROUT MONITOROUT_MUTE AV3_L AV3_R VOUT AV2_L AV2_R AV1_L AV1_R AUDIOOUT_L AUDIOOUT_R VOUT_FEED_B TUNER_MAIN_ON HV/FB_CONT 1% *R3313 75 L2001 J0JCC0000364 1% R3004 75 JS2031 JS2032 R2032 22k 1% R3002 75 R2195 100k Q3032 2SC584500L *C3119 10u 16V C2021 560p 50V AN15862A-VT IC2105 1 L1 2 R1 3 L2 4 R2 5 VCC 6 L3 7 R3 8 L4 9 R4 10 L5 11 R5 12 L6 13 R6 14 L7 15 R7 16 L8 17 R8 18 L9 19 R9 20 L10 21 R10 22 O1 23 LOUT5 24 ROUT5 25 LOUT4 26 ROUT4 27 LOUT3 28 ROUT3 29 GND 30 LOUT2 31 ROUT2 32 LOUT1 33 ROUT1 34 ADR 35 SCL 36 SDA 37 O2 38 BIAS 39 L11 40 R11 41 L12 42 R12 43 L13 44 R13 R3020 4.7k L2012 J0JCC0000100 C2161 16V 100u C3070 6.3V 220u R2196 100k C2164 16V 1u L3002 J0JCC0000100 L2004 J0JCC0000100 FL2002 J0HABB000004 1 2 3 4 C2136 16V 1u JS2049 C2167 16V 1u C2160 16V 1u R2138 220 *C2155 16V 1u C2022 560p 50V SUB9V_PRCT R2164 220 R2049 330 *D3334 MA2J11100L R2052 180k *C3100 10V 1u JS2062 *FL3003 J0HABB000004 1 2 3 4 R3022 4.7k 1% R3006 75 L2008 J0JCC0000100 JS2064 JS3011 0 L2015 J0JCC0000100 R2034 22k JK3100 K1U936A00002 Y-SW Y G PB PR V L R-SW R G Y-SW Y G PB PR V L R-SW R G C Y G Y-G C-G G V L R-SW R G V L R G R2173 220 *R3308 0 R2154 22 D3003 MAZ81400ML *C3102 10V 1u *FL3001 J0HABB000003 1 2 3 4 R2172 220 JS3015 0 FL2001 J0HABB000004 1 2 3 4 R2170 220 C2014 50V 560p *R3306 4.7k Q2003 2SC584500L L2016 J0JCC0000100 D3036 MAZ81400ML JS2060 10k R3107 JK2003 K2HA204A0041 L L-G R R-G R2152 22 1% R3001 75 C2159 16V 1u R2137 220 1% *R3143 69.8 *C2157 16V 1u SUB9V_VIDEO D3006 MAZ81400ML SUB5V R2132 47k *D3102 MA2J11100L L2002 J0JCC0000364 C2017 50V 560p R2053 100k 1% R3003 75 C3120 50V 0.1u R3188 0 R2050 2.2k 1% R3012 75 R2174 220 C2154 50V 0.1u R2051 180k JS3013 0 R2235 47k D2119 B0BC01100001 L3013 J0JCC0000100 1% R3008 75 10k R3113 1% *R3318 75 *D3338 MA2J11100L R3130 220 D3040 MAZ81400ML D3005 MAZ81400ML R3131 220 L3001 J0JCC0000100 R2033 22k D3100 MAZ81400ML R2054 100k R2048 2.2k C2166 16V 1u R3145 100k C2013 50V 560p *R2162 220 C2005 50V 560p C2010 50V 560p R2167 220 DTV9V C2135 16V 1u 1% R3009 75 JS2048 1% R3005 75 *FL3002 J0HABB000003 1 2 3 4 Q2002 2SC584500L C2147 16V 22u L2003 J0JCC0000100 R2031 22k JS3010 0 R2171 220 JS2059 L2007 J0JCC0000100 D3048 MAZ81400ML L3010 J0JCC0000100 D3035 MAZ81400ML 1% R3010 75 D3038 MAZ81400ML D3039 MAZ81400ML SUB9V_PRCT JS2033 L2011 J0JCC0000100 L3003 J0JCC0000100 D3047 MAZ81400ML R2030 22k R2029 22k Q3031 2SC584500L 10k R3177 D3045 MAZ81400ML R2047 330 *R3307 4.7k *D3335 MA2J11100L C2011 50V 560p D3046 MAZ81400ML JS2051 *R2160 220 *FL3005 J0HABB000004 1 2 3 4 C3060 16V 1u 1% *R3310 75 DTV9V *FL3004 J0HABB000004 1 2 3 4 *D3336 MA2J11100L JS3012 0 R2175 220 C2165 16V 1u R3021 4.7k D3049 MAZ81400ML C2163 16V 1u *R3309 0 JS2046 C2016 50V 560p *JK3001 K1FB315A0006 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 D3037 MAZ81400ML 1% R3007 75 JS3014 0 C2006 50V 560p C2162 16V 1u *C3101 10V 1u *D3337 MA2J11100L JS2061 JS3006 B G PC IN SUFFIX JW R Audio SW 7 1 C 6 F 4 5 2 3 B 8 D A E 9 2 3 1 AH TH-50PV70C H-Board (1 of 5) Schematic Diagram TH-50PV70C H-Board (1 of 5) Schematic Diagram H-BOARD (1/5) TXN/H1HMTC (TNPA4179AH) ! �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 71 15.11.H 电路板 (2/5) 线路图 + + + + + + + RGB_CVBS MAIN_RGB_CVBS_OUT AV2C_Y AV2C_PB AV2C_PR MAIN_RF_CVBS MAIN_RF_GND PC_H PC_V SUB_PB_OUT AV4_VGND AV4_YGND AV3C_PB PC_G PC_R PC_B AV4_V AV4_Y AV4_S AV4_CGND SUB_Y_OUT MAIN_RGB_CVBS_OUT MAIN_Y_OUT MAIN_PB_OUT MAIN_PR_OUT SUB_PR_OUT VIDEO_STATUS SDA0B_5V AGC1 SIF1 AFC1 AV1_Y AV2_V AV3_V AV3C_Y AV3C_PR SUB_RF_GND AV1_V AV1_S AV1_C AV3C_YSW AV2C_YSW SDA0B_5V SCL0B_5V MAIN_TNR_SW1 MAIN_TNR_SW2 AGC2 AGC1 MAIN_RF_CVBS MAIN_RF_GND SUB_RF_GND AFC2 MAIN_Y/CBVS/G MAIN_Y_OUT MAIN_PB/C/B MAIN_PB_OUT MAIN_PR/R MAIN_PR_OUT SCL0B_5V MAIN_TNR_SW1 MAIN_TNR_SW2 PC_H_IN PC_V_IN VOUT_FEED_B VOUT AV4_C HV/FB_CONT *R3063 220 *L3208 J0JCC0000241 *D3042 MAZ81400ML C3275 16V 0.1u R3140 47 *R3348 68 R3168 220 R3044 0 *D3043 MAZ81400ML R3074 220 R3089 330 L3209 J0JGC0000021 R3087 220 C3118 16V 47u C3103 16V 10u C3279 16V 0.1u *H15 K1KA04AA0150 1 2 3 4 C3053 10V 1u 100 R3180 C3051 10V 1u *D3041 MAZ81400ML DTV9V C3054 10V 1u C3272 50V 0.1u *R3062 220 C3052 10V 1u C3056 10V 1u R3249 1.5k L3207 J0JCC0000241 *R3073 220 R3244 0 R3133 22 C3116 50V 0.1u *R3174 68 R3266 1.5k *C3027 10V 1u JS3032 C3117 50V 0.1u AN15876A-VT IC3001 1 V4 2 S12 3 Y4 4 S22 5 C4 6 VCC2 7 LP5 8 V3 9 O3 10 Y3 11 GND2 12 C3 13 LP4 14 V2 15 S11 16 Y2 17 S21 18 C2 19 LP3 20 V1 21 O2 22 Y1 23 O1 24 C1 25 VCC3 26 VOUT6 27 DCOUT 28 VOUT5FB 29 VOUT5 30 VOUT4FB 31 VOUT4 32 VOUT3FB 33 VOUT3 34 OUT2(Pr) 35 OUT2(Pb) 36 OUT2(CY) 37 GND3 38 OUT1(Pr) 39 OUT1(Pb) 40 OUT1(CY) 41 VOUT 42 HOUT 43 HVOE 44 VOUT7 45 VCC4 46 FBLOUT 47 FBL3 48 FBL2 49 FBL1 50 FBLOE 51 G1 52 VIN1 53 B1 54 HIN1 55 R1 56 GND4 57 G2 58 VIN2 59 B2 60 HIN2 61 R2 62 NC 63 G3 64 TEST 65 B3 66 NC 67 R3 68 NC 69 VCC1 70 NC 71 G4 72 LP1 73 B4 74 L31 75 R4 76 NC 77 G5 78 LP2 79 B5 80 L32 81 R5 82 GND1 83 SDA 84 SCL 85 FLAG 86 BIAS 87 V9 88 NC 89 V8 90 NC 91 V7 92 O4 93 V6 94 LP7 95 V5 96 S13 97 Y5 98 S23 99 C5 100 LP6 C3115 50V 0.1u SUB5V *TU3200 ENGF9701GF BB 5 NC 6 SW1 7 SW2 8 +B 9 AUDIO_OUT 10 SIF_OUT 11 NC 12 SCL 13 SDA 14 RF_AGC 15 VB 16 NC 17 BTL 18 NC 19 AFT_OUT 20 VIDEO_OUT 21 R3065 220 R3111 22 R3069 220 SUB9V_VIDEO R3205 0 C3055 10V 1u *R3068 75 1% C3078 6.3V 22u *C3081 6.3V 100u *R3072 220 R3247 220 *R3176 68 R3222 0 R3123 47 *C3274 16V 0.1u D3044 B0BC01100001 R3240 560 1% R3097 68 1% R3137 100 L3211 J0JGC0000021 C3276 16V 0.1u R3059 220 R3110 0 C3033 10V 1u R3099 68 C3281 16V 0.1u C3280 50V 100p 1% *R3233 75 C3024 10V 1u R3239 220 JS3024 *R3216 0 JS3208 ERJ3GEY0R00V C3040 50V 0.1u C3026 50V 0.1u R3109 0 L3206 J0JCC0000241 C3021 10V 1u Q3200 2SA207700L R3191 22 R3045 0 R3101 68 C3271 10u 16V *C3028 10V 1u *C3031 50V 0.1u R3064 220 R3103 0 R3246 0 *R3206 100 R3096 68 *R3302 100 C3270 6.3V 1000u *R3349 68 R3202 0 C3043 10V 1u 1% *R3234 75 *R3175 68 R3100 68 L3226 J0JCC0000241 *C3029 16V 1u BT30V C3023 10V 1u C3273 10u 50V JS3023 R3090 22 *R3305 100 R3098 68 R3243 270 L3225 J0JCC0000241 R3121 47 C3075 16V 220u *R3102 0 *R3104 0 *R3268 47k Video SW 11 18 14 15 16 12 10 17 13 1 2 3 13 15 14 11 12 ! TH-50PV70C H-Board (2 of 5) Schematic Diagram TH-50PV70C H-Board (2 of 5) Schematic Diagram H-BOARD (2/5) TXN/H1HMTC (TNPA4179AH) ! �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 72 15.12.H 电路板 (3/5) 线路图 + + + + + + + + + + + + + 5V DTV_LRCK SQ_L+ SQ_R+ SQ_R- SQ_L- DTV_BCLK TV_R AUDIOOUT_R AUDIOOUT_L AV_R HDMI_SDIN HDMI_BCLK HDMI_LRCK DTV2_SDIN SOUND_SOS AUDIO_MUTE DAC_PD TV_L AV_L DTV_SDIN HP_ROUT HP_LOUT SDA0B SCL0B PWM_SQ_L+ PWM_SQ_L- SQ_L+ SQ_L- PWM_SQ_R+ SQ_R+ SQ_R- PWM_SQ_R- AUDIO_XRST AMUTE C2023 0.1u 50V L2027 J0JHC0000045 DVDD3.3V *C2271 470p 50V *R2236 15k C2116 470p 50V Q2015 2SA207700L *R2185 100 C2097 50V 0.1u C2173 4.7u 16V R2149 10k C2186 0.1u 50V C0CBCBC00190 IC2010 1 VDD 2 GND 3 CE 5 VOUT 4 NC R2266 560 *D2189 MA2J11100L 2k 1% R2104 C2130 6.3V 10u *R2210 10k 1% R2197 68k C2246 10u 10V C2138 0.1u 50V C2216 0.1u 50V C2131 50V 0.1u C2108 47u 6.3V *C2176 50V 0.01u 1% R2182 36k C2188 470p 50V C2109 0.1u 50V Q2102 2SC584500L C2054 10u 10V C2053 0.1u 50V C2153 50V 33p C2091 50V 10p L2039 J0JHC0000045 *R2271 22 EXB28V220JX 10k R2276 C2089 560p 50V *R2186 82k C2117 0.1u 50V 22 R2056 IC2011 C0ABBB000230 1 2 3 4 5 6 7 8 C2268 100p 50V C2052 0.1u 50V *R2099 10k *R2233 10k R2094 2.2k *R2237 15k C2055 12p 50V 0 R2257 C2100 0.1u 50V C2048 0.1u 50V C2059 47u 6.3V *C2179 16V 47u C2058 0.1u 50V C2288 10u 10V 1% R2169 22k C2272 4.7u 16V R2295 0 *R2187 0 *R2209 10k 1% *R2113 120k R2093 3.3k C2264 10u 10V C2192 47u 6.3V *C2184 50V 1000p Q2021 2SA207700L *C2198 25V 0.033u C2280 4.7u 10V R2291 0 R2296 0 *R2189 10k 1% R2181 22k R2265 4.7k C1AB00002746 IC2106 1 FILTA 2 VREF 3 AGND 4 AVDD 5 SIF_REEP 6 SIF_REFCM 7 SIF_REFN 8 SIF_IN1 9 SIF_PGA_REF 10 SIF_IN2 11 AGND 12 AVDD 13 DGND 14 DVDD 15 MUTE 16 SDA 17 SCL 18 LRCLK2 19 BCLK2 20 DGND 21 DVDD 22 SDIN0 23 SDIN1 24 SDIN2 25 SDIN3 26 LRCLK0 27 BCLK0 28 ODGND 29 ODVDD 30 VDRIVE 31 DVDD 32 DGND 33 MCLKI/XIN 34 XOUT 35 BCLK1 36 LRCLK1 37 SDO0 38 SPDIF_OUT 39 SPDIF_IN 40 DVDD 41 DGND 42 PWM1A 43 PWM1B 44 PWM2A 45 PWM2B 46 PWM3A 47 PWM3B 48 PWM4A 49 PWM4B 50 RESET 51 DVDD 52 DGND 53 AVDD 54 PLL_LF 55 AGND 56 AGND 57 HPOUTL1 58 HPOUTR1 59 AVDD 60 NC 61 NC 62 NC 63 NC 64 NC 65 NC 66 VOUT_SW 67 FILTD 68 AVDD 69 AGND 70 AGND 71 AVDD 72 AUXOUTL1 73 AUXOUTR1 74 AUXOUTL2 75 AUXOUTR2 76 AINL2 77 AINR2 78 AINL1 79 AINR1 80 ISET C2106 0.1u 50V R2088 100 *R2184 100 C2096 50V 0.1u SUB3.3V R2084 4.7k *C2133 50V 4.7u 1% R2168 16k *C2098 6.3V 220u *R2192 100k C2124 0.1u 50V 2.2k R2125 100 R2111 C2171 0.01u 50V R2290 0 C2050 0.1u 50V 20k 1% R2100 C2281 560p 50V L2040 J0JHC0000045 *C2195 50V 1000p C2251 10u 10V *C2270 470p 50V L2026 G1C6R8MA0061 300 R2058 *R2179 10k R2165 10k *R2180 1k C2110 0.1u 50V C2114 0.1u 50V *C2197 25V 0.033u C2057 0.1u 50V C2170 50V 33p *R2178 1k C2105 0.1u 50V *C2099 6.3V 220u C2120 56p 50V C2191 10u 10V 1M R2112 SUB5V *C2174 1u 10V C2213 1000p 50V H0J245500082 X2010 C2190 10u 10V C2245 1000p 50V C2143 50V 180p C2049 0.1u 50V 0 *R2116 C2146 50V 180p 1% *R2114 75k C2244 0.1u 50V C0CBCBE00001 IC2008 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 SUB 7 VIN *L2022 ERJ3GEY0R00V *R2098 10k C2189 1u 10V *C2180 1u 10V C2265 100p 50V DTV9V C2101 10u 10V 1% R2166 16k DVDD1.8V C2185 10u 10V SUB5V C2289 10u 10V *C2204 1u 16V *L2035 J0JCC0000364 SUB5V 1M *R2059 C2187 2.2u 6.3V C0DBGYY00281 *IC2013 1 NC 2 VSS 3 CE 5 VOUT 4 VIN R2263 0 C2113 47u 6.3V Q2101 2SC584500L 1% R2198 158k *IC2012 C1BB00000947 1 OUT1 2 MUTE 3 IN1 4 GND 5 IN2 6 BIAS 7 OUT2 8 VCC SUB3.3V *L2034 J0JCC0000364 C2111 2.2u 6.3V DTV9V JS3206 0 R2096 10k C2115 0.1u 50V 20k 1% R2145 DVDD3.3V AUD3.3V 22 R2057 L2029 J0JCC0000077 C2263 10u 10V C2118 1u 10V DVDD1.8V R2223 0 C2112 47u 6.3V R2085 560 *C2175 16V 47u C2151 47u 6.3V R2086 470 C2266 100p 50V C2183 10u 10V 20k 1% R2146 20k 1% R2150 MAIN9V Q2016 2SC584500L R2294 0 C2088 4.7u 10V C2121 56p 50V 20k 1% R2151 R2089 560 C2134 50V 0.01u *C2056 12p 50V R2097 3.3k 10k R2110 0 *R2117 C2107 47u 6.3V Q2017 2SC584500L R2092 470 JS2096 *C2203 1u 10V *C2202 2.2u 6.3V C2126 10u 10V 1% R2183 36k C2267 100p 50V C2102 0.1u 50V L2021 J0JHC0000078 C0DBFFD00003 IC2107 1 2 3 4 5 6 7 C2092 50V 22p R2297 0 *R2193 100k C2137 47u 6.3V *R2238 47k C >> RESETB - R L + - + HP AMP Rin Lin 3.3V AUD3.3V DVDD1.8V AUDIO DSP AMP 5V 26 23 20 27 21 19 24 25 22 14 15 13 11 12 22 21 25 24 23 26 TH-50PV70C H-Board (3 of 5) Schematic Diagram TH-50PV70C H-Board (3 of 5) Schematic Diagram H-BOARD (3/5) TXN/H1HMTC (TNPA4179AH) ! �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 73 15.13.H 电路板 (4/5) 线路图 + + + PWM_SQ_R+ PWM_SQ_R- AMUTE SOUND_SOS MONITOROUT_MUTE AUDIO_MUTE AMUTE HDMI_INT2 SP_MUTE PWM_SQ_L+ PWM_SQ_L- DTV9V C2305 25V 1u Q2031 2SA207700L STB+5V D2034 MA2J11100L R2144 10k C2302 16V 0.1u C2301 16V 0.1u C2307 25V 1u L2310 J0JJC0000011 C2349 50V 0.1u R2131 10k C2357 50V 0.1u TP2307 R2127 10k C1AB00002730 *IC2301 1 GVDD_B 44 GVDD_A 2 OTW 3 NC 4 NC 5 SD 6 PWM_A 7 RESET_AB 8 PWM_B 9 OC_ACJ 10 GND 11 AGND 12 VREG 13 M3 14 M2 15 M1 16 PWM_C 17 RESET_CD 18 PWM_D 19 NC 20 NC 21 VDD 22 GVDD_C 23 GVDD_D 24 BST_D 25 NC 26 PVDD_D 27 PVDD_D 28 OUT_D 29 GND_D 30 GND_C 31 OUT_C 32 PVDD_C 33 BST_C 34 BST_B 35 PVDD_B 36 OUT_B 37 GND_B 38 GND_A 39 OUT_A 40 PVDD_A 41 PVDD_A 42 NC 43 BST_A C2313 50V 0.1u R2330 1k C2333 50V 0.1u C2347 50V 0.022u R2302 2.2k R2194 1k D2302 MA2J11100L D2028 MA2J11100L Q2034 2SC584500L SOUND12V C2389 50V 1000p D2301 MA2J11100L R2331 2.2k D2029 MA2J11100L Q2033 2SA207700L C2387 50V 1000p C2119 10V 220u R2317 10 R2208 10k D2031 MA2J11100L Q2039 2SC584500L D2026 MA2J11100L Q2041 2SC584500L C2309 25V 1u R2315 3.3 C2303 25V 1u R2323 10 *C2329 50V 0.1u R2311 3.3 C2377 50V 0.022u C2321 0.033u 25V C2345 50V 0.022u R2321 10 D2303 MAZ30560HL D2304 MA2J11100L C2375 50V 0.022u Q2301 2SA207700L C2381 50V 0.022u C2383 50V 1000p *C2311 50V 0.1u R2128 47k C2353 50V 0.1u STB+5V C2335 50V 0.1u C2379 50V 0.022u Q2040 2SC584500L R2216 10k C2337 50V 0.022u *R2123 47k TP2303 D2032 MA2J11100L R2305 470 R2301 2.2k R2319 10 *C2315 50V 0.1u *C2363 50V 0.1u TP2305 C2359 50V 0.1u C2319 0.033u 25V R2122 10k MAIN9V C2325 50V 0.47u R2308 3.3 R2205 20k C2331 50V 0.47u Q2035 2SC584500L R2306 68k C2323 0.033u 25V R2325 10 C2385 50V 1000p R2118 1M C2317 0.033u 25V R2313 3.3 C2355 50V 0.1u TP2310 SOUND15V R2219 47k TP2301 MAIN9V *R2217 47k R2124 10k C0DBGYY00202 IC2303 VIN 3 2 VSS VOUT 1 TP2302 C2343 50V 0.1u D2033 MA2J11100L R2206 10k C2341 50V 0.1u C2365 220u 16V C2352 16V 1u R2119 10k R2220 12k C2339 50V 0.022u R2129 10k *C2327 50V 0.1u C2361 25V 470u R2156 330 L2308 J0JJC0000011 H12 1 2 3 4 *L2302 G1C100MA0291 *L2300 G1C100MA0291 *L2306 G1C100MA0291 *L2304 G1C100MA0291 *R2303 0 *R2304 0 OPERATE RESET SOS OPERATE R- L+ L- R+ MUTE MUTE SW OPERATE MUTE MUTE MUTE MUTE SOUND SOS DET SOUND12V AUDIO AMP 30 35 29 31 32 36 28 33 34 25 24 26 23 22 21 31 32 34 35 33 TH-50PV70C H-Board (4 of 5) Schematic Diagram TH-50PV70C H-Board (4 of 5) Schematic Diagram H-BOARD (4/5) TXN/H1HMTC (TNPA4179AH) ! �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 74 15.14.H 电路板 (5/5) 线路图 + + AV4_CGND AV4_YGND AV4_VGND HDMI_INT2 MAIN_PR/R MAIN_PB/C/B MAIN_Y/CBVS/G RGB_CVBS PC_H PC_V DVB_CVBS SDA0B TUNER_MAIN_ON AUDIO_MUTE AUDIO_XRST SP_MUTE SOUND_SOS AFC1 SOS TUNER_SUB_ON GENX_RST PANEL_STBY_ON 24V_DET KEY SCL0B FAN_SOS ECO_ON ALL_OFF AFC2 FAN_CONT SCL0B VIDEO_STATUS SDA0B SOS TV_SUB_ON_DELAY DTV_BCLK DTV_SDIN DTV_LRCK DTV2_SDIN HDMI_SDIN HDMI_LRCK HDMI_BCLK KEY HP_LOUT AV4_R HP_ROUT AV4_L AV4_S AV4_V TV_SUB_ON_DELAY 24V_DET FAN_CONT FAN_SOS SOS TUNER_MAIN_ON ALL_OFF TUNER_SUB_ON ECO_ON KEY PANEL_STBY_ON AV4_Y AV4_C SDA0B_5V SCL0B_5V C3228 50V 0.1u ZA3005 K4CD08000002 ZA3006 K4CD08000002 SUB3.3V SUB3.3V R2864 1k STB+5V TP2612 R2602 0 R2859 4.7k *H4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 H6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 C3263 50V 0.1u C3268 50V 0.1u R2624 22 L2650 G1C3R3ZA0083 C3267 50V 0.1u C3266 50V 0.1u R2229 0 D2638 B0BC03900015 C2813 50V 0.1u R2628 7.5k ZA3003 K4CD08000002 TP2608 *FL3007 J0JAD0000028 1 2 3 4 C2817 50V 1000p *R3237 0 BT30V R2853 10k H2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 *R3236 0 D2632 MA2J11100L *H51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R2856 0 R2228 0 SUB5V TP2012 TP2016 R3350 0 *FL2006 J0HABB000003 1 2 3 4 R2629 7.5k *R3227 0 STB+5V C2602 50V 0.1u R2225 0 C2801 10u 16V L2649 G1C100MA0072 C2816 35V 22u C3216 50V 0.1u MAIN9V *FL3008 J0HABB000003 1 2 3 4 C0DBAJB00004 IC2610 1 VOUT 2 VDD 3 NC 5 EXT 4 VSS R2224 0 MAIN9V TP2609 C3265 50V 0.1u R2855 47k LCD3.3V TP2617 SUB5V R2861 1k C2802 0.47u 50V SUB5V *FL3006 J0JAD0000028 1 2 3 4 R2854 2.2k Q2638 2SC584500L R2231 0 Q2635 2SC584500L 1% R2867 82k D2635 MA2J11100L C3214 50V 0.1u JS3213 0 R2863 1k DTV9V *R3229 0 C3226 50V 0.1u R2890 100k ZA3007 K4CD08000002 SUB3.3V *R3238 0 D2637 MA2J11100L TP2611 TP2014 R2230 0 R2601 0 C3201 50V 0.1u SUB5V P12V P12V R2603 0 TP2610 *FL2003 J0HABB000003 1 2 3 4 C2803 0.47u 50V *R3228 0 Q2637 2SA207700L C2819 25V 47u TP2606 C3230 50V 0.1u ZA3004 K4CD08000002 D2633 MA2J11100L R2860 10k *FL2005 J0HABB000003 1 2 3 4 R2625 22 *L2647 0 Q2639 B1CFNG000001 R2865 10k TP2607 R2858 2.2k *JS2101 0 Q2636 2SA207700L DTV9V C3227 50V 0.1u R2866 2.2k *H3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 D2636 MAZ30470HL SUB9V_H264 R2869 4.7k DTV9V STB+5V 1% R2868 16k TP2015 C2814 4700p 50V ZA3001 K4CD08000002 IC2601 C0JBAU000034 1 VCCA 2 SCLA 3 SDAA 4 GND 5 EN 6 SDAB 7 SCLB 8 VCCB D2634 MA3X78900L SOUND15V R2857 4.7k C2601 50V 0.1u LCD3.3V *FL2004 J0HABB000003 1 2 3 4 ZA3008 K4CD08000002 L2648 G1C470MA0077 C2815 50V 0.1u R2227 0 ZA3002 K4CD08000002 < < MAIN_Y/CVBS/G GND PC_V GND NC(RGB_FB) SCL0B_3.3V SUB_PB/C GND GND ALL_OFF GND GND GND SUB_PR SUB_Y/CVBS AUDIO_MUTE SOS GND GND GND GND GND VIDEO_STATUS TV_SUB_ON_DELAY GND GND AFC1 RGB_CVBS GND GND NC(QLINK_AV2) NC(QLINK_AV3) GND GND SP_MUTE SDA0B_3.3V GND GND GND GND GND PC_H GND DTV2_SDIN DTV_LRCK DTV_BCLK DTV_SDIN HDMI_SDIN HDMI_LRCK HDMI_BCLK ECO_ON GND GND GND GND GND GND GND MAIN_PB/C/B MAIN_PR/R GND DVB_CVBS AUDIO_XRST GENX_RST SOUND_SOS AFC2 TUNER_MAIN_ON TUNER_SUB_ON SPDIF_IN GND GND GND HDMI_INT2 GND FAN_CONT FAN_SOS KEY PANEL_STBY_ON GND DTV9V STB5V SUB5V SUB5V SUB3.3V GND SUB5V GND GND GND GND NC GND DTV9V GND FHD9V SUB3.3V GND FHD9V GND NC MAIN9V GND GND N.C. SUB5V N.C. GND N.C. +15V_S GND GND +15V_S GND S_GND SUB5V S_GND GND FAN_SOS MAIN9V DTV9V FAN_CONT +15V_S DTV9V GND AC_GOOD TUNER_SUB_ON GND GND KEY STB5V ALL_OFF N.C. SOS N.C. FHD9V ECO_ON GND GND N.C. GND FHD9V GND GND N.C. TUNER_MAIN_ON N.C. HP_R AV4_R AV4_C AV4_L NC NC GND GND GND NC HP_L GND HP_GND AV4_S HP_GND AV4_V GND GND KEY AV4_Y PDP AC_GOOD AC_GOOD SUB9V_H264 SUB9V_H264 Location of Earth Lug LEVEL SHIFT 5V<->3.3V TO G-BOARD (G51) TO DG-BOARD (DG2) TO DG-BOARD (DG6) TO PA-BOARD (PA3) TO PA-BOARD (PA4) BT30V SOS DET 41 45 37 42 43 44 38 39 40 32 31 34 35 33 TH-50PV70C H-Board (5 of 5) Schematic Diagram TH-50PV70C H-Board (5 of 5) Schematic Diagram H-BOARD (5/5) TXN/H1HMTC (TNPA4179AH) ! �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 75 15.15.DG 电路板 (1/3) 方框图 AG_ECO_ON HDMI_INT2 AG_TV_SUB_ON HDMI_SDIN STB_RST AG_TV_SUB_ON_DELAY AD_SDA2 AG_AUDIO_MUTE AG_RF_AFT1 PC_VS AG_A_MON_MUTE/SP_MUTE AG_TV_MAIN_ON MAIN_PB/C MAIN_PR AG_ALL_OFF AD_SCL2 HDMI_LRCK HDMI_BCLK PC_HS AG_AUDIO_XRST AG_KEY1(CON-PANE) AG_SOS AG_SOUND_SOS PANEL_STBY/VCC_ON MAIN_Y/CVBS RXA_2N RXA_0P RXA_CP RXA_2P RXA_1P RXA_CN RXA_1N RXA_0N RXB_CN RXB_2N RXB_CP RXB_2P RXB_1N RXB_1P RXB_0N RXB_0P VI1P8 VI1P5 VI1P4 VI1P6 VI1P3 VI1P2 VI1P9 VI1P7 VI1P17 VI1HSYNC VI1P19 VI1P15 VI1VSYNC VI1P18 VI1ENB VI1P14 VI1P29 VI1P16 VI1P13 VI1P28 VI1P12 VI1CLK CLKOA VI1P23 VI1P25 VI1P24 VI1P22 VI1P26 VI1P27 MAIN_PR RGB_CVBS MAIN_Y/CVBS MAIN_PB/C RGB_FB RXB_CN RXB_0P RXB_1N RXB_2P RXB_CP RXB_1P RXB_0N RXB_2N RXA_CN RXA_1P RXA_0N RXA_2P RXA_CP RXA_0P RXA_1N RXA_2N PC_HS PC_VS AG_HDMI_5V_DET1 AG_HDMI_CEC AG_EDID_WP AG_HPD1 AG_HDMI_5V_DET3 AG_HPD3 XIRQ3 AG_7493_XRST RGB_CVBS RGB_FB AG_VIDEO_STATUS AD_SCL1 AD_SDA1 AG_PANEL_STBY_ON/PANEL_VCC_ON HDMI_SPDIF HDMI_SDIN HDMI_LRCK HDMI_BCLK HDMI_INT2 AG_TV_MAIN_ON_DELAY PANEL_STBY/VCC_ON MAIN9V SUB5V SUB9V(FHD) P12V STB5V DTV9V SUB3.3V SUB3.3V SUB3.3V SUB5V X4500 Q4500 JK4500 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 D4524 Q4502 D4526 Q4501 JK4501 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 Q4503 D4527 MAIN5V MAIN5V D4525 MAIN3.3V STB5V Q2000 Q2001 R2001 TV_SUB_ON PC_V AFC1 HDMI_BCLK HDMI_LRCK ALL_OFF AUDIO_XRST AUDIO_MUTE TV_MAIN_ON VIDEO_STATUS SCL0B SDA0B HDMI_INT2 MAIN_PB/C/B RGB_FB KEY1 SOUND_SOS GENX_RST ECO_ON PC_H MAIN_Y/CVBS/G RGB_CVBS SOS SP_MUTE TO H6 MAIN_PR/R HDMI_SDIN SUB3.3V SUB5V P12V DTV9V SUB5V P12V STB5V SUB9V(FHD)/LCD3.3V DTV9V SUB9V(FHD)/LCD3.3V SUB3.3V SUB5V MAIN9V 1 2 5 6 8 9 12 13 14 17 18 21 23 DG2 IC4509 +1.8V 5 8 1 DVDD+1.8V +1.8V 5 8 1 IC4508 +1.8V 7 1 IC4506 +3.3V +3.3V 5 112 113 115 116 118 119 121 122 128 129 131 132 134 135 137 138 38 39 40 41 42 43 44 45 55 58 30 28 17 29 33 27 18 25 16 26 24 32 31 OUT IN 65 66 51 48 53 52 46 47 RIN0 RIN2 RIN1 RIN3 CLKOA CLKIA VSIA HSIA XTAL1 XTAL YIN6 YIN8 YIN4 YIN0 YIN3 YIN7 YIN1 YIN9 YIN5 YIN2 UVIN1 UVIN6 UVIN3 UVIN5 UVIN0 UVIN8 UVIN7 UVIN2 UVIN9 UVIN4 74 80 94 99 FB 78 97 Q4517 BUFFER Q4519 BUFFER Q4514 BUFFER Q4515 BUFFER Q4516 BUFFER SDA D1G D0+ HDMI2 +5V DET D2+ HPDT D2- CEC SCL D1+ +5V DDCG CLK+ HDMI2 RESET CLKG N.C. D0G D2G CLK- D0- D1- SDA HPDT CEC HDMI1 +5V DET D0- N.C. D2+ CLK- +5V D1+ SDA CLKG D2- HDMI1 RESET D0G CLK+ SCL D0+ D1G D1- DDCG D2G 62 63 6 SCL 5 7 WC 8 VCC EEPROM EDID1 IC4501 SDA EEPROM EDID2 7 SCL 6 IC4500 8 VCC 5 WC INV. Q4504 INV. Q4505 105 106 DDCA_SDA0 DDCA_SCL0 DDCA_SDA1 DDCA_SCL1 1 144 108 107 7 SCL 6 IC4504 8 VCC 5 WC EEPROM KEY SDA MDA MCL 1 3 4 5 6 SCL SDA WC MAIN3.3V XRST DG32 19 21 AVDD TVDD CVDD DVDD 11 12 3 5 7 10 12 14 16 28 30 32 33 34 35 36 38 39 41 48 49 54 55 66 68 70 74 76 77 79 DG6 20 RX_SCK 8 3 2 7 RX_SD0# RX_WS HDMI_BCLK HDMI_LRCK HDMI_SDIN HDMI_SPDIF HDMI_INT2 IC4510 AD/HDMI I2C I2C FOR FACTORY USED DG DIGITAL SIGNAL PROCESSOR 4 1 2 TO H2 TH-50PV70C DG-Board (1 of 3) Block Diagram TH-50PV70C DG-Board (1 of 3) Block Diagram �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 76 15.16.DG 电路板 (2/3) 方框图 AA_XRST AD_SCL3 AD_SDA3 AD_SDA1 AD_SCL0 AD_SCL3 AD_SDA3 AD_SCL1 AD_SDA0 AD_SDA2 AD_SCL2 AD_TO_GC3FS_NEXT AD_TMS AD_TO_BA01 AD_TCK AD_TRST SBO2 SBI2 SBO0 SBI0 XIRQ3 VMUTE VI2P21 VI2P10 AUDCLK VI2ENB ADCCK SLRCK AG_SD_BOOT_STS VOUTENB AG_SW_OFF_DET CLK74SEL DTV9V SUB3.3V 3.3V SCL1 SDA0 SDA2 SCL0 SDA3 SDA1 SCL2 SCL3 TMS TDI TRST TCK TDO VOUTENB CK27D CLK74 VC27 CK27 SBO0 SBO2 SBI2 SBI0 XIRQ3 DSRCK VI2P21 VI2P10 VI2ENB ADCCK SLRCK AUDCLK ADIN RMCO XRST 1 IC5660 RESET 2 PEAKES LITE2 RESET CLOCK GEN DDR IC8002,03 1.8V 74M CLOCK GENE. 27M 4 9 7 S2 14 VIN SUB3.3V IC8004 PEAKS_Lite II IC8001 IC8601 EEPROM 8 7 6 5 EEPROM_WP VCC WC SCL SDA SDCD SLOT SD CARD 7 5 4 SDCMD D.SW SDCLK SDCMD SDDAT3 SDAT2 SDCLK 3.3V SDAT0 SDAT1 SD CARD SDDAT0 SDWP 8 9 SDAT3 W.P. 2 JK8801 1 SD CARD I/F IIC I/F LVDS I/F JTAG FOR ADV7493 JTAG SERIAL I/F HDMI_IRQ VMUTE PANEL_STATUS PANEL_SOS RSV4 RSV1(SD_ERROR) RSV2(SDRAMCHK2) RSV3(SDRAM_CHK1) COMMON PORT .etc SDBOOT ETHER_IRQ I2C I2C VDD 14 15 13 17 16 11 12 1 2 4 DG DIGITAL SIGNAL PROCESSOR TH-50PV70C DG-Board (2 of 3) Block Diagram TH-50PV70C DG-Board (2 of 3) Block Diagram �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 77 15.17.DG 电路板 (3/3) 方框图 + + + + SBO2 SBI2 SCL SDA SLRCK AUDCLK SDA SCL AG_EDID_WP AG_HDCP_WP AG_7493_XRST AG_HPD3 AG_HDMI_5V_DET3 AG_HPD1 AG_HDMI_5V_DET1 AG_RF_AFT1 AG_VIDEO_STATUS AG_AUDIO_XRST AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE AG_SOUND_SOS AG_SOS AG_BUS_CONNECT2 AG_AVSW_OFF AG_TV_SUB_ON_DELAY AG_HDMI_OPT_ENB CLK74SEL AG_SD_BOOT_STS AG_SD_LED_ON SCL SDA AD_SCL3 AD_SDA3 AD_SCL1 AD_SDA1 AD_SCL2 AD_SDA2 STB_RST SBI2 G_LED_ON R_LED_ON RMIN AI_SENSOR KEY1 ACTIVE_STB_LED_ON AG_ECO_ON AG_ECO_ON AG_ALL_OFF AG_ALL_OFF AG_HDMI_CEC VI2ENB ADCCK AG_TV_MAIN_ON AA_XRST AG_DTV_VOUTENB AG_DTV_VOUTENB AG_SRQ-GENX AG_SRQ-GENX AG_SW_OFF_DET PANEL_STBY/VCC_ON AG_TV_SUB_ON AG_TV_SUB_ON TA1N TA1P TB1P TC1N TCLK1P PANEL_MUTE TD1N AD_SCL0 TE1N AR_IIC_CONT VI2P21 AR_PANEL_RXD VI2P10 AR_PANEL_TXD AR_PANEL_SCL AR_PANEL_SDA AD_SDA0 PANEL_STBY/VCC_ON TB1N TC1P TCLK1N TD1P TE1P AA_SBO0 CFG_TRST CFG_TDI CFG_TDO CFG_TMS CFG_TCK AR_PANEL_RXD AD_SCL0 AD_SDA0 AR_PANEL_TXD AR_PANEL_SCL AA_SBI0 AR_IIC_CONT AR_PANEL_SDA AG_SRQ-GENX SBO2 AG_PANEL_STBY_ON/PANEL_VCC_ON AG_PWM_POW_ON AD_SCL3 AD_SDA3 C5691 R5695 MAIN3.3V R5697 Q5690 R5691 Q5692 R5693 R5696 R5690 SUB5V C5690 Q5691 MAIN5V R5694 D5691 C5694 D5690 Q5693 C5695 R5692 SUB3.3V STB5V D5670 D5673 D5671 SUB5V STB3.3V STB5V STB3.3V SUB5V MAIN9V MAIN3.3V X1100 MAIN5V DTV9V Q1107 Q1108 SUB1.2V DTV9V SUB3.3V DTV9V SUB1.8V STB5V STB3.3V SUB5V R8870 SD3.3V R8830 STB5V D_15V STB3.3V MAIN3.3V SUB5V STB3.3V RSV3(LITE2) GenX4 MAIN3.3V MAIN5V MAIN+5V ON/OFF 5 +3.3V AVR 1 (STB) IC5670 STB+3.3V MAIN+3.3V ON/OFF (Lite2 E2PROM) (Device Control) LITE2_SCL1 (Device Control) SRQ STB5V (GenX4 Loarder/E2PROM) (GenX4 Loarder/E2PROM) (Device Control) GenX4_SDA LITE2_SDA1 LITE2_SDA3 GenX4_SCL LITE2_SDA2 (Lite2 E2PROM) (Device Control) LITE2_SCL2 LITE2_SCL3 RSV1(LITE2) SUB5V_SENSE SBO 63 64 52 33 34 35 SBI MAIN3.3V_SENSE 66 67 83 84 10MHz MAIN9V_SENSE 110 121 RSV4(LITE2) 93 30 DTV9V_SENSE 27 MAIN5V_SENSE RSV2(LITE2) 24 8 7 6 5 28 GenX-EEP_WP IC1101 EEPROM EDID_WP HDCP_WP 106 109 69 7493_XRST 38 HPD3 HDMI_5V_Det1 55 36 HDMI_5V_Det3 53 HPD1 HDMI_CEC 65 (HDMI_CEC_PU_ON) (HDMI_CEC_PU_ON) 21 DTV_1.5V_ON 3 1 TV_SUB_ON 14 PWM_POWER_ON 46 TV_MAIN_ON PANEL_STBY_ON 105 RF_AFT1 111 VIDEO_STATUS 58 AUDIO_XRST 68 ECO_ON 2 126 127 AUDIO_MUTE A_MON_MUTE/SP_MUTE SOUND_SOS 118 SOS 114 25 ALL_OFF 20 (BUS_CONNECT2) 48 AVSW_OFF(US) FE_XRST 71 MODEM_XRST 72 88 DTV_VOUTENB 16 125 SD_BOOT_STS 124 DTV_XRST SRQ_GenX 26 (SD_LED_ON) 17 56 SD_COIN_DET SW_OFF_DET 12 92 NBOOT IC1100 SDA WC SCL VCC TO K1 (SUB) SUB+1.8V/SUB+1.2V DC-DC CONV. IC5601 +3.3V 8 DTV_1.5V_ON (SUB) +1.8V 3 12 23 16 17 (SUB) 23 DC-DC CONV. SUB+3.3V +1.2V IC5600 1 2 4 5 6 7 8 9 10 11 DG33 2 RESET STB RESET 1 IC5671 5 7 96 9 100 11 13 15 17 19 DG31 1 3 104 102 103 99 97 TRCD1 for DEBUGER TRCCLK SCLOCK 101 SDATA STB3.3V TRCST TRCD0 TRCD2 TRCD3 STB_RST EXTRG0 95 4 89 G_LED_ON 45 KEY1 AI_SENSOR 113 115 87 REMOTE R_LED_ON 49 CLK74SEL I2C I2C 23 24 Rx1-(RB-) 26 27 29 Rx2+(RC+) Rx2-(RC-) IIC_SDA2 IIC_CONT PANEL_STATUS(READY) Rx0-(RA-) IIC_SCL2 TXD PANEL_STBY_ON PANEL_SDA(IIC_SDA1) 1 Rx4+)RE+) 2 3 4 6 7 9 10 11 12 30 31 DG5 Rx4-(RE-) RXD RxCLK+(RCLK+) 17 Rx3+(RD+) I2C GND(INEXCH) Rx3-(RD-) RxCLK-(RCLK-) Rx0+(RA+) PANEL_SCL(IIC_SCL1) PANEL_SOS(ALRAM) Rx1+(RB+) PANEL_MUTE(DISPEN) 14 15 18 19 20 21 TO D5 7 (Device Control) 8 Panel_TXD 9 10 12 Panel_RXD IIC_CONT Ex IIC Panel_SDA LITE2_SCL0 19 21 STB5V LITE2_SDA0 22 24 26 27 30 28 29 DG34 1 2 I2C 4 5 6 STB3.3V Panel_SCL (Panel Dpr.E2PROM) IIC_CONT/SRQ (Panel Dpr.E2PROM) (Device Control) ACTIVE_STBY_LED_ON 3 2 1 DG7 SUB5V SBO2 SBI2 4 6 7 9 12 G_LED_ON AI_SENSOR SUB5V RMIN ACTIVE_STBY_LED_ON STB3.3V R_LED_ON KEY1 DG1 1 2 3 40 39 JTAG FOR FACTORY USED FOR FACTORY USED FOR FACTORY USED DG DIGITAL SIGNAL PROCESSOR 15 13 17 16 12 14 11 SOS LED BLINKING : 10TIMES SOS LED BLINKING : 12TIMES SOS LED BLINKING : 10TIMES TH-50PV70C DG-Board (3 of 3) Block Diagram TH-50PV70C DG-Board (3 of 3) Block Diagram �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 78 15.18.DG 电路板 (1/9) 线路图 + CH0DQ30 CH0DQ31 CH0DQ26 CH0XRAS CH0DQS0 CH0XRAS CH0A5 CH0CKE CH0A8 CH0DQ18 CH0CK CH0DQ8 CH0DQ21 CH0XWE CH0XCS0 CH0CK CH0DM2 CH0A7 CH0DQ11 CH0DQ5 CH0XCAS CH0DQ9 CH0ODT CH0ODT CH0BA2 CH0XRAS CH0BA0 CH0DQ27 CH0A2 CH0A2 CH0A12 CH0DQS3 CH0BA1 CH0DM1 CH0A12 CH0BA2 CH0DM0 CH0DQ4 CH0A3 CH0DQ15 CH0A9 CH0CKE CH0A8 CH0XCS1 CH0DQ10 CH0BA2 CH0DQ1 CH0DQ14 CH0CK CH0A7 CH0DQ29 CH0A1 CH0DM3 CH0XCK CH0XWE CH0A0 CH0DQ25 CH0DQ7 CH0A5 CH0A4 CH0ODT CH0DQS3 CH0A4 CH0A11 CH0DQ0 CH0A10 CH0DM3 CH0BA1 CH0DQ12 CH0A9 CH0BA0 CH0DM2 CH0DQ20 CH0A11 CH0XCS0 CH0A6 CH0A7 CH0A11 CH0DQ2 CH0DQ23 CH0DQS0 CH0DQ22 CH0BA0 CH0A9 CH0XCAS CH0XWE CH0A10 CH0A0 CH0XCK CH0A5 CH0DQ6 CH0A2 CH0XCAS CH0A10 CH0A12 CH0A1 CH0A3 CH0A6 CH0DQ16 CH0A6 CH0DQ28 CH0DQ13 CH0A0 CH0DQS2 CH0XCS1 CH0A4 CH0DM1 CH0BA1 CH0DQ19 CH0ODT CH0DQ17 CH0DQ24 CH0A8 CH0DQS1 CH0CKE CH0DM0 CH0DQ3 CH0A3 CH0A1 CH0DQS1 CH0XCK CH0CKE CH0DQS2 CH0DQ16 CH0DQ17 CH0DQ18 CH0DQ19 CH0DQ20 CH0DQ21 CH0DQ22 CH0DQ23 CH0DQ24 CH0DQ25 CH0DQ26 CH0DQ27 CH0DQ28 CH0DQ29 CH0DQ30 CH0DQ31 CH0DQ0 CH0DQ1 CH0DQ2 CH0DQ3 CH0DQ4 CH0DQ5 CH0DQ6 CH0DQ7 CH0DQ8 CH0DQ9 CH0DQ10 CH0DQ11 CH0DQ12 CH0DQ13 CH0DQ14 CH0DQ15 VI2CLK C8001 16V 0.1u C8071 16V 0.1u ED14 C8051 16V 0.1u R8081 10k TB1N SUB3.3V VI2P24 VI1VSYNC EA3 SBO2 VI1P3 C8030 6.3V 1u C8072 16V 0.1u IS1DATA 1% R8005 10k ED8 C8010 10u 10V C0ZBZ0001030 IC8004 1 X1 2 S0 3 S1 4 VIN 5 VDD 6 GND 7 74M 8 COMM 9 27M 10 4.9152M 11 24.576/33M 12 GND 13 VDD 14 S2 15 VDD 16 X2 C8067 25V 0.01u VI1P9 VI1P27 C8007 16V 0.1u C8053 25V 0.01u ESZ0 SDA0 R8060 47 R8071 47 R8025 0 C8039 16V 0.1u TE1N SUB1.2V L8010 J0JHC0000045 1.8V_DDRI/F VI2VSYNC XNMIRQ SUB3.3V SMTD0 R8061 47 L8004 J0JHC0000045 XIRQ1 VI1P13 MVDACO2 R8076 47 SMTCMD0 VI1P22 ADIN C8004 1u 6.3V R8057 47 IS0DATA SMTCLK1 XRI0 R8028 0 1% R8006 6.8k L8009 J0JHC0000045 VREF VI1P2 C8035 10u 10V XNFWE C8027 16V 0.1u SUB3.3V SUB3.3V C8044 16V 0.1u C8041 16V 0.1u L8005 J0JHC0000045 C8077 16V 0.1u ED10 1.8V_DDRI/F C8073 16V 0.1u C8019 16V 0.1u VI2P17 R8065 47 C8015 6.3V 1u XDCD0 R8067 47 1.8V_DDRI/F EA5 C8052 6.3V 1u SBI0 R8024 0 1% R8082 75 VI1P1 VI2P14 VI2P10 C8009 10u 10V VI1P5 R8068 47 RXD0 EA7 EA6 CH0PSYNC VI1P16 SMTSEL1 C8048 16V 0.1u R8027 0 ED7 TDO IS0PSYNC TC1N ED2 L8003 J0JHC0000045 SUB1.2V R8074 220 TMS VI1P12 C8032 10u 10V SUB3.3V SUB3.3V C8026 16V 0.1u VI1P8 C8020 16V 0.1u VI1P25 ED6 C8057 16V 0.1u R8097 220 C8021 16V 0.1u XERE ED1 VI2HSYNC VI1P15 IS0VAL C8069 50V 82p CH0CLK VI2P26 VI2P12 R8095 10k C8023 10u 10V R8058 47 SDDAT0 MVDACO1 R8001 180 XEWE1 R8023 0 R8002 82 R8073 47 C8033 16V 0.1u XEDK R8091 100 SUB1.8V C8014 16V 0.1u XEXDMR0 1% R8032 270 C8038 16V 0.1u SDA1 SBO0 DMIX0 R8062 47 C8024 10u 10V C8025 16V 0.1u VI1ENB SDDAT1 TCLK1P R8077 47 TB1P VI1HSYNC R8087 10k VI1P11 R8072 47 SMTRST1 XIRQ3 XNFCE XDTR0 SUB1.2V VI2CLK2 SCL0 NFALE C8011 16V 0.1u R8078 47 MVDACO0 ED3 SBT0 R8069 47 C8008 16V 0.1u DSRCK VI1P29 VI2P27 XNFWP VI2P13 VI2P16 C8017 10u 10V LRCK0 C8056 16V 0.1u L8002 J0JHC0000045 VI1P19 C8037 16V 0.1u SBI2 VI2P22 IECOUT0 SDCD VI1P7 *IC8003 = K9 ODT C8012 16V 0.1u R8056 47 C8079 16V 0.1u TC1P C8005 1u 6.3V R8035 0 R8059 47 VI2P28 SBT2 XEWE0 VI2P4 SDDAT2 CH1DATA R8039 0 XCTS0 C8029 16V 0.1u XECS0 TP8037 C8036 10u 10V R8084 0 SMTCMD1 TA1P XECS6 TCLK1N SDCLK XECS1 EA0 L8007 J0JHC0000045 L8008 J0JHC0000045 XECS4 C8006 16V 0.1u XECS5 C8016 6.3V 1u EA1 R8100 47 1% R8004 24k NFCLE 1.8V_DDRI/F RMCO R8075 47 VI2P23 TD1N SMTD1 XECS2 DAUDIO TCK ADCCK XRTS0 CH1VAL 1% R8031 270 ED4 C8045 16V 0.1u VI2P19 SMTSEL0 C8076 16V 0.1u VI2P25 R8080 0 R8093 47 VI2P18 VI2ENB R8107 100 VI1CKOUT R8070 47 VI1P20 TE1P ED5 XECS7 C8078 16V 0.1u SDWP ED12 R8086 100k C8013 16V 0.1u R8106 2k *R8111 10k R8030 100 C8049 16V 0.1u TRST VI1P14 ED0 VI1P4 TD1P VI1P23 C8058 10u 10V XNFRE SCL1 C8040 16V 0.1u R8098 10k C8070 16V 0.1u CH1PSYNC XIRQ2 C8018 16V 0.1u C8003 1u 6.3V VI2P15 XRST R8066 47 VI1CLK2 C8050 16V 0.1u R8064 47 C8028 16V 0.1u CH0DATA R8079 0 C8080 16V 0.1u VI1CLK ERXW C8047 16V 0.1u VI1P24 XDSR0 BOOTSWAP VI1P18 C8031 6.3V 1u VI2P29 VI1P6 TA1N TDI XECS3 SMTCLK0 C8046 16V 0.1u C8075 4V 22u R8003 0 VI2P21 R8090 10k ESZ1 EA4 SDDAT3 EA2 C8042 68u 4V R8029 0 R8099 10k R8083 300 CLKGEN_S2 C8043 16V 0.1u TXD0 R8026 0 C8074 16V 0.1u VOUTENB C8022 6.3V 1u C8034 16V 0.1u C8068 16V 0.1u CH1CLK R8101 10k VI1P17 ED15 SRCK0 SLRCK VI1P26 MVDACO3 VI1P28 R8063 47 ED9 NANDRYBY ED11 VI2P20 SDCMD ED13 CH0VAL L8001 J0JHC0000045 XEXDMK0 ECLK C8002 6.3V 1u *IC8003 = E9 VDDQ *IC8003 = F3 LDM *IC8003 = M2 A10 *IC8003 = N7 A6 *IC8003 = C2 DQ9 *IC8003 = G1 VDDQ *IC8003 = F9 DQ7 *IC8003 = K7 RAS *IC8003 = M8 A0 *IC8003 = R7 RFU *IC8003 = D7 DQ10 *IC8003 = C3 VDDQ *IC8003 = L2 BA0 *IC8003 = E1 VDD *IC8003 = N1 VSS *IC8003 = C9 VDDQ *IC8003 = E3 VSS *IC8003 = B3 UDM *IC8003 = C1 VDDQ *IC8003 = G7 VDDQ *IC8003 = D3 DQ11 *IC8003 = B7 UDQS *IC8003 = C7 VDDQ *IC8003 = L3 BA1 *IC8003 = B2 VSSQ *IC8003 = D2 VSSQ *IC8003 = R3 RFU *IC8003 = K8 CK *IC8003 = B1 DQ14 *IC8003 = F1 DQ6 *IC8003 = F2 VSSQ *IC8003 = D1 DQ12 *IC8003 = E7 VSSQ *IC8003 = J1 VDDL *IC8003 = A7 VSSQ *IC8003 = J7 VSSDL *IC8003 = G3 VDDQ *IC8003 = R8 RFU *IC8003 = M7 A2 *IC8003 = P9 VSS *IC8003 = A9 VDDQ *IC8003 = H1 DQ4 *IC8003 = P7 A11 *IC8003 = B8 VSSQ *IC8003 = K2 CKE *IC8003 = D9 DQ13 *IC8003 = A8 UDQS *IC8003 C3ABRG000080 = A1 VDD *IC8003 = N3 A5 *IC8003 = F7 LDQS *IC8003 = G2 DQ1 *IC8003 = A3 VSS *IC8003 = H3 DQ3 *IC8003 = G8 DQ0 *IC8003 = J9 VDD *IC8003 = M9 VDD *IC8003 = N8 A4 *IC8003 = B9 DQ15 *IC8003 = H9 DQ5 *IC8003 = D8 VSSQ *IC8003 = P8 A8 *IC8003 = R1 VDD *IC8003 = M3 A1 *IC8003 = J8 CK *IC8003 = H7 DQ2 *IC8003 = F8 VSSQ *IC8003 = J3 VSS *IC8003 = N2 A3 *IC8003 = L7 CAS *IC8003 = G9 VDDQ *IC8003 = E2 NC *IC8003 = J2 VREF *IC8003 = L8 CS *IC8003 = H2 VSSQ *IC8003 = R2 A12 *IC8003 = K3 WE *IC8003 = E8 LDQS *IC8003 = A2 NC *IC8003 = L1 RFU *IC8003 = H8 VSSQ *IC8003 = C8 DQ8 *IC8003 = P2 A7 *IC8003 = P3 A9 *IC8002 = L2 BA0 *IC8002 = C7 VDDQ *IC8002 = J2 VREF *IC8002 = A9 VDDQ *IC8002 = N8 A4 *IC8002 = D3 DQ11 *IC8002 = R1 VDD *IC8002 = H8 VSSQ *IC8002 = E3 VSS *IC8002 = D7 DQ10 *IC8002 = G7 VDDQ *IC8002 = A2 NC *IC8002 = G1 VDDQ *IC8002 = A8 UDQS *IC8002 = E7 VSSQ *IC8002 = K2 CKE *IC8002 = C3 VDDQ *IC8002 = B3 UDM *IC8002 = J8 CK *IC8002 = N2 A3 *IC8002 = E8 LDQS *IC8002 = F8 VSSQ *IC8002 = B8 VSSQ *IC8002 = P3 A9 *IC8002 = B2 VSSQ *IC8002 = F3 LDM *IC8002 = L3 BA1 *IC8002 = L7 CAS *IC8002 = P2 A7 *IC8002 = P8 A8 *IC8002 = K9 ODT *IC8002 = J3 VSS *IC8002 = H9 DQ5 *IC8002 = G2 DQ1 *IC8002 = G9 VDDQ *IC8002 = J9 VDD *IC8002 = F2 VSSQ *IC8002 = P9 VSS *IC8002 = M8 A0 *IC8002 = R2 A12 *IC8002 = N1 VSS *IC8002 = D8 VSSQ *IC8002 = D2 VSSQ *IC8002 = A3 VSS *IC8002 = F7 LDQS *IC8002 = M7 A2 *IC8002 = R7 RFU *IC8002 = L8 CS *IC8002 = J1 VDDL *IC8002 = M3 A1 *IC8002 = E2 NC *IC8002 = M9 VDD *IC8002 = H3 DQ3 *IC8002 = E1 VDD *IC8002 C3ABRG000080 = A1 VDD *IC8002 = K7 RAS *IC8002 = E9 VDDQ *IC8002 = C2 DQ9 *IC8002 = B9 DQ15 *IC8002 = F9 DQ7 *IC8002 = C1 VDDQ *IC8002 = N3 A5 *IC8002 = R3 RFU *IC8002 = C8 DQ8 *IC8002 = D1 DQ12 *IC8002 = M2 A10 *IC8002 = H7 DQ2 *IC8002 = C9 VDDQ *IC8002 = H2 VSSQ *IC8002 = P7 A11 *IC8002 = N7 A6 *IC8002 = K8 CK *IC8002 = F1 DQ6 *IC8002 = B1 DQ14 *IC8002 = D9 DQ13 *IC8002 = R8 RFU *IC8002 = A7 VSSQ *IC8002 = K3 WE *IC8002 = G8 DQ0 *IC8002 = H1 DQ4 *IC8002 = J7 VSSDL *IC8002 = G3 VDDQ *IC8002 = B7 UDQS *IC8002 = L1 RFU X8001 H0J270500061 IC8001 AD26 VSS IC8001 AB1 ECLK IC8001 AB21 VSS IC8001 T24 MMBA2 IC8001 C17 VOP25 IC8001 G23 LPFIN IC8001 D10 VSS IC8001 R21 VDDIO IC8001 AD18 MMDQS3 IC8001 Y26 MMA6 IC8001 F8 VI2P0 IC8001 A14 ADIN IC8001 D4 VSS IC8001 E10 VI1CVBS2 IC8001 A22 VOP7 IC8001 AC26 MMCK IC8001 AE9 SMTRST0 IC8001 N1 XIRQ2 IC8001 N26 MMDQ11 IC8001 E19 VOP18 IC8001 M10 VSS IC8001 W22 MMXCS1 IC8001 U5 ED0 IC8001 L15 VSS IC8001 L14 VSS IC8001 W2 ED6 IC8001 AC16 VSS IC8001 C19 VOP16 IC8001 C9 VI1CLK IC8001 Y2 ED11 IC8001 D20 VOP8 IC8001 M6 VI2P27 IC8001 M12 VSS IC8001 V26 MMA1 IC8001 L4 VSS IC8001 E22 LVVDD IC8001 AE8 SMTD1 IC8001 J22 VC27 IC8001 R16 DPAVSS IC8001 L12 VSS IC8001 D17 VDD33 IC8001 D25 TC1N IC8001 B10 VI1P2 IC8001 H4 VDD33 IC8001 AB2 ERXW IC8001 AD12 SDCMD IC8001 B15 LCSID IC8001 AA14 VDD12 IC8001 T1 EA0 IC8001 AE10 CH1PSYNC IC8001 L6 VI2P21 IC8001 K3 VI2P20 IC8001 U21 MMXCAS IC8001 A20 VOP17 IC8001 B5 VI1P9 IC8001 Y5 XEDK IC8001 B9 VI1P23 IC8001 AD22 VDDIO IC8001 H23 VSS IC8001 T15 VDDR IC8001 AA25 VSS IC8001 D22 VDD33 IC8001 AA2 ED15 IC8001 D26 TC1P IC8001 G6 VI1P0 IC8001 AB16 MMDQ28 IC8001 AD7 XCTS0 IC8001 G4 VDD33 IC8001 E3 VI1ENB IC8001 P6 VDD33 IC8001 U16 VDDR IC8001 AD17 VDDIO IC8001 AB26 MMXCK IC8001 AD14 VDD12 IC8001 K21 CK27 IC8001 N11 VSS IC8001 AC9 XRI0 IC8001 D14 VSS IC8001 B13 SRCK0 IC8001 AA22 VSS IC8001 E23 LVVDD IC8001 AF7 RXD0 IC8001 U25 MMA9 IC8001 AD13 SDCD IC8001 B3 VI1P15 IC8001 M15 VSS IC8001 AE11 CH0VAL IC8001 AC14 VDD12 IC8001 F7 VI2P2 IC8001 AC21 TSTSEL IC8001 AB7 IS0VAL IC8001 AD4 XNFRE IC8001 AC19 MMDQ17 IC8001 V25 VSS IC8001 N14 VSS IC8001 AC6 NANDRYBY IC8001 AE19 MMDM2 IC8001 AA12 CH1VAL IC8001 C18 VOP12 IC8001 AE16 VDDIO IC8001 C3 VSS IC8001 AF11 CH0DATA IC8001 L11 VSS IC8001 AB22 VDDIO IC8001 AA19 MMDQ20 IC8001 A15 LCSCK IC8001 R4 VDD33 IC8001 L17 VSS IC8001 L26 MMDQS0 IC8001 AA20 MMDQ21 IC8001 AF18 MMDM3 IC8001 P4 GTCPOUT IC8001 K22 MMDQ4 IC8001 AA23 MMMONB IC8001 AC23 VDDIO IC8001 K10 VSS IC8001 C7 VI1P5 IC8001 AD20 MMDQ19 IC8001 P2 AGAVSS IC8001 C11 DACVSS1 IC8001 N3 SDA1 IC8001 J5 VI2P11 IC8001 AF12 CH0CLK IC8001 AB25 VDDIO IC8001 W5 ED12 IC8001 AC7 IS1PSYNC IC8001 Y3 ED13 IC8001 AE21 VDDIO IC8001 AA17 MMDQ24 IC8001 R17 VDDR IC8001 B22 VOP9 IC8001 AE24 DTCPOUT IC8001 AE1 XECS7 IC8001 E6 VI2P4 IC8001 F4 VI2P9 IC8001 J3 VI2P17 IC8001 AD9 SMTCLK0 IC8001 Y23 VSS IC8001 D8 VDD33 IC8001 U14 DPAVDD12 IC8001 K25 MMDQ2 IC8001 M5 RMCO IC8001 A12 DACVSS2 IC8001 Y4 XERE IC8001 G1 VI2P10 IC8001 D9 VSS IC8001 M21 VDDIO IC8001 E25 TCLK1N IC8001 Y22 VDDIOCK IC8001 B7 VI1P4 IC8001 H2 VI2P14 IC8001 E16 VOP20 IC8001 T23 MMBA0 IC8001 U15 VDDA IC8001 P11 VSS IC8001 N24 VDDIO IC8001 AE13 SDDAT1 IC8001 G25 TE1N IC8001 K26 VDDIO IC8001 AC3 XECS4 IC8001 F6 VSS IC8001 AB23 VSS IC8001 N23 MMDQ9 IC8001 AC15 VDDR IC8001 B21 VOP4 IC8001 K4 VI2P18 IC8001 V6 ED7 IC8001 A8 VI1CKOUT IC8001 P25 VDDIO IC8001 C8 VI1P25 IC8001 AF6 XDSR0 IC8001 M25 VSS IC8001 R23 MMCKE IC8001 L25 MMDM0 IC8001 AA18 VSS IC8001 N12 VSS IC8001 G24 VSS IC8001 A23 MVCLK IC8001 N6 VDD33 IC8001 M14 VSS IC8001 D21 XRST IC8001 P15 VSS IC8001 K13 VSS IC8001 B26 TA1P IC8001 AF2 XNFWP IC8001 AA4 ESZ0 IC8001 F17 VOP27 IC8001 N5 SCL1 IC8001 B8 VI1P24 IC8001 L24 VSS IC8001 W26 VDDIO IC8001 G2 VI2CLK IC8001 M22 MMVREF0 IC8001 M3 VI2P29 IC8001 R12 VDD12 IC8001 U1 EA5 IC8001 AF19 MMDQS2 IC8001 U22 MMA5 IC8001 C24 SBI0 IC8001 K12 VSS IC8001 C21 VOP6 IC8001 F11 VDD33 IC8001 AC4 XECS5 IC8001 G5 VI1P1 IC8001 N4 XIRQ1 IC8001 K6 VDD33 IC8001 G26 TE1P IC8001 AF21 VSS IC8001 E7 VI2P1 IC8001 E12 VVREF IC8001 T12 VDD12 IC8001 K14 VSS IC8001 R2 TRST IC8001 AD6 SBT2 IC8001 H5 VI2VSYNC IC8001 E26 TCLK1P IC8001 C2 VI1P18 IC8001 P16 DPAVDD IC8001 F16 VOP11 IC8001 M26 MMDM1 IC8001 H6 VI1P20 IC8001 C1 VI1P19 IC8001 W21 VSS IC8001 J21 MVAVSS IC8001 P26 MMDQ15 IC8001 AF9 SMTCMD0 IC8001 T25 VDDIO IC8001 R24 VSS IC8001 AB14 VDD12 IC8001 K5 VI2P16 IC8001 R25 MMXWE IC8001 U23 MMA12 IC8001 F5 VI2P6 IC8001 C25 TB1N IC8001 AE4 IS0PSYNC IC8001 D6 VI2P3 IC8001 N13 VSS IC8001 D11 MVCOMP IC8001 E24 VSS IC8001 AD11 CH0PSYNC IC8001 E13 MVDACO0 IC8001 A9 VI1P22 IC8001 AF3 IS0CLK IC8001 N22 VSS IC8001 AC5 XNFCE IC8001 U3 EA7 IC8001 AD25 VDDIO IC8001 E4 VI2P7 IC8001 E2 VI1CLK2 IC8001 D19 VSS IC8001 A7 VI1P26 IC8001 AE26 MMRODT IC8001 F25 TD1N IC8001 C12 DACVDD1 IC8001 E21 VDD33 IC8001 AD21 MMDQ23 IC8001 C10 VI1P3 IC8001 L21 MMDQ1 IC8001 P1 XIRQ3 IC8001 E8 VI1CK208F IC8001 AF1 VSS IC8001 AA7 VSS IC8001 K11 VSS IC8001 D23 SBO0 IC8001 U11 VDD12 IC8001 AA9 VDD33 IC8001 AB24 MMMONA IC8001 AA24 MMODT IC8001 F2 VI1P21 IC8001 A3 VI1P14 IC8001 F10 VI1CVBS1 IC8001 AE6 XRTS0 IC8001 B17 VOP24 IC8001 M13 VSS IC8001 V4 VSS IC8001 AF5 IS1DATA IC8001 AE14 VDD12 IC8001 T5 TDI IC8001 U4 EA4 IC8001 C5 VI1P28 IC8001 F24 VSS IC8001 T3 EA3 IC8001 V3 ED4 IC8001 P21 MMDQ12 IC8001 AE25 VSS IC8001 H3 VI2P12 IC8001 B11 MVIREF IC8001 K23 VDDIO IC8001 P17 VSS IC8001 AF4 IS0DATA IC8001 R14 VSS IC8001 AC13 VSS IC8001 A6 VI1P6 IC8001 G7 VSS IC8001 H1 VI2P15 IC8001 P12 VSS IC8001 U13 VDD12 IC8001 AF8 SMTCMD1 IC8001 R15 VSS IC8001 F1 VI2HSYNC IC8001 AC11 VDD33 IC8001 AB5 XEXDMK0 IC8001 AD10 CH1CLK IC8001 L16 VSS IC8001 P22 MMDQ13 IC8001 K2 VI2P22 IC8001 V24 MMBA1 IC8001 B23 SBO2 IC8001 A25 VDD33 IC8001 AE7 TXD0 IC8001 E14 DACVDD2 IC8001 A26 VDD33 IC8001 T22 VSS IC8001 AB9 XDCD0 IC8001 AB19 VDDIO IC8001 W4 ED9 IC8001 V21 MMA4 IC8001 D7 VDD33 IC8001 AB17 VSS IC8001 AB8 SBT0 IC8001 AF23 BOOTSWAP IC8001 B18 VOP28 IC8001 A10 IECOUT0 IC8001 L3 VI2P25 IC8001 D18 VSS IC8001 U10 VDD12 IC8001 G3 VI2ENB IC8001 AE2 XEXDMR0 IC8001 M1 SDA0 IC8001 AC2 XECS1 IC8001 AF26 VDDIO IC8001 P3 AGAVDD IC8001 K17 LVVDD12 IC8001 T4 VDD33 IC8001 AC17 MMDQ25 IC8001 H24 AUDCLK IC8001 AB20 MMDQ16 IC8001 C26 TB1P IC8001 K16 VSS IC8001 M17 VDDA IC8001 H22 TCPOUT IC8001 B24 VDD33 IC8001 T13 VDD12 IC8001 F18 VOP15 IC8001 U12 VDD12 IC8001 AD5 IS1CLK IC8001 AB10 SMTSEL1 IC8001 AB12 SDDAT0 IC8001 AD1 XECS3 IC8001 AA5 XECS0 IC8001 F19 VOP5 IC8001 C15 VOP21 IC8001 V23 MMA11 IC8001 Y21 MMVCAL IC8001 AC24 MMPCLKEXT IC8001 U6 VDD33 IC8001 C22 MHSYNC IC8001 A2 VI1P16 IC8001 N10 VDD12 IC8001 F13 MVDACO2 IC8001 W6 VSS IC8001 P5 AVCOIN IC8001 B20 VOP19 IC8001 U2 EA6 IC8001 Y25 MMA8 IC8001 AF16 MMDQ31 IC8001 E15 SLRCK IC8001 H21 MVAVDD IC8001 F9 VI1CK204F IC8001 T17 VDDA IC8001 Y6 VSS IC8001 E1 VI1P11 IC8001 D5 VI2P5 IC8001 V1 ED1 IC8001 AF24 VSS IC8001 AE5 IS1VAL IC8001 AC8 XDTR0 IC8001 E9 VI1CVBS0 IC8001 L5 VI2P23 IC8001 R13 VDD12 IC8001 AB6 NFCLE IC8001 A21 VOP3 IC8001 H25 CLK74 IC8001 A18 VOP26 IC8001 J25 VSS IC8001 C16 VOP1 IC8001 M4 VSS IC8001 P13 VSS IC8001 N16 VSS IC8001 AA13 SDDAT3 IC8001 L1 VI2P28 IC8001 C23 VDD33 IC8001 J4 VI2P13 IC8001 B2 VSS IC8001 K1 VI2P24 IC8001 AA8 VDD33 IC8001 R3 TDO IC8001 D12 MVDACO3 IC8001 B1 VI1P17 IC8001 AD2 XECS6 IC8001 AC1 ESZ1 IC8001 B19 VOP14 IC8001 T16 VSS IC8001 AB11 SMTSEL0 IC8001 D15 DAUDIO IC8001 A11 SVCOMP IC8001 AA21 VDDIO IC8001 AD15 VDDR IC8001 D2 VI1VSYNC IC8001 AE3 NFALE IC8001 J26 MMDQ6 IC8001 AE22 VSS IC8001 F20 VDD33 IC8001 R1 TMS IC8001 AD24 CK27D IC8001 AB15 VDDR IC8001 F3 VI1P10 IC8001 E17 VOP22 IC8001 AB18 MMVREF1 IC8001 A16 VOP10 IC8001 AD19 VSS IC8001 P10 VDD12 IC8001 AC25 VSS IC8001 AA15 VSS IC8001 N21 MMDQ8 IC8001 U17 VSS IC8001 AE23 MCLK IC8001 T11 VDD12 IC8001 F22 LVVSS IC8001 R10 VDD12 IC8001 M23 VDDIO IC8001 AC20 VSS IC8001 AE15 VDDR IC8001 L13 VSS IC8001 V2 ED2 IC8001 E20 MVSYNC IC8001 AF10 CH1DATA IC8001 T2 EA1 IC8001 N15 VSS IC8001 AA10 SMTRST1 IC8001 F26 TD1P IC8001 Y24 VDDIO IC8001 T26 MMA10 IC8001 W1 ED5 IC8001 K15 VSS IC8001 B4 VI1P12 IC8001 B6 VI1P7 IC8001 AA6 VSS IC8001 B12 MVDACO1 IC8001 B14 ADCCK IC8001 G22 LPFOUT IC8001 W3 ED8 IC8001 F23 LVVSS IC8001 K24 MMDQ3 IC8001 W25 MMXRAS IC8001 V5 ED3 IC8001 AD16 MMDQ30 IC8001 G21 LVVSS IC8001 C13 DACCK0 IC8001 AF20 VDDIO IC8001 A13 DMIX0 IC8001 AC10 VDD33 IC8001 A24 SBI2 IC8001 U24 VDDIO IC8001 F14 LRCK0 IC8001 W24 VSS IC8001 T14 VSS IC8001 AE17 MMDQ26 IC8001 AF14 VDD12 IC8001 W23 MMA0 IC8001 J6 VDD33 IC8001 L22 VSS IC8001 C6 VI1P27 IC8001 AF15 VDDR IC8001 A5 VI1P8 IC8001 T10 VDD12 IC8001 AA11 SMTD0 IC8001 F12 VDD33 IC8001 AA16 MMDQ29 IC8001 D16 VDD33 IC8001 F15 VDD33 IC8001 AF22 MMDQ22 IC8001 R11 VDD12 IC8001 AA3 XEWE0 IC8001 A4 VI1P29 IC8001 T6 EA2 IC8001 P23 VSS IC8001 U26 MMA7 IC8001 R26 VSS IC8001 N25 MMDQ10 IC8001 E11 VI1CVBS3 IC8001 D3 VI2P8 IC8001 Y1 ED10 IC8001 M11 VSS IC8001 C4 VI1P13 IC8001 A19 VOP13 IC8001 M2 SCL0 IC8001 R6 TCK IC8001 C20 VOP2 IC8001 M24 MMDQS1 IC8001 L2 VI2P26 IC8001 R5 ATCPOUT IC8001 C14 DSRCK IC8001 D13 VSS IC8001 J2 VI2P19 IC8001 AC22 VSS IC8001 P24 MMDQ14 IC8001 T21 MMA3 IC8001 P14 VSS IC8001 AE12 SDWP IC8001 D1 VI1HSYNC IC8001 J23 MMDQ5 IC8001 N2 XNMIRQ IC8001 A17 VOP23 IC8001 J24 MMDQ7 IC8001 AC12 VSS IC8001 E5 VSS IC8001 AA1 ED14 IC8001 AE20 MMDQ18 IC8001 AD23 VSS IC8001 H26 VOUTENB IC8001 E18 VOP29 IC8001 R22 MMXCS0 IC8001 AF25 MMRDRV IC8001 AD8 SMTCLK1 IC8001 AC18 VDDIO IC8001 M16 VSS IC8001 F21 LVVDD IC8001 B25 TA1N IC8001 MN2WS0039A A1 VSS IC8001 B16 VOP0 IC8001 D24 TSTAIO IC8001 L23 MMDQ0 IC8001 AD3 XNFWE IC8001 AB13 SDDAT2 IC8001 AE18 VSS IC8001 AF13 SDCLK IC8001 V22 VDDIO IC8001 J1 VI2CLK2 IC8001 N17 VDDR IC8001 AB3 XEWE1 IC8001 AB4 XECS2 IC8001 L10 VSS IC8001 AF17 MMDQ27 IC8001 AA26 MMA2 L8006 0 R4284 10k R4330 47k R4200 33 R4287 47k R4288 47k R4202 33 R4286 47k R4201 33 EA19 IIC I/F AUDIO IF XDTR0 SD CARD I/F JTAG SERIAL I/F LVDS I/F SBI1 SCL2 SDA2 SCL3 SDA3 LOSDOUT11 LOSDOUT10 LOSDOUT13 LOSDOUT12 PORT14[1] PORT14[2] PORT14[3] LOSDOUT15 RSV2(SDRAMCHK2) to(6/9) PORT14[4] PORT16[1] VMUTE SCARD_NMIRQ XRI0 SCARD_IRQ XDCD0 RXD0 TXD0 XCTS0 XDSR0 RSV3(SDRAM_CHK1) to(6/9) B PORT (Sub Video Input or Address) SBO1 XRTS0 HSVALIN Analog Video I/F HSSYNIN POD,CI I/F HSBCLKIN CPU BUS I/F COMMON PORT .etc PORT5[6] CLOCK GEN SMT_OFF RSV1(SD_ERROR) PORT5[7] PORT16[0] HSDIN0 HSDIN1 PORT15[5] NAND I/F POWER_DET HSDIN2 HSDIN3 PORT15[7] HSDIN4 EA20 FOR HQ1L VIDEO HSDIN5 EA13 HSDIN6 EA22 EA15 EA16 HSDIN7 EA10 PORT10[6] EA21 PORT10[7] LOSDOUT14 LOSDOUT9 PORT5[4] PORT5[5] LOSDOUT8 LOSDOUT7 LOSDOUT6 PORT6[4] PORT6[5] PORT6[7] SDBOOT EA12 LOSD OUT (for HQ1) C Y Cmp V EA09 FOR ADV7493 U EA18 DDR2 #0 Y EA17 LOSDOUT5 Cmp LOSDOUT4 LOSDOUT3 RSV4 LOSDOUT2 CH,IS IF LOSDOUT1 EA24 PORT9[5] LOSDOUT0 EA11 LOSDOUT_CLK_O R LOSDOUT_H_O G LOSDOUT_YS B LOSDOUT_YM Cmp PANEL_STATUS EA23 LOSDOUT_V_I LOSDOUT_CLK_I LOSDOUT_H_I EEPROM_WP FE_IRQ HDMI_IRQ ETHER_IRQ PANEL_SOS EA08 EA14 CRNo.8000-8299 Peaks-Lite2/DDR2 DDR2 #1 CLOCK GEN IC8002 IC8003 to(8/9) to(8/9) to(2/9) to(9/9) to(3/9) to(3/9) to(2/9) to(2/9) to(3/9) to(2/9) to(2/9) to(2/9) to(2/9) to(2/9) to(9/9) to(9/9) to(6/9) to(2/9) to(6/9) DG-BOARD (1/9) ! TXNDG1HMTC (TNPA4226AE) 7 1 C 6 E 8 3 F 5 B 9 4 D A 2 MN2WS0039A Peaks-Lite2 IC8001 TH-50PV70C DG-Board (1 of 9) Schematic Diagram TH-50PV70C DG-Board (1 of 9) Schematic Diagram �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 79 15.19.DG 电路板 (2/9) 线路图 AA_XERE AA_ED10 AA_ED0 AA_XEAS AA_EA20 AA_ED10 AA_EA14 AA_ED7 AA_XNMIRQ AA_EA19 SMTCMD0 AA_EA17 AA_EA12 AA_ED13 AA_EA4 AA_EA22 AA_XEWE0 AA_XEWE0 AC_XEAB AC_XETS AA_ED6 AA_ED10 AD_TRST AA_ED12 AA_EA8 AA_EA15 NET0031303 AA_ED6 AA_EA18 AA_EA21 AA_ED0 AD_SDA3 AA_XECS1 AA_ED0 AA_EA9 AA_EA14 AD_TO_BA01 AA_EA11 AA_EA15 AA_ED4 AD_SCL3 AG_DTV_XRST AA_ED15 AA_ED5 AA_ED11 AA_ED4 AA_EA19 AA_XERE AA_EA5 AA_ESZ1 AA_ED13 AA_EA3 AA_ESZ0 AA_ED11 AA_ED2 AA_ED1 AA_EA8 AD_SCL2 AD_TO_GC3FS_NEXT AA_BOOTSWAP SMTSEL0 AA_EA7 AA_ED1 AC_IOWR AA_ED7 AA_EA16 AA_EA9 AC_XPDWE AA_ED8 AA_ERXW AA_XECS0 AA_ED14 AA_XIRQ1 AA_EA23 AA_EA22 AD_SDA2 AA_EA6 AA_XECS0 AA_ED9 AA_EA5 AC_IORD AA_EA21 AA_ED5 AA_ED15 AA_EA16 AD_TMS AA_ED9 AA_ED12 AA_ED1 AA_EA10 AA_EA6 AA_ED14 AD_SCL1 AA_EA2 AA_XIRQ2 AA_EA18 AA_EA1 AA_ED9 AA_EA13 AA_XRST AA_ED15 AA_EA10 AA_EA12 AA_EA1 AA_EA11 AA_XRST AA_EA3 AA_ED2 AA_EA20 AA_EA7 AA_ED7 AA_ED13 AA_XEWE1 AA_ED8 AA_ED3 AC_CI_XRST AC_XPDOE AA_ED8 AA_ED11 AC_XPDCE1 AA_EA2 AA_ED12 AA_ED14 SMTCLK0 AC_REG AA_XEDK AA_EA25 AC_CHVAL AA_EA17 AA_EA24 AA_ED5 AA_EA13 AA_ED2 AD_SDA1 AA_EA0 AA_ECLK GUARD_CLK AA_ED4 AA_ED6 AA_ED3 AA_EA4 AA_ED3 AD_TCK AA_XECS2 AG_MODEM_LED2/CLK74SEL AG_SD_BOOT_STS AG_SW_OFF_DET IS0PSYNC AA_FE_XRST AA_SBI0 AA_SBO0 AA_EA23 AC_CHSYNC GUARD_CLK AC_CHCLK AC_XPDWT AA_XRST AG_DTV_VOUTENB AC_CHDI0 AC_CHDI1 AC_CHDI2 AC_CHDI3 AC_CHDI4 AC_CHDI5 AC_CHDI6 AC_CHDI7 AD_SDA0 AD_SCL0 SMTCLK0 AC_CHCLK AC_CHVAL AC_CHDI3 AC_CHSYNC AC_CHDI4 SMTCMD0 AC_CHDI0 AC_CHDI5 SMTSEL0 AC_CHDI1 AC_CHDI6 AC_XPDWT AC_CHDI2 AC_CHDI7 ED9 EA4 XNFWP CH1PSYNC VOUTENB R8745 10k R8890 68 ED10 SBI0 ECLK VI2P20 R8749 10k VI2P4 EA3 SMTD0 R8948 10k R8922 4.7k BOOTSWAP XRST SBO0 TP8854 R8742 10k ED14 XECS7 R8858 68 R8907 10k SUB3.3V R8557 68 ED12 R8560 68 ED11 XEXDMR0 R8626 68 XEWE0 R8908 10k R8897 0 TP8851 R8634 68 AA_SBI0 SCL1 R8860 68 R8855 68 R8904 10k R8635 68 25M R8913 68 R8625 68 R8863 68 TDI R8871 10k R8929 EXB2HVR000V R8632 68 RXD0 EA6 R8901 68 VI1CLK2 R8738 68 TMS R8927 0 R8864 68 ED4 CLKGEN_S2 TVRP436-2 *IC8554 1 N.C. 2 A22 3 A15 4 A14 5 A13 6 A12 7 A11 8 A10 9 A9 10 A8 11 A19 12 A20 13 WE 14 RESET 15 A21 16 WP/ACC 17 RY/BY 18 A18 19 A17 20 A7 21 A6 22 A5 23 A4 24 A3 25 A2 26 A1 27 N.C. 28 N.C. 29 Vio 30 N.C. 31 A0 32 CE 33 Vss 34 OE 35 DQ0 36 DQ8 37 DQ1 38 DQ9 39 DQ2 40 DQ10 41 DQ3 42 DQ11 43 Vcc 44 DQ4 45 DQ12 46 DQ5 47 DQ13 48 DQ6 49 DQ14 50 DQ7 51 DQ15/A-1 52 Vss 53 BYTE 54 A16 55 N.C. 56 N.C. XDSR0 XECS0 EA1 R8914 68 SLRCK ADCCK XIRQ2 R8624 68 R8917 68 EA2 R8893 0 ED8 R8856 68 R8896 0 EA5 R8909 10k IS0PSYNC ED3 R8703 68 ED2 VI2ENB R8869 10k C0JBAZ002845 IC8621 OE 1 2 Q0 3 D0 4 D1 5 Q1 6 Q2 7 D2 8 D3 9 Q3 10 GND 11 LE 12 Q4 13 D4 14 D5 15 Q5 16 Q6 17 D6 18 D7 19 Q7 20 Vcc XECS6 TP8852 R8876 10k R8874 10k TDO R8885 68 TCK R8906 10k NFCLE R8737 68 CH0CLK SMTCMD1 SMTRST1 R8746 10k R8923 2.2k R8892 68 SUB3.3V R8916 68 R8558 68 R8875 10k R8935 10k R8899 10k R8883 68 XIRQ1 R8628 68 R8880 68 SUB3.3V R8867 EXB2HV680JV SBT0 CH1CLK R8857 68 R8854 0 ERJ2GE0R00X ED0 ED5 SMTCMD0 SMTD1 R8556 68 SDA1 XEDK EA0 VI1P20 ED7 SUB3.3V SMTSEL1 SMTCLK0 R8947 68 R8633 68 CH1DATA XNFRE R8881 68 XECS2 R8559 68 XERE R8915 68 EA7 ADIN R8898 10k R8895 0 R8735 68 4.9152M XECS3 MAIN3.3V XRTS0 TRST XDCD0 ED1 R8555 68 R8621 68 SDA0 R8852 0 C0JBAZ002845 IC8622 OE 1 2 Q0 3 D0 4 D1 5 Q1 6 Q2 7 D2 8 D3 9 Q3 10 GND 11 LE 12 Q4 13 D4 14 D5 15 Q5 16 Q6 17 D6 18 D7 19 Q7 20 Vcc R8877 68 R8564 10k R8627 68 C8622 16V 0.1u R8894 68 XEWE1 NFALE ESZ1 NANDRYBY R8851 0 TP8853 R8870 0 R8636 68 R8882 68 R8866 EXB2HV680JV XECS4 XNFCE XRI0 R8891 68 R8630 68 R8921 4.7k R8631 68 L8551 J0JHC0000075 SCL0 XCTS0 R8926 4.7k R8888 68 AA_SBO0 R8920 4.7k SUB3.3V ED13 SUB3.3V R8912 68 XNFWE R8736 68 R8859 68 XDTR0 R8919 4.7k R8925 4.7k SUB3.3V R8887 68 R8622 68 R8878 68 R8910 10k C8621 16V 0.1u R8853 0 R8900 68 ED6 XEXDMK0 C8555 16V 0.1u R8924 2.2k IS1DATA R8561 68 R8918 68 R8884 68 R8879 68 ERXW R8911 68 TXD0 L8621 J0JHC0000075 R8710 68 R8623 68 XECS1 R8905 10k SMTSEL0 ED15 R8889 68 R8862 68 R8739 68 XECS5 DSRCK ESZ0 R8868 68 R8629 68 XNMIRQ 24.576M SMTCLK1 R8886 68 R8865 EXB2HV680JV SBT2 RMCO *R8474 EXB28V103JX *R8475 EXB28V103JX *R8472 EXB2HV103JV SUB3.3V SUB3.3V *R8471 10k R8328 10k CL8702 < ExBUS JTAG XCI_IREQ INT.PU /EA10 INT.PU /EA9 I2C /EA11 INT.PU PORT16[7], SD_BOOT OUTPUT OUTPUT/(BOOTBT) XPDCD2 Hi-Z (XECS2,3 setting) /EA17 BOOTBT INT.PU OUTPUT INT.PD Hi-Z RESERVED INT.PU Hi-Z CI I/F LiteII OUTPUT /EA12 INT.PU B_PORT ed_pullup_sel OUTPUT PORT16[5] PORT9[5] CI_XRST /EA16 /EA14 INT.PU INT.PU INT.PD OUTPUT /EA21 /EA22 L:ADMPX INT.PU H:Int.PU on ED INT.PU Hi-Z see also SDA2 for ea_pullup_sel EA24 /EA15 XPDCD1 Reserved for NAND I/F ED/EA with Int.PU at start INT.PU NEED EXT.PU XIRQ3 for HDMI_INT in ADV sheet DUBUG/JIG INT.PU Hi-Z /EA23 Hi-Z NEED EXT.PU Hi-Z INT.PD INT.PU Hi-Z Hi-Z INT.PU ExBUS Hi-Z /EA20 /EA13 CI_#CE1 Hi-Z non NAND I/F ADDRESS MPXed, if D-Latch INT.PU (ea_pullup_sel) CI PARALLEL TS non PORT6[6]:PSV1 ExBUS N.C. for CLKGEN port /EA18 Reserved/(ed_pullup_sel) LiteII Hi-Z (VIO) /EA19 non Hi-Z 128/256Mbit NOR FLASH /EA8 H:Int.PU on EA PORT5[1] PORT5[2] RSV3 RSV2 CI_POWER_ON CI_OCP Hi-Z Hi-Z XECS3,5,7: USED FOR OTHER PORPOSE PINS INT.PU Hi-Z PORT16[4] PORT15[4] Hi-Z D-LATCH D-LATCH XCI_IREQ XPDCD2 XPDCD1 to(9/9) to(1/9) to(1/9) 17 18 15 14 10 16 12 13 11 13 12 14 15 11 TH-50PV70C DG-Board (2 of 9) Schematic Diagram TH-50PV70C DG-Board (2 of 9) Schematic Diagram DG-BOARD (2/9) ! TXNDG1HMTC (TNPA4226AE) C3FBQD000024 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 80 15.20.DG 电路板 (3/9) 线路图 D.SW W.P. G G G G AH_LRCK0 DVB_CVBS AE_SDCLK AA_XRST AD_SCL2 AG_SD_LED_ON AG_SW_OFF_DET AD_SDA2 AD_SDA1 MVDACO3 AG_DTV_VOUTENB AG_SD_LED_ON AH_DAUDIO AE_SDDAT0 AG_DTV_XRST AH_DAUDIO AG_SD_BOOT_STS AE_SDCMD AD_SCL1 AE_SDCLK AH_DMIX0 AD_SDA3 AD_SDA0 AH_SRCK0 AD_SCL0 AH_LRCK0 AE_SDDAT3 AE_SDDAT2 AD_SCL3 AD_SDA3 AD_SCL3 MVDACO3 AH_DMIX0 AE_SDCD AE_SDWP AG_MODEM_LED2/CLK74SEL GUARD AE_SDCD AE_SDWP AH_SRCK0 AE_SDCMD AE_SDDAT1 AE_SDDAT1 AE_SDDAT3 AE_SDDAT2 AE_SDDAT0 AD_TO_SC AD_TO_GC3FS_NEXT AG_TV_MAIN_ON AG_SRQ-GENX STB_RST C8803 16V 0.1u R8814 68 *R8823 4.7k AG_DTV_VOUTENB SDDAT2 AG_SD_LED_ON STB_RST C8802 16V 0.1u R8502 330 *R8818 4.7k SUB3.3V DVB_CVBS R8655 10k SDDAT3 1% R8508 91 R8605 68 1% R8507 91 VI1P1 TP8801 SDCD MVDACO3 R8804 10k MVDACO0 R8963 10k TP8803 SUB3.3V R8812 0 IS0VAL *DG52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 R8504 330 R8826 68 JK8801 K1NA09D00004 NO 1 2 3 4 5 6 7 8 9 10 W.P. 10 11 11 12 D.SW 12 VI1P11 TP8501 R8601 22 C8601 16V 0.1u AD_SCL1 R8519 0 TP8602 R8513 0 CH1VAL IS0DATA R8653 10k TP8805 R8518 0 SUB3.3V SDWP R8809 10k R8603 47k *L8801 J0JHC0000045 R8604 0 R8602 22 R8813 EXB28V680JX AD_SCL0 1% R8509 91 AG_TV_MAIN_ON DAUDIO SRCK0 TP8804 R8807 10k AH_DMIX0 DMIX0 AD_SDA2 R8506 330 TP8603 TP8807 R8828 10k 1% R8510 91 SDDAT1 R8517 0 TP8802 AG_SD_BOOT_STS AH_SRCK0 R8503 330 R8817 68 TP8601 R8808 10k TP8806 *FL8802 J0HAAA000013 1 2 3 4 5 6 7 8 9 10 VI2CLK2 AA_XRST *R8833 0 TP8605 AG_SW_OFF_DET TP8604 AG_MODEM_LED2/CLK74SEL *IC8601 1 A0 2 A1 3 A2 4 VSS 5 SDA 6 SCL 7 WP 8 VCC SDDAT0 SUB3.3V SDCLK TP8808 VI1P0 R8806 10k R8825 0 R8832 10k AD_SCL3 MVDACO2 LRCK0 R8952 68 AG_DTV_XRST R8816 68 AH_LRCK0 SUB3.3V_SD SDCMD MVDACO1 AD_SDA1 AD_SCL2 R8803 10k *FL8801 J0HAAA000013 1 2 3 4 5 6 7 8 9 10 VMUTE AD_SDA0 R8802 10k 1% R8512 180 R8815 68 R8805 10k AH_DAUDIO AG_SRQ-GENX AD_SDA3 *R4026 0 TP4201 TP4200 *R4242 0 SDDAT0 MAIN AUDIO DATA Comp. Comp. Comp. SDCMD 3.3V GND SDCLK SD_CARD OUTPUT SDDAT1 3.3V INT.PD SDDTC GENX4 GND SDDAT0 GND SDCLK EEPROM COMMON LR/SR CLK Y Y G SDDAT3 SDCMD SDDAT2 SDWP YC YUV RGB GND NO PU/PD SDDAT2 SDDTC SDDAT3 DIGITAL AUDIO Comp. SDWP GND C U B PORT9[4] EEPROM_WP to other devices SDDAT1 with AUDIO DESCRIPTION DATA HQ1L/FHD - V R H-PCB CRNo.8300 8999 FE 8300 8399 CI 8400 8499 AV_OUT 8500 8549 NAND/NOR 8550 8599 EEPROM 8600 8619 D-LATCH 8620 8649 SMART_CARD 8650 8699 SUPPORT_CARD 8700 8799 SD_CARD 8800 8849 MPEG 8850 8949 MODEM 8950 TH-50PV70C DG-Board (3 of 9) Schematic Diagram TH-50PV70C DG-Board (3 of 9) Schematic Diagram 8999 FOR H.264 BOARD Hi-Z H:Lite2 (Default) L:Pro for H.264 Hi-Z Hi-Z RXD0 SMART CARD I/F is removed Hi-Z RESERVED SMTSEL0 SMTCMD0 Int.PU PORT5[4] SD_COIN_DET JTAG to (9/9) to (6,9/9) to (9/9) to (5,9/9) to (8,9/9) to (4/9) to(1/9) LiteII to(4,5,6/9) to(6,9/9) to(4,5,6/9) to(6/9) to(5/9) 23 21 24 20 26 27 25 19 22 13 14 12 11 15 DG-BOARD (3/9) ! TXNDG1HMTC (TNPA4226AE) TVRP302 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 81 15.21.DG 电路板 (4/9) 线路图 + + + + + G G G G G G + + + G G + + + AG_RMIN AG_KEY1(CON-PANE) AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON D5606 B0JCDD000002 C5670 10V 1u L5604 G1C100MA0077 *R5635 22k C5609 47u 16V R5622 100k D5604 B0JCDD000002 STB3.3V C5629 68u 4V C5694 47u 6.3V STB3.3V C5610 16V 47u C5640 0.1u 16V R5672 0 *C5620 0.1u 50V D5671 B0HCMM000014 R5612 23.2k 1% R5660 5.6k C5711 50V 0.1u L5670 J0JHC0000078 *R5647 47k R5634 16k 1% TP5670 D5601 MA22D3900L C5715 50V 0.1u C5712 50V 0.1u R5662 10k TP5705 SUB9V(FHD) C0CBCBC00190 IC5670 1 VDD 2 GND 3 CE 5 VOUT 4 NC AG_G_LED_ON Q5690 B1ABCF000138 D5605 MA22D3900L TP5706 Q5601 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 R5628 0 TP5606 R5600 68 C5607 50V 220p AG_KEY1(CON-PANE) IC5660 C0EBM0000026 1 OUT 2 Vdd 3 GND 5 Cd 4 NC C5600 1u 16V C5630 16V 47u Q5693 B1DHDC000028 TP5604 D5673 B0HCMM000014 SUB5V *C5621 0.01u 25V L5602 G1C3R3ZA0083 STB5V C5618 10u 10V C5714 50V 0.1u TP5700 R5671 18k L5692 J0JHC0000075 *C5643 0.1u 50V *R5638 10k R5626 0 C5623 470p 50V R5691 10k DTV9V L5601 G1C2R2ZA0083 R5661 47k STB3.3V R5620 68 SUB5V DTV9V C5606 470p 50V TP5600 R5694 1k R5731 47k *D5609 MAZ80560LL DTV9V TP5607 AG_KEY2 *R5636 68k AA_XRST Q5602 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 TP5707 J0HABH000013 FL5733 R5633 16k 1% C5637 0.1u 16V R5697 10k C5638 0.1u 16V C0EBF0000376 IC5671 1 RST 2 VDD 3 GND 5 Cd 4 NC L5605 J0JHC0000075 R5605 12.7k 1% C5662 10V 0.047u AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON L5611 J0JHC0000035 *C5663 25V 0.01u *C5693 50V 0.1u *R5641 47k C5617 1u 16V R5608 0 L5690 J0JHC0000078 J0HABH000013 FL5734 R5632 30k 1% Q5600 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 L5610 J0JHC0000035 R5696 10k *R5646 10k STB5V P12V TP5605 R5609 0 R5670 0 R5610 100k TP5701 D5602 MA22D3900L C5676 16V 0.1u L5606 G1C100MA0077 SUB3.3V C5716 50V 0.1u C5632 1u 16V AG_KEY3 *C5661 25V 0.01u D5670 MA2J11100L C5639 0.1u 16V TP5603 *C5625 0.01u 25V J0HABH000013 *FL5732 R5692 47k D5691 B0BC6R600005 TP5704 R5730 47k C5690 47u 6.3V R5690 10k MAIN3.3V L5600 G1C2R2ZA0083 Q5603 2SD0601ASL R5627 0 D5603 B0JCDD000002 *C5692 50V 0.1u C5695 47u 6.3V C5628 68u 4V SUB1.8V C5608 0.1u 16V C5713 50V 0.1u *C5644 0.01u 25V C5673 10V 1u C5624 220p 50V Q5691 B1ABCF000138 C5710 50V 0.1u C5619 10u 10V Q5604 2SD0601ASL R5623 47k 1% C5641 0.1u 16V R5695 1k C5605 4.7u 10V AG_R_LED_ON SUB5V *C5604 0.01u 25V TP5703 C5626 0.1u 16V STB5V MAIN5V SUB3.3V C5615 10u 10V SUB5V SUB1.2V R5630 47.5k 1% C5622 4.7u 10V TP5602 J0HABH000013 *FL5730 *C5645 2.2u 10V Q5692 B1DHDC000028 R5604 47k 1% SUB3.3V AG_RMIN AG_TV_MAIN_ON *C5603 0.01u 25V STB_RST C5627 0.1u 16V C5691 47u 6.3V L5691 J0JHC0000078 R5606 0 R5607 0 R5693 47k D5690 B0BC6R600005 C5602 68u 4V R5611 36k 1% C5674 10V 1u C5636 0.1u 16V TP5702 TP5608 R5621 47k 1% R5625 0 C5616 0.047u 10V C5601 0.1u 16V C5631 16V 47u SUB3.3V DTV9V MAIN9V R5674 47k R5631 36k 1% TP5601 L5735 J0JHC0000078 R5629 30.1k 1% *R5644 2.2k D5607 MAZ802400L D5608 MAZ802400L R5637 0 DG1 1 2 3 4 5 6 7 8 9 10 11 12 DG2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 C0DBAYY00273 IC5600 1 GND 2 REFIN 3 VREF 4 CS 5 COVP 6 CUVP 7 PGOOD 8 CTL 9 LSAT 10 ILIM 11 +INC 12 -INC 13 FSW 14 PGND 15 OUT-2 16 VB 17 VCC 18 VBIN 19 LX 20 OUT-1 21 CB 22 RT 23 VO 24 FB C0DBAYY00274 IC5601 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP 11 GenX4 From GenX4 to (6/9) SUB5V 2 GND 4 1 G_LED_ON R_LED_ON GND CRNo.5600-5749 PIN SUB3.3V SUB5V 9 AI_SENSOR GND TO H-BOARD (H2) GND P12V GND GND 5 Peaks-LITE2 RST 5660 5669 GenX4 POWER/RST 5670 5689 Peaks-LITE2 POWER 5600 5659 MAIN5V/MAIN3.3V 5690 5709 DG-H Connecter 5710 5729 DG-G Connecter 5730 5749 EURO/ASIA 3 GND GND GND RMIN MAIN5V P12V DTV9V 12 TO K-BOARD (K1) KEY1 DTV9V 7 ACTIVE_STBY_LED_ON SUB3.3V 8 GenX4 SUB5V to (3/9) MAIN3.3V to (3,5,6/9) 6 GND STB3.3V VREF(2.5V) to(3,5,6/9) PGOOD GND MAIN9V 10 STB5V SUB9V(FHD)/LCD3.3V SUB9V(FHD)/LCD3.3V GND G_LED_ON GND AI_SENSOR SUB5V RMIN ACTIVE_STBY_LED_ON GND STB3.3V R_LED_ON GND KEY1 GND SUB5V GND GND GenX4 RESET PEAKS-LITE2 RESET STB+3.3V SUB+3.3V SUB+1.8V/+1.2V to (5,6/9) 33 36 28 32 31 30 29 34 35 TH-50PV70C DG-Board (4 of 9) Schematic Diagram TH-50PV70C DG-Board (4 of 9) Schematic Diagram DG-BOARD (4/9) ! TXNDG1HMTC (TNPA4226AE) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 82 15.22.DG 电路板 (5/9) 线路图 AG_QLINK2 AG_VIDEO_STATUS AG_TV_MAIN_ON AG_SOS AD_SCL2 MAIN_Y/CVBS AH_DMIX0 PC_VS AG_FAN_SOS PC_VS RGB_CVBS STB_RST HDMI_SDIN AH_LRCK0 DVB_CVBS AG_RF_AFT2 AG_RF_AFT1 AG_QLINK1 AG_SOUND_SOS AD_SDA2 AG_TV_SUB_ON HDMI_INT2 HDMI_INT2 AG_ECO_ON MAIN_PR MAIN_PB/C AH_SRCK0 PC_HS AG_FAN_MAX/INV_PSU_ON MAIN_Y/CVBS AG_KEY1(CON-PANE) HDMI_LRCK PC_HS AG_ALL_OFF AH_DAUDIO HDMI_BCLK AG_SOUND_SOS AG_A_MON_MUTE/SP_MUTE AG_TV_SUB_ON STB_RST AG_AUDIO_MUTE AG_AUDIO_XRST AG_VIDEO_STATUS PANEL_STBY/VCC_ON AG_RF_AFT2 AG_FAN_SOS AG_ECO_ON AG_ALL_OFF AG_QLINK1 AG_QLINK1 AG_QLINK2 AG_QLINK2 DVB_CVBS AG_TV_SUB_ON_DELAY AH_DAUDIO AH_LRCK0 AH_DMIX0 AH_SRCK0 AD_SCL2 AD_SDA2 MAIN_PB/C MAIN_PR RGB_CVBS AG_KEY1(CON-PANE) PANEL_STBY/VCC_ON AG_SOS AG_RF_AFT1 AG_AUDIO_XRST AG_TV_SUB_ON_DELAY HDMI_BCLK HDMI_SDIN HDMI_LRCK AG_TV_MAIN_ON AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE AG_FAN_MAX/INV_PSU_ON MAIN_Y/CVBS R2018 47k AH_SRCK0 TP2021 TP2014 TP2017 AG_ODU_DET AG_QLINK_PU_ON TP2019 AH_DMIX0 AG_QLINK2 DG6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 AG_AUDIO_MUTE AG_BUS_CONNECT2 R2015 47k TP2009 *R2007 47k R2020 47k AH_DAUDIO TP2024 R2014 47k R2025 47k AG_ALL_OFF AG_FAN_MAX TP2001 AG_RF_AFT1 AG_QLINK1 R2012 47k TP2012 HDMI_BCLK TP2002 TP2022 TP2007 *Q2001 2SD0601ASL AH_LRCK0 AG_AVSW_OFF AG_TV_SUB_ON PC_HS MAIN_PB/C *Q2000 2SD0601ASL TP2015 STB_RST MAIN_PR AG_ODU_ON/GEMSTER_STBY_EN AG_FAN_SOS TP2013 HDMI_INT2 DVB_CVBS AU_SBI(HOTEL) STB5V RGB_CVBS AG_TV_MAIN_ON TP2010 TP2018 AD_SCL2 TP2005 AG_PANEL_STBY_ON/PANEL_VCC_ON AU_SBO(HOTEL) AG_KEY1(CON-PANE) to (4,6/9) HDMI_LRCK AG_RF_AGC1 AG_SOS AG_SOUND_SOS TP2006 *R2006 10k R2010 47k AG_RF_AFT2 TP2003 AD_SDA2 TP2016 R2011 47k HDMI_SDIN TP2023 TP2004 AG_VIDEO_STATUS PC_VS *R2027 0 AG_TV_SUB_ON_DELAY R2013 47k AG_AUDIO_XRST *R2001 100k TP2008 AG_A_MON_MUTE/SP_MUTE PANEL_STBY/VCC_ON AG_ECO_ON R2023 47k TP2011 R2021 47k R2022 47k SPDIF_IN(OPT) AFC2 FAN_SOS SUB_PB/C DTV_LRCK CRNo.2699-2999:Without AVSW AC_GOOD/24V_DET ALL_OFF TV_MAIN_ON GenX4 DTV_BCKL QLINK_AV3 to(3/9) to (9/9) EURO QLINK CONTROL ADV7493 GENX_RST ECO_ON MAIN_Y/CVBS/G 3.3V:V-AVSW/ADV4422/FE/DVB-TNR DTV_SDIN SOS DVB_CVBS MAIN_PR/R HDMI_SDIN MAIN_PB/C/B << Connection Device >> KEY1 SOUND_SOS SUB_PR PC_V AFC1 HDMI_BCLK HDMI_LRCK AUDIO_XRST FAN_MAX/INV_PSU_ON CRNo.3000-3199:AVSW 5V :A-AVSW/A-TNR DTV2_SDIN CRNo.2000-2299:Without AVSW to(3,9/9) IRD PC_H SUB_Y/CVBS RGB_CVBS SP_MUTE TO H-BOARD (H6) IIC2 QLINK_AV2 to(6/9) VIDEO_STATUS SCL0B SDA0B GenX4 HDMI_INT2 Panel_STBY_ON/Pannel_VCC_ON RGB_FB to (8/9) TV_SUB_ON CN to H AUDIO_MUTE (Common) to (6/9) 42 37 41 45 39 40 38 43 44 TH-50PV70C DG-Board (5 of 9) Schematic Diagram TH-50PV70C DG-Board (5 of 9) Schematic Diagram DG-BOARD (5/9) ! TXNDG1HMTC (TNPA4226AE) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 83 15.23.DG 电路板 (6/9) 线路图 AD_SCL3 AG_HDMI_CEC AG_RMIN AG_G_LED_ON AG_KEY3 AG_R_LED_ON AG_ODU_ON/GEMSTER_STBY_EN AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON AG_HPD2 AD_SDA3 SCL AU_SBI(HOTEL) AG_TV_MAIN_ON AG_SD_LED_ON SDA AG_QLINK2 AU_SBO(HOTEL) AG_DTV_XRST AG_HPD1 AG_SRQ-GENX AG_LVDS_EN AG_ECO_ON AG_DTV_VOUTENB AG_TV_SUB_ON AG_SD_BOOT_STS AG_KEY1(CON-PANE) AG_PWM_POW_ON AG_QLINK1 AG_HDMI_5V_DET1 AG_QLINK1 AG_AVSW_OFF AG_RF_AGC1 AG_QLINK2 AG_BUS_CONNECT2 AG_ALL_OFF AG_RF_AFT1 AG_RF_AFT2 AG_SOUND_SOS AG_SOS AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE AG_AUDIO_XRST AG_FAN_MAX AG_FAN_SOS AG_QLINK_PU_ON AG_7493_XRST SCL SDA AG_VIDEO_STATUS AG_PANEL_STBY_ON/PANEL_VCC_ON SBI2 SBO2 AD_SCL3 AD_SDA3 DTV9V_SENSE ADCCK AG_BUS_CONNECT2 AG_ODU_DET AG_RF_AGC1 AUDCLK SLRCK SCL SDA AG_ODU_ON/GEMSTER_STBY_EN AG_AVSW_OFF AG_KEY2 AG_MODEM_LED2/CLK74SEL AG_RMIN AUDCLK SLRCK ADCCK VI2ENB VI2ENB AG_ODU_DET MAIN9V_SENSE AG_HDMI_CEC AG_SRQ-GENX MAIN5V_SENSE AG_SRQ-GENX AG_KEY2 AG_SW_OFF_DET AG_KEY3 AG_HDCP_WP AG_EDID_WP AG_HDMI_MUX_SEL AG_HDMI_MUX_EN AG_HDMI_REP_EN AG_HPD3 AG_HDMI_5V_DET3 AG_HDMI_5V_DET3 AG_SW_OFF_DET AU_SBO(HOTEL) AU_SBI(HOTEL) AG_HDMI_OPT_ENB AG_TV_SUB_ON_DELAY AG_KEY1(CON-PANE) AG_HDMI_5V_DET1 AG_CONFIG_DONE AG_VIDEO_STATUS SBO2 SBI2 AG_PANEL_STBY_ON/PANEL_VCC_ON AG_EDID_WP AG_RF_AFT2 AG_SOS AG_FAN_SOS AG_SOUND_SOS AG_FPGA_XRST AG_DTV_XRST AG_SD_BOOT_STS AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE AG_ECO_ON AG_HQ1_VOUTENB AG_HDMI_MUX_SEL AG_HDMI_MUX_EN AG_HDMI_REP_EN AG_INVERTER_ON AG_PWM_POW_ON AG_LVDS_EN AG_DTV_VOUTENB HDMI_CEC_PU_ON AG_QLINK_PU_ON AG_ALL_OFF AG_HPD1 AG_HPD2 AG_HPD3 AG_TV_MAIN_ON AG_R_LED_ON AG_AUDIO_XRST AG_7493_XRST AG_HQ1_XRST AG_TV_SUB_ON_DELAY AG_HDMI_OPT_ENB AG_FAN_MAX AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON AG_G_LED_ON AG_HDCP_WP AG_TV_SUB_ON AG_MODEM_LED2/CLK74SEL AG_INVERTER_SOS AG_RF_AFT1 AG_INVERTER_ON AG_HQ1_VOUTENB AG_CONFIG_DONE AG_FPGA_XRST AG_INVERTER_SOS R1246 47k R1109 100 VI2ENB R1175 22 SBO2 AG_DTV_VOUTENB D1113 MA2J72800L R1122 47k R1225 47k R1226 47k Q1107 2SD0601ASL Q1108 2SD0601ASL R1147 47k C1123 1u 10V R1233 47k D1107 MA3X704A0L AG_ECO_ON AG_SOS R1216 33k C1109 1u 10V STB_RST AG_VIDEO_STATUS AG_HDMI_5V_DET3 AG_HDMI_5V_DET1 AG_FAN_SOS *R1140 47k AG_RF_AFT1 AG_TV_SUB_ON_DELAY SDA R1244 47k R1163 1M AG_TV_MAIN_ON R1124 22 STB3.3V R1144 47k AG_RMIN AG_ALL_OFF R1220 10k AG_KEY3 R1184 22 R1106 100 R1217 56k AG_RF_AFT2 R1183 22 R1134 100 R1172 27k R1219 10k AG_FAN_MAX R1107 100 C1103 16V 0.1u AG_MODEM_LED2/CLK74SEL AG_AUDIO_XRST R1104 47k R1186 100 MAIN3.3V C1114 16V 0.1u AG_RF_AGC1 C1102 10u 10V AG_G_LED_ON SCL AG_SW_OFF_DET R1200 5.6k AG_BUS_CONNECT2 DG31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 SUB5V R1237 47k R1196 33k R1228 47k AU_SBO(HOTEL) R1103 33 AG_ODU_ON/GEMSTER_STBY_EN R1194 56k AG_QLINK_PU_ON R1206 22 AG_QLINK1 STB3.3V R1169 56k AU_SBI(HOTEL) R1231 47k TP1105 AG_AUDIO_MUTE AG_SD_BOOT_STS R1179 100 AG_KEY2 AG_SOUND_SOS R1105 100 C1104 16V 0.1u C1117 16V 0.1u R1229 100 R1201 5.6k AG_AVSW_OFF C1111 1u 10V C1107 50V 22p C1106 50V 27p C1108 16V 0.1u DTV9V R1195 100k R1166 100k R1100 100 AG_SRQ-GENX MAIN5V STB3.3V R1234 47k C1112 16V 0.1u L1100 J0JHC0000078 TP1104 R1205 22 R1164 10k X1100 H0J100500035 AG_DTV_XRST R1235 100k R1182 27k R1209 47k R1146 1k AG_TV_SUB_ON R1241 100 AG_HDCP_WP TP1100 R1199 47k AG_A_MON_MUTE/SP_MUTE R1239 100 R1102 100 R1218 10k AG_7493_XRST *R1243 47k *IC1101 1 2 3 4 6 5 7 8 R1255 1k AD_SCL3 R1204 0 SUB5V R1174 22 *C1122 25V 0.01u TP1103 AG_SD_LED_ON AG_HPD3 AG_HDMI_CEC R1153 820 TP1101 AG_ODU_DET R1247 47k AD_SDA3 MAIN9V AG_HDMI_OPT_ENB R1221 7.15k 1% AG_KEY1(CON-PANE) R1162 100 R1222 47k R1245 47k DG7 1 2 3 4 AG_R_LED_ON SLRCK R1101 0 R1125 22 R1170 27k AG_PANEL_STBY_ON/PANEL_VCC_ON AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON R1227 47k R1165 1.8k AG_EDID_WP STB3.3V SBI2 R1171 56k AG_HPD1 R1185 100 R1236 47k R1232 47k R1181 100 R1203 47k ADCCK TP1102 R1108 100 R1223 47k AG_QLINK2 MNZSFD7GP42 IC1100 1 P41/TMIO1 2 P42/TMIO2 3 P43/TMIO3 4 P44/TMIO4 5 P00/TMIO5 6 P01 7 P02 8 P03/SBT0B 9 P04/SBO0B 10 P51/IRQ2 11 P52/IRQ3 12 PB2 13 PB3 14 PB4 15 PB5 16 PB6 17 PB7 18 P53/IRQ4 19 P54/IRQ5 20 PA7 21 PA6 22 PA5 23 VSS 24 PA4 25 PA3 26 PA2 27 PA1/IRQ1 28 PA0 29 P45 30 P46 31 IVDD 32 VDD 33 P60/SBO0A 34 P61/SBT0A 35 P62/SBI0A 36 P05/IRQ6 37 P06/IRQ7 38 P07/IRQ8 39 P70/SDA0 40 P71/SCL0 41 N.C. 42 N.C. 43 N.C. 44 N.C. 45 P50/RMIN/IRQ0 46 P20 47 P21 48 P22 49 P23 50 IVDD 51 VSS 52 P10 53 P11 54 P12 55 P13 56 P14 57 P15 58 P16 59 P17 60 N.C. 61 N.C. 62 N.C. 63 P72/SDA1 64 P73/SCL1 65 P76/CEC0 66 P65/SBO2 67 P66/SBI2 68 P30 69 P31 70 P32 71 P33 72 P34 73 P35 74 VPPEX 75 N.C. 76 N.C. 77 N.C. 78 IVDD 79 VDD 80 N.C. 81 RONA 82 VSS 83 OSCXO 84 OSCXI 85 IVDD 86 P24 87 P25 88 P26 89 P27 90 P64/SBI1 91 P63/SBO1 92 NBOOT 93 NRST 94 NTEST 95 SCLOCK 96 SDATA 97 EXTRG0 98 EXTRG1 99 TRCCLK 100 TRCST 101 TRCD0 102 TRCD1 103 TRCD2 104 TRCD3 105 P90 106 P91 107 VSS 108 IVDD 109 P92 110 P93 111 P80/ADIN0 112 P81/ADIN1 113 P82/ADIN2 114 P83/ADIN3 115 P84/ADIN4 116 P85/ADIN5 117 P86/ADIN6 118 P87/ADIN7 119 P74/SDA2/CECAVL1B 120 P75/SCL2/CECAVL1A 121 P36 122 P37 123 P47 124 PB0 125 PB1 126 PC0 127 PC1 128 P40/TMIO0/SYSCLK *R4322 47k *R4323 47k *R4325 47k *R4326 47k R4327 47k R4328 47k *R4329 47k to(5/9) TRCD1 VIDEO_STATUS CONFIG_DONE TV_MAIN_ON ODU_ON/GEMSTER_STBY_EN AVSW_OFF(US) (SD_LED_ON) ODU_DET (BUS_CONNECT2) SUB5V_SENSE GenX-EEP_WP MAIN5V_SENSE SRQ_GenX ALL_OFF RSV2(LITE2) (QLINK_PU_ON) (HDMI_CEC_PU_ON) (For LCD) UART (HOTEL) HQ1_VOUTENB SCLOCK (For LCD) HDMI_5V_Det1 IIC HDMI_5V_Det2 MAIN9V_SENSE MAIN3.3V_SENSE RF_AFT1 RF_AFT2 SOS KEY2(US) to(3/9) to (4/9) KEY1 STB3.3V FAN_SOS STB_RST SOUND_SOS SBI GND PANEL_STBY_ON R_LED_ON TRCCLK FAN_MAX SBO 7493_XRST RSV3(LITE2) HQ1_XRET GND RSV3 FE_XRST G_LED_ON PORT5[2] MODEM_XRST AUDIO_XRST PORT0[0] PORT5[1] TV_SUB_ON RSV3(LITE2) Power Supply RSV4(LITE2) to (1/9) RSV2(LITE2) to (1/9) GND GND Lite2 to (5/9) UART(LITE2-GenX4) TRCD0 CN to H to(5/9) A_MON_MUTE/SP_MUTE GND AUDIO_MUTE Lite2 ExBUS/Etc. RSV4 RSV2 GND for DEBUGER Hand Sheke Reserve TRCD3 DTV_XRST SD_BOOT_STS SW_OFF_DET INVERTER_ON PWM_POWER_ON DTV_VOUTENB LVDS_EN LITE2 GND GenX4 E2PROM LINE EXTRG0 Lite2 E2PROM LINE GND Power Supply SDATA RSV4(LITE2) FPGA_RST to (8/9) HPD2 GND HPD1 CRNo.1100-1999 TRCD2 GenX4,EEPROM TRCST REMOTE ADV7493 ECO_ON DTV_1.5V_ON RF_AGC1 DTV9V_SENSE STB5V_SENSE (RESERVE) INVERTER_SOS GenX4 RST to (3,4,5/9) (HDMI_CEC_PU_ON) 10MHz KEY3(TV_POWER) PORT6[6] RSV1 RSV1(LITE2) HDMI_5V_Det3 HDCP_WP EDID_WP HDMI_MUX_SEL HDMI_MUX_EN HDMI_REP_EN EEPROM STB MCU TVRP465-1 FOR FACTORY USED to (9/9) to (3,9/9) to (5/9) to (4,5/9) CN to H to(3,4,5/9) 50 53 47 51 48 49 54 46 52 TH-50PV70C DG-Board (6 of 9) Schematic Diagram TH-50PV70C DG-Board (6 of 9) Schematic Diagram DG-BOARD (6/9) ! TXNDG1HMTC (TNPA4226AE) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 84 15.24.DG 电路板 (7/9) 线路图 + + AG_HDMI_5V_DET3 AG_EDID_WP AG_HDMI_5V_DET1 AG_HDMI_5V_DET1 AG_HPD3 AG_HPD1 RXA_2N RXA_1P RXA_1N RXA_0P RXA_0N RXA_CN RXA_2P RXB_CN RXB_CP RXB_0N RXB_0P RXB_1N RXB_1P RXB_2N RXB_2P AG_HDMI_CEC RXA_CP *Q4505 2SD0601ASL D4515 MAZ30560ML *D4502 EZAEG2A50AX R4536 4.7k D4511 EZAEG2A50AX *R4524 10k L4506 J0JHC0000078 *R4535 4.7k *D4510 EZAEG2A50AX *R4532 10k *R4511 2.2 *D4522 EZAEG2A50AX Q4503 2SD0601ASL C4511 0.1u 16V *R4545 10k R4521 2.2 *C4502 0.1u 16V R4503 33 R4540 47k *R4510 2.2 R4516 2.2 *R4513 2.2 TP4502 D4516 EZAEG2A50AX R4501 10k *D4500 EZAEG2A50AX R4522 2.2 JK4501 K1FY119D0002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 R4541 68 Q4504 2SD0601ASL R4533 10k 33u 6.3V *C4508 D4509 EZAEG2A50AX D4505 EZAEG2A50AX *D4524 B0HCMM000014 *D4514 EZAEG2A50AX *R4500 10k *D4506 EZAEG2A50AX R4543 68 R4619 0 *R4509 2.2 R4523 2.2 *D4504 EZAEG2A50AX *R4528 10k *D4513 MAZ30560ML D4517 EZAEG2A50AX *R4514 2.2 C4507 0.1u 16V *R4506 10k *R4515 2.2 *C4506 0.1u 16V R4517 2.2 Q4501 2SD0601ASL *R4539 68 D4501 EZAEG2A50AX *L4505 J0JHC0000078 *IC4500 C3EBDC000067 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC *D4512 EZAEG2A50AX *Q4502 2SD0601ASL *D4525 B0HCMM000014 33u 6.3V C4509 *R4547 10k R4617 0 D4520 EZAEG2A50AX TP4503 D4527 B0HCMM000014 *L4504 J0JHC0000078 TP4507 *R4512 2.2 R4544 10k D4528 EZAEG2A50AX TP4508 R4531 4.7k R4527 1k TP4501 R4530 10k *R4538 47k R4546 10k R4518 2.2 D4503 EZAEG2A50AX R4507 10k *R4529 4.7k *R4502 33 D4523 EZAEG2A50AX *C4500 0.1u 16V *D4518 EZAEG2A50AX R4525 10k C4503 0.1u 16V TP4500 R4520 2.2 D4507 EZAEG2A50AX *L4500 J0JHC0000078 *D4519 EZAEG2A50AX D4526 B0HCMM000014 TP4504 TP4505 *IC4501 C3EBDC000067 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC *Q4500 2SD0601ASL *R4508 2.2 R4519 2.2 L4501 J0JHC0000078 *L4502 J0JHC0000078 *R4542 68 R4618 0 *R4526 1k R4616 0 TP4506 C4501 0.1u 16V *C4510 0.1u 16V D4521 EZAEG2A50AX MAIN5V L4503 J0JHC0000078 *JK4500 K1FY119D0002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 L4507 J0JHC0000078 *D4508 EZAEG2A50AX R4552 22 MAIN5V DDCG D0G D1+ +5V CLKG D0- D0G N.C. SCL D1+ CLKG CLK+ D1G D2+ D2G CLK+ D2- +5V N.C. D1- SDA CEC D2+ HPDT CEC DDCG SDA SCL D0+ CLK- D0- D1- CLK- D1G HPDT D2- D2G D0+ EEPROM EEPROM ADV7493,HDMI-Mux CRNo.4500-4799 27 23 25 26 21 22 24 57 58 59 61 55 60 62 56 63 TH-50PV70C DG-Board (7 of 9) Schematic Diagram TH-50PV70C DG-Board (7 of 9) Schematic Diagram DG-BOARD (7/9) ! TXNDG1HMTC (TNPA4226AE) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 85 15.25.DG 电路板 (8/9) 线路图 + + + + VI1P25 VI1P22 VI1P28 CLKOA VI1P27 VI1P8 VI1HSYNC MAIN_PB/C PC_VS RXA_1P RXA_0N XIRQ3 VI1P25 AG_HDMI_5V_DET1 VI1P7 VI1ENB AG_HPD1 VI1P7 AG_HDMI_5V_DET3 VI1VSYNC VI1P22 HDMI_LRCK VI1P26 VI1P19 VI1P12 VI1P29 RXA_1N VI1P9 RXA_2N VI1P12 VI1P3 AG_HDCP_WP VI1P15 HDMI_SDIN VI1P16 MAIN_PB/C VI1P9 MAIN_PR RGB_CVBS PC_VS VI1P6 VI1P2 VI1CLK VI1HSYNC PC_HS VI1P24 VI1P4 VI1P13 AG_HDMI_CEC VI1P3 AG_7493_XRST RXA_0P VI1P15 PC_HS VI1P29 VI1P2 VI1P27 VI1P18 VI1VSYNC VI1P13 VI1P24 VI1P28 VI1P26 VI1P17 MAIN_Y/CVBS VI1P14 VI1P5 VI1P18 VI1P4 VI1P8 VI1ENB VI1P19 VI1P23 VI1CLK RXA_CN VI1P16 VI1P5 VI1P6 VI1P23 RXA_CP MAIN_PR CVDD_1.8V VI1P14 VI1P17 HDMI_BCLK RXB_CN RXB_CP RXB_0N RXB_0P RXB_1N RXB_1P RXB_2N RXB_2P RXA_2P AG_EDID_WP AG_HPD3 XIRQ3 AG_7493_XRST MAIN_Y/CVBS CLKOA RGB_CVBS DVDD_1.8V DVDDIO_3.3V RGB_CVBS R4635 68 EXB28V680JX TP4518 MAIN5V R4579 150 VI1P15 VI1P9 C4595 25V 0.01u L4517 J0JHC0000078 VI1P18 TP4517 TP4510 R4596 1k TP4512 R4640 68 EXB28V680JX R4644 22 C4602 16V 0.1u C4620 10V 1u C4528 16V 0.1u MAIN_PR C4593 25V 0.01u R4706 1k R4667 150 IC4515 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC R4601 1k VI1P4 L4512 J0JCC0000077 C4546 6.3V 2.2u C4548 50V 0.1u VI1P29 C4589 15p 50V C4577 16V 0.1u C4550 16V 0.1u IC4509 C0CBCAD00082 1 Vout 2 NC 3 Cn 4 GND 5 Cont 6 NC 7 NC 8 Vin VI1P12 SUB5V R4613 22 1% R4615 160 C4572 16V 0.1u R4652 47k VI1P14 AG_HDMI_CEC JS4501 C4549 50V 0.1u Q4517 2SB0709ASL VI1P23 C4611 1u 10V C4578 16V 0.1u VI1VSYNC VI1P13 C4564 25V 0.01u C1AB00002753 IC4510 1 DDCB_SDA 2 SPDIF 3 I2S0 4 I2S1 5 I2S2 6 I2S3 7 LRCLK 8 SCLK 9 MCLKOUT 10 MCLKIN 11 SDA 12 SCL 13 ALSB 14 DGND 15 DVDDIO 16 DE 17 HS 18 VS/FIELD 19 INT1 20 SFL/SYNC_OUT/INT2 21 RESET 22 DGND 23 DVDD 24 P19 25 P18 26 P17 27 P16 28 P15 29 P14 30 P13 31 P12 32 P29 33 P28 34 DGND 35 DVDDIO 36 P11 37 P10 38 P9 39 P8 40 P27 41 P7 42 P6 43 P5 44 P4 45 P26 46 R_ACTIVE/P25 47 SRLIN/P24 48 DCLKIN 49 DGND 50 DVDDIO 51 LLC 52 SRLUP/P23 53 TRGIN/P22 54 P21 55 P3 56 DGND 57 DVDD 58 P2 59 P1 60 P0 61 P20 62 VS_IN 63 HS_IN 64 DGND 65 XTAL1 66 XTAL 67 DVDDIO 68 PVDD 69 PGND 70 ELPF 71 PVDD 72 PGND 73 ELPF2 74 FB 75 SOG 76 AIN7 77 AIN1 78 AIN8 79 AIN2 80 AIN9 81 AIN3 82 AGND 83 AGND 84 AVDD 85 REFOUT 86 CML 87 AGND 88 AVDD 89 BIAS 90 CAPY1 91 CAPC1 92 CAPC2 93 AIN10 94 AIN4 95 AIN11 96 AIN5 97 SOY 98 AIN12 99 AIN6 100 PGND 101 PVDD 102 ELPF3 103 CGND 104 CVDD 105 DDCA_SCL 106 DDCA_SDA 107 MDA 108 MCL 109 CVDD 110 CGND 111 TVDD 112 RXA_CN 113 RXA_CP 114 TGND 115 RXA_0N 116 RXA_0P 117 TGND 118 RXA_1N 119 RXA_1P 120 TGND 121 RXA_2N 122 RXA_2P 123 TVDD 124 RTERM 125 CVDD 126 CGND 127 TVDD 128 RXB_CN 129 RXB_CP 130 TGND 131 RXB_0N 132 RXB_0P 133 TGND 134 RXB_1N 135 RXB_1P 136 TGND 137 RXB_2N 138 RXB_2P 139 TVDD 140 CGND 141 CVDD 142 DVDD 143 DGND 144 DDCB_SCL C4585 1u 10V C4587 16V 0.1u AG_HDCP_WP C4628 16V 0.1u AG_EDID_WP C4614 16V 0.1u MAIN_PB/C C0DBGGF00001 IC4506 1 Vo 2 NC 3 GND 4 Cn 5 Cont 6 Sub 7 Vin R4561 47k L4516 J0JHC0000078 Q4516 2SB0709ASL VI1P28 HDMI_SDIN R4698 0 R4562 4.7k C4573 16V 0.1u 1% R4682 10k C4617 16V 0.1u C4580 25V 0.01u C4613 1u 10V C4559 16V 0.1u R4670 68 R4638 68 1M R4626 AD_SDA1 R4651 68 TP4519 C4604 6.3V 2.2u HDMI_BCLK R4656 2.2k C4541 50V 470p C4590 18p 50V C4609 10V 1u VI1P3 R4565 22 C4553 50V 1000p R4691 22 R4636 68 1% R4611 1.37k VI1P5 MAIN9V R4683 10k 4.7k 1% R4606 HDMI_INT2 R4604 7.5k 1% DG32 1 2 3 4 5 6 7 TP4515 PC_VS VI1P26 HDMI_LRCK C4570 47u 6.3V C4586 25V 0.01u R4666 47k MAIN3.3V C4605 16V 0.1u C4591 1u 10V R4614 22 Q4515 2SB0709ASL VI1P6 L4521 J0JHC0000078 C4598 1u 10V C4596 16V 0.1u IC4504 C3EBEY000009 1 NC 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC R4645 68 VI1P24 C4575 1u 10V VI1P17 R4707 10k C4551 50V 0.1u AG_HDMI_5V_DET3 AG_HPD1 C4576 47u 6.3V R4628 100 R4585 100 R4646 68 SUB5V C4574 25V 0.01u R4639 68 EXB28V680JX R4708 1k R4665 47k SUB3.3V C4552 50V 0.1u TP4509 R4655 100 SUB5V R4657 22 C4547 16V 0.1u R4650 68 C4618 25V 0.01u C4581 10V 1u *R4641 22 L4520 J0JHC0000078 VI1P2 Q4514 2SB0709ASL *C4600 25V 0.01u C4568 16V 0.1u *C4615 25V 0.01u 1% *R4593 1k AD_SCL1 C4544 16V 0.1u C4557 16V 0.1u 1% R4612 1.5k VI1P27 R4648 EXB28V330JX 0 R4627 L4518 J0JHC0000078 R4703 0 C4625 50V 0.1u C4565 25V 0.01u C4534 50V 0.1u R4702 0 C4545 16V 0.1u C4515 16V 0.1u C4538 47u 6.3V C4623 16V 0.1u C4584 1u 10V AG_HDMI_5V_DET1 VI1ENB R4649 68 EXB28V680JX VI1P25 R4661 100 R4699 0 C4539 10u 10V R4564 22 C4563 16V 0.082u D4532 B0HCMM000014 C4556 10V 10u L4511 J0JHC0000078 *R4643 22 AG_7493_XRST R4647 68 C4566 16V 0.039u C4582 16V 0.1u R4622 100 C4619 16V 0.1u X4500 H0J270500113 C4588 16V 0.082u C4592 1u 10V R4578 150 C4533 50V 68p 1% R4631 499 TP4514 VI1P19 C4562 50V 8200p R4598 1k TP4516 TP4513 1% R4654 4.7k C4624 50V 0.1u R4658 22 C4555 10V 10u VI1P22 VI1HSYNC R4597 1k VI1P8 VI1CKOUT IC4508 C0CBCAD00082 1 Vout 2 NC 3 Cn 4 GND 5 Cont 6 NC 7 NC 8 Vin AG_HPD3 C4612 25V 0.01u R4642 68 EXB28V680JX L4524 J0JHC0000078 C4535 50V 0.1u C4527 10V 1u C0CBCBC00190 IC4507 1 VDD 2 GND 3 CE 5 VOUT 4 NC XIRQ3 C4616 16V 0.1u 1% R4624 1.69k MAIN_Y/CVBS C4560 16V 0.1u C4531 16V 0.1u 1% R4587 820 C4607 47u 6.3V R4653 10k C4629 10V 10u PC_HS C4569 16V 0.68u R4637 68 MAIN5V C4543 16V 0.1u C4583 16V 0.1u VI1P16 VI1CLK R4692 22 R4563 4.7k VI1P7 TP4511 R4629 100 C4601 25V 0.01u R4659 0 R4672 0 YIN3 GenX4 YIN1 YIN2 UVIN8 CRNo.4500-4799 IN YIN4 OUT CN_to_H RIN2 UVIN9 RIN3 Peaks Lite II RIN0 Peaks Lite II RIN1 to(1/9) YIN0 CLKOA UVIN7 HSIA UVIN4 to(1/9) UVIN2 VSIA UVIN3 CLKIA UVIN5 UVIN0 UVIN6 YIN9 UVIN1 YIN7 YIN5 CN_to_H ADV7493,HDMI-Mux CN_to_H YIN6 YIN8 DVDD1.8V 1.8V 3.3V 3.3V COMPARATOR ADV/HDMI EEPROM to (3,9/9) to (5/9) to (5/9) to (5/9) to(6/9) 21 26 23 24 25 22 27 67 68 70 64 69 71 65 72 66 TH-50PV70C DG-Board (8 of 9) Schematic Diagram TH-50PV70C DG-Board (8 of 9) Schematic Diagram DG-BOARD (8/9) ! TXNDG1HMTC (TNPA4226AE) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 86 15.26.DG 电路板 (9/9) 线路图 AD_SCL1 AD_SDA0 SCL AD_SCL3 AD_SCL2 AD_SDA2 AD_SDA1 SDA AD_SCL0 AD_SDA3 VI2P21 VI2P10 PANEL_MUTE PANEL_STBY/VCC_ON AD_SCL3 AD_SDA3 AD_SCL1 AD_SDA1 AD_SCL2 AD_SDA2 AR_PANEL_TXD PANEL_MUTE AD_SCL0 AD_SDA0 AR_IIC_CONT VI2P21 VI2P10 PANEL_STBY/VCC_ON AR_PANEL_SDA AR_PANEL_SCL AR_PANEL_RXD AR_PANEL_SCL AR_PANEL_SDA AD_SCL0 AD_SDA0 AR_IIC_CONT AR_PANEL_RXD AR_PANEL_TXD SDA SCL AA_SBI0 AA_SBO0 AD_SDA1 AD_SCL1 VMUTE PANEL_STBY/VCC_ON TD1P TCLK1P TCLK1N AD_SDA2 AD_SDA0 AD_SCL3 TA1N STB5V AD_SCL1 TB1N STB5V TP4807 TP4806 AA_SBI0 TP4811 TP4800 TD1N TP4804 TP4801 AA_SBO0 AG_SRQ-GENX *R4858 0 *R4838 100 AD_SCL2 TP4803 VI2P10 TP4805 TP4802 AD_SDA1 FL4800 J0JAD0000028 1 2 3 4 TE1P *R4857 0 AD_SDA3 *R4856 0 STB3.3V TE1N *R4865 0 FL4802 J0JAD0000028 1 2 3 4 *R4860 0 DG34 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 TB1P TP4810 *R4801 0 *R4859 0 TP4809 SCL VI2P21 *R4863 0 DG5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 TC1P *R4861 0 MAIN3.3V DG33 1 2 3 4 5 6 7 8 9 10 11 AD_SCL0 *R4872 0 FL4801 J0JAD0000028 1 2 3 4 *R4862 0 TP4808 TA1P *R4864 0 TC1N SDA D_15V TP4812 TP4813 C4807 16V 0.1u MAIN3.3V R4819 22 R4820 22 IC4800 C1ZBZ0003577 1 SCL 2 GND 3 A1 4 VDD 5 A0 6 SDA *R4317 47k *R4319 47k *R4318 47k *R4320 47k *R4324 47k ZA0002 K4CD08000002 *ZA0004 K4AZ01D00004 *ZA0001 K4AZ01D00004 ZA0006 K4CD08000002 *ZA0005 K4AZ01D00004 ZA0007 K4CD08000002 *JS1100 GenX4 LVDS Out IIC CRNo.4800-4999 GenX4 CN to ExIIC to (6/9) to (1/9) Lite2 PANEL_STATUS PANEL_SOS PANEL_STATUS PANEL_SOS to (3/9) LITE2 ExBUS/Etc. (Common) SRQ GND STB5V GenX4_SCL GenX4_SDA LITE2_SCL3 LITE2_SDA3 LITE2_SCL1 LITE2_SDA1 LITE2_SCL2 LITE2_SDA2 (GenX4 Loarder/E2PROM) (GenX4 Loarder/E2PROM) (Lite2 E2PROM) (Lite2 E2PROM) (Device Control) (Device Control) (Device Control) (Device Control) Panel_SDA LITE2_SCL0 GND LITE2_SDA0 STB3.3V Panel_SCL (Panel Dpr.E2PROM) (Device Control) (Device Control) (Panel Dpr.E2PROM) Panel_TXD Panel_RXD IIC_CONT GND STB5V IIC_CONT/SRQ PANEL_SDA (GND) RXD PANEL_STBY_ON GND Rx2+ Rx0+ Rx0- (ALARM) (DISPEN) IIC_SCL2 TXD GND RxCLK+ RxCLK- Rx3- Rx3+ INEXCH Rx1+ Rx1- Rx2- IIC_CONT GND PANEL_SOS GND GND Rx4+ Rx4- (READY) IIC_SDA2 PANEL_STATUS PANEL_SCL GND GND PANEL_MUTE Rx1+ Rx3- Rx4+ Rx3+ RxCLK- Rx4- Rx2- Rx0- RxCLK+ Rx1- Rx0+ Rx2+ (VMUTE/DISPEN) (PANEL_STATUS) (PANEL_SOS) to (1/9) Lite2 LVDS OUT TEMP SENSOR TO D-BOARD (D5) FOR FACTORY USED FOR FACTORY USED SD Card CI Location of Earth Lug SUFFIX SUFFIX UPPER SUFFIX LOWER A(AA) JS1108 E to (5/9) to (3,6/9) to (2/9) to (3,6/9) to (3,5/9) to (3/9) to (3,8/9) 77 79 73 76 78 80 74 81 75 TH-50PV70C DG-Board (9 of 9) Schematic Diagram TH-50PV70C DG-Board (9 of 9) Schematic Diagram DG-BOARD (9/9) ! TXNDG1HMTC (TNPA4226AE) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 87 15.27.D 电路板方框图 TXD_PC RXD_PC PANEL_MAIN_ON ALARM READY RXD_PC IIC_INT TXD_PC RXD_PC SOS8_SS ALARM LED_R REMOCON IIC_CONT TXD_PC VDATA_DET VDATA_DET SOS6_SC1 SOS7_SC2 SOS7_SC2 SOS6_SC1 PCD3 SOS4_PS LED_R LED_G REMOCON LED_G SOS4-PS PCD1 PCD2 ODED1 ODED2 PCD4 CLRD2 READY PANEL_MAIN_ON SOS9_CONF FVSEL LVDSBIT FVSEL SOS9_CONF LVDSBIT OSD_YS OSD_VO OSD_HO OSD_CLKO OSD_B OSD_G OSD_R IIC_CONT INEXCH DRVCLKD0 DRVCLKD3 DRVCLKD1 DRVCLKD2 LED1 LED2 DRVCLKU1 DRVCLKU2 DRVCLKU3 DRVCLKU0 CLRD1 STB_SCL01 STB_SDA01 STB_SCL02 STB_SDA02 OSD_R OSD_G OSD_B OSD_CLKO OSD_YS INEXCH IIC_CONT DRVMUTE X9200 TP9101 TP9100 TP9010 R 10bit Scan Control DATA 16bit G 10bit B 10bit B 10bit R 10bit Sustain Control DATA 7bit G 10bit 14 40 PROCESSOR DRIVER TO C11 TO C21 30 50 49 33 29 TXD1 32 RXD1 IIC_CONT IIC_CONT LVDS INPUT DISCHARGE CONTROL IIC1_SDA 70 IIC2_SCL 69 67 71 Voltage 66 IIC2_SDA 43 2 IC9500 1 FPGA LSI_RST XRST SUB-FIELD PLASMA AI/SUB FIELD PROCESSOR/PEAKS DATA DRIVER IC9003 IC9303 MICOM XIN XOUT X9000 9.216MHz IIC1_SCL Video DATA 59bit(UA00-UC04,DA00-DC13,DB14,DC14) Low ROMDATA04-15, ROMADDRESS00-20 D32 D31 68 1 SOS7_SC2 93 91 90 SOS8_SS 36 READY ALARM 37 DRVMUTE IC9011 IIC_CLK1 IIC_DATA1 23 18 ALARM 19 21 DISPEN READY PANEL_STBY_ON 20 24 RXD TXD 6 D5 RA+ RCLK- 14 TO DG5 RC- 7 15 11 12 RD- 10 3 RB- 1 9 RE-(LSB) 2 RA- RCLK+ RD+ RB+ 4 RC+ STBY5V +5V D25 VDATA_DET 6 PANEL_MAIN_ON 1 +5V 5 2 +15V +15V 11 13 9 TO P25 RXD 13 14 8 6 TXD 7 SDA1 PDB0 4 PSTB 5 IIC_INT 11 PSLCT PBUSY 9 D6 SCL1 12 15 LED_R PDB1 17 16 LED_G st-r IC9900 CONVERTER XRST CTI/TINT WB-ADJ I/P COLOR FORMAT CONVERTER/RGB PROCESSOR CONVERTER CONTRAST FORMAT Differential Signaling RECEIVER FPGA SOS4-PS 92 PANEL_MAIN_ON 100 P_ON/OFF P3V_SCL02 P3V_SDA02 TO SC20 D20 2 12 14 19 SCAN DATA 15 16 1 P5V 48 46 5VDET 53 55 3 SOS6_SC1 SUSTAIN DATA 60 66 3 1 SS_SOS8 P3V_SCL1 P3V_SDA1 P15V P5V STB5V_M NRST DRV_RST DATA DRIVER 16/32M FLASH MEMORY RESET 4 5 VOUT VCC IC9502 RESET P3.3V SS PULSE SCAN OUT SC PULSE 6 UMH,UML,USH,USL,UEH,NUEL(URH) OC1,OC2,CLK,SIU,SID,SCSU,CPH1,CPH2,(LAT),CEL,(CBK)CSL,CSH,CML,CMH,SC_DRV_RST IC9901 DDR SDRAM(128M) Q9302 Q9301 CLK7 12 CLK5 CLK6 14 13 4 CLK9 XT 1 20 XTN IC9200 PCK OCK D P5V CONTROL STBY5V P15V 21 19 IC9007 NCS ASDIO DATA0 DCLK P5V 86 SOS3_3V SOS2_15V 85 87 SOS5_5V Q9054 Q9053 Q9052 Q9051 P5V P15V STB3.3V PROM(FPGA) CLOCK GENE. DIGITAL SIGNAL PROCESSOR PLASMA AI SUB-FIELD PROCESSOR FOR FACTORY USE P5V P5V DRVCLKD0-D3 30bit (DA00-DC09) 32bit ODED1,ODED2,CLRD1,CLRD2,PCD1,PCD2,PCD3,PCD4,LED1,LED2 (LSI58 COMM) TDO,TDI TMS,TCK JTAG DCK HD VD JTAG PD1-Mplus FPCLK FPDAT0 FPDAT1 SFVRST LATCH SFRST R0-R9 G0-G9 VD B0-B9 HD DCK PICTURE OUTPUT LVDS LVDS RECEIVER SYNC PROCESSING WB ADJ DISCHARGE CONTROL FLASH CONTROL FPGA CONTROL CONTROL RESET CONTROL FLASH CLKM PRCKI -IN 17 Q9044 IIC_CLK2 27 26 IIC_DATA2 IIC_CONT/C_SEL 31 IC9001 6 5 32k EEPROM SDA SCL 7 WP 35 EEP_WR_CTL P15V STB5V_M REMOCON 18 15V->2.5V OUT2 G2 13 S1 20 D1 OUT1 17 D2 21 12 D1 D2 VO 23 16 15 LX VB VCC VDD 19 G1 IC9806 S2 DC-DC CONVERTER 24 FB -INC 8 CTL CB P15V P2.5V Q9805 Q9806 7 NCS DATA ASDI DCLK 10 IIC_CONT 1 2 STBY3.3V STB3.3V SDA2 SCL2 VDATA_DET 84 NCS 26 27 ASDIO 28 DATA0 DCLK 29 1 VOUT RESET 3 4 VDD CE 6 STB5V Q9046 STB3.3V 72 RESET Q9050 XRST SOS9_CONF 10 DRVRST PLASMA AI NEW DATA ROMDATA00-03 DQ4-DQ15 A0-A19 DQ0-DQ3 ROMDATA00-03 ROMDATA04-07/ROMADDRESS00-20,-1,CE,OE,WE,BYTE 4bit SOS4_PS 12 XRST 54 LED_R REM_IN 53 34 LED_G Q9010 INEXCH RA ,RB ,RC ,RD ,RE ,RCLK RE+(LSB) STB_SCL02 STB_SDA02 STB_SDA02 STB_SCL02 OSD SC_SOS6_SC1 SOS7_SC2 P3.3V STB_SDA02 STB_SCL02 P3V_SCL1 P3V_SDA1 1 2 5 6 D9811 DCDC_ON Q9809 VB1_5V VCC OUT2-2 G2 25 20 S1 26 D1 -INC1 D1 D2 4 FB1 P15V P3.3V VO1 3 24 Q9807 D2 23 OUT1-1 G1 7 IC9805 S2 DC-DC CONVERTER 15V->1.2V,15V->3.3V LX1 OUT1-2 Q9808 D2 G1 S2 G2 S1 D1 D1 D2 P15V P1.2V DOUTDC21 DOUTDA12 PC1_C1 LE_C1 ODE_C1 PC2_C1 (DA14,DA15-DC15) 47 49 P5V 7 8 9 (DA14,DA15-DC15) FORMAT CONVERTER STB 3.3V/RESET P+3.3V SOS / LED BLINKING : 3TIMES P+5V SOS / LED BLINKING : 5TIMES P+15V SOS / LED BLINKING : 2TIMES P1.2V P2.5V P3.3V OSD_HD OSD_VD 36.6MHz 60MHz 20MHz 84MHz D9802 NCS_FPGA INEXCH P15V_MOTO D9804 STB3.3V_ON 6 SDA SCL 1 3 A1 A0 5 IC9002 DIGITAL TEMPERATURE SENSOR SCL SDA IIC P3V_SCL01 P3V_SDA01 P3V_SCL02 P3V_SDA02 11 13 12 8 10 9 2 1 6 3 4 5 IC9013 IIC SWITCH DRVCLKU0-U3 P2.5V P2.5V P1.2V P3.3V LVDSbit FVSEL K_DONE 5 LVDSBIT 30 FVSEL 23 OSD_CLK 16 OSD_YS 17 OSD_B OSD_G 18 19 OSD_R OSD_VD 20 OSD_HD 21 42 INEXCH 18 22 26 20 SC_DRV_RST +15V P15V_MOTO 30 29 +15V 28 +15V 3.3V->5V LEVEL CONVERTER IC9802,03 P5V P3.3V CLK1N_C1 CLK0P_C1 CLK2P_C1 CLK3N_C1 3 5 42 44 5 CLK3N_C2 CLK2P_C2 11 CLK0P_C2 12 CLK1N_C2 58 56 SC_DRV_RST 50 CLR_C1 14 VCC STB3.3V 16 CTL 11 FB2 VO2 12 8 -INC2 19 LX2 OUT2-1 18 30 OVP 27 CB1 CB2 17 VB 21 FSW 10 OSD_YSI OSD_BI OSD_GI OSD_RI OSD_CLKO (FREE_RUN) P3V_SCL02 P3V_SDA02 SCL SDA P3.3V Control DATA 10bit STB3.3V NCS_FPGA 52 DCDC_ON CE,OE,WE,BYTE DOUTDA0 DOUTDC11 14 54 ODE_C2 PC3_C2 CLR_C2 LE_C2 PC4_C2 (UA00-UC05,DA10-DC13,DB14,DC14) 4bit(DA14,DA15-DC15) 3bit(UA05-UC05) 3bit (UA05-UC15) TH-50PV70C D-Board Block Diagram TH-50PV70C D-Board Block Diagram �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 88 15.28.D 电路板 (1/6) 线路图 TERM SIDE + + G G G G G G + FP_CSL SC_CSL SC_DRV_RST SC_SID SC_SCSU SC_CLK FP_SCSU FP_CMH SC_CBK FP_CBK SC_CPH1 SC_OC2 SC_SIU FP_CSH FP_OC2 SC_CML SC_CSH SC_CMH SC_CSH FP_CML SC_CMH SC_CLK FP_SC_DRV_RST SC_SIU SC_OC2 FP_SID SC_CML SC_SID SC_CBK FP_CPH1 SC_CSL SC_DRV_RST SC_CPH1 FP_SIU SC_SCSU P_ON/OFF DCDC_ON PANEL_MAIN_ON SOS4_PS SC_OC1 SC_CPH2 SC_OC1 SC_CPH2 FP_OC1 FP_CPH2 VDATA_DET FP_CLK SC_LAT SC_CEL FP_LAT FP_CEL SC_LAT SC_CEL SOS6_SC1 SOS7_SC2 P15V D20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 C9883 100p 50V C9868 10u 25V R9893 56k C0DBAYY00273 IC9806 1 GND 2 REFIN 3 VREF 4 CS 5 COVP 6 CUVP 7 PGOOD 8 CTL 9 LSAT 10 ILIM 11 +INC 12 -INC 13 FSW 14 PGND 15 OUT-2 16 VB 17 VCC 18 VBIN 19 LX 20 OUT-1 21 CB 22 RT 23 VO 24 FB C9029 10V 10u C9837 10u 10V C9879 8200p 25V R9888 11k C9823 10u 25V R9889 18.2k C9886 0.1u 25V C9872 10u 25V C9862 0.1u 25V D9812 MA22D3900L D9814 B0JCGD000002 R9879 13k C9873 68u 4V C9865 68u 4V R9895 100k VB1_5V STB5V_M R9883 0 C9882 8200p 25V R9868 100k P5V R9869 10k P15V D25 1 2 3 4 5 6 7 8 9 10 11 12 13 PA9900 K5H5022A0023 R9115 100 C9884 1000p 50V P15V_MOTO R9896 18.2k D9808 B0JCCE000008 C9840 25V 0.01u P3.3V P5V VB1_5V R9886 56k P15V_MOTO C9877 68p 50V Q9809 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 D9816 MA22D3900L Q9808 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 D9813 B0JCGD000002 R9892 100k C9864 0.1u 25V R9890 47.5k L9800 G1C2R2Z00007 C0JBAZ002692 IC9803 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C9845 16V 0.1u Q9807 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 C9881 0.01u 25V C9869 10u 25V C9859 25V 0.01u C0DBAYY00274 IC9805 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP C9888 360p 50V R9847 EXB2HV222JV C9880 8200p 25V R9849 EXB2HV470JV C9832 10u 10V C9871 10u 25V C9841 16V 0.1u F1J1E104A148 FL9806 R9848 EXB2HV470JV P15V C9858 10u 25V C9887 0.1u 25V P1.2V R9872 0 L9801 G1C1R5Z00006 C9844 25V 0.01u P15V C9878 0.01u 25V R9873 0 R9850 47k R9894 11k F1J1E104A148 FL9805 C9861 0.1u 25V R9891 12.7k C9028 10V 10u C9860 4.7u 6.3V F1J1E104A148 FL9803 R9871 10k C9874 68p 50V L9802 G1C2R2Z00007 P5V R9897 47.5k C9866 68u 4V P15V VB1_5V R9880 0 R9881 0 R9846 EXB2HV222JV C9867 10u 25V PA9800 K5H4022A0023 C9885 1000p 50V D9815 B0JCGD000002 R9884 0 Q9806 B1ABCF000138 R9887 56k C9842 16V 0.1u D9807 B0JCCE000008 D9817 MA22D3900L C0JBAZ002692 IC9802 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc P2.5V R9882 0 C9870 10u 25V R9870 10k R9878 11k P3.3V C9863 4.7u 6.3V C9846 16V 0.1u P5V Q9805 B1ABCF000138 STBY5V GND GND +15V +15V GND GND +5V +5V GND VDATA_DET PANEL_MAIN_ON SOS4_PS P5V OC1 CPH2 GND GND GND GND GND GND GND CLK SIU SID SCSU OC2 CPH1 LAT SOS6_SC1 SOS7_SC2 CEL CBK SC_DRV_RST CSL CSH CML CMH NC +15V +15V +15V C 3 4 2 B A E 6 7 5 D 1 F 8 9 LEVEL CONVERTER LEVEL CONVERTER 15V 3.3V 15V 1.2V DC-DC CONVERTER 15V 5.0V DC-DC CONVERTER 15V 2.5V TO P-BOARD (P25) TO SC-BOARD (SC20) 1 2 TH-50PV70C D-Board (1 of 6) Schematic Diagram TH-50PV70C D-Board (1 of 6) Schematic Diagram ! D-BOARD (1/6) TZTNP01HMTC (TNPA4134AG) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 89 15.29.D 电路板 (2/6) 线路图 18 16 14 12 10 8 6 4 2 20 21 19 17 15 13 11 9 7 5 3 1 ASDIO DCLK EEP_WR_CTL STB_SCL02 STB_SDA02 RE+ RE- DATA0 NCS NRST DRVRST LVDSBIT P_ON/OFF PANEL_MAIN_ON LED_R LED_G TXD_PC ALARM READY REM_IN STB_SCL01 STB_SDA01 SOS7_SC2 SOS6_SC1 STB_SCL02 STB_SDA02 FVSEL DCLK DATA0 ASDIO XRST XRST IIC_CONT IIC_CONT STBY3.3V_ON DCDC_ON IIC_CONT STBY3.3V_ON RXD_PC AR_IIC_CONT AR_IIC_CONT AR_IIC_CONT AR_RXD_PC AR_TXD_PC AR_STB_SDA02 AR_STB_SCL02 PSTB PBUSY PDB0 PSLCT PDB1 LED_R LED_G REM_IN AR_RXD_PC RXD_PC TXD_PC STB_SCL02 AR_STB_SCL02 STB_SDA02 AR_STB_SDA02 P3V_SDA1 P3V_SCL1 ALARM READY INEXCH OSD_R OSD_G OSD_B OSD_YS OSD_CLKO OSD_HO OSD_VO AR_TXD_PC AR_IIC_CONT STB_SCL01 STB_SDA01 STB_SCL02 STB_SDA02 XRST P3V_SCL02 P3V_SDA02 DRVMUTE P3V_SDA02 VDATA_DET P3V_SCL1 P3V_SDA1 RD+ RD- RCLK+ RCLK- RC+ RC- RB+ RB- RA+ RA- P3V_SDA1 PANEL_STBY_ON P3V_SCL1 SOS8_SS SOS4_PS P3V_SCL02 AR_RXD_PC AR_TXD_PC AR_STB_SCL02 AR_STB_SDA02 C_SEL INEXCH NCS EEP_WR_CTL SOS9_CONF NCS_FPGA C9050 16V 0.1u STB3.3V R9225 2.7k R9062 100 R9144 100 STB5V_M R9099 10k IC9002 C1ZBZ0003577 1 SCL 2 GND 3 A1 4 VDD 5 A0 6 SDA R9104 10k C9048 16V 0.1u R9217 10k C9037 0.01u 25V R9165 2.2k C9058 10V 10u R9182 1k C9051 16V 0.1u MNZSFC9GPH2 IC9003 1 P41_TM1IO 2 P42_TM2IO 3 P43_TM3IO 4 P44_TM4IO_SYSCLK 5 P00 6 P01 7 P02 8 P03_SBT0B 9 P04_SBO0B 10 P51_IRQ2 11 P52_IRQ3 12 P53_IRQ4 13 P54_IRQ5 14 PA7_VCLKOUT 15 PA6_HOUT 16 PA5_YSOUT 17 PA4_B00 18 PA3_G00 19 PA2_R00 20 PA1_VSYNC_IRQ1 21 PA0_HSYNC 22 VSS 23 OSDXI 24 IVDD 25 VDD 26 P60_SBO0A 27 P61_SBT0A 28 P62_SBI0A 29 P05_IRQ6 30 P06_IRQ7 31 P07_IRQ8 32 P70_SDA0 33 P71_SCL0 34 P50_RMIN_IRQ0 35 P20 36 P21 37 P22 38 P23 39 IVDD 40 VSS 41 P10 42 P11 43 P12 44 P13 45 P14 46 P15 47 P16 48 P17 49 P72_SDA1 50 P73_SCL1 51 P65_SBT2 52 P66_SBI2 53 P30 54 P31 55 P32 56 P33 57 P34 58 P35 59 P36 60 P37 61 VPPEX_(N.C.) 62 IVDD 63 VDD 64 RONA 65 VSS 66 OSCXO 67 OSCXI 68 IVDD 69 P64_SBI1 70 P63_SBT1 71 NBOOT_(N.C.) 72 NRST 73 NTEST 74 SCLOCK_(UND) 75 SDATA_(UND) 76 ENTRG0_(UND) 77 ENTRG1_(UND) 78 TRCCLK_(UND) 79 TRCST_(UND) 80 TRCD0_(UND) 81 TRCD1_(UND) 82 TRCD2_(UND) 83 TRCD3_(UND) 84 P80_ADIN0 85 P81_ADIN1 86 P82_ADIN2 87 P83_ADIN3 88 IVDD 89 VSS 90 P84_ADIN4 91 P85_ADIN5 92 P86_ADIN6 93 P87_ADIN7 94 P90_ADIN8 95 P91_ADIN9 96 P92_ADIN10 97 P93_ADIN11 98 P74_SDA2 99 P75_SCL2 100 P40_TM0IO R9215 12k R9166 10k R9200 10 D9018 MAZ303300L R9187 5.6k STB3.3V R9158 10k C9843 16V 0.1u R9828 100k R9154 5.6k X9000 H2D100500004 STB3.3V R9160 0 C9033 16V 0.1u IC9007 TVRP211-6 1 nCS 2 DATA 3 VCC 4 GND 5 ASDI 6 DCLK 7 VCC 8 VCC STB5V TP9000 R9122 10k R9240 0 R9119 EXB38V470JV R9194 0 D9110 B0JCGD000002 C9838 16V 0.1u C9825 50V 100p R9221 10k R9206 1k R9134 33k C9056 16V 0.1u R9189 10k P3.3V C9057 16V 0.1u D9020 B0JCCE000008 Q9053 B1ABCF000138 C9045 16V 0.1u R9840 22 R9139 0 R9163 0 R9825 100 D9802 B0JCCE000008 R9107 3.3k R9123 10k C9039 10V 10u R9142 100 R9113 10 R9184 1k R9174 10k C9034 16V 0.1u R9190 10k R9065 100 R9237 10k STB3.3V R9105 10k Q9010 B1ABCF000138 Q9046 B1ABCF000138 R9164 2.2k C9036 10V 10u R9159 10k R9131 4.7k R9101 10k P5V R9845 10k R9188 5.6k R9102 10k C9063 16V 0.1u C9061 16V 0.1u STB3.3V R9156 10k D6 R9223 2.7k P3.3V R9218 10k R9186 22 Q9051 B1ABCF000138 C9040 16V 0.1u R9826 100 R9116 100 R9110 100 STB3.3V R9219 10k Q9054 B1ABCF000138 R9183 1k R9874 0 R9193 10k P3.3V STB3.3V R9177 22k R9181 1k R9133 4.7k R9854 100 R9063 100 R9150 22 IC9011 C0EBF0000431 1 RESET 2 Cd 3 VOUT 4 VDD 5 GND 6 CE R9839 EXB38V101JV P3.3V R9561 EXB38V222JV C9052 16V 0.1u R9841 0 C9046 16V 0.1u R9132 4.7k C9049 16V 0.1u R9140 0 R9129 68k R9161 0 P15V_MOTO STB3.3V D9017 MAZ303300L R9066 100 R9109 10k R9824 100 C9035 10V 10u R9220 10k R9170 39k R9185 22 R9167 100 R9196 10k C9053 16V 0.1u R9203 1k R9827 100 D5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Q9050 B1ABCF000138 R9108 10k P15V R9207 1k R9126 10k Q9052 B1ABCF000138 R9149 4.7k R9145 100 STB5V_M R9201 10 STB3.3V R9173 10k STB3.3V R9151 22 R9064 100 R9155 5.6k C9055 16V 0.1u IC9001 TVRP208-3 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 Vcc R9127 68k R9135 4.7k R9143 100 D9811 B0JCCE000008 D9019 MAZ303300L R9112 10k D9804 B0JCCE000008 C9062 4.7u 6.3V R9859 EXB38V101JV R9172 39k Q9044 B1ABCF000138 R9222 10k STB3.3V R9199 2.7k IC9013 C0JBAZ002060 1 1OE 2 1A 3 1B 4 2OE 5 2A 6 2B 7 GND 8 3B 9 3A 10 3OE 11 4B 12 4A 13 4OE 14 VCC R9205 4.7k R9120 100 R9121 100k R9067 100 STB3.3V R9171 39k R9141 100 C9047 16V 0.1u C9044 6.3V 4.7u RB- RB+ RC- RC+ RCLK- GND RCLK+ GND GND GND RE+(LSB) RD+ GND IIC_CLK2 IIC_CONT/C_SEL RE-(LSB) RXD TXD PANEL_STBY_ON ALARM IIC_DATA2 GND IIC_CLK1 IIC_DATA1 READY DISPEN RA- RA+ INEXCH STB3.3V ON/OFF GND P15V PBUSY STBY5V STBY3.3V RXD IIC_CONT LED_G GND SDA2 SCL2 PSTB PSLCT PDB1 SCL1 SDA1 LED_R PDB0 IIC_INT TXD REMOCON RD- GND 12 13 14 10 11 18 17 15 16 MICON PROM(FPGA) SWITCH EEPROM STB 3.3V RESET FOR FACTORY USE 1 2 11 12 13 14 15 TEMPERATURE DIGITAL SENSOR TO A-BOARD (A5) TH-50PV70C D-Board (2 of 6) Schematic Diagram TH-50PV70C D-Board (2 of 6) Schematic Diagram ! D-BOARD (2/6) TZTNP01HMTC (TNPA4134AG) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 90 15.30.D 电路板 (3/6) 线路图 G G SOS9_CONF AA_BYTE L8R_UA09 L8R_UB06 L8R_UC11 L8R_UA08 L8R_UA12 FVSEL FP_CSL FP_CSH L8R_DA15 FPDAT1 FP_SID L8R_UC13 L8R_DA14 FP_UMH L8R_UA06 FP_CPH1 DD_CLRD1 L8R_UA10 FP_SC_DRV_RST L8R_UC12 L8R_UA07 L8R_UB12 FP_UML NRST L8R_UC08 L8R_UA11 FP_CEL FP_NUEL L8R_UC05 L8R_UB11 FP_USL DD_ODED1 L8R_DB15 SFRST FPCLK FP_USH FP_SIU L8R_UB07 LVDSBIT L8R_UB08 FPDAT0 FP_OC1 DD_PCD2 L8R_UC07 L8R_UB09 SFVRST LATCH FP_OC2 DD_PCD1 L8R_UB10 L8R_UB05 L8R_DC15 FP_CML FP_SCSU FP_CMH L8R_UC06 L8R_UC09 DD_LED1 FP_CLK PSLCT PBUSY NCS DATA0 ENHMASK ASDIO INEXCH PSTB PDB1 PDB0 DRVRST L8_B9 L8_B7 L8_B6 L8_B5 L8_B4 L8_B3 L8_B2 L8_G7 L8_G6 L8_G5 L8_G4 L8_G3 L8_G2 L8_G1 L8_G0 L8_R7 L8_R6 L8_R5 L8_R4 L8_R3 L8_R2 L8_R1 L8_R0 DRVMUTE L8_DCK L8R_UC10 P3V_SCL02 P3V_SDA02 DD_ODED2 AA_XOE AA_XWE DCLK FP_LAT OSD_R OSD_G OSD_B OSD_YS L8_VIN L8_HIN OSD_VO OSD_HO OSD_CLKO NCS_FPGA L8_R8 L8_R9 L8_G8 L8_G9 L8_B0 L8_B1 L8_B8 TDO_TO_FPGA DD_PCD3 DD_PCD4 FP_UEH FP_URH FP_CBK FP_CPH2 RA+ RA- RB+ RB- RCLK+ RCLK- RD+ RD- RE+ RE- DD_LED2 DD_CLRD2 RC+ RC- DCLK DATA0 ASDIO TDI_TO_68 TRST TMS TCK AA_XCE IC9500 J13 MSEL0 IC9500 P4 IO IC9500 M8 GND IC9500 F9 IO IC9500 G7 IO IC9500 M2 IO R9545 300k IC9500 F15 IO P3.3V R9553 0 IC9500 T7 IO IC9500 K13 IO IC9500 J16 CLK7 IC9500 T3 IO IC9500 L13 CONF_DONE C9564 16V 0.1u IC9500 H8 GND IC9500 K12 MSEL1 C9516 16V0.1u IC9500 C6 IO IC9500 R10 IO IC9500 L9 IO IC9500 D15 IO IC9500 K3 VCCIO1 IC9500 B3 IO IC9500 K16 IO IC9500 K7 IO IC9500 J1 CLK3 IC9500 T9 IO IC9500 E13 IO R9523 10k IC9500 C7 VCCIO2 IC9500 J6 IO D9 1 2 3 4 5 6 7 R9541 10k IC9500 D16 IO IC9500 J11 IO IC9500 B5 IO R9549 10k C9528 16V 0.1u IC9500 R13 IO IC9500 E1 IO IC9500 F8 IO IC9500 P2 IO P3.3V IC9500 C3 IO IC9500 K8 VCCINT IC9500 K2 IO C9518 16V 0.1u IC9500 R5 IO IC9500 C12 IO IC9500 M13 nSTATUS R9548 10k R9402 0 R9544 10k IC9500 K6 IO R9565 EXB2HV470JV IC9500 R16 VCCIO3 IC9500 P14 IO IC9500 A2 VCCIO2 IC9500 C5 IO C9523 16V 0.1u IC9500 C15 IO R9564 EXB2HV470JV IC9500 D13 IO IC9500 N4 IO IC9500 G11 IO R9554 0 P3.3V C9560 16V 0.1u IC9500 A6 IO L9505 J0JHC0000078 C9527 16V 0.1u IC9500 H5 TDI IC9500 D4 IO IC9500 N12 IO IC9500 N5 GND_PLL1 IC9500 F3 IO IC9500 A13 IO IC9500 P13 IO IC9500 H3 GND IC9500 T13 IO IC9500 M11 IO R9526 0 IC9500 B14 IO IC9500 T6 IO IC9500 N2 IO IC9500 F13 IO IC9500 J15 CLK6 IC9500 F11 VCCD_PLL2 IC9500 D8 IO C9562 16V 0.1u IC9500 M1 IO IC9500 P5 IO IC9500 R8 IO IC9500 H15 CLK5 IC9500 R1 VCCIO1 IC9500 G14 VCCIO3 IC9500 B9 IO R9558 0 IC9500 L7 IO IC9500 H11 IO IC9500 P15 IO IC9500 P12 IO IC9500 A7 IO IC9500 K11 IO IC9500 H16 CLK4 IC9500 G4 IO C9563 16V 0.1u IC9500 B7 IO IC9500 D10 IO IC9500 E3 IO IC9500 B12 IO P2.5V_ASIC IC9500 M4 IO IC9500 H6 IO R9569 0 IC9500 A15 VCCIO2 IC9500 D6 IO IC9500 M10 VCCIO4 IC9500 L1 IO IC9500 G6 IO IC9500 A16 GND R9536 47 *R9540 10k IC9500 D11 IO IC9500 N14 IO C9517 16V 0.1u C9524 16V 0.1u IC9500 F4 IO IC9500 E10 VCCIO2 IC9500 B1 VCCIO1 IC9500 L4 IO R9550 10k IC9500 H9 GND IC9500 F7 IO IC9500 L14 IO IC9500 G3 VCCIO1 IC9500 K15 IO IC9500 C8 GND IC9500 T11 IO IC9500 N15 IO IC9500 F6 IO R9956 10k IC9500 N7 IO *R9538 10k IC9500 J3 GND IC9500 D9 IO IC9500 C2 IO IC9500 J12 IO IC9500 M7 VCCIO4 IC9500 B8 IO IC9500 C4 IO IC9500 R11 IO IC9500 H2 CLK0 IC9500 J4 IO IC9500 L11 IO C9559 16V 0.1u R9530 10k IC9500 E15 IO C9519 16V 0.1u IC9500 N11 IO R9566 EXB2HV470JV IC9500 R2 GND R9531 47 IC9500 J2 CLK2 P3.3V IC9500 J14 GND IC9500 A9 IO C9522 16V 0.1u IC9500 G13 IO IC9500 R4 IO IC9500 L2 IO IC9500 A4 IO IC9500 P10 VCCIO4 TP9014 R9567 10k IC9500 C1 IO IC9500 M6 GNDA_PLL1 IC9500 T10 IO IC9500 N10 IO IC9500 T1 GND IC9500 H10 VCCINT R9552 10k R9525 10k R9379 0 IC9500 A1 GND IC9500 H12 IO FL9504 F1J1E104A148 1 2 3 IC9500 H7 VCCINT IC9500 J7 VCCINT IC9500 M5 VCCA_PLL1 IC9500 L16 IO R9863 10k IC9500 E14 IO IC9500 G15 IO IC9500 B11 IO IC9500 F2 TCK R9070 47 IC9500 B13 IO IC9500 G8 GND R9510 0 IC9500 G1 TMS IC9500 K4 IO IC9500 E6 IO IC9500 M16 IO IC9500 K9 GND IC9500 T14 IO IC9500 P11 IO IC9500 E8 GND R9532 47 IC9500 P1 IO IC9500 H14 GND IC9500 A3 IO C9521 16V 0.1u P1.2V IC9500 F14 IO TP9011 P3.3V IC9500 T2 VCCIO4 R9562 47 IC9500 J9 GND R9543 10k IC9500 R9 IO IC9500 L5 GND_PLL1 IC9500 L6 VCCD_PLL1 IC9500 T8 IO IC9500 D12 GND_PLL2 IC9500 P6 IO IC9500 N3 IO IC9500 G12 IO IC9500 A14 IO IC9500 D2 IO IC9500 E5 IO IC9500 J5 nCONFIG IC9500 R6 IO IC9500 T16 GND IC9500 N6 IO IC9500 C11 IO P3.3V IC9500 J10 VCCINT IC9500 G9 VCCINT IC9500 K10 IO R9563 EXB2HV470JV C9526 10V 10u IC9500 C9 GND IC9500 L15 IO IC9500 N8 IO IC9500 N13 IO IC9500 R12 IO IC9500 G10 IO IC9500 M3 IO IC9500 C13 IO IC9500 P7 VCCIO4 R9535 47 IC9500 D5 IO IC9500 E12 VCCA_PLL2 L9502 J0JHC0000078 IC9500 B15 GND IC9500 M14 IO C9520 16V 0.1u IC9500 E16 IO IC9500 E9 GND R9534 EXB38V470JV TP9015 IC9500 L3 IO IC9500 A10 IO IC9500 D3 IO IC9500 F1 DATA0 IC9500 N1 IO IC9500 L12 IO IC9500 M12 IO IC9500 P9 GND IC9500 E11 GNDA_PLL2 IC9500 F12 GND_PLL2 IC9500 G2 TDO R9507 0 IC9500 K1 IO IC9500 D7 IO R9506 22 R9861 10k IC9500 L8 IO TP9013 IC9500 D1 IO IC9500 N9 IO IC9500 M15 IO IC9500 B4 IO IC9500 L10 IO IC9500 N16 IO IC9500 A8 IO R9862 10k IC9500 F10 IO IC9500 A12 IO IC9500 J8 GND IC9500 B16 VCCIO3 IC9500 A5 IO IC9500 E4 IO IC9500 H4 DCLK IC9500 R14 IO IC9500 B6 IO IC9500 E2 IO P3.3V IC9500 C14 IO IC9500 B10 IO C9531 10V 10u IC9500 H13 IO IC9500 R7 IO IC9500 F5 IO IC9500 T4 IO IC9500 C10 VCCIO2 IC9500 K14 VCCIO3 TP9012 IC9500 D14 IO IC9500 R15 GND R9961 10k IC9500 G5 nCE IC9500 P3 IO R9533 47 IC9500 T12 IO C9561 16V 0.1u IC9500 G16 IO IC9500 E7 VCCIO2 IC9500 T5 IO IC9500 R3 IO C9525 16V 0.1u IC9500 P8 GND TP9016 R9557 0 IC9500 A11 IO IC9500 T15 VCCIO4 IC9500 M9 GND IC9500 K5 IO IC9500 C16 IO L9501 J0JHC0000078 IC9500 B2 GND IC9500 F16 IO IC9500 P16 IO IC9500 H1 CLK1 L9504 J0JHC0000078 /ROMADRS[19] M_GOUT9 M_GOUT5 M_BOUT0 NRST CLK M_ROUT9 FPCLK PCD2 DRVRST M_ROUT7 CEL /ROMADRS[03] ODED1 FPDATA0 M_BOUT1 /ROMADRS[02] M_GOUT4 /ROMADRS[11] DRVMUTE /ROMADRS[07] /ROMADRS[04] SC_DRV_RST FPDATA1 OSD_CLKO CLRD1 /ROMADRS[18] /ROM_BYTE M_GOUT3 /ROMADRS[10] SFRST SCSU OSD_GI /ROMADRS[08] LATCH MODEL[1] /ROMDATA[06] M_ROUT3 CPH1 /ROMADRS[20] OC2 MODEL[0] CBK M_ROUT6 /ROMADRS[17] SDA LAT M_GOUT1 CLK_INPUT OSD OC1 SCL /ROMDATA[07] OTHER CSH NUEL RESET USL SIU Flash_Control M_ROUT2 LSI58 CLKM_IN M_ROUT1 M_ROUT5 SFVRST /ROMDATA[01] /ROMADRS[16] /ROMDATA[05] LVDS_INPUT /ROMADRS[13] /ROMDATA[00] /ROMADRS[05] M_GOUT6 DATA_DRIVER /ROMDATA[04] /ROM_OE PICTURE_OUTPUT /ROMDATA[03] /ROM_CE NC IIC /ROMDATA[02] /ROMADRS[00] CONTROL CML SS_PULSE UML CMH UMH SC_PULSE M_ROUT4 K_DONE GND LVDSbit M_ROUT8 M_ROUT0 M_GOUT2 FVSEL M_BOUT3 M_BOUT4 VCCINT M_GOUT8 VCCI /ROMADRS[01] M_BOUT5 JTAG OSD_YSI /ROMADRS[09] M_BOUT6 OSD_BI M_GOUT0 M_DCKO /ROMADRS[14] M_HDO M_BOUT7 OSD_RI /ROM_WE M_VDO M_BOUT8 M_GOUT7 M_BOUT9 USH SID UEL LED1 CSL PCD1 /ROMADRS[06] M_BOUT2 /ROMADRS[12] MASK p_db1 p_db0 p_stb p_slct p_busy TP_CLK FREE RUN CLK XRST /ROMADRS[-1] /ROMADRS[15] MODEL2 MODEL1 MODEL0 RSV0 L L L SD L L H 37HD L H L 42HD L H H 58HD H L L 50HD H L H RSV1 H H L 42WH H H H ODED2 OSD_HI MICON nCS_FPGA SOUT SIN SCLK TRST TDO GND TDI TMS TCK PCD3 PCD4 URH CPH2 RC-[inv->RC+] RB- RB+ RC+[inv->RC-] RCLK- RCLK+ RE+(LSB) RD+[inv->RD-] RA- RA+ RD-[inv->RD+] RE-(LSB) MODEL[2] LED2 CLRD2 TEST PRCKI P3.3V TRST 27 24 23 25 26 20 19 22 21 IC9500 FPGA C1ZBZ0003575 ! 11 12 14 15 13 21 22 23 24 25 26 TH-50PV70C D-Board (3 of 6) Schematic Diagram TH-50PV70C D-Board (3 of 6) Schematic Diagram D-BOARD (3/6) TZTNP01HMTC (TNPA4134AG) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 91 15.31.D 电路板 (4/6) 线路图 DD_PCD1 USH_C2 UML_C2 UEH_C2 USL_C2 DD_LED1 DD_PCD2 NUEL_C2 DD_ODED1 UMH_C2 L8R_UB10 L8R_UB08 L8R_UA08 L8R_UC07 L8R_UC09 L8R_UB05 L8R_UC10 L8R_UB11 L8R_UC12 L8R_UC13 L8R_UA13 L8R_DC15 L8R_UA14 L8R_UA12 L8R_UB13 L8R_UA06 L8R_UB15 L8R_UB06 L8R_UA07 AA_XCE L8R_UC06 L8R_UB07 L8R_UC14 L8R_UC15 L8R_DA14 L8R_UB12 L8R_UA15 L8R_UA09 L8R_UB14 L8R_UA10 L8R_UA05 L8R_UC08 L8R_UB09 L8R_UC11 L8R_UC05 L8R_DB15 L8R_DA15 AA_XWE AA_XOE AA_BYTE D-LED1 D-PCD1 D-PCD2 D-ODED1 L8_PCK L8_OCK DD_CLRD1 DD_LED2 D-CLRD1 D-LED2 DD_PCD3 DD_PCD4 D-PCD4 D-PCD3 FP_UMH FP_USL FP_USH FP_UML FP_UEH FP_URH FP_NUEL URH_C2 DD_ODED2 DD_CLRD2 D-CLRD2 D-ODED2 L8R_UA11 R9403 EXB2HV470JV X9200 H0J200500038 L9500 G1C150KA0038 R9384 4.7k R9516 10k R9518 0 C1ZBZ0003566 IC9200 X1 1 2 S0 3 S1 4 CLK9 5 VDD 6 GND 7 CLK1 8 GND 9 CLK2 10 GND 11 GND 12 CLK7 13 CLK6 14 CLK5 15 GND 16 VDD 17 S2 18 STBY 19 VDD 20 X2 C9500 16V 0.1u R9349 EXB2HV470JV C9469 16V 0.1u R9363 EXB2HV470JV R9513 47 C9508 16V 0.1u C9512 16V 0.1u C9510 50V 12p R9514 10k C9505 16V 0.1u R9503 47 TVRP218 IC9303 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 P3.3V R9394 0 R9501 10k R9400 4.7k C9509 50V 12p P3.3V C9511 10V 10u IC9502 C0EBE0000066 1 NC 2 SUB 3 GND 5 Vcc 4 Vout R9520 47 R9385 4.7k R9512 47 P3.3V CPG 36.6MHz 20SSMHz 60SSMHz 84MHz 39.5MHz 20MHz 28 33 36 32 31 30 29 34 35 CPG PD1M_ROM RESET H SD 37HD 42HD 50HD S2 S1 S0 L H L H H L H L H L H 25 26 22 23 24 21 31 32 33 34 35 36 TH-50PV70C D-Board (4 of 6) Schematic Diagram TH-50PV70C D-Board (4 of 6) Schematic Diagram ! D-BOARD (4/6) TZTNP01HMTC (TNPA4134AG) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 92 15.32.D 电路板 (5/6) 线路图 TERM SIDE G G G G G G G G G G G G G G TERM SIDE L8R_MONOUT1 L8_G0 L8_G1 L8_G2 L8_G3 L8_G4 L8_G5 L8_G6 L8_G7 L8_G8 L8_G9 L8_B0 L8_B1 L8_B2 L8_B3 L8_B4 L8_B5 L8_B6 L8_B7 L8_B8 L8_B9 L8_R0 L8_R1 L8_R2 L8_R3 L8_R4 L8_R5 L8_R6 L8_R7 L8_R8 L8_R9 L8R_UA15 L8R_UA09 L8R_UA11 L8R_UA12 L8R_UA10 L8R_UA08 L8R_UA14 L8R_UA13 L8R_UA05 L8R_UA06 L8R_UA07 L8R_DA03 L8R_DA11 L8R_DA15 L8R_DA12 L8R_DA06 L8R_DA02 L8R_DA13 L8R_DA07 L8R_DA04 L8R_DA08 L8R_DA09 L8R_DA00 L8R_DA01 L8R_DA14 L8R_DA05 L8R_DA10 L8R_UB12 L8R_UB14 L8R_UB15 L8R_UB10 L8R_UB07 L8R_UB13 L8R_UB11 L8R_UB05 L8R_UB09 L8R_UB08 L8R_UB06 L8R_DB02 L8R_DB12 L8R_DB04 L8R_DB07 AA_XCE L8R_DB08 L8R_DB01 L8R_DB15 L8R_DB13 L8R_DB09 L8R_DB05 L8R_DB10 L8R_DB00 L8R_DB14 L8R_DB03 L8R_DB06 L8R_DB11 L8R_UC14 L8R_DC01 L8R_UC05 L8R_UC08 L8R_UC06 L8R_UC11 L8R_DC05 L8R_DC00 L8R_UC12 L8R_DC09 L8R_UC15 L8R_UC07 L8R_DC06 L8R_DC10 L8R_UC09 L8R_UC10 L8R_UC13 L8R_DC11 L8R_DC13 L8R_DC03 L8R_DC07 L8R_DC14 L8R_DC12 L8R_DC02 L8R_DC04 L8R_DC08 L8R_DC15 L8R_MONOUT1 FPDAT1 FPCLK FPDAT0 SFRST SFVRST LATCH L8R_DRVCLKD0 L8R_DRVCLKD3 L8R_DRVCLKD2 L8R_DRVCLKD1 L8R_DB09 L8R_DC04 L8R_UB03 L8R_UA04 L8R_DA04 L8R_DA08 L8R_DB10 L8R_UC03 L8R_DC07 L8R_DC09 L8R_DA07 L8R_DA10 L8R_DA03 L8R_UA02 L8R_DB03 L8R_UA03 L8R_DA09 L8R_UC05 L8R_DC11 L8R_DA11 L8R_DC10 L8R_UB02 L8R_DB07 L8R_UB04 L8R_DB08 L8R_UA05 L8R_DB11 L8R_UC04 L8R_UC02 L8R_DC08 L8R_UB05 L8R_DC05 L8R_DB04 L8R_UA03 L8R_UA02 L8R_UA00 L8R_UA01 L8R_UA04 L8R_UB00 L8R_UB01 L8R_UB02 L8R_UB03 L8R_UB04 L8R_UC04 L8R_UC03 L8R_UC02 L8R_UC00 L8R_UC01 TCK TMS TDI_TO_68 TDO_TO_FPGA XRST P3V_SDA02 P3V_SCL02 L8R_DQ9 L8R_TEST0 L8R_OCKOUT L8R_MONOUT0 L8R_DQ23 L8R_A6 L8R_MONOUT2 L8R_A5 L8R_A4 L8R_MONOUT2 L8R_DQ13 L8R_DQ24 L8R_BA0 L8R_DQS2 L8R_MUTE L8R_MONOUT0 L8R_BA1 L8R_DQ4 L8R_OCKOUT L8R_TCKSEL2 L8R_DQ2 L8R_RAS L8R_DQ18 L8R_A1 L8R_A10 L8R_A0 L8R_DQ31 L8R_TCKSEL1 L8R_DQ8 L8R_A3 L8R_DQ14 L8R_DQS3 L8R_WE L8R_DQ3 L8R_DQ10 L8R_DQ26 L8R_DQ1 L8R_SDCKE L8R_DQ21 L8R_SDCLKO L8R_DQ12 L8R_DQ28 L8R_DQ30 L8R_DQ6 L8R_A9 L8R_DQS1 L8R_TCKSEL0 L8R_DQ22 L8R_TIIC L8R_A7 L8R_DQ17 L8R_NSDCLKO L8R_DQ5 L8R_MUTE L8R_DQ15 L8R_SDIV1 L8R_DQ11 L8R_DQ25 L8R_DQ29 L8R_TIIC L8R_A8 L8_OCK L8R_DQ27 L8R_A11 L8R_SDIV0 L8R_TEST1 L8_PCK L8R_CS L8R_TILD L8R_DQ20 L8R_DQS0 L8R_DQ19 L8R_TILD L8R_DQ16 L8R_A2 L8R_K_TEST L8R_TCKSEL2 L8R_CAS L8R_K_TEST L8R_DQ0 L8R_DQ7 L8R_TCKSEL1 L8R_TCKSEL0 L8R_TEST0 L8R_TEST1 L8R_DRVCLKU0 L8R_DRVCLKU1 L8R_DRVCLKU2 L8R_DRVCLKU3 L8R_DRVCLKD3 L8R_DRVCLKD2 L8R_DC03 L8R_DA02 L8R_DA06 L8R_DB06 L8R_DA05 L8R_DB05 L8R_DC06 L8R_DB02 L8R_DC01 L8R_DC02 L8R_DB01 L8R_DA01 L8R_DA00 L8R_DC00 L8R_DB00 L8R_DRVCLKD1 L8R_DRVCLKU1 L8R_DRVCLKU0 L8R_DRVCLKU3 L8R_DRVCLKU2 DDC15 DDB16 DDC16 DDA18 DDC19 DDB17 DDA21 DDB12 DDA17 DDB13 DDB21 DDB14 DDC12 DDC18 DDA13 DDB20 DDA19 DDC21 DDC20 DDB15 DDA14 DDB18 DDB19 DDC14 DDA12 DDA20 DDC17 DDA15 DDA16 DDC13 DDA20 DDB20 DDB21 DDC20 DDC21 DDA21 DDC19 DDA18 DDA19 DDB19 DDC18 DDB18 DDB17 DDA16 DDC16 DDC17 DDB16 DDA17 DDA15 DDC15 DDC14 DDA14 DDB14 DDB15 DDC13 DDA12 DDA13 DDC12 DDB13 DDB12 CLKD_0P CLKD_1N CLKD_2P CLKD_3N CLKD_2P CLKU_1N CLKD_0P CLKU_0P D-LED1 D-PCD1 D-PCD2 D-ODED1 D-LED1 D-ODED1 D-CLRD1 D-LED2 D-PCD4 D-PCD3 D-ODED2 L8_DCK CLKD_1N CLKD_3N L8R_SDIV1 L8R_SDIV0 C_5V_DET DRVRST D-PCD2 D-CLRD1 D-CLRD2 DDB08 DDC08 DDA10 DDC11 DDC10 DDB11 DDA11 DDB10 DDA06 DDB06 DDC06 DDA09 DDB09 DDC09 DDA08 DDC07 DDA00 DDB00 DDA01 DDC00 DDB01 DDA03 DDC01 DDB03 DDC02 DDC03 DDA05 DDA02 DDB05 DDB02 DDC05 DDA04 DDB04 DDC04 DDA07 DDB07 CLKU_3N CLKU_2P L8R_DC12 L8R_DB12 L8R_DA12 L8R_DC13 L8R_DB13 L8R_DA13 L8R_DC14 L8R_DB14 L8R_DA14 L8R_DC15 L8R_DB15 L8R_DA15 L8R_UC00 L8R_UB00 L8R_UA00 L8R_UC01 L8R_UB01 L8R_UA01 D-PCD1 DDC10 DDB07 DDC11 DDC05 CLKU_1N DDA07 DDA10 DDB05 DDB09 DDA03 DDA05 D-CLRD2 DDA09 DDC00 DDC04 DDC08 DDB00 DDB04 DDB08 DDA00 DDA04 DDA08 DDC01 DDC02 NUEL_C2 DDC09 DDB01 DDB02 UEH_C2 DDC06 DDA01 DDA02 USL_C2 D-PCD3 URH_C2 DDB06 DDC03 USH_C2 D-LED2 D-ODED2 DDB03 CLKU_0P UML_C2 D-PCD4 UMH_C2 DDB10 CLKU_3N DDA06 DDA11 CLKU_2P SOS8_SS DDC07 DDB11 TRST L8R_DRVCLKD0 L8_VIN L8_HIN ENHMASK IC9900 V5 VSS IC9900 V7 VDD25 IC9900 C14 DOUTUC11 IC9900 K12 VSS IC9900 L12 VSS IC9900 L13 VSS IC9900 C22 DOUTUB01 IC9900 C13 DOUTUB12 IC9900 W19 VSS R9398 22 IC9900 D18 DOUTUC05 IC9900 H22 DOUTDA14 C9923 0.1u 16V IC9900 C2 VDD12 IC9900 AA12 DQS3 IC9900 A19 DOUTUA05 IC9900 B15 DOUTUB10 IC9900 C15 DOUTUB09 IC9900 A22 VSS IC9900 M19 DOUTDC11 IC9900 F20 DOUTUB00 IC9900 J18 VDD33 IC9900 E8 VDD12 IC9900 AB22 VSS IC9900 M5 VDD33 TP9215 IC9900 AA5 CKE IC9900 AA1 VDD25 IC9900 C21 DOUTUA02 IC9900 D14 DOUTUC10 IC9900 H20 DRVCLKD1 C9902 0.1u 16V IC9900 AA14 DQ9 C9907 0.1u 16V P5V IC9900 P14 VSS IC9900 C20 VSS IC9900 AA20 DOUTDA01 R9556 10k IC9900 V11 VDD25 IC9900 W9 A10 L8R2.5V IC9900 L19 DOUTDB12 IC9900 H4 BI7 L8R3.3V IC9900 M4 PCK TP9228 IC9900 D5 GI2 TP9243 IC9900 L11 VSS IC9900 W21 VDD33 IC9900 E3 GI5 TP9200 IC9900 B1 VSS IC9900 J21 DOUTDB14 TP9227 R9362 22 C9958 0.1u 16V IC9900 D6 RI7 IC9900 F21 DRVCLKU2 TP9211 IC9900 M21 DOUTDB10 IC9900 U3 DQ6 C9910 0.1u 16V R9361 22 R9915 0 IC9900 C17 DOUTUA06 D31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 IC9900 C9 ROMCE TP9219 IC9900 B10 SFRST Q9302 B1ABCF000138 R9902 0 IC9900 K5 VDD33 IC9900 W22 DOUTDC02 C9906 0.1u 16V IC9900 N19 DOUTDB09 IC9900 E20 DOUTUC02 IC9900 H21 DOUTDB15 IC9900 J10 VSS P1.2V IC9900 L5 VDD33 IC9900 B16 DOUTUC09 IC9900 C7 RI0 IC9900 AB1 VSS TP9010 R9922 0 R9358 EXB2HV470JV IC9900 B9 FPCLK IC9900 A12 DOUTUB14 IC9900 A6 OCKOUT IC9900 U5 VDD25 IC9900 K10 VSS IC9900 V13 VDD12 IC9900 B18 DOUTUB06 TP9209 IC9900 B21 VSS IC9900 A5 RI2 IC9900 U4 DQ5 F1J1E104A148 FL9904 IC9900 K14 VSS IC9900 Y21 VDD33 IC9900 AA15 AVSS1 C9920 0.1u 16V IC9900 D21 DOUTUB02 IC9900 D17 DOUTUC06 IC9900 N5 VDD33 IC9900 AB7 A6 C9922 0.1u 16V IC9900 L22 DOUTDB11 C9949 16V 0.1u IC9900 A8 TCKSEL0 IC9900 W5 AVDD25_3 IC9900 B4 RI8 IC9900 F4 GI7 IC9900 R20 DOUTDB06 IC9900 M2 FULL0 IC9900 T18 VDD33 IC9900 Y13 DQ14 IC9900 D20 DOUTUB03 IC9900 J13 VSS IC9900 T4 DQ7 IC9900 M12 VSS IC9900 P12 VSS C9921 0.1u 16V P3.3V IC9900 H18 VDD33 IC9900 W2 DQ1 IC9900 M13 VSS IC9900 AA3 CK IC9900 Y5 NCAS IC9900 K22 DOUTDA12 IC9900 L21 DOUTDA11 L8R3.3V C9914 0.1u 16V TP9242 IC9900 AA19 DOUTDC01 IC9900 E4 VDD12 IC9900 B5 RI5 TP9220 IC9900 R4 DQ16 IC9900 T22 DOUTDC06 IC9900 C10 SFVRST IC9900 Y20 VSS IC9900 N11 VSS IC9900 G19 DOUTUC00 IC9900 E16 VDD12 IC9900 A7 K_TEST IC9900 V4 VDD25 IC9900 B14 DOUTUB11 IC9900 AB13 DQ10 IC9900 T3 AVDD25_1 IC9900 AB17 VSS IC9900 T20 DOUTDA04 IC9900 L3 ID1 IC9900 V12 VDD25 IC9900 AB3 NCK IC9900 F18 VSS IC9900 A9 FPDAT1 IC9900 E21 DOUTUA00 IC9900 C6 RI4 IC9900 C4 GI3 C9963 10V 10u C9925 0.1u 16V TP9216 R9348 EXB2HV220JV IC9900 D15 DOUTUB08 IC9900 R21 DOUTDA06 IC9900 Y1 DQ0 IC9900 P4 DQ18 C9908 0.1u 16V IC9900 AB4 BA0 IC9900 N22 DOUTDA09 R9918 0 TP9222 C9904 0.1u 16V L8R3.3V IC9900 AB11 DQ28 IC9900 Y12 AVSS_4 IC9900 M9 VSS TP9224 IC9900 V3 DQ4 R9919 1k IC9900 V6 AVSS_3 C9960 10V 10u R9383 1k C9919 0.1u 16V IC9900 Y3 VSS IC9900 G22 DRVCLKD0 IC9900 J2 MONOUT1 IC9900 F3 GI9 TP9231 IC9900 L18 VDD12 TP9232 IC9900 AB5 BA1 IC9900 P21 DOUTDC08 R9357 EXB2HV470JV IC9900 E10 VDD33 L8R1.2V IC9900 A15 DOUTUA10 IC9900 J9 VSS IC9900 P5 VDD33 TP9223 IC9900 AB6 A4 IC9900 D7 RI3 TP9213 IC9900 Y16 SDSEL IC9900 K2 VDI L8R3.3V L8R3.3V IC9900 E9 VDD33 IC9900 AB20 DOUTDB01 IC9900 W15 TCPOUT IC9900 M14 VSS IC9900 D1 GI6 IC9900 Y2 VDD25 IC9900 M18 VDD12 IC9900 AA7 A9 IC9900 A4 RI6 IC9900 W16 SDIV1 IC9900 N4 TMS IC9900 N12 VSS IC9900 F5 VDD12 IC9900 D10 FPDAT0 IC9900 G21 DRVCLKD2 IC9900 AB21 VSS IC9900 B6 RI1 IC9900 A16 DOUTUA09 IC9900 Y6 NRAS IC9900 AA4 VREF IC9900 R5 VDD25 IC9900 D16 DOUTUC07 IC9900 N18 VDD12 IC9900 D8 OCK FL9900 F1J1E104A148 1 2 3 TP9205 IC9900 AA22 VSS IC9900 AA17 SDIV0 IC9900 C18 DOUTUB05 IC9900 D4 VSS P2.5V IC9900 W4 VSS IC9900 D22 DOUTUC01 IC9900 R19 DOUTDA05 IC9900 D2 GI4 L8R2.5V C9468 25V 0.01u TP9221 IC9900 Y22 VDD33 IC9900 W17 VSS IC9900 V9 VSS C9924 0.1u 16V IC9900 L10 VSS R9350 22 IC9900 E6 VSS IC9900 P3 DQ19 R9370 10k IC9900 C11 DOUTUB15 R9936 1k IC9900 V21 DOUTDC03 IC9900 W6 NWE IC9900 E11 VDD33 TP9208 IC9900 J14 VSS IC9900 T1 DQ21 IC9900 K19 DOUTDC14 R9355 EXB2HV220JV IC9900 U21 DOUTDB04 IC9900 W7 NCS R9353 EXB2HV220JV IC9900 K21 DOUTDC13 IC9900 Y7 A0 IC9900 R22 DOUTDC07 IC9900 N14 VSS IC9900 B2 VSS IC9900 K3 SDA IC9900 W18 VSS IC9900 V2 DQ3 TP9225 C9903 0.1u 16V IC9900 A11 DOUTUA14 IC9900 V8 VDD25 IC9900 J20 DOUTDC15 IC9900 P20 DOUTDA07 IC9900 J12 VSS TP9244 HIN IC9900 E17 VSS R9351 22 IC9900 L14 VSS IC9900 G3 BI4 IC9900 K18 VDD33 R9356 EXB2HV220JV IC9900 E13 VDD33 R9399 22 TP9214 TP9212 IC9900 C1 VDD12 IC9900 U1 DQS2 R9917 0 IC9900 V22 DOUTDA03 Q9301 B1ABCF000138 IC9900 J1 MONOUT2 IC9900 N20 DOUTDC09 IC9900 A13 DOUTUC13 IC9900 D13 DOUTUC12 IC9900 V16 VDD33 TP9204 IC9900 Y10 DQ26 IC9900 W12 AVDD25_4 IC9900 D11 DOUTUA15 IC9900 G4 BI2 R9916 0 FL9300 F1J1E104A148 1 2 3 IC9900 W11 DQ25 IC9900 F19 DOUTUA01 IC9900 V10 VDD25 IC9900 B3 GI1 IC9900 AA9 A8 IC9900 N10 VSS IC9900 Y11 DQ24 IC9900 E7 VDD12 IC9900 AB9 VDD25 IC9900 P13 VSS C9913 0.1u 16V IC9900 V20 DOUTDB02 IC9900 E1 BI0 IC9900 B19 DOUTUA04 IC9900 A17 DOUTUA08 IC9900 B13 DOUTUA12 R9901 0 IC9900 A2 VSS IC9900 L1 SCL IC9900 R18 VDD33 IC9900 J22 DOUTDA13 IC9900 AB10 DQ29 IC9900 K1 DCK R9393 0 IC9900 A1 VSS IC9900 L9 VSS TP9226 IC9900 W20 VDD33 IC9900 E22 DRVCLKU3 IC9900 W8 A2 R9352 EXB2HV220JV TP9206 IC9900 E18 VSS IC9900 P1 TDO IC9900 A18 DOUTUB07 IC9900 C12 DOUTUB13 IC9900 E19 DOUTUC03 IC9900 V1 DQS0 IC9900 T19 DOUTDC04 IC9900 AB8 A7 IC9900 V17 VDD33 IC9900 AB14 DQ8 IC9900 G1 BI6 IC9900 C3 VSS IC9900 AA13 DQ11 IC9900 P19 DOUTDB07 IC9900 N1 TRST IC9900 Y4 AVDD25_2 C9964 10V 10u IC9900 D3 VDD12 IC9900 G18 VSS IC9900 A10 SFLATCH R9317 390 TP9207 IC9900 H3 BI8 IC9900 B17 DOUTUA07 IC9900 M20 DOUTDA10 IC9900 U2 AVSS_1 IC9900 W13 DQ15 IC9900 B11 DOUTUC15 IC9900 C16 DOUTUC08 IC9900 K11 VSS IC9900 C19 DOUTUB04 IC9900 C8 TEST0 IC9900 J4 ENHMASK C9950 16V 0.1u IC9900 G2 BI5 IC9900 U22 DOUTDC05 IC9900 L2 ID0 C9959 0.1u 16V IC9900 AB19 DOUTDA00 IC9900 H19 DRVCLKU0 C9911 0.1u 16V IC9900 M10 VSS TP9230 R9347 EXB2HV220JV IC9900 P2 XRST IC9900 E12 VDD33 IC9900 Y8 A1 R9397 22 TP9229 TP9240 IC9900 J11 VSS C9955 0.1u 16V TP9202 C9900 0.1u 16V IC9900 M1 TILD C9966 16V 0.1u R9937 1k IC9900 U18 VDD33 IC9900 AA10 DQ31 IC9900 R2 DQ23 IC9900 L20 DOUTDC12 FL9901 F1J1E104A148 1 2 3 IC9900 K13 VSS IC9900 P18 VDD33 IC9900 R1 DQ22 IC9900 M22 DOUTDC10 C9916 0.1u 16V C9905 0.1u 16V IC9900 T2 DQ20 F1J1E104A148 FL9903 IC9900 Y14 DQ12 IC9900 Y19 VSS IC9900 P10 VSS IC9900 H5 VDD12 IC9900 T5 AVSS_2 IC9900 AA6 A11 TP9233 IC9900 F1 BI3 IC9900 E2 GI8 IC9900 B7 TEST1 IC9900 G5 VDD12 IC9900 L4 TIIC IC9900 J5 VDD12 C9961 10V 10u IC9900 F22 DRVCLKD3 IC9900 AB18 DOUTDC00 IC9900 AA11 DQ30 TP9217 IC9900 B22 VSS IC9900 AB2 VSS IC9900 G20 DRVCLKU1 IC9900 W14 DQ13 TP9100 IC9900 N3 TDI R9391 100k IC9900 V18 VSS R9354 EXB2HV220JV R9380 56 IC9900 W10 DQ27 IC9900 U19 DOUTDA02 C9918 0.1u 16V IC9900 J3 MONOUT0 IC9900 H1 MUTE IC9900 N21 DOUTDA08 C9912 0.1u 16V C9909 0.1u 16V IC9900 AA16 AVSS2 IC9900 A3 GI0 IC9900 B12 DOUTUC14 IC9900 K9 VSS IC9900 N13 VSS R9555 0 TP9241 TP9210 VIN IC9900 D9 TCKSEL1 C9901 0.1u 16V L8R2.5V IC9900 Y9 A3 IC9900 V14 VDD12 R9359 EXB2HV470JV C9957 0.1u 16V IC9900 Y17 VSS TP9201 R9960 0 C9915 0.1u 16V IC9900 M11 VSS IC9900 U20 DOUTDB03 IC9900 AA2 VSS IC9900 R3 DQ17 IC9900 V19 VDD33 IC9900 E15 VDD12 R9928 0 C9956 0.1u 16V IC9900 K20 DOUTDB13 IC9900 Y18 VSS IC9900 F2 BI1 R9371 100k IC9900 D19 VSS IC9900 P9 VSS R9396 22 IC9900 N2 TCK IC9900 B8 TCKSEL2 IC9900 AB12 DQS1 IC9900 AA8 A5 IC9900 D12 DOUTUA13 IC9900 AA21 VSS C9917 0.1u 16V IC9900 C5 RI9 P3.3V L8R1.2V IC9900 E14 VDD33 FL9902 F1J1E104A148 1 2 3 IC9900 F6 VSS IC9900 B20 DOUTUA03 IC9900 W3 VDD25 L8R3.3V IC9900 A20 DOUTUC04 IC9900 AB15 AVDD33_1 IC9900 A21 VSS IC9900 K4 HDI IC9900 J19 DOUTDA15 IC9900 P11 VSS IC9900 P22 DOUTDB08 IC9900 M3 FULL1 IC9900 Y15 VSS C9962 10V 10u R9392 0 IC9900 W1 DQ2 TP9218 IC9900 N9 VSS TP9234 IC9900 V15 VDD12 IC9900 T21 DOUTDB05 IC9900 AB16 AVDD33_2 TP9203 IC9900 H2 BI9 IC9900 A14 DOUTUA11 IC9900 E5 VSS L8R2.5V IC9900 AA18 DOUTDB00 R9369 4.7k C9967 0.1u 16V TP9271 TP9301 TP9270 TP9284 TP9287 TP9282 TP9304 TP9260 TP9255 TP9267 TP9280 FL9301 F1J1E104A148 1 2 3 TP9276 TP9272 TP9283 TP9274 TP9277 TP9303 TP9101 TP9268 TP9235 TP9310 TP9289 TP9286 TP9269 TP9285 TP9281 TP9249 TP9258 TP9273 TP9288 TP9259 TP9305 TP9262 TP9278 TP9246 TP9248 TP9265 TP9251 TP9254 TP9302 TP9253 TP9266 TP9245 TP9264 TP9275 P5V TP9257 TP9306 TP9252 TP9279 TP9300 TP9250 TP9261 TP9256 D32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 TP9263 from FPGA1 IIC P5V DOUTDA[20] P5V P5V DOUTDB[20] PC1_C1 DOWN_LEFT GND ODE_C1 CLR_C1 DOUTDC[12] DOUTDC[20] DOUTDC[13] DOUTDA[12] DOUTDA[13] DOUTDB[12] DOUTDB[13] CLK1N_C1 CLK0P_C1 LE_C1 rromdata[14] rromadrs[00] rromdata[06] rromdata[09] rromdata[12] rromadrs[11] rromadrs[14] rromdata[15] rromadrs[01] rromadrs[04] rromadrs[17] rromadrs[20] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[16] rromdata[00] rromdata[01] rromdata[02] rromadrs[19] rromadrs[03] rromdata[03] rromdata[04] rromdata[07] rromdata[10] to DDR rromadrs[06] rromadrs[09] rromdata[13] rromadrs[12] rromdata[05] rromadrs[15] rromadrs[18] rromadrs[02] rromadrs[05] rromadrs[08] rromdata[08] rromdata[11] DOUTDC[21] DOUTDB[21] DOUTDA[21] DOUTDC[19] DOUTDA[19] DOUTDC[18] DOUTDB[19] DOUTDB[18] DOUTDA[18] DOUTDB[17] DOUTDC[16] DOUTDB[16] DOUTDA[17] DOUTDA[16] DOUTDC[17] DOUTDB[15] DOUTDC[14] DOUTDB[14] DOUTDA[15] DOUTDC[15] DOUTDA[14] GND GND GND GND GND GND GND GND NC CLK2P_C1 CLK3N_C1 SDIV1 SDIV0 x08 L L x09 L H x10 H L x11 H H GND GND C_5V_DET PC2_C1 42 45 37 41 39 40 44 38 43 DOUTDA[5] DOUTDB[3] DOUTDC[2] DOUTDC[9] UMH DOUTDB[4] DOUTDA[4] DOUTDB[1] UML DOUTDA[9] DOUTDC[1] DOUTDB[9] DOUTDC[8] DOUTDA[2] DOUTDC[5] DOUTDA[0] DOUTDA[8] DOUTDB[8] DOUTDC[11] DOUTDB[2] DOUTDA[11] DOUTDB[11] DOUTDC[10] DOUTDA[3] USH SOS8_SS DOUTDA[10] DOUTDB[10] DOUTDA[1] DOUTDC[0] USL UEH DOUTDC[3] DOUTDC[4] DOUTDB[0] DOUTDB[5] DOWN_RIGHT DOUTDB[6] DOUTDA[6] DOUTDC[6] DOUTDC[7] DOUTDB[7] DOUTDA[7] P5V P5V P5V UEL NC LE_C2 ODE_C2 PC3_C2 CLR_C2 CLK0P_C2 CLK1N_C2 GND GND GND CLK2P_C2 CLK3N_C2 GND GND GND GND GND GND GND URH GND PC4_C2 MN84524 PD1-Mplus IC9900 36 35 31 33 32 34 41 TO C1-BOARD (C11) TO C2-BOARD (C21) TH-50PV70C D-Board (5 of 6) Schematic Diagram TH-50PV70C D-Board (5 of 6) Schematic Diagram ! D-BOARD (5/6) TZTNP01HMTC (TNPA4134AG) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 93 15.33.D 电路板 (6/6) 线路图 L8DR_DQ28 L8R_A0 L8DR_DQS0 L8DR_DQ31 L8DR_NCS L8R_DQ15 L8DR_A5 L8DR_A1 L8DR_NCAS L8R_A3 L8DR_A11 L8R_DQ17 L8DR_DQ21 L8DR_DQ23 L8DR_DQ22 L8DR_DQ25 L8R_DQ16 L8DR_BA1 L8DR_A11 L8DR_DQ10 L8DR_DQ3 L8R_DQ14 L8R_DQ24 L8DR_BA0 L8DR_DQ1 L8DR_DQ9 L8R_DQ10 L8DR_A7 L8DR_DQ4 L8R_SDCLKO L8DR_DQ31 L8DR_A2 L8R_BA0 L8DR_NRAS L8DR_DQ11 L8R_DQ31 L8DR_DQ2 L8DR_DQ26 L8DR_DQ0 L8DR_BA1 L8DR_DQ5 L8DR_DQ11 L8R_DQ0 L8R_DQ26 L8R_A4 L8R_BA1 L8R_DQ19 L8R_DQ13 L8DR_A6 L8DR_DQS3 L8R_DQ9 L8DR_NCLK L8DR_DQ20 L8R_A2 L8DR_DQ18 L8DR_A2 L8DR_A3 L8DR_A9 L8R_DQ22 L8DR_NRAS L8R_A8 L8R_A10 L8R_A1 L8DR_A3 L8R_WE L8R_DQS2 L8DR_DQ7 L8DR_DQ24 L8R_SDCKE L8DR_DQ8 L8DR_DQ16 L8R_DQ3 L8R_DQ4 L8R_RAS L8DR_DQ20 L8DR_DQ6 L8R_DQ11 L8DR_DQ19 L8DR_DQ24 L8DR_A4 L8DR_A0 L8R_DQ1 L8DR_DQ25 L8DR_DQ12 L8R_A6 L8DR_A6 L8DR_DQ8 L8R_DQ23 L8DR_DQ12 L8DR_DQ2 L8R_DQ8 L8DR_DQ18 L8DR_DQ4 L8DR_DQ0 L8R_DQ21 L8DR_DQS2 L8DR_A1 L8DR_A0 L8DR_DQ22 L8R_A9 L8DR_DQ6 L8DR_DQ29 L8DR_DQS0 L8DR_DQS2 L8DR_DQ7 L8DR_DQ19 L8DR_DQ14 L8DR_DQ5 L8DR_DQ23 L8DR_DQ14 L8DR_CKE L8DR_DQ13 L8DR_DQS1 L8DR_DQ30 L8DR_A8 L8DR_NCS L8DR_DQ16 L8DR_DQ17 L8R_DQ7 L8DR_DQ28 L8DR_DQ17 L8DR_DQ15 L8DR_DQ15 0V L8R_DQ30 L8R_DQ27 L8DR_A5 L8DR_DQS1 L8R_DQS0 L8R_DQ6 L8DR_NCAS L8DR_DQ9 L8DR_DQS3 L8DR_NWE L8R_CS L8R_NSDCLKO L8R_A7 L8DR_DQ26 L8R_DQ29 L8DR_A9 L8DR_A8 L8DR_DQ21 L8R_DQ12 L8DR_BA0 L8R_DQ20 L8DR_DQ27 L8DR_A10 L8DR_A4 L8R_DQS1 L8R_CAS L8DR_NWE L8DR_DQ13 L8DR_CLK L8R_A5 L8R_DQ2 L8DR_DQ10 L8R_DQ28 L8DR_A7 L8DR_DQ30 L8R_DQ18 L8R_A11 L8DR_DQ1 L8DR_DQ29 L8DR_DQ27 L8DR_CKE L8DR_DQ3 L8R_DQ25 L8R_DQ5 L8DR_A10 L8DR_CLK L8DR_NCLK L8R_DQS3 IC9901 B10 DQ28 IC9901 M3 NC IC9901 G13 DQ12 IC9901 G8 VSS_Thermal IC9901 C12 VDDQ C9943 16V 0.1u L8R2.5V IC9901 K12 DQ9 IC9901 F2 DQ17 R9945 EXB38V470JV IC9901 L3 WE IC9901 B2 DQS0 R9944 EXB38V470JV IC9901 G11 VDDQ IC9901 N6 A1 IC9901 M12 CK C9934 16V 0.1u IC9901 C13 DQ27 IC9901 H8 VSS_Thermal IC9901 L4 VDD IC9901 N5 A0 IC9901 C3 VDDQ L8R2.5V IC9901 G6 VSS_Thermal IC9901 E10 VSS IC9901 D4 VSSQ IC9901 J8 VSS_Thermal R9941 47 C9932 16V 0.1u C9936 16V 0.1u R9955 47 IC9901 N8 A4 IC9901 E5 VSS IC9901 N9 A6 IC9901 J3 DQ20 IC9901 L7 VDD IC9901 J5 VSSQ IC9901 E4 VDD IC9901 J12 DQ11 IC9901 D2 DQ6 IC9901 N7 A3 IC9901 K4 VDDQ IC9901 H12 DM1 C9941 16V 0.1u IC9901 H5 VSSQ IC9901 D6 VSSQ IC9901 K10 VSSQ IC9901 K13 DQ8 C9928 16V 0.1u IC9901 G12 DQ13 IC9901 L11 VDD IC9901 D12 DQ26 IC9901 H3 DM2 IC9901 N13 VREF IC9901 B4 VSSQ IC9901 G4 VDDQ R9949 EXB38V470JV IC9901 K3 DQ23 IC9901 F6 VSS_Thermal IC9901 M10 RFU R9939 1k IC9901 N10 A7 IC9901 E7 VSS C9939 16V 0.1u IC9901 K5 VSSQ IC9901 M9 A5 IC9901 F11 VDDQ IC9901 G3 DQ18 IC9901 B9 DQ29 IC9901 B3 DM0 C9947 16V 0.1u C9951 16V 0.1u IC9901 L10 VSS IC9901 L6 A10 C9945 16V 0.1u R9950 EXB38V470JV IC9901 J11 VDDQ IC9901 M6 A2 IC9901 C7 VDDQ IC9901 M8 A9 IC9901 L9 RFU IC9901 C8 VDDQ R9906 EXB38V470JV C9942 16V 0.1u C9929 16V 0.1u IC9901 B12 DM3 IC9901 E6 VSSQ IC9901 E8 VSS C9938 16V 0.1u IC9901 J6 VSS_Thermal IC9901 C4 NC C9935 16V 0.1u IC9901 C11 NC IC9901 N4 BA0 IC9901 M13 NC IC9901 D10 VSSQ C9927 16V 0.1u IC9901 F5 VSSQ IC9901 H6 VSS_Thermal IC9901 H9 VSS_Thermal IC9901 J13 DQ10 IC9901 G5 VSSQ R9953 47 R9908 0 IC9901 B8 DQ31 IC9901 E13 DQ24 IC9901 K7 VSS IC9901 J7 VSS_Thermal IC9901 B5 DQ3 IC9901 G2 DQ19 C9930 16V 0.1u IC9901 L8 VDD R9954 47 IC9901 H7 VSS_Thermal R9948 EXB38V470JV IC9901 E9 VSSQ IC9901 M5 BA1 IC9901 C6 DQ1 IC9901 D13 DQ25 IC9901 F4 VDDQ IC9901 F12 DQ15 C9931 16V 0.1u IC9901 F8 VSS_Thermal IC9901 B13 DQS3 IC9901 D5 VSSQ R9943 EXB38V470JV L8R2.5V R9946 EXB38V470JV IC9901 M2 RAS IC9901 F7 VSS_Thermal IC9901 H4 NC IC9901 N12 CKE IC9901 H2 DQS2 IC9901 D3 DQ5 IC9901 B11 VSSQ IC9901 L12 NC IC9901 E3 VDDQ IC9901 D11 VSSQ IC9901 E12 VDDQ IC9901 J9 VSS_Thermal IC9901 L2 CAS R9911 0 IC9901 K6 VSS IC9901 H10 VSSQ R9938 1k ZA9001 K4CD01000011 IC9901 M11 CK IC9901 M7 A11 IC9901 G7 VSS_Thermal R9909 0 C9933 16V 0.1u IC9901 E11 VDD C9948 16V 0.1u R9942 47 R9951 EXB38V470JV IC9901 L5 VSS IC9901 B6 DQ2 IC9901 N11 A8/AP IC9901 K11 VDDQ IC9901 G10 VSSQ IC9901 D9 VSSQ IC9901 C5 VDDQ IC9901 K8 VSS R9910 0 R9905 33 IC9901 F10 VSSQ R9952 47 R9907 150 R9903 EXB2HV470JV R9940 33 C9946 16V 0.1u IC9901 C2 DQ4 IC9901 L13 NC C9937 16V 0.1u IC9901 N2 CS C9940 16V 0.1u R9904 47 IC9901 K2 DQ22 IC9901 E2 DQ7 IC9901 H11 NC IC9901 B7 DQ0 IC9901 J10 VSSQ IC9901 C10 VDDQ R9947 EXB38V470JV IC9901 G9 VSS_Thermal IC9901 D7 VDD C9944 16V 0.1u IC9901 H13 DQS1 IC9901 D8 VDD IC9901 J4 VDDQ IC9901 N3 NC IC9901 F13 DQ14 IC9901 F3 DQ16 IC9901 C9 DQ30 IC9901 M4 NC IC9901 K9 VSS IC9901 J2 DQ21 IC9901 F9 VSS_Thermal DDR-Terminate DDR-SDRAM 47 50 53 51 54 48 46 49 52 IC9901 C3ABQJ000055 DDR_SDRAM 41 TH-50PV70C D-Board (6 of 6) Schematic Diagram TH-50PV70C D-Board (6 of 6) Schematic Diagram ! D-BOARD (6/6) TZTNP01HMTC (TNPA4134AG) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 94 15.34.C1,C2 和 C3 电路板方框图 USL UEH UMH UML USH UEL CLKD_2P CLKD_3N CLKD_1N CLKD_0P LE PC1 PC2 ODE CLR PC3 SOS8_SS CLKU_0P CLKU_3N CLKU_2P CLKU_1N URH CLKU_3N CLKU_2P ODE_C3 PC4_C3 LE_C3 CLR_C3 LE PC4 ODE CLR UEL USH CLR UML ODE UMH UEH LE CLKU_3N CLKU_2P USL PC4 SOS8_SS URH UML USH USL UEL UMH UEH URH SOS8_SS CLKU_2P CLKU_3N PC4 LE CLR ODE +5V +5V +5V +5V +5V +5V +5V 5V_DET +5V +5V +5V +5V +5V +5V +5V +5V +5V 5V_DET +5V +5V +5V +5V +5V +5V +5V +5V +5V VCC 57 5 6bit A8-C9 6bit 63 7 68 6 A16-C17 8 C10 A10-C11 60 58 56 CB5 55 A18-C19 7 C22 55 9 1 CB2 CB3 59 6bit C21 A6-C7 IC7102 BUFFER A14-C15 CB7 4 Vda75V Vda75V C11 CB6 6bit DATA 36bit DA0-DC11 30bit DA12-DC21 DATA TO D31 CB4 A12-C13 9 CB8 8 10 49 - 16 DOUTDA12 DOUTDC21 ODE_C1 7 1 C20 20 14 3 1 LE_C1 14 12 PC1_C1 IC7101 VCC BUFFER IC7203 VCC BUFFER P5V P5V 5V_DET UML UEL USH USL SOS8_SS UMH 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit UEL USH USL UML UMH UEH SOS8_SS P5V Vda75V Vda75V DATA DRIVE LOWER RIGHT(FRONT VIEW) C1 C2 DATA DRIVE LOWER CENTER (FRONT VIEW) PANEL DATA DRIVER PANEL DATA DRIVER TO D32 TO C32 6bit 6bit 6bit 6 CLR_C1 53 51 CLK0P_C1 CLK1N_C1 CLK2P_C1 CLK3N_C1 20 1 5V DET 6bit 6bit P5V P5V 66 68 DOUTDC11 DOUTDA0 55 - 15 61 LE_C2 PC3_C2 VCC PC4_C2 60 ODE_C2 CLR_C2 62 64 63 IC7202 BUFFER UEH UEL USH USL UMH UML UEH 13 11 IC7201 VCC 57 BUFFER CLK0P_C2 CLK2P_C2 CLK1N_C2 CLK3N_C2 PC2 PC2 PC2 PC1 PC3 PC3 PC4 02P,12N 23P,33N 24P,34N 25P,35N 08P,18N 06P,16N 07P,17N CB1 PC1 6bit 6bit 6bit 01P,11N A20-C21 PC2_C1 66 P5V 61 URH 64 URH URH 3 49 27 1 8 24 23 22 53 25 CLKU_3N ODE_C3 CLR_C3 PC4_C3 LE_C3 CLKU_2P 51 DOUTDA0 DOUTDC5 5V_DET C32 20 9 42 DOUTDC5 11 68 13 ODE_C3 CLR_C3 PC4_C3 LE_C3 CLKU_2P 18 UEL 10 USH 3 P5V 8 URH 5 TO C22 12 5V_DET USL 6 UML 1 UMH UEH SOS8_SS 61 45 DOUTDA0 P5V 46 Vda75V 47 Vda75V 16 44 CLKU_3N 14 A4-C5 6bit 6bit 6bit 6bit 6bit 6bit 6bit A0-C1 PC4 10 CB9 PC4 PC4 21P,31N 29P,39N 20P,30N A2-C3 6bit 6bit PANEL DATA DRIVER UEL USH USL 3 8 TO SS33 UMH URH UEH 9 SOS8_SS TO SS35 C35 UML 5 7 1 P5V Vda75V Vda75V 2 1 2 4 6 C33 IC7304 BUFFER VCC IC7303 VCC BUFFER IC7302 BUFFER VCC CB 11 CB BUFFER VCC IC7301 DATA 18bit DA0-DC5 DA0-DC5 DATA 18bit C3 DATA DRIVE LOWER LEFT (FRONT VIEW) 58 TH-50PV70C C1, C2 and C3-Board Block Diagram TH-50PV70C C1, C2 and C3-Board Block Diagram �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 95 15.35.C1 电路板 (1/3) 线路图 TERM SIDE TERM SIDE CLR_C1 AA_DDA21 AA_DDC20 ODE_C1 AA_DDC21 AA_DDA20 ODE_C1 AA_DDC20 LE_C1 AA_DDB18 AA_DDC19 AA_DDC18 AA_DDA18 AA_DDA21 CLKD_11N AA_DDA19 LE_C1 AA_DDA19 AA_DDB20 LE_C1 ODE_C1 PC1_C1 AA_DDB19 CLR_C1 PC1_C1 AA_DDA20 CLR_C1 AA_DDB21 AA_DDA18 AA_DDB20 CLKD_02P CLR_C1 CLKD_12N AA_DDC21 LE_C1 PC1_C1 AA_DDB21 AA_DDB19 AA_DDC18 AA_DDC19 PC1_C1 AA_DDB18 ODE_C1 CLKD_01P R7172 EXB38V471JV C7137 16V 1u VDA_75V R7149 10 D7108 B0HCMM000014 R7154 10 C7128 100V 0.47u R7198 10 C7131 16V 1u ZA7104 K4AD01Z00001 ZA7101 K4AD01Z00001 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7170 EXB38V471JV C7138 16V 1u R7169 EXB38V471JV R7173 EXB38V471JV R7199 10 R7137 10 R7148 10 R7138 10 C7134 100V 0.47u ZA7105 K4AD01Z00001 R7147 10 C7130 16V 1u R7155 10 R7157 10 D7107 B0HCMM000014 C7135 100V 0.47u ZA7102 K4AD01Z00001 D7110 B0HCMM000014 ZA7103 K4AD01Z00001 C7127 100V 0.47u 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7146 10 R7179 4.7k R7156 10 C7140 50V 100p ZA7106 K4AD01Z00001 C1_5V VDA_75V C7133 50V 100p D7109 B0HCMM000014 C1_5V GND GND CLR VDD2 GND VDD2 A6 VDD2 NC A4 VDD2 A3 NC GND FDET DM A3 FDET VDD1 ODE FX A2 DM A3 GND LEN GND VDD2 A1 GND GND NC ODE A4 GND GND VDD2 A1 VDD1 CLR FS VDD2 LEN BLK NC LEN NC VDD2 A1 GND GND FX GND GND BLK FX GND ODE GND GND VDD2 VDD2 VDD1 LEN NC A6 NC NC A4 CB2 ODE VDD2 BLK A1 VDD2 FDET1 VDD2 CLR DM VDD2 GND NC VDD1 GND NC VDD2 NC VDD2 GND GND A2 VDD2 GND VDD2 GND VDD2 A5 VDD2 FS GND VDD1 A6 BLK GND FS VDD1 A2 NC A2 GND VDD1 GND VDD2 VDD1 FDET1 DM CLR NC A3 VDD2 GND A5 A4 NC FS FX GND GND A6 A5 GND GND VDD2 VDD2 A5 NC NC 3 4 A 6 5 2 7 B C D E 8 1 CB1 TO DRIVER PANEL DATA PANEL DATA DRIVER TO 1 2 3 4 5 6 TH-50PV70C C1-Board (1 of 3) Schematic Diagram TH-50PV70C C1-Board (1 of 3) Schematic Diagram C1-BOARD TNPA4169 (1/3) ! �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 96 15.36.C1 电路板 (2/3) 线路图 TERM SIDE TERM SIDE PC2_C1 AA_DDA17 AA_DDB15 CLKD_34N AA_DDA14 LE_C1 CLR_C1 AA_DDB14 CLR_C1 AA_DDB15 ODE_C1 AA_DDB14 CLR_C1 AA_DDA16 AA_DDC17 AA_DDC14 CLKD_24P CLKD_23P LE_C1 CLR_C1 AA_DDC14 LE_C1 AA_DDB17 LE_C1 AA_DDA17 AA_DDA16 AA_DDA14 ODE_C1 AA_DDC17 AA_DDC16 AA_DDA15 AA_DDC16 AA_DDB16 AA_DDA15 AA_DDC15 AA_DDC15 ODE_C1 PC2_C1 AA_DDB17 ODE_C1 PC2_C1 PC2_C1 CLKD_33N AA_DDB16 R7145 EXB38V471JV R7130 10 D7104 B0HCMM000014 D7105 B0HCMM000014 C7117 100V 0.47u C7125 16V 1u R7122 10 R7123 10 R7135 10 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7133 10 C7118 100V 0.47u R7136 10 C7121 100V 0.47u D7103 B0HCMM000014 C1_5V VDA_75V C7124 16V 1u C1_5V R7127 EXB38V471JV R7125 10 D7106 B0HCMM000014 R7132 10 C7106 50V 100p R7124 10 C7108 50V 100p R7171 EXB38V471JV C7111 16V 1u C7122 100V 0.47u CB4 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7166 EXB38V471JV VDA_75V R7111 10 R7112 10 C7110 16V 1u R7131 10 GND ODE CLR GND FDET VDD2 VDD2 VDD2 FDET1 CLR A3 BLK NC GND GND A3 VDD2 GND GND NC VDD2 VDD1 FDET CLR VDD1 GND GND VDD2 A3 LEN A6 DM ODE DM VDD2 VDD2 DM LEN VDD1 FX VDD2 VDD1 BLK GND VDD1 GND NC A3 FX GND NC GND GND A4 NC A5 GND GND VDD1 NC VDD2 VDD2 VDD1 NC A6 NC ODE FX GND VDD2 FX LEN A4 VDD2 VDD2 GND DM BLK FS GND A5 GND FDET1 LEN VDD2 A4 VDD2 A1 NC GND CLR A2 GND GND GND GND NC A2 ODE NC GND FS A1 A5 VDD2 NC NC FS GND CB4 VDD2 A2 A5 A1 A6 FS VDD2 GND A1 A4 GND NC NC VDD2 VDD2 VDD2 VDD2 GND VDD2 A2 NC GND BLK GND A6 GND VDD1 13 11 9 14 10 12 8 15 CB3 PANEL DATA DRIVER TO TO DRIVER PANEL DATA 3 2 5 6 1 4 11 12 13 14 15 16 TH-50PV70C C1-Board (2 of 3) Schematic Diagram TH-50PV70C C1-Board (2 of 3) Schematic Diagram C1-BOARD TNPA4169 (2/3) ! �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 97 15.37.C1 电路板 (3/3) 线路图 TERM SIDE TERM SIDE SIDE TERM G G LE_C1A AA_DDA13 AA_DDC12 AA_DDA12 PC1_C1A CLKD_2P CLKD_3N AA_DDC20 AA_DDC19 AA_DDA13 ODE_C1A AA_DDC12 AA_DDA13 AA_DDB19 CLR_C1A AA_DDB18 AA_DDB13 AA_DDA20 CLKD_0P AA_DDB20 AA_DDB12 AA_DDC17 AA_DDC13 AA_DDA14 ODE_C1 AA_DDA16 5V_DET AA_DDC16 AA_DDB12 CLKD_35N LE_C1 AA_DDA18 AA_DDB13 AA_DDB12 PC2_C1 AA_DDA21 CLR_C1 CLR_C1 AA_DDB15 AA_DDB21 AA_DDA12 AA_DDA17 CLKD_25P AA_DDB17 AA_DDC18 PC2_C1 AA_DDC21 AA_DDC12 AA_DDC15 AA_DDC13 LE_C1 AA_DDB16 AA_DDA12 AA_DDA19 CLKD_1N ODE_C1 LE_C1 AA_DDB14 AA_DDA15 AA_DDC13 ODE_C1 AA_DDB13 AA_DDC14 CLKD_24P CLR_C1 PC2_C1 PC2_C1A CLKD_2P CLKD_3N CLR_C1A ODE_C1A PC2_C1A PC1_C1 CLKD_02P CLKD_12N CLKD_01P CLKD_23P CLKD_34N CLKD_35N CLKD_33N CLKD_11N PC1_C1A LE_C1A CLKD_0P CLKD_1N CLKD_25P C11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 C0JBAZ002692 IC7102 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7107 50V 100p D7102 B0HCMM000014 C1_5V C7119 100V 0.47u R7110 EXB38V220JV C1_5V C7103 16V 0.1u R7106 10 C1_5V C7105 16V 0.1u 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7195 EXB38V470JV C10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7192 47 C0JBAZ002692 IC7101 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7117 10 R7105 10 VDA_75V R7193 0 C7115 16V 1u C1_5V J0HABH000013 FL7101 1 2 3 R7183 EXB38V220JV C7120 100V 0.47u R7167 EXB38V471JV D7101 B0HCMM000014 R7108 EXB38V102JV R7113 1k C7114 16V 1u R7118 10 R7116 10 VDA_75V R7115 10 R7191 47 R7103 EXB38V220JV C7141 16V 1u R7168 EXB38V471JV R7184 EXB38V102JV GND PC1_C1 GND FS GND DOUTDA[15] VDD2 FX GND GND DOUTDC[15] CLR_C1 GND GND GND DOUTDB[17] DOUTDB[21] P5V DM DOUTDB[18] DOUTDB[15] GND P5V NC DOUTDC[13] GND FDET CLK1N_C1 GND A5 ODE GND GND DOUTDA[12] VDD2 A6 NC FDET1 VDD2 DOUTDB[12] NC NC DOUTDB[20] A4 GND A3 NC GND DOUTDC[14] GND VDD2 NC Vda 75V GND GND VDD1 ODE GND DOUTDB[19] NC LEN A1 LEN GND Vda 75V 5V_DET VDD2 DOUTDC[17] Vda 75V FS VDD2 A2 VDD2 GND BLK DOUTDC[19] DOUTDA[17] NC A2 GND A4 NC DOUTDA[21] Vda 75V P5V GND NC NC DM GND NC GND NC A1 VDD1 VDD2 GND CLK0P_C1 Vda 75V CLR DOUTDA[20] GND DOUTDC[20] DOUTDA[16] VDD2 DOUTDB[14] Vda 75V GND GND DOUTDA[14] CLK3N_C1 NC VDD2 CLR DOUTDC[18] A5 DOUTDA[19] GND GND VDD1 DOUTDB[13] DOUTDA[13] DOUTDB[16] ODE_C1 A6 5V_DET NC VDD2 VDD1 DOUTDC[12] FX DOUTDC[16] BLK LE_C1 CLK2P_C1 GND DOUTDA[18] DOUTDC[21] VDD2 A3 Vda 75V GND PC2_C1 18 19 22 17 21 20 16 23 CB5 BUFFER BUFFER PANEL DATA DRIVER TO TO D-BOARD (D31) TO C2-BOARD (C20) 12 16 11 14 15 13 TH-50PV70C C1-Board (3 of 3) Schematic Diagram TH-50PV70C C1-Board (3 of 3) Schematic Diagram C1-BOARD TNPA4169 (3/3) ! �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 98 15.38.C2 电路板 (1/2) 线路图 TERM SIDE TERM SIDE ODE_C2 CLR_C2 PC3_C2 AA_DDA10 AA_DDC10 AA_DDC9 LE_C2 PC3_C2 ODE_C2 AA_DDB11 AA_DDA9 CLKU_07P AA_DDC11 AA_DDA8 AA_DDC8 LE_C2 AA_DDC9 LE_C2 AA_DDA10 PC3_C2 CLR_C2 AA_DDA11 AA_DDC11 AA_DDB10 AA_DDA11 AA_DDB9 AA_DDB11 AA_DDB10 ODE_C2 AA_DDC10 CLR_C2 AA_DDA9 CLR_C2 CLKU_06P AA_DDC8 ODE_C2 AA_DDB8 LE_C2 AA_DDB9 AA_DDA8 AA_DDB8 CLKU_16N CLKU_17N R7224 10 D7203 B0HCMM000014 CB7 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 VDA_75V D7206 B0HCMM000014 C7227 16V 1u C7224 100V 0.47u R7225 10 CB6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7227 10 D7205 B0HCMM000014 C2_5V R7240 EXB38V471JV R7241 EXB38V471JV R7221 EXB38V471JV D7204 B0HCMM000014 R7257 10 R7232 10 C7222 100V 0.47u C7220 16V 1u R7255 10 C7217 50V 100p R7219 EXB38V471JV R7231 10 C7223 100V 0.47u R7256 10 VDA_75V R7229 10 C7225 100V 0.47u R7254 10 R7226 10 C7219 16V 1u C7228 16V 1u R7230 10 C7216 50V 100p C2_5V NC A4 NC DM GND LEN VDD1 A2 BLK VDD1 VDD1 GND FX ODE NC GND A1 GND GND BLK GND GND CLR VDD1 GND FS LEN FX VDD2 GND A6 NC A5 A4 VDD2 GND LEN A3 NC VDD2 VDD2 BLK GND VDD2 A3 A6 A6 VDD2 FX FDET VDD2 GND VDD2 GND GND FDET1 GND FDET1 VDD2 GND NC GND VDD2 VDD2 GND A1 A2 A4 VDD1 VDD2 GND GND VDD2 GND BLK NC CB7 GND CLR DM DM NC FS NC VDD2 VDD2 VDD2 VDD2 A1 NC NC VDD1 GND VDD1 GND A6 A3 A2 VDD2 NC DM GND A2 CLR VDD2 VDD2 ODE NC GND NC VDD2 FS GND FX A5 A5 VDD2 NC VDD2 LEN NC GND A4 GND ODE A3 A1 GND VDD2 VDD1 CLR FS GND A5 GND FDET ODE A B C D E 3 4 6 5 2 7 8 1 CB6 PANEL DATA DRIVER TO PANEL DATA DRIVER TO 1 2 3 TH-50PV70C C2-Board (1 of 2) Schematic Diagram TH-50PV70C C2-Board (1 of 2) Schematic Diagram ! C2-BOARD TNPA4170 (1/2) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 99 15.39.C2 电路板 (2/2) 线路图 TERM SIDE G G TERM SIDE TERM SIDE G G SIDE TERM AA_DDA2 ODE_C3 AA_DDB9 AA_DDB7 AA_DDC11 AA_DDB7 AA_DDC6 UML_C2 AA_DDC4 AA_DDA6 AA_DDA6 URH_C2 LE_C3 LE_C2 CLKU_07P CLKU_3N AA_DDA4 AA_DDC3 UEL AA_DDB3 AA_DDA7 AA_DDC4 USL_C2 AA_DDC1 PC4_C3 UEL_C2 CLKU_08P AA_DDC6 LE_C2 AA_DDB3 AA_DDC1 AA_DDB0 CLR_C2 LE_C3 LE_C2 UML AA_DDB5 UEH_C2 AA_DDA3 UEL USL_C2 LE_C2A PC3_C2 UEH AA_DDB4 AA_DDA1 CLKU_0P AA_DDA1 AA_DDB7 USH_C2 AA_DDA2 CLKU_18N AA_DDB1 UMH ODE_C3 AA_DDC8 AA_DDC9 AA_DDB1 PC3_C2A SOS8_C2 AA_DDC6 AA_DDA6 AA_DDB11 UEH AA_DDA7 AA_DDC2 AA_DDB6 UMH_C2 AA_DDB2 UML AA_DDC7 AA_DDA7 USH PC4_C3 ODE_C2 AA_DDC0 CLKU_06P UML_C2 AA_DDC0 PC3_C2 CLKU_16N AA_DDA8 AA_DDC5 AA_DDA5 URH_C2 USH PC3_C2 UEL_C2 CLKU_08P AA_DDA5 AA_DDA0 USL URH CLKU_2P UEH_C2 CLKU_3N USL USH_C2 AA_DDB10 CLR_C3 AA_DDA9 AA_DDA0 UMH AA_DDC3 AA_DDC7 AA_DDC7 AA_DDC5 SOS8_C2 CLR_C3 AA_DDA11 AA_DDB5 CLKU_1N AA_DDC10 CLKU_0P AA_DDA3 AA_DDB6 CLKU_18N AA_DDB0 AA_DDC2 AA_DDA10 AA_DDA4 UMH_C2 CLKU_17N AA_DDB2 AA_DDB8 CLR_C2A ODE_C2A CLKU_2P AA_DDB4 URH PC4_C3A CLKU_1N PC4_C3A PC3_C2A ODE_C2A CLR_C2A LE_C2A 5V_DET AA_DDB6 CLR_C2 ODE_C2 CLR_C2 ODE_C2 R7210 EXB38V222JV C7206 16V 0.1u VDA_75V R7220 2.2k R7245 EXB38V470JV R7214 10 ZA7204 K4AD01Z00001 R7258 10 R7213 10 C7209 100V 0.47u R7211 10 C0JBAZ002692 IC7202 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc VDA_75V D7201 B0HCMM000014 C21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 C7203 16V 0.1u R7244 EXB38V222JV R7212 10 D7202 B0HCMM000014 C2_5V C0JBAZ002692 IC7203 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc VDA_75V R7247 EXB38V470JV C0JBAZ002692 IC7201 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc ZA7202 K4AD01Z00001 C7215 50V 100p J0HABH000013 FL7202 1 2 3 R7222 EXB38V471JV C7210 100V 0.47u R7250 EXB38V470JV C2_5V C7230 16V 1u C22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 C2_5V CB8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 J0HABH000013 FL7201 1 2 3 ZA7203 K4AD01Z00001 C20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7251 EXB38V222JV R7205 EXB38V220JV R7252 0 C7201 16V 1u R7259 10 C2_5V C2_5V C2_5V C7212 16V 1u R7223 EXB38V471JV R7202 EXB38V220JV ZA7201 K4AD01Z00001 R7246 EXB38V470JV C7231 16V 0.1u C7213 16V 1u R7243 EXB38V102JV DOUTDA[3] DOUTDC[4] CLR_C2 DOUTDC[11] GND DOUTDB[1] GND GND NC VDD2 GND UMH FDET1 DOUTDC[6] DOUTDA[8] GND AB_DDB1 GND DOUTDC[0] DOUTDA[7] DOUTDC[1] AB_DDC0 ODE AB_DDA1 DOUTDB[11] CLR BLK VDD1 GND DOUTDB[7] DOUTDC[8] DOUTDA[2] NC Vda 75V GND DOUTDB[8] DOUTDA[4] GND PC3_C2 VDD2 DOUTDA[0] FS GND A1 GND VDD1 NC NC A6 Vda 75V GND Vda 75V GND VDD2 P5V Vda 75V FX CLK2P_C2 GND UEH NC GND GND VDD2 NC DOUTDB[0] Vda 75V Vda 75V NC A1 NC AB_DDA3 Vda 75V NC VDD1 LEN 5V_DET AB_DDB2 BLK NC GND GND DOUTDC[9] A2 DOUTDA[5] GND ODE DOUTDC[2] AB_DDC1 SOS8_SS A6 GND GND ODE DOUTDA[11] A5 GND LE AB_DDC4 VDD2 USH CLR DM AB_DDB3 GND FDET P5V Vda 75V GND GND GND NC NC VDD2 AB_DDC5 NC UMH AB_DDC3 NC AB_DDA4 Vda 75V GND Vda 75V LE_C3 NC PC4_C3 GND NC A5 GND VDD2 AB_DDB0 DM CLKU_3N DOUTDB[4] GND DOUTDB[2] FX GND NC VDD2 GND GND DOUTDC[7] Vda 75V GND GND VDD1 NC SOS8_SS VDD2 UEL NC A4 P5V A4 GND FS UEH LEN GND 5V_DET GND UML GND A3 A3 NC GND P5V GND USL CLK1N_C2 DOUTDC[10] DOUTDA[1] USH DOUTDB[6] DOUTDA[10] DOUTDB[5] DOUTDA[9] Vda 75V AB_DDA5 USL DOUTDB[9] GND UEL DOUTDA[6] GND DOUTDC[3] URH GND NC DOUTDC[5] VDD2 DOUTDB[10] Vda 75V NC CLK0P_C2 AB_DDC2 UML Vda 75V GND AB_DDB5 GND P5V AB_DDA2 CLK3N_C2 P5V AB_DDB4 AB_DDA0 A2 VDD2 CLKU_C2 VDD2 ODE_C2 CLR DOUTDB[3] URH GND GND GND GND Vda 75V PC4_C3 13 11 9 14 10 12 8 15 CB8 BUFFER BUFFER BUFFER TO D-BOARD (D32) TO C1-BOARD (C10) TO C3-BOARD (C32) PANEL DATA DRIVER TO 1 3 2 TH-50PV70C C2-Board (2 of 2) Schematic Diagram TH-50PV70C C2-Board (2 of 2) Schematic Diagram ! C2-BOARD TNPA4170 (2/2) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 100 15.40.C3 电路板 (1/2) 线路图 G G TERM SIDE TERM SIDE URH_C3 UEH_C3 UEL_C3 AA_DDC2 CLR_C3A AA_DDA4 AA_DDC3 AA_DDC1 AA_DDB0 USL_C3 AA_DDA2 CLKU_2P AA_DDC4 AA_DDB2 ODE_C3A AA_DDA3 AA_DDC0 AA_DDA1 AA_DDC5 AA_DDB1 AA_DDB4 UMH_C3 UML_C3 AA_DDA5 URH_C3 CLKU_3N UEH_C3 USH_C3 AA_DDA0 SOS8_C3 AA_DDB5 AA_DDB3 CLKU_39N CLKU_30N CLKU_21P UEL_C3 USL_C3 UML_C3 AB_DDB5 AB_DDA5 AB_DDC5 AB_DDA4 AB_DDC4 AB_DDB4 LE_C3 CLKU_29P CLKU_20P CLKU_3N CLKU_2P CLR_C3A ODE_C3A AA_DDB5 AA_DDA5 AA_DDA4 AA_DDB4 AA_DDC4 PC4_C3A LE_C3A PC4_C3A CLR_C3 ODE_C3 AA_DDC5 SOS8_C3 LE_C3A USH_C3 PC4_C3 CLKU_31N PC4_C3 AB_DDA5 CLKU_29P PC4_C3 ODE_C3 CLR_C3 CLR_C3 AB_DDC5 ODE_C3 AB_DDA4 AB_DDC4 AB_DDB5 AB_DDB4 AB_DDB4 AB_DDC4 AB_DDA5 AB_DDA4 LE_C3 CLKU_39N AB_DDB5 AB_DDC5 LE_C3 AA_DDC3 AA_DDA2 AA_DDB3 AA_DDA3 AB_DDA3 AB_DDC2 AB_DDB2 AB_DDA2 AB_DDC3 AA_DDB2 AA_DDC2 AB_DDB3 AB_DDA0 AB_DDC1 AB_DDB1 AB_DDC0 AB_DDB0 AB_DDA1 AA_DDC0 AA_DDB0 AA_DDA0 AA_DDC1 AA_DDB1 AA_DDA1 UMH_C3 C0JBAZ002692 IC7301 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C3_5V C35 1 2 3 4 R7334 EXB38V102JV C0JBAZ002692 IC7302 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc J0HABH000013 FL7301 1 2 3 C3_5V R7344 EXB38V470JV C3_5V R7343 EXB38V471JV C7330 16V 0.1u R7346 EXB38V470JV R7341 1k ZA7302 K4AD01Z00001 R7366 0 R7364 47 VDA_75V C7326 16V 1u C7301 100V 0.47u C3_5V VDA_75V ZA7301 K4AD01Z00001 R7365 47 C7328 16V 0.1u ZA7304 K4AD01Z00001 R7345 EXB38V471JV R7361 220k C33 1 2 3 4 5 6 7 8 9 10 R7330 EXB38V220JV C32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 ZA7303 K4AD01Z00001 R7327 EXB38V220JV C7305 100V 0.47u C3_5V C7309 16V 1u R7303 10 R7301 10 R7304 10 D7301 B0HCMM000014 D7302 B0HCMM000014 C7306 100V 0.47u C7308 16V 1u C7311 50V 100p R7325 EXB38V102JV VDA_75V R7335 EXB38V102JV R7368 10 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7302 10 R7367 10 C0JBAZ002692 IC7303 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7332 16V 0.1u R7349 EXB38V471JV R7348 EXB38V470JV C3_5V R7350 EXB38V470JV R7347 EXB38V471JV R7353 EXB38V471JV R7352 EXB38V470JV C7334 16V 0.1u C3_5V R7354 EXB38V470JV R7351 EXB38V471JV C0JBAZ002692 IC7304 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc NC GND Vda 75V Vda 75V P5V UEL UEH USL USH UML UMH SOS8_SS URH GND USH AB_DDC5 NC UMH AB_DDC1 SOS8_SS AB_DDC3 AB_DDA4 GND AB_DDA5 LE_C3 PC4_C3 URH GND NC AB_DDB0 AB_DDC2 CLKU_3N Vda 75V Vda 75V Vda 75V GND AB_DDB5 GND P5V GND AB_DDA2 GND Vda 75V AB_DDB4 AB_DDA0 CLKU_C2 ODE_C2 NC Vda 75V UEL GND GND NC AB_DDC4 P5V CLR_C2 GND AB_DDB3 GND GND NC GND Vda 75V AB_DDB1 UEH P5V GND AB_DDA3 Vda 75V 5V_DET AB_DDC0 UML GND Vda 75V AB_DDA1 AB_DDB2 GND NC GND GND USL NC B 3 4 E A 6 5 2 7 8 D 1 C VDD1 VDD1 VDD2 NC GND BLK GND LEN BLK CB9 FS VDD2 GND NC CLR A3 VDD2 GND FX VDD2 GND GND NC A5 GND FDET A1 GND A4 VDD1 FDET1 GND VDD1 ODE CLR VDD2 A6 VDD2 GND A2 GND NC FX VDD2 VDD2 VDD2 DM A5 A2 A1 ODE GND NC DM NC VDD2 GND VDD2 FS NC GND NC A4 GND GND VDD2 A3 A6 LEN BUFFER BUFFER BUFFER BUFFER TO C2-BOARD (C22) PANEL DATA DRIVER TO TO SS-BOARD (SS33) TO SS-BOARD (SS35) 1 2 3 TH-50PV70C C3-Board (1 of 2) Schematic Diagram TH-50PV70C C3-Board (1 of 2) Schematic Diagram C3-BOARD TNPA4171 (1/2) ! �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 101 15.41.C3 电路板 (2/2) 线路图 TERM SIDE TERM SIDE LE_C3 PC4_C3 AB_DDA1 AB_DDB1 AB_DDC1 AB_DDA0 AB_DDB0 AB_DDC0 PC4_C3 LE_C3 AB_DDC3 AB_DDB3 AB_DDA3 PC4_C3 LE_C3 AB_DDC2 AB_DDB2 AB_DDA2 PC4_C3 CLKU_21P ODE_C3 CLR_C3 ODE_C3 ODE_C3 CLR_C3 CLR_C3 ODE_C3 CLKU_20P AB_DDA2 AB_DDB2 AB_DDC2 AB_DDA3 AB_DDB3 AB_DDC3 AB_DDA0 AB_DDB0 AB_DDC0 AB_DDA1 AB_DDB1 AB_DDC1 CLR_C3 LE_C3 CLKU_31N CLKU_30N R7309 10 C7320 100V 0.47u R7320 10 C7313 100V 0.47u VDA_75V C7315 16V 1u R7312 10 R7371 10 R7317 10 C7319 100V 0.47u R7370 10 C7312 100V 0.47u C7322 16V 1u 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C3_5V C7316 16V 1u R7372 10 R7342 4.7k R7337 EXB38V102JV D7305 B0HCMM000014 R7336 EXB38V102JV C7318 50V 100p R7339 EXB38V102JV R7338 EXB38V102JV R7369 10 D7304 B0HCMM000014 D7303 B0HCMM000014 R7311 10 C3_5V R7310 10 R7319 10 C7323 16V 1u D7306 B0HCMM000014 R7318 10 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7325 50V 100p VDA_75V A5 VDD1 VDD1 VDD2 VDD2 GND A2 GND NC FX VDD2 A1 GND NC DM VDD2 GND FS NC NC GND NC A1 VDD2 CLR FX GND ODE A4 VDD1 VDD1 VDD2 VDD2 BLK GND LEN BLK NC A3 VDD2 GND VDD2 VDD2 A5 FDET1 GND FS GND CLR A6 GND GND A3 A6 LEN VDD2 GND GND GND DM A2 ODE VDD2 NC A4 NC GND FDET A5 VDD1 VDD1 VDD2 VDD2 GND A2 GND NC FX VDD2 A1 GND NC DM VDD2 GND FS NC NC GND NC A1 VDD2 CLR FX GND ODE A4 VDD1 VDD1 VDD2 VDD2 BLK GND LEN BLK NC A3 VDD2 GND VDD2 VDD2 A5 FDET1 GND FS GND CLR A6 GND GND A3 A6 LEN VDD2 GND GND GND DM A2 ODE VDD2 NC A4 NC GND FDET CB10 13 11 12 8 15 9 14 10 CB11 TO DRIVER PANEL DATA TO PANEL DATA DRIVER 1 2 3 TH-50PV70C C3-Board (2 of 2) Schematic Diagram TH-50PV70C C3-Board (2 of 2) Schematic Diagram C3-BOARD TNPA4171 (2/2) ! �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 102 15.42.SC，SU 和 SD 电路板方框图 REF K A REF K A REF K A REF K A REF K A CLK FSIU SCSU OC2 OC1D OC2 CEL CLK CEL FSID CPH1 SCSU SID OC2D OC1 OC2U SIU OC1 SIU FCLKD OC1U SID CPH2 FCLKU CPH2 CPH1 CBK D6806 D6804 D6583 T6602 VSET +16V_F VSUS D6862 D6860 15V_F VSUS D6872 VSUS D6585 D6825 D6859 D6721 +5V G D S G D S G D S G D S +5V +15V +5V D6480 +5V +5V_F 15V +16V_F D6841 D2826 IC6802 R6800 +15V CPH1 IC6801 VR6600 1 2 3 D6742 D6478 D6619 G D S G D S G D S +15V D6690 VR6602 1 2 3 D6871 VAD D6791 +16V_F VAD CPH1 +5V_F +15V VSET D6466 G D S +15V D6499 VR6604 1 2 3 VBK D6833 VSCN D6838 VSCN VAD VR6603 1 2 3 VF_GND VF_GND +5V_F SO B36 13 CML Q6402-Q6404 OC1 CLK 96 BUFFER A1 IC6951 VCC GND A11 Q6531,Q6532 BUFFER VCC A32 HO 64bit A33 CLK SI 5 SD4 LO C76 OC2 1 OC1 Vf SCAN 9 VDD Q6646-Q6649,Q6651 OC1 32 IC6521 64 7 IC6901 OC2U VDD IC6904 VDDH ENERGY RECOVERY AVR C1 8 VDD 64bit VCC 32 OC2 BUFFER CLK VSUS AVR 3 GND IC6955 A33 S/P HIN 64bit +5V 3 SU SCAN OUT (UPPER) GND A71 GND VDD GND VDDH OC2 CLK Vsus IC6903 LO GND FET SI +5V GND TO P2 A7 OC1 SU3 2 Vad( 105V) VDD CLK A32 OC2D OC1D C80 A7 8 B33 CMH IC6725 8 PC6702 Vfo A40 CLK OC2 COUPLER 64bit SID VDD 26 C11 VSETSOS DET PHOTO SD3 64 16 GND CSL (LOWER) 19 IC6953 45 C9 B5 A31 VDD FCLKD 2 SO C74 VSCN Gen. C50 TPSC1 SIGNAL WAVE Q6551,Q6552 CLK VDDH B1 HIN SI IC6841 Vf IC6561,6562 CLK Q6842 OC2 SO S/P VDD A8 SC2 A30 Vf 96 VDDH 32 64bit SI Vfo B34 GND (Vad 105V) B1 (UPPER) 64 B30 PC6861 Vscn OC2 A6 VCOM S/P VDDH SC A40 VDD OC2 SC41 B8 7 PC6480 SO DRIVER 20 COUPLER 64bit 96 IC6954 PC6703 PHOTO OC2 CLK SU41 Vscn A1 CMH 64 SI Vf IC6752 A72 CML 64bit VSET SEPARATE CSH S/P OC1 Q6521,Q6522 L6401 CLK CPH1 25 SO CSL Q6643,Q6645 23 Vf+5V L6404 Vf+5V IN A6 OC1 Vf SCAN PANEL A8 GND OC1 L6414 OC1 A34 SC SCAN DRIVE R6833 B40 LINE VDD 64bit L6411 SU4 A80 VCC R6834 1 OC1U A36 Vfo GND A35 Vf+5V LINE R6835 SO FSID GND C10 Vf+5V Q6671-Q6673 B11 IC6724 R6836 IC6905 S/P IC6501 46 15 COMPARATOR 3 B9 VSET COM VDD VDDH SD42 OC2 32 ELECTRODES IC6871 IC6906 TPVSCN IC6671 IC6721 DRIVER OC2U 9 TPVAD A5 5 LINE OC2 384LINE SIU 29 1 VDD SO IC6956 VCC 7 VSET VDDH 8 A47 5 C73 B6 Vscn SI VDDH 3 Q6422-Q6424 B32 A73 PANEL Vscn SI LINE SD2 +5V OC1 VDDH IC6581 VAD SLOPE Vf CSH 64 A8 A48 VAD CONST Q6501,Q6502 B40 SI C48 ELECTRODES SU2 LINE SD1 OC2D LED(G) CLK 32 96 32 S/P A1 Vf A5 SI GND FSIU GND SOS7_SC2 CEL 384LINE VDDH SID DRIVER SIU OC1 C8 FET SI A41 46 OC1 C49 64bit +5V 64bit IC6902 96 A33 OC1 VCC FCLKD PHOTO BUFFER GND 64 VSET2 VAD A30 COUPLER OC1D VDDH S/P B8 Vsus Gen. B31 Vscn(VAD+145V) OC2 A40 PC6801 Q6581 30 SC IC6771 IC6861 S/P 64bit DRIVER SC 1 32 SU1 COMPA- FET LINE Vfo LO 2 B35 FET Q6452,Q6453 IC6722 +5V 64 Vf FCLKU 1 9 20 IC6773 SO S/P 1 HIN FSID COUPLER IC6774 LIN PC6701 3 PHOTO Vad 105V Q6441-Q6443 COUPLER LINE +5V SU OC1 SI HO CLK RATOR C41 96 VSCN S/P PHOTO PC6871 32 RATOR FSIU COUPLER 3 Vf+5V COMPA- SC42 OC2 B33 45 B7 16V_F VCC 28 PC6705 96 6 PHOTO LIN 9 64 9 B10 A31 OC1U +5V_F PHOTO A70 5 LO 64bit COUPLER 1 A9 SO COUPLER VCC SOS6_SC1 7 BUFFER PHOTO AVR 8 SI LINE IC6952 SD GND A10 3 C51 A45 VDDH S/P OC2 CLK 1 CLK A46 Vf+5V 96 TO D20 VCC S/P SO OC1 FCLKU C75 OC2 TPSOS6 TPSOS7 VCC FET HO GND VAD SEPARATE IN DRIVER IC6772 LO D6904 D6903 IC6471 RATOR COMPA- SD SCAN OUT (LOWER) SCSU 22 CPH2 5 FET OUTPUT FET OUTPUT FET OUTPUT FET OUTPUT 2 +15V 1 +15V +15V 3 1 5 IC6471 AND GATE VCC IN_B 2 4 OUT_Y IN_A 2G LIN DC/DC CONV. COM VIN VOUT IC6791 GND TPVSUS +5V_F DET Q6824 SC30 FOR FACTORY 10 USE 7 8 6 3 4 1 Vscn DET OPERATES AT 160V OR MORE AND 121V OR LESS. VCC2 OUTPUT FET D S G S G OUTPUT FET D Q6602 Q6763 HO Q6601 Q6621,Q6623 VAD GENE IN_A IN_B OUT_Y IN_A IN_B OUT_Y AND AND Q6742,Q6743 VSET2 GENE 6 3 5 1 SC31 FOR FACTORY USE C40 C34 C33 C35 C36 Q6781,Q6782 FET OUTPUT FET OUTPUT FET OUTPUT 4 1 7 9 VCC Z/C VIN D 2 F/B 3 5 GND S IC6803 POWER OSC R6861 R6863 R6862 Vad DET OPERATES AT 76VOR MORE AND 121V OR LESS Q6690 R6696 R6697 TPSC1 Q6662 Q6665 Q6841 Q6791 Vf+5V Vf+5V TPVSET2 (+12V) Vscn VAD SOS7_SC +15V 11 SC_DRV_RST COM SC_DRV_RST TP15V Vf Vfo Vscn Q6679,Q6680 D6953 D6954 CBK 12 VCC2 Q6822 (+330V) IC6821 TPVSET VSET Gen. Q6821 190V R6465 R6468 R6467 R6466 FET OUTPUT Q6561,Q6562 FET HIN LIN DRIVER HO VCC IC6481 VBK Gen. Q6571,Q6573 VBK IC6881 Q6883 Q6881 Q6882 VCC + - COMPARATOR IC6500 Q6500 TPVBK 155V Q6804 R6837 CPH1 Q6805 Q6806 Q6661 Q6803 F16V DET OPERATES AT 21V OR MORE (VAD+145V) Q6603 FLOATING GND COLD ENERGY RECOVERY SOS DET LED BLINKING : 6 TIMES SC FLOATING PART SOS DET LED BLINKING : 7 TIMES FLOATING GND COLD TH-50PV70C SC, SU and SD-Board Block Diagram TH-50PV70C SC, SU and SD-Board Block Diagram �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 103 15.43.SC 电路板 (1/3) 线路图 + + + REF K A + + + TOP + + + + AA_CSH AA_CMH AA_CML AA_OC1 AA_SIU AA_SID AA_CMH AA_CPH2 AA_DRV_RST AA_CPH1 AA_CML CBK AA_CSH AA_CBK AA_OC2 AA_CSL AA_CSL CMH CPH2 AA_LAT CML CEL AA_SCSU CSH AA_CLK AA_CEL CSL CPH1 OC2 SC_DRV_RST 192V VSUS C6525 25V 4.7u L6881 G0ZZ00002183 R6565 EXB38V472JV R6522 100 D6521 B0ECKP000047 TP20 VR6604 30k 1 2 3 C6491 630V 1000p R6499 10k TP16 R6558 0 SOS6_SC1 R6560 0 R6586 1.5k Q6500 2SD0601A0L 15V R6880 10k C6424 630V 2200p D6585 MA2J11100L TP13 TP23 TP11 R6562 EXB38V470JV Q6442 2PG0010000RP R6446 82 R6896 47k R6516 47k R6467 82k R6509 1 L6483 J0JKB0000049 L6485 J0JKB0000049 SOS7_SC2 Q6452 2PG0030000RP C6521 25V 1u C6533 250V 4u 15V D6887 B0ECKP000047 D6583 LNJ301MPUJA C6531 250V 4u C6403 630V 2200p D6442 B0ECKP000047 C0JBAZ000005 IC6561 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C0ZBZ0000895 IC6501 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC Q6404 2PG0010000RP TP069 C6412 220V 200u R6553 47k TP17 C6524 25V 4.7u L6412 G0C1R6KA0119 VSUS D6452 B0ECKP000047 D6523 B0ECKP000047 C6404 630V 2200p Q6532 B1ADRD000001 L6466 J0JKB0000049 C6561 10V 100u TP066 R6587 4.7k R6442 7.5 C0ZBZ0001324 IC6521 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC Q6522 B1ADPF000004 5V C6532 250V 4u C6500 25V 1u IC6500 C0BBBA000022 1 2 3 4 5 6 7 8 L6465 J0JKB0000049 C6527 25V 4.7u C6564 16V 1u C6415 220V 200u IC6581 C0BBBA000022 1 2 3 4 5 6 7 8 D6472 B0ECKP000047 TP5 D6500 MAZ80510LL C6534 250V 4u R6889 22k C6581 25V 1u TP15 TP067 Q6424 2PG0030000RP L6413 G0C1R6KA0119 R6564 EXB38V470JV L6486 J0JKB0000049 L6602 G0ZZ00002183 15V R6532 47k R6402 7.5 D6463 B0HBSN000008 R6894 10k IC6881 C0DBEMC00043 L6405 G0C1R6KA0119 R6494 100k Q6883 2SC3063000RL C6471 630V 1000p R6898 2.49k R6580 2.2k R6584 8.2k C6562 16V 1u Q6422 2PG0030000RP C6413 220V 200u TP27 D6471 B0HBSN000008 D6466 MA2J11100L R6588 10k L6592 G0ZZ00002183 C6566 50V 0.01u R6579 4.7k R6517 47k R6585 1.8k D6491 B0HBSP000019 R6551 10 Q6551 B1ABRD000003 L6591 G0ZZ00002183 Q6881 2SD1263AP0LB R6465 27k R6501 100 TP8 R6403 7.5 15V VSUS 15V C6402 630V 2200p D6483 MA3DF30000LZ Q6882 2SB0940AP0LB L6403 G0C1R6KA0119 TP24 TP38 R6891 47k C6504 25V 4.7u R6441 7.5 R6506 10 D6421 MA3DF40000LZ L6401 G0C1R6KA0119 L6463 J0JKB0000049 VBK Q6531 B1ABRD000003 Q6521 B1ABPF000014 C0JBAZ000005 IC6562 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC TP2 15V C6505 25V 4.7u R6533 47k R6443 7.5 15V C6593 50V 1000p R6592 4.7k D6422 MA3DF40000LZ Q6501 B1ABPF000014 D6886 B0ECKP000047 D6401 B0HBSN000008 D6503 B0ECKP000047 75 R6523 Q6402 2PG0010000RP D6462 B0HBSN000008 R6503 10 TP22 R6567 EXB38V472JV L6411 G0C1R6KA0119 R6423 7.5 SC2 1 3 TP19 R6424 7.5 D6522 B0ECKP000047 L6601 G0ZZ00002183 R6591 EXB38V472JV R6502 100 D6402 B0HBSN000008 Q6443 2PG0010000RP TP18 R6495 100k R6566 EXB38V472JV R6466 56k R6552 47k C6416 220V 200u L6402 G0C1R6KA0119 C6411 220V 200u Q6502 B1ADPF000004 R6881 8.2 Q6552 B1ADRD000001 SC20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R6893 47k D6482 MA3DF30000LZ R6468 82k R6498 1.2k 75 R6504 C6884 50V 0.01u C6502 25V 4.7u TP14 R6505 1 Q6581 2SD0601A0L R6531 10 C6563 10V 100u C6431 250V 4u C6421 630V 2200p R6892 47k R6511 47k Q6441 2PG0010000RP C6423 630V 2200p R6512 47k C6592 25V 220u TP37 R6496 10k SOS6_SC1 R6422 7.5 5V R6590 220 C6565 50V 0.01u TP9 R6521 100 Q6423 2PG0030000RP TP10 R6884 0 TP7 R6899 0 C6522 25V 4.7u TP39 TP12 TP36 C6582 16V 1u R6561 EXB38V470JV R6508 1 R6497 2.2k MAIN_STOP D6584 MAZ80510LL R6890 4.7k TP51 TP52 R6507 1 C6414 220V 200u R6883 0 D6883 MA2J11100L R6453 7.5 C6422 630V 2200p C6594 25V 220u TP21 TP6 C6499 16V 1u R6563 EXB38V470JV D6501 RF101L4STE25 L6415 G0C1R6KA0119 TP068 R6582 39k TP065 R6895 47k R6493 2.2k Q6453 2PG0030000RP TP1 TP26 SOS6_SC1 TP25 Q6403 2PG0010000RP R6568 EXB38V472JV L6464 J0JKB0000049 R6404 7.5 R6583 39k R6897 47k R6452 7.5 L6484 J0JKB0000049 TP4 D6499 MA2J11100L 5V * * Vsus GND TPVSUS TP15V + - + - TPVBK +15V P5V +15V GND SOS7_SC2 CSH TPSOS7 LAT CML OC2 +15V CPH1 CMH SCSU OC1 GND TPSOS6 NC CSL GND GND SID SIU CLK GND CPH2 GND SOS6_SC1 GND CEL CBK + - + - SC_DRV_RST VBK 155V(150-175V) 9 C 6 A 8 7 1 F 5 E B 2 3 4 D BUFFER BUFFER COMPARATOR FET DRIVER ENERGY RECOVERY COMPARATOR Vsus Gen. FET DRIVER TO D-BOARD (D20) TO P-BOARD (P2) VBK DET OPERATES AT 185V OR MORE AND 105V OR LESS VBK Gen. OPERATES AT 118V OR MORE AND 57V OR LESS 1 2 3 190 2V (GREEN LED) TH-50PV70C SC-Board (1 of 3) Schematic Diagram TH-50PV70C SC-Board (1 of 3) Schematic Diagram SC-BOARD TNPA4186 (1/3) ! �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 104 15.44.SC 电路板 (2/3) 线路图 + + + + TPVSET TPSC1 INIT-F INIT-F - - + + 11 15 14 12 17 13 16 18 10 BUFFER BUFFER VBK Gen. FET DRIVER COMPARATOR OPERATES AT 160V OR MORE AND 121V OR LESS. Vscn DET +5V(SC1) +5V(SC2) VSET SEPARATE FET DRIVER FET DRIVER VAD SEPARATE VAD CONT FET DRIVER 2 1 3 11 12 13 14 15 16 AB_FOC2U AB_FSIU AB_FSID AB_FOC1U AB_FCLKU AB_FCLKD AB_FOC2D AA_SIU AA_SID AA_SCSU AA_CEL AB_FOC1D AA_OC2 AA_CPH2 AA_OC1 AA_CLK AA_CPH1 AA_DRV_RST AA_CML AA_CBK R6863 56k 15V_F D6726 MAZ80560HL C6773 25V 4.7u R6658 100 R6623 220 Q6648 2SK399500L C0ZBZ0001324 IC6752 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC SOS7_SC2 R6696 2.2 R6868 22k C6621 1kV 3900p Q6621 2SK399500L R6488 10 D6631 B0JCME000037 Q6679 B1ABPF000014 VSET2 R6662 3k C6695 50V 1000p R6473 560 D6480 MA2J11100L D6643 B0JCME000037 R6722 EXB38V220JV VF_GND C6727 16V 1u R6762 47k L6690 G0ZZ00002183 C6694 25V 1u C6671 25V 4.7u D6862 MA2J11100L R6672 47k R6638 1 R6745 4.7k C6706 50V 0.1u R6671 47 R6714 2.2k C6722 50V 100p R6651 33 R6482 100 D6477 MA2J11100L D6667 MA2J11100L PC6480 B3PBA0000223 1 2 3 4 R6782 47k VF_GND Q6601 B1DFES000003 G D S C6662 630V 1000p C6771 16V 1u L6573 J0JJC0000015 R6869 4.7k D6861 MAZ80510LL VSET C6775 25V 4.7u 5V R6742 10k D6663 MAZ83300ML R6472 2.2k Q6643 2SK399500L R6721 EXB38V220JV D6478 B0HCKS000002 D6623 B0HDSM000005 C0DBEKA00003 IC6471 1 NC 2 A 3 K 5 A 4 REF R6706 100 SOS7_SC2 C6620 1kV 3900p IC6725 C0CBADC00072 VIN 3 2 COM VOUT 1 R6666 100k 75 R6766 C0JBAA000377 IC6472 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y D6622 B0HDSM000005 C6723 25V 4.7u C6776 50V 0.1u C6863 50V 0.01u D6731 MAZ80560HL R6489 47k C6777 50V 0.1u Q6602 2SD0601AQL C6772 25V 4.7u R6487 75 5V R6675 47 IC6671 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB D6727 MAZ80560HL R6716 2.2k IC6861 C0BBBA000022 1 2 3 4 5 6 7 8 R6866 620 R6661 100k R6705 100 R6474 1k 16V_F D6573 B0JCME000037 5V C6692 160V 100u D6766 B0ECKP000047 C6725 25V 4.7u C6806 160V 100u C6472 50V 100p R6693 82k 15V VSCN_F C6753 25V 4.7u C6571 630V 1000p R6710 2.2k R6639 1 C6703 50V 0.1u R6694 27k C6752 25V 1u C6603 630V 1000p Q6673 B1DFDR000001 G D S VSET R6647 33 D6644 B0HCKS000002 C6721 50V 100u R6668 4.7k IC6722 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC R6733 47 R6477 100 R6674 47 D6761 B0JCME000037 Q6742 2SD0601A0L D6633 B0JCME000037 C6724 25V 4.7u PC6701 B3PBA0000233 1 2 3 4 5 6 7 8 R6673 47 C6755 25V 4.7u R6471 3.9k R6646 33 R6761 10 15V C0JBAA000377 IC6774 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y PC6861 B3PBA0000223 1 2 3 4 R6665 47 C6482 25V 4.7u R6659 220k D6562 B0ECKP000047 R6707 470 D6722 MA2J11100L R6643 33 Q6690 2SA19610QAHW 5V R6711 2.2k PC6705 B3PBA0000397 1 2 3 4 5 6 7 8 R6747 10k D6661 MA2J11100L R6695 120k 16V_F C6756 25V 4.7u Q6662 2SD0601A0L R6864 6.8k L6474 R6629 33k R6612 47 TP64 R6723 1.8k D6690 MA2J11100L C6726 16V 1u D6642 B0HCKS000002 Q6561 B1ABPF000014 R6607 6.81k R6768 1 R6621 220 R6571 10 D6767 B0ECKP000047 C6480 50V 0.1u R6608 1k R6702 470 Q6661 B1DEET000002 G D S R6660 220k D6602 MAZ82400ML R6475 4.7k D6662 MAZ83300ML C6705 50V 0.1u C0JBAA000377 IC6773 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y D6701 MAZ80560HL IC6721 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC D6607 MA2J11100L Q6651 2SK399500L R6631 10 C6702 50V 0.1u D6721 B0HCKS000002 R6692 4.7k IC6772 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB C6485 4.7u 25V D6625 B0HDSM000005 Q6573 B1DFKM000002 G D S 15V_F D6561 B0ECKP000047 VSET_S Q6743 2SD0601A0L R6570 1 Q6763 B1ADPF000004 Q6646 2SK399500L Q6603 2SB0709ASL D6728 MAZ80560HL PC6703 B3PBA0000234 1 2 3 4 5 R6645 33 Q6562 B1ADPF000004 C6641 1u 250V C6606 630V 4700p D6605 MAZ80510LL C6579 220V 200u Q6645 2SK399500L C6708 50V 0.1u D6691 MAZ82000ML 1 R6765 D6742 MA2J11100L D6571 B0JCME000037 R6712 2.2k R6776 100 D6619 B0HCKS000002 Q6571 B1DFKM000002 G D S C6704 50V 0.1u R6605 1.8k D6621 B0HDSM000005 D6601 MAZ82400ML IC6724 C0CBADC00072 VIN 3 2 COM VOUT 1 C0ZBZ0000895 IC6481 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC D6820 MA2J11100L R6610 100k R6708 470 VF_GND R6633 10 R6781 47 R6649 33 R6485 1 C6481 25V 4.7u D6664 MAZ83300ML R6664 2.2k Q6665 B1ABPF000014 D6729 MAZ80560HL R6867 3.9k R6717 2.2k MAIN_STOP D6641 B0HCKS000002 R6667 4.7k R6609 1k R6701 470 R6746 10k Q6647 2SK399500L Q6782 B1ADPF000004 C6661 630V 1000p C6861 16V 1u VR6602 5k 1 2 3 R6743 3.3k R6481 100 R6775 100 R6769 75 VBK D6732 MAZ80560HL Q6649 2SK399500L R6704 470 D6497 B0ECKP000047 Q6781 B1ABPF000014 D6765 B0ECKP000047 R6862 51k R6713 2.2k R6731 47 D6604 MA2J11100L R6861 51k IC6771 C0CBADC00072 VIN 3 2 COM VOUT 1 VSCN_F L6571 J0JJC0000015 C6862 25V 1u 16V_F R6490 47k SC31 1 2 3 4 5 6 R6573 10 R6718 2.2k C6604 630V 1000p D6725 B0ECKP000047 R6700 470 D6730 MAZ80560HL D6733 MAZ80560HL D6773 B0HCKS000002 PC6702 B3PBA0000233 1 2 3 4 5 6 7 8 C6572 630V 1000p D6743 MA2J11100L R6476 4.7k D6606 B0HCMM000014 Q6671 B1DFDR000001 G D S R6703 470 R6663 10k D6692 MAZ82000ML D6665 MAZ80510LL R6777 150 5V_F D6764 B0HCKS000002 R6648 33 D6666 MA2J11100L Q6680 B1ADPF000004 Q6672 B1DFDR000001 G D S C6605 630V 4700p Q6623 2SK399500L R6865 3.3k FLOATING GND COLD FLOATING GND COLD FLOATING GND COLD COLD FLOATING GND * TH-50PV70C SC-Board (2 of 3) Schematic Diagram TH-50PV70C SC-Board (2 of 3) Schematic Diagram SC-BOARD TNPA4186 (2/3) ! �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 105 15.45.SC 电路板 (3/3) 线路图 + + + + + REF K A + + + + REF K A REF K A AB_FOC1D AB_FCLKD AB_FOC2D AB_FSIU AB_FSID AB_FOC2U AB_FCLKU AB_FOC1U TP063 R6815 3.3k 16V_F TP052 L6472 G0ZZ00002183 C6842 160V 100u SOS7_SC2 R6858 1k R6822 100k C6796 25V 220u R6827 200k L6802 J0JJC0000015 R6878 22k R6886 220k D6816 MAZ80510LL TP40 C6807 50V 470p VR6600 1k 1 2 3 D6807 B0HCMM000014 R6835 75k D6827 MAZ83300ML Q6821 2SD1263AP0LB R6875 3.3k R6823 100k D6826 MA2J11100L R6806 1.2 R6821 220 TP044 R6872 39k Q6824 2SD0601A0L R6851 18k R6812 240k C6802 630V 0.022u 5V_F 5V R6826 200k VSCN_F Q6805 2SC3063000RL R6850 68k SOS7_SC2 D6825 MAZ83300ML C6813 160V 100u R6836 75k Q6803 2SD0814A0L R6833 75k D6808 B0HCMM000014 TP45 ZA6402 K4CD01000011 R6802 68k R6857 120k 5V R6887 220k SC30 1 2 3 4 5 6 7 8 9 10 PC6871 B3PBA0000223 1 2 3 4 R6837 56k R6848 10k R6846 62k C6814 25V 220u R6849 68k TP050 R6825 200k C6832 50V 3900p R6847 62k R6808 2.7k TP33 R6726 470k Q6841 2SD1263AP0LB D6871 MAZ80510LL TP047 15V_F D6841 B0HCKS000002 D6823 MA2J11100L TP048 15V C6812 25V 4.7u R6793 100 R6853 100 R6811 33k C6822 400V 47u 15V TP046 15V ZA6401 K4CD01000011 IC6841 C0DBEMC00043 D6806 B0HCKS000002 D6805 MA2J11100L D6810 B0HCMM000014 D6843 MA2J11100L TP47 R6810 33k R6792 10k R6860 8.2 R6842 43k C6805 50V 1000p R6728 0 R6843 62k D6860 B0HCKS000002 C6871 16V 1u R6830 100k D6842 MA2J11100L D6822 MA2J11100L R6876 560 R6831 15k C6845 50V 0.1u R6814 5.6k TP29 R6879 4.7k VSUS R6855 10k TP051 TP31 C6791 25V 220u TP49 C6804 250V 10u TP35 TP042 1% R6852 2.7k TP32 R6807 1.2 TP049 R6803 33k VSCN D6828 MAZ83300ML R6888 220k R6877 3.9k TP045 TP043 TP44 Q6806 2SC1473AEA D6836 MAZ81500ML C6815 50V 0.1u D6872 MA2J11100L 16V_F R6882 16.9k D6824 MAZ83300ML T6602 ETS25AZ179AD 1 S5 2 S4 4 S2 5 S1 7 P1 10 V2 9 V1 3 S3 6 P2 D6838 B0BC027A0234 IC6871 C0BBBA000022 1 2 3 4 5 6 7 8 R6839 4.7k TP50 C6803 2kV 220p R6809 10k D6830 MAZ80560HL L6841 J0JJC0000015 Q6842 2SC1473AEA R6813 10k EHMDD9863 IC6791 1 GND 2 GND 3 N.C. 4 VIN 5 VIN 6 N.C. 9 COM 10 COM 11 VOUT 12 VOUT C6795 25V 220u R6829 100k R6828 4.7k D6859 B0ECKP000047 C6841 200V 100u VSET2 R6824 3.9k Q6822 2SC3063000RL R6870 100k IC6821 C0DBEMC00043 C6873 50V 0.01u PC6801 B3PBA0000223 1 2 3 4 D6802 B0BC01000044 R6841 15k R6709 100 IC6801 C0DBEMC00043 TP43 C6823 50V 0.01u R6874 6.8k D6803 B0HCKS000002 VSET0 R6873 39k TP28 VSET0 R6834 75k D6839 B0ECKP000047 VSET R6844 100 R6832 4.7 SOS7_SC2 VSCN_F D6817 MAZ80680HL R6819 680 SC42 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 D6821 MA2J11100L C6811 50V 0.01u R6791 1k D6804 B0ECKP000047 R6725 100k D6837 MA2J11100L TP062 Q6791 2SD0601A0L TP42 C0DAAMH00005 IC6803 1 Drain 2 Source 3 GND 4 Vin 5 OCP/FB D6791 MAZ82000ML R6845 62k SC41 1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 2 C6872 25V 1u TP30 16V_F R6727 27k SC45 1 2 3 4 5 6 7 8 9 TP037 ZA6403 K4CD01000011 16V_F R6871 39k TP34 TP053 R6820 0 VSUS L6801 J0JJC0000015 TP48 5V_F SC46 1 2 3 4 5 6 7 8 9 R6856 56 D6809 B0HCMM000014 5V_F TP036 FLOATING GND COLD COLD FLOATING GND m TPVSET2:12V TPVAD TPVSCN VSET:330V - - + + AB_FSIU AB_FOC1U AB_FCLKU AB_FOC2U AB_FSID AB_FOC1D AB_FCLKD AB_FOC2D 24 22 23 25 26 20 19 21 27 POWER OSC COMPARATOR DC/DC CONV. (Vscn volatage) Vf(High Voltage Floting GND) Vfo(Vscn Out) VF5V Vf (SU41) TO SU-BOARD Vfo(Vscn Out) Vf Vf(High Voltage Floting GND) VF5V (Vscn volatage) SD-BOARD (SD42) TO TO (SU45) SU-BOARD VSET Gen. VSCN Gen. VAD Gen. VAD DET OPERATES AT 76V OR MORE AND 121V OR LESS OPERATES AT 21V OR MORE F16V DET VSET DET OPERATES AT 214V OR LESS TO (SD46) SD-BOARD 11 14 16 15 12 13 TH-50PV70C SC-Board (3 of 3) Schematic Diagram TH-50PV70C SC-Board (3 of 3) Schematic Diagram SC-BOARD TNPA4186 (3/3) ! �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 106 15.46.SU 电路板 (1/2) 线路图 TERM SIDE TERM SIDE AB_766 AB_765 AB_764 AB_763 AB_762 AB_761 AB_760 AB_759 AB_758 AB_757 AB_756 AB_755 AB_754 AB_753 AB_752 AB_751 AB_750 AB_749 AB_748 AB_747 AB_746 AB_745 AB_744 AB_742 AB_743 AB_741 AB_739 AB_740 AC_702 AC_701 AC_700 AC_699 AC_698 AC_697 AC_696 AC_695 AC_694 AC_693 AC_692 AC_691 AC_690 AC_689 AC_688 AC_687 AC_686 AC_685 AC_684 AC_683 AC_682 AC_681 AC_680 AC_678 AC_679 AC_677 AC_675 AC_676 AD_638 AD_637 AD_636 AD_635 AD_634 AD_633 AD_632 AD_631 AD_630 AD_629 AD_628 AD_627 AD_626 AD_625 AD_624 AD_623 AD_622 AD_621 AD_620 AD_619 AD_618 AD_617 AD_616 AD_614 AD_615 AD_613 AD_611 AD_612 AB_705 AB_707 AB_709 AB_711 AB_713 AB_715 AB_717 AB_719 AB_721 AB_723 AB_725 AB_727 AB_729 AB_731 AB_733 AB_735 AB_737 AB_739 AB_741 AB_743 AB_745 AB_747 AB_749 AB_751 AB_753 AB_755 AB_757 AB_759 AB_761 AB_763 AB_767 AB_765 AB_706 AB_708 AB_710 AB_712 AB_714 AB_716 AB_718 AB_720 AB_722 AB_724 AB_726 AB_728 AB_730 AB_732 AB_734 AB_736 AB_738 AB_740 AB_742 AB_744 AB_746 AB_748 AB_750 AB_752 AB_754 AB_756 AB_758 AB_760 AB_762 AB_764 AB_768 AB_766 AC_641 AC_643 AC_645 AC_647 AC_649 AC_651 AC_653 AC_655 AC_657 AC_659 AC_661 AC_663 AC_665 AC_667 AC_671 AC_669 AC_673 AC_675 AC_677 AC_679 AC_681 AC_683 AC_685 AC_687 AC_689 AC_691 AC_693 AC_695 AC_697 AC_699 AC_703 AC_701 AC_642 AC_644 AC_646 AC_648 AC_650 AC_652 AC_654 AC_656 AC_658 AC_660 AC_662 AC_664 AC_666 AC_668 AC_670 AC_674 AC_676 AC_678 AC_680 AC_682 AC_684 AC_686 AC_688 AC_690 AC_692 AC_694 AC_696 AC_698 AC_700 AC_704 AC_702 AD_577 AD_579 AD_581 AD_583 AD_585 AD_587 AD_589 AD_591 AD_593 AD_595 AD_597 AD_599 AD_601 AD_603 AD_605 AD_607 AD_609 AD_611 AD_613 AD_615 AD_617 AD_619 AD_621 AD_623 AD_625 AD_627 AD_629 AD_633 AD_631 AD_635 AD_637 AD_639 AD_578 AD_580 AD_584 AD_586 AD_588 AD_590 AD_592 AD_594 AD_596 AD_598 AD_600 AD_602 AD_604 AD_606 AD_608 AD_610 AD_612 AD_614 AD_616 AD_618 AD_620 AD_622 AD_624 AD_626 AD_628 AD_630 AD_632 AD_634 AD_636 AD_640 AD_638 AB_768 AB_767 AC_703 AC_704 AD_639 AD_582 AC_672 AB_705 AB_706 AB_707 AB_708 AB_709 AB_710 AB_711 AB_712 AB_713 AB_714 AB_715 AB_716 AB_717 AB_718 AB_719 AB_720 AB_721 AB_722 AB_723 AB_724 AB_725 AB_726 AB_727 AB_728 AB_729 AB_730 AB_731 AB_732 AB_733 AB_734 AB_735 AB_736 AB_738 AB_737 AC_641 AC_642 AC_643 AC_644 AC_645 AC_646 AC_647 AC_648 AC_649 AC_650 AC_651 AC_652 AC_653 AC_654 AC_655 AC_656 AC_657 AC_658 AC_659 AC_660 AC_661 AC_662 AC_663 AC_664 AC_665 AC_666 AC_667 AC_668 AC_669 AC_670 AC_671 AC_672 AC_674 AC_673 AD_577 AD_578 AD_579 AD_580 AD_581 AD_582 AD_583 AD_584 AD_585 AD_586 AD_587 AD_588 AD_589 AD_590 AD_591 AD_592 AD_593 AD_594 AD_595 AD_596 AD_597 AD_598 AD_599 AD_600 AD_602 AD_601 AD_603 AD_604 AD_605 AD_606 AD_607 AD_608 AD_610 AD_609 AA_SI AA_SO1 AA_SO2 AA_SO3 AA_CLK AA_OC2 AA_CLK AA_OC2 AA_CLK AA_OC2 AA_CLK AA_OC1 AA_OC2 AA_CLK AA_OC2 AA_OC1 AD_640 AA_OC1 AA_OC1 AA_OC1 AA_SO1 AA_SO2 AA_SI C6901 50V 1000p R6901 100 C6906 16V 1u AN16076A-VT IC6903 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6904 16V 1u R6909 220 R6902 22 D6901 MAZ80560HL R6904 22 SU1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 AN16076A-VT IC6901 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6903 22 R6932 10k R6931 10k R6925 0 C6931 50V 1000p C6902 16V 1u R6905 220 SU45 1 2 3 4 5 6 7 8 9 C6937 50V 220p R6938 10k C6936 50V 220p R6933 10k AN16076A-VT IC6902 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6926 0 R6934 10k SU2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 D A E B 4 C 8 2 3 6 7 5 1 Vfo Vf Vf5 S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER SCAN ELECTRODES To 2nd 96pins of UP To 1st 96pins of SCAN ELECTRODES SC-BOARD (SC45) TO 1 2 3 4 5 6 7 Vf5 Vf Vf TH-50PV70C SU-Board (1 of 2) Schematic Diagram TH-50PV70C SU-Board (1 of 2) Schematic Diagram SU-BOARD TNPA4188 (1/2) ! �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 107 15.47.SU 电路板 (2/2) 线路图 TERM SIDE TERM SIDE AE_574 AE_573 AE_572 AE_571 AE_570 AE_569 AE_568 AE_567 AE_566 AE_565 AE_564 AE_563 AE_562 AE_561 AE_560 AE_559 AE_558 AE_557 AE_556 AE_555 AE_554 AE_553 AE_552 AE_550 AE_551 AE_549 AE_547 AE_548 AF_510 AF_509 AF_508 AF_507 AF_506 AF_505 AF_504 AF_503 AF_502 AF_501 AF_500 AF_499 AF_498 AF_497 AF_496 AF_495 AF_494 AF_493 AF_492 AF_491 AF_490 AF_489 AF_488 AF_486 AF_487 AF_485 AF_483 AF_484 AG_446 AG_445 AG_444 AG_443 AG_442 AG_441 AG_440 AG_439 AG_438 AG_437 AG_436 AG_435 AG_434 AG_433 AG_432 AG_431 AG_430 AG_429 AG_428 AG_427 AG_426 AG_425 AG_424 AG_422 AG_423 AG_421 AG_419 AG_420 AE_513 AE_515 AE_517 AE_519 AE_521 AE_523 AE_525 AE_527 AE_529 AE_531 AE_533 AE_535 AE_537 AE_539 AE_541 AE_543 AE_545 AE_547 AE_549 AE_551 AE_553 AE_555 AE_557 AE_559 AE_561 AE_563 AE_565 AE_567 AE_569 AE_571 AE_575 AE_573 AE_514 AE_516 AE_518 AE_520 AE_522 AE_524 AE_526 AE_528 AE_530 AE_532 AE_534 AE_536 AE_538 AE_540 AE_542 AE_544 AE_546 AE_548 AE_550 AE_552 AE_554 AE_556 AE_558 AE_560 AE_562 AE_564 AE_566 AE_568 AE_570 AE_572 AE_576 AE_574 AF_449 AF_451 AF_453 AF_455 AF_457 AF_459 AF_461 AF_463 AF_465 AF_467 AF_469 AF_471 AF_473 AF_475 AF_479 AF_477 AF_481 AF_483 AF_485 AF_487 AF_489 AF_491 AF_493 AF_495 AF_497 AF_499 AF_501 AF_503 AF_505 AF_507 AF_511 AF_509 AF_450 AF_452 AF_454 AF_456 AF_458 AF_460 AF_462 AF_464 AF_466 AF_468 AF_470 AF_472 AF_474 AF_476 AF_478 AF_482 AF_484 AF_486 AF_488 AF_490 AF_492 AF_494 AF_496 AF_498 AF_500 AF_502 AF_504 AF_506 AF_508 AF_512 AF_510 AG_385 AG_387 AG_389 AG_391 AG_393 AG_395 AG_397 AG_399 AG_401 AG_403 AG_405 AG_407 AG_409 AG_411 AG_413 AG_415 AG_417 AG_419 AG_421 AG_423 AG_425 AG_427 AG_429 AG_431 AG_433 AG_435 AG_437 AG_439 AG_441 AG_443 AG_445 AG_447 AG_386 AG_388 AG_390 AG_392 AG_394 AG_396 AG_398 AG_400 AG_402 AG_404 AG_406 AG_408 AG_410 AG_412 AG_414 AG_416 AG_418 AG_420 AG_422 AG_424 AG_426 AG_428 AG_430 AG_432 AG_434 AG_436 AG_438 AG_440 AG_442 AG_444 AG_448 AG_446 AE_576 AE_575 AF_511 AF_512 AG_448 AG_447 AF_480 AE_514 AE_515 AE_516 AE_517 AE_518 AE_519 AE_520 AE_521 AE_522 AE_523 AE_524 AE_525 AE_526 AE_527 AE_528 AE_529 AE_530 AE_531 AE_532 AE_533 AE_534 AE_535 AE_536 AE_537 AE_538 AE_539 AE_540 AE_541 AE_542 AE_543 AE_544 AE_546 AE_545 AF_449 AF_450 AF_451 AF_452 AF_453 AF_454 AF_455 AF_456 AF_457 AF_458 AF_459 AF_460 AF_461 AF_462 AF_463 AF_464 AF_465 AF_466 AF_467 AF_468 AF_469 AF_470 AF_471 AF_472 AF_473 AF_474 AF_475 AF_476 AF_477 AF_478 AF_479 AF_480 AF_482 AF_481 AG_385 AG_386 AG_387 AG_388 AG_389 AG_390 AG_391 AG_392 AG_393 AG_394 AG_395 AG_396 AG_397 AG_398 AG_399 AG_400 AG_401 AG_402 AG_403 AG_404 AG_405 AG_406 AG_407 AG_408 AG_409 AG_410 AG_411 AG_412 AG_413 AG_414 AG_415 AG_416 AG_418 AG_417 AA_SO4 AA_SO5 AA_CLK AA_CLK AA_OC2 AA_CLK AA_OC2 AA_OC2 AE_513 AA_OC1 AA_OC1 AA_OC1 AA_SO5 AA_SO4 AA_SO3 C43 C48 SU4 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 AN16076A-VT IC6905 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C44 C8 C6 C7 C3 R6924 220 R6913 220 SU3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 C1 C6908 16V 1u C46 AN16076A-VT IC6906 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16076A-VT IC6904 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6912 16V 1u C45 R6936 220k R6917 220 C2 C5 C6910 16V 1u C42 C41 C4 C47 C23 C10 C26 C52 C56 C62 C24 C69 C57 C65 C61 C59 C6929 250V 0.1u C6930 250V 0.1u C55 C72 C64 C16 C14 C49 C66 C31 C27 C29 C70 C6932 250V 0.1u C60 C73 C11 C21 C28 C53 C12 C54 C18 C32 C50 C17 R6935 220k C67 C58 C6923 250V 0.1u C9 C68 C63 C15 C6924 250V 0.1u C71 C33 C20 C22 C30 C25 C51 C19 C6933 250V 0.1u C13 D6903 B0HCMM000013 D6904 B0HCMM000013 D6907 B0HCMM000013 C34 C79 C77 C78 C80 C38 C35 C76 D6902 MAZ80560HL C75 C36 C37 C39 C40 C74 Vscn Vf5 Vfo 8 12 13 11 15 10 14 9 Vf Vf VF5V VF5V (UPPER) (LOWER) COMPONENT SIDE FOIL SIDE S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER (Vscn voltage) Vfo(Vscn Out) Vf(High Voltage Floting GND) Vf(High Voltage Floting GND) To 3rd 96pins of SCAN ELECTRODES To 4th 96pins of SCAN ELECTRODES UP TO (SC41) SC-BOARD SU41(Card Edge 80Pin) 4 2 5 3 6 1 7 Vf5 Vf Vf TH-50PV70C SU-Board (2 of 2) Schematic Diagram TH-50PV70C SU-Board (2 of 2) Schematic Diagram SU-BOARD TNPA4188 (2/2) ! �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 108 15.48.SD 电路板 (1/2) 线路图 TERM SIDE TERM SIDE AB_382 AB_381 AB_380 AB_379 AB_378 AB_377 AB_376 AB_375 AB_374 AB_373 AB_372 AB_371 AB_370 AB_369 AB_368 AB_367 AB_366 AB_365 AB_364 AB_363 AB_362 AB_361 AB_360 AB_358 AB_359 AB_357 AB_355 AB_356 AC_318 AC_317 AC_316 AC_315 AC_314 AC_313 AC_312 AC_311 AC_310 AC_309 AC_308 AC_307 AC_306 AC_305 AC_304 AC_303 AC_302 AC_301 AC_300 AC_299 AC_298 AC_297 AC_296 AC_294 AC_295 AC_293 AC_291 AC_292 AD_254 AD_253 AD_252 AD_251 AD_250 AD_249 AD_248 AD_247 AD_246 AD_245 AD_244 AD_243 AD_242 AD_241 AD_240 AD_239 AD_238 AD_237 AD_236 AD_235 AD_234 AD_233 AD_232 AD_230 AD_231 AD_229 AD_227 AB_365 AB_367 AB_369 AB_371 AB_373 AB_375 AB_377 AB_379 AB_381 AB_383 AB_366 AB_368 AB_370 AB_372 AB_374 AB_376 AB_380 AB_382 AB_341 AB_343 AB_345 AB_347 AB_349 AB_351 AB_353 AB_355 AB_357 AB_359 AB_361 AB_363 AB_342 AB_344 AB_346 AB_348 AB_350 AB_352 AB_354 AB_356 AB_358 AB_360 AB_362 AB_364 AB_321 AB_323 AB_325 AB_327 AB_329 AB_331 AB_333 AB_335 AB_337 AB_339 AB_322 AB_324 AB_326 AB_328 AB_330 AB_332 AB_334 AB_336 AB_338 AB_340 AC_319 AC_317 AC_316 AC_320 AC_318 AB_384 AB_383 AC_293 AC_295 AC_297 AC_299 AC_301 AC_303 AC_305 AC_307 AC_309 AC_311 AC_313 AC_315 AC_294 AC_296 AC_298 AC_300 AC_302 AC_304 AC_306 AC_308 AC_310 AC_312 AC_314 AC_281 AC_283 AC_287 AC_285 AC_282 AC_284 AC_288 AC_286 AC_289 AC_291 AC_257 AC_259 AC_261 AC_263 AC_265 AC_267 AC_269 AC_271 AC_273 AC_275 AC_277 AC_279 AC_258 AC_260 AC_262 AC_264 AC_266 AC_268 AC_270 AC_272 AC_274 AC_276 AC_278 AC_280 AD_256 AC_320 AC_319 AD_254 AD_252 AD_250 AD_248 AD_246 AD_244 AD_242 AD_240 AD_238 AD_236 AD_234 AD_232 AD_253 AD_255 AD_251 AD_249 AD_247 AD_245 AD_243 AD_241 AD_239 AD_237 AD_235 AD_233 AD_230 AD_228 AD_226 AD_224 AD_222 AD_220 AD_218 AD_216 AD_214 AD_212 AD_210 AD_208 AD_231 AD_229 AD_227 AD_225 AD_223 AD_221 AD_219 AD_217 AD_215 AD_213 AD_211 AD_209 AD_206 AD_204 AD_202 AD_200 AD_198 AD_196 AD_194 AD_207 AD_205 AD_203 AD_201 AD_199 AD_197 AD_195 AD_193 AD_256 AD_255 AB_378 AB_384 AC_292 AC_290 AB_321 AB_323 AB_324 AB_325 AB_326 AB_327 AB_328 AB_329 AB_330 AB_331 AB_332 AB_333 AB_334 AB_335 AB_336 AB_337 AB_338 AB_339 AB_340 AB_341 AB_342 AB_343 AB_344 AB_345 AB_346 AB_322 AB_347 AB_348 AB_349 AB_350 AB_351 AB_352 AB_353 AB_354 AC_258 AC_259 AC_260 AC_261 AC_262 AC_263 AC_264 AC_265 AC_266 AC_267 AC_268 AC_269 AC_270 AC_271 AC_272 AC_273 AC_274 AC_275 AC_276 AC_277 AC_278 AC_279 AC_280 AC_281 AC_282 AC_283 AC_284 AC_285 AC_286 AC_287 AC_288 AC_289 AC_290 AD_193 AD_194 AD_195 AD_196 AD_197 AD_198 AD_199 AD_200 AD_201 AD_202 AD_203 AD_204 AD_205 AD_206 AD_207 AD_208 AD_209 AD_210 AD_211 AD_212 AD_213 AD_214 AD_215 AD_216 AD_217 AD_218 AD_219 AD_220 AD_221 AD_222 AD_223 AD_224 AD_226 AD_225 AD_228 AA_SO7 AA_CLK AA_OC2 AA_CLK AA_OC2 AA_CLK AA_OC2 AA_SO9 AA_CLK AA_OC1 AA_SO8 AA_SO8 AC_257 AA_OC1 AA_OC1 AA_OC1 145V 145V AA_SO7 AA_SI AA_OC2 C6951 50V 1000p A9 A17 A66 C6974 250V 0.1u A35 R6955 220 A1 A42 A36 C6982 250V 0.1u D6953 B0HCMM000013 R6981 10k A62 A45 A73 A50 A20 A49 A31 A80 A18 D6952 MAZ80560HL C6957 16V 1u A79 SD2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 A48 SD1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 R6986 220k R6985 220k A12 A6 A24 C6983 250V 0.1u A41 A74 A52 A30 A59 A46 A37 AN16076A-VT IC6953 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A72 A70 R6959 220 A3 A22 A64 A57 A11 A78 A40 R6983 10k A61 A33 AN16076A-VT IC6951 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A5 A43 A47 A13 A4 A60 A19 A71 A53 A65 A67 A76 A32 A38 A14 D6951 MAZ80560HL A16 C6952 16V 1u A75 A29 A21 A25 A23 A34 R6971 100 R6982 10k C6955 16V 1u A26 A2 A55 AN16076A-VT IC6952 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6985 250V 0.1u A27 A15 C6984 250V 0.1u A58 A28 A10 A8 A63 A56 A54 A69 A51 R6984 10k A44 A68 C6975 250V 0.1u A39 R6989 10k A77 A7 D6957 B0HCMM000013 D6954 B0HCMM000013 Vfo 4 5 A 6 7 8 2 3 1 B C D E Vf Vscn S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER Vf Vf5 TO COMPONENT SIDE (LOWER) FOIL SIDE (UPPER) Vf(High Voltage Floting GND) (Vscn voltage) Vf(High Voltage Floting GND) Vfo(Vscn Out) SD42(Card Edge 80Pin) SC-BOARD VF5V VF5V (SC42) To 1st 96pins of SCAN ELECTRODES SCAN ELECTRODES To 2nd 96pins of DOWN 1 2 3 4 5 6 7 Vf5 Vf Vf5 TH-50PV70C SD-Board (1 of 2) Schematic Diagram TH-50PV70C SD-Board (1 of 2) Schematic Diagram SD-BOARD TNPA4189 (1/2) ! �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 109 15.49.SD 电路板 (2/2) 线路图 TERM SIDE TERM SIDE AE_190 AE_189 AE_188 AE_187 AE_186 AE_185 AE_184 AE_183 AE_182 AE_181 AE_180 AE_179 AE_178 AE_177 AE_176 AE_175 AE_174 AE_173 AE_172 AE_171 AE_170 AE_169 AE_168 AE_166 AE_167 AE_165 AE_163 AE_164 AF_126 AF_125 AF_124 AF_123 AF_122 AF_121 AF_120 AF_119 AF_118 AF_117 AF_116 AF_115 AF_114 AF_113 AF_112 AF_111 AF_110 AF_109 AF_108 AF_107 AF_106 AF_105 AF_104 AF_102 AF_103 AF_101 AF_99 AF_100 AG_62 AG_61 AG_60 AG_59 AG_58 AG_57 AG_56 AG_55 AG_54 AG_53 AG_52 AG_51 AG_50 AG_49 AG_48 AG_47 AG_46 AG_45 AG_44 AG_43 AG_42 AG_41 AG_40 AG_38 AG_39 AG_37 AG_35 AG_36 AE_187 AE_185 AE_183 AE_188 AE_186 AE_184 AE_182 AE_191 AE_192 AE_189 AE_190 AE_175 AE_173 AE_181 AE_179 AE_177 AE_176 AE_174 AE_172 AE_180 AE_178 AE_161 AE_159 AE_163 AE_164 AE_162 AE_160 AE_158 AE_165 AE_171 AE_169 AE_167 AE_170 AE_168 AE_166 AE_151 AE_157 AE_155 AE_153 AE_149 AE_152 AE_156 AE_154 AE_148 AE_150 AE_192 AE_191 AE_137 AE_135 AE_140 AE_138 AE_136 AE_134 AE_141 AE_143 AE_145 AE_147 AE_144 AE_146 AE_139 AE_142 AE_133 AE_131 AE_129 AF_127 AF_125 AF_123 AE_132 AE_130 AF_128 AF_126 AF_124 AF_113 AF_111 AF_114 AF_112 AF_110 AF_117 AF_121 AF_119 AF_122 AF_120 AF_115 AF_116 AF_118 AF_109 AF_107 AF_105 AF_103 AF_101 AF_99 AF_108 AF_106 AF_104 AF_102 AF_100 AF_97 AF_98 AF_94 AF_96 AF_92 AF_90 AF_93 AF_95 AF_91 AF_128 AF_127 AF_88 AF_86 AF_84 AF_82 AF_80 AF_78 AF_76 AF_74 AF_72 AF_70 AF_68 AF_66 AF_89 AF_87 AF_85 AF_83 AF_81 AF_79 AF_77 AF_75 AF_73 AF_71 AF_69 AF_67 AG_61 AG_63 AG_59 AG_57 AG_55 AG_53 AG_51 AG_49 AG_47 AG_45 AG_43 AG_41 AG_64 AG_62 AG_60 AG_58 AG_56 AG_54 AG_52 AG_50 AG_48 AG_46 AG_44 AG_42 AF_65 AG_39 AG_37 AG_35 AG_33 AG_31 AG_29 AG_27 AG_25 AG_23 AG_21 AG_19 AG_17 AG_40 AG_38 AG_36 AG_34 AG_32 AG_30 AG_28 AG_26 AG_24 AG_22 AG_20 AG_18 AG_64 AG_63 AG_15 AG_13 AG_11 AG_9 AG_7 AG_5 AG_3 AG_1 AG_16 AG_14 AG_12 AG_10 AG_8 AG_6 AG_4 AG_2 AE_130 AE_129 AE_132 AE_133 AE_134 AE_135 AE_136 AE_137 AE_138 AE_139 AE_140 AE_141 AE_142 AE_143 AE_144 AE_145 AE_146 AE_147 AE_148 AE_149 AE_150 AE_151 AE_152 AE_153 AE_154 AE_131 AE_155 AE_156 AE_157 AE_158 AE_159 AE_160 AE_162 AE_161 AF_65 AF_66 AF_67 AF_68 AF_69 AF_70 AF_71 AF_72 AF_73 AF_74 AF_75 AF_76 AF_77 AF_78 AF_79 AF_80 AF_81 AF_82 AF_83 AF_84 AF_85 AF_86 AF_87 AF_88 AF_89 AF_90 AF_91 AF_92 AF_93 AF_94 AF_95 AF_96 AF_97 AF_98 AG_2 AG_3 AG_4 AG_5 AG_6 AG_7 AG_8 AG_9 AG_10 AG_11 AG_12 AG_13 AG_14 AG_15 AG_16 AG_17 AG_18 AG_19 AG_20 AG_21 AG_22 AG_23 AG_24 AG_25 AG_26 AG_27 AG_28 AG_29 AG_30 AG_31 AG_32 AG_34 AG_33 AA_SO10 AA_SI AA_CLK AA_OC2 AA_CLK AA_CLK AA_OC2 AA_SO11 AA_SO10 AA_OC2 AA_CLK AA_OC2 AA_OC1 AG_1 AA_SO11 AA_SO9 AA_OC1 AA_OC1 AA_OC1 R6963 220 AN16076A-VT IC6955 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6987 50V 220p C6963 16V 1u R6976 0 SD4 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 SD3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 C6958 16V 1u R6967 220 R6973 22 SD46 1 2 3 4 5 6 7 8 9 C6961 16V 1u AN16076A-VT IC6956 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6986 50V 220p C6981 50V 1000p R6975 0 R6951 220 R6974 22 R6972 22 AN16076A-VT IC6954 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 Vf5 8 12 10 15 14 9 11 13 S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER Vf Vfo Vf5 To 3rd 96pins of SCAN ELECTRODES To 4th 96pins of SCAN ELECTRODES DOWN TO SC-BOARD (SC46) 3 6 1 5 4 7 2 Vf Vf5 TH-50PV70C SD-Board (2 of 2) Schematic Diagram TH-50PV70C SD-Board (2 of 2) Schematic Diagram SD-BOARD TNPA4189 (2/2) ! �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 110 15.50.S，SS，SS2 和 SS3 电路板方框图 REF K A REF K A D6253 D6255 R6113 G D S G D S G D S G D S G D S G D S G D S VR6000 1 2 3 +5V D6273 D6278 D6275 15V D6221 D6277 15V Q6052,Q6053 Q6141-Q6142 +15V LED(G) FET DRIVER VCC SS IC6191 TPSS1 SIGNAL WAVE 1 Q6103,Q6104 4 Vsus Gen. 34 Q6021-Q6023 VCC Vda Q6001-Q6003 SS_SOS8 VSUS VE 1 2 8 MAIN_SW_1 VCC Vda Ve Gen. 10 VCC 3 IC6251 MAIN_SW_2 IC6131 12 Ve2 TO P12 SS ENERGY RECOVERY COMPARATOR SS SUSTAIN DRIVE Vsus 11 SS 1 TO P11 Q6146-Q6147 IC6151 Q6041-Q6043 L6011-L6014 L6001-L6004 VCC IC6211 (+5V) IN Ve2 Gen. FET DRIVER SUSTAIN ELECTRODE PANEL SS54 SS55 Q6101,Q6102 2 IC6241 1 2 4 6 TO C33 UMH UEH SOS8_SS P5V Vda 33 Vda SS UEL USH USL UML 5 7 1 3 VCC 8 BUFFER OUTPUT FET IC6221 HIN LIN OUTPUT FET HIN LIN HO LO OUTPUT OUTPUT FET FET HO LO FET DRIVER Q6171,Q6172 Q6181,Q6031 VCC2 FET DRIVER HO HIN LIN OUTPUT FET FET OUTPUT OUTPUT FET Q6111 Q6112,Q6114 LO HO Ve Det Adj. Q6271 Q6251 TPVSUS 190V TPVDA TPSS1 TPVe TPSOS8 UEL UML UEH USH USL UML UMH TPVe2 SS3 SS57 SS22 SS24 Q6105,Q6106 SS23 SS2 SS52 SS21 IC6281 Q6281 Ve2 Det Q6282 URH 9 TO C35 35 SS 75V Q6256 Q6222A LED BLINKING : 8 TIMES ENERGY RECOVERY SOS DET TH-50PV70C S, SS, SS2 and SS3-Board Block Diagram TH-50PV70C S, SS, SS2 and SS3-Board Block Diagram PUSH SW2500 S1 S POWER SWITCH POWER SWITCH 3 1 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 111 15.51.SS 电路板 (1/2) 线路图 + + + + + + + + + + AA_SOS8 AA_UEH AA_USL AA_UEL AA_USH AA_UML AA_UMH AA_USH AA_USL AA_UML AA_UMH AA_SOS8 5V Q6002 2PG0010000RP R6244 EXB38V472JV D6061 B0HBSN000008 Q6146 B1ABPF000014 D6082 MA3DF30000LZ C6243 50V 0.01u C6001 630V 5600p C6134 25V 4.7u R6252 39k R6005 7.5 C6013 220V 200u R6160 1 C6154 25V 4.7u R6131 100 R6255 1.2k R6241 EXB38V470JV C6203 250V 4u C6242 16V 1u R6142 47k C6135 25V 4.7u R6055 7.5 R6146 47k L6083 J0JKB0000049 Q6042 2PG0010000RP TP20 D6071 B0HBSN000008 R6210 2.2k Q6251 2SD0601A0L R6173 47k TP5 Q6181 B1ABRD000003 SS11 1 3 C6031 250V 4u C6015 220V 200u D6091 B0HBSN000008 TP19 TP21 C6251 16V 1u Q6142 B1ADPF000004 R6242 EXB38V472JV L6084 J0JKB0000049 IC6251 C0BBBA000022 1 2 3 4 5 6 7 8 R6183 47k R6053 7.5 R6157 1 TP9 Q6052 2PG0010000RP R6132 100 Q6053 2PG0010000RP TP3 TP10 C6011 220V 200u L6010 J0JJC0000015 C6014 220V 200u 5V L6003 G0C1R6KA0119 L6082 J0JKB0000049 R6261 100k D6025 B0ECKP000047 L6241 L6014 G0C1R6KA0119 D6152 B0ECKP000047 C6202 250V 4u L6061 J0JKB0000049 D6132 B0ECKP000047 D6024 B0ECKP000047 R6141 47k Q6043 2PG0010000RP L6064 J0JKB0000049 Q6141 B1ABPF000014 TP13 R6045 7.5 5V R6254 8.2k D6092 B0ECKP000047 TP1 Q6031 B1ADRD000001 C6201 250V 4u R6159 1 R6182 47k Q6041 2PG0010000RP L6081 J0JKB0000049 D6001 B0HBSN000008 R6003 7.5 Q6003 2PG0010000RP L6000 J0JJC0000015 TP15 Q6021 2PG0010000RP C6151 25V 1u TP22 L6271 G0ZZ00002183 R6135 10 Q6001 2PG0010000RP R6147 47k D6022 MA3DF30000LZ SS34 1 2 3 TP2 R6152 100 TP14 D6021 MA3DF30000LZ C0ZBZ0001324 IC6151 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC TP17 D6072 B0HBSN000008 R6253 39k D6062 B0HBSN000008 TP34 Q6171 B1ABRD000003 R6021 7.5 TP7 D6253 LNJ301MPUJA 75 R6134 L6013 G0C1R6KA0119 C6272 25V 220u R6026 7.5 C6132 25V 4.7u L6011 G0C1R6KA0119 R6001 7.5 L6005 G0C1R6KA0119 TP11 R6151 100 L6001 G0C1R6KA0119 R6171 10 TP6 C6241 10V 100u C6252 25V 1u C6152 25V 4.7u Q6023 2PG0010000RP SS35 1 2 3 4 D6131 B0ECKP000047 VEEXT160V R6256 1.8k C6023 630V 5600p Q6172 B1ADRD000001 R6033 56k L6012 G0C1R6KA0119 R6257 10k R6136 10 Q6147 B1ADPF000004 C6261 100V 470u C6016 220V 200u TP8 C6037 25V 4.7u TP33 L6002 G0C1R6KA0119 D6032 MA2J11100L C6262 100V 470u R6032 82k TP18 C0ZBZ0000895 IC6131 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC 75 R6154 TP12 R6172 47k SS12 1 2 3 4 5 6 7 8 9 10 R6258 2.2k R6024 7.5 R6243 EXB38V470JV D6081 MA3DF30000LZ R6034 27k D6153 B0ECKP000047 R6181 10 L6063 J0JKB0000049 Q6022 2PG0010000RP C6153 25V 4.7u L6062 J0JKB0000049 R6031 82k C0JBAZ000005 IC6241 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC D6255 MA2J11100L C6204 250V 4u L6262 G0ZZ00002183 R6043 7.5 C6012 220V 200u R6145 1 D6151 B0ECKP000047 TP16 R6041 7.5 R6290 1.2k SS33 1 2 3 4 5 6 7 8 9 10 TP15V TPVDA - + - + (GREEN LED) TPVSUS VSUS GND VDA VDA NC P5V TPSOS8 UEL UEH USL USH UML UMH SOS8_SS URH 190 2V 75V 5V B 2 7 8 1 A 5 6 D E C 3 4 BUFFER COMPARATOR FET DRIVER FET DRIVER (P12) P-BOARD P-BOARD TO (P11) TO (S1) S-BOARD TO (C35) C3-BOARD TO (C33) C3-BOARD TO 1 2 3 4 TH-50PV70C SS-Board (1 of 2) Schematic Diagram TH-50PV70C SS-Board (1 of 2) Schematic Diagram SS-BOARD TNPA4187 (1/2) ! �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 112 15.52.SS 电路板 (2/2)，SS2 和 SS3 电路板线路图 + + REF K A + + TERM SIDE TERM SIDE + REF K A TERM SIDE TERM SIDE AA_UEL AA_UEH AA_UML AA_SOS8 C6273 25V 220u R6158 1 D6222 MA2J11100L D6101 B0JCME000037 C6248 0.1u 50V J0JJC0000015 L6102 L6103 G0ZZ00002183 R6112 47 C6221 50V 0.1u TP27 R6233 150k R6247 150k ZA6003 K4CD01000011 R6110 47k R6274 220 R6292 47k R6113 220k L6221 G0ZZ00002183 C6223 47u 250V Q6282 B1ADPF000004 R6214 150 Q6105 B1DFKM000002 G D S C6276 25V 4.7u R6277 150k R6194 1 Q6114 B1DFKM000001 G D S TP28 Q6102 B1DFKM000002 G D S R6226 51k CF6281 10 R6291 2.49k R6227 51k Q6106 B1DFKM000002 G D S R6108 100 Q6104 B1ADPF000004 R6020 33 D6104 B0JCME000037 C0DBEMC00043 IC6281 R6192 100 R6283 27k C6288 0.1u 50V D6278 MA3X152D0L D6281 B0JCME000037 D6102 B0JCME000037 R6289 1.24k R6222 10k R6114 47 C6112 200V 220u Q6256 2SD1263AP0LB ZA6002 K4CD01000011 C0ZBZ0000895 IC6191 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC C6211 25V 4.7u TP31 J0JJC0000015 L6101 R6109 10 R6248 27k C6111 200V 220u TP29 C6281 50V 0.1u R6104 100 TP35 C6216 25V 4.7u IC6211 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB Q6101 B1DFKM000002 G D S TP26 D6221 B0HDRP000003 R6102 100 D6103 B0JCME000037 C6287 0.1u 50V R6232 2.49k Q6281 B1ABPF000014 SS21 1 2 3 4 5 6 7 J0JJC0000015 L6106 J0JJC0000015 L6105 ZA6001 K4CD01000011 R6116 47k C6193 25V 4.7u R6282 15 R6246 27k C6194 25V 4.7u 75 R6193 D6191 B0ECKP000047 SS55 1 2 3 4 5 6 7 8 9 10 11 12 13 SS54 1 2 3 4 5 6 7 8 9 10 11 12 13 C6195 25V 4.7u Q6112 B1DFKM000001 G D S C6213 25V 1000u Q6222A 2SC1473AEA R6275 150k R6272 2.2k R6234 18k R6249 150k C6212 25V 4.7u C6197 25V 4.7u R6284 4.7k D6275 MAZ80680ML TP25 D6277 MA3X152D0L R6106 100 VR6000 10k 1 2 3 TP30 R6273 10k D6282 B0JCME000037 TP24 C0DBEMC00043 IC6221 3 2 1 R6111 47 R6286 100 D6280 MAZ80510LL D6211 B0JCME000037 R6213 100 D6273 MA2J11100L R6276 82k R6288 1.24k Q6103 B1ABPF000014 D6193 B0ECKP000047 R6225 54.9k SS22 1 2 3 4 5 6 7 R6223 12k C6247 0.1u 50V R6285 27k Q6271 2SD0601A0L R6191 100 D6223 MA2J11100L Q6111 2SK326800L G D S D6225 RF101L4STE25 SS23 1 2 3 4 5 6 7 SS52 1 2 3 4 5 6 7 8 9 10 11 12 13 SS57 1 2 3 4 5 6 7 8 9 10 11 12 13 SS24 1 2 3 4 5 6 7 * * = * TPSS1 TPVe 10 8 15 13 12 14 9 11 TNPA4202 SS2-BOARD ! UP TNPA4203 SS3-BOARD ! FET DRIVER FET DRIVER VE GEN. SUSTAIN PANEL ELECTRODE SUSTAIN PANEL ELECTRODE SUSTAIN PANEL ELECTRODE SUSTAIN PANEL ELECTRODE Ve2 Det DOWN 4 1 2 3 TH-50PV70C SS-Board (2 of 2), SS2 and SS3-Board Schematic Diagram TH-50PV70C SS-Board (2 of 2), SS2 and SS3-Board Schematic Diagram SS-BOARD TNPA4187 (2/2) ! �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 113 15.53.G 和 K 电路板方框图及 G，K 和 S 电路板线路图 VCC GND OUT R G VCC GND OUT R G D2512 MAZ80430LL *C2523 50V 1000p *R2531 270 *RM2501 PNA4701M05TV 1 2 3 *R2558 0 *C2525 50V 1000p R2557 5.6k R2516 22k *C2524 50V 1000p *Q2510 2SD0601ASL *C2526 50V 1000p *R2556 5.6k C2515 50V 0.01u *R2576 R2578 0 K1 1 2 3 4 5 6 7 8 9 10 11 12 R2524 22k R2520 220k D2524 MAZ80560ML *JS2517 0 *Q2511 2SD0601ASL *R2577 *R2579 *C2527 50V 1000p *D2520 LNJ107W5PRW 1% *R2525 576 *R2530 22k *Q2513 2SD0601ASL R2517 47 *C2512 6.3V 10u C2521 0.01u 50V R2542 47k *C2522 50V 1000p *Q2511 *RM2501 1 2 3 *Q2513 *D2520 *Q2510 < REMOTE CONTROL SENSOR POWER LED STBY3.3V GND TO DG-BOARD (DG1) TO DG-BOARD (DG1) TO SS-BOARD (SS34) AI_SENSOR GND G_LED_ON REMOCON PSM_LEDR Active_STB_LED GND SUB5V GND AJ SUFFIX JW ! TNPA4137AJ K-BOARD A 5 F 1 2 C 4 D 7 8 3 9 6 E B REMOTE CONTROL SENSOR POWER LED STBY3.3V REMOCON G_LED_ON R_LED_ON/STBY_LED R_LED_ON/STBY_LED 1 2 3 4 K1 K REMOTE/LED TH-50PV70C G and K-Board Block Diagram G, K, and S-Board Schematic Diagram TH-50PV70C G and K-Board Block Diagram G, K, and S-Board Schematic Diagram PUSH SW2500 K0F162B00002 C2502 1000p 50V S1 1 2 3 R2506 0 C2503 1000p 50V R2507 0 GND 12V STB_PS POWER SW ! S-BOARD TNPA4138AD ! R V L Y C C3703 560p 50V L3701 J0JCC0000364 R3710 0 *FL3710 J0MAB0000199 1 2 3 4 R3755 0 JS3708 0 1% R3751 14.3k L3700 J0JCC0000364 *C3715 16V 0.1u 1% R3767 3.16k SW3755 EVQPC105K SW3756 EVQPC105K C3711 50V 0.033u SW3754 EVQPC105K R3768 0 1% R3758 6.65k JS3705 0 R3711 0 ZA3701 K4CZ01000027 R3709 0 R3717 180k SW3757 EVQPC105K 1% R3765 2.32k R3721 10k JS3707 0 JS3704 0 C3712 50V 0.033u 1% R3754 1.62k *JS3700 0 SW3753 EVQPC105K *JK3701C K4AK18B00001 C Y G CY-G G R2 R1 T NC SW R-SW R R-G L L-G V-SW V V-G C3750 1000p 50V *R3714 0 R3746 0 R3748 0 R3732 0 *FL3712 J0MAB0000199 1 2 3 4 R3716 180k 1% R3753 1.74k L3708 J0JCC0000100 *FL3711 J0MAB0000199 1 2 3 4 L3707 J0JCC0000100 C3701 560p 50V D3702 MAZ81400ML *R3722 0 *R3723 0 *R3724 0 *R3725 0 *G51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 < < < < < < < AB SUFFIX JW +/ STR TV/AV -/ F KEY1 5.HP_GND 6.GND 14.GND 7.MAIN_L/HPOUT_L 9.MAIN_R/HPOUT_R 11.SUB_MONO 13.HP_GND 17.AV4_Y 8.AV4_R 10.AV4_L 12.AV4_S 2.V_DET 15.AV4_C 19.AV4_V 18.GND 20.GND 16.GND 4.GND 3.HP_DET 1.KEY1 G-BOARD ! TNPA4262AB TO H-BOARD (H51) R V L Y C JK3701 C Y G CY-G G R2 R1 T NC SW R-SW R R-G L L-G V-SW V V-G R3754 SW3753 R3751 R3766 R3767 SW3757 R3753 SW3754 R3758 SW3755 SW3756 HPOUT_R AV4_Y AV4_R AV4_L AV4_S F 3 8 10 2 9 7 G 17 HEAD PHONE G 51 19 AV4/HP/KEY SW AV4 1 TO H51 HP_DET 15 KEY1 V_DET AV4_C TV/AV AV4_V 12 -/ +/ STR HPOUT_L �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 114 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 115 16 部件布置及机械部件更换清单 16.1. 部件布置 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 116 16.2. 包装分解图 (1) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 117 16.3. 包装分解图 (2) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 118 16.4. 包装分解图 (3) �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 119 16.5. 附件 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 120 16.6. 更换部件清单注意事项 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 121 16.7. 维修部品清单 参考号 部品号 部品名称及说明 数量 备注 1 EAS12S10B 喇叭 2 ETXMM655MEH P 线路板 1 2 EUR7651130 遥控器 1 GQZB-42 高清标贴 1 3 K2CK3DH00028 AC 电源线 1 K5D103BMA001 保险丝 （F601/F602） 2 4 R6PND/2SP PANASONIC 干电池 2 5 TBLA0285 台座本体 1 6 TBMA220 PANASONIC 标牌 1 TBMG517 机型铭牌 1 TBMU744 后端子标贴 1 TBMU747 指示标贴 1 TBMU798 SD 标贴 1 7 TBXA51401 操作开关 1 8 TBXA51502 电源开关 1 9 TESA280 弹簧 1 10 TESD085 电源按钮弹簧 1 THEL037N 螺丝 1 THEL0429 螺丝 29 THEL047J 螺丝 2 THTF011N 螺丝 86 11 TKGA5329 前面玻璃 1 12 TKKC5277 导光板 1 13 TKKL5344-1 M8 垫片盖 4 14 TKKL5384 L/ 调整盖 (TUNER 顶部 ) 1 TKNA139 喇叭片 1 15 TKPA98102 AC 接入口盖 1 16 TKPB10202 门 1 TKPB10601 底板 1 TKPB12102 前面屏 1 17 TKRA48002 后盖把手 2 TKRA57301 SD 卡支撑架 1 18 TMKG686-1 海绵 （前面玻璃 H） 2 19 TMKG687 海绵 （前面玻璃 V） 2 TMME226 AC 电源线夹 1 20 TMME258 线夹 2 21 TMMX148 M8 垫片 4 22 TMZX5097 L/ 台座安装块 左 1 23 TMZX5098 L/ 台座安装块 右 1 24 TPCC14701A L/ 包装箱本体 1 25 TPCC14801 L/ 包装箱底箱 1 26 TPDA1537 L/ 顶部衬垫 1 27 TPDA1617 顶部衬垫 中 1 28 TPDA1618 底部衬垫 中 1 29 TPDA1657 L/ 底部衬垫 1 30 TPDF0764-3 附件盒 1 31 TPDF1897 顶盖 1 32 TPDF1901 纸盒支架 1 33 TPDX0035 包装箱箱扣 4 TPE2AH01121 EPE 包装袋 1 34 TPEH343 顶面保护片 2 35 TPEH344 整机保护袋 1 TQD1712010 合格票 1 TQFD070525 ROHS 回收标志 1 TQFD070601 中国节能认证标志 1 TQFD945 线夹说明标签 1 36 TQZC957 说明书 1 TQZF163 保修证 1 TSXL519 FFC 1 TSXL554 FFC 1 TSXL562 FFC(D31-C11) 1 TSXL600 FFC(D32-C21) 1 TSXL604 FFC(SC20-D20) 1 TUCC6225 FFC 前屏蔽片 1 TXAUX01HMTC 高频头元件 半成品 1 37 TXAJS01HMTP AC 插入口 1 38 TXFBL02LJTU 台座支架组件 2 TXFHM010VKSA 台座螺丝组件 1 39 TKUX13501 后盖 1 40 TKYA30401 面框 1 TXFMM01LJTU 台座保护组件 1 41 TXFUA01HMTC 50HD 屏 (MC127H27F10) 1 TXJ/P2HMTU 线束 (SC2-P2) 1 TXJ/P6HMTB 线束 (PA6-P6) 1 TXJ/P7HMTB 线束 (PA7-P7) 1 TXJ/P9HMTP 线束 INLET-P9 1 TXJ/S1HMTP 线束 (S1-SS34) 1 TXJD25HMTU 线束 (D25-P25) 1 TXJDG1HMTB 线束 (DG1-K1) 1 TXJDG5HNTB 线束 (DG5-D5) 1 TXJFGNHNTU 线束 (GND-INLET) 1 TXJG51HMTA 线束 (G51-H51) 1 TXJH12HNTP-1 线束 (H12-RELAY) 1 TXJP11HMTU-1 线束 (P11-SS11) 1 TXJP12HMTU 线束 (P12-SS12) 1 TXJS33HMTU 线束 (SS33-C33) 1 TXJS35HMTU 线束 (SS35-C35) 1 TXN/D1HMTC D 线路板 完成品 1 TXN/G1HMTC G 线路板 完成品 1 TXN/K1HMTC K 线路板 完成品 1 TXN/S1HMTC S 线路板 完成品 1 TXNC11HMTC C1 线路板 完成品 1 TXNC21HMTC C2 线路板 完成品 1 TXNC31HMTC C3 线路板 完成品 1 TXNPA1HMTC PA 线路板 完成品 1 TXNSC1HMTC SC 线路板 完成品 1 TXNSD1HMTC SD 线路板 完成品 1 TXNSS1HMTC SS 线路板 半成品 1 TXNSS21HMTC SS2 线路板 完成品 1 TXNSS31HMTC SS3 线路板 完成品 1 TXNSU1HMTC SU 线路板 完成品 1 XTB4+12GFJ 螺丝 45 XTB4+12GFJK 螺丝 （底盖：2） 12 XTB4+16GFJ 螺丝 2 XTV3+10JFJK L/ 螺丝 ( 后面 ) 6 XTW3+10TFJ 螺丝 3 XYN3+F8FJ 螺丝 25 XYN3+J6FJ 螺丝 1 XYN4+E8FJ 螺丝 1 XYN4+F10FJ 螺丝 9 XYN4+F10FJK 螺丝 5 XYN4+F30FJK 螺丝 6 XYN5+C15FJ L/ 带垫螺丝 （标准垫片） 8 参考号 部品号 部品名称及说明 数量 备注 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 122 16.8. 电器部件更换清单 参考号 部品号 部品名称及描述 数量 备注 F601.602 K5D103BMA001 延时型保险丝 2 C10 K1MN20BA0231 20P 连接器 1 C11 K1MN55BA0076 55P 连接器 1 C20 K1MN20BA0231 20P 连接器 1 C21,22 K1MN68BA0076 68P 连接器 2 C32 K1MN68BA0076 68P 连接器 1 C33 K1KA10B00218 10P 连接器 1 C35 K1KA04BA0107 4P 连接器 1 C1102 F1J1A106A043 C 0.010UF, K, 10V 1 C1103,04 F1G1C104A081 C 0.10UF, K, 16V 2 C1106 F1H1H2700008 E 27UF, 50V 1 C1107 F1H1H2200008 E 22UF, 50V 1 C1108 F1G1C104A081 C 0.10UF, K, 16V 1 C1109 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1111 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1112 F1G1C104A081 C 0.10UF, K, 16V 1 C1114 F1G1C104A081 C 0.10UF, K, 16V 1 C1117 F1G1C104A081 C 0.10UF, K, 16V 1 C1122 F1G1E1030005 C 0.01UF, Z, 25V 1 C1123 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2005,06 F1H1H5610007 E 560UF, 50V 2 C2010,11 F1H1H5610007 E 560UF, 50V 2 C2013,14 F1H1H5610007 E 560UF, 50V 2 C2016,17 F1H1H5610007 E 560UF, 50V 2 C2021,22 F1H1H5610007 E 560UF, 50V 2 C2023 ECJ1XB1H104K C 10PF, J, 50V 1 C2048-50 ECJ1XB1H104K C 10PF, J, 50V 3 C2052,53 ECJ1XB1H104K C 10PF, J, 50V 2 C2054 F1J1A106A043 C 0.010UF, K, 10V 1 C2055,56 ECJ1VC1H120J C 12PF, J, 50V 2 C2057,58 ECJ1XB1H104K C 10PF, J, 50V 2 C2059 F2G0J470A019 E 47UF 6.3V 1 C2088 ECJ2FB1A475K C 4.7UF, K, 10V 1 C2089 F1H1H5610007 E 560UF, 50V 1 C2091 ECJ1VC1H100C C 10PF, C, 50V 1 C2092 F1H1H2200008 E 22UF, 50V 1 C2096,97 ECJ1XB1H104K C 10PF, J, 50V 2 C2098,99 EEEHB0J221UP C 220PF, J,6.3V 2 C2100 ECJ1XB1H104K C 10PF, J, 50V 1 C2101 F1J1A106A043 C 0.010UF, K, 10V 1 C2102 ECJ1XB1H104K C 10PF, J, 50V 1 C2105,06 ECJ1XB1H104K C 10PF, J, 50V 2 C2107,08 F2G0J470A019 E 47UF 6.3V 2 C2109,10 ECJ1XB1H104K C 10PF, J, 50V 2 C2111 F1H0J2250008 C 2.2UF, K, 16V 1 C2112,13 F2G0J470A019 E 47UF 6.3V 2 C2114,15 ECJ1XB1H104K C 10PF, J, 50V 2 C2116 F1H1H471A792 E 470UF, 50V 1 C2117 ECJ1XB1H104K C 10PF, J, 50V 1 C2118 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2119 EEEHB1A221P C 220PF, J, 10V 1 C2120,21 F1H1H5600007 E 56UF, 50V 2 C2124 ECJ1XB1H104K C 10PF, J, 50V 1 C2126 F1J1A106A043 C 0.010UF, K, 10V 1 C2130 F1J0J106A021 C 0.010UF, K, 16V 1 C2131 ECJ1XB1H104K C 10PF, J, 50V 1 C2133 EEEHB1H4R7R C 4.7PF, J, 50V 1 C2134 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2135,36 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2137 F2G0J470A019 E 47UF 6.3V 1 C2138 ECJ1XB1H104K C 10PF, J, 50V 1 C2143 F1H1H181A792 E 180UF, 50V 1 C2146 F1H1H181A792 E 180UF, 50V 1 C2147 EEEHB1C220R C 22PF, J, 16V 1 C2151 F2G0J470A019 E 47UF 6.3V 1 C2153 ECJ1VC1H330J C 33PF, J, 50V 1 C2154 ECJ1XB1H104K C 10PF, J, 50V 1 C2155 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2157 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2159,60 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2161 EEEHB1C101UP C 100PF, J, 16V 1 C2162-67 ECJ1VB1C105K C 0.01UF, K, 16V 6 C2170 ECJ1VC1H330J C 33PF, J, 50V 1 C2171 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2173 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C2174 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2175 EEEHB1C470P C 47PF, J, 16V 1 C2176 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2179 EEEHB1C470P C 47PF, J, 16V 1 C2180 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2183 F1J1A106A043 C 0.010UF, K, 10V 1 C2184 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2185 F1J1A106A043 C 0.010UF, K, 10V 1 C2186 ECJ1XB1H104K C 10PF, J, 50V 1 C2187 F1H0J2250008 C 2.2UF, K, 16V 1 C2188 F1H1H471A792 E 470UF, 50V 1 C2189 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2190,91 F1J1A106A043 C 0.010UF, K, 10V 2 C2192 F2G0J470A019 E 47UF 6.3V 1 C2195 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2197,98 ECJ1VB1C333K C 0.033UF, K, 16V 2 C2202 F1H0J2250008 C 2.2UF, K, 16V 1 C2203 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2204 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2213 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2216 ECJ1XB1H104K C 10PF, J, 50V 1 C2244 ECJ1XB1H104K C 10PF, J, 50V 1 C2245 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2246 F1J1A106A043 C 0.010UF, K, 10V 1 C2251 F1J1A106A043 C 0.010UF, K, 10V 1 C2263,64 F1J1A106A043 C 0.010UF, K, 10V 2 C2265-68 ECJ1XC1H101J C 100PF, J, 50V 4 C2270,71 F1H1H471A792 E 470UF, 50V 2 C2272 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C2280 ECJ2FB1A475K C 4.7UF, K, 10V 1 C2281 F1H1H5610007 E 560UF, 50V 1 C2288,89 F1J1A106A043 C 0.010UF, K, 10V 2 C2301,02 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C2311 ECJ1XB1H104K C 10PF, J, 50V 1 C2313 ECJ1XB1H104K C 10PF, J, 50V 1 C2315 ECJ1XB1H104K C 10PF, J, 50V 1 C2317 ECJ1VB1C333K C 0.033UF, K, 16V 1 C2319 ECJ1VB1C333K C 0.033UF, K, 16V 1 C2321 ECJ1VB1C333K C 0.033UF, K, 16V 1 C2323 ECJ1VB1C333K C 0.033UF, K, 16V 1 C2325 F1J1H474A757 C 0.47UF, 50V 1 C2327 ECJ1XB1H104K C 10PF, J, 50V 1 C2329 ECJ1XB1H104K C 10PF, J, 50V 1 C2331 F1J1H474A757 C 0.47UF, 50V 1 C2333 ECJ1XB1H104K C 10PF, J, 50V 1 C2335 ECJ1XB1H104K C 10PF, J, 50V 1 C2337 F1H1H223A219 E 0.022UF, 50V 1 C2339 F1H1H223A219 E 0.022UF, 50V 1 C2341 ECJ1XB1H104K C 10PF, J, 50V 1 C2343 ECJ1XB1H104K C 10PF, J, 50V 1 C2345 F1H1H223A219 E 0.022UF, 50V 1 C2347 F1H1H223A219 E 0.022UF, 50V 1 C2349 ECJ1XB1H104K C 10PF, J, 50V 1 C2352 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2353 ECJ1XB1H104K C 10PF, J, 50V 1 C2355 ECJ1XB1H104K C 10PF, J, 50V 1 C2357 ECJ1XB1H104K C 10PF, J, 50V 1 C2359 ECJ1XB1H104K C 10PF, J, 50V 1 C2361 EEEFG1E471P E 470UF, 25V 1 C2363 ECJ1XB1H104K C 10PF, J, 50V 1 C2365 EEEHB1C221UP C 220PF, J, 16V 1 C2375 F1H1H223A219 E 0.022UF, 50V 1 C2377 F1H1H223A219 E 0.022UF, 50V 1 C2379 F1H1H223A219 E 0.022UF, 50V 1 C2381 F1H1H223A219 E 0.022UF, 50V 1 C2383 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2385 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2387 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2389 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2502,03 ECJ2XB1H102K C 1000PF, K, 50V 2 C2512 F1K0J1060020 C 10UF, K,6.3V 1 C2515 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2521 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2522-27 ECJ1VB1H102K C 1000UF, Z, 50V 6 C2601,02 ECJ1XB1H104K C 10PF, J, 50V 2 C2801 ECJ3XB1C106M C 1.0UF, K, 16V 1 参考号 部品号 部品名称及描述 数量 备注 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 123 C2802,03 F1J1H474A757 C 0.47UF, 50V 2 C2813 ECJ1XB1H104K C 10PF, J, 50V 1 C2814 ECJ1VB1H472K C 4700PF, K, 50V 1 C2815 ECJ1XB1H104K C 10PF, J, 50V 1 C2816 EEEHB1V220P E 22UF, 35V 1 C2817 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2819 EEEHB1E470P C 47PF, J, 25V 1 C3021 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3023,24 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C3026 ECJ1XB1H104K C 10PF, J, 50V 1 C3027,28 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C3029 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3031 ECJ1XB1H104K C 10PF, J, 50V 1 C3033 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3040 ECJ1XB1H104K C 10PF, J, 50V 1 C3043 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3051-56 ECJ1VB1A105K C 0.01UF, Z, 50V 6 C3060 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3070 EEEHB0J221UP C 220PF, J,6.3V 1 C3075 EEEHB1C221UP C 220PF, J, 16V 1 C3078 F1K0J226A008 C 22UF, K,6.3V 1 C3081 F2H0J1010009 C 100UF, 6.3V 1 C3100-02 ECJ1VB1A105K C 0.01UF, Z, 50V 3 C3103 EEEHB1C100R C 10PF, J, 16V 1 C3115-17 ECJ1XB1H104K C 10PF, J, 50V 3 C3118 EEEHB1C470P C 47PF, J, 16V 1 C3119 EEEHB1C100R C 10PF, J, 16V 1 C3120 ECJ1XB1H104K C 10PF, J, 50V 1 C3201 ECJ1XB1H104K C 10PF, J, 50V 1 C3214 ECJ1XB1H104K C 10PF, J, 50V 1 C3216 ECJ1XB1H104K C 10PF, J, 50V 1 C3226-28 ECJ1XB1H104K C 10PF, J, 50V 3 C3230 ECJ1XB1H104K C 10PF, J, 50V 1 C3263 ECJ1XB1H104K C 10PF, J, 50V 1 C3265-68 ECJ1XB1H104K C 10PF, J, 50V 4 C3270 EEEHB0J102UP C 1100PF, J, 6.3V 1 C3271 EEEHB1C100R C 10PF, J, 16V 1 C3272 ECJ1XB1H104K C 10PF, J, 50V 1 C3273 F2G1H100A031 E 10UF, 50V 1 C3274-76 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C3279 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3280 ECJ1XC1H101J C 100PF, J, 50V 1 C3281 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3701 ECJ2XC1H561K C 560PF, K, 50V 1 C3703 ECJ2XC1H561K C 560PF, K, 50V 1 C3711,12 ECJ2VF1H333Z C 0.033UF, Z, 50V 2 C3715 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3750 F1J1H102A721 E 1000UF, 50V 1 C4500-03 F1G1C104A081 C 0.10UF, K, 16V 4 C4506,07 F1G1C104A081 C 0.10UF, K, 16V 2 C4508,09 EEEHB0J330R C 33PF, J,6.3V 2 C4510,11 F1G1C104A081 C 0.10UF, K, 16V 2 C4515 F1G1C104A081 C 0.10UF, K, 16V 1 C4527 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4528 F1G1C104A081 C 0.10UF, K, 16V 1 C4531 F1G1C104A081 C 0.10UF, K, 16V 1 C4533 F1G1H680A565 E 68UF, 50V 1 C4534,35 ECJ1XB1H104K C 10PF, J, 50V 2 C4538 F2G0J470A019 E 47UF 6.3V 1 C4539 F1J1A106A043 C 0.010UF, K, 10V 1 C4541 F1H1H471A219 E 470UF, 50V 1 C4543-45 F1G1C104A081 C 0.10UF, K, 16V 3 C4546 F1H0J2250008 C 2.2UF, K, 16V 1 C4547 F1G1C104A081 C 0.10UF, K, 16V 1 C4548,49 ECJ1XB1H104K C 10PF, J, 50V 2 C4550 F1G1C104A081 C 0.10UF, K, 16V 1 C4551,52 ECJ1XB1H104K C 10PF, J, 50V 2 C4553 F1G1H1020008 E 1000UF, 50V 1 C4555,56 F1J1A106A043 C 0.010UF, K, 10V 2 C4557 F1G1C104A081 C 0.10UF, K, 16V 1 C4559,60 F1G1C104A081 C 0.10UF, K, 16V 2 C4562 F1H1H822A219 E 8200UF, 50V 1 C4563 ECJ1VB1C823K C 0.082UF, K, 16V 1 C4564,65 F1G1E1030005 C 0.01UF, Z, 25V 2 C4566 ECJ1XB1C393K C 0.039UF, K, 16V 1 C4568 F1G1C104A081 C 0.10UF, K, 16V 1 C4569 F1J1C684A097 C 0.68UF, Z, 16V 1 参考号 部品号 部品名称及描述 数量 备注 C4570 F2G0J470A019 E 47UF, 6.3V 1 C4572,73 F1G1C104A081 C 0.10UF, K, 16V 2 C4574 F1G1E1030005 C 0.01UF, Z, 25V 1 C4575 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4576 F2G0J470A019 E 47UF 6.3V 1 C4577,78 F1G1C104A081 C 0.10UF, K, 16V 2 C4580 F1G1E1030005 C 0.01UF, Z, 25V 1 C4581 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4582,83 F1G1C104A081 C 0.10UF, K, 16V 2 C4584,85 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4586 F1G1E1030005 C 0.01UF, Z, 25V 1 C4587 F1G1C104A081 C 0.10UF, K, 16V 1 C4588 ECJ1VB1C823K C 0.082UF, K, 16V 1 C4589 F1G1H150A565 E 15UF, 50V 1 C4590 ECJ0EC1H180J C 180PF, K, 50V 1 C4591,92 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4593 F1G1E1030005 C 0.01UF, Z, 25V 1 C4595 F1G1E1030005 C 0.01UF, Z, 25V 1 C4596 F1G1C104A081 C 0.10UF, K, 16V 1 C4598 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4600,01 F1G1E1030005 C 0.01UF, Z, 25V 2 C4602 F1G1C104A081 C 0.10UF, K, 16V 1 C4604 F1H0J2250008 C 2.2UF, K, 16V 1 C4605 F1G1C104A081 C 0.10UF, K, 16V 1 C4607 F2G0J470A019 E 47UF 6.3V 1 C4609 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4611 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4612 F1G1E1030005 C 0.01UF, Z, 25V 1 C4613 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4614 F1G1C104A081 C 0.10UF, K, 16V 1 C4615 F1G1E1030005 C 0.01UF, Z, 25V 1 C4616,17 F1G1C104A081 C 0.10UF, K, 16V 2 C4618 F1G1E1030005 C 0.01UF, Z, 25V 1 C4619 F1G1C104A081 C 0.10UF, K, 16V 1 C4620 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4623 F1G1C104A081 C 0.10UF, K, 16V 1 C4624,25 ECJ1XB1H104K C 10PF, J, 50V 2 C4628 F1G1C104A081 C 0.10UF, K, 16V 1 C4629 F1J1A106A043 C 0.010UF, K, 10V 1 C4807 F1G1C104A081 C 0.10UF, K, 16V 1 C5501 F2A1C471A537 E 470UF, 16V 1 C5502 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5503 F2A1C471A537 E 470UF, 16V 1 C5504 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5521,22 ECJ2VB1C104K C 0.1UF, K, 16V 2 C5551 F2A1H331A257 E 330UF, 50V 1 C5552 ECJ2VB1E104K C 0.1UF, K, 25V 1 C5595 ECA1HM220 E 22UF, 50V 1 C5600 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5601 F1G1C104A081 C 0.10UF, K, 16V 1 C5602 ECGRL0G680ER C 68PF, J, 4V 1 C5603,04 F1G1E1030005 C 0.01UF, Z, 25V 2 C5605 F1J1A475A039 C 4.7UF, K, 10V 1 C5606 F1H1H471A219 E 470UF, 50V 1 C5607 F1G1H221A459 E 220UF, 50V 1 C5608 F1G1C104A081 C 0.10UF, K, 16V 1 C5609,10 EEEHB1C470P C 47PF, J, 16V 2 C5615 F1J1A106A043 C 0.010UF, K, 10V 1 C5616 ECJ0EB1A473K C 0.047UF, K, 10V 1 C5617 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5618,19 F1J1A106A043 C 0.010UF, K, 10V 2 C5620 ECJ1XB1H104K C 10PF, J, 50V 1 C5621 F1G1E1030005 C 0.01UF, Z, 25V 1 C5622 F1J1A475A039 C 4.7UF, K, 10V 1 C5623 ECJ0EB1H471K C 470PF, K, 50V 1 C5624 F1G1H221A459 E 220UF, 50V 1 C5625 F1G1E1030005 C 0.01UF, Z, 25V 1 C5626,27 F1G1C104A081 C 0.10UF, K, 16V 2 C5628,29 ECGRL0G680ER C 68PF, J, 4V 2 C5630,31 EEEHB1C470P C 47PF, J, 16V 2 C5632 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5636-41 F1G1C104A081 C 0.10UF, K, 16V 6 C5643 ECJ1XB1H104K C 10PF, J, 50V 1 C5644 F1G1E1030005 C 0.01UF, Z, 25V 1 C5645 F1H1A225A051 E 22UF, 50V 1 C5661 F1G1E1030005 C 0.01UF, Z, 25V 1 C5662 ECJ0EB1A473K C 0.047UF, K, 10V 1 参考号 部品号 部品名称及描述 数量 备注 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 124 C5663 F1G1E1030005 C 0.01UF, Z, 25V 1 C5670 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5673,74 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C5676 F1G1C104A081 C 0.10UF, K, 16V 1 C5690,91 F2G0J470A019 E 47UF 6.3V 2 C5692,93 ECJ1XB1H104K C 10PF, J, 50V 2 C5694,95 F2G0J470A019 E 47UF 6.3V 2 C5710-16 ECJ2VF1C104Z C 0.1UF, Z, 16V 7 C6001 F1L2J562A022 C 5600UF, K,6.3V 1 C6011-16 F2A2T201A002 E 200UF, 6 C6023 F1L2J562A022 C 5600UF, K,6.3V 1 C6031 F0C2E405A176 E 0.040UF, 250V 1 C6037 F1L1E4750004 C 4.7UF, 25V 1 C6111,12 F2A2D221A022 E 220UF, 200V 2 C6132 F1L1E4750004 C 4.7UF, 25V 1 C6134,35 F1L1E4750004 C 4.7UF, 25V 2 C6151 ECJ3YB1E105K C 1UF, K, 25V 1 C6152-54 F1L1E4750004 C 4.7UF, 25V 3 C6193-95 F1L1E4750004 C 4.7UF, 25V 3 C6197 F1L1E4750004 C 4.7UF, 25V 1 C6201-04 F0C2E405A176 E 0.040UF, 250V 4 C6211,12 F1L1E4750004 C 4.7UF, 25V 2 C6213 F2A1E102A220 E 1000UF, 25V 1 C6216 F1L1E4750004 C 4.7UF, 25V 1 C6221 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6223 F2A2E470A022 E 47UF, 250V 1 C6241 F2A1A101A439 E 100UF, 10V 1 C6242 F1H1C105A072 C 1UF, K, 16V 1 C6243 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6247,48 ECJ2XB1H104K C 0.1UF, K, 50V 2 C6251 F1H1C105A072 C 1UF, K, 16V 1 C6252 ECJ3YB1E105K C 1UF, K, 25V 1 C6261,62 F2A2A471A072 E 470UF, 100V 2 C6272,73 F2A1E221A487 E 220UF, 25V 2 C6276 F1L1E4750004 C 4.7UF, 25V 1 C6281 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6287,88 ECJ2XB1H104K C 0.1UF, K, 50V 2 C6402-04 F1L2J222A022 C 2200UF, K,6.3V 3 C6411-16 F2A2T201A002 E 200UF, 6 C6421-24 F1L2J222A022 C 2200UF, K,6.3V 4 C6431 F0C2E405A176 E 0.040UF, 250V 1 C6471 F1L2J1020001 C 1000UF, K,6.3V 1 C6472 ECJ2XC1H101J C 100PF, J, 50V 1 C6480 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6481,82 F1L1E4750004 C 4.7UF, 25V 2 C6485 F1L1E4750004 C 4.7UF, 25V 1 C6491 F1L2J1020001 C 1000UF, K,6.3V 1 C6499 F1H1C105A072 C 1UF, K, 16V 1 C6500 ECJ3YB1E105K C 1UF, K, 25V 1 C6502 F1L1E4750004 C 4.7UF, 25V 1 C6504,05 F1L1E4750004 C 4.7UF, 25V 2 C6521 ECJ3YB1E105K C 1UF, K, 25V 1 C6522 F1L1E4750004 C 4.7UF, 25V 1 C6524,25 F1L1E4750004 C 4.7UF, 25V 2 C6527 F1L1E4750004 C 4.7UF, 25V 1 C6531-34 F0C2E405A176 E 0.040UF, 250V 4 C6561 F2A1A101A439 E 100UF, 10V 1 C6562 F1H1C105A072 C 1UF, K, 16V 1 C6563 F2A1A101A439 E 100UF, 10V 1 C6564 F1H1C105A072 C 1UF, K, 16V 1 C6565,66 ECJ2VB1H103K C 0.01UF, K, 50V 2 C6571,72 F1L2J1020001 C 1000UF, K,6.3V 2 C6579 F2A2T201A002 E 200UF, 1 C6581 ECJ3YB1E105K C 1UF, K, 25V 1 C6582 F1H1C105A072 C 1UF, K, 16V 1 C6592 F2A1E221A487 E 220UF, 25V 1 C6593 ECJ2XC1H102J C 1000PF, J, 50V 1 C6594 F2A1E221A487 E 220UF, 25V 1 C6603,04 F1K2J102A014 C 1000UF, K,6.3V 2 C6605,06 F1L2J472A022 C 4700UF, K,6.3V 2 C6620,21 ECKD3A392KBP C 3900PF, K, 1KV 2 C6641 ECQE2105RKB P 1UF, 250V 1 C6661,62 F1K2J102A014 C 1000UF, K,6.3V 2 C6671 F1L1E4750004 C 4.7UF, 25V 1 C6692 ECA2CM101 E 100UF, 160V 1 C6694 ECJ3YB1E105K C 1UF, K, 25V 1 C6695 ECJ2XC1H102J C 1000PF, J, 50V 1 参考号 部品号 部品名称及描述 数量 备注 C6702-06 ECJ2XB1H104K C 0.1UF, K, 50V 5 C6708 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6721 F2A1H101A493 E 100UF, 50V 1 C6722 ECJ2XC1H101J C 100PF, J, 50V 1 C6723-25 F1L1E4750004 C 4.7UF, 25V 3 C6726,27 F1H1C105A072 C 1UF, K, 16V 2 C6752 ECJ3YB1E105K C 1UF, K, 25V 1 C6753 F1L1E4750004 C 4.7UF, 25V 1 C6755,56 F1L1E4750004 C 4.7UF, 25V 2 C6771 F1H1C105A072 C 1UF, K, 16V 1 C6772,73 F1L1E4750004 C 4.7UF, 25V 2 C6775 F1L1E4750004 C 4.7UF, 25V 1 C6776,77 ECJ2XB1H104K C 0.1UF, K, 50V 2 C6791 F2A1E221A487 E 220UF, 25V 1 C6795,96 F2A1E221A487 E 220UF, 25V 2 C6802 ECQE6223KF P 0.022UF, K,400V 1 C6803 ECKD3D221KBP C 220PF, K, 2KV 1 C6804 F2A2E100A022 E 10UF, 250V 1 C6805 ECJ2XC1H102J C 1000PF, J, 50V 1 C6806 ECA2CM101 E 100UF, 160V 1 C6807 ECJ2XC1H471J C 470PF, J, 50V 1 C6811 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6812 F1L1E4750004 C 4.7UF, 25V 1 C6813 ECA2CM101 E 100UF, 160V 1 C6814 F2A1E221A487 E 220UF, 25V 1 C6815 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6822 F2A2G470A018 E 470UF, 400V 1 C6823 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6832 ECJ2XB1H392K C 3900PF, K, 50V 1 C6841 ECA2DHG101 E 100UF, 200V 1 C6842 ECA2CM101 E 100UF, 160V 1 C6845 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6861 F1H1C105A072 C 1UF, K, 16V 1 C6862 ECJ3YB1E105K C 1UF, K, 25V 1 C6863 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6871 F1H1C105A072 C 1UF, K, 16V 1 C6872 ECJ3YB1E105K C 1UF, K, 25V 1 C6873 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6884 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6901 ECJ2XB1H102K C 1000PF, K, 50V 1 C6902 TCUY1C105ZFN C 1UF, 16V 1 C6904 TCUY1C105ZFN C 1UF, 16V 1 C6906 TCUY1C105ZFN C 1UF, 16V 1 C6908 TCUY1C105ZFN C 1UF, 16V 1 C6910 TCUY1C105ZFN C 1UF, 16V 1 C6912 TCUY1C105ZFN C 1UF, 16V 1 C6923,24 F1L2E1040002 E 1000UF, 25V 2 C6929,30 F1L2E1040002 E 1000UF, 25V 2 C6931 ECJ2XB1H102K C 1000PF, K, 50V 1 C6932,33 F1L2E1040002 E 1000UF, 25V 2 C6936,37 ECJ2VB1H221K C 220PF, K, 50V 2 C6951 ECJ2XB1H102K C 1000PF, K, 50V 1 C6952 TCUY1C105ZFN C 1UF, 16V 1 C6955 TCUY1C105ZFN C 1UF, 16V 1 C6957,58 TCUY1C105ZFN C 1UF, 16V 2 C6961 TCUY1C105ZFN C 1UF, 16V 1 C6963 TCUY1C105ZFN C 1UF, 16V 1 C6974,75 F1L2E1040002 E 1000UF, 25V 2 C6981 ECJ2XB1H102K C 1000PF, K, 50V 1 C6982-85 F1L2E1040002 E 1000UF, 25V 4 C6986,87 ECJ2VB1H221K C 220PF, K, 50V 2 C7103 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7105 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7106-08 ECJ1XC1H101J C 100PF, J, 50V 3 C7110,11 F1H1C105A072 C 1UF, K, 16V 2 C7114,15 F1H1C105A072 C 1UF, K, 16V 2 C7117-22 F1K2A474A006 C 0.47UF, 6.3V 6 C7124,25 F1H1C105A072 C 1UF, K, 16V 2 C7127,28 F1K2A474A006 C 0.47UF, 6.3V 2 C7130,31 F1H1C105A072 C 1UF, K, 16V 2 C7133 ECJ1XC1H101J C 100PF, J, 50V 1 C7134,35 F1K2A474A006 C 0.47UF, 6.3V 2 C7137,38 F1H1C105A072 C 1UF, K, 16V 2 C7140 ECJ1XC1H101J C 100PF, J, 50V 1 C7141 F1H1C105A072 C 1UF, K, 16V 1 C7201 F1H1C105A072 C 1UF, K, 16V 1 C7203 ECJ1XB1C104K C 0.1UF, Z, 16V 1 参考号 部品号 部品名称及描述 数量 备注 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 125 C7206 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7209,10 F1K2A474A006 C 0.47UF, 6.3V 2 C7212,13 F1H1C105A072 C 1UF, K, 16V 2 C7215-17 ECJ1XC1H101J C 100PF, J, 50V 3 C7219,20 F1H1C105A072 C 1UF, K, 16V 2 C7222-25 F1K2A474A006 C 0.47UF, 6.3V 4 C7227,28 F1H1C105A072 C 1UF, K, 16V 2 C7230 F1H1C105A072 C 1UF, K, 16V 1 C7231 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7301 F1K2A474A006 C 0.47UF, 6.3V 1 C7305,06 F1K2A474A006 C 0.47UF, 6.3V 2 C7308,09 F1H1C105A072 C 1UF, K, 16V 2 C7311 ECJ1XC1H101J C 100PF, J, 50V 1 C7312,13 F1K2A474A006 C 0.47UF, 6.3V 2 C7315,16 F1H1C105A072 C 1UF, K, 16V 2 C7318 ECJ1XC1H101J C 100PF, J, 50V 1 C7319,20 F1K2A474A006 C 0.47UF, 6.3V 2 C7322,23 F1H1C105A072 C 1UF, K, 16V 2 C7325 ECJ1XC1H101J C 100PF, J, 50V 1 C7326 F1H1C105A072 C 1UF, K, 16V 1 C7328 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7330 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7332 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7334 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C8001 F1G1C104A081 C 0.10UF, K, 16V 1 C8002-05 F1H0J1050012 C 1UF, K, 16V 4 C8006-08 F1G1C104A081 C 0.10UF, K, 16V 3 C8009,10 F1J1A106A043 C 0.010UF, K, 10V 2 C8011-14 F1G1C104A081 C 0.10UF, K, 16V 4 C8015,16 F1H0J1050012 C 1UF, K, 16V 2 C8017 F1J1A106A043 C 0.010UF, K, 10V 1 C8018-21 F1G1C104A081 C 0.10UF, K, 16V 4 C8022 F1H0J1050012 C 1UF, K, 16V 1 C8023,24 F1J1A106A043 C 0.010UF, K, 10V 2 C8025-29 F1G1C104A081 C 0.10UF, K, 16V 5 C8030,31 F1H0J1050012 C 1UF, K, 16V 2 C8032 F1J1A106A043 C 0.010UF, K, 10V 1 C8033,34 F1G1C104A081 C 0.10UF, K, 16V 2 C8035,36 F1J1A106A043 C 0.010UF, K, 10V 2 C8037-41 F1G1C104A081 C 0.10UF, K, 16V 5 C8042 ECGRL0G680ER C 68PF, J, 4V 1 C8043-51 F1G1C104A081 C 0.10UF, K, 16V 9 C8052 F1H0J1050012 C 1UF, K, 16V 1 C8053 F1G1E1030005 C 0.01UF, Z, 25V 1 C8056,57 F1G1C104A081 C 0.10UF, K, 16V 2 C8058 F1J1A106A043 C 0.010UF, K, 10V 1 C8067 F1G1E1030005 C 0.01UF, Z, 25V 1 C8068 F1G1C104A081 C 0.10UF, K, 16V 1 C8069 F1G1H820A565 E 82UF, 50V 1 C8070-74 F1G1C104A081 C 0.10UF, K, 16V 5 C8075 F1J0G2260001 C 0.001UF, 6.3V 1 C8076-80 F1G1C104A081 C 0.10UF, K, 16V 5 C8551,52 F1G1C104A081 C 0.10UF, K, 16V 2 C8555 F1G1C104A081 C 0.10UF, K, 16V 1 C8601 F1G1C104A081 C 0.10UF, K, 16V 1 C8621,22 F1G1C104A081 C 0.10UF, K, 16V 2 C8731 F1G1E1030005 C 0.01UF, Z, 25V 1 C9028,29 F1J1A106A043 C 0.010UF, K, 10V 2 C9033,34 F1G1C104A083 C 0.10UF, K, 16V 2 C9035,36 F1J1A106A043 C 0.010UF, K, 10V 2 C9037 F1G1E1030005 C 0.01UF, Z, 25V 1 C9039 F1J1A106A043 C 0.010UF, K, 10V 1 C9040 F1G1C104A083 C 0.10UF, K, 16V 1 C9044 ECJ2YB0J475K C 3.3UF, Z,4.7V 1 C9045-53 F1G1C104A083 C 0.10UF, K, 16V 9 C9055-57 F1G1C104A083 C 0.10UF, K, 16V 3 C9058 F1J1A106A043 C 0.010UF, K, 10V 1 C9061 F1G1C104A077 C 0.10UF, K, 16V 1 C9062 ECJ2YB0J475K C 3.3UF, Z,4.7V 1 C9063 F1G1C104A083 C 0.10UF, K, 16V 1 C9468 F1G1E1030005 C 0.01UF, Z, 25V 1 C9469 F1G1C104A083 C 0.10UF, K, 16V 1 C9500 F1G1C104A077 C 0.10UF, K, 16V 1 C9505 F1G1C104A077 C 0.10UF, K, 16V 1 C9508 F1G1C104A077 C 0.10UF, K, 16V 1 C9509,10 F1G1H120A565 E 12UF, 50V 2 C9511 F1J1A106A043 C 0.010UF, K, 10V 1 参考号 部品号 部品名称及描述 数量 备注 C9516-25 F1G1C104A077 C 0.10UF, K, 16V 10 C9526 F1J1A106A043 C 0.010UF, K, 10V 1 C9527,28 F1G1C104A077 C 0.10UF, K, 16V 2 C9531 F1J1A106A043 C 0.010UF, K, 10V 1 C9559-64 F1G1C104A077 C 0.10UF, K, 16V 6 C9823 ECJ3YB1E106M C 10 UF, K, 25V 1 C9825 F1G1H101A565 C 100PF, K, 50V 1 C9832 F1J1A106A043 C 0.010UF, K, 10V 1 C9837 F1J1A106A043 C 0.010UF, K, 10V 1 C9838 F1G1C104A083 C 0.10UF, K, 16V 1 C9840 F1G1E1030005 C 0.01UF, Z, 25V 1 C9841-43 F1G1C104A083 C 0.10UF, K, 16V 3 C9844 F1G1E1030005 C 0.01UF, Z, 25V 1 C9845,46 F1G1C104A083 C 0.10UF, K, 16V 2 C9858 ECJ3YB1E106M C 10 UF, K, 25V 1 C9859 F1G1E1030005 C 0.01UF, Z, 25V 1 C9860 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1 C9861,62 ECJ1VB1E104K C 0.10UF, K, 25V 2 C9863 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1 C9864 ECJ1VB1E104K C 0.10UF, K, 25V 1 C9865,66 ECGRL0G680ER C 68PF, J, 4V 2 C9867-72 ECJ3YB1E106M C 10 UF, K, 25V 6 C9873 ECGRL0G680ER C 68PF, J, 4V 1 C9874 F1G1H680A565 E 68UF, 50V 1 C9877 F1G1H680A565 E 68UF, 50V 1 C9878 F1G1E1030005 C 0.01UF, Z, 25V 1 C9879,80 F1G1E822A086 C 8200UF, Z, 25V 2 C9881 F1G1E1030005 C 0.01UF, Z, 25V 1 C9882 F1G1E822A086 C 8200UF, Z, 25V 1 C9883 F1G1H101A565 C 100PF, K, 50V 1 C9884,85 F1G1H1020008 E 1000UF, 50V 2 C9886,87 ECJ1VB1E104K C 0.10UF, K, 25V 2 C9888 F1G1H361A565 E 360UF, 50V 1 C9900-25 F1G1C104A077 C 0.10UF, K, 16V 26 C9927-51 F1G1C104A077 C 0.10UF, K, 16V 25 C9955-59 F1G1C104A077 C 0.10UF, K, 16V 5 C9960-64 F1J1A106A043 C 0.010UF, K, 10V 5 C9966,67 F1G1C104A077 C 0.10UF, K, 16V 2 CB1-11 K1MN68BA0052 68P 连接器 11 CF6281 D4DA91000001 电热调节器 1 D5 K1KB31BA0064 31P 连接器 1 D6 K1KA21A00011 21P 连接器 1 D9 K1KA07A00292 7P 连接器 1 D20 K1KY30BA0090 30P 连接器 1 D25 K1KA13B00069 13P 连接器 1 D31 K1MN55BA0257 55P 连接器 1 D32 K1MN68BA0251 68P 连接器 1 D1107 MA704A 二极管 1 D2026 MA2J11100L 二极管 1 D2028,29 MA2J11100L 二极管 2 D2031-34 MA2J11100L 二极管 4 D2119 B0BC01100001 齐纳二极管 1 D2189 MA2J11100L 二极管 1 D2301,02 MA2J11100L 二极管 2 D2303 MA3056H 齐纳二极管 1 D2304 MA2J11100L 二极管 1 D2512 MA8043LTX 齐纳二极管 1 D2520 LNJ107W5PRW LED 1 D2524 MAZ80560ML 齐纳二极管 1 D2632,33 MA2J11100L 二极管 2 D2634 MA3X78900L 齐纳二极管 1 D2635 MA2J11100L 二极管 1 D2636 MA3047H 齐纳二极管 1 D2637 MA2J11100L 二极管 1 D2638 B0BC03900015 齐纳二极管 1 D3003 MA8140M 齐纳二极管 1 D3005,06 MA8140M 齐纳二极管 2 D3035-43 MA8140M 齐纳二极管 9 D3044 B0BC01100001 齐纳二极管 1 D3045-49 MA8140M 齐纳二极管 5 D3100 MA8140M 齐纳二极管 1 D3102 MA2J11100L 二极管 1 D3334-38 MA2J11100L 二极管 5 D3702 MA8140M 齐纳二极管 1 参考号 部品号 部品名称及描述 数量 备注 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 126 D4500-12 EZAEG2A50AX 二极管 13 D4513 MA3056MTX 齐纳二极管 1 D4514 EZAEG2A50AX 二极管 1 D4515 MA3056MTX 齐纳二极管 1 D4516-23 EZAEG2A50AX 二极管 8 D4524-27 B0HCMM000014 二极管 4 D4528 EZAEG2A50AX 二极管 1 D4532 B0HCMM000014 二极管 1 D5517 MTZJ10B 齐纳二极管 1 D5518 MTZJ12B 齐纳二极管 1 D5519 MTZJ6R8B 齐纳二极管 1 D5521 MA2J11100L 二极管 1 D5522 MA3X152A0L 二极管 1 D5526 MA3X152A0L 二极管 1 D5528 MA8120M 齐纳二极管 1 D5529 MAZ80680LL 齐纳二极管 1 D5530 MA2J11100L 二极管 1 D5601,02 MA22D3900L 二极管 2 D5603,04 B0JCDD000002 二极管 2 D5605 MA22D3900L 二极管 1 D5606 B0JCDD000002 二极管 1 D5607,08 MA8024LTX 齐纳二极管 2 D5609 MA8056LTX 齐纳二极管 1 D5670 MA2J11100L 二极管 1 D5671 B0HCMM000014 二极管 1 D5673 B0HCMM000014 二极管 1 D5690,91 B0BC6R600005 齐纳二极管 2 D6001 B0HBSN000008 二极管 1 D6021 MA3DF30000LZ 齐纳二极管 1 D6024,25 B0ECKP000047 二极管 2 D6032 MA2J11100L 二极管 1 D6061,62 B0HBSN000008 二极管 2 D6071,72 B0HBSN000008 二极管 2 D6081,82 MA3DF30000LZ 齐纳二极管 2 D6091 B0HBSN000008 二极管 1 D6092 B0ECKP000047 二极管 1 D6101-04 B0JCME000037 二极管 4 D6131,32 B0ECKP000047 二极管 2 D6151-53 B0ECKP000047 二极管 3 D6191 B0ECKP000047 二极管 1 D6193 B0ECKP000047 二极管 1 D6211 B0JCME000037 二极管 1 D6221 B0HDRP000003 二极管 1 D6222,23 MA2J11100L 二极管 2 D6225 B0ECKP000047 二极管 1 D6253 LNJ301MPUJA LED 1 D6255 MA2J11100L 二极管 1 D6273 MA2J11100L 二极管 1 D6275 MA8068M 齐纳二极管 1 D6277,78 MA3X152A0L 二极管 2 D6280 MAZ80510LL 齐纳二极管 1 D6281,82 B0JCME000037 二极管 2 D6401,02 B0HBSN000008 二极管 2 D6422 MA3DF40000LZ 齐纳二极管 1 D6442 B0ECKP000047 二极管 1 D6452 B0ECKP000047 二极管 1 D6462,63 B0HBSN000008 二极管 2 D6466 MA2J11100L 二极管 1 D6471 B0HBSN000008 二极管 1 D6472 B0ECKP000047 二极管 1 D6477 MA2J11100L 二极管 1 D6478 B0HCKS000002 二极管 1 D6480 MA2J11100L 二极管 1 D6482,83 MA3DF30000LZ 齐纳二极管 2 D6491 MA3DF40000LZ 齐纳二极管 1 D6497 B0ECKP000047 二极管 1 D6499 MA2J11100L 二极管 1 D6500 MAZ80510LL 齐纳二极管 1 D6501 B0ECKP000047 二极管 1 D6503 B0ECKP000047 二极管 1 D6521-23 B0ECKP000047 二极管 3 D6561,62 B0ECKP000047 二极管 2 D6571 B0JCME000037 二极管 1 D6573 B0JCME000037 二极管 1 D6583 LNJ301MPUJA LED 1 D6584 MAZ80510LL 齐纳二极管 1 D6585 MA2J11100L 二极管 1 参考号 部品号 部品名称及描述 数量 备注 D6601,02 MA8240MTX 齐纳二极管 2 D6604 MA2J11100L 二极管 1 D6605 MAZ80510LL 齐纳二极管 1 D6606 B0HCMM000014 二极管 1 D6607 MA2J11100L 二极管 1 D6619 B0HCKS000002 二极管 1 D6621-23 B0HDSM000005 二极管 3 D6625 B0HDSM000005 二极管 1 D6631 B0JCME000037 二极管 1 D6633 B0JCME000037 二极管 1 D6641,42 B0HCKS000002 二极管 2 D6643 B0JCME000037 二极管 1 D6644 B0HCKS000002 二极管 1 D6661 MA2J11100L 二极管 1 D6662-64 MA8330M 齐纳二极管 3 D6665 MAZ80510LL 齐纳二极管 1 D6666,67 MA2J11100L 二极管 2 D6690 MA2J11100L 二极管 1 D6691,92 MA8200M 齐纳二极管 2 D6701 MA8056H 齐纳二极管 1 D6721 B0HCKS000002 二极管 1 D6722 MA2J11100L 二极管 1 D6725 B0ECKP000047 二极管 1 D6726-33 MA8056H 齐纳二极管 8 D6742,43 MA2J11100L 二极管 2 D6761 B0JCME000037 二极管 1 D6764 B0HCKS000002 二极管 1 D6765-67 B0ECKP000047 二极管 3 D6773 B0HCKS000002 二极管 1 D6791 MA8200M 齐纳二极管 1 D6802 B0BC01000044 齐纳二极管 1 D6803 B0HCKS000002 二极管 1 D6804 B0ECHP000003 二极管 1 D6805 MA2J11100L 二极管 1 D6806 B0HCKS000002 二极管 1 D6807-10 B0HCMM000014 二极管 4 D6816 MAZ80510LL 齐纳二极管 1 D6817 MAZ80680HL 齐纳二极管 1 D6820-23 MA2J11100L 二极管 4 D6824,25 MA8330M 齐纳二极管 2 D6826 MA2J11100L 二极管 1 D6827,28 MA8330M 齐纳二极管 2 D6830 MA8056H 齐纳二极管 1 D6836 MAZ81500ML 齐纳二极管 1 D6837 MA2J11100L 二极管 1 D6838 B0BC027A0234 齐纳二极管 1 D6839 B0ECKP000047 二极管 1 D6841 B0HCKS000002 二极管 1 D6842,43 MA2J11100L 二极管 2 D6859 B0ECKP000047 二极管 1 D6860 B0HCKS000002 二极管 1 D6861 MAZ80510LL 齐纳二极管 1 D6862 MA2J11100L 二极管 1 D6871 MAZ80510LL 齐纳二极管 1 D6872 MA2J11100L 二极管 1 D6883 MA2J11100L 二极管 1 D6886,87 B0ECKP000047 二极管 2 D6901,02 MA8056H 齐纳二极管 2 D6903,04 B0HCMM000013 二极管 2 D6907 B0HCMM000013 二极管 1 D6951,52 MA8056H 齐纳二极管 2 D6953,54 B0HCMM000013 二极管 2 D6957 B0HCMM000013 二极管 1 D7101-10 B0HCMM000014 二极管 10 D7201-06 B0HCMM000014 二极管 6 D7301-06 B0HCMM000014 二极管 6 D9017-19 MA3033 齐纳二极管 3 D9020 B0JCCE000008 二极管 1 D9110 B0JCGD000002 二极管 1 D9802 B0JCCE000008 二极管 1 D9804 B0JCCE000008 二极管 1 D9807,08 B0JCCE000008 二极管 2 D9811 B0JCCE000008 二极管 1 D9812 MA22D3900L 二极管 1 D9813-15 B0JCGD000002 二极管 3 D9816,17 MA22D3900L 二极管 2 参考号 部品号 部品名称及描述 数量 备注 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 127 DG1 K1KA12B00151 12P 连接器 1 DG2 K1KB23A00003 23P 连接器 1 DG5 K1KB31AA0140 31P 连接器 1 DG6 K1KB80AA0218 80P 连接器 1 DG32 K1KA07AA0266 7P 连接器 1 DG33 K1KA11AA0715 11P 连接器 1 DG34 K1KA30AA0009 30P 连接器 1 FL2001,02 J0HABB000004 LC 滤波器 2 FL2003-06 J0HABB000003 LC 滤波器 4 FL3001,02 J0HABB000003 LC 滤波器 2 FL3003-05 J0HABB000004 LC 滤波器 3 FL3006,07 J0JAD0000028 芯片感应器 2 FL3008 J0HABB000003 LC 滤波器 1 FL3710-12 J0MAB0000199 LC 滤波器 3 FL4800-02 J0JAD0000028 芯片感应器 3 FL5730 J0HABH000013 LC 滤波器 1 FL5732-34 J0HABH000013 LC 滤波器 3 FL7101 J0HABH000013 LC 滤波器 1 FL7201,02 J0HABH000013 LC 滤波器 2 FL7301 J0HABH000013 LC 滤波器 1 FL9300,01 F1J1E104A148 C 0.10UF, Z, 25V 2 FL9504 F1J1E104A148 C 0.10UF, Z, 25V 1 FL9803 F1J1E104A148 C 0.10UF, Z, 25V 1 FL9805,06 F1J1E104A148 C 0.10UF, Z, 25V 2 FL9900-04 F1J1E104A148 C 0.10UF, Z, 25V 5 G51 K1KY20A00015 20P 连接器 1 H2 K1KA23A00003 23P 连接器 1 H3,H4 K1KA23A00005 23P 连接器 2 H6 K1KB80AA0218 80P 连接器 1 H12 K1KA04AA0190 4P 连接器 1 H15 K1KA04AA0714 到 AGC 检查 1 H51 K1KA20AA0178 20P 连接器 1 IC1100 MNZSFD7GP42 IC 1 IC1101 TVRP465-1 IC 1 IC2008 C0CBCBE00001 IC 1 IC2010 C0CBCBC00190 IC 1 IC2011 C0ABBB000230 IC 1 IC2012 C1BB00000947 IC 1 IC2013 C0DBGYY00281 IC 1 IC2105 AN15862A-VT IC 1 IC2106 C1AB00002746 IC 1 IC2107 C0DBFFD00003 IC 1 IC2301 C1AB00002730 IC 1 IC2303 C0DBGYY00202 IC 1 IC2601 C0JBAU000034 IC 1 IC2610 C0DBAJB00004 IC 1 IC3001 AN15876A-VT IC 1 IC4500 TVRP317 IC 1 IC4501 TVRP316 IC 1 IC4504 C3EBEY000009 IC 1 IC4506 C0DBGGF00001 IC 1 IC4507 C0CBCBC00190 IC 1 IC4508,09 C0CBCAD00082 IC 2 IC4510 C1AB00002753 IC 1 IC4515 NJM2903V IC 1 IC4800 C1ZBZ0003577 IC 1 IC5550 EHMDD9851 线性 IC 1 IC5600 C0DBAYY00273 IC 1 IC5601 C0DBAYY00274 IC 1 IC5660 C0EBM0000026 IC 1 IC5670 C0CBCBC00190 IC 1 IC5671 C0EBF0000376 IC 1 IC6131 C0ZBZ0000895 IC 1 IC6151 C0ZBZ0001324 IC 1 IC6191 C0ZBZ0000895 IC 1 IC6211 C0ZBZ0001325 IC 1 IC6221 C0DBEMC00043 IC 1 IC6241 C0JBAZ000005 IC 1 IC6251 NJM2903M 集成电路 1 IC6281 C0DBEMC00043 IC 1 IC6471 C0DBEKA00003 IC 1 IC6472 C0JBAA000377 IC 1 IC6481 C0ZBZ0000895 IC 1 参考号 部品号 部品名称及描述 数量 备注 IC6500 NJM2903M 集成电路 1 IC6501 C0ZBZ0000895 IC 1 IC6521 C0ZBZ0001324 IC 1 IC6561,62 C0JBAZ000005 IC 2 IC6581 NJM2903M 集成电路 1 IC6671 C0ZBZ0001325 IC 1 IC6721,22 C0JBAZ000994 IC 2 IC6724,25 C0CBADC00072 IC 2 IC6752 C0ZBZ0001324 IC 1 IC6771 C0CBADC00072 IC 1 IC6772 C0ZBZ0001325 IC 1 IC6773,74 C0JBAA000377 IC 2 IC6791 EHMDD9863 线性 IC 1 IC6801 C0DBEMC00043 IC 1 IC6803 C0DAAMH00005 IC 1 IC6821 C0DBEMC00043 IC 1 IC6841 C0DBEMC00043 IC 1 IC6861 NJM2903M 集成电路 1 IC6871 NJM2903M 集成电路 1 IC6881 C0DBEMC00043 IC 1 IC6901-06 AN16076A-VT IC 6 IC6951-56 AN16076A-VT IC 6 IC7101,02 C0JBAZ001120 IC 2 IC7201-03 C0JBAZ001120 IC 3 IC7301-04 C0JBAZ001120 IC 4 IC8001 MN2WS0039A IC 1 IC8002,03 C3ABRG000080 IC 2 IC8004 C0ZBZ0001030 IC 1 IC8554 TVRP436-2 IC 1 IC8601 TVRP302 IC 1 IC8621,22 C0JBAZ002845 IC 2 IC9001 TVRP208-3 IC 1 IC9002 C1ZBZ0003577 IC 1 IC9003 MNZSFC9GPH2 IC 1 IC9007 TVRP211-6 IC 1 IC9011 C0EBF0000431 IC 1 IC9013 C0JBAZ002060 IC 1 IC9200 C1ZBZ0003566 IC 1 IC9303 TVRP218-2 IC 1 IC9500 C1ZBZ0003575 IC 1 IC9802,03 C0JBAZ001120 IC 2 IC9805 C0DBAYY00274 IC 1 IC9806 C0DBAYY00273 IC 1 IC9900 MN84524 IC 1 IC9901 C3ABQJ000055 IC 1 JA2 ERJ6GEY0R00V M 0 OHM, 1/10W 1 JA4-A8 ERJ6GEY0R00V M 0 OHM, 1/10W 5 JK2003 K2HA204A0053 插孔 1 JK3001 K1FB315A0006 连接器 1 JK3100 K1U936A00002 连接器单元 1 JK3701C K4AK18B00003 端子 1 JK4500,01 K1FY119D0002 连接器 2 JK8801 K1NA09D00004 9P 连接器 1 JS1100 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS1108 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS2031-33 J0JCC0000100 芯片感应器 3 JS2046 J0JCC0000100 芯片感应器 1 JS2048,49 J0JCC0000100 芯片感应器 2 JS2051 J0JCC0000100 芯片感应器 1 JS2059-62 J0JCC0000100 芯片感应器 4 JS2064 J0JCC0000100 芯片感应器 1 JS2096 J0JCC0000100 芯片感应器 1 JS2101 J0JCC0000100 芯片感应器 1 JS2517 J0JCC0000100 芯片感应器 1 JS3006 J0JCC0000100 芯片感应器 1 JS3010-15 ERJ6GEY0R00V M 0 OHM, 1/10W 6 JS3023,24 J0JCC0000100 芯片感应器 2 JS3032 J0JCC0000100 芯片感应器 1 JS3206 J0JCC0000100 芯片感应器 1 JS3208 J0JCC0000100 芯片感应器 1 JS3213 ERJ6GEY0R00V M 0 OHM, 1/10W 1 JS3700 J0JCC0000100 芯片感应器 1 JS3704,05 ERJ6GEY0R00V M 0 OHM, 1/10W 2 JS3707,08 ERJ6GEY0R00V M 0 OHM, 1/10W 2 参考号 部品号 部品名称及描述 数量 备注 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 128 JS4501 D0YAR0000007 M 0.0 OHM, J,0.063W 1 K1 K1KY12B00001 12P 连接器 1 L1100 J0JHC0000078 芯片感应器 1 L2001,02 J0JCC0000364 芯片感应器 2 L2003,04 J0JCC0000100 磁珠电感 2 L2007,08 J0JCC0000100 磁珠电感 2 L2011,12 J0JCC0000100 磁珠电感 2 L2015,16 J0JCC0000100 磁珠电感 2 L2021 J0JHC0000078 芯片感应器 1 L2022 J0JCC0000100 芯片感应器 1 L2026 G1C6R8MA0061 感应器线圈 1 L2027 J0JHC0000045 芯片感应器 1 L2029 J0JCC0000077 芯片感应器 1 L2034,35 J0JCC0000364 芯片感应器 2 L2039,40 J0JHC0000045 芯片感应器 2 L2300 G1C100MA0291 感应线圈 1 L2302 G1C100MA0291 感应线圈 1 L2304 G1C100MA0291 感应线圈 1 L2306 G1C100MA0291 感应线圈 1 L2308 J0JJC0000011 芯片感应器 1 L2310 J0JJC0000011 芯片感应器 1 L2647 ERJ6GEY0R00V M 0 OHM, 1/10W 1 L2648 G1C470MA0077 感应线圈 1 L2649 G1C100MA0072 感应线圈 1 L2650 G1C3R3ZA0083 感应线圈 1 L3001-03 J0JCC0000100 磁珠电感 3 L3010 J0JCC0000100 磁珠电感 1 L3013 J0JCC0000100 磁珠电感 1 L3206-08 J0JCC0000241 芯片感应器 3 L3209 J0JGC0000021 芯片感应器 1 L3211 J0JGC0000021 芯片感应器 1 L3225,26 J0JCC0000241 芯片感应器 2 L3700,01 J0JCC0000364 芯片感应器 2 L3707,08 J0JCC0000100 磁珠电感 2 L4500-07 J0JHC0000078 芯片感应器 8 L4511 J0JHC0000078 芯片感应器 1 L4512 J0JCC0000077 芯片感应器 1 L4516-18 J0JHC0000078 芯片感应器 3 L4520,21 J0JHC0000078 芯片感应器 2 L4524 J0JHC0000078 芯片感应器 1 L5550 TALL08N2R7MA 感应线圈 1 L5551,52 G0C150MA0056 峰值线圈 2 L5564 TALL08N2R7MA 感应线圈 1 L5565 G0A220GA0002 电感线圈 1 L5566 TALL08N2R7MA 感应线圈 1 L5600,01 G1C2R2ZA0083 感应线圈 2 L5602 G1C3R3ZA0083 感应线圈 1 L5604 G1C100MA0077 感应线圈 1 L5605 J0JCC0000241 芯片感应器 1 L5606 G1C100MA0077 感应线圈 1 L5610,11 J0JHC0000035 芯片感应器 2 L5670 J0JHC0000078 芯片感应器 1 L5690,91 J0JHC0000078 芯片感应器 2 L5692 J0JCC0000241 芯片感应器 1 L5735 J0JHC0000078 芯片感应器 1 L6000 J0JJC0000015 芯片感应器 1 L6001-03 G0C1R6KA0119 峰值线圈 3 L6005 G0C1R6KA0119 峰值线圈 1 L6010 J0JJC0000015 芯片感应器 1 L6011-14 G0C1R6KA0119 峰值线圈 4 L6061-64 J0JKB0000049 扁平磁芯 4 L6081-84 J0JKB0000049 扁平磁芯 4 L6101,02 J0JJC0000015 芯片感应器 2 L6103 G0ZZ00002183 峰值线圈 1 L6105,06 J0JJC0000015 芯片感应器 2 L6221 G0ZZ00002183 峰值线圈 1 L6241 G0ZZ00002183 峰值线圈 1 L6262 G0ZZ00002183 峰值线圈 1 L6271 G0ZZ00002183 峰值线圈 1 L6401-03 G0C1R6KA0119 峰值线圈 3 L6405 G0C1R6KA0119 峰值线圈 1 L6411-13 G0C1R6KA0119 峰值线圈 3 L6415 G0C1R6KA0119 峰值线圈 1 L6463-66 J0JKB0000049 扁平磁芯 4 L6472 G0ZZ00002183 峰值线圈 1 参考号 部品号 部品名称及描述 数量 备注 L6474 G0ZZ00002183 峰值线圈 1 L6483-86 J0JKB0000049 扁平磁芯 4 L6571 J0JJC0000015 芯片感应器 1 L6573 J0JJC0000015 芯片感应器 1 L6591,92 G0ZZ00002183 峰值线圈 2 L6601,02 G0ZZ00002183 峰值线圈 2 L6690 G0ZZ00002183 峰值线圈 1 L6801,02 J0JJC0000015 芯片感应器 2 L6841 J0JJC0000015 芯片感应器 1 L6881 G0ZZ00002183 峰值线圈 1 L8001-05 J0JHC0000045 芯片感应器 5 L8006 J0JCC0000100 芯片感应器 1 L8007-10 J0JHC0000045 芯片感应器 4 L8551 J0JCC0000241 芯片感应器 1 L8621 J0JCC0000241 芯片感应器 1 L9500 G1C150KA0038 感应线圈 1 L9501,02 J0JHC0000078 芯片感应器 2 L9504,05 J0JHC0000078 芯片感应器 2 L9800 G1C2R2Z00007 感应线圈 1 L9801 G1C1R5Z00006 感应线圈 1 L9802 G1C2R2Z00007 感应线圈 1 NP TXN/H1HMTC H 电路板 1 NP TXNDG1HMTC DG 电路板 1 NP TNPA4178AG PA 电路板 1 NP ETXMM655MEH P 电路板 1 NP TNPA4169 C1 电路板 1 NP TNPA4170 C2 电路板 1 NP TNPA4171 C3 电路板 1 NP TZTNP01HMTC D 电路板 1 NP TNPA4186 SC 电路板 1 NP TNPA4189 SD 电路板 1 NP TNPA4202 SS2 电路板 1 NP TNPA4187 SS 电路板 1 NP TNPA4203 SS3 电路板 1 NP TNPA4188 SU 电路板 1 NP TNPA4262AB G 电路板 1 NP TNPA4137AJ K 电路板 1 NP TNPA4138AD S 电路板 1 PA3,A4 K1KB23A00004 23P 连接器 2 PA6 K1KA12AA0191 12P 连接器 1 PA7 K1KA11AA0191 11P 连接器 1 PA9800 K5H4022A0023 保险丝 1 PA9900 K5H5022A0023 保险丝 1 PAMM1 TMME047 卡夹 1 PAMM11 TMME300 卡夹 1 PAMM13 TMME300 卡夹 1 PC6480 B3PBA0000223 IC 1 PC6701,02 B3PBA0000233 IC 2 PC6703 B3PBA0000234 IC 1 PC6705 B3PBA0000397 IC 1 PC6801 B3PBA0000223 IC 1 PC6861 B3PBA0000223 IC 1 PC6871 B3PBA0000223 IC 1 Q1107,08 2SD0601ARL 晶体管 2 Q2000,01 2SD0601ARL 晶体管 2 Q2002,03 2SC584500L 晶体管 2 Q2015 2SA207700L 晶体管 1 Q2016,17 2SC584500L 晶体管 2 Q2021 2SA207700L 晶体管 1 Q2031 2SA207700L 晶体管 1 Q2033 2SA207700L 晶体管 1 Q2034,35 2SC584500L 晶体管 2 Q2039-42 2SC584500L 晶体管 4 Q2101,02 2SC584500L 晶体管 2 Q2301 2SA207700L 晶体管 1 Q2510,11 2SD0601ARL 晶体管 2 Q2513 2SD0601ARL 晶体管 1 Q2635 2SC584500L 晶体管 1 Q2636,37 2SA207700L 晶体管 2 Q2638 2SC584500L 晶体管 1 Q2639 2SK3065T100 FET 1 参考号 部品号 部品名称及描述 数量 备注 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 129 Q3031,32 2SC584500L 晶体管 2 Q3200 2SA207700L 晶体管 1 Q4500-05 2SD0601ARL 晶体管 6 Q4514-17 2SB0709ARL 晶体管 4 Q5501 2SD0601ARL 晶体管 1 Q5521,22 2SA207700L 晶体管 2 Q5523,24 2SD0601ARL 晶体管 2 Q5561 B1DHDC000028 晶体管 1 Q5562 2SD0601ARL 晶体管 1 Q5600-02 B1MBEDA00015 晶体管 3 Q5603,04 2SD0601ARL 晶体管 2 Q5690,91 2SD0601ARL 晶体管 2 Q5692,93 B1DHDC000028 晶体管 2 Q6001-04 2PG0010000RP 晶体管 4 Q6021-23 2PG0010000RP 晶体管 3 Q6031 B1ADRD000001 晶体管 1 Q6041-43 2PG0010000RP 晶体管 3 Q6052,53 2PG0010000RP 晶体管 2 Q6101,02 B1DFKM000002 晶体管 2 Q6103 B1ABPF000014 晶体管 1 Q6104 B1ADPF000004 晶体管 1 Q6105,06 B1DFKM000002 晶体管 2 Q6111 2SK326800L FET 1 Q6112 B1DFKM000001 晶体管 1 Q6114 B1DFKM000001 晶体管 1 Q6141 B1ABPF000014 晶体管 1 Q6142 B1ADPF000004 晶体管 1 Q6146 B1ABPF000014 晶体管 1 Q6147 B1ADPF000004 晶体管 1 Q6171 B1ABRD000003 晶体管 1 Q6172 B1ADRD000001 晶体管 1 Q6181 B1ABRD000003 晶体管 1 Q6222A 2SC1473AEA 晶体管 1 Q6251 2SD0601ARL 晶体管 1 Q6256 2SD1263A 晶体管 1 Q6271 2SD0601ARL 晶体管 1 Q6281 B1ABPF000014 晶体管 1 Q6282 B1ADPF000004 晶体管 1 Q6401-04 2PG0010000RP 晶体管 4 Q6422-24 2PG0030000RP 晶体管 3 Q6441-43 2PG0010000RP 晶体管 3 Q6452,53 2PG0030000RP 晶体管 2 Q6500 2SD0601ARL 晶体管 1 Q6501 B1ABPF000014 晶体管 1 Q6502 B1ADPF000004 晶体管 1 Q6521 B1ABPF000014 晶体管 1 Q6522 B1ADPF000004 晶体管 1 Q6531 B1ABRD000003 晶体管 1 Q6532 B1ADRD000001 晶体管 1 Q6551 B1ABRD000003 晶体管 1 Q6552 B1ADRD000001 晶体管 1 Q6561 B1ABPF000014 晶体管 1 Q6562 B1ADPF000004 晶体管 1 Q6571 B1DFKM000002 晶体管 1 Q6573 B1DFKM000002 晶体管 1 Q6581 2SD0601ARL 晶体管 1 Q6601 B1DFES000003 晶体管 1 Q6602 2SD0601ARL 晶体管 1 Q6603 2SB0709ARL 晶体管 1 Q6621 2SK399500L FET 1 Q6623 2SK399500L FET 1 Q6643 2SK399500L FET 1 Q6645-49 2SK399500L FET 5 Q6651 2SK399500L FET 1 Q6661 B1DEET000002 晶体管 1 Q6662 2SD0601ARL 晶体管 1 Q6665 B1ABPF000014 晶体管 1 Q6671-73 B1DFDR000001 晶体管 3 Q6679 B1ABPF000014 晶体管 1 Q6680 B1ADPF000004 晶体管 1 Q6690 2SA19610Q0HW 晶体管 1 Q6742,43 2SD0601ARL 晶体管 2 Q6763 B1ADPF000004 晶体管 1 Q6781 B1ABPF000014 晶体管 1 Q6782 B1ADPF000004 晶体管 1 Q6791 2SD0601ARL 晶体管 1 Q6803 2SD0814A 晶体管 1 参考号 部品号 部品名称及描述 数量 备注 Q6805 2SC3063 晶体管 1 Q6806 2SC1473AEA 晶体管 1 Q6821 2SD1263A 晶体管 1 Q6822 2SC3063 晶体管 1 Q6824 2SD0601ARL 晶体管 1 Q6841 2SD1263A 晶体管 1 Q6842 2SC1473AEA 晶体管 1 Q6881 2SD1263A 晶体管 1 Q6882 2SB940A 晶体管 1 Q6883 2SC1473AEA 晶体管 1 Q8911-13 2SD0601ARL 晶体管 3 Q9010 2SD0601ARL 晶体管 1 Q9044 2SD0601ARL 晶体管 1 Q9046 2SD0601ARL 晶体管 1 Q9050-54 2SD0601ARL 晶体管 5 Q9301,02 2SD0601ARL 晶体管 2 Q9805,06 2SD0601ARL 晶体管 2 Q9807-09 B1MBEDA00015 晶体管 3 R1104 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1122 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1124,25 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1134 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1140 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1144 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1146 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R1147 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1153 ERJ2GEJ821 M 820 OHM, J,0.063W 1 R1162 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1163 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R1164 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1165 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R1166 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1169 ERJ2GED563X M 56KOHM, J,0.063W 1 R1170 ERJ2GEJ273 M 27KOHM, J,0.063W 1 R1171 ERJ2GED563X M 56KOHM, J,0.063W 1 R1172 ERJ2GEJ273 M 27KOHM, J,0.063W 1 R1174,75 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1179 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1181 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1182 ERJ2GEJ273 M 27KOHM, J,0.063W 1 R1183,84 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1185,86 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1194 ERJ2GED563X M 56KOHM, J,0.063W 1 R1195 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1196 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1199 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1200,01 ERJ2GEJ562 M 5.6KOHM, J,0.063W 2 R1203 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1204 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1205,06 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1209 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1216 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1217 ERJ2GED563X M 56KOHM, J,0.063W 1 R1218-20 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R1221 ERJ3EKF7151 M 7.15KOHM, 1/16W 1 R1222-28 ERJ2GEJ473 M 47KOHM, J,0.063W 7 R1229 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1231-34 ERJ2GEJ473 M 47KOHM, J,0.063W 4 R1235 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1236,37 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R1239 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1241 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1243-47 ERJ2GEJ473 M 47KOHM, J,0.063W 5 R1255 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R2001 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R2006 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2007 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2010-15 ERJ2GEJ473 M 47KOHM, J,0.063W 6 R2018 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2020-23 ERJ2GEJ473 M 47KOHM, J,0.063W 4 R2025 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2027 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R2029-34 ERJ6GEYJ184 M 180KOHM, J, 1/10W 6 R2047 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R2048 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2049 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 参考号 部品号 部品名称及描述 数量 备注 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 130 R2050 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2051,52 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R2053,54 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2056,57 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R2058 ERJ3GEYJ301 M 300 OHM,J,1/16W 1 R2059 D0GB105JA057 M 1MOHM,J,1/16W 1 R2084 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2085 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R2086 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2088 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2089 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R2092 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2093 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2094 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2096 D0GB103JA057 M 10KOHM,J,1/16W 1 R2097 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2098,99 D0GB103JA057 M 10KOHM,J,1/16W 2 R2100 ERJ3EKF2002 M 20KOHM, 1/16W 1 R2104 ERJ3EKF2001 M 2KOHM, 1/16W 1 R2110 D0GB103JA057 M 10KOHM,J,1/16W 1 R2111 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2112 D0GB105JA057 M 1MOHM,J,1/16W 1 R2113 ERJ3EKF1203 M 120KOHM, 1/16W 1 R2114 ERJ3EKF7502 M 75KOHM, 1/16W 1 R2116,17 J0JCC0000100 芯片感应器 2 R2118 D0GB105JA057 M 1MOHM,J,1/16W 1 R2119 D0GB103JA057 M 10KOHM,J,1/16W 1 R2122 D0GB103JA057 M 10KOHM,J,1/16W 1 R2123 D0GB473JA057 M 47KOHM,J,1/16W 1 R2124 D0GB103JA057 M 10KOHM,J,1/16W 1 R2125 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2127 D0GB103JA057 M 10KOHM,J,1/16W 1 R2128 D0GB473JA057 M 47KOHM,J,1/16W 1 R2129 D0GB103JA057 M 10KOHM,J,1/16W 1 R2131 D0GB103JA057 M 10KOHM,J,1/16W 1 R2132 D0GB473JA057 M 47KOHM,J,1/16W 1 R2137,38 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2143,44 D0GB103JA057 M 10KOHM,J,1/16W 2 R2145,46 ERJ3EKF2002 M 20KOHM, 1/16W 2 R2149 D0GB103JA057 M 10KOHM,J,1/16W 1 R2150,51 ERJ3EKF2002 M 20KOHM, 1/16W 2 R2152 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2154 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2156 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R2160 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2162 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2164 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2165 D0GB103JA057 M 10KOHM,J,1/16W 1 R2166 ERJ3EKF1602 M16.0KOHM, 1/16W 1 R2167 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2168 ERJ3EKF1602 M16.0KOHM, 1/16W 1 R2169 ERJ3EKF2202 M 22KOHM, 1/16W 1 R2170-75 ERJ3GEYJ221 M 220 OHM,J,1/16W 6 R2178 D0GB102JA057 M 1KOHM,J,1/16W 1 R2179 D0GB103JA057 M 10KOHM,J,1/16W 1 R2180 D0GB102JA057 M 1KOHM,J,1/16W 1 R2181 ERJ3EKF2202 M 22KOHM, 1/16W 1 R2182,83 ERJ3EKF3602 M 36KOHM, 1/16W 2 R2184,85 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R2186 ERJ3GEYJ823 M 82KOHM,J,1/16W 1 R2187 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R2189 D0GB103JA057 M 10KOHM,J,1/16W 1 R2192,93 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2194 D0GB102JA057 M 1KOHM,J,1/16W 1 R2195,96 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2197 ERJ3EKF6802 M 68KOHM, 1/16W 1 R2198 ERJ3EKF1583 M 158KOHM, 1/16W 1 R2205 ERJ3GEYJ203 M 20KOHM,J,1/16W 1 R2206 D0GB103JA057 M 10KOHM,J,1/16W 1 R2208-10 D0GB103JA057 M 10KOHM,J,1/16W 3 R2216 D0GB103JA057 M 10KOHM,J,1/16W 1 R2217 D0GB473JA057 M 47KOHM,J,1/16W 1 R2218 D0GB102JA057 M 1KOHM,J,1/16W 1 R2220 D0GB123JA057 M 12KOHM,J,1/16W 1 R2223-25 J0JCC0000100 芯片感应器 3 R2227-31 J0JCC0000100 芯片感应器 5 R2233 D0GB103JA057 M 10KOHM,J,1/16W 1 参考号 部品号 部品名称及描述 数量 备注 R2235 D0GB473JA057 M 47KOHM,J,1/16W 1 R2236,37 ERJ3GEYD153V M 15KOHM,J,1/16W 2 R2238 D0GB473JA057 M 47KOHM,J,1/16W 1 R2257 J0JCC0000100 芯片感应器 1 R2263 J0JCC0000100 芯片感应器 1 R2265 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2266 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R2271 EXB28V220J 电阻器组件 1 R2276 D0GB103JA057 M 10KOHM,J,1/16W 1 R2290,91 J0JCC0000100 芯片感应器 2 R2294-97 J0JCC0000100 芯片感应器 4 R2301,02 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R2303,04 J0JCC0000100 芯片感应器 2 R2305 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2306 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R2308 ERJ8GEYJ3R3V M 3.3 OHM,J, 1/8W 1 R2311 ERJ8GEYJ3R3V M 3.3 OHM,J, 1/8W 1 R2313 ERJ8GEYJ3R3V M 3.3 OHM,J, 1/8W 1 R2315 ERJ8GEYJ3R3V M 3.3 OHM,J, 1/8W 1 R2317 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R2319 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R2321 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R2323 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R2325 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R2330 D0GB102JA057 M 1KOHM,J,1/16W 1 R2331 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2506,07 J0JHC0000096 芯片感应器 2 R2516 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2517 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R2520 ERJ3GEYJ224 M 220KOHM,J,1/16W 1 R2524 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2525 ERJ3EKF5760 M 576 OHM, 1/16W 1 R2530 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2531 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R2542 D0GB473JA057 M 47KOHM,J,1/16W 1 R2556,57 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R2558 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R2576,77 J0JCC0000241 芯片感应器 2 R2578,79 J0JCC0000100 芯片感应器 2 R2601-03 J0JCC0000100 芯片感应器 3 R2624,25 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R2628,29 ERJ3GEYJ752 M 7.5KOHM,J,1/16W 2 R2853 D0GB103JA057 M 10KOHM,J,1/16W 1 R2854 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2855 D0GB473JA057 M 47KOHM,J,1/16W 1 R2856 J0JCC0000100 芯片感应器 1 R2857 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2858 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2859 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2860 D0GB103JA057 M 10KOHM,J,1/16W 1 R2861 D0GB102JA057 M 1KOHM,J,1/16W 1 R2863,64 D0GB102JA057 M 1KOHM,J,1/16W 2 R2865 D0GB103JA057 M 10KOHM,J,1/16W 1 R2866 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2867 ERJ6ENF8202 M 82KOHM, 1/10W 1 R2868 ERJ6ENF1602 M 16KOHM, 1/10W 1 R2869 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2890 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3001-10 ERJ6RED750 M 75 OHM, 1/10W 10 R3012 ERJ6RED750 M 75 OHM, 1/10W 1 R3020-22 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R3044,45 J0JCC0000100 芯片感应器 2 R3059 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3062-65 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R3068 ERJ6RED750 M 75 OHM, 1/10W 1 R3069 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3072-74 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R3087 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3089 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3090 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3096-01 ERJ3GEYJ680 M 68 OHM,J,1/16W 6 R3102-04 J0JCC0000100 芯片感应器 3 R3107 D0GB103JA057 M 10KOHM,J,1/16W 1 R3109,10 J0JCC0000100 芯片感应器 2 R3111 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3113 D0GB103JA057 M 10KOHM,J,1/16W 1 R3121 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 参考号 部品号 部品名称及描述 数量 备注 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 131 R3123 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R3130,31 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3133 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3137 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3140 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R3143 ERJ6ENF69R8 M 69.8OHM, 1/10W 1 R3145 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3168 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3174-76 ERJ3GEYJ680 M 68 OHM,J,1/16W 3 R3177 D0GB103JA057 M 10KOHM,J,1/16W 1 R3180 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3188 J0JCC0000100 芯片感应器 1 R3191 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3202 J0JCC0000100 芯片感应器 1 R3205 J0JCC0000100 芯片感应器 1 R3206 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3216 J0JCC0000100 芯片感应器 1 R3222 J0JCC0000100 芯片感应器 1 R3227-29 J0JCC0000100 芯片感应器 3 R3233,34 ERJ6RED750 M 75 OHM, 1/10W 2 R3236-38 J0JCC0000100 芯片感应器 3 R3239 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3240 ERJ3EKF5600 M 560 OHM, 1/16W 1 R3243 ERJ6GEYG271 M 270 OHM,J,1/10W 1 R3244 J0JCC0000100 芯片感应器 1 R3246 J0JCC0000100 芯片感应器 1 R3247 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3249 D0GB152JA057 M 1.5KOHM,J,1/16W 1 R3266 D0GB152JA057 M 1.5KOHM,J,1/16W 1 R3268 D0GB473JA057 M 47KOHM,J,1/16W 1 R3302 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R3305 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R3306,07 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R3308,09 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R3310 ERJ6RED750 M 75 OHM, 1/10W 1 R3313 ERJ6RED750 M 75 OHM, 1/10W 1 R3318 ERJ6RED750 M 75 OHM, 1/10W 1 R3348,49 ERJ3GEYJ680 M 68 OHM,J,1/16W 2 R3350 J0JCC0000100 芯片感应器 1 R3709-11 J0JCC0000100 芯片感应器 3 R3714 J0JCC0000100 芯片感应器 1 R3716,17 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3721 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R3722-25 J0JCC0000100 芯片感应器 4 R3732 J0JCC0000100 芯片感应器 1 R3746 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3748 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3750 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3751 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R3753 ERJ6ENF1741 M1.74KOHM, 1/10W 1 R3754 ERJ6ENF1621 M1.62KOHM, 1/10W 1 R3755 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3758 ERJ6ENF6651 M6.65KOHM, 1/10W 1 R3765 ERJ6ENF2321 M2.32KOHM, 1/10W 1 R3767 ERJ6ENF3161 M3.16KOHM, 1/10W 1 R3768 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R4001 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4026 J0JCC0000100 芯片感应器 1 R4200-02 ERJ2RKD330 M 33 OHM, J,0.063W 3 R4242 J0JCC0000100 芯片感应器 1 R4284 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4286-88 ERJ2GEJ473 M 47KOHM, J,0.063W 3 R4317-20 ERJ2GEJ473 M 47KOHM, J,0.063W 4 R4322-30 ERJ2GEJ473 M 47KOHM, J,0.063W 9 R4500,01 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4502,03 ERJ2RKD330 M 33 OHM, J,0.063W 2 R4506,07 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4508-23 ERJ2GEJ2R2X M 2.2OHM, J,0.063W 16 R4524,25 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4526,27 ERJ2GEJ102X M 1KOHM, J,0.063W 2 R4528 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4529 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4530 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4531 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4532,33 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4535,36 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4538 ERJ2GEJ473 M 47KOHM, J,0.063W 1 参考号 部品号 部品名称及描述 数量 备注 R4539 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4540 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4541-43 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4544-47 ERJ2GEJ103 M 10KOHM, J,0.063W 4 R4552 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4561 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4562,63 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4564,65 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4578,79 ERJ2GEJ151 M 150 OHM, J,0.063W 2 R4585 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4587 ERJ3GEYF821 M 820 OHM, 1/16W 1 R4593 ERJ3EKF1001 M 1KOHM, 1/16W 1 R4596-98 ERJ6GEYG102 M 1KOHM, J, 1/10W 3 R4601 ERJ6GEYG102 M 1KOHM, J, 1/10W 1 R4604 ERJ3EKF7501 M 7.5KOHM, 1/16W 1 R4606 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R4611 ERJ3EKF1371 M 1.37KOHM, 1/16W 1 R4612 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 R4613,14 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4615 ERJ3EKF1600 M 160 OHM, 1/16W 1 R4616-19 D0YAR0000007 M 0.0 OHM, J,0.063W 4 R4622 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4624 ERJ3EKF1691 M1.69KOHM, 1/16W 1 R4626 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R4627 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4628,29 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R4631 ERJ3EKF4990 M 499 OHM, 1/16W 1 R4635 EXB28V680JX 电阻器组件 1 R4636-38 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4639,40 EXB28V680JX 电阻器组件 2 R4641 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4642 EXB28V680JX 电阻器组件 1 R4643,44 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4645-47 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4648 EXB28V330J 电阻器组件 1 R4649 EXB28V680JX 电阻器组件 1 R4650,51 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4652 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4653 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4654 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R4655 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4656 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R4657,58 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4659 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4661 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4665,66 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R4667 ERJ2GEJ151 M 150 OHM, J,0.063W 1 R4670 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4672 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4682 ERJ3EKF1002 M 10KOHM, 1/16W 1 R4683 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4691,92 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4698,99 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R4702,03 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R4706 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4707 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4708 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4800 J0JCC0000100 芯片感应器 1 R4819,20 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4838 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4856-65 D0YAR0000007 M 0.0 OHM, J,0.063W 10 R4872 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5485 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R5506,07 ERJ6GEYG103 M 10KOHM, J, 1/10W 2 R5508 ERJ6GEYF473 M 47KOHM, J, 1/10W 1 R5509 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R5531 ERJ6GEYG222 M 2.2KOHM, J, 1/10W 1 R5532 ERJ6GEYF472 M 4.7KOHM, J, 1/10W 1 R5533 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R5534 ERJ6GEYF473 M 47KOHM, J, 1/10W 1 R5535 ERJ6GEYG222 M 2.2KOHM, J, 1/10W 1 R5536 ERJ6GEYF472 M 4.7KOHM, J, 1/10W 1 R5537 ERJ6GEYG681 M 680 OHM, J, 1/10W 1 R5538 ERJ6GEYG222 M 2.2KOHM, J, 1/10W 1 R5540 ERJ6GEYJ471 M 470 OHM, J, 1/10W 1 R5542 ERJ6GEYJ471 M 470 OHM, J, 1/10W 1 R5544 ERJ6GEYG221 M 220 OHM, J, 1/10W 1 参考号 部品号 部品名称及描述 数量 备注 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 132 R5546,47 ERJ6GEYG103 M 10KOHM, J, 1/10W 2 R5548,49 ERJ6GEYF472 M 4.7KOHM, J, 1/10W 2 R5554 ERJ6ENF2611 M2.61KOHM, 1/10W 1 R5555 ERJ6ENF1271 M1.27KOHM, 1/10W 1 R5570 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R5571 ERJ6GEYF473 M 47KOHM, J, 1/10W 1 R5572 ERJ6GEYG222 M 2.2KOHM, J, 1/10W 1 R5573 ERJ6GEYF472 M 4.7KOHM, J, 1/10W 1 R5600 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5604 ERJ3GEYF473 M 47KOHM, 1/16W 1 R5605 ERJ3EKF1272 M12.7KOHM, 1/16W 1 R5606-09 D0YAR0000007 M 0.0 OHM, J,0.063W 4 R5610 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5611 ERJ3EKF3602 M 36KOHM, 1/16W 1 R5612 ERJ3EKF2322 M23.2KOHM, 1/16W 1 R5620 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5621 ERJ3GEYF473 M 47KOHM, 1/16W 1 R5622 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5623 ERJ3GEYF473 M 47KOHM, 1/16W 1 R5625-28 D0YAR0000007 M 0.0 OHM, J,0.063W 4 R5629 ERJ3EKF3012 M30.1KOHM, 1/16W 1 R5630 ERJ3EKF4752 M47.5KOHM, 1/16W 1 R5631 ERJ3EKF3602 M 36KOHM, 1/16W 1 R5632 ERJ3EKF3002 M 30KOHM, 1/16W 1 R5633,34 ERJ3EKF1602 M16.0KOHM, 1/16W 2 R5635 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R5636 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R5637 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5638 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5641 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5644 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5646 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5647 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5660 ERJ2GEJ562 M 5.6KOHM, J,0.063W 1 R5661 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5662 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5670 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5671 ERJ2GEJ183 M 18KOHM, J,0.063W 1 R5672 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5674 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5690,91 D0GB103JA057 M 10KOHM, J, 1/16W 2 R5692,93 D0GB473JA057 M 47KOHM, J, 1/16W 2 R5694,95 D0GB102JA057 M 1KOHM, J, 1/16W 2 R5696,97 D0GB103JA057 M 10KOHM, J, 1/16W 2 R5730,31 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R6001 ERJT08J7R5V M 7.5OHM, J, 0.33W 1 R6003 ERJT08J7R5V M 7.5OHM, J, 0.33W 1 R6005 ERJT08J7R5V M 7.5OHM, J, 0.33W 1 R6007 ERJT08J7R5V M 7.5OHM, J, 0.33W 1 R6020 ERF5TJ330 W 33 OHM, 5W 1 R6021 ERJT08J7R5V M 7.5OHM, J, 0.33W 1 R6024 ERJT08J7R5V M 7.5OHM, J, 0.33W 1 R6026 ERJT08J7R5V M 7.5OHM, J, 0.33W 1 R6031,32 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6033 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6034 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6041 ERJT08J7R5V M 7.5OHM, J, 0.33W 1 R6043 ERJT08J7R5V M 7.5OHM, J, 0.33W 1 R6045 ERJT08J7R5V M 7.5OHM, J, 0.33W 1 R6053 ERJT08J7R5V M 7.5OHM, J, 0.33W 1 R6055 ERJT08J7R5V M 7.5OHM, J, 0.33W 1 R6102 ERJT06J101V M 100 OHM, F, 0.25W 1 R6104 ERJT06J101V M 100 OHM, F, 0.25W 1 R6106 ERJT06J101V M 100 OHM, F, 0.25W 1 R6108 ERJT06J101V M 100 OHM, F, 0.25W 1 R6109 ERJT06J100V M 10 OHM, F, 0.25W 1 R6110 ERJ6GEYF473 M 47KOHM, J, 1/10W 1 R6111,12 ERJT06J470V M 47 OHM, F, 0.25W 2 R6113 ERJ14YJ224 M 220KOHM, J, 1/4W 1 R6114 ERJT06J470V M 47 OHM, F, 0.25W 1 R6116 ERJ6GEYF473 M 47KOHM, J, 1/10W 1 R6131,32 ERJ6GEYJ101V M 100 OHM, J, 1/10W 2 R6134 ERJT06J750V M 75 OHM, F, 0.25W 1 R6135,36 ERJT06J100V M 10 OHM, F, 0.25W 2 R6141,42 ERJ6GEYF473 M 47KOHM, J, 1/10W 2 R6145 ERJT08J1R0V M 1.8OHM, J, 0.33W 1 R6146,47 ERJ6GEYF473 M 47KOHM, J, 1/10W 2 参考号 部品号 部品名称及描述 数量 备注 R6151,52 ERJ6GEYJ101V M 100 OHM, J, 1/10W 2 R6154 ERJT06J750V M 75 OHM, F, 0.25W 1 R6157-60 ERJT08J1R0V M 1.8OHM, J, 0.33W 4 R6171 ERJT06J100V M 10 OHM, F, 0.25W 1 R6172,73 ERJ6GEYF473 M 47KOHM, J, 1/10W 2 R6181 ERJT06J100V M 10 OHM, F, 0.25W 1 R6182,83 ERJ6GEYF473 M 47KOHM, J, 1/10W 2 R6191,92 ERJ6GEYJ101V M 100 OHM, J, 1/10W 2 R6193 ERJT06J750V M 75 OHM, F, 0.25W 1 R6194 ERJT08J1R0V M 1.8OHM, J, 0.33W 1 R6210 ERJ6GEYG222 M 2.2KOHM, J, 1/10W 1 R6213 ERJ6GEYJ101V M 100 OHM, J, 1/10W 1 R6214 ERJT06J151V M 150 OHM, F, 0.25W 1 R6222 ERG1FJS103D M 10KOHM, J, 1W 1 R6223 ERG2FJS123D M 12KOHM, J, 2W 1 R6225 ERJ6ENF5492 M54.9KOHM, 1/10W 1 R6226 ERJ6ENF5622 M5.62KOHM, 1/10W 1 R6227 ERJ6ENF5102 M 51KOHM, 1/10W 1 R6232 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6233 ERJ14YJ154 M 150KOHM, J, 1/4W 1 R6234 ERJ6GEYG183 M 18KOHM, J, 1/10W 1 R6241 EXB38V470J 电阻器组件 1 R6242 EXB38V472JV 电阻器组件 1 R6243 EXB38V470J 电阻器组件 1 R6244 EXB38V472JV 电阻器组件 1 R6246 ERJ6GEYJ273 M 27KOHM, J, 1/10W 1 R6247 ERJT08J154V M150KOHM, J, 0.33W 1 R6248 ERJ6GEYJ273 M 27KOHM, J, 1/10W 1 R6249 ERJT08J154V M150KOHM, J, 0.33W 1 R6252,53 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6254 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R6255 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6256 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R6257 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R6258 ERJ6GEYG222 M 2.2KOHM, J ,1/10W 1 R6261 ERJ6GEYG104 M 100KOHM, J, 1/10W 1 R6272 ERJ6GEYG222 M 2.2KOHM, J, 1/10W 1 R6273 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R6274 ERJ6GEYG221 M 220 OHM, J, 1/10W 1 R6275 ERJT08J154V M 150KOHM, J, 0.33W 1 R6276 ERJ6GEYG823 M 82KOHM, J, 1/10W 1 R6277 ERJT08J154V M 150KOHM, J, 0.33W 1 R6282 ERG2FJS150D M 15 OHM, J, 2W 1 R6283 ERJ6GEYJ273 M 27KOHM, J, 1/10W 1 R6284 ERJ6GEYF472 M 4.7KOHM, J, 1/10W 1 R6285 ERJ6GEYJ273 M 27KOHM, J, 1/10W 1 R6286 ERJT06J101V M 100 OHM, F, 0.25W 1 R6288,89 ERJ6ENF1241 M1.24KOHM, 1/10W 2 R6290 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6291 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6292 ERJ6GEYF473 M 47KOHM, J, 1/10W 1 R6401-04 ERJT08J7R5V M 7.5OHM, J, 0.33W 4 R6422-24 ERJT08J7R5V M 7.5OHM, J, 0.33W 3 R6441-43 ERJT08J7R5V M 7.5OHM, J, 0.33W 3 R6446 ERF5TJ820 W 82 OHM, 5W 1 R6452,53 ERJT08J7R5V M 7.5OHM, J, 0.33W 2 R6465 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6466 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6467,68 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6471 ERJ6GEYG392 M 3.9KOHM, J, 1/10W 1 R6472 ERJ6GEYG222 M 2.2KOHM, J, 1/10W 1 R6473 ERJ6GEYF561 M 560 OHM, J, 1/10W 1 R6474 ERJ6GEYG102 M 1KOHM, J, 1/10W 1 R6475,76 ERJ6GEYF472 M 4.7KOHM, J, 1/10W 2 R6477 ERJ6GEYJ101V M 100 OHM, J, 1/10W 1 R6481,82 ERJ6GEYJ101V M 100 OHM, J, 1/10W 2 R6485 ERJT08J1R0V M 1.8OHM, J, 0.33W 1 R6487 ERJT06J750V M 75 OHM, F, 0.25W 1 R6488 ERJT06J100V M 10 OHM, F, 0.25W 1 R6489,90 ERJ6GEYF473 M 47KOHM, J, 1/10W 2 R6493 ERJ6GEYG222 M 2.2KOHM, J, 1/10W 1 R6494,95 ERJ6ENF1003 M 100KOHM, 1/10W 2 R6496 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6497 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R6498 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6499 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R6501,02 ERJ6GEYJ101V M 100 OHM, J, 1/10W 2 参考号 部品号 部品名称及描述 数量 备注 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 133 R6503 ERJT06J100V M 10 OHM, F, 0.25W 1 R6504 ERJT06J750V M 75 OHM, F, 0.25W 1 R6505 ERJT08J1R0V M 1.8OHM, J, 0.33W 1 R6506 ERJT06J100V M 10 OHM, F, 0.25W 1 R6507-09 ERJT08J1R0V M 1.8OHM, J, 0.33W 3 R6511,12 ERJ6GEYF473 M 47KOHM, J, 1/10W 2 R6516,17 ERJ6GEYF473 M 47KOHM, J, 1/10W 2 R6521,22 ERJ6GEYJ101V M 100 OHM, J, 1/10W 2 R6523 ERJT06J750V M 75 OHM, F, 0.25W 1 R6531 ERJT06J100V M 10 OHM, F, 0.25W 1 R6532,33 ERJ6GEYF473 M 47KOHM, J, 1/10W 2 R6551 ERJT06J100V M 10 OHM, F, 0.25W 1 R6552,53 ERJ6GEYF473 M 47KOHM, J, 1/10W 2 R6558 J0JCC0000100 芯片感应器 1 R6560 J0JCC0000100 芯片感应器 1 R6561-64 EXB38V470J 电阻器组件 4 R6565-68 EXB38V472JV 电阻器组件 4 R6570 ERJT08J1R0V M 1.8OHM, J, 0.33W 1 R6571 ERJT06J100V M 10 OHM, F, 0.25W 1 R6573 ERJT06J100V M 10 OHM, F, 0.25W 1 R6579 ERJ6GEYF472 M 4.7KOHM, J, 1/10W 1 R6580 ERJ6GEYG222 M 2.2KOHM, J, 1/10W 1 R6582,83 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6584 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R6585 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R6586 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R6587 ERJ6GEYF472 M 4.7KOHM, J, 1/10W 1 R6588 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R6590 ERJ6GEYG221 M 220 OHM, J, 1/10W 1 R6591 EXB38V472JV 电阻器组件 1 R6592 ERJ6GEYF472 M 4.7KOHM, J, 1/10W 1 R6605 ERJ6GEYG182 M 1.8KOHM, J, 1/10W 1 R6607 ERJ6ENF6811 M6.81KOHM, 1/10W 1 R6608,09 ERJT08J102V M 1KOHM, J, 0.33W 2 R6610 ERJ6GEYG104 M 100KOHM, J, 1/10W 1 R6612 ERJT06J470V M 47 OHM, F, 0.25W 1 R6621 ERJ6GEYG221 M 220 OHM, J, 1/10W 1 R6623 ERJ6GEYG221 M 220 OHM, J, 1/10W 1 R6629 ERG2FJS333D M 33KOHM, J, 2W 1 R6631 ERJT06J100V M 10 OHM, F, 0.25W 1 R6633 ERJT06J100V M 10 OHM, F, 0.25W 1 R6638,39 ERJT08J1R0V M 1.8OHM, J, 0.33W 2 R6643 ERJT06J330V M 33 OHM, F, 0.25W 1 R6645-49 ERJT06J330V M 33 OHM, F, 0.25W 5 R6651 ERJT06J330V M 33 OHM, F, 0.25W 1 R6658 D0D1101JA009 M 100 OHM, J, 1W 1 R6659,60 ERJ6GEYJ224 M 220KOHM, J, 1/10W 2 R6661 ERJ6GEYG104 M 100KOHM, J, 1/10W 1 R6662 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R6663 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R6664 ERJT08J222V M 2.2KOHM, J, 0.33W 1 R6665 ERJT06J470V M 47 OHM, F, 0.25W 1 R6666 ERJ6GEYG104 M 100KOHM, J, 1/10W 1 R6667,68 ERJ6GEYF472 M 4.7KOHM, J, 1/10W 2 R6671 ERJT06J470V M 47 OHM, F, 0.25W 1 R6672 ERJ6GEYF473 M 47KOHM, J, 1/10W 1 R6673-75 ERJT06J470V M 47 OHM, F, 0.25W 3 R6692 D0GZ472JA020 M 4.7KOHM, J, 0.5W 1 R6693 ERJ6GEYG823 M 82KOHM, J, 1/10W 1 R6694 ERJ6GEYJ273 M 27KOHM, J, 1/10W 1 R6695 ERJ8GEYJ124 M 120KOHM, J, 1/8W 1 R6696 ERF5TK2R2 W 2.2 OHM, K, 5W 1 R6700-04 ERJ6GEYJ471 M 470 OHM, J, 1/10W 5 R6705,06 ERJ6GEYJ101V M 100 OHM, J, 1/10W 2 R6707,08 ERJ6GEYJ471 M 470 OHM, J, 1/10W 2 R6709 ERJ6GEYJ101V M 100 OHM, J, 1/10W 1 R6710-14 ERJ6GEYG222 M 2.2KOHM, J, 1/10W 5 R6716-18 ERJ6GEYG222 M 2.2KOHM, J, 1/10W 3 R6721,22 EXB38V220JV 电阻器组件 2 R6723 ERJ6GEYG182 M 1.8KOHM, J, 1/10W 1 R6725 ERJ6GEYG104 M 100KOHM, J, 1/10W 1 R6726 ERJ6GEYJ474 M 470KOHM, J, 1/10W 1 R6727 ERJ6GEYJ273 M 27KOHM, J, 1/10W 1 R6728 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6731 ERJT06J470V M 47 OHM, F, 0.25W 1 R6733 ERJT06J470V M 47 OHM, F, 0.25W 1 R6742 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 参考号 部品号 部品名称及描述 数量 备注 R6743 ERJ6GEYG332 M 3.3KOHM, J, 1/10W 1 R6745 ERJ6GEYF472 M 4.7KOHM, J, 1/10W 1 R6746,47 ERJT06J103V M 10KOHM, F, 0.25W 2 R6761 ERJT06J100V M 10 OHM, F, 0.25W 1 R6762 ERJ6GEYF473 M 47KOHM, J, 1/10W 1 R6765 ERJT08J1R0V M 1.8OHM, J, 0.33W 1 R6766 ERJT06J750V M 75 OHM, F, 0.25W 1 R6768 ERJT08J1R0V M 1.8OHM, J, 0.33W 1 R6769 ERJT06J750V M 75 OHM, F, 0.25W 1 R6775,76 ERJ6GEYJ101V M 100 OHM, J, 1/10W 2 R6777 ERJT06J151V M 150 OHM, F, 0.25W 1 R6781 ERJT06J470V M 47 OHM, F, 0.25W 1 R6782 ERJ6GEYF473 M 47KOHM, J ,1/10W 1 R6791 ERJ6GEYG102 M 1KOHM, J, 1/10W 1 R6792 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R6793 ERJ6GEYJ101V M 100 OHM, J, 1/10W 1 R6802 ERG2FJS683D M 68KOHM, J, 2W 1 R6803 ERG3FJS333D M 33KOHM, J, 3W 1 R6806,07 ERX12SJ1R2 M 1.2 OHM, J, 1/2W 2 R6808 ERJT06J272V M 2.7KOHM, F, 0.25W 1 R6809 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R6810,11 ERJ6GEYF333 M 33KOHM, J, 1/10W 2 R6812 ERJ6ENF2403 M 240KOHM, 1/10W 1 R6813 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6814 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R6815 ERJ6GEYG332 M 3.3KOHM, J, 1/10W 1 R6819 ERJ6GEYG681 M 680 OHM, J, 1/10W 1 R6820 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6821 ERF5TJ221 W 220 OHM, J, 5W 1 R6822 ERJ12YJ104U M 100KOHM, 1/2W 1 R6823 ERG1FJS104D M 100KOHM, J, 1W 1 R6824 ERJ6GEYG392 M 3.9KOHM, J, 1/10W 1 R6825-27 ERJ6ENF2003 M 200KOHM, 1/10W 3 R6828 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R6829,30 ERJ6GEYG104 M 100KOHM, J, 1/10W 2 R6831 ERJ6GEYG153 M 15KOHM, J, 1/10W 1 R6832 ERJT08J4R7V M 4.7OHM, J, 0.33W 1 R6833-36 ERJ6ENF7502 M 75KOHM, 1/10W 4 R6837 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6839 ERJ6GEYF472 M 4.7KOHM, J, 1/10W 1 R6841 ERJ12YJ153U M 15KOHM, 1/2W 1 R6842 ERJ12YJ433U M 43KOHM, 1/2W 1 R6843 ERJ6GEYJ623 M 62KOHM, J, 1/10W 1 R6844 D0D2101JA021 M 100 OHM, J, 2W 1 R6845-47 ERJ6GEYJ623 M 62KOHM, J, 1/10W 3 R6848 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R6849,50 ERJ6ENF6802 M 68KOHM, 1/10W 2 R6851 ERJ6ENF1802 M 18KOHM, 1/10W 1 R6852 ERJ6ENF2701 M 2.7KOHM, 1/10W 1 R6853 ERJ6GEYJ101V M 100 OHM, J, 1/10W 1 R6855 ERJ12YJ103 M 10KOHM, J, 1/2W 1 R6856 ERQ12AJW560E F 56 OHM, J, 1/2W 1 R6857 ERJ12YJ124U M 120KOHM, 1/2W 1 R6858 ERJ6GEYG102 M 1KOHM, J, 1/10W 1 R6860 D0D28R2JA021 M 8.2 OHM, J, 2W 1 R6861,62 ERJ6ENF5102 M 51KOHM, 1/10W 2 R6863 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6864 ERJ6ENF6801 M 6.8KOHM, 1/10W 1 R6865 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R6866 ERJ6ENF6200 M 620 OHM, 1/10W 1 R6867 ERJ6GEYG392 M 3.9KOHM, J, 1/10W 1 R6868 ERJ6GEYJ223 M 22KOHM, J, 1/10W 1 R6869 ERJ6GEYF472 M 4.7KOHM, J, 1/10W 1 R6870 ERJ6GEYG104 M 100KOHM, J, 1/10W 1 R6871-73 ERJ6ENF3902 M 39KOHM, 1/10W 3 R6874 ERJ6ENF6801 M 6.8KOHM, 1/10W 1 R6875 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R6876 ERJ6RBD561 M 560 OHM, 1/10W 1 R6877 ERJ6GEYG392 M 3.9KOHM, J, 1/10W 1 R6878 ERJ6GEYJ223 M 22KOHM, J, 1/10W 1 R6879 ERJ6GEYF472 M 4.7KOHM, J, 1/10W 1 R6880 ERG1FJS103D M 10KOHM, J, 1W 1 R6881 ERG2FNJS8R2E M 8.2 OHM, J, 2W 1 R6882 ERJ6ENF1692 M16.9KOHM, 1/10W 1 R6883,84 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R6886-88 ERJ6GEYJ224 M 220KOHM, J, 1/10W 3 R6889 ERG2FJS223D M 22KOHM, J, 2W 1 参考号 部品号 部品名称及描述 数量 备注 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 134 R6890 ERJ6GEYF472 M 4.7KOHM, J, 1/10W 1 R6891-93 ERJ6GEYF473 M 47KOHM, J, 1/10W 3 R6894 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R6895-97 ERJ6ENF4702 M 47KOHM, 1/10W 3 R6898 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6899 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6901 ERJ6GEYJ101V M 100 OHM, J, 1/10W 1 R6902-04 ERJ3GEYJ220 M 22 OHM, J, 1/16W 3 R6905 ERJ6GEYG221 M 220 OHM, J, 1/10W 1 R6909 ERJ6GEYG221 M 220 OHM, J, 1/10W 1 R6913 ERJ6GEYG221 M 220 OHM, J, 1/10W 1 R6917 ERJ6GEYG221 M 220 OHM, J, 1/10W 1 R6924 ERJ6GEYG221 M 220 OHM, J, 1/10W 1 R6925,26 J0JCC0000100 芯片感应器 2 R6931-34 ERJ6GEYG103 M 10KOHM, J, 1/10W 4 R6935,36 ERJ8GEYJ224 M 220KOHM, J, 1/8W 2 R6938 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R6951 ERJ6GEYG221 M 220 OHM, J, 1/10W 1 R6955 ERJ6GEYG221 M 220 OHM, J, 1/10W 1 R6959 ERJ6GEYG221 M 220 OHM, J, 1/10W 1 R6963 ERJ6GEYG221 M 220 OHM, J, 1/10W 1 R6967 ERJ6GEYG221 M 220 OHM, J, 1/10W 1 R6971 ERJ6GEYJ101V M 100 OHM, J, 1/10W 1 R6972-74 ERJ3GEYJ220 M 22 OHM, J, 1/16W 3 R6975,76 J0JCC0000100 芯片感应器 2 R6981-84 ERJ6GEYG103 M 10KOHM, J, 1/10W 4 R6985,86 ERJ8GEYJ224 M 220KOHM, J, 1/8W 2 R6989 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R7103 EXB38V220JV 电阻器组件 1 R7105,06 D0GZ100JA020 M 10 OHM, J, 0.5W 2 R7108 EXB38V102J 电阻器组件 1 R7110 EXB38V220JV 电阻器组件 1 R7111,12 D0GZ100JA020 M 10 OHM, J, 0.5W 2 R7113 D0GB102JA057 M 1KOHM, J, 1/16W 1 R7115-18 D0GZ100JA020 M 10 OHM, J, 0.5W 4 R7122-25 D0GZ100JA020 M 10 OHM, J, 0.5W 4 R7127 EXB38V471J 电阻器组件 1 R7130-33 D0GZ100JA020 M 10 OHM, J, 0.5W 4 R7135-38 D0GZ100JA020 M 10 OHM, J, 0.5W 4 R7145 EXB38V471J 电阻器组件 1 R7146-49 D0GZ100JA020 M 10 OHM, J, 0.5W 4 R7154-57 D0GZ100JA020 M 10 OHM, J, 0.5W 4 R7166-73 EXB38V471J 电阻器组件 8 R7179 D0GF472JA047 M 4.7KOHM, J, 0.33W 1 R7183 EXB38V220JV 电阻器组件 1 R7184 EXB38V102J 电阻器组件 1 R7191,92 ERJ3GEYJ470 M 47 OHM, J, 1/16W 2 R7193 J0JCC0000100 芯片感应器 1 R7195 EXB38V470J 电阻器组件 1 R7198,99 D0GZ100JA020 M 10 OHM, J, 0.5W 2 R7202 EXB38V220JV 电阻器组件 1 R7205 EXB38V220JV 电阻器组件 1 R7210 EXB38V222J 电阻器组件 1 R7211-14 D0GZ100JA020 M 10 OHM, J, 0.5W 4 R7219 EXB38V471J 电阻器组件 1 R7220 ERJ3GEYJ222 M 2.2KOHM, J, 1/16W 1 R7221-23 EXB38V471J 电阻器组件 3 R7224-27 D0GZ100JA020 M 10 OHM, J, 0.5W 4 R7229-32 D0GZ100JA020 M 10 OHM, J, 0.5W 4 R7240,41 EXB38V471J 电阻器组件 2 R7243 EXB38V102J 电阻器组件 1 R7244 EXB38V222J 电阻器组件 1 R7245-47 EXB38V470J 电阻器组件 3 R7250 EXB38V470J 电阻器组件 1 R7251 EXB38V222J 电阻器组件 1 R7252 J0JCC0000100 芯片感应器 1 R7254-59 D0GZ100JA020 M 10 OHM, J, 0.5W 6 R7301-04 D0GZ100JA020 M 10 OHM, J, 0.5W 4 R7309-12 D0GZ100JA020 M 10 OHM, J, 0.5W 4 R7317-20 D0GZ100JA020 M 10 OHM, J, 0.5W 4 R7325 EXB38V102J 电阻器组件 1 R7327 EXB38V220JV 电阻器组件 1 R7330 EXB38V220JV 电阻器组件 1 R7334-39 EXB38V102J 电阻器组件 6 R7341 ERJ6GEYG102 M 1KOHM, J, 1/10W 1 R7342 D0GF472JA047 M 4.7KOHM, J, 0.33W 1 R7343 EXB38V471J 电阻器组件 1 参考号 部品号 部品名称及描述 数量 备注 R7344 EXB38V470J 电阻器组件 1 R7345 EXB38V471J 电阻器组件 1 R7346 EXB38V470J 电阻器组件 1 R7347 EXB38V471J 电阻器组件 1 R7348 EXB38V470J 电阻器组件 1 R7349 EXB38V471J 电阻器组件 1 R7350 EXB38V470J 电阻器组件 1 R7351 EXB38V471J 电阻器组件 1 R7352 EXB38V470J 电阻器组件 1 R7353 EXB38V471J 电阻器组件 1 R7354 EXB38V470J 电阻器组件 1 R7361 ERJ6GEYJ224 M 220KOHM, J, 1/10W 1 R7364,65 ERJ3GEYJ470 M 47 OHM, J, 1/16W 2 R7366 J0JCC0000100 芯片感应器 1 R7367-72 D0GZ100JA020 M 10 OHM, J, 0.5W 6 R8001 ERJ2GEJ181 M 180 OHM, J,0.063W 1 R8002 ERJ2GEJ820 M 82 OHM, J,0.063W 1 R8003 J0JCC0000100 芯片感应器 1 R8004 ERJ3EKF2402 M 24KOHM, 1/16W 1 R8005 ERJ3EKF1002 M 10KOHM, 1/16W 1 R8006 ERJ3EKF6801 M 6.8KOHM, 1/16W 1 R8023-29 D0YAR0000007 M 0.0 OHM, J,0.063W 7 R8030 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8031,32 ERJ3EKF2700 M 270 OHM, 1/16W 2 R8035 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8039 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8056-73 ERJ2GEJ470 M 47 OHM, J,0.063W 18 R8074 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8075-78 ERJ2GEJ470 M 47 OHM, J,0.063W 4 R8079,80 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R8081 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8082 D1BA75R0A026 M0.75KOHM, 1/10W 1 R8083 ERJ2GEJ301 M 300 OHM, J,0.063W 1 R8084 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8086 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R8087 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8090 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8091 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8093 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8095 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8097 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8098,99 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8100 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8101 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8106 ERJ2GEJ202 M 2KOHM, J,0.063W 1 R8107 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8111 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8328 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8471 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8472 D1HG1038A002 NETWORK RESISTER 1 R8474,75 EXB28V103JX 电阻器组件 2 R8502-04 ERJ2GEJ331 M 330 OHM, J,0.063W 3 R8506 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R8507-10 ERJ3EKF91R0 M 91 OHM, 1/16W 4 R8512 ERJ3EKF1800 M 180 OHM, 1/16W 1 R8513 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8517-19 D0YAR0000007 M 0.0 OHM, J,0.063W 3 R8551 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8555-61 ERJ2GEJ680 M 68 OHM, J,0.063W 7 R8564 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8601,02 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R8603 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R8604 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R8605 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8621-36 ERJ2GEJ680 M 68 OHM, J,0.063W 16 R8653 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8655 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8702 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8703 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8709 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8710 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8711,12 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8732 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8735-39 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R8742 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8745,46 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8749 ERJ2GEJ103 M 10KOHM, J,0.063W 1 参考号 部品号 部品名称及描述 数量 备注 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 135 R8802-09 ERJ2GEJ103 M 10KOHM, J,0.063W 8 R8812 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8813 EXB28V680JX 电阻器组件 1 R8814-17 ERJ2GEJ680 M 68 OHM, J,0.063W 4 R8818 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8823 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8825 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R8826 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8828 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8832 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8833 J0JCC0000100 芯片感应器 1 R8851-54 D0YAR0000007 M 0.0 OHM, J,0.063W 4 R8855-60 ERJ2GEJ680 M 68 OHM, J,0.063W 6 R8862-64 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R8865-67 EXB2HV680J 电阻器组件 3 R8868 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8869 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8870 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8871 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8874-76 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R8877-89 ERJ2GEJ680 M 68 OHM, J,0.063W 13 R8891,92 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R8893 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8894 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8895-97 D0YAR0000007 M 0.0 OHM, J,0.063W 3 R8898,99 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8900,01 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R8904-10 ERJ2GEJ103 M 10KOHM, J,0.063W 7 R8911-18 ERJ2GEJ680 M 68 OHM, J,0.063W 8 R8919-22 ERJ2GEJ472 M 4.7KOHM, J,0.063W 4 R8923,24 ERJ2GEJ222 M 2.2KOHM, J,0.063W 2 R8925,26 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R8927 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8928 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R8929 EXB2HVR000 电阻器组件 1 R8930 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8932 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R8933-35 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R8947 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8948 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8952 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8963 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9062-67 ERJ3GEYJ101 M 100 OHM, J, 1/16W 6 R9070 ERJ3GEYJ470 M 47 OHM, J, 1/16W 1 R9099 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9101,02 D0GB103JA057 M 10KOHM, J, 1/16W 2 R9104,05 D0GB103JA057 M 10KOHM, J, 1/16W 2 R9107 ERJ3GEYJ332 M 3.3KOHM, J, 1/16W 1 R9108,09 D0GB103JA057 M 10KOHM, J, 1/16W 2 R9110 ERJ3GEYJ101 M 100 OHM, J, 1/16W 1 R9112 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9113 ERJ3GEYJ100 M 10 OHM, J, 1/16W 1 R9115,16 ERJ3GEYJ101 M 100 OHM, J, 1/16W 2 R9119 EXB38V470J 电阻器组件 1 R9120 ERJ3GEYJ101 M 100 OHM, J, 1/16W 1 R9121 ERJ3GEYJ104 M 100KOHM, J, 1/16W 1 R9122,23 D0GB103JA057 M 10KOHM, J, 1/16W 2 R9126 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9127 ERJ3GEYJ683 M 68KOHM, J, 1/16W 1 R9129 ERJ3GEYJ683 M 68KOHM, J, 1/16W 1 R9131-33 ERJ3GEYJ472 M 4.7KOHM, J, 1/16W 3 R9134 ERJ3GEYJ333 M 33KOHM, J, 1/16W 1 R9135 ERJ3GEYJ472 M 4.7KOHM, J, 1/16W 1 R9141-45 ERJ3GEYJ101 M 100 OHM, J, 1/16W 5 R9149 ERJ3GEYJ472 M 4.7KOHM, J, 1/16W 1 R9150,51 ERJ3GEYJ220 M 22 OHM, J, 1/16W 2 R9154,55 ERJ3GEYJ562 M 5.6KOHM, J, 1/16W 2 R9156 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9158,59 D0GB103JA057 M 10KOHM, J, 1/16W 2 R9160,61 J0JCC0000100 芯片感应器 2 R9164,65 ERJ3GEYJ222 M 2.2KOHM, J, 1/16W 2 R9166 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9167 ERJ3GEYJ101 M 100 OHM, J, 1/16W 1 R9170-72 D0GB393JA041 M 39KOHM, J, 1/16W 3 R9173,74 D0GB103JA057 M 10KOHM, J, 1/16W 2 R9177 ERJ3GEYJ223 M 22KOHM, J, 1/16W 1 R9181-84 D0GB102JA057 M 1KOHM, J, 1/16W 4 参考号 部品号 部品名称及描述 数量 备注 R9185,86 ERJ3GEYJ220 M 22 OHM, J, 1/16W 2 R9187,88 ERJ3GEYJ562 M 5.6KOHM, J, 1/16W 2 R9189,90 D0GB103JA057 M 10KOHM, J, 1/16W 2 R9193 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9194 J0JCC0000100 芯片感应器 1 R9196 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9199 ERJ3GEYJ272 M 2.7KOHM, J, 1/16W 1 R9200,01 ERJ3GEYJ100 M 10 OHM, J, 1/16W 2 R9203 D0GB102JA057 M 1KOHM, J, 1/16W 1 R9205 ERJ3GEYJ472 M 4.7KOHM, J, 1/16W 1 R9206,07 D0GB102JA057 M 1KOHM, J, 1/16W 2 R9215 D0GB123JA057 M 12KOHM, J, 1/16W 1 R9217-22 D0GB103JA057 M 10KOHM, J, 1/16W 6 R9223 ERJ3GEYJ272 M 2.7KOHM, J, 1/16W 1 R9225 ERJ3GEYJ272 M 2.7KOHM, J, 1/16W 1 R9237 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9240 J0JCC0000100 芯片感应器 1 R9317 ERJ3GEYJ391 M 390 OHM, J, 1/16W 1 R9347,48 EXB2HV220JV 电阻器组件 2 R9349 EXB2HV470JV 电阻器组件 1 R9350,51 ERJ3GEYJ220 M 22 OHM, J, 1/16W 2 R9352-56 EXB2HV220JV 电阻器组件 5 R9357-59 EXB2HV470JV 电阻器组件 3 R9361,62 ERJ3GEYJ220 M 22 OHM, J, 1/16W 2 R9363 EXB2HV470JV 电阻器组件 1 R9369 ERJ3GEYJ472 M 4.7KOHM, J, 1/16W 1 R9370 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9371 ERJ3GEYJ104 M 100KOHM, J, 1/16W 1 R9379 J0JCC0000100 芯片感应器 1 R9380 ERJ3GEYJ560 M 56 OHM, J, 1/16W 1 R9383 D0GB102JA057 M 1KOHM, J, 1/16W 1 R9384,85 ERJ3GEYJ472 M 4.7KOHM, J, 1/16W 2 R9391 ERJ3GEYJ104 M 100KOHM, J, 1/16W 1 R9392,93 J0JCC0000100 芯片感应器 2 R9396-99 ERJ3GEYJ220 M 22 OHM, J, 1/16W 4 R9402 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R9403 EXB2HV470JV 电阻器组件 1 R9501 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9503 ERJ3GEYJ470 M 47 OHM, J, 1/16W 1 R9506 ERJ3GEYJ220 M 22 OHM, J, 1/16W 1 R9507 J0JCC0000100 芯片感应器 1 R9512,13 ERJ3GEYJ470 M 47 OHM, J, 1/16W 2 R9514 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9516 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9518 J0JCC0000100 芯片感应器 1 R9520 ERJ3GEYJ470 M 47 OHM, J, 1/16W 1 R9523 ERJ3GEYJ472 M 4.7KOHM, J, 1/16W 1 R9525 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9526 J0JCC0000100 芯片感应器 1 R9530 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9531-33 ERJ3GEYJ470 M 47 OHM, J, 1/16W 3 R9534 EXB38V470J 电阻器组件 1 R9535,36 ERJ3GEYJ470 M 47 OHM, J, 1/16W 2 R9538 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9540,41 D0GB103JA057 M 10KOHM, J, 1/16W 2 R9543,44 D0GB103JA057 M 10KOHM, J, 1/16W 2 R9545 ERJ3GEYJ304 M 300KOHM, J, 1/16W 1 R9548-50 D0GB103JA057 M 10KOHM, J, 1/16W 3 R9552 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9553-55 J0JCC0000100 芯片感应器 3 R9556 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9557,58 J0JCC0000100 芯片感应器 2 R9561 EXB38V222J 电阻器组件 1 R9562 ERJ3GEYJ470 M 47 OHM, J, 1/16W 1 R9563-66 EXB2HV470JV 电阻器组件 4 R9567 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9569 J0JCC0000100 芯片感应器 1 R9824-27 ERJ3GEYJ101 M 100 OHM, J, 1/16W 4 R9828 ERJ3GEYJ104 M 100KOHM, J, 1/16W 1 R9839 EXB38V101JV 电阻器组件 1 R9840 ERJ3GEYJ220 M 22 OHM, J, 1/16W 1 R9845 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9846,47 EXB2HV222JV 电阻器组件 2 R9848,49 EXB2HV470JV 电阻器组件 2 R9850 D0GB473JA057 M 47KOHM, J, 1/16W 1 R9854 ERJ3GEYJ101 M 100 OHM, J, 1/16W 1 R9859 EXB38V101JV 电阻器组件 1 参考号 部品号 部品名称及描述 数量 备注 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 136 R9861-63 D0GB103JA057 M 10KOHM, J, 1/16W 3 R9868 ERJ3GEYJ104 M 100KOHM, J,1 /16W 1 R9869-71 D0GB103JA057 M 10KOHM, J, 1/16W 3 R9872 J0JCC0000100 芯片感应器 1 R9874 J0JCC0000100 芯片感应器 1 R9878 ERJ3EKF1102 M 11KOHM, 1/16W 1 R9879 ERJ3EKF1302 M 13KOHM, 1/16W 1 R9886,87 ERJ3EKF5602 M 56KOHM, 1/16W 2 R9888 ERJ3EKF1102 M 11KOHM, 1/16W 1 R9889 ERJ3EKF1742 M17.2KOHM, 1/16W 1 R9890 ERJ3EKF4752 M47.5KOHM, 1/16W 1 R9891 ERJ3EKF1272 M12.7KOHM, 1/16W 1 R9892 ERJ3GEYJ104 M 100KOHM, J, 1/16W 1 R9893 ERJ3EKF5602 M 56KOHM, 1/16W 1 R9894 ERJ3EKF1102 M 11KOHM, 1/16W 1 R9895 ERJ3GEYJ104 M 100KOHM, J, 1/16W 1 R9896 ERJ3EKF1822 M18.2KOHM, 1/16W 1 R9897 ERJ3EKF4752 M47.5KOHM, 1/16W 1 R9901,02 J0JCC0000100 芯片感应器 2 R9903 EXB2HV470JV 电阻器组件 1 R9904 ERJ3GEYJ470 M 47 OHM, J, 1/16W 1 R9905 ERJ3GEYJ330 M 33 OHM, J, 1/16W 1 R9906 EXB38V470J 电阻器组件 1 R9907 D0GB151JA057 M 150 OHM, J, 1/16W 1 R9908-11 J0JCC0000100 芯片感应器 4 R9915-18 J0JCC0000100 芯片感应器 4 R9919 D0GB102JA057 M 1KOHM, J, 1/16W 1 R9922 J0JCC0000100 芯片感应器 1 R9928 J0JCC0000100 芯片感应器 1 R9936-39 ERJ3EKF1001 M 1KOHM, 1/16W 4 R9940 ERJ3GEYJ330 M 33 OHM, J, 1/16W 1 R9941,42 ERJ3GEYJ470 M 47 OHM, J, 1/16W 2 R9943-51 EXB38V470J 电阻器组件 9 R9952-55 ERJ3GEYJ470 M 47 OHM, J, 1/16W 4 R9956 D0GB103JA057 M 10KOHM, J, 1/16W 1 R9960 J0JCC0000100 芯片感应器 1 R9961 D0GB103JA057 M 10KOHM, J, 1/16W 1 RM2501 PNA4701M05TV 遥控接收器 1 S1 K1KA03BA0061 3P 连接器 1 SC2 K1KA02A00676 2P 连接器 1 SC20 K1KY30AA0369 30P 连接器 1 SC30 K1KA10AA0191 10P 连接器 1 SC41 K1ML80B00001 80P 连接器 1 SC43 K1ML80B00001 80P 连接器 1 SC45,46 K1KA09AA0707 9P 连接器 2 SCMM2,M3 TMME260 卡夹 2 SD1-D4 K1MN96BA0260 96P 连接器 4 SD46 K1KB09AA0219 9P 连接器 1 SS11 K1KA02A00676 2P 连接器 1 SS12 K1KA10AA0194 10P 连接器 1 SS21,22 K1KA07A00170 7P 连接器 2 SS23,24 K1KB07AA0087 7P 连接器 2 SS33 K1KA10A00416 10P 连接器 1 SS34 K1KA03AA0193 3P 连接器 1 SS35 K1KA04AA0193 4P 连接器 1 SS52 K1MN13B00091 13P 连接器 1 SS54,55 K1MN13B00091 13P 连接器 2 SS57 K1MN13B00091 13P 连接器 1 SSMM1 TMME260 卡夹 1 SU1-U4 K1MN96BA0260 96P 连接器 4 SU45 K1KB09AA0219 9P 连接器 1 SW2500 K0F162B00002 开关 1 SW3753-57 EVQPC105K 开关 5 T6602 ETS25AZ179AD 转换变压器 1 TU3200 ENGF9701GF 调谐器 1 参考号 部品号 部品名称及描述 数量 备注 VR6000 EVMEASA00B14 控制 10KOHMB 0.3W 1 VR6600 EVMEASA00B13 控制 1KOHMB 0.3W 1 VR6602 EVMEASA00B53 控制 5KOHMB 0.3W 1 VR6604 EVMEASA00B34 控制 30KOHMB 0.3W 1 X1100 H0J100500035 晶体 1 X2010 H0J245500082 晶体 1 X4500 H0J270500113 晶体 1 X8001 H0J270500061 晶体 1 X9000 H2D100500004 晶体 1 X9200 H0J200500038 晶体 1 ZA0001 K4AZ01D00004 端子 1 ZA0002 K4CD08000002 AV 端子 1 ZA0004,05 K4AZ01D00004 端子 2 ZA0006,07 K4CD08000002 AV 端子 2 ZA3001-08 K4CD08000002 AV 端子 8 ZA3701 K4CZ01000027 兼容 JALCO K9 1 ZA5501-03 K4CZ01000027 兼容 JALCO K9 3 ZA6001-03 K4CD01000011 AV 端子 3 ZA6401-03 K4CD01000011 AV 端子 3 ZA7101-06 K4AD01Z00001 端子 6 ZA7201-04 K4AD01Z00001 端子 4 ZA7301-04 K4AD01Z00001 端子 4 ZA9001 K4CD01000011 AV 端子 1 A601,02 RA362MSV7 避雷器 2 C201 KZE1H560 电解电容器 1 C202,03 RR3DD221K 陶瓷电容器 2 C204 MPEF12393H 塑料膜电容器 1 C205 MPEF12473H 塑料膜电容器 1 C251 MBB224K2 陶瓷芯片电容器 1 C253 MBB224K2 陶瓷芯片电容器 1 C254,55 ECQE6223KF P 0.022UF, K, 400V 2 C256-58 KMQ220901Z 电解电容器 3 C301 KZE1H560 电解电容器 1 C302,03 RR3DD101K 陶瓷电容器 2 C304 MPEF12333H 塑料膜电容器 1 C351 ECQV1H224JL 塑料膜电容器 1 C352 KZE1E182S C 1800UF 25V 1 C354 MBB224K2 陶瓷芯片电容器 1 C355 ECJ2VB1H223K C 0.022UF, K, 50V 1 C356 MBB104K5 陶瓷芯片电容器 1 C357,58 KZE1E471L 电解电容器 2 C401,02 TAB104K2E 陶瓷芯片电容器 2 C403 KMQ2C471H 电解电容器 1 C404 KZE1H221 电解电容器 1 C405 MBB224K2 陶瓷芯片电容器 1 C406-08 KZE2A471S C 470UF 100V 3 C451 KZE1A471 电解电容器 1 C501 ECQU2A103ML 塑料膜电容器 1 C503 KMQ2W560 电解电容器 1 C504 KZE1H560 电解电容器 1 C505 YBB474K1 陶瓷芯片电容器 1 C506 TBB106K1A C 10U 0V 1 C507 KZE1H221 电解电容器 1 C508 KZE1H560 电解电容器 1 C509 ECKENA101KBR C 100P 250V 1 C551 KZE1A471 电解电容器 1 C552 TBB474K2 陶瓷芯片电容器 1 C554 MBB103K5 陶瓷芯片电容器 1 C555 KZE1E470 C 470U 25V 1 C556 MBB103K5 陶瓷芯片电容器 1 C601 ECQU2A105ML P 1UF, 250V 1 C602 ECQU2A104ML 塑料膜电容器 1 C603,04 ECKENA221KBR C 221P 250V 2 C605 DE1R102K 陶瓷电容器 1 C606 MMXC2W105K C 1P 450V 1 C608 MMXC2W105K C 1P 450V 1 C610 MBB224K2 陶瓷芯片电容器 1 C611 KZE1H560 电解电容器 1 C612-14 KMQ2W221L C 220U 450V 3 C615 ECKENA101KBR C 100P 250V 1 C620,21 ECKENA221KBR C 221P 250V 2 C623 MPEF12223H 塑料膜电容器 1 C624,25 RR3AD471K 陶瓷电容器 2 参考号 部品号 部品名称及描述 数量 备注 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 137 C701 KZE1A471 电解电容器 1 D201,02 AG01A 二极管 2 D251 D4SBL40 二极管 1 D253 1SS355 二极管 1 D351 YG805C06R 二极管 1 D352 AG01A 二极管 1 D353 YG805C06R 二极管 1 D401 D6SBN20 二极管 1 D402 AG01A 二极管 1 D403 YG901C3R 二极管 1 D451 RK39 二极管 1 D501 B0EBKT000007 二极管 1 D504 ST3D82 二极管 1 D505 AG01A 二极管 1 D506 RF101A2S 二极管 1 D551 RK39 二极管 1 D552 1SS355 二极管 1 D553 B0JCMD000024 二极管 1 D601,02 1SS355 二极管 2 D603,04 AP01C 二极管 2 D605,06 B0EAKR000059 二极管 2 D701 1SS355 二极管 1 D702 B0JCMD000024 二极管 1 F201 HU216005BP 熔丝管 1 F301 HU216005BP 熔丝管 1 F603 HU382T2 细保险丝 1 IC251 HA17431UA 集成电路 1 IC351 HA17431UA 集成电路 1 IC401 HA17431UA 集成电路 1 IC451 PQ1CN41H2Z 稳压器 1 IC501 MIP3E30MP IC 1 IC551 HA17431UA 集成电路 1 IP351 ERBSE0R75U 细保险丝 1 IP701 ERBSE0R75U 细保险丝 1 K601 KQ3298 继电器 1 K602 DJ5D2QT8 继电器 1 L401 LH8TB681K 电感 1 L402 H221012HY 电感 1 L403 EXCELSA35 磁珠电感 1 L404 EXCELSR35 磁珠电感 1 L451 SNK1012A 电感 1 L501 EXCELSA35 磁珠电感 1 L502,03 EXCELDR35 磁珠电感 2 L601,02 B3180207Z 过滤器电感 2 L603 ETB50CZ13GAD 电感变压器 1 L607,08 EXCELDR35 磁珠电感 2 MC201 MLQNF153 模板 1 MC202 MLKJA154 模板 1 MC203 MP00R3 模板 1 MC301 MLQNF682 模板 1 MC351 MLJFF103 模板 1 MC401 MLPSC103 模板 1 MC501 MLTZB100 模板 1 MC502 MLJHA103 模板 1 MC601 MLLPD103 模板 1 MC602 MP00P18 模板 1 MC603 MP00P13 模板 1 MC701 MLZDE103 模板 1 P2 B2P3-VH-B 连接器 1 P6 B12B-EH-A 连接器 1 P7 B11B-EH-A 连接器 1 P9 B03P-VL 连接器 1 P11 B2P3-VH-B 连接器 1 P12 B10B-PH-KS 连接器 1 P23 B3B-PH-KS 连接器 1 P25 B13B-PH-KS 连接器 1 PC201,02 PS2581A 光电耦合器 2 参考号 部品号 部品名称及描述 数量 备注 PC301,02 PS2581A 光电耦合器 2 PC401 PS2581A 光电耦合器 1 PC501,02 PS2581A 光电耦合器 2 Q301,02 FMA16N55G 场效应晶体管 2 Q351,52 2SK2510 场效应晶体管 2 Q401 2SK3607 场效应晶体管 1 Q402,03 2SA17670Q1TV 晶体管 2 Q551 HAT1130R FET 1 Q552 2SB710AQRSTX 晶体管 1 Q602 2SD2185 晶体管 1 Q603 2SB14400RL 晶体管 1 Q701,02 2SD602A-R 晶体管 2 Q704 2SK3018 场效应晶体管 1 R201 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R202 ERQ14AJ4R7J 金属氧化皮膜电阻器 1 R203,04 ERJ6GEYJ334 M 330KOHM, J, 1/10W 2 R205 ERJ6ENF1782 M17.8KOHM, 1/10W 1 R206-08 ERJ12YJ683 M 68KOHM, 1/2W 3 R215,16 SG732K220 芯片电阻器 2 R251-54 ERJ6ENF6802 M 68KOHM, 1/10W 4 R258 ERJ6GEYJ220 M 22 OHM, J, 1/10W 1 R259 ERJ6GEYJ101V M 100 OHM, J, 1/10W 1 R260 ERJ6GEYF151 M 150 OHM, F, 1/10W 1 R261 ERJ6GEYJ101V M 100 OHM, J, 1/10W 1 R263 ERJ6GEYG102 M 1KOHM, J, 1/10W 1 R264 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R265 ERJ6ENF1073 M 107KOHM, 1/10W 1 R266 ERJ6GEYF472 M 4.7KOHM, F, 1/10W 1 R267-69 ERJ6ENF1073 M 107KOHM, 1/10W 3 R270 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R301 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R302 ERQ14AJ4R7J 金属氧化皮膜电阻器 1 R303,04 ERJ6GEYJ334 M 330KOHM, J, 1/10W 2 R305 ERJ6ENF4421 M4.42KOHM, 1/10W 1 R306-08 ERJ12YJ683 M 68KOHM, 1/2W 3 R309 ERG1SJ680 金属氧化电阻器 1 R310 ERG12SJ220 金属氧化膜电阻器 1 R351 ERJ6ENF1052 M10.5KOHM, 1/10W 1 R352 ERJ12YJ100 M 10 OHM, J, 1/2W 1 R353 ERJ6GEYG102 M 1KOHM, J, 1/10W 1 R355 ERJ6GEYG682 芯片电阻器 1 R356 ERJ6GEYG102 M 1KOHM, J, 1/10W 1 R358 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R359 ERJ6ENF2102 M 21KOHM, 1/10W 1 R362 ERJ12YJ332 M 3.3KOHM, J, 1/2W 1 R363,64 ERJ6GEYF333 M 33KOHM, J, 1/10W 2 R365 ERJ6ENF1052 M10.5KOHM, 1/10W 1 R366 ERJ6ENF6981 M6.98KOHM, 1/10W 1 R367 ERJ6ENF1002 M 10KOHM, 1/10W 1 R368,69 ERJ6GEYG102 M 1KOHM, J, 1/10W 2 R370 ERJ6ENF1002 M 10KOHM, 1/10W 1 R371 ERJ6ENF6981 M6.98KOHM, 1/10W 1 R403 ERJ12YJ100 M 10 OHM, J, 1/2W 1 R404 ERJ6ENF2152 M21.5KOHM, 1/10W 1 R405 MPC2WR10J 金属板电阻器 1 R406 ERJ6ENF2152 M21.5KOHM, 1/10W 1 R407 ERJ6GEYJ220 M 22 OHM, J, 1/10W 1 R408 ERJ6GEYJ5R6 M 5.6 OHM, J, 1/10W 1 R409 ERJ6GEYF473 M 47KOHM, J, 1/10W 1 R410 ERJ6ENF2152 M21.5KOHM, 1/10W 1 R411,12 ERJ6GEYG152 芯片电阻器 2 R413,14 ERJ6ENF1622 M16.2KOHM, 1/10W 2 R415 ERJ6ENF8662 芯片电阻器 1 R416 ERJ6ENF8061 M8.06KOHM, 1/10W 1 R417-19 ERJ6ENF3572 M35.7KOHM, 1/10W 3 R420 ERJ6ENF2870 M 287 OHM, 1/10W 1 R451 ERJ6GEYG102 M 1KOHM, J, 1/10W 1 R452 ERJ6GEYF124 芯片电阻器 1 R453 ERJ6GEYF473 M 47KOHM, J, 1/10W 1 R454 ERJ6ENF3001 M 3KOHM, 1/10W 1 R455 ERJ6ENF1001 M 1KOHM, 1/10W 1 R456 ERJ6ENF1332 M13.3KOHM, 1/10W 1 R505 ERJ6GEYJ101V M 100 OHM, J, 1/10W 1 R506-11 ERJ6ENF8253 M 825KOHM, 1/10W 6 R514-21 ERJ6ENF2703 M 270KOHM, 1/10W 8 参考号 部品号 部品名称及描述 数量 备注 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网 138 FLE20070530001 R522 ERJ6GEYJ180 M 18 OHM, J, 1/10W 1 R551 ERJ6GEYG121 芯片电阻器 1 R552 ERJ6GEYG222 M 2.2KOHM, J, 1/10W 1 R553 ERJ6GEYJ150 M 15 OHM, J, 1/10W 1 R555 ERJ6ENF1072 M10.7KOHM, 1/10W 1 R556 ERJ6ENF1022 M10.2KOHM, 1/10W 1 R557 ERJ6GEYG392 M 3.9KOHM, J, 1/10W 1 R558 ERJ6GEYF473 M 47KOHM, J, 1/10W 1 R559 ERJ6GEYG332 M 3.3KOHM, J, 1/10W 1 R561 ERJ6ENF2152 M21.5KOHM, 1/10W 1 R562 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R563,64 ERJ6GEYG221 M 220 OHM, J, 1/10W 2 R601 RCRU5J125 金属膜固定电阻器 1 R602 R5B100J W 10 OHM, J, 5W 1 R603 ERJ6ENF1693 M 169KOHM, 1/10W 1 R604-06 ERJ6ENF1783 M 178KOHM, 1/10W 3 R607-10 ERJ6ENF3743 芯片电阻器 4 R611 ERJ6ENF1783 M 178KOHM, 1/10W 1 R617,18 RF5EJR15B 金属板电阻器 2 R619 RF5EJR10B 金属板电阻器 1 R621 ERJ6GEYJ101V M 100 OHM, J, 1/10W 1 R622 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R623 ERJ12YJ470 M 47 OHM, J, 1/2W 1 R624 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R625 ERJ12YJ470 M 47 OHM, J, 1/2W 1 R626 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R627 ERJ12YJ470 M 47 OHM, J, 1/2W 1 R628 ERQ14AJ330J 金属氧化皮膜电阻器 1 R629 ERJ6GEYG154 芯片电阻器 1 R630 ERJ6ENF5902 M 59KOHM, 1/10W 1 R631-36 ERJ6ENF1103 M 110KOHM, 1/10W 6 R637 RCR6J825 金属膜固定电阻器 1 R638 RCRU5J155 金属膜固定电阻器 1 R701 ERJ6GEYG182 M 1.8KOHM, J, 1/10W 1 R702 ERJ6GEYG222 M 2.2KOHM, J, 1/10W 1 R703 ERJ6GEYG182 M 1.8KOHM, J, 1/10W 1 R704 ERJ6GEYG222 M 2.2KOHM, J, 1/10W 1 R706 ERJ6GEYG182 M 1.8KOHM, J, 1/10W 1 R707 ERJ6GEYG222 M 2.2KOHM, J, 1/10W 1 R708 ERJ14YJ471 芯片电阻器 1 R709 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R710 ERJ6GEYG182 M 1.8KOHM, J, 1/10W 1 R711 ERJ14YJ471 芯片电阻器 1 R712 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R713 ERJ6GEYG222 M 2.2KOHM, J, 1/10W 1 R716 ERJ6GEYG103 M 10KOHM, J, 1/10W 1 R717 ERJ6GEYJ474 M 470KOHM, J, 1/10W 1 R718 ERJ6GEYG470V M 47 OHM, J, 1/10W 1 RF601 A5MC100JP2 139C 10 1 T201 ETB50LZ15GAD 变压器 1 T301 ETB50LZ14GAD 变压器 1 T501 ETB25BG118AD 变压器 1 VR251 EVMEASA01B25 可变电阻器 1 VR351 EVMEASA01B14 可变电阻器 1 VR401 EVMEASA01B24 可变电阻器 1 Z501 ERZVGAD471 电阻器 1 Z601 ERZVGED751 电阻器 1 Z602 ERZVGAD471 电阻器 1 ZD201,02 MAZ4270NMF 齐纳二极管 2 ZD301,02 MAZ4270NMF 齐纳二极管 2 ZD305 MAZ4270NMF 齐纳二极管 1 ZD401 MA4033 齐纳二极管 1 ZD402 MA8360 齐纳二极管 1 ZD451 MA4068N 齐纳二极管 1 ZD501,02 MA4300N 齐纳二极管 2 ZD503 MA4082N 齐纳二极管 1 ZD601 MA4047N 齐纳二极管 1 参考号 部品号 部品名称及描述 数量 备注 �������������� 家电维修资料网 www. 520101. com www. 520101. com 家电维修资料网
