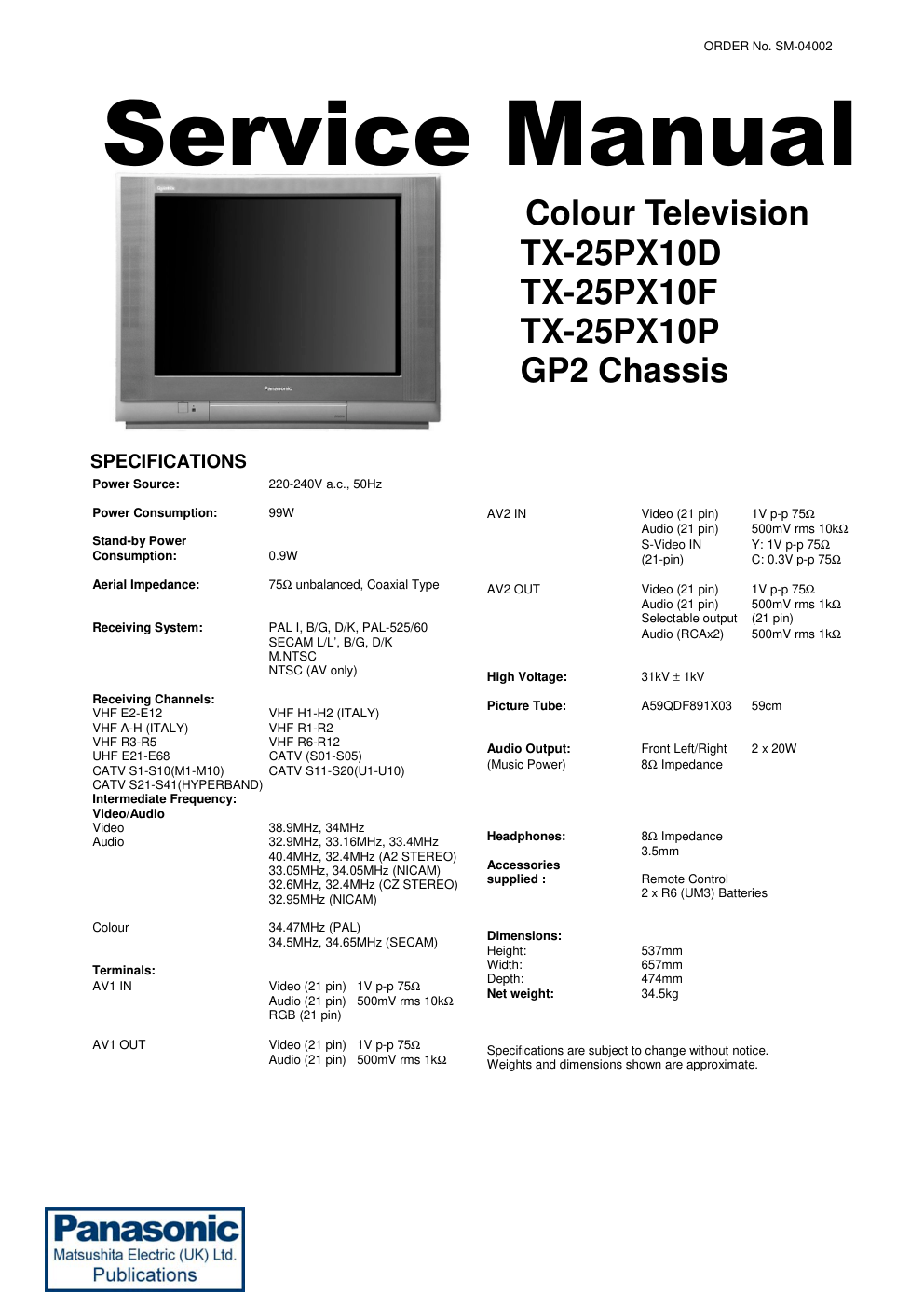

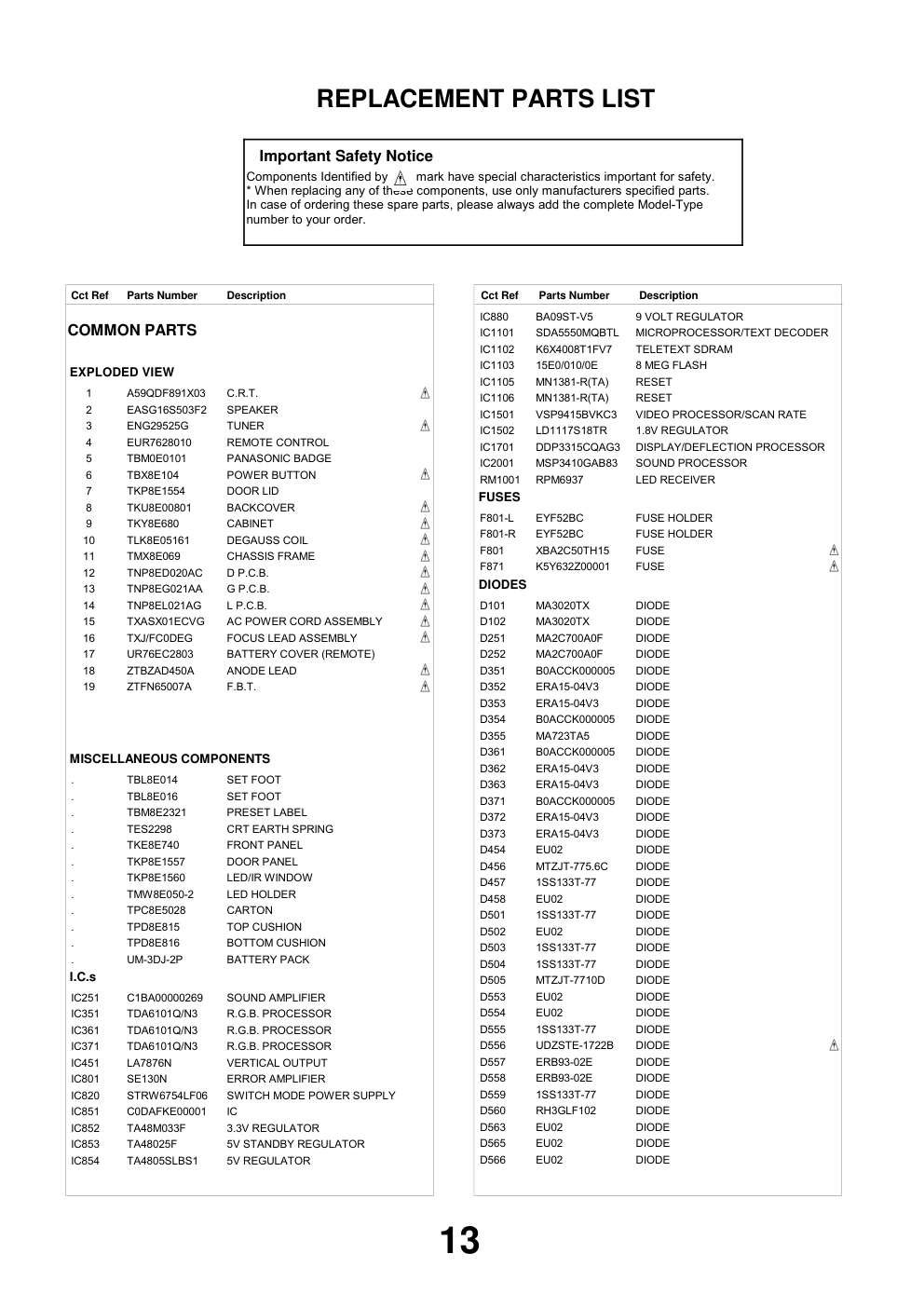

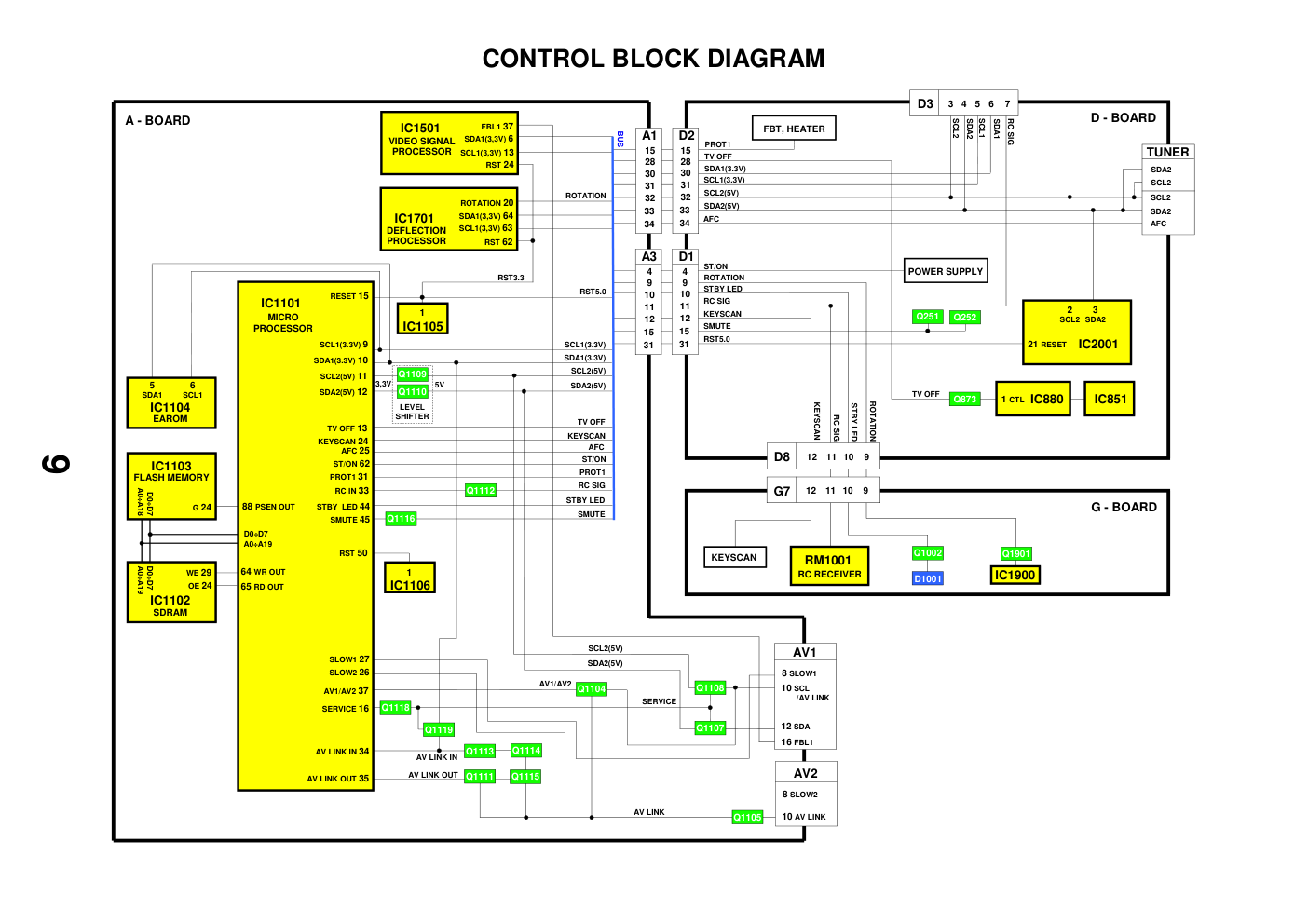

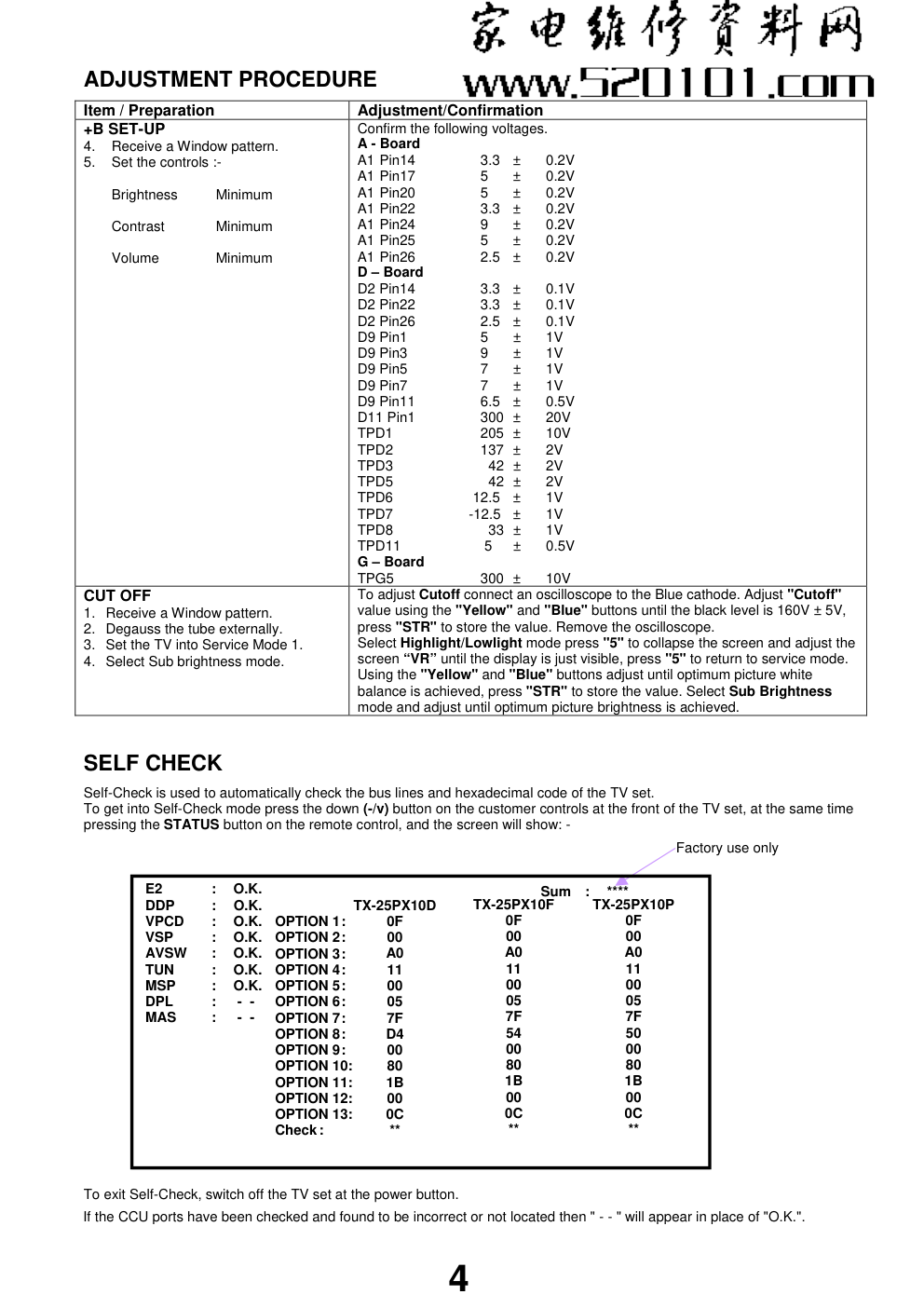

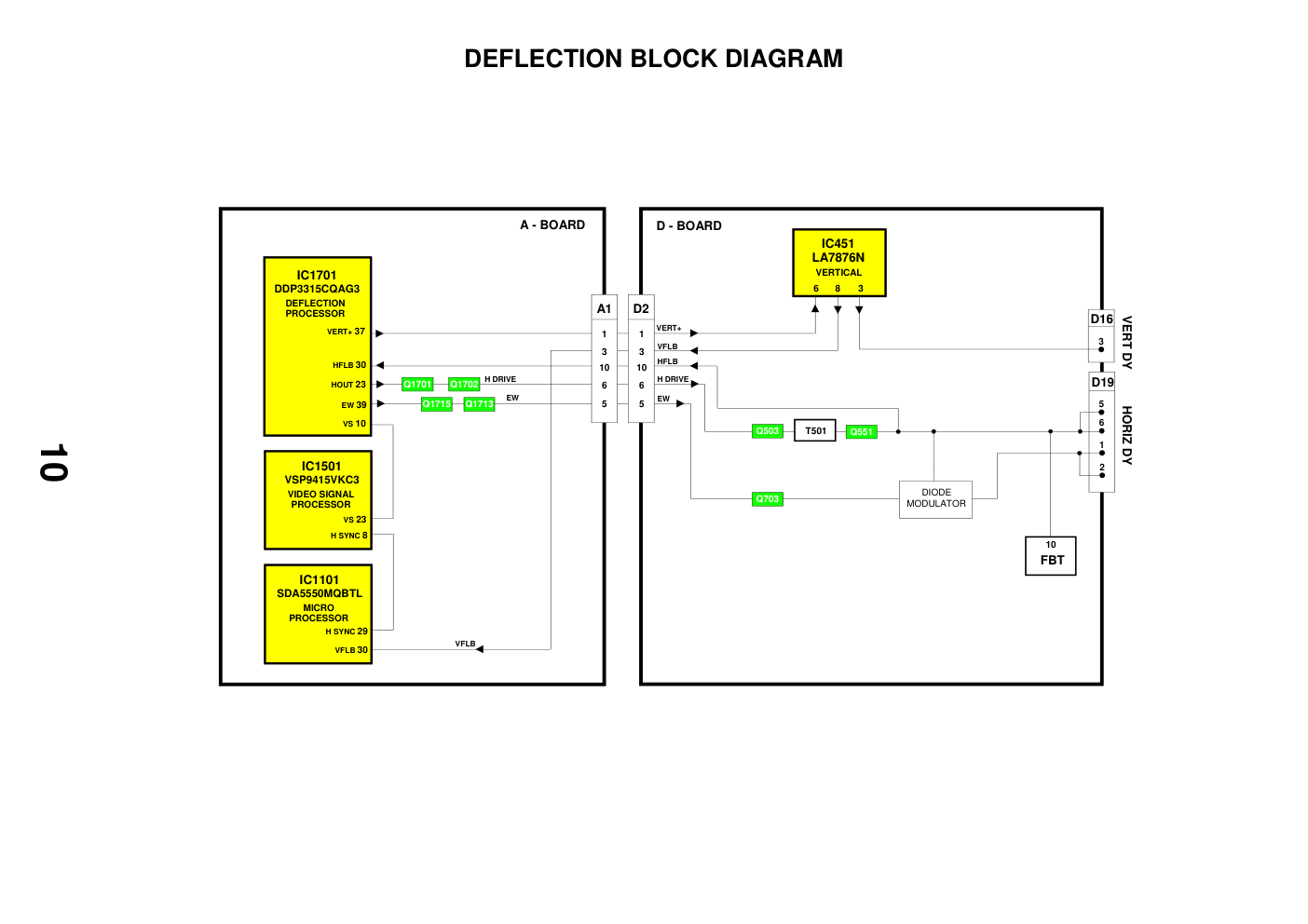

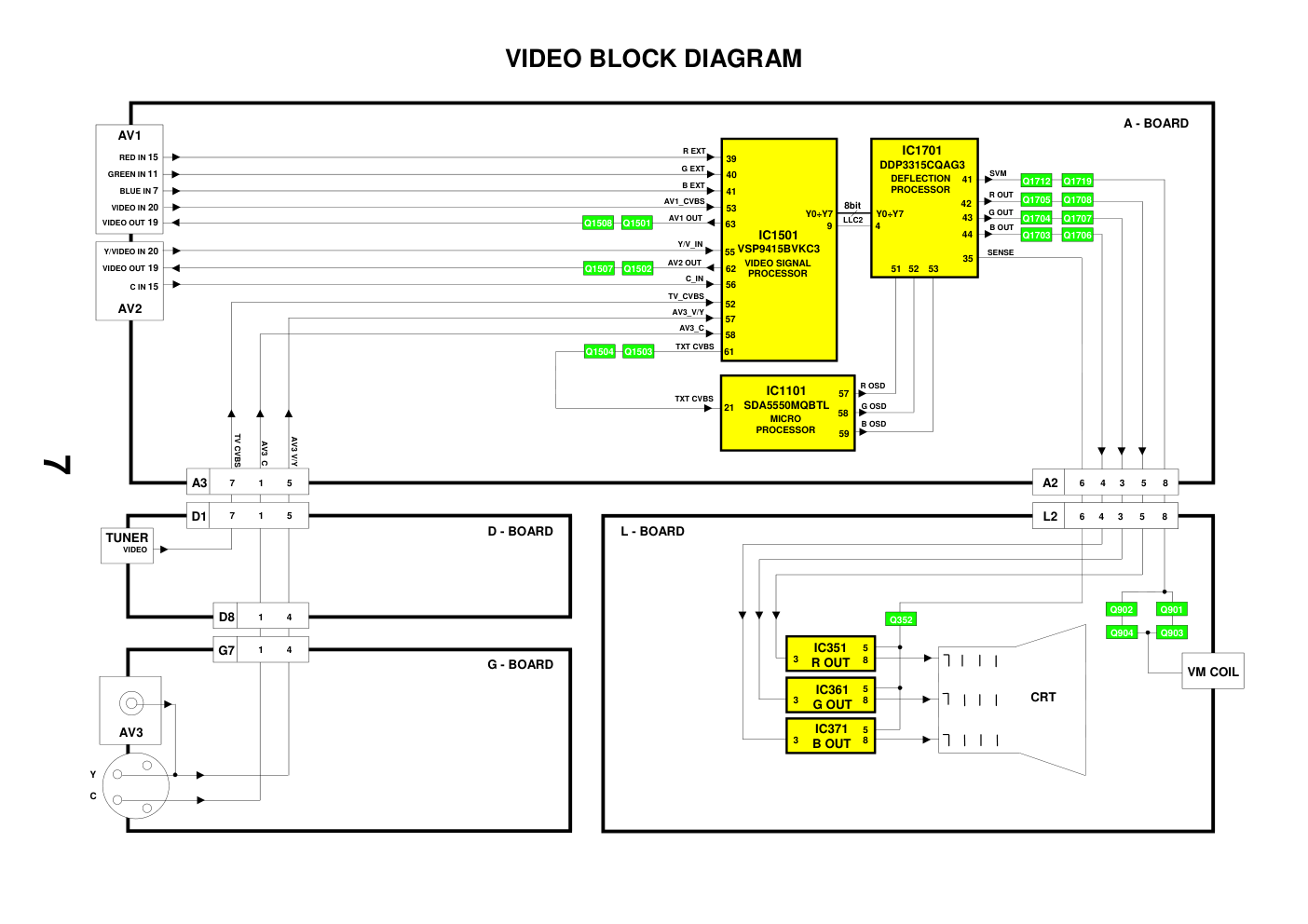

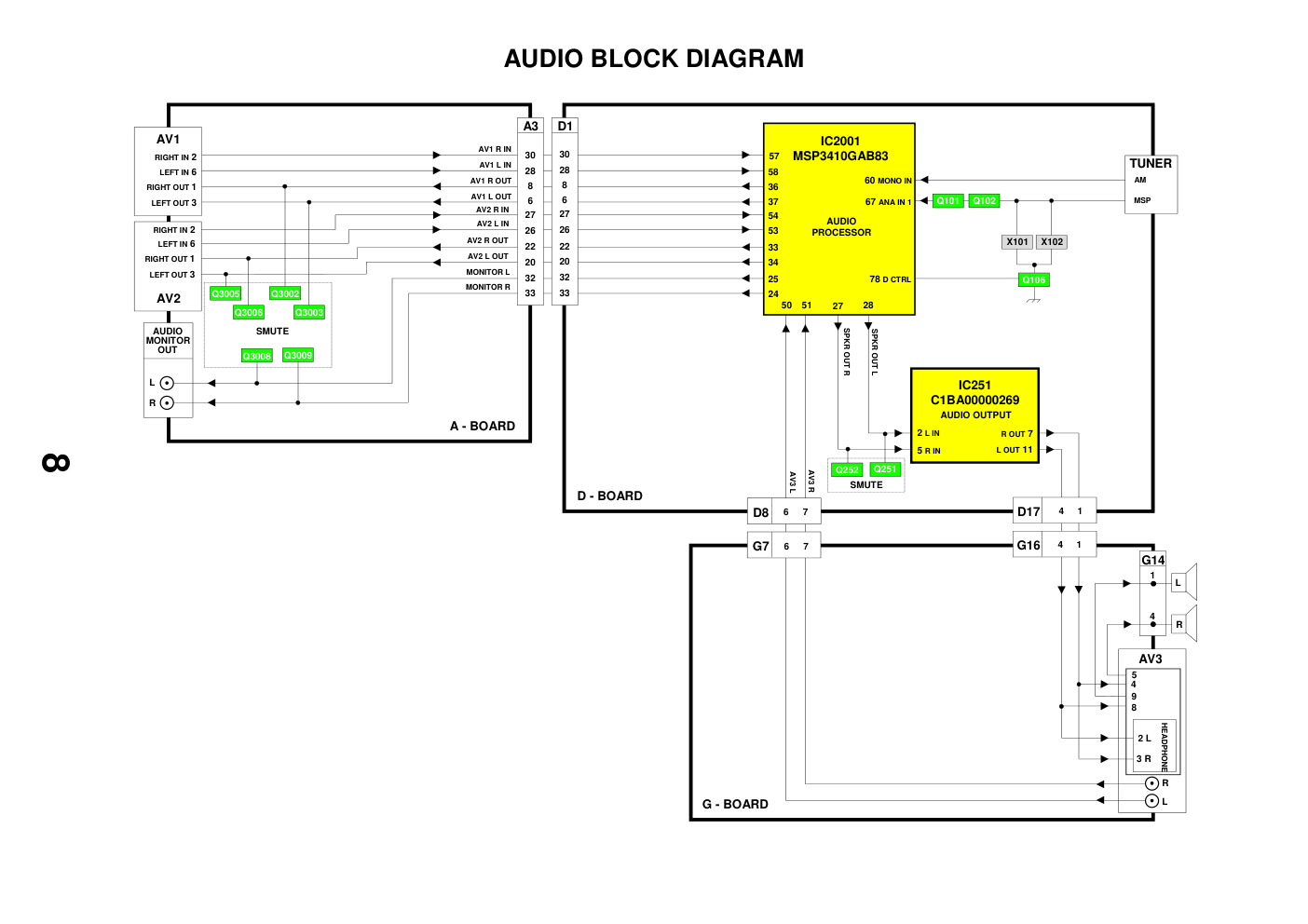

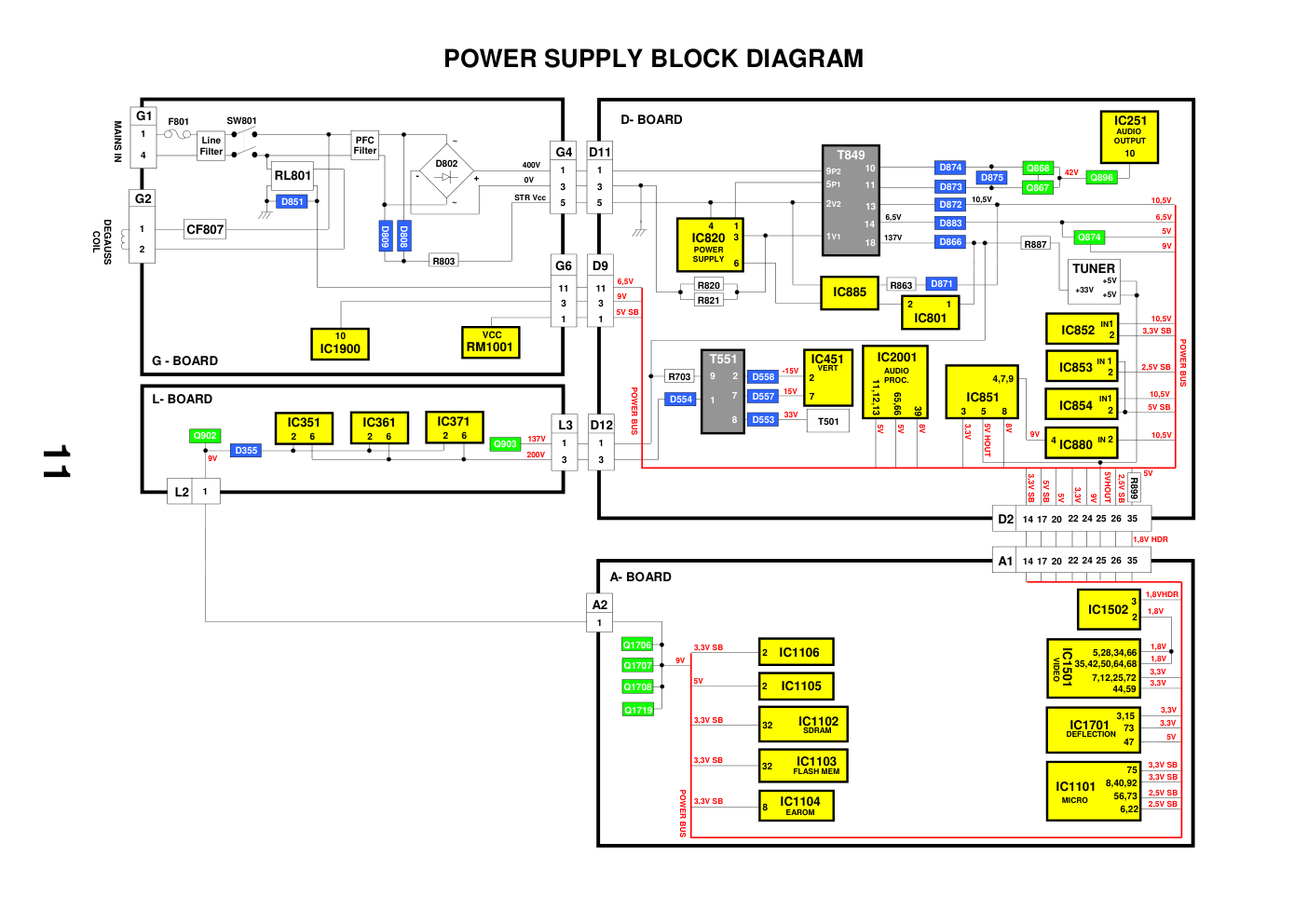

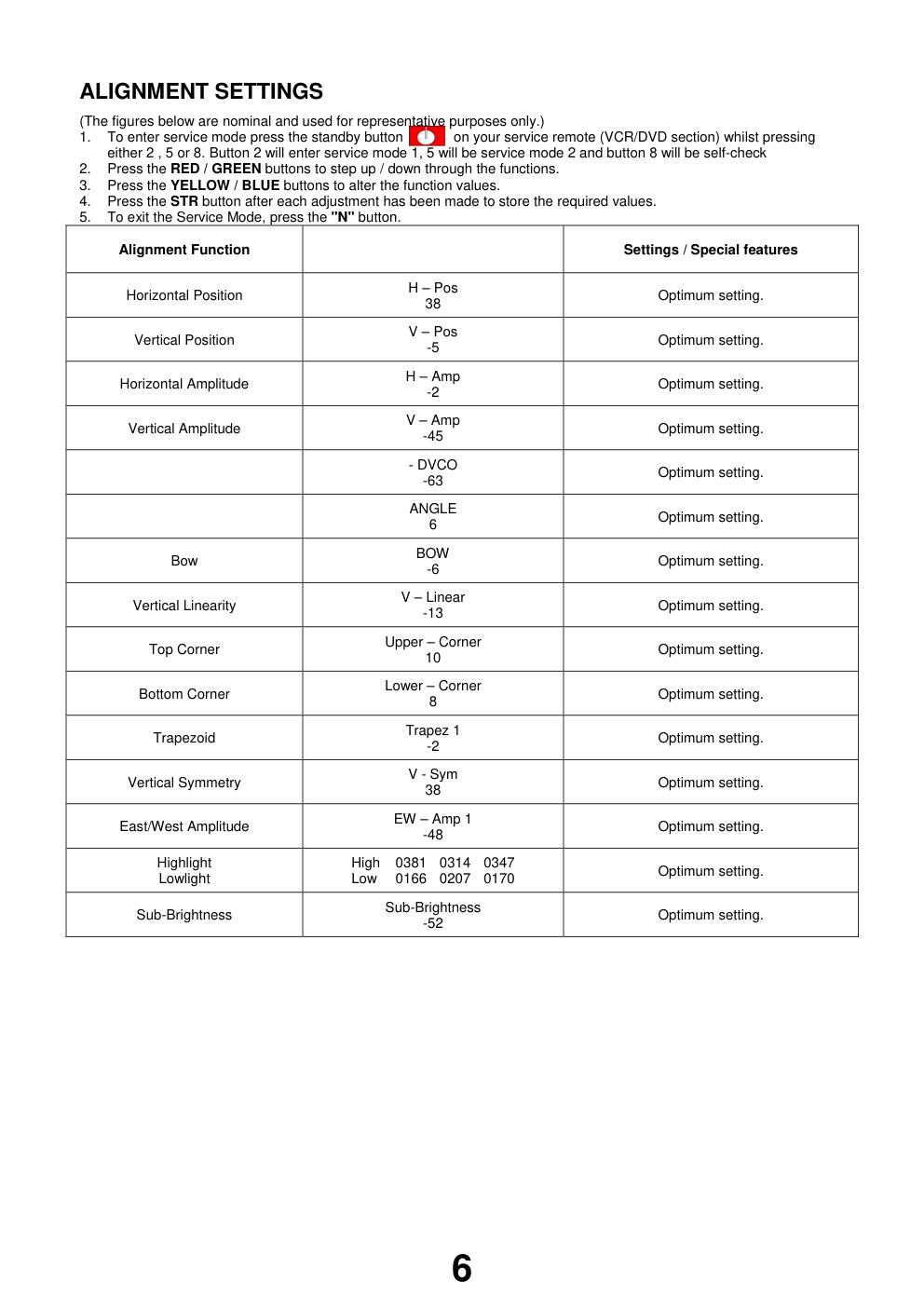

Colour Television TX-25PX10D TX-25PX10F TX-25PX10P GP2 Chassis SPECIFICATIONS Power Source: 220-240V a.c., 50Hz Power Consumption: 99W Stand-by Power Consumption: 0.9W Aerial Impedance: 75Ω unbalanced, Coaxial Type Receiving System: PAL I, B/G, D/K, PAL-525/60 SECAM L/L’, B/G, D/K M.NTSC NTSC (AV only) Receiving Channels: VHF E2-E12 VHF H1-H2 (ITALY) VHF A-H (ITALY) VHF R1-R2 VHF R3-R5 VHF R6-R12 UHF E21-E68 CATV (S01-S05) CATV S1-S10(M1-M10) CATV S11-S20(U1-U10) CATV S21-S41(HYPERBAND) Intermediate Frequency: Video/Audio Video 38.9MHz, 34MHz Audio 32.9MHz, 33.16MHz, 33.4MHz 40.4MHz, 32.4MHz (A2 STEREO) 33.05MHz, 34.05MHz (NICAM) 32.6MHz, 32.4MHz (CZ STEREO) 32.95MHz (NICAM) Colour 34.47MHz (PAL) 34.5MHz, 34.65MHz (SECAM) Terminals: AV1 IN Video (21 pin) 1V p-p 75Ω Audio (21 pin) 500mV rms 10kΩ RGB (21 pin) AV1 OUT Video (21 pin) 1V p-p 75Ω Audio (21 pin) 500mV rms 1kΩ AV2 IN Video (21 pin) 1V p-p 75Ω Audio (21 pin) 500mV rms 10kΩ S-Video IN Y: 1V p-p 75Ω (21-pin) C: 0.3V p-p 75Ω AV2 OUT Video (21 pin) 1V p-p 75Ω Audio (21 pin) 500mV rms 1kΩ Selectable output (21 pin) Audio (RCAx2) 500mV rms 1kΩ High Voltage: 31kV ± 1kV Picture Tube: A59QDF891X03 59cm Audio Output: Front Left/Right 2 x 20W (Music Power) 8Ω Impedance Headphones: 8Ω Impedance 3.5mm Accessories supplied : Remote Control 2 x R6 (UM3) Batteries Dimensions: Height: 537mm Width: 657mm Depth: 474mm Net weight: 34.5kg Specifications are subject to change without notice. Weights and dimensions shown are approximate. ORDER No. SM-04002 ADJUSTMENT PROCEDURE Item / Preparation Adjustment/Confirmation +B SET-UP 4. Receive a Window pattern. 5. Set the controls :- Brightness Minimum Contrast Minimum Volume Minimum Confirm the following voltages. A - Board A1 Pin14 3.3 ± 0.2V A1 Pin17 5 ± 0.2V A1 Pin20 5 ± 0.2V A1 Pin22 3.3 ± 0.2V A1 Pin24 9 ± 0.2V A1 Pin25 5 ± 0.2V A1 Pin26 2.5 ± 0.2V D – Board D2 Pin14 3.3 ± 0.1V D2 Pin22 3.3 ± 0.1V D2 Pin26 2.5 ± 0.1V D9 Pin1 5 ± 1V D9 Pin3 9 ± 1V D9 Pin5 7 ± 1V D9 Pin7 7 ± 1V D9 Pin11 6.5 ± 0.5V D11 Pin1 300 ± 20V TPD1 205 ± 10V TPD2 137 ± 2V TPD3 42 ± 2V TPD5 42 ± 2V TPD6 12.5 ± 1V TPD7 -12.5 ± 1V TPD8 33 ± 1V TPD11 5 ± 0.5V G – Board TPG5 300 ± 10V CUT OFF 1. Receive a Window pattern. 2. Degauss the tube externally. 3. Set the TV into Service Mode 1. 4. Select Sub brightness mode. To adjust Cutoff connect an oscilloscope to the Blue cathode. Adjust "Cutoff" value using the "Yellow" and "Blue" buttons until the black level is 160V ± 5V, press "STR" to store the value. Remove the oscilloscope. Select Highlight/Lowlight mode press "5" to collapse the screen and adjust the screen “VR” until the display is just visible, press "5" to return to service mode. Using the "Yellow" and "Blue" buttons adjust until optimum picture white balance is achieved, press "STR" to store the value. Select Sub Brightness mode and adjust until optimum picture brightness is achieved. SELF CHECK Self-Check is used to automatically check the bus lines and hexadecimal code of the TV set. To get into Self-Check mode press the down (-/v) button on the customer controls at the front of the TV set, at the same time pressing the STATUS button on the remote control, and the screen will show: - To exit Self-Check, switch off the TV set at the power button. If the CCU ports have been checked and found to be incorrect or not located then " - - " will appear in place of "O.K.". 4 Factory use only Sum : **** E2 : O.K. DDP : O.K. VPCD : O.K. VSP : O.K. AVSW : O.K. TUN : O.K. MSP : O.K. DPL : - - MAS : - - OPTION 1: OPTION 2: OPTION 3: OPTION 4: OPTION 5: OPTION 6: OPTION 7: OPTION 8: OPTION 9: OPTION 10: OPTION 11: OPTION 12: OPTION 13: Check : TX-25PX10D 0F 00 A0 11 00 05 7F D4 00 80 1B 00 0C ** TX-25PX10F 0F 00 A0 11 00 05 7F 54 00 80 1B 00 0C ** TX-25PX10P 0F 00 A0 11 00 05 7F 50 00 80 1B 00 0C ** WAVEFORM PATTERN TABLE 5 CONDITIONS: CONTRAST...MAX, BRIGHTNESS...MID, COLOUR...MID, SHARPNESS...MID ALIGNMENT SETTINGS (The figures below are nominal and used for representative purposes only.) 1. To enter service mode press the standby button on your service remote (VCR/DVD section) whilst pressing either 2 , 5 or 8. Button 2 will enter service mode 1, 5 will be service mode 2 and button 8 will be self-check 2. Press the RED / GREEN buttons to step up / down through the functions. 3. Press the YELLOW / BLUE buttons to alter the function values. 4. Press the STR button after each adjustment has been made to store the required values. 5. To exit the Service Mode, press the "N" button. Alignment Function Settings / Special features Horizontal Position H – Pos 38 Optimum setting. Vertical Position V – Pos -5 Optimum setting. Horizontal Amplitude H – Amp -2 Optimum setting. Vertical Amplitude V – Amp -45 Optimum setting. - DVCO -63 Optimum setting. ANGLE 6 Optimum setting. Bow BOW -6 Optimum setting. Vertical Linearity V – Linear -13 Optimum setting. Top Corner Upper – Corner 10 Optimum setting. Bottom Corner Lower – Corner 8 Optimum setting. Trapezoid Trapez 1 -2 Optimum setting. Vertical Symmetry V - Sym 38 Optimum setting. East/West Amplitude EW – Amp 1 -48 Optimum setting. Highlight Lowlight High 0381 0314 0347 Low 0166 0207 0170 Optimum setting. Sub-Brightness Sub-Brightness -52 Optimum setting. 6 VIDEO BLOCK DIAGRAM 7 AV3 V/Y AV3 C TV CVBS AV1 VIDEO IN 20 VIDEO OUT 19 RED IN 15 GREEN IN 11 BLUE IN 7 AV2 Y/VIDEO IN 20 VIDEO OUT 19 C IN 15 D1 A3 7 1 5 TXT CVBS IC1501 VSP9415BVKC3 VIDEO SIGNAL PROCESSOR 39 40 41 R EXT G EXT B EXT 53 AV1_CVBS 56 C_IN Y0÷Y7 IC1701 DDP3315CQAG3 DEFLECTION PROCESSOR Y0÷Y7 8bit IC1101 SDA5550MQBTL MICRO PROCESSOR 21 57 58 59 R OSD G OSD B OSD 51 52 53 42 43 44 35 R OUT G OUT B OUT SENSE TUNER VIDEO G7 D8 1 4 D - BOARD AV3 Y G - BOARD C Q1705 Q1708 Q1704 Q1707 Q1703 Q1706 6 4 3 5 L2 A2 A - BOARD Q352 CRT 3 8 IC351 R OUT 3 8 IC361 G OUT 3 8 IC371 B OUT L - BOARD 63 AV1 OUT 55 Y/V_IN Q1501 Q1508 Q1502 Q1507 62 AV2 OUT 52 TV_CVBS 57 AV3_V/Y 58 AV3_C 7 1 5 1 4 9 LLC2 4 41 SVM Q1712 Q1719 8 6 4 3 5 8 TXT CVBS 61 Q1503 Q1504 5 5 5 Q901 Q902 Q903 Q904 VM COIL AUDIO BLOCK DIAGRAM AV1 R IN AV1 L IN AV2 R IN AV2 L IN AV1 RIGHT IN 2 LEFT IN 6 RIGHT OUT 1 LEFT OUT 3 AV2 RIGHT IN 2 LEFT IN 6 RIGHT OUT 1 LEFT OUT 3 AV1 R OUT AV1 L OUT AV2 R OUT AV2 L OUT 30 A3 D1 AUDIO MONITOR OUT L R Q3008 Q3009 IC2001 MSP3410GAB83 AUDIO PROCESSOR 57 60 MONO IN 25 36 37 TUNER AM MSP Q106 Q101 Q102 X101 X102 67 ANA IN 1 78 D CTRL 27 28 Q252 Q251 SPKR OUT R SPKR OUT L IC251 C1BA00000269 AUDIO OUTPUT 5 R IN 2 L IN L OUT 11 R OUT 7 G7 D8 6 7 G16 D17 4 1 AV3 R HEADPHONE 3 R 2 L L R L A - BOARD D - BOARD G - BOARD G14 1 4 28 30 28 8 6 8 6 27 26 27 26 20 22 20 22 33 32 33 32 MONITOR L MONITOR R SMUTE Q3005 Q3006 Q3002 Q3003 58 54 53 33 34 24 4 1 5 4 9 8 AV3 R AV3 L 6 7 51 50 SMUTE 8 CONTROL BLOCK DIAGRAM IC1101 MICRO PROCESSOR IC1104 EAROM 5 SDA1 6 SCL1 IC1701 DEFLECTION PROCESSOR SDA1(3,3V) 64 SCL1(3,3V) 63 RST 62 IC1501 VIDEO SIGNAL PROCESSOR SDA1(3,3V) 6 SCL1(3,3V) 13 RST 24 FBL1 37 A - BOARD Q1114 Q1113 Q1111 Q1115 AV LINK OUT 35 AV LINK IN 34 AFC 25 PROT1 31 PROT1 KEYSCAN 24 RC IN 33 STBY LED 44 ROTATION 20 RST 50 IC1106 1 IC1103 FLASH MEMORY IC1102 SDRAM G 24 WE 29 64 WR OUT D0÷D7 D0÷D7 KEYSCAN AFC SLOW2 26 SLOW1 27 RC SIG AV LINK OUT AV LINK IN AV1/AV2 37 AV1/AV2 SMUTE 45 Q1116 SMUTE STBY LED ST/ON 62 ST/ON 65 RD OUT A0÷A19 D0÷D7 A0÷A18 A0÷A19 88 PSEN OUT OE 24 TV OFF 13 TV OFF SERVICE 16 SERVICE Q1119 Q1118 SCL1(3.3V) 9 SCL1(3.3V) SDA1(3.3V) 10 SDA1(3.3V) SCL2(5V) 11 SCL2(5V) SDA2(5V) 12 SDA2(5V) AV LINK AV1 8 SLOW1 10 SCL /AV LINK 12 SDA 16 FBL1 AV2 8 SLOW2 10 AV LINK SCL2(5V) SDA2(5V) Q1105 Q1104 Q1108 Q1107 RESET 15 RST3.3 IC1105 1 RST5.0 BUS ROTATION D - BOARD G - BOARD 15 A1 28 30 31 32 D2 33 34 PROT1 TV OFF SDA1(3.3V) SCL1(3.3V) SCL2(5V) SDA2(5V) AFC 15 28 30 31 32 33 34 4 A3 9 10 11 12 D1 15 31 4 9 10 11 12 15 31 ST/ON ROTATION STBY LED Q1112 RC SIG KEYSCAN SMUTE RST5.0 IC2001 3 SDA2 2 SCL2 21 RESET FBT, HEATER TUNER SCL2 SDA2 AFC SCL2 SDA2 D3 3 4 5 6 7 SCL2 SDA2 SCL1 SDA1 RC SIG IC880 1 CTL IC851 Q873 TV OFF POWER SUPPLY Q251 Q252 G7 D8 12 11 10 9 KEYSCAN STBY LED ROTATION RC SIG 12 11 10 9 KEYSCAN RM1001 RC RECEIVER Q1002 D1001 Q1901 IC1900 9 Q1109 Q1110 LEVEL SHIFTER 3,3V 5V DEFLECTION BLOCK DIAGRAM 10 IC451 LA7876N VERTICAL 8 3 6 IC1701 DDP3315CQAG3 DEFLECTION PROCESSOR VERT+ 37 VFLB HFLB 30 HOUT 23 EW 39 Q1715 EW IC1501 VSP9415VKC3 VIDEO SIGNAL PROCESSOR IC1101 SDA5550MQBTL MICRO PROCESSOR VS 10 VS 23 H SYNC 8 H SYNC 29 1 A1 3 10 6 5 D2 1 10 6 5 3 Q1701 Q1702 H DRIVE VERT+ VFLB HFLB H DRIVE EW Q503 T501 Q551 Q703 FBT 10 DIODE MODULATOR 3 D16 VERT DY 6 D19 1 HORIZ DY A - BOARD D - BOARD 5 2 VFLB 30 Q1713 POWER SUPPLY BLOCK DIAGRAM 11 Line Filter 1 G1 4 MAINS IN F801 SW801 PFC Filter ~ D802 ~ - + G - BOARD RL801 1 G4 3 400V 0V 1 D11 3 DEGAUSS COIL 1 G2 2 CF807 D851 G6 11 3 1 D9 3 1 11 IC1900 10 RM1001 VCC D- BOARD IC820 POWER SUPPLY 4 T849 5P1 10 9P2 11 1 3 1V1 2V2 R820 6 R821 13 14 18 9V 5V SB 10,5V 6,5V 137V D874 D873 Q868 Q867 D875 IC251 10 AUDIO OUTPUT D872 POWER BUS 10,5V 42V D883 6,5V IC801 2 1 TUNER +5V +5V +33V A1 D2 14 17 20 24 25 26 14 17 20 24 25 26 5VHOUT 1 L3 3 1 D12 3 IC852 2 IC853 2 IC854 2 IN1 IN 1 R887 IC2001 AUDIO PROC. 11,12,13 5V 65,66 5V 39 8V POWER BUS 3,3V SB 5V SB 5V 22 22 3,3V 9V 2,5V SB 137V T551 1 2 7 8 D553 D557 D558 9 D554 R703 200V -15V 15V 33V IC451 VERT 7 2 T501 A- BOARD L- BOARD IC351 6 IC361 6 IC371 6 Q903 L2 1 2 2 2 9V Q902 IC1701 DEFLECTION IC1501 VIDEO IC1101 MICRO IC1104 EAROM 8 IC1103 FLASH MEM IC1102 SDRAM IC1106 2 IC1105 2 IC1502 3 2 POWER BUS 1,8VHDR 1,8V 5,28,34,66 1,8V 35,42,50,64,68 1,8V 7,12,25,72 3,3V 44,59 3,3V 3,15 3,3V 73 3,3V 47 5V 75 3,3V SB 8,40,92 3,3V SB 56,73 2,5V SB 6,22 2,5V SB 32 32 3,3V SB 5V 3,3V SB 3,3V SB 3,3V SB Q1706 Q1707 Q1708 Q1719 9V 1 A2 5 5 D808 D809 STR Vcc R803 6,5V Q896 Q874 5V 9V D866 IC885 R863 D871 10,5V 3,3V SB IN1 10,5V 5V SB 2,5V SB IC880 IN 2 10,5V IC851 4 9V 4,7,9 3,3V 5V HOUT 8V 3 5 8 D355 35 35 R899 1,8V HDR 5V Components Identified by mark have special characteristics important for safety. * When replacing any of these components, use only manufacturers specified parts. In case of ordering these spare parts, please always add the complete Model-Type number to your order. REPLACEMENT PARTS LIST Important Safety Notice Description Cct Ref Parts Number Description Cct Ref Parts Number COMMON PARTS EXPLODED VIEW C.R.T. 1 A59QDF891X03 SPEAKER 2 EASG16S503F2 TUNER 3 ENG29525G REMOTE CONTROL 4 EUR7628010 PANASONIC BADGE 5 TBM0E0101 POWER BUTTON 6 TBX8E104 DOOR LID 7 TKP8E1554 BACKCOVER 8 TKU8E00801 CABINET 9 TKY8E680 DEGAUSS COIL 10 TLK8E05161 CHASSIS FRAME 11 TMX8E069 D P.C.B. 12 TNP8ED020AC G P.C.B. 13 TNP8EG021AA L P.C.B. 14 TNP8EL021AG AC POWER CORD ASSEMBLY 15 TXASX01ECVG FOCUS LEAD ASSEMBLY 16 TXJ/FC0DEG BATTERY COVER (REMOTE) 17 UR76EC2803 ANODE LEAD 18 ZTBZAD450A F.B.T. 19 ZTFN65007A MISCELLANEOUS COMPONENTS SET FOOT . TBL8E014 SET FOOT . TBL8E016 PRESET LABEL . TBM8E2321 CRT EARTH SPRING . TES2298 FRONT PANEL . TKE8E740 DOOR PANEL . TKP8E1557 LED/IR WINDOW . TKP8E1560 LED HOLDER . TMW8E050-2 CARTON . TPC8E5028 TOP CUSHION . TPD8E815 BOTTOM CUSHION . TPD8E816 BATTERY PACK . UM-3DJ-2P I.C.s SOUND AMPLIFIER IC251 C1BA00000269 R.G.B. PROCESSOR IC351 TDA6101Q/N3 R.G.B. PROCESSOR IC361 TDA6101Q/N3 R.G.B. PROCESSOR IC371 TDA6101Q/N3 VERTICAL OUTPUT IC451 LA7876N ERROR AMPLIFIER IC801 SE130N SWITCH MODE POWER SUPPLY IC820 STRW6754LF06 IC IC851 C0DAFKE00001 3.3V REGULATOR IC852 TA48M033F 5V STANDBY REGULATOR IC853 TA48025F 5V REGULATOR IC854 TA4805SLBS1 9 VOLT REGULATOR IC880 BA09ST-V5 MICROPROCESSOR/TEXT DECODER IC1101 SDA5550MQBTL TELETEXT SDRAM IC1102 K6X4008T1FV7 8 MEG FLASH IC1103 15E0/010/0E RESET IC1105 MN1381-R(TA) RESET IC1106 MN1381-R(TA) VIDEO PROCESSOR/SCAN RATE IC1501 VSP9415BVKC3 1.8V REGULATOR IC1502 LD1117S18TR DISPLAY/DEFLECTION PROCESSOR IC1701 DDP3315CQAG3 SOUND PROCESSOR IC2001 MSP3410GAB83 LED RECEIVER RM1001 RPM6937 FUSES FUSE HOLDER F801-L EYF52BC FUSE HOLDER F801-R EYF52BC FUSE F801 XBA2C50TH15 FUSE F871 K5Y632Z00001 DIODES DIODE D101 MA3020TX DIODE D102 MA3020TX DIODE D251 MA2C700A0F DIODE D252 MA2C700A0F DIODE D351 B0ACCK000005 DIODE D352 ERA15-04V3 DIODE D353 ERA15-04V3 DIODE D354 B0ACCK000005 DIODE D355 MA723TA5 DIODE D361 B0ACCK000005 DIODE D362 ERA15-04V3 DIODE D363 ERA15-04V3 DIODE D371 B0ACCK000005 DIODE D372 ERA15-04V3 DIODE D373 ERA15-04V3 DIODE D454 EU02 DIODE D456 MTZJT-775.6C DIODE D457 1SS133T-77 DIODE D458 EU02 DIODE D501 1SS133T-77 DIODE D502 EU02 DIODE D503 1SS133T-77 DIODE D504 1SS133T-77 DIODE D505 MTZJT-7710D DIODE D553 EU02 DIODE D554 EU02 DIODE D555 1SS133T-77 DIODE D556 UDZSTE-1722B DIODE D557 ERB93-02E DIODE D558 ERB93-02E DIODE D559 1SS133T-77 DIODE D560 RH3GLF102 DIODE D563 EU02 DIODE D565 EU02 DIODE D566 EU02 13 Description Cct Ref Parts Number Description Cct Ref Parts Number DIODE D575 MTZJT-775.1C DIODE D576 EU02 DIODE D580 FMV-3GULF730 DIODE D706 EU02 DIODE D707 EU02 DIODE D710 MTZJT-7716C DIODE D711 MAZ40560HF DIODE D712 1SS133T-77 DIODE D713 MAZ41300MF DIODE D714 MTZJT-775.6A DIODE D717 MA4020 DIODE D802 RBV4-08 SMT DIODE D803 BZX79B75A26A SMT DIODE D804 BZX79B75A26A DIODE D808 AU02AV0 DIODE D809 AU02AV0 ZENER DIODE D820 MTZJT-776.8B DIODE D822 SARS01V1 DIODE D823 1SR124-4AT82 DIODE D824 1SR124-4AT82 DIODE D825 1SS133T-77 DIODE D851 1SS133T-77 DIODE D865 RU2BLFC4 DIODE D866 RU4BLF-L1 DIODE D867 1SR124-4AT82 ZENER DIODE D868 B0BA3R100004 DIODE D869 MTZJT-775.1B DIODE D870 1SS133T-77 DIODE D871 1SR124-4AT82 DIODE D872 RK46LF-M1 DIODE D873 FMGG26S DIODE D874 1SR124-4AT82 ZENER DIODE D875 MTZJT-7727A DIODE D877 1SS133T-77 DIODE D878 1SS133T-77 DIODE D880 1SS133T-77 DIODE D881 MTZJT-7736A DIODE D883 RK46LF-M1 DIODE D887 1SR124-4AT82 DIODE D888 1SS133T-77 DIODE D889 1SR124-4AT82 DIODE D890 1SS133T-77 DIODE D891 1SS133T-77 DIODE D892 1SS133T-77 SMT DIODE D893 BZX79B75A26A DIODE D894 MTZJT-7722C DIODE D895 MTZJT-775.1B DIODE D896 1SS133T-77 ZENER DIODE D898 MTZJT-772.0B LED D1001 LNH201RFCF6 DIODE D1004 MTZJT-778.2C DIODE D1102 1SS355TE-17 DIODE D1104 1SS355TE-17 DIODE D1105 B0ACCK000005 DIODE D1701 DAN217T146 DIODE D1702 DAN217T146 DIODE D1703 B0ACCK000005 DIODE D1705 1SR124-4AT82 DIODE D2005 1SS133T-77 DIODE D2006 1SS133T-77 DIODE D2007 1SS133T-77 DIODE D2008 1SS133T-77 DIODE D2009 1SS133T-77 ZENER DIODE D2010 B0BA4R800003 DIODE D3201 MTZJT-778.2C DIODE D3202 MTZJT-778.2C DIODE D3203 MTZJT-778.2C S.M.T. ZENER DIODE D3204 UDZSTE-1716B DIODE IC885 PC123FY2 TRANSISTORS TRANSISTOR Q101 BC847B TRANSISTOR Q102 BC847B TRANSISTOR Q106 BC847B TRANSISTOR Q251 BC847B TRANSISTOR Q252 BC847B TRANSISTOR Q351 BC857B TRANSISTOR Q352 BC857B TRANSISTOR Q503 2SD1223TE16L TRANSISTOR Q551 2SC5905000RK TRANSISTOR Q552 2SC1473AEA TRANSISTOR Q556 BC847B TRANSISTOR Q701 BC847B TRANSISTOR Q702 BC847B F.E.T. TRANSISTOR Q703 2SK2231TE16L TRANSISTOR Q704 BC847B TRANSISTOR Q705 BC547B/126 TRANSISTOR Q706 BC847B TRANSISTOR Q707 2SA10180QA TRANSISTOR Q850 BC847B TRANSISTOR Q852 BC847B TRANSISTOR Q865 2SA1668LF603 TRANSISTOR Q866 MPSA42/RA TRANSISTOR Q867 2SA1534A-RTA TRANSISTOR Q868 BC557B/126 TRANSISTOR Q870 BC847B TRANSISTOR Q871 BC857B TRANSISTOR Q873 BC847B TRANSISTOR Q874 2SD2396/KM1R F.E.T. TRANSISTOR Q896 2SK2231TE16L TRANSISTOR Q898 BC847B TRANSISTOR Q901 BC857B TRANSISTOR Q902 BC847B TRANSISTOR Q903 2SA1535AR0LB TRANSISTOR Q904 2SC3944AR0LB TRANSISTOR Q1002 BC847B TRANSISTOR Q1103 BC847B TRANSISTOR Q1104 BC847B TRANSISTOR Q1105 BC847B TRANSISTOR Q1106 BC847B TRANSISTOR Q1107 BC847B TRANSISTOR Q1108 BC847B MOSFET TRANSISTOR Q1109 2N7002 MOSFET TRANSISTOR Q1110 2N7002 TRANSISTOR Q1111 BC847B TRANSISTOR Q1112 BC847B TRANSISTOR Q1113 BC847B TRANSISTOR Q1114 BC847B TRANSISTOR Q1115 BC847B TRANSISTOR Q1116 BC857B TRANSISTOR Q1117 BC847B TRANSISTOR Q1118 BC847B TRANSISTOR Q1119 BC847B TRANSISTOR Q1501 BC847B TRANSISTOR Q1502 BC847B TRANSISTOR Q1503 BC847B TRANSISTOR Q1504 BC857B TRANSISTOR Q1507 BC857B TRANSISTOR Q1508 BC857B TRANSISTOR Q1701 BC847B TRANSISTOR Q1702 BC847B TRANSISTOR Q1703 BC847B TRANSISTOR Q1704 BC847B 14 Description Cct Ref Parts Number Description Cct Ref Parts Number TRANSISTOR Q1705 BC847B TRANSISTOR Q1706 FMY4AT148 TRANSISTOR Q1707 FMY4AT148 TRANSISTOR Q1708 FMY4AT148 TRANSISTOR Q1711 BC847B TRANSISTOR Q1712 BC847B TRANSISTOR Q1713 BC847B TRANSISTOR Q1715 BC847B TRANSISTOR Q1719 BC847B TRANSISTOR Q2006 BC857B TRANSISTOR Q3002 BC847B TRANSISTOR Q3003 BC847B TRANSISTOR Q3005 BC847B TRANSISTOR Q3006 BC847B TRANSISTOR Q3008 BC847B TRANSISTOR Q3009 BC847B TRANSFORMERS H-DRIVE TRANSFORMER T501 ETH19Y212AZ SWITCHING TRANSFORMER T849 45T-2029 COILS COIL DL1713 J0HAAB000012 COIL J54 EXCELSA35T COIL L103 EXCELSA35T COIL L104 EXCELDR35V COIL L107 TLTACT100K S.M.T. COIL L109 ELJFC4R7KF COIL L116 ELESN6R8KA COIL L582 ELC18B221L LINEARITY COIL L584 ELH5L7719 COIL L701 ELC18B181F COIL L704 ELC18B182F COIL L804 ETQR42T005A COIL L865 EXCELSA35T COIL L866 EXCELSA35T COIL L867 ELEKE470KA COIL L870 EXCELSA35T COIL L871 EXCELSA35T COIL L872 EXCELSA35T COIL L873 EXCELSA35T COIL L874 EXCELSA35T COIL L1061 TLT331K991R COIL L1101 TALV35VB8R2K COIL L1103 ELESN4R7KA COIL L1104 ELESN4R7KA COIL L1501 ELESN4R7KA COIL L1502 ELESN4R7KA COIL L1503 ELJFC2R2KF COIL L1701 EXC3BB221H COIL L2001 TALV35VB100K COIL L2004 ELESN101KA COIL L2005 TALV35VB100K S.M.T. COIL L2006 ELJFC4R7KF S.M.T. COIL L2007 ELJFC4R7KF COIL L2351 EXCELDR35V COIL L2352 EXCELDR35V COIL L3201 ELESN6R8KA COIL L3202 ELESN6R8KA COIL L3204 ELESN6R8KA COIL L3205 ELESN6R8KA COIL L3206 EXCELSA35T COIL LF801 ELF21V012A FILTERS FILTER DL1510 ELKE103FA FILTER DL1511 ELKE103FA FILTER DL1512 ELKE103FA FILTER DL1513 ELKE103FA FILTER DL1705 ELKE103FA FILTER DL1706 ELKE103FA FILTER X101 EFCT6504BF CERAMIC FILTER X102 EFCT7004BF CRYSTALS CRYSTAL X1101 AI060006AD CRYSTAL X1501 AI202504E CRYSTAL X1701 4730007823 CRYSTAL X2001 4730007158 RESISTORS DEG PTC CF807 59890T60B110 20% 9 Ω FUSIBLE F870 K5Y252Z00002 2.5A Ω S.M.CARB JA1 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB JA1 ERJ8GEY0R00 .125W 5% 0 Ω S.M.CARB JA2 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB JA7 ERJ8GEY0R00 .125W 5% 0 Ω S.M.CARB JA14 ERJ8GEY0R00 .125W 5% 0 Ω S.M.CARB JA15 ERJ8GEY0R00 .125W 5% 0 Ω S.M.CARB JA20 ERJ8GEY0R00 .125W 5% 0 Ω S.M.CARB JA27 ERJ8GEY0R00 .125W 5% 0 Ω S.M.CARB JA32 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB R111 ERJ6GEYJ393 0.1W 5% 39K Ω S.M.CARB R112 ERJ6GEYJ101 0.1W 5% 100 Ω S.M.CARB R113 ERJ6GEYJ223 0.1W 5% 22K Ω S.M.CARB R114 ERJ6GEYJ471 0.1W 5% 470 Ω S.M.CARB R115 ERJ6GEYJ102 0.1W 5% 1K Ω S.M.CARB R116 ERJ6GEYJ101 0.1W 5% 100 Ω S.M.CARB R117 ERJ6GEYJ332 0.1W 5% 3K3 Ω S.M.CARB R118 ERJ6GEYJ681 0.1W 5% 680 Ω S.M.CARB R120 ERJ6GEYJ222 0.1W 5% 2K2 Ω S.M.CARB R121 ERJ6GEYJ103 0.1W 5% 10K Ω S.M.CARB R122 ERJ6GEYJ331 0.1W 5% 330 Ω S.M.CARB R129 ERJ6GEYJ101 0.1W 5% 100 Ω S.M.CARB R133 ERJ6GEYJ222 0.1W 5% 2K2 Ω S.M.CARB R134 ERJ6GEYJ101 0.1W 5% 100 Ω S.M.CARB R135 ERJ6GEYJ101 0.1W 5% 100 Ω S.M.CARB R137 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB R139 ERJ6GEYJ101 0.1W 5% 100 Ω S.M.CARB R140 ERJ6GEYJ101 0.1W 5% 100 Ω S.M.CARB R142 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB R143 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB R147 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB R148 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB R250 ERJ6GEYJ103 0.1W 5% 10K Ω S.M.CARB R251 ERJ6GEYJ471 0.1W 5% 470 Ω S.M.CARB R252 ERJ6GEYJ103 0.1W 5% 10K Ω S.M.CARB R253 ERJ6GEYJ471 0.1W 5% 470 Ω S.M.CARB R254 ERJ6GEYJ103 0.1W 5% 10K Ω S.M.CARB R255 ERJ6GEYJ104 0.1W 5% 100K Ω S.M.CARB R256 ERJ6GEYJ104 0.1W 5% 100K Ω S.M.CARB R257 ERJ6GEYJ150 0.1W 5% 15 Ω S.M.CARB R258 ERJ6GEYJ150 0.1W 5% 15 Ω S.M.CARB R259 ERJ6GEYJ121 0.1W 5% 120 Ω S.M.CARB R260 ERJ6GEYJ121 0.1W 5% 120 Ω S.M.CARB R261 ERJ6GEYJ152 0.1W 5% 1K5 Ω S.M.CARB R262 ERJ6GEYJ152 0.1W 5% 1K5 Ω CARBON R263 ERD25TJ2R2 0.25W 5% 2R2 Ω CARBON R264 ERD25TJ2R2 0.25W 5% 2R2 Ω S.M.CARB R269 ERJ6GEY0R00 0.1W 5% 0 Ω FUSIBLE R350 ERQ12AJ151P 0.5W 5% 150 Ω S.M.CARB R352 ERJ6GEYJ202 0.1W 5% 2K Ω S.M.CARB R353 ERJ6GEYJ821 0.1W 5% 820 Ω S.M.CARB R354 ERJ6GEYJ102 0.1W 5% 1K Ω METAL R355 ERG1SJ823 1W 5% 820 Ω S.M.CARB R356 ERJ6GEYJ560 0.1W 5% 56 Ω 15 Description Cct Ref Parts Number Description Cct Ref Parts Number S.M.CARB R357 ERJ6GEYJ271 0.1W 5% 270 Ω CARBON R358 ERDS1TJ821 0.5W 5% 820 Ω S.M.CARB R359 ERJ6GEYJ391 0.1W 5% 390 Ω S.M.CARB R360 ERJ6GEYJ102 0.1W 5% 1K Ω S.M.CARB R362 ERJ6GEYJ202 0.1W 5% 2K Ω S.M.CARB R363 ERJ6GEYJ821 0.1W 5% 820 Ω S.M.CARB R364 ERJ6GEYJ102 0.1W 5% 1K Ω METAL R365 ERG1SJ823 1W 5% 820 Ω S.M.CARB R366 ERJ6GEYJ560 0.1W 5% 56 Ω CARBON R368 ERDS1TJ821 0.5W 5% 820 Ω FUSIBLE R370 ERQ1CJP1R2 1W 5% 1R2 Ω S.M.CARB R372 ERJ6GEYJ202 0.1W 5% 2K Ω S.M.CARB R373 ERJ6GEYJ821 0.1W 5% 820 Ω METAL R375 ERG1SJ823 1W 5% 820 Ω S.M.CARB R376 ERJ6GEYJ560 0.1W 5% 56 Ω CARBON R378 ERDS1TJ821 0.5W 5% 820 Ω S.M.CARB R380 ERJ6GEYJ392 0.1W 5% 3K9 Ω S.M.CARB R381 ERJ6GEYJ102 0.1W 5% 1K Ω S.M.CARB R451 ERJ6GEYJ223 0.1W 5% 22K Ω S.M.CARB R454 ERJ6GEYJ333 0.1W 5% 33K Ω CARBON R455 ERDS2TJ223T 2W 5% 22K Ω CARBON R458 ERDS1TJ270T 1W 5% 27 Ω METAL R460 ERG3SJS271H 3W 5% 270 Ω METAL R461 ERX2SJS1R0H 2W 5% 1R0 Ω S.M. CAR R463 ERJ6GEYJ621 0.1W 5% 620 Ω S.M.CARB R464 ERJ6GEYJ512 0.1W 5% 5K1 Ω S.M.CARB R465 ERJ6GEYJ821 0.1W 5% 820 Ω S.M.CARB R467 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB R501 ERJ6GEYJ392 0.1W 5% 3K9 Ω S.M.CARB R503 ERJ6GEYJ103 0.1W 5% 10K Ω METAL R507 ERG3FJ680H 3W 5% 68 Ω METAL R509 ERG1SJ222E 0.5W 5% 2K2 Ω METAL R510 ERG1SJ222E 0.5W 5% 2K2 Ω METAL R553 ERX3SJSR68H 3W 5% R68 Ω S.M.CARB R555 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB R556 ERJ6GEYJ124 0.1W 5% 120K Ω S.M.CARB R557 ERJ6GEYJ101 0.1W 5% 100 Ω CARBON R558 ERDS1TJ124 0.5W 5% 120K Ω S.M.CARB R559 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB R560 ERJ6GEYJ274 0.1W 5% 270K Ω S.M.CARB R561 ERJ6GEYJ223 0.1W 5% 22K Ω S.M.CARB R562 ERJ6GEYJ103 0.1W 5% 10K Ω S.M.CARB R563 ERJ6GEYJ564 0.1W 5% 560K Ω S.M.CARB R564 ERJ6GEYJ563 0.1W 5% 56K Ω S.M.CARB R566 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB R567 ERJ6GEYJ124 0.1W 5% 120K Ω CARBON R568 ERDS1TJ120 0.5W 5% 12 Ω S.M.CARB R569 ERJ6GEY0R00 0.1W 5% 0 Ω FUSIBLE R576 ERQ12HKR39P 0.5W 10% 0.39 Ω METAL R581 ERG3FJ561H 2W 5% 560 Ω S.M.CARB R701 ERJ6GEYJ101 0.1W 5% 100 Ω METAL R702 ERX3FJ1R0 3W 5% 1 Ω METAL R703 343-23R3AY 10W 5% 3.3 Ω CARBON R704 ERDS1FJ472 0.5W 5% 4.7K Ω METAL R705 ERG3FJ201H 3W 5% 200 Ω METAL R706 ERG3FJ201H 3W 5% 200 Ω S.M.CARB R707 ERJ6GEYJ272 0.1W 5% 2K7 Ω S.M.CARB R708 ERJ6GEYJ103 0.1W 5% 10K Ω S.M.CARB R709 ERJ6GEYJ473 0.1W 5% 47K Ω S.M.CARB R710 ERJ6GEY0R00 0.1W 5% 0 Ω METAL R711 ERG2SJS123H 2W 5% 12K Ω S.M.CARB R712 ERJ6GEYJ203 0.1W 5% 20K Ω CARBON R713 ERDS2TJ301T 2W 5% 300 Ω CARBON R715 ERD25TJ272F 0.25W 5% 2K7 Ω METAL R716 ERQ12AJ680P 0.5W 5% 68 Ω S.M.CARB R717 ERJ6GEYJ242 0.1W 5% 2K4 Ω S.M.CARB R718 ERJ6GEYJ203 0.1W 5% 20K Ω S.M.CARB R720 ERJ6GEYJ302 0.1W 5% 3K Ω S.M.CARB R721 ERJ6GEYJ202 0.1W 5% 2K Ω S.M.CARB R722 ERJ6GEYJ242 0.1W 5% 2K4 Ω S.M.CARB R723 ERJ6GEYJ473 0.1W 5% 47K Ω METAL R724 ERG2FJ820 2W 5% 82 Ω METAL R725 ERG1FJ202 0.5W 5% 2K Ω SOLID R801 ERC12ZGK105C 0.5W 10% 1M Ω CARBON R803 ERDS1TJ683 0.5W 5% 68K Ω WIRE R820 D0D2R27KA003 2W 5% 0.27 Ω WIRE R821 D0D2R27KA003 2W 5% 0.27 Ω CARBON R823 ERDS1TJ221 0.5W 5% 220 Ω CARBON R825 ERDS1TJ102 0.5W 5% 1K Ω CARBON R827 ERDS1TJ272 0.5W 5% 2K7 Ω CARBON R828 ERDS1TJ100 0.5W 5% 10 Ω METAL R829 ERG2FJ470H 2W 5% 47 Ω CARBON R830 ERDS1TJ684 0.5W 5% 680K Ω CARBON R831 ERD75TAJ825 0.75W 5% 8M2 Ω METAL R852 ERG12SJ470 0.5W 5% 47 Ω S.M.CARB R853 ERJ6GEYJ103 0.1W 5% 10K Ω S.M.CARB R854 ERJ6GEYJ203 0.1W 5% 20K Ω S.M.CARB R860 ERJ6GEYJ103 0.1W 5% 10K Ω S.M.CARB R860 ERJ6GEYJ473 0.1W 5% 47K Ω CARBON R861 ERD25TJ123 0.25W 5% 12K Ω CARBON R862 ERD25TJ182 1/4W 5% 1K8 Ω CARBON R863 ERD25TJ102 0.25W 5% 1K Ω CARBON R864 ERDS2TJ472T 0.25W 5% 4K7 Ω FUSIBLE R865 ERQ12HJ180P 1/2W 5% 18 Ω S.M.CARB R867 ERJ6GEYJ682 0.1W 5% 6K8 Ω CARBON R868 ERD25TJ271 0.25W 5% 270 Ω S.M.CARB R869 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB R871 ERJ6GEY0R00 0.1W 5% 0 Ω METAL R873 ERG3FJ151 3W 5% 150 Ω METAL R874 ERG3FJ151 3W 5% 150 Ω CARBON R875 ERDS1TJ2R2 0.5W 5% 2R2 Ω CARBON R876 ERD25TJ101 0.25W 5% 100 Ω CARBON R877 ERD25TJ202 0.25W 5% 2K Ω CARBON R878 ERDS1TJ103 0.5W 5% 10K Ω S.M.CARB R882 ERJ6GEYJ153 0.1W 5% 15K Ω S.M.CARB R883 ERJ6GEYJ473 0.1W 5% 47K Ω S.M.CARB R884 ERJ6GEYJ753 0.1W 5% 75K Ω CARBON R885 ERD25TJ752 0.25W 5% 7.5K Ω S.M.CARB R886 ERJ6GEYJ752 0.1W 5% 7K5 Ω CARBON R887 ERDS1TJ683 0.5W 5% 68K Ω S.M.CARB R889 ERJ6GEYJ752 0.1W 5% 7K5 Ω CARBON R892 ERDS1TJ751 0.5W 5% 750 Ω S.M.CAR R893 ERJ6ENF3002V 0.125 1% 30K Ω S.M.CARB R894 ERJ6ENF1002 0.1W 1% 10K Ω S.M.CARB R896 ERJ6GEY0R00 0.1W 5% 0 Ω CARBON R897 ERD25TJ622 0.25W 5% 6K2 Ω CARBON R898 ERD25TJ273 0.25W 5% 27K Ω METAL R899 ERX2FJ3R9H 2W 5% 3R9 Ω S.M.CARB R901 ERJ6GEYJ271 0.1W 5% 270 Ω CARBON R902 ERD25TJ122 0.25W 5% 1K2 Ω CARBON R903 ERD25TJ100 0.25W 5% 10 Ω METAL R904 ERG5FJ152H 5W 5% 1.5K Ω S.M.CARB R905 ERJ6GEYJ271 0.1W 5% 270 Ω CARBON R906 ERD25TJ122 0.25W 5% 1K2 Ω CARBON R907 ERD25TJ124 0.25W 5% 120K Ω CARBON R908 ERD25TJ124 0.25W 5% 120K Ω CARBON R909 ERD25TJ100 0.25W 5% 10 Ω METAL R910A ERG2SJ181E 2W 5% 180 Ω S.M.CARB R914 ERJ6GEYJ331 0.1W 5% 330 Ω S.M.CARB R1005 ERJ6GEYJ332 0.1W 5% 3K3 Ω S.M.CARB R1007 ERJ6GEYJ103 0.1W 5% 10K Ω S.M.CARB R1017 ERJ6GEYJ103 0.1W 5% 10K Ω 16 Description Cct Ref Parts Number Description Cct Ref Parts Number S.M.CARB R1043 ERJ6GEYJ682 0.1W 5% 6K8 Ω S.M.CARB R1044 ERJ6GEYJ123 0.1W 5% 12K Ω S.M.CARB R1045 ERJ6GEYJ223 0.1W 5% 22K Ω S.M.CARB R1046 ERJ6GEYJ683 0.1W 5% 68K Ω CARBON R1047 ERD25TJ102 0.25W 5% 1K Ω S.M.CARB R1101 ERJ3GEYJ472V 0.125 5% 4K7 Ω S.M.CARB R1102 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1103 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1104 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1105 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1106 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1107 ERJ3GEYJ562V 0.125 5% 5K6 Ω S.M.CARB R1108 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1109 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1110 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1111 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1114 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1115 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1116 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1117 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1118 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1120 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1123 ERJ3GEYJ473V 0.125 5% 47K Ω S.M.CARB R1125 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1126 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1127 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1128 ERJ3GEYJ683 0.33W 5% 68K Ω S.M.CARB R1129 ERJ3GEYJ562V 0.125 5% 5K6 Ω S.M.CARB R1130 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1131 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1132 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1133 ERJ3GEYJ273 0.125 5% 27K Ω S.M.CARB R1134 ERJ3GEYJ471V 0.125 5% 470 Ω S.M.CARB R1135 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1136 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1137 ERJ3GEYJ822 0.33W 5% 8K2 Ω S.M.CARB R1138 ERJ3GEYJ153V 0.1W 5% 15K Ω S.M.CARB R1139 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1140 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1141 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1142 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1143 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1144 ERJ3GEYJ473V 0.125 5% 47K Ω S.M.CARB R1145 ERJ3GEYJ473V 0.125 5% 47K Ω S.M.CARB R1147 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1150 ERJ3GEYJ331 0.125 5% 330 Ω S.M.CARB R1151 ERJ3GEYJ683 0.33W 5% 68K Ω S.M.CARB R1152 ERJ3GEYJ332 0.125 5% 3K3 Ω S.M.CARB R1153 ERJ3GEYJ472V 0.125 5% 4K7 Ω S.M.CARB R1154 ERJ3GEYJ472V 0.125 5% 4K7 Ω S.M.CARB R1155 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1156 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1157 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1158 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1159 ERJ3GEYJ472V 0.125 5% 4K7 Ω S.M.CARB R1160 ERJ3GEYJ472V 0.125 5% 4K7 Ω S.M.CARB R1161 ERJ3GEYJ102 0.1W 5% 1K Ω S.M.CARB R1162 ERJ3GEYJ102 0.1W 5% 1K Ω S.M.CARB R1163 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1164 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1165 ERJ3GEYJ273 0.125 5% 27K Ω S.M.CARB R1166 ERJ3GEYJ224V 0.16W 5% 220 Ω S.M.CARB R1167 ERJ3GEYJ104V 0.1W 5% 100K Ω S.M.CARB R1168 ERJ3GEYJ104V 0.1W 5% 100K Ω S.M.CARB R1169 ERJ3GEYJ473V 0.125 5% 47K Ω S.M.CARB R1170 ERJ3GEYJ472V 0.125 5% 4K7 Ω S.M.CARB R1171 ERJ3GEYJ225 0.33W 5% 2M2 Ω S.M.CARB R1172 ERJ3GEYJ221 0.1W 5% 220 Ω S.M.CARB R1173 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1174 ERJ3GEYJ223V 0.1W 5% 22K Ω S.M.CARB R1175 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R1176 ERJ3GEYJ102 0.1W 5% 1K Ω S.M.CARB R1177 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1178 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1179 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1180 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1184 ERJ3GEYJ680 0.33W 5% 68 Ω S.M.CARB R1185 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1186 ERJ3GEYJ473V 0.125 5% 47K Ω S.M.CARB R1188 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1189 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1190 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1191 ERJ3GEYJ223V 0.1W 5% 22K Ω S.M.CARB R1192 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1193 ERJ3GEYJ472V 0.125 5% 4K7 Ω S.M.CARB R1194 ERJ3GEYJ472V 0.125 5% 4K7 Ω S.M.CARB R1198 ERJ3GEYJ680 0.33W 5% 68 Ω S.M.CARB R1199 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1200 ERJ3GEYJ222 0.125 5% 2K2 Ω S.M.CARB R1204 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R1206 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R1207 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R1208 ERJ3GEY0R00 0.1W 5% 0 Ω CHIP R1209 EXB38V680JV 0.063 5% 680 Ω S.M.CARB R1210 ERJ3GEY0R00 0.1W 5% 0 Ω CHIP NET R1211 D1HG6808A002 0.25W 5% 68 Ω CHIP NET R1212 D1HG6808A002 0.25W 5% 68 Ω S.M.CARB R1213 ERJ3GEYJ680 0.33W 5% 68 Ω CHIP R1214 EXB38V680JV 0.063 5% 680 Ω S.M.CARB R1215 ERJ3GEYJ680 0.33W 5% 68 Ω S.M.CARB R1216 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R1217 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R1218 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1251 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB R1502 ERJ3GEYJ152 0.1W 5% 150K Ω S.M.CARB R1503 ERJ3GEYJ152 0.1W 5% 150K Ω S.M.CARB R1504 ERJ6GEYJ750 0.1W 5% 75 Ω S.M.CARB R1510 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R1511 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R1512 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R1513 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R1514 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1515 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1516 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1519 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1520 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R1521 ERJ6GEYJ750 0.1W 5% 75 Ω S.M.CARB R1523 ERJ6GEYJ750 0.1W 5% 75 Ω S.M.CARB R1524 ERJ6GEYJ750 0.1W 5% 75 Ω S.M.CARB R1525 ERJ3GEYJ152 0.1W 5% 150K Ω S.M.CARB R1526 ERJ3GEYJ221 0.1W 5% 220 Ω S.M.CARB R1540 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1547 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R1548 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R1549 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB R1551 ERJ3GEYJ221 0.1W 5% 220 Ω S.M.CARB R1552 ERJ3GEYJ221 0.1W 5% 220 Ω S.M.CARB R1553 ERJ3GEYJ331 0.125 5% 330 Ω S.M.CARB R1556 ERJ6GEYJ750 0.1W 5% 75 Ω S.M.CARB R1561 ERJ3GEYJ221 0.1W 5% 220 Ω S.M.CARB R1562 ERJ3GEYJ221 0.1W 5% 220 Ω S.M.CARB R1701 ERJ3GEY0R00 0.1W 5% 0 Ω 17 Description Cct Ref Parts Number Description Cct Ref Parts Number S.M.CARB R1704 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R1705 ERJ3GEYJ122V 0.33W 5% 1K2 Ω S.M.CARB R1706 ERJ3GEYJ272 0.125 5% 2K7 Ω S.M.CARB R1707 ERJ3GEYJ102 0.1W 5% 1K Ω S.M.CARB R1708 ERJ3GEYJ473V 0.125 5% 47K Ω S.M.CARB R1709 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1710 ERJ3GEYJ563V 0.125 5% 56K Ω S.M.CARB R1712 ERJ3GEYJ102 0.1W 5% 1K Ω S.M.CARB R1714 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1716 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1717 ERJ3GEYJ271V 0.33W 5% 270 Ω S.M.CARB R1719 ERJ3GEYJ223V 0.1W 5% 22K Ω S.M.CARB R1720 ERJ3GEYJ822 0.33W 5% 8K2 Ω S.M.CARB R1721 ERJ3GEYJ682V 0.125 5% 6K8 Ω S.M.CARB R1723 ERJ3GEYJ561V 0.125 5% 560 Ω S.M.CARB R1724 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1725 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1726 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1727 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1728 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1730 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R1732 ERJ3GEYJ151 0.1W 5% 150 Ω S.M.CARB R1733 ERJ3GEYJ151 0.1W 5% 150 Ω S.M.CARB R1734 ERJ3GEYJ151 0.1W 5% 150 Ω S.M.CARB R1735 ERJ3GEYJ821V 0.125 5% 820 Ω S.M.CARB R1736 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1737 ERJ3GEYJ560 0.33W 5% 56 Ω S.M.CARB R1738 ERJ6GEYJ561 0.1W 5% 560 Ω S.M.CARB R1739 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1740 ERJ3GEYJ560 0.33W 5% 56 Ω S.M.CARB R1741 ERJ6GEYJ561 0.1W 5% 560 Ω S.M.CARB R1742 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1743 ERJ3GEYJ560 0.33W 5% 56 Ω S.M.CARB R1744 ERJ6GEYJ561 0.1W 5% 560 Ω S.M.CARB R1745 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R1746 ERJ3GEYJ472V 0.125 5% 4K7 Ω S.M.CARB R1750 ERJ3GEYJ821V 0.125 5% 820 Ω S.M.CAR R1751 ERJ3GEYJ244V 0.1W 5% 240K Ω S.M.CARB R1752 ERJ3GEYJ560 0.33W 5% 56 Ω S.M.CARB R1755 ERJ6GEYJ471 0.1W 5% 470 Ω S.M.CARB R1759 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1780 ERJ3GEYJ331 0.125 5% 330 Ω S.M.CARB R1781 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R1782 ERJ3GEYJ102 0.1W 5% 1K Ω S.M.CARB R1783 ERJ3GEYJ271V 0.33W 5% 270 Ω S.M.CARB R1784 ERJ3GEYJ472V 0.125 5% 4K7 Ω S.M.CARB R2011 ERJ6GEYJ183 0.1W 5% 18K Ω S.M.CARB R2013 ERJ6GEYJ101 0.1W 5% 100 Ω S.M.CARB R2014 ERJ6GEYJ101 0.1W 5% 100 Ω S.M.CARB R2015 ERJ6GEYJ101 0.1W 5% 100 Ω S.M.CARB R2016 ERJ6GEYJ101 0.1W 5% 100 Ω S.M.CARB R2017 ERJ6GEYJ471 0.1W 5% 470 Ω S.M.CARB R2020 ERJ6GEYJ101 0.1W 5% 100 Ω S.M.CARB R2021 ERJ6GEYJ562 0.1W 5% 5K6 Ω S.M.CARB R2022 ERJ6GEYJ221 0.1W 5% 220 Ω S.M.CARB R2024 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB R2029 ERJ6GEYJ101 0.1W 5% 100 Ω S.M.CARB R2032 ERJ6GEYJ101 0.1W 5% 100 Ω S.M.CARB R2033 ERJ6GEYJ471 0.1W 5% 470 Ω S.M.CARB R2036 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB R2037 ERJ6GEYJ102 0.1W 5% 1K Ω S.M.CARB R2038 ERJ6GEYJ562 0.1W 5% 5K6 Ω S.M.CARB R2039 ERJ6GEYJ221 0.1W 5% 220 Ω S.M.CARB R2040 ERJ6GEYJ222 0.1W 5% 2K2 Ω S.M.CARB R2041 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB R2042 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB R2043 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB R2044 ERJ6GEY0R00 0.1W 5% 0 Ω S.M.CARB R2045 ERJ6GEY0R00 0.1W 5% 0 Ω S.M. CAR R3001 ERJ3GEYJ183V 3W 5% 18K Ω S.M.CARB R3002 ERJ3GEYJ101 0.1W 5% 100 Ω S.M. CAR R3003 ERJ3GEYJ183V 3W 5% 18K Ω S.M.CARB R3004 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R3005 ERJ6GEYJ123 0.1W 5% 12K Ω S.M.CARB R3006 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R3007 ERJ3GEYJ272 0.125 5% 2K7 Ω S.M.CARB R3008 ERJ6GEYJ750 0.1W 5% 75 Ω S.M. CAR R3009 ERJ3GEYJ183V 3W 5% 18K Ω S.M.CARB R3010 ERJ3GEYJ101 0.1W 5% 100 Ω S.M. CAR R3011 ERJ3GEYJ183V 3W 5% 18K Ω S.M.CARB R3012 ERJ3GEYJ101 0.1W 5% 100 Ω S.M.CARB R3013 ERJ3GEYJ272 0.125 5% 2K7 Ω S.M.CARB R3014 ERJ3GEYJ123 0.33W 5% 12K Ω S.M.CARB R3015 ERJ6GEYJ750 0.1W 5% 75 Ω S.M.CARB R3016 ERJ6GEYJ750 0.1W 5% 75 Ω S.M.CARB R3017 ERJ6GEYJ750 0.1W 5% 75 Ω S.M.CARB R3018 ERJ6GEYJ750 0.1W 5% 75 Ω S.M.CARB R3019 ERJ6GEYJ750 0.1W 5% 75 Ω S.M.CARB R3020 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R3021 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R3022 ERJ3GEYJ391 0.125 5% 390 Ω S.M.CARB R3023 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R3024 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R3025 ERJ3GEYJ391 0.125 5% 390 Ω S.M.CARB R3026 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R3027 ERJ3GEYJ103 0.1W 5% 10K Ω S.M.CARB R3029 ERJ3GEYJ104V 0.1W 5% 100K Ω S.M.CARB R3030 ERJ3GEYJ104V 0.1W 5% 100K Ω S.M.CARB R3031 ERJ3GEYJ391 0.125 5% 390 Ω S.M.CARB R3032 ERJ3GEYJ391 0.125 5% 390 Ω S.M.CARB R3033 ERJ3GEYJ104V 0.1W 5% 100K Ω S.M.CARB R3034 ERJ3GEYJ104V 0.1W 5% 100K Ω S.M.CARB R3037 ERJ3GEYJ104V 0.1W 5% 100K Ω S.M.CARB R3038 ERJ3GEYJ104V 0.1W 5% 100K Ω S.M.CARB R3039 ERJ6GEYJ680 0.1W 5% 68 Ω S.M.CARB R3040 ERJ6GEYJ680 0.1W 5% 68 Ω S.M.CARB R3043 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R3049 ERJ3GEYJ391 0.125 5% 390 Ω S.M.CARB R3050 ERJ3GEYJ391 0.125 5% 390 Ω S.M.CARB R3056 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R3057 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R3058 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R3059 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R3060 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R3061 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R3062 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R3063 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R3064 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R3065 ERJ3GEY0R00 0.1W 5% 0 Ω S.M.CARB R3201 ERJ6GEYJ103 0.1W 5% 10K Ω S.M.CARB R3202 ERJ6GEYJ103 0.1W 5% 10K Ω METAL R3203 ERG2SJS151 2W 5% 150 Ω CARBON R3205 ERDS1TJ151 0.5W 5% 150 Ω METAL R3208 ERG2SJS151 2W 5% 150 Ω S.M.CARB R3212 ERJ6GEYJ101 0.1W 5% 100 Ω S.M.CARB R3213 ERJ6GEYJ101 0.1W 5% 100 Ω S.M.CARB R3214 ERJ6GEYJ153 0.1W 5% 15K Ω S.M.CARB R3215 ERJ6GEYJ153 0.1W 5% 15K Ω CARBON R3217 ERDS1TJ151 0.5W 5% 150 Ω CAPACITORS S.M. CAP C107 ECUV1H104KBX 50V 100nF ELECT C108 ECA1CM470GB 16V 47µF 18 Description Cct Ref Parts Number Description Cct Ref Parts Number S.M. CAP C109 ECUV1H472KBX 50V 4.7nF CERAMIC C110 ECUV1H103JCN 50V 10nF ELECT C111 ECA1HMR33GB 50V 0.33µF CERAMIC C117 ECUV1H103JCN 50V 10nF S.M. CAP C118 ECUV1H104KBX 50V 100nF ELECT C119 ECA1CM221GB 16V 220µF CERAMIC C122 ECJ2FB1H104 50V 100nF CERAMIC C130 ECUV1H103JCN 50V 10nF S.M. CAP C131 ECUV1H683ZFX 50V 68nF CERAMIC C136 ECJ2FB1H104 50V 100nF S.M. CAP C137 ECUV1H560GCG 50V 56pF S.M. CAP C138 ECUV1H220JCX 50V 22pF CERAMIC C141 ECUV1H103JCN 50V 10nF CERAMIC C142 ECJ2FB1H104 50V 100nF ELECT C251 ECA1HM010GB 50V 1µF ELECT C252 ECA1HHG010B 50V 1µF ELECT C253 ECA1HM4R7GB 50V 4.7µF CERAMIC C254 ECJ2VB1H102K 50V 1nF ELECT C255 ECA1HM4R7GB 50V 4.7µF CERAMIC C256 ECJ2VB1H102K 50V 1nF FILM C259 ECQV1H684J 50V 680nF FILM C260 ECQV1H684J 50V 680nF ELECT C261 ECA1HM100GB 50V 10µF ELECT C262 ECA1HM100GB 50V 10µF ELECT C263 ECEA1HU101 50V 100µF FILM C264 ECQV1H154J 50V 150nF FILM C265 ECQV1H154J 50V 150nF CERAMIC C266 ECJ2FB1H104 50V 100nF CERAMIC C267 ECJ2FB1H104 50V 100nF ELECTRO C269 ECA1HM332 50V 3.3nF S.M. CAP C352 ECUV1H104KBX 50V 100nF CERAMIC C353 ECJ2FB1H104 50V 100nF FILM C354 ECQM2104KZ 250V 100nF CERAMIC C355 ECKC2H102J 500V 1nF S.M. CAP C358 ECUV1H104KBX 50V 100nF S.M. CAP C359 ECUV1H150JCX 50V 15pF CERAMIC C360 ECJ2VF1E104Z 25V 100nF S.M. CAP C362 ECUV1H104KBX 50V 100nF CERAMIC C363 ECJ2FB1H104 50V 100nF FILM C364 ECQM2104KZ 250V 100nF CERAMIC C365 ECKC2H102J 500V 1nF ELECT C366 ECA1HM101GB 50V 100µF ELECT C368 ECA1CM221GB 16V 220µF S.M. CAP C372 ECUV1H104KBX 50V 100nF CERAMIC C373 ECJ2FB1H104 50V 100nF FILM C374 ECQM2104KZ 250V 100nF CERAMIC C375 ECKC2H102J 500V 1nF S.M. CAP C379 ECUV1H150JCX 50V 15pF ELECT C382 ECA1HM100GB 50V 10µF ELECT C385 ECA2EM100B 250V 10µF CERAMIC C386 ECKC3D152J 2KV 1.5nF CERAMIC C451 ECJ2VB1H102K 50V 1nF ELECT C456 ECEA1HU221 50V 220µF FILM C459 ECQV1H105JZ 50V 1µF ELECT C463 ECEA1HU221 50V 220µF ELECT C501 ECA1EM101GB 25V 100µF FILM C508 ECQB1H392J 50V 3.9nF ELECT C509 ECA1HM470GB 50V 47µF CERAMIC C551 ECKW3D221JBN 2KV 220pF FILM C552 ECWH20102JVY 200V 1µF CERAMIC C557 ECKC2H471J 500V 470pF ELECT C558 ECA1HHG101B 50V 100µF CERAMIC C559 ECJ2FB1H104 50V 100nF FILM C560 ECQE2393KFW 250V 39nF ELECT C561 ECA1EM222GB 25V 2200µF CERAMIC C562 ECKC2H101J 500V 100pF ELECT C563 ECA2EM100B 250V 10µF ELECT C564 ECEA2AN2R2SB 100V 2.2µF FILM C565 ECQB1H273J 50V 27nF CERAMIC C566 ECKC2H471J 500V 470pF ELECT C567 ECA1EM222GB 25V 2200µF CERAMIC C568 ECKC2H471J 500V 470pF CERAMIC C572 ECJ2VB2A102K 250V 1µF CERAMIC C573 ECUV1H221KBX 50V 220µF CERAMIC C574 ECUV1H221KBX 50V 220µF FILM C581 ECWF4684JBB 400V 680nF FILM C582 ECWF4514JBB 400V 810nF FILM C583 ECWH20562JVB 200V 5.6nF FILM C584 ECWH20562JVB 200V 5.6nF FILM C587 ECQF4393JZH 400V 39nF FILM C588 ECWF4684JBB 400V 680nF CERAMIC C701 ECKC2H152J 500V 1.5nF FILM C702 ECQE1335KFB 125V 3.3µF S.M. CAP C703 ECUV1H332ZFX 50V 3.3nF FILM C704 ECQV1H474JZ 50V 470nF CERAMIC C706 ECKC2H471J 500V 470pF CERAMIC C707 ECJ2VB1H471K 50V 470pF S.M. CAP C708 ECUV1H332ZFX 50V 3.3nF S.M. CAP C709 ECUV1H332ZFX 50V 3.3nF ELECT C710 ECA1HM010GB 50V 1µF FILM C801 ECQU2A224MLA 250V 220nF FILM C804 222233820154 275V 150nF CERAMIC C805 ECKC2H472J 500V 4.7nF CERAMIC C806 ECKC2H472J 500V 4.7nF CERAMIC C807 ECKC2H472J 500V 4.7nF CERAMIC C808 ECKC2H472J 500V 4.7nF FILM C809 ECQE6823KFB 600V 82nF CERAMIC C811 ECKWNA101MBC 400V 100µF ELECT C820 43303S9227M5 400V 220µF ELECT C821 ECA1HM010GB 50V 1µF CERAMIC C822 ECUV1H103JCN 50V 10nF ELECT C823 ECA1HM100GB 50V 10µF CERAMIC C824 ECJ2VB1H221K 50V 220pF CERAMIC C825 ECJ2VB1H471K 50V 470pF CERAMIC C826 ECKC3D681J 2KV 680pF FILM C827 ECQM4103KZ 400V 10nF CERAMIC C830 ECKCNS332J 1.2KV 3.3nF CERAMIC C860 ECJ2VF1H103Z 50V 10nF ELECT C861 ECA1CHG101 16V 100µF ELECT C862 ECA1CHG101 16V 100µF ELECT C864 ECA1EHG471B 25V 470pF ELECT C865 ECA2CM100B 160V 10µF CERAMIC C866 ECKC3D471JB 2KV 470pF CERAMIC C867 EEUEB2D101B 250V 100pF ELECT C868 ECA2DHG221E 200V 220pF ELECT C870 EEUFC1C471B 16V 470µF CERAMIC C871 ECKC2H471J 500V 470pF ELECT C872 ECA1CHG472B 16V 4.7nF CERAMIC C873 ECKC2H471J 500V 470pF ELECT C875 ECA1HHG102E 50V 1nF ELECT C878 ECA1CM100GB 16V 10µF ELECT C879 ECA1VHG331B 35V 330pF CERAMIC C880 ECKC2H471J 500V 470pF ELECT C882 ECA1HHG100B 50V 10µF ELECT C883 ECA1CHG101 16V 100µF ELECT C884 ECA1HHG100B 50V 10µF ELECT C886 ECA1HHG100B 50V 10µF CERAMIC C888 ECJ2FB1H104 50V 100nF ELECT C889 ECA1CHG101 16V 100µF CERAMIC C890 ECJ2FB1H104 50V 100nF ELECT C891 ECA1CHG101 16V 100µF CERAMIC C892 ECJ2FB1H104 50V 100nF 19 Description Cct Ref Parts Number Description Cct Ref Parts Number ELECT C893 ECA1CHG101 16V 100µF CERAMIC C894 ECJ2FB1H104 50V 100nF ELECT C895 ECA1CHG101 16V 100µF CERAMIC C896 ECJ2FB1H104 50V 100nF ELECT C901 ECA1HM101GB 50V 100µF CERAMIC C902 ECJ2VF1H103Z 50V 10nF CERAMIC C903 ECKC2H472J 500V 4.7nF S.M. CAP C904 ECUV1H472KBX 50V 4.7nF ELECT C905 ECA2CM220B 160V 22µF ELECT C906 ECA2CM220B 160V 22µF ELECT C907 ECA2CM220B 160V 22µF ELECT C1002 ECA1HM101GB 50V 100µF CERAMIC C1003 ECJ2FB1H104 50V 100nF CERAMIC C1004 ECUV1H103JCN 50V 10nF ELECT C1005 ECA1HM101GB 50V 100µF CERAMIC C1007 ECUV1H270JCG 50V 27pF CERAMIC C1101 ECJ1VF1E104 35V 100nF ELECT C1102 ECA1HM101GB 50V 100µF CERAMIC C1103 ECJ1VF1E104 35V 100nF ELECT C1104 ECA1HM101GB 50V 100µF CERAMIC C1105 ECJ1VF1E104 35V 100nF CERAMIC C1107 ECJ1VC1H330J 50V 33pF CERAMIC C1108 ECJ1VC1H330J 50V 33pF CERAMIC C1109 ECJ1VB1H103 50V 10nF CERAMIC C1111 ECJ1VF1E104 35V 100nF CERAMIC C1112 ECJ1VC1H151J 50V 150pF CERAMIC C1116 ECJ1VF1E104 35V 100nF CERAMIC C1117 ECJ1VC1H221 50V 220pF CERAMIC C1118 ECJ1VC1H221 50V 220pF CERAMIC C1119 ECJ1VF1E104 35V 100nF CERAMIC C1120 ECJ1VF1E104 35V 100nF CERAMIC C1121 ECJ1VF1E104 35V 100nF CERAMIC C1122 ECJ1VF1E104 35V 100nF CERAMIC C1123 ECJ1VF1E104 35V 100nF CERAMIC C1124 ECJ1VF1E104 35V 100nF CERAMIC C1125 ECJ1VF1E104 35V 100nF CERAMIC C1126 ECJ1VF1E104 35V 100nF CERAMIC C1127 ECJ1VF1E104 35V 100nF CERAMIC C1501 ECJ1VC1H220J 50V 22pF CERAMIC C1502 ECJ1VC1H220J 50V 22pF CERAMIC C1503 ECJ1VF1E104 35V 100nF CERAMIC C1505 ECJ2FB1H104 50V 100nF CERAMIC C1506 ECJ1VF1E104 35V 100nF CERAMIC C1507 ECJ1VF1E104 35V 100nF CERAMIC C1508 ECJ2FB1H104 50V 100nF CERAMIC C1509 ECJ1VB1H103 50V 10nF CERAMIC C1510 ECJ1VF1E104 35V 100nF CERAMIC C1511 ECJ2FB1H104 50V 100nF CERAMIC C1512 ECJ2FB1H104 50V 100nF CERAMIC C1514 ECJ1VF1E104 35V 100nF ELECT C1515 ECA1CM100GB 16V 10µF CERAMIC C1516 ECJ1VF1E104 35V 100nF CERAMIC C1517 ECJ1VC1H271 50V 270pF CERAMIC C1518 ECJ1VC1H271 50V 270pF ELECT C1519 ECA1CM100GB 16V 10µF CERAMIC C1520 ECJ1VB1H103 50V 10nF CERAMIC C1522 ECJ1VF1E104 35V 100nF CERAMIC C1524 ECJ1VF1E104 35V 100nF CERAMIC C1525 ECJ1VF1E104 35V 100nF CERAMIC C1526 ECJ1VC1H271 50V 270pF CERAMIC C1527 ECJ1VC1H331 50V 330pF CERAMIC C1528 ECJ1VC1H331 50V 330pF CERAMIC C1530 ECJ1VF1E104 35V 100nF CERAMIC C1532 ECJ1VF1E104 35V 100nF CERAMIC C1533 ECJ1VB1H103 50V 10nF CERAMIC C1535 ECJ1VF1E104 35V 100nF CERAMIC C1537 ECJ1VF1E104 35V 100nF CERAMIC C1543 ECJ2FB1H104 50V 100nF CERAMIC C1544 ECJ2FB1H104 50V 100nF ELECT C1545 ECA1CM221GB 16V 220µF CERAMIC C1548 ECJ1VF1E104 35V 100nF ELECT C1549 ECEA1CKA470 16V 47µF CERAMIC C1550 ECJ1VF1E104 35V 100nF CERAMIC C1551 ECJ1VF1E104 35V 100nF CERAMIC C1560 ECJ1VF1E104 35V 100nF CERAMIC C1561 ECJ1VF1E104 35V 100nF ELECT C1563 ECA1HM220GB 50V 22µF CERAMIC C1565 ECJ2FB1H104 50V 100nF CERAMIC C1573 ECJ1VB1C473 16V 47nF CERAMIC C1574 ECJ1VB1C473 16V 47nF CERAMIC C1575 ECJ1VB1C473 16V 47nF ELECT C1580 ECA1HM100GB 50V 10µF ELECT C1581 ECA1HM100GB 50V 10µF CERAMIC C1701 ECJ1VC1H270 50V 27pF CERAMIC C1702 ECJ1VC1H270 50V 27pF CERAMIC C1703 ECJ1VF1E104 35V 100nF ELECT C1704 ECEA1AKA221B 10V 220µF CERAMIC C1705 ECJ1VB1H222K 50V 2.2nF ELECT C1706 ECA1CM100GB 16V 10µF CERAMIC C1707 ECJ1VC1H270 50V 27pF ELECT C1708 ECA0JHG102B 6.3V 1nF CERAMIC C1709 ECJ1VB1H102 50V 10nF CERAMIC C1710 ECJ1VB1H153K 50V 15nF CERAMIC C1711 ECJ1VB1H153K 50V 15nF ELECT C1713 ECA1CM100GB 16V 10µF CERAMIC C1714 ECJ1VF1E104 35V 100nF CERAMIC C1716 ECJ1VF1E104 35V 100nF CERAMIC C1719 ECJ1VB1H103 50V 10nF CERAMIC C1720 ECJ1VB1H103 50V 10nF CERAMIC C1721 ECJ1VB1H103 50V 10nF CERAMIC C1722 ECJ1VB1H103 50V 10nF ELECT C1723 ECA1HM101GB 50V 100µF CERAMIC C1724 ECJ1VB1H222K 50V 2.2nF ELECT C1725 ECA1CM100GB 16V 10µF CERAMIC C1726 ECJ1VF1E104 35V 100nF ELECT C1727 ECA1CM470GB 16V 47µF CERAMIC C1728 ECJ1VF1E104 35V 100nF CERAMIC C1731 ECJ1VF1E104 35V 100nF CERAMIC C1732 ECJ1VF1E104 35V 100nF CERAMIC C1733 ECJ1VF1E104 35V 100nF CERAMIC C1734 ECJ1VC1H391 50V 390pF CERAMIC C1735 ECJ1VC1H391 50V 390pF CERAMIC C1736 ECJ1VC1H391 50V 390pF S.M. CAP C1737 ECUV1C224KBX 16V 220nF ELECT C1739 ECA1HM101GB 50V 100µF CERAMIC C1740 ECJ1VF1E104 35V 100nF CERAMIC C1742 ECJ1VB1H472K 50V 4.7nF ELECT C1743 ECA1HM3R3GB 50V 3.3µF CERAMIC C1744 ECJ1VF1E104 35V 100nF CERAMIC C1745 ECJ1VF1E104 35V 100nF CERAMIC C1746 ECJ1VF1E104 35V 100nF CERAMIC C1752 ECJ1VB1H471K 50V 470µF CERAMIC C1783 ECJ1VC1H151J 50V 150pF ELECT C2001 ECA1CM100GB 16V 10µF CERAMIC C2002 ECJ2VB1H152K 50V 1.5nF CERAMIC C2003 ECUV1H471JCN 50V 470µF CERAMIC C2004 ECUV1H221KBX 50V 220µF CERAMIC C2005 ECJ2FB1H104 50V 100nF CERAMIC C2006 ECJ2VB1H102K 50V 1nF CERAMIC C2007 ECJ2VB1H102K 50V 1nF CERAMIC C2009 ECJ2VB1H102K 50V 1nF CERAMIC C2010 ECJ2VB1H102K 50V 1nF 20 Description Cct Ref Parts Number Description Cct Ref Parts Number CERAMIC C2011 ECJ2VB1H102K 50V 1nF ELECT C2012 ECA1CM100GB 16V 10µF ELECT C2013 ECA1CM100GB 16V 10µF CERAMIC C2014 ECUV1H471JCN 50V 470µF CERAMIC C2015 ECJ2VB1H152K 50V 1.5nF ELECT C2016 ECA1HM100GB 50V 10µF CERAMIC C2017 ECJ2VB1H102K 50V 1nF CERAMIC C2018 ECJ2VB1H102K 50V 1nF CERAMIC C2019 ECJ2VB1H102K 50V 1nF CERAMIC C2020 ECJ2VB1H102K 50V 1nF ELECT C2021 ECA1HM3R3GB 50V 3.3µF CERAMIC C2022 ECJ2FB1H104 50V 100nF CERAMIC C2023 ECUV1H221KBX 50V 220µF CERAMIC C2024 ECUV1H221KBX 50V 220µF ELECT C2025 ECA1CM100GB 16V 10µF CERAMIC C2026 ECJ2FB1H104 50V 100nF CERAMIC C2027 ECUV1H221KBX 50V 220µF ELECT C2028 ECA1CM100GB 16V 10µF CERAMIC C2029 ECJ2VB1H152K 50V 1.5nF CERAMIC C2030 ECUV1H471JCN 50V 470µF CERAMIC C2031 ECJ2VC1H070D 50V 7pF S.M. CAP C2032 ECUV1H470JCX 50V 47pF CERAMIC C2034 ECUV1H010CCN 50V 47pF CERAMIC C2035 ECUV1H010CCN 50V 47pF CERAMIC C2041 ECJ2VF1C334Z 16V 330nF CERAMIC C2042 ECJ2VF1C334Z 16V 330nF CERAMIC C2043 ECUV1H103JCN 50V 10nF ELECT C2044 ECA1CM331B 16V 330µF ELECT C2046 ECA1CM470GB 16V 47µF ELECT C2047 ECA1CM470GB 16V 47µF CERAMIC C2048 ECJ2VF1C334Z 16V 330nF CERAMIC C2049 ECJ2VF1C334Z 16V 330nF CERAMIC C2050 ECJ2VF1C334Z 16V 330nF CERAMIC C2051 ECJ2VF1C334Z 16V 330nF CERAMIC C2052 ECUV1H221KBX 50V 220µF CERAMIC C2053 ECUV1H221KBX 50V 220µF CERAMIC C2054 ECUV1H221KBX 50V 220µF CERAMIC C2055 ECUV1H221KBX 50V 220µF ELECT C2056 ECA1CM470GB 16V 47µF ELECT C2057 ECA1CM470GB 16V 47µF ELECT C2058 ECA1CM470GB 16V 47µF ELECT C2059 ECA1CM470GB 16V 47µF CERAMIC C2060 ECJ2VF1C334Z 16V 330nF CERAMIC C2061 ECJ2VF1C334Z 16V 330nF CERAMIC C2062 ECUV1H221KBX 50V 220µF CERAMIC C2063 ECUV1H221KBX 50V 220µF ELECT C2361 ECA1VM102GB 35V 1nF ELECT C2362 ECA1VM102GB 35V 1nF CERAMIC C2363 ECJ2VC1H102J 50V 1nF CERAMIC C2364 ECJ2VC1H102J 50V 1nF CERAMIC C3001 ECJ1VC1H561J 50V 560pF CERAMIC C3002 ECJ1VC1H561J 50V 560pF CERAMIC C3003 ECJ1VC1H561J 50V 560pF CERAMIC C3006 ECJ1VC1H561J 50V 560pF CERAMIC C3007 ECJ1VC1H561J 50V 560pF CERAMIC C3008 ECJ1VC1H561J 50V 560pF CERAMIC C3010 ECJ1VC1H561J 50V 560pF CERAMIC C3011 ECJ1VC1H561J 50V 560pF CERAMIC C3013 ECJ1VC1H561J 50V 560pF CERAMIC C3014 ECJ1VC1H561J 50V 560pF CERAMIC C3015 ECJ1VC1H561J 50V 560pF CERAMIC C3016 ECJ1VC1H561J 50V 560pF CERAMIC C3018 ECJ1VC1H561J 50V 560pF CERAMIC C3019 ECJ1VC1H561J 50V 560pF ELECT C3038 ECA1CM100GB 16V 10µF ELECT C3039 ECA1CM100GB 16V 10µF ELECT C3040 ECA1CM100GB 16V 10µF ELECT C3041 ECA1CM100GB 16V 10µF ELECT C3044 ECA1CM100GB 16V 10µF ELECT C3045 ECA1CM100GB 16V 10µF CERAMIC C3201 ECUV1H103JCN 50V 10nF CERAMIC C3202 ECUV1H103JCN 50V 10nF S.M. CAP C3203 ECUV1H561KBX 50V 560pF S.M. CAP C3204 ECUV1H561KBX 50V 560pF CERAMIC C3207 ECJ2VC1H271J 50V 270pF S.M. CAP C3213 ECUV1H561KBX 50V 560pF S.M. CAP C3214 ECUV1H561KBX 50V 560pF ELECT C3215 SMG1HV470MT5 50V 47µF ELECT C3216 SMG1HV470MT5 50V 47µF S.M. CAP C3217 ECUV1H561KBX 50V 560pF S.M. CAP C3218 ECUV1H561KBX 50V 560pF TERMINALS AND LINKS SCART SOCKET JK3001 0350536400 SCART SOCKET JK3002 0350536400 AV TERMINAL JK3201 TJB8E026 CRT SOCKET SC381 0330550049 SWITCHES SWITCH SW801 ESB92DA1B SWITCH SW1003 EVQ21405R SWITCH SW1004 EVQ21405R SWITCH SW1005 EVQ21405R SWITCH SW1006 EVQ21405R SWITCH SW1007 EVQ21405R RELAYS DEGAUSSING RELAY RL801 8-1419125-3 DIFFERENCES FOR MODEL TX--25PX10D EXPLODED VIEW A P.C.B. 20 TNP8EA021AE MODEL LABEL 21 TQF8E3482 MISCELLANEOUS COMPONENTS DOOR CATCH . TEK6935 INSTRUCTION BOOKS GERMAN TQB8E4020A ITALIAN TQB8E4020C FRENCH TQB8E4020D I.C.s EAROM* IC1104 X24C1500-1DD DIFFERENCES FOR MODEL TX--25PX10F EXPLODED VIEW A P.C.B. 20 TNP8EA021AQ MODEL LABEL 21 TQF8E3487 MISCELLANEOUS COMPONENTS DOOR CATCH TEK6935 INSTRUCTION BOOKS GERMAN/SPANISH TQB8E4028AE DUTCH/FRENCH TQB8E4028BD SWEDISH/NORWEGIAN TQB8E4028FG DANISH TQB8E4028K I.C.s EAROM* IC1104 X24C1500-1DF 21 SCHEMATIC DIAGRAMS FOR MODELS TX-25PX10D TX-25PX10F TX-25PX10P (GP2 CHASSIS) NOTE 1. RESISTOR All resistors are carbon ¼W resistor, unless marked otherwise. Unit of resistance is OHM (Ω) (K=1,000, M=1,000,000) 2. CAPACITORS All capacitors are ceramic 50V unless marked otherwise. Unit of capacitance is µF unless otherwise stated. 3. COIL Unit of inductance is µH, unless otherwise stated. 4. TEST POINT Test Point Position 5. EARTH SYMBOL Chassis Earth (Cold) Line Earth (Hot) 6. VOLTAGE MEASUREMENT Voltage is measured by a d.c. voltmeter. Measurement conditions are as follows: Power source a.c. 220V-240V, 50Hz Receiving Signal Colour Bar signal (RF) All customer controls Maximum position 7. Indicates the Video signal path Indicates the Audio signal path These schematic diagrams are the latest at time of printing and are subject to change without notice. REMARKS a. Do not touch the hot part, or the hot and cold parts at the same time, as you are liable to a shock hazard. b. Do not short circuit the hot and cold circuits as electrical components may be damaged. c. Do not connect an instrument, such as an oscilloscope, to the hot and cold circuits simultaneously as this may cause fuse failure. Connect the earth of the instruments to the earth connection of the circuit being measured. d. Make sure to disconnect the power plug before removing the chassis. NOTE 1. The Power Supply Circuit contains a circuit area, which uses a separate power supply to isolate the earth connection. The circuit is defined by HOT and COLD indications in the schematic diagram. All circuits, except the Power Circuit, are COLD. IMPORTANT SAFETY NOTICE Components identified by mark have special characteristics important for safety. When replacing any of these components, use only manufacturer's specified parts. 22 + + + + + + + + + + + + + + + + + + + + + + + + AB_RST5.0 RST_MAIN AD_GOUT AD_BOUT AD_GOUT AB_VERT+ AB_H_SYNC R_OUT L_OUT AB_SLOW2 AF_D2 D2 P0.2 P0.1 AA_3.3V AB_HFLB AC_MSP_IRD_R IRD_R_IN Y1 AB_YZ AA_HOUT_SUPPLY AC_AV1_V_OUT AC_FBL1 FBL1 AC_AV1_L_IN AC_AV1_R_IN AC_AV2_L_IN L_IN AB_PROG_SW AB_VERT+ VERT+ AB_VERT- VERT- AB_VFLB E/W AB_E/W AB_VDAF VDAF 3.3V_STBY AA_3.3V_STBY AB_HDAF HDAF AB_PROT1 PROT1 HDRIVE 2.5V_STBY AA_2.5V_STBY TV_OFF AB_TV_OFF 5V_STBY AA_5V_STBY GND_AUDIO GND_AUDIO GND_AUDIO GND_AV3_CVBS GND_AV3_CVBS GND_TUNER GND_TUNER GND_TUNER GND_TUNER AUDIO_MONITOR_R AUDIO_MONITOR_L AV2_OUTL AC_AV2_L_IN AV2_LIN AC_AV2_R_IN AV2_RIN AC_AV1_L_IN AV1_LIN AC_AV1_R_IN AV1_RIN AA_9V_IRD 9V_IRD AB_SCL1(3.3V) AB_VS VS AB_SMUTE SMUTE AC_AV1_L_OUT AV1_OUTL AC_TVCVBS TUNER_CVBS AC_AV1_R_OUT AV1_OUTR AB_ROTATION ROTATION AB_STBY_LED LED_SBY AB_KEYSCAN KEYSCAN AB_RC RC_SIG AV3_Y AC_AV3_V_IN AB_PROG/C AE_RST_IN RST AE_RST_OUT AC_C_IN AB_SLOW1 AB_AV2_IRD_SW XTAL1 XTAL2 AF_A12 AF_A14 AF_A15 AF_A17 AF_A18 AF_A16 AF_A19 AD_OSD_BLK AD_OSD_B AD_OSD_G AE_WR_OUT WE AE_WR_IN AE_RD_OUT OE AE_RD_IN AE_PSEN_OUT AE_PSEN_IN AF_A19 A17 AF_A17 A15 AF_A15 CS AB_VS AB_HOUT AB_SDA1(3.3V) AB_SCL1(3.3V) AB_RST3.3 AA_3.3V AA_5V_HOUT AA_3.3V_STBY SLOW C_IN AC_C_IN AC_V_IN V_IN AC_AV2_V_OUT AB_VERT- AB_AFC AB_H_SYNC AB_RST5.0 AB_RST3.3 AB_SLOW1 AA_3.3V_STBY1 AA_5V_STBY AA_3.3V_STBY1 AB_AV_LINK_IN AA_5V AA_3.3V P2.2 P2.3 AB_PROT1 AB_TXT_CVBS EXTIF AF_A18 A18 AA_5V AD_OSD_R AD_OSD_G AD_OSD_B AD_ROUT AD_BOUT RESET AD_Y4 v50 ADR/TD1 h50 HOUT Y3 AD_Y3 GIN1 RIN1 Y0 AD_Y0 Y1 AD_Y1 Y2 AD_Y2 CLKOUT BIN1 656IN4 656IN3 656IN7 656IN6 656IN5 Y5 AD_Y5 Y6 AD_Y6 SCL1(3.3V) Y7 Y7 LLC2 656VIN/BLANK SDA1(3.3V) 656IN2 656IN1 656IN0 656INCLK 656HIN PB1 PR1/C CVBS7 CVBS6 CVBS5 CVBS4 CVBS2 CVBS1 AD_G_EXT AD_LLC2 AC_IRD_CVBS AF_D1 AC_V_IN SCL AF_D2 AF_D0 AF_A0 AF_A1 AF_A2 AF_A3 AF_A4 AF_A5 AF_A6 AF_A7 AF_A12 AF_A15 AF_A16 AF_A12 A12 AF_A7 A7 AF_A5 A5 AF_A4 A4 AF_A3 A3 AF_A2 A2 AF_A6 A6 AF_A16 A16 AF_A14 A14 AF_A0 A0 AF_D0 D0 AF_D1 D1 AF_A1 A1 AF_D2 D2 L_IN AF_A8 AF_A6 AF_A9 AF_A5 AF_A4 AF_A11 AF_D7 AF_A0 AF_D6 AF_D5 AF_D0 AD_SVM AB_SMUTE SDA R_OUT V_OUT R_IN P1.1 P1.3 FL_RST FL_CE AB_IRD_RGB AB_STBY_LED AB_IRD_LED P3.4 P3.3 P3.2 R G B BLANK/COR AB_AV_LINK_IN AB_AV_LINK_OUT GND AF_D3 AF_D4 AF_D5 AF_D6 AF_D7 AF_A10 AF_A11 AF_A9 AF_A8 AF_A13 AF_A14 AF_A17 AF_D3 D3 AF_D4 D4 AF_D5 D5 AF_D6 D6 AF_D7 D7 AF_A10 A10 AF_A11 A11 AF_A9 A9 AF_A8 A8 AF_A13 A13 AF_A18 AD_OSD_BLK AD_ROUT AD_SVM AD_Y1 AD_Y2 AD_Y3 AD_Y4 5V_SCL2 AB_SCL2(5V) 5V_SDA2 AB_SDA2(5V) AFC AB_AFC 1.8V_HDR AA_1.8V_HDR AB_SDA2(5V) AB_SDA1(3.3V) AB_SCL1(3.3V) AB_SDA2(5V) AB_SCL2(5V) AC_AV1CVBS AV1CVBS AD_R_EXT AE_PSEN_OUT R_IN AC_AV2_R_IN AB_SLOW2 AC_MSP_IRD_L IRD_L_IN AA_5V_HOUT 5V_HOUT AC_AV3_C_IN AC_FBL1 SCL1 AB_SCL1(3.3V) SDA1 AB_SDA1(3.3V) VDDD4 AB_RST3.3 AA_2.5V_STBY AA_HOUT_SUPPLY AB_ROTATION DEF_GND DEF_GND DEF_GND DEF_GND AB_HFLB HFLB SMUTE2 AV2_OUTR 5V AA_5V 3.3V AA_3.3V 9V AA_9V GND GND GND GND GND AB_AV_LINK_OUT AA_5V_HOUT AB_E/W AA_9V P1.4 AB_AV_LINK AA_3.3V_STBY AB_RC AB_RC_IN AB_AV_LINK AA_5V VDDP3 XIN VSSP3 FBL2 AC_AV1_V_OUT L_OUT AD_R_EXT AD_G_EXT AD_B_EXT AC_C_IN G_IN AB_KEYSCAN AC_TVCVBS VDDA AF_A1 AF_A2 AF_A10 A4 A5 A6 AF_A13 AB_SDA1(3.3V) AB_SCL1(3.3V) VDD2.5 AA_2.5V_STBY1 AF_D1 AF_D4 AF_D3 RD AE_RD_OUT WR AE_WR_OUT AD_OSD_R AA_2.5V_STBY AA_3.3V_STBY1 VDD3.3 AA_2.5V_STBY AB_VFLB P3.1 AB_RC_IN P3.5 AB_AV1/AV2 VSSA VDD AA_3.3V_STBY1 AF_A3 AA_3.3V_STBY1 AA_5V AB_SERVICE AB_AV1/AV2 AB_TV_OFF AB_AV_LINK_IN AB_SDA1(3.3V) AB_SERVICE AA_HOUT_SUPPLY AC_AV3_C_IN AC_AV1CVBS AC_AV3_V_IN AA_1.8V_HDR ST/ON(DEGAUSS_IDTV) AB_ST/ON(DEGAUSS_IDTV) CVBS02 AA_5V_STBY AH_SVMDRIVE AH_BDRIVE AH_RDRIVE 9V AA_9V AA_5V AD_Y0 AD_SENSE AB_ST/ON(DEGAUSS_IDTV) AA_2.5V_STBY1 VDD2.5 AB_TXT_CVBS AB_SDA1(3.3V) AB_SCL2(5V) XOUT AA_9V_IRD VSSP VSSA AC_AV2_V_OUT CVBS03 AC_AV3_C_IN AB_PB1 AD_B_EXT AD_SENSE AD_Y5 AD_Y6 AD_Y7 AD_LLC2 AA_3.3V R_IN AC_AV1_L_OUT AC_AV1_R_OUT AB_HOUT VCC AA_3.3V_STBY1 HS/SSC AB_HDAF VDD3.3 AB_PR1 Q1502 BC847B R1161 1k Q1110 2N7002 G D S C1502 50V 22p 2200p C1724 50V C1102 100u 16V GND R3007 2.7k GND R1540 100 GND *R3059 0 C1548 25V 0.1u TP294 AUD 56 R1743 Q1503 BC847B GND R1143 10k C1127 25V 0.1u R1106 100 R1727 100 R1216 0 R1172 220 R3008 75 C1520 50V 0.01u C1123 25V 0.1u GND R1515 100 R3039 68 R3030 100k GND R1108 10k GND GND R1755 470 C1574 16V 0.047u R1728 100 R1741 560 560p C3007 50V Q1712 BC847B R1132 10k R1719 22k R1156 100 A7 1 2 0.1u C1740 25V C1101 25V 0.1u Q1507 BC857B R1102 10k GND 10k R1736 GND *R1510 0 R1166 220k R1714 10k GND GND GND C1714 25V 0.1u R1173 100 R1738 560 AUD C1550 25V 0.1u IC1501 VSP9415BVKC3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 Q3008 BC847B Q1104 BC847B R1103 100 AUD Q1711 BC847B GND GND C1545 16V 220u C1535 25V 0.1u GND R1186 47k L1502 ELESN4R7KA 1k *R1750 R1178 100 AUD Q1112 BC847B R1150 330 C1708 16V 220u L1103 ELESN4R7KA C1125 25V 0.1u AUD GND R1783 270 GND GND C1512 50V 0.1u R1759 100 GND Q1119 BC847B R3004 100 C1707 50V 27p Q1719 BC847B R1561 220 C3039 16V 10u IC1102 K6X4008T1FV7 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 A1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 Q1106 BC847B R3015 75 GND R1730 0 Q1113 BC847B R3064 0 Q1109 2N7002 G D S R1131 100 Q1705 BC847B R3005 12k 560p C3018 50V JK3004 YKC21-5861N L L-G R R-G GND R3037 100k R1168 100k R1519 100 R3019 75 C1509 50V 0.01u R1151 68k GND C3038 16V 10u C1501 50V 22p Q1715 BC847B R1107 5.6k R1523 75 GND *R1512 0 R1199 100 D1104 1SS355TE-17 Q1107 BC847B R1130 100 L1501 ELESN4R7KA JK3002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 GND 10k R1739 560p C3008 50V GND DL1512 ELKE103FA 1 2 3 R1179 10k X1701 4730007823 GND GND GND GND R1105 100 C1530 25V 0.1u Q1501 BC847B GND R1723 560 C1518 270p 50V AUD R1209 EXB38V680JV AUD GND GND C3010 50V 560p GND R1215 68 0.1u C1731 25V C1532 25V 0.1u 560p C3015 50V R1153 4.7k R1708 47k AUD Q1707 FMY4AT148 R1218 10k R3040 68 C1503 25V 0.1u C1743 50V 3.3u GND GND C1121 25V 0.1u GND DL1713 TLK212T256AL J0HAAB000012 1 2 3 4 56 R1752 R1117 100 470p C1752 50V R3003 18k R1548 0 C1119 25V 0.1u GND C3041 16V 10u R1155 100 R1212 D1HG6808A002 GND R1169 47k R1147 10k LD1117S IC1502 LD1117S18TR 2 VOUT 1 GND 3 VIN 4 Q1116 BC857B C1524 25V 0.1u R1142 100 GND R1120 100 R3033 100k 560p C3016 50V GND Q1111 BC847B R1104 100 GND C1573 16V 0.047u GND GND GND GND C1721 50V 0.01u C1522 25V 0.1u DL1510 ELKE103FA 1 2 3 L1701 EXC3BB221H 0.1u C1728 25V IC1701 DDP3315C DDP3315CQAG3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 DL1705 ELKE103FA 1 2 3 C1710 50V 0.015u C1563 50V 22u 390p C1735 50V Q3009 BC847B L1503 ELJFC2R2KF GND GND Q1115 BC847B R3043 0 R1193 4.7k C1107 50V 33p R1208 0 GND C1745 25V 0.1u C1561 0.1u 25V 1.6X0.8 C3045 16V 10u R3034 100k C1104 100u 16V 560p C3019 50V IC1101 SDA5550M SDA5550MQBTL 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 C1719 50V 0.01u 0.1u C1732 25V GND R1139 100 C1103 25V 0.1u R1725 10k R1140 100 R3050 390 R1516 100 AUD R3057 0 C1722 50V 0.01u MN1381-TTA IC1105 VSS 3 2 VDD OUT 1 GND Q1708 FMY4AT148 R1513 0 R1745 10k C1508 50V 0.1u R1556 75 R1152 3.3k 0.1u C1105 25V GND C3003 50V 560p R1111 100 R3032 390 GND R1189 100 C1704 6.3V 1000u R3029 100k C1709 50V 1000p C1581 50V 10u L1104 ELESN4R7KA GND R1525 1.5k C1507 25V 0.1u *R1110 100 R3009 18k Q1114 BC847B GND A2 1 2 3 4 5 6 7 8 C1551 25V 0.1u GND DL1706 ELKE103FA 1 2 3 C1124 25V 0.1u GND JK3001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 GND 560p C3002 50V C1702 50V 27p R1114 100 R1704 0 R1207 0 GND R1176 1k GND R1717 270 560p C3014 50V R1185 100 R1746 4.7k R1125 100 R1123 47k C1701 50V 27p 330k *R1751 GND R3017 75 R1780 330 GND GND 820 R1735 R1127 100 R1177 100 R1724 10k C1510 25V 0.1u C1783 50V 150p R1165 27k C1111 25V 0.1u 0.1u C1744 25V R1705 1.2k GND GND AUD GND C1727 16V 47u R1520 0 D1705 1SR124-4AT82 GND D1102 1SS355TE-17 R3014 12k R1214 EXB38V680JV C1511 50V 0.1u GND GND R1162 1k GND Q1704 BC847B R1109 100 R1129 5.6k GND AUD GND GND C1580 50V 10u GND R1217 0 R1137 8.2k R1159 4.7k Q1706 FMY4AT148 *R3058 0 R1167 100k R3031 390 R1709 10k 270p C1526 50V R1562 220 C1543 0.1u 50V GND L1101 TALV35VB8R2K GND C1517 270p 50V C1126 25V 0.1u GND R1175 0 AUD R1524 75 GND GND R3060 0 R3016 75 R1134 470 R1547 0 C1723 16V 100u R1171 2.2M GND C1746 25V 0.1u 560p C3013 50V 0.1u C1733 25V R1116 100 DL1513 ELKE103FA 1 2 3 Q1504 BC857B GND AUD 1k R1782 R1115 10k *R3061 0 *R1716 10k R3002 100 C1514 25V 0.1u D1703 B0ACCK000005 6.8k R1721 R1170 4.7k R3006 100 C1120 25V 0.1u GND Q1508 BC857B GND Q1118 BC847B R1204 0 10k R1742 R3025 390 A3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 GND R1551 220 C1706 16V 10u 0.1u C1703 25V 560p C3001 50V C1716 25V 0.1u C1533 50V 0.01u C1537 25V 0.1u GND R1164 10k C1112 50V 120p AUD R1138 15k C1117 50V 220p GND C1739 16V 100u = C1575 16V 0.047u R1154 4.7k 390p C1736 50V GND D1701 B0ADCJ000015 R1726 10k 390p C1734 50V R1744 560 AUD 8.2k R1720 C1118 50V 220p 56 R1737 GND R1135 100 R1145 47k R1128 68k C1516 25V 0.1u R1206 0 R1126 100 GND R1101 4.7k TP290 Q1703 BC847B R1211 D1HG6808A002 GND GND R1192 100 C1549 47u 16V GND R3013 2.7k R3049 390 C1506 25V 0.1u GND R3065 0 X1101 AI060006AD GND C1720 50V 0.01u R1157 100 R1160 4.7k R3027 10k D1105 B0ACCK000005 R1191 22k R1174 22k GND C3044 16V 10u IC1103 M27W401-80B6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 R1712 1k R1180 10k GND X1501 AI202504E AC202504E Q1701 BC847B GND C3040 16V 10u R3018 75 R1136 10k R1163 10k GND 150 R1734 R1521 75 R3022 390 0.1u C1726 25V 2200p C1705 50V R3038 100k GND C1108 50V 33p GND GND C1711 50V 0.015u R1526 220 C1725 16V 10u GND Q1713 BC847B C1116 25V 0.1u DL1511 ELKE103FA 1 2 3 GND 1k R1707 R1781 100 Q1103 BC847B GND 0.22u C1737 16V R1504 75 GND R1552 220 GND R1118 100 150 R1733 IC1106 MN1381-JTA VSS 3 2 VDD OUT 1 GND C1519 16V 10u R1198 68 GND R1503 1.5k *R1511 0 GND R1784 4.7k R1158 100 R1514 100 C1505 50V 0.1u R3026 10k *R1549 0 Q1702 BC847B R1710 56k GND R1553 330 C1122 25V 0.1u R1184 68 C1525 25V 0.1u R1188 100 GND C1515 16V 10u R3010 100 R1502 1.5k GND IC1104 24C32A10PI27 1 2 3 4 5 6 7 8 GND GND R3062 0 R1200 2.2k R1701 0 GND GND GND GND TP291 Q1108 BC847B R1141 100 R1213 68 AUD R1194 4.7k GND R3056 0 R3001 18k D1702 B0ADCJ000015 C1713 16V 10u GND GND C3011 50V 560p C1109 50V 0.01u R1210 0 C1560 25V 0.1u GND C3006 50V 560p GND 56 R1740 R1144 47k 150 R1732 Q1105 BC847B 2.7k R1706 AUD C1742 50V 4700p Q1117 BC847B C1544 0.1u 50V GND TP292 R3011 18k R3063 0 GND R1190 100 GND R3012 100 R1133 27k C1565 50V 0.1u VSS E G A18 VPP VCC A16 A15 A12 A7 A6 A5 A4 A3 A2 A1 A0 D0 D1 D2 D3 D4 D5 D6 D7 A10 A11 A9 A8 A13 A14 A17 0 5.7 0 0 5.7 0 AV2 AV1 TNP8EA021 A BOARD ! < + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + + NP + + + + + + + + + 12.4M 33.1M CRT 0.0M SCREEN FOCUS 0.1k 5.4M 5.6k 28.9M 34.1M + + + + + SS /OLP FB VCC D S/GND OCP /BD Control + P S + + + + AE_VFLB AA_5V_STBY 5V_STBY AA_2.5V_STBY 2.5V_STBY AA_9V 9V AA_HDAF(XDEGAUSS_IDTV) HDAF AA_3.3V_STBY 3.3V_STBY AA_5V AG_SCL2(5V) 5V_SCL2 AG_SDA2(5V) 5V_SDA2 AG_SCL2(5V) SCL2 AG_SDA2(5V) SDA2 AG_SCL1(3.3V) SCL1 AG_SDA1(3.3V) SDA1 AG_AFC AFC AC_RC_SIG AC_SMUTE SMUTE AC_ROTATION ROTATION AC_LED_STBY LED_SBY AC_LED_IRD LED_IRD AC_KEYSCAN KEYSCAN AC_RC_SIG RC_SIG AC_IRD_L_IN IRD_L_IN AC_IRD_R_IN IRD_R_IN AD_AV3_C AV3_C AD_AV1_OUTL AV1_OUTL AD_AV1_OUTR AV1_OUTR AD_AV2_OUTL AV2_OUTL AD_AV3_Y AV3_Y AD_AV2_OUTR AV2_OUTR AD_AV2_L_IN AV2_LIN AD_AV1_R_IN AV1_RIN AD_AV1_L_IN AV1_LIN AE_VERT+ AD_AV1_L_IN AD_AV2_R_IN AD_AV2_L_IN AD_AV1_R_IN AD_AV3_L_IN AD_AV3_R_IN AD_AV1_OUTL AD_AV1_OUTR AD_AV2_OUTR AD_AV2_OUTL 1.8V_HDR AA_2.5V_STBY AA_3.3V_STBY AB_HP_L AE_EW E/W AE_VFLB VFLB AE_VERT- VERT- AE_VERT+ VERT+ AB_HP_R AUDIO_MONITOR_R AB_HP_L AUDIO_MONITOR_L AD_AV3_Y AV3_Y AA_9V AE_EW 27V AE_HFLB AA_9V AA_TV_OFF AA_6.5V AA_8V AA_3.3V AA_9V AA_5V 200V AF_ANA-IN1 AB_HP_R HP_R AD_AV3_R_IN AV3_R AD_AV3_L_IN AV3_L AB_HP_L HP_L AD_AV3_C AV3_C AC_IRD_R_IN AF_ANA-IN1 AC_IRD_L_IN AG_SCL2(5V) AB_HP_R AC_HEADPHONE_SW HEADPHONE_SW AC_RC_SIG RC_SIG AC_LED_IRD LED_IRD AC_KEYSCAN KEYSCAN AC_LED_STBY LED_SBY GND RC_SIG AE_H-DRIVE Hdrive NC NC NC AD_AV2_R_IN AV2_RIN AE_H-DRIVE AA_33V AF_MONO-IN AG_SDA2(5V) 9V AA_9V 9V AA_5V_STBY 5V_STBY AA_9V 15V AG_SDA2(5V) SMUTE2 AG_SCL2(5V) AG_AFC AC_HEADPHONE_SW HEADPHONE_SW GND GND AA_5V_STBY AA_6.5V 6.5V GND_AV3_CVBS GND_TUNER GND_TUNER GND_TUNER GND_TUNER GND_AUDI0 GND_AUDI0 GND_AUDI0 GND_LPG GND_LPG GND_LPG GND_LPG GND_LPG GND_LPG GND_LPG SPKR_R SPKR_R GND_APG GND_APG AC_ROTATION ROTATION GND_AV3_CVBS GND_AV3_CVBS GND_AV3_AUDIO SMUTE AC_SMUTE IRD_ON AC_IRD_ON HDAF(XDEGAUSS_IDTV) AA_HDAF(XDEGAUSS_IDTV) VDAF AA_VDAF(TV_OFF_IDTV) AG_SDA1(3.3V) SDA1 AG_SCL1(3.3V) SCL1 AA_9V AF_MONO-IN AA_5V AA_5V 5V 3.3V AA_3.3V AE_HFLB HFLB DEF_GND 1300V -15V 1300V H.Out HTR V.Out DEF_GND DEF_GND DEF_GND AA_5V_STBY TUNER_CVBS STR_Vcc AA_TV_OFF TV_OFF RST_5V AA_8V AC_SMUTE AA_VDAF(TV_OFF_IDTV) VDAF PROT1 5V_HOUT 0V 400V AA_6.5V 6.5V 6.5V 6.5V AA_5V 5V AA_33V 300V V.Out D501 B0AACK000004 R116 100 C2057 16V 47u JSD048 0 R863 1k C2006 50V 1000p C2022 50V 0.1u GND 2W R821 0.27 Q707 2SA1018QTA 1/2W R892 750 D2005 B0AACK000004 AG Q551 2SC5905000RK ** ** ** AG C2047 16V 47u C509 50V 47u TPD1 C826 2kV 680p C253 50V 4.7u GND D869 B0BA5R000004 JSD076 T3A206022 1% R893 30k D712 B0AACK000004 C892 50V 0.1u C118 50V 0.1u TNR C2023 50V 220p AG C899 160V 10u D890 B0AACK000004 C463 50V 220u R256 100k Q702 BC847B *R898 27k R2014 100 *R869 0 R134 100 AG GND C704 50V 0.47u C860 50V 0.01u D824 1SR124-4AT82 3W R705 200 AG C2012 16V 10u L116 ELESN6R8KA C581 = ECWF4684JBB * * R884 75k GND AG C2050 16V 0.33u IC451 LA7876N 1 2 3 4 5 6 7 8 9 10 *D874 1SR124-4AT82 AG G AV3_V CL127 GND D706 EU02V0 GND CL151 C883 16V 100u C891 16V 100u CL128 D563 EU02V0 C2001 16V 10u AG *JSD056 T3A205016 *C588 ECWF4684JBB * * L2007 ELJFC4R7KF D711 MA4056MTA D554 EU02V0 Q703 2SK2231TE16L G D S R253 470 JSD088 D3 1 2 3 4 5 6 7 8 *L584 ELH5L7719 1 * 2 * 3 * 4 * *Q868 BC557B/126 R721 2k *C561 25V 470u *C894 50V 0.1u C259 0.68u 50V C131 16V 0.1u GND AG R701 100 CL086 T849 WW-G4D-A0019 1 V1 * 2 V2 * 5 P1 * 6 PTB * 7 PTA * 9 P2 * 10 S8 * 11 S7 * 12 S6 * 13 S5 * 14 S4 * 15 S3 * 16 S2 * 17 NC * 18 S1 * *C865 200V 10u R269 0 GND AG Q706 BC847B C2041 16V 0.33u D17 1 2 3 4 5 1/2W R568 12 *D892 B0AACK000004 R258 15 C560 250V 0.039u C886 50V 10u D19 1 2 3 4 5 6 C701 500V 1500p C2027 50V 220p R464 5.1k G R255 100k GND C252 50V 1u Q251 BC847B GND TPD17 GND Q705 BC547B/126 R567 120k D713 MA4130MTA C263 50V 100u D872 RK46LF-M1 ** ** GND R453 0 GND GND JSD046 T3A205016 *R454 27k TNR C882 50V 10u D553 EU02V0 TPD7 C871 500V 470p *D875 B0BA02400030 TPD11 C2044 16V 330u R261 1.5k TPD5 TPD22 R557 100 C574 50V 220p C587 400V 0.027u * * AG CL185 CL186 TA48025F IC853 OUT 2 3 GND IN 1 R565 10k AG C2014 50V 470p APG TNR AG C267 50V 0.1u D566 B0HAMC000013 Q704 BC847B *Q865 2SA1668LF603 *D889 1SR124-4AT82 D458 EU02V0 TNR C2060 16V 0.33u Q102 BC847B D503 B0AACK000004 C559 50V 0.1u R260 120 C707 50V 470p *D868 MTZJT-773.3B R264 2.2 GND R2042 0 TNR C456 50V 220u GND C870 16V 470u R147 0 R2045 0 GND C563 250V 10u AG L872 EXCELSA35T C893 16V 100u C451 50V 1000p D2007 B0AACK000004 D823 1SR124-4AT82 L107 TLTACT100K R2039 220 JSD045 T3A206022 *R140 100 GND R254 10k L701 180u * * C820 400V 220 ** ** C827 400V 0.01u 1/2W *R458 1 *C880 500V 470p TNR D2009 B0AACK000004 JSD013 T3A205016 AG C872 16V 4700u *Q873 BC847B TNR Q874 2SD2396/KM1R C261 50V 10u C582 ECWF4514JBB * * CL184 2W R711 12k C830 3300p *D865 RU2BLFC4 C896 50V 0.1u D16 1 2 3 L704 ELC18B182F * * GND R862 1.8k CL188 Q701 BC847B D825 B0AACK000004 D707 EU02V0 GND Q870 BC847B D710 B0BA01600007 C868 220u 200V * * CL020 L2005 10u D555 B0AACK000004 *R111 39k C2015 50V 1500p CL062 1/2W R887 68k R2040 2.2k C866 2kV 470p C2061 16V 0.33u R262 1.5k Q2006 BC857B D565 EU02V0 R712 20k D252 MA700ATA JSD029 T3A206027 *R876 100 *D898 B0BA01900005 R563 560k 1W R831 8.2M D871 1SR124-4AT82 1/2W R827 2.7k GND R117 3.3k CL189 D870 B0AACK000004 TNR D820 B0BA6R600008 D8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 D580 FMV-3GULF730 ** ** ** R718 20k C122 50V 0.1u GND TPD14 D12 1 2 3 4 5 6 7 C2043 50V 0.01u C2034 50V 1p GND R2017 470 GND JSD021 T3A205016 R889 7.5k IC801 SE130N GND 3 2 COLLECTOR OUT 1 R467 0 GND *TNR001 ENG29525G AGC 1 TU 2 ADD 3 SCL 4 SDA 5 NC 6 BPL 7 4MHz_OUT 8 BTL 9 NC 10 IF_OUT 11 IF_IN 12 BV 13 AM 14 GND 15 AFT 16 RF_AGC 17 VIDEO 18 SDA 19 SCL 20 MSP 21 4MHz_IN 22 R2044 0 R250 10k *R566 1k Q871 BC857B C888 50V 0.1u C2025 16V 10u JSD090 T3A205016 GND GND C2005 50V 0.1u AG R129 100 D22 1 GT TPD2 1/2W R558 120k C2019 50V 1000p AG D11 ** 1 3 5 C824 50V 220p GND C568 500V 470p *D101 MA3020TX JSD044 T3A206022 R465 820 C873 500V 470p R121 10k TPD4 GND TPD21 JSD063 T3A2060195 AG D557 ERB93-02E 1/2W R823 220 C2013 16V 10u GND *X102 EFCT7004BN MSP3410GAB83 *IC2001 1 NC 2 I2C_CL 3 I2C_DA 4 I2S_CL 5 I2S_WS 6 I2S_DA_OUT 7 I2S_DA_IN1 8 ADR_DA 9 ADR_WS 10 ADR_CL 11 DVSUP 12 DVSUP 13 DVSUP 14 DVSS 15 DVSS 16 DVSS 17 I2S_DA_IN2 18 NC 19 NC 20 NC 21 RESETQ 22 NC 23 NC 24 DACA_R 25 DACA_L 26 VREF2 27 DACM_R 28 DACM_L 29 NC 30 DACM_SUB 31 NC 32 NC 33 SC2_OUT_R 34 SC2_OUT_L 35 VREF1 36 SC1_OUT_R 37 SC1_OUT_L 38 CAPL_A 39 AHVSUP 40 CAPL_M 41 NC 42 NC 43 AHVSS 44 AHVSS 45 AGNDC 46 NC 47 SC4_IN_L 48 SC4_IN_R 49 ASG 50 SC3_IN_L 51 SC3_IN_R 52 ASG 53 SC2_IN_L 54 SC2_IN_R 55 ASG 56 SC1_IN_L 57 SC1_IN_R 58 VREFTOP 59 NC 60 MONO_IN 61 AVSS 62 AVSS 63 NC 64 NC 65 AVSUP 66 AVSUP 67 ANA_IN1+ 68 ANA_IN- 69 ANA_IN2+ 70 TESTEN 71 XTAL_IN 72 XTAL_OUT 73 TP 74 AUD_CL_OUT 75 NC 76 NC 77 D_CTR_I/O_1 78 D_CTR_I/O_0 79 ADR_SEL 80 STANDBYQ GND GND 3W R706 200 GND GND D575 B0BA5R200014 1/2W R576 0.39 R564 56k *D894 B0BA02100019 GND *C895 16V 100u GND C2035 50V 1p R715 2.7k L104 EXCELDR35V *R867 6.8k GND Q552 2SC1473ATA 3W R553 0.68 * * C822 50V 0.01u D881 B0BA03600019 C706 500V 470p D560 RH3GLF102 * * 1/2W *R878 10k C702 100V 3.3u D873 FMGG26S * * GND R713 300 D505 B0BA01000052 GND BA09ST-V5 IC880 1 2 3 4 5 C2010 50V 1000p 2W R820 0.27 R2011 18k R118 680 C584 5600p 2kV * * R717 2.4k 1/2W R716 68 C2053 50V 220p L867 ELEIE470KA * * AG C119 16V 220u *F870 TSF19252 R2016 100 C2007 50V 1000p C2016 50V 10u C2021 50V 3.3u TNR *R139 100 AG C2046 16V 47u R259 120 R137 0 1/2W R830 680k TNR IC851 C0DAFKE00001 1 2 3 4 5 6 7 8 9 10 11 AG C552 2kV 1000p * * C558 50V 100u CL187 AG 1/2W *R865 18 CL034 *Q896 2SK2231TE16L G D S R251 470 C254 50V 1000p R2029 100 TNR *C136 50V 0.1u GND D717 MA4020LTA R560 270k C255 50V 4.7u CL126 AG C2009 50V 1000p *JSD085 T3A206022 CL229 Q101 BC847B R883 47k D21 1 GT R252 10k 1W R509 2.2k R463 620 L2006 ELJFC4R7KF APG R882 15k D2006 B0AACK000004 GND R886 7.5k GND L874 EXCELSA35T 1/2W R704 4.7k *D456 MTZJT-776.2B C878 16V 10u C861 16V 100u R720 3k C2051 16V 0.33u R2021 5.6k R2036 0 *C109 50V 4700p TPD18 R142 0 AV3_V AG R2015 100 *L873 EXCELSA35T AG JSD047 0 C2028 16V 10u D504 B0AACK000004 C709 50V 0.033u R556 120k R710 0 GND C821 50V 1u X2001 4730007158 C141 50V 0.01u IC251 C1BA00000269 1 2 3 4 5 6 7 8 9 10 11 12 C564 ECEA2AN2R2SB R709 47k R507 68 3W C2058 16V 47u C262 50V 10u GND D457 1SS133T-77 GND D891 B0AACK000004 CL022 *R860 47k CL021 D888 B0AACK000004 GND 1W R725 2k C557 500V 470p GND R455 22k *JSD084 T3A205016 C562 500V 100p C108 16V 47u GND *D893 BZX79B75A26A C501 25V 100u Q503 2SD1223TE16L C825 50V 470p Q252 BC847B CL019 C269 50V 3300u GND *R2020 100 R501 3.9k TNR D558 ERB93-02E GND C572 0.01u 100V 3W R899 3.3 R885 7.5k L865 EXCELSA35T D883 RK46LF-M1 ** ** *Q867 2SA1534A-RTA C2003 50V 470p D878 B0AACK000004 GND *C879 35V 330u 1/2W R828 10 D251 MA700ATA F871 TSF19632 2W R724 82 AG L2008 EXCELSA35T *L870 EXCELSA35T C256 50V 1000p C117 50V 0.01u *R143 0 3W R581 560 * * TNR R263 2.2 GND AG D877 B0AACK000004 GND *JSD057 T3A205016 GND C2055 50V 220p *D867 1SR124-4AT82 TA4805SLBS1 *IC854 OUT 2 3 GND IN 1 D502 EU02V0 1% R894 10k GND *Q106 BC847B *R122 330 R708 10k C884 50V 10u D714 MTZJT-775.6A R2032 100 Q556 BC847B JSD087 GND R503 10k *C2031 50V 7p *C551 2kV 330p * * CL181 C2049 16V 0.33u TNR C2024 50V 220p C142 50V 0.1u C2002 50V 1500p C2004 50V 220p *C567 25V 470u D896 B0AACK000004 JSD028 T3A205016 *C459 100V 0.22u AG *R569 1k D556 UDZSTE-1722B CL180 *R861 12k APG TNR C2020 50V 1000p C2029 50V 1500p *Q866 MPSA42 CL222 JSD036 T3A205016 C862 16V 100u *D887 1SR124-4AT82 GND D880 B0AACK000004 C508 50V 3900p C2011 50V 1000p *JSD089 T3A206022 R559 0 D18 1 APG C138 50V 22p AG_AV3 GND C2062 50V 220p D454 EU02V0 R561 22k D866 RU4BLF-L1 ** ** R2043 0 TNR D2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 *R877 2k TNR GND *X101 EFCT6504BN AG GND R135 100 C2048 16V 0.33u D895 B0BA5R000004 GND C708 50V 0.033u R113 22k C2030 50V 470p 1W R510 2.2k GND C583 5600p 2kV * * GND C2063 50V 220p C2042 16V 0.33u *R461 ERX2SJS1R2H C890 50V 0.1u TNR 1/2W *R875 2.2 L871 EXCELSA35T C2026 50V 0.1u R114 470 L866 EXCELSA35T GND R148 0 R451 22k *T551 ZTFN65004A 1 ** 2 ** 4 ** 5 ** 6 ** 7 ** 8 ** 9 ** 10 ** 3 ** 11 ** 3W R460 270 C107 50V 0.1u *R562 100k GND GND 2W R829 47 *D102 MA3020TX CL158 R2024 0 R2041 0 GND *L103 EXCELSA35B C864 25V 470u C130 50V 0.01u GND AG *R896 0 R2037 1k C137 50V 56p TA48M033F IC852 OUT 2 3 GND IN 1 GND C2059 16V 47u *R871 0 50V 0.33u C111 3W *R874 150 GND C875 50V 1000u R257 15 L109 ELJFC4R7KF C889 16V 100u C2032 50V 47p TPD6 GND D2008 B0AACK000004 C2054 50V 220p GND L2001 10u R2033 470 C566 500V 470p C565 50V 0.027u GND 1/2W R825 1k IC885 PC123FY2 *R897 6.2k R707 2.7k CL154 C2052 50V 220p C703 50V 0.033u JSD027 0 T3A206032 GND R115 1k D559 B0AACK000004 IC820 STRW6754LF06 6 3 * 1 * 5 4 7 C710 50V 1u T501 ETH19Y212AZ 1 * 2 3 * 4 * 6 * R1047 1k TPD8 C260 0.68u 50V AG AG GND JSD058 T3A206022 L582 220u * * 10W R703 3.3 * * 3W *R873 150 R868 270 C110 50V 0.01u R2013 100 R112 100 R722 2.4k C573 50V 220p D9 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 D1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 *R133 2.2k TNR R723 47k C2017 50V 1000p D576 EU02V0 C264 50V 0.15u R555 0 D822 SARS01V1 C2056 16V 47u 3W R702 1 * * GND C867 200V 100u * * C265 50V 0.15u AG_AV3 TNR C251 50V 1u L2004 ELESN101KA GND R2038 5.6k R120 2.2k C2018 50V 1000p GND C823 50V 10u C266 50V 0.1u GND D2010 B0BA4R800003 TPD3 M < M S < m = S * S S - m S - S = * = S * = * = M M S < * * M S M * S M * M 3.3V 8V DAF TO FBT 5V_HOUT GND INPUT1 RESET DISABLE INPUT3 PROGRAM INPUT2 DAF HORIZONTAL DY NC HOT 5 -3 5 L-FB-IN L-IN FILTER GND_AG R-IN R-FB-IN R-OUT MUTE VCC L-OUT O/P APG VERT DY 19.4 20 20.2 20.5 20.2 O/P APG 6 11 CTL Vcc GND OUT NC (PSU) HOT COLD TNP8ED020 D BOARD ! - + + + L.F + + L L V Y C G R R GND_AV3_CVBS GND_AV3_CVBS AC_AV3_Y AV3_Y LIVE AC_AV3_Y AC_AV3_R AV3_R AC_AV3_L AV3_L GND_AV3_AUDIO AC_AV3_C AV3_C AB_RC_SIG AB_KEYSCAN AC_AV3_L AC_AV3_R GND_HP AB_LED_IRD LED_IRD AB_KEYSCAN KEYSCAN AB_LED_SBY LED_SBY AB_RC_SIG RC_SIG AC_AV3_C NEUTRAL DEGAUSS DEGAUSS 400V GND_LPG GND_LPG 6.5V AB_HP_L HP_L AB_HP_R HP_R 5V STR_Vcc IRD_ON HEADPHONE_SW AB_LED_SBY 0V AV3_V 1/2W R803 68k 2W R3208 150 R854 20k CL64 Q850 BC847B C3214 50V 560p AV3_A R1007 10k C805 4700p JSG040 T3A206022 JSG027 T3A205016 L2352 EXCELDR35V D802 RBV408 * * * * 2W R3203 150 D804 BZX79B75A26A SW801 ESB92DA1B ** ** ** ** R853 10k D803 BZX79B75A26A L3205 ELESN6R8KA C3216 SMG1HV470MT5 LPG AV3_V R3212 100 CL63 AV3_A C809 630V 82n * * R3215 15k TPG6 LPG C1007 50V 27p R1017 10k AG C3215 SMG1HV470MT5 D3204 UDZSTE-1716B C801 AC250V 220n GT * AV3_V C1003 50V 100n JSG039 T3A206022 LPG JSG041 T3A206022 Q1002 BC847B JSG007 T3A206022 C1004 50V 10n JSG037 T3A205016 G7 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 L3204 ELESN6R8KA SW1006 EVQ21405R L3206 EXCELSA35T G6 D9 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 R852 47 TPG1 LPG C3204 50V 560p C807 4700p G14 SPEAKERS 1 2 3 4 JSG012 T3A206027 C2364 50V 1n Q852 BC847B AV3_A G4 1 ** 3 ** ** 5 C808 4700p SW1007 EVQ21405R LF801 ELF21V012A 1 * 2 * 3 * 4 * 1/2W R3205 150 L804 ETQR42T005A 1 ** 2 3 4 5 6 ** 7 ** 8 9 10 11 12 ** AV3_A R3202 10k SW1004 EVQ21405R C804 275V 0.15u * * LPG D1001 LNH201RFCF6 C3213 50V 560p LPG C3207 50V 270p R860 10k 1/2W R801 1M * * CL62 R1251 0 C811 100p D1004 B0BA8R200005 D3201 B0BA8R200005 D809 AU02AV0 G2 TO_DEGAUSS 1 2 AG C1005 16V 100u AG SW1003 EVQ21405R C3202 50V 10n L1061 330u LPG C1002 16V 100u RL801 8-1419125-3 * * C3201 50V 10n C2363 50V 1n R3201 10k R1005 3.3k R3214 15k AV3_A JSG023 T3A206022 AG SW1005 EVQ21405R AG R1045 22k D851 1SS133T-77 G1 1 ** 3 4 ** LPG AG HP L3201 ELESN6R8KA AV3_A CF807 59890T60B110 * * * R1046 68k JSG042 T3A206022 LPG RM1001 RPM6937 ROUT GND VCC CL65 L2351 EXCELDR35V AG D3203 B0BA8R200005 R1043 6.8k G AV3_V AV3_V LPG C3218 50V 560p LPG L3202 ELESN6R8KA C806 4700p JSG008 T3A206022 R3213 100 1/2W R3217 150 AV3_A R1044 12k LPG S5055AC F801 D808 AU02AV0 AV3_A D3202 B0BA8R200005 JSG011 T3A206027 C3203 50V 560p JK3201 TJB8E026 R R-G L L-G V V-G Y-SW Y Y-G G C-G C-SW C G 7 6 2 3 1 4 5 9 8 LPG AV3_A C3217 50V 560p JSG009 T3A206027 -4.6 5 5 FUNCTION - TV/AV + STR 1/2w S002 S001 S003 HOT HOT COLD TNP8EG021 G BOARD ! * * S S = S < S < P2A NC NC NC NC P1B P2B NC NC NC NC P1A S S S + + GND G1 KG G2 KR GND H H KB NC + + + + + + G GND GND SENSE B SVM R 9V 137V 137V NC 200V NC HTR GND GND 200V CL059 DEF CL057 DEF CL045 1W R378 820 CL033 CL027 TPL3 SIG Q351 BC857B SIG C373 50V 0.1u 1W R358 820 CL046 C368 16V 220u R903 10 SIG CL004 C363 50V 0.1u Q903 2SA1535ARLB DEF C901 16V 100u 5W R904 1.5k C375 500V 1000p CL005 SIG L8 1 DEF L10 1 SIG CL051 D351 B0ACCK000005 C353 50V 0.1u C358 50V 0.1u C360 25V 0.1u TPL4 R381 1k SIG TPL8 SIG CL031 L7 1 2 CL020 DEF SIG TPL6 CL043 CL029 DEF CL038 CL039 SIG 2W R910 180 CL061 SIG Q904 2SC3944ARLB SIG CL030 R352 2k R356 56 SIG CL053 SC381A 0330550049 5 6 7 8 9 10 11 12 CL036 IC371 TDA6101Q/N3 1 2 3 4 5 6 7 8 9 D354 B0ACCK000005 L11 1 2 3 R905 270 C359 50V 15p CL040 SIG C386 2kV 1500p DEF SIG CL028 TPL9 Q901 BC857B R364 1k DEF IC351 TDA6101Q/N3 1 2 3 4 5 6 7 8 9 R372 2k 1W R365 82k CL050 CL047 R380 3.9k D371 B0ACCK000005 R907 120k R914 330 SIG SIG CL026 1W R375 82k R906 1.2k SIG SIG C374 250V 0.1u C354 250V 0.1u DEF CL037 CL006 R901 270 CL032 C903 500V 4700p TPL7 R909 10 L3 1 2 3 4 5 6 7 C372 50V 0.1u SIG CL056 R373 820 R370 1.2 1W CL044 R366 56 R357 680 Q902 BC847B SIG SIG C385 250V 10u C382 50V 10u C365 500V 1000p CL007 1/2W R350 150 CL060 C352 50V 0.1u TPL5 CL035 CL003 SIG R902 1.2k D355 MA723TA CL052 TPL1 D361 B0ACCK000005 CL019 C906 160V 22u C362 50V 0.1u C364 250V 0.1u TPL2 CL049 R360 1k SIG Q352 BC857B JSL007 C902 50V 0.01u CL055 CL042 SIG IC361 TDA6101Q/N3 1 2 3 4 5 6 7 8 9 C379 50V 15p SIG R362 2k C355 500V 1000p CL011 CL054 DEF R908 120k C366 16V 100u C904 50V 4700p L2 1 2 3 4 5 6 7 8 1W R355 82k C905 160V 22u R376 56 R353 820 1W R368 820 R359 390 CL048 R363 820 DEF C907 160V 22u SIG CL041 R354 1k D372 ERA15-04V3 D353 ERA15-04V3 D352 ERA15-04V3 D373 ERA15-04V3 SIG SIG D362 ERA15-04V3 D363 ERA15-04V3 SIG SIG SIG JSL001 DEF SIG JSL008 6.5 0 2.5 Vin GND V DDL 11.7 2.5 Vip Vin V DDL GND Vip 6.5 0 2.5 11.8 2.5 6.5 0 2.5 Vin V DDL GND 11.8 2.5 Vip Vof 149 149 Voc Vcn V DDH Vof Voc Vcn V DDH 150 156 150 Vof 156 161 156 Voc Vcn V DDH TNP8EL021 L BOARD ! * * S < * * m m - - m *
