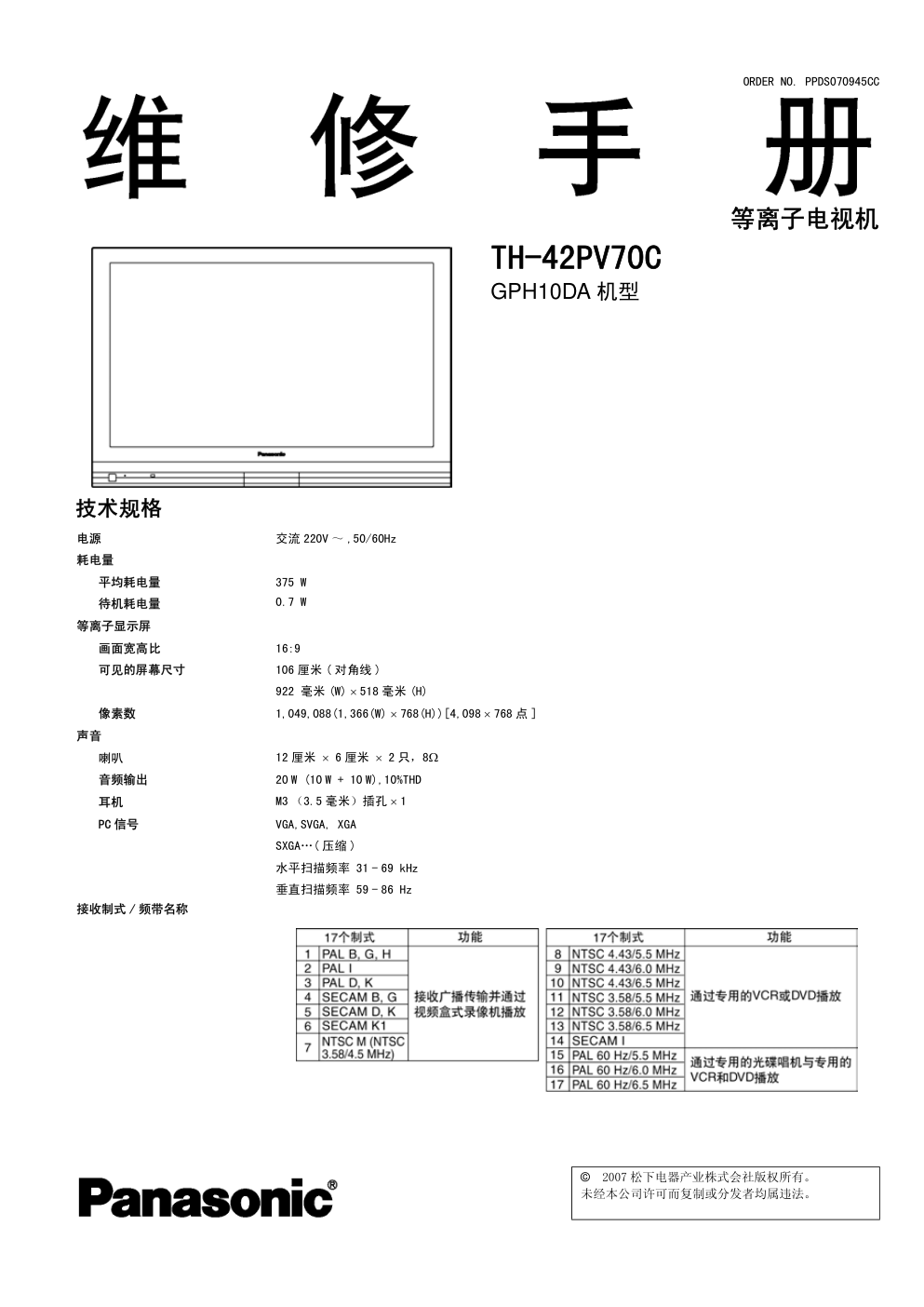

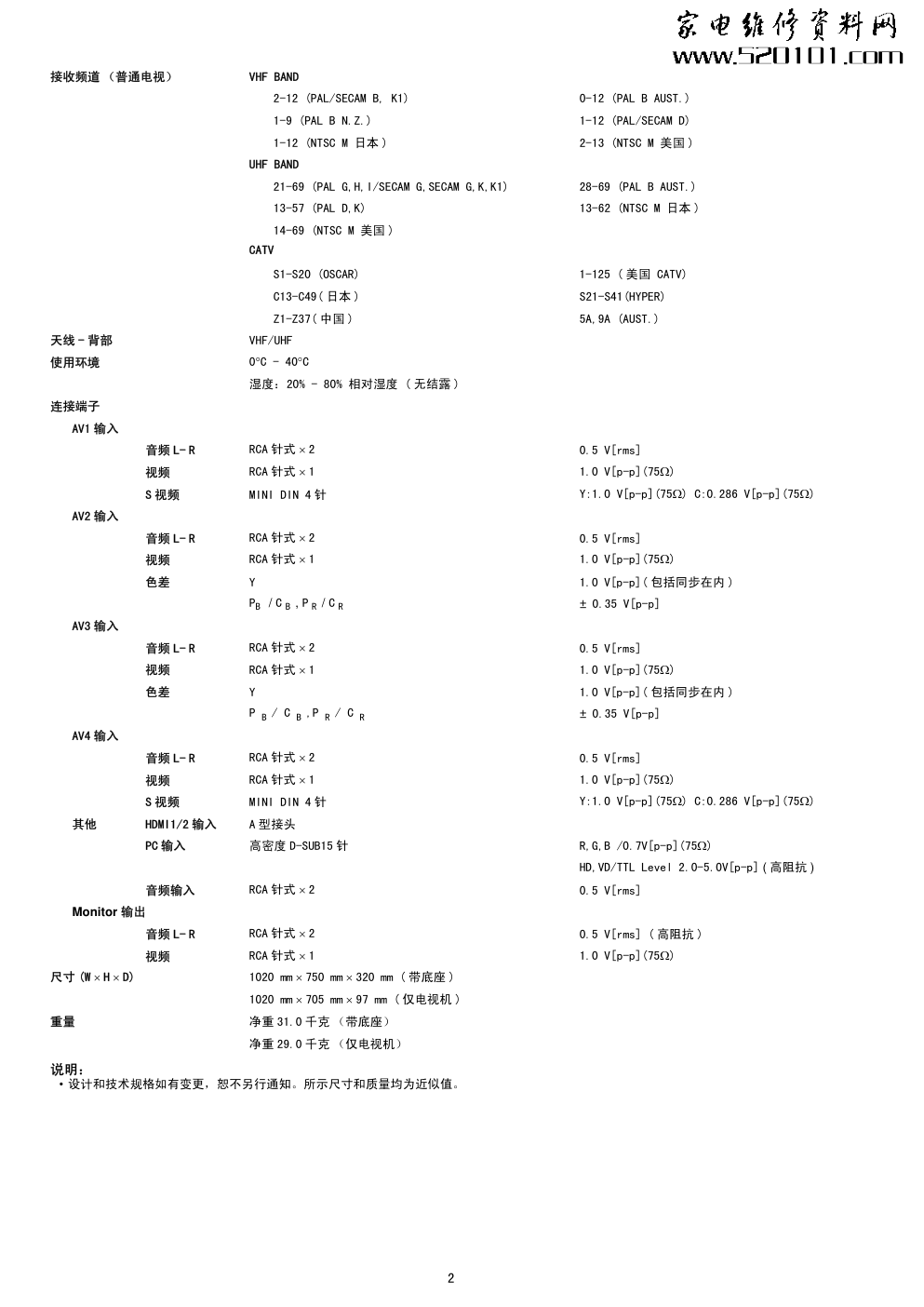

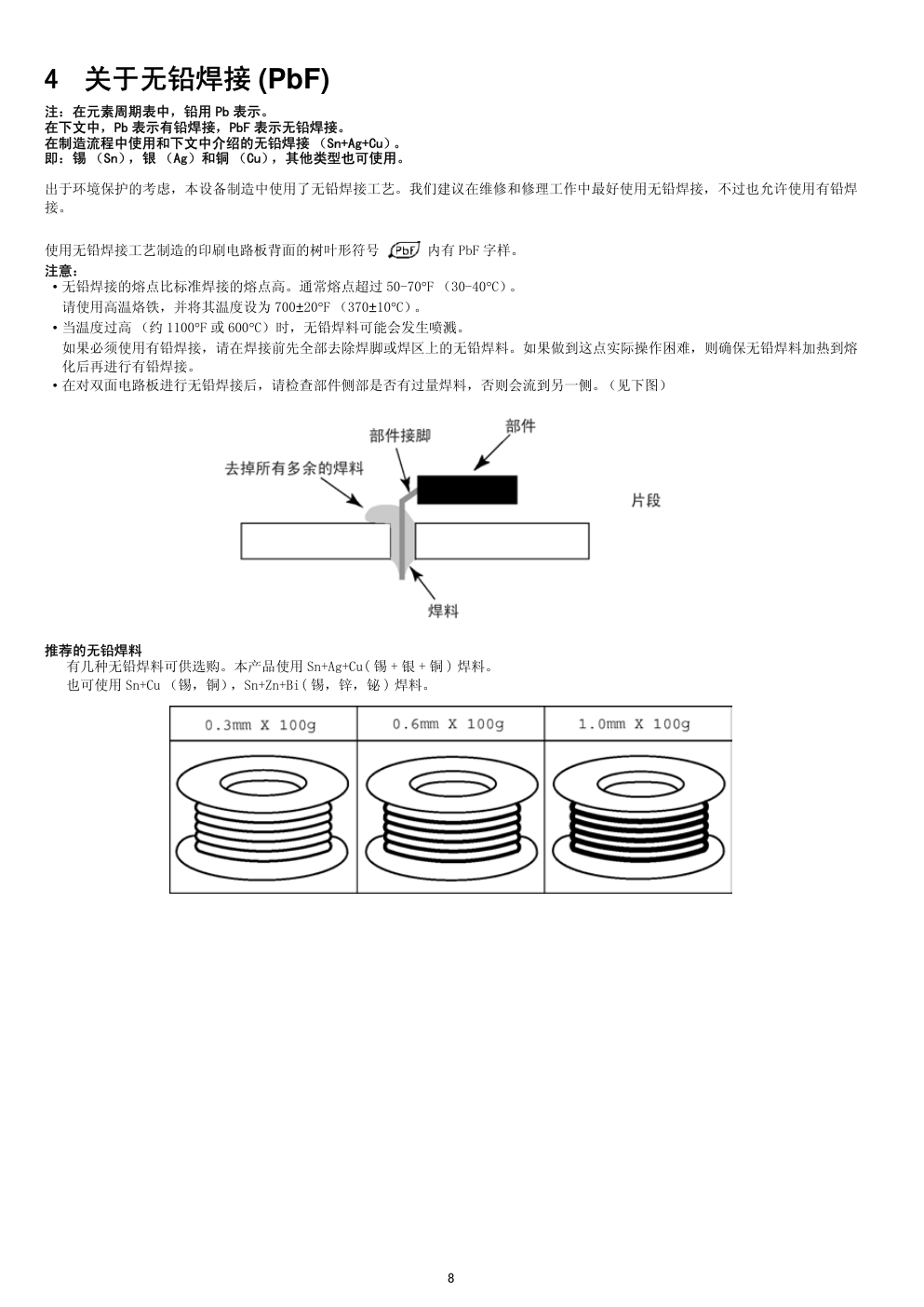

© 2007 松下电器产业株式会社版权所有。 未经本公司许可而复制或分发者均属违法。 ORDER NO. PPDS070945CC 等离子电视机 TH-42PV70C GPH10DA 机型 技术规格 电源 交流 220V ～ ,50/60Hz 耗电量 平均耗电量 375 W 待机耗电量 0.7 W 等离子显示屏 画面宽高比 16:9 可见的屏幕尺寸 106 厘米 ( 对角线 ) 922 毫米 (W) × 518 毫米 (H) 像素数 1,049,088(1,366(W) × 768(H))[4,098 × 768 点 ] 声音 喇叭 12 厘米 × 6 厘米 × 2 只，8Ω 音频输出 20 W (10 W + 10 W),10%THD 耳机 M3 （3.5 毫米）插孔 × 1 PC 信号 VGA,SVGA, XGA SXGA…( 压缩 ) 水平扫描频率 31 - 69 kHz 垂直扫描频率 59 - 86 Hz 接收制式 / 频带名称 2 接收频道 （普通电视） VHF BAND 2-12 (PAL/SECAM B, K1) 0-12 (PAL B AUST.) 1-9 (PAL B N.Z.) 1-12 (PAL/SECAM D) 1-12 (NTSC M 日本 ) 2-13 (NTSC M 美国 ) UHF BAND 21-69 (PAL G,H,I/SECAM G,SECAM G,K,K1) 28-69 (PAL B AUST.) 13-57 (PAL D,K) 13-62 (NTSC M 日本 ) 14-69 (NTSC M 美国 ) CATV S1-S20 (OSCAR) 1-125 ( 美国 CATV) C13-C49( 日本 ) S21-S41(HYPER) Z1-Z37( 中国 ) 5A,9A (AUST.) 天线 - 背部 VHF/UHF 使用环境 0°C - 40°C 湿度：20% - 80% 相对湿度 ( 无结露 ) 连接端子 AV1 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) S 视频 MINI DIN 4 针 Y:1.0 V[p-p](75Ω) C:0.286 V[p-p](75Ω) AV2 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) 色差 Y 1.0 V[p-p]( 包括同步在内 ) PB / C B , P R / C R ± 0.35 V[p-p] AV3 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) 色差 Y 1.0 V[p-p]( 包括同步在内 ) P B / C B ,P R / C R ± 0.35 V[p-p] AV4 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) S 视频 MINI DIN 4 针 Y:1.0 V[p-p](75Ω) C:0.286 V[p-p](75Ω) 其他 HDMI1/2 输入 A 型接头 PC 输入 高密度 D-SUB15 针 R,G,B /0.7V[p-p](75Ω) HD,VD/TTL Level 2.0-5.0V[p-p] ( 高阻抗 ) 音频输入 RCA 针式 × 2 0.5 V[rms] Monitor 输出 音频 L- R RCA 针式 × 2 0.5 V[rms] ( 高阻抗 ) 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) 尺寸 (W × H × D) 1020 mm × 750 mm × 320 mm ( 带底座 ) 1020 mm × 705 mm × 97 mm ( 仅电视机 ) 重量 净重 31.0 千克 （带底座） 净重 29.0 千克 （仅电视机） 说明： • 设计和技术规格如有变更，恕不另行通知。所示尺寸和质量均为近似值。 3 目录 页数 页数 1 适用信号----------------------------------------- 5 2 安全警告----------------------------------------- 6 2.1. 一般准则 ----------------------------------- 6 2.2. 漏电检查 ----------------------------------- 6 3 静电敏感设备 (ES) 的静电放电保护 (ESD) ------------ 7 4 关于无铅焊接 (PbF) ------------------------------- 8 5 维修提示----------------------------------------- 9 6 等离子显示屏更换方式---------------------------- 10 6.1. 取下后盖 ---------------------------------- 10 6.2. 取下后端子盖 ------------------------------ 10 6.3. 取下 P 电路板 ------------------------------ 10 6.4. 取下 PB 电路板 ----------------------------- 10 6.5. 取下调谐器组件 ---------------------------- 10 6.6. 取下 DG 电路板 ----------------------------- 11 6.7. 取下 D 电路板 ------------------------------ 11 6.8. 取下 SU 电路板 ----------------------------- 11 6.9. 取下 SD 电路板 ----------------------------- 12 6.10. 取下 SC 电路板 ----------------------------- 12 6.11. 取下 SS 电路板 ----------------------------- 12 6.12. 取下支架 ---------------------------------- 12 6.13. 取下 C1 电路板 ----------------------------- 13 6.14. 取下 C2 电路板 ----------------------------- 13 6.15. 取下前支架 -------------------------------- 13 6.16. 取下 G 电路板 ------------------------------ 13 6.17. 取下左、右扬声器 -------------------------- 13 6.18. 取下 S 电路板 ------------------------------ 14 6.19. 取下 K 电路板 ------------------------------ 14 6.20. 取下前面框 （玻璃）上的等离子显示屏部件 --- 14 6.21. 安装等离子显示屏 （完成）------------------ 15 7 注意事项---------------------------------------- 16 7.1. 注意事项 ---------------------------------- 16 8 导线布置---------------------------------------- 17 8.1. 导线 (1) ---------------------------------- 17 8.2. 导线 (2) ---------------------------------- 18 8.3. 导线 (3) ---------------------------------- 19 9 自检功能---------------------------------------- 20 9.1. IIC 总线检测 ------------------------------ 20 9.2. 电源 LED 闪烁次数图 ------------------------ 21 9.3. 无电源 ------------------------------------ 22 9.4. 无图像 ------------------------------------ 23 9.5. 显示器局部故障 ---------------------------- 24 10 维修模式---------------------------------------- 25 10.1. 如何进入维修模式 -------------------------- 25 10.2. 维修工具模式 ------------------------------ 27 11 调整步骤---------------------------------------- 28 11.1. 驱动器设置 -------------------------------- 28 11.2. 初始化脉冲调整 ---------------------------- 29 11.3. P.C.B. （印刷电路版）更换 ----------------- 29 11.4. 调整点位置 -------------------------------- 30 11.5. 测试点位置 -------------------------------- 30 12 调整-------------------------------------------- 31 12.1. 副对比度调整 ------------------------------ 31 12.2. PAL 显示屏白平衡调整 -----------------------32 12.3. HD 白平衡调整 ------------------------------33 13 旅馆模式 ----------------------------------------34 14 导线图 ------------------------------------------35 14.1. P 电路板 -----------------------------------35 14.2. PB 电路板 ----------------------------------38 14.3. DG 电路板 ----------------------------------39 14.4. D 电路板 -----------------------------------42 14.5. C1 电路板 ----------------------------------44 14.6. C2 电路板 ----------------------------------45 14.7. SC 电路板 ----------------------------------46 14.8. SU 电路板 ----------------------------------49 14.9. SD 电路板 ----------------------------------50 14.10. SS 电路板 ----------------------------------51 14.11. K 和 S 电路板 -------------------------------53 14.12. G 电路板 -----------------------------------54 15 方框图和线路图 ----------------------------------55 15.1. 线路图注意事项-----------------------------55 15.2. 主要集成电路方框图-------------------------56 15.3. P 电路板方框图 -----------------------------57 15.4. P 电路板 (1/4) 线路图 -----------------------58 15.5. P 电路板 (2/4) 线路图 -----------------------59 15.6. P 电路板 (3/4) 线路图 -----------------------60 15.7. P 电路板 (4/4) 线路图 -----------------------61 15.8. PB 电路板方框图和线路图 --------------------62 15.9. DG 电路板 (1/4) 方框图 ----------------------63 15.10. DG 电路板 (2/4) 方框图 ----------------------64 15.11. DG 电路板 (3/4) 方框图 ----------------------65 15.12. DG 电路板 (4/4) 方框图 ----------------------66 15.13. DG 电路板 (1/16) 线路图 ---------------------67 15.14. DG 电路板 (2/16) 线路图 ---------------------68 15.15. DG 电路板 (3/16) 线路图 ---------------------69 15.16. DG 电路板 (4/16) 线路图 ---------------------70 15.17. DG 电路板 (5/16) 线路图 ---------------------71 15.18. DG 电路板 (6/16) 线路图 ---------------------72 15.19. DG 电路板 (7/16) 线路图 ---------------------73 15.20. DG 电路板 (8/16) 线路图 ---------------------74 15.21. DG 电路板 (9/16) 线路图 ---------------------75 15.22. DG 电路板 (10/16) 线路图 --------------------76 15.23. DG 电路板 (11/16) 线路图 --------------------77 15.24. DG 电路板 (12/16) 线路图 --------------------78 15.25. DG 电路板 (13/16) 线路图 --------------------79 15.26. DG 电路板 (14/16) 线路图 --------------------80 15.27. DG 电路板 (15/16) 线路图 --------------------81 15.28. DG 电路板 (16/16) 线路图 --------------------82 15.29. D 电路板方框图 -----------------------------83 15.30. D 电路板 (1/6) 线路图 -----------------------84 15.31. D 电路板 (2/6) 线路图 -----------------------85 15.32. D 电路板 (3/6) 线路图 -----------------------86 15.33. D 电路板 (4/6) 线路图 -----------------------87 15.34. D 电路板 (5/6) 线路图 -----------------------88 15.35. D 电路板 (6/6) 线路图 -----------------------89 4 15.36. C1 和 C2 电路板方框图----------------------- 90 15.37. C1 电路板 (1/3) 线路图---------------------- 91 15.38. C1 电路板 (2/3) 线路图---------------------- 92 15.39. C1 电路板 (3/3) 线路图---------------------- 93 15.40. C2 电路板 (1/5) 线路图---------------------- 94 15.41. C2 电路板 (2/5) 线路图---------------------- 95 15.42. C2 电路板 (3/5) 线路图---------------------- 96 15.43. C2 电路板 (4/5) 线路图---------------------- 97 15.44. C2 电路板 (5/5) 线路图---------------------- 98 15.45. SC 电路板方框图---------------------------- 99 15.46. SC 电路板 (1/2) 线路图--------------------- 100 15.47. SC 电路板 (2/2) 线路图--------------------- 101 15.48. SU 和 SD 电路板方框图---------------------- 102 15.49. SU 电路板 (1/2) 线路图--------------------- 103 15.50. SU 电路板 (2/2) 线路图--------------------- 104 15.51. SD 电路板 (1/2) 线路图--------------------- 105 15.52. SD 电路板 (2/2) 线路图 ---------------------106 15.53. SS 和 S 电路板方框图 -----------------------107 15.54. S 电路板和 SS 电路板 (1/2) 线路图 -----------108 15.55. SS 电路板 (2/2) 线路图 ---------------------109 15.56. G 和 K 电路板方框图及 G 和 K 电路板线路图 ----110 16 部件布置及机械部件更换清单 ---------------------111 16.1. 部件布置 ----------------------------------111 16.2. 包装分解图 (1) ----------------------------112 16.3. 包装分解图 (2) ----------------------------113 16.4. 包装分解图 (3) ----------------------------114 16.5. 附件 --------------------------------------115 16.6. 更换部件清单注意事项 ----------------------116 16.7. 机械部件更换清单 --------------------------117 17 电器部件更换清单--------------------------------118 17.1. 电器部件更换清单 --------------------------118 5 1 适用信号 6 2 安全警告 2.1. 一般准则 1. 进行维修和维护时，请勿试图更改设备及其部件或其材料。 2. 维修连接线 （如电缆、柔性电缆或导线）时，当仅有一条导线或几条导线损坏或断开时，请勿试图维修或重新为其连接。请更 换整条连接线。 3. 进行维修和维护时，应直接拉出或插入固定连接器，而不应将其扭曲。 4. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 5. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸屏蔽等安装正确。 6. 维修后，进行以下漏电检查，以免用户遭受触电危险。 2.2. 漏电检查 1. 将 AC 电源线直接插入 AC 电源插座。进行检查时，请勿使用隔离变压器。 2. 在设备上各外露金属部分和良好接地 （如水管）之间连接一个电流测量装置，如图 1 所示。 3. 用漏电测试仪 （Simpson 228 或类似型号）测量通过该装置的电势。 4. 检查各外露金属部件，并测量各点电压。 5. 变换 AC 插座中的 AC 插头，并重复上述各项测量。 6. 各点 （漏电）的电势表示为电压 U1 和 U2，并且不能超过以下各值： 交流：U1=35V （峰值） U2=0.35V （峰值）； 直流：U1=1.0V， 注： 与交流的 U2 限定峰值 0.35V 和直流的 U1 限定峰值 1.0V 相对应的电流峰值分别为 0.7mA 和 2.0mA。 与交流的 U1 限定峰值 35V 相对应的 100kHz 以上的电流峰值为 70mA。 7. 当测量值超出规定的限制时，可能会引起触电。所以必须在机器返回用户手中之前对其进行修理和再检测。 漏电测量电路 电阻值 （Ω） V：电压表或示波器 （r.m.s. 或峰值） 输入电阻：≥ 1MΩ 输入电容：≤ 200pF 频率范围：分别为直流 15Hz 到 1MHz 注：必须使用合适的测量设备，以便在非正弦波形时测量准确。 图 1 7 3 静电敏感设备 (ES) 的静电放电保护 (ESD) 一些半导体（固态）装置很容易被静电损坏。这些装置通称为静电敏感装置（ES）。典型的 ES 装置有集成电路和一些场效应晶体管以 及半导体 “芯片”组件。以下方法通常被用来减少由于静电释放 （ESD） 所造成的组件损坏。 1. 在处理任何半导体组件或是配备有半导体组件的设备之前，接触已知地线以排除身体上的静电。或者戴上市面上可购买到的抗静 电腕带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 在拆卸配有静电敏感装置的电气组件后，请将组件放置于导体表面上 （如铝箔），以防止聚集静电或组件外露。 3. 仅使用末端接地的烙铁焊接或拆焊静电敏感装置。 4. 仅使用防静电拆焊装置。不属于 “防静电 （静电释放保护）”的拆焊装置可能会产生足以损坏静电敏感装置的电荷。 5. 禁止使用氟里昂驱动化学物质。它们能产生足以损坏静电敏感装置的电荷。 6. 在准备立即安装之前，才能拆开静电敏感备换装置的保护性包装，取出备换静电敏感装置。（大多数备换静电敏感装置都使用导 电泡沫、铝箔或类似导电性材料包装，其导线被短接。） 7. 从备换静电敏感装置导线上取下防护性材料前，使防护性材料接触机芯或即将安装的电路组件。 注意： 确定机芯或电路无电源，并遵守其它所有安全注意事项。 8. 在处理未包装的备换静电敏感装置时，尽量减少身体活动。（否则，如衣物纤维的摩擦或从铺有地毯的地面抬起脚等动作都会产 生足以损坏静电敏感装置的静电 （静电释放））。 8 4 关于无铅焊接 (PbF) 注：在元素周期表中，铅用 Pb 表示。 在下文中，Pb 表示有铅焊接，PbF 表示无铅焊接。 在制造流程中使用和下文中介绍的无铅焊接 （Sn+Ag+Cu）。 即：锡 （Sn），银 （Ag）和铜 （Cu），其他类型也可使用。 出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维修和修理工作中最好使用无铅焊接，不过也允许使用有铅焊 接。 使用无铅焊接工艺制造的印刷电路板背面的树叶形符号 内有 PbF 字样。 注意： • 无铅焊接的熔点比标准焊接的熔点高。通常熔点超过 50-70°F （30-40°C）。 请使用高温烙铁，并将其温度设为 700±20°F （370±10°C）。 • 当温度过高 （约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。 如果必须使用有铅焊接，请在焊接前先全部去除焊脚或焊区上的无铅焊料。如果做到这点实际操作困难，则确保无铅焊料加热到熔 化后再进行有铅焊接。 • 在对双面电路板进行无铅焊接后，请检查部件侧部是否有过量焊料，否则会流到另一侧。（见下图） 推荐的无铅焊料 有几种无铅焊料可供选购。本产品使用 Sn+Ag+Cu( 锡 + 银 + 铜 ) 焊料。 也可使用 Sn+Cu （锡，铜），Sn+Zn+Bi( 锡，锌，铋 ) 焊料。 9 5 维修提示 取下后盖 电路板名称 功能 电路板名称 功能 P 主电源 C1 数据驱动 ( 下右 ) DG 数字信号处理器、Micom、HDMI 接口、峰值 Lite 2、扬声 器输出、声音处理器、AV 端子、AV 切换、DC-DC 转换器 C2 数据驱动 ( 下左 ) SC 扫描驱动 K 遥控接收器，电源指示灯 SU 扫描输出 ( 上 ) S 电源开关 SD 扫描输出 ( 下 ) PB 风扇控制 SS 维持驱动 D 格式转换，等离子 AI， 子场处理器 G 按键开关、前端子 10 6 等离子显示屏更换方式 6.1. 取下后盖 1. 参见维修提示 （请参见第 5 章节） 6.2. 取下后端子盖 1. 松开螺丝 （×8 ， ×4 ， ×2 ， ×2 ）。 2. 取下后端子盖。 6.3. 取下 P 电路板 注意： 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.C.B.。 1. 松开线夹，取下电缆。 2. 断开连接件 （P2，P6，P7，P9，P11，P12 和 P25）。 3. 松开螺丝 （×9 ），并取下 P 电路板。 6.4. 取下 PB 电路板 1. 松开线夹，取下电缆。 2. 断开连接件 （PB7，PB8，PB36 和 PB37）。 3. 松开螺丝 （×2 ），并取下 PB 电路板。 6.5. 取下调谐器组件 1. 松开线夹，取下电缆。 2. 断开连接件（DG1, DG5, DG6, DG7, DG8, DG12 和 DG51）。 3. 松开螺丝 （×4 ），并取下调谐器组件。 11 6.6. 取下 DG 电路板 1. 取下调谐器组件。（请参见 6.5 章节） 2. 松开螺丝 （×1 ），并取下 SD 卡支架。 3. 松开螺丝 （×9 ），并取下 DG 电路板。 6.7. 取下 D 电路板 1. 取下调谐器组件。（请参见 6.5 章节）。 2. 断开连接件 （D5 和 D25）。 3. 断开柔性电缆 （D20，D31 和 D32）。 4. 松开螺丝 （×4 ），并取下 D 电路板。 6.8. 取下 SU 电路板 1. 松开螺丝 （×2 ）。 2. 断开连接到 SU 板上的柔性电缆 （SU1，SU2，SU3 和 SU4）， 并取下桥连接器 （SC45-SU45）。 3. 将 SU 板移到左边，并与 SC 板的连接件（SC41-SU41）断开， 取下 SU 电路板。 12 6.9. 取下 SD 电路板 1. 松开螺丝 （×2 ）。 2. 断开连接到 SD 板上的柔性电缆 （SD1，SD2，SD3 和 SD4）， 并取下桥连接器 （SC46-SD46）。 3. 将 SD 板移到左边，并与 SC 板的连接件（SC42-SD42）断开， 取下 SD 电路板。 6.10. 取下 SC 电路板 1. 取下 SU 电路板和 SD 电路板。 （请参见第 6.8 章节和第 6.9 章节） 2. 松开线夹，取下电缆。 3. 断开连接件 （SC2）。 4. 断开柔性电缆 （SC20）。 5. 松开螺丝 （×6 ），并取下 SC 电路板。 6.11. 取下 SS 电路板 1. 断开连接件 （SS11，SS12，SS23 和 SS34）。 2. 断开柔性电缆 （SS53A，SS54A，SS55A 和 SS56A）。 3. 松开螺丝 （×6 ），并取下 SS 电路板。 6.12. 取下支架 1. 将等离子显示屏从维修支架上取下，将显示屏朝下放置在 类似桌子 （铺有软布）的表面上。 2. 松开支架 （左、右）固定螺丝 （各 ×6 ），并取下支架 （左、右） 13 6.13. 取下 C1 电路板 1. 取下调谐器组件。（请参见 6.5 章节） 2. 松开线夹，取下电缆。 3. 取下柔性电缆固定器的固定螺丝 （×10 ）。 4. 断开柔性电缆 （CB1，CB2，CB3，CB4 和 CB5）。 5. 断开柔性电缆 （C10 和 C11）。 6. 松开螺丝 （×4 ），并取下 C1 电路板。 6.14. 取下 C2 电路板 1. 取下调谐器组件。（请参见 6.5 章节） 2. 松开线夹，取下电缆。 3. 取下柔性电缆固定器的固定螺丝 （×12 ）。 4. 断开柔性电缆 （CB6，CB7，CB8，CB9，CB10 和 CB11）。 5. 断开柔性电缆 （C20 和 C21）。 6. 断开连接件 （C23）。 7. 松开螺丝 （×4 ），并取下 C2 电路板。 6.15. 取下前支架 1. 松开线夹， 取下电缆。 2. 断开连接件 （DG51）。（请参见 6.5 章节） 3. 松开螺丝 （×5 ），并取下前支架。 6.16. 取下 G 电路板 1. 取下前支架。（请参见第 6.15 章节） 2. 松开螺丝 （×4 ），并取下前屏蔽仓和控制按钮。 3. 松开螺丝 （×2 ），并断开连接件 （G51）。 4. 取下 G 电路板。 6.17. 取下左、右扬声器 1. 断开连接件 （DG12）。（请参见 6.5 章节） 2. 松开螺丝 （各 ×4 ），并取下左、右扬声器。 14 6.18. 取下 S 电路板 1. 松开螺丝 （×2 ），并取下 S 电路板金属框。 2. 断开连接件 （S1）。 3. 松开螺丝 （×2 ），并取下 S 电路板。 6.19. 取下 K 电路板 1. 取下 S 电路板。（请参见第 6.18 章节） 2. 松开线夹，取下电缆。 3. 断开连接件 （DG1）。（请参见第 6.5 章节） 4. 松开螺丝 （×2 ），并滑至右侧卸下 K 电路板。 5. 断开连接件 （K1）, 并取下 K 电路板。 6.20. 取下前面框（玻璃）上的等离子显 示屏部件 1. 从维修支架上取下等离子显示屏部件，放置在类似桌子（铺 有软布）等的平坦的表面上，并且等离子显示屏表面朝下。 2. 取下支架 （左，右）固定螺丝 （各 ×2 ）。 3. 重新放置维修支架，并固定电视机。 4. 取下前面框和等离子显示屏固定螺丝 （×7 ）。 15 5. 将等离子显示屏从前面框上取下时，拉住前面框底部，抬 起，并向前拉出。 6. 取下垫片和垫片环 （×6 ） 6.21. 安装等离子显示屏 （完成） 1. 将新的等离子显示屏（完成）放置在类似桌子（铺有软布） 等的表面上，并且等离子显示屏表面朝下。 2. 安装 C1 和 C2 电路板，用柔性电缆 (× 11) 将等离子显示屏 与 C1 和 C2 电路板连接，并固定柔性电缆固定器。 3. 安装卡钩 （左，右） ，并将支架 （左，右）安装到新的等 离子显示屏上。 4. 将等离子显示屏放置到维修架上。 5. 放置垫片及垫片环 (× 6）。 6. 将前面框和 P.C. 板等安装到新的等离子显示屏上。 * 安装机壳组件时，注意前玻璃和等离子显示屏之间不要有 碎屑、灰尘或杂质存在。 16 7 注意事项 7.1. 注意事项 注意 : 请确认所有的柔性电缆都正确束起，并且锁定在连接器内。 轻拉一下柔性电缆进行确认。 17 8 导线布置 8.1. 导线 (1) 如下图所示布置导线。 18 8.2. 导线 (2) 如下图所示布置导线。 19 8.3. 导线 (3) 如下图所示布置导线。 20 9 自检功能 应用自检功能测试本机。 1. 检测 IIC 总线 2. 电源 LED 闪烁次数 9.1. IIC 总线检测 9.1.1. 如何进入 仅自检指示： 进入 TV 接收屏幕，然后按主机 按钮的同时按下遥控器上的 [ 确定 ] 按钮 3 秒钟以上。 自检指示和恢复出厂设置： 进入 TV 接收屏幕，然后按主机 按钮的同时按下遥控器上的 [ 菜单 ] 按钮 3 秒钟以上。 9.1.2. 屏幕显示 9.1.3. 检查点 如果显示 NG，请确认检查下列部件。 9.1.4. 退出 从墙面插座上拔下 AC 电源线。 显示 参考号 说明 电路板 ADV IC4510 AD/HDMI DG 电路板 VSW IC3001 视频开关 H 电路板 ADAV IC2106 声音处理器 H 电路板 ASW IC3101 音频开关 H 电路板 GEN IC1100 GenX （STB MCU） DG 电路板 MEM1 IC1101 EEPROM （GenX） DG 电路板 MEM2 IC8601 EEPROM （Peaks） DG 电路板 TUN1 TU3200 调谐器 H 电路板 PDP-PANEL IC9003 MICOM D 电路板 TEMP IC4800 Temp 传感器 DG 电路板 21 9.2. 电源 LED 闪烁次数图 1. 主题 发光二极管闪烁时间图信息。 2. 内容 当设备出现异常时，保护电路将运行并将设备复位到待机状态。此时，通过本机前端的 LED 电源闪烁次数便可识别出故障部位。 22 9.3. 无电源 第一检测点 LED 无电源指示有二种情况： 1. 不亮 2. 红灯亮，几秒钟后转为红灯闪烁。（请参见第 9.2 章节） 23 9.4. 无图像 24 9.5. 显示器局部故障 等离子显示屏屏幕上可能会出现局部故障。图 1 是各局部可能会出现故障的 P.C.B. 印刷电路板。 25 10 维修模式 10.1. 如何进入维修模式 按主机 按钮的同时，在 3 秒钟内按遥控器上的 [RECALL] 按钮三次。 10.1.1. 主要指令 “1”按钮…正向选择主项目 “2”按钮…反向选择主项目 “3”按钮…正向选择副项目 “4”按钮…反向选择副项目 “RED”按钮…所有副项目选择反向 “GREEN”按钮…所有副项目选择正向 “VOL”按钮…正向 （+）或反向 （-）更改副项目的数据。 26 10.1.2. 调整模式内容 • 按十六进制显示数值。 • 预设值根据型号的不同而不同。 • 进入调整模式后，在开始调整前请记录各项目的值。 10.1.3. 如何退出 使用主机或遥控器上的 [POWER] 按钮关闭电源。 主项目 副项目 示例数据 备注 ADJUST CONTRAST 25E COLOR 2B TINT 00 SUB-BRT 810 H-POS 0 H-AMP 0 V-POS 0 V-AMP 0 WB-ADJ R-CUT 80 G-CUT 80 B-CUT 80 R-DRV F0 G-DRV F0 B-DRV FC ALL-CUT 80 ALL-DRV FC OPTION Panel-Type 42WHD 出厂预设 Boot ROM STBY-SET 00 Emergency ON Y/C Delay -1 OPT 1 00101000 OPT 2 11100010 OPT 3 01101111 AGING RGBW All white (COUNTER) All white All red All green All blue ON/OFF Diagonal lamp W Diagonal lamp R Diagonal lamp G Diagonal lamp B 1%WINDOW COLOR BAR A B zone/checkerd4 trio SCROLL BAR 2dot width border SRV-TOOL 参见下页 销售地区 C 中国 选项 1 28 选项 2 E2 选项 3 6F 27 10.2. 维修工具模式 10.2.1. 如何进入 1. 选择维修模式下的 “SRV-TOOL”。 2. 按遥控器上的 [ 确定 ] 按钮。 10.2.2. 显示 SOS 历史纪录 SOS 历史纪录 （LED 闪烁次数）指示。 从左侧开始依次为：最后一次 SOS、倒数第二次、倒数第三次、出厂后第二次、出厂后第一次。通过 “自检指示和恢复出厂设置”即 可清除该指示。 10.2.3. 开启 TIME/COUNT TIME （计时）：累计开启时间，显示小时：十进制分钟 COUNT （计数）：十进制开启次数 注意：无法通过自检或任何指令清除该指示。 10.2.4. 退出 1. 从墙面插座上拔下 AC 电源线。 28 11 调整步骤 11.1. 驱动器设置 11.1.1. 项目 / 准备 1. 输入白色信号到等离子显示屏视频。 2. 如下设定图像控制： 图像菜单：最佳 PNR：关闭 宽高比：16:9 注意 1. 首先进行 Vsus 调整。 2. Vad 调整确认后，再确定 Vscn 电压。当 Vad = -105V 时， Vscn 的电压为 40V ± 4V。 11.1.2. 调整 参照显示屏数据标牌上的显示屏数据，调整驱动器各部分的电 压。 使用万用表检查或调整下列电压。 * 见显示屏标签。 名称 测试点 电压 调整点 备注 Vsus TPVSUS(SS) Vsus±2V R628(P) * Ve TPVE(SS) Ve±1V VR6000(SS) * Vset TPVSET(SC) 330V±7V 固定 Vad TPVAD(SC) -105V±1V VR6600(SC) Vscn TPVSCN(SC) Vad+145V±4V 固定 Vda TPVDA(SS) 75V+1V, -2V 固定 PFC C446(+)(-) 396V±0.5V R443(P) 29 11.2. 初始化脉冲调整 1. 输入白色信号到等离子显示屏视频。 2. 如下设定图像控制： 图像菜单：最佳 PNR：关闭 宽高比：16:9 3. 连接示波器至测试点 TPSC1 （SC）。 检查并将每个短时脉冲 （T2）时长调整至规格范围之内。 11.3. P.C.B. （印刷电路版）更换 11.3.1. 注意 1. 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.C.B.。 11.3.2. P.C.B. 更换后进行快速调整 使用万用表调整以下电压。 * 见显示屏标牌签。 注意： 请勿将 Vsus 设置到 Ve 以下，以防损坏 P.C.B 板。 测试点 调整点 等级 T2 TPSC1(SC) VR6602 (SC) 190 ± 10μ Sec P.C.B. 名称 测试点 电压 调整点 备注 P 电路板 Vsus TPVSUS (SS) Vsus ± 2V R628(P) * PFC C446 396V ± 0.5V R443(P) SC 电路板 Vad TPVAD (SC) -105V ± 1V VR6600(SC) SS 电路板 Ve TPVE (SS) Ve ± 1V VR6000(SS) * D,DG 电路板 NTSC, PAL, HD, PC 和 625i 信号的白平衡和副亮度。 30 11.4. 调整点位置 11.5. 测试点位置 31 12 调整 12.1. 副对比度调整 仪器名称 连接 备注 RF 发生器 基带发生器 准备 （AV） 备注 1. 接收 AV1 ( 如下所示 PAL 100% 全白或彩条，如下图 )。 2. 进入维修模式。 3. 按 “1”或 “2”键，进入 “副对比度”维修模式。 AV 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为黑色。 4. 结束。 准备 （RF） 备注 1. 接收 RF (PAL 100% 全白或彩条，如下图 )。 2. 进入维修模式。 3. 按 “1”或 “2”键，进入 “副对比度”维修模式。 RF 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为黑色。 4. 结束。 准备 （HD） 备注 1. 接收分量。 (1080i/ 60Hz 或 1080i/ 50Hz, 100% 全白或彩条，如下图。) 2. 进入维修模式。 3. 按 “1”或 “2”键，进入 “副对比度”维修模式。 HD 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为黑色。 4. 结束。 32 12.2. PAL 显示屏白平衡调整 仪器名称 连接 备注 • 黑白模式 • 彩色分析仪 （Minolta CA-100 或同等产品） RF 输入 显示屏表面 用户设定：正常 步骤 备注 • 确保充分老练 15 分钟以上。 • 确保前面板已经安装在整机上。 • 确认调整之前无彩色信号显示。 • 将彩色分析仪放置在有轻微色差的地方。 通电后 10 分钟内完成调整。 通过老练等不能完成调整时，重新打开电源。 1. 显示白平衡图像。 2. 进入维修模式。 3. 操作数字键 “1”或 “2”，然后显示 “WB-ADJ”。 查看确保色温为 “高”。 4. 使用数字键 “3”或 “4”选择 “G-CUTOFF”项目，使用音量 “+”或 “-”键将其设置为 “80”。并将 “B-CUTOFF”和 “R-CUTOFF”也设置为 “80”。 5. 将 “G-DRIVE”设置为 “E0”。 6. 将彩色分析仪的信号接收器放到高亮窗口的中间位置，然后调整 B-DRIVE 和 R-DRIVE，将 x, y 的值调整为下表中的 “色温 - 高”的值。 7. 将 “ALL-DRIVE”设置为 “FC”。 8. 使用 “7”键将色温设置为 “中”。 9. 将 G-CUTOFF、B-CUTOFF 和 R-CUTOFF 固定为 “80”。 10. 将 G-DRIVE 固定为 “E0”。 11. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 中”的值。 12. 将 “ALL-DRIVE”设置为 “FC”。 13. 使用 “7”键将色温设置为 “低”。 14. 将 G-CUTOFF、B-CUTOFF 和 R-CUTOFF 固定为 “80”。 15. 将 G-DRIVE 固定为 “E0”。 16. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 低”的值。 17. 将 “ALL-DRIVE”设置为 “FC”。 图像菜单：最佳 宽高比：16:9 • 高亮显示部分 信号振幅 75% 33 12.3. HD 白平衡调整 仪器名称 连接 备注 • 1080i 黑白模式 • 彩色分析仪 （Minolta CA-100 或同等产品） RF 输入 显示屏表面 用户设定：标准 步骤 备注 • 确保充分老练 15 分钟以上。 • 确保前面板已经安装在整机上。 • 确认调整之前无彩色信号显示。 • 将彩色分析仪放置在有轻微色差的地方。 通电后 10 分钟内完成调整。 通过老练等不能完成调整时，重新打开电源。 1. 显示白平衡图像。 2. 进入维修模式。 3. 操作数字键 “1”或 “2”，然后显示 “WB-ADJ”。 查看确保色温为 “高”。 4. 使用数字键 “3”或 “4”选择 “G-CUTOFF”项目，使用音量 “+”或 “-”键将其设置为 “80”。并将 “B-CUTOFF”和 “R-CUTOFF”也设置为 “80”。 5. 将 “G-DRIVE”设置为 “E0”。 6. 将彩色分析仪的信号接收器放到高亮窗口的中间位置，然后调整 B-DRIVE 和 R-DRIVE，将 x, y 的值调整为下表中的 “色温 - 高”的值。 7. 将 “ALL-DRIVE”设置为 “FC”。 8. 使用 “7”键将色温设置为 “中”。 9. 将 G-CUTOFF、B-CUTOFF 和 R-CUTOFF 固定为 “80”。 10. 将 G-DRIVE 固定为 “E0”。 11. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 中”的值。 12. 将 “ALL-DRIVE”设置为 “FC”。 13. 使用 “7”键将色温设置为 “低”。 14. 将 G-CUTOFF、B-CUTOFF 和 R-CUTOFF 固定为 “80”。 15. 将 G-DRIVE 固定为 “E0”。 16. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 低”的值。 17. 将 “ALL-DRIVE”设置为 “FC”。 图像菜单：最佳 宽高比：16:9 • 高亮部分 信号振幅 75% * 色彩平衡 COOL 与日本型号的值不同。 34 13 旅馆模式 1. 目的 设置旅馆功能。 2. 进入旅馆模式设置菜单指令 为了显示旅馆模式设置菜单，请输入以下指令 （在 2 秒钟 内）。 随后将显示旅馆模式设置菜单。 3. 若要退出旅馆模式设置菜单 从墙面插座上拔下 AC 电源线。 4. 旅馆模式设置菜单说明 项目 功能 旅馆模式 选择旅馆模式开启 / 关闭。 初始输入 选择输入信号模式。 每次接通电源后都设置此输入。 选项： Off/TV/AV1/AV2/AV3/AV4/PC/HDMI1/HDMI2 • Off: 以最后一次存储为准。 • PC: VGA 可选 初始位置 选择频道号。 选项： Off/0 到 99 • Off: 以最后一次存储为准。 初始音量等级 每次接通电源后都设置音量 选项 / 范围： Off/0 到 100 • Off: 以最后一次储存为准。 最大音量等级 调节最大音量。 范围： 0 到 100 键锁定 选择按键键入条件。 选项： Off/SETUP/MENU/ALL • Off: 所有按键有效 • SETUP: 只有 F 键无效 （菜单中调谐状态无） • MENU: 只有 F 键无效 （只可选择音量 / 静音。） • ALL: 所有按键全部无效。 遥控锁定 选择遥控键入条件。 选项： Off/SETUP/MENU • Off: 所有按键有效 • SETUP: 只有设置菜单无效 • MENU: 图像 / 声音 / 设置菜单无效 35 14 导线图 14.1. P 电路板 A B C D E F G H I 1 2 3 4 5 6 P-BOARD (FOIL SIDE) TNPA4221AL TH-42PV70C P-BOARD TNPA4221AL TH-42PV70C P-BOARD TNPA4221AL 36 TH-42PV70C P-BOARD PARTS LOCATION TH-42PV70C P-BOARD PARTS LOCATION Parts Location Parts Location P-BOARD (COMPONENT SIDE) IC402 E-2 IC409 E-2 IC411 F-2 IC504 D-2 IC506 B-4 IC508 B-4 IC511 C-4 IC512 B-3 IC513 B-3 IC Q404 F-3 Q406 G-3 Q412 E-3 Q413 E-4 Q507 D-4 Q527 A-4 TRANSITOR R443 F-3 R661 C-2 R665 B-3 VOLUME P-BOARD (FOIL SIDE) IC401 E-2 IC402 E-2 IC403 F-2 IC406 D-4 IC408 F-2 IC409 E-2 IC411 D-2 IC412 F-3 IC501 H-2 IC502 H-1 IC504 F-2 IC505 H-5 IC506 H-4 IC507 G-4 IC508 H-4 IC509 G-4 IC510 I-1 IC511 G-4 IC512 H-3 IC513 H-3 IC520 H-3 IC Q401 D-4 Q402 D-4 Q403 E-2 Q404 D-4 Q406 C-3 Q407 D-3 Q408 E-3 Q409 E-4 Q410 F-2 Q411 E-2 Q412 E-3 Q413 E-4 Q420 D-4 Q422 D-3 Q434 D-2 Q501 H-1 Q502 G-1 Q507 F-4 Q508 G-2 Q509 G-3 Q510 G-4 Q517 E-4 Q520 F-4 Q521 G-1 Q524 H-2 Q525 H-4 Q527 H-4 Q530 H-4 TRANSISTOR R443 C-3 R661 G-2 R665 H-3 Q535 H-4 Q537 G-1 Q538 H-2 Q540 G-5 Q541 G-2 Q553 G-2 Q554 G-2 Q555 G-3 Q556 G-3 Q563 G-2 Q564 G-3 Q565 H-3 Q566 G-3 Q567 G-2 Q569 G-2 VOLUME P 37 A B C D E F G H I 1 2 3 4 5 6 P-BOARD (COMPONENT SIDE) TNPA4221AL TH-42PV70C P-BOARD TNPA4221AL TH-42PV70C P-BOARD TNPA4221AL 38 14.2. PB 电路板 A B C D E F G H I 1 2 3 4 5 6 L852 C860 C869 PB32 PB33 PB36 PB35 PB37 TNPA4324 PBMM1 PB 1 PBMM2 PBMM3 PB8 PB7 PBMM5 PBMM4 PbF 1 2 1 6 ORDER NO. 31 31 31 3 1 31 Q850 L852 JA1 JA2 JA3 JA4 JA5 JA6 JA7 R852 R853 R856 R855 R857 R858 R859 R861 R865 R866 R867 R868 R869 R871 R872 R874 C852 C853 C854 C855 C857 C858 C859 C860 C861 C862 C869 C877 C878 C879 C880 C881 D852 D853 D856 D855 D857 D859 D860 D861 D862 IC850 TP850 TP851 TP852 TP853 PB32 PB33 PB36 PB35 PB37 TNPA4324 1 PB PBMM1 PB8 PB7 R875 R876 R877 R878 PBMM2 PBMM3 PBMM5 PBMM4 PbF 12 16 SEE REVERSE FOR ORDER NO. 1 5 1 3 1 3 1 3 1 3 1 3 TH-42PV70C PB-BOARD TNPA4324AB TH-42PV70C PB-BOARD TNPA4324AB PB-BOARD (FOIL SIDE) TNPA4324AB PB-BOARD (COMPONENT SIDE) TNPA4324AB Parts Location PB-BOARD IC850 B-4 Q850 B-4 IC TRANSISTOR TP850 A-3 TP851 B-4 TP852 A-3 TP853 A-3 TP 39 14.3. DG 电路板 A B C D E F G H I 1 2 3 4 5 6 R2284 D3034 R2090 R8044 TP5608 TP5609 R2091 R2285 D3035 R8621 C1119 R2861 R8045 R3032 R2862 R2092 D3036 R8622 D3037 R2093 R2863 R8623 D3038 R2094 R2864 R8048 R8624 C8070 D3039 R2095 R8049 C8071 R8625 R2096 R2866 R8626 C8072 R3037 R2097 R8627 C8073 C3060 R3038 R2098 C8074 R8628 C1120 R3039 R2099 R8629 C8075 C8076 C1122 C8077 D3040 IC5550 C8078 C1124 D3041 C8079 D3042 C3066 R8052 D3043 R3233 R8053 C3068 R3234 D3044 R3040 R8630 D3045 R1101 R8825 R8631 D3046 R8056 R8632 D1106 D3047 R8633 R2873 D3048 C8080 R1104 R8634 R2299 D3049 R8635 R8059 C8851 C8852 R8636 C8853 C3070 Q8850 C8854 TP8501 Q8851 C8855 C8856 Q8852 Q8853 R8060 D1110 R8061 R8832 R3243 C3078 R3244 TU3200A R3246 R8067 R8068 TP8700 R3249 R8069 TP8701 C3272 DG12 TP8702 C3273 TP8703 TP8704 R3059 C3081 TP8705 TP8706 C3277 TP8707 C4600 C3278 TP8708 C4601 TP8709 R8071 C3086 C4602 C3087 C4603 R3060 C4604 R8074 C4605 R8075 R8651 R3062 R1122 R3063 C4607 R8077 R3064 TP8710 R8078 R3065 C3281 C4609 TP8711 R8655 R8079 TP8712 R3067 TP8713 R3068 TP8714 R3069 TP8715 TP8716 TP8717 C4610 TP8718 R8080 C4611 TP8719 R8081 C4612 R8082 C4613 R8083 R3070 C4614 R8084 JS2031 C4615 R3266 R3072 C4616 JS2032 R8086 R3073 JS2033 R8087 C4617 C4618 R8088 R3074 JS2034 TP8720 R3075 C4619 JS2035 R8089 TP8721 TP8722 TP8723 R1138 TP8724 TP8725 TP8726 TP8727 R3270 C4620 R8090 L5670 TP8728 Q2101 R8091 TP8729 Q2102 C4623 R8093 Q2103 JK3100 R3274 R8094 R1140 R8095 R1141 R1142 C4628 R4600 R8098 TP8730 R8868 C4629 C2301 JS2045 R8099 TP8731 C2302 JS2046 TP8732 R3087 R4603 JS2047 TP8733 R1147 R3088 TP8734 R3089 Q2301 TP8735 TP8736 TP8737 TP8738 R4609 R8871 TP8739 C2116 R3090 R8874 R8875 R1151 R1152 DG6 R8877 DG7 R4610 JS2054 TP8740 R4611 JS2055 TP8741 R8879 R4612 R3096 JS2056 TP8742 R3097 JS2057 TP8743 R1157 C2120 R3098 JS2058 TP5670 TP8744 C2121 R3099 TP8745 TP8746 C2317 TP8747 L5690 TP8748 L5691 C2319 R8881 TP8749 R8883 R2100 L5694 L4502 R8886 L4503 L4504 TP8750 L4505 C2321 TP8751 R8889 R4622 L4506 TP8752 L4507 C2323 JS2067 TP8753 R1167 R2108 C2130 R4624 JS2068 TP8754 D2301 R2109 C2325 C2131 JS2069 TP8755 D2302 C2132 TP8756 D2303 TP8757 D2304 TP8758 R8890 R2301 TP8759 R8891 R2302 R2110 JS3010 R8894 R2111 L4511 JS3011 R2305 R1171 JS3012 L4512 R2112 R1172 R8896 R2113 L4513 JS3013 R2114 R4630 JS3014 TP8760 JS3015 R4631 L4515 D2119 R2115 C2331 TP8761 L4516 R4632 TP8762 L4517 C2333 IC2303 TP8763 L4518 TP8764 C2335 R2119 TP8765 TP8766 C2143 TP8767 TP4500 C5600 TP8768 TP4501 C5601 C2146 TP4502 TP4503 L2003 C2147 C5603 TP4504 L4520 L2004 C5604 TP4505 JK8731 C5605 TP4506 R2122 C5606 R2317 L2007 TP4507 C5607 R2123 TP4508 L2008 C5608 R2124 X8001 C2341 R2319 R2125 TP4509 C5609 C2343 R2127 R2128 R2129 R4839 C2153 TP4510 C5610 L2011 R2321 C2349 TP4511 L2012 R2323 TP4513 TP4514 R2130 R4840 TP4515 L2015 R2325 R2131 C8301 R2132 L2016 TP4516 C8302 C5616 R2327 TP4517 C5617 C8303 TP4518 C2350 C2351 Q8301 TP15F C2352 R4653 C3100 R4654 C3101 TP2001 C3102 TP2002 C3103 TP2003 R2330 TP2004 C5620 R2331 TP2005 C5621 TP2006 C5622 TP2007 C5623 R2140 TP2008 C5624 R2141 C8505 TP2009 C8311 C5625 L2026 C8506 R2142 C5626 C8312 L2027 D5603 R2143 C5627 C8313 L2028 C8314 R5600 D5604 R2144 R2145 R4661 C8315 R2146 D5606 D5607 TP2010 C2170 D5608 R5604 C2171 R4665 D5609 R5605 C2172 R4666 TP2012 R5606 C2173 R5607 C3113 C2174 R8100 C5630 IC5600 C3115 C2175 TP2015 R8101 C5631 JS5569 IC5601 C3116 C2176 C5632 C3117 L2034 C5634 R8104 R4284 L2035 C3119 C2179 R8105 TU8301 TP2019 C5635 TPC0F R8106 C5636 C8322 C8323 R8107 C5637 C8324 C5638 R5610 R5611 C5639 R4672 R2156 R5612 R5613 TP2020 C2180 C3120 TP2021 R5615 C8329 R8301 R5617 R8303 C3124 C2184 L2040 D3100 TP2024 R8304 R5618 C5640 R8110 D3101 C5641 R8111 R5619 D3102 R8306 C5643 R8307 C2188 R3100 C8330 C5644 R8308 R3101 IC8301 C5645 TPS15V TP2606 C8333 C8334 R5620 TP2608 C8335 R5621 TP2609 R2166 R4682 R5622 R4683 R8503 R5623 R3107 R3108 R2168 R4684 R8310 R5624 R2169 R8505 L8001 R8311 R5625 L8002 R5626 C2193 L8003 R8507 R5627 R8313 C2194 R8314 L8004 R5628 C2195 R8315 R5629 R8509 R3302 C2196 TP2612 C2197 L8007 C2198 C8340 L8008 R3305 R3111 L8009 R3112 R3113 R5630 R8510 R8704 R3114 R4691 R5631 R4692 R5632 JK2003 R5633 R2178 L8010 R5634 R5635 R8709 R4696 R5636 R5637 R8900 L3001 R8325 R8901 L3002 R8326 R3312 L3003 R8327 L3004 R8710 R8328 R8904 R2181 R3121 R8905 R2182 R8906 R2183 R3123 R8907 R2184 R8908 R5640 R2185 R5641 R8909 D2189 R2186 R5642 R2187 R5643 R2188 TP5700 R5644 TP5701 R2189 TP5702 L3010 C5670 R8910 C8551 TP5705 L3206 C8552 TP5706 C5672 L3013 L3207 C5673 R8913 R3130 C5674 R8914 R3131 R2191 C5675 R8915 R2192 C5676 R8916 R2193 R3133 R8917 R3134 R8918 R2194 R2197 R3137 R2198 D3334 D3335 R8921 D3336 R8922 D3337 R8923 D3338 R3140 R8924 R8925 JS2102 R8926 JS2103 R8927 R3143 R3144 TP3200 R3145 R3146 R3147 R8737 R3148 R3149 TP8601 R8739 TP8602 TP8603 C5690 TP8604 L3225 C5691 TP8605 L3226 C5694 D5670 C5695 D5671 R8935 R8936 D5672 R8742 R8937 D5673 Q4500 C4504 R3348 R8938 Q5694 R5670 R3349 C4505 R5671 R8939 R8551 TP8801 Q4502 R8552 TP8802 R5672 R1216 C4507 Q4503 R5673 R8553 TP8803 R1217 C4508 Q4504 TP8804 R1218 R5674 R8554 Q4505 C4509 TP8805 R8749 R1219 R8555 Q4506 TP8806 R8556 TPS0N Q4507 TP8037 TP8807 R8557 L5750 TP8808 IC5670 R8940 R3351 R8941 IC5671 IC8551 R3352 IC8552 IC5672 R8942 R3353 R8943 TPS0S R1220 R8944 R1221 R3162 C4512 R8946 R1222 C4513 R1223 R3164 R8948 R1224 R3165 R8949 R1225 C4515 R3166 R1226 R3167 R1227 R3168 R1228 R1229 R8950 R8951 D5690 R1230 Q2000 D5691 C2005 Q2001 R1231 C2006 Q2002 R1232 D5692 Q2003 R1233 D5693 R3174 R3175 JK3001 R3176 R1236 R3177 TP1100 R1238 TP1101 C2202 TP1102 C2203 TP1103 C2204 C2010 TP1104 C2011 TP1105 R4506 C2013 R8963 C2014 R3180 C2016 C2017 R1244 IC4504 Q2015 Q2016 R3186 D4512 R1246 Q2017 IC4507 D4513 C4538 IC4508 R3188 R1248 R4705 D4515 C4539 IC4509 R1249 R4707 D4517 R4708 D4518 R4709 C4540 R1250 R3191 Q2021 R4325 R1251 C4543 Q2023 C4544 Q2024 D4520 R2000 R4328 IC4515 Q2025 R1255 R4329 R2001 Q2026 R2002 Q2027 C4547 R2003 D4524 Q2028 R2004 Q2029 D4525 D4526 R2006 D4527 R2007 D4528 R4524 R4525 IC2002 C4550 Q2030 R4528 C4551 IC2006 R1263 Q2033 R2203 C4554 Q2034 R2010 C4555 D2015 R2011 R2205 TP8851 Q2035 C4556 D2016 TP8852 R2012 R2206 D4533 D2017 C4557 R2207 TP8853 R4530 D4534 R2208 TP8854 R2209 D4535 C4559 Q2039 R4532 D4536 R4533 IC2010 R2018 R4534 IC2011 R2019 IC2012 IC2013 C2813 R4537 R2210 R4538 C4560 D2020 Q2040 R4539 Q2041 C5501 C4562 Q2042 C4563 C5503 C4564 D2025 C4565 R2216 D2026 R2217 R4540 R2218 D2028 R4541 R2219 R2025 C8001 D2029 R4542 C8002 R4543 C8003 R4544 C8004 R2029 R4545 C8005 R4546 C8006 C2053 R4547 C8007 C4570 C8008 R2220 C8009 D2031 D2032 C4573 D2033 R2030 D2034 R2031 R2032 C4576 R2226 C4577 R2033 R2034 TP4800 C8010 R2035 TP4801 C4579 C8011 Q2635 R2036 TP4802 R4552 Q2636 C8012 TP4803 C8013 Q2637 TP4804 C8014 TP4805 C2061 C8015 C2062 TP4806 C8016 TP4807 C8017 C2063 C4580 TP4808 L2308 C8018 C2064 TP4809 C4581 C2065 C8019 X8301 C5522 C4583 Q2640 C4584 R2235 Q2641 C4585 R2236 C4586 Q5522 C4587 R2237 Q5523 L2310 C4588 TP4810 Q5524 C8020 R2045 TP4811 C8021 R2046 C8022 R2047 C8023 R2624 R2048 C8024 R2049 R2625 C2265 C8025 C2266 C8026 C8027 C3014 R2628 C8028 R2629 FL4501 C4591 R8001 C8029 C4592 FL4502 R8002 FL4503 C4593 R2243 FL4504 R2050 C4594 R8004 R2244 C4595 TP2301 R8005 C4596 D2632 C4597 R2053 TP2303 R8007 D2633 R2054 C2270 C4598 R8008 C8030 C2271 TP2305 C8031 C8801 C2272 C8032 TP2307 C8033 C2274 IC8004 C8034 C5730 C3021 C5731 C8035 C3022 C8036 C5732 C3023 C8037 C3024 C5734 C8038 C3025 R8011 C8039 C3026 R8012 D3003 C3027 C3028 TP2310 C2088 C3029 D3005 C2089 R3001 R8015 D3006 R3002 D5522 R8016 Q3027 R3003 R2257 C2280 R3004 C8040 C2281 R3005 R8019 C8041 R3006 D5526 C8042 R3007 C8043 C3030 R3008 C8044 C3031 R3009 IC3001 C2091 C8045 IC3002 C2092 C8046 C2093 FL2003 C3033 C8047 FL2004 Q3030 C2094 C8048 R8020 FL2005 C2095 C3035 C5551 TPAC1 C8049 Q3031 FL2006 C2096 Q3032 C2097 R8023 C2098 R3010 R8024 D5530 R2265 C2099 L5605 R8025 R2266 R3012 L5606 R8028 C8050 R8029 C8051 C8052 C8053 R5533 C3040 C8054 R5534 C8055 R5535 R5536 C8056 C3043 C8057 R5537 C8058 L5610 R5538 R8030 R8031 R8802 R8032 R8803 R8033 R3020 R5730 R8034 R8804 R3021 R8805 C1109 R8035 R3022 R8806 R8036 R5732 R2277 R8807 R8037 R5733 R2853 R2084 R2278 TPEC0 R5734 R8808 R2854 R8038 R2085 R2279 R5735 R2855 R8809 R8039 C8061 R2086 C8062 R5736 R5543 R5737 R2857 R2088 R2858 R5738 TP5600 C3051 R2089 C8065 R2859 TP5601 R5739 R5545 C3052 TP5602 R5546 C8066 C3053 C8067 R5547 TP5603 R2280 C3054 C8068 TP5604 R8040 R5548 R2281 C3055 TP5605 R8041 R5549 C8069 R2282 C3056 TP5606 R8812 R2283 L8503 TP5607 R8813 TNPA4311 B DG-BOARD (FOIL SIDE) TNPA4311AH TH-42PV70C DG-BOARD TNPA4311AH TH-42PV70C DG-BOARD TNPA4311AH 40 Parts Location DG-BOARD (FOIL SIDE) IC2002 IC2002 IC2010 IC2011 IC2012 IC2013 IC2303 IC3001 IC3002 IC4504 IC4507 IC4508 IC4509 IC4515 IC5550 IC5600 IC5601 IC5670 IC5671 IC5672 IC8004 IC8301 IC8551 IC8552 IC Q2000 Q2001 Q2002 Q2003 Q2015 Q2016 Q2017 Q2021 Q2023 Q2024 Q2025 Q2026 Q2027 Q2028 Q2029 Q2030 Q2033 Q2034 Q2035 Q2039 Q2040 Q2041 Q2042 Q2101 Q2102 Q2103 Q2301 Q2635 Q2636 Q2637 Q2640 Q2641 Q3027 Q3030 Q3031 Q3032 Q4500 Q4502 Q4503 Q4504 Q4505 Q4506 Q4507 Q5522 Q5523 Q5524 Q5694 Q8301 Q8850 Q8851 Q8852 Q8853 TRANSISTOR TP TP1100 TP1101 TP1102 TP1103 TP1104 TP1105 TP2001 TP2002 TP2003 TP2004 TP2005 TP2006 TP2007 TP2008 TP2009 TP2010 TP2012 TP2015 TP2019 TP2020 TP2021 TP2301 TP2606 TP2608 TP2609 TP2612 TP4504 TP4505 TP4506 TP4506 TP4507 TP4513 TP4514 TP4515 TP4516 TP4517 TP4518 TP4800 TP4801 TP4802 TP4803 TP4804 TP4805 TP4806 TP4807 TP4808 TP4809 TP4810 TP4811 TP5600 TP5601 TP5602 TP5608 TP5670 TP5700 TP5701 TP5705 TP5706 TP8037 TP8501 TP8601 TP8602 TP8603 TP8604 TP8605 TP8851 TP8852 TP8853 TP8854 TPCOF TPSOS Parts Location DG-BOARD (COMPONENT SIDE) IC1100 IC1101 IC2000 IC2008 IC2105 IC2106 IC2107 IC2301 IC2601 IC2610 IC4500 IC4501 IC4506 IC4510 IC4513 IC4514 IC4800 IC5550 IC5660 IC8001 IC8002 IC8003 IC8302 IC8553 IC8554 IC8601 IC8621 IC8622 IC Q1107 Q1108 Q1109 Q1110 Q2031 Q2638 Q2639 Q3200 Q4501 Q4514 Q4515 Q4516 Q4517 Q4519 Q4805 Q5501 Q5521 Q5551 Q5561 Q5562 Q5600 Q5601 Q5602 Q5603 Q5604 Q5690 Q5691 Q5692 Q5693 Q8501 TRANSISTOR TP TP2607 TP2610 DG TH-42PV70C DG-BOARD PARTS LOCATION TH-42PV70C DG-BOARD PARTS LOCATION G-5 G-5 F-5 G-4 G-2 G-2 H-3 G-2 F-2 E-4 E-4 F-4 F-5 F-5 B-5 C-5 C-5 B-2 B-2 C-3 E-5 C-4 E-2 E-2 C-3 C-3 G-1 H-1 G-4 H-5 H-5 G-4 H-2 H-2 H-2 H-2 H-2 H-2 H-2 H-2 B-3 B-3 B-3 C-3 C-3 C-3 C-3 G-5 G-5 G-4 H-3 C-3 C-3 D-3 F-4 F-4 G-2 F-3 G-4 G-4 F-3 E-3 F-3 F-3 F-3 F-3 F-3 C-2 C-2 C-3 C-2 B-3 C-4 C-4 C-4 C-4 B-2 B-2 B-2 B-2 B-3 C-3 F-5 F-5 F-5 F-5 G-5 G-5 F-5 F-5 F-5 F-5 F-5 C-3 C-3 F-4 F-3 H-3 C-2 C-2 D-3 C-3 E-3 F-3 F-3 F-3 F-3 F-4 F-4 E-4 E-4 E-4 E-4 E-5 E-5 E-5 E-5 E-5 E-5 E-5 E-5 E-5 E-5 E-5 E-5 C-5 D-5 D-5 B-2 B-3 G-4 F-5 D-5 B-4 E-5 G-2 B-2 B-2 B-2 B-2 B-2 C-3 C-3 C-3 D-4 C-3 C-3 G-3 H-2 D-5 C-4 C-4 C-5 C-5 B-1 D-4 B-5 D-3 D-3 D-4 E-3 D-3 E-3 H-1 H-5 E-5 E-5 E-5 F-5 G-4 E-3 E-3 H-2 E-4 F-3 G-2 F-3 G-4 G-4 G-4 G-4 H-3 G-3 B-5 A-5 D-3 C-3 D-3 D-3 C-3 C-3 E-5 H-5 G-2 H-5 H-4 H-4 G-5 G-5 G-5 F-5 F-5 D-5 D-5 D-4 D-5 D-4 41 A B C D E F G H I 1 2 3 4 5 6 C1118 R5740 R8814 R2860 R5741 R8815 R8046 R8816 R8047 R8817 S3010 R5550 S3011 R2865 S3012 S3013 R2867 S3014 R2868 R5554 S3015 R2869 IC8621 R5555 S3016 R5556 IC8622 S3017 R5557 C1123 S3018 R8050 IC5550 R5558 S3019 C1125 R5559 R8051 C1126 R5750 R1100 R8054 R3041 R8055 D1105 R2871 R2296 R1102 R2872 R2297 D1107 R1103 R8057 S3020 R8058 D1108 R8828 R5560 S3021 R3239 D1109 R1105 R5561 S3022 R1106 S3023 R1107 S3024 R1108 IC1100 S3025 R1109 IC1101 S3026 S3027 S3028 R3240 S3029 C3075 C5591 C3076 R8062 D1112 C5593 R8063 R8064 TU3200A C5595 D5571 R8065 R8066 R3247 D5573 C5597 C3270 R5570 C5598 R5571 DG12 R5572 R5573 C3275 C3276 C3082 C3083 X4500 R8070 C3279 R8072 R8073 R2890 R4001 R8076 R8653 C3280 C3282 C3283 FL3001 FL3002 FL3003 FL3004 FL3005 FL3006 FL3007 C4807 FL3008 Q4805 R1134 R8470 R8471 DG31 R3076 DG32 R8472 R3077 DG33 C2100 R8474 DG34 C2101 R8475 C2102 C2105 C4621 L8551 C2106 C4622 C2107 JK3100 C4624 C2108 C2109 C4625 R8865 C4626 R8866 C4627 R8867 R8097 R1144 R4601 R8869 R4602 R1146 C2303 R4604 X2010 C2110 R1148 FL5730 R4605 C2111 C2305 FL5731 R4606 C2112 FL5732 C2307 C2113 R4607 FL5733 R4608 C2114 FL5734 R8870 C2115 C2309 DG1 C2117 JS2050 C2118 R4800 DG5 JS2051 JK8701 C2119 R4801 JS2052 R8876 DG6 JK8702 JS2053 DG7 R1153 DG8 R8878 C2311 DG51 C2313 R4613 R4614 IC4800 C2315 R4615 JS2059 R4616 R4617 C2124 R4618 R8880 R4619 C2126 R8882 C2127 C2128 L4500 JS2060 R8884 L4501 C2129 JS2061 R8885 JS2062 R1162 JS2063 R1163 R8887 R2104 R8888 R1164 R1165 R2106 R1166 FL5750 R4819 R1169 FL5751 R4626 C2133 R4627 C2327 C2134 C2135 IC2105 C2329 C2136 IC2106 R8892 IC2107 C2137 R8893 C2138 R4820 R1170 R2306 JS3207 R1173 R8897 R2308 JS3208 R1174 R8898 JS3209 IC2301 R1175 R8899 R2118 R4635 R1179 R4636 C2337 R4637 R4638 D2120 C2144 C2339 R4639 C2145 R2311 L2001 L2002 C5602 R2313 Q5600 R2315 L4521 JK8731 Q5601 R1181 Q5602 R1182 Q5603 R1183 L4524 R4640 Q5604 R1184 R4641 R4835 R4642 R4836 R2126 R1186 R4643 R4837 R4838 R4644 C2151 C2345 R4645 R4646 R4647 C2347 C2154 R4648 R4649 C2155 C5611 C5612 C2157 C2159 C5615 JS3032 R2133 R2134 R4650 C5618 R1194 C8304 R2135 R4651 C5619 R1195 R2136 R4652 R1196 C8306 C2353 R2137 R1197 C8307 C2160 R2138 C8308 R1198 C2354 C2161 R4655 C2355 R1199 C8309 C2162 R4656 R4657 C2163 C2357 R4658 C2164 R4659 C2165 C8501 L2021 C2359 C2166 L2022 C8502 C8503 C2167 C8504 C8310 D5600 Q8501 D5601 D5602 R4660 C5628 L2029 C2361 D5605 C5629 C3301 C3302 R4856 R4662 JS1106 C8316 C3303 C2363 R4857 JS1107 C8317 C3304 R4858 R4664 C8318 JS1108 R2149 R4859 JS1109 C8319 C3306 R4668 JS5568 R5608 R4669 R5609 R8102 C5633 R8103 C3118 R2150 R4860 C8320 JS1110 R4861 R2151 TU8301 C8321 JS1111 R2152 R4862 R4286 JS1112 R4863 R4287 JS1113 R2154 R4864 R4288 R4670 JS1114 R8108 R4865 JS1115 C8325 R4866 C8326 JS1116 C8327 JS1117 FL4800 JK4500 C8328 C2375 JK4501 R4675 FL4801 FL4802 R4676 C2183 R4677 C2377 R4678 C2185 C2379 R8305 R4679 C2186 C5642 C2187 R2160 JS1120 C2189 C8331 R8309 JS1121 R2162 R4872 IC8302 C8332 JS1122 TP2607 JS1123 R2164 R4680 JS1124 R2165 C2381 R8501 R4681 JS1125 JS1126 C8336 R8502 R2167 C2383 C2190 C8338 R8504 R3109 C2385 C2191 D3301 C8339 R4685 C2192 D3302 R8312 R4686 R8506 R4687 C2387 R4688 R8508 TP2610 C2389 L8005 R4689 R3301 R3303 R3110 R2170 R8318 R2171 C2199 R8701 C8341 R2172 R3306 R8702 R2173 R3307 R3308 R4690 R2174 R3309 R2175 R8511 R8705 R8512 R8706 R8513 JK2003 R8707 R8514 R8708 X1100 R8515 R4695 R2179 IC8003-A D8901 C8731 R8321 R8516 R8322 R8323 C5660 R3310 L3000 R8324 R5638 C5661 R3311 C5662 R3313 C5663 R2180 R8711 R8329 R3316 R8712 R3318 R3319 L2648 L2649 R5646 R5647 R8911 C5671 R8912 C8553 R2190 L2650 C8554 L3209 C8555 R2195 R8919 R2196 L3211 S3116 S3117 R8920 R1200 JS2101 R1201 L5735 R1202 R8732 R8733 R1203 R5660 R1204 R8734 R5661 R1205 R8735 R5662 R1206 R8736 R8738 R1209 IC5660 L8621 C5692 C5693 Q5690 C4500 R1210 L5550 C4501 Q5691 R1211 L5551 Q5692 C4502 L5552 C5696 R1212 Q5693 C4503 R1213 R1214 Q4501 R8745 R1215 C4506 R8746 L1100 R8558 R8559 IC8553 C4510 IC8554 C4511 R8947 L5564 R8560 R8561 L5565 R8562 L5566 Q4514 R8564 Q4515 Q4516 R8566 Q4517 R8567 C2000 Q4519 C2003 C2004 D4500 R5690 R1234 D4501 R5691 JK3001 R1235 D4502 R5692 C4527 D4503 R5693 R1237 C4528 C2200 D4504 R5694 R4500 R5695 C2201 D4505 R4501 C4529 R5696 R4502 D4506 D4507 R4503 R5697 D4508 R4504 R4505 D4509 R4507 R4508 IC4500 C4530 R4509 C4531 IC4501 C4532 C4533 R1243 D4510 C4534 C4535 ZA2101 D4511 R1245 IC4506 ZA2102 ZA2103 C4537 R1247 R4510 ZA2104 R4704 D4514 R4511 ZA2105 D4516 R4706 ZA2106 R4512 ZA2107 C2213 R4513 ZA2108 R4514 C2021 R4515 D4519 C2216 R4516 C2022 R4322 R4517 C2023 R4323 IC4510 C2218 R4518 C2601 C4541 R4519 C2219 JK8801 C2602 C4542 R4326 IC4513 R4327 IC4514 C4545 D4521 C4546 D4522 D4523 R4520 C4548 R4521 R2005 C4549 R4522 R4523 IC2000 C2224 R4330 C2801 R4526 C2802 R4527 C2803 R4529 Q2031 C4552 C4553 IC2008 D4532 R2013 R2014 R4531 R2015 R4535 R4536 C2812 C2814 C5501 C2815 C2816 C5502 C2817 C5503 R2214 C2048 C5504 C2818 R2020 D2025 C2049 R2215 Q5501 R2021 C2819 C4566 R2022 C4567 R2023 C4568 R2024 R2601 C4569 R2602 ZA0002 R2603 ZA0003 C2050 C2244 R2028 ZA0004 C2245 ZA0005 C2052 C2246 ZA0006 ZA0007 C2054 R4548 ZA0008 IC2601 C4571 R2221 C2055 R4549 R2222 C4572 C2056 C2057 C2058 C4574 C2059 C4575 L2300 C4578 C2251 L2302 L2304 C2060 Q2638 Q2639 L2306 IC2610 C5521 C4582 R2233 R2234 C2068 D5501 Q5521 C2069 R2238 C4589 R4561 R4562 C2263 R4563 Q3200 C2264 R4564 C8601 R4565 R5506 C2267 R5507 C2268 C4590 R5508 R5509 FL4505 R2051 R2052 R8006 D2634 C4599 R8009 D2635 IC8001 R2056 D2636 IC8002 R2057 IC8003 D2637 R2058 D2638 R2059 C5733 R2250 R8010 R2252 R2253 R8013 R2254 R8014 R2061 D5521 R8017 R8018 R2066 R2067 D5528 R4585 C8621 FL2001 D5529 FL2002 C8622 R2647 R4587 R4588 L5600 R4589 C5551 L5601 R8021 C5552 L5602 R8022 L5603 C5553 L5604 C5554 Q5551 R8601 R2072 R8602 R8026 R2073 R8027 R8603 R8604 R2074 R5531 R8605 R2075 R4592 R8606 R5532 R4593 R3017 R3018 R4594 R4595 IC8002-A IC8601 R4596 C1102 R4597 C1103 R4598 C1104 R4599 R2271 C8059 L5611 C1105 C1106 C1107 C1108 R2275 R5731 L8301 Q5561 R2276 Q5562 L8302 Q1107 L8303 C8060 Q1108 L8304 R5540 Q1109 R5541 S3002 L8306 R5542 R2087 S3003 C8063 S3004 C8064 C1110 R5544 S3005 C1111 S3006 C1112 S3007 S3008 C1114 Q1110 S3009 L8501 L8502 C1116 R8042 R8043 C1117 TNPA4311 A DG-BOARD (COMPONENT SIDE) TNPA4311AH TH-42PV70C DG-BOARD TNPA4311AH TH-42PV70C DG-BOARD TNPA4311AH 42 14.4. D 电路板 A B C D E F G H I 1 2 3 4 5 6 C028 C029 IC001 C032 IC002 IC007 R203 R205 Q805 R206 Q806 R207 D017 R400 D020 C044 C045 Q044 C048 R215 Q046 R217 R218 R219 C050 C051 C052 R220 Q050 C825 R221 Q051 D802 R222 C056 C057 Q053 D804 C058 D807 D808 C062 C832 C063 D811 IC805 IC806 D813 D814 C838 L501 D815 L502 L504 L505 C840 C843 C844 C846 R827 R828 C856 C860 R839 C861 C862 C863 C864 R070 R840 R845 R846 R847 R848 R849 C874 C877 C878 R850 C879 C880 R859 C881 C882 C883 C884 C885 C886 C887 C888 R861 R862 R863 R868 R869 FL806 R870 R871 R872 R875 R878 R879 R886 R887 R888 R889 R890 R891 R892 R893 R894 R895 R896 R897 R898 R899 C507 C511 R101 C512 C513 R105 C516 C517 C900 C518 R108 C901 C519 R109 C902 C903 C904 C905 C906 C907 C908 C520 R110 C521 C909 C522 R112 C523 C524 C525 C526 C527 C910 C528 C911 R501 C912 R503 C913 C914 R504 R505 C915 C916 R507 C917 C918 C919 C531 IC502 R122 R317 R123 R127 C920 R511 R129 C921 C922 C923 C924 R514 C925 R515 R516 C927 C928 R519 R901 C929 R902 R132 R903 R134 R904 R906 R907 R520 C930 R908 R521 C931 C932 C933 C934 C935 R526 C936 C937 R910 C938 R141 C939 R911 R142 R915 R918 TP010 R530 C940 C559 R919 C941 C942 C943 C944 C945 C946 R537 C947 C560 R538 C561 R539 C949 C562 C563 C564 C565 R925 C566 R926 R927 R928 C950 R540 R541 C952 R543 R544 C954 C955 R545 C956 C957 C958 C959 R936 R166 R937 C960 R552 C966 C967 R557 R558 R364 R365 R941 R171 R172 R943 R174 FL300 R945 FL301 R175 R946 R949 R568 R950 R957 R959 R189 R382 R383 R384 R385 R193 FL900 R199 FL902 R394 3 CR NO.9 TNPA4134 D 2 1 1 PbF 8 5 4 1 6 4 3 1 8 5 4 1 30 16 15 1 12 13 24 1 SEE REVERSE FOR ORDER NO. 5 4 3 1 + + TH-42PV70C D-BOARD TNPA4134AQ/TNPA4134BQ TH-42PV70C D-BOARD TNPA4134AQ/TNPA4134BQ D-BOARD (FOIL SIDE) TNPA4134AQ/TNPA4134BQ Parts Location D-BOARD (FOIL SIDE) IC TEST POINT IC9001 E-5 IC9002 E-5 IC9007 D-5 IC9502 C-3 IC9805 E-2 IC9806 E-3 TP010 D-2 Q9044 C-5 Q9046 D-5 Q9050 D-4 Q9051 E-3 Q9053 E-4 Q9805 F-4 Q9806 F-4 TRANSISTOR D 43 A B C D E F G H I 1 2 3 4 5 6 Q010 C033 IC003 C034 R200 C035 R201 C036 C037 C038 PA800 C039 Q807 IC200 Q808 D018 Q809 D019 C040 IC011 C041 R402 C042 R403 IC013 C046 C047 C049 C823 C053 C055 Q052 R223 Q054 R225 C061 IC802 IC803 IC804 D812 C837 L500 D816 D817 R237 C841 C842 R240 C845 R242 R243 R244 R245 R824 R825 R826 C468 C469 C853 C854 C855 C858 C859 R062 R063 R064 R065 R066 R067 C865 C866 C867 C868 C869 D5 D6 D9 C870 C871 C872 C873 C875 C876 R854 R099 FL803 FL805 R874 R885 X9000 X200 D20 ZA001 D25 Q301 Q302 C500 C505 D31 D32 C508 C509 C510 R102 R103 R104 R107 D110 D111 PA900 R113 R115 R116 IC303 R500 R119 R502 R506 IC500 R508 R120 R121 C532 C533 C534 C536 R126 C537 R128 R512 R513 R517 R518 R131 R133 R905 R135 IC900 R909 IC901 R523 R524 R525 R912 R143 R144 R145 R916 R917 R531 R149 R532 R533 R534 L800 R535 L801 R536 L802 R920 C948 R150 R921 R151 R922 R347 R154 R348 R155 R349 R156 C567 R158 R929 R159 C951 R542 C953 R350 R351 R352 R353 R354 R548 R160 R549 R355 R161 R356 R357 R164 R358 R165 R359 R167 R550 R938 R939 C961 C962 R553 C963 R554 C964 R555 C965 R361 R362 R556 R363 R940 R170 R942 R173 R944 R369 R947 R177 R948 R561 R562 R563 R564 R370 R565 R371 R566 R567 FL500 R569 R181 R951 R952 R182 R953 R183 FL504 R184 R954 R379 R185 R955 R956 R186 R187 R958 R188 R380 R381 R960 R190 R961 R194 R196 R197 FL901 FL903 FL904 R391 R392 R393 R396 R397 R398 R399 D 1 TP_VD TP_HD CR NO.9 TNPA4134 PbF 1 25 26 50 51 75 76 100 20 11 10 1 6 4 3 1 1 7 8 14 20 11 10 1 20 11 10 1 5 4 3 1 + + 31 1 21 1 1 7 ORDER NO. + 1 55 1 30 13 1 68 1 48 25 24 1 A 1 A 1 C E G J L NM K H F D B 2 4 6 8 10 12 3 5 7 9 11 13 + + TH-42PV70C D-BOARD TNPA4134AQ/TNPA4134BQ TH-42PV70C D-BOARD TNPA4134AQ/TNPA4134BQ D-BOARD (COMPONENT SIDE) TNPA4134AQ/TNPA4134BQ Parts Location D-BOARD (COMPONENT SIDE) IC IC9003 C-4 IC9011 C-5 IC9013 B-5 IC9200 E-5 IC9303 F-3 IC9500 D-5 IC9802 D-5 IC9803 D-4 IC9804 F-5 IC9900 D-2 IC9901 C-3 TP-HD D-4 TP-VD D-4 TP Q9010 B-5 Q9052 C-3 Q9054 B-4 Q9301 A-2 Q9302 C-1 Q9807 B-3 Q9808 B-3 Q9809 B-3 TRANSISTOR D 44 14.5. C1 电路板 A B C D E F G H I 1 2 3 4 5 6 C103 C105 C106 C107 C108 C110 C111 C114 C115 C117 C118 C119 C120 C121 C122 C124 D101 C125 D102 D103 C127 D104 C128 D105 R102 D106 D107 D108 D109 R108 C130 IC101 C131 IC102 C133 D110 C134 C135 C137 R110 C138 R113 R115 R116 R117 R118 C140 C141 C142 R122 R123 R124 R125 R127 R130 R131 R132 R133 R139 R140 R141 R142 R143 R144 R145 R146 R147 R148 R149 R150 R152 R154 R155 R156 R157 R158 R160 R165 R166 R167 R168 FL101 R169 R170 R171 R172 R173 R179 R183 R184 R193 R194 R195 CB1 CB2 CB3 CB4 CB5 ZA101 ZA102 ZA103 ZA104 C10 C11 C1MM3 C1MM4 C1MM1 C1MM2 CR NO.7 C1 1 C1MM5 TNPA4299 P b F 1 10 11 20 1 10 11 20 O R D E R N O . 1 68 1 68 1 68 1 68 1 68 1 20 1 55 C1 1 TNPA4299 3 2 1 P b F S E E R E V E R S EF O R O R D E R N O . C1-BOARD (FOIL SIDE) TNPA4299 C1-BOARD (COMPONENT SIDE) TNPA4299 TH-42PV70C C1-BOARD TNPA4299 TH-42PV70C C1-BOARD TNPA4299 Parts Location C1-BOARD IC7101 H-2 IC7102 H-2 IC IC C1 45 14.6. C2 电路板 A B C D E F G H I 1 2 3 4 5 6 C20 C21 C23 ZA201 ZA202 ZA203 ZA204 CB10 CB11 CB6 CB7 CB8 CB9 C203 C206 C209 C210 C212 C213 C215 C216 C217 C219 C220 C222 C223 C224 D201 C225 D202 D203 C227 R200 D204 C228 R201 D205 R202 D206 D207 D208 D209 C231 IC201 R209 IC202 C233 D210 C234 IC205 D211 C235 IC206 D212 C237 R210 C238 R211 R212 R213 R214 R215 R216 R217 C240 R219 C241 C242 C244 C245 C247 R220 C248 R221 C249 R222 R223 R224 R225 R226 R227 R229 C251 C252 C254 C256 R230 R231 R232 R236 R237 R238 C261 R239 R240 R241 R243 R244 R245 R246 R247 R248 R250 R251 R252 R253 R254 R255 R256 R257 R258 R260 R262 R263 R264 R265 R266 R268 FL201 R270 R271 R272 R273 R274 R275 R276 R277 R278 R279 R283 R284 R287 R288 R289 C2MM2 C2MM1 C2MM3 CR NO.7 C2 1 TNPA4300 PbF 1 20 1 68 1 12 O R D E R N O . 1 68 1 68 1 68 1 68 1 10 11 20 1 68 1 10 11 20 1 10 11 20 1 10 11 20 1 68 C2 1 3 2 1 TNPA4300 PbF S E E R E V E R S EF O R O R D E R N O . C2-BOARD (FOIL SIDE) TNPA4300 C2-BOARD (COMPONENT SIDE) TNPA4300 TH-42PV70C C2-BOARD TNPA4300 TH-42PV70C C2-BOARD TNPA4300 Parts Location C2-BOARD IC7201 B-2 IC7202 E-2 IC7205 D-2 IC7206 F-2 IC IC C2 46 14.7. SC 电路板 A B C D E F G H I 1 2 3 4 5 6 SC41 SC42 SC45 SC46 C721 C531 C532 L401 L402 L403 L601 L602 L411 L412 L413 C561 C563 C592 C791 C795 C796 L461 L462 D583 L463 L464 L465 L466 L467 L468 L472 L473 L474 L481 L482 L483 L484 L485 L486 L487 L488 IC791 L690 Q401 Q402 Q403 C411 C412 C413 C414 C415 C801 C803 C804 C806 Q805 Q806 D401 Q421 D402 Q422 Q423 C813 C814 C620 C621 C431 C822 Q821 Q822 C440 R801 D421 Q441 D422 Q442 R806 R807 R809 IC803 C641 C450 Q451 Q452 R623 VR600 C841 C842 VR602 Q841 Q842 C460 R821 R823 TP1 TP2 TP4 TP5 Q661 TP6 TP7 TP8 TP9 T602 R840 R844 D461 D462 R658 SC2 D471 R856 TP10 TP11 TP12 TP13 TP14 TP15 C691 C692 TP16 TP17 Q690 TP18 R860 TP19 D481 D482 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 D491 TP30 TP31 TP32 TP33 TP34 TP35 TP36 TP37 TP38 TP39 TP40 TP41 TP42 R696 TP43 R697 TP44 TP45 TP46 TP47 TP48 TP49 TP50 TP51 TP52 TP53 TP54 TP55 TP56 TP57 TP58 TP59 L591 L592 TP60 TP61 TP62 TP63 TP64 SC23 TP70 SC30 SC31 PbF TNPA4182 1 2 3 4 5 6 CRNo.6 1 SC A1 A2 B2 B1 B40 B39 A40 A39 A1 B2 B1 B40 B39 A40 A39 A2 1 2 8 9 1 2 8 9 SEE REVERSE FOR ORDER NO. 1 12 G C E G C E G C E E C B E B C A A K G C E A A K G C E G C E E C B E C B A A K G C E A A K G C E 7 1 2 9 G C E G C E E C B C B E G D S S5 V2 S4 S3 S2 S1 V1 P1 P2 A A K A A K 1 3 A A K E B C A A K A A K A A K 3 1 1 10 1 6 TH-42PV70C SC-BOARD TNPA4182AF TH-42PV70C SC-BOARD TNPA4182AF SC-BOARD (FOIL SIDE) TNPA4182AF 47 TH-42PV70C SC-BOARD PARTS LOCATION TH-42PV70C SC-BOARD PARTS LOCATION Parts Location SC-BOARD (FOIL SIDE) IC6791 H-2 IC6803 F-1 Q6401 B-4 Q6402 B-4 Q6403 C-4 Q6421 D-4 Q6422 D-4 Q6423 E-4 Q6441 E-2 Q6442 E-2 Q6451 C-2 Q6452 C-2 Q6661 F-4 Q6690 H-5 Q6805 H-5 Q6806 H-5 Q6821 G-3 Q6822 F-4 Q6841 H-3 Q6842 H-3 IC TRANSISTOR TP1 A-2 TP2 A-2 TP4 B-2 TP5 B-2 TP6 B-1 TP7 B-1 TP8 B-1 TP9 B-1 TP10 H-1 TP11 H-2 TP12 H-1 TP13 G-1 TP14 H-1 TP15 H-2 TP16 G-2 TP17 G-2 TP18 G-1 TP19 G-2 TP20 G-2 TP21 G-1 TP22 G-2 TP23 G-2 TP24 G-2 TP25 H-2 TP26 H-1 TP27 H-2 TP28 H-1 TP29 H-3 TP30 H-5 TP31 E-1 TP32 E-5 TP33 A-1 TP34 A-4 TP35 A-5 TP36 G-2 TP37 H-2 TP38 G-1 TP39 H-1 TP40 D-5 TP VOLUME Parts Location SC-BOARD (COMPONENT SIDE) IC6471 B-4 IC6472 B-3 IC6501 G-4 IC6521 F-2 IC6561 C-1 IC6562 B-1 IC6581 F-1 IC6671 E-4 IC6721 A-5 IC6722 A-4 IC6724 C-5 IC6725 C-5 IC6752 D-4 IC6771 C-5 IC6772 C-5 IC6773 C-4 IC6774 C-4 IC6791 B-2 IC6801 C-2 IC6802 B-2 IC6803 D-1 IC6821 C-4 IC6841 B-3 IC6861 B-4 IC6871 C-3 IC PC6480 B-4 PC6701 A-4 PC6702 A-4 PC6704 A-4 PC6705 B-4 PC6801 C-2 PC6861 B-4 PC6871 B-2 Q6401 H-4 Q6402 H-4 Q6403 G-4 Q6421 F-4 Q6422 F-4 Q6423 E-4 Q6441 E-2 Q6442 E-2 Q6451 G-1 Q6452 G-1 Q6501 G-4 Q6502 G-4 Q6521 F-4 Q6522 F-4 Q6531 F-2 Q6532 F-2 Q6551 G-1 Q6552 G-1 Q6581 F-1 Q6601 E-6 Q6602 D-4 Q6603 E-6 Q6621 F-4 Q6622 G-4 PHOTO COUPLER TRANSISTOR TP15V G-1 TPSC1 D-5 TPSOS6 C-2 TPSOS7 B-2 TPVDA C-2 TPVSCN B-3 TPVSET C-4 TPVSET2 B-4 TPVSUS H-1 TP VR6600 C-2 VR6602 C-4 VOLUME TP41 D-5 TP42 D-5 TP43 D-5 TP44 B-5 TP45 D-5 TP46 F-5 TP47 F-5 TP48 F-5 TP49 F-5 TP50 H-5 TP51 G-5 TP52 H-1 TP53 H-3 TP54 C-5 TP55 C-5 TP56 C-5 TP57 C-5 TP58 B-5 TP59 G-5 TP60 G-5 TP61 G-5 TP62 G-5 TP63 G-5 TP64 G-3 TP70 H-2 VR6600 G-2 VR6602 G-4 Q6642 F-5 Q6643 F-5 Q6644 G-5 Q6645 G-5 Q6646 G-5 Q6647 H-5 Q6648 H-5 Q6661 D-4 Q6662 C-4 Q6665 D-4 Q6671 E-5 Q6672 F-4 Q6679 E-5 Q6680 E-5 Q6690 B-5 Q6742 B-4 Q6743 B-4 Q6762 F-4 Q6781 F-5 Q6782 F-5 Q6791 C-3 Q6801 D-1 Q6802 D-1 Q6805 B-5 Q6806 B-5 Q6821 C-3 Q6822 D-4 Q6824 B-3 Q6841 B-3 Q6842 B-3 SC 48 A B C D E F G H I 1 2 3 4 5 6 C708 SC41 SC42 SC45 SC46 C521 C522 C524 Q521 D501 C525 Q522 D503 C527 R501 R502 R503 R504 C721 R506 C722 C723 R507 C724 R508 C531 IC501 D701 C725 R509 C532 D702 C726 D703 C727 C728 R700 Q531 R701 Q532 R702 R703 R510 R704 R511 R705 R512 R706 R707 R708 R709 R516 R517 R710 R711 L401 D521 R712 L402 D522 R713 L403 D523 R714 R521 R522 R717 R523 C740 R718 D721 L601 IC521 L602 Q742 D722 Q743 D723 D724 L411 R721 D725 Q551 L412 R722 D726 Q552 L413 D727 R723 R724 D728 R531 D729 R532 R533 IC721 PC701 IC722 PC702 C752 C753 PC704 C754 IC724 D730 IC725 C561 D731 PC705 C755 C756 D732 C562 C563 D733 C564 C565 C566 Q762 R742 R745 R551 R746 R552 R747 R553 R748 C771 C772 C773 C775 C581 C582 C776 C777 Q581 R754 R561 R562 R563 R564 R565 IC752 R566 R567 R568 IC561 D761 Q781 IC562 C592 Q782 D763 C593 D764 D765 R761 D766 R762 R765 R766 R768 R769 C791 D771 C795 Q791 C796 D773 L461 L462 D583 L463 L464 D584 R580 R775 D585 L465 R582 R776 L466 R583 R777 L467 R584 L468 IC771 R585 IC772 R586 R587 IC773 R588 IC774 IC581 R589 R781 L472 R782 L473 L474 R590 R591 R785 R592 R786 R593 R788 R789 D791 L481 R791 L482 R792 L483 R793 L484 R795 L485 R796 L486 R797 L487 L488 IC791 L690 C401 C402 C403 Q401 Q402 Q403 C603 C604 C411 Q601 C605 C606 C412 Q602 C413 Q603 C414 C415 C801 C803 C804 C805 Q801 C806 Q802 Q805 C421 Q806 C422 C423 D401 Q421 D402 Q422 Q423 R401 C811 R402 C812 C813 R403 C814 C620 C815 C621 Q621 C431 Q622 D604 D605 D606 D607 R605 C822 R607 C823 R608 R609 Q821 D801 D802 Q822 C440 D804 Q824 D805 R801 D806 R802 R803 R804 R610 D421 D809 Q441 R805 D422 Q442 R612 R806 R807 R808 D619 R421 IC801 R809 C832 R422 IC802 IC803 R423 C641 C450 R810 R811 D621 Q642 R812 D622 D816 Q643 R813 D623 D817 Q644 R814 D624 Q451 R621 Q645 R815 R622 Q646 R816 Q452 R623 Q647 R817 R818 Q648 VR600 C841 R819 C842 VR602 D820 Q841 C845 D821 Q842 D822 D823 C460 D824 D631 D825 R821 D632 D826 R822 D827 R823 D828 R824 R825 D441 R826 R827 R828 R441 PC801 IC821 R829 R442 D830 R638 C661 R639 C662 C663 R830 Q661 D641 C471 R831 D836 R832 D642 Q662 D837 R833 D643 D838 R834 D644 Q665 D839 R835 D451 R642 R836 R837 R643 R838 R644 R839 R645 R451 C861 C862 R646 R452 C863 R647 R648 C671 D841 D842 T602 D843 R840 C480 R841 Q671 R842 Q672 R843 R844 D461 R845 R846 D462 R847 R848 Q679 IC841 R849 C871 D465 C872 D466 C873 R658 R659 R465 R466 R467 Q680 R850 R468 C491 D661 R851 D662 R852 SC2 D663 R853 D664 R660 R855 D471 D665 R661 D859 R856 D472 D666 R662 R857 D667 R663 R664 R665 R471 R472 R666 D477 R667 R473 D478 D860 R668 R474 D861 C691 R475 C692 D862 R476 R477 C694 Q690 R860 D670 C695 R861 IC471 D671 R862 IC472 R863 R864 D480 R865 D481 R671 R866 R672 D482 R867 R673 R868 R674 IC861 R869 D871 IC671 D872 R871 R872 R873 R874 R680 R875 D491 R681 R876 R877 R878 IC871 R879 D497 D690 D691 D692 R692 R886 R693 R887 R694 R888 R695 PC861 R696 R697 PC480 R891 PC871 L591 L592 SC20 SC23 C502 SC30 C504 SC31 Q501 C505 Q502 ZA401 ZA402 C702 ZA403 C703 C704 C705 C706 SCMM1 TPVAD TP15V TPVSCN TPSOS6 TPSOS7 TPSC1 DIP SCMM2 TPVSET2 TPVSET TPVSUS PbF Discharge SC CRNo.6 TNPA4182 1 A1 A2 B1 B2 A40 A39 B40 B39 A1 A2 B1 B2 A40 A39 B40 B39 1 2 8 9 1 2 8 9 9 16 8 1 1 8 16 9 1 7 8 14 14 1 7 8 ORDER NO. 1 8 9 16 1 10 11 20 1 10 11 20 1 4 5 8 3 4 5 1 3 4 5 1 1 4 5 8 12 1 C G E C G E C G E G S D B C E B C E A A K C G E A A K C G E C G E D G S D G S B C E B C E A A K C G E A A K C G E 7 2 9 1 D G S D G S D G S C G E D G S D G S C G E D G S D G S B C E B C E 1 2 3 4 G S D S5 V2 S4 S3 S2 S1 V1 P1 P2 D G S D G S A A K A A K 3 1 A A K B C E 1 1 3 4 5 A A K A A K 5 1 4 8 1 4 5 8 A A K 1 5 8 4 1 2 3 4 1 2 3 4 1 2 3 4 1 30 1 3 1 10 1 6 TH-42PV70C SC-BOARD TNPA4182AF TH-42PV70C SC-BOARD TNPA4182AF SC-BOARD (COMPONENT SIDE) TNPA4182AF 49 14.8. SU 电路板 A B C D E F G H I 1 2 3 4 5 6 C6901 C6902 C6903 C6904 C6905 C6906 C6907 C6908 C6909 C6910 C6911 C6912 C6913 C6914 C6915 C6916 C6917 C6918 C41 C6921 C6923 C6924 D6901 D6902 C6926 D6903 C6927 D6904 R6901 D6905 C6929 R6902 R6903 R6904 R6905 IC6901 R6909 C6931 IC6902 IC6903 IC6904 IC6905 C6936 IC6906 C6937 R6913 R6917 C6940 IC6910 C6941 IC6911 C6942 C6943 R6924 R6925 R6926 R6927 R6928 R6931 R6932 R6933 C80 R6934 R6935 R6936 R6938 SU45 SU1 SU2 SU3 SU4 L6901 TPSU1 TPSU2 SU TNPA4184 1 PbF B1 B48 A48 A1 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 50 51 75 76 100 26 1 25 26 50 51 75 76 100 3 4 5 1 3 4 5 1 9 8 2 1 ORDER NO. A1 B1 A48 B48 A1 A48 B48 B1 A1 A48 B48 B1 A1 B1 A48 B48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 C40 C1 TNPA4184 1 1 2 3 SU PbF SEE REVERSE FOR ORDER NO. TH-42PV70C SU-BOARD TNPA4184 TH-42PV70C SU-BOARD TNPA4184 SU-BOARD (COMPONENT SIDE) TNPA4184 SU-BOARD (FOIL SIDE) TNPA4184 Parts Location SU-BOARD IC6901 G-2 IC6902 F-2 IC6903 E-2 IC6904 D-2 IC6905 C-2 IC6906 B-2 IC6910 B-2 IC6911 B-2 IC TPSU1 C-2 TPSU2 F-1 TP SU 50 14.9. SD 电路板 A B C D E F G H I 1 2 3 4 5 6 A41 A80 C6951 C6952 C6953 C6954 C6955 TPSD1 C6956 TPSD2 C6957 C6958 C6959 C6960 C6961 C6962 C6963 C6964 C6965 C6966 C6967 C6968 C6971 C6973 C6974 D6951 D6952 C6976 D6953 C6977 D6954 R6951 D6955 C6979 R6952 R6953 R6954 R6955 R6959 IC6951 C6981 IC6952 IC6953 IC6954 IC6955 C6986 IC6956 C6987 R6963 R6967 C6990 IC6960 C6991 IC6961 C6992 C6993 R6971 R6975 R6976 R6977 R6978 R6981 R6982 R6983 R6984 R6985 R6986 R6989 SD46 SD1 SD2 SD3 SD4 L6951 SD TNPA4185 1 PbF ORDER NO. 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 50 51 75 76 100 26 B1 B48 A1 A48 3 4 5 1 3 4 5 1 B1 B48 A1 A48 9 8 2 1 B1 B48 A1 A48 A1 B1 A48 B48 A1 B1 A48 B48 A1 B1 A48 B48 A1 B1 A48 B48 B1 B48 A1 A48 TNPA4185 1 1 2 3 SD PbF SEE REVERSE FOR ORDER NO. TH-42PV70C SD-BOARD TNPA4185 TH-42PV70C SD-BOARD TNPA4185 SD-BOARD (COMPONENT SIDE) TNPA4185 SD-BOARD (FOIL SIDE) TNPA4185 Parts Location SD-BOARD IC6951 G-2 IC6952 F-2 IC6953 E-2 IC6954 D-2 IC6955 C-2 IC6956 B-2 IC6960 G-2 IC6961 G-2 IC TPSD1 D-2 TPSD2 F-2 TP SD 51 14.10.SS 电路板 A B C D E F G H I 1 2 3 4 5 6 L001 L002 L003 L011 L012 L013 SS11 SS12 SS23 L221 SS34 L045 L046 L047 L048 L241 L055 L056 L057 L058 SS53 SS54 SS55 SS56 L061 L062 L063 L064 L262 L271 L272 L081 L082 L083 L084 Q001 Q002 Q003 C201 C202 C011 C012 C013 C014 C015 C213 Q021 D001 Q022 Q023 C031 Q222 D021 Q041 D022 Q042 R020 VR000 C241 L103 Q051 Q052 R222 R223 Q256 C261 C262 C272 C273 D253 D061 TP1 D062 TP2 TP3 TP4 TP5 TP6 TP7 TP8 TP9 D071 D072 D081 D082 TP10 TP11 TP12 TP13 TP14 D091 TP15 TP16 TP17 TP18 TP19 TP20 TP22 TP24 TP25 TP26 TP27 TP28 TP29 SS53A TP30 TP31 TP33 TP34 TP36 SS54A SS55A SS56A C111 C112 1 SS 1 2 3 TNPA4183 6 5 4 CRNo.6 TPVe2 PbF 1 3 1 1 0 1 12 1 3 1 1 3 1 1 3 1 1 3 1 1 3 SEE REVERSE FOR ORDER NO. G C E G C E G C E G C E A A K G C E G C E E B C A A K G C E A A K G C E G C E G C E E C B A A K A A K A A K A A K A A K A A K A A K 1 13 1 1 3 1 13 1 1 3 1 1 3 1 1 3 1 1 3 1 1 3 1 1 3 1 1 3 1 1 3 1 1 3 SS-BOARD (FOIL SIDE) TNPA4183AF TH-42PV70C SS-BOARD TNPA4183AF TH-42PV70C SS-BOARD TNPA4183AF Parts Location SS-BOARD (FOIL SIDE) TRANSISTOR Q6001 H-3 Q6002 H-3 Q6003 G-3 Q6021 G-3 Q6022 F-3 Q6023 F-3 Q6041 D-3 Q6042 D-3 Q6051 E-3 Q6052 E-3 Q6222 D-1 Q6256 D-1 TP22 B-2 TP24 H-3 TP25 G-3 TP26 F-3 TP27 F-3 TP28 D-3 TP29 D-3 TP30 C-3 TP31 B-3 TP33 B-2 TP34 B-2 TP36 D-3 TPVe2 D-1 TP1 H-1 TP2 H-1 TP3 H-1 TP4 H-1 TP5 H-1 TP6 H-1 TP7 H-2 TP8 H-2 TP9 H-2 TP10 G-2 TP11 G-2 TP12 B-3 TP13 B-2 TP14 B-2 TP15 B-2 TP16 B-2 TP17 B-2 TP18 B-2 TP19 B-2 TP20 B-2 TRANSISTOR TP VR6000 D-2 VOLUME SS 52 A B C D E F G H I 1 2 3 4 5 6 R104 R106 R107 R108 R109 C132 D110 C134 D111 C135 R110 R111 R112 R113 R114 R116 L000 L001 Q141 Q142 L002 L003 Q146 Q147 C151 C152 C153 L010 C154 D131 L011 D132 L012 L013 R131 R132 R134 SS11 R135 SS12 R136 IC131 L211 L212 R141 R142 R145 R146 R147 SS23 L221 Q171 D151 Q172 D152 D153 R151 R152 R154 R157 R158 SS34 R159 IC151 Q181 R160 L045 L046 L047 L048 L241 C193 C194 C195 C197 L055 R171 L056 R172 L057 R173 L058 SS53 SS54 SS55 SS56 L061 L062 L063 L064 R181 R182 R183 L262 D191 D193 R191 R192 R193 R194 IC191 L271 L272 L081 L082 L083 L084 C001 C002 C003 Q001 Q002 Q003 C201 C202 C011 C012 C013 C014 C209 C015 C211 C212 C213 C021 C022 C023 Q021 D001 Q022 Q023 R001 R003 C220 C221 R005 C031 Q222 C033 D010 Q031 C037 D211 R210 D021 Q041 D022 Q042 R213 D024 R020 R214 D025 R021 VR000 R024 C241 IC211 C242 R026 C243 D221 L101 D222 L102 L103 D223 R220 R221 D031 Q051 L105 L106 Q052 D032 R222 R223 R031 R225 R032 R226 R227 R033 R034 R228 R229 C251 IC221 C252 Q251 R230 R231 Q256 R232 R041 R043 C261 C262 C071 R241 R242 R051 R246 R247 R053 R248 R249 IC241 C272 C273 Q271 C276 D253 C278 D254 D255 D061 D062 R252 R253 R254 R255 R062 R256 R257 R064 R258 R259 IC251 R066 C282 C283 R068 C284 C091 C286 C287 C288 C289 D071 R261 D072 D073 R070 R071 R072 R073 R269 R077 D270 D271 D272 D273 R270 D275 D081 D276 R272 D082 R273 D278 R080 R274 R082 R276 R084 R278 R279 R086 R088 D280 R089 D281 D091 D092 R090 R284 R091 R290 R292 R293 SS53A SS54A SS55A SS56A Q101 Q102 Q103 Q104 Q105 Q106 ZA001 ZA002 C111 ZA005 C112 Q111 Q112 Q114 D101 D102 D103 D104 R102 TPVe SSMM1 TNPA4183 CRNo.6 SS 1 Discharge TPVSUS TP15V TPVDA TPSS1 Discharge TPSOS8 SSMM2 PbF 1 3 1 10 1 8 9 16 1 12 1 3 1 8 9 16 1 13 1 13 1 13 1 13 ORDER NO. 1 8 9 16 C G E C G E C G E C G E A A K C G E C G E B C E A A K C G E A A K C G E 1 4 5 8 C G E C G E B C E 1 10 11 20 A A K A A K 1 4 5 A A K A A K A A K A A K A A K 1 13 13 1 13 1 1 13 13 1 13 1 1 13 13 1 13 1 1 13 13 1 13 1 G S D G S D G S D G S D G S D G S D G S D SS-BOARD (COMPONENT SIDE) TNPA4183AF TH-42PV70C SS-BOARD TNPA4183AF TH-42PV70C SS-BOARD TNPA4183AF Parts Location SS-BOARD (COMPONENT SIDE) IC IC6131 C-2 IC6151 E-2 IC6191 H-2 IC6211 G-1 IC6221 F-1 IC6241 H-2 IC6251 H-2 Q6001 B-2 Q6002 B-2 Q6003 C-2 Q6021 C-2 Q6022 D-2 Q6023 D-2 Q6031 F-2 Q6041 F-2 Q6042 F-2 Q6051 E-2 Q6052 E-2 Q6101 H-3 Q6102 H-2 Q6103 G-2 Q6104 G-2 Q6105 G-3 Q6106 H-2 Q6111 F-2 Q6112 G-1 Q6114 G-1 Q6141 C-2 Q6142 C-2 Q6146 C-2 Q6147 C-2 Q6171 F-2 Q6172 F-2 Q6181 E-2 Q6222 F-1 Q6251 H-3 Q6256 E-2 Q6271 F-3 TRANSISTOR TP15V B-2 TPSOS8 H-3 TPSS1 G-3 TPVDA B-2 TPVe F-2 TPVSUS B-2 TRANSISTOR TP VR6000 F-2 VOLUME SS 53 14.11.K 和 S 电路板 A B C D E F G H I 1 2 3 4 5 6 C2510 C2513 C2515 C2522 C2523 C2524 C2525 C2526 C2527 D2510 R2512 D2520 D2524 D2525 R2524 R2530 R2531 RM2501 R2538 PC2511 R2539 R2540 R2554 R2556 R2557 R2569 R2570 R2571 K1 R2572 K2 R2573 R2575 R2576 R2577 R2578 R2579 PbF K 1 TNPA4137 AB AC AD AE AF AG AH AJ SUFFIX. 1 2 11 12 1 2 C2511 C2512 Q2510 Q2511 C2516 Q2513 C2517 Q2518 Q2519 C2520 C2521 Q2520 Q2521 Q2522 D2511 D2512 R2516 R2517 R2519 R2520 R2521 D2526 D2528 R2525 D2530 RM2501 R2537 R2542 R2558 R2559 R2560 R2561 R2562 R2563 R2564 R2565 R2566 R2567 R2568 K1 K2 PbF K1 TNPA4137 REVERSEFORSUFFIX. SEE 1 2 11 12 1 2 TH-42PV70C K-BOARD TNPA4137AJ S-BOARD TNPA4138AD TH-42PV70C K-BOARD TNPA4137AJ S-BOARD TNPA4138AD K-BOARD (FOIL SIDE) TNPA4137AJ K-BOARD (COMPONENT SIDE) TNPA4137AJ Parts Location K-BOARD Q2510 B-3 Q2511 D-3 Q2513 D-3 Q2518 C-3 Q2519 B-4 Q2520 B-3 Q2521 C-4 Q2522 D-3 TRANSISTOR K S SW2500 S1 TNPA4138 1 S PbF ORDER NO. 1 3 C2502 C2503 SW2500 R2506 R2507 S1 TNPA4138 1 S PbF SEE REVERSE FOR ORDER NO. 1 3 S-BOARD (FOIL SIDE) TNPA4138AD S-BOARD (COMPONENT SIDE) TNPA4138AD 54 14.12.G 电路板 A B C D E F G H I 1 2 3 4 5 6 L3700 L3701 L3704 L3705 L3706 L3707 L3708 L3713 JK3701 C3701 C3702 C3703 C3704 C3705 C3706 C3707 C3708 C3711 C3712 C3713 C3714 C3715 D3701 D3702 D3703 D3704 D3705 D3706 D3707 D3708 R3705 D3709 R3706 R3709 D3710 D3711 R3710 R3711 R3712 R3713 R3714 R3716 R3717 R3718 R3719 R3720 R3721 R3732 R3736 R3737 R3738 R3739 R3740 R3741 SW3751 R3746 R3747 SW3753 R3748 SW3754 R3749 SW3755 SW3757 SW3758 FL3713 FL3714 FL3715 FL3716 FL3717 JS3700 JS3701 JS3702 JS3704 JS3705 JS3707 JS3708 JS3711 JS3712 JS3713 JS3714 JS3715 JS3716 JS3717 ZA3701 ZA3702 AB AC AD AE AF AG R3724 R3722 R3723 R3725 SW3756 PbF 1 TNPA4262 CH.UP CH.UP CH.DN CH.DN VOL.UP VOL.UP -/ VOL.DN VOL.DN TV/VTR TV/VTR F ASPECT STR OK MENU JAPAN USA EURO +/ TV/AV G L V R L V R SUFFIX. 1 2 3 4 1 2 3 4 2 3 4 1 1 2 3 4 1 2 3 4 R L V G51 JK3701 C3750 SW3751 SW3753 SW3754 SW3755 SW3757 D3750 SW3758 R3750 R3751 R3752 R3753 R3754 R3755 R3756 R3758 R3765 R3766 R3767 R3768 FL3710 FL3711 FL3712 ZA3701 TNPA4262 1 G G52 SW3756 PbF CH.UP CH.UP CH.DN TV/AV CH.DN VOL.UP +/ VOL.UP VOL.DN -/ VOL.DN TV/VTR F TV/VTR ASPECT STR OK MENU USA EURO JAPAN R L V R L V REVERSE FOR SUFFIX. SEE 1 19 20 2 1 2 R L V G-BOARD (FOIL SIDE) TNPA4262AB G-BOARD (COMPONENT SIDE) TNPA4262AB TH-42PV70C G-BOARD TNPA4262AB TH-42PV70C G-BOARD TNPA4262AB G 55 15 方框图和线路图 15.1. 线路图注意事项 56 15.2. 主要集成电路方框图 S.R. LVDS format S.R SS12 64 DCLK SS11 STB_PS/ +15V P11 STB12V WRITE PROTECT S.R RECTIFIER SD CARD RECTIFIER P5V 64 MICOM RECTIFIER SS_SOS8 SS23 ASDIO D SUSTAIN DISPEN MAIN 64 FLASH CONTROL S.R. 12V P5V PCLK/NCLK SUSTAIN 64 PROCESS +5V BOOT ROM LATCH,SFVRST,SFRST VOLTAGE VSUS PULSE VCXO +15V STB12V VOLTAGE S.R SD GENERATOR *CLK VOLTAGE Peaks-Lite 2 X'tal S VDA LINE PULSE ADDRESS VSUS SLOT S.R STB_PS S.R. AC CORD STB_PS PS_SOS VOLTAGE POWER Vda RESET IC PROM VOLTAGE DATA0 128Mbit DDR DCK STB3.3V D5 RECTIFIER EEPROM NOR FLASH RESET D-LATCH SOS1 CONTROL FACTOR DRVRST VDA P_ON/OFF STBY5V_M SWITCH +15V *Discharge Control DATA DRIVER(LEFT) 64 P2.5V SC STANDBY 64 16/32Mbit Flash-ROM DC/DC CONVERTER S.R. *H,V Snyc Control S1 SUSTAIN S.R 64 SCAN OUT 64 S.R S.R. (4MByte) FILTER FCLK,FPDATA[1:0] D20 C11 15V REG RESET VOLTAGE MCU GENERATOR CONTROL D31 S.R VOLTAGE SCAN OUT C2 RECTIFIER SU R[9:0] VSUS S.R. FORMAT CONVERTER, OSD 64 PULSE 5V DC/DC 1.8V C23 32k Vda 75V CONTROL SUSTAIN P9 THERMAL (VE) [27MHz] P12 DC/DC 1.2V SENSOR XRST S.R IIC2 *Sub Filed Processor C1 64 SCAN DRIVE P3.3V STB12V AD/HDMI S.R. RELAY D25 64 *RGB:10bit(or8bit) PROTECTION(SOS) DC/DC 3.3V POWER SW D32 CONTROL B[9:0],HD,VD STANDBY *VD,HD SC20 P1.2V SCAN LINE DG5 G[9:0] S.R S.R S.R S.R C21 *LVDS receiver Discharge Control(SC) DATA DRIVER(RIGHT) 64 P25 PD1-M plus STB5V *Plasma AI DDR2x2 SC2 CLOCK POWER SUPPLY SUSTAIN DRIVE FILTER C20 ERASE CONTROL SOS2 P2 VDA PULSE Discharge Control(SS) PLASMA AI PROCESSOR Data Driver Control C10 PULSE STB12V POWER FPGA SS SS34 PROCESS VOLTAGE P MEM S.R. POWER SOS DC/DC DC POWER DG7 DG6 +15V P7 P6 DC POWER F_STBY_15V STB5V CONVERTER HDMI1 IN HDMI2 IN TH-42PV70C Main Block Diagram TH-42PV70C Main Block Diagram V,Y,C K1 DG51 DIGITAL SIGNAL PROCESSOR REMOTE/LED AV1 HP_L/R OUT G51 L/R AV2 KEY SW AUDIO VIDEO KEY SCAN R,G,B INPUT INPUT L/R V,Y,PB,PR AUDIO L/R PC IN REMOTE RECEIVER DG MAIN TV-V TUNER MCU AV4 IN L/R MSP AI SENSOR SELECT POWER LED DDR2x2 AV3 AV4 IN IN L/R TV_L/R AUDIO IN L/R S-VIDEO IN V,Y,PB,PR DG1 G HEADPHONE SELECT SIF K MONITOR VIDEO IN AMP L SPEAKER DG 12 R SPEAKER L R SPEAKER FAN DG8 SOS SOS +15V PB FAN CONTROL PB36 PB37 PB8 PB7 FAN CONTROL S.R. S.R. S.R. S.R. 57 15.3. P 电路板方框图 + - + - + REF K A REF K A REF K A D509 X501 4NHz R661 1 2 3 R665 1 2 3 Q408 Q412 D417 D420 D419 C469 C555 D404 D416 D435 D401 D511 R628 Q527 Q413 Q409 R443 1 2 3 1 2 IC408 4 2 1 3 1 3 4 2 IC403 8 7 10 2 T401 5 8 7 6 VCC MOS DRIVE CURR DET CURR COMP 2 1 3 4 Q420 Q404,Q406 R406,D415 IC406 PFC 8 6 10 7 9 2 3 4 1 15 19 24 18 22 23 16 17 21 20 VDD VSS XIN XOUT RESET STB PS Vdat_GO_L STB 5 ON/OFF LOW 15 PANEL_ MAIN_ON AC_DET/ F STB H V LOW DET AC_P_DET (FAIL:H) AC_GO_L VSUS DET F_15V_ON/OFF SOS4_PS PFC ON/OFF V LOW ON/OFF IC501 1 2 IC502 RESET 6 4 1 4 Vdat P12 +15V TO 1 2 4 DG6 TO DG7 P5 3 5 10 6 +5Vc TO STBY5V 5 P25 D25 +5Vc 9 POWER MCU COLD COLD HOT 10 STB_PS Vda75V 8 STB12V Q509 12 11 13 2 +15Vc 1 3 HOT POWER SUPPLY 4 Vdat Q508 10 9 13 14 12 MAIN RELAY(H) RUSH RELAY(H) VSUS ON/OFF ALL OFF 11 VDATA_DET SOS4_PS PANEL_MAIN_ON IC520 PR401 F401 F402 1 4 NEUTRAL RL402 RL403 2 4 IC412 1 3 5 13 11 10 14 9 7 SS12 TO T410 T404 D540 LIVE P9 2 POWER COLD HOT AC CORD TO VlOW DET VlOW DET Vsus 192V Vlow Vlow OSC 395V Q501 Q502 Q525 ERROR DET IC506 ON:L 2 Vdat 73V D569 D570 R670 Q541 R650 R649 5V OUT DETECTION COUPLER PHOTO CONTROL D579 R579 D549 IC401 COUPLER (3V 1.0V) OVER VOLTAGE PROTECTION (490V 80V) COUPLER PHOTO PHOTO COUPLER PHOTO R441 D441 4 OSC L405 L404 L410 R407 Q434 IC409 IPD 8 Source Source 7 1 2 Drain 5 3 3 14 6 11 C446 Q402 L403 Q401 D407 R455 R438 (AC DET) RESET 1 2 3 ECO R411 7 3 2 1 IC504 12 15 Q521 Q569 Q537 1 S 2 S G 3 4 S 8 7 5 6 D D D D 6 4 S 8 5 S 3 D D D 7 G 1 2 S D Q555 Q556 DC/DC CONV. DC/DC CONV. Q524 OUT 2 1 Vcc PR505 ERROR DET (Vda) IC512 D544 D545 DC-DC CONV. IC510 Q566 13 4 6 12 2 PHOTO COUPLER 3 4 1 2 IC507 3 1 2 (Vsus) K A Vsus R622 R648 R636 R626 R627 OUT DETECTION (60V 40V) VOLTAGE 2 4 3 9 5 6 10 T402 R631 R674 3 1 2 K A POWER CIRCUIT F_5A_250V OSC OSC D531 8 7 D506 2 5 1 D536 Q563 Q554 Vdat OVER VOLTAGE DETECTION(100V 25V) Q520 Q517 +15Vc P ERROR DET IC411 ERROR DET SW SW RECTIFIER RECTIFIER 5V (Vlow) STB_12V STB5V ON/OFF STB5V (15V) (F STB 5V) INV. 12V ON/OFF BUFF D602 3 15V 250V 8A 250V 8A LINE FILTER 4 5 1 12 13 9 PR402 PFC R444 R442 R445 680kx3 R474 R472 R473 560kx3 Q422 Q407 D418 A K Vref LINE FILTER Q411 RL401 R410 R415 250V T630mA F403 4 Source Source Source Q410 PR509 16 15 D539 R676 Control Q540 Q507 Q510 Q538 RELAY ON RUSH ON RELAY MAIN ON:H D522 D523 ON IC513 7 10 2 3 PR601 T601 Vda DET Vref IC508 180k x4 2 1 3 5 4 IC509 IC511 TO 1 Vsus P11 P2 Vsus SS11 3 SC2 TO GND GND 1 3 7 USE NO P6 3 8 9 1 +15Vs(S) 2 F_STBY +15Vs(S) +15Vs(S) F_STBY F_STBY +15Vc +15Vs(S) +15Vs(S) STBY5V +15Vc +15Vs(S) 13 F_STB F_STB F_STB 12 15 17 F_STBY_ON 16 ALL_OFF 18 AC_GOOD +5Vc 20 +15Vc +15Vc STBY5V ALL_OFF AC_GOOD 1 8 F_STBY_ON 5 P7 9 2 6 +5Vc 10 Q564 BUFF BUFF Q565 Q535 PHOTO COUPLER 3 4 1 2 IC505 D701 D535 Q530 Q553 0.1 + - P_OUT P_OUT VDD2 VDD1 Vref 5V CRT_ON FB (PFC_ON/OFF) RCC CONV. (100KHz) (120-145KHz) CONVERTER RESONANCE ON:L ON:L ON:H ON:L GO:L 16 15 ON:H 11 12 15 16 D521 POWER SOS LED BLINKING : 4TIMES TH-42PV70C P-Board Block Diagram TH-42PV70C P-Board Block Diagram D408 D450 TO PB7 58 15.4. P 电路板 (1/4) 线路图 AA AB AC AD AE AF AG AH AI AJ 1 2 3 E 9 6 7 8 1 2 F B 4 C 5 A 3 D TH-42PV70C P-Board (1 of 4) Schematic Diagram TH-42PV70C P-Board (1 of 4) Schematic Diagram P-BOARD (1/4) TNPA4221AL TO P-BOARD (3/4) COLD HOT COLD HOT To AC Cord 59 15.5. P 电路板 (2/4) 线路图 P-BOARD (2/4) TNPA4221AL 15 16 17 10 9 11 13 14 12 TH-42PV70C P-Board (2 of 4) Schematic Diagram TH-42PV70C P-Board (2 of 4) Schematic Diagram 1 BA BB BC BD BF BH BJ BL BN BP BR BK BM BO BQ BS BI BE BG 2 3 To SS-Board (SS12) TO P-BOARD (4/4) 60 15.6. P 电路板 (3/4) 线路图 AA AB AC AD AE AF AG AH AI AJ 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 23 22 24 25 E 9 6 7 8 1 2 F B 4 C 5 A 3 D TH-42PV70C P-Board (3 of 4) Schematic Diagram TH-42PV70C P-Board (3 of 4) Schematic Diagram P-BOARD (3/4) TNPA4221AL COLD HOT TO P-BOARD (1/4) 61 15.7. P 电路板 (4/4) 线路图 15 16 17 10 9 11 13 14 12 TH-42PV70C P-Board (4 of 4) Schematic Diagram TH-42PV70C P-Board (4 of 4) Schematic Diagram P-BOARD (4/4) TNPA4221AL 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 24 23 25 BA BB BC BD BF BH BJ BL BN BP BR BK BM BO BQ BS BI BE BG To SC-Board (SC2) To SS-Board (SS11) TO DG-BOARD (DG6) TO DG-BOARD (DG7) NO USE To D-Board (D25) TO P-BOARD (2/4) } TO PB-BOARD (PB7) 62 15.8. PB 电路板方框图和线路图 C B A E 5 6 7 D 1 2 3 4 F 8 9 TH-42PV70C PB-Board Schematic Diagram TH-42PV70C PB-Board Schematic Diagram TP853 +B FOR FAN GND FOR FAN PB36 PB37 1 2 3 1 2 3 D856 MA2J11100L D857 MA2J11100L R856 4.7k R857 4.7k FAN_SOS 9V C858 25V 0.1u 1 2 TP850 TP851 TP852 C862 25V 0.1u C860 470u 25V + 470u 25V C869 C861 0.1u 25V Vin Vout(sw) Vadj ON/OFF (FIN) GND 3 C0DBAZF00003 IC850 R869 1k 1 2 4 5 9V D859 B0JCME000037 L852 R867 0 LHLP10TB101KB R872 845 1% R871 13k R859 2k 1% 1% R861 4.7k R874 470 D860 MAZ81100ML MA2J11100L D861 PB7 C859 25V 0.1u D862 PB8 1 2 3 4 5 6 GND TO DG-BOARD (DG8) DR15V Fan cont FAN SOS Main9V 7V 9V TO FAN TO FAN TO P-BOARD (P6) ! PB-BOARD TNPA4324AB FAN CONTROL 1 5 2 4 IC850 TO FAN D874 D861 D856 D857 FAN DR15V SOS FAN SOS PB36 1 3 PB37 1 3 PB8 1 2 4 5 6 PB7 1 DR15V DR15V Fan cont FAN SOS Main9V/5V + 9V + 7V TO P6 TO DG8 63 15.9. DG 电路板 (1/4) 方框图 DRIVE IC VCC Vin GND COMPONENT COMPONENT AV1 AV1S AV2 AV3 AV2 AV3 PR PB Y PR V L C R R L Y R L V R V V L MONITOR OUT PB Y AV1_R TUNER_MAIN_ON SQ_R- PC_LIN AV1_C SCL0B_5V VIDEO_STATUS AV2C_PB SCL0B_5V TV_R PC_RIN PC_V_IN SCL0B_5V AV3_L SDA0B_5V TV_L PC_R AV3_V SDA0B_5V AV_R SDA0B_5V AV1_Y AV2_L AV3C_PR PC_G AV2C_Y AV_L AV1_V PC_B AV2_R AV3C_PR AV2C_PR AV3C_YSW AV2C_YSW AV1_L AV3_R AV1_Y AV1_C AV3_L AV1_S AV3C_PB AV2_R AV3_R MAIN_RF_CVBS AV2_L AV3C_YSW TV_R SDA2 MAIN_Y_OUT SQ_R+ MAIN_PB_OUT HDMI_LRCK MAIN_PR_OUT TV_L PC_V HDMI_SDIN AV_L PC_B AV3_V SCL2 PC_H PC_R AV_R SDA2 AUDIOOUT_R PC_H_IN RGB_CVBS PC_G SDA0B_5V RF_AFT1 AV2C-Y AV3C_Y AUDIO_XRST PC_H_IN SCL2 AUDIOOUT_R AUDIOOUT_L AV1_V AV2C_YSW HDMI_BCLK PC_V_IN AV1_S AV2C-PR MAIN_RF_CVBS PC_LIN AV3C_PB SQ_L+ SQ_L- MON_MUTE AV1_R SCL0B_5V AV2C_PB AV1_L PC_RIN AUDIOOUT_L HPOUT_L HPOUT_R MUTE AV2_V AV2_V DTV9V Q3032 BT30V DTV9V X2010 AUD3.3V SUB3.3V *JK3001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 SUB5V *D2025 *Q2002 *Q2003 JK3100 Y-SW Y G PB PR V L R-SW R G Y-SW Y G PB PR V L R-SW R G C Y G Y-G C-G G V L R-SW R G V L R G Q3032 SUB5V SUB3.3V Q2102 Q2101 DTV9V JK2003 L L-G R R-G PWM1A L7 5 L12 LP2 VOUT7 B4 AUDIO_OUT 41 G3 G PWM2A 42 LP3 77 17 XIN HPOUTR1 HPOUTL1 L5 13 44 33 VOUT IC2008 AV2 Q2640 75 MUTE 32 SCL B5 SDA R3 41 5 G5 16 L8 G4 5V<->3.3V AINL2 17 L6 ROUT1 5V<->3.3V 1 AUXOUTL1 AV3 I2C Q2017 I2C VCC 43 50 I2C 9 HD 7 78 35 RESET DVDD3.3V AV3 77 VOUT3 7 81 HIN2 72 8 R AV2 AV3 10 AV1 VCC4 SDA L BTL VD 1 IC2105 2 PC IN 2 PC 91 45 33 SCL LRCLK0 AVR 14 SCL AUXOUTR2 78 I2C VIDEO_OUT SPDIF_OUT AV1 DG 38 BB TV OUT1(CY) DIGITAL SIGNAL PROCESSOR VCC1 HVOE 4 40 18 75 SIF_OUT 63 AINR1 16 36 V4 65 IC2010 14 43 R5 67 15 AV1 C4 11 1 6 IC2107 SDA 1 1 5 OUT1(Pb) VCC3 AINR2 PC AUDIO IN AMP 79 39 5 3 V3 DVDD1.8V 25 19 Y4 B3 44 42 OUT1(Pr) 3 84 2 VCC2 SDA AFT_OUT SCL 15 34 13 27 38 6 33 PWM1B AVR S12 AUD3.3V V2 22 12 I2C 26 10 +B AUXOUTR1 79 SIF_IN1 14 R AVR+3.3V BCLK0 5 IC2106 11 8 16 IC2011 TH-42PV70C DG-Board (1 of 4) Block Diagram TH-42PV70C DG-Board (1 of 4) Block Diagram SOUND PROCESSOR TU3200 TUNER(ANALOG) 5 Q3200 20 AUXOUTL2 76 3 5 SDIN1 74 7 AINL1 PWM2B 69 45 AV SW1 83 6 Video SW FLAG VIN2 3 Q2641 5 Q2021 XOUT MONITOR OUT IC3001 85 1 V7 HOUT DVDD1.8V 8 42 TV 73 AV2 Q2015 R5 71 R6 VB AV SW2 (AUDIO SW) 60 R12 58 SIF3.3V AVR R8 AUD3.3V 21 R7 R4 PC B LOUT1 73 Q2016 AV4_C AV4_Y AV4_V AV4_S V5 C5 Y5 S13 95 96 99 97 AV4 AV4_L HP_L DG51 HP_R AV4_R AV4_L AV4_R 10 8 7 9 AV4_V AV4_S AV4_C AV4_Y AV4_V AV4_S AV4_C AV4_Y 19 17 12 15 HP AMP IC2012 IC2013 3 8 1 7 2 5 53 57 5 4 MAIN9V HPOUT_L HPOUT_R AV4_L AV4_R L3 R3 7 6 AV4 TO G51 64 15.10.DG 电路板 (2/4) 方框图 RXB_2N RXA_CP VI1P13 RXA_2P SOS VI1P26 AG_HDMI_5V_DET1 RXA_CN HDMI_INT2 RXB_0N VI1P22 VI1P29 RXB_0P VI1P16 RXA_0N HDMI_BCLK RXA_1P VI1P14 RXB_1N HDMI_LRCK VI1ENB RXA_0P VI1P18 ALL_OFF TV_SUB_ON_DELAY VI1VSYNC RXB_2P ECO_ON SQ_R- SDA1 SCL1 VI1P15 TV_SUB_ON RXB_CP RXB_0P VI1HSYNC VI1P17 RXB_CN AG_HDMI_CEC SQ_L+ VI1P19 RXB_CN AMUTE HDMI_SDIN VI1P7 RXA_CN RXA_2N SQ_R+ RXB_2N SP_MUTE VI1P2 VI1P9 SOUND_SOS RXA_1N AG_EDID_WP AUDIO_MUTE VI1P3 RGB_FB RXA_1P MUTE VI1P6 AUDIO_MUTE RXA_2N SQ_L- MAIN_PB/C VI1P4 RXA_0N VI1P25 VI1P5 VI1P24 RXB_CP RXB_2P VI1P23 VI1P8 MAIN_Y/CVBS RXA_0P AG_HPD1 TV_MAIN_ON CLKOA RXB_1N AG_HDMI_5V_DET3 RGB_CVBS VI1CLK VI1P12 RXA_CP RXB_1P HDMI_INT2 MAIN_PR RXB_1P RXA_2P RXA_1N RXB_0N VI1P28 AG_HPD3 VI1P27 SUB3.3V D2632 D2636 SUB5V SUB5V SOUND12V JK4501 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 D2635 SUB3.3V D2304 Q4501 MAIN5V Q5522 BT30V D2301 MAIN9V DTV9V SOUND15V D5529 MAIN5V D4526 D5530 Q2301 D4527 D5522 Q5521 TPS0N MAIN3.3V D4524 MAIN9V D2637 Q5562 D2303 DTV9V Q5561 DTV9V Q5524 TPS0S D5521 Q5501 Q4500 STB+5V SUB5V JK4500 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 D5528 SOUND12V D2633 Q2635 STB5V MAIN5V Q4502 SUB5V D5526 SOUND15V D4525 Q5523 Q2636 D5501 SUB5V Q4503 TPS15V Q2637 Q2638 MAIN5V X4500 SUB3.3V SOUND15V TP15F STB+5V OVER VOLTAGE DET (+10V) SUB+5V SUB+9V (+6.8V) (+12V) F STB+15V SHORT DET SUB+5V/DTV+9V D1- CLK- 46 SDA +15V CLK+ 47 MDA AUDIO MUTE +5V L 112 I2C RIN0 IC4509 RIN2 39 +1.8V VSIA RIN1 5 IC2301 HSIA RIN3 8 XTAL1 +1.8V DCLKIN 1 SCL XTAL 4 3 MUTE SCL 7 DVDD+1.8V LLC F+15V YIN6 17 36 1 7 +1.8V YIN8 AMP SOS 7 INV. IC4506 5 OPERATE F+15V YIN4 To SOS +3.3V 8 YIN0 +3.3V 1 YIN3 5 5 IC4508 1 DG32 38 YIN7 WC DG 12 YIN1 39 40 R 41 BT+30V SPEAKER D1G ECO_ON 137 TO P6 5 5 7 8 R+ SCL 1 SDA 4 107 105 3 CEC IC4507 Q4514 8 CEC 5 5 BUFFER D0- F+15V EEPROM EDID2 Q4515 WC 3 BUFFER 6 N.C. 19 20 2 Q4516 6 EEPROM KEY 5 SDA BUFFER 21 6 AVDD 8 2 6 TVDD CVDD SCL IC4504 DVDD SDA WC 8 ERROR DET 1 6 11 D2G IC4510 Q4505 3 11 IC4501 12 8 DDCA_SDA1 HDMI INT AD/HDMI CLK- 13 TUNER_SUB_ON 42 IC5550 7 43 106 44 SOS EEPROM EDID1 45 13 55 STB7V VCC 58 18 7 HDMI2 +5V DET 30 135 BT30V SHORT DET DC-DC 28 SDA 17 MAIN3.3V Q4504 D2- D0+ VCC 6 29 HPDT MONITOR 132 3 XRST TV_ON OFF 33 1 3 MAIN+9V B_+_INPUT 4 27 L+ 6 D1- IC2303 9 HPDT IC2610 DE 2 3 DDCG +15V_S MCL WC 1 7 DDCA_SCL1 DTV+9V 8 DTV+9V 3 SDA UVIN4 RX_SCK N.C. 74 7 CLKG 80 RX_SD0# HDMI_BCLK 9 94 D0G VCC 5 128 99 144 HDMI1 RESET MUTE SW 5 122 SOUND12V FB AVR DG SUB_3.3V SHORT DET 31 78 1 DIGITAL SIGNAL PROCESSOR DVDDIO 97 Q4517 8 BUFFER MAIN_PR(AIN4) SCL IC4500 Q4519 VCC Q2639 HDMI1 +5V DET D0+ B_-_INPUT BUFFER D1+ 138 L- SUB+5V HDMI_SDIN AUDIO MUTE SPEAKER 15 D1G MAIN_PR(AIN4) 134 B_OUTPUT SUB_3.3V OVER VOLTAGE MAIN_PB/C(AIN8) CLK+ FOR FACTORY USED 7 129 DDCA_SCL0 YIN9 SCL YIN5 AMP 131 AUDIO AMP 9 YIN2 D0G +3.3V SUB+5V/DTV+9V 6 TO P7 D2G UVIN1 HDMI_LRCK +3.3V Q2031,Q2033-Q2035 STB+5V IC4515 DG7 5 UVIN6 16 UVIN3 SPEAKER UVIN5 RX_WS 118 18 UVIN0 RESET 119 INV. 25 UVIN8 113 +12V 16 UVIN7 R- 26 UVIN2 MUTE 24 UVIN9 +15V_S 32 DG6 HDMI_INT2 Q2039-Q2042 D2- 31 OPERATE RESET HDMI2 RESET 121 RESET 115 OUT D1+ D0- 116 1 IN CLKG 108 +15V_S 51 1 D2+ 65 SOY +5V 48 8 RGB_CVBS(AIN9) D2+ 12 66 53 ALL_OFF DDCG AC_GOOD/KEY DDCA_SDA0 28 52 TH-42PV70C DG-Board (2 of 4) Block Diagram TH-42PV70C DG-Board (2 of 4) Block Diagram 65 15.11.DG 电路板 (3/4) 方框图 SDA1 SDA3 SCL3 SD_BOOT_STS SLRCK ADCCK VI2ENB VMUTE DTV_VOUTENB CLK74SEL PANEL_STATUS PANEL_SOS XIRQ3 SCL2 SBI0 DTV_XRST SDA2 SBO0 SCL1 SDA0 SBI2 SCL1 SBO2 SDA3 SDA1 SCL3 SCL0 VC27 SBT0 VOUTENB CK27 SUB3.3V CK27D SCL0 CLK74 ECS3 SCL1 SBO0 ADIN SDA0 XRST DTV9V SUB1.2V 3.3V SUB3.3V VI2ENB SUB3.3V MAIN3.3V SUB1.8V DSRCK SBO2 ADCCK XIRQ3 VI2P21 SBI2 SLRCK VI2P10 SBI0 SDA1 SUB3.3V SBT2 ECS5 14 ED0-ED15 SDBOOT VIN SUB3.3V TEMP.SENSOR IC8004 MMA0-12 SDCD IC4800 VI1P9-2,27,26(UVIN9-0) SLOT SD CARD VI1P19-12,29,28(YIN9-0) VI1P25-22(RIN3-0) VMUTE VI1ENB 1 VI1CLKOUT,VI1CLK 6 PANEL_STATUS 7 5 PANEL_SOS VI1VSYNC,VI1HSYNC 4 ED15-ED0 SDCMD (DEMPX) D.SW IC8601 IC5660 SDCLK EA23-EA8 XRST EA1-EA23 ED0-ED7/EA8-EA15 SDCMD ED8-ED15/EA16-EA23 SDDAT3 SDAT2 SDCLK 3.3V SDAT0 SDAT1 SD CARD TCLK1N/P TA1N/P SDDAT0 SDWP VI1P20 8 RSV1(SD_ERROR) ISOPSYNC 9 EA1-EA7 SDA I2C I2C SDAT3 W.P. VDD 2 SERIAL I/F 11 JK8801 27 1 HDMI_IRQ 26 RESET 2 DG PEAKES LITE2 RESET 24 CLOCK GEN DIGITAL SIGNAL PROCESSOR 23 DDR 22 IC8002,03 I2C RSV2(SDRAMCHK2) 1.8V 21 74M PEAKS_Lite 2 25 CLOCK GENE. IC8001 27M IC8621,22 4 D-LATCH 1 9 NOR FLASH 7 IC8554 S2 RSV3(SDRAM_CHK1) 12 SD CARD I/F ExBUS 13 IIC I/F TB1N/P TC1N/P LVDS I/F FOR ADV7493 TD1N/P CPU BUS I/F TE1N/P COMMON PORT .etc EEPROM DDR I/F MMDQ0-31 8 7 6 5 EEPROM_WP VCC WC VCC SCL 4 SCL SDA TH-42PV70C DG-Board (3 of 4) Block Diagram TH-42PV70C DG-Board (3 of 4) Block Diagram 66 15.12.DG 电路板 (4/4) 方框图 + + + + TV_SUB_ON_DELAY TB1N SDA0 DTV_VOUTENB DTV_XRST SBO0 PANEL_SDA CLK74SEL PANEL_SCL SLRCK RMIN SOS PANEL_TXD G_LED_ON TV_SUB_ON SOUND_SOS STB_RST R_LED_ON ECO_ON AUDIO_MUTE KEY1 ALL_OFF PANEL_SDA SP_MUTE PANEL_STATUS STB_LED_ON AUDIO_XRST PANEL_RXD VIDEO_STATUS PANEL_SOS ALL_OFF RF_AFT1 IIC_CONT SDA3 ECO_ON IIC_CONT TE1N SCL1 SBI0 TC1N SCL0 SDA1 PANEL_SCL ADCCK TB1P STB_LED_ON TD1N SCL2 PANEL_TXD VI2ENB TA1P HDMI_5V_DET1 KEY1 VMUTE SDA0 TA1N HPD1 RMIN TCLK1P SCL0 HDMI_CEC R_LED_ON 7493_XRST SDA2 G_LED_ON PANEL_RXD SCL SDA3 SCL SBO0 SDA SDA SCL3 SDA SCL3 TE1P SCL TD1P SBI2 SBI0 TCLK1N TV_MAIN_ON TC1P SD_BOOT_STS SBO2 STB3.3V STB5V MAIN9V SUB5V SUB5V MAIN5V STB5V Q5604 Q1107 SUB1.2V MAIN3.3V C5690 Q2000 Q5693 STB3.3V Q5603 SUB1.8V D5691 STB5V X1100 C5694 Q1108 D5670 SUB5V C5691 Q2001 D5673 C5695 Q5691 SUB5V MAIN3.3V D5671 R5697 MAIN3.3V SUB5V SUB3.3V D5609 Q5690 STB3.3V D5690 MAIN5V Q5692 STB3.3V DTV9V DTV9V R5696 STB5V DTV9V SUB3.3V 16 SDA 10MHz Rx3+(RD+) +3.3V 17 WC MAIN9V_SENSE IC1100 8 SCL 110 PANEL_SOS(ALRAM) REMOTE (SUB) 93 VCC Ex IIC ECO_ON Rx0+(RA+) 30 65 RSV1(LITE2) DTV9V_SENSE R_LED_ON +1.8V SUB5V_SENSE SOUND_SOS 27 49 SBI0A MAIN5V_SENSE (Panel Dpr.E2PROM) PANEL_SDA(IIC_SDA1) IIC_CONT/SRQ RSV2(LITE2) 63 1 24 64 (Panel Dpr.E2PROM) Rx4+(RE+) 8 12 I2C 52 (Device Control) 10 7 2 33 11 6 34 2 5 35 ACTIVE_STBY_LED_ON 28 SBO0A 3 GenX-EEP_WP MAIN3.3V_SENSE Rx1+(RB+) IC1101 2 3 EEPROM 1 DTV_VOUTENB 69 88 CLK74SEL 7493_XRST Rx2+(RC+) A_MON_MUTE/SP_MUTE HDMI_5V_Det1 126 AUDIO_MUTE STB5V 36 7 53 1 46 8 Panel_SDA HPD1 9 118 TV_MAIN_ON HDMI_CEC IIC_CONT 22 Panel_RXD I2C 2 68 127 STB3.3V 12 SBI0 R_LED_ON RESET 12 STB RESET 20 4 8 RxCLK+(RCLK+) 9 Panel_TXD STB3.3V (GenX4 Loarder/E2PROM) 7 10 Panel_SCL (Device Control) 23 GenX4_SDA OSCXO 11 ALL_OFF 25 9 16 10 PANEL_SCL(IIC_SCL1) I2C 71 TV_SUB_ON_DELAY 6 ECO_ON 2 17 TV_SUB_ON SOS Rx2-(RC-) JK8702 1 SUB5V 1 15 (SUB) LITE2_SDA2 SBO0 23 IIC_SDA2 (Lite2 E2PROM) SBI0 (Device Control) DC-DC CONV. Q5600 21 RSV3(LITE2) SUB+3.3V SDA1 I2C GenX4 DG34 SCL1 27 STB5V 40 1 IC5671 PANEL_MUTE(DISPEN) MAIN3.3V 4 6 RMIN 29 (GenX4 Loarder/E2PROM) MAIN5V 7 4 39 MAIN+5V 2 FOR FACTORY USED MAIN+3.3V ON/OFF 23 111 ON/OFF VIDEO_STATUS FOR FACTORY USED 89 24 12 58 2 24 +1.2V 21 30 G_LED_ON 5 31 DG Rx1-(RB-) +3.3V IIC_CONT G_LED_ON 92 DG 33 DG5 KEY1 26 14 AVR 3 (Lite2 E2PROM) Q5601 Q5602 SRQ_GENX (Device Control) IC5600 1 21 GND(INEXCH) 26 DIGITAL SIGNAL PROCESSOR (STB) (Device Control) Rx3-(RD-) TO D5 SOS LED BLINKING : 10TIMES AUDIO_XRST 27 114 IC5670 Rx4-(RE-) STB+3.3V SOS LED BLINKING : 12TIMES SOS LED BLINKING : 10TIMES 26 4 24 LITE2_SDA1 6 23 LITE2_SDA3 7 GenX4_SCL HDMI_CEC_PU_ON PANEL_STATUS(READY) LITE2_SCL1 5 FOR FACTORY USED 25 (Device Control) DG1 1 22 LITE2_SDA0 SRQ SUB5V 2 21 LITE2_SCL0 RF_AFT1 (SUB) LITE2_SCL2 6 LITE2_SCL3 SBO0 SUB+1.8V/SUB+1.2V 25 MAIN3.3V DC-DC CONV. NRST 5 45 SDA0 PANEL_STBY_ON Rx0-(RA-) KEY1 SCL0 105 IIC_SCL2 RxCLK-(RCLK-) ALL_OFF NBOOT OSCXI TXD 125 RXD IC5601 PANEL_STBY_ON 66 18 67 3 115 SD_BOOT_STS 124 83 TO K1 19 DTV_XRST 87 84 ACTIVE_STBY_LED_ON TH-42PV70C DG-Board (4 of 4) Block Diagram TH-42PV70C DG-Board (4 of 4) Block Diagram FAN_SOS FAN_MAX MAIN5V MAIN5V FAN_SOS FAN_MAX TO PB8 DG8 4 6 5 86 117 67 15.13.DG 电路板 (1/16) 线路图 CH0A8 CH0XWE CH0XCS0 CH0CK CH0DM2 CH0XRAS CH0A2 CH0DM1 CH0A12 CH0BA2 CH0A9 CH0A7 CH0DM3 CH0A5 CH0A4 CH0DQS3 CH0BA1 CH0BA0 CH0A11 CH0DQS0 CH0A10 CH0XCAS CH0A1 CH0A6 CH0A0 CH0XCS1 CH0ODT CH0DQS1 CH0CKE CH0DM0 CH0A3 CH0XCK CH0DQS2 CH0DQ0 CH0DQ1 CH0DQ2 CH0DQ3 CH0DQ4 CH0DQ5 CH0DQ6 CH0DQ7 CH0DQ8 CH0DQ9 CH0DQ10 CH0DQ11 CH0DQ12 CH0DQ13 CH0DQ14 CH0DQ15 CH0DQ16 CH0DQ17 CH0DQ18 CH0DQ19 CH0DQ20 CH0DQ21 CH0DQ22 CH0DQ23 CH0DQ24 CH0DQ25 CH0DQ26 CH0DQ27 CH0DQ28 CH0DQ29 CH0DQ30 CH0DQ31 C8053 25V 0.01u C8080 16V 0.1u C8070 16V 0.1u C8073 16V 0.1u C8052 16V 1u C8014 16V 0.1u C8074 16V 0.1u C8020 16V 0.1u C8026 16V 0.1u C8076 16V 0.1u C8001 16V 0.1u C8008 16V 0.1u C8025 16V 0.1u C8023 10u 10V C8068 16V 0.1u C8067 25V 0.01u C8030 16V 1u C8078 16V 0.1u C8072 16V 0.1u C8013 16V 0.1u C8056 16V 0.1u C8071 16V 0.1u C8075 4V 22u C8057 16V 0.1u C8009 10u 10V C8011 16V 0.1u C8017 10u 10V C8028 16V 0.1u C8021 16V 0.1u C8016 16V 1u C8012 16V 0.1u C8032 10u 10V C8038 16V 0.1u C8037 16V 0.1u C8003 1u 16V C8018 16V 0.1u C8079 16V 0.1u *C8069 50V 82p C8022 16V 1u C8051 16V 0.1u C8033 16V 0.1u C8019 16V 0.1u C8007 16V 0.1u C8058 10u 10V C8004 1u 16V C8031 16V 1u C8006 16V 0.1u C8077 16V 0.1u C8027 16V 0.1u C8024 10u 10V C8015 16V 1u C8005 1u 16V C8010 10u 10V C8029 16V 0.1u C8002 16V 1u C8034 16V 0.1u IC8001 A1 VSS IC8001 AA11 SMTD0 IC8001 K6 VDD33 IC8001 AD25 VDDIO IC8001 B19 VOP14 IC8001 AF21 VSS IC8001 P3 AGAVDD IC8001 Y24 VDDIO IC8001 M26 MMDM1 IC8001 K12 VSS IC8001 D16 VDD33 IC8001 AB23 VSS IC8001 F4 VI2P9 IC8001 D19 VSS IC8001 C14 DSRCK IC8001 AB13 SDDAT2 IC8001 AC19 MMDQ17 IC8001 AC7 IS1PSYNC IC8001 AB17 VSS IC8001 AA24 MMODT IC8001 F14 LRCK0 IC8001 B1 VI1P17 IC8001 R12 VDD12 IC8001 P25 VDDIO IC8001 E21 VDD33 IC8001 B6 VI1P7 IC8001 P21 MMDQ12 IC8001 AE12 SDWP IC8001 L1 VI2P28 IC8001 P6 VDD33 IC8001 D18 VSS IC8001 AC18 VDDIO IC8001 L6 VI2P21 IC8001 W2 ED6 IC8001 AB25 VDDIO IC8001 E20 MVSYNC IC8001 U17 VSS IC8001 AE8 SMTD1 IC8001 D4 VSS IC8001 U25 MMA9 IC8001 AB22 VDDIO IC8001 AE17 MMDQ26 IC8001 D11 MVCOMP IC8001 AC14 VDD12 IC8001 B5 VI1P9 IC8001 H22 TCPOUT IC8001 N10 VDD12 IC8001 F24 VSS IC8001 Y6 VSS IC8001 U24 VDDIO IC8001 AE26 MMRODT IC8001 AD4 XNFRE IC8001 M14 VSS IC8001 AA4 ESZ0 IC8001 V3 ED4 IC8001 A11 SVCOMP IC8001 P11 VSS IC8001 F26 TD1P IC8001 U15 VDDA IC8001 AB3 XEWE1 IC8001 V1 ED1 IC8001 V4 VSS IC8001 C21 VOP6 IC8001 L3 VI2P25 IC8001 C12 DACVDD1 IC8001 AB6 NFCLE IC8001 AA22 VSS IC8001 AC1 ESZ1 IC8001 AD23 VSS IC8001 M10 VSS IC8001 C1 VI1P19 IC8001 T3 EA3 IC8001 E13 MVDACO0 IC8001 B24 VDD33 IC8001 J21 MVAVSS IC8001 A17 VOP23 IC8001 M22 MMVREF0 IC8001 M15 VSS IC8001 P12 VSS IC8001 F8 VI2P0 IC8001 F20 VDD33 IC8001 AC8 XDTR0 IC8001 AF4 IS0DATA IC8001 H6 VI1P20 IC8001 A13 DMIX0 IC8001 A2 VI1P16 IC8001 U5 ED0 IC8001 B14 ADCCK IC8001 D7 VDD33 IC8001 AE16 VDDIO IC8001 C7 VI1P5 IC8001 AE13 SDDAT1 IC8001 R22 MMXCS0 IC8001 E3 VI1ENB IC8001 D10 VSS IC8001 P10 VDD12 IC8001 D22 VDD33 IC8001 D6 VI2P3 IC8001 E18 VOP29 IC8001 A5 VI1P8 IC8001 AE11 CH0VAL IC8001 L11 VSS IC8001 J26 MMDQ6 IC8001 W6 VSS IC8001 K11 VSS IC8001 AC16 VSS IC8001 B16 VOP0 IC8001 U11 VDD12 IC8001 J25 VSS IC8001 D8 VDD33 IC8001 M12 VSS IC8001 AE14 VDD12 IC8001 U21 MMXCAS IC8001 B26 TA1P IC8001 K21 CK27 IC8001 J5 VI2P11 IC8001 V23 MMA11 IC8001 AA23 MMMONB IC8001 AA2 ED15 IC8001 Y21 MMVCAL IC8001 F6 VSS IC8001 AF24 VSS IC8001 F2 VI1P21 IC8001 N15 VSS IC8001 C5 VI1P28 IC8001 C19 VOP16 IC8001 N23 MMDQ9 IC8001 V21 MMA4 IC8001 AB7 IS0VAL IC8001 T12 VDD12 IC8001 AB21 VSS IC8001 T13 VDD12 IC8001 AF19 MMDQS2 IC8001 C26 TB1P IC8001 AD3 XNFWE IC8001 R10 VDD12 IC8001 H3 VI2P12 IC8001 AD26 VSS IC8001 AA10 SMTRST1 IC8001 A3 VI1P14 IC8001 AF15 VDDR IC8001 B10 VI1P2 IC8001 U6 VDD33 IC8001 D23 SBO0 IC8001 AB19 VDDIO IC8001 AD1 XECS3 IC8001 AC24 MMPCLKEXT IC8001 AB20 MMDQ16 IC8001 AD7 XCTS0 IC8001 AB1 ECLK IC8001 AB24 MMMONA IC8001 L26 MMDQS0 IC8001 A22 VOP7 IC8001 A10 IECOUT0 IC8001 C17 VOP25 IC8001 K10 VSS IC8001 AD15 VDDR IC8001 N3 SDA1 IC8001 AE24 DTCPOUT IC8001 U13 VDD12 IC8001 AB18 MMVREF1 IC8001 R3 TDO IC8001 E8 VI1CK208F IC8001 AE15 VDDR IC8001 AA19 MMDQ20 IC8001 E17 VOP22 IC8001 A19 VOP13 IC8001 R1 TMS IC8001 C10 VI1P3 IC8001 R26 VSS IC8001 G4 VDD33 IC8001 M17 VDDA IC8001 Y23 VSS IC8001 AD13 SDCD IC8001 V25 VSS IC8001 F16 VOP11 IC8001 AC23 VDDIO IC8001 D25 TC1N IC8001 AF26 VDDIO IC8001 V22 VDDIO IC8001 B8 VI1P24 IC8001 F22 LVVSS IC8001 K2 VI2P22 IC8001 L14 VSS IC8001 Y25 MMA8 IC8001 AD5 IS1CLK IC8001 P22 MMDQ13 IC8001 D5 VI2P5 IC8001 L5 VI2P23 IC8001 G7 VSS IC8001 AD22 VDDIO IC8001 T23 MMBA0 IC8001 K3 VI2P20 IC8001 G6 VI1P0 IC8001 E14 DACVDD2 IC8001 N1 XIRQ2 IC8001 AA21 VDDIO IC8001 N11 VSS IC8001 P2 AGAVSS IC8001 A8 VI1CKOUT IC8001 L2 VI2P26 IC8001 AE3 NFALE IC8001 N16 VSS IC8001 AD24 CK27D IC8001 AA14 VDD12 IC8001 R16 DPAVSS IC8001 T26 MMA10 IC8001 F7 VI2P2 IC8001 AF22 MMDQ22 IC8001 AD19 VSS IC8001 N13 VSS IC8001 D14 VSS IC8001 C23 VDD33 IC8001 AE7 TXD0 IC8001 AC20 VSS IC8001 AD6 SBT2 IC8001 W3 ED8 IC8001 AB9 XDCD0 IC8001 E12 VVREF IC8001 AF5 IS1DATA IC8001 U22 MMA5 IC8001 K1 VI2P24 IC8001 V2 ED2 IC8001 K22 MMDQ4 IC8001 M13 VSS IC8001 U1 EA5 IC8001 K14 VSS IC8001 AD11 CH0PSYNC IC8001 AB2 ERXW IC8001 B23 SBO2 IC8001 AC6 NANDRYBY IC8001 P23 VSS IC8001 D1 VI1HSYNC IC8001 L10 VSS IC8001 G25 TE1N IC8001 G23 LPFIN IC8001 D21 XRST IC8001 A21 VOP3 IC8001 D17 VDD33 IC8001 R15 VSS IC8001 M16 VSS IC8001 L17 VSS IC8001 D20 VOP8 IC8001 L15 VSS IC8001 G21 LVVSS IC8001 W22 MMXCS1 IC8001 W21 VSS IC8001 M24 MMDQS1 IC8001 U12 VDD12 IC8001 L21 MMDQ1 IC8001 AC22 VSS IC8001 AA26 MMA2 IC8001 P13 VSS IC8001 E16 VOP20 IC8001 AF1 VSS IC8001 N17 VDDR IC8001 AC11 VDD33 IC8001 E6 VI2P4 IC8001 U2 EA6 IC8001 L13 VSS IC8001 R23 MMCKE IC8001 AC5 XNFCE IC8001 J1 VI2CLK2 IC8001 L16 VSS IC8001 M11 VSS IC8001 C9 VI1CLK IC8001 E11 VI1CVBS3 IC8001 L23 MMDQ0 IC8001 AF25 MMRDRV IC8001 AF17 MMDQ27 IC8001 AA1 ED14 IC8001 U16 VDDR IC8001 G5 VI1P1 IC8001 C18 VOP12 IC8001 F21 LVVDD IC8001 AD9 SMTCLK0 IC8001 T24 MMBA2 IC8001 AE23 MCLK IC8001 A4 VI1P29 IC8001 M4 VSS IC8001 F13 MVDACO2 IC8001 A15 LCSCK IC8001 AE2 XEXDMR0 IC8001 AA9 VDD33 IC8001 AC3 XECS4 IC8001 Y3 ED13 IC8001 AB16 MMDQ28 IC8001 AB26 MMXCK IC8001 N25 MMDQ10 IC8001 AF20 VDDIO IC8001 AE5 IS1VAL IC8001 K4 VI2P18 IC8001 E4 VI2P7 IC8001 H21 MVAVDD IC8001 AE4 IS0PSYNC IC8001 R21 VDDIO IC8001 T10 VDD12 IC8001 P5 AVCOIN IC8001 AA7 VSS IC8001 A16 VOP10 IC8001 R25 MMXWE IC8001 F17 VOP27 IC8001 AF8 SMTCMD1 IC8001 M5 RMCO IC8001 F3 VI1P10 IC8001 B7 VI1P4 IC8001 F1 VI2HSYNC IC8001 W25 MMXRAS IC8001 A12 DACVSS2 IC8001 AA17 MMDQ24 IC8001 C11 DACVSS1 IC8001 L24 VSS IC8001 AC25 VSS IC8001 E2 VI1CLK2 IC8001 E26 TCLK1P IC8001 J22 VC27 IC8001 D24 TSTAIO IC8001 K5 VI2P16 IC8001 T15 VDDR IC8001 K13 VSS IC8001 AE10 CH1PSYNC IC8001 AD16 MMDQ30 IC8001 C8 VI1P25 IC8001 B17 VOP24 IC8001 G3 VI2ENB IC8001 C2 VI1P18 IC8001 AE18 VSS IC8001 B22 VOP9 IC8001 R2 TRST IC8001 G26 TE1P IC8001 B2 VSS IC8001 AB10 SMTSEL1 IC8001 J6 VDD33 IC8001 B12 MVDACO1 IC8001 K25 MMDQ2 IC8001 M25 VSS IC8001 AA5 XECS0 IC8001 C15 VOP21 IC8001 C13 DACCK0 IC8001 N2 XNMIRQ IC8001 E24 VSS IC8001 H25 CLK74 IC8001 M21 VDDIO IC8001 N22 VSS IC8001 AD10 CH1CLK IC8001 U4 EA4 IC8001 Y4 XERE IC8001 T22 VSS IC8001 W23 MMA0 IC8001 F23 LVVSS IC8001 G24 VSS IC8001 Y22 VDDIOCK IC8001 AD14 VDD12 IC8001 W4 ED9 IC8001 AF9 SMTCMD0 IC8001 AA6 VSS IC8001 E5 VSS IC8001 AA16 MMDQ29 IC8001 AD12 SDCMD IC8001 AC12 VSS IC8001 A25 VDD33 IC8001 V5 ED3 IC8001 F10 VI1CVBS1 IC8001 H5 VI2VSYNC IC8001 W1 ED5 IC8001 K23 VDDIO IC8001 W5 ED12 IC8001 E15 SLRCK IC8001 T25 VDDIO IC8001 AA3 XEWE0 IC8001 AB11 SMTSEL0 IC8001 N14 VSS IC8001 E22 LVVDD IC8001 AF6 XDSR0 IC8001 F19 VOP5 IC8001 AC4 XECS5 IC8001 U10 VDD12 IC8001 K16 VSS IC8001 AB5 XEXDMK0 IC8001 C4 VI1P13 IC8001 AD18 MMDQS3 IC8001 H4 VDD33 IC8001 AF18 MMDM3 IC8001 C16 VOP1 IC8001 E7 VI2P1 IC8001 M3 VI2P29 IC8001 L22 VSS IC8001 D12 MVDACO3 IC8001 AD20 MMDQ19 IC8001 P17 VSS IC8001 H26 VOUTENB IC8001 J23 MMDQ5 IC8001 W24 VSS IC8001 N24 VDDIO IC8001 A24 SBI2 IC8001 AE20 MMDQ18 IC8001 F18 VOP15 IC8001 A6 VI1P6 IC8001 F9 VI1CK204F IC8001 C22 MHSYNC IC8001 N6 VDD33 IC8001 A14 ADIN IC8001 P1 XIRQ3 IC8001 T11 VDD12 IC8001 C3 VSS IC8001 AF11 CH0DATA IC8001 AE22 VSS IC8001 M6 VI2P27 IC8001 AF2 XNFWP IC8001 J24 MMDQ7 IC8001 AF12 CH0CLK IC8001 B11 MVIREF IC8001 AB4 XECS2 IC8001 M23 VDDIO IC8001 J4 VI2P13 IC8001 AA12 CH1VAL IC8001 W26 VDDIO IC8001 K26 VDDIO IC8001 AA20 MMDQ21 IC8001 Y26 MMA6 IC8001 U23 MMA12 IC8001 A23 MVCLK IC8001 AC17 MMDQ25 IC8001 T4 VDD33 IC8001 E23 LVVDD IC8001 Y1 ED10 IC8001 G2 VI2CLK IC8001 E1 VI1P11 IC8001 AC13 VSS IC8001 N21 MMDQ8 IC8001 D15 DAUDIO IC8001 B15 LCSID IC8001 N12 VSS IC8001 L4 VSS IC8001 AC26 MMCK IC8001 T1 EA0 IC8001 AC21 TSTSEL IC8001 R13 VDD12 IC8001 AD17 VDDIO IC8001 V26 MMA1 IC8001 AB8 SBT0 IC8001 AD21 MMDQ23 IC8001 F11 VDD33 IC8001 H1 VI2P15 IC8001 T14 VSS IC8001 E9 VI1CVBS0 IC8001 AA8 VDD33 IC8001 B13 SRCK0 IC8001 T5 TDI IC8001 Y2 ED11 IC8001 U3 EA7 IC8001 R4 VDD33 IC8001 T21 MMA3 IC8001 B20 VOP19 IC8001 K17 LVVDD12 IC8001 Y5 XEDK IC8001 L25 MMDM0 IC8001 D9 VSS IC8001 F12 VDD33 IC8001 K24 MMDQ3 IC8001 J3 VI2P17 IC8001 C6 VI1P27 IC8001 P16 DPAVDD IC8001 AA25 VSS IC8001 F5 VI2P6 IC8001 AA15 VSS IC8001 AE21 VDDIO IC8001 V6 ED7 IC8001 B3 VI1P15 IC8001 R6 TCK IC8001 T2 EA1 IC8001 AD8 SMTCLK1 IC8001 B4 VI1P12 IC8001 B18 VOP28 IC8001 AB14 VDD12 IC8001 D2 VI1VSYNC IC8001 AE9 SMTRST0 IC8001 P24 MMDQ14 IC8001 A26 VDD33 IC8001 D3 VI2P8 IC8001 AE25 VSS IC8001 AC15 VDDR IC8001 A9 VI1P22 IC8001 T17 VDDA IC8001 AF7 RXD0 IC8001 H2 VI2P14 IC8001 D26 TC1P IC8001 P14 VSS IC8001 H23 VSS IC8001 U26 MMA7 IC8001 AF16 MMDQ31 IC8001 AC2 XECS1 IC8001 P15 VSS IC8001 E10 VI1CVBS2 IC8001 AD2 XECS6 IC8001 C20 VOP2 IC8001 J2 VI2P19 IC8001 N5 SCL1 IC8001 G1 VI2P10 IC8001 AE6 XRTS0 IC8001 AF10 CH1DATA IC8001 AE1 XECS7 IC8001 N26 MMDQ11 IC8001 D13 VSS IC8001 AA18 VSS IC8001 AA13 SDDAT3 IC8001 R14 VSS IC8001 T6 EA2 IC8001 B9 VI1P23 IC8001 R17 VDDR IC8001 F25 TD1N IC8001 U14 DPAVDD12 IC8001 T16 VSS IC8001 AF13 SDCLK IC8001 A7 VI1P26 IC8001 A20 VOP17 IC8001 AC9 XRI0 IC8001 E25 TCLK1N IC8001 AB15 VDDR IC8001 R5 ATCPOUT IC8001 E19 VOP18 IC8001 G22 LPFOUT IC8001 F15 VDD33 IC8001 H24 AUDCLK IC8001 L12 VSS IC8001 M1 SDA0 IC8001 AF23 BOOTSWAP IC8001 A18 VOP26 IC8001 B25 TA1N IC8001 AE19 MMDM2 IC8001 R24 VSS IC8001 P26 MMDQ15 IC8001 B21 VOP4 IC8001 AB12 SDDAT0 IC8001 K15 VSS IC8001 V24 MMBA1 IC8001 AC10 VDD33 IC8001 AF14 VDD12 IC8001 R11 VDD12 IC8001 P4 GTCPOUT IC8001 C24 SBI0 IC8001 N4 XIRQ1 IC8001 AF3 IS0CLK IC8001 C25 TB1N IC8001 M2 SCL0 C0ZBZ0001030 IC8004 1 X1 2 S0 3 S1 4 VIN 5 VDD 6 GND 7 74M 8 COMM 9 27M 10 4.9152M 11 24.576/33M 12 GND 13 VDD 14 S2 15 VDD 16 X2 L8010 J0JHC0000045 L8001 J0JHC0000045 L8007 J0JHC0000045 L8005 J0JHC0000045 L8008 J0JHC0000045 L8009 J0JHC0000045 L8002 J0JHC0000045 L8004 J0JHC0000045 L8003 J0JHC0000045 VREF 1.8V_DDRI/F SUB3.3V SUB3.3V SUB3.3V SUB3.3V 1.8V_DDRI/F SUB3.3V SUB1.2V SUB1.2V SUB1.8V SUB1.2V SUB3.3V TP8037 CLKGEN_S2 VI1P5 XEDK VI2P10 VI1CKOUT LRCK0 CH0DATA RMCO TC1P XECS6 SDDAT3 EA1 SMTSEL0 ED11 AC_CHDI2 ED2 XECS1 EA4 XECS7 SCL1 ED8 SMTSEL1 XNFCE DMIX0 TCK IS1DATA SDCMD CH0VAL SDDAT2 SMTRST0 VI1P17 VI1P29 XIRQ2 VMUTE XECS3 XEWE1 ED14 EA5 AC_CHDI7 VI1P6 TDO XIRQ3 VI1P15 MVDACO0 VI1P24 ED15 SBO0 VI1ENB IS0CLK XNFWE ED13 ED6 VI1P19 XEXDMR0 AC_XPDWT SMTCMD0 VI1P16 ED1 VI1P25 CH1VAL AC_CHSYNC TMS VI2P20 VI1CLK2 IS0PSYNC SDA0 VI2P11 VI1P4 VI1P10 VI1P27 TD1P IECOUT0 ED12 VI1P8 VI1P3 AC_CHVAL XIRQ1 ED10 EA6 TA1N SCL0 VI1P2 TE1N SDCD IS0DATA TDI ESZ1 VI1P7 MVDACO2 AC_CHDI6 AC_CHDI4 XNFWP AC_CHDI0 VI1P21 ERXW NANDRYBY XEWE0 ED0 VI2P4 VI1P18 TCLK1P VI2CLK2 TB1P VI1P11 ED7 VI1HSYNC SDCLK SMTCMD1 ED3 XNFRE ED5 TA1P SLRCK CH0PSYNC XERE SBT2 VI1P9 AC_CHDI1 CH0CLK VI1P23 XRST CH1DATA IS1PSYNC ECLK AC_CHDI5 VI2ENB ED9 SBI2 VOUTENB SDDAT1 XECS0 ED4 MVDACO1 TE1P NFCLE CH1PSYNC AC_CHDI3 XNMIRQ XECS5 VI1P0 ESZ0 VI1P1 XECS4 SBO2 TB1N ADCCK SBT0 VI1VSYNC SRCK0 VI2P21 TRST SDWP VI1P14 XEXDMK0 XECS2 EA2 EA0 IS0VAL IS1VAL VI1P12 VI1P13 EA7 NFALE EA3 SMTCLK0 MVDACO3 CH1CLK VI1P28 TCLK1N BOOTSWAP SDDAT0 VI1P22 ADIN VI1P26 TD1N VI1P20 TC1N SBI0 VI1CLK AC_CHCLK SDA1 R8059 47 R8100 47 R8039 0 R8106 2k R8087 10k R8002 82 R8071 47 R8027 0 R8057 47 R8075 47 R8072 47 R8091 100 R8090 10k R8065 47 R8060 47 R8077 47 1% R8005 10k R8107 100 R8067 47 R8061 47 R8023 0 R8029 0 R8056 47 R8095 10k R8086 100k R8076 47 R8079 0 R8078 47 *R8108 22k R8099 10k R8073 47 R8001 180 R8064 47 R8026 0 R8024 0 1% R8004 24k R8025 0 R8062 47 R8098 10k R8066 47 R8093 47 R8080 0 1% R8082 75 1% R8006 6.8k R8069 47 R8084 0 R8111 10k R8083 300 R8068 47 R8063 47 R8036 0 R8058 47 R8030 100 R8028 0 R8070 47 X8001 H0J270500061 *R4001 10k R4330 47k R4286 47k R4287 47k R4288 47k R4284 10k EA19 IIC I/F AUDIO IF XDTR0 SD CARD I/F JTAG SERIAL I/F LVDS I/F SBI1 SCL2 SDA2 SCL3 SDA3 LOSDOUT11 LOSDOUT10 LOSDOUT13 LOSDOUT12 PORT14[1] PORT14[2] PORT14[3] LOSDOUT15 RSV2(SDRAMCHK2) PORT14[4] PORT16[1] VMUTE SCARD_NMIRQ XRI0 SCARD_IRQ XDCD0 RXD0 TXD0 XCTS0 XDSR0 RSV3(SDRAM_CHK1) B PORT (Sub Video Input or Address) SBO1 XRTS0 HSVALIN Analog Video I/F HSSYNIN POD,CI I/F HSBCLKIN CPU BUS I/F COMMON PORT .etc PORT5[6] CLOCK GEN SMT_OFF RSV1(SD_ERROR) PORT5[7] PORT16[0] HSDIN0 HSDIN1 PORT15[5] NAND I/F POWER_DET HSDIN2 HSDIN3 PORT15[7] HSDIN4 EA20 FOR HQ1L VIDEO HSDIN5 EA13 HSDIN6 EA22 EA15 EA16 HSDIN7 EA10 PORT10[6] EA21 PORT10[7] LOSDOUT14 LOSDOUT9 PORT5[4] PORT5[5] LOSDOUT8 LOSDOUT7 LOSDOUT6 PORT6[4] PORT6[5] PORT6[7] SDBOOT EA12 LOSD OUT (for HQ1) C Y Cmp V EA09 FOR ADV7493 U EA18 Y EA17 LOSDOUT5 Cmp LOSDOUT4 LOSDOUT3 RSV4 LOSDOUT2 CH,IS IF LOSDOUT1 EA24 PORT9[5] LOSDOUT0 EA11 LOSDOUT_CLK_O R LOSDOUT_H_O G LOSDOUT_YS B LOSDOUT_YM Cmp PANEL_STATUS EA23 LOSDOUT_V_I LOSDOUT_CLK_I LOSDOUT_H_I EEPROM_WP FE_IRQ P_MAIN_SW HDMI_IRQ ETHER_IRQ PANEL_SOS EA08 EA14 XPDWT Peaks-Lite2 IC8001 MN2WS0039AA B C E A 9 6 7 8 3 1 5 D 4 F 2 4 1 5 3 2 Sheet No.002 CRNo.8000-8299 Peaks-Lite2/DDR2 to (10/16) to (5/16) to (4/16) to (4/16) to (4/16) to (5/16) to (5/16) to (4/16) to (9/16) to (4/16) to (4,5/16) to (4,5/16) to (4,5/16) to (4,5/16) to (4,5/16) to (7/16) to (4/16) to (5/16) to (4/16) CLOCK GEN TH-42PV70C DG-Board (1 of 16) Schematic Diagram TH-42PV70C DG-Board (1 of 16) Schematic Diagram DG-BOARD (1/16) ! TNPA4311AH 68 15.14.DG 电路板 (2/16) 线路图 + CH0DQ30 CH0DQ31 CH0DQ26 CH0XRAS CH0DQS0 CH0XRAS CH0A5 CH0CKE CH0DQ18 CH0CK CH0DQ8 CH0DQ21 CH0A7 CH0DQ11 CH0DQ5 CH0XCAS CH0DQ9 CH0ODT CH0ODT CH0BA2 CH0BA0 CH0DQ27 CH0A2 CH0A12 CH0DQS3 CH0BA1 CH0DM0 CH0DQ4 CH0A3 CH0DQ15 CH0CKE CH0A8 CH0XCS1 CH0DQ10 CH0BA2 CH0DQ1 CH0DQ14 CH0CK CH0DQ29 CH0A1 CH0XCK CH0XWE CH0A0 CH0DQ25 CH0DQ7 CH0ODT CH0A4 CH0A11 CH0DQ0 CH0A10 CH0DM3 CH0DQ12 CH0A9 CH0DM2 CH0DQ20 CH0A11 CH0XCS0 CH0A6 CH0A7 CH0DQ2 CH0DQ23 CH0DQ22 CH0BA0 CH0A9 CH0XCAS CH0XWE CH0A0 CH0XCK CH0A5 CH0DQ6 CH0A2 CH0A10 CH0A12 CH0A3 CH0DQ16 CH0A6 CH0DQ28 CH0DQ13 CH0DQS2 CH0A4 CH0DM1 CH0BA1 CH0DQ19 CH0DQ17 CH0DQ24 CH0A8 CH0DQ3 CH0A1 CH0DQS1 CH0CKE C8039 16V 0.1u C8049 16V 0.1u C8036 10u 10V C8050 16V 0.1u C8045 16V 0.1u C8044 16V 0.1u C8043 16V 0.1u C8047 16V 0.1u C8035 10u 10V C8040 16V 0.1u C8046 16V 0.1u C8048 16V 0.1u C8041 16V 0.1u C8042 68u 4V *IC8003 = A1 VDD *IC8002 = A1 VDD *IC8002 = H7 DQ2 *IC8003 = M8 A0 *IC8002 = K2 CKE *IC8002 = B7 UDQS *IC8002 = R3 RFU *IC8002 = A7 VSSQ *IC8002 = G7 VDDQ *IC8002 = L7 CAS *IC8002 = R7 RFU *IC8002 = E2 NC *IC8002 = G1 VDDQ *IC8002 = C7 VDDQ *IC8003 = G9 VDDQ *IC8002 = K9 ODT *IC8003 = H9 DQ5 *IC8003 = P9 VSS *IC8003 = M9 VDD *IC8002 = M9 VDD *IC8002 = E7 VSSQ *IC8003 = H3 DQ3 *IC8002 = F1 DQ6 *IC8002 = D8 VSSQ *IC8002 = G9 VDDQ *IC8002 = P7 A11 *IC8003 = K9 ODT *IC8002 = E9 VDDQ *IC8003 = D7 DQ10 *IC8002 = G3 VDDQ *IC8003 = B8 VSSQ *IC8002 = A9 VDDQ *IC8002 = R1 VDD *IC8003 = J3 VSS *IC8002 = L2 BA0 *IC8002 = P2 A7 *IC8002 = C2 DQ9 *IC8002 = M3 A1 *IC8002 = F8 VSSQ *IC8002 = J7 VSSDL *IC8002 = B2 VSSQ *IC8002 = A3 VSS *IC8002 = F7 LDQS *IC8002 = D1 DQ12 *IC8002 = N1 VSS *IC8002 = K8 CK *IC8002 = J3 VSS *IC8002 = C1 VDDQ *IC8002 = L3 BA1 *IC8002 = L8 CS *IC8002 = C3 VDDQ *IC8002 = A2 NC *IC8002 = J9 VDD *IC8002 = J8 CK *IC8002 = M8 A0 *IC8002 = P8 A8 *IC8003 = R2 A12 *IC8003 = N3 A5 *IC8002 = C8 DQ8 *IC8002 = N8 A4 *IC8002 = F2 VSSQ *IC8002 = B1 DQ14 *IC8002 = M7 A2 *IC8002 = E3 VSS *IC8002 = N3 A5 *IC8003 = H1 DQ4 *IC8002 = K7 RAS *IC8003 = N1 VSS *IC8002 = P9 VSS *IC8002 = D7 DQ10 *IC8002 = J2 VREF *IC8002 = R8 RFU *IC8003 = L2 BA0 *IC8002 = H3 DQ3 *IC8002 = B8 VSSQ *IC8002 = P3 A9 *IC8002 = E8 LDQS *IC8002 = F9 DQ7 *IC8002 = D3 DQ11 *IC8002 = H8 VSSQ *IC8003 = A9 VDDQ *IC8002 = G2 DQ1 *IC8002 = L1 RFU *IC8002 = D2 VSSQ *IC8002 = J1 VDDL *IC8002 = K3 WE *IC8003 = D3 DQ11 *IC8003 = F3 LDM *IC8002 = M2 A10 *IC8002 = G8 DQ0 *IC8003 = L8 CS *IC8002 = R2 A12 *IC8002 = H2 VSSQ *IC8002 = N2 A3 *IC8002 = H1 DQ4 *IC8002 = H9 DQ5 *IC8002 = B9 DQ15 *IC8002 = E1 VDD *IC8002 = A8 UDQS *IC8002 = F3 LDM *IC8002 = D9 DQ13 *IC8003 = A3 VSS *IC8002 = B3 UDM *IC8002 = C9 VDDQ *IC8002 = N7 A6 *IC8003 = F8 VSSQ *IC8003 = C2 DQ9 *IC8003 = H8 VSSQ *IC8003 = P2 A7 *IC8003 = R8 RFU *IC8003 = C3 VDDQ *IC8003 = C1 VDDQ *IC8003 = B2 VSSQ *IC8003 = J2 VREF *IC8003 = E8 LDQS *IC8003 = K2 CKE *IC8003 = G8 DQ0 *IC8003 = E1 VDD *IC8003 = M2 A10 *IC8003 = P8 A8 *IC8003 = N2 A3 *IC8003 = L3 BA1 *IC8003 = B7 UDQS *IC8003 = D8 VSSQ *IC8003 = G3 VDDQ *IC8003 = M7 A2 *IC8003 = C7 VDDQ *IC8003 = A2 NC *IC8003 = K8 CK *IC8003 = F7 LDQS *IC8003 = K7 RAS *IC8003 = E2 NC *IC8003 = C8 DQ8 *IC8003 = D1 DQ12 *IC8003 = G7 VDDQ *IC8003 = N7 A6 *IC8003 = L1 RFU *IC8003 = P7 A11 *IC8003 = D9 DQ13 *IC8003 = L7 CAS *IC8003 = R3 RFU *IC8003 = D2 VSSQ *IC8003 = M3 A1 *IC8003 = A7 VSSQ *IC8003 = E7 VSSQ *IC8003 = B1 DQ14 *IC8003 = F2 VSSQ *IC8003 = J9 VDD *IC8003 = E9 VDDQ *IC8003 = H2 VSSQ *IC8003 = B9 DQ15 *IC8003 = R1 VDD *IC8003 = K3 WE *IC8003 = J1 VDDL *IC8003 = E3 VSS *IC8003 = A8 UDQS *IC8003 = B3 UDM *IC8003 = F1 DQ6 *IC8003 = C9 VDDQ *IC8003 = J7 VSSDL *IC8003 = G1 VDDQ *IC8003 = P3 A9 *IC8003 = J8 CK *IC8003 = N8 A4 *IC8003 = G2 DQ1 *IC8003 = H7 DQ2 *IC8003 = R7 RFU *IC8003 = F9 DQ7 1.8V_DDRI/F 1.8V_DDRI/F R8074 220 R8081 10k 1% R8032 270 R8101 10k 1% R8031 270 R8035 0 R8097 220 DDR2 #1 84FBGA 84FBGA DDR2 #0 CRNo.8000-8299 Peaks-Lite2/DDR2 Sheet No.002 IC8002 C3ABRY000015 IC8003 DDR2 #1 C3ABRY000015 16 11 12 18 13 10 17 14 15 2 4 1 5 3 DG-BOARD (2/16) ! TNPA4311AH TH-42PV70C DG-Board (2 of 16) Schematic Diagram TH-42PV70C DG-Board (2 of 16) Schematic Diagram 69 15.15.DG 电路板 (3/16) 线路图 AA_ED10 AA_ED0 AA_EA20 AA_EA14 AA_EA19 AA_EA12 AA_ED13 AA_EA22 AA_XEWE0 AA_EA8 AA_ED6 AA_EA18 AA_EA15 AA_ED4 AA_ED5 AA_XERE AA_EA3 AA_ED11 AA_ED1 AA_EA9 AA_ED8 AA_XECS0 AA_EA6 AA_ED9 AA_EA5 AA_EA21 AA_EA16 AA_EA10 AA_ED14 AA_EA2 AA_EA13 AA_ED15 AA_EA1 AA_EA11 AA_XRST AA_ED2 AA_EA7 AA_ED7 AA_ED12 AA_EA17 AA_EA4 AA_ED3 AC_CHDI2 AC_CHDI1 AC_CHDI0 AC_CHDI7 AC_CHDI6 AC_CHDI5 AC_CHDI4 AC_CHDI3 AC_CHCLK AC_CHVAL SMTCLK0 AA_EA23 XECS7 VI1P20 AC_CHSYNC SMTCMD0 SMTSEL0 AC_XPDWT AF_NAND_RY/BY C8554 16V 0.1u C8553 16V 0.1u C8555 16V 0.1u TVRP463-9 *IC8554 1 N.C. 2 A22 3 A15 4 A14 5 A13 6 A12 7 A11 8 A10 9 A9 10 A8 11 A19 12 A20 13 WE 14 RESET 15 A21 16 WP/ACC 17 RY/BY 18 A18 19 A17 20 A7 21 A6 22 A5 23 A4 24 A3 25 A2 26 A1 27 N.C. 28 N.C. 29 Vio 30 N.C. 31 A0 32 CE 33 Vss 34 OE 35 DQ0 36 DQ8 37 DQ1 38 DQ9 39 DQ2 40 DQ10 41 DQ3 42 DQ11 43 Vcc 44 DQ4 45 DQ12 46 DQ5 47 DQ13 48 DQ6 49 DQ14 50 DQ7 51 DQ15/A-1 52 Vss 53 BYTE 54 A16 55 N.C. 56 N.C. L8551 J0JHC0000075 SUB3.3V SUB3.3V SUB3.3V *R8475 EXB28V103JX *R8474 EXB28V103JX *R8472 EXB2HV103JV R8551 10k R8470 10k R8564 10k R8471 10k 128/256Mbit NOR FLASH AV_OUT 8500-8549 NAND/NOR 8550-8599 SUPPORT_CARD 8700-8799 MPEG 8850-8949 EEPROM 8600-8619 SD_CARD 8800-8849 SMART_CARD 8650-8699 D-LATCH 8620-8649 MODEM 8950-8999 CRNo.8300-8999 DTV FE 8300-8399 CI 8400-8499 24 20 22 19 27 21 25 26 23 12 14 13 TH-42PV70C DG-Board (3 of 16) Schematic Diagram TH-42PV70C DG-Board (3 of 16) Schematic Diagram DG-BOARD (3/16) ! TNPA4311AH 70 15.16.DG 电路板 (4/16) 线路图 AA_XERE AA_ED4 AD_TO_SC AA_EA11 AA_EA16 AA_ED10 AA_ECLK AA_ED7 AA_XEAS AA_EA20 AA_XNMIRQ SMTCMD0 AA_EA17 AA_ED1 AA_EA4 AA_ED7 AA_XEWE0 NET0031261 AA_ED6 AA_ED10 AA_ED8 AA_ED9 AD_TRST AA_ED12 AA_EA9 AA_EA15 NET0031303 AA_XERE AA_EA19 AA_EA21 AA_EA25 AA_ED0 AA_ED14 AD_SDA3 AA_EA15 AA_XECS1 AG_DTV_VOUTENB AA_ED0 AD_SCL0 AA_EA8 AA_ED15 AA_EA9 AA_EA14 AD_TO_BA01 AA_EA11 AF_NAND_RY/BY AD_TRST AA_XNMIRQ AA_EA14 AD_SCL3 AG_DTV_XRST AA_EA17 AA_ED15 AA_ED11 AA_ED4 AA_EA19 AA_ED12 AA_EA4 AA_EA13 AA_EA5 AA_ESZ1 AA_ED13 AA_ESZ0 AA_ED2 AA_ED1 AA_EA8 AD_SCL2 AD_TO_SC AA_BOOTSWAP SMTSEL0 AA_EA7 AA_EA12 AA_ED7 AA_EA16 AA_ERXW AD_SDA0 AA_ED14 AA_XIRQ1 AA_EA23 AA_EA22 AD_SDA2 AA_EA24 AA_EA18 AA_XECS0 AA_EA7 AA_ED11 AA_EA3 AD_MODEMLED AA_ED5 AA_ED15 AA_BOOTSWAP AD_TMS AA_ED9 AA_ED12 AA_EA23 AA_XECS0 AA_ED1 AA_EA6 AA_XRST AA_XEDK AD_SCL1 AA_EA5 AA_XECS1 AA_EA18 AA_EA1 AA_ED9 AA_EA10 AA_ED5 AA_XRST AA_EA10 AA_XRST AA_EA12 AG_SRQ-GENX AA_ED0 AA_ED2 AD_TO_BA01 AA_EA3 AA_EA20 AA_EA2 AA_EA6 AA_ED13 AA_XEWE0 AA_XEWE1 AA_ED8 AA_ED3 AD_TCK AA_ED8 AA_ED11 AA_ED6 AA_ED3 AA_EA2 AA_XIRQ1 AA_ED14 SMTCLK0 AA_XEDK AA_XEWE1 AD_TMS AA_EA24 AA_ED5 AA_EA1 AA_EA13 AA_ED2 AD_SDA1 AA_EA0 AA_EA22 AA_ECLK AA_ED4 AA_ED6 AA_ED3 AA_ED13 AA_EA21 AA_EA0 AA_ERXW AA_ED10 AD_TCK AA_XEAS AA_XECS2 AA_XECS2 AG_MODEM_LED2/CLK74SEL AA_ESZ1 AA_ESZ0 AG_SD_BOOT_STS AA_SBO0 AG_SW_OFF_DET AA_SBI0 AA_SBI0 AA_SBO0 AC_CHDI0 AC_CHDI1 AC_CHDI2 AC_CHDI3 AC_CHDI4 AC_CHDI5 AC_CHDI6 AC_CHDI7 AC_CHVAL AC_CHSYNC AC_CHCLK AC_XPDWT XECS7 VI1P20 AA_XEAS C8621 16V 0.1u C8622 16V 0.1u D8901 MA3X704A0L C0JBAZ002845 IC8622 OE 1 2 Q0 3 D0 4 D1 5 Q1 6 Q2 7 D2 8 D3 9 Q3 10 GND 11 LE 12 Q4 13 D4 14 D5 15 Q5 16 Q6 17 D6 18 D7 19 Q7 20 Vcc C0JBAZ002845 IC8621 OE 1 2 Q0 3 D0 4 D1 5 Q1 6 Q2 7 D2 8 D3 9 Q3 10 GND 11 LE 12 Q4 13 D4 14 D5 15 Q5 16 Q6 17 D6 18 D7 19 Q7 20 Vcc JK8702 K1KA04AA0104 1 2 3 4 *JK8701 K1KAB0A00011 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 L8621 J0JHC0000075 SUB3.3V SUB3.3V SUB3.3V SUB3.3V SUB3.3V SUB3.3V SUB3.3V SUB5V MAIN3.3V TP8766 TP8747 TP8744 TP8733 TP8705 TP8742 TP8748 TP8735 TP8757 TP8750 TP8746 TP8718 TP8731 TP8767 TP8852 TP8851 TP8700 TP8755 TP8758 TP8707 TP8727 TP8704 TP8723 TP8736 TP8720 TP8765 TP8761 TP8717 TP8703 TP8768 TP8753 TP8739 TP8712 TP8749 TP8854 TP8722 TP8711 TP8759 TP8754 TP8732 TP8763 TP8726 TP8734 TP8702 TP8751 TP8729 TP8743 TP8730 TP8752 TP8725 TP8715 TP8714 TP8741 TP8745 TP8706 TP8762 TP8756 TP8764 TP8728 TP8738 TP8721 TP8713 TP8737 TP8760 TP8708 TP8709 TP8710 TP8719 TP8853 TP8724 TP8740 TP8716 TP8701 25M 24.576M 4.9152M CLKGEN_S2 AA_SBI0 ECLK EA1 XECS3 XIRQ1 SMTCMD0 VI2P11 CH1DATA AC_CHDI6 AC_CHVAL XEXDMR0 SMTSEL1 SMTRST0 AC_CHDI5 SMTCMD1 AC_XPDWT XECS2 ERXW ED6 AC_CHDI0 RMCO VI2P4 XERE XEXDMK0 ED2 XECS5 EA6 XECS4 EA2 XECS7 SBO0 ED14 ED10 ED13 TRST SBT2 VI2P20 CH1CLK EA3 EA0 AA_SBO0 EA7 XIRQ2 AC_CHDI7 ADIN TCK CH1PSYNC EA5 VI1CLK2 SBT0 ED1 TDI ESZ1 CH0PSYNC AC_CHDI1 ED15 ESZ0 XEDK ED7 SDA0 IS0PSYNC SCL1 AC_CHDI2 VOUTENB XEWE1 BOOTSWAP AC_CHDI3 VI2ENB XECS0 XEWE0 AC_CHSYNC TMS XNMIRQ XECS6 ED4 SDA1 ED11 AC_CHDI4 TDO CH0VAL AC_CHCLK SMTSEL0 VI1P20 XECS1 ED5 XRST ED12 SMTCLK0 EA4 ADCCK SLRCK CH0CLK ED3 IS1DATA NANDRYBY SBI0 ED9 ED0 CH0DATA SCL0 ED8 R8867 EXB2HV680JV R8865 EXB2HV680JV R8866 EXB2HV680JV R8883 68 R8749 10k R8898 10k *R8890 68 R8897 0 R8623 68 R8742 10k R8901 68 R8874 10k R8893 0 R8746 10k R8629 68 R8923 5.6k R8627 68 R8910 10k R8911 68 R8626 68 R8912 68 R8916 68 R8891 68 R8887 68 R8913 68 R8631 68 R8917 68 R8868 68 R8745 10k R8918 68 R8892 68 R8894 68 R8634 68 R8921 4.7k R8710 68 R8636 68 R8556 68 R8920 4.7k R8875 10k R8927 0 R8737 68 R8622 68 R8869 10k R8878 68 R8900 68 R8925 4.7k R8632 68 R8712 10k R8908 10k R8625 68 R8905 10k R8738 68 R8926 4.7k R8935 10k R8904 10k R8735 68 R8899 10k R8914 68 R8919 4.7k R8732 100 R8702 0 R8889 68 R8888 68 R8879 68 R8924 5.6k R8884 68 R8739 68 R8886 68 R8907 10k R8621 68 R8635 68 R8628 68 R8882 68 R8947 68 R8880 68 R8736 68 R8871 10k R8633 68 R8906 10k R8870 0 R8876 10k R8624 68 R8948 10k R8909 10k R8922 4.7k R8915 68 R8709 0 R8711 10k R8877 68 R8881 68 R8896 0 R8630 68 R8885 68 ExBUS SBI0 from GENX JTAG XCI_IREQ INT.PU /EA10 INT.PU /EA9 I2C /EA11 INT.PU TDO PORT16[7], SD_BOOT OUTPUT OUTPUT/(BOOTBT) XPDCD2 Hi-Z (XECS2,3 setting) /EA17 INT.PD INT.PU OUTPUT INT.PD Hi-Z RESERVED INT.PU SBO0 Hi-Z CI I/F LiteII OUTPUT /EA12 INT.PU B_PORT OUTPUT PORT16[5] PORT9[5] CI_XRST /EA16 /EA14 INT.PU INT.PU INT.PD INT.PD OUTPUT /EA21 +5V /EA22 INT.PU INT.PU Hi-Z see also SDA2 for ea_pullup_sel EA24 /EA15 XPDCD1 INT.PD ED/EA with Int.PU at start INT.PU NEED EXT.PU XIRQ3 for HDMI_INT in ADV sheet DUBUG/JIG TUNER SERIAL TS 33.75MHz Hi-Z /EA23 Hi-Z NEED EXT.PU Hi-Z INT.PD Hi-Z Hi-Z ExBUS Hi-Z /EA20 /EA13 CI_#CE1 TDI Hi-Z NAND I/F ADDRESS MPXed, if D-Latch BANKSIZE0 (ea_pullup_sel) CI PARALLEL TS PORT6[6]:PSV1 ExBUS N.C. for CLKGEN port /EA18 Reserved/(ed_pullup_sel) LiteII Hi-Z /EA19 Hi-Z /EA8 P_MAIN_SW H:Int.PU on EA PORT5[1] PORT5[2] RSV3 RSV2 CI_POWER_ON CI_OCP Hi-Z Hi-Z XECS3,5,7: USED FOR OTHER PORPOSE PINS INT.PU Hi-Z PORT16[4] PORT15[4] Hi-Z D-LATCH D-LATCH SUPPORT CARD FOR FACTORY USED to (1/16) to (1/16) to (10/16) EEPROM 8600-8619 SD_CARD 8800-8849 NAND/NOR 8550-8599 SUPPORT_CARD 8700-8799 SMART_CARD 8650-8699 D-LATCH 8620-8649 MPEG 8850-8949 MODEM 8950-8999 AV_OUT 8500-8549 CRNo.8300-8999 DTV FE 8300-8399 CI 8400-8499 34 30 36 28 33 31 32 35 29 14 12 13 21 23 22 TH-42PV70C DG-Board (4 of 16) Schematic Diagram TH-42PV70C DG-Board (4 of 16) Schematic Diagram DG-BOARD (4/16) ! TNPA4311AH 71 15.17.DG 电路板 (5/16) 线路图 D.SW W.P. AH_LRCK0 AE_SDCLK AA_XRST AD_SCL2 AG_SW_OFF_DET AD_SDA2 AD_SDA1 MVDACO3 AG_DTV_VOUTENB AE_SDDAT0 AG_DTV_XRST AG_SD_BOOT_STS AE_SDDAT1 AE_SDCMD AD_SCL1 AE_SDCLK AG_SRQ-GENX AH_DMIX0 AD_SDA3 AD_SDA0 AH_SRCK0 AD_SCL0 AH_IECOUT0 AH_LRCK0 AE_SDDAT3 AE_SDDAT2 AD_SCL3 AD_SDA3 AD_SCL3 AH_SRCK0 MVDACO3 AH_DMIX0 AE_SDCD AE_SDWP AG_MODEM_LED2/CLK74SEL STB_RST AE_SDCD AE_SDWP DVB_CVBS AE_SDDAT0 AE_SDDAT1 AE_SDDAT2 AE_SDDAT3 AE_SDCMD C8801 50V 0.47u C8601 16V 0.1u *IC8601 TVRP692 1 A0 2 A1 3 A2 4 VSS 5 SDA 6 SCL 7 WP 8 VCC JK8801 K1NA09D00004 NO 1 2 3 4 5 6 7 8 9 10 W.P. 10 11 11 12 D.SW 12 SUB3.3V SUB3.3V SUB3.3V SUB3.3V TP8605 TP8602 TP8802 TP8601 TP8604 TP8808 TP8805 TP8804 TP8501 TP8803 TP8603 TP8801 TP8806 TP8807 AG_DTV_VOUTENB AG_SD_BOOT_STS AA_XRST AG_DTV_XRST AG_MODEM_LED2/CLK74SEL AG_SW_OFF_DET AG_SRQ-GENX AD_SCL0 AH_SRCK0 DVB_CVBS AD_SCL3 AH_LRCK0 AH_DMIX0 AD_SCL1 AD_SCL2 MVDACO2 STB_RST SDDAT3 MVDACO0 SDCLK AD_SDA1 VI1P0 VI1P21 SDCMD VI1P0 IS0DATA IECOUT0 SDWP SDDAT2 SDDAT0 IS0CLK VI2CLK2 SDDAT1 MVDACO3 VI1P11 IS1VAL CH1VAL IS0VAL SDCD AD_SDA0 DMIX0 AD_SDA3 SRCK0 AD_SDA2 VI1P1 VI1P10 MVDACO1 LRCK0 IS1PSYNC R8813 EXB28V221JX R8604 0 R8513 0 R8812 0 R8601 22 1% R8508 91 1% R8507 91 R8963 10k R8808 10k R8803 10k R8807 10k R8816 68 R8605 68 R8655 10k R8503 330 1% R8509 91 R8815 68 R8502 330 R8806 10k R8802 10k R8504 330 1% R8512 180 R8814 68 R8602 22 1% R8510 91 R8817 68 R8653 10k R8825 0 R8805 10k R8832 10k R8804 10k R8828 10k R8603 47k R8809 10k MAIN AUDIO DATA Comp. Comp. Comp. SD_CARD OUTPUT INT.PD COMMON LR/SR CLK Y Y G YC YUV RGB NO PU/PD Comp. C U B PORT9[4] EEPROM_WP - V R Output Port need no Ext.PD. FOR H.264 BOARD Hi-Z if H.264 is non use Hi-Z PORT8[0] Hi-Z PORT15[7] TXD0 Hi-Z H.264 RXD0 should be L OUTPUT setting PORT15[6] Hi-Z Hi-Z SMART CARD I/F is removed SMTCLK0 Hi-Z RESERVED SMTSEL0 SMTCMD0 PORT15[4] used for CI_OCP on DT2 Int.PU PORT5[4] SD_COIN_DET PORT7[7] PRO_SDBOOT SDCLK SDDAT3 SDCMD GND 3.3V SDDTC SDDAT2 SDDAT0 SDWP GND SDDAT1 PORT5[4] ERXW JUDGE EEPROM SD CARD SLOT to (15/16) to (9,10/16) to (7,10/16) to other devices to (4/16) to (10/16) to (10,15/16) GENX4 to (6,7,15/16) to (7/16) LiteII to (1/16) EEPROM 8600-8619 SD_CARD 8800-8849 NAND/NOR 8550-8599 SUPPORT_CARD 8700-8799 SMART_CARD 8650-8699 D-LATCH 8620-8649 MPEG 8850-8949 MODEM 8950-8999 AV_OUT 8500-8549 CRNo.8300-8999 DTV FE 8300-8399 CI 8400-8499 44 38 42 37 43 39 40 41 45 21 22 23 TH-42PV70C DG-Board (5 of 16) Schematic Diagram TH-42PV70C DG-Board (5 of 16) Schematic Diagram DG-BOARD (5/16) ! TNPA4311AH 72 15.18.DG 电路板 (6/16) 线路图 + + + + + + + + + + + G G G G G G AG_RMIN AG_KEY1(CON-PANE) C5644 0.01u 25V C5627 0.1u 16V C5616 0.047u 10V C5645 2.2u 6.3V C5617 1u 16V C5615 10u 10V C5607 50V 220p C5608 0.1u 16V C5619 10u 10V C5626 0.1u 16V C5605 4.7u 16V C5670 16V 1u C5673 16V 1u C5637 0.1u 16V C5601 0.1u 16V C5636 0.1u 16V C5622 4.7u 16V C5674 16V 1u C5676 16V 0.1u C5620 0.1u 16V C5639 0.1u 16V C5624 220p 50V C5638 0.1u 16V C5640 0.1u 16V C5641 0.1u 16V C5643 0.1u 16V C5692 16V 0.1u C5623 470p 50V C5600 1u 16V C5693 16V 0.1u C5606 470p 50V C5603 0.01u 25V C5604 0.01u 25V C5621 0.01u 25V C5625 0.01u 25V C5632 1u 16V C5663 25V 0.01u C5662 10V 0.047u C5661 25V 0.01u C5618 10u 10V C5628 68u 4V C5695 47u 6.3V C5609 47u 16V C5690 47u 16V C5610 16V 47u C5629 68u 4V C5691 47u 6.3V C5694 47u 16V C5602 68u 4V C5631 16V 47u C5630 16V 47u D5601 MA22D3900L D5673 B0HCMM000014 D5603 B0JCDD000002 D5606 B0JCDD000002 D5671 B0HCMM000014 D5604 B0JCDD000002 D5605 MA22D3900L D5602 MA22D3900L D5670 MA2J11100L D5608 MAZ802400L D5691 B0BC6R600005 D5607 MAZ802400L D5690 B0BC6R600005 D5609 MAZ80560LL J0HABH000013 FL5733 J0HABH000013 *FL5734 J0HABH000013 *FL5730 C0CBCBC00190 IC5670 1 VDD 2 GND 3 CE 5 VOUT 4 NC C0EBF0000376 IC5671 1 RST 2 VDD 3 GND 5 Cd 4 NC IC5660 C0EBM0000026 1 OUT 2 Vdd 3 GND 5 Cd 4 NC C0DBAYY00273 IC5600 1 GND 2 REFIN 3 VREF 4 CS 5 COVP 6 CUVP 7 PGOOD 8 CTL 9 LSAT 10 ILIM 11 +INC 12 -INC 13 FSW 14 PGND 15 OUT-2 16 VB 17 VCC 18 VBIN 19 LX 20 OUT-1 21 CB 22 RT 23 VO 24 FB C0DBAYY00274 IC5601 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP DG1 1 2 3 4 5 6 7 8 9 10 11 12 L5611 J0JHC0000035 L5605 J0JHC0000075 L5691 J0JHC0000078 L5690 J0JHC0000078 L5610 J0JHC0000035 L5670 J0JHC0000078 L5735 J0JHC0000078 L5601 G1C2R2ZA0083 L5606 G1C100MA0077 L5602 G1C3R3ZA0083 L5600 G1C2R2ZA0083 L5604 G1C100MA0077 MAIN5V SUB1.8V SUB3.3V MAIN3.3V MAIN9V SUB1.2V SUB5V DTV9V DTV9V STB5V DTV9V SUB5V STB3.3V DTV9V STB3.3V STB5V SUB3.3V SUB5V SUB5V SUB3.3V STB5V SUB3.3V STB3.3V TP5600 TP5608 TP5606 TP5609 TP5601 TP5702 TP5605 TP5701 TP5670 TP5604 TP5602 TP5603 TP5705 TP5700 TP5607 TP5706 AG_R_LED_ON AG_G_LED_ON AG_KEY2 AG_RMIN AG_KEY3 AG_KEY1(CON-PANE) AA_XRST AG_TV_MAIN_ON STB_RST Q5600 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 Q5601 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 Q5602 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 Q5693 B1DHDC000028 Q5692 B1DHDC000028 Q5603 2SD0601ASL Q5691 B1ABCF000138 Q5690 B1ABCF000138 Q5604 2SD0601ASL R5731 47k R5661 47k R5690 10k R5600 68 R5628 0 R5622 100k R5671 18k R5641 47k R5694 1k R5608 0 R5646 10k R5693 47k R5670 0 R5629 28k 1% R5633 16k 1% R5621 47k 1% R5634 16k 1% R5631 36k 1% R5630 47.5k 1% R5632 30k 1% R5604 47k 1% R5605 12.4k 1% R5611 36k 1% R5612 23.2k 1% R5606 0 R5730 47k R5607 0 R5692 47k R5625 0 R5647 47k *R5741 0 R5636 68k R5696 10k R5635 22k R5627 0 R5674 47k R5672 0 R5644 2.2k R5626 0 R5638 10k R5662 10k R5660 5.6k R5691 10k R5609 0 R5610 100k R5697 10k R5637 0 R5623 47k 1% R5620 68 R5695 1k From GenX4 CRNo.5600-5749 Peaks-LITE2 RST 5660-5669 GenX4 POWER/RST 5670-5689 Peaks-LITE2 POWER 5600-5659 MAIN5V/MAIN3.3V 5690-5709 DG-H Connecter 5710-5729 DG-G Connecter 5730-5749 to K-PCB GenX4 G_LED_ON GND AI_SENSOR SUB5V RMIN ACTIVE_STBY_LED_ON GND STB3.3V R_LED_ON GND KEY1 GND POWER SUPPLY/RST 51 52 54 47 49 46 50 53 48 STB+3.3V GenX4 RESET PEAKS-LITE2 RESET MAIN5V MAIN3.3V SUB+3.3V SUB+1.8V/+1.2V to (7,16/16) to (7,15,16/16) to (4/16) to (5,7,15/16) TH-42PV70C DG-Board (6 of 16) Schematic Diagram TH-42PV70C DG-Board (6 of 16) Schematic Diagram DG-BOARD (6/16) ! TNPA4311AH GenX4 to (7/16) DG8 1 2 3 4 5 6 MAIN5V TO PB-BCARD (PB8) NC NC KIKA06AA0104 FAN_SOS GND MAIN5V FAN_MAX L5750 J0JHC0000035 G G *R5750 0 G G FL5750 J0HABH000013 FL5751 J0HABH000013 R2018 47K TPCOF GenX4 to (7/16) AG_FAN_MAX AG_FAN_SOS 73 15.19.DG 电路板 (7/16) 线路图 AD_SCL3 AG_HDMI_CEC AG_RMIN AG_G_LED_ON AG_KEY3 AG_R_LED_ON AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON AG_HPD2 AD_SDA3 SCL AG_TV_MAIN_ON AG_SD_LED_ON SDA AG_CONFIG_DONE AG_DTV_XRST AG_HPD1 AG_SRQ-GENX AG_LVDS_EN AG_DTV_VOUTENB AG_TV_SUB_ON AG_SD_BOOT_STS AG_KEY1(CON-PANE) AG_PWM_POW_ON AG_HDMI_5V_DET1 AG_AVSW_OFF AG_BUS_CONNECT2 AG_RF_AFT1 AG_RF_AFT2 AG_SOUND_SOS AG_SOS AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE AG_AUDIO_XRST AG_FAN_MAX AG_FAN_SOS AG_7493_XRST SCL SDA AG_VIDEO_STATUS AG_PANEL_STBY_ON/PANEL_VCC_ON SBI2 SBO2 AD_SCL3 AD_SDA3 SBO2 SBI2 DTV9V_SENSE ADCCK AG_BUS_CONNECT2 AG_ODU_DET AG_RF_AGC1 AG_AUDCLK SLRCK SCL SDA AG_ODU_ON/GEMSTER_STBY_EN AG_AVSW_OFF AG_KEY2 AG_MODEM_LED2/CLK74SEL AG_AUDCLK SLRCK ADCCK VI2ENB VI2ENB AG_HDMI_CEC AG_SRQ-GENX MAIN5V_SENSE AG_SRQ-GENX AG_KEY2 AG_KEY3 AG_HDCP_WP AG_EDID_WP AG_HDMI_MUX_SEL AG_HDMI_MUX_EN AG_HDMI_REP_EN AG_HPD3 AG_HDMI_5V_DET3 AG_SW_OFF_DET AU_SBO(HOTEL) AU_SBI(HOTEL) AG_TV_MAIN_ON_DELAY AG_HDMI_OPT_ENB AG_TV_SUB_ON_DELAY AG_VIDEO_STATUS AG_PANEL_STBY_ON/PANEL_VCC_ON AG_EDID_WP AG_HDCP_WP AG_RF_AFT1 AG_RF_AFT2 AG_SOS AG_FAN_SOS AG_SOUND_SOS AG_FPGA_XRST AG_DTV_XRST AG_SD_BOOT_STS AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE AG_ECO_ON AG_HQ1_VOUTENB AG_HDMI_MUX_SEL AG_HDMI_MUX_EN AG_HDMI_REP_EN AG_INVERTER_ON AG_PWM_POW_ON AG_LVDS_EN AG_DTV_VOUTENB AG_QLINK_PU_ON AG_ALL_OFF AG_HPD1 AG_HPD2 AG_HPD3 AG_R_LED_ON AG_TV_MAIN_ON AG_HDMI_5V_DET3 AG_HDMI_5V_DET1 AG_AUDIO_XRST AG_TV_SUB_ON_DELAY AG_HDMI_OPT_ENB AG_TV_MAIN_ON_DELAY AG_FAN_MAX AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON AG_G_LED_ON AG_MODEM_LED2/CLK74SEL AG_TV_SUB_ON AG_INVERTER_SOS AG_QLINK2 AG_QLINK1 AG_7493_XRST AG_SD_LED_ON AG_CONFIG_DONE AG_KEY1(CON-PANE) AG_RMIN AG_INVERTER_ON AG_HQ1_VOUTENB AG_FPGA_XRST AG_ALL_OFF AG_ECO_ON AG_QLINK_PU_ON AG_QLINK1 AG_QLINK2 AG_ODU_DET AG_RF_AGC1 AU_SBI(HOTEL) AU_SBO(HOTEL) AG_ODU_ON/GEMSTER_STBY_EN AG_INVERTER_SOS AG_SW_OFF_DET C1122 25V 0.01u C1103 16V 0.1u C1107 50V 22p C1106 50V 27p C1123 1u 16V C1112 16V 0.1u C1114 16V 0.1u C1108 16V 0.1u C1102 10u 10V C1111 1u 16V C1117 16V 0.1u C1109 1u 16V C1104 16V 0.1u D1107 MA3X704A0L *IC1101 1 2 3 4 5 6 7 8 MNZSFD7GP42 IC1100 1 P41/TMIO1 2 P42/TMIO2 3 P43/TMIO3 4 P44/TMIO4 5 P00/TMIO5 6 P01 7 P02 8 P03/SBT0B 9 P04/SBO0B 10 P51/IRQ2 11 P52/IRQ3 12 PB2 13 PB3 14 PB4 15 PB5 16 PB6 17 PB7 18 P53/IRQ4 19 P54/IRQ5 20 PA7 21 PA6 22 PA5 23 VSS 24 PA4 25 PA3 26 PA2 27 PA1/IRQ1 28 PA0 29 P45 30 P46 31 IVDD 32 VDD 33 P60/SBO0A 34 P61/SBT0A 35 P62/SBI0A 36 P05/IRQ6 37 P06/IRQ7 38 P07/IRQ8 39 P70/SDA0 40 P71/SCL0 41 N.C. 42 N.C. 43 N.C. 44 N.C. 45 P50/RMIN/IRQ0 46 P20 47 P21 48 P22 49 P23 50 IVDD 51 VSS 52 P10 53 P11 54 P12 55 P13 56 P14 57 P15 58 P16 59 P17 60 N.C. 61 N.C. 62 N.C. 63 P72/SDA1 64 P73/SCL1 65 P76/CEC0 66 P65/SBO2 67 P66/SBI2 68 P30 69 P31 70 P32 71 P33 72 P34 73 P35 74 VPPEX 75 N.C. 76 N.C. 77 N.C. 78 IVDD 79 VDD 80 N.C. 81 RONA 82 VSS 83 OSCXO 84 OSCXI 85 IVDD 86 P24 87 P25 88 P26 89 P27 90 P64/SBI1 91 P63/SBO1 92 NBOOT 93 NRST 94 NTEST 95 SCLOCK 96 SDATA 97 EXTRG0 98 EXTRG1 99 TRCCLK 100 TRCST 101 TRCD0 102 TRCD1 103 TRCD2 104 TRCD3 105 P90 106 P91 107 VSS 108 IVDD 109 P92 110 P93 111 P80/ADIN0 112 P81/ADIN1 113 P82/ADIN2 114 P83/ADIN3 115 P84/ADIN4 116 P85/ADIN5 117 P86/ADIN6 118 P87/ADIN7 119 P74/SDA2/CECAVL1B 120 P75/SCL2/CECAVL1A 121 P36 122 P37 123 P47 124 PB0 125 PB1 126 PC0 127 PC1 128 P40/TMIO0/SYSCLK L1100 J0JHC0000078 STB3.3V SUB5V STB3.3V STB3.3V MAIN9V DTV9V STB3.3V MAIN3.3V MAIN5V TP1104 TP1100 TP1102 TP1101 TP1105 TP1103 AG_SRQ-GENX AG_HDMI_5V_DET1 AG_SOUND_SOS AG_VIDEO_STATUS AG_KEY1(CON-PANE) AG_SOS AG_ALL_OFF STB_RST AG_HDMI_5V_DET3 AG_RF_AFT1 AG_KEY2 AG_RF_AFT2 AG_RMIN AG_KEY3 AG_HPD1 AG_HDMI_OPT_ENB AG_TV_MAIN_ON AG_TV_SUB_ON_DELAY AG_DTV_XRST AG_TV_SUB_ON AG_SW_OFF_DET AG_A_MON_MUTE/SP_MUTE AG_ECO_ON AG_HDCP_WP AG_G_LED_ON AG_AUDIO_MUTE AG_MODEM_LED2/CLK74SEL AG_AUDIO_XRST AG_FAN_MAX AG_FAN_SOS AG_EDID_WP AG_R_LED_ON AG_SD_BOOT_STS AG_HPD3 AG_PANEL_STBY_ON/PANEL_VCC_ON AG_TV_MAIN_ON_DELAY AG_DTV_VOUTENB AG_7493_XRST SBI2 SLRCK ADCCK VI2ENB SDA AD_SDA3 AG_HDMI_CEC AD_SCL3 SCL SBO2 Q1107 2SD0601A0L Q1108 2SD0601A0L R1217 56k R1171 56k R1163 1M R1152 47k R1198 100k *R1230 47k R1153 820 R1223 47k R1235 100k R1182 27k R1227 47k R1144 47k R1251 47k R1195 100k R1147 47k R1255 1k R1169 56k R1231 47k R1170 27k R1196 33k R1165 1.8k R1181 100 R1205 22 R1226 47k R1140 47k R1229 100 R1166 100k R1232 47k R1218 10k R1245 47k R1220 10k R1184 22 R1250 47k R1146 1k R1183 22 R1203 47k R1194 56k R1138 47k R1186 100 R1104 47k R1206 22 R1219 10k R1244 47k R1175 22 R1247 47k R1209 47k R1134 100 R1234 47k R1179 100 R1243 47k R1221 7.15k 1% R1228 47k R1216 33k R1148 47k R1236 47k R1246 47k R1174 22 R1122 47k R1222 47k R1200 5.6k R1204 0 R1248 47k R1249 47k R1162 100 R1172 27k R1201 5.6k R1164 10k R1199 47k R1233 47k R1237 47k X1100 H0J100500035 R4322 47k R4323 47k R4325 47k R4329 47k R4326 47k R4327 47k R4328 47k R2019 47k R2020 47k *R2022 47k R2023 47k *R2021 47k R2010 47k R2025 47k R2012 47k R2011 47k R2013 47k R2015 47k R2014 47k VIDEO_STATUS CONFIG_DONE TV_MAIN_ON ODU_ON/GEMSTER_STBY_EN AVSW_OFF(US) (SD_LED_ON) ODU_DET (BUS_CONNECT2) (USA only) SUB5V_SENSE GenX-EEP_WP MAIN5V_SENSE SRQ_GenX ALL_OFF RSV2(LITE2) (QLINK_PU_ON) (HDMI_CEC_PU_ON) HQ1_VOUTENB LVDS Out HDMI_5V_Det1 IIC HDMI_5V_Det2 MAIN9V_SENSE MAIN3.3V_SENSE RF_AFT1 RF_AFT2 AI_SENSOR SOS KEY2(US) KEY1 FAN_SOS SOUND_SOS SBI PANEL_STBY_ON R_LED_ON FAN_MAX SBO 7493_XRST RSV3(LITE2) HQ1_XRET RSV3 TV_SUB_ON_DELAY G_LED_ON PORT5[2] MODEM_XRST AUDIO_XRST PORT0[0] ETHER/1394_XRST PORT5[1] TV_SUB_ON RSV3(LITE2) Power Supply RSV4(LITE2) SYSCLK_OUT Lite2 UART(LITE2-GenX4) A_MON_MUTE/SP_MUTE AUDIO_MUTE Lite2 ExBUS/Etc. RSV4 RSV2 Hand Sheke Reserve DTV_XRST SD_BOOT_STS SW_OFF_DET (USA Only) INVERTER_ON PWM_POWER_ON DTV_VOUTENB LVDS_EN LITE2 GenX4 E2PROM LINE Lite2 E2PROM LINE Power Supply RSV4(LITE2) FPGA_RST HPD2 HPD1 CRNo.1100-1999 GenX4,EEPROM ADV7493 ECO_ON DTV_1.5V_ON RF_AGC1 DTV9V_SENSE STB5V_SENSE INVERTER_SOS GenX4 RST (HDMI_CEC_PU_ON) 10MHz KEY3(TV_POWER) PORT6[6] RSV1 RSV1(LITE2) HDMI_5V_Det3 HDCP_WP EDID_WP HDMI_MUX_SEL HDMI_MUX_EN HDMI_REP_EN STB MCU EEPROM 60 62 63 57 56 59 58 61 55 to (9/16) to (6,15,16/16) to (10/16) to (15/16) to (15,16/16) to (16/16) to (6/16) to (15/16) to (15/16) to (6/16) to (5/16) to (16/16) to (5,10,15/16) to (1,4/16) to (5,10/16) to (10/16) to (2/16) to (10/16) to (5/16) TVRP465-1 to (6,16/16) TH-42PV70C DG-Board (7 of 16) Schematic Diagram TH-42PV70C DG-Board (7 of 16) Schematic Diagram DG-BOARD (7/16) ! TNPA4311AH 74 15.20.DG 电路板 (8/16) 线路图 + + AG_HDMI_5V_DET3 AG_EDID_WP AG_HDMI_5V_DET1 AG_HDMI_CEC AG_HPD3 AG_HPD1 RXA_1P RXA_CP RXA_2P RXA_0P RXB_CP RXB_0P RXB_1P RXB_2P RXB_2N RXB_1N RXB_0N RXB_CN RXA_2N RXA_1N RXA_0N RXA_CN *C4506 0.1u 16V *C4502 0.1u 16V C4503 0.1u 16V C4507 0.1u 16V *C4510 0.1u 16V C4501 0.1u 16V C4511 0.1u 16V *C4500 0.1u 16V 33u 6.3V *C4508 33u 6.3V C4509 *D4525 B0HCMM000014 D4527 B0HCMM000014 *D4524 B0HCMM000014 D4526 B0HCMM000014 *D4518 EZAEG2A50AX *D4500 EZAEG2A50AX *D4519 EZAEG2A50AX *D4522 EZAEG2A50AX D4503 EZAEG2A50AX D4523 EZAEG2A50AX D4528 EZAEG2A50AX *D4508 EZAEG2A50AX *D4512 EZAEG2A50AX D4521 EZAEG2A50AX *D4510 EZAEG2A50AX D4516 EZAEG2A50AX D4509 EZAEG2A50AX D4517 EZAEG2A50AX *D4504 EZAEG2A50AX D4520 EZAEG2A50AX D4505 EZAEG2A50AX *D4502 EZAEG2A50AX *D4514 EZAEG2A50AX D4507 EZAEG2A50AX *D4506 EZAEG2A50AX D4511 EZAEG2A50AX D4501 EZAEG2A50AX *D4513 MAZ30560ML D4515 MAZ30560ML *IC4501 TVRP316 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC *IC4500 TVRP317 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC *JK4500 K1FY119D0002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 JK4501 K1FY119D0002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 *L4502 J0JHC0000078 L4507 J0JHC0000078 *L4500 J0JHC0000078 *L4505 J0JHC0000078 *L4504 J0JHC0000078 L4503 J0JHC0000078 L4506 J0JHC0000078 L4501 J0JHC0000078 MAIN5V TP4504 TP4501 TP4500 TP4505 TP4506 TP4503 TP4502 TP4507 TP4508 *Q4502 2SD0601A0L *Q4500 2SD0601A0L Q4501 2SD0601A0L *Q4505 2SD0601A0L Q4503 2SD0601A0L Q4504 2SD0601A0L *R4537 47k *R4534 47k R4617 0 *R4619 0 R4616 0 *R4618 0 *R4535 4.7k R4544 10k R4523 2.2 R4522 2.2 R4520 2.2 R4541 68 *R4513 2.2 *R4510 2.2 *R4506 10k *R4509 2.2 R4536 4.7k *R4511 2.2 *R4529 4.7k *R4528 10k *R4539 68 *R4514 2.2 *R4545 10k R4530 10k *R4526 1k *R4512 2.2 R4517 2.2 R4546 10k R4531 4.7k *R4547 10k R4533 10k R4519 2.2 R4527 1k *R4508 2.2 R4521 2.2 *R4502 33 R4518 2.2 *R4515 2.2 R4525 10k *R4500 10k R4516 2.2 R4507 10k R4552 22 *R4542 68 R4501 10k R4543 68 *R4532 10k *R4524 10k R4503 33 DDCG D0G D1+ +5V CLKG D0- CRNo.4500-4799 D0G N.C. SCL D1+ CLKG CLK+ D1G D2+ D2G CLK+ D2- +5V N.C. D1- SDA CEC D2+ HPDT CEC DDCG SDA SCL D0+ CLK- D0- D1- CLK- ADV7493,HDMI-Mux D1G HPDT D2- D2G D0+ EEPROM EDID EEPROM EDID 71 65 72 66 69 67 68 70 64 35 33 34 37 31 36 32 TH-42PV70C DG-Board (8 of 16) Schematic Diagram TH-42PV70C DG-Board (8 of 16) Schematic Diagram DG-BOARD (8/16) ! TNPA4311AH 75 15.21.DG 电路板 (9/16) 线路图 + + + + VI1P25 VI1P22 VI1P28 CLKOA VI1P27 VI1P8 VI1HSYNC RXA_1P RXA_0N XIRQ3 VI1P25 AG_HDMI_5V_DET1 VI1P7 VI1ENB AG_HPD1 VI1P7 AG_HDMI_5V_DET3 VI1VSYNC VI1P22 AH_HDMI_LRCK VI1P26 VI1P19 VI1P12 VI1P29 RXA_1N VI1P9 RXA_2N VI1P12 VI1P3 VI1P15 AH_HDMI_SDIN VI1P16 MAIN_PB/C VI1P9 RGB_CVBS VI1P6 VI1P2 VI1CLK VI1HSYNC VI1P24 VI1P4 VI1P13 AG_HDMI_CEC VI1P3 AG_7493_XRST RXA_0P VI1P15 VI1P29 RGB_FB VI1P2 VI1P27 VI1P18 VI1VSYNC VI1P13 VI1P24 VI1P28 VI1P26 VI1P17 MAIN_Y/CVBS VI1P14 VI1P5 VI1P18 VI1P4 VI1P8 VI1ENB VI1P19 VI1P23 VI1CLK RXA_CN VI1P16 VI1P5 VI1P6 VI1P23 RXA_CP MAIN_PR VI1P14 VI1P17 AH_HDMI_BCLK HDMI_SPDIF RXB_CN RXB_CP RXB_0N RXB_0P RXB_1N RXB_1P RXB_2N RXB_2P RXA_2P AG_EDID_WP AG_HPD3 XIRQ3 AG_7493_XRST PC_V PC_H CLKOA RGB_CVBS MAIN_PR MAIN_PB/C RGB_FB PC_V PC_H MAIN_Y/CVBS 1.8V C4584 1u 16V C4620 16V 1u C4590 18p 50V C4581 16V 1u C4629 10V 10u C4566 16V 0.039u C4616 16V 0.1u C4596 16V 0.1u C4535 50V 0.1u C4615 25V 0.01u C4545 16V 0.1u C4528 16V 0.1u C4573 16V 0.1u C4600 25V 0.01u C4617 16V 0.1u C4583 16V 0.1u C4574 25V 0.01u C4619 16V 0.1u C4527 16V 1u C4609 16V 1u C4557 16V 0.1u C4565 25V 0.01u C4569 16V 0.68u C4613 1u 16V C4563 16V 0.082u C4578 16V 0.1u C4602 16V 0.1u C4531 16V 0.1u C4564 25V 0.01u C4568 16V 0.1u C4601 25V 0.01u C4551 50V 0.1u C4543 16V 0.1u C4556 10V 10u C4604 6.3V 2.2u C4547 16V 0.1u C4618 25V 0.01u C4592 1u 16V C4559 16V 0.1u C4598 1u 16V C4562 50V 8200p C4625 50V 0.1u C4555 10V 10u C4589 15p 50V C4515 16V 0.1u C4595 25V 0.01u C4577 16V 0.1u C4533 50V 68p C4587 16V 0.1u C4611 1u 16V C4588 16V 0.082u C4539 10u 10V C4580 25V 0.01u C4550 16V 0.1u C4593 25V 0.01u C4605 16V 0.1u C4586 25V 0.01u C4612 25V 0.01u C4585 1u 16V C4591 1u 16V C4544 16V 0.1u C4548 50V 0.1u C4572 16V 0.1u C4541 50V 470p C4628 16V 0.1u C4560 16V 0.1u C4549 50V 0.1u C4623 16V 0.1u C4614 16V 0.1u C4546 6.3V 2.2u C4624 50V 0.1u C4552 50V 0.1u C4582 16V 0.1u C4534 50V 0.1u C4553 50V 1000p C4575 1u 16V C4570 47u 6.3V C4576 47u 6.3V C4538 47u 6.3V C4607 47u 6.3V D4532 B0HCMM000014 C0CBCBC00190 IC4507 1 VDD 2 GND 3 CE 5 VOUT 4 NC IC4515 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC IC4509 C0CBCAD00082 1 Vout 2 NC 3 Cn 4 GND 5 Cont 6 NC 7 NC 8 Vin IC4504 C3EBEY000009 1 NC 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC IC4508 C0CBCAD00082 1 Vout 2 NC 3 Cn 4 GND 5 Cont 6 NC 7 NC 8 Vin C0DBGGF00001 IC4506 1 Vo 2 NC 3 GND 4 Cn Cont 5 Sub 6 Vin 7 C1AB00002753 IC4510 1 DDCB_SDA 2 SPDIF 3 I2S0 4 I2S1 5 I2S2 6 I2S3 7 LRCLK 8 SCLK 9 MCLKOUT 10 MCLKIN 11 SDA 12 SCL 13 ALSB 14 DGND 15 DVDDIO 16 DE 17 HS 18 VS/FIELD 19 INT1 20 SFL/SYNC_OUT/INT2 21 RESET 22 DGND 23 DVDD 24 P19 25 P18 26 P17 27 P16 28 P15 29 P14 30 P13 31 P12 32 P29 33 P28 34 DGND 35 DVDDIO 36 P11 37 P10 38 P9 39 P8 40 P27 41 P7 42 P6 43 P5 44 P4 45 P26 46 R_ACTIVE/P25 47 SRLIN/P24 48 DCLKIN 49 DGND 50 DVDDIO 51 LLC 52 SRLUP/P23 53 TRGIN/P22 54 P21 55 P3 56 DGND 57 DVDD 58 P2 59 P1 60 P0 61 P20 62 VS_IN 63 HS_IN 64 DGND 65 XTAL1 66 XTAL 67 DVDDIO 68 PVDD 69 PGND 70 ELPF 71 PVDD 72 PGND 73 ELPF2 74 FB 75 SOG 76 AIN7 77 AIN1 78 AIN8 79 AIN2 80 AIN9 81 AIN3 82 AGND 83 AGND 84 AVDD 85 REFOUT 86 CML 87 AGND 88 AVDD 89 BIAS 90 CAPY1 91 CAPC1 92 CAPC2 93 AIN10 94 AIN4 95 AIN11 96 AIN5 97 SOY 98 AIN12 99 AIN6 100 PGND 101 PVDD 102 ELPF3 103 CGND 104 CVDD 105 DDCA_SCL 106 DDCA_SDA 107 MDA 108 MCL 109 CVDD 110 CGND 111 TVDD 112 RXA_CN 113 RXA_CP 114 TGND 115 RXA_0N 116 RXA_0P 117 TGND 118 RXA_1N 119 RXA_1P 120 TGND 121 RXA_2N 122 RXA_2P 123 TVDD 124 RTERM 125 CVDD 126 CGND 127 TVDD 128 RXB_CN 129 RXB_CP 130 TGND 131 RXB_0N 132 RXB_0P 133 TGND 134 RXB_1N 135 RXB_1P 136 TGND 137 RXB_2N 138 RXB_2P 139 TVDD 140 CGND 141 CVDD 142 DVDD 143 DGND 144 DDCB_SCL DG32 1 2 3 4 5 6 7 L4511 J0JHC0000078 L4512 J0JCC0000077 L4524 J0JHC0000078 L4517 J0JHC0000078 L4521 J0JHC0000078 L4518 J0JHC0000078 L4516 J0JHC0000078 L4520 J0JHC0000078 SUB5V MAIN5V MAIN9V SUB5V SUB5V MAIN5V MAIN3.3V SUB3.3V TP4518 TP4514 TP4513 TP4515 TP4511 TP4510 TP4516 TP4509 TP4517 AG_HPD3 VI1P19 VI1P24 AH_HDMI_BCLK MAIN_PB/C AG_HDCP_WP RGB_FB AG_HDMI_5V_DET1 MAIN_PR VI1P26 AD_SCL1 VI1P3 RGB_CVBS VI1P4 VI1P22 VI1P5 VI1P18 VI1CLK VI1ENB VI1P12 VI1P2 XIRQ3 VI1P7 AD_SDA1 AG_HPD1 AG_EDID_WP VI1P29 MAIN_Y/CVBS VI1P17 HDMI_INT2 VI1VSYNC PC_H VI1P15 VI1HSYNC AG_HDMI_5V_DET3 AG_HDMI_CEC VI1CKOUT VI1P6 VI1P13 VI1P14 AH_HDMI_LRCK PC_V AH_HDMI_SDIN VI1P27 VI1P23 VI1P25 AG_7493_XRST VI1P8 VI1P9 HDMI_SPDIF VI1P28 VI1P16 Q4517 2SB0709ASL Q4515 2SB0709ASL Q4514 2SB0709ASL Q4516 2SB0709ASL R4649 68 EXB28V680JX R4648 EXB28V330JX R4642 68 EXB28V680JX R4635 68 EXB28V680JX R4640 68 EXB28V680JX R4639 68 EXB28V680JX R4683 10k R4666 47k R4661 100 R4548 4.7k R4549 4.7k 1% R4606 4.7k 1% R4631 499 1% R4612 1.5k 1% R4611 1.37k 1% *R4593 1k 1% R4587 820 0 R4627 R4585 100 R4707 10k R4601 1k R4658 22 R4641 22 R4597 1k R4650 68 R4657 22 *R4659 0 1% R4604 7.5k R4652 47k R4638 68 R4643 22 R4651 68 *R4672 0 R4644 22 1% R4624 1.69k 1% R4615 160 R4670 68 1% R4682 10k R4637 68 1% R4654 4.7k R4562 4.7k R4614 22 R4665 47k 1M R4626 R4622 100 R4563 4.7k R4656 2.2k R4645 68 R4613 22 R4564 22 R4655 100 R4636 68 R4706 1k R4596 1k R4692 22 R4598 1k R4646 68 R4653 10k R4647 68 R4565 22 R4708 1k R4561 4.7k R4691 22 X4500 H0J270500113 YIN3 RX_SD0# YIN1 YIN2 UVIN8 IN YIN4 OUT RIN2 UVIN9 RIN3 Peaks Lite II RIN0 Peaks Lite II RIN1 YIN0 CLKOA UVIN7 HSIA UVIN4 UVIN2 VSIA UVIN3 CLKIA UVIN5 UVIN0 UVIN6 YIN9 UVIN1 RX_WS YIN7 RX_SCK YIN5 YIN6 YIN8 EEPROM EDID AD/HDMI 3.3V 1.8V AD/HDMI DVDD1.8V COMPARATOR 3.3V CRNo.4500-4799 ADV7493,HDMI-Mux to (5/16) to (15/16) to (5,10/16) to (15/16) to (15/16) to (1/16) to (1/16) to (7/16) GenX4 74 77 79 73 76 81 75 78 80 35 32 37 33 36 34 31 TH-42PV70C DG-Board (9 of 16) Schematic Diagram TH-42PV70C DG-Board (9 of 16) Schematic Diagram DG-BOARD (9/16) ! TNPA4311AH 76 15.22.DG 电路板 (10/16) 线路图 AD_SCL1 AD_SDA0 SCL AD_SCL3 AD_SCL2 AD_SDA2 AD_SDA1 SDA AD_SCL0 AD_SDA3 VMUTE PANEL_MUTE AD_SCL3 AD_SDA3 AD_SCL1 AD_SDA1 AD_SCL2 AD_SDA2 AR_PANEL_TXD PANEL_MUTE AD_SCL0 AD_SDA0 AR_IIC_CONT VI2P21 VI2P10 PANEL_STBY/VCC_ON AR_PANEL_SDA AR_PANEL_SCL AR_PANEL_RXD SDA SCL AD_SCL1 AD_SDA1 VI2P21 VI2P10 AR_PANEL_SCL AR_PANEL_SDA AD_SCL0 AD_SDA0 AR_PANEL_TXD AR_PANEL_RXD AR_IIC_CONT AA_SBI0 AA_SBO0 PANEL_STBY/VCC_ON C4807 16V 0.1u FL4801 J0JAD0000028 1 2 3 4 FL4800 J0JAD0000028 1 2 3 4 FL4802 J0JAD0000028 1 2 3 4 IC4800 C1ZBZ0003577 1 SCL 2 GND 3 A1 4 VDD 5 A0 6 SDA DG33 1 2 3 4 5 6 7 8 9 10 11 DG34 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 DG5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 MAIN3.3V STB5V STB3.3V MAIN3.3V STB5V TP4804 TP4801 TP4800 TP4805 TP4811 TP4806 TP4808 TP4807 TP4803 TP4802 TP4810 TP4809 VMUTE VI2P10 AG_SRQ-GENX VI2P21 TB1P SCL TD1P AD_SCL0 TCLK1P TCLK1N AD_SDA2 AD_SDA0 AD_SCL3 TE1N TA1P TA1N TC1N SDA AD_SCL1 AD_SDA3 TB1N TC1P TE1P AD_SDA1 TD1N AD_SCL2 AA_SBO0 AA_SBI0 R4838 100 R4858 0 R4863 0 R4819 22 R4820 22 R4857 0 R4856 0 R4864 0 R4800 0 R4862 0 R4872 0 R4865 0 R4860 0 R4861 0 R4859 0 STB5V TP2010 R2006 10k AG_PANEL_STBY_ON/PANEL_VCC_ON Q2001 2SD0601ASL Q2000 2SD0601ASL R2002 100k R2001 100k R2007 47k ZA0008 K4AZ01D00004 ZA0006 K4AZ01D00004 ZA0007 K4AZ01D00004 ZA0002 K4AZ01D00004 ZA0005 K4AZ01D00004 ZA0003 K4AZ01D00004 ZA0004 K4AZ01D00004 JS1111 GenX4 LVDS Out IIC CRNo.4800-4999 GenX4 CN to ExIIC Lite2 PANEL_STATUS PANEL_SOS PANEL_STATUS PANEL_SOS LITE2 ExBUS/Etc. SRQ GND STB5V GenX4_SCL GenX4_SDA LITE2_SCL3 LITE2_SDA3 LITE2_SCL1 LITE2_SDA1 LITE2_SCL2 LITE2_SDA2 (GenX4 Loarder/E2PROM) (GenX4 Loarder/E2PROM) (Lite2 E2PROM) (Lite2 E2PROM) (Device Control) (Device Control) (Device Control) (Device Control) PANEL_SDA (GND) RXD PANEL_STBY_ON GND Rx2+ Rx0+ Rx0- (ALARM) (DISPEN) IIC_SCL2 TXD GND RxCLK+ RxCLK- Rx3- Rx3+ INEXCH Rx1+ Rx1- Rx2- IIC_CONT GND PANEL_SOS GND GND Rx4+ Rx4- (READY) IIC_SDA2 PANEL_STATUS PANEL_SCL GND GND PANEL_MUTE Rx1+ Rx3- Rx4+ Rx3+ RxCLK- Rx4- Rx2- Rx0- RxCLK+ Rx1- Rx0+ Rx2+ (VMUTE/DISPEN) (PANEL_STATUS) (PANEL_SOS) Lite2 LVDS OUT GND STB5V LITE2_SDA0 STB3.3V Panel_SCL IIC_CONT/SRQ Panel_TXD Panel_RXD IIC_CONT Panel_SDA LITE2_SCL0 GND (Panel Dpr.E2PROM) (Panel Dpr.E2PROM) (Device Control) (Device Control) TO D-BOARD (D5) TEMP SENSOR FOR FACTORY USED FOR FACTORY USED 86 82 90 83 88 89 85 84 87 to (1/16) to (1/16) to (1/16) to (7/16) to (7/16) to (7/16) to (5/16) to (5,9/16) to (5,15/16) to (5,7/16) to (4/16) Location of Earth Lug SUFFIX AH TH-42PV70C DG-Board (10 of 16) Schematic Diagram TH-42PV70C DG-Board (10 of 16) Schematic Diagram DG-BOARD (10/16) ! TNPA4311AH 77 15.23.DG 电路板 (11/16) 线路图 + + + R L COMPONENT COMPONENT AV1 AV1S AV2 AV3 AV2 AV3 PR PB Y PR V L C R R L Y R L V R V V L MONITOR OUT PB Y AV_L SDA0B_5V SCL0B_5V AV4_L AV2_R AV1_R AV1_L AV2_L AV4_R AV_R PC_RIN PC_LIN TV_L TV_R DAC_PD DAC_PD PC_H_IN PC_R PC_V_IN PC_G PC_B AV3_R AV3C_YSW AV2C_Y AV2C_PR A_VOUT AV3_L AUDIOOUT_R AV1_S AUDIOOUT_L MONITOROUT_MUTE AV1_V A_LOUT AV1_R AV1_C A_AV1_R AV1_L AV2_V AV3C_Y A_AV2_R A_AV2_L AV2_R A_AV1_RSW A_AV2_L AV2C_YSW AV3C_PB A_AV2_RSW AV2_L A_LOUT A_AV1_R A_AV2_R A_AV3_R AV3C_PR AV3_V A_AV3_L A_AV1_L VOUT A_AV1_L A_AV3_L A_AV1_V A_ROUT A_AV3_RSW A_AV3_R A_ROUT AV1_Y AV2C_PB PC_LIN PC_RIN AV3_L AV3_R VOUT_FEED_B A_AV1_RSW A_AV2_RSW A_AV3_RSW SUB5V AG_TV_MAIN_ON HV/FB_CONT C2013 50V 560p C2159 16V 1u C3100 16V 1u C2006 50V 560p C2162 16V 1u C2010 50V 560p *C2155 16V 1u C3101 16V 1u C2166 16V 1u C3102 16V 1u C2016 50V 560p *C2157 16V 1u C2135 16V 1u C2011 50V 560p C2164 16V 1u C2017 50V 560p C2005 50V 560p C2022 560p 50V C2136 16V 1u C2165 16V 1u C2021 560p 50V C2163 16V 1u C2154 16V 0.1u C3060 16V 1u C3120 16V 0.1u C2160 16V 1u C2014 50V 560p C2167 16V 1u C2147 16V 22u C3070 6.3V 220u C2161 16V 100u D3337 MA2J11100L D3334 MA2J11100L D3335 MA2J11100L D3338 MA2J11100L D3102 MA2J11100L D3336 MA2J11100L D3039 MAZ81400ML D3040 MAZ81400ML D3037 MAZ81400ML D2119 B0BC01100001 D3005 MAZ81400ML D3006 MAZ81400ML D3038 MAZ81400ML D3036 MAZ81400ML D3047 MAZ81400ML D3049 MAZ81400ML D3045 MAZ81400ML D3046 MAZ81400ML D3100 MAZ81400ML D3003 MAZ81400ML D3035 MAZ81400ML D3048 MAZ81400ML FL3002 J0HABB000003 1 2 3 4 FL2001 J0HABB000004 1 2 3 4 FL2002 J0HABB000004 1 2 3 4 FL3005 J0HABB000004 1 2 3 4 FL3004 J0HABB000004 1 2 3 4 FL3003 J0HABB000004 1 2 3 4 FL3001 J0HABB000003 1 2 3 4 AN15862A-VT IC2105 1 L1 2 R1 3 L2 4 R2 5 VCC 6 L3 7 R3 8 L4 9 R4 10 L5 11 R5 12 L6 13 R6 14 L7 15 R7 16 L8 17 R8 18 L9 19 R9 20 L10 21 R10 22 O1 23 LOUT5 24 ROUT5 25 LOUT4 26 ROUT4 27 LOUT3 28 ROUT3 29 GND 30 LOUT2 31 ROUT2 32 LOUT1 33 ROUT1 34 ADR 35 SCL 36 SDA 37 O2 38 BIAS 39 L11 40 R11 41 L12 42 R12 43 L13 44 R13 JK2003 K2HA204A0053 L L-G R R-G JK3100 K1U936A00002 Y-SW Y G PB PR V L R-SW R G Y-SW Y G PB PR V L R-SW R G C Y G Y-G C-G G V L R-SW R G V L R G JK3001 K1FB315A0006 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 L3013 J0JCC0000100 L2012 J0JCC0000100 L2016 J0JCC0000100 L2001 J0JCC0000364 L2002 J0JCC0000364 L3010 J0JCC0000100 L3003 J0JCC0000100 L2007 J0JCC0000100 L3001 J0JCC0000100 L3002 J0JCC0000100 L2003 J0JCC0000100 L2015 J0JCC0000100 L2011 J0JCC0000100 L2004 J0JCC0000100 L2008 J0JCC0000100 SUB5V SUB9V_PRCT DTV9V SUB9V_VIDEO SUB9V_PRCT DTV9V Q3032 2SC584500L Q3031 2SC584500L Q2003 2SC584500L Q2002 2SC584500L JS2032 0 JS2031 0 JS2033 0 JS3013 0 JS3010 0 JS3014 0 JS3011 0 JS3012 0 JS3015 0 R2164 220 R3188 0 R3020 4.7k 1% R3143 69.8 1% R3007 75 R2048 2.2k 1% R3003 75 R2235 47k 1% R3313 75 R2052 180k *R2162 220 R2029 180k 1% R3002 75 R2152 22 R3309 0 R2138 220 R2132 47k R2031 180k 1% R3008 75 R2053 100k R3307 4.7k R2047 330 10k R3107 1% R3004 75 R2174 220 R3145 100k R2167 220 R2050 2.2k R2034 180k 1% R3006 75 R3308 0 R2172 220 10k R3114 R2171 220 R3130 220 R2137 220 R3021 4.7k 1% R3318 75 *R2160 220 R2154 22 R2173 220 R3131 220 1% R3010 75 R2170 220 1% R3310 75 R2030 180k R2032 180k R2051 180k R2049 330 1% R3001 75 R3022 4.7k 1% R3005 75 R2175 220 R2033 180k R2196 100k 1% R3009 75 R2195 100k R3306 4.7k R2054 100k 1% R3012 75 10k R3177 PC IN G HD R VD B AV3 CRNo.2000-3350 AV-TERMINAL Audio SW 97 98 95 92 96 91 94 99 93 43 41 42 TH-42PV70C DG-Board (11 of 16) Schematic Diagram TH-42PV70C DG-Board (11 of 16) Schematic Diagram DG-BOARD (11/16) ! TNPA4311AH 78 15.24.DG 电路板 (12/16) 线路图 + + + RGB_CVBS MAIN_RGB_CVBS_OUT AV2C_Y MAIN_RF_CVBS AV1_V MAIN_RGB_CVBS_OUT MAIN_Y_OUT MAIN_PB_OUT MAIN_PR_OUT AV3_V AG_VIDEO_STATUS SCL0B_5V SDA0B_5V AV2C_PB AV2C_PR MAIN_Y_OUT MAIN_Y/CVBS MAIN_PB/C MAIN_PR_OUT PC_B PC_R PC_G PC_V_IN PC_H_IN PC_V PC_H AV3C_YSW AV2_V AV1_Y AV1_S AV1_C AV2C_YSW AV3C_PR AV3C_PB AV3C_Y VOUT VOUT_FEED_B MAIN_TNR_SW2 AV4_S AV4_V AV4_Y MAIN_PR AV4_C MAIN_TNR_SW1 MAIN_PB_OUT P_AVSW9V HV/FB_CONT P_AVSW9V2 *C3029 16V 1u C3023 16V 1u C3056 10V 2.2u C3043 16V 1u *C3027 16V 1u C3033 16V 1u C3026 16V 0.1u C3053 10V 2.2u C3024 16V 1u C3051 10V 2.2u C3117 16V 1u C3021 16V 1u C3040 16V 0.1u C3055 10V 2.2u C3052 10V 2.2u *C3031 16V 0.1u C3116 16V 0.1u C3115 16V 0.1u C3054 10V 2.2u C3078 6.3V 22u *C3028 16V 1u C3118 16V 47u C3075 16V 220u C3103 50V 10u *D3041 MAZ81400ML *D3043 MAZ81400ML *D3042 MAZ81400ML D3044 B0BC01100001 AN15876A-VT IC3001 1 V4 2 S12 3 Y4 4 S22 5 C4 6 VCC2 7 LP5 8 V3 9 O3 10 Y3 11 GND2 12 C3 13 LP4 14 V2 15 S11 16 Y2 17 S21 18 C2 19 LP3 20 V1 21 O2 22 Y1 23 O1 24 C1 25 VCC3 26 VOUT6 27 DCOUT 28 VOUT5FB 29 VOUT5 30 VOUT4FB 31 VOUT4 32 VOUT3FB 33 VOUT3 34 OUT2(Pr) 35 OUT2(Pb) 36 OUT2(CY) 37 GND3 38 OUT1(Pr) 39 OUT1(Pb) 40 OUT1(CY) 41 VOUT 42 HOUT 43 HVOE 44 VOUT7 45 VCC4 46 FBLOUT 47 FBL3 48 FBL2 49 FBL1 50 FBLOE 51 G1 52 VIN1 53 B1 54 HIN1 55 R1 56 GND4 57 G2 58 VIN2 59 B2 60 HIN2 61 R2 62 NC 63 G3 64 TEST 65 B3 66 NC 67 R3 68 NC 69 VCC1 70 NC 71 G4 72 LP1 73 B4 74 L31 75 R4 76 NC 77 G5 78 LP2 79 B5 80 L32 81 R5 82 GND1 83 SDA 84 SCL 85 FLAG 86 BIAS 87 V9 88 NC 89 V8 90 NC 91 V7 92 O4 93 V6 94 LP7 95 V5 96 S13 97 Y5 98 S23 99 C5 100 LP6 SUB9V_VIDEO DTV9V JS3032 R3101 220 R3109 0 R3140 47 R3065 220 R3087 220 R3348 68 R3113 47k R3112 47k R3069 220 *R3068 75 1% R3302 100 1% *R3233 75 R3097 68 R3110 0 R3090 22 1% *R3234 75 R3099 220 100 R3180 R3059 220 R3100 220 R3064 220 R3349 68 *R3063 220 R3074 220 R3175 68 R3176 68 R3305 100 R3098 68 R3174 68 R3191 22 R3096 68 R3121 47 R3111 22 R3089 330 R3133 22 *R3072 220 *R3062 220 1% R3137 100 *R3073 220 R3123 47 R3168 220 Video SW CRNo.2000-3350 AV-TERMINAL 106 103 105 102 101 108 104 100 107 42 41 43 54 52 53 51 TH-42PV70C DG-Board (12 of 16) Schematic Diagram TH-42PV70C DG-Board (12 of 16) Schematic Diagram DG-BOARD (12/16) ! TNPA4311AH 79 15.25.DG 电路板 (13/16) 线路图 + + + + + + + + + + + + + + + + DRIVE IC VCC Vin GND AH_LRCK0 PWM_SQ_R- SQ_L+ PWM_SQ_R+ AD_SCL2 SQ_R+ SQ_R- PWM_SQ_L- AD_SDA2 SQ_L- PWM_SQ_L+ AH_SRCK0 AUDIOOUT_R AV_R AH_HDMI_SDIN AH_HDMI_BCLK AH_HDMI_LRCK AH_DAUDIO AG_SOUND_SOS AG_AUDIO_MUTE DAC_PD AV_L AH_DMIX0 AH_IECOUT0 TV_L TV_R AUDIOOUT_L SPDIF_OUT SPDIF_OUT SCL0B_5V SDA0B_5V MAIN_TNR_SW2 MAIN_TNR_SW1 MAIN_RF_CVBS AG_RF_AFT1 HP_LOUT HP_ROUT AMUTE SIF1 AG_AUDIO_XRST SIF3.3V C2170 50V 33p C2190 10u 10V C2054 10u 10V C2187 2.2u 6.3V C2265 0.1u 16V C2100 0.1u 16V *C2180 1u 16V C2143 50V 180p C2185 10u 10V C2216 0.1u 16V *C2184 50V 1000p C2117 0.1u 16V C2110 0.1u 16V C2109 0.1u 16V C2281 560p 50V C2114 0.1u 16V C2106 0.1u 16V C2267 100p 50V C2105 0.1u 16V C2186 0.1u 16V *C2271 470p 50V C2092 50V 22p C2111 2.2u 6.3V C2118 1u 16V *C2174 1u 16V C2050 0.1u 16V C2130 10V 10u C2089 560p 50V *C2270 470p 50V *C2202 2.2u 6.3V C2244 0.1u 16V C2146 50V 180p C3275 16V 0.1u C3280 50V 100p C2053 0.1u 16V C2097 16V 0.1u C3272 50V 0.1u C2189 1u 16V C2134 25V 0.01u C2120 56p 50V C2246 10u 10V C2048 0.1u 16V C3276 16V 0.1u *C2176 25V 0.01u C2138 0.1u 16V *C2128 16V 0.1u C2251 10u 10V C2023 0.1u 16V C2058 0.1u 16V C2121 56p 50V C2191 10u 10V C2055 12p 50V C2124 0.1u 16V C2263 10u 10V C2264 10u 10V *C2203 1u 16V C2131 16V 0.1u C2188 470p 50V C2173 4.7u 16V C2245 1000p 50V C2101 10u 10V C2171 0.01u 25V C2088 4.7u 16V C2266 0.1u 16V C2153 50V 33p C2091 50V 10p C2126 10u 10V *C2056 12p 50V C2132 25V 0.01u C2052 0.1u 16V C2049 0.1u 16V *C2204 1u 16V C2116 470p 50V C2280 4.7u 16V C2115 0.1u 16V C2102 0.1u 16V C2057 0.1u 16V C3281 16V 0.1u C2096 16V 0.1u C3279 16V 0.1u C2183 10u 10V C2268 100p 50V C2272 4.7u 16V *C2198 25V 0.033u C2213 1000p 50V *C2195 50V 1000p *C2197 25V 0.033u C2151 47u 6.3V C2112 47u 6.3V C3081 6.3V 100u C2113 47u 6.3V *C2099 6.3V 220u *C2179 16V 47u *C2175 16V 47u C2133 50V 4.7u C3273 10u 50V C2059 47u 6.3V C2137 47u 6.3V C2108 47u 6.3V C2192 47u 6.3V C3270 6.3V 1000u C2107 47u 6.3V *C2098 6.3V 220u *D2189 MA2J11100L *D2025 K7AAAY000003 C0DBGYY00281 *IC2013 1 NC 2 VSS 3 CE 5 VOUT 4 VIN C0CBCBC00190 IC2010 1 VDD 2 GND 3 CE 5 VOUT 4 NC IC2011 C0ABBB000230 1 2 3 4 5 6 7 8 *IC2012 C1BB00000947 1 OUT1 2 MUTE 3 IN1 4 GND 5 IN2 6 BIAS 7 OUT2 8 VCC C0CBCBE00001 IC2008 1 VOUT 2 NC 3 GND 4 CNCONT 5 SUB 6 VIN 7 C0DBFFD00003 IC2107 1 2 3 4 5 6 7 C1AB00002746 IC2106 1 FILTA 2 VREF 3 AGND 4 AVDD 5 SIF_REEP 6 SIF_REFCM 7 SIF_REFN 8 SIF_IN1 9 SIF_PGA_REF 10 SIF_IN2 11 AGND 12 AVDD 13 DGND 14 DVDD 15 MUTE 16 SDA 17 SCL 18 LRCLK2 19 BCLK2 20 DGND 21 DVDD 22 SDIN0 23 SDIN1 24 SDIN2 25 SDIN3 26 LRCLK0 27 BCLK0 28 ODGND 29 ODVDD 30 VDRIVE 31 DVDD 32 DGND 33 MCLKI/XIN 34 XOUT 35 BCLK1 36 LRCLK1 37 SDO0 38 SPDIF_OUT 39 SPDIF_IN 40 DVDD 41 DGND 42 PWM1A 43 PWM1B 44 PWM2A 45 PWM2B 46 PWM3A 47 PWM3B 48 PWM4A 49 PWM4B 50 RESET 51 DVDD 52 DGND 53 AVDD 54 PLL_LF 55 AGND 56 AGND 57 HPOUTL1 58 HPOUTR1 59 AVDD 60 NC 61 NC 62 NC 63 NC 64 NC 65 NC 66 VOUT_SW 67 FILTD 68 AVDD 69 AGND 70 AGND 71 AVDD 72 AUXOUTL1 73 AUXOUTR1 74 AUXOUTL2 75 AUXOUTR2 76 AINL2 77 AINR2 78 AINL1 79 AINR1 80 ISET L3209 J0JGC0000021 L3207 J0JCC0000241 L3211 J0JGC0000021 *L2034 J0JCC0000364 L2040 J0JHC0000045 L2027 J0JHC0000045 L2021 J0JHC0000078 *L3226 J0JCC0000241 L3206 J0JCC0000241 *L2035 J0JCC0000364 *L3225 J0JCC0000241 L2029 L2026 G1C6R8MA0061 DVDD3.3V DVDD1.8V SUB3.3V SUB5V SUB3.3V DTV9V AUD3.3V DVDD3.3V SUB5V SUB3.3V DVDD1.8V SUB5V DTV9V SUB5V BT30V MAIN9V TP3200 Q2016 2SC584500L Q2017 2SC584500L Q2102 2SC584500L Q2101 2SC584500L Q3200 2SA207700L Q2021 2SA207700L Q2015 2SA207700L R2271 22 EXB28V220JX *JS3209 JS3208 0 2.2k R2125 1% R2166 16k 1% R2114 75k *R2193 100k R2210 10k 1% R2169 22k 1% R2168 16k R2266 560 *R2106 0 R2096 10k 10k R2276 R3246 22 R2209 10k 1% R2113 120k *R2186 82k *R2236 15k R3239 220 0 R2257 1% R2182 36k 20k 1% R2151 *R2184 100 R2089 560 R2093 3.3k R2296 0 *R2237 15k *R3266 1.5k R3244 22 R3240 560 1% *R2098 10k 1% R2181 22k *R3249 1.5k *R2035 100 *R2189 10k R2088 100 20k 1% R2150 R2149 10k R3243 270 *R2233 10k 300 R2058 R2097 3.3k 20k 1% R2100 R2085 560 10k R2110 1M R2059 1% R2183 36k *R2036 100 R2178 1k 1% R2198 158k R2092 470 *R2185 100 R3247 220 22 R2057 R2094 2.2k 0 R2146 R2179 10k R2165 10k 2k 1% R2104 100 R2111 1% R2197 68k R2046 0 R2084 4.7k R2238 47k 22 R2056 1M R2112 *R2192 100k R2265 4.7k R2180 1k R2086 470 *R2099 10k *R2187 0 0 R2145 *R2005 < 0 R2297 0 *TU3200A ENGF9701GF < BB 5 NC 6 SW1 7 SW2 8 +B 9 AUDIO_OUT 10 SIF_OUT 11 NC 12 SCL 13 SDA 14 RF_AGC 15 VB 16 NC 17 BTL 18 NC 19 AFT_OUT 20 VIDEO_OUT 21 H0J245500082 X2010 - R L + - + SIF1 in HP AMP Audio DSP DVDD1.8V AMP SIF3.3V AUD3.3V 5V AV-TERMINAL CRNo.2000-3350 ! 111 110 113 112 116 115 117 114 109 53 54 52 51 66 63 62 64 61 65 TH-42PV70C DG-Board (13 of 16) Schematic Diagram TH-42PV70C DG-Board (13 of 16) Schematic Diagram DG-BOARD (13/16) ! TNPA4311AH 80 15.26.DG 电路板 (14/16) 线路图 + + + + PWM_SQ_R+ PWM_SQ_R- AMUTE PWM_SQ_L- AG_SOUND_SOS AG_A_MON_MUTE/SP_MUTE HDMI_INT2 MONITOROUT_MUTE AG_AUDIO_MUTE STB_RST AMUTE PWM_SQ_L+ C2353 50V 0.1u C2337 50V 0.022u C2335 50V 0.1u C2389 50V 1000p C2343 50V 0.1u C2333 50V 0.1u C2313 50V 0.1u C2311 16V 0.1u C2359 50V 0.1u C2357 50V 0.1u C2327 16V 0.1u C2375 50V 0.022u C2385 50V 1000p C2339 50V 0.022u C2341 50V 0.1u C2383 50V 1000p C2321 0.033u 25V C2381 50V 0.022u C2301 16V 0.1u C2319 0.033u 25V C2387 50V 1000p C2345 50V 0.022u C2349 50V 0.1u C2317 0.033u 25V C2363 16V 0.1u C2377 50V 0.022u C2315 16V 0.1u C2355 50V 0.1u C2302 16V 0.1u C2352 16V 1u C2323 0.033u 25V C2379 50V 0.022u C2329 16V 0.1u C2347 50V 0.022u C2331 50V 0.47u C2325 50V 0.47u C2354 220u 16V C2361 25V 470u C2819 25V 47u C2119 16V 220u D2302 MA2J11100L D2029 MA2J11100L D2031 MA2J11100L D2034 MA2J11100L D2026 MA2J11100L D2304 MA2J11100L D2301 MA2J11100L D2028 MA2J11100L D2033 MA2J11100L D2032 MA2J11100L D2303 MAZ30560HL C1AB00002730 IC2301 1 GVDD_B 44 GVDD_A 2 OTW 3 NC 4 NC 5 SD 6 PWM_A 7 RESET_AB 8 PWM_B 9 OC_ACJ 10 GND 11 AGND 12 VREG 13 M3 14 M2 15 M1 16 PWM_C 17 RESET_CD 18 PWM_D 19 NC 20 NC 21 VDD 22 GVDD_C 23 GVDD_D 24 BST_D 25 NC 26 PVDD_D 27 PVDD_D 28 OUT_D 29 GND_D 30 GND_C 31 OUT_C 32 PVDD_C 33 BST_C 34 BST_B 35 PVDD_B 36 OUT_B 37 GND_B 38 GND_A 39 OUT_A 40 PVDD_A 41 PVDD_A 42 NC 43 BST_A C0DBGYY00202 IC2303 VIN 3 2 VSS VOUT 1 DG12 K1KA04AA0190 1 2 3 4 L2308 J0JJC0000011 L2310 J0JJC0000011 L2650 G1C3R3ZA0083 L2302 G1C330MA0291 L2304 G1C330MA0291 L2306 G1C330MA0291 L2300 G1C330MA0291 MAIN9V SOUND15V SOUND12V SOUND15V DTV9V STB5V MAIN9V STB5V S_15V TP2305 TP2307 TP2303 TP2310 TP2301 Q2042 2SC584500L Q2035 2SC584500L Q2041 2SC584500L Q2034 2SC584500L Q2040 2SC584500L Q2039 2SC584500L Q2301 2SA207700L Q2031 2SA207700L Q2033 2SA207700L R2194 1k R2308 3.3 R2217 47k R2131 10k R2216 10k R2321 10 R2305 470 R2323 10 R2144 10k R2205 20k R2319 10 R2122 10k R2127 10k R2143 10k R2208 10k R2156 330 R2124 10k R2129 10k R2315 3.3 R2206 10k R2220 12k R2128 47k R2331 2.2k R2313 3.3 R2301 2.2k R2118 1M R2302 2.2k R2218 1k R2119 10k R2306 68k R2317 10 R2325 10 R2123 47k R2311 3.3 R2330 1k MUTE MUTE SW To SOS OPERATE RESET SOS OPERATE R- L+ L- OPERATE MUTE R+ MUTE MUTE MUTE MUTE AUDIO AMP 15V TO SPEAKER CRNo.2000-3350 AV-TERMINAL 123 125 121 124 126 118 119 122 120 62 61 65 63 66 64 73 72 71 75 74 TH-42PV70C DG-Board (14 of 16) Schematic Diagram TH-42PV70C DG-Board (14 of 16) Schematic Diagram DG-BOARD (14/16) ! TNPA4311AH 81 15.27.DG 电路板 (15/16) 线路图 + HDMI_INT2 MAIN_PR MAIN_PB/C MAIN_Y/CVBS RGB_CVBS AD_SDA2 AG_AUDIO_XRST AG_A_MON_MUTE/SP_MUTE AG_SOUND_SOS AG_RF_AFT1 AG_SOS STB_RST AG_KEY1(CON-PANE) AD_SCL2 AD_SCL2 AG_VIDEO_STATUS AD_SDA2 AG_SOS AG_TV_SUB_ON_DELAY AG_TV_SUB_ON_DELAY PC_V PC_H AV4_V AV4_S AG_AUDIO_MUTE AH_SRCK0 AH_DMIX0 AH_LRCK0 AH_DAUDIO AH_IECOUT0 AH_HDMI_BCLK AH_HDMI_SDIN AH_HDMI_LRCK AV4_C AV4_Y HP_LOUT AV4_R HP_ROUT AV4_L AG_TV_MAIN_ON SDA0B_5V SCL0B_5V AG_KEY1(CON-PANE) C2802 0.47u 50V C2817 50V 1000p C2801 16V 10u C2813 16V 0.1u C2815 16V 0.1u C2814 4700p 50V C2803 0.47u 50V C2816 35V 22u D2632 MA2J11100L D2635 MA2J11100L D2633 MA2J11100L D2637 MA2J11100L D2634 MA3X78900L D2638 B0BC03900015 D2636 MAZ30470HL *FL2006 J0HABB000003 1 2 3 4 *FL2003 J0HABB000003 1 2 3 4 *FL2004 J0HABB000003 1 2 3 4 *FL2005 J0HABB000003 1 2 3 4 *FL3008 J0HABB000003 1 2 3 4 *FL3006 J0JAD0000028 < 1 2 3 4 *FL3007 J0JAD0000028 < 1 2 3 4 C0DBAJB00004 IC2610 1 VOUT 2 VDD 3 NC 5 EXT 4 VSS *DG51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 L2648 G1C470MA0077 L2649 G1C100MA0072 STB5V SUB3.3V DTV9V SUB5V SUB3.3V BT30V TP2019 TP2006 TP2008 TP2001 TP2007 TP2004 TP2015 TP2024 TP2609 TP2005 TP2002 TP2610 TP2012 TP2606 TP2009 TP2021 TP2612 TP2608 TP2003 TP2607 TP2020 AH_LRCK0 AH_HDMI_LRCK AG_VIDEO_STATUS AH_HDMI_BCLK AG_AUDIO_XRST RGB_FB AH_DAUDIO AG_AUDIO_MUTE AH_SRCK0 AG_TV_MAIN_ON HDMI_INT2 AG_KEY1(CON-PANE) RGB_CVBS PC_V AH_HDMI_SDIN MAIN_PB/C AD_SCL2 AH_IECOUT0 AD_SDA2 AG_A_MON_MUTE/SP_MUTE AG_RF_AFT1 MAIN_PR AG_RF_AFT2 PC_H AH_DMIX0 AG_SOS MAIN_Y/CVBS AG_TV_SUB_ON_DELAY AG_SOUND_SOS STB_RST Q2639 B1CFNG000001 Q2640 B1CBHD000002 Q2641 B1CBHD000002 Q2638 2SC584500L Q2635 2SC584500L Q2637 2SA207700L Q2636 2SA207700L JS2051 *JS2101 0 JS2053 JS2046 JS2047 R2861 1k R2854 2.2k R2625 22 R2855 47k R2628 6.8k 1% R2868 16k R2629 6.8k R3312 47k R2864 1k R2857 4.7k R2853 10k R2865 10k R2860 10k *R3077 0 R2863 1k R2890 100k 1% R2867 82k R2624 22 R2866 2.2k R2647 0 R2869 4.7k R2859 4.7k R2858 2.2k *R3076 0 NC NC GND GND GND NC HP_L TO G-BOARD (G51) GND HP_GND AV4_S HP_GND AV4_V GND GND KEY AV4_Y HP_R AV4_R AV4_C AV4_L BT30V CRNo.2000-3350 AV-TERMINAL 133 128 132 131 134 130 129 127 135 74 75 73 71 72 to (9/16) to (5,10/16) to (5,6,7/16) to (7,16/16) to (7/16) to (6,7/16) to (6,7,16/16) to (9/16) to (7/16) TH-42PV70C DG-Board (15 of 16) Schematic Diagram TH-42PV70C DG-Board (15 of 16) Schematic Diagram DG-BOARD (15/16) ! TNPA4311AH 82 15.28.DG 电路板 (16/16) 线路图 + + + + C5502 16V 0.1u C5552 50V 0.1u C5504 16V 0.1u C5521 16V 0.1u C5522 16V 0.1u C5501 470u 16V C5551 330u 50V C5503 470u 16V C5595 16V 22u D5521 MA2J11100L D5530 MA2J11100L D5522 MA3X152D0L D5526 MA3X152E0L D5528 MAZ81200ML D5571 B0BC6R600005 D5529 MAZ80680LL D5573 B0BC01100001 D5501 B0BC01000035 EHMDD9851 IC5550 < 1 ON/OFF2 2 VAR2 3 VOUT2 4 SW-Node2 6 GND 7 N.C. 8 GND 9 VIN 10 N.C. 11 GND 12 SW-Node1 13 VOUT1 14 VAR1 15 ON/OFF1 16 N.C. DG7 1 2 3 4 5 6 7 8 9 10 11 DG6 1 2 3 4 5 6 7 8 9 10 11 12 L5565 22u G1C220MA0077 L5566 3.3u G1C3R3ZA0083 L5551 G1C150ZA0083 L5550 3.3u G1C3R3ZA0083 L5564 3.3u G1C3R3ZA0083 L5552 G1C150ZA0083 MAIN9V STB5V DTV9V S_15V SUB5V TPAC1 TPS0N TP15F TPS15V TPS0S TPEC0 AG_TV_MAIN_ON AG_ECO_ON AG_TV_SUB_ON AG_ALL_OFF AG_SOS Q5561 B1DHDC000028 Q5523 2SD0601ASL Q5524 2SD0601ASL Q5501 2SD0601ASL Q5562 2SD0601ASL Q5521 2SA207700L Q5522 2SA207700L JS5569 JS5568 R5535 2.2k R5547 10k 1% R5554 2.61k R5572 2.2k R5540 470 R5570 10k R5531 2.2k R5548 4.7k R5509 0 R5534 47k R5573 4.7k R5532 4.7k R5506 10k 1% R5555 1.3k R5536 4.7k R5544 220 R5542 470 R5533 10k R5549 4.7k R5546 10k R5537 680 R5507 10k R5538 2.2k R5508 47k R5571 47k 5V/9V TV_ON OFF GND GND GND F+15V F+15V F+15V +15V_S +15V_S S_GND S_GND +15V_S S_GND +15Vc +15Vc GND P5V(MON)/P12V-ON N.C. STB5V AC_GOOD/KEY TUNER_SUB_ON ALL_OFF ECO_ON GND CRNo.5400-5600 POWER-SUPPLY TO P-BOARD (P6) TO P-BOARD (P7) MAIN9V 140 142 137 143 141 139 138 144 136 to (7/16) to (7,15/16) to (6,7,15/16) TH-42PV70C DG-Board (16 of 16) Schematic Diagram TH-42PV70C DG-Board (16 of 16) Schematic Diagram DG-BOARD (16/16) ! TNPA4311AH 83 15.29.D 电路板方框图 TXD_PC RXD_PC PANEL_MAIN_ON ALARM READY RXD_PC IIC_INT TXD_PC RXD_PC SOS8_SS ALARM LED_R REMOCON IIC_CONT TXD_PC VDATA_DET VDATA_DET SOS6_SC1 SOS7_SC2 SOS7_SC2 SOS6_SC1 PCD3 SOS4_PS LED_R LED_G REMOCON LED_G SOS4-PS PCD1 PCD2 ODED1 ODED2 PCD4 CLRD2 READY PANEL_MAIN_ON SOS9_CONF FVSEL LVDSBIT FVSEL SOS9_CONF LVDSBIT OSD_YS OSD_VO OSD_HO OSD_CLKO OSD_B OSD_G OSD_R IIC_CONT INEXCH DRVCLKD0 DRVCLKD3 DRVCLKD1 DRVCLKD2 LED1 LED2 DRVCLKU1 DRVCLKU2 DRVCLKU3 DRVCLKU0 CLRD1 STB_SCL01 STB_SDA01 STB_SCL02 STB_SDA02 OSD_R OSD_G OSD_B OSD_CLKO OSD_YS INEXCH IIC_CONT DRVMUTE X9200 TP9101 TP9100 TP9010 R 10bit Scan Control DATA 16bit G 10bit B 10bit B 10bit R 10bit Sustain Control DATA 7bit G 10bit 14 40 PROCESSOR DRIVER TO C11 TO C21 30 50 49 33 29 TXD1 32 RXD1 IIC_CONT IIC_CONT LVDS INPUT DISCHARGE CONTROL IIC1_SDA 70 IIC2_SCL 69 67 71 Voltage 66 IIC2_SDA 43 2 IC9500 1 FPGA LSI_RST XRST SUB-FIELD PLASMA AI/SUB FIELD PROCESSOR/PEAKS DATA DRIVER IC9003 IC9303 MICOM XIN XOUT X9000 9.216MHz IIC1_SCL Video DATA 59bit(UA00-UC04,DA00-DC13,DB14,DC14) Low ROMDATA04-15, ROMADDRESS00-20 D32 D31 68 1 SOS7_SC2 93 91 90 SOS8_SS 36 READY ALARM 37 DRVMUTE IC9011 IIC_CLK1 IIC_DATA1 23 18 ALARM 19 21 DISPEN READY PANEL_STBY_ON 20 24 RXD TXD 6 D5 RA+ RCLK- 14 TO DG5 RC- 7 15 11 12 RD- 10 3 RB- 1 9 RE-(LSB) 2 RA- RCLK+ RD+ RB+ 4 RC+ STBY5V +5V D25 VDATA_DET 6 PANEL_MAIN_ON 1 +5V 5 2 +15V +15V 11 13 9 TO P25 RXD 13 14 8 6 TXD 7 SDA1 PDB0 4 PSTB 5 IIC_INT 11 PSLCT PBUSY 9 D6 SCL1 12 15 LED_R PDB1 17 16 LED_G st-r IC9900 CONVERTER XRST CTI/TINT WB-ADJ I/P COLOR FORMAT CONVERTER/RGB PROCESSOR CONVERTER CONTRAST FORMAT Differential Signaling RECEIVER FPGA SOS4-PS 92 PANEL_MAIN_ON 100 P_ON/OFF P3V_SCL02 P3V_SDA02 TO SC20 D20 2 12 14 19 SCAN DATA 15 16 1 P5V 48 46 5VDET 53 55 3 SOS6_SC1 SUSTAIN DATA 60 66 3 1 SS_SOS8 P3V_SCL1 P3V_SDA1 P15V P5V STB5V_M NRST DRV_RST DATA DRIVER 16/32M FLASH MEMORY RESET 4 5 VOUT VCC IC9502 RESET P3.3V SS PULSE SCAN OUT SC PULSE 6 UMH,UML,USH,USL,UEH,NUEL(URH) OC1,OC2,CLK,SIU,SID,SCSU,CPH1,CPH2,(LAT),CEL,(CBK)CSL,CSH,CML,CMH,SC_DRV_RST IC9901 DDR SDRAM(128M) Q9302 Q9301 CLK7 12 CLK5 CLK6 14 13 4 CLK9 XT 1 20 XTN IC9200 PCK OCK D P5V CONTROL STBY5V P15V 21 19 IC9007 NCS ASDIO DATA0 DCLK P5V 86 SOS3_3V SOS2_15V 85 87 SOS5_5V Q9054 Q9053 Q9052 Q9051 P5V P15V STB3.3V PROM(FPGA) CLOCK GENE. DIGITAL SIGNAL PROCESSOR PLASMA AI SUB-FIELD PROCESSOR FOR FACTORY USE P5V P5V DRVCLKD0-D3 30bit (DA00-DC09) 32bit ODED1,ODED2,CLRD1,CLRD2,PCD1,PCD2,PCD3,PCD4,LED1,LED2 (LSI58 COMM) TDO,TDI TMS,TCK JTAG DCK HD VD JTAG PD1-Mplus FPCLK FPDAT0 FPDAT1 SFVRST LATCH SFRST R0-R9 G0-G9 VD B0-B9 HD DCK PICTURE OUTPUT LVDS LVDS RECEIVER SYNC PROCESSING WB ADJ DISCHARGE CONTROL FLASH CONTROL FPGA CONTROL CONTROL RESET CONTROL FLASH CLKM PRCKI -IN 17 Q9044 IIC_CLK2 27 26 IIC_DATA2 IIC_CONT/C_SEL 31 IC9001 6 5 32k EEPROM SDA SCL 7 WP 35 EEP_WR_CTL P15V STB5V_M REMOCON 18 15V->2.5V OUT2 G2 13 S1 20 D1 OUT1 17 D2 21 12 D1 D2 VO 23 16 15 LX VB VCC VDD 19 G1 IC9806 S2 DC-DC CONVERTER 24 FB -INC 8 CTL CB P15V P2.5V Q9805 Q9806 7 NCS DATA ASDI DCLK 10 IIC_CONT 1 2 STBY3.3V STB3.3V SDA2 SCL2 VDATA_DET 84 NCS 26 27 ASDIO 28 DATA0 DCLK 29 1 VOUT RESET 3 4 VDD CE 6 STB5V Q9046 STB3.3V 72 RESET Q9050 XRST SOS9_CONF 10 DRVRST PLASMA AI NEW DATA ROMDATA00-03 DQ4-DQ15 A0-A19 DQ0-DQ3 ROMDATA00-03 ROMDATA04-07/ROMADDRESS00-20,-1,CE,OE,WE,BYTE 4bit SOS4_PS 12 XRST 54 LED_R REM_IN 53 34 LED_G Q9010 INEXCH RA ,RB ,RC ,RD ,RE ,RCLK RE+(LSB) STB_SCL02 STB_SDA02 STB_SDA02 STB_SCL02 OSD SC_SOS6_SC1 SOS7_SC2 P3.3V STB_SDA02 STB_SCL02 P3V_SCL1 P3V_SDA1 1 2 5 6 D9811 DCDC_ON Q9809 VB1_5V VCC OUT2-2 G2 25 20 S1 26 D1 -INC1 D1 D2 4 FB1 P15V P3.3V VO1 3 24 Q9807 D2 23 OUT1-1 G1 7 IC9805 S2 DC-DC CONVERTER 15V->1.2V,15V->3.3V LX1 OUT1-2 Q9808 D2 G1 S2 G2 S1 D1 D1 D2 P15V P1.2V DOUTDC21 DOUTDA12 PC1_C1 LE_C1 ODE_C1 PC2_C1 (DA14,DA15-DC15) 47 49 P5V 7 8 9 (DA14,DA15-DC15) FORMAT CONVERTER STB 3.3V/RESET P+3.3V SOS / LED BLINKING : 3TIMES P+5V SOS / LED BLINKING : 5TIMES P+15V SOS / LED BLINKING : 2TIMES P1.2V P2.5V P3.3V OSD_HD OSD_VD 36.6MHz 60MHz 20MHz 84MHz D9802 NCS_FPGA INEXCH P15V_MOTO D9804 STB3.3V_ON 6 SDA SCL 1 3 A1 A0 5 IC9002 DIGITAL TEMPERATURE SENSOR SCL SDA IIC P3V_SCL01 P3V_SDA01 P3V_SCL02 P3V_SDA02 11 13 12 8 10 9 2 1 6 3 4 5 IC9013 IIC SWITCH DRVCLKU0-U3 P2.5V P2.5V P1.2V P3.3V LVDSbit FVSEL K_DONE 5 LVDSBIT 30 FVSEL 23 OSD_CLK 16 OSD_YS 17 OSD_B OSD_G 18 19 OSD_R OSD_VD 20 OSD_HD 21 42 INEXCH 18 22 26 20 SC_DRV_RST +15V P15V_MOTO 30 29 +15V 28 +15V 3.3V->5V LEVEL CONVERTER IC9802,03 P5V P3.3V CLK1N_C1 CLK0P_C1 CLK2P_C1 CLK3N_C1 3 5 42 44 5 CLK3N_C2 CLK2P_C2 11 CLK0P_C2 12 CLK1N_C2 58 56 SC_DRV_RST 50 CLR_C1 14 VCC STB3.3V 16 CTL 11 FB2 VO2 12 8 -INC2 19 LX2 OUT2-1 18 30 OVP 27 CB1 CB2 17 VB 21 FSW 10 OSD_YSI OSD_BI OSD_GI OSD_RI OSD_CLKO (FREE_RUN) P3V_SCL02 P3V_SDA02 SCL SDA P3.3V Control DATA 10bit STB3.3V NCS_FPGA 52 DCDC_ON CE,OE,WE,BYTE DOUTDA0 DOUTDC11 14 54 ODE_C2 PC3_C2 CLR_C2 LE_C2 PC4_C2 (UA00-UC05,DA10-DC13,DB14,DC14) 4bit(DA14,DA15-DC15) 3bit(UA05-UC05) 3bit (UA05-UC15) TH-42PV70C D-Board Block Diagram TH-42PV70C D-Board Block Diagram TMPA4134AQ only IC9804 VOUT 1 5 VDD P3.3V P2.5V 3.3V 2.5V TNPA4134BQ only 84 15.30.D 电路板 (1/6) 线路图 TERM SIDE + + G G G G G G + FP_CSL SC_CSL SC_DRV_RST SC_SID SC_SCSU SC_CLK FP_SCSU FP_CMH SC_CBK FP_CBK SC_CPH1 SC_OC2 SC_SIU FP_CSH FP_OC2 SC_CML SC_CSH SC_CMH SC_CSH FP_CML SC_CMH SC_CLK FP_SC_DRV_RST SC_SIU SC_OC2 FP_SID SC_CML SC_SID SC_CBK FP_CPH1 SC_CSL SC_DRV_RST SC_CPH1 FP_SIU SC_SCSU P_ON/OFF DCDC_ON PANEL_MAIN_ON SOS4_PS SC_OC1 SC_CPH2 SC_OC1 SC_CPH2 FP_OC1 FP_CPH2 VDATA_DET FP_CLK SC_LAT SC_CEL FP_LAT FP_CEL SC_LAT SC_CEL SOS6_SC1 SOS7_SC2 P15V D20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 C9883 100p 50V C9868 10u 25V R9893 56k C0DBAYY00273 IC9806 1 GND 2 REFIN 3 VREF 4 CS 5 COVP 6 CUVP 7 PGOOD 8 CTL 9 LSAT 10 ILIM 11 +INC 12 -INC 13 FSW 14 PGND 15 OUT-2 16 VB 17 VCC 18 VBIN 19 LX 20 OUT-1 21 CB 22 RT 23 VO 24 FB C9029 10V 10u C9837 10u 10V C9879 8200p 25V R9888 11k C9823 10u 25V R9889 18.2k C9886 0.1u 25V C9872 10u 25V C9862 0.1u 25V D9812 MA22D3900L D9814 B0JCGD000002 R9879 13k C9873 68u 4V C9865 68u 4V R9895 100k VB1_5V STB5V_M R9883 0 C9882 8200p 25V R9868 100k P5V R9869 10k P15V D25 1 2 3 4 5 6 7 8 9 10 11 12 13 PA9900 K5H5022A0023 R9115 100 C9884 1000p 50V P15V_MOTO R9896 18.2k D9808 B0JCCE000008 C9840 25V 0.01u P3.3V P5V VB1_5V R9886 56k P15V_MOTO C9877 68p 50V Q9809 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 D9816 MA22D3900L Q9808 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 D9813 B0JCGD000002 R9892 100k C9864 0.1u 25V R9890 47.5k L9800 G1C2R2Z00007 C0JBAZ002692 IC9803 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C9845 16V 0.1u Q9807 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 C9881 0.01u 25V C9869 10u 25V C9859 25V 0.01u C0DBAYY00274 IC9805 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP C9888 360p 50V R9847 EXB2HV222JV C9880 8200p 25V R9849 EXB2HV470JV C9832 10u 10V C9871 10u 25V C9841 16V 0.1u F1J1E104A148 FL9806 R9848 EXB2HV470JV P15V C9858 10u 25V C9887 0.1u 25V P1.2V R9872 0 L9801 G1C1R5Z00006 C9844 25V 0.01u P15V C9878 0.01u 25V R9873 0 R9850 47k R9894 11k F1J1E104A148 FL9805 C9861 0.1u 25V R9891 12.7k C9028 10V 10u C9860 4.7u 6.3V F1J1E104A148 FL9803 R9871 10k C9874 68p 50V L9802 G1C2R2Z00007 P5V R9897 47.5k C9866 68u 4V P15V VB1_5V R9880 0 R9881 0 R9846 EXB2HV222JV C9867 10u 25V PA9800 K5H4022A0023 C9885 1000p 50V D9815 B0JCGD000002 R9884 0 Q9806 B1ABCF000138 R9887 56k C9842 16V 0.1u D9807 B0JCCE000008 D9817 MA22D3900L C0JBAZ002692 IC9802 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc P2.5V R9882 0 C9870 10u 25V R9870 10k R9878 11k P3.3V C9863 4.7u 6.3V C9846 16V 0.1u P5V Q9805 B1ABCF000138 STBY5V GND GND +15V +15V GND GND +5V +5V GND VDATA_DET PANEL_MAIN_ON SOS4_PS P5V OC1 CPH2 GND GND GND GND GND GND GND CLK SIU SID SCSU OC2 CPH1 LAT SOS6_SC1 SOS7_SC2 CEL CBK SC_DRV_RST CSL CSH CML CMH NC +15V +15V +15V C B A E 5 6 7 D 1 2 3 4 F 8 9 LEVEL CONVERTER LEVEL CONVERTER 15V 3.3V 15V 1.2V DC-DC CONVERTER 15V 5.0V DC-DC CONVERTER 15V 2.5V TO P-BOARD (P25) TO SC-BOARD (SC20) 1 2 TH-42PV70C D-Board (1 of 6) Schematic Diagram TH-42PV70C D-Board (1 of 6) Schematic Diagram C9876 Only TNPA4134BQ 10V 10u R9885 P3.3V C0DBGFD00011 IC9804 C9875 10V 10u P2.5V_ASIC 5 4 0 VOUT VSS NC VIN ON/OFF 1 2 3 ! D-BOARD TNPA4134AQ/TNPA4134BQ (1/6) 85 15.31.D 电路板 (2/6) 线路图 18 16 14 12 10 8 6 4 2 20 21 19 17 15 13 11 9 7 5 3 1 ASDIO DCLK EEP_WR_CTL STB_SCL02 STB_SDA02 RE+ RE- DATA0 NCS NRST DRVRST LVDSBIT P_ON/OFF PANEL_MAIN_ON LED_R LED_G TXD_PC ALARM READY REM_IN STB_SCL01 STB_SDA01 SOS7_SC2 SOS6_SC1 STB_SCL02 STB_SDA02 FVSEL DCLK DATA0 ASDIO XRST XRST IIC_CONT IIC_CONT STBY3.3V_ON DCDC_ON IIC_CONT STBY3.3V_ON RXD_PC AR_IIC_CONT AR_IIC_CONT AR_IIC_CONT AR_RXD_PC AR_TXD_PC AR_STB_SDA02 AR_STB_SCL02 PSTB PBUSY PDB0 PSLCT PDB1 LED_R LED_G REM_IN AR_RXD_PC RXD_PC TXD_PC STB_SCL02 AR_STB_SCL02 STB_SDA02 AR_STB_SDA02 P3V_SDA1 P3V_SCL1 ALARM READY INEXCH OSD_R OSD_G OSD_B OSD_YS OSD_CLKO OSD_HO OSD_VO AR_TXD_PC AR_IIC_CONT STB_SCL01 STB_SDA01 STB_SCL02 STB_SDA02 XRST P3V_SCL02 P3V_SDA02 DRVMUTE P3V_SDA02 VDATA_DET P3V_SCL1 P3V_SDA1 RD+ RD- RCLK+ RCLK- RC+ RC- RB+ RB- RA+ RA- P3V_SDA1 PANEL_STBY_ON P3V_SCL1 SOS8_SS SOS4_PS P3V_SCL02 AR_RXD_PC AR_TXD_PC AR_STB_SCL02 AR_STB_SDA02 C_SEL INEXCH NCS EEP_WR_CTL SOS9_CONF NCS_FPGA C9050 16V 0.1u STB3.3V R9225 2.7k R9062 100 R9144 100 STB5V_M R9099 10k IC9002 C1ZBZ0003577 1 SCL 2 GND 3 A1 4 VDD 5 A0 6 SDA R9104 10k C9048 16V 0.1u R9217 10k C9037 0.01u 25V R9165 2.2k C9058 10V 10u R9182 1k C9051 16V 0.1u MN103SC9GPH3 IC9003 1 P41_TM1IO 2 P42_TM2IO 3 P43_TM3IO 4 P44_TM4IO_SYSCLK 5 P00 6 P01 7 P02 8 P03_SBT0B 9 P04_SBO0B 10 P51_IRQ2 11 P52_IRQ3 12 P53_IRQ4 13 P54_IRQ5 14 PA7_VCLKOUT 15 PA6_HOUT 16 PA5_YSOUT 17 PA4_B00 18 PA3_G00 19 PA2_R00 20 PA1_VSYNC_IRQ1 21 PA0_HSYNC 22 VSS 23 OSDXI 24 IVDD 25 VDD 26 P60_SBO0A 27 P61_SBT0A 28 P62_SBI0A 29 P05_IRQ6 30 P06_IRQ7 31 P07_IRQ8 32 P70_SDA0 33 P71_SCL0 34 P50_RMIN_IRQ0 35 P20 36 P21 37 P22 38 P23 39 IVDD 40 VSS 41 P10 42 P11 43 P12 44 P13 45 P14 46 P15 47 P16 48 P17 49 P72_SDA1 50 P73_SCL1 51 P65_SBT2 52 P66_SBI2 53 P30 54 P31 55 P32 56 P33 57 P34 58 P35 59 P36 60 P37 61 VPPEX_(N.C.) 62 IVDD 63 VDD 64 RONA 65 VSS 66 OSCXO 67 OSCXI 68 IVDD 69 P64_SBI1 70 P63_SBT1 71 NBOOT_(N.C.) 72 NRST 73 NTEST 74 SCLOCK_(UND) 75 SDATA_(UND) 76 ENTRG0_(UND) 77 ENTRG1_(UND) 78 TRCCLK_(UND) 79 TRCST_(UND) 80 TRCD0_(UND) 81 TRCD1_(UND) 82 TRCD2_(UND) 83 TRCD3_(UND) 84 P80_ADIN0 85 P81_ADIN1 86 P82_ADIN2 87 P83_ADIN3 88 IVDD 89 VSS 90 P84_ADIN4 91 P85_ADIN5 92 P86_ADIN6 93 P87_ADIN7 94 P90_ADIN8 95 P91_ADIN9 96 P92_ADIN10 97 P93_ADIN11 98 P74_SDA2 99 P75_SCL2 100 P40_TM0IO R9215 12k R9166 10k R9200 10 D9018 MAZ303300L R9187 5.6k STB3.3V R9158 10k C9843 16V 0.1u R9828 100k R9154 5.6k X9000 H2D100500004 STB3.3V R9160 0 C9033 16V 0.1u IC9007 C1ZB0003631 only TNPA4134AQ 1 nCS 2 DATA 3 VCC 4 GND 5 ASDI 6 DCLK 7 VCC 8 VCC STB5V TP9000 R9122 10k R9240 0 R9119 EXB38V470JV R9194 0 D9110 B0JCGD000002 C9838 16V 0.1u C9825 50V 100p R9221 10k R9206 1k R9134 33k C9056 16V 0.1u R9189 10k P3.3V C9057 16V 0.1u D9020 B0JCCE000008 Q9053 B1ABCF000138 C9045 16V 0.1u R9840 22 R9139 0 R9163 0 R9825 100 D9802 B0JCCE000008 R9107 3.3k R9123 10k C9039 10V 10u R9142 100 R9113 10 R9184 1k R9174 10k C9034 16V 0.1u R9190 10k R9065 100 R9237 10k STB3.3V R9105 10k Q9010 B1ABCF000138 Q9046 B1ABCF000138 R9164 2.2k C9036 10V 10u R9159 10k R9131 4.7k R9101 10k P5V R9845 10k R9188 5.6k R9102 10k C9063 16V 0.1u C9061 16V 0.1u STB3.3V R9156 10k D6 R9223 2.7k P3.3V R9218 10k R9186 22 Q9051 B1ABCF000138 C9040 16V 0.1u R9826 100 R9116 100 R9110 100 STB3.3V R9219 10k Q9054 B1ABCF000138 R9183 1k R9874 0 R9193 10k P3.3V STB3.3V R9177 22k R9181 1k R9133 4.7k R9854 100 R9063 100 R9150 22 IC9011 C0EBF0000431 1 RESET 2 Cd 3 VOUT 4 VDD 5 GND 6 CE R9839 EXB38V101JV P3.3V R9561 EXB38V222JV C9052 16V 0.1u R9841 0 C9046 16V 0.1u R9132 4.7k C9049 16V 0.1u R9140 0 R9129 68k R9161 0 P15V_MOTO STB3.3V D9017 MAZ303300L R9066 100 R9109 10k R9824 100 C9035 10V 10u R9220 10k R9170 39k R9185 22 R9167 100 R9196 10k C9053 16V 0.1u R9203 1k R9827 100 D5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Q9050 B1ABCF000138 R9108 10k P15V R9207 1k R9126 10k Q9052 B1ABCF000138 R9149 4.7k R9145 100 STB5V_M R9201 10 STB3.3V R9173 10k STB3.3V R9151 22 R9064 100 R9155 5.6k C9055 16V 0.1u IC9001 TVRP436-1 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 Vcc R9127 68k R9135 4.7k R9143 100 D9811 B0JCCE000008 D9019 MAZ303300L R9112 10k D9804 B0JCCE000008 C9062 4.7u 6.3V R9859 EXB38V101JV R9172 39k Q9044 B1ABCF000138 R9222 10k STB3.3V R9199 2.7k IC9013 C0JBAZ002060 1 1OE 2 1A 3 1B 4 2OE 5 2A 6 2B 7 GND 8 3B 9 3A 10 3OE 11 4B 12 4A 13 4OE 14 VCC R9205 4.7k R9120 100 R9121 100k R9067 100 STB3.3V R9171 39k R9141 100 C9047 16V 0.1u C9044 6.3V 4.7u RB- RB+ RC- RC+ RCLK- GND RCLK+ GND GND GND RE+(LSB) RD+ GND IIC_CLK2 IIC_CONT/C_SEL RE-(LSB) RXD TXD PANEL_STBY_ON ALARM IIC_DATA2 GND IIC_CLK1 IIC_DATA1 READY DISPEN RA- RA+ INEXCH STB3.3V ON/OFF GND P15V PBUSY STBY5V STBY3.3V RXD IIC_CONT LED_G GND SDA2 SCL2 PSTB PSLCT PDB1 SCL1 SDA1 LED_R PDB0 IIC_INT TXD REMOCON RD- GND 12 13 14 10 11 18 17 15 16 MICON PROM(FPGA) SWITCH EEPROM STB 3.3V RESET FOR FACTORY USE 1 2 11 12 13 14 15 TEMPERATURE DIGITAL SENSOR TO A-BOARD (A5) TH-42PV70C D-Board (2 of 6) Schematic Diagram TH-42PV70C D-Board (2 of 6) Schematic Diagram ! D-BOARD TNPA4134AQ/TNPA4134BQ (2/6) 86 15.32.D 电路板 (3/6) 线路图 G G SOS9_CONF AA_BYTE L8R_UA09 L8R_UB06 L8R_UC11 L8R_UA08 L8R_UA12 FVSEL FP_CSL FP_CSH L8R_DA15 FPDAT1 FP_SID L8R_UC13 L8R_DA14 FP_UMH L8R_UA06 FP_CPH1 DD_CLRD1 L8R_UA10 FP_SC_DRV_RST L8R_UC12 L8R_UA07 L8R_UB12 FP_UML NRST L8R_UC08 L8R_UA11 FP_CEL FP_NUEL L8R_UC05 L8R_UB11 FP_USL DD_ODED1 L8R_DB15 SFRST FPCLK FP_USH FP_SIU L8R_UB07 LVDSBIT L8R_UB08 FPDAT0 FP_OC1 DD_PCD2 L8R_UC07 L8R_UB09 SFVRST LATCH FP_OC2 DD_PCD1 L8R_UB10 L8R_UB05 L8R_DC15 FP_CML FP_SCSU FP_CMH L8R_UC06 L8R_UC09 DD_LED1 FP_CLK PSLCT PBUSY NCS DATA0 ENHMASK ASDIO INEXCH PSTB PDB1 PDB0 DRVRST L8_B9 L8_B7 L8_B6 L8_B5 L8_B4 L8_B3 L8_B2 L8_G7 L8_G6 L8_G5 L8_G4 L8_G3 L8_G2 L8_G1 L8_G0 L8_R7 L8_R6 L8_R5 L8_R4 L8_R3 L8_R2 L8_R1 L8_R0 DRVMUTE L8_DCK L8R_UC10 P3V_SCL02 P3V_SDA02 DD_ODED2 AA_XOE AA_XWE DCLK FP_LAT OSD_R OSD_G OSD_B OSD_YS L8_VIN L8_HIN OSD_VO OSD_HO OSD_CLKO NCS_FPGA L8_R8 L8_R9 L8_G8 L8_G9 L8_B0 L8_B1 L8_B8 TDO_TO_FPGA DD_PCD3 DD_PCD4 FP_UEH FP_URH FP_CBK FP_CPH2 RA+ RA- RB+ RB- RCLK+ RCLK- RD+ RD- RE+ RE- DD_LED2 DD_CLRD2 RC+ RC- DCLK DATA0 ASDIO TDI_TO_68 TRST TMS TCK AA_XCE IC9500 J13 MSEL0 IC9500 P4 IO IC9500 M8 GND IC9500 F9 IO IC9500 G7 IO IC9500 M2 IO R9545 300k IC9500 F15 IO P3.3V R9553 0 IC9500 T7 IO IC9500 K13 IO IC9500 J16 CLK7 IC9500 T3 IO IC9500 L13 CONF_DONE C9564 16V 0.1u IC9500 H8 GND IC9500 K12 MSEL1 C9516 16V0.1u IC9500 C6 IO IC9500 R10 IO IC9500 L9 IO IC9500 D15 IO IC9500 K3 VCCIO1 IC9500 B3 IO IC9500 K16 IO IC9500 K7 IO IC9500 J1 CLK3 IC9500 T9 IO IC9500 E13 IO R9523 10k IC9500 C7 VCCIO2 IC9500 J6 IO D9 1 2 3 4 5 6 7 R9541 10k IC9500 D16 IO IC9500 J11 IO IC9500 B5 IO R9549 10k C9528 R9505 0 16V 0.1u IC9500 R13 IO IC9500 E1 IO IC9500 F8 IO IC9500 P2 IO P3.3V IC9500 C3 IO IC9500 K8 VCCINT IC9500 K2 IO C9518 16V 0.1u IC9500 R5 IO IC9500 C12 IO IC9500 M13 nSTATUS R9548 10k R9402 0 R9544 10k IC9500 K6 IO R9565 EXB2HV470JV IC9500 R16 VCCIO3 IC9500 P14 IO IC9500 A2 VCCIO2 IC9500 C5 IO C9523 16V 0.1u IC9500 C15 IO R9564 EXB2HV470JV IC9500 D13 IO IC9500 N4 IO IC9500 G11 IO R9554 0 P3.3V C9560 16V 0.1u IC9500 A6 IO L9505 J0JHC0000078 C9527 16V 0.1u IC9500 H5 TDI IC9500 D4 IO IC9500 N12 IO IC9500 N5 GND_PLL1 IC9500 F3 IO IC9500 A13 IO IC9500 P13 IO IC9500 H3 GND IC9500 T13 IO IC9500 M11 IO R9526 TNPA4134AQ ONLY 0 IC9500 B14 IO IC9500 T6 IO IC9500 N2 IO IC9500 F13 IO IC9500 J15 CLK6 IC9500 F11 VCCD_PLL2 IC9500 D8 IO C9562 16V 0.1u IC9500 M1 IO IC9500 P5 IO IC9500 R8 IO IC9500 H15 CLK5 IC9500 R1 VCCIO1 IC9500 G14 VCCIO3 IC9500 B9 IO R9558 0 IC9500 L7 IO IC9500 H11 IO IC9500 P15 IO IC9500 P12 IO IC9500 A7 IO IC9500 K11 IO IC9500 H16 CLK4 IC9500 G4 IO C9563 16V 0.1u IC9500 B7 IO IC9500 D10 IO IC9500 E3 IO IC9500 B12 IO P2.5V_ASIC IC9500 M4 IO IC9500 H6 IO R9569 0 IC9500 A15 VCCIO2 IC9500 D6 IO IC9500 M10 VCCIO4 IC9500 L1 IO IC9500 G6 IO IC9500 A16 GND R9536 47 *R9539 10k D0GB103JA057 IC9500 D11 IO IC9500 N14 IO C9517 16V 0.1u C9524 16V 0.1u IC9500 F4 IO IC9500 E10 VCCIO2 IC9500 B1 VCCIO1 IC9500 L4 IO R9550 10k IC9500 H9 GND IC9500 F7 IO IC9500 L14 IO IC9500 G3 VCCIO1 IC9500 K15 IO IC9500 C8 GND IC9500 T11 IO IC9500 N15 IO IC9500 F6 IO R9956 10k IC9500 N7 IO *R9538 10k IC9500 J3 GND IC9500 D9 IO IC9500 C2 IO IC9500 J12 IO IC9500 M7 VCCIO4 IC9500 B8 IO IC9500 C4 IO IC9500 R11 IO IC9500 H2 CLK0 IC9500 J4 IO IC9500 L11 IO C9559 16V 0.1u R9530 10k IC9500 E15 IO C9519 16V 0.1u IC9500 N11 IO R9566 EXB2HV470JV IC9500 R2 GND R9531 47 IC9500 J2 CLK2 P3.3V IC9500 J14 GND IC9500 A9 IO C9522 16V 0.1u IC9500 G13 IO IC9500 R4 IO IC9500 L2 IO IC9500 A4 IO IC9500 P10 VCCIO4 TP9014 R9567 10k IC9500 C1 IO IC9500 M6 GNDA_PLL1 IC9500 T10 IO IC9500 N10 IO IC9500 T1 GND IC9500 H10 VCCINT R9552 10k R9525 10k R9379 0 IC9500 A1 GND IC9500 H12 IO FL9504 F1J1E104A148 1 2 3 IC9500 H7 VCCINT IC9500 J7 VCCINT IC9500 M5 VCCA_PLL1 IC9500 L16 IO R9863 10k IC9500 E14 IO IC9500 G15 IO IC9500 B11 IO IC9500 F2 TCK R9070 47 IC9500 B13 IO IC9500 G8 GND R9510 0 IC9500 G1 TMS IC9500 K4 IO IC9500 E6 IO IC9500 M16 IO IC9500 K9 GND IC9500 T14 IO IC9500 P11 IO IC9500 E8 GND R9532 47 IC9500 P1 IO IC9500 H14 GND IC9500 A3 IO C9521 16V 0.1u P1.2V IC9500 F14 IO TP9011 P3.3V IC9500 T2 VCCIO4 R9562 47 IC9500 J9 GND R9543 10k IC9500 R9 IO IC9500 L5 GND_PLL1 IC9500 L6 VCCD_PLL1 IC9500 T8 IO IC9500 D12 GND_PLL2 IC9500 P6 IO IC9500 N3 IO IC9500 G12 IO IC9500 A14 IO IC9500 D2 IO IC9500 E5 IO IC9500 J5 nCONFIG IC9500 R6 IO IC9500 T16 GND IC9500 N6 IO IC9500 C11 IO P3.3V IC9500 J10 VCCINT IC9500 G9 VCCINT IC9500 K10 IO R9563 EXB2HV470JV C9526 10V 10u IC9500 C9 GND IC9500 L15 IO IC9500 N8 IO IC9500 N13 IO IC9500 R12 IO IC9500 G10 IO IC9500 M3 IO IC9500 C13 IO IC9500 P7 VCCIO4 R9535 47 IC9500 D5 IO IC9500 E12 VCCA_PLL2 L9502 J0JHC0000078(TNPA4134AQ) IC9500 B15 GND IC9500 M14 IO C9520 16V 0.1u IC9500 E16 IO IC9500 E9 GND R9534 EXB38V470JV TP9015 IC9500 L3 IO IC9500 A10 IO IC9500 D3 IO IC9500 F1 DATA0 IC9500 N1 IO IC9500 L12 IO IC9500 M12 IO IC9500 P9 GND IC9500 E11 GNDA_PLL2 IC9500 F12 GND_PLL2 IC9500 G2 TDO R9507 0 IC9500 K1 IO IC9500 D7 IO R9506 22 R9861 10k IC9500 L8 IO TP9013 IC9500 D1 IO IC9500 N9 IO IC9500 M15 IO IC9500 B4 IO IC9500 L10 IO IC9500 N16 IO IC9500 A8 IO R9862 10k IC9500 F10 IO IC9500 A12 IO IC9500 J8 GND IC9500 B16 VCCIO3 IC9500 A5 IO IC9500 E4 IO IC9500 H4 DCLK IC9500 R14 IO IC9500 B6 IO IC9500 E2 IO P3.3V IC9500 C14 IO IC9500 B10 IO C9531 10V 10u IC9500 H13 IO IC9500 R7 IO IC9500 F5 IO IC9500 T4 IO IC9500 C10 VCCIO2 IC9500 K14 VCCIO3 TP9012 IC9500 D14 IO IC9500 R15 GND R9961 10k IC9500 G5 nCE IC9500 P3 IO R9533 47 IC9500 T12 IO C9561 16V 0.1u IC9500 G16 IO IC9500 E7 VCCIO2 IC9500 T5 IO IC9500 R3 IO C9525 16V 0.1u IC9500 P8 GND TP9016 K1KA07A00292 only TNPA4134AQ R9557 0 IC9500 A11 IO IC9500 T15 VCCIO4 IC9500 M9 GND IC9500 K5 IO IC9500 C16 IO L9501 J0JHC0000078(TNPA4134AQ) ERJ3GEY0R00V(TNPA4134BQ) ERJ3GEY0R00V(TNPA4134BQ) IC9500 B2 GND IC9500 F16 IO IC9500 P16 IO IC9500 H1 CLK1 L9504 J0JHC0000078 only TNPA4134AQ /ROMADRS[19] M_GOUT9 M_GOUT5 M_BOUT0 NRST CLK M_ROUT9 FPCLK PCD2 DRVRST M_ROUT7 CEL /ROMADRS[03] ODED1 FPDATA0 M_BOUT1 /ROMADRS[02] M_GOUT4 /ROMADRS[11] DRVMUTE /ROMADRS[07] /ROMADRS[04] SC_DRV_RST FPDATA1 OSD_CLKO CLRD1 /ROMADRS[18] /ROM_BYTE M_GOUT3 /ROMADRS[10] SFRST SCSU OSD_GI /ROMADRS[08] LATCH MODEL[1] /ROMDATA[06] M_ROUT3 CPH1 /ROMADRS[20] OC2 MODEL[0] CBK M_ROUT6 /ROMADRS[17] SDA LAT M_GOUT1 CLK_INPUT OSD OC1 SCL /ROMDATA[07] OTHER CSH NUEL RESET USL SIU Flash_Control M_ROUT2 LSI58 CLKM_IN M_ROUT1 M_ROUT5 SFVRST /ROMDATA[01] /ROMADRS[16] /ROMDATA[05] LVDS_INPUT /ROMADRS[13] /ROMDATA[00] /ROMADRS[05] M_GOUT6 DATA_DRIVER /ROMDATA[04] /ROM_OE PICTURE_OUTPUT /ROMDATA[03] /ROM_CE NC IIC /ROMDATA[02] /ROMADRS[00] CONTROL CML SS_PULSE UML CMH UMH SC_PULSE M_ROUT4 K_DONE GND LVDSbit M_ROUT8 M_ROUT0 M_GOUT2 FVSEL M_BOUT3 M_BOUT4 VCCINT M_GOUT8 VCCI /ROMADRS[01] M_BOUT5 JTAG OSD_YSI /ROMADRS[09] M_BOUT6 OSD_BI M_GOUT0 M_DCKO /ROMADRS[14] M_HDO M_BOUT7 OSD_RI /ROM_WE M_VDO M_BOUT8 M_GOUT7 M_BOUT9 USH SID UEL LED1 CSL PCD1 /ROMADRS[06] M_BOUT2 /ROMADRS[12] MASK p_db1 p_db0 p_stb p_slct p_busy TP_CLK FREE RUN CLK XRST /ROMADRS[-1] /ROMADRS[15] MODEL2 MODEL1 MODEL0 RSV0 L L L SD L L H 37HD L H L 42HD L H H 58HD H L L 50HD H L H RSV1 H H L 42WH H H H ODED2 OSD_HI MICON nCS_FPGA SOUT SIN SCLK TRST TDO GND TDI TMS TCK PCD3 PCD4 URH CPH2 RC-[inv->RC+] RB- RB+ RC+[inv->RC-] RCLK- RCLK+ RE+(LSB) RD+[inv->RD-] RA- RA+ RD-[inv->RD+] RE-(LSB) MODEL[2] LED2 CLRD2 TEST PRCKI P3.3V TRST 27 24 23 25 26 20 19 22 21 IC9500 FPGA C1ZBZ0003575(TNPA4134AQ) C1ZBZ0003711(TNPA4134BQ) ! D-BOARD (3/6) TNPA4134AQ TNPA4134BQ 11 12 14 15 13 21 22 23 24 25 26 TH-42PV70C D-Board (3 of 6) Schematic Diagram TH-42PV70C D-Board (3 of 6) Schematic Diagram only TNPA4134AQ only TNPA4134AQ ERJ6GEY0R00V C9566 16V 0.1u C9565 16V 0.1u Only TNPA4134BQ Only TNPA4134BQ 87 15.33.D 电路板 (4/6) 线路图 DD_PCD1 USH_C2 UML_C2 UEH_C2 USL_C2 DD_LED1 DD_PCD2 NUEL_C2 DD_ODED1 UMH_C2 L8R_UB10 L8R_UB08 L8R_UA08 L8R_UC07 L8R_UC09 L8R_UB05 L8R_UC10 L8R_UB11 L8R_UC12 L8R_UC13 L8R_UA13 L8R_DC15 L8R_UA14 L8R_UA12 L8R_UB13 L8R_UA06 L8R_UB15 L8R_UB06 L8R_UA07 AA_XCE L8R_UC06 L8R_UB07 L8R_UC14 L8R_UC15 L8R_DA14 L8R_UB12 L8R_UA15 L8R_UA09 L8R_UB14 L8R_UA10 L8R_UA05 L8R_UC08 L8R_UB09 L8R_UC11 L8R_UC05 L8R_DB15 L8R_DA15 AA_XWE AA_XOE AA_BYTE D-LED1 D-PCD1 D-PCD2 D-ODED1 L8_PCK L8_OCK DD_CLRD1 DD_LED2 D-CLRD1 D-LED2 DD_PCD3 DD_PCD4 D-PCD4 D-PCD3 FP_UMH FP_USL FP_USH FP_UML FP_UEH FP_URH FP_NUEL URH_C2 DD_ODED2 DD_CLRD2 D-CLRD2 D-ODED2 L8R_UA11 R9403 EXB2HV470JV X9200 H0J200500038 L9500 G1C150KA0038 C C R9384 4.7k R9516 10k R9518 0 C1ZBZ0003600 IC9200 X1 1 2 S0 3 S1 4 CLK9 5 VDD 6 GND 7 CLK1 8 GND 9 CLK2 10 GND 11 GND 12 CLK7 13 CLK6 14 CLK5 15 GND 16 VDD 17 S2 18 STBY 19 VDD 20 X2 C9500 16V 0.1u R9349 EXB2HV470JV C9469 16V 0.1u R9363 EXB2HV470JV R9513 47 C9508 16V 0.1u C9512 16V 0.1u C9510 50V 12p R9502 10k D0GB103JA057 D0GB103JA057 C9505 16V 0.1u R9503 47 TVRP437 IC9303 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 P3.3V R9394 0 R9500 10k R9400 4.7k C9509 50V 12p P3.3V C9511 10V 10u IC9502 C0EBE0000066 1 NC 2 SUB 3 GND 5 Vcc 4 Vout R9520 47 R9385 4.7k R9512 47 P3.3V CPG 36.6MHz 20SSMHz 60SSMHz 84MHz 39.5MHz 20MHz 28 33 36 32 31 30 29 34 35 CPG PD1M_ROM RESET H SD 37HD 42HD 50HD S2 S1 S0 L H L H H L H L H L H 25 26 22 23 24 21 31 32 33 34 35 36 TH-42PV70C D-Board (4 of 6) Schematic Diagram TH-42PV70C D-Board (4 of 6) Schematic Diagram ! D-BOARD TNPA4134AQ/TNPA4134BQ (4/6) 88 15.34.D 电路板 (5/6) 线路图 TERM SIDE G G G G G G G G G G G G G G TERM SIDE L8R_MONOUT1 L8_G0 L8_G1 L8_G2 L8_G3 L8_G4 L8_G5 L8_G6 L8_G7 L8_G8 L8_G9 L8_B0 L8_B1 L8_B2 L8_B3 L8_B4 L8_B5 L8_B6 L8_B7 L8_B8 L8_B9 L8_R0 L8_R1 L8_R2 L8_R3 L8_R4 L8_R5 L8_R6 L8_R7 L8_R8 L8_R9 L8R_UA15 L8R_UA09 L8R_UA11 L8R_UA12 L8R_UA10 L8R_UA08 L8R_UA14 L8R_UA13 L8R_UA05 L8R_UA06 L8R_UA07 L8R_DA03 L8R_DA11 L8R_DA15 L8R_DA12 L8R_DA06 L8R_DA02 L8R_DA13 L8R_DA07 L8R_DA04 L8R_DA08 L8R_DA09 L8R_DA00 L8R_DA01 L8R_DA14 L8R_DA05 L8R_DA10 L8R_UB12 L8R_UB14 L8R_UB15 L8R_UB10 L8R_UB07 L8R_UB13 L8R_UB11 L8R_UB05 L8R_UB09 L8R_UB08 L8R_UB06 L8R_DB02 L8R_DB12 L8R_DB04 L8R_DB07 AA_XCE L8R_DB08 L8R_DB01 L8R_DB15 L8R_DB13 L8R_DB09 L8R_DB05 L8R_DB10 L8R_DB00 L8R_DB14 L8R_DB03 L8R_DB06 L8R_DB11 L8R_UC14 L8R_DC01 L8R_UC05 L8R_UC08 L8R_UC06 L8R_UC11 L8R_DC05 L8R_DC00 L8R_UC12 L8R_DC09 L8R_UC15 L8R_UC07 L8R_DC06 L8R_DC10 L8R_UC09 L8R_UC10 L8R_UC13 L8R_DC11 L8R_DC13 L8R_DC03 L8R_DC07 L8R_DC14 L8R_DC12 L8R_DC02 L8R_DC04 L8R_DC08 L8R_DC15 L8R_MONOUT1 FPDAT1 FPCLK FPDAT0 SFRST SFVRST LATCH L8R_DRVCLKD0 L8R_DRVCLKD3 L8R_DRVCLKD2 L8R_DRVCLKD1 L8R_DB09 L8R_DC04 L8R_UB03 L8R_UA04 L8R_DA04 L8R_DA08 L8R_DB10 L8R_UC03 L8R_DC07 L8R_DC09 L8R_DA07 L8R_DA10 L8R_DA03 L8R_UA02 L8R_DB03 L8R_UA03 L8R_DA09 L8R_UC05 L8R_DC11 L8R_DA11 L8R_DC10 L8R_UB02 L8R_DB07 L8R_UB04 L8R_DB08 L8R_UA05 L8R_DB11 L8R_UC04 L8R_UC02 L8R_DC08 L8R_UB05 L8R_DC05 L8R_DB04 L8R_UA03 L8R_UA02 L8R_UA00 L8R_UA01 L8R_UA04 L8R_UB00 L8R_UB01 L8R_UB02 L8R_UB03 L8R_UB04 L8R_UC04 L8R_UC03 L8R_UC02 L8R_UC00 L8R_UC01 TCK TMS TDI_TO_68 TDO_TO_FPGA XRST P3V_SDA02 P3V_SCL02 L8R_DQ9 L8R_TEST0 L8R_OCKOUT L8R_MONOUT0 L8R_DQ23 L8R_A6 L8R_MONOUT2 L8R_A5 L8R_A4 L8R_MONOUT2 L8R_DQ13 L8R_DQ24 L8R_BA0 L8R_DQS2 L8R_MUTE L8R_MONOUT0 L8R_BA1 L8R_DQ4 L8R_OCKOUT L8R_TCKSEL2 L8R_DQ2 L8R_RAS L8R_DQ18 L8R_A1 L8R_A10 L8R_A0 L8R_DQ31 L8R_TCKSEL1 L8R_DQ8 L8R_A3 L8R_DQ14 L8R_DQS3 L8R_WE L8R_DQ3 L8R_DQ10 L8R_DQ26 L8R_DQ1 L8R_SDCKE L8R_DQ21 L8R_SDCLKO L8R_DQ12 L8R_DQ28 L8R_DQ30 L8R_DQ6 L8R_A9 L8R_DQS1 L8R_TCKSEL0 L8R_DQ22 L8R_TIIC L8R_A7 L8R_DQ17 L8R_NSDCLKO L8R_DQ5 L8R_MUTE L8R_DQ15 L8R_SDIV1 L8R_DQ11 L8R_DQ25 L8R_DQ29 L8R_TIIC L8R_A8 L8_OCK L8R_DQ27 L8R_A11 L8R_SDIV0 L8R_TEST1 L8_PCK L8R_CS L8R_TILD L8R_DQ20 L8R_DQS0 L8R_DQ19 L8R_TILD L8R_DQ16 L8R_A2 L8R_K_TEST L8R_TCKSEL2 L8R_CAS L8R_K_TEST L8R_DQ0 L8R_DQ7 L8R_TCKSEL1 L8R_TCKSEL0 L8R_TEST0 L8R_TEST1 L8R_DRVCLKU0 L8R_DRVCLKU1 L8R_DRVCLKU2 L8R_DRVCLKU3 L8R_DRVCLKD3 L8R_DRVCLKD2 L8R_DC03 L8R_DA02 L8R_DA06 L8R_DB06 L8R_DA05 L8R_DB05 L8R_DC06 L8R_DB02 L8R_DC01 L8R_DC02 L8R_DB01 L8R_DA01 L8R_DA00 L8R_DC00 L8R_DB00 L8R_DRVCLKD1 L8R_DRVCLKU1 L8R_DRVCLKU0 L8R_DRVCLKU3 L8R_DRVCLKU2 DDC15 DDB16 DDC16 DDA18 DDC19 DDB17 DDA21 DDB12 DDA17 DDB13 DDB21 DDB14 DDC12 DDC18 DDA13 DDB20 DDA19 DDC21 DDC20 DDB15 DDA14 DDB18 DDB19 DDC14 DDA12 DDA20 DDC17 DDA15 DDA16 DDC13 DDA20 DDB20 DDB21 DDC20 DDC21 DDA21 DDC19 DDA18 DDA19 DDB19 DDC18 DDB18 DDB17 DDA16 DDC16 DDC17 DDB16 DDA17 DDA15 DDC15 DDC14 DDA14 DDB14 DDB15 DDC13 DDA12 DDA13 DDC12 DDB13 DDB12 CLKD_0P CLKD_1N CLKD_2P CLKD_3N CLKD_2P CLKU_1N CLKD_0P CLKU_0P D-LED1 D-PCD1 D-PCD2 D-ODED1 D-LED1 D-ODED1 D-CLRD1 D-LED2 D-PCD4 D-PCD3 D-ODED2 L8_DCK CLKD_1N CLKD_3N L8R_SDIV1 L8R_SDIV0 C_5V_DET DRVRST D-PCD2 D-CLRD1 D-CLRD2 DDB08 DDC08 DDA10 DDC11 DDC10 DDB11 DDA11 DDB10 DDA06 DDB06 DDC06 DDA09 DDB09 DDC09 DDA08 DDC07 DDA00 DDB00 DDA01 DDC00 DDB01 DDA03 DDC01 DDB03 DDC02 DDC03 DDA05 DDA02 DDB05 DDB02 DDC05 DDA04 DDB04 DDC04 DDA07 DDB07 CLKU_3N CLKU_2P L8R_DC12 L8R_DB12 L8R_DA12 L8R_DC13 L8R_DB13 L8R_DA13 L8R_DC14 L8R_DB14 L8R_DA14 L8R_DC15 L8R_DB15 L8R_DA15 L8R_UC00 L8R_UB00 L8R_UA00 L8R_UC01 L8R_UB01 L8R_UA01 D-PCD1 DDC10 DDB07 DDC11 DDC05 CLKU_1N DDA07 DDA10 DDB05 DDB09 DDA03 DDA05 D-CLRD2 DDA09 DDC00 DDC04 DDC08 DDB00 DDB04 DDB08 DDA00 DDA04 DDA08 DDC01 DDC02 NUEL_C2 DDC09 DDB01 DDB02 UEH_C2 DDC06 DDA01 DDA02 USL_C2 D-PCD3 URH_C2 DDB06 DDC03 USH_C2 D-LED2 D-ODED2 DDB03 CLKU_0P UML_C2 D-PCD4 UMH_C2 DDB10 CLKU_3N DDA06 DDA11 CLKU_2P SOS8_SS DDC07 DDB11 TRST L8R_DRVCLKD0 L8_VIN L8_HIN ENHMASK IC9900 V5 VSS IC9900 V7 VDD25 IC9900 C14 DOUTUC11 IC9900 K12 VSS IC9900 L12 VSS IC9900 L13 VSS IC9900 C22 DOUTUB01 IC9900 C13 DOUTUB12 IC9900 W19 VSS R9398 22 IC9900 D18 DOUTUC05 IC9900 H22 DOUTDA14 C9923 0.1u 16V IC9900 C2 VDD12 IC9900 AA12 DQS3 IC9900 A19 DOUTUA05 IC9900 B15 DOUTUB10 IC9900 C15 DOUTUB09 IC9900 A22 VSS IC9900 M19 DOUTDC11 IC9900 F20 DOUTUB00 IC9900 J18 VDD33 IC9900 E8 VDD12 IC9900 AB22 VSS IC9900 M5 VDD33 TP9215 IC9900 AA5 CKE IC9900 AA1 VDD25 IC9900 C21 DOUTUA02 IC9900 D14 DOUTUC10 IC9900 H20 DRVCLKD1 C9902 0.1u 16V IC9900 AA14 DQ9 C9907 0.1u 16V P5V IC9900 P14 VSS IC9900 C20 VSS IC9900 AA20 DOUTDA01 R9556 10k IC9900 V11 VDD25 IC9900 W9 A10 L8R2.5V IC9900 L19 DOUTDB12 IC9900 H4 BI7 L8R3.3V IC9900 M4 PCK TP9228 IC9900 D5 GI2 TP9243 IC9900 L11 VSS IC9900 W21 VDD33 IC9900 E3 GI5 TP9200 IC9900 B1 VSS IC9900 J21 DOUTDB14 TP9227 R9362 22 C9958 0.1u 16V IC9900 D6 RI7 IC9900 F21 DRVCLKU2 TP9211 IC9900 M21 DOUTDB10 IC9900 U3 DQ6 C9910 0.1u 16V R9361 22 R9915 0 IC9900 C17 DOUTUA06 D31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 IC9900 C9 ROMCE TP9219 IC9900 B10 SFRST Q9302 B1ABCF000138 R9902 0 IC9900 K5 VDD33 IC9900 W22 DOUTDC02 C9906 0.1u 16V IC9900 N19 DOUTDB09 IC9900 E20 DOUTUC02 IC9900 H21 DOUTDB15 IC9900 J10 VSS P1.2V IC9900 L5 VDD33 IC9900 B16 DOUTUC09 IC9900 C7 RI0 IC9900 AB1 VSS TP9010 R9922 0 R9358 EXB2HV220JV IC9900 B9 FPCLK IC9900 A12 DOUTUB14 IC9900 A6 OCKOUT IC9900 U5 VDD25 IC9900 K10 VSS IC9900 V13 VDD12 IC9900 B18 DOUTUB06 TP9209 IC9900 B21 VSS IC9900 A5 RI2 IC9900 U4 DQ5 F1J1E104A148 FL9904 IC9900 K14 VSS IC9900 Y21 VDD33 IC9900 AA15 AVSS1 C9920 0.1u 16V IC9900 D21 DOUTUB02 IC9900 D17 DOUTUC06 IC9900 N5 VDD33 IC9900 AB7 A6 C9922 0.1u 16V IC9900 L22 DOUTDB11 C9949 16V 0.1u IC9900 A8 TCKSEL0 IC9900 W5 AVDD25_3 IC9900 B4 RI8 IC9900 F4 GI7 IC9900 R20 DOUTDB06 IC9900 M2 FULL0 IC9900 T18 VDD33 IC9900 Y13 DQ14 IC9900 D20 DOUTUB03 IC9900 J13 VSS IC9900 T4 DQ7 IC9900 M12 VSS IC9900 P12 VSS C9921 0.1u 16V P3.3V IC9900 H18 VDD33 IC9900 W2 DQ1 IC9900 M13 VSS IC9900 AA3 CK IC9900 Y5 NCAS IC9900 K22 DOUTDA12 IC9900 L21 DOUTDA11 L8R3.3V C9914 0.1u 16V TP9242 IC9900 AA19 DOUTDC01 IC9900 E4 VDD12 IC9900 B5 RI5 TP9220 IC9900 R4 DQ16 IC9900 T22 DOUTDC06 IC9900 C10 SFVRST IC9900 Y20 VSS IC9900 N11 VSS IC9900 G19 DOUTUC00 IC9900 E16 VDD12 IC9900 A7 K_TEST IC9900 V4 VDD25 IC9900 B14 DOUTUB11 IC9900 AB13 DQ10 IC9900 T3 AVDD25_1 IC9900 AB17 VSS IC9900 T20 DOUTDA04 IC9900 L3 ID1 IC9900 V12 VDD25 IC9900 AB3 NCK IC9900 F18 VSS IC9900 A9 FPDAT1 IC9900 E21 DOUTUA00 IC9900 C6 RI4 IC9900 C4 GI3 C9963 10V 10u C9925 0.1u 16V TP9216 R9348 EXB2HV220JV IC9900 D15 DOUTUB08 IC9900 R21 DOUTDA06 IC9900 Y1 DQ0 IC9900 P4 DQ18 C9908 0.1u 16V IC9900 AB4 BA0 IC9900 N22 DOUTDA09 R9918 0 TP9222 C9904 0.1u 16V L8R3.3V IC9900 AB11 DQ28 IC9900 Y12 AVSS_4 IC9900 M9 VSS TP9224 IC9900 V3 DQ4 R9919 1k IC9900 V6 AVSS_3 C9960 10V 10u R9383 1k C9919 0.1u 16V IC9900 Y3 VSS IC9900 G22 DRVCLKD0 IC9900 J2 MONOUT1 IC9900 F3 GI9 TP9231 IC9900 L18 VDD12 TP9232 IC9900 AB5 BA1 IC9900 P21 DOUTDC08 R9357 EXB2HV220JV IC9900 E10 VDD33 L8R1.2V IC9900 A15 DOUTUA10 IC9900 J9 VSS IC9900 P5 VDD33 TP9223 IC9900 AB6 A4 IC9900 D7 RI3 TP9213 IC9900 Y16 SDSEL IC9900 K2 VDI L8R3.3V L8R3.3V IC9900 E9 VDD33 IC9900 AB20 DOUTDB01 IC9900 W15 TCPOUT IC9900 M14 VSS IC9900 D1 GI6 IC9900 Y2 VDD25 IC9900 M18 VDD12 IC9900 AA7 A9 IC9900 A4 RI6 IC9900 W16 SDIV1 IC9900 N4 TMS IC9900 N12 VSS IC9900 F5 VDD12 IC9900 D10 FPDAT0 IC9900 G21 DRVCLKD2 IC9900 AB21 VSS IC9900 B6 RI1 IC9900 A16 DOUTUA09 IC9900 Y6 NRAS IC9900 AA4 VREF IC9900 R5 VDD25 IC9900 D16 DOUTUC07 IC9900 N18 VDD12 IC9900 D8 OCK FL9900 F1J1E104A148 1 2 3 TP9205 IC9900 AA22 VSS IC9900 AA17 SDIV0 IC9900 C18 DOUTUB05 IC9900 D4 VSS P2.5V IC9900 W4 VSS IC9900 D22 DOUTUC01 IC9900 R19 DOUTDA05 IC9900 D2 GI4 L8R2.5V C9468 25V 0.01u TP9221 IC9900 Y22 VDD33 IC9900 W17 VSS IC9900 V9 VSS C9924 0.1u 16V IC9900 L10 VSS R9350 22 IC9900 E6 VSS IC9900 P3 DQ19 R9370 10k IC9900 C11 DOUTUB15 R9936 1k IC9900 V21 DOUTDC03 IC9900 W6 NWE IC9900 E11 VDD33 TP9208 IC9900 J14 VSS IC9900 T1 DQ21 IC9900 K19 DOUTDC14 R9355 EXB2HV220JV IC9900 U21 DOUTDB04 IC9900 W7 NCS R9353 EXB2HV220JV IC9900 K21 DOUTDC13 IC9900 Y7 A0 IC9900 R22 DOUTDC07 IC9900 N14 VSS IC9900 B2 VSS IC9900 K3 SDA IC9900 W18 VSS IC9900 V2 DQ3 TP9225 C9903 0.1u 16V IC9900 A11 DOUTUA14 IC9900 V8 VDD25 IC9900 J20 DOUTDC15 IC9900 P20 DOUTDA07 IC9900 J12 VSS TP9244 HIN IC9900 E17 VSS R9351 22 IC9900 L14 VSS IC9900 G3 BI4 IC9900 K18 VDD33 R9356 EXB2HV220JV IC9900 E13 VDD33 R9399 22 TP9214 TP9212 IC9900 C1 VDD12 IC9900 U1 DQS2 R9917 0 IC9900 V22 DOUTDA03 Q9301 B1ABCF000138 IC9900 J1 MONOUT2 IC9900 N20 DOUTDC09 IC9900 A13 DOUTUC13 IC9900 D13 DOUTUC12 IC9900 V16 VDD33 TP9204 IC9900 Y10 DQ26 IC9900 W12 AVDD25_4 IC9900 D11 DOUTUA15 IC9900 G4 BI2 R9916 0 FL9300 F1J1E104A148 1 2 3 IC9900 W11 DQ25 IC9900 F19 DOUTUA01 IC9900 V10 VDD25 IC9900 B3 GI1 IC9900 AA9 A8 IC9900 N10 VSS IC9900 Y11 DQ24 IC9900 E7 VDD12 IC9900 AB9 VDD25 IC9900 P13 VSS C9913 0.1u 16V IC9900 V20 DOUTDB02 IC9900 E1 BI0 IC9900 B19 DOUTUA04 IC9900 A17 DOUTUA08 IC9900 B13 DOUTUA12 R9901 0 IC9900 A2 VSS IC9900 L1 SCL IC9900 R18 VDD33 IC9900 J22 DOUTDA13 IC9900 AB10 DQ29 IC9900 K1 DCK R9393 0 IC9900 A1 VSS IC9900 L9 VSS TP9226 IC9900 W20 VDD33 IC9900 E22 DRVCLKU3 IC9900 W8 A2 R9352 EXB2HV220JV TP9206 IC9900 E18 VSS IC9900 P1 TDO IC9900 A18 DOUTUB07 IC9900 C12 DOUTUB13 IC9900 E19 DOUTUC03 IC9900 V1 DQS0 IC9900 T19 DOUTDC04 IC9900 AB8 A7 IC9900 V17 VDD33 IC9900 AB14 DQ8 IC9900 G1 BI6 IC9900 C3 VSS IC9900 AA13 DQ11 IC9900 P19 DOUTDB07 IC9900 N1 TRST IC9900 Y4 AVDD25_2 C9964 10V 10u IC9900 D3 VDD12 IC9900 G18 VSS IC9900 A10 SFLATCH R9317 390 TP9207 IC9900 H3 BI8 IC9900 B17 DOUTUA07 IC9900 M20 DOUTDA10 IC9900 U2 AVSS_1 IC9900 W13 DQ15 IC9900 B11 DOUTUC15 IC9900 C16 DOUTUC08 IC9900 K11 VSS IC9900 C19 DOUTUB04 IC9900 C8 TEST0 IC9900 J4 ENHMASK C9950 16V 0.1u IC9900 G2 BI5 IC9900 U22 DOUTDC05 IC9900 L2 ID0 C9959 0.1u 16V IC9900 AB19 DOUTDA00 IC9900 H19 DRVCLKU0 C9911 0.1u 16V IC9900 M10 VSS TP9230 R9347 EXB2HV220JV IC9900 P2 XRST IC9900 E12 VDD33 IC9900 Y8 A1 R9397 22 TP9229 TP9240 IC9900 J11 VSS C9955 0.1u 16V TP9202 C9900 0.1u 16V IC9900 M1 TILD C9966 16V 0.1u R9937 1k IC9900 U18 VDD33 IC9900 AA10 DQ31 IC9900 R2 DQ23 IC9900 L20 DOUTDC12 FL9901 F1J1E104A148 1 2 3 IC9900 K13 VSS IC9900 P18 VDD33 IC9900 R1 DQ22 IC9900 M22 DOUTDC10 C9916 0.1u 16V C9905 0.1u 16V IC9900 T2 DQ20 F1J1E104A148 FL9903 IC9900 Y14 DQ12 IC9900 Y19 VSS IC9900 P10 VSS IC9900 H5 VDD12 IC9900 T5 AVSS_2 IC9900 AA6 A11 TP9233 IC9900 F1 BI3 IC9900 E2 GI8 IC9900 B7 TEST1 IC9900 G5 VDD12 IC9900 L4 TIIC IC9900 J5 VDD12 C9961 10V 10u IC9900 F22 DRVCLKD3 IC9900 AB18 DOUTDC00 IC9900 AA11 DQ30 TP9217 IC9900 B22 VSS IC9900 AB2 VSS IC9900 G20 DRVCLKU1 IC9900 W14 DQ13 TP9100 IC9900 N3 TDI R9391 100k IC9900 V18 VSS R9354 EXB2HV220JV R9380 56 IC9900 W10 DQ27 IC9900 U19 DOUTDA02 C9918 0.1u 16V IC9900 J3 MONOUT0 IC9900 H1 MUTE IC9900 N21 DOUTDA08 C9912 0.1u 16V C9909 0.1u 16V IC9900 AA16 AVSS2 IC9900 A3 GI0 IC9900 B12 DOUTUC14 IC9900 K9 VSS IC9900 N13 VSS R9555 0 TP9241 TP9210 VIN IC9900 D9 TCKSEL1 C9901 0.1u 16V L8R2.5V IC9900 Y9 A3 IC9900 V14 VDD12 R9359 EXB2HV220JV C9957 0.1u 16V IC9900 Y17 VSS TP9201 R9960 0 C9915 0.1u 16V IC9900 M11 VSS IC9900 U20 DOUTDB03 IC9900 AA2 VSS IC9900 R3 DQ17 IC9900 V19 VDD33 IC9900 E15 VDD12 R9928 0 C9956 0.1u 16V IC9900 K20 DOUTDB13 IC9900 Y18 VSS IC9900 F2 BI1 R9371 100k IC9900 D19 VSS IC9900 P9 VSS R9396 22 IC9900 N2 TCK IC9900 B8 TCKSEL2 IC9900 AB12 DQS1 IC9900 AA8 A5 IC9900 D12 DOUTUA13 IC9900 AA21 VSS C9917 0.1u 16V IC9900 C5 RI9 P3.3V L8R1.2V IC9900 E14 VDD33 FL9902 F1J1E104A148 1 2 3 IC9900 F6 VSS IC9900 B20 DOUTUA03 IC9900 W3 VDD25 L8R3.3V IC9900 A20 DOUTUC04 IC9900 AB15 AVDD33_1 IC9900 A21 VSS IC9900 K4 HDI IC9900 J19 DOUTDA15 IC9900 P11 VSS IC9900 P22 DOUTDB08 IC9900 M3 FULL1 IC9900 Y15 VSS C9962 10V 10u R9392 0 IC9900 W1 DQ2 TP9218 IC9900 N9 VSS TP9234 IC9900 V15 VDD12 IC9900 T21 DOUTDB05 IC9900 AB16 AVDD33_2 TP9203 IC9900 H2 BI9 IC9900 A14 DOUTUA11 IC9900 E5 VSS L8R2.5V IC9900 AA18 DOUTDB00 R9369 4.7k C9967 0.1u 16V TP9271 TP9301 TP9270 TP9284 TP9287 TP9282 TP9304 TP9260 TP9255 TP9267 TP9280 FL9301 F1J1E104A148 1 2 3 TP9276 TP9272 TP9283 TP9274 TP9277 TP9303 TP9101 TP9268 TP9235 TP9310 TP9289 TP9286 TP9269 TP9285 TP9281 TP9249 TP9258 TP9273 TP9288 TP9259 TP9305 TP9262 TP9278 TP9246 TP9248 TP9265 TP9251 TP9254 TP9302 TP9253 TP9266 TP9245 TP9264 TP9275 P5V TP9257 TP9306 TP9252 TP9279 TP9300 TP9250 TP9261 TP9256 D32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 TP9263 from FPGA1 IIC P5V DOUTDA[20] P5V P5V DOUTDB[20] PC1_C1 DOWN_LEFT GND ODE_C1 CLR_C1 DOUTDC[12] DOUTDC[20] DOUTDC[13] DOUTDA[12] DOUTDA[13] DOUTDB[12] DOUTDB[13] CLK1N_C1 CLK0P_C1 LE_C1 rromdata[14] rromadrs[00] rromdata[06] rromdata[09] rromdata[12] rromadrs[11] rromadrs[14] rromdata[15] rromadrs[01] rromadrs[04] rromadrs[17] rromadrs[20] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[16] rromdata[00] rromdata[01] rromdata[02] rromadrs[19] rromadrs[03] rromdata[03] rromdata[04] rromdata[07] rromdata[10] to DDR rromadrs[06] rromadrs[09] rromdata[13] rromadrs[12] rromdata[05] rromadrs[15] rromadrs[18] rromadrs[02] rromadrs[05] rromadrs[08] rromdata[08] rromdata[11] DOUTDC[21] DOUTDB[21] DOUTDA[21] DOUTDC[19] DOUTDA[19] DOUTDC[18] DOUTDB[19] DOUTDB[18] DOUTDA[18] DOUTDB[17] DOUTDC[16] DOUTDB[16] DOUTDA[17] DOUTDA[16] DOUTDC[17] DOUTDB[15] DOUTDC[14] DOUTDB[14] DOUTDA[15] DOUTDC[15] DOUTDA[14] GND GND GND GND GND GND GND GND NC CLK2P_C1 CLK3N_C1 SDIV1 SDIV0 x08 L L x09 L H x10 H L x11 H H GND GND C_5V_DET PC2_C1 42 45 37 41 39 40 44 38 43 DOUTDA[5] DOUTDB[3] DOUTDC[2] DOUTDC[9] UMH DOUTDB[4] DOUTDA[4] DOUTDB[1] UML DOUTDA[9] DOUTDC[1] DOUTDB[9] DOUTDC[8] DOUTDA[2] DOUTDC[5] DOUTDA[0] DOUTDA[8] DOUTDB[8] DOUTDC[11] DOUTDB[2] DOUTDA[11] DOUTDB[11] DOUTDC[10] DOUTDA[3] USH SOS8_SS DOUTDA[10] DOUTDB[10] DOUTDA[1] DOUTDC[0] USL UEH DOUTDC[3] DOUTDC[4] DOUTDB[0] DOUTDB[5] DOWN_RIGHT DOUTDB[6] DOUTDA[6] DOUTDC[6] DOUTDC[7] DOUTDB[7] DOUTDA[7] P5V P5V P5V UEL NC LE_C2 ODE_C2 PC3_C2 CLR_C2 CLK0P_C2 CLK1N_C2 GND GND GND CLK2P_C2 CLK3N_C2 GND GND GND GND GND GND GND URH GND PC4_C2 MN84524 PD1-Mplus IC9900 36 35 31 33 32 34 41 TO C1-BOARD (C11) TO C2-BOARD (C21) TH-42PV70C D-Board (5 of 6) Schematic Diagram TH-42PV70C D-Board (5 of 6) Schematic Diagram ! D-BOARD TNPA4134AQ/TNPA4134BQ (5/6) 89 15.35.D 电路板 (6/6) 线路图 L8DR_DQ28 L8R_A0 L8DR_DQS0 L8DR_DQ31 L8DR_NCS L8R_DQ15 L8DR_A5 L8DR_A1 L8DR_NCAS L8R_A3 L8DR_A11 L8R_DQ17 L8DR_DQ21 L8DR_DQ23 L8DR_DQ22 L8DR_DQ25 L8R_DQ16 L8DR_BA1 L8DR_A11 L8DR_DQ10 L8DR_DQ3 L8R_DQ14 L8R_DQ24 L8DR_BA0 L8DR_DQ1 L8DR_DQ9 L8R_DQ10 L8DR_A7 L8DR_DQ4 L8R_SDCLKO L8DR_DQ31 L8DR_A2 L8R_BA0 L8DR_NRAS L8DR_DQ11 L8R_DQ31 L8DR_DQ2 L8DR_DQ26 L8DR_DQ0 L8DR_BA1 L8DR_DQ5 L8DR_DQ11 L8R_DQ0 L8R_DQ26 L8R_A4 L8R_BA1 L8R_DQ19 L8R_DQ13 L8DR_A6 L8DR_DQS3 L8R_DQ9 L8DR_NCLK L8DR_DQ20 L8R_A2 L8DR_DQ18 L8DR_A2 L8DR_A3 L8DR_A9 L8R_DQ22 L8DR_NRAS L8R_A8 L8R_A10 L8R_A1 L8DR_A3 L8R_WE L8R_DQS2 L8DR_DQ7 L8DR_DQ24 L8R_SDCKE L8DR_DQ8 L8DR_DQ16 L8R_DQ3 L8R_DQ4 L8R_RAS L8DR_DQ20 L8DR_DQ6 L8R_DQ11 L8DR_DQ19 L8DR_DQ24 L8DR_A4 L8DR_A0 L8R_DQ1 L8DR_DQ25 L8DR_DQ12 L8R_A6 L8DR_A6 L8DR_DQ8 L8R_DQ23 L8DR_DQ12 L8DR_DQ2 L8R_DQ8 L8DR_DQ18 L8DR_DQ4 L8DR_DQ0 L8R_DQ21 L8DR_DQS2 L8DR_A1 L8DR_A0 L8DR_DQ22 L8R_A9 L8DR_DQ6 L8DR_DQ29 L8DR_DQS0 L8DR_DQS2 L8DR_DQ7 L8DR_DQ19 L8DR_DQ14 L8DR_DQ5 L8DR_DQ23 L8DR_DQ14 L8DR_CKE L8DR_DQ13 L8DR_DQS1 L8DR_DQ30 L8DR_A8 L8DR_NCS L8DR_DQ16 L8DR_DQ17 L8R_DQ7 L8DR_DQ28 L8DR_DQ17 L8DR_DQ15 L8DR_DQ15 0V L8R_DQ30 L8R_DQ27 L8DR_A5 L8DR_DQS1 L8R_DQS0 L8R_DQ6 L8DR_NCAS L8DR_DQ9 L8DR_DQS3 L8DR_NWE L8R_CS L8R_NSDCLKO L8R_A7 L8DR_DQ26 L8R_DQ29 L8DR_A9 L8DR_A8 L8DR_DQ21 L8R_DQ12 L8DR_BA0 L8R_DQ20 L8DR_DQ27 L8DR_A10 L8DR_A4 L8R_DQS1 L8R_CAS L8DR_NWE L8DR_DQ13 L8DR_CLK L8R_A5 L8R_DQ2 L8DR_DQ10 L8R_DQ28 L8DR_A7 L8DR_DQ30 L8R_DQ18 L8R_A11 L8DR_DQ1 L8DR_DQ29 L8DR_DQ27 L8DR_CKE L8DR_DQ3 L8R_DQ25 L8R_DQ5 L8DR_A10 L8DR_CLK L8DR_NCLK L8R_DQS3 IC9901 B10 DQ28 IC9901 M3 NC IC9901 G13 DQ12 IC9901 G8 VSS_Thermal IC9901 C12 VDDQ C9943 16V 0.1u L8R2.5V IC9901 K12 DQ9 IC9901 F2 DQ17 R9945 EXB38V470JV IC9901 L3 WE IC9901 B2 DQS0 R9944 EXB38V470JV IC9901 G11 VDDQ IC9901 N6 A1 IC9901 M12 CK C9934 16V 0.1u IC9901 C13 DQ27 IC9901 H8 VSS_Thermal IC9901 L4 VDD IC9901 N5 A0 IC9901 C3 VDDQ L8R2.5V IC9901 G6 VSS_Thermal IC9901 E10 VSS IC9901 D4 VSSQ IC9901 J8 VSS_Thermal R9941 47 C9932 16V 0.1u C9936 16V 0.1u R9955 47 IC9901 N8 A4 IC9901 E5 VSS IC9901 N9 A6 IC9901 J3 DQ20 IC9901 L7 VDD IC9901 J5 VSSQ IC9901 E4 VDD IC9901 J12 DQ11 IC9901 D2 DQ6 IC9901 N7 A3 IC9901 K4 VDDQ IC9901 H12 DM1 C9941 16V 0.1u IC9901 H5 VSSQ IC9901 D6 VSSQ IC9901 K10 VSSQ IC9901 K13 DQ8 C9928 16V 0.1u IC9901 G12 DQ13 IC9901 L11 VDD IC9901 D12 DQ26 IC9901 H3 DM2 IC9901 N13 VREF IC9901 B4 VSSQ IC9901 G4 VDDQ R9949 EXB38V470JV IC9901 K3 DQ23 IC9901 F6 VSS_Thermal IC9901 M10 RFU R9939 1k IC9901 N10 A7 IC9901 E7 VSS C9939 16V 0.1u IC9901 K5 VSSQ IC9901 M9 A5 IC9901 F11 VDDQ IC9901 G3 DQ18 IC9901 B9 DQ29 IC9901 B3 DM0 C9947 16V 0.1u C9951 16V 0.1u IC9901 L10 VSS IC9901 L6 A10 C9945 16V 0.1u R9950 EXB38V470JV IC9901 J11 VDDQ IC9901 M6 A2 IC9901 C7 VDDQ IC9901 M8 A9 IC9901 L9 RFU IC9901 C8 VDDQ R9906 EXB38V470JV C9942 16V 0.1u C9929 16V 0.1u IC9901 B12 DM3 IC9901 E6 VSSQ IC9901 E8 VSS C9938 16V 0.1u IC9901 J6 VSS_Thermal IC9901 C4 NC C9935 16V 0.1u IC9901 C11 NC IC9901 N4 BA0 IC9901 M13 NC IC9901 D10 VSSQ C9927 16V 0.1u IC9901 F5 VSSQ IC9901 H6 VSS_Thermal IC9901 H9 VSS_Thermal IC9901 J13 DQ10 IC9901 G5 VSSQ R9953 47 R9908 0 IC9901 B8 DQ31 IC9901 E13 DQ24 IC9901 K7 VSS IC9901 J7 VSS_Thermal IC9901 B5 DQ3 IC9901 G2 DQ19 C9930 16V 0.1u IC9901 L8 VDD R9954 47 IC9901 H7 VSS_Thermal R9948 EXB38V470JV IC9901 E9 VSSQ IC9901 M5 BA1 IC9901 C6 DQ1 IC9901 D13 DQ25 IC9901 F4 VDDQ IC9901 F12 DQ15 C9931 16V 0.1u IC9901 F8 VSS_Thermal IC9901 B13 DQS3 IC9901 D5 VSSQ R9943 EXB38V470JV L8R2.5V R9946 EXB38V470JV IC9901 M2 RAS IC9901 F7 VSS_Thermal IC9901 H4 NC IC9901 N12 CKE IC9901 H2 DQS2 IC9901 D3 DQ5 IC9901 B11 VSSQ IC9901 L12 NC IC9901 E3 VDDQ IC9901 D11 VSSQ IC9901 E12 VDDQ IC9901 J9 VSS_Thermal IC9901 L2 CAS R9911 0 IC9901 K6 VSS IC9901 H10 VSSQ R9938 1k ZA9001 K4CD01000011 IC9901 M11 CK IC9901 M7 A11 IC9901 G7 VSS_Thermal R9909 0 C9933 16V 0.1u IC9901 E11 VDD C9948 16V 0.1u R9942 47 R9951 EXB38V470JV IC9901 L5 VSS IC9901 B6 DQ2 IC9901 N11 A8/AP IC9901 K11 VDDQ IC9901 G10 VSSQ IC9901 D9 VSSQ IC9901 C5 VDDQ IC9901 K8 VSS R9910 0 R9905 33 IC9901 F10 VSSQ R9952 47 R9907 150 R9903 EXB2HV470JV R9940 33 C9946 16V 0.1u IC9901 C2 DQ4 IC9901 L13 NC C9937 16V 0.1u IC9901 N2 CS C9940 16V 0.1u R9904 47 IC9901 K2 DQ22 IC9901 E2 DQ7 IC9901 H11 NC IC9901 B7 DQ0 IC9901 J10 VSSQ IC9901 C10 VDDQ R9947 EXB38V470JV IC9901 G9 VSS_Thermal IC9901 D7 VDD C9944 16V 0.1u IC9901 H13 DQS1 IC9901 D8 VDD IC9901 J4 VDDQ IC9901 N3 NC IC9901 F13 DQ14 IC9901 F3 DQ16 IC9901 C9 DQ30 IC9901 M4 NC IC9901 K9 VSS IC9901 J2 DQ21 IC9901 F9 VSS_Thermal DDR-Terminate DDR-SDRAM 47 50 53 51 54 48 46 49 52 IC9901 C3ABQJ000055 DDR_SDRAM 41 TH-42PV70C D-Board (6 of 6) Schematic Diagram TH-42PV70C D-Board (6 of 6) Schematic Diagram ! D-BOARD TNPA4134AQ/TNPA4134BQ (6/6) 90 15.36.C1 和 C2 电路板方框图 USL UEH UMH UML USH NUEL CLKU_0P CLKU_1N SS_SOS8 CLKU_2P CLRD ODED1 PC2 PC1 LED CLKD_0P CLKD_1N R7281 +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V 5 5 A8-C9 8 7 1 6 8 2 4 6 7 C23 1 11 3 CB11 C21 A4-C5 A0-C1 CB7 4 Vda75V Vda75V CB6 DATA 36bit DA0-DC11 9 CB9 C20 20 14 IC7206 VCC BUFFER UML UEL USH USL SS_SOS8 UMH 12 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit NUEL USH USL UML UMH UEH SS_SOS8 5V Vda Vda C2 DATA DRIVE LOWER LEFT (FRONT VIEW) PANEL DATA DRIVER TO D32 TO SS23 1 5V DET Vda75V Vda75V 5V DET 6bit A10-C11 6bit 6bit 6bit P5V P5V 66 68 DOUTDC11 DOUTDA0 55 - 15 CLK(0)(+) CLK(1)(-) VCC LED PC3 PC4 ODED2 CLRD 58 57 IC7201 BUFFER UEH NUEL USH USL UMH UML UEH 13 IC7202 VCC BUFFER CLK(2)(+) CLK(3)(-) 06P,16N 07P,17N 29P,39N 2BP,3BN PC4 PC4 PC3 PC3 LED 55 9 PC1 IC7101 VCC BUFFER 25P,35N CB1 24P,34N CB3 23P,33N CLK(0)(+) P5V CLK(1)(-) P5V 01P,11N 5VDET IC7102 BUFFER A14-C15 PC1,PC2 6bit 6bit 6bit 6bit 6bit PANEL DATA DRIVER 6bit C11 6bit 6bit 6bit 6bit 30bit DA12-DC21 DATA TO D31 VCC 6bit 6 CLR_C1 6bit 53 51 CB4 A12-C13 A16-C17 C10 TO C20 TO C10 8 10 49 - 16 DOUTDC21 DOUTDA12 PC2 CB5 PC1 ODE_C1 20 PC2 7 PC2 1 DATA DRIVE PC2 A20-C21 LOWER RIGHT(FRONT VIEW) C1 7 3 1 CLKU_3N 11 CLKD_3N CLKD_2P 14 12 CLK(2)(+) CLK(3)(-) +5V A2-C3 CB10 6bit 6bit 6bit 2AP,3AN PC4 PC3 CLRD ODED2 PC4 +5V +5V A6-C7 CB8 6bit 6bit 6bit 61 60 IC7205 VCC 62 BUFFER 63 08P,18N PC3 +5V CB2 02P,12N 6bit 6bit 6bit A18-C19 PC1 TH-42PV70C C1 and C2-Board Block Diagram TH-42PV70C C1 and C2-Board Block Diagram LED 64 91 15.37.C1 电路板 (1/3) 线路图 C B A E 5 6 7 D 1 2 3 4 F 8 9 TH-42PV70C C1-Board (1 of 3) Schematic Diagram TH-42PV70C C1-Board (1 of 3) Schematic Diagram 1 2 3 4 ! C1-BOARD TNPA4299 (1/3) 92 15.38.C1 电路板 (2/3) 线路图 15 16 17 10 9 11 13 14 12 TH-42PV70C C1-Board (2 of 3) Schematic Diagram TH-42PV70C C1-Board (2 of 3) Schematic Diagram 1 2 3 4 11 12 13 14 ! C1-BOARD TNPA4299 (2/3) 93 15.39.C1 电路板 (3/3) 线路图 23 24 25 18 17 19 21 22 20 TH-42PV70C C1-Board (3 of 3) Schematic Diagram TH-42PV70C C1-Board (3 of 3) Schematic Diagram 11 12 13 14 TO C2-BOARD (C20) TO D-BOARD (D31) ! C1-BOARD TNPA4299 (3/3) 94 15.40.C2 电路板 (1/5) 线路图 C B A E 5 6 7 D 1 2 3 4 F 8 9 TH-42PV70C C2-Board (1 of 5) Schematic Diagram TH-42PV70C C2-Board (1 of 5) Schematic Diagram 2 1 3 4 A B 5 6 TO D-BOARD (D32) TO C1-BOARD (C10) TO C2-BOARD (4/5) ! C2-BOARD TNPA4300 (1/5) 95 15.41.C2 电路板 (2/5) 线路图 15 16 17 10 9 11 13 14 12 TH-42PV70C C2-Board (2 of 5) Schematic Diagram TH-42PV70C C2-Board (2 of 5) Schematic Diagram 2 1 3 4 5 6 TO SS-BOARD (SS23) 12 11 13 14 ! C2-BOARD TNPA4300 (2/5) 96 15.42.C2 电路板 (3/5) 线路图 23 24 25 18 17 19 21 22 20 TH-42PV70C C2-Board (3 of 5) Schematic Diagram TH-42PV70C C2-Board (3 of 5) Schematic Diagram 12 11 13 14 ! C2-BOARD TNPA4300 (3/5) 97 15.43.C2 电路板 (4/5) 线路图 C B A E 5 6 7 D 1 2 3 4 F 8 9 TH-42PV70C C2-Board (4 of 5) Schematic Diagram TH-42PV70C C2-Board (4 of 5) Schematic Diagram A B 21 22 23 TO C2-BOARD (1/5) ! C2-BOARD TNPA4300 (4/5) 98 15.44.C2 电路板 (5/5) 线路图 TH-42PV70C C2-Board (5 of 5) Schematic Diagram TH-42PV70C C2-Board (5 of 5) Schematic Diagram 21 22 23 15 16 17 10 9 11 13 14 12 ! C2-BOARD TNPA4300 (5/5) 99 15.45.SC 电路板方框图 + + REF K A REF K A REF K A REF K A CLK FSIU SCSU OC2 FCLD OC2 CEL CLK CEL FSID CPH1 SCSU SID PROD OC1 PROU SIU OC1 SIU FCLKD FCLU SID CPH2 FCLKU CPH2 CPH1 D6806 D6804 D6583 T6602 VSET +16V_F VSUS D6862 VSET D6860 15V_F VSUS D6872 VSUS D6585 D6825 D6859 D6721 +5V G D S G D S G D S G D S +5V +15V +5V D6480 +15V +5V +5V_F 15V +16V_F D6841 D6466 D2826 IC6802 R6815 +15V CPH1 IC6801 VR6600 1 2 3 D6703 D6478 D6619 G D S G D S D6805 D6861 +15V D6690 D6871 VAD D6791 +16V_F D6839 15V_F VAD CPH1 +5V_F VR6602 1 2 3 G D S B36 13 CML Q6401-Q6403 2 BUFFER A1 VCC A11 Q6531,Q6532 BUFFER VCC HO CLK LO Vf Q6646-Q6648 IC6521 PROU ENERGY RECOVERY AVR VCC BUFFER VSUS AVR A33 HIN +5V 3 GND GND Vsus LO FET +5V TO P2 A7 (+330V) OC1 2 Vad( 105V) A32 PROD FCLD 8 B33 CMH IC6725 8 PC6702 Vfo COUPLER SID 26 VSETSOS DET PHOTO 16 GND CSL 19 45 B5 FCLKD 2 VSCN Gen. TPSC1 SIGNAL WAVE Q6551,Q6552 B1 HIN IC6841 Vf IC6561,6562 Q6842 SC2 A30 Vf Vfo B34 GND (Vad 105V) B1 B30 PC6861 Vscn GND SC A40 SC41 B8 7 PC6480 DRIVER 20 COUPLER PC6704 PHOTO Vscn CMH Vf (+145V) IC6752 IC6821 CML VSET SEPARATE CSH Q6521,Q6522 L6401 CLK CPH1 25 Vsus CSL Q6642-Q6644 23 Vf+5V L6403 Vf+5V IN A6 Vf A8 L6413 A34 SC SCAN DRIVE R6833 B40 L6411 VCC R6834 1 FCLU A36 Vfo A35 Vf+5V R6835 FSID Vf+5V Q6671,Q6672 B11 IC6724 R6836 IC6501 15 COMPARATOR 3 B9 VSET COM IC6871 TPVSCN IC6671 IC6721 DRIVER PROU 9 TPVAD 5 SIU 29 1 VCC 7 VSET 8 5 B6 Vscn 3 Q6421-Q6423 B32 Vscn +5V OC1 IC6581 Vf CSH A8 VAD CONST Q6501,Q6502 B40 PROD LED(G) A1 TPVSET VSET Gen. Vf A5 FSIU SOS7_SC2 CEL SID DRIVER SIU FET 46 VCC2 +5V A33 VCC FCLKD PHOTO BUFFER VSET2 VAD COUPLER FCLD B8 Vsus Gen. B31 Vscn(VAD+140V) A40 PC6801 Q6581 30 SC IC6771 IC6861 DRIVER SC 1 COMPA- FET Vfo LO 2 B35 FET Q6451 IC6722 +5V Vf FCLKU 1 9 20 IC6773 1 HIN FSID COUPLER IC6774 LIN PC6701 3 PHOTO Vad 105V Q6441,Q6442 COUPLER +5V HO RATOR VSCN PHOTO PC6871 RATOR FSIU COUPLER 3 Vf+5V COMPA- SC42 OC2 B33 B7 16V_F VCC 28 PC6705 6 PHOTO LIN 9 B10 A31 FCLU +5V_F PHOTO LO COUPLER A9 COUPLER VCC SOS6_SC1 BUFFER PHOTO AVR A10 OC2 1 Vf+5V TO D20 VCC FCLKU TPSOS6 TPSOS7 VCC FET HO GND VAD SEPARATE IN DRIVER IC6772 LO IC6471 RATOR COMPA- SCSU 22 CPH2 5 FET OUTPUT FET OUTPUT FET OUTPUT FET OUTPUT 2 +15V 1 +15V +15V 3 1 5 IC6471 AND GATE VCC IN_B 2 4 OUT_Y IN_A 2G LIN DC/DC CONV. COM VIN VOUT IC6791 GND R6466 R6467 R6468 R6465 TPVSUS +5V_F DET Q6824 SC30 FOR 10 USE 7 8 6 3 4 1 Vscn DET OPERATES AT 160V OR MORE AND 125V OR LESS. VCC2 OUTPUT FET D S G S G OUTPUT FET D Q6602 Q6762 HO Q6601 Q6621 VAD GENE IN_A IN_B OUT_Y IN_A IN_B OUT_Y AND AND Q6742,Q6743 VSET2 GENE 6 3 5 1 SC31 FOR FACTORY USE Q6781,Q6782 FET OUTPUT FET OUTPUT 4 1 7 9 VCC Z/C VIN D 2 F/B 3 5 GND S IC6803 POWER OSC R6861 R6863 R6862 VDA DET OPERATES AT 91VOR MORE AND 120V OR LESS Q6690 R6696 R6697 TPSC1 Q6841 Q6791 Q6805,Q6806 OFF SET D6836-D6838 Vf+5V Vf+5V TPVSET2 (+14V) Vscn VAD SOS7_SC +15V 189V+7V,-6V 11 SS_DRV_RST COM SS_DRV_RST TP15V Vf+5V Vf Vfo Vscn Q6679,Q6680 Q6821 Q6822 VAD SLOPE Q6661 FET OUTPUT Q6662 Q6665 FLOATING GND COLD ENERGY RECOVERY SOS DET LED BLINKING : 6 TIMES SC FLOATING PART SOS DET LED BLINKING : 7 TIMES FLOATING GND COLD TH-42PV70C SC-Board Block Diagram TH-42PV70C SC-Board Block Diagram 100 15.46.SC 电路板 (1/2) 线路图 + + + + + + + + TOP + AA_CSH AA_CSL AA_CML AA_CMH AB_FSIU AB_FCLKD AB_FCLKU AA_SIU AB_PROD AB_FCLU AB_PROU AB_FCLD AA_SID AB_FSID AA_OC2 AA_DRV_RST AA_CPH2 AA_CEL AA_SCSU AA_OC1 AA_CLK CPH2 AA_CLK OC2 CMH DRV_RST CML CEL CSH AA_CSL AA_CML AA_OC2 AA_CPH2 AA_CMH AA_SCSU AA_CPH1 AA_CSH CSL AA_CEL CPH1 AA_SIU AA_SID AA_OC1 AA_DRV_RST AA_CPH1 Q6532 B1ADRD000001 R6501 100 C6431 250V 4u D6703 MA2J11100L R6711 2.2k R6714 2.2k R6533 47k R6580 2.2k C6480 50V 0.1u C6772 25V 4.7u C6532 250V 4u TP4 PC6705 B3PBA0000397 1 2 3 4 5 6 7 8 *L6463 C6581 25V 1u R6466 56k C6413 220V 200u R6465 27k C6525 25V 4.7u D6441 B0ECHP000003 R6742 10k 75 R6504 R6503 10 R6713 2.2k R6721 EXB38V220JV D6503 B0ECHP000003 C6703 50V 0.1u R6705 100 R6512 47k C6702 50V 0.1u C6776 50V 0.1u C6561 10V 100u MAIN_STOP *L6468 5V *C6401 630V 3300p R6509 1 C6722 50V 100p R6402 7.5 R6521 100 IC6725 C0CBADC00072 VIN 3 2 COM VOUT 1 R6552 47k PC6480 B3PBA0000223 1 2 3 4 D6732 MAZ80560HL *L6467 *Q6441 B1JADN000002 SC2 1 3 Q6552 B1ADRD000001 16V_F D6478 B0HCKS000002 TP2 D6730 MAZ80560HL D6522 B0ECHP000003 *L6412 1.8u *L6482 G0ZZ00002183 R6477 100 R6422 5.6 5V C0ZBZ0001324 IC6521 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC *D6422 MA3DF40000LZ R6586 1.2k R6748 3.3k R6507 1 TP5 *PC6704 B3PBA0000456 1 2 3 4 5 VSUS 15V D6477 MA2J11100L *L6411 1.8u *D6481 MA3DF30000LZ R6584 8.2k IC6721 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC D6726 MAZ80560HL Q6522 B1ADNF000006 *L6402 1.8u D6480 MA2J11100L *L6462 R6718 2.2k C6721 50V 100u Q6743 2SD0601A0L 15V D6701 MAZ80560HL C6704 50V 0.1u R6423 5.6 C6727 16V 1u Q6531 B1ABRD000003 R6401 7.5 *L6401 1.8u C6582 16V 1u C6504 25V 4.7u D6702 MA2J11100L *L6403 1.8u C6771 16V 1u C6522 25V 4.7u IC6771 C0CBADC00072 VIN 3 2 COM VOUT 1 D6466 MA2J11100L R6707 470 R6712 2.2k *L6481 G0ZZ00002183 *L6486 G0ZZ00002183 Q6521 B1ABNF000006 D6451 B0ECHP000003 C6725 25V 4.7u D6733 MAZ80560HL Q6742 2SD0601A0L D6725 B0ECHP000003 R6700 470 D6727 MAZ80560HL R6722 EXB38V220JV R6506 10 IC6722 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC R6551 10 C6502 25V 4.7u *C6422 630V 2700p C0DBEKA00003 IC6471 1 NC 2 A 3 K 5 A 4 REF R6511 47k C6724 25V 4.7u *Q6401 B1JADN000001 G D S R6582 39k R6517 47k R6516 47k R6708 470 D6471 B0HBSN000008 C6726 16V 1u *Q6423 B1JADP000002 R6745 4.7k Q6581 2SD0601A0L D6728 MAZ80560HL *Q6422 B1JADP000002 IC6581 C0BBBA000022 1 2 3 4 5 6 7 8 C6527 25V 4.7u *PC6701 B3PBA0000457 1 2 3 4 5 6 7 8 *Q6442 B1JADN000002 5V 5V C0JBAA000377 IC6773 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y IC6724 C0CBADC00072 VIN 3 2 COM VOUT 1 R6476 4.7k C6524 25V 4.7u R6442 5.6 R6441 5.6 *C6402 2200p 630V 200u 220V C6415 *Q6451 B1JADP000002 C6414 220V 200u D6402 B0HBSN000008 75 R6523 *Q6402 B1JADN000001 R6468 82k R6588 10k R6508 1 C0JBAA000377 IC6774 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y R6587 2.2k D6521 B0ECHP000003 *L6413 1.8u Q6502 B1ADNF000006 R6531 10 C6777 50V 0.1u C0ZBZ0000895 IC6501 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC D6731 MAZ80560HL R6701 470 R6724 100 R6467 82k *L6465 G0ZZ00002183 R6723 1.8k R6704 470 D6584 MAZ80510LL R6451 5.6 *Q6403 B1JADN000001 *Q6421 B1JADP000002 *L6464 L6591 *D6421 MA3DF40000LZ 15V R6471 3.9k D6721 B0HCKS000002 D6401 B0HBSN000008 *D6461 MA3DF30000LZ R6747 10k TP1 5V_F D6491 MA3DF40000LZ R6702 470 R6706 100 15V VSUS D6583 LNJ301MPUJA R6583 39k R6776 100 *L6461 G0ZZ00002183 D6501 D1FL40-7063 Q6501 B1ABNF000006 D6472 D1FL40-7063 R6510 1 R6421 5.6 R6746 10k R6502 100 VF_GND C6531 250V 4u R6717 2.2k *C6411 220V 200u R6473 560 R6474 1k VSET2 VSUS R6403 7.5 *D6462 MA3DF30000LZ SOS7_SC2 *PC6702 B3PBA0000457 1 2 3 4 5 6 7 8 R6475 4.7k *C6421 630V 2700p R6585 1.8k D6585 MA2J11100L R6553 47k C6505 25V 4.7u VF_GND *L6485 G0ZZ00002183 D6523 B0ECHP000003 C0JBAA000377 IC6472 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y C6723 25V 4.7u C6705 50V 0.1u C6740 50V 100p C6708 50V 0.1u R6522 100 *L6466 Q6551 B1ABRD000003 15V_F C6706 50V 0.1u R6703 470 C6521 25V 1u R6532 47k C6412 220V 200u R6472 2.2k R6710 2.2k D6729 MAZ80560HL D6722 MA2J11100L TP52 C0JBAZ000005 IC6562 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC TP19 R6566 EXB38V472JV TP28 R6564 EXB38V470JV TP29 TP8 15V TP13 R6568 EXB38V472JV TP15 R6591 EXB38V472JV TP22 L6602 G0ZZ00002183 5V TP7 R6567 EXB38V472JV TP21 C6565 50V 0.01u TP27 TP25 R6592 4.7k TP26 TP23 R6590 220 R6562 EXB38V470JV MAIN_STOP TP33 TP20 C6564 16V 1u TP34 TP36 C6593 50V 1000p TP30 C6562 16V 1u TP70 TP11 C6566 50V 0.01u C6563 10V 100u SOS7_SC2 TP14 TP18 TP10 SC20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 TP35 TP24 R6565 EXB38V472JV TP32 TP9 TP17 L6601 G0ZZ00002183 TP37 C0JBAZ000005 IC6561 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R6563 EXB38V470JV TP12 TP39 TP38 TP16 L6592 G0ZZ00002183 C6592 25V 220u R6561 EXB38V470JV TP6 TP31 FLOATING GND COLD FLOATING GND COLD GND Vsus TPVSUS 189V+7V-8V + + - - SG73P2A 7 3 4 C D B 9 E A 1 2 5 6 8 F COMPARATOR SOS6_SC1 LAT CML CSH CSL SC_DRV_RST CBK CEL P5V TPSOS6 +15V +15V GND GND GND GND CPH1 OC2 SCSU OC1 TPSOS7 GND BUFFER GND BUFFER +15V CMH NC GND SID SIU CLK CPH2 TP15V SOS7_SC2 BUFFER BUFFER FET DRIVER ENERGY RECOVERY Vsus Gen. FET DRIVER +5V(SC1) +5V(SC2) TO P-BOARD (P2) TO D-BOARD (D20) ! SC-BOARD (1/2) TNPA4182AF AND 53V OR LESS OPERATES AT 98V OR MORE 1 2 3 4 5 6 7 8 9 10 (GREEN LED) L6463,L6464 L6461,L6462 L6467,L6468 L6465,L6466 TH-42PV70C SC-Board (1 of 2) Schematic Diagram TH-42PV70C SC-Board (1 of 2) Schematic Diagram 101 15.47.SC 电路板 (2/2) 线路图 + + + + + + REF K A + + + REF K A + + + REF K A REF K A AB_FSIU AB_FCLU AB_FCLKU AB_PROU AB_PROD AB_FCLKD AB_FCLD AB_FSID R6863 56k D6820 MA2J11100L R6610 100k C6832 50V 3900p TP59 5V_F R6680 10 D6764 B0HCKS000002 TP63 TP60 R6608 1k D6662 MAZ83300ML R6696 2.2 Q6680 B1ADNF000006 ZA6401 K4CD01000011 VSCN_F Q6646 2SK399500L R6648 33 R6662 3k R6857 120k D6670 B0JCME000037 Q6601 B1DFES000003 G D S D6827 MAZ83300ML D6872 MA2J11100L L6472 G0ZZ00002183 5V R6793 100 R6791 1k L6474 G0ZZ00002183 TP50 D6761 B0JCME000037 M1FS4-5063 C6796 25V 220u R6831 15k D6661 MA2J11100L R6807 1.5 Q6806 2SC1473AEA R6817 2.49k D6641 B0HCKS000002 D6841 B0HCKS000002 R6878 22k D6861 MAZ80510LL R6842 43k VR6600 1k 1 2 3 R6864 6.8k C6871 16V 1u R6612 47 TP41 R6782 47k R6840 1.5 R6822 100k C6801 250V 47u C6842 160V 100u R6844 100 R6875 3.3k R6830 100k C6815 50V 1000p ZA6402 K4CD01000011 R6647 33 C6775 25V 4.7u SC45 1 2 3 4 5 6 7 8 9 R6888 220k R6851 18k C6791 25V 220u R6761 10 D6632 MAZ82400ML D6667 MA2J11100L D6604 MA2J11100L D6690 MA2J11100L 16V_F R6869 4.7k ZA6403 K4CD01000011 R6879 4.7k D6665 MAZ80510LL C6671 25V 4.7u N0BF1FB00001 IC6791 1 GND 2 GND 3 N.C. 4 VIN 5 VIN 6 N.C. 9 COM 10 COM 11 VOUT 12 VOUT TP45 R6668 4.7k R6812 240k Q6642 2SK399500L R6607 6.81k D6837 MA2J11100L TP55 R6777 150 R6792 10k 5V R6853 100 R6665 47 T6602 ETS25AZ169AD 1 S5 2 S4 4 S2 5 S1 7 P1 10 V2 9 V1 3 S3 6 P2 VAD R6813 10k TP62 D6497 B0ECHP000003 R6848 10k C6606 630V 4700p D6825 MAZ83300ML R6809 27k C6845 50V 0.01u IC6861 C0BBBA000022 1 2 3 4 5 6 7 8 D6806 B0HCKS000002 R6827 200k R6867 3.9k IC6671 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB C6803 2kV 220p PC6801 B3PBA0000223 1 2 3 4 SOS7_SC2 D6822 MA2J11100L Q6648 2SK399500L R6639 1 D6663 MAZ83300ML R6672 47k R6843 62k R6850 68k R6658 100 R6828 4.7k R6622 220 R6872 39k R6671 47 D6773 B0HCKS000002 D1FK70-7063 C6822 400V 47u R6834 75k R6862 51k D6607 MA2J11100L R6605 1.8k SOS7_SC2 Q6781 B1ABNF000006 R6821 220 R6837 56k Q6822 2SD1263AP0LB *SC41 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 TP46 Q6671 B1DFDR000001 G D S R6839 4.7k Q6672 B1DFDR000001 RJK6026DPE-00-J3 G D S R6841 15k R6642 33 1 R6765 Q6662 2SD0601A0L C6694 25V 1u R6762 47k TP57 C6641 0.22u 250V R6856 56 R6621 220 R6874 6.8k C6805 50V 330p TP64 R6855 10k Q6603 2SB0709ASL C6605 630V 4700p R6825 200k R6806 1.5 TP42 R6865 3.3k C6804 250V 10u D6843 MA2J11100L D6804 B0ECHP000003 IC6821 C0DBEMC00043 15V C5HABZZ00165 IC6803 1 Z/C 2 F/B 3 GND 4 Vcc 5 Souce/OCL 7 Vin 9 Drain TP44 Q6824 2SD0601A0L C6691 160V 100u D6643 B0JCME000037 C0ZBZ0001324 IC6752 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C6621 630V 2200p VAD VR6602 5k 1 2 3 R6818 470k C6662 630V 1000p D6644 B0HCKS000002 *D6624 B0HDSM000005 R6810 1k SC46 1 2 3 4 5 6 7 8 9 R6789 47k TP47 Q6665 B1ABNF000006 *R6815 ERJ6ENF1801 Q6621 2SK399500L D6830 MAZ80560HL R6673 47 C6841 250V 47u C6862 25V 1u C6755 25V 4.7u R6659 220k 5V D6836 MAZ81500ML TP43 R6871 39k C6806 160V 100u 16V_F R6666 100k R6646 33 R6801 8.2 SOS7_SC2 VF_GND D6823 MA2J11100L D6824 MAZ83300ML D6619 B0HCKS000002 D6828 MAZ83300ML R6638 1 Q6782 B1ADNF000006 IC6802 C0DBEMC00043 R6769 75 R6868 22k R6847 62k D6605 MAZ80510LL D6805 MAZ82400ML R6814 5.6k Q6647 2SK399500L R6775 100 VSET2 R6797 16.9k *D6621 B0HDSM000005 D6871 MAZ80510LL *Q6661 B1DEET000002 G D S D6859 B0ECHP000003 C6604 630V 1000p VSUS R6833 75k R6873 39k D6821 MA2J11100L C6873 50V 0.01u C6795 25V 220u R6860 8.2 1 R6768 IC6871 C0BBBA000022 1 2 3 4 5 6 7 8 R6832 4.7 SC30 1 2 3 4 5 6 7 8 9 10 D6826 MA2J11100L PC6871 B3PBA0000223 1 2 3 4 75 R6766 TP40 D6838 B0BC027A0234 *R6816 ERJ6ENF4531 R6660 220k Q6841 2SD1263AP0LB R6644 33 C6861 16V 1u R6823 100k 16V_F D6664 MAZ83300ML C6823 50V 0.01u Q6762 B1ADNF000006 C6752 25V 1u Q6821 2SD1263AP0LB C6620 630V 2200p 5V_F C6695 50V 1000p D6606 B0HCMM000014 VSUS Q6679 B1ABNF000006 TP51 R6664 2.2k PC6861 B3PBA0000223 1 2 3 4 R6788 470k TP61 C6872 25V 1u R6681 10 VSET R6876 560 R6866 620 R6694 27k R6845 62k TP49 D6860 D1FK70-7063 Q6690 2SA19610QAHW D6763 B0ECHP000003 C6753 25V 4.7u R6674 47 TP53 D6642 B0HCKS000002 Q6805 2SC3063000RL R6849 68k R6826 200k D6766 B0ECHP000003 R6836 75k 16V_F D6765 B0ECHP000003 C6814 25V 220u SOS7_SC2 D6666 MA2J11100L IC6772 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6802 10k R6661 100k R6667 4.7k R6886 220k R6887 220k L6690 G0ZZ00002183 *D6623 B0HDSM000005 TP54 C6756 25V 4.7u D6692 MAZ82000ML R6877 3.9k 15V R6796 100k Q6791 2SD0601A0L R6846 62k TP56 15V D6809 B0HCMM000014 R6692 4.7k Q6622 2SK399500L C6812 25V 4.7u VSCN_F D6631 MAZ82400ML R6835 75k D6842 MA2J11100L R6852 2.7k C6603 630V 1000p *SC42 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 D6862 MA2J11100L C6813 160V 100u D6839 B0ECHP000003 R6808 2.7k Q6602 2SD0601AQL C6811 25V 1u R6795 100k 15V_F R6695 120k R6609 1k R6824 3.9k VAD Q6644 2SK399500L 2W R6623 33k VSCN R6811 10k C6661 630V 1000p C6773 25V 4.7u VSET D6691 MAZ82000ML D6791 MAZ82000ML 15V D6802 B0BC01000044 D6671 B0JCME000037 R6829 100k R6709 100 IC6841 C0DBEMC00043 R6663 10k R6861 51k Q6842 2SC1473AEA R6693 82k R6781 47 VF_GND IC6801 C0DBEMC00043 TP58 R6643 33 TP48 Q6643 2SK399500L R6891 18k SC31 1 2 3 4 5 6 C6863 50V 0.01u FLOATING GND COLD COLD FLOATING GND COLD FLOATING GND * * * m * * * TPSC1 + + - - - - + + INIT-R SG73P2A INIT-F VSET:330V TPVSET2:14V TPVAD TPVSCN TPVSET VSCN:145V VAD:-105V 11 12 16 17 18 14 15 13 10 POWER OSC DC/DC CONV. COMPARATOR COMPARATOR FET DRIVER VAD SEPARATE VAD CONT FET DRIVER VAD Gen. VSCN Gen. VSET2 Gen. VSET Gen. VSET SEPARATE OPERATES AT 160V OR MORE AND 125V OR LESS. Vscn DET VAD DET OPERATES AT 91V OR MORE AND 120V OR LESS OPERATES AT 21V OR MORE F16V DET (Vscn volatage) Vf(High Voltage Floting GND) Vfo(Vscn Out) VF5V Vf Vfo(Vscn Out) Vf Vf(High Voltage Floting GND) VF5V (Vscn volatage) (SU41) TO SU-BOARD SD-BOARD (SD42) TO TO (SU45) SU-BOARD TO (SD46) SD-BOARD OPERATES AT 214V OR LESS VSET DET FET DRIVER 7 10 1 4 5 3 9 2 8 6 TH-42PV70C SC-Board (2 of 2) Schematic Diagram TH-42PV70C SC-Board (2 of 2) Schematic Diagram ! SC-BOARD (2/2) TNPA4182AF 102 15.48.SU 和 SD 电路板方框图 64 SU2 Vfo A6 3 A5 45 SO LINE D6905 IC6952 SO SD SU CLK 96 C40 CLK LINE GND SCAN PRO PRO IC6906 SU SCAN OUT (UPPER) GND VDDH C9 64bit PROD VDD CLK 1 32 64bit CLK LINE 64bit GND CLK Vf+5V Vf Vf SO VDD A30 SU3 32 A46 CL Vf+5V VDDH A31 96 CLK C74 FCLKD CLK Vfo 64 FSIU PRO CL 96 PRO SI S/P 32 SD4 VDDH A32 C41 S/P A72 32 IC6903 C50 CL CLK C49 46 Vfo 64bit 96 32 PRO PRO CLK VDD VDD Vscn CL VDD S/P VDD A1 VDD 384LINE SO SO Vf C51 IC6901 CL GND A45 SU41 S/P 1 C80 VDDH SI GND Vf+5V CL Vf+5V 384LINE VDDH C75 C11 VDD Vf IC6951 C76 GND Vf+5V Vf+5V GND C34 CL C33 Vf SD3 VDD C73 64 VDDH VDDH 96 IC6905 CLK GND S/P FCLKU PROU A73 PANEL 7 64 ELECTRODES (UPPER) SD SCAN OUT (LOWER) C35 VDDH 96 C36 C1 S/P PRO FSID 64 9 SCAN CL D6904 D6903 SI 5 SU4 LINE SI GND VDD CL IC6953 IC6956 CL Vscn D6955 S/P SI S/P SI 64bit VDD 64bit SO 8 SO PRO Vscn S/P PRO S/P Vf VDDH 96 CL LINE Vf+5V Vfo SD1 SI IC6904 C48 9 3 LINE 64bit SI SO 64 GND Vf+5V SO A70 SI A71 VDDH A41 LINE 7 VDDH S/P Vscn 64bit A33 SD42 SI VDDH 96 IC6955 D6953 64 D6954 A80 IC6954 PRO SU1 FCLD S/P A7 64bit LINE A47 SD2 SO 64 A8 GND Vf Vf 32 FCLU 8 32 PRO 64bit SI 32 VDD 5 CLK 64bit A48 A40 SI PRO C10 PANEL (LOWER) C8 CL CLK GND 64bit IC6902 ELECTRODES TH-42PV70C SU and SD-Board Block Diagram TH-42PV70C SU and SD-Board Block Diagram 103 15.49.SU 电路板 (1/2) 线路图 TERM SIDE TERM SIDE AB_766 AB_765 AB_764 AB_763 AB_762 AB_761 AB_760 AB_759 AB_758 AB_757 AB_756 AB_755 AB_754 AB_753 AB_752 AB_751 AB_750 AB_749 AB_748 AB_747 AB_746 AB_745 AB_744 AB_742 AB_743 AB_741 AB_739 AB_740 AC_702 AC_701 AC_700 AC_699 AC_698 AC_697 AC_696 AC_695 AC_694 AC_693 AC_692 AC_691 AC_690 AC_689 AC_688 AC_687 AC_686 AC_685 AC_684 AC_683 AC_682 AC_681 AC_680 AC_678 AC_679 AC_677 AC_675 AC_676 AD_638 AD_637 AD_636 AD_635 AD_634 AD_633 AD_632 AD_631 AD_630 AD_629 AD_628 AD_627 AD_626 AD_625 AD_624 AD_623 AD_622 AD_621 AD_620 AD_619 AD_618 AD_617 AD_616 AD_614 AD_615 AD_613 AD_611 AD_612 AB_705 AB_707 AB_709 AB_711 AB_713 AB_715 AB_717 AB_719 AB_721 AB_723 AB_725 AB_727 AB_729 AB_731 AB_733 AB_735 AB_737 AB_739 AB_741 AB_743 AB_745 AB_747 AB_749 AB_751 AB_753 AB_755 AB_757 AB_759 AB_761 AB_763 AB_767 AB_765 AB_706 AB_708 AB_710 AB_712 AB_714 AB_716 AB_718 AB_720 AB_722 AB_724 AB_726 AB_728 AB_730 AB_732 AB_734 AB_736 AB_738 AB_740 AB_742 AB_744 AB_746 AB_748 AB_750 AB_752 AB_754 AB_756 AB_758 AB_760 AB_762 AB_764 AB_768 AB_766 AC_641 AC_643 AC_645 AC_647 AC_649 AC_651 AC_653 AC_655 AC_657 AC_659 AC_661 AC_663 AC_665 AC_667 AC_671 AC_669 AC_673 AC_675 AC_677 AC_679 AC_681 AC_683 AC_685 AC_687 AC_689 AC_691 AC_693 AC_695 AC_697 AC_699 AC_703 AC_701 AC_642 AC_644 AC_646 AC_648 AC_650 AC_652 AC_654 AC_656 AC_658 AC_660 AC_662 AC_664 AC_666 AC_668 AC_670 AC_674 AC_676 AC_678 AC_680 AC_682 AC_684 AC_686 AC_688 AC_690 AC_692 AC_694 AC_696 AC_698 AC_700 AC_704 AC_702 AD_577 AD_579 AD_581 AD_583 AD_585 AD_587 AD_589 AD_591 AD_593 AD_595 AD_597 AD_599 AD_601 AD_603 AD_605 AD_607 AD_609 AD_611 AD_613 AD_615 AD_617 AD_619 AD_621 AD_623 AD_625 AD_627 AD_629 AD_633 AD_631 AD_635 AD_637 AD_639 AD_578 AD_580 AD_584 AD_586 AD_588 AD_590 AD_592 AD_594 AD_596 AD_598 AD_600 AD_602 AD_604 AD_606 AD_608 AD_610 AD_612 AD_614 AD_616 AD_618 AD_620 AD_622 AD_624 AD_626 AD_628 AD_630 AD_632 AD_634 AD_636 AD_640 AD_638 AB_768 AB_767 AC_703 AC_704 AD_639 AD_640 AD_582 AC_672 AB_705 AB_706 AB_707 AB_708 AB_709 AB_710 AB_711 AB_712 AB_713 AB_714 AB_715 AB_716 AB_717 AB_718 AB_719 AB_720 AB_721 AB_722 AB_723 AB_724 AB_725 AB_726 AB_727 AB_728 AB_729 AB_730 AB_731 AB_732 AB_733 AB_734 AB_735 AB_736 AB_738 AB_737 AC_641 AC_642 AC_643 AC_644 AC_645 AC_646 AC_647 AC_648 AC_649 AC_650 AC_651 AC_652 AC_653 AC_654 AC_655 AC_656 AC_657 AC_658 AC_659 AC_660 AC_661 AC_662 AC_663 AC_664 AC_665 AC_666 AC_667 AC_668 AC_669 AC_670 AC_671 AC_672 AC_674 AC_673 AD_577 AD_578 AD_579 AD_580 AD_581 AD_582 AD_583 AD_584 AD_585 AD_586 AD_587 AD_588 AD_589 AD_590 AD_591 AD_592 AD_593 AD_594 AD_595 AD_596 AD_597 AD_598 AD_599 AD_600 AD_602 AD_601 AD_603 AD_604 AD_605 AD_606 AD_607 AD_608 AD_610 AD_609 AA_SO1 AA_SO1 AA_SO2 AA_SO3 AA_SO2 AA_CLK AA_CL AA_PRO AA_CL AA_CLK AA_CL AA_SI AA_CL AA_CLK AA_PRO AA_PRO AA_CLK AA_PRO AA_SI C6906 16V 1u AN16077A-VT IC6902 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D6901 MAZ80560HL R6932 10k SU45 1 2 3 4 5 6 7 8 9 R6903 22 R6933 10k C6931 50V 1000p R6909 220 R6905 220 R6926 0 C6936 50V 680p SU2 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C6937 50V 220p AN16077A-VT IC6903 AN16077AAVT 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6938 10k R6925 0 C6904 16V 1u R6934 10k SU1 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 R6901 100 C6901 50V 1000p R6904 22 AN16077A-VT IC6901 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6902 16V 1u R6931 10k R6902 22 PRO FSI FCLK FCL S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER SC-BOARD (SC45) TO Vfo Vf5 Vf5 Vf B 1 ! D 8 7 5 C 6 E A 2 3 4 SCAN ELECTRODES To 2nd 96pins of UP To 1st 96pins of SCAN ELECTRODES 1 2 3 4 5 SU-BOARD TNPA4184 (1/2) TH-42PV70C SU-Board (1 of 2) Schematic Diagram TH-42PV70C SU-Board (1 of 2) Schematic Diagram 104 15.50.SU 电路板 (2/2) 线路图 TERM SIDE TERM SIDE AE_574 AE_573 AE_572 AE_571 AE_570 AE_569 AE_568 AE_567 AE_566 AE_565 AE_564 AE_563 AE_562 AE_561 AE_560 AE_559 AE_558 AE_557 AE_556 AE_555 AE_554 AE_553 AE_552 AE_550 AE_551 AE_549 AE_547 AE_548 AF_510 AF_509 AF_508 AF_507 AF_506 AF_505 AF_504 AF_503 AF_502 AF_501 AF_500 AF_499 AF_498 AF_497 AF_496 AF_495 AF_494 AF_493 AF_492 AF_491 AF_490 AF_489 AF_488 AF_486 AF_487 AF_485 AF_483 AF_484 AG_446 AG_445 AG_444 AG_443 AG_442 AG_441 AG_440 AG_439 AG_438 AG_437 AG_436 AG_435 AG_434 AG_433 AG_432 AG_431 AG_430 AG_429 AG_428 AG_427 AG_426 AG_425 AG_424 AG_422 AG_423 AG_421 AG_419 AG_420 AE_513 AE_515 AE_517 AE_519 AE_521 AE_523 AE_525 AE_527 AE_529 AE_531 AE_533 AE_535 AE_537 AE_539 AE_541 AE_543 AE_545 AE_547 AE_549 AE_551 AE_553 AE_555 AE_557 AE_559 AE_561 AE_563 AE_565 AE_567 AE_569 AE_571 AE_575 AE_573 AE_514 AE_516 AE_518 AE_520 AE_522 AE_524 AE_526 AE_528 AE_530 AE_532 AE_534 AE_536 AE_538 AE_540 AE_542 AE_544 AE_546 AE_548 AE_550 AE_552 AE_554 AE_556 AE_558 AE_560 AE_562 AE_564 AE_566 AE_568 AE_570 AE_572 AE_576 AE_574 AF_449 AF_451 AF_453 AF_455 AF_457 AF_459 AF_461 AF_463 AF_465 AF_467 AF_469 AF_471 AF_473 AF_475 AF_479 AF_477 AF_481 AF_483 AF_485 AF_487 AF_489 AF_491 AF_493 AF_495 AF_497 AF_499 AF_501 AF_503 AF_505 AF_507 AF_511 AF_509 AF_450 AF_452 AF_454 AF_456 AF_458 AF_460 AF_462 AF_464 AF_466 AF_468 AF_470 AF_472 AF_474 AF_476 AF_478 AF_482 AF_484 AF_486 AF_488 AF_490 AF_492 AF_494 AF_496 AF_498 AF_500 AF_502 AF_504 AF_506 AF_508 AF_512 AF_510 AG_385 AG_387 AG_389 AG_391 AG_393 AG_395 AG_397 AG_399 AG_401 AG_403 AG_405 AG_407 AG_409 AG_411 AG_413 AG_415 AG_417 AG_419 AG_421 AG_423 AG_425 AG_427 AG_429 AG_431 AG_433 AG_435 AG_437 AG_439 AG_441 AG_443 AG_445 AG_447 AG_386 AG_388 AG_390 AG_392 AG_394 AG_396 AG_398 AG_400 AG_402 AG_404 AG_406 AG_408 AG_410 AG_412 AG_414 AG_416 AG_418 AG_420 AG_422 AG_424 AG_426 AG_428 AG_430 AG_432 AG_434 AG_436 AG_438 AG_440 AG_442 AG_444 AG_448 AG_446 AE_576 AE_575 AF_511 AF_512 AG_448 AG_447 AF_480 AE_513 AE_514 AE_515 AE_516 AE_517 AE_518 AE_519 AE_520 AE_521 AE_522 AE_523 AE_524 AE_525 AE_526 AE_527 AE_528 AE_529 AE_530 AE_531 AE_532 AE_533 AE_534 AE_535 AE_536 AE_537 AE_538 AE_539 AE_540 AE_541 AE_542 AE_543 AE_544 AE_546 AE_545 AF_449 AF_450 AF_451 AF_452 AF_453 AF_454 AF_455 AF_456 AF_457 AF_458 AF_459 AF_460 AF_461 AF_462 AF_463 AF_464 AF_465 AF_466 AF_467 AF_468 AF_469 AF_470 AF_471 AF_472 AF_473 AF_474 AF_475 AF_476 AF_477 AF_478 AF_479 AF_480 AF_482 AF_481 AG_385 AG_386 AG_387 AG_388 AG_389 AG_390 AG_391 AG_392 AG_393 AG_394 AG_395 AG_396 AG_397 AG_398 AG_399 AG_400 AG_401 AG_402 AG_403 AG_404 AG_405 AG_406 AG_407 AG_408 AG_409 AG_410 AG_411 AG_412 AG_413 AG_414 AG_415 AG_416 AG_418 AG_417 AA_SO3 AA_SO4 AA_SO4 AA_SO5 AA_SO5 AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO C80 C47 C79 C78 SU4 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C40 D6905 B0HCMM000013 D6903 B0HCMM000013 C8 D6904 B0HCMM000013 C3 C6 C45 C1 C48 SU3 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C77 C37 C34 C7 C5 AN16077A-VT IC6904 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6908 16V 1u C41 C46 C43 C6924 250V 0.1u D6902 MAZ80560HL R6936 220k C38 C74 C4 C49 C44 R6924 220 C42 C75 C76 C50 C2 C6910 16V 1u C6912 16V 1u R6913 220 C10 C39 R6917 220 AN16077A-VT IC6905 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C35 C9 AN16077A-VT IC6906 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6926 250V 0.1u C36 C26 C32 C15 C70 C31 C33 C54 C14 C61 C22 C64 C58 C55 C17 C65 C71 C68 C29 C66 C16 C62 C60 C23 C11 C63 C51 C13 C67 C57 C28 C27 C72 C25 C18 C12 C56 C19 C20 C53 C30 C69 C73 C21 C24 C52 C59 C6929 250V 0.1u C6927 250V 0.1u C6923 250V 0.1u R6935 220k C6921 250V 0.1u Vscn Vf5 Vf Vfo Vf VF5V VF5V S/P 64bit PDP SCAN DRIVER PDP SCAN DRIVER S/P 64bit S/P 64bit PDP SCAN DRIVER (UPPER) (LOWER) COMPONENT SIDE FOIL SIDE TO (SC41) SC-BOARD SU41(Card Edge 80Pin) Vf5 Vscn voltage Vfo(Vscn Out) Vf(High Voltage Floting GND) Vf(High Voltage Floting GND) 12 8 15 14 9 13 10 11 ! To 4th 96pins of SCAN ELECTRODES UP To 3rd 96pins of SCAN ELECTRODES 2 5 3 4 1 SU-BOARD TNPA4184 (2/2) TH-42PV70C SU-Board (2 of 2) Schematic Diagram TH-42PV70C SU-Board (2 of 2) Schematic Diagram 105 15.51.SD 电路板 (1/2) 线路图 TERM SIDE TERM SIDE AB_382 AB_381 AB_380 AB_379 AB_378 AB_377 AB_376 AB_375 AB_374 AB_373 AB_372 AB_371 AB_370 AB_369 AB_368 AB_367 AB_366 AB_365 AB_364 AB_363 AB_362 AB_361 AB_360 AB_358 AB_359 AB_357 AB_355 AB_356 AC_318 AC_317 AC_316 AC_315 AC_314 AC_313 AC_312 AC_311 AC_310 AC_309 AC_308 AC_307 AC_306 AC_305 AC_304 AC_303 AC_302 AC_301 AC_300 AC_299 AC_298 AC_297 AC_296 AC_294 AC_295 AC_293 AC_291 AC_292 AD_254 AD_253 AD_252 AD_251 AD_250 AD_249 AD_248 AD_247 AD_246 AD_245 AD_244 AD_243 AD_242 AD_241 AD_240 AD_239 AD_238 AD_237 AD_236 AD_235 AD_234 AD_233 AD_232 AD_230 AD_231 AD_229 AD_227 AB_365 AB_367 AB_369 AB_371 AB_373 AB_375 AB_377 AB_379 AB_381 AB_383 AB_366 AB_368 AB_370 AB_372 AB_374 AB_376 AB_380 AB_382 AB_341 AB_343 AB_345 AB_347 AB_349 AB_351 AB_353 AB_355 AB_357 AB_359 AB_361 AB_363 AB_342 AB_344 AB_346 AB_348 AB_350 AB_352 AB_354 AB_356 AB_358 AB_360 AB_362 AB_364 AB_321 AB_323 AB_325 AB_327 AB_329 AB_331 AB_333 AB_335 AB_337 AB_339 AB_322 AB_324 AB_326 AB_328 AB_330 AB_332 AB_334 AB_336 AB_338 AB_340 AC_319 AC_317 AC_316 AC_320 AC_318 AB_384 AB_383 AC_293 AC_295 AC_297 AC_299 AC_301 AC_303 AC_305 AC_307 AC_309 AC_311 AC_313 AC_315 AC_294 AC_296 AC_298 AC_300 AC_302 AC_304 AC_306 AC_308 AC_310 AC_312 AC_314 AC_281 AC_283 AC_287 AC_285 AC_282 AC_284 AC_288 AC_286 AC_289 AC_291 AC_257 AC_259 AC_261 AC_263 AC_265 AC_267 AC_269 AC_271 AC_273 AC_275 AC_277 AC_279 AC_258 AC_260 AC_262 AC_264 AC_266 AC_268 AC_270 AC_272 AC_274 AC_276 AC_278 AC_280 AD_256 AC_320 AC_319 AD_254 AD_252 AD_250 AD_248 AD_246 AD_244 AD_242 AD_240 AD_238 AD_236 AD_234 AD_232 AD_253 AD_255 AD_251 AD_249 AD_247 AD_245 AD_243 AD_241 AD_239 AD_237 AD_235 AD_233 AD_230 AD_228 AD_226 AD_224 AD_222 AD_220 AD_218 AD_216 AD_214 AD_212 AD_210 AD_208 AD_231 AD_229 AD_227 AD_225 AD_223 AD_221 AD_219 AD_217 AD_215 AD_213 AD_211 AD_209 AD_206 AD_204 AD_202 AD_200 AD_198 AD_196 AD_194 AD_207 AD_205 AD_203 AD_201 AD_199 AD_197 AD_195 AD_193 AD_256 AD_255 AB_378 AB_384 AC_292 AC_290 AB_321 AB_323 AB_324 AB_325 AB_326 AB_327 AB_328 AB_329 AB_330 AB_331 AB_332 AB_333 AB_334 AB_335 AB_336 AB_337 AB_338 AB_339 AB_340 AB_341 AB_342 AB_343 AB_344 AB_345 AB_346 AB_322 AB_347 AB_348 AB_349 AB_350 AB_351 AB_352 AB_353 AB_354 AC_257 AC_258 AC_259 AC_260 AC_261 AC_262 AC_263 AC_264 AC_265 AC_266 AC_267 AC_268 AC_269 AC_270 AC_271 AC_272 AC_273 AC_274 AC_275 AC_276 AC_277 AC_278 AC_279 AC_280 AC_281 AC_282 AC_283 AC_284 AC_285 AC_286 AC_287 AC_288 AC_289 AC_290 AD_193 AD_194 AD_195 AD_196 AD_197 AD_198 AD_199 AD_200 AD_201 AD_202 AD_203 AD_204 AD_205 AD_206 AD_207 AD_208 AD_209 AD_210 AD_211 AD_212 AD_213 AD_214 AD_215 AD_216 AD_217 AD_218 AD_219 AD_220 AD_221 AD_222 AD_223 AD_224 AD_226 AD_225 AD_228 AA_SO7 AA_SO7 AA_SO8 AA_SO9 AA_CLK AA_CL AA_PRO AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_SI AA_SO8 A36 A6 D6953 B0HCMM000013 A46 AN16077A-VT *IC6953 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6984 10k A33 A80 D6952 MAZ80560HL R6959 220 A32 R6951 100 A39 A8 R6985 220k A37 R6955 220 D6954 B0HCMM000013 A71 A9 A74 A79 C6951 50V 1000p A72 A76 A47 C6957 16V 1u A75 A35 D6955 B0HCMM000013 A77 SD2 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 A48 A31 A78 A40 C6952 16V 1u A34 AN16077A-VT *IC6951 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D6951 MAZ80560HL A7 SD1 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 A38 AN16077A-VT *IC6952 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6955 16V 1u A73 A16 A12 A24 A52 A56 A26 A10 A65 A64 C6973 250V 0.1u A62 A58 A21 A49 A66 A14 A51 A17 A30 A23 A60 A50 A70 A15 A54 C6977 250V 0.1u C6976 250V 0.1u A18 A28 A29 A13 A57 A20 A68 C6979 250V 0.1u A69 A27 A11 C6971 250V 0.1u A22 A67 A55 A63 C6974 250V 0.1u A59 A61 R6986 220k A53 A25 A19 A4 A43 A5 A1 A45 A3 A41 A44 A42 A2 VF5V VF5V COMPONENT SIDE (LOWER) FOIL SIDE (UPPER) D B C E A 1 8 7 5 6 2 3 4 ! S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER Vscn Vf(High Voltage Floting GND) Vscn voltage Vf(High Voltage Floting GND) Vfo(Vscn Out) Vf Vfo Vf5 Vf5 SD42(Card Edge 80Pin) SC-BOARD (SC42) TO SCAN ELECTRODES To 2nd 96pins of To 1st 96pins of SCAN ELECTRODES DOWN 1 2 3 4 5 SD-BOARD TNPA4185 (1/2) TH-42PV70C SD-Board (1 of 2) Schematic Diagram TH-42PV70C SD-Board (1 of 2) Schematic Diagram 106 15.52.SD 电路板 (2/2) 线路图 TERM SIDE TERM SIDE AE_190 AE_189 AE_188 AE_187 AE_186 AE_185 AE_184 AE_183 AE_182 AE_181 AE_180 AE_179 AE_178 AE_177 AE_176 AE_175 AE_174 AE_173 AE_172 AE_171 AE_170 AE_169 AE_168 AE_166 AE_167 AE_165 AE_163 AE_164 AF_126 AF_125 AF_124 AF_123 AF_122 AF_121 AF_120 AF_119 AF_118 AF_117 AF_116 AF_115 AF_114 AF_113 AF_112 AF_111 AF_110 AF_109 AF_108 AF_107 AF_106 AF_105 AF_104 AF_102 AF_103 AF_101 AF_99 AF_100 AG_62 AG_61 AG_60 AG_59 AG_58 AG_57 AG_56 AG_55 AG_54 AG_53 AG_52 AG_51 AG_50 AG_49 AG_48 AG_47 AG_46 AG_45 AG_44 AG_43 AG_42 AG_41 AG_40 AG_38 AG_39 AG_37 AG_35 AG_36 AE_187 AE_185 AE_183 AE_188 AE_186 AE_184 AE_182 AE_191 AE_192 AE_189 AE_190 AE_175 AE_173 AE_181 AE_179 AE_177 AE_176 AE_174 AE_172 AE_180 AE_178 AE_161 AE_159 AE_163 AE_164 AE_162 AE_160 AE_158 AE_165 AE_171 AE_169 AE_167 AE_170 AE_168 AE_166 AE_151 AE_157 AE_155 AE_153 AE_149 AE_152 AE_156 AE_154 AE_148 AE_150 AE_192 AE_191 AE_137 AE_135 AE_140 AE_138 AE_136 AE_134 AE_141 AE_143 AE_145 AE_147 AE_144 AE_146 AE_139 AE_142 AE_133 AE_131 AE_129 AF_127 AF_125 AF_123 AE_132 AE_130 AF_128 AF_126 AF_124 AF_113 AF_111 AF_114 AF_112 AF_110 AF_117 AF_121 AF_119 AF_122 AF_120 AF_115 AF_116 AF_118 AF_109 AF_107 AF_105 AF_103 AF_101 AF_99 AF_108 AF_106 AF_104 AF_102 AF_100 AF_97 AF_98 AF_94 AF_96 AF_92 AF_90 AF_93 AF_95 AF_91 AF_128 AF_127 AF_88 AF_86 AF_84 AF_82 AF_80 AF_78 AF_76 AF_74 AF_72 AF_70 AF_68 AF_66 AF_89 AF_87 AF_85 AF_83 AF_81 AF_79 AF_77 AF_75 AF_73 AF_71 AF_69 AF_67 AG_61 AG_63 AG_59 AG_57 AG_55 AG_53 AG_51 AG_49 AG_47 AG_45 AG_43 AG_41 AG_64 AG_62 AG_60 AG_58 AG_56 AG_54 AG_52 AG_50 AG_48 AG_46 AG_44 AG_42 AF_65 AG_39 AG_37 AG_35 AG_33 AG_31 AG_29 AG_27 AG_25 AG_23 AG_21 AG_19 AG_17 AG_40 AG_38 AG_36 AG_34 AG_32 AG_30 AG_28 AG_26 AG_24 AG_22 AG_20 AG_18 AG_64 AG_63 AG_15 AG_13 AG_11 AG_9 AG_7 AG_5 AG_3 AG_1 AG_16 AG_14 AG_12 AG_10 AG_8 AG_6 AG_4 AG_2 AE_130 AE_129 AE_132 AE_133 AE_134 AE_135 AE_136 AE_137 AE_138 AE_139 AE_140 AE_141 AE_142 AE_143 AE_144 AE_145 AE_146 AE_147 AE_148 AE_149 AE_150 AE_151 AE_152 AE_153 AE_154 AE_131 AE_155 AE_156 AE_157 AE_158 AE_159 AE_160 AE_162 AE_161 AF_65 AF_66 AF_67 AF_68 AF_69 AF_70 AF_71 AF_72 AF_73 AF_74 AF_75 AF_76 AF_77 AF_78 AF_79 AF_80 AF_81 AF_82 AF_83 AF_84 AF_85 AF_86 AF_87 AF_88 AF_89 AF_90 AF_91 AF_92 AF_93 AF_94 AF_95 AF_96 AF_97 AF_98 AG_1 AG_2 AG_3 AG_4 AG_5 AG_6 AG_7 AG_8 AG_9 AG_10 AG_11 AG_12 AG_13 AG_14 AG_15 AG_16 AG_17 AG_18 AG_19 AG_20 AG_21 AG_22 AG_23 AG_24 AG_25 AG_26 AG_27 AG_28 AG_29 AG_30 AG_31 AG_32 AG_34 AG_33 AA_SO10 AA_SO11 AA_SO11 AA_CL AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_PRO AA_CL AA_SI AA_CLK AA_PRO AA_SO10 AA_SO9 C6981 50V 1000p R6976 0 AN16077A-VT IC6955 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6952 22 R6981 10k R6967 220 R6971 220 SD46 1 2 3 4 5 6 7 8 9 C6961 16V 1u C6958 16V 1u AN16077A-VT IC6956 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16077A-VT IC6954 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SD4 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 R6975 0 SD3 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C6987 50V 220p R6953 22 R6963 220 R6954 22 C6963 16V 1u C6986 50V 680p R6983 10k R6982 10k R6989 10k Vf5 PRO FSI FCLK FCL Vf 8 15 13 14 11 10 9 12 S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER Vfo Vf5 TO SC-BOARD (SC46) To 4th 96pins of SCAN ELECTRODES DOWN To 3rd 96pins of SCAN ELECTRODES ! 2 1 4 5 3 SD-BOARD TNPA4185 (2/2) TH-42PV70C SD-Board (2 of 2) Schematic Diagram TH-42PV70C SD-Board (2 of 2) Schematic Diagram 107 15.53.SS 和 S 电路板方框图 PUSH REF K A D6221 SW2500 D6253 TP15V D6255 R6113 G D S G D S G D S G D S G D S G D S G D S VR6000 1 2 3 D6281 +5V +5V D6273 D6278 D6276 D6275 Q6052 Q6141-Q6142 +15V LED(G) FET DRIVER VCC SS IC6191 TPSS1 SIGNAL WAVE 1 Q6103,Q6104 S1 4 Vsus Gen. S POWER SWITCH POWER SWITCH 34 Q6021-Q6023 VCC Vda Q6001-Q6003 SS_SOS8 VSUS VE 1 2 8 MAIN_SW_1 VCC Vda 3 Ve Gen. 10 VCC 3 IC6251 1 MAIN_SW_2 IC6131 12 Ve2 P12 SS ENERGY RECOVERY COMPARATOR SS SUSTAIN DRIVE Vsus 11 SS 1 TO P11 Q6146-Q6147 IC6151 Q6041,Q6042 L6011-L6013 L6001-L6003 VCC IC6211 (+5V) IN Ve2 Gen. FET DRIVER SUSTAIN ELECTRODE PANEL SS55A SS53A SS56A SS54A Q6101,Q6102, Q6105,Q6106 12 IC6241 1 2 4 6 TO C23 UMH UEH SOS8_SS P5V Vda 23 Vda SS NUEL USH USL UML 5 7 11 3 VCC 8 BUFFER OUTPUT FET IC6221 HIN LIN OUTPUT FET HIN LIN HO LO OUTPUT OUTPUT FET FET HO LO FET DRIVER Q6171,Q6172 Q6181,Q6031 VCC2 FET DRIVER HO HIN LIN OUTPUT FET FET OUTPUT OUTPUT FET Q6111 Q6114 LO HO Q6256,Q6222 Ve Det Adj. Q6271 Q6251 TPVSUS 189V+7V,-6V TPVDA TPSS1 TPVE MAIN_SW_2 MAIN_SW_1 TPSOS8 UEL UML UEH USH USL UML UMH TPVe2 LED BLINKING : 8 TIMES ENERGY RECOVERY SOS DET TH-42PV70C SS-Board Block Diagram TH-42PV70C SS-Board Block Diagram 108 15.54.S 电路板和 SS 电路板 (1/2) 线路图 + + + + + + + + + + PUSH AA_SOS8 AA_UEH AA_USL AA_UEL AA_USH AA_UML AA_UMH AA_USH AA_USL AA_SOS8 Q6181 B1ABRD000003 *L6013 1.8u D6072 B0HBSN000008 R6261 100k TP1 R6253 39k C6202 250V 4u L6010 J0JJC0000015 L6241 G0ZZ00002183 R6258 2.2k D6253 LNJ301MPUJA R6220 47 TP22 SS11 1 3 TP12 TP13 R6041 5.6 TP11 L6262 G0ZZ00002183 Q6031 B1ADRD000001 R6252 39k *L6047 D6024 B0ECHP000003 R6230 47 R6231 4.7k *L6058 G0ZZ00002183 R6210 2.2k C6252 25V 1u C6037 25V 4.7u C0JBAZ000005 IC6241 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C0ZBZ0001324 IC6151 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC *L6061 *L6012 1.8u C6011 220V 200u R6032 82k C6272 25V 220u L6000 J0JJC0000015 C6014 220V 200u D6151 B0ECHP000003 Q6171 B1ABRD000003 C6242 16V 1u *L6046 *Q6042 B1JADN000002 B1JADN000002 R6160 1 VEEXT160V *L6083 G0ZZ00002183 TP9 R6043 5.6 R6241 EXB38V470JV *L6011 1.8u R6034 27k D6071 B0HBSN000008 TP2 *Q6052 R6256 1.5k Q6251 2SD0601A0L C6261 100V 220u L6271 TP19 R6152 100 *L6045 G0ZZ00002183 *L6062 R6159 1 D6092 B0ECHP000003 C6151 25V 1u C6262 100V 220u *L6003 1.8u R6172 47k R6242 EXB38V472JV TP33 R6031 82k R6183 47k TP18 *L6002 1.8u D6153 B0ECHP000003 SS23 1 2 3 4 5 6 7 8 9 10 11 12 *L6048 G0ZZ00002183 R6182 47k D6255 MA2J11100L D6152 B0ECHP000003 TP10 TP16 D6254 MAZ80510LL *L6057 G0ZZ00002183 C6012 220V 200u C6243 50V 0.01u Q6172 B1ADRD000001 *C6091 630V 1000p 5V IC6251 C0BBBA000022 1 2 3 4 5 6 7 8 5V TP17 R6181 10 R6053 5.6 TP8 C6251 16V 1u D6025 B0ECHP000003 R6257 10k TP3 TP6 TP14 D6032 MA2J11100L R6254 8.2k R6173 47k *D6082 MA3DF30000LZ SS12 1 2 3 4 5 6 7 8 9 10 C6013 220V 200u R6171 10 C6154 25V 4.7u C6273 25V 220u *L6064 *D6062 MA3DF30000LZ TP5 R6033 56k D6091 B0HBSN000008 *L6084 G0ZZ00002183 TP15 C6031 250V 2.2u C6241 10V 100u TP34 *L6001 1.8u C6201 250V 4u R6221 4.7k R6255 1.2k *L6063 C6152 25V 4.7u TP7 R6151 100 *C6015 220V 200u SS34 1 2 3 C6153 25V 4.7u 75 R6154 TP20 *D6061 MA3DF30000LZ *Q6041 B1JADN000002 SW2500 K0F162B00002 C2502 1000p 50V S1 1 2 3 R2506 0 C2503 1000p 50V R2507 0 TP15V TPVDA - + - + (GREEN LED) TPVSUS VSUS GND P5V TPSOS8 UEL UEH USL USH UML UMH SOS8_SS GND NC VDA VDA 189V+7V-8V FET DRIVER BUFFER COMPARATOR (P12) TO P-BOARD (C23) C2-BOARD TO (P11) TO P-BOARD 1 2 3 4 5 6 7 GND 12V STB_PS POWER SW ! S-BOARD TNPA4138AD L6047,L6048 L6045,L6046 L6063,L6064 L6061,L6062 ! 6 B 8 5 D E 1 F 9 A 7 3 4 C 2 TH-42PV70C S and SS-Board (1 of 2) Schematic Diagram TH-42PV70C S and SS-Board (1 of 2) Schematic Diagram SS-BOARD (1/2) TNPA4183AF ! 109 15.55.SS 电路板 (2/2) 线路图 + TERM SIDE TERM SIDE + TERM SIDE + REF K A TERM SIDE AA_UEL AA_UEH AA_UML AA_UML AA_UMH AA_SOS8 C6111 200V 220u C6289 0.1u 50V Q6104 B1ADNF000006 R6247 150k R6222 10k R6109 10 C6212 25V 4.7u R6113 220k Q6141 B1ABNF000006 TP24 Q6103 B1ABNF000006 VR6000 10k 1 2 3 R6026 7.5 R6227 16k TP27 *R6064 0 R6191 100 R6142 47k R6192 100 D6104 B0JCME000037 R6272 2.2k *SS56A 1 2 3 4 5 6 7 8 9 10 11 12 13 D6222 MA2J11100L R6157 1 D6275 MAZ80680ML D6001 B0HBSN000008 C6134 25V 4.7u *R6062 0 D6131 B0ECHP000003 C6211 25V 4.7u D6191 B0ECHP000003 D6273 MA2J11100L C6287 0.1u 50V TP29 R6146 47k R6276 82k D6280 MAZ80510LL 75 R6193 C6220 630V 1000p R6114 47 *R6068 0 R6158 1 R6003 7.5 C6132 25V 4.7u Q6222 2SC1473AEA R6229 16k *Q6021 B1JADN000001 *Q6002 B1JADN000001 ZA6005 K4CD01000011 C6221 50V 0.1u C0ZBZ0000895 IC6191 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC R6021 7.5 R6135 10 75 R6134 Q6146 B1ABNF000006 D6021 MA3DF30000LZ C6209 25V 4.7u D6211 B0JCME000037 TP25 D6101 B0JCME000037 R6225 20k *R6066 0 Q6111 B1DFKM000001 G D S R6226 16k D6281 B0JCME000037 *R6070 0 D6276 MA3X152D0L *SS54A 1 2 3 4 5 6 7 8 9 10 11 12 13 C6193 25V 4.7u *R6071 0 C6135 25V 4.7u R6020 33 D6221 B0ECHP000003 R6116 47k C6194 25V 4.7u ZA6002 K4CD01000011 C0ZBZ0000895 IC6131 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC Q6147 B1ADNF000006 *Q6001 B1JADN000001 C6286 0.1u 50V D6132 B0ECHP000003 R6278 27k R6194 1 TP31 R6279 150k C6112 200V 220u R6248 27k R6246 27k Q6101 B1DFKM000002 G D S R6292 47k R6005 7.5 R6108 220 R6249 150k *C6001 630V 3300p J0JJC0000015 L6106 J0JJC0000015 L6212 TP26 R6274 220 R6110 47k C6276 25V 4.7u *SS53A 1 2 3 4 5 6 7 8 9 10 11 12 13 R6024 7.5 *R6072 0 R6001 7.5 TP30 *R6073 0 D6193 B0ECHP000003 D6223 MA2J11100L R6147 47k *C6021 630V 2700p *Q6022 B1JADN000001 C6197 25V 4.7u R6213 100 C6288 0.1u 50V ZA6001 K4CD01000011 R6145 1 Q6256 2SD1263AP0LB IC6211 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB C6213 25V 1000u R6136 10 R6269 27k R6223 12k R6228 5.6k Q6114 B1DFKM000001 G D S Q6271 2SD0601A0L R6102 220 TP28 *Q6023 B1JADN000001 R6270 150k C6195 25V 4.7u R6232 1.2k *C6002 2200p 630V D6278 MA3X152D0L R6111 47 Q6142 B1ADNF000006 R6284 1k C0DBEMC00043 IC6221 J0JJC0000015 L6101 D6103 B0JCME000037 Q6105 B1DFKM000002 G D S R6106 220 J0JJC0000015 L6105 *SS55A 1 2 3 4 5 6 7 8 9 10 11 12 13 R6131 100 L6221 G0ZZ00002183 R6214 150 R6273 10k Q6106 B1DFKM000002 G D S R6141 47k *Q6003 B1JADN000001 R6132 100 *C6022 2700p 630V L6103 G0ZZ00002183 * * TPSS1 TPVe FET DRIVER FET DRIVER VE GEN. FET DRIVER SUSTAIN PANEL ELECTRODE 7 6 5 1 2 4 3 12 10 17 14 15 16 18 11 13 TH-42PV70C SS-Board (2 of 2) Schematic Diagram TH-42PV70C SS-Board (2 of 2) Schematic Diagram Q6102 B1DFKM000002 R6104 220 J0JJC0000015 L6102 D6102 B0JCME000037 G D S SS-BOARD (2/2) TNPA4183AF ! 110 15.56.G 和 K 电路板方框图及 G 和 K 电路板线路图 VCC GND OUT R G VCC GND OUT R G D2512 MAZ80430LL *C2523 50V 1000p *R2531 270 *RM2501 PNA4701M05TV 1 2 3 *R2558 0 *C2525 50V 1000p R2557 5.6k R2516 22k *C2524 50V 1000p *Q2510 2SD0601ASL *C2526 50V 1000p *R2556 5.6k C2515 50V 0.01u *R2576 R2578 0 K1 1 2 3 4 5 6 7 8 9 10 11 12 R2524 22k R2520 220k D2524 MAZ80560ML *JS2517 0 *Q2511 2SD0601ASL *R2577 *R2579 *C2527 50V 1000p *D2520 LNJ107W5PRW 1% *R2525 576 *R2530 22k *Q2513 2SD0601ASL R2517 47 *C2512 6.3V 10u C2521 0.01u 50V R2542 47k *C2522 50V 1000p *Q2511 *RM2501 1 2 3 *Q2513 *D2520 *Q2510 < REMOTE CONTROL SENSOR POWER LED STBY3.3V GND TO DG-BOARD (DG1) TO DG-BOARD (DG1) AI_SENSOR GND G_LED_ON REMOCON PSM_LEDR Active_STB_LED GND SUB5V GND AJ SUFFIX JW ! TNPA4137AJ K-BOARD A 5 F 1 2 C 4 D 3 9 6 7 8 E B REMOTE CONTROL SENSOR POWER LED STBY3.3V REMOCON G_LED_ON R_LED_ON/STBY_LED R_LED_ON/STBY_LED 1 2 3 4 K1 K REMOTE/LED TH-42PV70C G, K, and S-Board Schematic Diagram TH-42PV70C G, K and S-Board Schematic Diagram R V L Y C C3703 560p 50V L3701 J0JCC0000364 R3710 0 *FL3710 J0MAB0000199 1 2 3 4 R3755 0 JS3708 0 1% R3751 14.3k L3700 J0JCC0000364 *C3715 16V 0.1u 1% R3767 3.16k SW3755 EVQPC105K SW3756 EVQPC105K C3711 50V 0.033u SW3754 EVQPC105K R3768 0 1% R3758 6.65k JS3705 0 R3711 0 ZA3701 K4CZ01000027 R3709 0 R3717 180k SW3757 EVQPC105K 1% R3765 2.32k R3721 10k JS3707 0 JS3704 0 C3712 50V 0.033u 1% R3754 1.62k *JS3700 0 SW3753 EVQPC105K *JK3701C K4AK18B00001 C Y G CY-G G R2 R1 T NC SW R-SW R R-G L L-G V-SW V V-G C3750 1000p 50V *R3714 0 R3746 0 R3748 0 R3732 0 *FL3712 J0MAB0000199 1 2 3 4 R3716 180k 1% R3753 1.74k L3708 J0JCC0000100 *FL3711 J0MAB0000199 1 2 3 4 L3707 J0JCC0000100 C3701 560p 50V D3702 MAZ81400ML *R3722 0 *R3723 0 *R3724 0 *R3725 0 *G51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 < < AB SUFFIX JW +/ STR TV/AV -/ F KEY1 5.HP_GND 6.GND 14.GND 7.MAIN_L/HPOUT_L 9.MAIN_R/HPOUT_R 11.SUB_MONO 13.HP_GND 17.AV4_Y 8.AV4_R 10.AV4_L 12.AV4_S 2.V_DET 15.AV4_C 19.AV4_V 18.GND 20.GND 16.GND 4.GND 3.HP_DET 1.KEY1 G-BOARD ! TNPA4262AB TO DG-BOARD (DG51) R V L Y C JK3701 C Y G CY-G G R2 R1 T NC SW R-SW R R-G L L-G V-SW V V-G R3754 SW3753 R3751 R3766 R3767 SW3757 R3753 SW3754 R3758 SW3755 SW3756 HPOUT_R AV4_Y AV4_R AV4_L AV4_S F 3 8 10 2 9 7 G 17 HEAD PHONE G 51 19 AV4/HP/KEY SW AV4 1 TO DG51 HP_DET 15 KEY1 V_DET AV4_C TV/AV AV4_V 12 -/ +/ STR HPOUT_L 111 16 部件布置及机械部件更换清单 16.1. 部件布置 112 16.2. 包装分解图 (1) 113 16.3. 包装分解图 (2) 114 16.4. 包装分解图 (3) 115 16.5. 附件 116 16.6. 更换部件清单注意事项 117 16.7. 机械部件更换清单 参考号 部品号 部品名称及说明 数量 备注 1 EAS12S10B 喇叭 2 2 EUR7651130 遥控器 1 GQZB-42 高清标签 1 3 K2CK3DH00028 AC 电源线 1 K5D802BNA005 主保险丝 2 L6FAYYYH0050 风扇 (80MM) 2 4 MC106H23FC10 10 系列 WHD 屏 1 5 R6PND/2SP PANASONIC 干电池 （中文） 2 6 TBLX0028 台座本体 1 7 TBMA219 PANASONIC 标牌 1 TBMG560 机型铭牌 1 TBMU747 指示标贴 1 TBMU809 后端子标贴 1 8 TBXA51401 操作开关 1 9 TBXA51502 电源开关 1 10 TESA280 弹簧 1 11 TESD085 电源按钮弹簧 1 THEL0429 螺丝 29 THEL047J 螺丝 2 THTD013N 风扇螺丝 6 THTF011N 螺丝 72 12 TKGA5288 前面玻璃 1 13 TKKC5277 导光板 1 14 TKKL5344-1 M8 垫片盖 4 15 TKKL5384 调整盖 (ON TUNER_TOP) 1 16 TKPA98102 AC 接入口盖 1 17 TKPB10202 门 1 18 TKRA52602 后盖把手 2 19 TKRA57301 SD 卡支撑架 1 20 TKUX14101 后盖 1 21 TKYA31401 面框 1 TMKG675-1 海绵 1 TMKG675-2 防尘海绵 1 22 TMKG676 海绵 （前面玻璃 V） 2 TMKG717 风扇海绵 2 TMKY314 螺丝孔盖 1 TMME226 AC 电源线夹 1 23 TMME258 线夹 2 TMMJ068 风扇橡胶 6 24 TMMX130 M8 垫片 4 25 TMZX5087 台座安装块 2 26 TPCC17702 包装箱本体 1 27 TPCC17801 包装箱底箱 1 28 TPDA1754 顶部衬垫 1 29 TPDA1755 底部衬垫 1 30 TPDA1617 顶部衬垫 中 1 31 TPDA1618 底部衬垫 中 1 32 TPDF0764-3 附件盒 1 33 TPDF1831 纸盒支架 1 34 TPDF1896 顶片 1 35 TPDX0035 箱扣 （ROHS） 4 36 TPEH343 顶面保护片 3 37 TPEH344 整机保护袋 （ROHS） 1 TQD1712010 合格票 1 TQFD070601 中国节能认证标志 1 TQFD640 ROHS 环境标签 1 TQFD945 线夹说明标签 1 TQZF163 保修证 1 38 TQZK087 说明书 1 TSXL519 FFC(C10-C20) 1 TSXL562 FFC(D31-C11) 1 TSXL600 FFC(D32-C21) 1 TSXL604 FFC(SC20-D20) 1 TUXL184 TUNER 盖 1 TUXX391 风扇支撑件 2 TXAUX01HNTC TUNER 组件 1 39 TXAUX02HNTC AC 接入口组件 1 40 TXFBL05HNTC 台座附件 1 TXJ/P2HNTU 线束 (SC2-P2) 1 TXJ/P6HNTC 线束 (P6-DG6) 1 TXJ/P7HNTC 线束 (P7-DG7) 1 TXJ/P9HNTU 线束 (INLET-P9) 1 TXJ/S1HNTC 线束 (S1-SS34) 1 TXJD25HNTU 线束 (D25-P25) 1 TXJDG1PSTP 线束 (DG1-K1) 1 TXJDG5HNTB 线束 (DG5-D5) 1 TXJDGSPSTP 线束 (DG12-RELAY) 1 TXJFA1HNTC 线束 (PA-FAN) 2 TXJFGNHNTU 线束 (GND-INLET) 1 TXJG51PSTP 线束 (G51-DG51) 1 TXJP11HNTU 线束 (P11-SS11) 1 TXJP12HNTU 线束 (P12-SS12) 1 TXJPB8HNTC 线束 (PB8-DG8) 1 TXJS23BJTU 线束 (SS23-C23) 1 TXN/D1HLTC D 线路板 1 TXN/G1HMTC G 线路板 1 TXN/K1HMTC K 线路板 1 TXN/P1HNTC P 线路板 1 TXN/S1HMTC S 线路板 1 TXNC11HLTC C1 线路板 1 TXNC21HLTC C2 线路板 1 TXNPB1HNTC PB 线路板 1 TXNSC1HLTC SC 线路板 1 TXNSD1HLTC SD 线路板 1 TXNSS1HLTC SS 线路板 1 TXNSU1HLTC SU 线路板 1 XTB4+12GFJ 螺丝 45 XTB4+12GFJK 螺丝 12 XTB4+16GFJ 螺丝 2 XTV3+10JFJK 螺钉 ( 后面 ) 6 XTW3+10TFJ 螺丝 3 XYN3+F8FJ 螺丝 (S:2) 19 XYN3+J6FJ 螺丝 1 XYN3+J8FJ 风扇螺丝 8 XYN4+E8FJ 螺丝 1 XYN4+F10FJ 螺丝 9 XYN4+F10FJK 螺丝 6 XYN4+F30FJK 螺丝 6 XYN5+C15FJ 带垫螺丝 （标准垫片） 8 参考号 部品号 部品名称及说明 数量 备注 118 17 电器部件更换清单 17.1. 电器部件更换清单 所有在备注栏 [PPDS] 中提到的部件均由 PPDS 提供。 参考号 部品号 部品名称 & 说明 件数 备注 F401.402 K5D802BNA005 延时保险丝 高 2 C10 K1MN20BA0231 20P 连接接头 1 C11 K1MN55BA0076 55P 连接接头 1 C20 K1MN20BA0231 20P 连接接头 1 C21 K1MN68BA0076 68P 连接接头 1 C23 K1KA12BA0107 12P 连接接头 1 C858,59 ECJ2VB1E104K C 0.1UF, K, 25V 2 C860 ECA1EHG471 E 470UF, 25V 1 C861,62 ECJ2VB1E104K C 0.1UF, K, 25V 2 C869 ECA1EHG471 E 470UF, 25V 1 C1102 F1J1A106A043 C 0.010UF, K, 10V 1 C1103,04 F1G1C104A081 C 0.10UF, K, 16V 2 C1106 F1H1H2700008 E 27UF, 50V 1 C1107 F1G1H220A565 E 22UF, 50V 1 C1108 F1G1C104A081 C 0.10UF, K, 16V 1 C1109 ECJ1VB1C105K C 0.01UF, K, 16V 1 C1111 ECJ1VB1C105K C 0.01UF, K, 16V 1 C1112 F1G1C104A081 C 0.10UF, K, 16V 1 C1114 F1G1C104A081 C 0.10UF, K, 16V 1 C1117 F1G1C104A081 C 0.10UF, K, 16V 1 C1122 F1G1E1030005 C 0.01UF, Z, 25V 1 C1123 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2005,06 F1H1H5610007 E 560UF, 50V 2 C2010,11 F1H1H5610007 E 560UF, 50V 2 C2013,14 F1H1H5610007 E 560UF, 50V 2 C2016,17 F1H1H5610007 E 560UF, 50V 2 C2021,22 F1H1H5610007 E 560UF, 50V 2 C2023 F1G1C104A081 C 0.10UF, K, 16V 1 C2048-50 F1G1C104A081 C 0.10UF, K, 16V 3 C2052,53 F1G1C104A081 C 0.10UF, K, 16V 2 C2054 F1J1A106A043 C 0.010UF, K, 10V 1 C2055,56 ECJ1VC1H120J C 12PF, J, 50V 2 C2057,58 F1G1C104A081 C 0.10UF, K, 16V 2 C2059 EEEHB0J470R C 47PF, J, 6.3V 1 C2088 ECJ2FB1C475K C 47UF, K, 16V 1 C2089 F1H1H5610007 E 560UF, 50V 1 C2091 ECJ1VC1H100C C 10PF, C, 50V 1 C2092 F1G1H220A565 E 22UF, 50V 1 C2096,97 F1G1C104A081 C 0.10UF, K, 16V 2 C2098,99 EEEHB0J221UP C 220PF, J, 6.3V 2 C2100 F1G1C104A081 C 0.10UF, K, 16V 1 C2101 F1J1A106A043 C 0.010UF, K, 10V 1 C2102 F1G1C104A081 C 0.10UF, K, 16V 1 C2105,06 F1G1C104A081 C 0.10UF, K, 16V 2 C2107,08 EEEHB0J470R C 47PF, J, 6.3V 2 C2109,10 F1G1C104A081 C 0.10UF, K, 16V 2 C2111 F1H0J2250008 C 2.2UF, K, 16V 1 C2112,13 EEEHB0J470R C 47PF, J, 6.3V 2 C2114,15 F1G1C104A081 C 0.10UF, K, 16V 2 C2116 F1H1H471A792 E 470UF, 50V 1 C2117 F1G1C104A081 C 0.10UF, K, 16V 1 C2118 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2119 EEEHB1C221UP C 220PF, J, 16V 1 C2120,21 F1H1H5600007 E 56UF, 50V 2 C2124 F1G1C104A081 C 0.10UF, K, 16V 1 C2126 F1J1A106A043 C 0.010UF, K, 10V 1 C2130 F1J1A106A043 C 0.010UF, K, 10V 1 C2131 F1G1C104A081 C 0.10UF, K, 16V 1 C2132 F1G1E1030005 C 0.01UF, Z, 25V 1 C2133 EEEHB1H4R7R C 4.7PF, J, 50V 1 C2134 F1G1E1030005 C 0.01UF, Z, 25V 1 C2135,36 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2137 EEEHB0J470R C 47PF, J, 6.3V 1 C2138 F1G1C104A081 C 0.10UF, K, 16V 1 C2143 F1H1H181A792 E 180UF, 50V 1 C2146 F1H1H181A792 E 180UF, 50V 1 C2147 EEEHB1C220UR C 22PF, J, 16V 1 C2151 EEEHB0J470R C 47PF, J, 6.3V 1 C2153 ECJ1VC1H330J C 33PF, J, 50V 1 C2154 F1G1C104A081 C 0.10UF, K, 16V 1 C2155 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2157 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2159,60 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2161 EEEHB1C101UP C 100PF, J, 16V 1 C2162-67 ECJ1VB1C105K C 0.01UF, K, 16V 6 C2170 ECJ1VC1H330J C 33PF, J, 50V 1 C2171 F1G1E1030005 C 0.01UF, Z, 25V 1 C2173 ECJ2FB1C475K C 47UF, K, 16V 1 C2174 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2175 EEEHB1C470P C 47PF, J, 16V 1 C2176 F1G1E1030005 C 0.01UF, Z, 25V 1 C2179 EEEHB1C470P C 47PF, J, 16V 1 C2180 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2183 F1J1A106A043 C 0.010UF, K, 10V 1 C2184 F1G1H1020008 E 1000UF, 50V 1 C2185 F1J1A106A043 C 0.010UF, K, 10V 1 C2186 F1G1C104A081 C 0.10UF, K, 16V 1 C2187 F1H0J2250008 C 2.2UF, K, 16V 1 C2188 F1H1H471A792 E 470UF, 50V 1 C2189 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2190,91 F1J1A106A043 C 0.010UF, K, 10V 2 C2192 EEEHB0J470R C 47PF, J, 6.3V 1 C2195 F1G1H1020008 E 1000UF, 50V 1 C2197,98 ECJ1VB1C333K C 0.033UF, K, 16V 2 C2202 F1H0J2250008 C 2.2UF, K, 16V 1 C2203,04 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2213 F1G1H1020008 E 1000UF, 50V 1 C2216 F1G1C104A081 C 0.10UF, K, 16V 1 C2244 F1G1C104A081 C 0.10UF, K, 16V 1 C2245 F1G1H1020008 E 1000UF, 50V 1 C2246 F1J1A106A043 C 0.010UF, K, 10V 1 C2251 F1J1A106A043 C 0.010UF, K, 10V 1 C2263,64 F1J1A106A043 C 0.010UF, K, 10V 2 C2265,66 F1G1C104A081 C 0.10UF, K, 16V 2 C2267,68 F1G1H101A565 C 100PF, K, 50V 2 C2270,71 F1H1H471A792 E 470UF, 50V 2 C2272 ECJ2FB1C475K C 47UF, K, 16V 1 C2280 ECJ2FB1C475K C 47UF, K, 16V 1 C2281 F1H1H5610007 E 560UF, 50V 1 C2301,02 F1G1C104A081 C 0.10UF, K, 16V 2 C2311 F1G1C104A081 C 0.10UF, K, 16V 1 C2313 ECJ1XB1H104K C 10PF, J, 50V 1 C2315 F1G1C104A081 C 0.10UF, K, 16V 1 C2317 ECJ1VB1C333K C 0.033UF, K, 16V 1 C2319 ECJ1VB1C333K C 0.033UF, K, 16V 1 C2321 ECJ1VB1C333K C 0.033UF, K, 16V 1 C2323 ECJ1VB1C333K C 0.033UF, K, 16V 1 C2325 F1J1H474A757 C 0.47UF, 50V 1 C2327 F1G1C104A081 C 0.10UF, K, 16V 1 C2329 F1G1C104A081 C 0.10UF, K, 16V 1 C2331 F1J1H474A757 C 0.47UF, 50V 1 C2333 ECJ1XB1H104K C 10PF, J, 50V 1 C2335 ECJ1XB1H104K C 10PF, J, 50V 1 C2337 F1H1H223A219 E 0.022UF, 50V 1 C2339 F1H1H223A219 E 0.022UF, 50V 1 C2341 ECJ1XB1H104K C 10PF, J, 50V 1 C2343 ECJ1XB1H104K C 10PF, J, 50V 1 C2345 F1H1H223A219 E 0.022UF, 50V 1 C2347 F1H1H223A219 E 0.022UF, 50V 1 C2349 ECJ1XB1H104K C 10PF, J, 50V 1 C2352 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2353 ECJ1XB1H104K C 10PF, J, 50V 1 C2354 EEEHB1C221UP C 220PF, J, 16V 1 C2355 ECJ1XB1H104K C 10PF, J, 50V 1 C2357 ECJ1XB1H104K C 10PF, J, 50V 1 C2359 ECJ1XB1H104K C 10PF, J, 50V 1 C2361 EEEFG1E471P E 470UF, 25V 1 C2363 F1G1C104A081 C 0.10UF, K, 16V 1 C2375 F1H1H223A219 E 0.022UF, 50V 1 C2377 F1H1H223A219 E 0.022UF, 50V 1 参考号 部品号 部品名称 & 说明 件数 备注 119 C2379 F1H1H223A219 E 0.022UF, 50V 1 C2381 F1H1H223A219 E 0.022UF, 50V 1 C2383 F1G1H1020008 E 1000UF, 50V 1 C2385 F1G1H1020008 E 1000UF, 50V 1 C2387 F1G1H1020008 E 1000UF, 50V 1 C2389 F1G1H1020008 E 1000UF, 50V 1 C2502,03 ECJ2XB1H102K C 1000PF, K, 50V 2 C2512 F1K0J1060020 C 10UF, K,6.3V 1 C2515 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2521 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2522-27 ECJ1VB1H102K C 1000UF, Z, 50V 6 C2801 ECJ3XB1C106M C 1.0UF, K, 16V 1 C2802,03 F1J1H474A757 C 0.47UF, 50V 2 C2813 F1G1C104A081 C 0.10UF, K, 16V 1 C2814 ECJ1VB1H472K C 4700PF, K, 50V 1 C2815 F1G1C104A081 C 0.10UF, K, 16V 1 C2816 EEEHB1V220P E 22UF, 35V 1 C2817 F1G1H1020008 E 1000UF, 50V 1 C2819 EEEHB1E470P C 47PF, J, 25V 1 C3021 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3023,24 ECJ1VB1C105K C 0.01UF, K, 16V 2 C3026 F1G1C104A081 C 0.10UF, K, 16V 1 C3027-29 ECJ1VB1C105K C 0.01UF, K, 16V 3 C3031 F1G1C104A081 C 0.10UF, K, 16V 1 C3033 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3040 F1G1C104A081 C 0.10UF, K, 16V 1 C3043 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3051-56 F1H1A225A051 E 22UF, 50V 6 C3060 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3070 EEEHB0J221UP C 220PF, J, 6.3V 1 C3075 EEEHB1C221UP C 220PF, J, 16V 1 C3078 F1K0J226A008 C 22UF, K,6.3V 1 C3081 EEFUD0J101ER E 100UF 1 C3100-02 ECJ1VB1C105K C 0.01UF, K, 16V 3 C3103 EEEHB1H100P C 10PF, J, 50V 1 C3115,16 F1G1C104A081 C 0.10UF, K, 16V 2 C3117 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3118 EEEHB1C470P C 47PF, J, 16V 1 C3120 F1G1C104A081 C 0.10UF, K, 16V 1 C3270 EEEHB0J102UP C 1100PF, J, 6.3V 1 C3272 ECJ1XB1H104K C 10PF, J, 50V 1 C3273 EEEHB1H100P C 10PF, J, 50V 1 C3275,76 F1G1C104A081 C 0.10UF, K, 16V 2 C3279 F1G1C104A081 C 0.10UF, K, 16V 1 C3280 F1G1H101A565 C 100PF, K, 50V 1 C3281 F1G1C104A081 C 0.10UF, K, 16V 1 C3701 ECJ2XC1H561K C 560PF, K, 50V 1 C3703 ECJ2XC1H561K C 560PF, K, 50V 1 C3711,12 ECJ2VF1H333Z C 0.033UF, Z, 50V 2 C3715 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3750 F1J1H102A721 E 1000UF, 50V 1 C4500-03 F1G1C104A081 C 0.10UF, K, 16V 4 C4506,07 F1G1C104A081 C 0.10UF, K, 16V 2 C4508,09 EEEHB0J330R C 33PF, J, 6.3V 2 C4510,11 F1G1C104A081 C 0.10UF, K, 16V 2 C4515 F1G1C104A081 C 0.10UF, K, 16V 1 C4527 ECJ1VB1C105K C 0.01UF, K, 16V 1 C4528 F1G1C104A081 C 0.10UF, K, 16V 1 C4531 F1G1C104A081 C 0.10UF, K, 16V 1 C4533 F1G1H680A565 E 68UF, 50V 1 C4534,35 ECJ1XB1H104K C 10PF, J, 50V 2 C4538 EEEHB0J470R C 47PF, J, 6.3V 1 C4539 F1J1A106A043 C 0.010UF, K, 10V 1 C4541 F1H1H471A792 E 470UF, 50V 1 C4543-45 F1G1C104A081 C 0.10UF, K, 16V 3 C4546 F1H0J2250008 C 2.2UF, K, 16V 1 C4547 F1G1C104A081 C 0.10UF, K, 16V 1 C4548,49 ECJ1XB1H104K C 10PF, J, 50V 2 C4550 F1G1C104A081 C 0.10UF, K, 16V 1 C4551,52 ECJ1XB1H104K C 10PF, J, 50V 2 C4553 F1G1H1020008 E 1000UF, 50V 1 C4555,56 F1J1A106A043 C 0.010UF, K, 10V 2 C4557 F1G1C104A081 C 0.10UF, K, 16V 1 C4559,60 F1G1C104A081 C 0.10UF, K, 16V 2 C4562 F1H1H822A219 E 8200UF, 50V 1 C4563 ECJ1VB1C823K C 0.082UF, K, 16V 1 C4564,65 F1G1E1030005 C 0.01UF, Z, 25V 2 参考号 部品号 部品名称 & 说明 件数 备注 C4566 ECJ1XB1C393K C 0.039UF, K, 16V 1 C4568 F1G1C104A081 C 0.10UF, K, 16V 1 C4569 F1J1C684A097 C 0.68UF, Z, 16V 1 C4570 EEEHB0J470R C 47PF, J, 6.3V 1 C4572,73 F1G1C104A081 C 0.10UF, K, 16V 2 C4574 F1G1E1030005 C 0.01UF, Z, 25V 1 C4575 ECJ1VB1C105K C 0.01UF, K, 16V 1 C4576 EEEHB0J470R C 47PF, J, 6.3V 1 C4577,78 F1G1C104A081 C 0.10UF, K, 16V 2 C4580 F1G1E1030005 C 0.01UF, Z, 25V 1 C4581 ECJ1VB1C105K C 0.01UF, K, 16V 1 C4582,83 F1G1C104A081 C 0.10UF, K, 16V 2 C4584,85 ECJ1VB1C105K C 0.01UF, K, 16V 2 C4586 F1G1E1030005 C 0.01UF, Z, 25V 1 C4587 F1G1C104A081 C 0.10UF, K, 16V 1 C4588 ECJ1VB1C823K C 0.082UF, K, 16V 1 C4589 F1G1H150A565 E 15UF, 50V 1 C4590 ECJ0EC1H180J C 180PF, K, 50V 1 C4591,92 ECJ1VB1C105K C 0.01UF, K, 16V 2 C4593 F1G1E1030005 C 0.01UF, Z, 25V 1 C4595 F1G1E1030005 C 0.01UF, Z, 25V 1 C4596 F1G1C104A081 C 0.10UF, K, 16V 1 C4598 ECJ1VB1C105K C 0.01UF, K, 16V 1 C4600,01 F1G1E1030005 C 0.01UF, Z, 25V 2 C4602 F1G1C104A081 C 0.10UF, K, 16V 1 C4604 F1H0J2250008 C 2.2UF, K, 16V 1 C4605 F1G1C104A081 C 0.10UF, K, 16V 1 C4607 EEEHB0J470R C 47PF, J, 6.3V 1 C4609 ECJ1VB1C105K C 0.01UF, K, 16V 1 C4611 ECJ1VB1C105K C 0.01UF, K, 16V 1 C4612 F1G1E1030005 C 0.01UF, Z, 25V 1 C4613 ECJ1VB1C105K C 0.01UF, K, 16V 1 C4614 F1G1C104A081 C 0.10UF, K, 16V 1 C4615 F1G1E1030005 C 0.01UF, Z, 25V 1 C4616,17 F1G1C104A081 C 0.10UF, K, 16V 2 C4618 F1G1E1030005 C 0.01UF, Z, 25V 1 C4619 F1G1C104A081 C 0.10UF, K, 16V 1 C4620 ECJ1VB1C105K C 0.01UF, K, 16V 1 C4623 F1G1C104A081 C 0.10UF, K, 16V 1 C4624,25 ECJ1XB1H104K C 10PF, J, 50V 2 C4628 F1G1C104A081 C 0.10UF, K, 16V 1 C4629 F1J1A106A043 C 0.010UF, K, 10V 1 C4807 F1G1C104A081 C 0.10UF, K, 16V 1 C5501 F2A1C471A256 E 470UF, 16V 1 C5502 F1G1C104A081 C 0.10UF, K, 16V 1 C5503 F2A1C471A256 E 470UF, 16V 1 C5504 F1G1C104A081 C 0.10UF, K, 16V 1 C5521,22 F1G1C104A081 C 0.10UF, K, 16V 2 C5551 F2A1H331A257 E 330UF, 50V 1 C5552 ECJ1XB1H104K C 10PF, J, 50V 1 C5595 EEEHB1C220UR C 22PF, J, 16V 1 C5600 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5601 F1G1C104A081 C 0.10UF, K, 16V 1 C5602 ECGRL0G680ER C 68PF, J, 4V 1 C5603,04 F1G1E1030005 C 0.01UF, Z, 25V 2 C5605 ECJ2FB1C475K C 47UF, K, 16V 1 C5606 F1H1H471A792 E 470UF, 50V 1 C5607 F1H1H221A792 E 220UF, 50V 1 C5608 F1G1C104A081 C 0.10UF, K, 16V 1 C5609,10 EEEHB1C470P C 47PF, J, 16V 2 C5615 F1J1A106A043 C 0.010UF, K, 10V 1 C5616 ECJ0EB1A473K C 0.047UF, K, 10V 1 C5617 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5618,19 F1J1A106A043 C 0.010UF, K, 10V 2 C5620 F1G1C104A081 C 0.10UF, K, 16V 1 C5621 F1G1E1030005 C 0.01UF, Z, 25V 1 C5622 ECJ2FB1C475K C 47UF, K, 16V 1 C5623 F1H1H471A792 E 470UF, 50V 1 C5624 F1H1H221A792 E 220UF, 50V 1 C5625 F1G1E1030005 C 0.01UF, Z, 25V 1 C5626,27 F1G1C104A081 C 0.10UF, K, 16V 2 C5628,29 ECGRL0G680ER C 68PF, J, 4V 2 C5630,31 EEEHB1C470P C 47PF, J, 16V 2 C5632 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5636-41 F1G1C104A081 C 0.10UF, K, 16V 6 C5643 F1G1C104A081 C 0.10UF, K, 16V 1 C5644 F1G1E1030005 C 0.01UF, Z, 25V 1 参考号 部品号 部品名称 & 说明 件数 备注 120 C5645 F1H0J2250008 C 2.2UF, K, 16V 1 C5661 F1G1E1030005 C 0.01UF, Z, 25V 1 C5662 ECJ0EB1A473K C 0.047UF, K, 10V 1 C5663 F1G1E1030005 C 0.01UF, Z, 25V 1 C5670 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5673,74 ECJ1VB1C105K C 0.01UF, K, 16V 2 C5676 F1G1C104A081 C 0.10UF, K, 16V 1 C5690 EEEHB1C470P C 47PF, J, 16V 1 C5691 EEEHB0J470R C 47PF, J, 6.3V 1 C5692,93 F1G1C104A081 C 0.10UF, K, 16V 2 C5694 EEEHB1C470P C 47PF, J, 16V 1 C5695 EEEHB0J470R C 47PF, J, 6.3V 1 C6001 F1L2J332A022 C 3300UF, K,6.3V 1 C6002 F1L2J222A022 C 2200UF, K,6.3V 1 C6011-15 F2A2T201A002 E 200UF, 5 C6021,22 F1L2J272A022 C 2700UF, K,6.3V 2 C6031 F0C2E225A218 E 0.022UF, 250V 1 C6037 F1L1E4750004 C 4.7UF, 25V 1 C6091 F1L2J1020001 C 1000UF, K,6.3V 1 C6111,12 F2A2D221A022 E 220UF, 200V 2 C6132 F1L1E4750004 C 4.7UF, 25V 1 C6134,35 F1L1E4750004 C 4.7UF, 25V 2 C6151 ECJ3YB1E105K C 1UF, K, 25V 1 C6152-54 F1L1E4750004 C 4.7UF, 25V 3 C6193-95 F1L1E4750004 C 4.7UF, 25V 3 C6197 F1L1E4750004 C 4.7UF, 25V 1 C6201,02 F0C2E405A176 E 0.040UF, 250V 2 C6209 F1L1E4750004 C 4.7UF, 25V 1 C6211,12 F1L1E4750004 C 4.7UF, 25V 2 C6213 F2A1E102A220 E 1000UF, 25V 1 C6220 F1L2J1020001 C 1000UF, K,6.3V 1 C6221 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6241 F2A1A101A439 E 100UF, 10V 1 C6242 F1H1C105A072 C 1UF, K, 16V 1 C6243 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6251 F1H1C105A072 C 1UF, K, 16V 1 C6252 ECJ3YB1E105K C 1UF, K, 25V 1 C6261,62 F2A2A221A073 E 220UF, 100V 2 C6272,73 F2A1E221A487 E 220UF, 25V 2 C6276 F1L1E4750004 C 4.7UF, 25V 1 C6286-89 ECJ2XB1H104K C 0.1UF, K, 50V 4 C6401 F1L2J332A022 C 3300UF, K,6.3V 1 C6402 F1L2J222A022 C 2200UF, K,6.3V 1 C6411-15 F2A2T201A002 E 200UF, 5 C6421,22 F1L2J272A022 C 2700UF, K,6.3V 2 C6431 F0C2E405A176 E 0.040UF, 250V 1 C6480 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6502 F1L1E4750004 C 4.7UF, 25V 1 C6504,05 F1L1E4750004 C 4.7UF, 25V 2 C6521 ECJ3YB1E105K C 1UF, K, 25V 1 C6522 F1L1E4750004 C 4.7UF, 25V 1 C6524,25 F1L1E4750004 C 4.7UF, 25V 2 C6527 F1L1E4750004 C 4.7UF, 25V 1 C6531,32 F0C2E405A176 E 0.040UF, 250V 2 C6561 F2A1A101A439 E 100UF, 10V 1 C6562 F1H1C105A072 C 1UF, K, 16V 1 C6563 F2A1A101A439 E 100UF, 10V 1 C6564 F1H1C105A072 C 1UF, K, 16V 1 C6565,66 ECJ2VB1H103K C 0.01UF, K, 50V 2 C6581 ECJ3YB1E105K C 1UF, K, 25V 1 C6582 F1H1C105A072 C 1UF, K, 16V 1 C6592 F2A1E221A487 E 220UF, 25V 1 C6593 ECJ2XC1H102J C 1000PF, J, 50V 1 C6603,04 F1K2J102A014 C 1000UF, K,6.3V 2 C6605,06 F1L2J472A022 C 4700UF, K,6.3V 2 C6620,21 F1E2J222A002 C 2200PF, 600V 2 C6641 ECQE2224KF3 P 2.2UF, K,250V 1 C6661,62 F1K2J102A014 C 1000UF, K,6.3V 2 C6671 F1L1E4750004 C 4.7UF, 25V 1 C6691 ECA2CM101 E 100UF, 160V 1 C6694 ECJ3YB1E105K C 1UF, K, 25V 1 C6695 ECJ2XC1H102J C 1000PF, J, 50V 1 C6702-06 ECJ2XB1H104K C 0.1UF, K, 50V 5 C6708 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6721 ECA1HM101 E 100UF, 50V 1 C6722 ECJ2XC1H101J C 100PF, J, 50V 1 C6723-25 F1L1E4750004 C 4.7UF, 25V 3 参考号 部品号 部品名称 & 说明 件数 备注 C6726,27 F1H1C105A072 C 1UF, K, 16V 2 C6740 ECJ2XC1H101J C 100PF, J, 50V 1 C6752 ECJ3YB1E105K C 1UF, K, 25V 1 C6753 F1L1E4750004 C 4.7UF, 25V 1 C6755,56 F1L1E4750004 C 4.7UF, 25V 2 C6771 F1H1C105A072 C 1UF, K, 16V 1 C6772,73 F1L1E4750004 C 4.7UF, 25V 2 C6775 F1L1E4750004 C 4.7UF, 25V 1 C6776,77 ECJ2XB1H104K C 0.1UF, K, 50V 2 C6791 F2A1E221A487 E 220UF, 25V 1 C6795,96 F2A1E221A487 E 220UF, 25V 2 C6801 F2A2E470A022 E 47UF, 250V 1 C6803 ECKD3D221KBP C 220PF, K, 2KV 1 C6804 F2A2E100A022 E 10UF, 250V 1 C6805 ECJ2XC1H331J C 330PF, J, 50V 1 C6806 ECA2CM101 E 100UF, 160V 1 C6811 ECJ3YB1E105K C 1UF, K, 25V 1 C6812 F1L1E4750004 C 4.7UF, 25V 1 C6813 ECA2CM101 E 100UF, 160V 1 C6814 F2A1E221A487 E 220UF, 25V 1 C6815 ECJ2XC1H102J C 1000PF, J, 50V 1 C6822 F2A2G470A018 E 470UF, 400V 1 C6823 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6832 ECJ2XB1H392K C 3900PF, K, 50V 1 C6841 F2A2E470A022 E 47UF, 250V 1 C6842 ECA2CM101 E 100UF, 160V 1 C6845 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6861 F1H1C105A072 C 1UF, K, 16V 1 C6862 ECJ3YB1E105K C 1UF, K, 25V 1 C6863 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6871 F1H1C105A072 C 1UF, K, 16V 1 C6872 ECJ3YB1E105K C 1UF, K, 25V 1 C6873 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6901 ECJ2XB1H102K C 1000PF, K, 50V 1 C6902 TCUY1C105ZFN C 1UF, 16V 1 C6904 TCUY1C105ZFN C 1UF, 16V 1 C6906 TCUY1C105ZFN C 1UF, 16V 1 C6908 TCUY1C105ZFN C 1UF, 16V 1 C6910 TCUY1C105ZFN C 1UF, 16V 1 C6912 TCUY1C105ZFN C 1UF, 16V 1 C6921 F1L2E1040002 E 1000UF, 25V 1 C6923,24 F1L2E1040002 E 1000UF, 25V 2 C6926,27 F1L2E1040002 E 1000UF, 25V 2 C6929 F1L2E1040002 E 1000UF, 25V 1 C6931 ECJ2XB1H102K C 1000PF, K, 50V 1 C6936 ECJ2XB1H681K C 680PF, K, 50V 1 C6937 ECJ2VB1H221K C 220PF, K, 50V 1 C6951 ECJ2XB1H102K C 1000PF, K, 50V 1 C6952 TCUY1C105ZFN C 1UF, 16V 1 C6955 TCUY1C105ZFN C 1UF, 16V 1 C6957,58 TCUY1C105ZFN C 1UF, 16V 2 C6961 TCUY1C105ZFN C 1UF, 16V 1 C6963 TCUY1C105ZFN C 1UF, 16V 1 C6971 F1L2E1040002 E 1000UF, 25V 1 C6973,74 F1L2E1040002 E 1000UF, 25V 2 C6976,77 F1L2E1040002 E 1000UF, 25V 2 C6979 F1L2E1040002 E 1000UF, 25V 1 C6981 ECJ2XB1H102K C 1000PF, K, 50V 1 C6986 ECJ2XB1H681K C 680PF, K, 50V 1 C6987 ECJ2VB1H221K C 220PF, K, 50V 1 C7103 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7105 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7106-08 ECJ1XC1H101J C 100PF, J, 50V 3 C7110,11 F1H1C105A072 C 1UF, K, 16V 2 C7114,15 F1H1C105A072 C 1UF, K, 16V 2 C7117-22 F1K2A474A006 C 0.47UF, 6.3V 6 C7124,25 F1H1C105A072 C 1UF, K, 16V 2 C7127,28 F1K2A474A006 C 0.47UF, 6.3V 2 C7130,31 F1H1C105A072 C 1UF, K, 16V 2 C7133 ECJ1XC1H101J C 100PF, J, 50V 1 C7134,35 F1K2A474A006 C 0.47UF, 6.3V 2 C7137,38 F1H1C105A072 C 1UF, K, 16V 2 C7140 ECJ1XC1H101J C 100PF, J, 50V 1 C7141 F1H1C105A072 C 1UF, K, 16V 1 C7142 F1K2A474A006 C 0.47UF, 6.3V 1 C7203 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7206 ECJ1XB1C104K C 0.1UF, Z, 16V 1 参考号 部品号 部品名称 & 说明 件数 备注 121 C7209,10 F1K2A474A006 C 0.47UF, 6.3V 2 C7212,13 F1H1C105A072 C 1UF, K, 16V 2 C7215-17 ECJ1XC1H101J C 100PF, J, 50V 3 C7219,20 F1H1C105A072 C 1UF, K, 16V 2 C7222-25 F1K2A474A006 C 0.47UF, 6.3V 4 C7227,28 F1H1C105A072 C 1UF, K, 16V 2 C7231 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7233-35 F1K2A474A006 C 0.47UF, 6.3V 3 C7237,38 F1H1C105A072 C 1UF, K, 16V 2 C7240 ECJ1XC1H101J C 100PF, J, 50V 1 C7241,42 F1K2A474A006 C 0.47UF, 6.3V 2 C7244,45 F1H1C105A072 C 1UF, K, 16V 2 C7247 ECJ1XC1H101J C 100PF, J, 50V 1 C7248,49 F1K2A474A006 C 0.47UF, 6.3V 2 C7251,52 F1H1C105A072 C 1UF, K, 16V 2 C7254 ECJ1XC1H101J C 100PF, J, 50V 1 C7256 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7261 F1H1C105A072 C 1UF, K, 16V 1 C8001 F1G1C104A081 C 0.10UF, K, 16V 1 C8002-05 ECJ1VB1C105K C 0.01UF, K, 16V 4 C8006-08 F1G1C104A081 C 0.10UF, K, 16V 3 C8009,10 F1J1A106A043 C 0.010UF, K, 10V 2 C8011-14 F1G1C104A081 C 0.10UF, K, 16V 4 C8015,16 ECJ1VB1C105K C 0.01UF, K, 16V 2 C8017 F1J1A106A043 C 0.010UF, K, 10V 1 C8018-21 F1G1C104A081 C 0.10UF, K, 16V 4 C8022 ECJ1VB1C105K C 0.01UF, K, 16V 1 C8023,24 F1J1A106A043 C 0.010UF, K, 10V 2 C8025-29 F1G1C104A081 C 0.10UF, K, 16V 5 C8030,31 ECJ1VB1C105K C 0.01UF, K, 16V 2 C8032 F1J1A106A043 C 0.010UF, K, 10V 1 C8033,34 F1G1C104A081 C 0.10UF, K, 16V 2 C8035,36 F1J1A106A043 C 0.010UF, K, 10V 2 C8037-41 F1G1C104A081 C 0.10UF, K, 16V 5 C8042 ECGRL0G680ER C 68PF, J, 4V 1 C8043-51 F1G1C104A081 C 0.10UF, K, 16V 9 C8052 ECJ1VB1C105K C 0.01UF, K, 16V 1 C8053 F1G1E1030005 C 0.01UF, Z, 25V 1 C8056,57 F1G1C104A081 C 0.10UF, K, 16V 2 C8058 F1J1A106A043 C 0.010UF, K, 10V 1 C8067 F1G1E1030005 C 0.01UF, Z, 25V 1 C8068 F1G1C104A081 C 0.10UF, K, 16V 1 C8069 F1G1H820A565 E 82UF, 50V 1 C8070-74 F1G1C104A081 C 0.10UF, K, 16V 5 C8075 F1J0G2260001 C 0.001UF, 6.3V 1 C8076-80 F1G1C104A081 C 0.10UF, K, 16V 5 C8553-55 F1G1C104A081 C 0.10UF, K, 16V 3 C8601 F1G1C104A081 C 0.10UF, K, 16V 1 C8621,22 F1G1C104A081 C 0.10UF, K, 16V 2 C8801 F1J1H474A757 C 0.47UF, 50V 1 C9028,29 F1J1A106A043 C 0.010UF, K, 10V 2 C9033,34 F1G1C104A083 C 0.10UF, K, 16V 2 C9035,36 F1J1A106A043 C 0.010UF, K, 10V 2 C9037 F1G1E1030005 C 0.01UF, Z, 25V 1 C9039 F1J1A106A043 C 0.010UF, K, 10V 1 C9040 F1G1C104A083 C 0.10UF, K, 16V 1 C9044 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1 C9045-53 F1G1C104A083 C 0.10UF, K, 16V 9 C9055-57 F1G1C104A083 C 0.10UF, K, 16V 3 C9058 F1J1A106A043 C 0.010UF, K, 10V 1 C9061 F1G1C104A077 C 0.10UF, K, 16V 1 C9062 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1 C9063 F1G1C104A083 C 0.10UF, K, 16V 1 C9468 F1G1E1030005 C 0.01UF, Z, 25V 1 C9469 F1G1C104A083 C 0.10UF, K, 16V 1 C9500 F1G1C104A077 C 0.10UF, K, 16V 1 C9505 F1G1C104A077 C 0.10UF, K, 16V 1 C9508 F1G1C104A077 C 0.10UF, K, 16V 1 C9509,10 F1G1H120A565 E 12UF, 50V 2 C9511 F1J1A106A043 C 0.010UF, K, 10V 1 C9516-25 F1G1C104A077 C 0.10UF, K, 16V 10 C9526 F1J1A106A043 C 0.010UF, K, 10V 1 C9527,28 F1G1C104A077 C 0.10UF, K, 16V 2 C9531 F1J1A106A043 C 0.010UF, K, 10V 1 C9559-64 F1G1C104A077 C 0.10UF, K, 16V 6 C9565 F1G1C104A077 C 0.10UF, K, 16V 1 TNPA4134BQ C9566 F1G1C104A077 C 0.10UF, K, 16V 1 TNPA4134BQ 参考号 部品号 部品名称 & 说明 件数 备注 C9823 ECJ3YB1E106M C 10 UF, K, 25V 1 C9825 F1G1H101A565 C 100PF, K, 50V 1 C9832 F1J1A106A043 C 0.010UF, K, 10V 1 C9837 F1J1A106A043 C 0.010UF, K, 10V 1 C9838 F1G1C104A083 C 0.10UF, K, 16V 1 TNPA4134AQ C9840 F1G1E1030005 C 0.01UF, Z, 25V 1 C9841-42 F1G1C104A083 C 0.10UF, K, 16V 3 C9843 F1G1C104A083 C 0.10UF, K, 16V 1 TNPA4134AQ C9844 F1G1E1030005 C 0.01UF, Z, 25V 1 C9845,46 F1G1C104A083 C 0.10UF, K, 16V 2 C9858 ECJ3YB1E106M C 10 UF, K, 25V 1 C9859 F1G1E1030005 C 0.01UF, Z, 25V 1 C9860 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1 C9861,62 ECJ1VB1E104K C 0.10UF, K, 25V 2 C9863 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1 C9864 ECJ1VB1E104K C 0.10UF, K, 25V 1 C9865,66 ECGRL0G680ER C 68PF, J, 4V 2 C9867-72 ECJ3YB1E106M C 10 UF, K, 25V 6 C9873 ECGRL0G680ER C 68PF, J, 4V 1 C9874 F1G1H680A565 E 68UF, 50V 1 C9875 F1J1A106A043 C 0.010UF, K, 10V 1 TNPA4134BQ C9876 F1J1A106A043 C 0.010UF, K, 10V 1 TNPA4134BQ C9877 F1G1H680A565 E 68UF, 50V 1 C9878 F1G1E1030005 C 0.01UF, Z, 25V 1 C9879,80 F1G1E822A086 C 8200UF, Z, 25V 2 C9881 F1G1E1030005 C 0.01UF, Z, 25V 1 C9882 F1G1E822A086 C 8200UF, Z, 25V 1 C9883 F1G1H101A565 C 100PF, K, 50V 1 C9884,85 F1G1H1020008 E 1000UF, 50V 2 C9886,87 ECJ1VB1E104K C 0.10UF, K, 25V 2 C9888 F1G1H361A565 E 360UF, 50V 1 C9900-25 F1G1C104A077 C 0.10UF, K, 16V 26 C9927-51 F1G1C104A077 C 0.10UF, K, 16V 25 C9955-59 F1G1C104A077 C 0.10UF, K, 16V 5 C9960-64 F1J1A106A043 C 0.010UF, K, 10V 5 C9966,67 F1G1C104A077 C 0.10UF, K, 16V 2 CB1-11 K1MN68BA0052 68P 连接接头 11 D5 K1KB31BA0064 31P 连接接头 1 D6 K1KA21A00011 21P 连接接头 1 D9 K1KA07A00292 7P 连接接头 1 TNPA4134AQ D20 K1KY30BA0090 30P 连接接头 1 D25 K1KA13B00069 13P 连接接头 1 D31 K1MN55BA0257 55P 连接接头 1 D32 K1MN68BA0251 68P 连接接头 1 D856,57 MA2J11100L 二极管 2 D859 B0JCME000037 二极管 1 D860 MAZ81100ML 稳压二极管 1 D861 MA2J11100L 二极管 1 D862 MA8033L 稳压二极管 1 D1107 MA704A 二极管 1 D2026 MA2J11100L 二极管 1 D2028,29 MA2J11100L 二极管 2 D2031-34 MA2J11100L 二极管 4 D2119 B0BC01100001 稳压二极管 1 D2189 MA2J11100L 二极管 1 D2301,02 MA2J11100L 二极管 2 D2303 MA3056H 稳压二极管 1 D2304 MA2J11100L 二极管 1 D2512 MA8043LTX 稳压二极管 1 D2520 LNJ107W5PRW LED 1 D2524 MAZ80560ML 稳压二极管 1 D2632,33 MA2J11100L 二极管 2 D2634 MA3X78900L 稳压二极管 1 D2635 MA2J11100L 二极管 1 D2636 MA3047H 稳压二极管 1 D2637 MA2J11100L 二极管 1 D2638 B0BC03900015 稳压二极管 1 D3003 MA8140M 稳压二极管 1 D3005,06 MA8140M 稳压二极管 2 D3035-43 MA8140M 稳压二极管 9 D3044 B0BC01100001 稳压二极管 1 D3045-49 MA8140M 稳压二极管 5 D3100 MA8140M 稳压二极管 1 D3102 MA2J11100L 二极管 1 D3334-38 MA2J11100L 二极管 5 参考号 部品号 部品名称 & 说明 件数 备注 122 D3702 MA8140M 稳压二极管 1 D4500-12 EZAEG2A50AX 二极管 13 D4513 MA3056MTX 稳压二极管 1 D4514 EZAEG2A50AX 二极管 1 D4515 MA3056MTX 稳压二极管 1 D4516-23 EZAEG2A50AX 二极管 8 D4524-27 B0HCMM000014 二极管 4 D4528 EZAEG2A50AX 二极管 1 D4532 B0HCMM000014 二极管 1 D5501 B0BC01000035 稳压二极管 1 D5521 MA2J11100L 二极管 1 D5522 MA3X152A0L 二极管 1 D5526 MA3X152A0L 二极管 1 D5528 MA8120M 稳压二极管 1 D5529 MAZ80680LL 稳压二极管 1 D5530 MA2J11100L 二极管 1 D5571 B0BC6R600005 稳压二极管 1 D5573 B0BC01100001 稳压二极管 1 D5601,02 MA22D3900L 二极管 2 D5603,04 B0JCDD000002 二极管 2 D5605 MA22D3900L 二极管 1 D5606 B0JCDD000002 二极管 1 D5607,08 MA8024LTX 稳压二极管 2 D5609 MA8056LTX 稳压二极管 1 D5670 MA2J11100L 二极管 1 D5671 B0HCMM000014 二极管 1 D5673 B0HCMM000014 二极管 1 D5690,91 B0BC6R600005 稳压二极管 2 D6001 B0HBSN000008 二极管 1 D6021 MA3DF30000LZ 稳压二极管 1 D6024,25 B0ECHP000003 二极管 2 D6032 MA2J11100L 二极管 1 D6061,62 MA3DF30000LZ 稳压二极管 2 D6071,72 B0HBSN000008 二极管 2 D6082 MA3DF30000LZ 稳压二极管 1 D6091 B0HBSN000008 二极管 1 D6092 B0ECHP000003 二极管 1 D6101-04 B0JCME000037 二极管 4 D6131,32 B0ECHP000003 二极管 2 D6151-53 B0ECHP000003 二极管 3 D6191 B0ECHP000003 二极管 1 D6193 B0ECHP000003 二极管 1 D6211 B0JCME000037 二极管 1 D6221 B0ECHP000003 二极管 1 D6222,23 MA2J11100L 二极管 2 D6253 LNJ301MPUJA LED 1 D6254 MAZ80510LL 稳压二极管 1 D6255 MA2J11100L 二极管 1 D6273 MA2J11100L 二极管 1 D6275 MA8068M 稳压二极管 1 D6276 MA3X152A0L 二极管 1 D6278 MA3X152A0L 二极管 1 D6280 MAZ80510LL 稳压二极管 1 D6281 B0JCME000037 二极管 1 D6401,02 B0HBSN000008 二极管 2 D6422 MA3DF40000LZ 稳压二极管 1 D6441 B0ECHP000003 二极管 1 D6451 B0ECHP000003 二极管 1 D6461,62 MA3DF30000LZ 稳压二极管 2 D6466 MA2J11100L 二极管 1 D6471 B0HBSN000008 二极管 1 D6472 B0ECHP000003 二极管 1 D6477 MA2J11100L 二极管 1 D6478 B0HCKS000002 二极管 1 D6480 MA2J11100L 二极管 1 D6481 MA3DF30000LZ 稳压二极管 1 D6491 MA3DF40000LZ 稳压二极管 1 D6497 B0ECHP000003 二极管 1 D6501 B0ECHP000003 二极管 1 D6503 B0ECHP000003 二极管 1 D6521-23 B0ECHP000003 二极管 3 D6583 LNJ301MPUJA LED 1 D6584 MAZ80510LL 稳压二极管 1 D6585 MA2J11100L 二极管 1 D6604 MA2J11100L 二极管 1 D6605 MAZ80510LL 稳压二极管 1 D6606 B0HCMM000014 二极管 1 参考号 部品号 部品名称 & 说明 件数 备注 D6607 MA2J11100L 二极管 1 D6619 B0HCKS000002 二极管 1 D6621 B0HDSM000005 二极管 1 D6623,24 B0HDSM000005 二极管 2 D6631,32 MA8240MTX 稳压二极管 2 D6641,42 B0HCKS000002 二极管 2 D6643 B0JCME000037 二极管 1 D6644 B0HCKS000002 二极管 1 D6661 MA2J11100L 二极管 1 D6662-64 MA8330M 稳压二极管 3 D6665 MAZ80510LL 稳压二极管 1 D6666,67 MA2J11100L 二极管 2 D6670,71 B0JCME000037 二极管 2 D6690 MA2J11100L 二极管 1 D6691,92 MA8200M 稳压二极管 2 D6701 MA8056H 稳压二极管 1 D6702,03 MA2J11100L 二极管 2 D6721 B0HCKS000002 二极管 1 D6722 MA2J11100L 二极管 1 D6725 B0ECHP000003 二极管 1 D6726-33 MA8056H 稳压二极管 8 D6761 B0JCME000037 二极管 1 D6763 B0ECHP000003 二极管 1 D6764 B0HCKS000002 二极管 1 D6765,66 B0ECHP000003 二极管 2 D6773 B0HCKS000002 二极管 1 D6791 MA8200M 稳压二极管 1 D6802 B0BC01000044 稳压二极管 1 D6804 B0ECHP000003 二极管 1 D6805 MA8240MTX 稳压二极管 1 D6806 B0HCKS000002 二极管 1 D6809 B0HCMM000014 二极管 1 D6820-23 MA2J11100L 二极管 4 D6824,25 MA8330M 稳压二极管 2 D6826 MA2J11100L 二极管 1 D6827,28 MA8330M 稳压二极管 2 D6830 MA8056H 稳压二极管 1 D6836 MAZ81500ML 稳压二极管 1 D6837 MA2J11100L 二极管 1 D6838 B0BC027A0234 稳压二极管 1 D6839 B0ECHP000003 二极管 1 D6841 B0HCKS000002 二极管 1 D6842,43 MA2J11100L 二极管 2 D6859 B0ECHP000003 二极管 1 D6860 B0HCKS000002 二极管 1 D6861 MAZ80510LL 稳压二极管 1 D6862 MA2J11100L 二极管 1 D6871 MAZ80510LL 稳压二极管 1 D6872 MA2J11100L 二极管 1 D6901,02 MA8056H 稳压二极管 2 D6903-05 B0HCMM000013 二极管 3 D6951,52 MA8056H 稳压二极管 2 D6953-55 B0HCMM000013 二极管 3 D7101-10 B0HCMM000014 二极管 10 D7201-12 B0HCMM000014 二极管 12 D8901 MA704A 二极管 1 D9017-19 MA3033 稳压二极管 3 D9020 B0JCCE000008 二极管 1 D9110 B0JCGD000002 二极管 1 D9802 B0JCCE000008 二极管 1 D9804 B0JCCE000008 二极管 1 D9807,08 B0JCCE000008 二极管 2 D9811 B0JCCE000008 二极管 1 D9812 MA22D3900L 二极管 1 D9813-15 B0JCGD000002 二极管 3 D9816,17 MA22D3900L 二极管 2 DG1 K1KA12B00151 12P 连接接头 1 DG5 K1KB31AA0140 31P 连接接头 1 DG6 K1KA12AA0191 12P 连接接头 1 DG7 K1KA11AA0191 11P 连接接头 1 DG8 K1KA06AA0104 6P 连接接头 1 DG12 K1KA04AA0190 4P 连接接头 1 DG32 K1KA07AA0266 7P 连接接头 1 DG33 K1KA11AA0715 11P 连接接头 1 DG34 K1KA30AA0009 30P 连接接头 1 DG51 K1KY20A00015 20P 连接接头 1 参考号 部品号 部品名称 & 说明 件数 备注 123 FL2001,02 J0HABB000004 LC 滤波器 2 FL2003-06 J0HABB000003 LC 滤波器 4 FL3001,02 J0HABB000003 LC 滤波器 2 FL3003-05 J0HABB000004 LC 滤波器 3 FL3006,07 J0JAD0000028 片状电感 2 FL3008 J0HABB000003 LC 滤波器 1 FL3710-12 J0MAB0000199 LC 滤波器 3 FL4800-02 J0JAD0000028 片状电感 3 FL5733,34 J0HABH000013 LC 滤波器 2 FL5750,51 J0HABH000013 LC 滤波器 2 FL7101 J0HABH000013 LC 滤波器 1 FL7201 J0HABH000013 LC 滤波器 1 FL9300,01 F1J1E104A148 C 0.10UF, Z, 25V 2 FL9504 F1J1E104A148 C 0.10UF, Z, 25V 1 FL9803 F1J1E104A148 C 0.10UF, Z, 25V 1 FL9805,06 F1J1E104A148 C 0.10UF, Z, 25V 2 FL9900-04 F1J1E104A148 C 0.10UF, Z, 25V 5 G51 K1KY20A00015 20P 连接接头 1 IC850 C0DBAZF00003 IC 1 IC1100 MNZSFD7GP42 IC 1 IC1101 TVRP465-1 IC 1 IC2008 C0CBCBE00001 IC 1 IC2010 C0CBCBC00190 IC 1 IC2011 C0ABBB000230 IC 1 IC2012 C1BB00000947 IC 1 IC2013 C0DBGYY00281 IC 1 IC2105 AN15862A-VT IC 1 IC2106 C1AB00002746 IC 1 IC2107 C0DBFFD00003 IC 1 IC2301 C1AB00002730 IC 1 IC2303 C0DBGYY00202 IC 1 IC2610 C0DBAJB00004 IC 1 IC3001 AN15876A-VT IC 1 IC4500 TVRP317 IC 1 IC4501 TVRP316 IC 1 IC4504 C3EBEY000009 IC 1 IC4506 C0DBGGF00001 IC 1 IC4507 C0CBCBC00190 IC 1 IC4508,09 C0CBCAD00082 IC 2 IC4510 C1AB00002753 IC 1 IC4515 NJM2903V IC 1 IC4800 C1ZBZ0003577 IC 1 IC5550 EHMDD9851 线形 IC 1 IC5600 C0DBAYY00273 IC 1 IC5601 C0DBAYY00274 IC 1 IC5660 C0EBM0000026 IC 1 IC5670 C0CBCBC00190 IC 1 IC5671 C0EBF0000376 IC 1 IC6131 C0ZBZ0000895 IC 1 IC6151 C0ZBZ0001324 IC 1 IC6191 C0ZBZ0000895 IC 1 IC6211 C0ZBZ0001325 IC 1 IC6221 C0DBEMC00043 IC 1 IC6241 C0JBAZ000005 IC 1 IC6251 NJM2903M 集成电路 1 IC6471 C0DBEKA00003 IC 1 IC6472 C0JBAA000377 IC 1 IC6501 C0ZBZ0000895 IC 1 IC6521 C0ZBZ0001324 IC 1 IC6561,62 C0JBAZ000005 IC 2 IC6581 NJM2903M 集成电路 1 IC6671 C0ZBZ0001325 IC 1 IC6721,22 C0JBAZ000994 IC 2 IC6724,25 C0CBADC00072 IC 2 IC6752 C0ZBZ0001324 IC 1 IC6771 C0CBADC00072 IC 1 IC6772 C0ZBZ0001325 IC 1 IC6773,74 C0JBAA000377 IC 2 IC6791 N0BF1FB00001 IC 1 IC6801,02 C0DBEMC00043 IC 2 IC6803 C5HABZZ00165 IC 1 IC6821 C0DBEMC00043 IC 1 IC6841 C0DBEMC00043 IC 1 IC6861 NJM2903M 集成电路 1 参考号 部品号 部品名称 & 说明 件数 备注 IC6871 NJM2903M 集成电路 1 IC6901-06 AN16077A-VT IC 6 IC6951-56 AN16077A-VT IC 6 IC7101,02 C0JBAZ001120 IC 2 IC7201,02 C0JBAZ001120 IC 2 IC7205,06 C0JBAZ001120 IC 2 IC8001 MN2WS0039AA IC 1 IC8002,03 C3ABRY000015 IC 2 IC8004 C0ZBZ0001030 IC 1 IC8554 TVRP463-9 IC 1 IC8601 TVRP692 IC 1 IC8621,22 C0JBAZ002845 IC 2 IC9001 TVRP436-1 IC 1 IC9002 C1ZBZ0003577 IC 1 IC9003 MN103SC9GPH3 IC 1 IC9007 C1ZBZ0003631 IC 1 TNPA4134AQ IC9011 C0EBF0000431 IC 1 IC9013 C0JBAZ002060 IC 1 IC9200 C1ZBZ0003600 IC 1 IC9303 TVRP437 IC 1 IC9500 C1ZBZ0003575 IC 1 TNPA4134AQ IC9500 C1ZBZ0003711 IC 1 TNPA4134BQ IC9802,03 C0JBAZ001120 IC 2 IC9804 C0DBGFD00011 IC 1 TNPA4134BQ IC9805 C0DBAYY00274 IC 1 IC9806 C0DBAYY00273 IC 1 IC9900 MN84524 IC 1 IC9901 C3ABQJ000055 IC 1 JA1-A5 ERJ6GEY0R00V M 0 OHM, 1/10W 5 JK2003 K2HA204A0053 插孔 1 JK3001 K1FB315A0006 连接接头 1 JK3100 K1U936A00002 连接接头单元 1 JK3701C K4AK18B00003 端子 1 JK4500,01 K1FY119D0002 连接接头 2 JK8701 K1KAB0A00011 连接接头 1 JK8702 K1KA04AA0104 4P 连接接头 1 JK8801 K1NA09D00004 9P 连接接头 1 JS1111 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS2031-33 D0YAR0000007 M 0.0 OHM, J,0.063W 3 JS2046,47 J0JCC0000100 片状电感 2 JS2051 J0JCC0000100 片状电感 1 JS2053 J0JCC0000100 片状电感 1 JS2101 J0JCC0000100 片状电感 1 JS2517 J0JCC0000100 片状电感 1 JS3010-15 ERJ6GEY0R00V M 0 OHM, 1/10W 6 JS3032 J0JCC0000100 片状电感 1 JS3208 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS3209 J0JCC0000100 片状电感 1 JS3700 J0JCC0000100 片状电感 1 JS3704,05 ERJ6GEY0R00V M 0 OHM, 1/10W 2 JS3707,08 ERJ6GEY0R00V M 0 OHM, 1/10W 2 JS5568,69 J0JCC0000100 片状电感 2 K1 K1KY12B00001 12P 连接接头 1 L852 G0C101KA0167 校正线圈 1 L1100 J0JHC0000078 片状电感 1 L2001,02 J0JCC0000364 片状电感 2 L2003,04 J0JCC0000100 扼流线圈 2 L2007,08 J0JCC0000100 扼流线圈 2 L2011,12 J0JCC0000100 扼流线圈 2 L2015,16 J0JCC0000100 扼流线圈 2 L2021 J0JHC0000078 片状电感 1 L2026 G1C6R8MA0061 感应线圈 1 L2027 J0JHC0000045 片状电感 1 L2029 J0JCC0000077 片状电感 1 L2034,35 J0JCC0000364 片状电感 2 L2040 J0JHC0000045 片状电感 1 L2300 G1C330MA0291 感应线圈 1 L2302 G1C330MA0291 感应线圈 1 L2304 G1C330MA0291 感应线圈 1 L2306 G1C330MA0291 感应线圈 1 L2308 J0JJC0000011 片状电感 1 L2310 J0JJC0000011 片状电感 1 参考号 部品号 部品名称 & 说明 件数 备注 124 L2648 G1C470MA0077 感应线圈 1 L2649 G1C100MA0072 感应线圈 1 L2650 G1C3R3ZA0083 感应线圈 1 L3001-03 J0JCC0000100 扼流线圈 3 L3010 J0JCC0000100 扼流线圈 1 L3013 J0JCC0000100 扼流线圈 1 L3206,07 J0JCC0000241 片状电感 2 L3209 J0JGC0000021 片状电感 1 L3211 J0JGC0000021 片状电感 1 L3225,26 J0JCC0000241 片状电感 2 L3700,01 J0JCC0000364 片状电感 2 L3707,08 J0JCC0000100 扼流线圈 2 L4500-07 J0JHC0000078 片状电感 8 L4511 J0JHC0000078 片状电感 1 L4512 J0JCC0000077 片状电感 1 L4516-18 J0JHC0000078 片状电感 3 L4520,21 J0JHC0000078 片状电感 2 L4524 J0JHC0000078 片状电感 1 L5550 G1C3R3ZA0083 感应线圈 1 L5551,52 G1C150ZA0083 感应线圈 2 L5564 G1C3R3ZA0083 感应线圈 1 L5565 G1C220MA0077 感应线圈 1 L5566 G1C3R3ZA0083 感应线圈 1 L5600,01 G1C2R2ZA0083 感应线圈 2 L5602 G1C3R3ZA0083 感应线圈 1 L5604 G1C100MA0077 感应线圈 1 L5605 J0JCC0000241 片状电感 1 L5606 G1C100MA0077 感应线圈 1 L5610,11 J0JHC0000035 片状电感 2 L5670 J0JHC0000078 片状电感 1 L5690,91 J0JHC0000078 片状电感 2 L5735 J0JHC0000078 片状电感 1 L5750 J0JHC0000035 片状电感 1 L6000 J0JJC0000015 片状电感 1 L6001-03 ELC13P1R9 扼流线圈 3 L6010 J0JJC0000015 片状电感 1 L6011-13 ELC13P1R9 扼流线圈 3 L6045-48 G0ZZ00002183 校正线圈 4 L6057,58 G0ZZ00002183 校正线圈 2 L6061-64 G0ZZ00002183 校正线圈 4 L6083,84 G0ZZ00002183 校正线圈 2 L6101,02 J0JJC0000015 片状电感 2 L6103 G0ZZ00002183 校正线圈 1 L6105,06 J0JJC0000015 片状电感 2 L6212 J0JJC0000015 片状电感 1 L6221 G0ZZ00002183 校正线圈 1 L6241 G0ZZ00002183 校正线圈 1 L6262 G0ZZ00002183 校正线圈 1 L6271 G0ZZ00002183 校正线圈 1 L6401-03 ELC13P1R9 扼流线圈 3 L6411-13 ELC13P1R9 扼流线圈 3 L6461-68 G0ZZ00002183 校正线圈 8 L6472 G0ZZ00002183 校正线圈 1 L6474 G0ZZ00002183 校正线圈 1 L6481,82 G0ZZ00002183 校正线圈 2 L6485,86 G0ZZ00002183 校正线圈 2 L6591,92 G0ZZ00002183 校正线圈 2 L6601,02 G0ZZ00002183 校正线圈 2 L6690 G0ZZ00002183 校正线圈 1 L8001-05 J0JHC0000045 片状电感 5 L8007-10 J0JHC0000045 片状电感 4 L8551 J0JCC0000241 片状电感 1 L8621 J0JCC0000241 片状电感 1 L9500 G1C150KA0038 感应线圈 1 L9501,02 J0JHC0000078 片状电感 2 TNPA4134AQ L9501,02 ERJ3GEY0ROOV 片状电感 2 TNPA4134BQ L9504,05 J0JHC0000078 片状电感 2 TNPA4134AQ L9800 G1C2R2Z00007 感应线圈 1 L9801 G1C1R5Z00006 感应线圈 1 L9802 G1C2R2Z00007 感应线圈 1 PA9800 K5H4022A0023 保险丝 1 PA9900 K5H5022A0023 保险丝 1 PB7 K1KA02AA0193 2P 连接接头 1 PB8 K1KA06A00452 6P 连接接头 1 PB36,37 K1KA03AA0192 3P 连接接头 2 参考号 部品号 部品名称 & 说明 件数 备注 PBMM4 TMME260 线夹 1 PBMM5 TMM7464-2 线夹 1 PC6480 B3PBA0000223 IC 1 PC6701,02 B3PBA0000457 IC 2 PC6704 B3PBA0000456 IC 1 PC6705 B3PBA0000397 IC 1 PC6801 B3PBA0000223 IC 1 PC6861 B3PBA0000223 IC 1 PC6871 B3PBA0000223 IC 1 PCB TXNDG1HNTC DG 电路板 1 PCB TXNPB1HNTC PB 电路板 1 PCB TXNC11HLTC C1 电路板 1 PCB TXNC21HLTC C2 电路板 1 PCB TZTNP01HLTC D 电路板 1 PCB TXN/P1HNTC P 电路板 1 PCB TXNSC1HLTC SC 电路板 1 PCB TNPA4185 SD 电路板 1 PCB TXNSS1HLTC SS 电路板 1 PCB TNPA4184 SU 电路板 1 PCB TNPA4262AB G 电路板 1 PCB TNPA4137AJ K 电路板 1 PCB TNPA4138AD S 电路板 1 Q1107,08 2SD0601ARL 三极管 2 Q2000,01 2SD0601ARL 三极管 2 Q2002,03 2SC584500L 三极管 2 Q2015 2SA207700L 三极管 1 Q2016,17 2SC584500L 三极管 2 Q2021 2SA207700L 三极管 1 Q2031 2SA207700L 三极管 1 Q2033 2SA207700L 三极管 1 Q2034,35 2SC584500L 三极管 2 Q2039-42 2SC584500L 三极管 4 Q2101,02 2SC584500L 三极管 2 Q2301 2SA207700L 三极管 1 Q2510,11 2SD0601ARL 三极管 2 Q2513 2SD0601ARL 三极管 1 Q2635 2SC584500L 三极管 1 Q2636,37 2SA207700L 三极管 2 Q2638 2SC584500L 三极管 1 Q2639 2SK3065T100 FET 1 Q2640,41 B1CBHD000002 FET 2 Q3031,32 2SC584500L 三极管 2 Q3200 2SA207700L 三极管 1 Q4500-05 2SD0601ARL 三极管 6 Q4514-17 2SB0709ARL 三极管 4 Q5501 2SD0601ARL 三极管 1 Q5521,22 2SA207700L 三极管 2 Q5523,24 2SD0601ARL 三极管 2 Q5561 B1DHDC000028 三极管 1 Q5562 2SD0601ARL 三极管 1 Q5600-02 B1MBEDA00015 三极管 3 Q5603,04 2SD0601ARL 三极管 2 Q5690,91 2SD0601ARL 三极管 2 Q5692,93 B1DHDC000028 三极管 2 Q6001-03 B1JADN000001 三极管 3 Q6021-23 B1JADN000001 三极管 3 Q6031 B1ADRD000001 三极管 1 Q6041,42 B1JADN000002 三极管 2 Q6052 B1JADN000002 三极管 1 Q6101,02 B1DFKM000002 三极管 2 Q6103 B1ABNF000006 三极管 1 Q6104 B1ADNF000006 三极管 1 Q6105,06 B1DFKM000002 三极管 2 Q6111 B1DFKM000001 三极管 1 Q6114 B1DFKM000001 三极管 1 Q6141 B1ABNF000006 三极管 1 Q6142 B1ADNF000006 三极管 1 Q6146 B1ABNF000006 三极管 1 Q6147 B1ADNF000006 三极管 1 Q6171 B1ABRD000003 三极管 1 Q6172 B1ADRD000001 三极管 1 Q6181 B1ABRD000003 三极管 1 参考号 部品号 部品名称 & 说明 件数 备注 125 Q6222 2SC1473AEA 三极管 1 Q6251 2SD0601ARL 三极管 1 Q6256 2SD1263A 三极管 1 Q6271 2SD0601ARL 三极管 1 Q6401-03 B1JADN000001 三极管 3 Q6421-23 B1JADP000002 三极管 3 Q6441,42 B1JADN000002 三极管 2 Q6451 B1JADP000002 三极管 1 Q6501 B1ABNF000006 三极管 1 Q6502 B1ADNF000006 三极管 1 Q6521 B1ABNF000006 三极管 1 Q6522 B1ADNF000006 三极管 1 Q6531 B1ABRD000003 三极管 1 Q6532 B1ADRD000001 三极管 1 Q6551 B1ABRD000003 三极管 1 Q6552 B1ADRD000001 三极管 1 Q6581 2SD0601ARL 三极管 1 Q6601 B1DFES000003 三极管 1 Q6602 2SD0601ARL 三极管 1 Q6603 2SB0709ARL 三极管 1 Q6621,22 2SK399500L FET 2 Q6642-44 2SK399500L FET 3 Q6646-48 2SK399500L FET 3 Q6661 B1DEET000002 三极管 1 Q6662 2SD0601ARL 三极管 1 Q6665 B1ABNF000006 三极管 1 Q6671,72 B1DFDR000001 三极管 2 Q6679 B1ABNF000006 三极管 1 Q6680 B1ADNF000006 三极管 1 Q6690 2SA19610Q0HW 三极管 1 Q6742,43 2SD0601ARL 三极管 2 Q6762 B1ADNF000006 三极管 1 Q6781 B1ABNF000006 三极管 1 Q6782 B1ADNF000006 三极管 1 Q6791 2SD0601ARL 三极管 1 Q6805 2SC3063 三极管 1 Q6806 2SC1473AEA 三极管 1 Q6821,22 2SD1263A 三极管 2 Q6824 2SD0601ARL 三极管 1 Q6841 2SD1263A 三极管 1 Q6842 2SC1473AEA 三极管 1 Q9010 2SD0601ARL 三极管 1 Q9044 2SD0601ARL 三极管 1 Q9046 2SD0601ARL 三极管 1 Q9050-54 2SD0601ARL 三极管 5 Q9301,02 2SD0601ARL 三极管 2 Q9805,06 2SD0601ARL 三极管 2 Q9807-09 B1MBEDA00015 三极管 3 R856,57 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R859 ERJ6ENF2001 M 2KOHM, 1/10W 1 R861 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R867 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R869 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R871 ERJ6ENF1302 M 13KOHM, 1/10W 1 R872 ERJ6ENF8450 M 845 OHM, 1/10W 1 R874 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R1104 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1122 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1134 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1138 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1140 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1144 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1146 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R1147,48 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R1152 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1153 ERJ2GEJ821 M 820 OHM, J,0.063W 1 R1162 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1163 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R1164 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1165 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R1166 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1169 ERJ2GED563X M 56KOHM ,J,0.063W 1 R1170 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1171 ERJ2GED563X M 56KOHM ,J,0.063W 1 R1172 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1174,75 ERJ2GEJ220 M 22 OHM, J,0.063W 2 参考号 部品号 部品名称 & 说明 件数 备注 R1179 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1181 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1182 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1183,84 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1186 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1194 ERJ2GED563X M 56KOHM ,J,0.063W 1 R1195 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1196 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1198 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1199 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1200,01 ERJ2GEJ562 M 5.6KOHM, J,0.063W 2 R1203 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1204 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1205,06 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1209 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1216 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1217 ERJ2GED563X M 56KOHM ,J,0.063W 1 R1218-20 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R1221 ERJ3EKF7151 M 7.15KOHM, 1/16W 1 R1222,23 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R1226-28 ERJ2GEJ473 M 47KOHM, J,0.063W 3 R1229 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1231-34 ERJ2GEJ473 M 47KOHM, J,0.063W 4 R1235 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1236,37 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R1243-51 ERJ2GEJ473 M 47KOHM, J,0.063W 9 R1255 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R2001,02 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R2005 J0JCC0000100 片状电感 1 R2006 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2007 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2010-15 ERJ2GEJ473 M 47KOHM, J,0.063W 6 R2018-23 ERJ2GEJ473 M 47KOHM, J,0.063W 6 R2025 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2028 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2029-34 ERJ6GEYJ184 M 180KOHM,J,1/10W 6 R2035,36 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R2046 J0JCC0000100 片状电感 1 R2047 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R2048 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R2049 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R2050 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R2051,52 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R2053,54 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R2056,57 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R2058 ERJ3GEYJ301 M 300 OHM,J,1/16W 1 R2059 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R2084 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2085 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R2086 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R2088 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R2089 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R2092 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R2093 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R2094 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R2096 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2097 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R2098,99 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R2100 ERJ3EKF2002 M 20KOHM, 1/16W 1 R2104 ERJ3EKF2001 M 2KOHM, 1/16W 1 R2110 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2111 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R2112 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R2113 ERJ3EKF1203 M 120KOHM, 1/16W 1 R2114 ERJ3EKF7502 M 75KOHM, 1/16W 1 R2118 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R2119 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2122 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2123 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2124 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2125 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R2127 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2128 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2129 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2131 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2132 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2137,38 ERJ2GEJ221 M 220 OHM, J,0.063W 2 参考号 部品号 部品名称 & 说明 件数 备注 126 R2143,44 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R2145,46 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R2149 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2150,51 ERJ3EKF2002 M 20KOHM, 1/16W 2 R2152 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R2154 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R2156 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R2160 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R2162 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R2164 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R2165 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2166 ERJ3EKF1602 M16.0KOHM, 1/16W 1 R2167 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R2168 ERJ3EKF1602 M16.0KOHM, 1/16W 1 R2169 ERJ3EKF2202 M 22KOHM, 1/16W 1 R2170-75 ERJ2GEJ221 M 220 OHM, J,0.063W 6 R2178 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R2179 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2180 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R2181 ERJ3EKF2202 M 22KOHM, 1/16W 1 R2182,83 ERJ3EKF3602 M 36KOHM, 1/16W 2 R2184,85 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R2186 ERJ2GEJ823 M 82KOHM, J,0.063W 1 R2187 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R2189 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2192,93 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R2194 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R2195,96 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R2197 ERJ3EKF6802 M 68KOHM, 1/16W 1 R2198 ERJ3EKF1583 M 158KOHM, 1/16W 1 R2205 ERJ2GEJ203 M 20KOHM,J,0.063W 1 R2206 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2208-10 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R2216 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2217 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2218 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R2220 ERJ2GEJ123 M 12KOHM ,J,0.063W 1 R2233 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2235 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2236,37 ERJ2GEJ153 M 15KOHM ,J,0.063W 2 R2238 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2257 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R2265 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2266 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R2271 EXB28V220J 电阻阵列 1 R2276 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2296,97 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R2301,02 ERJ2GEJ222 M 2.2KOHM, J,0.063W 2 R2305 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R2306 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R2308 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 1 R2311 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 1 R2313 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 1 R2315 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 1 R2317 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R2319 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R2321 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R2323 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R2325 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R2330 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R2331 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R2506,07 J0JHC0000096 片状电感 2 R2516 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2517 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R2520 ERJ3GEYJ224 M 220KOHM,J,1/16W 1 R2524 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2525 ERJ3EKF5760 M 576 OHM, 1/16W 1 R2530 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2531 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R2542 D0GB473JA057 M 47KOHM,J,1/16W 1 R2556,57 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R2558 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R2576,77 J0JCC0000241 片状电感 2 R2578,79 J0JCC0000100 片状电感 2 R2624,25 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R2628,29 ERJ2RHD682X M 22KOHM, J, 2W 2 R2647 ERJ6GEY0R00V M 0 OHM, 1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 R2853 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2854 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R2855 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2857 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R2858 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R2859 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R2860 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2861 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R2863,64 ERJ2GEJ102X M 1KOHM, J,0.063W 2 R2865 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2866 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R2867 ERJ6ENF8202 M 82KOHM, 1/10W 1 R2868 ERJ6ENF1602 M 16KOHM, 1/10W 1 R2869 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R2890 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R3001-10 ERJ6RED750 M 75 OHM, 1/10W 10 R3012 ERJ6RED750 M 75 OHM, 1/10W 1 R3020-22 ERJ2GEJ472 M 4.7KOHM, J,0.063W 3 R3059 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3062-65 ERJ2GEJ221 M 220 OHM, J,0.063W 4 R3068 ERJ6RED750 M 75 OHM, 1/10W 1 R3069 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3072-74 ERJ2GEJ221 M 220 OHM, J,0.063W 3 R3076,77 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R3087 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3089 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R3090 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R3096-98 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R3099-01 ERJ2GEJ221 M 220 OHM, J,0.063W 3 R3107 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3109,10 J0JCC0000100 片状电感 2 R3111 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R3112,13 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R3114 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3121 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R3123 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R3130,31 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3133 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R3137 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3140 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R3143 ERJ6ENF69R8 M 69.8OHM, 1/10W 1 R3145 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R3168 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3174-76 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R3177 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3180 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3188 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R3191 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R3233,34 ERJ6RED750 M 75 OHM, 1/10W 2 R3239 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3240 ERJ3EKF5600 M 560 OHM, 1/16W 1 R3243 ERJ6GEYG271 M 270 OHM,J,1/10W 1 R3244 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R3246 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R3247 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3249 ERJ2GEJ152 M 1.5KOHM, J,0.063W 1 R3266 ERJ2GEJ152 M 1.5KOHM, J,0.063W 1 R3302 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R3305 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R3306,07 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R3308,09 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R3310 ERJ6RED750 M 75 OHM, 1/10W 1 R3312 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3313 ERJ6RED750 M 75 OHM, 1/10W 1 R3318 ERJ6RED750 M 75 OHM, 1/10W 1 R3348,49 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R3709-11 J0JCC0000100 片状电感 3 R3714 J0JCC0000100 片状电感 1 R3716,17 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3721 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R3722-25 J0JCC0000100 片状电感 4 R3732 J0JCC0000100 片状电感 1 R3746 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3748 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3750 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3751 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R3753 ERJ6ENF1741 M1.74KOHM, 1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 127 R3754 ERJ6ENF1621 M1.62KOHM, 1/10W 1 R3755 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3758 ERJ6ENF6651 M6.65KOHM, 1/10W 1 R3765 ERJ6ENF2321 M2.32KOHM, 1/10W 1 R3767 ERJ6ENF3161 M3.16KOHM, 1/10W 1 R3768 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R4001 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4284 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4286-88 ERJ2GEJ473 M 47KOHM, J,0.063W 3 R4322,23 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R4325-30 ERJ2GEJ473 M 47KOHM, J,0.063W 6 R4500,01 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4502,03 ERJ2RKD330 M 33 OHM, J,0.063W 2 R4506,07 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4508-23 ERJ2GEJ2R2X M 2.2OHM, J,0.063W 16 R4524,25 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4526,27 ERJ2GEJ102X M 1KOHM, J,0.063W 2 R4528 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4529 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4530 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4531 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4532,33 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4534 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4535,36 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4537 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4539 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4541-43 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4544-47 ERJ2GEJ103 M 10KOHM, J,0.063W 4 R4548,49 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4552 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4561-63 ERJ2GEJ472 M 4.7KOHM, J,0.063W 3 R4564,65 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4585 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4587 ERJ3GEYF821 M 820 OHM, 1/16W 1 R4593 ERJ3EKF1001 M 1KOHM, 1/16W 1 R4596-98 ERJ6GEYG102 M 1KOHM,J,1/10W 3 R4601 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R4604 ERJ3EKF7501 M 7.5KOHM, 1/16W 1 R4606 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R4611 ERJ3EKF1371 M 1.37KOHM, 1/16W 1 R4612 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 R4613,14 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4615 ERJ3EKF1600 M 160 OHM, 1/16W 1 R4616-19 D0YAR0000007 M 0.0 OHM, J,0.063W 4 R4622 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4624 ERJ3EKF1691 M1.69KOHM, 1/16W 1 R4626 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R4627 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4631 ERJ3EKF4990 M 499 OHM, 1/16W 1 R4635 EXB28V680JX 电阻阵列 1 R4636-38 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4639,40 EXB28V680JX 电阻阵列 2 R4641 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4642 EXB28V680JX 电阻阵列 1 R4643,44 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4645-47 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4648 EXB28V330J 电阻阵列 1 R4649 EXB28V680JX 电阻阵列 1 R4650,51 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4652 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4653 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4654 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R4655 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4656 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R4657,58 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4659 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4661 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4665,66 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R4670 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4672 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4682 ERJ3EKF1002 M 10KOHM, 1/16W 1 R4683 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4691,92 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4706 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4707 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4708 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4800 D0YAR0000007 M 0.0 OHM, J,0.063W 1 参考号 部品号 部品名称 & 说明 件数 备注 R4819,20 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4838 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4856-65 D0YAR0000007 M 0.0 OHM, J,0.063W 10 R4872 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5506 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R5507 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5508 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5509 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R5531 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5532 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5533 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5534 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5535 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5536 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5537 ERJ2GEJ681 M 680 OHM, J,0.063W 1 R5538 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5540 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R5542 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R5544 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5546,47 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R5548,49 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R5554 ERJ6ENF2611 M2.61KOHM, 1/10W 1 R5555 ERJ6ENF1301 M 1.3KOHM, 1/10W 1 R5570 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5571 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5572 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5573 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5600 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5604 ERJ3GEYF473 M 47KOHM, 1/16W 1 R5605 ERJ3EKF1242 M12.4KOHM, 1/16W 1 R5606-09 D0YAR0000007 M 0.0 OHM, J,0.063W 4 R5610 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5611 ERJ3EKF3602 M 36KOHM, 1/16W 1 R5612 ERJ3EKF2322 M23.2KOHM, 1/16W 1 R5620 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5621 ERJ3GEYF473 M 47KOHM, 1/16W 1 R5622 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5623 ERJ3GEYF473 M 47KOHM, 1/16W 1 R5625-28 D0YAR0000007 M 0.0 OHM, J,0.063W 4 R5629 ERJ3EKF2802 M 28KOHM, 1/16W 1 R5630 ERJ3EKF4752 M47.5KOHM, 1/16W 1 R5631 ERJ3EKF3602 M 36KOHM, 1/16W 1 R5632 ERJ3EKF3002 M 30KOHM, 1/16W 1 R5633,34 ERJ3EKF1602 M16.0KOHM, 1/16W 2 R5635 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R5636 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R5637 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5638 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5641 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5644 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5646 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5647 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5660 ERJ2GEJ562 M 5.6KOHM, J,0.063W 1 R5661 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5662 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5670 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5671 ERJ2GEJ183 M 18KOHM ,J,0.063W 1 R5672 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5674 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5690,91 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R5692,93 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R5694,95 ERJ2GEJ102X M 1KOHM, J,0.063W 2 R5696,97 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R5730,31 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R5741 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5750 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6001 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6003 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6005 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6020 ERF5TJ330 W 33 OHM, 5W 1 R6021 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6024 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6026 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6031,32 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6033 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6034 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6041 D0GF5R6JA047 M 5.6 OHM,J, 0.33W 1 参考号 部品号 部品名称 & 说明 件数 备注 128 R6043 D0GF5R6JA047 M 5.6 OHM,J, 0.33W 1 R6053 D0GF5R6JA047 M 5.6 OHM,J, 0.33W 1 R6062 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6064 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6066 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6068 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6070-73 ERJ6GEY0R00V M 0 OHM, 1/10W 4 R6102 D0GD221JA059 M 220 OHM,J,1/10W 1 R6104 D0GD221JA059 M 220 OHM,J,1/10W 1 R6106 D0GD221JA059 M 220 OHM,J,1/10W 1 R6108 D0GD221JA059 M 220 OHM,J,1/10W 1 R6109 D0GD100JA059 M 10 OHM,J,0.25W 1 R6110 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6111 D0GD470JA059 M 47 OHM,J,0.25W 1 R6113 ERJ14YJ224 M 220KOHM, J,1/4W 1 R6114 D0GD470JA059 M 47 OHM,J,0.25W 1 R6116 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6131,32 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6134 D0GD750JA059 M 75 OHM,J,0.25W 1 R6135,36 D0GD100JA059 M 10 OHM,J,0.25W 2 R6141,42 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6145 D0GF1R0JA047 M 1.0 OHM,J,0.33W 1 R6146,47 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6151,52 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6154 D0GD750JA059 M 75 OHM,J,0.25W 1 R6157-60 D0GF1R0JA047 M 1.0 OHM,J,0.33W 4 R6171 D0GD100JA059 M 10 OHM,J,0.25W 1 R6172,73 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6181 D0GD100JA059 M 10 OHM,J,0.25W 1 R6182,83 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6191,92 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6193 D0GD750JA059 M 75 OHM,J,0.25W 1 R6194 D0GF1R0JA047 M 1.0 OHM,J,0.33W 1 R6210 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6213 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6214 D0GD151JA059 M 150 OHM,J,0.25W 1 R6220 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R6221 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6222 ERG1FJS103D M 10KOHM, J, 1W 1 R6223 ERG2FJS123D M 12KOHM, J, 2W 1 R6225 D0GD203JA059 M 20KOHM,J,1/10W 1 R6226,27 ERJ6GEYJ163V M 16KOHM,J,1/10W 2 R6228 ERJ6GEYG562 M 5.6KOHM,J,1/10W 1 R6229 ERJ6GEYJ163V M 16KOHM,J,1/10W 1 R6230 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R6231 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6232 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6241 EXB38V470J 电阻阵列 1 R6242 EXB38V472JV 电阻阵列 1 R6246 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6247 D0GF154JA047 M 150 KOHM,J,0.33W 1 R6248 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6249 D0GF154JA047 M 150 KOHM,J,0.33W 1 R6252,53 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6254 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R6255 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6256 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R6257 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6258 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6261 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6269 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6270 D0GF154JA047 M 150 KOHM,J,0.33W 1 R6272 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6273 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6274 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6276 ERJ6GEYG823 M 82KOHM,J,1/10W 1 R6278 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6279 D0GF154JA047 M 150 KOHM,J,0.33W 1 R6284 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6292 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6401-03 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 3 R6421-23 D0GF5R6JA047 M 5.6 OHM,J, 0.33W 3 R6441,42 D0GF5R6JA047 M 5.6 OHM,J, 0.33W 2 R6451 D0GF5R6JA047 M 5.6 OHM,J, 0.33W 1 R6465 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6466 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6467,68 ERJ6ENF8202 M 82KOHM, 1/10W 2 参考号 部品号 部品名称 & 说明 件数 备注 R6471 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6472 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6473 ERJ6GEYF561 M 560 OHM,J,1/10W 1 R6474 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6475,76 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R6477 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6501,02 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6503 D0GD100JA059 M 10 OHM,J,0.25W 1 R6504 D0GD750JA059 M 75 OHM,J,0.25W 1 R6506 D0GD100JA059 M 10 OHM,J,0.25W 1 R6507-10 D0GF1R0JA047 M 1.0 OHM,J,0.33W 4 R6511,12 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6516,17 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6521,22 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6523 D0GD750JA059 M 75 OHM,J,0.25W 1 R6531 D0GD100JA059 M 10 OHM,J,0.25W 1 R6532,33 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6551 D0GD100JA059 M 10 OHM,J,0.25W 1 R6552,53 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6561-64 EXB38V470J 电阻阵列 4 R6565-68 EXB38V472JV 电阻阵列 4 R6580 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6582,83 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6584 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R6585 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R6586 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6587 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6588 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6590 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6591 EXB38V472JV 电阻阵列 1 R6592 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6605 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R6607 ERJ6ENF6811 M6.81KOHM, 1/10W 1 R6608,09 D0GF102JA047 M 1.0 KOHM,J,0.33W 2 R6610 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6612 D0GD470JA059 M 47 OHM,J,0.25W 1 R6621,22 ERJ6GEYG221 M 220 OHM,J,1/10W 2 R6623 ERG2FJS333D M 33KOHM, J, 2W 1 R6638,39 D0GF1R0JA047 M 1.0 OHM,J,0.33W 2 R6642-44 D0GD330JA059 M 33 OHM,J,1/10W 3 R6646-48 D0GD330JA059 M 33 OHM,J,1/10W 3 R6658 D0D1101JA009 M 100 OHM,J,1W 1 R6659,60 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6661 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6662 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R6663 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6664 D0GF222JA047 M 2.2KOHM,J,0.33W 1 R6665 D0GD470JA059 M 47 OHM,J,0.25W 1 R6666 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6667,68 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R6671 D0GD470JA059 M 47 OHM,J,0.25W 1 R6672 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6673,74 D0GD470JA059 M 47 OHM,J,0.25W 2 R6680,81 D0GD100JA059 M 10 OHM,J,0.25W 2 R6692 D0GZ472JA020 M 4.7KOHM,J, 0.5W 1 R6693 ERJ6GEYG823 M 82KOHM,J,1/10W 1 R6694 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6695 ERJ8GEYJ124 M 120KOHM, J,1/8W 1 R6696 ERF5TK2R2 W 2.2 OHM, K, 5W 1 R6700-04 ERJ6GEYJ471 M 470 OHM,J,1/10W 5 R6705,06 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6707,08 ERJ6GEYJ471 M 470 OHM,J,1/10W 2 R6709 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6710-14 ERJ6GEYG222 M 2.2KOHM,J,1/10W 5 R6717,18 ERJ6GEYG222 M 2.2KOHM,J,1/10W 2 R6721,22 EXB38V220JV 电阻阵列 2 R6723 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R6724 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6742 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6745 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6746,47 D0GD103JA059 M 10KOHM,J,0.25W 2 R6748 ERJ6GEYG332 M 3.3KOHM,J,1/10W 1 R6761 D0GD100JA059 M 10 OHM,J,0.25W 1 R6762 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6765 D0GF1R0JA047 M 1.0 OHM,J,0.33W 1 R6766 D0GD750JA059 M 75 OHM,J,0.25W 1 R6768 D0GF1R0JA047 M 1.0 OHM,J,0.33W 1 参考号 部品号 部品名称 & 说明 件数 备注 129 R6769 D0GD750JA059 M 75 OHM,J,0.25W 1 R6775,76 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6777 D0GD151JA059 M 150 OHM,J,0.25W 1 R6781 D0GD470JA059 M 47 OHM,J,0.25W 1 R6782 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6788 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R6789 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6791 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6792 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6793 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6795,96 ERJ6GEYG104 M 100KOHM,J,1/10W 2 R6797 ERJ6ENF1692 M16.9KOHM, 1/10W 1 R6801 ERG2FNJS8R2E M 8.2 OHM, J, 2W 1 R6802 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6806,07 ERX12SJ1R5 M 1.5 OHM, J,1/2W 2 R6808 D0GF272JA047 M 2.7 KOHM,J,0.33W 1 R6809 ERG1SJ273 M 27KOHM, J, 1W 1 R6810 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6811 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6812 ERJ6ENF2403 M 240KOHM, 1/10W 1 R6813 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6814 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R6815 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R6816 ERJ6ENF4531 M4.53KOHM, 1/10W 1 R6817 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6818 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R6821 ERF5TJ221 W 220 OHM, J, 5W 1 R6822 ERJ12YJ104U M 100KOHM, 1/2W 1 R6823 ERG1FJS104D M 100KOHM, J, 1W 1 R6824 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6825-27 ERJ6ENF2003 M 200KOHM, 1/10W 3 R6828 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R6829,30 ERJ6GEYG104 M 100KOHM,J,1/10W 2 R6831 ERJ6GEYG153 M 15KOHM,J,1/10W 1 R6832 D0GF4R7JA047 M 4.7 OHM,J, 0.33W 1 R6833-36 ERJ6ENF7502 M 75KOHM, 1/10W 4 R6837 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6839 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6840 ERX12SJ1R5 M 1.5 OHM, J,1/2W 1 R6841 ERJ12YJ153U M 15KOHM, 1/2W 1 R6842 ERJ12YJ433U M 43KOHM, 1/2W 1 R6843 ERJ6GEYJ623 M 62KOHM,J,1/10W 1 R6844 D0D2101JA021 M 100 OHM,J,2W 1 R6845-47 ERJ6GEYJ623 M 62KOHM,J,1/10W 3 R6848 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6849,50 ERJ6ENF6802 M 68KOHM, 1/10W 2 R6851 ERJ6ENF1802 M 18KOHM, 1/10W 1 R6852 ERJ6ENF2701 M 2.7KOHM, 1/10W 1 R6853 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6855 ERJ12YJ103 M 10KOHM,J, 1/2W 1 R6856 ERQ12AJW560E F 56 OHM, J,1/2W 1 R6857 ERJ12YJ124U M 120KOHM, 1/2W 1 R6860 D0D28R2JA021 M 8.2 OHM,J,2W 1 R6861,62 ERJ6ENF5102 M 51KOHM, 1/10W 2 R6863 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6864 ERJ6ENF6801 M 6.8KOHM, 1/10W 1 R6865 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R6866 ERJ6ENF6200 M 620 OHM, 1/10W 1 R6867 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6868 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6869 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6871-73 ERJ6ENF3902 M 39KOHM, 1/10W 3 R6874 ERJ6ENF6801 M 6.8KOHM, 1/10W 1 R6875 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R6876 ERJ6RBD561 M 560 OHM, 1/10W 1 R6877 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6878 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6879 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6886-88 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6891 ERJ6GEYG183 M 18KOHM,J,1/10W 1 R6901 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6902-04 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R6905 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6909 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6913 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6917 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6924 ERJ6GEYG221 M 220 OHM,J,1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 R6925,26 J0JCC0000100 片状电感 2 R6931-34 ERJ6GEYG103 M 10KOHM,J,1/10W 4 R6935,36 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R6938 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6951 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6952-54 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R6955 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6959 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6963 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6967 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6971 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6975,76 J0JCC0000100 片状电感 2 R6981-84 ERJ6GEYG103 M 10KOHM,J,1/10W 4 R6985,86 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R6989 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R7102 EXB38V220JV 电阻阵列 1 R7108 EXB38V102J 电阻阵列 1 R7110 EXB38V220JV 电阻阵列 1 R7113 EXB38V102J 电阻阵列 1 R7115-18 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7122-25 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7127 EXB38V471J 电阻阵列 1 R7130-33 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7145 EXB38V471J 电阻阵列 1 R7146-49 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7154-57 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7166-73 EXB38V471J 电阻阵列 8 R7179 D0GF472JA047 M 4.7KOHM,J,0.33W 1 R7183 EXB38V220JV 电阻阵列 1 R7184 D0GB102JA057 M 1KOHM,J,1/16W 1 R7193 J0JCC0000100 片状电感 1 R7195 EXB38V220JV 电阻阵列 1 R7201 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R7202 EXB38V220JV 电阻阵列 1 R7209 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7210 EXB38V222J 电阻阵列 1 R7211-14 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7216 EXB38V220JV 电阻阵列 1 R7219 EXB38V471J 电阻阵列 1 R7220 EXB38V222J 电阻阵列 1 R7221-23 EXB38V471J 电阻阵列 3 R7224-27 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7229-32 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7240,41 EXB38V471J 电阻阵列 2 R7243 EXB38V102J 电阻阵列 1 R7244 EXB38V222J 电阻阵列 1 R7245-47 EXB38V470J 电阻阵列 3 R7248 EXB38V220JV 电阻阵列 1 R7250 EXB38V470J 电阻阵列 1 R7251 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R7252 J0JCC0000100 片状电感 1 R7254-57 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7262-65 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7270-73 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7275 EXB38V471J 电阻阵列 1 R7277,78 EXB38V471J 电阻阵列 2 R7279 EXB38V220JV 电阻阵列 1 R7283,84 EXB38V471J 电阻阵列 2 R7287,88 EXB38V471J 电阻阵列 2 R7289 D0GF472JA047 M 4.7KOHM,J,0.33W 1 R8001 ERJ2GEJ181 M 180 OHM, J,0.063W 1 R8002 ERJ2GEJ820 M 82 OHM, J,0.063W 1 R8004 ERJ3EKF2402 M 24KOHM, 1/16W 1 R8005 ERJ3EKF1002 M 10KOHM, 1/16W 1 R8006 ERJ3EKF6801 M 6.8KOHM, 1/16W 1 R8023-29 D0YAR0000007 M 0.0 OHM, J,0.063W 7 R8030 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8031,32 ERJ3EKF2700 M 270 OHM, 1/16W 2 R8035 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8036 J0JCC0000100 片状电感 1 R8039 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8056-73 ERJ2GEJ470 M 47 OHM, J,0.063W 18 R8074 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8075-78 ERJ2GEJ470 M 47 OHM, J,0.063W 4 R8079,80 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R8081 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8082 D1BA75R0A026 M0.75KOHM, 1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 130 R8083 ERJ2GEJ301 M 300 OHM, J,0.063W 1 R8084 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8086 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R8087 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8090 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8091 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8093 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8095 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8097 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8098,99 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8100 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8101 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8106 ERJ2GEJ202 M 2KOHM, J,0.063W 1 R8107 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8108 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R8111 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8328 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8470,71 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8472 D1HG1038A002 排阻 1 R8474,75 EXB28V103JX 电阻阵列 2 R8502-04 ERJ2GEJ331 M 330 OHM, J,0.063W 3 R8507-10 ERJ3EKF91R0 M 91 OHM, 1/16W 4 R8512 ERJ3EKF1800 M 180 OHM, 1/16W 1 R8513 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8551 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8556 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8564 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8601,02 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R8603 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R8604 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R8605 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8621-36 ERJ2GEJ680 M 68 OHM, J,0.063W 16 R8653 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8655 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8702 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8709 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8710 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8711,12 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8732 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8735-39 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R8742 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8745,46 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8749 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8802-09 ERJ2GEJ103 M 10KOHM, J,0.063W 8 R8812 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8813 EXB28V221J 电阻阵列 1 R8814-17 ERJ2GEJ680 M 68 OHM, J,0.063W 4 R8825 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R8828 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8832 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8865-67 EXB2HV680J 电阻阵列 3 R8868 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8869 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8870 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8871 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8874-76 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R8877-92 ERJ2GEJ680 M 68 OHM, J,0.063W 16 R8893 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8894 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8896,97 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R8898,99 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8900,01 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R8904-10 ERJ2GEJ103 M 10KOHM, J,0.063W 7 R8911-18 ERJ2GEJ680 M 68 OHM, J,0.063W 8 R8919-22 ERJ2GEJ472 M 4.7KOHM, J,0.063W 4 R8923,24 ERJ2GEJ562 M 5.6KOHM, J,0.063W 2 R8925,26 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R8927 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8935 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8947 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8948 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8963 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9062-67 ERJ3GEYJ101 M 100 OHM,J,1/16W 6 R9070 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9099 D0GB103JA057 M 10KOHM,J,1/16W 1 R9101,02 D0GB103JA057 M 10KOHM,J,1/16W 2 R9104,05 D0GB103JA057 M 10KOHM,J,1/16W 2 参考号 部品号 部品名称 & 说明 件数 备注 R9107 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9108,09 D0GB103JA057 M 10KOHM,J,1/16W 2 R9110 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9112 D0GB103JA057 M 10KOHM,J,1/16W 1 R9113 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9115,16 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9119 EXB38V470J 电阻阵列 1 R9120 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9121 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9122,23 D0GB103JA057 M 10KOHM,J,1/16W 2 R9126 D0GB103JA057 M 10KOHM,J,1/16W 1 R9127 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9129 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9131-33 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R9134 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R9135 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9141-45 ERJ3GEYJ101 M 100 OHM,J,1/16W 5 R9149 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9150,51 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9154,55 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9156 D0GB103JA057 M 10KOHM,J,1/16W 1 R9158,59 D0GB103JA057 M 10KOHM,J,1/16W 2 R9160,61 J0JCC0000100 片状电感 2 R9164,65 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R9166 D0GB103JA057 M 10KOHM,J,1/16W 1 R9167 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9170-72 D0GB393JA041 M 39KOHM,J,1/16W 3 R9173,74 D0GB103JA057 M 10KOHM,J,1/16W 2 R9177 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9181-84 D0GB102JA057 M 1KOHM,J,1/16W 4 R9185,86 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9187,88 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9189,90 D0GB103JA057 M 10KOHM,J,1/16W 2 R9193 D0GB103JA057 M 10KOHM,J,1/16W 1 R9194 J0JCC0000100 片状电感 1 R9196 D0GB103JA057 M 10KOHM,J,1/16W 1 R9199 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9200,01 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R9203 D0GB102JA057 M 1KOHM,J,1/16W 1 R9205 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9206,07 D0GB102JA057 M 1KOHM,J,1/16W 2 R9215 D0GB123JA057 M 12KOHM,J,1/16W 1 R9217-22 D0GB103JA057 M 10KOHM,J,1/16W 6 R9223 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9225 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9237 D0GB103JA057 M 10KOHM,J,1/16W 1 R9240 J0JCC0000100 片状电感 1 R9317 ERJ3GEYJ391 M 390 OHM,J,1/16W 1 R9347,48 EXB2HV220JV 电阻阵列 2 R9349 EXB2HV470JV 电阻阵列 1 R9350,51 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9352-59 EXB2HV220JV 电阻阵列 8 R9361,62 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9363 EXB2HV470JV 电阻阵列 1 R9369 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9370 D0GB103JA057 M 10KOHM,J,1/16W 1 R9371 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9379 J0JCC0000100 片状电感 1 R9380 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9383 D0GB102JA057 M 1KOHM,J,1/16W 1 R9384,85 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9391 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9392,93 J0JCC0000100 片状电感 2 R9396-99 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R9402 ERJ6GEY0R00V M 0 OHM, 1/10W 1 TNPA4134AQ R9403 EXB2HV470JV 电阻阵列 1 R9500 D0GB103JA057 M 10KOHM,J,1/16W 1 R9502 D0GB103JA057 M 10KOHM,J,1/16W 1 R9503 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9505 ERJ6GEY0R00V M 0 OHM, 1/10W 1 TNPA4134BQ R9506 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9507 J0JCC0000100 片状电感 1 R9512,13 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9516 D0GB103JA057 M 10KOHM,J,1/16W 1 R9518 J0JCC0000100 片状电感 1 R9520 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9523 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 131 R9525 D0GB103JA057 M 10KOHM,J,1/16W 1 R9526 ERJ3GEY0R00V 片状电感 1 TNPA4134AQ R9530 D0GB103JA057 M 10KOHM,J,1/16W 1 R9531-33 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9534 EXB38V470J 电阻阵列 1 R9535,36 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9538,39 D0GB103JA057 M 10KOHM,J,1/16W 2 R9541 D0GB103JA057 M 10KOHM,J,1/16W 1 R9543,44 D0GB103JA057 M 10KOHM,J,1/16W 2 R9545 ERJ3GEYJ304 M 300KOHM,J,1/16W 1 R9548-50 D0GB103JA057 M 10KOHM,J,1/16W 3 R9552 D0GB103JA057 M 10KOHM,J,1/16W 1 R9553-55 J0JCC0000100 片状电感 3 R9556 D0GB103JA057 M 10KOHM,J,1/16W 1 R9557,58 J0JCC0000100 片状电感 2 R9561 EXB38V222J 电阻阵列 1 R9562 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9563-66 EXB2HV470JV 电阻阵列 4 R9567 D0GB103JA057 M 10KOHM,J,1/16W 1 R9569 J0JCC0000100 片状电感 1 R9824-27 ERJ3GEYJ101 M 100 OHM,J,1/16W 4 R9828 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9839 EXB38V101JV 电阻阵列 1 R9840 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9845 D0GB103JA057 M 10KOHM,J,1/16W 1 R9846,47 EXB2HV222JV 电阻阵列 2 R9848,49 EXB2HV470JV 电阻阵列 2 R9850 D0GB473JA057 M 47KOHM,J,1/16W 1 R9854 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9859 EXB38V101JV 电阻阵列 1 R9861-63 D0GB103JA057 M 10KOHM,J,1/16W 3 R9868 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9869-71 D0GB103JA057 M 10KOHM,J,1/16W 3 R9872 J0JCC0000100 片状电感 1 R9874 J0JCC0000100 片状电感 1 R9878 ERJ3EKF1102 M 11KOHM, 1/16W 1 R9879 ERJ3EKF1302 M 13KOHM, 1/16W 1 R9885 ERJ3GEY0ROOV 片状电感 1 TNPA4134BQ R9886,87 ERJ3EKF5602 M 56KOHM, 1/16W 2 R9888 ERJ3EKF1102 M 11KOHM, 1/16W 1 R9889 ERJ3EKF1742 M17.2KOHM, 1/16W 1 R9890 ERJ3EKF4752 M47.5KOHM, 1/16W 1 R9891 ERJ3EKF1272 M12.7KOHM, 1/16W 1 R9892 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9893 ERJ3EKF5602 M 56KOHM, 1/16W 1 R9894 ERJ3EKF1102 M 11KOHM, 1/16W 1 R9895 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9896 ERJ3EKF1822 M18.2KOHM, 1/16W 1 R9897 ERJ3EKF4752 M47.5KOHM, 1/16W 1 R9901,02 J0JCC0000100 片状电感 2 R9903 EXB2HV470JV 电阻阵列 1 R9904 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9905 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9906 EXB38V470J 电阻阵列 1 R9907 D0GB151JA057 M 150 OHM,J,1/16W 1 R9908-11 J0JCC0000100 片状电感 4 R9915-18 J0JCC0000100 片状电感 4 R9919 D0GB102JA057 M 1KOHM,J,1/16W 1 R9922 J0JCC0000100 片状电感 1 R9928 J0JCC0000100 片状电感 1 R9936-39 ERJ3EKF1001 M 1KOHM, 1/16W 4 R9940 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9941,42 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9943-51 EXB38V470J 电阻阵列 9 R9952-55 ERJ3GEYJ470 M 47 OHM,J,1/16W 4 R9956 D0GB103JA057 M 10KOHM,J,1/16W 1 R9960 J0JCC0000100 片状电感 1 R9961 D0GB103JA057 M 10KOHM,J,1/16W 1 RM2501 PNA4701M05TV 远程绞掌? 1, S1 K1KA03BA0061 3P 连接接头 1 SC2 K1KA02A00676 2P 连接接头 1 SC20 K1KY30AA0369 30P 连接接头 1 SC30 K1KA10AA0191 10P 连接接头 1 SC41,42 K1ML80B00001 80P 连接接头 2 参考号 部品号 部品名称 & 说明 件数 备注 SC45,46 K1KA09A00239 9P 连接接头 2 SCMM1,M2 TMME260 线夹 2 SD1-D4 K1MN96B00005 96P 连接接头 4 SD46 K1KB09AA0213 9P 连接接头 1 SS11 K1KA02A00676 2P 连接接头 1 SS12 K1KA10AA0194 10P 连接接头 1 SS23 K1KA12AA0194 12P 连接接头 1 SS34 K1KA03AA0193 3P 连接接头 1 SS53A-6A K1MN13BA0258 13P 连接接头 4 SU1-U4 K1MN96B00005 96P 连接接头 4 SU45 K1KB09AA0213 9P 连接接头 1 SW2500 K0F162B00002 开关 1 SW3753-57 EVQPC105K 开关 5 T6602 ETS25AZ169AD 转接变压器 1 TU3200A ENGF9701GF 调谐器 1 VR6000 EVMEASA00B14 控制 10KOHMB 0.3W 1 VR6600 EVMEASA00B13 控制 1KOHMB 0.3W 1 VR6602 EVMEASA00B53 控制 5KOHMB 0.3W 1 X1100 H0J100500035 晶体 1 X2010 H0J245500082 晶体 1 X4500 H0J270500113 晶体 1 X8001 H0J270500061 晶体 1 X9000 H2D100500004 晶体 1 X9200 H0J200500038 晶体 1 ZA0002-08 K4AZ01D00004 端子 7 ZA3701 K4CZ01000027 与 ALCO K9 兼容 1 ZA6001,02 K4CD01000011 AV 端子 2 ZA6005 K4CD01000011 AV 端子 1 ZA6401-03 K4CD01000011 AV 端子 3 ZA7101-04 K4AD01Z00001 端子 4 ZA7201-04 K4AD01Z00001 端子 4 ZA9001 K4CD01000011 AV 端子 1 C404 F0CZZ445A097 E 0.044UF, 200V 1 C406 F1E2J4730001 C 0.047PF, , 600V 1 C407 F2B2W220A032 C 22UF, 450V 1 C408 ECJ1VB1H102K C 1000PF, K, 50V 1 C410 F1J1E105A080 E 1 UF 25V 1 C413 ECJ1VB1E104K C 0.10UF, K, 25V 1 C420 F1J1E105A080 E 1 UF 25V 1 C421 ECJ1VB1E104K C 0.10UF, K, 25V 1 C423 ECJ1VB1H472K C 4700PF, K, 50V 1 C425 F1J1E105A080 E 1 UF 25V 1 C426 ECJ1VC1H471J C 470PF, J, 50V 1 C427 F1H1C105A071 C 1UF, K, 16V 1 C428 ECJ1XC1H221J C 220PF, J, 50V 1 C429 F1E2J4730001 C 0.047PF, , 600V 1 C431 ECJ1VB1H102K C 1000PF, K, 50V 1 C432,33 F1H1C105A071 C 1UF, K, 16V 2 C435 ECJ1XC1H101J C 100PF, J, 50V 1 C436 F1H1C105A071 C 1UF, K, 16V 1 C437 ECJ1VB1H103K C 0.001UF, K, 50V 1 C443,44 ECKD3A102KBP C 1000PF, K, 1KV 2 C445 F1H1C105A071 C 1UF, K, 16V 1 C446 F2B2W3910010 C 390UF, 450V 1 C450 ECJ1VB1H103K C 0.001UF, K, 50V 1 C451 ECKD3A101KBP C 100PF, K, 1KV 1 C457 ECWH12333RHV P 0.013UF,J,1.2KV 1 C462 F1J1E105A080 E 1 UF 25V 1 C463 F1H1H2200008 E 22UF, 50V 1 C467 F1BAF221A107 C 220UF, 250V 1 C468 ECJ1VB1H103K C 0.001UF, K, 50V 1 C469 F1BAF221A107 C 220UF, 250V 1 C470 F0CAF335A080 C 0.033UF, 250V 1 C472 F1BAF221A107 C 220UF, 250V 1 C474,75 F1BAF221A107 C 220UF, 250V 2 参考号 部品号 部品名称 & 说明 件数 备注 132 C478 F1BAF221A107 C 220UF, 250V 1 C492 ECA1HM100 E 10UF, 50V 1 C493 ECA1HM470 E 47UF, 50V 1 C493 F2A1H4700057 E 47UF, 50V 1 C497 F2A1H4700057 E 47UF, 50V 1 C501,02 ECJ1VB1H103K C 0.001UF, K, 50V 2 C504 F1H1C105A071 C 1UF, K, 16V 1 C505 ECJ1VB1H102K C 1000PF, K, 50V 1 C506 ECJ1VB1H103K C 0.001UF, K, 50V 1 C507 ECJ1VB1E104K C 0.10UF, K, 25V 1 C509 ECA1EHG101 E 100UF, 25V 1 C511 ECJ1VB1H102K C 1000PF, K, 50V 1 C515 F2A1A1220015 E 1200UF, 10V 1 C516 ECJ1VB1C474K C 0.47UF,K, 16V 1 C517 F2A1E221A096 E 220UF, 25V 1 C518,19 F1H1C105A071 C 1UF, K, 16V 2 C520 F0C2E683A160 E 0.068UF, 250V 1 C521 ECJ1VB1H103K C 0.001UF, K, 50V 1 C522 F1E2E1030002 C 0.010PF, , 600V 1 C523 F1J1E105A080 E 1 UF 25V 1 C526 ECJ1VB1H223K C 0.22UF, K, 50V 1 C528 ECJ1VB1H102K C 1000PF, K, 50V 1 C529 ECJ2FB1C475K C 47UF, K, 16V 1 C530 ECJ1VB1E333K C 0.033UF, K, 25V 1 C531 ECJ1VB1E104K C 0.10UF, K, 25V 1 C534 F1H1H471A792 E 470UF, 50V 1 C546,47 ECJ1VB1H102K C 1000PF, K, 50V 2 C552 ECJ1VB1E104K C 0.10UF, K, 25V 1 C554 F1H1C105A071 C 1UF, K, 16V 1 C555 F2A2C4710003 E 470UF, 160V 1 C556 F2A1E3320040 E 3300PF, 25V 1 C558 F2A1E4710065 E 470UF, 25V 1 C559 F2A1A1020085 E 1000UF, 10V 1 C562 F1H1H223A219 E 0.022UF, 50V 1 C571 ECJ1VC1H330J C 33PF, J, 50V 1 C574 ECJ1VB1E104K C 0.10UF, K, 25V 1 C577 F2A2A330A022 E 33UF, 100V 1 C581 ECJ2VB1H223K C 0.022UF, K, 50V 1 C583 ECJ1VB1H102K C 1000PF, K, 50V 1 C584 ECJ2VB1H223K C 0.022UF, K, 50V 1 C585 F1H1H223A219 E 0.022UF, 50V 1 C587 ECJ1VB1H332K C 3300PF, K, 50V 1 C590 ECJ1XB1H104K C 10PF, J, 50V 1 C601 ECJ1VB1H103K C 0.001UF, K, 50V 1 C603 F1J1E105A080 E 1 UF 25V 1 C604,05 F2A2D1510008 E 150UF, 200V 2 C607 F1H1C105A071 C 1UF, K, 16V 1 C610 F1J1E105A080 E 1 UF 25V 1 C611 F2B2T1420003 E 142UF, 220V 1 C612 ECJ1VB1H103K C 0.001UF, K, 50V 1 C616 ECKD3A102KBP C 1000PF, K, 1KV 1 C619 F1H1C105A071 C 1UF, K, 16V 1 C620 F1J1E105A080 E 1 UF 25V 1 C623 ECA1HM100 E 10UF, 50V 1 C624 ECJ1VB1H103K C 0.001UF, K, 50V 1 C625 F2A1H1000083 E 10UF, 50V 1 C626 ECJ1VB1H103K C 0.001UF, K, 50V 1 C627 ECJ1VB1H102K C 1000PF, K, 50V 1 C630,31 ECJ1VB1H103K C 0.001UF, K, 50V 2 C632 ECJ2XC1H330J C 33PF, J, 50V 1 C639 ECJ1VB1H103K C 0.001UF, K, 50V 1 C640 ECJ1VC1H330J C 33PF, J, 50V 1 C641 ECJ1VB1H102K C 1000PF, K, 50V 1 C650,51 ECJ1VB1E104K C 0.10UF, K, 25V 2 C653 ECJ1VB1H102K C 1000PF, K, 50V 1 C657 ECJ1VB1H102K C 1000PF, K, 50V 1 C658 F1J1E105A080 E 1 UF 25V 1 C660 ECJ2FB1C225K C 22UF, K, 16V 1 C661 ECJ1VB1H103K C 0.001UF, K, 50V 1 C662 ECJ2VB1H103K C 0.01UF, K, 50V 1 C665 ECJ1XC1H101J C 100PF, J, 50V 1 C666 ECJ1VB1H103K C 0.001UF, K, 50V 1 C667,68 ECJ1VB1H102K C 1000PF, K, 50V 2 C670 ECJ1VB1E104K C 0.10UF, K, 25V 1 C671 ECJ2VB1E104K C 0.1UF, K, 25V 1 C672 ECJ1VB1E104K C 0.10UF, K, 25V 1 C673 F1E2J4730001 C 0.047PF, , 600V 1 参考号 部品号 部品名称 & 说明 件数 备注 D401 B0FBBT000008 二极管 1 D404 B0EBKT000007 二极管 1 D407,08 B0ACDJ000010 二极管 2 D411 B0BB17000009 二极管 1 D415 B0JAME000099 二极管 1 D416 B0HAMP000067 二极管 1 D417 B0EAMR000009 二极管 1 D418 B0BC8R100013 稳压二极管 1 D419,20 B0EAMR000009 二极管 2 D423 MA188 二极管 1 D425 MA188 二极管 1 D429 B0EAKT000048 二极管 1 D431 B0JCDD000002 二极管 1 D433 B0BC01400033 稳压二极管 1 D435 B0EAKT000048 二极管 1 D436 B0AACK000004 二极管 1 D436 MA165TA5 二极管 1 D438 B0BC02000014 稳压二极管 1 D439 B0EAKT000048 二极管 1 D441 B0HAMM000122 二极管 1 D444 B0HAMM000122 二极管 1 D445 MTZJ10B 稳压二极管 1 D450 MA188 二极管 1 D501 B0EAMR000010 二极管 1 D503 B0AACK000004 二极管 1 D503 MA165TA5 二极管 1 D504 B0AACK000004 二极管 1 D504 MA165TA5 二极管 1 D506 B0ACDJ000010 二极管 1 D507,08 B0BC7R400023 稳压二极管 2 D509 B0JANG000018 二极管 1 D511 B0JAML000011 二极管 1 D512 B0ACDJ000010 二极管 1 D516-18 B0BA03300004 稳压二极管 3 D520 B0ACDJ000010 二极管 1 D521 B0JAME000099 二极管 1 D522,23 B0JCDD000002 二极管 2 D524 B0AACK000004 二极管 1 D524 MA165TA5 二极管 1 D531 B0HBSN000013 二极管 1 D535 MA188 二极管 1 D536 B0JBSG000026 二极管 1 D538 B0BC5R100039 稳压二极管 1 D539,40 B0HARR000019 二极管 2 D543 B0BC01400033 稳压二极管 1 D544,45 B0BA02100001 稳压二极管 2 D546 B0BA02800001 稳压二极管 1 D549 B0BC02500008 稳压二极管 1 D569,70 B0BA05100010 稳压二极管 2 D579 B0AACK000004 二极管 1 D582 MAZ705600F 稳压二极管 1 D584 MAZ706200F 稳压二极管 1 D586 B0HAMP000067 二极管 1 D598 B0BC5R100039 稳压二极管 1 D599 B0JCND000009 二极管 1 D600 B0BC7R400023 稳压二极管 1 D601 B0BC5R100039 稳压二极管 1 D602 B0BC8R100013 稳压二极管 1 D603 B0BA01900005 稳压二极管 1 D701,02 B0BC5R100039 稳压二极管 2 D703 B0EAKT000048 二极管 1 F403 K5G631B00007 保险丝 1 IC401 CNC1S171R IC 1 IC403 CNC1S171R IC 1 IC406 C0DBZZZ00082 IC 1 IC408 B3PBA0000459 IC 1 IC409 MIP3E30MPSCF IC 1 IC411 C0DAEMZ00001 IC 1 IC412 CNC1S171R IC 1 IC501 C2ABDB000114 IC 1 IC502 C0EBH0000210 IC 1 IC504 C0DAEMZ00001 IC 1 IC505 B3PBA0000459 IC 1 参考号 部品号 部品名称 & 说明 件数 备注 133 IC506 C0DAEMZ00001 IC 1 IC507 B3PBA0000459 IC 1 IC508 C0DAEMZ00001 IC 1 IC509 C0BBAA000039 IC 1 IC510 C0DBAZG00034 IC 1 IC511-13 C0DAEMZ00001 IC 3 IC520 C9ZB00000561 IC 1 J410 D0X0R0000056 M 0 OHM,J,1/10W 1 L403 EXCELSA35 扼流线圈 1 L404,05 G0B123K00004 扼流线圈 2 L406 J0JCC0000004 片状电感 1 L410 G0B353D00002 扼流线圈 1 L511 G0A470ZA0035 扼流线圈 1 L512 G0C4R7JA0021 校正线圈 1 L514 G0A100GA0013 扼流线圈 1 L515 J0JKB0000037 铁氧体磁芯 1 L518 J0JCC0000004 片状电感 1 P2 K1KA02A00676 2P 连接接头 1 P6 K1KA12AA0191 12P 连接接头 1 P7 K1KA11AA0191 11P 连接接头 1 P9 K1KA03A00608 3P 连接接头 1 P11 K1KA02A00676 2P 连接接头 1 P12 K1KA08A00514 8P 连接接头 1 P25 K1KA13AA0194 13P 连接接头 1 PMM1 TMME047 线夹 1 PMM2,M3 TMM7464-2 线夹 2 PMM5 TMM7464-2 线夹 1 PMM6-M8 TMME260 线夹 3 PR401 K5Y502BA0001 保险丝 1 PR402 ERBSE0R50U 保险丝 1 PR501 ERBSE0R50U 保险丝 1 PR505 ERBSE5R00U 保险丝 1 PR509 ERBSE0R50U 保险丝 1 PR601 K5G312B00012 保险丝 1 Q401 B1CHND000004 三极管 1 Q402 B1CBGD000001 FET 1 Q404 B1BCCF000022 三极管 1 Q406 B1DEKQ000003 三极管 1 Q407 B1HFCFA00021 三极管 1 Q408,09 B1DHCD000034 三极管 2 Q410 2SD1819ARL 三极管 1 Q411 B1HFCFA00021 三极管 1 Q412,13 B1DEGQ000070 三极管 2 Q420 2SD1819ARL 三极管 1 Q422 B1CBGD000001 FET 1 Q501,02 2SD1820A0L 三极管 2 Q507 B1DAGQ000013 三极管 1 Q508 B1HBCFA00033 三极管 1 Q509 B1HDCEA00001 三极管 1 Q510 B1DFDD000019 三极管 1 Q517 B1HBCFA00033 三极管 1 Q520 B1HBCFA00033 三极管 1 Q521 B1CBGD000001 FET 1 Q524 B1CFGF000008 三极管 1 Q525 B1CBGD000001 FET 1 Q527 B1CERM000012 FET 1 Q530 B1ADCF000111 三极管 1 Q535 2SD1819ARL 三极管 1 Q537 B1DFDD000019 三极管 1 Q538 B1CBGD000001 FET 1 Q540 B1DFDD000019 三极管 1 Q541 B1CBGD000001 FET 1 Q553 2SD1819ARL 三极管 1 Q554 B1CHND000004 三极管 1 Q555,56 B1CFRD000018 FET 2 Q563 2SD1819ARL 三极管 1 Q564,65 B1ADCF000111 三极管 2 Q566 2SD1819ARL 三极管 1 Q569 B1CBGD000001 FET 1 参考号 部品号 部品名称 & 说明 件数 备注 R401 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R402 ERJ6GEYG821 M 820 OHM,J,1/10W 1 R403 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R404 ERJ6GEYG153 M 15KOHM,J,1/10W 1 R405 D0B1825JA033 M1.22MOHM,J,0.05W 1 R406 ERX12SJ4R7 M 4.7 OHM, J,1/2W 1 R407 D1AB2203A023 片状电阻 1 R408 ERJ6GEYF472 M 4.7KOHM,F,1/10W 1 R409 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R410 D1AB2203A023 片状电阻 1 R411 ERF5TJ100 W 10 OHM, J, 5W 1 R414 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R415 D1AB2203A023 片状电阻 1 R417 D1AB4303A023 片状电阻 1 R418 ERJ6GEYJ6R8V M 6.8 OHM,J,1/10W 1 R419 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R421 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R422 ERJ6GEYF472 M 4.7KOHM,F,1/10W 1 R423 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R424 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R425 ERJ6ENF1802 M 18KOHM, 1/10W 1 R426 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R428 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R429 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R430 D1AB4303A023 片状电阻 1 R431 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R432 D1AB4303A023 片状电阻 1 R433 ERJ6RBD123V M 12KOHM, 1/10W 1 R436 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R437 ERJ6GEYG183 M 18KOHM,J,1/10W 1 R438 ERJ6GEYG331 M 330 OHM,G,1/10W 1 R439 ERG12SJ120 M 12 OHM, J,1/2W 1 R440 ERJ8GEYJ474 M 470KOHM, J,1/8W 1 R441,42 D1AB6803A023 片状电阻 2 R443 EVMAASA00B23 控制 2KOHMB 1 R444 ERJ6GEYF123 M 12KOHM,J,1/10W 1 R445 D1AB6803A023 片状电阻 1 R448,49 D0XGR10J0003 M 0.1OOHM,J, 5W 2 R450 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R451 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R452 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R454 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R455 ERJ6GEYF123 M 12KOHM,J,1/10W 1 R456 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R458 ERJ6GEYF472 M 4.7KOHM,F,1/10W 1 R460 ERDS2TC0 C 0 OHM, 1/4W 1 R461 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R463 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R464 ERJ6ENF3302 M 33KOHM, 1/10W 1 R467 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R468,69 ERX12SJ1R0 M 0.1 OHM, J,1/2W 2 R471 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 1 R472-74 D1AB5603A023 片状电阻 3 R476,77 ERJ14YJ181 M 181 OHM, J,1/4W 2 R478 ERJ8GEYJ220 M 22 OHM, J,1/8W 1 R482 ERJ8GEYJ220 M 22 OHM, J,1/8W 1 R483 D0BF334JA030 片状电阻 1 R484 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R485 ERJ6GEYF472 M 4.7KOHM,F,1/10W 1 R488 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R490 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R491 ERJ6GEYG821 M 820 OHM,J,1/10W 1 R493 ERG12SJ120 M 12 OHM, J,1/2W 1 R498 ERG3SJ101 M 100 OHM, J, 3W 1 R500 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R501 ERJ6GEYG154 M 150KOHM,J,1/10W 1 R502,03 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R505 ERJ8GEYJ330 M 33 OHM, J,1/8W 1 R507 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R508 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R510 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R512 ERJ6GEYG823 M 82KOHM,J,1/10W 1 R513 ERJ6GEYG332 M 3.3KOHM,J,1/10W 1 R514 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R518 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R519 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R520 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 134 R523 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R524 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R526,27 ERJ6ENF1803 M 180KOHM, 1/10W 2 R528 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R529 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R530,31 ERJ6RBD333 M 33KOHM,J,1/10W 2 R532 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R533 ERJ6ENF1803 M 180KOHM, 1/10W 1 R534 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R537 ERJ6ENF1003 M 100KOHM, 1/10W 1 R538 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R539 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R540,41 ERJ6GEYG105 M 1MOHM,J,1/10W 2 R542 ER0S2CKF2202 M 22KOHM, F,1/4W 1 R543 ERJ6ENF3902 M 39KOHM, 1/10W 1 R545 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R546 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R547 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R550 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R551 ERJ6GEYF151 M 150 OHM,F,1/10W 1 R553 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R555 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R556 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R557,58 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R559 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R560 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R561 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R562 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R563 ERJ6GEYJ2R2 M 2.2 OHM,J,1/10W 1 R564 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R565,66 ERJ6GEYG105 M 1MOHM,J,1/10W 2 R567,68 ERJ8GEYJ105 M 1MOHM, J,1/8W 2 R569 ERJ6ENF3302 M 33KOHM, 1/10W 1 R570 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R571 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R572,73 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R574 ERJ6GEYG331 M 330 OHM,G,1/10W 1 R576 ERJ6RBD123V M 12KOHM, 1/10W 1 R579 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R581 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R582 ERJ6ENF1002 M 10KOHM, 1/10W 1 R584 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R585 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R586 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R587 ERJ8RSJR16V M 16 OHM, 1/8W 1 R592 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R593 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R594 ERJ6GEYF151 M 150 OHM,F,1/10W 1 R595 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R596 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R597,98 ERJ6ENF3302 M 33KOHM, 1/10W 2 R599,00 ERJ8ENF3900 M 390 OHM, 1/8W 2 R601 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R603 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R604 ERJ6RBD303 M 30KOHM,J,1/10W 1 R605 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R606 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R607 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R608 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 1 R609 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R610 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R611 ERDS2FJ101 C 100 OHM, J,1/4W 1 R612 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R613 ERJ6ENF2402 M 24KOHM, 1/10W 1 R614 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R616,17 ERJ6GEYJ223 M 22KOHM,J,1/10W 2 R618 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R619 ERJ8RQFR39 M 0.39OHM, J,1/8W 1 R620 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R622 ERJ6ENF1603 M 160KOHM, 1/10W 1 R624 ERX2SJR22P M0.22 OHM, J, 2W 1 R625 B0BC8R100013 稳压二极管 1 R626 ERJ6ENF1603 M 160KOHM, 1/10W 1 R627 ERJ6GEYJ752 M 7.5KOHM,J,1/10W 1 R628 EVMAASA00B33 控制 3KOHMB 1 R629 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R630 ERJ6GEYF472 M 4.7KOHM,F,1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 R631 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R632 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R633 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R634 ERJ8RQFR39 M 0.39OHM, J,1/8W 1 R635 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R636 ERJ6ENF1603 M 160KOHM, 1/10W 1 R637 ERJ8RQFR39 M 0.39OHM, J,1/8W 1 R639,40 ERJ8RQFR39 M 0.39OHM, J,1/8W 2 R641 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R642-44 ERJ8RQFR39 M 0.39OHM, J,1/8W 3 R645 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R646,47 ERJ14YJ330 M 33 OHM, J,1/4W 2 R648 ERJ6ENF1603 M 160KOHM, 1/10W 1 R649 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R650 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R651 ERJ6ENF1002 M 10KOHM, 1/10W 1 R652 ERJ6GEYF123 M 12KOHM,J,1/10W 1 R653 ERJ6ENF3302 M 33KOHM, 1/10W 1 R654 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R655 ERJ8RSJR16V M 16 OHM, 1/8W 1 R656 ERJ6ENF1803 M 180KOHM, 1/10W 1 R657 ERJ6GEYF561 M 560 OHM,F,1/10W 1 R658 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R659 ERJ6RBD303 M 30KOHM,J,1/10W 1 R660 ERJ6RBD123V M 12KOHM, 1/10W 1 R661 EVMAASA00B53 控制 5KOHMB 1 R662 ERJ6ENF1503 M 150KOHM, 1/10W 1 R664 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R665 EVMAASA00B23 控制 2KOHMB 1 R669 ERJ6ENF1503 M 150KOHM, 1/10W 1 R670 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R671 ERJ6RBD751 M 750 OHM,J,1/10W 1 R672,73 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R674 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R675 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R676 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R677 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R678-80 ERJ8RSJR16V M 16 OHM, 1/8W 3 R682 ERJ6ENF2002 M 20KOHM, 1/10W 1 R683 ERJ14YJ330 M 33 OHM, J,1/4W 1 R684,85 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R686 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R687 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R688 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R689 ERJ8GEYJ472 M 4.7KOHM, J,1/8W 1 R690 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R691 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R693 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R695 ERJ6RBD123V M 12KOHM, 1/10W 1 R696 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R697 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R698 ERJ8RSJR16V M 16 OHM, 1/8W 1 R699 ERJ8GEYJ105 M 1MOHM, J,1/8W 1 R700,01 ERJ6ENF1503 M 150KOHM, 1/10W 2 R702 ERJ6ENF1102 M 11KOHM, 1/10W 1 R707,08 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R709,10 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R711,12 ERJ6GEYG222 M 2.2KOHM,J,1/10W 2 R713 ERJ6GEYG152 M 1.5KOHM,J,1/10W 1 R714 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R715 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R716 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R717 ERJ6GEYG122 M 1.2KOHM,J,1/10W 1 R718 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R719 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R720 ERJ6GEYG152 M 1.5KOHM,J,1/10W 1 R721 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R722-24 ERJ6GEYG102 M 1KOHM,J,1/10W 3 R726,27 ERJ6GEYG222 M 2.2KOHM,J,1/10W 2 R729 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R730-38 ERJ8GEYJ105 M 1MOHM, J,1/8W 9 R739 ERJ6ENF1003 M 100KOHM, 1/10W 1 R740 ERJ6GEYJ243 M 24KOHM,J,1/10W 1 R741 ERJ8GEYJ205 M 2MOHM, J,1/8W 1 R742 ERJ6GEYG102 M 1KOHM,J,1/10W 1 RL401-03 K6B1CGA00055 REALY 3 参考号 部品号 部品名称 & 说明 件数 备注 135 FLE20070800000 S401,02 J0LT00000009 开关 2 T401 G4D4A0000123 转接变压器 T402 G4D1A0000128 转接变压器 T404 ETS42LB11GAD 转接变压器 T410 G4D2A0000283 转接变压器 T601 G4D2A0000284 转接变压器 W13 ERJ6GEY0R00V M 0 OHM, 1/10W 1 W46 ERJ6GEY0R00V M 0 OHM, 1/10W 1 X501 H2B400400021 晶体 1 Z1-Z3 K4ZZ01000206 端子 3 ZN401,02 D4EAD6210001 变阻器 2 ZN403 ERZVGAD681T2 变阻器 1 ZN404,05 ERZVA7D511 变阻器 2 参考号 部品号 部品名称 & 说明 件数 备注
