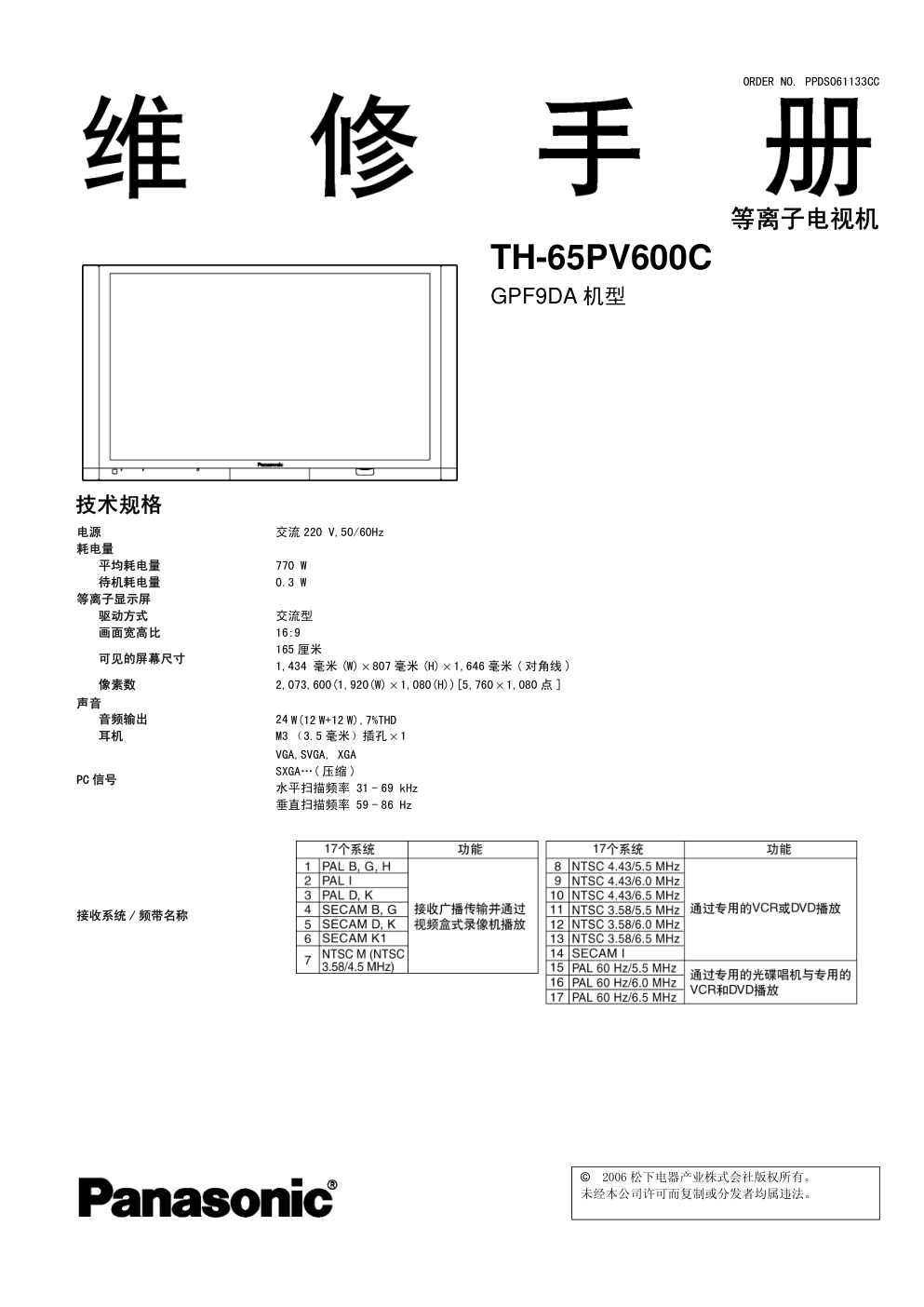

© 2006 松下电器产业株式会社版权所有。 未经本公司许可而复制或分发者均属违法。 ORDER NO. PPDS061133CC 等离子电视机 TH-65PV600C GPF9DA 机型 技术规格 电源 交流 220 V,50/60Hz 耗电量 平均耗电量 770 W 待机耗电量 0.3 W 等离子显示屏 驱动方式 交流型 画面宽高比 16:9 可见的屏幕尺寸 165 厘米 1,434 毫米 (W) × 807 毫米 (H) × 1,646 毫米 ( 对角线 ) 像素数 2,073,600(1,920(W) × 1,080(H))[5,760 × 1,080 点 ] 声音 音频输出 24 W(12 W+12 W),7%THD 耳机 M3 （3.5 毫米）插孔 × 1 PC 信号 VGA,SVGA, XGA SXGA…( 压缩 ) 水平扫描频率 31 - 69 kHz 垂直扫描频率 59 - 86 Hz 接收系统 / 频带名称 2 接收频道 （普通电视） 天线 - 背部 VHF/UHF 使用环境 0°C - 40°C 连接端子 AV1 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) S 视频 MINI DIN 4 针 Y:1.0 Vp-p(75Ω) C:0.286 V[p-p](75Ω) AV2 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) 色差 Y P B / C B ,P R / C R 1.0 V[p-p]( 包括同步在内 ) ± 0.35 V[p-p] AV3 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) 色差 Y P B / C B ,P R / C R 1.0 V[p-p]( 包括同步在内 ) ± 0.35 V[p-p] AV4 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) S 视频 Mini DIN 4 针 Y:1.0 V[p-p](75Ω) C:0.286 V[p-p](75Ω) 其他 HDMI1/2 输入 A 型接头 PC 输入 高密度 D-SUB15 针 R,G,B /0.7V[p-p](75Ω) HD,VD/TTL 水平 2.0 - 5.0 V[p-p]( 高阻抗 ) 音频输入 RCA 针式 × 2 0.5 V[rms] 卡插槽 SD 卡插槽 × 1 Monitor 输出 音频 L- R RCA 针式 × 2 0.5 V[rms]( 高阻抗 ) 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) 尺寸 (W × H × D) 1,554 mm × 985 mm × 145 mm （仅为电视机的尺寸） 1,754 mm × 1,058 mm × 419 mm （包括台架与扬声器的尺寸） 重量 净重 79.0 公斤 （仅为电视机的重量） 净重 110.0 公斤 （包括台架与扬声器的重量） 执行标准 Q/YXNS3-2005 TH 彩色等离子电视机系列 3 目录 页数 页数 1 适用信号----------------------------------------- 5 2 安全警告----------------------------------------- 6 2.1. 一般准则 ----------------------------------- 6 2.2. 漏电检查 ----------------------------------- 6 3 静电敏感设备 (ES) 的静电放电保护 (ESD) ------------ 7 4 关于无铅焊接 (PbF) ------------------------------- 8 5 维修提示----------------------------------------- 9 6 拆卸-------------------------------------------- 10 6.1. 取下后盖 ---------------------------------- 10 6.2. 取下后端子盖 ------------------------------ 10 6.3. 取下 P(P-1) 板 ----------------------------- 10 6.4. 取下 P(P-2) 板 ----------------------------- 10 6.5. 取下 PA 板 --------------------------------- 10 6.6. 取下 D 板 ---------------------------------- 11 6.7. 取下调谐器组件 ---------------------------- 11 6.8. 取下 DG 板 --------------------------------- 11 6.9. 取下 TA 板 --------------------------------- 12 6.10. 取下 H 板 ---------------------------------- 12 6.11. 取下 JG 板 --------------------------------- 12 6.12. 取下风扇 （中 / 右）------------------------ 12 6.13. 取下风扇 （大和中 / 左）-------------------- 13 6.14. 取下风扇 (SC) ----------------------------- 13 6.15. 取下风扇 (SS) ----------------------------- 13 6.16. 取下防护盖 (A) ---------------------------- 13 6.17. 取下防护盖 (B) 和 (C) ---------------------- 13 6.18. 取下 H3 板 （左、右）----------------------- 14 6.19. 取下面框固定金属 (A) ---------------------- 14 6.20. 取下面框固定金属 (B) ---------------------- 14 6.21. 取下 SU 板 --------------------------------- 14 6.22. 取下 SD 板 --------------------------------- 15 6.23. 取下 SC 板 --------------------------------- 15 6.24. 取下 SS2 板 -------------------------------- 15 6.25. 取下 SS3 板 -------------------------------- 15 6.26. 取下 SS 板 --------------------------------- 16 6.27. 取下加强压条和连接板 (A,B,C,D) ------------ 16 6.28. 取下 C1 板 --------------------------------- 16 6.29. 取下 C2 板 --------------------------------- 16 6.30. 取下 C3 板 --------------------------------- 17 6.31. 取下 C4 板 --------------------------------- 17 6.32. 取下 C5 板 --------------------------------- 17 6.33. 取下 C6 板 --------------------------------- 17 6.34. 取下前支架 -------------------------------- 17 6.35. 取下 G，GH 和 GK 板 ------------------------- 18 6.36. 取下 GS 板 --------------------------------- 18 6.37. 取下 K，R 和 S 板 --------------------------- 18 6.38. 从前面框上取下等离子显示屏 ---------------- 19 6.39. 安装等离子显示屏 （完成）------------------ 20 7 注意事项---------------------------------------- 21 7.1. 注意事项 ---------------------------------- 21 8 导线布置---------------------------------------- 22 8.1. 导线 (1)-1 -------------------------------- 22 8.2. 导线 (1)-2 -------------------------------- 22 8.3. 导线 (2) ---------------------------------- 23 8.4. 导线 (3) -----------------------------------24 9 自检功能 ----------------------------------------25 9.1. IIC 总线检测 -------------------------------25 9.2. 电源 LED 闪烁次数图-------------------------26 9.3. 无电源-------------------------------------27 9.4. 无图像-------------------------------------28 9.5. 显示屏局部故障-----------------------------29 10 维修模式功能 ------------------------------------30 10.1. 如何进入维修模式 1 -------------------------30 10.2. 如何进入维修模式 2 -------------------------30 10.3. 选项说明-----------------------------------32 11 调整步骤 ----------------------------------------34 11.1. 驱动器设置---------------------------------34 11.2. 初始化脉冲调整-----------------------------35 11.3. P.C.B. （印刷电路版）更换 ------------------35 11.4. 调整点位置---------------------------------36 11.5. 测试点位置---------------------------------36 12 调整 --------------------------------------------37 12.1. PA 板电压调整图 ----------------------------37 12.2. 副对比度调整-------------------------------38 12.3. 多窗口调整---------------------------------39 12.4. PAL 显示屏白平衡调整 -----------------------39 12.5. HD 白平衡调整 ------------------------------40 12.6. 副亮度调整---------------------------------41 12.7. ABL 调整 -----------------------------------42 13 旅馆模式 ----------------------------------------43 14 导线图 ------------------------------------------45 14.1. P 电路板 -----------------------------------45 14.2. PA 电路板 ----------------------------------51 14.3. H 和 TA 电路板 ------------------------------53 14.4. G 电路板 -----------------------------------55 14.5. GH 和 GS 电路板 -----------------------------56 14.6. GK，H3，K，R 和 S 电路板 --------------------57 14.7. JG 电路板 ----------------------------------58 14.8. DG 电路板 ----------------------------------60 14.9. D 电路板 -----------------------------------62 14.10. C1 电路板 ----------------------------------64 14.11. C2 电路板 ----------------------------------65 14.12. C3 电路板 ----------------------------------66 14.13. C4 电路板 ----------------------------------67 14.14. C5 电路板 ----------------------------------68 14.15. C6 电路板 ----------------------------------69 14.16. SC 电路板 ----------------------------------70 14.17. SU 电路板 ----------------------------------73 14.18. SD 电路板 ----------------------------------74 14.19. SS 电路板 ----------------------------------75 14.20. SS2 和 SS3 电路板 ---------------------------78 15 方框图和线路图 ----------------------------------79 15.1. 线路图注意事项-----------------------------79 15.2. 主要集成电路方框图-------------------------80 15.3. P 电路板 (SUS) 方框图 -----------------------81 15.4. P 电路板 (MULTI) 方框图 ---------------------82 15.5. P 电路板 (SUS) 线路图 -----------------------83 4 15.6. P 电路板 (MULTI) 线路图--------------------- 84 15.7. PA 和 H3 电路板方框图----------------------- 85 15.8. PA 电路板 (1/3) 线路图---------------------- 86 15.9. PA 电路板 (2/3) 线路图---------------------- 87 15.10. PA 电路板 (3/3) 和 H3 电路板线路图----------- 88 15.11. H 和 TA 电路板方框图------------------------ 89 15.12. H 电路板 (1/3) 线路图----------------------- 90 15.13. H 电路板 (2/3) 线路图----------------------- 91 15.14. H 电路板 (3/3) 线路图----------------------- 92 15.15. G，GK，K 和 R 电路板方框图------------------ 93 15.16. G，GK，K 和 R 电路板线路图------------------ 94 15.17. DG 电路板 (1/4) 和 GH 电路板方框图----------- 95 15.18. DG 电路板 (2/4) 方框图---------------------- 96 15.19. DG 电路板 (3/4) 方框图---------------------- 97 15.20. DG 电路板 (4/4) 方框图---------------------- 98 15.21. DG 电路板 (1/13) 线路图--------------------- 99 15.22. DG 电路板 (2/13) 线路图-------------------- 100 15.23. DG 电路板 (3/13) 线路图-------------------- 101 15.24. DG 电路板 (4/13) 线路图-------------------- 102 15.25. DG 电路板 (5/13) 线路图-------------------- 103 15.26. DG 电路板 (6/13) 线路图-------------------- 104 15.27. DG 电路板 (7/13) 线路图-------------------- 105 15.28. DG 电路板 (8/13) 线路图-------------------- 106 15.29. DG 电路板 (9/13) 线路图-------------------- 107 15.30. DG 电路板 (10/13) 线路图------------------- 108 15.31. DG 电路板 (11/13) 线路图------------------- 109 15.32. DG 电路板 (12/13) 线路图------------------- 110 15.33. DG 电路板 (13/13) 线路图------------------- 111 15.34. GH 电路板线路图--------------------------- 112 15.35. JG 和 GS 电路板方框图---------------------- 113 15.36. TA 和 GS 电路板线路图---------------------- 114 15.37. JG 电路板 (1/5) 线路图--------------------- 115 15.38. JG 电路板 (2/5) 线路图--------------------- 116 15.39. JG 电路板 (3/5) 线路图--------------------- 117 15.40. JG 电路板 (4/5) 线路图--------------------- 118 15.41. JG 电路板 (5/5) 线路图--------------------- 119 15.42. D 电路板 (1/2) 方框图---------------------- 120 15.43. D 电路板 (2/2) 方框图---------------------- 121 15.44. D 电路板 (1/8) 线路图---------------------- 122 15.45. D 电路板 (2/8) 线路图---------------------- 123 15.46. D 电路板 (3/8) 线路图---------------------- 124 15.47. D 电路板 (4/8) 线路图---------------------- 125 15.48. D 电路板 (5/8) 线路图 ----------------------126 15.49. D 电路板 (6/8) 线路图 ----------------------127 15.50. D 电路板 (7/8) 线路图 ----------------------128 15.51. D 电路板 (8/8) 线路图 ----------------------129 15.52. C1，C2，C5 和 C6 电路板方框图 --------------130 15.53. C2，C3，C4 和 C5 电路板方框图 --------------131 15.54. C1 电路板 (1/2) 线路图 ---------------------132 15.55. C1 电路板 (2/2) 线路图 ---------------------133 15.56. C2 电路板 (1/2) 线路图 ---------------------134 15.57. C2 电路板 (2/2) 线路图 ---------------------135 15.58. C3 电路板 (1/2) 线路图 ---------------------136 15.59. C3 电路板 (2/2) 线路图 ---------------------137 15.60. C4 电路板 (1/2) 线路图 ---------------------138 15.61. C4 电路板 (2/2) 线路图 ---------------------139 15.62. C5 电路板 (1/2) 线路图 ---------------------140 15.63. C5 电路板 (2/2) 线路图 ---------------------141 15.64. C6 电路板 (1/2) 线路图 ---------------------142 15.65. C6 电路板 (2/2) 线路图 ---------------------143 15.66. SC 电路板方框图 ---------------------------144 15.67. SC 电路板 (1/4) 线路图 ---------------------145 15.68. SC 电路板 (2/4) 线路图 ---------------------146 15.69. SC 电路板 (3/4) 线路图 ---------------------147 15.70. SC 电路板 (4/4) 线路图 ---------------------148 15.71. SU 和 SD 电路板方框图 ----------------------149 15.72. SU 电路板 (1/3) 线路图 ---------------------150 15.73. SU 电路板 (2/3) 线路图 ---------------------151 15.74. SU 电路板 (3/3) 线路图 ---------------------152 15.75. SD 电路板 (1/3) 线路图 ---------------------153 15.76. SD 电路板 (2/3) 线路图 ---------------------154 15.77. SD 电路板 (3/3) 线路图 ---------------------155 15.78. S，SS，SS2 和 SS3 电路板方框图 -------------156 15.79. SS 电路板 (1/2) 和 S 电路板线路图 -----------157 15.80. SS 电路板 (2/2)，SS2 和 SS3 电路板线路图 ----158 16 部件布置及机械部件更换清单 ---------------------159 16.1. 部件布置 ----------------------------------159 16.2. 包装分解图 (1) ----------------------------160 16.3. 包装分解图 (2) ----------------------------161 16.4. 包装分解图 (3) ----------------------------162 16.5. 机械部件更换清单 --------------------------163 17 电器部件更换清单--------------------------------164 17.1. 更换部件清单注意事项 ----------------------164 17.2. 电器部件更换清单 --------------------------165 5 1 适用信号 6 2 安全警告 2.1. 一般准则 1. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 2. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸、屏蔽等安装正确。 3. 维修后，进行以下漏电检查，以免用户遭受触电危险。 2.2. 漏电检查 1. 将 AC 电源线直接插入 AC 电源插座。进行检查时，请勿使用隔离变压器。 2. 在设备上各外露金属部分和良好接地 （如水管）之间连接一个电流测量装置，如图 1 所示。 3. 用漏电测试仪 （Simpson 228 或类似型号）测量通过该装置的电势。 4. 检查各外露金属部件，并测量各点电压。 5. 变换 AC 插座中的 AC 插头，并重复上述各项测量。 6. 各点 （漏电）的电势表示为电压 U1 和 U2，并且不能超过以下各值： 交流：U1=35V （峰值） U2=0.35V （峰值）； 直流：U1=1.0V， 注： 与交流的 U2 限定峰值 0.35V 和直流的 U1 限定峰值 1.0V 相对应的电流峰值分别为 0.7mA 和 2.0mA。 与交流的 U1 限定峰值 35V 相对应的 100kHz 以上的电流峰值为 70mA。 7. 当测量值超出规定的限制时，可能会引起触电。所以必须在机器返回用户手中之前对其进行修理和再检测。 漏电测量电路 电阻值 （Ω） V：电压表或示波器 （r.m.s. 或峰值） 输入电阻：≥ 1MΩ 输入电容：≤ 200pF 频率范围：分别为直流 15Hz 到 1MHz 注：必须使用合适的测量设备，以便在非正弦波形时测量准确。 图 1 7 3 静电敏感设备 (ES) 的静电放 电保护 (ESD) 一些半导体（固态）装置很容易被静电损坏。这些装置通称为静电敏感装置（ES）。典型的 ES 装置有集成电路和一些场效应晶体管以 及半导体 “芯片”组件。以下方法通常被用来减少由于静电释放 （ESD） 所造成的组件损坏。 1. 在处理任何半导体组件或是配备有半导体组件的设备之前，接触已知地线以排除身体上的静电。或者戴上市面上可购买到的抗静 电腕带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 在拆卸配有静电敏感装置的电气组件后，请将组件放置于导体表面上 （如铝箔），以防止聚集静电或组件外露。 3. 仅使用末端接地的烙铁焊接或拆焊静电敏感装置。 4. 仅使用防静电拆焊装置。不属于 “防静电 （静电释放保护）”的拆焊装置可能会产生足以损坏静电敏感装置的电荷。 5. 禁止使用氟里昂驱动化学物质。它们能产生足以损坏静电敏感装置的电荷。 6. 在准备立即安装之前，才能拆开静电敏感备换装置的保护性包装，取出备换静电敏感装置。（大多数备换静电敏感装置都使用导 电泡沫、铝箔或类似导电性材料包装，其导线被短接。） 7. 从备换静电敏感装置导线上取下防护性材料前，使防护性材料接触机芯或即将安装的电路组件。 注意： 确定机芯或电路无电源，并遵守其它所有安全注意事项。 8. 在处理未包装的备换静电敏感装置时，尽量减少身体活动。（否则，如衣物纤维的摩擦或从铺有地毯的地面抬起脚等动作都会产 生足以损坏静电敏感装置的静电 （静电释放））。 8 4 关于无铅焊接 (PbF) 注：在元素周期表中，铅用 Pb 表示。 在下文中，Pb 表示有铅焊接，PbF 表示无铅焊接。 在制造流程中使用和下文中介绍的无铅焊接 （Sn+Ag+Cu）。 即：锡 （Sn），银 （Ag）和铜 （Cu），其他类型也可使用。 出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维修和修理工作中最好使用无铅焊接，不过也允许使用有铅焊 接。 使用无铅焊接工艺制造的印刷电路板背面的树叶形符号 内有 PbF 字样。 注意： • 无铅焊接的熔点比标准焊接的熔点高。通常熔点超过 50-70°F （30-40°C）。 请使用高温烙铁，并将其温度设为 700±20°F （370±10°C）。 • 当温度过高 （约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。 如果必须使用有铅焊接，请在焊接前先全部去除焊脚或焊区上的无铅焊料。如果做到这点实际操作困难，则确保无铅焊料加热到熔 化后再进行有铅焊接。 • 在对双面电路板进行无铅焊接后，请检查部件侧部是否有过量焊料，否则会流到另一侧。（见下图） 推荐的无铅焊料 有几种无铅焊料可供选购。本产品使用 Sn+Ag+Cu( 锡 + 银 + 铜 ) 焊料。 也可使用 Sn+Cu （锡，铜），Sn+Zn+Bi( 锡，锌，铋 ) 焊料。 9 5 维修提示 电路板名称 功能 电路板名称 功能 P 电源 C1 数据驱动 ( 上右 ) PA DC-DC 转换器 , 电源 SOS C2 数据驱动 ( 上中 ) 扬声器输出，音频放大，风扇控制 C3 数据驱动 ( 上左 ) H AV 端口，AV 切换 C4 数据驱动 ( 下左 ) DG 数字信号处理器 , Micon，HDMI 接口 C5 数据驱动 ( 下中 ) JG SD 卡信号处理器 C6 数据驱动 ( 下右 ) D 格式转换，等离子 AI， 子场处理器 SC 扫描驱动 GS SD 卡插槽 SU 扫描输出 ( 上 ) R 遥控接收器 SD 扫描输出 ( 下 ) K 电源指示灯 SS 维持驱动 S 电源开关 SS2 维持连接 ( 上 ) G 前端子 SS3 维持连接 ( 下 ) GK 按键开关 GH HDMI 接口 10 6 拆卸 6.1. 取下后盖 1. 参见维修提示 （请参见第 5 章节） 6.2. 取下后端子盖 1. 松开螺丝 （×4 ， ×2 ， ×4 ）。 2. 取下后端子盖。 6.3. 取下 P(P-1) 板 注意： 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.C.B.。 1. 断开连接件 （P2，P9，P11，P52，P54 和 P56）。 2. 松开螺丝 （×10 ），取下 P(P-1) 板。 6.4. 取下 P(P-2) 板 注意： 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.C.B.。 1. 断开连接件（P5，P10，P12，P23，P25，P51，P53 和 P55）。 2. 松开螺丝 （×9 ），取下 P(P-2) 板。 6.5. 取下 PA 板 1. 松开螺丝 （×2 ），取下 PA 板金属框架。 11 2. 松开线夹，取下电缆。 3. 断开连接件 （PA2，PA5，PA10，PA31，PA32，PA36，PA37， PA38，PA51 和 PA40）。 4. 断开柔性电缆 （PA20）。 5. 松开螺丝 （×2 ），取下 PA 板单元。 6. 松开螺丝 （×4 ），取下 PA 板。 6.6. 取下 D 板 1. 取下 PA 板。（请参见 6.5 章节）。 2. 断开连接件 （D3，D5，D20 和 D25）。 3. 断开柔性电缆 （D31，D32，D33，D34，D35 和 D36）。 4. 松开螺丝 （×4 ），取下 D 板。 6.7. 取下调谐器组件 1. 松开线夹，取下电缆。 2. 断开连接件（DG2，DG3，DG5，DG30，H2，H40，H51，H53 和 中继连接件）。 3. 断开柔性电缆 （DG11 和 DG20）。 4. 松开螺丝 （×4 ），取下调谐器组件。 6.8. 取下 DG 板 1. 断开连接件 （DG2，DG3，DG5 和 DG30）。 2. 断开柔性电缆 （DG1，DG11 和 DG20）。 3. 松开螺丝 （×9 ），取下 DG 板。 12 6.9. 取下 TA 板 1. 松开螺丝 （×1 ），取下 TA 板。 6.10. 取下 H 板 1. 松开线夹，取下电缆。 2. 断开连接件 （H2，H40，H51 和 H53）。 3. 断开柔性电缆 （H1）。 4. 松开螺丝 （×5 ），取下 H 板。 6.11. 取下 JG 板 1. 松开螺丝 （×2 ），取下 JG 板金属框架。 2. 断开连接件 （JG1，JG2 和 JG3）。 3. 松开螺丝 （×4 ），取下 JG 板。 6.12. 取下风扇 （中 / 右） 1. 断开中继连接件。 2. 松开螺丝 （×4 ），取下风扇单元 （中 / 右）。 3. 松开螺丝 （×4 ），取下风扇 （中 / 右）。 13 6.13. 取下风扇 （大和中 / 左） 1. 断开中继连接件。 2. 松开螺丝 （×4 ），取下风扇单元 （大和中 / 左）。 3. 松开螺丝 （×8 ），取下风扇 （大和中 / 左）。 6.14. 取下风扇 (SC) 1. 断开中继连接件。 2. 松开螺丝 （×4 ），取下风扇单元 （SC）。 3. 松开螺丝 （×8 ），取下风扇 （SC × 2）。 6.15. 取下风扇 (SS) 1. 断开中继连接件。 2. 松开螺丝 （×4 ），取下风扇单元 （SS）。 3. 松开螺丝 （×4 ），取下风扇 （SS）。 6.16. 取下防护盖 (A) 1. 松开螺丝 （×4 ）。 2. 松开防护盖 (A)。 6.17. 取下防护盖 (B) 和 (C) 1. 松开螺丝 （各 ×2 ）。 2. 松开防护盖 (B) 和 (C)。 14 6.18. 取下 H3 板 （左、右） 1. 松开螺丝 （各 ×2 ），取下左、右扬声器端子单元。 2. 松开螺丝 （各 ×1 ）和 （各 ×2 ）。 3. 断开连接件 （H37）。 4. 取下 H3 板。 6.19. 取下面框固定金属 (A) 1. 松开螺丝 （各 ×4 ）。 2. 取下面框固定金属 (A)。 6.20. 取下面框固定金属 (B) 1. 松开螺丝 （各 ×6 ）。 2. 取下面框固定金属 (B)。 6.21. 取下 SU 板 1. 松开螺丝 （×4 ）。 2. 断开连接到 SU 板上的柔性电缆 （SU1，SU2，SU3，SU4 和 SU5），并取下桥连接器 （SU45）。 3. 将 SU 板移到左边，并与 SC 板的连接件（SC41-SU41 和 SC42- SU42）断开，取下 SU 电路板。 15 6.22. 取下 SD 板 1. 松开螺丝 （×4 ）。 2. 断开连接到 SD 板上的柔性电缆 （SD1，SD2，SD3，SD4 和 SD5），并取下桥连接器 （SD46）。 3. 将 SD 板移到左边，并与 SC 板的连接件（SC43-SD43 和 SC44- SD44）断开，取下 SD 电路板。 6.23. 取下 SC 板 1. 松开线夹，取下电缆。 2. 取下风扇 (SC)。（请参见第 6.14 章节） 3. 取下 SU 和 SD 板。（请参见第 6.21 和 6.22 章节） 4. 断开连接件 （SC2，SC20 和 SC23）。 5. 松开螺丝 （×11 ），取下 SC 板。 6.24. 取下 SS2 板 1. 松开线夹，取下电缆。 2. 断开连接件 （SS23）和柔性电缆 （SS51 和 SS52）。 3. 松开螺丝 （×3 ），取下 SS2 板。 6.25. 取下 SS3 板 1. 松开线夹，取下电缆。 2. 断开连接件 （SS27）和柔性电缆 （SS57 和 SS58）。 3. 松开螺丝 （×3 ），取下 SS3 板。 16 6.26. 取下 SS 板 1. 松开线夹，取下电缆。 2. 取下风扇 (SS)。（请参见第 6.15 章节） 3. 断开连接件 （SS11，SS12，SS23，SS27，SS35，SS42 和 SS44）。 4. 断开柔性电缆 （SS53，SS54，SS55 和 SS56）。 5. 松开螺丝 （×11 ），取下 SS 板。 6.27. 取下加强压条和连接板 (A,B,C,D) 1. 将等离子显示屏从维修支架上取下，放置在类似桌子 （铺 有软布）的表面上，并且显示屏表面朝下。 为使等离子显示屏不被刮伤，放置软布起保护作用。 2. 松开螺丝 （各 ×2 ），取下左、右加强压条。 3. 松开螺丝 （各 ×2 ），取下连接板 (A,B,C,D)。 6.28. 取下 C1 板 1. 取下风扇单元 （中 / 右）。（请参见第 6.12 章节） 2. 取下面框固定金属 (A) 和 (B)。（请参见第 6.19 章节） 3. 取下加强压条 （右）。（请参见第 6.27 章节） 4. 取下柔性线缆紧固螺丝 （×10 ）。 5. 断开连接件 （CA1，CA2，CA3，CA4 和 CA5）。 6. 断开柔性电缆 （C10 和 C11）。 7. 松开螺丝 （×6 ），取下 C1 板。 6.29. 取下 C2 板 1. 取下风扇单元 （大和中 / 左）。（请参见第 6.13 章节） 2. 取下面框固定金属 (B)。（请参见第 6.20 章节） 3. 取下柔性线缆紧固螺丝 （×10 ）。 4. 断开连接件 （CA6，CA7，CA8，CA9 和 CA10）。 5. 断开柔性电缆 （C21，C22，C24 和 C25）。 6. 松开螺丝 （×6 ），取下 C2 板。 17 6.30. 取下 C3 板 1. 取下风扇单元 （大和中 / 左）。（请参见第 6.13 章节） 2. 取下面框固定金属 (A) 和 (B)。（请参见第 6.19 章节） 3. 取下加强压条 （左）。（请参见第 6.27 章节） 4. 取下柔性线缆紧固螺丝 （×10 ）。 5. 断开连接件 （CA11，CA12，CA13，CA14 和 CA15）。 6. 断开柔性电缆 （C31）。 7. 断开连接件 （C35）。 8. 松开螺丝 （×6 ），取下 C3 板。 6.31. 取下 C4 板 1. 取下扬声器端子单元 （左）。（请参见第 6.18 章节） 2. 取下面框固定金属(A)和(B)。（请参见第6.19和6.20章节） 3. 取下加强压条 （左）。（请参见第 6.27 章节） 4. 取下柔性线缆紧固螺丝 （×10 ）。 5. 断开连接件 （CB11，CB12，CB13，CB14 和 CB15）。 6. 断开柔性电缆 （C41）。 7. 断开连接件 （C42 和 C44）。 8. 松开螺丝 （×6 ），取下 C4 板。 6.32. 取下 C5 板 1. 取下调谐器单元 （左）。（请参见第 6.7 章节） 2. 取下面框固定金属 (B)。（请参见第 6.20 章节） 3. 取下柔性线缆紧固螺丝 （×10 ）。 4. 断开连接件 （CB6，CB7，CB8，CB9 和 CB10）。 5. 断开柔性电缆 （C51，C52，C54 和 C55）。 6. 松开螺丝 （×6 ），取下 C5 板。 6.33. 取下 C6 板 1. 取下扬声器端子单元 （右）。（请参见第 6.18 章节） 2. 取下面框固定金属(A)和(B)。（请参见第6.19和6.20章节） 3. 取下加强压条 （右）。（请参见第 6.27 章节） 4. 取下柔性线缆紧固螺丝 （×10 ）。 5. 断开连接件 （CB1，CB2，CB3，CB4 和 CB5）。 6. 断开柔性电缆 （C60 和 C61）。 7. 松开螺丝 （×6 ），取下 C6 板。 6.34. 取下前支架 1. 取下防护盖 (A)。（请参见第 6.16 章节） 2. 松开线夹，取下电缆。 3. 断开连接件 （G1，G4 和 G51）。 4. 断开柔性电缆 （GH11）。 5. 松开螺丝 （×2 ），取下前支架。 18 6.35. 取下 G，GH 和 GK 板 1. 取下前支架。（请参见第 6.34 章节） 2. 松开螺丝 （×3 ），取下前支架盖。 3. 松开螺丝 （×5 ）。 4. 松开螺丝 （×1 ），取下端子防护固定器。 5. 松开螺丝 （×4 ），断开连接件 （G3-GK3）。 6. 取下 G 和 GH 板。 7. 松开控制按钮爪 （×2 ）。 8. 取下 GK 板。 6.36. 取下 GS 板 1. 取下防护盖 (B)。（请参见第 6.17 章节） 2. 松开螺丝 （×3 ）。 3. 松开 SD 卡单元。 4. 松开螺丝 （×2 ）。 5. 断开连接件 （G52）。 6. 取下 GS 板。 6.37. 取下 K，R 和 S 板 1. 松开线夹，取下电缆。 2. 断开连接件 （G1，G4）。（请参见第 6.34 章节） 3. 松开螺丝 （×6 ），取下前屏左侧组件。 19 4. 松开螺丝 （×1 ）。 5. 断开连接件 （R4），取下 R 板。 6. 松开螺丝 （×2 ）。 7. 断开连接件 （K1 和 K2），取下 K 板。 8. 松开螺丝 （×2 ），取下 S 板单元。 9. 断开连接件 （S1）。 10. 松开螺丝 （×2 ），取下 S 板。 6.38. 从前面框上取下等离子显示屏 1. 取下面框固定金属(A)和(B)。（请参见第6.19和6.20章节） 2. 松开面框与等离子屏的紧固螺丝 （×6 ）。 3. 松开垫片及垫片环 （×12 ）。 20 4. 将等离子显示屏从前面框上取下时，拉住前面框底部，抬 起，并向前拉出。 6.39. 安装等离子显示屏 （完成） 1. 将新的等离子显示屏（完成）放置在类似桌子（铺有软布） 等的表面上，并且等离子显示屏表面朝下。 2. 安装 C1 ，C2，C3，C4，C5 和 C6 电路板，用柔性电缆 (× 30) 将等离子显示屏与 C1 ，C2，C3，C4，C5 和 C6 电路板连接， 并固定柔性电缆固定器。 3. 安装卡钩 （左，右） ，并将加强压条 （左，右）和连接盘 (A，B，C，D) 安装到新的等离子显示屏上。 4. 将等离子显示屏放置到维修架上。 5. 放置垫片及垫片环 (× 12）。 6. 将前面框和 P.C. 板等安装到新的等离子显示屏上。 * 安装前面框时，注意前玻璃和等离子显示屏之间不要有碎屑、 灰尘或杂质存在。 21 7 注意事项 7.1. 注意事项 注意 : 请确认所有的柔性电缆都正确束起，并且锁定在连接器内。 轻拉一下柔性电缆进行确认。 22 8 导线布置 8.1. 导线 (1)-1 8.2. 导线 (1)-2 23 8.3. 导线 (2) 24 8.4. 导线 (3) 25 9 自检功能 使用自检功能检测整机。 1. 检测 IIC 总线 2. 电源 LED 闪烁次数 9.1. IIC 总线检测 9.1.1. 如何进入 选择 TV 接收屏幕，按下主机上的 [ 音量 ( )] 键的同时，按住遥控器上的 [OK] 键 3 秒以上。 9.1.2. 退出 从壁装插座上拔出 AC 电源线。 9.1.3. 屏幕显示 1. 自检用来自动检测电视机的总线和十六进制编码。 2. 进入自检模式，按下电视机前面的用户控制中的下 （DOWN）( ) 键，同时按下遥控器上的菜单键，屏幕上将会显示： 如果 CCU 端口经过检测，发现异常或位置不正确，则 “--”将会显示在 “O.K.”的位置。 显示 参考号 说明 电路板 MEM IC1102 内存 DG 电路板 Gc5 IC4037 全球核心处理器 DG 电路板 GC3FS IC4020 全球子级核心 DG 电路板 AVSW 1 IC3005 AV 开关 H 电路板 AVSW 2 IC2105 AV 开关 H 电路板 Tun1 TU001 调谐器 ( 主 ) TA 电路板 Tun2 TU002 调谐器 ( 副 ) TA 电路板 MSP IC2106 多声音处理器 H 电路板 PANEL IC9003 显示屏 D 电路板 SD-P IC5013 SD 峰值 JG 电路板 HDMI IC4026 HDMI I/F DG 电路板 ADV IC4019 A/D 转换器 DG 电路板 FPGA1 IC1401 FPGA1 DG 电路板 FPGA2 IC11501 FPGA1 DG 电路板 26 9.2. 电源 LED 闪烁次数图 1. 主题 发光二极管闪烁次数图信息。 2. 内容 当设备出现异常时，保护电路将运行并将设备复位到待机状态。此时，通过本机前显示屏上的电源 LED 闪烁次数便可识别出故障 部位。 27 9.3. 无电源 第一检测点 电源 LED 无电源指示有以下两种情况： 1. 不亮 2. 红灯亮，几秒钟后转为红灯闪烁。（请参见第 9.2 章节） 28 9.4. 无图像 29 9.5. 显示屏局部故障 等离子显示屏屏幕上可能会出现局部故障。图 1 是各局部可能会出现故障的 P.C.B. 印刷电路板。 30 10 维修模式功能 MPU 通过此机型的 IIC 总线来控制各 IIC 模式的功能转换。以下各项可在维修模式下通过遥控来进行设置和调节。 10.1. 如何进入维修模式 1 1. 将音量设置为最小，将定时关机设置为 15 分钟。 2. 同时按下电视机上的 DOWN （下） 键和遥控器上的 RECALL[ ] 键。 10.2. 如何进入维修模式 2 1. 进入维修模式 1。 2. 同时按下电视机上的 DOWN （下） 键和遥控器上的静音 [ ] 键。 注： 要退出维修模式，按下遥控器上的 N 或 Power 键。 31 32 10.3. 选项说明 PV600C 选项 1 0F b0 1 彩色制式 自动 (1) b1 1 SECAM(1) b2 1 NTSC(1) b3 1 M.NTSC(1) b4 0 A2 选择 6.5MHz 5.742MHz(0) 6.742MHz(1) b5 0 SIF 4.5/5.5/6.0/6.5(0)，5.5/6.0/6.5(1) b6 0 5.5/6.5(2)，6.0/6.5(3) b7 0 闲置 选项 2 E2 b0 0 A2 启动 4.5 （1） b1 1 5.5 （1） b2 0 6.0 （1） b3 0 6.5 （1） b4 0 NICAM 启动 4.5 （1） b5 1 5.5 （1） b6 1 6.0 （1） b7 1 6.5 （1） 选项 3 1A b0 0 SASO 启动 SASO 启动 (1) b1 1 微调 启动 (1) b2 0 搜索速度 慢 (1) 快 (0) b3 1 调谐器 MACO 调谐器 (1), 其它 (0) b4 1 HYPER 仅 UHF(0), UHF/VHF(1) b5 0 IF I2C 12C 控制调谐器 IF 模块 (1) b6 0 NICAM C4 比特 启动 (1) b7 0 蓝底 菜单中蓝背景开 / 关选择 （0） 选项 4 08 b0 0 ASPECT 自动 启动 (1) b1 0 S1/S2 启动 启动 (1) b2 0 ID-1 启动 (1) b3 1 用户比例调整 启动 (1) b4 0 用户比例调整 14:9 启动 (1) b5 0 ALBD 14:9 14:9 启动 , self wide (1) 时 Zoom 3 未启动 / self wide (0) 时 Zoom1, Zoom 3 启动 b6 0 TEXT 启动 (1) b7 0 TEXT TOP TOP 启动 (1) 选项 5 3B b0 1 CH 闪烁 闪烁启动 (1) b1 1 AV 闪烁 闪烁启动 (1) b2 0 静音 静音启动 (0) b3 1 副图像 无副图像 (0)，有副图像 (1) b4 1 2 调谐器 2 调谐器 (1)，1 调谐器 (0) b5 1 AV 输入 3 旋转 (1)/2 无前 RCA 旋转 (0) b6 0 显示屏 ( 液晶 ) Samsung 显示屏 (1)/SHARP 显示屏 (0) b7 0 大尺寸 ( 液晶 ) 液晶 32(1)/26(0) 选项 6 E0 b0 0 SD 模块 有 SD 模块 (1) b1 0 SD 模块外部 Rec(PAL) SD 模块外部 Rec(NTSC) SD 模块外部 Rec.(SECAM) 启动 (1) b2 0 启动 (1) b3 0 启动 (1) b4 0 IDTV 启动 (1) b5 1 HDMI 启动 (1) b6 1 外部 HV 输入 无 HV 输入 (0)/ 有 HV 输入 (1) b7 1 PC 启动 (1) 选项 7 61 b0 1 亚洲 亚洲 (1), 欧洲 (0) b1 0 澳大利亚 澳大利亚 (1) b2 0 爱尔兰 / 印度 印度 (1) b3 0 英国 / 韩国 韩国 (1) b4 0 Lang1 语言 (0)/ 小 (1) b5 1 Lang2 OSD 语言：阿拉伯 (1) b6 1 较低 POS 低 POS 启动 (1) b7 0 用户 ID 不使用 33 PV600C 选项 8 40 欧洲选项 b0 0 ACI 所有国家 ACI 启动 (1)，仅在荷兰 (0) b1 0 ACI 自动 MP ACI 自动多包装启动 (1) b2 0 ACI 补偿 VCR 程序的 ACI 补偿启动 (1) b3 0 供电 EC 模式 EC 电源启动 (1) b4 0 AV 接线 不可在菜单中选择 Q-Link(1) b5 0 音量调节 TV 音量调节启动 (1) b6 1 MPX/NICAM 显示 显示 NICAM(0)，显示 MPX(1) b7 0 Albd 复位关闭 启动 (1) 选项 9 FF b0 1 CH 方案 亚洲 / 中东 / 香港 / 英国 / 中国 (1) b1 1 新西兰 / 印度尼西亚 (1) b2 1 澳大利亚 (1) b3 1 东欧 (1) b4 1 SPECIAL (1) b5 1 美国 (1) b6 1 CATV(1) b7 1 日本 (1) 选项 10 6F b0 1 NICAM 优先 亚洲 / 中东 (1) b1 1 香港 / 英国 (1) b2 1 中国 (1) b3 1 新西兰 / 印度 (1) b4 0 奥地利 (1) b5 1 东欧 (1) b6 1 SPECIAL (1) b7 0 HDMI AVI Aspect 启动 (1) 选项 11 4F 其它 b0 1 Remocon 类型 Delux(1)/ 导线 (0) b1 1 环境 AI(PDP) 启动，有自动视图模式 (1)/ 未启动，无自动视图模式 (0) b2 1 WSS14:9 关闭 WSS14:9 关闭 (1) b3 1 儿童锁码 儿童锁码开： 调谐菜单跳过 （1） b4 0 b5 0 对比 AI 启动 (1) b6 1 维修 H-POS 启动 (1) b7 0 维修 V-VOS 启动 (1) 选项 12 21 其它 b0 1 aspect 最新记忆 单个来源 （1）/ 所有来源 （0） b1 0 保留 b2 0 TEXT 频道刷新 刷新启动 （1）/ 关闭 （0） b3 0 STILL 1: 启动 /0： 启动 b4 0 LATIN Latin: SAP/ 固定 SIF 4.5MHz/PAL-M,N/CC/ 黑色电平 / 语言 b5 1 SRS 启动 (1) b6 0 HDMI Quali 电视 启动 (0) b7 0 HDMI EC 功能 启动 (1) 选项 13 00 其它 b0 0 DVB ALBD 启动 (1) b1 0 HDMI 端口 启动 (0) 2 端口型号 / (1) 1 端口型号 ( 仅适用于 TV MCU 端口设置 ) b2 0 HDMI 格式错误 OSD 显示 (0)/ 未显示 (1) b3 0 CEC 控制 启动 (1) b4 0 Aspect 4:3 全屏 启动 (0) b5 0 FTZ 启动 (1) b6 0 b7 0 34 11 调整步骤 11.1. 驱动器设置 11.1.1. 项目 / 准备 1. 输入白色信号到等离子显示屏视频。 2. 如下设定图像控制： 图像菜单：最佳 D. PNR：关 宽高比：全屏 注意 1. 首先进行 Vsus 调整。 2. Vad 调整确认后，再确定 Vscn 电压。当 Vad = -90V 时， Vscn 的电压为 50V ± 4V。 11.1.2. 调整 参照显示屏数据标牌上的显示屏数据，调整驱动器各部分的电 压。 * 见显示屏标牌 名称 测试点 电压 调整点 备注 Vsus TPVSUS(SS) Vsus±2V VR251(P) * Ve TPVE(SS) Ve±1V VR6000(SS) * Vset TPVSET(SC) 240V±7V 固定 Vad TPVAD(SC) -90V±1V VR6600(SC) Vscn TPVSCN(SC) Vad+140V±4V 固定 Vda TPVDA(SS) 72V+1V, -3V 固定 35 11.2. 初始化脉冲调整 1. 输入白色信号到等离子显示屏视频。 2. 如下设定图像控制： 图像菜单：最佳 D. PNR：关 宽高比：全屏 3. 连接示波器至测试点 TPSC1 （SC）。 检查以确认持平部分少于 40μ Sec 并调整 VR6602 至 160+10μ Sec。 11.3. P.C.B. （印刷电路版）更换 11.3.1. 注意 1. 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.B.C.。 11.3.2. P.C.B. 更换后进行快速调整 使用万用表调整以下电压。 * 见显示屏标牌。 注意： 请勿将 Vsus 设置到 Ve 以下，以防损坏 PCB 板。 测试点 调整点 等级 T1 TPSC1(SC) --- T1<40μ Sec T2 TPSC1(SC) VR6602 (SC) 160 ± 10μ Sec P.C.B. 名称 测试点 电压 调整点 备注 P 电路板 Vsus TPVSUS (SS) Vsus ± 2V VR251 (P) * SC 电路板 Vad TPVAD (SC) -90V ± 1V VR6600 (SC) SS 电路板 Ve TPVE (SS) Ve ± 1V VR6000 (SS) * D,DG 电路板 NTSC, PAL, HD, PC 和 625i 信号的白平衡、背景设定和副亮度。 36 11.4. 调整点位置 11.5. 测试点位置 37 12 调整 12.1. PA 板电压调整图 1. 打开主电源开关，然后检查并确认每个测试点的输出电压都在以下规格以内。 调整 / 检测项目 测试点 电压规格 主电源 5V TPM5, TPM5V 5.1 ± 0.45V 副电源 9V TPS9, TPS9V 9.1 ± 0.45V 主电源 9V TPM9, TPM9V 9.1 ± 0.3V 副电源 5V TPS5, TPS5V 5.1 ± 0.45V 主电源 1.8V TPM18, TPM18V 1.8 ± 0.15V 副电源 3.3V TPS33, TPS33V 3.3 ± 0.2V 主电源 3.3V TPM33, TPM33V 3.4 ± 0.2V 主电源 NF3.3V TPF33, TPF33V 3.4 ± 0.2V 主电源 NF1.8V TPF18, TPF18V 1.9 ± 0.15V 风扇 SOS TPFSOS, TPFANS ≤ 0.5V SOS TPFSOS ≤ 0.5V 38 12.2. 副对比度调整 仪器名称 连接 备注 RF 发生器 基带发生器 准备 （AV） 备注 1. 接收 AV1 ( 如下所示 PAL 100% 全白或彩条，如下图 )。 2. 进入维修模式，选择副对比度，并确认数据值为 512。 （初始值为默认值） AV 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为白色。 4. 结束。 EEPROM : 地址 AV1 ( 高 ) : A0-0106 AV2 ( 低 ) : A0-0107 准备 （RF） 备注 1. 接收 RF (PAL 100% 全白或彩条，如下图 )。 2. 进入维修模式，选择副对比度，并确认数据值为 512。 （初始值为默认值） RF 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为白色。 4. 结束。 EEPROM : 地址 RF ( 高 ) : A0-0102 RF ( 低 ) : A0-0103 准备 （HD） 备注 1. 接收分量。 (1080i/ 60Hz 或 1080i/ 50Hz, 100% 全白或彩条，如下图。) 2. 进入维修模式，选择副对比度，并确认数据值为 384。 （初始值为默认值） HD 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为白色。 4. 结束。 EEPROM : 地址 分量 ( 高 ) : A0-0108 分量 ( 低 ) : A0-0109 39 12.3. 多窗口调整 12.4. PAL 显示屏白平衡调整 仪器名称 连接 备注 基带信号发生器 条件 备注 完成副对比度调整。 准备 1. 退出维修模式，输入 AV1 （PAL 100% 全白）信号。 2. 进入维修模式，选择 VIDEO Gain2, 并确认数据值为 255。 （初始值为默认值） 调整 备注 1. 通过目视检查主屏幕和副屏幕的亮度。 2. 当副屏幕的亮度比主屏幕的亮度高时，执行步骤 3。 相反，当副屏幕的亮度比主屏幕的亮度低时，将不进行调整，调整结束。 3. 调整 VIDEO Gain2 直至主画面和子画面的界线表现得不明显。 按 OK （确定）按钮。 仪器名称 连接 备注 • 黑白模式 • 彩色分析仪 （Minolta CA-100 或同等产品） RF 输入 显示屏表面 用户设定：正常 步骤 备注 • 确保充分老练 15 分钟以上。 • 确保前面板已经安装在整机上。 • 确认调整之前无彩色信号显示。 • 将彩色分析仪放置在有轻微色差的地方。 打开电源后 10 分钟之内完成调整。 通过老炼处理等不能完成调整时，要重新打开电源。 1. 显示白平衡图像。 2. 检查以确认彩色平衡为 “冷色”。 3. 进入到 “维修菜单 1”模式。 4. 用红键或绿键选择 “G-CUTOFF”，并通过黄键或蓝键将其设定到 “128”。 同样，“B-CUTOFF”和 “R-CUTOFF”设定为 “128”。 5. 设定 “G-DRIVE”为 “208”。 6. 将彩色分析仪的信号接收器紧贴高亮窗口的中间位置，然后调整 B 驱动和 R 驱动，将 x, y 的值调整为表 1 中色温度 （冷色）的值。 7. 设定 “ALL-DRIVE”为 “252”。 8. 将色调设定设置为 “标准”。 9. 设定 G cutoff,B cutoff 和 R cutoff 为 “128”。 10. 确定 G 驱动为 “208”。 11. 调整 B 驱动和 R 驱动，将高亮显示窗口中的 x, y 的值调整为下表中色温 （标准）的值。 12. 设定 “ALL-DRIVE”为 “252”。 13. 设色调设定设置为 “暖色”。 14. 设定 G cutoff,B cutoff 和 R cutoff 为 “128”。 15. 确定 G 驱动为 “208”。 16. 调整 B 驱动和 R 驱动，将高亮窗口中的 x, y 的值调整为下表 1 中色温 （暖色）的值。 17. 设定 “ALL-DRIVE”为 “252”。 图像菜单：最佳 宽高比：16:9 • 高亮显示部分 信号振幅 75% 40 12.5. HD 白平衡调整 仪器名称 连接 备注 • 1080i 黑白模式 • 彩色分析仪 （Minolta CA-100 或同等产品） RF 输入 显示屏表面 用户设定：标准 步骤 备注 • 确保充分老练 15 分钟以上。 • 确保前面板已经安装在整机上。 • 确认调整之前无彩色信号显示。 • 将彩色分析仪放置在有轻微色差的地方。 • 通电后 10 分钟内完调整。 在老练没有完成的情况下，再插上电源。 1. 显示白平衡图像。 2. 确认色温设定为 “冷色”。 3. 进入 < 维修菜单 1>。 4. 用红键或绿键选择 “G-CUTOFF”，并通过黄键或蓝键将其设定到 “128”。 同样，“B-CUTOFF”和 “R-CUTOFF”设定为 “128”。 5. 设定 “G-DRIVE”为 “208”。 6. 将彩色分析仪的信号接收器紧贴高亮窗口的中间位置，然后调整 B 驱动和 R 驱动，将 x, y 的值调整为表 1 中色温度 （冷色）的值。 7. 设定 “ALL-DRIVE”为 “252”。 8. 将色调设定设置为 “标准”。 9. 设定 G cutoff,B cutoff 和 R cutoff 为 “128”。 10. 确定 G 驱动为 “208”。 11. 调整 B 驱动和 R 驱动，将高亮显示窗口中的 x, y 的值调整为下表中色温 （标准）的值。 12. 设定 “ALL-DRIVE”为 “252”。 13. 设色调设定设置为 “暖色”。 14. 设定 G cutoff,B cutoff 和 R cutoff 为 “128”。 15. 确定 G 驱动为 “208”。 16. 调整 B 驱动和 R 驱动，将高亮窗口中的 x, y 的值调整为下表 1 中色温 （暖色）的值。 17. 设定 “ALL-DRIVE”为 “252”。 图像菜单：最佳 宽高比：16:9 • 高亮显示部分 信号振幅 75% * 白平衡冷色不同于日本模型值。 41 12.6. 副亮度调整 仪器名称 连接 备注 1. PAL 信号发生器 （或 RF） 连接到输入端子 用户设定：正常 步骤 备注 • 每个信号的色彩平衡调整都已完成。 • 务必在暗室中调整。 • 接通电源 10 分钟内完成调整。 时效之内无法完成调整时请再次打开电源。 1. 显示通过视频输入调整亮度的 10 级灰度图案。 2. 通过 < 维修菜单 1> 中的 “Sub-Bright”进行调整，使图中第 6 级灰度显示，而第 7 级灰度 不显示。 数据 副亮度数据地址 副亮度 （高）A2-0116 副亮度 （低）A2-0117 图像菜单：最佳 彩色平衡：正常 宽高比：16:9 42 12.7. ABL 调整 仪器名称 连接 备注 1. HD 信号发射器 （或引导器 1080i/No.9 信号） 2. 功率计 分量输入端子 将调整设备的交流电源连接到功率计 上。 步骤 备注 • 确保在调整之前经过 30 分钟以上的老炼。 （运行期间或之后请勿关闭设备。） • 电压 230V 50Hz （变化在 1%） • 音量为最小，屏幕尺寸为 “16:9” 设定 分量输入，最佳，标准 1. 连接机器设备的交流电源至功率计。 2. 输入信号 ( 上半部：彩色条形图，下半部：10 级灰度 )。 3. 在 < 维修模式 1> 中选择 “PWRCTL”。 4. 调整 PWRCTL，使机器的功耗为 663+7/-18W 备注 1. 初始数据为： 数据地址： A2-0102 默认数据： 0 ×00 2. 所调电压和显示数字呈反比。 （数字变小，电压升高。） • 上升方向 ( ↑ ): 0 → 255, 254, 253 • 下降方向 ( ↓ ): 0 → 1, 2, 3 有可能调整值在两处均可使用，此时调整 PWRCTL 数值大那种情况。 43 13 旅馆模式 1. 目的 设置旅馆功能。 2. 进入指令 • 进入维修模式 2。 • 同时按下电视机上的DOWN[-/V]键和遥控器上的静音键，进 入 EAROM EDITOR 模式。 • 按红 / 绿键，在各地址间上下选择。 • 按黄 / 蓝键在各地址间左右选择。 • 按节目键在各页之间上下选择。 • 按黄 / 蓝键来改变功能值。 • 设定 EEPROM （ADDRESS 0BAF）为 01。 • 按 OK 键，存储数据。 通过遥控器上的开关键来进行开 / 关机操作。 由此进入旅馆模式。 3. 退出指令 • 首先，设定 EEPROM （ADDRESS 0BAF）为 00。 然后，通过遥控器上的开关键来进行开关机操作。 之后便退出旅馆模式。 4. 进入旅馆模式设置菜单指令 • 前提：EEPROM (ADDRESS 0BAF) 的数据应为 01。 为了显示旅馆模式设置菜单，请输入以下指令 （在 2 秒钟 内） 之后便退出旅馆模式。 5. 旅馆模式设置菜单说明 6. 退出旅馆模式 从壁装插座上拔出 AC 电源线 项目 功能 初始输入 选择输入信号模式。 每次接通电源后都设置此信号。 选项： Off/TV/AV1/AV2/AV3/AV4/PC/HDMI1/HDMI2/HDMI3 关： • 以最后一次存储为准。 • PC: VGA 可选 初始音量等级 每次接通电源后都设置音量 选项 / 范围： Off/0 到 100 • 关 : 以最后一次储存为准。 最大音量等级 调节最大音量。 范围： 0 到 100 初始位置 选择频道号。 选项： Off/0 到 99 • 关 : 以最后一次存储为准。 键锁定 选择按键键入条件。 选项： Off/SETUP/MENU/ALL • 关 : 所有按键有效 • 设定：只有 F 键无效 （菜单中调谐状态无） • 菜单：只有 F 键无效 （只可选择音量 / 静音。） • 所有：所有按键全部无效。 遥控锁定 选择遥控键入条件。 选项： Off/SETUP/MENU • 关 : 所有按键有效 • 设置：只有设置菜单无效 • 菜单：图像 / 声音 / 设置菜单无效 44 45 14 导线图 14.1. P 电路板 A B C D E F G H I 1 2 3 4 5 6 P-BOARD (MULTI) (FOIL SIDE) ETXMM631MGH TH-65PV600C P-BOARD (MULTI) ETXMM631MGH TH-65PV600C P-BOARD (MULTI) ETXMM631MGH 46 TH-65PV600C P-BOARD (MULTI) PARTS LOCATION TH-65PV600C P-BOARD (MULTI) PARTS LOCATION Parts Location Parts Location P-BOARD (MULTI) (COMPONENT SIDE) IC401 H-2 IC501 E-2 MC301 F-3 MC401 H-2 MC502 F-3 MC601 F-2 MC701 H-3 MC1703 E-5 IC MODULE PC505 F-2 PC506 F-5 PC507 H-3 PHOTO COUPLER VR351 F-3 VR401 H-2 VOLUME Q301 E-4 Q302 E-4 Q351 H-5 Q352 H-5 Q404 G-2 Q405 H-2 Q406 H-2 Q501 C-1 Q1701 C-3 Q1702 D-3 TRANSISTOR P-BOARD (MULTI) (FOIL SIDE) IC401 G-4 IC501 E-5 MC301 F-3 MC401 H-4 MC502 F-4 MC601 F-4 MC701 H-3 MC1703 E-2 IC MODULE PC505 F-4 PC506 F-1 PC507 G-4 VR351 F-4 VR401 H-4 PHOTO COUPLER VOLUME Q301 E-3 Q302 E-2 Q303 D-2 Q304 E-2 Q351 H-1 Q352 H-1 Q353 H-1 Q354 H-1 Q404 G-4 Q405 H-4 Q406 H-4 Q501 C-5 Q502 D-5 Q551 G-5 Q552 G-5 Q553 H-5 Q1701 C-4 Q1702 D-4 Q1703 C-4 Q1704 C-4 Q1706 F-1 Q1707 D-1 Q1708 E-2 TRANSISTOR P (MULTI) 47 A B C D E F G H I 1 2 3 4 5 6 P-BOARD (MULTI) (COMPONENT SIDE) ETXMM631MGH TH-65PV600C P-BOARD (MULTI) ETXMM631MGH TH-65PV600C P-BOARD (MULTI) ETXMM631MGH 48 A B C D E F G H I 1 2 3 4 5 6 P-BOARD (SUS) (FOIL SIDE) ETXMM631MGH TH-65PV600C P-BOARD (SUS) ETXMM631MGH TH-65PV600C P-BOARD (SUS) ETXMM631MGH 49 TH-65PV600C P-BOARD (SUS) PARTS LOCATION TH-65PV600C P-BOARD (SUS) PARTS LOCATION Parts Location P-BOARD (SUS) (FOIL SIDE) MC201 F-2 MC202 F-1 MC1601 F-2 MODULE PC201 G-2 PC202 G-2 VR251 G-5 PHOTO COUPLER VOLUME Q201 E-4 Q202 E-5 Q203 E-4 Q204 E-5 Q205 E-5 Q206 F-5 Q251 G-1 Q1602 D-2 Q1603 D-2 Q1604 C-1 Q1605 C-1 Q1606 D-2 Q1607 D-2 Q1608 E-2 Q1609 E-2 TRANSISTOR Parts Location P-BOARD (SUS) (COMPONENT SIDE) MC201 F-5 MC202 F-5 MC1601 F-5 MODULE PC201 G-5 PC202 G-5 VR251 G-2 PHOTO COUPLER VOLUME Q201 E-3 Q202 E-2 Q203 E-3 Q204 E-2 Q1602 D-5 Q1603 D-5 Q1606 D-5 Q1607 D-5 TRANSISTOR P (SUS) 50 A B C D E F G H I 1 2 3 4 5 6 P-BOARD (SUS) (COMPONENT SIDE) ETXMM631MGH TH-65PV600C P-BOARD (SUS) ETXMM631MGH TH-65PV600C P-BOARD (SUS) ETXMM631MGH 51 14.2. PA 电路板 E F G H I 1 2 3 4 5 6 TH-65PV600C PA-BOARD TNPA4076AB PA-BOARD (FOIL SIDE) TNPA4076AB Parts Location PA-BOARD IC2306 A-2 IC2307 B-2 IC5601 E-2 IC5602 E-4 IC5603 F-3 IC5611 C-4 Q2306 B-2 Q2307 A-2 Q2308 B-3 Q2309 B-3 Q5606 E-3 Q5612 E-2 Q5613 E-1 Q5800 C-5 TRANSISTOR TP TP16 D-5 TP17 C-4 TP5613 A-1 TP5615 A-1 TP5616 A-1 TP5617 A-1 TPF18 F-2 TPF33 F-2 TPFANC B-1 TPFSOS B-1 TPM18 E-3 TPM33 D-4 TPM5 F-1 TPM9 F-1 TPMUTE D-2 TPS33 D-2 TPS5 D-2 TPS9 D-3 TPSOS A-1 TPSTB5 D-2 PA IC L5624 TP5613 TP5615 TP5616 TP5617 L5651 L5666 PA1 PA2 PA5 TPFSOS C2300 C2301 C2302 C2303 L5681 L5875 Q2306 L5682 L5876 Q2307 L5683 L5877 Q2308 L5684 L5878 Q2309 L5685 R2303 R2307 C2332 C2333 IC2306 IC2307 C5604 C5605 C5606 C5607 C5609 Q5606 PA10 C5801 C5802 C5803 C5610 C5804 Q5800 C5805 C5611 C5612 C5806 C5613 C5614 C5615 Q5612 R2326 C5616 Q5613 R2327 C5617 R2328 C5618 C5619 C5810 PA21 C5620 C5621 C5622 C5623 C5626 D5605 C2361 R5601 D5606 C2362 R5602 D5607 R5603 R5604 PA31 PA32 R5606 PA33 R5607 PA34 C5630 R5608 PA35 R5609 IC5601 C5631 PA36 C5632 IC5602 D5803 PA37 C5633 IC5603 PA38 R2344 D5610 R5801 R2345 R5802 D5612 C5636 C5637 R5803 R5610 R5805 R5611 R5806 R5612 D5616 R5807 D5617 R5613 R5808 R5614 R5809 PA41 R5616 R5618 C5640 IC5611 C5641 C5642 C5836 C5643 R5810 C5644 R5811 C5645 C5839 R5812 D5817 R5813 C5647 R5814 R5621 R5622 R5623 PA50 PA51 R5625 PA52 R5626 PA53 R5627 PA54 R5628 PA55 R5629 C5845 PA56 C5846 C5654 R5820 C5849 R5822 R5630 R5631 R5632 R5633 R5634 R5635 C5851 C5853 R2370 C5854 R2371 C5855 C5856 C5857 R5830 C5858 R5831 C5859 R5832 C5666 C5667 C5668 R5641 R5836 R5644 C5670 R5648 C5672 C5673 TPM18 D5651 R5650 R5651 R5652 R5847 R5848 R5654 R5849 R5656 R5657 R5658 R5659 C5681 C5683 C5684 C5685 C5686 C5687 R2397 R5660 C5688 R5661 C5689 R5662 R5663 R5664 R5666 R5667 TPM33 C5690 JS2302 JS2303 D5671 D5672 R5670 R5671 R5867 R5868 R5675 R5677 R5679 D5875 JS2316 JS2317 R5873 D5877 R5680 JS2318 R5874 JS2319 R5681 R5684 R5685 R5686 R5687 R5688 R5689 JS2322 TPS33 JS2323 R5690 R5691 R5692 R5693 TPSSOS TPMUTE R5695 TPM5 R5697 JS2330 R5698 TPM9 R5699 C2401 C2402 C2403 C2404 C2405 TPSTB5 R5899 C2416 C2417 C2418 R2401 R2402 TP16 R2403 TP17 R2404 R2405 R2406 R2407 R2408 R2409 R2410 R2411 R2412 R2413 R2414 R2415 R2416 R2417 R2418 R2419 L2300 L2301 L2302 L2303 L2304 R2420 L2305 R2421 L2306 R2422 L2307 R2423 L2308 R2424 L2309 TPS5 L2311 TPS9 TPFANC TPF18 L5602 L5604 L5605 L5606 L5607 L5609 L5801 L5802 L5803 L5804 L5805 L5612 L5615 TPF33 L5621 L5622 L5623 TNPA4076 PA 1 PbF 1 4 1 5 1 11 1 4 5 8 1 4 5 8 6 1 1 3 REVERSE FOR SUFFIX. SEE 1 3 1 3 1 3 1 3 1 3 1 16 1 3 1 16 1 3 1 16 1 3 1 16 1 4 1 5 4 3 2 1 5 1 3 1 16 1 3 1 3 1 3 1 3 1 3 TH-65PV600C PA-BOARD TNPA4076AB A B C D 52 E F G H I 1 2 3 4 5 6 TH-65PV600C PA-BOARD TNPA4076AB PA-BOARD (COMPONENT SIDE) TNPA4076AB Parts Location PA-BOARD IC2300 F-2 IC2301 E-2 IC2302 F-4 IC2303 E-4 IC2304 F-2 IC2305 E-2 IC5601 B-2 IC5602 B-4 IC5603 A-3 IC5604 C-2 IC5611 D-4 IC5801 D-5 IC Q2300 F-3 Q2301 F-3 Q2302 F-3 Q2303 F-3 Q2304 E-3 Q2305 E-3 Q5601 B-2 Q5602 B-2 Q5603 B-1 Q5604 C-3 Q5605 B-1 Q5608 D-4 Q5609 D-3 Q5610 D-3 Q5611 C-3 Q5614 D-4 Q5641 D-3 Q5642 D-2 Q5643 D-3 Q5644 D-3 Q5653 D-4 TRANSISTOR TP TP16V C-4 TP17V D-4 TPF18V B-2 TPF33V A-2 TPFANS D-2 TPM18V C-3 TPM33V C-2 TPM5V D-4 TPM9V D-2 TPS33V D-2 TPS5V C-2 TPS9V C-1 TPSOS D-2 TPSTB5V D-2 PA L5624 TPF18V L5651 L5666 PA1 PA2 PA5 C2301 C2302 C2303 C2304 Q2300 C2305 Q2301 Q2302 C2306 Q2303 C2307 C2308 Q2304 C2309 Q2305 L5681 L5682 L5683 L5684 L5685 C2310 C2311 C2312 C2313 C2314 C2315 C2316 C2317 C2318 C2319 TPM33V C2320 C2321 C2322 C2323 D2300 C2324 C2325 D2301 D2302 C2326 D2303 C2327 C2328 D2304 R2300 C2329 D2305 R2301 R2302 D2306 D2307 R2304 D2308 R2305 D2309 R2306 C2330 R2308 IC2300 C2331 IC2301 R2309 C2332 IC2302 IC2303 C2333 IC2304 C2334 C2335 IC2305 C2336 C2337 R2310 C2338 R2311 R2312 R2313 R2314 C5604 Q5601 C5605 R2315 Q5602 C5606 R2316 Q5603 R2317 C5607 R2318 Q5604 Q5605 C5609 C2341 R2319 C2342 C2343 C2344 Q5608 PA10 C2345 C5801 Q5609 C2346 C5802 C2347 C5803 C5610 R2320 C2348 C2349 R2321 C5611 C5612 R2322 C5806 R2323 R2324 Q5610 C5615 R2325 C5809 Q5611 C5617 C2350 Q5614 C2351 R2329 C2352 C2353 C2354 PA20 C5810 C5811 C2355 PA21 C5812 C2356 C5813 C2357 C5814 C2358 R2330 C5815 C2359 R2331 C5816 R2332 C5622 C5817 R2333 C5818 R2334 R2335 C5819 R2336 R2337 C2360 R2338 R2339 C2361 TPM18V C2362 C2363 C2364 PA31 R5605 C2365 PA32 C2366 PA33 C2367 PA34 C5630 R2340 C2368 PA35 IC5601 R2341 C2369 C5631 D5801 PA36 C5632 TPS33V R2342 IC5602 PA37 R2343 C5633 IC5603 D5804 C5828 PA38 IC5604 C5829 R2346 R2347 R2348 C2370 R2349 C2371 C2372 TP16V C2373 C5830 PA40 C2374 C5831 R5615 C2375 IC5801 PA41 C5832 C2376 C5833 R5617 C2377 C2378 R2350 C2379 R2351 IC5611 R5619 R2352 R2353 R2354 C5645 R2355 Q5641 D5815 C5646 R2356 Q5642 C5647 R2357 Q5643 C5648 C2380 R2358 Q5644 R5620 R5815 C2381 R2359 C2382 TP17V C2383 C2384 R5624 PA50 PA51 C2385 PA52 C2386 PA53 C2387 PA54 C2388 R2360 PA55 C2389 R2361 PA56 C5846 R2362 C5847 R2363 C5848 D5824 R2364 D5825 R2365 D5826 R2366 D5827 R2367 Q5653 D5828 C2390 R2368 D5634 D5829 C2391 R2369 D5635 C2392 D5636 C2393 D5637 C2394 D5638 C5850 C2395 D5639 C2396 R5636 C5852 R5637 D5830 R5638 D5831 R5639 D5832 R2372 D5833 R2373 D5834 R2374 D5640 D5835 R2375 D5641 D5836 R2376 D5642 D5837 R2377 C5667 D5643 R2378 R5640 D5644 R2379 D5645 R5642 D5646 D5647 R5643 D5649 R5645 R5646 R5647 R2380 R2381 R5649 C5672 R2382 R2383 C5674 R2384 D5650 R2385 R2386 R2387 D5653 R2388 R2389 R5653 D5658 D5659 R5655 R2390 R2391 C5681 R2392 C5682 R2393 R2394 R2395 C5685 C5879 R2396 C5687 R2398 C5688 C5880 R5665 R5668 C5690 JS2300 JS2301 R5669 R5864 R5865 R5672 R5866 R5673 FL5800 R5674 R5869 FL5801 R5676 FL5802 TPSOS R5678 JS2312 JS2313 R5870 JS2314 R5871 D5681 JS2315 R5872 D5682 D5683 R5682 R5683 PA057 PA058 PA059 JS2320 JS2321 PA060 PA061 JS2328 JS2329 R5694 JS2331 JS5600 JS5601 JS5602 JS5603 JS5604 R5898 TPM5V TPS5V TPSTB5V L2300 L2301 L2302 L2303 L2304 L2305 TPM9V L2306 L2307 L2308 L2309 L2311 TPF33V TPS9V TPFANS L5602 L5604 L5605 L5606 L5607 L5609 L5801 L5802 L5803 L5804 L5805 L5612 L5615 L5621 L5622 L5623 TNPA4076 THERMAL PAD PAMM6 PAMM4 PAMM5 PA PAMM1 PAMM7 1 PAMM3 AD AC AE AF AB PAMM5 DIP PAMM2 PbF 1 4 1 5 1 1 1 1 4 5 8 1 4 5 8 13 24 25 36 48 1 12 37 1 12 13 24 25 36 37 48 1 4 5 8 1 4 5 8 SUFFIX. 1 6 1 40 1 3 1 3 1 3 1 3 1 3 1 3 16 1 1 3 1 1 6 1 3 1 16 1 3 1 4 5 3 2 19 20 1 1 16 5 1 1 4 1 3 4 5 2 1 5 1 3 1 16 1 3 1 3 1 3 1 3 1 3 TH-65PV600C PA-BOARD TNPA4076AB A B C D 53 14.3. H 和 TA 电路板 1 2 3 4 5 6 H-BOARD (FOIL SIDE) TNPA4063 TA-BOARD (FOIL SIDE) TNPA4071 TH-65PV600C H-BOARD TNPA4063 TA-BOARD TNPA4071 Parts Location H-BOARD Q2001 F-4 Q2002 F-4 TRANSISTOR Parts Location TA-BOARD Q002 H-3 TRANSISTOR C3058 R3224 R3227 D3038 R3228 R3229 D3039 C3254 C3060 D3040 C3065 D3041 C3066 D3042 C3067 D3043 L2178 C3069 L2179 D3045 D3046 D3047 R3044 R3238 D3048 R3045 D3049 C3263 L2184 R3241 C3075 L2185 C3076 R3057 R3058 R3059 R3061 R3064 JS2026 R3264 R3070 JS2031 JS2032 R3073 JS2033 R3075 R3076 JK3100 R3087 R3088 C2118 C2119 C2501 C2502 R3096 R3097 R3099 C2125 C2126 C2127 C2128 C2135 C2136 JS3202 JS3010 JS3205 JS3011 JS3012 R2113 JS3013 R2114 JS3014 JS3015 C2143 C2147 L2003 L2004 JS3023 L2007 L2008 R2128 JS3029 R2129 C2153 L2203 R2513 L2204 R2514 L2205 L2011 R2515 L2206 L2012 R2130 R2131 L2015 R2519 L2016 C2161 C2162 C2163 C2164 JS3230 C2165 C2166 C2167 C2168 C2169 C2551 JS3237 C2553 PA3104 C3301 C3302 C3303 C3304 C3306 C2173 C2175 JS3244 JS3245 D3100 H5 ZA3401 H6 ZA3402 C2187 ZA3403 R3100 C2188 ZA3405 R3101 R3105 R3106 R3107 R3108 D3301 R3109 D3302 C2195 JS3262 C2196 JS3263 R2170 R3110 R2171 R3111 C2199 R2172 R3112 R3306 R2173 R3113 R3307 R2174 C3330 R3114 R3308 R2175 R3309 R2176 R2177 JK2003 C3334 C3335 C3336 C3337 R3310 C3338 L3000 C3339 L3001 L3002 R3313 L3003 R2181 R2184 R3318 R2185 L3009 L3201 R2189 L3010 L3012 L3013 R2191 R3134 R2197 D3334 D3336 D3338 R3336 JS2108 R3341 R3346 JS2121 JS2122 C2005 Q2001 Q2002 C2006 R3174 JK3001 R3176 C2200 X2102 X2103 C2203 C2204 C2010 C2205 C2011 C2013 C2014 C2209 C2016 C2017 C2019 C2211 C2213 C2020 C2217 R2005 C2222 R2006 R2007 R2008 R2009 C2227 R2200 C2229 R2203 R2010 R2205 R2011 JS3105 R2012 JS3106 R2013 JS3107 C2230 R2014 JS3108 R2209 C2231 R2015 JS3109 C2232 R2016 C2233 C2234 C2236 JS3302 JS3303 JS3304 JS3110 R2211 R2213 R2214 R2215 R2216 R2217 R2219 C2241 C2242 C2243 L2108 L2110 L2111 L2112 R2230 R2231 C3005 L2115 R2232 L2117 R2233 L2118 L2119 L2120 L2121 L2124 L2125 L2126 L2127 R2244 R2245 C3211 C3212 C3213 C3021 C3216 C3022 C3217 C3218 C3024 C3219 C3026 D3003 D3005 R3001 D3006 R3002 R3003 C3220 R3004 C3221 R3005 R3006 R3007 C3030 R3008 R3009 C3226 JS3352 C3227 C3228 C3034 JS3354 JS3355 C3036 JS3356 JS3357 JS3358 R3010 R3011 C3039 JS3359 R3012 C3233 C3041 C3235 C3236 C3044 D3021 C3045 C3046 R3213 R3214 C3048 R3020 R3021 R3215 R3022 R3027 C3054 C3055 R3222 C3056 TNPA4063 1 H PbF MONITOR AV1 AV2 AV4 REVERSE FOR SUFFIX. SEE 1 15 1 15 1 2 3 4 1 2 3 4 5 6 10 11 15 1 R018 R019 R020 R021 R022 R023 R024 R025 R026 R027 R028 R029 R030 R031 C002 C003 C004 C006 C007 C008 C009 C010 C011 C016 C020 C021 C022 C024 C029 C030 C037 C038 TA6 C040 C041 C042 C043 C044 C045 JS012 JS026 JS027 JS028 JS029 JS030 JS031 TU001 TU002 Q002 L001 L007 L010 L011 L013 L015 L021 L024 L025 L026 L028 L031 L032 R001 R005 R008 R009 R011 R012 R013 R014 R016 R017 1 TA TNPA4071 TA5 SEE REVERSE FOR SUFFIX PbF 1 15 SDA BM BT SCL BTL VIDEOOUT RFAGC AFT SW1 SW2 1 15 SDA SIF BM BT SCL BTL VIDEO RFAGC AFT AUDIO SW1SW2 H TA TH-65PV600C H-BOARD TNPA4063 TA-BOARD TNPA4071 E F G H I A B C D 54 E F G H I 1 2 3 4 5 6 TH-65PV600C H-BOARD TNPA4063 TA-BOARD TNPA4071 TH-65PV600C H-BOARD TNPA4063 TA-BOARD TNPA4071 H-BOARD (COMPONENT SIDE) TNPA4063 TA-BOARD (COMPONENT SIDE) TNPA4071 Parts Location H-BOARD IC2103 F-4 IC2104 F-4 IC2105 D-2 IC2106 E-4 IC2107 F-3 IC2108 F-2 IC2109 C-2 IC2110 C-1 IC2551 G-2 IC3005 E-3 IC3200 F-2 IC3301 D-4 Q2011 E-4 Q2012 E-4 Q2013 E-4 Q2102 E-4 Q2103 F-4 Q2104 F-4 Q2105 F-4 Q2106 E-2 Q2107 F-2 Q2108 E-2 Q2109 F-2 Q2113 G-4 Q2114 G-3 TRANSISTOR IC Q2314 G-4 Q2315 G-4 Q2316 G-4 Q2317 G-4 Q2501 E-5 Q2502 E-4 Q2503 E-4 Q2551 G-3 Q3002 C-5 Q3008 G-3 Q3011 A-2 Q3012 A-2 Q3013 A-2 Q3014 D-3 Q3015 A-2 Q3017 A-2 Q3018 A-2 Q3203 F-2 Q3204 E-2 Q3205 F-2 Q3206 G-3 Q3207 G-3 Q3209 E-2 Q3210 E-2 Q3331 A-3 Q3332 A-3 Q3333 A-3 C3058 C3059 L2551 C3251 C3252 C3253 C3255 R3039 C3256 C3062 C3257 C3063 C3064 D3235 D3236 R3232 R3233 D3044 R3234 C3069 R3237 R3239 C3262 R3048 C3070 R3049 C3265 L2182 C3266 L2183 C3267 R3240 C3268 D3050 C3269 D3051 C3075 R3242 L2186 D3052 C3076 L2187 R3050 R3051 C3273 C3275 C3276 R3250 R3251 R3252 R3253 R3254 R3060 R3255 R3256 R3062 R3257 R3063 R3259 R3068 R3261 R3262 R3263 R3266 R3072 R3267 R3268 R3074 FL3204 FL3205 R3271 Q2102 Q2103 R3080 R3274 Q2104 JK3100 R3275 Q2105 Q2106 R3276 Q2107 Q2108 Q2109 C2111 R3089 C2116 Q2113 Q2114 R3090 C2118 R3285 C2119 C2501 R3092 R3286 C2502 R3094 R3095 Q2501 Q2502 Q2503 Q2314 Q2315 D2102 Q2316 C2127 D2103 Q2317 JS3000 JS3001 C2129 JS3002 JS3003 JS3004 C2130 C2131 C2132 C2133 IC2103 IC2104 C2134 IC2105 IC2106 C2137 IC2107 C2138 IC2108 IC2109 C2139 JS3206 D2119 D2501 R2116 D2502 D2503 IC2110 C2140 D2504 C2141 R2501 C2142 R2502 R2503 D2120 R2504 L2001 R2505 C2146 L2002 R2506 C2147 R2507 C2148 R2508 JS3215 C2149 R2509 R2124 R2125 R2126 R2127 C2150 R2510 R2511 C2152 R2512 C2154 C2155 C2156 R2516 C2157 R2517 JS3030 C2158 R2518 C2159 JS3031 JS3032 R2132 R2133 JS3033 L2017 R2134 L2018 JS3034 L2019 JS3035 JS3036 R2137 C2160 R2138 R2520 C2161 D2333 PA3100 C2551 C2552 C2553 C2554 Q2551 R2147 R2148 C2170 R2149 C3305 C2171 C2172 C2174 C2176 C2177 C2178 C2179 R2152 JS3246 R2153 R2154 R2155 R2156 R2158 D5618 C2180 C2181 H1 C2182 H2 C2183 C2184 H5 ZA3401 C2185 H6 ZA3402 JS3252 ZA3403 R2160 ZA3405 C2189 JS3255 R2161 R2162 JS3256 R3102 R2163 R3104 JS3258 R2164 R2165 D2551 R2166 R2167 C2190 R2168 R2169 C2191 R2551 C2192 R2552 R3301 R3302 C2197 R3303 JS3264 C2198 JS3265 R3305 IC2551 JS3266 C3330 R3115 IC3301 C3331 R3116 C3332 R3117 JK2003 R3118 C3334 R3119 Q3331 Q3332 C3336 Q3333 C3338 L3000 R3311 R3312 R3120 R3121 R2182 R3122 R3316 R3123 R2183 R3317 R3124 C3340 R3125 R3319 C3341 R3126 R2186 C3342 R2187 R3127 R3128 R2188 L3201 R3129 R3320 L3012 R3323 R3324 R2192 R2193 R2194 R2195 R3135 R2196 R3137 R2198 R3138 D3330 R3139 L3212 R3330 H15 D3335 L3216 D3337 R3140 L3219 R3141 D3339 L3026 R3142 JS2103 R3337 JS2104 R3338 R2399 R3339 JS2109 R3340 R3342 R3343 R3344 JS2111 R3345 R3347 R3348 R3349 R3350 R3351 R3352 R3353 R3354 R3160 R3161 JS2123 JS2124 R3167 H40 FL3105 FL3106 C2003 FL3107 C2004 R3175 FL3301 JK3001 FL3302 FL3303 FL3304 C2201 X2101 FL3305 H51 X2102 C2202 X2103 H53 C2206 C2207 C2208 Q2011 Q2012 Q2013 ZA2101 C2019 ZA2102 ZA2103 ZA2104 C2210 ZA2105 ZA2106 C2212 ZA2107 C2020 ZA2108 C2214 C2215 C2021 C2022 R2003 R2004 C2220 C2221 C2223 C2224 C2225 C2226 C2227 C2228 C2229 R2201 D2011 R2202 D2012 D2013 R2204 D2014 R2206 R2207 R2208 C2230 C2231 R2400 C2235 C2236 C2237 R2210 C2238 C2239 R2212 C2430 C2240 R2218 C2243 C2244 C2245 R2220 L2107 L2109 FL3352 R2227 R2228 FL3354 R2229 PA2055 FL3355 FL3356 FL3357 FL3358 FL3359 Q3002 L2117 R2234 L2118 L2119 R2235 R2042 R2236 R2043 R2237 R2044 Q3008 R2238 R2045 R2239 R2046 R2048 L2121 R2049 Q3203 C3207 L2123 Q3204 C3208 R2240 Q3205 R2241 Q3011 Q3206 Q3012 Q3207 Q3013 R2050 Q3014 Q3209 Q3015 R2051 R2052 R2053 Q3017 R2054 Q3018 R2248 C3211 C3213 Q3210 C3214 C3023 C3025 R2251 R2252 C3027 C3028 C3029 C3031 C3033 IC3005 C3035 R3204 C3038 R3205 R3206 D3017 R3207 L5608 IC3200 C3230 R3208 R3209 C3232 C3040 C3234 C3042 C3236 JS3362 C3043 JS3363 L5610 R3210 R3211 D3022 R3212 D3023 C3047 D3024 R3408 R3409 C3049 R3219 C3241 C3050 C3051 C3052 C3053 C3248 C3249 C3057 R3223 A A H DIP 1 TNPA4063 SUFFIX B B AB AD AE AF C AC C PbF AV1 AV2 AV4 MONITOR NP NP 1 4 5 8 1 11 12 22 23 33 34 44 1 24 25 40 41 64 65 80 1 5 1 4 5 8 1 80 1 15 1 15 1 15 1 3 4 5 1 4 5 8 NP NP NP 1 2 3 4 1 2 3 4 1 4 1 2 19 20 1 2 3 4 1 2 3 4 1 2 3 4 1 5 6 10 11 15 1 2 29 30 1 12 1 16 17 32 33 64 49 48 1 4 5 8 C002 C006 C020 TA6 JS002 JS003 JS001 TU001 TU002 1 TA TNPA4071 AB AC AD TA5 SUFFIX PbF 1 15 VIDEOOUT SCL BT BM SDA BTL RFAGC AFT SW1 SW2 1 15 VIDEO SCL BT BM SIF SDA BTL RFAGC AFT AUDIO SW1 SW2 H TA A B C D 55 14.4. G 电路板 A B C D E F G H I 1 2 3 4 5 6 G51 JK3701 G1 G3 G4 C3715 R3703 R3733 R3736 R3737 R3738 R3739 R3740 R3741 FL3710 FL3711 FL3712 JS3700 JS3701 JS3702 JS3709 JS3711 JS3712 JS3713 JS3714 JS3715 JS3716 ZA3701 AB AC AD AE AF PbF TNPA4068 1 G R L V R L V R L V 1 2 29 30 L V R SUFFIX. 1 12 1 3 1 4 1 2 3 4 1 2 3 4 1 2 3 4 L3700 L3701 L3702 L3703 L3704 L3705 L3706 L3707 L3708 L3713 JK3701 C3701 C3702 C3703 C3704 C3705 C3706 C3707 C3708 C3709 C3710 C3711 C3712 C3713 C3714 C3716 C3717 C3718 C3719 D3701 D3702 D3703 D3704 R3701 D3705 R3702 D3706 D3707 R3704 D3708 R3705 D3709 R3706 R3707 R3708 R3709 D3710 D3711 D3712 D3713 R3710 R3711 R3712 R3713 R3714 R3716 R3717 R3718 R3719 R3720 R3721 R3724 R3725 R3728 R3729 R3730 R3731 R3732 R3742 R3743 R3744 R3745 R3746 R3747 R3748 R3749 JS3704 JS3705 JS3707 JS3708 PbF G 1 TNPA4068 L V R L V R L V R L V R REVERSE FOR SUFFIX. SEE G-BOARD (FOIL SIDE) TNPA4068AD G-BOARD (COMPONENT SIDE) TNPA4068AD TH-65PV600C G-BOARD TNPA4068AD G TH-65PV600C G-BOARD TNPA4068AD 56 14.5. GH 和 GS 电路板 A B C D E F G H I 1 2 3 4 5 6 R802 R803 D807 D808 R806 R807 R808 R809 IC803 D813 R810 D814 R815 R819 R820 R833 GH11 FL801 JS800 JS801 JS802 JS815 JS816 JS817 JS819 L802 L803 L805 TP801 TP802 TP803 TP804 TP805 C805 Q802 C807 C808 C809 C810 C811 C812 C813 C814 C815 C816 C817 C818 C819 C820 C821 C822 C823 C824 C825 C826 AB AC AD AE AF 1 TNPA4077 GH CR NO.3 PbF 1 4 5 8 1 30 SUFFIX. D804 R801 D805 D806 R804 R805 D809 IC801 IC802 D810 D811 D812 R811 R812 R813 R814 R816 R817 R818 R821 R822 R823 R824 R825 R826 R827 R828 R829 R830 R831 R832 R834 GH10 JS818 JS820 L801 L804 C801 C802 C803 C804 Q801 C806 Q804 D801 D802 D803 TNPA4077 1 GH CR NO.3 PbF 1 12 13 24 25 36 37 48 1 4 5 8 1 19 REVERSE FOR SUFFIX. SEE C7701 C7702 C7703 C7704 C7705 C7706 C7707 C7708 C7710 C7711 D7704 R7701 R7703 R7704 R7705 R7708 R7709 R7713 R7716 R7792 R7793 R7795 R7796 JS7701 R7801 L7702 PbF 1 GS TNPA4074 SEE REVERSE FOR NO. ORDER JK7701 C7709 C7723 C7724 D7701 R7702 R7706 R7707 R7710 R7712 R7714 R7715 R7731 R7738 R7739 R7740 R7741 R7742 R7743 R7794 R7797 R7798 R7799 JS7702 L7701 L7721 GS52 PbF GS 1 TNPA4074 1 8 9 10 ORDER NO. 1 1 3 GS GH GH-BOARD (FOIL SIDE) TNPA4077AC GH-BOARD (COMPONENT SIDE) TNPA4077AC GS-BOARD (FOIL SIDE) TNPA4092 TH-65PV600C GH-BOARD TNPA4077AC GS-BOARD TNPA4092 GS-BOARD (COMPONENT SIDE) TNPA4092 TH-65PV600C GH-BOARD TNPA4077AC GS-BOARD TNPA4092 57 14.6. GK，H3，K，R 和 S 电路板 E F G H I 1 2 3 4 5 6 C510 Q511 C516 Q513 C517 Q518 Q519 C523 Q520 Q521 Q522 R512 IC511 IC512 D520 D521 D522 R521 D525 D526 R524 R525 R530 D534 R531 D520A D520B R537 R538 R539 R540 D521A D521B R554 D522B R556 R557 R558 R560 R561 R562 R563 R564 R565 R566 R568 R569 R570 R571 K1 R572 K2 R573 R574 D525B CR No.2 PbF 1 TNPA4073 K ORDER NO. 1 2 11 12 1 2 C511 C515 C520 C522 C524 D510 D511 IC511 IC512 D524 D528 D531 D532 D533 D535 R559 R567 K1 K2 TNPA4073 CR No.2 PbF 1 K SEE REVERSE FOR ORDER NO. 1 2 11 12 1 2 C2581 C2582 Q2581 D2581 D2582 R2581 R2582 R2583 R2584 R2585 RM2581 R4 1 R TNPA4069 R2587 R2588 R2586 PbF SEE REVERSE FOR ORDER NO. 1 4 RM2581 R4 TNPA4069 R 1 PbF ORDER NO. 1 4 SW3751 SW3753 SW3754 SW3755 SW3756 SW3757 SW3758 GK3 SW3752 TNPA3721 1 GK CH.UP CH.DN VOL.UP (USA) CH.UP VOL.DN VOL.DN(USA) TV/VTR(USA) TV/VTR VOL.UP(USA) CH.DN(USA) OK(USA) ASPECT MENU(USA) TV GUIDE (USA) SW2500 S1 S2 S 1 ORDER NO. PbF PbF TNPA3715 1 3 ORDER NO. 1 3 1 2 C3750 C3751 SW3751 SW3753 SW3754 SW3755 SW3756 SW3757 SW3758 R3750 R3751 R3752 R3753 R3754 R3755 R3756 R3757 R3758 R3761 R3762 R3763 R3764 GK3 R3759 R3760 D3750 SW3752 C2500 SW2500 R2501 S1 S2 S 1 SEE FOR ORDER NO. 1 REVERSE GK TNPA3721 PbF PbF TNPA3715 1 3 REVERSE FOR ORDER NO. SEE 1 3 1 2 JK8500 H37 C8001 C8002 L8501 L8502 TNPA3003 H3 1 SEE REVERSE FOR ORDERNO. 1 3 H3-BOARD TNPA3003 K-BOARD (FOIL SIDE) TNPA4073AE K-BOARD (COMPONENT SIDE) TNPA4073AE S-BOARD (FOIL SIDE) TNPA3715AB S-BOARD (COMPONENT SIDE) TNPA3715AB R-BOARD (FOIL SIDE) TNPA4069 R-BOARD (COMPONENT SIDE) TNPA4069 GK-BOARD (FOIL SIDE) TNPA3721AD TH-65PV600C GK-BOARD TNPA3721AD K-BOARD TNPA4073AE H3-BOARD TNPA3003 R-BOARD TNPA4069 S-BOARD TNPA3715AB TH-65PV600C GK-BOARD TNPA3721AD K-BOARD TNPA4073AE H3-BOARD TNPA3003 R-BOARD TNPA4069 S-BOARD TNPA3715AB GK-BOARD (COMPONENT SIDE) TNPA3721AD R GK K S H3 H3 A B C D 58 14.7. JG 电路板 E F G H I 1 2 3 4 5 6 JG-BOARD (FOIL SIDE) TNPA4092 TH-65PV600C JG-BOARD TNPA4092 TH-65PV600C JG-BOARD TNPA4092 Parts Location JG-BOARD IC5010 A-4 IC5038 E-3 IC5043 B-4 IC5044 D-3 IC5045 D-4 IC5246 E-4 Q5026 D-3 Q5027 D-3 Q5900 C-5 Q5901 D-5 Q5902 D-5 TRANSISTOR IC TP TP5000 E-1 TP5001 E-2 TP5002 E-2 TP5003 E-2 TP5004 E-2 TP5005 E-2 TP5006 E-2 TP5007 E-2 TP5041 D-4 TP5043 E-4 TP5044 C-2 TP5090 B-4 TP5091 D-4 TP5213 D-3 TP5214 A-2 TP5215 A-2 TP5238 A-2 TP5239 A-2 TP5240 A-4 TP5241 A-2 TP5242 B-2 TP5243 B-2 TP5249 B-2 TP5251 B-3 TP5252 B-2 JG R164 R358 R165 L049 R166 R167 C384 R168 R550 C385 R169 R552 R553 R554 L050 R555 C196 R556 R557 L053 R170 R364 R558 L054 R171 L056 R173 R175 C392 R177 R178 R179 TP041 C397 R563 TP043 C398 R564 TP044 TP238 R371 TP239 R566 R372 R568 R950 R374 R181 R569 R376 R377 R184 TP240 R378 R185 TP241 R379 TP242 TP243 R570 R189 R572 R574 R575 TP249 R576 R577 R190 R191 L075 R192 R193 R387 R963 R388 R964 R389 TP251 R965 R196 TP252 R966 R197 R967 R198 R199 R390 R584 R585 R394 R395 R589 R396 R397 R398 R399 R590 R594 R599 L096 L098 L099 TP090 TP091 C216 C218 R5000 R001 Q026 Q027 R005 R006 R007 C225 C227 R200 C228 R201 C038 C420 C039 R205 C421 R206 C422 R207 C423 C424 C232 R017 IC010 C236 R403 R210 D020 R404 R211 D021 R405 R212 R406 R020 R214 C049 C431 D025 R021 R216 R022 R217 D027 R023 D028 R028 R029 L101 C053 C247 D030 R221 C249 R222 L106 R223 R224 R030 R226 R033 C445 R229 C252 C255 C256 C257 C258 R231 IC038 R234 R428 R235 C260 C261 R239 R046 R047 R048 R049 IC043 R433 C268 IC044 C269 IC045 R436 C078 C079 C466 C467 C468 R440 L900 C275 C469 R441 L901 IC246 R442 L902 C277 R250 C279 R251 R252 R446 R253 R254 R448 R255 R449 C472 C473 R257 C474 R064 C281 C475 C476 C477 R067 C478 R450 C479 R451 R452 C287 R453 C288 R261 R262 C097 R263 C480 C099 C481 C483 C290 C484 C291 C485 C292 R461 R465 FL017 R080 FL018 R081 C492 R082 R276 R083 R084 R085 R279 R086 R087 R470 R089 R471 R472 R474 R475 R090 R478 R091 R096 R097 R098 R099 R481 R482 R487 R294 R488 R295 R495 FL263 C103 C104 C112 C113 C118 C120 C509 C122 C124 C126 C128 C129 C514 C516 C518 C131 C132 Q900 R301 Q901 R302 C136 C906 Q902 C137 C907 C138 C139 R112 R116 R117 R501 R503 C145 C149 C531 C532 C340 C341 R125 R319 R126 C537 R510 C151 C539 R511 C153 C154 R514 R320 C155 R515 R321 C156 R516 R322 C157 R517 C159 R519 R326 R133 R327 R328 R135 R329 R136 C547 C354 C548 R520 TP5000 C161 C355 C549 R521 TP001 C162 TP002 TP003 C164 R330 TP004 C359 R331 TP005 C166 R332 TP006 TP007 C168 C550 C551 R141 C552 C553 R143 L027 C554 R338 R914 C555 R145 R339 R146 C170 C171 R149 C172 C173 C174 R340 C175 C369 R341 L031 R342 C177 R537 C178 R150 L034 C179 R151 R347 C370 R155 R156 C373 TP213 C180 R158 R540 TP214 C375 R159 R541 TP215 C376 R542 C183 C184 R544 R545 R546 R547 R160 R548 R930 R355 R549 R931 R163 CR NO.5 TNPA4092 1 JG PbF SEE REVERSE FOR SUFFIX 1 27 28 54 + 1 24 25 48 1 3 4 6 1 12 13 24 1 12 13 24 3 6 10 7 1 2 3 6 10 7 1 2 + + + + + A B C D 59 E F G H I 1 2 3 4 5 6 TH-65PV600C JG-BOARD TNPA4092 TH-65PV600C JG-BOARD TNPA4092 JG-BOARD (COMPONENT SIDE) TNPA4092 Parts Location JG-BOARD IC5009 E-4 IC5013 D-2 IC5016 C-3 IC5019 B-2 IC5022 D-4 IC5023 C-4 IC5025 D-2 IC5026 A-3 IC5035 C-4 IC5037 D-5 IC5042 D-2 IC5055 D-1 IC5900 B-4 IC Q5022 B-4 Q5024 B-4 Q5500 B-4 TRANSISTOR JG R937 C190 C191 R551 C192 C388 C195 C389 L051 R362 C197 R363 C199 L055 R172 C390 R174 C391 R176 R561 R565 R567 R373 R180 R951 R375 R182 R952 R183 R953 R954 R955 R186 R956 R187 R957 R188 R958 R959 R380 R381 R382 R383 R578 R384 R960 R579 R385 R961 R386 R962 R194 R195 R580 R581 FL901 R582 FL902 R583 FL903 FL904 R391 FL905 R392 R586 FL906 R393 R587 FL907 R588 FL908 R976 R591 R593 R596 R597 R598 L095 JG1 JG2 JG3 JG4 SW001 JG5 JG6 C217 Q022 Q024 R002 R003 R004 C415 C419 C034 C035 R202 R203 R204 IC009 R208 R014 R209 R015 R016 R400 R018 R401 R019 R402 IC013 IC016 D022 R213 R407 C430 D024 R408 IC019 R215 R409 R218 C240 R024 R219 R025 R026 C437 R027 R410 L100 C051 C245 C439 R411 C246 IC022 R412 L102 IC023 L103 C054 R220 L104 C055 IC025 L105 D031 IC026 D032 C057 D033 C058 C440 R418 D034 C441 R225 C250 C251 C060 C254 R421 L111 C062 C063 R230 R424 C065 IC035 R425 C066 IC037 R233 C068 R236 R237 R238 C262 C263 C070 C264 C071 R431 IC042 C073 R434 C075 R435 C077 R437 R438 R051 R245 R439 R246 R247 C270 R248 C271 R249 C272 C273 C080 C274 C082 C276 R443 L903 L904 C084 C278 R444 C085 IC055 R445 C087 R447 C089 R061 R256 C280 R259 C282 C283 C284 C091 C285 C092 C286 C093 C094 R260 R454 C095 R455 C096 R456 R457 C098 R458 R459 R268 C293 C487 R466 R468 R275 R469 R852 R853 R278 R854 R855 C496 R856 C497 R280 R281 R283 R477 R284 R286 R862 R863 FL224 FL225 FL229 R292 R298 FL230 R299 FL235 FL262 FL264 C100 FL265 C101 C102 X005 C105 C117 C119 C501 C502 C504 Q500 C505 C506 C508 C121 C123 C125 C127 C510 R100 C511 R101 R102 C512 C513 R104 C515 R105 R106 C517 R107 C130 R108 C900 R109 D301 C901 C902 C133 C903 R300 C134 C904 C135 C905 R303 R304 R110 C908 R305 R111 C909 R306 C140 R118 C910 C141 R119 C142 C144 R504 R505 R312 R506 R313 R120 R314 R121 R315 R122 R316 R123 R317 R124 R318 R127 C150 R128 R129 R512 R513 C926 C927 R323 R130 C928 R518 R324 R131 R325 R132 C544 R134 R137 R138 IC900 R139 C356 C357 C167 R333 R140 L024 R334 C169 L025 R335 R142 R336 R337 C360 R144 C556 R147 R148 R918 C365 R919 C366 R534 L030 C176 R536 R343 R344 R345 R152 R153 R923 R154 R924 C371 R349 R925 R926 R927 C181 C182 C377 C186 C187 C188 C189 R161 R162 CR NO.5 A A AB AC AD AF AG AH AE SUFFIX. JG 1 TNPA4092 PbF 1 2 3 4 1 2 3 4 1 2 3 4 1 12 1 15 1 1 3 1 4 1 8 1 55 56 110 1 27 28 54 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 A B C D E F G H J K L M N P R T U V W Y AA AB AC AD AE AF A B C D E F G H J 1 3 5 7 2 6 1 24 25 48 8 16 9 1 1 12 13 24 1 4 5 8 1 54 55 108 109 162 163 216 1 16 17 32 33 48 49 64 1 12 13 24 25 36 37 48 1 3 4 5 1 5 + + 1 5 A B C D 60 14.8. DG 电路板 E F G H I 1 2 3 4 5 6 TH-65PV600C DG-BOARD TNPA4061CK DG-BOARD (FOIL SIDE) TNPA4061CK Parts Location DG-BOARD IC1101 E-3 IC1102 E-4 IC1111 F-5 IC1122 F-5 IC1503 B-4 IC1906 B-5 IC4016 C-2 IC4017 D-2 IC4018 B-2 IC4024 D-2 IC4029 B-3 IC4030 C-3 IC Q1103 E-3 Q1104 E-5 Q1105 E-4 Q1109 F-5 Q1110 E-5 Q1132 E-4 Q1133 F-4 Q1134 E-4 Q1135 F-3 Q1136 E-4 Q1140 F-4 Q1141 F-5 Q1142 E-4 Q1143 E-4 Q1144 E-5 Q1145 E-5 Q1146 F-5 Q1301 C-3 Q1302 C-3 Q1903 D-1 Q1904 D-2 Q1905 D-2 Q1906 D-2 Q1907 D-2 Q4045 D-3 Q4053 A-2 Q4055 A-1 Q4062 D-3 Q4063 D-3 Q4064 D-3 Q4065 D-1 Q4068 C-2 Q4071 D-1 Q4083 D-2 Q4084 D-2 Q4918 E-4 Q4919 E-4 TRANSISTOR TP TP1101 D-4 TP1102 E-2 TP1103 E-5 TP1104 E-5 TP1105 E-4 TP1106 E-5 TP1107 F-5 TP1113 A-3 TP1114 A-2 TP1115 A-4 TP1116 A-4 TP1117 A-3 TP1118 A-3 TP1119 A-3 TP1120 B-1 TP1121 E-4 TP1901 D-1 TP1902 D-1 TP1903 D-2 TP1904 D-2 TP1905 D-1 TP1906 A-5 TP1907 B-5 TP4028 B-2 TP4029 C-2 TP4030 B-2 TP4031 C-1 TP4033 C-1 TP4035 D-2 TP4037 B-3 TP4041 B-2 TP4066 C-2 DG IC1101 IC1102 Q1132 Q1903 Q1133 Q1904 Q1134 Q1905 Q1135 Q1906 Q1136 Q1907 IC1111 Q1140 Q1141 Q1142 Q1143 Q1144 Q1145 Q1146 IC1503 IC1122 IC016 IC1906 IC017 IC018 Q045 IC024 Q053 IC029 Q055 IC030 Q062 Q063 Q064 Q065 Q068 Q071 Q083 Q084 TP1101 TP1102 TP1103 TP1104 TP1105 TP1106 TP1107 Q918 Q919 TP1113 TP1114 TP1115 TP1116 TP1117 TP1118 TP1119 TP1120 TP1121 TP1901 TP1902 TP1903 TP1904 TP1905 TP1906 TP1907 TP028 TP029 TP030 TP031 TP033 TP035 TP037 TP041 TP066 Q1103 Q1104 Q1105 Q1109 Q1301 Q1302 Q1110 CR NO.4 TNPA4061 DG 1 1 3 PbF + 1 24 25 48 1 4 5 8 + 1 + 1 1 7 8 14 + + 1 1 1 1 1 1 + REVERSE FOR SUFFIX. SEE + TNPA4061 B R1498 R1272 Q4055 R1705 R1712 C1218 L1904 Q4062 D1104 L4027 R4730 C4270 C1502 R1116 C4499 R4506 C1691 R1277 IC1503 R1908 R1197 FL4025 JS4036 R4339 C4387 R4811 C4028 C1358 C1407 R1202 C4397 R1672 FL1113 FL1107 R1928 Q1143 C1163 R4512 R4547 R1950 R4823 R4620 C4436 R1711 C4302 C4316 R1454 R1687 R1481 R1374 R1543 R4025 C4167 IC4030 C1125 FL4039 C1403 R4525 C4395 D4051 C1175 C4003 C4220 R1902 R4293 JS4039 C4163 R4341 R4580 R4752 R1286 R4022 D1106 R1325 R1587 JS4075 R1249 L4076 R1489 FL1305 Q1141 R4466 R4482 R1234 R1630 L4071 R4049 Q4063 C4247 Q1904 C1912 C4297 JS1116 JS4014 C4502 Q4918 R1255 Q1103 C1394 C4267 C4401 R1959 C1666 R1282 R4540 C1392 C4263 R1531 R1119 C4294 R4478 R1222 C1662 C4363 L4048 C4182 C4459 C1158 C1932 C4478 C4296 JS4013 R1233 R1675 R1666 Q4083 R1164 R1115 C4424 R4568 C4195 R1667 R1544 C4010 R1704 C1351 R1207 C4157 R4528 R4538 R4757 R4443 R1930 R4614 C4026 R1717 C4152 R1685 R1565 R4042 C4449 C1214 JS4042 C1687 C4456 C4438 R1118 R4002 R1595 R4495 JS4080 R4721 L4043 L4038 C4261 C4437 C4427 R1195 JS4200 JS4034 C4326 R1626 R1458 C4197 C4441 C1902 R1706 R4016 C4473 R1963 C4306 R1625 R1445 R1457 R4760 C1682 C1379 C4006 R1376 R1962 C4324 L4057 C4380 C4467 C1366 R4450 R4656 C4501 C4513 R1243 R4710 R4531 R1291 L4046 R1661 C4466 R1168 C4439 IC1111 IC4016 R1199 R1629 R4723 L4073 C4266 R1340 Q1135 C1913 C4285 C4298 C4503 Q4919 JS4111 C4273 FL1101 C1367 R4069 C1665 Q1105 C4390 C1395 R1101 C1914 R1586 R1652 C4392 C4382 C1396 R4806 R1103 C4219 C4421 FL4017 R1235 R1631 C1669 R4777 R4543 C1389 R4807 C1369 Q1906 C4414 R4717 C1295 Q1302 R4587 C4191 R1363 C1374 R4005 D4018 C4481 JS4027 C1227 R4719 R4536 R1679 R1476 R4541 C1365 R1909 C4477 JS4204 C4309 R4102 R1241 R1253 C1678 R1284 R1662 C1393 R1938 C1172 C1927 R4838 FL1902 R4287 JS4206 R1417 C4522 C1653 C1664 R1727 R1405 R1244 C4544 JS4113 R4578 C1387 R4810 R1731 R4480 R4442 C1915 R4484 C1659 C4173 PA1101 L4058 R4441 C1371 C4523 C1668 C4171 Q1301 C4385 R4738 D4052 C1176 R4024 Q1907 C1341 D1907 C4507 JS4078 R1451 R4535 C4377 FL1105 R1734 C4240 R1190 JS4023 R1216 R1450 JS4108 R1689 C4196 Q4084 C4204 C1344 R1443 C4168 R1493 R4447 C4462 R4006 R1328 R1453 C4398 R4553 Q4065 D4033 C1406 R4746 FL1108 C4237 JS4028 C1690 R1368 C1381 C4243 R1184 C1410 C4327 R4720 R4732 C1382 C1506 R1500 C4412 R4200 C1354 C4475 R4474 C1412 C4328 R4953 L4052 R4539 R4030 C4011 Q1133 C1217 L4025 C1353 R1431 L1905 C4553 R4737 Q4071 C4253 R4013 R4487 C1222 C4527 R4729 R4756 R4745 FL1106 C4448 C4415 R1191 R4489 C1402 C1226 C4313 R4500 L4021 R1285 R4805 R1324 C1657 C4393 R1562 C1372 D1107 JS1100 C4331 C4151 C4161 C4367 R1698 R4440 R4804 C1368 IC4018 R4645 FL4015 C4341 C1385 R1533 C4400 C4216 R4657 C1654 L4056 C4181 C1356 D1913 R1188 R1426 C1679 R4048 R4605 C1931 C4117 C4512 C4149 R4764 R1678 Q1134 C1346 R1194 JS4033 C4519 R1497 C4259 D1102 C1901 R1129 R4015 R1951 R1386 C4304 C4188 C4372 R1175 R4046 R1530 C4407 R1320 C4428 R1331 FL4024 JS4035 R4507 C1685 C4411 C1347 R1137 R1954 FL4022 C4360 C4386 R4808 Q4053 C1357 C1404 JS4040 R4747 R4638 R1931 C4410 C1213 C4379 R4822 R1933 R4616 D4029 C4404 C4416 R1205 R1219 C4514 R4526 R4537 C4425 R1603 C4516 C1671 R1659 R4751 C1696 C4431 C1159 R1393 C4524 R4714 R4775 C4383 R1926 D1108 R1901 R1588 FL4035 C4525 C4355 R1654 C4394 R4736 R1124 C4422 R1215 R4716 C4396 R1289 R1158 Q1132 C1401 C1225 L4031 L4047 C4375 C4272 C1384 R1532 C1162 R4286 R1242 C4364 R1475 C4374 C1910 R1332 FL4027 JS4203 R4101 R4508 C4362 FL1103 C4450 C1118 C1909 R1585 R1246 C1667 Q4064 R1534 D1914 FL1904 R1245 R4549 R1660 C4465 R1167 C4244 C4413 R1321 C4293 FL4026 C1413 R4731 C1390 C1504 R1117 C1919 C1165 R4338 R1499 R1677 D4041 D1103 IC1102 Q1903 C4419 R1182 R1193 R1605 C4518 R1430 L4035 C4471 R1604 C1660 C4551 L4050 C4256 C4241 C4508 C4176 R4448 C1380 D1119 R4491 JS4046 C4509 C4142 C1670 R1684 C1398 R4041 R1735 C4027 FL4019 C4153 R1491 R1674 R4639 R1932 R1542 R4210 JS1105 C1215 JS4043 R1635 C1386 R4610 C4479 JS1117 JS4015 C1655 Q1104 L4074 R1360 C4248 R4647 R4659 C1656 R4765 C1688 C4457 R1725 C4408 C4476 R1198 R1597 R1400 C4511 C4541 R4722 R4735 R4624 R1726 C4014 C1911 R1323 C4236 R4068 R1232 C4170 R1671 R1540 R1536 C1360 C4403 R1125 D4017 C4480 R4488 JS4024 R1217 C4164 R1288 C4376 FL1104 C4447 R1341 R1700 R4012 R1381 JS4038 C4526 C4162 C4174 R4581 R4753 Q1142 R1429 R4511 R4773 R1949 R1732 R4467 FL4033 L1501 R4510 R4759 C4461 R1929 C4440 R1121 R1330 R1203 C4348 R4758 R1564 C4460 C4451 R4039 JS1102 C1211 L4063 C4389 C4454 C4257 C1343 D1908 R4470 C4301 R1442 L4023 R1492 R4739 R1373 R1366 C4453 C4435 R1308 C4222 FL4040 C4300 R1657 R1496 C1681 C4005 C1131 C4016 C1216 C4517 R4517 C4169 R1273 R4619 C1907 C4225 C4426 R1952 C4305 L1101 R4505 C4552 C4371 R4824 C4455 C4406 R4001 R1138 R1432 R1278 C1383 R4019 IC1906 R4653 R4476 C4148 C1676 L4060 C1177 Q1144 C1933 C1405 R1201 C1116 L4061 C1399 R4439 C4452 R4809 Q1145 C1408 C4388 R4545 R1372 R4043 D1109 D1118 C1342 R4014 R4661 JS4079 R1441 L4051 Q4068 C4405 R4492 R1206 R1602 C4515 L1902 C1680 R4763 C1683 IC4029 R4009 C1352 C4112 C1661 C1672 C1378 C1178 C1906 R4008 R1375 C1409 R1208 R4529 R1465 R1669 C4373 C1391 C1120 R1123 C1930 R1221 R1628 C4361 R1276 R1166 C4213 R1122 C4234 C1359 R1185 C1411 C4510 C4147 C1675 C1388 R4040 C1119 Q1905 Q1140 R4271 R4481 C4504 R4713 R4577 R1939 R4607 R4451 R4672 C4545 C4021 C4235 FL1901 C4521 R4509 C4543 R1650 C1692 R1176 R4047 C1355 C4520 R1446 R4744 R4542 C1373 R1535 D1116 R1326 C4289 C1414 R1237 C4368 R4779 R4551 R1664 C4434 C4004 R1307 C4423 FL4038 C1400 C4506 R1238 R4524 L4077 L4049 R1561 D1121 C4420 R4272 R1428 C1658 R4582 R4754 C1397 R1733 C4200 C1916 R1132 R1236 R1474 C1686 C4464 Q1146 C1348 C4239 R4651 JS4201 R1608 R1627 R1281 R4733 R1936 C1349 R1596 JS4037 R1609 R1240 R1676 IC1101 C4418 R1329 C4303 L1903 R1455 L4053 C4017 IC1122 R1412 C4325 JS4105 R1688 L4042 R1367 D4048 C1377 C1362 R1686 C4194 R4446 C1376 C1361 R1126 R4490 C4399 C4193 C1375 C4238 JS1104 R1673 R1940 R1541 JS1103 C1212 R4513 R4485 R1632 R4340 L4078 C4391 C4381 C4469 D1105 R4010 FL4016 R4483 C4150 C4172 C4183 C4269 R4038 C4249 C1124 C4015 R4004 R1327 C1224 C4312 R4718 R1681 C4384 R1663 R1927 C4402 R4649 FL4036 JS4021 C4505 JS4077 R4523 R4534 R4734 FL1302 R1937 C4442 R1501 C1925 C4429 R4477 C4531 C1677 L4055 C1689 C4458 C4245 C4409 IC4017 C4295 R1210 C1663 R4530 R4633 C1370 C4430 C4018 R4711 R4579 IC4024 Q4045 Q1136 C4299 FL4031 R1409 R1247 R1258 TP4035 TP4031 TP1903 TP1121 TP1901 TP1907 TP4033 TP1120 TP4041 TP1905 TP1103 TP1106 TP1104 TP4030 TP1119 TP1118 TP1117 TP1904 TP4066 TP1107 TP1101 TP4029 TP1102 TP1115 TP1113 TP1906 TP4037 TP1105 TP4028 TP1902 TP1116 TP1114 Q1109 R1311 R1319 R1312 Q1110 R1314 R1318 R1313 R1248 R1211 R1204 TH-65PV600C DG-BOARD TNPA4061CK A B C D 61 E F G H I 1 2 3 4 5 6 TH-65PV600C DG-BOARD TNPA4061CK DG-BOARD (COMPONENT SIDE) TNPA4061CK Parts Location DG-BOARD IC1100 B-3 IC1103 B-4 IC1104 A-5 IC1105 B-5 IC1106 B-5 IC1107 D-2 IC1110 B-5 IC1302 C-5 IC1401 E-5 IC1501 D-4 IC1601 D-3 IC1602 B-5 IC1603 C-4 IC1604 C-4 IC1901 C-1 IC1902 C-2 IC1903 C-2 IC1904 C-2 IC1907 F-5 IC1908 F-5 IC1909 C-1 IC4013 D-2 IC4014 C-3 IC4019 E-2 IC4020 C-3 IC4022 D-1 IC4025 D-2 IC4026 C-2 IC4027 C-2 IC4028 IC4032 F-3 IC4035 F-2 IC4037 E-3 IC4038 F-3 IC4040 C-3 IC Q1100 B-3 Q1101 B-3 Q1102 B-3 Q1106 B-5 Q1107 B-5 Q1108 B-2 Q1111 B-3 Q1112 B-2 Q1113 B-3 Q1114 B-2 Q1115 B-2 Q1116 B-2 Q1117 E-2 Q1118 E-2 Q1120 E-1 Q1121 E-2 Q1122 D-1 Q1125 B-3 Q1130 B-5 Q1131 B-5 Q1137 B-4 Q1138 D-1 Q1139 B-3 Q1601 C-3 Q1901 C-1 Q1902 C-2 Q4040 C-3 Q4041 C-3 Q4042 C-3 Q4043 C-3 Q4044 C-3 Q4046 C-3 Q4050 F-2 Q4051 C-3 Q4052 C-3 TRANSISTOR Q4054 C-3 Q4056 E-2 Q4057 F-2 Q4058 F-2 Q4059 F-2 Q4060 C-3 Q4061 C-4 Q4080 E-1 Q4081 E-1 TP TP1108 C-4 TP1109 C-4 DG Q1114 Q1115 Q1116 Q1117 Q1118 Q1120 Q1121 Q1122 Q1125 IC1100 IC1103 Q1130 IC1104 Q1901 IC1105 Q1131 Q1902 IC1106 IC1107 Q1137 Q1138 DG11 Q1139 IC1302 IC1110 IC1501 DG20 DG22 DG30 IC1901 DG35 IC1902 IC013 IC1903 IC1904 IC014 Q040 Q041 Q042 IC1907 Q043 IC1908 Q044 IC019 IC1909 Q046 DG41 IC020 IC022 Q050 IC025 DG1 Q051 IC026 DG2 Q052 IC027 DG3 IC028 Q054 DG5 Q056 Q057 DG7 Q058 DG8 Q059 DG9 DG51 IC032 Q060 IC035 Q061 IC037 IC038 IC040 Q080 Q081 Q1601 IC1401 IC1601 IC1602 IC1603 IC1604 TP1108 TP1109 HC01 HC21 HC22 HC23 Q1100 Q1101 Q1102 Q1106 Q1107 Q1108 Q1111 Q1112 Q1113 THERMAL PAD TNPA4061 CR NO.4 THERMAL PAD 1 DG THERMAL PAD THERMAL PAD CA CG CK CN CU CD 1 5 1 5 PbF 1 27 28 54 1 54 55 108 109 162 163 216 1 1 7 8 14 1 7 8 14 1 7 8 14 1 30 1 3 2 33 64 65 96 97 128 1 1 A 1 40 110 56 55 1 1 15 1 4 5 8 1 7 1 7 8 14 1 4 5 8 1 12 13 24 25 36 37 48 1 4 5 8 1 + 1 25 26 50 51 75 76 100 1 4 5 8 + 1 4 1 25 26 50 51 75 76 100 1 4 5 8 1 8 9 16 1 80 1 36 37 72 73 108 109 144 1 15 1 1 29 30 2 1 4 5 8 1 31 1 19 20 2 19 1 19 1 7 1 1 4 5 8 1 4 5 8 A 1 1 A 1 SUFFIX. + NP NP A 1 1 32 33 64 65 96 97 128 1 32 33 64 65 96 97 128 1 24 25 48 1 21 + 1 8 1 11 1 10 TNPA4061 A C4205 C1137 R4831 C4482 R1209 R1029 R1610 C4144 R1262 JS4301 R4570 C1684 DG5 C1138 C1152 R1136 R1377 R1964 C1603 C1233 R1611 C4159 R4595 R1473 R1165 R1147 IC1501 C4233 D1910 R4257 R1388 R4493 C1604 R1413 R1612 C1674 JS4304 R4825 IC4020 C1334 R1709 D1911 R4641 C1631 C4329 C1650 R1371 R1559 R1344 R4681 R4514 R1355 IC4026 JS1101 C1210 C1610 JS4106 R1494 R1350 R1108 R1128 C4498 R1226 R4502 L4034 R4546 C4260 C1331 R1703 R1904 C4497 R1601 R1225 R1636 C4177 C1112 R4544 R1557 R1721 Q1138 C4221 DG30 R1385 R1656 R4550 R4037 L1604 Q1901 R4457 JS4022 C4333 R4792 FL1112 C4252 C1695 DG9 IC4019 C1202 R4520 R4532 R1947 C4250 C1168 R1958 R1160 R4034 C4217 R4673 R4701 R1692 R4032 C1134 C1156 R1187 C4308 C1651 R1695 R1294 FL1303 R1730 IC4022 Q1131 C1336 C1937 C1634 R1437 C4350 JS4103 C1183 C4202 DG22 FL4041 C1629 L1109 R4501 C4349 R4527 R4783 R4830 R1916 C4211 C4122 C1636 R4437 DG2 R4898 R1200 FL1109 R1538 Q4040 R4660 R1440 C4228 D4021 C4281 C1606 IC1601 R1615 Q1116 C4212 R1315 R1707 C1934 R1378 R1607 L4037 C1186 C1128 R1110 L1102 R4593 R1483 R1539 C1345 C1619 R1411 C4338 R1456 R4575 R1169 R4033 C1142 IC1902 IC1907 C1643 Q4056 R1300 R1322 IC1901 R1598 C1641 C1107 FL1304 R1924 IC1908 JS4209 R1256 R1696 R1353 R4020 C1908 FL1903 JS4208 R1406 C4340 FL1605 R1911 C1928 C1644 Q1107 R1142 FL4034 R4533 R1299 C4190 R1338 C1123 R1382 C1221 C4311 C1647 R1683 C4184 R1342 L1605 D1101 C1330 R1218 C4529 IC4040 R1922 C1328 C1141 C1936 FL4028 R1231 R1293 R1923 C1621 R1269 C4265 D4042 R1348 C1938 JS4207 R1560 D4030 R1334 C1144 R4646 R1391 C1624 R1257 R4793 R1297 C1697 R1156 Q4046 R1394 C1645 R1259 R1699 D4025 C1129 D1904 R1392 R4675 C1201 C4343 R4562 C4254 C1136 R1960 R4585 DG1 Q1120 Q1137 R1133 C1223 C4528 R1943 R1934 Q4060 R1723 DG11 R1135 R4665 C1617 C4322 C4178 HC21 C4185 R1358 R1737 R1915 R1106 C1615 C4320 C4335 L4033 JS4121 Q4080 R1159 C1148 R1718 R1634 R1370 R1537 C1147 R4469 R1633 JS4302 R1275 C1332 C1153 R1907 FL1601 R1148 Q4041 C4530 R1459 R1545 C1126 C4224 R1192 C1230 C1638 R1250 R1691 R1484 R1468 R1921 C4008 IC1103 R1304 C4226 R1018 L1103 R4796 R4778 R4949 C1905 D1117 DG20 R1383 C1626 R1644 L4040 Q4052 R1339 Q1121 IC1106 L4032 C1109 R4750 R4021 C4009 C4218 R4465 JS4019 R1427 R1640 C4365 R4774 R1912 D1905 R4433 C4019 JS4016 R1214 C4352 Q1101 R4827 R1352 R1154 R1140 R4644 C1622 FL1604 C4264 Q4057 C4246 C4208 C4215 D1903 R1436 R1254 R4573 R4559 FL1603 R4826 R1347 IC1104 C1335 D1902 C1167 C4283 R4479 R4498 R1619 JS4093 R1268 C1101 R1274 R1546 C1327 R1713 R1953 C4307 R1606 C4145 C1673 R4592 HC23 C4179 IC4028 R1303 C4318 R1624 R1261 C1103 R1316 R1379 R4846 R1414 R1614 R1265 C1102 R1280 R4045 R4027 JS4127 IC1302 IC1904 R1389 L1104 L1303 C4146 C1113 R4563 R4637 R1364 C1189 R1589 C4346 C1115 R4564 R1365 C4255 C1164 C4493 C1612 R4708 R4566 R1567 C4201 C4230 C4496 R1621 L1901 R4569 C4187 R1569 R1174 R1359 C4258 C1363 R1109 C1150 R1591 R1623 Q1106 R4772 R4035 R4677 C4344 C4366 C4277 R1337 C1146 R4890 C4345 Q1108 R4434 R1157 R1729 D4027 C4001 R1301 R1112 R4648 R4679 R4891 C1220 C4332 R1470 R4436 R1914 R1903 C1627 R1620 R1645 R1694 C1157 D4023 R4643 FL4011 C1620 IC1603 C1642 R1447 R4571 C4198 R1149 C1903 D1901 C1161 R1956 C1234 C1640 R1948 R1349 Q4050 IC1909 R1310 C4287 JS4017 R1408 R1697 FL1102 Q4058 C1139 C4023 R1407 C4351 C1121 C4020 DG35 C1166 R1186 R4496 R1617 R1266 R4596 R4548 C1940 R1708 R1714 C4474 R4269 R4494 C1605 R1220 R1613 C1100 R1466 R1151 C4232 C1601 C1231 C4158 L4026 R4785 L4066 R4556 Q4061 R1920 Q1122 C1325 IC1107 D1909 R1228 R4503 C1117 R1566 R1172 R1163 C4210 R1702 R1134 C1614 R4515 R1646 R4567 R4749 R1472 R4617 R1722 IC1100 R1127 R4516 R1270 C1114 C4192 R4438 DG3 IC1903 R4899 C1228 Q1112 C1199 R1150 C1149 FL1110 C1188 R1728 R1910 R1305 C1143 R4658 C1623 IC4038 DG51 R1141 Q1114 C1338 X1100 C4353 R1290 R1945 R1346 C1133 R1715 Q4042 R1230 R1434 R4574 R1292 C1694 R1177 D4037 R1333 R4655 R4499 R1223 C1652 R1682 R1556 R1302 C4334 C4175 JS4119 R4776 R4560 R1913 C1122 IC1105 R1306 R4486 C1209 C1625 R4743 C4276 R4612 C1929 R4715 C1294 R1296 R1336 R1102 C1145 R1131 C1204 JS4099 R4727 R1480 Q4081 C4212-A R4552 C1917 C1611 C4347 JS4104 R1942 R1146 C4203 R1309 C4315 C1635 R1658 R4589 R4554 IC4032 R1105 C1350 C4314 C1649 R1452 R4591 HC22 R1739 D4034 R1905 R4449 R1961 C1618 R1410 R4762 R4557 C1127 C1132 C1219 R1229 R1251 R1917 Q1117 C4227 R1719 C4291 R1592 Q1601 C1630 L4028 C1105 C4189 R4631 C1941 C1140 R4003 C4229 C1608 R1415 R4444 C1198 D4045 C1181 R4680 IC4014 C4494 R4682 C1613 R4565 R1941 R1145 C1628 R1224 C4165 C4186 C4470 R1173 R1738 C4242 C1130 C4417 C4231 C4336 R1260 R4788 R1351 C1326 C4483 C1639 R4951 R1482 D4019 R1227 C4143 C1104 C4262 C1364 C4214 C1155 C1935 R4847 R4669 C1607 R1616 JS4303 R1944 C1170 C1154 R4668 L1304 FL1111 R1155 C1174 C1169 R1380 C1200 C4342 Q1102 C4274 IC4037 DG8 Q4044 R1111 C1337 R1390 R1213 R1438 C4199 C1693 R1279 R4632 C1190 R1153 R1919 Q1130 Q4043 R1957 R1599 R1416 R4572 L4054 C4180 R1152 C1171 D1110 D1912 FL4010 IC1602 R1267 R1361 C1329 IC1401 R4522 R1362 C1180 IC4025 C4209 R1701 R1384 X4004 R4791 R1295 Q4059 Q1125 C4354 R4794 R4023 R1395 R4706 R1642 R1460 R1935 R4028 Q1118 C1333 C1160 R4640 R4667 R1264 Q1100 C4271 R1918 IC1110 R1317 R4018 R1955 JS4202 L4029 R4590 R1181 Q4054 Q1902 R4265 C4317 C1637 C4337 R1271 R4594 R1690 R1467 IC4035 C4007 C4206 R1906 R1183 R1387 C1602 C1232 C4339 R4519 R1263 R4555 R1568 Q1139 R4007 R1590 FL4042 C1616 C4321 R1622 R1648 R1464 Q1113 R1665 R1114 R1710 R4662 R1600 IC1604 R1239 R4709 C4166 R4342 Q1111 R4445 R1162 C1918 R1490 FL1114 IC4027 IC4013 C1229 JS4118 R1680 C1698 R1563 R4036 R1143 FL4018 JS4020 C1646 R4521 R1925 R1335 C1339 C1203 C4330 C4160 C1110 R4561 R1144 R1113 R4458 C1648 HC01 R4583 R4435 Q4051 R1720 C4002 C1135 C1340 D1906 C1609 R4558 FL1602 R4029 R4642 R4497 C1632 R1618 R1252 R1283 R1946 DG7 C1904 R1716 R4837 JS4205 C1633 R1435 JS4112 C1187 C1173 R1189 R1212 C4275 C4268 R1354 C4251 Q1115 R4454 X1101 TP1108 TP1109 ZA4001 ZA4009 ZA4003 ZA4004 ZA4008 C1939 DG41 C1920 C1926 A B C D TH-65PV600C DG-BOARD TNPA4061CK 62 14.9. D 电路板 E F G H I 1 2 3 4 5 6 C201 C202 Q200 TP680 Q201 C028 C029 C800 IC001 C801 IC002 C802 C033 C803 C034 C804 C035 C805 C036 C037 R203 C807 C038 R204 Q805 C809 Q806 D017 D018 R208 R209 D019 IC011 C043 R210 D020 R404 C045 C817 C048 Q044 C818 C049 Q045 R216 Q048 Q049 C050 R604 C051 R605 R412 C053 R413 Q050 C055 R415 D801 C826 D802 C056 R416 C057 D804 C058 R800 D805 D035 C059 R801 R419 D806 R226 R802 C442 R227 Q057 D807 R803 C443 Q058 D808 C444 R804 D809 C445 R805 C446 R806 R807 C447 C830 C060 C448 IC800 R420 R808 C831 C061 C449 C062 R617 C063 R618 D810 Q060 C064 C065 C066 IC807 D813 C067 C838 R810 C068 C450 L501 C451 R811 C069 IC809 D815 L502 C452 R237 R813 C453 R238 L504 C454 R814 R239 L505 R815 C455 C456 R816 C457 C070 R430 C458 R625 C071 C459 R626 C072 R627 C843 C073 R628 C074 R629 C075 C846 C076 C077 R244 C460 C078 R245 C461 C079 C462 R247 C463 R248 R630 C464 R249 R631 C465 C466 R632 C467 R634 C468 C080 R635 C081 C469 R636 C082 R638 C854 C084 C855 R639 C856 C086 C857 C087 C858 C088 R831 C859 C089 R640 R641 R642 R643 R644 R450 C090 R451 C091 R646 R452 C092 C863 R647 C093 C864 C094 R648 C865 C095 C866 C096 C867 C097 R840 R070 C098 R841 C099 R650 D9 R846 R847 R848 R654 R849 R850 C496 C882 C883 C884 C885 R475 R476 C886 C887 R864 R865 R097 R098 FL800 R868 R099 R869 C891 R484 R485 C896 FL806 FL807 C897 R487 C898 R870 C899 R871 R872 R873 R875 R876 R877 R878 R490 R879 R491 R880 R883 R884 R887 R891 R892 R893 R896 R897 C101 C102 C103 C104 C105 C106 C107 C108 C109 C300 C301 C302 C303 C304 C110 Q301 C111 C305 C306 C307 C308 C309 Q500 C310 C311 C312 C313 C314 C315 C316 C317 D100 C318 D101 C319 D102 D103 R100 D105 R101 D106 C512 C513 C320 C321 C516 C322 C517 C323 R108 C518 C324 R109 D301 C519 C325 D110 C520 R110 R111 C521 C522 R112 C523 C524 R114 C525 R116 C527 R117 C528 R500 R501 R502 R503 R504 R505 R506 R120 R508 R121 C531 C532 R122 C533 R124 R125 R127 R128 R129 C926 R900 R134 R135 R136 R137 TP9000 C355 R522 C356 R523 C357 C358 R525 C359 R526 R527 R140 R528 R529 C555 C362 R530 C558 C559 C365 C368 C560 C561 R154 C370 R155 R159 R542 R545 R548 R549 R162 R166 R169 C967 R170 C968 R171 C969 R172 R178 R560 FL304 C970 R179 C971 R371 R372 R180 R374 R375 R187 R188 R189 R192 R196 R580 R199 R581 R585 R587 R589 R590 R593 R594 3 2 1 1 D CR NO.9 TNPA3983 PbF 1 4 5 8 1 3 4 6 1 4 6 3 1 12 13 24 1 12 13 24 1 12 13 24 + 1 6 SEE REVERSE FOR ORDER NO. + + TH-65PV600C D-BOARD TNPA3983AL TH-65PV600C D-BOARD TNPA3983AL D-BOARD (FOIL SIDE) TNPA3983AL Parts Location D-BOARD (FOIL SIDE) IC IC9001 E-3 IC9002 G-2 IC9011 G-3 IC9800 A-3 IC9807 A-4 IC9809 A-2 TP9000 E-3 TP9680 C-1 TP Q9044 G-3 Q9045 G-3 Q9048 G-3 Q9049 E-2 Q9050 D-2 Q9057 F-2 Q9058 F-2 Q9060 D-2 Q9200 D-2 Q9201 D-2 Q9301 D-5 Q9500 F-4 Q9805 B-5 Q9806 C-5 TRANSISTOR D A B C D 63 E F G H I 1 2 3 4 5 6 C200 X500 C600 C601 C608 C609 IC003 R200 C610 Q800 R201 Q801 R202 C806 IC007 Q803 PA800 C808 R205 C039 R206 R207 IC200 C040 R400 C041 R401 C042 C044 C815 C046 C816 C047 IC400 R215 R409 IC401 Q046 IC402 Q047 R217 R218 R600 R601 R219 R602 R603 R410 R411 C052 R606 R607 C823 R220 R608 D800 R414 C824 C825 R221 Q051 R609 R222 Q052 IC602 D803 Q053 R417 IC603 Q054 R418 R610 R611 R612 R613 R614 R809 R615 R421 IC802 C832 R616 IC803 C833 C834 R619 C835 IC806 D812 C836 C837 R428 D814 R236 L503 R620 R621 R622 R623 R624 C840 C841 C842 R433 C844 C845 C847 R437 C848 R438 R439 R823 R824 R825 R826 R827 R633 R828 R440 R829 R441 R442 R443 C083 R637 R444 R445 C085 R446 R447 R060 R830 R448 R061 R449 R062 R063 R064 R065 R066 R067 R838 C860 FL9000 R839 R645 R453 R454 R455 R456 R457 D3 C868 R458 D5 R459 D6 R842 R843 R844 R074 R845 R652 R076 R653 R460 R461 R462 R463 R464 R465 R466 R467 R468 R469 R854 C880 R470 C498 C881 R859 R471 C499 R472 R473 R474 R477 R478 R479 R094 R095 R096 R480 R481 FL803 FL804 FL805 R486 R488 R489 R492 R493 R494 R495 R496 R497 R898 R899 C100 X9000 Q100 D20 ZA001 Q300 D25 Q302 Q303 Q304 Q305 Q306 D31 D32 D33 D34 D35 D36 R102 R103 C514 R104 R105 C515 R106 R107 D300 D302 D303 D304 D305 R113 IC300 IC301 R115 C526 IC304 R118 R119 R507 IC500 IC503 R123 IC504 C534 IC505 C535 R126 C536 C537 C538 C539 R512 R514 R515 R518 R130 R519 C542 C546 C547 C353 C548 R138 C354 C550 R141 C552 R143 C553 R144 C554 C360 R145 C361 C557 R147 C363 R148 C364 R149 R531 R532 R533 L800 R534 R535 C369 L801 R536 L802 R150 R151 R539 C371 R156 C372 C373 R157 R158 C374 R540 R541 R543 L810 R544 R547 R160 R161 R165 R167 R550 R552 R553 R554 R555 R557 R558 R367 R174 R175 R176 FL302 R177 FL303 R561 FL305 R562 FL306 R563 FL307 R564 FL308 R565 FL309 R566 R567 R373 R568 R181 R569 FL501 R182 FL502 R183 FL503 FL504 R184 FL310 R185 FL311 R186 R570 R571 R572 R573 R574 R575 R576 R382 R577 TP058 R190 R578 TP059 R191 R579 R193 TP443 R194 TP444 R389 R197 TP060 R198 TP061 TP062 R390 R584 R391 R586 R392 R393 R394 R588 R395 R396 R397 R398 R399 R591 R592 R595 R596 R597 R598 R599 TP464 TP465 C001 TNPA3983 D CR NO.9 1 VD VD HD HD DCK DCK PbF 1 3 2 5 7 9 4 6 8 10 12 14 16 11 13 15 A C E G J L N R B D F H K M P T 1 20 21 40 41 60 61 80 + 1 4 5 8 1 10 11 20 + + A B C E G J L N R U W AA D F H K M P T V Y AB 1 2 3 5 7 9 11 4 6 8 10 13 15 17 19 21 12 14 16 18 20 22 13 11 9 7 5 3 12 10 8 6 4 2 B D F H K M N L J G E C 1 40 41 80 1 3 4 5 1 24 25 48 1 10 11 20 1 10 11 20 1 3 4 5 1 2 29 30 1 31 1 21 + + ORDER NO. 1 68 1 68 1 68 1 2 19 20 1 19 20 2 1 68 1 68 1 68 1 68 1 68 1 68 A B C E G J L N R U W AA D F H K M P T V Y AB 1 2 3 5 7 9 11 4 6 8 10 13 15 17 19 21 12 14 16 18 20 22 13 11 9 7 5 3 12 10 8 6 4 2 B D F H K M N L J G E C 1 24 25 48 1 10 11 20 1 10 11 20 1 10 11 20 + + + 1 68 1 68 1 68 TH-65PV600C D-BOARD TNPA3983AL TH-65PV600C D-BOARD TNPA3983AL D-BOARD (COMPONENT SIDE) TNPA3983AL Parts Location D-BOARD (COMPONENT SIDE) IC IC9003 B-3 IC9007 B-3 IC9200 C-4 IC9300 E-3 IC9301 E-2 IC9304 E-4 IC9400 D-3 IC9401 C-2 IC9402 C-5 IC9500 B-5 IC9503 B-4 IC9504 A-1 IC9505 B-4 IC9602 E-5 IC9603 D-5 IC9802 B-4 IC9803 A-4 IC9806 F-2 TP9058 C-2 TP9059 B-5 TP9060 B-5 TP9061 B-5 TP9062 B-5 TP9443 E-4 TP9444 E-4 TP9464 C-4 TP9465 C-4 TP Q9046 B-3 Q9047 A-3 Q9051 C-2 Q9052 B-2 Q9053 C-2 Q9054 B-2 Q9100 B-3 Q9300 A-5 Q9302 E-5 Q9303 F-2 Q9304 C-1 Q9305 E-2 Q9306 E-2 Q9800 F-3 Q9801 F-2 Q9803 G-4 TRANSISTOR D A B C D 64 14.10.C1 电路板 E F G H I 1 2 3 4 5 6 C1-BOARD (COMPONENT SIDE) TNPA4003 C1-BOARD (FOIL SIDE) TNPA4003 TH-65PV600C C1-BOARD TNPA4003 TH-65PV600C C1-BOARD TNPA4003 C1 C1 1 TNPA4003 1 2 3 PbF SEE REVERSE FOR ORDER NO. C101 C102 C103 C104 C105 C106 C107 C108 C109 C110 C111 C113 C115 C116 C117 C118 C119 C120 C121 C122 C125 C126 C129 R101 R104 R107 C130 R108 IC101 C131 R109 C132 IC102 IC103 C133 IC104 C134 IC105 C135 D111 IC106 C136 D112 C137 D113 C138 D114 R110 D115 R111 D116 R112 D117 R113 D118 R114 D119 R115 R116 R117 C141 C142 C143 D120 C144 C145 C146 C147 C148 R123 R124 R125 R126 R127 R128 C150 R129 C152 R130 R131 R132 R133 R134 R135 R136 R137 R138 R139 R140 R141 R142 R143 R144 R145 R146 R147 R148 C170 R149 C172 C173 C174 C175 C176 C177 C178 R150 R151 R152 R153 R154 R155 R156 R157 R158 C181 R159 C182 C183 C184 C185 C186 C187 R160 FL101 R172 R173 R174 R175 R176 R177 R178 R179 R186 R187 R191 R193 R194 R195 CA1 R196 CA2 R197 CA3 R198 CA4 R199 CA5 ZA101 ZA102 ZA103 ZA104 ZA105 ZA106 C10 C11 CR NO.7 1 C1 TNPA4003 PbF 1 68 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 ORDER NO. 1 68 1 68 1 68 1 68 1 68 1 68 1 68 1 68 1 68 1 68 1 20 1 68 Parts Location C1-BOARD IC7101 H-2 IC7102 G-2 IC7103 G-2 IC7104 H-2 IC7105 H-5 IC7106 I-2 IC A B C D 65 14.11.C2 电路板 E F G H I 1 2 3 4 5 6 C2-BOARD (COMPONENT SIDE) TNPA4004 C2-BOARD (FOIL SIDE) TNPA4004 TH-65PV600C C2-BOARD TNPA4004 TH-65PV600C C2-BOARD TNPA4004 Parts Location C2-BOARD IC7201 B-2 IC7202 D-1 IC7203 A-2 IC7204 B-2 IC7205 C-2 IC7206 C-2 IC7207 D-2 IC7211 C-1 IC7212 E-1 IC7213 F-1 IC7214 F-1 IC7215 G-1 IC C2 C21 C22 C24 C25 ZA201 ZA202 ZA203 ZA204 ZA205 ZA206 CA6 CA7 CA8 CA9 C200 C201 C203 C204 C205 C206 C207 C208 C209 C210 C211 C212 C213 C214 C215 C216 C217 C218 C219 C220 C221 C222 C223 C224 C225 C226 R200 C228 C229 R201 R202 R203 R204 R205 R206 R207 R208 C230 C231 R209 IC201 IC202 C232 IC203 C233 IC204 C234 IC205 C235 D211 IC206 C236 D212 IC207 C237 D213 R210 C238 D214 D215 R211 D216 R212 R213 D217 R214 D218 D219 R215 R216 R217 R218 C240 IC211 R219 IC212 IC213 IC214 D220 IC215 R220 R221 R222 R223 R224 R225 R226 R227 R228 R229 C252 C253 R230 R231 R232 R233 R234 R235 R236 R237 CA10 R238 R239 C264 C265 C266 C267 C268 R240 C269 R241 R242 R243 R244 R245 R246 R247 R248 C270 R249 C271 C272 C273 C274 C275 C276 C277 R250 C278 C279 R251 R252 R253 R254 R255 R256 R257 R258 R259 C281 C282 C285 C286 C287 C288 R260 C289 R261 R262 R263 R264 R266 R267 R268 C290 R269 FL201 FL202 C292 FL203 C293 C296 C297 R270 C298 R271 C299 R272 R273 R274 R275 R276 R277 R278 R279 R280 R281 R282 R283 R284 R285 R286 R287 R288 R289 R290 R291 R292 R293 R294 R295 R296 CR NO.7 TNPA4004 1 C2 PbF 1 80 1 20 1 68 1 68 68 1 68 1 ORDER NO. 68 1 1 68 1 68 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 2 3 TNPA4004 C2 1 PbF SEE REVERSE FOR ORDER NO. A B C D 66 14.12.C3 电路板 E F G H I 1 2 3 4 5 6 C3-BOARD (COMPONENT SIDE) TNPA4005 C3-BOARD (FOIL SIDE) TNPA4005 TH-65PV600C C3-BOARD TNPA4005 TH-65PV600C C3-BOARD TNPA4005 Parts Location C3-BOARD IC7301 B-1 IC7302 D-1 IC7303 B-2 IC7304 C-1 IC7305 C-1 IC7306 D-1 IC C3 1 C3 3 2 1 TNPA4005 PbF SEE REVERSE FOR ORDER NO. C31 C35 C301 C302 C303 C304 C305 C306 C307 C308 C309 C310 C311 C312 C315 C316 C319 C320 C321 C322 C323 C324 C325 C326 C327 C328 C329 R302 R303 R304 R305 R306 R307 R308 C331 IC301 R309 C332 IC302 IC303 C333 IC304 C334 IC305 D311 C335 IC306 D312 C336 D313 C337 R310 D314 C338 R311 D315 C339 R312 D316 R313 D317 R314 D318 R315 D319 R316 R317 R318 C340 R319 C341 C342 C343 C344 D320 C345 C346 C347 R320 C348 R321 R322 R323 R324 R325 R326 C351 R330 R331 R332 R333 R334 R335 R336 R337 R338 C369 C370 C371 C372 C373 C374 C375 C376 R354 R355 R358 C380 R359 C381 C382 C383 C384 C385 C386 R360 R361 R362 R363 R364 R365 R366 R367 FL301 R373 R374 R375 R376 R377 R378 R379 R380 R381 R382 R383 R384 R385 R386 R387 R390 R391 R392 R393 R394 R395 R396 R397 R398 R399 ZA301 ZA302 ZA303 ZA304 ZA305 ZA306 CA11 CA12 CA13 CA14 CA15 1 C3 CR NO.7 TNPA4005 PbF 1 80 1 8 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 ORDER NO. 1 1 68 1 68 68 1 68 1 68 A B C D 67 14.13.C4 电路板 E F G H I 1 2 3 4 5 6 C4-BOARD (COMPONENT SIDE) TNPA4006 C4-BOARD (FOIL SIDE) TNPA4006 TH-65PV600C C4-BOARD TNPA4006 TH-65PV600C C4-BOARD TNPA4006 Parts Location C4-BOARD IC7401 B-2 IC7402 D-2 IC7403 B-2 IC7404 C-2 IC7405 C-2 IC7406 D-2 IC C4 R490 R491 R492 R493 R494 R495 R496 C41 C42 C44 ZA401 ZA402 ZA403 ZA404 ZA405 ZA406 CB11 CB12 CB13 CB14 CB15 C401 C404 C406 C408 C409 C410 C411 C412 C413 C414 C415 C418 C419 C420 C421 C422 C423 C426 C427 C428 R401 C429 R405 R406 R407 R408 R409 C433 C434 C436 C437 C438 R410 D415 C439 R411 D416 R412 D417 R413 D418 D419 R416 R417 C440 C441 C442 C443 C444 D420 C445 D421 D422 C446 D423 C447 R420 C448 D424 R421 C449 R422 R424 R425 R428 R429 C452 C453 R430 R431 R432 R433 R434 R435 R436 R438 R439 C468 R445 R446 R447 R448 C470 R449 C471 C472 C473 C474 C475 R450 C479 R451 R452 R453 R454 R455 R456 R457 R458 C480 R459 C481 C482 C483 C484 C485 R460 R461 R462 R463 R464 R465 R466 R467 R468 FL401 R469 R470 R471 R472 R473 R474 R477 R478 R479 R480 R481 R482 R483 R484 R485 R486 R487 R488 TNPA4006 1 C4 CR NO.7 R402 C402 IC401 IC402 IC403 IC404 IC405 IC406 R497 R498 C424 C425 C432 C435 C469 C4MM1 C4MM2 PbF 68 1 80 1 8 1 2 19 20 ORDER NO. 1 1 6 8 1 68 1 68 1 6 8 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 C4 1 TNPA4006 1 2 3 PbF SEE REVERSE FOR ORDER NO. A B C D 68 14.14.C5 电路板 E F G H I 1 2 3 4 5 6 C52 C54 C55 C502 C507 C509 C510 C511 C512 C513 C514 C515 C516 C518 C519 C522 C525 C527 R506 IC501 C531 C532 C533 IC503 IC504 C534 IC505 D512 IC506 IC507 D513 C537 D514 C538 D515 C539 C541 IC511 C543 R526 R528 R529 R530 R531 R532 R533 R534 R535 R536 R537 R538 R539 C566 C567 R540 R541 R542 R543 R544 R545 R546 R547 R548 C574 C575 C576 C577 R550 R559 R560 R561 R562 R563 R564 R565 R568 FL501 R569 FL502 R583 R584 R585 R586 R587 R588 R589 CB6 R592 R593 CB7 R594 R595 R596 R597 R598 R599 ZA501 ZA502 ZA505 1 TNPA4007 CR NO.7 C5 R001 R002 R003 R004 C506 C517 C51 C501 C508 C520 C521 C523 C524 C526 C528 R501 C529 R502 R503 R504 R505 R507 C530 R508 R509 IC502 C535 C536 R510 R511 D516 R512 D517 R513 D518 R514 R515 D519 R516 R517 R518 R519 IC512 IC513 C544 D520 IC514 D521 IC515 IC516 C547 R520 C548 R521 C549 R522 R523 R524 R525 R527 CB10 C568 C569 C570 R549 C571 C572 C573 C578 C579 R551 R552 R553 R554 R555 R556 R557 C580 R558 C581 C582 C583 C584 C585 C586 C587 R567 C591 C592 C593 FL503 C594 C595 C596 C597 R570 C599 R571 R572 R573 R574 R575 R576 R577 R578 R579 R580 R581 R582 R590 R591 CB8 CB9 ZA503 ZA504 ZA506 C5MM1 PbF 1 20 1 68 68 1 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 68 1 1 68 1 80 1 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 ORDER NO. 1 68 68 1 68 C5 1 TNPA4007 1 2 3 PbF SEE REVERSE FOR ORDER NO. C5 C5-BOARD (COMPONENT SIDE) TNPA4007 C5-BOARD (FOIL SIDE) TNPA4007 TH-65PV600C C5-BOARD TNPA4007 TH-65PV600C C5-BOARD TNPA4007 Parts Location C5-BOARD IC7501 B-2 IC7502 D-2 IC7503 A-2 IC7504 B-2 IC7505 C-2 IC7507 D-2 IC7511 C-2 IC7512 E-2 IC7513 E-2 IC7514 F-2 IC7215 G-2 IC7516 G-2 IC A B C D 69 14.15.C6 电路板 E F G H I 1 2 3 4 5 6 C6-BOARD (COMPONENT SIDE) TNPA4008 C6-BOARD (FOIL SIDE) TNPA4008 TH-65PV600C C6-BOARD TNPA4008 TH-65PV600C C6-BOARD TNPA4008 C6 R686 R687 R688 R689 R690 R691 R692 R693 R694 R695 R696 R697 R698 R699 C60 C61 ZA603 ZA604 ZA605 ZA606 CB1 CB2 CB3 CB4 CB5 C601 C602 C603 C604 C605 C606 C607 C610 C611 C612 C613 C617 C618 C619 C620 C621 C622 C623 C624 C629 R604 R607 R608 C630 C631 R609 C632 C633 C634 C635 D611 C636 D612 D613 C637 D614 R610 C638 D615 R611 D616 R612 R613 D617 R614 D618 R615 D619 R616 R617 R618 C641 C642 C643 C644 D620 C645 C646 C647 C648 R623 R624 R625 R626 R627 R628 C650 R629 C654 C656 C657 R630 C658 R631 C659 R632 R633 R634 R636 R637 R638 C660 R639 C661 C664 C665 C666 C667 R640 C668 R641 C669 R642 R643 R644 R645 R646 R647 C670 R648 R650 R651 R654 R655 R658 R659 R660 R661 R662 R663 R664 R665 R666 R667 FL601 TNPA4008 1 C6 CR NO.7 ZA601 ZA602 IC603 IC604 IC605 IC606 IC601 IC602 R606 R605 R603 C608 C655 C616 C615 C609 C6MM2 C6MM1 PbF 1 68 1 20 ORDER NO. 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 68 1 68 1 68 1 68 1 6 8 1 1 68 1 TNPA4008 C6 3 2 1 PbF SEE REVERSE FOR ORDER NO. Parts Location C6-BOARD IC7601 H-2 IC7602 I-2 IC7603 F-2 IC7604 G-2 IC7605 G-5 IC7606 H-2 IC A B C D 70 14.16.SC 电路板 E F G H I 1 2 3 4 5 6 SC-BOARD (FOIL SIDE) TNPA4011 TH-65PV600C SC-BOARD TNPA4011 TH-65PV600C SC-BOARD TNPA4011 SC41 SC42 SC43 SC44 SC45 SC46 D502 C721 C531 C532 C533 C534 C535 C536 C537 C538 L401 D522 L402 L403 D524 L404 L405 L406 L407 L408 L601 L602 L411 L412 L413 L414 L415 L416 L417 C754 C561 C563 L430 L431 L441 L442 L443 L444 L445 L446 L447 L448 L449 C592 L450 C594 L451 L452 L453 L454 L455 L456 L457 L458 L459 C791 C795 C796 L460 L461 L462 D583 L463 L464 L465 L466 L467 L468 L470 L471 L472 L473 L474 L475 L476 L477 L478 L479 L480 L481 L482 L483 L484 L485 L486 L487 L488 IC791 L680 L490 L491 L492 L493 L494 L495 L496 L497 L498 Q401 Q402 Q403 Q404 Q405 Q406 Q407 Q408 C604 C411 C412 C413 C414 C415 C416 C417 C418 C419 C801 C802 C803 C804 C806 C420 C808 C809 Q421 D401 Q422 D402 D403 Q423 Q424 D404 C429 Q425 Q426 Q427 C813 C814 Q428 C430 C431 C822 Q821 Q822 C440 R801 R802 R803 R804 Q441 D421 Q442 D422 R806 D423 Q443 R807 Q444 D424 Q445 IC803 C641 C450 R620 Q451 Q452 Q453 Q454 VR600 Q455 C841 VR601 C842 VR602 VR603 Q841 Q842 C460 R821 R823 D441 TP1 TP2 TP4 TP5 Q661 TP6 TP7 TP8 D451 TP9 T602 R840 R844 D461 D462 D463 D464 TP036 D467 TP037 D468 R658 D469 SC2 D471 D472 TP042 TP043 TP10 TP044 TP11 TP045 TP12 TP046 TP13 TP047 TP14 TP048 TP15 C691 TP049 TP16 C692 TP17 C693 TP18 R860 TP19 TP050 D481 TP051 D482 TP052 D483 TP053 D484 TP20 TP21 D485 TP22 D486 TP23 D487 TP24 TP25 TP26 TP27 TP28 TP29 D491 TP062 TP063 TP30 TP31 TP32 TP33 TP34 TP35 TP38 TP39 TP40 TP41 TP42 R696 TP43 R697 R698 TP46 TP47 TP48 TP49 TP50 TP52 TP53 L591 L592 TP64 SC23 SC30 CRNo.6 1 SC 6 5 4 3 2 1 TNPA4011 PbF A39 A40 B39 B40 B1 B2 A2 A1 A39 A40 B39 B40 B1 B2 A2 A1 A39 A40 B39 B40 B1 B2 A2 A1 A39 A40 B39 B40 B1 B2 A2 A1 9 8 2 1 9 8 2 1 A A K A A K A A K SEE REVERSE FOR ORDER NO. 12 1 E G C E C G E C G E C G E C G E C G G C E G C E E C G A A K E C G A A K A A K E C G E C G A A K E C G E C G G C E G C E E C B B C E E C G A A K E C G A A K A A K E C G E C G A A K G E C 5 4 3 2 1 E C G E C G E G C G C E G C E E C B E B C A A K S D G A A K P2 P1 V2 S2 V1 PT S3 S1 S4 S5 A A K A A K A A K A A K A A K A A K A A K 3 1 A A K A A K K A A K A A K A A A A K A A K A A K A A K K A A 1 3 1 8 A B C D 71 TH-65PV600C SC-BOARD PARTS LOCATION TH-65PV600C SC-BOARD PARTS LOCATION Parts Location SC-BOARD (FOIL SIDE) Q6401 C-4 Q6402 C-4 Q6403 C-4 Q6404 C-4 Q6405 C-4 Q6406 C-4 Q6407 C-4 Q6408 D-4 Q6421 F-4 Q6422 F-4 Q6423 F-4 Q6424 F-4 Q6425 F-4 Q6426 F-4 Q6427 F-4 Q6428 F-4 Q6441 D-1 Q6442 D-1 Q6443 D-1 Q6444 C-1 Q6445 C-1 Q6451 G-2 Q6452 F-2 Q6453 F-2 Q6454 F-2 Q6455 F-2 Q6661 H-4 Q6821 G-3 Q6822 H-3 Q6841 G-2 Q6842 H-2 TRANSISTOR TP036 B-6 TP037 B-6 TP042 H-6 TP043 F-6 TP044 B-6 TP045 B-6 TP046 B-6 TP047 B-6 TP048 B-6 TP049 F-6 TP050 F-6 TP051 F-6 TP052 F-6 TP053 F-6 TP062 F-6 TP063 D-6 TP1 B-1 TP2 B-1 TP4 B-1 TP5 B-1 TP6 B-1 TP7 C-1 TP8 C-1 TP9 C-1 TP10 E-1 TP11 E-1 TP12 F-1 TP13 F-1 TP14 E-1 TP15 E-1 TP16 E-1 TP17 I-4 TP18 E-1 TP19 E-1 TP20 F-1 TP21 E-1 TP22 E-1 TP IC6791 H-3 IC6803 I-2 IC VOLUME Parts Location SC-BOARD (COMPONENT SIDE) IC6471 B-5 IC6472 B-4 IC6501 E-3 IC6521 E-1 IC6561 D-1 IC6562 D-1 IC6581 C-1 IC6601 C-5 IC6602 B-5 IC6610 B-5 IC6671 C-5 IC6681 B-5 IC6682 B-5 IC6721 A-5 IC6722 B-5 IC6724 B-5 IC6725 A-5 IC6751 B-4 IC6752 D-5 IC6753 B-4 IC6771 C-5 IC6772 D-5 IC6773 C-5 IC6774 C-5 IC6791 B-3 IC6801 B-1 IC6802 B-4 IC6803 A-2 IC6821 B-3 IC6841 C-2 IC6861 B-5 IC6871 B-3 IC PC6480 B-4 PC6610 B-4 PC6701 A-4 PC6702 B-4 PC6703 B-4 PC6704 B-4 PC6705 C-5 PC6760 B-4 PC6801 B-1 PC6861 B-4 PC6871 B-3 Q6401 G-3 Q6402 G-3 Q6403 G-3 Q6404 F-3 Q6405 G-4 Q6406 G-4 Q6407 G-4 Q6408 F-4 Q6421 D-3 Q6422 D-3 Q6423 D-3 Q6424 D-3 Q6425 D-4 Q6426 D-4 Q6427 D-4 Q6428 D-4 Q6441 F-1 Q6442 F-1 Q6443 G-1 Q6444 G-1 Q6445 G-1 Q6451 C-1 Q6452 D-1 Q6453 D-1 Q6454 D-1 Q6455 D-1 PHOTO COUPLER TRANSISTOR TP15V H-1 TPSC1 B-5 TPSOS6 C-1 TPSOS7 D-1 TPVAD B-3 TPVSCN B-2 TPVSET C-4 TPVSET2 B-4 TPVSUS H-1 Q6648 F-6 Q6649 F-6 Q6651 G-6 Q6652 G-6 Q6653 G-6 Q6654 G-6 Q6655 G-6 Q6656 G-6 Q6657 H-6 Q6658 H-6 Q6659 H-6 Q6660 H-6 Q6661 B-4 Q6662 D-5 Q6665 D-5 Q6671 C-5 Q6672 D-5 Q6673 D-5 Q6674 C-5 Q6675 D-5 Q6676 D-5 Q6679 C-5 Q6680 C-5 Q6681 B-5 Q6682 C-5 Q6691 B-5 Q6742 B-5 Q6743 B-5 Q6744 B-5 Q6762 D-5 Q6763 F-5 Q6781 D-6 Q6782 D-5 Q6783 G-6 Q6784 G-6 Q6791 B-3 Q6803 B-1 Q6821 C-3 Q6822 B-2 Q6824 B-3 Q6841 C-2 Q6842 B-2 TP VR6600 B-1 VR6601 C-5 VR6602 D-5 VR6603 B-4 VOLUME TP23 F-1 TP24 E-1 TP25 E-1 TP26 E-1 TP27 E-1 TP28 I-6 TP29 E-6 TP30 A-6 TP31 B-1 TP32 E-1 TP33 I-1 TP34 I-3 TP35 E-3 TP38 E-1 TP39 E-1 TP40 C-6 TP41 C-6 TP42 C-6 TP43 C-6 TP46 G-6 TP47 G-6 TP48 G-6 TP49 G-6 TP50 G-6 TP52 E-1 TP53 H-4 TP64 G-3 VR6600 H-1 VR6601 G-5 VR6602 F-5 VR6603 H-4 Q6501 E-4 Q6502 F-4 Q6503 E-4 Q6504 F-4 Q6505 F-4 Q6506 F-4 Q6507 F-4 Q6508 F-4 Q6521 E-4 Q6522 E-4 Q6523 E-4 Q6524 E-4 Q6525 E-4 Q6526 E-4 Q6527 E-4 Q6528 E-4 Q6531 F-1 Q6532 F-1 Q6533 G-1 Q6534 G-1 Q6551 C-1 Q6552 D-1 Q6553 D-1 Q6554 D-1 Q6581 C-1 Q6601 C-5 Q6602 B-5 Q6621 E-5 Q6622 E-5 Q6623 F-5 Q6624 F-5 Q6625 G-5 Q6626 G-5 Q6627 H-5 Q6628 H-5 Q6641 E-6 Q6642 E-6 Q6643 E-6 Q6644 E-6 Q6645 F-6 Q6646 F-6 Q6647 F-6 SC 72 E F G H I 1 2 3 4 5 6 SC-BOARD (COMPONENT SIDE) TNPA4011 TH-65PV600C SC-BOARD TNPA4011 TH-65PV600C SC-BOARD TNPA4011 C708 SC41 SC42 SC43 SC44 SC45 SC46 C521 C522 C523 C524 Q521 C525 D501 D502 Q522 C526 C527 Q523 Q524 R501 Q525 Q526 R502 Q527 R503 R504 Q528 C721 R506 R507 C723 R508 C724 C531 R509 IC501 C725 D701 C532 D702 C726 C533 C727 C534 C728 R700 Q531 C535 R701 C536 Q532 R702 C537 Q533 R703 C538 Q534 R704 R511 R705 R512 R706 R513 R707 R514 R708 R515 R516 R517 R518 R519 R710 D521 L401 R711 D522 L402 R712 L403 D523 R713 R520 D524 L404 R714 R521 L405 R715 L406 R522 R716 L407 R523 R717 L408 R718 R527 R528 R529 L601 IC521 D721 L602 Q742 Q743 D723 D724 Q744 Q551 L411 R721 D725 L412 Q552 R722 D726 Q553 L413 R723 D727 Q554 R530 L414 D728 R724 L415 R531 D729 R532 L416 L417 R533 R534 R535 L801 IC721 PC701 R536 L802 IC722 PC702 C752 R537 PC703 C753 PC704 R538 C754 IC724 D730 C561 R539 C755 PC705 IC725 D731 C562 D732 C563 D733 C564 D734 C565 C566 R540 R541 R542 Q762 Q763 L430 L431 R742 R743 R744 R551 R745 R552 R746 R553 R747 R554 R555 C771 R556 C772 C773 C581 C775 C582 C776 D752 C777 D753 Q581 L441 L442 L443 L444 D758 L445 R561 R755 R562 L446 R756 R563 L447 R564 L448 R565 L449 IC751 R759 R566 IC752 R567 IC753 R568 D760 IC561 D761 Q781 C592 IC562 D762 Q782 C593 D763 Q783 L450 C594 D764 R760 Q784 L451 R761 L452 R762 L453 R763 L454 R764 L455 L456 L457 L458 L459 C791 L841 C795 D771 Q791 C796 D773 L460 D581 L461 D582 L462 D583 L463 L464 D584 D585 L465 R581 R775 R582 L466 R776 R583 L467 R777 L468 R584 R585 IC771 R586 IC772 R587 IC773 R588 IC774 R589 IC581 L470 L471 R781 L472 R782 L473 R783 L474 R590 R784 R591 L475 L476 R592 L477 L478 PC760 L479 D791 L480 L481 R791 L482 R792 L483 R793 L484 L485 L486 L487 L488 IC791 L680 L490 L491 L492 L493 L494 L495 L496 L497 L498 C401 C402 C403 C404 C405 Q401 C406 Q402 C407 Q403 Q404 C408 C409 Q405 Q406 Q407 Q408 C601 C602 C603 C410 C604 Q601 C411 C605 C412 Q602 C606 C413 C414 C415 C416 C417 C418 C419 C801 C802 C803 C804 C610 C805 C806 C612 C807 Q803 C420 C808 C421 C809 C422 C423 C424 Q421 C425 D401 Q422 C426 D402 D403 C427 Q423 Q424 C428 D404 C429 R401 Q425 C811 Q426 R402 C812 R403 Q427 C813 C814 Q428 R404 C620 R405 C815 R406 C816 R407 C430 R408 C431 Q621 D601 D602 Q622 C433 D603 Q623 C434 D604 Q624 C435 D605 Q625 C436 D606 Q626 C437 D607 R603 Q627 C438 Q628 R604 C439 R605 R606 C822 R607 C823 R608 R609 IC601 D801 Q821 IC602 D802 Q822 D803 D804 Q824 D610 C440 C441 R801 D805 D611 D806 R802 D612 D807 R803 D613 D808 R804 R610 Q441 D421 D809 R805 R611 D615 Q442 D422 D616 R612 R806 D423 Q443 R807 R613 Q444 D424 R808 R614 R421 Q445 IC801 R809 D619 R615 R422 IC802 R616 R423 IC803 R617 R424 D810 IC610 R618 R425 C641 R619 D812 R426 D813 R427 R428 R810 D620 C450 Q641 R811 D621 Q642 R812 D622 Q643 R813 D623 Q644 R814 R620 D624 Q451 R621 Q645 D625 Q452 R622 Q646 R816 D626 Q453 Q647 R817 R623 D627 R818 Q454 Q648 VR600 R624 D628 Q455 R819 C841 VR601 Q649 R625 D629 C842 VR602 R626 VR603 R627 R628 D820 Q841 C845 D821 Q842 D822 R437 D823 D824 R438 R820 D630 C460 D825 R821 Q651 D826 R822 Q652 R823 Q653 R630 R824 Q654 D441 R631 R825 Q655 D442 R632 R826 Q656 R633 R827 Q657 R828 Q658 R441 PC801 IC821 R829 Q659 R442 R443 R444 PC610 R445 C661 C662 C663 R830 Q660 C471 Q661 D641 R831 R832 D642 Q662 C473 R833 D643 R834 D644 D451 R641 R835 Q665 D452 R642 R836 R837 R643 R838 R644 R451 R839 R645 C861 R452 R646 C862 R453 R647 C863 R454 R648 R455 C671 D841 R649 D842 T602 D843 R840 C480 R841 Q671 R842 Q672 Q673 R843 D653 R844 Q674 D461 R845 Q675 R651 D462 R846 R652 Q676 D463 R847 R653 D464 R848 R654 D465 IC841 R849 C871 Q679 R655 D466 C872 R656 D467 C873 R657 D468 R658 R465 D469 C681 R659 R466 C682 R467 C683 R468 Q680 R850 C491 D661 R851 Q681 SC2 D662 R852 Q682 D663 R853 D664 R660 D471 D665 R661 D859 D472 D666 R662 D667 R663 R664 R858 R665 R471 R472 R666 D477 R667 R473 D478 D860 R668 R474 C691 D861 R475 R669 D862 R476 C692 R477 C693 R860 R861 Q691 IC471 IC472 R862 R863 D480 R864 R670 D481 R671 R865 D482 R672 R866 D483 R673 R867 D484 R674 R868 D485 R675 IC861 R869 D486 R676 D487 R677 R678 IC671 D871 R679 D872 R870 D681 R871 D682 R872 D683 R873 D684 R874 D491 D685 R875 R682 D686 R876 D687 R683 R877 R684 R878 R685 IC871 R879 R686 D497 R687 R688 IC681 R689 IC682 R690 R691 R886 R887 R888 PC861 R696 R697 R698 PC480 R891 PC871 L591 L592 SC20 SC23 C502 C503 C504 SC30 Q501 C505 Q502 C506 Q503 C507 Q504 Q505 Q506 Q507 Q508 ZA401 C701 ZA402 C702 ZA403 C703 C704 C705 C706 C707 Discharge TPVAD TPVSUS TP15V TPVSCN SCMM1 TPVSET2 TPSC1 TPVSET SCMM3 SCMM4 TPSOS7 TPSOS6 SCMM6 DIP SCMM5 SCMM2 SCMM7 SC CRNo.6 TNPA4011 1 PbF A1 A2 B1 B2 A40 A39 B40 B39 A1 A2 B1 B2 A40 A39 B40 B39 A1 A2 B1 B2 A40 A39 B40 B39 A1 A2 B1 B2 A40 A39 B40 B39 9 8 2 1 1 2 8 9 A A K 1 8 9 16 A A K A A K 1 8 16 9 1 7 8 14 1 7 8 14 1 4 8 5 1 3 4 5 1 10 11 20 1 10 11 20 ORDER NO. 1 4 5 8 1 3 5 4 3 4 1 5 1 4 5 8 1 2 3 4 12 1 G E C C G E C G E C G E C G E C G E C G E C G E G S D C G E A A K C G E A A K A A K C G E C G E A A K C G E C G E C G E C G E G S D G S D G S D G S D G S D G S D G S D G S D 1 4 5 8 B C E 1 3 5 4 B C E C G E A A K C G E A A K A A K C G E C G E A A K C G E 1 2 3 4 5 1 4 5 G S D G S D G S D G S D C G E G S D C G E G S D C G E G S D C G E G S D C G E G S D B C E B C E G S D G D S GS D G S D A A K G S D G S D G S D G S D 1 2 3 4 G S D 1 2 3 4 G S D G S D A A K S5 S4 S1 S3 PT V1 S2 V2 P1 P2 G S D G S D G S D G S D A A K G S D A A K G S D A A K A A K A A K A A K A A K G S D 1 3 G S D A A K A A K 1 4 5 3 1 3 4 5 A A K A A K A A K A A K A A K 1 5 8 4 A A K A A K 1 4 5 8 A A K 1 4 5 8 4 5 8 1 3 5 1 4 2 3 4 1 1 2 3 4 1 2 3 4 1 2 19 20 1 3 1 8 A B C D 73 14.17.SU 电路板 E F G H I 1 2 3 4 5 6 SU-BOARD (COMPONENT SIDE) TNPA4009 SU-BOARD (FOIL SIDE) TNPA4009 TH-65PV600C SU-BOARD TNPA4009 TH-65PV600C SU-BOARD TNPA4009 Parts Location SU-BOARD IC6901 I-2 IC6902 H-2 IC6903 G-2 IC6904 F-2 IC6905 E-2 IC6906 D-2 IC6907 C-2 IC6908 B-2 IC6909 A-2 TPSU1 I-2 TPSU2 E-1 TPSU3 A-2 IC TP SU C6901 C6902 C6903 C6904 C6905 C6906 C6907 C6908 C6909 C6921 C6922 C6923 C6924 C6925 D6901 C6926 D6902 C6927 C6928 C6929 R6901 R6902 R6903 R6904 R6905 R6906 R6907 R6908 R6909 IC6901 IC6902 IC6903 IC6904 D6910 IC6905 D6911 IC6906 D6912 IC6907 D6913 IC6908 IC6909 C6940 C6941 C6942 C6943 C6944 C6945 C6946 C6947 C6948 R6920 C6949 R6921 R6922 R6924 R6930 R6931 R6932 R6933 R6938 C6961 R6939 C6962 C6963 C6964 C6965 C6966 C6967 C6968 C6969 SU45 IC6940 C6980 C6981 R6963 SU1 SU2 SU3 SU4 SU5 TPSU1 TPSU2 TPSU3 TNPA4009 1 SU A A PbF 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 9 8 2 1 7 8 14 ORDER NO. A1 B1 A54 B54 A1 B1 A54 B54 A1 B1 A54 B54 A1 B1 A54 B54 A1 B1 A54 B54 D40 D1 C40 C1 TNPA4009 1 SU PbF SEE REVERSE FOR ORDER NO. D41 D80 C80 C41 A B C D 74 14.18.SD 电路板 E F G H I 1 2 3 4 5 6 SD-BOARD (COMPONENT SIDE) TNPA4010 SD-BOARD (FOIL SIDE) TNPA4010 TH-65PV600C SD-BOARD TNPA4010 TH-65PV600C SD-BOARD TNPA4010 Parts Location SD-BOARD IC6910 I-2 IC6911 H-2 IC6912 G-2 IC6913 F-2 IC6914 E-2 IC6915 D-2 IC6916 C-2 IC6917 B-2 IC6918 A-2 TPSD1 A-2 TPSD2 E-1 TPSD3 I-2 IC TP SD R6964 R6948 C6956 IC6910 D6905 C6916 C6973 C6951 IC6913 C6931 SD46 C6954 R6912 C6913 R6954 C6972 R6943 C6958 C6950 IC6912 R6910 C6930 C6918 C6910 SD1 C6975 IC6915 R6913 C6933 C6938 C6911 R6951 R6941 IC6918 R6918 C6936 C6952 R6911 C6912 SD5 R6950 C6970 IC6917 R6917 C6935 R6949 D6906 C6917 SD3 C6976 C6955 IC6916 R6915 C6934 R6914 C6914 R6952 C6971 R6942 C6957 IC6911 C6937 SD4 C6977 R6916 C6915 C6974 C6953 IC6914 C6932 TPSD3 SD2 TPSD2 TPSD1 TNPA4010 1 SD R6953 IC6920 C6978 C6979 C6990 C6991 D6921 D6923 D6920 D6922 PbF 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 9 8 2 A1 B1 A54 B54 A1 B1 A54 B54 A1 B1 A54 B54 A1 B1 A54 B54 A1 B1 A54 B54 A1 A40 B1 B40 ORDER NO. 1 7 8 14 TNPA4010 1 SD PbF SEE REVERSE FOR ORDER NO. B41 B80 A41 A80 A B C D 75 14.19.SS 电路板 E F G H I 1 2 3 4 5 6 SS-BOARD (FOIL SIDE) TNPA4012 TH-65PV600C SS-BOARD TNPA4012 TH-65PV600C SS-BOARD TNPA4012 R115 L001 L002 L003 L004 L005 L006 L007 L008 CF281 L011 L012 D132 L013 L014 L015 L016 L017 L018 SS11 SS12 SS21 L221 SS25 L222 D152 D154 SS34 SS35 L040 SS42 L241 SS53 SS54 SS55 SS56 L061 L062 L063 L064 L065 L066 L067 L068 L069 L262 L070 L071 L072 L073 L074 L075 L076 L077 L078 L079 L271 L272 L081 L082 L083 L084 L085 L086 L087 L088 L089 L090 L091 L092 L093 L094 L095 L096 L097 L098 L099 L291 Q001 Q002 Q003 Q004 Q005 Q006 Q007 Q008 C201 C202 C203 C204 C011 C205 C012 C206 C013 C207 C014 C208 C015 C016 C017 C018 C019 C213 C214 C020 Q021 D001 Q022 D002 Q023 D003 Q024 D004 Q025 Q026 Q027 Q028 C223 C224 C031 Q222 C032 R018 D212 Q041 D021 Q042 D022 Q043 D023 Q044 R020 D024 D025 Q045 R022 D026 VR000 C241 C051 C052 L103 Q051 Q052 R222 Q053 R223 VR200 Q054 Q055 C255 Q256 C261 C262 C263 C264 C265 C266 C267 C268 C269 C270 C272 C273 C274 C275 D253 TP1 D061 TP2 D062 TP3 D063 TP4 D064 TP5 TP6 TP7 D067 TP8 D068 TP9 D069 D071 D072 TP904 TP905 D081 D082 D083 D084 D085 D086 D087 TP910 TP911 TP913 TP10 TP11 L161 TP12 L162 TP13 L163 TP14 TP918 L164 TP15 TP919 R281 D091 L165 TP16 R282 D092 L166 TP17 L167 TP18 L168 TP19 TP920 TP921 TP922 TP923 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 L181 TP32 L182 TP33 L183 TP34 L184 L185 L186 L187 L188 L189 L386 C111 C112 C113 C114 C120 1 3 2 1 SS TNPA4012 CR No.6 PbF A A K 1 3 1 10 1 7 6 2 1 7 6 2 A A K A A K 1 3 1 8 1 8 1 13 1 13 1 13 1 13 SEE REVERSE FOR ORDER NO. C G E G C E G C E G C E G C E G C E G C E G C E G C E A A K G C E A A K G C E A A K G C E A A K G C E G C E G C E G C E E C B A A K G C E A A K G C E A A K G C E A A K G C E A A K A A K G C E A A K G C E G C E G C E G C E G C E E C B A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A B C D 76 TH-65PV600C SS-BOARD PARTS LOCATION TH-65PV600C SS-BOARD PARTS LOCATION SS Parts Location SS-BOARD (FOIL SIDE) Q6001 D-2 Q6002 D-2 Q6003 C-2 Q6004 C-2 Q6005 D-2 Q6006 D-2 Q6007 C-2 Q6008 C-2 Q6021 F-2 Q6022 F-2 Q6023 G-2 Q6024 G-2 Q6025 F-2 Q6026 F-2 Q6027 G-2 Q6028 G-2 Q6041 C-5 Q6042 C-5 Q6043 C-5 Q6044 B-5 Q6045 B-5 Q6051 F-4 Q6052 F-4 Q6053 F-4 Q6054 G-4 Q6055 G-4 Q6222 H-5 Q6256 H-5 TRANSISTOR TP1 A-5 TP2 A-5 TP3 B-5 TP4 B-5 TP5 B-5 TP6 A-5 TP7 B-5 TP8 B-5 TP9 A-5 TP10 A-5 TP11 B-5 TP12 B-5 TP13 I-5 TP14 I-5 TP15 I-5 TP17 I-5 TP18 I-5 TP19 I-5 TP20 I-5 TP21 I-5 TP22 I-5 TP23 I-5 TP24 H-1 TP25 G-1 TP26 G-1 TP27 F-1 TP28 D-1 TP29 C-1 TP30 C-1 TP31 B-1 TP32 H-4 TP33 I-5 TP34 I-5 TP VOLUME Parts Location SS-BOARD (COMPONENT SIDE) IC6131 E-2 IC6151 E-5 IC6191 B-2 IC6211 A-3 IC6221 B-5 IC6241 A-5 IC6251 C-5 IC6281 A-4 IC Q6001 F-3 Q6002 F-3 Q6003 F-3 Q6004 G-3 Q6005 F-1 Q6006 F-1 Q6007 F-1 Q6008 G-1 Q6021 D-3 Q6022 D-3 Q6023 C-3 Q6024 C-3 Q6025 D-1 Q6026 D-1 Q6027 C-1 Q6028 C-1 Q6031 D-5 Q6041 G-5 Q6042 G-5 Q6043 G-5 Q6044 G-5 Q6045 H-5 Q6051 D-4 Q6052 D-4 Q6053 D-4 Q6054 C-4 Q6055 C-4 Q6101 B-2 Q6102 B-3 Q6103 B-2 Q6104 B-3 Q6105 B-2 Q6106 B-3 Q6107 B-2 Q6108 B-2 Q6111 B-4 Q6112 B-4 Q6114 B-3 Q6115 A-5 Q6116 B-3 TRANSISTOR TP15V H-5 TPSOS7 A-5 TPSOS8 A-5 TPSS1 B-2 TPVDA A-2 TPVe A-5 TPVe2 B-4 TPVSUS I-4 TP VR6000 B-5 VR6200 A-4 VOLUME TP6904 A-3 TP6905 A-3 TP6910 I-2 TP6911 I-2 TP6913 I-5 TP6918 I-5 TP6919 I-5 TP6920 I-5 TP6921 I-5 TP6922 I-5 TP6923 I-5 VR6000 H-5 VR6200 I-4 Q6141 E-2 Q6142 F-2 Q6143 F-2 Q6144 F-2 Q6146 D-2 Q6147 D-2 Q6148 D-2 Q6149 C-2 Q6151 E-2 Q6152 E-2 Q6153 F-2 Q6154 F-2 Q6156 D-2 Q6157 D-2 Q6158 D-2 Q6159 C-2 Q6171 G-5 Q6172 G-5 Q6173 G-5 Q6174 G-5 Q6181 D-5 Q6183 D-5 Q6184 C-5 Q6211 A-3 Q6212 A-4 Q6222 B-5 Q6251 C-5 Q6256 B-5 Q6281 A-4 Q6282 A-4 77 E F G H I 1 2 3 4 5 6 SS-BOARD (COMPONENT SIDE) TNPA4012 TH-65PV600C SS-BOARD TNPA4012 TH-65PV600C SS-BOARD TNPA4012 R104 R106 R108 C131 R109 C132 C133 C134 D110 C135 D111 D112 C136 D113 R110 R111 R112 R113 R114 R115 R116 R117 R119 L001 Q141 L002 Q142 L003 Q143 L004 Q144 R120 L005 L006 Q146 Q147 L007 Q148 L008 Q149 R125 R126 R127 R128 C151 R129 C152 C153 C154 CF281 L011 D131 Q151 C155 L012 D132 Q152 C156 L013 Q153 L014 R130 Q154 R131 L015 L016 R132 Q156 R133 L017 Q157 R134 Q158 L018 SS11 R135 Q159 SS12 R136 R137 R138 IC131 L211 R139 L212 L213 R140 R141 R142 R143 R144 SS21 R146 R147 R148 L221 R149 SS25 L222 Q171 D151 Q172 D152 D153 Q173 D154 R150 Q174 R151 R152 R153 R154 R157 SS34 R158 IC151 R159 SS35 L040 Q181 Q183 R160 Q184 R161 R162 R163 R164 R165 SS42 R166 R167 SS44 R168 L241 R169 C192 C193 C194 C195 C196 C197 R170 R171 R172 R173 R174 R175 R176 SS53 R177 SS54 SS55 SS56 L061 L062 L063 L064 R181 L065 R182 L066 R183 L067 L068 R184 L069 R185 R186 L262 L070 L071 D191 L072 D192 L073 D193 L074 L075 R191 R192 L076 R193 L077 L078 R195 L079 R196 IC191 L271 L272 L081 L082 L083 L084 L085 L086 L087 L088 L089 L090 L091 L092 L093 L094 L095 L096 L097 L098 L099 L291 C001 C002 C003 C004 Q001 C005 Q002 C006 Q003 C007 Q004 C008 Q005 C009 Q006 Q007 Q008 C201 C202 C203 C204 C010 C011 C205 C012 C206 C013 C207 C014 C208 C015 C016 C017 C018 C019 ZA101 ZA102 ZA103 C210 C211 C212 C213 C214 C020 C021 Q211 C215 C216 Q212 C022 C217 C023 C218 C024 Q021 C025 D001 Q022 C026 D002 Q023 C027 D003 Q024 C028 D004 R001 Q025 C029 Q026 R003 Q027 Q028 R005 C221 C222 R007 C223 C030 C224 R009 C031 Q222 C032 C033 D010 C034 Q031 C035 C036 C037 R011 C039 R013 R015 C040 R018 C041 D211 C042 D212 C043 C044 Q041 D021 Q042 D022 Q043 R213 D023 Q044 R214 R020 D024 R021 D025 R215 Q045 R022 R216 D026 R217 R024 VR000 IC211 C241 R026 C242 C243 R028 L101 D221 C051 L102 D222 C052 L103 D223 D224 D225 Q051 D031 L105 Q052 D032 L106 R222 Q053 R223 L107 VR200 R224 Q054 R030 L108 R031 R225 Q055 R032 R226 R033 R227 R034 IC221 C251 C252 R036 R038 Q251 C255 R232 Q256 R233 R234 R040 R041 R235 R236 R043 R237 R238 C261 R045 R239 C262 R047 C263 C264 C071 R049 C265 C072 C266 C267 C268 R240 R241 C269 R242 R243 R244 R051 R053 C270 R055 IC241 C272 R057 C273 C274 D251 R059 C275 D252 D253 D254 D061 D255 R251 D062 R252 D063 R253 D064 R254 R255 R061 R256 R257 D067 R258 D068 C281 IC251 R259 D069 C282 C283 C284 Q281 C091 Q282 C092 D071 R261 D072 R078 D271 D272 D274 D081 D082 D083 D084 D085 D086 D087 D281 L161 D282 L162 L163 L164 R281 D091 L165 R282 D092 L166 L167 R284 L168 R286 R288 R289 IC281 R291 L181 L182 L183 L184 L185 L186 L187 L188 L189 L386 L398 L399 Q101 Q102 Q103 Q104 Q105 Q106 Q107 Q108 C111 C112 C113 C114 Q111 Q112 Q114 Q115 Q116 C120 D101 D102 D103 D104 R102 D106 D107 DIP Discharge TPVSUS TP15V TPVDA TPSOS7 TPSOS8 TPVe2 CR No.6 TNPA4012 SS 1 TPSS1 SSMM1 SSMM2 SSMM3 SSMM4 TPVe PbF A A K 1 3 10 1 1 8 9 16 1 7 6 2 1 7 6 2 A A K A A K 3 1 8 1 9 16 1 8 1 8 20 19 2 1 1 13 1 13 1 13 1 13 ORDER NO. 1 8 9 16 C G E C G E C G E C G E C G E C G E C G E C G E C G E A A K C G E A A K C G E A A K C G E A A K C G E C G E C G E C G E B C E A A K C G E A A K C G E A A K C G E A A K C G E A A K A A K C G E A A K 4 5 8 1 C G E G E C C G E C G E C G E B C E 1 1 0 11 20 A A K A A K A A K A A K A A K A A K 1 4 5 8 A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D A B C D 78 14.20.SS2 和 SS3 电路板 E F G H I 1 2 3 4 5 6 SS2-BOARD (COMPONENT SIDE) TNPA4013 SS2-BOARD (FOIL SIDE) TNPA4013 SS3-BOARD (COMPONENT SIDE) TNPA4014 SS3-BOARD (FOIL SIDE) TNPA4014 TH-65PV600C SS2-BOARD TNPA4013 SS3-BOARD TNPA4014 TH-65PV600C SS2-BOARD TNPA4013 SS3-BOARD TNPA4014 SS3 SS2 SS23 SS51 SS52 R6218 R6219 SS2MM1 TNPA4013 SS2 1 SS2MM2 PbF 7 1 2 6 1 13 1 13 ORDER NO. SS57 SS58 R6220 R6221 TNPA4014 SS3 1 SS3MM1 SS3MM2 SS27 PbF 1 13 1 13 ORDER NO. 7 1 2 6 SS57 SS58 R6220 R6221 TNPA4014 1 SS3 SS27 PbF 1 1 3 1 1 3 SEE REVERSE FOR ORDER NO. 7 1 2 6 SS23 SS51 SS52 R6218 R6219 TNPA4013 1 SS2 PbF 7 1 2 6 1 13 1 13 SEE REVERSE FOR ORDER NO. A B C D 79 15 方框图和线路图 15.1. 线路图注意事项 80 15.2. 主要集成电路方框图 C1 C24 C55 VDA_75V SCAN OUT D36 MEMORY FORMAT CONVERTER ERASE P3.3V GENERATOR SS44 MICOM DATA DRIVER(RIGHT) SS_SOS8 S.R. FLASH SS CONTROL PROCESSOR SOS7 D5 SS42 RGB OUTPUT PICTURE PROCESSOR C54 D S.R. 64 64 RGB SCAN OUT DATA C41 PLASMA AI PULSE 64 SUSTAIN CONTROL FPGA SOS6/ FORMAT P_ON/OFF CONTROL C6 S.R. D34 CONVERTER 64 D20 64 S.R SD SC2 ADDRESS OUTPUT PLASMA AI PROCESSOR VIDEO SOS8 CONTROL SCAN DRIVE D25 DC/DC CONVERTER S.R SUB-FIELD S.R VDA_75V PICTURE VDA_75V PLASMA AI SU VDA_75V SOS7 (VE) S.R SUSTAIN DRIVE SS27 SOS6 SS21 SOS8 28 SUSTAIN CONTROL SC20 SCAN CONTROL PULSE SDRAM SS23 DISCHARGE SS25 +15V PROCESSOR C52 IIC C61 VSUS PULSE SUSTAIN FLASH SC RECEIVER SS2 FORMAT CONTROL SS3 DATA DRIVE SC23 SUSTAIN PROCESSOR C5 C51 VOLTAGE D3 IIC P1.2V S.R. C4 SCAN VOLTAGE C42 DATA DRIVER(LEFT) DATA DRIVER(CENTER) S.R. S.R. PULSE C44 S.R. S.R. S.R SS35 S.R. C25 VDA_75V SS12 P2.5V S.R LVDS S.R. C11 SUB-FIELD EEPROM PULSE CONVERTER VDA_75V DATA DRIVER(RIGHT) D31 S.R. D32 SS11 AV1 MONITOR DIGITAL SIGNAL PROCESSOR AUDIO TRANS- MCU SELECT L/R H1 V,Y,Pb,Pr PA SOS Y,C,V AUDIO DAC AV2 SELECT HDMI OSD GS V,Y,Pb,Pr RECEIVER PA2 V DG3 MITTER AMP SL/SR SPEAKER DC-DC CONVERTER MAIN PA H AUDIO PROCESSOR SOUND SOS L/R L/R AUDIO RGB AMP INPUT L/R SOS POWER PA32 (GC5) PROCESSOR FAN LVDS DC-DC CONVERTER AVR H2 AV TERMINAL/AV SW/MSP PA40 YG/UB PA20 MAIN Y,Pb,Pr PA10 POWER LED DG PA5 L/R SD CARD SLOT INPUT FAN SOS DC POWER K DG20 FAN SOS PC AUDIO IN AI SENSOR L/R PC IN R,G,B K1 SL/SR PC RGB SD CARD SLOT 10bit AD (ADV7499) GS52 POWER LED DG1 (GC3FS) A/D OUT HDMI I/F DC POWER VIDEO AV3 DG2 AI SENSOR DG5 H40 L/R RELAY CORRECTOR LINE SUSTAIN P9 RELAY,PFC POWER PROTECTION(SOS) F_STB_14V SUSTAIN P23 +15V VOLTAGE RECTIFIER CONTROL PROCESS VOLTAGE P5 POWER SUPPLY VOLTAGE RECTIFIER PFC_ON/OFF +15V STB5V Vda CONTROL 15Vd PS_SOS VOLTAGE RECTIFIER P10 VOLTAGE VDA RECTIFIER +5V VSUS VOLTAGE F_STB 14V 15Vc 15V VSUS RUSH/ MAIN_ON/OFF FILTER STBY5V_M P11 15Vd +5Vc P25 CONTROL P2 CONTROL STANDBY FACTOR PROCESS P STANDBY P12 64 S.R 64 S.R 64 S.R 64 64 64 64 28 S.R S.R S.R S.R 64 S.R S.R 64 S.R 64 S.R 64 S.R GK GK3 KEY SCAN SW KEY VIDEO IN S-VIDEO IN AV3 IN AUDIO IN H51 G51 FRONT G TERMINAL G3 G1 REMOTE R REMOTE RECEIVER RECEIVER G4 R4 S.R. S.R. VDA_75V S.R. DATA DRIVER(CENTER) S.R. S.R. C2 S.R. DATA DRIVER(LEFT) S.R. C3 S.R. C35 S.R. S.R. S.R. VDA_75V C21 C31 C10 C22 S.R. PFC_ON/OFF CONTROL FACTOR RECTIFIER RUSH/ MAIN_ON/OFF FILTER LINE POWER CORRECTOR RELAY,PFC RELAY PA33 PA34 PA35 PA36 HDMI2 IN DG11 HDMI1 IN S.R. S.R. S.R. S.R. VDA_75V S.R. C60 DATADRIVER DATADRIVER D35 SDRAM D33 DATA DRIVE SW U/R D/R D/L U/L S.R. S.R. EQ & SW Y/C FHQ Y/C THQ FPGA1 FPGA2 PA31 TERMINAL R H37 SPEAKER H37 H3 SPEAKER TERMINAL L EQ GH11 HDMI3 IN HDMI IN 3 GH PA51 SWITCH S POWER S1 POWER SW STB12V STB_PS SS34 RGB_CVBS SUB Y,Pb,Pr JG30 JG2 JG3 JG1 H53 HEADPHONE H5 TA5 MSP SD PEAKS FLASH ROM SID DAC ENCODER JG TA TUNER SIF TV_V1 MAIN TUNER SUB TUNER TV_V2 TA6 H6 TH-65PV600C Main Block Diagram TH-65PV600C Main Block Diagram 81 15.3. P 电路板 (SUS) 方框图 L.F L.F L.F + D1601 F1601 F1602 D1602 L1601 L1602 L1603 R1607 R1605 R1606 R1608 Q1602 G D S Q1603 G D S Q1607 G D S Q1606 G D S D1606 R1635 R1636 R1631 C1620 R1639 R1638 R1637 R1633 R1632 D1605 D1609 ZD1602 F201 R1644 R1642 R1643 R219 R221 R222 R220 Q203 G D S Q204 G D S Q202 G D S Q201 G D S K1601 AC CORD 3 P9 K1602 1 RF1601 3A AC+ AC- +AC -AC L1604 PFC OVP 9 ON/OFF 4 Q1608 Q1609 1 +S OCL 3 (IDET) 7 11 GATE 6 GND Q1604 Q1605 MC1601 PFC MODULE MAIN 7 RUSH 8 RELAY RELAY 6 BIAS-PFC (VCC-OUT) PFC-SUS 15 Q206 Q205 2 VDD V+ 9 I+ SH 24 0V 25 SL GL 12 VCC SG IRS 13 GH BIAS Vsus 5 10 ON/OFF I+ 6 VCO STOP 22 23 1 P1 P2 P2 T201 P1 Zero Voltage Switching Controller MC201 POWER SUPPLY Vsus TO SS11 R278 P11 C255 R260 S1 D251 Vsus R282 R279 R261 Vsus R264 S2 R267 1 D252 R277 S2 P2 R257 R262 T2 R266 S1 VR251 T1 D255 R281 D253 TO SC2 D254 VSUS R280 C256 R268 R254 1 R265 PC201 PC202 PFC ON/OFF Vsus ON/OFF RELAY/ PFC CONTROL MODULE MC202 (18V) VCC 10 VIN (VDET) H:ON L:ON 3 SUS ON/OFF PFC 11 ON/OFF 2 ON/OFF BIAS L:ON 4 P52 1 1 P54 1 VCC-IN 5 TIMING 4 -GND CAP BIAS GND P56 PFC_ON Vs_STOP 7 1 5Vc_OUT 2 6 TO P55 Vs_OUT 8 HV(SUS)_ON STB_IN 5 Q251 AC_N AC_L VSUS_VCC COLD HOT COLD HOT TO P51 TO P53 D1603 D1604 AC INLET POWER SUPPLY P (+4.7V) Vsus 178V TH-65PV600C P-Board (SUS) Block Diagram TH-65PV600C P-Board (SUS) Block Diagram 82 15.4. P 电路板 (MULTI) 方框图 L.F L.F + F1702 D1701 L1701 F1701 L1702 R515 R509 L502 R514 F501 R511 R512 R510 L504 D1702 R1708 R1706 Q1702 G D S D1711 R1704 Q1701 G D S R1705 D1705 F301 R1732 R1727 C1715 R1729 R1750 R1761 R1731 R1728 R1733 R1740 R1742 R529 R581 R528 R530 R1741 Q301 G D S Q302 G D S R1751 K1701 K1702 1 P51 3 RF1701 3A DISCHG AC_L 5 1 S1A 16 D502 5 S2A D551 6 2 Source Drain IC501 Control 4 IPD B5 3 P2 B6 20 GND S1B CONTROL Q501 7 B2 P53 1 17 D504 4 P1 T501 VBias D503 B4 Q502 18 DISCHARGE B3 D511 STB+5V B1 GND GND STB+5V AC_N 19 D508 S2B AC DET AC- AC+ D501 PG- STB RECTIFIER (STB) D1703 AC- RECTIFIER AC+ 10 L1703 GND Q1703 Q1704 MC1703 PFC MODULE (VDET) (18V) PFC_15V OVP 4 1 VIN VCC +S OCL 3 (IDET) 7 11 GATE 6 P1 P2 S2 S1 D351 D402 T301 D403 D404 D405 D352 S5 S4B S3 S4A Q303 Q304 MAIN 7 RUSH 8 RELAY 4 RELAY 5 GND TIMING RELAY/ MC502 PFC CONTROL MODULE 6 VCC_OUT Q1707 Q1708 14 VCC-IN 1 PGC_ON/OFF 3 13 Fsw_Low 12 15V_ON/OFF ON/OFF 9 I+ 9 SH 2 GH 6 1 GL 11 Fsw-ON 13 ON/OFF BIAS 12 22 V+ VCC 25 VR351 15V AC_DET 20 15V_OUT PFC_ON 3 25 14 Vda_ON (VDD) 10 MC701 15 Vda_LOW 12 2 15V_IN SUS_STOP BIAS_ON Vda_OUT 22 24 SW_MAIN 5 6 5VC_OUT 21 17 8 11 26 SUS_ON 18 F15V_OUT 9 GND STB_OUT PANEL_ON SUS_OUT ALL_OFF F_STB_ON PS_SOS STB_IN 4 POWER MCU MODULE 7 POWER CONTROL MC601 MODULE MC301 Vda/STB POWER CONTROL MODULE HOT COLD BAIS ON/OFF PC505 PFC ON/OFF PC506 Q1706 Q06 VOUT Q02 Q01 11 10 Vda L401 ZD401 6 D401 MC401 Vda CONTROL MODULE 7 8 IC01 Q04 Q406 Q405 FB 1 PG SG 9 VIN 5 3 2 OCL Q404 VR401 Q03 Q05 L402 1 STB+5V 1 P12 +15V 16 8 4 +15V 7 F STB+15V P25 2 1 TO SC23 10 Vda+75V 17 18 SW_MAIN 4 D358 P+5V +15V PS_SOS P+5V TO PA10 PANEL_ON TO PA5 Vda_Low ALL_OFF P10 7 10 3 +15V 2 1 Vda+75V P+15V F STB+15V F_STB_ON 2 F STB+15V 1 TO SS12 2 13 STB PS 20 +15V 8 P+15V 2 +15V TO D25 +15V P+15V +15V 9 P5 P23 6 P55 STB_IN Vs_OUT 8 HV(SUS)_ON 6 PFC_ON TO P56 1 5Vc_OUT 5 2 Vs_STOP 7 Q553 BIAS_ON/OFF 2 PC507 Vda ON/OFF Q352 Q354 Q353 Q551 Q351 Q552 ZD353 13 F15V_ON 16 15V_ON ZD351 1 STB_ON D554 15V_ON 5VC_ON 19 D555 D556 STB_ON/OFF 5V_ON F STB+15V ON/OFF D355 TO P52 TO P54 AC_N AC_L VSUS_VCC HOT COLD P POWER SUPPLY +5V +18V (+15V) (+15V) Vda+72V +15V TH-65PV600C P-Board (MULTI) Block Diagram TH-65PV600C P-Board (MULTI) Block Diagram 83 15.5. P 电路板 (SUS) 线路图 AC_IN P(P-1)-BOARD (P51) TO P(P-1)-BOARD (P53) TO SS-BOARD (SS11) TO SC-BOARD (SC2) TO P(P-1)-BOARD (P55) TO PFC MODULE RELAY/ PFC CONTROL MODULE Vsus POWER SUPPLY TH-65PV600C P-Board (SUS) Block Diagram TH-65PV600C P-Board (SUS) Block Diagram HOT COLD HOT COLD ! P-BOARD ETXMM631MGH (1/2) 84 15.6. P 电路板 (MULTI) 线路图 P(P-2)-BOARD (P52) TO SS-BOARD (SS12) TO SS-BOARD (SS23) TO PA-BOARD (PA5) TO PA-BOARD (PA10) TO D-BOARD (D25) TO P(P-2)-BOARD (P56) TO P(P-2)-BOARD (P54) TO Vda/STB POWER CONTROL MODULE POWER MCU MODULE Vda CONTROL MODULE PFC MODULE RELAY/ PFC CONTROL MODULE POWER CONTROL MODULE HOT COLD HOT COLD HOT COLD HOT COLD TH-65PV600C P-Board (MULTI) Block Diagram TH-65PV600C P-Board (MULTI) Block Diagram ! P-BOARD ETXMM631MGH (2/2) 85 15.7. PA 和 H3 电路板方框图 ON/OFF D5644 D5642 D5639 D5641 D5643 D5647 D5642 MAIN9V TP16 TPS9V TPS9 TPS5 TPS5V TPM5 TPM5V D2309 D5650 TPS33 TPM33 TPM33V TPM18V TPM18 TPM9V TPM9 TP5616 TP5617 TP5615 MAIN9V D5646 D5636 D5638 D5637 D5653 D5649 D5645 D5640 D5817 D5825 D5804 D5830 D5826 D5827 D5828 D5829 D5832 D5651 TPS33V JK8500 JK8500 TPSSOS TPFANC TPFSOS 6 SUB_5V Q5603 7 22 Q5602 SUB_9V-1 SUB9V PA_SOS 3 FAN_SOS F_STBY_14V 26 16 MAIN_5V SUB5V PA20 LINP 1 21 IC2306 19 SUB_3.3V 35 LOUTP 5 1 LOUTN LOUTP SHUTDOWN IC2304 34 MAIN_9V(0.4A) PA2 8 SUB9V(2.2A) 26 SOUND_SOS TUNER_SUB_ON ON/OFF1 TUNER_MAIN_ON 3 20 SUB9V Q5643 SUB9V 11 MAIN9V VOUT1 MAIN3.3V F_STBY_14V 1 TO P10 MAIN1.8V Q2306 6 NR14V 6 ROUTP RINP 1 5 27 7 OP AMP 39 VOUT1 VIN FAULT IC5601 5 PVCCR ROUTN AVR 5V/9V 48 40 ON/OFF1 12 2 42 ON/OFF2 9 2 VIN Q5641 5 41 10 3 +15V VOUT2 OP AMP 14 2 4 MAIN3.3V 23 16 VOUT2 3 MAIN9V FAN_CONT PA40 14 STB5V 18 22 Q5601 ON/OFF2 ON/OFF 37 21 36 39 2 Q5605 MAIN5V 1 Q5644 +15V SR 7 33 AVCC 4 ROUTN PVCCL 15 5 IC5602 ROUTP SUB5VA PVCCL AMUTE SL 3 13 MAIN2_1.8V 20 LOUTN 2 IC2302 7 46 1 44 3 MAIN_9V 34 PA5 Q2302 F_STBY_14V PVCCR 2 35 +15V PA10 AVR 1.8V/3.3V +15V +15V FAN 3 PA32 SOS 3 FAN 1 PA33 FAN 1 FAN SOS 1 PA34 SOS 3 1 SOS PA31 3 Q2307 SUB5VA TO P5 Q5642 PA SUB5V SUB9V/ MAIN9V Q5613 STB5V1 STB5V1 TO H40 Q5604 ON/OFF TV_SUB_ON IC5604 VIN 5 AVR 3.3V VOUT 1 TO DG20 MAIN_9V(0.1A) SUB5V(1.0A) MAIN5V(0.37A) MAIN5V TV_MAIN_ON SPEAKER AMP Q2300 Q2301 11 SUB3.3V 13 MAIN3.3V SUB3.3V MAIN3.3V(1.55A) MAIN1.8V(1.2A) MAIN3.3V(2.5A) SUB9V(1.7A) MAIN1.8V(1.2A) SOS Q2303 15 Q5610 9 1 SPEAKER OUT/AUDIO AMP FAN CONTROL DC-DC CONVERTER/POWER SOS LED BLINKING : 12TIMES SOUND SOS FAN SOS LED BLINKING : 11TIMES PA SOS LED BLINKING : 10TIMES 13 1 3 15 ON/OFF2 ON/OFF1 AVR 1.8V/3.3V IC5603 VOUT1 VIN 9 VOUT2 MAIN_1.8V SUB_3.3V MAIN2_1.8V SUB_5V SUB_9V-1 MAIN_3.3V MAIN_1.8V MAIN2_3.3V (sw) FAN CONTROL AVR 15V Vin ON/OFF 5 1 IC5801 Vout 2 4 INV PA35 FAN FAN SOS 1 PA36 SOS 3 1 3 Q5800 FAN SOS PA51 1 3 MAIN2_3.3V MAIN2_3.3V 8 9 MAIN2_3.3V 7 MAIN2_3.3V MAIN2_1.8V 1 2 MAIN2_1.8V MAIN2_1.8V 3 MAIN2_1.8V MAIN2_3.3V H3 SP_R+ SP_R- 1 3 3 H37 (R) SPEAKER H37 SP_L+ SP_L- (L) SPEAKER TERMINAL H3 TERMINAL 1 SUB3.3V TV_MAIN_ON TH-65PV600C PA-Board and H3-Board Block Diagram TH-65PV600C PA-Board and H3-Board Block Diagram 86 15.8. PA 电路板 (1/3) 线路图 + + + + + + + + + + C5621 4700p 50V R5693 33k L5622 33u R5639 2.2k R5642 470 R5874 0 R5872 0 D5643 MA3X152D0L D5635 MAZ30470HL R5643 1k TPF18 L5624 33u N0BG2DE00001 IC5601 1 N.C. 2 ON/OFF2 3 VAR2 4 VOUT2 5 SW-Node2 7 GND 8 N.C. 9 GND 10 VIN 11 N.C. 12 GND 13 SW-Node1 14 VOUT1 15 VAR1 16 ON/OFF1 C5606 16V 470u R5870 0 R5633 1k R5832 4.7k C5619 25V 0.1u C5809 1u 25V R5695 10k R5871 0 D5829 MA3X152D0L R5664 4.7k 1% R5601 180 TPF33 C5684 16V 0.1u C5637 16V 0.1u D5817 MA3X152E0L 1% R5681 4.53k D5827 MA3X152D0L D5653 MA3X152E0L D5637 MA3X152E0L D5650 MAZ30470HL C5620 25V 0.1u R5672 10k C5644 16V 0.1u R5867 4.7k R5809 910 1% R5680 0 D5828 MA3X152D0L D5832 MA3X152D0L L5606 22u LHL08TB220K R5637 10k D5638 MA3X152E0L Q5601 B1DHDC000028 EHMDD9851 IC5603 1 ON/OFF2 2 VAR2 3 VOUT2 4 SW-Node2 6 GND 7 N.C. 8 GND 9 VIN 10 N.C. 11 GND 12 SW-Node1 13 VOUT1 14 VAR1 15 ON/OFF1 16 N.C. C5804 0.1u 16V R5812 4.7k R5647 220 R5654 10k R5667 47k R5868 10k R5815 2.2k R5810 4.7k R5811 4.7k R5848 4.7k R5692 1k C5670 25V 0.1u R5628 4.7k D5646 MA3X152E0L R5641 2.2k 1% R5609 200 R5836 1k R5640 4.7k R5638 10k D5644 MAZ30680ML C5686 25V 0.1u R5689 0 D5681 B0BC4R700007 D5606 B0BC01100001 D5830 MA3X152D0L C5688 16V 470u C5681 25V 470u TPF33V C5810 47u 25V PA51 1 2 3 R5660 0 PA35 1 2 3 C5689 25V 0.1u TP16 D5825 MA3X152D0L Q5604 B1ABCF000138 Q5641 2SA207700L R5648 3.9k D5645 MAZ30390HL PA36 1 2 3 L5683 15u R5649 100k D5642 MAZ31200ML C5642 16V 0.1u R5644 2.2k Q5800 B1ABCF000138 D5804 MAZ81100ML PA10 1 2 3 4 5 6 R5807 4.7k D5640 MAZ30390HL D5636 MA3X152E0L 1% R5645 2.2k L5682 33u L5685 10u R5623 680 R5635 220 R5830 22k 1% L5802 100u C5805 1u 16V R5632 470 C5685 16V 470u PA32 1 2 3 R5873 0 PA31 1 2 3 R5688 0 PA33 1 2 3 R5630 220 C0DBAZG00034 IC5801 1 VCC 2 OUT 3 GND 4 INV 5 STBY L5801 G0C101K00023 Q5602 B1ABCF000138 C5802 470u 25V R5659 680 D5649 MA3X152D0L Q5644 B1ABCF000138 R5636 4.7k L5604 2.7u D5639 MAZ30470HL C5643 16V 0.1u R5694 47k PA34 1 2 3 D5801 B0JCME000037 R5634 470 R5621 4.7k R5808 4.7k R5606 2.2k C5690 25V 220u 1% R5686 18k D5651 MA2J11100L C5683 16V 0.1u C5609 50V 22u TPF18V R5665 47k R5626 4.7k R5627 4.7k R5803 2.74k 1% R5650 220 C5605 25V 470u 1% R5898 5.6k 1% R5646 1k C5801 470u 25V R5869 0 D5647 MA3X152D0L R5625 4.7k C5850 16V 0.1u C5641 16V 0.1u L5684 22u Q5642 2SA207700L L5602 2.7u LHL08TB2R7M R5605 4.7k R5662 4.7k Q5613 B1ABCF000138 D5641 MA3X152D0L R5690 0 D5682 B0BC3R700006 TP16V R5822 2.2k Q5643 2SA207700L C5682 25V 0.1u D5826 MA3X152D0L L5681 22u R5806 4.7k F_STBY_14V F_STBY_14V GND GND TO P-BOARD (P10) SUB5V/SUB9V GND F_STBY_14V MAIN3.3V/MAIN1.8V FAN SWITCHING REG TO FAN TO FAN TO FAN TO FAN TO FAN TO FAN TO FAN MAIN_9V D C 8 9 2 E B 1 7 F A 6 18 14 15 6 7 1 5 12 9 17 4 16 11 19 2 10 13 3 8 ! PA-BOARD TNPA4076AB(1/3) < TH-65PV600C AP-Board (1 of 3) Schematic Diagram TH-65PV600C PA-Board (1 of 3) Schematic Diagram 3 4 5 87 15.9. PA 电路板 (2/3) 线路图 + + + + + + + + L5615 15u LHL08TB150K TPM18V TP5617 TPFANS TPM18 TP5613 MAIN9V TPFANC R5865 0 D5612 B0BC3R700006 R5864 0 SUB9V Q5610 B1ABCF000138 C5672 50V 10u TPM33V C5626 16V 0.1u C5648 50V 0.01u TPM5V SUB5VA SUB5VA MAIN3.3V L5609 22u TPS33 TPFSOS TPS5 C5633 25V 220u TPS5V L5651 22u C5646 50V 0.01u TPSTB5V C5612 16V 470u SUB3.3V C5647 16V 47u MAIN9V R5610 0 L5612 2.7u TPS9 TP5616 MAIN5V L5623 15u R5652 0 TP17 R5619 33k TPSOS L5621 33u R5669 47k C5618 25V 0.1u TPSTB5 C5645 16V 47u TPM9V TPM33 C5623 25V 0.1u Q5605 B1ABCF000138 TPM5 R5676 10k C5617 16V 470u TP17V C5611 50V 330u TPS9V D5610 B0BC4R700007 L5607 22u LHL08TB220K SUB3.3V R5615 10k MAIN3.3V TPMUTE R5617 1k C0DBZGC00067 IC5604 1 VIN 2 GND 3 STBY 5 VOUT 4 NC TPSSOS SUB9V C5616 25V 0.1u R5653 10k EHMDD9851 IC5602 1 ON/OFF2 2 VAR2 3 VOUT2 4 SW-Node2 6 GND 7 N.C. 8 GND 9 VIN 10 N.C. 11 GND 12 SW-Node1 13 VOUT1 14 VAR1 15 ON/OFF1 16 N.C. R5866 0 TP5615 MAIN2.5V D5607 B0BC6R600005 R5602 0 TPM9 PA40 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 PA20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 1% R5607 4.53k C5673 16V 0.1u C5622 16V 470u TPS33V R5668 47k Q5603 B1DHDC000028 R5620 1k C5613 25V 0.1u 1% R5603 15.4k SUB5V(0.63A) SUB9V(1.3A/0.766A) Tuner_Main_ON MAIN5V(0.37A/0.46A) ODU +B 17.5V / 0.27A TUNER_SUB_ON MAIN3.3V(1.55A/1.847A) PA_SOS SCL1(Main3.3V) SDA1(Main3.3V) ODU_ON/OFF MAIN1.8V/MAIN3.3V MAIN1.8V SUB9V(1.3A/0.766A) MAIN3.3V(1.55A/1.847A) MAIN_5V TV_ON OFF HP_R HP_L GND FAN_CONT FAN_SOS AMUTE HP_MUTE SOUND_SOS MAIN9V(0.1A/NC) SR SL SOS MAIN2_1.8V(A/A) MAIN2_1.8V(A/A) MAIN2_1.8V(A/A) MAIN2_3.3V(A/A) MAIN2_3.3V(A/A) MAIN2_3.3V(A/A) STB5V SUB_3.3V 15 18 12 17 13 11 14 16 10 21 23 22 24 25 5 12 9 17 4 16 11 19 10 13 3 8 18 15 6 14 7 1 2 PA-BOARD TNPA4076AB(2/3) ! TO DG-BOARD (DG20) TO H-BOARD (H40) < < < < TH-65PV600C PA-Board (2 of 3) Schematic Diagram TH-65PV600C PA-Board (2 of 3) Schematic Diagram *JS5600 SUFFIX JW 88 15.10.PA 电路板 (3/3) 和 H3 电路板线路图 Thermal Pad + + + + IC2304 C0ABBA000168 1 2 3 4 5 6 7 8 C1AB00002451 IC2302 1 NC 2 RINN 3 RINP 4 AGND 5 LINP 6 LINN 7 NC 8 GAIN0 9 GAIN1 10 MSTR/NSLV 11 SYNC 12 NC 13 NC 14 ROSC 15 VREG 16 VBYP 17 AGND 18 BSLP 19 LOUTP 20 LOUTP 21 LOUTN 22 LOUTN 23 BSLN 24 NC 25 NC 26 PVCCL 27 PVCCL 28 PGNDL 29 PGNDL 30 VCLAMPL 31 VCLAMPR 32 PGNDR 33 PGNDR 34 PVCCR 35 PVCCR 36 NC 37 NC 38 BSRN 39 ROUTN 40 ROUTN 41 ROUTP 42 ROUTP 43 BSRP 44 NSHUTDOWN 45 MUTE 46 FAULT 47 NC 48 AVCC C2393 1u 16V C2333 25V 470u C2329 1u 25V R2403 4.7k R2357 0 R2359 2.2k R2366 4.7k R2408 1.07k 1% PA2 1 2 3 4 5 R2375 100 C2387 1u 10V R2398 0 R2380 2.2k 1% PA5 1 2 3 4 5 6 7 8 9 10 11 Q2301 B1ABCF000138 R2372 680 R2329 100k 1% R2365 100 C2403 50V 0.01u L2308 3.9u R2406 4.7k C2328 1u 25V C2321 0.01u 50V Q2300 2SA207700L L2303 G0C330MA0049 *R2310 R2363 470 C2373 50V 0.1u JS2319 R2407 1.24k 1% R2325 10k C2394 1u 16V C2374 10V 1u C2314 1u 16V R2404 330 R2323 0 JS2331 C2327 0.47u 50V C2341 10u 25V C2417 10u 6.3V JS2300 C2336 0.47u 50V C2334 0.1u 25V C2320 1u 10V R2388 4.02k 1% D2309 MA2J11100L R2379 2.2k 1% C2332 25V 470u R2368 0 C2326 0.1u 25V C2322 1u 10V R2376 10k 1.5k 1% 1% 1.5k 1% R2387 453 1% Q2303 B1ABCF000138 2SA207700L Q2307 R2421 1.62k 1% L2302 G0C330MA0049 R2405 330 R2410 787 1% C2402 10u 6.3V IC2306 C0ABBA000168 1 2 3 4 5 6 7 8 R2332 10k L2300 G0C330MA0049 R2312 10k 1% L2301 G0C330MA0049 C2331 1u 25V C2301 25V 470u R2360 10k C2325 0.1u 25V R2402 330 R2361 5.6k R2349 100 R2409 1.62k 1% C2330 1u 25V C2303 16V 100u C2324 0.22u 25V R2341 0 C2342 1u 25V C2335 0.1u 25V C2380 50V 0.01u R2384 453 1% Q2302 B1ABCF000138 2SA207700L Q2306 C2401 1u 10V *R2311 C2317 1u 10V C2338 0.22u 25V C2337 0.22u 25V C2382 1u 16V C2323 0.22u 25V R2324 0 R2397 0 R2373 680 R2422 787 1% MAIN9V R2401 330 JS2302 R2383 4.02k 1% R2369 18k JS2303 JS2301 C2385 1u 10V R2364 47k H37 1 2 3 L8502 G0A2R5H00003 L8501 G0A2R5H00003 L8501 G0A2R5H00003 H37 1 2 3 JK8500 K4BC02B00013 JK8500 K4BC02B00013 L8502 G0A2R5H00003 TO WOOFER/SPEAKER TO P-BOARD (P5) 15V GND (W-R & W-L) +15V +15V GND GNDs GNDs R GNDs +15V W_R+ +15V WF AMP W_R- NC W_L+ W_L- + L +15V - + L R - - + + GND VCC - GND VCC SOUND_SOS 23 21 19 20 25 26 27 22 24 23 21 22 24 25 PA-BOARD TNPA4076AB(3/3) ! OP AMP OP AMP TNPA3003 H3-BOARD TNPA3003 TERMINAL SPEAKER (L) ! H3-BOARD TERMINAL SPEAKER (R) ! TH-65PV600C PA-Board (3 of 3) and H3-Board Schematic Diagram TH-65PV600C PA-Board (3 of 3) and H3-Board Schematic Diagram 89 15.11.H 和 TA 电路板方框图 PR PB Y PR AV2 V L C R R L Y R L V R V V AV1 L MONITOR OUT PB Y RED WHITE AV2C_PR AV4_C TV_L AV4_Y AV4_S HDMI_SR RM_IN AV3_R SUB_PR HDMI_SL STBY_LED MAIN_Y AI_SENSOR AV2C_YSW TV_R PC_V SUB_PB SUB_PB G_LED AV2C_PB AV3C_PR TV_R AV4_R SUB_PR KEY1 AFC1 MAIN_SR HP_ROUT AV2C_Y MAIN_PR AV1_Y MAIN_SL RM_IN MAIN_PB AV4_L AV2C_PB MAIN_PR AV1_L MAIN_CVBS AV2_V AV1_L MAIN_Y AV3C_Y AV3_V AV4_V MAIN_R AV3C_PB AV1_V HDMI_SR AV2_R KEY_EDGE AV3_L MAIN_L STBY_LED AV2_L KEY_EDGE AV2C_PR L_OUT AV3C-YSW PC_RIN PC_H PC_LIN AV1_S AV3C_YSW AV1_S AV4_S AV1_R PC_LIN AV4_R AV1_Y AV4_L AV2C_Y PC_RIN TV_L R_OUT SUB_Y AV2_L AI_SENSOR L_OUT HP_LOUT AV3C_Y AV2_V AV1_R AV3C_PB AV3_L AV3C_PR PC_V HP_LOUT PC_G AV2_R HP_ROUT AV4_C PC_B AV2C_YSW PC_G SUB_Y AV3_R KEY1 AV4_Y PC_H PC_B MAIN_PB AV1_C G_LED PC_R MAIN_CVBS AV4_V AV3_V AV1_V PC_R AV1_C HDMI_SL R_OUT AFC2 M_SW2 AFT1 M_SW1 S_SW1 S_SW2 M_SW1 S_SW1 S_SW2 M_SW2 AFC2 SDIN_Y SDIN_PB SDIN_PR SDIN_Y SDIN_PB SDIN_PR SUB9V D3021 JK3100 Y-SW Y G PB PR V L R-SW R G Y-SW Y G PB PR V L R-SW R G C Y G Y-G C-G G V L R-SW R G V L R G D3022 SUB5V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 BT30V SUB9V D3023 Q3008 SUB5V_MSP SUB9V SUB8V SUB5V BT30V PA2100 Q2551 D2551 SIF TRAP Q2317 Q3014 5 PB2 58 V9 DACM R 8 74 LOUDSPEAKER AV3 45 AV2 35 1 Q2012 VOUT5 DAC SC1OR SELECT Q2011 SD 17 5 SDA0B IC3005 X2101 VCC AV4_R 25 8 SC2OR Q2106,Q2108 AI_SENSOR PROUT1 MSP_RESET 56 22 V/YOUT1 AV4_S SDA0B PR1 VCC H51 Q2104 3 MAIN_L 7 22 L AV2 49 35 65 IN Q3015 SDA VDD MAIN IN TO PA40 14 19 IN VCC 13 4 STBY_LED 39 54 IN 7 4 - 66 52 MAIN PB STB 3.3V Y4 3 AV1 MAIN Y/CVBS 4 RM_IN SCL SUB 5V SUB 9V VCC PRESCALE 32 PC_H OUT 8 SUB 5V PC_V STB 3.3V AV4_L 11 17 7 SCL0B ANA IN+ G_LED AV4_C SUB 3.3V MUTE HEADPHONE 18 TV(M) VCC 6 9 TO G51 SUB 3.3V MAIN 9V SHORT SOS DET OUT 8 27 AI_SENSOR STB 5V 27 16 SL AV3 2 G_LED SUB 3.3V 30 RM_IN AVR BT30V IN 15 DVB 73 + 1 IN 9 L3 6 SUB8V IN1 7 PRE- PROCESSING 24 MAIN 3.3V 56 6 18 3 10 SUB 5V 72 16 R6 DACA R 7 MAIN_R C1 SDA SCL0B A_MUTE 12 SCL0B 46 MUTE CCT R1 1 5 AV4_V 10 MAIN 9V TO DG1 R DACA L SUB Q2114 IC2109 STBY_LED SUB 5V HDMI_SL 76 50 80 HDMI 26 13 OUT2 53 1 20 SC1OL H1 L6 Q2502 XIN IN2 SP MUTE H40 AV4 HDMI_SR HP OUT 9 OUT1 MAIN PR PC_R VOUT4 SOURCE 25 R5 HP AMP KEY1 AUDIO OUT IN 34 Q2105 11 AUDIO MUTE 1 STB5V DACM L KEY1 SDA0B 39 IN 64 R7 19 3 KEY_EDGE 1 Q2503 75 20 CY2 48 IN SL PC_G STB 5V MAIN 54 V3OUT OUT SR Q2314 MUTE CCT SP OUT L9 S-3 2 8 16 Q3332 3 8 36 IN Q5614 5 SR Q3331 STB 5V IC2104 SUB 5V 67 TO DG2 Q2113 PC_R 14 4 SUB 3.3V V DET 3 KEY_EDGE 7 PR2 L2 PC_G MSP +8V SELECT 12 2 OUT AUDIO VIDEO SWICTHING MSP OUT 57 MAIN_CVBS H2 PC_L INPUT Y2 SDA0B AV4_Y MUTE SW ROUT4 L7 24 1 59 PC_R 14 IN STB 5V R3 JK2003 13 VIDEO SW S-2 Q2103 CY1 PROCESSING 36 SDA 26 Q2102 - V7 R8 R9 10 SCL PC_B MONITOR V/YOUT2 DAC IC2103 5 R4 EXT AUDIO IN Q2315 28 PROCESSING 21 20 Q3002 SC2OL SUB_PB DE- MODULATOR 19 IC3301 TV IN SUB_PR SD SD SOS 3 SUB_Y 77 2 Q2001 L8 3 9 Q2002 41 6 SUB 9V AUDIO SW 7 1 RESET 2 ROUT2 25 SOUND Y3 34 SOUND V2 MAIN 2 38 ADC L4 VAO Q2316 AVR 8V IC2105 28 44 IN Q2013 OUT STB5V OUTPUT STB 5V PROUT2 15 L5 SC1IL 33 AUDIO Q2501 SURROUND C/PBOUT1 SC1IR 36 SUB9V 14 SCL 24 78 3 STB 5V AV3C DAC AV TERMINAL IC2106 AV1 Q3017 SCL0B 5 LOUT4 H SDA0B BT30V + MAIN 3.3V JK3001 36 SCL0B 17 SUB 9V PC IN IN 42 9 Q3333 60 37 Q3011 IN PDD1 L1 Y1 TV OUT 1 38 XOUT IN 32 S-1 AFC1 VOUT 7 IN 25 PB1 71 29 ADC 18 PC_B IN R2 V3 IN AV2C 55 63 IC5603 33 AV4 C3 LOUT2 V1 PB/COUT2 RESETQ OUT SELECT V4 TV 6 SIF 11 H5 17 AFT1 TU001 8 13 17 11 15 RFAGC2 14 USE AFT2 15 12 8 6 15 TV_V2 H6 AFT FOR 12 SUB_SW1 SW2 11 11 FACTORY S-CLOCK 2 AFT MAIN_SW1 15 14 10 1 3 VIDEO SUB_SW2 H15 6 2 TA6 15 TA 13 SUB TUNER SUB5V SUB5V BTL 8 AFAGC 11 SW1 AGC2 AGC1 5 BM MAIN_SW2 TU002 6 TUNER 3 S-CLOCK 8 RFAGC1 VIDEO 8 S-DATA 3 6 1 SIF BTL 9 SW1 11 BM SDA0B SW2 1 12 TV_V1 3 10 MAIN TUNER TA5 3 SDA0B 6 12 SCL0B 13 AFAGC SCL0B 13 Q002 8 15 9 14 5 S-DATA BT30V MUTE SW SUB 5V SUB5V_MSP SUB8V AV3 SUB_SW2 MAIN_SW2 71 MAIN_SW1 SUB_SW1 Q3205 Q3204 Q3206 72 69 Q3207 68 4 5 MAIN9V MAIN9V MAIN9V SDIN_PR SDIN_Y 11 7 TO JG1 H53 SDIN_PB 9 SD 34 PR4 PB4 33 32 CY4 IN AFC2 14 ACTIVE STB_LED STB_LED 5 ACTIVE 15 ACTIVE ACTIVE IN TV(S) Q3210 5 2 EXT VOUT AVR BT30V 1 VDD IC2551 SUB 9V BT30V SUB_RF_CVBS MAIN_RF_CVBS 1 IC2110 AVR 5V 3 IN OUT MAIN9V MAIN9V SUB5V MUTE SW TH-65PV600C H and TA-Board Block Diagram TH-65PV600C H and TA-Board Block Diagram 90 15.12.H 电路板 (1/3) 线路图 + RED WHITE NP PR PB Y PR AV2 V L C R R L Y R L V R V V AV1 L MONITOR OUT PB Y + + + NP NP AUDIO_MUTE A_AV3_L A_AV2_L A_AV1_L AV3_R AV2C_Y A_AV2_R AV2C_YSW A_AV1_RSW AV3_L AV3_V AV1_R A_LOUT A_AV3_L AV3C_PR AV1_V A_ROUT A_AV3_R AV3C_PB AV3C_YSW A_AV1_L AV3C_Y A_AV2_L A_AV1_R A_AV3_RSW AV1_S A_AV2_RSW A_AV2_R AV1_Y AV2_V AV1_L A_LOUT A_AV3_R AV1_C AV2_R A_AV3_RSW AV2C_PR A_AV2_RSW A_AV1_R AV2_L A_AV1_RSW AV2C_PB A_ROUT VOUT4 AUDIOOUT_L AUDIOOUT_R PC_GND_R PC_GND_G PC_G PC_GND_B PC_B PC_RIN PC_LIN PC_R PC_V PC_H L3002 J0JCC0000100 R3350 51 Q2002 B1ABDF000034 Q2001 B1ABDF000034 C3330 16V 47u D2011 MA2J11100L R3324 0 1% R3009 75 L2016 J0JCC0000100 R3021 10k R3011 0 R2011 22k R3330 0 D3003 MAZ81400ML C0JBAZ002205 IC3301 1 /1OE 2 1A 3 2Y 4 GND 5 2A 6 1Y 7 2OE 8 Vcc R3341 47k R2043 47k C3005 50V 0.1u R3344 100 R2042 1M C3342 50V 0.1u Q3002 2SA207700L Q2011 2SA207700L R2052 180k 1% R3027 75 D3048 MAZ81400ML R3337 18k C2021 560p 50V R2006 22k C3331 50V 0.01u 1% R3012 75 R3308 0 R2008 22k 1% R3001 75 D3338 MA2J11100L R3323 0 C3340 50V 0.1u D3045 MAZ81400ML D3335 MA2J11100L D3339 MA2J11100L D3040 MAZ81400ML JK2003 K2HA204A0038 C3305 16V 0.1u SUB5V Q3331 2SC24800VL R3022 10k R3351 51 L3003 J0JCC0000100 MAIN9V ZA3403 K4CZ01000027 1% R3010 75 R3340 100 R2013 2.2k D3005 MAZ81400ML R3312 10k C2022 560p 50V 1% R3310 75 C3337 16V 0.1u D3334 MA2J11100L R3347 470 R2010 22k R2012 100k R2049 10k C2006 50V 560p C3334 47u 16V R2007 22k R2009 22k R2044 1k JS2031 SUB9V_VIDEO L2012 J0JCC0000100 D3043 MAZ81400ML L2004 J0JCC0000100 D3100 MAZ81400ML C2010 50V 560p L2011 J0JCC0000100 L2002 J0JCC0000364 R2054 10k JK3001 K1FB315A0005 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 L2015 J0JCC0000100 ZA3405 K4CZ01000027 L2003 J0JCC0000100 C3335 16V 0.1u MAIN9V_PC 1% R3004 75 JK3100 TJB0A639 Y-SW Y G PB PR V L R-SW R G Y-SW Y G PB PR V L R-SW R G C Y G Y-G C-G G V L R-SW R G V L R G R3339 470 JS2032 1% R3003 75 D2014 MA2J11100L R3342 18k R3409 360 Q2012 B1ABDF000034 R3302 100 C3332 50V 0.1u Q2013 2SA207700L 1% R3020 22k ZA3402 K4CZ01000027 D3336 MA2J11100L R2015 330 R3305 100 R3346 47k D3046 MAZ81400ML JS3010 0 ERJ6GEY0R00V JS3014 0 C3339 16V 0.1u D3006 MAZ81400ML L3010 J0JCC0000100 Q3333 2SC24800VL 1% R3007 75 ZA3401 K4CZ01000027 C3060 16V 1u R2005 100k R3348 68 1% R3002 75 C2014 50V 560p R2048 470 R3336 47k R3320 0 STB+5V 1% R3313 75 C2017 50V 560p D3017 MAZ81400ML D2012 MA2J11100L C2005 50V 560p R3307 4.7k R2046 10k R2016 330 C2019 16V 220u R3309 0 C3341 50V 0.1u 1% R3008 75 1% R3318 75 D3049 MAZ81400ML L2001 J0JCC0000364 JS3012 0 FL3303 J0HABB000004 1 2 3 4 R2050 10k JS2033 R3317 10k R2014 2.2k JS3015 0 D3041 MAZ81400ML L2008 J0JCC0000100 STB+5V C2020 50V 22u C3069 25V 470u 1% R3006 75 D3047 MAZ81400ML FL3302 J0HABB000003 1 2 3 4 D3038 MAZ81400ML FL3304 J0HABB000004 1 2 3 4 L3001 J0JCC0000100 MAIN3.3V R3039 220 R2053 470 1% R3005 75 Q3332 2SC24800VL R2051 180k R3343 470 D3042 MAZ81400ML R3134 100k R2045 10k R3349 68 D3337 MA2J11100L FL3305 J0HABB000004 1 2 3 4 R3408 360 C3336 47u 16V C2011 50V 560p R3352 51 L3013 J0JCC0000100 C2016 50V 560p R3345 18k R3338 100 C3338 47u 16V FL3301 J0HABB000003 1 2 3 4 JS3011 0 D3039 MAZ81400ML C2013 50V 560p R3306 4.7k D2013 MA2J11100L L2007 J0JCC0000100 JS3013 0 B VD HD PC IN R G AV3 AUDIO IN BUFFER H-BOARD TNPA4063 (1/3) ! 3 F E 9 1 C 2 A 4 5 D B 1 2 3 TH-65PV600C H-Board (1 of 3) Schematic Diagram TH-65PV600C H-Board (1 of 3) Schematic Diagram 6 7 8 91 15.13.H 电路板 (2/3) 线路图 + + + + + + + + + NP + + + NP + + + + + + + RST TV_L AV1_R SDA0B TV_R AV2C_YSW AUDIO_MUTE AV4_R AV2_R SDA0B VOUT5 AV3C_YSW SCL0B AV4_Y AV4_VGND SUB_PR_OUT HP_LOUT HDMI_SL AV4_S AV2_L SCL0B SUB_PB_OUT MAIN_RF_CVBS HDMI_SR AV4_C TV_L SUB_Y_OUT SL_GND HP_ROUT AV_L AV2C_Y SR_GND MAIN_PR_OUT AV_R AV1_V MAIN_Y_OUT AV4_YGND AV4_CGND MAIN_PB_OUT AV3_R AV1_S MSP_RESET SP_MUTE AV3_L VOUT4 AV1_L PC_RIN AV4_L PC_LIN TV_R MSP AUDIOOUT_L AUDIOOUT_R MAIN_L MAIN_R AV3C_Y AV2C_Y AV2C_PR AV1_Y AV1_C SUB_RF_CVBS SDA0B SCL0B AV2C_PB AV3C_PB AV3C_PR AV2_V AV3C_Y AV3_V DVB_CVBS MAIN_RF_GND SUB_RF_GND SR SL BS_SR BS_SL AV_R AV_L AMUTE AV4_V C3028 10V 1u C2202 50V 5p L2110 J0JCC0000100 IC2103 AN77L08M-E1 IN 3 2 COM OUT 1 R2137 33k R2126 4.7k C2243 16V 47u C2136 50V 0.01u L2187 J0JCC0000241 C3031 10V 1u Q2113 B1ABDF000034 R2515 10k R2188 10k MAIN9V C2179 16V 10u L2123 J0JCC0000241 ZA2103 TESA169 IC2106 C1AB00002469 1 NC 2 I2C_CL 3 I2C_DA 4 I2S_CL 5 I2S_WS 6 I2S_DA_OUT 7 I2S_DA_IN1 8 I2S_DEL_IN 9 I2S_DEL_OUT 10 I2S_DEL_CL 11 I2S_DEL_WS 12 DVSUP 13 DVSUP 14 DVSS 15 DVSS 16 DVSS 17 IS2_DA_IN2 18 NC 19 I2S_CL3 20 I2S_WS3 21 RESETQ 22 I2S_DA_IN3 23 I2S_DA_IN4 24 DACA_R 25 DACA_L 26 VREF2 27 DACM_R 28 DACM_L 29 DACM_C 30 DACM_SUB 31 DACM_SR 32 DACM_SL 33 SC2_OUT_R 34 SC2_OUT_L 35 VREF1 36 SC1_OUT_R 37 SC1_OUT_L 38 CAPL_A 39 AHVSUP 40 CAPL_M 41 SC3_OUT_R 42 SC3_OUT_L 43 AHVSS 44 AHVSS 45 AGNDC 46 NC 47 SC4_IN_L 48 SC4_IN_R 49 ASG 50 SC3_IN_L 51 SC3_IN_R 52 ASG 53 SC2_IN_L 54 SC2_IN_R 55 ASG 56 SC1_IN_L 57 SC1_IN_R 58 VREFTOP 59 SC5_IN_L 60 SC5_IN_R 61 AVSS 62 AVSS 63 NC 64 NC 65 AVSUP 66 AVSUP 67 ANA_IN1+ 68 ANA_IN- 69 ANA_IN2+ 70 TESTEN 71 XTAL_IN 72 XTAL_OUT 73 TP 74 AUD_CL_OUT 75 NC 76 SPDIF_OUT 77 D_CTR_I/O_1 78 D_CTR_I/O_0 79 ADR_SEL 80 STANDBYQ D2119 B0BC01100001 C2501 16V 100u C2143 50V 0.01u R2171 220 SUB9V_VIDEO C2174 50V 1000p C2138 50V 22p Q2503 B1ABDF000034 C2430 10V 1u C2134 50V 47p R2173 220 L2205 J0JCC0000241 C3070 16V 0.1u R2195 100k R2517 10k R3060 220 L2204 0 R3087 220 C2227 16V 100u D3024 B0BC01100001 C2162 16V 1u C3055 10V 1u ZA2101 TESA169 L2186 J0JCC0000241 C2116 50V 0.1u L2185 J0JCC0000241 C2237 50V 0.01u C2147 50V 22u C2129 10V 1u JS2026 C3065 50V 0.01u D2504 MA2J11100L C2142 50V 0.01u X2101 H0J184500027 L2206 J0JCC0000241 C2230 16V 100u C2168 16V 1u C3047 10V 1u L3026 J0JCC0000100 C2223 50V 39p JS3029 Q2108 B1ABDF000034 1% R3234 75 R2520 12k STB+5V C3058 25V 470u C3040 16V 0.1u C2233 50V 1000p C2200 50V 47p PA3100 K5H1622A0023 R3099 220 C2133 50V 47p D2503 MA2J11100L R2154 22 JS3023 C2226 50V 1000p R3114 0 C2149 16V 1u R2513 1k C3038 16V 0.1u L2111 J0JCC0000241 R2219 100 R3089 22 C2232 1u 6.3V C3050 10V 1u R2501 22k Q2502 2SD0601ASL C3039 50V 0.01u L3009 J0JCC0000100 R2514 20k R2153 220 C3045 10V 1u C3067 10V 1u C3021 10V 1u C2225 16V 1u R2516 22k R3105 220 R2186 220 L2184 J0JCC0000241 C0ABBA000168 IC2104 1 2 3 4 5 6 7 8 C2502 50V 10u 1% R2149 63.4k R3090 22 Q2103 2SA207700L D2502 MA2J11100L C2171 50V 1000p C2130 10V 1u C2228 50V 0.01u R3074 220 R3073 220 R2399 1k R2175 220 R2129 100 R2203 100 R2197 470 C2154 50V 0.1u SUB5V R3088 220 R2233 15k R2208 470 R2252 100k C3024 10V 1u C2197 6.3V 2.2u C2236 16V 47u C2201 50V 3p R2167 220 R2512 1k R2166 1k AN7705SP-E1 IC2110 OUT 3 2 COMMON IN 1 IC3005 AN15867A-VT 1 C3 2 S-3 3 V4 4 Y4 5 PDD2 6 C4 7 VCC1 8 C5 9 PDD1 10 V5 11 Y5 12 GND1 13 V6 14 V7 15 V8 16 V9 17 CY1 18 SPD1 19 PB1 20 PR1 21 IPD1 22 CY2 23 APD1 24 PB2 25 PR2 26 SPD2 27 CY3 28 IPD2 29 PB3 30 PR3 31 APD2 32 CY4 33 PB4 34 PR4 35 SDA 36 SCL 37 VOUT6 38 VOUT4 39 VCC2 40 COUT3/VOUT7 41 VOUT3 42 YOUT3/VOUT5 43 GND2 44 PRout2 45 PBout2/Cout2 46 CYout2/Yout2/Vout2 47 DCOUT 48 PRout1 49 PBout1/Cout1 50 CYout1/Yout1/Vout1 51 VOUT 52 SA1 53 V1 54 Y1 55 S-1 56 C1 57 SA2 58 V2 59 Y2 60 S-2 61 C2 62 SA3 63 V3 64 Y3 C2119 16V 47u R3044 0 R2251 100k R3076 0 C2183 3.3u 50V C3033 10V 1u L2178 J0JCC0000241 R2168 4.7k R2509 0 C2198 6.3V 100u R2237 10k R2181 0 C2153 16V 4.7u R3167 1k JS2108 L2117 G0C6R8K00002 R2156 220 ZA2107 TESA169 L3000 G0C101K00023 1% R2131 8.2k R2170 220 SUB9V R2232 15k R2165 1k MAIN9V C3042 50V 0.01u R2505 820 R2162 220 R2182 100 C2172 50V 1000p R2124 100 C2125 50V 1000p C3051 50V 0.01u C3023 10V 1u C2148 16V 1u L2115 J0JCC0000241 R2504 470 Q2104 2SA207700L C2132 16V 10u C2150 16V 1u R2127 4.7k C3053 50V 0.01u C2235 1u 6.3V Q2316 B1ABDF000034 R2518 10k C3052 50V 0.01u R3097 220 R2174 220 R3175 220 C2238 50V 0.01u L2112 J0JCC0000241 R2116 J0JCC0000241 C3030 16V 0.1u R3058 0 Q2501 B1ABDF000034 C2181 50V 0.1u R2196 100k Q2317 B1ABDF000034 D3050 MAZ81400ML C2169 16V 1u C2239 50V 0.01u SUB5V C3066 10V 1u 1% R2148 63.4k C2118 16V 47u D3052 MAZ81400ML C2163 16V 1u C3035 10V 1u C3049 10V 1u Q2102 2SA207700L AN15862A-VT IC2105 1 L1 2 R1 3 L2 4 R2 5 VCC 6 L3 7 R3 8 L4 9 R4 10 L5 11 R5 12 L6 13 R6 14 L7 15 R7 16 L8 17 R8 18 L9 19 R9 20 L10 21 R10 22 O1 23 LOUT5 24 ROUT5 25 LOUT4 26 ROUT4 27 LOUT3 28 ROUT3 29 GND 30 LOUT2 31 ROUT2 32 LOUT1 33 ROUT1 34 ADR 35 SCL 36 SDA 37 O2 38 BIAS 39 L11 40 R11 41 L12 42 R12 43 L13 44 R13 SUB9V C2139 50V 0.01u C3043 10V 1u C2166 16V 1u C2191 50V 0.1u C3041 50V 0.01u C2231 47u 16V C3036 50V 0.01u D2501 MA2J11100L R2220 15k C2141 50V 0.01u C2140 50V 0.01u R3072 220 R3106 220 R2215 0 C2229 16V 100u C2192 16V 10u R3075 220 L2182 J0JCC0000241 C2173 50V 0.01u D3051 MAZ81400ML R2231 100k L2109 J0JCC0000100 ZA2102 TESA169 R2238 0 C2137 50V 22p C3046 10V 1u R2235 10k R3062 220 JS2123 0 C2196 50V 0.1u SUB9V_VIDEO R3100 220 R2210 1.2k C2178 16V 10u ZA2108 TESA169 C3022 10V 1u C2135 50V 0.01u R3101 220 C2126 50V 1000p R2227 0 JS2124 0 C2175 50V 0.01u R2172 220 R2506 100k R3070 1k C2157 16V 1u SUB8V R3112 0 R2169 4.7k R2114 0 R2160 220 SUB5V R3111 0 R2152 22 L2183 J0JCC0000241 C2204 50V 22p R2511 1k C2146 50V 0.1u L2108 J0JCC0000241 R2502 5.6k R2193 220 1% R3233 75 R3092 220 R2128 100 R2230 100k C2240 50V 0.01u C2211 16V 0.1u R2507 180k R3063 220 R2519 47k C3054 10V 1u R2155 220 Q2114 B1ABDF000034 C3025 10V 1u SUB8V Q2314 B1ABDF000034 R3064 220 L2107 J0JCC0000100 R2158 220 C2217 1u 6.3V C2184 50V 0.1u C2131 50V 0.1u R3057 0 C2165 16V 1u C2159 16V 1u R3059 220 C2185 50V 0.1u L2179 J0JCC0000241 ZA2106 TESA169 R2113 0 L2118 EXCELDR35V R2125 100 R2236 10k C2213 0 R3068 75 1% SUB5V R2133 0 R2132 33k C3075 16V 220u R2508 1.8k STB+5V R3113 0 R2234 10k R2213 10k C2111 50V 0.1u C2127 16V 100u R2214 3.3k 1% R2130 10k C2190 16V 1u Q2315 B1ABDF000034 Q2105 2SA207700L C2189 16V 1u R3222 0 C2176 50V 0.01u C2195 50V 47p C3026 50V 0.01u R2239 0 C3029 16V 1u R2176 220 R3045 0 C2152 16V 1u R3061 0 1% R2147 10k R3095 220 R2187 220 SUB5V_MSP C2234 50V 1000p R2184 220 Q2106 B1ABDF000034 C2203 50V 10p R2183 100 R3080 0 C2160 16V 1u C2199 50V 56p R3107 220 R3176 220 C2177 50V 0.01u C2164 16V 1u R2164 220 C2167 16V 1u R3096 0 JS2109 0 C3056 10V 1u R3094 220 C2155 16V 1u C3048 10V 1u C3027 10V 1u R2211 0 ZA2104 TESA169 R2503 100k C2161 16V 100u R2177 220 ZA2105 TESA169 C2222 50V 0.1u R3174 220 IC2109 C1BB00000947 1 OUT1 2 MUTE 3 IN1 4 GND 5 IN2 6 BIAS 7 OUT2 8 VCC PA2055 K5H1622A0023 R2202 100 R2400 1.8k R2185 220 R2204 560 R2209 3.3k C2170 50V 1000p C2128 50V 0.1u 1% R2138 10k R2192 220 DVSUP HP AMP MAIN HP out MAIN in SUB in L AHVSS VREFTOP MSP NC R (MSP4450K-QA-D6) VCC MUTE SW GND AGNDC MUTE CCT. 8V MSP SHIELD CASE VIDEO SW (AVSW1) AUDIO SW (AVSW2) OP AMP AVR 5V ! H-BOARD TNPA4063 (2/3) 11 15 16 12 13 18 14 10 17 3 2 1 16 14 12 11 17 18 15 13 TH-65PV600C H-Board (2 of 3) Schematic Diagram TH-65PV600C H-Board (2 of 3) Schematic Diagram 92 15.14.H 电路板 (3/3) 线路图 + + + KEY1 SUB_PB G_LED STBY_LED AV4_VGND MAIN_PB AV4_CGND MAIN_Y MAIN_SW2 SUB_PR SUB_Y PC_GND_G MAIN_SW1 PC_GND_B MAIN_PR PC_GND_R MAIN_L MAIN_R AFC2 VOUT5 AI_SENSOR AGC2 AGC1 AGC1 AGC2 SUB_SW1 SUB_SW2 KEY_EDGE AFC1 MAIN_Y_OUT MAIN_PB_OUT SUB_Y_OUT SUB_PB_OUT SUB_PR_OUT SOS SOS SOS RST MSP_RESET SP_MUTE AUDIO_MUTE SDA0B SCL0B BS_SL BS_SR DVB_CVBS PC_V PC_H PC_B PC_G PC_R SUB_Y SUB_PB SUB_PR MAIN_PB MAIN_PR MAIN_CVBS MAIN_Y SR_GND SR SL_GND SL AMUTE HDMI_SR HDMI_SL HP_LOUT HP_ROUT AV4_YGND MAIN_SW1 MAIN_SW2 SUB_SW1 SUB_SW2 SUB_RF_GND SUB_RF_CVBS MAIN_RF_GND MAIN_RF_CVBS ACTIVE_STB_LED AV4_L AV4_Y AV4_R AV4_C SCL0B SDA0B RM_IN MAIN_PR_OUT MAIN_CVBS AFC2 RM_IN KEY1 AV4_S G_LED STBY_LED AI_SENSOR AV4_V MSP AFC1 KEY_EDGE ACTIVE_STB_LED JS3206 0 STB+5V R3206 100 D3044 MA2J11100L C3214 10V 10u 1% R3138 100 STB+5V Q3008 2SA207700L JS2122 Q3207 B1ABDF000034 SUB5V R3250 0 JS3358 J0JCC0000241 C3062 50V 0.1u R3048 22k SUB3.3V R3160 1k R3128 1.3k R3240 10k R3214 0 R3228 0 C3216 10V 10u JS3357 J0JCC0000241 C3227 10V 10u R3286 J0JCC0000241 H51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 SUB9V L3219 J0JGC0000021 R3267 0 R3125 1k R3242 10k JS3252 0 1% R2551 82k D3022 MA2J11100L MAIN3.3V PA3104 0 R3127 1k R3255 560 R3239 10k R3116 100 D3023 MA2J11100L C3233 50V 0.1u JS3255 0 R3141 1k C3207 1u 16V C3268 50V 0.01u R3261 0 L3216 J0JGC0000021 SUB3.3V H6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 R3264 0 C3248 1u 16V JS3230 JS3265 0 C2553 50V 10u L5608 G1C100MA0072 R3161 1k R3102 6.8k JS3354 J0JCC0000241 Q3204 B1ABDF000034 R3262 0 JS3266 0 R3238 0 R3126 100 Q3014 2SA207700L SUB5V H2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Q3018 2SA207700L 1% R3123 130 JS3202 J0JCC0000241 JS3359 J0JCC0000241 FL3106 J0MAB0000199 1 2 3 4 JS3352 J0JCC0000241 R3263 0 JS3215 0 BT30V R3104 1.3k 1% R3353 270k Q3015 2SA207700L R3227 0 1% R3140 130 JS3245 J0JCC0000241 R3213 0 R3051 6.8k SUB5V_MSP Q3205 B1ABDF000034 C3059 16V 1u C3256 1u 16V Q3013 2SA207700L JS3355 J0JCC0000241 R3215 J0JCC0000241 1% R3354 150k L3212 J0JCC0000100 R3251 0 C2551 50V 10u R3259 220 FL3105 J0MAB0000199 1 2 3 4 Q2551 B1CFNG000001 R3129 100 C3257 16V 0.1u JS3256 0 C3241 50V 0.1u JS3205 J0JCC0000241 L5610 G1C470MA0077 C3254 16V 0.1u C3228 10V 10u H1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 1% R2552 16k JS3237 JS3304 0 C3253 16V 0.1u R3254 0 C3063 50V 0.1u C3064 50V 0.1u C3252 1u 16V C0DBAJB00004 IC2551 1 VOUT 2 VDD 3 NC 5 EXT 4 VSS Q3012 2SA207700L C2554 50V 0.01u R3122 100 STB+B SUB5V R3139 1k R3117 100 H15 1 2 3 4 FL3107 J0MAB0000199 1 2 3 4 Q3017 2SA207700L Q3206 B1ABDF000034 JS3356 J0JCC0000241 R3253 220 R3266 0 R3241 10k SUB9V_VIDEO R3049 220 Q3210 2SA207700L C3230 50V 0.1u SUB5V JS3363 H40 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 SUB5V MAIN9V C3249 16V 0.47u C3208 16V 0.47u JS3362 Q3011 2SA207700L JS3302 0 C3251 16V 0.1u JS2121 D3021 MA2J11100L C3262 50V 4700p R3135 0 R3115 100 BT30V C3211 16V 47u H53 1 2 3 4 5 6 7 8 9 10 11 12 R3219 100 STB+B L2551 G1C1R0MA0072 SUB8V JS3303 0 MAIN9V R3224 0 H5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1% R3121 130 R3118 100 R3256 0 JS3246 0 D2551 MA3X78900L SUB9V R3229 0 D5618 B0BC03900015 R3050 2.4k R3124 1.5k R3120 0 JS3244 J0JCC0000241 C3226 10V 10u R3142 1.5k R3119 0 SL_GND SL_GND GND SL GND SOS STB5V GND SL STB3.3V SP_MUTE GND SUB_SW2 GND MAIN_SW2 GND AUDIO_MUTE SCL0B GND GND GND GND GND MAIN_SW1 GND SUB_SW1 GND GND SUB5V GND AD_LRCK GND NC GND SDA0B GND GND GND A_MUTE AD_DAT GND GND GND MAIN_L MSP_RESET GND RST BS_SL GND BS_SR MAIN3.3V GND GND NC GND MAIN_R GND PC_V GND SUB_PR SUB3.3V GND SUB_Y GND MAIN9V PC_H GND HDMI_SL GND PC_B BT30V PC_G GND SUB_PB SUB3.3V GND SUB9V AD_BICK PC_R NC DVB_CVBS GND MAIN_CVBS SUB5V MAIN_PB SR SR MAIN_Y GND BT30V MAIN_PR STB5V SR_GND GND SR_GND HDMI_SR TV_V2 AFT2 SDA0B TV_V2_GND GND GND GND GND SCL0B TV_V1 TV_V1_GND GND AGC2 GND SUB_SW1 GND GND MAIN_SW2 AGC1 GND GND GND SUB_SW2 SIF SUB5V AFT1 SUB30V AM SUB5V MAIN_SW1 NC HP_MUTE HP_R HP_L V_DET KEY_EDGE STB5V HP_GND MAIN_L MAIN_R STBY_LED HP_GND GND AV4_R G_LED AV4_V AV4_L AV4_S SUB5V AV4_Y GND AI_SENSOR ACTIVE_STB_LED GND GND GND GND RM_IN GND SUB_MONO GND AV4_C KEY1 HP_DET GND MAIN9V MAIN9V SDin_PR SDin_PB SDin_Y TO DG-BOARD (DG1) TO PA-BOARD (PA40) TO TA-BOARD (TA6) TO TA-BOARD (TA5) TO JG-BOARD (JG1) TO G-BOARD (G51) TO DG-BOARD (DG2) ! H-BOARD TNPA4063 (3/3) 22 27 25 19 26 21 24 20 23 11 12 13 14 17 16 18 15 AFC1 G_LED KEY1 AFC2 SD_TX GND KEY_EDGE STBY_LED GND SD_IRQ AI_SENSOR SD_RX SD_RST Active STB LED RM_IN TH-65PV600C H-Board (3 of 3) Schematic Diagram TH-65PV600C H-Board (3 of 3) Schematic Diagram 93 15.15.G，GK，K 和 R 电路板方框图 R G D2520 SW3756 SW3755 STB3.3V K1 Q2511 8 ON/OFF AI SENSOR/POWER LED K KEY SWITCH GK SUB5V S-VIDEO COMPOSITE G1 JK3701C AV3 IN G3 2 FRONT TERMINAL G 3 TO H51 G51 GK3 2 1 KEY_EDGE KEY1 2 6 R_LED_ON 8 6 KEY1 AV3_L KEY EDGE SUB5V 22 18 10 AV3_Y AV3_V 20 7 AV3_C R_LED_ON/ STB3.3V 14 29 AV4_S_DETECT AV3_R 25 27 RM_IN 9 6 8 2 POWER LED SW3751 SW3753 SW3754 AI_SENSOR 4 9 AI_SENSOR 9 IC2511 AI SENSOR STNBY_LED 3 STB3.3V 3 1 RM2581 1 VCC Q2581 REMOTE RECEIVER VOUT REMOTE INPUT INPUT R4 G4 REMOTE RECEIVER R 11 11 G_LED_ON Q2513 ON/OFF 1 G_LED_ON -/ TV/AV +/ F STR 20 MAIN_R 17 MAIN_L C Y V L R V V-G L-G Y CY-G C V-SW L R-G R G G R1 T TH-65PV600C G, GK, K, and R-Board Block Diagram TH-65PV600C G, GK, K, and R-Board Block Diagram 94 15.16.G，GK，K 和 R 电路板线路图 R V L Y C VCC GND OUT R G STB3.3V *R3704 0 *L3707 J0JCC0000100 *R3732 0 *R3710 0 *R3748 0 *R3740 0 *R3721 10k *R3716 180k *R3717 180k *R3738 0 *R3714 0 *L3701 J0JCC0000364 *G4 1 2 3 4 JS3708 0 *JK3701C K4AK22B00002 C Y G CY-G G R2 R1 T NC1 SW1 NC2 SW2 R-SW R R-G L L-G V-SW V V-G NC3 SW3 *G3 1 2 3 *R3741 0 *JS3705 0 *R3709 0 *R3746 0 *C3701 560p 50V *G51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 *D3702 MAZ81400ML *G1 1 2 3 4 5 6 7 8 9 10 11 12 *R3733 0 *JS3702 0 *C3711 50V 0.033u *R3703 0 JS3707 0 *R3739 0 *R3737 0 ZA3701 K4CD01000013 *C3703 560p 50V *L3708 J0JCC0000100 *R3736 0 *JS3704 0 *L3700 J0JCC0000364 *R3711 0 *C3712 50V 0.033u *JS3711 0 *JS3714 0 *JS3712 0 *JS3713 0 R2588 0 D2581 MAZ30430ML Q2581 B1ABCF000138 C2582 0.01u 50V R2581 47 D2582 MAZ30560ML R2583 22k R4 1 2 3 4 C2581 6.3V 10u R2585 220k R2586 0 RM2581 B3RAD0000127 R2584 47k R2524 22k 1% R2525 910 IC2511 B3L000000020 R2556 5.6k D2524 MA8056MTX D2510 MA8056MTX R2530 22k R2521 47 C2515 50V 0.01u K1 1 2 3 4 5 6 7 8 9 10 11 12 R2557 5.6k Q2513 B1ABCF000138 C2510 16V 1u D2520 LNJ107W5PRW Q2511 B1ABCF000138 R2512 47 D2511 MA8056MTX 1% R2531 270 R2558 0 C2511 16V 1u SW3756 EVQ11G05R R3759 0 SW3751 EVQ11G05R *R3757 0 1% R3752 1.74k 1% R3753 1.62k R3761 0 SW3753 EVQ11G05R 1% *R3755 3.16k R3762 0 R3764 0 SW3754 EVQ11G05R *C3751 1000p 50V 1% *R3750 14.3k R3758 0 1% R3754 2.32k R3760 0 SW3755 EVQ11G05R *R3756 82 C3750 1000p 50V 1% *R3751 6.65k GK3 1 2 3 R3763 0 SUB5V G_LED_ON GND GND AI_SENSOR STB3.3V RM_IN KEY_EDGE KEY1 GND KEY1 KEYEDGE GND GND HP_DET HP_GND GND MAIN_L MAIN_R SUB_MONO HP_GND AV4_C AV4_R AV4_L AV4_S V_DET AV4_Y AV4_V GND GND GND SUFFIX JW AD REMOTE G-BOARD TNPA4068AD ! REMOTE RECEIVER ! R-BOARD TNPA4069 STBY3.3V AI_SENSOR STBY3.3V GND GND G_LED_ON GND SUB5V C.A.T.S._SENSOR R_LED_ON K-BOARD TNPA4073AE GND ! POWER LED R:STANDBY G:POWER ON TV/AV -/ F +/ ! STR GK-BOARD TNPA3721AD TO H-BOARD (H51) F 1 2 C 4 D 3 9 E B A 5 < < TH-65PV600C G, GK, K, and R-Board Schematic Diagram TH-65PV600C G, GK, K, and R-Board Schematic Diagram 6 7 8 95 15.17.DG 电路板 (1/4) 和 GH 电路板方框图 D2 D1 AP_DE CLKINB2 VSIB REFCH_HDMI HSIB MUTE_OUT RX_SD0 RX_WS RX_MCLK RX_SCK HDMI_INT HDMI_RST HDMI_5V_DET1 HDMI_5V_DET2 HPD1 HPD2 HDMI_WP HDMI_DAC_PD HDMI_SEL GH10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 TP3802 TP3801 D3814 D3813 TP3804 TP3803 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 D1913 D1914 TP1903 Q1906 MAIN3.3V Q1905 MAIN2_3.3V MAIN5V MAIN5V MAIN5V D4052 D4051 MAIN5V MAIN5V HPDT D0+ CLKG D1+ +5V D2- D0G CLK+ D1G DDCG SDA D0- D2+ CEC SCL CLK- D1- D2G N.C. HDMI IN 3 10 9 6 7 3 4 45 46 BDT2P BDT2N BDT1N BDT1P BDT0N BDT0P BCKP BCKN EQUALIZER ADT2N ADT2P ADT1N 27 28 ACKN 33 ADT0P 39 ACKP 30 40 34 31 ADT1P ADT0N 36 SEL (H:A/L:B) B A YDT2N YDT2P YDT1N 24 23 YCKN 17 YDT0P 14 YCKP 21 13 16 20 YDT1P YDT0N 25 CE HDMI EQ & SW IC3801 MAIN2 3.3V 20 28 25 22 29 23 26 19 8 3 6 2 9 11 5 12 D0+ D1+ D2- CLK+ D0- D2+ CLK- D1- 29 HDMI_CEC 2 GH11 16 15 11 20 10 21 MAIN 5V MAIN2 3.3V DG11 Q3801 3 6 8 VCC SCLIN SDAIN 5V<->3.3V IC3803 SCLOUT VCC2 7 SDAOUT 1 2 9 HDMI_CE2 22 8 HPD3 23 MAIN2 3.3V IC3802 SDA SCL 8 7 6 5 WC DDC EEPORM(2kbit) VCC Q3802 Q3804 5 26 SDA 4 27 SCL 6 25 WP 7 24 HDMI 5V DET3 14 17 DDC5V MAIN 5V MAIN 5V MAIN2 3.3V GH HDMI IN 3 +5V HPDT D0+ CLK+ D2G D1- SCL DDCG D2- D0+ D0- DDC DATA D0- CLK- DG8 CLKG HDMI IN 1 D1+ HDMI IN 2 N.C. D0G D1G HPDT D2G CLK+ CLKG D1+ D0G DDC DATA D2+ DG9 D1G CLK- D2+ SCL DDCG D2- +5V CEC CEC N.C. D1- BDT2N BDT2P BDT1N 45 46 BCKN 6 BDT0P 9 BCKP 3 10 7 4 BDT1P BDT0N ADT2N 27 ADT0N ADT1N 33 ADT1P ADT0P ADT2P 28 ACKP 30 39 40 31 34 ACKN A B CE 25 36 (H:A/L:B) SEL YDT0N 14 YDT1N YDT1P 23 YDT2P 20 16 24 17 YCKN YDT2N YDT0P 21 13 YCKP EQUALIZER RECEIVER 47 39 ROX2- 43 40 44 TMDS DATA ROX2+ HDCP AND ROXC- CIPHER DECRYPTOR ROX1- ROX1+ ROXC+ ROX0+ TMDS DECODER 52 ROX0- 51 48 R1XC+ R1XC- R1X1- R1X2- R1X2+ R1X1+ CIPHER DECRYPTOR TMDS DATA 66 70 62 63 67 AND R1X0- R1X0+ HDCP TMDS DECODER 71 59 RECEIVER 58 IC1901 SDA SCL 8 7 6 5 WC DDC EEPROM VCC HDMI EQ & SW IC1903 Q1904 SDAIN 5V<->3.3V IC1909 SCLOUT VCC2 7 SDAOUT 3 6 8 VCC SCLIN 1 2 6 1 5 2 3 7 SWITCH IC1904 H:Aport=Front L:Bport=Rear 1 13 4 3 2 5 9 10 11 6 8 12 Q1907 INV. IC1902 L:Bport=Rear IIC SWITCH H:Aport=Front R0PWR5V 34 32 DSCL0 31 DSDA0 HDMI I/F RECEIVER IC4026 CSCL CSDA 28 27 SDA1 SCL1 VSYNC HSYNC ODCK 121 97 3 1 2 XTALIN DE MCLK LRCK INTERFACE AOUTR AUDIO DAC AUDIO Modulator 6 SMUTE SCK 5 H:MUTE INTERFACE Divider SDTI IC4028 PDN MCLK SD0 3 MAIN9V R 2 P AOUTL 7 BICK L Interpolator Modulator 77 AUDIO AMP 88 86 84 85 AUDIO Interpolator 1 6 2 3 4 5 10 11 MUTE OUT IC4025 INTERFACE 1 Data WS Clock YB0-YB9 123 UB0-UB9 VIDEO 142 136 INTERFACE 132 110 141 133 119 MAIN 1.8V MAIN 3.3V 14 9 8 7 VDD VDD VDD VDD D1 3.3V D2 30 29 DSDA1 S2 DSCL1 S1 Q4071 5V IC4022 SDA SCL 8 7 DDC EEPROM 6 VCC 5 WC R1PWR5V 33 Q4083 Q4084 INT RESET 104 102 Q1902 Q1901 Q4065 Q4068 HDMI CE1 HDMI_SEL L R 2 4 3 1 HDMI INTERFACE DG DIGITAL SIGNAL PROCESSOR MICOM AND 5V DET AUDIO MUTE CABLE OUT;LOW/MUTE CABLE IN;Hi/NORM Low;DETECT HPD5V Hi;MUTE Low;DETECT HPD5V CABLE IN;Hi/NORM CABLE OUT;LOW/MUTE AND 5V DET AUDIO MUTE Hi;MUTE HOTPLUG HOTPLUG MAIN2.5V VOUT 5 MAIN 2.5V MAIN 3.3V VOUT PLL 2.5V PLL 2.5V 1 IC4017 5 MAIN 3.3V IC4040 VDD 1 1 VDD 5 MAIN 3.3V VDD AD 2.5V AD 2.5V IC4014 VOUT 7 IC4030 PLL 3.3V MAIN 5V VOUT MAIN 1.8V VIN IC4032 8 MAIN1.2V VOUT PLL 3.3V MAIN1.8V MAIN 1.2V 1 IC4027 VOUT MAIN3.3V 1 DLL 2.5V VOUT 5 VDD VIN MAIN3.3V 1 5 5 MAIN1.8V IC4029 VIN CONT 2.5V 1 HDMI_WP 1 5 IC1503 PLL2 3.3V MAIN 5V VOUT VIN PLL2 3.3V TH-65PV600C DG-Board (1 of 4) and GH-Board Block Diagram TH-65PV600C DG-Board (1 of 4) and GH-Board Block Diagram 96 15.18.DG 电路板 (2/4) 方框图 AFC1 R_LED_STBY_LED KEY1 RM_IN AI_SENSOR SR SOUND_SOS SL TV_SUB_ON FAN_MAX FAN_SOS SUB_PR SUB_PB SUB_Y MAIN_Y MAIN_PR MAIN_PB PC_B PC_G PC_HS PC_VS PC_R SOS SP_MUTE MSP_RESET AUDIO_MUTE TV_MAIN_ON JTAG_FS_GC5 JTAG_TMS JTAG_TRST JTAG_BA_FS JTAG_TCK SOS SOS KEY_EDGE SW_OFF_DET MAIN_PB PC_G PC_B PC_R PC_HS MAIN_PR PC_VS REFCK_HDMI AP_DE VSIB CLKINB HSIB CLKINB2 SR SL HPD2 HDMI_CE2 HDMI_RST HPD1 HDMI_WP HPD3 HDMI_5V_DET3 HDMI_DAC_PD HDMI_5V_DET2 HDMI_INT HDMI_5V_DET1 HDMI_SEL SP_MUTE GC_RST AUDIO_MUTE MSP_RESET AI_SENSOR KEY_EDGE KEY1 AFC1 RM_IN R_LED_STBY_LED CVBS0 HDMI_CE1 G_LED_POWER ACTIVE_STB_LED HDMI_CEC FRCK CLKINB HSIB VSIB RGB_FB MAIN_Y CVBS1 RGB_CVBS RST MCU_RST MCU_RST JTAG_TMS JTAG_GC5_BA JTAG_BA_FS GC_RST JTAG_TCK JTAG_GC5_BA JTAG_TRST JTAG_TMS JTAG_FS_GC5 RGB_CVBS RGB_FB SUB_PR SUB_PB SUB_Y MAIN_SW1 MAIN_SW2 AFC2 ACTIVE_STB_LED CVBS0 CVBS1 AFC2 SUB_SW2 SUB_SW1 TP4029 STBY3.3V SUB3.3V 6 SUB_PB AUDIO MUTE 49 29 63 H1 8 STB3.3V 3 4 57 PC_G PC_B PC_HS PC_R 5 SUB_PR SCL0B SUB3.3V SDA0B SL 78 SR SDA0B 74 RST 55 77 16 SOS 51 53 45 MAIN_PB 73 STBY3.3V PC_VS SP_MUTE 43 TO 67 65 MAIN_PR HDMI_SR STBY5V SUB3.3V MAIN_Y SCL0B SL 27 SR SUB_Y 47 STB5V MSP RESET 7 15 80 1 HDMI_SL DG1 STBY_LED KEY_EDGE 12 RM_IN DG2 10 KEY1 AI_SENSOR H2 AFC1 6 1 3 TO 9 8 3 1 2 4 7 PA_SOS MAIN2_3.3V MAIN9V 33 34 SOUND SOS MAIN2_3.3V 6 2 7 SUB_ON SR MAIN2_3.3V 2 TUNER 5 MAIN2_3.3V 32 MAIN9V 8 4 SL TUNER MAIN_ON FAN_MAX 20 21 FAN_SOS MAIN 1.8V 15 MAIN1.8V 19 MAIN3.3V MAIN3.3V MAIN3.3V 18 DG20 PA20 TO 23 MAIN5V MAIN 5V SUB 5V SUB5V 25 29 SUB9V SUB 9V 30 SUB 9V MAIN2_1.5V 39 40 MAIN2_1.5V MAIN2_1.5V MAIN2_1.8V 38 CONT VOUT ADV 3.3V 5 VIN IC4013 ADV 3.3V MAIN5V 8 1 30 VIN3 24 UBOUT0 35 VIN1 IC4020 61 64 YGOUT0 Q4043,Q4051 85 UBOUT7 TRST Q4044,Q4052 SCL1 65 YGOUT7 SDA TCK 21 SDA1 23 25 22 TMS NRST SCL TDI 93 TDO Q4046,Q4054 VIN2 GC3FS 40 STB5V (SUB5V BACK UP) VIN STBY 3.3V STBY3.3V VIN Q1116 VOUT 4 D1107 5 3 IC1110 ON/OFF IC1111 RESET 1 4 Q1111 VOUT VDOUT Q1108 5 STB 1.5V Q1140,Q1141 VS_IN 58 AIN2 56 54 625i/p RGB Q4057 SCL2 78 525i/p AIN3 Q1130,Q1134 SW SEPA 3D/2D com Q4050,Q4058 MATRIX SYNC Sync AIN6 10bit A/D(ADV7499) ->YUV DETECT SDA Q4056 76 AIN4 SELF,ID,ED2 VPK SDA2 72 85 COLOUR AIN5 RESET 1080i 74 IC4019 82 NOISE LEVEL A/D (10bit) 720p CHROMA Macrovision AIN1 HS_IN 81 DEM. Detection 86 SCLK CLK 84 74 MAIN3.3V VDD DVD1.8V IC4018 5 VOUT VDD 1 PVD1.8V AVR 1.8V 5 IC4016 MAIN 1.8V 1 VOUT 1 VOUT IC4035 DDR 2.5V 5 CONT VIN DDR2.5V MAIN3.3V 8 94 91 YOUT0 7 YOUT7 14 UVOUT0 29 UVOUT9 22 42 41 ROUT0 33 ROUT3 30 Q1114 CLKINB1 CLKINB2 VSIB AP_DE HSIB REFCK_HDMI JTAG NRST PORT-B PORT-A (ADV7499) (FS&HDMI) 3D Y/C VSIA HS 4 99 DCLK_IN REFCK_ADV 38 CLK0A VS CLKIA LLC1 XTAL 36 35 HSIA SCL2 128M DDR SDRAM IC4038 SDA2 CK CK DIGITAL INPUT I/F IC4037 GC5 PROCESSOR 14 NR MIX I/P CONV. RESIZE 13 11 183 184 185 58 163 195 196 197 198 199 200 CECINA 165 186 HDMI_CEC Q1142,Q1143 HDMI_CE2 51 HDMI_5V_DET1 HDMI_5V_DET3 HDMI_INT HDMI_WP HDMI_SEL HPD3 HPD2 HPD1 HDMI_RST HDMI_5V_DET2 HDMI_DAC_PD CVBS0 142 151 CVBS1 Q4918 Q4919 42 MSP_RESET 61 52 GC_RST 45 AUDIO MUTE SP_MUTE REMOTE IN 46 KEY_EDGE 162 KEYSCAN1 AFC1 138 187 159 AI_SENSOR 160 R_LED_STBY_LED IC1103 MAIN MICOM 12 MICOM DG HDMI INTERFACE DIGITAL SIGNAL PROCESSOR STB1.5V MAIN3.3V HDMI_CE1 166 SDCLK0 SDNCLK0 SCL2 SDA2 G_LED 7 ACTIVE STB_LED 15 XTAL IN 16 73 CLK0 94 HPO 72 VPO DVD1.8V PVD1.8V ADV3.3V DVDD AVDD PVDD 51 FB Q4053,Q4055 AIN9 57 Q1131,Q1135 STB5V D1106 STBY5V Q1115,Q1113 R1283 Q4061 Q4061 Q4061 Q4061 TCK TRST TMS TDI TDO 61 RGB_FB 59 RGB_CVBS Q4040 Q4041 Q4012 13 MAIN_SW2 MAIN_SW1 12 ACTIVE_STB_LED AFC2 62 161 151 VREFL1 151 VREFL0 AFC2 14 SUB_SW1 9 10 SUB_SW2 TH-65PV600C DG-Board (2 of 4) Block Diagram TH-65PV600C DG-Board (2 of 4) Block Diagram 97 15.19.DG 电路板 (3/4) 方框图 CFG_TDI_A CFG_TMS_A CFG_TDO_A CFG_TCK_A OSD_YS CLK OSD_VS OSD_YM OSD_HS TV_MAIN_ON SOUND_SOS FAN_MAX FAN_SOS SOS MCU_RST SW_OFF_DET SW_OFF_DET TV_SUB_ON TV_SUB_ON MAIN_SW2 MAIN_SW1 SUB_SW2 SUB_SW1 (OSD INPUT) AI OSDYM GAMMA PORT_D CLKOE OSD MIX VSOE IC4037 14 GC5 PROCESSOR HSOE PIXEL CONVERTER OSDYS OSDHS CLK OSDVS OSD0-15 PORT-FHQ (GC3E&HQ1) THQ FHQ PORT-E (output for Panel) THQYO1-9 THQCO1-9 THQHOUT THQVOUT THQCKOUT FHQYIN0-9 FHQCIN0-9 FHQHIN FHQVIN FHQCKIN GOE0-9 ROE0-9 BOE0-9 YO0-YO9 HOUT,VOUT, CKOUT CO0-CO9 HIN,VIN, CKIN YIN0-9 CIN0-9 GOE0-GOE9 BOE0-BOE9 ROE0-ROE9 ROE GOE FHQ Y/C IC1401 Virtex4-SX25 FPGA1 IC1501 FPGA2 Spartan3E-1600 Y/C THQ YOF2FCOF POSTIP DLYYC TMP BOE TTL PARALLEL DATA -> LVDS(SERIAL) LVDS OUTPUT RB_O- RB_O+ RC_O+ RC_O- RD_O+ RD_O- RE_O+ RE_O- RCLK_O+ RCLK_O- RA_O+ RA_O- RC_E+ RD_E+ RC_E- RB_E+ RD_E- RE_E+ RA_E- RE_E- RB_E- RA_E+ POSTIP TMP YOF2FCOF DLYYC IIC RST 27MHz CFG DATA FPGA-RST CFG-DONE CFG-RST SDA SCL REFCK-FB TDO TMS TCK TMS SCL SDA REFCK-FB RST IIC TCK CFG DATA 27MHz CFG-RST TDI FPGA-RST CFG-DONE IC1604 16M SDRAM CE,OE,WE,BYTE A0-A18 DQ0-DQ7 RESET CFG_DONE 63 FPGA_RST 53 CFG_RST 86 Q1601 IC1601 RESET MAIN2_2.5V OUT 1 4 VDD CFG_RST REFCK_FB Q1301 Q1302 SDA2 SCL2 12 TO D5 2 1 4 5 6 4 DG5 7 11 9 10 15 1 O- LVDS1 E- LVDS0 O+ LVDS1 E+ LVDS0 E- LVDS3 E+ LVDSCLK E+ LVDS4 O- LVDS3 O+ LVDS0 E+ LVDS1 E- LVDSCLK O- LVDS0 E+ LVDS3 E- LVDS4 O- LVDS2 E+ LVDS2 E- LVDS2 E- LVDS1 O+ LVDS3 O+ LVDS2 31 30 28 29 20 21 24 25 23 26 O- LVDS4 O+ LVDS4 13 11 LVDS_PD 3 LVDS_PD R00 128 G00 OSDXI OSD 110 YMOUT R04 G05 122 109 117 111 107 105 HSYNC B00 VSYNC B04 YSOUT 123 116 112 215 SOUND SOS TV_SUB_ON 216 212 TV_MAIN_ON IC1103 MAIN MICOM POWER_SOS 209 FAN_SOS 211 6 FAN_CONT RTCXI OSCXO 136 X1101 135 168 169 X1100 RTCXO OSCXI IC1602 32M FIFO FIFO FOR IP DI0-DI31 DO0-DO31 IC1603 32M FIFO FIFO FOR BNR DI0-DI31 DO0-DO31 97 NRST ROM IC1101 16M RESET FLASH 22 21 12 MICOM DG HDMI INTERFACE DIGITAL SIGNAL PROCESSOR IC1302 DO0-DO19 DI0-DI19 FIFO FOR VSC 32M FIFO MAIN3.3V DDR2.5V MAIN1.2V Q1136 87 SW_OFF_DET SDRAM IC1100 16M STBY3.3V STBY3.3V MAIN2_3.3V MAIN_1.2V MAIN2_2.5V MAIN2_2.5V MAIN_1.2V MAIN2_3.3V MAIN2_3.3V SUB_SW1 194 193 MAIN_SW1 190 SUB_SW2 189 MAIN_SW2 TH-65PV600C DG-Board (3 of 4) Block Diagram TH-65PV600C DG-Board (3 of 4) Block Diagram 98 15.20.DG 电路板 (4/4) 方框图 ECO_ON DISPEN PANEL_SOS PANEL_STBY_ON STATUS PANEL_STBY_ON STATUS PANEL_SOS DISPEN ECO_ON D_RXD D_TXD D_SDA2 D_SCL2 D_IIC_CONT D_PDB1 D_PSLCT D_PDB0 D_PBUSY D_PSTB D_IIC_INT D_RXD D_IIC_CONT D_PSTB D_PBUSY D_PDB0 D_SCL2 D_IIC_INT D_PSLCT D_TXD CFG_TMS_A CFG_TDI_A CFG_TCK_A D_PDB1 D_SDA2 CFG-TDO-A TV_SUB_ON ALL_OFF ALL_OFF 22 21 MAIN3 1.2V VOUT 3 VOUT IC1907 VCTRL 4 6 5 MAIN3_1.2V VIN MAIN2_1.5V MAIN5V VOUT 3 6 5 MAIN5V MAIN2_1.2V VIN VOUT IC1908 VCTRL 4 MAIN2 1.2V MAIN2_1.5V MAIN2 2.5V 1 VOUT MAIN2_3.3V VDD MAIN2_2.5V IC1906 3 EEPROM WC 5 6 7 SDA SDA0A SCL0A IC1102 SCL 44 WP Q1137 (256kbit) SDA0A SCL0B SCL1 SCL2 SCL0A 100 SCL0B 132 SDA0B SCL0A 101 SDA1 102 SDA2 SDA0B Q1110 130 SCL2 131 103 SDA0A SDA2 SDA1 SCL1 133 Q1109 5 4 VMUTE 2 PANEL_SOS PANEL STATUS 1 Q1100 Q1101,1139 PANEL_STBY_ON ECO_ON 210 2 IIC_DATA1 D3 DISPEN 12 6 D_SCL2 D_PSTB D_TXD TUNER_SUB_ON 7 2 1 SCL1 4 11 D_PDB1 PANEL_STBY_ON SDA1 ECO_ON 16 D_PBUSY 8 2 0 (F_STBY_ON) D_SDA2 1 25 D_RXD 18 26 STBY5V 19 D_IIC_INT TO ALARM D_PSLCT 14 D_15V DG3 29 D_PDB0 STBY5V D_IIC_CONT 3 IIC_CLK1 23 READY 22 15 (PANEL_SOS) (STATUS) D_15V 208 MAIN3.3V_DET MAIN3.3V 205 STBY3.3V STBY5V SUB5V_DET SUB9V 207 206 STBY3.3V_DET Q1103 SUB5V SUB9V_DET IIC_CONT 6 16 18 PDB0 17 SCL1 9 RXD 2 D_15V PSLCT 10 HC01 12 14 SDA1 19 STBY5V PBUSY 21 IIC_DATA2 TDI TCK PDB1 IIC_INT IIC_CLK2 TXD PSTB 11 TMS 4 SCL1 5 13 15 D15V SDA1 STBY5V 7 8 SRQ 95 SCL0B SDA1 SDA2 STB5V SCL1 SDA0A SCL0A SCL2 SDA0B SRQ1 1 HC22 2 4 5 6 7 8 9 10 11 SDA1 SDA2 SCL1 SDA0A SCL0A SCL2 SDA0B SCL0B MAIN3.3V 2 HC23 1 3 SD_SBI SD_SBO 9 7 6 10 5 8 SD_RX MAIN2_2.5V SD_SDA CFG_TDO_A SD_TX SD_SCL STBY5V MAIN2_2.5V SD_SDA SD_SCL IC1103 MAIN MICOM MICOM DG HDMI INTERFACE DIGITAL SIGNAL PROCESSOR FACTORY FOR USE SD_RXD 59 SD_TXD 60 SD_SBI SD_SBO 18 ALL_OFF ALL_OFF 41 76 SD_BOOT 78 SD_RST STB1.5V STBY3.3V MAIN3.3V SD_RX STB5V SDA0A GND SD_TX SCL0A SRQ1 1 HC21 2 3 5 6 7 8 SDA0A SCL0A STBY5V SD_RESET 3 DG30 1 7 SSD_BOOT SD_TX MAIN5V 6 4 MAIN5V SD_RX 8 SD_SDA SD_SCL SW_OFF_DET 10 11 14 SD_SBI 15 SD_SBO SD_SDA SD_SBO SD_SBI SD_SCL SW_OFF_DET 1 2 4 6 3 5 DRIVER IC1122 Q1144 Q1145,Q1146 TO JG2 FOR FACTORY USED FOR FACTORY USED FOR FACTORY USED TH-65PV600C DG-Board (4 of 4) Block Diagram TH-65PV600C DG-Board (4 of 4) Block Diagram 99 15.21.DG 电路板 (1/13) 线路图 + AO_A6 AQ_D4 AO_A14 AQ_D13 AR_CLK AQ_D3 AR_RAS AQ_D10 AQ_D5 PANEL_STATUS AO_A8 AQ_D2 AO_A3 AO_A11 SDA0A AO_A6 AQ_D7 AQ_D9 AO_A7 AQ_D14 AO_A11 AQ_D4 AO_A12 AQ_D6 AQ_D6 MEMA10 AO_A2 AR_CS AQ_D10 AO_A9 AO_A19 AQ_D13 AO_A18 AR_CKE AQ_D1 AR_BA0 AR_CAS AP_CE AO_A9 AQ_D15 AQ_D12 AO_A0 TV_SUB_ON AO_A8 AO_A10 AR_LDQM AP_OE AQ_D0 AQ_D11 AQ_D5 AO_A15 AO_A5 AQ_D0 AQ_D9 AQ_D11 AQ_D12 AO_A12 AQ_D14 AO_A3 AQ_D8 AQ_D7 PANEL_SOS AO_A10 AP_WE AO_A17 AO_A4 AQ_D3 AQ_D15 AQ_D8 AR_UDQM AQ_D2 AO_A4 AO_A1 AR_WR AO_A13 AQ_D1 AO_A5 AO_A2 AO_A16 AO_A7 DISPEN PANEL_SCL1 PANEL_SDA1 D_IIC_CONT D_PSTB D_PBUSY D_PDB0 D_PSLCT D_PDB1 AO_A0 ALL_OFF ECO_ON D_IIC_INT D_SCL2 D_SDA2 PANEL_STBY_ON D_RXD D_15V D_TXD SCL0A R1124 3.3k R1116 5.6k TP1105 R1121 22 R1454 0 *C1109 10V 0.1u *C1102 10V 0.1u *C1223 6.3V 10u TP1101 *C1110 10V 0.1u R1122 22 *C1112 25V 270p TP1104 *C1114 10V 0.1u *C1103 25V 270p DG3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 *IC1101 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 *C1100 10V 0.1u *IC1102 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC STBY5V R1123 47k TP1108 R1105 1k R1117 0 C1116 10V 0.1u C1226 6.3V 10u TP1103 R1412 100k R1458 100 R1408 100k C1412 10V 0.1u R1413 100k L1101 J0JHC0000078 R1125 3.3k R1118 EXB2HV680JV R1102 1k C1406 10V 1u R1101 100 *R1417 0 *C1222 6.3V 10u R1103 1k R1119 EXB2HV680JV R1459 100 STBY3.3V *C1107 4V 100u TP1102 C3ABPG000145 IC1100 1 VDD 2 DQ0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 VDD 15 LDQM 16 /WE 17 /CAS 18 /RAS 19 /CS 20 BA0 21 BA1 22 A10 23 A0 24 A1 25 A2 26 A3 27 VDD 28 VSS 29 A4 30 A5 31 A6 32 A7 33 A8 34 A9 35 A11 36 NC 37 CKE 38 CLK 39 UDQM 40 NC 41 VSS 42 DQ8 43 VDDQ 44 DQ9 45 DQ10 46 VSSQ 47 DQ11 48 DQ12 49 VDDQ 50 DQ13 51 DQ14 52 VSSQ 53 DQ15 54 VSS STBY3.3V R1106 1k C1227 50V 100p Q1137 B1ABDF000034 *C1105 25V 270p 16M-FLASH IIC_CLK1 INEXCH F_STB_ON IIC_DATA1 P5V IIC_CLK2 ECO_ON IIC_DATA1 DISPEN READY Panasonic_Mode ALARM TVRP088 EEPROM TVRP085 64M SDRAM TO D-BOARD (D3) GND ALL_OFF GND GND PANEL_STBY_ON RXD STBY5V_F PSLCT P15V IIC_INT GND PDB1 GND IIC_CONT PBUSY TXD PDB0 PSTB 2 8 3 5 1 7 6 9 4 10 TNPA4061CK ! DG-BOARD (1/13) 4 C 1 2 B F 5 9 E 3 A D TH-65PV600C DG-Board (1 of 13) Schematic Diagram TH-65PV600C DG-Board (1 of 13) Schematic Diagram 6 7 8 100 15.22.DG 电路板 (2/13) 线路图 + + AO_A8 R_LED_STBY_LED GENX_R2 SDA0A AQ_D15 LVDS_PD GENX_G0 AO_A12 GENX_R1 GENX_B1 SDA1 AP_WE MEMA10 KEY1 GENX_HIN GENX_R3 PSM_LEDR_AFC1_KEY2 AUDIO_MUTE AQ_D2 SCL0A AR_RAS AQ_D9 AO_A2 AQ_D4 AO_A19 GENX_G2 SCL2 AR_BA0 SCL1 AO_A5 AO_A14 AO_A1 AQ_D14 AGC1_TXD PANEL_SOS AP_OE AQ_D5 AR_UDQM SOUND_SOS AO_A3 SCL1 GENX_G3 AR_CKE AI_SENSOR AO_A17 SDA0B AQ_D10 GENX_B2 PANEL_STATUS AO_A16 AQ_D12 GENX_B0 GC_RST AGC2_RXD AR_LDQM AQ_D0 AO_A6 KEY3_KEY_EDGE AR_CLK GENX_YS AQ_D11 AQ_D7 AO_A10 RST ALL_OFF AQ_D8 SOS SDA1 DISPEN GENX_R0 AQ_D3 ECO_ON SP_MUTE GENX_YM HDMI_DAC_PD AQ_D1 GENX_B3 GENX_CLKIN GENX_VIN AR_WR AQ_D13 AO_A15 G_LED_POWER A_MON_MUTE_MSP_RESET AR_CAS FAN_SOS AP_CE RST AQ_D6 AO_A9 GENX_G1 GENX_R4 AO_A18 QLINK_IN2_(MAIN_SW2) AO_A7 AR_CS AO_A11 AO_A4 AO_A13 SRQ SD_RST RM_IN MCU_RST TV_SUB_ON TV_SUB_ON SDA2 CFG_RST QLINK_SEL_(SUB_SW2) HDMI_INT PANEL_STBY_ON MCU_RST HDMI_5V_DET2 AO_A0 SD_BOOT HDMI_WP HPD1 SCL0B GENX_B4 GENX_G4 GENX_G5 CVBS0 CVBS1 CFG_DONE FPGA_RST HDMI_SEL HDMI_5V_DET3 HDMI_CE2 HPD3 HDMI_CE1 ODU_ON_ACTIVE_STB_LED FAN_MAX FORMAT_EDGE(MAIN) SW_OFF_DET SW_OFF_DET TV_MAIN_ON TV_MAIN_ON QLINK_OUT_(SUB_SW1) QLINK_IN1_(MAIN_SW1) HDMI_CEC HDMI_5V_DET1 M_SDA0 AFC2_AFT2_SUB-MUTE PANEL_SDA1 PANEL_SCL1 R1324 82k R1270 22 R1308 27k C1122 10V 0.1u R1207 100k R1222 33 R1283 100 C1221 50V 1000p STBY5V C1159 10V 0.1u R1151 100 C1168 10V 1u TP1121 Q1141 B1ABDF000034 C1120 10V 0.1u D1109 B0JCCE000008 R1177 100 STBY3.3V R1263 100 R1199 47k SUB5V MAIN3.3V *R1152 1k MAIN3.3V Q1142 B1ABDF000034 C1142 10V 0.1u R1182 68k R1410 1k R1327 68k R1176 12k R1256 1k R1140 68 R1530 0 R1214 10k R1282 15k R1322 10 Q1115 B1ABDF000034 R1316 10k STBY5V C1145 10V 0.1u R1246 9.1k R1269 0 R1236 2.7k R1156 100k R1165 15k R1175 56k MN103SB20RGL IC1103 1 ZMEMD29 2 ZMEMD28 3 ZMEMD27 4 ZMEMD26 5 ZMEMD25 6 ZMEMD24 7 IVSS 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 IVDD 17 - 18 - 19 - 20 - 21 MVSS 22 MVDD 23 - 24 - 25 - 26 - 27 DQM0 28 DQM1 29 SDCKI 30 IVDD 31 SDCLK 32 IVSS 33 SDCKE 34 NSDWE 35 NSDCAS 36 NSDRAS 37 NSDCS 38 SDBS0 39 - 40 MEMA10 41 ZMEMA11 42 ZMEMA9 43 ZMEMA8 44 ZMEMA7 45 ZMEMA6 46 ZMEMA5 47 ZMEMA4 48 IVSS 49 IVDD 50 ZMEMA3 51 ZMEMA2 52 ZMEMA1 53 ZMEMA0 54 VSS 55 VDD 56 - 57 - 58 - 59 - 60 - 61 - 62 - 63 - 64 A17 65 A16 66 A15 67 A14 68 - 69 - 70 - 71 - 72 - 73 IVDD 74 IVSS 75 A20 76 A21 77 NWE0 78 A22 79 A19 80 A18 81 RTCCNT 82 - 83 - 84 - 85 IVSS 86 - 87 - 88 IVDD 89 - 90 - 91 - 92 A2 93 NRE 94 NCS0 95 ZA1 96 VSS 103 SCL1 104 NTEST 105 HSYNC 106 IVSS 107 OSDXI 108 IVDD 118 G04 119 G03 120 G02 121 - 122 - 123 B04 124 B03 125 B02 126 B01 127 IVSS 128 - 129 IVDD 130 - 131 - 132 SDA0A 133 SCL0A 134 VSS 135 RTCXI 136 RTCXO 137 VDD 138 RMIN_IRQ0 139 ROMCNT 140 TEST 141 AVSS1 142 CVBS0 143 AVDD1 144 VREFL0 145 VREFH0 146 VCMO0 147 IREF0 148 VCMO1 149 VREFH1 150 VREFL1 151 CVBS1 152 AVSS2 153 AVDD2 154 PVDD 155 CLL 156 CLH 157 PVSS 158 IVSS 159 - 160 - 161 - 162 - 163 ADIN4 164 ADIN5 165 CECINA 166 CECINB 167 IVSS 168 OSCXO 169 OSCXI 170 IVDD 171 TRCD3 184 - 185 - 186 - 187 - 188 - 189 - 190 - 191 IVDD 192 IVSS 193 - 194 - 195 - 196 - 197 - 198 - 199 - 200 - 201 IVDD 202 IVSS 203 MVSS 204 MVDD 205 - 206 - 207 - 208 - 209 - 210 - 211 - 212 - 213 IVSS 214 IVDD 215 ZMEMD31 216 ZMEMD30 109 - 111 YSOUT 113 R03 115 R01 117 G05 110 - 112 R04 114 R02 116 - 172 TRCD2 173 TRCD1 174 TRCD0 181 VSS 182 VDD 183 - 97 NRST 98 VDD 99 PSCNT 100 SDA2 101 SCL2 102 SDA1 175 TRCST 176 TRCCLK 177 EXTRG1 178 EXTRG0 179 SDATA 180 SCLOCK C1153 4V 100u D1106 MA2J72900L C0EBY0000041 IC1111 1 VIN 2 VSS 3 ON/OFF 5 VOUT 4 VDOUT C1130 10V 0.1u C1132 10V0.1u JS1100 0 D1121 MA2J72900L R1290 4.7k C1134 50V 15p C1138 10V 0.1u C1157 50V 22p Q1143 B1ABDF000034 R1189 10k R1312 22 C1167 10V 1u C1141 10V 0.1u STBY5V R1168 0 R1315 33k R1134 1k X1100 H0J100500030 C1137 10V 0.1u C1146 10V 0.1u R1275 7.15k 1% C1178 10V 1u R1128 1.2k R1149 EXB2HV680JV R1226 22 R1331 100k X1101 H0J327200114 D1119 MA3X704A0L R1200 EXB2HV680JV R1215 100 STBY3.3V TP1107 Q1136 B1ABDF000034 STBY3.3V R1531 0 R1307 100k C1135 10V 0.1u Q1110 B1CBHD000002 STBY3.3V R1435 100 R1230 22 TP1106 C1160 6.3V 47u C1129 10V 0.1u R1220 68 C1156 50V 22p R1203 1k JS1101 0 R1148 EXB2HV560JV R1363 47k C1144 10V 0.1u R1279 22 R1310 22 R1344 100 C1131 10V 0.1u R1235 2.7k R1153 100 R1319 5.1k Q4919 B1ABDF000034 R1183 EXB28V680JX Q1113 B1ABDF000034 R1229 1.8k PA1101 K5H8012A0023 R1470 0 C1162 16V 0.01u R1450 10k R1250 560k R1216 100 R1268 0 STBY3.3V R1018 22 R1146 270 C1139 10V 0.1u C1161 10V 1u R1466 68k Q1111 B1ABDF000034 C1119 10V 0.1u *R1384 100 SUB9V L1104 J0JHC0000078 R1132 100 R1372 47k Q4918 B1ABDF000034 R1281 1k R1252 EXB2HV101JV R1251 EXB2HV101JV R1157 100 Q1140 B1ABDF000034 Q1139 B1ABDF000034 R1174 100 R1217 100 SUB3.3V R1239 12k 1% C1133 50V 15p R1375 100k R1314 10k R1169 0 Q1101 B1ABDF000034 Q1103 B1ABDF000034 R1258 47k C0CBCAD00016 IC1110 1 Vcont 2 GND 3 Np 5 Vin 4 Vout STBY3.3V R1232 3.3k C1154 10V 0.1u R1326 100k C1128 10V 0.1u Q1116 B1ABDF000034 R1141 68 C1127 10V 0.1u C1177 10V 0.33u R1224 47k C1152 10V 0.1u R1271 22 R1325 100k R1131 100 C1155 16V 0.01u R1311 22 C1149 10V 0.1u R1330 47k C1150 10V 0.1u R1159 12k *R1389 0 C1118 10V 0.1u R1323 82k SUB5V SUB3.3V R1223 1k R1164 12k SUB5V R1376 27k C1147 10V 0.1u JS4200 C1172 10V 0.1u R1231 47k D1107 MA2J72900L C1121 10V 0.1u JS1102 0 C1125 10V 0.1u Q1108 B1ABDF000034 R1218 68 R1113 3.3k R1329 47k R1249 47k R1368 18k C1190 16V 0.01u R1676 1k R1154 4.7k R1133 1k R1147 EXB2HV560JV R1332 100k R1309 22 R1280 22 R1234 0 R1233 3.3k C1158 10u 6.3V R1188 10k L1102 J0JHC0000078 R1467 47k R1181 100 Q1109 B1CBHD000002 R1318 5.1k C1136 10V 0.1u R1264 100 R1367 68k C1148 10V 0.1u Q1100 B1ABDF000034 R1221 3.3k MAIN3.3V SUB3.3V Q1114 B1ABDF000034 R1284 6.8k R1321 15k R1313 10k R1029 22 R1225 22 R1328 68k R1241 8.2k R1184 0 R1158 27k L1103 J0JHC0000078 R1228 22 R1187 EXB2HV680JV C1123 10V 0.1u R1243 1k C1140 10V 0.1u *R1162 47k *R1160 47k *R1301 0 *R1299 0 *R1300 0 *R1302 0 *R1340 47k *R1452 47k *R1480 47k *R1348 100 YMOUT0 MEMD5/D5/IRQ6A HOUTA A4/MEMA1 ADIN3 ADIN1 MEMD28/D28 MEMD6/D6/IRQ7A A10/MEMA7 ADIN0 SCL0B MEMD19/D19 MEMD30/D30 ZMEMD20/IRQ5B ZMEMD18/IRQ3B MEMD10/D10 MEMD20/D20 G01 A11/MEMA8 MEMD8/D8 A7/MEMA4 A8/MEMA5 ZMEMD21/IRQ6B ZMEMD23/IRQ8B MEMD29/D29 MEMD7/D7/IRQ8A MEMD27/D27 SDBS1/A1 VSYNC MEMD25/D25 MEMD31/D31 MEMD16/D16 ZMEMD19/IRQ4B SDA0B ZMEMD22/IRQ7B A6/MEMA3 B00 MEMD17/D17 G00 MEMD18/D18 MEMD21/D21 MEMD11/D11 VCLKOUTA ADIN2 MEMD24/D24 A5/MEMA2 A9/MEMA6 R00 MEMD22/D22 MEMD1/D1/IRQ2A ZMEMD16/NCS2B MEMD23/D23 MEMD4/D4/IRQ5A MEMD0/D0/NCS2A ZMEMD17/IRQ2B MEMD26/D26 MEMD15/D15 MEMD2/D2/IRQ3A MEMD14/D14 MEMD3/D3/IRQ4A A12/MEMA9 MEMD13/D13 A13/MEMA11 MEMD9/D9 MEMD12/D12 A3/MEMA0 MCU RESET STB1.5V 10 8 7 6 9 2 3 5 1 4 21 25 24 28 26 32 27 29 31 30 22 23 16 11 14 15 13 18 17 12 10 TNPA4061CK ! DG-BOARD (2/13) TH-65PV600C DG-Board (2 of 13) Schematic Diagram TH-65PV600C DG-Board (2 of 13) Schematic Diagram 101 15.23.DG 电路板 (3/13) 线路图 NP + NP 18 16 14 12 10 8 6 4 2 20 21 19 17 15 13 11 9 7 5 3 1 CVBS0 CVBS1 AFC2_AFT2_SUB-MUTE PSM_LEDR_AFC1_KEY2 KEY1 RM_IN G_LED_POWER R_LED_STBY_LED KEY3_KEY_EDGE D_15V EURO_TEXT D_IIC_CONT D_SCL2 D_SDA2 D_TXD D_RXD D_IIC_INT D_PSTB D_PDB0 D_PSLCT D_PDB1 AI_SENSOR SDA0B SCL0B SCL0A SDA0A SCL1 SDA1 SCL2 SDA2 SRQ D_PBUSY ODU_ON_ACTIVE_STB_LED CFG_TCK_A CFG_TMS_A CFG_TDI_A CFG_TDO_A SD_SDA SD_SCL SD_SBO SD_SBI AGC2_RXD AGC1_TXD SD_BOOT SD_SBO SD_SBI SD_SCL SD_SDA SW_OFF_DET AGC1_TXD AGC2_RXD AGC2_RXD AGC2_RXD AGC1_TXD AGC1_TXD SD_RST C1212 50V 150p Q1130 B1ABDF000034 R1204 100 R1416 0 MAIN3.3V R1212 0 *C1209 10V 1u R1237 10k C1220 16V 10u *Q1135 B1ABDF000034 R1273 47k R1538 560 JS1117 MAIN5V Q1134 B1ABDF000034 STBY3.3V Q1144 B1ABDF000034 *L1109 J0JHC0000078 R1501 1k R1546 560 DG30 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 R1500 100 HC23 1 2 3 4 5 6 7 8 9 10 HC22 1 2 3 4 5 6 7 8 9 10 11 R1379 330 Q1145 2SA207700L R1248 0 C4530 16V 47u R1543 0 C4531 10V 0.1u R1559 270 R1544 270 R1545 300 R1556 330 R1540 470 HC21 1 2 3 4 5 6 7 8 R1208 47k MAIN2_2.5V R1219 10k R1211 100 R1261 0 R1265 0 R1498 100 DG2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 R1260 0 R4890 0 MAIN3.3V R1499 100 STBY5V IC1122 C0JBAZ000851 1 1OE 2 1A 3 1Y 4 2OE 5 2A 6 2Y 7 GND 8 3Y 9 3A 10 3OE 11 4Y 12 4A 13 4OE 14 VCC C1294 50V 33p Q1131 B1ABDF000034 R1266 0 R1537 300 R1262 0 C1219 16V 10u R1532 470 HC01 1 SUB9V Q1146 B1ABDF000034 STBY3.3V SD_RX SDA0A STB5V 01 STB3.3V 02 IIC_CONT 03 GND 04 SCL1 05 SDA1 06 SCL2 07 SDA2 08 TXD 09 RXD 10 IIC_INT 11 PSTB 12 PBUSY 13 PDB0 14 PSLCT 15 PDB1 16 LED_G 17 LED_R 18 REMOCON 19 STB5V 20 GND 21 P15V SCL1 GND G_LED->TDI RIMOCON->TCK HC01 SRQ1 R_LED->TMS SCL0A SCL2 SDA0B SDA1 SDA2 SCL0B SRQ1 NC SD_TX GND STB5V SDA0A SCL0A SD_RX SD_TXD SD_RXD SD_RESET SD_BOOT SW_OFF_DET SD_SDA SD_SCL SRQ SD_SBI SD_SBO SD_RX SD_TX H;Reset H;Boot TO JG-BOARD (JG2) TO H-BOARD (H2) Active STB LED SD_TX AFC2 SD_IRQ KEY1 RM_IN GND SD_RST G_LED STBY_LED AI_SENSOR GND KEY_EDGE AFC1 FOR FACTORY USED FOR FACTORY USED FOR FACTORY USED FOR FACTORY USED 25 29 32 27 28 26 31 30 24 22 23 21 48 44 47 42 43 41 50 49 45 46 26 23 24 27 22 20 19 21 25 TNPA4061CK ! DG-BOARD (3/13) TH-65PV600C DG-Board (3 of 13) Schematic Diagram TH-65PV600C DG-Board (3 of 13) Schematic Diagram 102 15.24.DG 电路板 (4/13) 线路图 + + + + + + + + Thermal Pad + + + + + + + SDA1 JTAG_TMS UBIN6 UBIN7 YBIN2 UBIN3 YBIN7 UBIN8 JTAG_TCK HSIB YBIN4 UBIN2 JTAG_TRST VSIB YBIN5 UBIN9 SCL1 YBIN6 UBIN4 UBIN5 YBIN9 YBIN3 YBIN8 UVIN0 RIN3 UVIN1 RIN2 YIN5 UVIN7 RIN1 YIN4 UVIN6 RIN0 YIN3 UVIN5 YIN6 UVIN2 UVIN4 UVIN3 PC_HS CLKOA PC_VS PC_B CLKIA SCL2 YIN2 SDA2 YIN0 UVIN9 YIN1 RGB_CVBS UVIN8 PC_G HSIA PC_R YIN7 YIN8 VSIA YIN9 REFCK_ADV MAIN_Y/CVBS MAIN_PB/C EURO_TEXT MAIN_PR BS_Y(V) AUDIO_MUTE RST A_MON_MUTE_MSP_RESET SDA0B SCL0B HDMI_L HDMI_R PC_R PC_G PC_B PC_HS PC_VS SUB_PR SUB_PB SUB_Y RGB_CVBS MAIN_PR MAIN_Y/CVBS MAIN_PB/C SP_MUTE TV_MAIN_ON TV_SUB_ON SOS SL SL_GND SR SR_GND SL SL_GND SR SR_GND SOS JTAG_FS_GC5 CLKINB FAN_MAX TV_MAIN_ON FAN_SOS SUB_PB SUB_Y SUB_PR JTAG_BA_FS REFCK_HDMI SOUND_SOS QLINK_OUT_(SUB_SW1) QLINK_SEL_(SUB_SW2) QLINK_IN2_(MAIN_SW2) QLINK_IN1_(MAIN_SW1) R4563 22 MAIN2_1.5V R4484 0 C4265 10V 0.1u C4227 16V 0.082u C4226 50V 68p Q4051 2SD10300TL 1% R4532 470 1% R4526 1.4k *R4490 1k C1920 220u 4V STBY5V C4243 10V 1u JS4021 C4189 10V 0.1u JS4024 0 R4514 0 1% R4524 33 Q4059 2SA207700L R4478 470 *C4543 16V 0.1u C4212 220u 4V L4034 J0JCC0000077 TP1114 STBY3.3V C4275 10V 0.1u C4273 10V 0.1u C4149 10V 1u R4502 1k C1230 47u 16V R1426 0 R4497 1k C4250 10V 0.1u C4009 6.3V 4.7u C4217 16V 0.1u R4467 33 1% R4500 27k Q4041 B1ABDF000034 1%R4529 33 C4151 10V 1u C4239 10V 0.1u R4515 0 C4172 16V 0.1u C1229 47u 16V C1234 47u 16V C4244 10V 1u L4033 G1C100KA0009 C4204 10V 0.1u R4496 1k C4218 50V 1000p L4032 J0JHC0000078 SUB9V TP1113 C4165 10V 0.1u C4242 10V 0.1u SUB5V R4451 820 C4240 10V 0.1u C4176 6.3V 2.2u Q4050 B1ABDF000034 C4267 10V 0.1u R1352 47k R1427 0 MAIN9V C4200 47u 6.3V C4232 10V 0.1u 1% R4469 150 L4037 J0JCC0000077 R4552 22 EXB28V220JX R4547 0 R4554 22 L4029 J0JHC0000078 1% R4480 422 JS4013 0 1% R4447 910 C4188 10u 6.3V C4261 10V 0.1u R4491 0 TP1119 R1953 0 C4169 10V 1u Q4043 2SA207700L R4533 22 C4160 10V 0.1u Q4053 B1ABDF000034 1% R4482 1.78k L4031 J0JHC0000078 Q4040 B1ABDF000034 1% R4503 160 C4230 10V 0.1u C4234 10V 0.1u L4028 J0JHC0000078 C4269 10V 1u R4569 EXB2HV560JV R4435 180 C4162 10V 1u L4023 J0JHC0000078 TP4028 IC4017 C0CBCAC00282 1 VDD 2 GND 3 CE 5 VOUT 4 NC TP1906 L4021 J0JHC0000078 R4570 56 EXB28V560JX C4233 10V 0.1u R1428 0 R4565 22 R4556 22 C4215 10V 0.1u R1354 100 C4213 10V 0.1u C4177 16V 0.68u 1% R4523 33 1% R4487 560 R4510 0 C1228 47u 16V C4145 50V 5p C4263 10V 0.1u R4521 22 R4485 0 C4192 10V 0.1u C4255 50V 5600p R4562 56 1% R4539 1k JS4020 Q4052 2SD10300TL R4439 360 DG1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 TP4029 C4198 10V 1u 1% *R4470 150 L4038 J0JHC0000078 1% R4530 33 *R4535 100 L4027 J0JBC0000080 C4205 16V 0.1u C4259 6.3V 2.2u R4545 0 C4246 10V 0.1u C4272 47u 6.3V IC4013 C0CBCBF00009 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 NC 7 NC 8 VIN C4253 47u 6.3V C4181 16V 0.01u R4025 0 1% R4481 2.2k Q4058 2SA207700L C4216 47u 6.3V R1432 0 R4450 820 MAIN9V 1% R4483 1.78k R4544 22 1% R4531 2.7k 1% R4525 33 C4197 16V 0.1u SUB9V C4228 16V 0.01u C4235 16V 0.01u C4236 10V 0.1u C4277 6.3V 4.7u C4256 10V 1u C1AB00002456 IC4019 1 P32 2 P31 3 INT 4 CS/HS 5 DGND 6 DVDDIO 7 P15 8 P14 9 P13 10 P12 11 DGND 12 DVDD 13 P29 14 P28 15 SFL/SYNC_OUT 16 SCLK2 17 DGND 18 DVDDIO 19 SDA2 20 P11 21 P10 22 P9 23 P8 24 P27 25 P7 26 P6 27 P5 28 P4 29 P26 30 R_ACTIVE/P25 31 SRLIN/P24 32 SRLUP/P23 33 TRGIN/P22 34 P21 35 MEI_CK/DCLK_IN 36 BLC/LLC1 37 XTAL1 38 XTAL 39 DVDD 40 DGND 41 P3 42 P2 43 P1 44 P0 45 P20 46 ELPF 47 PVDD 48 PVDD 49 AGND 50 AGND 51 FB 52 SOG 53 AIN7 54 AIN1 55 AIN8 56 AIN2 57 AIN9 58 AIN3 59 ELPF2 60 AGND 61 CAPY1 62 CAPY2 63 AVDD 64 REFOUT 65 CML 66 AGND 67 BIAS 68 CAPC1 69 CAPC2 70 TEST0 71 AIN10 72 AIN4 73 AIN11 74 AIN5 75 AIN12 76 AIN6 77 SOY 78 RESET 79 DE_IN 80 ALSB 81 SDA 82 SCLK 83 P40 84 P39 85 VS_IN 86 HS_IN 87 P38 88 P37 89 DGND 90 DVDD 91 P19 92 P18 93 P17 94 P16 95 P36 96 P35 97 P34 98 FIELD/DE 99 VS 100 P33 MAIN1.8V IC4040 C0CBCAC00282 1 VDD 2 GND 3 CE 5 VOUT 4 NC 1% R4488 2.2k C4208 10V 0.1u C0CBCAC00275 IC4016 1 VDD 2 GND 3 CE 5 VOUT 4 NC C4257 6.3V 4.7u Q4046 2SA207700L R4516 0 MAIN5V R4477 470 Q4042 B1ABDF000034 R4541 0 C4142 16V 0.1u R4519 0 L4073 J0JHC0000078 JS4113 C4262 10V 0.1u 1% R4537 150 TP1120 1% R4445 3.6k DG20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 1% R4474 1.21k MAIN5V C4238 10V 0.1u C4168 50V 68p R4437 180 R4476 33 C4159 16V 0.1u R4008 0 R4557 22 IC4014 C0CBCAC00282 1 VDD 2 GND 3 CE 5 VOUT 4 NC C4209 10V 0.1u JS4015 0 JS4112 MAIN3.3V Q4054 2SD10300TL 1% *R4479 422 C4150 10V 1u C4245 10V 0.1u C4276 6.3V 2.2u C1AB00002202 IC4020 1 VROUT4 2 VROUT3 3 VROUT2 4 VROUT1 5 VROUT0 6 VDDE 7 VSS 8 VDDI 9 SASW 10 TEST 11 VPD 12 VDDE 13 VSS 14 XTALOUT 15 VDDI 16 XTALIN 17 VDDE 18 VSS 19 EXHPIN 20 EXVPIN 21 TCK 22 TRST 23 TMS 24 TDO 25 TDI 26 AVSAD1 27 VRH1 28 AVDAD1 29 VRL1 30 VIN1 31 AVSAD2 32 VRH2 33 AVDAD2 34 VRL2 35 VIN2 36 AVSAD3 37 VRH3 38 AVDAD3 39 VRL3 40 VIN3 41 AVDCLP 42 AVSCLP 43 UCLP 44 VCLP 45 YCLP 46 VRO1 47 VREF1 48 AVSDA1 49 AVDDA1 50 AOUT1 51 VDDE 52 BXS 53 VDDI 54 CW358 55 VSS 56 AVSPL1 57 AVDPL1 58 CPO1 59 VGS1 60 VSS 61 NRST 62 VDDE 63 CTRL1 64 SDA 65 SCL 66 VDDI 67 VSS 68 FRCLKO1 69 VDDE 70 FRCLKO2 71 CTRL0 72 VPO 73 HPO 74 YGOUT7 75 YGOUT6 76 YGOUT5 77 VSS 78 YGOUT4 79 YGOUT3 80 YGOUT2 81 VDDE 82 VDDI 83 YGOUT1 84 YGOUT0 85 UBOUT7 86 UBOUT6 87 VSS 88 UBOUT5 89 UBOUT4 90 UBOUT3 91 UBOUT2 92 UBOUT1 93 UBOUT0 94 CLKO 95 VDDI 96 VSS 97 VDDE 98 VROUT7 99 VROUT6 100 VROUT5 R1474 0 MAIN3.3V C4266 16V 0.01u R1429 0 C4264 10V 0.1u R4501 1k R4004 0 C4214 10V 1u C4175 16V 0.1u C1233 47u 16V 1% R4442 560 C4258 10V 0.1u C4186 6.3V 10u C4219 10V 1u C4158 10V 1u R4441 560 C1919 68u 4V SUB3.3V R4555 22 EXB28V220JX C4146 50V 5p JS4022 0 C4248 10V 0.1u R1954 0 1% R4536 150 TP1116 R4564 22 R4466 33 R4433 360 C4174 10V 0.1u C4251 10V 0.1u C1231 47u 16V TP1115 R4522 22 C4191 10V 0.1u C4173 16V 0.1u C1232 47u 16V R4561 22 EXB28V220JX C4252 1u 10V MAIN3.3V C4241 10V 0.1u TP1117 C4194 16V 0.1u *R4891 0 R4550 22 EXB28V220JX D1117 MAZ80430ML C4171 50V 470p R1952 0 C4220 16V 0.01u JS4111 1% R4495 43k R4560 22 EXB28V220JX *R4457 0 C4193 50V 1000p 1% R4538 150 C4268 10V 0.1u *R4534 100 JS4014 0 C4190 10V 0.1u C4211 10V 0.1u 1% R4517 1.37k 1% R4443 560 1% R4486 487 R4508 0 R1351 100 R4571 56 EXB28V560JX C4274 10V 0.1u C4237 10V0.1u C4195 16V 0.1u MAIN9V R4568 100 C4185 6.3V 10u C4144 50V 5p R1333 100 C4161 10V 1u C4182 10V 0.1u C0CBCAC00275 IC4018 1 VDD 2 GND 3 CE 5 VOUT 4 NC R4567 47 C4157 6.3V 10u C4544 10V 1u R4024 0 R4527 22 JS4016 MAIN2_3.3V C4229 16V 0.1u Q4056 2SA207700L TP1907 1% R4444 3.6k Q4044 2SA207700L R4543 0 C4199 16V 0.01u JS4023 0 R4489 330 C4206 16V 0.1u R4498 1k JS4017 R4499 1k R4553 100 R4551 0 C4224 10V 0.1u C4148 10V 1u R4548 910 R1430 0 *JS4108 *R4492 1k C4225 10V 1u R4454 680 *C4196 16V 0.1u C4231 10V 0.1u *Q4055 2SA207700L R4465 220k R4546 0 R4549 0 C4201 16V 0.01u C4187 47u 6.3V 1% R4449 1.37k 1% R4001 1.21k R1431 0 R4440 560 C4270 10V 0.1u TP4030 C4178 16V 0.039u C4180 16V 0.1u Q4057 2SA207700L TP1118 R4566 56 1% R4520 1.69k 1% R4528 33 MAIN3.3V MAIN3.3V *JS4103 R1377 0 MAIN3.3V *R1383 0 *R1254 0 *R1213 0 *R1382 0 *R4507 0 AD 2.5V GC3FS PLL2.5V SOUND_SOS MAIN9V SUB5V BT30V MAIN1.8V ODU_ON/OFF SUB9V SUB9V MAIN3.3V Tuner_Main_ON PA_SOS MAIN5V MAIN3.3V TUNER_SUB_ON SCL1(Main3.3V) SDA1(Main3.3V) FAN_SOS FAN_MAX MAIN2_3.3V MAIN2_3.3V MAIN2_3.3V MAIN2_1.5V MAIN2_1.5V MAIN2_1.5V GND GND GND SCL0B GND GND STB3.3V GND SOS SL SL SL_GND SL_GND SR_GND SR_GND SR SR BT30V(NC) BT30V(NC) MAIN_Y/CVBS MAIN_PB MAIN_PR RGB_CVBS RGB_FB PC_R SUB_PB SUB_Y SUB_PR PC_G PC_B PC_H PC_V BS_Y(V) NC BS_SR BS_SL MAIN_R MAIN_L HDMI_SR HDMI_SL AD_DAT AD_LRCK AD_BICK GND SDA0B AUDIO_MUTE SP_MUTE MSP_RESET RST STB5V SUB3.3 GND GND GND GND NC GND NC GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND MAIN_SW2 SUB_SW2 SUB_SW1 MAIN_SW1 ADV TO PA-BOARD (PA20) TO H-BOARD (H1) AVR 1.8V MAIN 1.8V AD 3.3V 50 45 44 47 46 43 49 48 41 42 67 68 66 65 63 69 61 62 70 71 32 34 35 31 29 33 28 30 36 TNPA4061CK ! DG-BOARD (4/13) < < < < < TH-65PV600C DG-Board (4 of 13) Schematic Diagram TH-65PV600C DG-Board (4 of 13) Schematic Diagram 103 15.25.DG 电路板 (5/13) 线路图 SIDE TERM + JTAG_GC5_BA JTAG_TMS JTAG_BA_FS HDMI_CE2 HDMI_CE1 SCL_R HPD3 HDMI_SEL SCL_H SDA_H HDMI_SEL SCL_H HDMI_5V_DET3 SDA_H SDA_R HPD1 SDA_R SCL_R GC_RST HPD2 R4899 0 Q1906 2SK122800L R1935 22 R1938 0 D1914 B0HCMM000014 D1910 EZJZ0V80008B C1904 0.1u 10V R1942 0 IC1901 C3EBDC000067 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC 0.1u 10V C1910 C1915 6.3V 10u R1927 0 R1926 47k C1908 0.1u 10V Q4064 B1ABDF000034 MAIN5V D1907 EZJZ0V80008B 0.1u 10V C1914 D1902 EZJZ0V80008B R1929 4.7k R1902 10k C1901 0.01u 16V DG11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 G2 G1 G3 MAIN2_3.3V R1922 10k 0.1u 10V C1912 DG9 K1FY119D0001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 D1903 EZJZ0V80008B 0.1u 10V C1913 R4575 4.7k IC1902 C0JBAS000128 1 1A 2 1B 3 2B 4 2A 5 2C 6 3C 7 GND 8 3A 9 3B 10 4B 11 4A 12 4C 13 1C 14 Vcc Q1905 2SK122800L D1913 B0HCMM000014 D1901 EZJZ0V80008B C1903 0.1u 10V Q1901 B1ABDF000034 R1945 0 R1907 10k R1924 4.7k TP1904 TP1902 R4572 10k R1941 0 R1915 2.7 Q4062 B1ABDF000034 L1902 56 ERJ3GEYJ560V 33u 6.3V C1907 SUB5V R1949 100k R1943 0 TP1903 R1905 22 R1932 10k D1908 EZJZ0V80008B TP1901 Q1907 B1ABDF000034 0.1u 10V C1916 R1946 0 R1919 2.7 C1906 0.1u 10V MAIN3.3V D1911 EZJZ0V80008B R1914 2.7 0.1u 10V C1909 R1939 56 R1921 10k C1AB00002641 IC1903 1 TEST 2 VCC 3 BDT0N 4 BDT0P 5 GND 6 BDT1N 7 BDT1P 8 GND 9 BDT2N 10 BDT2P 11 VCC 12 REXT 13 YDT2P 14 YDT2N 15 GND 16 YDT1P 17 YDT1N 18 VCC 19 VCC 20 YDT0P 21 YDT0N 22 GND 23 YCKP 24 YCKN 25 CE 26 VCC 27 ACKN 28 ACKP 29 GND 30 ADT0N 31 ADT0P 32 GND 33 ADT1N 34 ADT1P 35 VCC 36 SEL 37 VCC 38 VCC 39 ADT2N 40 ADT2P 41 GND 42 VCC 43 VCC 44 GND 45 BCKN 46 BCKP 47 VCC 48 VCC C1917 10V 0.1u R1918 2.7 R1934 22 L1905 J0JHC0000078 MAIN5V R1906 1k R1948 0 C1902 0.01u 16V R1920 2.7 R1944 0 C1941 0.1u 10V R4579 2.2k R1947 0 R1910 39 Q1902 B1ABDF000034 R4577 2.2k D1904 EZJZ0V80008B Q4061 B1ABDF000034 0.1u 10V C1911 D1909 EZJZ0V80008B R1964 0 1% R1931 4.7k R1928 0 R1940 56 D1905 EZJZ0V80008B IC1904 C0JBAS000251 1 2 3 4 5 6 7 8 R1917 2.7 L1903 56 ERJ3GEYJ560V C1918 10V 0.1u R1903 22 Q4063 B1ABDF000034 MAIN2_3.3V R1930 4.7k IC1909 C0ZBZ0001038 1 Vcc2 2 SCLOUT 3 SCLIN 4 GND 5 ACC 6 SDAIN 7 SDAOUT 8 Vcc D1906 EZJZ0V80008B L1904 J0JHC0000078 Q1904 B1ABDF000034 D1912 MAZ30560ML R4578 2.2k R1913 2.7 R1951 47k R1925 4.7k L1901 J0JHC0000078 R1901 10k R1904 22 TP1905 C1940 0.1u 10V R1916 2.7 D2G +5V D2- SCL HPDT SDA CLKG D0+ D1- CEC D1G N.C. D2+ CLK+ D0G D1+ CLK- DDCG D0- SCL D2+ SCL D0- WP H:Aport=Front L:Bport=Rear D1- CEC SDA D0+ CLK+ HDMI_CE1 Main2_3.3V Main5V DDC5V CLK- HPD3 D1+ Main2_3.3V D2- EDID EEPROM EDID EEPROM TO GH-BOARD (GH11) 5V<->3.3V SWITCH IIC SWITCH 71 68 67 69 70 61 62 66 65 63 94 89 90 98 81 95 96 100 93 86 82 88 97 91 92 99 87 85 83 101 102 105 103 104 41 45 42 38 44 43 37 40 39 TNPA4061CK ! DG-BOARD (5/13) < TH-65PV600C DG-Board (5 of 13) Schematic Diagram TH-65PV600C DG-Board (5 of 13) Schematic Diagram 104 15.26.DG 电路板 (6/13) 线路图 Thermal Pad + + + + SCL1 HDMI_DAC_PD UBIN3 UBIN2 UBIN9 YBIN6 HDMI_INT UBIN0 HDMI_RST YBIN2 UBIN7 YBIN4 UBIN6 VSIB AP_DE SDA1 YBIN3 UBIN1 HSIB YBIN7 YBIN0 UBIN5 YBIN9 UBIN4 UBIN8 REFCK_HDMI YBIN5 YBIN8 DDC_SCL1 DDC_SDA1 YBIN1 CLKINB2 HDMI_R HDMI_L HDMI_5V_DET2 HDMI_5V_DET2 HDMI_CEC HPD2 HDMI_WP HDMI_5V_DET1 HDMI_5V_DET1 D4037 EZJZ0V80008B C1AB00002535 IC4026 1 DE 2 HSYNC 3 VSYNC 4 IOGND 5 IOVCC 6 NC 7 NC 8 NC 9 EVNODD 10 NC 11 NC 12 NC 13 NC 14 NC 15 IOGND 16 IOVCC 17 NC 18 NC 19 NC 20 NC 21 CGND 22 CVCC18 23 CVCC18 24 CGND 25 IOGND 26 IOVCC 27 CSDA 28 CSCL 29 DSDA1 30 DSCL1 31 DSDA0 32 DSCL0 33 R1PWR5V 34 R0PWR5V 35 CVCC18 36 CGND 37 PVCC0 38 AVCC 39 R0XC- 40 R0XC+ 41 AGND 42 AVCC 43 R0X0- 44 R0X0+ 45 AGND 46 AVCC 47 R0X1- 48 R0X1+ 49 AGND 50 AVCC 51 R0X2- 52 R0X2+ 53 AGND 54 TMDSPGND 55 PVCC1 56 RSVD_A 57 AVCC 58 R1XC- 59 R1XC+ 60 AGND 61 AVCC 62 R1X0- 63 R1X0+ 64 AGND 65 AVCC 66 R1X1- 67 R1X1+ 68 AGND 69 AVCC 70 R1X2- 71 R1X2+ 72 AGND 73 CGND 74 CVCC18 75 IOGND 76 IOVCC 77 MUTEOUT 78 SPDIF 79 CVCC18 80 CGND 81 NC 82 NC 83 NC 84 SD0 85 WS 86 SCK 87 NC 88 MCLK 89 IOVCC 90 IOGND 91 CGND 92 CVCC18 93 NC 94 AUDPVCC18 95 AUDPGND 96 XTALOUT 97 XTALIN 98 XTALVCC 99 REGVCC 100 NC 101 RSVDL 102 RESET# 103 SCDT 104 INT 105 CVCC18 106 CGND 107 CLK48B 108 IOGND 109 IOVCC 110 Q23 111 Q22 112 Q21 113 Q20 114 CVCC18 115 CGND 116 Q19 117 Q18 118 Q17 119 Q16 120 IOGND 121 ODCK 122 IOVCC 123 Q15 124 Q14 125 Q13 126 Q12 127 CGND 128 CVCC18 129 Q11 130 Q10 131 Q9 132 Q8 133 Q7 134 IOVCC 135 IOGND 136 Q6 137 Q5 138 CGND 139 CVCC18 140 Q4 141 Q3 142 Q2 143 Q1 144 Q0 R4101 10k R4633 22 R4591 2.7 R4027 1k C4339 2.2u 6.3V D4034 EZJZ0V80008B R4673 10k C4347 1u 10V R4640 22 D4051 B0HCMM000014 C4338 0.1u 10V R4594 2.7 R4590 2.7 R4010 0 D4041 EZJZ0V80008B C4307 0.1u 10V TP4035 R4647 22 C4320 0.1u 10V R4605 10k MAIN5V R4617 4.7k L4051 J0JHC0000078 R4272 0 R4286 0 C4330 0.1u 10V R4607 22 R4032 10k D4033 EZJZ0V80008B MAIN9V R4661 4.7k C4350 50V 180p L4050 J0JHC0000078 C4283 0.1u 10V C4343 16V 10u MAIN3.3V C4329 0.1u 10V C4312 0.01u 16V C4304 1u 10V C4302 1u 10V Q4071 B1MBACA00008 G1 D1 S1 G2 D2 S2 C4344 10u 6.3V R4037 100 R4271 0 TP4033 C4315 6.3V 10u C4327 0.1u 10V L4076 J0JHC0000078 C4297 0.1u 10V C4333 0.1u 10V R4665 EXB2HV220JV D4048 MAZ30560ML C4351 50V 180p D4045 EZJZ0V80008B C4349 16V 0.01u C4314 0.1u 10V R4668 68 R4631 4.7k C4348 16V 47u L4071 J0JBC0000080 1% R4682 33k D4027 EZJZ0V80008B C4331 6.3V 10u C4354 0.01u 16V D4025 EZJZ0V80008B R4040 0 IC4022 C3EBDC000067 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC C4299 1u 10V R4658 22 R4632 4.7k L4052 J0JCC0000077 D4023 EZJZ0V80008B R4662 22 C4313 0.1u 10V D4029 EZJZ0V80008B D4019 EZJZ0V80008B C0DBFFD00003 IC4027 1 2 3 4 5 6 7 R4644 22 C4309 0.1u 10V 33u 6.3V C4289 R4655 33 L4046 J0JHC0000078 TP4066 C0FBBK000047 IC4025 1 MCLK 2 BICK 3 SDTI 4 LRCK 5 PDN 6 SMUTE/CSN 7 ACKS/CCLK 8 DIF0/CDTI 9 P/S 10 AOUTR 11 AOUTL 12 VCOM 13 VSS 14 VDD 15 DZFR 16 DZFL R4637 33 C4291 0.1u 10V R4672 10k Q4068 B1ABDF000034 C4353 50V 33p L4042 J0JHC0000078 C4303 1u 10V C4317 0.1u 10V Q4083 2SK122800L 1% R4679 22k R4619 47k R4645 22 R4648 33 R4642 22 R4641 EXB28V330JX C4300 1u 10V C4311 0.1u 10V C4346 0.1u 10V R4595 2.7 R4669 EXB2HV220JV C4352 50V 33p IC4028 C0ABBB000230 1 2 3 4 5 6 7 8 R4593 2.7 R4643 22 R4610 10k TP4031 1% R4677 18k C4298 1u 10V L4043 J0JHC0000078 D4030 EZJZ0V80008B 1% R4675 18k JS4104 R4589 2.7 L4040 J0JHC0000078 R4045 0 R4620 56 R4612 4.7k C4306 1u 10V C4340 470p 50V R4667 EXB2HV220JV C4325 0.1u 10V Q4084 B1ABDF000034 MAIN3.3V C4335 0.1u 10V C4318 0.1u 10V R4639 10k C4334 0.1u 10V C4308 0.1u 10V DG8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 C4337 0.1u 10V R4624 56 1% R4681 33k L4078 J0JHC0000078 C4336 0.1u 10V C4296 6.3V 10u C4341 16V 47u L4049 J0JBC0000080 C4345 10u 6.3V C4301 1u 10V D4021 EZJZ0V80008B R4592 2.7 C4322 0.1u 10V C4321 0.1u 10V C4316 0.1u 10V C4332 1u 10V C4541 0.1u 10V R4657 1.8k C4287 0.1u 10V D4052 B0HCMM000014 R4583 39 R4036 100 C4305 1u 10V L4048 J0JHC0000078 C4342 0.1u 10V R4596 2.7 1% R4680 22k C4281 0.1u 10V C4026 0.1u 10V Q4065 B1ABDF000034 DDCG CEC D2+ GND +5V Cn D0+ CLK+ D0G D1- HDMI_SCL D1+ D2G CLKG HDMI_SDA HDMI_Y0 HDMI_Y1 - HDMI_Y2 N.C. 1 D2- HDMI_Y3 3 HDMI_Y4 HDMI_Y5 + - HDMI_UV0 HDMI_UV2 NC 6 HDMI_Y6 D1G HDMI_UV6 HDMI_Y7 HDMI_CLK Audio DAC + SDA Vin sub SCL HDMI_UV4 CLK- HDMI_UV3 CONT HDMI_UV5 Vo HDMI_UV1 4 HDMI_UV7 D0- 5 HDMI_VS 2 HDMI_DE HDMI_HS HPDT G D S EDID EEPROM HDMI I/F LSI AUDIO AMP 101 104 102 105 103 100 95 93 94 91 97 89 96 90 99 82 81 83 87 92 98 86 85 88 126 127 122 123 128 129 125 52 51 47 46 49 54 53 50 48 121 TNPA4061CK ! DG-BOARD (6/13) MAIN_1.8V TH-65PV600C DG-Board (6 of 13) Schematic Diagram TH-65PV600C DG-Board (6 of 13) Schematic Diagram 105 15.27.DG 电路板 (7/13) 线路图 A_DDR_DQ2 CLKIA A_DDR_DQ18 YBIN2 A_DDR_DQ1 VSIA CLKINB A_DDR_DQ17 A_DDR_DQ0 YBIN4 CLKOA UVIN0 A_DDR_DQ16 A_DDR_DQ19 YBIN7 YIN1 A_DDR_DQ20 RIN1 AP_DE A_DDR_DQ21 UVIN1 VSIB A_DDR_DQ22 HSIA UVIN3 A_DDR_RAS RIN0 YBIN1 HSIB RIN2 YIN9 A_DDR_WE A_DDR_DQ23 YIN0 YBIN6 UBIN3 UVIN9 A_DDR_BA0 RIN3 YBIN9 A_DDR_BA1 UBIN2 YIN3 YBIN5 UBIN7 YIN7 REFCK_ADV A_DDR_DQ25 A_DDR_A8 UVIN6 A_DDR_DQ26 YIN6 A_DDR_A7 A_DDR_NCLK A_DDR_DQ27 A_DDR_A5 YIN2 A_DDR_CLK A_DDR_DQ28 A_DDR_A6 A_DDR_DQ10 UBIN1 UVIN7 A_DDR_DQS1 A_DDR_DQ9 A_DDR_A1 REFCK_HDMI A_DDR_DQ29 A_DDR_DQS3 UBIN9 YIN5 A_DDR_A9 A_DDR_DQ30 A_DDR_DQS2 UVIN2 UBIN6 A_DDR_DQ8 A_DDR_A2 A_DDR_SDCKE UVIN4 UBIN4 A_DDR_DQ15 A_DDR_A0 A_DDR_DQ24 A_DDR_CAS A_DDR_DQ3 A_DDR_A4 UBIN8 A_DDR_DQ31 A_DDR_A3 A_DDR_DQS0 A_DDR_DQ4 UBIN0 A_DDR_DQ14 UVIN5 A_DDR_A11 A_DDR_DQ5 UBIN5 A_DDR_DQ13 A_DDR_A10 UVIN8 A_DDR_DQ6 A_DDR_DQ12 YBIN0 YIN8 A_DDR_DQ11 YBIN3 CLKINB2 A_DDR_DQ7 YIN4 YBIN8 REFCK_FS FHQCIN9 FHQCIN8 FHQCIN6 FHQCIN5 FHQCIN2 FHQCIN3 FHQCIN7 FHQCIN0 FHQCIN1 FHQCIN4 FHQYIN9 FHQYIN8 FHQYIN7 FHQYIN6 FHQYIN5 FHQYIN4 FHQYIN3 FHQYIN2 FHQYIN1 FHQYIN0 FHQHIN FHQVIN FHQCKIN THQCO6 THQCO2 THQCO9 THQCO8 THQCO7 THQCO5 THQCO4 THQCO3 THQCO1 THQCO0 THQCKO THQVOUT THQHOUT THQYO8 THQYO4 THQYO9 THQYO7 THQYO6 THQYO5 THQYO3 THQYO2 THQYO0 THQYO1 IC4037 N1 RVIA2 IC4037 AF8 GND IC4037 Y27 GND IC4037 C8 THQYO3 R1567 22 IC4037 M4 GND IC4037 B6 THQCO0 IC4037 T1 BUIA7 R1568 22 IC4037 Y5 GND IC4037 P1 BUIA2 R4701 68 IC4037 T5 GND IC4037 T2 BUIA6 IC4037 AD1 DQ25 IC4037 H4 YIB1 IC4037 W1 GYIA4 IC4037 AH1 DQ8 IC4037 AC1 DQ29 IC4037 C11 FHQYIN4 IC4037 G5 GND IC4037 R14 GND IC4037 C7 THQYO7 IC4037 AG2 DQ10 IC4037 AG16 GND IC4037 AA3 GND IC4037 U14 GND IC4037 AA5 GND IC4037 AF24 GND IC4037 M5 GND IC4037 L27 GND IC4037 Y3 GYIA5 IC4037 AJ13 DQ16 IC4037 AJ26 GND IC4037 AF25 GND IC4037 W27 GND IC4037 R3 BUIA3 IC4037 AH2 DQ9 IC4037 B14 FHQCIN6 IC4037 D27 GND IC4037 E25 GND IC4037 U15 GND IC4037 T13 GND IC4037 AF20 GND IC4037 D1 UVIB0 IC4037 AK4 A8 IC4037 D18 GND IC4037 N3 RVIA0 IC4037 M26 GND IC4037 H2 YIB3 IC4037 AF2 DQ13 R4711 10k IC4037 AF12 GND IC4037 B11 FHQYIN5 IC4037 A14 FHQCIN7 IC4037 AG15 GND IC4037 A11 FHQYIN6 IC4037 A5 THQCO3 IC4037 C10 FHQYIN7 IC4037 AJ14 DQ6 IC4037 L1 BUIA1 IC4037 A7 THQYO5 IC4037 U16 GND IC4037 AJ10 DQ23 IC4037 D5 THQCO6 IC4037 P18 GND IC4037 E3 UVIB1 IC4037 E22 GND IC4037 C3 GND IC4037 E18 GND IC4037 H1 YIB4 IC4037 AH14 DQ7 IC4037 C13 FHQCIN8 R4709 68 R1565 22 IC4037 E26 GND IC4037 AK16 DQ1 IC4037 J5 GND IC4037 AK2 GND IC4037 N2 RVIA1 IC4037 AH11 DQ20 IC4037 U5 GND IC4037 AG22 GND IC4037 U13 GND IC4037 AK9 WE IC4037 T27 GND IC4037 D6 THQCO2 IC4037 AK1 GND IC4037 D8 THQYO4 IC4037 D14 GND IC4037 AH26 GND IC4037 AF23 GND IC4037 AG13 GND IC4037 R1 BUIA5 IC4037 D21 GND IC4037 E13 GND IC4037 N5 GND IC4037 AG1 DQ14 IC4037 D22 GND IC4037 AB1 DQ31 IC4037 D2 CLKIB2 IC4037 R19 GND *R4023 68 IC4037 AD5 GND IC4037 R2 BUIA4 IC4037 AK15 DQ5 IC4037 E5 GND IC4037 AH12 DQ19 IC4037 E1 UVIB2 IC4037 M15 GND IC4037 F3 UVIB4 IC4037 AG24 GND IC4037 W14 GND IC4037 W17 GND IC4037 G2 UVIB9 IC4037 K4 YIB9 IC4037 D9 THQYO0 IC4037 AH20 GND IC4037 AH13 DQ17 IC4037 C1 ENBIB IC4037 U3 RVIA6 IC4037 AH10 CAS IC4037 J1 YIB8 IC4037 E9 GND IC4037 Y26 GND IC4037 M16 GND IC4037 G1 YIB0 IC4037 P19 GND IC4037 AF1 DQS1 IC4037 AK29 GND IC4037 AH23 GND IC4037 M1 CLKOA IC4037 AK3 SDCLKO IC4037 AK18 GND IC4037 C12 FHQYIN1 IC4037 T3 RVIA5 IC4037 AJ8 A0 IC4037 W26 GND IC4037 A9 FHQCKIN IC4037 P2 RVIA4 IC4037 B15 FHQCIN3 IC4037 U2 RVIA7 IC4037 D4 GND IC4037 Y2 GYIA6 IC4037 J3 YIB6 IC4037 AK24 GND R1563 EXB2HV220JV IC4037 AH16 DQ0 IC4037 AG23 GND IC4037 AA4 GND IC4037 F2 UVIB5 IC4037 T15 GND IC4037 N4 GND IC4037 AE1 DQS3 IC4037 J4 YIB5 IC4037 T26 GND IC4037 AK5 A6 IC4037 AG8 GND IC4037 AH3 GND IC4037 U12 GND IC4037 W2 VSIA IC4037 AH15 DQ3 IC4037 G26 GND IC4037 AG9 GND IC4037 D17 GND R1561 22 IC4037 AH6 A9 IC4037 AF15 GND IC4037 AJ4 CKE IC4037 C16 FRCKO2 IC4037 E10 GND IC4037 A2 CLKOTHQ1 IC4037 K2 VSIB IC4037 AK17 GND IC4037 AJ2 GND IC4037 R18 GND IC4037 AF13 GND IC4037 AG4 GND IC4037 A8 THQYO1 IC4037 AJ5 A5 R1560 EXB2HV220JV IC4037 AJ28 GND IC4037 B9 FHQVIN R4706 0 IC4037 AH18 GND IC4037 AE4 GND IC4037 R26 GND IC4037 A30 GND IC4037 M3 FRCKO1 IC4037 V1 GYIA3 IC4037 AC26 GND IC4037 C6 THQCO1 IC4037 AJ16 DQ2 IC4037 A10 FHQYIN9 IC4037 A16 FHQCIN1 IC4037 R12 GND IC4037 B16 FHQCIN0 IC4037 R27 GND R1566 22 IC4037 G3 UVIB8 IC4037 F1 UVIB6 IC4037 AF9 GND IC4037 AJ3 NSDCLO IC4037 MN84522-A A1 GND IC4037 K3 HSIB IC4037 AJ24 GND IC4037 B29 GND IC4037 C9 FHQHIN IC4037 AK13 GND IC4037 B10 FHQYIN8 IC4037 AD26 GND IC4037 AD2 DQ27 IC4037 AD3 DQ26 IC4037 AE3 DQ15 IC4037 AF16 GND IC4037 AK14 DQS0 IC4037 AH5 A7 IC4037 Y1 GYIA7 IC4037 N17 GND IC4037 W3 HSIA IC4037 AJ17 GND IC4037 M27 GND IC4037 AK11 DQS2 IC4037 H5 GND IC4037 AJ9 RAS IC4037 AG12 GND IC4037 L3 CLKIA2 IC4037 J2 YIB7 IC4037 G27 GND IC4037 AJ11 DQ21 IC4037 E2 CLKIB1 IC4037 AJ20 GND IC4037 AH9 BA0 IC4037 AH17 GND IC4037 E21 GND R1564 22 IC4037 B2 GND IC4037 AJ12 DQ18 IC4037 F4 UVIB3 IC4037 B3 THQVOUT IC4037 H27 GND IC4037 B12 FHQYIN2 IC4037 V3 GYIA1 IC4037 C5 THQCO5 IC4037 AH21 GND IC4037 A13 FHQYIN0 R1562 22 IC4037 AJ15 DQ4 IC4037 P17 GND IC4037 B13 FHQCIN9 IC4037 N16 GND IC4037 AJ6 A4 IC4037 AC2 DQ30 IC4037 M2 CLKIA IC4037 AF4 GND IC4037 M17 GND IC4037 T4 GND IC4037 C14 FHQCIN5 IC4037 AK12 GND IC4037 V15 GND R4708 68 IC4037 E14 GND IC4037 B5 THQCO4 IC4037 U1 GYIA0 IC4037 AK6 A11 IC4037 AG3 DQ11 IC4037 AK7 A1 IC4037 A4 THQCO7 IC4037 AK8 BA1 IC4037 P15 GND IC4037 AF3 DQ12 IC4037 R16 GND IC4037 L26 GND IC4037 P3 RVIA3 IC4037 D7 THQYO8 IC4037 D10 GND IC4037 AH8 A2 IC4037 P16 GND IC4037 AC3 DQ28 IC4037 AG25 GND IC4037 G4 UVIB7 IC4037 C4 THQCO9 IC4037 V14 GND IC4037 AD4 GND IC4037 E17 GND IC4037 G28 GND IC4037 K1 FRCKO3 IC4037 A6 THQYO9 IC4037 V17 GND IC4037 T14 GND IC4037 AH27 GND IC4037 E6 GND IC4037 AH7 A3 IC4037 C28 GND IC4037 A12 FHQYIN3 IC4037 AE2 DQ24 IC4037 R13 GND IC4037 B7 THQYO6 IC4037 H3 YIB2 IC4037 R17 GND IC4037 F6 GND IC4037 AJ7 A10 IC4037 T12 GND IC4037 V2 GYIA2 IC4037 L2 BUIA0 IC4037 AK10 DQ22 IC4037 AG26 GND IC4037 C15 FHQCIN2 IC4037 AH24 GND IC4037 B4 THQCO8 IC4037 A15 FHQCIN4 IC4037 A3 THQHOUT IC4037 B8 THQYO2 IC4037 H26 GND IC4037 N15 GND PORT-A(ADV7499) PORT-B(FS&HDMI) PORT-FHQ(GC3E&HQ1) 27MHz 27MHz 151 149 150 146 147 148 142 143 145 122 123 129 125 128 126 127 58 61 62 59 57 60 55 56 63 141 121 TNPA4061CK ! DG-BOARD (7/13) TH-65PV600C DG-Board (7 of 13) Schematic Diagram TH-65PV600C DG-Board (7 of 13) Schematic Diagram 106 15.28.DG 电路板 (8/13) 线路图 Thermal Pad + + + ROE0 VSOE ROE1 ROE8 ROE7 GENX_YS ROE5 ROE6 GOE7 ROE2 GOE5 ROE3 GOE6 ROE4 GOE2 ROE9 GOE3 GOE4 JTAG_TRST GOE9 GC_RST JTAG_TCK GOE0 JTAG_TMS GOE1 JTAG_FS_GC5 BOE0 BOE1 PEAKS-CLKIN BOE2 BOE7 BOE3 BOE8 BOE4 BOE9 BOE5 BOE6 GENX_CLKIN OSDMSK HSOE GENX_VIN PEAKS-CLKIN SDA2 SCL2 GENX_YM GENX_B0 GENX_G3 GENX_R2 GENX_B2 GENX_R1 GENX_R0 GENX_R3 GENX_B1 GENX_B3 GENX_G1 GENX_G4 GENX_G0 GENX_G2 JTAG_GC5_BA MAIN1.2V CLKOE GENX_G5 GENX_R4 GENX_B4 GOE8 GENX_HIN JTAG_BA_FS JTAG_TRST 0.1u 10V C4477 MAIN1.2V IC4037 E16 VDDW IC4037 D29 UVIC2 1000p 50V C4385 IC4037 AA26 VDDW 1u 10V C4399 JS4036 JS4040 L1501 J0JCC0000077 IC4037 V29 ROE1 IC4037 U29 ROE4 0.1u 10V C4386 R4068 220 IC4037 Y29 BOF8 IC4037 AG27 VDD12 IC4037 AC30 BOF0 C4464 1u 10V IC4032 C0DBGYY00052 1 VOUT 2 NC 3 GND 4 NC 5 CONT 6 NC 7 NC 8 VIN IC4037 L29 BOE2 IC4037 B24 OSDYMI 1u 10V C4435 C4366 47u 6.3V 0.1u 10V C4401 IC4037 A18 OSDI14 IC4037 B30 YIC1 IC4037 P12 VDD12 1000p 50V C4413 C4467 0.1u 10V 0.1u 10V C4364 0.1u 10V C4411 JS4033 IC4037 AH25 FRCLKIN IC4037 D24 TDI IC4037 AA1 VDD25 IC4037 R29 GOE0 IC4037 V19 VDD12 R4340 0 IC4037 M18 VDDW 1000p 50V C4375 1% R4730 470 IC4037 N27 VDDW 1000p 50V C4403 1000p 50V C4481 IC4037 AG28 ROF6 R4751 22 1000p 50V C4453 IC4037 A23 CLKID C4367 10V 0.1u IC4037 B23 OSDHSI IC4037 B27 YIC6 C4360 10V 1u IC4037 D26 TDO IC4037 AJ21 IREF C4462 10V 0.1u C4461 82p 50V C4470 10V 1u IC4037 AG6 VDD25 IC4037 V12 VDD25 IC4037 N19 VDDW R4746 22 R4744 22 1000p 50V C4394 IC4037 E11 VDDW IC4037 T29 ROE7 0.1u 10V C4397 IC4037 AF14 AVSS_DDR 1000p 50V C4383 0.1u 10V C4452 1u 10V C4455 IC4037 T18 VDD12 C4388 10V 1u IC4037 F26 VDDW IC4037 D30 UVIC3 1000p 50V C4436 IC4037 U30 ROE5 IC4037 AB5 VDD25 R4754 22 1u 10V C4405 IC4037 H29 HSOE C4004 6.3V 10u R4760 22 L4056 J0JCC0000077 C0CBCAC00282 IC4029 1 VDD 2 GND 3 CE 5 VOUT 4 NC IC4037 AK21 VREF IC4037 AC29 GOF9 1000p 50V C4439 IC4037 E8 VDDW IC4037 AJ25 EXCLKIN IC4037 J29 BOE8 IC4037 A19 OSDI11 C4016 56u 4V C0CBCBC00190 IC4030 1 VDD 2 GND 3 CE 5 VOUT 4 NC IC4037 AF19 VDD_PLL2 IC4037 N18 VDDW 1000p 50V C4396 IC4037 W5 VDDW IC4037 M13 VDD12 C4428 10V 0.1u C4362 6.3V 10u L4057 J0JCC0000077 1000p 50V C4430 IC4037 AH19 VCOINV2 IC4037 C27 YIC5 IC4037 B18 OSDI13 IC4037 B26 MOSDHSO IC4037 N13 VDD12 R4731 1k 1% IC4037 AF29 GOF0 L4063 G1C100KA0009 IC4037 P14 VDD12 C4421 10V 0.1u 1000p 50V C4451 IC4037 AK25 VCOIN IC4037 AB26 VDDW 0.1u 10V C4425 IC4037 AG5 AVDD_DDR IC4037 AF28 ROF9 IC4037 AG19 GND_PLL2 IC4037 AG30 ROF8 0.1u 10V C4377 IC4037 D3 VDD12 IC4037 M28 GOE8 C4466 0.01u 16V IC4037 U26 VDDW 1000p 50V C4476 R4739 3.3k 1u 10V C4400 1u 10V C4478 1000p 50V C4414 IC4037 B21 OSDI4 IC4037 D19 VDDW C4014 6.3V 10u IC4037 AF10 VDD25 IC4037 AK20 COMP IC4037 P13 VDD12 C4027 1u 10V IC4037 U27 VDDW IC4037 W19 VDD12 IC4037 AB27 PTVEN JS4028 IC4037 A27 YIC7 1000p 50V C4457 IC4037 W12 VDD25 IC4037 AK26 VDDW IC4037 A25 ALPHAI0 IC4037 R28 ROE9 IC4037 P26 VDDW IC4037 N29 GOE6 IC4037 V18 VDD12 IC4037 V16 GNDPLLDDR 1u 10V C4373 IC4037 V27 VDDW IC4037 AH4 VREFSSTL2V_0 1000p 50V C4442 C4482 50V 15p 1000p 50V C4402 IC4037 L4 TEST MAIN5V IC4037 V13 VDD25 0.1u 10V C4398 IC4037 D28 UVIC1 R4719 68 IC4037 AE28 GOF2 IC4037 D12 NRST IC4037 R4 VDDW IC4037 E12 VDDW IC4037 P5 VDDW C1504 10V 0.1u IC4037 M30 BOE0 IC4037 D16 MOSDVSO2 IC4037 G30 SDA 1000p 50V C4387 0.1u 10V C4426 C4015 6.3V 10u IC4037 AF22 DAC_VDD R4735 2k 1% IC4037 E29 UVIC6 IC4037 K28 BOE4 X4004 H0J270500087 R4714 EXB2HV221JV 1000p 50V C4460 0.1u 10V C4395 0.1u 10V C4392 IC4037 C25 MOSDVSO IC4037 AC5 AVSS_DDR IC4037 N28 GOE5 R4747 22 IC4037 AB30 BOF3 MAIN1.2V 1000p 50V C4406 IC4037 C24 ALPHAI1 1000p 50V C4390 L4054 J0JHC0000078 IC4037 AG17 TESTIO_DDR 0.1u 10V C4407 IC4037 AG20 GND_PLL2 IC4037 P4 VDDW IC4037 A28 YIC4 IC4037 C19 OSDI9 1000p 50V C4475 IC4037 AG29 ROF7 IC4037 C2 VDD12 IC4037 A17 CLKOD2 C4363 10V 0.1u R4898 10k IC4037 K30 BOE6 IC4037 A26 CLKOD IC4037 K27 VDDW 1000p 50V C4409 IC4037 T30 ROE8 IC4037 E27 UVIC4 IC4037 J30 BOE9 R4338 0 IC4037 M12 VDD12 R4752 22 IC4037 B1 VDD12 C4417 47u 6.3V C4379 10V 0.1u 1000p 50V C4371 IC4037 N26 VDDW IC4037 AJ30 ROF3 1000p 50V C4429 IC4037 AD28 GOF5 IC4037 U19 VDD12 TP4037 C4415 10V 0.1u R4341 0 IC4037 T17 VDD12 IC4037 E24 VDDW IC4037 P29 GOE3 C4448 16V 0.01u IC4037 AC27 PWMK IC4037 W13 VDD25 IC4037 AH28 VDD12 R4745 22 IC4037 AE26 VDD12 IC4037 V5 VDDW IC4037 C18 OSDI12 IC4037 K26 VDDW IC4037 E20 VDDW MAIN1.8V IC4037 AA27 SSOUT R4753 22 1u 10V C4391 IC4037 J27 VDDW R4022 1k R4736 0 IC4037 AC28 GOF8 C4112 6.3V 10u R4021 0 0.1u 10V C4440 R4733 75 1% R4749 EXB2HV220JV IC4037 N30 GOE7 IC4037 L28 BOE1 R4293 0 IC4037 AF7 VDD25 IC4037 C26 TMS R4069 220 R4718 68 IC4037 C29 YIC0 IC4037 F30 CLKIC IC4037 AE27 VDD12 MAIN3.3V R4720 68 IC4037 A21 OSDI5 IC4037 AA28 BOF4 IC4037 W18 VDD12 R4783 4.7k IC4037 L5 VDDW IC4037 AF17 GND_PLL1 R4762 EXB2HV220JV IC4037 D11 VDDW IC4037 L30 BOE3 IC4037 V30 ROE2 R4046 0 IC4037 H28 VSOE IC4037 F29 HSIC IC4037 W15 VDDPLLDDR IC4037 N14 VDD12 IC4037 P28 GOE2 IC4037 AA29 BOF5 IC4037 AB29 BOF2 R4756 22 0.1u 10V C4459 1000p 50V C4458 R4713 EXB2HV221JV IC4037 M14 VDD12 L4055 J0JHC0000078 0.1u 10V C4412 IC4037 Y4 OEMUTE IC4037 W4 OEBLK IC4037 AJ23 XTALOUT 0.1u 10V C4408 IC4037 J28 BOE7 JS4038 IC4037 R30 GOE1 MAIN3.3V R4763 0 IC4037 AG7 VDD25 IC4037 F28 VSIC JS4034 IC4037 K5 VDDW IC4037 AG11 VDD25 IC4037 AB28 BOF1 IC4037 AK28 ROF2 IC4037 AJ29 VDD12 JS4039 0.1u 10V C4389 IC4037 AD27 CLKID2 C4474 10V 1u R4743 22 IC4037 T19 VDD12 1000p 50V C4376 IC4037 V4 SCL_MC L4053 J0JHC0000078 IC4037 K29 BOE5 1000p 50V C4454 IC4037 H30 CLKOE IC4037 F5 VDD12 R4758 22 IC4037 AF18 VDD_PLL1 R4287 0 IC4037 E15 VDDW JS4037 IC4037 AK27 ROF0 IC4037 V28 ROE0 IC4037 P30 GOE4 C4447 1u 10V IC4037 U17 VDD12 IC4037 V26 VDDW 0.1u 10V C4372 IC4037 D15 VDDW C4418 1u 10V IC4037 C20 OSDI6 1000p 50V C4380 1000p 50V C4427 IC4037 AG21 GND_DAC R4785 4.7k IC4037 AC4 AVDD_DDR 1000p 50V C4480 IC4037 J26 VDDW IC4037 C30 UVIC0 R4033 10k C4483 50V 18p JS4035 1000p 50V C4393 IC4037 M29 GOE9 IC4037 E23 VDDW R4759 22 IC4037 F27 VDDW IC4037 N12 VDD12 R4757 22 IC4037 B28 YIC3 MAIN5V R4339 0 C4007 6.3V 10u C4465 0.1u 10V IC4037 D13 LCDMODE IC4037 AG18 GND_PLL1 0.1u 10V C4374 IC4037 C17 OSDI15 1000p 50V C4424 IC4037 T28 ROE6 IC4037 P27 VDDW C4419 1u 10V IC4037 E30 UVIC7 IC4037 AF30 GOF1 C4469 50V 68p C4003 6.3V 10u R4041 0 IC4037 AA2 VDD25 IC4037 U28 ROE3 R4738 3.3k IC4037 AH22 CPOUT2 C4365 10V 1u IC4037 E19 VDDW IC4037 E4 VDD12 R4732 4.75k 1% 0.1u 10V C4384 IC4037 D20 VDDW IC4037 AG10 VDD25 IC4037 G29 SCL IC4037 AE5 AVSS_DDRCLK IC4037 A22 OSDI2 IC4037 W28 VSOF IC4037 C21 OSDI3 IC4037 AJ18 TESTIO_PLL1 IC4037 T16 VDD12 IC4037 U18 VDD12 IC4037 AH29 ROF4 0.1u 10V C4456 IC4037 A20 OSDI8 IC4037 B25 ENBID L4061 J0JCC0000077 0.1u 10V C4404 IC4037 AJ1 VDD25 C4008 6.3V 10u IC4037 E28 UVIC5 IC4037 AK30 VDD12 IC4037 B17 MOSDHSO2 IC4037 R15 VDD12 IC4037 AK22 DDREFIN L4060 J0JCC0000077 IC4037 M19 VDDW C4028 16V 0.01u IC4037 W16 GNDPLLDDR IC4037 AB2 VDD25 1u 10V C4410 IC4037 AF5 AVSS_DDR IC4037 AD30 GOF7 1000p 50V C4423 IC4037 B22 OSDI1 *R4838 1.1k C4473 10V 0.1u IC4037 AD29 GOF6 MAIN3.3V R4837 22 1000p 50V C4434 IC4037 R5 VDDW C4420 10V 0.1u IC4037 AF27 VDD12 IC4037 AF21 GND_DAC R4734 22k IC4037 AK19 IOUT JS4027 IC4037 AH30 ROF5 IC4037 AF26 VDD12 IC4037 AJ22 DDREFOUT 1000p 50V C4437 IC4037 B20 OSDI7 IC4037 AF11 VDD25 C0CBCBC00190 IC1503 1 VDD 2 GND 3 CE 5 VOUT 4 NC IC4037 C22 OSDI0 IC4037 B19 OSDI10 IC4037 AB4 VDD25 IC4037 AE30 GOF4 1000p 50V C4479 IC4037 AA30 BOF6 IC4037 AB3 VDD25 IC4037 AG14 AVDD_DDR 0.1u 10V C4381 IC4037 D25 TCK C4553 6.3V 10u IC4037 AK23 XTALIN 1000p 50V C4422 R4727 0 IC4037 U4 SDA_MC IC4037 AF6 AVDD_DDRCLK IC4037 A29 YIC2 1000p 50V C4438 IC4037 W29 HSOF IC4037 AJ27 ROF1 C1502 6.3V 10u 1% R4729 100 IC4037 C23 OSDVSI 1000p 50V C4441 IC4037 A24 OSDYSI 0.1u 10V C4431 R4764 0 IC4037 AE29 GOF3 IC4037 E7 VDDW IC4037 Y30 BOF9 R4750 EXB2HV220JV IC4037 D23 TRST IC4037 AJ19 TESTIO_PLL2 0.1u 10V C4382 R4765 0 IC4037 Y28 BOF7 R4715 0 IC4037 W30 CLKOF 0.1u 10V C4117 DDR2.5V *JS4046 *R4018 10k PORT-C(PEAKS) PORT-D(OSD INPUT) PORT-E PORT-F(out) (output for FHD&PWM) (output for Panel) GC5 PLL3.3V 2.5V MAIN 1.2V AVR 3.3V MN84522-A GC5 PROCESSOR IC4037 151 150 148 149 146 147 142 143 145 164 162 166 170 168 169 167 171 173 174 69 64 70 67 72 66 65 68 71 141 TNPA4061CK ! DG-BOARD (8/13) TH-65PV600C DG-Board (8 of 13) Schematic Diagram TH-65PV600C DG-Board (8 of 13) Schematic Diagram 107 15.29.DG 电路板 (9/13) 线路图 Thermal Pad + + B_DDR_DQ10 B_DDR_DQ12 B_DDR_A2 B_DDR_DQ29 B_DDR_A10 B_DDR_DQ19 B_DDR_NCLK B_DDR_DQS2 B_DDR_CLK A_DDR_DQ4 B_DDR_A7 A_DDR_DQ8 B_DDR_CAS B_DDR_CLK A_DDR_DQ3 A_DDR_DQ9 A_DDR_DQ29 B_DDR_DQ26 A_DDR_NCLK B_DDR_DQ3 B_DDR_DQS3 B_DDR_NCLK A_DDR_SDCKE B_DDR_DQ4 B_DDR_DQ16 A_DDR_CLK B_DDR_BA0 A_DDR_CAS B_DDR_DQ0 B_DDR_DQ30 B_DDR_DQ11 B_DDR_DQ27 A_DDR_A10 B_DDR_A1 B_DDR_A0 A_DDR_DQ17 A_DDR_DQ14 B_DDR_DQ21 B_DDR_CAS B_DDR_A2 B_DDR_DQS3 B_DDR_DQ28 B_DDR_DQ1 B_DDR_DQ25 A_DDR_DQ28 B_DDR_DQ15 B_DDR_DQ4 A_DDR_A1 A_DDR_DQ2 B_DDR_DQ21 A_DDR_DQ21 B_DDR_WE B_DDR_A9 B_DDR_DQ5 B_DDR_WE B_DDR_DQ18 B_DDR_DQ13 B_DDR_DQ8 B_DDR_A5 B_DDR_DQ0 B_DDR_RAS A_DDR_DQS0 B_DDR_A7 B_DDR_DQ3 A_DDR_DQ25 A_DDR_DQ10 B_DDR_DQ22 B_DDR_A11 B_DDR_DQ22 A_DDR_DQ30 A_DDR_A7 A_DDR_DQ6 B_DDR_SDCKE B_DDR_DQ27 A_DDR_A2 A_DDR_DQ12 B_DDR_DQS1 B_DDR_A4 B_DDR_DQS0 B_DDR_BA1 B_DDR_A6 B_DDR_DQ29 A_DDR_A0 B_DDR_DQ6 A_DDR_DQ16 B_DDR_DQ9 B_DDR_DQ28 B_DDR_DQ16 B_DDR_A8 B_DDR_DQ12 B_DDR_RAS B_DDR_DQ9 B_DDR_DQ14 B_DDR_DQ8 B_DDR_DQ25 A_DDR_DQ13 A_DDR_DQS3 B_DDR_DQ2 B_DDR_DQ18 A_DDR_BA1 B_DDR_DQ6 B_DDR_DQ13 B_DDR_DQ10 B_DDR_A5 A_DDR_BA0 A_DDR_WE A_DDR_A8 A_DDR_DQ11 B_DDR_A4 B_DDR_DQ14 B_DDR_DQS2 A_DDR_DQ22 B_DDR_DQ24 B_DDR_DQ31 B_DDR_A10 A_DDR_DQ19 B_DDR_DQ2 A_DDR_DQS1 B_DDR_BA1 B_DDR_DQ23 A_DDR_DQ27 A_DDR_A11 A_DDR_DQ24 B_DDR_A1 A_DDR_DQ31 A_DDR_DQ15 B_DDR_DQ30 B_DDR_DQ17 A_DDR_DQ5 A_DDR_A5 A_DDR_DQ0 A_DDR_RAS B_DDR_A11 B_DDR_DQ20 A_DDR_A9 A_DDR_DQS2 B_DDR_DQ17 A_DDR_DQ20 B_DDR_A3 B_DDR_DQ23 A_DDR_A4 A_DDR_DQ23 B_DDR_A8 B_DDR_A0 B_DDR_DQ20 B_DDR_DQ5 A_DDR_A3 B_DDR_DQS0 B_DDR_DQ24 A_DDR_DQ18 B_DDR_DQ19 B_DDR_DQ7 A_DDR_A6 A_DDR_DQ7 B_DDR_DQ11 B_DDR_BA0 A_DDR_DQ26 B_DDR_DQ26 B_DDR_A9 A_DDR_DQ1 B_DDR_A3 B_DDR_DQ1 B_DDR_DQ7 B_DDR_SDCKE B_DDR_DQ31 B_DDR_DQ15 B_DDR_A6 B_DDR_DQS1 IC4038 H2 DQ20 IC4038 G4 VSSQ R4807 0 1% R4805 1k IC4038 B1 DQ4 IC4038 G8 VSS_Thermal IC4038 E5 VSS_Thermal R4342 0 C4526 10V 0.1u IC4038 L5 A2 IC4038 C12 DQ25 IC4038 B4 VDDQ IC4038 B8 DQ30 C4525 16V 0.01u R4810 0 C4524 10V 0.1u IC4038 J2 DQ23 IC4038 G2 DM2 IC4038 D8 VSSQ IC4038 M6 A3 IC4038 H3 VDDQ IC4038 F2 DQ18 IC4038 F10 VDDQ R4794 22 IC4038 A5 DQ2 IC4038 B5 DQ1 IC4038 E9 VSSQ IC4038 K8 RFU1 IC4038 F7 VSS_Thermal IC4038 F5 VSS_Thermal IC4038 J10 VDDQ IC4038 M7 A4 IC4038 C5 VSSQ IC4038 J3 VDDQ IC4038 B9 VDDQ IC4038 D9 VSS IC4038 D12 DQ24 R4811 0 IC4038 A4 DQ3 R4808 0 IC4038 M8 A6 IC4038 K11 NC R4775 47 IC4038 A10 VSSQ R4791 47 IC4038 K2 WE IC4038 H4 VSSQ IC4038 K7 VDD C4493 10V 0.1u IC4038 D10 VDD IC4038 D11 VDDQ IC4038 E10 VDDQ IC4038 L7 A9 IC4035 C0CBCAF00031 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 NC 7 NC 8 VIN C4517 16V 0.01u IC4038 C10 VSSQ IC4038 C8 VSSQ IC4038 G6 VSS_Thermal IC4038 D7 VSS C4023 6.3V 10u IC4038 K5 A10 IC4038 H9 VSSQ IC4038 A8 DQ29 C4503 10V 0.1u IC4038 B2 VDDQ IC4038 D1 DQ7 R4804 100 IC4038 H7 VSS_Thermal IC4038 K1 CAS R4796 EXB2HV470JV IC4038 A2 DM0 IC4038 D3 VDD R4792 47 1% R4257 33k C4512 16V 0.01u IC4038 M3 BA0 IC4038 M12 VREF IC4038 F6 VSS_Thermal C4522 10V 0.1u IC4038 L8 A5 IC4038 H8 VSS_Thermal IC4038 K10 VDD IC4038 C7 VDD IC4038 E2 DQ16 C4509 10V 0.1u R4269 0 IC4038 J1 DQ22 IC4038 A12 DQS3 IC4038 E8 VSS_Thermal C4513 10V 0.1u R4809 0 1% R4806 1k IC4038 M9 A7 IC4038 B7 VDDQ IC4038 D4 VSS R4788 EXB2HV470JV IC4038 C3 VSSQ IC4038 J5 VSS IC4038 L10 CK IC4038 E3 VDDQ IC4038 L1 RAS C4507 10V 0.1u IC4038 C4 VSSQ C4514 16V 0.01u 1% R4265 32.4k IC4038 H10 VDDQ IC4038 A11 DM3 IC4038 M10 A8/AP IC4038 K12 NC MAIN3.3V IC4038 E4 VSSQ C4502 16V 0.01u C4496 10V 0.1u R4774 EXB2HV470JV IC4038 A1 DQS0 IC4038 K6 VDD IC4038 E7 VSS_Thermal IC4038 J7 VSS IC4038 K3 VDD C4521 16V 0.01u IC4038 G7 VSS_Thermal IC4038 F9 VSSQ IC4038 E6 VSS_Thermal IC4038 G3 NC IC4038 F4 VSSQ IC4038 G5 VSS_Thermal C4515 10V 0.1u C4006 6.3V 10u IC4038 C9 VSSQ IC4038 H5 VSS_Thermal C4523 16V 0.01u IC4038 B3 NC C4510 10V 0.1u C4498 470p 50V IC4038 G9 VSSQ C4520 10V 0.1u C4518 10V 0.1u IC4038 L2 NC IC4038 E1 DQ17 IC4038 L3 NC IC4038 B6 VDDQ IC4038 A9 DQ28 IC4038 J9 VSSQ IC4038 B11 VDDQ IC4038 L12 MCL IC4038 D5 VSSQ DDR2.5V IC4038 K9 VSS L4066 J0JHC0000078 IC4038 B10 NC C4005 6.3V 10u IC4038 M1 CS IC4038 M11 CKE IC4038 M2 NC IC4038 J8 VSS IC4038 H1 DQ21 IC4038 L9 RFU2 IC4038 L11 CK IC4038 M5 A1 C4516 10V 0.1u C4499 56u 4V IC4038 H6 VSS_Thermal IC4038 J12 DQ8 IC4038 A7 DQ31 R4776 EXB2HV470JV R4772 EXB2HV470JV IC4038 A3 VSSQ IC4038 F3 VDDQ IC4038 G11 DM1 C4506 16V 0.01u R4793 22 C4497 4V 100u C4519 16V 0.01u IC4038 C11 DQ26 IC4038 F11 DQ13 IC4038 B12 DQ27 IC4038 J6 VSS IC4038 H11 DQ11 IC4038 G12 DQS1 TP4041 IC4038 L4 BA1 IC4038 C2 DQ5 IC4038 D6 VSS C4527 16V 0.01u IC4038 C6 VDD C4508 16V 0.01u C4494 10V 1u IC4038 L6 A11 IC4038 K4 VSS IC4038 A6 DQ0 IC4038 C1 DQ6 IC4038 E12 DQ14 R4779 47 C4501 10V 0.1u R4778 EXB2HV470JV IC4038 E11 DQ15 IC4038 G10 NC C4504 16V 0.01u IC4038 F12 DQ12 IC4038 F1 DQ19 IC4038 J11 DQ9 IC4038 M4 A0 R4777 47 C4511 10V 0.1u IC4038 J4 VSSQ IC4038 D2 VDDQ R4773 47 IC4038 G1 DQS2 C4505 10V 0.1u IC4038 F8 VSS_Thermal IC4038 H12 DQ10 DDR FOR GC5 DDR_2.5V 128M DDR SDRAM C3ABQJ000048 IC4038 169 167 170 168 171 173 174 166 164 162 184 185 186 188 183 187 181 182 76 78 81 80 73 75 77 79 74 TNPA4061CK ! DG-BOARD (9/13) TH-65PV600C DG-Board (9 of 13) Schematic Diagram TH-65PV600C DG-Board (9 of 13) Schematic Diagram 108 15.30.DG 电路板 (10/13) 线路图 + + + ROE7 FHQCIN2 FHQYIN5 BOE5 ROE8 SCL_F SDA2 FHQYIN7 FHQHIN FPGA_RST GOE4 FHQCIN4 OSDMSK SDA_F GOE1 FHQCKIN ROE4 FHQYIN6 ROE0 FHQYIN8 FHQCIN6 FHQCIN5 SCL2 GOE8 BOE3 REFCK_FS FHQCIN8 VSOE GOE3 ROE3 GOE2 GOE0 FHQCIN1 SDA_F GOE6 FHQYIN0 GOE7 HSOE FHQYIN1 FHQYIN4 BOE1 FHQYIN2 BOE8 CLKOE FHQYIN9 FHQCIN9 ROE5 ROE2 BOE7 SCL_F GOE5 BOE0 ROE6 FHQCIN3 FHQVIN FHQYIN3 BOE4 BOE9 GOE9 ROE9 FHQCIN7 BOE2 FHQCIN0 ROE1 BOE6 IC1401 L21 NC IC1401 AA7 IO_L20P_8 IC1401 P14 GND IC1401 M1 NC R1589 10k IC1401 AD12 IO_L8P_GC_CC_LC_4 IC1401 P7 NC IC1401 E8 VCCO_6 IC1401 AA23 IO_L14N_7 IC1401 M20 NC IC1401 U3 NC IC1401 J6 NC IC1401 L7 NC IC1401 K5 NC IC1401 N6 GND IC1401 AE1 GND IC1401 T14 GND IC1401 AC6 IO_L24P_CC_LC_8 IC1401 G21 IO_L23N_VRP_5 R1631 220 R1406 10k IC1401 L19 NC IC1401 AE19 VCCO_7 C1925 10V 1u IC1401 K8 NC IC1401 T13 GND IC1401 L22 NC IC1401 N23 NC IC1401 V4 NC IC1401 AB1 IO_L10P_8 0.1u 10V C1397 IC1401 AD25 IO_L11P_7 IC1401 J20 NC IC1401 AA26 IO_L10N_7 IC1401 T20 NC Q1301 B1CBHD000002 R1442 22 IC1401 N16 GND IC1401 L15 GND IC1401 AB6 IO_L24N_CC_LC_8 R1958 0 IC1401 AC10 IO_L2P_GC_LC_4 IC1401 E12 GND IC1401 V8 VCCO_8 IC1401 AB21 IO_L24N_CC_LC_7 IC1401 N20 NC IC1401 F6 GND IC1401 E16 VCCO_1 IC1401 AD8 IO_L32P_8 IC1401 AB3 IO_L12P_8 IC1401 M18 NC IC1401 G10 IO_L9P_CC_LC_6 IC1401 L2 NC R4824 EXB2HV103JV IC1401 AD1 IO_L16N_8 IC1401 P13 GND IC1401 P12 GND IC1401 M24 NC R1494 EXB2HV103JV IC1401 G17 IO_L9N_CC_LC_5 IC1401 C3 GND IC1401 AC4 IO_L11P_8 IC1401 AB19 VCCO_7 R1622 22 IC1401 R8 NC IC1401 J22 NC IC1401 J5 NC IC1401 Y7 IO_L20N_VREF_8 IC1401 AC19 IO_L25N_CC_SM7_LC_7 IC1401 R5 NC IC1401 AA19 IO_L26P_SM6_7 IC1401 T24 NC R1624 22 IC1401 AD24 GND IC1401 AB13 IO_L4P_D9_LC_2 IC1401 K22 NC IC1401 F2 VCCO_6 IC1401 T26 NC IC1401 R19 NC C1936 6.3V 10u IC1401 H9 VCCO_6 IC1401 AF3 IO_L15P_8 IC1401 AE25 GND IC1401 U24 NC IC1401 K23 NC IC1401 AE14 IO_L5P_GC_LC_4 IC1401 L25 NC IC1401 W23 IO_L4P_7 C1931 68u 4V IC1401 Y26 IO_L6N_7 IC1401 N25 NC 0.1u 10V C1403 R4823 47k IC1401 AE8 VCCO_8 IC1401 P11 GND IC1401 M7 NC IC1401 AA2 VCCO_8 0.1u 10V C1399 IC1401 B16 VCCO_3 IC1401 AC11 IO_L2N_D12_LC_2 0.1u 10V C1382 IC1401 AF11 IO_L4P_GC_LC_4 IC1401 L6 NC IC1401 AE5 VCCO_8 IC1401 T3 NC IC1401 AB25 IO_L7N_7 IC1401 M10 GND IC1401 W21 IO_L3P_7 IC1401 M3 NC IC1401 G20 IO_L22N_5 IC1401 U14 GND IC1401 N24 NC IC1401 G22 IO_L23P_VRN_5 IC1401 AA5 VCCO_8 IC1401 AC25 IO_L9P_CC_LC_7 0.1u 10V C1414 0.1u 10V C1381 IC1401 V3 GND IC1401 AF23 IO_L19P_7 IC1401 AA20 IO_L26N_SM6_7 IC1401 K1 NC IC1401 K16 GND R4822 10k IC1401 AF15 NC IC1401 AD17 IO_L7P_GC_VRN_LC_4 IC1401 AD20 IO_L23N_VRP_7 0.1u 10V C1413 0.1u 10V C1383 IC1401 J14 GND IC1401 V25 NC IC1401 V14 GND IC1401 A25 GND IC1401 N13 GND MAIN2_3.3V IC1401 AC23 IO_L16P_7 IC1401 U1 NC IC1401 R20 NC IC1401 F21 GND IC1401 U2 NC IC1401 AC3 IO_L18N_8 0.1u 10V C1404 IC1401 W17 VCCO_7 IC1401 AA24 IO_L8P_CC_LC_7 IC1401 Y6 IO_L9P_CC_LC_8 IC1401 AA22 VCCO_7 IC1401 AD19 IO_L25P_CC_SM7_LC_7 IC1401 J1 NC IC1401 AE7 IO_L23P_VRN_8 IC1401 F20 IO_L19P_5 IC1401 N17 GND IC1401 N4 NC IC1401 M25 NC IC1401 AF7 IO_L25N_CC_LC_8 IC1401 AE3 IO_L15N_8 IC1401 L20 NC IC1401 AB4 IO_L11N_8 IC1401 J23 NC IC1401 R11 GND MAIN2_3.3V IC1401 AC20 IO_L28N_VREF_7 IC1401 W8 VCCO_8 IC1401 C15 IO_L3P_GC_LC_3 IC1401 L4 NC IC1401 V1 NC IC1401 P24 NC IC1401 M26 NC IC1401 U26 NC IC1401 V13 GND IC1401 AE18 IO_L31N_SM2_7 IC1401 P25 NC IC1401 R1 NC IC1401 P26 NC C1928 50V 0.01u IC1401 U16 GND IC1401 F5 VCCO_6 IC1401 C18 GND IC1401 R2 NC IC1401 AC5 IO_L13P_8 IC1401 AA8 IO_L26P_8 IC1401 AC8 IO_L32N_8 IC1401 E11 VCCO_1 R1443 22 IC1401 K26 NC IC1401 AE6 IO_L30P_8 IC1401 AB22 IO_L13N_7 0.1u 10V C1384 IC1401 N22 NC IC1401 AB26 IO_L10P_7 IC1401 AF5 IO_L19N_8 0.1u 10V C1378 0.1u 10V C1380 R1635 220 IC1401 AA13 IO_L4N_D8_VREF_LC_2 IC1401 V21 IO_L1P_7 IC1401 T15 GND IC1401 H10 VCCO_6 R1632 4.7k IC1401 L1 NC IC1401 K15 GND IC1401 T25 NC IC1401 R26 NC IC1401 J25 NC IC1401 D22 IO_L14P_5 IC1401 AB8 VCCO_8 IC1401 AF4 IO_L17P_8 IC1401 L8 NC R1623 22 IC1401 AA10 IO_L27N_8 C1932 50V 0.01u IC1401 R25 NC IC1401 N15 GND 0.1u 10V C1409 IC1401 M19 NC IC1401 AD26 IO_L11N_7 0.1u 10V C1410 IC1401 Y22 IO_L12P_7 IC1401 AF17 NC IC1401 P1 GND IC1401 E15 GND IC1401 U21 NC IC1401 K3 NC IC1401 AF9 IO_L31P_8 IC1401 P16 GND IC1401 J7 NC IC1401 J4 NC IC1401 N14 GND IC1401 B2 GND IC1401 AF6 IO_L19P_8 IC1401 AB16 VCCO_2 IC1401 AD2 IO_L16P_8 IC1401 U23 NC 0.1u 10V C1392 IC1401 N1 NC IC1401 AB17 IO_L3P_GC_LC_4 IC1401 J21 NC IC1401 N5 NC IC1401 R17 GND C1927 50V 0.01u MAIN2_3.3V IC1401 M6 NC R1957 0 IC1401 P22 NC IC1401 N21 NC IC1401 M13 GND IC1401 AB14 IO_L1N_D14_CC_LC_2 R4825 EXB2HV103JV IC1401 AB24 IO_L7P_7 IC1401 AA9 IO_L21P_8 IC1401 U15 GND IC1401 AA3 IO_L7N_8 IC1401 U25 NC IC1401 V2 NC IC1401 AD4 IO_L22N_8 IC1401 T8 NC IC1401 T6 NC IC1401 AC22 IO_L13P_7 IC1401 N12 GND C1933 50V 0.01u R1475 EXB2HV103JV R1473 EXB2HV103JV IC1401 V23 NC IC1401 AB9 IO_L29N_8 R1629 4.7k IC1401 K7 NC IC1401 M2 NC R1472 EXB2HV103JV R1592 10k R1963 100 IC1401 R7 NC IC1401 R9 NC IC1401 AC26 IO_L9N_CC_LC_7 IC1401 Y25 IO_L6P_7 IC1401 R22 NC 0.1u 10V C1391 0.1u 10V C1408 IC1401 L14 GND 0.1u 10V C1401 IC1401 V20 IO_L5N_7 IC1401 AD3 IO_L18P_8 IC1401 Y23 IO_L12N_VREF_7 IC1401 N2 NC IC1401 H23 IO_L30N_5 IC1401 C9 GND IC1401 W22 IO_L3N_7 IC1401 W24 IO_L4N_VREF_7 IC1401 AF21 IO_L30P_SM3_7 IC1401 T1 NC IC1401 M23 NC IC1401 AE2 GND IC1401 N8 NC IC1401 AF24 IO_L22P_7 IC1401 AE11 VCCO_4 MAIN5V R1405 10k R1618 22 0.1u 10V C1394 C1929 50V 0.01u IC1401 AA25 VCCO_7 IC1401 AE26 GND IC1401 T2 NC C1377 6.3V 10u IC1401 AA18 IO_L21P_7 IC1401 L26 NC IC1401 J15 VCCO_0 MAIN3_1.2V IC1401 U8 NC R1617 22 IC1401 K21 NC IC1401 L13 GND IC1401 R4 NC IC1401 L23 NC IC1401 U12 GND IC1401 V22 IO_L1N_7 IC1401 J3 GND IC1401 AE4 IO_L17N_8 IC1401 U7 NC IC1401 T12 GND IC1401 V12 VCCO_0 IC1401 AC18 IO_L29P_SM4_7 R1400 10k IC1401 AD6 IO_L30N_8 R1587 10k IC1401 K2 NC IC1401 AC2 IO_L14P_8 IC1401 AA4 IO_L7P_8 0.1u 10V C1398 IC1401 AE15 NC IC1401 R10 GND IC1401 Y20 IO_L20P_7 IC1401 E22 IO_L18N_5 IC1401 Y10 IO_L27P_8 IC1401 AF25 GND IC1401 R6 NC IC1401 AD7 IO_L23N_VRP_8 R1962 100 IC1401 AC7 IO_L28P_8 IC1401 AB20 IO_L28P_7 IC1401 Y24 IO_L8N_CC_LC_7 IC1401 AF14 GND IC1401 V24 GND R1620 22 0.1u 10V C1393 IC1401 B8 VCCO_6 IC1401 AB5 IO_L13N_8 IC1401 A2 GND R1591 10k IC1401 R14 GND IC1401 J2 NC IC1401 J24 GND IC1401 G23 IO_L28N_VREF_5 IC1401 AB7 IO_L28N_VREF_8 IC1401 AB2 IO_L12N_VREF_8 IC1401 M4 NC IC1401 P10 GND R1440 22 IC1401 AC21 IO_L24P_CC_LC_7 IC1401 B25 GND IC1401 P15 GND IC1401 Y8 IO_L26N_8 IC1401 P19 NC IC1401 R3 NC R1476 EXB2HV103JV IC1401 R23 NC R1961 10 IC1401 AE17 NC 0.1u 10V C1405 IC1401 T5 NC IC1401 U20 NC R1490 EXB2HV103JV IC1401 U11 GND IC1401 K6 NC IC1401 G19 IO_L17P_5 IC1401 L12 GND IC1401 H24 IO_L30P_5 0.1u 10V C1400 IC1401 J26 NC C0DBEYY00043 IC1907 1 SENSE 2 ADJ/GND 3 VOUT 4 VCTRL 5 VIN 6 VOUT IC1401 V26 NC IC1401 N10 GND Q1302 B1CBHD000002 IC1401 AA21 GND IC1401 AD16 IO_L7N_GC_VRP_LC_4 IC1401 AC17 IO_L3N_GC_LC_4 IC1401 W20 IO_L5P_7 IC1401 Y21 IO_L20N_VREF_7 IC1401 V19 VCCO_7 IC1401 K20 NC IC1401 P4 NC IC1401 P20 NC IC1401 T21 NC R1960 10 IC1401 AA6 GND IC1401 B5 VCCO_6 IC1401 AF22 IO_L30N_SM3_7 IC1401 AB18 IO_L29N_SM4_7 IC1401 K12 GND C1937 6.3V 10u IC1401 M21 NC IC1401 AD18 GND C1930 68u 4V IC1401 F18 IO_L11P_5 R1441 22 IC1401 P3 NC IC1401 AD9 GND IC1401 U19 NC IC1401 K4 NC IC1401 W25 IO_L2P_7 MAIN2_1.5V IC1401 K19 NC IC1401 U22 NC IC1401 K11 GND IC1401 M16 GND IC1401 AF8 IO_L25P_CC_LC_8 IC1401 AB23 IO_L14P_7 IC1401 AE13 IO_L5N_GC_LC_4 IC1401 P2 NC IC1401 AE22 VCCO_7 0.1u 10V C1407 IC1401 M14 GND IC1401 AE24 IO_L22N_7 MAIN2_1.2V IC1401 AE23 IO_L19N_7 R1621 22 IC1401 AB11 VCCO_2 IC1401 M22 NC R1491 EXB2HV103JV IC1401 W18 VCCO_7 IC1401 AF18 IO_L31P_SM2_7 IC1401 W26 IO_L2N_7 IC1401 R13 GND IC1401 AC9 IO_L29P_8 IC1401 U6 NC IC1401 N7 NC IC1401 T4 NC R1586 10k IC1401 AC24 IO_L16N_7 IC1401 P17 GND IC1401 W9 VCCO_8 R1608 0 IC1401 AE12 IO_L1N_GC_LC_4 IC1401 N26 GND IC1401 M17 GND IC1401 AE9 IO_L31N_8 IC1401 AC1 IO_L14N_8 IC1401 H21 IO_L26N_5 IC1401 G18 IO_L9P_CC_LC_5 R1590 10k IC1401 T7 NC IC1401 Y18 IO_L21N_7 0.1u 10V C1395 IC1401 AA17 IO_L27N_SM5_7 IC1401 U5 NC IC1401 P23 NC IC1401 P8 NC IC1401 AF12 IO_L1P_GC_LC_4 IC1401 A14 GND IC1401 M5 NC IC1401 N3 NC IC1401 R21 NC IC1401 L24 NC 0.1u 10V C1396 IC1401 P5 NC IC1401 R24 NC IC1401 J13 GND C1926 220u 4V R1616 EXB2HV220JV IC1401 AF16 NC IC1401 T22 NC IC1401 L5 NC IC1401 AB15 GND IC1401 B26 GND IC1401 U13 GND IC1401 H20 IO_L22P_5 IC1401 R16 GND IC1401 AA14 IO_L1P_D15_CC_LC_2 IC1401 U4 NC IC1401 M11 GND MAIN2_3.3V IC1401 K13 GND IC1401 M8 NC IC1401 H22 IO_L26P_5 IC1401 AF13 GND MAIN5V IC1401 AD23 IO_L15N_7 IC1401 AE20 IO_L23P_VRN_7 IC1401 AA16 IO_L3P_D11_LC_2 IC1401 Y17 IO_L27P_SM5_7 IC1401 AB10 IO_L2N_GC_LC_4 IC1401 AE21 IO_L32P_SM1_7 IC1401 AF19 IO_L17P_7 IC1401 AB12 GND IC1401 AD15 VCCO_4 IC1401 K24 NC IC1401 L3 NC 0.1u 10V C1402 MAIN2_1.5V C0DBEYY00043 IC1908 1 SENSE 2 ADJ/GND 3 VOUT 4 VCTRL 5 VIN 6 VOUT IC1401 AE10 IO_L6P_GC_LC_4 IC1401 B11 VCCO_3 0.1u 10V C1411 IC1401 AE16 NC IC1401 AD10 IO_L6N_GC_LC_4 0.1u 10V C1379 IC1401 K14 GND IC1401 AA15 IO_L3N_D10_LC_2 C0DBGYY00143 IC1906 VOUT 3 2 GND VIN 1 IC1401 T23 NC R1619 EXB2HV220JV MAIN2_3.3V IC1401 P21 GND IC1401 AC12 IO_L2P_D13_LC_2 IC1401 A13 GND IC1401 T19 NC IC1401 B1 GND R1727 0 IC1401 F19 IO_L17N_5 R1588 10k IC1401 P6 NC IC1401 Y9 IO_L21N_8 IC1401 N19 NC IC1401 N11 GND MAIN2_2.5V R1585 EXB2HV103JV IC1401 AF2 GND IC1401 AF10 IO_L4N_GC_VREF_LC_4 IC1401 Y19 IO_L18P_7 IC1401 W19 IO_L18N_7 IC1401 Y5 IO_L9N_CC_LC_8 IC1401 J8 VCCO_6 IC1401 AF20 IO_L17N_7 IC1401 K25 NC Virtex4-SX25 FPGA->FIFO GC5->Virtex4 ROE/GOE/BOE Peaks<->Virtex4 OSD Virtex4->GC5 FHQY/C FIFO->FPGA 27MHz Virtex4 IIC,RST,27MHz FPGA->FIFO IC1401 Virtex4-SX25 FPGA1 C1ZBZ0003449 MAIN2 1.2V FOR IC1501 FOR IC1401 MAIN3 1.2V MAIN2 2.5V 188 186 184 185 187 183 182 181 197 191 194 195 192 193 196 90 83 89 82 87 88 86 84 85 TNPA4061CK ! TH-65PV600C DG-Board (10 of 13) Schematic Diagram TH-65PV600C DG-Board (10 of 13) Schematic Diagram DG-BOARD (10/13) 109 15.31.DG 电路板 (11/13) 线路图 VSC_DO4 VSC_DO9 RD_0- POSTIP_C1 RD_E- VSC_DI1 CFG_D2 RE_0- POSTIP_Y3 VSC_DO0 VSC_DI9 VSC_DO1 RA_E+ POSTIP_Y6 DLYYC9 VSC_DI4 VSC_DO14 VSC_DI5 RE_0+ RCLK_E- VSC_DI17 VSC_DI15 VSC_DI6 POSTIP_C2 POSTIP_C7 VSC_RE VSC_WE Y0F2FC0F14 RA_E+ POSTIP_CLK RC_E- DLYYC4 POSTIP_Y9 VSC_DO12 VSC_DO7 POSTIP_Y8 VSC_DO13 RC_0+ VSC_DI10 VSC_DI0 RCLK_E+ Y0F2FC0F0 RA_0- RD_0+ VSC_DO0 VSC_DI18 POSTIP_C0 VSC_DO10 Y0F2FC0F7 CFG_D0 VSC_DO6 VSC_DO5 CFG_TDO_3E MH RB_E- RA_0+ VSC_DI5 VSC_DI14 VSC_DI2 CFG_RST_2 RB_E- VSC_DI19 POSTIP_C6 VSC_DO17 VSC_DI8 Y0F2FC0F10 VSC_DO8 VSC_DI8 RCLK_E+ RA_E- VSC_SWCK POSTIP_C9 Y0F2FC0F11 VSC_DI4 VSC_DO10 DLYYC0 Y0F2FC0F4 VSC_DO7 Y0F2FC0F2 VSC_DO2 CFG_D5 VSC_DO17 VSC_DO2 DLYYC1 Y0F2FC0F1 VSC_RSTW SPAR_TMP5 POSTIP_Y0 SPAR_TMP9 CFG_D6 VSC_DO19 SPAR_TMP3 VSC_DI15 RE_E+ CFG_D1 RA_0- RD_E+ VSC_DI2 RC_0- RD_0- RC_E+ VSC_DI19 RB_0+ VSC_DO11 CFG_D7 Y0F2FC0F12 RE_0- DLYYC7 VSC_DO16 VSC_DI14 POSTIP_Y5 Y0F2FC0F8 SPAR_TMP6 RA_E- VSC_SRCK RD_E- RE_0+ POSTIP_Y2 DLYYC8 Y0F2FC0F3 VSC_RSTR VSC_DI3 DLYYC3 VSC_DI7 CFG_TDO VSC_SWCK POSTIP_C8 SPAR_TMP1 Y0F2FC0F13 SPAR_TMP2 RB_0- POSTIP_Y4 VSC_DO4 Y0F2FC0F9 VSC_DO3 RB_0- SPAR_TMP8 VSC_DO1 SPAR_TMP0 POSTIP_C3 CFG_TMS VSC_DI13 VSC_SRCK RB_0+ POSTIP_C4 RCLK_E- CFG_INIT_B VSC_DI17 Y0F2FC0F5 RE_E- SPAR_TMP4 CFG_D4 VSC_DO16 VSC_DI16 VSC_DO6 VSC_DO5 VSC_DI9 MV RD_0+ VSC_DO13 CFG_CCLK POSTIP_C5 Y0F2FC0F6 VSC_DI16 CFG_TCK VSC_DI0 VSC_RSTR VSC_RE VSC_DO9 CFG_DONE VSC_DI3 SPAR_TMP7 VSC_DI18 VSC_DO11 LVDS_PD VSC_DI11 RC_0- VSC_DO15 DLYYC2 VSC_DO8 RB_E+ RC_E- CFG_CSO_B VSC_DI13 VSC_RSTW RC_0+ VSC_DO19 CFG_D3 VSC_DI12 VSC_DI12 VSC_DO18 VSC_DO18 RE_E+ MCLK POSTIP_Y7 RC_E+ DLYYC5 RA_0+ VSC_WE VSC_DO3 VSC_DO12 RB_E+ RD_E+ VSC_DI1 VSC_DI11 VSC_DO15 VSC_DI7 POSTIP_Y1 RE_E- VSC_DI6 DLYYC6 VSC_DO14 VSC_DI10 IC1401 B20 IO_L2N_5 R1615 EXB38VR000V IC1401 Y2 IO_L6P_8 R1743 3.3k IC1401 H6 IO_L29P_6 IC1401 A6 IO_L6P_6 0.1u 10V C1331 IC1401 D12 IO_L8N_D16_CC_LC_1 R1453 4.7k 0.1u 10V C1350 IC1401 D21 IO_L12N_VREF_5 R1613 EXB38VR000V IC1401 Y14 DOUT_BUSY_0 0.1u 10V C1362 IC1401 J17 VCCINT IC1401 F24 IO_L24P_CC_LC_5 IC1401 U10 VCCINT IC1401 B19 VCCO_5 IC1401 F10 IO_L5P_6 IC1401 E3 IO_L24P_CC_LC_6 0.1u 10V C1387 IC1401 N18 VCCAUX IC1401 C7 IO_L11N_6 IC1401 G2 IO_L30P_6 0.1u 10V C1332 IC1401 R18 VCCAUX IC1401 C25 IO_L20N_VREF_5 IC1401 B6 IO_L8P_CC_LC_6 IC1401 V5 IO_L2N_8 IC1401 A19 IO_L13N_5 IC1401 L17 VCCINT IC1401 U9 VCCINT IC1401 B17 IO_L7P_GC_LC_3 IC1401 W12 TCK_0 IC1401 B13 IO_L4P_GC_LC_3 IC1401 D1 IO_L25N_CC_LC_6 IC1401 AA12 IO_L6P_D5_LC_2 IC1401 C19 IO_L7P_5 0.1u 10V C1353 IC1401 E13 IO_L8P_D17_CC_LC_1 IC1401 F26 IO_L29P_5 IC1401 C8 IO_L2N_6 IC1401 B10 IO_L6N_GC_LC_3 IC1401 D18 IO_L7N_5 R1604 68 IC1401 Y1 IO_L6N_8 IC1401 H7 IO_L21N_6 R1607 0 IC1401 L9 VCCINT IC1401 A20 IO_L13P_5 IC1401 F13 IO_L1N_D30_LC_1 R1460 4.7k 0.1u 10V C1338 R1496 47 IC1401 E10 IO_L5N_6 IC1401 D15 IO_L5P_D23_LC_1 IC1401 Y12 TDI_0 IC1401 F22 VCCO_5 0.1u 10V C1389 MAIN2_1.2V 0.1u 10V C1370 IC1401 B9 IO_L13N_6 IC1401 F3 IO_L27N_6 R1611 EXB38VR000V 0.1u 10V C1374 IC1401 D14 IO_L4P_D25_LC_1 IC1401 A8 IO_L3P_6 IC1401 C12 IO_L8N_GC_LC_3 IC1401 E4 IO_L22N_6 0.1u 10V C1345 IC1401 H3 IO_L31N_6 IC1401 E1 IO_L26P_6 IC1401 L18 VCCINT IC1401 AC15 IO_L7N_D2_LC_2 MAIN2_3.3V IC1401 D8 IO_L4P_6 R1626 47 R1605 0 IC1401 G8 IO_L10N_6 IC1401 L16 VCCINT IC1401 H16 VCCAUX IC1401 A17 IO_L7N_GC_LC_3 IC1401 G15 INIT_B_0 IC1401 V7 IO_L3N_8 IC1401 A5 IO_L6N_6 0.1u 10V C1326 0.1u 10V C1364 IC1401 Y3 IO_L8N_CC_LC_8 IC1401 L10 VCCINT IC1401 A3 IO_L14P_6 IC1401 E14 IO_L5N_D22_LC_1 0.1u 10V C1366 IC1401 N9 VCCAUX 0.1u 10V C1328 IC1401 H17 VCCAUX IC1401 H12 RDWR_B_0 IC1401 H1 IO_L32N_6 IC1401 G3 IO_L28N_VREF_6 IC1401 D17 IO_L1N_5 IC1401 D24 IO_L16P_5 0.1u 10V C1355 R1737 3.3k IC1401 D19 IO_L4N_VREF_5 0.1u 10V C1346 IC1401 D20 IO_L4P_5 IC1401 C24 IO_L16N_5 IC1401 K9 VCCINT R1497 47 R1599 22 IC1401 Y13 TDO_0 MAIN2_2.5V IC1401 A15 IO_L5N_GC_LC_3 IC1401 A24 IO_L8P_CC_LC_5 IC1401 D10 IO_L1P_6 R1436 EXB2HV470JV IC1401 F4 IO_L27P_6 IC1401 G5 IO_L23N_VRP_6 IC1401 C21 IO_L6P_5 IC1401 P9 VCCAUX R1457 4.7k IC1401 B15 IO_L1P_GC_CC_LC_3 IC1401 H13 TDP_0 0.1u 10V C1348 IC1401 W7 IO_L3P_8 IC1401 B18 IO_L3P_5 0.1u 10V C1365 R1437 47 0.1u 10V C1388 IC1401 W15 M0_0 IC1401 W2 IO_L1P_8 L1304 J0JHC0000078 IC1401 M15 VCCINT IC1401 T16 VCCINT IC1401 W6 IO_L5P_8 IC1401 T17 VCCINT IC1401 F7 IO_L19P_6 R1625 EXB2HV470JV IC1401 E23 IO_L18P_5 IC1401 W4 IO_L4P_8 0.1u 10V C1371 IC1401 C1 IO_L20N_VREF_6 0.1u 10V C1352 R1445 4.7k IC1401 J16 VCCINT 0.1u 10V C1354 IC1401 AD22 IO_L15P_7 IC1401 J10 VCCINT IC1401 H8 IO_L21P_6 R1609 0 IC1401 H11 VCCAUX IC1401 W14 M2_0 R1602 68 0.1u 10V C1341 IC1401 AC13 IO_L8P_D1_LC_2 0.1u 10V C1367 0.1u 10V C1357 IC1401 V15 VCCAUX IC1401 Y11 TMS_0 0.1u 10V C1385 R1595 EXB2HV820JV IC1401 B14 IO_L1N_GC_CC_LC_3 IC1401 G25 IO_L31N_5 IC1401 F8 IO_L10P_6 IC1401 G1 IO_L30N_6 R1627 47 0.1u 10V C1325 IC1401 H2 IO_L32P_6 IC1401 G24 IO_L28P_5 IC1401 G13 TDN_0 IC1401 H26 IO_L32P_5 IC1401 B7 IO_L11P_6 IC1401 AD11 IO_L8N_GC_CC_LC_4 0.1u 10V C1390 IC1401 D5 IO_L12N_VREF_6 R1601 22 C3ZBN0000026 IC1302 1 DO1 2 VccQ 3 DO2 4 DO3 5 VssQ 6 DO4 7 DO5 8 VccQ 9 DO6 10 DO7 11 VssQ 12 Vss 13 SWCK 14 RSTW 15 Vcc 16 Vss 17 Vcc 18 WE 19 IE 20 WAD 21 Vss 22 VssQ 23 DO8 24 DO9 25 VccQ 26 DO10 27 DO11 28 VssQ 29 DO12 30 DO13 31 VccQ 32 DO14 33 DO15 34 VssQ 35 VccQ 36 Vcc 37 Vss 38 DI8 39 DI9 40 DI10 41 DI11 42 Vcc 43 DI12 44 DI13 45 DI14 46 DI15 47 Vss 48 Vcc 49 Vss 50 Vss 51 DI16 52 DI17 53 DI18 54 DI19 55 Vcc 56 DI20 57 DI21 58 DI22 59 DI23 60 Vss 61 Vcc 62 VccQ 63 VssQ 64 DO16 65 DO17 66 VccQ 67 DO18 68 DO19 69 VssQ 70 DO20 71 DO21 72 VccQ 73 DO22 74 DO23 75 VssQ 76 Vss 77 RAD 78 OE 79 RE 80 Vcc 81 Vss 82 Vcc 83 RSTR 84 SRCK 85 Vss 86 VssQ 87 DO24 88 DO25 89 VccQ 90 DO26 91 DO27 92 VssQ 93 DO28 94 DO29 95 VccQ 96 DO30 97 DO31 98 VssQ 99 VccQ 100 Vcc 101 Vss 102 DI24 103 DI25 104 DI26 105 DI27 106 Vcc 107 DI28 108 DI29 109 DI30 110 DI31 111 Vss 112 Vcc 113 Vss 114 Vss 115 DI0 116 DI1 117 DI2 118 DI3 119 Vcc 120 DI4 121 DI5 122 DI6 123 DI7 124 Vss 125 Vcc 126 VccQ 127 VssQ 128 DO0 0.1u 10V C1368 IC1401 E2 IO_L24N_CC_LC_6 R1597 EXB2HV680JV R1603 68 IC1401 D16 IO_L7P_D19_LC_1 IC1401 F23 IO_L24N_CC_LC_5 0.1u 10V C1358 IC1401 E20 IO_L19N_5 IC1401 H14 DONE_0 IC1401 C11 IO_L6P_D21_LC_1 IC1401 B4 IO_L15N_6 0.1u 10V C1359 IC1401 C5 IO_L12P_6 IC1401 A10 IO_L6P_GC_LC_3 IC1401 D7 IO_L4N_VREF_6 R1610 EXB38VR000V 0.1u 10V C1356 IC1401 E24 IO_L27N_5 IC1401 E26 IO_L29N_5 IC1401 V6 IO_L2P_8 0.1u 10V C1333 IC1401 W3 IO_L4N_VREF_8 IC1401 C4 IO_L16P_6 C1347 6.3V 10u IC1401 T9 VCCINT IC1401 H5 IO_L29N_6 IC1401 C16 IO_L7N_D18_LC_1 IC1401 A4 IO_L15P_6 0.1u 10V C1342 IC1401 M9 VCCAUX IC1401 C20 IO_L2P_5 IC1401 D11 IO_L6N_D20_LC_1 IC1401 A23 IO_L8N_CC_LC_5 IC1401 E5 IO_L18N_6 IC1401 D13 IO_L4N_D24_VREF_LC_1 0.1u 10V C1334 R1438 47 IC1401 J12 VCCAUX R1725 0 IC1401 F14 IO_L1P_D31_LC_1 0.1u 10V C1375 IC1401 L11 VCCINT IC1401 K17 VCCINT IC1401 J11 VCCINT IC1401 AC14 IO_L5P_D7_LC_2 IC1401 E19 VCCO_5 IC1401 C2 IO_L20P_6 MAIN2_2.5V 0.1u 10V C1373 IC1401 A12 IO_L2P_GC_VRN_LC_3 IC1401 B22 VCCO_5 IC1401 C17 IO_L1P_5 DG5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 IC1401 R15 VCCINT IC1401 C13 IO_L8P_GC_LC_3 IC1401 G16 HSWAPEN_0 0.1u 10V C1376 IC1401 D26 IO_L25P_CC_LC_5 IC1401 E9 IO_L7P_6 0.1u 10V C1335 0.1u 10V C1344 IC1401 F25 VCCO_5 IC1401 G7 IO_L19N_6 R1612 EXB38VR000V IC1401 G12 D_IN_0 IC1401 A11 IO_L2N_GC_VRP_LC_3 C1349 6.3V 10u 0.1u 10V C1351 IC1401 Y15 M1_0 IC1401 AD14 IO_L5N_D6_LC_2 0.1u 10V C1372 IC1401 Y4 IO_L8P_CC_LC_8 IC1401 D23 IO_L21P_5 IC1401 T10 VCCINT IC1401 Y16 VBATT_0 IC1401 G14 CCLK_0 IC1401 G6 IO_L23P_VRN_6 IC1401 H25 IO_L32N_5 MAIN2_3.3V R1598 EXB2HV680JV IC1401 B21 IO_L6N_5 IC1401 W5 IO_L5N_8 IC1401 T11 VCCINT IC1401 AA1 IO_L10N_8 0.1u 10V C1327 IC1401 A9 IO_L13P_6 IC1401 H4 IO_L31P_6 IC1401 K10 VCCINT IC1401 F9 IO_L7N_6 IC1401 D4 IO_L16N_6 IC1401 G9 IO_L9N_CC_LC_6 IC1401 AA11 IO_L6N_D4_LC_2 IC1401 V11 VCCINT IC1401 B3 IO_L14N_6 IC1401 F12 IO_L2P_D29_LC_1 0.1u 10V C1330 IC1401 W11 VCCAUX 0.1u 10V C1336 R1600 22 0.1u 10V C1360 IC1401 G26 IO_L31P_5 L1303 J0JHC0000078 0.1u 10V C1337 IC1401 E18 IO_L11N_5 IC1401 V10 VCCINT IC1401 M12 VCCINT IC1401 T18 VCCINT IC1401 G4 IO_L28P_6 IC1401 C6 IO_L8N_CC_LC_6 IC1401 E21 IO_L12P_5 IC1401 B23 IO_L10N_5 R1414 EXB28V680JX 0.1u 10V C1361 IC1401 H15 PROGRAM_B_0 IC1401 F1 IO_L26N_6 IC1401 D25 IO_L25N_CC_LC_5 IC1401 U18 VCCINT IC1401 U17 VCCINT R1434 EXB28V820JX IC1401 A21 IO_L15N_5 IC1401 A16 IO_L5P_GC_LC_3 0.1u 10V C1343 IC1401 V17 VCCINT C1363 6.3V 10u IC1401 AD21 IO_L32N_SM1_7 0.1u 10V C1386 IC1401 C23 IO_L21N_5 IC1401 G11 CS_B_0 R1447 330 IC1401 A7 IO_L3N_6 IC1401 J19 VCCO_5 IC1401 AC16 IO_L7P_D3_LC_2 IC1401 D6 IO_L17N_6 IC1401 D3 IO_L22P_6 IC1401 W1 IO_L1N_8 IC1401 AD5 IO_L22P_8 IC1401 C26 IO_L20P_5 0.1u 10V C1329 IC1401 B12 IO_L4N_GC_VREF_LC_3 IC1401 W13 PWRDWN_B_0 IC1401 H19 VCCO_5 R1596 EXB2HV820JV IC1401 C22 IO_L14N_5 IC1401 W16 VCCAUX IC1401 P18 VCCAUX 0.1u 10V C1340 IC1401 F15 IO_L3N_D26_LC_1 IC1401 E7 IO_L17P_6 R1606 0 IC1401 C10 IO_L1N_6 IC1401 D2 IO_L25P_CC_LC_6 IC1401 F11 IO_L2N_D28_LC_1 IC1401 F16 IO_L3P_D27_LC_1 IC1401 A22 IO_L15P_5 IC1401 A18 IO_L3N_5 IC1401 F17 IO_L5N_5 0.1u 10V C1339 IC1401 C14 IO_L3N_GC_LC_3 IC1401 V16 VCCINT IC1401 E6 IO_L18P_6 IC1401 AD13 IO_L8N_D0_LC_2 IC1401 D9 IO_L2P_6 IC1401 E17 IO_L5P_5 IC1401 W10 VCCAUX 0.1u 10V C1369 IC1401 E25 IO_L27P_5 R1614 EXB38VR000V IC1401 K18 VCCINT IC1401 H18 VCCO_5 IC1401 R12 VCCINT IC1401 B24 IO_L10P_5 GND E- LVDS4 GND O- LVDS2 E+ LVDS2 O- LVDSCLK GND O+ LVDS4 Virtex4->Dprint LVDS O+ LVDS1 E- LVDS0 O- LVDS4 E- LVDS3 FPGA->FIFO GND E- LVDS2 O- LVDS1 E+ LVDS1 FIFO->FPGA LVDS_DET E+ LVDSCLK FPGA->FIFO E- LVDS1 GND GND E+ LVDS4 Virtex4<->Spartan TMP O- LVDS3 O+ LVDS0 O+ LVDS3 Virtex4->Spartan DLYYC O+ LVDS2 E- LVDSCLK E+ LVDS3 Spartan->Virtex4 Y0F2FC0F Spartan->Virtex4 POSTIP E+ LVDS0 O+ LVDSCLK O- LVDS0 32M FIFO FIFO FOR VSC VSC FIFO BLOCK 196 195 194 197 193 191 192 202 211 209 205 208 204 210 206 212 207 201 203 99 92 98 91 96 97 95 93 94 TNPA4061CK ! DG-BOARD (11/13) TO (D5) D-BOARD TH-65PV600C DG-Board (11 of 13) Schematic Diagram TH-65PV600C DG-Board (11 of 13) Schematic Diagram 110 15.32.DG 电路板 (12/13) 线路图 IP_DO20 IP_DI11 IP_DI12 IP_DO8 Y0F2FC0F7 IP_DI19 IP_DO4 THQCKO IP_DI15 IP_DI18 IP_DI20 SPAR_TMP3 SCL_F IP_DI30 IP_DI26 IP_DO15 POSTIP_Y1 THQCO7 DLYYC4 POSTIP_Y5 IP_DO31 IP_DI25 IP_DI2 IP_DO26 POSTIP_Y0 THQCO0 IP_DO10 IP_WE IP_DI27 IP_DO27 IP_DO23 THQCO9 SPAR_TMP1 IP_DO23 IP_DI18 POSTIP_Y2 IP_SWCK IP_DI17 IP_DO31 THQYO2 IP_DO5 SPAR_TMP4 Y0F2FC0F12 THQYO3 IP_DI24 IP_DO22 SPAR_TMP5 IP_DO0 IP_DI9 IP_DO13 THQCO3 DLYYC8 IP_DO17 POSTIP_Y8 SPAR_TMP7 THQCO1 IP_DI6 SPAR_TMP6 IP_DI29 SPAR_TMP8 IP_DO18 Y0F2FC0F13 IP_DO2 Y0F2FC0F2 IP_DO19 FPGA_RST IP_DI27 IP_DO12 IP_DI3 Y0F2FC0F11 POSTIP_C1 IP_DO10 IP_DI14 IP_RE DLYYC9 IP_DI28 IP_DI1 IP_DI4 IP_DI28 DLYYC5 IP_DI8 IP_DI2 IP_RSTR IP_DO27 IP_DO16 IP_DI5 IP_DI23 IP_DI5 IP_DO3 IP_DO22 IP_DI16 THQYO6 THQYO9 POSTIP_C6 IP_SRCK IP_DO3 IP_DO21 THQCO5 IP_DI21 IP_SRCK IP_DI25 IP_DI22 IP_DO30 IP_DI19 THQCO2 Y0F2FC0F4 IP_DO4 THQCO8 IP_SWCK POSTIP_C2 POSTIP_C8 IP_DI7 SPAR_TMP9 IP_DO20 IP_DO11 IP_RSTR Y0F2FC0F3 IP_DI0 POSTIP_Y9 POSTIP_Y6 Y0F2FC0F6 IP_DI20 SPAR_TMP0 IP_DO24 IP_RSTW IP_DO25 IP_DO9 IP_DO29 IP_DO21 THQCO6 IP_DI1 MV IP_DO26 IP_DO1 THQYO0 IP_DO7 IP_DO8 DLYYC2 IP_DI23 POSTIP_C3 IP_DO14 IP_DO5 POSTIP_C5 IP_DI31 IP_DI30 THQVOUT IP_DI31 IP_DI26 POSTIP_C9 THQYO5 MH IP_RSTW IP_DO17 SDA_F IP_DI15 IP_DI3 DLYYC1 IP_DO6 Y0F2FC0F0 IP_DI13 IP_DO11 IP_DI7 POSTIP_Y4 DLYYC3 IP_WE Y0F2FC0F9 IP_DO15 IP_DI13 IP_DO6 IP_DO29 IP_DO14 Y0F2FC0F1 IP_DI6 IP_DO19 POSTIP_C7 THQYO1 IP_DI16 IP_DI0 Y0F2FC0F5 Y0F2FC0F10 IP_DO12 IP_DO28 DLYYC7 DLYYC0 SPAR_TMP2 IP_DO9 POSTIP_CLK THQCO4 POSTIP_C4 THQYO8 Y0F2FC0F14 THQYO7 IP_DO7 DLYYC6 IP_DO16 IP_DO18 IP_DI22 IP_DI4 IP_DO28 IP_DI9 IP_DI17 THQHOUT IP_DO30 REFCK_FS IP_DO25 IP_DI8 IP_DI24 IP_DI21 IP_DO0 IP_DO13 IP_DO1 Y0F2FC0F8 THQYO4 IP_DO24 IP_DI12 IP_DI11 POSTIP_C0 IP_DI14 IP_DO2 IP_RE IP_DI29 MCLK POSTIP_Y7 POSTIP_Y3 IC1501 L10 GND IC1501 H6 IO_L08P_3 0.1u 10V C1624 R1686 82 IC1501 J2 IO_L12N_3/LHCLK3/IRDY2 IC1501 B2 GND IC1501 C8 IP_L16P_0 IC1501 N4 IO_L20P_3 R1726 22 0.1u 10V C1623 IC1501 T2 IO_L24P_3 IC1501 H1 IO_L10N_3 IC1501 L1 IO_L15P_3 0.1u 10V C1666 IC1501 L11 GND IC1501 B18 IP IC1501 E9 IO_L15P_0 IC1501 P7 IO_L07N_2 IC1501 B12 VCCAUX 0.1u 10V C1610 IC1501 A8 IO IC1501 D5 IO_L23N_0/VREF_0 IC1501 A12 IP IC1501 V8 IP_L11N_2/VREF_2 IC1501 B6 IO_L20P_0 IC1501 U2 GND C1625 6.3V 10u IC1501 M5 IO_L19P_3 IC1501 E16 IO_L22N_1 0.1u 10V C1654 C1651 6.3V 10u IC1501 U17 GND IC1501 D18 IP/VREF_1 IC1501 F16 VCCO_1 0.1u 10V C1622 0.1u 10V C1620 IC1501 G14 IO_L20P_1 IC1501 N13 VCCINT IC1501 J6 IP/VREF_3 IC1501 C3 IO_L25P_0 R1683 EXB2HV820JV IC1501 B14 IO_L04P_0 IC1501 H13 IP IC1501 F7 IO_L19P_0 IC1501 A18 GND R1675 EXB2HV820JV IC1501 E7 IO_L19N_0/VREF_0 IC1501 A11 IO 0.1u 10V C1609 IC1501 M11 VCCO_2 IC1501 K16 GND R1677 EXB2HV820JV 0.1u 10V C1664 IC1501 L3 IO_L16P_3 IC1501 V3 IP_L02N_2 IC1501 E2 IO_L03P_3 IC1501 P9 IO IC1501 G9 IO R1721 EXB2HV220JV R1678 EXB2HV820JV 0.1u 10V C1688 IC1501 L4 IO_L16N_3 IC1501 G5 IO_L07N_3 IC1501 J8 GND IC1501 A7 IO L1605 J0JHC0000078 IC1501 L2 IO_L15N_3 IC1501 U1 IP IC1501 V1 GND 0.1u 10V C1659 IC1501 A16 IO_L01N_0 IC1501 P6 IO_L05N_2 0.1u 10V C1653 IC1501 G1 IP R1652 22 IC1501 D13 IO IC1501 F11 IO_L08N_0 IC1501 N3 VCCO_3 IC1501 T6 VCCO_2 IC1501 P14 VCCINT 0.1u 10V C1658 R1679 EXB2HV820JV MAIN2_3.3V IC1501 R8 IO_L10P_2 IC1501 J1 IO_L12P_3/LHCLK2 IC1501 T5 IO_L04N_2 IC1501 R4 IP/VREF_3 IC1501 R3 IO_L23P_3 IC1501 F1 IO_L05P_3 0.1u 10V C1611 IC1501 N5 IO_L20N_3 IC1501 N8 IO_L09N_2 IC1501 J7 IP IC1501 D1 IO_L02P_3 0.1u 10V C1657 IC1501 F8 IO_L17N_0 0.1u 10V C1677 IC1501 D8 IP_L16N_0 0.1u 10V C1676 R1713 EXB2HV220JV 0.1u 10V C1606 0.1u 10V C1619 IC1501 F4 IP 0.1u 10V C1614 IC1501 K7 IP IC1501 R2 IO_L23N_3 IC1501 B7 VCCAUX IC1501 D7 IO_L18N_0/VREF_0 MAIN2_3.3V IC1501 M7 GND 0.1u 10V C1681 IC1501 N1 IP IC1501 R6 IO_L05P_2 IC1501 V18 GND IC1501 M2 VCCAUX IC1501 D10 IO_L11P_0/GCLK4 R1723 22 IC1501 C9 IO_L14P_0/GCLK10 0.1u 10V C1663 IC1501 A14 IO_L04N_0 0.1u 10V C1621 0.1u 10V C1660 IC1501 B10 IO_L12P_0/GCLK6 IC1501 L9 GND IC1501 V4 IP_L02P_2 R1689 82 IC1501 L8 GND IC1501 U5 IO/VREF_2 IC1501 F10 IP_L10P_0 0.1u 10V C1618 IC1501 D4 IO IC1501 M3 IO_L18N_3 IC1501 B13 IO_L05N_0/VREF_0 IC1501 U7 VCCAUX IC1501 A10 IO_L12N_0/GCLK7 IC1501 L5 IO_L17N_3/VREF_3 IC1501 H4 IO_L09P_3 0.1u 10V C1615 0.1u 10V C1678 IC1501 H10 GND IC1501 G12 GND L1604 J0JHC0000078 IC1501 F14 IO_L21N_1 R1688 82 IC1501 C10 GND IC1501 M8 VCCO_2 IC1501 K1 VCCO_3 IC1501 H5 IO_L08N_3 IC1501 A9 VCCO_0 IC1501 G15 IO_L18P_1 IC1501 G11 VCCO_0 R1715 22 0.1u 10V C1668 0.1u 10V C1684 IC1501 H14 IO_L17P_1 IC1501 D3 IP R1722 22 0.1u 10V C1687 C3ZBN0000026 IC1602 1 DO1 2 VccQ 3 DO2 4 DO3 5 VssQ 6 DO4 7 DO5 8 VccQ 9 DO6 10 DO7 11 VssQ 12 Vss 13 SWCK 14 RSTW 15 Vcc 16 Vss 17 Vcc 18 WE 19 IE 20 WAD 21 Vss 22 VssQ 23 DO8 24 DO9 25 VccQ 26 DO10 27 DO11 28 VssQ 29 DO12 30 DO13 31 VccQ 32 DO14 33 DO15 34 VssQ 35 VccQ 36 Vcc 37 Vss 38 DI8 39 DI9 40 DI10 41 DI11 42 Vcc 43 DI12 44 DI13 45 DI14 46 DI15 47 Vss 48 Vcc 49 Vss 50 Vss 51 DI16 52 DI17 53 DI18 54 DI19 55 Vcc 56 DI20 57 DI21 58 DI22 59 DI23 60 Vss 61 Vcc 62 VccQ 63 VssQ 64 DO16 65 DO17 66 VccQ 67 DO18 68 DO19 69 VssQ 70 DO20 71 DO21 72 VccQ 73 DO22 74 DO23 75 VssQ 76 Vss 77 RAD 78 OE 79 RE 80 Vcc 81 Vss 82 Vcc 83 RSTR 84 SRCK 85 Vss 86 VssQ 87 DO24 88 DO25 89 VccQ 90 DO26 91 DO27 92 VssQ 93 DO28 94 DO29 95 VccQ 96 DO30 97 DO31 98 VssQ 99 VccQ 100 Vcc 101 Vss 102 DI24 103 DI25 104 DI26 105 DI27 106 Vcc 107 DI28 108 DI29 109 DI30 110 DI31 111 Vss 112 Vcc 113 Vss 114 Vss 115 DI0 116 DI1 117 DI2 118 DI3 119 Vcc 120 DI4 121 DI5 122 DI6 123 DI7 124 Vss 125 Vcc 126 VccQ 127 VssQ 128 DO0 IC1501 N6 VCCINT R1728 0 IC1501 M12 GND IC1501 K5 IO_L14N_3/LHCLK7 0.1u 10V C1679 IC1501 V2 IP R1690 0 IC1501 R1 IP R1730 0 R1654 22 IC1501 A4 IO_L24P_0 IC1501 H7 VCCO_3 IC1501 D6 IO_L21P_0 0.1u 10V C1682 0.1u 10V C1608 IC1501 B4 IO_L24N_0 IC1501 E10 IO_L11N_0/GCLK5 IC1501 V7 IO IC1501 J11 GND IC1501 H8 GND IC1501 K6 IO_L14P_3/LHCLK6 R1709 0 IC1501 C1 IO_L01P_3 IC1501 E1 IO_L03N_3 IC1501 T1 IO_L24N_3 IC1501 C13 VCCO_0 IC1501 F6 VCCINT 0.1u 10V C1670 IC1501 H12 VCCO_1 R1714 EXB2HV220JV IC1501 H9 GND IC1501 L6 IO_L17P_3 IC1501 V5 IO_L06P_2 0.1u 10V C1685 R1684 82 IC1501 B17 GND IC1501 H2 IO_L10P_3 R1648 22 IC1501 P5 VCCINT IC1501 T7 IP_L08P_2 0.1u 10V C1626 0.1u 10V C1605 IC1501 T13 VCCO_2 MAIN3_1.2V 0.1u 10V C1667 IC1501 P3 IO_L22P_3 R1687 82 IC1501 E3 IO_L04N_3 IC1501 R5 IO_L04P_2 IC1501 T8 IO_L10N_2 0.1u 10V C1607 IC1501 C5 IO_L23P_0 IC1501 G2 VCCAUX IC1501 N2 IP IC1501 F3 VCCO_3 IC1501 C6 VCCO_0 R1681 EXB2HV820JV IC1501 G17 VCCAUX IC1501 J4 IO_L11N_3/LHCLK1 IC1501 D9 IO_L14N_0/GCLK11 IC1501 P2 IO_L21P_3 IC1501 C4 IO IC1501 E4 IO_L04P_3 IC1501 T9 GND IC1501 G4 IO_L06N_3/VREF_3 0.1u 10V C1690 IC1501 A6 IO_L20N_0 IC1501 G8 VCCO_0 IC1501 K2 IP R1685 82 IC1501 M1 IP IC1501 N7 IO_L07P_2 R1717 22 IC1501 U6 IO R1708 0 IC1501 U8 IP_L11P_2 0.1u 10V C1671 R1738 560 R1650 22 IC1501 G3 IO_L06P_3 0.1u 10V C1691 0.1u 10V C1661 IC1501 F5 IP IC1501 A3 IP IC1501 G10 IP_L10N_0 R1680 EXB2HV820JV IC1501 J5 IO_L11P_3/LHCLK0 IC1501 K4 IO_L13N_3/LHCLK5 IC1501 D14 IO_L03P_0 IC1501 A15 IP_L02N_0 IC1501 H11 GND IC1501 E13 IO IC1501 D12 IP_L07N_0 IC1501 R7 IP_L08N_2 IC1501 L12 VCCO_1 0.1u 10V C1612 0.1u 10V C1603 IC1501 M6 IO_L19N_3 IC1501 D11 IO_L09N_0 0.1u 10V C1675 IC1501 C7 IO_L18P_0 IC1501 K3 IO_L13P_3/LHCLK4/TRDY2 IC1501 J3 GND 0.1u 10V C1655 IC1501 G16 IO_L18N_1 0.1u 10V C1613 IC1501 B9 IP_L13N_0/GCLK9 0.1u 10V C1617 0.1u 10V C1689 IC1501 E5 VCCINT IC1501 B8 IP_L13P_0/GCLK8 IC1501 G6 IO_L07P_3 R1719 22 IC1501 F12 IO_L06P_0 IC1501 K8 GND 0.1u 10V C1604 IC1501 N16 VCCO_1 R1718 EXB2HV220JV IC1501 H15 IO_L17N_1 IC1501 F13 VCCINT IC1501 H3 IO_L09N_3 IC1501 E6 IO_L21N_0 IC1501 P8 IO_L09P_2 IC1501 C14 IO_L03N_0/VREF_0 IC1501 A13 IO_L05P_0 IC1501 V10 VCCO_2 0.1u 10V C1662 R1710 0 IC1501 A1 GND MAIN2_2.5V IC1501 K11 GND IC1501 E8 IO_L17P_0 IC1501 A5 IP_L22P_0 0.1u 10V C1652 IC1501 J18 VCCO_1 IC1501 F2 IO_L05N_3 IC1501 D2 IO_L02N_3/VREF_3 IC1501 B5 IP_L22N_0 IC1501 C15 IP IC1501 G7 GND 0.1u 10V C1692 IC1501 B16 IO_L01P_0 IC1501 C2 IO_L01N_3 C1683 6.3V 10u 0.1u 10V C1616 IC1501 B15 IP_L02P_0 IC1501 E15 IO_L22P_1 IC1501 B11 IO/VREF_0 R1716 22 IC1501 E14 VCCINT IC1501 E11 IO_L08P_0 0.1u 10V C1674 0.1u 10V C1656 IC1501 F9 IO_L15N_0 IC1501 F15 IO_L21P_1 R1682 EXB2HV820JV IC1501 U12 VCCAUX IC1501 V6 IO_L06N_2/VREF_2 R1720 22 IC1501 P4 IO_L22N_3 IC1501 M17 VCCAUX IC1501 C12 IP_L07P_0 C1673 6.3V 10u IC1501 L7 VCCO_3 IC1501 P1 IO_L21N_3 IC1501 C11 IO_L09P_0 0.1u 10V C1669 0.1u 10V C1680 IC1501 G13 IO_L20N_1 0.1u 10V C1665 IC1501 M4 IO_L18P_3 IC1501 E12 IO_L06N_0 0.1u 10V C1672 0.1u 10V C1686 FPGA->FIFO FPGA->FIFO Virtex4->Spartan DLYYC GC5->Spartan THQY/C Spartan -> Virtex4 Y0F2FC0F Spartan->Virtex4 POSTIP Spartan3E-1600 Spartan3E IIC,RST,27MHz 27MHz Virtex4<->Spartan TMP FIFO->FPGA IP FIFO BLOCK 32M FIFO FIFO FOR IP Spartan3E-1600 FPGA2 IC1501 C1ZBZ0003448 211 205 202 212 207 208 209 206 203 210 204 201 226 223 222 225 221 224 108 101 107 100 105 106 104 102 103 TNPA4061CK ! DG-BOARD (12/13) TH-65PV600C DG-Board (12 of 13) Schematic Diagram TH-65PV600C DG-Board (12 of 13) Schematic Diagram 111 15.33.DG 电路板 (13/13) 线路图 BNR_DI6 BNR_DI30 BNR_DI13 BNR_SWCK CFG_A12 CFG_A15 BNR_DI21 BNR_SRCK BNR_DI14 BNR_DO23 BNR_RSTR BNR_DI7 CFG_A3 BNR_DI27 CFG_D4 BNR_DI18 BNR_DI1 BNR_DO26 BNR_DO5 BNR_DI26 BNR_DI24 BNR_DO24 BNR_RE BNR_DO7 BNR_DI1 BNR_DI6 CFG_D7 BNR_DO30 CFG_CSO_B BNR_WE BNR_DI17 CFG_A8 BNR_DI0 BNR_DO15 CFG_D2 BNR_DI8 CFG_WE CFG_TMS CFG_BYTE CFG_A16 BNR_DI7 BNR_DI2 BNR_DO2 BNR_DO0 CFG_A7 CFG_D2 BNR_DO21 BNR_DI8 BNR_RSTW BNR_DO2 BNR_DI23 BNR_DO28 BNR_DI10 BNR_DO21 BNR_WE BNR_DO22 BNR_DI13 CFG_A13 CFG_D3 BNR_DO3 CFG_WE BNR_DI28 BNR_DO6 CFG_RST BNR_DO3 BNR_DO14 CFG_CE BNR_DO1 BNR_DI9 BNR_DO6 BNR_DO0 BNR_DI15 CFG_D7 BNR_DI19 CFG_D0 CFG_D3 CFG_D6 BNR_DI5 CFG_RST_2 CFG_A6 BNR_DI2 BNR_DO25 BNR_DO20 BNR_DI11 BNR_DO11 BNR_DO29 BNR_DI15 CFG_BYTE BNR_DO30 CFG_DONE CFG_D5 CFG_D4 BNR_DO4 CFG_A4 BNR_DO8 BNR_DO23 BNR_DI14 BNR_DI18 CFG_A9 BNR_DO8 BNR_DI28 BNR_DO22 CFG_D6 CFG_TDO_3E BNR_DO13 BNR_DI25 BNR_DI20 BNR_DI22 CFG_A17 CFG_OE BNR_DO4 BNR_DO12 CFG_A10 CFG_A19 CFG_A5 CFG_INIT_B BNR_DI25 BNR_DI16 CFG_D1 BNR_DO28 BNR_DO9 BNR_DO17 BNR_DO9 CFG_TDI BNR_DI21 BNR_DO5 BNR_SWCK BNR_DO16 CFG_A0 BNR_DI12 BNR_DI23 BNR_DI16 BNR_DI12 BNR_DI20 BNR_RE CFG_A11 BNR_DO25 BNR_DI22 BNR_DI19 BNR_DI30 CFG_D1 CFG_CE BNR_DI26 BNR_DO27 BNR_DO7 CFG_A-1 BNR_DI0 BNR_DO27 BNR_RSTR BNR_DI5 BNR_DI24 BNR_DI4 CFG_A2 BNR_DI9 BNR_DI3 BNR_DO1 BNR_DO29 CFG_A18 BNR_DI3 BNR_DO18 BNR_DO26 CFG_OE CFG_A14 BNR_DO24 BNR_DI27 CFG_D0 CFG_A1 BNR_SRCK BNR_DI11 BNR_DI29 BNR_DO10 CFG_D5 BNR_DI4 CFG_TCK BNR_DI29 BNR_DI10 BNR_DO19 BNR_RSTW BNR_DI17 BNR_DO20 BNR_DO10 BNR_DO11 BNR_DO12 BNR_DO13 BNR_DO14 BNR_DO15 BNR_DO19 BNR_DO18 BNR_DO17 BNR_DO16 CFG_CCLK CFG_TCK CFG_TMS CFG_TDO CFG_TDI CFG_TCK_A CFG_TMS_A CFG_TDO_A CFG_TDI_A CFG_A11 CFG_A10 CFG_A8 CFG_A7 CFG_A6 CFG_A9 CFG_A0 CFG_A4 CFG_A5 CFG_A1 CFG_A3 CFG_A2 CFG_A13 CFG_A15 CFG_A14 CFG_A12 CFG_A17 CFG_A18 CFG_A19 CFG_A16 CFG_A-1 CFG_RST_2 R1644 4.7k IC1501 K17 IP IC1501 J15 IO_L14P_1/A4/RHCLK6 IC1501 H18 IP/VREF_1 R1671 120 IC1501 U4 IO_L03P_2/DOUT/BUSY MAIN2_2.5V IC1501 L15 IO_L09N_1/A11 R1672 120 R1697 EXB2HV820JV R1702 82 IC1501 P13 IO_L22P_2/A23 R1658 47 R1696 82 R1666 120 IC1501 B1 PROG_B IC1501 U15 IO_L25N_2/VS1/A18 IC1501 N10 IO_L16N_2/DIN/D0 0.1u 10V C1602 R1645 4.7k IC1501 K12 IO_L11N_1/A9/RHCLK1 R1663 0 R1664 120 R1667 120 R1706 82 0.1u 10V C1650 IC1501 V17 DONE IC1501 N14 IO_L04N_1 R1673 120 IC1501 V9 IO_L13N_2/D3/GCLK15 IC1501 P15 IP IC1501 T11 IP_L17P_2 IC1501 T4 IO_L03N_2/MOSI/CSI_B R1700 EXB2HV820JV R1659 0 R1662 120 R1734 EXB28V680JX IC1501 H16 IO_L16P_1 0.1u 10V C1640 0.1u 10V C1646 IC1501 J16 IO_L13N_1/A5/RHCLK5 IC1501 E18 IP IC1501 T10 IP_L14N_2/M2/GCLK1 IC1501 C18 IO_L24P_1/LDC1 IC1501 U10 IP_L14P_2/RDWR_B/GCLK0 IC1501 U9 IO_L13P_2/D4/GCLK14 R1698 EXB28V820JX IC1501 G18 IP IC1501 D17 IO_L23P_1/HDC IC1501 A17 TCK R1705 82 IC1501 V14 IP_L23P_2 R1657 0 0.1u 10V C1645 C1694 6.3V 10u IC1501 P16 IO C1693 10V 0.1u IC1501 U16 IO_L26N_2/CCLK R1661 0 IC1501 J13 IO_L15N_1/A1 IC1501 K13 IO_L11P_1/A10/RHCLK0 IC1501 N12 IO_L21P_2 IC1501 N11 IO_L18N_2 IC1501 L13 IP 0.1u 10V C1632 JS4304 IC1501 R14 IO_L24N_2/A20 0.1u 10V C1628 IC1501 M15 IO_L07P_1 R1660 120 IC1501 P18 IO_L06N_1 R1732 EXB28V680JX IC1501 A2 TDI R1699 EXB2HV820JV IC1501 M9 IO_L12N_2/D6/GCLK13 0.1u 10V C1644 IC1501 T16 IO_L26P_2/VS0/A17 IC1501 K14 IO_L12N_1/A7/RHCLK3/TRDY1 IC1501 T15 IO/VREF_2 R1707 0 IC1501 P11 IO_L18P_2 Q1601 B1ABDF000034 0.1u 10V C1634 MAIN2_2.5V R1731 EXB2HV680JV IC1501 M18 IO_L08N_1 C1601 10V 0.15u R1735 68 IC1501 T18 IO_L02N_1/A13 R1739 560 R1695 EXB2HV820JV C3FBMD000223 IC1604 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 IC1501 M10 IO_L16P_2/M0 IC1501 R9 IO/D5 R1703 82 IC1501 R18 IO_L02P_1/A14 R1704 82 IC1501 B3 IO_L25N_0/HSWAP IC1501 V12 IO_L19P_2 R1642 4.7k R1633 10k IC1501 J14 IO_L14N_1/A3/RHCLK7 IC1501 K18 IP IC1501 L18 IO_L10P_1 IC1501 M13 IO_L05N_1/VREF_1 R1646 4.7k IC1501 C16 TDO 0.1u 10V C1629 IC1501 J12 IO_L15P_1/A2 IC1501 M16 IO_L07N_1 MAIN2_3.3V C1695 50V 100p IC1501 N18 IO_L08P_1 IC1501 V13 IO_L19N_2/VREF_2 IC1501 C17 IO_L24N_1/LDC2 IC1501 N15 IO_L04P_1 R1694 82 IC1501 V16 IP R1711 5.6k R1691 22 0.1u 10V C1633 IC1501 L17 IO_L10N_1/VREF_1 IC1501 R12 IO_L20N_2 R1692 22 0.1u 10V C1637 IC1501 R15 IO_L03P_1 IC1501 U18 IO_L01P_1/A16 R1640 4.7k IC1501 D15 TMS IC1501 N9 IO_L12P_2/D7/GCLK12 0.1u 10V C1647 0.1u 10V C1636 0.1u 10V C1631 IC1501 D16 IO_L23N_1/LDC0 IC1501 F18 IO_L19P_1 R1656 EXB28V820JX R1674 120 IC1501 F17 IO_L19N_1 IC1501 P10 IO_L15N_2/D1/GCLK3 ZA4001 K4CD08000002 R1733 EXB28V680JX 0.1u 10V C1635 MAIN2_3.3V C0EBD0000221 IC1601 4 OUT 3 Cd 1 GND 2 Vdd IC1501 R16 IO_L03N_1/VREF_1 IC1501 T17 IO_L01N_1/A15 IC1501 L16 IO_L09P_1/A12 IC1501 T14 IO_L24P_2/A21 0.1u 10V C1638 0.1u 10V C1641 0.1u 10V C1630 IC1501 U14 IP_L23N_2 IC1501 R17 IP JS4303 IC1501 P17 IO_L06P_1 IC1501 U11 IP_L17N_2 IC1501 E17 IP 0.1u 10V C1642 IC1501 N17 IP IC1501 P12 IO_L21N_2 IC1501 U13 IO IC1501 T12 IO_L20P_2 R1636 100 R1669 120 C1649 6.3V 10u 0.1u 10V C1648 IC1501 R13 IO_L22N_2/A22 IC1501 T3 IO_L01N_2/INIT_B ZA4009 K4CD08000002 0.1u 10V C1639 IC1501 V15 IO_L25P_2/VS2/A19 IC1501 R10 IO_L15P_2/D2/GCLK2 IC1501 H17 IO_L16N_1/A0 IC1501 L14 IP IC1501 K15 IO_L12P_1/A8/RHCLK2 0.1u 10V C1643 0.1u 10V C1627 IC1501 V11 IO/M1 C3ZBN0000026 IC1603 1 DO1 2 VccQ 3 DO2 4 DO3 5 VssQ 6 DO4 7 DO5 8 VccQ 9 DO6 10 DO7 11 VssQ 12 Vss 13 SWCK 14 RSTW 15 Vcc 16 Vss 17 Vcc 18 WE 19 IE 20 WAD 21 Vss 22 VssQ 23 DO8 24 DO9 25 VccQ 26 DO10 27 DO11 28 VssQ 29 DO12 30 DO13 31 VccQ 32 DO14 33 DO15 34 VssQ 35 VccQ 36 Vcc 37 Vss 38 DI8 39 DI9 40 DI10 41 DI11 42 Vcc 43 DI12 44 DI13 45 DI14 46 DI15 47 Vss 48 Vcc 49 Vss 50 Vss 51 DI16 52 DI17 53 DI18 54 DI19 55 Vcc 56 DI20 57 DI21 58 DI22 59 DI23 60 Vss 61 Vcc 62 VccQ 63 VssQ 64 DO16 65 DO17 66 VccQ 67 DO18 68 DO19 69 VssQ 70 DO20 71 DO21 72 VccQ 73 DO22 74 DO23 75 VssQ 76 Vss 77 RAD 78 OE 79 RE 80 Vcc 81 Vss 82 Vcc 83 RSTR 84 SRCK 85 Vss 86 VssQ 87 DO24 88 DO25 89 VccQ 90 DO26 91 DO27 92 VssQ 93 DO28 94 DO29 95 VccQ 96 DO30 97 DO31 98 VssQ 99 VccQ 100 Vcc 101 Vss 102 DI24 103 DI25 104 DI26 105 DI27 106 Vcc 107 DI28 108 DI29 109 DI30 110 DI31 111 Vss 112 Vcc 113 Vss 114 Vss 115 DI0 116 DI1 117 DI2 118 DI3 119 Vcc 120 DI4 121 DI5 122 DI6 123 DI7 124 Vss 125 Vcc 126 VccQ 127 VssQ 128 DO0 R1701 82 IC1501 J17 IO_L13P_1/A6/RHCLK4/IRDY1 R1729 0 IC1501 M14 IO_L05P_1 IC1501 R11 IO IC1501 U3 IO_L01P_2/CSO_B *JS4118 SUFFIX JW FPGA->FIFO FIFO->FPGA FPGA->FIFO BNR FIFO BLOCK FIFO FOR BNR 32M FIFO 16M SDRAM RESET 223 225 222 224 226 221 117 110 116 109 114 115 113 111 112 TNPA4061CK ! DG-BOARD (13/13) TH-65PV600C DG-Board (13 of 13) Schematic Diagram TH-65PV600C DG-Board (13 of 13) Schematic Diagram 112 15.34.GH 电路板线路图 TOP D2 D1 + D3810 EZJZ0V80008B TP3805 L3801 J0JHC0000078 C3816 16V 0.01u R3834 49.9 R3809 4.7k D3806 EZJZ0V80008B 0.1u 10V C3809 R3832 4.7k R3814 1k C3817 16V 0.01u Q3801 B1ABDF000034 D3809 EZJZ0V80008B C3823 0.1u 10V IC3803 C0ZBZ0001038 1 Vcc2 2 SCLOUT 3 SCLIN 4 GND 5 ACC 6 SDAIN 7 SDAOUT 8 Vcc C3819 16V 0.01u 0.1u 10V C3812 D3802 EZJZ0V80008B R3805 4.7k D3804 EZJZ0V80008B R3806 47k D3801 EZJZ0V80008B R3804 4.7k R3808 0 D3808 EZJZ0V80008B R3815 0 R3821 39 Q3804 B1ABDF000034 *JS3801 0 D3807 EZJZ0V80008B C3806 0.1u 10V C3801 0.1u 10V D3813 B0HCMM000014 L3804 J0JHC0000078 R3824 4.7 C3820 16V 0.01u GH11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 D3814 B0HCMM000014 R3828 4.7 C1AB00002641 IC3801 1 TEST 2 VCC 3 BDT0N 4 BDT0P 5 GND 6 BDT1N 7 BDT1P 8 GND 9 BDT2N 10 BDT2P 11 VCC 12 REXT 13 YDT2P 14 YDT2N 15 GND 16 YDT1P 17 YDT1N 18 VCC 19 VCC 20 YDT0P 21 YDT0N 22 GND 23 YCKP 24 YCKN 25 CE 26 VCC 27 ACKN 28 ACKP 29 GND 30 ADT0N 31 ADT0P 32 GND 33 ADT1N 34 ADT1P 35 VCC 36 SEL 37 VCC 38 VCC 39 ADT2N 40 ADT2P 41 GND 42 VCC 43 VCC 44 GND 45 BCKN 46 BCKP 47 VCC 48 VCC R3830 4.7 0.1u 10V C3814 R3822 1k 0.1u 10V C3811 R3816 56 R3827 4.7 D3812 MAZ30560ML 0.1u 10V C3807 R3807 0 D3811 EZJZ0V80008B R3831 4.7 C3813 6.3V 10u 0.1u 10V C3808 GH10 K1FA121E0001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 R3812 10k R3810 4.7k 33u 6.3V C3805 TP3802 Q3802 B1ABDF000034 R3811 4.7k R3818 10k C3818 16V 0.01u C3815 16V 0.01u *IC3802 TVRP092 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC R3829 4.7 C3804 0.1u 10V L3805 J0JHC0000078 TP3804 D3805 EZJZ0V80008B R3825 4.7 TP3801 0.1u 10V C3810 C3824 0.1u 10V R3802 10k R3826 4.7 R3801 10k D3803 EZJZ0V80008B C3802 0.1u 10V TP3803 L3802 ERJ3GEYJ560V L3803 ERJ3GEYJ560V AC SUFFIX DDCG Main2_3.3V Main2_3.3V SDA D0- D2+ D2+ CEC HDMI_CE1 CEC D1- D2G HDMI_5V_DET3 SCL N.C. HPDT WP CLK- D1+ D0+ Main5V HPD3 SCL DDC5V D2- CLK+ D1- CLK- D0- D0+ CLKG D1+ +5V D2- D0G CLK+ D1G SDA D A 5 E C B 4 ! TH-65PV600C GH-Board Schematic Diagram TH-65PV600C GH-Board Schematic Diagram GH-BOARD TNPA4077AC HDMI EQ & SW DDC EEPROM(2kbit) 5V<->3.3V (DG11) TO DG-BOARD HDMI IN 3 1 2 3 6 7 8 113 15.35.JG 和 GS 电路板方框图 SBO1 SBI1 EEPWP XRSTOUT CLK CMD DATA3 DATA1 DATA2 SDWP DATA0 SDCD SD_LED SD_LED SDCD CLK CMD DATA3 DATA2 DATA1 DATA0 SDWP XRST XRST ESZ0 TMS SD_LED TCK XEWE2 XECS4 TRST ECLK ESZ1 XERE XECS2 XEWE3 XEDK ESZ0 EEPWP XRSTOUT TO_SID6 SDBOOT TRST SBI0 TCK TMS TO_SID6 SRQ SBI0 SBO0 SBI0 SBO0 SBI1 SBO1 XRST SDBOOT POWER_DET POWER_DET NTSCRST NTSCRST ESZ1 XEWE2 XEWE3 XERE XEDK XECS4 XECS2 ECLK SRQ TP5041 TP5043 X8005 SBO1 SBI1 HDsL_PEAKS (2/5) EEPWP MMA12 MMDQ0 MMA0 MMDQ31 IC5009 ADDRESS BUS CONTROL BUS IC5010 256Mbit CPU WORK SDRAM DATA BUS DQ0-DQ15 A11,A12 A0-A9 CLK,CLE,WE CS,RAS,CAS U0QM,L0QM XRST XRSTOUT 1 VDD RESET 2 XRST 9V_SUB IC5042 OUT XRST OUT 1 VDD RESET2 2 3.3V IC5043 XRST SD CARD SLOT W.P. GS GS52 SD LED D7704 13 SDCMD DATA0 Q5026,Q5027 7 DATA3 SDCLK DATA1 SDWP 3 12 10 5 H:LED ON 11 13 SDCD 9 7 SDDAT3 9 5 8 1 10 JK7701 4 SDLED 2 JG3 3.3V SDCMD DATA2 9 SLOT 11 7 SD CARD 8 3.3V 1 1 3.3V 12 SDCLK 5 3.3V SDDAT0 3.3V 3 8 D.SW DMA/ SERIAL1 SD_DATA0 SD_DATA2 SD_DATA1 SDCLK SDWP SD SDCMD CARD SDCD SD_DATA3 AVR 2.5V VDD VOUT IC5044 +2.5V 1 +3.3V 6 AVR 2.5V +3.3V IC5900 1 VOUT VIN DA_2.5V 5 5V_SUB 17 D2 CB S1 +1.5V 9 D1 21 20 D1 23 VO 9V_SUB D2 9V_POWER 9V_POWER 5 16 LX VCC VIN VDD 24 18 G1 Q5022 IC5045 S2 FB DC-DC CONVERTER 13 OUT-1 -INC CTL 9V -> 1.5V 19 OUT-2 G2 9V_POWER 9V_POWER 5 16 D1 21 D2 S1 13 OUT-2 LX VCC Q5024 20 DC-DC CONVERTER 19 D1 23 18 G1 VO CB 9 9V_SUB D2 -INC IC5246 5V_SUB S2 CTL 17 OUT-1 G2 FB 9V -> 3.3V +3.3V VIN VDD 24 DC IN AVDDMPLL VDD33 AVDD33UPLL AVDDAPLL AVDDRAC +1.8V AVDDUPLL 1 VDD15 +1.5V VDDIO VREFRAC 3 VREF RAC1.4V DC OUT IC5055 HDsL_PEAKS AVR 1.8V +3.3V AVDDRAC IC5016 D-RDRAM 128M IC5023 400MHz Direct Rambus CLOCK GENERATER DQA0-DQA7 DQB0-DQB7 RQ0-RQ7 SCK/CMD/SID CFM/CFMN CTM/CTMN REFCLK SYNCLKN PCLKM RAM BUS I/F 9 MCLK UCLK CLK1 8 66.5M 11 CLOCK 74M 7 VIN 4 VC270 CLK75 CLK74 27M CLK27 X1 CLK58 16 CLK67 CLK270 X2 1 IC5022 CLK GEN PEAKS 350MHz TDO CONTROL BUS 47 49 ECLK 33.75MHz 44 JTAG 48 89 TRST 4 DATA16 3 DATA31 21 ADDRESS BUS TCK DATA BUS 91 92 TMS 93 XCS2 ED16-ED31 XCS4 WD0 TDI 52 WD1 XWP,XNWE1 AD21 NALE1,NCLE1 AD24 AD0 XNCE1 SD_LED AD11 40 ESZ1 24 XEDK ESZ0 IC5026 90 XNRE1 RD NRXB1 SID6 210 214 199 198 43 42 5 XECS2 XEDK ASIC XERE ESZ0 IC5038 ED16-ED31 NAND FLASH I/O1-I/O16 RY/BY,RE,CE CLE,ALE,WE,WP DATA BUS BOOT ROM DQ0-DQ15 A0-A21 CE,OE,WE RESET XRST EA1-EA22 IC5019 ED16-ED31 DATA BUS ADDRESS BUS MVY7 MVY0 MVY0-MVY7 MVC0 MVC7 MVSYNC0 MHSYNC0 MVCLK0 ESZ1 XEWE2 XEWE3 6 SDA 5 SCL VCC 8 WC 7 IC5025 EPPROM +3.3V SDA1 SCL1 50 XRST 78 CONTROL BUS XECS4 MVC0-MVC7 57 SDBOOT SBI0/TDI SBO0/TD0 SBT0TCK TMS JTAG/ SERIAL TRSTEN SBO0 SDA1 SCL1 4 9 12 13 30 26 18 16 Y2 Y9 C9 C2 55 SVD0-SVD7 53 58 SVD7 S2 S9 62 SVD0 63 SVCLK0 CLKIN_B 23 P_HSYNC 24 P_VSYNC 32 CLKIN_A CPU FLASH ROM I/F XERE EA26 EA1 XECS0 XEWE2 ED31 ED16 SD_RESET 4 SW_OFF_DET 14 SDQ 10 SD_TXD 7 SD_CLK 8 SD_RXD 3 MAIN5V JG2 1 11 SD_SBI 6 SD_SDA 13 SD_BOOT 15 SD_SBO JG4 +5V SBO0 FOR SBI0 3 1 5V_SUB 2 FACTROY DG30 TO 5V_SUB SDA1 SCL1 POWER DET 4 5 MAIN9V MAIN9V MAIN9V SDIN_PR SDIN_Y 11 7 TO H53 JG1 SDIN_PB 9 +3.3V IC5035 VIDEO ENCODER DA_2.5V DACF 39 37 38 HD_PR HD_PB HD_Y DACE DACD VDD_IO VDD (3/5) HDsL_PEAKS (1/5) HDsL_PEAKS (4/5) HDsL_PEAKS (5/5) RESET 33 NTSCRST 114 ECLK SRQ 95 EA1-EA11 EA21-EA24 USE IC5013 HDsL_PEAKS TH-65PV600C JG and GS-Board Block Diagram TH-65PV600C JG and GS-Board Block Diagram 114 15.36.TA 和 GS 电路板线路图 + + + + D.SW W.P. MAIN_SW1 MAIN_SW2 TV_V2 SIF SCL0B SCL0B SDA0B SCL0B SDA0B MAIN_SW1 MAIN_SW2 AFT2 TV_V2 TV_V2_GND SUB_SW1 SUB_SW2 AFT1 SIF TV_V1 TV_V1_GND TV_V1 TV_V1_GND SDA0B AFT1 AFT2 SUB_SW1 SUB_SW2 TV_V2_GND AA_SDDAT0 AA_SDDAT1 AA_SDDAT3 AA_SDDAT1 AA_SDDTC AA_SDCMD AA_SDDAT2 AA_SDDAT3 AA_SDDAT0 AA_SDCLK AA_SDDTC AA_SDDAT2 AA_SDWP AA_SDWP AA_SDCLK *L024 J0JCC0000100 TA6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 *TU001 ENGF9301GF NC 1 NC 2 BM 3 NC 4 SW1 5 SW2 6 BT 7 RF_AGC 8 NC 9 SCL 10 SDA 11 AFT 12 AUDIO_OUT 13 SIF_OUT 14 BTL 15 NC 16 VIDEO_OUT 17 18 19 20 21 *L010 J0JCC0000241 C011 50V 33p *R013 1k *C022 50V 100p 1% *R028 150k R018 22 L007 J0JCC0000241 *JS027 0 *L026 J0JCC0000241 *L015 J0JGC0000021 *C040 16V 0.1u Q002 2SA207700L C006 10V 1000u *L011 J0JCC0000241 C003 50V 0.1u R009 220 *R001 1k C016 16V 0.1u JS012 0 C002 10u 50V *R021 1k *R027 220 C008 16V 0.1u C010 50V 33p *C021 16V 0.1u *TU002 ENG39A01GF NC 1 NC 2 BM 3 NC 4 SW1 5 SW2 6 BT 7 RF_AGC 8 NC 9 SCL 10 SDA 11 AFT 12 NC 13 NC 14 BTL 15 NC 16 VIDEO_OUT 17 C020 10V 1000u *L028 J0JGC0000021 *R020 22 *L025 J0JCC0000241 R014 0 *R005 560 C042 16V 0.1u *C024 50V 0.1u L001 J0JGC0000021 R022 220 C041 16V 0.1u *R019 22 C009 50V 100p *R023 0 *R012 1k *R024 0 1% *R029 270k C029 50V 33p R011 270 *C043 16V 0.1u L032 J0JGC0000021 TA5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 *R016 270 L021 0 C030 50V 33p L013 J0JCC0000241 L031 J0JGC0000021 *JS031 0 R008 0 R017 22 R7705 68 R7701 68 R7801 75 R7731 0 L7721 0 ERJ3GEY0R00V C7703 50V 33p D7704 B3AEB0000100 C7705 16V 0.1u R7799 0 R7792 0 R7703 68 C7708 50V 0.01u C7704 50V 33p C7701 50V 33p R7713 68 JS7702 R7798 0 C7707 0.1u 16V R7716 0 R7793 0 R7795 0 R7797 0 C7711 50V 33p R7796 0 R7708 0 R7702 0 C7709 16V 0.1u R7710 100 R7704 68 C7702 47u 4V JS7701 R7709 68 R7794 0 JK7701 K1NA09E00080 1 2 3 4 5 6 7 8 9 10 11 12 GS52 1 2 3 4 5 6 7 8 9 10 11 12 13 TV_V1 AFT1 GND TV_V1_GND SCL0B BT30V GND GND GND GND AFT2 GND TV_V2 SDA0B MAIN_SW1 SUB5V GND GND GND RFAGC2 SUB_SW1 SUB_SW2 GND SUB5V MAIN_SW2 RFAGC1 GND NC SIF TV_V2_GND TO H-BOARD (H5) TO H-BOARD (H6) TA-BOARD TNPA4071 ! 2 1 F 5 C 4 9 E B D 3 7 8 6 A SDLED GND GND SDWP GND SDDAT1 GND SDCMD 3.3V GS-BOARD TNPA4092 SD CARD SLOT SDDAT2 SDDAT0 3.3V SDCLK ! SDDAT0 GND SDDAT3 SDDAT1 SDDAT2 SDCMD SDCD SDDAT3 SDCLK SD_LED TO JG-BOARD (JG3) ! ! TH-65PV600C TA and GS-Board Schematic Diagram TH-65PV600C TA and GS-Board Schematic Diagram 115 15.37.JG 电路板 (1/5) 线路图 AF_NAEBY1 AF_NACLE1 AA_EA21 AA_EA22 AA_ED21 AA_ED21 AA_EA21 AA_ED17 AA_EA4 AA_ED19 AA_ED27 AA_XECS5 AA_EA20 AA_XERE AA_EA19 AA_ED26 AA_ED20 AA_EA22 AA_ED26 AA_EA3 AF_XNARE1 AA_ED26 AF_NAALE1 AA_EA19 AA_ED28 AA_XEWE3 AA_EA9 AA_ED19 AA_ED18 AA_ED25 AA_EA2 AA_XECS3 AA_EA18 AA_EA10 AA_XEWE2 AD_CLKEN AA_ED18 AA_ED25 AF_XNAWE1 AD_SDA1 AA_EA17 AA_ED25 AA_XECS5 AA_ESZ0 AA_ED17 AA_XECS2 AA_EA12 AA_ED20 AA_EA11 AA_ED24 AA_XECS4 AF_XNAWP1 AD_SCL1 AA_EA13 AA_EA8 AD_TMS AA_ED17 AA_ED16 AA_XECS3 AA_XEWE3 AF_NAALE1 AA_ED16 AD_TRST AA_ED31 AA_ESZ1 AA_NTSCRST AA_XECS2 AF_NAEBY1 AA_EA14 AA_XERE AA_ED27 AF_XNACE1 AA_XECS1 AA_ECLK AF_XNARE1 AA_ED24 AA_EA15 AD_SDBOOT AA_XEWE2 AA_XEWE3 AA_EA20 AA_XECS2 AF_XNAWP1 AA_ED23 AA_EA16 AA_XEWE2 AA_XRSTOUT AA_POWER_DET AA_ED21 AA_XECS4 AA_XEWE1 AA_EA24 AA_XERE AA_ED20 AA_EA23 AA_EA7 AA_EA18 AA_XEDK AA_ED19 AA_ED31 AA_XEWE0 AD_TCK AA_EA22 AA_EA6 AA_EA17 AA_ED18 AA_EA1 AA_EA5 AF_NACLE1 AA_ERXW AA_EA21 AA_EA5 AA_EA16 AA_ED16 AA_ED17 AA_EA6 AA_EA0 AA_ED20 AA_EA11 AA_EA4 AA_EA15 AA_ED28 AA_ED16 AA_XNANDMAIRQ AA_XEWE0 AA_EA8 AA_ED31 AA_ED28 AA_EA10 AA_EA3 AA_EA26 AA_XECS0 AA_EA14 AA_ED27 AA_EA4 AA_ED21 AA_ED30 AA_XEWE1 AA_EA9 AA_XRST AA_XSIDIRQ AF_XNACE1 AA_ESZ1 AA_EA13 AA_ED26 AA_EA3 AA_ED29 AA_ED29 AA_EA7 AA_EA2 AA_ECLK AA_EA12 AA_ESZ0 AA_ED25 AA_EA2 AA_ED22 AA_XEAS AA_ED30 AA_ED23 AA_EA8 AA_EA11 AA_EA25 AA_ED30 AA_EA1 AA_ED24 AA_ED22 AA_ED30 AA_XEWE2 AA_EA7 AA_ED18 AA_ED23 AA_EA10 AA_EA24 AA_EA0 AA_ED23 AA_ED22 AA_EA1 AA_EA6 AA_ED24 AA_ED31 AA_ED29 AA_EA9 AA_EA23 AA_ED22 AA_ED29 AA_ED19 AF_XNAWE1 AA_XECS0 AA_EA5 AA_ED27 AA_ED28 AA_XSPTIRQ AA_XNANDMAIRQ AD_TRST AD_TMS AD_TCK AD_TO_SID6 AA_SRQ AE_SDLED AA_XNMIRQ AA_SBO0 AA_BOOTSWAP AA_FWP AD_TO_PEAKS AD_TO_SID6 AA_SBI0 AA_XEDK 3.3V 5V_SUB 3.3V 3.3V IC5013 F1 CHVAL0 IC5013 L26 EA11 IC5013 D26 ED26 IC5013 B6 HSVAL R5495 10k R5118 100 R5181 10k IC5013 D23 TDO R5435 100 R5967 10k IC5013 F25 ED31 R5581 4.7k IC5013 M24 EA16 IC5013 J3 ISODATA1 IC5013 L22 EA25 IC5013 A21 ED4 IC5013 E22 TDI R5196 10k R5514 10k IC5013 P25 ECLK R5190 EXB2HV100JV IC5013 B24 ED17 R5305 EXB2HV103JV R5554 100 IC5013 A24 ED16 R5007 0 R5206 0 IC5013 H24 EA6 IC5013 T22 XEAS C5278 10V 0.1u R5233 100 IC5013 R24 XECS1 IC5013 A6 HSERR R5130 EXB2HV330JV R5412 0 R5580 4.7k IC5013 MN2WS012AA-A K1 SDA0 IC5013 M26 EA14 R5519 10k R5205 0 R5421 100 R5121 100 IC5013 B2 XFERST IC5013 F26 EA0 IC5013 C3 HSBCLK R5446 1k IC5013 C25 ED22 R5536 100 R5125 10k IC5013 M22 EA24 IC5013 B20 ED0 IC5013 R25 XECS0 C5437 10V 0.1u R5131 EXB2HV101JV R5239 100 IC5013 E2 CHDATA0 IC5013 C2 CHDATA6 IC5013 AC24 XIRQ13 IC5013 K2 SCL0 IC5013 E4 CHCLK2 IC5013 B25 ED20 IC5013 P23 ESZ1 IC5013 D5 TRSTEN C5440 10V 0.1u R5019 10k IC5013 K23 EA26 IC5013 N23 EA21 IC5013 V25 XECS4 IC5013 C21 ED6 IC5013 AF22 XDCD2 R5117 10k IC5013 B1 CHDATA7 R5237 100 R5123 10k IC5013 R26 XEDK IC5013 D3 CHDATA4 R5006 0 C5441 10V 0.1u IC5013 G2 ISODATA6 R5927 0 R5020 10k IC5013 E24 ED27 R5215 EXB2HV103JV R5245 100 R5184 100 IC5013 B22 ED10 R5138 100 IC5013 H3 ISODATA4 R5207 0 R5129 EXB2HV330JV R5231 100 IC5013 AD24 XIRQ16 IC5013 N24 EA19 R5201 0 IC5013 P26 EA20 R5159 100 IC5013 A23 ED13 IC5013 G4 TTXREQ IC5013 R22 XERE R5599 0 IC5013 T24 XECS2 R5596 0 R5003 0 R5100 10k IC5013 K24 EA10 IC5013 E3 CHDATA1 IC5013 AF23 SBI2 IC5013 AC22 XDTR2 R5428 10k R5229 100 C5439 10V 0.1u C5283 10V 0.1u C5285 10V 0.1u R5513 100 R5119 100 R5251 10k IC5013 J5 ISOSYNC IC5013 G23 EA30 R5005 0 IC5013 G3 ISODATA7 R5256 4.7k R5135 EXB38V101JV C5039 10V 0.1u R5132 EXB2HV101JV R5017 0 IC5013 J2 ISODATA0 IC5013 F3 CHERR0 R5191 EXB2HV100JV R5246 10k IC5013 AD22 XCTS2 R5022 10k IC5013 U23 XEBGT IC5013 N26 EA17 IC5013 H22 EA29 IC5013 D21 ED7 IC5013 E21 ED8 IC5013 B26 ED21 IC5013 F22 TCK IC5013 G1 ISODATA5 C5284 10V 0.1u IC5013 L24 EA13 R5021 10k IC5013 D25 ED25 R5023 10k IC5013 AF25 XNMIRQ R5587 0 C5286 10V 0.1u IC5013 L3 SCL1 C5280 10V 0.1u IC5013 C26 ED23 IC5013 R23 ERXW IC5013 C6 HSEN Q5500 B1ADDF000005 IC5013 T25 XEWE2 IC5013 H23 EA28 R5122 10k IC5013 U22 XEBRQ IC5013 L2 SDA1 IC5013 D20 ED2 R5203 0 R5517 EXB38V103JV R5134 EXB2HV101JV IC5013 H1 ISODATA2 IC5013 U24 BOOTSWAP IC5013 J4 ISOVAL R5855 10k R5521 10k IC5013 N22 EA22 R5136 100 R5002 0 L5095 J0JHC0000045 C1AB00001849 IC5026 1 (VDD) 2 (VDD) 3 XNRE1 4 NRXB1 5 DATA16 6 DATA17 7 DATA18 8 DATA19 9 DATA20 10 DATA21 11 DATA22 12 DATA23 13 (GND) 14 DATA24 15 DATA25 16 DATA26 17 DATA27 18 DATA28 19 DATA29 20 DATA30 21 DATA31 22 (GND) 23 (VDD) 24 AD0 25 AD1 26 AD2 27 AD3 28 AD4 29 AD5 30 AD6 31 AD7 32 (GND) 33 AD8 34 AD9 35 AD10 36 AD11 37 AD21 38 AD22 39 AD23 40 AD24 41 (VDD) 42 WD0 43 WD1 44 RD 45 OPT1 46 OPT2 47 XEDK 48 XCS4 49 XCS2 50 XRST 51 (GND) 52 ECLK 53 (GND) 54 (GND) 55 (VDD) 56 (VDD) 57 IPT15 58 XCS5_0 59 XCS5_1 60 XCS4_0 61 XCS4_1 62 XCS0_0 63 XCS0_1 64 XCS5 65 XCS0 66 (VDD) 67 ADDATI 68 I958IN 69 I958OUT1 70 I958OUT2 71 ADFS 72 ADFS64 73 ADFS512 74 PWDN 75 DCLK 76 (GND) 77 IRQI1 78 IRQI2 79 IRQI3 80 IRQI4 81 IRQI5 82 IRQI6 83 IRQI7 84 IRQO1 85 IRQO2 86 IRQO3 87 IRQO4 88 (GND) 89 TRST 90 TDO 91 TDI 92 TCK 93 TMS 94 IPT4 95 IPT5 96 UART1 103 IPT10 104 OPT36 105 SCANEN 106 ATPGEN 107 (GND) 108 (GND) 118 JV_CD1 119 JV_CD2 120 JV_RDY 121 JV_WP 122 JV_WT 123 JV_CE1 124 JV_CE2 125 JV_REG 126 (VDD) 127 (GND) 128 JV_NOE 129 JV_NWE 130 JV_OE 131 JV_WE 132 JV_NPWRON 133 JV_NPCRST 134 JV_PONOE 135 JV_NPRSTOE 136 JV_DOE 137 JV_VS1 138 (VDD) 139 JV_VS2 140 JV_BVD1 141 JV_BVD2 142 JV_D0 143 JV_D1 144 JV_D2 145 JV_D3 146 JV_D4 147 JV_D5 148 JV_D6 149 (GND) 150 (VDD) 151 JV_D7 152 JV_D8 153 JV_D9 154 JV_D10 155 JV_D11 156 JV_D12 157 JV_D13 158 JV_D14 159 JV_D15 160 JV_A10 161 (GND) 162 (GND) 163 (VDD) 164 (VDD) 165 JV_A9 166 JV_A8 167 JV_A7 168 JV_A6 169 JV_A5 170 JV_A4 171 JV_A3 184 OPT21 185 IPT11 186 OPT22 187 OPT23 188 (GND) 189 SMTSEL 190 SMTD 191 SMTCMD 192 SMTRST 193 (VDD) 194 PWM 195 NSBHE 196 LA7 197 NWR 198 SZ0 199 SZ1 200 OPT28 201 (GND) 202 XWP2 203 XNWE2 204 NALE2 205 NCLE2 206 XNCE2 207 XNRE2 208 NRXB2 209 (VDD) 210 XWP1 211 XNWE1 212 NALE1 213 NCLE1 214 XNCE1 215 (GND) 216 (GND) 109 (VDD) 111 OPT37 113 SMTD2 115 OPT13 117 OPT15 110 (VDD) 112 OPT11 114 OPT12 116 OPT14 172 JV_A2 173 JV_A1 174 JV_A0 181 UACLK 182 UADO 183 OPT20 97 UART2 98 (GND) 99 SMTVPP 100 IPT8 101 IPT9 102 OPT10 175 (VDD) 176 (GND) 177 OPT16 178 OPT17 179 OPT18 180 OPT19 R5561 56 IC5013 AD25 XIRQ14 IC5013 D1 CHDATA2 R5016 0 C5556 10V 0.1u IC5013 D24 ED24 IC5013 E1 CHCLK0 R5555 33 IC5013 F2 CHPSYNC0 IC5013 G25 EA2 IC5013 M25 EA15 R5189 10k IC5013 A25 ED19 R5318 56 IC5013 K25 EA9 IC5013 C1 CHDATA5 R5914 EXB2HV560JV R5515 4.7k R5505 0 R5014 0 IC5013 F24 ED30 IC5013 M23 EA23 R5197 10k IC5013 E25 ED28 R5510 0 R5504 10k IC5013 T26 XEWE1 IC5013 A5 HSSYNC R5204 0 R5004 0 R5200 0 IC5013 D2 CHDATA3 R5018 10k R5534 10k R5520 10k IC5013 H26 EA4 R5033 10k IC5013 P24 XEWE0 IC5013 A2 HSD7 IC5013 B23 ED14 IC5013 C22 ED11 C5038 10V 0.1u R5234 100 IC5013 K4 ISOCLK C5282 10V 0.1u R5442 10k C5035 10V 0.1u IC5013 AC21 XRTS2 IC5013 E5 CHERR2 IC5013 E23 TMS IC5013 C5 HSD1 L5051 J0JHC0000075 IC5013 N25 EA18 IC5013 P22 ESZ0 R5236 100 IC5013 V26 XECS5 IC5013 L25 EA12 IC5013 D22 ED12 R5235 100 IC5013 A4 HSD2 IC5013 K26 EA8 IC5013 G22 EA31 IC5013 G5 TTXDATA IC5013 AE23 SBO2 C5034 10V 0.1u IC5013 E26 ED29 R5061 10k R5101 10k IC5013 A22 ED9 R5139 100 R5238 100 IC5013 H4 PHYCTRL R5501 10k IC5013 U25 XECS3 IC5013 J26 EA7 IC5013 C20 ED1 R5960 4.7k R5158 33 R5597 0 IC5013 B3 HSD6 IC5013 E7 EVTRG R5919 10k C3FBRG000003 IC5038 1 NC 2 NC 3 NC 4 NC 5 NC 6 GND 7 RY/#BY 8 #RE 9 #CE 10 NC 11 NC 12 Vcc 13 Vss 14 NC 15 NC 16 CLE 17 ALE 18 #WE 19 #WP 20 NC 21 NC 22 NC 23 NC 24 NC 25 Vss 26 I/O1 27 I/O9 28 I/O2 29 I/O10 30 I/O3 31 I/O11 32 I/O4 33 I/O12 34 NC 35 NC 36 NC 37 Vccq 38 NC 39 NC 40 I/O5 41 I/O13 42 I/O6 43 I/O14 44 I/O7 45 I/O15 46 I/O8 47 I/O16 48 Vss IC5013 C4 HSD4 R5255 10k IC5013 A3 HSD5 R5000 0 IC5013 B21 ED5 IC5013 AE25 XIRQ17 R5111 10k IC5013 U26 XEWE3 IC5013 G24 EA3 C5430 10V 0.1u IC5013 F5 CHCLK1 R5567 56 IC5013 H5 LINKCTRL R5924 0 R5202 0 R5488 10k IC5013 AE22 XRI2 IC5013 C23 ED15 R5112 10k R5451 2.2k R5512 100 IC5013 H2 ISODATA3 IC5013 K5 ISOPLL R5001 0 R5257 10k IC5013 G26 EA1 R5015 0 R5120 100 IC5013 B4 HSD3 R5248 10k R5961 4.7k R5598 0 R5127 10k IC5013 K22 EA27 R5137 100 IC5013 AE26 XIRQ15 C5250 10V 0.1u IC5013 AB21 XDSR2 IC5013 E20 ED3 IC5013 H25 EA5 IC5013 B5 HSD0 R5918 10k IC5013 C24 ED18 R5503 10k C3FBPG000022 IC5019 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 A20 11 WE 12 RESET 13 A21 14 WP/ACC 15 RY/BY 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE 27 VSS 28 OE 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VDD 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15 46 VSS 47 NC 48 A16 /SBI0 IC5013 IIC_BUS Interrupt HS_DATA SERIAL2 SID6 Channel JTAG/SERIAL0 1394_I/F /SBT0 /SBO0 CPU_BUS (POWER_DET) BOOT ROM LEFT-UP SOLDER SIDE RIGHT-DOWN LEFT-DOWN LOCATION PARTS SIDE RIGHT-UP AA_XVBIIRQ AA_XPODIRQ NAND FLASH TS CPU/CS CPU/A CPU/D JG-BOARD TNPA4092 (1/5) ! 2 1 3 D 4 F 5 B A 1 2 E 6 C 8 9 7 3 TH-65PV600C JG-Board (1 of 5) Schematic Diagram TH-65PV600C JG-Board (1 of 5) Schematic Diagram 116 15.38.JG 电路板 (2/5) 线路图 + + + G G + + + G G AE_SDCLK AA_XRST AD_SBO1 AO_MMDQ23 AB_MMBS1 AB_MMA9 AO_MMDQ10 AG_MMDQMU0 AO_MMDQ22 AO_MMDQ9 AB_MMBS0 AB_MMA8 AG_MMCKE AG_XMMWE AB_MMA10 AB_MMA7 0V AG_XMMCAS AB_MMA0 AB_MMA0 AG_MMDQMU0 AO_MMDQ16 AO_MMDQ17 AO_MMDQ5 AG_XMMRAS AG_XMMWE AB_MMA10 AO_MMDQ27 AG_MMDQMU1 AB_MMA4 AO_MMDQ6 AE_SDDAT2 AO_MMDQ13 AO_MMDQ26 AO_MMDQ17 AG_XMMCAS AB_MMBS1 AB_MMA3 AO_MMDQ0 AO_MMDQ4 AA_XSIDIRQ AO_MMDQ5 AO_MMDQ12 AG_MMDQML0 AB_MMA10 AO_MMDQ21 AA_SBI0 AG_XMMRAS AB_MMBS0 AB_MMA9 AG_MMDQML1 AO_MMDQ18 AO_MMDQ3 AG_XMMCS AG_XMMCS AE_SDDAT1 AB_MMA1 AO_MMDQ15 AO_MMDQ28 AO_MMDQ14 AB_MMA2 AO_MMDQ19 AO_MMDQ2 AO_MMDQ25 AG_XMMRAS AG_MMCK AA_EEPWP AB_MMA3 AO_MMDQ1 AE_SDDAT0 AB_MMA2 AB_MMBS1 AG_MMCKE AO_MMDQ20 AA_XRSTOUT AB_MMA6 AO_MMDQ1 AO_MMDQ4 AO_MMDQ24 AB_MMA1 AO_MMDQ31 AB_MMA6 AB_MMA4 AO_MMDQ8 AG_XMMCS AB_MMA13 AA_SBO0 AO_MMDQ21 AB_MMA5 AO_MMDQ0 AO_MMDQ7 AB_MMA5 AB_MMA0 AG_XMMCAS AO_MMDQ30 AB_MMA6 AG_MMDQMU1 AA_XRST AB_MMBS0 AA_FWP AO_MMDQ30 AO_MMDQ15 AO_MMDQ29 AD_SBI1 AB_MMA5 AO_MMDQ16 AG_MMCK AG_XMMWE AE_SDCMD AB_MMA4 AO_MMDQ31 AO_MMDQ18 AO_MMDQ14 AG_MMCKE AB_MMA3 AG_MMDQML0 AB_MMA7 AB_MMA11 AO_MMDQ29 AO_MMDQ3 AO_MMDQ13 AB_MMA2 AB_MMA11 AB_MMA12 AO_MMDQ2 AO_MMDQ7 AB_MMA1 AO_MMDQ25 AB_MMA8 AO_MMDQ28 AO_MMDQ12 AE_SDCMD AO_MMDQ11 AO_MMDQ24 AB_MMA9 AE_SDCD AO_MMDQ6 AG_MMDQML1 AO_MMDQ27 AB_MMA12 AO_MMDQ11 AO_MMDQ20 AE_SDCLK AO_MMDQ9 AB_MMA13 AB_MMA8 AO_MMDQ22 AO_MMDQ19 AE_SDWP AO_MMDQ26 AO_MMDQ10 AB_MMA7 AB_MMA12 AO_MMDQ8 AO_MMDQ23 AB_MMA11 AE_SDLED AE_SDCD AE_SDWP AE_SDDAT3 AE_SDDAT3 AE_SDDAT2 AE_SDDAT1 AE_SDDAT0 1.8V AG_MMCK 3.3V 3.3V 5V_SUB 3.3V 1.8V 9V_SUB 3.3V 1.5V 3.3V 3.3V 9V_SUB 3.3V 1% R5176 5.6k IC5013 D10 MMDQ19 C5149 10V 0.1u R5027 10k IC5013 A9 MMDQ3 IC5013 AA23 GND IC5013 AE17 VSSRAC_11 C5275 10V 0.1u R5098 10k IC5013 L15 VDD33 C5119 10V 0.1u IC5013 E17 MMDQML1 C5139 68u 4V IC5013 AC19 XRSTOUT TP5000 IC5013 D19 XMMCAS IC5013 AF1 GND IC5013 N17 AVDDUPLL IC5013 C13 GND TP5003 IC5013 T4 GND IC5013 C18 MMA6 R5164 56 R5304 47k IC5013 A12 MMDQ8 IC5013 D7 GND R5224 200 C5262 33u 6.3V L5099 J0JCC0000100 C5173 10V 0.1u R5221 56 IC5013 E12 MMDQ27 IC5013 AB14 VDDIO_1 R5091 56 R5276 0 IC5013 B13 GND IC5013 AC8 VSSRAC_17 IC5013 AB23 SMTSEL1 IC5013 N16 AVSSUPLL IC5013 AE7 VSSRAC_1 IC5013 M10 GND IC5013 AF24 RMCI0 IC5013 AA24 SMTRST0 IC5013 AE19 VSSRAC_13 IC5013 E11 MMDQ29 R5152 56 IC5013 K17 VDD33 IC5013 AD23 RMCO IC5013 AA25 SMTSEL0 IC5013 T13 VDD15 IC5013 D8 MMDQ17 R5064 EXB38V560JV IC5013 B11 MMDQ9 C5134 16V 0.01u IC5013 AA22 SMTCLK1 C3ABRG000037 IC5010 1 VDD 2 DQ0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 VDD 15 LDQM 16 WE# 17 CAS# 18 RAS# 19 CS# 20 BA0 21 BA1 22 AP/A10 23 A0 24 A1 25 A2 26 A3 27 VDD 28 VSS 29 A4 30 A5 31 A6 32 A7 33 A8 34 A9 35 A11 36 A12 37 CKE 38 CLK 39 UDQM 40 NC 41 VSS 42 DQ8 43 VDDQ 44 DQ9 45 DQ10 46 VSSQ 47 DQ11 48 DQ12 49 VDDQ 50 DQ13 51 DQ14 52 VSSQ 53 DQ15 54 VSS IC5013 B12 MMDQML0 TP5001 IC5013 Y25 SDWP IC5013 AC11 VSSRAC_20 IC5013 E19 MMCKE IC5013 A7 MMDQ0 R5026 10k C5176 33u 6.3V IC5013 R14 GND IC5013 AD11 VREFRAC_1 IC5013 AE6 VSSRAC_0 IC5013 M17 AVDDMPLL IC5013 AB12 AVDDRAC_0 IC5013 C10 MMDQ10 IC5013 K14 VDD33 IC5013 B9 MMDQ12 IC5013 U15 GND TP5005 IC5013 AE16 VSSRAC_10 R5170 56 IC5013 AE9 VSSRAC_3 IC5013 C9 MMDQ4 R5167 56 C5130 10V 0.1u C5135 10V 0.047u R5145 56 IC5013 U11 AVDDAPLL IC5013 MN2WS012AA-A V23 XEXDMK0 R5047 56 IC5013 K11 GND C5132 50V 1000p C5121 10V 0.1u IC5013 D15 MMDQ23 C5140 10V 0.1u TP5006 IC5013 N13 GND IC5013 T12 VDD15 IC5013 T11 VDD15 IC5013 E8 MMDQ16 IC5013 F23 GND IC5013 AB20 VDDRAC_8 IC5013 AD26 XIRQ19 IC5013 AB22 SMTD1 IC5013 A15 MMA13 IC5013 B19 MMA5 IC5013 AB17 VDDRAC_6 IC5013 AB16 VDDRAC_5 IC5013 M11 GND FL5017 J0HAAA000013 1 2 3 4 5 6 7 8 9 10 R5147 56 C5118 10V 0.1u IC5013 AE18 VSSRAC_12 IC5013 E18 MMDQMU1 IC5013 E13 GND IC5013 W23 XEXDMK1 IC5013 W22 XEXDMR1 R5081 56 C5128 10V 0.1u L5075 J0JHC0000045 IC5013 E16 MMDQ24 IC5013 A13 GND L5098 J0JHC0000045 R5096 10k IC5013 A26 GND R5553 56 R5083 0 R5149 56 IC5013 D6 MINTEST IC5013 D16 MMDQ25 R5143 EXB2HV560JV IC5013 L16 VDD33 IC5042 C0EBM0000026 1 OUT 2 Vdd 3 GND 5 Cd 4 NC IC5013 AE21 VSSRAC_15 C3ABRG000037 IC5009 1 VDD 2 DQ0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 VDD 15 LDQM 16 WE# 17 CAS# 18 RAS# 19 CS# 20 BA0 21 BA1 22 AP/A10 23 A0 24 A1 25 A2 26 A3 27 VDD 28 VSS 29 A4 30 A5 31 A6 32 A7 33 A8 34 A9 35 A11 36 A12 37 CKE 38 CLK 39 UDQM 40 NC 41 VSS 42 DQ8 43 VDDQ 44 DQ9 45 DQ10 46 VSSQ 47 DQ11 48 DQ12 49 VDDQ 50 DQ13 51 DQ14 52 VSSQ 53 DQ15 54 VSS IC5013 AE14 VSSRAC_8 IC5013 L4 GND IC5013 B15 MMA12 IC5013 Y24 SDCD R5576 0 FL5264 J0HAAC000045 1 2 3 4 IC5013 D9 MMDQ31 IC5013 AC17 VSSRAC_26 C5138 68u 4V IC5013 AB9 VDDRAC_2 R5303 5.6k R5150 56 IC5013 AE10 VSSRAC_4 1% R5174 1.6k IC5013 AC18 VSSRAC_27 IC5013 N11 GND IC5013 D18 XMMRAS TP5238 IC5013 AA26 SDCMD Q5027 B1ADDF000005 IC5013 C8 MMDQ13 IC5013 V24 SDDAT0 R5169 10k IC5013 AC23 SMTRST1 IC5013 P10 VDD15 C5142 16V 0.01u C5123 10V 0.1u IC5013 B17 MMA8 R5146 56 IC5013 C19 MMA3 IC5013 C7 MMDQ1 IC5013 C17 MMA0 IC5013 AE13 VSSRAC_7 C5169 33u 6.3V R5171 56 IC5013 AE11 VSSRAC_5 C5129 10V 0.1u IC5013 AE24 RMCI1 IC5013 M16 AVSSMPLL R5163 56 C5167 16V 0.01u R5067 EXB38V103JV IC5013 V22 XEXDMR0 C5180 10V 0.1u C5117 10V 0.1u R5025 10k IC5013 P13 GND 0.1u 50V C5516 IC5013 F4 GND IC5013 C12 MMDQMU0 IC5013 P15 GND L5030 J0JHC0000045 TP5002 IC5013 C16 MMA9 R5172 100 TP5004 C5179 10V 0.1u R5261 10k R5090 56 IC5013 E6 TSTSEL IC5013 C11 MMDQ7 R5049 56 IC5013 AB25 SMTVPP0 C5144 16V 0.01u R5086 56 TP5007 IC5013 R11 VDD15 IC5013 AE8 VSSRAC_2 R5085 56 IC5013 R16 GND R5142 EXB2HV560JV IC5013 A14 MMCK IC5013 B7 MMDQ15 IC5013 Y23 SMTCMD1 IC5013 T16 GND IC5013 A20 MMA4 IC5013 K16 VDD33 IC5013 AE12 VSSRAC_6 C5126 10V 0.1u IC5013 B16 MMBS1 IC5013 A8 MMDQ14 C5131 16V 0.01u R5140 EXB2HV560JV IC5013 Y26 SDCLK IC5013 AB10 VDDRAC_3 IC5013 A10 MMDQ11 C5172 10V 0.1u C5228 10V 0.1u IC5013 AB18 VDDIO_2 R5141 EXB2HV560JV IC5013 D13 GND C5170 10V 0.1u R5080 56 IC5013 D12 MMDQ28 IC5013 AB7 VDDRAC_0 IC5013 W26 SDDAT1 IC5013 U14 VDD15 IC5013 AB8 VDDRAC_1 C5166 10V 0.1u C5127 10V 0.1u IC5013 U10 AVSSAPLL IC5013 N10 VDD15 IC5013 E9 MMDQ30 R5965 10k R5144 EXB2HV560JV IC5013 L13 GND IC5013 K12 GND IC5013 R12 VDD15 IC5013 A19 MMA2 IC5013 AF26 GND IC5013 E14 MMDQ21 IC5013 AC12 VSSRAC_21 IC5013 E15 MMDQ26 IC5013 AB15 VDDRAC_4 IC5013 K10 GND R5275 10k IC5013 AD12 VREFRAC_0 IC5013 M13 GND IC5013 AE15 VSSRAC_9 IC5013 AB19 VDDRAC_7 IC5013 T23 GND IC5013 AA4 GND IC5013 D14 MMDQ22 IC5013 AC16 VSSRAC_25 R5962 0 C0EBE0000336 IC5043 4 OUT 3 Cd 1 GND 2 Vdd IC5013 AC25 XIRQ18 IC5013 R10 VDD15 C5136 68u 4V C5928 16V 0.01u IC5013 A11 MMDQ6 IC5013 R15 GND IC5013 L12 GND FL5265 J0HAAC000045 1 2 3 4 C5927 16V 0.01u FL5018 J0HAAA000013 1 2 3 4 5 6 7 8 9 10 IC5013 L23 GND IC5013 T15 GND IC5013 P14 GND IC5013 T17 GND IC5013 AC26 SMTD0 IC5013 B10 MMDQ5 IC5013 M15 VDD33 0.1u 50V C5518 IC5013 A16 MMA11 IC5013 T14 GND IC5013 A17 MMA10 IC5013 R13 GND R5161 22 IC5013 R17 GND IC5013 L17 AVDD33UPLL R5223 10k IC5013 AB24 SMTCMD0 IC5013 C14 XMMCS IC5013 AC9 VSSRAC_18 IC5013 D4 XRST C5168 10V 0.1u IC5013 L11 GND JG4 1 2 3 4 IC5013 P11 VDD15 L5024 J0JHC0000045 C5122 10V 0.1u IC5013 M12 GND C5145 16V 0.01u C5124 10V 0.1u IC5013 L14 VDD33 R5166 56 R5222 4.7k C5137 6.3V 0.33u IC5013 P16 GND C5178 10V 0.1u IC5013 B14 MMCKI R5084 56 L5050 J0JHC0000045 JG3 1 2 3 4 5 6 7 8 9 10 11 12 13 C5926 16V 0.01u IC5013 L10 GND C5177 10V 0.1u L5049 J0JHC0000045 IC5013 U17 GND IC5013 B8 MMDQ2 IC5013 U13 VDD15 IC5013 W24 SDDAT3 C5125 10V 0.1u R5162 56 IC5013 N14 GND IC5013 F6 GND IC5013 AC20 XHEGRST C5216 10u 10V IC5013 D11 MMDQ20 IC5013 A1 GND IC5013 AB11 VDDIO_0 Q5026 B1ABDF000034 IC5013 P17 GND R5097 10k IC5013 C15 MMBS0 R5165 56 R5051 10k IC5013 AC14 VSSRAC_23 L5027 J0JHC0000045 IC5013 W25 SDDAT2 C5154 10V 0.1u R5099 10k R5557 56 IC5013 AC10 VSSRAC_19 IC5013 T10 VDD15 R5087 56 R5048 56 TP5239 IC5013 AC13 VSSRAC_22 IC5013 U12 VDD15 IC5013 AC7 VSSRAC_16 IC5013 Y22 SMTVPP1 IC5013 M14 GND IC5013 AB13 AVDDRAC_1 IC5013 AC15 VSSRAC_24 R5046 56 R5148 56 IC5013 N12 GND IC5013 N15 GND R5280 10k C5175 10V 0.1u R5588 10k IC5013 AB26 SMTCLK0 IC5013 E10 MMDQ18 IC5013 B18 MMA1 IC5013 A18 MMA7 IC5013 U16 GND R5024 10k R5082 56 R5279 56 C5162 10V 0.1u IC5013 P12 GND R5028 10k C5120 10V 0.1u R5966 10k IC5013 AE20 VSSRAC_14 IC5013 D17 XMMWE IC5013 MN2WS012AA-A K13 VDD33 R5029 10k IC5013 K15 VDD33 256Mbit RESET 2 RESET SDWP SDCMD SDCLK SDDAT0 IC_CARD SDRAM CPU WORK SDRAM 2/2 350MHz SDLED /SBT1 IC5013 256Mbit RESET SDDAT2 SDCD CPU WORK SDRAM 1/2 SBO0 REMOCON SDDAT3 GND +5V SBI0 DMA/SERIAL1 /SBI1 GND /SBO1 3.3V SDDAT1 GND Interrupt IC5013 SD_CARD PU PORT0[1] PORT0[0] PORT0[3] PORT0[4] PORT0[5] PORT0[6] PORT0[2] JG-BOARD TNPA4092 (2/5) ! TO GS-BOARD (GS52) 3 2 1 15 13 12 14 11 12 10 16 15 13 14 18 17 11 TH-65PV600C JG-Board (2 of 5) Schematic Diagram TH-65PV600C JG-Board (2 of 5) Schematic Diagram 117 15.39.JG 电路板 (3/5) 线路图 + + + + + + AP_DQA2 AP_RQ5 AP_CTMN AP_DQA0 AP_DQA1 AP_RQ6 AP_DQA0 AP_DQA1 AP_DQA0 AP_RQ7 AP_DQA3 AP_DQA2 AP_RQ6 AP_DQA4 AP_RQ4 AP_DQA3 AP_DQA5 AP_RQ5 AP_SIO AP_DQA6 AP_RQ1 AP_RQ0 AP_DQB7 AP_DQA7 AP_RQ0 AP_DQB4 AP_VCMOS AP_DQB1 AP_DQB2 AP_DQB3 AP_DQB5 AP_DQB0 AP_DQB1 AP_RQ4 AP_DQB0 AP_DQB6 AP_DQB2 AP_DQB3 AP_DQB0 AP_DQB1 AP_DQB6 AP_DQB2 AP_RQ3 AP_RQ0 AP_DQB4 AP_RQ3 AP_DQB7 AP_RQ1 AP_RQ2 AP_RQ1 AP_DQB5 AP_RQ2 AP_RQ7 AP_CFM AP_VCMOS AP_RQ2 AP_DQB6 AP_RQ5 AP_SCK AP_DQB7 AP_RQ3 AK_CLK67_1CHIP AP_RQ6 AP_CMD AP_DQA1 AP_CFMN AP_CFMN AP_CFM AP_DQA6 AP_CFM AP_SCK AP_CFMN AP_DQA2 AP_CTM AP_DQA7 AP_DQA4 AP_DQB3 AP_CTMN AK_SYNCLKN AP_DQA6 AP_DQA5 AP_CMD AP_DQB4 AP_SCK AK_PCLKM AP_DQA5 AP_DQA7 AP_DQB5 AP_CMD AK_REFCLK AP_DQA4 AP_RQ7 AP_DQA3 AP_RQ4 AP_CTM AP_SIO AK_CLK27 AP_VCMOS AK_CLK74_1CHIP 2.5V 3.3V 2.5V 3.3V IC5016 D3 GND IC5016 D5 GNDA IC5013 J22 MCLK C5293 4V 100u C5068 10V 0.1u R5195 0 IC5016 G6 DQB1 IC5013 AF16 RQ2 C5097 10V 0.1u IC5013 AF21 DQB7 IC5013 AD20 DQB6 IC5016 H6 DQB5 IC5016 H7 DQB4 R5187 EXB2HV390JV R5182 39 IC5013 MN2WS012AA-A AD5 PCLKM L5101 J0JHC0000045 IC5013 AF5 SCK C5473 10u 10V C5195 10V 0.1u C5188 10V 0.1u IC5055 C0DBEZG00018 1 DC_INPUT_(_VIN_) 2 ON_/_OFF_CONTROL_(_VC_) 3 DC_OUTPUT_(_VO_) 4 OUTPUT_VOL_ADJ_(_adj_) 5 GND 6 DC_OUTPUT_(_VO_) C5192 10V 0.1u 1% R5549 4.7k IC5016 C1 DQA0 IC5013 AD8 DQA5 IC5013 AD17 DQB1 C5066 10V 0.1u IC5016 E6 RQ6 TP5044 C5263 10V 0.1u IC5013 AF9 DQA0 C5057 10V 0.1u C5063 10V 0.1u C5077 4V 100u IC5016 G7 DQB0 C5199 10V 0.1u IC5016 G5 VDD IC5016 E7 RQ5 IC5016 J2 VCMOS C5049 10V 0.1u IC5016 C6 DQA2 R5188 EXB2HV390JV IC5013 K3 VC270 IC5013 AF6 DQA7 R5178 4.7k R5177 0 IC5013 M5 CLK271 C5071 10V 0.1u IC5016 J6 GND IC5013 AF14 RQ6 C5079 10V 0.1u C5065 10V 0.1u R5260 100k C5078 10V 0.1u IC5016 G2 DQB2 C5197 10V 0.1u IC5016 J1 NC IC5013 AD6 CMD IC5013 AF13 CTM IC5013 AF11 CFMN IC5016 B6 DQA5 C5555 68u 4V L5053 J0JJC0000015 IC5016 H1 DQB3 C5415 10V 0.1u IC5016 D7 CFMN C5191 10V 0.1u IC5013 J1 CLK270 IC5016 A7 DQA7 IC5013 AF15 RQ5 IC5016 F7 RQ3 IC5016 A5 CMD C5189 10V 0.1u IC5016 B5 VDD IC5013 AD14 RQ4 1% R5208 1.5k R5192 4.7k IC5016 C5 GND IC5016 F2 RQ1 C5182 1u 6.3V R5179 4.7k IC5013 L1 CLK75 IC5016 C2 DQA1 IC5016 F5 GND IC5013 AF18 DQB0 R5180 39 IC5013 AD19 DQB5 IC5013 AF19 DQB3 IC5016 C3 VDD 1% R5545 1.8k R5338 10k IC5016 C7 CFM C5062 10V 0.1u IC5016 A6 GND IC5016 J5 SIO0 C5181 1u 6.3V IC5013 AF17 RQ1 IC5016 B3 GND C5184 6.3V 1u IC5013 AD21 SIO R5194 0 IC5016 F6 RQ2 IC5013 L5 VC271 IC5013 AD18 DQB2 IC5016 J7 DQB7 IC5013 AD9 DQA2 IC5016 H3 GND IC5016 E3 GND IC5013 AF20 DQB4 IC5016 B2 DQA6 R5183 EXB2HV390JV C5183 10V 0.1u IC5013 AF4 SYNCLKN C5070 10V 0.1u IC5016 C3ABQG000075 A1 NC IC5016 E2 RQ7 C5098 10V 0.1u IC5013 M4 CLKMON C5075 4V 100u IC5013 AF7 DQA4 IC5016 H2 DQB6 C5190 10V 0.1u IC5016 G1 RQ0 IC5016 F1 RQ4 L5056 J0JHC0000045 IC5013 AF10 CFM IC5016 B7 DQA4 IC5016 B1 DQA3 TP5213 C5053 10V 0.1u IC5016 D1 CTMN 1% R5209 680 C5060 10V 0.1u IC5013 AF8 DQA3 IC5013 AD10 DQA1 IC5016 D2 VREF IC5013 AD15 RQ3 IC5013 AF12 CTMN IC5013 AE5 REFCLK C5054 10V 0.1u IC5016 F3 VDD C5073 10V 0.1u IC5013 J25 MTCPOUT L5104 J0JHC0000045 R5214 22 IC5016 H5 VDD C5186 4V 100u IC5016 E5 VDD C5291 10u 10V IC5016 E1 CTM C5377 10V 0.1u C5099 10V 0.1u IC5013 AD16 RQ0 C5055 10V 0.1u IC5016 J3 SIO1 C5419 4V 100u IC5016 G3 GND R5210 39 IC5013 J24 UTCPOUT R5211 39 IC5016 D6 VDDA IC5016 A2 VCMOS C5058 10V 0.1u C5196 10V 0.1u IC5013 J23 UCLK IC5016 A3 SCK IC5013 AD7 DQA6 IC5013 AD13 RQ7 IC5044 C0DBZFF00004 1 VOUT 2 GND 3 CE 4 NC 5 GND 6 VDD IC5013 PULL DOWNED SIGNALS RAMBUS_I/F DQB7 GND SIO0 CLOCK DQB8 D-RDRAM 128Mbit*1 SIO1 VCMOS AVR 2.5V AVR 1.8V IC5016 JG-BOARD TNPA4092 (3/5) ! 13 15 14 12 11 22 23 26 24 28 27 21 25 20 21 19 25 26 24 22 23 27 TH-65PV600C JG-Board (2 of 5) Schematic Diagram TH-65PV600C JG-Board (2 of 5) Schematic Diagram 118 15.40.JG 电路板 (4/5) 线路图 + + + + + + AM_MVC7 AP_CTM AM_MVC6 AA_EEPWP AM_MVC3 AM_MVC1 AM_SVD0 AD_CLKEN AK_CLK67_1CHIP AM_SVD7 AM_SVD4 AM_SVD5 AM_SVD6 AM_MVC2 AM_SVD3 AM_MVSYNCO AK_PCLKM AP_CTMN AM_SVD1 AM_MVC4 AM_MHSYNCO AM_SVD2 AM_MVC5 AK_SYNCLKN AM_SVCLKO AD_SCL1 AM_MVY0 AM_MVY7 AM_MVY4 AK_REFCLK AD_SDA1 AK_CLK74_1CHIP AM_MVY5 AM_MVY6 AM_MVY3 AM_MVY1 AM_MVY2 AM_MVCLKO AM_MVC0 AM_MVY5 AM_MVC0 AM_MVC7 AM_SVD7 AM_MVC6 AM_SVD6 AM_MVC5 AM_SVD5 AM_MVC4 AM_SVD4 AM_MVC3 AM_SVD3 AM_SVD2 AM_MVCLKO AM_SVD1 AM_SVD0 AM_SVCLKO AM_MVY7 AM_MVY6 AM_MVC2 AM_MVC1 AM_MHSYNCO AM_MVSYNCO AM_MVY0 AM_MVY1 AM_MVY2 AM_MVY3 AM_MVY4 AA_NTSCRST AD_SCL1 AD_SDA1 DA_2.5V 5V_SUB 9V_SUB 3.3V 3.3V DA_2.5V 3.3V FL5908 J0MAB0000199 1 2 3 4 C5269 16V 0.01u C5084 50V 68p R5322 680 C5254 10V 0.1u IC5013 T1 MVY0 C0ZBZ0000804 IC5022 1 X1 2 S0 3 S1 4 VIN 5 VDD 6 GND 7 74M 8 CLK1 9 27M 10 66.5M 11 66.5M 12 GND 13 VDD 14 S2 15 VDD 16 X2 R5362 56 IC5013 AE2 DMIX 1% R5388 10k C5373 16V 0.1u IC5013 AC2 LOSD14 IC5013 T5 SVCLKO R5286 47 IC5013 T3 YSOSD R5343 56 R5315 10k IC5013 U1 SVD7 R5294 0 L5901 J0JHC0000045 R5393 56 C5371 16V 0.1u C5268 6.3V 1u C5085 10V 0.1u IC5013 M3 MHSYNCO 1% R5324 300 IC5013 AA2 LOSD6 IC5013 W4 LVSYNCI IC5013 N5 MVC7 C5906 50V 3900p R5317 0 C5092 50V 68p L5900 J0JHC0000045 C5901 16V 0.1u IC5013 AA1 LOSD5 IC5013 W5 LHSYNCI C5355 10V 0.1u L5904 10u 1% R5328 300 IC5023 C0ZBZ0001327 1 VDDIR 2 REFCLK 3 VDDP 4 GNDP 5 GNDI 6 PCLKM 7 SYNCLKN 8 GNDC 9 VDDC 10 VDDIPD 11 STOPB 12 PWRDNB 13 S2 14 MULT1 15 MULT0 16 VDDO 17 GNDO 18 CLKB 19 NC 20 CLK 21 GNDO 22 VDDO 23 S1 24 S0 R5403 0 Q5901 2SA207700L IC5013 M2 MVSYNCO IC5013 AD2 ADOUT1 IC5013 U5 SVD3 R5469 56 IC5013 U2 SVD6 R5344 0 L5096 J0JHC0000045 L5054 J0JHC0000045 IC5013 AE1 ADOUT0 R5565 100 C5904 16V 0.1u C5094 10V 0.1u Q5902 2SA207700L IC5013 AE4 ATCPOUT FL5907 J0MAB0000199 1 2 3 4 IC5013 MN2WS012AA-A AB6 AUDCLK C5082 50V 68p 1% R5326 300 IC5013 V2 SVD1 C5270 16V 0.01u C5095 10V 0.1u C5900 4V 47u C5247 10V 0.1u 1% R5319 2.8k R5292 39 IC5013 W3 VOUTENB IC5013 AD4 IECOUT R5340 56 IC5013 R3 MVY3 C5370 16V 0.1u R5558 56 IC5013 AC1 LOSD13 C5246 4V 100u R5392 56 C5905 4V 100u C0DBEHG00006 IC5900 1 CTL 2 Vcc 3 GND(FIN) 4 OUT 5 ADJ R5339 10k 1% R5321 240 IC5013 N4 MVC6 R5397 470 IC5013 AF2 DACCK 1% R5327 300 R5406 0 1% R5550 240 C5903 47u 4V R5300 0 R5547 10k C5907 50V 820p C3EBJC000055 IC5025 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC IC5013 V5 LVSYNCO IC5013 AC6 ATVROUT C5080 10V 0.1u R5437 EXB2HV560JV R5395 470 IC5013 W2 LOCKI 1% R5389 22k R5399 470 R5459 EXB2HV103JV IC5013 N3 MVC5 1% R5390 1.5k IC5013 P2 MVC1 C5357 16V 0.1u R5349 100 IC5013 Y4 LOSD3 TP5242 IC5013 P4 MVY7 J0MAB0000164 FL5262 1 2 3 4 IC5035 C1AB00001858 1 VDD_IO 2 Y0 3 Y1 4 Y2 5 Y3 6 Y4 7 Y5 8 Y6 9 Y7 10 VDD 11 DGND 12 Y8 13 Y9 14 C0 15 C1 16 C2 17 C3 18 C4 19 I2C 20 ALSB 21 SDA 22 SCLK 23 P_HSYNC 24 P_VSYNC 25 P_BLANK 26 C5 27 C6 28 C7 29 C8 30 C9 31 RTC_SCR_TR 32 CLKIN_A 33 RESET 34 EXT_LF 35 RSET2 36 COMP2 37 DACF 38 DACE 39 DACD 40 AGND 41 VAA 42 DACC 43 DACB 44 DACA 45 COMP1 46 VREF 47 RSET1 48 S_BLANK 49 S_VSYNC 50 S_HSYNC 51 S0 52 S1 53 S2 54 S3 55 S4 56 VDD 57 DGND 58 S5 59 S6 60 S7 61 S8 62 S9 63 CLKIN_B 64 GND_IO IC5013 AF3 AVCOIN IC5013 AA3 LOSD7 1% R5323 300 TP5240 IC5013 V4 LHSYNCO L5034 J0JHC0000045 R5546 10k R5455 100 R5295 10k IC5013 T2 YSSTIL R5398 470 C5245 10V 0.1u IC5013 Y3 LOSD2 IC5013 Y1 LOSD0 FL5906 J0MAB0000199 1 2 3 4 C5240 6.3V 1u IC5013 N1 MVC3 IC5013 R5 MVY1 IC5013 AC4 DEEMP JG1 1 2 3 4 5 6 7 8 9 10 11 12 IC5013 P5 MVY6 IC5013 P3 MVC0 IC5013 V3 SVD0 R5548 10k C5089 10V 0.1u C5272 10V 0.1u IC5013 AA5 LOSD8 R5283 10k IC5013 P1 MVC2 IC5013 R1 MVY5 Q5900 2SA207700L R5439 EXB2HV820JV R5363 56 IC5013 AC3 LOSD15 R5314 10k R5394 470 R5278 22 IC5013 M1 MVCLKO C5102 16V 0.01u IC5013 AB3 LOSD11 C5369 16V 0.1u R5454 100 IC5013 AC5 ADIN C5366 16V 0.1u IC5013 AB5 SLRCK X5005 H0J270500061 R5387 10k IC5013 W1 LOCKO IC5013 N2 MVC4 IC5013 U4 SVD4 IC5013 R4 MVY2 R5468 56 C5096 10V 0.1u IC5013 R2 MVY4 R5299 0 C5217 16V 0.1u IC5013 AB1 LOSD9 IC5013 Y5 LOSD4 1% R5320 2.8k IC5013 AB4 LOSD12 R5396 470 IC5013 U3 SVD5 R5154 10k L5031 J0JHC0000045 C5902 0.1u 10V 1% R5325 300 R5404 0 IC5013 Y2 LOSD1 R5466 56 ERJ2GEJ560X IC5013 V1 SVD2 IC5013 AB2 LOSD10 IC5013 AD3 SRCK C5356 10V 0.1u R5298 110 R5341 330 R5391 56 IC5013 AE3 LRCK TP5243 L5055 J0JHC0000045 R5312 110 C5360 6.3V 47u R5438 EXB2HV560JV L5903 J0JHC0000045 C5091 50V 68p IC5013 AD1 ADOUT2 C5093 10V 0.1u C5087 4V 100u TP5091 TP5090 IC5013 LOSD_YM LOSD_YS AUDIO VIDEO 27M AUDIO SD_Y SD_C HD_Y HD_Pr VIDEO ENCODER HD_Pr HD_Pb HD_Y HD_Pb SD_Composite +2.5V EEPROM DRCG CLK GEN JG-BOARD TNPA4092 (4/5) ! TO H-BOARD (H53) SDin_Y SDin_PB SDin_PR MAIN9V MAIN9V GND 26 25 28 27 22 23 21 24 31 33 32 36 30 31 34 28 32 35 33 29 TH-65PV600C JG-Board (4 of 5) Schematic Diagram TH-65PV600C JG-Board (4 of 5) Schematic Diagram 119 15.41.JG 电路板 (5/5) 线路图 + + + + + + AA_SRQ AD_SDA1 AA_SBI0 AD_SCL1 AD_SBO1 AD_SDBOOT AA_POWER_DET AA_XRST AA_SBO0 AD_SBI1 9V_SUB 9V_POWER 5V_SUB 3.3V 5V_SUB 9V_POWER 3.3V 5V_SUB 1.5V 5V_SUB 9V_SUB 5V_SUB R5116 0 D5027 MA22D3900L D5020 MAZ802400L C5552 10V 0.1u R5386 EXB38VR000V C5252 10V 0.1u C5501 10u 16V R5590 12.7k 1% C5421 10V 0.1u TP5043 R5579 0 C5474 470p 50V R5583 0 C5502 47u 16V C5468 0.1u 10V R5425 9.31k 1% C5341 0.1u 10V C5550 16V 0.1u TP5241 C5359 470p 50V D5024 MA22D3900L Q5022 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 TP5252 L5102 G1C3R3ZA0083 R5575 68k 1% C5480 1u 16V R5453 0 C0DBAYY00054 IC5246 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB FL5903 J0HAAC000045 1 2 3 4 C5496 10u 16V FL5904 J0HAAC000045 1 2 3 4 C5506 68u 4V C5476 10V 0.1u C5485 4.7u 6.3V R5862 0 C5481 0.1u 10V C5113 1u 16V C5504 47u 16V C5539 10u 10V FL5902 J0HAAC000045 1 2 3 4 R5431 0 TP5214 D5025 MA22D3900L FL5224 J0HAAC000045 1 2 3 4 JG2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 C5508 68u 4V L5103 G1C100MA0203 FL5230 J0HAAC000045 1 2 3 4 R5541 0 L5100 G1C1R5ZA0083 C5445 47u 6.3V R5156 0 R5424 27.4k 1% C5420 10V 0.1u C5547 10V 0.1u C5548 10V 0.1u C5375 10V 0.1u C5469 0.022u 16V C5509 1u 16V R5568 46.4k 1% FL5235 J0HAAC000045 1 2 3 4 R5155 0 C5354 0.022u 16V FL5229 J0HAAC000045 1 2 3 4 C0DBAYY00054 IC5045 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB R5863 0 C5376 10V 0.1u L5105 G1C100MA0077 C5218 10V 0.1u C5423 10V 0.1u FL5901 J0HAAC000045 1 2 3 4 C5551 16V 0.1u C5287 50V 1000p TP5215 R5572 100k R5582 0 C5255 10V 0.1u J0MAB0000164 FL5263 1 2 3 4 R5589 47k 1% D5022 MA22D3900L TP5249 C5258 10V 0.1u R5577 68k 1% R5563 21.5k 1% Q5024 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 C5422 10V 0.1u C5260 10V 0.1u C5492 4.7u 6.3V TP5041 C5232 10V 0.1u R5578 0 C5365 0.22u 10V R5584 39k 1% C5292 0.1u 10V L5106 J0JHC0000075 C5553 10V 0.1u C5256 10V 0.1u R5585 33.2k 1% C5257 10V 0.1u C5225 10V 0.1u C5510 16V 47u FL5905 J0HAAC000045 1 2 3 4 C5549 10V 0.1u C5112 50V 1000p R5542 46.4k 1% TP5251 C5340 0.1u 10V FL5225 J0HAAC000045 1 2 3 4 R5566 24k 1% C5484 0.1u 10V C5475 10V 0.1u R5569 100k C5537 10u 10V C5497 4.7u 16V DCDC 3.3V DCDC 1.5V JG-BOARD TNPA4092 (5/5) ! TO DG-BOARD (DG30) SRQ SD_SBI SD_SBO SD_RESET SD_BOOT SW_OFF_DET SD_SDA SD_TXD SD_RXD SD_SCL MAIN_5V 32 31 33 43 45 44 39 41 40 37 38 42 TH-65PV600C JG-Board (5 of 5) Schematic Diagram TH-65PV600C JG-Board (5 of 5) Schematic Diagram 120 15.42.D 电路板 (1/2) 方框图 ALARM READY PANEL_MAIN_ON REMOCON LED_R TUNER_SUB_ON TXD_PC ECO_ON TUNER_SUB_ON ECO_ON IIC_CONT SOS4_PS RXD_PC TXD_PC VDATA_DET IIC_INT LED_G RXD_PC ALL_OFF AC_GOOD ALL_OFF LED_G LED_R READY ALARM PANEL_MAIN_ON SOS8_SS SOS6_SC1 STB_SCL01 SOS7_SC2 STB_SDA01 IIC_INT IIC_CONT RXD_PC STB_SDA02 REMOCON TXD_PC VDATA_DET STB_SCL02 IIC_CONT IIC_INT SOS4-PS D9035 D9804 RA_E ,RB_E ,RC_E ,RD_E ,RE_E E+LVDS2 (RX_TC+) 6 RCLK_E E-LVDSCLK (RX_TCLK-) E+LVDS0 (RX_TA+) 10 D5 2 E-LVDS0 (RX_TA-) TO DG5 14 E+LVDSCLK (RX_TCLK+) E-LVDS2 (RX_TC-) E-LVDS1 (RX_TB-) 12 11 LVDS_DET 15 E+LVDS3 (RX_TD+) 7 5 9 16 E+LVDS4 (RX_TE+) E-LVDS3 (RX_TD-) E+LVDS1 (RX_TB+) 1 E-LVDS4 (RX_TE-) 4 LED_R PDB1 PDB0 17 14 P5V 14 12 22 16 18 VDATA_DET LED_G 2 D3 18 TO DG3 P5V 16 STB5V_M 7 D25 P5V +5V 30 2 STBY3.3V REMOCON ALARM DISPEN IIC_CONT IIC_INT 1 11 P3V_SCL1 P3V_SDA1 PSLCT PBUSY STB3.3V SDA2 9 TXD D6 18 ALL OFF 26 STB5V 8 SCL1 FOR FACTORY SCL2 10 23 STBY5V 4 12 P15V 15 21 USE 29 7 STB_SCL02 STB_SDA02 21 P15V PANEL_STBY_ON 11 17 TO P25 15 P15V STB5V IIC_DATA1 F_STBY_ON +15V STBY5V 15 IIC_CLK1 RXD +5V 6 20 20 P3V_SCL1 TUNER_SUB_ON 8 Q9044 6 TXD 1 7 STB_SDA02 10 STB_SCL02 SDA1 ALL OFF P3V_SDA1 27 PDB0 ECO_ON 19 READY 9 SOS4_PS 13 ECO_ON PSLCT PSTB +15V 4 16 STBY5V-F 3 IIC_CLK2 IIC_DATA2 PSTB PANEL_MAIN_ON IIC/INT IIC_CONT 13 19 P15V RXD 1 PDB1 5 2 25 PBUSY 19 AC GOOD TEMPERATURE VO RESET 13 12 23 73 VO 15 IC9001 FB G2 76 P15V Voltage 6 24 D2 50 10 VCC SOS7_SC2 25 EEPROM 5 LX P15V D1 SDA VCC 51 15V 2.5V SENSOR 6 24 SCL 26 STB 3.3V/RESET FB 5 Q9058 PROM(FPGA) P_ON/OFF Q9057 S2 20 DC-DC CONVERTER XRST 74 DRVMUTE 65 CTL Q9051 CB NRST D2 Control DATA(D) P5V 20 SOS6_SC1 16 P3.3V D2 23 VO 21 Q9050 NCS LED_R VDD 70 OUT1 REM_IN OUT1 G1 23 X9000 DRV_RST LDO_5V Q9800 1 S1 SOS3_3V D2 9.216MHz CTL 19 SOS2_15V CB DATA SDA P3V_SDA1 69 15V 3.3V ADSI IC9011 LX D2 LX P15V 24 R10-R19(R) P2.5V DATA DRIVER STB3.3V G10-G19(R) 21 OUT2 IIC1_SCL VIN 13 CONTROL IC9807 VDD G2 3 SOS9_CONF ALARM 34 DC-DC CONVERTER 9 SS PULSE VD D1 LVDS Differential 7 LVDS 18 S2 SYNC PROCESSING DRVRST WB ADJ 66 16 SCL DISCHARGE CONTROL D2 SCAN OUT 21 P1.2V 24 OUT1 P15V 1 VOUT 2 VOUT FLASH CONTROL 67 RESET SOS4-PS Q9801 FB SC PULSE P15V Q9201 VDATA_DET IC9806 5 LDO_5V Signaling 6 3 IIC2_SDA IC9800 RECEIVER 4 S2 -INC 14 Q9200 9 21 68 AVR 5V IC9500 NCS 5 22 LDO_5V VIN FPGA,ASIC ADD1 VDD CE LSI_RST VDD XRST 36 G2 1 37 XRST VDD P3V_SCL1 ADD0 IC9003 6 DC-DC CONVERTER S1 STB5V 15V 1.2V 19 1 MICOM EEP_WR_CTL P3V_SDA02 18 XIN ASDIO B10-B19(R) 17 38 XOUT Q9805 WP Q9806 P3V_SCL02 17 G1 5 Q9046 9 D1 STB3.3V D1 D1 HD -INC -INC OUT2 DCK S1 16 PICTURE P3.3V OUTPUT 18 TXD1 17 IC9002 9 DCLK 27 RESET RXD1 5 STB_SDA02 IIC_CONT 20 STB_SCL02 DATA0 IIC_INT CTL 16 19 DCLK CB LVDS INPUT READY Q9803 VIN R 10bit 71 DIGITAL LDO_5V SOS5_5V 5 IIC1_SDA 23 Q9054 28 G 10bit IC9809 Low Q9053 20 39 SOS8_SS IC9007 B 10bit FPGA CONTROL Q9052 IIC2_SCL 13 5 LED_G VCC Q9100 29 72 OUT2 G1 PANEL_MAIN_ON D1 DCK PICTURE OUTPUT R10-R19(L) G10-G19(L) R 10bit VD G 10bit B 10bit B10-B19(L) HD JTAG DISCHARGE CONTROL FLASH CONTROL XCE-L,XOE DCLK DATA0 NCS ASDIO FPGA IIC SCL SDA FPGA XRST PLL_RST 2 XRST2 DC-DC ON DIGITAL SIGNAL PROCESSOR PLASMA AI SUB-FIELD PROCESSOR FORMAT CONVERTER D Control DATA(U) CLKM-IN PRCKI XWE BYTE BUS SW K-DONE 12 13 3 11 16 9 10 6 5 15 8 1 7 2 20 21 18 17 19 DISCHARGE CONTROL VD HD DCK 4 JTAG FLASH CONTROL BUS SW VD HD DCK 14 SFRST,SFVRST,LATCH FPCLK,FPDAT0,FPDAT1 TD0,TD1,TMS,TCK SS PULSE SC PULSE Control DATA(U) SS PULSE Control DATA(D) SC PULSE SOS9_C0NF DRV_RST SOS6,7,8 P+15V SOS / LED BLINKING : 2 TIMES P+3.3V SOS / LED BLINKING : 3 TIMES P+5V SOS / LED BLINKING : 5 TIMES DATA POWER RECOVERY 78 AVCC 13 VCC STB3.3V 8 VCC STB3.3V D9110 STB5V-M STBY3.3V-ON TH-65PV600C D-Board (1 of 2) Block Diagram TH-65PV600C D-Board (1 of 2) Block Diagram 121 15.43.D 电路板 (2/2) 方框图 CLRU1 PCU1 LEU1 SOS6_SC1 ODEU1 FREE_RUN CLKM_IN SOS7_SC2 PCD6 ODED6 CLRD6 LED6 CLKD2 CLKD1 CLRD5 PCD5 LED5 CLKD3 ODED5 CLKD0 LEU2 PCU2 CLRU2 CLKU1 CLKU0 ODEU2 CLKU3 CLKU2 CLKU3 CLKU2 CLKU1 CLKU0 CLKD0 CLKD1 CLKD3 CLKD2 LED TP9534 X9500 TP9879 TP9681 TP9533 TP9462 TP9051 B 10bit st-r IC9400 CONVERTER XRST CTI/TINT WB-ADJ I/P CONVERTER COLOR XRST2 SFVRST LATCH CONTRAST FORMAT SFRST Video DATA 48bit DA00-DC11 FORMAT CONVERTER/RGB PROCESSOR IC9401 DATA ROMDATA00-03 DA14,DA15-DC15 DDR SDRAM(128M) PCK OCK SUB-FIELD PLASMA AI/SUB FIELD PROCESSOR/DATA DRIVER R 10bit JTAG DCK R 10bit ROMDATA04-15 UA12-UC15 PLASMA AI G 10bit NEW DRVCLKU0-U3,DRVCLKD0-D3 HD G 10bit B 10bit VD PROCESSOR DRIVER PD1-M B 10bit st-r IC9300 CONVERTER XRST CTI/TINT WB-ADJ I/P CONVERTER COLOR FPCLK FPDAT0 FPDAT1 XRST SFVRST LATCH CONTRAST FORMAT SFRST Video DATA 48bit DA00-DC15 FORMAT CONVERTER/RGB PROCESSOR IC9301 DATA ROMDATA00-03 DA14,DA15-DC15 DDR SDRAM(128M) SUB-FIELD PLASMA AI/SUB FIELD PROCESSOR/DATA DRIVER R 10bit JTAG DCK R 10bit ROMDATA04-15 UA12-UC15 PLASMA AI G 10bit NEW DRVCLKU0-U3,DRVCLKD0-D3 HD G 10bit B 10bit VD PROCESSOR DRIVER PD1-M TO C10 P5V 64 R-UP D31 32 30 PCU1(R) 60 28 CLKU6(+) LEU1(R) CLKU7(-) 58 P5V 6 ODEU1(R) CLRU1(R) 59 61 Q9300 5VDET 68 52 38 66 SCAN DATA 1 SOS6-SC1 P5V SOS7-SC2 11 TO SC20 12 D20 P5V Video DATA 48bit UA00-UC15 Video DATA 48bit UA00-UC11 DMHR 56 55 DSHR DMLR 54 36 DSLR 30bit UA06-UC15 Q9306 IC9504 LEVEL CONVERTER 3.3V 5V IC9505 LEVEL CONVERTER 3.3V 5V IC9503 LEVEL CONVERTER 3.3V 5V IC9802,03 3.3V 5V LEVEL CONVERTER CLOCK GENE. CLK7 12 CLK5 CLK6 14 13 7 CLK1 XT 1 20 XTN IC9200 IC9304 16M FLASH MEMORY RESET 4 5 VOUT VCC IC9602 RESET P3.3V DQ4-DQ15 A0-A19 DQ0-DQ3 IC9402 BUS SWITCH BUS SW ODED5,ODED6,PCD5,PCD6,LED5,LED6,CLRD5,CLRD6 UMH,UML,USH,USL,UEH,NUEL,URH,URL CL,CLK,SIU,SID,SCSU,CEL2,CPH,CEL,DVR_RST_0,CSL,CSH,CML,CMH Sustain Control DATA 8bit Scan Control DATA 13bit ODEU1,ODEU2,PCU1,PCU2,LEU1,LEU2,CLRU1,CLRU2 PCK OCK XCE-L BYTE XWE XOE R10-R19,G10-G19,B10-B19 UA05-UC12,UC13,UA15 DA14,DA15-DC15 UA12-UC12,UC13,UA15 UA05-UC11 DA14,DA15-DC15 UA12-UC15 UA05-UC10,UB11,UC11 XCE-L 20MHz 84MHz 39.5MHz 60MHz VD HD DCK DISCHARGE CONTROL BUS SW JTAG FLASH CONTROL VD HD DCK 3 11 16 9 10 6 5 15 8 1 7 2 20 21 18 17 19 4 12 13 14 Control DATA(D) Control DATA(U) SS PULSE SC PULSE TD0,TD1,TMS,TCK SOS9_C0NF DRV_RST SOS6,7,8 SUB-FIELD PROCESSOR FORMAT CONVERTER D DIGITAL SIGNAL PROCESSOR PLASMA AI DMHR,DSHR,DSLR,DMLR,DMHL,DSHL,DMLL,DSLL Data power recovery DATA 8bit 13 20 2 9 DOUTU31C DOUTU22A P5V P5V P5V P5V IIC SCL SDA P3V_SCL02 P3V_SDA02 SCL IIC P3V_SDA02 SDA P3V_SCL02 IC9603 BUS SWITCH XCE-L P5V D36 30bit DA06-DC15 ODED6(R) Q9304 68 DOUTD31C 66 64 PCD6(R) TO C60 58 CLKD7(-) CLKD6(+) 60 LED6(R) DOUTD22A 59 CLRD6(R) 5VDET P5V 34 61 36 34 30 CLKD3(-) 32 CLKD4(+) LED5(L) 58 P5V 64 L/R-DOWN D35 60 TO C54 28 59 CLKD2(+) 68 P5V 36 2 61 ODED5(L) CLRD5(L) 56 38 CLKD5(-) 66 18bit DA10-DC15 Q9305 PCD5(L) 5VDET 18bit DA00-DC05 DOUTD10A DOUTD21C R-DOWN 28 6 38 52 56 DMLL 55 DSHL 54 DMHL 32 DSLL 30 DSLR DMHR 4 DMLR 3 DSHR 2 56 38 66 DOUTU21C DOUTU16A DOUTU10A DOUTU15C LEU2(L) TO C24 58 CLKU5(-) 36 P5V P5V 64 L/R-UP D32 2 ODEU2(L) CLRU2(L) 59 34 CLKU4(+) CLKU3(-) 32 61 PCU2(L) 18bit UA10-UC15 Q9301 5VDET 30 CLKU2(+) 18bit UA00-UC05 68 60 28 DSHL TO C25 2 68 5VDET 30bit UA00-UC09 66 DMLL 4 DMHL D33 P5V 3 L-UP 34 30 36 64 P5V DSLL Q9302 CLKU0(+) CLKU1(-) 6 52 38 28 DOUTU9C DOUTU0A 5VDET SOS8-SS 48 30 38 P5V 64 DOUTD9C CLKD0(+) 62 32 66 30bit DA00-DC09 L-DOWN D34 Q9303 TO C55 28 68 P5V 2 CLKD1(-) DOUTD0A 51 60 SUSTAIN DATA NOT USED USED NOT USED NOT TH-65PV600C D-Board (2 of 2) Block Diagram TH-65PV600C D-Board (2 of 2) Block Diagram 122 15.44.D 电路板 (1/8) 线路图 G G G G G G + + G G 18 16 14 12 10 8 6 4 2 20 21 19 17 15 13 11 9 7 5 3 1 + G G G G FP_SCSU ECO_ON SC_CEL PANEL_STBY_ON NCS FP_CEL INEXCH DATA0 RXD_PC FP_DRV_RST_O ALARM FP_CSL SC_SID TXD_PC READY SC_CSH SC_CPH STB_SDA02 SC_CMH AR_IIC_INT SC_CEL STB_SCL02 PANASONIC_MODE PDB1_2 SC_SID PSLCT_2 FP_CML PDB0_2 SC_SCSU SC_CSL FP_CL ALL_OFF ASDIO PBUSY_2 DCLK SC_CLK P3V_SCL1 PSTB_2 SC_SCSU PANEL_MAIN_ON SC_CMH SOS6_SC1 SC_CEL2 FP_CLK SC_CML P3V_SDA1 SC_CSL SOS4_PS FP_CMH SC_CL FP_SIU SC_CL SC_CSH FP_CSH SOS9_CONF ECO_ON FP_CEL2 SC_CPH FP_SID SC_CLK SC_CML SC_CEL2 SC_DRV_RST_O SC_DRV_RST_O FP_CPH ALL_OFF SC_SIU SC_SIU DCDC_ON DRVMUTE TUNER_SUB_ON DCDC_ON P3V_SCL1 AR_IIC_CONT_D4 PSTB PDB1 PSLCT PSLCT_2 LED_R AR_IIC_INT_D2 STB_SCL02_D4 PDB0_2 STB_SDA02_D4 TXD_PC_D4 PDB1_2 PDB0 PBUSY_2 RXD_PC_D4 PBUSY PSTB_2 P3V_SDA1 LED_G REM_IN VDATA_DET TUNER_SUB_ON STB_SCL02_D4 STB_SDA02_D4 TXD_PC_D4 RXD_PC_D4 STBY3.3V_ON AR_IIC_INT_D2 AR_IIC_CONT_D4 AR_IIC_CONT P_ON/OFF SOS7_SC2 CBK C9848 0.1u 25V C9883 8200p 50V R9896 0 L9800 G1C3R0MA0248 C9801 4700p 50V C9805 4.7u 6.3V R9878 39k C9028 6.3V 10u R9198 4.7k C9887 4.7u 6.3V C9809 0.1u 16V C9881 50V 1000p R9815 22k R9897 100k P5V R9807 0 R9891 47k 1% C9969 33p 50V J0HABH000013 FL9806 C9823 10u 25V R9826 100 C9825 50V 100p P3.3V R9830 10k C9884 10p 50V R9813 2.4k R9823 100 P2.5V R9840 22 P5V STB3.3V P15V R9879 20k Q9800 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 LDO_5V C9824 10u 25V J0HABH000013 FL9800 R9842 100 R9825 100 LDO_5V STB3.3V C9971 0.1u 16V R9828 100 D9801 B0JCDD000002 C9885 1000p 50V C9880 50V 1000p R9870 10k R9802 62k D9804 MA3X152K0L P15V R9872 0 R9868 100k STB5V FL9803 J0HABH000012 1 2 3 Q9805 B1ABCF000138 P15V R9201 4.7k C9840 16V 0.1u R9883 0 R9892 15k 1% P15V STB3.3V P15V R9824 100 C0DBAYY00054 IC9807 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB C9882 0.1u 16V C9802 47p 50V P15V L9810 J0JHC0000045 R9884 100k D9802 MA2J72800L Q9803 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 R9847 EXB2HV222JV C9808 10u 25V D9808 MA3X152K0L R9898 47 C9886 0.1u 16V P15V C9897 8200p 50V C9843 16V 0.1u C9842 16V 1u C9806 68u 4V L9801 G1C2R2MA0241 STB3.3V R9202 4.7k C9847 0.1u 25V C9816 68u 4V FL9804 J0HABH000012 1 2 3 C0DBAYY00054 IC9809 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB C9898 10p 50V R9808 100k D9814 B0JCME000037 R9838 100 D6 C9891 0.1u 16V C9826 16V 0.1u LDO_5V C9970 47p 50V C9807 10u 25V R9843 100 R9803 0 IC9007 TVRP073-1 1 nCS 2 DATA 3 VCC 4 GND 5 ASDI 6 DCLK 7 VCC 8 VCC C9833 10u 25V P3.3V R9850 47k R9841 0 R9846 EXB2HV222JV R9816 82k STB5V_M C9838 16V 0.1u C9815 68u 4V R9806 39k C9832 10u 16V P5V C9803 4700p 50V R9804 24k R9848 EXB2HV470JV C0DBAHD00011 IC9806 1 VOUT 2 GND 3 CE 5 VDD 4 NC R9814 68k R9871 10k C9818 10u 25V R9839 100 R9849 EXB2HV470JV C9926 0.1u 16V C9899 1000p 50V R9854 100 Q9801 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 C9831 10u 16V P15V P5V R9800 13k R9880 36k R9844 100 P1.2V C0JBAZ001120 IC9802 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc J0HABH000013 FL9805 L9802 G1C2R2MA0241 C9841 16V 1u C9817 10u 25V R9801 24k R9831 10k R9099 100 C9029 6.3V 10u R9893 36k Q9100 B1ABCF000138 R9845 5.6k D9800 B0JCME000037 D3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R9827 100 P15V C9830 10u 16V R9869 10k C0DBAYY00054 IC9800 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB D25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C9967 4.7u 6.3V C9844 50V 0.01u C9837 10u 16V C9800 0.1u 16V R9810 3k C0JBAZ001120 IC9803 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R9805 30k C9846 16V 0.1u P5V LDO_5V PA9800 K5H4022A0023 STB5V C9896 0.1u 16V D9815 B0JCDD000002 Q9806 B1ABCF000138 D9807 MA3X152K0L C9845 16V 0.1u D9813 B0JCDD000002 D9812 B0JCME000037 D20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 D9035 MA2J72800L C9804 0.1u 16V FL9807 J0HABH000013 1 2 3 TP9058 R9859 EXB38V101JV SOS7_SC2/ CBK CSH ECO_ON +5V GND CML FAN_CONT CL +5V F_STBY_ON GND GND SID GND FAN_SOS +15V CEL2 +15V SOS4_PS GND STBY5V GND GND GND DRV_RST_O CEL CSL ALL_OFF P5V CLK CPH GND SCSU CMH SIU PANEL_MAIN_ON GND SOS6_SC1 AC_GOOD STBY5V GND P15V STBY3.3V IIC_CONT GND SCL1 SDA1 SCL2 SDA2 TXD RXD IIC_INT LED_G PSTB LED_R PDB0 PSLCT PDB1 PBUSY REMOCON VDATA_DET 15V->2.5V 15V->5V ALARM TUNER_SUB_ON ECO_ON INEXCH RXD STBY5V_F DISPEN PSLCT PANASONIC_MODE/ C_SEL IIC_CLK1 READY P15V IIC_INT GND PDB1 GND IIC_CONT PBUSY IIC_CLK2 TXD IIC_DATA1 IIC_DATA2 PDB0 PSTB GND ALL_OFF P5V GND GND PANEL_STBY_ON (P25) TO ! P-BOARD D-BOARD TNPA3983AL(1/8) DG-BOARD TO (DG3) TO SC-BOARD (SC20) LEVEL CONVERTER FOR USE FACTORY DC-DC CONVERTER DC-DC CONVERTER 15V->1.2V DC-DC CONVERTER 15V->3.3V AVR 5V PROM(FPGA) 1 3 2 E 1 A C 3 B D 4 6 F 5 2 LEVEL CONVERTER TH-65PV600C D-Board (1 of 8) Schematic Diagram TH-65PV600C D-Board (1 of 8) Schematic Diagram 7 8 9 123 15.45.D 电路板 (2/8) 线路图 RCLK_E- M_SEL1 LVDSBIT P3V_SCL1 RCLK_E+ SOS9_CONF RA_0+ RA_E- P3V_SDA1 INEXCH ALARM RB_0- RA_E+ STB_SCL01 RB_0+ SOS8_SS EEP_WR_CTL STB_SCL01 M_SEL4 RB_E- SOS4_PS STB_SDA01 XRST XRST M_SEL3 RC_0- AR_IIC_INT PANEL_MAIN_ON RB_E+ STB_SDA01 REM_IN RC_0+ P_ON/OFF RC_E- PANEL_STBY_ON SOS9_CONF RD_0- READY M_SEL3 M_SEL2 LED_R NRST RC_E+ STBY3.3V_ON M_SEL2 PANASONIC_MODE RD_0+ LED_G RD_E- RE_0- RD_E+ TXD_PC RE_0+ RCLK_0- M_SEL4 RE_E- RCLK_0+ LVDS_DET STB_SDA02 P3V_SDA02 P3V_SCL02 STB_SCL02 P3V_SCL02 XRST STB_SCL02 P3V_SDA02 STB_SDA02 RE_E+ RA_0- DRVRST SOS6_SC1 VDATA_DET LVDS_DET DCLK DATA0 ASDIO NCS STB_SCL02 STB_SDA02 FVSEL AR_IIC_CONT AR_IIC_CONT M_SEL1 LVDS_DET C_SEL SOS7_SC2 XRST2 EEP_WR_CTL RXD_PC XRST R9060 100 R9156 10k Q9058 B1CBHD000002 D9110 B0JCGD000002 R9218 10k R9175 10k R9237 10k R9160 0 R9109 10k R9141 100 D9102 B0JCGD000002 STB3.3V R9149 4.7k Q9044 B1ABCF000138 D9105 B0JCGD000002 R9155 5.6k R9221 10k R9204 4.7k R9074 100 R9134 33k TVRP068-2 IC9003 1 2 3 4 5 6 CNV 7 8 - 9 RESET 10 XOUT 11 VSS 12 XIN 13 VCC 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 IC9011 C0EBF0000431 1 RESET 2 Cd 3 VOUT 4 VDD 5 GND 6 CE R9188 5.6k STB5V R9169 10k STB3.3V R9064 100 R9105 100 D9100 B0JCGD000002 R9066 100 R9203 1k IC9001 TVRP123 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 Vcc C9058 6.3V 10u R9206 1k D9019 MAZ303300L R9174 10k C9045 16V 0.1u R9185 22 R9189 10k R9120 100 R9094 10k R9113 10 R9143 100 R9192 0 C9056 16V 0.1u R9067 100 R9178 10k R9062 100 R9101 10k Q9201 B1CBHD000002 R9220 10k D9101 B0JCGD000002 C9053 16V 0.1u R9107 3.3k Q9200 B1CBHD000002 P3.3V C9052 16V 0.1u C9033 16V 0.1u Q9051 B1ABCF000138 X9000 H2D200500011 R9194 0 STB3.3V R9061 100 R9176 10k R9166 10k R9182 1k Q9050 B1ABCF000138 R9165 10k C9050 16V 0.1u C9046 16V 0.1u D5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 R9171 39k R9127 68k R9170 39k R9209 10 R9158 10k STB3.3V Q9052 B1ABCF000138 R9205 4.7k Q9054 B1ABCF000138 R9199 2.7k C9039 6.3V 10u R9247 4.7k R9190 10k C9044 16V 0.1u C9048 16V 0.1u D9018 MAZ303300L R9207 1k STB3.3V R9151 22 STB3.3V R9065 100 R9222 10k C9037 0.01u 50V R9248 4.7k C9049 16V 0.1u TP9000 R9121 100k R9187 5.6k R9177 22k R9150 22 R9063 100 R9098 10k R9183 1k R9210 2.7k R9162 10k R9167 100 R9179 1k C9034 16V 0.1u P3.3V R9108 10k STB3.3V R9161 0 R9186 22 R9110 0 D9103 B0JCGD000002 R9148 10k R9145 100 C9051 16V 0.1u C9055 16V 0.1u R9236 0 D9017 MAZ303300L Q9057 B1CBHD000002 C9040 16V 0.1u R9129 68k R9140 0 STB3.3V Q9049 B1ADCE000011 R9159 10k IC9002 C0ZBZ0001330 1 SCL 2 GND 3 ADD1 4 V+ 5 ADD0 6 SDA R9181 1k R9196 10k R9184 1k R9217 10k R9144 100 R9102 100 C9057 16V 0.1u R9193 10k Q9046 B1ABCF000138 R9154 5.6k P15V R9215 12k P5V STB5V_M C9035 6.3V 10u P3.3V D9020 MA2J72800L C9036 6.3V 10u R9180 10k C9047 16V 0.1u Q9053 B1ABCF000138 P3.3V R9096 10k D9106 B0JCGD000002 R9076 100 R9219 10k R9172 39k R9111 22k IIC_CONT NC GND DRIVER_RESET SCLK(for Loader) IIC1_SCL SOS8_SS NC CE(Loader) E+ LVDS2 NC O+ LVDS3 E+ LVDS1 SOS4_PS GND XRST O+ LVDS0 RESET IIC1_SDA BUSY(for Loader) NC AVSS GND NC NC E- LVDS2 FPGA_CE NC SOS7_SC2 NC XOUT REM_IN SOUT(FPGA) GND NC O- LVDS3 NC VREF FVSEL E+ LVDS3 PLL_RST M_SEL2 SIN(FPGA) NC LSI_RST E- LVDS3 M_SEL3 O+ LVDS1 ALARM INEXCH E+ LVDS4 AC_GOOD O- LVDS1 P_ON/OFF GND NC E- LVDS4 LVDS_DET E+ LVDSCLK SOS6_SC1 O+ LVDS2 NC AVCC O- LVDS2 VSS PANEL_MAIN_ON NC E- LVDS0 SOS9_CONF GND SCLK(FPGA) EEP_WR_CTL NC O+ LVDS4 LED_GRN O- LVDS4 IIC_INT E+ LVDS0 M_SEL4 NC(ALL_OFF) IIC2_SCL SOS_INH SOS5_5V XIN NC NC(C_SEL) IIC2_SDA PANASONIC_MODE O- LVDSCLK LVDS_MODE NC NC O+ LVDSCLK VCC E- LVDSCLK NC TXD(Loader) O- LVDS0 LVDS_BIT SOS3_3V READY RXD(Loader) INT_CONF E- LVDS1 LED_RED SOS2_15V CNVSS M_SEL1 NC MAIN_CONF VDATA_DET EEPROM RESET STB 3.3V MICOM TEMPERATURE DIGITAL SENSOR ! 1 2 3 11 12 17 16 14 15 13 16 17 13 11 12 10 14 18 15 TO DG-BOARD (DG5) D-BOARD TNPA3983AL (2/8) TH-65PV600C D-Board (2 of 8) Schematic Diagram TH-65PV600C D-Board (2 of 8) Schematic Diagram 124 15.46.D 电路板 (3/8) 线路图 G G L8L_RI4 L8L_GI4 FP_CL L8R_RI6 AA_BYTE L8R_GI3 L8R_GI7 L8L_RI5 SOS9_CONF RD_E+ L8R_RI0 RCLK_0+ L8L_GI5 FP_CSH DD_PCD1 L8R_GI9 TDO_TO_FPGA RC_E+ L8R_GI2 RB_0- L8R_BI0 L8R_BI3 NRST RD_0+ L8L_GI6 L8R_BI8 FP_CLK L8R_BI2 FP_CSL TMS DATA0 RC_0+ SFRST FP_DRV_RST_O RB_E+ L8R_GI1 FP_CEL2 L8R_GI4 L8L_RI6 L8R_GI6 NCS L8R_GI0 RE_E+ RCLK_E+ L8L_GI7 L8L_BI4 FP_SID FP_UEH L8R_RI7 PDB0 LATCH TCK L8L_RI7 L8L_BI5 FVSEL L8L_GI8 L8L_HDI L8L_RI8 PDB1 FP_UML L8R_RI9 L8R_RI5 L8R_GI5 RA_E+ L8R_BI9 L8L_GI9 RE_0+ L8L_BI6 FPDAT1 L8L_RI9 FP_CMH PSTB RB_E- TDI_TO_68_L FP_CPH L8R_RI2 FP_UMH L8L_RI0 RD_E- L8L_BI0 L8R_RI1 L8L_BI7 FP_SCSU L8L_GI0 PBUSY RCLK_E- DD_ODED L8R_RI3 PSLCT L8L_RI1 L8L_BI1 L8L_BI8 RC_0- AA_XWE L8L_GI1 SFVRST RA_0- FP_USH RA_E- RB_0+ ASDIO RE_0- FP_NUEL DRVRST L8L_RI2 L8L_BI9 L8R_BI4 FP_CML L8L_BI2 RD_0- L8L_GI2 L8R_BI1 L8R_BI6 L8R_GI8 L8R_BI5 FP_CEL RC_E- INEXCH L8L_RI3 FP_SIU L8L_BI3 FPCLK L8R_RI8 L8R_RI4 L8L_GI3 L8R_BI7 FP_USL FPDAT0 RE_E- RA_0+ DD_PCD2 LVDSBIT L8L_VDI L8L_DCK L8L_MASK BUS_SW L8R_VDI L8R_HDI L8R_DCK L8R_MASK DD_ODEU DD_PCU1 DD_LEUR DD_PCU2 P3V_SCL02 P3V_SDA02 DRVMUTE FP_URH/CBK FP_URL DMLL DMLR DSHL DSLR DSLL DCLK DMHL DSHR DMHR DD_CLRU DD_LEDR DD_CLRD AA_XCE_L AA_XOE RCLK_0- LVDS_DET DD_LEUL DD_LEDL IC9500 C1ZBZ0003463 A1 GND IC9500 K7 - IC9500 K11 - IC9500 K8 VCCINT IC9500 P2 - IC9500 B15 GND IC9500 C3 ASDO IC9500 B2 GND IC9500 G1 TMS IC9500 N16 - R9543 10k IC9500 J15 - IC9500 P8 GND IC9500 M1 - IC9500 C10 VCCIO2 IC9500 G15 - R9531 47 IC9500 L7 - IC9500 C15 - IC9500 B14 - IC9500 A11 - IC9500 N4 - R9608 EXB2HV470JV R9609 EXB2HV470JV IC9500 P16 - IC9500 R5 - IC9500 E2 - IC9500 F13 - IC9500 D14 - C9526 6.3V 10u IC9500 N3 - IC9500 M5 VCCA_PLL1 IC9500 M10 VCCIO4 P3.3V R9877 10k IC9500 A4 - IC9500 C5 - IC9500 F3 - IC9500 L4 - R9552 47 R9534 EXB38V470JV IC9500 E1 - IC9500 D7 - IC9500 A7 - IC9500 R4 - IC9500 K3 VCCIO1 IC9500 T7 - IC9500 B16 VCCIO3 IC9500 L8 - R9549 10k R9876 10k IC9500 B9 - IC9500 D1 - IC9500 D12 GND_PLL2 L9502 J0JHC0000078 IC9500 T13 - IC9500 R1 VCCIO1 IC9500 A8 - IC9500 L3 - IC9500 C14 - R9550 10k IC9500 A13 - P3.3V IC9500 F12 GND_PLL2 IC9500 F7 - R9560 10k IC9500 H15 - C9523 16V 0.1u IC9500 P4 - L9504 J0JHC0000078 IC9500 F16 - IC9500 K13 - R9525 10k R9532 47 IC9500 M3 - IC9500 T15 VCCIO4 IC9500 E7 VCCIO2 IC9500 P14 - IC9500 P6 - IC9500 M8 GND IC9500 J7 VCCINT IC9500 E13 - IC9500 P13 - C9522 16V 0.1u IC9500 D2 - IC9500 K14 VCCIO3 IC9500 H9 GND IC9500 G14 VCCIO3 IC9500 C16 - IC9500 J16 - IC9500 H10 VCCINT IC9500 K6 - IC9500 A10 - IC9500 E6 - IC9500 A15 VCCIO2 IC9500 E9 GND IC9500 H3 GND IC9500 R3 - IC9500 M9 GND IC9500 J11 - R9542 68 R9536 47 IC9500 R10 - IC9500 B13 - IC9500 K16 - IC9500 L16 - IC9500 B1 VCCIO1 IC9500 J6 - IC9500 D9 - IC9500 H1 - IC9500 E14 - IC9500 L9 - IC9500 T8 - C9519 16V 0.1u IC9500 G16 - IC9500 G13 - C9517 16V 0.1u IC9500 G3 VCCIO1 IC9500 N7 - R9530 10k IC9500 F1 DATAO C9532 50V 100p R9604 0 IC9500 C7 VCCIO2 IC9500 L11 - R9245 100 IC9500 T14 - IC9500 M16 - IC9500 B6 - IC9500 J14 GND IC9500 B11 - IC9500 M2 - IC9500 T11 - IC9500 C12 - IC9500 J8 GND IC9500 M4 - IC9500 D4 - IC9500 F4 nCSO IC9500 T2 VCCIO4 C9559 16V 0.1u IC9500 N15 - IC9500 T3 - C9520 16V 0.1u R9610 EXB2HV470JV IC9500 N5 GND_PLL1 IC9500 N14 nCEO R9535 47 IC9500 R11 - IC9500 F6 - IC9500 P12 - R9615 EXB2HV470JV IC9500 H2 - IC9500 D8 - IC9500 D5 - IC9500 L13 CONF_DONE IC9500 F14 - IC9500 D3 - IC9500 B3 - IC9500 K15 - IC9500 F2 TCK IC9500 T6 - IC9500 R6 - IC9500 M7 VCCIO4 IC9500 C13 - IC9500 H14 GND IC9500 P11 - IC9500 L6 VCCD_PLL1 *R9644 10k IC9500 J9 GND P3.3V IC9500 R9 - FL9504 F1J1E1040022 1 2 3 IC9500 L12 - R9554 47 IC9500 G12 - IC9500 C11 - IC9500 K5 - R9526 0 IC9500 D15 - C9516 16V 0.1u R9611 EXB2HV470JV IC9500 H11 - IC9500 N10 - IC9500 E12 VCCA_PLL2 IC9500 G2 TDO IC9500 K2 - C9524 16V 0.1u IC9500 P7 VCCIO4 IC9500 E5 - R9612 EXB2HV470JV IC9500 L5 GND_PLL1 IC9500 E15 - IC9500 N12 - IC9500 T5 - IC9500 E4 - IC9500 F11 VCCD_PLL2 IC9500 A16 GND IC9500 M13 nSTATUS IC9500 H4 DCLK IC9500 N1 - P3.3V IC9500 N11 - IC9500 T10 - IC9500 K1 - P3.3V IC9500 E10 VCCIO2 *R9647 10k *R9638 10k IC9500 F10 - IC9500 G7 - IC9500 K4 - IC9500 L2 - C9531 6.3V 10u IC9500 G8 GND IC9500 B8 - C9528 16V 0.1u IC9500 M14 - IC9500 D13 - IC9500 B10 - IC9500 A2 VCCIO2 IC9500 F8 - C9525 16V 0.1u IC9500 J13 MSEL0 L9501 J0JHC0000078 IC9500 C8 GND IC9500 H12 - IC9500 R13 - IC9500 B4 - IC9500 M6 GNDA_PLL1 C9527 16V 0.1u IC9500 P15 - IC9500 A5 - IC9500 C1 - IC9500 R14 - R9507 56 IC9500 M12 - IC9500 E3 - IC9500 M11 - R9553 47 IC9500 J5 nCONFIG IC9500 N2 - IC9500 M15 - R9244 100 IC9500 L1 - R9523 10k IC9500 A12 - C9560 16V 0.1u IC9500 B12 - IC9500 D10 - IC9500 R7 - L9505 J0JHC0000078 IC9500 R15 GND IC9500 B7 - R9875 10k IC9500 G9 VCCINT IC9500 P3 - IC9500 P9 GND IC9500 B5 - R9506 22 C9561 16V 0.1u R9544 10k IC9500 T12 - R9630 10k IC9500 N13 INT_DONE R9548 10k IC9500 C9 GND IC9500 L14 - R9533 47 IC9500 N9 - R9614 EXB2HV470JV R9070 47 IC9500 J3 GND IC9500 R16 VCCIO3 IC9500 E11 GNDA_PLL2 IC9500 N6 - IC9500 T16 GND R9613 EXB2HV470JV IC9500 J1 - IC9500 J10 VCCINT R9629 10k IC9500 L10 - IC9500 C4 - IC9500 T1 GND IC9500 F15 - IC9500 E16 - P3.3V IC9500 F5 - IC9500 P5 - IC9500 C6 - IC9500 H6 - IC9500 G5 nCE IC9500 D11 - IC9500 J12 - IC9500 T9 - IC9500 R2 GND IC9500 K10 - IC9500 J4 - IC9500 H8 GND IC9500 K12 MSEL1 IC9500 J2 - IC9500 G11 - IC9500 P1 - IC9500 R8 - IC9500 H13 - IC9500 A6 - IC9500 G10 - IC9500 A3 - P3.3V IC9500 P10 VCCIO4 IC9500 T4 - IC9500 D16 - C9521 16V 0.1u IC9500 K9 GND IC9500 E8 GND IC9500 A9 - IC9500 H7 VCCINT IC9500 L15 - L8L1.2V IC9500 G4 - IC9500 A14 - R9529 10k IC9500 N8 - C9518 16V 0.1u IC9500 H16 - IC9500 G6 - IC9500 H5 TDI IC9500 F9 - IC9500 C2 - IC9500 R12 - R9545 300k IC9500 D6 - P3.3V TP9059 TP9060 TP9061 TP9062 BR[1]/A-1 VCCINT M_BOUT1 FPDATA0 UEH M_BOUT4 K_DONE ODED SID M_BOUT3 M_ROUT4 USH GR[9]/A19 PCU1 SC_PULSE CEL M_BOUT9 UMH M_ROUT7 M_GOUT7 USL DRVRST RESET M_BOUT8 CMH UML MASK_L PCD2 M_VDO_L FPCLK SS_PULSE INEXCH NUEL CML p_db1 BR[5]/DQ3 CSH RR[8]/A8 CONTROL p_db0 OTHER M_ROUT9 BR[0]/A20 p_stb f_nWE CLK BR[8]/DQ6 GR[7]/A17 NRST IIC NC M_BOUT0 SCL M_GOUT5 CL M_BOUT7 M_GOUT9 M_HDO_L TP CLK_INPUT p_slct M_GOUT1 p_busy RR[2]/A2 M_DCKO_L PRCKI M_GOUT0 SDA RR[9]/A9 M_ROUT6 XRST M_BOUT6 RR[0]/A0 GR[2]/A12 LVDS_DET MSEL0 CEL2 RR[4]/A4 JTAG fL_nCE SCSU M_BOUT5 CPH BR[7]/DQ5 SFRST M_ROUT3 RR[3]/A3 PICTURE_OUTPUT(L) GR[0]/A10 BR[2]/DQ0 M_GOUT3 f_nBYTE f_nOE RR[7]/A7 PCU2 RR[5]/A5 CLRD BR[3]/DQ1 LATCH DATA_DRIVER GR[3]/A13 FPDATA1 M_GOUT6 GR[6]/A16 LSI58 Communication BR[6]/DQ4 PCD1 RR[1]/A1 M_BOUT2 LVDS_INPUT M_ROUT2 CSL FPGA BR[4]/DQ2 LEDR GR[8]/A18 CLRU RR[6]/A6 BR[9]/DQ7 FVSEL ODEU SFVRST LEUR SIU M_GOUT2 DRV_RST_O M_ROUT0 M_ROUT5 GR[5]/A15 M_ROUT1 M_ROUT8 CLKM_IN GR[1]/A11 VCCI LVDSbit DRVMUTE GR[4]/A14 GND M_GOUT4 M_GOUT8 MASK_R M_DCKO_R M_HDO_R M_VDO_R XRST BUS_SW PICTURE_OUTPUT(R) /FLASH_CONTROL URH/CBK URL DATA ENERGY RECOVERY MSEL1 MODEL[0] MODEL[1] MODEL[2] DMHR DSHR DSLR DMLR DMHL DSHL DSLL DMLL PRCK84M Nosync LEUL LEDL MODEL SELECTION FREE RUN CLK IC9500 ! 11 13 12 14 17 16 27 26 24 23 22 21 25 26 27 19 25 23 24 21 22 20 DISCHARGE CONTROL WB ADJ FLASH CONTROL FPGA CONTROL LVDS SYNC PROCESSING FPGA,ASIC D-BOARD TNPA3983AL (3/8) TH-65PV600C D-Board (3 of 8) Schematic Diagram TH-65PV600C D-Board (3 of 8) Schematic Diagram 15 125 15.47.D 电路板 (4/8) 线路图 G G TERM SIDE FP_UMH FP_NUEL FP_USL FP_UML UMH D_ODEU2 D_ODEU1 USH NUEL UML FP_URL FP_USH USL L8_PCK L8_OCK R8_OCK R8_PCK D_CLRD6 D_CLRD5 D_PCD5 D_PCD6 BUS_SW BUS_SW BUS_SW BUS_SW D_ODED5 D_ODED6 D_LED5 D_LED6 FP_URH/CBK FP_UEH D_LEU1 D_PCU1 D_LEU2 D_PCU2 D_CLRU1 D_CLRU2 DOUTDA29 CLKD6 DOUTDC27 DOUTDB30 DOUTDC23 DOUTDA31 DOUTDC26 CLRD_6 DOUTDB29 DOUTDA27 DOUTDA28 DOUTDB31 5V_DET6 DOUTDB28 DOUTDA25 DOUTDB23 DOUTDA24 DOUTDA22 LED_6 DOUTDC29 DOUTDB22 DOUTDC22 DOUTDC24 DOUTDB26 DOUTDC28 DOUTDB25 DOUTDC25 DOUTDC31 DOUTDB24 DOUTDA30 DOUTDB27 DOUTDC30 CLKD7 DOUTDA23 DOUTDA26 PCD_6 L8R_DA07 L8R_DB11 DOUTDC20 DOUTDA16 DOUTDA18 DOUTDA23 DOUTDB16 L8R_DA15 DOUTDB18 L8R_DB07 L8R_DC11 DOUTDC24 DOUTDA31 DOUTDC18 DOUTDC21 L8R_DB03 DOUTDB31 DOUTDA27 L8R_DC07 L8R_DA10 DOUTDA17 DOUTDB21 DOUTDC31 DOUTDB27 DOUTDB17 5V_DET6 DOUTDA21 DOUTDC17 DOUTDA30 L8R_DA06 DOUTDC27 L8R_DB10 DOUTDC16 L8R_DA01 DOUTDA19 DOUTDB30 5V_SENSE DOUTDA26 L8R_DB01 DOUTDB23 L8R_DC08 DOUTDC30 L8R_DB06 L8R_DC01 DOUTDB26 L8R_DC10 DOUTDC26 DOUTDC23 L8R_DA05 L8R_DB15 DOUTDA29 DOUTDA22 L8R_DA13 L8R_DC06 L8R_DB05 DOUTDB29 DOUTDB22 L8R_DC03 L8R_DC15 DOUTDC29 DOUTDC22 L8R_DB13 L8R_DA09 L8R_DC05 DOUTDA28 L8R_DA02 DOUTDA25 L8R_DA14 DOUTDB28 DOUTDB25 L8R_DA03 L8R_DC13 L8R_DB09 L8R_DA04 L8R_DB02 DOUTDC28 DOUTDC25 L8R_DB14 DOUTDA24 L8R_DA00 L8R_DA12 L8R_DC09 L8R_DB04 L8R_DC02 DOUTDB24 L8R_DC14 L8R_DB00 L8R_DB12 L8R_DA08 L8R_DC04 L8R_DA11 DOUTDA20 DOUTDB19 L8R_DC00 L8R_DC12 L8R_DB08 DOUTDC19 DOUTDB20 L8R_RI5 L8R_RI4 L8R_RI1 L8R_RI6 L8R_RI0 L8R_RI2 L8R_RI7 L8R_RI3 L8R_GI1 L8R_RI8 L8R_GI3 L8R_GI0 L8R_GI4 L8R_GI2 L8R_RI9 L8R_GI8 L8R_BI1 L8R_GI6 L8R_BI0 L8R_GI7 L8R_GI5 L8R_GI9 L8R_BI2 L8R_BI5 L8R_BI3 L8R_BI8 L8R_BI4 L8R_BI6 L8R_BI7 L8R_BI9 L8L_DB15 L8L_UC09 L8L_UA07 L8L_UA09 L8L_UA10 L8L_UC08 L8L_DA14 L8L_UC11 L8L_UC10 L8L_UC07 L8L_UA11 L8L_UA12 L8L_UB06 L8L_UB11 L8L_UC12 L8L_UA08 L8L_UA06 L8L_UC13 L8L_UB10 L8L_UB07 L8L_UB08 L8L_UA15 L8L_UA05 L8L_UC05 L8L_UC06 L8L_DA15 L8L_UB09 L8L_UB12 L8L_DC15 L8L_UB05 DD_PCD1 DD_PCD2 DD_PCU1 DD_PCU2 ODED_6 DD_ODEU DD_LEUR DD_CLRU DD_ODED DD_LEDL DD_CLRD DD_LEUL DD_LEDR URH URL UEH C9557 16V 1u TP9679 P3.3V C9542 16V 0.1u C1ZBZ0003473 IC9200 XT 1 2 SL0 3 SL1 4 CLK9 5 VDD1 6 VSS1 7 CLK1 8 N/C 9 CLK2 10 VSS 11 N/C 12 CLK7 13 CLK6 14 CLK5 15 VSS2 16 VDD2 17 SL2 18 STBY 19 VDD3 20 XTN TP9616 C9554 6.3V 10u TP9585 P5V TP9587 C0JBAZ001120 IC9503 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc TP9442 TP9618 TP9615 TP9547 C9548 16V 0.1u TP9550 C9552 16V 0.1u R9634 47 TP9401 TP9558 R9469 EXB2HV820JV TP9559 R9624 10k P3.3V TP9549 R9631 EXB2HV222JV R9467 EXB2HV820JV D9304 MA3X152K0L R9639 47 C9514 16V 1u TP9574 R9527 EXB2HV222JV P3.3V TP9564 TP9586 R9632 47 P5V R9471 EXB2HV820JV TP9583 Q9304 B1ABCF000138 TP9577 TP9594 X9500 H0J200500038 TP9570 TP9572 C9373 50V 0.01u TP9582 C9546 50V 12p TP9580 TP9588 C9515 16V 1u R9466 EXB2HV820JV TP9576 *R9605 0 R9625 10k TP9617 R9474 4.7k R9468 EXB2HV820JV TP9541 TP9543 TP9553 R9641 47 TP9614 R9497 10k L9503 G1C150KA0038 TP9057 TP9568 R9642 0 R9628 10k TP9592 TP9578 FL9310 J0HABH000013 1 2 3 TP9591 TP9589 TP9579 R9633 47 TP9593 TP9561 TP9581 C0JBAZ001120 IC9504 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ002614 IC9402 1 NC 2 A0 3 A1 4 A2 5 A3 6 A4 7 A5 8 A6 9 A7 10 GND 11 NC 12 A8 13 A9 14 A10 15 A11 16 A12 17 A13 18 A14 19 A15 20 GND 21 NC 22 A16 23 A17 24 A18 25 A19 26 A20 27 A21 28 A22 29 A23 30 GND 31 NC 32 A24 33 A25 34 A26 35 A27 36 A28 37 A29 38 A30 39 A31 40 GND 41 B31 42 B30 43 B29 44 B28 45 B27 46 B26 47 B25 48 B24 49 OE4 50 VCC 51 B23 52 B22 53 B21 54 B20 55 B19 56 B18 57 B17 58 B16 59 OE3 60 VCC 61 B15 62 B14 63 B13 64 B12 65 B11 66 B10 67 B9 68 B8 69 OE2 70 VCC 71 B7 72 B6 73 B5 74 B4 75 B3 76 B2 77 B1 78 B0 79 OE1 80 VCC R9637 47 TP9575 TP9544 P5V C0JBAZ001120 IC9505 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R9496 100k TP9555 TP9619 R9528 EXB2HV222JV TP9584 R9622 0 C9547 50V 12p TP9556 TP9566 R9470 EXB2HV820JV TP9590 D36 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 R9428 EXB38V103JV P5V 3.3V->5V 3.3V->5V 20SSMHz 60SSMHz/ 65SSMHz 36.6MHz 84MHz 20MHz 39.5MHz DOUTDB[30] DOUTDA[26] DMHL DOUTDA[23] GND DOUTDA[22] ODED6 DOUTDC[26] DOUTDC[28] DOUTDB[26] DOUTDB[22] NC GND GND GND GND DOUTDC[27] DOUTDB[24] 5V_DET DOUTDB[27] LED6 DOUTDC[30] DOUTDA[25] DSHL GND DMLL DOUTDA[29] GND DOUTDC[24] CLKD6(+) DSHR GND DOUTDC[31] GND DOUTDA[24] GND DOUTDA[28] GND DOUTDB[23] DOUTDC[23] DMHR CLKD7(-) PCD6 DOUTDA[30] DOUTDA[27] DOUTDB[28] CLRD6 DOUTDB[29] DOUTDA[31] DOUTDC[25] GND DOUTDB[31] P5V GND DOUTDC[29] GND GND DSLL DOUTDB[25] GND DMLR GND DSLR DOUTDC[22] GND P5V P5V A13 DQ15/A-1 A20 A11 A16 DQ5 A17 DQ1 A18 A15 A19 A5 A6 DQ6 A1 DQ2 DQ3 DQ0 DQ7 A2 A3 A7 A14 A12 A8 A4 A9 DQ4 A10 A0 A17 DQ1 A18 A15 A19 A5 A6 DQ15/A-1 A20 A11 A16 DQ5 A13 DQ6 A1 DQ2 DQ3 DQ0 DQ7 A2 A3 A7 A14 A12 A8 A4 A9 DQ4 A10 A0 NC 3.3V->5V CLOCK GENE. BUS SWITCH LEVEL CONVERTER LEVEL CONVERTER LEVEL CONVERTER ! 26 24 27 25 23 22 21 31 32 35 33 34 32 28 33 29 31 34 30 35 36 (C60) TO C6-BOARD D-BOARD TNPA3983AL (4/8) TH-65PV600C D-Board (4 of 8) Schematic Diagram TH-65PV600C D-Board (4 of 8) Schematic Diagram 126 15.48.D 电路板 (5/8) 线路图 L8R_DB01 L8R_BI4 L8R_UC02 L8R_RI0 L8R_BI3 L8R_DQ6 L8R_TEST0 L8R_DQ16 L8R_NSDCLKO L8R_DC04 L8R_DQ5 L8R_UC01 L8R_GI4 L8R_RI8 L8R_GI2 L8R_BA1 L8R_BI6 L8R_DC03 L8R_UC00 L8R_DQ11 L8R_DQS2 L8R_DB00 L8R_RI2 L8R_DB08 L8R_DC02 L8R_DA01 L8R_DQ23 L8R_DQ20 L8R_DQ29 L8R_UA01 L8R_DC01 L8R_DA02 L8R_DA11 L8R_WE L8R_UA02 L8R_DB10 L8R_DQ22 L8R_BI9 L8R_DC00 L8R_TEST1 L8R_GI8 L8R_GI9 L8R_DRVCLKD3 L8R_DA10 L8R_BI1 L8R_DQ2 L8R_A9 L8R_A6 L8R_DQ8 L8R_SDCLKO L8R_DRVCLKD2 L8R_RI7 L8R_BA0 L8R_DQS3 L8R_A2 L8R_DA03 L8R_DRVCLKD1 L8R_RI4 L8R_DQ31 L8R_RI3 L8R_A10 L8R_UB00 L8R_A0 L8R_DRVCLKD0 L8R_DA00 L8R_RI5 L8R_DB06 L8R_DB03 L8R_DQ30 L8R_DRVCLKU3 L8R_A11 L8R_DA05 L8R_DRVCLKU2 L8R_RI1 L8R_BI7 L8R_DA04 L8R_DRVCLKU1 L8R_DQ12 L8R_A4 L8R_GI1 L8R_DRVCLKU0 L8R_DA08 L8R_DQ27 L8R_UB02 L8R_DQ1 L8R_DA06 L8R_BI2 L8R_BI5 L8R_DC11 L8R_BI0 L8R_DQS1 L8R_UB04 L8R_RAS L8R_DQ21 L8R_DC10 L8R_DQ17 L8R_UA03 L8R_CS L8R_DB07 L8R_DQ25 L8R_DB02 L8R_RI9 L8R_DC09 L8R_DQS0 L8R_DQ18 L8R_MASK L8R_DB05 L8R_ID0 L8R_DQ3 L8R_DC08 L8R_A8 L8R_DA09 L8R_UA00 L8R_DQ24 L8R_DQ13 L8R_DC07 TCK L8R_SDIV0 L8R_DQ10 L8R_DB09 L8R_UB03 L8R_DC06 L8R_DQ14 L8R_A3 L8R_DC05 L8R_A5 TMS L8R_A1 L8R_RI6 L8R_DQ15 L8R_GI3 L8R_ID0 L8R_DQ4 L8R_DB04 L8R_DQ28 L8R_DQ7 L8R_GI0 L8R_SDIV1 L8R_GI5 L8R_A7 L8R_GI6 L8R_BI8 L8R_TCKSEL2 L8R_DQ0 L8R_CAS L8R_GI7 L8R_DA07 L8R_DQ9 L8R_UC04 L8R_DQ26 L8R_SDCKE L8R_UB01 L8R_UC03 L8R_DQ19 L8R_DB11 L8R_TEST0 L8R_TCKSEL2 L8R_TEST1 L8R_HDI L8R_VDI TDO_TO_FPGA TDO_TO_68_R L8R_MONOUT1 SFRST SFVRST LATCH P3V_SDA02 P3V_SCL02 L8R_UA04 L8R_UB05 L8R_UB06 L8R_UB07 L8R_UB08 L8R_UB09 L8R_UB10 L8R_UB11 L8R_UA05 L8R_UA06 L8R_UA07 L8R_UA08 L8R_UA09 L8R_UA10 L8R_UA11 L8R_UC05 L8R_UC06 L8R_UC07 L8R_UC08 L8R_UC09 L8R_UC10 L8R_UC11 L8R_DCK R8_OCK TRST L8R_DC15 L8R_UA15 L8R_DA14 L8R_DB15 L8R_UC15 L8R_UB14 L8R_UC13 L8R_UC12 L8R_UC14 L8R_UA14 L8R_UB15 L8R_UA13 L8R_UB12 L8R_DA15 L8R_UA12 L8R_UB13 XRST2 L8R_SDIV0 DOUTDA18 LED_5 DOUTDC18 DOUTDC13 DOUTDC17 DOUTDA21 DOUTDA19 CLRD_5 DOUTDC12 DOUTDA13 DOUTDB21 DOUTDB13 DOUTDC21 DOUTDA15 DOUTDA16 DOUTDB19 CLKD5 CLKD3 DOUTDA12 DOUTDB16 DOUTDC14 DOUTDB15 DOUTDA14 CLKD2 DOUTDC16 DOUTDA17 DOUTDB12 DOUTDA11 DOUTDB14 DOUTDC19 DOUTDC15 DOUTDB17 DOUTDB11 DOUTDB10 PCD_5 DOUTDC11 DOUTDA20 CLKD4 5V_DET5 DOUTDB20 DOUTDC10 DOUTDC20 DOUTDB18 DOUTDA10 CLKD3 L8R_DRVCLKD1 L8R_DRVCLKD3 CLKD6 CLKD2 L8R_DRVCLKD2 L8L_DRVCLKD2 L8L_DRVCLKD3 L8L_DRVCLKD0 CLKD5 L8L_DRVCLKD1 L8R_DRVCLKD0 CLKD1 CLKD4 5V_SENSE CLKD0 5V_DET5 D_PCD6 PCD_5 CLRD_6 D_ODED6 D_CLRD5 ODED_5 D_LED5 D_ODED5 D_LED6 LED_5 LED_6 ODED_6 D_CLRD6 PCD_6 D_PCD5 USL C_UMH UEH C_USH UML C_USL SOS8_SS_C USH C_UEH C_UML NUEL SOS8_SS C_URL URL C_NUEL UMH URH C_URH CLRD_5 CLKD7 L8R_DA12 L8R_DA13 L8R_DB12 L8R_DB13 L8R_DB14 L8R_DC12 L8R_DC13 L8R_DC14 ODED_5 SOS7_DRD R8_PCK L8R_SDIV1 FULL0 IC9400 M2 FULL0 IC9400 AA5 CKE IC9400 A20 DOUTUC04 IC9400 J13 VSS IC9400 L3 ID1 IC9400 M18 VDD12 R9433 2.7k TP9542 R9570 10k IC9400 D20 DOUTUB03 L8L3.3V IC9400 T2 DQ20 L8L3.3V IC9400 MN84521A-A A1 VSS IC9400 C11 DOUTUB15 IC9400 Y12 AVSS_4 TP9629 IC9400 E21 DOUTUA00 R9563 22 IC9400 M19 DOUTDC11 IC9400 M21 DOUTDB10 IC9400 A7 K_TEST IC9400 C12 DOUTUB13 IC9400 AB6 A4 IC9400 W12 AVDD25_4 IC9400 AB1 VSS IC9400 N5 VDD33 IC9400 U3 DQ6 IC9400 K19 DOUTDC14 IC9400 E1 BI0 IC9400 U1 DQS2 IC9400 C15 DOUTUB09 IC9400 D12 DOUTUA13 IC9400 K5 VDD33 TP9456 IC9400 A15 DOUTUA10 IC9400 P2 XRST IC9400 D9 TCKSEL1 IC9400 L5 VDD33 C9469 0.1u 16V IC9400 B10 SFRST IC9400 W1 DQ2 IC9400 U18 VDD33 IC9400 Y8 A1 R9569 100k TP9639 IC9400 G3 BI4 IC9400 Y20 VSS IC9400 V17 VDD33 IC9400 J1 MONOUT2 IC9400 AB16 AVDD33_2 J0HABH000013 FL9502 IC9400 AB5 BA1 IC9400 C19 DOUTUB04 C9448 0.1u 16V IC9400 C10 SFVRST P3.3V IC9400 E15 VDD12 IC9400 G5 VDD12 IC9400 AA2 VSS IC9400 U4 DQ5 IC9400 D7 RI3 IC9400 Y13 DQ14 IC9400 W8 A2 IC9400 AA18 DOUTDB00 IC9400 C20 VSS IC9400 Y18 VSS IC9400 J3 MONOUT0 IC9400 W4 VSS TP9633 C9447 0.1u 16V IC9400 Y10 DQ26 TP9604 IC9400 Y22 VDD33 C9443 0.1u 16V IC9400 J4 ENHMASK IC9400 T4 DQ7 IC9400 N4 TMS IC9400 J19 DOUTDA15 IC9400 H5 VDD12 IC9400 L1 SCL TP9464 VIN IC9400 W17 VSS IC9400 W22 DOUTDC02 IC9400 H20 DRVCLKD1 IC9400 J12 VSS C9449 0.1u 16V IC9400 N10 VSS IC9400 AB15 AVDD33_1 IC9400 A9 FPDAT1 IC9400 AB3 NCK IC9400 D6 RI7 IC9400 N13 VSS IC9400 E12 VDD33 IC9400 AA9 A8 TP9620 R9540 10k R9555 47 IC9400 W16 SDIV1 IC9400 A14 DOUTUA11 IC9400 AA1 VDD25 IC9400 R2 DQ23 IC9400 T20 DOUTDA04 IC9400 R19 DOUTDA05 IC9400 C3 VSS C9458 0.1u 16V IC9400 F2 BI1 IC9400 V12 VDD25 IC9400 V11 VDD25 IC9400 W20 VDD33 IC9400 M4 PCK L8L2.5V IC9400 AA6 A11 IC9400 W19 VSS IC9400 AB20 DOUTDB01 R9481 0 IC9400 Y19 VSS IC9400 AA10 DQ31 IC9400 C9 ROMCE L8L3.3V IC9400 L4 TIIC IC9400 AB8 A7 TP9606 IC9400 J11 VSS IC9400 L10 VSS TP9601 IC9400 L13 VSS IC9400 V7 VDD25 IC9400 E14 VDD33 R9566 22 IC9400 C7 RI0 IC9400 N11 VSS TP9554 P5V IC9400 L21 DOUTDA11 TP9638 IC9400 N9 VSS TP9626 IC9400 W14 DQ13 IC9400 H19 DRVCLKU0 L8L3.3V C9450 0.1u 16V IC9400 P21 DOUTDC08 C9534 6.3V 10u IC9400 AB17 VSS IC9400 W9 A10 IC9400 G22 DRVCLKD0 IC9400 K3 SDA C9536 6.3V 10u IC9400 V19 VDD33 TP9632 R9515 EXB2HV470JV IC9400 N21 DOUTDA08 IC9400 N18 VDD12 IC9400 R5 VDD25 IC9400 W18 VSS IC9400 C8 TEST0 IC9400 E18 VSS IC9400 AA15 AVSS1 IC9400 Y2 VDD25 IC9400 K2 VDI IC9400 E3 GI5 R9567 22 IC9400 N22 DOUTDA09 IC9400 V3 DQ4 TP9630 R9565 22 C9538 6.3V 10u IC9400 E2 GI8 IC9400 B5 RI5 IC9400 B3 GI1 IC9400 N12 VSS Q9305 B1ABCF000138 TP9624 TP9552 IC9400 V22 DOUTDA03 IC9400 F21 DRVCLKU2 IC9400 B19 DOUTUA04 IC9400 D18 DOUTUC05 L8L2.5V IC9400 M12 VSS IC9400 A12 DOUTUB14 IC9400 AA4 VREF IC9400 F3 GI9 IC9400 U5 VDD25 L8L1.2V IC9400 U21 DOUTDB04 IC9400 C6 RI4 IC9400 J5 VDD12 IC9400 M22 DOUTDC10 IC9400 A16 DOUTUA09 IC9400 L18 VDD12 IC9400 M3 FULL1 IC9400 H22 DOUTDA14 IC9400 AA3 CK R9562 22 IC9400 B1 VSS R9539 0 IC9400 P14 VSS IC9400 A13 DOUTUC13 IC9400 B7 TEST1 IC9400 A18 DOUTUB07 C9467 0.1u 16V C9451 0.1u 16V IC9400 L9 VSS IC9400 C1 VDD12 C9539 56u 4V C9512 0.1u 16V IC9400 B16 DOUTUC09 IC9400 N1 TRST IC9400 D5 GI2 IC9400 P19 DOUTDB07 IC9400 B13 DOUTUA12 TP9597 IC9400 K9 VSS TP9457 TP9625 IC9400 W15 TCPOUT IC9400 V20 DOUTDB02 IC9400 L22 DOUTDB11 IC9400 W7 NCS IC9400 Y9 A3 IC9400 K13 VSS IC9400 Y1 DQ0 IC9400 V16 VDD33 IC9400 J14 VSS IC9400 U2 AVSS_1 IC9400 K12 VSS IC9400 Y17 VSS IC9400 F20 DOUTUB00 IC9400 V2 DQ3 IC9400 A21 VSS IC9400 G21 DRVCLKD2 C9513 0.1u 16V IC9400 D4 VSS IC9400 M11 VSS IC9400 AA17 SDIV0 IC9400 J10 VSS R9558 22 IC9400 D21 DOUTUB02 IC9400 G18 VSS IC9400 F18 VSS L8L3.3V IC9400 M20 DOUTDA10 TP9609 IC9400 D17 DOUTUC06 C9462 0.1u 16V IC9400 B22 VSS IC9400 R22 DOUTDC07 TP9637 IC9400 K21 DOUTDC13 IC9400 J9 VSS C9457 0.1u 16V IC9400 B8 TCKSEL2 L8L3.3V IC9400 J18 VDD33 C9446 0.1u 16V IC9400 D19 VSS IC9400 E10 VDD33 IC9400 W13 DQ15 IC9400 C22 DOUTUB01 IC9400 T22 DOUTDC06 IC9400 H18 VDD33 IC9400 AA22 VSS IC9400 V6 AVSS_3 IC9400 L2 ID0 IC9400 M10 VSS TP9546 IC9400 V21 DOUTDC03 J0HABH000013 FL9501 IC9400 AA8 A5 IC9400 V13 VDD12 R9437 2.7k IC9400 V14 VDD12 IC9400 D2 GI4 IC9400 AB12 DQS1 IC9400 AA7 A9 TP9598 IC9400 D14 DOUTUC10 R9561 22 IC9400 A10 SFLATCH IC9400 E8 VDD12 R9568 4.7k IC9400 F6 VSS TP9608 IC9400 M1 TILD IC9400 P22 DOUTDB08 IC9400 AA16 AVSS2 IC9400 W21 VDD33 C9537 6.3V 10u R9438 2.7k IC9400 C18 DOUTUB05 IC9400 D15 DOUTUB08 IC9400 N2 TCK IC9400 C17 DOUTUA06 L8L3.3V IC9400 K4 HDI IC9400 L19 DOUTDB12 IC9400 T5 AVSS_2 IC9400 V9 VSS TP9603 IC9400 R21 DOUTDA06 IC9400 E17 VSS TP9551 IC9400 G1 BI6 IC9400 N3 TDI C9452 0.1u 16V IC9400 H21 DOUTDB15 IC9400 P18 VDD33 C9456 0.1u 16V IC9400 P4 DQ18 IC9400 Y6 NRAS C9460 0.1u 16V IC9400 M13 VSS IC9400 K11 VSS IC9400 L12 VSS IC9400 AA13 DQ11 IC9400 F19 DOUTUA01 TP9557 IC9400 AB2 VSS IC9400 J20 DOUTDC15 IC9400 R3 DQ17 IC9400 D1 GI6 TP9635 IC9400 AA11 DQ30 IC9400 T3 AVDD25_1 TP9596 C9464 0.1u 16V C9535 6.3V 10u IC9400 N19 DOUTDB09 IC9400 E11 VDD33 IC9400 Y15 VSS IC9400 U20 DOUTDB03 TP9628 IC9400 P11 VSS IC9400 B12 DOUTUC14 IC9400 AB7 A6 C9455 0.1u 16V IC9400 AB22 VSS IC9400 M5 VDD33 C9453 0.1u 16V IC9400 N14 VSS IC9400 V15 VDD12 IC9400 AA12 DQS3 IC9400 V8 VDD25 IC9400 J2 MONOUT1 IC9400 D8 OCK IC9400 D16 DOUTUC07 IC9400 P12 VSS IC9400 W11 DQ25 D9305 MA3X152K0L TP9465 HIN IC9400 B18 DOUTUB06 IC9400 B4 RI8 IC9400 D11 DOUTUA15 IC9400 C5 RI9 IC9400 P20 DOUTDA07 IC9400 AB9 VDD25 IC9400 Y16 SDSEL IC9400 W3 VDD25 TP9605 IC9400 E5 VSS IC9400 A6 OCKOUT IC9400 C16 DOUTUC08 IC9400 M14 VSS IC9400 A2 VSS IC9400 B11 DOUTUC15 R9485 1k 1% IC9400 P9 VSS C9465 0.1u 16V IC9400 G2 BI5 IC9400 K20 DOUTDB13 IC9400 A22 VSS IC9400 M9 VSS IC9400 F4 GI7 IC9400 E13 VDD33 IC9400 H2 BI9 IC9400 V5 VSS IC9400 Y4 AVDD25_2 IC9400 K18 VDD33 IC9400 E7 VDD12 TP9612 C9459 0.1u 16V TP9599 TP9548 IC9400 H4 BI7 IC9400 E22 DRVCLKU3 IC9400 E19 DOUTUC03 C9466 0.1u 16V IC9400 G19 DOUTUC00 TP9610 R9564 22 IC9400 R18 VDD33 IC9400 N20 DOUTDC09 IC9400 L11 VSS IC9400 W10 DQ27 IC9400 P1 TDO IC9400 F5 VDD12 IC9400 K1 DCK TP9545 IC9400 C4 GI3 TP9600 IC9400 R4 DQ16 C9445 0.1u 16V IC9400 Y7 A0 TP9634 C9374 50V 0.01u IC9400 U19 DOUTDA02 IC9400 T21 DOUTDB05 TP9627 IC9400 G4 BI2 IC9400 D3 VDD12 C9533 0.1u 16V L8L2.5V IC9400 A5 RI2 IC9400 K22 DOUTDA12 IC9400 W2 DQ1 IC9400 C13 DOUTUB12 IC9400 P5 VDD33 IC9400 AB14 DQ8 IC9400 E6 VSS IC9400 V4 VDD25 IC9400 AB11 DQ28 IC9400 J22 DOUTDA13 IC9400 D22 DOUTUC01 IC9400 C21 DOUTUA02 IC9400 K14 VSS IC9400 B17 DOUTUA07 IC9400 AB13 DQ10 IC9400 V18 VSS IC9400 B15 DOUTUB10 IC9400 AA20 DOUTDA01 IC9400 H3 BI8 IC9400 F1 BI3 IC9400 C14 DOUTUC11 IC9400 Y3 VSS C9442 0.1u 16V IC9400 L20 DOUTDC12 IC9400 A4 RI6 TP9631 IC9400 B20 DOUTUA03 IC9400 B14 DOUTUB11 IC9400 F22 DRVCLKD3 TP9007 IC9400 B9 FPCLK IC9400 A8 TCKSEL0 IC9400 Y14 DQ12 IC9400 Y5 NCAS IC9400 T18 VDD33 C9444 0.1u 16V IC9400 P3 DQ19 TP9636 IC9400 Y11 DQ24 TP9611 IC9400 L14 VSS IC9400 AB21 VSS IC9400 V1 DQS0 IC9400 Y21 VDD33 IC9400 E20 DOUTUC02 IC9400 E4 VDD12 IC9400 R1 DQ22 IC9400 A17 DOUTUA08 IC9400 K10 VSS IC9400 A11 DOUTUA14 IC9400 R20 DOUTDB06 IC9400 T1 DQ21 IC9400 T19 DOUTDC04 C9454 0.1u 16V IC9400 D13 DOUTUC12 FL9311 J0HABH000013 1 2 3 IC9400 A3 GI0 IC9400 P13 VSS C9463 0.1u 16V IC9400 C2 VDD12 R9430 10k IC9400 P10 VSS IC9400 E9 VDD33 IC9400 H1 MUTE TP9602 IC9400 B21 VSS TP9681 C9468 0.1u 16V IC9400 J21 DOUTDB14 C9496 16V 0.1u IC9400 B2 VSS IC9400 B6 RI1 IC9400 E16 VDD12 IC9400 U22 DOUTDC05 IC9400 AA21 VSS IC9400 AB4 BA0 IC9400 D10 FPDAT0 IC9400 V10 VDD25 IC9400 AB18 DOUTDC00 IC9400 A19 DOUTUA05 IC9400 AB19 DOUTDA00 R9484 1k 1% IC9400 AB10 DQ29 TP9607 IC9400 G20 DRVCLKU1 TP9613 IC9400 AA19 DOUTDC01 IC9400 W5 AVDD25_3 TP9595 C9461 0.1u 16V IC9400 AA14 DQ9 IC9400 W6 NWE D35 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 R9472 EXB38V820JV R9473 EXB38V820JV = to DDR to DISCHARGE CONTROL FPGA from FPGA1 IIC from DISCHARGE CONTROL FPGA MN84521A-A Right rromdata[00] rromdata[03] rromdata[01] rromdata[2] rromdata[12] rromdata[15] rromdata[09] rromdata[06] rromdata[05] rromdata[14] rromdata[08] rromdata[11] rromdata[04] rromdata[07] rromdata[10] rromdata[13] rromadrs[20] rromadrs[02] rromadrs[05] rromadrs[08] rromadrs[11] rromadrs[14] rromadrs[17] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[01] rromadrs[16] rromadrs[19] rromadrs[04] rromadrs[03] rromadrs[06] rromadrs[09] rromadrs[12] rromadrs[15] rromadrs[18] rromadrs[00] rromadrs[-1] 5V_DET GND GND DOUTDB[14] DOUTDB[19] GND P5V DOUTDA[15] NC DOUTDA[12] DOUTDC[16] DOUTDB[18] GND DOUTDA[10] DOUTDC[13] GND GND DOUTDC[12] DOUTDB[11] DOUTDC[15] DOUTDC[19] DOUTDA[21] GND GND DOUTDA[18] DOUTDB[10] DOUTDB[17] GND DOUTDA[17] GND DOUTDB[16] GND LED5 DOUTDB[20] DOUTDC[14] DOUTDC[18] DOUTDC[21] DOUTDB[13] DOUTDC[17] CLKD4(+) DOUTDA[20] CLKD5(-) GND GND DOUTDC[20] DOUTDB[21] DOUTDC[10] P5V DOUTDA[16] GND GND GND DOUTDC[11] DOUTDB[12] CLRD5 DOUTDA[11] P5V CLKD3(-) DOUTDA[19] GND ODED5 PCD5 CLKD2(+) DOUTDA[14] DOUTDA[13] GND DOUTDB[15] DRV_SOS7 IC9400 ! 33 32 35 34 31 45 46 42 43 41 44 42 37 40 43 44 41 45 39 38 FORMAT CONVERTER/RGB PROCESSOR PLASMA AI/SUB FIELD PROCESSOR/DATA DRIVER (C54) TO C5-BOARD D-BOARD TNPA3983AL (5/8) G G + G G G G TERM SIDE TH-65PV600C D-Board (5 of 8) Schematic Diagram TH-65PV600C D-Board (5 of 8) Schematic Diagram 127 15.49.D 电路板 (6/8) 线路图 G G + TERM SIDE G G TERM SIDE L8R_DQ4 L8R_DQ3 L8R_A4 L8R_DQ21 L8R_DQ17 L8R_DQS1 L8DR_DQ25 L8DR_DQ26 L8DR_A0 L8DR_DQ9 L8R_DQ25 L8R_DQ15 L8DR_DQ14 L8R_WE L8R_A3 L8R_DQ26 L8R_DQ18 L8DR_DQ6 L8R_DQ12 L8DR_DQ29 L8DR_DQ30 L8R_DQ9 L8DR_CKE L8R_DQ10 L8DR_DQ22 L8R_BA0 L8DR_DQS3 L8R_DQS3 L8R_DQ0 L8DR_DQ20 L8R_A2 L8DR_DQ21 L8R_CS L8R_DQ28 L8R_DQ27 L8R_DQ29 L8DR_A5 L8DR_DQ16 L8R_DQ6 L8DR_DQ15 L8R_DQ19 L8DR_DQ1 L8DR_DQ2 L8R_BA1 L8R_DQ22 L8R_CAS L8R_A6 L8DR_A4 L8DR_DQ10 L8R_DQ14 L8DR_A8 L8DR_NRAS L8DR_BA1 L8DR_BA0 L8DR_DQ18 L8R_DQ23 L8R_DQS0 L8DR_A11 L8DR_DQ11 L8DR_NCS L8DR_DQ24 L8DR_DQ31 L8DR_DQ8 L8DR_NCAS L8DR_A3 L8DR_DQ3 L8R_DQ11 L8R_A9 L8R_DQ5 L8R_DQS2 L8R_A11 L8R_A0 L8R_RAS L8DR_A9 L8R_DQ31 L8DR_DQ0 L8R_DQ30 L8DR_A6 L8DR_A10 L8DR_DQ27 L8R_DQ8 L8R_A8 L8DR_DQS1 L8R_SDCLKO L8R_DQ2 L8R_DQ16 L8R_DQ20 L8DR_NWE L8DR_DQ5 L8DR_DQ13 L8DR_A1 L8R_DQ24 L8DR_DQ19 L8R_SDCKE L8R_A7 L8R_DQ13 L8R_A5 L8DR_DQS2 L8DR_DQ7 L8R_DQ1 L8DR_A2 L8DR_DQ28 L8R_A10 L8DR_A7 L8DR_DQ17 L8R_DQ7 L8DR_DQ4 L8DR_DQS0 L8R_A1 L8R_NSDCLKO L8DR_DQ23 L8DR_DQ12 L8L_UC09 L8L_UA09 L8L_UA11 L8L_UA08 L8L_UB11 L8L_UC08 L8L_UA10 L8L_UB09 L8L_UA05 L8L_UB10 L8L_UB05 L8L_UC07 L8L_UC11 AA_XWE L8L_UB07 L8L_UB08 L8L_UA06 L8L_UC06 L8L_UC10 L8L_UA07 L8L_UB06 5V_SENSE L8L_DC15 L8L_UA14 L8L_UC13 L8L_UC12 L8L_UB15 L8L_DA14 L8L_UC15 L8L_UC14 L8L_UA12 L8L_UB13 L8L_UB14 L8L_UB12 L8L_UA13 L8L_DB15 DRVRST 5V_SENSE 5V_DET4 DOUTUA25 L8R_UA11 DOUTUC25 L8R_UA05 L8R_UC13 L8R_UA14 DOUTUB18 L8R_UA02 L8R_UC12 DOUTUB26 L8R_UC10 L8R_UC14 L8R_UB01 L8R_UB09 L8R_UC09 L8R_UC03 DOUTUC18 L8R_UA15 DOUTUC17 L8R_UA00 L8R_UB04 L8R_UB07 L8R_UC11 L8R_UC15 DOUTUA27 L8R_UA04 DOUTUA18 DOUTUA19 L8R_UC00 DOUTUB25 DOUTUC28 DOUTUC29 DOUTUC19 L8R_UB06 L8R_UB03 L8R_UB00 L8R_UC01 L8R_UB15 L8R_UB08 L8R_UB10 DOUTUA17 DOUTUB23 L8R_UB14 DOUTUC21 L8R_UC02 L8R_UA07 DOUTUB29 L8R_UC05 DOUTUA26 DOUTUC27 L8R_UC07 L8R_UB02 L8R_UB11 L8R_UA01 L8R_UA09 L8R_UA13 DOUTUA21 DOUTUB19 L8R_UB05 L8R_UA10 L8R_UB13 L8R_UA08 DOUTUC23 DOUTUB21 L8R_UC04 L8R_UA06 L8R_UA03 L8R_UC06 DOUTUA23 DOUTUB17 L8R_UC08 DOUTUC16 DOUTUB16 DOUTUA16 DOUTUB27 DOUTUA29 DOUTUB28 DOUTUC26 DOUTUB22 5V_DET1 DOUTUC23 DOUTUC25 DOUTUB26 DOUTUA23 DOUTUB31 DOUTUB27 CLKU7 DOUTUC22 DOUTUC30 DOUTUC26 DOUTUA22 DOUTUA28 PCU_1 DOUTUC31 CLKU6 DOUTUB24 DOUTUA26 DOUTUA31 DOUTUC29 DOUTUB29 LEU_1 DOUTUC27 CLRU_1 DOUTUC28 DOUTUA29 DOUTUB23 DOUTUB28 DOUTUB30 DOUTUA30 DOUTUB25 DOUTUA27 DOUTUA25 DOUTUC24 DOUTUA24 DOUTUC20 DOUTUB20 DOUTUA20 DOUTUC22 DOUTUB22 DOUTUA22 DOUTUC24 DOUTUB24 DOUTUA24 DOUTUA28 DOUTUC31 DOUTUB31 DOUTUA31 DOUTUC30 DOUTUB30 DOUTUA30 L8R_UB12 L8R_UA12 L8L_DA13 L8L_DB12 DOUTDC8 DOUTDB0 L8L_DA03 DOUTDA6 L8L_DA04 L8L_DA00 L8L_DC14 DOUTDA10 L8L_DA09 DOUTDC10 L8L_DB13 L8L_DC11 DOUTDB12 DOUTDA1 DOUTDB10 DOUTDB5 DOUTDB1 L8L_DB00 L8L_DC13 DOUTDB7 L8L_DB09 DOUTDA4 L8L_DB04 L8L_DC01 L8L_DC03 L8L_DC07 L8L_DA02 L8L_DA10 L8L_DA08 L8L_DB10 DOUTDC2 DOUTDC1 DOUTDC7 DOUTDC4 L8L_DC08 DOUTDC3 L8L_DA12 L8L_DB02 L8L_DC10 DOUTDB8 DOUTDB9 DOUTDA2 L8L_DA07 DOUTDA7 DOUTDB6 L8L_DB06 L8L_DB07 L8L_DC02 DOUTDA3 L8L_DA06 DOUTDA13 DOUTDA8 DOUTDC15 L8L_DB01 L8L_DC12 L8L_DB08 DOUTDC11 L8L_DB03 DOUTDB15 DOUTDA5 DOUTDC12 L8L_DA05 DOUTDA15 DOUTDA9 L8L_DC05 DOUTDB2 L8L_DC15 L8L_DA01 DOUTDA14 DOUTDB3 L8L_DB11 DOUTDA0 L8L_DB15 DOUTDC5 DOUTDB13 DOUTDB14 L8L_DC04 L8L_DA15 L8L_DB05 DOUTDA11 L8L_DA11 DOUTDC14 L8L_DC00 L8L_DC06 DOUTDC6 DOUTDA12 DOUTDC0 DOUTDC13 DOUTDC9 DOUTDB11 L8L_DC09 DOUTDB4 L8L_DB14 AA_XCE_L AA_XOE L8R_UC14 L8R_UC13 L8R_UA15 L8R_UB13 L8R_DC15 L8R_UA13 L8R_UC12 L8L_DB15 L8R_DA15 L8L_UC13 L8R_UA14 L8L_UB14 L8L_DC15 L8L_DA14 L8L_UB15 L8L_UA14 L8L_UA13 L8L_UC15 L8L_UC12 L8R_UB12 L8R_UB15 L8L_UB12 L8R_UB14 L8R_DA14 L8R_UC15 L8L_UA15 L8L_DA15 L8L_UB13 L8L_UC14 AA_BYTE L8R_UA12 L8L_UA12 AA_XCE_L L8DR_DQ0 L8DR_NCLK L8DR_CLK L8DR_DQS3 L8DR_DQ19 L8DR_DQ17 L8DR_DQ26 L8DR_DQS0 L8DR_DQ29 L8DR_DQ3 L8DR_DQ2 L8DR_DQ24 L8DR_BA1 L8DR_DQ8 L8DR_A10 L8DR_DQ18 L8DR_A6 L8DR_A2 L8DR_DQ4 L8DR_DQ12 L8DR_DQ7 L8DR_A9 L8DR_A8 L8DR_DQ21 L8DR_A7 L8DR_DQS2 L8DR_NWE L8DR_NCAS L8DR_DQ1 L8DR_NCS L8DR_CKE L8DR_A4 L8DR_A5 L8DR_A0 L8DR_NRAS L8DR_DQ23 L8DR_A11 L8DR_DQ6 L8DR_DQ31 L8DR_DQ14 L8DR_A1 L8DR_DQ10 L8DR_DQ27 L8DR_BA0 L8DR_DQ13 L8DR_DQS1 L8DR_DQ20 L8DR_DQ25 L8DR_DQ9 L8DR_DQ30 L8DR_DQ22 L8DR_A3 L8DR_DQ5 L8DR_DQ16 L8DR_DQ28 L8DR_DQ11 L8DR_DQ15 L8L_UA15 L8L_DA14 DOUTDC6 DOUTDC7 DOUTDB9 C_URL C_USL C_UMH DOUTDC5 DOUTDA5 DOUTDC9 DOUTDC0 DOUTDB3 DOUTDA9 DOUTDB1 C_UEH DOUTDC2 DOUTDB2 C_NUEL DOUTDB6 DOUTDC1 DOUTDC3 DOUTDA8 DOUTDA2 DOUTDC4 5V_DET4 C_UML DOUTDA6 DOUTDA7 DOUTDB7 DOUTDA1 CLKD0 DOUTDA4 C_URH CLKD1 DOUTDA0 DOUTDB5 DOUTDC8 DOUTDB8 DOUTDA3 DOUTDB0 DOUTDB4 C_USH ODEU_1 SOS8_SS_C L8R_DB15 L8DR_NCLK L8DR_CLK L8L_DA15 L8L_UC05 F_RST R9416 47 EXB38V470JV IC9401 F12 DQ15 IC9401 C9 DQ30 FL9307 J0HABH000013 1 2 3 IC9401 M3 NC R9462 EXB2HV820JV R9572 EXB2HV820JV R9396 EXB2HV820JV IC9401 G11 VDDQ TP9050 C9085 16V 0.1u TP9469 IC9401 B10 DQ28 C9090 16V 0.1u R9404 EXB2HV470JV 47 IC9401 N12 CKE TP9453 P3.3V R9465 10k TP9402 TP9413 IC9401 C8 VDDQ IC9401 G8 VSS_Thermal IC9401 N2 CS IC9401 E3 VDDQ IC9401 H13 DQS1 IC9401 M13 NC C9108 16V 0.1u IC9401 G7 VSS_Thermal TP9425 TP9458 TP9020 IC9401 E5 VSS TP9008 TP9048 IC9401 L2 CAS TP9041 TP9433 R9652 0 TP9528 IC9401 C7 VDDQ TP9392 TP9030 IC9401 E9 VSSQ C9096 16V 0.1u R9653 EXB2HV103JV 10k IC9401 N7 A3 P3.3V IC9401 G5 VSSQ TP9051 IC9401 L7 VDD R9415 47 EXB38V470JV TP9052 IC9401 B8 DQ31 IC9401 L9 NC TP9019 TP9399 IC9401 B6 DQ2 IC9401 G2 DQ19 IC9401 D11 VSSQ IC9401 K4 VDDQ R9421 47 EXB38V470JV TP9002 IC9401 C5 VDDQ C9608 16V 0.1u IC9401 F11 VDDQ IC9401 J11 VDDQ C9087 16V 0.1u C9088 16V 0.1u IC9401 B9 DQ29 IC9401 D8 VDD IC9401 K12 DQ9 TP9432 IC9401 H4 NC C9097 16V 0.1u IC9401 F3 DQ16 IC9602 C0EBE0000066 1 NC 2 SUB 3 GND 5 Vcc 4 Vout IC9401 L8 VDD TP9448 TP9394 TP9447 TP9406 R9491 47 IC9401 F8 VSS_Thermal R9418 47 EXB38V470JV IC9401 D7 VDD C9095 16V 0.1u R9397 EXB2HV820JV TP9431 TP9415 IC9401 B3 DM0 R9576 EXB2HV820JV IC9401 E10 VSS TVRP109-1 IC9304 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 IC9401 M11 CK TP9412 IC9401 E4 VDD C9107 16V 0.1u D9303 MA3X152K0L IC9401 G6 VSS_Thermal R9619 4.7k R9492 47 TP9439 P3.3V C9601 16V 0.1u TP9032 TP9035 IC9401 K3 DQ23 R9123 0 TP9005 Q9306 B1ABCF000138 TP9022 C9098 16V 0.1u IC9401 L4 VDD C9099 16V 0.1u IC9401 F6 VSS_Thermal C9104 16V 0.1u TP9441 C9610 16V 0.1u L8L2.5V R9873 4.7k TP9037 TP9040 TP9404 C9103 16V 0.1u IC9401 E8 VSS R9620 4.7k C9086 16V 0.1u R9494 47 TP9009 IC9401 C4 NC C9105 16V 0.1u IC9401 J7 VSS_Thermal TP9015 R9122 0 IC9401 L10 VSS TP9056 IC9401 B4 VSSQ IC9401 F9 VSS_Thermal R9493 47 IC9401 C2 DQ4 IC9401 H11 NC TP9427 IC9401 F2 DQ17 IC9401 G9 VSS_Thermal TP9016 IC9401 N4 BA0 C0JBAZ002183 IC9603 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 2A1 14 2A2 15 VCC 16 2A3 17 GND 18 2A4 19 2A5 20 2A6 21 2A7 22 2A8 23 2A9 24 2A10 25 2B10 26 2B9 27 2B8 28 2B7 29 2B6 30 2B5 31 2B4 32 GND 33 2B3 34 2B2 35 2B1 36 1B10 37 1B9 38 1B8 39 1B7 40 1B6 41 GND 42 1B5 43 1B4 44 1B3 45 1B2 46 1B1 47 2OE 48 1OE IC9401 J2 DQ21 IC9401 D2 DQ6 IC9401 F5 VSSQ R9490 47 IC9401 D9 VSSQ C9372 50V 0.01u R9488 33 TP9534 IC9401 G3 DQ18 TP9407 IC9401 E2 DQ7 R9489 47 IC9401 J10 VSSQ IC9401 D10 VSSQ IC9401 C11 NC R9124 0 IC9401 K13 DQ8 TP9454 R9394 EXB2HV820JV R9420 47 EXB38V470JV IC9401 K5 VSSQ R9412 47 EXB38V470JV TP9049 TP9526 TP9034 IC9401 L11 VDD P5V TP9036 R9130 1k 1% TP9409 IC9401 D3 DQ5 TP9467 IC9401 B13 DQS3 TP9530 TP9424 IC9401 K2 DQ22 TP9025 IC9401 M9 A5 IC9401 M12 CK TP9024 IC9401 J6 VSS_Thermal IC9401 H9 VSS_Thermal R9464 100k TP9438 IC9401 B7 DQ0 TP9531 R9607 100k C9093 16V 0.1u IC9401 J9 VSS_Thermal C9111 56u 4V TP9017 TP9527 C9109 16V 0.1u IC9401 F10 VSSQ IC9401 C6 DQ1 TP9455 TP9397 TP9013 IC9401 M5 BA1 R9645 0 IC9401 K11 VDDQ IC9401 F7 VSS_Thermal IC9401 L13 NC IC9401 F13 DQ14 TP9003 IC9401 J5 VSSQ TP9042 IC9401 L5 VSS IC9401 K6 VSS L8L2.5V IC9401 H7 VSS_Thermal C9091 16V 0.1u IC9401 K10 VSSQ IC9401 C3ABQJ000051 B2 DQS0 TP9470 R9419 47 EXB38V470JV IC9401 M2 RAS TP9459 TP9043 D31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 IC9401 G10 VSSQ Q9303 B1ABCF000138 C9106 16V 0.1u R9606 100 IC9401 D13 DQ25 IC9401 B5 DQ3 C9609 6.3V 10u TP9026 IC9401 J3 DQ20 IC9401 N13 VREF TP9680 FL9000 J0HABH000013 1 2 3 TP9029 IC9401 J8 VSS_Thermal TP9033 TP9463 R9413 47 EXB38V470JV R9573 EXB2HV820JV IC9401 H12 DM1 IC9401 M10 NC IC9401 E13 DQ24 C9101 16V 0.1u IC9401 J13 DQ10 C9102 16V 0.1u TP9028 IC9401 C12 VDDQ IC9401 K7 VSS IC9401 D5 VSSQ R9575 EXB2HV820JV TP9529 IC9401 D4 VSSQ R9414 47 EXB38V470JV R9393 EXB2HV820JV IC9401 N8 A4 IC9401 E12 VDDQ IC9401 M6 A2 IC9401 E11 VDD IC9401 N9 A6 TP9055 R9577 EXB2HV820JV TP9012 P3.3V IC9401 J12 DQ11 IC9401 E6 VSSQ IC9401 K8 VSS TP9421 C9089 16V 0.1u IC9401 J4 VDDQ R9486 33 IC9401 C10 VDDQ IC9401 K9 VSS R9463 4.7k TP9011 TP9023 IC9401 N3 NC IC9401 G13 DQ12 TP9419 R9571 EXB2HV820JV IC9401 H5 VSSQ IC9401 C3 VDDQ IC9401 M7 A11 TP9006 TP9461 TP9014 TP9010 TP9450 IC9401 F4 VDDQ IC9401 H8 VSS_Thermal R9126 1k 1% R9487 150 IC9401 H6 VSS_Thermal IC9401 H2 DQS2 IC9401 H3 DM2 IC9401 H10 VSSQ TP9429 TP9460 P5V IC9401 D12 DQ26 IC9401 N10 A7 IC9401 C13 DQ27 IC9401 B11 VSSQ IC9401 N11 A8/AP IC9401 B12 DM3 R9417 47 EXB38V470JV IC9401 M8 A9 TP9004 TP9001 TP9039 TP9038 TP9435 TP9418 IC9401 E7 VSS L8L2.5V C9110 16V 0.1u IC9401 N5 A0 TP9018 R9395 EXB2HV820JV R9616 0 C9092 16V 0.1u TP9031 TP9027 IC9401 L3 WE IC9401 N6 A1 IC9401 L12 NC IC9401 M4 NC C9094 16V 0.1u IC9401 D6 VSSQ IC9401 G12 DQ13 R9495 47 TP9021 IC9401 L6 A10 IC9401 G4 VDDQ R9125 0 D34 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 DDR-Terminate NC NC GND DOUTUC[29] NC NC DOUTUB[27] DOUTUB[25] DSHR DOUTUB[24] DOUTUC[26] GND DOUTUA[28] P5V DOUTUB[26] DOUTUA[25] GND DOUTUB[22] 5V_DET P5V DMLR GND GND DOUTUA[26] DOUTUC[23] DOUTUC[31] GND GND DOUTUA[22] DOUTUC[28] DOUTUA[24] GND DOUTUA[31] DOUTUA[29] GND CLKU6(+) CLKU7(-) DOUTUA[23] GND DOUTUC[27] P5V NC DSLR ODEU1 DOUTUB[30] GND DOUTUB[28] DOUTUB[31] GND DOUTUA[30] DOUTUB[29] GND DOUTUC[22] CLRU1 DOUTUB[23] LEU1 GND PCU1 DOUTUC[30] DOUTUA[27] DOUTUC[24] DMHR GND GND DOUTUC[25] GND GND DDR-SDRAM R UMH DOUTDC[3] P5V URH CLKD0(+) GND DOUTDB[6] DOUTDA[8] URL USH P5V DOUTDB[7] DOUTDB[0] NC DOUTDB[1] UEH DOUTDB[9] GND DOUTDB[4] DOUTDC[7] GND DOUTDA[2] GND NC DOUTDC[0] NUEL DOUTDA[5] DOUTDA[6] DOUTDA[9] DOUTDC[8] NC DOUTDB[2] GND DRVSOS8 P5V 5V_DET GND DOUTDB[3] GND DOUTDC[6] DOUTDA[1] DOUTDC[9] GND GND DOUTDC[4] DOUTDB[5] DOUTDC[5] DOUTDA[0] CLKD1(-) DOUTDB[8] DOUTDA[7] USL DOUTDC[1] DOUTDA[3] GND NC GND DOUTDA[4] DOUTDC[2] GND UML GND GND GND GND GND GND NC NC FLASH MEMORY BUS SWITCH IC9401 DDR-SDRAM R RESET ! 45 42 44 43 46 41 55 54 52 53 51 48 53 47 49 51 52 54 46 50 (C10) TO C1-BOARD (C55) TO C5-BOARD D-BOARD TNPA3983AL (6/8) TH-65PV600C D-Board (6 of 8) Schematic Diagram TH-65PV600C D-Board (6 of 8) Schematic Diagram 128 15.50.D 电路板 (7/8) 线路图 + G G G G G G G G G G G G TERM SIDE L8L_DQ29 L8L_DQ2 L8L_DB03 L8L_BI9 L8L_A8 L8L_UB08 L8L_DC01 L8L_SDIV0 L8L_DA07 L8L_DQ28 L8L_DQ1 L8L_DB02 L8L_RI0 L8L_A7 L8L_UB09 L8L_DC02 L8L_DA06 L8L_DQ27 L8L_DQ0 L8L_DB01 L8L_RI1 L8L_A6 L8L_UB10 L8L_DC03 L8L_DA05 L8L_DQ26 L8L_DB00 L8L_RI4 L8L_A5 L8L_UB11 L8L_DC04 L8L_DA04 L8L_DQ25 L8L_RI2 L8L_UC11 L8L_A4 L8L_DC05 L8L_DA03 L8L_DQ24 L8L_VDI L8L_RI3 L8L_UC10 L8L_A3 L8L_DC06 L8L_DA02 L8L_DQ23 TMS L8L_HDI L8L_RI5 L8L_UC09 L8L_A2 L8L_DC07 L8L_DA01 L8L_DQ22 L8L_RI6 L8L_UC08 L8L_A1 L8L_DC08 L8L_DA00 L8L_DQ21 TCK L8L_GI0 L8L_RI7 L8L_UC07 L8L_A0 L8L_DC09 L8L_DQ20 L8L_GI1 L8L_RI8 L8L_UC06 L8L_DC10 L8L_DQ19 L8L_GI2 L8L_RI9 L8L_UC05 L8L_DC11 L8L_DQ18 L8L_TCKSEL2 L8L_GI3 L8L_UC04 L8L_DQ17 L8L_GI4 L8L_UC03 L8L_DQ16 L8L_RAS L8L_GI5 L8L_UC02 L8L_DQ15 L8L_GI6 L8L_UC01 L8L_DRVCLKD0 L8L_WE L8L_DQ14 L8L_TEST1 L8L_GI7 L8L_UC00 L8L_UA00 L8L_DRVCLKD1 L8L_DQ13 L8L_TEST0 L8L_GI8 L8L_DRVCLKU1 L8L_UA01 L8L_CS L8L_DQ12 L8L_GI9 L8L_DRVCLKU0 L8L_UA02 L8L_DQ11 L8L_BI0 L8L_CAS L8L_UA03 L8L_DQ10 L8L_DB11 L8L_BI1 L8L_SDCKE L8L_UB00 L8L_UA04 L8L_DQ9 SFRST L8L_DB10 L8L_BI2 L8L_NSDCLKO L8L_UB01 L8L_UA05 L8L_DQS3 L8L_DQ8 SFVRST L8L_DB09 L8L_BI3 L8L_SDCLKO L8L_UB02 L8L_UA06 L8L_DQS2 L8L_DQ7 LATCH L8L_DB08 L8L_BI4 L8L_BA1 L8L_UB03 L8L_UA07 L8L_DQS1 L8L_DQ6 FPCLK L8L_DB07 L8L_BI5 L8L_BA0 L8L_UB04 L8L_UA08 L8L_DA11 L8L_DQS0 L8L_DQ5 FPDAT0 L8L_DB06 L8L_BI6 L8L_A11 L8L_UB05 L8L_UA09 L8L_DA10 L8L_DQ31 L8L_DQ4 FPDAT1 L8L_DB05 L8L_BI7 L8L_A10 L8L_UB06 L8L_UA10 L8L_DA09 L8L_DQ30 L8L_DQ3 L8L_MONOUT1 L8L_DB04 L8L_BI8 L8L_SDIV1 L8L_A9 L8L_UB07 L8L_DC00 L8L_UA11 L8L_DA08 L8L_TEST1 L8L_TCKSEL2 L8L_DRVCLKD3 L8L_DRVCLKD2 L8L_DRVCLKU2 L8L_DRVCLKU3 L8L_MASK XRST AA_XCE_L P3V_SDA02 P3V_SCL02 L8L_DCK L8_PCK L8_OCK FULL0 TRST L8L_UB13 L8L_UC15 L8L_DB15 L8L_UB12 L8L_UA12 L8L_UA13 L8L_UC13 L8L_DC15 L8L_UB14 L8L_UA14 L8L_DA15 L8L_UC12 L8L_UB15 L8L_UA15 L8L_DA14 L8L_UC14 L8L_SDIV0 ODEU_2 CLKU5 5V_SENSE L8R_DRVCLKU1 L8L_DRVCLKU2 L8R_DRVCLKU2 D_ODEU1 L8L_DRVCLKU3 CLKU6 D_CLRU1 5V_SENSE D_PCU1 L8R_DRVCLKU3 CLRU_1 L8L_DRVCLKU0 CLKU7 D_LEU1 5V_DET2 PCU_1 CLKU1 LEU_1 D_ODEU2 L8L_DRVCLKU1 D_LEU2 D_PCU2 D_CLRU2 CLKU3 LEU_2 L8R_DRVCLKU0 PCU_2 CLKU4 CLRU_2 ODEU_1 CLKU0 DOUTUC10 DOUTUA21 DOUTUB10 DOUTUA15 DOUTUC21 DOUTUA19 DOUTUC13 DOUTUB12 CLRU_2 CLKU3 PCU_2 DOUTUB15 DOUTUB21 DOUTUC15 DOUTUB11 CLKU2 DOUTUA13 DOUTUB14 DOUTUA17 DOUTUA18 DOUTUC19 DOUTUB20 DOUTUA10 CLKU4 DOUTUC20 CLKU5 DOUTUA14 DOUTUB13 DOUTUB18 DOUTUB19 DOUTUA20 DOUTUA16 5V_DET2 DOUTUC18 DOUTUC16 DOUTUC14 LEU_2 DOUTUA11 DOUTUC11 DOUTUB16 DOUTUC12 DOUTUA12 DOUTUB17 DOUTUC17 5V_DET1 CLKU2 L8L_DA12 L8L_DA13 L8L_DB12 L8L_DB13 L8L_DB14 L8L_DC12 L8L_DC13 L8L_DC14 L8L_TEST0 ODEU_2 SOS7_DRU TDI_TO_68_L TDO_TO_68_R L8L_SDIV1 IC9300 V14 VDD12 IC9300 K9 VSS IC9300 E14 VDD33 IC9300 G2 BI5 IC9300 F21 DRVCLKU2 IC9300 G20 DRVCLKU1 IC9300 U19 DOUTDA02 C9306 0.1u 16V R9602 0 IC9300 J4 ENHMASK IC9300 Y4 AVDD25_2 IC9300 G5 VDD12 Q9300 B1ABCF000138 IC9300 L11 VSS IC9300 A20 DOUTUC04 IC9300 A7 K_TEST IC9300 K21 DOUTDC13 TP9499 L8L2.5V IC9300 V15 VDD12 IC9300 T18 VDD33 IC9300 K20 DOUTDB13 IC9300 M4 PCK L8L3.3V IC9300 L21 DOUTDA11 IC9300 W16 SDIV1 C9323 0.1u 16V IC9300 F18 VSS TP9426 IC9300 AB17 VSS IC9300 B20 DOUTUA03 IC9300 D13 DOUTUC12 TP9483 IC9300 M20 DOUTDA10 IC9300 Y7 A0 IC9300 V1 DQS0 TP9436 IC9300 T3 AVDD25_1 IC9300 H21 DOUTDB15 IC9300 D21 DOUTUB02 IC9300 C5 RI9 IC9300 M10 VSS R9475 10k IC9300 B5 RI5 IC9300 B12 DOUTUC14 IC9300 J22 DOUTDA13 TP9410 C9365 56u 4V IC9300 W17 VSS IC9300 G3 BI4 IC9300 U21 DOUTDB04 IC9300 W22 DOUTDC02 TP9492 C9324 0.1u 16V C9315 0.1u 16V IC9300 A5 RI2 TP9440 TP9449 TP9414 C9305 0.1u 16V IC9300 C8 TEST0 P3.3V C9319 0.1u 16V R9448 22 IC9300 V18 VSS P3.3V IC9300 B13 DOUTUA12 IC9300 Y21 VDD33 IC9300 AB13 DQ10 IC9300 AB15 AVDD33_1 IC9300 C15 DOUTUB09 P3.3V C9301 0.1u 16V FL9304 J0HABH000013 1 2 3 IC9300 N3 TDI IC9300 B10 SFRST R9399 100k IC9300 V12 VDD25 IC9300 C13 DOUTUB12 IC9300 Y15 VSS IC9300 AB7 A6 IC9300 AB19 DOUTDA00 IC9300 AB6 A4 L8L3.3V IC9300 V11 VDD25 TP9398 TP9444 HIN IC9300 R4 DQ16 IC9300 D6 RI7 IC9300 M22 DOUTDC10 R9580 1k 1% IC9300 C21 DOUTUA02 C9370 50V 0.01u J0HABH000013 FL9305 IC9300 AA5 CKE IC9300 AB10 DQ29 TP9053 IC9300 C1 VDD12 IC9300 Y16 SDSEL IC9300 U18 VDD33 IC9300 L14 VSS R9390 2.7k IC9300 J3 MONOUT0 IC9300 E4 VDD12 IC9300 A3 GI0 L8L3.3V C9360 6.3V 10u TP9506 J0HABH000013 FL9306 IC9300 N10 VSS IC9300 C10 SFVRST TP9478 IC9300 L22 DOUTDB11 C9311 0.1u 16V FL9308 J0HABH000013 1 2 3 IC9300 E18 VSS IC9300 P3 DQ19 IC9300 F1 BI3 IC9300 C17 DOUTUA06 IC9300 J10 VSS IC9300 J1 MONOUT2 FL9302 J0HABH000013 1 2 3 R9449 22 IC9300 D11 DOUTUA15 IC9300 K19 DOUTDC14 IC9300 AB8 A7 IC9300 AA1 VDD25 IC9300 B15 DOUTUB10 C9355 0.1u 16V IC9300 J9 VSS IC9300 AA12 DQS3 IC9300 W11 DQ25 IC9300 D5 GI2 IC9300 W13 DQ15 C9309 0.1u 16V IC9300 K13 VSS IC9300 AA20 DOUTDA01 C9369 50V 0.01u IC9300 AA14 DQ9 IC9300 T19 DOUTDC04 IC9300 P14 VSS IC9300 R20 DOUTDB06 IC9300 AA22 VSS C9368 16V 0.1u TP9504 TP9403 R9445 22 IC9300 V2 DQ3 IC9300 H18 VDD33 TP9443 VIN L8L3.3V IC9300 A14 DOUTUA11 IC9300 B1 VSS IC9300 N5 VDD33 IC9300 AA8 A5 C9316 0.1u 16V IC9300 B7 TEST1 IC9300 R22 DOUTDC07 TP9532 IC9300 N9 VSS IC9300 N21 DOUTDA08 C9304 0.1u 16V IC9300 E21 DOUTUA00 C9313 0.1u 16V IC9300 K14 VSS IC9300 K11 VSS IC9300 J2 MONOUT1 TP9485 TP9408 Q9301 B1ABCF000138 IC9300 AA4 VREF C9303 0.1u 16V IC9300 V3 DQ4 IC9300 M2 FULL0 IC9300 C7 RI0 IC9300 A12 DOUTUB14 IC9300 T4 DQ7 IC9300 T2 DQ20 IC9300 G1 BI6 IC9300 V5 VSS IC9300 AB20 DOUTDB01 R9367 180 IC9300 E9 VDD33 IC9300 U5 VDD25 IC9300 R18 VDD33 IC9300 D20 DOUTUB03 IC9300 Y3 VSS IC9300 T22 DOUTDC06 TP9490 C9321 0.1u 16V IC9300 V9 VSS IC9300 N11 VSS P1.2V C9300 0.1u 16V IC9300 AA16 AVSS2 IC9300 B22 VSS R9581 1k 1% TP9445 IC9300 Y22 VDD33 IC9300 R19 DOUTDA05 IC9300 W12 AVDD25_4 IC9300 A21 VSS P5V IC9300 P13 VSS IC9300 Y9 A3 IC9300 P11 VSS IC9300 Y13 DQ14 IC9300 Y11 DQ24 IC9300 E12 VDD33 IC9300 V17 VDD33 IC9300 W8 A2 TP9405 IC9300 V10 VDD25 IC9300 B2 VSS IC9300 U1 DQS2 IC9300 B18 DOUTUB06 IC9300 K5 VDD33 TP9502 IC9300 P19 DOUTDB07 TP9423 IC9300 B3 GI1 IC9300 M18 VDD12 IC9300 AB14 DQ8 IC9300 U20 DOUTDB03 IC9300 J11 VSS IC9300 Y2 VDD25 IC9300 E5 VSS IC9300 E6 VSS IC9300 H22 DOUTDA14 IC9300 C9 ROMCE IC9300 Y17 VSS C9310 0.1u 16V IC9300 D9 TCKSEL1 IC9300 E3 GI5 IC9300 R1 DQ22 IC9300 K1 DCK C9359 0.1u 16V L8L2.5V IC9300 M19 DOUTDC11 IC9300 AA19 DOUTDC01 IC9300 W6 NWE IC9300 W15 TCPOUT IC9300 E7 VDD12 IC9300 F22 DRVCLKD3 IC9300 F19 DOUTUA01 IC9300 U22 DOUTDC05 IC9300 K2 VDI IC9300 L1 SCL IC9300 B19 DOUTUA04 IC9300 A8 TCKSEL0 IC9300 Y12 AVSS_4 IC9300 D10 FPDAT0 IC9300 J21 DOUTDB14 IC9300 F20 DOUTUB00 IC9300 D15 DOUTUB08 TP9477 IC9300 P20 DOUTDA07 IC9300 C14 DOUTUC11 IC9300 B11 DOUTUC15 TP9416 IC9300 D4 VSS IC9300 AA17 SDIV0 IC9300 W1 DQ2 IC9300 E13 VDD33 IC9300 C6 RI4 TP9479 IC9300 B9 FPCLK IC9300 B21 VSS IC9300 L3 ID1 IC9300 N18 VDD12 IC9300 J13 VSS IC9300 Y10 DQ26 IC9300 F4 GI7 R9574 0 IC9300 A13 DOUTUC13 IC9300 G19 DOUTUC00 TP9533 L8L3.3V IC9300 J14 VSS IC9300 B6 RI1 TP9395 IC9300 Y19 VSS C9356 0.1u 16V IC9300 R5 VDD25 TP9437 IC9300 W20 VDD33 IC9300 A11 DOUTUA14 IC9300 L2 ID0 IC9300 B17 DOUTUA07 IC9300 H1 MUTE TP9480 IC9300 D19 VSS IC9300 T20 DOUTDA04 IC9300 L18 VDD12 TP9422 IC9300 AA2 VSS IC9300 AA15 AVSS1 C9318 0.1u 16V IC9300 C19 DOUTUB04 IC9300 E19 DOUTUC03 IC9300 N19 DOUTDB09 C9363 6.3V 10u IC9300 F5 VDD12 IC9300 Y8 A1 R9400 10k C9312 0.1u 16V IC9300 L19 DOUTDB12 IC9300 K18 VDD33 IC9300 AB4 BA0 C9358 0.1u 16V IC9300 T1 DQ21 TP9428 IC9300 D7 RI3 L8L3.3V IC9300 Y18 VSS IC9300 C3 VSS IC9300 M3 FULL1 IC9300 W18 VSS IC9300 U4 DQ5 C9325 0.1u 16V IC9300 W2 DQ1 IC9300 L13 VSS IC9300 M11 VSS D9301 MA3X152K0L R9444 22 IC9300 V7 VDD25 IC9300 A9 FPDAT1 IC9300 V8 VDD25 IC9300 T5 AVSS_2 IC9300 J5 VDD12 R9451 100k IC9300 C2 VDD12 L8L3.3V IC9300 G18 VSS IC9300 N22 DOUTDA09 IC9300 V21 DOUTDC03 IC9300 A22 VSS R9391 2.7k TP9411 IC9300 AB1 VSS IC9300 B16 DOUTUC09 IC9300 P5 VDD33 IC9300 AA18 DOUTDB00 IC9300 L4 TIIC IC9300 H5 VDD12 IC9300 H2 BI9 IC9300 J18 VDD33 IC9300 AA7 A9 IC9300 W5 AVDD25_3 TP9451 IC9300 A10 SFLATCH IC9300 N2 TCK R9450 4.7k TP9396 IC9300 E20 DOUTUC02 L8L2.5V IC9300 V13 VDD12 IC9300 E2 GI8 IC9300 P2 XRST IC9300 D22 DOUTUC01 IC9300 K12 VSS IC9300 E10 VDD33 R9452 10k R9603 10k IC9300 D2 GI4 P2.5V TP9446 R9447 22 IC9300 E16 VDD12 IC9300 L10 VSS IC9300 AB22 VSS L8L1.2V IC9300 G4 BI2 IC9300 AB18 DOUTDC00 IC9300 W14 DQ13 C9308 0.1u 16V TP9488 TP9400 TP9434 IC9300 AB3 NCK IC9300 R21 DOUTDA06 IC9300 Y5 NCAS R9579 0 R9442 22 IC9300 V22 DOUTDA03 C9322 0.1u 16V IC9300 C12 DOUTUB13 IC9300 T21 DOUTDB05 IC9300 J20 DOUTDC15 IC9300 E1 BI0 IC9300 N20 DOUTDC09 IC9300 E8 VDD12 R9446 22 IC9300 R3 DQ17 IC9300 AB9 VDD25 IC9300 AA13 DQ11 IC9300 Y6 NRAS IC9300 C4 GI3 IC9300 C18 DOUTUB05 IC9300 AB11 DQ28 IC9300 M1 TILD IC9300 U2 AVSS_1 TP9497 IC9300 M21 DOUTDB10 TP9417 IC9300 L12 VSS R9398 4.7k IC9300 L9 VSS IC9300 V6 AVSS_3 IC9300 AA11 DQ30 IC9300 A4 RI6 IC9300 U3 DQ6 C9364 6.3V 10u IC9300 K3 SDA IC9300 H3 BI8 IC9300 D3 VDD12 C9314 0.1u 16V IC9300 M9 VSS IC9300 F3 GI9 IC9300 M12 VSS TP9476 IC9300 W10 DQ27 IC9300 D18 DOUTUC05 TP9420 IC9300 AA21 VSS C9317 0.1u 16V IC9300 F2 BI1 FL9303 J0HABH000013 1 2 3 C9361 6.3V 10u IC9300 E17 VSS IC9300 MN84521A-A A1 VSS IC9300 W19 VSS IC9300 B8 TCKSEL2 IC9300 AA6 A11 C9307 0.1u 16V L8L3.3V C9302 0.1u 16V IC9300 P18 VDD33 IC9300 L5 VDD33 IC9300 D16 DOUTUC07 IC9300 D8 OCK IC9300 V16 VDD33 IC9300 H19 DRVCLKU0 IC9300 A18 DOUTUB07 IC9300 W7 NCS TP9494 IC9300 AB21 VSS IC9300 N4 TMS IC9300 P10 VSS IC9300 P1 TDO IC9300 E15 VDD12 IC9300 M14 VSS IC9300 K22 DOUTDA12 C9320 0.1u 16V C9357 0.1u 16V IC9300 P22 DOUTDB08 D9300 MA3X152K0L IC9300 AB16 AVDD33_2 IC9300 R2 DQ23 IC9300 C16 DOUTUC08 IC9300 V4 VDD25 IC9300 M13 VSS C9362 6.3V 10u IC9300 N14 VSS IC9300 E22 DRVCLKU3 IC9300 A15 DOUTUA10 TP9472 IC9300 A16 DOUTUA09 L8L2.5V IC9300 C11 DOUTUB15 IC9300 H4 BI7 IC9300 N13 VSS IC9300 AA3 CK IC9300 Y14 DQ12 D32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 IC9300 P9 VSS IC9300 Y20 VSS IC9300 K10 VSS IC9300 A17 DOUTUA08 IC9300 AA10 DQ31 IC9300 B4 RI8 IC9300 D12 DOUTUA13 TP9486 L8L3.3V IC9300 W3 VDD25 R9443 22 IC9300 P21 DOUTDC08 IC9300 L20 DOUTDC12 IC9300 E11 VDD33 IC9300 V19 VDD33 IC9300 K4 HDI IC9300 A2 VSS IC9300 V20 DOUTDB02 IC9300 W4 VSS IC9300 N12 VSS IC9300 AB12 DQS1 IC9300 AB2 VSS IC9300 A19 DOUTUA05 IC9300 AB5 BA1 IC9300 G21 DRVCLKD2 R9389 2.7k IC9300 C20 VSS IC9300 M5 VDD33 TP9430 IC9300 J19 DOUTDA15 IC9300 N1 TRST IC9300 W9 A10 IC9300 P4 DQ18 IC9300 C22 DOUTUB01 IC9300 D17 DOUTUC06 IC9300 W21 VDD33 IC9300 P12 VSS IC9300 G22 DRVCLKD0 IC9300 Y1 DQ0 IC9300 D1 GI6 L8L1.2V IC9300 D14 DOUTUC10 IC9300 H20 DRVCLKD1 IC9300 J12 VSS TP9393 IC9300 B14 DOUTUB11 IC9300 A6 OCKOUT IC9300 F6 VSS IC9300 AA9 A8 R9409 EXB38V820JV R9410 EXB38V820JV MN84521A-A Left from FPGA1 IIC from DISCHARGE CONTROL FPGA to DDR rromdata[00] rromdata[01] rromdata[02] rromdata[03] rromdata[04] rromdata[07] rromdata[10] rromdata[13] rromdata[05] rromdata[08] rromdata[11] rromdata[14] rromdata[06] rromdata[09] rromdata[12] rromdata[15] rromadrs[00] rromadrs[01] rromadrs[04] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[16] rromadrs[19] rromadrs[03] rromadrs[06] rromadrs[09] rromadrs[12] rromadrs[15] rromadrs[18] rromadrs[02] rromadrs[05] rromadrs[08] rromadrs[11] rromadrs[14] rromadrs[17] rromadrs[20] DOUTUB[10] DOUTUB[17] GND DOUTUB[16] GND GND DOUTUC[15] P5V GND DOUTUA[16] ODEU2 LEU2 DOUTUC[19] DOUTUC[12] DOUTUA[10] GND GND GND DOUTUA[17] DOUTUA[12] GND CLKU4(+) DOUTUA[11] DOUTUC[10] GND DOUTUB[11] GND DOUTUB[12] DOUTUC[14] DOUTUC[11] DOUTUC[21] DOUTUC[16] DOUTUB[20] DOUTUC[13] DOUTUB[19] CLKU5(-) DOUTUA[14] GND DOUTUA[19] DOUTUC[20] DOUTUA[15] DOUTUB[15] GND GND DOUTUA[20] DOUTUC[18] DOUTUA[18] DOUTUC[17] P5V DOUTUA[13] DOUTUB[21] PCU2 DOUTUB[18] DOUTUB[13] CLRU2 5V_DET CLKU2(+) GND GND GND DOUTUA[21] GND P5V DOUTUB[14] GND NC CLKU3(-) DRV_SOS7 IC9300 ! 54 53 55 52 51 63 62 61 58 60 62 59 56 61 55 63 57 PLASMA AI/SUB FIELD PROCESSOR/DATA DRIVER FORMAT CONVERTER/RGB PROCESSOR (C24) TO C2-BOARD D-BOARD TNPA3983AL (7/8) TH-65PV600C D-Board (7 of 8) Schematic Diagram TH-65PV600C D-Board (7 of 8) Schematic Diagram 129 15.51.D 电路板 (8/8) 线路图 + G G TERM SIDE L8DL_DQS3 L8L_SDCKE L8L_DQ28 L8DL_NCAS L8DL_DQ22 L8DL_DQ25 L8DL_NRAS L8DL_DQ31 L8DL_A1 L8L_DQ12 L8DL_DQ11 L8DL_DQ4 L8L_DQS1 L8L_DQ17 L8L_A10 L8L_DQ25 L8L_DQS0 L8DL_A3 L8L_DQ10 L8DL_DQ21 L8L_CS L8L_DQ16 L8DL_DQS0 L8L_DQ24 L8DL_A4 L8DL_DQ9 L8L_DQ22 L8L_A3 L8DL_DQ13 L8L_DQ20 L8L_DQ4 L8L_SDCLKO L8L_BA0 L8L_DQ27 L8L_DQ19 L8L_NSDCLKO L8DL_DQ1 L8L_DQ3 L8L_DQ0 L8DL_DQ19 L8L_A2 L8L_DQ18 L8DL_DQ6 L8L_DQ9 L8DL_NCS L8DL_A7 L8DL_DQS1 L8DL_A6 L8L_DQS3 L8DL_DQ0 L8L_DQ5 L8DL_DQ15 L8DL_A8 L8DL_DQ30 L8DL_DQ8 L8L_A8 L8DL_DQ5 L8L_DQ23 L8DL_DQ24 L8L_BA1 L8DL_DQ14 L8DL_DQ10 L8L_CAS L8DL_A9 L8DL_DQ29 L8DL_BA1 L8L_DQ6 L8DL_CKE L8L_A7 L8DL_A10 L8L_DQ30 L8L_A9 L8L_DQ2 L8DL_DQS2 L8L_DQ21 L8DL_DQ23 L8DL_DQ27 L8L_A4 L8L_DQ29 L8DL_DQ16 L8L_WE L8DL_DQ26 L8L_A6 L8L_DQ15 L8DL_A0 L8L_DQ8 L8DL_DQ3 L8L_A11 L8DL_DQ7 L8DL_A11 L8L_DQ7 L8L_DQ1 L8L_DQS2 L8DL_DQ28 L8DL_DQ12 L8L_DQ13 L8L_A5 L8L_DQ26 L8DL_BA0 L8L_A0 L8DL_A2 L8L_DQ31 L8DL_DQ18 L8L_DQ11 L8L_DQ14 L8DL_DQ2 L8DL_NWE L8DL_A5 L8DL_DQ17 L8L_RAS L8L_A1 L8DL_DQ20 DOUTUA8 DOUTUA13 DOUTUC4 DOUTUA1 L8L_UC09 DOUTUA12 L8L_UA01 DOUTUA4 L8L_UC07 DOUTUC0 DOUTUB0 DOUTUB3 DOUTUB15 DOUTUC3 L8L_UB07 DOUTUC11 DOUTUA15 DOUTUC1 L8L_UC06 DOUTUA2 L8L_UB02 5V_DET3 L8L_UA09 DOUTUB8 DOUTUC14 DOUTUB13 L8L_UB11 L8L_UC11 L8L_UC03 L8L_UB10 DOUTUC9 DOUTUB4 L8L_UC00 L8L_UA02 DOUTUC12 L8L_UA07 DOUTUC10 L8L_UC01 L8L_UC05 DOUTUA11 L8L_UA13 DOUTUB10 L8L_UA10 L8L_UA11 DOUTUA0 DOUTUB6 L8L_UA04 DOUTUB1 L8L_UA00 DOUTUA5 DOUTUB12 DOUTUB14 DOUTUC8 5V_SENSE DOUTUA7 DOUTUC15 L8L_UB05 DOUTUC5 DOUTUA14 DOUTUB9 L8L_UB01 DOUTUA9 DOUTUB7 DOUTUB11 DOUTUC13 DOUTUC7 DOUTUB5 DOUTUA3 L8L_UC02 DOUTUC6 L8L_UB00 DOUTUA10 DOUTUC2 DOUTUA6 L8L_UC08 L8L_UA08 L8L_UB12 L8L_UA12 L8L_UC15 L8L_UB15 L8L_UA15 L8L_UC14 L8L_UB14 L8L_UA14 DOUTUB1 DOUTUA9 DOUTUA8 DOUTUB6 DOUTUB2 DOUTUA1 DOUTUA2 DOUTUC3 DOUTUC8 DOUTUA5 DOUTUB9 DOUTUA7 DOUTUB5 DOUTUB3 DOUTUC7 DOUTUA6 DOUTUA3 DOUTUC5 DOUTUC6 DOUTUC0 CLKU0 DOUTUB7 DOUTUC1 5V_DET3 CLKU1 DOUTUA0 DOUTUC4 DOUTUB4 DOUTUB8 DOUTUB0 DOUTUA4 DOUTUC2 DOUTUC9 DOUTUB2 L8DL_DQ26 L8DL_DQ11 L8DL_DQS2 L8DL_DQ0 L8DL_DQ7 L8DL_DQ12 L8DL_DQ24 L8DL_A1 L8DL_A10 L8DL_A11 L8DL_A9 L8DL_A5 L8DL_A6 L8DL_BA0 L8DL_CLK L8DL_DQ28 L8DL_DQ22 L8DL_DQ23 L8DL_DQ3 L8DL_DQ17 L8DL_DQ21 L8DL_CKE L8DL_DQ25 L8DL_DQ29 L8DL_NWE L8DL_DQ19 L8DL_DQ8 L8DL_DQ1 L8DL_DQ31 L8DL_DQ4 L8DL_DQ18 L8DL_A4 L8DL_DQ20 L8DL_A2 L8DL_DQ30 L8DL_DQ14 L8DL_A3 L8DL_DQS0 L8DL_DQ13 L8DL_DQ5 L8DL_NCLK L8DL_DQ2 L8DL_NCS L8DL_NRAS L8DL_DQ6 L8DL_A7 L8DL_A0 L8DL_BA1 L8DL_NCAS L8DL_DQS1 L8DL_DQ27 L8DL_DQS3 L8DL_DQ9 L8DL_DQ16 L8DL_DQ10 L8DL_A8 L8DL_DQ15 L8L_UC13 L8L_UB13 L8L_UC12 L8L_UC10 L8L_UB09 L8L_UB08 L8L_UB06 L8L_UA06 L8L_UB04 L8L_UC04 L8L_UA05 L8L_UB03 L8L_UA03 L8DL_CLK L8DL_NCLK TP9524 IC9301 H6 VSS_Thermal IC9301 M3 NC R9456 EXB2HV820JV TP9054 IC9301 L4 VDD IC9301 B5 DQ3 IC9301 J12 DQ11 TP9505 IC9301 J13 DQ10 IC9301 B4 VSSQ TP9496 IC9301 K4 VDDQ TP9518 TP9521 IC9301 C2 DQ4 C9066 16V 0.1u TP9484 IC9301 N11 A8/AP IC9301 D6 VSSQ R9118 1k 1% R9597 47 IC9301 L13 NC R9374 47 EXB38V470JV R9589 47 EXB38V470JV IC9301 D12 DQ26 IC9301 H7 VSS_Thermal R9588 47 EXB38V470JV C9069 16V 0.1u IC9301 M13 NC IC9301 B10 DQ28 IC9301 L10 VSS IC9301 G8 VSS_Thermal IC9301 J8 VSS_Thermal R9117 0 IC9301 J6 VSS_Thermal IC9301 D8 VDD ZA9001 K4CD01000011 TP9536 IC9301 F4 VDDQ L8L2.5V C9080 16V 0.1u R9587 47 EXB38V470JV P3.3V IC9301 C7 VDDQ D9302 MA3X152K0L TP9510 IC9301 B7 DQ0 IC9301 L11 VDD C9084 56u 4V R9455 EXB2HV820JV TP9462 R9116 0 IC9301 E11 VDD TP9491 IC9301 B6 DQ2 TP9501 IC9301 H4 NC IC9301 D10 VSSQ IC9301 M10 NC R9461 10k IC9301 B3 DM0 R9459 4.7k IC9301 N9 A6 IC9301 J3 DQ20 IC9301 G3 DQ18 R9371 EXB2HV470JV 47 IC9301 N3 NC IC9301 C3 VDDQ IC9301 D5 VSSQ R9372 47 IC9301 J7 VSS_Thermal R9119 1k 1% R9460 100k R9596 47 IC9301 C3ABQJ000051 B2 DQS0 IC9301 E6 VSSQ TP9507 IC9301 H11 NC TP9515 IC9301 F3 DQ16 R9598 47 IC9301 N8 A4 L8L2.5V IC9301 B8 DQ31 TP9498 Q9302 B1ABCF000138 IC9301 B13 DQS3 IC9301 G7 VSS_Thermal TP9512 R9595 47 EXB38V470JV IC9301 G4 VDDQ IC9301 K7 VSS IC9301 G11 VDDQ IC9301 N6 A1 C9064 16V 0.1u IC9301 C6 DQ1 IC9301 F11 VDDQ TP9481 C9075 16V 0.1u IC9301 G10 VSSQ R9592 47 EXB38V470JV IC9301 B11 VSSQ IC9301 M8 A9 C9071 16V 0.1u TP9471 TP9537 IC9301 F9 VSS_Thermal IC9301 F2 DQ17 C9059 16V 0.1u IC9301 B9 DQ29 C9083 16V 0.1u IC9301 N10 A7 C9063 16V 0.1u IC9301 J10 VSSQ IC9301 H2 DQS2 TP9474 IC9301 E12 VDDQ IC9301 K2 DQ22 C9082 16V 0.1u R9453 EXB2HV820JV IC9301 G6 VSS_Thermal TP9495 C9068 16V 0.1u TP9522 IC9301 C13 DQ27 IC9301 J11 VDDQ IC9301 J2 DQ21 IC9301 M9 A5 FL9309 J0HABH000013 1 2 3 IC9301 D7 VDD IC9301 F6 VSS_Thermal TP9539 IC9301 C10 VDDQ C9078 16V 0.1u IC9301 L5 VSS IC9301 K11 VDDQ TP9538 R9594 47 EXB38V470JV TP9540 R9586 47 IC9301 L9 NC IC9301 C4 NC TP9493 TP9535 TP9468 R9584 33 R9454 EXB2HV820JV R9375 150 IC9301 N13 VREF IC9301 D2 DQ6 IC9301 G5 VSSQ TP9513 R9114 0 IC9301 E4 VDD R9593 47 EXB38V470JV C9079 16V 0.1u IC9301 K12 DQ9 D33 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 IC9301 E9 VSSQ IC9301 G13 DQ12 IC9301 E10 VSS IC9301 H13 DQS1 IC9301 K13 DQ8 IC9301 E2 DQ7 IC9301 F13 DQ14 IC9301 L7 VDD R9585 47 IC9301 H10 VSSQ TP9487 IC9301 M5 BA1 IC9301 E7 VSS R9591 47 EXB38V470JV IC9301 K10 VSSQ IC9301 L6 A10 C9072 16V 0.1u IC9301 C11 NC IC9301 F12 DQ15 IC9301 E13 DQ24 IC9301 J4 VDDQ IC9301 G12 DQ13 IC9301 G9 VSS_Thermal TP9519 IC9301 J9 VSS_Thermal IC9301 E8 VSS C9070 16V 0.1u TP9489 P5V TP9482 IC9301 M6 A2 IC9301 N7 A3 IC9301 K8 VSS R9599 47 TP9511 R9458 EXB2HV820JV TP9523 TP9500 IC9301 N2 CS TP9503 IC9301 L2 CAS TP9514 IC9301 L3 WE C9073 16V 0.1u IC9301 M7 A11 R9373 33 IC9301 C5 VDDQ IC9301 H9 VSS_Thermal IC9301 K3 DQ23 TP9452 IC9301 C12 VDDQ IC9301 D3 DQ5 IC9301 H5 VSSQ IC9301 F10 VSSQ IC9301 D9 VSSQ IC9301 N12 CKE IC9301 G2 DQ19 TP9517 C9076 16V 0.1u C9061 16V 0.1u TP9466 IC9301 H8 VSS_Thermal IC9301 C9 DQ30 IC9301 H3 DM2 TP9520 C9060 16V 0.1u TP9475 C9081 16V 0.1u TP9509 IC9301 H12 DM1 IC9301 D11 VSSQ IC9301 C8 VDDQ IC9301 F7 VSS_Thermal IC9301 M11 CK IC9301 M12 CK C9074 16V 0.1u TP9473 IC9301 J5 VSSQ IC9301 L12 NC R9590 47 EXB38V470JV R9457 EXB2HV820JV TP9516 IC9301 K9 VSS IC9301 F5 VSSQ IC9301 M4 NC IC9301 L8 VDD IC9301 D4 VSSQ L8L2.5V TP9525 C9067 16V 0.1u C9371 50V 0.01u C9062 16V 0.1u IC9301 K5 VSSQ IC9301 N4 BA0 IC9301 N5 A0 C9065 16V 0.1u IC9301 E5 VSS IC9301 E3 VDDQ IC9301 M2 RAS R9115 0 IC9301 F8 VSS_Thermal IC9301 B12 DM3 IC9301 K6 VSS C9077 16V 0.1u TP9508 IC9301 D13 DQ25 DDR-Terminate DOUTUA[3] DOUTUC[3] CLKU1(-) GND DOUTUC[1] NC DOUTUB[6] DSLL DOUTUA[7] GND DOUTUA[2] DOUTUA[6] NC GND P5V GND NC DOUTUA[9] DOUTUB[1] DOUTUC[9] GND GND DOUTUA[5] P5V GND GND GND GND GND GND GND GND DOUTUA[4] DOUTUB[7] NC DSHL NC CLKU0(+) DOUTUC[7] 5V_DET DOUTUC[0] GND DOUTUB[3] P5V GND DOUTUB[5] DOUTUA[0] DOUTUB[8] DOUTUA[1] GND DOUTUB[0] DOUTUB[4] DOUTUC[8] DOUTUA[8] DOUTUC[4] DOUTUB[9] DMLL GND DOUTUC[6] DOUTUC[5] DOUTUC[2] DMHL DOUTUB[2] DDR-SDRAM L NC NC NC NC NC IC9301 DDR-SDRAM L ! 63 61 62 67 69 71 65 68 70 64 72 66 (C25) TO C2-BOARD D-BOARD TNPA3983AL (8/8) TH-65PV600C D-Board (8 of 8) Schematic Diagram TH-65PV600C D-Board (8 of 8) Schematic Diagram 130 15.52.C1，C2，C5 和 C6 电路板方框图 VDA_75V VDA_75V VDA_75V P+5V P+5V P+5V R7187 R7186 VDA_75V VDA_75V VDA_75V VDA_75V VDA_75V VDA_75V P+5V VDA_75V R7686 P+5V VDA_75V VDA_75V R7687 VDA_75V R7285 R7286 P+5V P+5V VDA_75V VDA_75V VDA_75V VDA_75V P+5V P+5V R7593 P+5V VDA_75V VDA_75V VDA_75V P+5V VDA_75V R7592 VDA_75V P+5V VCC UC11 IC7207 61 6bit IC7206 DATA LOWER CENTER (FRONT VIEW) BUFFER UA10 P75V VCC DATA DATA DRIVE TO D32 C2 5V_DET UPPER CENTER (FRONT VIEW) 30 5 2 1 6 19 8bit 13 DOUTUB14 DATA 1 P+5V P+5V UB17 DOUTUA12 DATA 3 UC19 1 50 59 6bit C5 BUFFER C24 8bit UA12 UA20-UC21 BUFFER UB14 VCC UA16-UC16 VCC 4bit IC7203 IC7201 UA18-UC19 6bit VCC 6bit UA12-UC13 VCC BUFFER UA17 DOUTUC14 DOUTUA17 8bit 49 DATA DRIVE DATA 67 31,41 6bit UA14 DOUTUB17 DOUTUC11 CA 10 DOUTUC19 P75V DOUTUA10 6bit 6bit DOUTUA20 DOUTUC21 C22 BUFFER UA20 IC7204 UC21 VCC IC7205 BUFFER IC7202 BUFFER CA3 UA26 15 VCC C11 UB26 UC26 BUFFER 6bit IC7102 UA22-UC23 CA2 4bit UA28-UA29 20 C1 VCC UC23 VCC DATA DATA VCC 6bit 6bit CA4 DATA BUFFER UC31 IC7104 CA1 UB29 DATA DRIVE 6bit 6bit 8bit 8bit IC7103 IC7106 8bit BUFFER UA22 6bit IC7105 BUFFER UPPER RIGHT (FRONT VIEW) UA29 UA24 BUFFER 2bit VCC DATA UA30-UC31 6bit 6bit 6bit 6bit 6bit ODEU1 CLRU1 PCU1 UC29 UB29 1 C10 TO D31 17 DOUTUC31 26 DOUTUB29 31,41 27 45 DOUTUA28 DOUTUA29 DOUTUC26 DOUTUB26 55 DOUTUA24 46 DOUTUB26 DOUTUC23 57 63 DOUTUA22 11 10 9 8 CLRU1 PCU1 LEU1 ODEU1 6bit CA5 BUFFER IC7101 6bit VCC 39 CLKU6(+) CLKU7(-) 37 +5V_DET 5 P+5V 3 P+5V 1 CLK71R-73R CLK61R-63R LE1-LE5 6bit UA24-UC25 UB26 2bit 4bit UC26-UC27 CLRU1 ODEU1 LEU1 PCU1 CLK6R NCLK7R CLRU6 IC7606 PCU6 8bit UA22-UC23 UC28 VCC BUFFER 6bit UB28 6bit DA24-DC25 DA27 IC7605 6bit BUFFER 1 2bit VCC 4bit C60 BUFFER CB5 IC7604 5 17 10 54 DOUTDA30 P75V +5V_DET CLRD6 DOUTDB26 15 BUFFER 6bit IC7601 CB3 8 DOUTDC29 ODED6 DOUTDA29 23 6bit CLKD7(-) DA24-DC25 35 CLK61R-63R DOUTDA26 LE1-LE5 P+5V CB4 DATA 1 DOUTDC23 CLRD6 CB1 C61 DB28,DC28 63 DA26-DC26 DOUTDC31 BUFFER 6bit IC7602 DA22-DC23 VCC DB27 C52 CB2 DATA DOUTDA24 DATA DOUTDA22 LED6 11 DOUTDC26 NCLK7R CLK6R 6bit 6bit 6bit ODED6 6bit CLK71R-73R 6bit 33 6bit DC27 P75V CLKD6(+) ODEU6 BUFFER 2bit DA29-DC29 TO D36 PCD6 LED6 P+5V VCC 19 6bit 6bit 8bit 9 8bit PCD6 IC7603 VCC VCC DATA DA30-DC31 4bit DA29-DC29 6 3 LOWER RIGHT (FRONT VIEW) C6 DATA DRIVE DA27,DB27 DC27,DA28 DA30-DC31 UA28 DA26-DC26 6bit 6bit CA6 CA7 6bit 6bit CA8 6bit 6bit CA9 6bit 6bit CLRU2 ODEU2 LEU2 PCU2 10 9 8 CLRU2 PCU2 LEU2 ODEU2 11 CLRU2 ODEU2 LE6-10 PCU2 CLK21L,22L NCLK31L,32L CLK41R,42R NCLK51R,52R 37 39 CLKU5(-) 35 CLKU4(+) CLKU3(-) CLKU2(+) 33 CLK2L CLK4R NCLK5R NCLK3L 6bit UA10-UC11 4bit UC14-UC15 2bit UA14 UB14 UA17 UC17 2bit UB17 BUFFER 9 DOUTDC11 LE6-10 DB16,DC16 21 6bit BUFFER DA10-DC11 DOUTDA12 CB 10 CLKD2(+) 13 IC7503 DA16 67 DB15 NCLK5R C54 DOUTDC19 DC16 NCLK3L 2bit DATA VCC CLRD5 VCC 37 41,31 8bit 8 BUFFER DA17-DC17 CLRD5 DATA 6bit 3 10 DOUTDA20 BUFFER 6bit 49 TO D35 DB16 IC7501 BUFFER 33 ODED5 IC7504 5V_DET 4bit NCLK51R,52R DA14-DC14 PCD5 50 LED5 ODED5 DOUTDC21 11 BUFFER CLK2L ODED2 DA12-DC13 DOUTDA10 CLRD2 CLK21L,22L DOUTDC13 5 NCLK31L,32L DATA CLKD4(+) CLK41R,42R 2 4bit 6bit VCC DA10-DC11 DA20 DA20-DC21 59 VCC PCD2 BUFFER IC7507 CLKD5(-) 1 DC21 19 6bit VCC IC7502 35 6bit 30 6bit P+5V 6bit IC7506 CB6 CB7 DA15,DB15 6bit 6bit 61 CB8 P+5V 6bit DA18-DC19 DOUTDA14 2bit CLK4R 6bit 6bit CB9 DOUTDC14 6bit 6bit DA15 VCC 39 6bit 8bit DA12-DC13 DATA IC7505 DOUTDA18 VCC LED5 CLKD3(-) PCD5 DC15 DA18-DC19 8bit DA14-DC14 DC15,DA16 DATA DA17-DC17 DOUTDB15 DOUTDA15 DOUTDA17 DOUTDC17 DOUTDA16 DOUTDC15 DOUTDC16 DOUTDB16 PANEL DATA DRIVER PANEL DATA DRIVER PANEL DATA DRIVER PANEL DATA DRIVER DOUTU31C DOUTU22A DOUTD22A DOUTD31C DOUTD21C DOUTD10A DOUTU10A DOUTU21C DOUTDC29 DOUTDB28 54 63 DOUTDA28 DOUTDC27 42,41,31 25 TH-65PV600C C1, C2, C5 and C6-Board Block Diagram TH-65PV600C C1, C2, C5 and C6-Board Block Diagram 131 15.53.C2，C3，C4 和 C5 电路板方框图 NCLK1L CLK0L ODEU3 CLRU3 PCU3 LEU3 CLK0L NCLK1L NCLK1L CLK0L LEU3 PCU3 CLRU3 ODEU3 ODEU3 PCU3 CLRU3 LEU3 CLK0L NCLK1L ODED4 CLK0L NCLK1L CLRD4 LED4 PCD4 PCD4 LED4 CLK0L ODED4 CLRD4 LED4 CLK0L CLK0L CLRD4 NCLK1L NCLK1L PCD4 ODED4 NCLK1L VDA75V VDA75V P+5V R7387 R7386 VDA_75V VDA_75V P+5V P+5V VDA_75V VDA_75V VDA_75V VDA_75V P+5V P+5V P+5V P+5V P+5V P+5V VDA_75V P+5V VDA_75V P+5V P+5V VDA_75V P+5V P+5V P+5V VDA_75V VDA_75V VDA75V P+5V P+5V R7490 VDA_75V P+5V VDA75V R7491 P+5V C35 2 1 6bit CA 6bit LE11-LE15 UA8-UC9 VCC IC7301 IC7302 VCC VCC IC7303 VCC IC7304 12 13 CA BUFFER BUFFER BUFFER BUFFER 6bit 6bit 6bit 6bit 6bit PANEL DATA DRIVER C3 DATA DRIVE UPPER LEFT (FRONT VIEW) 80 75 5V_DET CLKU0(+) 67 TO D33 CLKU1(-) P+5V 1 C25 23 4 25 P+5V P+5V P+5V 1 57 3 DATA 6bit UA0 DOUTUC1 35 UC1 63 CLKU0(+) DOUTUA0 33 CLKU1(-) C21 5 5V_DET P75V P75V DATA DRIVE C2 UPPER CENTER (FRONT VIEW) CLRU3 19 ODEU3 18 20 PCU3 21 LEU3 80 1 6 14 C31 77 8bit DATA 8bit DATA UC4-UA7 CLK01L-03L NCLK11L-13L CLRU3 ODEU3 5 Vda 75V 3 4 TO SS35 1 56 58 62 63 61 60 IC7211 VCC BUFFER VCC BUFFER IC7215 VCC BUFFER IC7214 VCC BUFFER IC7213 VCC BUFFER IC7212 CLRU2 ODEU2 LEU2 PCU2 8bit DOUTUA2 DATA UB4 46 55 UA2 DOUTUB4 DOUTUB7 DATA UC9 17 26 UB7 DOUTUC9 8bit DOUTUC4 45 UC4 DOUTUC5 8bit DATA UA7 27 31,41 DOUTUA6 DOUTUA7 DATA 30bit UA0-UC9 DOUTUC9 27 65 DOUTUA0 54 16 Vda 75V Vda 75V Vda 75V Vda 75V 6bit 14 15 CA 6bit 6bit 6bit CA 11 CA 6bit UA0-UC1 DATA UA0-UC1 VCC IC7305 VCC IC7306 BUFFER BUFFER 8bit DATA 6bit UA2-UB4 6bit PCU3 UB7-UC9 6bit UA2-UC3 UA4 UB4 2bit UC4-UC5 4bit 4bit UA6-UA7 UB7 UC7 2bit 2 LED4 VCC 6bit 2bit 6bit CLKU1(-) P+5V P+5V CB 8bit DATA 1 23 6bit 80 25 20 Vda 75V 3 LE11-LE15 BUFFER 75 DA8-DC9 IC7512 67 5 CLRD5 VCC ODED5 IC7401 LED5 DATA DRIVE IC7402 PCD5 80 VCC ODED4 5 C55 IC7403 C41 4 VCC 39 IC7404 CLKD1(-) 6bit 56 C4 DATA 1 DOUTDA0 DOUTDC9 12 DATA 30bit DA0-DC9 DOUTDC9 13 2 16 CB DB4,DC4 77 6 54 CLK01L-03L BUFFER DOUTDA0 BUFFER C51 65 BUFFER 27 BUFFER Vda 75V Vda 75V Vda 75V Vda 75V 6bit 6bit 14 DA6-DC7 6bit 15 3 6bit LOWER LEFT (FRONT VIEW) CB 6bit 5V_DET 6bit 6bit 6bit PANEL DATA DRIVER 6bit 5V_DET CB 11 58 CB P+5V 1 DA0-DC1 DATA DA0-DC1 VCC IC7405 VCC IC7406 4 BUFFER TO SS42 VCC CLRD4 NCLK11L-13L CLKU0(+) 61 CLRD4 C42 DA0-DC1 P75V 21 P75V ODED4 60 67 14 41,31 21 19 62 BUFFER PCD4 18 8bit IC7511 DATA P+5V 6bit VCC DA2-DC2 BUFFER VCC 8bit BUFFER PCD4 37 IC7515 DA8-DC9 VCC DC3 BUFFER DA2-DC2 IC7514 DA4-DC4 VCC DA5 1 BUFFER 4bit TO D34 63 IC7513 CLKD0(+) DB4 C5 DATA DRIVE LOWER CENTER (FRONT VIEW) DA3,DB3 DATA 30bit DA0-DC9 DA2-DC2 DC3 DA4 DA5-DC5 DA8-DC9 DA6-DC7 DB4,DC4 IC7516 BUFFER USH UEH NUEL UML USL UMH VCC UMH NUEL USL USH 11 9 UML UEH 14 13 15 10 (SS_SOS8) 7 DRV_SOS8 DRV_SOS8 74 7 +5V 1 DRV(SS)_SOS8 TO SS44 3 6 5 8 7 UML USL UMH P+5V USH UEL C44 9 NUEL 14 13 UEH 72 71 9 10 USL UML 69 70 12 11 USH 67 UMH 68 UEH,USL,USH UML,UMH,NUEL DA3,DB3 DC3,DA4 DA5-DC5 DA6-DC7 DC4 4bit DA3,DB3 2bit DOUTU9C DOUTU0A DOUTD9C DOUTD0A 4 UEH SUSTAIN DATA DATA 30bit UA0-UC9 DATA 30bit DA0-DC9 TH-65PV600C C2, C3, C4 and C5-Board Block Diagram TH-65PV600C C2, C3, C4 and C5-Board Block Diagram 132 15.54.C1 电路板 (1/2) 线路图 TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE LE1 AB_DUA30 AB_DUB30 AB_DUC30 AB_DUB31 AB_DUC31 AB_PCU1 LE1 AB_DUA30 AB_DUB30 AB_DUC30 AB_DUA31 AB_DUB31 AB_DUC31 AB_PCU1 LE3 AB_DUA26 AB_DUB26 AB_DUC26 AB_DUA27 AB_DUB27 AB_DUC27 AB_PCU1 LE3 AB_DUA26 AB_DUB26 AB_DUC26 AB_DUA27 AB_DUB27 AB_DUC27 AB_PCU1 LE2 AB_DUA28 AB_DUB28 AB_DUC28 AB_DUA29 AB_DUB29 AB_DUC29 AB_PCU1 LE2 AB_DUA28 AB_DUB28 AB_DUC28 AB_DUA29 AB_DUB29 AB_DUC29 AB_PCU1 LE4 AB_DUA24 AB_DUB24 AB_DUC24 AB_DUA25 AB_DUB25 AB_DUC25 AB_PCU1 LE4 AB_DUA24 AB_DUB24 AB_DUC24 AB_DUA25 AB_DUB25 AB_DUC25 AB_PCU1 AB_DUA31 AB_CLK61R AB_NCLK71R AB_CLK61R AB_NCLK71R AB_CLK62R AB_NCLK72R AB_CLK62R AB_NCLK72R AB_CLK63R AB_NCLK73R AB_PCU1 AB_DUA22 AB_PCU1 AB_DUC23 LE5 AB_DUB23 AB_DUC23 AB_DUA23 AB_DUB23 AB_DUC22 AB_DUA23 AB_DUB22 AB_DUC22 AB_DUA22 AB_DUB22 LE5 AB_CLRU1 AB_CLRU1 AB_ODEU1 AB_ODEU1 AB_CLRU1 AB_CLRU1 AB_ODEU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 C7150 50V 100p C7186 16V 1u C7173 100V 0.47u D7114 B0HCMM000014 C7187 16V 1u D7112 B0HCMM000014 D7118 B0HCMM000014 C7152 50V 100p VDA_75V R7133 47 C1_5V R7117 47 VDA_75V R7116 47 R7123 47 C7115 100V 0.47u D7117 B0HCMM000014 C7176 16V 1u C7102 16V 1u D7111 B0HCMM000014 C7185 16V 1u D7113 B0HCMM000014 C7184 16V 1u C7111 50V 100p R7134 47 D7119 B0HCMM000014 R7135 47 C1_5V C1_5V R7104 47 D7116 B0HCMM000014 R7140 47 C7125 16V 1u D7120 B0HCMM000014 C1_5V C7110 100V 0.47u C7101 16V 1u C7113 50V 100p R7107 47 VDA_75V C7170 50V 100p C7109 100V 0.47u D7115 B0HCMM000014 C7118 100V 0.47u C7183 16V 1u C1_5V R7124 47 VDA_75V VDA_75V C7126 16V 1u CA2 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA4 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA1 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA3 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA5 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7101 10k C7107 100V 0.47u C7108 100V 0.47u C7117 100V 0.47u C7116 100V 0.47u C7172 100V 0.47u R7132 6.8 R7114 6.8 R7109 6.8 R7110 6.8 R7113 6.8 R7139 6.8 R7126 6.8 R7128 6.8 R7137 6.8 R7131 6.8 R7127 6.8 R7125 6.8 R7108 6.8 R7112 6.8 R7130 6.8 R7136 6.8 R7115 6.8 R7138 6.8 R7129 6.8 R7111 6.8 VDD2 VDD2 VDD2 VDD2 GND GND GND GND A2 A6 NC A3 NC NC GND DM NC GND GND VDD2 GND NC GND VDD1 GND FX GND GND A3 VDD2 A4 VDD2 VDD2 FS VDD1 VDD2 FDET1 FDET NC BLK NC A1 VDD1 VDD1 BLK FS NC NC NC NC A2 NC FX A6 DM LEN VDD2 A5 VDD2 VDD2 A5 A4 A1 LEN GND GND GND GND VDD2 BLK GND FDET GND FX VDD2 FS VDD2 A4 VDD2 DM VDD1 A5 GND NC VDD2 VDD2 VDD2 NC VDD2 GND A2 GND GND GND A2 A6 FS NC A1 LEN A3 NC NC GND DM NC NC GND GND VDD1 VDD2 GND NC BLK GND A6 VDD1 VDD2 GND FX FDET1 A1 NC VDD2 A4 GND GND VDD2 GND NC NC LEN A5 A3 NC VDD1 VDD2 BLK GND FDET GND FX VDD2 FS VDD2 A4 VDD2 DM VDD1 A5 GND NC VDD2 VDD2 VDD2 NC VDD2 GND A2 GND GND GND A2 A6 FS NC A1 LEN A3 NC NC GND DM NC NC GND GND VDD1 VDD2 GND NC BLK GND A6 VDD1 VDD2 GND FX FDET1 A1 NC VDD2 A4 GND GND VDD2 GND NC NC LEN A5 A3 NC VDD1 VDD2 BLK GND FDET GND FX VDD2 FS VDD2 A4 VDD2 DM VDD1 A5 GND NC VDD2 VDD2 VDD2 NC VDD2 GND A2 GND GND GND A2 A6 FS NC A1 LEN A3 NC NC GND DM NC NC GND GND VDD1 VDD2 GND NC BLK GND A6 VDD1 VDD2 GND FX FDET1 A1 NC VDD2 A4 GND GND VDD2 GND NC NC LEN A5 A3 NC VDD1 BLK GND FDET1 NC VDD1 VDD2 LEN A3 A1 NC NC GND VDD2 GND NC VDD2 DM VDD2 GND A2 VDD2 GND A4 A2 NC GND NC GND VDD2 VDD1 NC A6 FX GND FS LEN NC VDD1 VDD2 GND A5 GND VDD2 FDET A6 NC A4 GND A3 FS NC VDD2 A1 NC GND VDD1 DM FX GND VDD2 NC GND GND VDD2 BLK VDD2 A5 GND 4 8 D B 2 7 3 C 6 F 5 E 1 9 A 2 1 C1-BOARD TNPA4003 (1/2) ! TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO DRIVER PANEL DATA TH-65PV600C C1-Board (1 of 2) Schematic Diagram TH-65PV600C C1-Board (1 of 2) Schematic Diagram 133 15.55.C1 电路板 (2/2) 线路图 SIDE TERM G G TERM SIDE AB_DUA23 AB_DUC23 AB_DUC22 AB_DUB23 AB_DUB22 AB_DUA22 AB_DUA27 AB_DUC26 AB_DUB26 AB_DUA26 AB_DUC29 AB_DUB29 AB_DUB25 AB_DUA25 AB_DUC24 AB_DUB24 AB_DUA24 AB_DUB28 AB_DUA28 AB_DUC31 AB_DUB31 AB_DUA31 AB_DUC30 AB_NCLK71R AB_CLK62R AB_NCLK72R AB_DUC27 AB_DUB27 AB_DUA29 AB_DUC28 AB_DUB30 AB_DUA30 LE1 LE2 LE3 LE4 AB_PCU1 LE5 AB_CLRU1 AB_ODEU1 AA_DUB22 AA_DUA22 AA_DUC23 AA_DUB23 AA_DUA23 AA_DUC22 AA_ODEU1 AA_CLRU1 AA_PCU1 AA_LEU1 AA_DUA22 AA_DUB22 AA_DUC22 AA_DUA23 AA_DUB23 AA_DUC23 AA_DUA24 AA_DUB24 AA_DUC24 AA_DUA25 AA_DUB25 AA_DUC25 AA_DUA26 AA_DUB26 AA_DUC26 AA_DUA27 AA_DUB27 AA_DUC27 AA_CLK6R AA_NCLK7R AA_DUA28 AA_DUB28 AA_DUC28 AA_DUA29 AA_DUB29 AA_DUC29 AA_DUA30 AA_DUB30 AA_DUC30 AA_DUA31 AA_DUB31 AA_DUC31 AA_CLRU1 AA_PCU1 AA_LEU1 AA_ODEU1 AB_CLK61R AB_DUC25 AA_DUC27 AA_DUC24 AA_DUB27 AA_DUB24 AA_DUC25 AA_DUB25 AA_DUA24 AA_DUA25 AA_DUB29 AA_DUC26 AA_DUB26 AA_DUC28 AA_DUA29 AA_DUC29 AA_DUA26 AA_DUA27 AA_DUA30 AA_DUA31 AA_DUB31 AA_DUC30 AA_DUB30 AA_DUC31 AA_DUA28 AA_DUB28 AA_CLK6R AA_NCLK7R AB_NCLK73R AB_CLK63R C1_5V R7158 EXB38V470JV 47 R7154 EXB38V470JV 47 R7159 EXB38V470JV 47 C11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7151 EXB38V470JV 47 R7156 EXB38V681JV R7193 EXB38V681JV C1_5V VDA_75V C7130 16V 0.1u C1_5V R7191 EXB38V681JV C7137 16V 0.1u R7143 EXB38V681JV C1_5V R7145 EXB38V681JV R7197 22 J0HABH000013 FL7101 1 2 3 R7148 EXB38V681JV R7149 EXB38V681JV R7153 EXB38V681JV C10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 R7147 47 EXB38V470JV R7195 22 C7136 16V 0.1u R7186 22k C1_5V C7182 16V 0.1u C1_5V R7146 EXB38V470JV 47 R7152 EXB38V681JV R7194 22 R7155 EXB38V470JV 47 R7187 100k R7150 EXB38V470JV 47 R7144 EXB38V681JV C7138 16V 0.1u C7135 16V 0.1u C1_5V R7196 22 R7157 EXB38V470JV 47 R7160 EXB38V470JV 47 C0JBAZ001120 IC7105 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7106 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7104 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7103 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7102 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7101 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7199 22 R7198 22 ZA7104 K4AD01Z00001 ZA7106 K4AD01Z00001 ZA7102 K4AD01Z00001 ZA7103 K4AD01Z00001 ZA7105 K4AD01Z00001 ZA7101 K4AD01Z00001 P75V GND NC R-UP P75V P5V P5V DOUTUB[29] DOUTUA[29] DOUTUA[28] DOUTUC[28] GND DOUTUB[28] DOUTUA[27] DOUTUC[27] GND DOUTUB[27] DOUTUC[26] GND DOUTUB[26] DOUTUA[26] GND DOUTUC[25] GND NC DOUTUB[25] GND DOUTUA[25] NC DOUTUC[24] NC GND NC DOUTUB[24] DOUTUA[24] DOUTUC[23] GND DOUTUA[22] DOUTUC[31] GND DOUTUB[31] DOUTUA[31] GND GND GND NC(DSHR) DOUTUB[23] GND NC(DMLR) DOUTUA[30] DOUTUA[23] CLKU[6](+) NC(DMHR) DOUTUC[30] DOUTUC[22] ODEU1 GND GND DOUTUB[30] DOUTUB[22] GND 5V_DET GND CLRU1 DOUTUC[29] PCU1 GND LEU1 P5V GND GND GND GND GND NC NC NC NC NC NC NC P75V P75V P75V P75V CLKU[7](-) NC(DSLR) NC NC 10 14 12 15 11 13 16 17 18 1 2 ! D-BOARD (D31) TO C2-BOARD (C22) TO BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER C1-BOARD TNPA4003 (2/2) TH-65PV600C C1-Board (2 of 2) Schematic Diagram TH-65PV600C C1-Board (2 of 2) Schematic Diagram 134 15.56.C2 电路板 (1/2) 线路图 G G TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE LE6 AB_DUA20 AB_DUB20 AB_DUC20 AB_DUA21 AB_DUB21 AB_DUC21 AB_PCU2 LE6 AB_DUA20 AB_DUB20 AB_DUC20 AB_DUA21 AB_DUB21 AB_DUC21 AB_PCU2 LE8 AB_DUA14 AB_DUB14 AB_DUC14 AB_DUA15 AB_DUB15 AB_DUC15 AB_PCU2 AB_DUB17 AB_DUA17 AB_DUC16 AB_DUB16 AB_DUA16 LE8 AB_DUC17 AB_PCU2 LE7 AB_DUB18 AB_DUC18 AB_DUB19 AB_DUC19 AB_DUA18 AB_DUA19 LE7 AB_DUA18 AB_DUB18 AB_DUC18 AB_DUA19 AB_DUB19 AB_DUC19 AB_PCU2 AB_CLK41R AB_NCLK51R AB_CLK42R AB_NCLK52R AB_CLK21L AB_NCLK52R AB_DUB12 AB_DUB13 AB_DUC12 AB_DUA12 AB_PCU2 LE9 AB_DUA13 AB_NCLK31L AB_DUA12 AB_CLK21L AB_PCU2 AB_DUB12 AB_DUC13 LE9 AB_DUB13 AB_DUA13 AB_DUC13 AB_DUC12 AB_ODEU2 AB_ODEU2 AB_ODEU2 AB_CLRU2 AB_CLRU2 AB_CLRU2 AB_DUB21 AB_DUA21 AB_DUA20 AB_DUC21 AB_DUC20 AB_DUB20 AB_DUA19 AB_DUB19 AB_CLRU2 AB_ODEU2 AB_CLRU2 AB_ODEU2 AB_ODEU2 AB_CLRU2 AB_ODEU2 AB_CLRU2 AB_ODEU2 AB_CLRU2 AB_DUC19 AB_DUA18 AB_DUB18 AB_DUC18 AB_DUB17 AB_DUC17 AA_DUA10 AA_DUB10 AA_DUC10 AA_DUA11 AA_DUB11 AA_DUC11 AA_DUA12 AA_DUB12 AA_DUC12 AA_DUA13 AA_DUB13 AA_DUC13 AA_DUA14 AA_DUB14 AA_DUC14 AA_DUA15 AA_DUB15 AA_DUC15 AA_DUA16 AA_DUB16 AA_DUC16 AA_CLK2L AA_NCLK3L AA_CLK4R AA_NCLK5R AA_DUA17 AA_DUB17 AA_DUC17 AA_DUA18 AA_DUB18 AA_DUA19 AA_DUC18 AA_DUB19 AA_DUC19 AA_DUA20 AA_DUB20 AA_DUC20 AA_DUA21 AA_DUB21 AA_DUC21 AA_CLRU2 AA_PCU2 AA_LEU2 AA_ODEU2 AB_ODEU2 AB_CLRU2 AB_PCU2 LE6 LE7 LE8 LE9 LE10 AA_LEU2 AA_PCU2 AA_CLRU2 AA_ODEU2 AB_DUB16 AB_DUA16 AB_DUC15 AB_DUB15 AB_DUA15 AB_DUC14 AB_DUA17 AB_DUC16 AA_DUB16 AA_DUC16 AB_CLK21L AB_CLK41R AB_NCLK51R AB_NCLK31L AA_DUA21 AA_DUA19 AA_DUB21 AA_DUC21 AA_DUA17 AA_DUA18 AA_DUB17 AA_DUB18 AA_DUC17 AA_DUC18 AA_DUA16 AA_DUC15 AA_DUB15 AA_DUA15 AA_DUC14 AA_DUB19 AA_DUC19 AA_DUC20 AA_DUB20 AA_NCLK5R AA_CLK4R AB_NCLK52R AB_CLK42R AB_CLK22L AB_NCLK32L AA_CLK2L AA_NCLK3L AB_PCU2 AA_DUA20 R7288 22 VDA_75V C7274 16V 1u R7245 47 R7233 EXB38V470JV 47 C7207 16V 1u J0HABH000013 FL7202 1 2 3 R7235 EXB38V681JV 680 C7299 16V 0.1u R7243 47 R7255 47 C2_5V VDA_75V C2_5V C7214 100V 0.47u C7204 16V 1u R7230 EXB38V681JV 680 C7221 50V 100p R7257 EXB38V681JV 680 D7215 B0HCMM000014 R7256 EXB38V681JV 680 C2_5V R7251 EXB38V470JV 47 R7246 EXB38V470JV 47 C24 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 R7285 100k C7238 50V 100p R7222 EXB38V470JV 47 C7240 50V 100p C2_5V C7208 16V 0.1u D7212 B0HCMM000014 R7211 47 VDA_75V C2_5V C7276 100V 0.47u D7216 B0HCMM000014 R7236 EXB38V681JV 680 R7252 EXB38V470JV 47 C7203 16V 1u D7217 B0HCMM000014 R7229 EXB38V681JV 680 D7211 B0HCMM000014 C7212 16V 1u R7234 47 C7297 16V 0.1u R7231 47 R7232 EXB38V470JV 47 D7218 B0HCMM000014 D7213 B0HCMM000014 R7286 22k C7279 50V 100p C7200 16V 1u R7289 22 C7226 100V 0.47u VDA_75V R7287 22 R7214 47 D7214 B0HCMM000014 R7221 EXB38V470JV 47 R7258 EXB38V681JV 680 C2_5V C2_5V C2_5V C7253 16V 0.1u C7224 16V 1u C7218 100V 0.47u R7213 47 C2_5V R7290 22 C2_5V C7231 16V 0.1u C7205 16V 1u R7247 EXB38V470JV 47 R7276 EXB38V102JV 1k CA6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA7 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA9 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ001120 IC7203 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7201 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7205 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7202 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7204 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7293 22 R7294 22 R7295 22 R7296 22 C7213 100V 0.47u C7217 100V 0.47u C7222 100V 0.47u C7275 100V 0.47u R7242 6.8 R7203 6.8 R7224 6.8 R7254 6.8 R7253 6.8 R7201 6.8 R7250 6.8 R7200 6.8 R7202 6.8 R7225 6.8 R7226 6.8 R7238 6.8 R7249 6.8 R7237 6.8 R7223 6.8 R7241 6.8 R L L L C-UP CLKU[3](-) GND DOUTUC[20] DOUTUA[10] DOUTUC[14] GND P5V GND DOUTUB[20] DOUTUC[10] DOUTUB[14] DOUTUA[21] GND DOUTUA[14] DOUTUB[21] DOUTUB[10] DOUTUC[12] GND GND DOUTUC[21] DOUTUA[12] DOUTUB[12] GND GND LEU2 DOUTUB[19] DOUTUA[19] DOUTUC[19] DOUTUA[18] DOUTUC[18] GND DOUTUB[18] P5V P5V DOUTUB[17] DOUTUA[17] DOUTUA[16] GND NC DOUTUC[16] PCU2 GND DOUTUB[16] DOUTUA[15] DOUTUC[15] GND DOUTUC[17] DOUTUB[15] CLRU2 DOUTUC[13] GND GND DOUTUB[13] DOUTUA[13] 5V_DET ODEU2 GND NC(DRVSOS7U) DOUTUC[11] GND DOUTUB[11] DOUTUA[20] DOUTUA[11] CLKU[4](+) CLKU[2](+) GND GND CLKU[5](-) NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 E B A 1 8 F 9 D C 7 6 5 BUFFER BUFFER BUFFER BUFFER BUFFER ! C2-BOARD TNPA4004 (1/2) 1 3 2 D-BOARD (D32) TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO TH-65PV600C C2-Board (1 of 2) Schematic Diagram TH-65PV600C C2-Board (1 of 2) Schematic Diagram 2 3 4 135 15.57.C2 电路板 (2/2) 线路图 SIDE TERM G G SIDE TERM TERM SIDE TERM SIDE AB_DUC11 AB_DUB11 AB_DUA11 AB_DUC10 AB_DUB10 AB_DUA10 AB_DUB10 AB_DUB11 AB_DUC10 AB_DUA10 LE10 AB_DUA11 AB_NCLK32L AB_DUA10 AB_CLK22L AB_PCU2 AB_DUB10 AB_DUC11 LE10 AB_DUB11 AB_DUA11 AB_DUC11 AB_DUC10 AB_ODEU2 AB_ODEU2 AB_CLRU2 AB_CLRU2 AB_DUA12 AB_DUB12 AB_DUC12 AB_DUA13 AB_DUB13 AB_DUC13 AB_DUA14 AB_DUB14 5V_DET AA_DUC9 AA_DUB9 AA_DUA9 AA_DUC8 AA_DUA6 AA_DUB6 AA_DUC6 AA_DUA7 AA_DUB7 AA_DUC7 AA_DUA8 AA_DUB8 AA_DUA0 AA_DUB0 AA_DUC0 AA_DUA1 AA_DUB1 AA_DUC1 AA_DUA2 AA_DUB2 AA_DUC2 AA_DUA3 AA_DUB3 AA_DUC3 AA_DUA4 AA_DUB4 AA_DUC4 AA_DUA5 AA_DUB5 AA_DUC5 AA_NCLK1L AA_CLK0L AB_DUC5 AB_DUC4 AB_ODEU3 AB_DUA6 AB_DUA5 AB_DUB6 AB_DUB5 AB_DUC6 AB_DUA7 AB_DUB7 AB_DUC7 AB_DUA8 AB_DUB8 AA_DUC7 AB_DUC8 AB_DUB2 AB_DUA9 AB_DUA2 AB_DUB9 AB_DUC1 AB_DUC9 AB_DUB1 AB_LEU3 AB_DUA1 AB_DUC0 AB_DUB0 AB_DUA0 AB_DUC2 AB_DUA3 AB_DUB3 AB_DUC3 AB_DUA4 AB_DUB4 AB_CLK0L AB_NCLK1L AB_NCLK1L AB_DUC6 AB_DUC3 AB_DUC4 AB_DUC2 AB_DUC1 AB_DUC7 AB_CLK0L AB_PCU3 AB_DUC5 AB_DUC0 AB_DUA0 AB_DUC8 AB_DUC9 5V_DET AB_PCU3 AB_DUB0 AB_DUB1 AB_DUB2 AB_DUB3 AB_DUB4 AB_DUB5 AB_DUB6 AB_DUB7 AB_DUB8 AB_DUB9 AB_LEU3 AB_CLRU3 AA_LEU2 AA_NCLK1L AA_CLK0L AB_CLRU3 AB_ODEU3 AA_DUB13 AA_DUA12 AA_DUC13 AA_DUB12 AA_DUA14 AA_DUA13 AA_DUB14 AA_DUC12 AA_DUC11 AA_DUB11 AA_DUA11 AA_DUB7 AA_DUB9 AA_DUC8 AA_DUB8 AA_DUC9 AA_DUA8 AA_DUA9 AA_DUB6 AA_DUA7 AA_DUB5 AA_DUC6 AA_DUA6 AA_DUC5 AA_DUC2 AA_DUA4 AA_DUA3 AA_DUB3 AA_DUC4 AA_DUA5 AA_DUC3 AA_DUB4 AA_DUC1 AA_DUB2 AA_DUA1 AA_DUC0 AA_DUA2 AA_DUB0 AA_DUA0 AA_DUB1 AA_DUC10 AA_DUA10 AA_DUB10 AA_PCU2 AA_CLRU2 AA_ODEU2 AB_DUA4 AB_DUA2 AB_DUA8 AB_DUA6 AB_DUA5 AB_DUA7 AB_DUA3 AB_DUA9 AB_DUA1 AB_PCU2 R7264 EXB38V470JV 47 C7290 50V 100p C2_5V C7272 16V 0.1u R7212 EXB38V681JV 680 R7260 EXB38V470JV 47 R7240 EXB38V470JV 47 VDA_75V R7270 EXB38V681JV 680 D7220 B0HCMM000014 VDA_75V R7239 EXB38V470JV 47 C7264 16V 0.1u C21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 C7268 16V 0.1u C2_5V R7259 EXB38V470JV 47 R7228 EXB38V470JV 47 C7287 100V 0.47u R7275 EXB38V681JV 680 C2_5V R7266 EXB38V681JV 680 R7269 EXB38V681JV 680 J0HABH000013 FL7201 1 2 3 C22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C7209 16V 1u R7292 22 R7274 EXB38V681JV 680 R7208 EXB38V470JV 47 C2_5V D7219 B0HCMM000014 R7263 EXB38V470JV 47 R7209 EXB38V470JV 47 C2_5V R7273 EXB38V681JV 680 C2_5V R7267 EXB38V681JV 680 C25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 R7261 EXB38V470JV 47 C2_5V R7217 47 R7272 EXB38V681JV 680 C7216 16V 0.1u R7227 EXB38V470JV 47 R7284 EXB38V102JV 1k C7225 16V 0.1u VDA_75V R7291 22 C7285 16V 1u R7218 47 C7270 16V 0.1u C7266 16V 0.1u R7271 EXB38V681JV 680 C2_5V R7244 EXB38V470JV 47 C2_5V R7210 EXB38V681JV 680 R7262 EXB38V470JV 47 C2_5V R7268 EXB38V681JV 680 R7283 EXB38V681JV 680 C7201 16V 1u R7248 0 CA10 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ001120 IC7214 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7213 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7211 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7215 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7206 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7207 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7212 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C7286 100V 0.47u ZA7202 K4AD01Z00001 ZA7203 K4AD01Z00001 ZA7205 K4AD01Z00001 ZA7201 K4AD01Z00001 ZA7204 K4AD01Z00001 ZA7206 K4AD01Z00001 R7205 6.8 R7204 6.8 R7206 6.8 R7207 6.8 L-UP L P75V GND NC P75V P75V P75V GND GND DOUTUB[2] GND DOUTUA[3] DOUTUB[1] DOUTUA[1] DOUTUC[1] GND DOUTUA[0] DOUTUB[9] DOUTUA[9] DOUTUC[9] DOUTUA[8] DOUTUC[8] GND DOUTUB[8] GND NC(LEU3) P5V GND P5V GND NC(PCU3) GND GND NC(CLRU3) GND GND 5V_DET CLKU[1](-) DOUTUC[7] DOUTUB[7] DOUTUA[7] DOUTUC[6] GND GND DOUTUB[6] DOUTUA[6] NC(ODEU3) DOUTUC[5] GND CLKU[0](+) DOUTUB[5] DOUTUA[5] NC DOUTUC[4] NC GND NC DOUTUB[4] NC DOUTUA[4] NC NC NC NC GND NC(DSLL) DOUTUC[3] GND DOUTUB[3] DOUTUC[0] GND DOUTUB[0] DOUTUA[2] P5V DOUTUC[2] NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 55:DOUTDA[7] 63:DOUTDA[9] 71:GND 77:P75V 79:P75V 67:5V_DET 65:DOUTDC[9] 73:NC 69:GND 59:DOUTDA[8] 28:DOUTDB[0] 62:GND 72:NC 78:P75V 66:GND 46:GND 48:DOUTDB[5] 8:GND 4:P5V 76:P75V 32:DOUTDB[1] 10:DSLH 54:GND 68:GND 40:DOUTDB[3] 50:GND 52:DOUTDB[6] 38:GND 30:GND 18:ODEU3 74:NC 24:GND 26:GND 60:DOUTDB[8] 70:GND 36:DOUTDB[2] 14:DMLH 80:P75V 12:DSHH 20:PCU3 44:DOUTDB[4] 16:DMHH 58:GND 56:DOUTDB[7] 42:GND 2:P5V 22:GND 6:NC 17:GND 53:DOUTDC[6] 75:P75V 57:DOUTDC[7] 34:GND 64:DOUTDB[9] 13:DMLL 11:DSHL 19:CLRU3 15:DMHL 1:P5V 21:LEU3 5:NC 23:CLKU[0](+) 25:CLKU[1](-) 7:NC 3:P5V 33:DOUTDC[1] 29:DOUTDC[0] 35:DOUTDA[2] 43:DOUTDA[4] 49:DOUTDC[5] 51:DOUTDA[6] 39:DOUTDA[3] 37:DOUTDC[2] 45:DOUTDC[4] 41:DOUTDC[3] 27:DOUTDA[0] 47:DOUTDA[5] 31:DOUTDA[1] 61:DOUTDC[9] P75V P75V NC NC NC NC NC NC NC GND GND GND GND 9:DSLL NC 18 17 14 11 13 16 15 12 10 TO (C11) C1-BOARD C3-BOARD (C31) TO BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER C2-BOARD TNPA4004 (2/2) ! 2 3 1 D-BOARD (D33) TO DRIVER PANEL DATA TO TH-65PV600C C2-Board (2 of 2) Schematic Diagram TH-65PV600C C2-Board (2 of 2) Schematic Diagram 136 15.58.C3 电路板 (1/2) 线路图 SIDE TERM TERM SIDE TERM SIDE LE11 AB_DUA8 AB_DUB8 AB_DUC8 AB_DUA9 AB_DUB9 AB_DUC9 AB_PCU3 LE11 AB_DUA8 AB_DUB8 AB_DUC8 AB_DUA9 AB_DUB9 AB_DUC9 AB_PCU3 LE12 AB_DUA6 AB_DUB6 AB_DUC6 AB_DUA7 AB_DUB7 AB_DUC7 LE12 AB_DUA6 AB_DUB6 AB_DUC6 AB_DUA7 AB_DUB7 AB_DUC7 AB_PCU3 AB_DUC9 AB_DUB9 AB_DUA9 AB_DUC8 AB_DUB8 AB_DUA8 AB_CLK01L AB_NCLK11L AB_CLK02L AB_NCLK12L AB_DUC7 AB_DUB7 AB_DUA7 AB_DUC6 AB_DUB6 AB_DUA6 AB_DUC5 AB_DUB5 AB_DUA5 AB_DUC4 AB_DUB4 AB_DUA4 AB_DUC3 AB_DUB3 AB_DUA3 AB_DUC2 AB_DUB2 AB_DUA2 AB_DUC1 AB_DUB1 AB_DUA1 AB_DUC0 AB_DUB0 AB_DUA0 LE13 LE11 LE12 LE15 LE14 AB_PCU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_CLK02L AB_NCLK12L AA_DUA3 AA_DUC2 AA_DUB2 AA_DUA2 AA_DUB3 AA_DUC3 AA_DUA4 AA_DUB4 AA_DUC5 AA_DUB5 AA_DUA5 AA_DUC4 AA_DUA7 AA_DUC6 AA_DUB6 AA_DUA6 AA_DUB8 AA_DUA8 AA_DUC7 AA_DUB7 AA_DUC9 AA_DUB9 AA_DUA9 AA_DUC8 AA_DUB0 AA_DUA0 AA_DUC1 AA_DUB1 AA_DUA1 AA_DUC0 AA_DUB2 AA_DUC9 AA_PCU3 AA_DUB8 AA_LEU3 AA_DUC1 AA_DUC7 AA_DUB7 AA_DUC6 AA_DUB6 AA_DUC8 AA_DUB1 AA_DUB9 AA_LEU3 AA_DUA9 AA_DUA8 AA_DUA7 AA_DUA6 AA_DUB3 AA_DUC2 AA_DUC0 AA_DUC4 AA_DUB0 AA_DUB4 AA_DUC3 AA_DUA4 AA_DUA3 AA_DUA2 AA_DUA1 AA_DUA0 AA_DUC5 AA_DUB5 AA_DUA5 AA_NCLK1L AA_CLK0L AA_CLRU3 AA_ODEU3 AB_CLK01L AB_NCLK11L AA_ODEU3 AA_CLRU3 AA_PCU3 AA_CLK0L AA_NCLK1L AB_NCLK13L AB_CLK03L AB_PCU3 R7319 EXB38V470JV 47 R7310 EXB38V681JV R7366 47 R7312 EXB38V470JV 47 R7303 EXB38V470JV 47 R7313 EXB38V681JV C7323 50V 100p R7304 EXB38V470JV 47 R7311 EXB38V470JV 47 D7313 B0HCMM000014 R7318 EXB38V681JV 680 C3_5V C3_5V R7386 100k C7316 16V 1u R7322 22 R7305 EXB38V681JV C7382 16V 1u D7314 B0HCMM000014 C3_5V R7320 EXB38V470JV 47 C7315 16V 1u R7324 EXB38V470JV 47 R7302 0 C7304 16V 0.1u R7354 47 VDA_75V C7381 16V 0.1u R7314 EXB38V681JV R7387 22k C7327 100V 0.47u D7312 B0HCMM000014 R7323 EXB38V470JV 47 C7308 16V 0.1u VDA_75V R7309 EXB38V681JV R7307 EXB38V681JV C31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 C3_5V C7312 16V 0.1u C7311 16V 0.1u R7316 EXB38V470JV 47 C7325 100V 0.47u R7317 EXB38V681JV 680 R7367 47 R7315 EXB38V470JV 47 C3_5V D7311 B0HCMM000014 C7309 16V 0.1u C7301 16V 1u C3_5V C7383 16V 1u C3_5V R7355 47 R7306 EXB38V681JV C3_5V C7326 50V 100p C3_5V VDA_75V R7398 22 R7399 22 R7321 22 R7308 EXB38V681JV R7385 0 CA11 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA12 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ001120 IC7303 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7306 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7302 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7304 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7305 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7301 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7325 22 R7326 22 C7328 100V 0.47u C7324 100V 0.47u ZA7306 K4AD01Z00001 ZA7301 K4AD01Z00001 ZA7302 K4AD01Z00001 ZA7304 K4AD01Z00001 ZA7305 K4AD01Z00001 ZA7303 K4AD01Z00001 R7365 6.8 R7363 6.8 R7361 6.8 R7362 6.8 R7359 6.8 R7360 6.8 R7364 6.8 R7358 6.8 C3_5V NC A4 VDD2 DM VDD1 VDD1 A4 FS DM VDD2 GND FX NC FDET1 VDD2 A3 VDD2 A2 VDD2 VDD2 GND NC GND VDD2 GND A2 NC BLK NC LEN VDD2 GND A5 GND VDD2 NC BLK GND GND FDET VDD1 GND NC GND A1 A3 A6 NC NC GND GND LEN A5 VDD2 FX VDD2 FS GND GND GND GND NC NC NC A6 VDD1 A1 VDD2 FDET VDD2 VDD1 VDD1 DM A1 GND VDD1 VDD2 NC VDD1 GND A4 A1 FS A3 DM A6 VDD2 NC NC GND FX NC FDET1 VDD2 A4 A3 VDD2 A2 VDD2 VDD2 GND NC GND VDD2 GND A2 NC BLK NC LEN VDD2 NC GND GND LEN A5 VDD2 FX VDD2 FS GND GND A5 GND GND GND VDD2 GND NC NC BLK NC GND NC GND A6 37:DOUTDB[4] 21:DOUTDB[8] 71:DSLH 51:GND 50:DOUTDA[1] 32:DOUTDC[5] 75:NC 4:P75V 13:GND 2:P75V 70:DSHL 40:DOUTDC[3] 52:DOUTDC[0] 47:GND 44:DOUTDC[2] 20:DOUTDC[8] 23:GND 39:GND 60:LEU3 3:P75V 53:DOUTDB[0] 13:DMLL 72:DSLL 25:DOUTDB[7] 24:DOUTDC[7] 41:DOUTDB[3] 36:DOUTDC[4] 54:DOUTDA[0] 73:GND 69:DSHH 35:GND 38:DOUTDA[4] 64:GND 26:DOUTDA[7] 15:GND 1:P75V 28:DOUTDC[6] 56:CLKU[1](-) 46:DOUTDA[2] 22:DOUTDA[8] 59:GND 78:P5V 62:CLRU3 19:GND 34:DOUTDA[5] 6:P75V 29:DOUTDB[6] 66:DMHL 45:DOUTDB[2] 61:PCU3 43:GND 42:DOUTDA[3] 14:5V_DET 79:P5V 58:CLKU[0](+) 7:NC 10:GND 63:ODEU3 57:GND 11:GND 49:DOUTDB[1] 27:GND 31:GND 5:P75V 30:DOUTDA[6] 33:DOUTDB[5] 17:DOUTDB[9] 48:DOUTDC[1] 77:P5V 74:NC 16:DOUTDC[9] 55:GND 18:DOUTDA[9] 8:NC 9:NC 12:GND 65:DMHH 67:DMLH 76:NC 80:P5V 3 B A C D E F 2 1 9 1 3 2 4 ! C3-BOARD TNPA4005 (1/2) TO C2-BOARD (C21) BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER DRIVER PANEL DATA TO DRIVER PANEL DATA TO TH-65PV600C C3-Board (1 of 2) Schematic Diagram TH-65PV600C C3-Board (1 of 2) Schematic Diagram 4 5 6 7 8 137 15.59.C3 电路板 (2/2) 线路图 TERM SIDE TERM SIDE TERM SIDE LE13 AB_DUA4 AB_DUB4 AB_DUC4 AB_DUA5 AB_DUB5 AB_DUC5 LE13 AB_DUA4 AB_DUB4 AB_DUC4 AB_DUA5 AB_DUB5 AB_DUC5 AB_PCU3 LE14 AB_DUA2 AB_DUB2 AB_DUC2 AB_DUA3 AB_DUB3 AB_DUC3 LE14 AB_DUA2 AB_DUB2 AB_DUC2 AB_DUA3 AB_DUB3 AB_DUC3 AB_PCU3 AB_CLK02L AB_NCLK12L AB_CLK03L AB_NCLK13L AB_DUA1 AB_CLK03L AB_DUC0 AB_NCLK13L AB_DUB0 AB_DUA0 LE15 AB_PCU3 AB_DUC1 AB_DUB1 AB_DUA1 AB_DUC0 AB_DUB0 AB_DUC1 AB_DUA0 AB_DUB1 LE15 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_PCU3 AB_PCU3 AB_PCU3 C7369 50V 100p D7316 B0HCMM000014 VDA_75V D7317 B0HCMM000014 C3_5V VDA_75V D7320 B0HCMM000014 C7384 16V 1u C7371 100V 0.47u C7339 16V 1u D7315 B0HCMM000014 C7329 50V 100p C7386 16V 1u R7330 47 R7373 47 C7374 16V 1u C3_5V R7384 47 C7334 100V 0.47u VDA_75V R7374 47 C7385 16V 1u R7383 47 VDA_75V D7318 B0HCMM000014 R7335 47 C3_5V C7333 100V 0.47u D7319 B0HCMM000014 C7351 50V 100p C7340 16V 1u C35 1 2 3 4 5 6 7 8 CA13 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA15 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA14 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7336 10k C7331 100V 0.47u C7332 100V 0.47u C7370 100V 0.47u R7376 6.8 R7334 6.8 R7332 6.8 R7378 6.8 R7381 6.8 R7377 6.8 R7331 6.8 R7380 6.8 R7379 6.8 R7333 6.8 R7382 6.8 R7375 6.8 Vda 75V Vda 75V NC GND FDET VDD2 VDD1 VDD1 DM A1 GND VDD1 VDD2 NC VDD1 GND A4 A1 FS A3 DM A6 VDD2 NC NC GND FX NC FDET1 VDD2 A4 A3 VDD2 A2 VDD2 VDD2 GND NC GND VDD2 GND A2 NC BLK NC LEN VDD2 NC GND GND LEN A5 VDD2 FX VDD2 FS GND GND A5 GND GND GND VDD2 GND NC NC BLK NC GND NC GND A6 FDET VDD2 VDD1 VDD1 DM A1 GND VDD1 VDD2 NC VDD1 GND A4 A1 FS A3 DM A6 VDD2 NC NC GND FX NC FDET1 VDD2 A4 A3 VDD2 A2 VDD2 VDD2 GND NC GND VDD2 GND A2 NC BLK NC LEN VDD2 NC GND GND LEN A5 VDD2 FX VDD2 FS GND GND A5 GND GND GND VDD2 GND NC NC BLK NC GND NC GND A6 GND VDD2 FX NC FS VDD2 GND GND A6 A2 VDD1 LEN A5 GND A4 A1 FS NC A3 DM VDD2 DM NC GND NC GND BLK A6 VDD1 GND VDD1 GND VDD2 VDD2 A1 GND NC FDET VDD1 GND VDD2 NC GND GND FX A5 NC FDET1 VDD2 VDD2 A4 LEN GND A3 VDD2 A2 GND NC VDD2 VDD2 BLK VDD2 GND NC NC NC GND NC GND Vda 75V Vda 75V Vda 75V 10 17 11 14 18 12 16 13 15 3 1 2 4 C3-BOARD TNPA4005 (2/2) ! TO SS-BOARD (SS35) DRIVER PANEL DATA TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO TH-65PV600C C3-Board (2 of 2) Schematic Diagram TH-65PV600C C3-Board (2 of 2) Schematic Diagram 138 15.60.C4 电路板 (1/2) 线路图 SIDE TERM TERM SIDE TERM SIDE AB_NCLK12L AB_CLK02L LE11 LE12 LE13 LE14 LE12 AB_DDC6 AB_DDB6 AB_DDA6 AB_DDC7 AB_DDB7 AB_DDA7 AB_PCD4 LE12 AB_DDC6 AB_DDB6 AB_DDA6 AB_DDC7 AB_DDB7 AB_DDA7 AB_PCD4 AB_DDC8 AB_DDB8 AB_DDA8 AB_DDC9 AB_DDB9 AB_DDA9 LE11 LE11 AB_DDC8 AB_DDB8 AB_DDA8 AB_DDC9 AB_DDB9 AB_DDA9 AB_PCD4 AB_DDB1 AB_DDC1 AB_DDA0 AB_DDB0 AB_DDC0 AB_CLK02L AB_NCLK12L AB_CLK01L AB_NCLK11L UMH NUEL USH UML UEH USL AB_DDA3 AB_DDB3 AB_DDC3 AB_DDA2 AB_DDB2 AB_DDC2 AB_DDA5 AB_DDB5 AB_DDC5 AB_DDA4 AB_DDB4 AB_DDC4 AB_DDA7 AB_DDB7 AB_DDC7 AB_DDA6 AB_DDB6 AB_DDC6 AB_DDA9 AB_DDB9 AB_DDC9 AB_DDA8 AB_DDB8 AB_DDC8 AB_ODED4 AB_CLRD4 AB_CLRD4 AB_ODED4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 LE15 AB_PCD4 AB_ODED4 AB_CLRD4 DRV_SOS8 URH URL AA_DDB8 AA_DDC8 AA_DDA9 AA_DDB9 AA_DDC9 AA_DDA8 AA_DDC7 AA_DDA6 AA_DDB6 AA_DDC6 AA_DDB4 AA_DDC4 AA_DDA7 AA_DDB7 AA_DDA5 AA_DDB5 AA_DDC5 AA_DDA4 AA_DDC3 AA_DDA2 AA_DDB2 AA_DDC2 AA_DDB0 AA_DDC0 AA_DDA3 AA_DDB3 AA_DDA1 AA_DDB1 AA_DDC1 AA_DDA0 AA_DDA4 AA_DDA1 DRV_SOS8 AA_DDA0 AA_DDA2 AA_DDA3 AA_DDA8 AA_DDA5 AA_DDA6 USH AA_DDA9 AA_DDA7 UML USL AA_DDB1 AA_DDC0 AA_DDC2 AA_DDC5 AA_DDB4 AA_DDC7 AA_DDC6 AA_DDC8 UMH NUEL URL URH AB_NCLK11L AB_CLK01L AA_CLK0L AA_NCLK1L AB_DDA1 AB_PCD4 AA_CLRD4 AA_ODED4 AA_LED4 AA_PCD4 AB_NCLK13L AB_CLK03L AA_DDB0 AA_DDC3 AA_DDB5 AA_DDB7 AA_DDB8 AA_DDC1 AA_DDB6 AA_DDC9 AA_DDB3 AA_DDC4 AA_DDB2 AA_DDB9 AA_ODED4 UEH AA_LED4 AA_CLRD4 AA_NCLK1L AA_CLK0L AA_PCD4 R7473 EXB38V681JV R7429 EXB38V470JV 47 C7428 50V 100p VDA_75V R7428 EXB38V470JV 47 R7439 EXB38V470JV R7410 0 R7405 0 R7420 EXB38V470JV 47 R7492 EXB38V681JV R7491 100k R7490 22k R7417 EXB38V470JV 47 D7418 B0HCMM000014 C4_5V C7406 16V 0.1u C7412 16V 0.1u C7481 16V 1u R7425 EXB38V470JV 47 R7474 EXB38V681JV R7459 EXB38V681JV C4_5V R7413 0 R7401 0 C7480 16V 0.1u C7482 16V 1u R7457 EXB38V681JV R7421 EXB38V470JV 47 VDA_75V C4_5V R7453 EXB38V681JV R7411 0 R7493 22 R7455 EXB38V681JV D7416 B0HCMM000014 R7407 0 R7438 EXB38V470JV C7426 100V 0.47u R7495 22 C4_5V R7496 22 D7417 B0HCMM000014 C4_5V R7461 47 R7406 0 R7494 22 R7460 47 C7429 50V 100p R7454 EXB38V681JV C7418 16V 1u VDA_75V C7401 16V 1u R7408 0 D7415 B0HCMM000014 C7419 16V 1u R7470 47 C7427 100V 0.47u C4_5V C7413 16V 0.1u C41 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 R7456 EXB38V681JV R7424 EXB38V470JV 47 C4_5V C7415 16V 0.1u R7416 EXB38V470JV 47 C4_5V C4_5V R7412 0 R7471 47 C7414 16V 0.1u R7409 0 R7458 EXB38V681JV C4_5V C42 1 2 3 4 5 6 7 8 VDA_75V C44 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7402 0 CB11 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB12 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ001120 IC7404 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7406 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7401 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7402 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7403 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7405 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7497 22 R7498 22 C7424 100V 0.47u C7425 100V 0.47u ZA7403 K4AD01Z00001 ZA7404 K4AD01Z00001 ZA7406 K4AD01Z00001 ZA7405 K4AD01Z00001 ZA7401 K4AD01Z00001 ZA7402 K4AD01Z00001 R7466 6.8 R7463 6.8 R7468 6.8 R7462 6.8 R7464 6.8 R7467 6.8 R7465 6.8 R7469 6.8 DRV_SOS8 NC USH UMH 5V UEL UEH USL URH UML DRV_SOS7 GND URL URL URH GND GND GND NC NC NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 66:GND 42:GND 34:GND 7:DRVSOS8 56:DOUTDB[6] 27:DOUTDA[1] 53:DOUTDC[7] 19:PCD4 55:DOUTDA[6] 38:GND 51:DOUTDA[7] 41:DOUTDC[2] 64:DOUTDB[8] 76:P75V 71:GND 45:DOUTDC[5] 36:DOUTDB[3] 11:USH 52:DOUTDB[7] 13:UMH 54:GND 50:GND 48:DOUTDB[4] 14:NUEL 35:DOUTDA[3] 75:P75V 8:GND 26:GND 62:GND 58:GND 72:NC 6:NC(DRVSOS7) 23:CLKD[1](-) 57:DOUTDC[6] 63:DOUTDA[8] 80:P75V 78:P75V 37:DOUTDC[3] 68:GND 73:NC 1:P5V 25:CLKD[0](+) 49:DOUTDC[4] 65:DOUTDC[8] 60:DOUTDB[9] 18:LED4 47:DOUTDA[4] 29:DOUTDC[1] 43:DOUTDA[5] 32:DOUTDB[0] 46:GND 69:GND 12:UML 21:ODED4 40:DOUTDB[2] 74:NC 59:DOUTDA[9] 16:URH 5:NC 4:P5V 24:GND 67:5V_DET 39:DOUTDA[2] 3:P5V 20:CLRD4 28:DOUTDB[1] 44:DOUTDB[5] 70:GND 9:UEH 2:P5V 33:DOUTDC[0] 79:P75V 77:P75V 15:URL 10:USL 61:DOUTDC[9] 30:GND 17:GND 31:DOUTDA[0] 22:GND Vda 75V Vda 75V NC GND GND Vda 75V Vda 75V Vda 75V ! C4-BOARD TNPA4006 (1/2) BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER TO C5-BOARD (C51) (SS42) SS-BOARD TO (SS44) SS-BOARD TO 1 3 2 4 3 B A C D E F 2 1 9 DRIVER PANEL DATA TO DRIVER PANEL DATA TO TH-65PV600C C4-Board (1 of 2) Schematic Diagram TH-65PV600C C4-Board (1 of 2) Schematic Diagram 4 5 6 7 8 139 15.61.C4 电路板 (2/2) 线路图 TERM SIDE TERM SIDE TERM SIDE LE14 AB_DDC2 AB_PCD4 AB_DDA3 AB_DDB3 AB_DDC3 AB_DDA2 AB_DDB2 LE14 AB_DDB3 AB_DDC3 AB_DDA2 AB_DDB2 AB_DDC2 AB_DDA3 AB_PCD4 LE13 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 LE13 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 AB_PCD4 AB_CLK02L AB_NCLK12L AB_CLK03L AB_NCLK13L AB_NCLK13L AB_DDB0 AB_DDA0 AB_DDB1 AB_DDC1 LE15 AB_DDB1 AB_DDA1 AB_PCD4 AB_PCD4 AB_DDC0 AB_DDA1 LE15 AB_DDC0 AB_DDB0 AB_DDA0 AB_DDC1 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_CLK03L AB_PCD4 VDA_75V D7420 B0HCMM000014 C4_5V C4_5V C4_5V VDA_75V C7468 100V 0.47u R7488 47 R7478 47 C7472 16V 1u C7475 50V 100p C7453 50V 100p R7422 47 C7440 16V 1u R7477 47 R7487 47 C7484 16V 1u D7419 B0HCMM000014 C7485 16V 1u C7434 100V 0.47u C7433 100V 0.47u C7441 16V 1u R7434 47 VDA_75V C7452 50V 100p C7483 16V 1u D7422 B0HCMM000014 D7423 B0HCMM000014 D7421 B0HCMM000014 D7424 B0HCMM000014 CB14 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB15 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB13 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7472 10k C7432 100V 0.47u C7435 100V 0.47u C7469 100V 0.47u R7479 6.8 R7481 6.8 R7433 6.8 R7431 6.8 R7430 6.8 R7432 6.8 R7480 6.8 R7486 6.8 R7484 6.8 R7485 6.8 R7483 6.8 R7482 6.8 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 C4-BOARD TNPA4006 (2/2) ! 1 3 4 2 10 17 11 14 18 12 16 13 15 DRIVER PANEL DATA TO PANEL DATA TO DRIVER PANEL DATA TO DRIVER TH-65PV600C C4-Board (2 of 2) Schematic Diagram TH-65PV600C C4-Board (2 of 2) Schematic Diagram 140 15.62.C5 电路板 (1/2) 线路图 G G SIDE TERM TERM SIDE TERM SIDE TERM SIDE TERM SIDE LE6 AB_DDC20 AB_PCD5 AB_DDB20 AB_DDA20 AB_DDC21 AB_DDB21 AB_DDA21 LE6 AB_DDC20 AB_DDB20 AB_DDA20 AB_DDC21 AB_DDB21 AB_DDA21 AB_PCD5 AB_DDC17 AB_DDA16 AB_DDB16 AB_DDC16 LE8 LE8 AB_DDC15 AB_PCD5 AB_DDA15 AB_DDB15 AB_CLK41R AB_NCLK51R AB_ODED5 AB_CLRD5 AB_ODED5 AB_CLRD5 AB_ODED5 AB_CLRD5 AB_ODED5 AB_CLRD5 AB_DDA14 AB_DDB14 AB_DDC14 AB_DDA17 AB_DDB17 AB_CLK42R AB_DDB19 AB_DDA18 AB_DDC19 AB_CLK22L LE10 AB_DDB18 AB_DDC18 AB_DDA19 AB_DDB20 LE9 AB_DDA20 LE8 AB_DDA21 AB_DDC20 AB_DDC21 AB_DDB21 AA_NCLK3L AA_CLK2L AA_DDC10 AA_DDB10 AA_DDA10 AA_DDC11 AA_DDB11 AA_DDA11 AA_DDA13 AA_DDB13 AA_DDC13 AA_DDA12 AA_DDB12 AA_DDC12 AA_DDA15 AA_DDB15 AA_DDC15 AA_DDC14 AA_DDB14 AA_DDA14 AA_DDC16 AA_DDB16 AA_DDA16 AA_DDC17 AA_DDB17 AA_DDA17 AA_DDC18 AA_DDB18 AA_DDA18 AA_DDC19 AA_DDB19 AA_DDA19 AA_DDC20 AA_DDB20 AA_DDA20 AA_DDC21 AA_DDB21 AA_DDA21 AA_NCLK3L AA_CLK2L AA_NCLK5R AA_CLK4R AA_LED5 AA_PCD5 AA_CLRD5 AA_ODED5 AB_DDC16 AB_PCD5 LE6 LE7 AB_CLRD5 AB_ODED5 AA_LED5 AA_PCD5 AA_CLRD5 AA_ODED5 AB_NCLK32L AB_NCLK52R AA_CLK4R AA_NCLK5R AA_DDC21 AA_DDB21 AA_DDC20 AA_DDA21 AA_DDC19 AA_DDA20 AA_DDB20 AA_DDC18 AA_DDA18 AA_DDB18 AA_DDC16 AB_DDB16 AA_DDB16 AA_DDB19 AA_DDA19 AB_CLK21L AB_NCLK31L AB_CLK41R AB_NCLK51R AB_NCLK31L AB_CLK42R AB_PCD5 LE7 AB_DDC18 AB_DDB18 AB_DDA18 AB_DDC19 AB_DDB19 AB_DDA19 AB_PCD5 AB_CLRD5 AB_NCLK52R AB_ODED5 LE7 AB_DDC18 AB_DDB18 AB_DDA18 AB_DDC19 AB_DDB19 AB_DDA19 AB_PCD5 AB_CLRD5 AB_CLK42R AB_ODED5 R7536 47 C5_5V R7596 22 C7521 16V 1u R7526 EXB38V470JV 47 R7595 22 R7559 47 R7553 47 R7597 22 C7502 16V 1u R7567 EXB38V470JV 47 C5_5V J0HABH000013 FL7501 1 2 3 C7577 16V 0.1u R7549 EXB38V470JV 47 C7541 50V 100p C7520 50V 100p R7528 EXB38V470JV 47 R7565 EXB38V681JV 680 C5_5V C5_5V R7541 EXB38V681JV 680 C7513 16V 0.1u D7513 B0HCMM000014 C7530 16V 0.1u C5_5V C7524 100V 0.47u VDA_75V D7516 B0HCMM000014 VDA_75V VDA_75V C7547 16V 1u R7562 EXB38V470JV 47 C52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C7543 16V 1u C5_5V C7511 16V 1u C5_5V C54 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 R7542 47 R7558 47 C7575 16V 0.1u VDA_75V D7517 B0HCMM000014 R7593 22k R7563 EXB38V470JV 47 R7560 47 C7516 100V 0.47u C5_5V D7515 B0HCMM000014 C7539 16V 1u R7594 22 R7592 100k D7512 B0HCMM000014 C7507 100V 0.47u D7514 B0HCMM000014 C7522 50V 100p R7564 EXB38V681JV 680 R7561 EXB38V681JV 680 R7529 EXB38V681JV 680 R7570 EXB38V102JV 1k CB6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ001120 IC7502 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7503 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7504 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7501 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7001 22 R7002 22 R7004 22 R7003 22 C7517 100V 0.47u C7523 100V 0.47u C7506 100V 0.47u ZA7504 K4AD01Z00001 ZA7503 K4AD01Z00001 ZA7502 K4AD01Z00001 ZA7505 K4AD01Z00001 ZA7501 K4AD01Z00001 ZA7506 K4AD01Z00001 R7546 6.8 R7555 6.8 R7548 6.8 R7545 6.8 1/2W R7538 6.8 R7556 6.8 R7547 6.8 1/2W R7537 6.8 R7554 6.8 1/2W R7540 6.8 1/2W R7539 6.8 R7557 6.8 CB7 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 L R GND DOUTDB[20] DOUTDC[21] DOUTDB[21] GND GND DOUTDA[21] DOUTDC[17] DOUTDA[20] DOUTDB[14] DOUTDC[20] GND DOUTDA[14] DOUTDC[19] GND DOUTDA[18] DOUTDC[16] 5V_DET ODED5 DOUTDC[11] DOUTDA[15] DOUTDA[11] DOUTDC[15] P5V GND CLRD5 GND GND NC DOUTDA[16] NC(DRVSOS7) GND CLKD[3](-) DOUTDC[12] CLKD[2](+) GND GND CLKD[5](-) DOUTDC[13] DOUTDB[13] DOUTDA[13] DOUTDA[10] DOUTDC[10] DOUTDB[10] DOUTDB[15] DOUTDB[19] DOUTDB[17] GND DOUTDB[12] DOUTDC[18] DOUTDC[14] DOUTDB[18] DOUTDB[11] DOUTDA[19] PCD5 DOUTDA[17] GND GND DOUTDB[16] P5V CLKD[4](+) DOUTDA[12] P5V LED5 GND GND GND GND NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC NC NC GND NC GND GND GND NC Vda 75V NC Vda 75V NC Vda 75V Vda 75V Vda 75V GND Vda 75V NC GND R R C6-BOARD TO (C61) BUFFER BUFFER BUFFER BUFFER D-BOARD TO (D35) C5-BOARD TNPA4007 (1/2) ! 1 9 2 F 5 E 3 7 8 D 6 B A C 4 4 6 1 5 3 2 DRIVER PANEL DATA TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO TH-65PV600C C5-Board (1 of 2) Schematic Diagram TH-65PV600C C5-Board (1 of 2) Schematic Diagram 141 15.63.C5 电路板 (2/2) 线路图 TERM SIDE G G SIDE TERM TERM SIDE TERM SIDE AB_CLK21L AB_NCLK31L AB_CLK22L AB_NCLK32L AB_ODED5 AB_CLRD5 AB_ODED5 AB_CLRD5 AB_ODED5 AB_CLRD5 AB_ODED5 AB_CLRD5 UML_N UMH_N NUEL_N USH_N USL UEH AB_DDA11 AB_DDB17 AB_DDB13 AB_DDC17 AB_DDC13 AB_DDA12 AB_DDB12 AB_DDA16 AB_DDC12 AB_DDB10 AB_DDC10 AB_DDA17 AB_DDA10 AB_DDC11 AB_DDB14 AB_DDC14 AB_DDB11 AB_DDA13 URL URH NUEL UMH UML USH UEH_N URL_N URH_N USL_N AA_DDC0 AA_DDB0 AA_DDA0 AA_DDC1 AA_DDB1 AA_DDA1 AA_DDC2 AA_DDB2 AA_DDA2 AA_DDC3 AA_DDB3 AA_DDA3 AA_DDA5 AA_DDB5 AA_DDA4 AA_DDB4 AA_DDC4 AA_DDA7 AA_DDC7 AA_DDA6 AA_DDB6 AA_DDC6 AA_DDC8 AA_DDB8 AA_DDA8 AA_DDC9 AA_DDB9 NUEL UMH UML USH USL UEH 5V_DET URH URL AB_DDA15 AB_DDB15 AB_DDC15 AA_NCLK1L AA_CLK0L AB_DDB2 AA_DDB6 AB_DDB9 AB_DDA2 AB_DDA9 AA_DDC6 AA_DDC5 AA_DDB5 AA_DDC2 AB_CLRD4 AA_DDB9 AB_ODED4 AA_DDA5 AA_DDB2 AA_DDC9 AB_DDA1 AB_DDC3 AA_DDB3 AA_DDA2 AA_DDA8 AB_DDB3 AA_DDA3 AB_DDA3 AA_DDC3 AA_DDB8 AB_DDC6 AB_DDC0 AA_DDC0 AB_DDB6 AA_DDA4 AB_DDB0 AB_LED4 AB_DDA6 AB_PCD4 AB_DDA0 AA_DDB0 AB_DDC7 AA_DDC8 AA_DDA6 AB_DDC1 AA_DDB1 AB_DDB7 AA_DDA0 AB_DDB1 AA_DDC7 AB_DDA7 AA_DDA1 AA_DDC1 AB_DDC4 AA_DDB7 AB_DDB4 AB_DDA4 AA_DDA7 AB_DDC5 AB_DDC8 AA_DDC4 AB_DDB5 AB_DDB8 AB_DDA5 AB_DDA8 AA_DDB4 AB_DDC2 AB_DDC9 AB_CLK0L AB_NCLK1L AB_DDA2 AB_DDA6 AB_DDA7 AB_DDA4 AB_DDA9 AB_DDA5 AB_DDA8 AB_DDA3 AB_NCLK1L URL_N AA_ODED5 AA_CLRD5 AA_PCD5 AA_LED5 AB_DDA1 AB_DDA0 AB_DDB1 AB_DDC0 AB_DDC2 AB_DDC5 AB_DDB4 AB_DDC4 AB_DDC8 AB_CLK0L AB_PCD4 AB_LED4 AB_ODED4 NUEL_N USL_N DRV_SOS8 5V_DET AA_NCLK1L AA_CLK0L AB_DDA14 AA_DDA9 DRV_SOS8 AA_DDA9 AA_DDC5 AA_DDB7 AA_DDA17 AA_DDC17 AA_DDB17 AA_DDC15 AA_DDB15 AA_DDA15 AA_DDA14 AA_DDC13 AA_DDB12 AA_DDB14 AA_DDC14 AA_DDA13 AA_DDA12 AA_DDC12 AA_DDB13 AA_DDB10 AA_DDC10 AA_DDC11 AA_DDA11 AA_DDB11 AA_DDA10 AA_DDA16 UML_N AB_DDB0 AB_DDB3 URH_N AB_DDB9 USH_N AB_DDC7 UEH_N AB_CLRD4 AB_DDB2 AB_DDB7 AB_DDB8 AB_DDC1 UMH_N AB_DDC6 AB_DDC3 AB_DDB5 AB_DDB6 AB_DDC9 LE10 AB_DDC10 AB_DDB10 AB_DDA10 AB_DDC11 AB_DDB11 AB_DDA11 AB_PCD5 LE10 AB_DDC10 AB_DDB10 AB_DDA10 AB_DDC11 AB_DDB11 AB_DDA11 AB_PCD5 AB_DDC12 LE9 AB_DDB12 AB_DDA12 AB_DDC13 AB_DDB13 AB_DDA13 AB_PCD5 AB_DDA13 AB_DDB13 AB_PCD5 AB_DDA12 AB_DDB12 AB_DDC12 LE9 AB_DDC13 D7518 B0HCMM000014 R7580 EXB38V681JV 680 C7527 16V 0.1u C7566 16V 0.1u R7502 EXB38V470JV 47 C55 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 C7572 16V 0.1u C5_5V R7532 EXB38V470JV 47 R7533 EXB38V470JV 47 R7527 EXB38V681JV 680 R7531 EXB38V470JV 47 R7581 EXB38V681JV 680 C7581 16V 1u C7591 50V 100p C7594 100V 0.47u C7578 16V 0.1u R7586 EXB38V681JV VDA_75V R7574 EXB38V470JV 47 C7508 16V 0.1u R7515 47 R7550 EXB38V681JV R7583 EXB38V681JV R7582 EXB38V681JV 680 C5_5V R7504 EXB38V681JV 680 R7520 47 C7570 16V 0.1u R7585 EXB38V681JV C7538 16V 0.1u C5_5V R7505 EXB38V681JV 680 R7572 EXB38V470JV 47 D7521 B0HCMM000014 VDA_75V C5_5V C7583 100V 0.47u C7548 16V 1u R7579 EXB38V681JV 680 R7523 EXB38V470JV 47 C5_5V D7519 B0HCMM000014 C7549 16V 1u C5_5V R7543 EXB38V681JV 680 VDA_75V R7535 EXB38V470JV 47 R7584 EXB38V681JV C5_5V R7577 EXB38V681JV 680 R7507 47 R7576 EXB38V470JV 47 R7578 EXB38V681JV 680 C7592 16V 1u C5_5V R7599 22 C5_5V C5_5V R7512 47 C7580 50V 100p C7519 16V 0.1u J0HABH000013 FL7502 1 2 3 R7571 EXB38V470JV 47 R7534 EXB38V470JV 47 R7525 EXB38V681JV 680 R7524 EXB38V470JV 47 D7520 B0HCMM000014 C51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 C5_5V R7506 EXB38V470JV 47 R7530 EXB38V470JV 47 C5_5V R7575 EXB38V470JV 47 R7598 22 R7503 EXB38V470JV 47 R7573 EXB38V470JV 47 C5_5V R7587 EXB38V681JV C7568 16V 0.1u R7544 EXB38V102JV 1k C7501 16V 1u R7501 0 CB9 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ001120 IC7511 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7515 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7513 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7506 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7507 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7516 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7512 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7505 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7514 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C7593 100V 0.47u C7582 100V 0.47u R7516 6.8 R7510 6.8 R7519 6.8 R7517 6.8 R7511 6.8 R7509 6.8 R7508 6.8 R7518 6.8 CB10 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 L L DOUTDB[9] DOUTDA[9] DOUTDB[8] DOUTDA[8] DOUTDC[8] DOUTDC[9] NC DOUTDB[0] DOUTDC[6] USL DOUTDA[5] DOUTDA[1] DOUTDA[0] GND DOUTDB[5] DOUTDA[3] DOUTDB[7] GND DOUTDC[7] DOUTDB[4] GND DOUTDC[1] DOUTDA[4] DOUTDB[3] URL DOUTDC[5] P5V GND GND GND DOUTDB[6] P5V NC P5V DOUTDC[4] URH NUEL UMH USH DOUTDC[0] GND DOUTDA[7] UML DOUTDA[2] DOUTDC[3] GND GND DOUTDA[6] DOUTDC[2] GND UEH DOUTDB[1] DOUTDB[2] 5V_DET NC GND CLKD[1](-) CLKD[0](+) NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 20:DOUTDC[9] 74:DRVSOS8 25:DOUTDB[6] 51:GND 35:GND 12:GND 64:GND 69:UML 50:DOUTDA[0] 42:DOUTDA[2] 78:P5V 61:CLRD4 60:ODED4 41:DOUTDB[2] 10:GND 36:DOUTDC[5] 45:DOUTDB[3] 59:GND 54:DOUTDA[1] 28:DOUTDC[7] 62:PCD4 77:P5V 57:GND 14:5V_DET 40:DOUTDC[2] 17:DOUTDB[8] 5:P75V 15:GND 70:USH 29:DOUTDB[7] 68:UMH 73:GND 55:GND 19:GND 23:GND 67:NUEL 9:NC 46:DOUTDA[3] 75:NC(DRVSOS7) 6:P75V 58:CLKD[1](-) 24:DOUTDC[6] 18:DOUTDA[8] 22:DOUTDA[9] 65:URH 76:NC 1:P75V 3:P75V 44:DOUTDC[3] 13:GND 8:NC 80:P5V 56:CLKD[0](+) 72:UEH 32:DOUTDC[4] 79:P5V 16:DOUTDC[8] 48:DOUTDC[0] 21:DOUTDB[9] 63:LED4 34:DOUTDA[4] 2:P75V 4:P75V 27:GND 31:GND 26:DOUTDA[6] 52:DOUTDC[1] 33:DOUTDB[4] 53:DOUTDB[1] 43:GND 66:URL 38:DOUTDA[5] 37:DOUTDB[5] 30:DOUTDA[7] 71:USL 49:DOUTDB[0] 47:GND 7:NC 39:GND 11:GND DRV_SOS8 NC GND GND GND GND GND GND GND NC TO C4-BOARD (C41) BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER D-BOARD TO (D34) C5-BOARD TNPA4007 (2/2) ! 18 16 17 14 11 10 15 12 13 6 4 1 5 3 2 DRIVER PANEL DATA TO DRIVER PANEL DATA TO TH-65PV600C C5-Board (2 of 2) Schematic Diagram TH-65PV600C C5-Board (2 of 2) Schematic Diagram 142 15.64.C6 电路板 (1/2) 线路图 TERM SIDE TERM SIDE AB_DDA29 AB_PCD6 LE2 AB_DDC28 AB_DDB28 AB_DDA28 AB_DDC29 AB_DDB29 AB_DDA29 LE2 AB_DDB29 AB_DDC29 AB_DDA28 AB_DDB28 AB_DDC28 LE1 AB_DDC30 AB_DDB30 AB_DDA30 AB_DDC31 AB_DDB31 AB_DDA31 LE1 AB_DDC30 AB_DDB30 AB_DDA30 AB_DDC31 AB_DDB31 AB_DDA31 AB_PCD6 AB_PCD6 AB_CLK61R AB_NCLK71R AB_CLK61R AB_NCLK71R AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_PCD6 C7666 16V 1u C7667 16V 1u C6_5V C7612 50V 100p C6_5V R7604 47 R7607 47 VDA_75V D7613 B0HCMM000014 C7610 100V 0.47u C7611 50V 100p D7614 B0HCMM000014 D7612 B0HCMM000014 D7611 B0HCMM000014 VDA_75V R7616 47 R7617 47 C7607 100V 0.47u C7602 16V 1u C7601 16V 1u CB1 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB2 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7618 10k C7608 100V 0.47u C7609 100V 0.47u ZA7601 K4AD01Z00001 ZA7604 K4AD01Z00001 ZA7606 K4AD01Z00001 ZA7602 K4AD01Z00001 ZA7603 K4AD01Z00001 ZA7605 K4AD01Z00001 R7613 6.8 R7615 6.8 R7612 6.8 R7610 6.8 R7614 6.8 R7608 6.8 R7611 6.8 R7609 6.8 NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 GND NC NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 C6-BOARD TNPA4008 (1/2) ! 2 1 DRIVER PANEL DATA TO DRIVER PANEL DATA TO 3 2 B 9 D C 1 E F A TH-65PV600C C6-Board (1 of 2) Schematic Diagram TH-65PV600C C6-Board (1 of 2) Schematic Diagram 4 5 6 7 8 143 15.65.C6 电路板 (2/2) 线路图 TERM SIDE SIDE TERM G G TERM SIDE TERM SIDE TERM SIDE AB_CLK63R LE1 LE2 LE3 LE4 AB_NCLK73R AB_CLK62R LE4 AB_DDC24 AB_DDB24 AB_DDA24 AB_DDC25 AB_DDB25 AB_DDA25 LE4 AB_DDC24 AB_DDB24 AB_DDA24 AB_DDC25 AB_DDB25 AB_DDA25 LE3 AB_DDC26 AB_DDB26 AB_DDA26 AB_DDC27 AB_DDB27 AB_DDA27 LE3 AB_DDC26 AB_DDB26 AB_DDA26 AB_DDC27 AB_DDB27 AB_DDA27 AB_PCD6 AB_PCD6 AB_DDC31 AB_DDB31 AB_DDA31 AB_DDC30 AB_DDB30 AB_DDA30 AB_CLK62R AB_DDC22 AB_PCD6 LE5 AB_DDA23 AB_DDB23 AB_DDC23 AB_DDA22 AB_PCD6 AB_DDB22 AB_DDA23 AB_DDC22 AB_DDB23 LE5 AB_DDC23 AB_DDA22 AB_DDB22 AB_DDA28 AB_DDB28 AB_DDC28 AB_DDA29 AB_DDB29 AB_DDC29 AB_DDB26 AB_DDC26 AB_DDA27 AB_DDB27 AB_DDA24 AB_DDB24 AB_DDC24 AB_DDA25 AB_DDB25 AB_DDC25 AB_DDA22 AB_DDB22 AB_DDC22 AB_DDA23 AB_DDB23 AB_DDC23 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_PCD6 AB_CLRD6 AB_ODED6 LE5 AB_DDA26 AB_DDC27 AB_NCLK72R AB_NCLK72R AB_NCLK73R AB_NCLK72R AA_ODED6 AA_CLRD6 AA_PCD6 AA_LED6 AA_DDC28 AA_DDA31 AA_DDB31 AA_DDC31 AA_DDA30 AA_DDB30 AA_DDC30 AA_DDB28 AA_DDA28 AA_DDC29 AA_DDA29 AA_DDB29 AA_DDB23 AA_DDA23 AA_DDC23 AA_DDA22 AA_DDB22 AA_DDC22 AA_DDB24 AA_DDC24 AA_DDA24 AA_DDC25 AA_DDB25 AA_DDA25 AA_DDC26 AA_DDB26 AA_DDA26 AA_DDC27 AA_DDB27 AA_DDA27 AA_CLK6R AA_NCLK7R AA_LED6 AA_ODED6 AA_PCD6 AA_CLRD6 AB_CLK63R AB_CLK62R AB_PCD6 AA_NCLK7R AA_CLK6R AA_DDB22 AA_DDB23 AA_DDA22 AA_DDC23 AA_DDC22 AA_DDC24 AA_DDC27 AA_DDB25 AA_DDB24 AA_DDA24 AA_DDC25 AA_DDB27 AA_DDA25 AA_DDA26 AA_DDB26 AA_DDC26 AA_DDB29 AA_DDA29 AA_DDA27 AA_DDC28 AA_DDC29 AA_DDB31 AA_DDB30 AA_DDA30 AA_DDC31 AA_DDA31 AA_DDA28 AA_DDB28 AA_DDC30 AB_CLK61R AB_NCLK71R AA_DDA23 AB_PCD6 C7613 50V 100p C7650 50V 100p C7630 16V 0.1u R7646 EXB38V470JV 47 C7654 100V 0.47u R7634 47 R7698 22 C6_5V R7658 EXB38V470JV 47 C7635 16V 0.1u VDA_75V R7665 47 C6_5V D7618 B0HCMM000014 R7696 EXB38V681JV 680 R7697 22 C7669 16V 1u C6_5V R7655 EXB38V470JV 47 R7624 47 R7644 EXB38V681JV 680 C7623 16V 1u C7636 16V 0.1u R7651 EXB38V470JV 47 C6_5V R7633 47 D7615 B0HCMM000014 C7638 16V 0.1u C7617 100V 0.47u R7640 EXB38V681JV 680 D7616 B0HCMM000014 R7638 EXB38V681JV 680 R7603 22 R7699 22 R7648 EXB38V681JV 680 R7647 EXB38V470JV 47 VDA_75V R7641 EXB38V681JV 680 C7624 16V 1u C6_5V D7620 B0HCMM000014 D7617 B0HCMM000014 R7643 EXB38V470JV 47 R7642 EXB38V681JV 680 C7658 16V 1u VDA_75V C7665 16V 0.1u C6_5V C6_5V R7639 EXB38V681JV 680 C7661 50V 100p VDA_75V C60 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 R7654 EXB38V470JV 47 R7650 EXB38V470JV 47 R7687 100k R7645 EXB38V681JV 680 R7637 EXB38V681JV 680 C7618 100V 0.47u C6_5V R7659 EXB38V470JV 47 R7623 47 C7670 16V 1u C61 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C6_5V C7668 16V 1u R7660 47 R7636 EXB38V470JV 47 J0HABH000013 FL7601 1 2 3 D7619 B0HCMM000014 C7637 16V 0.1u R7686 22k C6_5V CB3 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB5 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB4 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ001120 IC7606 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7603 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7602 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7601 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7605 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7604 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7606 22 R7605 22 C7655 100V 0.47u C7616 100V 0.47u C7615 100V 0.47u R7630 6.8 R7627 6.8 R7664 6.8 R7632 6.8 R7626 6.8 R7628 6.8 R7662 6.8 R7625 6.8 R7661 6.8 R7629 6.8 R7631 6.8 R7663 6.8 P75V NC GND DOUTDC[29] GND DOUTDC[25] DOUTDC[30] DOUTDC[31] DOUTDC[27] GND DOUTDB[22] DOUTDA[31] GND DOUTDB[26] NC P5V P5V GND DOUTDB[25] DOUTDB[29] 5V_DET DOUTDA[29] ODED6 GND CLKD[6](+) CLKD[7](-) GND GND GND NC NC NC NC DOUTDC[24] NC GND NC P5V NC(CLK) NC(CLK) GND DOUTDA[28] DOUTDC[26] GND DOUTDB[24] DOUTDB[31] DOUTDC[28] DOUTDA[25] DOUTDB[28] GND GND PCD6 GND GND DOUTDA[27] DOUTDA[22] DOUTDA[26] DOUTDC[22] GND GND LED6 DOUTDA[23] DOUTDB[30] DOUTDA[24] DOUTDB[27] GND DOUTDA[30] DOUTDB[23] DOUTDC[23] CLRD6 P75V NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 GND GND GND GND GND NC NC NC NC NC NC NC P75V P75V P75V P75V NC C5-BOARD (C52) TO C6-BOARD TNPA4008 (2/2) ! BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER 1 2 TO D-BOARD (D36) DRIVER PANEL DATA TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO 14 13 12 11 15 16 10 17 18 TH-65PV600C C6-Board (2 of 2) Schematic Diagram TH-65PV600C C6-Board (2 of 2) Schematic Diagram 144 15.66.SC 电路板方框图 + + SID SIU FCLU CPH2 CEL2 PROD CEL CL FCLKD SCSU SIU CPH1 CPH1 CPH2 FCLKU SID CLK CL SCSU PROU CEL2 FCLD FSIU CLK CEL FSID 15V_F +15V R6614 D6478 D6871 R6615 +15V_F +15V +16V_F D6616 R6630 16V_F Q6824 +5V +15V D6619 D6862 D6620 +16V_F D6825 +5V VSET +5V D6610 D6791 T6602 16V_F D6859 D6721 VSUS +16V_F D6585 VSUS D6804 D6583 D6806 +5V +15V_F VR6602 1 2 3 +15V VR6600 1 2 3 D6841 D6860 VSUS D6612 D6480 D6872 D6760 VSET D6826 VR6603 VR6601 A33 1 B40 LIN CL CMH VSCN HO G +5V(SC3) 3 TPVSCN (SC3) FET K A34 FET S FET (+140V) Vf VSET SEPARATE B7 D LED(G) CML SC Q6551-Q6554 L6416 Vf+5V VF_GND HO FET LO PC6760 CL LO AVR B6 GND GND PHOTO FET OUT 90V 2 POWER OSC LO SC44 GND +5V(SC1) DC/DC CONV. REF A13 PC6480 VSET SLOPE FSID CLK VIN K SIU Vf PC6702 (0-200V) 12 Vfo COUPLER Q6421-Q6428 Q6602 Vsus Gen. B30 B13 8 IC6801 9 1 2 3 COUPLER PHOTO VSET SOS DET IN PC6705 9 FSID (Vfo) Vf GND DRIVER Vsus Vf+5V Q6691 (0-305V) VAD SOS 3 A40 GND Vf Vin VF_GND COMPARATOR SC30 PHOTO IC6671 FSIU S Vf+5V VF_GND 2 IN 15 RATOR S Q6581 (SC3) DRIVER IC6721 Vad( 90V) 13 VF_GND FET OUT 6 19 12 VCC 7 2 IC6521 IN 17 GND A30 K Vscn Vfo SOS REF A8 L6401 BUFFER VCC HIN VCC Vf+5V 9 A28 OUT SC G 20 IC6610 (+8V) SC Q6671- Q6675 - DRIVER Vfo A1 IC6471 IC6871 (CBK)DRVRST_0 CEL Vfo BUFFER VCC VF_GND A40 IC6682 Q6680 PHOTO DRIVER VF_GND D TPSCI COUPLER BUFF D VAD Gen.( 90V) TPVSET2 Vfo SOS COUPLER SCSU BUFFER IC6771 G Vf Q6401-Q6408 A29 IC6841 D OUT VSET SOS B1 Q6744 HIN Q6841,Q6842 4 Q6791 L6407 COM (SC1) COMPA- 20 Q6662 BUFF FCLD +5V(SC1) (SC2) IC6472 PC6871 Vscn SOS 1 FCLKU 14 DRIVER IC6581 Q6665 CSL B1 IC6725 AMP IC6724 1 Q6679 Vf+5V D FET S 23 IC6602 45 A36 FET VSCN Gen. FET B29 B28 K A7 +5V(SC1)SOS SC43 G Vscn B31 A10 11 178V 10 S VF_GND CLK TO P23 PC6610 BUFF Q6743 Q6641-Q6649 Q6651-Q6660 IC6791 SID B40 A +5V(SC3) 3 VSET2 Gen. A 4 Q6661 REF 46 5 Q6521-Q6528 7 A1 IC6753 TO D20 LO +5V(SC3) Q6762 Q6763 COUPLER INVERTER FET B34 Q6501-Q6508 ENERGY RECOVERY VSET Gen. R6833- R6836 FET VCC PHOTO AVR TPSOS7 B8 Vf+5V CPH IC6751 13 Vf+5V 8 PHOTO +5V SID COUPLER HO PROD +5V(SC1) FCLU TO P2 SOS7_SC2 LO VF_GND Vf RATOR OUTFET 3 VF_GND VAD CONT 1 A1 B11 BUFF 2 VAD SEPARATE TPVSUS IC6802 6 CEL2 OUTFET HO B10 TPV15V VOUT Vf 11 PROU B40 COM IC6861 +5V GND BUFF Vf PC6704 VAD INIT-F Q6742 Vscn(VAD+140V) COMPA- INVERTER IC6561,6562 6 B12 FET FCLKD PHOTO G 8 +5V 18 VF_GND SC Vfo 5 A31 3 D CSH TPVAD B1 BUFFER K 3 PC6861 ERROR DET 1 1 FCLKD SC42 +15V OUT CML VCC PHOTO LIN S VCC G A12 GND SOS6_SC1 D Vscn Vf+5V TPSC1 SIGNAL WAVE S IC6772 COMPA- BUFFER FCLU B5 AVR IC6501 PHOTO FOR SIU LO D A5 4 A1 PROU FCLKU S +5V(SC1)SOS 5 USE B35 +5V(SC1),+5V(SC3) 1 FET OUT A40 Q6441- Q6444 VSCN SUPERIMEPOSED 2G- A40 CMH COUPLER B1 Vad 90V CEL2 S L6412 2 A6 FSIU D GND (335V) SC SCAN DRIVE 1 COUPLER BUFFER IC6752 Vf PC6703 RATOR A FACTORY VSET2 G Vf B33 AVR IC6803 COUPLER Q6682 IC6601 2 2 OUT Q6451- Q6454 COM Vf IN VSUS TPVSET G + A35 CEL2 IC6821 BUFFER PHOTO BUFFER +5V(SC3)SOS 7 8 VCC VCC IC6774 Q6681 VCC IC6681 FET SC41 P+5V 7 COUPLER A11 +5V Q6622, Q6623, Q6625-27 OUTFET IC6773 FET VAD SLOPE VCC REF GND VCC Vfo R6663 R6858 Q6821,Q6822 FCLD B36 IN PROD Q6601 A PHOTO DRIVER +15V TPSOS6 (Vscn) COUPLER CPH2 PC6701 1 Q6531-Q6534 DRIVER IC6722 Vscn B40 REF Vf OUTFET +5V(SC2) Q6803 CSL SC2 PC6801 CSH Vscn,VAD( 90V),Vfo,VSET A OCP HO VSET R6662 R6661 240V Vscn SOS operates at 156V or more and 78V or less. VSET SOS operates at 156V or less. Vad SOS operates at -76V or more and -121V or less. F16V SOS operates at 21V or more. B A Y B A Y Q6781- Q6784 BUFF INIT-F TO SU45 TO SU41 TO SU42 TO SD46 TO SD44 TO SD43 COLD FLOATING GND COLD LED BLINKING : 7 TIMES LED BLINKING : 6 TIMES SC FLOATING PART SOS DET FLOATING GND ENERGY RECOVERY SOS DET TH-65PV600C SC-Board Block Diagram TH-65PV600C SC-Board Block Diagram 145 15.67.SC 电路板 (1/4) 线路图 + + + + + + + + + + + + + + + + AA_SIU AA_SID AC_CPH2 CEL AA_SCSU CPH AA_CL CMH CML DRV_RSTO CEL2 CSL AA_CEL AA_CLK CSH AC_CPH1 AA_DRV_RSTO SOS7_SC2 SOS6_SC1 AA_CEL2 L6486 G0ZZ00002183 1 2 3 L6441 G0ZZ00002183 TP22 Q6554 B1ADRD000001 L6463 G0ZZ00002183 C6561 10V 100u Q6444 2PG0010000RP TP26 L6485 G0ZZ00002183 R6444 7.5 TP2 Q6553 B1ABRD000003 R6561 EXB38V470JV D6451 MA3DF40000LZ TP20 R6455 7.5 L6406 G0CR60KA0118 L6461 G0ZZ00002183 Q6533 B1ABRD000003 L6493 G0ZZ00002183 D6524 MA3DF30000LZ R6454 7.5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C6537 250V 4u R6587 2.2k L6484 G0ZZ00002183 D6485 MA3DF30000LZ R6533 10k Q6532 B1ADRD000001 TP1 L6458 G0ZZ00002183 R6562 EXB38V470JV TP9 C6538 250V 4u 15V L6451 G0ZZ00002183 R6566 EXB38V472JV VSUS D6582 MAZ83300ML R6526 0 TP11 Q6552 B1ADRD000001 R6564 EXB38V470JV R6466 56k R6532 10k TP52 C6416 200V 220u Q6441 2PG0010000RP L6462 G0ZZ00002183 C6415 200V 220u C6414 200V 220u R6443 7.5 L6403 G0CR60KA0118 C6593 50V 1000p R6554 10 C6527 25V 4.7u Q6452 2PG0030000RP C6524 25V 4.7u R6531 10 15V R6542 10 L6602 G0ZZ00002183 R6581 10k R6442 7.5 C6419 200V 220u C6532 250V 4u R6521 100 Q6451 2PG0030000RP C0JBAZ000005 IC6562 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R6585 1.5k L6480 G0ZZ00002183 C6592 25V 220u TP24 D6481 MA3DF30000LZ 75 R6523 L6482 G0ZZ00002183 L6474 G0ZZ00002183 L6467 G0ZZ00002183 D6523 B0ECHP000003 L6404 G0CR60KA0118 L6415 G0CR96KA0118 R6584 7.5k R6555 10k L6416 G0CR96KA0118 L6414 G0CR96KA0118 D6466 MA2J11100L D6584 MAZ80510LL TP25 C6429 200V 220u Q6551 B1ABRD000003 L6476 G0ZZ00002183 R6553 10k TP7 C6582 16V 1u R6453 7.5 C6413 200V 220u R6522 100 R6441 7.5 R6567 EXB38V472JV L6457 G0ZZ00002183 L6453 G0ZZ00002183 R6590 220 L6477 G0ZZ00002183 L6497 G0ZZ00002183 L6412 G0CR96KA0118 L6407 G0CR60KA0118 D6486 MA3DF30000LZ C6412 200V 220u TP16 C6566 50V 0.01u C6521 25V 1u D6482 MA3DF30000LZ Q6581 2SD0601A0L L6445 G0ZZ00002183 L6442 G0ZZ00002183 R6468 82k C6418 200V 220u TP27 C6411 200V 220u D6521 B0ECHP000003 Q6442 2PG0010000RP C6563 10V 100u L6487 G0ZZ00002183 L6601 G0ZZ00002183 L6444 G0ZZ00002183 TP13 C6581 25V 1u TP23 L6592 G0ZZ00002183 R6588 10k C6565 50V 0.01u C6431 250V 4u D6491 MA3DF40000LZ C6430 200V 220u R6583 39k D6484 MA3DF30000LZ L6491 G0ZZ00002183 Q6454 2PG0030000RP R6582 39k C6562 16V 1u C6533 250V 4u L6456 G0ZZ00002183 TP8 R6452 7.5 R6586 1.5k TP19 R6556 10k 5V TP14 C6536 250V 4u L6479 G0ZZ00002183 TP12 Q6443 2PG0010000RP L6454 G0ZZ00002183 L6413 G0CR96KA0118 R6509 1 L6495 G0ZZ00002183 L6471 G0ZZ00002183 L6496 G0ZZ00002183 D6583 LNJ301MPUJA R6507 1 L6443 G0ZZ00002183 TP38 R6437 10k TP39 R6525 0 C6525 25V 4.7u TP6 SC2 1 3 TP5 TP15 L6401 G0CR60KA0118 R6451 7.5 C0ZBZ0001324 IC6521 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C6420 200V 220u C6534 250V 4u 15V C0JBAZ000005 IC6561 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R6568 EXB38V472JV R6565 EXB38V472JV Q6531 B1ABRD000003 D6581 MAZ83300ML IC6581 C0BBBA000022 1 2 3 4 5 6 7 8 L6481 G0ZZ00002183 L6405 G0CR60KA0118 R6467 82k R6591 EXB38V472JV C6417 200V 220u L6468 G0ZZ00002183 L6475 G0ZZ00002183 TP21 L6464 G0ZZ00002183 L6483 G0ZZ00002183 L6492 G0ZZ00002183 D6483 MA3DF30000LZ D6585 MA2J11100L L6455 G0ZZ00002183 L6448 G0ZZ00002183 L6447 G0ZZ00002183 TP18 R6465 27k Q6453 2PG0030000RP L6591 G0ZZ00002183 L6465 G0ZZ00002183 L6446 G0ZZ00002183 R6552 10k L6478 G0ZZ00002183 MAIN_STOP L6402 G0CR60KA0118 C6564 16V 1u TP10 Q6534 B1ADRD000001 D6522 MA3DF30000LZ C6535 250V 4u R6551 10 L6452 G0ZZ00002183 TP4 R6438 10k C6594 25V 220u L6466 G0ZZ00002183 L6498 G0ZZ00002183 C6522 25V 4.7u R6563 EXB38V470JV R6592 4.7k L6488 G0ZZ00002183 TP17 L6494 G0ZZ00002183 SOS7_SC2 D6471 B0HBSN000008 D6472 B0HBSN000008 D6461 B0HBSN000008 D6462 B0HBSN000008 D6463 B0HBSN000008 D6464 B0HBSN000008 D6467 B0HBSN000008 D6468 B0HBSN000008 D6441 B0HBSN000008 = Vsus GND TPVSUS TPSOS7 TPSOS6 GND GND GND GND TP15V +15V GND +15V (GREEN LED) + - + - D-BOARD (D20) TO P-BOARD (P23) TO (P2) TO P-BOARD 5V CLK SIU CL SCSU SID BUFFER BUFFER COMPARATOR FET DRIVER ENERGY RECOVERY A D F 5 2 1 9 4 B C 6 7 8 E 3 4 6 1 5 3 2 ! SC-BOARD TNPA4011 (1/4) SC 23 SC 20 TH-65PV600C SC-Board (1 of 4) Schematic Diagram TH-65PV600C SC-Board (1 of 4) Schematic Diagram 146 15.68.SC 电路板 (2/4) 线路图 + AND FLOATING GND COLD FLOATING GND COLD COLD FLOATING GND AB_PROU AB_FSIU AB_FSID AB_FCLU AA_CLK AB_FCLKU AB_FCLKD AA_CL AB_PROD AA_SIU AA_SID AB_FCLD AA_DRV_RSTO Q6408 2PG0010000RP R6541 10k C6701 50V 0.1u Q6522 B1ADNF000006 Q6406 2PG0010000RP R6519 10k R6540 10k R6711 2.2k R6511 10k R6402 7.5 R6423 7.5 R6403 7.5 R6421 7.5 R6520 10k IC6722 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC 5V C6727 16V 1u D6701 MAZ80560HL Q6525 B1ABNF000006 Q6422 2PG0030000RP C6426 630V 5600p 16V_F C6406 630V 2200p D6480 MA2J11100L C6480 50V 0.1u Q6402 2PG0010000RP VSUS R6710 2.2k R6536 10 C6428 630V 2200p R6724 100 C6403 630V 4700p C6704 50V 0.1u C6405 630V 5600p Q6505 B1ABNF000006 D6732 MAZ80560HL R6723 2.2k R6700 470 15V D6726 MAZ80560HL R6712 2.2k 5V_F R6701 470 Q6504 B1ADNF000006 Q6403 2PG0010000RP Q6425 2PG0030000RP C0JBAA000377 IC6472 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y C6435 630V 2700p R6475 4.7k R6517 10k Q6508 B1ADNF000006 D6721 B0HCKS000002 15V_F D6731 MAZ80560HL R6406 7.5 Q6428 2PG0030000RP C6427 630V 4700p IC6725 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 R6407 7.5 D6423 MA3DF40000LZ 75 R6504 R6529 47k R6404 7.5 C6724 25V 4.7u C6705 50V 0.1u C6728 50V 1000p C6721 50V 100u R6477 100 D6733 MAZ80560HL 5V Q6427 2PG0030000RP R6501 100 R6427 7.5 R6503 10 R6530 10 Q6421 2PG0030000RP C6424 630V 2700p C6408 630V 2700p Q6426 2PG0030000RP R6538 10k Q6501 B1ABNF000006 Q6401 2PG0010000RP Q6506 B1ADNF000006 R6528 10k R6405 7.5 Q6502 B1ADNF000006 C6723 25V 4.7u R6722 EXB38V220JV D6725 B0ECHP000003 D6723 B0JCME000037 D6421 MA3DF40000LZ IC6724 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 C6702 50V 0.1u R6516 10k D6727 MAZ80560HL R6512 10k D6734 MA2J11100L C6422 630V 5600p R6514 10k R6424 7.5 Q6503 B1ABNF000006 D6422 MA3DF40000LZ D6501 D1FL40-7063 R6428 7.5 15V D6424 MA3DF40000LZ Q6424 2PG0030000RP Q6407 2PG0010000RP PC6701 B3PBA0000233 1 2 3 4 5 6 7 8 R6527 10 SOS7_SC2 R6518 10 R6476 4.7k R6515 10k 5V R6703 470 C6402 630V 2200p R6534 10k R6535 47k IC6721 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC C6437 630V 4700p Q6423 2PG0030000RP R6721 EXB38V220JV R6425 7.5 R6426 7.5 PC6702 B3PBA0000233 1 2 3 4 5 6 7 8 Q6524 B1ADNF000006 R6506 10 Q6528 B1ADNF000006 C6726 16V 1u Q6521 B1ABNF000006 R6713 2.2k R6513 10 R6539 10 Q6523 B1ABNF000006 D6724 B0JCME000037 R6537 10k C0ZBZ0000895 IC6501 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC C6425 630V 2200p C6504 25V 4.7u R6508 1 C6502 25V 4.7u R6408 7.5 R6702 470 Q6526 B1ADNF000006 Q6405 2PG0010000RP R6422 7.5 Q6404 2PG0010000RP R6502 100 D6728 MAZ80560HL MAIN_STOP C6725 25V 4.7u C6505 25V 4.7u D6730 MAZ80560HL Q6527 B1ABNF000006 R6401 7.5 Q6507 B1ABNF000006 D6729 MAZ80560HL D6401 B0HBSN000008 D6402 B0HBSN000008 D6403 B0HBSN000008 D6404 B0HBSN000008 D6502 MA3DF30000LZ Vsus Gen. FET DRIVER BUFFER BUFFER +5V(SC1) +5V(SC2) 12 17 10 13 11 15 16 14 18 4 5 3 2 6 1 12 17 18 16 19 14 15 13 20 11 21 ! SC-BOARD TNPA4011 (2/4) TH-65PV600C SC-Board (2 of 4) Schematic Diagram TH-65PV600C SC-Board (2 of 4) Schematic Diagram 147 15.69.SC 电路板 (3/4) 线路图 + + + + + + AA_SCSU AA_CEL AC_CPH1 AA_CEL2 AC_CPH2 D6644 B0HCKS000002 D6758 B0ECHP000003 D6667 MA2J11100L PC6704 B3PBA0000234 1 2 3 4 5 D6773 B0HCKS000002 R6865 2.2k PC6760 B3PBA0000223 1 2 3 4 D6663 MAZ83300ML D6478 B0HCKS000002 D6682 B0HCMM000014 C6773 25V 4.7u Q6641 B1DFKM000001 C6692 160V 100u R6619 1.5k R6646 100 15V Q6784 B1ADNF000006 R6783 47 D6760 MA2J11100L Q6681 2SK389500L G D S Q6642 B1DFKM000001 R6604 150 R6615 11k R6684 10 D6613 MA2J11100L D6666 MA2J11100L R6626 220 PC6861 B3PBA0000223 1 2 3 4 R6718 2.2k D6763 MA2J11100L D6684 MA2J11100L 16V_F D6665 MAZ80510LL R6645 100 C6771 16V 1u D6664 MAZ83300ML 15V_F C6603 630V 1000p L6680 G0ZZ00002183 R6661 100k R6667 4.7k R6613 1M R6647 100 R6633 4.7k R6714 2.2k IC6671 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6666 100k R6861 39k D6623 B0HDSM000005 R6672 10k R6617 220k Q6763 B1ADNF000006 R6674 5.6 R6677 5.6 R6651 100 R6664 2.2k C6706 50V 0.1u VSET D6620 B0HCKS000002 C6671 25V 4.7u R6616 15k R6660 220k R6654 100 D6616 MA2J11100L C0JBAA000377 IC6773 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y R6782 10k C6776 50V 0.1u R6471 3.9k R6644 100 C0JBAA000377 IC6774 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y R6603 100 R6623 220 R6687 2.2k D6497 MA2J11100L D6820 MA2J11100L R6759 4.7k Q6742 2SD0601A0L D6683 MA2J11100L R6670 100 C6772 25V 4.7u D6612 MA2J11100L R6673 5.6 C0JBAA000377 IC6682 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y R6662 2.7k C6755 50V 0.1u Q6783 B1ABNF000006 R6781 47 C6808 1u 250V R6656 100 C0JBAB000715 IC6753 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y R6625 220 R6643 100 R6668 4.7k Q6665 B1ABNF000006 D6610 MAZ81500ML R6631 68k PC6705 B3PBA0000233 1 2 3 4 5 6 7 8 R6622 220 D6625 B0HDSM000005 R6474 1k C6612 25V 1u VSCN_F D6702 MAZ80560HL R6683 150 5V D6761 MA2J11100L C6693 250V 4u Q6658 B1DFKM000001 D6662 MAZ83300ML Q6657 B1DFKM000001 D6627 B0HDSM000005 R6648 100 C0JBAB000715 IC6602 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y R6746 10k D6603 MAZ82400ML Q6661 B1DEET000002 G D S R6690 150 R6696 2.2 R6784 10k R6608 1k R6717 2.2k D6861 MAZ80510LL Q6646 B1DFKM000001 IC6772 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6611 1M C6777 50V 0.1u D6611 MA2J11100L PC6610 B3PBA0000223 1 2 3 4 C6775 25V 4.7u R6697 2.2 R6627 220 Q6674 B1DEDS000001 G D S C6604 350V 47u D6601 MAZ82400ML R6605 100k C6753 25V 4.7u Q6781 B1ABNF000006 TP64 Q6671 B1DEDS000001 G D S D6862 MA2J11100L Q6673 B1DEDS000001 G D S R6868 22k R6867 3.9k C6641 1u 250V R6657 100 R6655 100 R6642 100 Q6626 B1DFKM000001 D6771 B0JCME000037 D6607 MA2J11100L D6629 B0HDSM000005 C0DBEKA00003 IC6471 1 NC 2 A 3 K 5 A 4 REF R6652 100 PC6480 B3PBA0000223 1 2 3 4 R6742 10k Q6622 B1DFKM000001 R6760 1.2k R6614 11k C6681 25V 4.7u R6653 100 Q6691 2SK062000L G D S C6862 25V 1u IC6751 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 IC6601 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB D6643 B0JCME000037 5V R6649 100 C6754 35V 56u R6669 100 C6708 50V 0.1u R6747 10k R6688 4.7k Q6762 B1ADNF000006 R6689 10 Q6627 B1DFKM000001 R6682 100 Q6660 B1DFKM000001 R6863 47k PC6703 B3PBA0000233 1 2 3 4 5 6 7 8 R6743 1k Q6649 B1DFKM000001 R6705 470 Q6645 B1DFKM000001 C6861 16V 1u Q6672 B1DEDS000001 G D S C6703 50V 0.1u D6621 B0HDSM000005 C6691 160V 100u R6762 10k C6707 50V 0.1u IC6681 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB SOS7_SC2 R6632 3.9k IC6861 C0BBBA000022 1 2 3 4 5 6 7 8 Q6651 B1DFKM000001 Q6652 B1DFKM000001 D6619 B0HCKS000002 R6685 470 R6708 470 D6642 B0HCKS000002 R6745 4.7k R6472 2.2k Q6682 2SK389500L G D S R6862 47k R6744 10k C6602 25V 4.7u Q6662 2SD0601A0L Q6648 B1DFKM000001 C6606 630V 1000p C6809 160V 100u R6869 4.7k R6691 10k D6477 MA2J11100L R6620 8.2 C6806 160V 100u Q6743 2SD0601A0L R6630 11k C6620 630V 2200p VF_GND VR6602 2k 1 2 3 R6473 560 R6715 2.2k D6661 MA2J11100L SOS7_SC2 IC6610 C0BBBA000022 1 2 3 4 5 6 7 8 R6641 100 R6675 5.6 R6704 470 Q6654 B1DFKM000001 Q6601 B1DEDS000001 G D S R6716 2.2k Q6602 2SD0601A0L IC6771 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 5V Q6653 B1DFKM000001 1% R6607 20k R6612 47 C6682 25V 4.7u D6653 B0JCME000037 C6610 50V 0.01u Q6744 2SK062000L G D S D6605 MAZ80510LL Q6623 B1DFKM000001 D6604 MA2J11100L D6752 B0JCME000037 5V C6605 50V 0.1u Q6625 B1DFKM000001 R6609 1k C6662 630V 1000p Q6656 B1DFKM000001 C6863 50V 0.01u Q6782 B1ADNF000006 R6610 100k Q6643 B1DFKM000001 R6659 220k R6756 33 R6755 100 R6763 10 Q6680 B1ADNF000006 D6606 B0HCMM000014 R6761 10 Q6679 B1ABNF000006 R6764 10k R6776 100 D6630 B0HDSM000005 D6641 B0HCKS000002 D6687 MA2J11100L VR6601 5k 1 2 3 D6686 MA2J11100L R6658 100 Q6659 B1DFKM000001 R6775 100 R6679 100 16V_F Q6644 B1DFKM000001 R6777 150 R6707 470 R6676 5.6 R6866 2.2k 1% R6606 1k R6706 470 Q6675 B1DEDS000001 G D S R6864 8.87k R6618 12k R6665 47 Q6655 B1DFKM000001 C6661 630V 1000p C6601 25V 4.7u R6686 10k C6683 50V 0.1u D6602 B0ECHP000003 VSCN_F Q6647 B1DFKM000001 R6671 47 C6752 16V 1u SOS7_SC2 VSET2 IC6752 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB TPVSET TPSC1 - + - + INIT-F INIT-F - - + + COMPARATOR 24 26 23 25 19 20 22 21 27 11 16 18 17 12 14 15 13 19 21 20 31 32 33 34 VAD CONT FET DRIVER FET DRIVER VAD SEPARATE FET DRIVER VSET SEPARATE COMPARATOR FET DRIVER VSET SLOPE FET DRIVER SUPERIMPOSED VSCN ! SC-BOARD TNPA4011 (3/4) AND AND AND COLD FLOATING GND FLOATING GND COLD FLOATING GND COLD FLOATING GND COLD TH-65PV600C SC-Board (3 of 4) Schematic Diagram TH-65PV600C SC-Board (3 of 4) Schematic Diagram 148 15.70.SC 电路板 (4/4) 线路图 + + + + REF K A REF K A REF K A + + + + + REF K A + AB_FCLD AB_FCLKD AB_PROD AB_FSIU AB_FSID AB_PROU AB_FCLKU AB_FCLU R6842 43k R6833 51k 16V_F TP049 D6821 MA2J11100L 1 2 3 4 5 6 7 8 9 R6858 1k D6808 B0HCMM000014 C6815 50V 0.1u C6807 50V 470p ZA6402 K4CD01000011 PC6801 B3PBA0000223 1 2 3 4 D6841 B0HCKS000002 1 2 3 4 5 6 7 8 9 TP050 R6811 33k TP048 R6809 10k TP037 SOS7_SC2 R6875 3.3k C6822 350V 47u R6820 0 TP34 D6826 MA2J11100L TP051 Q6842 2SC1473AEA TP50 R6807 1.2 1/2W SC42 1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 2 D6802 B0BC01000044 L6841 J0JJC0000011 C6872 25V 1u C6791 25V 220u 16V_F C6814 35V 150u VR6603 20k 1 2 3 R6801 8.2 R6829 220k R6849 68k R6823 100k R6886 220k R6834 51k R6822 100k R6819 680 R6813 12k TP31 Q6791 2SD0601A0L T6602 ETS28AU389AC 2 P2 3 PT 4 P1 6 V1 7 V2 9 NC 10 S5 12 S3 13 S2 14 NC 15 S1 16 NC 11 S4 VSET R6791 1k R6808 2.7k TP042 C6801 250V 47u VSCN_F D6825 MAZ83300ML R6844 100 PC6871 B3PBA0000223 1 2 3 4 SOS7_SC2 TP28 C6823 50V 0.01u Q6821 2SD1263AP0LB R6839 4.7k TP49 R6825 270k TP036 N0BF1FB00001 IC6791 1 GND 2 GND 3 N.C. 4 VIN 5 VIN 6 N.C. 9 COM 10 COM 11 VOUT 12 VOUT R6826 220k R6879 4.7k R6792 10k TP42 IC6841 C0DBEMB00005 L6801 IC6802 C0DBEMB00005 C6811 50V 0.01u 15V TP32 5V_F Q6822 2SC3063000RL R6832 4.7 1 2 3 4 5 6 7 8 TP35 Q6841 2SD1263AP0LB R6877 3.9k R6876 1.2k 5V R6806 1.2 1/2W D6822 MA2J11100L C6805 50V 1000p R6852 2.49k D6807 B0HCMM000014 R6846 56k 5V_F TP41 IC6801 C0DBEMB00005 R6816 2.2k R6891 3.3k C6795 25V 220u TP052 C6804 250V 10u R6817 5.6k VSUS 15V C6871 16V 1u L6802 J0JJC0000011 TP047 R6878 22k TP29 TP044 TP43 R6836 51k D6823 MA2J11100L R6841 15k D6872 MA2J11100L TP30 C6803 2kV 220p TP046 D6860 B0HCKS000002 R6888 220k 2W R6803 56k TP063 D6810 B0HCMM000014 C6812 25V 4.7u R6851 1.2k ZA6401 K4CD01000011 R6793 100 R6871 39k TP062 R6873 39k L6473 G0ZZ00002183 VR6600 1k 1 2 3 D6809 B0HCMM000014 SC41 1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 2 R6835 51k D6824 MAZ83300ML L6472 G0ZZ00002183 Q6803 2SD0814ARL TP48 5V VSUS TP47 C6845 50V 0.01u R6828 5.23k VSET0 C6841 200V 100u C6842 160V 100u SOS7_SC2 R6850 68k R6810 33k TP53 TP043 SC44 1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 2 D6859 B0ECHP000003 R6887 220k TP33 C6813 160V 100u 16V_F C6802 630V 0.022u R6848 10k D6805 MA2J11100L R6837 56k D6842 MA2J11100L 5V_F IC6821 C0DBEMB00005 R6821 220 Q6824 2SD0601A0L C6873 50V 0.01u TP40 TP045 D6804 B0ECHP000003 TP46 ZA6403 K4CD01000011 D6806 B0ECHP000003 16V_F R6872 39k R6845 62k R6830 220k R6853 100 R6802 68k R6814 5.6k D6871 MAZ80510LL R6812 200k IC6871 C0BBBA000022 1 2 3 4 5 6 7 8 R6831 15k R6824 5.6k R6847 56k R6860 8.2 VSET0 D6843 MA2J11100L C6796 25V 220u R6870 0 R6843 62k C0DAAMH00005 IC6803 1 Drain 2 Source 3 GND 4 Vin 5 OCP/FB R6874 9.53k D6803 B0HCKS000002 D6791 MAZ82000ML VSET2 TP053 R6827 8.2k SC43 1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 2 * * * * m * * TPVSET2:5V TPVAD TPVSCN VSET:240V - - + + AB_FSIU AB_FCLU AB_FCLKU AB_PROU AB_FSID AB_FCLD AB_FCLKD AB_PROD VSET VAD 31 30 35 29 34 28 33 36 32 32 31 34 33 DC/DC CONV. POWER OSC COMPARATOR (SU41) TO SU-BOARD (SU42) TO SU-BOARD TO SU-BOARD (SU45) (SD46) TO SD-BOARD SD-BOARD (SD44) TO SD-BOARD (SD43) TO ! SC-BOARD TNPA4011 (4/4) SC 45 SC 46 VSCN Gen. VAD Gen. VSET2 Gen. SC 30 FLOATING GND COLD FLOATING GND COLD TH-65PV600C SC-Board (4 of 4) Schematic Diagram TH-65PV600C SC-Board (4 of 4) Schematic Diagram 149 15.71.SU 和 SD 电路板方框图 46 S/P FCLKD ELECTRODES VDD GND Vfo 7 VDD S/P Vfo Vf+5V 41 SO VDDH 64 Vscn 50 CL 41 Vf+5V PRO CLK Vf 64 LINE 28 GND SI 53 SD43 28bit CL IC6912 Vf GND SU SCAN OUT (UPPER) SI S/P Vf+5V 540LINE 11 S/P 40 75 64bit SO VDD 40 CLK 108 80 GND PROD VDDH SD5 76 GND 33 VDDH 1 CLK PRO 1 SD 64bit Vf S/P SI Vscn GND 64bit CL SO 34 51 40 PRO SI VDD 13 5 IC6913 9 35 8 LINE 108 VDD VDDH 73 SD4 CLK SD44 CLK 3 PRO CL SCAN IC6914 36 52 PANEL FCLD 74 SD3 1 VDDH IC6910 VDDH Vf PRO VDD S/P IC6911 60 SI SO 10 PRO LINE IC6915 108 SI CLK 16 12 48 CL SO Vf+5V 64bit Vf (LOWER) SD SCAN OUT (LOWER) 64bit 80 Vf CL 1B 1A 1Y IC6920 2B 2A 2Y 3B 3A 3Y 4B 4A 4Y CLK VDD SD1 SO SD2 VDD VDD 64 CLK SO VDDH 44 GND SI GND S/P S/P SI GND 64 SO VDDH CL PRO 64bit LINE CLK 64bit CL PRO IC6917 108 S/P VDDH PRO 20 CL 64bit SO IC6916 LINE IC6918 108 24 4 SI CLK VDD D69 16 SU3 SI 64 D40 2Y D60 SO SU2 48 C45 PRO 4B SI 64bit SU4 CL CLK VDD 4A PRO D31 CL VDD CLK Vfo SU41 VDD 40 4 CLK VDDH 108 CLK 1B SU5 D41 C48 SO D80 GND VDDH VDDH GND 64 CL CL C5 Vscn IC6907 PRO PRO CLK Vf Vf 64 LINE GND VDD VDD 28 D71 SI Vscn GND S/P S/P S/P SI IC6908 GND 45 60 SI GND SU42 SO 28bit VDDH 3Y SO VDD 64bit D28 CLK CL PRO 64bit 44 C1 VDDH Vf IC6940 3 CLK (UPPER) PRO 64bit CL S/P PRO 64bit S/P LINE 1 C80 CLK SCAN SU IC6905 CL 64bit Vf+5V Vf Vf 1A 540LINE 3B 24 D1 SU1 3A VDDH S/P SI D29 IC6909 S/P GND VDDH 2A S/P Vf PRO 1Y IC6902 108 ELECTRODES S/P D68 VDDH PRO VDD 20 GND CL SI SO IC6903 Vfo C41 LINE 7 C40 IC6901 Vf+5V C47 108 VDD SI GND 64bit 5 C8 SO IC6906 4Y 9 D70 PANEL 2B C7 C46 SO LINE 8 CL IC6904 64 64bit LINE VDDH C6 SO 108 108 PROU Vf+5V FCLKU FCLU Vf+5V FSIU TO SC45 TO SC41 TO SC42 TO SC46 TO SC44 TO SC43 TH-65PV600C SU and SD-Board Block Diagram TH-65PV600C SU and SD-Board Block Diagram 150 15.72.SU 电路板 (1/3) 线路图 TERM SIDE AB515 AB516 AB517 AB518 AB519 AB520 AB521 AB522 AB523 AB524 AB525 AB526 AB527 AB528 AB529 AB530 AB531 AB532 AB533 AB534 AB535 AB536 AB537 AB539 AB538 AB540 AC451 AC452 AC453 AC454 AC455 AC456 AC457 AC458 AC459 AC460 AC461 AC462 AC463 AC464 AC465 AC466 AC467 AC468 AC469 AC470 AC471 AC472 AC473 AC475 AC474 AC476 AC478 AC477 AB513 AB514 AC450 AC449 AC512 AC511 AC510 AC509 AC508 AC507 AC506 AC505 AC504 AC503 AC502 AC501 AC500 AC499 AC498 AC497 AC496 AC495 AC494 AC493 AC492 AC491 AC490 AC489 AC488 AC487 AC486 AC485 AC484 AC483 AC482 AC481 AC479 AC480 AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_SI9 AD433 AD435 AD437 AD439 AD441 AD443 AD445 AD447 AD434 AD436 AD438 AD440 AD442 AD444 AD446 AD448 AC450 AC452 AC454 AC456 AC458 AC460 AC462 AC464 AC466 AC468 AC470 AC472 AC474 AC476 AC478 AC480 AC482 AC484 AC486 AC488 AC490 AC492 AC494 AC496 AC498 AC500 AC502 AC504 AC506 AC508 AC510 AC512 AC449 AC451 AC453 AC455 AC457 AC459 AC461 AC463 AC465 AC467 AC469 AC471 AC473 AC475 AC477 AC479 AC481 AC483 AC485 AC487 AC489 AC491 AC493 AC495 AC497 AC499 AC501 AC503 AC505 AC507 AC509 AC511 AB513 AB515 AB517 AB519 AB521 AB523 AB525 AB527 AB529 AB531 AB533 AB535 AB537 AB539 AB514 AB516 AB518 AB520 AB522 AB524 AB526 AB528 AB530 AB532 AB534 AB536 AB538 AB540 AA_SI8 AA_SI9 AA_CL AA_SI1 AA_PRO AA_CLK SU5 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 R6909 220 C6928 50V 220p C6908 16V 1u AN16071A-VT IC6908 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6909 16V 1u AN16071A-VT IC6909 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6940 50V 0.1u 1 2 3 4 5 6 7 8 9 C6929 50V 220p R6908 220 C6961 50V 1000p IC6940 C0JBAA000174 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 Vcc R6920 EXB38V220JV R6922 EXB38V220JV R6921 EXB38V103JV S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 28bit SU-BOARD TNPA4009 (1/3) ! AND Gate (SC45) SC-BOARD TO Vf Vf Vf Vf5 Vf5 FCL FSI FCLK PRO A 5 F 1 2 C 4 D 3 9 E B 4 6 7 1 5 3 2 To 5th 108pins of SCAN ELECTRODES 45 SU TH-65PV600C SU-Board (1 of 3) Schematic Diagram TH-65PV600C SU-Board (1 of 3) Schematic Diagram 6 7 8 151 15.73.SU 电路板 (2/3) 线路图 TERM SIDE TERM SIDE AD387 AD388 AD389 AD390 AD391 AD392 AD393 AD394 AD395 AD396 AD397 AD398 AD399 AD400 AD401 AD402 AD403 AD404 AD405 AD406 AD407 AD408 AD409 AD411 AD410 AD412 AD414 AD413 AE323 AE324 AE325 AE326 AE327 AE328 AE329 AE330 AE331 AE332 AE333 AE334 AE335 AE336 AE337 AE338 AE339 AE340 AE341 AE342 AE343 AE344 AE345 AE347 AE346 AE348 AE350 AE349 AF259 AF260 AF261 AF262 AF263 AF264 AF265 AF266 AF267 AF268 AF269 AF270 AF271 AF272 AF273 AF274 AF275 AF276 AF277 AF278 AF279 AF280 AF281 AF283 AF282 AF284 AF286 AF285 AD386 AD385 AE321 AE322 AF258 AD448 AD447 AD446 AD445 AD444 AD443 AD442 AD441 AD440 AD439 AD438 AD437 AD436 AD435 AD434 AD433 AD432 AD431 AD430 AD429 AD428 AD427 AD426 AD425 AD423 AD424 AD422 AD421 AD420 AD419 AD418 AD417 AD415 AD416 AE384 AE383 AE382 AE381 AE380 AE379 AE378 AE377 AE376 AE375 AE374 AE373 AE372 AE371 AE370 AE369 AE368 AE367 AE366 AE365 AE364 AE363 AE362 AE361 AE360 AE359 AE358 AE357 AE356 AE355 AE354 AE353 AE351 AE352 AF320 AF319 AF318 AF317 AF316 AF315 AF314 AF313 AF312 AF311 AF310 AF309 AF308 AF307 AF306 AF305 AF304 AF303 AF302 AF301 AF300 AF299 AF298 AF297 AF296 AF295 AF294 AF293 AF292 AF291 AF290 AF289 AF287 AF288 AA_SI8 AA_SI7 AA_SI5 AA_SI6 AA_CLK AA_CL AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_PRO AG217 AG219 AG221 AG223 AG225 AG227 AG229 AG231 AG233 AG235 AG237 AG239 AG241 AG243 AG245 AG247 AG249 AG251 AG253 AG255 AG218 AG220 AG222 AG224 AG226 AG228 AG230 AG232 AG234 AG236 AG238 AG240 AG242 AG244 AG246 AG248 AG250 AG252 AG254 AG256 AF257 AF259 AF261 AF263 AF265 AF267 AF269 AF271 AF273 AF275 AF277 AF279 AF281 AF283 AF285 AF287 AF289 AF291 AF293 AF295 AF297 AF299 AF301 AF303 AF305 AF307 AF309 AF311 AF313 AF315 AF317 AF319 AF258 AF260 AF262 AF264 AF266 AF268 AF270 AF272 AF274 AF276 AF278 AF280 AF282 AF284 AF286 AF288 AF290 AF292 AF294 AF296 AF298 AF300 AF302 AF304 AF306 AF308 AF310 AF312 AF314 AF316 AF318 AF320 AE322 AE324 AE326 AE328 AE330 AE332 AE334 AE336 AE338 AE340 AE342 AE346 AE348 AE350 AE352 AE354 AE356 AE358 AE360 AE362 AE364 AE366 AE368 AE370 AE372 AE374 AE376 AE378 AE380 AE382 AE384 AE344 AE321 AE323 AE325 AE327 AE329 AE331 AE333 AE335 AE337 AE339 AE341 AE343 AE345 AE347 AE349 AE351 AE353 AE355 AE357 AE359 AE361 AE363 AE365 AE367 AE369 AE371 AE373 AE375 AE377 AE379 AE381 AE383 AD385 AD387 AD389 AD391 AD393 AD395 AD397 AD399 AD401 AD403 AD405 AD407 AD409 AD411 AD413 AD415 AD417 AD419 AD421 AD423 AD425 AD427 AD429 AD431 AD386 AD388 AD390 AD392 AD394 AD396 AD398 AD400 AD402 AD404 AD406 AD408 AD410 AD412 AD414 AD416 AD418 AD420 AD422 AD424 AD426 AD428 AD430 AD432 AA_SI6 AA_SI7 AF257 D16 D43 R6938 220k AN16071A-VT IC6907 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D42 D71 D54 D77 R6905 220 D49 SU3 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 C6926 50V 220p D23 D69 D58 D1 D72 D26 D29 D27 D62 D28 D51 D79 D47 D22 D3 D56 SU4 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 D34 D35 D12 D39 D37 D80 D41 D68 D6 R6939 220k D36 D14 D18 D73 D11 C6906 16V 1u D21 D60 D2 D55 D31 R6907 220 D48 D78 C6905 16V 1u D52 D50 D64 D15 R6906 220 D65 D20 D24 D8 D66 D45 D30 C6925 50V 220p D61 D4 D53 D40 AN16071A-VT IC6906 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D13 D57 D32 D46 D9 D76 D70 D74 C6927 50V 220p AN16071A-VT IC6905 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D38 D67 C6907 16V 1u D19 D25 D10 D17 D7 D63 D75 D59 D33 D44 D5 D6913 B0HDRP000002 DE5LC20U-7061 C6968 250V 0.1u C6969 250V 0.1u C6980 250V 0.1u C6981 250V 0.1u Vscn Vf Vfo 1/8W 1/8W S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit SU-BOARD TNPA4009 (2/3) COMPONENT SIDE (LOWER) (UPPER) FOIL SIDE 17 13 15 11 16 10 12 18 14 6 1 5 3 7 4 2 11 12 17 18 16 19 14 15 13 To 3rd 108pins of SCAN ELECTRODES To 4th 108pins of SCAN ELECTRODES SU42(Card Edge 80Pin) TO (SC42) SC-BOARD ! TH-65PV600C SU-Board (2 of 3) Schematic Diagram TH-65PV600C SU-Board (2 of 3) Schematic Diagram 152 15.74.SU 电路板 (3/3) 线路图 TERM SIDE TERM SIDE AG195 AG196 AG197 AG198 AG199 AG200 AG201 AG202 AG203 AG204 AG205 AG206 AG207 AG208 AG209 AG210 AG211 AG212 AG213 AG214 AG215 AG216 AG217 AG219 AG218 AG220 AG222 AG221 AG193 AG194 AG256 AG255 AG254 AG253 AG252 AG251 AG250 AG249 AG248 AG247 AG246 AG245 AG244 AG243 AG242 AG241 AG240 AG239 AG238 AG237 AG236 AG235 AG234 AG233 AG232 AG231 AG230 AG229 AG228 AG227 AG226 AG225 AG223 AG224 AA_CLK AA_CL AA_PRO AH162 AH185 AH163 AH186 AH164 AH187 AH134 AH165 AH188 AH133 AH166 AH189 AH132 AH167 AH190 AH131 AH144 AH168 AH191 AH143 AH169 AH192 AH142 AH170 AH157 AH141 AH171 AH158 AH140 AH172 AH156 AH139 AH173 AH154 AH138 AH174 AH155 AH175 AH137 AH153 AH176 AH136 AH152 AH177 AH135 AH151 AH178 AH150 AH179 AH149 AH130 AH180 AH148 AH129 AH181 AH147 AH160 AH182 AH146 AH159 AH183 AH145 AH161 AH184 AI98 AI121 AI99 AI122 AI100 AI123 AI70 AI101 AI124 AI69 AI102 AI125 AI68 AI103 AI126 AI67 AI80 AI104 AI127 AI79 AI105 AI128 AI78 AI106 AI93 AI77 AI107 AI94 AI76 AI108 AI92 AI75 AI109 AI90 AI74 AI110 AI91 AI111 AI73 AI89 AI112 AI72 AI88 AI113 AI71 AI87 AI114 AI86 AI115 AI85 AI66 AI116 AI84 AI65 AI117 AI83 AI96 AI118 AI82 AI95 AI119 AI81 AI97 AI120 AJ6 AJ5 AJ4 AJ3 AJ16 AJ15 AJ14 AJ13 AJ12 AJ28 AJ11 AJ26 AJ10 AJ27 AJ9 AJ25 AJ8 AJ24 AJ7 AJ23 AJ22 AJ21 AJ2 AJ20 AJ1 AJ19 AJ18 AJ17 AA_CLK AA_CLK AA_CLK AA_CL AA_CL AA_CL AA_PRO AA_PRO AA_SI3 AA_SI4 AA_SI1 AA_PRO AA_SI2 AJ29 AJ30 AJ31 AJ32 AJ33 AJ34 AJ35 AJ36 AJ37 AJ38 AJ39 AJ40 AJ41 AJ42 AJ43 AJ44 AJ45 AJ46 AJ47 AJ48 AJ49 AJ50 AJ51 AJ52 AJ53 AJ54 AJ55 AJ56 AJ57 AJ58 AJ59 AJ60 AJ61 AJ62 AJ63 AJ64 AJ2 AJ4 AJ6 AJ8 AJ10 AJ12 AJ14 AJ16 AJ18 AJ20 AJ22 AJ24 AJ26 AJ28 AJ30 AJ32 AJ3 AJ5 AJ7 AJ9 AJ11 AJ13 AJ15 AJ17 AJ19 AJ21 AJ23 AJ25 AJ27 AJ29 AJ31 AJ33 AJ35 AJ37 AJ39 AJ41 AJ43 AJ45 AJ47 AJ49 AJ51 AJ53 AJ55 AJ57 AJ59 AJ61 AJ63 AJ34 AJ36 AJ38 AJ40 AJ42 AJ44 AJ46 AJ48 AJ50 AJ52 AJ54 AJ56 AJ58 AJ60 AJ62 AJ64 AI65 AI67 AI69 AI71 AI73 AI75 AI77 AI79 AI81 AI83 AI85 AI87 AI89 AI91 AI93 AI95 AI97 AI99 AI101 AI103 AI105 AI109 AI111 AI113 AI115 AI117 AI119 AI121 AI123 AI125 AI127 AI66 AI68 AI70 AI72 AI74 AI76 AI78 AI80 AI82 AI84 AI86 AI88 AI90 AI92 AI94 AI96 AI98 AI100 AI102 AI104 AI106 AI108 AI110 AI112 AI114 AI116 AI118 AI120 AI122 AI124 AI126 AI128 AI107 AH129 AH131 AH133 AH135 AH137 AH139 AH141 AH143 AH145 AH147 AH149 AH151 AH153 AH155 AH157 AH159 AH161 AH163 AH165 AH167 AH169 AH171 AH173 AH175 AH177 AH179 AH181 AH183 AH185 AH187 AH189 AH191 AH130 AH132 AH134 AH136 AH138 AH140 AH142 AH144 AH146 AH148 AH150 AH152 AH154 AH156 AH158 AH160 AH162 AH164 AH166 AH168 AH170 AH172 AH174 AH176 AH178 AH180 AH182 AH184 AH186 AH188 AH190 AH192 AG193 AG195 AG197 AG199 AG201 AG203 AG205 AG207 AG209 AG211 AG213 AG215 AG194 AG196 AG198 AG200 AG202 AG204 AG206 AG208 AG210 AG212 AG214 AG216 AA_SI2 AA_SI3 AA_SI4 AA_SI5 AJ1 AA_CL AA_CLK AA_SI1 AA_PRO D6902 MAZ80560HL C4 AN16071A-VT IC6902 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D6901 MAZ80560HL C16 R6963 220k C6901 16V 1u C42 C47 C39 C45 C68 C62 C20 C64 C56 C63 C6904 16V 1u C3 C21 C18 C76 C34 C44 C17 C19 C57 C61 C8 C12 C6966 250V 0.1u C6924 50V 220p C24 C52 C58 C78 AN16071A-VT IC6904 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C60 C31 C6922 50V 220p C6903 16V 1u C2 C80 C49 C26 C11 C36 C14 C15 C74 C41 C27 C13 C65 C40 C25 R6902 220 C6923 50V 220p C10 C22 C6965 250V 0.1u C69 C30 R6904 220 C33 C53 C28 R6901 100 R6903 220 C43 C71 C77 AN16071A-VT IC6901 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C48 C50 C66 C9 AN16071A-VT IC6903 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C23 C67 C6921 50V 1000p C59 C1 C55 C37 C6902 16V 1u C51 C46 C6964 250V 0.1u C54 C73 C38 C29 C75 C79 SU1 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 C7 SU2 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 C6967 250V 0.1u C72 C35 C6 C5 C70 C32 D6910 B0HDRP000002 R6924 EXB38V103JV Vf5 1/8W S/P 64bit PDP SCAN DRIVER S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit SU-BOARD TNPA4009 (3/3) ! COMPONENT SIDE FOIL SIDE (UPPER) (LOWER) 24 23 25 26 20 19 21 22 27 17 18 16 19 15 13 11 14 12 To 1st 108pins of SCAN ELECTRODES SCAN ELECTRODES To 2nd 108pins of SU41(Card Edge 80Pin) TO (SC41) SC-BOARD TH-65PV600C SU-Board (3 of 3) Schematic Diagram TH-65PV600C SU-Board (3 of 3) Schematic Diagram 153 15.75.SD 电路板 (1/3) 线路图 TERM SIDE TERM SIDE AE827 AE828 AE829 AE830 AE831 AE832 AE833 AE834 AE835 AE836 AE837 AE838 AE839 AE840 AE841 AE842 AE843 AE844 AE845 AE846 AE847 AE848 AE849 AE851 AE850 AE852 AE854 AE853 AE825 AE826 AE888 AE888 AE886 AE885 AE884 AE883 AE882 AE881 AE880 AE879 AE878 AE877 AE876 AE875 AE874 AE873 AE872 AE871 AE870 AE869 AE868 AE867 AE866 AE865 AE864 AE863 AE887 AE862 AE861 AE860 AE859 AE858 AE857 AE856 AE855 AD941 AD892 AD907 AD917 AD906 AA_PRO AD890 AD918 AD905 AD889 AD916 AD904 AD919 AD927 AD914 AD903 AD920 AD928 AD923 AD915 AD902 AA_SI16 AD921 AD929 AD924 AD913 AD901 AD922 AD930 AD925 AD900 AD931 AA_CL AD926 AD899 AA_CLK AD898 AD951 AD942 AD897 AD943 AD947 AD944 AD912 AD948 AD932 AD945 AD911 AD949 AD933 AD946 AD910 AD950 AD934 AD909 AD935 AD952 AD952 AD908 AD936 AD937 AD896 AD938 AD895 AD939 AD894 AD940 AD891 AD893 AC1005 AC956 AC971 AC981 AC970 AA_PRO AC954 AC982 AC969 AC953 AC980 AC968 AC983 AC991 AC978 AC967 AC984 AC992 AC987 AC979 AC966 AC985 AC993 AC988 AC977 AC965 AC986 AC994 AC989 AC964 AC995 AA_CL AC990 AC963 AA_CLK AC962 AC1015 AC1006 AC961 AC1007 AC1011 AC1008 AC976 AC1012 AC996 AC1009 AC975 AC1013 AC997 AC1010 AC974 AC1014 AC998 AC973 AC999 AC1016 AC972 AC1000 AC1001 AC960 AC1002 AC959 AC1003 AC958 AC1004 AC955 AC957 AB1069 AA_PRO AB1055 AB1056 AA_SI18 AB1057 AB1058 AB1053 AB1059 AA_CL AB1054 AA_CLK AB1079 AB1070 AB1071 AB1075 AB1072 AB1076 AB1060 AB1073 AB1077 AB1061 AB1074 AB1078 AB1062 AB1063 AB1080 AB1064 AB1065 AB1066 AB1067 AB1068 AA_SI15 AA_SI17 AA_PRO AA_CL AA_CLK AB1052 AB1051 AB1050 AB1049 AB1048 AB1047 AB1046 AB1045 AB1044 AB1043 AB1042 AB1041 AB1040 AB1039 AB1038 AB1037 AB1036 AB1035 AB1034 AB1033 AB1032 AB1031 AB1030 AB1029 AB1028 AB1027 AB1026 AB1025 AB1024 AB1023 AB1022 AB1021 AB1020 AB1019 AB1018 AB1017 AB1080 AB1078 AB1076 AB1074 AB1072 AB1070 AB1068 AB1066 AB1064 AB1062 AB1060 AB1058 AB1056 AB1054 AB1052 AB1050 AB1048 AB1046 AB1044 AB1042 AB1040 AB1038 AB1036 AB1034 AB1032 AB1030 AB1028 AB1026 AB1024 AB1022 AB1020 AB1018 AB1079 AB1077 AB1075 AB1073 AB1071 AB1069 AB1067 AB1065 AB1063 AB1061 AB1059 AB1057 AB1055 AB1053 AB1051 AB1049 AB1047 AB1045 AB1043 AB1041 AB1039 AB1037 AB1035 AB1033 AB1031 AB1029 AB1027 AB1025 AB1023 AB1021 AB1019 AB1017 AC1016 AC1014 AC1012 AC1010 AC1008 AC1006 AC1004 AC1002 AC1000 AC998 AC996 AC994 AC992 AC990 AC988 AC986 AC984 AC982 AC980 AC978 AC976 AC974 AC972 AC970 AC968 AC966 AC964 AC962 AC960 AC958 AC956 AC954 AC1015 AC1013 AC1011 AC1009 AC1007 AC1005 AC1003 AC1001 AC999 AC997 AC995 AC993 AC991 AC989 AC987 AC985 AC983 AC981 AC979 AC977 AC975 AC973 AC971 AC969 AC967 AC965 AC963 AC961 AC959 AC957 AC955 AC953 AD952 AD950 AD948 AD946 AD944 AD942 AD940 AD938 AD936 AD934 AD932 AD930 AD928 AD926 AD924 AD922 AD920 AD918 AD916 AD914 AD912 AD910 AD908 AD906 AD904 AD902 AD900 AD898 AD896 AD894 AD892 AD890 AD951 AD949 AD947 AD945 AD943 AD941 AD939 AD937 AD935 AD933 AD931 AD929 AD927 AD925 AD923 AD921 AD919 AD917 AD915 AD913 AD911 AD909 AD907 AD905 AD903 AD901 AD899 AD897 AD895 AD893 AD891 AD889 AE888 AE886 AE884 AE882 AE880 AE878 AE876 AE874 AE872 AE870 AE868 AE866 AE887 AE885 AE883 AE881 AE879 AE877 AE875 AE873 AE871 AE869 AE867 AE865 AA_CLK AA_SI17 AA_SI16 AA_SI15 AA_SI14 AA_SI18 AA_PRO AA_CL A23 A42 A18 R6948 220k A57 A26 C6916 16V 1u A17 A4 R6916 220 A14 A43 A74 A52 A60 A47 A7 A25 AN16071A-VT IC6915 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A19 A59 A32 A9 A66 A37 A77 A80 A34 D6906 MAZ80560HL A61 A71 A11 A20 C6935 50V 220p A48 A45 A16 A10 A5 A58 AN16071A-VT IC6917 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6938 50V 1000p A22 C6917 16V 1u C6936 50V 220p A8 A62 D6905 MAZ80560HL C6918 16V 1u A70 A38 A64 A63 A49 A46 A51 A29 A15 A6 A67 A33 A3 A40 A76 A41 A24 A36 A75 A53 C6937 50V 220p A65 SD2 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 A56 A78 A73 A28 A50 AN16071A-VT IC6918 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A55 R6915 220 A2 A69 A12 A30 R6917 220 R6918 100 A13 A31 A79 A35 C6915 16V 1u A54 A1 A68 A21 A44 A72 A39 SD1 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 AN16071A-VT IC6916 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A27 D6923 B0HDRP000002 R6954 EXB38V103JV C6978 250V 0.1u C6979 250V 0.1u C6990 250V 0.1u C6991 250V 0.1u 1/8W Vf5 SD-BOARD TNPA4010 (1/3) S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit SCAN ELECTRODES To 2nd 108pins of To 1st 108pins of SCAN ELECTRODES (SC43) SD43(Card Edge 80Pin) TO SC-BOARD COMPONENT SIDE (LOWER) FOIL SIDE (UPPER) A 6 7 8 9 3 E D 5 F 2 1 C B 4 4 6 7 3 8 2 1 5 9 ! TH-65PV600C SD-Board (1 of 3) Schematic Diagram TH-65PV600C SD-Board (1 of 3) Schematic Diagram 154 15.76.SD 电路板 (2/3) 线路图 TERM SIDE TERM SIDE AF763 AF764 AF765 AF766 AF767 AF768 AF769 AF770 AF771 AF772 AF773 AF774 AF775 AF776 AF777 AF778 AF779 AF780 AF781 AF782 AF783 AF784 AF785 AF787 AF786 AF788 AF790 AF789 AG699 AG700 AG701 AG702 AG703 AG704 AG705 AG706 AG707 AG708 AG709 AG710 AG711 AG712 AG713 AG714 AG715 AG716 AG717 AG718 AG719 AG720 AG721 AG723 AG722 AG724 AG726 AH635 AH636 AH637 AH638 AH639 AH640 AH641 AH642 AH643 AH644 AH645 AH646 AH647 AH648 AH649 AH650 AH651 AH652 AH653 AH654 AH655 AH656 AH657 AH659 AH658 AH660 AH662 AH661 AF761 AF762 AG697 AG698 AH633 AH634 AF823 AF822 AF821 AF820 AF819 AF818 AF817 AF816 AF815 AF814 AF813 AF812 AF811 AF810 AF809 AF808 AF807 AF806 AF805 AF804 AF803 AF802 AF801 AF800 AF799 AF798 AF797 AF796 AF795 AF794 AF793 AF792 AF791 AG760 AG759 AG758 AG757 AG756 AG755 AG754 AG753 AG752 AG751 AG750 AG749 AG748 AG747 AG746 AG745 AG744 AG743 AG742 AG741 AG740 AG739 AG738 AG737 AG736 AG735 AG734 AG733 AG732 AG731 AG730 AG729 AG727 AG728 AG725 AH695 AH696 AH693 AH692 AH691 AH690 AH689 AH688 AH687 AH686 AH685 AH684 AH683 AH682 AH681 AH680 AH679 AH678 AH677 AH676 AH675 AH674 AH673 AH672 AH671 AH694 AH670 AH669 AH668 AH667 AH666 AH665 AH663 AH664 AA_SI11 AA_SI12 AA_CLK AA_CL AA_PRO AA_SI14 AA_CLK AA_CL AA_PRO AA_SI13 AA_CLK AA_CL AA_PRO AE864 AE862 AE860 AE858 AE856 AE854 AE852 AE850 AE848 AE846 AE844 AE842 AE840 AE838 AE836 AE834 AE832 AE830 AE828 AE826 AE863 AE861 AE859 AE857 AE855 AE853 AE851 AE849 AE847 AE845 AE843 AE841 AE839 AE837 AE835 AE833 AE831 AE829 AE827 AE825 AF824 AF822 AF820 AF818 AF816 AF814 AF812 AF810 AF808 AF806 AF804 AF802 AF800 AF798 AF796 AF794 AF792 AF790 AF788 AF786 AF784 AF782 AF780 AF778 AF776 AF774 AF772 AF770 AF768 AF766 AF764 AF762 AF823 AF821 AF819 AF817 AF815 AF813 AF811 AF809 AF807 AF805 AF803 AF801 AF799 AF797 AF795 AF793 AF791 AF789 AF787 AF785 AF783 AF781 AF779 AF777 AF775 AF773 AF771 AF769 AF767 AF765 AF763 AF761 AG760 AG758 AG756 AG754 AG752 AG750 AG748 AG746 AG744 AG742 AG740 AG738 AG736 AG734 AG732 AG730 AG728 AG726 AG724 AG722 AG720 AG718 AG716 AG714 AG712 AG710 AG708 AG706 AG704 AG702 AG700 AG698 AG759 AG757 AG755 AG753 AG751 AG749 AG747 AG745 AG743 AG741 AG739 AG737 AG735 AG733 AG731 AG729 AG727 AG725 AG723 AG721 AG719 AG717 AG715 AG713 AG711 AG709 AG707 AG705 AG703 AG701 AG699 AG697 AH696 AH694 AH692 AH690 AH688 AH686 AH684 AH682 AH680 AH678 AH676 AH674 AH672 AH670 AH668 AH666 AH664 AH662 AH660 AH658 AH656 AH654 AH652 AH650 AH695 AH693 AH691 AH689 AH687 AH685 AH683 AH681 AH679 AH677 AH675 AH673 AH671 AH669 AH667 AH665 AH663 AH661 AH659 AH657 AH655 AH653 AH651 AH649 AA_SI13 AA_SI12 AF824 B80 B36 B24 B19 B29 B77 B56 B55 B25 B61 SD4 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 B11 R6964 220k B70 B14 B40 B30 B43 B38 B53 B12 B8 C6914 16V 1u B64 B3 B78 SD3 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 B68 B17 AN16071A-VT IC6912 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 B72 B60 AN16071A-VT IC6913 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 B35 R6949 220k B18 B22 B66 B49 B39 B51 B75 B28 B48 C6934 50V 220p B34 B54 B27 R6913 220 B15 B58 B20 B67 B65 B5 B32 AN16071A-VT IC6914 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 B47 B1 B33 C6974 250V 0.1u B21 B45 B31 C6975 250V 0.1u B73 B13 C6932 50V 220p B4 C6977 250V 0.1u B71 C6912 16V 1u B10 B41 B9 B79 B26 B74 B42 B2 B59 B62 B37 B23 B6 B63 B16 C6933 50V 220p B57 B44 B7 B69 B52 R6914 220 B76 C6913 16V 1u B50 R6912 220 C6976 250V 0.1u B46 D6920 B0HDRP000002 1/8W 1/8W Vfo Vscn Vf SD-BOARD TNPA4010 (2/3) S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit To 3rd 108pins of SCAN ELECTRODES To 4th 108pins of SCAN ELECTRODES (SC44) SD44(Card Edge 80Pin) TO SC-BOARD (LOWER) COMPONENT SIDE FOIL SIDE (UPPER) 10 18 12 17 13 14 15 11 16 7 8 5 9 4 6 3 2 1 14 15 13 16 11 12 17 TH-65PV600C SD-Board (2 of 3) Schematic Diagram TH-65PV600C SD-Board (2 of 3) Schematic Diagram ! 155 15.77.SD 电路板 (3/3) 线路图 TERM SIDE AI571 AI572 AI573 AI574 AI575 AI576 AI577 AI578 AI579 AI580 AI581 AI582 AI583 AI584 AI585 AI586 AI587 AI588 AI589 AI590 AI591 AI592 AI593 AI595 AI594 AI596 AI598 AI597 AI569 AI570 AI632 AI631 AI630 AI629 AI628 AI627 AI626 AI625 AI624 AI623 AI622 AI621 AI620 AI619 AI618 AI617 AI616 AI615 AI614 AI613 AI612 AI611 AI610 AI609 AI608 AI607 AI606 AI605 AI604 AI603 AI602 AI601 AI600 AI599 AJ568 AJ567 AJ566 AJ565 AJ564 AJ563 AJ562 AJ561 AJ560 AJ559 AJ558 AJ557 AJ556 AJ555 AJ554 AJ553 AJ552 AJ551 AJ550 AJ549 AJ548 AJ547 AJ546 AJ545 AJ544 AJ543 AJ542 AJ541 AA_SI10 AA_PRO AA_CLK AA_CLK AA_CL AA_PRO AA_CL AH648 AH644 AH642 AH640 AH638 AH636 AH634 AH646 AH647 AH645 AH643 AH641 AH639 AH637 AH635 AH633 AI632 AI630 AI628 AI626 AI624 AI622 AI620 AI618 AI616 AI614 AI612 AI610 AI608 AI606 AI604 AI602 AI600 AI598 AI596 AI594 AI592 AI590 AI588 AI586 AI584 AI582 AI580 AI578 AI576 AI574 AI572 AI570 AI631 AI629 AI627 AI625 AI623 AI621 AI619 AI617 AI615 AI613 AI611 AI609 AI607 AI605 AI603 AI601 AI599 AI597 AI595 AI593 AI591 AI589 AI587 AI585 AI583 AI581 AI579 AI577 AI575 AI573 AI571 AI569 AJ568 AJ566 AJ564 AJ562 AJ560 AJ558 AJ556 AJ554 AJ552 AJ550 AJ548 AJ546 AJ544 AJ542 AJ567 AJ565 AJ563 AJ561 AJ559 AJ557 AJ555 AJ553 AJ551 AJ549 AJ547 AJ545 AJ543 AJ541 AA_SI11 AA_SI10 AA_CLK AA_PRO AA_SI18 AA_CL AN16071A-VT IC6910 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6970 50V 0.1u 1 2 3 4 5 6 7 8 9 AN16071A-VT IC6911 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SD5 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 R6911 220 C6971 50V 1000p C6911 16V 1u C6930 50V 220p IC6920 C0JBAA000174 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 Vcc R6910 220 C6931 50V 220p C6910 16V 1u R6951 EXB38V220JV R6953 EXB38V220JV R6952 EXB38V103JV SD-BOARD TNPA4010 (3/3) S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 28bit AND Gate To 5th 108pins of SCAN ELECTRODES (SC46) SC-BOARD TO 27 21 22 20 24 23 25 26 19 13 11 12 14 15 16 17 SD 46 ! TH-65PV600C SD-Board (3 of 3) Schematic Diagram TH-65PV600C SD-Board (3 of 3) Schematic Diagram 156 15.78.S，SS，SS2 和 SS3 电路板方框图 REF K A PUSH REF K A R6020 D6253 IC6221 G D S 5V G D S R6022 G D S +5V VR6000 1 2 3 G D S SW2500 G D S G D S G D S G D S D6255 IC6281 G D S G D S D6221 D6112 D6113 Q6112,Q6114,Q6116 (+5V) IC6151 LIN Q6256,Q6222 Vsus Gen. COMPARATOR USL Ve AVR IC6251 35 Ve Det 1 5 IC6131 TPVDA TO C44 VCC Adj. Q6141- Q6144 USL 7 HIN VCC STB PS USH 9 5 UML UEH UMH VCC UML UEH 3 SS23 8 UEL(NUEL) TO C35 6 TO C42 5 UEL DRV(SS)_SOS8 1 USH Ve:155V SS UML 2 SS Vda75V Vda75V UMH +5V TP15V 4 STB_12V 4 3 Vda75V 44 SS53 VCC 2 IC6241 SS VCC SS58 BUFFER SS25 TPVe Q6101,Q6105,Q6107 SUSTAIN DRIVE SS2 SS3 UMH S UEH POWER SW USL FET DRIVER UEL FET DRIVER FET USH OUTPUT UML FET DRIVER BUFFER 1 BUFFER LED BLINKING : 8 TIMES HO ENERGY RECOVERY SOS DET SS55 LO IC6211 OUTPUT FET FET S34 LIN OUTPUT SS51 LED(G) FET Q6146- Q6149 SUSTAIN FET VCC PANEL BUFFER ELECTRODE HO OUTPUT TPSS1 Ve2 Gen. SS LO TO P11 Q6171- Q6174 Vsus BUFFER TPSOS8 Q6181,Q6031 Q6183,Q6184 11 IC6191 OUTPUT 1 SS_SOS8 Q6021-Q6024 SS Q6001-Q6004 1 FET DRIVER Q6051-Q6054 4 34 Q6041-Q6044 SS54 3 L6001-L6006,L6008 SS Vda75V L6012-L6015,L6017 STB12V Q6102,Q6106,Q6108 2 1 FET Vda75V 12 OUTPUT VSUS 8 Q6103, Q6104 LIN 10 BUFFER HIN TO P12 HO TPSS1 WAVEFORM Ve2 +15V FET HIN Ve Gen. TPVSUS STB PS OUTPUT VE ENERGY RECOVERY SS FET IN 4 HO 42 1 OUTPUT SS56 Vda75V LO Q6111 Vda75V 3 Vda75V Vda75V 3 Vda75V Vda75V Vda75V SS27 SS57 SS21 SS52 Ve2 Det Q6281, Q6282 BUFFER Ve2 Push-PLL AVR(10V) TPVe2 Q6211, Q6212 BUFFER BUFFER Q6151- Q6154 Q6025-Q6028 Q6005-Q6008 Q6156- Q6159 FET OUTPUT OUTPUT BUFFER FET Q6251 Q6115 BUFFER D6061-D6064 D6067-D6069 D6081-D6086 TH-65PV600C S, SS, SS2, SS3, and S-Board Block Diagram TH-65PV600C S, SS, SS2, SS3, and S-Board Block Diagram 157 15.79.SS 电路板 (1/2) 和 S 电路板线路图 + + + + + + + + + + + + + + + + + + + + + + + + + PUSH DSLL DMHL DSHL DRV_SOS2 DMLL DMHR 75V D6252 MAZ83300ML R6181 10 1 2 3 4 5 6 7 8 9 10 TP15 C6241 25V 470u C6262 100V 470u C6251 16V 1u L6064 G0ZZ00002183 TP6913 L6074 G0ZZ00002183 R6255 1.2k L6040 G0ZZ00002183 TP10 D6086 MA3DF30000LZ L6004 G0CR60KA0118 TP33 TP8 L6075 G0ZZ00002183 L6001 G0CR60KA0118 Q6174 B1ADRD000001 75 R6154 1 2 3 4 5 6 7 8 L6006 G0CR60KA0118 TP2 C6153 25V 4.7u R6174 10 R6185 10k L6097 G0ZZ00002183 TP1 C6037 25V 4.7u C6031 250V 4u C6263 100V 470u L6090 G0ZZ00002183 D6254 MAZ80510LL D6071 B0HBSN000008 D6068 B0HBSN000008 TP6910 L6091 G0ZZ00002183 D6032 MA2J11100L TP6919 1 3 D6092 B0HBSN000008 C6051 200V 220u C6269 100V 470u R6045 7.5 1% R6033 56k L6088 G0ZZ00002183 L6077 G0ZZ00002183 R6173 10k L6399 J0JJC0000011 C6091 630V 1000p R6159 1 R6253 39k L6164 G0ZZ00002183 R6055 7.5 R6252 39k C6014 200V 220u TP6905 L6081 G0ZZ00002183 1 2 3 4 5 6 7 8 C6020 200V 220u TP18 L6087 G0ZZ00002183 L6003 G0CR60KA0118 TP23 C6273 25V 220u Q6051 2PG0010000RP R6183 10k D6154 MA3DF30000LZ C6052 200V 220u TP16 L6015 G0CR96KA0118 Q6173 B1ABRD000003 L6073 G0ZZ00002183 R6243 EXB38V470JV L6163 G0ZZ00002183 D6025 MA3DF30000LZ L6271 G0ZZ00002183 L6241 G0ZZ00002183 L6062 G0ZZ00002183 L6078 G0ZZ00002183 D6082 MA3DF30000LZ L6083 G0ZZ00002183 L6085 G0ZZ00002183 1 2 3 1% R6034 27k Q6251 2SD0601A0L L6183 G0ZZ00002183 D6251 MAZ83300ML TP6923 TP34 R6182 10k L6065 G0ZZ00002183 C6205 250V 4u C6274 250V 4u TP21 5V L6061 G0ZZ00002183 C6270 100V 470u C6203 250V 4u TP6918 R6186 10k L6076 G0ZZ00002183 D6153 B0ECHP000003 Q6041 2PG0010000RP C6011 200V 220u Q6183 B1ABRD000003 L6184 G0ZZ00002183 R6257 10k L6262 G0ZZ00002183 C6018 200V 220u R6053 7.5 L6182 G0ZZ00002183 TP12 C6017 200V 220u L6082 G0ZZ00002183 L6068 G0ZZ00002183 C6264 100V 470u L6063 G0ZZ00002183 C6252 25V 1u R6258 2.2k R6051 7.5 R6160 1 L6094 G0ZZ00002183 Q6184 B1ADRD000001 C6019 200V 220u D6064 B0HBSN000008 C6152 25V 4.7u IC6251 C0BBBA000022 1 2 3 4 5 6 7 8 C6206 250V 4u D6061 B0HBSN000008 Q6043 2PG0010000RP L6067 G0ZZ00002183 D6085 MA3DF30000LZ TP6911 R6057 7.5 TP20 R6256 1.5k C6267 100V 470u R6175 10k R6171 10 C0JBAZ000005 IC6241 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC 1% R6031 82k TP6904 C6261 100V 470u L6071 G0ZZ00002183 R6041 7.5 L6162 G0ZZ00002183 TP7 R6043 7.5 D6091 MA3DF30000LZ L6185 G0ZZ00002183 TP6921 R6184 10 TP9 L6014 G0CR96KA0118 L6005 G0CR60KA0118 D6253 LNJ301MPUJA Q6053 2PG0010000RP C6275 250V 4u D6083 MA3DF30000LZ TP6920 TP6922 D6067 B0HBSN000008 C6015 200V 220u C6202 250V 4u R6254 6.8k C6265 100V 470u L6095 G0ZZ00002183 Q6171 B1ABRD000003 L6072 G0ZZ00002183 L6161 G0ZZ00002183 R6172 10k Q6052 2PG0010000RP L6066 G0ZZ00002183 R6244 EXB38V472JV Q6172 B1ADRD000001 Q6042 2PG0010000RP 1% R6032 82k L6070 G0ZZ00002183 C6272 25V 220u R6151 100 C6016 200V 220u D6152 MA3DF30000LZ C6012 200V 220u TP22 L6092 G0ZZ00002183 TP11 Q6031 B1ADRD000001 L6099 G0ZZ00002183 L6086 G0ZZ00002183 L6017 G0CR96KA0118 C6154 25V 4.7u L6181 G0ZZ00002183 L6096 G0ZZ00002183 C6243 50V 0.01u D6072 MA3DF30000LZ L6013 G0CR96KA0118 Q6044 2PG0010000RP Q6181 B1ABRD000003 L6079 G0ZZ00002183 R6176 10k C6207 250V 4u D6081 MA3DF30000LZ R6242 EXB38V472JV L6084 G0ZZ00002183 D6062 B0HBSN000008 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R6152 100 D6063 B0HBSN000008 L6002 G0CR60KA0118 C6242 16V 1u C6013 200V 220u TP5 TP17 L6398 J0JJC0000011 Q6054 2PG0010000RP L6012 G0CR96KA0118 D6024 RF2001T3DFF55 R6047 7.5 TP3 D6084 MA3DF30000LZ TP6 C6151 25V 1u C6208 250V 4u D6151 B0ECHP000003 C0ZBZ0001324 IC6151 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC R6251 10k L6089 G0ZZ00002183 D6255 MA2J11100L TP13 R6261 100k L6069 G0ZZ00002183 L6008 G0CR60KA0118 TP14 C6201 250V 4u L6098 G0ZZ00002183 C6266 100V 470u R6241 EXB38V470JV L6093 G0ZZ00002183 TP19 C6268 100V 470u SW2500 K0F162B00002 S1 1 2 3 TP15V TPVDA - + - + (GREEN LED) TPVSUS VSUS GND BUFFER GND VDA VDA NC GND VDA VDA NC GND VDA VDA VDA GND VDA VDA VDA DRV_SOS8 DMHL DRV_SOS7 UEH 5V UML DMLL UMH DMHR DSHL USH GND NC(URL) TPSOS7 GND GND DSLL GND USL UEL NC(URH) TPSOS8 USH USL A 5 F 1 2 C 4 D 3 9 E B 4 6 7 1 5 3 8 2 10 9 TO P-BOARD (P11) (P12) TO P-BOARD (C35) TO C3-BOARD C4-BOARD TO (C42) TO C4-BOARD (C44) STB PS STB_12V NC STB_PS NC NC GND STB12V +15V GND Vda75V Vda75V GND SS-BOARD TNPA4012 (1/2) ! COMPARATOR 44 SS SS 42 SS 35 34 SS 12 SS SS 11 FET DRIVER POWER SW TNPA3715AB S-BOARD ! TH-65PV600C SS-Board (1 of 2) and S-Board Schematic Diagram 6 7 8 TH-65PV600C SS-Board (1 of 2) and S-Board Schematic Diagram 158 15.80.SS 电路板 (2/2)，SS2 和 SS3 电路板线路图 + + + + TERM SIDE + REF K A TERM SIDE TERM SIDE TERM SIDE REF K A + TERM SIDE TERM SIDE TERM SIDE TERM SIDE R6030 7.5 Q6025 2PG0010000RP D6192 B0HDRP000003 D6281 B0JCME000037 J0JJC0000011 L6107 L6221 G0ZZ00002183 R6289 2.49k R6284 4.7k R6078 220k R6119 100 R6291 2.49k D6110 MA2J11100L R6003 7.5 R6215 10 R6240 10 Q6141 B1ABNF000006 R6282 15 C6132 25V 4.7u C6111 200V 220u C6223 47u 250V D6223 MA2J11100L R6140 10k R6114 47 C6003 630V 4700p R6021 7.5 R6177 10k Q6211 B1ABNF000006 R6234 18k R6102 100 R6222 4.7k L6222 G0ZZ00002183 C6113 200V 220u TP26 R6136 10 D6001 MA3DF30000LZ Q6156 B1ABNF000006 R6015 7.5 Q6105 B1DFKM000002 G D S C6025 630V 2200p R6237 10 Q6149 B1ADNF000006 R6170 10k Q6021 2PG0010000RP Q6152 B1ADNF000006 R6131 100 TP24 IC6211 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB D6023 MA3DF30000LZ D6225 B0ECHP000003 D6102 B0JCME000037 ZA6101 K4CD01000011 C6218 25V 4.7u Q6159 B1ADNF000006 R6111 47 R6137 10 R6142 10k Q6102 B1DFKM000002 G D S R6138 10 R6235 10 D6222 MA2J11100L Q6005 2PG0010000RP R6239 10 TP29 D6106 B0JCME000037 R6128 56k R6125 0 J0JJC0000011 L6106 D6003 MA3DF30000LZ Q6004 2PG0010000RP C6135 25V 4.7u Q6027 2PG0010000RP Q6107 B1DFKM000002 G D S D6282 B0JCME000037 D6002 MA3DF30000LZ Q6108 B1DFKM000002 G D S C6024 630V 2700p C6215 25V 4.7u C6041 16V 1u R6126 56k Q6106 B1DFKM000002 G D S Q6143 B1ABNF000006 L6103 G0ZZ00002183 R6009 7.5 C0ZBZ0000895 IC6191 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC 51 R6193 C6043 16V 1u R6013 7.5 D6221 B0HDRP000003 R6165 10k C0ZBZ0000895 IC6131 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC 1% R6288 4.99k C6002 630V 2200p R6192 100 75 R6134 R6146 10k R6213 100 R6158 1 R6238 10 Q6024 2PG0010000RP D6026 MA3DF30000LZ Q6151 B1ABNF000006 R6040 7.5 TP32 C6213 25V 1000u R6148 10k J0JJC0000011 L6102 R6214 150 Q6028 2PG0010000RP Q6142 B1ADNF000006 R6007 7.5 C6134 25V 4.7u SS53 1 2 3 4 5 6 7 8 9 10 11 12 13 R6116 22k Q6222 2SC3063000RL Q6023 2PG0010000RP Q6148 B1ABNF000006 R6169 10 J0JJC0000011 L6101 R6001 7.5 C6035 630V 2700p Q6022 2PG0010000RP R6143 10k D6104 B0JCME000037 J0JJC0000011 L6211 D6193 B0HDRP000003 R6232 2.49k C6221 50V 0.1u Q6103 B1ABNF000006 Q6002 2PG0010000RP C6120 250V 4u R6226 51k Q6008 2PG0010000RP R6141 10k C6217 25V 4.7u Q6212 B1ADNF000006 Q6144 B1ADNF000006 SS25 1 2 3 4 5 6 7 C6042 16V 1u D6132 MA3DF30000LZ C6114 200V 220u Q6026 2PG0010000RP Q6007 2PG0010000RP R6195 100k R6108 100 D6103 B0JCME000037 R6227 51k C6008 630V 2700p R6113 220k Q6114 B1DFKM000002 G D S C6030 630V 2200p R6191 100 C6026 630V 5600p ZA6103 K4CD01000011 Q6147 B1ADNF000006 R6223 12k R6167 10k Q6282 B1ADNF000006 R6168 10k Q6006 2PG0010000RP R6028 7.5 C6192 25V 1u L6291 G0ZZ00002183 ZA6102 K4CD01000011 R6127 56k D6211 B0JCME000037 Q6101 B1DFKM000002 G D S Q6115 2SD0601A0L R6061 220k R6164 10k R6233 150k TP25 R6038 7.5 C6006 630V 2200p R6011 7.5 C6022 630V 5600p C6195 25V 4.7u C0DBEMB00005 IC6281 Q6153 B1ABNF000006 TP30 Q6146 B1ABNF000006 D6112 MAZ83300ML J0JJC0000011 L6105 Q6001 2PG0010000RP SS56 1 2 3 4 5 6 7 8 9 10 11 12 13 R6036 7.5 SS55 1 2 3 4 5 6 7 8 9 10 11 12 13 SS21 1 2 3 4 5 6 7 R6110 10k D6021 MA3DF30000LZ R6117 100 D6004 MA3DF30000LZ VR6000 10k 1 2 3 Q6104 B1ADNF000006 J0JJC0000011 L6212 C6197 25V 4.7u R6135 10 R6120 47 R6144 10k R6147 10k R6286 100 Q6281 B1ABNF000006 Q6111 B1DFKM000002 G D S C6044 16V 1u R6020 68 SS54 1 2 3 4 5 6 7 8 9 10 11 12 13 C6212 25V 4.7u R6287 0 TP27 CF6281 D4DA91000001 Q6158 B1ABNF000006 C6281 50V 0.1u R6225 45.3k TP31 Q6157 B1ADNF000006 Q6003 2PG0010000RP C6029 630V 4700p R6139 10 C0DBEMB00005 IC6221 C6211 25V 4.7u D6101 B0JCME000037 R6112 47 D6022 MA3DF30000LZ C6216 25V 4.7u C6005 630V 5600p Q6256 2SD1263AP0LB R6005 7.5 R6104 100 C6112 200V 220u D6107 B0JCME000037 D6113 MA2J11100L R6216 10k R6217 10k R6133 10 TP28 C6027 630V 4700p D6212 MA3DF30000LZ R6196 100k J0JJC0000011 L6213 D6131 B0ECHP000003 R6026 7.5 R6132 100 R6024 7.5 R6129 4.7k Q6112 B1DFKM000002 G D S D6191 B0HDRP000003 R6153 10k J0JJC0000011 L6108 Q6116 B1DFKM000002 G D S Q6154 B1ADNF000006 5V R6157 1 R6106 100 R6109 10 R6236 10 R6166 10 R6022 68 R6149 10k SS57 1 2 3 4 5 6 7 8 9 10 11 12 13 SS58 1 2 3 4 5 6 7 8 9 10 11 12 13 SS27 1 2 3 4 5 6 7 0 R6220 0 R6221 SS52 1 2 3 4 5 6 7 8 9 10 11 12 13 SS51 1 2 3 4 5 6 7 8 9 10 11 12 13 SS23 1 2 3 4 5 6 7 0 R6218 0 R6219 TPSS1 TPVe UEL UEH UML TPVe2 SS2-BOARD ! TNPA4013 SS3-BOARD ! TNPA4014 17 13 15 11 16 10 12 18 14 8 10 9 4 6 7 5 3 2 1 FET DRIVER FET DRIVER FET DRIVER ! SS-BOARD TNPA4012 (2/2) Ve * * = * * * TH-65PV600C SS-Board (2 of 2), SS2, and SS3-Board Schematic Diagram TH-65PV600C SS-Board (2 of 2), SS2, and SS3-Board Schematic Diagram 159 16 部件布置及机械部件更换清单 16.1. 部件布置 160 16.2. 包装分解图 (1) 161 16.3. 包装分解图 (2) 162 16.4. 包装分解图 (3) 163 16.5. 机械部件更换清单 参考号 部品号 部品名称 & 说明 件数 备注 1 J0KG00000014 磁环 1 2 K2CK3DH00028 L/ 电源线 1 3 L6FALEFH0041 风扇 ( 本体 ) 2 4 L6FAYYYH0025 风扇 ( 本体 ) 3 5 L6FAYYYH0026 风扇 ( 本体 ) 1 MD-65MU9U1 65 吋模块 1 6 N2QAYB000070 遥控器 1 7 R6PND/2SP 干电池 2 8 TBMA176 PANASONIC 标牌 1 TBMG394 模块铭牌 1 TBMU585 SP 端子表示标签 2 TBMU694 前端子标签 1 TBMU695 端子表示标签 1 9 TBXA45504 控制按钮 1 10 TBXA49702 电源开关 1 11 TES2249 电源开关弹簧 1 12 TESA274-1 前面门弹簧 1 13 TESA275-1 SD 屏弹簧 1 THEA130N 螺丝 4 THEL027N 螺丝 4 THEL0429 L/ 螺丝 45 THEL047J 螺丝 2 THNG005J 螺帽 2 THTD013N 螺丝 16 THTF011N 螺丝 58 14 TKEA16004A 面框 上部 1 14 TKEA16101 面框 下 1 14 TKEA16201 面框 左 1 14 TKEA16301 面框 右 1 15 TKGA5311 前面玻璃 1 16 TKKC5238 SD 导光板 1 17 TKKC5250 遥控受光屏 1 18 TKKC5251 LED 屏 1 19 TKKL5361 调整盖 1 20 TKPA94302 电源插头盖 1 21 TKPB02903 SD 门 1 22 TKPB04103 下部门 1 23 TKRA45301 把手 2 24 TKRA52102 BLIND CAP 2 TKSC017-1 按钮盖 1 TKUX09101 SD 后盖 1 25 TKUX11002 后盖 1 TMME226 电源线夹 1 26 TMME258 线夹 2 27 TMWX040 SD 导光板托架 1 28 TPCB66101A 包装底箱 1 29 TPCC05201 包装箱本体 1 30 TPD0A9002L PC 箱扣 4 31 TPDA1153 保护板 边角 2 32 TPDA1154 保护板 中央 1 33 TPDA1205 缓冲材 上 1 34 TPDA1206 缓冲材 下 1 35 TPDA1207 面框保护件 底 / 中央 2 36 TPDA1208 面框保护件 底 / 左右 2 37 TPDF0764 附件盒 1 38 TPDF1306 顶盖 1 39 TPDF1408 L 字角铁 2 40 TPDX0007 箱扣 （小） 4 41 TPEH246 保护袋 1 TQD1712010 L/ 合格票 1 TQFC933 线夹注意标签 1 42 TQZC936 说明书 1 TQZF163 保修证 1 TSXL520-1 DG1-H1 1 TSXL525 DG20-PA20 1 TSXL564 68PIN FFC 3 TSXL566 FFC （D34-C55/D35-C54） 2 TSXL582 FPC （DG11-GH11） 1 TXAUW01VESC SP 端子安装件 （半成品） 2 TXAUX01FLTC 高频头元件 半成品 1 43 TXAUX02FLTC AC_ 接入口 完成品 1 44 TXFKR01FLTC 前面板 _ 左 半成品 1 45 TXFKR02FLTCA 前面板 - 中间 半成品 1 46 TXFKR03FLTC 前面板 - 右 半成品 1 TXFUC02FLTC 端子元件 半成品 1 TXJ/G1DRTU 线束 1 TXJ/G3DRTU-1 线束 1 TXJ/H2BJTU 线束 DG2-H2 1 TXJ/P5DRTU 线束 1 TXJ/P9EVTJ 线束 1 TXJ/R4DRTU-1 线束 （R4-G4） 1 TXJ/S1FMTM 线束 1 TXJDG3DRTU 线束 （DG3-D3） 1 TXJDG5DRTU 线束 1 TXJERABHTU 线束 PA-H GND 1 TXJFA1DRTU 线束 1 TXJFA2DRTU 线束 1 TXJFA3DRTU 线束 3 TXJFA4DRTU 线束 1 TXJFGNYFSU 线束 1 TXJG51FMTM 线束 1 TXJH40DRTU 线束 H40-PA40 1 TXJJG1FMTM 线束 （H53-JG1） 1 TXJJG2FMTM 线束 （JG2-DG30） 1 TXJJG3FMTM 线束 1 TXJP10DRTU 线束 1 TXJPA2FMTM 线束 1 TXJSPLDRTU 线束 (RELAY-H37 (SP)) 1 TXJSPRDRTU 线束 (RELAY-H37 (SP)) 1 TXJSWLDRTU 线束 （RELAY-RELAY） 1 TXN/D1FLTC D 线路板 包装入 1 TXN/G1FLTC G 线路板 包装入 1 TXN/K1FLTC K 线路板 包装入 1 TXN/R1FLTC R 线路板 包装入 1 TXN/S1FLTC S 线路板 包装入 1 TXNGH1FLTC GH 线路板 包装入 1 TXNGK1FLTC GK 线路板 包装入 1 TXNGS2FLTC GS 元件 完成品 1 TXNJG1FLTC JG 线路板 包装入 1 TXNPA1FLTC PA 线路板 包装入 1 XTB4+12GFJ 螺丝 19 XTV3+10GFJ 螺丝 2 XTV3+10JFJK 螺丝 4 XTW3+8TFJ 螺丝 6 XTW4+Z12DFJK 螺丝 8 XYN3+F6FJ 螺丝 2 XYN3+F8FJ 螺丝 (S_PRINT) 25 XYN4+E8FJ 螺丝 1 XYN4+F10FJ 螺丝 (SC/SS 用 FAN) 110 XYN4+F10FJK 螺丝 4 XYN4+F20FJ 螺丝 (SC/SS 用 FAN) 22 XYN4+F32FJ 螺丝 4 XYN4+F38FJK 螺丝 12 XYN8+F30FJK 螺丝 4 参考号 部品号 部品名称 & 说明 件数 备注 164 17 电器部件更换清单 17.1. 更换部件清单注意事项 165 17.2. 电器部件更换清单 所有在备注栏 [PPDS] 中提到的部件均由 PPDS 提供。 参考号 部品号 部品名称 & 说明 件数 备注 C002 ECA1HM100 E 10UF, 50V 1 C003 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C006 F2A1A102A224 E 1000UF, 10V 1 C008 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C009 ECJ1XC1H101J C 100PF, J, 50V 1 C010,11 ECJ1VC1H330J C 33PF, J, 50V 2 C016 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C020 F2A1A102A224 E 1000UF, 10V 1 C021 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C022 ECJ1XC1H101J C 100PF, J, 50V 1 C024 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C029,30 ECJ1VC1H330J C 33PF, J, 50V 2 C040-43 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C1100 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1102 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1103 ECJ0EB1E271K C 270PF, K, 25V 1 C1105 ECJ0EB1E271K C 270PF, K, 25V 1 C1107 EEEHB0G101R C 100PF, J, 4V 1 C1109,10 ECJ0EB1A104K C 0.1UF, K, 10V 2 C1112 ECJ0EB1E271K C 270PF, K, 25V 1 C1114 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1116 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1118-23 ECJ0EB1A104K C 0.1UF, K, 10V 6 C1125 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1127-32 ECJ0EB1A104K C 0.1UF, K, 10V 6 C1133,34 ECJ1XC1H150J C 15PF, J, 50V 2 C1135-42 ECJ0EB1A104K C 0.1UF, K, 10V 8 C1144-50 ECJ0EB1A104K C 0.1UF, K, 10V 7 C1152 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1153 EEEHB0G101R C 100PF, J, 4V 1 C1154 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1155 ECJ0EB1C103K C 0.010UF, K, 16V 1 C1156,57 ECJ1XC1H220J C 22PF, J, 50V 2 C1158 F1J0J1060004 C 0.010UF, K, 16V 1 C1159 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1160 F2G0J470A019 E 47UF 6.3V 1 C1161 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1162 ECJ0EB1C103K C 0.010UF, K, 16V 1 C1167,68 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C1172 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1177 ECJ1VB1A334K C 0.1UF, K, 16V 1 C1178 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1190 ECJ0EB1C103K C 0.010UF, K, 16V 1 C1209 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1212 ECJ1XC1H151J C 150PF, J, 50V 1 C1219,20 EEEHP1C100R C 10PF, J, 16V 2 C1221 ECJ0EB1H102K C 1000PF, K, 50V 1 C1222,23 F1J0J1060004 C 0.010UF, K, 16V 2 C1226 F1J0J1060004 C 0.010UF, K, 16V 1 C1227 F1G1H101A422 C 100PF, K, 50V 1 C1228-34 EEEHB1C470P C 47PF, J, 16V 7 C1294 ECJ1XC1H330J C 33PF, J, 50V 1 C1325-46 ECJ0EB1A104K C 0.1UF, K, 10V 22 C1347 F1J0J1060004 C 0.010UF, K, 16V 1 C1348 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1349 F1J0J1060004 C 0.010UF, K, 16V 1 C1350-62 ECJ0EB1A104K C 0.1UF, K, 10V 13 C1363 F1J0J1060004 C 0.010UF, K, 16V 1 C1364-76 ECJ0EB1A104K C 0.1UF, K, 10V 13 C1377 F1J0J1060004 C 0.010UF, K, 16V 1 C1378-05 ECJ0EB1A104K C 0.1UF, K, 10V 28 C1406 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1407-14 ECJ0EB1A104K C 0.1UF, K, 10V 8 C1502 F1J0J1060004 C 0.010UF, K, 16V 1 C1504 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1601 ECJ1VB1A154K C 0.15UF, Z, 50V 1 C1602-24 ECJ0EB1A104K C 0.1UF, K, 10V 23 C1625 F1J0J1060004 C 0.010UF, K, 16V 1 C1626-48 ECJ0EB1A104K C 0.1UF, K, 10V 23 C1649 F1J0J1060004 C 0.010UF, K, 16V 1 C1650 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1651 F1J0J1060004 C 0.010UF, K, 16V 1 C1652-72 ECJ0EB1A104K C 0.1UF, K, 10V 21 C1673 F1J0J1060004 C 0.010UF, K, 16V 1 C1674-82 ECJ0EB1A104K C 0.1UF, K, 10V 9 C1683 F1J0J1060004 C 0.010UF, K, 16V 1 C1684-93 ECJ0EB1A104K C 0.1UF, K, 10V 10 C1694 F1J0J1060004 C 0.010UF, K, 16V 1 C1695 F1G1H101A422 C 100PF, K, 50V 1 C1901,02 ECJ0EB1C103K C 0.010UF, K, 16V 2 C1903,04 ECJ0EB1A104K C 0.1UF, K, 10V 2 C1906 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1907 EEEHB0J330R C 33PF, J, 6.3V 1 C1908-14 ECJ0EB1A104K C 0.1UF, K, 10V 7 C1915 F1J0J1060004 C 0.010UF, K, 16V 1 C1916-18 ECJ0EB1A104K C 0.1UF, K, 10V 3 C1919 ECGRL0G680ER C 68PF, J, 4V 1 C1920 EEEHB0G221P C 220PF, J, 4V 1 C1925 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1926 EEEHB0G221P C 220PF, J, 4V 1 C1927-29 ECJ1VB1H103K C 0.001UF, K, 50V 3 C1930,31 ECGRL0G680ER C 68PF, J, 4V 2 C1932,33 ECJ1VB1H103K C 0.001UF, K, 50V 2 C1936,37 F1J0J1060004 C 0.010UF, K, 16V 2 C1940,41 ECJ0EB1A104K C 0.1UF, K, 10V 2 C2005,06 ECJ1XC1H561J C 560PF, J, 50V 2 C2010,11 ECJ1XC1H561J C 560PF, J, 50V 2 C2013,14 ECJ1XC1H561J C 560PF, J, 50V 2 C2016,17 ECJ1XC1H561J C 560PF, J, 50V 2 C2019 ECA1CM221 E 220UF, 16V 1 C2020 ECA1HM220 E 22UF, 50V 1 C2021,22 ECJ1XC1H561J C 560PF, J, 50V 2 C2111 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2116 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2118,19 F2J1C4700003 E 47UF, 16V 2 C2125,26 ECJ1VB1H102K C 1000PF, K, 50V 2 C2127 ECA1CMH101 E 100UF, 16V 1 C2128 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2129,30 F1J1A1050002 C 1UF, Z, 50V 2 C2131 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2132 EEEHB1C100R C 10PF, J, 16V 1 C2133,34 ECJ1XC1H470J C 47PF, J, 50V 2 C2135,36 ECJ1VB1H103K C 0.001UF, K, 50V 2 C2137,38 ECJ1XC1H220J C 22PF, J, 50V 2 C2139-43 ECJ1VB1H103K C 0.001UF, K, 50V 5 C2146 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2147 ECA1HM220 E 22UF, 50V 1 C2148-50 ECJ2FB1C105K C 1UF, K, 16V 3 C2152 ECJ2FB1C105K C 1UF, K, 16V 1 C2153 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C2154 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2155 ECJ2FB1C105K C 1UF, K, 16V 1 C2157 ECJ2FB1C105K C 1UF, K, 16V 1 C2159,60 ECJ2FB1C105K C 1UF, K, 16V 2 C2161 ECA1CMH101 E 100UF, 16V 1 C2162-69 ECJ2FB1C105K C 1UF, K, 16V 8 C2170-72 ECJ1VB1H102K C 1000PF, K, 50V 3 C2173 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2174 ECJ1VB1H102K C 1000PF, K, 50V 1 C2175-77 ECJ1VB1H103K C 0.001UF, K, 50V 3 C2178,79 EEEHB1C100R C 10PF, J, 16V 2 C2181 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2183 EEEHB1H3R3R C 3.3PF, J, 50V 1 C2184,85 ECJ2VF1C104Z C 0.1UF, Z, 16V 2 C2189,90 ECJ2FB1C105K C 1UF, K, 16V 2 C2191 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2192 EEEHB1C100R C 10PF, J, 16V 1 C2195 ECJ1XC1H470J C 47PF, J, 50V 1 C2196 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2197 ECJ2FB0J225K C 2.2UF, Z, 16V 1 C2198 EEEHB0J101P C 100PF, J, 6.3V 1 C2199 ECJ1VC1H560J C 56PF, J, 50V 1 C2200 ECJ1XC1H470J C 47PF, J, 50V 1 C2201 ECJ1XC1H030C C 3PF, C, 50V 1 C2202 ECJ1XC1H050C C 5PF, C, 50V 1 C2203 ECJ1VC1H100C C 10PF, C, 50V 1 C2204 ECJ1XC1H220J C 22PF, J, 50V 1 参考号 部品号 部品名称 & 说明 件数 备注 166 C2211 ECJ1VB1C104K C 0.1UF, K, 16V 1 C2213 ERJ3GEY0R00 M 0 OHM, 1/16W 1 C2217 F1H0J1050012 C 1UF, K, 16V 1 C2222 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2223 ECJ1XC1H390J C 39PF, J, 50V 1 C2225 ECJ2FB1C105K C 1UF, K, 16V 1 C2226 ECJ1VB1H102K C 1000PF, K, 50V 1 C2227 ECA1CMH101 E 100UF, 16V 1 C2228 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2229,30 ECA1CMH101 E 100UF, 16V 2 C2231 ECA1CHG470 E 47UF, 16V 1 C2232 F1H0J1050012 C 1UF, K, 16V 1 C2233,34 ECJ1VB1H102K C 1000PF, K, 50V 2 C2235 F1H0J1050012 C 1UF, K, 16V 1 C2236 ECA1CHG470 E 47UF, 16V 1 C2237-40 ECJ1VB1H103K C 0.001UF, K, 50V 4 C2243 ECA1CHG470 E 47UF, 16V 1 C2301 ECA1EHG471 E 470UF, 25V 1 C2303 ECA1CMH101 E 100UF, 16V 1 C2314 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2317 ECJ2FB1A105K C 1UF, K, 10V 1 C2320 ECJ2FB1A105K C 1UF, K, 10V 1 C2321 ECJ2XB1H103K C 0.01UF, K, 50V 1 C2322 ECJ2FB1A105K C 1UF, K, 10V 1 C2323,24 ECJ2FB1E224K C 22UF, K, 25V 2 C2325,26 ECJ1VB1E104K C 0.10UF, K, 25V 2 C2327 F1J1H474A757 C 0.47UF, 50V 1 C2328-31 ECJ2FB1E105K C 1UF, K, 25V 4 C2332,33 ECA1EHG471 E 470UF, 25V 2 C2334,35 ECJ1VB1E104K C 0.10UF, K, 25V 2 C2336 F1J1H474A757 C 0.47UF, 50V 1 C2337,38 ECJ2FB1E224K C 22UF, K, 25V 2 C2341 ECJ3YB1E106M C 10 UF, K, 25V 1 C2342 ECJ2FB1E105K C 1UF, K, 25V 1 C2373 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C2374 ECJ1VF1A105Z C 1UF, Z, 10V 1 C2380 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2382 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2385 ECJ2FB1A105K C 1UF, K, 10V 1 C2387 ECJ2FB1A105K C 1UF, K, 10V 1 C2393,94 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2401 ECJ2FB1A105K C 1UF, K, 10V 1 C2402 ECJ2FB0J106M C 10UF, Z,6.3V 1 C2403 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2417 ECJ2FB0J106M C 10UF, Z,6.3V 1 C2430 ECJ1VF1A105Z C 1UF, Z, 10V 1 C2501 ECA1CMH101 E 100UF, 16V 1 C2502 ECA1HHG100 E 10UF, 50V 1 C2510,11 ECJ2VF1C105Z C 1UF, Z, 16V 2 C2515 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2551 ECA1HHG100 E 10UF, 50V 1 C2553 ECA1HHG100 E 10UF, 50V 1 C2554 ECJ2XB1H103K C 0.01UF, K, 50V 1 C2581 ECJ3XB0J106M C 10UF, M,6.3V 1 C2582 ECJ2XB1H103K C 0.01UF, K, 50V 1 C3005 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3021-25 F1J1A1050002 C 1UF, Z, 50V 5 C3026 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3027,28 F1J1A1050002 C 1UF, Z, 50V 2 C3029 ECJ2VF1C105Z C 1UF, Z, 16V 1 C3030 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3031 F1J1A1050002 C 1UF, Z, 50V 1 C3033 F1J1A1050002 C 1UF, Z, 50V 1 C3035 F1J1A1050002 C 1UF, Z, 50V 1 C3036 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3038 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3039 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3040 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3041,42 ECJ1VB1H103K C 0.001UF, K, 50V 2 C3043 F1J1A1050002 C 1UF, Z, 50V 1 C3045-50 F1J1A1050002 C 1UF, Z, 50V 6 C3051-53 ECJ1VB1H103K C 0.001UF, K, 50V 3 C3054-56 F1J1A1050002 C 1UF, Z, 50V 3 C3058 ECA1EM471 E 470UF, 25V 1 C3059,60 ECJ2VF1C105Z C 1UF, Z, 16V 2 C3062-64 ECJ2VF1C104Z C 0.1UF, Z, 16V 3 C3065 ECJ1VB1H103K C 0.001UF, K, 50V 1 参考号 部品号 部品名称 & 说明 件数 备注 C3066,67 F1J1A1050002 C 1UF, Z, 50V 2 C3069 ECA1EM471 E 470UF, 25V 1 C3070 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3075 ECA1CM221 E 220UF, 16V 1 C3207 ECJ2FB1C105K C 1UF, K, 16V 1 C3208 ECJ2FB1C474K C 0.47UF, Z, 16V 1 C3211 ECA1CHG470 E 47UF, 16V 1 C3214 ECJ2FF1A106Z C 0.001UF, Z, 10V 1 C3216 ECJ2FF1A106Z C 0.001UF, Z, 10V 1 C3226-28 ECJ2FF1A106Z C 0.001UF, Z, 10V 3 C3230 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3233 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3241 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3248 ECJ2FB1C105K C 1UF, K, 16V 1 C3249 ECJ2FB1C474K C 0.47UF, Z, 16V 1 C3251 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3252 ECJ2FB1C105K C 1UF, K, 16V 1 C3253,54 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3256 ECJ2FB1C105K C 1UF, K, 16V 1 C3257 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3262 ECJ1VB1H472K C 4700PF, K, 50V 1 C3268 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3305 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3330 ECA1CM470 E 47UF, 16V 1 C3331 ECJ2XB1H103K C 0.01UF, K, 50V 1 C3332 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3334 F2J1C4700003 E 47UF, 16V 1 C3335 ECJ2VB1C104K C 0.1UF, K, 16V 1 C3336 F2J1C4700003 E 47UF, 16V 1 C3337 ECJ2VB1C104K C 0.1UF, K, 16V 1 C3338 F2J1C4700003 E 47UF, 16V 1 C3339 ECJ2VB1C104K C 0.1UF, K, 16V 1 C3340-42 ECJ2VF1C104Z C 0.1UF, Z, 16V 3 C3701 ECJ2XC1H561K C 560PF, K, 50V 1 C3703 ECJ2XC1H561K C 560PF, K, 50V 1 C3711,12 ECJ2VF1H333Z C 0.033UF, Z, 50V 2 C3750,51 ECJ2XC1H102K C 1000PF, K, 50V 2 C3801,02 F1G1A104A012 C 0.01UF, K, 10V 2 C3804 F1G1A104A012 C 0.01UF, K, 10V 1 C3805 EEEHB0J330R C 33PF, J, 6.3V 1 C3806-12 F1G1A104A012 C 0.01UF, K, 10V 7 C3813 F1J0J1060004 C 0.010UF, K, 16V 1 C3814 F1G1A104A012 C 0.01UF, K, 10V 1 C3815-20 F1G1C103A048 C 0.010UF, K, 16V 6 C3823,24 F1G1A104A012 C 0.01UF, K, 10V 2 C4003-08 F1J0J1060004 C 0.010UF, K, 16V 6 C4009 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C4014,15 F1J0J1060004 C 0.010UF, K, 16V 2 C4016 EEFCD0G560ER 56UF, 1 C4023 F1J0J1060004 C 0.010UF, K, 16V 1 C4026 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4027 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4028 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4112 F1J0J1060004 C 0.010UF, K, 16V 1 C4117 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4142 F1H1C104A065 C 0.1UF, K, 16V 1 C4144-46 ECJ1XC1H050C C 5PF, C, 50V 3 C4148-51 ECJ1VB1A105K C 0.01UF, Z, 50V 4 C4157 F1J0J1060004 C 0.010UF, K, 16V 1 C4158 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4159 F1H1C104A065 C 0.1UF, K, 16V 1 C4160 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4161,62 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4165 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4168 ECJ1XC1H680J C 68PF, J, 50V 1 C4169 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4171 ECJ1XC1H471J C 470PF, J, 50V 1 C4172,73 F1H1C104A065 C 0.1UF, K, 16V 2 C4174 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4175 F1H1C104A065 C 0.1UF, K, 16V 1 C4176 ECJ1VB0J225K C 2.2UF, K, 6.3V 1 C4177 ECJ2FB1C684K C 68UF, Z, 16V 1 C4178 ECJ1XB1C393K C 0.039UF, K, 16V 1 C4180 F1H1C104A065 C 0.1UF, K, 16V 1 C4181 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4182 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4185,86 ECJ3XB0J106M C 10UF, M,6.3V 2 参考号 部品号 部品名称 & 说明 件数 备注 167 C4187 F2G0J470A019 E 47UF 6.3V 1 C4188 F1J0J1060004 C 0.010UF, K, 16V 1 C4189-92 ECJ0EB1A104K C 0.1UF, K, 10V 4 C4193 ECJ0EB1H102K C 1000PF, K, 50V 1 C4194-97 F1H1C104A065 C 0.1UF, K, 16V 4 C4198 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4199 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4200 F2G0J470A019 E 47UF 6.3V 1 C4201 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4204 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4205,06 F1H1C104A065 C 0.1UF, K, 16V 2 C4208,09 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4211 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4212 EEEHB0G221P C 220PF, J, 4V 1 C4213 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4214 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4215 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4216 F2G0J470A019 E 47UF 6.3V 1 C4217 F1H1C104A065 C 0.1UF, K, 16V 1 C4218 ECJ0EB1H102K C 1000PF, K, 50V 1 C4219 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4220 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4224 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4225 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4226 ECJ1XC1H680J C 68PF, J, 50V 1 C4227 ECJ1VB1C823K C 0.082UF, K, 16V 1 C4228 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4229 F1H1C104A065 C 0.1UF, K, 16V 1 C4230-34 ECJ0EB1A104K C 0.1UF, K, 10V 5 C4235 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4236-42 ECJ0EB1A104K C 0.1UF, K, 10V 7 C4243,44 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4245,46 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4248 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4250,51 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4252 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4253 F2G0J470A019 E 47UF 6.3V 1 C4255 ECJ1VB1H562K C 5600PF, K, 50V 1 C4256 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4257 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C4258 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4259 ECJ1VB0J225K C 2.2UF, K, 6.3V 1 C4261-65 ECJ0EB1A104K C 0.1UF, K, 10V 5 C4266 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4267,68 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4269 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4270 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4272 F2G0J470A019 E 47UF 6.3V 1 C4273-75 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4276 ECJ1VB0J225K C 2.2UF, K, 6.3V 1 C4277 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C4281 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4283 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4287 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4289 EEEHB0J330R C 33PF, J, 6.3V 1 C4291 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4296 F1J0J1060004 C 0.010UF, K, 16V 1 C4297 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4298-06 ECJ1VB1A105K C 0.01UF, Z, 50V 9 C4307-09 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4311 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4312 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4313,14 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4315 F1J0J1060004 C 0.010UF, K, 16V 1 C4316-18 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4320-22 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4325 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4327 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4329,30 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4331 F1J0J1060004 C 0.010UF, K, 16V 1 C4332 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4333-38 ECJ0EB1A104K C 0.1UF, K, 10V 6 C4339 ECJ1VB0J225K C 2.2UF, K, 6.3V 1 C4340 ECJ1XC1H471J C 470PF, J, 50V 1 C4341 EEEHB1C470P C 47PF, J, 16V 1 C4342 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4343 EEEHB1C100R C 10PF, J, 16V 1 参考号 部品号 部品名称 & 说明 件数 备注 C4344,45 F1J0J1060004 C 0.010UF, K, 16V 2 C4346 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4347 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4348 EEEHB1C470P C 47PF, J, 16V 1 C4349 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4350,51 ECJ1XC1H181J C 180PF, J, 50V 2 C4352,53 ECJ1XC1H330J C 33PF, J, 50V 2 C4354 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4360 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4362 F1J0J1060004 C 0.010UF, K, 16V 1 C4363,64 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4365 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4366 F2G0J470A019 E 47UF 6.3V 1 C4367 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4371 ECJ0EB1H102K C 1000PF, K, 50V 1 C4372 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4373 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4374 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4375,76 ECJ0EB1H102K C 1000PF, K, 50V 2 C4377 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4379 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4380 ECJ0EB1H102K C 1000PF, K, 50V 1 C4381,82 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4383 ECJ0EB1H102K C 1000PF, K, 50V 1 C4384 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4385 ECJ0EB1H102K C 1000PF, K, 50V 1 C4386 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4387 ECJ0EB1H102K C 1000PF, K, 50V 1 C4388 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4389 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4390 ECJ0EB1H102K C 1000PF, K, 50V 1 C4391 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4392 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4393,94 ECJ0EB1H102K C 1000PF, K, 50V 2 C4395 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4396 ECJ0EB1H102K C 1000PF, K, 50V 1 C4397,98 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4399,00 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4401 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4402,03 ECJ0EB1H102K C 1000PF, K, 50V 2 C4404 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4405 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4406 ECJ0EB1H102K C 1000PF, K, 50V 1 C4407,08 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4409 ECJ0EB1H102K C 1000PF, K, 50V 1 C4410 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4411,12 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4413,14 ECJ0EB1H102K C 1000PF, K, 50V 2 C4415 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4417 F2G0J470A019 E 47UF 6.3V 1 C4418,19 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4420,21 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4422-24 ECJ0EB1H102K C 1000PF, K, 50V 3 C4425,26 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4427 ECJ0EB1H102K C 1000PF, K, 50V 1 C4428 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4429,30 ECJ0EB1H102K C 1000PF, K, 50V 2 C4431 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4434 ECJ0EB1H102K C 1000PF, K, 50V 1 C4435 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4436-39 ECJ0EB1H102K C 1000PF, K, 50V 4 C4440 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4441,42 ECJ0EB1H102K C 1000PF, K, 50V 2 C4447 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4448 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4451 ECJ0EB1H102K C 1000PF, K, 50V 1 C4452 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4453,54 ECJ0EB1H102K C 1000PF, K, 50V 2 C4455 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4456 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4457,58 ECJ0EB1H102K C 1000PF, K, 50V 2 C4459 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4460 ECJ0EB1H102K C 1000PF, K, 50V 1 C4461 ECJ1XC1H820J C 82PF, J, 50V 1 C4462 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4464 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4465 ECJ0EB1A104K C 0.1UF, K, 10V 1 参考号 部品号 部品名称 & 说明 件数 备注 168 C4466 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4467 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4469 ECJ1XC1H680J C 68PF, J, 50V 1 C4470 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4473 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4474 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4475,76 ECJ0EB1H102K C 1000PF, K, 50V 2 C4477 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4478 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4479-81 ECJ0EB1H102K C 1000PF, K, 50V 3 C4482 ECJ1XC1H150J C 15PF, J, 50V 1 C4483 ECJ1XC1H180J C 18PF, J, 50V 1 C4493 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4494 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4496 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4497 EEEHB0G101R C 100PF, J, 4V 1 C4498 ECJ1XC1H471J C 470PF, J, 50V 1 C4499 EEFCD0G560ER 56UF, 1 C4501 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4502 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4503 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4504 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4505 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4506 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4507 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4508 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4509-11 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4512 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4513 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4514 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4515,16 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4517 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4518 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4519 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4520 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4521 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4522 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4523 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4524 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4525 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4526 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4527 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4530 EEEHB1C470P C 47PF, J, 16V 1 C4531 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4541 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4543 F1H1C104A065 C 0.1UF, K, 16V 1 C4544 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4553 F1J0J1060004 C 0.010UF, K, 16V 1 C5034,35 ECJ0EB1A104K C 0.1UF, K, 10V 2 C5038,39 ECJ0EB1A104K C 0.1UF, K, 10V 2 C5049 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5053-55 ECJ0EB1A104K C 0.1UF, K, 10V 3 C5057,58 ECJ0EB1A104K C 0.1UF, K, 10V 2 C5060 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5062,63 ECJ0EB1A104K C 0.1UF, K, 10V 2 C5065,66 ECJ0EB1A104K C 0.1UF, K, 10V 2 C5068 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5070,71 ECJ0EB1A104K C 0.1UF, K, 10V 2 C5073 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5075 EEEHB0G101R C 100PF, J, 4V 1 C5077 EEEHB0G101R C 100PF, J, 4V 1 C5078-80 ECJ0EB1A104K C 0.1UF, K, 10V 3 C5082 ECJ0EC1H680J C 680PF, K, 50V 1 C5084 ECJ0EC1H680J C 680PF, K, 50V 1 C5085 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5087 EEEHB0G101R C 100PF, J, 4V 1 C5089 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5091,92 ECJ0EC1H680J C 680PF, K, 50V 2 C5093-99 ECJ0EB1A104K C 0.1UF, K, 10V 7 C5102 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5112 ECJ0EB1H102K C 1000PF, K, 50V 1 C5113 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5117-30 ECJ0EB1A104K C 0.1UF, K, 10V 14 C5131 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5132 ECJ0EB1H102K C 1000PF, K, 50V 1 C5134 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5135 ECJ0EB1A473K C 0.047UF, K, 10V 1 参考号 部品号 部品名称 & 说明 件数 备注 C5136 ECGRL0G680ER C 68PF, J, 4V 1 C5137 ECJ1VB0J334K C 0.33UF, K,6.3V 1 C5138,39 ECGRL0G680ER C 68PF, J, 4V 2 C5140 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5142 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5144,45 ECJ0EB1C103K C 0.010UF, K, 16V 2 C5149 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5154 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5162 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5166 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5167 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5168 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5169 EEEHB0J330R C 33PF, J, 6.3V 1 C5170 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5172,73 ECJ0EB1A104K C 0.1UF, K, 10V 2 C5175 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5176 EEEHB0J330R C 33PF, J, 6.3V 1 C5177-80 ECJ0EB1A104K C 0.1UF, K, 10V 4 C5181,82 ECJ1XB0J105K C 1UF, K, 16V 2 C5183 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5184 ECJ1XB0J105K C 1UF, K, 16V 1 C5186 EEEHB0G101R C 100PF, J, 4V 1 C5188-92 ECJ0EB1A104K C 0.1UF, K, 10V 5 C5195-97 ECJ0EB1A104K C 0.1UF, K, 10V 3 C5199 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5216 F1J1A106A043 C 0.010UF, K, 16V 1 C5217 F1G1C104A081 C 0.10UF, K, 16V 1 C5218 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5225 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5228 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5232 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5240 ECJ1XB0J105K C 1UF, K, 16V 1 C5245 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5246 EEEHB0G101R C 100PF, J, 4V 1 C5247 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5250 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5252 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5254-58 ECJ0EB1A104K C 0.1UF, K, 10V 5 C5260 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5262 EEEHB0J330R C 33PF, J, 6.3V 1 C5263 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5268 ECJ1XB0J105K C 1UF, K, 16V 1 C5269,70 ECJ0EB1C103K C 0.010UF, K, 16V 2 C5272 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5275 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5278 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5280 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5282-86 ECJ0EB1A104K C 0.1UF, K, 10V 5 C5287 ECJ0EB1H102K C 1000PF, K, 50V 1 C5291 F1J1A106A043 C 0.010UF, K, 16V 1 C5292 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5293 EEEHB0G101R C 100PF, J, 4V 1 C5340,41 ECJ0EB1A104K C 0.1UF, K, 10V 2 C5354 ECJ0EB1C223K C 0.022UF, K, 16V 1 C5355,56 ECJ0EB1A104K C 0.1UF, K, 10V 2 C5357 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5359 ECJ1VB1H471K C 470PF, K, 50V 1 C5360 EEEHB0J470R C 47PF, J, 6.3V 1 C5365 ECJ1VB1A224K C 0.22UF, Z, 50V 1 C5366 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5369-71 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C5373 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5375-77 ECJ0EB1A104K C 0.1UF, K, 10V 3 C5415 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5419 EEEHB0G101R C 100PF, J, 4V 1 C5420-23 ECJ0EB1A104K C 0.1UF, K, 10V 4 C5430 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5437 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5439-41 ECJ0EB1A104K C 0.1UF, K, 10V 3 C5445 EEFCD0J470ER 47UF 1 C5468 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5469 ECJ0EB1C223K C 0.022UF, K, 16V 1 C5473 F1J1A106A043 C 0.010UF, K, 16V 1 C5474 ECJ1VB1H471K C 470PF, K, 50V 1 C5475,76 ECJ0EB1A104K C 0.1UF, K, 10V 2 C5480 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5481 ECJ0EB1A104K C 0.1UF, K, 10V 1 参考号 部品号 部品名称 & 说明 件数 备注 169 C5484 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5485 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C5492 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C5496 ECJ3YF1C106Z C 10UF, Z, 16V 1 C5497 ECJ2FB1C475K C 47UF, K, 16V 1 C5501 ECJ3YF1C106Z C 10UF, Z, 16V 1 C5502 EEEHB1C470P C 47PF, J, 16V 1 C5504 EEEHB1C470P C 47PF, J, 16V 1 C5506 ECGRL0G680ER C 68PF, J, 4V 1 C5508 ECGRL0G680ER C 68PF, J, 4V 1 C5509 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5510 EEEHB1C470P C 47PF, J, 16V 1 C5516 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C5518 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C5537 F1J1A106A043 C 0.010UF, K, 16V 1 C5539 F1J1A106A043 C 0.010UF, K, 16V 1 C5547-49 ECJ0EB1A104K C 0.1UF, K, 10V 3 C5550,51 F1G1C104A081 C 0.10UF, K, 16V 2 C5552,53 ECJ0EB1A104K C 0.1UF, K, 10V 2 C5555 ECGRL0G680ER C 68PF, J, 4V 1 C5556 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5605 EEUFC1E471 E 470UF, 25V 1 C5606 ECA1CM471 E 470UF, 16V 1 C5609 ECA1HM220 E 22UF, 50V 1 C5611 F2A1H331A257 E 330UF, 50V 1 C5612 ECA1CM471 E 470UF, 16V 1 C5613 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5616 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5617 ECA1CM471 E 470UF, 16V 1 C5618-20 ECJ1VB1E104K C 0.10UF, K, 25V 3 C5621 ECJ1VB1H472K C 4700PF, K, 50V 1 C5622 ECA1CM471 E 470UF, 16V 1 C5623 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5626 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5633 ECA1EM221 E 220UF, 25V 1 C5637 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5641-44 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C5645 ECA1CHG470 E 47UF, 16V 1 C5646 ECJ1VB1H103K C 0.001UF, K, 50V 1 C5647 ECA1CHG470 E 47UF, 16V 1 C5648 ECJ1VB1H103K C 0.001UF, K, 50V 1 C5670 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5672 ECA1HHG100 E 10UF, 50V 1 C5673 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5681 EEUFC1E471 E 470UF, 25V 1 C5682 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5683,84 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C5685 ECA1CM471 E 470UF, 16V 1 C5686 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5688 ECA1CM471 E 470UF, 16V 1 C5689 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5690 ECA1EM221 E 220UF, 25V 1 C5801,02 EEUFC1E471 E 470UF, 25V 2 C5804 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5805 ECJ2VF1C105Z C 1UF, Z, 16V 1 C5809 ECJ3XF1E105Z C 1UF, Z, 25V 1 C5810 ECA1EHG470 E 47UF, 25V 1 C5848 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5850 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5852 ECJ3YB1E106M C 10 UF, K, 25V 1 C5879,80 ECJ1VB1E104K C 0.10UF, K, 25V 2 C5900 EEEHB0G470R C 47PF, J, 4V 1 C5901 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 C5902 ECJ0EB1A104K C 0.1UF, K, 10V 1 C5903 EEEHB0G470R C 47PF, J, 4V 1 C5904 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5905 EEEHB0G101R C 100PF, J, 4V 1 C5906 ECJ1VB1H392K C 3900PF, K, 50V 1 C5907 ECJ1XC1H821J C 820PF, J, 50V 1 C5926-28 ECJ0EB1C103K C 0.010UF, K, 16V 3 C7701 ECJ1XC1H330J C 33PF, J, 50V 1 C7702 EEEHB0G470R C 47PF, J, 4V 1 C7703,04 ECJ1XC1H330J C 33PF, J, 50V 2 C7705 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C7707 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C7708 ECJ1VB1H103K C 0.001UF, K, 50V 1 C7709 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 参考号 部品号 部品名称 & 说明 件数 备注 C7711 ECJ1XC1H330J C 33PF, J, 50V 1 C9028,29 F1J0J1060004 C 0.010UF, K, 16V 2 C9033,34 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9035,36 F1J0J1060004 C 0.010UF, K, 16V 2 C9037 ECJ1VB1H103K C 0.001UF, K, 50V 1 C9039 F1J0J1060004 C 0.010UF, K, 16V 1 C9040 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9044-53 ECJ1XF1C104Z C 0.1UF, Z, 16V 10 C9055-57 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9058 F1J0J1060004 C 0.010UF, K, 16V 1 C9059-83 ECJ1XB1C104K C 0.1UF, Z, 16V 25 C9084 EEFCD0G560ER 56UF, 1 C9085-99 ECJ1XB1C104K C 0.1UF, Z, 16V 15 C9101-10 ECJ1XB1C104K C 0.1UF, Z, 16V 10 C9111 EEFCD0G560ER 56UF, 1 C9300-25 ECJ1XB1C104K C 0.1UF, Z, 16V 26 C9355-59 ECJ1XB1C104K C 0.1UF, Z, 16V 5 C9360-64 ECJ3XB0J106M C 10UF, M,6.3V 5 C9365 EEFCD0G560ER 56UF, 1 C9368 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9369-74 ECJ1VF1H103Z C 0.010UF, Z, 50V 6 C9442-69 ECJ1XB1C104K C 0.1UF, Z, 16V 28 C9496 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9512,13 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9514,15 ECJ2VF1C105Z C 1UF, Z, 16V 2 C9516-25 ECJ1XB1C104K C 0.1UF, Z, 16V 10 C9526 F1J0J1060004 C 0.010UF, K, 16V 1 C9527,28 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9531 F1J0J1060004 C 0.010UF, K, 16V 1 C9532 ECJ1XC1H101K C 100PF, K, 50V 1 C9533 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9534-38 ECJ3XB0J106M C 10UF, M,6.3V 5 C9539 EEFCD0G560ER 56UF, 1 C9542 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9546,47 ECJ1VC1H120J C 12PF, J, 50V 2 C9548 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9552 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9554 F1J0J1060004 C 0.010UF, K, 16V 1 C9557 ECJ2VF1C105Z C 1UF, Z, 16V 1 C9559-61 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C9601 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9608 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9609 ECJ3XB0J106M C 10UF, M,6.3V 1 C9610 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9800 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9801 ECJ1VB1H472K C 4700PF, K, 50V 1 C9802 ECJ1XC1H470J C 47PF, J, 50V 1 C9803 ECJ1VB1H472K C 4700PF, K, 50V 1 C9804 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9805 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9806 ECGRL0G680ER C 68PF, J, 4V 1 C9807,08 ECJ3YB1E106M C 10 UF, K, 25V 2 C9809 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9815,16 ECGRL0G680ER C 68PF, J, 4V 2 C9817,18 ECJ3YB1E106M C 10 UF, K, 25V 2 C9823,24 ECJ3YB1E106M C 10 UF, K, 25V 2 C9825 ECJ1XC1H101K C 100PF, K, 50V 1 C9826 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9830-32 ECJ3XB1C106M C 1.0UF, K, 16V 3 C9833 ECJ3YB1E106M C 10 UF, K, 25V 1 C9837 ECJ3XB1C106M C 1.0UF, K, 16V 1 C9838 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9840 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9841,42 ECJ2VF1C105Z C 1UF, Z, 16V 2 C9843 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9844 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C9845,46 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9847,48 ECJ1VB1E104K C 0.10UF, K, 25V 2 C9880,81 ECJ1XB1H102K C 1000UF, Z, 50V 2 C9882 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9883 ECJ1VB1H822K C 8200PF, K, 50V 1 C9884 ECJ1VC1H100C C 10PF, C, 50V 1 C9885 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9886 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9887 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9891 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9896 ECJ1XB1C104K C 0.1UF, Z, 16V 1 参考号 部品号 部品名称 & 说明 件数 备注 170 C9897 ECJ1VB1H822K C 8200PF, K, 50V 1 C9898 ECJ1VC1H100C C 10PF, C, 50V 1 C9899 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9926 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9967 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9969 ECJ1XC1H330J C 33PF, J, 50V 1 C9970 ECJ1XC1H470J C 47PF, J, 50V 1 C9971 ECJ1XB1C104K C 0.1UF, Z, 16V 1 D3 K1KA30AA0009 30P 连接接头 1 D5 K1KB31AA0140 31P 连接接头 1 D6 K1KA21A00011 21P 连接接头 1 D20 K1KA20AA0008 20P 连接接头 1 D25 K1KA20B00155 20P 连接接头 1 D31-33 K1MN68BA0076 68P 连接接头 3 D34-36 K1MN68BA0251 68P 连接接头 3 D1106,07 MA729 二极管 2 D1109 B0JCCE000008 二极管 1 D1117 MAZ8043M 稳压二极管 1 D1119 MA704A 二极管 1 D1121 MA729 二极管 1 D1901-11 EZJZ0V80008B 变压器 11 D1912 MA3056M 稳压二极管 1 D1913,14 B0HCMM000014 二极管 2 D2011-14 MA111 二极管 4 D2119 B0BC01100001 稳压二极管 1 D2309 MA111 二极管 1 D2501-04 MA111 二极管 4 D2510,11 MA8056-M 稳压二极管 2 D2520 LNJ107W5PRW LED 1 D2524 MA8056-M 稳压二极管 1 D2551 MA3X78900L 稳压二极管 1 D2581 MA3043M 稳压二极管 1 D2582 MA3056M 稳压二极管 1 D3003 MA8140M 稳压二极管 1 D3005,06 MA8140M 稳压二极管 2 D3017 MA8140M 稳压二极管 1 D3021-23 MA111 二极管 3 D3024 B0BC01100001 稳压二极管 1 D3038-43 MA8140M 稳压二极管 6 D3044 MA111 二极管 1 D3045-52 MA8140M 稳压二极管 8 D3100 MA8140M 稳压二极管 1 D3334-39 MA111 二极管 6 D3702 MA8140M 稳压二极管 1 D3801-11 EZJZ0V80008B 变压器 11 D3812 MA3056M 稳压二极管 1 D3813,14 B0HCMM000014 二极管 2 D4019 EZJZ0V80008B 变压器 1 D4021 EZJZ0V80008B 变压器 1 D4023 EZJZ0V80008B 变压器 1 D4025 EZJZ0V80008B 变压器 1 D4027 EZJZ0V80008B 变压器 1 D4029,30 EZJZ0V80008B 变压器 2 D4033,34 EZJZ0V80008B 变压器 2 D4037 EZJZ0V80008B 变压器 1 D4041 EZJZ0V80008B 变压器 1 D4045 EZJZ0V80008B 变压器 1 D4048 MA3056M 稳压二极管 1 D4051,52 B0HCMM000014 二极管 2 D5020 MA8024LTX 稳压二极管 1 D5022 MA22D3900L 二极管 1 D5024,25 MA22D3900L 二极管 2 D5027 MA22D3900L 二极管 1 D5606 B0BC01100001 稳压二极管 1 D5607 B0BC6R600005 稳压二极管 1 D5610 B0BC4R700007 稳压二极管 1 D5612 B0BC3R700006 稳压二极管 1 D5618 B0BC03900015 稳压二极管 1 D5635 MA3047H 稳压二极管 1 D5636-38 MA152 二极管 3 D5639 MA3047H 稳压二极管 1 D5640 MA3039H 稳压二极管 1 D5641 MA152 二极管 1 D5642 MA3120M 稳压二极管 1 D5643 MA152 二极管 1 D5644 MA3068M 稳压二极管 1 参考号 部品号 部品名称 & 说明 件数 备注 D5645 MA3039H 稳压二极管 1 D5646,47 MA152 二极管 2 D5649 MA152 二极管 1 D5650 MA3047H 稳压二极管 1 D5651 MA111 二极管 1 D5653 MA152 二极管 1 D5681 B0BC4R700007 稳压二极管 1 D5682 B0BC3R700006 稳压二极管 1 D5801 B0JCME000037 二极管 1 D5804 MA8110M 稳压二极管 1 D5817 MA152 二极管 1 D5824,25 MA152 二极管 2 D5828-31 MA152 二极管 4 D5877 B0JCPD000026 二极管 1 D7704 B3AEB0000065 二极管 1 D9017-19 MA3033 稳压二极管 3 D9020 MA728 二极管 1 D9035 MA728 二极管 1 D9100-03 B0JCGD000002 二极管 4 D9105,06 B0JCGD000002 二极管 2 D9110 B0JCGD000002 二极管 1 D9300-05 MA152K 二极管 6 D9800 B0JCME000037 二极管 1 D9801 B0JCDD000002 二极管 1 D9802 MA728 二极管 1 D9804 MA152K 二极管 1 D9807,08 MA152K 二极管 2 D9812 B0JCME000037 二极管 1 D9813 B0JCDD000002 二极管 1 D9814 B0JCME000037 二极管 1 D9815 B0JCDD000002 二极管 1 DG1 K1KY80A00011 80P 连接接头 1 DG2 K1KA15A00148 15P 连接接头 1 DG3 K1KA30B00078 30P 连接接头 1 DG5 K1KB31BA0064 31P 连接接头 1 DG8,G9 K1FY119D0001 连接接头 2 DG11 K1KY30B00006 30P 连接接头 1 DG20 K1MN40B00045 40P 连接接头 1 DG30 K1KA15B00074 15P 连接接头 1 FL3105-07 J0MAB0000199 LC 滤波器 3 FL3301,02 J0HABB000003 LC 滤波器 2 FL3303-05 J0HABB000004 LC 滤波器 3 FL3710-12 J0MAB0000199 LC 滤波器 3 FL5017,18 J0HAAA000013 LC 滤波器 2 FL5224,25 J0HAAC000045 LC 滤波器 2 FL5229,30 J0HAAC000045 LC 滤波器 2 FL5235 J0HAAC000045 LC 滤波器 1 FL5262,63 J0MAB0000164 LC 滤波器 2 FL5264,65 J0HAAC000045 LC 滤波器 2 FL5901-05 J0HAAC000045 LC 滤波器 5 FL5906-08 J0MAB0000199 LC 滤波器 3 FL9000 J0HABH000013 LC 滤波器 1 FL9302-11 J0HABH000013 LC 滤波器 10 FL9501,02 J0HABH000013 LC 滤波器 2 FL9504 F1J1E1040022 C 0.10UF, Z, 25V 1 FL9800 J0HABH000013 LC 滤波器 1 FL9803,04 J0HABH000012 LC 滤波器 2 FL9805-07 J0HABH000013 LC 滤波器 3 G1 K1KA12A00317 12P 连接接头 1 G3 K1KA03AA0150 3P 连接接头 1 G4 K1KA04AA0150 4P 连接接头 1 G51 K1KA30AA0009 30P 连接接头 1 GH10 K1FA121E0001 121P 连接接头 1 GH11 K1KY30A00017 30P 连接接头 1 GK3 K1KA03BA0061 3P 连接接头 1 GS52 K1KA13B00069 13P 连接接头 1 H1 K1KY80A00011 80P 连接接头 1 H2 K1KA15A00148 15P 连接接头 1 H5,H6 K1KA15AA0288 15P 连接接头 2 H15 K1KA04AA0150 4P 连接接头 1 参考号 部品号 部品名称 & 说明 件数 备注 171 H37 K1KA03AA0190 3P 连接接头 2 H40 K1KA20AA0009 20P 连接接头 1 H51 K1KA30AA0009 30P 连接接头 1 H53 K1KA12AA0153 12P 连接接头 1 HC01 K1KA21A00011 21P 连接接头 1 HC21 K1KA08AA0150 8P 连接接头 1 HC22 K1KA11AA0153 11P 连接接头 1 HC23 K1KA10AA0153 10P 连接接头 1 IC1100 C3ABPG000145 IC 1 IC1101 TVRP085 IC 1 IC1102 TVRP088 IC 1 IC1103 MN103SB20RGL IC 1 IC1110 C0CBCAD00016 IC 1 IC1111 C0EBY0000041 IC 1 IC1122 C0JBAZ000851 IC 1 IC1302 C3ZBN0000026 IC 1 IC1401 C1ZBZ0003449 IC 1 IC1501 C1ZBZ0003448 IC 1 IC1503 C0CBCBC00190 IC 1 IC1601 C0EBD0000221 IC 1 IC1602,03 C3ZBN0000026 IC 2 IC1604 TVRP047 IC 1 IC1901 TVRP091 IC 1 IC1902 C0JBAS000128 IC 1 IC1903 C1AB00002641 IC 1 IC1904 C0JBAS000251 IC 1 IC1906 C0DBGYY00143 IC 1 IC1907,08 C0DBEYY00043 IC 2 IC1909 C0ZBZ0001038 IC 1 IC2103 AN77L08M IC 1 IC2104 C0ABBA000168 IC 1 IC2105 AN15862A-VT IC 1 IC2106 C1AB00002469 IC 1 IC2109 C1BB00000947 IC 1 IC2110 AN7705SP IC 1 IC2302 C1AB00002451 IC 1 IC2304 C0ABBA000168 IC 1 IC2306 C0ABBA000168 IC 1 IC2511 B3L000000020 IC 1 IC2551 C0DBAJB00004 IC 1 IC3005 AN15867A-VT IC 1 IC3301 C0JBAZ002205 IC 1 IC3801 C1AB00002641 IC 1 IC3802 TVRP092 IC 1 IC3803 C0ZBZ0001038 IC 1 IC4013 C0CBCBF00009 IC 1 IC4014 C0CBCAC00282 IC 1 IC4016 C0CBCAC00275 IC 1 IC4017 C0CBCAC00282 IC 1 IC4018 C0CBCAC00275 IC 1 IC4019 C1AB00002456 IC 1 IC4020 C1AB00002202 IC 1 IC4022 TVRP090 IC 1 IC4025 C0FBBK000038 IC 1 IC4026 C1AB00002535 IC 1 IC4027 C0DBFFD00003 IC 1 IC4028 C0ABBB000230 IC 1 IC4029 C0CBCAC00282 IC 1 IC4030 C0CBCBC00190 IC 1 IC4032 C0DBGYY00052 IC 1 IC4035 C0CBCAF00031 IC 1 IC4037 MN84522-A IC 1 IC4038 C3ABQJ000048 IC 1 IC4040 C0CBCAC00282 IC 1 IC5009,10 C3ABRG000016 IC 2 IC5013 MN2WS012AA-A IC 1 IC5016 C3ABQG000066 IC 1 IC5019 TVRP147 IC 1 IC5022 C0ZBZ0000804 IC 1 IC5023 C0ZBZ0001327 IC 1 IC5025 C3EBJC000055 IC 1 IC5026 C1AB00001849 IC 1 IC5035 C1AB00001858 IC 1 IC5038 C3FBRG000004 IC 1 IC5042 C0EBM0000026 IC 1 参考号 部品号 部品名称 & 说明 件数 备注 IC5043 C0EBE0000336 IC 1 IC5044 C0DBZFF00004 IC 1 IC5045 C0DBAYY00054 IC 1 IC5055 C0DBEZG00018 IC 1 IC5246 C0DBAYY00054 IC 1 IC5601 N0BG2DE00001 IC 1 IC5602,03 EHMDD9851 线性 IC 2 IC5604 C0DBZGC00067 IC 1 IC5801 C0DBAZG00034 IC 1 IC5900 C0DBEHG00006 IC 1 IC9001 TVRP123 IC 1 IC9002 C0ZBZ0001330 IC 1 IC9003 TVRP068-2 IC 1 IC9007 TVRP073-1 IC 1 IC9011 C0EBF0000431 IC 1 IC9200 C1ZBZ0003473 IC 1 IC9300 MN84521A-A IC 1 IC9301 C3ABQJ000051 IC 1 IC9304 TVRP109-1 IC 1 IC9400 MN84521A-A IC 1 IC9401 C3ABQJ000051 IC 1 IC9402 C0JBAZ002614 IC 1 IC9500 C1ZBZ0003463 IC 1 IC9503-05 C0JBAZ001120 IC 3 IC9602 PST9128NR IC ( 逻辑 ) 1 IC9603 C0JBAZ002183 IC 1 IC9800 C0DBAYY00054 IC 1 IC9802,03 C0JBAZ001120 IC 2 IC9806 C0DBAHD00011 IC 1 IC9807 C0DBAYY00054 IC 1 IC9809 C0DBAYY00054 IC 1 JG1 K1KA12AA0153 12P 连接接头 1 JG2 K1KA15A00148 15P 连接接头 1 JG3 K1KA13AA0105 13P 连接接头 1 JG4 K1KA04AA0150 4P 连接接头 1 JK2003 K2HA204A0038 插孔 1 JK3001 K1FB315A0005 插孔 1 JK3100 TJB0A639 端子 1 JK3701C K4AK22B00002 端子板 1 JK7701 K1NA09E00080 9P 连接接头 1 JK8500 K4BC02B00013 AV 端子 2 H3 板 JS012 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS027 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS031 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS1100-02 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 JS1117 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 JS2026 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS2031-33 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS2108,09 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS2121-24 ERJ3GEY0R00 M 0 OHM, 1/16W 4 JS2300-03 ERJ6GEY0R00 M 0 OHM, 1/10W 4 JS2319 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS2331 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3010-15 ERJ6GEY0R00 M 0 OHM, 1/10W 6 JS3023 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3029 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3202 J0JCC0000241 片状电感 1 JS3205 J0JCC0000241 片状电感 1 JS3206 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3215 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3230 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3237 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3244,45 J0JCC0000241 片状电感 2 JS3246 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3252 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3255 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3256 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3265,66 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS3302-04 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS3352 J0JCC0000241 片状电感 1 JS3354-59 J0JCC0000241 片状电感 6 JS3362,63 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS3702 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3704,05 ERJ6GEY0R00 M 0 OHM, 1/10W 2 参考号 部品号 部品名称 & 说明 件数 备注 172 JS3707,08 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS3801 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS4013-15 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS4016,17 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 JS4020-24 ERJ2GE0R00 M 0.0 OHM, J,0.063W 5 JS4027,28 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 JS4033-40 ERJ2GE0R00 M 0.0 OHM, J,0.063W 8 JS4046 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 JS4103,04 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 JS4108 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 JS4111-13 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS4118 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 JS4200 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 JS4303,04 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS5600 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS7701,02 ERJ3GEY0R00 M 0 OHM, 1/16W 2 K1 K1KY12B00001 12P 连接接头 1 L001 J0JGC0000021 片状感应线圈 1 L007 J0JCC0000241 片状电感 1 L010,11 J0JCC0000241 片状电感 2 L013 J0JCC0000241 片状电感 1 L015 J0JGC0000021 片状感应线圈 1 L021 ERJ3GEY0R00 M 0 OHM, 1/16W 1 L024 TSK1032 头扼流圈 1 L025,26 J0JCC0000241 片状电感 2 L028 J0JGC0000021 片状感应线圈 1 L031,32 J0JGC0000021 片状感应线圈 2 L1101-04 J0JHC0000078 片状电感 4 L1109 J0JHC0000078 片状电感 1 L1303,04 J0JHC0000078 片状电感 2 L1501 J0JCC0000077 片状电感 1 L1604,05 J0JHC0000078 片状电感 2 L1901 J0JHC0000078 片状电感 1 L1902,03 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 L1904,05 J0JHC0000078 片状电感 2 L2001,02 J0JCC0000364 片状电感 2 L2003,04 TSK1032 头扼流圈 2 L2007,08 TSK1032 头扼流圈 2 L2011,12 TSK1032 头扼流圈 2 L2015,16 TSK1032 头扼流圈 2 L2107 TSK1032 头扼流圈 1 L2108 J0JCC0000241 片状电感 1 L2109,10 TSK1032 头扼流圈 2 L2111,12 J0JCC0000241 片状电感 2 L2115 J0JCC0000241 片状电感 1 L2117 ELESE6R8KA 校正线圈 1 L2118 EXCELDR35C 头扼流圈 1 L2123 J0JCC0000241 片状电感 1 L2178,79 J0JCC0000241 片状电感 2 L2182-87 J0JCC0000241 片状电感 6 L2204 ERJ3GEY0R00 M 0 OHM, 1/16W 1 L2205,06 J0JCC0000241 片状电感 2 L2300-03 G0C330MA0049 校正线圈 4 L2308 TALL08N3R9MA 感应线圈 1, L2551 G0A2R7ZA0021 扼流线圈 1 L3000 G0C101K00023 校正线圈 1 L3001-03 TSK1032 头扼流圈 3 L3009,10 TSK1032 头扼流圈 2 L3013 TSK1032 头扼流圈 1 L3026 TSK1032 头扼流圈 1 L3212 TSK1032 头扼流圈 1 L3216 J0JGC0000021 片状感应线圈 1 L3219 J0JGC0000021 片状感应线圈 1 L3700,01 J0JCC0000364 片状电感 2 L3707,08 TSK1032 头扼流圈 2 L3801 J0JHC0000078 片状电感 1 L3802,03 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 L3804,05 J0JHC0000078 片状电感 2 L4021 J0JHC0000078 片状电感 1 L4023 J0JHC0000078 片状电感 1 L4027 J0JBC0000080 片状电感 1 L4028,29 J0JHC0000078 片状电感 2 L4031,32 J0JHC0000078 片状电感 2 L4033 TALC168T100K 片状感应线圈 1 L4034 J0JCC0000077 片状电感 1 参考号 部品号 部品名称 & 说明 件数 备注 L4037 J0JCC0000077 片状电感 1 L4038 J0JHC0000078 片状电感 1 L4040 J0JHC0000078 片状电感 1 L4042,43 J0JHC0000078 片状电感 2 L4046 J0JHC0000078 片状电感 1 L4048 J0JHC0000078 片状电感 1 L4049 J0JBC0000080 片状电感 1 L4050,51 J0JHC0000078 片状电感 2 L4052 J0JCC0000077 片状电感 1 L4053-55 J0JHC0000078 片状电感 3 L4056,57 J0JCC0000077 片状电感 2 L4060,61 J0JCC0000077 片状电感 2 L4063 TALC168T100K 片状感应线圈 1 L4066 J0JHC0000078 片状电感 1 L4071 J0JBC0000080 片状电感 1 L4073 J0JHC0000078 片状电感 1 L4076 J0JHC0000078 片状电感 1 L4078 J0JHC0000078 片状电感 1 L5024 J0JHC0000045 片状电感 1 L5027 J0JHC0000045 片状电感 1 L5030,31 J0JHC0000045 片状电感 2 L5034 J0JHC0000045 片状电感 1 L5049,50 J0JHC0000045 片状电感 2 L5051 J0JCC0000241 片状电感 1 L5053 J0JJC0000015 片状电感 1 L5054-56 J0JHC0000045 片状电感 3 L5075 J0JHC0000045 片状电感 1 L5095,96 J0JHC0000045 片状电感 2 L5098 J0JHC0000045 片状电感 1 L5099 TSK1032 头扼流圈 1 L5100 G1C1R5ZA0083 感应线圈 1 L5101 J0JHC0000045 片状电感 1 L5102 G1C3R3ZA0083 感应线圈 1 L5103 G1C100MA0203 感应线圈 1 L5104 J0JHC0000045 片状电感 1 L5105 G1C100MA0077 感应线圈 1 L5106 J0JCC0000241 片状电感 1 L5602 TALL08N2R7MA 感应线圈 1 L5604 TALL08N2R7MA 感应线圈 1 L5606,07 G0A220GA0002 扼流线圈 2 L5608 G1C100MA0072 感应线圈 1 L5609 G0A220GA0002 扼流线圈 1 L5610 G1C470MA0077 感应线圈 1 L5612 TALL08N2R7MA 感应线圈 1 L5615 TALL08N150KA 感应线圈 1 L5621,22 G0C330MA0056 校正线圈 2 L5623 G0C150MA0056 校正线圈 1 L5624 G0C330MA0056 校正线圈 1 L5651 G0A220GA0002 扼流线圈 1 L5681 G0A220GA0002 扼流线圈 1 L5682 G0C330MA0056 校正线圈 1 L5683 G0A150ZA0037 扼流线圈 1 L5684 G0A220GA0002 扼流线圈 1 L5685 G0A100GA0013 扼流线圈 1 L5801 G0C101K00023 校正线圈 1 L5802 TALL08N101KA 感应线圈 1 L5877,78 J0JCC0000241 片状电感 2 L5900,01 J0JHC0000045 片状电感 2 L5903 J0JHC0000045 片状电感 1 L5904 G1C100MA0203 感应线圈 1 L7721 TSK1032 头扼流圈 1 L8501 G0A2R5H00003 扼流线圈 1 L8502 G0A2R5H00003 扼流线圈 2 H3 板 L9501,02 J0JHC0000078 片状电感 2 L9503 G1C150KA0038 感应线圈 1 L9504,05 J0JHC0000078 片状电感 2 L9800 G1C3R0MA0248 感应线圈 1 L9801,02 G1C2R2MA0241 感应线圈 2 L9810 J0JHC0000045 片状电感 1 PA2 K1KA05AA0192 5P 连接接头 1 PA5 K1KA11AA0194 11P 连接接头 1 PA10 K1KA06A00452 6P 连接接头 1 PA20 K1MN40A00024 40P 连接接头 1 PA31-36 K1KA03AA0192 3P 连接接头 6 PA40 K1KA20AA0009 20P 连接接头 1 PA1101 K5H8012A0023 保险丝 1 参考号 部品号 部品名称 & 说明 件数 备注 173 PA2055 K5H1622A0023 保险丝 1 PA3100 K5H1622A0023 保险丝 1 PA3104 ERJ3GEY0R00 M 0 OHM, 1/16W 1 PA9800 K5H4022A0023 保险丝 1 Q002 2SA207700L 三极管 1 Q1100,01 B1ABDF000034 三极管 2 Q1103 B1ABDF000034 三极管 1 Q1108 B1ABDF000034 三极管 1 Q1109,10 B1CBHD000002 FET 2 Q1111 B1ABDF000034 三极管 1 Q1113-16 B1ABDF000034 三极管 4 Q1130,31 B1ABDF000034 三极管 2 Q1134-37 B1ABDF000034 三极管 4 Q1139-44 B1ABDF000034 三极管 6 Q1145 2SA207700L 三极管 1 Q1146 B1ABDF000034 三极管 1 Q1301,02 B1CBHD000002 FET 2 Q1601 B1ABDF000034 三极管 1 Q1901,02 B1ABDF000034 三极管 2 Q1904 B1ABDF000034 三极管 1 Q1905,06 2SK1228 FET 2 Q1907 B1ABDF000034 三极管 1 Q2001,02 B1ABDF000034 三极管 2 Q2011 2SA207700L 三极管 1 Q2012 B1ABDF000034 三极管 1 Q2013 2SA207700L 三极管 1 Q2102-05 2SA207700L 三极管 4 Q2106 B1ABDF000034 三极管 1 Q2108 B1ABDF000034 三极管 1 Q2113,14 B1ABDF000034 三极管 2 Q2300 2SA207700L 三极管 1 Q2301-03 2SD601A 三极管 3 Q2306,07 2SA207700L 三极管 2 Q2314-17 B1ABDF000034 三极管 4 Q2501 B1ABDF000034 三极管 1 Q2502 2SD601A 三极管 1 Q2503 B1ABDF000034 三极管 1 Q2511 2SD601A 三极管 1 Q2513 2SD601A 三极管 1 Q2551 2SK3065T100 FET 1 Q2581 2SD601A 三极管 1 Q3002 2SA207700L 三极管 1 Q3008 2SA207700L 三极管 1 Q3011-15 2SA207700L 三极管 5 Q3017,18 2SA207700L 三极管 2 Q3204-07 B1ABDF000034 三极管 4 Q3210 2SA207700L 三极管 1 Q3331-33 2SC2480 三极管 3 Q3801,02 B1ABDF000034 三极管 2 Q3804 B1ABDF000034 三极管 1 Q4040-42 B1ABDF000034 三极管 3 Q4043,44 2SA207700L 三极管 2 Q4046 2SA207700L 三极管 1 Q4050 B1ABDF000034 三极管 1 Q4051,52 2SD1030 三极管 2 Q4053 B1ABDF000034 三极管 1 Q4054 2SD1030 三极管 1 Q4055-59 2SA207700L 三极管 5 Q4061-65 B1ABDF000034 三极管 5 Q4068 B1ABDF000034 三极管 1 Q4071 B1MBACA00008 三极管 1 Q4083 2SK1228 FET 1 Q4084 B1ABDF000034 三极管 1 Q4918,19 B1ABDF000034 三极管 2 Q5022 B1MBEDA00015 三极管 1 Q5024 B1MBEDA00015 三极管 1 Q5026 B1ABDF000034 三极管 1 Q5027 B1ADDF000005 三极管 1 Q5500 B1ADDF000005 三极管 1 Q5601 B1DHDC000028 三极管 1 Q5602 2SD601A 三极管 1 Q5603 B1DHDC000028 三极管 1 Q5604,05 2SD601A 三极管 2 Q5610 2SD601A 三极管 1 Q5613 2SD601A 三极管 1 Q5641-43 2SA207700L 三极管 3 参考号 部品号 部品名称 & 说明 件数 备注 Q5644 2SD601A 三极管 1 Q5800 2SD601A 三极管 1 Q5900-02 2SA207700L 三极管 3 Q9044 2SD601A 三极管 1 Q9046 2SD601A 三极管 1 Q9049 2SB709A 三极管 1 Q9050-54 2SD601A 三极管 5 Q9057,58 B1CBHD000002 FET 2 Q9100 2SD601A 三极管 1 Q9200,01 B1CBHD000002 FET 2 Q9300-06 2SD601A 三极管 7 Q9800,01 B1MBEDA00015 三极管 2 Q9803 B1MBEDA00015 三极管 1 Q9805,06 2SD601A 三极管 2 R001 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R4 K1KA04BA0061 4P 连接接头 1 R005 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R008 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R009 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R011 ERJ6GEYJ271 M 270 OHM,J,1/10W 1 R012,13 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R014 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R016 ERJ6GEYJ271 M 270 OHM,J,1/10W 1 R017-20 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R021 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R022 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R023,24 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R027 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R028 ERJ3EKF1503 M 150KOHM, 1/16W 1 R029 ERJ3EKF2703 M 270KOHM, 1/16W 1 R1018 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1029 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1101 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1102,03 ERJ2GEJ102 M 1KOHM, J,0.063W 2 R1105,06 ERJ2GEJ102 M 1KOHM, J,0.063W 2 R1113 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R1116 ERJ2GEJ562 M 5.6KOHM,J,0.063W 1 R1117 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1118,19 EXB2HV680J 电阻阵列 2 R1121,22 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1123 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1124,25 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R1128 ERJ2GEJ122 M 1.2KOHM, J,0.063W 1 R1131,32 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1133,34 ERJ2GEJ102 M 1KOHM, J,0.063W 2 R1140,41 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R1146 ERJ2GEJ271 M 270 OHM, J,0.063W 1 R1147,48 D1HG5608A002 排阻 2 R1149 EXB2HV680J 电阻阵列 1 R1151 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1152 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1153 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1154 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1156 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1157 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1158 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1159 ERJ2GEJ123X M 12KOHM ,J,0.063W 1 R1160 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1162 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1164 ERJ2GEJ123X M 12KOHM ,J,0.063W 1 R1165 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R1168,69 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R1174 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1175 ERJ2GEJ563 M 56KOHM ,J,0.063W 1 R1176 ERJ2GEJ123X M 12KOHM ,J,0.063W 1 R1177 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1181 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1182 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1183 EXB28V680JX 电阻阵列 1 R1184 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1187 EXB2HV680J 电阻阵列 1 R1188,89 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R1199 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1200 EXB2HV680J 电阻阵列 1 R1203 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1204 ERJ2GEJ101 M 100 OHM, J,0.063W 1 参考号 部品号 部品名称 & 说明 件数 备注 174 R1207 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1208 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1211 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1212,13 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R1214 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1215-17 ERJ2GEJ101 M 100 OHM, J,0.063W 3 R1218 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R1219 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1220 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R1221 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R1222 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R1223 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1224 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1225,26 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1228 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1229 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R1230 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1231 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1232,33 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R1234 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1235,36 ERJ2GEJ272 M 2.7KOHM, J,0.063W 2 R1237 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1239 ERJ3EKF1202 M 12KOHM, 1/16W 1 R1241 ERJ2GEJ822 M 8.2KOHM, J,0.063W 1 R1243 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1246 ERJ2GEJ912 M 9.1KOHM, J,0.063W 1 R1248 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1249 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1250 ERJ2GEJ564X M 560KOHM, J,0.063W 1 R1251,52 EXB2HV101J 电阻阵列 2 R1254 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1256 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1258 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1260-62 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R1263,64 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1265,66 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R1268 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1269 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1270,71 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1273 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1275 ERJ3EKF7151 M7.15KOHM, 1/16W 1 R1279,80 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1281 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1282 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R1283 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1284 ERJ2GEJ682 M 6.8KOHM, J,0.063W 1 R1290 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1299-02 ERJ2GE0R00 M 0.0 OHM, J,0.063W 4 R1307 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1308 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1309-12 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R1313,14 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R1315 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1316 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1318,19 ERJ2GEJ512X M5.12KOHM, J,0.063W 2 R1321 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R1322 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R1323,24 ERJ2GEJ823 M 82KOHM, J,0.063W 2 R1325,26 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R1327,28 ERJ2GEJ683 M 68KOHM, J,0.063W 2 R1329,30 ERJ2GEJ473 M 47KOHM,J,0.063W 2 R1331,32 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R1333 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1340 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1344 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1348 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1351 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1352 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1354 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1363 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1367 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1368 ERJ2GEJ183 M 18KOHM ,J,0.063W 1 R1372 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1375 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1376 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1377 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R1379 ERJ2GEJ331 M 330 OHM, J,0.063W 1 参考号 部品号 部品名称 & 说明 件数 备注 R1382,83 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R1384 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1389 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1400 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1405,06 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R1408 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1410 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1412,13 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R1414 EXB28V680JX 电阻阵列 1 R1416 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1417 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1426-32 ERJ8GEY0R00 M 0 OHM, 1/8W 7 R1434 EXB28V820JX 电阻阵列 1 R1435 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1436 EXB2HV470JV 电阻阵列 1 R1437,38 ERJ2GEJ470 M 47 OHM, J,0.063W 2 R1440-43 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R1445 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1447 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R1450 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1452 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1453 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1454 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1457 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1458,59 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1460 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1466 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1467 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1470 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1472,73 D1HG1038A002 排阻 2 R1474 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R1475,76 D1HG1038A002 排阻 2 R1480 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1490,91 D1HG1038A002 排阻 2 R1494 D1HG1038A002 排阻 1 R1496,97 ERJ2GEJ470 M 47 OHM, J,0.063W 2 R1498-00 ERJ2GEJ101 M 100 OHM, J,0.063W 3 R1501 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1530,31 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R1532 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R1537 ERJ2GEJ301 M 300 OHM, J,0.063W 1 R1538 ERJ2GEJ561 M 60 OHM, J,0.063W 1 R1540 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R1543 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1544 ERJ2GEJ271 M 270 OHM, J,0.063W 1 R1545 ERJ2GEJ301 M 300 OHM, J,0.063W 1 R1546 ERJ2GEJ561 M 60 OHM, J,0.063W 1 R1556 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R1559 ERJ2GEJ271 M 270 OHM, J,0.063W 1 R1560 EXB2HV220JV 电阻阵列 1 R1561,62 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1563 EXB2HV220JV 电阻阵列 1 R1564-68 ERJ2GEJ220 M 22 OHM, J,0.063W 5 R1585 D1HG1038A002 排阻 1 R1586-92 ERJ2GEJ103 M 10KOHM, J,0.063W 7 R1595,96 D1HG8208A002 排阻 2 R1597,98 EXB2HV680J 电阻阵列 2 R1599-01 ERJ2GEJ220 M 22 OHM, J,0.063W 3 R1602-04 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R1605,06 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R1607 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R1608,09 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R1610-15 EXB38VR000 电阻阵列 6 R1616 EXB2HV220JV 电阻阵列 1 R1617,18 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1619 EXB2HV220JV 电阻阵列 1 R1620-24 ERJ2GEJ220 M 22 OHM, J,0.063W 5 R1625 EXB2HV470JV 电阻阵列 1 R1626,27 ERJ2GEJ470 M 47 OHM, J,0.063W 2 R1629 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1631 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R1632 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1633 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1635 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R1636 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1640 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1642 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 参考号 部品号 部品名称 & 说明 件数 备注 175 R1644-46 ERJ2GEJ472 M 4.7KOHM, J,0.063W 3 R1648 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1650 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1652 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1654 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1656 EXB28V820JX 电阻阵列 1 R1657 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1658 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R1659 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1660 ERJ2GEJ121 M 120 OHM, J,0.063W 1 R1661 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1662 ERJ2GEJ121 M 120 OHM, J,0.063W 1 R1663 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1664 ERJ2GEJ121 M 120 OHM, J,0.063W 1 R1666,67 ERJ2GEJ121 M 120 OHM, J,0.063W 2 R1669 ERJ2GEJ121 M 120 OHM, J,0.063W 1 R1671-74 ERJ2GEJ121 M 120 OHM, J,0.063W 4 R1675 D1HG8208A002 排阻 1 R1676 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1677-83 D1HG8208A002 排阻 7 R1684-89 ERJ2GEJ820 M 82 OHM, J,0.063W 6 R1690 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1691,92 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1694 ERJ2GEJ820 M 82 OHM, J,0.063W 1 R1695 D1HG8208A002 排阻 1 R1696 ERJ2GEJ820 M 82 OHM, J,0.063W 1 R1697 D1HG8208A002 排阻 1 R1698 EXB28V820JX 电阻阵列 1 R1699,00 D1HG8208A002 排阻 2 R1701-06 ERJ2GEJ820 M 82 OHM, J,0.063W 6 R1707-10 ERJ2GE0R00 M 0.0 OHM, J,0.063W 4 R1711 ERJ2GEJ562 M 5.6KOHM,J,0.063W 1 R1713,14 EXB2HV220JV 电阻阵列 2 R1715-17 ERJ2GEJ220 M 22 OHM, J,0.063W 3 R1718 EXB2HV220JV 电阻阵列 1 R1719,20 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1721 EXB2HV220JV 电阻阵列 1 R1722,23 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1725 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1726 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1727-30 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R1731 EXB2HV680J 电阻阵列 1 R1732-34 EXB28V680JX 电阻阵列 3 R1735 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R1737 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R1738,39 ERJ2GEJ561 M 60 OHM, J,0.063W 2 R1743 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R1901,02 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R1903-05 ERJ2GEJ220 M 22 OHM, J,0.063W 3 R1906 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1907 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1910 ERJ2GEJ390 M 39 OHM, J,0.063W 1 R1913-20 ERJ2GEJ2R7X M 2.7OHM, J,0.063W 8 R1921,22 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R1924,25 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R1926 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1927,28 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R1929,30 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R1931 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R1932 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1934,35 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1938 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1939,40 ERJ2GEJ560 M 56 OHM, J,0.063W 2 R1941-48 ERJ2GE0R00 M 0.0 OHM, J,0.063W 8 R1949 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1951 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1952-54 ERJ8GEY0R00 M 0 OHM, 1/8W 3 R1957,58 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R1960,61 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R1962,63 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R1964 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R2005 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2006-11 ERJ6GEYJ223 M 22KOHM,J,1/10W 6 R2012 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2013,14 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R2015,16 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2042 ERJ3GEYJ105 M 1MOHM,J,1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R2043 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2044 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2045,46 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R2048 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2049,50 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R2051,52 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R2053 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2054 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2113,14 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2116 J0JCC0000241 片状电感 1 R2124,25 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R2126,27 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R2128,29 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R2130 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2131 ERJ3EKF8201 M 8.2KOHM, 1/16W 1 R2132 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R2133 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2137 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R2138 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2147 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2148,49 ERJ3EKF6342 M6.34KOHM, 1/16W 2 R2152 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2153 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2154 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2155,56 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2158 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2160 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2162 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2164 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2165,66 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R2167 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2168,69 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R2170-77 ERJ3GEYJ221 M 220 OHM,J,1/16W 8 R2181 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2182,83 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R2184-87 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R2188 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2192,93 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2195,96 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2197 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2202 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2203 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R2204 ERJ6GEYJ561 M 560 OHM,J,1/10W 1 R2208 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2209 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2210 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 R2211 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2213 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2214 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2215 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2219 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R2220 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R2227 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2230,31 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2232,33 ERJ3GEYJ153 M 15KOHM,J,1/16W 2 R2234-37 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R2238,39 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2251,52 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2310,11 ERJ3EKF1501 M 1.5KOHM, 1/16W 2 R2312 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2323,24 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2325 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2329 ERJ3EKF1003 M 100KOHM, 1/16W 1 R2332 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2341 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2349 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2357 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2359 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2360 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2361 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R2363 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2364 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2365 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2366 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2368 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2369 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R2372,73 ERJ6GEYJ681 M 680 OHM,J,1/10W 2 参考号 部品号 部品名称 & 说明 件数 备注 176 R2375 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2376 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2379,80 ERJ6ENF2201 M 2.2KOHM, 1/10W 2 R2383 ERJ3EKF4021 M 402 OHM, 1/16W 1 R2384 ERJ3EKF4530 M 453 OHM, 1/16W 1 R2387 ERJ3EKF4530 M 453 OHM, 1/16W 1 R2388 ERJ3EKF4021 M 402 OHM, 1/16W 1 R2397,98 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R2399 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2400 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R2401,02 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2403 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2404,05 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2406 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2407 ERJ3EKF1241 M1.24KOHM, 1/16W 1 R2408 ERJ3EKF1071 M1.07KOHM, 1/16W 1 R2409 ERJ3EKF1621 M1.62KOHM, 1/16W 1 R2410 ERJ3EKF7870 M 787 OHM, 1/16W 1 R2421 ERJ3EKF1621 M1.62KOHM, 1/16W 1 R2422 ERJ3EKF7870 M 787 OHM, 1/16W 1 R2501 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2502 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R2503 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2504 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2505 ERJ6GEYJ821 M 820 OHM,J,1/10W 1 R2506 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2507 ERJ3GEYJ184 M 180KOHM,J,1/16W 1 R2508 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R2509 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2511 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2512 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 H 板 R2512 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 K 板 R2513 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R2514 ERJ3GEYJ203 M 20KOHM,J,1/16W 1 R2515 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2516 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2517,18 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R2519 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2520 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 R2521 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R2524 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2525 ERJ3EKF5760 M 576 OHM, 1/16W 1 R2530 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2531 ERJ3EKF2700 M 270 OHM, 1/16W 1 R2551 ERJ6ENF8202 M 82KOHM, 1/10W 1 R2552 ERJ6ENF1602 M 16KOHM, 1/10W 1 R2556,57 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R2558 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2581 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R2583 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R2584 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R2585 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R2586 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2588 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3001-10 ERJ6ENF75R0 M 75 OHM, 1/10W 10 R3011 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3012 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3020 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R3021,22 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3027 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3039 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3044,45 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3048 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R3049 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3050 ERJ3GEYJ242 M 2.4KOHM,J,1/16W 1 R3051 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R3057,58 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3059,60 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3061 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3062-64 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R3068 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3070 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3072-75 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R3076 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3080 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3087,88 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3089,90 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 参考号 部品号 部品名称 & 说明 件数 备注 R3092 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3094,95 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3096 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3097 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3099-01 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R3102 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R3104 ERJ3EKF1301 M 1.3KOHM, 1/16W 1 R3105-07 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R3111-14 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R3115-18 ERJ3GEYJ101 M 100 OHM,J,1/16W 4 R3119,20 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3121 ERJ3EKF1300V M 130 OHM, 1/16W 1 R3122 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3123 ERJ3EKF1300V M 130 OHM, 1/16W 1 R3124 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 1 R3125 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3126 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3127 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3128 ERJ3EKF1301 M 1.3KOHM, 1/16W 1 R3129 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3134 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3135 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3138 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3139 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3140 ERJ3EKF1300V M 130 OHM, 1/16W 1 R3141 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3142 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 1 R3160,61 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R3167 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3174-76 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R3206 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3213,14 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3215 J0JCC0000241 片状电感 1 R3219 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3222 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3224 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3227-29 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R3233,34 ERJ6ENF75R0 M 75 OHM, 1/10W 2 R3238 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3239-42 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R3250,51 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3253 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3254 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3255 ERJ6GEYJ561 M 560 OHM,J,1/10W 1 R3256 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3259 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3261-64 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R3266,67 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3286 J0JCC0000241 片状电感 1 R3302 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3305 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3306,07 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R3308,09 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R3310 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3312 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3313 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3317 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3318 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3320 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3323,24 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R3330 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3336 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3337 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R3338 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3339 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3340 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3341 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3342 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R3343 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3344 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3345 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R3346 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3347 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3348,49 ERJ3GEYJ680 M 68 OHM,J,1/16W 2 R3350-52 ERJ3GEYJ510 M 51 OHM,J,1/16W 3 R3353 ERJ3EKF2703 M 270KOHM, 1/16W 1 R3354 ERJ3EKF1503 M 150KOHM, 1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 177 R3408,09 ERJ3GEYJ361 M 360 OHM,J,1/16W 2 R3703,04 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3709-11 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R3714 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3716,17 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3721 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R3732 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3733 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3746 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3748 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3750 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R3751 ERJ6ENF6651 M6.65KOHM, 1/10W 1 R3752 ERJ6ENF1741 M1.74KOHM, 1/10W 1 R3753 ERJ6ENF1621 M1.62KOHM, 1/10W 1 R3754 ERJ6ENF2321 M2.32KOHM, 1/10W 1 R3755 ERJ6ENF3161 M3.16KOHM, 1/10W 1 R3756 ERJ6GEYJ820 M 82 OHM,J,1/10W 1 R3757-64 ERJ6GEY0R00 M 0 OHM, 1/10W 8 R3801,02 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R3804,05 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R3806 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R3807,08 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R3809,10 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R3811 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R3812 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3814 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R3815 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R3816 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R3818 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3821 ERJ2GEJ390 M 39 OHM, J,0.063W 1 R3822 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R3824-31 ERJ2GEJ4R7X M 4.7OHM, J,0.063W 8 R3832 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3834 ERJ3EKF49R9 M 49.9 OHM, 1/16W 1 R4001 ERJ3EKF1211 M1.21KOHM, 1/16W 1 R4004 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4008 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4010 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4018 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4021 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4022 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R4023 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4024,25 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4027 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R4032,33 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4036,37 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R4040,41 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4045,46 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4068,69 ERJ2GEJ221 M 220 OHM, J,0.063W 2 R4101 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4257 ERJ3EKF3302 M 33KOHM, 1/16W 1 R4265 ERJ3EKF3242 M32.4KOHM, 1/16W 1 R4269 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4271,72 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4286,87 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4293 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4338-42 ERJ2GE0R00 M 0.0 OHM, J,0.063W 5 R4433 ERJ2GEJ361X M 360 OHM, J,0.063W 1 R4435 ERJ2GEJ181 M 180 OHM, J,0.063W 1 R4437 ERJ2GEJ181 M 180 OHM, J,0.063W 1 R4439 ERJ3GEYJ361 M 360 OHM,J,1/16W 1 R4440,41 ERJ6GEYJ561 M 560 OHM,J,1/10W 2 R4442,43 ERJ3EKF5600 M 560 OHM, 1/16W 2 R4444,45 ERJ3EKF3601 M 3.6KOHM, 1/16W 2 R4447 ERJ3EKF9100 M 910 OHM, 1/16W 1 R4449 ERJ3EKF1371 M 13.7 OHM, 1/16W 1 R4450,51 ERJ6GEYJ821 M 820 OHM,J,1/10W 2 R4454 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R4457 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4465 ERJ2GEJ224 M 220KOHM, J,0.063W 1 R4466,67 ERJ2GEJ330 M 33 OHM, J,0.063W 2 R4469,70 ERJ3EKF1500 M 150 OHM, 1/16W 2 R4474 ERJ3EKF1211 M1.21KOHM, 1/16W 1 R4476 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R4477,78 ERJ6GEYJ471 M 470 OHM,J,1/10W 2 R4479,80 ERJ3EKF4220 M 422 OHM, 1/10W 2 R4481 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R4482,83 ERJ3EKF1781 M1.78KOHM, 1/16W 2 R4484,85 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4486 ERJ3EKF4870 M 487 OHM, 1/16W 1 R4487 ERJ3EKF5600 M 560 OHM, 1/16W 1 R4488 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R4489 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R4490 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4491 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4492 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4495 ERJ3EKF4302 M 43KOHM, 1/16W 1 R4496-99 ERJ6GEYJ102 M 1KOHM,J,1/10W 4 R4500 ERJ3EKF2702V M27.0KOHM, 1/16W 1 R4501,02 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R4503 ERJ3EKF1600 M 160 OHM, 1/16W 1 R4507,08 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4510 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4514-16 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 R4517 ERJ3EKF1371 M 13.7 OHM, 1/16W 1 R4519 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4520 ERJ3EKF1691 M1.69KOHM, 1/16W 1 R4521,22 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4523-25 ERJ3EKF33R0 M 33 OHM, 1/16W 3 R4526 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R4527 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4528-30 ERJ3EKF33R0 M 33 OHM, 1/16W 3 R4531 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 R4532 ERJ3EKF4700 M 470 OHM, 1/16W 1 R4533 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4534,35 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R4536-38 ERJ3EKF1500 M 150 OHM, 1/16W 3 R4539 ERJ3EKF1001 M 1KOHM, 1/16W 1 R4541 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4543 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4544 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4545-47 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 R4548 ERJ2GEJ911X M 910 OHM, J,0.063W 1 R4549 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4550 EXB28V220J 电阻阵列 1 R4551 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4552 EXB28V220J 电阻阵列 1 R4553 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4554 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4555 EXB28V220J 电阻阵列 1 R4556,57 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4560,61 EXB28V220J 电阻阵列 2 R4562 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4563-65 ERJ2GEJ220 M 22 OHM, J,0.063W 3 R4566 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4567 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4568 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4569 D1HG5608A002 排阻 1 R4570,71 EXB28V560JX 电阻阵列 2 R4572 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4575 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4577-79 ERJ2GEJ222 M 2.2KOHM, J,0.063W 3 R4583 ERJ2GEJ390 M 39 OHM, J,0.063W 1 R4589-96 ERJ2GEJ2R7X M 2.7OHM, J,0.063W 8 R4605 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4607 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4610 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4612 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4617 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4619 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R4620 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4624 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4631,32 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4633 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4637 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R4639 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4640 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4641 EXB28V330J 电阻阵列 1 R4642-45 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R4647 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4648 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R4655 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R4657 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R4658 ERJ2GEJ220 M 22 OHM, J,0.063W 1 参考号 部品号 部品名称 & 说明 件数 备注 178 R4661 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4662 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4665 EXB2HV220JV 电阻阵列 1 R4667 EXB2HV220JV 电阻阵列 1 R4668 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4669 EXB2HV220JV 电阻阵列 1 R4672,73 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4675 ERJ3EKF1802 M 18KOHM, 1/16W 1 R4677 ERJ3EKF1802 M 18KOHM, 1/16W 1 R4679,80 ERJ3EKF2202 M 22KOHM, 1/16W 2 R4681,82 ERJ3EKF3302 M 33KOHM, 1/16W 2 R4701 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4706 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4708,09 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4711 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4713,14 EXB2HV221JV 电阻阵列 2 R4715 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4718-20 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4727 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4729 ERJ3EKF1000 M 100 OHM, 1/16W 1 R4730 ERJ3EKF4700 M 470 OHM, 1/16W 1 R4731 ERJ3EKF1001 M 1KOHM, 1/16W 1 R4732 ERJ3EKF4751 M 4.75KOHM, 1/16W 1 R4733 ERJ3EKF75R0 M 0.75HM, 1/16W 1 R4734 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R4735 ERJ3EKF2001 M 2KOHM, 1/16W 1 R4736 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4738,39 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R4743 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4744-47 ERJ2GE0R00 M 0.0 OHM, J,0.063W 4 R4749,50 EXB2HV220JV 电阻阵列 2 R4751-54 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R4756-60 ERJ2GEJ220 M 22 OHM, J,0.063W 5 R4762 EXB2HV220JV 电阻阵列 1 R4763-65 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 R4772 EXB2HV470JV 电阻阵列 1 R4773 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4774 EXB2HV470JV 电阻阵列 1 R4775 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4776 EXB2HV470JV 电阻阵列 1 R4777 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4778 EXB2HV470JV 电阻阵列 1 R4779 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4783 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4785 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4788 EXB2HV470JV 电阻阵列 1 R4791,92 ERJ2GEJ470 M 47 OHM, J,0.063W 2 R4793,94 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4796 EXB2HV470JV 电阻阵列 1 R4804 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4805,06 ERJ3EKF1001 M 1KOHM, 1/16W 2 R4807-11 ERJ2GE0R00 M 0.0 OHM, J,0.063W 5 R4822 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4823 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R4824,25 D1HG1038A002 排阻 2 R4837 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4838 ERJ2GEJ112 M 1.1KOHM, J,0.063W 1 R4890 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R4891 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4898 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4899 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R5000-07 ERJ3GEY0R00 M 0 OHM, 1/16W 8 R5014-17 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R5018-29 ERJ2GEJ103 M 10KOHM, J,0.063W 12 R5033 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5046-49 ERJ2GEJ560 M 56 OHM, J,0.063W 4 R5051 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5061 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5064 EXB38V560J 电阻阵列 1 R5067 EXB38V103J 电阻阵列 1 R5080-82 ERJ3GEYJ560 M 56 OHM,J,1/16W 3 R5083 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5084-87 ERJ3GEYJ560 M 56 OHM,J,1/16W 4 R5090,91 ERJ2GEJ560 M 56 OHM, J,0.063W 2 R5096-01 ERJ2GEJ103 M 10KOHM, J,0.063W 6 R5111,12 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R5116 ERJ3GEY0R00 M 0 OHM, 1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R5117 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5118-21 ERJ2GEJ101 M 100 OHM, J,0.063W 4 R5122,23 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R5125 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5127 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5129,30 D1HG33080001 排阻 2 R5131,32 EXB2HV101J 电阻阵列 2 R5134 EXB2HV101J 电阻阵列 1 R5135 EXB38V101J 电阻阵列 1 R5136-39 ERJ2GEJ101 M 100 OHM, J,0.063W 4 R5140-44 D1HG5608A002 排阻 5 R5145-50 ERJ2GEJ560 M 56 OHM, J,0.063W 6 R5152 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R5154 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5155 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5156 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R5158 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R5159 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5161 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R5162-67 ERJ2GEJ560 M 56 OHM, J,0.063W 6 R5169 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5170,71 ERJ2GEJ560 M 56 OHM, J,0.063W 2 R5172 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5174 ERJ3EKF1601 M 1.6KOHM, 1/16W 1 R5176 ERJ3EKF5601 M 5.6KOHM, 1/16W 1 R5177 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R5178,79 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R5180 ERJ2GEJ390 M 39 OHM, J,0.063W 1 R5181 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5182 ERJ2GEJ390 M 39 OHM, J,0.063W 1 R5183 D1HG3908A002 排阻 1 R5184 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5187,88 D1HG3908A002 排阻 2 R5189 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5190,91 D1HG1008A002 排阻 2 R5192 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5194,95 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R5196,97 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R5200-07 ERJ3GEY0R00 M 0 OHM, 1/16W 8 R5208 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 R5209 ERJ3EKF6800 M 680 OHM, 1/16W 1 R5210,11 ERJ8GEYJ390 M 39 OHM, J,1/8W 2 R5214 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R5215 D1HG1038A002 排阻 1 R5221 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R5222 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5223 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5224 ERJ6GEYJ201 M 200 OHM,J,1/10W 1 R5229 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5231 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5233-39 ERJ2GEJ101 M 100 OHM, J,0.063W 7 R5245 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5246 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5248 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5251 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5255 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5256 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5257 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5260 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5261 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5275 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5276 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R5278 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R5279 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R5280 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5283 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5286 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5292 ERJ2GEJ390 M 39 OHM, J,0.063W 1 R5294 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R5295 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5298 ERJ2GEJ111 M 110 OHM, J,0.063W 1 R5299,00 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R5303 ERJ2GEJ562 M 5.6KOHM,J,0.063W 1 R5304 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R5305 D1HG1038A002 排阻 1 R5312 ERJ2GEJ111 M 110 OHM, J,0.063W 1 R5314,15 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 参考号 部品号 部品名称 & 说明 件数 备注 179 R5317 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5318 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R5319,20 ERJ3EKF2801 M 2.8KOHM, 1/16W 2 R5321 ERJ3EKF2400 M 240 OHM, 1/16W 1 R5322 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R5323-28 ERJ3EKF3000 M 330 OHM, 1/16W 6 R5338,39 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R5340 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R5341 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R5343 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R5344 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R5349 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5362,63 ERJ2GEJ560 M 56 OHM, J,0.063W 2 R5386 EXB38VR000 电阻阵列 1 R5387 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5388 ERJ3EKF1002 M 10KOHM, 1/16W 1 R5389 ERJ3EKF2202 M 22KOHM, 1/16W 1 R5390 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 R5391-93 ERJ3GEYJ560 M 56 OHM,J,1/16W 3 R5394-99 ERJ6GEYJ471 M 470 OHM,J,1/10W 6 R5403,04 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R5406 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5412 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R5421 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5424 ERJ3EKF2742 M27.4KOHM, 1/16W 1 R5425 ERJ3EKF9311 M9.31KOHM, 1/16W 1 R5428 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5431 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R5435 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5437,38 D1HG5608A002 排阻 2 R5439 D1HG8208A002 排阻 1 R5442 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5446 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R5451 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5453 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R5454,55 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R5459 D1HG1038A002 排阻 1 R5466 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R5468,69 ERJ2GEJ560 M 56 OHM, J,0.063W 2 R5488 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5495 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5501 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5503,04 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R5505 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R5510 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R5512,13 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R5514 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5515 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5517 EXB38V103J 电阻阵列 1 R5519-21 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R5534 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5536 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5541 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R5542 ERJ3EKF4642 M46.4KOHM, 1/16W 1 R5545 ERJ3EKF1801 M 1.8KOHM, 1/16W 1 R5546-48 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R5549 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R5550 ERJ3EKF2400 M 240 OHM, 1/16W 1 R5553 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R5554 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5555 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R5557,58 ERJ2GEJ560 M 56 OHM, J,0.063W 2 R5561 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R5563 ERJ3EKF2152 M21.5KOHM, 1/16W 1 R5565 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5566 ERJ3EKF2402 M 24KOHM, 1/16W 1 R5567 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R5568 ERJ3EKF4642 M46.4KOHM, 1/16W 1 R5569 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5572 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5575 ERJ3EKF6802 M 68KOHM, 1/16W 1 R5576 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R5577 ERJ3EKF6802 M 68KOHM, 1/16W 1 R5578,79 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R5580,81 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R5582,83 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R5584 ERJ3EKF3902 M 39KOHM, 1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R5585 ERJ3EKF3322 M33.2KOHM, 1/16W 1 R5587 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R5588 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5589 ERJ3EKF4702 M 47KOHM, 1/16W 1 R5590 ERJ3EKF1272 M12.7KOHM, 1/16W 1 R5596-99 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R5601 ERJ3EKF1800 M 180 OHM, 1/16W 1 R5602 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R5603 ERJ3EKF1542 M15.4KOHM, 1/16W 1 R5605 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5606 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5607 ERJ3EKF4531 M4.53KOHM, 1/16W 1 R5609 ERJ3EKF2000 M 200 OHM, 1/16W 1 R5610 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R5615 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5617 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5619 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R5620 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5621 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5623 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R5625-28 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 4 R5630 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5632 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R5633 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5634 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R5635 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5636 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5637,38 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R5639 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5640 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5641 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5642 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R5643 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5644 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5645 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R5646 ERJ3EKF1001 M 1KOHM, 1/16W 1 R5647 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5648 ERJ3GEYJ392 M 3.9KOHM,J,1/16W 1 R5649 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R5650 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5652 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5653,54 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R5659 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R5660 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5662 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5664 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5665 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R5667-69 ERJ3GEYJ473 M 47KOHM,J,1/16W 3 R5672 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5676 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5680 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R5681 ERJ3EKF4531 M4.53KOHM, 1/16W 1 R5686 ERJ3EKF1432 M14.3KOHM, 1/16W 1 R5688-90 ERJ6GEY0R00 M 0 OHM, 1/10W 3 R5692 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5693 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R5694 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R5695 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5803 ERJ3EKF2741 M2.74KOHM, 1/16W 1 R5805,06 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R5809 ERJ3EKF9100 M 910 OHM, 1/16W 1 R5810-12 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R5815 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5822 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5830 ERJ3EKF2202 M 22KOHM, 1/16W 1 R5832 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5836 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5847 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5855 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5862,63 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R5864-66 ERJ8GEY0R00 M 0 OHM, 1/8W 3 R5867 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5868 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5869-74 ERJ6GEY0R00 M 0 OHM, 1/10W 6 R5898 ERJ3EKF5601 M 5.6KOHM, 1/16W 1 R5914 D1HG5608A002 排阻 1 R5918,19 ERJ2GEJ103 M 10KOHM, J,0.063W 2 参考号 部品号 部品名称 & 说明 件数 备注 180 R5924 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R5927 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R5960,61 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R5962 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R5965-67 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R7701 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R7702 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7703-05 ERJ3GEYJ121 M 120 OHM,J,1/16W 3 R7708 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7709 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7710 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R7713 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7716 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7731 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7792-99 ERJ3GEY0R00 M 0 OHM, 1/16W 8 R7801 ERJ3GEYJ750 M 75 OHM,J,1/16W 1 R9060-67 ERJ3GEYJ101 M 100 OHM,J,1/16W 8 R9070 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9074 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9076 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9094 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9096 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9098 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9099 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9101 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9102 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9105 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9107 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9108,09 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9110 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9111 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9113 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9114-17 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9118,19 ERJ3EKF1001 M 1KOHM, 1/16W 2 R9120 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9121 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9122-25 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9126 ERJ3EKF1001 M 1KOHM, 1/16W 1 R9127 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9129 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9130 ERJ3EKF1001 M 1KOHM, 1/16W 1 R9134 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R9140 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9141 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9143-45 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 R9148 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9149 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9150,51 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9154,55 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9156 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9158,59 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9160,61 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9162 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9165,66 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9167 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9169 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9170-72 ERJ3GEYJ393 M 39KOHM,J,1/16W 3 R9174-76 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9177 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9178 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9179 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9180 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9181-84 ERJ3GEYJ102 M 1KOHM,J,1/16W 4 R9185,86 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9187,88 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9189,90 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9192 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9193 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9194 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9196 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9198 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9199 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9201,02 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9203 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9204,05 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9206,07 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R9209 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R9210 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9215 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 R9217-22 ERJ3GEYJ103 M 10KOHM,J,1/16W 6 R9236 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9237 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9244,45 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9247,48 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9367 ERJ6GEYJ181 M 180 OHM,J,1/10W 1 R9371 EXB2HV470JV 电阻阵列 1 R9372 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9373 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9374 EXB38V470J 电阻阵列 1 R9375 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9389-91 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 3 R9393-97 D1HG8208A002 排阻 5 R9398 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9399 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9400 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9404 EXB2HV470JV 电阻阵列 1 R9409,10 EXB38V820J 电阻阵列 2 R9412-21 EXB38V470J 电阻阵列 10 R9428 EXB38V103J 电阻阵列 1 R9430 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9433 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9437,38 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R9442-49 ERJ3GEYJ220 M 22 OHM,J,1/16W 8 R9450 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9451 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9452 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9453-58 D1HG8208A002 排阻 6 R9459 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9460 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9461 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9462 D1HG8208A002 排阻 1 R9463 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9464 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9465 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9466-71 D1HG8208A002 排阻 6 R9472,73 EXB38V820J 电阻阵列 2 R9474 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9475 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9481 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9484,85 ERJ3EKF1001 M 1KOHM, 1/16W 2 R9486 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9487 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9488 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9489-95 ERJ3GEYJ470 M 47 OHM,J,1/16W 7 R9496 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9497 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9506 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9507 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9515 EXB2HV470JV 电阻阵列 1 R9523 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9525 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9526 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9527,28 EXB2HV222JV 电阻阵列 2 R9529,30 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9531-33 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9534 EXB38V470J 电阻阵列 1 R9535,36 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9539 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9540 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9542 ERJ3GEYJ680 M 68 OHM,J,1/16W 1 R9543,44 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9545 ERJ3GEYJ304V M 300KOHM,J,1/16W 1 R9548-50 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9552-55 ERJ3GEYJ470 M 47 OHM,J,1/16W 4 R9558 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9560 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9561-67 ERJ3GEYJ220 M 22 OHM,J,1/16W 7 R9568 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9569 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9570 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9571-73 D1HG8208A002 排阻 3 R9574 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9575-77 D1HG8208A002 排阻 3 R9579 ERJ3GEY0R00 M 0 OHM, 1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 181 R9580,81 ERJ3EKF1001 M 1KOHM, 1/16W 2 R9584 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9585,86 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9587-95 EXB38V470J 电阻阵列 9 R9596-99 ERJ3GEYJ470 M 47 OHM,J,1/16W 4 R9602 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9603 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9604,05 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9606 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9607 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9608-15 EXB2HV470JV 电阻阵列 8 R9616 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9619,20 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9622 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9624,25 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9628-30 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9631 EXB2HV222JV 电阻阵列 1 R9632-34 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9637 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9638 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9639 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9641 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9642 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9644 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9645 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9647 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9652 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9653 D1HG1038A002 排阻 1 R9800 ERJ3EKF1302 M 13KOHM, 1/16W 1 R9801 ERJ3EKF2402 M 24KOHM, 1/16W 1 R9802 ERJ3EKF6202 M 62KOHM, 1/16W 1 R9803 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9804 ERJ3EKF2402 M 24KOHM, 1/16W 1 R9805 ERJ3EKF3002 M 30KOHM, 1/16W 1 R9806 ERJ3EKF3902 M 39KOHM, 1/16W 1 R9807 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9808 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9810 ERJ3EKF3001 M 3KOHM, 1/16W 1 R9813 ERJ3EKF2401 M 2.4KOHM, 1/16W 1 R9814 ERJ3EKF6802 M 68KOHM, 1/16W 1 R9815 ERJ3EKF2202 M 22KOHM, 1/16W 1 R9816 ERJ3EKF8202 M 82KOHM, 1/16W 1 R9823-28 ERJ3GEYJ101 M 100 OHM,J,1/16W 6 R9830,31 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9838,39 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9840 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9841 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9842-44 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 R9845 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9846,47 EXB2HV222JV 电阻阵列 2 R9848,49 EXB2HV470JV 电阻阵列 2 R9850 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9854 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9859 EXB38V101J 电阻阵列 1 R9868 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9869-71 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9872 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9873 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9875-77 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9878 ERJ3EKF3902 M 39KOHM, 1/16W 1 R9879 ERJ3EKF2002 M 20KOHM, 1/16W 1 R9880 ERJ3EKF3602 M 36KOHM, 1/16W 1 R9883 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9884 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9891 ERJ3EKF4702 M 47KOHM, 1/16W 1 R9892 ERJ3EKF1502 M 15KOHM, 1/16W 1 R9893 ERJ3EKF3602 M 36KOHM, 1/16W 1 R9896 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9897 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9898 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 RM2581 B3RAD0000127 遥控接收器 1 S1 K1KA03AA0193 3P 连接接头 1 SW2500 K0F162B00002 开关 1 SW3751 EVQ11G05R 开关 1 参考号 部品号 部品名称 & 说明 件数 备注 SW3753-56 EVQ11G05R 开关 4 TA5,A6 K1KB15B00013 15P 连接接头 2 TU001 ENGF9301GF 调谐器 1 TU002 ENG39A01GF 调谐器 1 X1100 H0J100500030 晶体 1 X1101 H0J327200114 晶体 1 X2101 H0J184500027 晶体 1 X4004 H0J270500087 晶体 1 X5005 H0J270500061 晶体 1 X9000 H2D200500011 晶体 1 X9500 H0J200500038 晶体 1 ZA2101-08 TESA169 防护夹头 8 ZA3401-03 K4CZ01000027 与 JALCO K9 兼容 3 ZA3405 K4CZ01000027 与 JALCO K9 兼容 1 ZA3701 K4CD01000013 端子 1 ZA4001 K4CD08000002 端子 1 ZA4009 K4CD08000002 端子 1 ZA9001 K4CD01000011 端子 1 F1601,02 K5D103BMA001 延时保险丝 高 2 F1701,02 K5D502BNA007 AC 保险丝 2 C10 K1MN68BA0076 68P 连接接头 1 C11 K1MN20BA0231 20P 连接接头 1 C21 K1MN80BA0076 80P 连接接头 1 C22 K1MN20BA0231 20P 连接接头 1 C24,25 K1MN68BA0076 68P 连接接头 2 C31 K1MN80BA0076 80P 连接接头 1 C35 K1KA08AA0150 8P 连接接头 1 C41 K1MN80BA0076 80P 连接接头 1 C42 K1KA08AA0150 8P 连接接头 1 C44 K1KA20AA0009 20P 连接接头 1 C51 K1MN80BA0076 80P 连接接头 1 C52 K1MN20BA0231 20P 连接接头 1 C54,55 K1MN68BA0076 68P 连接接头 2 C60 K1MN68BA0076 68P 连接接头 1 C61 K1MN20BA0231 20P 连接接头 1 C6002 F1L2J222A022 C 2200UF, K,6.3V 1 C6003 F1L2J472A022 C 4700UF, K,6.3V 1 C6005 F1L2J562A022 C 5600UF, K,6.3V 1 C6006 F1L2J222A022 C 2200UF, K,6.3V 1 C6008 F1L2J272A022 C 2700UF, K,6.3V 1 C6011-20 F2A2D221A022 E 220UF, 200V 10 C6022 F1L2J562A022 C 5600UF, K,6.3V 1 C6024 F1L2J272A022 C 2700UF, K,6.3V 1 C6025 F1L2J222A022 C 2200UF, K,6.3V 1 C6026 F1L2J562A022 C 5600UF, K,6.3V 1 C6027 F1L2J472A022 C 4700UF, K,6.3V 1 C6029 F1L2J472A022 C 4700UF, K,6.3V 1 C6030 F1L2J222A022 C 2200UF, K,6.3V 1 C6031 F0C2E405A176 E 0.040UF, 250V 1 C6035 F1L2J272A022 C 2700UF, K,6.3V 1 C6037 F1L1E4750004 C 4.7UF, 25V 1 C6041-44 TCUY1C105ZFN C 1UF, 16V 4 C6051,52 F2A2D221A022 E 220UF, 200V 2 C6091 F1L2J1020001 C 1000UF, K,6.3V 1 C6111-14 F2A2D221A022 E 220UF, 200V 4 C6120 F0C2E405A176 E 0.040UF, 250V 1 C6132 F1L1E4750004 C 4.7UF, 25V 1 C6134,35 F1L1E4750004 C 4.7UF, 25V 2 C6151 ECJ3YB1E105K C 1UF, K, 25V 1 C6152-54 F1L1E4750004 C 4.7UF, 25V 3 C6192 ECJ3YB1E105K C 1UF, K, 25V 1 C6195 F1L1E4750004 C 4.7UF, 25V 1 C6197 F1L1E4750004 C 4.7UF, 25V 1 C6201-03 F0C2E405A176 E 0.040UF, 250V 3 C6205-08 F0C2E405A176 E 0.040UF, 250V 4 C6211,12 F1L1E4750004 C 4.7UF, 25V 2 C6213 F2A1E102A220 E 1000UF, 25V 1 C6215-18 F1L1E4750004 C 4.7UF, 25V 4 C6221 ECJ2FB1H104K C 0.1UF, K, 50V 1 C6223 F2A2E470A022 E 47UF, 250V 1 C6241 ECA1EM471 E 470UF, 25V 1 参考号 部品号 部品名称 & 说明 件数 备注 182 C6242 TCUY1C105ZFN C 1UF, 16V 1 C6243 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6251 TCUY1C105ZFN C 1UF, 16V 1 C6252 ECJ3YB1E105K C 1UF, K, 25V 1 C6261-70 F2A2A471A072 E 470UF, 100V 10 C6272,73 ECA1EM221 E 220UF, 25V 2 C6274,75 F0C2E405A176 E 0.040UF, 250V 2 C6281 ECJ2FB1H104K C 0.1UF, K, 50V 1 C6402 F1L2J222A022 C 2200UF, K,6.3V 1 C6403 F1L2J472A022 C 4700UF, K,6.3V 1 C6405 F1L2J562A022 C 5600UF, K,6.3V 1 C6406 F1L2J222A022 C 2200UF, K,6.3V 1 C6408 F1L2J272A022 C 2700UF, K,6.3V 1 C6411-20 F2A2D221A022 E 220UF, 200V 10 C6422 F1L2J562A022 C 5600UF, K,6.3V 1 C6424 F1L2J272A022 C 2700UF, K,6.3V 1 C6425 F1L2J222A022 C 2200UF, K,6.3V 1 C6426 F1L2J562A022 C 5600UF, K,6.3V 1 C6427 F1L2J472A022 C 4700UF, K,6.3V 1 C6428 F1L2J222A022 C 2200UF, K,6.3V 1 C6429,30 F2A2D221A022 E 220UF, 200V 2 C6431 F0C2E405A176 E 0.040UF, 250V 1 C6435 F1L2J272A022 C 2700UF, K,6.3V 1 C6437 F1L2J472A022 C 4700UF, K,6.3V 1 C6480 ECJ2FB1H104K C 0.1UF, K, 50V 1 C6502 F1L1E4750004 C 4.7UF, 25V 1 C6504,05 F1L1E4750004 C 4.7UF, 25V 2 C6521 ECJ3YB1E105K C 1UF, K, 25V 1 C6522 F1L1E4750004 C 4.7UF, 25V 1 C6524,25 F1L1E4750004 C 4.7UF, 25V 2 C6527 F1L1E4750004 C 4.7UF, 25V 1 C6531-36 F0C2E405A176 E 0.040UF, 250V 6 C6538 F0C2E405A176 E 0.040UF, 250V 1 C6561 F2A1A1010074 E 100UF, 10V 1 C6562 TCUY1C105ZFN C 1UF, 16V 1 C6563 F2A1A1010074 E 100UF, 10V 1 C6564 TCUY1C105ZFN C 1UF, 16V 1 C6565,66 ECJ2XB1H103K C 0.01UF, K, 50V 2 C6581 ECJ3YB1E105K C 1UF, K, 25V 1 C6582 TCUY1C105ZFN C 1UF, 16V 1 C6592 ECA1EM221 E 220UF, 25V 1 C6593 ECJ2XC1H102J C 1000PF, J, 50V 1 C6594 ECA1EM221 E 220UF, 25V 1 C6601,02 F1L1E4750004 C 4.7UF, 25V 2 C6603 F1K2J102A014 C 1000UF, K,6.3V 1 C6604 F2A2V470A020 E 47UF, 350V 1 C6605 ECJ2FB1H104K C 0.1UF, K, 50V 1 C6606 F1K2J102A014 C 1000UF, K,6.3V 1 C6610 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6612 ECJ3YB1E105K C 1UF, K, 25V 1 C6620 F1L2J222A022 C 2200UF, K,6.3V 1 C6641 ECQE2105RKB P 1UF, 250V 1 C6661,62 F1K2J102A014 C 1000UF, K,6.3V 2 C6671 F1L1E4750004 C 4.7UF, 25V 1 C6681,82 F1L1E4750004 C 4.7UF, 25V 2 C6683 ECJ2FB1H104K C 0.1UF, K, 50V 1 C6691,92 ECA2CM101 E 100UF, 160V 2 C6693 F0C2E405A176 E 0.040UF, 250V 1 C6701-08 ECJ2FB1H104K C 0.1UF, K, 50V 8 C6721 F2A1H101A252 E 100UF, 50V 1 C6723-25 F1L1E4750004 C 4.7UF, 25V 3 C6726,27 TCUY1C105ZFN C 1UF, 16V 2 C6728 ECJ2XC1H102J C 1000PF, J, 50V 1 C6752 TCUY1C105ZFN C 1UF, 16V 1 C6753 F1L1E4750004 C 4.7UF, 25V 1 C6754 F2A1V5600014 E 56UF, 35V 1 C6755 ECJ2FB1H104K C 0.1UF, K, 50V 1 C6771 TCUY1C105ZFN C 1UF, 16V 1 C6772,73 F1L1E4750004 C 4.7UF, 25V 2 C6775 F1L1E4750004 C 4.7UF, 25V 1 C6776,77 ECJ2FB1H104K C 0.1UF, K, 50V 2 C6791 ECA1EM221 E 220UF, 25V 1 C6795,96 ECA1EM221 E 220UF, 25V 2 C6801 F2A2E470A022 E 47UF, 250V 1 C6802 ECQE6223KF P 0.022UF, K,400V 1 C6803 ECKD3D221KBP C 220PF, K, 2KV 1 C6804 F2A2E100A022 E 10UF, 250V 1 参考号 部品号 部品名称 & 说明 件数 备注 C6805 ECJ2XC1H102J C 1000PF, J, 50V 1 C6806 ECA2CM101 E 100UF, 160V 1 C6807 ECJ2XC1H471J C 470PF, J, 50V 1 C6808 ECQE2105RKB P 1UF, 250V 1 C6809 ECA2CM101 E 100UF, 160V 1 C6811 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6812 F1L1E4750004 C 4.7UF, 25V 1 C6813 ECA2CM101 E 100UF, 160V 1 C6814 ECA1EM221 E 220UF, 25V 1 C6815 ECJ2FB1H104K C 0.1UF, K, 50V 1 C6822 F2A2V470A020 E 47UF, 350V 1 C6823 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6841 ECA2DHG101 E 100UF, 200V 1 C6842 ECA2CM101 E 100UF, 160V 1 C6845 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6861 TCUY1C105ZFN C 1UF, 16V 1 C6862 ECJ3YB1E105K C 1UF, K, 25V 1 C6863 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6871 TCUY1C105ZFN C 1UF, 16V 1 C6872 ECJ3YB1E105K C 1UF, K, 25V 1 C6873 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6901-18 TCUY1C105ZFN C 1UF, 16V 18 C6921 ECJ2XB1H102K C 1000PF, K, 50V 1 C6922-37 ECJ2XB1H221K C 220PF, K, 50V 16 C6938 ECJ2XB1H102K C 1000PF, K, 50V 1 C6940 ECJ2FB1H104K C 0.1UF, K, 50V 1 C6961 ECJ2XB1H102K C 1000PF, K, 50V 1 C6964-69 F1L2E1040002 E 1000UF, 25V 6 C6970 ECJ2FB1H104K C 0.1UF, K, 50V 1 C6971 ECJ2XB1H102K C 1000PF, K, 50V 1 C6974-81 F1L2E1040002 E 1000UF, 25V 8 C6990,91 F1L2E1040002 E 1000UF, 25V 2 C7101,02 TCUY1C105ZFN C 1UF, 16V 2 C7107-10 ECJ3XB2A474K C 0.47UF, 6.3V 4 C7111 ECJ1XC1H101J C 100PF, J, 50V 1 C7113 ECJ1XC1H101J C 100PF, J, 50V 1 C7115-18 ECJ3XB2A474K C 0.47UF, 6.3V 4 C7125,26 TCUY1C105ZFN C 1UF, 16V 2 C7130 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7135-38 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C7150 ECJ1XC1H101J C 100PF, J, 50V 1 C7152 ECJ1XC1H101J C 100PF, J, 50V 1 C7170 ECJ1XC1H101J C 100PF, J, 50V 1 C7172,73 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7176 TCUY1C105ZFN C 1UF, 16V 1 C7182 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7183-87 TCUY1C105ZFN C 1UF, 16V 5 C7200,01 TCUY1C105ZFN C 1UF, 16V 2 C7203-05 TCUY1C105ZFN C 1UF, 16V 3 C7207 TCUY1C105ZFN C 1UF, 16V 1 C7208 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7209 TCUY1C105ZFN C 1UF, 16V 1 C7212 TCUY1C105ZFN C 1UF, 16V 1 C7213,14 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7216 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7217,18 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7221 ECJ1XC1H101J C 100PF, J, 50V 1 C7222 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7224 TCUY1C105ZFN C 1UF, 16V 1 C7225 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7226 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7231 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7238 ECJ1XC1H101J C 100PF, J, 50V 1 C7240 ECJ1XC1H101J C 100PF, J, 50V 1 C7253 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7264 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7266 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7268 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7270 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7272 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7274 TCUY1C105ZFN C 1UF, 16V 1 C7275,76 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7279 ECJ1XC1H101J C 100PF, J, 50V 1 C7285 TCUY1C105ZFN C 1UF, 16V 1 C7286,87 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7290 ECJ1XC1H101J C 100PF, J, 50V 1 C7297 ECJ1XB1C104K C 0.1UF, Z, 16V 1 参考号 部品号 部品名称 & 说明 件数 备注 183 C7299 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7301 TCUY1C105ZFN C 1UF, 16V 1 C7304 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7308,09 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7311,12 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7315,16 TCUY1C105ZFN C 1UF, 16V 2 C7323 ECJ1XC1H101J C 100PF, J, 50V 1 C7324,25 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7326 ECJ1XC1H101J C 100PF, J, 50V 1 C7327,28 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7329 ECJ1XC1H101J C 100PF, J, 50V 1 C7331-34 ECJ3XB2A474K C 0.47UF, 6.3V 4 C7339,40 TCUY1C105ZFN C 1UF, 16V 2 C7351 ECJ1XC1H101J C 100PF, J, 50V 1 C7369 ECJ1XC1H101J C 100PF, J, 50V 1 C7370,71 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7374 TCUY1C105ZFN C 1UF, 16V 1 C7381 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7382-86 TCUY1C105ZFN C 1UF, 16V 5 C7401 TCUY1C105ZFN C 1UF, 16V 1 C7406 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7412-15 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C7418,19 TCUY1C105ZFN C 1UF, 16V 2 C7424-27 ECJ3XB2A474K C 0.47UF, 6.3V 4 C7428,29 ECJ1XC1H101J C 100PF, J, 50V 2 C7432-35 ECJ3XB2A474K C 0.47UF, 6.3V 4 C7440,41 TCUY1C105ZFN C 1UF, 16V 2 C7452,53 ECJ1XC1H101J C 100PF, J, 50V 2 C7468,69 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7472 TCUY1C105ZFN C 1UF, 16V 1 C7475 ECJ1XC1H101J C 100PF, J, 50V 1 C7480 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7481-85 TCUY1C105ZFN C 1UF, 16V 5 C7501,02 TCUY1C105ZFN C 1UF, 16V 2 C7506,07 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7508 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7511 TCUY1C105ZFN C 1UF, 16V 1 C7513 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7516,17 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7519 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7520 ECJ1XC1H101J C 100PF, J, 50V 1 C7521 TCUY1C105ZFN C 1UF, 16V 1 C7522 ECJ1XC1H101J C 100PF, J, 50V 1 C7523,24 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7527 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7530 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7538 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7539 TCUY1C105ZFN C 1UF, 16V 1 C7541 ECJ1XC1H101J C 100PF, J, 50V 1 C7543 TCUY1C105ZFN C 1UF, 16V 1 C7547-49 TCUY1C105ZFN C 1UF, 16V 3 C7566 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7568 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7570 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7572 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7575 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7577,78 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7580 ECJ1XC1H101J C 100PF, J, 50V 1 C7581 TCUY1C105ZFN C 1UF, 16V 1 C7582,83 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7591 ECJ1XC1H101J C 100PF, J, 50V 1 C7592 TCUY1C105ZFN C 1UF, 16V 1 C7593,94 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7601,02 TCUY1C105ZFN C 1UF, 16V 2 C7607-10 ECJ3XB2A474K C 0.47UF, 6.3V 4 C7611-13 ECJ1XC1H101J C 100PF, J, 50V 3 C7615-18 ECJ3XB2A474K C 0.47UF, 6.3V 4 C7623,24 TCUY1C105ZFN C 1UF, 16V 2 C7630 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7635-38 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C7650 ECJ1XC1H101J C 100PF, J, 50V 1 C7654,55 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7658 TCUY1C105ZFN C 1UF, 16V 1 C7661 ECJ1XC1H101J C 100PF, J, 50V 1 C7665 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7666-70 TCUY1C105ZFN C 1UF, 16V 5 参考号 部品号 部品名称 & 说明 件数 备注 CA1-15 K1MN68BA0002 68P 连接接头 15 CB1-15 K1MN68BA0002 68P 连接接头 15 CF6281 D4DA91000001 THERMISTOR 1 D6001-04 B0HBSN000008 二极管 4 D6021-26 B0HBSN000008 二极管 6 D6032 MA111 二极管 1 D6061-64 B0HBSN000008 二极管 4 D6067,68 B0HBSN000008 二极管 2 D6071,72 B0HBSN000008 二极管 2 D6081-86 B0HBSN000008 二极管 6 D6091,92 B0HBSN000008 二极管 2 D6101-04 B0JCME000037 二极管 4 D6106,07 B0JCME000037 二极管 2 D6110 MA111 二极管 1 D6112 MA8330M 稳压二极管 1 D6113 MA111 二极管 1 D6131 B0ECHP000003 二极管 1 D6132 B0HBSN000008 二极管 1 D6151 B0ECHP000003 二极管 1 D6152 B0HBSN000008 二极管 1 D6153 B0ECHP000003 二极管 1 D6154 B0HBSN000008 二极管 1 D6191-93 B0HDRP000003 二极管 3 D6211 B0JCME000037 二极管 1 D6212 B0HBSN000008 二极管 1 D6221 B0HDRP000003 二极管 1 D6222,23 MA111 二极管 2 D6225 B0ECHP000003 二极管 1 D6251,52 MA8330M 稳压二极管 2 D6253 LNJ301MPUJA LED 1 D6254 MA8051L 稳压二极管 1 D6255 MA111 二极管 1 D6281,82 B0JCME000037 二极管 2 D6401-04 B0HBSN000008 二极管 4 D6421-24 MA3DF40000LZ 二极管 4 D6441 B0HBSN000008 二极管 1 D6451 MA3DF40000LZ 二极管 1 D6461-64 B0HBSN000008 二极管 4 D6466 MA111 二极管 1 D6467,68 B0HBSN000008 二极管 2 D6471,72 B0HBSN000008 二极管 2 D6477 MA111 二极管 1 D6478 B0HCKS000002 二极管 1 D6480 MA111 二极管 1 D6481-86 B0HBSN000008 二极管 6 D6491 MA3DF40000LZ 二极管 1 D6497 MA111 二极管 1 D6501 B0ECHP000003 二极管 1 D6502 B0HBSN000008 二极管 1 D6521 B0ECHP000003 二极管 1 D6522 B0HBSN000008 二极管 1 D6523 B0ECHP000003 二极管 1 D6524 B0HBSN000008 二极管 1 D6581,82 MA8330M 稳压二极管 2 D6583 LNJ301MPUJA LED 1 D6584 MA8051L 稳压二极管 1 D6585 MA111 二极管 1 D6601 MA8240M 稳压二极管 1 D6602 B0ECHP000003 二极管 1 D6603 MA8240M 稳压二极管 1 D6604 MA111 二极管 1 D6605 MA8051L 稳压二极管 1 D6606 B0HCMM000014 二极管 1 D6607 MA111 二极管 1 D6610 MAZ81500ML 稳压二极管 1 D6611-13 MA111 二极管 3 D6616 MA111 二极管 1 D6619,20 B0HCKS000002 二极管 2 D6621 B0HDSM000005 二极管 1 D6623 B0HDSM000005 二极管 1 D6625 B0HDSM000005 二极管 1 D6627 B0HDSM000005 二极管 1 D6629,30 B0HDSM000005 二极管 2 D6641,42 B0HCKS000002 二极管 2 参考号 部品号 部品名称 & 说明 件数 备注 184 D6643 B0JCME000037 二极管 1 D6644 B0HCKS000002 二极管 1 D6653 B0JCME000037 二极管 1 D6661 MA111 二极管 1 D6662-64 MA8330M 稳压二极管 3 D6665 MA8051L 稳压二极管 1 D6666,67 MA111 二极管 2 D6682 B0HCMM000014 二极管 1 D6683,84 MA111 二极管 2 D6686,87 MA111 二极管 2 D6701,02 MA8056H 稳压二极管 2 D6721 B0HCKS000002 二极管 1 D6723,24 B0JCME000037 二极管 2 D6725 B0ECHP000003 二极管 1 D6726-33 MA8056H 稳压二极管 8 D6734 MA111 二极管 1 D6752 B0JCME000037 二极管 1 D6758 B0ECHP000003 二极管 1 D6760,61 MA111 二极管 2 D6763 MA111 二极管 1 D6771 B0JCME000037 二极管 1 D6773 B0HCKS000002 二极管 1 D6791 MA8200M 稳压二极管 1 D6802 B0BC01000044 稳压二极管 1 D6803 B0HCKS000002 二极管 1 D6804 B0ECHP000003 二极管 1 D6805 MA111 二极管 1 D6806 B0ECHP000003 二极管 1 D6807-10 B0HCMM000014 二极管 4 D6812,13 B0HCMM000014 二极管 2 D6820-23 MA111 二极管 4 D6824,25 MA8330M 稳压二极管 2 D6826 MA111 二极管 1 D6841 B0HCKS000002 二极管 1 D6842,43 MA111 二极管 2 D6859 B0ECHP000003 二极管 1 D6860 B0HCKS000002 二极管 1 D6861 MA8051L 稳压二极管 1 D6862 MA111 二极管 1 D6871 MA8051L 稳压二极管 1 D6872 MA111 二极管 1 D6901,02 MA8056H 稳压二极管 2 D6905,06 MA8056H 稳压二极管 2 D6910 B0HDRP000002 二极管 1 D6913 B0HDRP000002 二极管 1 D6920 B0HDRP000002 二极管 1 D6923 B0HDRP000002 二极管 1 D7111-20 B0HCMM000014 二极管 10 D7211-20 B0HCMM000014 二极管 10 D7311-20 B0HCMM000014 二极管 10 D7415-24 B0HCMM000014 二极管 10 D7512-21 B0HCMM000014 二极管 10 D7611-20 B0HCMM000014 二极管 10 FL7101 J0HABH000013 LC 滤波器 1 FL7201,02 J0HABH000013 LC 滤波器 2 FL7501,02 J0HABH000013 LC 滤波器 2 FL7601 J0HABH000013 LC 滤波器 1 IC6131 C0ZBZ0000895 IC 1 IC6151 C0ZBZ0001324 IC 1 IC6191 C0ZBZ0000895 IC 1 IC6211 C0ZBZ0001325 IC 1 IC6221 C0DBEMB00005 IC 1 IC6241 C0JBAZ000005 IC 1 IC6251 NJM2903M 集成电路 1 IC6281 C0DBEMB00005 IC 1 IC6471 C0DBEKA00003 IC 1 IC6472 C0JBAA000377 IC 1 IC6501 C0ZBZ0000895 IC 1 IC6521 C0ZBZ0001324 IC 1 IC6561,62 C0JBAZ000005 IC 2 IC6581 NJM2903M 集成电路 1 IC6601 C0ZBZ0001325 IC 1 IC6602 C0JBAB000715 IC 1 IC6610 NJM2903M 集成电路 1 IC6671 C0ZBZ0001325 IC 1 参考号 部品号 部品名称 & 说明 件数 备注 IC6681 C0ZBZ0001325 IC 1 IC6682 C0JBAA000377 IC 1 IC6721,22 C0JBAZ000994 IC 2 IC6724,25 C0CBADC00089 IC 2 IC6751 C0CBADC00089 IC 1 IC6752 C0ZBZ0001325 IC 1 IC6753 C0JBAB000715 IC 1 IC6771 C0CBADC00089 IC 1 IC6772 C0ZBZ0001325 IC 1 IC6773,74 C0JBAA000377 IC 2 IC6791 N0BF1FB00001 IC 1 IC6801,02 C0DBEMB00005 IC 2 IC6803 C0DAAMH00005 IC 1 IC6821 C0DBEMB00005 IC 1 IC6841 C0DBEMB00005 IC 1 IC6861 NJM2903M 集成电路 1 IC6871 NJM2903M 集成电路 1 IC6901-18 AN16071A-VT IC 18 IC6920 C0JBAA000174 IC 1 IC6940 C0JBAA000174 IC 1 IC7101-06 C0JBAZ001120 IC 6 IC7201-07 C0JBAZ001120 IC 7 IC7211-15 C0JBAZ001120 IC 5 IC7301-06 C0JBAZ001120 IC 6 IC7401-06 C0JBAZ001120 IC 6 IC7501-07 C0JBAZ001120 IC 7 IC7511-16 C0JBAZ001120 IC 6 IC7601-06 C0JBAZ001120 IC 6 L6001-06 G0CR60KA0118 校正线圈 6 L6008 G0CR60KA0118 校正线圈 1 L6012-15 G0CR96KA0118 校正线圈 4 L6017 G0CR96KA0118 校正线圈 1 L6040 G0ZZ00002183 校正线圈 1 L6061-79 G0ZZ00002183 校正线圈 19 L6081-99 G0ZZ00002183 校正线圈 19 L6101,02 J0JJC0000011 片状电感 2 L6103 G0ZZ00002183 校正线圈 1 L6105-08 J0JJC0000011 片状电感 4 L6161-64 G0ZZ00002183 校正线圈 4 L6181-85 G0ZZ00002183 校正线圈 5 L6211-13 J0JJC0000011 片状电感 3 L6221,22 G0ZZ00002183 校正线圈 2 L6241 G0ZZ00002183 校正线圈 1 L6262 G0ZZ00002183 校正线圈 1 L6271 G0ZZ00002183 校正线圈 1 L6291 G0ZZ00002183 校正线圈 1 L6398,99 J0JJC0000011 片状电感 2 L6401-07 G0CR60KA0118 校正线圈 7 L6411-17 G0C1R4KA0118 校正线圈 7 L6441-48 G0ZZ00002183 校正线圈 8 L6451-58 G0ZZ00002183 校正线圈 8 L6461-68 G0ZZ00002183 校正线圈 8 L6471-88 G0ZZ00002183 校正线圈 18 L6491-98 G0ZZ00002183 校正线圈 8 L6591,92 G0ZZ00002183 校正线圈 2 L6601,02 G0ZZ00002183 校正线圈 2 L6680 G0ZZ00002183 校正线圈 1 L6801,02 J0JJC0000011 片状电感 2 L6841 J0JJC0000011 片状电感 1 PC6480 B3PBA0000223 IC 1 PC6610 B3PBA0000223 IC 1 PC6701-03 B3PBA0000233 IC 3 PC6704 B3PBA0000234 IC 1 PC6705 B3PBA0000233 IC 1 PC6760 B3PBA0000223 IC 1 PC6801 B3PBA0000223 IC 1 PC6861 B3PBA0000223 IC 1 PC6871 B3PBA0000223 IC 1 Q6001-08 2PG0010000RP 三极管 8 Q6021-28 2PG0010000RP 三极管 8 Q6031 B1ADRD000001 三极管 1 Q6041-44 2PG0010000RP 三极管 4 Q6051-54 2PG0010000RP 三极管 4 Q6101,02 B1DFKM000002 三极管 2 参考号 部品号 部品名称 & 说明 件数 备注 185 Q6103 B1ABNF000006 三极管 1 Q6104 B1ADNF000006 三极管 1 Q6105-08 B1DFKM000002 三极管 4 Q6111,12 B1DFKM000002 三极管 2 Q6114 B1DFKM000002 三极管 1 Q6115 2SD601A 三极管 1 Q6116 B1DFKM000002 三极管 1 Q6141 B1ABNF000006 三极管 1 Q6142 B1ADNF000006 三极管 1 Q6143 B1ABNF000006 三极管 1 Q6144 B1ADNF000006 三极管 1 Q6146 B1ABNF000006 三极管 1 Q6147 B1ADNF000006 三极管 1 Q6148 B1ABNF000006 三极管 1 Q6149 B1ADNF000006 三极管 1 Q6151 B1ABNF000006 三极管 1 Q6152 B1ADNF000006 三极管 1 Q6153 B1ABNF000006 三极管 1 Q6154 B1ADNF000006 三极管 1 Q6156 B1ABNF000006 三极管 1 Q6157 B1ADNF000006 三极管 1 Q6158 B1ABNF000006 三极管 1 Q6159 B1ADNF000006 三极管 1 Q6171 2SD2185 三极管 1 Q6172 B1ADRD000001 三极管 1 Q6173 2SD2185 三极管 1 Q6174 B1ADRD000001 三极管 1 Q6181 2SD2185 三极管 1 Q6183 2SD2185 三极管 1 Q6184 B1ADRD000001 三极管 1 Q6211 B1ABNF000006 三极管 1 Q6212 B1ADNF000006 三极管 1 Q6222 2SC3063 三极管 1 Q6251 2SD601A 三极管 1 Q6256 2SD1263A 三极管 1 Q6281 B1ABNF000006 三极管 1 Q6282 B1ADNF000006 三极管 1 Q6401-08 2PG0010000RP 三极管 8 Q6421-28 2PG0030000RP 三极管 8 Q6441-44 2PG0010000RP 三极管 4 Q6451-54 2PG0030000RP 三极管 4 Q6501 B1ABNF000006 三极管 1 Q6502 B1ADNF000006 三极管 1 Q6503 B1ABNF000006 三极管 1 Q6504 B1ADNF000006 三极管 1 Q6505 B1ABNF000006 三极管 1 Q6506 B1ADNF000006 三极管 1 Q6507 B1ABNF000006 三极管 1 Q6508 B1ADNF000006 三极管 1 Q6521 B1ABNF000006 三极管 1 Q6522 B1ADNF000006 三极管 1 Q6523 B1ABNF000006 三极管 1 Q6524 B1ADNF000006 三极管 1 Q6525 B1ABNF000006 三极管 1 Q6526 B1ADNF000006 三极管 1 Q6527 B1ABNF000006 三极管 1 Q6528 B1ADNF000006 三极管 1 Q6531 2SD2185 三极管 1 Q6532 B1ADRD000001 三极管 1 Q6533 2SD2185 三极管 1 Q6534 B1ADRD000001 三极管 1 Q6551 2SD2185 三极管 1 Q6552 B1ADRD000001 三极管 1 Q6553 2SD2185 三极管 1 Q6554 B1ADRD000001 三极管 1 Q6581 2SD601A 三极管 1 Q6601 B1DFES000003 三极管 1 Q6602 2SD601A 三极管 1 Q6622,23 B1DFKM000001 三极管 2 Q6625-27 B1DFKM000001 三极管 3 Q6641-49 B1DFKM000001 三极管 9 Q6651-60 B1DFKM000001 三极管 10 Q6661 B1DEET000002 三极管 1 Q6662 2SD601A 三极管 1 Q6665 B1ABNF000006 三极管 1 Q6671-75 B1DFES000003 三极管 5 Q6679 B1ABNF000006 三极管 1 参考号 部品号 部品名称 & 说明 件数 备注 Q6680 B1ADNF000006 三极管 1 Q6681,82 2SK389500L FET 2 Q6691 2SK620 FET 1 Q6742,43 2SD601A 三极管 2 Q6744 2SK620 FET 1 Q6762,63 B1ADNF000006 三极管 2 Q6781 B1ABNF000006 三极管 1 Q6782 B1ADNF000006 三极管 1 Q6783 B1ABNF000006 三极管 1 Q6784 B1ADNF000006 三极管 1 Q6791 2SD601A 三极管 1 Q6803 2SD814A 三极管 1 Q6821 2SD1263A 三极管 1 Q6822 2SC3063 三极管 1 Q6824 2SD601A 三极管 1 Q6841 2SD1263A 三极管 1 Q6842 2SC1473A 三极管 1 R6001 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6003 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6005 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6007 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6009 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6011 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6013 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6015 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6020 ERG3FJS680D M 68 OHM, J, 3W 1 R6021 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6022 ERG3FJS680D M 68 OHM, J, 3W 1 R6024 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6026 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6028 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6030 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6031,32 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6033 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6034 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6036 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6038 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6040,41 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 2 R6043 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6045 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6047 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6051 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6053 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6055 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6057 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6061 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6078 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6102 D0GD101JA059 M 100 OHM,J,0.25W 1 R6104 D0GD101JA059 M 100 OHM,J,0.25W 1 R6106 D0GD101JA059 M 100 OHM,J,0.25W 1 R6108 D0GD101JA059 M 100 OHM,J,0.25W 1 R6109 D0GD100JA059 M 10 OHM,J,0.25W 1 R6110 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6111,12 D0GD470JA059 M 47 OHM,J,0.25W 2 R6113 ERJ14YJ224 M 220KOHM, J,1/4W 1 R6114 D0GD470JA059 M 47 OHM,J,0.25W 1 R6116 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6117 D0GD101JA059 M 100 OHM,J,0.25W 1 R6119 D0GD101JA059 M 100 OHM,J,0.25W 1 R6120 D0GD470JA059 M 47 OHM,J,0.25W 1 R6125 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6126-28 ERJ6GEYJ563 M 56KOHM,J,1/10W 3 R6129 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6131,32 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6133 D0GD100JA059 M 10 OHM,J,0.25W 1 R6134 D0GD750JA059 M 75 OHM,J,0.25W 1 R6135-39 D0GD100JA059 M 10 OHM,J,0.25W 5 R6140-44 ERJ6GEYJ103 M 10KOHM,J,1/10W 5 R6146-49 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6151,52 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6153 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6154 D0GD750JA059 M 75 OHM,J,0.25W 1 R6157-60 D0GF1R0JA047 M 1.0 OHM,J, 0.33W 4 R6164,65 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6166 D0GD100JA059 M 10 OHM,J,0.25W 1 R6167,68 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 参考号 部品号 部品名称 & 说明 件数 备注 186 R6169 D0GD100JA059 M 10 OHM,J,0.25W 1 R6170 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6171 D0GD100JA059 M 10 OHM,J,0.25W 1 R6172,73 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6174 D0GD100JA059 M 10 OHM,J,0.25W 1 R6175-77 ERJ6GEYJ103 M 10KOHM,J,1/10W 3 R6181 D0GD100JA059 M 10 OHM,J,0.25W 1 R6182,83 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6184 D0GD100JA059 M 10 OHM,J,0.25W 1 R6185,86 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6191,92 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6193 D0GD510JA059 M 51 OHM,J,0.25W 1 R6195,96 D0GD104JA059 M 100KOHM,J,0.25W 2 R6213 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6214 D0GD151JA059 M 150 OHM,J,0.25W 1 R6215 D0GD100JA059 M 10 OHM,J,0.25W 1 R6216,17 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6218-21 ERDS2TC0 C 0 OHM, 1/4W 4 R6222 ERG1FJS472D M 4.7KOHM, J, 1W 1 R6223 ERG2FJS123D M 12KOHM, J, 2W 1 R6225 D1BD4532A028 M45.3KOHM, 1/10W 1 R6226,27 ERJ6ENF5102 M 51KOHM, 1/10W 2 R6232 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6233 ERJ14YJ154 M 150KOHM, J,1/4W 1 R6234 ERJ6GEYJ183 M 18KOHM,J,1/10W 1 R6235-40 D0GD100JA059 M 10 OHM,J,0.25W 6 R6241 EXB38V470J 电阻阵列 1 R6242 EXB38V472J 电阻阵列 1 R6243 EXB38V470J 电阻阵列 1 R6244 EXB38V472J 电阻阵列 1 R6251 D0GD103JA059 M 10KOHM,J,0.25W 1 R6252,53 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6254 ERJ6ENF6801 M 6.8KOHM, 1/10W 1 R6255 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6256 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R6257 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6258 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6261 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6282 ERG2FJS150D M 15 OHM, J, 2W 1 R6284 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6286 D0GD101JA059 M 100 OHM,J,0.25W 1 R6287 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6288 ERJ6ENF4991 M4.99KOHM, 1/10W 1 R6289 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6291 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6401-08 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 8 R6421-28 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 8 R6437,38 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6441-44 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 4 R6451-55 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 5 R6465 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6466 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6467,68 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6471 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6472 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6473 ERJ6GEYJ561 M 560 OHM,J,1/10W 1 R6474 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6475,76 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R6477 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6501,02 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6503 D0GD100JA059 M 10 OHM,J,0.25W 1 R6504 D0GD750JA059 M 75 OHM,J,0.25W 1 R6506 D0GD100JA059 M 10 OHM,J,0.25W 1 R6507-09 D0GF1R0JA047 M 1.0 OHM,J, 0.33W 3 R6511,12 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6513 D0GD100JA059 M 10 OHM,J,0.25W 1 R6514-17 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6518 D0GD100JA059 M 10 OHM,J,0.25W 1 R6519,20 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6521,22 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6523 D0GD750JA059 M 75 OHM,J,0.25W 1 R6527 D0GD100JA059 M 10 OHM,J,0.25W 1 R6528 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6529 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R6530,31 D0GD100JA059 M 10 OHM,J,0.25W 2 R6532-34 ERJ6GEYJ103 M 10KOHM,J,1/10W 3 R6535 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 R6536 D0GD100JA059 M 10 OHM,J,0.25W 1 R6537,38 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6539 D0GD100JA059 M 10 OHM,J,0.25W 1 R6540,41 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6542 D0GD100JA059 M 10 OHM,J,0.25W 1 R6551 D0GD100JA059 M 10 OHM,J,0.25W 1 R6552,53 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6554 D0GD100JA059 M 10 OHM,J,0.25W 1 R6555,56 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6561-64 EXB38V470J 电阻阵列 4 R6565-68 EXB38V472J 电阻阵列 4 R6581 D0GD103JA059 M 10KOHM,J,0.25W 1 R6582,83 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6584 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R6585,86 ERJ6ENF1501 M 1.5KOHM, 1/10W 2 R6587 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6588 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6590 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6591 EXB38V472J 电阻阵列 1 R6592 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6603 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6604 D0GD151JA059 M 150 OHM,J,0.25W 1 R6605 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6606 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6607 D1BD2871A027 M 2.87KOHM, 1/10W 1 R6608,09 D0GF102JA047 M 1.0 KOHM,J,0.33W 2 R6610 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6611 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R6612 D0GD470JA059 M 47 OHM,J,0.25W 1 R6613 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R6614,15 D0GF113JA047 M 11 KOHM,J, 0.33W 2 R6616 ERJ6ENF1502 M 15KOHM, 1/10W 1 R6617 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6618 ERJ6ENF1202 M 12KOHM, 1/10W 1 R6619 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R6620 D0D28R2JA021 M 8.2 OHM,J,5W 1 R6622,23 ERJ6GEYJ221 M 220 OHM,J,1/10W 2 R6625-27 ERJ6GEYJ221 M 220 OHM,J,1/10W 3 R6630 D0GF113JA047 M 11 KOHM,J, 0.33W 1 R6631 ERJ6GEYJ683 M 68KOHM,J,1/10W 1 R6632 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6633 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6641-49 ERJ6GEYJ101 M 100 OHM,J,1/10W 9 R6651-57 ERJ6GEYJ101 M 100 OHM,J,1/10W 7 R6658 D0D1101JA009 M 100 OHM,J,1W 1 R6659,60 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6661 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6662 ERJ6ENF2701 M 2.7KOHM, 1/10W 1 R6664 D0GF222JA047 M 2.2 KOHM,J,0.33W 1 R6665 D0GD470JA059 M 47 OHM,J,0.25W 1 R6666 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6667,68 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R6669,70 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6671 D0GD470JA059 M 47 OHM,J,0.25W 1 R6672 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6673-77 D0GD5R6JA059 M 5.6 OHM,J,0.25W 5 R6679 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6682 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6683 D0GD151JA059 M 150 OHM,J,0.25W 1 R6684 D0GD100JA059 M 10 OHM,J,0.25W 1 R6685 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6686 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6687 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6688 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6689 D0GD100JA059 M 10 OHM,J,0.25W 1 R6690 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6691 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6696,97 ERF5TK2R2 W 2.2 OHM, K, 5W 2 R6700-08 ERJ6GEYJ471 M 470 OHM,J,1/10W 9 R6710-18 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 9 R6721,22 EXB38V220J 电阻阵列 2 R6723 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6724 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6742 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6743 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6744 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6745 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 187 R6746,47 D0GD103JA059 M 10KOHM,J,0.25W 2 R6755 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6756 D0GF330JA047 M 33 OHM,J, 0.33W 1 R6759 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6760 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 R6761 D0GD100JA059 M 10 OHM,J,0.25W 1 R6762 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6763 D0GD100JA059 M 10 OHM,J,0.25W 1 R6764 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6775,76 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6777 D0GD151JA059 M 150 OHM,J,0.25W 1 R6781 D0GD470JA059 M 47 OHM,J,0.25W 1 R6782 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6783 D0GD470JA059 M 47 OHM,J,0.25W 1 R6784 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6791 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6792 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6793 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6801 ERX3FJS8R2D M 8.2 OHM, J, 3W 1 R6802 ERG2FJS683D M 68KOHM, J, 2W 1 R6803 ERG2FJS563D M 56KOHM, J, 2W 1 R6806,07 ERX12SJ1R2 M 1.2 OHM, J,1/2W 2 R6808 D0GD272JA059 M 2.7KOHM,J,0.25W 1 R6809 ERJ12YJ103 M 10KOHM,J, 1/2W 1 R6810,11 ERJ6GEYJ333 M 33KOHM,J,1/10W 2 R6812 ERJ6ENF2003 M 200KOHM, 1/10W 1 R6813 ERJ6ENF1202 M 12KOHM, 1/10W 1 R6814 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R6816,17 ERJ6ENF5601 M 5.6KOHM, 1/10W 2 R6818 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6819 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R6820 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6821 ERG2FJS221D M 220 OHM, J, 2W 1 R6822 ERJ12YJ104U M 100KOHM, 1/2W 1 R6823 ERG1FJS104D M 100KOHM, J, 1W 1 R6824 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R6825 ERJ6ENF2703 M 270KOHM, 1/10W 1 R6826 ERJ6ENF2203 M 220KOHM, 1/10W 1 R6827 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R6828 ERJ6ENF5231 M5.23KOHM, 1/10W 1 R6829,30 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6831 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R6832 D0GF4R7JA047 M 4.7 OHM,J, 0.33W 1 R6833-36 ERJ6ENF5102 M 51KOHM, 1/10W 4 R6837 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6839 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6841 ERJ12YJ153U M 15KOHM, 1/2W 1 R6842 ERJ12YJ433U M 43KOHM, 1/2W 1 R6843 ERJ6GEYJ623 M 62KOHM,J,1/10W 1 R6844 D0D2101JA021 M 100 OHM,J,2W 1 R6845 ERJ6GEYJ623 M 62KOHM,J,1/10W 1 R6846,47 ERJ6GEYJ563 M 56KOHM,J,1/10W 2 R6848 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6849,50 ERJ6ENF6802 M 68KOHM, 1/10W 2 R6851 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6852 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6853 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6858 D0GD102JA059 M 1.0KOHM,J,0.25W 1 R6860 D0D28R2JA021 M 8.2 OHM,J,5W 1 R6861 ERJ6ENF3902 M 39KOHM, 1/10W 1 R6862,63 ERJ6ENF4702 M 47KOHM, 1/10W 2 R6864 ERJ6ENF8871 M8.87KOHM, 1/10W 1 R6865,66 ERJ6ENF2201 M 2.2KOHM, 1/10W 2 R6867 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6868 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6869 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6870 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6871-73 ERJ6ENF3902 M 39KOHM, 1/10W 3 R6874 D1BD9531A027 M9053KOHM, 1/10W 1 R6875 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R6876 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6877 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6878 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6879 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6886-88 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6891 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6901 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 R6902-17 ERJ6GEYJ221 M 220 OHM,J,1/10W 16 R6918 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6920 EXB38V220J 电阻阵列 1 R6921 EXB38V103J 电阻阵列 1 R6922 EXB38V220J 电阻阵列 1 R6924 EXB38V103J 电阻阵列 1 R6938,39 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R6948,49 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R6951 EXB38V220J 电阻阵列 1 R6952 EXB38V103J 电阻阵列 1 R6953 EXB38V220J 电阻阵列 1 R6954 EXB38V103J 电阻阵列 1 R6963,64 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R7001-04 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R7101 D0GF103JA047 M 10 KOHM,J, 0.33W 1 R7104 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7107 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7108-15 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7116,17 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7123,24 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7125-32 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7133-35 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R7136-39 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7140 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7143-45 EXB38V681J 电阻阵列 3 R7146,47 EXB38V470J 电阻阵列 2 R7148,49 EXB38V681J 电阻阵列 2 R7150,51 EXB38V470J 电阻阵列 2 R7152,53 EXB38V681J 电阻阵列 2 R7154,55 EXB38V470J 电阻阵列 2 R7156 EXB38V681J 电阻阵列 1 R7157-60 EXB38V470J 电阻阵列 4 R7186 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7187 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7191 EXB38V681J 电阻阵列 1 R7193 EXB38V681J 电阻阵列 1 R7194-99 ERJ3GEYJ220 M 22 OHM,J,1/16W 6 R7200-07 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7208,09 EXB38V470J 电阻阵列 2 R7210 EXB38V681J 电阻阵列 1 R7211 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7212 EXB38V681J 电阻阵列 1 R7213,14 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7217,18 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7221,22 EXB38V470J 电阻阵列 2 R7223-26 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7227,28 EXB38V470J 电阻阵列 2 R7229,30 EXB38V681J 电阻阵列 2 R7231 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7232,33 EXB38V470J 电阻阵列 2 R7234 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7235,36 EXB38V681J 电阻阵列 2 R7237,38 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 2 R7239,40 EXB38V470J 电阻阵列 2 R7241,42 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 2 R7243 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7244 EXB38V470J 电阻阵列 1 R7245 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7246,47 EXB38V470J 电阻阵列 2 R7248 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7249,50 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 2 R7251,52 EXB38V470J 电阻阵列 2 R7253,54 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 2 R7255 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7256-58 EXB38V681J 电阻阵列 3 R7259-64 EXB38V470J 电阻阵列 6 R7266-75 EXB38V681J 电阻阵列 10 R7276 EXB38V102J 电阻阵列 1 R7283 EXB38V681J 电阻阵列 1 R7284 EXB38V102J 电阻阵列 1 R7285 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7286 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7287-96 ERJ3GEYJ220 M 22 OHM,J,1/16W 10 R7302 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7303,04 EXB38V470J 电阻阵列 2 R7305-10 EXB38V681J 电阻阵列 6 R7311,12 EXB38V470J 电阻阵列 2 参考号 部品号 部品名称 & 说明 件数 备注 188 R7313,14 EXB38V681J 电阻阵列 2 R7315,16 EXB38V470J 电阻阵列 2 R7317,18 EXB38V681J 电阻阵列 2 R7319,20 EXB38V470J 电阻阵列 2 R7321,22 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7323,24 EXB38V470J 电阻阵列 2 R7325,26 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7330 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7331-34 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7335 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7336 D0GF103JA047 M 10 KOHM,J, 0.33W 1 R7354,55 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7358-65 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7366,67 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7373,74 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7375-82 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7383,84 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7385 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7386 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7387 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7398,99 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7401 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7402 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7405-13 ERJ3GEY0R00 M 0 OHM, 1/16W 9 R7416,17 EXB38V470J 电阻阵列 2 R7420,21 EXB38V470J 电阻阵列 2 R7422 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7424,25 EXB38V470J 电阻阵列 2 R7428,29 EXB38V470J 电阻阵列 2 R7430-33 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7434 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7438,39 EXB38V470J 电阻阵列 2 R7453-59 EXB38V681J 电阻阵列 7 R7460,61 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7462-69 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7470,71 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7472 D0GF103JA047 M 10 KOHM,J, 0.33W 1 R7473,74 EXB38V681J 电阻阵列 2 R7477,78 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7479-86 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7487,88 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7490 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7491 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7492 EXB38V681J 电阻阵列 1 R7493-98 ERJ3GEYJ220 M 22 OHM,J,1/16W 6 R7501 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7502,03 EXB38V470J 电阻阵列 2 R7504,05 EXB38V681J 电阻阵列 2 R7506 EXB38V470J 电阻阵列 1 R7507 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7508-11 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7512 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7515 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7516-19 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7520 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7523,24 EXB38V470J 电阻阵列 2 R7525 EXB38V681J 电阻阵列 1 R7526 EXB38V470J 电阻阵列 1 R7527 EXB38V681J 电阻阵列 1 R7528 EXB38V470J 电阻阵列 1 R7529 EXB38V681J 电阻阵列 1 R7530-35 EXB38V470J 电阻阵列 6 R7536 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7537-40 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7541 EXB38V681J 电阻阵列 1 R7542 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7543 EXB38V681J 电阻阵列 1 R7544 EXB38V102J 电阻阵列 1 R7545-48 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7549 EXB38V470J 电阻阵列 1 R7550 EXB38V681J 电阻阵列 1 R7553 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7554-57 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7558-60 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R7561 EXB38V681J 电阻阵列 1 R7562,63 EXB38V470J 电阻阵列 2 R7564,65 EXB38V681J 电阻阵列 2 参考号 部品号 部品名称 & 说明 件数 备注 R7567 EXB38V470J 电阻阵列 1 R7570 EXB38V102J 电阻阵列 1 R7571-76 EXB38V470J 电阻阵列 6 R7577-87 EXB38V681J 电阻阵列 11 R7592 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7593 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7594-99 ERJ3GEYJ220 M 22 OHM,J,1/16W 6 R7603 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R7604 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7605,06 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7607 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7608-15 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7616,17 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7618 D0GF103JA047 M 10 KOHM,J, 0.33W 1 R7623,24 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7625-32 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7633,34 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7636 EXB38V470J 电阻阵列 1 R7637-42 EXB38V681J 电阻阵列 6 R7643 EXB38V470J 电阻阵列 1 R7644,45 EXB38V681J 电阻阵列 2 R7646,47 EXB38V470J 电阻阵列 2 R7648 EXB38V681J 电阻阵列 1 R7650,51 EXB38V470J 电阻阵列 2 R7654,55 EXB38V470J 电阻阵列 2 R7658,59 EXB38V470J 电阻阵列 2 R7660 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7661-64 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7665 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7686 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7687 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7696 EXB38V681J 电阻阵列 1 R7697-99 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 SC2 K1KA02A00626 2P 连接接头 1 SC20 K1KA20AA0008 20P 连接接头 1 SC23 K1KA03AA0193 3P 连接接头 1 SC30 K1KA08AA0192 8P 连接接头 1 SC41-44 K1ML80B00001 80P 连接接头 4 SC45,46 K1KA09A00239 9P 连接接头 2 SCMM4 TMM7464-2 线夹 1 SCMM5 TMME047 线夹 1 SCMM6 TMME190 线夹 1 SCMM7 TMME047 线夹 1 SD1-D5 K1MNA8BA0250 8P 连接接头 5 SD46 K1KB09A00045 9P 连接接头 1 SS11 K1KA02A00626 2P 连接接头 1 SS12 K1KA10AA0194 10P 连接接头 1 SS21 K1KA07A00170 7P 连接接头 1 SS2MM1,M2 TMME190 线夹 2 SS23 K1KB07AA0087 7P 连接接头 1 SS25 K1KA07A00170 7P 连接接头 1 SS27 K1KB07AA0087 7P 连接接头 1 SS3MM1,M2 TMME190 线夹 2 SS34 K1KA03AA0193 3P 连接接头 1 SS35 K1KA08AA0193 8P 连接接头 1 SS42 K1KA08AA0193 8P 连接接头 1 SS44 K1KA20AA0009 20P 连接接头 1 SS51-58 K1MN13B00020 13P 连接接头 8 SU1-U5 K1MNA8BA0250 8P 连接接头 5 SU45 K1KB09A00045 9P 连接接头 1 T6602 ETS28AU389AC 转接变压器 1 VR6000 EVMEASA00B14 控制 10KOHMB 0.3W 1 VR6600 EVMEASA00B13 控制 1KOHMB 0.3W 1 VR6602 EVMEASA00B23 控制 2KOHMB 0.3W 1 ZA6101-03 K4CD01000011 端子 3 ZA6401-03 K4CD01000011 端子 3 ZA7101-06 K4AD01Z00001 端子 6 ZA7201-06 K4AD01Z00001 端子 6 ZA7301-06 K4AD01Z00001 端子 6 参考号 部品号 部品名称 & 说明 件数 备注 189 ZA7401-06 K4AD01Z00001 端子 6 ZA7501-06 K4AD01Z00001 端子 6 ZA7601-06 K4AD01Z00001 端子 6 A1601,02 RA362MSV7 放电器 2 C201 KZE1E470 C 470U 25V 1 C203,04 RR3DD101K 陶瓷电容 2 C205 ECWH12473HV 塑料薄膜电容 1 C212 ECWH12333HV 塑料薄膜电容 1 C213,14 KZE1E470 C 470U 25V 2 C215 ECJ2XB1H103K C 0.01UF, K, 50V 1 C216 KZE1H101 C 100UF 50V 1 C251-54 KMQ220821K 电解电容 4 C255,56 ECQE6223KF P 0.022UF, K,400V 2 C257 ECJ2XB1H103K C 0.01UF, K, 50V 1 C301 KZE1E101 C 100UF 25V 1 C302,03 RR3DD101K 陶瓷电容 2 C305 ECWH12333HV 塑料薄膜电容 1 C351,52 KZE1E182S C 1800UF 25V 2 C354,55 TBB475K1 陶瓷片状电容 2 C356 KZE1E821L C 8200UF 25V 1 C357 ECJ1XB1H104K C 10PF, J, 50V 1 C358 KZE1E101 C 100UF 25V 1 C359 ECJ1XB1H104K C 10PF, J, 50V 1 C360 KZE1E101 C 100UF 25V 1 C361 ECJ1XB1H104K C 10PF, J, 50V 1 C363 KZE1E821L C 8200UF 25V 1 C364 ECJ1XB1H104K C 10PF, J, 50V 1 C365 KZE2A270 C 27UF 100V 1 C366 ECJ2FB1H104K C 0.1UF, K, 50V 1 C401 TAB104K2E 陶瓷片状电容 1 C402,03 KMQ2C471H 电解电容 2 C405 TAB104K2E 陶瓷片状电容 1 C412 TBB104K2 陶瓷片状电容 1 C413,14 KZE2A471S C 470UF 100V 2 C415 KZE1H221 电解电容 1 C501 ECQU2A473ML P 0.047UF, M,250V 1 C502,03 ECJ2FB1H104K C 0.1UF, K, 50V 2 C504,05 KZE1E470 C 470U 25V 2 C506 KMQ2W560 电解电容 1 C507 KZE1H101 C 100UF 50V 1 C508 MBB474K1 陶瓷片状电容 1 C509 ECJ2XB1H103K C 0.01UF, K, 50V 1 C510 KZE1H101 C 100UF 50V 1 C514 KZE1E470 C 470U 25V 1 C551 ECKENA101KBR C 100P 250V 1 C552 KZE1A152 电解电容 1 C555 TBB474K2 陶瓷片状电容 1 C556 KZE1E101 C 100UF 25V 1 C557 TBB475K1 陶瓷片状电容 1 C558 KZE1E101 C 100UF 25V 1 C559-61 ECJ1XB1H104K C 10PF, J, 50V 3 C1601 ECQU2A105ML P 1UF, 250V 1 C1602-05 ECKENA101KBR C 100P 250V 4 C1608 ECQU2A224ML P 0.22UF, 250V 1 C1613,14 MMXC2W474K 塑料薄膜电容 2 C1619 ECJ2XB1H103K C 0.01UF, K, 50V 1 C1620 ECQE6103KF P 0.01UF, J,630V 1 C1621 ECJ2XB1H102K C 1000PF, K, 50V 1 C1622 KZE1E101 C 100UF 25V 1 C1623 ECQE6104RKF 塑料薄膜电容 1 C1624 ECKENA101KBR C 100P 250V 1 C1625-28 KMQ2W221KZ 电解电容 4 C1629 ECJ2FB1E224K C 22UF, K, 25V 1 C1630 KZE1E470 C 470U 25V 1 C1701 ECQU2A105ML P 1UF, 250V 1 C1702 ECQU2A474ML 塑料薄膜电容 1 C1706,07 MMXC2W105K C 1P 450V 2 C1712 KZE1E101 C 100UF 25V 1 C1714 KMQ2W221KZ 电解电容 1 C1715 ECQE6472B45 C 4700U 630V 1 C1716,17 KMQ2W221KZ 电解电容 2 C1719 ECKENA221KBR C 221P 250V 1 C1729 ECJ2FB1H104K C 0.1UF, K, 50V 1 C1731 ECJ2XB1H103K C 0.01UF, K, 50V 1 参考号 部品号 部品名称 & 说明 件数 备注 C1732 ECJ2XB1H102K C 1000PF, K, 50V 1 C1733 ECQE6473RKF 塑料薄膜电容 1 C1735 ECJ2FB1E224K C 22UF, K, 25V 1 C1736 ECJ2FB1H104K C 0.1UF, K, 50V 1 D201 MA165 二极管 1 D204 MA165 二极管 1 D251-54 YG901C3R 二极管 4 D255 MA111 二极管 1 D256 MA165 二极管 1 D301,02 MA165 二极管 2 D351,52 YG805C06R 二极管 2 D355 AG01A 二极管 1 D358 RK44 二极管 1 D401 AG01A 二极管 1 D402-06 YG901C3R 二极管 5 D501 S1WBA80 二极管 1 D502,03 ERA22-10 二极管 2 D504 AG01A 二极管 1 D505 MA111 二极管 1 D506 ST3D82 二极管 1 D508 AG01A 二极管 1 D511 ERA91-02 二极管 1 D551 RK39 二极管 1 D554 MA165 二极管 1 D555 MA111 二极管 1 D556 MA165 二极管 1 D557 MA111 二极管 1 D1601,02 MA111 二极管 2 D1603,04 D15XB80 二极管 2 D1605 S3V60 二极管 1 D1606 S20LC60US 二极管 1 D1608 M1F60 二极管 1 D1609 S3V60 二极管 1 D1701,02 MA111 二极管 2 D1703 D15XB80 二极管 1 D1704 WS10A22 跳线 1 D1705 SF8L60USM 二极管 1 D1709 ERA15-10 二极管 1 D1710 M1F60 二极管 1 D1711 S3V60 二极管 1 F201 HU216005BP 机盒保险丝 1 F301 HU216005BP 机盒保险丝 1 F501 HU216002BP 机盒保险丝 1 IC401 TL431AI 集成电路 1 IC501 MIP3E30MP IC 1 K1601 DG12D1-0 继电器 1 K1602 DJ12D2-0 继电器 1 K1701 KS321M01 继电器 1 K1702 DJ12D2-0T5 继电器 1 L352,53 EXCELDR35 头扼流圈 2 L401 H221012HY 扼流 1 L402 LH8TB681K 扼流 1 L403,04 EXCELDR35 头扼流圈 2 L501 EXCELSA35 头扼流圈 1 L502 EXCELDR35 头扼流圈 1 L504 EXCELDR35 头扼流圈 1 L1601-03 P3165208Z 滤波器扼流 3 L1604 ETB50CZ12GAD 扼流 1 L1605 EXCELSR35 头扼流圈 1 L1607 EXCELSR35 头扼流圈 1 L1609 EXCELSR35 头扼流圈 1 L1611 EXCELSR35 头扼流圈 1 L1613 EXCELSA35 头扼流圈 1 L1701,02 P2590204Y 滤波器扼流 2 L1703 ETB44CZ129AD 变压器 1 L1704 EXCELSR35 头扼流圈 1 L1708 EXCELSR35 头扼流圈 1 MC201 MLZNC682 模块 1 MC202 MLWNB393 模块 1 MC301 MLZNC102 模块 1 参考号 部品号 部品名称 & 说明 件数 备注 190 MC401 MLLSB103 模块 1 MC502 MLWNB393 模块 1 MC601 MLSZA100 模块 1 MC701 MLZDD103 模块 1 MC1601 MLLPC123 模块 1 MC1703 MLLPC123 模块 1 P2 B2P3-VH-B 连接接头 1 P5 B11B-PH-KS 连接接头 1 P9 B03P-VL 连接接头 1 P10 B6B-PH-KS 连接接头 1 P11 B2P3-VH-B 连接接头 1 P12 B10B-PH-KS 连接接头 1 P23 B3B-PH-KS 连接接头 1 P25 B20B-PHDSS 连接接头 1 P51,52 B3P4VH-B-L 连接接头 2 P53,54 B3P-VH 连接接头 2 P55,56 B8B-PH-KS 连接接头 2 PC201,02 PS2581A 光电连接件 2 PC503 PS2581A 光电连接件 1 PC506,07 PS2581A 光电连接件 2 Q201-04 FMW21N55G 场效应三极管 4 Q205,06 2SB1440 三极管 2 Q251 2SB1218A 三极管 1 Q301,02 2SK3568 FET 2 Q303,04 2SB1440 三极管 2 Q351,52 2SK2903 FET 2 Q353,54 2SB1218A 三极管 2 Q404 2SK3607 场效应三极管 1 Q405,06 2SA1767 三极管 2 Q501 2SK3302 FET 1 Q502 2SK2731 FET 1 Q551,52 HAT1130R FET 2 Q553 2SB710A 三极管 1 Q1602,03 FMW21N55G 场效应三极管 2 Q1604 2SD2185 三极管 1 Q1605 2SB1440 三极管 1 Q1606,07 FMW21N55G 场效应三极管 2 Q1608 2SB709A 三极管 1 Q1609 2SD601A 三极管 1 Q1701,02 FMA16N55G 场效应三极管 2 Q1703 2SD2185 三极管 1 Q1704 2SB1440 三极管 1 Q1706 2SD1819A 三极管 1 Q1707 2SB709A 三极管 1 Q1708 2SD601A 三极管 1 R201 ERQ14AJ4R7J 可熔金属薄膜电阻 1 R202 ERJ12YJ820 片状电阻 1 R204,05 SG732K220 片状电阻 2 R206 ERJ12YJ820 片状电阻 1 R208,09 SG732K220 片状电阻 2 R210 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R211 ERJ12YJ513 片状电阻 1 R212-14 ERJ6GEYJ334 M 330KOHM,J,1/10W 3 R215,16 ERJ12YJ513 片状电阻 2 R217 ERJ12YJ4R7 M 4.7OHM, J,1/2W 1 R218 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R219-22 ERJ6ENF2703 M 270KOHM, 1/10W 4 R223 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R224,25 ERJ12YJ680 M 68 OHM,J, 1/2W 2 R226 ERJ12YJ513 片状电阻 1 R254 ERDS1TJ201 C 200 OHM, J,1/2W 1 R257 ERDS1TJ201 C 200 OHM, J,1/2W 1 R258 ERJ6ENF7152 M71.5KOHM, 1/10W 1 R259 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R260-62 ERJ6ENF1003 M 100KOHM, 1/10W 3 R263-65 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 3 R266-68 ERJ6ENF5492 M54.9KOHM, 1/10W 3 R269 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R270 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R271 ERJ6GEYJ391 M 390 OHM,J,1/10W 1 R272 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R273,74 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 参考号 部品号 部品名称 & 说明 件数 备注 R276 ERJ6ENF1003 M 100KOHM, 1/10W 1 R277 ERDS1TJ472 C 4.7KOHM, J,1/2W 1 R278-82 ERDS1TJ622 碳状薄膜电阻 5 R283 ERJ6ENF2212 M22.1KOHM, 1/10W 1 R301,02 ERJ12YJ560 M 56 OHM,J, 1/2W 2 R303,04 SG732K560 0.5W 56OHM 2 R305-07 ERJ12YJ513 片状电阻 3 R308,09 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R310 ERQ14AJ4R7J 可熔金属薄膜电阻 1 R311 ERJ12YJ513 片状电阻 1 R351 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R353 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R354 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R359,60 ERJ6GEYJ513 M 51KOHM,J,1/10W 2 R361 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R362 ERDS2TJ101 C 100 OHM, J,1/4W 1 R364 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R365 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R366,67 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R368 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R369 ERJ6GEYJ202 M 2KOHM,J,1/10W 1 R370 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R371 ERJ6ENF1622 M16.2KOHM, 1/10W 1 R372 ERJ6GEYJ1R0 M 1 OHM,J,1/10W 1 R374 ERJ12YJ100 M 10 OHM,J, 1/2W 1 R375 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R376 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R377 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R378-85 ERJ12YJ222 M 2.2KOHM,J, 1/2W 8 R389 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R401 ERJ12YJ100 M 10 OHM,J, 1/2W 1 R407 ERJ6ENF2372 M23.7KOHM, 1/10W 1 R408 MPC2WR05K 金属板电阻 1 R410 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R412 ERJ6ENF2372 M23.7KOHM, 1/10W 1 R413 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R414 ERJ6GEYJ150 M 15 OHM,J,1/10W 1 R415 ERJ6ENF2372 M23.7KOHM, 1/10W 1 R416,17 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 2 R418,19 ERJ6ENF1622 M16.2KOHM, 1/10W 2 R420 ERJ6ENF8662 片状电阻 1 R421 ERJ6ENF8061 M8.06KOHM, 1/10W 1 R422 ERJ6GEYJ150 M 15 OHM,J,1/10W 1 R474 ERJ6ENF1302 M 13KOHM, 1/10W 1 R477-79 ERJ6ENF1302 M 13KOHM, 1/10W 3 R481 ERJ6GEYJ154 M 150KOHM,J,1/10W 1 R484 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R485 ERJ6GEYJ154 M 150KOHM,J,1/10W 1 R486 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R501 ERJ12YJ474 M 470KOHM, 1/2W 1 R502 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R503 ERJ12YJ474 M 470KOHM, 1/2W 1 R505 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R507,08 ERJ6GEYJ334 M 330KOHM,J,1/10W 2 R509-12 ERJ6ENF8253 M 825KOHM, 1/10W 4 R514,15 ERJ6ENF8253 M 825KOHM, 1/10W 2 R518 ERJ12YJ100 M 10 OHM,J, 1/2W 1 R519 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R528-30 ERJ6ENF2703 M 270KOHM, 1/10W 3 R531,32 ERJ12YJ201 片状电阻 2 R560 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R561 ERDS2TJ332 C 3.3KOHM, J,1/4W 1 R563 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R564 ERJ6GEYJ391 M 390 OHM,J,1/10W 1 R565 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R566 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R567 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R568 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R570 ERJ12YJ151 M 150 OHM,J, 1/2W 1 R580 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R581 ERJ6ENF2703 M 270KOHM, 1/10W 1 R582 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R583 ERJ12YJ4R7 M 4.7OHM, J,1/2W 1 R1601 R5B100J W 10 OHM, J, 5W 1 R1602 ERC12UGK185 S 1.8MOHM, K,1/2W 1 R1605-08 ERJ6ENF1213 M 121KOHM, 1/10W 4 R1609 ERJ6GEYJ6R8 M 6.8 OHM,J,1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 191 FLE20060600006 R1610-15 RF5EJR27B 金属板电阻 6 R1616 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R1617 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R1618 ERJ12YJ470 M 47 OHM, J,1/2W 1 R1619 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R1620 ERJ6GEYJ154 M 150KOHM,J,1/10W 1 R1622 ERJ12YJ470 M 47 OHM, J,1/2W 1 R1623 ERQ14AJ330J 可熔金属薄膜电阻 1 R1624 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R1625 ERJ12YJ470 M 47 OHM, J,1/2W 1 R1626 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R1627 ERJ12YJ470 M 47 OHM, J,1/2W 1 R1628 ERJ6GEYJ183 M 18KOHM,J,1/10W 1 R1629 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R1630 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R1631-33 ERJ6GEYJ183 M 18KOHM,J,1/10W 3 R1634 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R1635 ER0S2CKF5363 M 536KOHM, F,1/4W 1 R1636-39 ERJ6ENF2493 M 249KOHM, 1/10W 4 R1640,41 ERJ6GEYJ154 M 150KOHM,J,1/10W 2 R1642,43 ERJ6ENF5233 M 523KOHM, 1/10W 2 R1644 ERJ6ENF5623 M 523KOHM, 1/10W 1 R1645,46 ERJ6GEYJ154 M 150KOHM,J,1/10W 2 R1701 ERC12UGK185 S 1.8MOHM, K,1/2W 1 R1703 R5B100J W 10 OHM, J, 5W 1 R1704-06 ERJ6ENF1213 M 121KOHM, 1/10W 3 R1707 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R1708 ERJ6ENF1213 M 121KOHM, 1/10W 1 R1709-11 RF5EJR18B F 0.18 OHM, J, 5W 3 R1715 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R1716 ERJ12YJ470 M 47 OHM, J,1/2W 1 R1717 ERQ14AJ330J 可熔金属薄膜电阻 1 R1719 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R1722 ERJ6GEYJ154 M 150KOHM,J,1/10W 1 R1723 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R1725 ERJ12YJ470 M 47 OHM, J,1/2W 1 R1727-29 ERJ6GEYJ183 M 18KOHM,J,1/10W 3 R1731-33 ERJ6ENF2493 M 249KOHM, 1/10W 3 R1740,41 ERJ6ENF5233 M 523KOHM, 1/10W 2 R1742 ERJ6ENF5623 M 523KOHM, 1/10W 1 R1747 ERJ6GEYJ393 M 39KOHM,J,1/10W 1 R1749 ERJ6GEYJ393 M 39KOHM,J,1/10W 1 R1750,51 ERJ6ENF2493 M 249KOHM, 1/10W 2 R1752 ERJ6GEYJ183 M 18KOHM,J,1/10W 1 R1753 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R1754 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R1755 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R1756-59 ERJ6GEYJ154 M 150KOHM,J,1/10W 4 R1760 ERJ12YJ100 M 10 OHM,J, 1/2W 1 R1761 ERJ6ENF2493 M 249KOHM, 1/10W 1 RF1601 A5MC100JP2 139C 10 1 RF1701 A5MC100JP2 139C 10 1 T201 ETB57LZ1AGAD 变压器 1 T202 ETB57LZ19GAD 变压器 1 T301 ZTS9766H 变压器 1 T501 ETB25KA1B8AD 变压器 1 VR251 EVMEASA01B25 可变电阻 1 VR351 EVMEASA01B14 可变电阻 1 VR401 EVMEASA01B24 可变电阻 1 Z501,02 ERZVGAD471 变压器 2 Z1601 ERZVGED751 变压器 1 Z1602 ERZVGAD471 变压器 1 ZD201,02 MA4270N 稳压二极管 2 ZD207 MA4270N 稳压二极管 1 ZD303,04 MA4270N 稳压二极管 2 ZD351-54 MA8150 稳压二极管 4 ZD401 MA4033 稳压二极管 1 ZD402 MA8360 稳压二极管 1 ZD501,02 MA8270 稳压二极管 2 ZD503 MA4120N 稳压二极管 1 ZD1602 MA4047N 稳压二极管 1 参考号 部品号 部品名称 & 说明 件数 备注 ZD1701 MA4047N 稳压二极管 1 参考号 部品号 部品名称 & 说明 件数 备注
