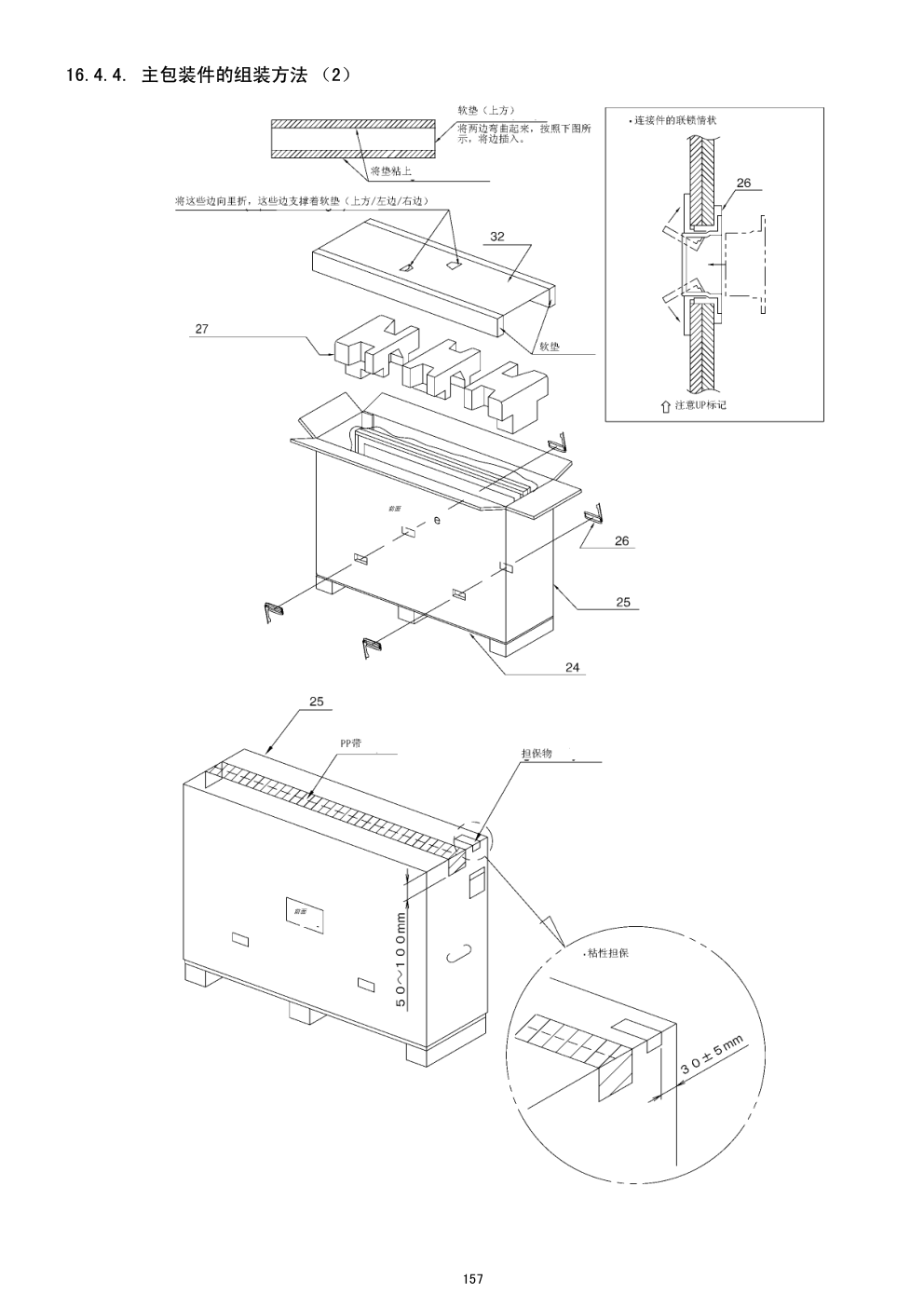

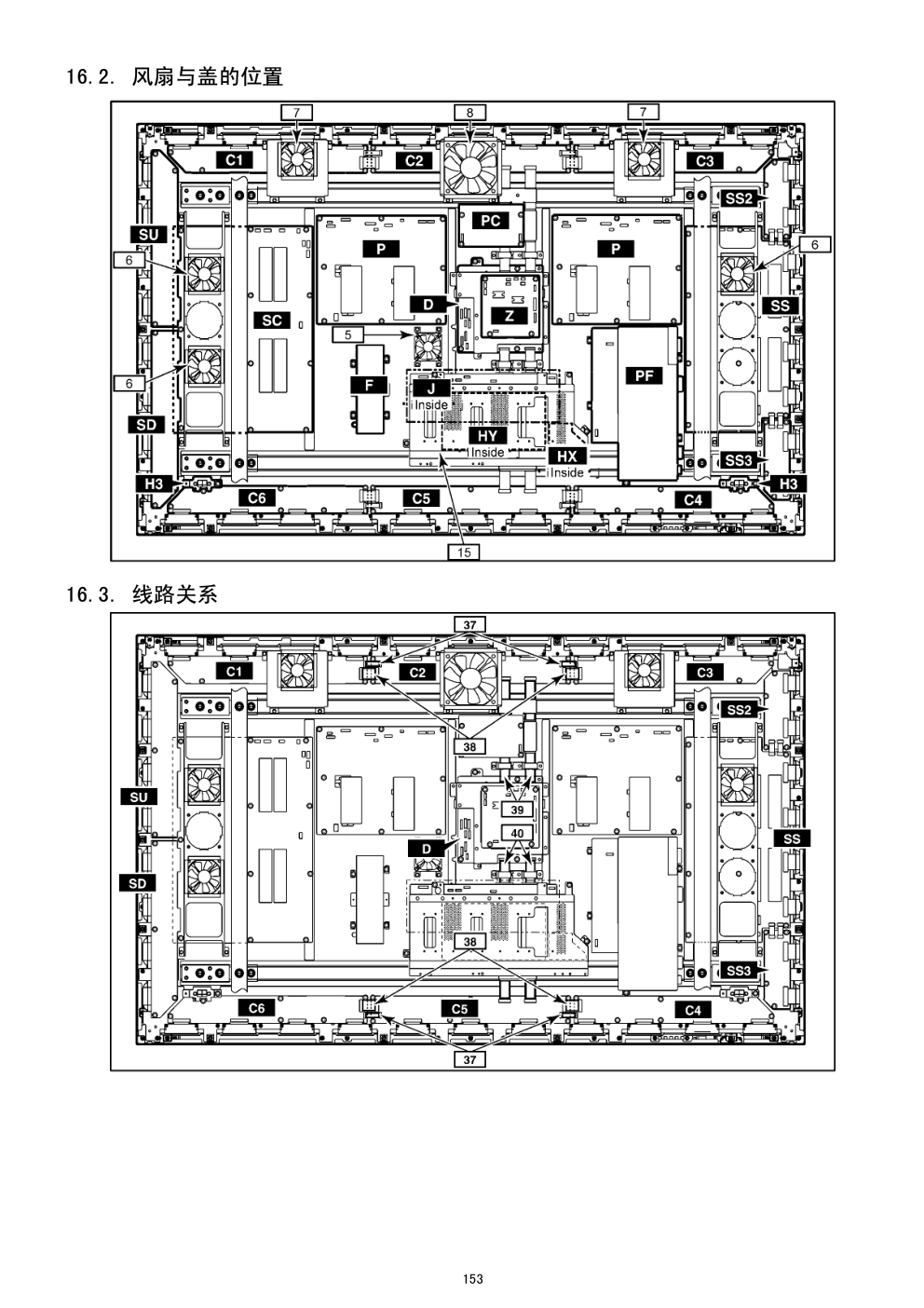

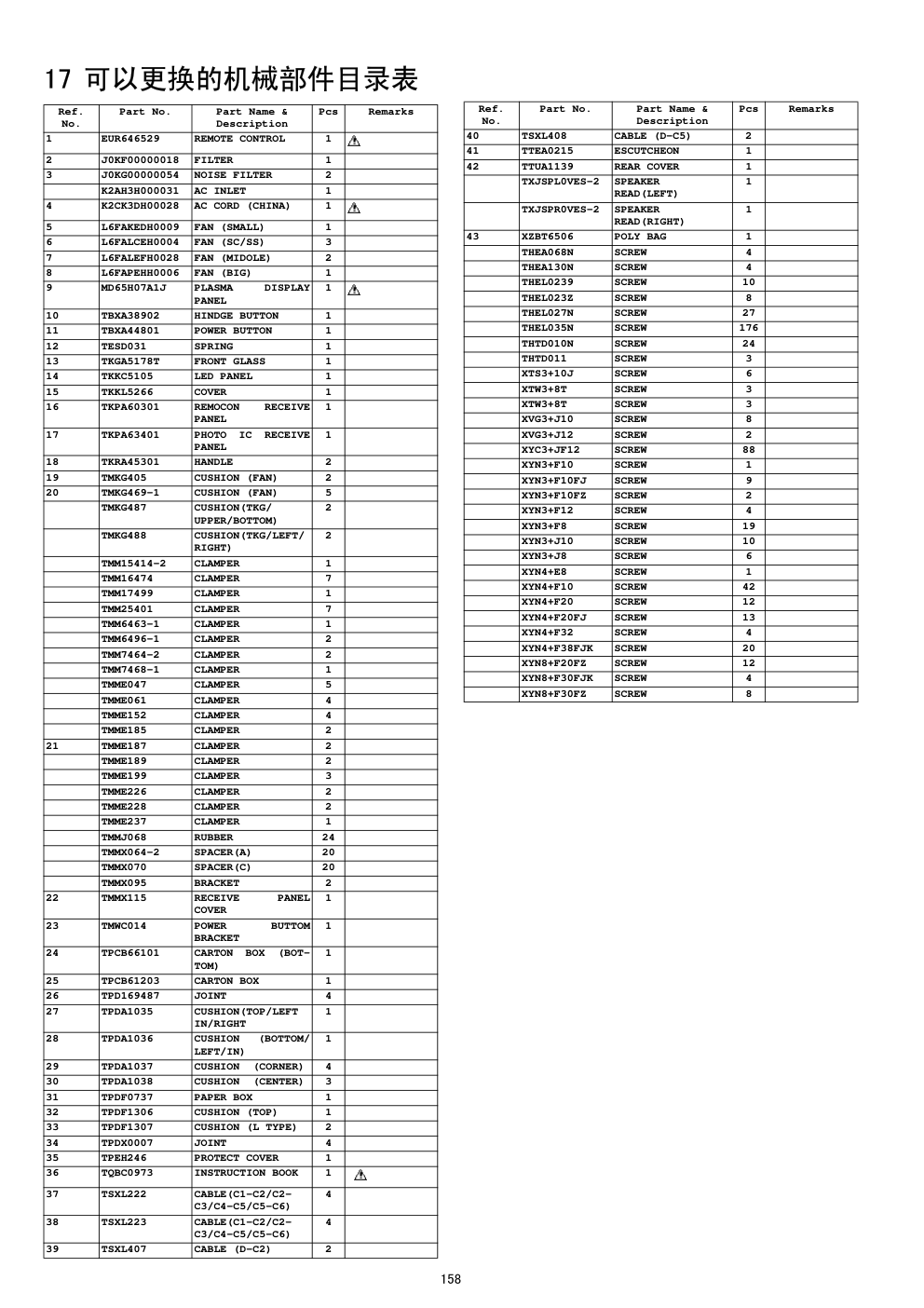

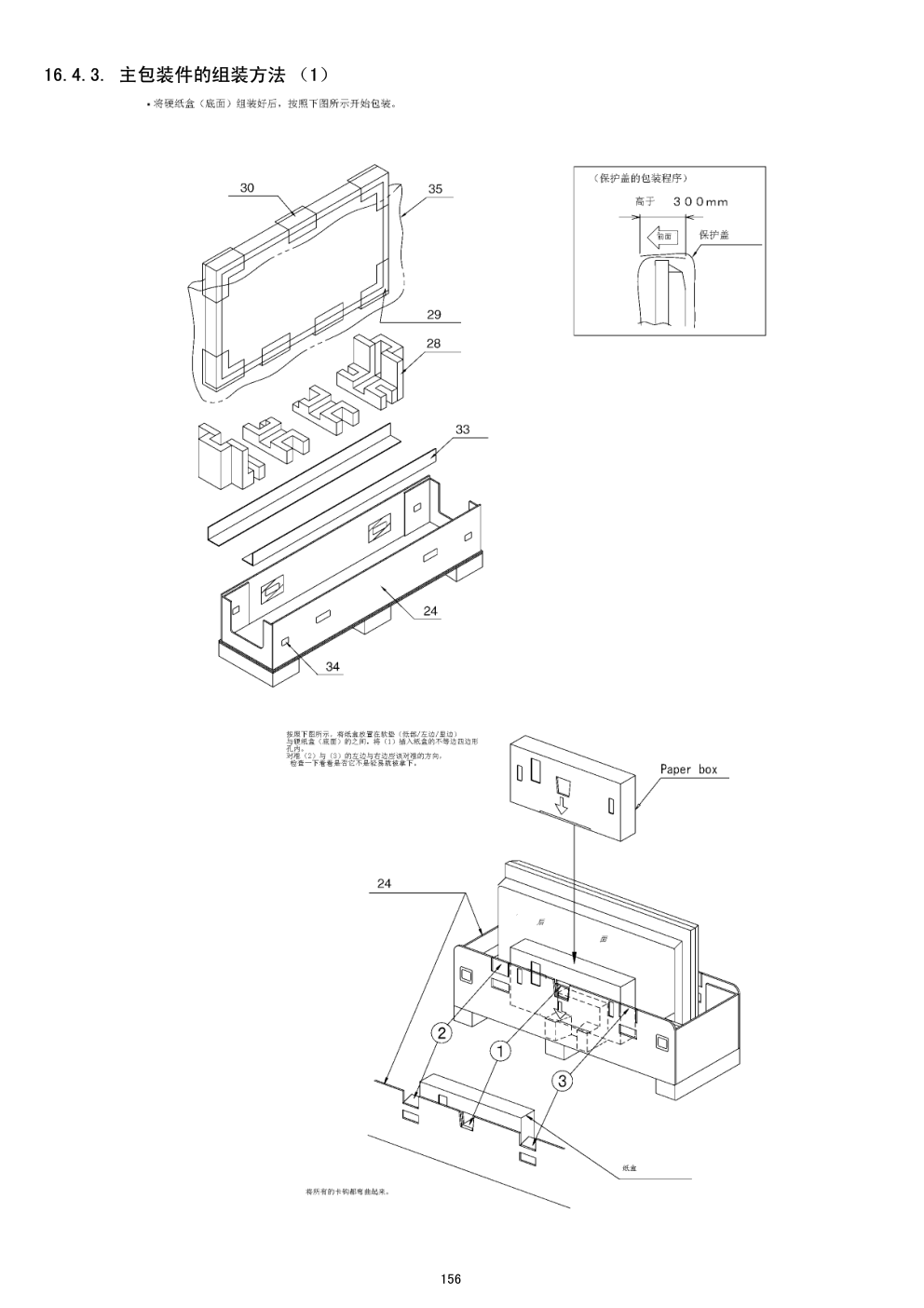

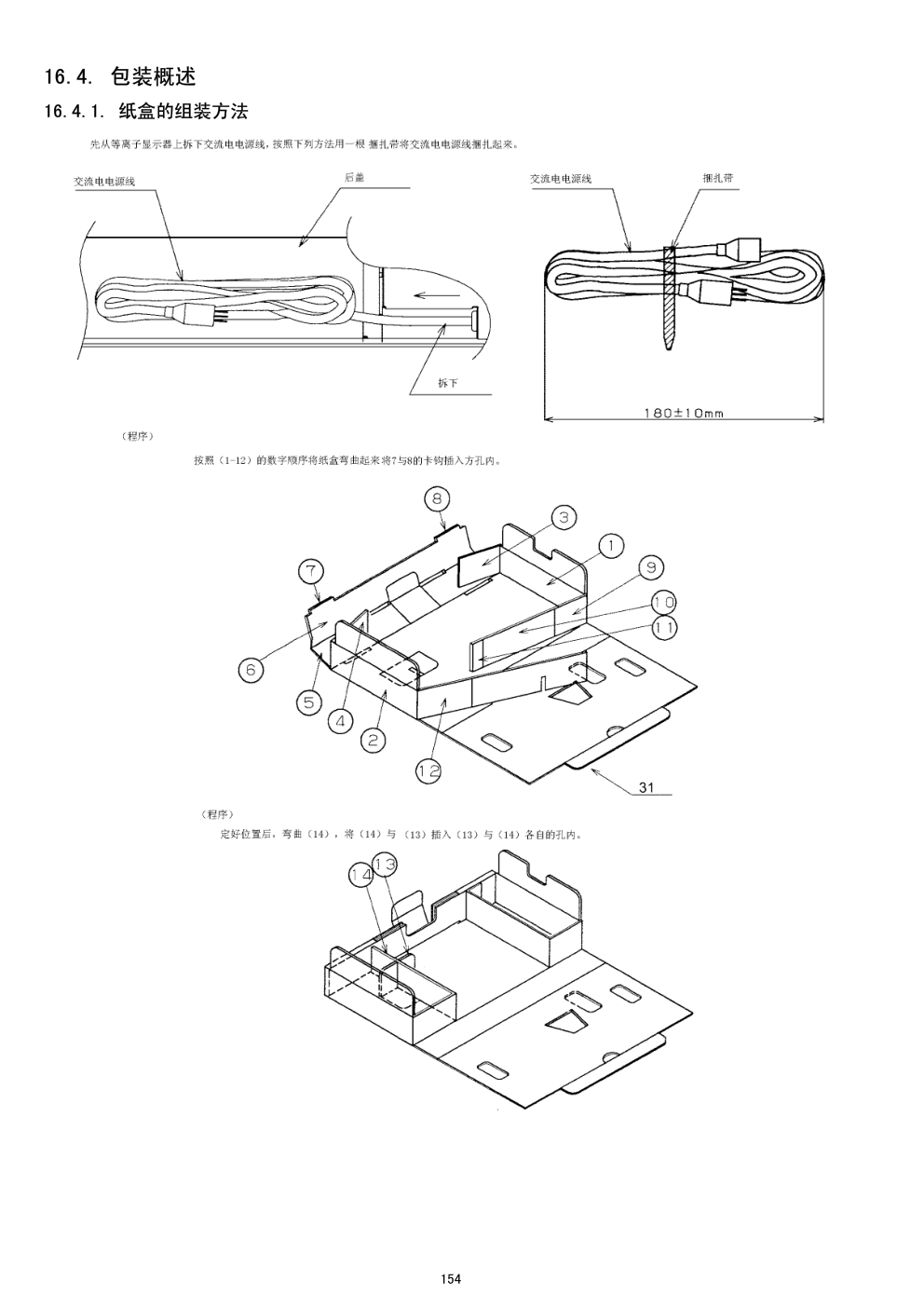

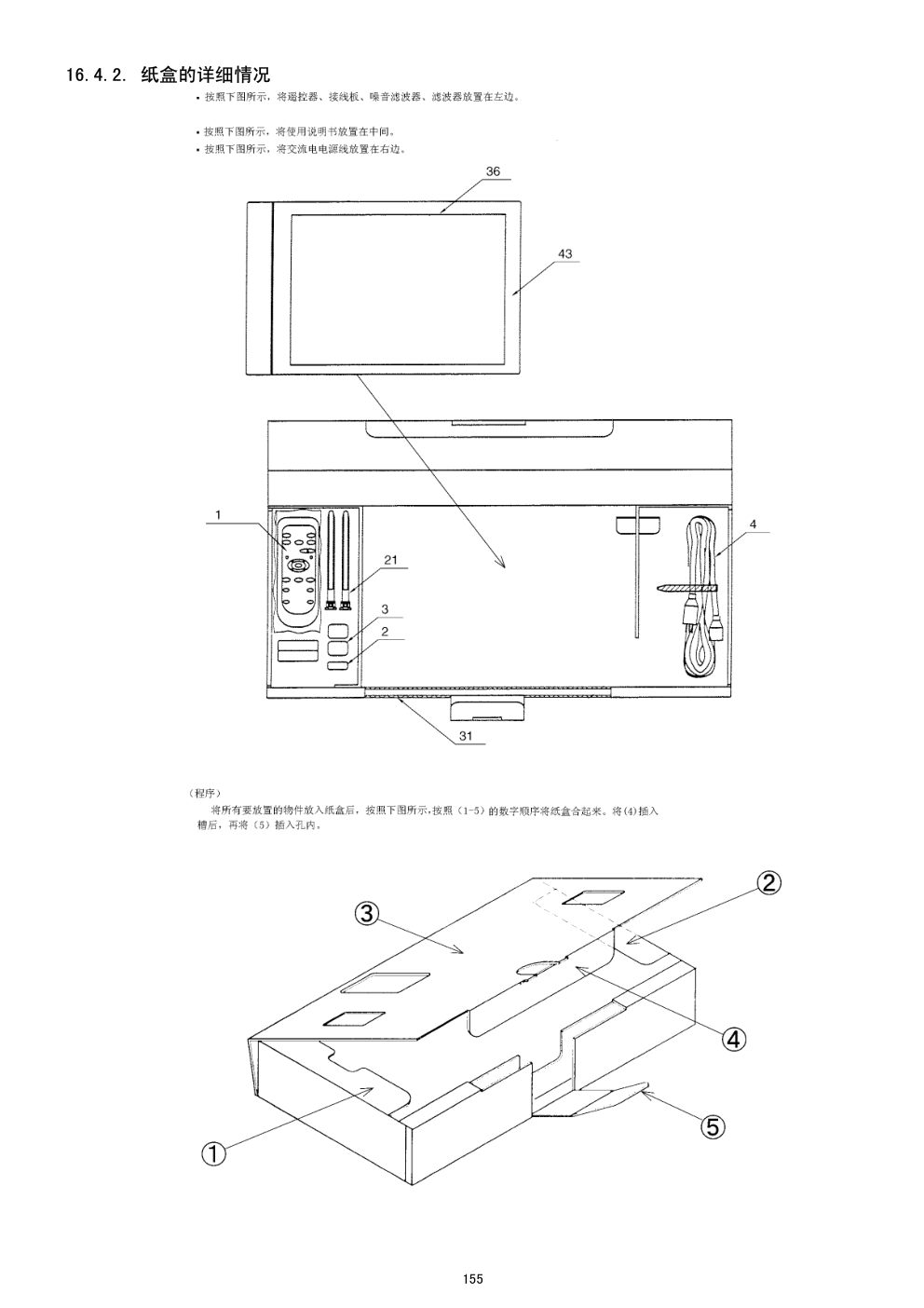

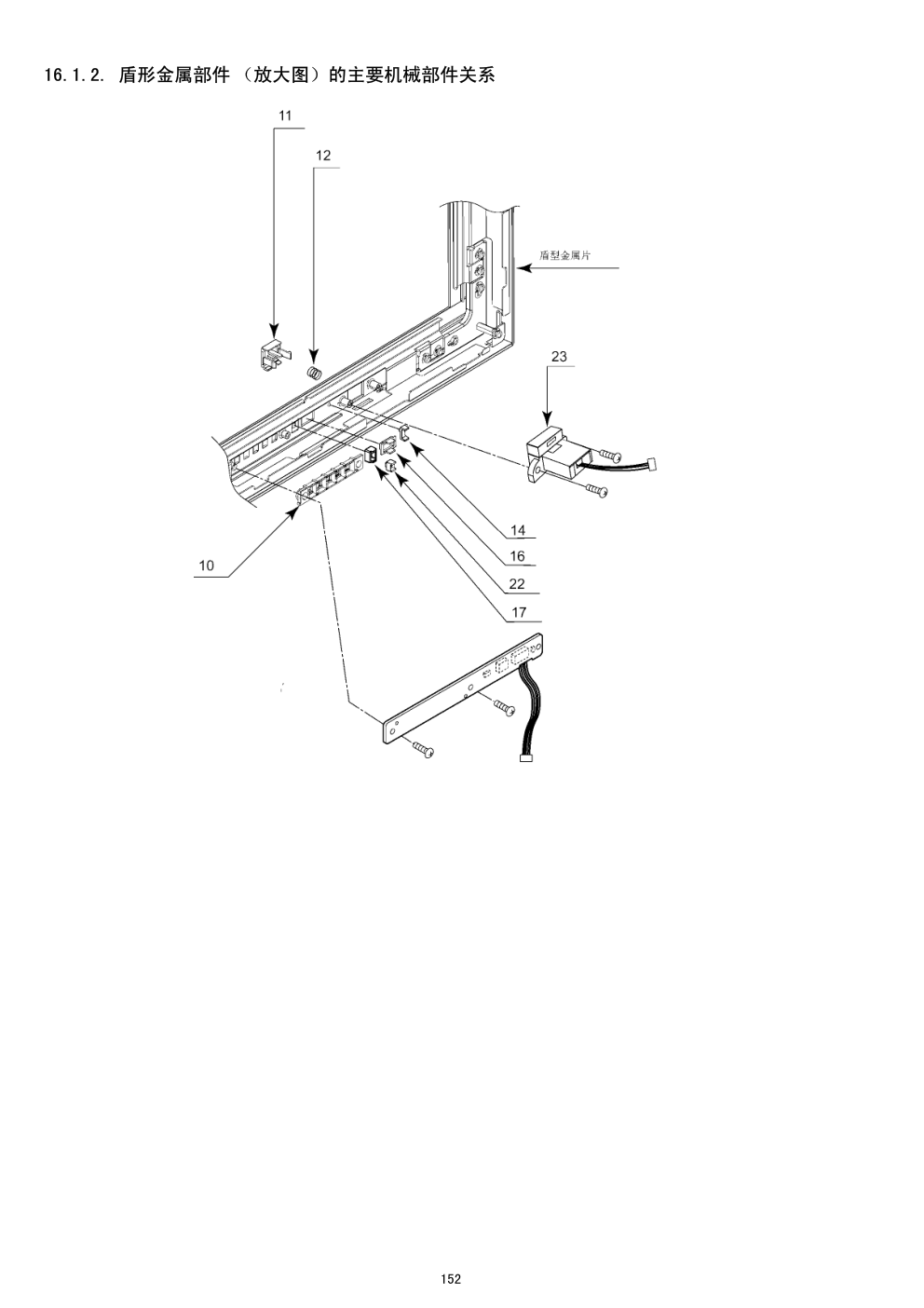

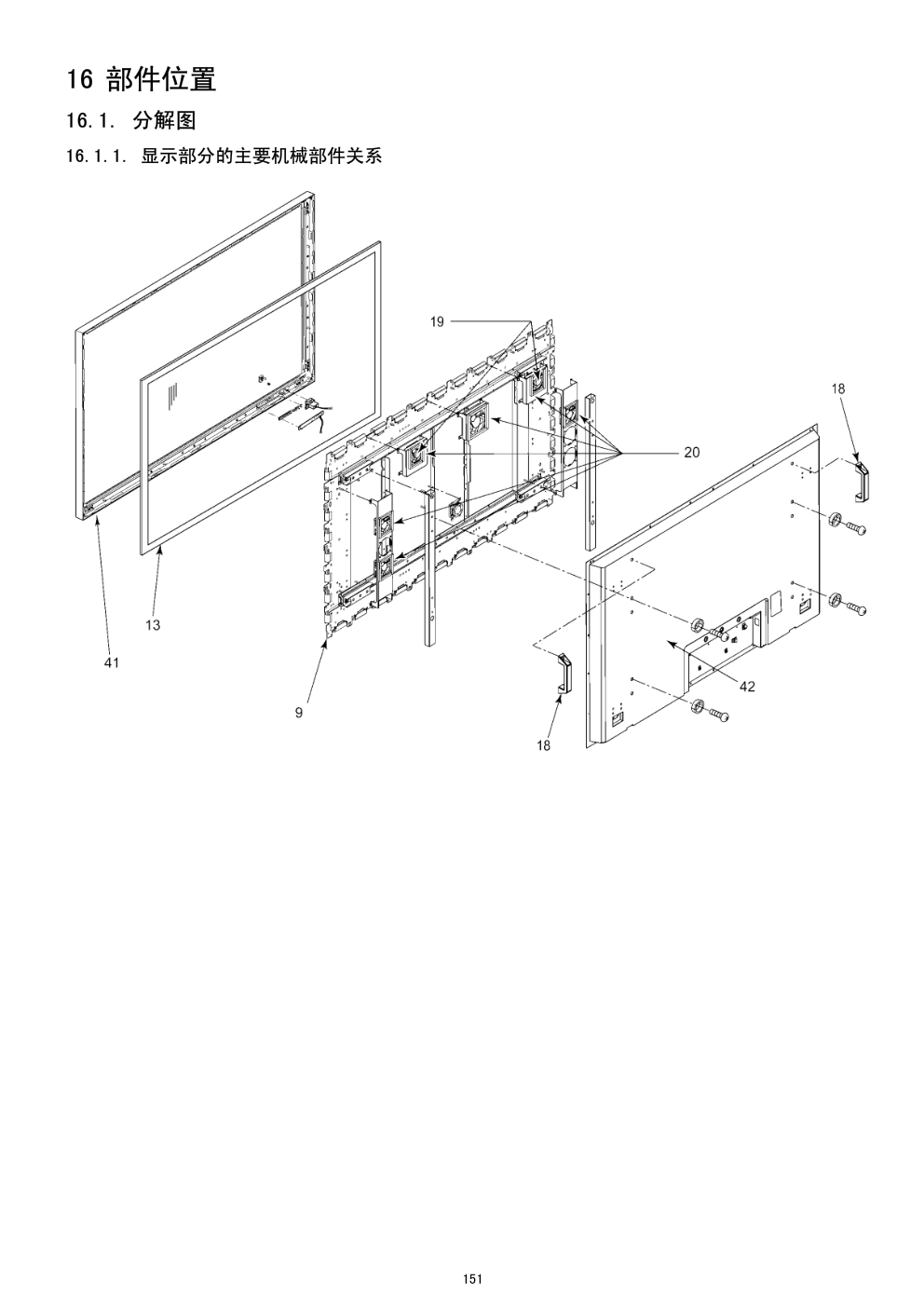

151 16 部件位置 16.1. 分解图 16.1.1. 显示部分的主要机械部件关系 152 16.1.2. 盾形金属部件 （放大图）的主要机械部件关系 153 16.2. 风扇与盖的位置 16.3. 线路关系 154 16.4. 包装概述 16.4.1. 纸盒的组装方法 155 16.4.2. 纸盒的详细情况 156 16.4.3. 主包装件的组装方法 （1） 157 16.4.4. 主包装件的组装方法 （2） 158 17 可以更换的机械部件目录表 Ref. No. Part No. Part Name & Description Pcs Remarks 1 EUR646529 REMOTE CONTROL 1 2 J0KF00000018 FILTER 1 3 J0KG00000054 NOISE FILTER 2 K2AH3H000031 AC INLET 1 4 K2CK3DH00028 AC CORD (CHINA) 1 5 L6FAKEDH0009 FAN (SMALL) 1 6 L6FALCEH0004 FAN (SC/SS) 3 7 L6FALEFH0028 FAN (MIDOLE) 2 8 L6FAPEHH0006 FAN (BIG) 1 9 MD65H07A1J PLASMA DISPLAY PANEL 1 10 TBXA38902 HINDGE BUTTON 1 11 TBXA44801 POWER BUTTON 1 12 TESD031 SPRING 1 13 TKGA5178T FRONT GLASS 1 14 TKKC5105 LED PANEL 1 15 TKKL5266 COVER 1 16 TKPA60301 REMOCON RECEIVE PANEL 1 17 TKPA63401 PHOTO IC RECEIVE PANEL 1 18 TKRA45301 HANDLE 2 19 TMKG405 CUSHION (FAN) 2 20 TMKG469-1 CUSHION (FAN) 5 TMKG487 CUSHION(TKG/ UPPER/BOTTOM) 2 TMKG488 CUSHION(TKG/LEFT/ RIGHT) 2 TMM15414-2 CLAMPER 1 TMM16474 CLAMPER 7 TMM17499 CLAMPER 1 TMM25401 CLAMPER 7 TMM6463-1 CLAMPER 1 TMM6496-1 CLAMPER 2 TMM7464-2 CLAMPER 2 TMM7468-1 CLAMPER 1 TMME047 CLAMPER 5 TMME061 CLAMPER 4 TMME152 CLAMPER 4 TMME185 CLAMPER 2 21 TMME187 CLAMPER 2 TMME189 CLAMPER 2 TMME199 CLAMPER 3 TMME226 CLAMPER 2 TMME228 CLAMPER 2 TMME237 CLAMPER 1 TMMJ068 RUBBER 24 TMMX064-2 SPACER(A) 20 TMMX070 SPACER(C) 20 TMMX095 BRACKET 2 22 TMMX115 RECEIVE PANEL COVER 1 23 TMWC014 POWER BUTTOM BRACKET 1 24 TPCB66101 CARTON BOX (BOT- TOM) 1 25 TPCB61203 CARTON BOX 1 26 TPD169487 JOINT 4 27 TPDA1035 CUSHION(TOP/LEFT IN/RIGHT 1 28 TPDA1036 CUSHION (BOTTOM/ LEFT/IN) 1 29 TPDA1037 CUSHION (CORNER) 4 30 TPDA1038 CUSHION (CENTER) 3 31 TPDF0737 PAPER BOX 1 32 TPDF1306 CUSHION (TOP) 1 33 TPDF1307 CUSHION (L TYPE) 2 34 TPDX0007 JOINT 4 35 TPEH246 PROTECT COVER 1 36 TQBC0973 INSTRUCTION BOOK 1 37 TSXL222 CABLE(C1-C2/C2- C3/C4-C5/C5-C6) 4 38 TSXL223 CABLE(C1-C2/C2- C3/C4-C5/C5-C6) 4 39 TSXL407 CABLE (D-C2) 2 40 TSXL408 CABLE (D-C5) 2 41 TTEA0215 ESCUTCHEON 1 42 TTUA1139 REAR COVER 1 TXJSPL0VES-2 SPEAKER READ(LEFT) 1 TXJSPR0VES-2 SPEAKER READ(RIGHT) 1 43 XZBT6506 POLY BAG 1 THEA068N SCREW 4 THEA130N SCREW 4 THEL0239 SCREW 10 THEL023Z SCREW 8 THEL027N SCREW 27 THEL035N SCREW 176 THTD010N SCREW 24 THTD011 SCREW 3 XTS3+10J SCREW 6 XTW3+8T SCREW 3 XTW3+8T SCREW 3 XVG3+J10 SCREW 8 XVG3+J12 SCREW 2 XYC3+JF12 SCREW 88 XYN3+F10 SCREW 1 XYN3+F10FJ SCREW 9 XYN3+F10FZ SCREW 2 XYN3+F12 SCREW 4 XYN3+F8 SCREW 19 XYN3+J10 SCREW 10 XYN3+J8 SCREW 6 XYN4+E8 SCREW 1 XYN4+F10 SCREW 42 XYN4+F20 SCREW 12 XYN4+F20FJ SCREW 13 XYN4+F32 SCREW 4 XYN4+F38FJK SCREW 20 XYN8+F20FZ SCREW 12 XYN8+F30FJK SCREW 4 XYN8+F30FZ SCREW 8 Ref. No. Part No. Part Name & Description Pcs Remarks 159 18 可以更换的部件目录表 18.1. 可以更换的机械部件目录表说明 160 18.2. 可以更换的电器部件目录表 Ref. No. Part No. Part Name & Description Pcs Remarks F902 K5D312BL0008 FUSE 1 F900.1.3. 4 K5D802BNA003 FUSE 4 C10 K1MN80B00002 CONNECTOR 1 C11 K1MN20B00043 20P CONNECTOR 1 C12 K1KA06A00183 6P CONNECTOR 1 C13 K1KA08A00293 8P CONNECTOR 1 C1530 ECJ3XB0J106M C 10UF, M,6.3V 1 C20,21 K1MN80B00002 CONNECTOR 2 C22,23 K1MN20B00043 20P CONNECTOR 2 C2312 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C2313 ECA1HHG470 E 47UF, 50V 1 C2314 ECA1EHG470 E 47UF, 25V 1 C2350,51 TCUY1C225KBM C 2.2UF, 16V 2 F1K1C225A026 C2352,53 ECA1HHG100 E 10UF, 50V 2 C2354,55 ECA1VM470 E 47UF, 35V 2 C2356,57 ECJ2XB1H102K C 1000PF, K, 50V 2 C2358,59 ECA1HM2R2 E 2.2UF, 50V 2 C2360,61 ECJ2XC1H102J C 1000PF, J, 50V 2 C2362,63 ECA1EM471 E 470UF, 25V 2 C2364,65 ECQV1H104JM P 0.1UF, J, 50V 2 C2366,67 ECQV1H225JM P 2.2UF, J, 50V 2 C2368,69 ECQV1H104JM P 0.1UF, J, 50V 2 C2370,71 ECA1VM470 E 47UF, 35V 2 C24,25 K1MN80B00002 CONNECTOR 2 C2419 ECA1HHG100 E 10UF, 50V 1 C2423 ECJ2XB1H103K C 0.01UF, K, 50V 1 C2426 ECJ2XB1H153K C 0.015UF, K, 50V 1 C2427 ECA1HHG100 E 10UF, 50V 1 C2429 EEAGA1C101 E 100UF, 16V 1 C2431 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C2433 ECJ2XB1H393K C 0.039UF, K, 50V 1 C2434 ECJ2XB1H223K C 0.022UF, K, 50V 1 C2435 ECJ2XB1H103K C 0.01UF, K, 50V 1 C2436 ECJ3VB1C104K C 0.10UF, K, 16V 1 C2437,38 EEAGA1C101 E 100UF, 16V 2 C2440,41 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 C2450 ECA1HHG100 E 10UF, 50V 1 C2451 ECA1HHG4R7 E 4.7UF, 50V 1 C2452 ECJ2XB1H562K C 5600PF, K, 50V 1 C2453 ECJ2VF1H104Z C 0.1UF, Z, 50V 1 C2454 ECA1HHG4R7 E 4.7UF, 50V 1 C2457 ECA1HHG4R7 E 4.7UF, 50V 1 C2458 ECJ2XC1H102J C 1000PF, J, 50V 1 C2459 ECJ3VB1C104K C 0.10UF, K, 16V 1 C2460 ECJ2XB1H473K C 0.047UF, K, 50V 1 C2461 ECJ2XC1H102J C 1000PF, J, 50V 1 C2463 ECJ2XB1H473K C 0.047UF, K, 50V 1 C2466,67 ECJ3VB1C104K C 0.10UF, K, 16V 2 C3001 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3002 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C3002 02 ECJ2XB1E104K C 0.1UF, K, 25V 1 C3003 EEVHP1A100 E 10UF, 10V 1 C3004 EEEHB1C470P C 47PF, J, 16V 1 C3004 02 EEVHP1A100 E 10UF, 10V 1 C3005 ECJ2XB1H682K C 6800PF, K, 50V 1 C3005 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3006 ECJ2XB1H682K C 6800PF, K, 50V 1 C3006 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3007 EEEHB1C470P C 47PF, J, 16V 1 C3007 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3008 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C3009 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3009 02 EEVHB1C470 E 47UF, 16V 1 C3010 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3011 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3011 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3012 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3012 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3013 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3013 02 ECJ2XB1H682K C 6800PF, K, 50V 1 C3014 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3014 02 EEVHB1C470 E 47UF, 16V 1 C3015 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3015 02 ECJ1XC1H470J C 47PF, J, 50V 1 C3016 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3016 02 ECJ1XC1H220J C 22PF, J, 50V 1 C3017 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3017 02 ECJ1XC1H680J C 68PF, J, 50V 1 C3018 EEEHB1C470P C 47PF, J, 16V 1 C3019 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3019 02 ECJ3YB0J335K C 33UF, J, 25V 1 C3020 TCUY1C225KBM C 2.2UF, 16V 1 F1K1C225A026 C3021 TCUY1C225KBM C 2.2UF, 16V 1 F1K1C225A026 C3021 02 ECJ2XB1H682K C 6800PF, K, 50V 1 C3022 02 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3022-31 TCUY1C225KBM C 2.2UF, 16V 10 F1K1C225A026 C3032 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3040,41 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3051-54 ECJ1XC1H561J C 560PF, J, 50V 4 C3055,56 ECJ2XB1H682K C 6800PF, K, 50V 2 C31 K1MN80B00002 CONNECTOR 1 C3101 TCUY1C225KBM C 2.2UF, 16V 1 F1K1C225A026 C3101 02 EEVHB0G221 E 220UF, 4V 1 C3102 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3102 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3103 TCUY1C225KBM C 2.2UF, 16V 1 F1K1C225A026 C3103 02 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3104 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3104,05 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3105 02 EEVHB0G221 E 220UF, 4V 1 C3106 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3106 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3107 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3107 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3108 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3108 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3109 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3109 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3110 TCUY1C225KBM C 2.2UF, 16V 1 F1K1C225A026 C3110 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3111 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3111 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3112 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3112 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3113 EEEHB1C470P C 47PF, J, 16V 1 C3113 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3114 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C3114 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3115 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3115 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3116 TCUY1C225KBM C 2.2UF, 16V 1 F1K1C225A026 Ref. No. Part No. Part Name & Description Pcs Remarks 161 C3116 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3117 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3117 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3118 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3118 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3119 TCUY1C225KBM C 2.2UF, 16V 1 F1K1C225A026 C3119 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3120 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3120 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3121 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3121 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3122 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3122 02 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3123 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3123 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3124 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3124 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3125 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3125 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3126 TCUY1C225KBM C 2.2UF, 16V 1 F1K1C225A026 C3126 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3127 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3127 02 ECJ2XB1H682K C 6800PF, K, 50V 1 C3128 EEEHB1C470P C 47PF, J, 16V 1 C3128 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3129 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C3129 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3130 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3130 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3131-02 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C3134 EEVHB1C471 E 470UF, 16V 1 C3135 EEVHB1C471 E 470UF, 16V 1 C3135 02 ECJ1VB1C103K C 0.01UF, K, 16V 1 C3136 EEVHB1C471 E 470UF, 16V 1 C3136 02 ECJ1XC1H330J C 33PF, J, 50V 1 C3137 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3138 ECJ3XB0J106M C 10UF, M,6.3V 1 C3139 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3140 ECJ1XC1H101J C 100PF, J, 50V 1 C3141 TCUY1C225KBM C 2.2UF, 16V 1 F1K1C225A026 C3141 02 ECJ1XB0J105K C 1UF, K, 16V 1 C3142 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3142,43 TCUY1C225KBM C 2.2UF, 16V 2 F1K1C225A026 C3144 TCUY1C225KBM C 2.2UF, 16V 1 F1K1C225A026 C3144 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3146 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3147 ECJ3XB0J106M C 10UF, M,6.3V 1 C3148 ECJ1XB0J105K C 1UF, K, 16V 1 C3149 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3150 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3150 02 ECJ1VB1C103K C 0.01UF, K, 16V 1 C3151 ECJ1XC1H330J C 33PF, J, 50V 1 C3152 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3153 ECJ1XC1H101J C 100PF, J, 50V 1 C3154 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3156 ECJ1XB0J105K C 1UF, K, 16V 1 C3157 ECJ3XB0J106M C 10UF, M,6.3V 1 C3158 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3159 EEVHB0G221 E 220UF, 4V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C3160,61 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3162-66 ECJ1VF1A105Z C 1UF, Z, 10V 5 C3167-78 ECJ1XB1C104K C 0.1UF, Z, 16V 12 C3179 EEVHB0G221 E 220UF, 4V 1 C3180-83 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C3184 EEVHB0G221 E 220UF, 4V 1 C3185 ECJ1XC1H060D C 6PF, D, 50V 1 C3186 ECJ1XC1H470J C 47PF, J, 50V 1 C3187 EEVHB0G221 E 220UF, 4V 1 C3188 ECJ1VF1A105Z C 1UF, Z, 10V 1 C32 K1KA20AA0009 20P CONNECTOR 1 C3200 ECJ2XB1H682K C 6800PF, K, 50V 1 C3202-06 ECJ1VF1A105Z C 1UF, Z, 10V 5 C3207 EEVHB0G221 E 220UF, 4V 1 C3208-14 ECJ1VF1A105Z C 1UF, Z, 10V 7 C3216,17 ECJ1VF1A105Z C 1UF, Z, 10V 2 C3218 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3219 EEVHB0J101P E 100UF, 6.3V 1 C3253 ECJ1XB1H102K C 1000UF, Z, 50V 1 C3254 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3255 ECJ1XB1H102K C 1000UF, Z, 50V 1 C3256 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3257 ECJ1XB1H102K C 1000UF, Z, 50V 1 C3258 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3259 ECJ1XB1H102K C 1000UF, Z, 50V 1 C3260 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3261 EEVHB0G221 E 220UF, 4V 1 C3262 ECJ1XB1H102K C 1000UF, Z, 50V 1 C3263,64 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3265 EEVHB0G221 E 220UF, 4V 1 C3266 02 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3266-68 EEVHB1C471 E 470UF, 16V 3 C33 K1MN20B00043 20P CONNECTOR 1 C3308 EEVHB0G221 E 220UF, 4V 1 C3309 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3311,12 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3313 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3315 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3316 ECJ2XB1H682K C 6800PF, K, 50V 1 C3317 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3318-21 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C3322,23 EEVHB0G221 E 220UF, 4V 2 C3324 EEVHB0J101P E 100UF, 6.3V 1 C3325,26 EEVHB1C470 E 47UF, 16V 2 C3327-30 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C3401 EEVHP1C100R E 10UF, 16V 1 C3404 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3405 EEEHB1C470P C 47PF, J, 16V 1 C3409 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C35 K1KA08A00293 8P CONNECTOR 1 C3507,08 ECJ3XB0J106M C 10UF, M,6.3V 2 C3510,11 ECJ2XB1H682K C 6800PF, K, 50V 2 C3520 EEVHB1C470 E 47UF, 16V 1 C3521 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3523 EEEHB1C470P C 47PF, J, 16V 1 C3523 02 EEVHB1C470 E 47UF, 16V 1 C3524 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C3524 02 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3525,26 ECJ2VF1C104Z C 0.1UF, Z, 16V 2 C3527 TCUY0J685MBM C 6.8UF, 6.3V 1 F1K0J685A003 C3550 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C3551 EEEHB1C470P C 47PF, J, 16V 1 C3561,62 ECJ2XB1H682K C 6800PF, K, 50V 2 C401 F0CAF105A021 C 1UF, 250V 1 C401 F0CAF105A021 C 1UF, 250V 1 C402 ECJ2XC1H101J C 100PF, J, 50V 1 C402 ECJ2XC1H101J C 100PF, J, 50V 1 C403 ECKCNA222MEB C 2200PF, M 1 C403 ECKCNA222MEB C 2200PF, M 1 C404 F0CAF105A021 C 1UF, 250V 1 C404 F0CAF105A021 C 1UF, 250V 1 C407 EEUEB2W220B E 22UF, 450V 1 C407 EEUEB2W220B E 22UF, 450V 1 C409 F0CAF105A021 C 1UF, 250V 1 Ref. No. Part No. Part Name & Description Pcs Remarks 162 C409 F0CAF105A021 C 1UF, 250V 1 C41 K1MN80B00002 CONNECTOR 1 C410 ECA1HM470 E 47UF, 50V 1 C410 ECA1HM470 E 47UF, 50V 1 C411 ECA1HM100 E 10UF, 50V 1 C411 ECA1HM100 E 10UF, 50V 1 C412 ECJ2XB1H103K C 0.01UF, K, 50V 1 C412 ECJ2XB1H103K C 0.01UF, K, 50V 1 C416 ECJ2XB1E104K C 0.1UF, K, 25V 1 C416 ECJ2XB1E104K C 0.1UF, K, 25V 1 C417 ECJ2XB1H103K C 0.01UF, K, 50V 1 C417 ECJ2XB1H103K C 0.01UF, K, 50V 1 C418 F1J1C1050011 C 1UF, Z, 50V 1 C418 F1J1C1050011 C 1UF, Z, 50V 1 C419 ECJ2XB1H104K C 0.1UF, K, 50V 1 C419 ECJ2XB1H104K C 0.1UF, K, 50V 1 C42 K1KA08A00293 8P CONNECTOR 1 C420 ECA1HM470 E 47UF, 50V 1 C420 ECA1HM470 E 47UF, 50V 1 C421,22 ECJ2XB1H103K C 0.01UF, K, 50V 2 C421,22 ECJ2XB1H103K C 0.01UF, K, 50V 2 C423 ECJ2XB1H472K C 4700PF, K, 50V 1 C423 ECJ2XB1H472K C 4700PF, K, 50V 1 C424 ECJ2XC1H101J C 100PF, J, 50V 1 C424 ECJ2XC1H101J C 100PF, J, 50V 1 C425 ECJ2XB1H102K C 1000PF, K, 50V 1 C425 ECJ2XB1H102K C 1000PF, K, 50V 1 C426 ECJ2XC1H471J C 470PF, J, 50V 1 C426 ECJ2XC1H471J C 470PF, J, 50V 1 C427 F1J1A1050002 C 1UF, Z, 50V 1 C427 F1J1A1050002 C 1UF, Z, 50V 1 C428 ECJ2XC1H221J C 220PF, J, 50V 1 C428 ECJ2XC1H221J C 220PF, J, 50V 1 C429,30 F1K2J1530002 C 0.15PF, J,630V 2 C429,30 F1K2J1530002 C 0.15PF, J,630V 2 C43 K1MN20B00043 20P CONNECTOR 1 C431 ECJ2XB1H102K C 1000PF, K, 50V 1 C431 ECJ2XB1H102K C 1000PF, K, 50V 1 C432 F1J1C1050011 C 1UF, Z, 50V 1 C432 F1J1C1050011 C 1UF, Z, 50V 1 C436 F1J1C1050011 C 1UF, Z, 50V 1 C436 F1J1C1050011 C 1UF, Z, 50V 1 C44 K1KA08A00232 8P CONNECTOR 1 C440 ECA1HM100 E 10UF, 50V 1 C440 ECA1HM100 E 10UF, 50V 1 C443,44 F1A3A102A040 C 1000PF, J, 1KV 2 C443,44 F1A3A102A040 C 1000PF, J, 1KV 2 C445 F1J1C1050011 C 1UF, Z, 50V 1 C445 F1J1C1050011 C 1UF, Z, 50V 1 C446 F2B2W4710005 C 470UF, 450V 1 C446 F2B2W4710005 C 470UF, 450V 1 C448 F2B2W4710005 C 470UF, 450V 1 C448 F2B2W4710005 C 470UF, 450V 1 C449,50 F1A3A102A040 C 1000PF, J, 1KV 2 C449,50 F1A3A102A040 C 1000PF, J, 1KV 2 C451 F1A3A101A040 C 100PF, J, 1KV 1 C451 F1A3A101A040 C 100PF, J, 1KV 1 C455 F1A3A221A040 E 220UF, 1KV 1 C455 F1A3A221A040 E 220UF, 1KV 1 C457 ECWH8203RHV P 0.020PF, J, 8KV 1 C457 ECWH8203RHV P 0.020PF, J, 8KV 1 C458 ECWH12223RHV P 0.022UF,J,1.2KV 1 C458 ECWH12223RHV P 0.022UF,J,1.2KV 1 C459 F1K2J1530002 C 0.15PF, J,630V 1 C459 F1K2J1530002 C 0.15PF, J,630V 1 C460,61 F1A3A331A039 E 330UF, 1KV 2 C460,61 F1A3A331A039 E 330UF, 1KV 2 C462 ECJ3YB1E105K C 1UF, K, 25V 1 C462 ECJ3YB1E105K C 1UF, K, 25V 1 C463 ECJ2XC1H220J C 22UF, J, 50V 1 C463 ECJ2XC1H220J C 22UF, J, 50V 1 C465 ECKCNA221KB7 C 220PF, M, 1 C465 ECKCNA221KB7 C 220PF, M, 1 C468 ECJ2XB1H103K C 0.01UF, K, 50V 1 C468 ECJ2XB1H103K C 0.01UF, K, 50V 1 C471 F1J1C1050011 C 1UF, Z, 50V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C471 F1J1C1050011 C 1UF, Z, 50V 1 C480 ECJ3YB1E105K C 1UF, K, 25V 1 C480 ECJ3YB1E105K C 1UF, K, 25V 1 C481 ECJ2XB1H103K C 0.01UF, K, 50V 1 C481 ECJ2XB1H103K C 0.01UF, K, 50V 1 C482 ECJ2XB1H104K C 0.1UF, K, 50V 1 C482 ECJ2XB1H104K C 0.1UF, K, 50V 1 C50,51 K1MN80B00002 CONNECTOR 2 C501,02 ECJ2XB1H103K C 0.01UF, K, 50V 2 C501,02 ECJ2XB1H103K C 0.01UF, K, 50V 2 C503 ECJ2XB1H104K C 0.1UF, K, 50V 1 C503 ECJ2XB1H104K C 0.1UF, K, 50V 1 C506 ECJ2XB1H103K C 0.01UF, K, 50V 1 C506 ECJ2XB1H103K C 0.01UF, K, 50V 1 C511 F1J1C1050011 C 1UF, Z, 50V 1 C511 F1J1C1050011 C 1UF, Z, 50V 1 C513,14 ECJ2XC1H471J C 470PF, J, 50V 2 C513,14 ECJ2XC1H471J C 470PF, J, 50V 2 C515 F2A1A122A118 E 1200UF, 10V 1 C515 F2A1A122A118 E 1200UF, 10V 1 C516 F1J1A1050002 C 1UF, Z, 50V 1 C516 F1J1A1050002 C 1UF, Z, 50V 1 C517 F2A1E221A096 E 220UF, 25V 1 C517 F2A1E221A096 E 220UF, 25V 1 C52,53 K1MN20B00043 20P CONNECTOR 2 C523 ECA1EM470 E 47UF, 25V 1 C523 ECA1EM470 E 47UF, 25V 1 C525 ECJ2XB1H103K C 0.01UF, K, 50V 1 C525 ECJ2XB1H103K C 0.01UF, K, 50V 1 C526 ECJ2XB1H104K C 0.1UF, K, 50V 1 C526 ECJ2XB1H104K C 0.1UF, K, 50V 1 C527 ECJ2XB1H102K C 1000PF, K, 50V 1 C527 ECJ2XB1H102K C 1000PF, K, 50V 1 C528 ECJ2XB1H104K C 0.1UF, K, 50V 1 C528 ECJ2XB1H104K C 0.1UF, K, 50V 1 C529 ECA1HM100 E 10UF, 50V 1 C529 ECA1HM100 E 10UF, 50V 1 C530 ECJ2VB1H333K C 0.033UF, K, 50V 1 C530 ECJ2VB1H333K C 0.033UF, K, 50V 1 C531,32 ECJ2XB1H104K C 0.1UF, K, 50V 2 C531,32 ECJ2XB1H104K C 0.1UF, K, 50V 2 C534 ECJ2XC1H681J C 680PF, J, 50V 1 C534 ECJ2XC1H681J C 680PF, J, 50V 1 C535 ECJ2XB1H103K C 0.01UF, K, 50V 1 C535 ECJ2XB1H103K C 0.01UF, K, 50V 1 C536 ECJ2XB1H104K C 0.1UF, K, 50V 1 C536 ECJ2XB1H104K C 0.1UF, K, 50V 1 C537 ECJ2XB1H102K C 1000PF, K, 50V 1 C537 ECJ2XB1H102K C 1000PF, K, 50V 1 C538 ECJ2XB1H103K C 0.01UF, K, 50V 1 C538 ECJ2XB1H103K C 0.01UF, K, 50V 1 C539 ECJ2VB1H333K C 0.033UF, K, 50V 1 C539 ECJ2VB1H333K C 0.033UF, K, 50V 1 C54,55 K1MN80B00002 CONNECTOR 2 C540 ECJ2VC1H821J C 820PF, J, 50V 1 C540 ECJ2VC1H821J C 820PF, J, 50V 1 C541 F1J1C1050011 C 1UF, Z, 50V 1 C541 F1J1C1050011 C 1UF, Z, 50V 1 C542 ECJ2XB1H103K C 0.01UF, K, 50V 1 C542 ECJ2XB1H103K C 0.01UF, K, 50V 1 C544 F1J1C1050011 C 1UF, Z, 50V 1 C544 F1J1C1050011 C 1UF, Z, 50V 1 C546 ECA1HM100 E 10UF, 50V 1 C546 ECA1HM100 E 10UF, 50V 1 C547 ECJ2VB1H333K C 0.033UF, K, 50V 1 C547 ECJ2VB1H333K C 0.033UF, K, 50V 1 C550 F2A1E1520089 E 1500UF, 25V 1 C550 F2A1E1520089 E 1500UF, 25V 1 C552 F1J1C1050011 C 1UF, Z, 50V 1 C552 F1J1C1050011 C 1UF, Z, 50V 1 C553,54 ECJ2XB1H104K C 0.1UF, K, 50V 2 C553,54 ECJ2XB1H104K C 0.1UF, K, 50V 2 C556 F2A1C1520009 E 1500UF, 16V 1 C556 F2A1C1520009 E 1500UF, 16V 1 C558 F2B2D2220003 E 2200UF, 200V 1 C558 F2B2D2220003 E 2200UF, 200V 1 Ref. No. Part No. Part Name & Description Pcs Remarks 163 C560 ECA2AHG102 E 1000UF, 100V 1 C560 ECA2AHG102 E 1000UF, 100V 1 C561 ECJ2XB1H103K C 0.01UF, K, 50V 1 C561 ECJ2XB1H103K C 0.01UF, K, 50V 1 C562 F2B2D2220003 E 2200UF, 200V 1 C562 F2B2D2220003 E 2200UF, 200V 1 C576 ECA1EM470 E 47UF, 25V 1 C576 ECA1EM470 E 47UF, 25V 1 C577 ECA2AM330 E 33UF, 100V 1 C577 ECA2AM330 E 33UF, 100V 1 C579 ECJ2XB1H223K C 0.022UF, K, 50V 1 C579 ECJ2XB1H223K C 0.022UF, K, 50V 1 C581 ECJ2XB1H223K C 0.022UF, K, 50V 1 C581 ECJ2XB1H223K C 0.022UF, K, 50V 1 C585,86 ECJ2XB1H104K C 0.1UF, K, 50V 2 C585,86 ECJ2XB1H104K C 0.1UF, K, 50V 2 C587 ECJ2XB1H103K C 0.01UF, K, 50V 1 C587 ECJ2XB1H103K C 0.01UF, K, 50V 1 C599 ECJ2XB1H104K C 0.1UF, K, 50V 1 C599 ECJ2XB1H104K C 0.1UF, K, 50V 1 C60 K1MN80B00002 CONNECTOR 1 C600,01 ECJ2XB1H103K C 0.01UF, K, 50V 2 C600,01 ECJ2XB1H103K C 0.01UF, K, 50V 2 C6015 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6016-19 F1L1E4750004 C 4.7UF, 25V 4 C602 ECJ2XB1H102K C 1000PF, K, 50V 1 C602 ECJ2XB1H102K C 1000PF, K, 50V 1 C603,04 ECJ2XB1H104K C 0.1UF, K, 50V 2 C603,04 ECJ2XB1H104K C 0.1UF, K, 50V 2 C6035 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6036-39 F1L1E4750004 C 4.7UF, 25V 4 C6040 F1L2E1040002 E 1000UF, 25V 1 C605 ECJ2XB1H103K C 0.01UF, K, 50V 1 C605 ECJ2XB1H103K C 0.01UF, K, 50V 1 C606 ECJ2XB1H102K C 1000PF, K, 50V 1 C606 ECJ2XB1H102K C 1000PF, K, 50V 1 C6060 ECJ3YB1E105K C 1UF, K, 25V 1 C6061,62 EEUFC1E221 E 220UF, 25V 2 C6063 ECA1EM101 E 100UF, 25V 1 C6064,65 TCUY1C105ZFN C 1UF, 16V 2 F1J1C1050006 C6066-69 ECJ2XB1H103K C 0.01UF, K, 50V 4 C6080-91 ECWF2205JS P 2UF, 250V 12 C609 ECJ2XB1H103K C 0.01UF, K, 50V 1 C609 ECJ2XB1H103K C 0.01UF, K, 50V 1 C61 K1MN20B00043 20P CONNECTOR 1 C610 F1J1C1050011 C 1UF, Z, 50V 1 C610 F1J1C1050011 C 1UF, Z, 50V 1 C6101-04 F1K2J222A014 C 2200UF, K,6.3V 4 C611 ECJ2XB1H103K C 0.01UF, K, 50V 1 C611 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6121-24 F1K2J222A014 C 2200UF, K,6.3V 4 C6130 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6131-34 F1L1E4750004 C 4.7UF, 25V 4 C6141-43 F1K2J222A014 C 2200UF, K,6.3V 3 C6145-47 F1K2J222A014 C 2200UF, K,6.3V 3 C6155-57 F1K2J222A014 C 2200UF, K,6.3V 3 C6159-61 F1K2J222A014 C 2200UF, K,6.3V 3 C6170-81 F2A2D221A022 E 220UF, 200V 12 C6185,86 ECWF2205JS P 2UF, 250V 2 C62 K1KA08A00293 8P CONNECTOR 1 C6200,01 ECA2CM101 E 100UF, 160V 2 C6202 EEUFC1E221 E 220UF, 25V 1 C6203 F1L2E1040002 E 1000UF, 25V 1 C6204-09 ECA2CM101 E 100UF, 160V 6 C6210-13 ECWF2205JS P 2UF, 250V 4 C6214 F1L1E4750004 C 4.7UF, 25V 1 C6215 EEUFC1E221 E 220UF, 25V 1 C6216 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6217,18 F1L1E4750004 C 4.7UF, 25V 2 C6220 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6221 F1L1E4750004 C 4.7UF, 25V 1 C6222 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6223 F1L1E4750004 C 4.7UF, 25V 1 C6224 EEUFC1E221 E 220UF, 25V 1 C6225 F1L1E4750004 C 4.7UF, 25V 1 C6226 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 Ref. No. Part No. Part Name & Description Pcs Remarks C6227 F1L1E4750004 C 4.7UF, 25V 1 C623 ECA1HM100 E 10UF, 50V 1 C623 ECA1HM100 E 10UF, 50V 1 C624 ECA1HM010 E 1UF, 50V 1 C624 ECA1HM010 E 1UF, 50V 1 C6240 ECA2AHG101 E 100UF, 100V 1 C6241 F1L2E1040002 E 1000UF, 25V 1 C625 ECA1HM100 E 10UF, 50V 1 C625 ECA1HM100 E 10UF, 50V 1 C6255 ECJ3XB2J222K C 2200PF, K,630V 1 C6256 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6257 ECJ3YB1E105K C 1UF, K, 25V 1 C6258 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6259-62 F1L1E4750004 C 4.7UF, 25V 4 C626 ECJ2XB1H103K C 0.01UF, K, 50V 1 C626 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6264 ECJ3YB1E105K C 1UF, K, 25V 1 C6265 F1L1E4750004 C 4.7UF, 25V 1 C6266 EEUFC1E102 E 1000UF, 25V 1 C6269,70 F2A2D221A022 E 220UF, 200V 2 C6271 ECWF2205JS P 2UF, 250V 1 C6273 F1L1E4750004 C 4.7UF, 25V 1 C6275 F1L1E4750004 C 4.7UF, 25V 1 C6281-83 ECJ3XB2J222K C 2200PF, K,630V 3 C6297 EEUFC1C122 E 1200UF, 16V 1 C6298 ECQV1H104JM P 0.1UF, J, 50V 1 C6299 ECA1EHG221 E 220UF, 25V 1 C6401-12 F2A2D221A022 E 220UF, 200V 12 C6413,14 ECWF2205JS P 2UF, 250V 2 C6421 ECJ3YB1E105K C 1UF, K, 25V 1 C6422 EEUFC1E221 E 220UF, 25V 1 C6424 EEUFC1E221 E 220UF, 25V 1 C6425,26 EEUFC1E470 E 47UF, 25V 2 C6432-35 TCUY1C105ZFN C 1UF, 16V 4 F1J1C1050006 C6436 ECJ3YB1E105K C 1UF, K, 25V 1 C6437 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6440-45 TCUY1C105ZFN C 1UF, 16V 6 F1J1C1050006 C6446 EEUFC1E470 E 47UF, 25V 1 C6447 F1L1E4750004 C 4.7UF, 25V 1 C6450 F1L1E4750004 C 4.7UF, 25V 1 C6453 EEUFC1E221 E 220UF, 25V 1 C6501-12 ECWF2205JS P 2UF, 250V 12 C6513 F1K2J222A014 C 2200UF, K,6.3V 1 C6516 F1K2J222A014 C 2200UF, K,6.3V 1 C6518,19 F1K2J222A014 C 2200UF, K,6.3V 2 C6524,25 F1K2J222A014 C 2200UF, K,6.3V 2 C6527,28 F1K2J222A014 C 2200UF, K,6.3V 2 C6533,34 F1K2J222A014 C 2200UF, K,6.3V 2 C6536 F1K2J222A014 C 2200UF, K,6.3V 1 C6539,40 F1K2J222A014 C 2200UF, K,6.3V 2 C6542 F1K2J222A014 C 2200UF, K,6.3V 1 C6547,48 F1K2J222A014 C 2200UF, K,6.3V 2 C6550 F1K2J222A014 C 2200UF, K,6.3V 1 C6553,54 F1K2J222A014 C 2200UF, K,6.3V 2 C6556 F1K2J222A014 C 2200UF, K,6.3V 1 C6559,60 F1L1E4750004 C 4.7UF, 25V 2 C6562 F1L1E4750004 C 4.7UF, 25V 1 C6563 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6580,81 F1L2E1040002 E 1000UF, 25V 2 C6582 F1L1E4750004 C 4.7UF, 25V 1 C6584,85 F1L1E4750004 C 4.7UF, 25V 2 C6586 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6587-90 F1L1E4750004 C 4.7UF, 25V 4 C6591 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6594,95 F1L1E4750004 C 4.7UF, 25V 2 C6596 ECJ3YB1E105K C 1UF, K, 25V 1 C6597 EEUFC1E470 E 47UF, 25V 1 C6611 F1L1E4750004 C 4.7UF, 25V 1 C6612,13 ECJ3FC2D102J C 1000PF, J,200V 2 C6614 ECA2EHG470 E 47UF, 250V 1 C6615 ECA1VM470 E 47UF, 35V 1 C6616,17 F1L1E4750004 C 4.7UF, 25V 2 C6618 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6619 ECJ3YB1E105K C 1UF, K, 25V 1 C6620 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6621,22 F1L1E4750004 C 4.7UF, 25V 2 Ref. No. Part No. Part Name & Description Pcs Remarks 164 C6623 ECQE2105RKB P 1UF, 250V 1 C6624 F1L1E4750004 C 4.7UF, 25V 1 C6626 F1L1E4750004 C 4.7UF, 25V 1 C6627-29 TCUY1C105ZFN C 1UF, 16V 3 F1J1C1050006 C6630-32 ECJ3FC2D102J C 1000PF, J,200V 3 C6634,35 F1L1E4750004 C 4.7UF, 25V 2 C6636,37 ECA2CM101 E 100UF, 160V 2 C6638 F1L1E4750004 C 4.7UF, 25V 1 C6639 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6651-56 TCUY1C105ZFN C 1UF, 16V 6 F1J1C1050006 C6657 ECJ2XC1H102J C 1000PF, J, 50V 1 C6658 ECA1HM101 E 100UF, 50V 1 C6659-62 F1L1E4750004 C 4.7UF, 25V 4 C6701-04 ECA2CM101 E 100UF, 160V 4 C6706 F1L2E1040002 E 1000UF, 25V 1 C6707 F1L1E4750004 C 4.7UF, 25V 1 C6709 F1L1E4750004 C 4.7UF, 25V 1 C6711-14 ECWF2205JS P 2UF, 250V 4 C6715 F1L1E4750004 C 4.7UF, 25V 1 C6716 EEUFC1E221 E 220UF, 25V 1 C6717 F1L1E4750004 C 4.7UF, 25V 1 C6718 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6719 EEUFC1E221 E 220UF, 25V 1 C6720,21 F1L1E4750004 C 4.7UF, 25V 2 C6722 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6724,25 F1L1E4750004 C 4.7UF, 25V 2 C6726,27 TCUY1C105ZFN C 1UF, 16V 2 F1J1C1050006 C6730-32 ECJ2XB1H103K C 0.01UF, K, 50V 3 C6735 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6736 F1L1E4750004 C 4.7UF, 25V 1 C6801,02 ECA2CM101 E 100UF, 160V 2 C6803 ECQE2105RKB P 1UF, 250V 1 C6804 F2A2D1510004 E 150UF, 200V 1 C6805 ECQE2105RKB P 1UF, 250V 1 C6806 ECA2EHG470 E 47UF, 250V 1 C6807 ECA1HM221 E 220UF, 50V 1 C6808,09 ECA2CM101 E 100UF, 160V 2 C6812-15 F1K2J222A014 C 2200UF, K,6.3V 4 C6816 F2A2G100A017 E 100UF, 400V 1 C6818 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6819 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6820 ECJ2XB1H472K C 4700PF, K, 50V 1 C6821 EEUFC1E221 E 220UF, 25V 1 C6822 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6823 F1K2J222A014 C 2200UF, K,6.3V 1 C6824 ECA2EHG470 E 47UF, 250V 1 C6825 ECQE6223KF P 0.022UF, K,400V 1 C6826 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6828 EEUFC1V151 E 150UF, 35V 1 C6829 ECA2DHG330 E 33UF, 200V 1 C6830 F1L1E4750004 C 4.7UF, 25V 1 C6831 EEUFC1E470 E 47UF, 25V 1 C6833 F1L1E4750004 C 4.7UF, 25V 1 C6834 ECJ2XC1H102J C 1000PF, J, 50V 1 C6835 ECJ2XC1H471J C 470PF, J, 50V 1 C6836 ECKD3D221KBP C 220PF, K, 2KV 1 C6900 ECJ2XB1H222K C 2200PF, K, 50V 1 C6901 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6904 ECJ2XB1H222K C 2200PF, K, 50V 1 C6905,06 F1L2E1040002 E 1000UF, 25V 2 C6907 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6909 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6911 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6913,14 F1L2E1040002 E 1000UF, 25V 2 C6915 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6918 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6920 ECJ2XB1H222K C 2200PF, K, 50V 1 C6921 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6923,24 F1L2E1040002 E 1000UF, 25V 2 C6925 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6927 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6929 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6931,32 F1L2E1040002 E 1000UF, 25V 2 C6934 ECJ2XB1H222K C 2200PF, K, 50V 1 C6935 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6938 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 Ref. No. Part No. Part Name & Description Pcs Remarks C700 F1J1C1050011 C 1UF, Z, 50V 1 C701 ECA1EM101 E 100UF, 25V 1 C702 F1J1C1050011 C 1UF, Z, 50V 1 C703 ECJ2XB1H103K C 0.01UF, K, 50V 1 C705-07 ECJ2XB1H103K C 0.01UF, K, 50V 3 C708 F1J1C1050011 C 1UF, Z, 50V 1 C709 ECJ2XB1H102K C 1000PF, K, 50V 1 C7101,02 TCUY1C105ZFN C 1UF, 16V 2 F1J1C1050006 C710-12 ECJ2XB1H103K C 0.01UF, K, 50V 3 C7107-10 ECJ3XB2A104K C 0.10UF, Z, 6.3V 4 C7111-14 ECJ1XC1H101J C 100PF, J, 50V 4 C7115-18 ECJ3XB2A104K C 0.10UF, Z, 6.3V 4 C7125,26 TCUY1C105ZFN C 1UF, 16V 2 F1J1C1050006 C7129 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7130 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7131-34 TCUY1C105ZFN C 1UF, 16V 4 F1J1C1050006 C7135-38 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C7139 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7150-53 ECJ1XC1H101J C 100PF, J, 50V 4 C7201 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7202 ECJ1XC1H101J C 100PF, J, 50V 1 C7203 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7206 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7208 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7212 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7213,14 ECJ3XB2A104K C 0.10UF, Z, 6.3V 2 C7215 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7216 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7217,18 ECJ3XB2A104K C 0.10UF, Z, 6.3V 2 C7221 ECJ1XC1H101J C 100PF, J, 50V 1 C7222 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7223,24 TCUY1C105ZFN C 1UF, 16V 2 F1J1C1050006 C7225 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7226 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7227 ECJ1XC1H101J C 100PF, J, 50V 1 C7230 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7231 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7238-40 ECJ1XC1H101J C 100PF, J, 50V 3 C7256 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7257 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7258 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7259 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7260 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7261 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7262 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7263 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7264 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7265 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7266 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7267 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7268 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7269 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7270 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7271 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7301 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7303 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7304 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7305-07 TCUY1C105ZFN C 1UF, 16V 3 F1J1C1050006 C7308,09 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7310 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7311,12 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7315,16 TCUY1C105ZFN C 1UF, 16V 2 F1J1C1050006 C7323 ECJ1XC1H101J C 100PF, J, 50V 1 C7324,25 ECJ3XB2A104K C 0.10UF, Z, 6.3V 2 C7326 ECJ1XC1H101J C 100PF, J, 50V 1 C7327,28 ECJ3XB2A104K C 0.10UF, Z, 6.3V 2 C7329 ECJ1XC1H101J C 100PF, J, 50V 1 C7331-34 ECJ3XB2A104K C 0.10UF, Z, 6.3V 4 C7339,40 TCUY1C105ZFN C 1UF, 16V 2 F1J1C1050006 Ref. No. Part No. Part Name & Description Pcs Remarks 165 C7350-54 ECJ1XC1H101J C 100PF, J, 50V 5 C7401,02 TCUY1C105ZFN C 1UF, 16V 2 F1J1C1050006 C7403 ECJ1XC1H101J C 100PF, J, 50V 1 C7404 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7406 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7408-11 TCUY1C105ZFN C 1UF, 16V 4 F1J1C1050006 C7412-15 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C7418,19 TCUY1C105ZFN C 1UF, 16V 2 F1J1C1050006 C7424-27 ECJ3XB2A104K C 0.10UF, Z, 6.3V 4 C7428-31 ECJ1XC1H101J C 100PF, J, 50V 4 C7432-35 ECJ3XB2A104K C 0.10UF, Z, 6.3V 4 C7440,41 TCUY1C105ZFN C 1UF, 16V 2 F1J1C1050006 C7451-54 ECJ1XC1H101J C 100PF, J, 50V 4 C7501 ECJ1XC1H101J C 100PF, J, 50V 1 C7502 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7506,07 ECJ3XB2A104K C 0.10UF, Z, 6.3V 2 C7511,12 TCUY1C105ZFN C 1UF, 16V 2 F1J1C1050006 C7513 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7516,17 ECJ3XB2A104K C 0.10UF, Z, 6.3V 2 C7518 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7519 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7520 ECJ1XC1H101J C 100PF, J, 50V 1 C7521 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7522 ECJ1XC1H101J C 100PF, J, 50V 1 C7523,24 ECJ3XB2A104K C 0.10UF, Z, 6.3V 2 C7525 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7527 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7529 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7530 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7540-42 ECJ1XC1H101J C 100PF, J, 50V 3 C7558 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7559 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7560 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7561 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7562 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7563 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7564 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7565 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7566 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7567 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7568 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7569 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7570 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7571 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7572 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7573 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7601,02 TCUY1C105ZFN C 1UF, 16V 2 F1J1C1050006 C7607-10 ECJ3XB2A104K C 0.10UF, Z, 6.3V 4 C7611-14 ECJ1XC1H101J C 100PF, J, 50V 4 C7615-18 ECJ3XB2A104K C 0.10UF, Z, 6.3V 4 C7623,24 TCUY1C105ZFN C 1UF, 16V 2 F1J1C1050006 C7629 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7630 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7631-34 TCUY1C105ZFN C 1UF, 16V 4 F1J1C1050006 C7635-38 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C7640 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7649-52 ECJ1XC1H101J C 100PF, J, 50V 4 C8001 EEEHB1C470P C 47PF, J, 16V 1 C8002,03 ECJ1VF1H104Z C 0.1UF, Z, 50V 2 C8005,06 ECJ1VF1H103Z C 0.01UF, Z, 50V 2 C8007,08 ECJ1XC1H101J C 100PF, J, 50V 2 C8009 ECJ3XB0J106M C 10UF, M,6.3V 1 C8011 ECJ3XB0J106M C 10UF, M,6.3V 1 C8013,14 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C8015 ECJ3YF1A106Z C 10UF, Z, 10V 1 C8016 ECJ3YB1A475K C 0.047UF, K, 10V 1 C8017 ECJ3YF1A106Z C 10UF, Z, 10V 1 C8018 ECJ3YB1A475K C 0.047UF, K, 10V 1 C8019,20 ECJ1VB1H103K C 0.01UF, K, 50V 2 C802 EEUFC1E471 E 470UF, 25V 1 C8021,22 ECJ3VB1C474K C 0.47UF, K, 16V 2 Ref. No. Part No. Part Name & Description Pcs Remarks C8023-26 ECJ1VB1H103K C 0.01UF, K, 50V 4 C8027 TCUY1C225KBM C 2.2UF, 16V 1 F1K1C225A026 C8029 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C803 EEUFC1E331 E 330UF, 25V 1 C8030 EEEHB1C470P C 47PF, J, 16V 1 C8031 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8032 EEEHB1C470P C 47PF, J, 16V 1 C8033,34 ECJ1XC1H102J C 1000PF, J, 50V 2 C8035 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8036,37 ECJ1XC1H101J C 100PF, J, 50V 2 C8038,39 ECJ2XC1H102J C 1000PF, J, 50V 2 C8041 TCUY1C225KBM C 2.2UF, 16V 1 F1K1C225A026 C8043 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8045 ECJ2XB1H682K C 6800PF, K, 50V 1 C8049,50 ECJ2VF1H103Z C 0.01UF, Z, 50V 2 C805 EEUFC1C102 E 1000UF, 16V 1 C8051 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C806 EEUFC1A102 E 1000UF, 10V 1 C807 ECJ2VF1H104Z C 0.1UF, Z, 50V 1 C8070 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C8071 EEEHB1C470P C 47PF, J, 16V 1 C8072,73 ECJ3YF1A106Z C 10UF, Z, 10V 2 C808,09 ECQB1H103JF P 0.01UF, J, 50V 2 C8080-83 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C8084 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C810 EEUFC1E561 E 560UF, 25V 1 C8100 EEEHB1C470P C 47PF, J, 16V 1 C8101 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8102-07 EEEHB1C470P C 47PF, J, 16V 6 C8108,09 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C811 ECQB1H103JF P 0.01UF, J, 50V 1 C8110 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8111-13 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C8114 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C8115 EEEHB1C470P C 47PF, J, 16V 1 C8116,17 ECJ1VF1H103Z C 0.01UF, Z, 50V 2 C8118 EEEHB1C470P C 47PF, J, 16V 1 C8119 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C812 ECQB1H104JF P 0.1UF, J, 50V 1 C8120 EEEHB1C470P C 47PF, J, 16V 1 C8121 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8122 EEEHB1C470P C 47PF, J, 16V 1 C8123 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C813 ECQB1H473JF P 0.047UF, J, 50V 1 C814 EEUFC0J152 E 1500UF, 6.3V 1 C815 ECQB1H104JF P 0.1UF, J, 50V 1 C816 ECQB1H682JF3 P 6800PF, J, 50V 1 C817 ECA1EHG221 E 220UF, 25V 1 C818 EEUFC1C122 E 1200UF, 16V 1 C8181,82 ECJ1XC1H150J C 15PF, J, 50V 2 C8183 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8185 EECS5R5H155 E 1.5UF, 5.5V 1 C819 ECQB1H104JF P 0.1UF, J, 50V 1 C8200 EEEHB1C470P C 47PF, J, 16V 1 C9000,01 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9002 ECJ1XC1H101J C 100PF, J, 50V 1 C9003 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9005 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C901,02 ECQU2A105BN9 P 1UF, 250V 2 C9013 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9015,16 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9018 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9019 ECJ1XF1H102Z C 1000PF, Z, 50V 1 C9020 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9021 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9022 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9024 EEEHB1C470P C 47PF, J, 16V 1 C9025,26 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9028 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9029 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9030 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9031 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9033,34 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9035 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9036 ECJ1XC1H220J C 22PF, J, 50V 1 C9037 ECJ1VC1H270J C 27PF, J, 50V 1 Ref. No. Part No. Part Name & Description Pcs Remarks 166 C9038,39 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C904 ECQU2A105MGA P 1UF, 250V 1 C9041 ECJ1XF1H102Z C 1000PF, Z, 50V 1 C9043-45 TCUY1C105ZFN C 1UF, 16V 3 F1J1C1050006 C9046 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9047 ECJ1XC1H101J C 100PF, J, 50V 1 C9048 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9049 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C905,06 ECKDNA101KB7 C 100PF 2 C9050 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9051 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C907,08 ECKCNA221KB7 C 220PF, M, 2 C910 EETHC2W101J C 4700PF, Z,450V 1 C911 ECQE6223KF P 0.022UF, K,400V 1 C912 EEUEB1H100SB E 100UF, 25V 1 C913 ECJ2XC1H221J C 220PF, J, 50V 1 C914 ECKD3D221KBN C 220PF, K, 2KV 1 C915 ECJ2XC1H471J C 470PF, J, 50V 1 C916 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C917 EEUEB1H100SB E 100UF, 25V 1 C918 ECJ2XC1H222J C 2200PF, J, 50V 1 C919 ECJ2XF1H224Z C 0.22UF, Z, 50V 1 C920 ECKDNA471KB7 C 470PF, Z, 1 C9200 ECJ3XB0J106M C 10UF, M,6.3V 1 C9201 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9202 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9203 ECJ3XB0J106M C 10UF, M,6.3V 1 C9204,05 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9206 EEEHB0G221P C 220PF, J, 4V 1 C9207-09 ECJ3XB0J106M C 10UF, M,6.3V 3 C9210-13 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C921-23 ECQU2A224BN9 P 0.22UF, 250V 3 C9215,16 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9219 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9220 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9222 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9226 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9227 ECJ3XB0J106M C 10UF, M,6.3V 1 C9228 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9229,30 ECJ3XB0J106M C 10UF, M,6.3V 2 C9231,32 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9233,34 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9235 ECJ3XB0J106M C 10UF, M,6.3V 1 C9236 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9237,38 ECJ3XB0J106M C 10UF, M,6.3V 2 C9239,40 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9241 ECJ2XB1H103K C 0.01UF, K, 50V 1 C9242 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9243,44 ECJ2XB1H103K C 0.01UF, K, 50V 2 C9245 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9246-48 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9249 ECJ1VB1C823K C 0.082UF, K, 16V 1 C9250 ECJ1VB1H822K C 8200PF, K, 50V 1 C9253-56 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C9257-59 EEEHB1C470P C 47PF, J, 16V 3 C926,27 ECKDNA101KB7 C 100PF 2 C9260-62 ECJ3XF1C475Z C 4.7UF, Z, 16V 3 C9263 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9264,65 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9266 F2H1E221A007 E 2.2UF, 25V 1 C9267 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9268 ECGRL0G680R C 68PF, J, 4V 1 C9269 F2H1E221A007 E 2.2UF, 25V 1 C9270 ECGRL0G680R C 68PF, J, 4V 1 C9271,72 EEEHB0G221P C 220PF, J, 4V 2 C9275 ECJ2XB1H472K C 4700PF, K, 50V 1 C9276 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9278 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9279 F2H1E221A007 E 2.2UF, 25V 1 C9282,83 F2H1E221A007 E 2.2UF, 25V 2 C9284,85 ECJ2XB1H472K C 4700PF, K, 50V 2 C9286 EEEHB1C470P C 47PF, J, 16V 1 C9287 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9288 EEEHB1C470P C 47PF, J, 16V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C9290 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9292 EEEHB0G221P C 220PF, J, 4V 1 C9293 ECGRL0G680R C 68PF, J, 4V 1 C9294,95 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9296 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9299 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C930 EEUFC1E222 E 2200UF, 25V 1 C9308-44 ECJ1XF1C104Z C 0.1UF, Z, 16V 37 C931 ECKD3A331KBP C 330PF, K, 1KV 1 C932 EEUEB1E101 E 100UF, 25V 1 C933 ECJ2FB1E105K C 1UF, K, 16V 1 C9346-62 ECJ1XB1C104K C 0.1UF, Z, 16V 17 C9363-65 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9366-68 EEEHB1C470P C 47PF, J, 16V 3 C9369-71 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9372 ECJ3XB0J106M C 10UF, M,6.3V 1 C9373 ECGRL0G680R C 68PF, J, 4V 1 C9374 ECJ3XB0J106M C 10UF, M,6.3V 1 C9375 EEEHB0G221P C 220PF, J, 4V 1 C9376 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9500,01 ECJ1XC1H180J C 18PF, J, 50V 2 C9503-49 ECJ1XF1C104Z C 0.1UF, Z, 16V 47 C954 ECQU2A105BN9 P 1UF, 250V 1 C9551 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9552 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9553 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9554 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9555 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9556 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9557-59 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C9560 EEEHB0G221P C 220PF, J, 4V 1 C9561-72 ECJ1XB1C104K C 0.1UF, Z, 16V 12 C9573 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9574 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9575 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9576-78 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C9579 EEEHB0G221P C 220PF, J, 4V 1 C958,59 ECKCNA221KB7 C 220PF, M, 2 C960 ECQU2A105MGA P 1UF, 250V 1 C9700 ECJ2XB1H682K C 6800PF, K, 50V 1 C9701-05 ECJ1XF1C104Z C 0.1UF, Z, 16V 5 C9707 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9708 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9709 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9711-13 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9714 ECJ2XB1H682K C 6800PF, K, 50V 1 C9715-18 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C9721-36 ECJ1XF1C104Z C 0.1UF, Z, 16V 16 C9737-39 ECJ2XB1H682K C 6800PF, K, 50V 3 C9801-03 ECJ3XB0J106M C 10UF, M,6.3V 3 C9850,51 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9852 EEEHB1C470P C 47PF, J, 16V 1 C9853 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9860 ECJ3XB0J106M C 10UF, M,6.3V 1 C9861 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9862 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9863 ECJ3XB0J106M C 10UF, M,6.3V 1 C9864,65 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9866 EEEHB0G221P C 220PF, J, 4V 1 C9867-69 ECJ3XB0J106M C 10UF, M,6.3V 3 C9870-73 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C9875,76 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9879 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9880 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9882 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9886 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9894 ECJ3XB0J106M C 10UF, M,6.3V 1 C9895 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9905,06 ECJ3XB0J106M C 10UF, M,6.3V 2 C9907,08 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9909,10 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9911,12 ECJ3XB0J106M C 10UF, M,6.3V 2 C9913,14 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9915 ECJ2XB1H103K C 0.01UF, K, 50V 1 C9916 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 Ref. No. Part No. Part Name & Description Pcs Remarks 167 C9917,18 ECJ2XB1H103K C 0.01UF, K, 50V 2 C9919 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9920,21 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9922 ECJ3XB0J106M C 10UF, M,6.3V 1 C9923,24 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9925 ECJ1VB1C823K C 0.082UF, K, 16V 1 C9926 ECJ1VB1H822K C 8200PF, K, 50V 1 C9929-31 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 CA1-11 K1MN68BA0002 68P CONNECTOR 11 CB1-11 K1MN68BA0002 68P CONNECTOR 11 CF901-03 ERZV10V621P2 VARISTOR 3 D1 K1KA20AA0009 20P CONNECTOR 1 D10 K1KA12A00254 12P CONNECTOR 1 D1550 LNJ107W5PRW LED 1 D1551-54 MA8056-M DIODE 4 MAZ80560M D20 K1KA20A00272 20P CONNECTOR 1 D2301,02 M1FS4 DIODE 2 D2308 MA152 DIODE 1 D2317 M1FS4 DIODE 1 D25 K1KA08A00293 8P CONNECTOR 1 D27 K1KA09A00077 9P CONNECTOR 1 D3 K1KA30AA0009 30P CONNECTOR 1 D3001 MA111 DIODE 1 MA2J111 D3001 02 MA729 DIODE 1 MA2J729 D3002 MA3100M ZENER DIODE 1 MAZ31000M D3003,04 MA111 DIODE 2 MA2J111 D3005 LNJ206R5ARA LED 1 D3007,08 MA111 DIODE 2 MA2J111 D3021 MA111 DIODE 1 MA2J111 D3024 MA111 DIODE 1 MA2J111 D3061 MA728 DIODE 1 MA2J728 D31-34 K1MN80B00002 CONNECTOR 4 D3351,52 MA153 DIODE 2 MA3X153 D3501-04 MA3056M ZENER DIODE 4 MAZ30560M D3507-10 MA8160H ZENER DIODE 4 MAZ81600H D4 K1KA14A00248 14P CONNECTOR 1 D401 B0FBCT000004 DIODE 1 D401 B0FBCT000004 DIODE 1 D402 MA4082M ZENER DIODE 1 MAZ40820M D402 MA4082M ZENER DIODE 1 MAZ40820M D404 B0EBKT000007 DIODE 1 D404 B0EBKT000007 DIODE 1 D405 MA165 DIODE 1 MA2C165 D405 MA165 DIODE 1 MA2C165 D409 B0HAMM000122 DIODE 1 D409 B0HAMM000122 DIODE 1 D410 MA188 DIODE 1 MA2C188 D410 MA188 DIODE 1 MA2C188 D411 B0BB17000006 DIODE 1 D411 B0BB17000006 DIODE 1 D412,13 MA165 DIODE 2 MA2C165 D412,13 MA165 DIODE 2 MA2C165 D415 B0JAME000081 DIODE 1 D415 B0JAME000081 DIODE 1 D418 MA4082M ZENER DIODE 1 MAZ40820M D418 MA4082M ZENER DIODE 1 MAZ40820M D419,20 B0HBSR000005 DIODE 2 D419,20 B0HBSR000005 DIODE 2 D423-26 B0JAME000081 DIODE 4 D423-26 B0JAME000081 DIODE 4 D427-29 ERA15-10 DIODE 3 D427-29 ERA15-10 DIODE 3 D431 B0JCDD000002 DIODE 1 D431 B0JCDD000002 DIODE 1 D433 MA4150M ZENER DIODE 1 MAZ41500M D433 MA4150M ZENER DIODE 1 MAZ41500M D434 MA4082M ZENER DIODE 1 MAZ40820M D434 MA4082M ZENER DIODE 1 MAZ40820M D435 ERA15-10 DIODE 1 D435 ERA15-10 DIODE 1 D436 B0HAMP000067 DIODE 1 D436 B0HAMP000067 DIODE 1 D438 ERA15-10 DIODE 1 D438 ERA15-10 DIODE 1 D5 K1KA31A00003 31P CONNECTOR 1 Ref. No. Part No. Part Name & Description Pcs Remarks D503,04 MA165 DIODE 2 MA2C165 D503,04 MA165 DIODE 2 MA2C165 D506 B0JAME000081 DIODE 1 D506 B0JAME000081 DIODE 1 D509,10 B0HANM000028 DIODE 2 D509,10 B0HANM000028 DIODE 2 D511 AK06 DIODE 1 B0JAME000038 D511 AK06 DIODE 1 B0JAME000038 D515 ERDS2TJ104 C 100KOHM, J,1/4W 1 D515 ERDS2TJ104 C 100KOHM, J,1/4W 1 D521 MA188 DIODE 1 MA2C188 D521 MA188 DIODE 1 MA2C188 D528,29 MA153 DIODE 2 MA3X153 D528,29 MA153 DIODE 2 MA3X153 D530 MA4100M ZENER DIODE 1 MAZ41000M D530 MA4100M ZENER DIODE 1 MAZ41000M D531 B0HDRM000002 DIODE 1 D531 B0HDRM000002 DIODE 1 D532 MA3J142D0L DIODE 1 D532 MA3J142D0L DIODE 1 D534 MA752A DIODE 1 D534 MA752A DIODE 1 D535 MA188 DIODE 1 MA2C188 D535 MA188 DIODE 1 MA2C188 D536 MA752A DIODE 1 D536 MA752A DIODE 1 D537 B0HBRP000007 DIODE 1 D537 B0HBRP000007 DIODE 1 D538 MA4051NM ZENER DIODE 1 MAZ4051NM D538 MA4051NM ZENER DIODE 1 MAZ4051NM D539 B0HBRP000007 DIODE 1 D539 B0HBRP000007 DIODE 1 D543-45 MA4200H ZENER DIODE 3 MAZ42000H D543-45 MA4200H ZENER DIODE 3 MAZ42000H D547 MA4150M ZENER DIODE 1 MAZ41500M D547 MA4150M ZENER DIODE 1 MAZ41500M D548 MA4075M ZENER DIODE 1 MAZ40750M D548 MA4075M ZENER DIODE 1 MAZ40750M D549 MA188 DIODE 1 MA2C188 D549 MA188 DIODE 1 MA2C188 D551 MA4075M ZENER DIODE 1 MAZ40750M D551 MA4075M ZENER DIODE 1 MAZ40750M D554 ERA15-01V5 DIODE 1 B0AAML000001 D554 ERA15-01V5 DIODE 1 B0AAML000001 D557 MA111 DIODE 1 MA2J111 D557 MA111 DIODE 1 MA2J111 D559 MA4075M ZENER DIODE 1 MAZ40750M D559 MA4075M ZENER DIODE 1 MAZ40750M D561 MA4075M ZENER DIODE 1 MAZ40750M D561 MA4075M ZENER DIODE 1 MAZ40750M D563,64 MA111 DIODE 2 MA2J111 D563,64 MA111 DIODE 2 MA2J111 D572 MA188 DIODE 1 MA2C188 D572 MA188 DIODE 1 MA2C188 D6001-04 B0HBSN000008 DIODE 4 D6010,11 B0HBSN000008 DIODE 2 D6015 D1FL40F4063 DIODE 1 B0ECHP000001 D6016 B0HBSN000008 DIODE 1 D6021-24 B0HBSN000008 DIODE 4 D6030,31 B0HBSN000008 DIODE 2 D6035,36 D1FL40F4063 DIODE 2 B0ECHP000001 D6040 D1FL40F4063 DIODE 1 B0ECHP000001 D6060 MA111 DIODE 1 MA2J111 D6061,62 MA8330M ZENER DIODE 2 MAZ83300M D6063 LNJ301MPUJA LED 1 D6064 MA8051L ZENER DIODE 1 MAZ80510L D6065,66 MA152 DIODE 2 D6141-43 M1FL20UF4063 DIODE 3 B0HCMM000009 D6145-47 M1FL20UF4063 DIODE 3 B0HCMM000009 D6151-53 M1FL20UF4063 DIODE 3 B0HCMM000009 D6155-57 M1FL20UF4063 DIODE 3 B0HCMM000009 D6190 D1FL40F4063 DIODE 1 B0ECHP000001 D6200-05 B0HDSM000004 DIODE 6 D6206-09 D1FL40F4063 DIODE 4 B0ECHP000001 D6210,11 B0HDSM000004 DIODE 2 D6220-25 M1FS4 DIODE 6 Ref. No. Part No. Part Name & Description Pcs Remarks 168 D6226 D1FL40F4063 DIODE 1 B0ECHP000001 D6240 B0HDSM000004 DIODE 1 D6241,42 D1FL40F4063 DIODE 2 B0ECHP000001 D6250-53 M1FS4 DIODE 4 D6256-59 D1FL40F4063 DIODE 4 B0ECHP000001 D6260 MA111 DIODE 1 MA2J111 D6261 LNJ301MPUJA LED 1 D6262 M1FS4 DIODE 1 D6263,64 MA111 DIODE 2 MA2J111 D6271 MA111 DIODE 1 MA2J111 D6295 M1FS4 DIODE 1 D6296-98 MA152K DIODE 3 MA3X152K D6299 M1FS4 DIODE 1 D6411 MA111 DIODE 1 MA2J111 D6412 MA8051L ZENER DIODE 1 MAZ80510L D6413,14 MA8330M ZENER DIODE 2 MAZ83300M D6415 LNJ301MPUJA LED 1 D6416 MA111 DIODE 1 MA2J111 D6417,18 MA8330M ZENER DIODE 2 MAZ83300M D6419-21 MA111 DIODE 3 MA2J111 D6422,23 MA8200M ZENER DIODE 2 MAZ82000M D6501-04 B0HBSN000008 DIODE 4 D6512-15 B0HBSN000008 DIODE 4 D6517 MA8330M ZENER DIODE 1 MAZ83300M D6518 MA111 DIODE 1 MA2J111 D6522-25 B0HBSN000008 DIODE 4 D6543-50 M1FL20UF4063 DIODE 8 B0HCMM000009 D6552-59 M1FL20UF4063 DIODE 8 B0HCMM000009 D6561,62 D1FL40F4063 DIODE 2 B0ECHP000001 D6563 B0HBSN000008 DIODE 1 D6564-66 D1FL40F4063 DIODE 3 B0ECHP000001 D6567-70 M1FS4 DIODE 4 D6571-73 D1FL40F4063 DIODE 3 B0ECHP000001 D6611,12 D1FL40F4063 DIODE 2 B0ECHP000001 D6613 MA8240M ZENER DIODE 1 MAZ82400M D6615,16 MA111 DIODE 2 MA2J111 D6617 MA8051L ZENER DIODE 1 MAZ80510L D6618 M1FL20UF4063 DIODE 1 B0HCMM000009 D6619 MA111 DIODE 1 MA2J111 D6620 D1FL40F4063 DIODE 1 B0ECHP000001 D6621 MA111 DIODE 1 MA2J111 D6622 MA8240M ZENER DIODE 1 MAZ82400M D6623 M1FS4 DIODE 1 D6624 MA111 DIODE 1 MA2J111 D6625 B0HCKS000001 DIODE 1 D6627,28 MA111 DIODE 2 MA2J111 D6629,30 B0HCKS000001 DIODE 2 D6631 MA111 DIODE 1 MA2J111 D6632 M1FS4 DIODE 1 D6633 MA111 DIODE 1 MA2J111 D6634 MA8051L ZENER DIODE 1 MAZ80510L D6635-37 MA8330M ZENER DIODE 3 MAZ83300M D6638 MA111 DIODE 1 MA2J111 D6639 M1FL20UF4063 DIODE 1 B0HCMM000009 D6640-42 MA111 DIODE 3 MA2J111 D6643 M1FL20UF4063 DIODE 1 B0HCMM000009 D6644-51 MA8056H ZENER DIODE 8 MAZ80560H D6652 MA111 DIODE 1 MA2J111 D6653 MA8056H ZENER DIODE 1 MAZ80560H D6654-57 M1FS4 DIODE 4 D6658 B0HCKS000001 DIODE 1 D6711-18 B0HDSM000004 DIODE 8 D6719-24 M1FS4 DIODE 6 D6725-29 D1FL40F4063 DIODE 5 B0ECHP000001 D6733,34 MA152 DIODE 2 D6811-14 D1FL40F4063 DIODE 4 B0ECHP000001 D6815 MA111 DIODE 1 MA2J111 D6817 MA111 DIODE 1 MA2J111 D6818 B0JCKG000001 DIODE 1 D6819 D1FL40F4063 DIODE 1 B0ECHP000001 D6820 MA111 DIODE 1 MA2J111 D6821 M1FS4 DIODE 1 D6822,23 B0HCKS000001 DIODE 2 D6824 M1FL20UF4063 DIODE 1 B0HCMM000009 D6825 B0BC010A0012 DIODE 1 D6826 D1FL40F4063 DIODE 1 B0ECHP000001 Ref. No. Part No. Part Name & Description Pcs Remarks D6827 MA111 DIODE 1 MA2J111 D6828 B0HCKS000001 DIODE 1 D6829 MA111 DIODE 1 MA2J111 D6830 B0HCKS000001 DIODE 1 D6831,32 MA111 DIODE 2 MA2J111 D6833-35 M1FL20UF4063 DIODE 3 B0HCMM000009 D6900,01 MA8056H ZENER DIODE 2 MAZ80560H D6902 D1FL40F4063 DIODE 1 B0ECHP000001 D6906 D1FL40F4063 DIODE 1 B0ECHP000001 D6920 MA8056H ZENER DIODE 1 MAZ80560H D6921 D1FL40F4063 DIODE 1 B0ECHP000001 D6925 D1FL40F4063 DIODE 1 B0ECHP000001 D6926 MA8056H ZENER DIODE 1 MAZ80560H D706 B0JAME000081 DIODE 1 D707 MA4075M ZENER DIODE 1 MAZ40750M D7101-08 M1FL20UF4063 DIODE 8 B0HCMM000009 D7201-06 M1FL20UF4063 DIODE 6 B0HCMM000009 D7301-08 M1FL20UF4063 DIODE 8 B0HCMM000009 D7401-04 MA152K DIODE 4 MA3X152K D7405-12 M1FL20UF4063 DIODE 8 B0HCMM000009 D7421,22 MA8056-M DIODE 2 MAZ80560M D7501-06 M1FL20UF4063 DIODE 6 B0HCMM000009 D7601-08 M1FL20UF4063 DIODE 8 B0HCMM000009 D8001-04 MA111 DIODE 4 MA2J111 D8010,11 MA153 DIODE 2 MA3X153 D802,03 M1FS4 DIODE 2 D804 B0JCPD000010 DIODE 1 D806,07 B0BC6R8A0010 DIODE 2 D808 M1FS4 DIODE 1 D810-14 MA152K DIODE 5 MA3X152K D8180 MA111 DIODE 1 MA2J111 D8200 MA3150M ZENER DIODE 1 MAZ31500M D8201 MA111 DIODE 1 MA2J111 D8203 MA3100M ZENER DIODE 1 MAZ31000M D8204 MA111 DIODE 1 MA2J111 D9010 MA728 DIODE 1 MA2J728 D9011-14 MA152 DIODE 4 D9016 MA728 DIODE 1 MA2J728 D9017-19 MA3033 ZENER DIODE 3 MAZ3033 D9021 MA3033 ZENER DIODE 1 MAZ3033 D9023-26 MA152K DIODE 4 MA3X152K D910 D4SB80Z DIODE 1 B0EBNT000004 D911 B0EAKT000017 DIODE 1 D912-14 B0HCMM000001 DIODE 3 D915,16 TMPG10G3 DIODE 2 B0BA01000046 D918 TMPG10G3 DIODE 1 B0BA01000046 D9200 MA3033 ZENER DIODE 1 MAZ3033 D9201-03 B0JCPD000010 DIODE 3 D9251 MA728 DIODE 1 MA2J728 D930 B0HARM000020 DIODE 1 D9300-03 MA152K DIODE 4 MA3X152K D931 LNJ301MPUJA LED 1 D932 MA152K DIODE 1 MA3X152K D933 M1FS4 DIODE 1 D9860 MA3033 ZENER DIODE 1 MAZ3033 F2 K1KA03A00181 3P CONNECTOR 1 F405 P130A FUSE 1 F405 P130A FUSE 1 F9 K1KA03A00181 3P CONNECTOR 1 F900-1,-2 EYF-52BC FUSE HOLDER 2 F901-1,-2 EYF-52BC FUSE HOLDER 2 F902-1,-2 EYF-52BC FUSE HOLDER 2 F903-1,-2 EYF-52BC FUSE HOLDER 2 F904-1,-2 EYF-52BC FUSE HOLDER 2 FL3000-10 ELKE103FA NOISE FILTER 11 FL3507-09 J0HABB000004 LC FILTER 3 FL3510-17 TLK212T256AL EMI FILTER 8 J0HAAB000012 FL7201,02 ELKE103FA NOISE FILTER 2 FL7501-03 ELKE103FA NOISE FILTER 3 FL9000,01 J0HABH000012 LC FILTER 2 FL9200-14 J0HABH000012 LC FILTER 15 FL9301,02 J0HABH000012 LC FILTER 2 FL9500-03 J0HABH000012 LC FILTER 4 FL9850,51 J0MAB0000175 LC FILTER 2 FL9860-62 J0HABH000012 LC FILTER 3 Ref. No. Part No. Part Name & Description Pcs Remarks 169 H0 K1KA08A00293 8P CONNECTOR 1 H1,H2 K1KA80B00034 80P CONNECTOR 2 H37 TJS3A9640 3P CONNECTOR 1 K1KA03A00171 H37 02 TJS3A9640 3P CONNECTOR 1 K1KA03A00171 HX1 K1KB22A00036 22P CONNECTOR 1 IC1550 B3L000000020 IC 1 IC2301,02 C1BA00000383 IC 2 IC2304 PQ09SZ1T IC 1 C0CBAHG00005 IC2401 BH3865S LINEAR IC 1 C1BA00000302 IC3001 MC14052BF MOS IC (CMOS GATE ARRLY) 1 C0JBAR000021 IC3002 C0JBBR000002 IC 1 IC3003 CXA1315M LINEAR IC 1 C1AB00000440 IC3004 CXA1875AM LINEAR IC 1 C0FBBD000017 IC3005 C1AB00001139 IC 1 IC3006 CXA1315M LINEAR IC 1 C1AB00000440 IC3007 AHC2G66HDCTR INTEGRATED CIR- CUIT 1 C0JBAS000109 IC3101 C1AB00001720 IC 1 IC3101 02 PQ07VZ012ZP IC 1 C0DBEZG00004 IC3102 C1AB00001720 IC 1 IC3102 02 C0DBZLB00001 IC 1 IC3103 C1AB00001826 IC 1 IC3104 PST9128NR IC (LOGIC) 1 C0EBE0000066 IC3105 C0JBAZ001834 IC 1 IC3108,09 AN78L05M LINEAR IC 2 IC3150 C0JBCA000066 IC 1 IC3201 C3HBKZ000002 IC 1 IC3251 C0ZBZ0000967 IC 1 IC3301 MM1065ZMR LINEAR IC 1 C0CBABB00029 IC3302 PQ07VZ012ZP IC 1 C0DBEZG00004 IC3303 AN80L25RMS IC 1 IC3305 JLC1562BFEL IC 1 C0JBAZ000801 IC3311 C0JBAZ002344 1 IC3401 C0ABZA000028 IC 1 IC3502 TVRN377 IC 1 C3EBCC000020 IC3699 C3EBGC000018 IC 1 IC401 CNC1S171R IC 1 IC401 CNC1S171R IC 1 IC402 C0BBAA000038 IC 1 IC402 C0BBAA000038 IC 1 IC403,04 CNC1S171R IC 2 IC403,04 CNC1S171R IC 2 IC405 C0CBADE00037 IC 1 IC405 C0CBADE00037 IC 1 IC406 C0DAZZZ00021 IC 1 IC406 C0DAZZZ00021 IC 1 IC408 CNC1S171R IC 1 IC408 CNC1S171R IC 1 IC409 MIP2C20MP1KT IC 1 IC409 MIP2C20MP1KT IC 1 IC410 C0CBADE00037 IC 1 IC410 C0CBADE00037 IC 1 IC411 C0BBAA000038 IC 1 IC411 C0BBAA000038 IC 1 IC503 C0ZBZ0000878 IC 1 IC503 C0ZBZ0000878 IC 1 IC504 C0DAEMB00004 IC 1 IC504 C0DAEMB00004 IC 1 IC512 C0DAEMB00004 IC 1 IC512 C0DAEMB00004 IC 1 IC520 C0JBAZ002056 IC 1 IC520 C0JBAZ002056 IC 1 IC521 C0JBAF000540 IC 1 IC521 C0JBAF000540 IC 1 IC522 C0JBAZ002056 IC 1 IC522 C0JBAZ002056 IC 1 IC523 C0JBAF000540 IC 1 IC523 C0JBAF000540 IC 1 IC524,25 C0BBAA000039 IC 2 IC524,25 C0BBAA000039 IC 2 IC6000 C0ZBZ0000895 IC 1 IC6020 C0ZBZ0000895 IC 1 IC6060 C0JBAZ000005 IC 1 Ref. No. Part No. Part Name & Description Pcs Remarks IC6061,62 NJM2903M INTEGRATED CIR- CUIT 2 C0BBBA000019 IC6100 C0ZBZ0000895 IC 1 IC6200,01 C0ZBZ0000895 IC 2 IC6220 C0ZBZ0000895 IC 1 IC6240 C0JBAZ000005 IC 1 IC6250 C0ZBZ0000895 IC 1 IC6251 C0ZBZ0000735 IC 1 IC6252 AN1431M LINEAR IC 1 IC6299 C0DAAZG00006 IC 1 IC6411,12 C0JBAZ000005 IC 2 IC6413 TC74HC08AF IC 1 C0JBAA000084 IC6421 NJM2903M INTEGRATED CIR- CUIT 1 C0BBBA000019 IC6422-25 TLP181 PHOTO COUPLER 4 B3PBA0000081 IC6501-04 C0ZBZ0000895 IC 4 IC6601-08 B3PBA0000191 IC 8 IC6610 C0ZBZ0000735 IC 1 IC6611 AN78L05M LINEAR IC 1 IC6620 C0ZBZ0000735 IC 1 IC6621 AN78L05M LINEAR IC 1 IC6630 C0ZBZ0000735 IC 1 IC6640 C0ZBZ0000735 IC 1 IC6650,51 TC74HC14AF IC 2 C0JBAB000155 IC6652 AN78L15M LINEAR IC * 1 IC6653,54 AN78L05M LINEAR IC 2 IC6701-03 C0ZBZ0000895 IC 3 IC6704 C0JBAZ000005 IC 1 IC6705 NJM2903M INTEGRATED CIR- CUIT 1 C0BBBA000019 IC6801 C0DAAMH00005 IC 1 IC6811,12 AN1431M LINEAR IC 2 IC6813 TLP181 PHOTO COUPLER 1 B3PBA0000081 IC6814,15 AN1431M LINEAR IC 2 IC6816 AN78L15M LINEAR IC * 1 IC6817,18 AN1431M LINEAR IC 2 IC6819 TLP181 PHOTO COUPLER 1 B3PBA0000081 IC6900-05 AN16021A-VT IC 6 IC6920-25 AN16021A-VT IC 6 IC700 C0CBABE00041 IC 1 IC701 C2ABCA000031 IC 1 IC702 C0EBE0000154 IC 1 IC703-05 C0JBAE000313 IC 3 IC7102-06 C0JBAZ001120 IC 5 IC7201 C0JBAZ001120 IC 1 IC7203-05 C0JBAZ001120 IC 3 IC7212-19 C0JBAZ001120 IC 8 IC7301-05 C0JBAZ001120 IC 5 IC7401-05 C0JBAZ001120 IC 5 IC7502-05 C0JBAZ001120 IC 4 IC7512-19 C0JBAZ001120 IC 8 IC7602-06 C0JBAZ001120 IC 5 IC8001,02 MC14052BF MOS IC (CMOS GATE ARRLY) 2 C0JBAR000021 IC8003,04 M52346SP LINEAR IC 2 C1AA00000395 IC8005 TC74HC14AF IC 1 C0JBAB000155 IC8007,08 TC4W53FEL IC 2 C0JBAR000111 IC8009 AHC2G66HDCTR INTEGRATED CIR- CUIT 1 C0JBAS000109 IC801 C0DAAHG00008 IC 1 IC8014 C0ZBZ0000911 IC 1 IC8016 C0JBAZ001934 IC 1 IC802 C0DAAHG00007 IC 1 IC803 C0DBALH00002 IC 1 IC804 C0DAAZG00006 IC 1 IC8100 PQ12SZ1T IC 1 C0CBAKG00003 IC8101 PQ09SZ1T IC 1 C0CBAHG00005 IC8181 C1DB00000274 IC 1 IC9000 C0JBAZ000856 IC 1 IC9001 AHC2G66HDCTR INTEGRATED CIR- CUIT 1 C0JBAS000109 IC9002 C0JBAE000239 IC 1 IC9003 MN102H90MTC IC 1 IC9004 TVRN474 IC 1 C3EBJC000059 IC9005 C0EBE0000447 IC 1 IC9006 TVRN385-1 OR C3FBKD000268 1 C3FBKD000273 IC9007 C0JBAE000239 IC 1 Ref. No. Part No. Part Name & Description Pcs Remarks 170 IC910 C5HABZZ00121 IC 1 IC920 B3PAA0000261 IC 1 IC9200,01 C0JBAZ001992 IC 2 IC9202 C0CBCBD00008 IC 1 IC9203 C0ZBZ0000850 IC 1 IC9204 C0JBAB000550 IC 1 IC9205 AHC2G66HDCTR INTEGRATED CIR- CUIT 1 C0JBAS000109 IC9206,07 C0CBCBD00008 IC 2 IC9208 C0FBAD000102 IC 1 IC9209-11 C0DBAMH00014 IC 3 IC9212-15 PQ07VZ012ZP IC 4 C0DBEZG00004 IC930 AN1431M LINEAR IC 1 IC9301 C3ABQJ000031 IC 1 IC9302 MN84512-A IC 1 IC9500 C1ZBZ0002606 IC 1 IC9501 MN845110-A IC 1 IC9505 C3ABQJ000031 IC 1 IC9506 TVRN387 IC 1 C3FBNG000007 IC9700 C0JBAZ000856 IC 1 IC9701 C1ZBZ0002555 IC 1 IC9702 C0JBAZ000856 IC 1 IC9703 PST9128NR IC (LOGIC) 1 C0EBE0000066 IC9704 C0ZBZ0000764 IC 1 IC9705-07 C0JBAZ000856 IC 3 IC9850 C0JBAZ000855 IC 1 IC9860,61 C0JBAZ001992 IC 2 IC9862 C0CBCBD00008 IC 1 IC9863 C0ZBZ0000850 IC 1 IC9864 C0JBAB000550 IC 1 IC9865 AHC2G66HDCTR INTEGRATED CIR- CUIT 1 C0JBAS000109 IC9867,68 C0CBCBD00008 IC 2 IC9869 C0FBAD000102 IC 1 J1 K1KA20AA0009 20P CONNECTOR 1 J10 K1KA06A00183 6P CONNECTOR 1 J11-13 K1KB80B00023 80P CONNECTOR 3 J14 K1KA22A00067 22P CONNECTOR 1 J3 K1KA30AA0009 30P CONNECTOR 1 J5 K1KA31B00004 31P CONNECTOR 1 J6 K1KA21B00005 21P CONNECTOR 1 J8 K1KA20AA0008 20P CONNECTOR 1 JK3001 K1CB106B0027 CONNECTOR 1 JK3002 K1QBB2AB0005 CONNECTOR 1 JK3004 K2HA204B0097 JACK 1 JK3303 K2HA204B0097 JACK 1 JK3304 K1QBB5AB0005 CONNECTOR 1 JK3509 K1FB109B0058 CONNECTOR 1 JK3511 K1FB115B0034 CONNECTOR 1 JK3513 K2HC103B0105 JACK 1 JK8500 K4BC02B00013 TERMINAL 1 JK8500 02 K4BC02B00013 TERMINAL 1 JS2301 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3301-12 ERJ3GEY0R00 M 0 OHM, 1/16W 12 JS3501-03 ERJ6GEY0R00 M 0 OHM, 1/10W 3 JS3506-08 ERJ6GEY0R00 M 0 OHM, 1/10W 3 JS6402 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS6505-12 ERD25V0T M OHM, 1/10W 8 JS6801 ERD25V0T M OHM, 1/10W 1 JS8094-97 J0JCC0000100 CHIP INDUCTOR 4 L2306 ELJPA100KB CHIP INDUCTOR 1 L2330,31 G0A221ZA0038 CHOKE COIL 2 L3001 J0HABB000003 LC FILTER 1 L3002 G1C100K00020 INDUCTION COIL 1 L3002 02 J0HABB000004 LC FILTER 1 L3003 G1C100K00020 INDUCTION COIL 1 L3003 02 J0HABB000004 LC FILTER 1 L3005 02 ERJ3GEY0R00 M 0 OHM, 1/16W 1 L3005,06 G1C100K00020 INDUCTION COIL 2 L3006 02 J0E8004B0008 LC FILTER 1 L3007 G1C2R2K00006 INDUCTION COIL 1 L3050 G1C100K00020 INDUCTION COIL 1 Ref. No. Part No. Part Name & Description Pcs Remarks L3051,52 ELJNA1R5JF COIL 2 L3101-04 ELJPA100KB CHIP INDUCTOR 4 L3107 J0JGC0000021 CHIP INDUCTOR COIL 1 L3108 ELJPA100KB CHIP INDUCTOR 1 L3201 ELJPA100KB CHIP INDUCTOR 1 L3251,52 ELJPA2R2MF CHIP INDUCTOR 2 L3303 ELJPA100KB CHIP INDUCTOR 1 L3305-08 ELKE103FA NOISE FILTER 4 L3525 J0HABB000003 LC FILTER 1 L3526 ELJPA100KB CHIP INDUCTOR 1 L3526 02 J0HABB000003 LC FILTER 1 L3527-29 J0HABB000004 LC FILTER 3 L3530,31 J0HABB000003 LC FILTER 2 L3532,33 ELJPA100KB CHIP INDUCTOR 2 L3555 ELJPA100KB CHIP INDUCTOR 1 L402 EXCELSA24 BEAD CHOKE 1 L402 EXCELSA24 BEAD CHOKE 1 L403 EXCELSA35 BEAD CHOKE 1 L403 EXCELSA35 BEAD CHOKE 1 L505 EXCELDR35C BEAD CHOKE 1 L505 EXCELDR35C BEAD CHOKE 1 L506,07 EXCELDR25C BEAD CHOKE 2 L506,07 EXCELDR25C BEAD CHOKE 2 L509 J0JBC0000032 CHIP INDUCTOR 1 L509 J0JBC0000032 CHIP INDUCTOR 1 L6001-04 J0JJC0000021 CHIP INDUCTOR 4 L6010-15 G0A1R0MA0003 CHOKE COIL 6 L6021-24 J0JJC0000021 CHIP INDUCTOR 4 L6031,32 G0A1R0MA0003 CHOKE COIL 2 L6034,35 G0A1R0MA0003 CHOKE COIL 2 L6044-59 G0ZZ00002183 PEAKING COIL 16 L6068 J0JJC0000021 CHIP INDUCTOR 1 L6074-89 G0ZZ00002183 PEAKING COIL 16 L6098 J0JJC0000021 CHIP INDUCTOR 1 L6101-04 J0JJC0000021 CHIP INDUCTOR 4 L6111-15 J0JJC0000021 CHIP INDUCTOR 5 L6141-43 J0JJC0000021 CHIP INDUCTOR 3 L6145-47 J0JJC0000021 CHIP INDUCTOR 3 L6151-53 J0JJC0000021 CHIP INDUCTOR 3 L6155-57 J0JJC0000021 CHIP INDUCTOR 3 L6180-82 G0ZZ00002183 PEAKING COIL 3 L6190 J0JJC0000021 CHIP INDUCTOR 1 L6200-05 TLPF097 CHOKE COIL 6 G1A1R0H00001 L6210-21 J0JJC0000021 CHIP INDUCTOR 12 L6222 G0ZZ00002183 PEAKING COIL 1 L6223,24 J0JJC0000021 CHIP INDUCTOR 2 L6230-36 J0JJC0000021 CHIP INDUCTOR 7 L6237 G0C101K00023 PEAKING COIL 1 L6239,40 G0ZZ00002183 PEAKING COIL 2 L6250 G0ZZ00002183 PEAKING COIL 1 L6251-54 J0JJC0000021 CHIP INDUCTOR 4 L6260 G0ZZ00002183 PEAKING COIL 1 L6297 G0ZZ00002183 PEAKING COIL 1 L6298 TALFP15B221K INDUCTION COIL 1 G0A221GA0001 L6299 G0C101K00023 PEAKING COIL 1 L6411,12 G0ZZ00002183 PEAKING COIL 2 L6501-07 G0A1R0MA0003 CHOKE COIL 7 L6509-11 G0A1R0MA0003 CHOKE COIL 3 L6513-16 J0JJC0000021 CHIP INDUCTOR 4 L6521-68 G0ZZ00002183 PEAKING COIL 48 L6569-88 J0JJC0000021 CHIP INDUCTOR 20 L6590-97 J0JJC0000021 CHIP INDUCTOR 8 L6676-79 J0JJC0000021 CHIP INDUCTOR 4 L6688-99 J0JJC0000021 CHIP INDUCTOR 12 L6701-04 G0ZZ00002183 PEAKING COIL 4 L6711 G0C101K00023 PEAKING COIL 1 L6713-15 TLPF097 CHOKE COIL 3 G1A1R0H00001 L6718-20 TLPF097 CHOKE COIL 3 G1A1R0H00001 L6723-43 J0JJC0000021 CHIP INDUCTOR 21 L6811-13 G0ZZ00002183 PEAKING COIL 3 L6814-16 J0JJC0000021 CHIP INDUCTOR 3 L7101-08 J0JJC0000011 CHIP INDUCTOR 8 L7201-06 J0JJC0000011 CHIP INDUCTOR 6 L7301-08 J0JJC0000011 CHIP INDUCTOR 8 L7401-08 J0JJC0000011 CHIP INDUCTOR 8 Ref. No. Part No. Part Name & Description Pcs Remarks 171 L7411-16 J0JHC0000078 CHIP INDUCTOR 6 L7501-06 J0JJC0000011 CHIP INDUCTOR 6 L7601-08 J0JJC0000011 CHIP INDUCTOR 8 L8001 G1C100K00020 INDUCTION COIL 1 L8003-05 G1C100K00020 INDUCTION COIL 3 L801 G1C101ZA0037 INDUCTION COIL 1 L802 G1C121ZA0037 INDUCTION COIL 1 L803 G1C680ZA0037 INDUCTION COIL 1 L804 G0C101K00023 PEAKING COIL 1 L805 TALFP15B221K INDUCTION COIL 1 G0A221GA0001 L8181 G1C100K00020 INDUCTION COIL 1 L8501 G0A2R5H00003 CHOKE COIL 1 L8502 G0A2R5H00003 CHOKE COIL 1 L8502 02 G0A2R5H00003 CHOKE COIL 1 L912 EXCELSA24 BEAD CHOKE 1 L9200,01 G1C150MA0078 INDUCTION COIL 2 L9202 G1C220M00029 INDUCTOR COIL 1 L930 G0A100GA0013 CHOKE COIL 1 LF901 G0B123K00002 CHOKE COIL 1 LF902,03 G0BYYYL00004 CHOKE COIL 2 LF905 G0B353G00001 CHOKE COIL 1 LF906-08 G0B123K00002 CHOKE COIL 3 LF951,52 G0BYYYL00004 CHOKE COIL 2 P10 K1KA05A00177 5P CONNECTOR 1 P10 K1KA05A00177 5P CONNECTOR 1 P11 K1KA07A00096 7P CONNECTOR 1 P11 K1KA07A00096 7P CONNECTOR 1 P12 K1KA10A00259 10P CONNECTOR 1 P12 K1KA10A00259 10P CONNECTOR 1 P2 K1KA06A00180 6P CONNECTOR 1 P2 K1KA06A00180 6P CONNECTOR 1 P23 K1KA03A00213 3P CONNECTOR 1 P23 K1KA03A00213 3P CONNECTOR 1 P25 TJS1A8840 8P CONNECTOR 1 K1KA08A00221 P27 K1KA09A00099 9P CONNECTOR 1 P5 K1KA11A00073 11P CONNECTOR 1 P5 K1KA11A00073 11P CONNECTOR 1 P7 K1KA04A00242 4P CONNECTOR 1 P7 K1KA04A00242 4P CONNECTOR 1 P700,01 K1KA20A00085 20P CONNECTOR 2 P701 K1KA20A00085 20P CONNECTOR 1 P701 K1KA20A00085 20P CONNECTOR 1 P9 K1KA03A00181 3P CONNECTOR 1 P9 K1KA03A00181 3P CONNECTOR 1 PF1 K1KA03A00080 3P CONNECTOR 1 PF10 K1KA06A00220 6P CONNECTOR 1 PF2 K1KA03A00181 3P CONNECTOR 1 PF9 K1KA03A00181 3P CONNECTOR 1 PR401 K5Y502B00007 FUSE 1 PR401 K5Y502B00007 FUSE 1 PR402 K5G162B00003 FUSE 1 PR402 K5G162B00003 FUSE 1 PR509,10 K5H501Z00005 FUSE 2 PR509,10 K5H501Z00005 FUSE 2 Q1540 2SD601A TRANSISTOR 1 2SD0601A Q2303 2SD601A TRANSISTOR 1 2SD0601A Q2305,06 2SD601A TRANSISTOR 2 2SD0601A Q2330,31 2SD1266A TRANSISTOR 2 2SD1266AJ Q2333-36 2SD601A TRANSISTOR 4 2SD0601A Q2370,71 2SB709A TRANSISTOR 2 2SB0709A Q2406 2SD601A TRANSISTOR 1 2SD0601A Q3001 2SB709A TRANSISTOR 1 2SB0709A Q3002-04 2SD601A TRANSISTOR 3 2SD0601A Q3005 2SD601A TRANSISTOR 1 2SD0601A Q3007 2SB709A TRANSISTOR 1 2SB0709A Q3023 2SD601A TRANSISTOR 1 2SD0601A Q3051,52 2SD601A TRANSISTOR 2 2SD0601A Q3101 2SD601A TRANSISTOR 1 2SD0601A Q3101 02 2SB709A TRANSISTOR 1 2SB0709A Q3102 02 2SD1030 TRANSISTOR 1 Q3102,03 2SD601A TRANSISTOR 2 2SD0601A Ref. No. Part No. Part Name & Description Pcs Remarks Q3104 02 2SD1030 TRANSISTOR 1 Q3104-06 2SD601A TRANSISTOR 3 2SD0601A Q3401 2SD601A TRANSISTOR 1 2SD0601A Q3403 2SD601A TRANSISTOR 1 2SD0601A Q3501 2SD601A TRANSISTOR 1 2SD0601A Q3502 2SB709A TRANSISTOR 1 2SB0709A Q3503-05 2SD601A TRANSISTOR 3 2SD0601A Q3506 2SB709A TRANSISTOR 1 2SB0709A Q3531,32 2SD601A TRANSISTOR 2 2SD0601A Q401 B1DHBD000004 TRANSISTOR 1 Q401 B1DHBD000004 TRANSISTOR 1 Q404 2SB1386RT100 TRANSISTOR 1 Q404 2SB1386RT100 TRANSISTOR 1 Q406 B1DELQ000003 TRANSISTOR 1 Q406 B1DELQ000003 TRANSISTOR 1 Q407 XN4601TX TRANSISTOR 1 XN0460100L Q407 XN4601TX TRANSISTOR 1 XN0460100L Q408 B1CBGD000001 TRANSISTOR 1 Q408 B1CBGD000001 TRANSISTOR 1 Q412,13 B1DEDQ000021 TRANSISTOR 2 Q412,13 B1DEDQ000021 TRANSISTOR 2 Q414,15 B1DAGQ000013 TRANSISTOR 2 Q414,15 B1DAGQ000013 TRANSISTOR 2 Q417 B1CBGD000001 TRANSISTOR 1 Q417 B1CBGD000001 TRANSISTOR 1 Q418 UNR521L00L TRANSISTOR 1 Q418 UNR521L00L TRANSISTOR 1 Q420,21 2SD1819A TRANSISTOR 2 2SD1819AW Q420,21 2SD1819A TRANSISTOR 2 2SD1819AW Q422 UN5213 TRANSISTOR 1 UNR521300L Q422 UN5213 TRANSISTOR 1 UNR521300L Q501,02 2SD1820A TRANSISTOR 2 Q501,02 2SD1820A TRANSISTOR 2 Q503 2SB1218ARL TRANSISTOR 1 Q503 2SB1218ARL TRANSISTOR 1 Q504 B1CBGD000001 TRANSISTOR 1 Q504 B1CBGD000001 TRANSISTOR 1 Q506 XN0440100L TRANSISTOR 1 Q506 XN0440100L TRANSISTOR 1 Q508 B1GBCFNA0010 TRANSISTOR 1 Q508 B1GBCFNA0010 TRANSISTOR 1 Q509 XN0440100L TRANSISTOR 1 Q509 XN0440100L TRANSISTOR 1 Q510 2SB1218ARL TRANSISTOR 1 Q510 2SB1218ARL TRANSISTOR 1 Q511 B1CBGD000001 TRANSISTOR 1 Q511 B1CBGD000001 TRANSISTOR 1 Q512 B1DHBD000004 TRANSISTOR 1 Q512 B1DHBD000004 TRANSISTOR 1 Q513 B1CBGD000001 TRANSISTOR 1 Q513 B1CBGD000001 TRANSISTOR 1 Q514 B1MBACA00006 TRANSISTOR 1 Q514 B1MBACA00006 TRANSISTOR 1 Q515 B1CBGD000001 TRANSISTOR 1 Q515 B1CBGD000001 TRANSISTOR 1 Q516 B1DHBD000004 TRANSISTOR 1 Q516 B1DHBD000004 TRANSISTOR 1 Q518 B1MBACA00006 TRANSISTOR 1 Q518 B1MBACA00006 TRANSISTOR 1 Q519 B1CBGD000001 TRANSISTOR 1 Q519 B1CBGD000001 TRANSISTOR 1 Q520 B1HFCFA00021 TRANSISTOR 1 Q520 B1HFCFA00021 TRANSISTOR 1 Q521 2SD1819A TRANSISTOR 1 2SD1819AW Q521 2SD1819A TRANSISTOR 1 2SD1819AW Q524 2SD1819A TRANSISTOR 1 2SD1819AW Q524 2SD1819A TRANSISTOR 1 2SD1819AW Q525 XN4601TX TRANSISTOR 1 XN0460100L Q525 XN4601TX TRANSISTOR 1 XN0460100L Q527 B1DEHL000018 TRANSISTOR 1 Q527 B1DEHL000018 TRANSISTOR 1 Q528 2SD1819A TRANSISTOR 1 2SD1819AW Q528 2SD1819A TRANSISTOR 1 2SD1819AW Q536-38 B1CFQD000001 TRANSISTOR 3 Q536-38 B1CFQD000001 TRANSISTOR 3 Q540 B1DHBD000004 TRANSISTOR 1 Ref. No. Part No. Part Name & Description Pcs Remarks 172 Q540 B1DHBD000004 TRANSISTOR 1 Q541 B1CBGD000001 TRANSISTOR 1 Q541 B1CBGD000001 TRANSISTOR 1 Q542 XN4601TX TRANSISTOR 1 XN0460100L Q542 XN4601TX TRANSISTOR 1 XN0460100L Q545 B1CBGD000001 TRANSISTOR 1 Q545 B1CBGD000001 TRANSISTOR 1 Q547 2SD1119 TRANSISTOR 1 2SD11190L Q547 2SD1119 TRANSISTOR 1 2SD11190L Q553 2SD1819A TRANSISTOR 1 2SD1819AW Q553 2SD1819A TRANSISTOR 1 2SD1819AW Q554 B1DHBD000004 TRANSISTOR 1 Q554 B1DHBD000004 TRANSISTOR 1 Q6001-04 B1DEHM000004 TRANSISTOR 4 Q6010 2SD2185 TRANSISTOR 1 Q6011 2SB1073001TV TRANSISTOR 1 Q6012 2SD2185 TRANSISTOR 1 Q6013 2SB1073001TV TRANSISTOR 1 Q6021-24 B1DEHM000004 TRANSISTOR 4 Q6030 2SD2185 TRANSISTOR 1 Q6031 2SB1073001TV TRANSISTOR 1 Q6032 2SD2185 TRANSISTOR 1 Q6033 2SB1073001TV TRANSISTOR 1 Q6060 2SD601A TRANSISTOR 1 2SD0601A Q6101-04 B1DEHM000005 TRANSISTOR 4 Q6111-14 B1DEHM000005 TRANSISTOR 4 Q6120 2SD2185 TRANSISTOR 1 Q6121 2SB1073001TV TRANSISTOR 1 Q6122 2SD2185 TRANSISTOR 1 Q6123 2SB1073001TV TRANSISTOR 1 Q6130 2SD2185 TRANSISTOR 1 Q6131 2SB1073001TV TRANSISTOR 1 Q6132 2SD2185 TRANSISTOR 1 Q6133 2SB1073001TV TRANSISTOR 1 Q6141-43 B1DEHM000005 TRANSISTOR 3 Q6145-47 B1DEHM000005 TRANSISTOR 3 Q6151-53 B1DEHM000005 TRANSISTOR 3 Q6155-57 B1DEHM000005 TRANSISTOR 3 Q6160 2SD2185 TRANSISTOR 1 Q6161 2SB1073001TV TRANSISTOR 1 Q6162 2SD2185 TRANSISTOR 1 Q6163 2SB1073001TV TRANSISTOR 1 Q6164 2SD2185 TRANSISTOR 1 Q6165 2SB1073001TV TRANSISTOR 1 Q6166 2SD2185 TRANSISTOR 1 Q6167 2SB1073001TV TRANSISTOR 1 Q6200-04 2SK326900L FET 5 Q6210 2SD2185 TRANSISTOR 1 Q6211 2SB1073001TV TRANSISTOR 1 Q6212 2SD2185 TRANSISTOR 1 Q6213 2SB1073001TV TRANSISTOR 1 Q6220-25 2SK326900L FET 6 Q6230 2SD2185 TRANSISTOR 1 Q6231 2SB1073001TV TRANSISTOR 1 Q6232 2SD2185 TRANSISTOR 1 Q6233 2SB1073001TV TRANSISTOR 1 Q6240 2SB1193000LB TRANSISTOR 1 Q6250-53 B1DFKM000001 TRANSISTOR 4 Q6254 2SD2185 TRANSISTOR 1 Q6255 2SB1073001TV TRANSISTOR 1 Q6256 2SD1263A TRANSISTOR 1 Q6257,58 2SC1473A TRANSISTOR 2 2SC1473AE Q6259 2SK326800L FET 1 Q6260 B1DFKM000001 TRANSISTOR 1 Q6261 2SK620 FET 1 2SK0620 Q6411 2SD601A TRANSISTOR 1 2SD0601A Q6412,13 2SK620 FET 2 2SK0620 Q6502-05 B1DEHM000005 TRANSISTOR 4 Q6508-11 B1DEHM000005 TRANSISTOR 4 Q6514-16 B1DEHM000005 TRANSISTOR 3 Q6518-20 B1DEHM000005 TRANSISTOR 3 Q6523-25 B1DEHM000005 TRANSISTOR 3 Q6527-29 B1DEHM000005 TRANSISTOR 3 Q6532-35 B1DEHM000004 TRANSISTOR 4 Q6538-41 B1DEHM000004 TRANSISTOR 4 Q6543-46 2SK349400L FET 4 Ref. No. Part No. Part Name & Description Pcs Remarks Q6551 2SD2185 TRANSISTOR 1 Q6552 2SB1073001TV TRANSISTOR 1 Q6553 2SD2185 TRANSISTOR 1 Q6554 2SB1073001TV TRANSISTOR 1 Q6555 2SD2185 TRANSISTOR 1 Q6556 2SB1073001TV TRANSISTOR 1 Q6557 2SD2185 TRANSISTOR 1 Q6558 2SB1073001TV TRANSISTOR 1 Q6559 2SD2185 TRANSISTOR 1 Q6560 2SB1073001TV TRANSISTOR 1 Q6561 2SD2185 TRANSISTOR 1 Q6562 2SB1073001TV TRANSISTOR 1 Q6563 2SD2185 TRANSISTOR 1 Q6564 2SB1073001TV TRANSISTOR 1 Q6565 2SD2185 TRANSISTOR 1 Q6566 2SB1073001TV TRANSISTOR 1 Q6567 2SD2185 TRANSISTOR 1 Q6568 2SB1073001TV TRANSISTOR 1 Q6569 2SD2185 TRANSISTOR 1 Q6570 2SB1073001TV TRANSISTOR 1 Q6571 2SD2185 TRANSISTOR 1 Q6572 2SB1073001TV TRANSISTOR 1 Q6573 2SD2185 TRANSISTOR 1 Q6574 2SB1073001TV TRANSISTOR 1 Q6575 2SD2185 TRANSISTOR 1 Q6576 2SB1073001TV TRANSISTOR 1 Q6577 2SD601A TRANSISTOR 1 2SD0601A Q6601 B1DEDS000001 TRANSISTOR 1 Q6602 B1DEET000001 TRANSISTOR 1 Q6604 2SK389500L FET 1 Q6611-18 B1DFJM000003 TRANSISTOR 8 Q6620-27 B1DFJM000003 TRANSISTOR 8 Q6630-37 B1DFKM000001 TRANSISTOR 8 Q6639-46 B1DFKM000001 TRANSISTOR 8 Q6649-52 B1DEDS000001 TRANSISTOR 4 Q6654 2SK389500L FET 1 Q6655 2SD601A TRANSISTOR 1 2SD0601A Q6656,57 2SB1073001TV TRANSISTOR 2 Q6658,59 2SK620 FET 2 2SK0620 Q6660 2SD2185 TRANSISTOR 1 Q6661 2SB1073001TV TRANSISTOR 1 Q6662 2SD2185 TRANSISTOR 1 Q6663 2SB1073001TV TRANSISTOR 1 Q6664 2SD601A TRANSISTOR 1 2SD0601A Q6665 2SD2185 TRANSISTOR 1 Q6666,67 2SK620 FET 2 2SK0620 Q6668 2SD2185 TRANSISTOR 1 Q6669 2SB1073001TV TRANSISTOR 1 Q6670 2SK620 FET 1 2SK0620 Q6711-21 2SK326900L FET 11 Q6722 2SD2185 TRANSISTOR 1 Q6723 2SB1073001TV TRANSISTOR 1 Q6724 2SD2185 TRANSISTOR 1 Q6725 2SB1073001TV TRANSISTOR 1 Q6726 2SD2185 TRANSISTOR 1 Q6727 2SB1073001TV TRANSISTOR 1 Q6728 2SD2185 TRANSISTOR 1 Q6729 2SB1073001TV TRANSISTOR 1 Q6811 2SD1263A TRANSISTOR 1 Q6812 2SB940A TRANSISTOR 1 2SB0940AJ Q6813 2SC1473A TRANSISTOR 1 2SC1473AE Q6814 2SD1263A TRANSISTOR 1 Q6815 2SC1473A TRANSISTOR 1 2SC1473AE Q6816 B1BBCJ000003 TRANSISTOR 1 Q6817 2SD601A TRANSISTOR 1 2SD0601A Q6818 2SB0709A TRANSISTOR 1 Q6819 2SD1263A TRANSISTOR 1 Q6820 2SC1473A TRANSISTOR 1 2SC1473AE Q6821 2SD814A TRANSISTOR 1 Q6822,23 2SD601A TRANSISTOR 2 2SD0601A Q700,01 2SB1218ARL TRANSISTOR 2 Q705-08 2SD1819A TRANSISTOR 4 2SD1819AW Q712 2SD1819A TRANSISTOR 1 2SD1819AW Q713,14 2SB1218ARL TRANSISTOR 2 Q715 B1CFND000005 TRANSISTOR 1 Q8001,02 2SD601A TRANSISTOR 2 2SD0601A Ref. No. Part No. Part Name & Description Pcs Remarks 173 Q801 2SD601A TRANSISTOR 1 2SD0601A Q8010 2SD601A TRANSISTOR 1 2SD0601A Q8011 2SB709A TRANSISTOR 1 2SB0709A Q8012 2SD601A TRANSISTOR 1 2SD0601A Q8013 2SB709A TRANSISTOR 1 2SB0709A Q8018,19 2SD601A TRANSISTOR 2 2SD0601A Q8181,82 2SK2731T146 TRANSISTOR 2 B1CBHD000001 Q8200-02 2SD601A TRANSISTOR 3 2SD0601A Q9000-02 2SK2731T146 TRANSISTOR 3 B1CBHD000001 Q9003-09 2SD601A-R TRANSISTOR 7 2SD0601AR Q9010 2SB709A-R TRANSISTOR 1 2SB0709AR Q9011 2SD601A-R TRANSISTOR 1 2SD0601AR Q9012 2SB709A-R TRANSISTOR 1 2SB0709AR Q9013 2SD601A-R TRANSISTOR 1 2SD0601AR Q9014 2SD601A TRANSISTOR 1 2SD0601A Q9015 2SD601A-R TRANSISTOR 1 2SD0601AR Q9016 2SB709A-R TRANSISTOR 1 2SB0709AR Q9017,18 2SD601A-R TRANSISTOR 2 2SD0601AR Q9019 2SK2731T146 TRANSISTOR 1 B1CBHD000001 Q930 2SC3311A TRANSISTOR 1 2SC3311AW Q9300-07 2SD601A-R TRANSISTOR 8 2SD0601AR Q9700,01 2SD601A-R TRANSISTOR 2 2SD0601AR R1500 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R1510 ERJ3GEYF222 M 2.2KOHM, 1/16W 1 R1511 ERJ3GEYF302 M 3.0KOHM, 1/16W 1 R1512 ERJ3GEYF472 M 4.7KOHM, 1/16W 1 R1513 ERJ3GEYF822 M 8.2KOHM,J,1/16W 1 R1550 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R1551 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R1552 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R1553 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R1554 ERJ6GEYJ271 M 270 OHM,J,1/10W 1 R1555,56 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R2301 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2304 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R2305,06 ERJ6GEYJ223 M 22KOHM,J,1/10W 2 R2309 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2310 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R2332 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R2333 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2346 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R2347 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R2348 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2350 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2351-54 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R2355-60 ERDS1FJ2R2 C 2.2 OHM, J,1/2W 6 R2365,66 ERX1FJSR56D M0.56 OHM, J, 1W 2 R2367 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R2368,69 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R2370 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R2371,72 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R2373 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2374,75 ERX1FJSR56D M0.56 OHM, J, 1W 2 R2376 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R2377,78 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R2379 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R2380,81 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R2382 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2431 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R2434 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2439 ERJ6GEYJ563 M 56KOHM,J,1/10W 1 R2440 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2441 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R2445 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2448 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R2450 ERJ6GEYJ563 M 56KOHM,J,1/10W 1 R2452 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R2453 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2456 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2460 ERJ6ENF1802 M 18KOHM, 1/10W 1 R2461,62 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R2463 ERJ6ENF1502 M 15KOHM, 1/10W 1 R2466 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R2467 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R2468 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2469 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R2470 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2471 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R2472 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2473 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R2476,77 ERJ6GEYJ220 M 22 OHM,J,1/10W 2 R2485-89 ERJ6GEY0R00 M 0 OHM, 1/10W 5 R2492,93 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R3001 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3001 02 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3002 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3002 02 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3003 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3003 02 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3004 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 D0GB101JA002 R3005 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R3005 02 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3006 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R3006 02 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3007 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3007 02 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3008 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3008 02 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3009 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 D0GB101JA002 R3009 02 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3010 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 D0GB101JA002 R3010 02 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R3011 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R3011 02 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3012 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3012 02 ERJ3GEYJ752 M 7.5KOHM,J,1/16W 1 R3013 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R3013 02 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3014 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3014 02 ERJ3GEYJ752 M 7.5KOHM,J,1/16W 1 R3015 02 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3015-22 J0JCC0000100 CHIP INDUCTOR 8 R3023-25 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 D0GB101JA002 R3026 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3026 02 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R3027 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3027 02 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R3028 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3028 02 ERJ3GEYJ820 M 82 OHM,J,1/16W 1 R3029 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3030 J0JCC0000100 CHIP INDUCTOR 1 R3031 J0JCC0000100 CHIP INDUCTOR 1 R3031 02 ERJ3EKF1800 M 180 OHM, 1/16W 1 R3032 02 ERJ3EKF6200 M 620 OHM, 1/16W 1 R3032,33 J0JCC0000100 CHIP INDUCTOR 2 R3033 02 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3034 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3035 02 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3035,36 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R3036 02 ERJ6ENF1800 M 180 OHM, 1/10W 1 R3037 J0JCC0000100 CHIP INDUCTOR 1 R3038 J0JCC0000100 CHIP INDUCTOR 1 R3038 02 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R3039 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks 174 R3040 02 ERJ3EKF3300 M 330 OHM, 1/16W 1 R3040,41 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R3042 02 ERJ3EKF6801 M 6.8KOHM, 1/16W 1 R3042,43 J0JCC0000100 CHIP INDUCTOR 2 R3044 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3045 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3045 02 ERJ3EKF2200 M 220 OHM, 1/16W 1 R3046 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3046 02 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3047 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3047 02 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3048 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 D0GB334JA002 R3048 02 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3049 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 D0GB334JA002 R3049 02 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3050 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3050 02 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3051 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 D0GB334JA002 R3051 02 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3052 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 D0GB334JA002 R3052 02 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3053 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3053 02 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R3054 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3054 02 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3055 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 D0GB334JA002 R3055 02 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R3056 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 D0GB334JA002 R3056 02 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3057 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3057 02 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3058 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3058 02 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3059 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 D0GB101JA002 R3060 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3060 02 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3061 J0JCC0000100 CHIP INDUCTOR 1 R3061 02 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R3062 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3062 02 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R3063 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 D0GB101JA002 R3064 ERJ6GEYJ560 M 56 OHM,J,1/10W 1 R3065 02 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3065-69 ERJ6GEYJ560 M 56 OHM,J,1/10W 5 R3070-75 ERJ6ENF75R0 M 75 OHM, 1/10W 6 R3076-81 ERJ6GEYJ560 M 56 OHM,J,1/10W 6 R3082,83 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 D0GB101JA002 R3084,85 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3086,87 J0JCC0000100 CHIP INDUCTOR 2 R3088-93 ERJ6ENF75R0 M 75 OHM, 1/10W 6 R3094-96 ERJ3GEYJ331 M 330 OHM,J,1/16W 3 R3097,98 J0JCC0000100 CHIP INDUCTOR 2 R3099,00 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3101 ERJ6ENF1800 M 180 OHM, 1/10W 1 R3101 02 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3102 02 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3102,03 ERJ6ENF1800 M 180 OHM, 1/10W 2 R3104 02 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R3104,05 ERJ6ENF1800 M 180 OHM, 1/10W 2 R3106 ERJ6ENF1800 M 180 OHM, 1/10W 1 R3106 02 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3107 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 D0GB101JA002 R3107 02 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R3108 J0JCC0000100 CHIP INDUCTOR 1 R3108 02 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3109 ERJ6ENF8200 M 820 OHM, 1/10W 1 R3110 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R3111 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R3112 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R3112 02 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 R3113 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R3113 02 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 R3114 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3115 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3116 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3117 J0JCC0000100 CHIP INDUCTOR 1 R3117 02 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3118 ERJ6ENF8200 M 820 OHM, 1/10W 1 R3118 02 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3119 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R3121 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R3122 ERJ3EKF8201 M 8.2KOHM, 1/16W 1 R3123 ERJ3EKF1502 M 15KOHM, 1/16W 1 R3124 ERJ3EKF10R0 M 10 OHM, 1/16W 1 R3125 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3126 J0JCC0000100 CHIP INDUCTOR 1 R3127 J0JCC0000100 CHIP INDUCTOR 1 R3127 02 ERJ6ENF12R0 M 12 OHM, 1/10W 1 R3128,29 ERJ3GEYJ181 M 180 OHM,J,1/16W 2 R3129 02 ERJ6ENF12R0 M 12 OHM, 1/10W 1 R3130,31 ERJ3GEYJ181 M 180 OHM,J,1/16W 2 R3131 02 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3132,33 ERJ3GEYJ181 M 180 OHM,J,1/16W 2 R3135 ERJ6ENF10R0 M 10 OHM, 1/10W 1 R3136-39 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R3140 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3140 02 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3141 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3141 02 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3142,43 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3144,45 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R3148,49 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3150,51 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 D0GB101JA002 R3151 02 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3152 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R3153 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3154,55 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R3156 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R3157 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3158 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1 R3159 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3160 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R3160 02 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 R3161 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R3161 02 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 R3162 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3162 02 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 R3163 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3163 02 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 R3164-67 ERJ3GEY0R00 M 0 OHM, 1/16W 4 Ref. No. Part No. Part Name & Description Pcs Remarks 175 R3168 ERJ3EKF2000 M 200 OHM, 1/16W 1 R3169-72 ERJ6ENF75R0 M 75 OHM, 1/10W 4 R3173 ERJ3EKF2200 M 220 OHM, 1/16W 1 R3174 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3177 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R3178 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 R3179 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R3180 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 R3181 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R3182 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 R3183 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R3184 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 R3185 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3188 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3189 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3189 02 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3190 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3190 02 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3191 ERJ14YJ330 M 33 OHM, J,1/4W 1 R3191 02 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3192-94 ERJ14YJ330 M 33 OHM, J,1/4W 3 R3195,96 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3197,98 ERJ3GEYJ123 M 12KOHM,J,1/16W 2 R3199-01 ERJ6ENF1800 M 180 OHM, 1/10W 3 R3202 ERJ6ENF1800 M 180 OHM, 1/10W 1 R3202 02 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3203 ERJ6ENF1800 M 180 OHM, 1/10W 1 R3203 02 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3204 ERJ6ENF1800 M 180 OHM, 1/10W 1 R3204 02 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3205-07 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R3210,11 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3212-15 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 4 R3216-19 ERJ6GEYJ3R3 M 3.3KOHM,J,1/10W 4 R3230,31 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3251 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3252 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3253 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3260-62 ERJ6ENF75R0 M 75 OHM, 1/10W 3 R3300,01 ERJ3EKF1501 M 1.5KOHM, 1/16W 2 R3302 ERJ3GEYJ203 M 20KOHM,J,1/16W 1 R3303,04 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3305-09 ERJ3GEYJ103 M 10KOHM,J,1/16W 5 R3313,14 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3317,18 ERJ3GEYJ333 M 33KOHM,J,1/16W 2 R3334 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3337,38 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3400 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R3401 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 R3402 ERJ3EKF1801 M 1.8KOHM, 1/16W 1 R3403 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 R3404 ERJ3EKF1801 M 1.8KOHM, 1/16W 1 R3405 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 R3406 ERJ3EKF1801 M 1.8KOHM, 1/16W 1 R3407 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R3408 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3409 ERJ6ENF6800 M 680 OHM, 1/10W 1 R3410 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R3411 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3412 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3413 ERJ3EKF1800 M 180 OHM, 1/16W 1 R3418 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3501,02 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3506-09 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 4 R3510,11 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3514-17 TAJAAH0101JV M 100 OHM,J,1/16W 4 D0GB101JA006 R3521,22 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R3525-28 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R3529 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 R3529 02 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3530 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R3530 02 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R3531,32 ERJ3GEYJ3R3 M 3.3 OHM,J,1/16W 2 R3535,36 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R3538,39 TAJAAH0101JV M 100 OHM,J,1/16W 2 D0GB101JA006 R3544,45 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R3546,02 ERJ3GEYJ3R3 M 3.3 OHM,J,1/16W 2 R3547,48 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3585,86 ERJ6GEYJ560 M 56 OHM,J,1/10W 2 R3589 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R3590 ERJ6GEYJ560 M 56 OHM,J,1/10W 1 R3591-93 ERJ6GEY0R00 M 0 OHM, 1/10W 3 R3653 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R3654 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R3655 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R3656 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R3663,64 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R3668 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3672 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3776,77 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3778 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R3790,91 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R404 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R404 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R408 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R408 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R409 ERJ6ENF1693 M 169KOHM, 1/10W 1 R409 ERJ6ENF1693 M 169KOHM, 1/10W 1 R410 ERF10TJ200 W 20 OHM, 10W 1 R410 ERF10TJ200 W 20 OHM, 10W 1 R411 D1FZ100E0001 F 10 OHM 1 R411 D1FZ100E0001 F 10 OHM 1 R412 ERF10TJ200 W 20 OHM, 10W 1 R412 ERF10TJ200 W 20 OHM, 10W 1 R413 D1FZ100E0001 F 10 OHM 1 R413 D1FZ100E0001 F 10 OHM 1 R414 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R414 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R415 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R415 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R416 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R416 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R417 ERJ6ENF4303 M 430KOHM, 1/10W 1 R417 ERJ6ENF4303 M 430KOHM, 1/10W 1 R418 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R418 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R419 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R419 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R420 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R420 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R421 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R421 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R422 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R422 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R424 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R424 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R425 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R425 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R426 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R426 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R428 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R428 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R429 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R429 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R430 ERJ6ENF4303 M 430KOHM, 1/10W 1 R430 ERJ6ENF4303 M 430KOHM, 1/10W 1 R431 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R431 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R432 ERJ6GEYJ274 M 270KOHM,J,1/10W 1 R432 ERJ6GEYJ274 M 270KOHM,J,1/10W 1 R433 ERJ6ENF1202 M 12KOHM, 1/10W 1 R433 ERJ6ENF1202 M 12KOHM, 1/10W 1 R434 ERJ8GEYJ2R2 M 2.2 OHM, J,1/8W 1 R434 ERJ8GEYJ2R2 M 2.2 OHM, J,1/8W 1 R435 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R435 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R436 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 Ref. No. Part No. Part Name & Description Pcs Remarks 176 R436 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R437 ERJ6GEYJ183 M 18KOHM,J,1/10W 1 R437 ERJ6GEYJ183 M 18KOHM,J,1/10W 1 R438 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R438 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R439 ERJ14YJ6R2U M 6.2OHM, 1/4W 1 R439 ERJ14YJ6R2U M 6.2OHM, 1/4W 1 R440 ERJ8GEYJ474 M 470KOHM, J,1/8W 1 R440 ERJ8GEYJ474 M 470KOHM, J,1/8W 1 R441,42 ERJ6EKF6803 M 680KOHM, 1/10W 2 R441,42 ERJ6EKF6803 M 680KOHM, 1/10W 2 R443 EVMAASA00B23 CONTROL 2KOHMB 1 R443 EVMAASA00B23 CONTROL 2KOHMB 1 R444 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R444 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R445-47 ERJ6ENF1004 M1000KOHM, 1/10W 3 R445-47 ERJ6ENF1004 M1000KOHM, 1/10W 3 R448-50 D0XGR10JA007 RESISTOR ARRAY 3 R448-50 D0XGR10JA007 RESISTOR ARRAY 3 R451 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R451 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R452 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R452 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R453 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R453 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R454 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R454 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R456 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R456 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R458 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R458 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R459 ERJ14YJ6R2U M 6.2OHM, 1/4W 1 R459 ERJ14YJ6R2U M 6.2OHM, 1/4W 1 R460 ERJ14YJ5R6U M 6.2OHM, 1/4W 1 R460 ERJ14YJ5R6U M 6.2OHM, 1/4W 1 R462 ERJ6ENF4303 M 430KOHM, 1/10W 1 R462 ERJ6ENF4303 M 430KOHM, 1/10W 1 R463 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R463 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R464 ERJ6ENF3302 M 33KOHM, 1/10W 1 R464 ERJ6ENF3302 M 33KOHM, 1/10W 1 R465 ERJ6ENF5603 M 560KOHM, 1/10W 1 R465 ERJ6ENF5603 M 560KOHM, 1/10W 1 R467 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R467 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R471 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R471 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R472,73 ERJ6ENF5603 M 560KOHM, 1/10W 2 R472,73 ERJ6ENF5603 M 560KOHM, 1/10W 2 R475 ERJ6EKF6803 M 680KOHM, 1/10W 1 R475 ERJ6EKF6803 M 680KOHM, 1/10W 1 R476,77 ERJ8GEYJ2R2 M 2.2 OHM, J,1/8W 2 R476,77 ERJ8GEYJ2R2 M 2.2 OHM, J,1/8W 2 R478 ERJ8GEYJ102 M 1KOHM, J,1/8W 1 R478 ERJ8GEYJ102 M 1KOHM, J,1/8W 1 R479 ERJ6GEYJ154 M 150KOHM,J,1/10W 1 R479 ERJ6GEYJ154 M 150KOHM,J,1/10W 1 R480 ERJ6ENF9102 M91.0KOHM, 1/10W 1 R480 ERJ6ENF9102 M91.0KOHM, 1/10W 1 R481 ERJ14YJ221 M 220 OHM, J,1/4W 1 R481 ERJ14YJ221 M 220 OHM, J,1/4W 1 R482 ERJ8GEYJ102 M 1KOHM, J,1/8W 1 R482 ERJ8GEYJ102 M 1KOHM, J,1/8W 1 R483 ERJ14YJ221 M 220 OHM, J,1/4W 1 R483 ERJ14YJ221 M 220 OHM, J,1/4W 1 R484,85 ERJ8GEYJ2R2 M 2.2 OHM, J,1/8W 2 R484,85 ERJ8GEYJ2R2 M 2.2 OHM, J,1/8W 2 R486 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R486 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R487 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R487 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R493 ERJ14YJ5R6U M 6.2OHM, 1/4W 1 R493 ERJ14YJ5R6U M 6.2OHM, 1/4W 1 R494-96 ERJ6ENF5603 M 560KOHM, 1/10W 3 R494-96 ERJ6ENF5603 M 560KOHM, 1/10W 3 R497 ERJ6ENF2402 M 24KOHM, 1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R497 ERJ6ENF2402 M 24KOHM, 1/10W 1 R498 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R498 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R502,03 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R502,03 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R504 ERDS2TJ102 C 1KOHM, J,1/4W 1 R504 ERDS2TJ102 C 1KOHM, J,1/4W 1 R505 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R505 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R506 ERDS2TJ102 C 1KOHM, J,1/4W 1 R506 ERDS2TJ102 C 1KOHM, J,1/4W 1 R507 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R507 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R508,09 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R508,09 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R510 K5H501Z00005 FUSE 1 R510 K5H501Z00005 FUSE 1 R511 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R511 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R513,14 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R513,14 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R515 ERDS2TJ102 C 1KOHM, J,1/4W 1 R515 ERDS2TJ102 C 1KOHM, J,1/4W 1 R516 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R516 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R518 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R518 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R520 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R520 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R521,22 ERJ8GEYJ100 M 10 OHM, J,1/8W 2 R521,22 ERJ8GEYJ100 M 10 OHM, J,1/8W 2 R524 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R524 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R528 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R528 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R529 ERJ6ENF1002 M 10KOHM, 1/10W 1 R529 ERJ6ENF1002 M 10KOHM, 1/10W 1 R530 ERJ6ENF1052 M10.5KOHM, 1/10W 1 R530 ERJ6ENF1052 M10.5KOHM, 1/10W 1 R532 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R532 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R535 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R535 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R537 ERJ6ENF5602 M 56KOHM, 1/10W 1 R537 ERJ6ENF5602 M 56KOHM, 1/10W 1 R540 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R540 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R541-44 ERJ8GEYJ1R0 M 1 OHM, J,1/8W 4 R541-44 ERJ8GEYJ1R0 M 1 OHM, J,1/8W 4 R545 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R545 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R546 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R546 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R547-49 ERJ8GEYJ1R0 M 1 OHM, J,1/8W 3 R547-49 ERJ8GEYJ1R0 M 1 OHM, J,1/8W 3 R550 ERJ8GEYJ202 M 2KOHM, J,1/8W 1 R550 ERJ8GEYJ202 M 2KOHM, J,1/8W 1 R551 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R551 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R552 ERJ8GEYJ202 M 2KOHM, J,1/8W 1 R552 ERJ8GEYJ202 M 2KOHM, J,1/8W 1 R553 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R553 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R554 ERJ6ENF1002 M 10KOHM, 1/10W 1 R554 ERJ6ENF1002 M 10KOHM, 1/10W 1 R555,56 ERJ8GEYJ202 M 2KOHM, J,1/8W 2 R555,56 ERJ8GEYJ202 M 2KOHM, J,1/8W 2 R557 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R557 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R558 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R558 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R559 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R559 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R560 ERJ6ENF1002 M 10KOHM, 1/10W 1 R560 ERJ6ENF1002 M 10KOHM, 1/10W 1 R561 ERJ6ENF4301 M 4.3KOHM, 1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks 177 R561 ERJ6ENF4301 M 4.3KOHM, 1/10W 1 R562 ERJ6ENF1002 M 10KOHM, 1/10W 1 R562 ERJ6ENF1002 M 10KOHM, 1/10W 1 R563 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R563 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R564 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R564 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R565 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R565 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R566 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R566 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R567 ERJ6ENF1202 M 12KOHM, 1/10W 1 R567 ERJ6ENF1202 M 12KOHM, 1/10W 1 R568,69 ERJ6GEYJ2R2 M 2.2 OHM,J,1/10W 2 R568,69 ERJ6GEYJ2R2 M 2.2 OHM,J,1/10W 2 R570 ERJ6ENF1003 M 100KOHM, 1/10W 1 R570 ERJ6ENF1003 M 100KOHM, 1/10W 1 R571 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R571 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R574 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R574 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R575 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R575 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R576 ERJ6ENF1002 M 10KOHM, 1/10W 1 R576 ERJ6ENF1002 M 10KOHM, 1/10W 1 R577 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R577 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R578 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R578 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R579 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R579 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R581 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R581 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R582 ERJ6ENF1002 M 10KOHM, 1/10W 1 R582 ERJ6ENF1002 M 10KOHM, 1/10W 1 R583 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R583 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R584 ERJ6ENF1002 M 10KOHM, 1/10W 1 R584 ERJ6ENF1002 M 10KOHM, 1/10W 1 R585 ERJ6ENF3302 M 33KOHM, 1/10W 1 R585 ERJ6ENF3302 M 33KOHM, 1/10W 1 R586 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R586 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R587 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R587 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R588 ERJ6ENF4420 M 442 OHM, 1/10W 1 R588 ERJ6ENF4420 M 442 OHM, 1/10W 1 R589 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R589 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R590 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R590 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R592 ERJ6ENF3001 M 3KOHM, 1/10W 1 R592 ERJ6ENF3001 M 3KOHM, 1/10W 1 R593 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R593 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R594 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R594 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R595 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R595 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R596 ERJ6ENF1002 M 10KOHM, 1/10W 1 R596 ERJ6ENF1002 M 10KOHM, 1/10W 1 R597 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R597 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R599 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R599 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R600 ERJ8ENF3900 M 390 OHM, 1/8W 1 R600 ERJ8ENF3900 M 390 OHM, 1/8W 1 R6002-09 ERJ6GEYJ100 M 10 OHM,J,1/10W 8 R601 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R601 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6012 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6013 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6014,15 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6016 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6017,18 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R602,03 ERJ6ENF1002 M 10KOHM, 1/10W 2 Ref. No. Part No. Part Name & Description Pcs Remarks R602,03 ERJ6ENF1002 M 10KOHM, 1/10W 2 R6022-29 ERJ6GEYJ100 M 10 OHM,J,1/10W 8 R6032 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6033 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6034,35 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6036 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6037,38 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R604 ERJ6GEYJ391 M 390 OHM,J,1/10W 1 R604 ERJ6GEYJ391 M 390 OHM,J,1/10W 1 R6040-43 ERJ6GEYJ151 M 150 OHM,J,1/10W 4 R605,06 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 2 R605,06 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 2 R6050,51 ERJ12YJ220 M 22 OHM,J, 1/2W 2 R6052 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R6053-58 ERJ6GEYJ151 M 150 OHM,J,1/10W 6 R6060 EXB38V471J RESISTOR ARRAY 1 R6061 EXB38V473J RESISTOR ARRAY 1 R6062 EXB38V471J RESISTOR ARRAY 1 R6063 EXB38V473J RESISTOR ARRAY 1 R6064,65 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6066 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6067,68 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 2 R6069 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6070,71 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6072 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R6073,74 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6075,76 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 2 R6079 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R608 D3CA61020010 M1.0 KOHM,J,0.5W 1 R608 D3CA61020010 M1.0 KOHM,J,0.5W 1 R6080 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R6081,82 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6085-92 ERD25V0T M OHM, 1/10W 8 R609 ERJ6GEYJ822 M 8.2KOHM,J,1/10W 1 R609 ERJ6GEYJ822 M 8.2KOHM,J,1/10W 1 R6093-95 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 3 R6096 ERJ6ENF8200 M 820 OHM, 1/10W 1 R6097 ERJ6ENF2941 M2.94KOHM, 1/10W 1 R610 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R610 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6102-09 ERJ6GEYJ100 M 10 OHM,J,1/10W 8 R611 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R611 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R6114-21 ERJ6GEYJ100 M 10 OHM,J,1/10W 8 R612 ERDS2TJ102 C 1KOHM, J,1/4W 1 R612 ERDS2TJ102 C 1KOHM, J,1/4W 1 R6124 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6125 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6126,27 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6128 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6129,30 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R613 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R613 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R6131 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6132,33 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6134 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6135,36 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6137-39 ERJ6ENF8202 M 82KOHM, 1/10W 3 R614 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R614 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R6142 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6144 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6146 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R615 ERJ6ENF3302 M 33KOHM, 1/10W 1 R615 ERJ6ENF3302 M 33KOHM, 1/10W 1 R6150 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6152 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6154 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R616,17 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R616,17 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6160 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6162 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6164 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6168 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6170 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6172 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks 178 R6176 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6177 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6178,79 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R618 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R618 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6180 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6181,82 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6183 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6184,85 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6186 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6187,88 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6190-93 ERX2FJSR22D M0.22 OHM, J, 2W 4 R6195-98 ERJ6GEYJ151 M 150 OHM,J,1/10W 4 R6199 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6200-04 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 5 R6210 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6211,12 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R621-23 ERJ8GEYJ1R0 M 1 OHM, J,1/8W 3 R621-23 ERJ8GEYJ1R0 M 1 OHM, J,1/8W 3 R6213 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6214,15 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6216,17 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6218,19 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6220-25 ERJ6GEYJ220 M 22 OHM,J,1/10W 6 R6232 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6233,34 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6235 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6236,37 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6238,39 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R624 ERX1SJR22 M0.22 OHM, J, 1W 1 R624 ERX1SJR22 M0.22 OHM, J, 1W 1 R6240 ERJ6ENF6982 M69.8KOHM, 1/10W 1 R6241 ERJ6ENF1182 M11.8KOHM, 1/10W 1 R6242 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R6243 ERJ6ENF3832 M38.3KOHM, 1/10W 1 R6244 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6245 ERJ6ENF1302 M 13KOHM, 1/10W 1 R6246 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6247,48 ERF15ZXJ330 W 33 OHM, J, 15W 2 R6249 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R6250-53 ERJ6GEYJ101 M 100 OHM,J,1/10W 4 R6254 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6255,56 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6257,58 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R6259,60 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6261 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6262 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6263 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6264 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6265 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6266 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6267,68 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6269 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6270 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6271,72 ERG2FJS101D M 100 OHM, J, 2W 2 R6274 ERG1FJS472D M 4.7KOHM, J, 1W 1 R6275 ERG2FJS123D M 12KOHM, J, 2W 1 R6276-78 ERJ6GEYJ223 M 22KOHM,J,1/10W 3 R6279 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6280 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6281 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6282 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6283 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6284 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6288-90 ERX3FJSR22D M 2.2 OHM, J, 3W 3 R6298 EXB38V471J RESISTOR ARRAY 1 R6299 EXB38V473J RESISTOR ARRAY 1 R631 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R631 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R6311 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6312 ERJ6ENF6982 M69.8KOHM, 1/10W 1 R6313 ERJ6ENF1182 M11.8KOHM, 1/10W 1 R6314 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R6315 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6316-18 ERJ6GEYJ101 M 100 OHM,J,1/10W 3 R6319 ERJ6ENF3832 M38.3KOHM, 1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R632 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R632 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6320 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6327 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6328 EXB38V471J RESISTOR ARRAY 1 R6329 EXB38V473J RESISTOR ARRAY 1 R6331 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6332 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6333 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R6361,62 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6363,64 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R636-39 ERJ8ENF3902 M 39K OHM, 1/8W 4 R636-39 ERJ8ENF3902 M 39K OHM, 1/8W 4 R6365-74 ERJ6GEYJ151 M 150 OHM,J,1/10W 10 R6375-77 ERJ6ENF8202 M 82KOHM, 1/10W 3 R6378 ERJ6ENF5762 M57.6KOHM, 1/10W 1 R6379 ERJ6GEYJ563 M 56KOHM,J,1/10W 1 R6380,81 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R6382,83 ERX12SJ1R2 M 1.2 OHM, J,1/2W 2 R6385 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R6386 ERJ6GEYJ272 M 2.7KOHM,J,1/10W 1 R6387 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6388 ERG2FJS563D M 56KOHM, J, 2W 1 R6390 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R640 ERJ6ENF3601 M 3.6KOHM, 1/10W 1 R640 ERJ6ENF3601 M 3.6KOHM, 1/10W 1 R641 EVMAASA00B23 CONTROL 2KOHMB 1 R641 EVMAASA00B23 CONTROL 2KOHMB 1 R6411,12 ERX2FJSR22D M0.22 OHM, J, 2W 2 R6415 EXB38V471J RESISTOR ARRAY 1 R6416 EXB38V473J RESISTOR ARRAY 1 R6417 EXB38V471J RESISTOR ARRAY 1 R6418 EXB38V473J RESISTOR ARRAY 1 R6419 EXB38V471J RESISTOR ARRAY 1 R6420 EXB38V473J RESISTOR ARRAY 1 R6421 EXB38V471J RESISTOR ARRAY 1 R6422 EXB38V473J RESISTOR ARRAY 1 R6423 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R642-45 ERJ8ENF3902 M 39K OHM, 1/8W 4 R642-45 ERJ8ENF3902 M 39K OHM, 1/8W 4 R6429,30 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R6431,32 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6433 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6434,35 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 2 R6436 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6437,38 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6439 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R6440,41 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R6442,43 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 2 R6444-48 ERJ6GEYJ471 M 470 OHM,J,1/10W 5 R6449 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6450 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6451 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6452,53 ERJ6GEYJ471 M 470 OHM,J,1/10W 2 R6454 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6455-57 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 3 R6458 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6459 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R646 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R646 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R6460 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6461 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6462 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6463 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6464 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R6465 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6466 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R6467 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6468 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6469 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R647,48 ERJ8GEYJ202 M 2KOHM, J,1/8W 2 R647,48 ERJ8GEYJ202 M 2KOHM, J,1/8W 2 R6470 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6471,72 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R6473,74 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 2 R6475 ERJ6GEYF103 M 10KOHM,F,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks 179 R6476 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6477 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6478-83 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 6 R6484-91 ERJ6GEYJ680 M 68 OHM,J,1/10W 8 R649 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R649 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R650 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R650 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6501-24 ERJ6GEYJ100 M 10 OHM,J,1/10W 24 R652 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R652 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6526 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6528 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R653,54 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 2 R653,54 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 2 R6530 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6532 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6534 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6536 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6538 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6540 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6544 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6546 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6548 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6550 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6552 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6554 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6556 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6558 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R656,57 ERJ8GEYJ202 M 2KOHM, J,1/8W 2 R656,57 ERJ8GEYJ202 M 2KOHM, J,1/8W 2 R6561 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6562 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6563 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6564 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6565 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6566 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6567 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6568-72 ERJ6GEYJ103 M 10KOHM,J,1/10W 5 R6573 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6574 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6575 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6576 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6577 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6578 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6579 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R658 ERJ6ENF6201 M 6.2KOHM, 1/10W 1 R658 ERJ6ENF6201 M 6.2KOHM, 1/10W 1 R6580-84 ERJ6GEYJ103 M 10KOHM,J,1/10W 5 R6585,86 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6587,88 ERJ12YJ220 M 22 OHM,J, 1/2W 2 R659 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R659 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R660 ERJ6ENF1202 M 12KOHM, 1/10W 1 R660 ERJ6ENF1202 M 12KOHM, 1/10W 1 R6601,02 ERX3FJS2R2D M 2.2 OHM, J, 3W 2 R6603-05 ERJ6GEYJ101 M 100 OHM,J,1/10W 3 R661 EVMAASA00B53 CONTROL 5KOHMB 1 R661 EVMAASA00B53 CONTROL 5KOHMB 1 R6611 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6612 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6613 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6614 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R6615,16 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R6617 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6618 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6619,20 ERJ6GEYJ105 M 1MOHM,J,1/10W 2 R662 ERJ6ENF1503 M 150KOHM, 1/10W 1 R662 ERJ6ENF1503 M 150KOHM, 1/10W 1 R6621 ERJ6GEYJ680 M 68 OHM,J,1/10W 1 R6622 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6623 ERJ6GEYJ680 M 68 OHM,J,1/10W 1 R6624 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6625-32 ERJ6GEYJ470 M 47 OHM,J,1/10W 8 R663 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R663 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R6634-41 ERJ6GEYJ470 M 47 OHM,J,1/10W 8 R664 ERJ6ENF9531 M9.53KOHM, 1/10W 1 R664 ERJ6ENF9531 M9.53KOHM, 1/10W 1 R665 EVMAASA00B23 CONTROL 2KOHMB 1 R665 EVMAASA00B23 CONTROL 2KOHMB 1 R6653,54 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6655,56 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6657 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6658-61 ERJ6GEYJ470 M 47 OHM,J,1/10W 4 R666 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R666 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R6662 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6663-65 ERJ6GEYJ103 M 10KOHM,J,1/10W 3 R6666 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6667 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6668 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6669 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R667 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R667 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R6670-72 ERJ6GEYJ103 M 10KOHM,J,1/10W 3 R6673 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6674 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6675-99 ERJ6GEYJ100 M 10 OHM,J,1/10W 25 R668 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R668 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R669 ERJ6ENF1503 M 150KOHM, 1/10W 1 R669 ERJ6ENF1503 M 150KOHM, 1/10W 1 R670,71 ERJ6ENF2202 M 2.2KOHM, 1/10W 2 R670,71 ERJ6ENF2202 M 2.2KOHM, 1/10W 2 R6711 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6712 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6713 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6714 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6715 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6716-23 ERJ6GEYJ101 M 100 OHM,J,1/10W 8 R672 ERJ6ENF1502 M 15KOHM, 1/10W 1 R672 ERJ6ENF1502 M 15KOHM, 1/10W 1 R6725-32 ERJ6GEYJ101 M 100 OHM,J,1/10W 8 R673 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R673 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R6735-37 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6738 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6739 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R674,75 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R674,75 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R6740 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6741 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6742 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6743 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6744,45 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R6746 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6747,48 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6749-54 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 6 R6755 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6756 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6757 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6758 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6759 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R676 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R676 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R6760 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6761 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6762 ERG1FJS101D M 100 OHM, J, 1W 1 R6763,64 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6765,66 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6767 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6768,69 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R677 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R677 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6772 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R6774 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R6776 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R6778 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R678 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R678 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6780 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks 180 R6782 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R6783 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6784,85 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6786 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6787,88 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6790,91 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 2 R6794 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 1 R6796 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 1 R6798 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 1 R6799 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6804,05 ERJ6GEYJ563 M 56KOHM,J,1/10W 2 R6806 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6807-09 ERJ6GEYJ104 M 100KOHM,J,1/10W 3 R6810 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6811 ERX1FJS8R2D M 8.2 OHM, J, 1W 1 R6812 ERG1FJS103D M 10KOHM, J, 1W 1 R6813 ERJ12YJ101 M 100 OHM,J, 1/2W 1 R6814 ERG2FJS223D M 22KOHM, J, 2W 1 R6817,18 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R6819 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R682,83 ERJ3GEYJ2R2 M 2.2 OHM,J,1/16W 2 R682,83 ERJ3GEYJ2R2 M 2.2 OHM,J,1/16W 2 R6820 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6821 ERG2FJS820D M 82 OHM, J, 2W 1 R6823 ERX3FJS8R2D M 8.2 OHM, J, 3W 1 R6824 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6825,26 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6827 ERG1FJS471D M 470 OHM, J, 1W 1 R6828,29 ERJ8GEYJ104 M 100KOHM, J,1/8W 2 R6830 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6831,32 ERJ6ENF2203 M 220KOHM, 1/10W 2 R6833 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R6834 ERJ6ENF4991 M4.99KOHM, 1/10W 1 R6835,36 ERJ12YJ1R0 M 1 OHM, J,1/2W 2 R6837 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6838 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6839 ERDS1FJ221 C 220 OHM, J,1/2W 1 R684 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R684 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6840,41 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 2 R6842 ERJ6ENF1543 M 154KOHM, 1/10W 1 R6843 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6844 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R6845 ERX1FJS8R2D M 8.2 OHM, J, 1W 1 R6846 ERX3FJS8R2D M 8.2 OHM, J, 3W 1 R6847 ERG2FJS683D M 68KOHM, J, 2W 1 R6848 ERDS1FJ4R7 C 4.7 OHM, J,1/2W 1 R6849 ERX3FJS8R2D M 8.2 OHM, J, 3W 1 R685 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R685 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6851 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6852 ERG2FJS101D M 100 OHM, J, 2W 1 R6853 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R6854 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6855 ERJ6GEYJ563 M 56KOHM,J,1/10W 1 R6856 ERJ6ENF5762 M57.6KOHM, 1/10W 1 R6857,58 ERJ6ENF2491 M2.49KOHM, 1/10W 2 R6859 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6860 ERX3FJS8R2D M 8.2 OHM, J, 3W 1 R6861 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6862 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R6863 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R6864 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6866,67 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R6869 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R687 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R687 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6870 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6871 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6872,73 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6874 ERJ6GEYJ563 M 56KOHM,J,1/10W 1 R6876 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R688 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R688 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6886 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6900 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R6901 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6902 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6903 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6904-06 ERJ6GEYJ103 M 10KOHM,J,1/10W 3 R6907 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6908 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6909-11 ERJ6GEYJ221 M 220 OHM,J,1/10W 3 R691-93 ERJ8GEYJ224 M 220KOHM, J,1/8W 3 R691-93 ERJ8GEYJ224 M 220KOHM, J,1/8W 3 R6920 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6921 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6922 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6923,24 ERJ6GEYJ221 M 220 OHM,J,1/10W 2 R6925 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6926 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6927 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6928 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6929,30 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6931 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R694 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R694 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R695-97 ERJ8GEYJ224 M 220KOHM, J,1/8W 3 R695-97 ERJ8GEYJ224 M 220KOHM, J,1/8W 3 R698 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R698 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R699 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R699 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R706 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R707-09 ERJ6GEYJ101 M 100 OHM,J,1/10W 3 R710 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7101 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7104 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R7107 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R7109 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7111 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R711-13 ERJ6GEYJ101 M 100 OHM,J,1/10W 3 R7113 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7115 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7116,17 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R7123,24 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R7127,28 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7131,32 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7133,34 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R7138-41 TAJAAH0470JV M 47 OHM,J,1/16W 4 D0GB470JA006 R714 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7146,47 EXB38V470J RESISTOR ARRAY 2 R715 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R7150,51 EXB38V470J RESISTOR ARRAY 2 R7154,55 EXB38V470J RESISTOR ARRAY 2 R7158,59 EXB38V470J RESISTOR ARRAY 2 R716-18 ERJ6GEYJ102 M 1KOHM,J,1/10W 3 R7163 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7171 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7176-79 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R7184,85 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R7186 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7187 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R719 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R7206 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R7207,08 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7211 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R7215 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7216,17 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R7218,19 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7225 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7227 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R723,24 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R7230 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7231,32 EXB38V470J RESISTOR ARRAY 2 R7235 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R7238 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R7241 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7244 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7245,46 EXB38V470J RESISTOR ARRAY 2 R7250 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7251 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 Ref. No. Part No. Part Name & Description Pcs Remarks 181 R7256 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R7257,58 EXB38V470J RESISTOR ARRAY 2 R7262 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7266 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7267 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R7269 ERJ12Y0R00 M 0 OHM,J, 1/2W 1 R7270,71 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7274,75 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R728,29 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R7281 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R7288-97 ERJ3GEY0R00 M 0 OHM, 1/16W 10 R7298 ERJ12Y0R00 M 0 OHM,J, 1/2W 1 R7302 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7303-06 TAJAAH0470JV M 47 OHM,J,1/16W 4 D0GB470JA006 R730-37 ERJ6GEYJ102 M 1KOHM,J,1/10W 8 R7311,12 EXB38V470J RESISTOR ARRAY 2 R7315,16 EXB38V470J RESISTOR ARRAY 2 R7319,20 EXB38V470J RESISTOR ARRAY 2 R7323,24 EXB38V470J RESISTOR ARRAY 2 R7329 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7338-41 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R7346,47 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R7354,55 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R7360,61 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7364,65 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7366,67 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R7373,74 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R7377,78 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7381,82 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7383,84 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R738-43 ERJ6GEYJ473 M 47KOHM,J,1/10W 6 R7385 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7386 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7387 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7401 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7404 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7410-13 TAJAAH0470JV M 47 OHM,J,1/16W 4 D0GB470JA006 R7416,17 EXB38V470J RESISTOR ARRAY 2 R7420,21 EXB38V470J RESISTOR ARRAY 2 R7424,25 EXB38V470J RESISTOR ARRAY 2 R7428,29 EXB38V470J RESISTOR ARRAY 2 R744 ERF7ZXJ470 WIRE WOUND RESISTOR 1 R7440-43 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R7444 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7454 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R746 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R7460,61 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R7464,65 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7468,69 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R747 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7470,71 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R7472 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7477,78 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R748 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R7481,82 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7485,86 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7487,88 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R749 ERJ8GEYJ331 M 330 OHM, J,1/8W 1 R7490 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7491 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7496,97 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R7503 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R7504 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7506 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7514 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7517 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7519 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R7520,21 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7522 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R7526,27 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7528,29 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R7535 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7536,37 EXB38V470J RESISTOR ARRAY 2 R7541 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7544 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7549 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 Ref. No. Part No. Part Name & Description Pcs Remarks R7550,51 EXB38V470J RESISTOR ARRAY 2 R7557 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7559 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7560,61 EXB38V470J RESISTOR ARRAY 2 R7564 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R7569 ERJ12Y0R00 M 0 OHM,J, 1/2W 1 R7571 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R7582 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R7584 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R7592 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7595 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7598 ERJ12Y0R00 M 0 OHM,J, 1/2W 1 R7604 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R7607 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R7609 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7611 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7613 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7615 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7616,17 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R7618 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7623,24 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R7627,28 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7631,32 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7633-38 TAJAAH0470JV M 47 OHM,J,1/16W 6 D0GB470JA006 R7643 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7646,47 EXB38V470J RESISTOR ARRAY 2 R7650,51 EXB38V470J RESISTOR ARRAY 2 R7654,55 EXB38V470J RESISTOR ARRAY 2 R7658,59 EXB38V470J RESISTOR ARRAY 2 R7672-75 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R7677 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7680 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7685 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7686 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7687 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R780,81 ERF20ZXJ470 W 47 OHM, J, 20W 2 R782,83 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R784-87 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 4 R788,89 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R790-95 ERJ6GEYJ103 M 10KOHM,J,1/10W 6 R8001-08 J0JCC0000100 CHIP INDUCTOR 8 R8009-16 ERJ3GEYJ271 M 270 OHM,J,1/16W 8 R8017-20 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 4 R8021,22 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R8025 J0JCC0000100 CHIP INDUCTOR 1 R8026 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R8027 J0JCC0000100 CHIP INDUCTOR 1 R8028 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R8029,30 ERJ6ENF3001 M 3KOHM, 1/10W 2 R803 ERJ6ENF1001 M 1KOHM, 1/10W 1 R8031,32 ERJ6ENF2201 M 2.2KOHM, 1/10W 2 R8033,34 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R8035 ERJ6ENF3300 M 330 OHM, 1/10W 1 R8036 ERJ6ENF1500 M 150 OHM, 1/10W 1 R8037-40 ERJ6ENF4701 M 4.7KOHM, 1/10W 4 R8041,42 ERJ3GEYJ183 M 18KOHM,J,1/16W 2 R8045,46 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R8047 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R8048-51 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 4 R805 ERJ6ENF1001 M 1KOHM, 1/10W 1 R8054 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R8055,56 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 D0GB101JA002 R8057 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R8058,59 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 D0GB101JA002 R806,07 ERJ6ENF15R0 M 15 OHM, 1/10W 2 R8060 ERJ6ENF3300 M 330 OHM, 1/10W 1 R8061 ERJ6ENF1500 M 150 OHM, 1/10W 1 R8062 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R8065 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 D0GB101JA002 R8066 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R8067,68 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 D0GB101JA002 R8069 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R8070 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 D0GB101JA002 R8071,72 J0JCC0000100 CHIP INDUCTOR 2 R8077,78 ERJ3GEYJ152 M 1.5KOHM,J,1/16W 2 R808 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks 182 R8081,82 ERJ3GEYJ152 M 1.5KOHM,J,1/16W 2 R8089 ERJ3GEYJ181 M 180 OHM,J,1/16W 1 R809 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R8091 ERJ3GEYJ181 M 180 OHM,J,1/16W 1 R8093,94 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R8097-00 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R810 ERJ6ENF5100 M 510 OHM, 1/10W 1 R811 ERJ6ENF8200 M 820 OHM, 1/10W 1 R8117,18 J0JCC0000100 CHIP INDUCTOR 2 R812 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R8124-27 ERJ6GEYJ101 M 100 OHM,J,1/10W 4 R813 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R814 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R815 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R816 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R817-19 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 3 R8181 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 D0GB101JA002 R8182 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R8183,84 J0JCC0000100 CHIP INDUCTOR 2 R8185,86 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R8187,88 ERJ6GEYJ560 M 56 OHM,J,1/10W 2 R8200 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R8201 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R8202,03 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R8204 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R8205 ERJ3GEYJ563 M 56KOHM,J,1/16W 1 R8206 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R8207 J0JCC0000100 CHIP INDUCTOR 1 R825 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R830 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 R831 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R8601-06 EXB38V470J RESISTOR ARRAY 6 R8607 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R8609 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R8610 EXB38V681J RESISTOR ARRAY 1 R8611-17 TAJAAH0470JV M 47 OHM,J,1/16W 7 D0GB470JA006 R8618-24 EXB38V681J RESISTOR ARRAY 7 R8625-30 EXB38V470J RESISTOR ARRAY 6 R8631-38 TAJAAH0470JV M 47 OHM,J,1/16W 8 D0GB470JA006 R8641-50 EXB38V681J RESISTOR ARRAY 10 R8651-56 EXB38V470J RESISTOR ARRAY 6 R8657 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R8659,60 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R8662-67 TAJAAH0470JV M 47 OHM,J,1/16W 6 D0GB470JA006 R8668-73 EXB38V470J RESISTOR ARRAY 6 R8674-81 TAJAAH0470JV M 47 OHM,J,1/16W 8 D0GB470JA006 R8682-99 EXB38V681J RESISTOR ARRAY 18 R8711 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8714 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8717 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8720 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8723 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8726 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8730 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8733 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8742 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8745 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8750 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8753 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8758 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8761 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8782 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8785 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8790 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8793 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8798 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8801 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8805 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8808 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8822 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8825 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8830 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8833 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8837 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8840 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8844 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R8847 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8852 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8855 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8860 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8863 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8872 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8875 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8879 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8882 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8886 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8889 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8894 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8897 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9000 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9001 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9002,03 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9005 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9006 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9008 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9009-18 TAJAAH0101JV M 100 OHM,J,1/16W 10 D0GB101JA006 R901,02 ERC12ZGK105 S 1MOHM, K,1/2W 2 R9019 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9020-23 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R9024-26 ERJ3GEYJ102 M 1KOHM,J,1/16W 3 R9027-30 ERJ3GEYJ473 M 47KOHM,J,1/16W 4 R903,04 ERF7TK3R3 W 3.3 OHM, K, 7W 2 R9031,32 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R9033,34 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9035-38 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R9039 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9040 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9042 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9043 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9044 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9045 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9046,47 TAJAAH0101JV M 100 OHM,J,1/16W 2 D0GB101JA006 R9048 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9049 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9051,52 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9053 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9054,55 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9056 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9057,58 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9059 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R906,07 ERC12ZGK105 S 1MOHM, K,1/2W 2 R9060 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9061 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9062 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9063 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9064 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9065 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9066 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9067 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R9068-71 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9072 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9073,74 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9075 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9076 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9077 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9079 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9081,82 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9084 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9086 EXB38V220J RESISTOR ARRAY 1 R9089 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9091,92 ERJ6ENF1001 M 1KOHM, 1/10W 2 R9093,94 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9095 ERJ6ENF1101 M 1.1KOHM, 1/10W 1 R9096 ERJ6ENF1401 M 1.4KOHM, 1/10W 1 R9098 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9099 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R9100 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9101 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R9102,03 EXB2HV470JV RESISTOR ARRAY 2 R9105 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9106 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9108 ERJ3GEY0R00 M 0 OHM, 1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks 183 R9109 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R9110 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9111 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9112 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9113 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9114 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R9115 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9116 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9117 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9118 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9119 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R912,13 ERG2FJS104D M 100KOHM, J, 2W 2 R9120 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9121 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9122 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9123 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9124 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9126 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9127 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9128,29 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9130 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9131,32 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9133 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9134,35 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9136 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9137,38 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 2 R9139-43 TAJAAH0101JV M 100 OHM,J,1/16W 5 D0GB101JA006 R914 ERG2FJS100D M 10 OHM, J, 2W 1 R9145 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9149-51 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R915 ERG1FJS104D M 100KOHM, J, 1W 1 R9153 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9154 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9159 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9160,61 TAJAAH0101JV M 100 OHM,J,1/16W 2 D0GB101JA006 R9163 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9164 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 R9165-68 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R9169-72 TAJAAH0101JV M 100 OHM,J,1/16W 4 D0GB101JA006 R9173 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R9174 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9175-77 TAJAAH0101JV M 100 OHM,J,1/16W 3 D0GB101JA006 R9178 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R9179 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R918 ERX12SJR82 M0.82 OHM, J,1/2W 1 R9180 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9181 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9182 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9183 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R9184 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9186 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9189 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R919 ERX12SJ1R0 M 0.1 OHM, J,1/2W 1 R9192 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9193,94 ERJ6ENF1001 M 1KOHM, 1/10W 2 R9195,96 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9197 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9199 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R920 ERDS1FJ331 C 330 OHM, J,1/2W 1 R9200 EXB2HV470JV RESISTOR ARRAY 1 R9201,02 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9204 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9205 EXB2HV470JV RESISTOR ARRAY 1 R9206-08 TAJAAH0101JV M 100 OHM,J,1/16W 3 D0GB101JA006 R9209 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R921 ERDS1FJ150 C 15 OHM, J,1/2W 1 R9210 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9211 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9212 EXB2HV470JV RESISTOR ARRAY 1 R9213 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9215 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9216 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9218,19 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R922 ERDS1FJ102 C 1KOHM, J,1/2W 1 R9220-22 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9223-25 ERJ3GEYJ750 M 75 OHM,J,1/16W 3 Ref. No. Part No. Part Name & Description Pcs Remarks R9228,29 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R923 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R9230 ERJ3EKF6801 M 6.8KOHM, 1/16W 1 R9231-33 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9235 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9236 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9237 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R924 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R9240,41 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9243-45 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9246-60 TAJAAH0101JV M 100 OHM,J,1/16W 15 D0GB101JA006 R925 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R9261-65 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R9266 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9267-69 ERJ6GEY0R00 M 0 OHM, 1/10W 3 R927 ERJ6GEYJ683 M 68KOHM,J,1/10W 1 R9270 ERJ6ENF2322 M23.2KOHM, 1/10W 1 R9271 ERJ6ENF1002 M 10KOHM, 1/10W 1 R9272 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R9273 ERJ6ENF1002 M 10KOHM, 1/10W 1 R9274,75 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R9276 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R9277 ERJ3GEYJ823 M 82KOHM,J,1/16W 1 R9278 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9279 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9281 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R9282 ERJ6ENF1002 M 10KOHM, 1/10W 1 R9283,84 ERJ3GEYJ683 M 68KOHM,J,1/16W 2 R9287 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9288 ERJ6ENF1001 M 1KOHM, 1/10W 1 R9289 ERJ6ENF4420 M 442 OHM, 1/10W 1 R9290-92 ERJ6ENF1001 M 1KOHM, 1/10W 3 R9293 ERJ6ENF1601 M 1.6KOHM, 1/10W 1 R9294 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9295 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R9296 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9299 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R930 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R9300 EXB38V470J RESISTOR ARRAY 1 R9301 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9303 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9305-07 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9308,09 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R931 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R9311 EXB38V470J RESISTOR ARRAY 1 R9314 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9315-18 TAJAAH0470JV M 47 OHM,J,1/16W 4 D0GB470JA006 R932 ERJ6ENF2402 M 24KOHM, 1/10W 1 R9321-24 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9328,29 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R933 ERJ6ENF1002 M 10KOHM, 1/10W 1 R9331 EXB2HV101J RESISTOR ARRAY 1 R9332 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9333 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9334 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R9335 EXB2HV101J RESISTOR ARRAY 1 R9336 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9337 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9338-43 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R934 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R9344,45 EXB2HV101J RESISTOR ARRAY 2 R9346,47 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9348 EXB2HV101J RESISTOR ARRAY 1 R9349,50 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R935 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R9351 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9353,54 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R9355 EXB2HV101J RESISTOR ARRAY 1 R9356 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9357-59 TAJAAH0470JV M 47 OHM,J,1/16W 3 D0GB470JA006 R936 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1 R9360 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9361 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R9362 EXB2HV101J RESISTOR ARRAY 1 R9363 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9365 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 Ref. No. Part No. Part Name & Description Pcs Remarks 184 R9366,67 EXB2HV101J RESISTOR ARRAY 2 R9368 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R9369 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R937 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R9371 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R9372 EXB2HV101J RESISTOR ARRAY 1 R9374 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R9375 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9376 EXB2HV101J RESISTOR ARRAY 1 R9377 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R938 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R9380,81 EXB2HV101J RESISTOR ARRAY 2 R9382 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9384,85 EXB2HV101J RESISTOR ARRAY 2 R9386,87 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R9388 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9389 EXB2HV101J RESISTOR ARRAY 1 R9390,91 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R9393 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R939-42 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 4 R9395 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9397 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9399 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9401 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9403 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9405 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9407 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9409 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9411 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9413 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9415 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9417 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9419 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9421 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9423 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9425 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9427 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9429 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9431 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9433 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9435 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9439,40 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R9441 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9443 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9445 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9447 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9449 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9451 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9453 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9455 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9457 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9459 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9461 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9463 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9465 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9467 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9469 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9471 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9473 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9475 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9477 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9479 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9481 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9483 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9485 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9487 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9489 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9491 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9493 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9495 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9497 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9499 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9501 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9503 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9505 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9506-09 ERJ3GEY0R00 M 0 OHM, 1/16W 4 Ref. No. Part No. Part Name & Description Pcs Remarks R9510,11 TAJAAH0470JV M 47 OHM,J,1/16W 2 D0GB470JA006 R9512 EXB38V470J RESISTOR ARRAY 1 R9513 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9516 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R9517 EXB38V470J RESISTOR ARRAY 1 R9521-26 EXB2HV470JV RESISTOR ARRAY 6 R9527 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9530 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9532 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9534 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9535-41 TAJAAH0470JV M 47 OHM,J,1/16W 7 D0GB470JA006 R9542 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9543,44 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9548 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9550 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R9552,53 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9555-58 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9559,60 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R9561 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9562-64 EXB38V470J RESISTOR ARRAY 3 R9567,68 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9569 EXB38V470J RESISTOR ARRAY 1 R9570,71 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9574-77 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9578,79 EXB38V470J RESISTOR ARRAY 2 R9583-85 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9586 EXB38V470J RESISTOR ARRAY 1 R9587 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9589 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9590 EXB38V470J RESISTOR ARRAY 1 R9595 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9596 EXB38V470J RESISTOR ARRAY 1 R9597-02 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R9605 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9607 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9609 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9611 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9613 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9615 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9617 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9619 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9621 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9623 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9625 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9627 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9629 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9631 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9633 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9635 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9637 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9639 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9641 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9643 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9645 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9647 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9648 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9649 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9650 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9651 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9652 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9653 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9655 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9657 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9659 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9661 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9663 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9665 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9667 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9669 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9671 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9673 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9675 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9677 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9679 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9681 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9683 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks 185 R9685 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9687 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9689 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9691 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9693 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9695 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9697 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9699 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9701 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9703 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9705 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9707 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9709 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9711 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9713 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9715 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9717 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9718-21 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9722 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9723 EXB38V103J RESISTOR ARRAY 1 R9724 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9725-28 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9729 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9730,31 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R9736 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9739-45 ERJ3GEY0R00 M 0 OHM, 1/16W 7 R9747,48 EXB38V103J RESISTOR ARRAY 2 R9749-51 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9753 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9754 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9755 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9756 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9757 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9758 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9761 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9762 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R9764 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9765 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9766 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9767-70 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9771 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9774 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9775 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9776 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9777 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9778 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9779 EXB38V103J RESISTOR ARRAY 1 R9780,81 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9783 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9784,85 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9786 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9787-95 ERJ3GEY0R00 M 0 OHM, 1/16W 9 R9798 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9799 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R9800 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9803 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9804 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9805-07 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9808 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9809-13 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R9815 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9816 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9817 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9818-21 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 4 R9822 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9823-31 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 9 R9832 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9833-35 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9836-39 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9840-42 EXB38V103J RESISTOR ARRAY 3 R9843 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9844-48 EXB38V103J RESISTOR ARRAY 5 R9849 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9850 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9851 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9852 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R9853 EXB38V103J RESISTOR ARRAY 1 R9854 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9857-59 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9860-65 TAJAAH0101JV M 100 OHM,J,1/16W 6 D0GB101JA006 R9866 EXB2HV470JV RESISTOR ARRAY 1 R9867,68 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9870 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9871 EXB2HV470JV RESISTOR ARRAY 1 R9872-74 TAJAAH0101JV M 100 OHM,J,1/16W 3 D0GB101JA006 R9876 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9877 EXB2HV470JV RESISTOR ARRAY 1 R9878 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9880 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9884 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9886 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9888 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9892 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9893 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9894 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9897 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB101JA006 R9898 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9899 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9900 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9901 ERJ6ENF1001 M 1KOHM, 1/10W 1 R9903 ERJ6ENF1001 M 1KOHM, 1/10W 1 R9906,07 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R9911-13 ERJ3GEYJ750 M 75 OHM,J,1/16W 3 R9916,17 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9918 ERJ3EKF6801 M 6.8KOHM, 1/16W 1 R9919-21 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9922 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9924 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9936 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9942 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9951 ERJ6ENF1101 M 1.1KOHM, 1/10W 1 R9952 ERJ6ENF1401 M 1.4KOHM, 1/10W 1 R9953-56 ERJ6ENF1001 M 1KOHM, 1/10W 4 R9979,80 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R9985,86 ERJ3GEY0R00 M 0 OHM, 1/16W 2 RL402 K6B1AGA00177 REALY 1 RL402 K6B1AGA00177 REALY 1 RL403 K6B1AGA00086 RELAY 1 RL403 K6B1AGA00086 RELAY 1 RL920 K6B1ADA00009 REALY 1 RM001 PNA4601M05TV REMOCO RECEIVER 1 RTL TNPA3003 CIRCUIT BOARD H3 2 RTL TNPA3197 CIRCUIT BOARD J 1 RTL TZTNP020VAS CIRCUIT BOARD HX 1 RTL TXNHY10QBS CIRCUIT BOARD HY 1 RTL TXN/F10VES CIRCUIT BOARD F 1 RTL TNPA3198AC CIRCUIT BOARD Z 1 RTL TXNPF10VES CIRCUIT BOARD PF 1 RTL TNPA3354 CIRCUIT BOARD SS2 1 RTL TNPA3355 CIRCUIT BOARD SS3 1 RTL TNPA3401 CIRCUIT BOARD P (SS) 1 RTL TNPA3401AB CIRCUIT BOARD P (SC) 1 RTL TNPA3402 CIRCUIT BOARD PC 1 RTL TNPA3356 CIRCUIT BOARD C1 1 RTL TNPA3357 CIRCUIT BOARD C2 1 RTL TNPA3358 CIRCUIT BOARD C3 1 RTL TNPA3359 CIRCUIT BOARD C4 1 RTL TNPA3360 CIRCUIT BOARD C5 1 RTL TNPA3361 CIRCUIT BOARD C6 1 RTL TZTNP01VESC CIRCUIT BOARD D 1 RTL TNPA3352 CIRCUIT BOARD SC 1 RTL TNPA3363 CIRCUIT BOARD SD 1 RTL TNPA3353 CIRCUIT BOARD SS 1 Ref. No. Part No. Part Name & Description Pcs Remarks 186 RTL TNPA3362 CIRCUIT BOARD SU 1 RTL TNPA3200 CIRCUIT BOARD S1 1 RTL TNPA3199 CIRCUIT BOARD V1 1 S061 K0F162B00002 SWITCH 1 S1550-54 EVQPBD05R SWITCH 5 S34 K1KA03A00213 3P CONNECTOR 1 S901,02 J0LT00000009 SWITCH 2 SC10 K1KA10A00259 10P CONNECTOR 1 SC11 K1KA07A00096 7P CONNECTOR 1 SC12 K1KA06A00220 6P CONNECTOR 1 SC13 TJS1A8840 8P CONNECTOR 1 K1KA08A00221 SC2 K1KA06A00180 6P CONNECTOR 1 SC20 K1KA20A00272 20P CONNECTOR 1 SC23 K1KA03A00213 3P CONNECTOR 1 SC41-44 K1ML80BA0001 80P CONNECTOR 4 SC45,46 K1KA10A00194 10P CONNECTOR 2 SC62 TJS1A8840 8P CONNECTOR 1 K1KA08A00221 SCMM1 TMME047 CLAMPER 1 SCMM3,M4 TMM7464-2 CLAMPER 2 SCMM5,M6 TMME047 CLAMPER 2 SD1-D4 K1MN96B00001 CONNECTOR 4 SD46 K1KA10B00209 10P CONNECTOR 1 SS10 K1KA06A00180 6P CONNECTOR 1 SS11 K1KA07A00096 7P CONNECTOR 1 SS12 K1KA10A00259 10P CONNECTOR 1 SS1-S3 K1KA03A00172 3P CONNECTOR 3 SS21,22 K1KA07A00170 7P CONNECTOR 2 SS23 K1KB07A00037 7P CONNECTOR 1 SS24 K1KB07A00037 7P CONNECTOR 1 SS25,26 K1KA07A00170 7P CONNECTOR 2 SS27,28 K1KB07A00037 7P CONNECTOR 2 SS2MM2 TMME190 CLAMPER 1 SS2MM3 TMME190 CLAMPER 1 SS32 K1KA20AA0009 20P CONNECTOR 1 SS34 K1KA03A00213 3P CONNECTOR 1 SS35 TJS1A8840 8P CONNECTOR 1 K1KA08A00221 SS3MM1 TMME190 CLAMPER 1 SS3MM2,M3 TMME190 CLAMPER 2 SS4 K1KA05A00177 5P CONNECTOR 1 SS42 TJS1A8840 8P CONNECTOR 1 K1KA08A00221 SS5 K1KA04A00195 4P CONNECTOR 1 SS51-58 K1MN13B00020 13P CONNECTOR 8 SU1-U4 K1MN96B00001 CONNECTOR 4 SU45 K1KA10B00209 10P CONNECTOR 1 T401 G4D4A0000072 SWITCHING TRANS- FORMER 1 T401 G4D4A0000072 SWITCHING TRANS- FORMER 1 T402,03 G4D1A0000082 SWITCHING TRANS 2 T402,03 G4D1A0000082 SWITCHING TRANS 2 T404 ETS28LZ126AD SWITCHING TRANS 1 T404 ETS28LZ126AD SWITCHING TRANS 1 T405 ETS42LZ146AD SWITCHING TRANS 1 T405 ETS42LZ146AD SWITCHING TRANS 1 T406 G4D4A0000072 SWITCHING TRANS- FORMER 1 T406 G4D4A0000072 SWITCHING TRANS- FORMER 1 T407 ETQ11K5AZ CHOKE TRANS 1 T407 ETQ11K5AZ CHOKE TRANS 1 T410 ETS25AD1M6AG SWITCHING TRANS 1 T410 ETS25AD1M6AG SWITCHING TRANS 1 T6801 ETS28AU2S9AC SWITCHING TRANS- FORMER 1 T6802 ETS13TB199AP SWITCHING TRANS- FORMER 1 T920 ETS28AZ1K6AD SWITCHING TRANS 1 V34 K1KA08B00005 8P CONNECTOR 1 VR6250 EVMEASA00B14 CONTROL 10KOHMB 0.3W 1 VR6602 EVMEASA00B14 CONTROL 10KOHMB 0.3W 1 VR6801,02 EVMEASA00B14 CONTROL 10KOHMB 0.3W 2 W81 ERJ8GEYJ393 M 39KOHM, J,1/8W 1 W81 ERJ8GEYJ393 M 39KOHM, J,1/8W 1 Ref. No. Part No. Part Name & Description Pcs Remarks X3101 H0J202500002 CRYSTAL 1 X700 H2B400400021 CRYSTAL 1 X8181 H0J327200038 CRYSTAL 1 X9001 H0J400400017 CRYSTAL 1 X9500 H0J200500038 CRYSTAL 1 Z1 K4ZZ01000121 EARTH LUG 1 Z1 K4ZZ01000121 EARTH LUG 1 Z10 K1KA05A00177 5P CONNECTOR 1 Z30-34 K1KA03A00172 3P CONNECTOR 5 Z410 TMM7464-2 CLAMPER 1 Z410 TMM7464-2 CLAMPER 1 Z411 TMME190 CLAMPER 1 Z411 TMME190 CLAMPER 1 Z412-14 TMM7464-2 CLAMPER 3 Z412-14 TMM7464-2 CLAMPER 3 Z5 K1KA11A00102 11P CONNECTOR 1 Z6 K1KA04A00195 4P CONNECTOR 1 Z7 K1KA03A00172 3P CONNECTOR 1 Z8 K1KA20AA0008 20P CONNECTOR 1 Z9 K1KA08A00293 8P CONNECTOR 1 ZA001-03 K4ZZ01000121 EARTH LUG 3 ZA3001-07 K4CD01000013 TERMINAL 7 ZA6000-02 K4CD01000013 TERMINAL 3 ZA6401-03 K4CD01000013 TERMINAL 3 ZA7101,02 K4CD01000013 TERMINAL 2 ZA7201 K4CD01000013 TERMINAL 1 ZA7301,02 K4CD01000013 TERMINAL 2 ZA7401,02 K4CD01000013 TERMINAL 2 ZA7501 K4CD01000013 TERMINAL 1 ZA7601,02 K4CD01000013 TERMINAL 2 ZA901-03 K4ZZ01000121 EARTH LUG 3 ZA951 K4ZZ01000121 EARTH LUG 1 ZN401,02 D4EAD6210001 VARISTOR 2 ZN401,02 D4EAD6210001 VARISTOR 2 Ref. No. Part No. Part Name & Description Pcs Remarks
