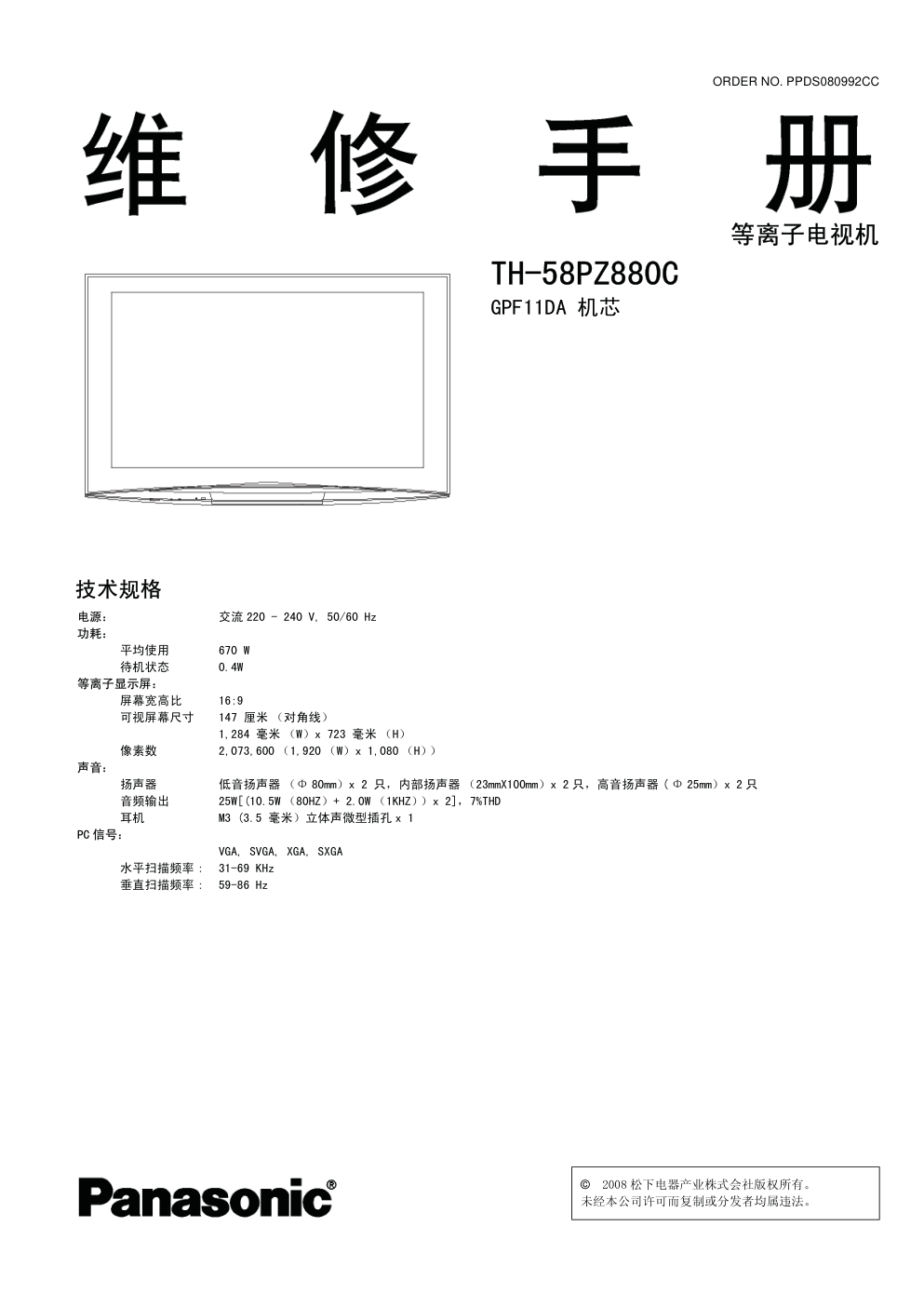

© 2008 松下电器产业株式会社版权所有。 未经本公司许可而复制或分发者均属违法。 ORDER NO. PPDS080992CC 等离子电视机 TH-58PZ880C GPF11DA 机芯 技术规格 电源： 交流 220 - 240 V, 50/60 Hz 功耗： 平均使用 670 W 待机状态 0.4W 等离子显示屏： 屏幕宽高比 16:9 可视屏幕尺寸 147 厘米 （对角线） 1,284 毫米 （W）x 723 毫米 （H） 像素数 2,073,600 （1,920 （W）x 1,080 （H）） 声音： 扬声器 低音扬声器 （Φ 80mm）x 2 只，内部扬声器 （23mmX100mm）x 2 只，高音扬声器 ( Φ 25mm）x 2 只 音频输出 25W[(10.5W （80HZ）+ 2.0W （1KHZ））x 2]，7%THD 耳机 M3 (3.5 毫米）立体声微型插孔 x 1 PC 信号： VGA, SVGA, XGA, SXGA 水平扫描频率 : 31-69 KHz 垂直扫描频率 : 59-86 Hz 2 TH-58PZ880C 接收制式 / 频带名称： 接收频道 VHF 频段 2-12 (PAL/SECAM B, K1) （普通电视机） 0-12 (PAL B 澳大利亚 ) 1-9 (PAL B 新西兰 ) 1-12 (PAL/SECAM D) 1-12 (NTSC M 日本 ) 2-13 (NTSC M 美国 ) UHF 频段 21-69 (PAL G, H, I/SECAM G, K, K1) 28-69 (PAL B 澳大利亚 ) 13-57 (PAL D, K) 13-62 (NTSC M 日本 ) 14-69 (NTSC M 美国 ) CATV S1-S20 (OSCAR) 1-125 ( 美国有线电视 ) C13-C49 ( 日本 ) S21-S41 (HYPER) Z1-Z37 ( 中国 ) 5A, 9A ( 澳大利亚 ) 天线 - 后侧： VHF / UHF 运行条件： 温度 : 0 ° C - 40 ° C 湿度 : 20 % - 80 % 相对湿度 （无结露） 连接端子： AV1 输入 音频 L-R RCA 针式× 2 0.5 Vrms 视频 RCA 针式× 1 1.0 V p-p (75 Ω ) 色差 Y 1.0 V p-p ( 含同步信号 ) PB / CB, PR/ CR ± 0.35 Vp-p AV2 输入 音频 L-R RCA 针式× 2 0.5 Vrms 视频 RCA 针式× 1 1.0 V p-p (75 Ω ) 色差 Y 1.0 V p-p ( 含同步信号 ) PB / CB, PR/ CR ± 0.35 V p-p AV3 输入 音频 L-R RCA 针式× 2 0.5 Vrms 视频 RCA 针式× 1 1.0 V p-p (75 Ω ) S 视频 小型 DIN 4 针 Y:1.0 V p-p (75 Ω ) C:0.286 V p-p (75 Ω ) AV4 输入 音频 L-R RCA 针式× 2 0.5 Vrms 视频 RCA 针式× 1 1.0 V p-p (75 Ω ) S 视频 小型 DIN 4 针 Y:1.0 V p-p (75 Ω ) C:0.286 V p-p (75 Ω ) 视频输出 音频 L-R RCA 针式× 2 0.5 Vrms （高阻抗） 视频 RCA 针式× 1 1.0 V p-p (75 Ω ) 其他 HDMI1-4 输入 A 型接头 此电视机支持 [HDAVI Control 3] 功能。 PC 输入 高密度 D-SUB15 针 R, G, B/0.7 Vp-p (75 Ω ) HD, VD/TTL 水平 2.0-5.0 Vp-p ( 高阻抗 ) 数字音频输出 PCM / 杜比数字，光纤 卡槽 SD 卡槽× 1 尺寸 ( 宽×高×厚 ): 1,445 毫米 x 949 毫米 x 409 毫米 （含底座） 1,445 毫米 x 898 毫米 x 109 毫米 （仅电视） 重量 : 净重 63.5 kg （含底座） 净重 59.0 kg （仅电视） 注： • 设计和技术规格如有变更，恕不另行通知。以上所示质量和尺寸均为近似值。 • 底座：ST-58R4-WG （通过安全认证） 3 TH-58PZ880C 目录 页数 页数 1 安全警告 ---------------------------------------- 5 1.1. 一般准则 ----------------------------------- 5 2 警告--------------------------------------------- 6 2.1. 对静电灵敏设备 （ES）的静电放电保护 （ESD）-- 6 2.2. 无铅焊接 （PbF）---------------------------- 7 3 维修指南----------------------------------------- 8 3.1. 维修提示 ----------------------------------- 8 3.2. 适用信号 ----------------------------------- 9 4 维修模式---------------------------------------- 10 4.1. 怎样进入维修模式 -------------------------- 10 4.2. 维修工具模式 ------------------------------ 12 4.3. 旅馆模式 ---------------------------------- 13 5 故障检修---------------------------------------- 14 5.1. 检测 IIC 总线 ------------------------------ 14 5.2. 无电源 ------------------------------------ 16 5.3. 无图像 ------------------------------------ 17 5.4. 显示屏局部故障 ---------------------------- 18 6 拆卸与组装指南---------------------------------- 19 6.1. 取下后盖 ---------------------------------- 19 6.2. 取下风扇组件 ------------------------------ 19 6.3. 取下 PA 板 --------------------------------- 19 6.4. 取下 P 板 ---------------------------------- 19 6.5. 取下后端子盖 ------------------------------ 20 6.6. 取下调谐器组件 ---------------------------- 21 6.7. 取下 A 板 ---------------------------------- 21 6.8. 取下 HC 板 --------------------------------- 21 6.9. 取下音箱（低音扬声器 / 左、低音扬声器 / 右）- 21 6.10. 取下 SU 板 --------------------------------- 22 6.11. 取下 SD 板 --------------------------------- 22 6.12. 取下 SC 板 --------------------------------- 23 6.13. 取下 SS 板 --------------------------------- 23 6.14. 取下 SS2 板 -------------------------------- 23 6.15. 取下 SS3 板 -------------------------------- 23 6.16. 取下 D 板 ---------------------------------- 24 6.17. 取下 C1 板 --------------------------------- 24 6.18. 取下 C2 板 --------------------------------- 24 6.19. 取下 C3 板 --------------------------------- 24 6.20. 取下扬声器 （中音扬声器）------------------ 25 6.21. 取下前端支架 ------------------------------ 25 6.22. 取下 G 板，GS 板和 GH 板 -------------------- 25 6.23. 取下支架和后面安装金属 -------------------- 26 6.24. 从面框组件中取出等离子显示屏 -------------- 26 6.25. 取下 K 板和 S 板 ---------------------------- 27 6.26. 取下 GL 板 --------------------------------- 28 6.27. 更换完成等离子显示屏 ---------------------- 28 7 测量、调整-------------------------------------- 29 7.1. 驱动器设置 -------------------------------- 29 8 方框图 ----------------------------------------- 33 8.1. 方框图 （1/6）----------------------------- 33 8.2. 方框图 （2/6）----------------------------- 34 8.3. 方框图 （3/6）----------------------------- 35 8.4. 方框图 （4/6）----------------------------- 36 8.5. 方框图 （5/6）----------------------------- 37 8.6. 方框图 （6/6）----------------------------- 38 9 配线连接图 -------------------------------------39 9.1. 注意事项-----------------------------------39 9.2. 配线 (1) -----------------------------------39 9.3. 配线 (2) -----------------------------------40 9.4. 配线 (3) -----------------------------------41 10 线路图 ------------------------------------------43 10.1. 线路图注意事项 ----------------------------43 10.2. P(SUS) 电路板线路图 ------------------------44 10.3. P(MULTI) 电路板线路图 ----------------------45 10.4. PA 电路板线路图 ----------------------------46 10.5. A 电路板 （1/20）线路图---------------------47 10.6. A 电路板 （2/20）线路图---------------------48 10.7. A 电路板 （3/20）线路图---------------------49 10.8. A 电路板 （4/20）线路图---------------------50 10.9. A 电路板 （5/20）线路图---------------------51 10.10. A 电路板 （6/20）线路图---------------------52 10.11. A 电路板 （7/20）线路图---------------------53 10.12. A 电路板 （8/20）线路图---------------------54 10.13. A 电路板 （9/20）线路图---------------------55 10.14. A 电路板 （10/20）线路图--------------------56 10.15. A 电路板 （11/20）线路图--------------------57 10.16. A 电路板 （12/20）线路图--------------------58 10.17. A 电路板 （13/20）线路图--------------------59 10.18. A 电路板 （14/20）线路图--------------------60 10.19. A 电路板 （15/20）线路图--------------------61 10.20. A 电路板 （16/20）线路图--------------------62 10.21. A 电路板 （17/20）线路图--------------------63 10.22. A 电路板 （18/20）线路图--------------------64 10.23. A 电路板 （19/20）线路图--------------------65 10.24. A 电路板 （20/20）线路图--------------------66 10.25. D 电路板 （1/6）线路图 ---------------------67 10.26. D 电路板 （2/6）线路图 ---------------------68 10.27. D 电路板 （3/6）线路图 ---------------------69 10.28. D 电路板 （4/6）线路图 ---------------------70 10.29. D 电路板 （5/6）线路图 ---------------------71 10.30. D 电路板 （6/6）线路图 ---------------------72 10.31. C1 电路板 （1/2）线路图 --------------------73 10.32. C1 电路板 （2/2）线路图 --------------------74 10.33. C2 电路板 （1/2）线路图 --------------------75 10.34. C2 电路板 （2/2）线路图 --------------------76 10.35. C3 电路板 （1/2）线路图 --------------------77 10.36. C3 电路板 （2/2）线路图 --------------------78 10.37. SC 电路板 （1/3）线路图 --------------------79 10.38. SC 电路板 （2/3）线路图 --------------------80 10.39. SC 电路板 （3/3）线路图 --------------------81 10.40. SU 电路板 （1/3）线路图 --------------------82 10.41. SU 电路板 （2/3）线路图 --------------------83 10.42. SU 电路板 （3/3）线路图 --------------------84 10.43. SD 电路板 （1/3）线路图 --------------------85 10.44. SD 电路板 （2/3）线路图 --------------------86 10.45. SD 电路板 （3/3）线路图 --------------------87 10.46. SS （1/2）和 S 电路板线路图 -----------------88 10.47. SS2、SS3 和 SS （2/2）电路板线路图 ----------89 10.48. G 和 K 电路板线路图 -------------------------90 4 TH-58PZ880C 10.49. GL 和 GS 电路板线路图----------------------- 91 10.50. HC 电路板线路图---------------------------- 92 10.51. GH 电路板线路图---------------------------- 93 11 导线图 ----------------------------------------- 94 11.1. P （SUS）电路板---------------------------- 94 11.2. P （MAIN）电路板--------------------------- 95 11.3. GH 和 HC 电路板----------------------------- 97 11.4. G，GL 和 GS 电路板-------------------------- 98 11.5. GL，K，PA 和 S 电路板----------------------- 99 11.6. A 电路板 --------------------------------- 100 11.7. D 电路板---------------------------------- 103 11.8. C1 电路板--------------------------------- 105 11.9. C2 电路板--------------------------------- 106 11.10. C3 电路板--------------------------------- 107 11.11. SC 电路板--------------------------------- 108 11.12. SU 电路板--------------------------------- 110 11.13. SD 电路板 -------------------------------- 111 11.14. SS 电路板 -------------------------------- 112 11.15. SS2 和 SS3 电路板-------------------------- 114 12 分解图和更换部件清单--------------------------- 115 12.1. 分解图和机械更换部件清单 ----------------- 115 12.2. 更换部件清单 ---------------------------- 119 5 TH-58PZ880C 1 安全警告 1.1. 一般准则 1. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 2. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸、屏蔽等安装正确。 3. 维修后，进行以下漏电检查，以免用户遭受触电危险。 1.1.1. 漏电检查 1. 将 AC 电源线直接插入 AC 电源插座。进行检查时，请勿使用分离变压器。 2. 在设备上各外露金属部分和良好接地 （如水管）之间连接一个电流测量装置，如图 1 所示。 3. 用漏电测试仪 （Simpson 228 或类似型号）测量通过该装置的电势。 4. 检查各外露金属部件，并测量各点的电压。 5. 变换 AC 插座中的 AC 插头，并重复上述各项测量。 6. 各点 （漏电）的电势表示为电压 U1 和 U2，并且不能超过以下各值： 交流：U1 = 35 V （峰值） U2 = 0.35 V （峰值）； 直流：U1=1.0 V 注： 与交流的 U2 限定峰值 0.35V 和直流的 U1 限定峰值 1.0V 相对应的电流峰值分别为 0.7mA 和 2.0mA。 与交流的 U1 限定峰值 35V 相对应的 100kHz 以上的电流峰值为 70mA。 7. 当测量值超出规定的限制时，可能会引起触电。所以必须在设备返回用户手中之前对其进行修理和再检测。 图 1 6 TH-58PZ880C 2 警告 2.1. 对静电灵敏设备 （ES）的静电放电保护 （ESD） 一些半导体（固态）装置很容易遭静电损坏。这些组件通常被称为静电灵敏装置（ES）. 典型的 ES 装置有集成电路和一些场效应晶体 管以及半导体芯片摂组件。以下方法通常被用来减少由于静电放电 （ESD）所产生的组件损坏。 1. 处理任何半导体组件或是配备有半导体组件的设备之前，应立即接地 （已知） ，去静电。或者戴上市场上出售的抗静电放电腕 带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 移动配有静电灵敏装置的电器组件之后，要将该组件放置于导体表面上 （如铝箔），以防组件静电电荷的产生或辐射。 3. 只采用一块接地端烙铁来联结或断开静电灵敏装置。 4. 只采用抗静电联结移动装置。一些不属于抗静电（静电放电保护）摂范围的联结移动装置会产生足以损坏静电灵敏装置的电荷。 5. 切勿使用类似氟利昂推进剂的化学物质。这些化学物质会产生足以损坏静电灵敏装置的电荷。 6. 准备即刻安装之前才能拆开静电灵敏替代装置的保护性包装。（大多数静电灵敏替代装置都是采用铅制包装，通过与传导泡沫、 铝箔或是类似的导体材料一起造成短路）。 7. 拆掉静电灵敏替代装置上的铅制保护性材料之前，立刻将保护性材料与即将安装该装置的机芯或是电路组件相接触。 注意 确定机芯或电路无电源，并遵守其它所有的安全措施。 8. 当处理未包装的静电灵敏替代装置时，尽量减小身体的动作幅度。（否则，一些无关紧要的动作如：衣服织物一起掠过或是从铺 有地毯的地板上抬起脚，都会产生足以损坏静电灵敏装置的静电 （静电放电））。 7 TH-58PZ880C 2.2. 无铅焊接 （PbF） 注：在元素周期表中，铅用 Pb 表示。 在下文中，Pb 表示有铅焊接，PbF 表示无铅焊接。 制造过程中使用及下文中讨论的无铅焊接皆指 (Sn+Ag+Cu)。 即：锡 （Sn），银 （Ag）和铜 （Cu），但其它种类也可使用。 出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维修和修理工作中最好使用无铅焊接，尽管有铅焊接也可使用。 使用无铅焊接工艺制造的印刷电路板背面的树叶形符号 内有 PbF 字样。 注意 • 无铅焊接的熔点比标准焊接的高。通常熔点高 50 ～ 70°F (30 ～ 40°C)。 请使用高温电烙铁，并将其温度设为 700 ± 20°F (370 ± 10°C)。 • 加热过度 （约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。 如果必须使用有铅焊接，请在焊接前先全部去除焊脚或焊接区上的无铅焊料。如果做到这点有实际困难，则确保无铅焊料加热到熔 化之后再进行有铅焊接。 • 在对双面电路板进行无铅焊接后，请检查部件侧部是否有过量焊料，否则会流到另一侧去。（见下图） 推荐的无铅焊料 有几种无铅焊料可供选购。本产品使用的是 Sn+Ag+Cu （锡＋银＋铜）焊料。 但也可使用 Sn+Cu （锡＋铜）和 Sn+Zn+Bi （锡＋锌＋铋）焊料。 8 TH-58PZ880C 3 维修指南 3.1. 维修提示 电路板名称 功能 电路板名称 功能 P 主电源 C1 数据驱动 （右下） A 直流－直流转换器 C2 数据驱动 （中下） 扬声器输出，声音处理器 C3 数据驱动 （左下） AV 端子， AV 切换 SC 扫描驱动 数据信号处理器，微电脑，HDMI 界面 SU 扫描输出 （上） 峰值 PRO, GC6 SD 扫描输出 （下） D 格式转换器，等离子 AI 处理器，子场处理器 SS 维持驱动 K 遥控接收器，电源指示灯 SS2 维持连接 （上） S 电源开关 SS3 维持连接 （下） GS SD 卡槽 GH HDMI4 接入 GL SD 蓝色指示灯 G 前置端子，按键开关 HC PC 接入，音频输出 PA 风扇控制 9 TH-58PZ880C 3.2. 适用信号 10 TH-58PZ880C 4 维修模式 4.1. 怎样进入维修模式 按住主机的 [ 音量 ( - )] 按钮，并同时在 2 秒钟内快速按下遥控器上的 [ 显示 ] 按钮三次。 4.1.1. 按键命令 按键 [1] ... 主项目 正向选择 按键 [2] ... 主项目 反向选择 按键 [3] ... 子项目 正向选择 按键 [4] ... 子项目 反向选择 按键 [ 红色 ] ... 所有子项目 正向选择 按键 [ 绿色 ] ... 所有子项目 反向选择 按键 [ 音量 ] ... 子项目值 正 （＋）或反 （－）方向变化 11 TH-58PZ880C 4.1.2. 调节模式内容 • 数值显示为十六进制。 • 预设值根据型号不同而不同。 • 进入调整模式后，调整启动之前，请注意每个项目值。 4.1.3. 如何退出 按主机或遥控器的 [ ] 键可关闭电源退出。 12 TH-58PZ880C 4.2. 维修工具模式 4.2.1. 怎样进入 1. 在维修模式中选择 [SRV-TOOL]。 2. 按遥控器的 [ 确定 ] 按钮。 4.2.2. 显示 SOS 历史 SOS 历史由指示灯闪烁次数表示。 从左侧开始依次为：最后一次 SOS，倒数第二次，倒数第三次，出厂后第二次，出场后第一次。 除了出厂后第一次和第二次以外，通过自检指示和恢复出厂设置即可清除该指示。 4.2.3. 启动电源时间 / 计数 按住静音按键三秒钟，可以显示时间 / 计数菜单，变亮部位。 时间：加电时间，表示为小时：十进制分钟 计数：启动次数以十进制计。 注：此显示不会被自检或其他命令清除。 4.2.4. 退出 1. 把交流电源线从壁装电源插座中拔出或按主机上 [ 电源 ] 按钮关闭电源。 13 TH-58PZ880C 4.3. 旅馆模式 1. 目的 对旅馆限制功能。 2. 使用命令进入旅馆模式设置菜单 为显示旅馆模式设置菜单，请在两秒钟内使用以下命令。 主机上的音量 [ － ] 按钮 + 遥控器上的 [ 视频 ] 按钮（3 次） 接着显示旅馆模式设置菜单。 3. 退出旅馆模式设置菜单 把交流电源线从壁装电源插座中拔出或按主机上 [ 电源 ] 按 钮关闭电源。 4. 旅馆模式设置菜单说明 项目 功能 旅馆模式 选择旅馆模式开 / 关 初始输入 选择输入信号模式。 每当电源接通时，可设置输入。 选择： Off/AV1/AV2/AV3/AV4/PC/HDMI1/HDMI2/HDMI3/ HDMI4/TV • Off：优先上次记忆。 • PC：与 VGA 选项可选 初始 POS 选择节目号码。 选择： Off/0 至 99 • Off：优先上次记忆。 初始音量等级 每当电源接通时，请调节音量。 选择 / 范围： Off/0 至 100 • Off：优先上次记忆。 最大音量等级 设定最大音量。 范围： 0 至 100 键锁定 选择当前按键状态。 选择： Off/SETUP/MENU/ALL • Off：全部有效 • SETUP：仅 F 键无效 （调谐菜单不可选） • MENU：仅 F 键无效 ( 仅音量 / 静音可选 ) • ALL：全部无效 遥控器锁定 选择遥控器按键状态。 选择： Off/SETUP/MENU • Off：全部有效 • SETUP：仅设置菜单无效 • MENU：图像 / 声音 / 设置菜单无效 14 TH-58PZ880C 5 故障检修 使用自检功能检测整机。 1. 检测 IIC 总线 2. 电源指示灯闪烁间隔 5.1. 检测 IIC 总线 5.1.1. 怎样进入 自检功能仅显示： 按下主机上的 [ 音量 （－）] 按钮，并按遥控器的 [ 确定 ] 按键超过三秒，电视接收屏幕出现。 自检指示并强制返回出厂设置： 按下主机上的 [ 音量 （－）] 按钮，并按遥控器的 [ 菜单 ] 按钮超过三秒，电视接收屏幕出现。 5.1.2. 屏幕显示 5.1.3. 检测点 如果屏幕显示异常，请确认下面部分。 5.1.4. 退出 把交流电源线从壁装电源插座中拔出或按主机上 [ 电源 ] 按钮关闭电源。 15 TH-58PZ880C 5.1.5. 电源指示灯闪烁间隔表 1. 主题 电源指示灯闪烁间隔表信息。 2. 内容 当设备出现异常时，保护电路将运行并将设备复位到待机状态。此时，通过本机前端的电源指示灯闪烁次数便可识别出故障部 位。 16 TH-58PZ880C 5.2. 无电源 第一检测点 电源指示灯的无电源指示有以下 2 种情况： 1. 不亮。 2. 红灯亮，几秒钟后转为红灯闪烁。（见 5.1.5.） 17 TH-58PZ880C 5.3. 无图像 18 TH-58PZ880C 5.4. 显示屏局部故障 等离子显示器屏幕上可能会出现局部故障。图 1 是各局部可能会出现故障的 P.C.B. 印刷电路板。 图 1 19 TH-58PZ880C 6 拆卸与组装指南 6.1. 取下后盖 1. 见维修提示 （第 3 节） 6.2. 取下风扇组件 1. 解开线夹，放出电线。 2. 卸下螺丝 ( × 3 )。 3. 取下继电器连接件并取下风扇组件。 4. 取下背面的螺丝 ( × 1 )。 5. 取下风扇。 6.3. 取下 PA 板 1. 断开连接件 (PA5, PA6, PA8, PA33, PA35, PA36 和 PA37)。 2. 卸下螺丝 ( × 2 )。 3. 取下 PA 板。 6.4. 取下 P 板 注意： 由于电解电容器放电原因，电源切断一分钟后再取下P.C.B.。 1. 解开线夹，放出电线。 2. 断开连接件 (P2, P6, P7, P9, P11, P12 和 P25)。 3. 卸下螺丝 （× 8 ），然后取下 P 板组件。 20 TH-58PZ880C 4. 取下背面的螺丝 （× 34 ）。 5. 断开连接件 (P51-P52, P53-P54 和 P55-P56)。 6. 卸下螺丝 （× 12 ）。 7. 取下成型支撑件 （× 6 ）。 8. 取下 P(Multi) 板。 9. 取下成型支撑件 （× 6 ）。 10. 取下 P(Sus) 板。 注： 安装 P （Multi）板和 P （Sus）板前，应当将绝缘片 （A、B、C、D）上面的每个孔与 P（Multi）板和 P（Sus） 板上的孔对准。 （ 标记表示设置位置）。 P 板背面 6.5. 取下后端子盖 1. 卸下螺丝 ( × 2 , × 3 , × 1 )。 2. 取下后端子盖。 21 TH-58PZ880C 6.6. 取下调谐器组件 1. 解开线夹，放出电线。 2. 断开连接件 (A1, A3, A5, A6, A7, A8, A9, A11, A51, A53, H13 和 H14)。 3. 卸下螺丝 （× 4 ），然后取下调谐器组件。 6.7. 取下 A 板 1. 取下调谐器组件。（见 6.6） 2. 取下桥式联接器 (A12, A13 和 A14)。 3. 卸下螺丝 ( × 8 )，然后取下 A 板。 6.8. 取下 HC 板 1. 取下调谐器组件。（见 6.6） 2. 取下桥式联接器 (A12, A13 和 A14)。 3. 卸下螺丝 （× 2 ），然后取下 HC 板。 6.9. 取下音箱（低音扬声器 / 左、低音 扬声器 / 右） 1. 解开线夹，放出电线。 2. 断开继电器连接件。 3. 卸下左右两边的螺丝 （各× 3 ），并取下音箱 （低音扬 声器 / 左、低音扬声器 / 右）。 22 TH-58PZ880C 4. 卸下螺丝 ( × 3 )，取下底部左边低音扬声器支架。 5. 卸下螺丝 ( × 3 )，取下底部右边低音扬声器支架。 6.10. 取下 SU 板 1. 断开连接 SU 板的柔性电缆 (SU1B, SU2B, SU3B, SU4B 和 SU5B)。 2. 断开柔性电缆 (SU11-SD11) 和桥式连接件 (SC41-SU41)。 3. 卸下螺丝 ( × 3 , × 3 )，然后取下 SU 板。 6.11. 取下 SD 板 1. 断开连接 SD 板的柔性电缆 (SD1B, SD2B, SD3B, SD4B 和 SD5B)。 2. 断开柔性电缆 (SU11-SD11) 和桥式连接件 (SC42-SD42 及 SC46-SD46)。 3. 卸下螺丝 ( × 3 , × 3 )，然后取下 SD 板。 23 TH-58PZ880C 6.12. 取下 SC 板 1. 取下 SU,SD 板 （见 6.10 和 6.11） 2. 断开连接件 （SC2）。 3. 断开柔性电缆 （SC20）。 4. 卸下螺丝 （× 8 ），然后取下 SC 板。 6.13. 取下 SS 板 1. 解开线夹，放出电线。 2. 断开连接件 (SS11, SS12, SS33 和 SS34) 并取下桥式连接器 (SS21-SS02 和 SS22-SS03)。 3. 断开柔性电缆 (SS54 和 SS55)。 4. 卸下螺丝 （× 6 ），然后取下 SS 板。 6.14. 取下 SS2 板 1. 断开桥式连接件 (SS21-SS02) 和柔性电缆 （SS52）。 2. 卸下螺丝 （× 2 ），然后取下 SS2 板。 6.15. 取下 SS3 板 1. 解开线夹，放出电线。 2. 断开连接件 （SS35）。 3. 断开柔性电缆 (SS57) 和桥式电缆 (SS22 - SS03)。 4. 卸下螺丝 ( × 4 ) ，然后取下 SS3 板。 24 TH-58PZ880C 6.16. 取下 D 板 1. 取下调谐器组件。（见 6.6） 2. 断开连接件 (D3, D5 和 D25)。 3. 断开柔性电缆 (D20, D31, D32 和 D33)。 4. 卸下螺丝 ( × 4 )，然后取下 D 板。 6.17. 取下 C1 板 1. 取下调谐器组件。（见 6.6） 2. 取下音箱 （低音扬声器 / 右）（见 6.9） 3. 取下 DD 散热器紧固件螺丝 ( × 10 )。 4. 取下 DD 散热器 5 个。 5. 断开柔性电缆 (CB1, CB2, CB3, CB4 和 CB5)。 6. 断开柔性电缆 (C10 和 C11)。 7. 卸下螺丝 ( × 5 )，然后取下 C1 板。 6.18. 取下 C2 板 1. 取下调谐器组件。（见 6.6） 2. 取下音箱 （低音扬声器 / 左）（见 6.9） 3. 取下 DD 散热器紧固件螺丝 ( × 10 )。 4. 取下 DD 散热器 5 个。 5. 断开柔性电缆 (CB6, CB7, CB8, CB9 和 CB10)。 6. 断开柔性电缆 (C20, C21, C22 和 C26)。 7. 卸下螺丝 ( × 4 )，然后取下 C2 板。 6.19. 取下 C3 板 1. 取下音箱 （低音扬声器 / 左）（见 6.9） 2. 取下 DD 散热器紧固件螺丝 ( × 10 )。 3. 取下 DD 散热器 5 个。 4. 断开活动电线 (CB11, CB12, CB13, CB14 和 CB15)。 5. 断开柔性电缆 （C36）。 6. 断开连接件 (C33 和 C35)。 25 TH-58PZ880C 7. 卸下螺丝 ( × 5 )，然后取下 C3 板。 6.20. 取下扬声器 （中音扬声器） 1. 卸下螺丝 ( × 4 )，取下底部金属支撑件。 2. 断开继电器连接件。 3. 卸下螺丝 ( 各× 2 )。 4. 取下扬声器 （左 / 右）。 6.21. 取下前端支架 1. 卸下底部支撑金属。（见 6.20） 2. 解开线夹，放出电线。 3. 断开连接件 （GS02, GS09 和 GH11）。 4. 断开连接件 （A51）。（见 6.6） 5. 卸下螺丝 ( × 3 ，× 2 )，然后取下前端支架。 6.22. 取下 G 板，GS 板和 GH 板 1. 取下前端支架 （见 6.21） 2. 卸下螺丝 ( × 5 )。 3. 卸下螺丝 ( × 4 )。 4. 取下前防护罩前部和前端防护罩顶部。 5. 取下 GH 板。 6. 卸下螺丝 ( × 1 )，然后取下 GS 板。 7. 卸下螺丝 ( × 3 )。 8. 断开连接件 （G51），取下 G 板。 26 TH-58PZ880C 6.23. 取下支架和后面安装金属 1. 从维修支架上取下等离子显示屏部分，面板表面朝下放置 于覆有软布工作台的水平表面。 2. 分别卸下紧固左右支架的螺丝 ( 各× 1 )。 3. 分别卸下紧固左右后面安装金属的螺丝 ( 各× 4 )。 4. 取下支架和后面安装金属。 5. 卸下紧固螺丝 ( 各× 4 )。 6. 从后面安装金属上取下支架。 6.24. 从面框组件中取出等离子显示屏 1. 卸下紧固左右支架的螺丝 ( 各× 1 )。 2. 取下紧固外壳组件和等离子面板的螺丝 ( × 6 , × 12 )。 3. 将面框底部拉出，上提，并从前框中取下等离子显示屏。 27 TH-58PZ880C 4. 取下垫片和垫圈 ( × 6 )。 注意： • 在更换等离子显示屏时，请确认垫片和垫圈的安装位置。 更换新的等离子显示屏后，将垫片和垫圈安装在初始位 置。 6.25. 取下 K 板和 S 板 1. 取下面框 （见 6.24） 2. 取下扬声器 （中音扬声器 / 左）。（见 6.20.） 3. 取下螺丝 ( × 5 )，取下底部左边防护罩。 4. 断开连接件 （S1）。 5. 卸下螺丝 ( × 2 )，然后取下 S 板组件。 6. 卸下螺丝 ( × 1 )，然后取下 S 板。 7. 卸下螺丝 ( × 2 )。 8. 取下 K 板，断开连接件 （K1）。 28 TH-58PZ880C 6.26. 取下 GL 板 1. 取下面框。（见 6.24） 2. 取下扬声器 （中音扬声器 / 右）。（见 6.20） 3. 卸下螺丝 ( × 5 )，取下底部右边防护罩。 4. 卸下螺丝 ( × 8 )，然后取下底部金属板。 5. 卸下螺丝 ( × 2 )，然后取下 GL 板并断开连接件 (GL02)。 6.27. 更换完成等离子显示屏 1. 把新完成等离子显示屏正面朝下放置于覆有软布工作台的 水平表面。 2. 装上 C1, C2, C3 板，连接从等离子显示屏和 C1，C2，C3 板 之间的 15 根柔性电缆，安装柔性电缆固定器。 3. 装上钩 （左，右），把左右支架安装到等离子显示屏上。 4. 把等离子显示屏放置于维修台座。 5. 安装面框组件和每个 P.C. 板到新等离子显示屏上。 * 安装面框组件时，注意切勿让任何碎片，灰尘或操作残骸 滞留于前部玻璃和等离子显示屏之间。 29 TH-58PZ880C 7 测量、调整 7.1. 驱动器设置 7.1.1. 项目 / 准备 1. 输入白色信号到等离子显示屏视频。 2. 如下设定图像控制： 图像菜单：动态 PNR: 关 屏幕宽高比： 16:9 注意 1. 首先进行 Vsus 调整。 2. Vad 调整确认后，再确定 Vscn 电压。 当 Vad=-135V 时，Vscn 的电压为 10V±4V。 7.1.2. 调整 参照显示屏数据标牌上的显示屏数据，调整驱动器各部分的电 压。 用万能表检测或调整以下电压。 * 见显示屏标牌。 30 TH-58PZ880C 7.1.3. 起始脉冲调整 1. 输入白色信号到等离子显示屏视频。 2. 如下设定图像控制： 图像菜单：动态 PNR: 关 屏幕高宽比：16:9 3. 连接示波器至测试点 TPSC1 （SC）。 检测下坡处 100 微秒范围内 T2 的电压。 7.1.4. P.C.B. （印刷电路板）更换 7.1.4.1. 注意 1. 由于电解电容器放电原因，电源切断一分钟后再取下 P.C.B.。 7.1.4.2. P.C.B. 更换后进行快速调整 用万能表调整以下电压。 * 见显示屏标牌。 注意： 请勿将 Vsus 设置到 Ve 以下，以防损坏 P.C.B.。 测试点 调整点 电压水平 T2 TPSC1(SC) VR16602(SC) 250V ± 10V P.C.B. 名称 测试点 电压 调整点 备注 P 电路板 Vsus TPVSUS(SS) Vsus ± 2V VR251(P) * SC 电路板 Vad TPVAD(SC) -135V ± 1V VR16600(SC) SS 电路板 Ve TPVE(SS) Ve ± 1V VR16000(SS) * A,D 电路板 NTSC, PAL, HD, PC 和 625i 信号的白平衡及副亮度调整 31 TH-58PZ880C 7.1.5. 调整电压位置 7.1.6. 测试点位置 32 TH-58PZ880C 33 TH-58PZ880C 8 方框图 8.1. 方框图 （1/6） BT+30V +9V(S) +3.3V(STB) +30V(BT) STB+3.3V +5V(STB) +5V(S) L,R Y,C,V AV1 AV2 AV4 F+15V FAN CONTROL FAN SOS HDMI2 DIGITAL SIGNAL PROCESSOR POWER LED SIF,AM REMOTE RECEIVER +5V(STB) +5V(S) V AUDIO SW EEPROM FLASH to D3 +15V(SND) PA33 +1.8V(GC6) MONITOR OUT PANEL STB_ON FRC+3.3V SD BOOT PA37 K1 FRC+1V +3.3V(S) PA DCDC CH0 DATA FRONT TERMINAL L,R +1V(FRC) REMOTE IN A5 L,R DCDC RESET DCDC L,R +9/7.2V FRC+2.5V DCDC L,R KEY SWITCH FRC+2.6V FAN SOS DET +2.5V(FRC) LVDS DATA DCDC MIHO +2.6V(FRC) A11 OPTICAL OUT G51 REMOTE RECEIVER +3.3V(S) SOUND SOS HDMI I/F RECEIVER POWER LED(R) +3.3V(MIHO) K L,R MIHO+3.3V SOUND SOS DCDC FAN POWER +5V(S) PA35 Y,C,V +1.2V(MIHO) PANEL STATUS MIHO+1.2V HDMI EQUALIZER CIRCUIT DCDC PCI BUS VIDEO SW +3.3V(STB) SOUND GC6+1.2V RESET A8 EEPROM DDR2 +5V(S) AI SENSOR STB MCU FAN CONT HDMI4 IN FAN_A-D 10bit A/D SBO2 SBI2 A Peaks Pro CLOCK GEN TUNER GC6+1.8V IIC1 Y,C,V +1.2V(GC6) RESET FAN SOS +3.3V(S) HDMI AUDIO +5V(S) GenX5 +3.3V(STB) HDMI4 +15V(S) to D5 +15V(FAN) PA36 SUB+3.3V DET GH MONITOR L,R G LED KEY SWITCH PANEL SOS KEYSCAN1 SUB+5V DET from P7 A51 A1 AI SENSOR A3 +15V(FAN) A7 PROCESSOR HDMI1 SUB+9V DET GH11 +9V(S) FAN CONT PA8 ALL OFF OPTICAL OUT +5V(S) +5V(S) AI SENSOR HEADPHONE HP_L,R HP_L,R A6 PA6 PA5 +15V(FAN) +15V(STB) +9V(S) +5V(S) DCDC SUB+5V SUB+9V from P6 +15V(STB) +9V(S) +5V(S) +15V(SND) HDMI3 SLOT GS09 +3.3V(S) +3.3V(S) SD CARD SLOT SD CARD A9 GS CONV. SD-USB HOST USB AUDIO AMP H13 TW(R) AUDIO AMP H14 HC13 +15V(SND) SOUND SOS DET CIRCUIT HC12 OPTICAL OUT AUDIO R,G,B PC HC PC IN/AUDIO OUT TEMP SENSOR HC14 +3.3V(S) +3.3V(M) +5V(STB) +15V(SND) +3.3V(S) GC6 FRC DDR SDRAM MUX A12 A13 SWITCH +9V(M) MAIN+9V +9V(S) DCDC +3.3V(GC6) GC6+3.3V +5V(S) +9V(MAIN) MAIN+9V DET MAIN+3.3V DET +3.3V(MAIN) TUNER SOS DET CIRCUIT TUNER SOS +5V(S) +9V(S) +30V(BT) A14 OPTICAL OUT PWM AUDIO OUT R PWM AUDIO OUT L +15V(SND) +3.3V(S) GC3FS DTV_MAIN OSD_16bit SUB+1.2V SUB+1.8V DCDC +1.8V(S) +1.2V(S) +3.3V(S) +15V(S) SUB+3.3V DCDC +9V(S) SWITCH +3.3V(M) MAIN+3.3V DDR SDRAM V,Y,PB,PR V,Y,PB,PR AV3 V L,R MONITOR OUT GS02 GL02 SD CARD LED SD CARD LED GL (LED:12 TIMES) (LED:11 TIMES) (LED:12 TIMES) (LED:11 TIMES) (LED:10TIMES) TH-58PZ880C Block (1/6) Diagram TH-58PZ880C Block (1/6) Diagram SQ(R) W(R) TW(L) SQ(L) W(L) 34 TH-58PZ880C 8.2. 方框图 （2/6） (LED:6TIMES) (LED:3TIMES) (LED:8TIMES) (LED:2TIMES) (LED:4TIMES) (LED 6 TIMES) (LED:5TIMES) (LED:7TIMES) (LED 7 TIMES) (LED 8 TIME) (LED 4 TIME) HOT COLD COLD HOT +5V(P) DATA DRIVER VIDEO DATA DATA DRIVER (RIGHT) C22 DATA DRIVER +5V(P) C2 C20 DATA DRIVER C36 DATA DRIVER (CENTER) +15V(P) +5V(P) SD42 SOS8_SS DATA DRIVER C21 SOS8_SS SU11 SOS6_SC1 DATA DRIVER DATA DRIVER DATA DRIVER D31 VIDEO DATA Vda DATA DRIVER C11 DATA DRIVER (36bit) +5V(STB) Vda +5V(P) DATA DRIVER +5V(STB) +5V(STB) DCDC SUSTAIN CONTROL +2.5V(P) (STB) +5V(P) SUSTAIN CONTROL SOS8_SS SCAN OUT (UPPER) +5V(P) SC20 SS +5V(P) SU SOS6_SC1 +2.5V(P) SOS8_SS +5V(P) SOS7_SC2 D25 POWER SOS C3 DDR +3.3V(P) SCAN OUT (LOWER) PANEL MAIN ON SUSTAIN DRIVE +3.3V SOS8_SS SCAN PULSE P D20 CONTROL PULSE +3.3V(P) VIDEO DATA DCDC +15V(P) DET VIDEO DATA SUSTAIN CONTROL SOS4_PS EEPROM +3.3V(P) GenX6 (30bit) +3.3V(P) DET CONTROL SIGNAL +5V(P) DET SC41 SD11 RESET PANEL MICOM POWER SUPPLY +15V(P) +15V(P) VIDEO DATA +5V(P) SC +5V(P) SC-BOARD FLOATING PART SOS DETECT VIDEO DATA ALL OFF to/from +1.2V(P) FORMAT CONVERTER, SOS4_PS D PANEL STB_ON PLASMA AI PROCESSOR SU41 MEMORY DISCHARGE CONTROL LVDS DATA SOS6_SC1 H/V SYNC CONTROL PLASMA AI CPG with SS +3.3V(STB) SOS8_SS +5V(P) D32 RESET +5V(P) +5V(P) P25 PANEL SOS ALL OFF +15V(P) SUB-FIELD PROCESSOR SS2 +15V(P) SCAN CONTROL +15V(P) LVDS RX SUSTAIN CONNECTOR DATA DRIVER D33 SOS8_SS FLASH DATA DRIVER VSUS DATA DRIVER +1.2V(P) VIDEO DATA DATA DRIVER SOS7_SC2 VIDEO DATA VIDEO DATA SUSTAIN CONTROL A3,A5 C33 VOLTAGE GENERATOR SC42 Vda SCAN DRIVE C26 +5V(P) D5 (30bit) D3 SUSTAIN PULSE SCAN DRIVER SOS7_SC2 SC-BOARD ENERGY RECOVERY SOS DETECT SD SD46 SC46 PANEL READY SCAN DRIVER +5V(P) DATA DRIVER C10 DATA DRIVER (LEFT) DCDC +5V(P) DATA DRIVER SUSTAIN CONTROL C1 SS33 SS11 VSUS SS34 SOS8_SS SS02 SS21 SS35 SS22 SS03 C35 MAIN SW2 +5V(P) MAIN SW1 SUSTAIN CONTROL SUSTAIN PULSE ERASE PULSE ADDRESS VOLTAGE (VE) SS-BOARD SOS DETECT SS3 SUSTAIN CONNECTOR MAIN SW1 +5V(P) P25 +15V(P) Vda MAIN SW2 +5V(P) +15V(SND) P6 +5V(STB) +15V(P) P(SUS) P(MAIN) +15V(P) +5V(STB) P51 P52 FSTB+15V VSUS P9 +5V(STB) MAIN SW2 FSTB+15V MAIN SW1 Vda P12 P11 VSUS +15V(FAN) P7 P2 P-BOARD SOS DETECT PS SOS ALL OFF ON/OFF CONTROL POWER MICOM PROCESS VOLTAGE RECTIFIER SUSTAIN VOLTAGE RECTIFIER SUSTAIN VOLTAGE CONTROL POWER FACTOR CONTROL RECTIFIER LINE FILTER LINE FILTER STANDBY VOLTAGE RECTIFIER PROCESS VOLTAGE CONTROL POWER FACTOR CONTROL RECTIFIER STANDBY VOLTAGE CONTROL RECTIFIER AC CORD PA5 to SS12 SC2 VSUS A7 to (LED:6TIMES) (LED:3TIMES) (LED:8TIMES) (LED:2TIMES) (LED:4TIMES) (LED 6 TIMES) (LED:5TIMES) (LED:7TIMES) (LED 7 TIMES) (LED 8 TIME) (LED 4 TIME) HOT COLD COLD HOT TH-58PZ880C Block (2/6) Diagram TH-58PZ880C Block (2/6) Diagram POWER SWITCH S1 ON S POWER SW 35 TH-58PZ880C 8.3. 方框图 （3/6） D860 TP850 TP853 F15V D5502 MAIN5V SUB5V SOUND15V D861 TPFA1 D9014 D9017 MAIN9V SUB3.3V SUB5V SUB5V MAIN_FS_1.8V SUB3.3V MAIN9V FRC1V DDR3.3V SUB1.8V D5692 F15V SUB1.8V SUB3.3V SUB1.2V SUB5V DTV9V FAN_MAX 3 +15V(FAN) TUNER_SUB_ON 6 2 SOS DET 5 4 FAN STOP +5V(STB) 2 A7 +15V(FAN) +9/7.2V 1 FAN D853 D855 D856 D857 OVER VOLTAGE 11 9 8 9 16 16 11 13 MAIN9V 13 12 1 DTV9V 3 A6 IC850 SUB5V FAN SOS 3 2 P5 1 PA8 5 ECO_ON +15Vs_SP F_STBY_15V +15Vs_SP +15Vs_SP F_STBY_15V +15Vs_SP F_STBY_15V SUB5V F_STBY_15V SUB5V F_STBY_15V 10 2 PB35 1 PB33 8 3 PA5 PA 6 +15Vc_FAN PB36 7 3 2 +9V +15Vc_FAN PB37 IC5501 1 P7 +5V 5 FAN CONTROL 6 1 7 2 9 PA6 1 +15Vs_SP F_STBY_15V 4 12 10 1 8 A8 +15Vs_SP SPEAKER OUT 4 2 H13 IC9001 1 3 SPEAKER OUT 4 2 H14 IC9002 1 3 SQ_L- SQ_L+ TW_R+ TW_R- SOUND_SOS HC 13 PWM_W_R- 1 SOUND15V 11 5 SOUND15V 2 SOUND15V 3 SOUND15V 4 PWM_W_R+ 12 PWM_W_L- 15 PWM_W_L+ 14 PWM_SQ_L- 20 21 PWM_SQ_R- 18 PWM_SQ_R+ 17 PWM_SQ_L+ PC_B PC_V PC PC_R PC_H PC_G JK9001 SPDIF-OUT AUDIO OUT D9002 OPTICAL 2 14 6 HC 12 10 12 8 4 PC_R PC_H PC_G SPDIF-OUT PC_B PC_V +3.3V(S) SPEAKER_R SPEAKER_L AUDIO AMP AUDIO AMP AGC6_SCL2 AGC6_SDA2 HC 14 12 13 IIC2 TEMP SENSOR IC9003 IIC2 +3.3V(S) 22 +3.3V(STB) 2 +5V(STB) 1 HC15 HC16 FOR FACTORY USE Tuner SIF,AM RF BT+30V TU8301A +5V IIC0 AUDIO OUT/PC IN HC 5 8 4 20 3 17 14 1 2 A13 15 1 4 12 21 2 12 A12 6 A14 14 22 10 12 13 11 2 18 KEY1 HP_R 20 6 11 AV3_C 2 HEADPHONE A51 15 2 1 17 AV3_V HP_L 4 AV4 12 AV3_L 10 9 19 CONTROL BUTTON AV3_Y 3 AV3_R 18 G51 6 HP AMP IC2013 IC2012 +5V AV2 IC3007 AV3 IIC0 AV1 VIDEO SW Y/U/V RF R,G,B,H,V MAIN SUB Y/U/V PC TV IIC2 COMP/PC L,R L,R L,R AV1 IIC0 IC3009 L,R L,R TV L,R AV3 AV2 L,R OUT AUDIO SW MAIN DTV9V DTV9V SIF,AM TV_LR/DTV_LR HDMI Audio HP L,R L,R +1.8V +3.3V SP L,R PWM IC2008 +3.3V HEADPHONE IIC0 AUDIO PROCESSOR +1.8V IC2107 IC2106 OPTICAL GS3FS IC4001 MAIN+3.3V +3.3V IC4005 MAIN+1.8V IC4002 +1.8V Q5561 +3.3V IC5402 DDR+3.3V +1V IC5403 FRC+1V Peaks-Pro IC8001 +5V IC2109,10 IC8201,02,03,04 DDR2 SDRAM LOSD (to MIHO) VIDEO OUT (to GC6) PCI_BUS SD BOOT SERIAL I/F Q5603,04 F+15V DET IC5660 +1.8V IC5601 RESET +3.3V IC5600 SUB+1.2V +1.2V Norm:Low Ab:high 3.3V 1.2V 1.8V Para TS_I/F Out Para TS_I/F In IC8402 TH-58PZ880C Block (3/6) Diagram TH-58PZ880C Block (3/6) Diagram CIMAX JK8401 CI SLOT LEVEL SHIFTER BUFFER IC8401 IC8406,7 5V 3.3V BUFFER IC8408 IC8403 5V CARD 15 10 1 16 18 13 5 3 19 9 4 2 7 12 14 20 17 8 11 23 21 24 22 AV2_LIN AV3_Y AV2_PB ROUT LIN AV2_RIN LOUT AV3 AV1_V AV1_PB AV1 AV1_RIN AV2_PR AV2 AV3_C VOUT AV1_Y MONITOR JK3100 AV2_V AV1_LIN AV3_V AV2_Y RIN AV1_PR MONITOR VOUT MONITOR V,Y,C V,Y,C V,Y,PB,PR AV4 V,Y,PB,PR (LED:11 TIMES) (+10V) (+5.6V) 5 6 7 6 SQ_R+ SQ_R- SQ_L+ SQ_L- SOUAWKER_R W_R+ W_R- WOOFER_R SOUAWKER_L WOOFER_L SOS DET +15V SOS DET +15V W_L+ W_L- 36 TH-58PZ880C 8.4. 方框图 （4/6） G R +3.3V(S) D3813 D3814 +5V(S) D2520 SUB3.3V MAIN3.3V SUB5V SUB5V D5522 DTV9V D5521 BT30V D5577 D5580 D5576 Q5565 D5578 D5579 DDR3.3V FHD3.3V MIHO1.2V FRC1V SUB3.3V GC6_3.3V GC6_1.8V GC6_1.2V DDR3.3V STB5V STB3.3V SUB5V DTV9V MAIN9V BT30V D1107 FRC2.6V DDR3.3V FRC2.5V SUB5V F15V D7800 +5V(HDMI) DDCB_IIC Q4502 Q4520 HDMI_SPDIF A11 HDMI_CEC DET_1 +1.8V HDMI Y/PB/PR AUDIO HDMI IN 1 HDMI_CEC SW A +3.3V DDCC_IIC +1.8V 18 +5V(HDMI) TMDS DATA CLOCK TMDS DATA CLOCK DET_2 DDC IIC DIGITAL SIGNAL PROCESSOR R(10bit) B(10bit) IC4513 20 HDMI EQUALIZER /SWITCH HDMI I/F RECEIVER +1.8V GH10 IC4511 10bit A/D DECODE VIDEO DDCA_IIC HDMI_CEC EEPROM DET_3 TMDS DATA CLOCK IC3801 IC4510 JK4501 +5V(S) +1.8V +3.3V(S) JK4500 IC4503 DDC IIC IC4516 EQ DDC IIC EEPROM JK4502 HDMI EQUALIZER IIC +3.3V(S) 20 GH HDMI_CEC IC4502 3.3V ->5V +5V Q3802 HDMI4 IN HDMI5V DET IC3802 DDC IIC DDC IIC HDCP KEY HDMI_SD HDMI PROCESSOR +5V(HDMI) INTERFACE INTERFACE A/D CONV. HDMI_CEC DET_4 26 G(10bit) 22 +5V +5V HDMI IN 3 IIC1 SW HDMI IN 4 Q4503 26 GH11 +3.3V TMDS DATA 18 12 IC4512 +5V(HDMI) 22 HDMI IN 2 +5V 12 TMDS DATA CLOCK 3.3V ->5V IC4504 3 7 2 POWER LED SUB+5V A3 G_LED_ON PC2511 4 4 K1 IIC2 K 2 R_LED_ON IIC_CLK2 2 REMOTE 9 IIC_DATA2 AI SENSOR 9 IIC1 12 IIC_CLK1 10 1 8 1 PANEL STATUS A1 PANEL SOS 12 RMIN 3 D3 AI_SENSOR 11 PANEL STB_ON 4 AI SENSOR IIC_DATA1 3 RM2501 STB+3.3V POWER LED/REMOTE RECEIVER D- A9 2 4 3 D+ SUB+5V ANALOG ASIC Q5693 IC5405 TH-58PZ880C Block (4/6) Diagram TH-58PZ880C Block (4/6) Diagram MIHO+1.2V +1.2V +3.3V IC5404 FHD+3.3V SOS Q5522 Norm:Low Ab:high GC6 IC5100 IC2604 FRC-H IC4200 MIHO IC5001,02 DDR2 SDRAM DDR SDRAM IC2602 31 LVDS DATA D5 LVDS Dual A5 1 ADV7495 GC3FS_next PEAKS Main Digital Out VIN VOUT IC2603 REG IC2403 STB +3.3V BT30V STB_RST Q2027 +9V STB_RESET STB3.3V IIC SW IC4013 IC1100 EEPROM STB_LED MAIN9V_SENSE PANEL STATUS (READY) STB+3.3V TUNER_SUB_ON AI_SENSOR IIC3 IC1101 SOS KEY1 FAN_MAX PANEL SOS (ARARM) IIC3 REMOCON ECO_ON SUB5V_SENSE DTV_9V_SENSE SOUND_SOS SUB3.3V_SENSE IIC STANDBY_MPU SD BOOT GenX5 G_LED_ON R_LED_ON STB_RST MAIN3.3V_SENSE HDMI_CEC_PU_ON +5V(HDMI) DET1,2,3 MAIN_ON PANEL STB_ON HDMI_CEC FAN SOS SBI2 SBO2 IC8620 USB HOST IIC1 IIC Q2022 SOUND SOS DET +2.6V IC5563 IC5562 +2.5V +3.3V IC5300 GC6_1.2V/1.8V +1.8V IC5301 +1.2V 21 16 24 22 23 18 20 19 17 15 14 13 10 3 11 4 5 9 7 12 8 1 2 GS 09 SD CARD LED 1 GS 02 GL 2 FLASH MEMORY SD-USB CONV. SD CARD SLOT GL 02 SD CARD SLOT JK7702 3 SD LED 4 SD CARD LED 1 IC7701 +3.3V IC7702 IC7700 GS (LED:3 TIMES) (LED:12 TIMES) (LED:10 TIMES) (LED:12TIMES) 37 TH-58PZ880C 8.5. 方框图 （5/6） (LED:4TIMES) (LED:5TIMES) (LED:4TIMES) (LED:2TIMES) (LED:3TIMES) (LED:6TIMES) (LED:7TIMES) (LED:8TIMES) D402 F301 F201 F602 F601 D352 MC201 A5 IC9401 T201 SOS6_SC1 MC606 +3.3V(STB) 9 SOS4_PS +15V(P) PC202 A7 MC603 PFC MC401 Vda P55 P9 PA5 P2 1 D3 K602 IC9500 Q401 2 BAIS2_ON IIC2 MAIN SW1 66 SOS7_SC2 56 6 48 29 +3.3V(STB) 11 A3 SOS8_SS 67 4 D5 7 6 5 IIC_DATA2 EEPROM D505 8 7 9 D506 RESET +15V(P) IIC_CLK2 15 1 SS11 13 DDR I/F +1.2V 1 4 1 10 IIC1 11 66 IC9300 D33 IIC_DATA1 C11 IC9803 IIC2 11 D254-D257 C21 IIC2 D31 VDA_DET 3 +3.3V 2 MC601 D6 +5V(P) IC9303 PC201 IC9806 MC602 IC9003 BIAS2/ SUS CONT. BIAS MC231 Vsus VR251 Vsus 2 IC251 PC231 SC20 +5V(P) P54 5 68 P11 SS12 2 6 IC9013 MC701 +5V(P) 7 IC9301 1 Vda_ON 67 2 4 MC502 16 +15V(P) +3.3V Vsus_ON 68 1 MC301 +15V(P) 15VON F803 IC9805 1 Vda MC801 13 MC352 IC555 P51 T301 +15V(SND) MAIN SW2 +5V(P) 31 +15V(FAN) P7 MC802 4 1 +1.2V 1 TV SUB ON MAIN SW 62 +5V(STB) P12 5 SC2 8 SUS OUT MULTI_ON C22 +5V(P) 1 3 6 FSTB+15V +1.2V 12 BIAS-2_ON 9 6 AC DET PC501 IC352 +5V 30 5 IIC2 D20 Vda_ON Q403 IIC2 +2.5V +15V(P) IIC1 P6 BAIS_ON SOS8_SS 2 P25 Q9805,06 BUFFER 7 VR401 +3.3V Vda OUT 12 PC502 IC9802 Vsus IC9002 2 IC9011 POWER SOS IC9001 PC401 LINE D32 +5V(P) AC DET 5V_OUT NEUTRAL 4 D401 (RIGHT) +2.5V 10 RF801 66 IC9400 52 MC501 4 3 K801 +3.3V +5V(P) IC501 P52 Q351 IIC_CLK1 BIAS-1_ON IIC2 T501 AC100V +2.5V L803 POW ON 1 2 F801 L802 +15V(P) D500 K802 DDR I/F MAIN RELAY-2_ON P53 D501 2 D551 15V_IN 5 F802 +5V(STB) Vda 1 8 MC552 RUSH RELAY-2_ON 15V_0CL STB5V_OUT P56 Q402 L604 7 L601 +15V(FAN) ALL OFF LINE 15V_ON VDATA_DET NEUTRAL +5V(P) 10 MC451 68 PC301 1 ECO ON STB5V_ON 67 PC302 1 +15V(SND) D25 FSTB+15V K601 5V_ON 6 L602 28 RF601 MC203,04 IC9019 PFC CONTROL COLD HOT POWER SUPPLY P AC INLET AC CORD FILTER COLD HOT Vsus POWER CONTROL Vsus POWER SUPPLY RECTIFIER PHOTO COUPLER PHOTO COUPLER Vsus ERROR DET PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER COLD HOT COLD HOT POWER CONTROL PFC PFC CONTROL BIAS1/ MULTI CONT. +15V ERROR DET FILTER RECTIFIER IPD PHOTO COUPLER STB CONTROL Vda CONTROL CONTROL SWITCH POWER MICOM MAIN RELAY-1(H) RUSH RELAY-1(H) MAIN RELAY-2(H) RUSH RELAY-2(H) PANEL MAIN ON POWER SOS PANEL MAIN ON CONTROL DATA DISCHARGE CONTROL IIC2 FLASH MEMORY TEMP SENSOR VIDEO DATA VIDEO DATA LVDS DATA SCAN CONTROL SUSTAIN CONTROL FLASH I/F VIDEO DATA VIDEO DATA DDR(R) MEMORY DDR(L) MEMORY USE FACTORY FOR LVDS DATA VDATA_DET PANEL MAIN ON +15V(P) DET POWER SOS POWER ON/OFF IIC1 IIC2 +3.3V(P) DET +5V(P) DET BUS SW PANEL SOS RESET PANEL STATUS SOS7_SC2 SOS6_SC1 VIDEO/PANEL CONTROL PANEL MICOM (LEFT) SOS6_SC1 SUSTAIN CONTROL CONTROL DATA SOS8_SS +15V(P) SCAN CONTROL VIDEO DATA CONTROL DATA VIDEO DATA VIDEO DATA CONTROL DATA SOS7_SC2 +5V(P) +15V(P) +15V(P) PANEL STATUS PANEL STB_ON PANEL SOS PLASMA AI PROCESSOR FORMAT CONVERTER, D TV SUB ON ALL OFF ECO ON MAIN RELAY-1_ON RUSH RELAY-1_ON HOT COLD LVDS RX DATA DRIVER PLASMA AI CPG with SS SUB-FIELD PROCESSOR H/V SYNC CONTROL (LED:4TIMES) (LED:5TIMES) (LED:4TIMES) (LED:2TIMES) (LED:3TIMES) (LED:6TIMES) (LED:7TIMES) (LED:8TIMES) TH-58PZ880C Block (5/6) Diagram TH-58PZ880C Block (5/6) Diagram STB ERROR DET Q301,302 POWER SUPPLY 38 TH-58PZ880C 8.6. 方框图 （6/6） + (LED:8TIMES) (LED:7TIMES) (LED:6TIMES) D16255 TPVSET TPVSUS D16253 D16721 5V TPVSCN TPSOS6 TPSOS8 D16583 5V TPVAD TPVSUS TPSC1 D16725 VF_GND TPSS1 TPVDA D16321 TPVE2 D16480 D16717 D16473 D16821 D16476 D16820 TPSOS7 D16718 D16475 TPVE D16280 39 +5V(P) Vda +5V(P) CB 15 6 D32 C22 CB3 CB7 3 +5V(P) +5V(P) 8 IC17103-06 2 C35 BUFFER +5V(P)DET 1 D31 3 1 CB2 1 5 1 CB 10 67 77 Vda SS35 +5V(P) 80 +5V(P)DET 73 +5V(P)DET Vda CB9 +5V(P) 3 +5V(P)DET CLOCK C10 5 7 C36 +5V(P) 75 41 39 +5V(P) CB4 D33 IC17204 C20 CB 14 21 2 2 IC17303-06 8 Vda Vda 78 1 1 5 +5V(P) 31 4 1 C26 13 C11 Vda +5V(P) 1 1 SOS8_SS +5V(P)DET IC17201-03 SOS8_SS 2 SS33 BUFFER 3 13 CB1 8 CB5 20 80 20 IC17101,02 C33 CB6 67 CB8 +5V(P) 41 31 C21 33 +5V(P) CB 13 CB 12 SOS8_SS 33 SS 57 SS 22 SS 03 20 Q16604 +5V(P) SC 41 (15V_F) SC2 9 Vsus SS 34 IC16131 Q16041 Q16051 CML SS 33 IC14901-04 18 Q16642-43 IC16791 1 Vsus 7 UMH,UML Q16423 1 1 8 C33 IC16786,87 21 IC14905-08 1 2 35 3 8 USH +5V 1 SS 54 6 Q16402 CEL Vfo IC16251 CMH 15 (SC2) 20 7 CPH2 Q16101 6 Vda 13 2 1 9 SS 55 10 Q16001-04 +5V(P) IC16501 VSCN-F SOS6_SC1 SOS8_SS IC14955-58 IC16151 P11 IC16581 Q16102 D16859 6 13 Q16453 1 VSET SC 42 +5V Q16661 Q16021-24 IC16521 USH,USL 1 PC16191 USL SU1B SU5B IC16788,89 8 IC14961-65 D16860 Q16421 2 +15V(P) 2 LED(G) SC 20 SS 12 P12 CSH SD 46 7 +15V(P) 7 F_5V_B 1 P2 SOS7_SC2 F_5V_A CSL 1 IC16724 VSCN IC16772 SS 11 SU 41 15 +15V(P) Q16621 Q16442 UMH 4 18 CPH1 UEH,UML Vfo D20 IC16725 IC14951-54 16V-F SC 46 Q16601 UML 20 SD 42 (SC1) Vda 1 IC16561-63 CEL Q16404 Q16406 IC16784 +15V(P) Q16424 T16301 IC16301 +15V IC16302 Q16441 IC17205-09 33 37 CB 11 IC17301,02 Q16191 9 8 SS 21 15 2 1 13 4 2 7 14 1 8 12 7 14 8 1 12 15 8 4 9 2 SS 02 2 1 SS 52 13 SS 35 2 1 C35 Q16401 PC16684 Q16622 PC16685 +5V IC16771 IC16464,65 PC16461 CQR4 Q16454 Q16425 SIU OC1 OC2A SID CLK Vda Vda Vda 41 63 31 17 CQR3 IC16564 IC16801 IC16792 VSET2,6 CML2 CPH2 CSL CPH1 OC2A CQR3 CML2 CML OC1 CSH CQR4 CEL CLK CMH SCSU SIU SID Q16664-67 SCSU IC16773 SU 11 SD 11 SD1B SD5B CHA 1 1 2 2 SCNR_PRO Q16876 D16873 MAIN_STOP D16871 PC16480 MAIN_STOP VSET Vscn Q16875,79 CSH/CMH GATE DRIVE CIRCUIT CSL/CML GATE DRIVE CIRCUIT CONVERTER INVERTER DC/DC PHOTO COUPLER INVERTER PHOTO COUPLER PHOTO COUPLER SHUNT REG VSET OUT VAD CONT. DRIVER GEN. DRIVER VAD SEPA GEN. VAD VSCN SC SCAN DRIVE ERROR DET BUFFER PHOTO COUPLER LED(G) ERROR DET SCAN CONTROL SCAN CONTROL VOLTAGE DROP ERROR DET ELECTRODES DRIVER SCAN SCAN DRIVER SCAN DRIVER PLASMA PANEL PANEL SCAN BUFFER DRIVER SCAN SCAN DATA VSET2,6 SCAN OUT (LOWER) SU SCAN OUT (UPPER) SD Q16331 NUEL NUEL Q16339 DRIVER RECOVERY DRIVER ENERGY TRANS VSUS Gen. ERROR DET IPD VE Gen. MAIN_SW1 SUSTAIN CONTROL MAIN_SW2 IC16241 NUEL UEH USH USL UML SUSTAIN CONTROL BUFFER UMH INVERTER IC16303 Q16280 D16282 ERROR DET PLASMA PANEL PANEL SUSTAIN ELECTRODE ERROR DET LED(G) CONTROL DATA VIDEO DATA CLOCK PANEL DRIVER PANEL DRIVER PANEL DRIVER BUFFER BUFFER BUFFER BUFFER BUFFER SUSTAIN CONTROL SUSTAIN CONTROL CLOCK CONTROL DATA CONTROL DATA VIDEO DATA VIDEO DATA SUSTAIN CONTROL CONTROL DATA CLOCK VIDEO DATA PLASMA PANEL SUSTAIN DRIVE SS SUSTAIN CONNECTOR SS3 SS2 SUSTAIN CONNECTOR (LED:8TIMES) (LED:7TIMES) (LED:6TIMES) TH-58PZ880C Block (6/6) Diagram TH-58PZ880C Block (6/6) Diagram DATA DRIVER (CENTER) C3 DATA DRIVER (LEFT) C2 DATA DRIVER (RIGHT) C1 STB_PS 12V ON POWER SWITCH STB_PS 3 12V 1 SW2500 S1 S POWER SWITCH 39 TH-58PZ880C 9 配线连接图 9.1. 注意事项 注意： 确认所有柔性电缆正确装配。 并确保它们均由连接件锁定。 可轻轻拉动柔性电缆以证实是否锁定。 9.2. 配线 (1) 40 TH-58PZ880C 9.3. 配线 (2) 41 TH-58PZ880C 9.4. 配线 (3) 42 TH-58PZ880C 43 TH-58PZ880C 10 线路图 10.1. 线路图注意事项 44 TH-58PZ880C 10.2. P(SUS) 电路板线路图 TH-58PZ880C P(SUS)-Board Schematic Diagram TO P(MULTI)-BOARD (P55) TO SC-BOARD (SC2) TO SS-BOARD (SS11) TO P(MULTI)-BOARD (P53) TO P(MULTI)-BOARD (P52) AC IN Vsus POWER SUPPLY Vsus POWER SUPPLY Vsus POWER CONTROL PFC RECTIFIER BIAS2/SUS CONT. PFC CONTROL COLD HOT COLD HOT COLD HOT ! P(SUS)-BOARD ETX2MM706NGA ERROR DET Vsus TH-58PZ880C P(SUS)-Board Schematic Diagram B E 9 6 8 1 A 2 3 D 7 F 5 4 C 45 TH-58PZ880C 10.3. P(MULTI) 电路板线路图 TH-58PZ880C P(MULTI)-Board Schematic Diagram PFC PFC CONTROL BIAS1/MULTI CONT. POWER CONTROL Vda CONTROL 15V ON +5V(P) CONTROL SWITCH STB CONTROL POWER MICOM IPD TO SS-BOARD (SS12) TO PA-BOARD (PA5) TO A-BOARD (A7) TO D-BOARD (D25) TO P(SUS)-BOARD (P51) TO P(SUS)-BOARD (P56) TO P(SUS)-BOARD (P54) COLD HOT COLD HOT COLD HOT ! P(MULTI)-BOARD ETX2MM706NGA ERROR DET Vda ERROR DET ERROR DET TH-58PZ880C P(MULTI)-Board Schematic Diagram B E 9 6 8 1 A 2 3 D 7 F 5 4 C 46 TH-58PZ880C 10.4. PA 电路板线路图 + + (FIN) + + + C861 0.1u 25V C858 25V 0.1u C859 25V 0.1u C862 25V 0.1u C869 470u 25V C860 100u 25V D853 MA2J11100L D856 MA2J11100L D857 MA2J11100L D859 B0JCME000037 D855 MA2J11100L D861 MA2J11100L D862 MAZ80330LL D860 MAZ81100ML C0DBAZF00003 IC850 1 Vin 2 Vout(sw) 4 Vadj 5 ON/OFF 3 GND PA37 1 2 3 PA35 1 2 3 PA33 1 2 3 4 PA36 1 2 3 4 PA8 1 2 3 4 5 6 PA5 1 2 3 4 5 6 7 8 9 10 11 12 PA6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 L852 15u ZA852 K4CZ01000027 ZA851 K4CZ01000027 PA5400 K5H5022A0023 TPS5 TP850 TP854 TPS9 TP855 TPFA2 TPFA1 TP851 TPS15V TP5401 TP852 TP5402 TPS9V TP856 TP853 TP5400 TPS5V JS851 JS852 R883 0 R856 4.7k R857 4.7k R880 0 *R886 0 R869 1k *R871 13k 1% R859 2.1k 1% *R872 402 1% R855 4.7k R861 4.7k R874 470 R853 4.7k R5515 0 R864 0 R884 0 L5505 2.7u R5509 0 L5503 33u D5502 B0BC01000035 1% R5503 2.61k D5504 B0BC6R600005 R5506 10k EHMDD9851 IC5501 1 ON/OFF2 2 VAR2 3 VOUT2 4 SW-Node2 6 GND 7 N.C. 8 GND 9 VIN 10 N.C. 11 GND 12 SW-Node1 13 VOUT1 14 VAR1 15 ON/OFF1 16 N.C. C5506 25V 0.1u C5505 1000u 25V C5501 470u 16V Q5501 2SD0601ASL R5507 10k L5504 2.7u C5504 16V 0.1u L5501 2.7u 1% R5504 1.27k R5508 47k C5503 470u 16V C5502 16V 0.1u L5502 15u D5503 B0BC01100001 R5516 0 < < FAN_SOS +B FOR FAN GND FOR FAN +15Vc_FAN FAN_SOS FAN_MAX GND MAIN9V +15Vc_FAN +15Vs_SP +15Vs_SP F_STBY_15V GNDs +15Vs_SP GND STB5V SOS DTV9V (SUB9V) SUB5V SUB5V GND GND TO A-BOARD (A6) GND GNDs GNDs GND F_STBY_15V F_STBY_15V GNDs +15Vs_SP +15Vs_SP +15Vs_SP F_STBY_15V GND GNDs GND F_STBY_15V GNDs GND PA5 PA8 IC850 1 PA6 FAN FAN CONNETCOR F_STBY_15V SUB5V 1 AC SUFFIX JW VFAN1 VFAN2 1 1 PAMM1 PAMM2 PAMM3 PAMM4 PAMM5 5V/9V IC5501 1 TO P-BOARD (P6) +B FOR FAN TO FAN TO FAN TO FAN TO FAN TO A-BOARD (A8) C D 7 3 8 5 4 F 2 9 6 E B 1 A PA-BOARD TXNPA1RETC ! TH-58PZ880C PA-Board Schematic Diagram TH-58PZ880C PA-Board Schematic Diagram 47 TH-58PZ880C 10.5. A 电路板 （1/20）线路图 C8017 10V 0.1u C8049 10V 0.1u C8028 10V 0.1u C8046 10u 10V C8008 10V 0.1u C8016 10V 0.1u C8035 10V 0.1u C8029 10V 0.1u C8043 10V 0.1u C8032 10V 0.1u C8072 10V 0.1u C8034 10V 0.1u C8022 10V 0.1u C8047 10u 10V C8045 10u 10V C8039 10V 0.1u C8010 10V 0.1u C8015 10V 0.1u C8070 1u 6.3V C8083 10V 0.1u C8076 10V 0.1u C8075 6.3V 1u C8040 10V 0.1u C8057 10V 0.1u C8012 10u 10V C8030 10V 0.1u C8031 10V 0.1u C8021 10V 0.1u C8050 10V 0.1u C8019 10V 0.1u C8004 10V 0.1u C8055 10V 0.1u C8082 10V 0.1u C8071 1u 6.3V C8011 10u 10V C8037 10V 0.1u C8033 10u 10V C8084 10V 0.1u C8014 10V 0.1u C8044 10V 0.1u C8079 10V 0.1u C8002 10V 0.1u C8056 10V 0.1u C8081 10V 0.1u C8005 10V 0.1u C8036 10V 0.1u C8085 10V 0.1u C8001 10V 0.1u C8038 10V 0.1u C8053 10V 0.1u C8048 10u 10V C8058 10V 0.1u C8027 10V 0.1u C8060 6.3V 1u C8003 10V 0.1u C8074 10V 0.1u C8042 10V 0.1u C8059 10V 0.1u C8054 10V 0.1u C8009 10V 0.1u C8062 10V 0.1u C8077 10V 0.1u C8025 10u 10V C8023 10V 0.1u C8078 10V 0.1u C8041 10V 0.1u C8052 10V 0.1u C8051 10V 0.1u C8007 10V 0.1u C8061 6.3V 1u C8020 10V 0.1u C8026 10u 10V C8024 10V 0.1u C8073 6.3V 1u C8018 10V 0.1u C8006 10V 0.1u C8080 10V 0.1u IC8001 MN2WS0031CTY A1 VSS IC8001 C32 VSS IC8001 AM33 VSS IC8001 B16 VI2Y2 IC8001 AE31 VSS IC8001 P12 VDD12 IC8001 V2 PCCLK IC8001 AP34 VDDIO IC8001 M2 XEAS IC8001 AN6 IDE2D8 IC8001 M16 VDD12 IC8001 E19 A1AVSS IC8001 AP7 XRTS0 IC8001 AE5 PCAD22 IC8001 V13 VSS IC8001 H7 VDD33 IC8001 AA17 VSS IC8001 P7 VSS IC8001 W1 PCRST IC8001 AN4 IRQI13 IC8001 D9 VSS IC8001 B33 VSS IC8001 AC28 VDDIO IC8001 T31 VDDIO IC8001 Y14 VSS IC8001 R20 VSS IC8001 V1 VSS IC8001 D10 VDD33 IC8001 A25 VI1G4 IC8001 W20 VSS IC8001 AL32 VSS IC8001 C4 EA8 IC8001 T33 VSS IC8001 AL14 TMS IC8001 J32 LOSD3 IC8001 AJ11 XDTR0 IC8001 E26 VI1R7C5 IC8001 G15 VI2Y8 IC8001 F2 EA25 IC8001 F20 A1AVDD IC8001 AB11 VDD12 IC8001 R34 VSS IC8001 AH11 XDCD0 IC8001 AH28 VDDIO IC8001 K7 ED9 IC8001 Y3 AMTCPOUT IC8001 E4 VDD33 IC8001 H3 ED4 IC8001 AM28 VDDIO IC8001 A20 A1VCOIN IC8001 AH3 PCCXBE1 IC8001 Y15 VSS IC8001 V21 VSS IC8001 J3 ED10 IC8001 AD22 VDDIO IC8001 J34 YMO IC8001 L7 XECS1 IC8001 AM14 VDDR IC8001 B31 VO1G5 IC8001 N5 ERXW IC8001 Y11 VDD12 IC8001 W6 (NC) IC8001 AE29 VDDIO IC8001 AB15 VSS IC8001 G26 VI1CLK IC8001 E28 VO1G7 IC8001 N33 VSS IC8001 AM24 VDDIO IC8001 E30 VSS IC8001 E13 VI2VSYNC IC8001 E25 VI1B5 IC8001 AH10 IDE2D10 IC8001 H30 LOSDCKIN IC8001 V14 VSS IC8001 L32 AO1DMIX IC8001 F21 SVCOMP IC8001 AN11 SDCD IC8001 U13 VSS IC8001 G33 LOSD11 IC8001 F9 CH1CLK IC8001 E33 LOSDHIN IC8001 AP3 IRQI10 IC8001 U12 VSS IC8001 M22 VDD12 IC8001 AP9 SDA0 IC8001 Y1 IPAVSS IC8001 R3 XNMIRQ IC8001 W15 VSS IC8001 G34 LOSD10 IC8001 AB17 VSS IC8001 R18 VSS IC8001 E22 VLOEN IC8001 R12 VDD12 IC8001 AM32 VDDIO IC8001 D16 VSS IC8001 AH6 VDD12 IC8001 B18 V1AVSS IC8001 AL8 VSS IC8001 D17 VSS IC8001 AC4 VSS IC8001 AH21 VDDIO IC8001 J29 LOSD14 IC8001 AD12 VDD12 IC8001 AA1 PCAD0 IC8001 AH8 IRQI9 IC8001 AH15 VSS IC8001 J4 VDD33 IC8001 P22 VDD12 IC8001 K29 AO2DACCK IC8001 T2 PCIRQ1 IC8001 A11 AI2BCK IC8001 V16 VSS IC8001 V19 VSS IC8001 G21 VSS IC8001 AK14 VDDR IC8001 E2 EA21 IC8001 AK32 VDDIO IC8001 AK31 VSS IC8001 AC6 PCAD3 IC8001 E11 AI2ADCCK IC8001 AC18 VSS IC8001 T17 VSS IC8001 B34 VO1B7 IC8001 AM2 VSS IC8001 AM1 VDD33 IC8001 K31 VDD12 IC8001 U11 VSS IC8001 N30 VDDR IC8001 T20 VSS IC8001 T3 PCIRQ0 IC8001 V24 VSS IC8001 AF30 VSS IC8001 AP26 VSS IC8001 V20 VSS IC8001 T15 VSS IC8001 B32 VO1G0 IC8001 G19 A2VCOIN IC8001 N31 AO2DMIX IC8001 AF2 PCAD25 IC8001 Y20 VSS IC8001 H4 VSS IC8001 T21 VSS IC8001 C18 MAVSS IC8001 V23 VSS IC8001 F23 XSRSTO2 IC8001 J31 VDD12 IC8001 AA3 PCAD2 IC8001 AC20 VDDR IC8001 L12 VDD12 IC8001 W18 VSS IC8001 D20 VSS IC8001 W28 VDDIO IC8001 AL12 VSS IC8001 AK16 TCK IC8001 AD6 PCAD13 IC8001 M19 VDD12 IC8001 AM8 SBO0 IC8001 C8 IS0DATA IC8001 C2 VDD33 IC8001 F33 LOSDVSYN IC8001 V12 VSS IC8001 AK10 XRI0 IC8001 L20 VDD12 IC8001 N1 XNFWE IC8001 AH16 EXTRG IC8001 AK22 VDDIO IC8001 AH17 VDDIO IC8001 F34 LOSD15 IC8001 AM5 IDE2D3 IC8001 AC16 VDDR IC8001 G14 VSS IC8001 AP4 IDE2D1 IC8001 AE2 PCAD20 IC8001 AF28 NC IC8001 L14 VDD12 IC8001 C11 AI1LRCK IC8001 T13 VDD12 IC8001 B26 VI1G0 IC8001 AD16 VDDR IC8001 E27 VI1VSYNC IC8001 B22 XSRSTO0 IC8001 AN1 VSS IC8001 A27 VI1R2C6 IC8001 AK6 IRQI8 IC8001 G22 SVDACO2 IC8001 AJ3 PCXFRAME IC8001 AJ7 IRQI7 IC8001 AF34 VSS IC8001 AB32 VSS IC8001 A23 VI1B4 IC8001 L33 AO1LRCK IC8001 AB7 PCAD6 IC8001 H34 LOSD5 IC8001 A33 VDD33 IC8001 W3 DPAVSS IC8001 AN8 SBI0 IC8001 G30 VO1B0 IC8001 B13 VI2C4 IC8001 AA14 VSS IC8001 E6 EA14 IC8001 B4 EA7 IC8001 T19 VSS IC8001 T23 VDDR IC8001 D3 VDD33 IC8001 G31 VSS IC8001 AP31 VDDIO IC8001 C34 VO1B5 IC8001 G27 VO3CLK IC8001 B25 VI1G3 IC8001 E5 VSS IC8001 D5 VDD33 IC8001 J5 ED8 IC8001 B28 VI1R0C0 IC8001 AE7 PCXIRDY IC8001 AP33 VDDIO IC8001 Y19 VSS IC8001 W21 VSS IC8001 N29 LOSD1 IC8001 N7 XEBGT0 IC8001 D11 VSS IC8001 AD5 PCAD9 IC8001 C21 SVAVSS IC8001 R16 VSS IC8001 AM4 IRQI11 IC8001 AD3 PCAD18 IC8001 AE33 VSS IC8001 D14 VDD33 IC8001 AC5 PCAD15 IC8001 N16 VDD12 IC8001 W17 VSS IC8001 V11 VSS IC8001 M3 ESZ1 IC8001 U21 VSS IC8001 AN2 VDD12 IC8001 W23 VDDR IC8001 AH13 SDDAT0 IC8001 D12 VSS IC8001 K28 LOSD9 IC8001 E10 AI1IEC IC8001 D34 VO1B1 IC8001 G25 VI1R1C7 IC8001 M13 VDD12 IC8001 W4 VSS IC8001 H29 LOSDCLK IC8001 A15 VI2Y5 IC8001 R22 VSS IC8001 AG28 VSS IC8001 AE34 VDDIO IC8001 W7 AMAVDD IC8001 G13 VI2C7 IC8001 AL16 VSS IC8001 N20 VDD12 IC8001 AB4 VSS IC8001 G11 RMCI IC8001 AK13 SDDAT1 IC8001 R1 XIRQ1 IC8001 G24 A1EXCK IC8001 H1 ED7 IC8001 AA11 VDD12 IC8001 AH29 VSS IC8001 G12 AI1DMIX IC8001 AC11 VDD12 IC8001 D22 VDD33 IC8001 D23 VSS IC8001 N4 VDD33 IC8001 AC22 VDDR IC8001 U14 VSS IC8001 D21 VSS IC8001 A13 VI2C3 IC8001 AH7 VDD12 IC8001 AK18 VDDIO IC8001 L30 LOSD4 IC8001 P3 XNFRE IC8001 P4 VSS IC8001 D13 VSS IC8001 AJ10 XDSR0 IC8001 AJ8 IDE2D0 IC8001 AA20 VSS IC8001 A10 AI1BCK IC8001 W34 VSS IC8001 AA15 VSS IC8001 Y32 VDDIO IC8001 AM20 VDDIO IC8001 A3 EA10 IC8001 B23 VI1B3 IC8001 M6 ECLK IC8001 A17 VDD33 IC8001 AE6 PCCXBE0 IC8001 B8 CH1VAL IC8001 AJ1 PCCXBE2 IC8001 F28 VO1G2 IC8001 R4 VSS IC8001 AA16 VSS IC8001 N19 VDD12 IC8001 T14 VSS IC8001 P16 VSS IC8001 AD15 VDDR IC8001 H32 LOSD8 IC8001 V5 PCIDSELB IC8001 AK4 VSS IC8001 A16 VI2Y1 IC8001 AM26 VSS IC8001 AJ2 PCCXBE3 IC8001 AB19 VSS IC8001 K1 XECS2 IC8001 F13 VI2CLK IC8001 AE3 PCAD21 IC8001 K5 ED14 IC8001 W22 VSS IC8001 L15 VDD12 IC8001 G23 A2EXCK IC8001 V4 VSS IC8001 B5 EA3 IC8001 Y4 VSS IC8001 U34 VDDIO IC8001 D18 VDD33 IC8001 AK1 PCXTRDY IC8001 U16 VSS IC8001 A34 VSS IC8001 AM30 VSS IC8001 U5 PCBRQ2 IC8001 C14 VI2C2 IC8001 L34 AO1BCK IC8001 E34 LOSDVIN IC8001 AE4 VDD33 IC8001 B14 VI2C1 IC8001 U24 VSS IC8001 V22 VSS IC8001 M24 VDD12 IC8001 AG1 PCAD27 IC8001 D27 VSS IC8001 Y2 (NC) IC8001 AM6 IDE2D7 IC8001 J1 ED12 IC8001 D2 EA17 IC8001 W14 VSS IC8001 J33 LOSD2 IC8001 P31 VSS IC8001 T6 PCXSERR IC8001 L16 VDD12 IC8001 A14 VI2C0 IC8001 Y23 VDDR IC8001 P13 VDD12 IC8001 R30 VSS IC8001 K32 AO1D2 IC8001 D30 VDD33 IC8001 E17 VI2Y0 IC8001 M14 VDD12 IC8001 AA21 VSS IC8001 E9 CH0CLK IC8001 M29 VDDR IC8001 C26 VI1HSYNC IC8001 E24 VI1B6 IC8001 AP13 VDD12 IC8001 AD19 VDDA IC8001 AK11 SBO1 IC8001 AN34 VSS IC8001 Y7 V2AVSS IC8001 Y5 AMAVSS IC8001 AP6 IDE2D11 IC8001 A18 VSS IC8001 AG34 VDDIO IC8001 AA13 VDD12 IC8001 A31 VO1G6 IC8001 AL13 VDDR IC8001 AN7 XCTS0 IC8001 AB2 PCAD5 IC8001 V3 PCXPERR IC8001 C24 VI1G5 IC8001 K30 LOSD7 IC8001 C30 VO1R0 IC8001 C20 XHWRSTO IC8001 AH19 VSS IC8001 F4 VSS IC8001 L11 VSS IC8001 AJ9 IDE2D9 IC8001 AB18 VSS IC8001 L5 XECS3 IC8001 AP11 TEST0 IC8001 AC12 VSS IC8001 E16 VI2Y4 IC8001 AG2 PCAD28 IC8001 M5 XERE IC8001 AE28 VSS IC8001 U6 DPAVDD IC8001 AH1 PCAD30 IC8001 AK9 TXD0 IC8001 U4 VDD33 IC8001 AL34 VDDIO IC8001 L23 VDD33 IC8001 AA12 VDD12 IC8001 C10 IRQI3 IC8001 M11 VDD12 IC8001 H5 EA24 IC8001 F29 VSS IC8001 G9 IS1VAL IC8001 AP27 VDDIO IC8001 N14 VDD12 IC8001 G18 MTCPOUT IC8001 C33 VO1B6 IC8001 AH14 VDDR IC8001 AK26 VDDIO IC8001 G7 VSS IC8001 AA34 VDDIO IC8001 AJ25 VSS IC8001 AC2 PCAD12 IC8001 B29 VO1R5 IC8001 U18 VSS IC8001 J28 VO1HSYNC IC8001 AP14 VDDR IC8001 R11 VDD12 IC8001 F14 VI2C6 IC8001 L6 XECS5 IC8001 C13 VI2C5 IC8001 B10 IRQI4 IC8001 F17 MAVDD IC8001 AP23 VSS IC8001 U15 VSS IC8001 C22 VI1B7 IC8001 AN25 VSS IC8001 F11 AI1ADCCK IC8001 AG4 VSS IC8001 E29 VO1G1 IC8001 M34 AO2BCK IC8001 D29 VSS IC8001 V32 VSS IC8001 L3 XECS4 IC8001 AB5 PCAD10 IC8001 M20 VDD12 IC8001 C7 IS1DATA IC8001 F19 A2AVDD IC8001 AL11 VDD12 IC8001 A8 CH1DATA IC8001 B27 VI1R6C4 IC8001 C19 A2AVSS IC8001 AB3 PCAD8 IC8001 AA24 VDD12 IC8001 A22 XSRSTO1 IC8001 M30 AO1IEC IC8001 P19 VSS IC8001 V7 IPAVDD IC8001 B21 SVVREF IC8001 L24 VSS IC8001 U17 VSS IC8001 F31 VDD12 IC8001 A9 RMCO IC8001 N17 VSS IC8001 H8 VSS IC8001 E14 VI2HSYNC IC8001 D26 VDD33 IC8001 AD17 VSS IC8001 C3 VSS IC8001 AG3 PCAD29 IC8001 U19 VSS IC8001 AE1 PCAD19 IC8001 H6 EA20 IC8001 C6 EA1 IC8001 A29 VO1R6 IC8001 F12 HDMICK IC8001 F3 EA23 IC8001 F25 VI1CKOUT IC8001 K33 AO1D1 IC8001 AD24 VSS IC8001 L18 VSS IC8001 E8 IS0CLK IC8001 AL7 VSS IC8001 M32 AO2LRCK IC8001 AJ15 SDDAT3 IC8001 D32 VO1B4 IC8001 E7 EA9 IC8001 AC23 VSS IC8001 C1 EA15 IC8001 A30 VO1R3 IC8001 G17 XRST IC8001 AJ13 VDDR IC8001 A21 SVAVDD IC8001 N32 VDDR IC8001 L21 VDD33 IC8001 T4 VSS IC8001 AC17 VSS IC8001 AM7 RXD0 IC8001 F10 CH0DATA IC8001 M12 VSS IC8001 AL17 VDDIO IC8001 P24 VDD12 IC8001 AD4 VSS IC8001 AF5 PCXSTOP IC8001 A12 VI2C8 IC8001 U20 VSS IC8001 M4 VSS IC8001 V17 VSS IC8001 AA19 VSS IC8001 W11 VDD12 IC8001 J30 LOSD12 IC8001 B24 VI1G6 IC8001 AA6 PCCLKO0 IC8001 AH32 VDDIO IC8001 AP2 IRQI5 IC8001 AH2 PCAD31 IC8001 W5 PCIDSELC IC8001 P6 BOOTSWAP IC8001 F5 VDD33 IC8001 AL2 IDE2DRQ IC8001 AJ31 DAVDD IC8001 AP1 VDD12 IC8001 E31 VDD12 IC8001 M23 VSS IC8001 AD32 VDDIO IC8001 C5 EA4 IC8001 AG30 NC IC8001 Y18 VSS IC8001 C9 CH0VAL IC8001 AK15 VSS IC8001 P23 VDD12 IC8001 U7 PCIDSELA IC8001 AD13 VDD12 IC8001 Y6 V2AVDD IC8001 AF6 IDE2IRQ IC8001 G28 VSS IC8001 AN14 XTRST IC8001 AN16 VSS IC8001 Y12 VDD12 IC8001 AM3 VDD12 IC8001 AK12 SDA1 IC8001 N11 VDD12 IC8001 F8 IS1CLK IC8001 K2 XECS0 IC8001 H2 ED6 IC8001 AH26 VDDIO IC8001 L22 VDD33 IC8001 AD14 VDD12 IC8001 B15 VI2Y6 IC8001 AP21 VDDIO IC8001 AN9 SBT2 IC8001 R19 VSS IC8001 F22 SVIREF IC8001 A32 VO1G4 IC8001 K6 ED13 IC8001 AP19 VSS IC8001 R7 XIRQ2 IC8001 P17 VSS IC8001 AA18 VSS IC8001 AB20 VSS IC8001 B19 A2TCPOUT IC8001 AB30 VDDIO IC8001 AJ30 VSS IC8001 AA23 VDDR IC8001 AP10 SDWP IC8001 U23 VSS IC8001 AG7 VDD12 IC8001 B20 A1TCPOUT IC8001 AJ14 SDCLK IC8001 P14 VSS IC8001 AN13 VDDR IC8001 D28 VSS IC8001 T5 PCIRQOUT IC8001 B2 VSS IC8001 F24 VI1B1 IC8001 R24 VDDR IC8001 AN3 IRQI6 IC8001 AH4 VDD33 IC8001 AL25 VSS IC8001 F32 LOSDHSYN IC8001 AD20 VDD12 IC8001 N12 VDD12 IC8001 AL10 VDD12 IC8001 N3 XEDMK0 IC8001 F7 EA12 IC8001 AB1 PCAD4 IC8001 M15 VDD12 IC8001 L2 XEWE0 IC8001 L4 VSS IC8001 Y17 VSS IC8001 D1 EA18 IC8001 L31 VSS IC8001 A2 EA13 IC8001 C29 VO1R4 IC8001 K4 VSS IC8001 AD2 PCAD17 IC8001 T1 PCBRQ0 IC8001 B1 VDD33 IC8001 AM12 TEST1 IC8001 Y22 VSS IC8001 AD11 VSS IC8001 AJ34 VSS IC8001 G1 ED3 IC8001 AA28 VSS IC8001 U28 VDDIO IC8001 A4 EA5 IC8001 AB22 VSS IC8001 D31 VSS IC8001 P29 VSS IC8001 B12 VI2C9 IC8001 AC21 VDDR IC8001 L17 VSS IC8001 AN10 SCL0 IC8001 M21 VDD12 IC8001 H31 VSS IC8001 AD23 VDDIO IC8001 B3 EA11 IC8001 F27 VO1R1 IC8001 AL5 VDD12 IC8001 AF1 PCAD24 IC8001 AL31 VDDIO IC8001 AN12 TEST2 IC8001 Y21 VSS IC8001 R28 VSS IC8001 G2 ED2 IC8001 T18 VSS IC8001 M33 VDDR IC8001 AA5 PCCLKO1 IC8001 U22 VSS IC8001 C16 VI2Y3 IC8001 Y13 VDD12 IC8001 P20 VSS IC8001 AL9 VSS IC8001 E1 EA22 IC8001 AK2 PCDEVSEL IC8001 J2 ED11 IC8001 N6 XEDK IC8001 P11 VDD12 IC8001 AF7 VSS IC8001 AM18 VSS IC8001 AP8 SBI1 IC8001 K3 ED15 IC8001 AA7 VSS IC8001 AP15 VSS IC8001 W13 VDD12 IC8001 R21 VSS IC8001 AD21 VDD12 IC8001 AK3 PCPAR IC8001 G6 VDD33 IC8001 G5 EA16 IC8001 M28 YSO IC8001 D19 VSS IC8001 D24 VSS IC8001 AK7 IRQI12 IC8001 AH30 VDDIO IC8001 F6 VSS IC8001 AD1 PCAD16 IC8001 N18 VSS IC8001 U2 PCBGT0 IC8001 AC24 VDDIO IC8001 V15 VSS IC8001 H33 LOSD6 IC8001 AC15 VDDR IC8001 AH5 VSS IC8001 G32 LOSD13 IC8001 E23 VI1B0 IC8001 AC14 VDD12 IC8001 AC1 PCAD11 IC8001 AB23 VDDR IC8001 R15 VSS IC8001 U1 VDD33 IC8001 AC7 PCAD7 IC8001 M31 VDDR IC8001 P2 XNFWP IC8001 N23 VDD12 IC8001 V30 VDDIO IC8001 V18 VSS IC8001 E12 AI2DMIX IC8001 AB16 VSS IC8001 B6 EA0 IC8001 B11 AI2LRCK IC8001 AB24 VDDIO IC8001 T16 VSS IC8001 AP12 TDI IC8001 V6 (NC) IC8001 N24 VDD12 IC8001 N21 VDD12 IC8001 AK20 VSS IC8001 AF32 VSS IC8001 AL4 VDD12 IC8001 AL6 VDD12 IC8001 A24 VI1G7 IC8001 L13 VDD12 IC8001 F1 EA26 IC8001 L19 VDD12 IC8001 AD18 VSS IC8001 D8 VSS IC8001 E21 XSRSTO3 IC8001 AM10 SCL1 IC8001 AM15 VSS IC8001 AG5 IDE2RDY IC8001 E15 VI2Y9 IC8001 R6 PCIRQ2 IC8001 B7 IS0VAL IC8001 F18 V1AVDD IC8001 AG6 VSS IC8001 G10 CH1PSYNC IC8001 AH9 IDE2D2 IC8001 AP29 VSS IC8001 A6 IS1PSYNC IC8001 AK8 IDE2D5 IC8001 AD7 PCAD23 IC8001 P15 VSS IC8001 AC19 VDDR IC8001 D33 VO1B2 IC8001 AH12 SBO2 IC8001 R23 VDDR IC8001 E20 SVDACO0 IC8001 M17 VSS IC8001 F26 VI1R5C3 IC8001 T29 VSS IC8001 B30 VO1R2 IC8001 D6 VSS IC8001 AA2 PCAD1 IC8001 G20 SVDACO1 IC8001 AK24 VSS IC8001 AB21 VSS IC8001 AB13 VSS IC8001 R2 XIRQ0 IC8001 N2 XEBRQ0 IC8001 E3 EA19 IC8001 T7 PCBGT2 IC8001 J7 ED1 IC8001 AB12 VDD12 IC8001 AP25 VDDIO IC8001 AJ12 SDDAT2 IC8001 AH23 VSS IC8001 F30 VO1CLK IC8001 H28 VO1B3 IC8001 N15 VDD12 IC8001 G4 VSS IC8001 AM22 VSS IC8001 AC3 PCAD14 IC8001 AP5 IDE2D6 IC8001 L1 XEWE1 IC8001 G3 ED0 IC8001 AN33 VDDIO IC8001 AA4 VDD33 IC8001 N22 VSS IC8001 C25 VI1G2 IC8001 D7 VSS IC8001 AJ4 VSS IC8001 AH27 VSS IC8001 G8 EA6 IC8001 AN5 IDE2D4 IC8001 AC13 VDD12 IC8001 L29 AO1DACCK IC8001 AK28 VSS IC8001 AF3 PCAD26 IC8001 A5 EA2 IC8001 P1 NFCLE IC8001 AB14 VDD12 IC8001 T24 VDDR IC8001 Y30 VSS IC8001 C31 VO1G3 IC8001 Y16 VSS IC8001 U3 PCBRQ1 IC8001 A7 IS0PSYNC IC8001 M1 XEDMR0 IC8001 AA22 VSS IC8001 R5 NFALE IC8001 T11 VDD12 IC8001 AC34 VSS IC8001 M18 VSS IC8001 C23 VI1B2 IC8001 N34 VDDR IC8001 W2 PCBGT1 IC8001 J6 ED5 IC8001 D15 VSS IC8001 C27 VI1R4C2 IC8001 L28 LOSD0 IC8001 AL1 IDE2XDAK IC8001 P5 XNFCE IC8001 W16 VSS IC8001 AP17 VDDIO IC8001 AB6 PCCLKO2 IC8001 AJ29 VDDIO IC8001 A28 VI1R3C1 IC8001 AM9 SBI2 IC8001 K34 AO1D0 IC8001 C12 HDMIENB IC8001 M7 ESZ0 IC8001 R14 VSS IC8001 R13 VDD12 IC8001 E32 VO1VSYNC IC8001 A26 VI1G1 IC8001 AL3 VSS IC8001 R32 VSS IC8001 R17 VSS IC8001 T12 VDD12 IC8001 AJ6 VDD12 IC8001 W12 VDD12 IC8001 AJ5 VDD12 IC8001 B9 CH0PSYNC IC8001 P18 VSS IC8001 AD30 VSS IC8001 AM11 SDCMD IC8001 C28 VO1R7 IC8001 AF4 VSS IC8001 P21 VSS IC8001 AK5 VDD12 IC8001 N13 VSS IC8001 W19 VSS IC8001 Y24 VDD12 IC8001 W24 VDDA IC8001 C15 VI2Y7 IC8001 D25 VSS IC8001 D4 VSS IC8001 AK30 VDDIO IC8001 AM13 TDO IC8001 N28 VDDR IC8001 T22 VSS IC8001 AJ16 VSS L8034 J0JHC0000045 L8035 J0JHC0000045 L8031 J0JHC0000045 L8030 J0JHC0000045 L8036 J0JHC0000045 L8032 J0JHC0000045 SUB3.3V SUB1.8V SUB1.2V SUB1.2V SUB3.3V 1.8V_PEAKS SUB3.3V SUB3.3V IRQI7 XNFWE PCAD16 EA22 VO1G4 IDE2D5 AO1DMIX EA19 IDE2D1 VO1G2 PCAD20 VI1G2 VI1VSYNC VI1CLK VI1R1C7 SVDACO0 TDI_PRO ED3 VI2C5 SDDAT1 PCBRQ0 LOSD10 AI2BCK VO1B0 ED7 PCCLKO1 VI2Y3 PCXFRAME PCAD3 VI2Y1 VI2C1 AO1BCK XDCD0 PCAD15 EA13 ED1 VO1CLK SBI0 LOSDCLK VI1G4 LOSDHSYN VI2HSYNC SDCMD VI1HSYNC PCBGT0 ED2 EA23 EA21 XNFCE CH0DATA VI1G6 SDDAT2 VI2VSYNC VO1B7 SVDACO2 VI1R7C5 VI1R5C3 XECS2 PCXSTOP ED4 SDDAT0 ED9 PCAD29 TDO_PRO XIRQ0 PCIDSELC XNMIRQ IDE2D4 IDE2D2 XRI0 PCAD1 VI1G1 PCRST PCAD25 PCAD14 EA16 PCAD24 PCCLK VI1R6C4 SCL1 LOSD7 SCL0 XERE VI2Y5 VI2C8 LOSD6 VO1B4 XSRSTO0 VI1R0C0 ED10 ED15 ED6 LOSD12 AI2LRCK PCAD0 EA12 EA6 NFALE IRQI9 VO1G5 EA4 PCIRQOUT PCAD28 SBI1 CH0VAL AO1LRCK IDE2RDY LOSD14 EA5 XNFWP VI1B4 XCTS0 VI2C7 PCAD4 EA2 TCK_PRO LOSD13 PCAD27 EA10 XDTR0 LOSD9 VO1R6 VO1G1 VI1CKOUT VI1R4C2 LOSDVIN LOSD1 PCBGT2 ED8 ESZ1 AI1IEC VI2C9 VO1R5 PCDEVSEL IDE2D9 EA11 VO1B2 PCBGT1 SBO0 XECS3 CH0PSYNC PCAD12 TEST0 VO1HSYNC IDE2D8 EA18 ED14 IRQI6 PCAD23 VLOEN XIRQ1 IRQI12 PCXIRDY XECS0 SDA0 IDE2D3 VI1G3 ED12 ED0 PCXSERR XRST XTRST_PRO AI2DMIX EA24 VI1B3 VI2Y7 PCBRQ1 VI2C2 LOSDHIN AI1DMIX HDMICK LOSD2 VI2Y6 PCAD30 XEDK EA17 LOSD3 VI1G5 VI2Y4 PCAD7 VO1R1 PCAD17 VI1B7 EA15 ED13 ED11 VI1B1 VI2Y8 XECS5 PCIRQ0 VI2C3 SDCLK SDCD PCAD13 SVDACO1 PCAD19 PCIRQ2 VO1VSYNC VI1R3C1 LOSD15 SDA1 EA25 PCAD5 EA20 VI2Y9 PCIRQ1 VI1B5 PCAD10 VI2Y2 SDDAT3 VI1B2 VO1G6 XSRSTO2 LOSDCKIN XDSR0 AI1BCK ESZ0 IDE2D7 EXTRG_PRO EA0 VO1B3 VO1R3 LOSD4 XEWE0 VI1R2C6 EA8 LOSD8 PCCLKO2 XNFRE PCAD11 IDE2D11 AI1LRCK IDE2DRQ VO1B1 YSO ERXW EA14 VI1G0 VO1R7 XIRQ2 XSRSTO3 LOSD5 IRQI13 IRQI5 VO1B6 VO1R0 VO1G3 CH0CLK AO2DMIX VI2C6 IDE2D0 PCAD21 PCXTRDY HDMIENB EA3 IRQI10 LOSDVSYN PCIDSELA LOSD11 IRQI11 VO3CLK PCCXBE2 SBO1 VO1G7 PCAD9 XRTS0 PCBRQ2 PCCXBE0 EA1 IDE2XDAK AI2ADCCK YMO LOSD0 XECS1 PCIDSELB VI2Y0 XEDMR0 VI1B0 TEST2 PCCXBE3 ED5 PCAD8 SBO2 XEWE1 IRQI3 IRQI8 PCAD26 TEST1 RMCI PCXPERR EA9 VO1G0 PCAD6 PCAD2 XSRSTO1 IDE2D10 PCAD22 VO1R2 VI2C4 PCAD18 VO1R4 VO1B5 IRQI4 SBI2 AO1IEC IDE2D6 VI1B6 BOOTSWAP XEAS SBT2 PCCXBE1 EA7 VI2CLK PCCLKO0 XECS4 VI1G7 TXD0 RXD0 IDE2IRQ NFCLE SDWP AI1ADCCK PCAD31 VI2C0 PCPAR TMS_PRO R8008 82 R8016 0 R8005 180 R8017 0 1% R8004 5.6k 1% R8003 10k 1% R8002 24k R8007 180 R8006 82 1% R8001 3.9k R8790 10k *R8370 10k R8385 10k SUB3.3V R8789 10k PRO_ANALOG/PLL PRO_VCC PRO_1 PRO_SUB3.3V Analog VIDEO I/F AUDIO PLL RESET CH TS_I/F DVB CH1 TS_I/F NAND I/F Free-SAT AUDIO OUT1 1394_I/F R656OUT3[0] JTAG SD_CARD Para TS_I/F Out Para TS_I/F In (VSM) PCI_BUS Parallel TS_I/F IS0 I/F IS1 I/F Interrupt CH0 TS_I/F VIDEO OUT (to GC6) AUDIO IN1 TO_GENX5_SBIO 8000-8099 AUDIO OUT CRNo.8000-8299 AUDIO OUT2 PIO PRO2 LOSD (to MIHO) VIDEO DAC-OUT SERIAL CPU_BUS (VBN) IIC_BUS (VBP) PAL-M ENC R656OUT3[1] R656OUT3[2] R656OUT3[3] R656OUT3[4] R656OUT3[5] R656OUT3[6] R656OUT3[7] R656OUT3_CLK Brazil B E 9 6 8 1 A 2 3 D 7 F 5 4 C IC8001 PEAKS-Pro TO 4/20 TO 3,5/20 TO 5/20 TO 5/20 TO 8/20 TO 5/20 TO 5/20 TO 3/20 TO 5/20 TO 5/20 TO 5/20 TO 5/20 TO 5/20 TO 5/20 TO 5/20 TO 5/20 TO 5/20 TO 5,11/20 TO 5,19/20 TO 5/20 TO 5/20 TO 5/20 TO 5/20 TO 5/20 ! A-BOARD (1/20) PEAKS-Pro+DDR2+VCXO TNPH0724BC TH-58PZ880C A-Board (1/20) Schematic Diagram TH-58PZ880C A-Board (1/20) Schematic Diagram 48 TH-58PZ880C 10.6. A 电路板 （2/20）线路图 + + AP_C1DQ20 AP_C1DQ7 AP_C1DQ25 AN_C1XWE AP_C1DQ27 AP_C1DQ9 AK_C0DS3 AP_C1DQ3 AG_C0A1 AK_C0DQ13 AK_C0DS1 AK_C0DQ14 AP_C1DS3 AG_C0A5 AJ_C0ODT AL_C1A9 AL_C1A10 AG_C0A11 AN_C1ODT AN_C1CK AP_C1DQ7 AN_C1BA2 AP_C1DS2 AG_C0A7 AL_C1A4 AP_C1DQ16 AJ_C0BA1 AL_C1A1 AK_C0DQ10 AG_C0A7 AP_C1DQ23 AJ_C0XWE AP_C1DQ0 AK_C0DQ13 AG_C0A11 AP_C1DQ14 AJ_C0CK AK_C0DQ31 AL_C1A0 AP_C1DQ10 AN_C1BA1 AL_C1A10 AK_C0DQ21 AK_C0DQ11 AK_C0DQ9 AK_C0DM0 AK_C0DQ8 AK_C0DQ5 AK_C0DQ0 AP_C1DQ28 AP_C1DQ5 AG_C0A12 AP_C1DS1 AL_C1A6 AK_C0DQ1 AP_C1DQ20 AG_C0A5 AP_C1DQ6 AN_C1ODT AK_C0DQ7 AP_C1DQ26 AN_C1ODT AL_C1A2 AL_C1A8 AK_C0DQ24 AP_C1DQ21 AK_C0DQ25 AP_C1DQ15 AP_C1DQ9 AN_C1BA1 AK_C0DQ3 AJ_C0XCK AN_C1XWE AP_C1DQ14 AP_C1DS1 AN_C1CKE AK_C0DQ17 AJ_C0XCK AK_C0DQ11 AK_C0DQ18 AK_C0DS3 AK_C0DS1 AK_C0DS0 AL_C1A12 AN_C1XCAS AN_C1XRAS AP_C1DM0 AJ_C0XWE AG_C0A8 AK_C0DQ0 AJ_C0CK AP_C1DQ17 AL_C1A9 AN_C1XWE AL_C1A2 AK_C0DQ31 AJ_C0CKE AK_C0DQ23 AP_C1DQ15 AL_C1A12 AK_C0DQ15 AN_C1CKE AG_C0A9 AP_C1DQ22 AL_C1A10 AN_C1XCAS AK_C0DQ28 AK_C0DQ20 AN_C1BA0 AN_C1BA2 AP_C1DQ12 AG_C0A12 AP_C1DQ0 AL_C1A7 AG_C0A10 AL_C1A1 AP_C1DQ27 AL_C1A9 AK_C0DQ16 AK_C0DQ22 AG_C0A5 AL_C1A7 AP_C1DQ1 AK_C0DQ2 AP_C1DQ24 AK_C0DQ29 AK_C0DQ19 AK_C0DQ24 AK_C0DS0 AG_C0A7 AP_C1DQ10 AL_C1A5 AP_C1DQ18 AG_C0A4 AK_C0DQ6 AP_C1DQ17 AP_C1DQ13 AK_C0DM2 AP_C1DQ4 AL_C1A8 AK_C0DQ3 AN_C1XRAS AL_C1A5 AK_C0DQ10 AK_C0DM1 AP_C1DQ16 AG_C0A9 AP_C1DQ11 AP_C1DQ8 AL_C1A11 AK_C0DQ8 AP_C1DQ30 AL_C1A8 AK_C0DQ18 AP_C1DQ24 AJ_C0XCS AG_C0A6 AP_C1DQ18 AG_C0A11 AK_C0DQ22 AJ_C0XRAS AL_C1A5 AG_C0A2 AK_C0DQ15 AL_C1A2 AK_C0DM1 AG_C0A0 AN_C1XCK AP_C1DS0 AJ_C0ODT AP_C1DM1 AL_C1A7 AP_C1DQ25 AK_C0DQ30 AN_C1XCS AK_C0DQ16 AG_C0A8 AG_C0A0 AP_C1DS2 AK_C0DM3 AK_C0DQ19 AG_C0A8 AP_C1DQ1 AP_C1DQ4 AJ_C0XCK AL_C1A11 AK_C0DQ29 AP_C1DQ31 AP_C1DQ26 AK_C0DQ7 AN_C1XCK AG_C0A3 AJ_C0BA1 AL_C1A3 AK_C0DQ1 AK_C0DQ25 AL_C1A12 AJ_C0CK AP_C1DQ19 AP_C1DQ2 AJ_C0XCAS AG_C0A2 AG_C0A10 AJ_C0BA0 AP_C1DS0 AK_C0DQ4 AK_C0DM0 AP_C1DQ31 AL_C1A6 AJ_C0ODT AN_C1XRAS AP_C1DS3 AG_C0A0 AG_C0A6 AP_C1DQ21 AK_C0DQ17 AG_C0A6 AN_C1CK AK_C0DQ23 AJ_C0XRAS AK_C0DQ27 AK_C0DQ28 AG_C0A4 AP_C1DQ8 AJ_C0BA2 AP_C1DQ13 AP_C1DQ6 AG_C0A3 AL_C1A3 AK_C0DQ9 AP_C1DQ19 AP_C1DQ23 AK_C0DQ4 AJ_C0CKE AN_C1BA0 AN_C1XCK AN_C1XCS AL_C1A0 AK_C0DQ12 AP_C1DM0 AN_C1CKE AL_C1A11 AK_C0DQ6 AN_C1CKE AP_C1DQ29 AN_C1CK AP_C1DM3 AJ_C0XRAS AK_C0DQ30 AG_C0A10 AJ_C0BA1 AL_C1A0 AG_C0A2 AK_C0DQ12 AP_C1DQ29 AK_C0DQ5 AL_C1A3 AJ_C0BA2 AJ_C0BA0 AG_C0A4 AN_C1XCAS AK_C0DQ2 AP_C1DQ5 AP_C1DQ3 AN_C1BA0 AP_C1DQ30 AJ_C0XWE AJ_C0XCS AL_C1A4 AK_C0DQ20 AP_C1DQ11 AJ_C0CKE AL_C1A6 AK_C0DS2 AK_C0DQ26 AG_C0A1 AN_C1BA2 AK_C0DS2 AG_C0A1 AJ_C0XCAS AL_C1A1 AP_C1DQ28 AP_C1DM2 AP_C1DQ22 AP_C1DM1 AG_C0A9 AP_C1DQ12 AP_C1DQ2 AN_C1BA1 AK_C0DQ26 AJ_C0BA0 AP_C1DM3 AK_C0DQ27 AJ_C0CKE AP_C1DM2 AL_C1A4 AJ_C0BA2 AK_C0DQ21 AK_C0DM2 AJ_C0XCAS AK_C0DQ14 AG_C0A12 AK_C0DM3 AG_C0A3 AJ_C0XCS AN_C1XCS C8230 10V 1u C8213 10V 1u C8229 10V 0.1u C8235 10V 1u C8226 10V 0.1u C8205 10V 1u C8201 10V 1u C8217 10V 0.1u C8102 50V 7p C8222 10V 1u C8206 10V 1u C8204 10V 1u C8208 10V 0.1u C8106 10V 0.1u C8220 10V 0.1u C8104 16V 0.01u C8232 10V 1u C8212 10V 1u C8103 6.3V 1u C8225 10V 1u C8216 10V 0.1u C8224 10V 1u C8219 10V 0.1u C8214 10V 0.1u C8215 10V 0.1u C8209 10V 1u C8234 10V 1u C8107 10V 0.1u C8223 10V 1u C8211 10V 1u C8203 10V 1u C8101 50V 18p C8227 10V 0.1u C8210 10V 1u C8218 10V 0.1u C8221 10V 1u C8105 10u 10V C8233 10V 1u C8228 10V 0.1u C8202 100u 2.5V C8231 100u 2.5V IC8201 C3ABSY000010 A1 VDD IC8204 C3ABRY000015 A1 VDD IC8203 C3ABRY000015 A1 VDD IC8202 C3ABSY000010 A1 VDD IC8204 L2 BA0 IC8001 AC33 C1BA0 IC8201 R3 RFU IC8203 A7 VSSQ IC8203 C2 DQ9 IC8203 A2 NC IC8001 AK19 C0DQ1 IC8001 AP18 C0DQ0 IC8001 AP32 C0DQ16 IC8001 P30 C1DQ21 IC8202 G7 VDDQ IC8202 M8 A0 IC8201 R7 RFU IC8203 J2 VREF IC8202 L2 BA0 IC8204 F9 DQ7 IC8001 AC32 C1XCS IC8202 C9 VDDQ IC8204 R3 RFU IC8203 M3 A1 IC8203 N2 A3 IC8204 A9 VDDQ IC8203 J9 VDD IC8204 B2 VSSQ IC8001 AJ26 C0DQ26 IC8204 B3 UDM IC8001 AN32 C0DQ20 IC8204 N7 A6 IC8001 W31 C1A4 IC8204 F3 LDM IC8001 AH33 C1DQ0 IC8203 B8 VSSQ IC8001 R31 C1DQ18 IC8203 B3 UDM IC8001 AH25 C0DQ30 IC8202 A2 NC IC8001 V29 C1A8 IC8001 AL20 C0DQ5 IC8202 J1 VDDL IC8201 B8 VSSQ IC8202 L3 BA1 IC8001 AL27 C0DQ25 IC8203 D2 VSSQ IC8001 AH24 C0A11 IC8001 W32 C1A12 IC8202 P3 A9 IC8201 M8 A0 IC8001 AC29 C1DQ2 IC8203 G7 VDDQ IC8001 Y33 C1A9 IC8201 C1 VDDQ IC8001 AC30 C1DQ5 IC8201 J2 VREF IC8203 K9 ODT IC8203 J3 VSS IC8001 F16 CK74 IC8001 AL28 C0DS2 IC8001 E18 VC27B IC8203 H7 DQ2 IC8001 U32 C1DM3 IC8203 G3 VDDQ IC8202 H7 DQ2 IC8204 M7 A2 IC8203 E9 VDDQ IC8201 A2 NC IC8201 F9 DQ7 IC8001 Y28 C1BA2 IC8203 R7 RFU IC8204 P8 A8 IC8001 P34 C1DQ19 IC8204 K8 CK IC8201 N7 A6 IC8001 AF29 C1DQ14 IC8202 B9 DQ15 IC8204 H2 VSSQ IC8203 L8 CS IC8001 AG32 C1DQ4 IC8203 E1 VDD IC8202 F1 DQ6 IC8204 A7 VSSQ IC8202 K2 CKE IC8202 D9 DQ13 IC8201 N3 A5 IC8201 J7 VSSDL IC8201 B9 DQ15 IC8201 J1 VDDL IC8201 L7 CAS IC8204 C3 VDDQ IC8201 M3 A1 IC8204 J7 VSSDL IC8001 AA33 C1A3 IC8001 AD33 C1RDRV IC8202 A8 UDQS IC8201 C2 DQ9 IC8001 AM31 C0DQ19 IC8203 D3 DQ11 IC8001 AE32 C1XWE IC8001 AK21 C0XCAS IC8203 G8 DQ0 IC8203 P3 A9 IC8001 AH20 C0ODT IC8201 N8 A4 IC8201 F1 DQ6 IC8203 G1 VDDQ IC8202 L8 CS IC8201 A3 VSS IC8202 M3 A1 IC8204 G3 VDDQ IC8203 N3 A5 IC8203 B2 VSSQ IC8201 D3 DQ11 IC8001 R33 C1DQ16 IC8201 A7 VSSQ IC8203 R1 VDD IC8201 D8 VSSQ IC8204 M2 A10 IC8203 N1 VSS IC8001 AP24 C0A10 IC8201 F3 LDM IC8202 J8 CK IC8204 D1 DQ12 IC8001 AN26 C0A9 IC8001 AM16 C0DQ11 IC8201 G2 DQ1 IC8202 G1 VDDQ IC8202 H8 VSSQ IC8204 J1 VDDL IC8001 AP16 C0VREF1 IC8001 AN20 C0CKE IC8202 J7 VSSDL IC8201 E1 VDD IC8204 M8 A0 IC8001 AP20 C0DQ7 IC8201 C3 VDDQ IC8201 H9 DQ5 IC8203 H3 DQ3 IC8202 R2 A12 IC8202 G9 VDDQ IC8204 B1 DQ14 IC8202 F2 VSSQ IC8204 D8 VSSQ IC8001 V33 C1DQ28 IC8204 H3 DQ3 IC8204 H1 DQ4 IC8001 AN18 C0DM0 IC8202 C8 DQ8 IC8204 N8 A4 IC8201 K3 WE IC8204 C1 VDDQ IC8203 K7 RAS IC8201 F8 VSSQ IC8001 AL29 C0DQ23 IC8001 AJ32 C1DQ8 IC8001 AK25 C0A8 IC8001 AA30 C1XCK IC8203 C1 VDDQ IC8001 AB34 C1A10 IC8202 R3 RFU IC8201 E9 VDDQ IC8204 J2 VREF IC8202 K9 ODT IC8202 N1 VSS IC8001 P33 C1DQ20 IC8202 J9 VDD IC8001 AE30 C1DQ9 IC8001 W29 C1A0 IC8001 AL23 C0BA1 IC8202 K8 CK IC8202 K3 WE IC8001 AF33 C1CKE IC8201 C8 DQ8 IC8202 D2 VSSQ IC8001 W30 C1A6 IC8203 D7 DQ10 IC8001 B17 CK33XI IC8201 A9 VDDQ IC8204 E9 VDDQ IC8204 A8 UDQS IC8203 M2 A10 IC8001 AN30 C0DQ24 IC8202 M2 A10 IC8001 AM25 C0A3 IC8201 R8 NC IC8001 AL26 C0DQ29 IC8203 A8 UDQS IC8202 P2 A7 IC8203 J1 VDDL IC8204 P2 A7 IC8201 P7 A11 IC8001 AA32 C1A5 IC8204 C2 DQ9 IC8201 B7 UDQS IC8001 P32 C1DQ23 IC8201 B3 UDM IC8001 AJ17 C0DQ13 IC8203 F9 DQ7 IC8202 E7 VSSQ IC8204 D2 VSSQ IC8001 AK29 C0DQ18 IC8202 C7 VDDQ IC8001 AK33 C1DM1 IC8001 T34 C1VREF2 IC8001 V34 C1DQ27 IC8202 H2 VSSQ IC8001 AB28 C1ODT IC8201 G9 VDDQ IC8201 K8 CK IC8001 AD28 C1DS1 IC8203 F2 VSSQ IC8201 H7 DQ2 IC8202 B2 VSSQ IC8204 P9 VSS IC8001 G16 CK27A IC8203 G9 VDDQ IC8001 AH31 C1DQ15 IC8204 N2 A3 IC8204 G2 DQ1 IC8204 K2 CKE IC8202 G2 DQ1 IC8202 A7 VSSQ IC8001 AN29 C0DQ27 IC8001 AN31 C0DM2 IC8202 E3 VSS IC8201 P8 A8 IC8201 K9 ODT IC8202 D1 DQ12 IC8001 AM23 C0A1 IC8202 N8 A4 IC8001 R29 C1DQ17 IC8204 E1 VDD IC8204 A3 VSS IC8201 F2 VSSQ IC8001 AJ28 C0DQ21 IC8001 AA31 C1VCAL IC8202 C2 DQ9 IC8203 C7 VDDQ IC8001 AN24 C0A5 IC8001 AM27 C0DQ31 IC8203 L1 RFU IC8204 C7 VDDQ IC8203 K2 CKE IC8202 H1 DQ4 IC8203 P8 A8 IC8201 B2 VSSQ IC8204 R8 NC IC8001 AG33 C1DQ7 IC8204 B9 DQ15 IC8201 J9 VDD IC8201 P9 VSS IC8203 F7 LDQS IC8001 AP22 C0RODT IC8202 P7 A11 IC8201 K2 CKE IC8203 J7 VSSDL IC8201 L2 BA0 IC8204 R7 RFU IC8001 AG31 C1DQ10 IC8001 Y31 C1A2 IC8202 B8 VSSQ IC8202 H9 DQ5 IC8001 AN19 C0DQ3 IC8203 L2 BA0 IC8202 E2 NC IC8201 L3 BA1 IC8204 N1 VSS IC8001 W33 C1DQ31 IC8001 AH22 C0BA2 IC8204 R1 VDD IC8201 M9 VDD IC8201 E8 LDQS IC8201 D2 VSSQ IC8202 D7 DQ10 IC8204 L1 RFU IC8202 B7 UDQS IC8201 F7 LDQS IC8202 N2 A3 IC8001 Y29 C1BA1 IC8204 E8 LDQS IC8202 F8 VSSQ IC8001 T28 C1DS3 IC8001 AB33 C1A1 IC8202 G3 VDDQ IC8204 A2 NC IC8001 AM17 C0DM1 IC8204 P3 A9 IC8201 R2 A12 IC8001 G29 RSZCLK IC8201 H1 DQ4 IC8203 D1 DQ12 IC8203 C3 VDDQ IC8203 P2 A7 IC8202 R1 VDD IC8203 F8 VSSQ IC8203 E3 VSS IC8204 J8 CK IC8203 K8 CK IC8203 P7 A11 IC8204 K9 ODT IC8201 J8 CK IC8201 H3 DQ3 IC8001 AJ19 C0DQ2 IC8203 E2 NC IC8001 U29 C1DQ29 IC8001 U30 C1DQ26 IC8203 B9 DQ15 IC8202 E8 LDQS IC8202 J3 VSS IC8204 G8 DQ0 IC8201 P2 A7 IC8204 K7 RAS IC8204 J3 VSS IC8202 A9 VDDQ IC8203 P9 VSS IC8203 F1 DQ6 IC8001 AN15 C0DQ12 IC8201 G3 VDDQ IC8201 H8 VSSQ IC8202 P9 VSS IC8204 J9 VDD IC8001 A19 VC27A IC8001 AN27 C0A7 IC8201 H2 VSSQ IC8001 AM29 C0DM3 IC8204 C8 DQ8 IC8202 M9 VDD IC8204 F2 VSSQ IC8204 F7 LDQS IC8202 R8 NC IC8202 A3 VSS IC8001 P28 C1DQ22 IC8204 C9 VDDQ IC8001 AK23 C0A2 IC8201 B1 DQ14 IC8204 D3 DQ11 IC8201 L8 CS IC8001 U31 C1DQ25 IC8202 K7 RAS IC8001 AL21 C0XRAS IC8201 D1 DQ12 IC8201 M7 A2 IC8001 AG29 CK33IN IC8001 AF31 C1DQ13 IC8204 G7 VDDQ IC8203 K3 WE IC8001 AJ23 C0A0 IC8202 C1 VDDQ IC8203 N7 A6 IC8202 F3 LDM IC8201 J3 VSS IC8203 B1 DQ14 IC8202 B3 UDM IC8203 D8 VSSQ IC8001 AM19 C0DQ4 IC8001 AC31 C1DQ6 IC8201 E2 NC IC8001 AN22 C0XCS IC8204 L7 CAS IC8001 AN21 C0RDRV IC8001 C17 CK33XO IC8203 E8 LDQS IC8202 P8 A8 IC8001 AD31 C1DQ1 IC8203 A3 VSS IC8001 T32 C1DM2 IC8201 P3 A9 IC8204 L3 BA1 IC8204 G1 VDDQ IC8201 N1 VSS IC8001 AA29 C1CK IC8203 M8 A0 IC8001 AJ22 C0VCAL IC8001 AN28 C0DQ28 IC8203 R3 RFU IC8201 G7 VDDQ IC8204 B8 VSSQ IC8203 H9 DQ5 IC8001 AN23 C0BA0 IC8204 E7 VSSQ IC8001 V28 C1A11 IC8203 B7 UDQS IC8203 L7 CAS IC8001 AJ24 C0A4 IC8001 AL15 C0DQ15 IC8204 B7 UDQS IC8202 E9 VDDQ IC8001 AK27 C0DS3 IC8201 E7 VSSQ IC8204 P7 A11 IC8201 N2 A3 IC8202 B1 DQ14 IC8001 AL18 C0DQ10 IC8201 K7 RAS IC8204 H7 DQ2 IC8203 H8 VSSQ IC8202 E1 VDD IC8001 AM34 C1DQ12 IC8204 H9 DQ5 IC8203 D9 DQ13 IC8204 D9 DQ13 IC8001 U33 C1DQ24 IC8202 F7 LDQS IC8001 AL30 C0DQ22 IC8203 G2 DQ1 IC8001 F15 CK27B IC8202 D8 VSSQ IC8201 R1 VDD IC8201 D9 DQ13 IC8201 M2 A10 IC8204 K3 WE IC8203 C8 DQ8 IC8204 D7 DQ10 IC8001 AH34 C1DQ3 IC8001 AJ20 C0DQ6 IC8204 G9 VDDQ IC8204 N3 A5 IC8202 C3 VDDQ IC8204 F1 DQ6 IC8001 AJ33 C1DM0 IC8001 AL19 C0DS0 IC8201 A8 UDQS IC8001 AK17 C0DQ14 IC8203 A9 VDDQ IC8201 C9 VDDQ IC8201 E3 VSS IC8201 G8 DQ0 IC8202 G8 DQ0 IC8001 AP30 C0VREF2 IC8001 Y34 C1A7 IC8001 AJ18 C0DQ9 IC8202 L7 CAS IC8001 AD34 C1RODT IC8202 H3 DQ3 IC8203 R8 NC IC8204 R2 A12 IC8202 N3 A5 IC8204 E2 NC IC8203 C9 VDDQ IC8203 E7 VSSQ IC8201 D7 DQ10 IC8001 AH18 C0DS1 IC8001 AB31 C1XCAS IC8203 L3 BA1 IC8201 L1 RFU IC8202 J2 VREF IC8001 AN17 C0DQ8 IC8202 D3 DQ11 IC8202 R7 RFU IC8203 F3 LDM IC8001 T30 C1DS2 IC8204 F8 VSSQ IC8202 L1 RFU IC8202 N7 A6 IC8001 AL24 C0A6 IC8001 AJ27 C0DQ17 IC8201 C7 VDDQ IC8202 F9 DQ7 IC8203 M7 A2 IC8202 M7 A2 IC8001 V31 C1DQ30 IC8204 H8 VSSQ IC8204 M3 A1 IC8203 N8 A4 IC8001 AK34 C1VREF1 IC8001 AL33 C1DQ11 IC8201 G1 VDDQ IC8001 AP28 C0A12 IC8204 E3 VSS IC8001 AD29 C1DS0 IC8203 J8 CK IC8001 AL22 C0XCK IC8203 R2 A12 IC8203 M9 VDD IC8203 H1 DQ4 IC8001 AM21 C0XWE IC8001 AB29 C1XRAS IC8001 AJ21 C0CK IC8203 H2 VSSQ IC8204 M9 VDD IC8204 L8 CS C0ZBZ0001567 IC8101 1 X1 2 S0 3 S1 4 VIN 5 VDD1 6 GND1 7 CLK1 8 CLK2 9 REFOUT 10 CLK3 11 CLK4 12 GND2 13 VDD2 14 S2 15 VDD3 16 X2 L8201 J0JHC0000045 L8101 J0JHC0000045 1.8V_PEAKS 1.8V_DDR 1.8V_DDR 1.8V_PEAKS SUB3.3V 1.8V_DDR 1.8V_DDR SUB1.8V AX_CIMAXCLK R8294 0 R8167 0 R8278 0 R8239 0 R8177 0 R8272 0 R8164 0 R8235 47 R8208 47 R8178 0 R8266 0 R8158 0 R8207 47 R8202 47 R8169 0 1% R8189 270 R8260 0 R8162 0 R8150 0 R8226 47 R8110 68 R8295 0 R8190 0 R8261 0 R8220 47 R8171 0 R8217 47 R8283 0 R8218 47 R8257 0 R8160 0 R8275 0 R8262 0 R8267 0 R8253 0 R8133 0 R8206 47 R8221 47 R8204 47 R8126 10k R8290 0 R8286 0 R8297 0 R8280 0 R8263 0 R8219 47 R8255 0 R8258 0 R8157 0 R8149 0 R8142 0 1% R8183 75 R8251 0 1% R8186 75 R8282 0 R8193 0 R8241 47 R8168 0 R8187 100 1% R8144 270 R8184 300 R8289 0 R8106 68 R8237 47 R8256 0 R8233 47 R8134 220 R8213 47 R8201 47 R8246 47 R8209 47 R8242 47 R8279 0 R8180 300 *R8101 10k R8135 10k R8136 220 R8229 47 R8227 47 R8216 47 R8254 0 R8156 0 R8224 47 R8141 0 R8192 0 R8250 0 R8139 0 R8203 47 R8173 0 R8174 0 R8155 0 R8152 0 R8284 0 R8210 47 1% R8181 75 R8222 47 R8132 0 R8298 0 R8268 0 R8140 0 R8287 0 R8236 47 R8191 0 R8249 0 R8252 0 R8230 47 R8102 10k R8276 0 R8234 47 R8172 0 R8205 47 1% R8143 270 R8112 10k R8166 0 R8223 47 R8212 47 R8243 47 R8175 0 R8225 47 1% R8185 75 R8153 0 R8292 0 R8159 0 R8288 0 R8163 0 R8273 0 R8145 100 R8296 0 R8170 0 R8299 0 R8248 47 R8214 0 R8165 0 R8277 0 R8269 0 R8231 47 R8265 0 R8197 10k 1% R8188 270 R8244 47 R8232 47 R8105 100k 1% R8179 75 R8198 220 R8293 0 R8281 0 R8228 47 R8285 0 R8291 0 R8270 0 R8108 82 R8196 220 R8245 47 R8238 0 R8154 0 R8259 0 *R8118 33 R8240 47 R8151 0 *R8117 10k R8111 82 R8176 0 1% R8182 75 R8161 0 R8264 0 R8199 0 R8271 0 R8211 47 R8215 0 R8274 0 R8247 47 X8101 H0J270500061 PRO_DDR2_3 PRO_DDR2_2 PRO_DDR2_0 PRO_DDR2_1 PRO_2 PRO_VREF1 PRO_VREF2 33.3MHz DDR2 #0 74.25MHz 25MHz 48MHz 27MHz PRO_VCXO 14 18 15 12 13 10 16 17 11 IC8201 IC8203 DDR2 #2 IC8204 DDR2 #3 IC8202 DDR2 #1 TO 3/20 ! PEAKS-Pro+DDR2+VCXO CRNo.8000-8299 TNPH0724BC A-BOARD (2/20) TH-58PZ880C A-Board (2/20) Schematic Diagram TH-58PZ880C A-Board (2/20) Schematic Diagram 49 TH-58PZ880C 10.7. A 电路板 （3/20）线路图 + CH0VAL CH0VAL CH0PSYNC CH0DATA CH0CLK CH0PSYNC CH0DATA CH0CLK *C8309 16V 0.1u *C8321 25V 0.01u *C8332 25V 0.01u *C8307 16V 0.1u *C8313 25V 0.01u *C8320 25V 0.01u *C8331 25V 0.01u *C8340 25V 0.01u *C8319 25V 0.01u *C8327 10V 1u *C8338 50V 22p *C8339 50V 22p *C8334 25V 0.01u *C8336 25V 0.01u *C8306 50V 1000p *C8312 50V 12p *C8330 25V 0.01u *C8328 10V 1u *C8329 25V 0.01u *C8333 25V 0.01u *C8314 25V 0.01u *C8335 25V 0.01u *C8311 50V 18p *C8310 100u 4V C0DBGFD00004 *IC8302 1 VOUT 2 VSS 3 NC 5 VIN 4 ON/OFF *IC8301 C1AB00002710 1 Vss 2 Vdd 3 Vss 4 CLK1 5 DATA1 6 IRQ 7 CVdd 8 Vss 9 RESET 10 SLEEP 11 STATUS 12 SADD4 13 Vdd 14 Vss 15 SADD3 16 SADD2 17 SADD1 18 SADD0 19 CVdd 20 Vss 21 PLLVdd 22 PLLGND 23 XTI 24 XTO 25 Vss 26 PLLTEST 27 OSCMODE 28 AVdd 29 AGnd 30 VIN 31 VIN 32 AGnd 33 Vdd 34 RFLEV 35 CLK2 36 DATA2 37 CVdd 38 Vss 39 CVdd 40 Vss 41 AGC2/GPP2 42 AGC1 43 GPP3 44 SMTEST 45 Vdd 46 Vss 47 MOSTRT 48 MOVAL 49 MDO0 50 MDO1 51 MDO2 52 MDO3 53 MDO4 54 Vdd 55 Vss 56 MDO5 57 MDO6 58 MDO7 59 CVdd 60 Vss 61 MOCLK 62 BKERR 63 MICLK 64 CVdd *L8301 J0JHC0000045 *L8304 J0JHC0000045 SUB3.3V SUB3.3V SUB5V TP8301 AD_SDA1 AD_SCL1 AA_XSRSTO0 SDA_05V SCL_05V IFAGC IFD1 IFD2 CH0PSYNC AA_XIRQ2 CH0DATA CH0CLK RMCO CH0VAL CH1CLK *R8307 4.7k *R8327 68 *R8354 100 *R8356 0 *R8308 10k *R8318 4.7k *R8311 0 *R8325 68 *R8326 68 *R8310 0 *R8314 0 R8328 10k *R8306 4.7k *R8305 22k *R8321 10k *R8353 100 *R8323 47k R8385 10k *R8330 68 *R8329 47k *R8396 56 *R8322 1k *R8324 47k *R8315 0 *R8370 10k *R8359 0 *X8301 H0J204500006 20.48MHz TS FE 1.8V 25 23 26 24 22 21 19 20 27 TO 15/20 TO 1/20 TO 5/20 TO 3,5,11,16/20 TO 1/20 A-BOARD (3/20) TNPH0724BC CRNo.8300-8999 ! DTV NO USE TH-58PZ880C A-Board (3/20) Schematic Diagram TH-58PZ880C A-Board (3/20) Schematic Diagram 50 TH-58PZ880C 10.8. A 电路板 （4/20）线路图 + + IDE2D3 IDE2D2 IDE2D1 XDSR0 IDE2D0 XCTS0 XRI0 XRI0 XCTS0 XDSR0 IDE2D7 IDE2D6 IDE2D5 IDE2D4 IDE2D3 IDE2D2 IDE2D7 IDE2D1 IDE2D6 IDE2D0 IDE2D5 IDE2D4 AA_EA4 AB_PCIRQ1 AA_ED3 AA_ED2 AB_PCAD18 AA_ED6 AB_PCAD29 AA_EA3 AA_ED2 AA_EA20 AB_PCAD8 AB_PCAD6 AA_EA2 AA_ED1 AA_EA1 AB_PCDEVSEL AB_PCAD12 AA_ED13 AB_PCAD25 AA_ED7 AA_EA1 AA_ED0 AB_PCXFRAME AA_ED4 AB_PCAD9 AA_XERE AB_PCAD7 AB_PCAD23 AA_ED6 AA_ED10 AB_PCXIRDY AB_PCAD16 AB_PCAD17 AA_ED5 AA_ED0 AA_EA4 AB_PCAD14 AB_PCAD31 AA_ED12 AA_ED4 AA_XRST AB_PCXTRDY AA_ED15 AB_PCPAR AB_PCCXBE0 AB_PCXPERR AB_PCAD0 AA_EA23 AB_PCAD13 AA_EA20 AA_EA15 AB_PCAD26 AA_XECS0 AB_PCCXBE3 AB_PCBGNT1 AB_PCAD21 AA_EA19 AB_PCAD10 AA_EA17 AA_ED1 AB_PCBGNT1 AA_EA18 AB_PCCXBE2 AA_EA12 AA_ED11 AB_PCXSERR AA_ED15 AA_EA17 AB_PCAD15 AA_EA18 AA_ED8 AB_PCXIRDY AB_PCAD11 AA_EA3 AA_XERE AA_EA6 AA_EA10 AA_XEWE0 AB_PCXPERR AA_EA13 AA_XECS0 AB_PCCXBE1 AA_EA2 AA_XRST AB_PCAD1 AA_ED9 AA_EA16 AB_PCXTRDY AA_EA25 AB_PCXSERR AA_EA15 AA_ED3 AA_EA24 AB_PCCLK1 AA_EA14 AB_PCXSTOP AA_EA23 AA_EA7 AB_PCAD20 AA_EA13 AA_EA22 AA_EA14 AB_PCAD2 AA_ED5 AA_EA12 AA_EA21 AA_EA16 AA_EA11 AA_EA8 AA_EA11 AA_ED14 AB_PCAD3 AA_EA21 AA_EA10 AB_PCAD12 AA_ED13 AB_PCAD27 AB_PCCLK1 AA_EA9 AA_EA9 AB_PCRST AB_PCAD22 AA_ED12 AB_PCXSTOP AB_PCAD24 AB_PCAD30 AB_PCRST AA_EA8 AA_EA5 AA_ED14 AA_ED11 AB_PCAD4 AA_EA7 AA_EA24 AB_PCBRQ AA_ED10 AA_XEWE0 AA_ED7 AA_EA6 AB_PCAD28 AA_ED9 AB_PCDEVSEL AB_PCAD19 AA_EA22 AA_EA5 AA_EA19 AB_PCBRQ1 AB_PCXFRAME AA_ED8 AB_PCBRQ1 AB_PCAD5 AB_PCIDSELA AB_PCCXBE0 AB_PCCXBE1 AB_PCCXBE2 AB_PCCXBE3 AB_PCAD0 AB_PCAD1 AB_PCAD2 AB_PCAD3 AB_PCAD4 AB_PCAD5 AB_PCAD6 AB_PCAD7 AB_PCAD8 AB_PCAD9 AB_PCAD10 AB_PCAD11 AB_PCAD12 AB_PCAD13 AB_PCAD14 AB_PCAD15 AB_PCAD16 AB_PCAD17 AB_PCAD18 AB_PCAD19 AB_PCAD20 AB_PCAD21 AB_PCAD22 AB_PCAD23 AB_PCAD24 AB_PCAD25 AB_PCAD26 AB_PCAD27 AB_PCAD28 AB_PCAD29 AB_PCAD30 AB_PCAD31 AB_PCCLK0 AB_PCIRQ AB_PCIRQ1 AB_PCBGNT AB_PCIDSELB C8630 0.1u 10V C8854 50V 68p C8622 0.1u 10V C8855 50V 68p C8624 0.1u 10V C8851 16V 0.01u C8581 16V 0.1u C8641 0.1u 10V C8653 0.1u 10V C8628 10u 10V C8638 1u 6.3V C8634 0.1u 10V C8646 0.1u 10V C8580 16V 0.1u C8856 16V 0.01u C8639 0.1u 10V C8853 50V 68p C8623 10u 10V C8635 0.1u 10V C8652 0.1u 10V C8621 0.1u 10V C8649 0.1u 10V C8645 0.1u 10V C8633 10u 10V C8644 0.1u 10V C8640 10u 10V C8627 0.1u 10V C8852 50V 68p C8650 10u 10V C8642 10u 10V C8632 0.1u 10V C8625 50V 5p C8647 10u 10V C8626 50V 5p C8654 0.1u 10V C8631 0.1u 10V C8651 0.1u 10V C8620 0.1u 10V C8643 10V 3.3u C8648 0.1u 10V C8629 10u 10V C8637 100u 6.3V C8501 6.3V 47u IC8621 C0DBZYY00266 1 GND 2 IN 3 IN 4 EN 5 /OC 6 OUT 7 OUT 8 OUT TVRQ049AA *IC8580 1 A23 2 A22 3 A15 4 A14 5 A13 6 A12 7 A11 8 A10 9 A9 10 A8 11 A19 12 A20 13 WE# 14 RESET# 15 A21 16 WP#/ACC 17 RY/BY# 18 A18 19 A17 20 A7 21 A6 22 A5 23 A4 24 A3 25 A2 26 A1 27 NC 28 NC 29 Vio 30 NC 31 A0 32 CE# 33 Vss 34 OE# 35 DQ0 36 DQ8 37 DQ1 38 DQ9 39 DQ2 40 DQ10 41 DQ3 42 DQ11 43 Vcc 44 DQ4 45 DQ12 46 DQ5 47 DQ13 48 DQ6 49 DQ14 50 DQ7 51 DQ15/A-1 52 Vss 53 BYTE# 54 A16 55 NC 56 NC C1CB00002607 IC8620 1 PPON1 2 OCI20 3 VSS 4 PPON2 5 OCI30 6 PPON3 7 VDD 8 VCCRST0 9 PME0 10 N.C. 11 PCLK 12 VSS 13 VBBRST0 14 INTA0 15 GNT0 16 REQ0 17 AD31 18 VDD 19 AD30 20 AD29 21 VSS 22 AD28 23 AD27 24 AD26 25 AD25 26 AD24 27 VDD 28 CBE30 29 IDSEL 30 VDD15 31 VSS 32 AD23 33 AD22 34 AD21 35 AD20 36 AD19 37 VDD 38 AD18 39 VSS 40 AD17 41 AD16 42 CBE20 43 FRAME0 44 IRDY0 45 VSS 46 N.C. 47 TRDY0 48 VDD 49 DEVSEL0 50 STOP0 51 PERR0 52 SERR0 53 PAR 54 VSS 55 CBE10 56 AD15 57 VDD 58 AD14 59 AD13 60 VSS 61 VDD15 62 AD12 63 AD11 64 AD10 65 VDD 66 AD9 67 AD8 68 CBE00 69 N.C. 70 AD7 71 VSS 72 AD6 73 AD5 74 AD4 75 VDD 76 AD3 77 AD2 78 AD1 79 AD0 80 VSS 81 XT1/SCLK 82 N.C. 83 XT2 84 VDD 85 CRUN0 86 SMI0 87 VSS 88 SRCLK 89 SRMOD 90 SRDTA 91 CLKSEL 92 HSMODE 93 TESTEN 94 AVSS(R) 95 RREF 96 AVDD33 97 AVDD15 98 AVSS 99 VSS 100 VDD15 101 DM1 102 DP1 103 VSS 104 VSS 105 DM2 106 DP2 107 VDD 108 VDD 109 DM3 110 DP3 111 VSS 112 VDD 113 N.C. 114 VSS 115 VDD15OUT 116 VDD 117 VDD 118 TEST4 119 TEST3 120 OCI10 A9 1 2 3 4 5 6 A52 1 2 3 4 5 6 7 8 9 10 11 12 13 L8621 J0JHC0000045 L8580 J0JHC0000075 L8623 J0JHC0000045 L8620 J0JHC0000045 L8501 J0JHC0000045 SUB3.3V SUB3.3V_SD SUB3.3V SUB3.3V SUB3.3V SUB3.3V SUB5V TP8009 TP8008 TP8004 TP8002 TP8003 TP8005 TP8006 TP8010 TP8007 AA_XRST AA_EA25 AA_EA14 AA_ED10 AA_XEWE1 PCAD0 AE_SDCMD ED4 EA17 PCAD2 PCAD11 AA_EA22 AA_EA16 AA_ED6 PCIDSELA PCAD28 PCAD15 PCAD22 AA_ED15 AA_ED13 AA_EA11 AA_EA3 PCAD20 IDE2D2 AA_ED3 AA_ED11 AA_EA18 AA_EA9 PCXPERR AA_ED5 AA_XERE PCAD3 ED14 EA14 XEWE0 PCDEVSEL AE_SDDAT2 AA_EA12 AA_EA17 AA_EA15 AA_XEWE0 PCBRQ1 AA_ED4 PCCXBE3 EA23 ED2 AA_XECS2 EA19 AA_EA17 ESZ1 PCXSERR PCXFRAME EA8 AA_EA4 AA_EA7 PCAD14 XRI0 AA_ED12 AA_ED0 AA_ED14 AA_EA1 PCAD17 AA_EA12 PCRST XERE EA15 AA_EA4 IDE2D6 PCAD16 AA_EA21 PCBRQ0 PCAD31 AA_EA0 PCXTRDY ED10 ERXW AA_ED12 AA_EA25 EA9 ED13 PCXIRDY EA11 AA_EA7 AA_XERE AA_ED15 AA_BOOTSWAP AA_EA9 AA_ED2 AA_EA1 IDE2D5 AA_ED5 AA_XEDK AA_ED8 AA_EA22 PCCXBE0 AA_EA20 AA_EA18 EA6 AA_EA13 AA_ED2 EA12 EA22 PCAD12 IDE2D3 PCAD10 AA_EA8 XECS5 PCXSTOP PCAD21 PCBGT2 AA_EA2 AA_ED14 AE_SDDAT3 EA20 PCIDSELC AA_ESZ0 AA_EA2 PCAD19 XECS4 PCAD24 AE_SDDAT0 AA_EA16 AA_ED9 XEWE1 PCIRQ1 PCCLKO1 PCIRQ0 PCIRQ2 PCCLKO0 PCCLKO2 PCCLK PCIRQOUT ED6 ED7 EA7 PCAD29 AA_EA6 AA_XECS0 AA_ED1 AA_EA23 XECS1 AA_EA21 PCAD9 PCAD4 AE_SDWP EA25 ED15 EA5 AA_EA10 AA_ED1 EA1 XEAS AA_ED7 AA_XECS1 XECS3 AA_EA20 AA_EA19 AA_EA10 AA_EA23 AE_SDDAT1 PCAD27 PCAD13 AA_ED8 XDSR0 AA_ED0 PCBRQ2 AA_EA5 IDE2D1 ED9 ED11 AA_ED9 AA_EA19 BOOTSWAP PCAD5 PCAD1 AA_XECS5 AE_SDCD PCBGT1 PCAD23 EA16 ED1 EA0 AA_XECS0 EA3 ED3 EA24 PCAD30 PCBGT0 EA13 AA_EA8 AA_EA24 AA_ERXW AA_ED6 ESZ0 AA_ED10 EA18 ED8 EA4 PCAD7 XECS0 AA_ED4 PCPAR AA_XEWE0 ED12 AA_ED3 XEDK AA_EA3 AA_ESZ1 AA_ED13 AA_EA14 EA2 PCCXBE1 PCAD18 AA_EA13 AA_EA6 AA_EA11 AA_EA15 PCCXBE2 PCAD25 XECS2 AA_ED7 XCTS0 AA_EA24 IDE2D7 AA_EA5 PCAD26 EA10 AE_SDCLK ED0 AA_ED11 PCIDSELB IDE2D4 EA21 AA_XEAS PCAD6 IDE2D0 PCAD8 ED5 R8851 EXB38V103JV R8855 EXB38VR000V R8538 EXB2HV121JV R8539 EXB2HV121JV R8702 EXB2HV680JV R8703 EXB2HV101JV R8704 EXB2HV101JV R8449 EXB2HV103JV R8537 EXB2HV121JV R8705 EXB2HV101JV R8540 EXB2HV121JV R8701 EXB2HV680JV R8861 100k R8549 10k R8534 120 R8720 100 R8628 10k R8541 120 R8447 10k R8627 10k R8533 120 R8562 3.3k R8859 10k R8535 120 R8547 120 R8550 120 R8563 3.3k R8543 120 R8561 3.3k R8545 120 R8860 10k R8726 100 R8544 120 R8728 100 R8536 120 R8721 100 R8557 10k R8542 120 R8551 56 R8632 0 R8566 10k R8826 100 R8529 10k R8531 56 R8732 100 R8869 0 R8448 10k R8630 15k R8661 10k R8631 10k R8626 100 R8552 10k R8733 100 R8556 56 1% R8625 1.6k R8706 100 R8620 100 R8565 3.3k R8530 10k R8526 56 R8581 10k R8555 56 R8525 10k R8629 4.7k R8722 100 R8548 120 R8527 56 R8622 10k R8650 10k *R8651 10k *R8663 10k R8558 10k R8623 47k R8710 2.2k R8569 10k R8554 56 R8532 56 R8564 3.3k R8707 100 R8528 56 R8560 3.3k R8727 100 R8725 100 R8718 100 R8446 10k R8715 10k R8723 100 R8719 100 R8734 68 R8583 0 R8621 15k R8716 10k R8567 10k R8546 120 R8852 10k R8553 120 R8559 1k R8724 100 X8620 H0J300500026 PCI_BUS CPU/D CPU/A CPU/CS MDO[0] MDO[1] MDO[2] MDO[3] MDO[4] MDO[5] MDO[6] MDO[7] MOSTRT MOVAL MCLKO SDDAT3 SDWP SDDAT0 SDDAT2 SDDAT1 3.3V GND SDCMD GND SDDTC SDCLK GND USB I/F FLASH (VIO) 32 31 29 34 36 28 33 30 35 TO 1/20 TO GS-BOARD (GS09) TO 3,5,19/20 TO 4,5/20 TO 7/20 TO 5/20 TO 3,5,19/20 TO 1/20 TO 3,4,19/20 TO 1/20 TO 1/20 TO 3,4/20 TO 1/20 TO 1,19/20 TO 4/20 TO 3/20 TO 3/20 TO 3,4,19/20 TO 19/20 CRNo.8300-8999 DTV A-BOARD (4/20) TNPH0724BC ! TH-58PZ880C A-Board (4/20) Schematic Diagram TH-58PZ880C A-Board (4/20) Schematic Diagram 51 TH-58PZ880C 10.9. A 电路板 （5/20）线路图 C8601 16V 0.1u D8952 MA2J72800L D8901 MA2J72800L 1 A0 2 A1 3 A2 4 VSS 5 SDA 6 SCL 7 WP 8 VCC SUB3.3V SUB3.3V STB3.3V SUB3.3V SUB3.3V SUB5V SUB3.3V SUB3.3V SUB3.3V SUB3.3V TP8851 TP8701 TP1042 TP8024 TP1043 TP1045 TP1044 TP8020 TP8501 TP8901 TP8902 TP8025 TP8702 TP8021 TP8019 TP8601 TP8603 TP8022 TP8602 TP8023 AA_XIRQ6 AA_XIRQ3 IDE2IRQ AG_SW_OFF_DET STB_RST AA_XIRQ7 AA_XNMIRQ AA_XIRQ5 AD_SBI0 AA_XIRQ4 AG_SD_BOOT_STS LOSDVIN AD_SDA0 AA_XIRQ1 AG_DTV_VOUTENB AA_XIRQ2 AD_SCL0 VBOH2 AM_LOSD8 AM_LOSDCLK TCK AM_LOSD14 AM_LOSD4 AM_LOSD1 AM_LOSD15 AM_LOSD7 AM_LOSDHSYN IRQI8 AM_LOSD2 AM_VOUTENB AH_SRCK0 AH_DMIX0 AH_IECOUT0 AH_LRCK0 NRST DISPEN AA_CI_XRST AD_SCL1 VLOEN AM_LOSD9 AM_LOSD3 AA_XSRSTO0 TRST AM_LOSD12 AA_XSRSTO1 AM_LOSD6 AM_LOSD11 AD_SDA0 TMS AM_LOSD5 AD_SDA1 AD_SBO0 AD_SCL0 AM_LOSD10 AM_LOSD0 TDI LOSD4 LOSD12 LOSD8 VO1B5 LOSDVSYN VO1HSYNC LOSD13 LOSD6 LOSD1 LOSDCKIN VO1B6 VO1CLK VO1G1 LOSDCLK VO1G3 XSRSTO0 VO1G6 EXTRG_PRO IDE2RDY LOSD11 SVDACO2 SDA1 AE_SDDAT2 LOSD10 VI2Y2 AE_SDDAT0 SDA0 VO1VSYNC XSRSTO1 TDI_PRO IRQI4 VI2C6 XTRST_PRO SBO0 VI2CLK SDWP AE_SDWP SCL0 IDE2XDAK NFALE SBO1 XSRSTO2 SDDAT3 IDE2DRQ IS1CLK TCK_PRO VI2C2 VI1R1C7 VI1B0 XIRQ1 VI2HSYNC VO1B1 AE_SDCD VI2C3 XSRSTO3 SCL1 XNFRE VI1G1 TEST0 VI2Y6 VI2C7 TMS_PRO TEST2 VI1G6 VI1CLK LOSD14 VI2Y9 VO1G7 VI2VSYNC VI1R5C3 SDDAT2 SDDAT1 AE_SDDAT1 VI1B3 IRQI7 NFCLE IRQI11 VI2Y7 VI1CKOUT VI2Y1 HDMICK VI1R6C4 VI2C8 VI2Y0 YSO VI1R3C1 VI2C0 VI2C4 AI2ADCCK VI1B7 VI1B1 VI1R4C2 VI1R0C0 VI1G4 XNMIRQ IRQI5 IRQI3 VI2Y8 VI1G7 SBT2 VI1HSYNC VI1VSYNC VI1B4 AI2BCK AE_SDDAT3 IRQI9 SDCLK XNFCE XNFWP VI2C1 VI2Y3 VI1B6 AE_SDCLK RMCI VI1G5 AI2LRCK SDDAT0 SBI1 VI1G3 XIRQ2 IRQI8 VI2Y5 SBO2 VI1G0 IRQI13 TEST1 HDMIENB SDCMD XNFWE AI2DMIX VI1R7C5 VI2Y4 AE_SDCMD VI2C9 IRQI6 SDCD IRQI12 TO_JIG_TDO VO1G0 VO1G4 VO1B2 SVDACO2_ LOSDHIN VO3CLK VO1R5 VO1R4 VO1R7 VO1R1 VO1R0 VO1R6 VO1R2 VO1R3 GC6_UVIC4 C8 GC6_YIC0 C8 GC6_UVIC5 C8 GC6_UVIC2 C9 GC6_CLKIC C7 GC6_YIC1 C8 GC6_HSIC C7 GC6_UVIC1 C9 GC6_UVIC7 C8 AO1BCK AO1IEC GC6_YIC7 C7 GC6_YIC6 C8 AO1LRCK GC6_YIC5 C8 GC6_UVIC3 C8 GC6_YIC4 C8 AO1DMIX GC6_UVIC6 C8 LOSD5 GC6_VSIC C7 XDCD0 XRTS0 XDTR0 IDE2D10 IDE2D11 IDE2D8 IDE2D9 LOSD9 VI2C5 LOSD7 GC6_YIC2 C8 LOSD3 VO1B3 LOSDHSYN YMO LOSD2 LOSDVIN IRQI10 IRQI8 VO1B7 AI1BCK SBI0 XIRQ0 VO1B4 AI1ADCCK SVDACO0 VO1G2 LOSD15 VI1R2C6 XEDMR0 VI1B2 AI1LRCK AI1DMIX SVDACO1 VO1G5 VO1B0 GC6_UVIC0 C9 VI1G2 SBI2 TDO_PRO GC6_YIC3 C8 LOSD0 VI1B5 AI1IEC Q8853 2SD0601ASL Q8850 2SD0601A0L Q8852 2SD0601A0L R8743 EXB38V560JV R8961 EXB2HV330JV R8903 EXB2HV103JV R8912 EXB2HV103JV R8962 EXB2HV330JV R8902 EXB2HV103JV R8934 EXB2HV560JV R8911 EXB2HV103JV R8933 EXB2HV560JV R8901 EXB2HV103JV R8910 EXB2HV103JV R8865 EXB2HV103JV R8930 56 R8941 91 1% R8955 33 R8837 10k R8923 10k R8931 56 R8942 91 1% R8764 10k R8959 10k *R8922 10k R8920 10k R8775 10k R8747 56 R8917 10k R8777 10k R8904 10k R8809 10k *R8779 10k R8736 4.7k R8788 56 R8735 4.7k R8758 10k R8785 56 R8744 68 R8832 100 R8603 47k R8974 56 R8772 68 R8766 68 R8749 56 R8973 56 R8778 10k R8970 56 R8829 10k R8752 56 R8776 10k R8972 56 R8907 10k R8812 0 R8825 0 R8787 56 R8748 56 R8905 10k R8906 10k R8792 10k R8799 10k R8817 5.6k R8767 68 R8745 56 R8757 10k R8831 100 R8760 10k R8741 68 R8830 10k R8834 0 R8737 4.7k R8781 10k R8796 56 R8833 0 R8789 10k R8762 10k R8823 10k R8761 10k R8824 47k R8602 0 R8913 2.7k R8791 10k R8738 4.7k R8765 10k R8915 10k R8768 68 R8798 100 R8601 0 R8786 56 R8773 68 R8850 100 R8604 22 R8813 0 *R8925 0 R8751 56 R8770 68 R8769 68 R8742 68 R8838 10k R8821 4.7k R8965 10k R8956 100k R8966 10k R8782 10k R8759 10k R8818 100k R8916 10k R8806 10k R8857 10k R8856 10k R8853 10k R8795 10k R8783 10k R8711 10k R8709 10k R8739 68 R8774 68 *R8928 0 *R8927 0 R8964 56 R8963 470 R8918 10k R8753 56 R8839 10k R8811 0 R8924 10k *R8926 0 *R8929 0 R8957 100k R8914 10k R8816 22k R8940 91 1% R8954 33 R8835 0 R8740 68 R8754 10k R8950 10k R8921 10k R8932 56 R8864 10k R8807 10k R8750 56 R8771 68 R8746 56 R8960 100k R8866 470 TP4820 TP4821 NAND_IF JTAG SERIAL_TS PIO IIC TS_PARA SERIAL RESET INTERRUPT OSD_FLAG SD_CARD HDD PRO2 POWER_OFF_DET VIDEO VIDEO_DAC AUDIO2 LOSD AUDIO1 MDI[4] MDI[5] MDI[6] MDI[7] Support Card LOSD_V_IRQ FE0_IRQ GC6_IRQ0 (IPR) GC6_IRQ2 (IIC) GC6_IRQ1 (VBI) CIMaX_IRQ HDMI_IRQ Support Card FE0_RST/SD_CHECK1 ADV_RST(PAL-M_ENC_RST) CIMaX_RST/SD_CHECK2 GC6_RST B[2] G[1] (no use) LOSDYM LOSDYS B[0] B[1] VIDEO-OUT (to GC6) G[0] R[0] G[4] R[1] R[3] G[2] R[2] B[3] G[3] MDI[0] MDI[3] MDI[2] MDI[1] MISTRT MIVAL MCLKI EEPROM 39 41 45 43 44 37 38 42 40 TO 1/20 TO 1/20 TO 5,8,11/20 TO 3,5,11,16/20 TO 5/20 TO 1/20 TO 1,3/20 TO 1/20 TO 1/20 TO 1/20 TO 1/20 TO 1,5/20 TO 8/20 TO 8,19/20 FROM 16/20 TO 5,8,11/20 TO 1,11/20 TO 1/20 TO 11/20 TO 1/20 TO 1/20 TO 18/20 TO 8/20 TO 1,5/20 TO 11,18/20 TO 1,5,18/20 TO 3/20 TO 19/20 TO 11/20 TO 2/20 TO 1/20 TO 1,5/20 TO 1/20 TO 6/20 TO 1,5/20 TO 19/20 TO 6,17,18,19/20 TO 19/20 TO 3/20 TO 1/20 TO 1/20 TO 1/20 TO 13/20 TO 1/20 TO 1/20 TO 16/20 TO 1/20 TO 1/20 TO 1/20 TO 19/20 TO 1/20 TO 1/20 TO 18/20 TO 1/20 TO 1,18/20 CRNo.8300-8999 DTV A-BOARD (5/20) TNPH0724BC ! TH-58PZ880C A-Board (5/20) Schematic Diagram TH-58PZ880C A-Board (5/20) Schematic Diagram *IC8601 TVPQ108 52 TH-58PZ880C 10.10.A 电路板 （6/20）线路图 + P AG_YG4 AG_YG6 AG_UB1 AG_YG3 AG_UB0 AG_YG1 AG_UB7 TMS TMS AG_YG2 AG_UB2 AG_YG7 AG_UB7 AG_YG2 AG_UB5 AG_VI2CLK TO_JIG_TDO AG_UB4 AG_YG6 TCK AG_UB5 AG_YG4 AG_UB3 AG_YG7 AG_UB3 GC3FS_TDI AG_UB1 AG_UB0 TRST AG_YG3 AG_UB4 TO_JIG_TDO AG_YG5 AG_UB6 0V AG_VI2CLK TCK AG_UB6 AG_YG0 AG_YG0 AG_HPO AG_YG5 AG_YG1 TRST AG_VPO AG_UB2 AG_VPO AG_HPO GC3FS_TDI *C4053 16V 0.1u *C4051 16V 0.1u *C4033 16V 0.1u *C4024 16V 0.1u *C4013 16V 0.1u *C4054 16V 10u *C4049 16V 0.1u *C4039 25V 0.01u C4050 10V 1u *C4030 16V 0.1u C4035 10V 1u *C4028 16V 0.1u *C4040 50V 15p *C4016 16V 4.7u *C4045 16V 0.1u *C4020 16V 0.1u *C4014 16V 0.1u *C4005 16V 0.1u *C4011 16V 0.1u *C4027 16V 0.1u *C4021 16V 0.1u *C4018 16V 0.1u *C4022 50V 0.47u *C4010 16V 0.1u *C4038 16V 0.1u *C4052 16V 0.1u *C4023 16V 0.1u *C4032 16V 0.1u *C4025 16V 0.1u *C4006 16V 0.1u *C4034 16V 0.1u *C4008 16V 0.1u *C4015 16V 0.1u *C4047 10V 1u *C4036 10V 1u *C4019 50V 0.47u *C4055 16V 0.1u *C4056 16V 47u *IC4002 C0CBCAC00358 1 ON/OFF 2 VSS 3 NC 5 VIN 4 VOUT *IC4005 C0CBCBC00227 1 ON/OFF 2 VSS 3 NC 5 VIN 4 VOUT C1AB00002687 *IC4001 1 VDDE 2 VSS 3 UBOUT3 4 UBOUT2 5 VDDI 6 UBOUT1 7 UBOUT0 8 CLKO 9 VDDE 10 VSS 11 VDDI 12 FRCLKIN 13 TEST 14 SDA 15 SCL 16 CTRL0 17 CTRL1 18 NRST 19 VSS 20 VDDE 21 VPD 22 RT1 23 RB1 24 AVD1 25 AVS1 26 MON1 27 YIN 28 RT2 29 RB2 30 AVD2 31 AVS2 32 MON2 33 UIN 34 RT3 35 RB3 36 AVD3 37 AVS3 38 MON3 39 VIN 40 TDI 41 TDO 42 VDDE 43 VSS 44 TRST 45 TMS 46 TCK 47 VDDI 48 VREF 49 AVD4 50 AVS4 51 AOUT 52 VSS 53 CW358 54 VDDE 55 BXS 56 VDDI 57 PLLVS 58 PLLVD 59 VSS 60 VDDE 61 VPO 62 HPO 63 YGOUT7 64 YGOUT6 65 YGOUT5 66 VDDE 67 VSS 68 VDDI 69 YGOUT4 70 YGOUT3 71 YGOUT2 72 YGOUT1 73 YGOUT0 74 VDDI 75 VSS 76 VDDE 77 UBOUT7 78 UBOUT6 79 UBOUT5 80 UBOUT4 *L4006 J0JHC0000045 *L4004 J0JYC0000068 *L4002 J0JHC0000045 *L4008 J0JYC0000068 *L4009 J0JYC0000068 SUB3.3V MAIN9V MAIN_FS_1.8V MAIN_FS_1.8V MAIN_FS_1.8V SUB5V L4003 TP4000 AG_HQ_XRST AG_TV_MAIN_ON SUB_PB SUB_Y SUB_PR GC6_FRCKO2 GC6_GYIB2 GC6_GYIB3 GC6_BUIB5 GC6_BUIB2 GC6_BUIB3 GC6_GYIB6 TRST GC6_VSIB GC3FS_TDI GC6_HSIB GC6_BUIB0 GC6_GYIB1 GC6_GYIB7 GC6_BUIB7 TCK GC6_GYIB5 GC6_GYIB4 GC6_BUIB4 TMS TO_JIG_TDO GC6_BUIB1 GC6_GYIB0 GC6_CLKIB GC6_BUIB6 AGC6_SCL2 AGC6_SDA2 *Q4001 2SA207700L *Q4000 2SA207700L *Q4002 2SA207700L *R4030 EXB2HV680JV *R4029 EXB2HV680JV *JS4002 *R4046 100 *R4040 680 1% *R4034 750 *R4031 68 1% *R4035 1.24k *R4042 1k *R4041 1k *R4048 10k *R4047 100 *R4033 68 *R4049 47k *R4037 0 *R4038 680 *R4036 0 *R4032 68 *R4043 2k *R4039 1k GC3FS-next MAIN3.3V YIN7 YIN5 YIN9 MAIN1.8V CRNo.4000-4199 TO 18/20 YIN6 YIN4 YIN8 YIN3 JTAG YIN2 FROM 8/20 TO 5/20 GC3FS-next UVIN8 UVIN7 UVIN5 UVIN3 UVIN6 UVIN4 UVIN9 UVIN2 53 47 50 52 48 51 46 49 54 TO 13/20 TO 19/20 TO 19/20 TO 11,13,19/20 FROM 8/20 TO 5,17,18,19/20 A-BOARD (6/20) ! TNPH0724BC TH-58PZ880C A-Board (6/20) Schematic Diagram TH-58PZ880C A-Board (6/20) Schematic Diagram 53 TH-58PZ880C 10.11.A 电路板 （7/20）线路图 + + + + + + + G G G G G G G G C5730 25V 0.01u C5662 10V 0.047u C5663 25V 0.01u C5661 25V 0.01u C5621 0.047u 10V C5639 0.1u 16V C5620 0.1u 25V C5618 10u 25V C5608 0.1u 16V C5643 0.1u 25V C5624 220p 50V C5642 10u 25V C5619 10u 25V C5604 0.022u 16V C5606 470p 50V C5612 25V 10u C5641 0.1u 16V C5615 10u 25V C5627 0.1u 16V C5623 220p 50V C5625 0.01u 25V C5611 25V 10u C5638 0.1u 16V C5617 1u 10V C5605 4.7u 10V C5640 0.1u 16V C5636 0.1u 16V C5622 4.7u 10V C5626 0.1u 16V C5688 2.2u 10V C5616 0.022u 16V C5632 1u 25V C5600 1u 10V C5607 50V 220p C5603 0.01u 25V C5637 0.1u 16V C5644 0.01u 25V C5601 0.1u 16V C5731 6.3V 47u C5628 68u 4V C5691 22u 16V C5695 47u 6.3V C5631 25V 47u C5629 68u 4V C5602 68u 4V D5605 MA22D3900L D5602 MA22D3900L D5603 B0JCDD000002 D5606 B0JCDD000002 D5601 MA22D3900L D5604 B0JCDD000002 D5692 MAZ80560LL D5600 B0BC4R700007 D5607 B0BC4R700007 D5608 B0BC4R700007 D5691 B0BC6R600005 J0HABH000013 FL5731 J0HABH000013 FL5734 J0HABH000013 FL5733 J0HABH000013 FL5732 IC5660 C0EBM0000026 1 OUT 2 Vdd 3 GND 5 Cd 4 NC C0DBAYY00273 IC5600 1 GND 2 REFIN 3 VREF 4 CS 5 COVP 6 CUVP 7 PGOOD 8 CTL 9 LSAT 10 ILIM 11 +INC 12 -INC 13 FSW 14 PGND 15 OUT-2 16 VB 17 VCC 18 VBIN 19 LX 20 OUT-1 21 CB 22 RT 23 VO 24 FB C0DBAYY00274 IC5601 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP A1 1 2 3 4 5 6 7 8 9 10 11 12 L5610 J0JHC0000035 L5691 J0JYC0000068 L5690 J0JYC0000068 L5611 J0JHC0000035 L5605 J0JHC0000075 L5735 J0JYC0000068 L5602 G1C2R2Z00007 L5601 G1C3R9Z00003 L5606 G1C100MA0203 L5600 G1C3R9Z00003 L5604 G1C100MA0203 DTV9V MAIN3.3V SUB5V F15V SUB3.3V SUB3.3V F15V SUB3.3V SUB3.3V MAIN5V F15V SUB1.8V MAIN9V STB3.3V SUB5V SUB5V SUB1.2V PA5600 K5H5022A0023 TP5608 TP5604 TP5700 TP5600 TP5660 TP5605 TP5606 TP5706 TP5607 TP5603 TP5601 TP5602 TP5705 TP5701 AG_G_LED_ON AG_R_LED_ON AG_ON_TIMER_LED_ON/ACTIVE_STB_LED_ON AG_DTV_XRST AG_AI_SENSOR XRST AG_RMIN AG_TV_MAIN_ON AA_XRST Q5602 B1MBDDA00003 S1 G1 S2 G2 D2 D2 D1 D1 Q5601 B1MBDDA00003 S1 G1 S2 G2 D2 D2 D1 D1 Q5600 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 Q5693 B1DHDC000028 Q5603 2SD0601A0L Q5604 2SD0601A0L Q5691 2SD0601A0L R5664 0 R5631 30k 1% R5733 33k R5662 47k R5641 47k R5611 36k 1% R5622 100k R5612 24k 1% R5614 0 R5646 10k R5633 47k 1% R5623 36k 1% R5610 100k R5629 47.5k 1% R5636 68k R5603 0 R5637 0 R5630 47k 1% R5620 68 R5691 10k R5605 36k 1% R5627 0 R5663 100 R5600 68 R5616 0 R5632 12.7k 1% R5644 2.2k R5638 10k R5647 47k R5602 0 R5626 0 R5607 0 R5628 0 R5697 4.7k R5698 0 R5621 36k 1% R5693 47k R5732 15k R5625 0 R5695 2k R5606 0 R5702 2.2k R5601 0 R5661 12k R5699 0 R5604 28k 1% R5634 47k 1% R5635 22k R5660 10k S MAIN5V CRNo.5600-5749 GND GND R_LED_ON AI_SENSOR STB3.3V GND ACTIVE_STBY_LED_ON RMIN G_LED_ON GND TO K-BOARD (K1) SUB5V KEY1-->NC RESET TO 1/20 MAIN3.3V SUB1.2V SUB3.3/1.8V 58 63 57 60 62 56 59 61 55 TO 4/20 TO 8/20 FROM 8/20 TO 8/20 POWER SUPPLY A-BOARD (7/20) ! TNPH0724BC TH-58PZ880C A-Board (7/20) Schematic Diagram TH-58PZ880C A-Board (7/20) Schematic Diagram 54 TH-58PZ880C 10.12.A 电路板 （8/20）线路图 S S P P AG_GC_XRST AG_RF_AFT1 AG_RMIN AG_QLINK1 AG_QLINK2 AG_RF_AFT2 AG_HPD3 AD_SCL0 AG_HDMI_5V_DET3 AG_SOUND_SOS AG_DTV_XRST AG_PANEL_ALARM SCL SDA AG_AUDIO_MUTE AG_PANEL_READY SCL AG_HDMI_MUX_EN AG_HDMI_5V_DET1 AG_HDMI_REP_EN AD_SDA0 AG_SOUND_SOS AG_AUDIO_MUTE DTV9V_SENSE AG_SD_LED_ON AG_HDMI_5V_DET2 AG_KEY1(CON-PANE) AG_QLINK2 AG_PANEL_ALARM AG_SOS AG_HPD2 AG_AUDIO_XRST SCL AG_RMIN AG_HDMI_5V_DET3 AG_HDMI_MUX_SEL SDA AG_SD_BOOT_STS AG_FAN_MAX AG_TV_SUB_ON AG_RF_AFT1 AG_HDMI_5V_DET4 AG_HPD1 AG_SRQ-GENX AG_ECO_ON AG_R_LED_ON AG_HDMI_5V_DET2 AG_HDMI_MUX_EN AG_HQ_XRST AG_HPD3 DDCSDA0 AG_RF_AFT2 AG_QLINK1 AG_SRQ-GENX AG_TV_MAIN_ON AG_HPD1 AG_SD_LED_ON SDA AG_G_LED_ON AG_SOS AG_FAN_MAX DDCSCL0 DDCSDA0 AG_BACK_VOUTENB RXD0 AG_SRQ-GENX AD_SCL0 AG_GC_XRST DDCSDA1 AG_FAN_SOS AG_G_LED_ON AG_HDMI_5V_DET1 AG_HDMI_CEC AG_SD_BOOT_STS AG_HDMI_MUX_SEL AG_DTV_VOUTENB AG_AI_SENSOR RXD0 AG_EDID_WP AG_ON_TIMER_LED_ON/ACTIVE_STB_LED_ON AG_ON_TIMER_LED_ON/ACTIVE_STB_LED_ON AG_HPD2 DDCSCL0 AG_SW_OFF_DET AD_SDA0 PANEL_STBY/VCC_ON AG_DTV_VOUTENB AG_TV_MAIN_ON AG_R_LED_ON AG_HPD4 AG_AUDIO_XRST AG_SW_OFF_DET TRCST AG_A_MON_MUTE/SP_MUTE AG_HDMI_REP_EN PANEL_STBY/VCC_ON AG_AI_SENSOR AG_PANEL_READY DDCSDA1 AG_ADV_XRST AG_ECO_ON DDCSCL1 AG_TV_SUB_ON AG_HPD4 AG_HDMI_CEC AG_FAN_SOS DDCSCL1 AG_BACK_VOUTENB AG_HDMI_5V_DET4 AG_DTV_XRST AG_A_MON_MUTE/SP_MUTE AG_HQ_XRST AG_EDID_WP IIC_SW IIC_SW TXD0_ TXD0_ AG_KEY1(CON-PANE) AG_ADV_XRST C1117 16V 0.1u C1112 16V 0.1u C1103 16V 0.1u C1108 16V 0.1u C1122 25V 0.01u C1102 10u 10V C1114 16V 0.1u C1123 1u 10V C1107 50V 22p C1104 16V 0.1u C1111 1u 10V C1109 1u 10V C1106 50V 27p D1112 MA2J72800L D1107 MA3X704A0L IC1101 TVRQ306 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 Vcc A70 1 2 3 4 L1100 J0JYC0000068 SUB5V STB3.3V MAIN3.3V STB3.3V DTV9V SUB3.3V SUB5V MAIN9V SUB3.3V SUB3.3V STB3.3V R1214 R1213 D1104 D1113 TP1104 TP1107 TP1101 TP1102 TP1103 TP1105 TP1106 TP1100 AG_HDMI_5V_DET4 AG_SOS AG_AI_SENSOR AG_SOUND_SOS AG_RF_AFT2 AG_KEY1(CON-PANE) AG_RMIN AG_HDMI_5V_DET2 AG_PANEL_READY AG_FAN_SOS AG_HDMI_5V_DET1 AG_HDMI_5V_DET3 STB_RST AG_SRQ-GENX AG_PANEL_ALARM AG_RF_AFT1 PANEL_STBY/VCC_ON AG_AUDIO_XRST AG_AUDIO_MUTE AG_HPD3 AG_FAN_MAX AG_SD_BOOT_STS AG_HPD1 AG_ON_TIMER_LED_ON/ACTIVE_STB_LED_ON AG_DTV_VOUTENB AG_HPD4 AG_ADV_XRST AG_TV_SUB_ON AG_R_LED_ON AG_HDMI_MUX_SEL AG_GC_XRST AG_HDMI_REP_EN AG_HDMI_MUX_EN AG_BACK_VOUTENB AG_HQ_XRST IIC_SW AG_ECO_ON AG_HPD2 AG_SW_OFF_DET AG_G_LED_ON AG_DTV_XRST AG_A_MON_MUTE/SP_MUTE AG_TV_MAIN_ON AG_EDID_WP SCL AG_QLINK2 RXD0 AD_SDA0 DDCSCL1 TXD0 DDCSDA1 AD_SCL0 DDCSCL0 AG_QLINK1 AG_HDMI_CEC DDCSDA0 SDA R1157 47k R1103 33 R1175 0 R1102 100 R1110 47k R1196 47k R1146 1k R1194 68k R1183 22 R1200 4.7k R1172 33k R1229 100 R1169 68k R1210 47k R1100 100 R1139 47k R1108 100 R1105 100 R1179 100 R1222 47k R1243 47k R1217 100k R1181 100 R1101 0 R1197 10k R1174 0 R1206 22 R1171 68k R1255 1k R1148 47k R1166 100k R1170 33k R1162 100 R1104 47k R1134 100 R1218 10k R1109 100 R1203 47k R1124 22 R1107 100 R1219 10k R1251 47k R1153 820 R1236 47k R1173 330 R1237 1k R1106 100 R1221 7.15k 1% R1208 10k R1205 22 R1201 4.7k R1239 0 R1238 47k R1125 22 R1147 10k R1182 27k R1164 10k R1216 10k R1211 47k R1209 4.7k R1220 10k R1184 22 X1100 H0J100500035 MN103SG3FPA1 IC1100 1 P41.TMIO1 2 P42.TMIO2 3 P43_TMIO3 4 P44_TMIO4 5 P00 6 P01 7 P02 8 P03_SBT0B 9 P04_SBO0B 10 PD0_DDCSDA0 11 PD1_DDCSCL0 12 PD2_DDCSDA1 13 PD3_DDCSCL1 14 PF1 15 PF2 16 PF3 17 P65_USBO2 18 P66_USBI2 19 P26 20 P70_SDA0 21 P71_SCL0 22 VSS 23 P27 24 IVDD 25 VDD 26 P60_SBO0A 27 P61_SBT0A 28 P62_SBI0A 29 P05_IRQ6 30 P06_IRQ7 31 P07_IRQ8 32 P50_RMIN_IRQ0 33 P20_IRQ1 34 P21_IRQ2 35 P22_IRQ3 36 P23_IRQ4 37 P24_IRQ5 38 P25 39 IVDD 40 VSS 41 P10 42 P11 43 P12 44 P13 45 P14 46 P15 47 P16 48 P17 49 P72_SDA1 50 P73_SCL1 51 P30 52 P31 53 P32 54 P33 55 P34 56 P35 57 P36 58 P37 59 PE0 60 PE3 61 PE4_VPPEX 62 IVDD 63 VDD 64 RONA 65 VSS 66 OSCXO 67 OSCXI 68 IVDD 69 PD4 70 PD5 71 NBOOT 72 NRST 73 NTEST 74 SCLOCK 75 SDATA 76 EXTRG0 77 TRCCLK 78 TRCST 79 TRCD0 80 TRCD1 81 TRCD2 82 TRCD3 83 PULDSEL 84 P80_ADIN0 85 P81_ADIN1 86 P82_ADIN2 87 P83_ADIN3 88 IVDD 89 VSS 90 P84_ADIN4 91 P85_ADIN5 92 P74_CECAVL1B 93 P75_CECAVL1A 94 PF0 95 P76_CEC0 96 PE1 97 PE2 98 P63_SBO1 99 P64_SBI1 100 P40_TMIO0_SYSCLK CRNo.1100-1999 GenX5,EEPROM QLINK1 EDID_WP AUDIO_XRST HDMI_CEC PANEL_STBY_ON 10MHz HDMI_5V_Det1 FACT HDMI_MUX_SEL HPD1 RF_AFT2 GenX5 RST Active_ANT_DET HQ_XRST SW_OFF_DET SBI SRQ_GenX TV_MAIN_ON RMIN PANEL_SOS FAN_MAX DTV9V_SENSE A_MON_MUTE/SP_MUTE (ASIA/EURO) DTV_XRST SBO RF_AFT1 DTV_VOUTENB SUB5V_SENSE MAIN9V_SENSE MAIN3.3V_SENSE AUDIO_MUTE GC_XRST EDID EEP IIC EDID EEP IIC TO 1/20 PANEL_ALARM/INVERTER_SOS CONFIG_DONE TO 14/20 HPD2 HDMI_CEC_PU_ON HDMI_5V_DET4 SDA GenX5 E2PROM LINE SD_COIN_DET MID_VOUTENB AI_SENSOR ECO_ON ADV_XRST (ASIA) HDMI_REP_EN PANEL_READY GRAB_MODULE_IIC/PWM_POWER_ON HDMI_5V_Det2 SUB3.3V_SENSE Lite2p E2PROM LINE HDMI1 BACK_VOUTENB SD_PWR_CTR HDMI2 (PANEL_STATUS) FAN_SOS (INV_PSU_ON) HDMI_5V_DET3 SD_BOOT_STS DTV_9V_SENSE QLINK2 GenX-EEP_WP R_LED_ON SCL CLK74SEL PANEL_STATUS FROM 16/20 SOUND_SOS KEY1 SD_LED_ON (PANEL_SOS) SOS HPD4 HDMI_MUX_EN TV_SUB_ON G_LED_ON HPD3 72 66 69 71 65 68 70 64 67 TO 13/20 TO 16/20 TO 7/20 TO 13/20 EEPROM GenX5 (FACTORY USE) TO 6,7,10,14,16/20 TO 10,13/20 TO 9/20 TO 10/20 TO 5,11/20 TO 11/20 TO 5/20 TO 7/20 TO 11/20 TO 5,19/20 TO 5/20 TO 11/20 TO 11/20 TO 6,17,18/20 TO 18/20 TO 17/20 TH-58PZ880C A-Board (8/20) Schematic Diagram TH-58PZ880C A-Board (8/20) Schematic Diagram A-BOARD (8/20) ! TNPH0724BC 55 TH-58PZ880C 10.13.A 电路板 （9/20）线路图 S S S S S S S S S S S S S S S S S S S S S S S P P P P P P P S RXB_CN AG_HDMI_MUX_SEL RXB_2P RXB_2N RXB_1P RXC_1N AG_HDMI_CEC RXC_2P RXB_1N AG_HDMI_5V_DET2 RXC_CN RXC_0P RXC_1P RXC_2N RXC_CP RXC_0N RXB_0P AG_HDMI_5V_DET3 RXB_0N RXB_CP AG_HPD1 AG_HPD2 AG_HPD3 DDCC_SDA DDCC_SCL DDCB_SDA DDCB_SCL AG_EDID_WP AG_HDMI_5V_DET1 *C4610 0.1u 16V C4500 0.1u 16V *C4615 0.1u 16V *C4524 0.1u 16V C4503 0.1u 16V *C4525 16V 0.1u 0.1u 16V C4521 C4511 0.1u 16V *C4609 0.1u 16V C4510 0.1u 16V *C4523 16V 0.1u C4502 0.1u 16V 0.1u 16V C4513 0.1u 16V C4517 0.1u 16V C4514 *C4611 0.1u 16V C4501 0.1u 16V *C4522 0.1u 16V C4520 10V 10u *D4560 MA2J11100L D4542 MA2J11100L *D4563 MA2J11100L D4562 MA2J11100L D4561 MA2J11100L D4541 MA2J11100L D4506 EZAEG2A50AX *D4547 EZAEG2A50AX *D4544 EZAEG2A50AX D4503 EZAEG2A50AX *D4545 EZAEG2A50AX D4521 EZAEG2A50AX D4505 EZAEG2A50AX *D4553 EZAEG2A50AX D4517 EZAEG2A50AX D4508 EZAEG2A50AX D4520 EZAEG2A50AX *D4546 EZAEG2A50AX *D4554 EZAEG2A50AX *D4548 EZAEG2A50AX D4523 EZAEG2A50AX D4504 EZAEG2A50AX D4519 EZAEG2A50AX D4509 EZAEG2A50AX D4502 EZAEG2A50AX D4511 EZAEG2A50AX D4512 EZAEG2A50AX D4516 EZAEG2A50AX D4510 EZAEG2A50AX D4522 EZAEG2A50AX D4507 EZAEG2A50AX *D4552 EZAEG2A50AX *D4551 EZAEG2A50AX *D4549 EZAEG2A50AX D4518 EZAEG2A50AX D4513 B0BC5R6A0275 D4515 B0BC5R6A0275 *D4550 B0BC5R6A0275 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC *IC4504 C0JBAU000034 1 VCCA 2 SCLA 3 SDAA 4 GND 5 EN 6 SDAB 7 SCLB 8 VCCB *IC4502 C0JBAU000034 1 VCCA 2 SCLA 3 SDAA 4 GND 5 EN 6 SDAB 7 SCLB 8 VCCB JK4501 K1FY119D0003 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 JK4500 K1FY119D0003 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 *JK4502 K1FY119D0003 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 L4503 J0JYC0000068 *L4523 J0JYC0000068 L4502 J0JYC0000068 *L4521 J0JYC0000068 L4504 J0JYC0000068 *L4522 J0JYC0000068 L4507 J0JYC0000068 L4508 J0JYC0000068 L4506 J0JYC0000068 L4505 J0JYC0000068 STB5V SUB5V STB5V MAIN5V MAIN5V SUB5V SUB3.3V STB5V MAIN5V MAIN3.3V R4511 R4515 R4514 R4649 R4674 R4624 R4522 R4642 R4672 R4521 R4516 R4677 R4510 R4509 R4625 R4623 R4512 R4523 R4520 R4517 R4518 R4519 R4508 R4702 R4671 L4520 VJUMP1608-P R4667 L4501 VJUMP1608-P L4500 VJUMP1608-P FL4506 TP4523 TP4520 TP4522 TP4521 TP4524 DDCSCL1 DDCSCL0 DDCSDA0 DDCSDA1 *Q4501 2SD0601ASL Q4503 2SD0601A0L Q4524 2SD0601ASL *Q4520 2SD0601A0L Q4523 2SD0601ASL *Q4500 2SD0601ASL Q4502 2SD0601A0L *Q4522 2SD0601A0L Q4531 2SB0709ASL Q4530 2SB0709ASL Q4529 2SB0709ASL Q4528 2SB0709ASL *R4713 22 R4690 56 R4728 10k R4729 10k R4538 47k R4603 68 R4731 10k R4732 10k *R4680 1k R4733 10k R4530 10k *R4727 10k *R4737 10k R4552 22 R4736 10k *R4711 22 *R4614 10k R4600 68 R4540 47k *R4714 4.7k R4644 4.7k *R4721 47k R4653 0 *R4615 33 R4613 68 1% R4567 4.7k *R4712 22 *R4689 10k *R4722 47k *R4749 0 R4526 1k R4528 10k *R4750 0 R4501 10k R4619 0 R4527 1k R4500 10k *R4685 47k *R4720 22 *R4723 22 *R4717 22 R4663 0 *R4715 4.7k *R4683 4.7k R4502 33 R4755 2.7k R4756 2.7k R4757 10k R4758 100k R4759 10k R4760 100k R4761 2.7k R4762 2.7k R4763 10k R4764 100k R4765 10k R4766 100k *R4716 22 *R4686 68 R4604 68 *R4726 10k R4503 33 R4661 0 *R4724 22 *R4681 10k *R4687 68 C1AB00002929 IC4503 1 TEST 2 VCC 3 BDT0N 4 BDT0P 5 GND 6 BDT1N 7 BDT1P 8 GND 9 BDT2N 10 BDT2P 11 VCC 12 REXT 13 YDT2P 14 YDT2N 15 GND 16 YDT1P 17 YDT1N 18 VCC 19 VCC 20 YDT0P 21 YDT0N 22 GND 23 YCKP 24 YCKN 25 CE 26 VCC 27 ACKN 28 ACKP 29 GND 30 ADT0N 31 ADT0P 32 GND 33 ADT1N 34 ADT1P 35 VCC 36 SEL 37 VCC 38 VCC 39 ADT2N 40 ADT2P 41 GND 42 VCC 43 VCC 44 GND 45 BCKN 46 BCKP 47 VCC 48 VCC R4513 D4514 EZAEG2A50AX D1G D0- CEC CLK- CLK+ DDCG CLK- D1- TO 8/20 SDA CEC HPDT D0G D1+ D1- D2+ CLK- D1+ D2- D0G CLK+ D0- D2+ CEC DDCG D2+ CLK+ N.C. SCL CLKG D2G D0- D1- N.C. SCL D1G SDA D0+ D2- D1G D1+ D0G D2G HPDT +5V D2G SDA D0+ CLKG SCL D0+ +5V CLKG N.C. D2- +5V EEPROM LEVEL SHIFT LEVEL SHIFT HDMI MUX 75 78 80 74 77 79 73 76 81 13 11 12 14 15 TO 8/20 CRNo.4500-4799 HDMI/ADV TH-58PZ880C A-Board (9/20) Schematic Diagram TH-58PZ880C A-Board (9/20) Schematic Diagram A-BOARD (9/20) ! TNPH0724BC *IC4516 TVRQ215 56 TH-58PZ880C 10.14.A 电路板 （10/20）线路图 + + + RXC_2N MAIN_Y/CVBS RXB_0N GC6_RVIA3 MAIN_PB/C RGB_FB GC6_GYIA1 GC6_BUIA1 RXC_2P ADV_MCLK GC6_GYIA0 GC6_RVIA4 GC6_ENBIA RXC_CN GC6_BUIA7 GC6_BUIA11 RXC_CP GC6_BUIA6 GC6_BUIA10 GC6_GYIA3 GC6_BUIA5 GC6_GYIA11 GC6_GYIA11 GC6_BUIA4 MAIN_Y/CVBS GC6_BUIA9 GC6_RVIA4 GC6_GYIA10 GC6_RVIA5 GC6_BUIA8 RXC_0N GC6_CLKIA GC6_BUIA9 GC6_RVIA11 RXC_1N GC6_GYIA7 GC6_RVIA9 GC6_RVIA10 RXC_0P GC6_GYIA8 GC6_ENBIA GC6_RVIA8 DCLKIN GC6_RVIA2 GC6_HSIA GC6_RVIA6 HDMI_SPDIF RXC_1P GC6_GYIA4 RGB_CVBS GC6_RVIA9 GC6_GYIA5 GC6_RVIA7 PC_HS GC6_RVIA1 GC6_BUIA4 GC6_BUIA7 GC6_RVIA8 GC6_GYIA0 GC6_GYIA4 GC6_BUIA8 DDCB_SCL GC6_BUIA6 GC6_GYIA7 GC6_GYIA5 GC6_GYIA6 GC6_BUIA3 GC6_GYIA6 GC6_GYIA9 GC6_GYIA1 AG_ADV_XRST GC6_GYIA8 GC6_RVIA3 GC6_RVIA11 GC6_BUIA5 RGB_CVBS GC6_RVIA10 GC6_BUIA0 GC6_RVIA2 AG_HPD2 GC6_GYIA2 AG_EDID_WP GC6_RVIA1 AG_HPD1 GC6_VSIA AG_HDMI_5V_DET4 RXA_2N GC6_GYIA9 AG_EDID_WP GC6_RVIA0 GC6_RVIA0 AA_XIRQ7 AG_HPD4 GC6_GYIA3 RXA_0N AA_XIRQ7 GC6_BUIA11 AG_HPD4 GC6_RVIA7 AG_HDMI_5V_DET4 MAIN_PR RXA_0P RXB_2P AG_HDMI_MUX_SEL GC6_GYIA10 AG_HDMI_5V_DET1 GC6_RVIA6 AG_HDMI_5V_DET2 RXA_1N RXA_CP RXA_CN RXB_CP RXB_2N GC6_HSIA RXA_1P GC6_VSIA AG_HDMI_MUX_EN GC6_BUIA0 GC6_BUIA2 RXA_2P RXB_CN AG_HDMI_CEC RXB_1P GC6_BUIA10 AG_HDMI_REP_EN GC6_BUIA1 RGB_FB GC6_RVIA5 MAIN_PB/C DDCB_SDA RXB_1N GC6_BUIA2 GC6_CLKIA PC_VS MAIN_PR RXB_0P GC6_BUIA3 GC6_GYIA2 DCLKIN PC_VS PC_HS AG_HDMI_5V_DET3 AG_HPD3 ADV_MCLK AG_HDMI_REP_EN DDCC_SCL DDCC_SDA RXA_CN RXA_CP RXA_0N RXA_0P RXA_1N RXA_1P RXA_2N RXA_2P DDCA_SCL DDCA_SDA DDCA_SCL DDCA_SDA AG_ADV_XRST C4603 2.2u 6.3V C4553 50V 1000p C4535 16V 0.1u C4607 4.7u 10V C4612 25V 0.01u C4547 16V 0.1u C4534 16V 0.1u C4552 16V 0.1u C4555 10V 10u C4636 1u 10V C4617 22u 4V C4646 16V 0.1u C4605 1u 10V C4580 25V 0.01u C4632 1u 10V C4614 16V 0.1u C4630 16V 0.1u C4642 1u 10V C4550 16V 0.1u *C4567 16V 0.1u C4574 25V 0.01u C4644 16V 0.1u C4616 4.7u 10V C4613 1u 10V C4619 16V 0.1u C4606 4.7u 10V C4608 16V 0.1u C4625 16V 0.1u C4602 16V 0.1u C4551 16V 0.1u C4549 16V 0.1u C4628 16V 0.1u C4634 1u 10V C4585 1u 10V C4598 1u 10V C4624 16V 0.1u C4575 1u 10V C4595 25V 0.01u C4600 16V 0.1u C4638 1u 10V C4596 16V 0.1u C4645 16V 0.1u C4640 1u 10V C4548 16V 0.1u C4643 16V 0.1u *C4537 16V 0.1u C4604 470p 50V C4533 50V 68p C4647 16V 10u C4601 47u 6.3V C4599 47u 6.3V C4554 16V 47u D4565 MA2J11100L D4564 MA2J11100L D4566 B0HCMM000014 C0DBGYY00477 IC4513 1 CE 2 GND 3 NC 5 VOUT 4 VDD C0DBGYY00477 IC4512 1 CE 2 GND 3 NC 5 VOUT 4 VDD C0CBCBE00001 IC4511 1 VOUT 2 NC 3 GND 4 CNCONT 5 SUB 6 VIN 7 C1AB00002966 IC4510 1 CVDD 2 GND 3 DVDD 4 SPDIF 5 CLK_24.576 6 SCLK 7 LRCLK 8 I2S0 9 SDATA 10 SCL 11 GND 12 DVDDIO 13 DE 14 HS 15 VS/FIELD 16 INT1 17 SFL/SYNC_OUT/INT2 18 GND 19 DVDD 20 P0 21 P1 22 P2 23 P3 24 P4 25 P5 26 P6 27 P7 28 P8 29 P9 30 P10 31 P11 32 GND 33 DVDDIO 34 P12 35 P13 36 P14 37 P15 38 P16 39 P17 40 P18 41 P19 42 P20 43 P21 44 P22 45 P23 46 P24 47 P25 48 P26 49 P27 50 DCLKIN 51 GND 52 DVDDIO 53 LLC 54 TRIGIN/P28 55 SRL_UP/P29 56 GND 57 DVDD 58 SRL_IN/P30 59 R_ACTIVE/P31 60 P32 61 P33 62 P34 63 P35 64 RESETB 65 HS_IN 66 VS_IN 67 FB 68 AGND 69 SYNC2 70 NC 71 AIN4 72 AIN5 73 AIN6 74 NC 75 AVDD 76 AGND 77 NC 78 AIN9 79 NC 80 AGND 81 AVDD 82 REF2 83 REF1 84 AGND 85 AVDD 86 GND 87 PVDD 88 XTAL1 89 XTAL 90 PVDD 91 GND 92 CVDD 93 GND 94 TVDD 95 RxA_C- 96 RxA_C+ 97 GND 98 RxA_0- 99 RxA_0+ 100 GND 101 RxA_1- 102 RxA_1+ 103 GND 104 RxA_2- 105 RxA_2+ 106 DDCA_SCL 107 DDCA_SDA 108 TVDD 109 CVDD 110 GND 111 DDCB_SCL 112 DDCB_SDA 113 TVDD 114 RxB_C- 115 RxB_C+ 116 GND 117 RxB_0- 118 RxB_0+ 119 GND 120 RxB_1- 121 RxB_1+ 122 GND 123 RxB_2- 124 RxB_2+ 125 TVDD 126 RTERM 127 CVDD 128 GND 129 TVDD 130 RxC_C- 131 RxC_C+ 132 GND 133 RxC_0- 134 RxC_0+ 135 GND 136 RxC_1- 137 RxC_1+ 138 GND 139 RxC_2- 140 RxC_2+ 141 TVDD 142 DDCC_SCL 143 DDCC_SDA 144 GND A11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 L4513 J0JYC0000068 L4519 J0JYC0000068 L4511 J0JYC0000068 L4516 J0JYC0000068 L4518 J0JYC0000068 L4514 J0JYC0000068 L4515 J0JYC0000068 L4517 J0JYC0000068 L4512 J0JYC0000068 MAIN9V MAIN3.3V MAIN3.3V SUB5V MAIN5V SUB3.3V PC_VS AG_HDMI_MUX_EN AG_EDID_WP AG_TV_MAIN_ON ADV_MCLK AG_HPD2 AG_HPD4 AGC6_SCL2 AG_HDMI_REP_EN AG_HDMI_MUX_SEL AG_HPD1 RGB_CVBS AG_ADV_XRST PC_HS MAIN_PR MAIN_Y/CVBS RGB_FB MAIN_PB/C AG_HPD3 AG_HDMI_5V_DET2 AA_XIRQ7 AG_HDMI_5V_DET4 AG_HDMI_5V_DET1 AH_HDMI_SDIN AH_HDMI_BCLK AH_HDMI_LRCK AG_HDMI_5V_DET3 HDMI_SPDIF GC6_RVIA0 GC6_RVIA1 GC6_RVIA2 GC6_CLKIA GC6_RVIA3 GC6_RVIA4 GC6_RVIA5 GC6_BUIA11 GC6_BUIA7 GC6_ENBIA GC6_BUIA8 GC6_BUIA6 GC6_BUIA2 GC6_RVIA10 AGC6_SDA2 GC6_CLKOA GC6_RVIA8 GC6_HSIA GC6_RVIA11 GC6_GYIA9 GC6_RVIA6 GC6_GYIA10 GC6_GYIA3 GC6_GYIA4 GC6_GYIA11 AG_HDMI_CEC GC6_GYIA5 GC6_GYIA2 GC6_BUIA1 GC6_BUIA4 GC6_GYIA6 GC6_GYIA0 GC6_BUIA9 GC6_BUIA0 GC6_BUIA10 GC6_BUIA5 GC6_BUIA3 GC6_GYIA8 GC6_VSIA GC6_RVIA7 GC6_RVIA9 GC6_GYIA7 GC6_GYIA1 Q4517 2SB0709ASL *Q4519 2SB0709ASL Q4515 2SB0709ASL Q4514 2SB0709ASL Q4516 2SB0709ASL R4639 68 EXB28V680JX R4679 68 EXB28V680JX R4635 68 EXB28V680JX R4648 EXB28V330JX R4640 68 EXB28V680JX R4700 68 EXB28V680JX 1% R4631 499 1% *R4593 806 R4507 0 R4601 1k R4694 68 *R4608 1k 1% R4626 316 R4704 68 1% R4611 5.6k R4705 68 1% R4634 316 R4641 22 R4636 68 1% R4587 1.24k R4656 2.2k R4708 68 R4643 22 R4598 1k 1% R4589 715 R4596 1k R4650 68 R4646 68 1% R4592 715 R4673 0 1% R4606 9.1k R4678 68 R4742 0 R4645 68 R4638 68 R4693 68 R4696 68 R4637 68 R4692 68 *R4609 1.2k R4652 47k R4665 47k R4651 68 R4666 47k R4628 100 R4658 0 R4647 68 1% R4627 316 R4706 68 1% *R4664 1.24k *R4622 1k R4699 68 R4707 68 R4657 0 R4629 100 1% *R4605 806 1% R4588 715 R4691 22 R4701 68 R4597 1k R4621 0 R4610 0 R4743 0 68 R4506 RX_SCK HDMI_CEC RX_SD0# RX_WS CRNo.4500-4799 CVDD1.8V DVDD1.8V DVDDIO3.3V FROM 8/20 YIN PB/C PR DDC5V DDC_SCL DDC_SDA A/D,HDMI RX TO GH-BOARD (GH11) 82 89 90 85 84 86 88 87 83 15 12 13 14 11 TO 8,13/20 TO 8/20 TO 5/20 TO 16/20 TO 19/20 TO 13/20 TO 16/20 TO 6,11,19/20 HDMI/ADV TH-58PZ880C A-Board (10/20) Schematic Diagram TH-58PZ880C A-Board (10/20) Schematic Diagram A-BOARD (10/20) ! TNPH0724BC 57 TH-58PZ880C 10.15.A 电路板 （11/20）线路图 PGC6_SCL1 PGC6_SDA1 SCL SDA AGC6_SDA1 SDA AGC6_SCL2 SCL AD_SCL1 AGC6_SDA2 AD_SDA1 AD_SDA0 AD_SCL0 AGC6_SCL1 AGC6_SCL2 AGC6_SDA2 AD_SCL1 AGC6_SCL1 AGC6_SDA1 SCL SDA AD_SCL0 AD_SDA0 AGC6_SCL1 AGC6_SDA1 AD_SDA1 PGC6_SCL1 PGC6_SDA1 C4101 16V 0.1u IC4013 C0JBAZ002060 1 1OE 2 1A 3 1B 4 2OE 5 2A 6 2B 7 GND 8 3B 9 3A 10 3OE 11 4B 12 4A 13 4OE 14 VCC STB3.3V STB3.3V FHD3.3V STB5V STB3.3V STB3.3V MAIN3.3V TP4815 TP4811 TP4806 TP4805 TP4804 TP4803 TP4813 TP4801 TP4814 TP4802 TP4812 TP4817 TP4818 TP4807 TP4816 TP4808 TP4810 TP4819 AD_SBO0 AG_SRQ-GENX IDE2IRQ AD_SCL1 AGC6_SDA2 AGC6_SDA1 SDA SCL AGC6_SCL2 AD_SDA1 AD_SCL0 AD_SDA0 IIC_SW AGC6_SCL1 Q4803 2SD0601ASL Q4802 2SD0601ASL Q4017 2SD0601ASL Q4801 2SD0601ASL R4812 47k R4153 47k R4814 10k R4810 10k R4813 10k R4817 22 R4811 47k R4158 0 R4155 10k R4154 47k A14 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 AD_SBI0 R4841 100k R4832 100 R4856 10k R4853 100k R4842 1k PANEL_STBY/VCC_ON R4833 100k Q4832 2SD0601ASL STB5V DISPEN R4854 100k R4834 1k A3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 AG_PANEL_ALARM R4844 100 AG_PANEL_READY R4857 47k Q4831 2SD0601ASL CRNo.4800-4999 TO 8/20 IIC_SW IIC_CONT GND IIC_CLK2 RXD DISPEN PANEL_STB_ON READY ALARM TXD GND IIC_DATA1 IIC_CLK1 IIC_DATA2 GND TO 1,5/20 TO 5/20 TO 8/20 TO 6,10,19/20 TO 17,18,19/20 TO 5,16/20 TO 5,8/20 TO 8/20 TO 8/20 TO D-BOARD (D3) TO HC-BOARD (HC14) TO 5,18/20 92 99 97 96 98 94 93 91 95 LVDS Out TH-58PZ880C A-Board (11/20) Schematic Diagram TH-58PZ880C A-Board (11/20) Schematic Diagram A-BOARD (11/20) ! TNPH0724BC 58 TH-58PZ880C 10.16.A 电路板 （12/20）线路图 + + + AV3 AV3S AV1 AV2 PR PB Y PR V L C R R L Y R L V R V V L MONITOR OUT PB Y S S S S S S S S S S AUDIOOUT_R E_AV1_SLOW SDA1B_5V A_AV2_R A_AV3S_S_ A_AV3S_Y E_AV2_LIN/A_AV3_LIN E_AV1_RIN/A_AV2_RIN FRONT_AV_RIN E_AV1_FB E_AV2_RIN/A_AV3_RIN E_PC_RIN/A_AV1_RIN A_AV2C_Y E_AV2_V_Y/A_AV3_V SCL1B_5V A_AV1_V_ E_PC_LIN/A_AV1_LIN A_AV2C_YSW E_AV1_LIN/A_AV2_LIN E_AV1_RIN/A_AV2_RIN A_AV3S_S RCA_AUDIOOUT_L_ RCA_AUDIOOUT_L AUDIOOUT_L E_AV1_V/A_AV2_V E_AV1_LIN/A_AV2_LIN AV_L E_AV1_RED/A_AV2C_PR A_VOUT A_AV1C_YSW_ A_AV2C_YSW_ FRONT_AV_LIN E_AV2_RIN/A_AV3_RIN A_AV2C_PR E_AV1_GREEN/A_AV2C_Y RCA_AUDIOOUT_R_ A_AV2_L A_AV1_V AV_R E_AV1_BLUE/A_AV2C_PB E_AV2_SLOW E_AV1_VOUT/A_VOUT E_AV2_RED_C/A_AV3S_C A_AV1C_YSW RCA_AUDIOOUT_R A_VOUT PC_B PC_G PC_R PC_V_IN PC_H_IN SPDIF_OUT RCA_AUDIOOUT_L_ RCA_AUDIOOUT_R_ A_AV3_L A_AV3_R E_YPBPR_PR/A_AV1C_PR_ E_YPBPR_PB/A_AV1C_PB_ E_YPBPR_Y/A_AV1C_Y_ E_YPBPR_PB/A_AV1C_PB E_YPBPR_PR/A_AV1C_PR E_PC_RIN/A_AV1_RIN_ E_PC_LIN/A_AV1_LIN_ E_PC_LIN/A_AV1_LIN E_PC_RIN/A_AV1_RIN RCA_AUDIOOUT_L RCA_AUDIOOUT_R A_AV3S_C A_AV3S_Y_ A_AV3S_S_ A_AV3_V A_AV3_L A_AV3_R A_AV2C_YSW_ A_AV2C_Y A_AV2C_PB A_AV2C_PR A_AV2_V A_AV2_L A_AV2_R A_AV1C_YSW_ E_YPBPR_Y/A_AV1C_Y_ E_YPBPR_PB/A_AV1C_PB_ E_YPBPR_PR/A_AV1C_PR_ A_AV1_V_ E_PC_LIN/A_AV1_LIN_ E_PC_RIN/A_AV1_RIN_ A_AV3S_Y_ A_AV3S_C E_YPBPR_Y/A_AV1C_Y A_AV2_V A_AV2C_PB MONITOROUT_MUTE A_AV3_V E_AV2_LIN/A_AV3_LIN *C3154 16V 1u *C3297 10u 10V *C3281 16V 1u C3226 16V 1u C3142 50V 560p C3247 16V 1u *C3299 10u 10V C3246 16V 1u C3250 16V 1u *C3152 16V 1u *C3298 10u 10V C3141 50V 560p C3223 16V 1u C3104 50V 0.1u C3249 16V 1u *C3300 10u 10V C3138 50V 560p C3139 50V 560p *C3277 50V 0.1u C3248 16V 1u C3245 16V 1u C3115 50V 2200p C3109 50V 2200p C3144 50V 560p *C3128 50V 560p *C3117 50V 560p C3145 50V 560p C3110 16V 100u C3099 16V 22u *C3278 10V 220u *D3077 MAZ81400ML D3057 B0BC01100001 *D3091 MAZ81400ML *D3092 MAZ81400ML *D3090 MAZ81400ML *D3086 MAZ81400ML *D3093 MAZ81400ML AN15862A-VT IC3009 1 L1 2 R1 3 L2 4 R2 5 VCC 6 L3 7 R3 8 L4 9 R4 10 L5 11 R5 12 L6 13 R6 14 L7 15 R7 16 L8 17 R8 18 L9 19 R9 20 L10 21 R10 22 O1 23 LOUT5 24 ROUT5 25 LOUT4 26 ROUT4 27 LOUT3 28 ROUT3 29 GND 30 LOUT2 31 ROUT2 32 LOUT1 33 ROUT1 34 ADR 35 SCL 36 SDA 37 O2 38 BIAS 39 L11 40 R11 41 L12 42 R12 43 L13 44 R13 *JK3100 K1U932A00002 Y-SW Y G PB PR V L R G Y-SW Y G PB PR V L R G C Y G Y-G C-G G V L R G V L R G A12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 L3032 J0JCC0000100 L3040 J0JCC0000100 *L3043 J0JCC0000100 *L3048 J0JCC0000100 *L3047 J0JCC0000100 L3044 J0JCC0000100 L3037 J0JCC0000100 L3033 J0JCC0000100 *L3042 J0JCC0000100 L3045 J0JCC0000100 L3041 J0JCC0000100 L3036 J0JCC0000100 *L3046 J0JCC0000100 SUB3.3V DTV9V SUB9V_PRCT DTV9V MOUT_9V DTV9V JS3031 JS3030 JS3025 VJUMP1608-S JS3032 JS3026 VJUMP1608-S JS3027 VJUMP1608-S JS3024 JS3023 JS3029 JS3028 VJUMP1608-S TP3005 TP3001 TP3004 TP3002 TP3007 TP3003 TP3006 TP3000 *Q3022 2SD0601A0L *Q3023 2SD0601A0L *Q3028 2SB0709A0L R3111 22k *R3138 220 R3151 220 R3146 220 R3449 0 *R3392 330 *R3442 360 *R3139 220 *R3131 100k *R3368 4.7k *R3127 2.2k 1% R3213 150 *R3125 2.2k 1% R3470 150 1% R3218 150 R3113 22k 1% R3344 150 R3115 22k R3114 22k *R3370 4.7k R3110 22k R3175 47k R3137 47k 1% R3465 150 R3112 22k *R3441 100k 1% R3343 150 R3155 220 R3150 220 R3450 0 R3189 100k *R3440 220 1% *R3439 75 1% *R3420 75 1% R3217 150 R3100 47k *R3419 4.7k R3152 220 *R3443 360 R3099 47k 1% R3369 150 1% R3208 150 R3154 220 R3145 220 1% R3240 75 R3187 100k 1% R3212 150 1% R3219 150 1% R3460 150 1% R3239 75 1% *R3421 75 1% R3238 75 *R3130 100k 1% *R3220 75 R3144 220 *R3418 330 TP3015 TP3016 < 107 101 102 105 100 104 108 103 106 AUDIO SW TO HC-BOARD (HC12) 24 23 22 21 CRNo.3000-3599 AV_terminal/AVSW A-BOARD (12/20) TNPH0724BC ! TH-58PZ880C A-Board (12/20) Schematic Diagram TH-58PZ880C A-Board (12/20) Schematic Diagram 59 TH-58PZ880C 10.17.A 电路板 （13/20）线路图 + + + + S S S S S S S S S P P P FRONT_AVS_Y E_AV1_SLOW FRONT_AV_VGND E_YPBPR_Y/A_AV1C_Y E_AV1_RED/A_AV2C_PR FRONT_AVS_S SUB_PB PC_VS FRONT_AVS_C E_AV1_GREEN/A_AV2C_Y SUB_Y RGB_CVBS_ PC_B FRONT_AV_V A_A SVDACO2_(DVB_CVBS) V2C_YSW SUB_PR MAIN_Y/CVBS_ E_AV1_V/A_AV2_V A_AV1C_YSW SCL1B_5V FRONT_AVS_YGND MAIN_PB_ E_AV2_FB PC_V_IN E_AV2_SLOW MAIN_PR/C_ PC_G FRONT_AVS_CGND E_AV2_RED_C/A_AV3S_C PC_HS MAIN_RF_CVBS PC_R E_AV2_V_Y/A_AV3_V E_YPBPR_PR/A_AV1C_PR SDA1B_5V PC_H_IN E_AV1_BLUE/A_AV2C_PB E_YPBPR_PB/A_AV1C_PB MAIN_PB_ AV_L MAIN_TNR_SW1 MAIN_Y/CVBS_ PC_HS PC_VS FRONT_AV_VGND HP_ROUT MAIN_TNR_SW2 HP_LOUT SCL1B_5V AUDIOOUT_R TV_R MAIN_RF_CVBS SDA1B_5V HP_ROUT TV_L MONITOROUT_MUTE FRONT_AV_LIN SUB_Y E_QLINK_AV1 HP_LOUT SUB_PR AG_ADV_XRST RGB_CVBS_ FRONT_AV_V SUB_PB SVDACO2_ E_QLINK_AV2 AV_R FRONT_AV_RIN MAIN_PR/C_ AUDIOOUT_L SPDIF_OUT A_AV3S_Y E_AV1_FB A_AV3S_S FRONT_AVS_C FRONT_AVS_CGND FRONT_AVS_YGND FRONT_AVS_Y FRONT_AVS_S A_AV1_V RGB_FB E_AV1_VOUT/A_VOUT E_AV2_VOUT C3259 10V 1u C3261 50V 0.1u C3276 10V 1u C3268 10V 1u C3225 50V 0.1u C3269 10V 1u *C3267 10V 1u *C3258 10V 1u C3319 50V 0.1u C3107 50V 47p C3323 10V 1u C3264 16V 1u C3310 50V 0.1u C3260 10V 1u C3266 50V 0.1u C3253 10V 1u C3263 10V 1u C3262 10V 1u C3270 10V 1u C3275 10V 1u C3311 50V 0.1u C3271 10V 1u C3116 1u 16V C3122 10V 1u C3123 10V 1u C3124 10V 1u C3265 220u 16V C3320 16V 47u C3308 16V 10u C3302 16V 220u D3082 B0BC01100001 AN15876A-VT IC3007 1 V4 2 S12 3 Y4 4 S22 5 C4 6 VCC2 7 LP5 8 V3 9 O3 10 Y3 11 GND2 12 C3 13 LP4 14 V2 15 S11 16 Y2 17 S21 18 C2 19 LP3 20 V1 21 O2 22 Y1 23 O1 24 C1 25 VCC3 26 VOUT6 27 DCOUT 28 VOUT5FB 29 VOUT5 30 VOUT4FB 31 VOUT4 32 VOUT3FB 33 VOUT3 34 OUT2(Pr) 35 OUT2(Pb) 36 OUT2(CY) 37 GND3 38 OUT1(Pr) 39 OUT1(Pb) 40 OUT1(CY) 41 VOUT 42 HOUT 43 HVOE 44 VOUT7 45 VCC4 46 FBLOUT 47 FBL3 48 FBL2 49 FBL1 50 FBLOE 51 G1 52 VIN1 53 B1 54 HIN1 55 R1 56 GND4 57 G2 58 VIN2 59 B2 60 HIN2 61 R2 62 NC 63 G3 64 TEST 65 B3 66 NC 67 R3 68 NC 69 VCC1 70 NC 71 G4 72 LP1 73 B4 74 L31 75 R4 76 NC 77 G5 78 LP2 79 B5 80 L32 81 R5 82 GND1 83 SDA 84 SCL 85 FLAG 86 BIAS 87 V9 88 NC 89 V8 90 NC 91 V7 92 O4 93 V6 94 LP7 95 V5 96 S13 97 Y5 98 S23 99 C5 100 LP6 A53 1 2 A51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 L3049 G1C101M00018 L3050 G1C101M00018 MAIN9V SUB9V_VIDEO SUB9V_VIDEO SUB9V_VIDEO DTV9V MOUT_9V SUB9V_VIDEO R3158 R3132 R3129 R3159 R3167 R3478 R3479 R3128 R3157 R3417 R3422 R3493 TP3026 TP3027 TP3031 TP3025 TP3021 TP3024 TP3030 TP3028 TP3029 TP3023 TP3022 TV_L MAIN_RF_CVBS SPDIF_OUT AG_ADV_XRST HP_ROUT AUDIOOUT_R TV_R AUDIOOUT_L HP_LOUT MONITOROUT_MUTE PC_VS AV_L MAIN_TNR_SW2 MAIN_PB/C SUB_Y MAIN_Y/CVBS SUB_PB SUB_PR PC_HS RGB_CVBS AV_R RGB_FB MAIN_TNR_SW1 AG_KEY1(CON-PANE) MAIN_PR AG_QLINK1 SDA1B_5V AG_QLINK2 SCL1B_5V SVDACO2_ R3103 EXB28VR000X R3104 EXB28VR000X JS3039 0 R3384 47k R3147 0 R3385 47k R3491 0 R3133 0 R3495 100 *R3174 220 R3451 47k 1% R3459 150 R3389 220 R3461 68 R3136 0 R3480 0 R3412 220 R3411 220 R3390 220 R3377 0 1% R3484 150 *R3172 47k R3402 330 R3490 0 R3148 0 R3405 68 R3383 0 R3414 270k R3508 68 *R3173 47k 1% R3458 150 1% R3485 150 R3492 0 R3107 0 *R3396 220 R3403 0 R3462 68 *R3397 220 *R3401 220 R3452 270k R3393 75 1% R3512 220 *R3517 0 R3108 0 R3106 0 R3406 68 R3475 0 R3511 47k R3391 220 R3463 68 R3395 220 R3457 47k R3410 47k R3404 68 R3400 220 R3489 0 R3513 47k R3415 47k R3388 220 R3105 0 R3497 100 *R3109 0 1% R3124 75 1% R3126 75 1% R3176 75 R3364 220 *R3516 0 R3509 68 TP3008 TP3012 TP3013 TP3014 TP3009 TP3010 TP3011 < < ASIA AV1 DVB_CVBS QLINK_AV3 QLINK_AV2 TO G-BOARD (G51) HP_GND GND_V GND_C HP_L HP_R HP_GND FRONT_AV_Y FRONT_AV_R FRONT_AV_L FRONT_AV_S FRONT_AV_C FRONT_AV_V GND GND GND_Y KEY NC NC GND_V FRONT_AV_V 115 114 117 112 116 111 113 109 110 VIDEO SW TO G-BOARD (G51) TO 15/20 TO 16/20 TO 8,10/20 TO 5/20 TO 10/20 TO 8/20 TO 13/20 TO 8/20 TO 16/20 24 23 22 21 AV_terminal/AVSW CRNo.3000-3599 A-BOARD (13/20) TNPH0724BC ! TH-58PZ880C A-Board (13/20) Schematic Diagram TH-58PZ880C A-Board (13/20) Schematic Diagram 60 TH-58PZ880C 10.18.A 电路板 （14/20）线路图 + + + + + + + + (FIN) Thermal Pad P P P C5543 470p 50V C5434 10u 10V C5453 10u 10V C5433 10u 10V C5471 6.3V 10u C5544 6.3V 10u C5541 0.1u 25V C5456 0.1u 25V C5472 16V 0.1u C5463 16V 0.1u C5432 10u 25V C5467 16V 0.1u C5442 50V 6800p C5465 10V 10u C5464 10V 10u C5441 0.1u 25V C5454 10u 10V C5462 50V 3900p C5531 10V 1u C5452 10u 25V C5436 0.1u 25V C5470 6.3V 10u C5545 10V 0.1u C5435 25V 0.01u C5466 10V 10u C5522 16V 0.1u C5461 0.1u 25V C5521 16V 0.1u C5533 10V 10u C5455 25V 0.01u C5542 10V 1u C5476 16V 0.1u C5474 16V 0.1u C5478 16V 0.1u C5469 4V 100u C5443 6.3V 220u C5477 6.3V 100u C5546 4V 100u C5475 16V 100u C5595 16V 22u C5468 4V 100u C5473 6.3V 100u D5406 B0JCME000037 D5409 B0JCME000037 D5580 MA2J11100L D5522 B0ADEJ000035 D5521 B0ADEJ000035 D5576 MA3X152E0L D5575 B0BC3R700006 D5408 B0BC4R700007 D5407 B0BC4R700007 D5410 B0BC4R700007 D5577 MAZ80680LL D5578 MAZ81200ML D5579 MAZ80680LL D5574 B0BC3R700006 D5411 B0BC4R700007 C0CBCAC00282 IC5562 1 VDD 2 GND 3 CE 5 VOUT 4 NC C0DBGYY00204 IC5405 1 NC 2 VSS 3 ON/OFF 5 VOUT 4 VIN IC5402 C0DBAYY00183 1 BS 2 VIN 3 SW 4 GND 5 FB 6 COMP 7 EN 8 SS IC5403 C0DBAYY00183 1 BS 2 VIN 3 SW 4 GND 5 FB 6 COMP 7 EN 8 SS C0DBEHG00006 IC5404 1 CTL 2 Vcc 4 OUT 5 ADJ 3 GND(FIN) IC5563 C0CBCAF00032 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 NC 7 NC 8 VIN A7 1 2 3 4 5 6 7 8 9 10 11 A6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 L5415 J0JYC0000068 L5412 J0JYC0000068 L5414 G1C100MA0291 L5407 G1C330M00027 L5409 G1C100MA0291 10u L5410 G1C330M00027 FRC1V SUB5V DTV9V S_15V F15V BT30V MIHO1.2V MAIN9V FRC2.5V SUB5V STB5V F15V FHD3.3V SUB5V DTV9V DDR3.3V FRC2.6V L5411 L5406 L5408 PA5402 K5H1022A0031 PA5403 K5H1022A0031 TPS0N TPMH33 TPST5 TPC0F TP5401 TPFR31 TPFR25 TPM0N TPS0S TPFR26 TPEC0 TPS15V TPMH12 TPFR1 AG_FAN_MAX AG_SOS AG_FAN_SOS AG_ECO_ON AG_TV_SUB_ON AG_TV_MAIN_ON Q5561 B1DHDC000028 Q5563 2SD0601A0L Q5531 2SD0601A0L Q5533 2SD0601A0L Q5564 2SD0601A0L Q5534 2SD0601A0L Q5562 2SD0601A0L Q5565 2SD0601ASL Q5532 2SD0601A0L Q5522 2SB0709A0L R5579 47k R5582 47k 1% R5443 10k R5580 1k R5550 1k R5542 470 R5577 33k R5575 47k R5587 56 R5574 10k R5583 47k R5566 10k R5565 10k R5434 27k 1% R5456 0 1% R5453 30k R5557 47k R5444 2.2k 1% R5536 4.7k R5556 4.7k 1% R5451 56k R5571 47k R5560 10k R5559 33k R5569 10k R5572 2.2k R5459 0 R5431 0 R5561 10k R5570 10k R5581 47k R5588 1k R5589 100k R5576 47k 1% R5433 10k R5590 4.7k R5538 1.2k R5591 4.7k R5441 0 R5558 47k R5573 4.7k R5578 47k R5537 680 R5592 4.7k R5535 2.2k R5544 220 R5567 47k 1% R5452 47k R5435 3.3k R5445 10k A8 1 2 3 4 5 6 S S GND GND TUNER_MAIN_ON GNDs GND +15Vc_FAN CRNo.5400-5599 +15Vc_FAN TV_ON OFF GNDs +15Vc_FAN GND ECO_ON FAN_MAX GND TV_ON OFF F_STBY_15V GND P5V(MON)/P12V-ON TV_ON OFF STB5V MAIN9V AC_GOOD/KEY N.C. ALL_OFF TUNER_SUB_ON FAN_SOS F_STBY_15V GNDs +15Vs_SP +15Vs_SP +15Vc_FAN +15Vs_SP TV_ON OFF DCDC_PA STB5V SOS DTV9V (SUB9V) SUB5V SUB5V GND GND TO PA-BOARD (PA6) F_STBY_15V SUB5V 3.3V FRC1V FRC2.5V FRC2.6V FHD3.3V MIHO1.2V MAIN9V TO P-BOARD (P7) TO PA-BOARD (PA8) FROM 8/20 TO 8/20 TO 8/20 123 118 122 124 120 121 119 126 125 TH-58PZ880C A-Board (14/20) Schematic Diagram TH-58PZ880C A-Board (14/20) Schematic Diagram A-BOARD (14/20) ! TNPH0724BC 61 TH-58PZ880C 10.19.A 电路板 （15/20）线路图 + + + + + + + + + + S S S S S S P P AH_LRCK0 WO_R- AH_IECOUT0 WO_L+ AG_RF_AFT1 AD_SCL1 SQ_R+ SPDIF_OUT AH_DAUDIO SQ_R- WO_R+ HP_ROUT AUDIOOUT_R TV_R WO_L- AH_HDMI_BCLK AH_HDMI_SDIN AH_HDMI_LRCK AH_DMIX0 AUDIOOUT_L SIF3.3V AH_SRCK0 AD_SDA1 SQ_L+ HP_LOUT SQ_L- TV_L SQ_L- PWM_W_R+ PWM_W_L- PWM_W_R- WO_R- PWM_W_L+ HP_LOUT WO_L+ ADV_MCLK SQ_R- SQ_L+ WO_L- WO_R+ SQ_R+ HP_ROUT SPDIF_OUT PWM_SQ_R- PWM_SQ_R+ PWM_SQ_L- PWM_SQ_L+ SDA1B_5V SCL1B_5V TV_L MAIN_RF_CVBS AG_AUDIO_XRST AMUTE AUDIOOUT_L AUDIOOUT_R TV_R HDMI_SPDIF C2091 50V 22p C2151 10u 10V C2106 0.1u 16V C2125 25V 0.01u C2059 10u 10V C2414 16V 0.1u C2116 470p 50V *C2430 25V 10u C2023 0.1u 16V C2246 10u 10V C2191 10u 10V C2418 25V 0.01u C2419 50V 100p C2117 0.1u 16V C2115 0.1u 16V C2058 0.1u 16V C2244 0.1u 16V C2096 16V 0.1u C2411 50V 0.1u C2121 56p 50V C2127 25V 0.01u C2054 10u 10V C2189 1u 10V *C2265 100p 50V C2049 0.1u 16V C2137 10u 10V C2126 10u 10V *C2266 100p 50V C2264 10u 10V C2110 0.1u 16V *C2431 50V 100p C2213 1000p 50V C2245 1000p 50V C2135 25V 0.01u C2263 10u 10V C2102 0.1u 16V C2111 2.2u 6.3V C2251 10u 10V C2420 16V 0.1u *C2432 470p 50V C2113 10u 10V C2052 0.1u 16V C2053 0.1u 16V C2203 1u 10V C2187 2.2u 6.3V C2120 56p 50V C2136 25V 0.01u C2415 16V 0.1u C2195 50V 1000p *C2129 25V 0.01u C2138 0.1u 16V C2105 0.1u 16V C2197 25V 0.033u C2202 2.2u 6.3V C2124 0.1u 16V C2198 25V 0.033u C2048 0.1u 16V *C2416 50V 33p C2188 470p 50V C2176 25V 0.01u C2114 0.1u 16V C2112 10u 10V C2174 1u 10V C2184 50V 1000p C2180 1u 10V C2216 0.1u 16V C2109 0.1u 16V C2092 50V 22p C2057 0.1u 16V C2101 10u 10V C2100 0.1u 16V C2050 0.1u 16V *C2128 25V 0.01u C2118 1u 10V *C2261 10u 10V *C2262 10u 10V C2056 15p 50V C2055 15p 50V C2204 1u 16V C2201 10V 0.047u *C2417 50V 33p C2437 16V 0.1u C2412 10u 50V C2175 6.3V 47u C2179 6.3V 47u C2098 6.3V 220u C2099 6.3V 220u C2409 6.3V 1000u C2108 47u 6.3V C2107 47u 6.3V C2192 47u 6.3V C2407 6.3V 100u D2013 MA2J11100L D2201 MA3X704A0L C0DBGYY00281 IC2013 1 NC 2 VSS 3 CE 5 VOUT 4 VIN IC2012 C1BB00000947 1 OUT1 2 MUTE 3 IN1 4 GND 5 IN2 6 BIAS 7 OUT2 8 VCC C0DBGHF00001 *IC2109 1 Vo 2 NC 3 GND 4 Cn Cont 5 Sub 6 Vin 7 C0CBCBE00001 IC2008 1 VOUT 2 NC 3 GND 4 CNCONT 5 SUB 6 VIN 7 C0DBFFD00003 IC2107 1 2 3 4 5 6 7 C1AB00003015 *IC2106 1 FILTA 2 VREF 3 AGND 4 AVDD 5 SIF_REFP 6 SIF_REFCM 7 SIF_REFN 8 SIF_IN1 9 SIF_PGA_REF 10 SIF_IN2 11 AGND 12 AVDD 13 DGND 14 DVDD 15 MUTE 16 SDA 17 SCL 18 SPDIF_IN5/LRCLK2 19 SPDIF_IN6/BCLK2 20 DGND 21 DVDD 22 SDIN0 23 SDIN1 24 SDIN2 25 SPDIF_IN0/SDIN3 26 SPDIF_IN1/LRCLK0 27 SPDIF_IN2/BCLK0 28 ODGND 29 ODVDD 30 MCLK_OUT 31 DVDD 32 DGND 33 MCLKI/XIN 34 XOUT 35 SPDIF_IN4/BCLK1 36 SPDIF_IN3/LRCLK1 37 SDO0/AD0 38 SPDIF_OUT/SDO1 39 PWM_READY 40 DVDD 41 DGND 42 PWM1A 43 PWM1B 44 PWM2A 45 PWM2B 46 PWM3A 47 PWM3B 48 PWM4A 49 PWM4B 50 RESET 51 DVDD 52 DGND 53 AVDD 54 PLL_LF 55 AGND 56 AGND 57 HPOUT1L 58 HPOUT1R 59 AVDD 60 HPOUT2L 61 HPOUT2R 62 AUXOUT3L 63 AUXOUT3R 64 AUXOUT4L 65 AUXOUT4R 66 NC 67 FILTD 68 AVDD 69 AGND 70 AGND 71 AVDD 72 AUXOUT1L 73 AUXOUT1R 74 AUXOUT2L 75 AUXOUT2R 76 AUXIN2L 77 AUXIN2R 78 AUXIN1L 79 AUXIN1R 80 ISET L2032 J0JYC0000068 L2031 J0JYC0000068 L2030 J0JYC0000068 L2025 J0JCC0000059 *L2034 J0JCC0000059 L2026 J0JCC0000059 *L2033 J0JCC0000059 L2036 J0JYC0000068 L2006 J0JCC0000284 L2005 J0JCC0000284 L2001 G1C150KA0038 MAIN9V SUB3.3V DVDD1.8V DVDD3.3V AUD3.3V DVDD1.8V SUB5V AUD3.3V BT30V DTV9V SUB5V R2029 JS2303 VJUMP1005-S R2030 R2066 JS2311 JS2313 R2183 R2134 AV_L AV_R MAIN_TNR_SW1 MAIN_TNR_SW2 TV_L HP_LOUT SPDIF_OUT AUDIOOUT_L TV_R AUDIOOUT_R HP_ROUT Q2001 2SD0601A0L Q2030 2SB0709A0L R2271 22 EXB28V220JX *R2270 22 EXB28V220JX 1M R2003 R2016 10k R2111 10k R2015 10k R2063 100 1% R2075 158k R2057 1k R2071 100k R2093 10k R2176 270 680 R2002 R2008 470 1% R2026 120k *R2178 0 R2092 10k *R2177 0 R2174 220 R2065 82k 1% R2074 68k 0 R2001 R2211 1k R2064 100 R2018 10k R2175 560 1% R2132 470 20k 1% R2019 R2072 100k R2006 470 20k 1% R2050 R2017 10k 20k 1% R2051 R2089 15k 20k 1% R2048 R2053 0 *R2208 10k R2068 0 *R2207 0 0 *R2205 R2007 220 10k R2023 68 R2172 R2090 15k 20k 1% R2047 1% R2027 75k 2k 1% R2020 R2179 220 R2058 10k 0 R2000 *R2272 0 R2204 *TU8301A ENG39E04GF NC 5 NC 6 SW1 7 SW2 8 +B 9 AUDIO_OUT 10 SIF_OUT 11 NC 12 SCL 13 SDA 14 RF_AGC_MONITOR 15 VB 16 NC 17 BTL 18 NC 19 AFT_OUT 20 VIDEO_OUT 21 H0J245500089 X2010 DTV_LRCLK >> HDMI_LRCLK >> HDMI_BCLK >> << SPDIF_IN, OUT>> HDMI_SDIN >> DTV2_SDIN >> DTV_SDIN >> DTV_BCLK >> HP AMP 5V 3.3V 135 127 129 128 132 134 131 130 133 AUDIO DSP 1.8V 51 52 53 55 54 TO 13/20 TO 13/20 TO 13/20 CRNo.2000-2499 TNR_ADAV_AudioAMP_SOS A-BOARD (15/20) TNPH0724BC ! ! TH-58PZ880C A-Board (15/20) Schematic Diagram TH-58PZ880C A-Board (15/20) Schematic Diagram C2131 1k 62 TH-58PZ880C 10.20.A 电路板 （16/20）线路图 + + S S S SDA1B_5V SDA1B_5V AH_DAUDIO AG_AUDIO_XRST A_MON_MUTE/SP_MUTE AUDIO_MUTE AH_LRCK0 AH_DMIX0 HDMI_SPDIF AH_HDMI_BCLK AD_SCL1 AH_HDMI_SDIN SCL1B_5V STB_RST AH_SRCK0 MONITOROUT_MUTE AH_HDMI_LRCK AG_SOUND_SOS AMUTE AG_SOUND_SOS AH_IECOUT0 MAIN_RF_CVBS STB_RST ADV_MCLK AG_RF_AFT1 AD_SDA1 SCL1B_5V AUDIO_MUTE A_MON_MUTE/SP_MUTE AD_SDA1 PWM_SQ_L+ PWM_SQ_L- PWM_SQ_R+ PWM_SQ_R- PWM_W_L+ PWM_W_L- PWM_W_R+ PWM_W_R- AMUTE MONITOROUT_MUTE AD_SCL1 AG_TV_MAIN_ON C2394 0.47u 50V C2404 50V 1000p C2301 16V 0.1u C2393 10u 16V C2408 16V 0.1u C2302 16V 0.1u C2410 2.2u 6.3V C2401 180p 50V C2400 16V 0.1u C2402 16V 0.1u C2427 10V 1u C2413 10V 1u C2395 0.47u 50V C2146 16V 0.1u C2145 16V 0.1u C2119 10V 220u C2403 35V 22u D2004 MA2J11100L D2300 MA2J11100L D2302 B0HCMM000014 D2006 MA2J11100L D2005 MA2J11100L D2301 B0HCMM000014 D2010 MA2J11100L D2009 MA2J11100L D2007 MA2J11100L D2020 MA3X78900L D2024 B0BC03900015 C1AB00002877 IC2403 1 DTV5VIN2 2 DTV5VIN1A 3 DTV5VIN1B 4 DTV5VOUTA 5 DTV5VOUTB 6 REF1 7 NC 8 FB1 9 FB2 10 NC 11 SFS 12 NC 13 OUT 14 GND1 15 Vref1 16 STB_RST 17 Cd 18 STB3.3V_OUT 19 REG5V_IN 20 GND2 21 MONITOR_MUTE 22 MUTE_PWR_SENSE_IN 23 AUDIO_MUTE_IN 24 MUTE_VCC 25 PWR_SENSE_MUTE_OUT 26 STB_RST_IN 27 A_MON_MUTE_IN 28 AMUTE 29 MAIN9V 30 STB5V A13 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 L2300 J0JYC0000068 L2021 G1C470MA0291 L2022 G1C100MA0072 STB5V S_15V STB5V SUB5V STB3.3V SUB5V DTV9V BT30V DTV9V SUB3.3V STB5V SUB5V MAIN9V MAIN9V R2147 R2094 R2146 TP2044 TP2040 TP2008 TP2045 TP2009 TP2035 TP2039 TP2019 TP2020 TP2042 TP2043 TP2041 TP2034 TP2038 TP2032 AG_RF_AFT1 AH_SRCK0 AH_IECOUT0 AH_DAUDIO AG_RF_AFT2 AG_AUDIO_XRST AH_HDMI_BCLK HDMI_SPDIF AH_HDMI_SDIN AH_LRCK0 AD_SCL1 AH_HDMI_LRCK AH_DMIX0 AG_A_MON_MUTE/SP_MUTE AG_TV_MAIN_ON AG_AUDIO_MUTE STB_RST SDA1B_5V MAIN_RF_CVBS ADV_MCLK MONITOROUT_MUTE AG_SOUND_SOS SCL1B_5V AD_SDA1 Q2029 B1CBHD000002 Q2028 B1CBHD000002 Q2027 B1CFNG000001 Q2022 2SB0709A0L Q2033 2SB0709A0L JS2320 JS2059 JS2061 JS2060 R2141 1k R2149 6.8k R2114 2.2k 1% R2164 100k 1% R2165 3.4k R2095 47k R2096 47k R2097 1M R2148 6.8k 1% R2300 4.7k R2098 10k R2073 680 R2115 2.2k 5% R2166 15k R2142 2.2k R2108 15 R2052 330 DTV_SDIN SP_MUTE SOUND_SOS AUDIO_MUTE DTV_BCLK SDA0B_3.3V AUDIO_XRST GENX_RST AFC1 DTV2_SDIN SCL0B_3.3V MUTE DTV_LRCK MUTE AFC2(NC) SPDIF_IN MUTE OPERATE MUTE HDMI_SDIN HDMI_BCLK HDMI_LRCK MUTE PWM_READY AMUTE SOUND_SOS 144 142 141 137 138 136 140 139 143 RST/STB3.3V/MUTE 55 51 52 54 53 TO HC-BOARD (HC13) TO 13/20 TO 5,11/20 TO 8/20 TO 3,8,19/20 TO 8/20 FROM 8/20 TO 10/20 TO 5/20 TO 10/20 CRNo.2000-2499 TNR_ADAV_AudioAMP_SOS A-BOARD (16/20) TNPH0724BC ! TH-58PZ880C A-Board (16/20) Schematic Diagram TH-58PZ880C A-Board (16/20) Schematic Diagram 63 TH-58PZ880C 10.21.A 电路板 （17/20）线路图 + + + + + + + P ROE8 A5 GOE5 BOE5 RAMDQ15 RAMDQ3 DQ6 V_VS RAMDQ8 ROE4 RAMA10 BOE0 RAMA2 RAS_N V_BIN3 RAMA8 RAMA9 RAMDQ6 BOE1 V_BIN4 CK_N V_GIN8 RAMA3 V_BIN1 DQ8 RAMDQ12 V_RIN1 A6 RAMDQ1 V_RIN5 RAMCLK_N RAMLDQS RAMDQ9 CK BOE0 AG_HQ_XRST V_GIN8 ROE5 A4 RAMA5 ROE8 BOE6 AGC6_SDA1 A_VA RAMDQ6 DQ1 V_RIN2 GOE8 ROE4 V_GIN7 V_RIN2 RAMCS_N DQ0 AG_GC_XRST AGC6_SCL1 DQ8 V_RIN8 V_GIN5 V_GIN1 RAMA11 V_GIN3 A8 V_BIN5 RAMDQ2 A10 RAMDQ2 BOE9 GOE9 RAMDQ0 BA0 CKE RAMBA0 GOE2 A0 BA1 V_GIN4 V_RIN9 RAMA4 V_RIN6 V_GIN6 A7 DQ12 RAMBA1 DQ5 V_GIN0 BOE9 BOE7 DQ13 RAMA5 BOE3 RAMA1 CAS_N RAMA2 V_BIN6 RAMDQ14 V_BIN3 RAMDQ7 AG_HQ_XRST GOE3 V_GIN6 DQ13 BOE4 A9 V_BIN7 ROE9 V_BIN8 GOE0 V_HS RAMDQ11 BOE1 ROE7 DQ15 DQ10 GOE4 BA0 DQ15 RAMBA0 V_GIN2 RAMRAS_N RAMDQ13 RAMDQ4 UDQS V_BIN4 RAMBA1 GOE8 WE_N GOE0 A10 CKE RAMCAS_N DQ3 DQ2 A2 RAMRAS_N DQ5 BOE8 RAMA8 RAMA4 V_BIN9 GOE7 V_GIN2 V_RIN6 V_GIN1 CS_N ROE1 V_RIN4 V_BIN6 DQ7 DQ4 RAMLDQS TRST V_BIN7 RAMCAS_N V_BIN1 V_GIN7 DQ7 V_RIN3 RAMDQ10 ROE7 A11 AGC6_SCL1 RAMDQ3 V_BIN2 DQ9 DQ9 RAMA7 V_RIN0 RAMDQ13 GOE9 AGC6_SDA1 A_CLKA1 A11 RAMDQ0 UDQS RAMDQ9 A0 DQ12 DQ14 RAMCLKIN RAMCLKE ROE3 LDQS A1 DQ11 RAMCLK A_CLKA1 CS_N BOE3 V_RIN0 A_HA RAMWE_N A9 WE_N BOE7 GOE6 TCK V_CLK RAMA6 V_BIN0 A8 DQ10 V_BIN9 RAMDQ10 ROE9 RAMDQ5 A5 RAMA6 BOE4 RAMDQ5 V_RIN4 A7 RAMDQ7 TRST RAMA0 V_RIN9 ROE6 BOE5 RAMA9 ROE3 ROE2 GOE2 RAMCLK A1 RAMA0 V_GIN9 DQ1 RAMCLKE GOE1 DQ2 V_RIN8 V_GIN0 TCK GOE5 RAMDQ14 BOE2 V_RIN5 V_GIN5 A_HA A4 V_RIN7 DQ4 V_RIN7 RAMCS_N DQ6 GOE6 V_BIN5 RAMUDQS A6 RAMDQ11 RAS_N V_BIN8 ROE5 RAMDQ15 RAMUDQS V_RIN1 RAMDQ12 GOE4 A3 GOE3 CK BOE8 RAMA1 V_CLK A2 RAMWE_N CAS_N RAMA7 GOE1 A_VA V_GIN4 DQ14 ROE6 RAMDQ4 ROE0 LDQS FRCH_TDO V_GIN9 RAMDQ1 DQ11 TMS V_RIN3 BOE6 BA1 RAMDQ8 V_GIN3 DQ3 GOE7 DQ0 RAMA3 V_BIN2 ROE0 V_BIN0 RAMA11 BOE2 RAMA10 ROE1 RAMCLKIN A3 ROE2 FRCH_TDI FRCH_TDO CK_N RAMCLK_N FRCH_TDI TMS V_HS V_VS C2623 10V 0.1u C2642 10V 0.1u C2610 16V 0.01u C2633 16V 0.01u C2648 10V 0.1u C2645 10V 0.1u C2614 50V 12p C2635 50V 0.047u C2626 10V 0.1u C2627 10V 0.1u C2632 10V 0.1u C2622 10V 0.1u C2628 16V 0.01u C2629 10V 0.1u C2612 10V 0.1u C2605 16V 0.01u C2631 16V 0.01u C2608 10V 0.1u C2630 10V 0.1u C2646 10V 0.1u C2625 10V 0.1u C2616 10V 0.1u C2602 10V 0.1u C2611 16V 0.01u C2609 16V 0.01u C2618 10V 0.1u C2649 10V 0.1u C2619 10V 0.1u C2651 50V 10p C2644 16V 0.01u C2603 16V 0.01u C2624 10V 0.1u C2613 50V 18p C2617 10V 0.1u C2601 10V 0.1u C2604 10V 0.1u C2615 10V 0.1u C2621 10V 0.1u C2647 10V 0.1u C2620 10V 0.1u C2634 10V 0.1u C2643 16V 0.01u C2658 16V 0.1u C2657 16V 0.01u C2661 10V 1u C2650 16V 22u C2641 16V 22u C2640 16V 22u C2637 220u 4V C2652 68u 4V C2639 16V 22u C2638 47u 4V IC2604 C1AB00002930 A1 TDI IC2604 V12 PORT_D_PCS4 IC2604 G7 VDD IC2604 E17 PORT_C_C6 IC2604 C4 PORT_A_A21 IC2604 T4 RAMA9 IC2604 H15 PORT_C_C15 IC2604 K7 VDD IC2604 H12 VDD IC2604 L10 VSS IC2604 U7 RAMDQ12 IC2604 U2 RAMA2 IC2604 M7 VDD IC2604 F1 PORT_B_B15 IC2604 A12 PORT_A_A8 IC2604 D10 VSSP IC2604 N15 VDDP IC2604 A14 PORT_C_PWM1 IC2604 P17 PORT_D_D4 IC2604 K16 PORT_C_C23 IC2604 T2 RAMA10 IC2604 B17 PORT_C_PCS2 IC2604 U10 RESET_N IC2604 D1 PORT_B_CLKB IC2604 U15 PORT_D_D19 IC2604 J17 PORT_C_C19 IC2604 J10 VSS IC2604 G10 VDD IC2604 M8 VDD IC2604 B2 TDO IC2604 D12 VDDP IC2604 G12 VDD IC2604 B11 PORT_A_A3 IC2604 H10 VSS IC2604 B10 PORT_A_A19 IC2604 E16 PORT_C_C7 IC2604 E4 VDDP_PLL IC2604 T11 PORT_D_PDS6 IC2604 T13 PORT_D_D26 IC2604 C15 PORT_C_PWM3 IC2604 N17 PORT_D_D1 IC2604 L17 PORT_C_C26 IC2604 G15 VDDP IC2604 A16 PORT_C_BLANKC IC2604 V18 PORT_D_D12 IC2604 B3 TRST IC2604 N2 RAMLDQS IC2604 C9 PORT_A_A17 IC2604 U8 RAMDQ9 IC2604 U1 RAMA1 IC2604 P16 PORT_D_D5 IC2604 U3 RAMA6 IC2604 V16 PORT_D_D18 IC2604 K18 PORT_C_C24 IC2604 B8 PORT_A_A12 IC2604 M1 RAMCS_N IC2604 C6 PORT_A_A27 IC2604 U14 PORT_D_D22 IC2604 T12 PORT_D_D29 IC2604 H16 PORT_C_C17 IC2604 G8 VDD IC2604 D11 PORT_A_A2 IC2604 C1 XOUT IC2604 L18 PORT_C_C28 IC2604 V5 RAMCLKIN IC2604 T18 PORT_D_D10 IC2604 G17 PORT_C_C12 IC2604 C18 PORT_C_C2 IC2604 F15 VSSP IC2604 A10 PORT_A_A1 IC2604 V4 RAMA7 IC2604 R16 PORT_D_D8 IC2604 C8 PORT_A_A13 IC2604 U18 PORT_D_D11 IC2604 K15 VDDP IC2604 U9 RAMCLKE IC2604 P18 PORT_D_D6 IC2604 P3 RAMDQ4 IC2604 A8 PORT_A_A14 IC2604 R14 VDDP IC2604 K1 PORT_B_B1 IC2604 K11 VSS IC2604 D2 PORT_B_HC0 IC2604 T16 PORT_D_D17 IC2604 H18 PORT_C_C18 IC2604 C3 PORT_A_CLKA1 IC2604 N18 PORT_D_D3 IC2604 L11 VSS IC2604 B16 PORT_C_VC IC2604 D7 VSSP IC2604 M15 VSSP IC2604 H1 PORT_B_B8 IC2604 C7 PORT_A_A10 IC2604 J16 PORT_C_C20 IC2604 E2 PORT_B_VB IC2604 V11 PORT_D_CLKD IC2604 D17 PORT_C_C3 IC2604 K8 VSS IC2604 R1 RAMDQ3 IC2604 E18 PORT_C_C8 IC2604 J9 VSS IC2604 R3 RAMDQ1 IC2604 U5 RAMCLK IC2604 T6 RAMDQ14 IC2604 R13 VSSP IC2604 H3 PORT_B_B7 IC2604 T9 GPIO IC2604 V1 RAMA3 IC2604 B9 PORT_A_A16 IC2604 C10 PORT_A_A0 IC2604 A2 TCLK IC2604 U12 PORT_D_D28 IC2604 J18 PORT_C_C21 IC2604 V8 RAMDQ10 IC2604 V10 TX IC2604 D18 PORT_C_C5 IC2604 D3 PORT_B_HC1 IC2604 G16 PORT_C_C13 IC2604 B12 PORT_A_A6 IC2604 J12 VDD IC2604 V17 PORT_D_D15 IC2604 L8 VSS IC2604 D5 VSSP IC2604 R18 PORT_D_D9 IC2604 K9 VSS IC2604 D6 VDDP IC2604 P2 RAMDQ5 IC2604 M17 PORT_C_C29 IC2604 A4 PORT_A_A22 IC2604 J1 PORT_B_B5 IC2604 F2 PORT_B_B13 IC2604 D16 PORT_C_C4 IC2604 F4 VSS_PLL IC2604 D14 VDDP IC2604 V14 PORT_D_D24 IC2604 H9 VSS IC2604 M4 NC IC2604 A9 PORT_A_A18 IC2604 L7 VDD IC2604 T17 PORT_D_D13 IC2604 F17 PORT_C_C9 IC2604 T15 PORT_D_D20 IC2604 B4 PORT_A_A20 IC2604 L12 VDD IC2604 P15 VSSP IC2604 L9 VSS IC2604 D4 VDDP IC2604 E3 PORT_B_HB IC2604 V13 PORT_D_D27 IC2604 R11 VSSP IC2604 G11 VDD IC2604 B15 PORT_C_PWM2 IC2604 A6 PORT_A_A28 IC2604 J15 VSSP IC2604 F3 PORT_B_B14 IC2604 U13 PORT_D_D25 IC2604 B14 PORT_A_DEA IC2604 N16 PORT_D_D2 IC2604 J7 VDD IC2604 L15 PORT_C_C25 IC2604 R12 VDDP IC2604 D13 VSSP IC2604 M10 VDD IC2604 C17 PORT_C_C0 IC2604 C16 PORT_C_C1 IC2604 K2 SDA IC2604 M9 VDD IC2604 G1 PORT_B_B12 IC2604 U4 RAMA8 IC2604 G9 VDD IC2604 U17 PORT_D_D14 IC2604 M18 PORT_D_D0 IC2604 N4 VDDP_SSTL IC2604 G4 PORT_B_B9 IC2604 R15 VSSP IC2604 C11 PORT_A_A4 IC2604 B5 PORT_A_A23 IC2604 K10 VSS IC2604 P4 VSSP_SSTL IC2604 A17 PORT_C_CLKC IC2604 M12 VDD IC2604 V3 RAMA5 IC2604 F18 PORT_C_C11 IC2604 B13 PORT_A_A9 IC2604 H17 PORT_C_C16 IC2604 R6 VSSP_SSTL IC2604 N1 RAMWE_N IC2604 K17 PORT_C_C22 IC2604 G18 PORT_C_C14 IC2604 K12 VDD IC2604 V2 RAMA4 IC2604 M2 RAMRAS_N IC2604 H4 NC IC2604 H7 VDD IC2604 A18 PORT_C_PCS1 IC2604 E1 PORT_B_FB IC2604 R17 PORT_D_D7 IC2604 J3 PORT_B_B4 IC2604 L4 VSSP_SSTL IC2604 T5 RAMA11 IC2604 M3 RAMCAS_N IC2604 N3 RAMDQ7 IC2604 C12 PORT_A_A7 IC2604 R10 VDDP IC2604 P1 RAMDQ6 IC2604 E15 VDDP IC2604 R8 FUSE_PWR IC2604 T10 RX IC2604 H2 PORT_B_B6 IC2604 L3 RAMBA0 IC2604 H11 VSS IC2604 T1 RAMDQ0 IC2604 D15 VSSP IC2604 A5 PORT_A_A25 IC2604 H8 VSS IC2604 J4 PORT_B_B2 IC2604 B1 TMS IC2604 A3 PORT_A_CLKA2 IC2604 T3 RAMA0 IC2604 T8 RAMDQ8 IC2604 G3 PORT_B_B11 IC2604 J8 VSS IC2604 V15 PORT_D_D21 IC2604 K3 PORT_B_B0 IC2604 V7 RAMDQ13 IC2604 M11 VDD IC2604 R4 VDDP_SSTL IC2604 C13 PORT_A_VA IC2604 C2 XIN IC2604 R2 RAMDQ2 IC2604 R9 VDDP_SSTL IC2604 A11 PORT_A_A5 IC2604 C14 PORT_C_REV IC2604 B6 PORT_A_A26 IC2604 J11 VSS IC2604 L2 RAMBA1 IC2604 T7 RAMDQ11 IC2604 F16 PORT_C_C10 IC2604 V9 RAMUDQS IC2604 C5 PORT_A_A24 IC2604 L16 PORT_C_C27 IC2604 U6 RAMDQ15 IC2604 R7 VSSP_SSTL IC2604 G2 PORT_B_B10 IC2604 M16 TM IC2604 A15 PORT_C_HC IC2604 B18 PORT_C_PCS3 IC2604 J2 PORT_B_B3 IC2604 R5 VSSP_SSTL IC2604 U11 PORT_D_PDS5 IC2604 B7 PORT_A_A29 IC2604 L1 SCL IC2604 A7 PORT_A_A11 IC2604 T14 PORT_D_D23 IC2604 V6 RAMCLK_N IC2604 A13 PORT_A_HA IC2604 D8 VDDP IC2604 U16 PORT_D_D16 IC2604 D9 PORT_A_A15 IC2604 K4 VDDP_SSTL IC2603 C0DBEFH00002 1 GND 2 EN 3 VTTS 4 VREF 5 VDDQ 6 VCC 7 VTTIN 8 VTT IC2602 C3ABRY000037 1 VDD 2 DQ0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 NC 15 VDDQ 16 LDQS 17 NC_A13 18 VDD 19 NC 20 LDM 21 WE 22 CAS 23 RAS 24 CS 25 NC 26 BA0 27 BA1 28 A10/AP 29 A0 30 A1 31 A2 32 A3 33 VDD 34 VSS 35 A4 36 A5 37 A6 38 A7 39 A8 40 A9 41 A11 42 A12 43 NC 44 CKE 45 CK 46 CK 47 UDM 48 VSS 49 VREF 50 NC 51 UDQS 52 VSSQ 53 NC 54 DQ8 55 VDDQ 56 DQ9 57 DQ10 58 VSSQ 59 DQ11 60 DQ12 61 VDDQ 62 DQ13 63 DQ14 64 VSSQ 65 DQ15 66 VSS DDR1.3V DDR1.3V FRC1V_PLL FRC2.5V DDR1.3V DDR3.3V DDR3.3V FRC2.6V DDR1.3V FRC1V_PLL DDR1.3V FRC1V FRC2.6V FRC2.5V FRC2.6V DDR1.3V DDR1.3V FRC1V R2766 TP2625 TP2624 AG_GC_XRST AG_HQ_XRST TDO V_RIN3 V_GIN3 V_BIN9 V_GIN2 V_BIN2 V_GIN6 V_HS V_BIN8 V_GIN1 V_GIN9 V_RIN0 V_BIN0 V_RIN9 V_RIN5 V_RIN6 V_BIN4 V_RIN1 V_BIN7 V_RIN2 V_RIN8 V_BIN3 V_BIN1 MIHO_TDI V_BIN6 V_CLK V_BIN5 V_GIN4 V_GIN0 V_VS V_GIN8 V_GIN7 V_RIN7 V_RIN4 V_GIN5 GC6_BOE5 TCK GC6_GOE7 GC6_GOE4 GC6_GOE9 GC6_BOE0 AGC6_SDA1 GC6_BOE6 GC6_BOE3 GC6_BOE4 GC6_BOE9 GC6_ROE4 GC6_ROE6 GC6_ROE5 GC6_ROE3 GC6_GOE2 GC6_ROE2 GC6_GOE0 GC6_HSOE AGC6_SCL1 GC6_ROE9 GC6_BOE7 GC6_GOE6 GC6_GOE8 GC6_GOE3 TMS GC6_VSOE GC6_BOE8 GC6_CLKOE GC6_BOE1 GC6_ROE1 GC6_ROE8 GC6_ROE7 TRST GC6_GOE5 GC6_ROE0 GC6_BOE2 GC6_GOE1 R2661 EXB28V330JX R2669 EXB28V680JX R2660 EXB28V330JX R2658 EXB28V330JX R2674 EXB28V680JX R2672 EXB28V680JX R2675 EXB28V680JX R2673 EXB28V680JX R2646 EXB28V470JX R2659 EXB28V330JX R2647 EXB28V470JX R2648 EXB28V470JX R2649 EXB28V470JX R2666 EXB28V680JX R2663 EXB28V680JX R2664 EXB28V680JX R2607 EXB2HV560JV R2638 EXB2HV330JV R2611 EXB2HV560JV R2626 EXB2HV330JV R2608 EXB2HV560JV R2633 EXB2HV330JV R2625 33 R2637 33 R2624 33 R2622 10k R2631 33 R2612 56 R2709 10k R2606 56 R2636 33 R2670 68 R2644 33 R2613 56 R2645 33 R2671 68 R2703 0 R2610 56 R2657 68 R2653 24 R2705 100 R2635 220 R2619 68 R2605 56 R2651 47 R2632 33 R2676 100 R2677 100 R2667 68 R2656 22 R2710 68 R2623 10k R2711 68 R2602 56 R2655 47 R2621 0 R2603 56 R2650 47 R2665 68 R2662 68 R2652 68 R2620 0 R2715 0 R2704 68 R2733 0 R2634 220 R2609 56 R2654 24 R2614 10k R2601 56 R2712 10k X2601 H0J202500019 *ZA0010 TESA169 *ZA0011 TESA169 FRC FRC TO 18/20 TO 19/20 TO 8/20 CRNo.2600-2999 PORT D POWER SUPPLY DDR SDRAM I/F PORT B DDR SDRAM TO 11,18,19/20 PORT A TO 19/20 INTERFACE PORT C REG 150 151 145 152 147 146 148 149 153 TO 6,8,18/20 TO 18/20 TO 5,6,18,19/20 TH-58PZ880C A-Board (17/20) Schematic Diagram TH-58PZ880C A-Board (17/20) Schematic Diagram A-BOARD (17/20) ! TNPH0724BC 64 TH-58PZ880C 10.22.A 电路板 （18/20）线路图 + G G S S S S S S P P AM_LOSD6 AM_LOSD8 V_GIN4 V_BIN8 V_GIN9 AM_LOSDHSYN DISPEN V_RIN2 TC2+ V_BIN1 V_HS AM_LOSD4 V_RIN8 TCLK1- V_BIN6 TD1- AM_LOSDHSYN LOSDCKIN V_BIN8 V_BIN6 TA1+ AGC6_SDA1 V_GIN9 V_GIN8 V_GIN6 V_RIN9 TC1+ V_GIN7 V_BIN5 V_BIN5 LOSDHIN V_GIN3 TB1- V_HS V_RIN4 AM_LOSD11 TC1- V_VS V_GIN0 V_GIN4 TCLK2+ V_VS V_RIN6 AM_LOSD11 TB2- AM_LOSD2 AM_LOSD10 AM_LOSD15 AM_LOSD9 V_GIN3 V_GIN1 AM_LOSD1 V_RIN2 TE1- AM_LOSD5 AM_LOSD8 TCLK2- V_RIN5 AM_LOSD3 V_BIN2 V_BIN4 AM_LOSD7 GC6_FRCKO3 V_BIN7 DISPEN TD2- TA2+ V_RIN6 V_BIN0 AM_LOSD2 AM_LOSD6 TC2- V_GIN6 TCLK1+ V_RIN3 AM_LOSDCLK V_RIN8 AM_LOSD9 V_BIN1 TB2+ V_BIN9 AM_LOSDCLK TD2+ TE2+ V_RIN1 V_BIN0 V_GIN5 LOSDHIN V_CLK V_RIN7 V_RIN0 V_PTVEN V_RIN0 V_RIN4 AM_LOSD12 V_RIN3 V_RIN5 V_GIN0 V_BIN4 V_GIN5 V_BIN2 TD1+ GC6_FRCKO3 V_GIN2 AM_LOSD14 TA1- TB1+ AM_LOSD15 V_BIN3 AM_LOSD0 TE1+ V_BIN7 TA2- AM_LOSD0 AM_LOSD12 AM_LOSD5 AM_LOSD1 AM_LOSD10 TE2- AM_LOSD3 V_BIN3 V_GIN7 V_RIN9 V_BIN9 LOSDCKIN AM_LOSD4 V_RIN7 V_GIN8 V_GIN1 V_GIN2 AGC6_SCL1 AM_LOSD7 AM_LOSD14 AGC6_SDA1 AGC6_SCL1 V_RIN1 AM_VOUTENB MIHO_XRST MIHO_XRST MIHO_VOUTENB MIHO_VOUTENB LOSDVIN LOSDVIN V_CLK AM_VOUTENB C4313 6.3V 10u C4282 16V 0.1u C4328 16V 0.1u C4329 16V 0.1u C4295 16V 0.1u C4277 16V 0.1u C4287 16V 0.1u C4325 6.3V 10u C4284 16V 0.1u C4281 16V 0.1u C4260 16V 0.1u C4316 16V 0.1u C4262 16V 0.1u C4315 16V 0.1u C4288 16V 0.1u 1000p 50V C4292 C4286 16V 0.1u C4314 16V 0.1u 1000p 50V C4296 C4280 16V 0.1u C4279 16V 0.1u C4255 16V 0.1u C4257 16V 0.1u 1000p 50V C4267 1000p 50V C4268 C4323 16V 0.1u 1000p 50V C4294 C4319 16V 0.1u 1000p 50V C4298 C4291 16V 0.1u C4275 16V 0.1u C4317 6.3V 10u C4261 16V 0.1u C4297 16V 0.1u C4256 16V 0.1u 1000p 50V C4290 C4318 16V 0.1u C4273 16V 0.1u C4283 16V 0.1u C4266 6.3V 1u C4274 16V 0.1u C4321 16V 0.1u C4276 16V 0.1u C4326 6.3V 10u C4301 16V 0.1u C4320 16V 0.1u C4289 16V 0.1u C4259 16V 0.1u C4293 16V 0.1u C4272 16V 0.1u C4264 16V 0.1u C4299 16V 0.1u C4263 16V 0.1u C4270 16V 0.1u C4265 16V 0.1u C4271 16V 0.1u C4278 16V 0.1u C4302 6.3V 10u C4258 16V 0.1u C4285 16V 0.1u C4300 47u 6.3V F1H0J4740004 FL4206 FL5019 J0JAD0000028 1 2 3 4 FL5018 J0JAD0000028 1 2 3 4 FL5015 J0JAD0000028 1 2 3 4 FL5020 J0JAD0000028 1 2 3 4 FL5017 J0JAD0000028 1 2 3 4 FL5016 J0JAD0000028 1 2 3 4 A5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 L4212 J0JYC0000068 L4217 J0JYC0000068 L4216 J0JYC0000068 L4220 J0JYC0000068 L4219 J0JYC0000068 FHD3.3V MIHO1.2V FHD3.3V R4304 R4284 R4286 R4276 R4280 R4270 JS4201 JS4200 TP2606 TP2605 TP2604 TP2603 TP2602 TP2601 TP2622 TP2612 TP2619 TP2621 TP2610 TP2618 TP2620 TP2613 TP2614 TP2615 TP2616 TP2600 TP2611 TP2623 TP2609 TP2608 TP2617 TP2607 AG_HQ_XRST V_BIN2 AM_LOSD2 V_RIN3 AM_LOSDCLK AM_LOSD15 AM_LOSD10 DISPEN AM_LOSD3 AM_LOSD5 V_GIN9 V_CLK V_RIN9 V_BIN9 AM_LOSD6 V_RIN0 V_BIN3 V_BIN0 AM_LOSD8 AM_VOUTENB V_BIN8 V_GIN6 V_GIN2 V_GIN0 V_RIN8 V_BIN5 V_BIN4 AM_LOSD11 V_RIN5 V_RIN6 V_RIN7 V_VS V_HS V_GIN3 V_GIN5 AM_LOSDHSYN V_BIN1 AM_LOSD12 MIHO_TDI AM_LOSD4 AM_LOSD1 V_BIN7 V_RIN2 AM_LOSD14 V_RIN1 V_GIN8 V_GIN7 V_RIN4 AM_LOSD7 AG_BACK_VOUTENB AM_LOSD9 V_BIN6 V_GIN4 AM_LOSD0 V_GIN1 LOSDHIN LOSDCKIN LOSDVIN GC3FS_TDI AGC6_SDA1 TRST GC6_FRCKO3 AGC6_SCL1 TCK TMS R4303 10k R4306 100 R4278 68 R4335 3.3k R4279 68 R4281 0 R4277 68 R4283 68 R4282 0 R4275 68 R4338 47k R4274 22 C1AB00002886 IC4200 1 VSS 2 VDD33 3 OSDI[7] 4 OSDI[8] 5 OSDI[9] 6 OSDI[10] 7 VSS 8 VDDC 9 OSDI[11] 10 OSDI[12] 11 OSDI[13] 12 OSDI[14] 13 OSDI[15] 14 TCK 15 VSS 16 VDD33 17 TMS 18 TDI 19 TDO 20 TRST 21 TEST0 22 TEST1 23 TEST2 24 TEST3 25 DTMB 26 DTCLK 27 VSS 28 VDD33 29 VSS 30 VDDC 31 VSS 32 VDDC 33 VSS 34 VDD33 35 VGND[0] 36 VGND[1] 37 VEXT1[0] 38 VEXT1[1] 39 VGND[3] 40 VGND[2] 41 VEXT1[2] 42 VEXT1[3] 43 VEXT1[4] 44 VGND[4] 45 VGND[5] 46 VEXT3[0] 47 VEXT3[1] 48 MBIO 49 VSS 50 VDD33 51 VSS 52 VDD33 53 HSI 54 VSI RI[0] 55 RI[1] 56 RI[2] 57 RI[3] 58 RI[4] 59 RI[5] 60 RI[6] 61 RI[7] 62 RI[8] 63 VSS 64 RI[9] 65 GI[0] 66 GI[1] 67 GI[2] 68 GI[3] 69 GI[4] 70 VDD33 71 GI[5] 72 GI[6] 73 GI[7] 74 GI[8] 75 GI[9] 76 BI[0] 77 VSS 78 VDDC 79 BI[1] 80 BI[2] 81 BI[3] 82 BI[4] 83 BI[5] 84 VSS 85 VDDC 86 BI[6] 87 BI[7] 88 BI[8] 89 BI[9] 90 PTVEN 91 VSS 92 VDDC 93 CLKI 94 VSS 95 VDD33 96 SSCGAVDDA2 103 SSCGAVSSA2 104 VSS 105 VDDC 106 VSS 107 VDD33 108 118 TE2M 119 TD2P 120 TD2M 121 TCLK2P 122 TCLK2M 123 VDDLVDSI 124 VSSLVDS 125 VDDLVDSO 126 TC2P 127 TC2M 128 TB2P 129 TB2M 130 TA2P 131 TA2M 132 VDDLVDSI 133 VSSLVDS 134 BGRVDD 135 AVSN 136 AVDN 137 DVDN 138 DVSN 139 VSSLVDS 140 VDDLVDSO 141 TE1P 142 TE1M 143 TD1P 144 TD1M 145 TCLK1P 146 TCLK1M 147 VDDLVDSI 148 VSSLVDS 149 VDDLVDSO 150 TC1P 151 TC1M 152 TB1P 153 TB1M 154 TA1P 155 TA1M 156 VDDLVDSI 157 VSS 158 VDDC 159 LVDSDVDD_2 160 LVDSDVSS_2 161 VSSLVDS 162 VDDC 163 VDD33 164 VSS 165 VSS 166 VDDC 167 PLLAVD 168 PLLAVS 169 VSS 170 VDDC 171 LCD_MODE 184 VSS 185 HSO 186 PWMKO 187 PWMAO 188 PWMKI 189 VIDEO_MUTE 190 VDDC 191 VSS 192 CLKOD 193 VDD33 194 MOSDHSO 195 MOSDVSO 196 VDD33 197 VDDC 198 VSS 199 CLKID 200 OSDYMI 201 OSDYSI 202 OSD_FLAG 203 OSDHSI 204 VDDC 205 VSS 206 OSDI[0] 207 OSDI[1] 208 OSDI[2] 209 OSDI[3] 210 OSDI[4] 211 OSDI[5] 212 OSDI[6] 213 VSS 214 VDDC 215 VSS 216 VDDC 109 VSS 111 VSSLVDS 113 LVDSDVSS_1 115 VSS 117 TE2P 110 VDDC 112 LVDSDVDD_1 114 VDDC 116 VDDLVDSO 172 FRCLKIN 173 VSS 174 VDD33 181 NRST 182 VSO 183 VDDC VDDC 97 VSS 98 SSCGAVDDA1 99 SSCGAVSSA1 100 SSCGANOMB 101 SSCGANOMA 102 175 SCL 176 SDA 177 VDDC 178 VSS 179 VDD33 180 PNL_HIZ MOSDHSO 1st pixel TB- 2nd pixel TA- GND GND GND 2nd pixel TB- 2nd pixel TC+ 2nd pixel TC- 2nd pixel TCLK+ LCDMODE OSD_FLAG 1st pixel TC+ 1st pixel TC- 1st pixel TCLK+ 1st pixel TCLK- 1st pixel TA- 1st pixel TE+ 1st pixel TE- 2nd pixel TB+ LVDS3.3V 1st pixel TA+ 2nd pixel TD- 2nd pixel TE+ OSDHSI 2nd pixel TE- 2nd pixel TD+ MIHO CRNo.2600-2999 CLKID 1st pixel TD+ 1st pixel TD- 2nd pixel TCLK- MOSDVSO TO 17/20 2nd pixel TA+ GND GND GND LVDS_DET CLKOD 1st pixel TB+ MIHO TO D-BOARD (D5) 161 160 157 154 158 162 159 156 155 TO 5/20 TO 5,11/20 TO 19/20 TO 11,17,19/20 TO 8/20 TO 6,8,17/20 TO 6/20 TO 17/20 TO 5,6,17,19/20 TH-58PZ880C A-Board (18/20) Schematic Diagram TH-58PZ880C A-Board (18/20) Schematic Diagram A-BOARD (18/20) ! TNPH0724BC 65 TH-58PZ880C 10.23.A 电路板 （19/20）线路图 GC6_SDA1 GC6_SDA2 GC6_SCL2 GC6_SCL1 GC6_SDA GC6_SCL C5015 16V 0.1u C5026 10u 10V C5027 16V 0.1u C5025 10u 10V C5017 16V 0.1u C5028 16V 0.1u C5002 16V 0.1u C5039 10u 10V C5038 6.3V 1u C5030 16V 0.1u C5013 10u 10V C5037 6.3V 1u C5004 16V 0.1u C5029 16V 0.1u C5049 16V 0.1u C5001 16V 0.1u C5009 16V 0.1u C5022 6.3V 1u C5043 16V 0.1u C5033 6.3V 1u C5050 6.3V 1u C5034 6.3V 1u C5019 16V 0.1u C5008 16V 0.1u C5035 6.3V 1u C5006 6.3V 1u C5007 10u 10V C5032 16V 0.1u C5020 16V 0.1u C5042 16V 0.1u C5021 6.3V 1u C5011 16V 0.1u C5041 10u 10V C5031 16V 0.1u C5016 10u 10V C5023 6.3V 1u C5040 10u 10V C5036 6.3V 1u C5003 16V 0.1u C5014 16V 0.1u C5048 6.3V 2.2u C5044 6.3V 1u C5012 16V 0.1u C5047 6.3V 1u C5018 16V 0.1u C5045 6.3V 1u C5024 6.3V 1u C5010 16V 0.1u C5005 6.3V 1u C5046 10u 10V C5073 6.3V 2.2u C5072 16V 0.1u C5201 50V 18p C5200 50V 18p D5201 MA2J72800L IC5100 A1 VSS IC5100 N12 LVVDD12 IC5100 B22 OSDYMI IC5100 K26 LCDMODE IC5100 E24 CLKOD2 IC5100 AH28 VDD12 IC5100 B8 ROE9 IC5100 U18 VSS IC5100 T19 DRAM12_4 IC5100 AF9 VDDIO IC5100 AG7 VSS IC5100 N18 VSS IC5100 AG4 VDDIO IC5100 AG28 RVIA3 IC5100 AE28 VSS IC5100 E2 TD1M IC5100 N3 VSS IC5100 F20 VSS IC5100 L25 VDD33 IC5100 M15 VDD12 IC5100 Y26 SCL2 IC5100 AH2 TESTIO_DDR IC5100 T1 VSS IC5100 AH29 RVIA1 IC5100 AJ20 VDD12 IC5100 F27 CCLIN IC5100 C13 YID0 IC5100 R12 VSS IC5100 V19 DRAM12_2 IC5100 M12 LVVDD12 IC5100 F15 VSS IC5100 E7 PWMK IC5100 B30 VDD33 IC5100 A25 OSDI9 IC5100 AG27 VDD12 IC5100 B23 OSDI2 IC5100 D4 VSS IC5100 D22 OSDI0 IC5100 E28 XECS IC5100 V30 GYIA4 IC5100 AK24 RVIB6 IC5100 AF19 VDDR IC5100 G27 VDD33 IC5100 P18 VSS IC5100 A5 BOE0 IC5100 Y27 VSS IC5100 AE25 VDD12 IC5100 F24 VDD33 IC5100 A23 OSDI1 IC5100 AH8 VSS IC5100 G1 TC1P IC5100 D8 GOE1 IC5100 AG1 VSS IC5100 P12 VSS IC5100 AB4 VDDIO IC5100 V13 VSS IC5100 AJ2 VSS IC5100 B3 BOE8 IC5100 N2 TC2M IC5100 AK26 GYIB4 IC5100 L29 ED5 IC5100 T25 VSS IC5100 E15 YID6 IC5100 U19 DRAM12_3 IC5100 L2 TD2M IC5100 A4 BOE4 IC5100 P14 VSS IC5100 AC27 SDA1 IC5100 AA25 VSS IC5100 D7 GOE5 IC5100 J30 ED0 IC5100 K27 VSS IC5100 J26 TDI IC5100 J29 EA7 IC5100 F13 VDD33 IC5100 AH7 VDDIO IC5100 AH3 VSS IC5100 C28 VDD33 IC5100 D28 XIRQ1 IC5100 AK21 VSS IC5100 E17 UVIC3 IC5100 AF22 RVIB3 IC5100 V26 OEMUTE IC5100 C19 YIC3 IC5100 B9 ROE5 IC5100 AJ19 VDDR IC5100 V16 VSS IC5100 F18 VDD33 IC5100 W2 VSS IC5100 AG26 VSS IC5100 D18 YIC0 IC5100 AB26 SCL1 IC5100 AF20 VDD12 IC5100 V15 VDDR IC5100 T29 GYIA9 IC5100 N30 ED12 IC5100 M5 AVDD_PLL IC5100 AF5 VDDIO IC5100 AF16 VSS IC5100 AK30 VDD12 IC5100 K28 ED1 IC5100 K6 TSTAIO1 IC5100 F3 LVVSS IC5100 N13 VSS IC5100 AC26 TDO IC5100 Y25 PVPPDRAM1 IC5100 AJ13 VDDIO IC5100 L1 TD2P IC5100 AE6 VDDIO IC5100 W4 VSS IC5100 J1 TA1P IC5100 AJ15 VSS IC5100 U17 VSS IC5100 E30 XERE IC5100 V14 AVDD_DPLL IC5100 H27 VDD33 IC5100 A2 BOE9 IC5100 A8 ROE8 IC5100 R6 VSS IC5100 U27 VDD33 IC5100 AG5 VSS IC5100 U25 VSS IC5100 U26 VDD33 IC5100 AD1 VDDIO IC5100 AH19 VDDR IC5100 A22 ALPHA1 IC5100 R4 VBOH8 IC5100 E3 VDD33 IC5100 W25 VDD33 IC5100 P1 TB2P IC5100 R25 VDD33 IC5100 AK25 GYIB1 IC5100 D16 HSIC IC5100 F5 VDD33 IC5100 AF21 RVIB2 IC5100 N5 TESTIO_SYS IC5100 AJ11 VDDIO IC5100 E29 XEDK IC5100 H26 PTESTDRAM0 IC5100 J2 TA1M IC5100 F2 TCLK1M IC5100 M30 ED9 IC5100 B26 OSDI14 IC5100 AH22 BUIB4 IC5100 B19 YIC4 IC5100 G7 VSS IC5100 A30 VDD33 IC5100 AF25 VSS IC5100 F28 XEWE0 IC5100 F1 TCLK1P IC5100 E23 MOSDVSO2 IC5100 A21 VSS IC5100 A28 CLKOSDIN1 IC5100 AD26 SDA IC5100 B1 VDD33 IC5100 C27 VSS IC5100 E13 UVID6 IC5100 B18 YIC2 IC5100 W17 VDDA IC5100 AE30 VSS IC5100 U14 VSS IC5100 AG25 CLKIB2 IC5100 B14 YID4 IC5100 G3 LVVSS IC5100 N28 ED10 IC5100 M28 ED7 IC5100 D23 OSDI4 IC5100 AK12 VSS IC5100 D11 UVID0 IC5100 T15 VSS IC5100 AE29 CLKOA IC5100 U29 GYIA6 IC5100 M14 VSS IC5100 AK20 CLKIB IC5100 B29 VDD33 IC5100 AH10 VDDIO IC5100 A6 GOE6 IC5100 C29 VDD33 IC5100 AG13 VSS IC5100 U2 VSS IC5100 V6 VSS IC5100 D6 GOE9 IC5100 F6 VSS IC5100 AJ30 RVIA0 IC5100 M1 TCLK2P IC5100 G4 LVVDD IC5100 AK27 GYIB7 IC5100 AJ28 VSS IC5100 AC25 VDD33 IC5100 H3 LVVSS IC5100 N4 VSS IC5100 R30 ENBIA IC5100 N26 VDD33 IC5100 Y4 VSS IC5100 P4 HSOH IC5100 AJ21 BUIB0 IC5100 A3 BOE7 IC5100 AB28 BUIA2 IC5100 A29 VSS IC5100 F4 VDD33 IC5100 AJ25 GYIB2 IC5100 AD27 SCL IC5100 C1 VDD33 IC5100 L27 VSS IC5100 W19 DRAM12_1 IC5100 T17 VSS IC5100 C12 UVID3 IC5100 R13 VSS IC5100 AE4 VSS IC5100 V18 VSS IC5100 H6 TSTAIO0 IC5100 F25 VDD33 IC5100 AE26 VDD12 IC5100 W15 VSS IC5100 F7 VSS IC5100 B28 VSS IC5100 M26 NRST IC5100 AH25 GYIB3 IC5100 H29 EA4 IC5100 E18 UVIC7 IC5100 C20 MOSDHSO IC5100 G29 EA1 IC5100 B11 CLKOE IC5100 W27 TCK IC5100 P3 VSS IC5100 D29 XIRQ0 IC5100 V27 OEBLK IC5100 N17 VSS IC5100 E21 MOSDHSO2 IC5100 C22 OSDYSI IC5100 M2 TCLK2M IC5100 N25 VSS IC5100 U30 GYIA7 IC5100 R15 VSS IC5100 R1 TA2P IC5100 V3 VBOH0 IC5100 AJ4 VSS IC5100 AJ18 VSS IC5100 AG21 RVIB1 IC5100 R28 GYIA11 IC5100 C4 BOE6 IC5100 N19 DRAM12_6 IC5100 D24 OSDI8 IC5100 M6 TESTIO_OUT IC5100 H4 LVVDD IC5100 A10 ROE0 IC5100 F19 VSS IC5100 F29 XEWE1 IC5100 AG17 VDDIO IC5100 R3 VSS IC5100 AJ3 VDDIO IC5100 F16 VSS IC5100 W16 VDDR IC5100 AB2 VSS IC5100 D30 XEAS IC5100 AE18 VSS IC5100 E16 VSIC IC5100 AG20 VDD12 IC5100 D13 UVID7 IC5100 P19 DRAM12_5 IC5100 AH30 RVIA2 IC5100 K2 TE2M IC5100 L30 ED6 IC5100 E19 OSDEXTVIN IC5100 B17 UVIC6 IC5100 P27 TEST IC5100 C9 ROE6 IC5100 V2 VSS IC5100 E22 MOSDVSO IC5100 M4 LVVDD IC5100 T6 VSS IC5100 U15 VSS IC5100 AG30 RVIA5 IC5100 F30 EA0 IC5100 AC29 BUIA0 IC5100 P13 VSS IC5100 AE17 VSS IC5100 V29 GYIA3 IC5100 L4 LVVDD IC5100 J3 LVVSS IC5100 N6 AVSS_PLL IC5100 AG19 VDDR IC5100 N15 VSS IC5100 C8 GOE0 IC5100 AF2 VSS IC5100 P26 WLBI IC5100 AA26 TRST IC5100 B24 OSDI6 IC5100 AH14 VDDIO IC5100 K29 ED2 IC5100 G6 VDD33 IC5100 R14 VSS IC5100 T14 VSS IC5100 B10 ROE1 IC5100 T26 VDD33 IC5100 F17 VDD33 IC5100 H25 VDD33 IC5100 T4 VBOH6 IC5100 U16 VSS IC5100 C23 OSDI3 IC5100 P15 VSS IC5100 E11 VSID IC5100 F10 VDD33 IC5100 C21 CLKOD IC5100 AE8 VSS IC5100 AD30 RVIA10 IC5100 C14 YID3 IC5100 V4 VBOH1 IC5100 N16 VSS IC5100 U1 XTALIN IC5100 A13 YID2 IC5100 R18 VSS IC5100 A26 OSDI13 IC5100 G28 EXBSEL0 IC5100 L6 VSS IC5100 H1 TB1P IC5100 H5 LVVDD IC5100 C10 ROE2 IC5100 AB30 BUIA4 IC5100 AJ29 VDD12 IC5100 U3 CLKOH IC5100 AH27 VSS IC5100 E20 OSDFLAG IC5100 W26 VSS IC5100 D17 UVIC4 IC5100 AK8 VDDIO IC5100 T12 VSS IC5100 AK17 VDDIO IC5100 M3 LVVSS IC5100 R2 TA2M IC5100 U4 VBOH3 IC5100 AE22 VSS IC5100 F8 VSS IC5100 B2 VSS IC5100 Y30 BUIA10 IC5100 E5 VSS IC5100 H2 TB1M IC5100 N27 VDD33 IC5100 F23 VSS IC5100 V5 VBOH2 IC5100 E12 UVID1 IC5100 D14 VDD33 IC5100 AK19 VDDR IC5100 C17 UVIC5 IC5100 P25 VSS IC5100 AD29 RVIA9 IC5100 AF14 VSS IC5100 AA3 VDDIO IC5100 L3 LVVSS IC5100 AG3 VSS IC5100 AF30 CLKIA IC5100 A27 OSDI15 IC5100 D3 VDD33 IC5100 D15 YID7 IC5100 AC3 VSS IC5100 AK3 VSS IC5100 R19 VDD33D_DRAM IC5100 AG23 RVIB5 IC5100 AE19 VDDR IC5100 M29 ED8 IC5100 AA5 VSS IC5100 J4 LVVDD IC5100 W29 GYIA0 IC5100 E14 VDD33 IC5100 R17 VSS IC5100 AA27 TMS IC5100 B27 FRCH_CLKIN IC5100 AJ23 BUIB6 IC5100 P17 VSS IC5100 B15 CLKID IC5100 W18 VSS IC5100 H30 EA5 IC5100 AJ27 HSIB IC5100 P16 VSS IC5100 B20 YIC6 IC5100 E1 TD1P IC5100 AG29 RVIA4 IC5100 M27 FRCKO1 IC5100 C18 YIC1 IC5100 D2 TE1M IC5100 K1 TE2P IC5100 D20 MOSDHSI IC5100 K5 LVVDD IC5100 D21 ALPHA0 IC5100 AC28 RVIA11 IC5100 AJ6 VSS IC5100 C24 OSDI7 IC5100 U12 VDDA IC5100 AE27 FRCKO2 IC5100 J6 LVVDD IC5100 C30 XIRQ2 IC5100 AG24 RVIB4 IC5100 B4 BOE5 IC5100 J27 VSS IC5100 W12 VSS IC5100 G5 VDD33 IC5100 F14 VDD33 IC5100 AF29 RVIA7 IC5100 R26 VDD33 IC5100 E26 VDD33 IC5100 A12 UVID5 IC5100 AF27 VDD12 IC5100 J5 LVVDD IC5100 AA30 BUIA7 IC5100 P2 TB2M IC5100 AG15 VDDIO IC5100 A11 VSS IC5100 AD4 VSS IC5100 V28 GYIA2 IC5100 D19 OSDEXTHIN IC5100 AF11 VSS IC5100 T3 VBOH5 IC5100 AF4 VSS IC5100 T30 GYIA10 IC5100 G26 DRAMTEST IC5100 AE12 VDDIO IC5100 AH23 BUIB7 IC5100 AG22 RVIB0 IC5100 D10 ROE3 IC5100 L5 VSS IC5100 F12 VSS IC5100 AF18 VSS IC5100 AJ24 RVIB7 IC5100 C2 VDD33 IC5100 V17 VSS IC5100 A9 ROE4 IC5100 N14 VSS IC5100 U13 VDDR IC5100 F21 VDD33 IC5100 T27 VSIA IC5100 AK1 VDDIO IC5100 B13 YID1 IC5100 AF24 CLKOB IC5100 D5 BOE3 IC5100 AH24 GYIB0 IC5100 AH1 VSS IC5100 T18 VSS IC5100 AK23 BUIB5 IC5100 K3 LVVSS IC5100 Y28 BUIA8 IC5100 L28 ED4 IC5100 B21 VSS IC5100 M19 DRAM12_7 IC5100 R29 HSIA IC5100 B12 UVID4 IC5100 A14 YID5 IC5100 AF7 VDDIOCK IC5100 D12 UVID2 IC5100 E27 EXBSEL1 IC5100 M25 VDD33 IC5100 K30 ED3 IC5100 V25 VDD33 IC5100 N1 TC2P IC5100 A16 UVIC2 IC5100 F26 PTESTDRAM1 IC5100 AF23 ENBIB IC5100 AJ5 VDDIO IC5100 W13 VDDA IC5100 F11 VSS IC5100 W6 VSS IC5100 AD28 RVIA8 IC5100 C5 BOE2 IC5100 A18 CLKIC IC5100 W30 GYIA1 IC5100 T16 VSS IC5100 F9 VDD33 IC5100 AH26 GYIB6 IC5100 AF26 VDD12 IC5100 P5 VSOH IC5100 R27 RON IC5100 B25 OSDI10 IC5100 AF3 VDDIO IC5100 A15 VSS IC5100 AH12 VSS IC5100 D1 TE1P IC5100 V1 XTALOUT IC5100 B5 BOE1 IC5100 AE2 VDDIO IC5100 AK28 VSIB IC5100 E9 FRCKO3 IC5100 C16 UVIC0 IC5100 P6 VSS IC5100 D26 VSS IC5100 A17 VSS IC5100 AE15 VDDIO IC5100 P29 ED14 IC5100 AB27 SDA2 IC5100 P28 ED13 IC5100 AB6 VSS IC5100 G2 TC1M IC5100 M18 VSS IC5100 W1 VSS IC5100 AF6 VSS IC5100 T13 VSS IC5100 AH16 VSS IC5100 T28 GYIA8 IC5100 B6 GOE7 IC5100 D9 ROE7 IC5100 AE20 VDD12 IC5100 AK29 VSS IC5100 K25 VSS IC5100 T2 VSS IC5100 AA29 BUIA6 IC5100 E6 SSOUT IC5100 G25 VDD33 IC5100 C6 GOE8 IC5100 M13 VSS IC5100 G30 EA2 IC5100 A24 OSDI5 IC5100 AH21 BUIB1 IC5100 U6 VSS IC5100 R16 VSS IC5100 U28 GYIA5 IC5100 D25 OSDI12 IC5100 W3 VSS IC5100 J28 EA6 IC5100 AH20 VDD12 IC5100 AC30 BUIA1 IC5100 AJ9 VSS IC5100 AE21 VDD12 IC5100 H28 EA3 IC5100 E4 VDD33 IC5100 AD25 VDD12 IC5100 AK22 BUIB2 IC5100 E8 HSOE IC5100 J25 PVPPDRAM2 IC5100 T5 VBOH7 IC5100 R5 VBOH9 IC5100 W28 BUIA11 IC5100 B16 UVIC1 IC5100 Y2 VDDIO IC5100 C3 VSS IC5100 M16 VDD12 IC5100 A20 YIC7 IC5100 D27 VDD33 IC5100 AA28 BUIA5 IC5100 A19 YIC5 IC5100 E10 VSOE IC5100 AB29 BUIA3 IC5100 F22 VDD33 IC5100 C7 GOE4 IC5100 P30 ED15 IC5100 AE1 VSS IC5100 W14 VDDR IC5100 L26 PTESTDRAM2 IC5100 AC5 VDDIO IC5100 C15 HSID IC5100 E25 VSS IC5100 AJ26 GYIB5 IC5100 V12 VDDR IC5100 AE23 VSS IC5100 Y29 BUIA9 IC5100 C26 CLKIN_EXTOSD IC5100 C11 PTVEN IC5100 K4 LVVDD IC5100 B7 GOE3 IC5100 AE5 VSS IC5100 N29 ED11 IC5100 A7 GOE2 IC5100 AE24 VSS IC5100 U5 VBOH4 IC5100 AJ22 BUIB3 IC5100 AB25 VDD33 IC5100 W5 VSS IC5100 C25 OSDI11 IC5100 M17 VSS IC5100 AF28 RVIA6 L5006 J0JHC0000045 L5004 J0JHC0000045 L5005 J0JHC0000045 L5001 J0JHC0000045 L5002 J0JHC0000045 SUB3.3V SUB3.3V 1.8V_DDRI/F GC6_1.2V GC6_1.2V GC6_1.8V GC6_1.2V GC6_3.3V MAIN3.3V FHD3.3V SUB3.3V GC6_3.3V SUB3.3V TCK NRST TDI AG_DTV_VOUTENB TRST STB_RST TMS VI2Y0 TDO AA_XIRQ3 AA_XIRQ4 AA_XIRQ5 VBOH2 GC6_ENBIA GC6_CLKOA GC6_YIC6 GC6_RVIA11 GC6_RVIA10 GC6_RVIA9 GC6_RVIA8 GC6_ROE4 GC6_RVIA6 GC6_RVIA5 GC6_RVIA4 GC6_RVIA3 GC6_RVIA2 GC6_GYIB0 GC6_RVIA0 GC6_BUIA11 GC6_CLKOE GC6_BUIA9 GC6_BUIA8 GC6_BUIA7 GC6_BUIA6 GC6_BUIA5 GC6_BUIA4 GC6_BUIA3 GC6_GYIB1 GC6_BUIA1 GC6_BUIA0 GC6_GYIA11 GC6_CLKIB GC6_GYIB2 GC6_GYIA8 GC6_GYIA7 GC6_RVIA1 GC6_GYIA5 GC6_GYIA4 GC6_GYIA3 GC6_GYIA2 GC6_GYIA1 GC6_GYIA0 GC6_ROE6 AA_XEAS GC6_BOE2 AA_XEWE1 GC6_VSOE GC6_GOE2 GC6_ROE2 GC6_BOE6 AA_XERE GC6_ROE7 GC6_BOE7 GC6_ROE0 GC6_GOE3 GC6_BOE1 GC6_GOE5 GC6_GYIB5 GC6_BOE4 GC6_BOE8 GC6_HSIC GC6_VSIC GC6_CLKIC GC6_YIC7 GC6_BUIA10 GC6_GYIB4 GC6_YIC4 GC6_YIC3 GC6_YIC2 GC6_YIC1 GC6_YIC0 GC6_UVIC0 GC6_UVIC1 GC6_UVIC2 GC6_UVIC3 GC6_UVIC4 GC6_UVIC5 GC6_UVIC6 GC6_UVIC7 AGC6_SCL1 AGC6_SCL2 AGC6_SDA1 AGC6_SDA2 GC6_RVIA7 GC6_CLKIA GC6_GOE0 GC6_VSIB GC6_HSIB GC6_GOE6 AA_XECS2 GC6_GOE8 GC6_GOE7 XEDK GC6_ROE5 GC6_ROE8 GC6_BOE5 GC6_BOE9 GC6_BOE0 GC6_FRCKO3 GC6_ROE9 AA_ED4 AA_ED8 AA_ED15 AA_ED9 AA_ED10 AA_ED5 AA_ED3 AA_ED14 AA_ED2 AA_ED13 AA_ED12 AA_ED1 AA_ED0 AA_ED6 AA_ED7 AA_ED11 GC6_ROE3 GC6_GOE9 GC6_HSOE GC6_GOE4 GC6_GYIB6 GC6_GYIB7 GC6_BUIB0 GC6_BUIB1 GC6_BUIB2 GC6_BUIB4 GC6_BUIB3 GC6_BUIB5 GC6_BUIB6 GC6_BUIB7 AA_XEWE0 GC6_BOE3 GC6_ROE1 GC6_GYIA10 GC6_BUIA2 GC6_YIC5 GC6_GYIA6 GC6_GOE1 GC6_FRCKO2 GC6_GYIA9 GC6_HSIA GC6_VSIA GC6_GYIB3 R5232 EXB2HV680JV R5231 EXB2HV680JV R5229 10k R5227 10k R5217 4.7k R5201 68 R5202 68 R5205 4.7k R5207 4.7k R5200 68 R5204 4.7k R5206 4.7k R5208 1M R5209 0 R5225 68 R5210 10k R5092 0 D0GBR00Z0002 R5216 4.7k R5203 68 R5223 100 R5226 3.3k X5200 H0J270500113 27MHz LOSD PLL TEST DRAM TEST DRAM REGSW LVDS TEST PORT-A(ADV7495) PORT-B(GC3FS_next) EXB-BUS (PEAKS) PORT-C (PEAKS Main) PORT-D (PEAKS Sub) PORT-E (Digital Out) LVDS VBI GC6 IIC I/F JTAG XTAL LSI TEST CTRL MASTER SLAVE FROM 16/20 170 168 164 169 167 171 163 166 165 TO 5/20 TO 3,4,5/20 TO 3,4,5/20 TO 1,5/20 TO 5/20 TO 5,8/20 TO 1,5/20 TO 5/20 TO 5/20 TO 11,17,18/20 TO 6,10,11/20 TO 10/20 TO 6/20 TO 17/20 TO 17/20 TO 5/20 TO 5,6,17,18/20 IC5100 MN84527 CRNo.5000-5999 GC6 TH-58PZ880C A-Board (19/20) Schematic Diagram TH-58PZ880C A-Board (19/20) Schematic Diagram A-BOARD (19/20) ! TNPH0724BC 66 TH-58PZ880C 10.24.A 电路板 （20/20）线路图 + S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S P + + + CH0A9 CH0XWE CH0DQ14 CH0DQ17 CH0XCS0 CH0A4 CH0DQ19 CH0DQ7 CH0A11 CH0A9 CH0DQ14 CH0CKE CH0DQ9 CH0A12 CH0A10 CH0DQ18 CH0CK CH0DQ0 CH0DQ4 CH0A5 CH0DQS3 CH0DQ10 CH0DQ31 CH0DQ25 CH0XCAS CH0ODT CH0A1 CH0ODT CH0CKE CH0DQ21 CH0DQ22 CH0BA2 CH0DM2 CH0BA2 CH0ODT CH0DQS3 CH0XCK CH0XRAS CH0A8 CH0DQ11 CH0XWE CH0DQ23 CH0A10 CH0A3 CH0BA0 CH0DQ27 CH0A11 CH0A2 CH0DQ12 CH0A10 CH0A5 CH0DQ10 CH0DQ31 CH0DQ2 CH0DM1 CH0A8 CH0BA0 CH0XWE CH0A0 CH0A0 CH0XRAS CH0A6 CH0XCS0 CH0XCS1 CH0DQ24 CH0DQS2 CH0A12 CH0A7 CH0DQ21 CH0CK CH0DQ30 CH0DQ29 CH0DQ13 CH0A11 CH0A0 CH0DM3 CH0A2 CH0A1 CH0XCK CH0A5 CH0XRAS CH0CKE CH0DQ17 CH0DQ5 CH0BA2 CH0DQ20 CH0DQ28 CH0DQ19 CH0XCK CH0DQ3 CH0A4 CH0BA1 CH0DQ29 CH0A6 CH0A12 CH0DQ6 CH0DQ26 CH0DQ23 CH0A3 CH0DQ27 CH0BA1 CH0A9 CH0BA1 CH0DQ5 CH0XCS1 CH0A4 CH0DQS0 CH0A8 CH0DM3 CH0DQ1 CH0ODT CH0CKE CH0A6 CH0A7 CH0A7 CH0DQ25 CH0XCAS CH0DQ16 CH0A3 CH0DQ12 CH0DQ3 CH0A2 CH0DM0 CH0A1 CH0BA0 CH0XCAS CH0DQ7 CH0DQ8 CH0DM1 CH0DQ1 CH0DQ15 CH0DQS1 CH0DM0 CH0DQS1 CH0DQS0 CH0CK CH0DQ30 CH0DQ22 CH0DQ20 CH0DQ24 CH0DQ26 CH0DQ18 CH0DQ28 CH0DQ16 CH0DQS2 CH0DQ15 CH0DQ6 CH0DQ9 CH0DQ4 CH0DQ11 CH0DQ8 CH0DQ13 CH0DQ0 CH0DQ2 CH0DM2 C5065 16V 0.1u C5059 16V 0.1u C5063 16V 0.1u C5056 16V 0.1u C5054 16V 0.1u C5061 16V 0.1u C5055 16V 0.1u C5053 16V 0.1u C5064 16V 0.1u C5067 16V 0.1u C5051 10u 10V C5062 16V 0.1u C5060 16V 0.1u C5066 16V 0.1u C5052 10u 10V C5057 16V 0.1u C5058 68u 4V IC5002 A1 VDD IC5001 A1 VDD IC5002 N1 VSS IC5002 N2 A3 IC5001 F1 DQ6 IC5100 AK7 MMA6 IC5002 A7 VSSQ IC5100 AB1 MMDM3 IC5100 AF15 MMVREF0 IC5002 G8 DQ0 IC5001 H3 DQ3 IC5002 E8 LDQS IC5002 L8 CS IC5001 B2 VSSQ IC5001 P9 VSS IC5001 G8 DQ0 IC5001 R2 A12 IC5100 AB5 MMVREF1 IC5001 E2 NC IC5002 C3 VDDQ IC5100 AC4 MMDQ17 IC5100 AE7 MMVCAL IC5100 AE3 MMDQ23 IC5001 B7 UDQS IC5002 B1 DQ14 IC5100 AJ17 MMDQ2 IC5001 L3 BA1 IC5001 M7 A2 IC5002 E3 VSS IC5002 D9 DQ13 IC5100 AH4 MMPCLKEXT IC5002 C9 VDDQ IC5100 AK4 MMCK IC5002 H8 VSSQ IC5100 AF8 MMXCS1 IC5002 F8 VSSQ IC5100 AK5 MMXCK IC5002 D7 DQ10 IC5002 G7 VDDQ IC5100 AE10 MMXCAS IC5002 A9 VDDQ IC5100 AC2 MMDM2 IC5001 N3 A5 IC5002 J7 VSSDL IC5001 C2 DQ9 IC5001 G7 VDDQ IC5002 M9 VDD IC5100 AH17 MMDQ3 IC5001 C7 VDDQ IC5001 B8 VSSQ IC5001 D1 DQ12 IC5001 K3 WE IC5001 M8 A0 IC5100 AG9 MMA11 IC5002 H7 DQ2 IC5100 AG12 MMCKE IC5002 L2 BA0 IC5001 R7 RFU IC5002 R1 VDD IC5100 AE9 MMA4 IC5002 P3 A9 IC5100 AD3 MMDQ19 IC5001 L2 BA0 IC5002 A3 VSS IC5001 H1 DQ4 IC5001 P3 A9 IC5002 C8 DQ8 IC5001 H9 DQ5 IC5001 E9 VDDQ IC5002 K9 ODT IC5001 K2 CKE IC5001 L1 RFU IC5001 K9 ODT IC5001 F8 VSSQ IC5001 A9 VDDQ IC5001 C8 DQ8 IC5100 AE14 MMDQ8 IC5002 B9 DQ15 IC5001 H7 DQ2 IC5001 F2 VSSQ IC5002 P8 A8 IC5001 J9 VDD IC5001 M2 A10 IC5002 F9 DQ7 IC5001 P8 A8 IC5100 AE13 MMDQ12 IC5001 D7 DQ10 IC5001 F7 LDQS IC5002 D8 VSSQ IC5100 AC6 MMDQ20 IC5100 AA2 MMDQ26 IC5002 M2 A10 IC5002 R7 RFU IC5002 A2 NC IC5100 AK16 MMDQS0 IC5001 L7 CAS IC5001 C1 VDDQ IC5100 Y5 MMDQ28 IC5001 B9 DQ15 IC5100 AK2 MMRODT IC5002 E9 VDDQ IC5001 H8 VSSQ IC5001 G9 VDDQ IC5100 AG6 MMMONB IC5002 F7 LDQS IC5002 G3 VDDQ IC5002 M8 A0 IC5100 AC1 MMDQS2 IC5002 K7 RAS IC5100 AD2 MMDQ18 IC5002 L1 RFU IC5100 AH13 MMDQ14 IC5002 E2 NC IC5001 C3 VDDQ IC5100 AA1 MMDQ27 IC5001 H2 VSSQ IC5002 L3 BA1 IC5100 AJ8 MMXRAS IC5100 AF10 MMA5 IC5002 R2 A12 IC5100 AK15 MMDM1 IC5002 F2 VSSQ IC5100 Y1 MMDQ31 IC5100 AG10 MMA12 IC5002 P9 VSS IC5002 N7 A6 IC5100 AH15 MMDQS1 IC5002 K3 WE IC5002 E1 VDD IC5100 AG2 MCLK IC5002 H2 VSSQ IC5100 AF17 MMDQ4 IC5002 J3 VSS IC5001 F9 DQ7 IC5002 R3 RFU IC5002 C7 VDDQ IC5001 A7 VSSQ IC5100 AH18 MMDQ7 IC5100 AK14 MMDQ11 IC5001 E7 VSSQ IC5100 AJ14 MMDQ10 IC5001 R8 NC IC5100 AE16 MMDQ1 IC5002 L7 CAS IC5002 J8 CK IC5002 D2 VSSQ IC5100 AJ10 MMA9 IC5100 AJ1 MMRDRV IC5100 AH11 MMBA2 IC5002 M3 A1 IC5002 K2 CKE IC5001 D3 DQ11 IC5100 AK10 MMA7 IC5100 AH9 MMBA1 IC5100 AJ7 MMA8 IC5001 G3 VDDQ IC5002 H3 DQ3 IC5001 B1 DQ14 IC5002 P2 A7 IC5002 B2 VSSQ IC5100 AK13 MMDQ15 IC5100 AF1 MMDQ22 IC5001 E3 VSS IC5002 E7 VSSQ IC5001 R1 VDD IC5001 D2 VSSQ IC5100 Y6 MMDQ29 IC5002 B8 VSSQ IC5002 H1 DQ4 IC5100 Y3 MMDQ30 IC5001 J2 VREF IC5002 D1 DQ12 IC5002 M7 A2 IC5100 AK18 MMDQ6 IC5002 B7 UDQS IC5001 A3 VSS IC5002 J2 VREF IC5100 AH6 MMODT IC5001 A8 UDQS IC5001 G2 DQ1 IC5100 AJ12 MMXWE IC5100 AG14 MMDQ9 IC5100 AA4 MMDQ25 IC5002 D3 DQ11 IC5001 E8 LDQS IC5001 G1 VDDQ IC5002 N3 A5 IC5001 J7 VSSDL IC5001 J3 VSS IC5100 AK6 MMA2 IC5001 B3 UDM IC5001 M9 VDD IC5002 C1 VDDQ IC5002 H9 DQ5 IC5001 A2 NC IC5001 J1 VDDL IC5002 B3 UDM IC5002 F3 LDM IC5100 AG16 MMDQ0 IC5001 J8 CK IC5001 P7 A11 IC5001 N1 VSS IC5001 D9 DQ13 IC5001 E1 VDD IC5001 M3 A1 IC5002 F1 DQ6 IC5100 AK11 MMA10 IC5002 P7 A11 IC5001 F3 LDM IC5100 AF12 MMXCS0 IC5100 AB3 MMDQS3 IC5100 AE11 MMA3 IC5002 J9 VDD IC5001 C9 VDDQ IC5100 AK9 MMA1 IC5100 AG18 MMDQ5 IC5002 A8 UDQS IC5100 AD5 MMDQ16 IC5100 AG11 MMBA0 IC5002 N8 A4 IC5001 D8 VSSQ IC5001 N7 A6 IC5002 R8 NC IC5100 AH5 MMMONA IC5001 P2 A7 IC5100 AG8 MMA0 IC5002 C2 DQ9 IC5100 AJ16 MMDM0 IC5002 G9 VDDQ IC5002 G2 DQ1 IC5001 L8 CS IC5002 K8 CK IC5100 AD6 MMDQ21 IC5001 K7 RAS IC5002 G1 VDDQ IC5002 J1 VDDL IC5001 N8 A4 IC5001 N2 A3 IC5001 K8 CK IC5001 R3 RFU IC5100 AA6 MMDQ24 IC5100 AF13 MMDQ13 1.8V_DDRI/F 1.8V_DDRI/F 1.8V_DDRI/F R5039 R5090 R5033 R5017 R5019 R5018 R5020 R5021 R5015 R5001 R5009 R5006 R5011 R5012 R5002 R5008 R5013 R5005 R5004 R5010 R5014 R5003 R5007 R5043 R5022 R5038 R5032 R5044 R5040 R5045 R5036 R5047 R5042 R5046 R5035 R5037 R5041 R5034 R5073 R5072 R5091 R5048 R5023 R5016 R5029 R5065 47 R5051 47 R5059 47 R5079 10k R5067 220 R5054 47 R5049 47 1% R5025 270 R5070 47 R5061 47 R5053 47 R5078 220 R5068 47 R5056 47 R5077 0 1% R5026 270 R5082 10k R5071 47 R5066 47 R5080 10k R5060 47 R5050 47 R5074 10k R5058 47 R5064 47 R5062 47 R5076 300 R5055 47 1% R5075 75 R5063 47 R5052 47 R5057 47 R5088 68 R5024 100 GC6_1.2V C5311 25V 10u L5304 G1C100MA0203 C5320 0.1u 25V D5303 B0JCDD000002 R5337 0 C5395 1u 25V GC6_3.3V R5314 0 F15V R5323 56k 1% L5300 G1C2R2Z00007 C5303 10V 1u C5324 220p 50V D5308 B0BC4R000002 PA5200 K5H5022A0023 C5322 4.7u 10V C5397 25V 10u GC6_1.8V R5327 0 TP5301 D5307 B0BC4R000002 C5329 68u 4V C5328 68u 4V R5334 24k 1% R5322 100k TP5300 R5335 68 SUB5V C5326 0.1u 16V C5396 25V 47u IC5300 C0CBCBD00062 1 VOUT 2 VSS 3 NC 5 VIN 4 ON/OFF C5316 0.047u 10V TP5302 R5330 47.5k 1% L5301 G1C2R2Z00007 Q5302 B1MBEDA00015 SP8K2TB S1 G1 S2 G2 D2 D2 D1 D1 SUB3.3V C0DBAYY00274 IC5301 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP C5399 25V 10u C5327 0.1u 16V R5316 0 R5324 47k R5326 0 Q5301 B1MBEDA00015 SP8K2TB S1 G1 S2 G2 D2 D2 D1 D1 C5321 0.01u 25V R5333 28k 1% C5341 0.1u 16V L5305 J0JHC0000075 C5301 10V 1u D5301 MA22D3900L R5325 0 R5332 30k 1% R5321 47k 1% R5328 0 C5317 1u 10V L5302 J0JYC0000068 C5325 0.01u 25V D5304 B0JCDD000002 SUB3.3V R5329 28k 1% R5331 36k 1% C5323 470p 50V C5312 25V 10u D5302 MA22D3900L C5302 16V 0.1u ZA0006 K4AZ01D00004 ZA0002 K4AZ01D00004 ZA0003 K4AZ01D00004 ZA0008 K4AZ01D00004 *JS1100 B C ZA0005 K4AZ01D00004 *JS1107 ZA0004 K4AZ01D00004 ZA0007 K4AZ01D00004 ZA0001 K4AZ01D00004 DDR2_0 DDR2_1 CRNo.5000-5999 GC6 DDR2 #0 GC6_3.3V GC6_1.2V_1.8V CRNo.5200-5399 POWER GC6 POWER SUFFIX LOWER SUFFIX UPPER Location of Earth Lug CI Pin Jack SUFFIX 173 176 174 178 180 179 172 175 177 C3ABRY000015 IC5001 IC5002 DDR2 #1 C3ABRY000015 ! TH-58PZ880C A-Board (20/20) Schematic Diagram TH-58PZ880C A-Board (20/20) Schematic Diagram A-BOARD (20/20) ! TNPH0724BC 67 TH-58PZ880C 10.25.D 电路板 （1/6）线路图 + + + G G G G G G TERM SIDE FP_CSL SC_CSL SC_SID SC_SCSU SC_CLK FP_SCSU FP_CMH SC_CERS SC_CPH1 SC_OC2 SC_SIU FP_CSH FP_OC2 SC_CML SC_CSH SC_CMH SC_CSH FP_CML SC_CMH SC_CLK SC_SIU SC_OC2 FP_SID SC_CML SC_SID SC_CEL FP_CPH1 SC_CSL SC_CPH1 FP_SIU SC_SCSU P_ON/OFF SC_OC1 SC_CPH2 SC_OC1 SC_CPH2 FP_OC1 FP_CPH2 VDATA_DET FP_CLK SC_CQR SC_CEL SC_CQR FP_SC_DRV_RST FP_CERS FP_OC2B FP_CQR FP_CEL SC_OC2B SC_DRV_RST SC_CERS SC_OC2B SC_DRV_RST SOS6_SC1 SOS7_SC2 SOS4_PS SC_CQR5 PANEL_MAIN_ON FP_CQR4 FP_CQR5 FP_SC3 SC_CQR4 SC_CQR5 SC_CQR4 C9881 0.01u 25V C9867 10u 25V C9823 10u 25V C9884 1000p 50V C9869 10u 25V C9864 0.1u 25V C9860 4.7u 6.3V C9885 1000p 50V C9887 0.1u 25V C9837 10u 10V C9840 25V 0.01u C9872 10u 25V C9877 68p 50V C9861 0.1u 25V C9883 100p 50V C9841 16V 0.1u C9842 16V 0.1u C9874 68p 50V C9846 16V 0.1u C9832 10u 10V C9886 0.1u 25V C9859 25V 0.01u C9863 4.7u 6.3V C9870 10u 25V C9871 10u 25V C9878 0.01u 25V C9868 10u 25V C9858 10u 25V C9844 25V 0.01u C9845 16V 0.1u C9862 0.1u 25V C9168 16V 0.1u C9879 0.015u 16V C9882 8200p 16V C9880 8200p 16V C9888 360p 50V C9865 68u 4V C9873 68u 4V C9866 68u 4V D9813 B0JCGD000002 D9807 B0JCCE000008 D9816 MA22D3900L D9815 B0JCGD000002 D9808 B0JCCE000008 D9817 MA22D3900L D9814 B0JCGD000002 D9812 MA22D3900L F1J1E104A148 FL9806 F1J1E104A148 FL9803 F1J1E104A148 FL9805 C0JBAZ002692 IC9802 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC9803 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC9019 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0DBAYY00273 IC9806 1 GND 2 REFIN 3 VREF 4 CS 5 COVP 6 CUVP 7 PGOOD 8 CTL 9 LSAT 10 ILIM 11 +INC 12 -INC 13 FSW 14 PGND 15 OUT-2 16 VB 17 VCC 18 VBIN 19 LX 20 OUT-1 21 CB 22 RT 23 VO 24 FB C0DBAYY00274 IC9805 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP D20 23 29 30 2 12 5 33 14 32 20 28 26 4 9 11 19 22 21 25 8 13 6 31 17 10 34 24 18 1 7 27 16 15 3 35 D25 1 2 3 4 5 6 7 8 9 10 11 12 13 L9802 G1C2R2Z00007 L9800 G1C2R2Z00007 L9801 G1C1R5Z00006 P5V P3.3V P15V P5V P5V P2.5V P15V VB1_5V P15V VB1_5V P3.3V P15V_MOTO P15V STB5V_M P1.2V P15V VB1_5V P15V_MOTO P5V P5V PA9800 K5H4022A0031 PA9900 K5H5022A0031 Q9807 B1MBDDA00003 S1 G1 S2 G2 D2 D2 D1 D1 Q9808 B1MBDDA00015 S1 G1 S2 G2 D2 D2 D1 D1 Q9809 B1MBDDA00003 1 S1 2 G1 3 S2 4 G2 5 D2 6 D2 7 D1 8 D1 Q9806 2SD0601A0L Q9805 2SD0601A0L R9120 EXB2HV103JV R9847 EXB2HV103JV R9848 EXB2HV470JV R9849 EXB2HV470JV R9846 EXB2HV103JV R9350 100 R9351 100 R9116 100 R9887 51k R9890 47.5k R9892 100k R9868 100k R9888 15k R9886 47k R9197 47 R9202 47 R9895 100k R9115 100 R9889 18.2k R9893 43k R9896 18.2k R9897 47.5k R9891 12.7k R9126 100 R9870 10k R9894 20k R9232 47 R9871 10k R9900 0 R9869 10k R9879 13k R9878 15k TP9003 TP9004 STBY5V GND GND +15V +15V GND GND +5V +5V GND VDATA_DET PANEL_MAIN_ON SOS4_PS P5V OC1(CL) CPH2 GND GND GND OC2B GND GND GND CLK SIU SID SCSU OC2(CEL2) CPH1 CQR SOS6_SC1 SOS7_SC2 CEL CERS SC_DRV_RST CSL CSH CML CMH NC +15V +15V +15V GND NC CQR4 CQR5 NC 15V->1.2V DC-DC CONVERTER DC-DC CONVERTER 15V->2.5V LEVEL CONVERTER LEVEL CONVERTER LEVEL CONVERTER 15V->5V TO SC-BOARD (SC20) TO P-BOARD (P25) 1 2 ! D-BOARD TXN/D1RETC (1/6) 15V->3.3V TH-58PZ880C D-Board (1/6) Schematic Diagram TH-58PZ880C D-Board (1/6) Schematic Diagram B E 9 6 8 1 A 2 3 D 7 F 5 4 C 68 TH-58PZ880C 10.26.D 电路板 （2/6）线路图 PANEL_STBY_ON STB_SCL02 STB_SDA02 IIC_CONT AR_IIC_CONT AR_RXD_PC AR_TXD_PC AR_STB_SDA02 AR_STB_SCL02 TRST AR_RXD_PC RXD_PC TXD_PC STB_SCL02 AR_STB_SCL02 STB_SDA02 AR_STB_SDA02 P3V_SCL1 ALARM READY AR_TXD_PC STB_SCL01 STB_SDA01 STB_SCL02 STB_SDA02 P3V_SCL02 P3V_SDA02 DRVMUTE P3V_SCL1 P3V_SDA1 P3V_SDA1 P3V_SCL1 AR_TXD_PC AR_STB_SDA02 FP_UEH FP_OC2B FP_CQR FP_CEL FP_OC2 FP_CERS FP_CLK FP_SC_DRV_RST FP_CSL FP_CPH1 FP_CSH FP_CML TMS FP_CMH FVSEL FP_SIU FP_OC1 FP_SCSU FP_SID DD_ODED FP_CPH2 DD_PCD2 FP_NUEL FP_UMH FP_UML FP_USH FP_USL CLKMO FPCLK TMS TCK AR_RXD_PC STB_SDA01 STB_SDA02 STB_SCL01 STB_SCL02 VDATA_DET INEXCH MCCLK REM_IN OSDVO RXD_PC ALARM OSDHO TXD_PC SOS6_SC1 FPGANRST LED_G LED_R OSDCKO DRVRST OSD_YS IIC_CONT SOS8_SS OSD_B IIC_CONT OSD_G XI_DONE OSD_R SOS7_SC2 P_ON/OFF FVSEL DMLL DMHL DSHL SFRST SFVRST SFLATCH FPDAT1 DD_PCU2 DD_CLRU DD_PCU1 DD_LEU DD_ODEU DRVMUTE DRVRST OSDVO_FP XRST FPGANRST P3V_SCL02 DD_CLRD DD_PCD1 DD_LED TDI_L TDO TCK TDO FCCLK SFVRST XI_PROG_B SFRST SIN PROG_M PANEL_MAIN_ON DSLR EEP_WR_CTL AR_IIC_CONT FPDAT0 XRST XRST REM_IN IIC_SW OSDHO_FP PANEL_STBY_ON P3V_SDA02 DSLL FP_CQR4 FP_CQR5 FP_SC3 AR_IIC_CONT LED_G LED_R P3V_SDA1 P3V_SCL02 AR_STB_SCL02 READY EEP_WR_CTL IIC_SW SOS4_PS XI_DONE TDI_FP XRST_SYS C9825 50V 100p C9037 0.01u 25V C9034 16V 0.1u C9033 16V 0.1u C9056 16V 0.1u C9055 16V 0.1u C9035 10V 10u C9057 16V 0.1u C9036 10V 10u C9058 10V 10u C9154 16V 0.1u C9159 16V 0.1u C9165 16V 0.1u C9163 4.7u 6.3V C9158 16V 0.1u C9135 10V 10u C9157 16V 0.1u C9156 16V 0.1u C9164 16V 0.1u C9136 16V 0.1u C9161 16V 0.1u C9152 6.3V 4.7u C9155 16V 0.1u C9160 16V 0.1u C9153 16V 0.1u C9143 16V 0.1u C9540 16V 0.1u C9550 16V 0.1u C9544 16V 0.1u C9542 16V 0.1u C9541 16V 0.1u C9535 16V 0.1u C9546 16V 0.1u C9547 16V 0.1u C9537 16V0.1u C9538 16V 0.1u C9536 16V0.1u C9539 16V 0.1u C9545 16V 0.1u C9548 16V 0.1u C9543 16V 0.1u C9549 16V 0.1u C9162 16V 0.1u C9552 10V 10u C9551 10V 10u C9553 10V 10u D9110 B0JCGD000002 D9029 B0BC3R3A0273 D9027 B0BC3R3A0273 D9028 B0BC3R3A0273 IC9002 C1ZBZ0003577 1 SCL 2 GND 3 A1 4 VDD 5 A0 6 SDA IC9011 C0EBF0000431 1 RESET 2 Cd 3 VOUT 4 VDD 5 GND 6 CE *IC9001 TVRQ058 1 E0 2 E1 3 E2 4 Vss 5 SDA 6 SCL 7 WC 8 Vcc IC9013 C0JBAZ002060 1 1OE 2 1A 3 1B 4 2OE 5 2A 6 2B 7 GND 8 3B 9 3A 10 3OE 11 4B 12 4A 13 4OE 14 VCC MN103SG4GPF3 IC9003 1 P60_SBO0A 2 P61_SBT0A 3 P62_SBI0A 4 P05_IRQ6 5 P06_IRQ7 6 P07_IRQ8 7 P70_SDA0 8 P71_SCL0 9 P50_RMIN_IRQ0 10 P20 11 P21 12 P22 13 P23 14 IVDD 15 VSS 16 P10 17 P11 18 P12 19 P13 20 P14 21 P15 22 P16 23 EXCLKSEL 24 P72_SDA1 25 P73_SCL1 26 P65_SBT2 27 P66_SBI2 28 P30 29 P31 30 P32 31 P33 32 P34 33 P35 34 P36 35 P37 36 VPPEX_(N.C.) 37 IVDD 38 VDD 39 RONA 40 VSS 41 OSCXO 42 OSCXI 43 IVDD 44 P64_SBI1 45 P63_SBT1 46 NBOOT_(N.C.) 47 NRST 48 NTEST 49 SCLOCK_(UND) 50 SDATA_(UND) 51 ENTRG0_(UND) 52 ENTRG1_(UND) 53 TRCCLK_(UND) 54 TRCST_(UND) 55 TRCD0_(UND) 56 TRCD1_(UND) 57 TRCD2_(UND) 58 TRCD3_(UND) 59 P80_ADIN0 60 P81_ADIN1 61 P82_ADIN2 62 P83_ADIN3 63 IVDD 64 VSS 65 P84_ADIN4 66 P85_ADIN5 67 P86_ADIN6 68 P87_ADIN7 69 P90_ADIN8 70 P91_ADIN9 71 P92_ADIN10 72 P93_ADIN11 73 P74_SDA2 74 P75_SCL2 75 P40_TM0IO 76 P41_TM1IO 77 P42_TM2IO 78 P43_TM3IO 79 P44_TM4IO_SYSCLK 80 P00 81 P01 82 P02 83 P03_SBT0B 84 P04_SBO0B 85 P51_IRQ2 86 P52_IRQ3 87 P53_IRQ4 88 P54_IRQ5 89 PA7_VCLKOUT 90 PA6_HOUT 91 PA5_YSOUT 92 PA4_B00 93 PA3_G00 94 PA2_R00 95 PA1_VSYNC_IRQ1 96 PA0_HSYNC 97 VSS 98 OSDXI 99 IVDD 100 VDD D3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 D6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 STB3.3V P3.3V STB5V_M STB3.3V P5V P15V STB5V_M STB3.3V P3.3V STB3.3V P3.3V P3.3V P2.5V P1.2V P3.3V P3.3V STB3.3V STB3.3V P3.3V P3.3V TP9312 VIN TP9000 TP9100 HIN Q9010 2SD0601A0L R9333 EXB38V103JV R9859 EXB38V101JV R9119 EXB38V470JV R9839 EXB38V101JV R9171 10k R9600 68 R9121 100k R9105 10k R9155 10k R9233 4.7k R9198 0 R9129 68k R9840 22 R9578 4.7k R9161 39k R9143 22 R9151 10k R9167 4.7k R9186 33k R9201 10 R9187 56k R9159 39k R9215 47 R9170 4.7k R9218 47 R9854 100 R9131 4.7k R9611 68 R9219 10k R9189 100k R9142 22 R9279 0 R9355 10k R9103 10k R9207 47 R9206 1k R9135 4.7k R9362 10k R9358 10k R9348 10k R9309 10k R9166 22 R9132 4.7k R9158 47 R9344 47 R9343 1k R9174 1k R9342 1k R9188 24k R9101 1k R9337 10k R9325 10k R9107 3.3k R9172 0 R9150 10k R9164 22 R9145 4.7k R9149 4.7k R9110 1k R9824 100 R9826 100 R9223 2.7k R9160 39k R9200 10 R9825 100 R9225 2.7k R9205 330 R9141 100 R9204 22k R9117 4.7k R9185 22k R9599 68 X9000 H2D100500004 TP9005 TP9006 TP9007 TP9008 TP9009 C1ZBZ0003760 IC9500 1 PROG_B 2 IO_L01P_3 3 IO_L01N_3 4 IO_L02P_3 5 IO_L02N_3/VREF_3 6 VCCINT 7 GND 8 VCCO_3 9 IO_L03P_3/LHCLK0 10 IO_L03N_3/LHCLK1 11 IO_L04P_3/LHCLK2 12 IO_L04N_3/LHCLK3/IRDY2 13 IP 14 GND 15 IO_L05P_3/LHCLK4/TRDY2 16 IO_L05N_3/LHCLK5 17 IO_L06P_3/LHCLK6 18 IO_L06N_3/LHCLK7 19 GND 20 VCCO_3 21 VCCAUX 22 IO_L07P_3 23 IO_L07N_3 24 IO_L01P_2/CSO_B 25 IO_L01N_2/INIT_B 26 IO_L02P_2/DOUT/BUSY 27 IO_L02N_2/MOSI/CSI_B 28 VCCINT 29 GND 30 IP/VREF_2 31 VCCO_2 32 IO_L03P_2/D7/GCLK12 33 IO_L03N_2/D6/GCLK13 34 IO/D5 35 IO_L04P_2/D4/GCLK14 36 IO_L04N_2/D3/GCLK15 37 GND 38 IP_L05P_2/RDWR_B/GCLK0 39 IP_L05N_2/M2/GCLK1 40 IO_L06P_2/D2/GCLK2 41 IO_L06N_2/D1/GCLK3 42 IO/M1 43 IO_L07P_2/M0 44 IO_L07N_2/DIN/D0 45 VCCO_2 46 VCCAUX 47 IO_L08P_2/VS2 48 IO_L08N_2/VS1 49 IO_L09P_2/VS0 50 IO_L09N_2/CCLK 51 DONE 52 GND 53 IO_L01P_1 54 IO_L01N_1 55 VCCO_1 56 VCCINT 57 IO_L02P_1 58 IO_L02N_1 59 GND 60 IO_L03P_1/RHCLK0 61 IO_L03N_1/RHCLK1 62 IO_L04P_1/RHCLK2 63 IO_L04N_1/RHCLK3/TRDY1 64 GND 65 IO_L05P_1/RHCLK4/IRDY1 66 IO_L05N_1/RHCLK5 67 IO_L06P_1/RHCLK6 68 IO_L06N_1/RHCLK7 69 IP/VREF_1 70 IO_L07P_1 71 IO_L07N_1 72 GND 73 VCCO_1 74 VCCAUX 75 TMS 76 TDO 77 TCK 78 IO_L01P_0 79 IO_L01N_0 80 VCCINT 81 GND 82 VCCO_0 83 IO_L02P_0/GCLK4 84 IO_L02N_0/GCLK5 85 IO_L03P_0/GCLK6 86 IO_L03N_0/GCLK7 87 GND 88 IP_L04P_0/GCLK8 89 IP_L04N_0/GCLK9 90 IO_L05P_0/GCLK10 91 IO_L05N_0/GCLK11 92 IO 93 GND 94 IO_L06P_0 95 IO_L06N_0/VREF_0 96 VCCAUX 97 VCCO_0 98 IO_L07P_0 99 IO_L07N_0/HSWAP 100 TDI SS_PULSE SC_PULSE FPGA STB3.3V ON/OFF JTAG CHAIN DATA_DRIVER to ucom/FPGA/PD2 NCS_ASIC SOUT IIC_DATA2 IIC_CLK1 IIC_DATA1 READY DISPEN GND GND GND IIC_CLK2 IIC_CONT RXD TXD PANEL_STBY_ON ALARM SCLK InternalPD_always + O.D. PanasonicMode GENX6 NCS_FPGA DONE PROG_B ODED PCD2 NUEL UMH UML USH USL UEH FP_CQR4/DMHR FP_CQR5/DSHR DMLR DSLR DSLL DMHL DSHL INIT_B DOUT DMLL FPDATA0 SFRST SFVRST LATCH FPCLK CLKMI FPADATA1 M2 PCU2 CLRU M1 M0 DIN PCU1 LEU ODEU CCLK CQR SIU TMS OC1(CL) DONE CPH2 OC2B CEL CPH(1) CSL CLK SID SCSU OC2(CEL2) CERS DRVMUTE SC_DRV_RST XRST(NRST2) VD FVSEL DRVRST CMH CLRD HSWAP SCL CML CSH TCK TDI SDA HD FPGANRST(NRST) PCD1 LED SIN Open Drain SCL2 TCK STBY5V RXD IIC_CONT TMS IIC_INT TXD REMOCON SDA1 LED_R TDI GND LED_G GND SDA2 TDO TRST SCL1 STBY3.3V 17 14 18 12 10 16 11 15 13 TEMP SENSOR EEPROM PANEL MICOM DISCHARGE CONTROL RESET STB 3.3V FOR FACTORY USE TO A-BOARD (A3) BUS SW 2 1 11 12 13 ! D-BOARD TXN/D1RETC (2/6) TH-58PZ880C D-Board (2/6) Schematic Diagram TH-58PZ880C D-Board (2/6) Schematic Diagram 69 TH-58PZ880C 10.27.D 电路板 （3/6）线路图 L8R_UB08 L8R_UA06 L8R_UA09 L8R_UC08 L8R_UA10 L8R_UB10 L8R_UC05 L8R_UB05 L8R_UB06 L8R_UC12 L8R_UC06 L8R_UC09 L8R_UA12 L8R_UB07 L8R_UB12 L8R_UA07 L8R_UC07 L8R_UA08 L8R_UB09 TMS L8R_DA04 L8R_DRVCLKD2 L8R_DB11 L8R_DA07 L8R_DRVCLKD3 TRST L8R_DB06 L8R_DA13 L8R_DRVCLKD0 L8R_DB03 L8R_DA02 L8R_DC15 L8R_DB14 L8R_DA10 L8R_DA06 L8R_DB00 L8R_DA05 L8R_DA12 L8R_DB10 L8R_DA14 L8R_DA15 L8R_DC08 L8R_DB05 L8R_DA01 L8R_DA11 L8R_DC04 L8R_DA00 L8R_DA03 L8R_DC02 L8R_DC12 TDI_FP L8R_DC14 L8R_DB09 L8R_DC07 P3V_SCL02 L8R_DB13 P3V_SDA02 L8R_DC03 L8R_DB15 L8R_DC11 XRST_SYS L8R_DC13 XRST L8R_DB01 L8R_DC10 L8R_DB08 L8R_DC06 L8R_DB07 L8R_DC09 L8R_DB04 L8R_DC00 L8R_DB12 L8R_DC05 L8R_DB02 TCK L8R_DA09 L8R_DC01 L8R_DA08 L8R_DRVCLKD1 L8R_UA07 L8R_UA06 L8R_UA05 L8R_UA01 L8R_UA03 L8R_UA00 L8R_UA04 L8R_UA02 L8R_UC10 L8R_UB03 L8R_UC09 L8R_UC00 L8R_UB12 L8R_UC08 L8R_UC15 L8R_UC01 L8R_UB11 L8R_UB10 L8R_UC03 L8R_UB09 L8R_UB00 L8R_UB08 L8R_UB15 L8R_UC07 L8R_UB07 L8R_UC06 L8R_UB06 L8R_UB05 L8R_UC02 L8R_UB02 L8R_UC04 L8R_UC14 L8R_UC12 L8R_UC13 L8R_UB14 L8R_UB04 L8R_UC05 L8R_UC11 L8R_UB01 L8R_UB13 USH D_ODED5 USL UEH DD_PCD1 FP_UEH FP_NUEL FP_USL D_CLRD6 FP_UMH D_PCD5 FP_UML D_LED6 FP_USH DD_ODED DD_PCD2 D_ODED6 NUEL D_PCD6 UMH UML D_CLRD5 RE_O+ RE_E- RD_E- RB_O- RC_E- RC_O+ RD_E+ RD_O- RA_O- RCLK_E- RB_O+ RCLK_O- RA_O+ RB_E- RCLK_O+ RCLK_E+ RB_E+ RD_O+ RE_O- RC_O- RA_E+ RC_E+ RE_E+ RA_E- RC_O+ RCLK_O+ RA_O+ RB_O- RCLK_O- RB_O+ RE_O+ RC_O- RE_O- RD_O+ RD_O- RA_O- CKMOSI CKSOMI XOUT SFLATCH SFRST SFVRST INEXCH IOSW FULL0 FULL1 L8R_DRVCLKU0 L8R_DRVCLKU1 CLKD10 D_LED5 CLKD11 TDI_R VIO CLKMO L8R_UA15 L8R_UA14 L8R_UA13 L8R_UA12 L8R_UA11 L8R_UA10 L8R_UA09 L8R_UA08 L8R_UA14 L8R_UC15 L8R_UC13 L8R_UB15 L8R_UA15 L8R_UB13 L8R_UB14 L8R_UC14 L8R_UA11 L8R_UC10 L8R_UB11 L8R_UC11 L8R_UA13 L8R_UA05 L8R_UC04 L8R_UB04 L8R_UA04 ACTV HIO DD_LEU DD_LED L8L_DIO21 L8L_DIO09 L8L_DIO19 L8L_DIO25 L8L_DIO06 L8L_DIO26 L8L_DIO22 L8L_DIO13 L8L_DIO07 L8L_DIO18 L8L_DIO03 L8L_DIO15 L8L_DIO01 L8L_DIO29 L8L_DIO05 L8L_DIO20 L8L_DIO24 L8L_DIO11 L8L_DIO08 L8L_DIO00 L8L_DIO12 L8L_DIO10 L8L_DIO27 L8L_DIO04 L8L_DIO02 L8L_DIO16 L8L_DIO28 L8L_DIO23 L8L_DIO30 L8L_DIO14 L8L_DIO17 DD_CLRD C9237 10V 10u C9247 10V 10u C9245 10V 10u C9123 0.1u 16V C9148 0.1u 16V C9149 0.1u 16V C9226 0.1u 16V C9124 0.1u 16V C9220 0.1u 16V C9250 0.1u 16V C9127 0.1u 16V C9119 0.1u 16V C9240 0.1u 16V C9128 0.1u 16V C9232 0.1u 16V C9216 0.1u 16V C9219 0.1u 16V C9221 0.1u 16V C9234 0.1u 16V C9121 0.1u 16V C9130 0.1u 16V C9224 0.1u 16V C9246 0.1u 16V C9144 0.1u 16V C9150 0.1u 16V C9230 0.1u 16V C9231 0.1u 16V C9241 16V 0.1u C9132 0.1u 16V C9243 0.1u 16V C9122 0.1u 16V C9223 0.1u 16V C9126 0.1u 16V C9239 0.1u 16V C9233 0.1u 16V C9218 0.1u 16V C9129 0.1u 16V C9235 0.1u 16V C9217 0.1u 16V C9244 0.1u 16V C9227 0.1u 16V C9236 0.1u 16V C9125 0.1u 16V C9242 16V 0.1u C9248 0.1u 16V C9222 0.1u 16V C9215 0.1u 16V C9249 16V 0.1u C9228 0.1u 16V IC9400 A19 CKSI IC9400 P22 DOUTDC06 IC9400 E16 DOUTUB09 IC9400 P25 DOUTDB06 IC9400 AB7 AVDD_D25 IC9400 K24 VDD33 IC9400 U11 VDD25 IC9400 E6 DIO4 IC9400 R10 VDD12 IC9400 AD6 VDD25 IC9400 E10 VDD12 IC9400 A24 DOUTUA00 IC9400 C9 DIO20 IC9400 L5 AVDD_PM33 IC9400 AB21 AVDD_PD33 IC9400 W24 TDI IC9400 AE2 VDD25 IC9400 L26 DOUTDC09 IC9400 C15 DOUTUB12 IC9400 B15 DOUTUA12 IC9400 F3 VDD12 IC9400 M5 AVDD_L33 IC9400 AA26 DOUTDB00 IC9400 M22 DOUTDC08 IC9400 V3 OSDBI IC9400 Y5 OSDCKO IC9400 G23 DOUTDC14 IC9400 B11 ROMCE IC9400 E25 DOUTDA13 IC9400 D21 DOUTUA03 IC9400 H2 SFLATCH IC9400 T13 VDD25 IC9400 B18 DOUTUC08 IC9400 H25 DOUTDA10 IC9400 D11 DIO29 IC9400 U26 DOUTDC04 IC9400 P4 AVDD_L33 IC9400 E9 VDD12 IC9400 P1 RCLKM IC9400 T10 VDD12 IC9400 U22 VDD33 IC9400 D16 DOUTUA10 IC9400 B19 DOUTUA06 IC9400 D2 VDD12 IC9400 C19 DOUTUB06 IC9400 D26 DOUTDB14 IC9400 E17 VDD33 IC9400 P26 DOUTDA06 IC9400 C20 DOUTUB05 IC9400 C12 ROMWE IC9400 U12 VDD25 IC9400 A23 DOUTUB02 IC9400 K25 DRVCLKD2 IC9400 B7 DIO13 IC9400 AB20 VDD25 IC9400 C8 DIO17 IC9400 W25 DOUTDB01 IC9400 L12 VDD12 IC9400 F25 DOUTDA12 IC9400 M1 RBM IC9400 AB16 AVDD_Q25 IC9400 D19 DOUTUC06 IC9400 C14 DOUTUB13 IC9400 B20 DOUTUA05 IC9400 F4 VDD12 IC9400 M10 VDD12 IC9400 AA25 TMS IC9400 V4 OSDGI IC9400 A7 DIO15 IC9400 B10 DIO26 IC9400 H3 FPDAT0 IC9400 E26 DOUTDC13 IC9400 E21 DOUTUC02 IC9400 B17 DOUTUA09 IC9400 H26 DOUTDB10 IC9400 P5 AVDD_L33 IC9400 E8 DIO14 IC9400 M26 DOUTDB08 IC9400 E1 ROMRESET IC9400 A15 DOUTUC13 IC9400 AA2 XO IC9400 D8 DIO16 IC9400 J23 DOUTDC11 IC9400 Y3 SDA IC9400 U23 DOUTDB02 IC9400 D1 VDD12 IC9400 B13 DRVCLKU2 IC9400 E18 VDD33 IC9400 C18 DOUTUA07 IC9400 L17 VDD33 IC9400 AB10 VDD25 IC9400 R1 RDM IC9400 P24 VDD33 IC9400 W3 SCL IC9400 U13 VDD25 IC9400 C25 VDD33 IC9400 K26 DRVCLKD3 IC9400 C7 DIO12 IC9400 L13 VDD12 IC9400 F26 DOUTDB12 IC9400 R23 DOUTDB05 IC9400 D13 DOUTUB14 IC9400 M2 RBP IC9400 B21 DOUTUA04 IC9400 E5 IOSW IC9400 C13 DOUTUC14 IC9400 B25 DOUTDC15 IC9400 A8 DIO19 IC9400 M11 VDD12 IC9400 AA24 VDD33 IC9400 R16 VDD33 IC9400 M24 VDD33 IC9400 V5 AVDD_PI33 IC9400 H4 FULL1 IC9400 AA5 PROG IC9400 B8 DIO18 IC9400 AD25 VDD33 IC9400 F1 CLKMO IC9400 J3 SFRST IC9400 J5 AVDD_L12 IC9400 E22 DOUTUC00 IC9400 B16 DOUTUC11 IC9400 E7 DIO8 IC9400 E12 DIO30 IC9400 T26 DOUTDA04 IC9400 N1 RCM IC9400 AC2 MCCLK IC9400 W2 OSDVO IC9400 K12 VDD12 IC9400 T24 VDD33 IC9400 A16 DOUTUA11 IC9400 T12 VDD25 IC9400 D7 DIO11 IC9400 D23 DOUTDB15 IC9400 Y4 PRCKO IC9400 AB5 VDD25 IC9400 B12 DOUTUB15 IC9400 A11 DOUTUA15 IC9400 E19 DOUTUB07 IC9400 AB9 VDD25 IC9400 C17 DOUTUC09 IC9400 R2 RDP IC9400 C24 OCKOUT IC9400 C6 DIO10 IC9400 L1 RAM IC9400 AB4 XRST IC9400 N22 VDD33 IC9400 G1 FPCLK IC9400 A10 DIO28 IC9400 AC4 VDD25 IC9400 B14 DRVCLKU0 IC9400 A5 CKMI IC9400 N26 DOUTDC07 IC9400 R17 VDD33 IC9400 D10 DIO23 IC9400 A20 CKSO IC9400 M25 DOUTDA08 IC9400 D18 DOUTUC07 IC9400 H5 VDD12 IC9400 F2 FULL0 IC9400 V22 DOUTDC00 IC9400 J4 OCK IC9400 N10 AVDD_L12 IC9400 J22 VDD33 IC9400 E23 VDD33 IC9400 G25 DOUTDC12 IC9400 D20 DOUTUB04 IC9400 B4 DIO2 IC9400 U25 DOUTDB03 IC9400 K13 VDD12 IC9400 AB15 VDD25 IC9400 AC1 XOUT IC9400 R11 VDD12 IC9400 N2 RCP IC9400 T25 DOUTDB04 IC9400 D6 DIO5 IC9400 B6 DIO9 IC9400 J25 DRVCLKD0 IC9400 A12 DOUTUA14 IC9400 AB23 VDD33 IC9400 D14 DOUTUA13 IC9400 U4 AVDD_L33 IC9400 B24 DOUTUB00 IC9400 E15 DOUTUC12 IC9400 C23 DOUTUC01 IC9400 C16 DOUTUB10 IC9400 W26 DOUTDC02 IC9400 AA1 XI IC9400 G4 VDD12 IC9400 C11 ROMOE IC9400 AD1 PROG_M IC9400 A6 CKMO IC9400 AA22 VDD33 IC9400 W5 OSDHO IC9400 L23 DOUTDA09 IC9400 V26 DOUTDC03 IC9400 D9 DIO21 IC9400 L2 RAP IC9400 C5 DIO3 IC9400 AB13 AVDD_D25 IC9400 Y25 DOUTDA00 IC9400 D12 DOUTUC15 IC9400 A21 DOUTUC05 IC9400 H22 DOUTDB13 IC9400 AB3 FVSEL IC9400 T17 VDD33 IC9400 N23 DOUTDB07 IC9400 V23 DOUTDA01 IC9400 G2 FPDAT1 IC9400 B9 DIO22 IC9400 N4 AVDD_L33 IC9400 A3 DIO1 IC9400 T4 AVDD_L33 IC9400 R25 DOUTDC05 IC9400 B3 HIO IC9400 G26 DOUTDB11 IC9400 AB14 AVDD_D25 IC9400 C22 DOUTUA02 IC9400 D5 SLVDOUTUB14 IC9400 B5 DIO7 IC9400 H24 VDD33 IC9400 A13 DRVCLKU3 IC9400 K11 VDD12 IC9400 J26 DRVCLKD1 IC9400 AE26 VDD33 IC9400 A17 DOUTUC10 IC9400 B22 DOUTUC03 IC9400 K22 DOUTDC10 IC9400 D22 DOUTUB01 IC9400 U5 AVDD_L33 IC9400 F24 DOUTDA14 IC9400 D24 VDD33 IC9400 E2 VDD12 IC9400 A26 VDD33 IC9400 R4 AVDD_L33 IC9400 M4 AVDD_L33 IC9400 C10 DIO25 IC9400 V2 OSDRI IC9400 T1 REM IC9400 M17 VDD33 IC9400 AB19 VDD25 IC9400 AD3 VDD25 IC9400 C1 VDD12 IC9400 W1 OSDYSI IC9400 C4 ACTV IC9400 H1 SFVRST IC9400 AC24 VDD33 IC9400 AB25 TDO IC9400 N25 DOUTDA07 IC9400 AB26 TCK IC9400 G3 FCCLK IC9400 M13 VDD12 IC9400 R26 DOUTDA05 IC9400 L10 VDD12 IC9400 M16 VDD33 IC9400 L25 DOUTDB09 IC9400 B26 VDD33 IC9400 G5 VDD12 IC9400 AD2 XRSTSYS IC9400 L4 AVDD_L33 IC9400 W23 TRST IC9400 E3 VDD12 IC9400 A2 DIO0 IC9400 B23 DOUTUA01 IC9400 AF1 VDD25 IC9400 Y26 DOUTDC01 IC9400 A22 DOUTUB03 IC9400 E11 DIO27 IC9400 D15 DOUTUB11 IC9400 H23 DOUTDA11 IC9400 F22 VDD33 IC9400 T22 DOUTDA03 IC9400 A25 DOUTDA15 IC9400 R5 AVDD_L33 IC9400 V24 VDD33 IC9400 N5 AVDD_L33 IC9400 P2 RCLKP IC9400 A4 DIO6 IC9400 T5 AVDD_L33 IC9400 D17 DOUTUA08 IC9400 A18 DOUTUB08 IC9400 C21 DOUTUC04 IC9400 AB8 AVDD_D25 IC9400 AB17 AVDD_D25 IC9400 A14 DRVCLKU1 IC9400 D4 VIO IC9400 T2 REP IC9400 A9 DIO24 IC9400 K5 AVDD_PO33 IC9400 V25 DOUTDA02 D5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 L9006 J0JHC0000078 L9007 J0JHC0000078 L9005 J0JHC0000078 L9004 J0JHC0000078 P2.5V P2.5V L8RAVDD3.3V L8RAVDD3.3V P1.2V P1.2V P3.3V P3.3V P3.3V L8RAVDD3.3V R9310 EXB38V103JV R9276 EXB2HV151JV R9274 EXB2HV151JV *R9293 EXB2HV470JV R9254 EXB2HV103JV R9253 EXB2HV103JV R9255 EXB2HV103JV *R9292 EXB2HVR000V R9354 EXB2HV103JV R9275 EXB2HV151JV R9277 EXB2HV151JV *R9321 22 *R9326 47 R9226 100 R9199 47 R9287 0 R9327 10k R9303 100 R9273 47 R9298 100 R9302 100 R9299 100 R9296 100 R9272 100 R9304 100 R9297 100 R9229 100 R9301 100 R9295 100 R9300 100 R9112 47 R9231 0 R9246 10k *R9323 22 RB+ RC+ RCLK- RCLK+ RD+ RA-(MSB) RA+(MSB) RD- RE-(LSB) Low Active RE+(LSB) LVDS_INPUT for LVDS_TX 20MHz(SS) IIC PD2M Right (Slave) RC- RB- RD_E- RD_E+ RC_E+ RC_E- RCLK_E+ GND RCLK_E- RA_E-(MSB) RB_E- GND RA_E+(MSB) GND RE_E+(LSB) RE_E-(LSB) RB_E+ LVDS_DET RB_O+ RE_O-(LSB) RE_O+(LSB) GND RA_O+(MSB) GND RB_O- RA_O-(MSB) RCLK_O- GND RCLK_O+ RC_O- RC_O+ RD_O+ RD_O- rromdata[06] rromdata[09] rromdata[12] rromdata[00] rromdata[01] rromdata[02] rromdata[03] rromdata[04] rromdata[07] rromdata[10] rromdata[13] rromdata[15] rromdata[05] rromdata[08] rromdata[11] rromdata[14] DIO0 DIO1 DIO2 DIO3 DIO4 DIO5 DIO6 DIO7 DIO8 DIO9 DIO10 DIO11 DIO14 DIO18 DIO23 DIO19 DIO13 DIO12 DIO15 DIO16 DIO20 DIO22 DIO21 DIO17 DIO26 DIO30 DIO25 DIO24 DIO27 DIO28 DIO29 ACTV HIO VIO IOSW Flash ROM JTAG INPUT INPUT INPUT OUTPUT 25 20 26 23 19 24 22 21 27 IC9400 VIDEO/PANEL CONTROL MN84526 TO A-BOARD (A5) 11 13 12 21 22 23 ! D-BOARD TXN/D1RETC (3/6) TH-58PZ880C D-Board (3/6) Schematic Diagram TH-58PZ880C D-Board (3/6) Schematic Diagram 70 TH-58PZ880C 10.28.D 电路板 （4/6）线路图 L8L_DIO17 L8L_DIO25 L8L_DIO22 L8L_UC15 L8L_DIO21 L8L_UC14 L8L_DIO18 L8L_DIO26 L8L_UB15 L8L_DIO30 L8L_DIO29 L8L_DIO23 L8L_ROMCE L8L_UA14 L8L_UA15 L8L_DIO20 L8L_DIO27 L8L_UB14 L8L_DIO24 L8L_DIO19 L8L_DIO28 L8L_DIO16 L8L_ROMWE L8L_ROMOE XRST L8L_ROMRST L8L_DIO00 L8L_DIO03 L8L_DIO01 L8L_DIO04 L8L_DIO02 L8L_DIO10 L8L_DIO06 L8L_DIO05 L8L_DIO07 L8L_DIO08 L8L_DIO09 L8L_DIO12 L8L_DIO13 L8L_DIO11 L8L_DIO15 L8L_DIO14 L8DR_DQ2 L8DR_DQ6 L8R_DQ5 L8DR_DQ25 L8R_DQ26 L8R_DQ29 L8DR_DQ4 L8R_DQ0 L8R_NSDCLKO L8R_DQ30 L8DR_A3 L8R_DQ20 L8DR_DQ22 L8R_DQ0 L8R_DQ25 L8DR_DQ12 L8DR_DQ20 L8R_DQ17 L8DR_A7 L8R_DQ28 L8R_A6 L8R_DQ11 L8DR_DQ10 L8DR_DQ23 L8DR_DQ11 L8R_DQ25 L8R_DQ10 L8DR_DQ22 L8DR_A11 L8R_DQ12 L8R_DQ10 L8R_DQ6 L8R_DQ3 L8R_DQ2 L8DR_DQ21 L8DR_DQ5 L8R_DQ4 L8DR_DQ26 L8R_SDCLKO L8DR_DQ9 L8R_DQS1 L8R_WE L8R_DQS1 L8R_DQS0 L8DR_BA1 L8DR_A1 L8DR_DQ2 L8R_DQ18 L8R_DQ23 L8DR_DQ5 L8DR_CLK L8DR_DQ1 L8R_A11 L8DR_DQS1 L8DR_DQ30 L8R_DQ3 L8DR_DQ0 L8DR_DQS2 L8R_DQ31 L8DR_DQ18 L8DR_DQ31 L8R_DQ19 L8DR_DQ14 L8R_DQ27 L8R_DQ23 L8DR_DQS1 L8DR_DQ16 L8R_DQ21 L8DR_DQ19 L8R_A9 L8DR_DQ8 L8DR_DQ7 L8DR_DQ27 L8DR_DQ8 L8DR_DQ13 L8DR_NCAS L8DR_DQ3 L8R_DQS0 L8R_RAS L8DR_DQ15 L8DR_DQS2 L8DR_NWE L8DR_A6 L8DR_CKE L8R_DQ4 L8R_DQ24 L8DR_DQ15 L8DR_DQS3 L8R_DQ20 L8R_DQ6 L8DR_DQ11 L8DR_A5 L8DR_DQ17 L8DR_DQ20 L8DR_DQ9 L8DR_DQ12 L8DR_DQ14 L8DR_BA0 L8R_DQ15 L8DR_DQ28 L8DR_NCLK L8DR_DQ29 L8DR_NCLK L8R_DQ14 L8DR_A0 L8DR_DQ23 L8R_CS L8DR_DQ0 L8R_CAS L8R_DQ9 L8R_DQ7 L8DR_DQ7 L8R_DQ24 L8R_DQS3 L8R_DQ12 L8R_DQ5 L8DR_DQ1 L8DR_DQS3 L8R_DQ31 L8DR_DQ4 L8DR_A4 L8R_BA1 L8R_DQ1 L8R_NSDCLKO L8DR_DQ18 L8R_DQ21 L8DR_DQ17 L8R_DQ13 L8DR_DQ3 L8R_DQ1 L8DR_NRAS L8R_DQS2 L8DR_DQS0 L8R_DQ17 L8R_DQ13 L8R_A0 L8R_DQ18 L8DR_DQS0 L8DR_DQ16 L8DR_DQ29 L8R_DQ2 L8R_DQ14 L8R_A10 L8R_DQ15 L8DR_DQ10 L8DR_DQ30 L8R_DQ9 L8R_A7 L8DR_DQ6 L8R_A3 L8DR_DQ21 L8R_DQS2 L8R_A1 L8R_DQ19 L8R_DQS3 L8R_A2 L8DR_NCS L8R_SDCKE L8DR_DQ24 L8DR_A8 L8R_BA0 L8R_A4 L8R_DQ22 L8R_DQ27 L8DR_A9 L8DR_CLK L8R_DQ8 L8DR_DQ19 L8DR_A2 L8R_A5 L8R_DQ16 L8DR_DQ28 L8R_DQ30 L8DR_A10 L8R_DQ29 L8DR_DQ13 L8DR_DQ31 L8R_DQ11 L8R_DQ28 L8R_DQ8 L8R_DQ26 L8R_SDCLKO L8R_DQ22 L8R_DQ16 L8R_DQ7 L8R_A8 0V L8DR_A0 L8DR_A6 L8R_WE L8R_A0 L8DR_A3 L8DR_A11 L8R_A1 L8DR_NCS L8R_RAS L8R_BA1 L8DR_BA1 L8R_A10 L8R_A4 L8R_SDCKE L8R_A8 L8R_A5 L8DR_NRAS L8R_A7 L8R_A3 L8DR_A9 L8DR_NWE L8DR_A2 L8DR_A1 L8DR_A8 L8R_CAS L8R_BA0 L8DR_A5 L8R_A6 L8R_CS L8DR_A4 L8R_A11 L8DR_A10 L8DR_BA0 L8R_A2 L8R_A9 L8DR_NCAS L8DR_A7 L8DR_DQ26 L8DR_DQ27 L8DR_DQ25 L8DR_DQ24 L8DR_CKE L8R_MONOUT C9469 16V 0.1u C9131 16V 0.1u C9096 16V 0.1u C9112 16V 0.1u C9100 16V 0.1u C9108 16V 0.1u C9110 16V 0.1u C9117 16V 0.1u C9114 16V 0.1u C9116 16V 0.1u C9104 16V 0.1u C9097 16V 0.1u C9113 16V 0.1u C9105 16V 0.1u C9109 16V 0.1u C9107 16V 0.1u C9099 16V 0.1u C9102 16V 0.1u C9111 16V 0.1u C9098 16V 0.1u C9106 16V 0.1u C9103 16V 0.1u C9142 16V 0.1u C9101 16V 0.1u C9120 16V 0.1u C9115 16V 0.1u IC9400 A1 VSS IC9401 B2 DQS0 IC9400 D3 VSS IC9400 K2 AVSS_L IC9400 AF8 DQ2 IC9401 G12 DQ13 IC9400 AF26 VSS IC9401 K10 VSSQ IC9401 G3 DQ18 IC9401 N5 A0 IC9400 K17 VSS IC9401 N10 A7 IC9400 F23 VSS IC9401 H7 VSS_Thermal IC9400 AE5 DQ20 IC9401 F10 VSSQ IC9401 M2 RAS IC9401 B11 VSSQ IC9401 L5 VSS IC9401 N2 CS IC9400 L11 VSS IC9401 C11 NC IC9400 L16 VSS IC9401 C13 DQ27 IC9400 AF20 VSS IC9400 AB18 VSS IC9400 AF5 VSS IC9400 AF14 AVSS_D IC9400 AC16 VSS IC9401 C8 VDDQ IC9400 AD7 AVSS_D IC9401 L6 A10 IC9400 AF25 AD4 IC9400 AE25 VSS IC9400 E13 VSS IC9400 J1 TCPOUT IC9401 B7 DQ0 IC9401 N9 A6 IC9400 E20 VSS IC9401 G11 VDDQ IC9401 J7 VSS_Thermal IC9400 N14 VSS IC9400 AC18 VSS IC9400 AA3 VSS IC9401 L4 VDD IC9400 U1 AVSS_L IC9401 D2 DQ6 IC9401 F2 DQ17 IC9400 AF13 VSS IC9401 F5 VSSQ IC9400 K3 AVSS_L IC9401 G5 VSSQ IC9401 E8 VSS IC9400 AF7 VSS IC9400 AE23 AD3 IC9401 E12 VDDQ IC9400 P23 VSS IC9401 N8 A4 IC9400 AD5 DQ16 IC9400 AD23 ID0 IC9400 C26 VSS IC9400 AE21 AD0 IC9400 L14 VSS IC9401 N13 VREF IC9401 J12 DQ11 IC9401 B9 DQ29 IC9400 R22 VSS IC9401 D8 VDD IC9401 L9 RFU IC9401 D12 DQ26 IC9401 F13 DQ14 IC9401 E5 VSS IC9401 H3 DM2 IC9401 D7 VDD IC9401 M13 NC IC9400 AF19 NRAS IC9400 AF4 DQ21 IC9401 H9 VSS_Thermal IC9400 AC15 DQ13 IC9401 C4 NC IC9401 G7 VSS_Thermal IC9400 R15 VSS IC9400 M23 VSS IC9400 Y22 TEST0 IC9400 AF24 AD11 IC9401 C2 DQ4 IC9401 B13 DQS3 IC9400 AC20 AD6 IC9400 T14 VSS IC9401 H10 VSSQ IC9401 N6 A1 IC9400 J2 AVSS_PO IC9401 B12 DM3 IC9401 L13 NC IC9400 AF11 DQ28 IC9400 AC17 VSS IC9400 AE15 DQ15 IC9401 B10 DQ28 IC9400 U2 AVSS_L IC9400 T23 VSS IC9401 E13 DQ24 IC9401 G8 VSS_Thermal IC9400 T11 VSS IC9401 G9 VSS_Thermal IC9401 J13 DQ10 IC9401 K6 VSS IC9400 AB6 VSS IC9400 U17 VSS IC9400 K4 AVSS_PM IC9400 AF6 VSS IC9401 H2 DQS2 IC9401 H12 DM1 IC9400 AD4 DQ18 IC9401 N4 BA0 IC9401 E2 DQ7 IC9400 AD22 AD8 IC9400 AE20 BA0 IC9400 L15 VSS IC9400 R14 VSS IC9401 K11 VDDQ IC9401 H6 VSS_Thermal IC9401 F9 VSS_Thermal IC9400 F5 VSS IC9401 M6 A2 IC9400 AF3 DQ22 IC9401 C6 DQ1 IC9400 AC5 DQ17 IC9401 D13 DQ25 IC9401 L12 NC IC9401 D5 VSSQ IC9400 Y23 TEST IC9400 AD18 NCAS IC9401 J8 VSS_Thermal IC9401 K9 VSS IC9400 AC19 CKE IC9400 T15 VSS IC9401 L7 VDD IC9400 AC7 VREF1 IC9400 N16 VSS IC9400 P10 VSS IC9400 AF10 DQ29 IC9401 G13 DQ12 IC9400 AE14 DQS1 IC9400 U3 AVSS_L IC9400 AF12 VSS IC9400 J24 VSS IC9400 AF18 CK IC9401 C3 VDDQ IC9401 C5 VDDQ IC9401 H8 VSS_Thermal IC9400 AB24 ID2 IC9400 P14 VSS IC9400 W4 VSS IC9401 J4 VDDQ IC9400 U14 VSS IC9400 L22 VSS IC9401 F7 VSS_Thermal IC9400 AD21 AD5 IC9400 AA23 ID1 IC9400 AB2 VSS IC9401 L11 VDD IC9401 M3 NC IC9401 E7 VSS IC9400 AE19 NCS IC9400 AE8 DQ3 IC9400 R24 VSS IC9400 M3 AVSS_L IC9400 E4 VSS IC9400 F6 VSS IC9400 M14 VSS IC9400 AE16 DQ9 IC9400 AF2 VSS IC9401 C10 VDDQ IC9401 H4 NC IC9400 Y24 VSS IC9401 L2 CAS IC9401 L8 VDD IC9400 AA4 VSS IC9401 J9 VSS_Thermal IC9400 AD17 AVSS_Q IC9400 AF22 AD2 IC9400 AE1 VSS IC9400 AD24 VSS IC9400 T16 VSS IC9401 J5 VSSQ IC9401 F4 VDDQ IC9400 AC6 AVSS_D IC9401 F6 VSS_Thermal IC9400 N17 VSS IC9400 P3 AVSS_L IC9400 T3 AVSS_L IC9401 M12 CK IC9401 J3 DQ20 IC9400 P11 VSS IC9401 E4 VDD IC9400 AE13 VSS IC9400 AF9 DQ0 IC9400 AF17 DQ8 IC9400 P15 VSS IC9401 G6 VSS_Thermal IC9401 D6 VSSQ IC9400 K10 VSS IC9401 B6 DQ2 IC9400 M15 VSS IC9400 R3 AVSS_L IC9401 E3 VDDQ IC9400 AC14 VREF0 IC9400 AD13 AVSS_D IC9400 U15 VSS IC9400 AC11 DQ25 IC9400 AB1 VSS IC9400 AD15 DQ14 IC9400 C2 VSS IC9400 AE18 AVSS_D IC9401 L10 VSS IC9400 AD16 DQ12 IC9401 K3 DQ23 IC9401 B5 DQ3 IC9401 F12 DQ15 IC9400 AF21 BA1 IC9400 AC23 VSS IC9400 AD26 TEST1 IC9401 M4 NC IC9400 N11 VSS IC9401 K8 VSS IC9401 F3 DQ16 IC9400 AF23 AD10 IC9401 J10 VSSQ IC9401 K4 VDDQ IC9400 E24 VSS IC9401 M8 A9 IC9401 G10 VSSQ IC9400 AC3 VSS IC9401 H13 DQS1 IC9400 M12 VSS IC9400 P12 VSS IC9400 K14 VSS IC9400 N3 AVSS_L IC9401 B3 DM0 IC9400 R12 VSS IC9401 K12 DQ9 IC9400 AE12 DQS3 IC9401 E9 VSSQ IC9400 N13 VSS IC9401 D4 VSSQ IC9400 P16 VSS IC9401 M5 BA1 IC9400 AF16 DQ10 IC9400 E14 VSS IC9401 C9 DQ30 IC9401 D9 VSSQ IC9400 AD14 VSS IC9400 AC9 DQ5 IC9400 AD8 DQ6 IC9400 G22 VSS IC9400 Y1 VSS IC9401 K5 VSSQ IC9400 AD9 DQ4 IC9400 AC13 VSS IC9400 AB11 VSS IC9400 AC26 MONOUT IC9401 M7 A11 IC9400 AD12 VSS IC9400 AC10 DQ27 IC9400 W22 VSS IC9401 D11 VSSQ IC9401 E11 VDD IC9400 AE7 DQS0 IC9400 AC22 AVSS_PD IC9400 L24 VSS IC9400 L3 AVSS_L IC9401 G2 DQ19 IC9401 L3 WE IC9400 AE22 AD1 IC9400 AE4 DQ23 IC9400 N24 VSS IC9400 AD20 AD9 IC9401 J6 VSS_Thermal IC9400 AD19 NWE IC9400 AE3 DQ19 IC9400 C3 VSS IC9400 V1 AVSS_PI IC9400 AD10 DQ26 IC9400 AC21 AD7 IC9401 D10 VSSQ IC9400 D25 VSS IC9400 AE6 DQS2 IC9400 AB22 VSS IC9401 N3 NC IC9401 N12 CKE IC9400 AB12 VSS IC9401 C7 VDDQ IC9401 H5 VSSQ IC9401 N7 A3 IC9400 AD11 DQ24 IC9401 F8 VSS_Thermal IC9400 U24 VSS IC9400 N12 VSS IC9401 G4 VDDQ IC9400 Y2 VSS IC9400 AC12 VSS IC9400 U10 VSS IC9400 B2 VSS IC9401 B4 VSSQ IC9401 K7 VSS IC9400 K23 VSS IC9400 AC8 DQ7 IC9401 D3 DQ5 IC9401 B8 DQ31 IC9400 P13 VSS IC9401 F11 VDDQ IC9400 AE9 DQ1 IC9400 AC25 V_TEST IC9400 K15 VSS IC9401 M11 CK IC9400 AE11 DQ30 IC9401 K13 DQ8 IC9400 B1 VSS IC9400 R13 VSS IC9400 U16 VSS IC9401 C12 VDDQ IC9401 J11 VDDQ IC9400 K1 AVSS_L IC9401 M9 A5 IC9400 AF15 DQ11 IC9400 K16 VSS IC9400 P17 VSS IC9401 N11 A8/AP IC9400 AE24 TCPOUT_D IC9401 H11 NC IC9401 M10 RFU IC9400 N15 VSS IC9400 AE10 DQ31 IC9401 K2 DQ22 IC9400 AE17 NCK IC9400 G24 VSS IC9401 J2 DQ21 IC9401 E6 VSSQ IC9401 E10 VSS TVRQ068 *IC9303 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 A20 11 WE 12 RESET 13 NC 14 WP/ACC 15 RY/BY 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE 27 Vss 28 OE 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 Vcc 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 Vss 47 BYTE 48 A16 P2.5V P2.5V P2.5V P2.5V P3.3V P3.3V R9259 EXB38V470JV R9258 EXB38V470JV R9256 EXB38V470JV R9237 EXB38V470JV R9260 EXB38V470JV R9257 EXB38V470JV R9263 EXB38V470JV R9261 EXB38V470JV R9262 EXB38V470JV R9234 EXB2HV470JV R9235 EXB2HV470JV R9385 4.7k R9265 47 R9252 33 R9251 1k R9236 33 R9264 47 R9267 47 R9249 1k R9248 1k R9250 1k R9238 150 R9266 47 *R9400 4.7k R9288 0 R9324 0 to DDR DDR-Terminate FlashROM (PDROM) Vss WP#/ACC 28 33 34 35 29 30 31 32 36 PD2M Right (Master) IC9400 VIDEO/PANEL CONTROL MN84526 DDR MEMORY C3ABQJ000055 IC9401 Right FLASH MEMORY 21 22 23 31 32 33 ! D-BOARD TXN/D1RETC (4/6) TH-58PZ880C D-Board (4/6) Schematic Diagram TH-58PZ880C D-Board (4/6) Schematic Diagram 71 TH-58PZ880C 10.29.D 电路板 （5/6）线路图 TERM SIDE P3V_SDA02 P3V_SCL02 L8L_DIO08 L8L_DIO09 L8L_DIO10 L8L_DIO11 L8L_DIO12 L8L_DIO13 L8L_DIO14 L8L_DIO16 L8L_DIO17 L8L_DIO18 L8L_DIO19 L8L_DIO20 L8L_DIO21 L8L_DIO22 L8L_DIO24 L8L_DIO25 L8L_DIO26 L8L_DIO27 L8L_DIO28 L8L_DIO29 L8L_ROMRST L8L_ROMOE L8L_ROMWE L8L_ROMCE XI_PROG_B OSDHO OSDVO OSDCKO OSD_YS OSD_R OSD_B OSD_G FPCLK FPDAT1 SFRST SFVRST FVSEL PROG_M MCCLK XOUT XRST XRST_SYS TRST TMS TCK DOUTDB30 CLKD9 DOUTDA27 L8R_DB10 DOUTDB25 DOUTDB23 L8R_DA05 DOUTDB31 DOUTDC18 DOUTDA23 L8R_DC04 DOUTDC30 DOUTDC22 L8R_DB05 DOUTDB26 DOUTDA19 DOUTDC22 L8R_DC10 L8R_DB13 L8R_DA01 DOUTDC29 DOUTDC27 L8R_DB06 L8R_DC15 DOUTDA18 L8R_DA15 L8R_DB00 L8R_DA09 L8R_DA00 DOUTDA31 DOUTDB22 DOUTDC21 DOUTDC16 L8R_DC02 DOUTDB17 DOUTDB16 DOUTDA25 L8R_DC07 L8R_DB08 L8R_DC08 DOUTDB27 DOUTDC25 DOUTDB27 DOUTDC30 CLKD10 L8R_DC14 L8R_DA10 L8R_DA12 CLRD_6 L8R_DB07 DOUTDC28 L8R_DC00 DOUTDA28 L8R_DA06 DOUTDC28 DOUTDC29 L8R_DC06 DOUTDC24 DOUTDA30 DOUTDA29 L8R_DA03 CLKD11 L8R_DB04 DOUTDC31 DOUTDB19 DOUTDA25 DOUTDC26 L8R_DA02 L8R_DB02 L8R_DC11 L8R_DC03 DOUTDB26 LED_6 L8R_DB12 DOUTDB23 DOUTDB31 DOUTDB24 DMLL_C4 DOUTDA22 DOUTDC27 L8R_DB14 DOUTDB28 DOUTDB29 DOUTDA29 DOUTDA22 DSHL_C4 L8R_DC05 L8R_DA08 L8R_DC01 DOUTDA30 ODED_6 DOUTDA31 DOUTDC17 DMHL_C4 L8R_DC13 DOUTDB21 L8R_DA13 DOUTDA28 PCD_6 L8R_DA14 L8R_DB15 DOUTDA20 DOUTDB22 DOUTDB25 DOUTDA24 L8R_DB09 L8R_DB01 DOUTDC31 DOUTDC23 DMLR_C6 DOUTDA21 DOUTDA16 DOUTDB28 DOUTDA26 DOUTDA17 5V_DET6 L8R_DA07 DOUTDB20 5V_DET6 L8R_DA11 DOUTDC24 DOUTDB18 DSHR_C6 DOUTDC25 DOUTDB24 L8R_DA04 DOUTDA24 DOUTDC19 DOUTDA26 DOUTDB29 DOUTDC23 DOUTDA23 DOUTDA27 DOUTDC26 L8R_DC12 5V_SENSE DMHR_C6 L8R_DC09 CLKD8 L8R_DB11 DOUTDB30 DOUTDC20 L8R_DB03 L8L_UA02 L8L_UA03 L8L_UA14 L8L_UA07 L8L_UA06 L8L_UA13 L8L_UA11 L8L_UA12 L8L_UA10 L8L_UA00 L8L_UA05 L8L_UA04 L8L_UA08 L8L_UA15 L8L_UA09 L8L_UA01 L8L_UB13 L8L_UB03 L8L_UB14 L8L_UB02 L8L_UB09 L8L_UB07 L8L_UB10 L8L_UB11 L8L_UB04 L8L_UB01 L8L_UB00 L8L_UB06 L8L_UB05 L8L_UB15 L8L_UB12 L8L_UB08 L8L_UC07 L8L_UC14 L8L_UC01 L8L_UC05 L8L_UC08 L8L_UC12 L8L_UC15 L8L_UC03 L8L_UC10 L8L_UC13 L8L_UC06 L8L_UC02 L8L_DRVCLKU3 L8L_DRVCLKU2 L8L_UC04 L8L_UC00 L8L_UC11 L8L_UC09 L8L_DA14 L8L_DA15 L8L_DA02 L8L_DA06 L8L_DA03 L8L_DA09 L8L_DA08 L8L_DA07 L8L_DA05 L8L_DA04 L8L_DA10 L8L_DA11 L8L_DA00 L8L_DA01 L8L_DA13 L8L_DA12 L8L_DB10 L8L_DB09 L8L_DB00 L8L_DB02 L8L_DB04 L8L_DB11 L8L_DB05 L8L_DB06 L8L_DB08 L8L_DB03 L8L_DB14 L8L_DB13 L8L_DB12 L8L_DB07 L8L_DB15 L8L_DB01 L8L_DRVCLKD0 L8L_DC01 L8L_DC06 L8L_DC15 L8L_DC10 L8L_DC02 L8L_DC00 L8L_DC14 L8L_DRVCLKD1 L8L_DC13 L8L_DC05 L8L_DC12 L8L_DRVCLKD2 L8L_DC03 L8L_DRVCLKD3 L8L_DC04 L8L_DC11 L8L_DC07 L8L_DC09 L8L_DC08 RB_E+ RD_E- RD_E+ RCLK_E+ RE_E- RB_E- RC_E- RCLK_E- RE_E+ RA_E+ RC_E+ RA_E- CKSOMI CKMOSI OSDVO_FP TDI_L FULL1 FULL0 CLKD0 CLKD1 OCKOUT_RD ACTV L8L_DIO05 L8L_DIO04 L8L_DIO02 L8L_DIO30 SIN FPDAT0 FCCLK SFLATCH TDI_R L8L_DIO06 L8L_DIO23 OSDHO_FP L8L_DIO07 L8L_DIO15 L8L_DIO15 VIO HIO L8L_DIO03 L8L_DIO01 L8L_DIO00 IOSW C9961 10V 10u C9971 50V 18p C9972 50V 15p C9068 25V 0.01u C9212 10V 10u C9210 10V 10u C9181 0.1u 16V C9204 0.1u 16V C9186 0.1u 16V C9183 0.1u 16V C9211 0.1u 16V C9175 0.1u 16V C9169 0.1u 16V C9187 0.1u 16V C9184 0.1u 16V C9147 0.1u 16V C9189 0.1u 16V C9185 0.1u 16V C9182 0.1u 16V C9178 0.1u 16V C9213 0.1u 16V C9171 0.1u 16V C9203 0.1u 16V C9194 0.1u 16V C9179 0.1u 16V C9192 0.1u 16V C9193 0.1u 16V C9195 0.1u 16V C9205 0.1u 16V C9170 0.1u 16V C9207 16V 0.1u C9206 16V 0.1u C9146 0.1u 16V C9190 0.1u 16V C9188 0.1u 16V C9196 0.1u 16V C9173 0.1u 16V C9176 0.1u 16V C9214 16V 0.1u C9200 0.1u 16V C9145 0.1u 16V C9177 0.1u 16V C9172 0.1u 16V C9199 0.1u 16V C9201 0.1u 16V C9198 0.1u 16V C9202 0.1u 16V C9209 0.1u 16V C9174 0.1u 16V C9180 0.1u 16V C9191 0.1u 16V C9208 0.1u 16V D9025 B0JCCE000008 IC9300 M16 VDD33 IC9300 M13 VDD12 IC9300 M11 VDD12 IC9300 M10 VDD12 IC9300 M5 AVDD_L33 IC9300 M4 AVDD_L33 IC9300 M2 RBP IC9300 M1 RBM IC9300 L26 DOUTDC09 IC9300 L25 DOUTDB09 IC9300 L23 DOUTDA09 IC9300 L17 VDD33 IC9300 L13 VDD12 IC9300 L12 VDD12 IC9300 L10 VDD12 IC9300 L5 AVDD_PM33 IC9300 L2 RAP IC9300 L1 RAM IC9300 K26 DRVCLKD3 IC9300 K25 DRVCLKD2 IC9300 K24 VDD33 IC9300 K22 DOUTDC10 IC9300 K13 VDD12 IC9300 K12 VDD12 IC9300 K11 VDD12 IC9300 K5 AVDD_PO33 IC9300 B23 DOUTUA01 IC9300 J26 DRVCLKD1 IC9300 J25 DRVCLKD0 IC9300 J23 DOUTDC11 IC9300 J22 VDD33 IC9300 J5 AVDD_L12 IC9300 J4 OCK IC9300 J3 SFRST IC9300 H26 DOUTDB10 IC9300 H25 DOUTDA10 IC9300 H24 VDD33 IC9300 H23 DOUTDA11 IC9300 H22 DOUTDB13 IC9300 H5 VDD12 IC9300 H4 FULL1 IC9300 H3 FPDAT0 IC9300 H2 SFLATCH IC9300 H1 SFVRST IC9300 G26 DOUTDB11 IC9300 G25 DOUTDC12 IC9300 G23 DOUTDC14 IC9300 G5 VDD12 IC9300 G4 VDD12 IC9300 G3 FCCLK IC9300 G2 FPDAT1 IC9300 G1 FPCLK IC9300 F26 DOUTDB12 IC9300 F25 DOUTDA12 IC9300 F24 DOUTDA14 IC9300 F22 VDD33 IC9300 F4 VDD12 IC9300 F3 VDD12 IC9300 F2 FULL0 IC9300 F1 CLKMO IC9300 E26 DOUTDC13 IC9300 E25 DOUTDA13 IC9300 E23 VDD33 IC9300 E22 DOUTUC00 IC9300 E21 DOUTUC02 IC9300 E15 DOUTUC12 IC9300 E19 DOUTUB07 IC9300 E18 VDD33 IC9300 E17 VDD33 IC9300 E16 DOUTUB09 IC9300 L4 AVDD_L33 IC9300 B9 DIO22 IC9300 AB17 AVDD_D25 IC9300 AB16 AVDD_Q25 IC9300 AB15 VDD25 IC9300 AB14 AVDD_D25 IC9300 AB13 AVDD_D25 IC9300 AB10 VDD25 IC9300 AB9 VDD25 IC9300 B8 DIO18 IC9300 AB8 AVDD_D25 IC9300 AB7 AVDD_D25 IC9300 AB5 VDD25 IC9300 AB4 XRST IC9300 AB3 FVSEL IC9300 AA26 DOUTDB00 IC9300 AA25 TMS IC9300 AA24 VDD33 IC9300 AA22 VDD33 IC9300 AA5 PROG IC9300 AA2 XO IC9300 AA1 XI IC9300 B10 DIO26 IC9300 B5 DIO7 IC9300 A24 DOUTUA00 IC9300 B22 DOUTUC03 IC9300 A2 DIO0 IC9300 A3 DIO1 IC9300 A4 DIO6 IC9300 A5 CKMI IC9300 A6 CKMO IC9300 B21 DOUTUA04 IC9300 A8 DIO19 IC9300 A9 DIO24 IC9300 A10 DIO28 IC9300 A11 DOUTUA15 IC9300 A12 DOUTUA14 IC9300 A14 DRVCLKU1 IC9300 B20 DOUTUA05 IC9300 A15 DOUTUC13 IC9300 A16 DOUTUA11 IC9300 A17 DOUTUC10 IC9300 A18 DOUTUB08 IC9300 A19 CKSI IC9300 A20 CKSO IC9300 A21 DOUTUC05 IC9300 B19 DOUTUA06 IC9300 T22 DOUTDA03 IC9300 T10 VDD12 IC9300 AE26 VDD33 IC9300 D18 DOUTUC07 IC9300 B7 DIO13 IC9300 B4 DIO2 IC9300 B3 HIO IC9300 T12 VDD25 IC9300 AE2 VDD25 IC9300 T2 REP IC9300 B6 DIO9 IC9300 AD25 VDD33 IC9300 T1 REM IC9300 M17 VDD33 IC9300 M22 DOUTDC08 IC9300 M25 DOUTDA08 IC9300 AD6 VDD25 IC9300 AD3 VDD25 IC9300 AD2 XRSTSYS IC9300 AD1 PROG_M IC9300 AC24 VDD33 IC9300 AC4 VDD25 IC9300 AC2 MCCLK IC9300 AC1 XOUT IC9300 AB26 TCK IC9300 AB25 TDO IC9300 AB23 VDD33 IC9300 A25 DOUTDA15 IC9300 AB21 AVDD_PD33 IC9300 AB20 VDD25 IC9300 AB19 VDD25 IC9300 B18 DOUTUC08 IC9300 B17 DOUTUA09 IC9300 B16 DOUTUC11 IC9300 B15 DOUTUA12 IC9300 B14 DRVCLKU0 IC9300 B13 DRVCLKU2 IC9300 B12 DOUTUB15 IC9300 B11 ROMCE IC9300 A13 DRVCLKU3 IC9300 A7 DIO15 IC9300 A23 DOUTUB02 IC9300 A26 VDD33 IC9300 D17 DOUTUA08 IC9300 D16 DOUTUA10 IC9300 D15 DOUTUB11 IC9300 D14 DOUTUA13 IC9300 T24 VDD33 IC9300 T25 DOUTDB04 IC9300 T26 DOUTDA04 IC9300 U4 AVDD_L33 IC9300 U5 AVDD_L33 IC9300 U11 VDD25 IC9300 U12 VDD25 IC9300 U13 VDD25 IC9300 U22 VDD33 IC9300 U23 DOUTDB02 IC9300 U25 DOUTDB03 IC9300 U26 DOUTDC04 IC9300 V2 OSDRI IC9300 V3 OSDBI IC9300 V4 OSDGI IC9300 V5 AVDD_PI33 IC9300 V22 DOUTDC00 IC9300 V23 DOUTDA01 IC9300 V24 VDD33 IC9300 V25 DOUTDA02 IC9300 V26 DOUTDC03 IC9300 W1 OSDYSI IC9300 W2 OSDVO IC9300 W3 SCL IC9300 W5 OSDHO IC9300 W23 TRST IC9300 W24 TDI IC9300 W25 DOUTDB01 IC9300 W26 DOUTDC02 IC9300 Y3 SDA IC9300 Y4 PRCKO IC9300 Y5 OSDCKO IC9300 Y25 DOUTDA00 IC9300 Y26 DOUTDC01 IC9300 E12 DIO30 IC9300 E11 DIO27 IC9300 E10 VDD12 IC9300 E9 VDD12 IC9300 E8 DIO14 IC9300 E7 DIO8 IC9300 E6 DIO4 IC9300 E5 IOSW IC9300 E3 VDD12 IC9300 E2 VDD12 IC9300 E1 ROMRESET IC9300 D26 DOUTDB14 IC9300 D24 VDD33 IC9300 D23 DOUTDB15 IC9300 D22 DOUTUB01 IC9300 D21 DOUTUA03 IC9300 D20 DOUTUB04 IC9300 D19 DOUTUC06 IC9300 AF1 VDD25 IC9300 B24 DOUTUB00 IC9300 B25 DOUTDC15 IC9300 B26 VDD33 IC9300 C1 VDD12 IC9300 C4 ACTV IC9300 C5 DIO3 IC9300 C6 DIO10 IC9300 C7 DIO12 IC9300 C8 DIO17 IC9300 C9 DIO20 IC9300 A22 DOUTUB03 IC9300 C10 DIO25 IC9300 C11 ROMOE IC9300 C12 ROMWE IC9300 C13 DOUTUC14 IC9300 C14 DOUTUB13 IC9300 C15 DOUTUB12 IC9300 C16 DOUTUB10 IC9300 C17 DOUTUC09 IC9300 C18 DOUTUA07 IC9300 C19 DOUTUB06 IC9300 C20 DOUTUB05 IC9300 C21 DOUTUC04 IC9300 C22 DOUTUA02 IC9300 C23 DOUTUC01 IC9300 C24 OCKOUT IC9300 C25 VDD33 IC9300 D1 VDD12 IC9300 D2 VDD12 IC9300 D4 VIO IC9300 D5 SLVDOUTUB14 IC9300 D6 DIO5 IC9300 D7 DIO11 IC9300 D8 DIO16 IC9300 D9 DIO21 IC9300 D10 DIO23 IC9300 D11 DIO29 IC9300 D12 DOUTUC15 IC9300 D13 DOUTUB14 IC9300 T17 VDD33 IC9300 T13 VDD25 IC9300 T4 AVDD_L33 IC9300 T5 AVDD_L33 IC9300 N22 VDD33 IC9300 N23 DOUTDB07 IC9300 N25 DOUTDA07 IC9300 N26 DOUTDC07 IC9300 P1 RCLKM IC9300 P2 RCLKP IC9300 P4 AVDD_L33 IC9300 P5 AVDD_L33 IC9300 P22 DOUTDC06 IC9300 P24 VDD33 IC9300 P25 DOUTDB06 IC9300 P26 DOUTDA06 IC9300 R1 RDM IC9300 R2 RDP IC9300 R4 AVDD_L33 IC9300 R5 AVDD_L33 IC9300 R10 VDD12 IC9300 R11 VDD12 IC9300 R16 VDD33 IC9300 R17 VDD33 IC9300 R23 DOUTDB05 IC9300 R25 DOUTDC05 IC9300 R26 DOUTDA05 IC9300 M26 DOUTDB08 IC9300 N1 RCM IC9300 N2 RCP IC9300 N4 AVDD_L33 IC9300 N5 AVDD_L33 IC9300 N10 AVDD_L12 IC9300 M24 VDD33 D31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 L9003 J0JHC0000078 L9002 J0JHC0000078 L9001 J0JHC0000078 L9000 J0JHC0000078 P2.5V P2.5V P3.3V P5V L8LAVDD3.3V L8LAVDD3.3V P1.2V P1.2V P3.3V P3.3V P3.3V L8LAVDD3.3V Q9059 2SD0601A0L R9230 EXB38V470JV R9140 EXB2HV220JV R9137 EXB2HV220JV R9146 EXB2HV220JV R9147 EXB2HV220JV R9139 EXB2HV220JV R9138 EXB2HV220JV R9335 EXB2HV103JV R9281 EXB2HV103JV R9280 EXB2HV103JV R9282 EXB2HV103JV *R9319 22 *R9317 22 R9247 47 R9270 47 R9271 47 R9157 4.7k R9162 100k R9168 0 R9163 10k R9966 470 R9311 1k R9345 68 R9217 68 R9341 100 R9133 68 R9154 47 R9969 47 R9113 47 R9114 47 R9975 47 R9974 10k R9973 10k R9972 10k R9334 10k R9245 1k R9308 1k R9980 0 X9200 H0J200500076 TP9001 TP9002 LVDS_INPUT IIC rromdata[14] rromadrs[00] rromdata[06] rromdata[09] rromdata[12] rromadrs[11] rromadrs[14] rromdata[15] rromadrs[01] rromadrs[04] rromadrs[17] rromadrs[20] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[16] rromdata[00] rromdata[01] rromdata[02] rromadrs[19] rromadrs[03] rromdata[03] rromdata[04] rromdata[07] rromdata[10] rromadrs[06] rromadrs[09] rromdata[13] rromadrs[12] rromdata[05] rromadrs[15] rromadrs[18] rromadrs[02] rromadrs[05] rromadrs[08] rromdata[08] rromdata[11] RC- RB- RB+ RC+ RCLK- RCLK+ RD+ RA-(MSB) RA+(MSB) RD- RE-(LSB) for LVDS_TX 20MHz(SS) Low Active RE+(LSB) GND CLKD9(-) GND DMLL DOUTDB[31] GND GND NC/OCKOUT_RD DOUTDA[29] GND GND GND LED6 DOUTDC[24] CLKD8(+) DOUTDB[23] DOUTDC[25] DOUTDA[28] GND GND DOUTDC[27] DSHR DOUTDB[24] DOUTDA[27] DOUTDC[28] GND CLKD10(+)/DSLL DOUTDC[26] DOUTDB[26] DOUTDA[31] GND 5V_DET GND DOUTDB[27] DOUTDA[24] DOUTDB[25] DMHR GND DMLR GND CLKD11(-)/DSLR DOUTDC[23] DOUTDB[29] DOUTDC[22] DOUTDB[22] GND NC DOUTDC[29] CLRD6 DOUTDC[31] DOUTDB[30] DOUTDA[26] P5V PCD6 DOUTDB[28] DMHL GND DOUTDA[23] P5V GND DOUTDA[22] DOUTDC[30] DOUTDA[30] DOUTDA[25] ODED6 P5V GND DSHL PD2M Left (Master) to PD2M Right JTAG SCLK NCS_FPGA OUTPUT OUTPUT OUTPUT INPUT 43 44 39 38 40 41 45 37 42 TO C1-BOARD (C11) VIDEO/PANEL CONTROL MN84526 IC9300 31 32 33 41 42 43 44 ! D-BOARD TXN/D1RETC (5/6) TH-58PZ880C D-Board (5/6) Schematic Diagram TH-58PZ880C D-Board (5/6) Schematic Diagram 72 TH-58PZ880C 10.30.D 电路板 （6/6）线路图 TERM SIDE TERM SIDE L8DL_DQ28 L8L_A0 L8L_DQ9 L8DL_DQS0 L8DL_DQ31 L8L_DQ23 L8L_A6 L8DL_NCS L8L_DQ15 L8DL_A5 L8DL_A1 L8DL_NCAS L8L_A3 L8DL_A11 L8L_DQ17 L8DL_DQ21 L8DL_DQ23 L8DL_DQ22 L8DL_DQ25 L8L_DQ16 L8DL_BA1 L8L_A5 L8L_A4 L8DL_A11 L8DL_DQ10 L8L_DQ13 L8DL_DQ3 L8L_DQ24 L8L_DQ14 L8L_DQ24 L8DL_BA0 L8DL_DQ1 L8DL_DQ9 L8L_DQ10 L8DL_A7 L8DL_DQ4 L8L_SDCLKO L8DL_DQ31 L8DL_A2 L8L_BA0 L8L_DQS2 L8L_BA0 L8DL_NRAS L8L_BA1 L8DL_DQ11 L8L_DQ4 L8L_DQ31 L8DL_DQ2 L8DL_DQ26 L8DL_DQ0 L8DL_BA1 L8DL_DQ5 L8DL_DQ11 L8L_DQ0 L8L_DQ26 L8L_A4 L8L_BA1 L8L_DQ19 L8L_DQ2 L8L_DQ13 L8DL_A6 L8DL_DQS3 L8L_DQ9 L8DL_NCLK L8DL_DQ20 L8L_A2 L8L_RAS L8DL_DQ18 L8L_DQ18 L8DL_A2 L8DL_A3 L8DL_A9 L8L_DQ22 L8DL_NRAS L8L_A8 L8L_A10 L8L_A1 L8L_A1 L8DL_A3 L8L_WE L8L_A10 L8L_A0 L8L_DQS2 L8L_DQ31 L8DL_DQ7 L8DL_DQ24 L8L_SDCKE L8DL_DQ8 L8DL_DQ16 L8L_DQ3 L8L_DQ4 L8L_RAS L8DL_DQ20 L8DL_DQ6 L8L_DQ8 L8L_DQ11 L8DL_DQ19 L8DL_DQ24 L8L_A3 L8L_DQ14 L8DL_A4 L8L_DQS3 L8DL_A0 L8L_DQ1 L8DL_DQ12 L8L_A6 L8DL_A6 L8DL_DQ8 L8L_DQ23 L8L_WE L8L_DQ3 L8L_DQ10 L8DL_DQ12 L8DL_DQ2 L8L_DQ26 L8L_DQ8 L8L_DQ1 L8DL_DQ18 L8DL_DQ4 L8DL_DQ0 L8L_DQ21 L8DL_DQS2 L8DL_A1 L8DL_A0 L8DL_DQ22 L8L_A9 L8L_SDCKE L8DL_DQ6 L8DL_DQ29 L8DL_DQS0 L8L_DQ21 L8DL_DQS2 L8DL_DQ7 L8DL_DQ19 L8DL_DQ14 L8DL_DQ5 L8L_SDCLKO L8L_DQ12 L8L_DQ28 L8L_DQ30 L8DL_DQ23 L8DL_DQ14 L8L_DQ6 L8DL_CKE L8DL_DQ13 L8L_A9 L8DL_DQS1 L8DL_DQ30 L8L_DQS1 L8DL_A8 L8L_DQ22 L8DL_NCS L8L_A7 L8DL_DQ16 L8L_DQ17 L8DL_DQ17 L8L_NSDCLKO L8L_DQ5 L8L_DQ7 L8DL_DQ28 L8DL_DQ17 L8DL_DQ15 L8DL_DQ15 L8L_DQ30 L8L_DQ27 L8L_DQS3 L8L_DQ15 L8DL_A5 L8DL_DQS1 L8L_DQS0 L8L_DQ6 L8L_DQ11 L8L_DQ25 L8L_DQ29 L8L_A8 L8DL_NCAS L8DL_DQ9 L8DL_DQS3 L8DL_NWE L8L_CS L8L_DQ27 L8L_A11 L8L_NSDCLKO L8L_A7 L8L_DQ29 L8DL_A9 L8DL_A8 L8DL_DQ21 L8L_DQ12 L8L_CS L8DL_BA0 L8L_DQ20 L8DL_DQ27 L8DL_A10 L8DL_A4 L8L_DQS1 L8L_CAS L8L_DQ20 L8DL_NWE L8DL_DQ13 L8DL_CLK L8L_DQS0 L8L_A5 L8L_DQ19 L8L_DQ2 L8DL_DQ10 L8L_DQ28 L8L_DQ16 L8DL_A7 L8L_A2 L8DL_DQ30 L8L_DQ18 L8L_A11 L8DL_DQ1 L8L_CAS L8DL_DQ29 L8DL_DQ3 L8L_DQ25 L8L_DQ0 L8L_DQ5 L8L_DQ7 L8DL_A10 0V L8L_DA06 DOUTDB9 CLKD5 CLKD2 L8L_DA14 DOUTDB10 DOUTDA15 DOUTDB14 DOUTDC14 DOUTDA20 L8L_DB01 CLKD3 DOUTDC9 L8L_DC12 LED_5 DOUTDB13 L8L_DB15 DOUTDA13 L8L_DA04 L8L_DC06 DOUTDB4 L8L_DA10 L8L_DA11 DOUTDC1 DOUTDB4 DOUTDA1 L8L_DC08 DOUTDC5 DOUTDB16 L8R_DRVCLKD2 L8L_DB09 L8L_DA01 PCD_6 5V_DET5 DOUTDC12 L8L_DA13 C_NUEL L8L_DA12 CLKD5 DOUTDA5 DOUTDB17 DOUTDB0 DOUTDA1 L8L_DC14 SOS8_SS D_CLRD6 DOUTDB7 DOUTDA17 DOUTDB6 DOUTDB7 CLKD6 DOUTDC15 L8L_DB08 DOUTDB18 CLKD2 L8L_DC09 DOUTDA12 DOUTDC14 ODED_6 DOUTDC5 DOUTDC15 DOUTDC13 NUEL CLKD7 DOUTDA8 DOUTDC12 DOUTDA3 DOUTDB12 DOUTDA16 C_NUEL C_UML LED_6 DOUTDA7 DOUTDC16 DOUTDC11 DOUTDC4 DOUTDA13 CLKD8 L8L_DC03 5V_DET4 C_UEH C_UMH DOUTDB6 LED_5 L8L_DA05 DOUTDC19 DOUTDC7 L8L_DC05 CLRD_5 CLRD_5 CLKD9 DOUTDB8 DOUTDA6 DOUTDA15 L8L_DC13 DOUTDB2 DOUTDA6 D_LED6 DOUTDA11 L8L_DB14 CLKD0 USH CLKD4 DOUTDA14 L8L_DB05 L8L_DB00 SOS8_SS_C C_USL SOS8_SS_C D_ODED5 DOUTDB1 DOUTDB8 CLKD7 DOUTDC8 DOUTDA19 DOUTDB3 DOUTDA7 DOUTDC1 C_USL L8L_DB03 DOUTDC2 DOUTDC21 C_UML L8L_DA08 L8L_DC15 DOUTDA18 L8L_DC07 DOUTDA5 SOS7_DRD DOUTDC10 UMH DOUTDA3 UML ODED_5 DOUTDB19 L8L_DA15 DOUTDB15 L8R_DRVCLKD3 DOUTDB5 DOUTDA21 DOUTDB11 CLKD0 L8L_DC04 C_UEH DOUTDC20 DOUTDB13 5V_DET4 C_USH L8L_DB10 D_CLRD5 DOUTDA14 DOUTDB0 L8R_DRVCLKD0 DOUTDA0 L8L_DC00 L8L_DB13 5V_SENSE DOUTDB14 DOUTDA4 L8L_DA09 D_ODED6 L8L_DB12 UEH DOUTDA0 5V_SENSE CLKD1 DOUTDC8 DOUTDC17 DOUTDC0 DOUTDB1 DOUTDC10 L8L_DA07 DOUTDC4 DOUTDC11 DOUTDC9 C_UMH PCD_5 CLRD_6 DOUTDA2 DOUTDA11 DOUTDA12 DOUTDB9 L8L_DB02 DOUTDC2 PCD_5 ODED_5 DOUTDA10 L8L_DB06 DOUTDC13 USL CLKD3 DOUTDA9 DOUTDC6 L8L_DRVCLKD3 DOUTDA2 L8L_DB07 DOUTDB10 L8L_DA02 D_PCD6 DOUTDA10 PCD_4 DOUTDB15 L8L_DB11 DOUTDC7 DOUTDC3 DOUTDB2 L8R_DRVCLKD1 DOUTDC18 DOUTDB3 DOUTDA8 DOUTDB21 L8L_DRVCLKD2 L8L_DA00 DOUTDA4 DOUTDB12 L8L_DC02 L8L_DB04 L8L_DC11 DOUTDC6 L8L_DC01 L8L_DA03 CLKD4 DOUTDB20 DRVRST DOUTDB11 DOUTDC0 CLKD6 DOUTDC3 DOUTDB5 5V_DET5 L8L_DC10 DOUTDA9 C_USH L8L_DRVCLKD0 L8L_DRVCLKD1 CLKD10 CLKD11 5V_SENSE OCKOUT_RD L8DL_DQ26 L8DL_DQ27 L8DL_DQ25 CLKD1 D_PCD5 D_LED5 LED_4 L8L_MONOUT L8DL_CKE L8DL_CLK L8DL_NCLK C9069 25V 0.01u C9067 25V 0.01u C9929 16V 0.1u C9936 16V 0.1u C9941 16V 0.1u C9133 16V 0.1u C9931 16V 0.1u C9947 16V 0.1u C9951 16V 0.1u C9930 16V 0.1u C9933 16V 0.1u C9928 16V 0.1u C9946 16V 0.1u C9948 16V 0.1u C9937 16V 0.1u C9932 16V 0.1u C9940 16V 0.1u C9935 16V 0.1u C9927 16V 0.1u C9942 16V 0.1u C9934 16V 0.1u C9966 16V 0.1u C9945 16V 0.1u C9943 16V 0.1u C9939 16V 0.1u C9944 16V 0.1u C9938 16V 0.1u D9026 B0JCCE000008 D9024 B0JCCE000008 IC9301 B2 DQS0 IC9300 A1 VSS IC9300 M15 VSS IC9300 M14 VSS IC9300 M12 VSS IC9300 M3 AVSS_L IC9300 L24 VSS IC9300 L22 VSS IC9300 L16 VSS IC9300 L15 VSS IC9300 L14 VSS IC9300 L11 VSS IC9300 N17 VSS IC9300 L3 AVSS_L IC9300 K23 VSS IC9300 K17 VSS IC9300 K16 VSS IC9300 K15 VSS IC9300 K14 VSS IC9300 K10 VSS IC9300 K4 AVSS_PM IC9300 K3 AVSS_L IC9300 K1 AVSS_L IC9300 J24 VSS IC9300 J2 AVSS_PO IC9300 J1 TCPOUT IC9300 G24 VSS IC9300 G22 VSS IC9300 F23 VSS IC9300 F6 VSS IC9300 F5 VSS IC9300 E24 VSS IC9300 E20 VSS IC9301 K8 VSS IC9301 N12 CKE IC9301 K4 VDDQ IC9301 M5 BA1 IC9301 M12 CK IC9301 J8 VSS_Thermal IC9301 M13 NC IC9301 N2 CS IC9301 M11 CK IC9301 E5 VSS IC9301 F10 VSSQ IC9301 C12 VDDQ IC9301 B3 DM0 IC9301 F4 VDDQ IC9301 L12 NC IC9301 F13 DQ14 IC9301 N5 A0 IC9301 H11 NC IC9301 M8 A9 IC9301 L8 VDD IC9301 F9 VSS_Thermal IC9301 N13 VREF IC9301 G12 DQ13 IC9300 AC25 V_TEST IC9300 AB12 VSS IC9300 AF19 NRAS IC9300 AB11 VSS IC9300 AF18 CK IC9300 AF17 DQ8 IC9300 AF16 DQ10 IC9300 AF15 DQ11 IC9300 AB6 VSS IC9300 AB2 VSS IC9300 AB1 VSS IC9300 AA23 ID1 IC9300 AA4 VSS IC9300 AA3 VSS IC9301 K3 DQ23 IC9300 K2 AVSS_L IC9301 D13 DQ25 IC9301 N6 A1 IC9301 E6 VSSQ IC9301 D7 VDD IC9301 K9 VSS IC9301 C8 VDDQ IC9301 H10 VSSQ IC9301 B5 DQ3 IC9301 H6 VSS_Thermal IC9301 H4 NC IC9301 F2 DQ17 IC9301 E2 DQ7 IC9301 K6 VSS IC9301 C10 VDDQ IC9301 G11 VDDQ IC9301 G9 VSS_Thermal IC9301 B4 VSSQ IC9301 D3 DQ5 IC9301 G3 DQ18 IC9301 H3 DM2 IC9301 J5 VSSQ IC9301 K12 DQ9 IC9301 C4 NC IC9301 J9 VSS_Thermal IC9301 G10 VSSQ IC9301 C7 VDDQ IC9301 N4 BA0 IC9301 F7 VSS_Thermal IC9300 T11 VSS IC9301 H13 DQS1 IC9301 D11 VSSQ IC9301 B12 DM3 IC9301 E10 VSS IC9301 E9 VSSQ IC9301 F11 VDDQ IC9301 F6 VSS_Thermal IC9301 N7 A3 IC9301 B13 DQS3 IC9301 C2 DQ4 IC9301 G13 DQ12 IC9301 J12 DQ11 IC9301 B6 DQ2 IC9301 G2 DQ19 IC9301 H2 DQS2 IC9301 E7 VSS IC9301 E11 VDD IC9301 C9 DQ30 IC9301 L4 VDD IC9301 G6 VSS_Thermal IC9301 K13 DQ8 IC9301 L5 VSS IC9301 F3 DQ16 IC9300 N16 VSS IC9301 M2 RAS IC9301 N11 A8/AP IC9301 H7 VSS_Thermal IC9301 G7 VSS_Thermal IC9301 K2 DQ22 IC9301 G4 VDDQ IC9300 AF13 VSS IC9300 AF12 VSS IC9300 AF11 DQ28 IC9300 AF10 DQ29 IC9300 AF9 DQ0 IC9300 AF8 DQ2 IC9300 AF7 VSS IC9300 AF6 VSS IC9300 AF5 VSS IC9300 AF4 DQ21 IC9300 AF3 DQ22 IC9300 AF2 VSS IC9301 D2 DQ6 IC9301 H12 DM1 IC9300 T23 VSS IC9301 H5 VSSQ IC9301 C6 DQ1 IC9300 AE25 VSS IC9301 M3 NC IC9301 D12 DQ26 IC9300 AE24 TCPOUT_D IC9301 F5 VSSQ IC9300 AE23 AD3 IC9300 AE22 AD1 IC9300 AE21 AD0 IC9300 T14 VSS IC9300 AE20 BA0 IC9301 L6 A10 IC9301 L13 NC IC9300 AE19 NCS IC9300 AE18 AVSS_D IC9300 AE17 NCK IC9300 AE16 DQ9 IC9300 AE15 DQ15 IC9300 AE14 DQS1 IC9300 AE13 VSS IC9300 AE12 DQS3 IC9300 AE11 DQ30 IC9300 AE10 DQ31 IC9300 AE9 DQ1 IC9300 AE8 DQ3 IC9300 AE7 DQS0 IC9301 J6 VSS_Thermal IC9300 AE6 DQS2 IC9300 T15 VSS IC9300 B2 VSS IC9300 T16 VSS IC9300 AE4 DQ23 IC9300 B1 VSS IC9300 AE1 VSS IC9300 AD26 TEST1 IC9300 AF26 VSS IC9300 AD24 VSS IC9300 AD23 ID0 IC9300 AD22 AD8 IC9300 AD21 AD5 IC9300 AD20 AD9 IC9300 AD19 NWE IC9300 AD18 NCAS IC9300 AD17 AVSS_Q IC9300 AD16 DQ12 IC9300 M23 VSS IC9300 AD14 VSS IC9300 AF25 AD4 IC9300 AD13 AVSS_D IC9300 AF24 AD11 IC9300 AD12 VSS IC9300 AD11 DQ24 IC9300 AD10 DQ26 IC9300 AD9 DQ4 IC9300 AD8 DQ6 IC9300 AD7 AVSS_D IC9300 AD5 DQ16 IC9300 AD4 DQ18 IC9300 AF23 AD10 IC9300 AC26 MONOUT IC9301 F12 DQ15 IC9300 AC23 VSS IC9300 AC22 AVSS_PD IC9300 AC21 AD7 IC9300 AC20 AD6 IC9300 AC19 CKE IC9300 AC18 VSS IC9300 AC17 VSS IC9300 AC16 VSS IC9300 AC15 DQ13 IC9300 AC14 VREF0 IC9300 AC13 VSS IC9300 AC12 VSS IC9300 AC11 DQ25 IC9300 AC10 DQ27 IC9300 AC9 DQ5 IC9300 AC8 DQ7 IC9300 AC7 VREF1 IC9300 AC6 AVSS_D IC9300 AC5 DQ17 IC9300 AC3 VSS IC9300 AF22 AD2 IC9300 AB24 ID2 IC9300 AF21 BA1 IC9300 AB22 VSS IC9300 AF20 VSS IC9300 AB18 VSS IC9301 E8 VSS IC9301 J10 VSSQ IC9301 B10 DQ28 IC9301 C3 VDDQ IC9301 E3 VDDQ IC9301 E12 VDDQ IC9301 M9 A5 IC9301 K10 VSSQ IC9301 B9 DQ29 IC9301 L11 VDD IC9301 G5 VSSQ IC9301 M4 NC IC9301 E13 DQ24 IC9301 H8 VSS_Thermal IC9301 L3 WE IC9301 K5 VSSQ IC9301 N9 A6 IC9301 G8 VSS_Thermal IC9301 C5 VDDQ IC9300 U1 AVSS_L IC9300 U2 AVSS_L IC9300 U3 AVSS_L IC9300 U10 VSS IC9300 U14 VSS IC9300 U15 VSS IC9300 U16 VSS IC9300 U17 VSS IC9300 U24 VSS IC9300 V1 AVSS_PI IC9300 W4 VSS IC9300 W22 VSS IC9300 Y1 VSS IC9300 Y2 VSS IC9300 Y22 TEST0 IC9300 Y23 TEST IC9300 Y24 VSS IC9300 E14 VSS IC9300 E13 VSS IC9301 J2 DQ21 IC9301 D6 VSSQ IC9301 M7 A11 IC9301 D8 VDD IC9301 L9 RFU IC9300 E4 VSS IC9301 L10 VSS IC9301 B7 DQ0 IC9300 D25 VSS IC9301 J7 VSS_Thermal IC9301 J13 DQ10 IC9301 D10 VSSQ IC9301 D4 VSSQ IC9301 K7 VSS IC9301 C11 NC IC9301 H9 VSS_Thermal IC9301 L7 VDD IC9301 E4 VDD IC9301 D9 VSSQ IC9301 F8 VSS_Thermal IC9301 C13 DQ27 IC9301 D5 VSSQ IC9300 C2 VSS IC9300 C3 VSS IC9300 C26 VSS IC9301 J4 VDDQ IC9300 D3 VSS IC9301 J3 DQ20 IC9301 N3 NC IC9301 K11 VDDQ IC9301 N8 A4 IC9301 B11 VSSQ IC9301 B8 DQ31 IC9301 L2 CAS IC9301 M10 RFU IC9301 N10 A7 IC9300 AE5 DQ20 IC9301 M6 A2 IC9300 T3 AVSS_L IC9300 AE3 DQ19 IC9300 AF14 AVSS_D IC9300 N24 VSS IC9300 P3 AVSS_L IC9300 P10 VSS IC9300 P11 VSS IC9300 P12 VSS IC9300 P13 VSS IC9300 P14 VSS IC9300 P16 VSS IC9300 P17 VSS IC9300 P23 VSS IC9300 R3 AVSS_L IC9300 R12 VSS IC9300 R13 VSS IC9300 R14 VSS IC9300 R15 VSS IC9300 R22 VSS IC9300 R24 VSS IC9300 N3 AVSS_L IC9300 N11 VSS IC9300 N12 VSS IC9300 N13 VSS IC9300 N14 VSS IC9300 AD15 DQ14 IC9300 N15 VSS IC9301 J11 VDDQ IC9300 P15 VSS D33 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 D32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 P2.5V P2.5V P2.5V P2.5V P3.3V P3.3V P5V P5V ZA9000 K4CD01000011 TP9395 5V_S Q9058 2SD0601A0L Q9060 2SD0601A0L Q9061 2SD0601A0L R9950 EXB38V470JV R9951 EXB38V470JV R9947 EXB38V470JV R9945 EXB38V470JV R9944 EXB38V470JV R9948 EXB38V470JV R9949 EXB38V470JV *R9148 EXB38VR000V R9353 EXB38V470JV R9946 EXB38V470JV R9210 EXB2HV220JV R9193 EXB2HV220JV R9195 EXB2HV220JV R9209 EXB2HV220JV R9212 EXB2HV470JV R9211 EXB2HV220JV R9352 EXB2HV470JV R9123 EXB2HV470JV R9208 EXB2HV220JV R9936 1k R9938 1k R9190 4.7k R9224 22 R9940 33 R9178 22 R9216 22 R9118 0 R9180 22 R9177 22 R9192 10k R9953 47 R9124 0 R9191 100k R9136 10k R9181 22 R9937 1k R9125 4.7k R9954 47 R9952 47 R9179 22 R9214 100k R9130 100k R9213 100 R9939 1k R9286 0 *R9156 0 *R9144 0 *R9134 0 *R9127 0 R9175 100 R9907 150 R9955 47 R9905 33 R9182 22 R9152 0 DDR-Terminate to DDR D36 D31 D33 D32 D35 D34 CLRD5 DOUTDC[20] PCD_4/NC CLKD2(+) DOUTDC[8] CLKD1(-)/NC/ OCKOUT_LD DOUTDC[10] GND GND GND GND GND DOUTDC[21] DOUTDB[17] DOUTDC[17] GND GND DOUTDC[7] GND DOUTDB[16] DOUTDB[12] DOUTDC[16] GND GND DOUTDB[18] DOUTDC[9] GND DOUTDB[20] DOUTDB[2] GND GND GND GND DOUTDA[3] LED_4/NC GND NC GND DOUTDC[12] CLKD6(+) DOUTDA[20] DOUTDC[11] DOUTDB[11] DOUTDC[15] GND DOUTDC[4] DOUTDA[4] DOUTDC[2] P5V DOUTDB[13] DOUTDC[14] DOUTDB[5] DOUTDC[6] DOUTDC[5] CLKD0(+)/NC DOUTDA[1] DOUTDC[0] DOUTDA[0] CLKD3(-) DOUTDC[19] DOUTDB[21] DOUTDA[21] GND DOUTDB[8] DOUTDA[7] NC/LED5 DOUTDA[10] GND CLKD5(-) USL DOUTDA[19] DOUTDC[1] GND DOUTDA[11] DOUTDA[2] GND NC DOUTDB[1] DRVSOS8 P5V GND GND DOUTDC[18] 5V_DET UML GND GND ODED5 NUEL GND DOUTDA[5] DOUTDA[18] NC/PCD5 DOUTDA[17] UEH CLKD4(+) GND DOUTDB[10] DOUTDC[13] DOUTDB[9] DOUTDB[14] DOUTDA[14] GND DOUTDA[13] 5V_DET DOUTDB[4] GND GND DOUTDB[19] CLKD7(-) DOUTDB[15] DOUTDA[16] DOUTDA[6] DOUTDA[9] GND DOUTDB[6] UMH GND DRV_SOS7 DOUTDB[3] GND P5V DOUTDC[3] P5V DOUTDA[15] DOUTDB[7] NC DOUTDB[0] DOUTDA[12] DOUTDA[8] NC GND GND USH P5V P5V Vss 52 46 49 54 48 51 53 47 50 TO C2-BOARD (C21) TO C2-BOARD (C22) IC9300 MN84526 VIDEO/PANEL CONTROL PD2M Left (Master) DDR MEMORY IC9301 C3ABQJ000055 Left 41 42 43 44 ! D-BOARD TXN/D1RETC (6/6) TH-58PZ880C D-Board (6/6) Schematic Diagram TH-58PZ880C D-Board (6/6) Schematic Diagram 73 TH-58PZ880C 10.31.C1 电路板 （1/2）线路图 TERM SIDE TERM SIDE TERM SIDE TERM SIDE AB_PCD61 AB_DDA29 AB_NCLK4 AB_DDB31 AB_PCD61 AB_ODED6 AB_DDB28 AB_DDC24 AB_LED6 AB_ODED6 AB_CLRD6 AB_DDB29 AB_DDB26 AB_DDA31 AB_DDA24 AB_DDC31 AB_LED6 AB_NCLK3 AB_CLK4 AB_NCLK2 AB_DDC28 AB_DDC26 AB_ODED6 AB_LED6 AB_CLRD6 AB_CLRD6 AB_ODED6 AB_LED6 AB_CLK1 AB_DDB24 AB_DDC25 AB_DDC30 AB_DDC29 AB_CLK2 AB_DDA28 AB_DDB25 AB_DDB30 AB_NCLK1 AB_PCD62 AB_DDA26 AB_DDA30 AB_CLRD6 AB_PCD61 AB_DDC30 AB_DDA30 AB_DDB30 AB_DDC31 AB_DDB31 AB_DDA31 AB_DDC29 AB_DDA29 AB_DDB29 AB_DDB28 AB_DDC28 AB_DDA28 AB_DDA26 AB_DDB26 AB_DDC26 AB_DDA27 AB_DDB27 AB_DDC27 AB_DDA27 AB_DDC27 AB_DDB27 AB_DDA24 AB_DDB24 AB_DDC24 AB_DDA25 AB_DDC25 AB_DDB25 AB_DDC27 AB_DDA26 AB_DDC26 AB_DDB26 AA_DDA29 AB_DDC29 AB_DDB28 AB_DDC28 AB_DDA28 AA_DDA28 AB_DDB29 AB_DDA29 AA_DDA31 AB_DDC31 AB_DDB30 AB_DDC30 AB_DDA30 AB_DDB31 AB_DDA31 AA_DDC26 AA_DDA26 AA_DDB26 AA_DDB29 AA_DDC29 AA_DDC27 AA_DDB31 AA_DDC28 AA_DDB28 AA_DDC31 AA_DDA30 AA_DDB30 AA_DDC30 AB_CLK3 AB_DDA25 C17106 10V 1u C17136 16V 0.1u C17108 10V 1u C17109 10V 1u C17135 16V 0.1u C17107 10V 1u D17101 B0ECKM000038 D17102 RF081M2STR D17104 B0ECKM000038 D17103 B0ECKM000038 C0JBAZ002692 IC17105 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17106 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc CB4 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB1 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 VDA_75V C1_5V VDA_75V C1_5V VDA_75V C1_5V C1_5V VDA_75V C1_5V C1_5V R17139 47 R17137 47 R17138 47 R17145 470 R17147 470 R17146 470 R17144 470 R17140 47 R17199 4.7k R17106 6.8 R17114 6.8 R17107 6.8 R17109 6.8 R17113 6.8 R17110 6.8 R17105 6.8 R17108 6.8 R17111 6.8 R17115 6.8 R17116 6.8 R17112 6.8 R17120 6.8 R17121 6.8 R17123 6.8 R17122 6.8 R17125 6.8 R17124 6.8 R17102 6.8 R17101 6.8 C17148 100V 0.47u C17143 100V 0.47u C17141 100V 0.47u C17147 100V 0.47u C17145 100V 0.47u C17144 100V 0.47u C17142 100V 0.47u C17146 100V 0.47u ZA17103 K4CD01000013 ZA17102 K4CD01000013 ZA17104 K4CD01000013 ZA17105 K4CD01000013 ZA17101 K4CD01000013 CB3 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB2 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 A6-2 GND NC NC NC DM A2-2 NC GND GND VDD2 NC NC VDD2 VDD2 ODE NC VDD1 NC VDD1 VDD2 NC VDD2 GND GND VDD2 A4-2 NC A3-1 GND NC GND VDD2 BLK(PC) A2-2 NC GND DSEL VDD2 DM GND NC GND GND GND LEN NC GND GND A5-2 GND NC ODE VDD2 VDD1 GND VDD2 NC A4-2 BLK(PC) NC DSEL GND A5-2 VDD2 NC A2-1 NC GND GND A4-1 GND NC GND LEN GND NC VDD2 VDD2 BLK(PC) DSEL VDD2 A2-1 GND GND GND DSEL DM GND GND GND GND A6-2 GND GND NC VDD2 GND NC NC ODE NC GND NC A4-2 DM NC VDD2 A2-2 VDD2 A5-2 NC NC GND GND A3-1 CLR GND NC VDD2 NC A5-1 GND VDD2 VDD2 A1-1 A6-2 GND VDD2 VDD1 CLR A6-1 GND VDD2 DM VDD2 NC A3-2 DM GND NC NC GND VDD2 GND A1-1 NC A5-1 VDD2 DM NC VDD1 A2-2 GND NC VDD2 GND VDD2 VDD2 VDD1 GND NC FX2(+) NC A3-1 GND A5-2 VDD1 FX2(+) CLR VDD1 GND GND NC VDD1 NC GND VDD2 VDD2 VDD2 A3-2 NC GND A3-2 NC NC A4-1 GND A5-1 NC GND VDD2 VDD2 VDD2 NC FX2(+) A6-2 NC A1-2 VDD2 GND FX1(-) VDD1 VDD2 ODE FX1(-) FX2(+) GND NC VDD1 A1-2 GND VDD1 NC VDD2 VDD2 VDD2 NC VDD1 FX1(-) A4-2 VDD1 A1-1 FX1(-) NC VDD2 VDD2 CLR A3-1 NC A6-1 VDD1 GND A4-1 VDD2 VDD2 NC DM A6-1 VDD2 NC GND A1-2 VDD2 VDD2 A3-2 GND VDD1 BLK(PC) NC GND A1-1 A5-1 VDD2 A4-1 GND A6-1 GND A1-2 GND LEN VDD2 GND NC GND A2-1 LEN NC A2-1 NC NC NC 1 C10 20 68 1 68 1 68 1 68 1 6 8 1 1 68 C11 4 6 1 5 3 2 BUFFER BUFFER TO PANEL DATA DRIVER TO PANEL DATA DRIVER TO PANEL DATA DRIVER TO PANEL DATA DRIVER C1-BOARD TXNC11RETC (1/2) ! TH-58PZ880C C1-Board (1/2) Schematic Diagram B E 9 6 8 1 A 2 3 D 7 F 5 4 C TH-58PZ880C C1-Board (1/2) Schematic Diagram 74 TH-58PZ880C 10.32.C1 电路板 （2/2）线路图 G G SIDE TERM TERM SIDE TERM SIDE AA_DDC28 AA_DDA31 AA_DDB31 AA_DDC31 AA_DDA30 AA_DDB30 AA_DDB28 AA_DDA28 AA_DDC29 AA_DDA29 AA_DDB29 AA_DDB23 AA_DDA23 AA_DDC23 AA_DDA22 AA_DDB22 AA_DDC22 AA_DDB24 AA_DDC24 AA_DDA24 AA_DDC25 AA_DDB25 AA_DDC26 AA_DDB26 AA_DDA26 AA_DDC27 AA_DDB27 AA_CLK8 AA_LED6 AA_PCD6 AA_CLRD6 AA_ODED6 AA_DDC30 AA_NCLK11 AA_CLK10 AB_PCD61 AB_LED6 AB_PCD62 AB_CLRD6 AB_NCLK2 AB_CLK2 AB_NCLK1 AB_NCLK3 AB_CLK3 AB_CLK1 AA_CLK10 AB_DDC22 AB_DDB22 AB_NCLK5 AB_DDB23 AB_CLRD6 AB_DDA22 AB_DDC23 AB_ODED6 AB_LED6 AB_DDA23 AB_PCD62 AB_CLK5 AA_NCLK11 AB_DDC22 AB_DDA22 AB_DDB22 AB_DDA23 AB_DDC23 AB_DDB23 AB_DDA27 AB_DDB27 AA_DDA27 AA_DDA24 AA_DDC25 AA_DDB24 AA_DDA25 AB_DDA25 AB_DDA24 AB_DDC24 AB_DDB24 AB_DDC25 AB_DDB25 AA_DDA27 AA_DDC24 AB_DDC22 AB_DDB23 AB_DDA22 AB_DDC23 AB_DDA23 AB_DDB22 AA_DDC23 AA_DDA23 AA_DDB23 AA_DDB22 AA_DDC22 AA_DDA22 AA_DDA25 AB_CLK5 AB_NCLK5 AB_CLK4 AB_NCLK4 AA_ODED6 AA_CLRD6 AA_LED6 AA_PCD6 AA_CLK8 AA_NCLK9 AB_ODED6 AA_DDB25 AA_NCLK9 AA_DDB27 C17132 16V 0.1u C17110 10V 1u C17134 16V 0.1u C17133 16V 0.1u D17105 B0ECKM000038 FL17101 J0HABH000013 1 2 3 C0JBAZ002692 IC17101 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17102 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17104 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 CB5 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C1_5V C1_5V C1_5V VDA_75V C1_5V C1_5V VDA_75V R17143 470 R17131 22 R17142 470 R17135 47 R17132 22 R17136 47 R17133 47 R17149 680 R17164 220k R17162 100k R17163 22k R17118 6.8 R17117 6.8 R17119 6.8 C1_5V R17156 470 C0JBAZ002692 IC17103 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C17137 16V 0.1u R17148 470 R17141 47 R17157 470 R17154 47 R17155 47 R17153 22 R17152 22 R17151 0 R17103 6.8 R17104 6.8 C17149 100V 0.47u C17150 100V 0.47u R17134 680 R17158 47 R17159 47 DOUTDC[29] GND DOUTDC[25] DOUTDC[30] DOUTDC[31] DOUTDC[27] GND DOUTDB[22] DOUTDA[31] GND DOUTDB[26] NC P5V P5V GND DOUTDB[25] DOUTDB[29] 5V_DET DOUTDA[29] ODED6 GND CLKD[8](+) CLKD[9](-) GND GND GND NC NC NC NC DOUTDC[24] NC GND NC P5V GND DOUTDA[28] DOUTDC[26] GND DOUTDB[24] DOUTDB[31] DOUTDC[28] DOUTDA[25] DOUTDB[28] GND GND PCD6 GND GND DOUTDA[27] DOUTDA[22] DOUTDA[26] DOUTDC[22] GND GND LED6 DOUTDA[23] DOUTDB[30] DOUTDA[24] DOUTDB[27] GND DOUTDA[30] DOUTDB[23] DOUTDC[23] CLRD6 NC CLKD[11](-) CLKD[10](+) VDD2 NC VDD2 A2-2 A3-2 NC VDD2 A1-2 NC VDD1 VDD2 GND VDD1 A1-1 LEN NC NC A6-1 VDD2 A2-1 A6-2 VDD2 GND VDD2 GND NC GND VDD1 VDD2 GND VDD2 A4-1 GND GND DM GND A4-2 A3-1 GND NC GND A5-1 NC VDD1 GND NC NC VDD2 NC DSEL NC FX2(+) GND CLR VDD2 NC FX1(-) VDD2 BLK(PC) GND A5-2 DM GND GND GND ODE NC 5V_DET VDA VDA GND NC VDA GND NC GND VDA VDA NC NC VDA VDA GND GND GND GND GND VDA CLK_R 17 14 18 13 12 16 15 10 11 3 4 2 1 6 5 BUFFER TO D-BOARD (D31) TO C2-BOARD (C20) TO PANEL DATA DRIVER BUFFER BUFFER BUFFER ! C1-BOARD TXNC11RETC (2/2) TH-58PZ880C C1-Board (2/2) Schematic Diagram TH-58PZ880C C1-Board (2/2) Schematic Diagram 75 TH-58PZ880C 10.33.C2 电路板 （1/2）线路图 G G TERM SIDE TERM SIDE TERM SIDE SIDE TERM AA_DDA14 AA_DDB13 AA_DDC12 AA_DDB18 AA_ODED5 AA_DDB11 AA_DDB10 AA_LED5 AB_NCLK8 AA_DDA17 AA_DDC14 AA_CLRD5 AA_DDA10 AA_PCD5 AA_DDB14 AB_PCD5 AA_DDA12 AA_DDB19 AA_DDA11 AA_DDB16 AA_DDB20 AA_DDC21 AA_DDA16 AB_CLRD5_C3 AA_DDC17 AA_DDB15 AA_DDC10 AA_DDA21 AA_DDC18 AA_DDC19 AA_CLRD5 AB_CLRD5 AA_DDB17 AA_DDC20 AA_DDA13 AB_LED5_C3 AA_DDA15 AB_ODED5 AB_PCD5_C3 AA_DDB21 AA_DDA18 AA_DDB12 AA_LED5 AA_NCLK5 AA_DDA19 AA_DDC16 AB_ODED5_C3 AA_PCD5 AA_ODED5 AA_NCLK7 AA_CLK6 AA_DDC13 AB_LED5 AA_DDC15 AA_CLK4 AA_DDC11 AA_DDA20 AB_NCLK6 AB_CLK6 AA_DDB21 AA_DDB20 AA_DDC21 AA_DDA21 AA_DDA20 AA_DDC20 AA_DDA16 AA_DDB16 AA_DDB14 AA_DDB17 AA_DDA17 AA_DDC14 AA_DDC16 AA_DDC17 AA_DDA19 AA_DDC19 AB_DDC18 AA_DDA18 AB_DDA19 AA_DDC18 AA_DDB18 AB_DDC19 AB_DDB18 AB_DDB19 AB_DDA18 AA_DDB19 AB_CLRD5 AB_DDC18 AB_DDA18 AB_PCD5 AB_CLK7 AB_ODED5 AB_DDB18 AB_DDA18 AB_NCLK7 AB_LED5 AB_DDC19 AB_DDB19 AB_DDC18 AB_DDA19 AB_DDB18 AB_DDB19 AB_DDC19 AB_DDA19 AB_CLRD5 AB_ODED5 AB_LED5 AB_PCD5 AB_NCLK10 AB_CLK10 AB_CLK9 AB_NCLK9 AA_CLK4 AA_NCLK5 AB_CLK6 AB_CLK7 AB_NCLK6 AB_CLK8 AB_NCLK7 AB_DDC16 AB_DDB16 AB_DDC17 AB_DDA16 AB_DDA17 AB_DDB17 AB_DDB14 AB_DDC14 5V_DET_C2 5V_DET_C2 AB_DDA20 AB_DDC20 AB_DDB20 AB_DDB21 AB_DDA21 AB_DDC21 AB_DDC21 AB_DDB21 AB_DDA21 AB_DDC20 AB_DDB20 AB_DDA20 AB_DDB21 AB_DDB20 AB_DDC21 AB_DDA20 AB_DDA21 AB_DDC20 AA_NCLK7 AA_CLK6 C17231 16V 0.1u C17233 16V 0.1u FL17201 J0HABH000013 1 2 3 C0JBAZ002692 IC17203 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17202 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 P5V C2_5V C2_5V VDA_75V C2_5V R17231 22 R17267 680 R17233 47 R17232 47 R17212 6.8 R17211 6.8 R17210 6.8 D17201 B0ECKM000038 VDA_75V C17208 10V 1u CB6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ002692 IC17205 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C17235 16V 0.1u R17255 470 C2_5V R17256 470 R17265 470 C2_5V C17238 16V 0.1u R17266 470 C0JBAZ002692 IC17207 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17206 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C17239 16V 0.1u R17257 470 C2_5V R17258 470 C2_5V VDA_75V D17202 B0ECKM000038 R17213 6.8 CB7 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C17209 10V 1u R17215 6.8 R17214 6.8 C2_5V R17280 0 R17289 680 R17290 680 R17281 22 C17232 16V 0.1u C2_5V R17288 680 R17287 680 C0JBAZ002692 IC17201 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R17282 22 C17247 100V 0.47u C17250 100V 0.47u C17249 100V 0.47u C17248 100V 0.47u R17216 6.8 R17217 6.8 R17218 6.8 R17219 6.8 R17234 22 R17238 47 R17237 47 R17284 47 R17285 47 R17286 47 R17283 47 R17243 68 R17244 68 C20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 CLK_L GND DOUTDB[16] P5V GND CLKD[6](+) DOUTDA[12] DOUTDB[12] P5V DOUTDC[18] DOUTDC[14] DOUTDB[18] GND VDA CLK_R GND NC CLRD5 GND GND DOUTDA[18] NC DOUTDA[16] DOUTDC[16] NC(DRVSOS7) 5V_DET NC ODED5 DOUTDC[11] GND CLKD[5](-) DOUTDC[12] DOUTDB[11] CLKD[4](+) DOUTDA[19] LED5 GND PCD5 GND DOUTDA[17] GND GND GND GND CLKD[7](-) DOUTDC[13] DOUTDB[13] DOUTDA[13] GND DOUTDA[10] DOUTDC[10] DOUTDB[10] DOUTDB[15] DOUTDB[19] DOUTDB[17] NC VDA GND GND DOUTDB[20] GND DOUTDC[21] GND DOUTDB[21] DOUTDA[21] DOUTDA[15] DOUTDC[17] DOUTDB[14] DOUTDA[11] DOUTDA[20] DOUTDC[20] DOUTDC[15] GND P5V DOUTDA[14] GND DOUTDC[19] GND VDA VDA 5V_DET VDA GND GND GND GND VDA VDA VDA GND NC GND A2-1 A5-2 FX1(-) NC DM GND VDD1 GND GND NC NC VDD1 ODE A2-2 A4-2 NC NC NC NC GND NC GND GND VDD2 GND A5-1 VDD2 VDD2 GND NC A3-2 VDD2 FX2(+) VDD2 VDD2 A3-1 GND VDD2 LEN VDD2 GND A1-2 A6-1 NC NC VDD2 GND GND BLK(PC) VDD1 VDD1 GND DSEL GND NC A6-2 VDD2 VDD2 NC A4-1 CLR NC VDD2 GND DM A1-1 ODE DSEL VDD2 A5-1 A6-2 GND NC VDD1 DM NC GND BLK(PC) VDD2 GND FX2(+) NC VDD1 GND A2-2 VDD2 NC NC NC NC A3-2 NC GND VDD1 VDD2 VDD2 NC A5-2 A2-1 GND A4-1 VDD2 A3-1 NC GND NC DM VDD2 LEN A6-1 A1-2 GND FX1(-) NC VDD2 GND NC GND VDD2 NC A1-1 CLR VDD2 VDD2 NC GND GND A4-2 GND VDD1 GND GND GND VDD2 4 6 1 5 3 2 C2-BOARD TXNC21RETC (1/2) ! BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER TO PANEL DATA DRIVER TO PANEL DATA DRIVER TO D-BOARD (D32) TH-58PZ880C C2-Board (1/2) Schematic Diagram TH-58PZ880C C2-Board (1/2) Schematic Diagram TO C1-BOARD (C10) B E 9 6 8 1 A 2 3 D 7 F 5 4 C 76 TH-58PZ880C 10.34.C2 电路板 （2/2）线路图 TERM SIDE TERM SIDE TERM SIDE TERM SIDE SIDE TERM AA_DDB7 AB_LED5 AB_DDC10 AA_DDB2 AB_DDB11 AB_DDB10 AB_DDA11 AB_DDC15 AB_DDC10 AA_UMH AB_DDA15 AB_CLK10 AA_DDA4 AA_DDA6 AB_LED5 AB_NCLK8 AA_DDB0 AA_UEH AA_USH AA_DDA0 AA_DDB3 AA_USL AB_DDB10 AA_DDC5 AA_NUEL AB_NCLK9 AA_DDB4 AA_DDA1 AA_DDC9 AA_DDA2 AA_USH AB_DDB15 AA_NCLK1 AA_DDC7 AA_DDC2 AA_DDC0 AB_CLRD5 AA_DDB5 AB_PCD5 AA_UMH AA_DDA3 AA_DDA7 AA_UML AB_LED5 AB_DDC11 AB_CLK9 AB_CLK8 AB_DDC11 AA_USL AA_DDA8 AA_DDC4 AB_CLRD5 AB_ODED5 AA_UML AB_DDB11 AA_DDC3 AB_DDB17 AA_DDB8 AA_DDC1 AB_ODED5 AA_CLK0 AA_DDB9 AB_DDA10 AB_DDC14 AA_DDB1 AA_UEH AA_DDA5 AA_NUEL AB_DDB14 AB_PCD5 AB_NCLK10 AA_DDB6 AB_PCD5 AB_DDA14 AB_ODED5 AB_DDA10 AB_CLRD5 AB_DDA11 AA_DDB8 AA_DDC8 AA_DDA8 AA_DDA9 AA_DDC9 AA_DDB9 AA_DDA6 AA_DDC6 AA_DDB6 AA_DDA7 AA_DDC7 AA_DDB7 AA_DDA4 AA_DDC4 AA_DDB4 AA_DDA5 AA_DDC5 AA_DDB5 AA_DDA2 AA_DDC2 AA_DDB2 AA_DDA3 AA_DDC3 AA_DDB3 AA_DDA0 AA_DDC0 AA_DDB0 AA_DDA1 AA_DDC1 AA_DDB1 AA_CLK0 AA_NCLK3 AA_CLK2 AA_NCLK1 AB_LED5_C3 AB_ODED5_C3 AB_CLRD5_C3 AB_PCD5_C3 AB_NUEL AB_UML AB_USH AB_UMH AB_UEH AB_USL SOS8 AA_DDB12 AA_DDC13 AA_DDA15 AA_DDA14 AA_DDC15 AA_DDA12 AA_DDC12 AA_DDC10 AA_DDA13 AA_DDA11 AA_DDA10 AA_DDC11 AA_DDB11 AA_DDB13 AA_DDB10 AA_DDC6 AA_DDA9 SOS8 AA_CLK2 AA_NCLK3 AB_DDC15 AB_DDA14 AB_DDA15 AB_DDB15 AA_DDB15 AB_DDA10 AB_DDC11 AB_DDC10 AB_DDB10 AB_DDB11 AB_DDA11 AB_DDC12 AB_DDB12 AB_DDA12 AB_DDA13 AB_DDB13 AB_DDC13 AB_DDA12 AB_DDB12 AB_DDC12 AB_DDA13 AB_DDB13 AB_DDC13 AB_DDA12 AB_DDC12 AB_DDB12 AB_DDC13 AB_DDA13 AB_DDB13 AA_DDC8 AB_DDA17 AB_DDC16 AB_DDB16 AB_DDA16 AB_DDC17 C17203 10V 1u C17234 16V 0.1u C17202 10V 1u C17201 10V 1u D17205 B0ECKM000038 D17204 B0ECKM000038 D17203 B0ECKM000038 C0JBAZ002692 IC17204 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 CB10 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB9 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C2_5V VDA_75V C2_5V VDA_75V C2_5V VDA_75V C2_5V P5V R17269 680 R17235 47 R17236 47 R17268 680 R17204 6.8 R17203 6.8 R17205 6.8 R17206 6.8 R17209 6.8 R17201 6.8 R17208 6.8 R17202 6.8 R17207 6.8 C26 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 C2_5V VDA_75V R17292 220k R17291 0 C0JBAZ002692 IC17208 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C17236 16V 0.1u R17261 470 C2_5V R17262 470 R17263 470 C2_5V C17237 16V 0.1u R17264 470 C0JBAZ002692 IC17209 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C17245 100V 0.47u C17244 100V 0.47u C17246 100V 0.47u C17241 100V 0.47u C17242 100V 0.47u C17243 100V 0.47u R17220 6.8 R17221 6.8 R17222 6.8 R17223 6.8 R17224 6.8 R17225 6.8 R17239 68 R17240 68 R17241 68 R17242 68 R17245 680 R17247 680 R17251 680 R17249 680 R17252 680 R17246 680 R17250 680 R17248 680 ZA17201 K4CD01000013 ZA17203 K4CD01000013 ZA17204 K4CD01000013 ZA17202 K4CD01000013 NC A3-1 GND VDD2 VDD1 NC VDD2 VDD2 DOUTDC[7] UMH VDD2 DOUTDB[5] DOUTDA[6] C20 NC GND C22 GND DOUTDB[8] CLKD[2](+) VDD2 DOUTDA[4] A4-1 NC 20 DOUTDC[2] VDD2 UML VDD2 USL GND NC GND DOUTDB[3] GND DOUTDA[5] GND GND CLR GND GND GND GND NC(URL) NC DOUTDB[6] A4-2 NC DOUTDA[2] NC DOUTDA[3] A4-1 VDD2 DM A2-2 NC VDD1 NUEL GND GND GND FX1(-) GND VDD2 A4-2 DOUTDA[7] NC DOUTDB[0] FX1(-) NC DOUTDC[6] GND BLK(PC) A4-2 VDD1 68 GND VDD2 1 C21 NC GND 68 NC GND A6-1 80 1 VDD2 C26 1 GND NC NC 1 GND 68 NC DOUTDB[2] 1 NC CLKD[3](-) VDD2 GND 68 VDD2 VDD1 5V_DET 1 ODE GND VDD2 GND NC NC NC VDD2 DOUTDC[4] GND GND GND A5-1 USH VDD2 DOUTDA[8] DSEL NC NC(URH) VDD2 BLK(PC) ODE A3-2 A3-1 GND GND GND A5-2 NC NC NC CLKD[1](-) NC DM DOUTDC[1] NC A6-2 NC NC VDD2 GND VDD2 GND NC NC 68 GND VDD2 NC FX2(+) A4-1 NC ODE A6-1 VDD1 NC VDD1 NC GND VDD2 LEN VDD1 A1-1 GND GND NC DOUTDC[8] GND GND UEH DOUTDB[1] CLR DOUTDC[0] VDD2 DOUTDB[4] GND GND A5-2 A3-2 VDD2 DOUTDC[9] 1 VDD1 A6-1 68 1 GND DSEL 68 VDD1 1 GND GND DOUTDA[1] NC DOUTDC[5] GND GND DOUTDA[0] A5-1 LEN A6-2 GND DM A3-2 BLK(PC) NC GND P5V GND FX2(+) A2-2 A1-1 VDD2 NC FX2(+) GND GND GND NC NC VDD1 A1-2 VDD2 VDD2 A2-1 VDD2 VDD2 DM GND FX1(-) VDD2 VDD2 GND A1-2 GND VDD2 A3-1 A2-1 A1-2 GND GND VDD2 NC A5-2 GND GND DM NC A6-2 NC CLR A2-1 NC NC VDD1 VDD2 A5-1 GND A2-2 VDD2 LEN NC DSEL DRV_SOS8 GND P5V CLK_L DOUTDC[3] CLKD[0](+) DM GND DOUTDB[7] DOUTDA[9] DOUTDB[9] A1-1 P5V GND GND GND VDD1 GND NC NC VDD2 VDD2 28:GND 68:UMH 69:UML 12:GND 73:UEH 43:DOUTDA[3] 5:P75V 20:GND 11:NC 79:GND 44:GND 23:DOUTDA[6] 71:USH 13:DOUTDC[8] 16:GND 55:CLK(2)_P 58:GND 8:P75V 56:GND 61:CLR 42:DOUTDB[3] 48:GND 54:GND 2:P75V 37:DOUTDC[2] 40:GND 66:GND 35:DOUTDA[5] 50:DOUTDB[1] 4:P75V 21:DOUTDC[6] 52:GND 38:DOUTDB[2] 45:DOUTDC[0] 25:DOUTDC[7] 1:P75V 30:DOUTDB[4] 46DOUTDC[0] 18:DOUTDB[9] 31:DOUTDA[4] 32:GND 22:DOUTDB[6] 6:P75V 78:P5V 27:DOUTDA[7] 17:DOUTDC[9] 53:CLK(3)_N 49:DOUTDC[1] 47:DOUTDA[0] 75:DRV_SOS8 76:GND 57:CLK(1)_N 34:DOUTDB[5] 64:LE 15:DOUTDA[8] 19:DOUTDA[9] 77:P5V 63:GND 67:NUEL 51:DOUTDA[1] 74:GND 24:GND 72:USL 26:DOUTDB[7] 7:P75V 60:GND 70:GND 10:NC 36:GND 9:NC 29:DOUTDC[4] 14:DOUTDB[8] 62:PC 59:CLK(0)_P 80:5V_DET 3:P75V 39:DOUTDA[2] 33:DOUTDC[5] 41:DOUTDC[3] 65:ODE 425*56 1 2 3 4 5 6 17 14 18 13 12 16 15 10 11 BUFFER BUFFER BUFFER TO PANEL DATA DRIVER TO PANEL DATA DRIVER TO PANEL DATA DRIVER TO D-BOARD (D33) TO C3-BOARD (C36) C2-BOARD TXNC21RETC (2/2) ! TH-58PZ880C C2-Board (2/2) Schematic Diagram TH-58PZ880C C2-Board (2/2) Schematic Diagram 77 TH-58PZ880C 10.35.C3 电路板 （1/2）线路图 TERM SIDE SIDE TERM AB_NCLK12 AB_NCLK11 AB_CLK12 AB_CLK11 AB_DDC0 AB_DDA0 AB_DDA1 AB_DDB0 AB_DDB1 AB_DDC1 AB_DDA3 AB_DDB3 AA_DDA1 AA_DDB1 AA_DDC1 AA_DDA0 AA_DDB0 AA_DDC0 AA_DDA3 AA_DDB3 AA_DDA2 AA_DDC3 AB_DDA5 AB_DDA4 AA_DDC2 AA_DDB2 AA_DDA4 AB_DDB5 AB_DDC3 AA_DDC5 AB_DDC2 AA_DDB5 AB_DDC5 AB_DDA2 AB_DDB2 AA_DDA5 AA_DDB7 AA_DDA7 AB_DDC7 AB_DDB4 AB_DDB7 AA_DDA6 AA_DDB4 AB_DDC6 AB_DDA6 AB_DDB6 AA_DDC4 AA_DDB6 AB_DDC4 AB_DDA7 AA_DDC7 AB_DDC8 AB_CLK11 AB_DDA9 AC_ODED5 AB_NCLK11 AB_DDC9 AB_DDB8 AB_DDC9 AC_LED5 AB_DDA8 AC_PCD5 AC_CLRD5 AB_DDB8 AB_DDA8 AB_DDB9 AB_DDB9 AB_DDA9 AB_DDC8 AA_DDB8 AA_DDC8 AA_DDB9 AA_DDC9 AB_DDB9 AB_DDC9 AB_DDA8 AA_DDA9 AA_DDA8 AA_DDC4 AA_DDA4 AA_DDB7 AA_DDA7 AA_DDC7 AA_DDC6 AA_DDB6 AA_DDA6 AA_DDC9 AA_DDA8 AA_DDC8 AA_DDB9 AA_DDA9 AA_DDB8 AA_DDB3 AA_DDA0 AA_DDC3 AA_DDB2 AA_DDA3 AA_DDC2 AA_DDB5 AA_DDA2 AA_DDA5 AA_DDC5 AA_DDB4 AA_DDB0 AA_DDA1 AA_DDB1 AA_DDC1 AB_PCD5_C3 AA_NCLK3 AB_CLRD5_C3 AA_CLK2 AA_NCLK1 AB_LED5_C3 AB_USL AB_UMH AB_NUEL AB_UML AB_USH AB_DDB8 AB_UEH AC_LED5 AC_PCD5 AC_ODED5 AC_CLRD5 AB_DDA9 AB_ODED5_C3 AA_CLK0 AB_NCLK15 AB_NCLK13 AB_CLK14 AB_CLK15 AB_NCLK14 AB_CLK13 AA_NCLK1 AA_CLK0 AB_DDC8 AA_DDC0 AB_ODED5_C3 AB_PCD5_C3 AB_LED5_C3 AB_CLRD5_C3 AA_NCLK3 AA_CLK2 AA_DDC6 SOS8_C3 SOS8_C3 C17332 16V 0.1u C17331 16V 0.1u C17333 16V 0.1u C17334 16V 0.1u C0JBAZ002692 IC17304 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17305 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17301 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17303 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C35 1 2 3 4 C33 1 2 3 4 5 6 7 8 9 10 C3_5V C3_5V C3_5V C3_5V VDA_75V C3_5V R17331 22 R17341 470 R17338 47 R17345 470 R17333 47 R17336 47 R17344 470 R17343 470 R17334 47 R17342 470 R17335 47 R17346 470 R17337 47 R17368 220k R17313 6.8 CB11 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R17315 6.8 R17314 6.8 C17310 10V 1u VDA_75V C3_5V D17305 B0ECKM000038 C17335 16V 0.1u C0JBAZ002692 IC17306 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R17339 47 C3_5V R17347 470 C36 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 VDA_75V R17365 0 R17366 100k C3_5V R17367 22k R17358 47 R17357 47 R17340 47 R17350 680 C17338 16V 0.1u C3_5V R17332 22 C0JBAZ002692 IC17302 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R17355 22 R17356 22 R17361 680 R17362 680 R17363 680 R17364 680 R17359 470 R17360 470 R17319 6.8 R17318 6.8 C17351 100V 0.47u C17349 100V 0.47u C17350 100V 0.47u GND Vda 75V Vda 75V NC UML UMH SOS8_SS NC GND P5V NUEL UEH USL USH GND NC GND A4-1 NC FX1(-) DM GND GND A1-2 GND A6-1 GND NC VDD2 LEN GND ODE VDD2 NC VDD2 DM VDD2 GND NC GND NC A1-1 VDD2 NC A3-2 VDD1 A5-2 VDD2 GND GND VDD2 GND VDD1 GND CLR GND FX2(+) VDD1 NC A2-1 A2-2 NC VDD2 GND A6-2 NC VDD1 NC VDD2 A5-1 VDD2 VDD2 NC BLK(PC) NC NC DSEL NC A4-2 GND VDD2 A3-1 79:P75V 44:DOUTDC[2] 41:GND 15:GND 46:DOUTDA[5] 31:DOUTDB[1] 77:P75V 11:GND 71:NC 45:GND 72:NC 52:DOUTDC[4] 67:DOUTDB[8] 1:5V_DET 19:PC 78:P75V 22:CLK(0)_P 42:DOUTDA[2] 48:DOUTDC[5] 40:DOUTDC[3] 16:ODE 23:GND 73:P75V 25:GND 20:CLR 39:DOUTDB[3] 33:GND 27:GND 12:UML 14:NUEL 69:GND 30:DOUTDA[1] 8:UEH 7:GND 38:DOUTDA[3] 57:GND 76:P75V 9:USL 61:GND 55:DOUTDB[7] 70:NC 74:P75V 21:GND 24:CLK(1)_N 47:DOUTDB[5] 17:LE 66:DOUTDA[8] 62:DOUTDA[9] 4:P5V 18:GND 54:DOUTDA[7] 64:DOUTDC[9] 28:CLK(3)_N 32:DOUTDC[1] 34:DOUTDA[0] 6:DRV_SOS8 5:GND 35:DOUTDC[0] 63:DOUTDB[9] 2:GND 50:DOUTDA[4] 37:GND 49:GND 58:DOUTDA[6] 59:DOUTDB[6] 10:USH 13:UMH 75:P75V 68:DOUTDC[8] 3:P5V 65:GND 26:CLK(2)_P 60:DOUTDC[6] 29:GND 43:DOUTDB[2] 36:DOUTDC[0] 56:DOUTDC[7] 80:P75V 53:GND 51:DOUTDB[4] 4 1 3 2 ! C3-BOARD TXNC31RETC (1/2) BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER TO SS-BOARD (SS33) TO SS3-BOARD (SS35) TO PANEL DATA DRIVER TO C2-BOARD (C26) TH-58PZ880C C3-Board (1/2) Schematic Diagram TH-58PZ880C C3-Board (1/2) Schematic Diagram B E 9 6 8 1 A 2 3 D 7 F 5 4 C 78 TH-58PZ880C 10.36.C3 电路板 （2/2）线路图 TERM SIDE TERM SIDE TERM SIDE TERM SIDE AB_CLK12 AC_LED5 AB_DDC7 AB_DDB7 AB_DDA7 AB_DDC6 AB_DDA6 AB_DDB6 AB_DDA7 AB_DDB7 AB_DDC7 AC_PCD5 AB_NCLK12 AC_CLRD5 AC_ODED5 AB_DDC6 AB_DDB6 AB_DDA6 AB_DDA5 AB_DDA4 AB_DDB4 AC_CLRD5 AB_DDA4 AB_DDB4 AB_DDC4 AB_NCLK13 AB_DDA5 AC_PCD5 AB_DDB5 AB_DDC5 AB_DDC5 AC_LED5 AB_DDC4 AC_ODED5 AB_DDB5 AB_DDA3 AB_DDA2 AB_DDB2 AC_CLRD5 AB_DDA2 AB_DDB2 AB_DDC2 AB_NCLK14 AB_DDA3 AC_PCD5 AB_DDB3 AB_DDC3 AB_DDC3 AC_LED5 AB_CLK14 AB_DDC2 AC_ODED5 AB_DDB3 AB_DDA1 AB_DDA0 AB_DDB0 AC_CLRD5 AB_DDA0 AB_DDB0 AB_DDC0 AB_NCLK15 AB_DDA1 AC_PCD5 AB_DDB1 AB_DDC1 AB_DDC1 AC_LED5 AB_CLK15 AB_DDC0 AB_DDB1 AC_ODED5 AB_CLK13 C17305 10V 1u C17307 10V 1u C17306 10V 1u C17304 10V 1u D17301 B0ECKM000038 D17304 B0ECKM000038 D17303 B0ECKM000038 D17302 B0ECKM000038 CB13 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB14 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB12 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C3_5V VDA_75V VDA_75V C3_5V C3_5V VDA_75V C3_5V VDA_75V R17399 4.7k R17301 6.8 R17302 6.8 R17310 6.8 R17309 6.8 R17306 6.8 R17307 6.8 R17303 6.8 R17305 6.8 R17312 6.8 R17304 6.8 R17308 6.8 R17311 6.8 CB15 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R17317 6.8 R17316 6.8 R17321 6.8 R17320 6.8 R17323 6.8 R17322 6.8 R17325 6.8 R17324 6.8 C17342 100V 0.47u C17341 100V 0.47u C17344 100V 0.47u C17343 100V 0.47u C17348 100V 0.47u C17345 100V 0.47u C17346 100V 0.47u C17347 100V 0.47u ZA17304 K4CD01000013 ZA17302 K4CD01000013 ZA17305 K4CD01000013 ZA17303 K4CD01000013 ZA17301 K4CD01000013 GND ODE VDD2 A2-2 VDD2 GND NC VDD2 VDD2 GND NC CLR VDD2 A3-2 A1-2 VDD2 NC LEN DM NC VDD2 NC VDD2 NC VDD1 A4-2 GND VDD1 GND FX2(+) VDD2 A5-2 NC NC A6-2 NC GND DM GND GND DSEL A3-1 A5-1 A1-1 A6-1 A4-1 A2-1 NC BLK(PC) FX1(-) VDD1 VDD1 GND GND GND GND GND GND GND GND NC NC NC VDD2 VDD2 VDD2 NC GND VDD2 DM NC GND GND NC NC NC NC BLK(PC) GND A5-2 GND NC GND VDD2 DSEL GND NC CLR VDD2 A3-2 A1-2 VDD2 NC A4-1 LEN A2-1 DM GND ODE NC VDD2 VDD2 A2-2 NC VDD2 NC VDD1 VDD2 GND A4-2 A3-1 GND A5-1 VDD1 GND NC VDD2 FX2(+) VDD2 FX1(-) VDD1 A1-1 A6-1 VDD2 VDD2 GND GND GND GND NC A6-2 VDD1 GND NC GND VDD2 DM NC GND GND NC NC NC NC BLK(PC) GND A5-2 GND NC GND VDD2 DSEL GND NC CLR VDD2 A3-2 A1-2 VDD2 NC A4-1 LEN A2-1 DM GND ODE NC VDD2 VDD2 A2-2 NC VDD2 NC VDD1 VDD2 GND A4-2 A3-1 GND A5-1 VDD1 GND NC VDD2 FX2(+) VDD2 FX1(-) VDD1 A1-1 A6-1 VDD2 VDD2 GND GND GND GND NC A6-2 VDD1 GND NC GND VDD2 DM NC GND GND NC NC NC NC BLK(PC) GND A5-2 GND NC GND VDD2 DSEL GND NC CLR VDD2 A3-2 A1-2 VDD2 NC A4-1 LEN A2-1 DM GND ODE NC VDD2 VDD2 A2-2 NC VDD2 NC VDD1 VDD2 GND A4-2 A3-1 GND A5-1 VDD1 GND NC VDD2 FX2(+) VDD2 FX1(-) VDD1 A1-1 A6-1 VDD2 VDD2 GND GND GND GND NC A6-2 VDD1 GND NC NC NC NC NC C35 10 C33 4 1 1 68 1 68 1 68 1 68 1 68 1 C36 68 1 17 14 18 13 12 16 15 10 11 1 2 3 4 TO PANEL DATA DRIVER TO PANEL DATA DRIVER TO PANEL DATA DRIVER TO PANEL DATA DRIVER ! C3-BOARD TXNC31RETC (2/2) TH-58PZ880C C3-Board (2/2) Schematic Diagram TH-58PZ880C C3-Board (2/2) Schematic Diagram 79 TH-58PZ880C 10.37.SC 电路板 （1/3）线路图 + + + + + + + TERM SIDE AA_SID OC2A AA_OC2A AA_CML AA_CSH AA_OC1 AA_CLK CMH AA_DRV_RST CSH AA_CML2 AA_CMH CPH1 AA_CPH1 AA_CERS AA_CSL CPH2 AA_CQR5 AA_CQR4 AA_CQR3 AA_CEL AA_CPH2 CSL AA_CML2 AA_CSH AA_CMH AA_CSL AA_CML AA_SCSU SCSU AA_SIU MAIN_STOP0 CML CML C16564 16V 1u C16566 50V 0.01u C16565 50V 0.01u C16593 50V 1000p C16562 16V 1u C16582 16V 1u C16581 25V 1u C16419 2.2u 250V C16533 50V 0.1u C16771 16V 1u C16772 25V 4.7u C16536 50V 0.1u C16535 50V 0.1u C16471 630V 1500p C16501 25V 1u C16504 25V 4.7u C16502 25V 4.7u C16521 25V 1u *C16634 250V 2.2u *C16632 250V 2.2u C16525 25V 4.7u C16491 630V 1500p *C16635 250V 2.2u C16524 25V 4.7u C16522 25V 4.7u *C16631 250V 2.2u *C16633 250V 2.2u C16505 25V 1u *C16636 250V 2.2u C16523 4.7u 25V 250u 220V C16415 C16413 220V 250u C16563 10V 100u 250u 220V C16416 C16414 220V 250u *C16411 220V 250u C16503 25V 470u D16480 MA2J11100L D16466 MA2J11100L D16503 B0HCKS000002 D16536 B0HCKS000002 D16411 MA2J11100L D16451 B0ECKP000047 D16522 B0ECKP000047 D16523 B0ECKP000047 D16524 B0ECKP000047 *D16484 MA3DF46000LW *D16463 MA3DF46000LW *D16482 MA3DF46000LW *D16462 MA3DF46000LW *D16483 MA3DF46000LW *D16464 MA3DF46000LW D16583 B3ABB0000210 C0JBAB000715 IC16464 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y C0JBAB000715 IC16465 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y IC16581 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC IC16563 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC C0ZBZ0001324 IC16521 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0ZBZ0001324 IC16501 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0JBAZ002811 IC16562 1G 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G 20 VCC C0JBAZ002811 IC16561 1G 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G 20 VCC IC16771 C0CBADC00072 VIN 3 2 COM VOUT 1 SC20 23 29 30 2 12 5 33 14 32 20 28 26 4 9 11 19 22 21 25 8 13 6 31 17 10 34 24 18 1 7 27 16 15 3 35 SC2 1 3 L16591 G0ZZ00002183 *L16415 G0C1R4KA0118 *L16406 G0C1R4KA0118 *L16413 G0C1R4KA0118 *L16403 G0C1R4KA0118 *L16414 G0C1R4KA0118 *L16405 G0C1R4KA0118 *L16411 G0C1R4KA0118 *L16404 G0C1R4KA0118 *L16417 G0C1R4KA0118 *L16402 G0C1R4KA0118 5V 15V 15V MAIN_STOP SOS7_SC2 MAIN_STOP VSUS 5V MIDF 15V_MIDF VSUS VAD+5V SOS7_SC2 15V 15V VSUS 16V_F VAD PC16461 PS9817A-2-F3-A 1 2 3 4 5 6 7 8 TP18 TP93 TP31 TP46 TP27 TP92 TP11 TP37 TP82 TP35 TP38 TP89 TP88 TP7 TP33 TP28 TP16 TP13 TP40 TP4 TP70 TP23 TP20 TP2 TP1 TP24 TP22 TP17 TP19 TP90 TP29 TP34 TP32 TP91 TP14 TP8 TP21 TP5 TP25 TP12 TP10 TP6 TP3 TP72 TP36 TP30 TP26 TP9 TP71 TP15 TP39 TP52 *Q16442 B1JAEP000003 *Q16453 B1JAEP000003 *Q16443 B1JAEP000003 *Q16441 B1JAEP000003 *Q16454 B1JAEP000003 *Q16532 B1HFPFA00001 Q16531 B1HFPFA00001 Q16552 B1HFPFA00001 R16564 47 R16579 47 R16570 4.7k R16566 4.7k R16561 47 R16563 47 R16568 4.7k R16562 47 R16567 4.7k R16565 4.7k R16591 4.7k *R16454 5.6 *R16442 5.6 R16467 82k R16521 100 R16509 1 *R16453 5.6 R16522 100 R16465 27k R16531 10 R16532 47k R16466 56k R16502 100 R16510 1 R16536 1 R16501 100 R16415 330 R16587 2.2k R16416 10k R16414 330 R16593 1.4k R16585 1.2k 75 R16504 R16476 4.7k R16588 10k R16592 4.7k R16586 1.5k *R16441 5.6 R16584 6.8k 75 R16523 *R16443 5.6 R16543 47k R16544 47k R16533 47k R16590 220 R16583 39k R16411 270 R16410 390 *R16539 47k *R16538 10 *R16540 47k R16468 82k R16542 10 R16582 39k R16500 2.2 GND Vsus TPVSUS P5V CMH CML CSH CSL SC_DRV_RST CEL SOS7_SC2 SOS6_SC1 CPH1 OC2 SCSU SID SIU CLK OC1 TPSOS7 TPSOS6 P5V OC1(CL) CLK SIU SID SCSU OC2(CEL2) CPH1 OC2B SOS6_SC1 SOS7_SC2 CEL SC_DRV_RST CSL CSH CML CMH CPH2 GND GND GND GND GND GND CQR3 CERS CERS CQR3 NC P15V P15V P15V NC NC GND CQR5 CQR4 CQR4 CQR5 CPH2 INV 4 6 7 1 5 3 2 8 SC-BOARD TXNSC1RETC (1/3) ! TO P-BOARD (P2) TO D-BOARD (D20) INV BUFFER BUFFER BUFFER ERROR DET CSH/CMH GATE DRIVE CIRCUIT +5V CSL/CML GATE DRIVE CIRCUIT TH-58PZ880C SC-Board (1/3) Schematic Diagram TH-58PZ880C SC-Board (1/3) Schematic Diagram B E 9 6 8 1 A 2 3 D 7 F 5 4 C 80 TH-58PZ880C 10.38.SC 电路板 （2/3）线路图 + + + + + AA_CPH2 AA_CPH1 AA_CERS AA_CEL AA_CPH2 AA_SCSU AA_DRV_RST MAIN_STOP0 C16662 630V 1000p C16724 25V 4.7u C16775 25V 4.7u C16708 50V 0.1u C16725 25V 4.7u C16661 630V 1000p C16472 25V 1u C16756 25V 4.7u C16608 50V 220p C16604 630V 1000p C16773 25V 4.7u C16603 630V 1000p C16755 25V 4.7u C16753 25V 4.7u C16423 630V 5600p C16402 5600p 630V C16642 0.015u 250V C16606 50V 22p C16605 50V 22p C16641 0.015u 250V C16685 50V 0.1u C16602 50V 22p C16684 50V 0.1u C16707 22p 50V C16665 50V 82p C16666 50V 82p C16664 50V 82p C16723 25V 4.7u C16721 25V 220u C16791 25V 220u *C16806 160V 100u C16795 25V 470u C16796 25V 470u D16671 MA2J11100L D16661 MA2J11100L D16618 B0ECKP000047 RF101L4STE25 D16619 B0ECKP000047 D16497 B0ECKP000047 D16607 MA2J11100L D16609 MA2J11100L D16765 B0ECKP000047 D16669 MA2J11100L D16660 B0HCMM000014 D16721 B0HCKS000002 D16606 B0ECKM000038 D16725 MA2J11100L D16610 MA2J11100L D16764 B0HCKS000002 D16702 MA2J11100L D16667 MA2J11100L D16604 MA2J11100L D16476 MA2J11100L D16474 MA2J11100L D16761 MA22D3900L D16407 MA22D3900L D16781 MA2J11100L D16473 MA3X152D0L D16668 MA3X152D0L *D16422 MA3DF40000LW *D16643 MA3DF25000LW *D16642 MA3DF25000LW *D16421 MA3DF40000LW *D16621 B0FBCN000006 *D16623 B0FBCN000006 *D16402 MA3DF47000LW *D16641 MA3DF25000LW *D16403 MA3DF47000LW *D16622 B0FBCN000006 *D16401 MA3DF47000LW D16633 MAZ81500ML D16602 MAZ81200ML D16664 MAZ81500ML D16662 MAZ81500ML D16665 MAZ80510LL D16605 MAZ80510LL D16631 MAZ81500ML D16475 MAZ80510LL D16608 MAZ81200ML D16663 MAZ81500ML D16632 MAZ81500ML D16791 MAZ82000ML C0DBEKA00003 IC16471 1 NC 2 A 3 K 5 A 4 REF C0JBAB000715 IC16773 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y IC16772 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB EHMDD9863 *IC16791 1 GND 2 GND 3 N.C. 4 VIN 5 VIN 6 N.C. 9 COM 10 COM 11 VOUT 12 VOUT IC16724 C0CBADC00072 VIN 3 2 COM VOUT 1 IC16725 C0CBADC00072 VIN 3 2 COM VOUT 1 5V 16V_F 16V_F 15V_F VAD+5V 16V_F 5V_F_A VSUS VSET 5V_F_B 16V_F VF_GND SCNR_PRO CHA VSUS 15V 15V_F 15V PC16603 B3PBA0000223 1 2 3 4 PC16601 B3PBA0000223 1 2 3 4 PC16480 B3PBA0000223 1 2 3 4 PC16684 B3PBA0000496 1 2 3 4 5 6 PC16685 B3PBA0000496 1 2 3 4 5 6 Q16607 B1CBGD000001 *Q16601 B1DEET000002 G D S Q16609 B1CFHL000002 *Q16622 2SK4208000RP *Q16621 2SK4208000RP Q16604 B1CHPM000001 G D S Q16606 2SD0601AQL Q16662 2SD0601AQL Q16702 B1ABCF000231 Q16602 2SD0601AQL Q16471 B1ABCF000231 Q16665 B1ABCF000231 *Q16401 2PG0060A00RP *Q16402 2PG0060A00RP *Q16423 B1JAEP000004 *Q16421 B1JAEP000004 *Q16406 2PG0060A00RP *Q16643 B1JADN000004 *Q16424 B1JAEP000004 *Q16642 B1JADN000004 *Q16404 2PG0060A00RP *Q16425 B1JAEP000004 *Q16661 B1JAER000004 Q16667 B1ADCN000007 Q16663 2SB0709ASL Q16762 B1ADNF000006 Q16603 2SB0709ASL Q16701 B1ADCN000007 Q16521 B1HFPFA00001 Q16781 B1HFPFA00001 *Q16503 B1HFPFA00001 Q16664 B1HFPFA00001 *Q16501 B1HFPFA00001 Q16523 B1HFPFA00001 *R16424 7.5 R16776 100 R16762 47k *R16404 7.5 *R16402 7.5 R16503 10 R16615 1.1k R16506 10 *R16425 7.5 R16512 47k R16668 47k R16782 47k R16665 33 *R16421 7.5 R16613 47k R16611 68k R16717 1k R16631 10k R16777 150 *R16401 7.5 R16479 10k 75 R16766 R16473 560 R16638 6.8 R16674 1k R16609 1k R16676 4.7k R16672 1k R16474 1k R16605 470 R16480 4.7k R16607 7.15k 7.5 R16765 R16610 100k R16769 75 R16661 1.8k *R16643 33 R16617 2.2k R16669 4.7k R16671 47k R16662 2.2k R16670 47 R16604 330 R16612 47 R16602 1k R16608 1k R16511 47k R16478 5.6k R16475 4.7k R16791 1k R16633 22k R16622 560 R16761 10 *R16527 47k *R16528 47k *R16526 10 *R16406 7.5 R16472 2.2k R16520 10 R16530 47k R16529 47k R16781 47 R16517 47k R16712 1k R16869 47k *R16423 7.5 R16867 47k R16516 47k R16684 220 R16666 10k R16685 220 R16664 1k R16614 68k R16678 56k R16621 560 *R16681 10 *R16682 10 R16711 4.7k R16707 3.9k R16677 1.5k R16663 5.6k R16634 220 *R16642 33 R16471 3.9k R16606 10k VR16602 2k 1 2 3 INIT-F INV 12 17 10 13 18 11 14 15 16 3 2 1 4 7 6 5 8 12 13 11 14 SC-BOARD TXNSC1RETC (2/3) ! VAD SEPA DRIVER SHUNT REG +5V (SC1) +5V (SC2) DC/DC CONVERTER TH-58PZ880C SC-Board (2/3) Schematic Diagram TH-58PZ880C SC-Board (2/3) Schematic Diagram 81 TH-58PZ880C 10.39.SC 电路板 （3/3）线路图 + + + + + + + AA_OC1 AA_OC2A AA_SIU AA_SID AA_CLK AB_VSET23 AB_VSET23 AA_CQR3 AA_CQR4 AB_VSET6 AB_VSET6 15V_MIDF C16868 0.1u 16V C16858 0.1u 16V C16869 50V 0.1u C16863 50V 0.01u C16867 4700p 50V C16861 4700p 50V C16857 4700p 50V C16862 0.1u 16V C16855 16V 1u C16864 0.1u 50V C16821 0.1u 50V C16823 5600p 630V *C16797 50V 0.1u *C16798 250V 0.1u C16843 50V 0.1u C16811 50V 4700p C16860 1u 10V C16844 50V 0.1u C16856 1u 10V C16866 1u 10V C16814 50V 560p *C16692 160V 100u *C16813 160V 100u 250u 220V *C16417 *C16822 400V 47u C16835 25V 220u *C16842 160V 100u *C16691 160V 100u *D16794 MA2J11100L D16860 D1FK70-7063 D16875 MA2J11100L D16715 B0HCMR000002 D16822 MA2J11100L D16722 MA2J11100L D16720 B0ECKP000047 D16713 B0HCMR000002 D16859 D1FK70-7063 D16711 B0HCMR000002 D16477 MA2J11100L *D16793 B0HCKS000002 *D16792 MA2J11100L D16478 B0HCKS000002 D16835 B0ECKP000047 D16718 MA2J11100L D16719 B0ECKP000047 D16820 MA3X152E0L D16824 MAZ83300ML D16712 MAZ815000L *D16871 MAZ82000ML D16714 MAZ815000L D16821 MAZ82000ML D16862 MAZ83300ML D16861 MAZ83300ML D16710 MAZ815000L D16874 MAZ80510LL *D16873 MAZ82000ML D16717 MAZ83300ML D16825 MAZ83300ML C0DBEYY00078 IC16787 1 NC 2 ANODE 3 NC 5 REFERENCE 4 CATHODE C0DBEYY00078 IC16801 1 NC 2 ANODE 3 NC 5 REFERENCE 4 CATHODE C0JBAB000715 IC16564 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y C0JBAA000377 *IC16792 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y C0DBEYY00078 IC16789 1 NC 2 ANODE 3 NC 5 REFERENCE 4 CATHODE MIP9L02MBS IC16786 1 SOURCE 2 BY 3 FB 5 VCC 6 GND 7 V01 8 VOUT 10 DRAIN MIP9L02MBS IC16784 1 SOURCE 2 BY 3 FB 5 VCC 6 GND 7 V01 8 VOUT 10 DRAIN MIP9L02MBS IC16788 1 SOURCE 2 BY 3 FB 5 VCC 6 GND 7 V01 8 VOUT 10 DRAIN SC46 1 2 3 4 5 6 7 8 9 SC41 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 SC42 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 L16851 G0ZZ00002183 L16472 G0ZZ00002183 L16473 G0ZZ00002183 L16801 G0ZZ00002183 L16474 G0ZZ00002183 L16698 G0C681KA0187 L16699 G0C331KA0187 T16697 ETS19AB249AC 1 NC 2 P1 4 PT 5 NC 6 P2 7 S1 10 S2 VAD 5V VSCN_F 5V_F_B VSCN 15V_MIDF VSCN MIDF 5V_F_A VSCN_F 5V 5V_F_B VF_GND 16V_F 5V_F_B VSET 5V SOS7_SC2 VSUS VSUS SCNR_PRO SOS7_SC2 5V_F_A 5V_F_B VSCN_F CHA 5V_F_B ZA16401 K4CD01000011 ZA16411 TUXJ490 ZA16423 TUXJ490 ZA16413 TUXJ490 ZA16422 TUXJ490 ZA16412 TUXJ490 ZA16402 K4CD01000011 ZA16421 TUXJ490 ZA16403 K4CD01000011 PC16897 B3PBA0000223 1 2 3 4 PC16896 B3PBA0000223 1 2 3 4 TP57 TP64 TP66 TP83 TP79 TP78 TP81 TP58 TP86 TP84 TP80 TP85 TP96 TP94 TP44 TP43 TP61 TP95 TP54 TP60 TP55 TP51 TP45 TP62 TP41 TP56 TP63 TP59 TP65 TP42 Q16874 B1CBGD000001 Q16743 2SD0601A0L Q16814 B1ABCN000007 Q16873 B1ABCF000231 *Q16796 2SC1473ARA Q16815 B1ABCN000007 Q16817 2SD0601AQL Q16810 B1ABCF000231 *Q16795 2SD0601A0L Q16875 B1ABCF000231 Q16876 B1ABCF000231 Q16879 B1ABCF000231 Q16816 2SD0601AQL B1ADCN000007 Q16801 Q16871 2SB0709A0L Q16872 2SB0709A0L R16735 221k *R16821 78.7k *R16798 10k R16841 56k R16720 22 R16730 47k R16871 3.9k R16702 3.3k R16823 82k R16733 470k R16787 33k R16852 10k R16723 22 R16696 2.2 R16732 3.9k R16860 8.2 R16734 4.99k R16700 4.7k R16753 47k R16838 56k R16731 82k R16795 200k R16722 22 R16846 39k *R16820 60.4k R16804 56k *R16818 68k R16703 10k R16788 150k R16825 150k R16756 22k R16750 22k R16751 220k *R16819 68k *R16799 33k R16747 10k R16796 56k R16789 10k R16826 10k *R16797 22 R16737 210k R16813 1k R16887 220k R16844 1.24k R16738 82k R16828 4.7k *R16801 7.32k R16721 22 R16815 1k R16816 0 R16742 10k R16874 73.2k R16736 221k R16824 33k R16873 2.49k R16573 22 *R16845 43k *R16802 5.9k R16814 3.09k R16778 2.2 R16822 82k R16729 47k R16794 200k R16701 10k R16746 10k R16719 22 R16744 200k R16758 3.24k *R16757 27k R16875 71.5k R16749 10k R16704 10k R16752 4.7k R16872 3.3k R16775 4.7k R16888 220k R16870 33k R16740 100k R16785 82k R16851 100k R16745 4.7k R16774 68k R16886 220k R16786 82k VR16600 50k 1 2 3 * * * * TPVAD TPVSET TPVSCN AND INV Q6406 D6621 Q6601 Q6453 Q6454 SC20 D6463 SC42 D6461 D6641 D6422 SC2 Q6402 D6642 Q6423 Q6451 Q6642 D6481 D6402 Q6424 Q6444 Q6422 D6623 Q6425 Q6442 Q6444 Q6643 D6462 Q6404 D6482 D6484 Q6403 D6622 D6464 D6421 Q6405 Q6621 Q6641 Q6421 D6643 D6401 SC46 Q6401 D6644 D6403 Q6443 Q6661 D6483 SC41 D6423 Q6452 Q6441 Q6622 D6441 TPSC1 Q6623 20 22 27 21 24 25 23 26 19 11 12 13 14 ! SC-BOARD TXNSC1RETC (3/3) VSET4= 10V VSET5= V VSET3= 8V VSET2= 6V SHUNT REG IPD IPD IPD VAD SHUNT REG TO SD-BOARD (SD46) TO SU-BOARD (SU41) TO SD-BOARD (SD42) SHUNT REG TH-58PZ880C SC-Board (3/3) Schematic Diagram TH-58PZ880C SC-Board (3/3) Schematic Diagram 82 TH-58PZ880C 10.40.SU 电路板 （1/3）线路图 SIDE TERM TERM SIDE AB_1057 AB_1055 AB_1056 AC_1014 AC_1013 AC_1012 AC_1011 AC_1010 AC_1009 AC_1008 AC_1007 AC_1006 AC_1005 AC_1004 AC_1003 AC_1002 AC_1001 AC_1000 AC_999 AC_998 AC_997 AC_996 AC_995 AC_994 AC_993 AC_992 AC_990 AC_991 AC_989 AC_987 AC_988 AC_1015 AC_1016 AB_1017 AB_1018 AB_1019 AB_1020 AB_1021 AB_1022 AB_1023 AB_1024 AB_1025 AB_1026 AB_1027 AB_1028 AB_1029 AB_1030 AB_1031 AB_1032 AB_1033 AB_1034 AB_1035 AB_1036 AB_1037 AB_1038 AB_1039 AB_1040 AB_1041 AB_1042 AB_1043 AB_1044 AB_1045 AB_1046 AB_1047 AB_1048 AB_1054 AB_1053 AC_949 AC_950 AC_951 AC_952 AC_953 AC_954 AC_955 AC_956 AC_957 AC_958 AC_959 AC_960 AC_961 AC_962 AC_963 AC_964 AC_965 AC_966 AC_967 AC_968 AC_969 AC_970 AC_971 AC_972 AC_973 AC_974 AC_975 AC_976 AC_977 AC_978 AC_979 AC_980 AC_986 AC_985 AA_SIU AA_SO2 AA_CLKU1 AA_OC2U1 AA_CLKU1 AA_OC2U1 AA_OC2U1 AA_CLKU1 AA_OC1U1 AA_OC1U2 AA_CLKU2 AA_OC2U2 AC_974 AB_1055 AB_1035 AB_1058 AB_1036 AC_993 AB_1053 AB_1056 AB_1033 AC_991 AB_1032 AB_1051 AB_1054 AC_989 AB_1031 AC_1014 AB_1030 AB_1049 AB_1052 AC_987 AB_1029 AC_1016 AB_1028 AB_1047 AC_985 AB_1027 AC_1012 AB_1026 AC_990 AC_1010 AC_979 AC_988 AB_1024 AC_1008 AC_977 AC_1006 AB_1022 AC_982 AC_975 AB_1025 AC_1004 AB_1020 AB_1076 AC_981 AC_973 AB_1023 AC_1002 AB_1018 AB_1074 AC_983 AC_1000 AB_1021 AB_1077 AB_1072 AC_984 AB_1019 AC_998 AB_1070 AB_1079 AB_1017 AC_1013 AC_996 AB_1068 AB_1075 AC_1015 AC_994 AB_1066 AB_1073 AC_1011 AC_992 AB_1064 AB_1071 AC_1009 AB_1050 AB_1062 AB_1069 AC_1007 AB_1048 AB_1067 AC_1005 AB_1045 AB_1065 AB_1046 AC_986 AC_1003 AB_1063 AB_1043 AB_1044 AB_1034 AC_1001 AC_980 AB_1061 AB_1041 AB_1042 AC_999 AC_978 AB_1059 AB_1039 AB_1040 AB_1078 AC_997 AC_976 AB_1057 AB_1037 AB_1038 AB_1060 AC_995 AB_1065 AB_1073 AB_1061 AB_1058 AB_1068 AB_1072 AB_1080 AB_1059 AB_1077 AB_1064 AB_1071 AB_1067 AB_1079 AB_1076 AB_1063 AB_1070 AB_1078 AB_1066 AB_1074 AB_1075 AB_1062 AB_1060 AB_1069 AA_OC1U1 AA_CLKU1 AA_CLKU2 AA_OC2U1 AA_OC2U2 AA_LATU1 AA_LATU1 AA_LATU1 AA_LATU2 AB_1049 AB_1050 AB_1051 AB_1052 AC_983 AC_984 AC_982 AC_981 AA_OC1U2 AA_LATU1 AA_LATU2 AA_LATU1 AA_OC2U2 AA_OC2U1 CHA AA_SIU OCM AA_SO1 AA_SO1 AA_OC1U1 AA_OC1U1 C14942 50V 470p C14940 50V 1000p C14941 50V 470p C14939 50V 470p C14904 16V 1u C14902 16V 1u C14901 50V 1000p D14910 MA2J11100L D14909 MA3X152E0L AN16181A-VT IC14901 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16181A-VT IC14902 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SU11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 SU1B K1MNA8BA0250 501872-1080 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 R14915 22 R14917 22 R14912 10k R14920 22 R14913 10k R14919 22 R14902 220 R14908 22 R14901 100 R14379 0 R14378 0 R14376 0 R14375 0 R14914 10k R14910 22 R14909 22 R14916 10k R14911 10k R14907 22 < Vf_GND 2 3 1 4 6 7 5 8 SU-BOARD TXNSU1RETC (1/3) ! TO SCAN ELECTRODES TO SD-BOARD (SD11) PDP SCAN DRIVER PDP SCAN DRIVER TH-58PZ880C SU-Board (1/3) Schematic Diagram B E 9 6 8 1 A 2 3 D 7 F 5 4 C TH-58PZ880C SU-Board (1/3) Schematic Diagram 83 TH-58PZ880C 10.41.SU 电路板 （2/3）线路图 TERM SIDE TERM SIDE AD_946 AD_945 AD_944 AD_943 AD_942 AD_941 AD_940 AD_939 AD_938 AD_937 AD_936 AD_935 AD_934 AD_933 AD_932 AD_931 AD_930 AD_929 AD_928 AD_927 AD_926 AD_925 AD_924 AD_922 AD_923 AD_921 AD_919 AD_920 AE_878 AE_877 AE_876 AE_875 AE_874 AE_873 AE_872 AE_871 AE_870 AE_869 AE_868 AE_867 AE_866 AE_865 AE_864 AE_863 AE_862 AE_861 AE_860 AE_859 AE_858 AE_857 AE_856 AE_854 AE_855 AE_853 AE_851 AE_852 AF_810 AF_809 AF_808 AF_807 AF_806 AF_805 AF_804 AF_803 AF_802 AF_801 AF_800 AF_799 AF_798 AF_797 AF_796 AF_795 AF_794 AF_793 AF_792 AF_791 AF_790 AF_789 AF_788 AF_786 AF_787 AF_785 AF_783 AF_784 AD_947 AE_880 AE_879 AF_811 AF_812 AD_881 AD_882 AD_883 AD_884 AD_885 AD_886 AD_887 AD_888 AD_889 AD_890 AD_891 AD_892 AD_893 AD_894 AD_895 AD_896 AD_897 AD_898 AD_899 AD_900 AD_901 AD_902 AD_903 AD_904 AD_906 AD_905 AD_907 AD_908 AD_909 AD_910 AD_911 AD_912 AD_918 AD_917 AE_814 AE_815 AE_816 AE_817 AE_818 AE_819 AE_820 AE_821 AE_822 AE_823 AE_824 AE_825 AE_826 AE_827 AE_828 AE_829 AE_830 AE_831 AE_832 AE_833 AE_834 AE_835 AE_836 AE_837 AE_838 AE_839 AE_840 AE_841 AE_842 AE_843 AE_844 AE_850 AE_849 AF_745 AF_746 AF_747 AF_748 AF_749 AF_750 AF_751 AF_752 AF_753 AF_754 AF_755 AF_756 AF_757 AF_758 AF_759 AF_760 AF_761 AF_762 AF_763 AF_764 AF_765 AF_766 AF_767 AF_768 AF_769 AF_770 AF_771 AF_772 AF_773 AF_774 AF_775 AF_776 AF_782 AF_781 AA_SO2 AA_SO4 AA_CLKU1 AA_CLKU1 AA_OC2U1 AD_948 AA_OC2U1 AE_813 AA_OC1U1 AA_OC1U1 AA_OC1U2 AF_796 AF_807 AF_765 AE_829 AE_871 AD_933 AD_891 AD_914 AF_805 AF_794 AC_972 AF_763 AE_869 AE_827 AD_931 AD_889 AD_912 AF_803 AF_790 AC_970 AF_761 AE_867 AD_929 AE_825 AD_910 AF_801 AF_788 AD_886 AC_968 AE_865 AD_927 AC_950 AF_758 AE_844 AE_822 AF_799 AD_908 AE_863 AD_888 AC_966 AD_925 AC_952 AF_760 AE_842 AF_797 AE_824 AD_906 AE_862 AE_861 AC_964 AD_923 AD_948 AE_840 AF_795 AE_820 AE_860 AD_904 AE_859 AC_962 AD_921 AD_946 AD_938 AE_838 AF_793 AE_818 AE_858 AD_902 AE_857 AD_944 AC_960 AD_919 AF_772 AD_936 AE_816 AE_836 AF_789 AE_856 AD_900 AE_855 AD_942 AC_958 AD_917 AD_934 AF_770 AE_814 AE_834 AF_791 AE_854 AD_898 AD_940 AE_853 AC_956 AD_915 AD_932 AF_768 AF_812 AC_971 AE_832 AF_787 AE_852 AD_896 AE_851 AF_792 AD_930 AC_954 AD_913 AF_766 AF_786 AD_884 AC_969 AE_830 AF_785 AE_850 AD_892 AE_849 AD_894 AD_928 AD_911 AD_882 AF_764 AF_784 AC_967 AE_828 AF_783 AE_848 AD_890 AE_847 AD_926 AD_909 AE_880 AF_762 AF_782 AC_965 AE_826 AF_781 AE_846 AD_924 AC_951 AE_845 AE_878 AD_907 AE_821 AF_780 AC_963 AD_885 AF_779 AC_949 AD_922 AE_843 AE_876 AF_759 AD_905 AF_810 AE_823 AF_778 AC_961 AD_887 AF_777 AD_947 AD_920 AE_841 AE_874 AF_757 AF_808 AD_903 AE_819 AF_776 AC_959 AD_883 AD_943 AF_775 AD_918 AE_872 AE_839 AF_806 AE_817 AD_901 AD_881 AF_774 AC_957 AD_945 AF_773 AE_870 AE_837 AF_804 AE_815 AD_899 AE_879 AC_955 AD_941 AF_771 AE_868 AF_802 AE_835 AE_813 AD_897 AE_877 AD_939 AC_953 AE_866 AF_769 AF_800 AF_811 AE_833 AE_875 AD_895 AD_937 AE_864 AF_767 AF_798 AF_809 AE_831 AE_873 AD_893 AD_935 AD_916 AA_LATU2 AA_LATU1 AA_LATU1 AA_SO4 AA_SO3 AD_913 AD_914 AD_915 AD_916 AE_845 AE_846 AE_847 AE_848 AF_777 AF_778 AF_779 AF_780 AA_SO3 AA_OC2U2 AA_CLKU2 AA_SO5 CHA 0V 145V C14923 250V 0.1u C14930 250V 0.1u C14925 250V 0.1u C14910 16V 1u C14906 16V 1u C14921 250V 0.1u C14927 250V 0.1u C14919 250V 0.1u C14935 250V 0.1u C14928 250V 0.1u C14908 16V 1u C14383 250V 0.1u C14386 250V 0.1u D14908 B0HCMM000013 D14911 B0HCMM000013 D14904 B0HCMM000013 D14906 B0HCMM000013 D14913 B0HCMM000013 D14903 B0HCMM000013 D14905 B0HCMM000013 D14907 B0HCMM000013 D14912 B0HCMM000013 D14914 B0HCMM000013 AN16181A-VT IC14904 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16181A-VT IC14903 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16181A-VT IC14905 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SU3B B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 SU2B B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 SU41 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 ZA14902 K4AD01Z00004 ZA14901 K4AD01Z00004 ZA14903 K4AD01Z00004 R14903 220 R14904 220 R14921 220k R14905 220 R14387 0 R14388 0 R14385 0 R14384 0 R14382 0 R14381 0 < < Vscn Vf_GND Vfo VF5V 17 14 18 13 12 16 15 10 11 1 4 2 3 7 6 5 8 11 12 17 16 19 14 15 13 PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER ! SU-BOARD TXNSU1RETC (2/3) TO SCAN ELECTRODES TO SCAN ELECTRODES TO SC-BOARD (SC41) TH-58PZ880C SU-Board (2/3) Schematic Diagram TH-58PZ880C SU-Board (2/3) Schematic Diagram 84 TH-58PZ880C 10.42.SU 电路板 （3/3）线路图 TERM SIDE TERM SIDE AG_742 AG_741 AG_740 AG_739 AG_738 AG_737 AG_736 AG_735 AG_734 AG_733 AG_732 AG_731 AG_730 AG_729 AG_728 AG_727 AG_726 AG_725 AG_724 AG_723 AG_722 AG_721 AG_720 AG_718 AG_719 AG_717 AG_715 AG_716 AG_743 AG_677 AG_678 AG_679 AG_680 AG_681 AG_682 AG_683 AG_684 AG_685 AG_686 AG_687 AG_688 AG_689 AG_690 AG_691 AG_692 AG_693 AG_694 AG_695 AG_696 AG_697 AG_698 AG_699 AG_700 AG_701 AG_702 AG_703 AG_704 AG_705 AG_706 AG_707 AG_708 AG_714 AG_713 AA_SO6 AA_CLKU2 AA_OC2U2 AA_OC1U2 AH_633 AH_653 AH_614 AG_728 AI_550 AG_680 AH_621 AI_549 AH_647 AH_617 AH_653 AH_665 AI_577 AH_636 AG_701 AG_743 AA_SO6 AI_547 AI_583 AH_669 AH_661 AI_553 AH_659 AG_726 AH_675 AI_606 AH_650 AI_577 AG_693 AI_580 AG_741 AH_671 AG_699 AH_611 AG_689 AI_595 AI_558 AH_674 AH_625 AI_607 AG_724 AI_543 AH_656 AI_590 AI_586 AI_544 AI_589 AI_598 AG_739 AH_614 AG_697 AH_656 AH_628 AI_574 AI_582 AH_611 AI_588 AG_722 AH_673 AG_696 AG_683 AH_622 AI_552 AI_567 AG_688 AG_737 AH_637 AH_635 AH_652 AI_561 AI_564 AH_618 AA_CLKU2 AI_559 AA_OC1U2 AI_554 AI_607 AG_720 AH_662 AH_674 AI_556 AH_643 AH_655 AG_735 AG_677 AH_615 AH_625 AI_571 AH_668 AA_OC2U2 AI_599 AH_649 AI_587 AG_718 AH_622 AH_629 AI_601 AG_733 AF_756 AI_585 AH_623 AH_646 AI_592 AA_OC2U2 AH_668 AG_682 AH_638 AH_626 AH_652 AI_583 AI_555 AI_558 AI_555 AH_646 AG_716 AG_731 AF_754 AI_601 AH_654 AH_616 AI_552 AH_659 AH_640 AH_616 AH_650 AH_619 AH_634 AH_667 AI_560 AF_752 AI_586 AA_OC1U2 AG_729 AI_557 AI_549 AI_585 AH_665 AH_661 AH_639 AH_627 AI_579 AH_655 AI_582 AF_750 AI_598 AI_602 AG_727 AH_619 AH_613 AG_691 AI_599 AH_647 AH_667 AI_546 AI_591 AI_602 AF_748 AI_584 AI_581 AI_546 AG_725 AI_543 AH_645 AH_658 AH_632 AI_568 AH_630 AI_588 AG_685 AH_676 AG_690 AH_651 AF_746 AI_600 AI_561 AI_569 AH_637 AI_563 AG_723 AI_566 AI_576 AH_664 AI_608 AH_664 AI_570 AH_645 AG_744 AH_628 AH_658 AG_702 AI_597 AG_679 AH_627 AI_547 AI_573 AG_721 AI_605 AH_648 AI_542 AH_624 AG_694 AH_669 AG_742 AH_666 AA_CLKU2 AH_620 AG_700 AI_594 AH_670 AG_684 AI_579 AI_570 AG_719 AI_544 AH_612 AI_557 AH_631 AI_560 AI_603 AG_740 AH_649 AH_618 AI_554 AG_698 AH_642 AI_562 AI_572 AI_548 AI_594 AG_717 AI_567 AI_545 AH_621 AH_636 AH_648 AH_663 AG_738 AH_676 AH_629 AI_551 AG_695 AH_663 AI_596 AI_571 AG_715 AI_604 AH_609 AI_548 AH_657 AI_584 AI_542 AG_736 AH_657 AH_609 AH_615 AI_587 AI_597 AI_592 AH_662 AG_714 AI_580 AH_651 AH_634 AI_581 AG_713 AG_678 AI_545 AG_692 AI_565 AH_632 AH_660 AI_565 AI_566 AF_755 AI_550 AH_617 AG_712 AI_563 AH_654 AG_687 AI_593 AI_604 AH_673 AG_711 AI_568 AI_593 AH_639 AH_630 AI_578 AF_753 AH_640 AG_710 AH_633 AH_626 AI_572 AI_595 AH_612 AG_709 AI_603 AI_606 AG_681 AI_578 AH_672 AI_575 AF_751 AG_734 AG_708 AI_559 AI_569 AH_635 AI_541 AG_707 AI_541 AH_620 AH_631 AG_686 AI_591 AF_749 AH_660 AH_670 AG_732 AI_590 AG_706 AH_666 AI_562 AI_608 AH_672 AG_705 AI_564 AH_671 AI_553 AI_600 AH_641 AF_747 AH_610 AH_624 AG_730 AH_675 AH_623 AH_638 AG_704 AI_589 AI_605 AI_551 AH_613 AI_596 AG_703 AI_556 AH_644 AF_745 AA_LATU2 AA_LATU2 AA_LATU2 AA_CLKU2 AG_709 AG_710 AG_711 AG_712 AH_642 AH_641 AH_643 AH_644 AI_575 AI_576 AI_573 AI_574 AH_610 AA_LATU2 AA_OC2U2 AA_OC1U2 AA_OC2U1 AA_CLKU1 AA_OC1U1 AA_LATU1 AA_SO7 AG_744 AA_SO5 C14912 16V 1u C14352 16V 1u C14937 50V 470p C14931 50V 1000p C14356 16V 1u C14936 50V 470p C14938 50V 470p AN16181A-VT IC14907 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16181A-VT IC14906 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16181A-VT IC14908 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SU5B B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 SU4B B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 R14397 0 R14928 220 R14923 10k R14390 0 R14925 10k R14926 10k R14929 220 R14924 10k R14391 0 R14906 220 R14394 0 R14393 0 < < 20 23 21 24 27 19 22 25 26 12 13 11 15 16 14 19 17 PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER ! SU-BOARD TXNSU1RETC (3/3) TO SCAN ELECTRODES TO SCAN ELECTRODES TH-58PZ880C SU-Board (3/3) Schematic Diagram TH-58PZ880C SU-Board (3/3) Schematic Diagram 85 TH-58PZ880C 10.43.SD 电路板 （1/3）线路图 TERM SIDE TERM SIDE AC_538 AC_537 AC_536 AC_535 AC_534 AC_533 AC_532 AC_531 AC_530 AC_529 AC_528 AC_527 AC_526 AC_525 AC_524 AC_523 AC_522 AC_521 AC_520 AC_519 AC_518 AC_517 AC_516 AC_514 AC_515 AC_513 AC_511 AC_512 AD_470 AD_469 AD_468 AD_467 AD_466 AD_465 AD_464 AD_463 AD_462 AD_461 AD_460 AD_459 AD_458 AD_457 AD_456 AD_455 AD_454 AD_453 AD_452 AD_451 AD_450 AD_449 AD_448 AD_446 AD_447 AD_445 AD_443 AE_402 AE_401 AE_400 AE_399 AE_398 AE_397 AE_396 AE_395 AE_394 AE_393 AE_392 AE_391 AE_390 AE_389 AE_388 AE_387 AE_386 AE_385 AE_384 AE_383 AE_382 AE_381 AE_380 AE_378 AE_379 AE_377 AE_375 AE_376 AC_540 AC_539 AD_472 AD_471 AE_404 AE_403 AC_474 AC_475 AC_476 AC_477 AC_478 AC_479 AC_480 AC_481 AC_482 AC_483 AC_484 AC_485 AC_486 AC_487 AC_488 AC_489 AC_490 AC_491 AC_492 AC_493 AC_494 AC_495 AC_496 AC_497 AC_498 AC_499 AC_500 AC_501 AC_502 AC_503 AC_504 AC_509 AC_510 AD_405 AD_406 AD_407 AD_408 AD_409 AD_410 AD_411 AD_412 AD_413 AD_414 AD_415 AD_416 AD_417 AD_418 AD_419 AD_420 AD_421 AD_422 AD_423 AD_424 AD_425 AD_426 AD_427 AD_428 AD_429 AD_430 AD_431 AD_432 AD_433 AD_434 AD_435 AD_436 AD_442 AD_441 AD_444 AE_338 AE_337 AE_340 AE_341 AE_342 AE_343 AE_344 AE_345 AE_346 AE_347 AE_348 AE_349 AE_350 AE_351 AE_352 AE_353 AE_354 AE_355 AE_356 AE_357 AE_358 AE_359 AE_360 AE_361 AE_362 AE_339 AE_363 AE_364 AE_365 AE_366 AE_367 AE_368 AE_374 AE_373 AA_CLKD1 AA_OC2D1 AA_CLKD1 AA_SO13 AA_OC2D1 AA_SO12 AC_473 AA_OC1D1 AA_OC1D1 AA_OC1D1 AA_OC2D1 AA_CLKD1 AE_367 AD_429 AE_395 AC_520 AE_341 AC_485 AC_527 AD_448 AE_404 AC_498 AD_470 AE_389 AE_369 AD_427 AE_397 AC_518 AE_343 AC_483 AD_451 AC_525 AC_534 AD_406 AF_334 AC_519 AD_468 AE_371 AE_391 AE_399 AC_516 AC_481 AD_449 AC_523 AD_408 AF_336 AE_373 AC_517 AD_466 AE_393 AE_401 AD_454 AE_348 AC_521 AD_410 AE_390 AE_375 AC_515 AD_464 AC_538 AE_403 AD_452 AE_347 AE_377 AE_392 AC_513 AD_462 AC_536 AD_405 AD_450 AE_338 AE_349 AE_379 AC_474 AE_394 AC_511 AD_460 AC_532 AD_407 AC_540 AE_340 AE_381 AE_351 AC_476 AD_412 AE_396 AC_509 AD_458 AC_530 AD_411 AD_469 AE_383 AE_342 AE_353 AD_472 AD_436 AE_398 AC_507 AD_456 AC_528 AD_409 AD_467 AE_385 AE_344 AE_355 AC_473 AD_434 AF_328 AC_505 AD_457 AC_526 AE_388 AD_465 AE_357 AE_387 AC_475 AD_432 AF_330 AC_503 AD_455 AC_524 AE_359 AE_364 AD_413 AD_463 AC_496 AD_430 AF_332 AC_501 AF_326 AD_453 AE_361 AE_366 AC_522 AD_447 AD_461 AC_494 AD_428 AF_333 AC_499 AE_363 AE_368 AC_539 AD_445 AD_459 AC_492 AD_422 AD_426 AF_335 AC_497 AF_325 AE_370 AE_350 AC_537 AC_514 AD_442 AD_424 AC_490 AD_420 AE_337 AF_327 AE_372 AE_352 AC_512 AD_444 AD_425 AC_488 AD_418 AF_329 AE_374 AC_478 AE_354 AC_510 AD_440 AD_423 AC_486 AD_416 AE_376 AF_331 AC_495 AE_356 AC_508 AD_438 AD_421 AC_484 AD_414 AE_378 AE_346 AE_358 AC_493 AC_506 AD_441 AC_535 AD_419 AE_380 AC_482 AD_435 AE_345 AE_360 AC_491 AC_533 AC_504 AD_443 AE_382 AD_417 AC_480 AD_433 AE_362 AC_479 AC_489 AC_531 AE_400 AC_502 AD_439 AE_384 AD_415 AD_431 AE_365 AC_477 AE_339 AC_487 AC_529 AD_446 AE_402 AC_500 AD_437 AE_386 AA_OC2D1 AA_LATD1 AA_CLKD1 AA_LATD1 AA_LATD1 AA_SO12 AE_372 AE_369 AE_370 AE_371 AD_437 AD_438 AD_439 AD_440 AC_506 AC_505 AC_507 AC_508 AA_OC1D1 AA_LATD1 AA_SO11 CHA AA_SO13 AA_SID C14985 250V 0.1u C14984 250V 0.1u C14980 250V 0.1u C14979 250V 0.1u C14982 250V 0.1u C14952 16V 1u C14970 50V 470p C14950 50V 470p C14973 50V 1000p C14955 16V 1u C14957 16V 1u C14361 250V 0.1u C14978 250V 0.1u C14972 50V 470p C14371 250V 0.1u C14373 50V 1000p C14374 250V 0.1u C14376 250V 0.1u D14954 B0HCMM000013 D14956 B0HCMM000013 D14957 B0HCMM000013 D14977 B0HCMM000013 D14960 B0HCMM000013 D14978 B0HCMM000013 D14955 B0HCMM000013 D14953 B0HCMM000013 D14958 B0HCMM000013 D14959 B0HCMM000013 AN16181A-VT IC14953 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16181A-VT IC14952 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16181A-VT IC14951 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SD1B K1MNA8BA0250 501872-1080 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 SD2B B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 SD42 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 VSET6_O VSET2_O 5V_F1_A 5V_F1_B ZA14952 K4AD01Z00004 ZA14951 K4AD01Z00004 ZA14953 K4AD01Z00004 R14358 0 R14357 220 R14356 0 R14352 0 R14351 10k R14350 100 R14980 0 R14952 0 R14986 220k R14953 0 R14354 220 < < Vfo Vscn VF_GND 2 9 6 8 4 10 7 1 5 3 PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER TO SC-BOARD (SC42) TO SCAN ELECTRODES TO SCAN ELECTRODES ! SD-BOARD TXNSD1RETC (1/3) TH-58PZ880C SD-Board (1/3) Schematic Diagram TH-58PZ880C SD-Board (1/3) Schematic Diagram B E 9 6 8 1 A 2 3 D 7 F 5 4 C 86 TH-58PZ880C 10.44.SD 电路板 （2/3）线路图 TERM SIDE TERM SIDE AF_334 AF_333 AF_332 AF_331 AF_330 AF_329 AF_328 AF_327 AF_326 AF_325 AF_324 AF_323 AF_322 AF_321 AF_320 AF_319 AF_318 AF_317 AF_316 AF_315 AF_314 AF_313 AF_312 AF_310 AF_311 AF_309 AF_307 AF_308 AG_266 AG_265 AG_264 AG_263 AG_262 AG_261 AG_260 AG_259 AG_258 AG_257 AG_256 AG_255 AG_254 AG_253 AG_252 AG_251 AG_250 AG_249 AG_248 AG_247 AG_246 AG_245 AG_244 AG_242 AG_243 AG_241 AG_239 AG_240 AF_336 AF_335 AG_268 AG_267 AF_269 AF_270 AF_271 AF_272 AF_273 AF_274 AF_275 AF_276 AF_277 AF_278 AF_279 AF_280 AF_281 AF_282 AF_283 AF_284 AF_285 AF_286 AF_287 AF_288 AF_289 AF_290 AF_291 AF_292 AF_293 AF_294 AF_295 AF_296 AF_297 AF_298 AF_299 AF_300 AF_305 AF_306 AG_202 AG_203 AG_204 AG_205 AG_206 AG_207 AG_208 AG_209 AG_210 AG_211 AG_212 AG_213 AG_214 AG_215 AG_216 AG_217 AG_218 AG_219 AG_220 AG_221 AG_222 AG_223 AG_224 AG_225 AG_226 AG_227 AG_228 AG_229 AG_230 AG_231 AG_232 AG_238 AG_237 AA_OC2D1 AA_CLKD1 AA_CLKD2 AA_OC2D2 AG_201 AA_SO10 AA_OC1D1 AA_OC1D2 AH_180 AH_151 AH_190 AH_181 AH_150 AH_191 AH_182 AH_149 AH_199 AH_183 AH_148 AH_200 AH_147 AH_146 AH_145 AH_169 AH_144 AH_170 AA_OC2D2 AH_143 AH_164 AH_142 AH_163 AH_141 AH_162 AH_140 AH_161 AH_139 AH_160 AH_172 AH_138 AH_159 AH_192 AH_171 AH_137 AH_135 AH_193 AH_173 AH_136 AH_158 AH_175 AH_194 AH_184 AH_157 AA_OC1D2 AH_174 AA_SO8 AH_195 AA_CLKD2 AH_185 AH_156 AH_133 AH_176 AH_196 AH_186 AH_155 AH_134 AH_177 AH_197 AH_187 AH_154 AH_178 AH_198 AH_188 AH_153 AH_179 AH_152 AH_189 AH_134 AH_189 AG_231 AG_244 AG_224 AG_208 AF_304 AG_265 AF_317 AI_119 AH_155 AI_126 AH_191 AG_233 AH_141 AF_283 AG_226 AF_310 AG_210 AF_274 AH_144 AI_118 AF_285 AF_312 AH_172 AG_212 AH_176 AF_272 AH_148 AG_247 AI_115 AF_308 AF_287 AH_178 AG_214 AH_157 AI_109 AG_251 AF_280 AF_305 AH_180 AF_289 AG_216 AH_159 AI_122 AG_249 AF_309 AF_282 AH_182 AF_298 AI_132 AG_218 AH_161 AG_246 AF_311 AF_284 AH_184 AF_295 AH_136 AI_116 AH_163 AG_220 AG_248 AF_313 AH_186 AF_302 AF_286 AH_139 AH_165 AH_197 AG_252 AI_124 AI_112 AF_307 AH_188 AF_300 AF_288 AH_135 AH_167 AG_250 AH_199 AF_322 AH_190 AH_151 AF_303 AI_123 AI_129 AF_279 AH_169 AG_254 AF_271 AH_140 AG_201 AH_192 AF_301 AF_324 AH_171 AF_281 AG_253 AH_142 AI_117 AF_276 AG_203 AF_299 AH_194 AG_209 AI_111 AG_256 AI_121 AF_278 AG_205 AH_153 AF_297 AG_211 AH_196 AF_323 AG_258 AF_275 AG_207 AF_290 AH_173 AG_213 AH_174 AH_193 AH_146 AH_152 AH_143 AG_260 AG_228 AH_158 AF_277 AH_145 AF_292 AG_215 AH_195 AI_131 AH_175 AG_230 AG_262 AG_235 AH_156 AH_160 AF_273 AF_294 AG_219 AF_321 AG_221 AI_128 AH_177 AG_232 AG_264 AG_237 AH_147 AF_296 AH_162 AG_266 AF_314 AG_217 AH_179 AH_198 AG_234 AG_255 AG_239 AH_133 AI_130 AF_291 AH_164 AG_268 AF_316 AG_223 AH_181 AG_236 AH_200 AG_241 AI_127 AG_257 AF_293 AH_166 AF_270 AF_318 AH_138 AI_113 AH_183 AG_225 AG_238 AG_243 AG_202 AH_137 AG_259 AH_168 AG_267 AF_320 AI_125 AH_185 AG_227 AG_240 AG_245 AI_120 AG_204 AH_170 AG_261 AF_269 AF_319 AH_154 AH_150 AH_187 AG_229 AG_242 AH_149 AG_222 AI_114 AI_110 AG_206 AF_306 AG_263 AF_315 AA_LATD1 AA_LATD2 AA_LATD2 AA_SO11 AA_SO10 AH_168 AH_167 AH_165 AH_166 AG_233 AG_234 AG_235 AG_236 AF_301 AF_302 AF_303 AF_304 AA_CLKD1 AA_OC1D1 AA_OC2D1 AA_LATD1 AA_LATD2 AA_CLKD2 AA_OC2D2 AA_OC1D2 AA_SO9 AA_SO9 SCN_PRO C14963 16V 1u C14961 16V 1u C14958 16V 1u C14989 50V 470p C14976 50V 1000p C14971 50V 470p C14981 50V 470p AN16181A-VT IC14955 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16181A-VT IC14954 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16181A-VT IC14956 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SD4B B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 SD3B B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 R14362 0 R14368 0 R14951 0 R14364 0 R14366 220 R14981 10k R14982 10k R14954 0 R14984 10k R14360 220 R14990 10k R14955 0 R14363 220 < < 17 14 18 13 12 16 15 10 11 3 4 9 5 10 1 2 8 6 11 12 17 18 16 19 14 15 13 20 PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER TO SCAN ELECTRODES TO SCAN ELECTRODES SD-BOARD TXNSD1RETC (2/3) ! TH-58PZ880C SD-Board (2/3) Schematic Diagram TH-58PZ880C SD-Board (2/3) Schematic Diagram 87 TH-58PZ880C 10.45.SD 电路板 （3/3）线路图 SIDE TERM TERM SIDE AI_82 AI_69 AJ_3 AI_131 AJ_25 AJ_61 AJ_45 AI_81 AI_103 AI_126 AI_68 AJ_2 AI_132 AJ_24 AJ_63 AJ_46 AJ_62 AI_80 AI_105 AI_127 AI_67 AJ_1 AJ_23 AJ_64 AI_79 AJ_47 AI_107 AI_128 AJ_22 AI_78 AJ_48 AI_106 AI_129 AJ_21 AI_66 AJ_49 AI_108 AI_130 AJ_36 AJ_20 AI_65 AJ_50 AI_102 AI_109 AJ_35 AJ_19 AJ_51 AI_101 AI_110 AJ_18 AJ_37 AI_96 AJ_52 AI_111 AJ_17 AJ_39 AI_95 AJ_53 AI_112 AJ_16 AJ_38 AI_94 AJ_54 AJ_15 AJ_40 AI_93 AJ_14 AJ_55 AJ_41 AI_119 AI_92 AA_OC1D2 AA_SO7 AJ_13 AJ_56 AJ_42 AI_91 AI_120 AA_OC2D2 AJ_12 AJ_57 AJ_43 AI_90 AI_121 AA_CLKD2 AI_77 AJ_11 AA_OC1D2 AJ_58 AI_89 AI_122 AA_CLKD2 AI_76 AJ_10 AA_SO8 AI_88 AI_113 AI_75 AJ_9 AI_87 AI_114 AI_74 AJ_8 AJ_33 AI_86 AI_115 AI_73 AJ_7 AJ_34 AI_85 AI_72 AJ_6 AI_116 AI_123 AJ_28 AI_84 AI_71 AJ_5 AI_117 AJ_59 AJ_27 AI_124 AI_83 AI_70 AJ_4 AI_118 AJ_60 AJ_44 AJ_26 AI_104 AI_125 AJ_6 AI_100 AJ_5 AJ_16 AI_102 AJ_42 AJ_13 AI_74 AJ_21 AJ_58 AJ_2 AI_87 AI_65 AI_90 AI_73 AJ_54 AJ_51 AI_91 AI_103 AJ_39 AI_97 AJ_35 AJ_10 AJ_25 AJ_3 AJ_48 AI_66 AI_78 AJ_40 AJ_11 AJ_47 AI_86 AI_72 AJ_14 AI_81 AI_101 AI_88 AJ_22 AJ_60 AJ_28 AJ_27 AI_71 AI_69 AI_107 AI_85 AJ_36 AI_96 AJ_49 AJ_52 AI_94 AJ_38 AI_79 AI_70 AJ_30 AJ_7 AJ_19 AI_95 AJ_45 AJ_8 AI_77 AJ_55 AJ_9 AJ_59 AI_98 AJ_46 AI_99 AI_76 AJ_63 AJ_20 AJ_17 AI_89 AJ_23 AJ_31 AI_108 AI_84 AI_67 AJ_57 AJ_1 AI_93 AJ_43 AI_106 AJ_56 AJ_62 AJ_64 AJ_18 AI_104 AJ_26 AJ_37 AJ_32 AJ_33 AJ_12 AJ_44 AJ_15 AJ_50 AJ_61 AI_75 AI_92 AI_82 AI_68 AJ_53 AJ_34 AI_83 AJ_4 AJ_41 AJ_24 AJ_29 AA_OC2D2 AA_OC1U1 AA_OC2U1 AA_CLKU2 AA_CLKU1 AA_LATD2 AA_LATD2 AA_OC2U2 AI_80 AA_OC2D2 AA_OC1D2 AA_CLKD2 AA_LATD2 AA_LATU2 AJ_32 AJ_30 AJ_29 AJ_31 AI_97 AI_98 AI_99 AI_100 AA_SIU AA_OC1U2 AA_LATU1 CHA AA_SO7 AA_LATD1 AA_LATU2 AB_SID AB_CLK AA_CLKU2 AA_OC1D1 AA_OC2D1 AA_OC2D2 AA_CLKD1 AB_OC1 AB_SIU AA_OC1D2 AA_LATU1 AA_OC1U1 AA_OC1U2 AA_SIU AB_OC2A AA_OC2U2 AA_CLKD2 AA_OC2D1 AA_SID AA_OC2U1 AA_OC2D2 AA_CLKU1 AA_LATD2 AA_LATD1 AB_SID AB_SIU AB_OC2A AB_CLK AB_OC1 AI_105 OCM C14364 16V 1u C14368 16V 1u C14992 16V 1u C14943 25V 4.7u C14987 50V 0.1u C14945 50V 100p C14969 50V 0.1u C14990 50V 0.1u C14944 50V 1000p C14988 50V 0.1u D14976 MA2J11100L D14979 MA2J11100L D14975 MA2J11100L D14974 MA3X152E0L D14961 C0JBAE000321 IC14963 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y C0JBAE000321 IC14965 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y IC14964 C0JBAA000174 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 Vcc IC14961 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC IC14962 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC AN16181A-VT IC14958 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16181A-VT IC14957 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SD11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 SD5B B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 SD46 1 2 3 4 5 6 7 8 9 5V_F1_B 5V 5V_F1_A VSET2_O VSET6_O 5V PC14953 B3PBA0000456 1 2 3 4 5 PC14951 B3PBA0000457 1 2 3 4 5 6 7 8 PC14952 B3PBA0000457 1 2 3 4 5 6 7 8 R14961 330 R14963 330 R14976 47 R14993 47 R14971 22 R14966 22 R14975 47 R14956 22 R14974 47 R14950 10k R14957 22 R14958 22 R14369 220 R14965 330 R14939 0 R14930 0 R14942 0 R14940 0 R14997 10k R14988 2.2k R14943 47 R14931 22 R14944 10 R14999 330 R14998 10k R14994 47 R14973 47 R14996 10k R14991 22 R14962 330 R14937 1k R14967 22 R14936 4.7k R14987 47 R14349 10k R14370 0 R14964 22 R14372 220 R14979 2.2k R14960 22 R14959 22 R14935 2.2k R14978 2.2k R14934 47 R14374 0 R14995 10k R14992 47 R14932 0 R14977 2.2k R14949 20k < OR 20 23 21 24 27 19 22 25 26 10 13 12 11 16 19 14 17 18 15 PDP SCAN DRIVER PDP SCAN DRIVER TO SCAN ELECTRODES SD-BOARD TXNSD1RETC (3/3) ! TO SC-BOARD (SC46) TO SU-BOARD (SU11) INV INV AND OR TH-58PZ880C SD-Board (3/3) Schematic Diagram TH-58PZ880C SD-Board (3/3) Schematic Diagram 88 TH-58PZ880C 10.46.SS （1/2）和 S 电路板线路图 + + + + + + + AA_UEH AA_SOS8 AA_SOS8 AA_USL AA_NUEL AA_USL AA_UML AA_UMH AA_UML AA_USH AA_UMH AA_USH AA_SOS8 5V 75V 75V 200V 200V 200V 15V C16152 25V 4.7u C16251 16V 1u C16157 25V 4.7u C16153 25V 4.7u C16092 630V 1500p C16133 25V 4.7u C16071 630V 1500p C16003 630V 5600p C16154 25V 4.7u C16023 630V 5600p C16252 25V 1u C16131 25V 4.7u C16243 50V 0.01u C16242 16V 1u C16151 25V 1u C16018 2.2u 250V C16135 25V 1u *C16203 250V 2.2u *C16202 250V 2.2u *C16201 250V 2.2u *C16204 250V 2.2u *C16206 2.2u 250V *C16205 250V 2.2u C16012 220V 250u C16241 10V 100u C16014 220V 250u C16272 25V 470u C16011 220V 250u C16015 220V 250u C16013 220V 250u D16152 B0ECKP000047 D16151 B0ECHP000003 D16050 B0ECKP000047 D16255 MA2J11100L D16131 B0ECHP000003 D16032 MA2J11100L D16153 B0ECKP000047 *D16002 B0FBCN000005 *D16052 B0FBCN000005 *D16051 B0FBCN000005 *D16001 B0FBCN000005 *D16003 B0FBCN000005 *D16053 B0FBCN000005 *D16041 MA3DF46000LW *D16021 MA3DF30000LW *D16042 MA3DF46000LW *D16022 MA3DF30000LW *D16043 MA3DF46000LW D16253 B3ABB0000210 D16281 MAZ80510LL IC16251 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC C0ZBZ0001324 IC16151 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0ZBZ0000895 IC16131 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0JBAZ002811 IC16241 1G 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G 20 VCC SS34 1 2 3 SS12 1 2 3 4 5 6 7 8 9 10 SS33 1 2 3 4 5 6 7 8 9 10 11 12 SS11 1 3 L16399 J0JJC0000015 L16398 J0JJC0000015 L16262 G0ZZ00002183 L16271 G0ZZ00002183 *L16001 G0C1R4KA0118 *L16006 G0C1R4KA0118 *L16013 G0C1R4KA0118 *L16004 G0C1R4KA0118 *L16015 G0C1R4KA0118 *L16003 G0C1R4KA0118 *L16016 G0C1R4KA0118 *L16005 G0C1R4KA0118 *L16012 G0C1R4KA0118 *L16014 G0C1R4KA0118 VE2EXT165V VEEXT160V TP15 TP22 TP39 TP20 TP41 TP13 TP10 TP38 TP4 TP17 TP3 TP19 TP18 TP33 TP8 TP1 TP7 TP5 TP12 TP37 TP40 TP14 TP2 TP34 TP16 TP9 TP6 TP21 Q16251 2SD0601A0L *Q16051 B1JAEN000003 *Q16003 B1JAEN000004 *Q16041 B1JAEN000003 *Q16004 B1JAEN000004 *Q16042 B1JAEN000003 *Q16001 B1JAEN000004 *Q16021 B1JAEN000004 *Q16023 B1JAEN000004 *Q16002 B1JAEN000004 *Q16024 B1JAEN000004 *Q16052 B1JAEN000003 *Q16022 B1JAEN000004 Q16055 B1HFPFA00001 Q16056 CPH5524-TL-E Q16141 B1HFPFA00001 Q16161 B1HFPFA00001 R16241 47 R16242 4.7k R16257 27k R16162 47k R16181 10 R16142 47k R16155 1 75 R16154 R16041 5.6 R16004 7.5 R16161 10 R16003 7.5 R16021 7.5 R16260 2.2k R16132 100 *R16052 5.6 R16152 100 R16131 100 R16171 10 R16221 4.7k R16182 47k R16138 0 R16033 56k R16254 6.8k R16183 47k R16280 2.2k R16258 10k R16253 39k R16163 47k 75 R16134 R16159 1 R16220 47 R16143 47k R16251 1.4k R16051 5.6 R16023 7.5 R16024 7.5 R16002 7.5 R16032 82k R16022 7.5 R16034 27k R16137 1 *R16042 5.6 R16173 47k R16151 100 R16001 7.5 R16252 39k R16031 82k R16231 4.7k R16172 47k R16255 1.2k R16261 100k R16230 47 R16256 1.5k R16141 10 TPVDA TPVSUS VSUS GND UML SOS8_SS UMH NUEL NC (URH) P5V USH USL UEH GND TPSOS8 1 2 4 5 3 SS-BOARD TXNSS1RETC (1/2) ! ENERGY RECOVERY BUFFER ERROR DET TO P-BOARD (P11) TO P-BOARD (P12) TO C3-BOARD (C33) VSUS Gen. DRIVER TH-58PZ880C SS-Board (1/2) and S-Board Schematic Diagram TH-58PZ880C SS-Board (1/2) and S-Board Schematic Diagram PUSH R2506 0 R2507 0 S1 1 2 3 SW2500 K0F162B00002 ! POWER SW S-BOARD TXN/S1RLTC MAIN-SW_1 MAIN-SW_2 75V MAIN-SW_2 MAIN-SW_1 15.7V 75V NC(Ve2EXT165V) NC(VeEXT160V) ! B E 9 6 8 1 A 2 3 D 7 F 5 4 C 89 TH-58PZ880C 10.47.SS2、SS3 和 SS （2/2）电路板线路图 + + + + + + TERM SIDE TERM SIDE TERM SIDE + + + + + TERM SIDE + AA_NUEL AA_SOS8 AA_UML AA_UEH C16197 25V 4.7u C16191 25V 4.7u C16194 25V 4.7u C16321 0.22u 250V C16325 25V 4.7u C16313 16V 1u C16312 50V 4700p C16311 10V 1u C16322 0.22u 250V C16326 25V 4.7u C16331 250V 2.2u C16284 0.1u 50V C16285 0.1u 50V C16302 470p 50V C16288 0.1u 50V C16289 0.1u 50V C16280 25V 1u C16303 16V 0.01u C16192 25V 0.1u C16195 25V 4.7u *C16332 3300p 630V C16323 25V 47u C16324 470u 25V C16310 220V 250u C16329 200u 200V C16328 200u 200V C16301 47u 25V D16191 B0ECKP000047 D16321 B0ECKP000047 D16101 MA22D3900L D16280 MA2J11100L D16313 B0ECKP000047 D16300 B0ECKP000047 D16192 MA2J11100L D16302 MA2J11100L D16284 MA3X152D0L D16286 MA3X152D0L D16324 MA3X152D0L D16301 MA3X152E0L D16304 MAZ80510LL D16311 MAZ81500ML D16282 MAZ80680ML D16323 MAZ80330HL C0JBAB000715 IC16303 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y MIP9L02MBS IC16301 1 SOURCE 2 BY 3 FB 5 VCC 6 GND 7 V01 8 VOUT 10 DRAIN C0CBALC00012 IC16302 Vin 3 2 Com Vout 1 SS54 1 2 3 4 5 6 7 8 9 10 11 12 13 SS55 1 2 3 4 5 6 7 8 9 10 11 12 13 SS21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 SS22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 J0JHC0000031 L16301 L16103 G0ZZ00002183 L16221 G0ZZ00002183 T16301 ETS19AB249AC 1 NC 2 P1 4 PT 5 NC 6 P2 7 S1 10 S2 ZA16003 K4CD01000011 ZA16001 K4CD01000011 ZA16002 K4CD01000011 PC16191 B3PBA0000496 1 2 3 4 5 6 TP52 TP42 TP51 TP57 TP43 TP31 TP28 TP35 TP53 TP25 TP27 TP29 TP24 TP58 TP26 TP44 TP30 TP45 TP36 TP54 Q16301 B1CBGD000001 Q16302 B1CFNG000001 Q16339 2SK417300L G D S *Q16101 2SK4174000RP G D S *Q16102 2SK4175000LZ G D S *Q16331 2SK4174000RP G D S Q16280 2SD0601A0L Q16304 2SB0709ASL Q16191 B1HFPFA00001 R16285 62k R16286 62k R16294 330k R16293 330k R16303 100 R16338 100 R16311 120k R16339 330k R16304 750 R16310 22k R16314 61.9k R16109 10 R16325 0 R16333 330k R16324 47k R16302 33k R16306 100 R16316 10k R16281 10k R16322 560 R16195 1 R16282 220 R16331 100 R16101 220 R16103 10 R16192 10k R16290 330k R16289 330k R16301 4.7k R16105 470k R16308 100 R16102 220 R16323 10k R16116 47k R16321 47k R16312 120k R16110 47k R16315 1.24k R16309 33k R16300 1k R16284 220k *R16313 52.3k R16191 150 R16305 270 R16283 47k R16104 10 VR16000 50k 1 2 3 SS02 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 SS52 1 2 3 4 5 6 7 8 9 10 11 12 13 C16270 820u C16269 820u C16272 250V 4u C16267 820u C16268 820u SS35 1 2 3 4 ZA16010 K4ZZ01000206 C16262 820u C16271 250V 4u SS03 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 ZA16011 K4ZZ01000206 SS57 1 2 3 4 5 6 7 8 9 10 11 12 13 C16263 820u TPSS1 SS55 SS53 SS54 SS56 TPVe 14 16 11 17 13 12 15 10 18 1 2 3 4 5 SS-BOARD TXNSS1RETC (2/2) ! TO SUSTAIN ELECTRODE TO SUSTAIN ELECTRODE IPD INV +15V Ve SS2-BOARD ! TXNSS21RETC VDA VDA GND NC TXNSS31RETC SS3-BOARD ! TO SUSTAIN ELECTRODE TO SUSTAIN ELECTRODE TO C3-BOARD (C35) TH-58PZ880C SS-Board (2/2), SS2-Board and SS3-Board Schematic Diagram TH-58PZ880C SS-Board (2/2), SS2-Board and SS3-Board Schematic Diagram 90 TH-58PZ880C 10.48.G 和 K 电路板线路图 P P P P P P P R V L Y C R G VCC GND OUT JS3705 0 FL3713 J0ZZA0000091 1 2 3 4 SW3757 EVQPC105K R3748 G51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 L3701 J0JCC0000364 FL3712 J0ZZA0000091 1 2 3 4 R3716 180k FL3714 J0ZZA0000091 1 2 3 4 L3708 J0JCC0000100 R3755 1% R3753 1.74k JS3707 0 R3709 JS3704 0 R3710 R3711 C3711 50V 0.033u R3746 L3700 J0JCC0000364 D3709 MAZ81400ML R3721 10k D3701 MAZ81400ML 1% R3758 6.65k D3711 MAZ81400ML C3750 1000p 50V JS3713 0 C3703 560p 50V 1% R3751 14.3k FL3711 J0ZZA0000091 1 2 3 4 JS3712 0 C3712 50V 0.033u R3717 180k FL3710 J0ZZA0000091 1 2 3 4 1% R3767 7.15k SW3753 EVQPC105K ZA3701 K4CZ01000027 SW3754 EVQPC105K D3702 MAZ81400ML SW3756 EVQPC105K R3732 D3710 MAZ81400ML JS3708 0 SW3755 EVQPC105K C3701 560p 50V L3707 J0JCC0000100 JK3701 K4AK19B00002 C Y G CY-G G R2 R1 T NC SW R-SW R R-G L L-G V-SW V V-G < < < < +/ STR TV/AV -/ F HP_GND GND(V) FRONT_AV_R GND(C) FRONT_AV_L HP_L FRONT_AV_S HP_R HP_GND FRONT_AV_Y FRONT_AV_C FRONT_AV_V GND GND GND(Y) KEY TO A-BOARD (A51) TO A-BOARD (A1) G-BOARD TXN/G1RLTC ! TH-58PZ880C G and K-Board Schematic Diagram C2511 16V 0.1u *C2525 50V 1000p C2512 10V 10u C2521 0.01u 50V C2515 50V 0.01u D2520 LNJ107W5PRW D2524 MAZ80560ML D2530 MAZ80560ML D2512 MAZ80560ML K1 1 2 3 4 5 6 7 8 9 10 11 12 *R2583A J0JCC0000241 *R2582A J0JCC0000241 PC2511 B3JB00000046 *RM2501 B3RAD0000160 1 2 3 Q2513 2SD0601A0L Q2510 2SD0601A0L Q2511 2SD0601A0L R2517 47 R2520 220k 1% R2525 604 R2556 10k 1% R2531 270 R2516 22k R2542 47k R2557 22k R2530 47k R2524 47k < < < C.A.T.S. SENSOR REMOTE CONTROL SENSOR STBY3.3V GND AI_SENSOR HD_LED G_LED_ON REMOCON Modem_LED/KEY3 PSM_LEDR Active_STB_LED GND SUB5V R_LED_ON/STBY_LED GND POWER LED ! K-BOARD TXN/K1RFTC B E 9 6 8 1 A 2 3 D 7 F 5 4 C TH-58PZ880C G and K-Board Schematic Diagram 91 TH-58PZ880C 10.49.GL 和 GS 电路板线路图 + + (FIN) D.SW W.P. MA6 MA13 MD5 MA11 MA9 MD7 MD6 MA5 MA1 MA16 MD1 AE_SDDAT2 #MCE MA11 AE_SDDAT0 AE_SDCMD MA14 MD7 #MWR #MRD MA4 MA2 AE_SDDTC MA7 MA13 MD6 MD2 MD1 MA10 AE_SDDAT3 MD3 MA4 #MCE MA0 MA10 MA8 MD3 MD2 #MWR MA15 MA8 MA3 MA12 MD0 MA16 AE_SDDAT1 MA14 MD4 MA15 MD4 MA16 MA3 MA2 MD5 MA6 MA9 MA1 MA12 #MRD MD0 MA7 MA5 MA0 AE_SDCLK Q7701 2SD0601A0L R7703 22k C7714 16V 0.1u R7714 12k 1% R7738 68 R7734 68 C7732 16V 0.1u Q7700 2SB0709A0L R7717 10k R7710 1k X7700 H0J240500037 C7713 50V 15p C7711 10u 6.3V R7779 EXB38VR000V R7735 68 R7716 1M C7733 16V 0.1u C7718 10u 6.3V JS7700 R7782 0 R7742 10k R7718 10k R7781 0 C7717 16V 0.1u C7712 16V 0.1u R7706 2.2k R7701 10k R7751 J0JCC0000241 C7716 10u 6.3V C7720 16V 0.1u 1% R7777 34k C7725 50V 15p R7705 10k C7719 16V 0.1u R7727 10k R7749 J0JCC0000241 D7800 B3AEB0000107 C7702 4V 100u R7709 100k R7708 100k C7738 4V 100u R7737 68 R7713 2.2k R7750 J0JCC0000241 C7731 50V 15p C7729 50V 15p R7711 4.7k C0DBEHG00006 IC7701 1 CTL 2 Vcc 4 OUT 5 ADJ 3 GND(FIN) C7705 16V 0.1u C7715 50V 22p R7726 10k GS02 1 2 C7710 10u 6.3V C7709 10V 2.2u 3.3V GS09 1 2 3 4 5 6 1% R7778 10k C7721 10u 6.3V C7708 10V 1u TVRP965 IC7700 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 NC 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 NC 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 JK7702 K1NA09E00080 1 2 3 4 5 6 7 8 9 10 11 12 3.3V R7754 10k C7742 10u 6.3V C7737 10u 6.3V L7704 J0JHC0000045 C7724 50V 15p TP7703 R7712 100k C7700 16V 0.1u C1CB00002668 IC7702 1 MA13 2 MA14 3 VDD33 4 MA15 5 MD0 6 MD1 7 MD2 8 MD3 9 MD4 10 MD5 11 MD6 12 MD7 13 nMRD 14 nMWR 15 VSS 16 VSS 17 nMCE 18 MS_INS 19 MS_D0 20 MS_D1 21 MS_D2 22 MS_D3 23 MS_CSLK 24 MS_BS 25 SD_nWP 26 SD_DAT0 27 SD_DAT1 28 SD_DAT2 29 SD_DAT3 30 SD_CMD 31 SD_CLK 32 CF_D0 33 CF_D1 34 CF_D2 35 CF_D3 36 CF_D4 37 CF_D5 38 CF_D6 39 CF_D7 40 CF_D8 41 CF_D9 42 GPIO8 43 VDD33 44 GPIO11 45 CF_D10 46 CF_D11 47 VSS 48 CF_D12 49 VDD18 50 CF_D13 51 CF_D14 52 CF_D15 53 CF_nCD1 54 CF_nCD2 55 CF_IRQ 56 CF_IORDY 57 CF_nIOR 58 CF_nIOW 59 CF_nRESET 60 CF_nCS0 61 CF_nCS1 62 CF_SA0 63 CF_SA1 64 CF_SA2 65 SM_D0 66 SM_D1 67 SM_D2 68 SM_D3 69 SM_D4 70 SM_D5 71 SM_D6 72 SM_D7 73 SM_ALE 74 SM_nWP 75 SM_CLE 76 SM_nWPS 77 SM_nB/R 78 SM_nCD 79 GPIO10 80 VDD33 81 SM_nRE 82 SM_nWE 83 SM_nCE 84 VSS 85 VSS 86 VSSA 87 USBDM 88 USBDP 89 VDDA33 90 GPIO15 91 GPIO14 92 GPIO13 93 GPIO12 94 GPIO3 95 nTEST1 96 nTEST0 97 VSS 98 RBIAS 99 ATEST 100 VDD33 101 VDD18PLL 102 XTAL1 103 XTAL2 104 VSSPLL 105 GPIO9 106 VDD18 107 GPIO7 108 VDD33 109 GPIO6/ROMEM 110 GPIO5 111 GPIO4 112 VSS 113 GPIO2 114 GPIO1 115 nRESET 116 MA0 117 MA1 118 MA2 119 MA3 120 MA4 121 MA5 122 MA6 123 MA7 124 MA8 125 MA9 126 MA10 127 MA11 128 MA12 L7705 J0JHC0000045 TP7706 R7719 0 GL02 1 2 C7736 16V 0.1u TP7701 R7725 68 R7800 0 R7715 2.2k C7706 10V 1u TP7704 R7733 68 C7704 10V 1u TP7705 R7744 0 TP7700 R7702 75 C7701 10V 2.2u R7704 1k SDDTC D+ D- SDDAT3 GND SDCMD VBUS GND(SHLD) CARD DET FLASH 3.3V SD USB CONV. SDDAT2 GND SDCLK SDDAT0 SD CARD SLOT TO A-BOARD (A9) 3.3V SDDAT1 GND GS-BOARD TXNGS1RFTC ! GL-BOARD ! TXNGL1RFTC SD CARD LED TH-58PZ880C GL and GS-Board Schematic Diagram TH-58PZ880C GL and GS-Board Schematic Diagram B E 9 6 8 1 A 2 3 D 7 F 5 4 C 92 TH-58PZ880C 10.50.HC 电路板线路图 + DRIVE IC VCC Vin GND + + Thermal Pad Thermal Pad AGC6_SDA1 AGC6_SCL2 SCL AD_SDA0 SDA AD_SCL0 AGC6_SCL1 AD_SCL1 AGC6_SDA2 AD_SDA1 PC_V_IN SPDIF_OUT PC_H_IN AD_SDA1 AD_SCL1 SDA SCL AGC6_SDA1 AGC6_SCL1 AD_SDA0 AD_SCL0 PWM_W_R- PWM_W_R+ PWM_W_L- PWM_W_L+ PWM_SQ_R- PWM_SQ_R+ PWM_SQ_L- PWM_SQ_L+ PC_B PC_G PC_R PC_V_IN PC_H_IN SPDIF_OUT AGC6_SCL2 AGC6_SDA2 PWM_SQ_L- PWM_SQ_L+ PWM_W_L+ PWM_W_L- AD_SDA1 AD_SCL1 PWM_W_R- PWM_W_R+ PWM_SQ_R- PWM_SQ_R+ PC_R PC_G PC_B *R9161 10 C9309 25V 1u TP9302 L9010 G1C220MA0291 R9123 3.3 *C9320 0.1u 50V *C9344 25V 0.33u *C9390 50V 1000p C9385 50V 1000p *R9130 10 L9018 J0JHC0000042 *C9322 0.1u 50V *C9342 25V 0.33u *C9304 25V 1u C9319 0.1u 50V C9353 50V 0.1u *L9017 G1C220MA0291 C9305 25V 1u *C9388 50V 1000p C9343 25V 0.33u *C9376 50V 0.022u C9339 50V 0.022u *L9015 G1C220MA0291 R9129 10 L9023 G1C3R0ZA0156 C9323 0.1u 50V D9014 MA2J11100L D9017 MA2J11100L TP9304 *C9348 50V 0.022u C9377 50V 0.022u *C9378 50V 0.022u *C9338 50V 0.022u L9016 G1C220MA0291 *R9122 3.3 TP9101 C9303 25V 1u C9375 50V 0.022u C9321 0.1u 50V C9341 25V 0.33u C9359 50V 0.1u C9387 50V 1000p *C9384 50V 1000p TP9102 R9127 3.3 C9333 25V 0.33u L9014 G1C220MA0291 C9317 0.1u 50V *C9306 25V 1u *C9310 25V 1u *L9011 G1C220MA0291 *R9128 3.3 TP9303 *C9380 50V 0.022u *R9124 3.3 *C9346 50V 0.022u *C9382 50V 0.022u *L9019 J0JHC0000042 TP9305 *C9308 25V 1u C9307 25V 1u *C9334 25V 0.33u L9012 G1C220MA0291 C9383 50V 1000p *R9126 3.3 C9381 50V 0.022u R9118 470 C9335 25V 0.33u C9379 50V 0.022u *C9354 50V 0.1u *R9138 10 R9137 10 *C9324 0.1u 50V *C9386 50V 1000p TP9103 C9345 50V 0.022u R9125 3.3 TP9104 C9347 50V 0.022u R9121 3.3 *C9318 0.1u 50V *L9013 G1C220MA0291 C9337 50V 0.022u *C9340 50V 0.022u C9406 25V 47u *C9360 50V 0.1u *C9336 25V 0.33u C9389 50V 1000p R9133 10 SOUND15V TP9004 HC16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 TP9003 TP9001 HC15 1 2 3 4 5 6 7 8 9 10 11 R9007 0 TP9002 FL9005 J0HABB000004 1 2 3 4 FL9003 J0HABB000004 1 2 3 4 D9002 K7AAAY000003 FL9004 J0HABB000004 1 2 3 4 R9023 0 C9001 50V 0.1u R9015 0 JK9001 K1FB315A0006 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 R9016 0 FL9001 J0HABB000003 1 2 3 4 FL9002 J0HABB000003 1 2 3 4 R9014 4.7k R9013 4.7k HC14 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 HC13 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 TP9005 TP9006 TP9007 TP9008 TP9009 TP9010 TP9011 TP9012 TP9013 TP9014 TP9015 HC12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 *C9362 25V 470u C9361 25V 470u C9313 1u 10V *C9314 1u 10V R9420 22 R9419 22 R9421 10k C9407 16V 0.1u ZA9001 K4AZ01D00004 ZA9002 K4AZ01D00004 C9408 25V 1u C1AB00002875 IC9001 1 STBY 2 NC1 3 MUTE 4 NC2 5 PWM_A1 6 NC3 7 PWM_B1 8 NC4 9 VREG5 10 GND 11 NC5 12 PWM_B2 13 NC6 14 PWM_A2 15 NC7 16 NOD_THERM 17 NOD_OUTSHDN 18 NC8 19 PVD2 20 PVD2 21 OUT_CH2_P 22 BOOT_CH2_P 23 VDDA2 24 BOOT_CH2_N 25 OUT_CH2_N 26 PGND2 27 PGND2 28 PGND1 29 PGND1 30 OUT_CH1_N 31 BOOT_CH1_N 32 VDDA1 33 BOOT_CH1_P 34 OUT_CH1_P 35 PVD1 36 PVD1 C1AB00002875 *IC9002 1 STBY 2 NC1 3 MUTE 4 NC2 5 PWM_A1 6 NC3 7 PWM_B1 8 NC4 9 VREG5 10 GND 11 NC5 12 PWM_B2 13 NC6 14 PWM_A2 15 NC7 16 NOD_THERM 17 NOD_OUTSHDN 18 NC8 19 PVD2 20 PVD2 21 OUT_CH2_P 22 BOOT_CH2_P 23 VDDA2 24 BOOT_CH2_N 25 OUT_CH2_N 26 PGND2 27 PGND2 28 PGND1 29 PGND1 30 OUT_CH1_N 31 BOOT_CH1_N 32 VDDA1 33 BOOT_CH1_P 34 OUT_CH1_P 35 PVD1 36 PVD1 C9363 10u 25V C9364 10u 25V R9001 0 R9002 0 IC9003 C1ZBZ0003775 1 SDA 2 SCL 3 ALERT 4 GND 5 A2 6 A1 7 A0 8 V+ *JS9323 0 1/10W *JS9324 0 1/10W JS9325 0 1/10W JS9326 0 1/10W R9027 0 R9029 0 R9028 0 < < < OPERATE RESET SOS OPERATE SOS OPERATE OPERATE RESET (PRO E2PROM) Panel_TXD (GenX5 Loarder/E2PROM) GenX5_SCL PRO_SDA1 (Panel Dpr.E2PROM) (Panel Dpr.E2PROM) STB3.3V (Device Control) (PRO E2PROM) STB5V (Device Control) PRO_SCL1 Panel_SCL GC6_SDA2 GenX5_SRQ GC6_SCL1 Panel_SDA STB5V Panel_RXD GND (Device Control) GC6_SCL2 SBI0_PRO Diag NC(LED_R) (GenX5 Loarder/E2PROM) IIC_CONT GC6_SDA1 (Device Control) NC(D_PDB_MODE) PRO_SCL0 (Device Control) IIC_CONT/SRQ GenX6_SRQ (Device Control) NC(REMOCON) GenX5_SDA SBO0_PRO Diag PRO_SDA0 GND PC IN DIGITAL AUDIO OUT TO A-BOARD (A12) TEMP SENSOR LOCATION OF EARTH LUG SOUND_SOS AMUTE PWM_READY PRO_SCL1 (PRO E2PROM) PRO_SDA1 (PRO E2PROM) TO A-BOARD (A14) TO A-BOARD (A13) FOR FACTORY USE FOR FACTORY USE SPEAKER AMP SPEAKER AMP B E 9 6 1 3 A 2 D 7 8 F 5 4 C HC-BOARD TNPA4544AD ! TH-58PZ880C HC-Board Schematic Diagram TH-58PZ880C HC-Board Schematic Diagram TO SPEAKER R TP9020 *H13 K1KA06AA0190 *C9365 1u 50V W_R- SQ_R+ TW_R- TW_R+ W_R- SQ_R- W_R+ 1 2 3 4 5 6 TO SPEAKER L TP9025 *H14 K1KA07AA0190 1 2 3 4 5 6 7 *C9368 1u 50V SQ_L+ SQ_L+ W_L+ W_L- TW_L- TW_L+ SQ_L- NC W_L+ SQ_L- W_L- 93 TH-58PZ880C 10.51.GH 电路板线路图 D2 D1 C3816 16V 0.01u 0.1u 16V C3812 C3820 16V 0.01u C3823 0.1u 16V C3819 16V 0.01u 0.1u 16V C3809 0.1u 16V C3807 0.1u 16V C3814 C3817 16V 0.01u C3801 0.1u 16V C3815 16V 0.01u C3828 4.7u 6.3V C3806 0.1u 16V C3818 16V 0.01u C3802 0.1u 16V 0.1u 16V C3810 C3804 0.1u 16V 0.1u 16V C3808 C3829 1u 10V C3813 6.3V 10u *C3803 1u 10V 0.1u 16V C3811 D3814 B0HCMM000014 D3813 B0HCMM000014 D3810 EZAEG2A50AX D3803 EZAEG2A50AX D3806 EZAEG2A50AX D3809 EZAEG2A50AX D3805 EZAEG2A50AX D3804 EZAEG2A50AX D3802 EZAEG2A50AX D3801 EZAEG2A50AX D3808 EZJZ0V80008B D3807 EZJZ0V80008B D3815 EZJZ0V120JA D3811 EZJZ0V80008B *IC3802 TVRQ130 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC C1AB00002835 IC3801 1 TEST 2 VCC 3 DN 4 DP 5 GND 6 SCL3 7 SDA3 8 DDCGND 9 IPACTRL 10 OPACTRL 11 VCC 12 REXT 13 ZP 14 ZN 15 GND 16 YP 17 YN 18 VCC 19 VCC 20 XP 21 XN 22 GND 23 WP 24 WN 25 CE 26 VCC 27 HPD 28 DDC5V 29 DDCGND 30 SDA5 31 SCL5 32 GND 33 AN 34 AP 35 VCC 36 RXTM 37 VCC 38 VCC 39 BN 40 BP 41 GND 42 VCC 43 VCC 44 GND 45 CN 46 CP 47 VCC 48 VCC GH11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 *GH10 K1FY121E0001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 L3801 J0JHC0000078 L3805 J0JHC0000078 L3804 J0JHC0000078 *ZA3801 K4AD01D00005 *ZA3802 K4AD01D00005 TP3801 TP3804 TP3802 TP3805 TP3803 Q3802 2SD0601A0L Q3804 2SD0601A0L Q3801 2SD0601A0L R3807 10 R3826 2.7 R3810 1k R3802 10k R3822 1k R3828 2.7 R3804 4.7k *R3801 10k *R3821 33 R3847 0 R3815 0 R3809 1k *R3823 10k R3845 4.7k R3841 10 R3830 2.7 R3831 2.7 R3840 10 R3805 4.7k R3814 4.7k R3827 2.7 R3806 47k R3812 10k R3803 3.3k R3818 10k R3808 10 R3825 2.7 R3824 2.7 R3829 2.7 R3832 4.7k R3834 49.9 1% 1% R3811 4.7k DDCG Main2_3.3V Main2_3.3V SDA D0- D2+ D2+ CEC CEC D1- D2G HDMI_5V_DET3 SCL N.C. HPDT WP CLK- D1+ D0+ Main5V HPD3 SCL DDC5V D2- CLK+ D1- CLK- D0- D0+ CLKG D1+ +5V D2- D0G CLK+ D1G SDA SDA SCL SDA SCL TO A-BOARD (A11) EEPROM HDMI EQUALIZER GH-BOARD TXNGH1RFTC ! TH-58PZ880C GH-Board Schematic Diagram TH-58PZ880C GH-Board Schematic Diagram B E 9 6 8 1 A 2 3 D 7 F 5 4 C 94 TH-58PZ880C 11 导线图 11.1. P （SUS）电路板 A B C D E F G H I 1 2 3 4 5 6 P(SUS)-BOARD ETX2MM706NGA (FOIL SIDE) P(SUS)-BOARD ETX2MM706NGA (COMPONET SIDE) TH-58PZ880C P(SUS)-BOARD ETX2MM706NGA TH-58PZ880C P(SUS)-BOARD ETX2MM706NGA P(SUS) Parts Location P(SUS)-BOARD (FOIL SIDE) IC251� C-5 MC201 C-3 MC203 A-5 MC204 C-4 MC231 D-3 MC601 D-3 MC602 B-2 MC603 C-3 MC606� A-3 IC MODULE PC201� C-4 PC202� C-4 PC231� C-4 PHOTO COUPLER Q201 A-4 Q202 A-4 Q203 C-4 Q204 C-4 Q651 C-5 Q652 C-5 TP1� A-4 TP2� A-4 TP5� B-6 TP6� A-5 TRANSISTOR VR251� C-6 VOLUME TEST POINT IC251� D-5 MC201� E-3 MC203� F-5 MC204� D-4 MC231� D-3 MC601� D-3 MC602� F-2 MC603� E-3 MC606� F-3 IC MODULE PC201 D-4 PC202 D-4 PC231 D-4 PHOTO COUPLER Q201� F-4 Q202� G-4 Q203� D-4 Q204� D-4 Q651� D-5 Q652� D-5 TP1� G-4 TP2� F-4 TP5� E-6 TP6� G-5 TRANSISTOR VR251� D-6 VOLUME TEST POINT P(SUS)-BOARD (COMPONENT SIDE) 95 TH-58PZ880C 11.2. P （MAIN）电路板 A B C D E F G H I 1 2 3 4 5 6 P(MULTI)-BOARD ETX2MM706NGA (FOIL SIDE) TH-58PZ880C P(MULTI)-BOARD ETX2MM706NGA TH-58PZ880C P(MULTI)-BOARD ETX2MM706NGA Parts Location P(MULTI)-BOARD (FOIL SIDE) IC352� B-5 IC401� C-6 IC501� B-3 IC555� B-5 MC301� C-3 MC352� C-6 MC401� D-6 MC451� C-5 MC501� C-4 MC502� C-4 MC552� B-6 MC701� B-5 MC801� C-2 MC802� D-3 IC MODULE PC301� C-4 PC302� C-4 PC401� C-5 PC501� C-4 PC502� C-4 PHOTO COUPLER Q301� C-4 Q302� D-4 Q351� C-6 Q401� D-5 Q402� C-5 Q403� C-5 TP1� C-3 TP2� C-3 TP3� B-3 TP4� B-3 TP7� C-6 TP8� D-5 TP9� D-6 TP10� B-6 TRANSISTOR VR401� C-5 VOLUME TEST POINT P(MULTI) 96 TH-58PZ880C A B C D E F G H I 1 2 3 4 5 6 P(MULTI)-BOARD ETX2MM706NGA (COMPONET SIDE) TH-58PZ880C P(MULTI)-BOARD ETX2MM706NGA TH-58PZ880C P(MULTI)-BOARD ETX2MM706NGA Parts Location P(MULTI)-BOARD (COMPONENT SIDE) IC352� D-5 IC401� C-6 IC501� D-3 IC555� D-5 MC301� D-3 MC352� C-5 MC401� B-6 MC451� D-5 MC501� C-4 MC502� C-4 MC552� D-5 MC701� D-5 MC801� C-3 MC802� B-3 IC MODULE PC301� C-4 PC302� C-4 PC401� C-5 PC501� D-4 PC502� C-4 PHOTO COUPLER Q301� C-4 Q302� B-4 Q351� C-6 Q401� B-5 Q402� C-5 Q403� C-5 TP1� C-3 TP2� C-3 TP3� D-3 TP4� D-3 TP7� C-6 TP8� B-5 TP9� B-6 TP10� D-5 TRANSISTOR VR401� C-5 VOLUME TEST POINT P(MULTI) 97 TH-58PZ880C 11.3. GH 和 HC 电路板 A B C D E F G H I 1 2 3 4 5 6 D804 C828 R801 D805 R802 D806 R803 R804 R805 D809 IC801 R809 IC802 D810 D811 D813 R810 D814 R816 R817 R818 R819 R820 R821 R822 R823 R824 R825 R826 R827 R828 R829 R830 R831 R832 R835 R844 R845 R848 R849 GH10 R854 L801 L804 C801 C802 C803 C804 Q801 Q802 C806 D801 D802 D803 C827 CRNO.3 1 TNPA4505 GH FOR ORDER NO. SEE REVERSE P b F 24 25 36 37 1 12 13 48 1 4 5 8 1 1 9 C829 D807 D808 R806 R807 R808 D812 R811 D815 R812 R813 R814 R815 R833 R834 R840 R841 R843 R846 R847 R850 R851 GH11 R852 R853 FL801 ZA801 ZA802 L805 TP801 TP802 TP803 TP804 TP805 C807 Q804 C808 C809 Q806 C810 C811 C812 C813 C814 C815 C816 C817 C818 C819 C820 C821 C822 C823 C824 C825 C826 TNPA4505 1 GH CRNO.3 P b F 1 2 29 30 O R D E R N O . TNPA4544 1 HC CR NO.9 C387 C376 C363 R130 C342 C332 H13 R024 D014 D005 JS325 C380 C367 L017 R129 C338 C319 C303 R015 R006 C405 C006 C383 R141 C353 C348 R122 C322 C306 FL005 R421 R018 R009 C408 JS324 C390 R160 C366 L016 R128 C336 C317 R013 R004 C003 HC13 L015 C344 C335 C314 FL002 D007 C007 R167 C369 R137 L010 R123 C323 C307 R019 D001 C004 HC14 R161 L023 R133 C345 C337 C318 FL003 R014 R005 C010 C001 C388 C377 C364 R324 R126 C333 H14 R025 R010 R002 C005 HC15 C381 R140 L018 C346 C339 C320 C304 FL004 R419 R016 R007 C406 C386 C375 C362 L013 R125 C331 H12 R023 IC003 R001 C002 C389 C378 L014 C343 C334 C310 FL001 R011 D006 C009 R168 C370 C360 R138 L012 R124 C325 C309 R021 D003 C008 C384 R142 C354 L011 C340 C324 C308 R020 D002 JS323 HC12 C379 C365 C359 R131 R127 R118 C313 R026 R012 R003 C385 R139 R323 C341 C326 H11 R022 D004 JS326 HC16 C382 C368 L019 C347 R121 C321 C305 R420 R017 R008 C407 ZA002 ZA001 D017 C361 THERMAL PAD THERMAL PAD IC001 IC002 C104 R100 R101 R102 R103 R104 R105 R106 R107 C133 C134 C139 C140 C141 C142 C143 C144 C145 C146 C147 C148 C149 C150 C151 HCMM1 HCMM2 HCMM3 HCMM4 HCMM5 HCMM6 HCMM7 HCMM8 JK001 R029 R028 R027 HCMM9 PbF 1 2 19 20 1 4 5 8 NP NP 1 4 6 1 1 2 14 15 1 2 22 23 1 2 22 23 1 11 O R D E R N O . 1 5 1 7 1 36 19 18 10 9 28 27 1 36 19 18 10 9 28 27 1 5 6 10 11 15 1 TNPA4544 CR NO.9 HC H13 C367 HC13 HC14 H14 H12 C370 D002 HC12 H11 JK001 PbF 1 4 6 1 1 2 14 15 1 2 22 23 1 2 22 23 S E E R E V E R S E F O R O R D E R N O . 5 1 1 7 1 5 6 10 11 15 HC-BOARD (FOIL SIDE) TNPA4544AD HC-BOARD (COMPONENT SIDE) TNPA4544AD GH-BOARD (FOIL SIDE) TXNGH1RFTC GH-BOARD (COMPONENT SIDE) TXNGH1RFTC TH-58PZ880C GH-BOARD TXNGH1RFTC HC-BOARD TNPA4544AD TH-58PZ880C GH-BOARD TXNGH1RFTC HC-BOARD TNPA4544AD GH HC 98 TH-58PZ880C 11.4. G，GL 和 GS 电路板 A B C D E F G H I 1 2 3 4 5 6 G51 SW3753 SW3754 SW3755 SW3756 SW3757 FL3710 FL3711 FL3712 FL3713 FL3714 J3701 J3702 J3703 J3704 J3705 J3706 J3707 J3708 J3709 J3710 J3711 ZA3701 ZA3702 TNPA4515 1 G TV/AV +/ -/ F STR JK3701 P b F 16 15 2 1 O R D E R N O . R L V R L V L3700 L3701 L3704 L3705 L3706 L3707 L3708 L3713 G51 L3750 C3701 C3702 C3703 C3704 C3705 C3706 C3707 C3708 C3711 C3712 C3714 D3702 D3703 D3704 D3705 D3706 R3705 R3706 R3709 JA3701 JA3702 JA3703 R3710 JA3704 R3711 R3712 R3713 R3716 R3717 R3718 R3719 R3720 R3721 R3722 R3723 R3724 S3701 R3725 S3702 S3703 S3704 C3750 S3705 S3706 R3732 R3736 R3737 R3738 R3739 R3740 R3741 R3746 SW3753 R3748 SW3754 SW3755 SW3756 SW3757 D3750 R3751 R3753 R3755 R3758 JA3751 JA3752 JA3753 JA3754 R3767 FL3710 FL3711 FL3712 FL3713 FL3714 JS3704 JS3705 JS3707 JS3708 JS3711 JS3712 JS3713 JS3714 ZA3701 ZA3702 G 1 TNPA4515 STR -/ +/ TV/AV F JK3701 P b F 2 16 15 1 S E E R E V E R S E F O R O R D E R N O . R L V R L V JS7801 GL02 C7801 D7800 R7800 P b F GL TNPA4523 1 2 1 O R D E R N O . P b F TNPA4523 1 GL S E E R E V E R S E F O R O R D E R N O . Q700 Q701 C705 C712 C716 C717 C718 C719 R700 R701 R702 R703 R704 R706 IC700 R708 R709 R710 R712 R713 R749 R750 R751 JK702 ZA701 TNPA4519 CRNO.7 1 GS D702 R743 R744 C733 R742 R711 R754 C709 R718 C704 C701 C706 C737 C736 R778 R705 R777 C703 P b F 10 8 1 9 1 24 25 48 ORDER NO. C700 C702 C707 C708 C710 C711 C713 C714 C715 C720 C721 C724 D701 C725 C726 C727 C729 IC701 C731 IC702 C732 IC705 C738 R714 R715 R716 R717 R719 C742 C746 C747 C748 R725 R726 R727 R733 R734 R735 R736 R737 R738 R740 R741 R779 R781 R782 JS700 X700 GS02 GS09 L701 TNPA4519 CRNO.7 1 GS L705 L704 TP700 TP701 TP703 TP704 TP705 TP706 P b F 1 5 1 32 33 64 65 96 97 128 1 3 4 5 1 2 1 6 S E E R E V E R S E F O R O R D E RN O . G-BOARD (FOIL SIDE) TXN/G1RLTC G-BOARD (COMPONENT SIDE) TXN/G1RLTC GS-BOARD (FOIL SIDE) TXNGS1RFTC GS-BOARD (COMPONENT SIDE) TXNGS1RFTC GL-BOARD (FOIL SIDE) TXNGL1RFTC GL-BOARD (COMPONENT SIDE) TXNGL1RFTC TH-58PZ880C G-BOARD TXN/G1RLTC GL-BOARD TXNGL1RFTC GS-BOARD TXNGS1RFTC TH-58PZ880C G-BOARD TXN/G1RLTC GL-BOARD TXNGL1RFTC GS-BOARD TXNGS1RFTC G GL GS 99 TH-58PZ880C 11.5. GL，K，PA 和 S 电路板 A B C D E F G H I 1 2 3 4 5 6 Q2511 Q2518 Q2519 Q2523 D2520 D2525 D2531 RM2501 PC2511 K1 P b F 1 TNPA4520 K O R D E R N O . 1 2 11 12 Q2510 Q2513 Q2522 Q2524 RM2501 K1 P b F TNPA4520 1 K S E E R E V E R S E F O R O R D E R N O . 1 2 11 12 SW2500 S1 P b F TNPA4535 1 S O R D E R N O . 1 3 C2502 C2503 SW2500 R2506 R2507 S1 P b F S 1 TNPA4535 O R D E R N O . S E E R E V E R S E F O R 1 3 L852 PA5 PA6 PA8 PA5400 R885 R886 R887 R888 R889 C859 C860 C861 C862 C863 PA32 PA33 PA34 PA35 C869 PA36 PA37 C877 C878 C879 L5501 L5502 L5503 L5504 L5505 C881 TPFA1 ZA851 ZA852 TPFA2 D859 D860 D861 D862 IC850 C5501 C5503 C5505 TPS5 TPS9 IC5501 TP854 TP855 TP5402 TNPA4543 1 PA PAMM4 PAMM5 AB AC AD AE DIP AF PAMM2 PAMM3 PAMM1 R5517 R5518 R891 R892 R893 R894 R895 AG AH AJ AK AL PbF 1 1 2 1 2 19 20 1 6 S U F F I X . 1 3 1 4 1 3 1 3 1 4 1 3 1 5 1 1 6 R5555 Q851 R5556 Q852 R5557 Q853 R5558 Q854 L852 PA5 PA8 R852 R853 R854 R855 R856 R857 R859 R861 R862 R863 R864 R866 R867 R869 R870 PA5401 R871 R872 R873 R874 R876 R880 R881 R882 R883 R884 C5424 C5425 C852 C853 C854 R890 C855 C856 C857 C858 C860 C863 C864 PA32 PA33 PA34 PA35 C869 PA36 PA37 Q5442 D5424 L5501 L5502 TPS15V L5503 L5504 C880 L5505 ZA851 ZA852 R5436 R5437 R5438 R5439 D5440 R5446 R5447 R5448 R5449 D852 D853 D854 D855 D856 D857 D863 D872 D873 JS851 JS852 C5501 C5502 TPS5V C5503 C5504 C5505 Q5501 C5506 Q5502 C5507 C5508 D5501 D5502 D5503 D5504 Q5524 R5502 R5503 R5504 R5505 R5506 R5507 R5508 R5509 IC5501 TP850 TP851 TP852 TP853 R5510 R5511 R5512 TP856 R5513 R5514 TPS9V D5526 D5528 D5529 TP5400 TP5401 1 PA TNPA4543 R5515 R5516 PbF 1 2 1 1 6 R E V E R S E F O R S U F F I X . S E E 3 1 1 4 3 1 3 1 1 4 3 1 1 16 CL2528 CL2529 C2510 Q2511 C2517 Q2518 Q2519 Q2523 C2527 C2528 R2516 CL2596 D2520 D2525 D2526 R2524 D2528 R2525 D2530 D2531 D2532 R2538 PC2511 R2556 R2565 R2571 R2573 R2574R2575 D2582 R2581 R2586 D2525B CL006 CL007 CL008 CL009 CL010 CL011 CL012 RM2501 K1 Q2510 Q2513 Q2522 Q2524 RM2501 K1 CL2518 CL2521 CL2523 CL2534 CL2535 CL2561 CL2562 CL2564 CL2565 C2511 C2512 CL2567 Q2510 C2515 Q2513 C2521 C2522 C2523 C2524 C2525 CL2579 C2526 Q2522 Q2524 CL2584 CL2587 CL2588 CL2589 D2512 CL2590 R2517 CL2599 R2520 D2524 R2530 R2531 R2539 R2540 R2542 R2557 R2561 R2562 R2569 R2570 R2576 R2577 R2580 R2582 R2583 R2585 CL001 CL002 CL005 CL013 CL014 CL015 CL016 CL017 CL018 CL2528 CL2529 C2510 Q2511 C2517 Q2518 Q2519 Q2523 C2527 C2528 R2516 CL2596 D2520 D2525 D2526 R2524 D2528 R2525 D2530 D2531 D2532 R2538 PC2511 R2556 R2565 R2571 R2573 R2574R2575 D2582 R2581 R2586 D2525B CL006 CL007 CL008 CL009 CL010 CL011 CL012 RM2501 K1 Q2510 Q2513 Q2522 Q2524 RM2501 K1 CL2518 CL2521 CL2523 CL2534 CL2535 CL2561 CL2562 CL2564 CL2565 C2511 C2512 CL2567 Q2510 C2515 Q2513 C2521 C2522 C2523 C2524 C2525 CL2579 C2526 Q2522 Q2524 CL2584 CL2587 CL2588 CL2589 D2512 CL2590 R2517 CL2599 R2520 D2524 R2530 R2531 R2539 R2540 R2542 R2557 R2561 R2562 R2569 R2570 R2576 R2577 R2580 R2582 R2583 R2585 CL001 CL002 CL005 CL013 CL014 CL015 CL016 CL017 CL018 PA-BOARD (FOIL SIDE) TXNPA1RETC PA-BOARD (COMPONENT SIDE) TXNPA1RETC K-BOARD (FOIL SIDE) TXN/K1RFTC K-BOARD (COMPONENT SIDE) TXN/K1RFTC S-BOARD (FOIL SIDE) TXN/S1RLTC S-BOARD (COMPONENT SIDE) TXN/S1RLTC TH-58PZ880C S-BOARD TXN/S1RLTC K-BOARD TXN/K1RFTC PA-BOARD TXNPA1RETC TH-58PZ880C S-BOARD TXN/S1RLTC K-BOARD TXN/K1RFTC PA-BOARD TXNPA1RETC K PA S 100 TH-58PZ880C 11.6. A 电路板 A B C D E F G H I 1 2 3 4 5 6 Q4000 Q4001 Q4002 IC1100 IC1101 IC5563 Q4017 IC4002 Q4801 IC4005 Q4802 Q4803 IC4013 JK8501 IC2107 IC2108 IC2109 IC2110 Q5604 IC5402 IC5403 IC5600 IC5601 TU8301 IC8101 IC8102 IC8301 IC8302 IC8501 Q5690 Q5692 Q5693 Q4500 Q4501 Q2001 Q2002 Q4520 JK3002 Q4522 Q4523 JK3003 Q4524 JK8401 Q4525 Q4526 Q4528 Q4529 IC4502 Q4530 IC4504 Q4531 IC8580 IC4511 Q2022 IC4512 IC4513 IC4516 IC4517 Q2028 IC4518 Q2029 Q2030 Q2032 Q2033 IC2008 IC2013 IC2401 IC2403 IC2603 IC5301 IC5302 Q8023 Q5533 Q5534 Q8801 Q3022 Q3023 Q3024 Q3025 Q3026 Q3027 Q3028 Q3029 IC8401 IC8402 IC3009 Q3036 IC8406 Q3037 IC8407 Q3038 Q3039 Q1100 Q5561 Q5562 IC8801 A 1 TNPH0724 Thermal pad JK3100A JK3100 PbF 1 25 26 50 51 75 76 100 1 4 5 8 1 4 5 8 1 3 4 5 1 3 4 5 1 7 8 14 7 1 2 8 1 1 1 4 5 7 1 3 4 5 1 4 5 7 R E V E R S E F O R S U F F I X . S E E 1 4 5 7 1 4 5 8 1 4 5 8 12 13 1 24 1 15 16 30 + SDA AUDIOOUT SIFOUT IFAGC +B VB IFDOUT1 AFTOUT VIDEOOUT IFDOUT2 SCL BB BTMONITOR BTL AGCMONITOR +BACTIVEANT 1 8 9 16 1 8 9 16 1 16 17 32 33 48 49 64 1 3 4 5 1 38 39 64 65 102 103 128 +B BTL RFAGCMONITOR SDA SCL SW2 SW1 IFMONITOR BTMONITOR 21 1 20 2 21 1 20 2 34 33 68 67 1 2 35 36 1 4 5 8 1 4 5 8 1 28 29 56 1 4 5 7 1 3 4 5 1 3 4 5 1 4 5 8 1 7 8 14 1 7 8 14 1 4 5 7 1 3 4 5 1 4 5 8 1 15 16 30 1 15 16 30 1 3 4 5 + 1 12 13 24 1 38 39 64 65 102 128 103 1 11 12 22 23 33 34 44 1 10 11 20 1 10 11 20 1 12 13 24 25 36 37 48 1 4 5 8 AUDIOOUT AUDIOIN AV3 AV2 AV2 AV1 MONITOROUT AV1 TP5600 C8229 TP4807 R3195 R5697 R8163 R5081 C5027 R2300 C4040 R1107 C5620 R8315 R8514 TP8003 C1111 C8057 C8811 R5321 C4580 C2052 D2006 R8384 R3170 R5082 C5200 R3472 IC1100 TP4521 R2764 C8235 C8806 C4598 CL8454 CL8443 R4720 L3043 R8164 TPM0N C4630 C3295 C8074 R5557 C4009 C4028 C4610 R2705 R2710 R5023 CL8754 CL5690 TP2601 TP5700 C2098 CL8473 C8419 CL8455 C8009 CL8811 TP8020 R8728 L2006 C2115 D3089 C2103 C4004 R1104 R3255 C8111 R5605 R5615 C5643 TP8005 R3217 C8055 C5546 R2053 TP4813 CL8451 C2059 C8002 D4536 C2603 TPFR31 CL3001 R3159 R8161 R8151 R4042 C4049 C5436 IC8102 R8501 R8314 C5465 TP2044 R8917 Q5561 R4762 R4755 R4159 R2208 C2224 R3385 R8581 TP1100 C4314 C3173 R8920 C5009 R8486 C4048 C3301 IC8101 TP2608 TP2043 R8138 R4768 CL8440 R4335 R1255 TP3024 R8154 R3135 C4266 C5006 R8446 R8267 CL8747 C8311 C5058 C8336 C8033 R4744 C5317 Q2030 R8777 TP1102 R8170 R3134 R4610 R8430 D1104 R8842 C5049 R8104 C8142 R3116 C8222 C2649 TP4804 C2628 L4220 CL3024 C2601 C4534 CL002 R1218 C3172 FL3034 C5598 S3047 R5019 R5433 R3213 C2648 C8013 R4157 R8797 L4212 R5692 C4312 R1209 C5600 C5019 R4047 R8299 TP8505 CL5202 S3046 R5206 R5018 CL8768 R5432 R4690 R8429 Q3038 C2093 C8212 IC4502 R1215 R2199 C4644 D3069 Q4802 R5204 R8102 TP2607 R5431 C5462 C8156 R8144 TP5605 R8801 C8205 CL8439 R4709 R5690 R8168 R5086 TP8503 R1125 R8658 R8469 C4618 R5203 R4281 R3102 R3108 R3111 D8901 C5472 R8913 R8233 C2099 CL4219 R5326 C2642 C2632 R4339 C2608 L4002 R3172 L3046 R1179 R4045 R4602 R8286 C4600 R8855 C3300 C5443 TP2605 R8140 TP5604 C8058 C2644 R4740 R4722 R8789 CL3007 R8763 R1213 R5085 R2119 L4506 C2121 C4047 D3067 Q5604 C5054 R5034 JS4002 R8135 R8141 CL8437 R2303 R1157 CL8312 Q4001 R1105 R3442 R2708 C8319 C5636 C3121 R4695 C3246 C5542 CL8465 R4731 R8962 IC2108 FL3030 C2118 R1106 R8840 C5036 R5017 C5623 R4667 R5227 C5063 C8338 C5461 R3119 R3120 R8910 R4767 R2027 C4537 R8940 TP8403 R2194 C4265 C4638 R2670 IC5563 D3059 C8116 R5215 C5437 C5634 C5730 C5324 L4219 R5696 TP8404 R2195 C5012 R8491 C8856 R8835 C4027 C8117 L2025 D5608 R5224 R5614 R3106 R5633 TPFR1 R8209 CL8852 C5320 R2014 R3191 Q4530 CL3000 TP3003 C4645 C4052 R2671 R3430 R2703 C5047 R5025 R8109 R8313 R2174 R5637 R8520 R8915 L8303 D5522 C2658 C8217 CL2691 D4552 R4736 R4726 L4216 D2003 Q4531 C3181 R8549 TP8401 C4646 C8085 C5030 CL8752 C8141 R4689 TP2619 R8518 R3125 R8723 C3222 R8203 C8225 CL2695 C2054 R2204 R8734 L8030 C4629 C8651 Q4000 R8827 C4611 C5032 D5410 R8306 R2765 R8202 Q5534 C2640 C4510 R5076 L2005 S001 R1102 C5031 R4277 C5438 R5038 C5065 R5068 R3410 C1103 C8041 TP4815 C8018 CL8431 R8960 TPS0S R8156 R2120 C5015 R1164 R8475 R5210 C5627 L2035 TP2613 C2394 C3145 C8810 C8805 CL4004 C2245 R4340 C2411 C2203 R8942 L4520 R2114 R4620 C4051 C8083 D5408 R5216 R8122 R8519 R5067 R8001 R2020 C5020 C2120 R3465 TP5608 R3426 C4293 R5607 R5033 C3324 TP2039 C2395 R5060 R3513 C3245 CL8474 C2650 C2623 R8385 C5017 C4633 C3298 R5556 R5200 C4292 C3105 CL8756 TP2614 R8903 TP8006 C1114 C8634 IC8406 CL8466 C8404 D4550 R2011 R4715 IC8580 L4003 R8957 C4514 R3152 C4301 C5021 R4622 S3038 C5608 R4280 R3101 L8401 R8529 R8427 Q1100 IC3009 R5331 R8207 L5005 C2643 D2008 CL3006 R3366 R1223 R1212 R8541 L4519 R4815 C5001 R8482 R8862 R3256 C3099 R5041 C3148 R5454 R3220 R4599 C8050 C8413 C2645 C8011 CL3008 R8764 C4321 C4302 CL8323 C4609 CL5600 C5037 C5055 C8332 TP2030 TP5301 R8321 R5456 R5549 R2074 R8214 C2646 R4746 D2025 R8189 Q4501 TP8023 TP3001 C5008 R8276 C4619 C8333 R5049 R5052 R8137 R5070 C8052 C5341 C8020 D4557 C2423 CL3022 C4519 R1216 C4263 C2123 D3095 R8255 R5005 JS3032 C4294 C5640 R5626 R3113 R8805 C8054 C8208 C2434 C2424 R8975 C2400 R1238 C4326 TP8603 D3096 CL5204 C8103 C4295 R5231 C5073 R3114 C2661 CL8464 IC4517 R8191 L4517 R8297 R8285 R3425 C8502 R8106 C8136 C3138 TP2041 R8133 R8426 R5325 C8029 R8788 Q4529 L4518 C5018 C4634 S3059 C4006 X4500 R5201 TP4523 R5617 C3128 C5070 R8125 R5453 TP5603 R2657 C8422 CL8456 CL8041 R4506 R8956 R8752 R3151 L4505 TP8745 CL8309 C3299 R8652 C5053 R2153 C5451 R8528 R8234 C8230 R5316 CL8042 R8963 R8187 R8178 R8167 TP1042 R8290 C3279 D3068 R8857 D5411 R3515 R2669 C1106 L8101 C8048 C8414 D4542 R8396 R8196 R3147 L8802 C1119 C1134 R8656 R8271 C4612 C5056 R3103 C5071 TP2616 R5442 CL4534 C3248 R8225 R5317 TP4801 D4541 R8958 Q4500 TP8022 C4101 C5007 R5580 D3078 IC8302 R8310 TP2615 R2179 R3516 CL4001 R4748 C2417 R8781 L4008 C4313 TP8602 R2112 C5010 CL8320 C4636 R5570 R5006 C8139 R5627 TP2618 C1117 R4761 IC2403 C2416 R3384 CL8013 D5000 IC2109 L4508 R8449 Q4017 C3100 R5230 TP2032 C8062 IC8402 C8228 C2244 R2201 TPFR26 C8581 R8532 C8071 D1105 R8259 CL5206 D3063 CL3157 C5626 CL3164 L2034 C8134 R4683 C8049 R4766 C5323 C2610 D2004 C8580 R8153 R5074 C5011 C4259 C8070 R8248 C4017 CL5205 R4656 R4275 R5223 R5613 C3322 CL8853 R4756 TP4805 C5321 R2015 C2419 IC4513 TP1101 R8568 TP3021 TP8019 C2113 R8095 R2096 C5398 R2704 R5214 R8119 TP2610 C8151 R5072 L8301 D5521 C2657 TP4812 C8201 C8001 D4535 R2008 R8199 Q4524 C3180 JS2061 R8288 C8084 C8315 TP2034 R5631 R5443 R5064 R3131 C3221 C8224 L5001 CL2694 Q5690 R2196 C5029 R8488 R8282 R3423 D1106 R8650 R8274 R8277 R5014 C5060 C3319 C8037 C4599 L5002 C2641 IC2008 R3171 R8175 R5002 R5558 C4029 R8278 C8135 R5543 C1102 C8040 R2058 C2256 R4739 R2018 R8383 R8182 L3041 R8356 R1201 C5026 JS2063 R8474 TP4520 R5022 R8105 TP2611 X1100 R8717 R8401 C8025 C8007 CL8810 R5698 D5690 TP3027 C5605 L4516 C4260 R3441 C5621 IC5403 C8321 C3140 R5644 R2652 R5319 TP4803 C2627 R2013 R2006 CL3018 R1237 R3156 TP8601 R2111 C4640 JS3025 R2132 C5040 C5064 C5072 R5630 R8229 R8413 C8014 R4540 C2618 CL3019 R8774 R3157 R8546 C5601 C4264 C2124 TP8506 JS3026 C8115 C5641 R8507 R5054 C8635 CL8467 R4155 R8188 R8179 R1214 R8729 C4643 R8238 C4035 R1134 R5202 TPS15V CL3195 R8906 R8142 R3415 C8051 R4760 TPMH12 D4556 R4732 L4006 R3167 R8239 R8659 C5039 R4282 R4680 C3325 TP5302 C2396 R3130 Q3036 L5006 CL8458 C4574 C2616 D4518 CL8403 R3173 R3145 R1166 R1148 R8863 R1124 C5435 C3114 R5228 R8116 R5061 TP8009 Q3022 CL2696 CL8446 C2615 CL3020 D4517 R8192 D5692 R8176 R5092 IC2110 R4621 R4615 C4622 C4606 R8279 L2028 C3113 R8328 TP8008 R2666 C8421 TP4819 IC4518 CL8401 R2304 R8298 C8077 R3239 C3277 C8113 C8503 R8107 C8137 R8308 R5441 TP2624 C1112 C8809 L5004 R2213 D2007 C2137 JS2057 C8081 R8263 C5034 C8306 TP4522 R5606 TP2604 R3110 TP2623 R5452 TP5601 R2059 X8501 TP4808 C2429 R4338 R8184 R3142 R1181 R2115 S3055 R1108 C8501 C3137 C5468 R8325 TP8004 C5731 C8017 CL8441 R4728 R3396 R8183 TP3025 C5603 C4270 R4628 R8291 R8280 R8454 R2142 C5441 R5634 TP2045 C8807 CL8444 C2420 D5691 C4511 R8165 R3137 C5606 R8489 D3088 IC4013 R2098 R8438 C3288 C4614 C8106 D5604 R2148 C3120 C5066 C8042 C8036 C8418 D5308 R8988 C4521 R8174 R3150 R5001 C2114 R8268 R8083 C4290 R5217 R5028 TP2020 R8305 C3150 C8630 C5545 C2656 D4565 CL8450 X8101 R4735 R4725 C2418 IC4512 L8070 R3158 R8353 L8034 C2112 C4624 R2095 C4283 C8504 R2164 R8511 C8157 R5071 C8232 R4763 C8023 C8015 R2031 C2425 R8783 C2401 R1239 C4328 C4315 R8354 R8921 C4053 R1109 R4274 R5612 JS4200 R5641 R3132 TPEC0 C8226 C2637 C2410 TP8010 C5005 CL8317 R8833 D5575 C4026 CL8746 C5431 R5603 C3117 R8502 R2662 C2096 C8034 R4745 CL3204 R8559 R5080 CL8322 R4035 R8431 C5595 R5604 C8320 R5333 C8220 R4752 TPST5 R8965 R3174 R3166 R3154 R8543 L8801 R5584 R5010 C3115 TP2042 R3122 R8914 R3212 C8206 C2626 R8966 TP3002 C2128 TP8504 R8657 D3072 L2032 R5620 C8339 R2172 R8322 R2190 C1107 R5701 C2647 Q2029 CL3017 R1236 R8564 R8448 CL5201 R3451 C8307 C8138 C8053 C8215 C2253 R4158 D4534 R2007 Q4523 TP1044 R1152 R5207 R5619 C8147 R8510 R8232 R5330 CL8475 C2624 CL3005 R2117 R1170 R4038 CL8313 Q4002 C8851 C3112 R5032 C5062 C8330 TP5300 R8904 R8527 R2665 C8044 C8038 TP4818 R4713 R3370 C1122 C1125 R3238 C4022 C3111 R8114 R5623 TP2038 CL3194 TP5701 IC8407 R5332 C5544 C2652 C5330 CL8448 C2422 C5002 C4050 D3083 R8841 C4617 L2030 C3310 C3149 TP5705 C3247 R8224 C8046 R5327 C8210 C2414 C4523 Q5692 R4816 R8483 C4623 C3278 C4616 R5601 IC5600 R4670 TP2625 L8025 C2660 C2271 C8027 TP8851 R1222 R3144 R1183 R8481 C3297 D3065 C8107 R4278 TP2603 R5337 R2054 C8026 TP4809 R4538 R3398 R8379 L3044 R3344 R8533 R1182 C4631 C4628 R8244 D3073 R2143 C3110 R8112 R8330 C8234 C8035 CL8453 C5319 R4712 C4520 R8172 C5693 R3141 C5604 R1175 C5014 L4504 R8485 R3460 C8853 C4298 C8312 R5225 C8154 R8131 R3127 R2663 Q3027 R5320 C8218 CL8452 R2029 R2017 Q2032 C2404 L3032 R8925 R4630 R4043 FL5731 R5562 C3103 R5435 R2177 C5476 R3218 R8215 C8802 C8203 R4737 D4520 C2402 R8148 R1169 C4637 R3427 C8855 TP8701 C8309 C5625 C5057 R2733 IC8401 C8227 C8010 R8791 C2403 Q4526 R8558 R4034 C4008 C1132 C4603 C5042 R2141 R5027 C5440 C3313 R2166 C2392 R5732 R8414 R5329 R8007 C8022 C2254 R4741 C2629 R8799 CL8809 R8782 JS2320 R8360 R8150 R4041 R8444 JS3027 L2029 R5229 C8334 R8120 C2397 R2191 D5523 C2270 TP4806 R2032 R2026 R4710 R8569 TPS0N R1163 R4608 R8251 TP2009 CL3162 TP2609 R8121 R8512 C2398 R3133 R4598 R8212 Q3023 R8002 D4560 CL8447 R2205 Q2028 R4507 R1205 R3099 D3082 D3060 C4607 R8856 C5630 R8108 IC8301 C5471 R5548 L5413 C3226 Q3024 FL4503 R4751 C2634 R8796 CL3021 C5022 TP5660 R3445 R4671 C5452 R3121 R5455 R8231 C3223 C8808 C2622 C2412 C2204 R4632 C5016 CL8319 C4632 R8284 R2675 C8079 R8440 R8262 C5033 C5051 C3119 C5061 C2187 C8143 R3118 R3511 R5546 C8045 C5541 R4714 R5699 CL8128 R3478 C1126 CL5001 R3443 C5035 C3106 C3306 C5637 C2188 C5458 C5469 R8134 TP8007 C4596 C8021 D5303 R4734 R8798 CL3023 IC4511 R8198 TP3031 R3149 L2000 L4512 FL3029 R8838 R2702 R5013 R2715 R8111 R4687 R8236 C8637 R2075 C8221 C5326 R4723 C2415 TP3030 R5088 TP1043 R1171 L4507 R3240 C4019 IC4002 C5616 R8110 R4686 C3249 R8802 FL4505 IC5302 C8012 R4156 R8765 C4518 R8169 R1208 L8032 CL8324 R8254 R5585 R8082 R8118 R3112 R3123 TP5401 R3208 C3227 R5700 IC2401 C4525 C4517 L3038 R3139 R4810 R8447 C4036 JS3030 L2031 C5459 R8126 C8030 R2623 C2255 R4742 R2016 CL8030 D4512 R8769 TP3022 R8152 CL8326 R8294 C2109 R2097 TP8501 TP4524 R5045 IC8501 R2175 R8130 R2193 Q3025 C8223 C8216 D5304 C4575 C2619 C2602 R8775 R5694 L8620 TP3004 R3489 R4607 C8854 C5624 R2145 R3104 R5628 C3143 C5474 R8916 IC8801 C8803 C8204 C2437 L1100 TP3007 R8531 CL8321 R8490 R2094 C1128 D1114 C4296 D5413 R5037 R5622 R2176 L8304 R4743 C8003 R8790 C2604 R4703 CL011 TP3023 TP3006 L5691 R1100 C4011 R5571 R8266 D5607 L2033 C8133 R4682 C8152 TP4814 CL2692 C8005 C2612 TP1103 TP1045 L4514 C4267 C3293 R8442 C4297 IC5402 R8509 R3117 R8324 Q8801 R4758 CL2693 C8006 IC4516 TP1104 TP3026 L3033 R1202 C4648 C3294 R5563 R3440 C5044 L2026 R5031 TP2612 R5445 C2097 C8812 R4764 R4759 C2258 C2053 IC2013 X5200 R8185 R8750 L3034 R3143 CL8310 C8078 R8826 R3448 R8468 R3457 R5009 R5208 C8313 C5050 R3510 R8219 R4765 CL8463 C8402 CL8436 R8186 C4512 R8359 C4300 TP3000 C2301 C4620 R8245 R5560 TP8901 Q4801 C5607 C4291 R5024 R5029 R8307 C3151 Q5562 C8426 Q5533 R4749 C2635 R2209 Q2022 C4535 CL010 R8180 R8160 CL8325 D3084 R8432 C4010 D5606 R4681 C8148 R8323 C8060 R8415 R8008 CL4003 C5316 C2426 R3392 R4702 R8181 C4316 C5691 TP3005 C4054 R2673 IC1101 C8105 C8310 C5455 C2391 C5475 R5073 R8420 R5334 R2055 C5322 C2436 C8197 R8922 R4049 C4641 CL8316 R8247 R3431 C5041 R8103 R2165 R5632 R2057 L2300 C8004 C2611 R4711 CL012 L3040 R1200 R5075 C4642 C4639 R1101 TP8502 R5572 R8843 R2147 R4284 R5046 R2664 C8633 Q3028 R8201 C8219 D5307 CL8442 R3189 R8954 L3042 R3343 CL4546 L4515 R4629 R4814 C2111 R8443 C3104 R4285 C3136 C5477 R5542 R4596 TPMH33 C8024 D4549 D2005 C4329 R8171 C5692 L2001 R1174 C5013 C4647 R3470 R8473 C8852 C5043 C5432 C3118 R5629 C2393 C3144 TP4817 X8301 CL8445 C2621 R4721 Q2001 C5688 R4601 S3057 R3424 C8080 R8275 D3074 R2711 C5439 R4675 R8113 R8402 C8031 C8019 C2630 R1221 C8950 R2197 R4609 R8480 S002 R2674 D1107 R8651 S3048 C4038 D5201 R5600 R5232 C5478 R8428 C2092 R5328 R8003 C8211 R2030 R2206 C2609 CL3014 L4004 C4524 Q5693 C5202 C2122 R8484 R8864 D3077 JS3024 R8101 C5639 TP2606 R2667 C1104 C2091 C5543 FL4502 R4750 C2633 R3399 TP4000 C2407 TP1107 Q2002 R8735 C5201 R4039 R4027 TP8902 R3265 R1184 C8314 C5638 C2189 R8711 C3154 R8205 R5314 R4154 R8961 IC2107 C2117 C4621 TP8301 R2136 C5622 C5442 R5616 R8318 R8515 R8327 C3152 R5545 C8420 FL4500 R4153 R8787 TP1105 CL8333 C2116 R8439 C5610 R4652 C4299 R2149 TPC0F C5457 C5460 R8709 R8326 R8803 L5415 C8214 C2252 R4733 D4533 R4716 C4526 R4817 C4257 R3439 C4032 C8101 R5618 R8506 TP2617 L5416 R5702 TP4811 C5327 C2433 R4724 IC4504 C4325 TP8025 C5024 C5004 R3479 D3057 R8273 C8102 C5617 C8308 C8150 L8501 C8059 R8004 IC5301 C2639 C2625 R4308 R8744 R3146 L8031 R3418 R8270 R8081 R4685 C3139 R8516 R8136 R8143 TP5606 R2272 Q3039 C8213 C2432 R1243 Q4522 L3039 TP8024 C8858 C3283 S3045 Q4803 R5205 C5633 TP2031 R8127 R4697 R8145 R5322 TP4821 TP4816 C8008 C2620 R8794 R8955 TP3028 R5090 R5077 L4522 R8295 C1124 R1103 C4605 R8080 JS3029 R2134 C3304 C8328 TP2602 R3128 C8629 C8043 R5323 C8801 Q8023 C2259 C2631 R8995 R8795 C4522 TP3029 L3035 R3138 L4523 CL8311 C8075 R8828 IC4005 C4615 R5209 C5067 R5451 C8056 C8233 C8804 R4757 C8016 R4727 R8792 C2605 R8778 R8941 R3140 C5025 R4813 R8472 C8082 R5573 D5407 TP2035 TP2620 TP8002 R5544 R4597 Q3029 CL8471 CL4005 C2257 R4729 Q2033 R8190 JS2303 R8732 C5028 R4631 R3471 R8281 R8455 R4270 D5603 C5059 R8123 TP2040 TP2621 C8061 C2095 C2638 R3194 R3187 R8730 R8725 FL3035 CL8318 C3250 C4012 R8258 TP8702 R3447 C3102 C3109 R5030 C8327 C5456 R5335 C8032 R8776 TPFR25 R8557 TP8402 R1153 R8445 C4016 R8839 R5579 C3101 R2146 R4283 C8326 C8335 Q3026 TP4820 X8102 R8977 Q4525 JS2321 L8621 R4812 C4625 JS3028 TP2008 R5026 C3312 C3321 C8149 R3115 R5444 R8147 R5733 C8631 C8209 CL8449 C2435 C5690 C2129 R8487 R8865 R2672 C8104 C5048 R5602 R5621 R5434 R8129 C4595 D4563 TP4802 D2026 R3175 R8758 R3155 R4811 C4613 JS3031 R8311 R8517 C5473 FL4504 C5325 C2431 R8195 R3368 R5079 R4040 C8857 C3289 R8470 C5038 R8117 R5625 R5062 R8804 FL4506 D4564 R2207 R4717 R3190 R1217 R8739 R1172 L5690 CL5203 TP2600 C3326 R8128 TP5607 L8102 TP4810 R4747 D4543 C2617 R8197 R1229 R8552 R3148 C5023 C5003 C4635 R8836 C5609 C8114 C8146 R5053 R5324 C8028 R2212 CL8033 Q4528 R2116 R8492 C8076 R5559 C8112 C5045 C3305 R5226 C8329 JS4000 R8503 R8124 R2178 TP2622 R3129 TP5602 CL4218 C8039 R4730 C2413 TP8950 R4614 C3256 R8441 R1197 C5046 C5052 CL5692 R3100 C8144 C8340 C8155 R5547 C8423 R5315 CL8457 IC2603 C2421 R2004 CL3013 CL8402 R4306 C4513 R8166 TP8021 C4261 C2302 R5578 D3066 JS3023 R2144 R5610 C8331 R3514 R2668 Q3037 C8047 C4585 C2058 R2012 C2408 R8194 Q4520 R8561 R3153 R1206 C2110 R8094 C4608 R4279 IC5601 R5611 R5042 R8329 TP5706 JK3100A JK8501 TU8301 JK8401 JK3100 JK3003 JK3002 A-BOARD (FOIL SIDE) TNPH0724BC TH-58PZ880C A-BOARD TNPH0724BC TH-58PZ880C A-BOARD TNPH0724BC 101 TH-58PZ880C TH-58PZ880C A-BOARD PARTS LOCATION TH-58PZ880C A-BOARD PARTS LOCATION Parts Location A-BOARD (FOIL SIDE) IC1100 C-2 IC1101 B-2 IC2008 H-4 IC2013 G-4 IC2107 H-5 IC2108 I-4 IC2109 I-6 IC2110 I-6 IC2401 H-6 IC2403 F-6 IC2603 D-6 IC3009 I-2 IC4002 F-3 IC4005 G-3 IC4013 A-2 IC4502 E-2 IC4504 E-1 IC4511 E-2 IC4512 E-2 IC4513 F-2 IC4516 D-1 IC4517 G-1 IC4518 C-1 IC5301 G-5 IC5302 G-5 IC5402 B-6 IC5403 C-5 IC5563 C-5 IC5600 B-3 IC5601 B-4 IC8101 E-3 IC8102 E-3 IC8301 H-5 IC8302 H-5 IC8401 A-5 IC8402 B-4 IC8406 A-4 IC8407 A-4 IC8501 B-3 IC8580 C-2 IC8801 F-4 IC IC Q1100 B-1 Q2001 I-4 Q2002 H-4 Q2022 H-1 Q2028 H-6 Q2029 H-5 Q2030 I-5 Q2032 I-4 Q2033 G-5 Q3022 I-3 Q3023 I-3 Q3024 H-3 Q3025 H-2 Q3026 H-2 Q3027 H-2 Q3028 H-2 Q3029 G-3 Q3036 H-4 Q3037 H-4 Q3038 H-4 Q3039 H-4 Q4000 G-4 Q4001 G-4 Q4002 G-4 Q4017 A-1 Q4500 E-2 Q4501 C-1 Q4520 C-1 Q4522 D-1 Q4523 F-2 Q4524 E-1 Q4525 F-1 Q4526 C-1 Q4528 F-1 Q4529 F-2 Q4530 E-2 Q4531 E-1 Q4801 A-1 Q4802 F-6 Q4803 A-1 Q5533 C-5 Q5534 C-5 Q5561 C-5 Q5562 C-5 Q5604 A-4 Q5690 C-4 Q5692 C-4 Q5693 C-4 Q8023 A-2 Q8801 F-3 TRANSISTOR TP1042 E-3 TP1043 E-3 TP1044 F-3 TP1045 E-4 TP1100 B-2 TP1101 B-2 TP1102 B-2 TP1103 B-2 TP1104 C-1 TP1105 C-1 TP1107 C-1 TP2008 H-1 TP2009 G-1 TP2020 F-6 TP2030 I-5 TP2031 I-4 TP2032 F-6 TP2034 G-1 TP2035 G-1 TP2038 G-1 TP2039 G-1 TP2040 G-1 TP2041 G-1 TP2042 G-1 TP2043 G-1 TP2044 G-1 TP2045 G-1 TP2600 F-6 TP2601 E-6 TP2602 E-6 TP2603 E-6 TP2604 E-6 TP2605 E-6 TP2606 E-6 TP2607 E-6 TP2608 E-6 TP2609 E-6 TP2610 E-6 TP2611 E-6 TP2612 E-6 TP2613 E-6 TP2614 E-6 TP2615 E-6 TP2616 E-6 TP2617 E-6 TP2618 E-6 TP2619 E-6 TP2620 E-6 TP2621 E-6 TP2622 E-6 TP2623 E-6 TEST POINT Parts Location A-BOARD (COMPONENT SIDE) IC1103 H-2 IC2010 C-4 IC2012 C-4 IC2106 C-4 IC2602 G-6 IC2604 F-5 IC3007 B-3 IC4001 D-4 IC4200 E-5 IC4503 F-2 IC4510 E-2 IC4514 D-2 IC4515 E-2 IC5001 D-4 IC5002 D-5 IC5100 E-4 IC5300 E-4 IC5404 D-5 IC5405 E-6 IC5562 G-5 IC5660 G-1 IC8001 F-3 IC8201 G-3 IC8202 G-3 IC8203 F-4 IC8204 F-4 IC8403 H-5 IC8408 H-5 IC8502 I-3 IC8601 G-2 IC8620 H-2 IC8621 I-2 IC8950 I-6 IC8970 C-5 IC Q2027 D-5 Q4502 E-2 Q4503 D-2 Q4514 D-2 Q4515 D-2 Q4516 D-2 Q4517 E-3 Q4519 E-3 Q4527 F-1 Q4831 A-3 Q4832 A-3 Q5301 C-6 Q5302 C-5 Q5522 G-2 Q5531 G-4 Q5532 G-4 Q5563 H-6 Q5564 H-6 Q5565 D-6 Q5600 I-3 Q5601 I-3 Q5602 I-4 Q5603 H-4 Q5691 G-4 Q8401 H-5 Q8402 H-5 Q8802 D-3 Q8850 H-2 Q8851 H-1 Q8852 G-2 Q8853 G-2 TRANSISTOR TP1106 H-2 TP2019 D-6 TEST POINT TP2624 D-5 TP2625 D-5 TP3000 H-1 TP3001 H-1 TP3002 H-1 TP3003 H-1 TP3004 H-1 TP3005 H-1 TP3006 H-1 TP3007 H-1 TP3021 F-2 TP3022 H-2 TP3023 I-1 TP3024 I-1 TP3025 I-1 TP3026 I-1 TP3027 I-2 TP3028 I-2 TP3029 I-2 TP3030 I-2 TP3031 I-1 TP4000 G-4 TP4520 D-1 TP4521 D-1 TP4522 D-1 TP4523 D-1 TP4524 D-1 TP4801 B-1 TP4802 B-1 TP4803 B-1 TP4804 B-1 TP4805 B-1 TP4806 B-1 TP4807 B-1 TP4808 B-1 TP4809 B-1 TP4810 B-1 TP4811 B-1 TP4812 B-1 TP4813 B-1 TP4814 B-1 TP4815 B-1 TP4816 A-1 TP4817 A-1 TP4818 A-1 TP4819 A-1 TP4820 B-3 TP4821 D-3 TP5300 E-4 TP5301 G-5 TP5302 G-6 TP5401 B-6 TP5600 B-3 TP5601 B-4 TP5602 B-3 TP5603 C-1 TP5604 C-1 TP5605 C-1 TP5606 C-1 TP5607 C-1 TP5608 C-1 TP5660 C-2 TP5700 C-5 TP5701 H-4 TP5705 G-5 TP5706 C-4 TP8002 C-4 TP8003 C-4 TP8004 C-4 TP8005 C-4 TP8006 C-4 TP8007 C-4 TP8008 C-4 TP8009 C-4 TP8010 C-4 TP8019 C-3 TP8020 C-3 TP8021 D-3 TP8022 C-4 TP8023 D-3 TP8024 C-3 TP8025 G-4 TP8301 H-5 TP8401 B-5 TP8402 A-5 TP8403 B-5 TP8404 B-5 TP8501 E-3 TP8502 A-3 TP8503 A-3 TP8504 A-3 TP8505 A-3 TP8506 B-2 TP8601 C-2 TP8602 C-2 TP8603 C-2 TP8701 D-3 TP8702 C-3 TP8745 C-2 TP8851 E-2 TP8901 E-3 TP8902 E-3 TP8960 B-6 TPC0F C-2 TPEC0 H-6 TPFR1 D-5 TPFR25 C-5 TPFR26 D-5 TPFR31 B-6 TPM0N C-5 TPMH12 D-6 TPMH33 F-6 TPS0N H-6 TPS0S C-2 TPS15V G-1 TPST5 H-6 A 102 TH-58PZ880C A B C D E F G H I 1 2 3 4 5 6 A31 IC8620 IC8621 Q8850 Q8851 Q8852 IC1103 Q8853 IC5562 A51 A52 A53 IC4001 IC4200 A70 JK8501 A1 A2 A3 A5 A6 A7 A8 A9 JK8701 JK8702 Q4831 Q4832 IC2106 Q5600 Q5601 Q5602 Q5603 IC5001 IC5002 IC5404 IC5405 TU8301 JK4500 JK4501 JK4502 IC8502 JK2601 IC5660 Q5691 Q4502 Q4503 Q4514 Q4515 Q4516 Q4517 Q4519 JK3002 JK3003 JK8401 Q4527 IC4503 IC4510 IC8970 IC4514 IC4515 Q2027 Q5301 Q5302 IC2010 IC2012 IC2602 IC2604 IC5100 IC5300 Q8401 Q8402 Q5522 Q5531 Q5532 IC8001 Q8802 IC8201 IC8202 IC8203 IC8204 IC3007 IC8403 A10 A11 A12 A13 A14 IC8601 Q5563 Q5564 TNPH0724 A 1 Reserved A B C E H P Y R M T Q N S L C B IC8408 F1AH F1AH F5AH F5AH Q5565 JK3100A JK3100 IC8950 P b F 1 2 19 20 1 30 31 60 61 90 91 120 1 4 5 8 1 4 5 7 1 3 4 5 1 19 20 2 1 13 1 2 1 21 40 41 60 61 80 20 1 54 55 108 109 162 163 216 1 4 1 2 7 8 1 12 1 2 19 20 1 14 1 31 1 2 19 20 1 1 1 1 6 1 37 38 74 4 1 1 20 21 40 41 60 61 80 S U F F I X . + A 1 A 1 1 5 + 1 3 4 5 + 19 1 19 1 19 1 1 4 5 8 1 4 1 1 1 1 1 1 1 3 4 5 + + 2 20 1 2 1 2 20 1 21 67 68 33 34 2 35 1 36 1 12 13 24 25 36 37 48 1 36 37 72 73 108 109 144 1 12 13 24 1 4 5 8 1 4 5 8 1 3 4 5 1 4 5 8 1 34 66 33 1 A + 1 A + + + 1 3 4 5 1 A + 1 A 1 A A 1 A 1 + 1 25 26 50 51 75 76 100 1 3 4 5 1 23 22 2 1 29 30 2 1 15 14 2 1 23 22 2 1 23 22 2 1 4 5 8 1 3 4 5 AUDIOOUT AUDIOIN AV2 AV1 MONITOROUT AV3 AV2 AV1 1 6 1 5 R2656 D5524 C2264 R2605 CL8430 D2012 R4705 R8377 CL5502 R2104 R4605 R5574 R4852 JS1111 R8901 C8601 R8991 R3397 D4516 R8173 C4500 L4521 C4271 R3495 C2101 C4021 JS1103 C2179 C2197 R5058 CL2005 R8217 R2625 CL8432 R4304 R1203 Q5601 D3086 C4037 R2067 R4567 CL2675 R4305 L3045 Q5691 R8241 D3071 R3458 IC5002 JS1104 R4526 L3050 R3473 R8627 Q8851 R5008 R5020 R5065 R4594 C8231 R2614 D4551 R8567 R5551 C1130 C3107 R4688 R8721 R2661 C8626 IC5100 R4510 CL3002 R4611 R8819 R8631 R3245 A52 R4664 JK4500 C8153 R8809 R8409 IC8970 FL5017 C2131 Q4831 Q8852 R1110 C3271 D5406 JS1107 C8639 A13 D4504 R4639 L4513 C2130 JK8702 R8256 R4643 R4650 R4679 C5464 C8647 R4592 R2051 R8974 R3377 R8565 FL3033 C4281 R3405 CL8468 C2251 C5311 R4516 D4501 R8757 R8737 R8621 C4013 C3284 R5591 R8907 A10 R8213 CL8850 Q8401 R4509 L3049 JK2601 C2127 R8620 R5538 C8411 R4707 C4502 R5661 R8495 R8846 R5003 C3307 L5412 C8816 C8424 C8412 L3048 R4604 C4601 R8086 D5605 R3411 C8814 R2638 C8410 C4547 R3371 D3080 R8242 JS3036 L2021 C5644 R5047 R5050 C5663 R2766 R8405 CL8034 C4274 D3081 R8814 R8437 R8823 JS1121 R3219 C8625 D4554 D2010 R2000 D4506 R3485 R8630 R5565 D3062 JS1117 C5466 R5541 R8216 C2050 R8785 D4514 CL5501 Q4832 R8625 R8249 C3272 A14 C2261 CL2690 D4545 R3390 R8373 R8554 R8547 R1140 R5044 R8221 D4505 R8951 A3 R8289 C8073 C3108 C8132 L5410 C2266 CL8435 CL009 R8751 C4501 R8477 R8269 R8084 C5619 R4665 JK4501 C8627 JK3100A CL8461 CL2683 R8992 C4554 R3364 C5694 R8733 R8870 CL8113 R8628 R2677 R8844 R8850 R8853 R2635 R2606 R8987 CL8032 CL8026 R8378 R1210 FL5732 C5397 R5575 R8718 R8230 R8416 R2617 C4553 R8779 R4303 L8623 FL5019 C4268 C2100 C4020 TP2019 R4694 R3412 C8621 R8206 C4548 TP1106 C2138 R4030 C3257 C5395 R3444 C5612 CL5693 R8210 D4523 R4613 C4005 R8635 C3276 JK4502 R5040 C3323 C3141 C8622 C4255 R1147 R8287 R8653 D3076 R4661 JS1114 C2056 R8989 CL8027 R8458 R4833 R4854 C8704 C8817 CL2679 CL8029 R8550 R8535 R2090 IC1103 S3050 R2271 R2050 CL3016 C4532 R8563 R3419 C3267 R5581 C4031 C5615 C5632 R5636 R8813 C4567 R8780 C4533 R8766 C8955 PA5403 D5572 R8466 R2052 C5335 R8980 R8748 C4279 R3490 R4619 R8832 R5588 JS3034 R2089 L5408 R8997 R3497 R8493 R2676 R8829 C4023 C4288 R5016 C8702 R3107 R5646 C8815 C2430 R3480 C8653 C3261 R4653 C8703 JS1113 R5059 C5470 L5411 R2645 C5531 IC2602 R4520 R4513 R8928 R8264 C4039 IC5404 R3508 R8418 R8603 R8406 IC5300 IC2604 C4549 CL8028 R8929 C4262 R8496 C2107 C4280 C3308 L5300 Q8402 R4552 R8959 C4323 R8745 S3051 R8604 C8623 CL8459 D4519 R8770 R8755 C8648 R8253 R8464 R8851 C5631 R8712 C1109 R2653 Q5532 D4544 R4530 R5693 R8372 C2144 D1112 R5587 R1194 C1108 R8412 C8408 C8207 C5303 D4510 R8759 R8545 R8498 R4031 R5586 R4642 R8704 R2610 IC4515 FL5018 C2132 C2126 JS2055 R5566 R4693 Q5565 R2603 D4513 C2201 L8950 C5399 R3446 R5056 R8807 R5535 R8016 ZA0001 IC8201-A R8930 R1162 R4672 C5660 R8139 R8220 C5328 C4542 CL003 IC5660 R8538 A2 R8626 R5007 C3320 IC8403 Q8802 ZA0007 IC2012 C2614 CL008 R1220 R8157 C4627 R3420 IC5001 R4853 JS1108 C8628 C8236 R2608 D2020 R8741 R8158 R8534 A5 JK8501 R8283 R8629 R3237 R5589 R4646 JS3035 C5628 C8701 C2186 R8525 CL8460 R8986 R8979 R1249 L8580 A1 C3262 R8260 R4699 C8641 R8417 C5732 R2618 R2019 R2002 CL3012 R8934 R8926 R2302 R4606 R3461 Q8850 C5662 R3223 R3407 R2620 R8968 Q4515 R4638 R2108 A9 R8831 R8837 R3452 C8416 R2621 D4528 R4500 Q4516 R1173 R4032 D5574 R3453 C5618 R3414 IC8408 R4587 D4561 R4515 C4530 R8542 Q8853 R8460 R5583 R4669 C2190 R5051 R8226 R4588 C2216 R3369 R8551 C8954 R8536 JS2060 R8830 R8462 R8852 R8471 R5063 C8644 R2658 R2646 R8208 CL8035 R8754 C4503 R4636 FL3031 D3061 R8663 R5004 C8643 R3403 R2071 L5409 C2651 C8951 R1146 C4024 Q5603 C5069 R8211 C2048 R4634 R8494 C2105 R8246 C4289 CL3166 R5048 R8701 R5647 R8404 R4505 R4633 R3477 C4045 R8436 C3259 JS1112 R4676 R8504 R8223 R2065 C2246 CL3212 R4706 CL3004 JS2313 R8740 C2135 R8292 C3275 C5433 TU8301 C1110 R8222 R2064 R2624 R3389 R4511 CL3003 R8933 R8731 C5396 R4658 JS4201 R8523 L5604 L5406 IC8001 CL8462 R2619 R8994 R8540 R8633 R8845 R4651 R8719 IC3007 C2265 R2607 CL8433 R5083 R3136 D3087 R8476 C8650 R8820 R3236 C4034 C4285 R3409 Q4517 R8250 R4855 JS1115 R8508 C8930 Q5563 IC8601 D4546 D2201 L4502 R1141 R5553 C4284 JS1106 R5055 R4698 R4589 ZA0003 C4550 R8381 CL5500 R8923 D2301 R8624 R8824 C3265 R4673 R4692 ZA0004 R3395 D4521 R8382 R8726 R3492 C1129 C3266 D5577 C4604 R4657 D5602 JS1118 R5057 R8811 R8419 R8410 R2611 C2049 CL8130 C8649 R5567 R8849 R3262 A70 C5453 R8702 R8812 R8411 C8624 R8005 R4753 R8973 R5691 Q4514 C4311 R5664 R8816 R8465 R8089 R4841 R2183 C8646 CL4801 D5302 C5312 C5302 IC4503 R8544 R4637 R2110 R4623 CL8513 A8 R3109 R8703 R3408 R8006 R4519 R4700 R8566 Q4503 C8956 D2300 C4258 JS2201 R8450 C3287 C4282 R1199 D5701 R2003 R8479 C1123 R5577 R2709 JS3037 L2022 X8620 R5635 R8996 IC2106 R4612 R3476 R8090 C4287 D5409 L2036 L5305 R8902 R8810 R3404 R4521 R8970 R4508 IC8950 R8560 L3037 C8952 C4276 R8848 L2008 JS1122 L5606 C5532 C2057 C5301 R4514 R8193 R8177 R8159 C4831 R8847 L5605 L5407 C5522 R2609 R2211 R8762 R5091 R3520 R8871 R3421 R8821 R8634 S3049 D3075 R5015 JS1109 JS1119 R2066 R2636 ZA0008 R8927 C3296 IC8620 R8632 D3064 R3454 C2151 R4844 C8640 R3402 R2048 R8990 R8793 D4515 D4508 C3274 IC8502 C8632 R2001 R4503 R8376 JS2311 C5602 R3493 R1138 D5578 R4276 C5661 R4528 JK8401 C4317 FL5016 X2601 R2093 D1113 R8459 R4663 R3105 R8706 R4738 R3388 R8924 R8149 R3491 C2125 R5550 R8834 D5576 D4511 R8768 R8548 FL5733 C2108 R5552 D5600 R8705 R2660 R3401 R2047 Q5302 L4217 R8582 C4529 R8162 L8036 C4626 C3253 R8716 R3413 R2072 C2213 D5693 R8753 L3036 R4603 R4640 C5629 R8911 R2270 R4708 R8964 D4500 C4320 R8743 R5662 R4046 C4256 R8093 C3280 R8087 R4834 JS1105 C8705 C2267 R1196 R4659 C2198 R8132 FL4501 D2024 R8091 R8243 R4677 C8638 R4593 R8767 R8553 R3484 C3269 C4033 R4754 D2027 R1250 D4502 Q4502 R8497 JK8701 R4641 C5463 A11 L5600 R4517 R8772 R2091 R5582 R8859 R5011 C2176 C2191 CL3196 R3518 R8235 Q5522 D5301 R8972 CL3009 R5663 R3225 R8461 R3450 IC4200 R5043 C3142 R8713 R8720 Q5564 R2655 IC8203 R2602 R4527 Q4519 R8931 R4645 C3302 R5036 R8522 R8806 R2654 R2601 CL3025 R8374 R1219 JK3100 C8072 R5035 L8201 R2649 D2011 R8978 R8583 R4502 R2109 R8252 A51 C4602 R5021 JS1110 L5601 R2632 R8530 R4033 R8818 R8257 JS3039 JS1101 R8423 R5536 R2063 CL8470 C2427 CL8031 CL3010 R8952 C4319 R8932 R8155 L4503 X2010 A53 C5635 R8424 R5537 IC8204 C2428 D2013 CL3011 R1230 Q5600 PA5200 R4029 R8708 CL8472 R8727 R8098 R3462 R8240 C2180 C5642 R8403 R8204 C2055 C4555 R8296 R8435 R8661 R2707 R5039 R3400 R2622 R8981 R8749 L8035 R8293 R4644 JS1100 L5301 R4691 R8715 R8722 R8017 C5329 C8202 R3387 R4501 D3085 D5412 JS1116 C2195 R5638 R8983 IC4514 R5695 R8918 R8817 IC5562 C3270 C4025 D5601 R4856 L5302 R8421 L5602 R1248 D2302 A31 C4018 FL4206 R4851 R4674 IC2010 C2613 D4522 R4504 R1139 R8261 C2399 R2634 R2616 R4533 C4552 R4704 D4507 L5735 C3273 R5066 R8601 C8813 R2637 R2631 IC8203-A C5695 R5078 R4832 R3475 IC8621 IC8202-A C4286 C5434 R5069 R2070 C5733 R2626 CL8434 C5300 R8761 R1211 Q5602 C8654 L5304 C1105 R2073 C8970 R8736 PA5402 S3039 R8654 IC5405 R3509 R8912 R8602 L3047 R8742 C4275 C2106 CL2714 R4668 C8642 R2644 Q2027 R4037 R3422 R5561 R8457 R4649 R4666 C5068 C8620 C4272 R4036 R8478 C8652 D1109 R8456 JS1120 R8526 R3416 Q5531 R4518 R8773 D8951 R8746 FL5020 C4277 L4511 R1151 C4014 R5012 R1198 R3417 R8228 R4523 R1251 D4503 R8747 R4048 C4015 C2184 C2192 R2650 R8407 R8971 R8771 R8562 L4500 C1133 R8655 R8088 C2175 R2648 CL8851 R2612 R3383 R8370 R8537 L4501 S3052 R2092 C5454 R8714 R8218 C5521 R5660 R4600 C2102 R8434 R8660 R5084 R8869 R3463 C3258 R3449 R4647 CL5691 R8422 ZA0005 Q4527 R8375 L8622 R4627 R4028 JS1102 C5467 ZA0006 R8786 R4512 R8760 CL5503 R2301 R4044 C3263 R8524 R2633 D4548 C4551 C2202 C4318 R4626 R8825 R4857 R8707 R5540 D4553 D4547 R3393 R8784 R8724 R4625 R8499 R8623 C4007 R8808 R4595 C2263 R2615 ZA0002 R4532 R8982 L4009 R8556 FL5015 FL5734 R8433 C1131 IC8202 C8417 C2262 Q5301 R3391 R8976 R4701 R8380 R8950 R8555 R8539 C3264 C3311 CL3197 R8521 R8146 C1116 R3406 R2651 R8408 C2023 R8967 R8738 L8803 D3079 R8622 R5568 R8463 IC4001 C3116 R5459 C8645 R2659 L5414 R2647 D4562 C2409 R8756 C4310 C8953 R8815 C3281 C4030 C3309 R4696 R3517 R8237 A12 R2613 R2023 JK3003 R8371 C4278 R4624 C2119 R5569 R8467 JS3033 JS3038 R8227 CL8469 R4522 IC4510 JK3002 C3268 R8272 R4842 R4678 R8425 R2068 C2136 A6 R8860 C3260 R5576 R4648 C2268 D4509 C4273 A7 R8861 R8822 CL2713 C5611 R4286 R8710 R3512 L5610 C3225 R4635 JS2059 R8092 R3459 C2174 R8905 L5611 IC8201 C5533 D2009 R2107 FL3032 R8265 R5590 PA5600 A-BOARD (COMPONENT SIDE) TNPH0724BC TH-58PZ880C A-BOARD TNPH0724BC TH-58PZ880C A-BOARD TNPH0724BC 103 TH-58PZ880C 11.7. D 电路板 A B C D E F G H I 1 2 3 4 5 6 C200 C201 C202 C203 C204 C205 C206 C207 Q010 C208 C209 C210 C211 C212 C213 C214 C215 C216 C217 C218 C219 C220 C221 C222 C223 C224 IC001 C225 IC002 C032 C226 C227 R200 C228 R201 C229 R202 R203 Q805 Q806 R208 C230 R209 C231 C232 C233 C234 C235 C236 IC013 C237 R210 C238 R211 D021 C239 IC016 R212 D022 D023 R213 IC017 D024 R214 IC018 D025 IC019 R216 D027 R217 D028 C240 D029 C241 C242 C243 C244 C245 C246 C247 C248 C055 C249 C056 R223 C057 C058 R224 R225 Q055 Q056 D807 Q057 D808 Q058 C250 Q059 IC802 IC803 R230 C064 IC805 Q061 C065 C066 IC806 R232 D813 D814 C068 D815 R235 R237 R238 C841 C842 R246 R247 R248 R249 R257 R258 C860 R068 R839 C861 R069 FL001 C862 C863 C864 R261 R262 C096 C097 R070 C098 C099 R071 R072 R073 R074 R075 R076 R846 R077 R847 R848 R078 R849 R270 C874 R271 C877 R273 C878 R274 R080 C879 R275 R276 R082 R083 R277 R279 R086 R087 R088 C880 R859 C881 R089 C882 C883 C884 C885 R282 C886 C887 C888 R285 R286 R092 R093 R288 R094 R095 R096 R097 R868 R098 R869 R099 R290 R291 R870 R294 R871 R878 R879 R886 R887 R888 R889 R890 R891 R892 R893 R894 R895 R896 R897 R898 R899 C100 C101 C102 C103 C104 C105 C106 C107 C108 C109 TP395 C110 C111 C112 C113 C114 C115 C116 C117 C119 C121 C122 C123 C124 C125 C126 C127 R100 C128 C129 R102 R103 R106 R108 C130 R109 C131 C132 C133 D110 C136 C138 R111 C139 R305 R306 R112 R113 R307 R114 R309 C140 C142 L9000 R310 C144 R311 L001 C145 L002 C146 L003 C147 R120 C148 L004 L005 C149 R316 L006 R317 L007 R318 R319 R127 R128 C150 R129 C157 C927 R900 C158 C928 R901 C159 R131 C929 R326 R132 R133 R327 R134 R136 R137 R907 R138 TP9000 C930 TP001 R139 C931 TP002 C932 TP003 C933 TP004 C934 TP005 C935 TP006 C936 TP007 C937 TP008 R140 R334 C938 C168 TP009 R141 R335 C169 C939 C552 R144 R146 R147 R148 C170 C940 C171 C941 C172 C942 C173 C943 C944 C174 C175 C945 C176 C946 C177 C947 C948 C178 R345 C179 R348 R154 R156 R157 C180 R159 C181 C182 C183 C184 R350 C185 R351 C186 R352 C187 R353 R160 C188 R161 C189 R162 R163 R358 R165 R936 R937 C960 C190 C191 R169 C961 C192 C193 C194 C964 C195 R362 C966 C196 R363 C197 C198 C199 R945 R175 R176 R946 R177 R178 R949 R179 R950 R180 R181 R182 R186 R187 R188 R189 R578 R193 R194 R195 R196 R197 R969 R972 R973 R974 R975 R982 TNPA4439 CR NO.9 1 2 5V_S 1 D 3 P b F 1 4 8 5 1 3 4 6 1 7 8 14 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 10 11 20 1 1 10 11 20 1 15 16 30 12 13 24 1 S E E R E V E R S E F O R O R D E R N O . D-BOARD (FOIL SIDE) TXN/D1RETC TH-58PZ880C D-BOARD TXN/D1RETC TH-58PZ880C D-BOARD TXN/D1RETC Parts Location D-BOARD (FOIL SIDE) IC TRANSISTOR IC9001 F-2 IC9002 F-4 IC9013 F-2 IC9016 C-2 IC9017 E-3 IC9018 E-3 IC9019 F-3 IC9802 F-4 IC9803 F-3 IC9805 A-2 IC9806 A-2 Q9010 F-2 Q9055 F-4 Q9056 D-4 Q9057 B-4 Q9058 A-1 Q9059 D-1 Q9061 F-4 Q9805 F-2 Q9806 F-2 TP9000 F-3 TP9001 C-3 TP9002 C-3 TP9003 A-3 TP9004 A-4 TP9005 F-2 TP9006 F-2 TP9007 F-2 TP9008 F-2 TP9009 F-2 TP9395 G-4 TEST POINT D 104 TH-58PZ880C A B C D E F G H I 1 2 3 4 5 6 C029 C033 IC003 C034 C035 C036 C037 R204 C038 PA800 R205 R206 Q807 R207 Q808 Q809 R400 IC011 IC400 IC401 R215 D026 R600 R218 R219 R601 R602 C823 C825 R226 R611 R229 C832 Q060 R231 D812 C837 C067 R233 R234 C069 D816 R236 D817 TP100 C840 C844 C845 C846 R245 R824 R825 R826 C469 C853 C854 R250 C855 R251 C856 R252 R253 C858 R254 C859 R255 TP312 R256 R259 FL9000 FL002 FL003 R260 FL004 C865 FL005 C866 D3 C867 R263 R840 C868 R264 C869 R265 D5 D6 R266 R267 C870 C871 R079 C872 C873 R272 R081 R278 R854 R280 R281 R283 R287 R289 FL803 FL805 FL806 R292 R293 R295 R296 R297 R298 R299 X9000 X200 D20 ZA9000 D25 D31 D32 D33 C120 D34 D35 D36 R101 R104 R105 R107 R300 C135 R301 R302 C137 R303 R110 PA900 R304 IC300 R308 R115 IC301 R116 R117 IC303 R118 R119 C143 R312 IC500 R315 R121 R122 R123 R124 R125 C535 R126 C536 C537 C538 C151 C539 C152 C153 C154 R320 C155 R321 C156 R322 R323 R324 R130 C540 R325 C541 C542 C543 C544 R135 R905 C545 C546 C547 C160 C548 C161 C549 C162 C163 C164 C165 R333 C550 C551 R142 C553 R337 R143 R145 R149 L800 R341 L801 R342 L802 R343 R344 R150 R151 R152 R155 R158 C951 R354 R355 R164 R359 R166 R167 R938 R168 R939 R360 R361 R170 R940 R171 R172 R173 R174 R944 R947 R948 C971 C972 R951 R952 R183 R953 R184 R954 R185 R955 R190 R385 R191 R192 R965 R966 R198 R199 R394 R980 R599 TNPA4439 VD CR NO.9 1 D HD R579 P b F 1 25 26 50 51 75 76 100 3 4 6 1 1 2 3 4 5 6 78 9 10 1112 13 14 15 16 17 18 19 20 21 22 23 24 25 26 A B C D E F G H J K L M N P R T U V W Y AA AB AC AD AE AF 13 11 9 7 5 3 12 10 6 4 2 B D F H K M N L J G E C 8 + + 1 14 1 31 1 2 19 20 + O R D E R N O . 1 35 1 13 1 68 1 68 68 1 1 68 1 68 1 68 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 A B C D E F G H J K L M N P R T U V W Y AA AB AC AD AE AF 13 11 9 7 5 3 12 10 8 6 4 2 B D F H K M N L J G E C 1 24 25 48 1 25 26 50 51 75 76 100 D-BOARD (COMPONENT SIDE) TXN/D1RETC TH-58PZ880C D-BOARD TXN/D1RETC TH-58PZ880C D-BOARD TXN/D1RETC Parts Location D-BOARD (COMPONENT SIDE) IC IC9003 B-2 IC9011 B-2 IC9300 E-3 IC9301 E-2 IC9303 D-4 IC9400 C-3 IC9401 C-2 IC9500 B-3 TP9100 B-3 TP9312 A-3 TEST POINT Q9060 D-2 Q9807 F-3 Q9808 F-3 Q9809 F-2 TRANSISTOR D 105 TH-58PZ880C 11.8. C1 电路板 A B C D E F G H I 1 2 3 4 5 6 3 2 1 1 TNPA4617 C1 PbF S E E R E V E R S E F O R O R D E R N O . C104 C105 C106 C107 C108 C109 IC101 IC102 IC103 IC104 IC105 IC106 C110 FL101 C132 C133 C134 C135 C136 C137 C138 ZA101 ZA102 ZA103 ZA104 ZA105 C141 C142 C143 C144 C145 C146 C147 C148 C149 D101 D102 D103 D104 C150 D105 C161 C162 C163 C164 C165 C166 C167 C168 C169 C170 C171 C172 C173 C174 C175 C176 C177 C178 C179 C180 C181 C182 C183 C184 C185 C186 C187 C188 C189 R101 R102 R103 R104 C190 R105 R106 R107 R108 R109 R110 R111 R112 R113 R114 R115 R116 R117 R118 R119 R120 R121 R122 R123 R124 R125 R131 R132 R133 R134 R135 R136 R137 R138 R139 R140 R141 R142 R143 R144 R145 R146 R147 R148 R149 R151 R152 R153 R154 R155 R156 R157 R158 R159 R162 R163 R164 CB1 CB2 CB3 CB4 CB5 R199 C10 C11 C101 C102 C103 CR NO.17 1 C1 TNPA4617 C1MM1 PbF 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 68 1 68 1 6 8 O R D E R N O . 1 20 1 68 68 1 1 68 1 68 1 6 8 68 1 1 68 1 68 1 68 1 20 1 68 Parts Location C1-BOARD IC17101 G-2 IC17102 H-2 IC17103� I-2 IC17104 G-2 IC17105� F-2 IC17106 E-2 IC IC TH-58PZ880C C1-BOARD TXNC11RETC TH-58PZ880C C1-BOARD TXNC11RETC C1-BOARD (FOIL SIDE) TXNC11RETC C1-BOARD (COMPONENT SIDE) TXNC11RETC C1 106 TH-58PZ880C 11.9. C2 电路板 A B C D E F G H I 1 2 3 4 5 6 C2 TNPA4618 1 1 2 3 PbF S E E R E V E R S E F O R O R D E R N O . C20 C21 C22 C26 R280 R281 R282 R283 R284 R285 R286 R287 R288 R289 R290 R291 R292 CB10 C201 C202 C203 C204 C205 C206 C207 C208 C209 IC201 CB6 IC202 CB7 IC203 CB8 IC204 CB9 IC205 IC206 IC207 C210 IC208 IC209 FL201 FL202 C231 C232 C233 C234 C235 C236 C237 C238 ZA201 C239 ZA202 ZA203 ZA204 C240 C241 C242 C243 C244 C245 C246 C247 C248 C249 D201 D202 D203 D204 C250 D205 C261 C262 C263 C264 C265 C266 C267 C268 C269 C270 C271 C272 C273 C274 C275 C276 C277 C278 C279 C280 C281 C282 C283 C284 C285 C286 C287 C288 C289 R201 R202 R203 R204 C290 R205 R206 R207 R208 R209 R210 R211 R212 R213 R214 R215 R216 R217 R218 R219 R220 R221 R222 R223 R224 R225 R231 R232 R233 R234 R235 R236 R237 R238 R239 R240 R241 R242 R243 R244 R245 R246 R247 R248 R249 R250 R251 R252 R255 R256 R257 R258 R261 R262 R263 R264 R265 R266 R267 R268 R269 CR NO.17 1 C2 TNPA4618 PbF 20 1 1 68 1 68 1 80 1 68 1 68 1 6 8 1 68 1 68 O R D E R N O . 1 68 1 10 11 20 68 1 1 10 11 20 1 6 8 1 10 11 20 1 68 1 10 11 20 1 68 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 20 1 1 68 1 68 1 68 1 68 Parts Location C2-BOARD IC17201 D-2 IC17202 E-2 IC17203 E-2 IC17204 H-2 IC17205 C-2 IC17206 C-2 IC17207 D-2 IC17208 E-2 IC17209 G-2 IC IC C2-BOARD (FOIL SIDE) TXNC21RETC TH-58PZ880C C2-BOARD TXNC21RETC TH-58PZ880C C2-BOARD TXNC21RETC C2 C2-BOARD (COMPONENT SIDE) TXNC21RETC 107 TH-58PZ880C 11.10.C3 电路板 A B C D E F G H I 1 2 3 4 5 6 C3 TNPA4619 1 1 2 3 PbF S E E R E V E R S E F O R O R D E R N O . C301 C302 C303 C304 C305 C306 C307 C308 IC301 C309 IC302 IC303 C33 IC304 IC305 C35 IC306 C36 C310 C328 C329 FL301 C330 C331 C332 C333 C334 C335 C338 ZA301 ZA302 ZA303 ZA304 ZA305 C341 C342 C343 C344 C345 C346 C347 C348 C349 D301 D302 D303 C350 D304 C351 D305 C361 C362 C363 C364 C365 C366 C367 C368 C369 C370 C371 C372 C373 C374 C375 C376 C377 C378 C379 C380 C381 C382 C383 C384 C385 C386 C387 C388 C389 R301 R302 R303 R304 C390 R305 R306 R307 R308 R309 CB11 CB12 CB13 CB14 R310 CB15 R311 R312 R313 R314 R315 R316 R317 R318 R319 R320 R321 R322 R323 R324 R325 R328 R329 R330 R331 R332 R333 R334 R335 R336 R337 R338 R339 R340 R341 R342 R343 R344 R345 R346 R347 R350 R355 R356 R357 R358 R359 R360 R361 R362 R363 R364 R365 R366 R367 R368 R399 TNPA4619 C3 1 CR NO.17 C3MM1 PbF 68 1 1 6 8 1 10 11 20 1 10 11 20 1 10 11 20 10 1 1 10 11 20 1 10 11 20 1 4 1 10 11 20 1 80 1 6 8 O R D E R N O . 1 68 1 68 1 6 8 1 68 1 6 8 1 68 1 68 Parts Location C3-BOARD IC17301 B-2 IC17302 B-2 IC17303 E-2 IC17304 D-2 IC17305 C-2 IC17306 A-2 IC IC C3-BOARD (FOIL SIDE) TXNC31RETC C3-BOARD (COMPONENT SIDE) TXNC31RETC TH-58PZ880C C3-BOARD TXNC31RETC TH-58PZ880C C3-BOARD TXNC31RETC C3 108 TH-58PZ880C 11.11.SC 电路板 A B C D E F G H I 1 2 3 4 5 6 SC41 SC42 TP90 TP91 TP92 SC46 TP93 TP94 TP95 TP96 L698 L699 C563 C592 IC784 IC786 IC788 C791 C795 C796 T697 R731 ZA421 ZA422 ZA423 R738 ZA411 ZA412 ZA413 Q796 VR600 VR602 C411 C412 C413 C414 C415 C416 C417 R774 C419 R778 C806 C807 C813 C822 C631 C632 C633 C440 C634 C635 Q401 C636 Q402 Q403 Q404 Q405 Q406 C835 Q601 D401 D402 D403 C450 L591 C842 C460 C461 Q421 C462 Q422 Q423 Q424 Q425 D421 Q621 D422 Q622 D423 Q623 D621 D622 D623 Q441 Q442 Q443 Q444 Q641 D441 Q642 Q643 Q644 Q451 Q452 Q453 Q454 D641 D642 D643 D644 C691 C692 TP1 TP2 TP4 TP5 TP6 TP7 TP8 TP9 Q661 D461 D462 D463 D464 L401 L402 L403 L404 L405 L406 L407 L411 L412 SC2 L413 L414 L415 D481 L416 D482 L417 D483 D484 TP10 TP11 L801 TP12 TP13 TP14 TP15 TP16 TP17 TP18 TP19 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 TP32 TP33 TP34 TP35 TP36 TP37 TP38 TP39 TP40 TP41 TP42 TP43 C503 R860 TP44 TP45 TP51 TP52 R870 TP54 TP55 TP56 TP57 TP58 TP59 TP60 TP61 L851 TP62 TP63 TP64 IC791 TP65 TP66 L472 L473 L474 C721 R696 TP70 TP78 TP79 SC30 TP80 TP81 TP83 TP84 TP85 TP86 TP88 TP89 CRNo.16 2 1 3 SC 1 TNPA4604 PbF 1 2 2 2 2 3 1 2 2 2 2 3 1 2 8 9 1 5 6 1 0 1 5 6 1 0 1 5 6 1 0 S E E R E V E R S E F O R O R D E R N O . P 2 P 1 P T S 1 S 2 1 E B C G C E G C E G C E G C E G C E G C E G D S A A K A A K A A K G C E G C E G C E G C E G C E A A K G D S A A K G D S A A K G D S A A K A A K A A K G C E G C E G C E G C E G C E A A K G C E G C E G C E G C E G C E G C E G C E A A K A A K A A K A A K C G E A A K A A K A A K A A K 1 3 A A K A A K A A K A A K 1 2 8 1 Parts Location SC-BOARD (FOIL SIDE) IC16784 H-2 IC16786 I-2 IC16788� H-3 IC16791 I-3 IC Q16401 B-3 Q16402 B-3 Q16403 B-3 Q16404 B-3 Q16405 B-2 Q16406 B-2 Q16421 E-3 Q16422 E-3 Q16423 E-3 Q16424 E-2 Q16425 E-2 TRANSISTOR TP94 H-2 TP95 I-2 TP96 D-4 TP1 A-1 TP2 A-1 TP4 A-1 TP5 A-1 TP6 H-1 TP7 H-1 TP8 I-2 TP9 I-2 TP10 H-2 TP11 H-2 TP12 I-1 TP13 I-1 TP14 H-2 TP15 H-2 TP16 H-1 TP17 I-1 TP18 H-2 TEST POINT VR16600 G-2 VR16602 H-3 VOLUME Q16441 D-1 Q16442 D-1 Q16443 D-1 Q16444 C-1 Q16451 F-1 Q16452 F-1 Q16453 F-1 Q16454� G-1 Q16601 G-3 Q16621 C-3 Q16622 C-2 Q16623 B-2 Q16641 F-3 Q16642 F-3 Q16643 G-2 Q16644 G-2 Q16661 G-3 Q16796 H-4 TP19 H-2 TP20 H-1 TP21 H-2 TP22 H-2 TP23 H-1 TP24 I-2 TP25 I-2 TP26 I-2 TP27 I-2 TP28 I-2 TP29 I-2 TP30 I-2 TP31 H-1 TP32 I-1 TP33 I-1 TP34 H-1 TP35 I-2 TP36 I-2 TP37� I-1 TP38 H-2 TP39 H-2 TP40 H-2 TP41� F-4 TP42 F-4 TP43 F-4 TP44 F-4 TP45 F-4 TP51 G-4 TP52 H-2 TP54 B-4 TP55 B-4 TP56 B-4 TP57 B-4 TP58 B-4 TP59 G-4 TP60 G-4 TP61 G-4 TP62 G-4 TP63 G-4 TP64 H-3 TP65 H-3 TP66 I-3 TP70 H-2 TP78 G-4 TP79 G-4 TP80 G-4 TP81 G-4 TP83 H-4 TP84 H-4 TP85 H-4 TP86 H-4 TP88 I-1 TP89 I-2 TP90 C-2 TP91 B-2 TP92 G-2 TP93 H-2 SC-BOARD (FOIL SIDE) TXNSC1RETC TH-58PZ880C SC-BOARD TXNSC1RETC TH-58PZ880C SC-BOARD TXNSC1RETC SC 109 TH-58PZ880C A B C D E F G H I 1 2 3 4 5 6 Q701 SC41 Q702 SC42 D503 SC46 D702 L698 L699 D706 C753 C754 C755 Q521 C562 C756 Q522 C563 Q523 C564 C565 C566 C568 D710 IC561 D711 IC562 D712 IC563 D713 D714 IC564 D715 D522 D717 D523 D718 D524 D719 Q531 Q532 D720 D721 D722 C771 D725 D726 C772 C773 C775 C581 C582 D536 D537 IC771 IC772 IC773 IC581 R501 R502 Q743 R503 R504 Q551 R505 Q552 C592 R506 C593 R507 R509 IC784 R700 R701 R702 IC786 R703 IC787 IC788 R704 R510 IC789 C791 R511 R512 R707 R513 R514 C795 R515 C796 R516 C797 R517 C798 R518 R519 R711 R712 R520 R521 Q762 R522 R717 R523 R719 R526 R527 R528 R529 R720 R721 D761 R722 R723 D764 R724 R530 D765 R725 R531 R726 R532 R727 R533 R728 R729 R536 R537 R538 R539 T697 R730 R731 R732 R733 R734 R540 R735 Q781 ZA421 R542 ZA422 R736 R543 D583 R737 ZA423 R544 R738 R739 R740 D781 R742 R744 R745 ZA411 R551 R552 R746 ZA412 R553 R747 ZA413 R748 Q795 R749 Q796 R750 R751 D791 R752 D792 R753 D793 D794 R754 R561 R562 R756 R563 R757 VR600 R564 R758 R565 R566 VR602 R567 R568 C402 C403 C404 C405 R761 R762 C406 R570 R765 R766 R573 R769 C602 C603 C604 C605 R579 C411 C606 C412 C413 C608 C414 C415 C416 C417 R774 R775 C419 R582 R776 R777 R583 R584 R778 R585 R586 C806 R587 C807 R588 IC801 C421 C422 C423 C424 R781 C425 R782 R590 R591 R785 C811 R786 R592 R787 C813 R593 R788 C814 R789 R791 R794 C821 R795 ZA401 R796 C822 ZA402 C823 R797 ZA403 R798 C824 PC601 R799 C631 C825 C826 C632 PC603 C827 C633 C440 C634 C635 Q401 C636 Q402 Q403 Q404 Q405 Q406 C835 Q601 D401 C641 Q602 D402 C642 Q603 D403 C643 Q604 C450 Q606 Q607 D407 Q609 L591 Q801 D602 C842 C843 D604 C844 D605 D411 D606 D607 D608 C460 C461 D609 Q421 C462 Q422 Q423 Q424 Q425 D610 Q810 Q814 IC464 C661 Q815 D421 C855 Q621 IC465 C662 D422 Q816 C856 Q622 D423 C857 Q817 C663 Q623 C664 D618 C858 C665 D619 C859 C471 C666 C472 D810 C860 C861 IC471 D621 C862 D622 C863 D623 C864 PC896 C866 PC897 C867 C868 C869 Q441 Q442 Q443 D820 Q444 D821 D822 D823 D824 C871 D631 D825 D632 D633 Q641 D441 R401 Q642 R402 Q643 R403 Q644 C684 R404 C491 Q451 R405 PC461 C685 Q452 R406 Q453 Q454 D641 D835 D642 R602 D643 R604 D644 R410 D451 R605 C691 R411 R606 C692 R607 R608 R414 R609 R415 R416 R801 R802 TP3 R803 R804 R610 R611 IC521 R612 R613 R614 R615 Q661 D461 R421 Q662 D462 R422 R617 Q663 R423 D463 Q664 D464 PC480 R424 R425 D465 Q665 Q471 Q666 D466 Q667 R813 R814 D660 IC724 D661 R815 IC725 L401 R621 R816 D662 R622 L402 D663 R817 R623 L403 D664 R818 L404 D665 D859 R819 L405 D666 L406 D667 L407 D473 D668 PC684 D474 D669 D475 PC685 D476 D477 R820 D478 D860 R821 D861 D862 R822 R823 R824 D671 R825 R631 Q871 L411 L412 Q872 R826 SC2 L413 R633 Q873 R634 L414 D480 R828 Q874 Q875 D675 L415 D481 R441 L416 D482 Q876 R442 L417 D483 R443 R638 D484 R444 Q879 L801 D871 D873 D874 R641 D875 Q881 R642 R836 Q882 R643 R837 R644 R838 R451 R452 R453 R454 D497 R841 R844 R845 R846 R465 R466 R467 R468 R850 R851 R852 R853 R661 R662 R663 R664 R859 R665 R471 R666 R472 R473 R668 R474 R669 R475 C501 R476 C502 C503 R860 C504 R478 R861 R479 C505 R862 TP46 R863 R670 R864 R865 R671 IC501 R672 R867 R674 R480 R869 R676 R677 R678 C707 R870 C708 R871 R872 R873 R874 R875 R681 R682 R683 R684 R685 L851 C521 C522 C523 C524 IC791 R881 C525 IC792 R882 C527 R886 L472 L473 R887 R888 SC20 L474 C721 R696 C723 C724 TPSOS6 C725 TPSOS7 C533 C535 C536 SC30 Q501 TP82 Q502 Q503 1 SC TPSC1 TPVSUS Discharge H.V. DANGER H.V. DANGER H.V. DANGER 65�� 58�� DIP H.V. DANGER H.V. DANGER TPVSET TPVAD TPVSCN CRNo.16 TNPA4604 H.V. DANGER PbF 1 2 2 2 2 3 1 2 2 2 2 3 1 2 8 9 1 1 0 11 2 0 1 1 0 1 1 2 0 1 7 8 1 4 1 3 4 5 1 4 5 8 1 3 4 5 1 4 5 8 1 5 6 1 0 1 5 6 1 0 1 3 4 5 1 5 6 1 0 1 3 4 5 O R D E R N O . S 2 P T P 2 P 1 S 1 B C E 1 3 4 5 1 2 3 4 1 2 3 4 C G E C G E C G E C G E C G E C G E G S D A A K A A K A A K G D S C G E C G E C G E C G E C G E 1 3 5 4 A A K D G S 1 3 4 5 A A K D G S A A K D G S 1 3 4 5 A A K A A K A A K 1 2 3 4 1 2 3 4 C G E C G E C G E C G E C G E A A K C G E C G E C G E C G E C G E C G E C G E A A K A A K A A K A A K 1 G C E A A K A A K A A K A A K 1 2 3 4 1 3 A A K A A K A A K A A K 8 9 1 6 9 1 1 2 1 8 16 1 3 4 5 1 3 5 8 1 Parts Location SC-BOARD (COMPONENT SIDE) IC16464 F-2 IC16465 F-2 IC16471 E-3 IC16501 F-3 IC16521 F-3 IC16561 B-1 IC16562 B-1 IC16563 A-1 IC16564 C-4 IC16581 A-1 IC16724 F-4 IC16725 E-4 IC16771 F-2 IC16772 B-4 IC16773 A-4 IC16784 B-2 IC16786 B-2 IC PC16461 F-2 PC16480 E-3 PC16601 B-3 PC16603 C-3 PC16684 B-3 PC16685 F-3 PC16896 B-2 PC16897 B-2 Q16401 H-3 Q16402 H-3 Q16403 H-3 Q16404 H-3 Q16405 H-2 Q16406 I-2 Q16421 E-3 Q16422 E-3 Q16423 E-3 Q16424 E-2 Q16425 E-2 Q16441 F-1 Q16442 F-1 Q16443 F-1 Q16444 G-1 Q16451 D-1 Q16452 D-1 PHOTO COUPLER TRANSISTOR TP3 A-1 TP46 B-1 TP82 B-1 TPSC1 E-4 TPSOS6 A-1 TPSOS7 A-1 TPVAD C-3 TPVSCN� B-2 TPVSET C-3 TPVSUS I-1 TEST POINT VR16600 B-3 VR16602 C-2 VOLUME Q16453 D-1 Q16454 D-1 Q16471 E-4 Q16501 G-3 Q16502 G-3 Q16503 G-3 Q16521 F-3 Q16522 F-3 Q16523 F-3 Q16531 G-1 Q16532 G-1 Q16551 E-1 Q16552 E-1 Q16601 D-3 Q16602 C-3 Q16603 C-3 Q16604 C-3 Q16606 D-3 Q16607 C-3 IC16787 A-2 IC16788 B-3 IC16789 B-3 IC16791 A-3 IC16792 C-4 IC16801 B-4 Q16609 C-3 Q16621 G-3 Q16622 G-2 Q16623 H-2 Q16641 D-3 Q16642 D-3 Q16643 D-2 Q16644 C-2 Q16661 C-3 Q16662 B-3 Q16663� B-4 Q16664 B-4 Q16665 A-4 Q16666 C-3 Q16667 A-4 Q16701 A-4 Q16702 B-4 Q16743 B-4 Q16762 F-3 Q16781 D-3 Q16795 B-4 Q16796 B-4 Q16801 A-4 Q16810 B-4 Q16814 B-2 Q16815 B-2 Q16816 B-3 Q16817 A-2 Q16871 A-2 Q16872 B-3 Q16873 A-3 Q16874 B-3 Q16875 A-3 Q16876 A-1 Q16879 A-3 Q16881 B-2 Q16882 B-3 SC-BOARD (COMPONENT SIDE) TXNSC1RETC TH-58PZ880C SC-BOARD TXNSC1RETC TH-58PZ880C SC-BOARD TXNSC1RETC SC 110 TH-58PZ880C 11.12.SU 电路板 A B C D E F G H I 1 2 3 4 5 6 PbF SU 1 TNPA4612 3 2 1 S E E R E V E R S E F O R O R D E R N O . R393 R394 R395 R396 R397 R398 R399 SU11 SU1 SU2 SU3 SU4 SU5 C901 C902 C903 C904 C905 C906 C907 C908 IC901 IC902 IC903 IC904 IC907 IC908 C911 C913 C914 C915 C916 C919 C920 C921 C922 C923 C924 C349 C925 C926 C927 C928 C929 C350 C351 C352 C353 C354 C930 C931 C355 C932 C356 C933 C357 C934 C935 C936 C937 C938 C939 ZA903 C940 C941 C942 C946 C947 D901 D903 D904 C375 D905 D906 D907 D908 D909 D910 D911 D912 D913 D914 TPSU4 TPSU5 TPSU6 TPSU7 D350 R901 R902 R903 R904 R907 R908 R909 R910 R911 R912 R913 R914 R915 R916 R917 R919 R920 R921 R928 R929 R375 R376 R377 R378 R379 R380 R381 R382 R383 R384 R385 R386 R390 R391 R392 SU41 C909 IC905 IC906 C910 C912 C917 C918 C348 ZA901 ZA902 C948 C949 D902 TPSU1 TPSU2 TPSU3 R905 R906 R922 R923 R924 R925 R926 R387 R388 R389 C383 C384 C385 C386 PbF TNPA4612 H.V.DANGER CRNo.14 SU H.V.DANGER H.V.DANGER 1 1 2 0 A 1 A 5 4 B 5 4 B 1 A 1 B 1 A 5 4 B 5 4 A 1 B 1 B 5 4 A 5 4 A 1 B 1 A 5 4 B 5 4 A 1 B 1 A 5 4 B 5 4 O R D E R N O . A 1 A 5 4 B 1 B 5 4 A 1 A 5 4 B 1 B 5 4 A 1 A 5 4 B 1 B 5 4 A 1 A 5 4 B 1 B 5 4 A 1 A 5 4 B 1 B 5 4 1 2 5 2 6 5 0 5 1 7 5 7 6 1 0 0 1 2 5 2 6 5 0 5 1 7 5 7 6 1 0 0 1 2 5 2 6 5 0 5 1 7 5 7 6 1 0 0 1 2 5 2 6 5 0 5 1 7 5 7 6 1 0 0 1 2 5 2 6 5 0 5 1 7 5 7 6 1 0 0 1 2 5 2 6 5 0 5 1 7 5 7 6 1 0 0 1 2 0 2 2 2 1 2 3 1 2 5 2 6 5 0 5 1 7 5 7 6 1 0 0 1 2 5 2 6 5 0 5 1 7 5 7 6 1 0 0 Parts Location SU-BOARD IC14901� B-1 IC14902 C-1 IC14903 D-1 IC14904 D-1 IC14905 F-2 IC14906 G-1 IC14907 H-1 IC14908 H-1 IC IC TPSU1 E-2 TPSU2 E-1 TPSU3 E-1 TPSU4 A-1 TPSU5� A-1 TPSU6� I-1 TPSU7� I-1 TEST POINT SU-BOARD (COMPONENT SIDE) TXNSU1RETC SU-BOARD (FOIL SIDE) TXNSU1RETC TH-58PZ880C SU-BOARD TXNSU1RETC TH-58PZ880C SU-BOARD TXNSU1RETC SU 111 TH-58PZ880C 11.13.SD 电路板 A B C D E F G H I 1 2 3 4 5 6 R983 R995 R996 R997 R998 TPSD1 TPSD2 TPSD3 TPSD4 TPSD5 C358 C359 C360 C361 C362 C363 C364 C365 C366 C367 C368 C369 C374 C376 C377 IC955 IC956 IC957 C960 IC958 C961 C962 C963 C964 C968 C971 C976 C978 C981 SD4 SD5 C985 C989 C998 C999 D951 D955 D956 D959 D960 R932 R933 D978 R361 R362 R363 R364 R365 R366 R367 R368 R369 R370 R371 R372 R373 R374 R951 R955 R981 R982 R984 R985 R986 R990 SD42 C954 C955 C956 C957 C958 C959 IC952 IC953 IC954 C965 C966 C967 C975 C979 C980 SD2 C983 SD3 C995 C996 C997 D952 D953 D958 ZA952 R354 R355 R356 R357 R358 R359 R360 R952 R953 R954 R971 R973 R974 R975 R976 R977 R978 R979 R980 R987 R988 R991 R992 R993 R994 R999 SD11 SD46 C943 C944 C945 C370 C371 C372 C373 C950 C951 C952 C953 IC951 C380 C381 C969 IC961 IC962 IC963 IC964 IC965 C970 C972 C973 C974 C977 SD1 C982 C984 C986 C987 C988 R900 C990 C992 C994 D954 PC951 PC952 D957 PC953 R918 ZA951 D961 R349 R350 R351 R352 R353 R930 R931 R934 D974 D975 R935 R936 D976 R937 D977 R938 D979 R939 R940 R941 R942 R943 R944 R949 R950 R956 R957 R958 R959 D999 R960 R961 R962 R963 R964 R965 R966 R967 C382 ZA953 H . V . D A N G E R PbF TNPA4613 1 H . V . D A N G E R CRNo.14 SD H.V.DANGER A 1 A 5 4 B 5 4 B 1 A 1 A 5 4 B 5 4 B 1 1 2 5 2 6 7 5 7 6 1 0 0 50 51 1 2 6 5 0 5 1 75 7 6 1 0 0 2 5 1 2 5 5 0 5 1 7 5 7 6 1 0 0 2 6 1 2 5 2 6 5 0 5 1 7 5 7 6 1 0 0 A 1 A 5 4 B 5 4 B 1 A 1 A 5 4 B 1 O R D E R N O . A1 B 1 A 5 4 B 5 4 2 22 1 2 3 A 1 B 1 A 5 4 B 5 4 1 2 5 2 6 5 1 7 5 7 6 1 0 0 5 0 1 2 5 26 50 5 1 7 5 7 6 1 0 0 1 2 6 5 0 5 1 75 7 6 1 0 0 2 5 A1 A 5 4 B 1 B 5 4 A 1 A 5 4 B 1 B 5 4 A 1 B 1 B 5 4 A 5 4 1 9 8 2 1 2 5 2 6 5 0 5 1 7 5 7 6 1 0 0 1 7 8 1 4 7 8 1 14 1 7 8 1 4 A 1 B 1 B 5 4 A 5 4 1 2 0 1 2 0 PbF 1 SD TNPA4613 3 2 1 SDMM1 S E E R E V E R S E F O R O R D E R N O . Parts Location SD-BOARD IC14951 C-1 IC14952 C-1 IC14953 D-1 IC14954 E-1 IC14955 F-1 IC14956 G-1 IC14957 H-2 IC14958 I-1 IC14961 B-2 IC14962 A-2 IC14963 B-2 IC14964 B-1 IC14965 B-2 TPSD1 G-1 TPSD2 G-1 TPSD3 G-2 TPSD4 I-2 TPSD5 I-1 IC IC TEST POINT SD-BOARD (FOIL SIDE) TXNSD1RETC SD-BOARD (COMPONENT SIDE) TXNSD1RETC TH-58PZ880C SD-BOARD TXNSD1RETC TH-58PZ880C SD-BOARD TXNSD1RETC SD 112 TH-58PZ880C 11.14.SS 电路板 A B C D E F G H I 1 2 3 4 5 6 Q331 SS11 SS12 SS21 SS22 SS34 L103 R327 SS53 SS54 SS55 SS56 VR000 C201 C202 C203 C204 C205 C011 C012 C206 C013 C014 C015 C016 C018 T301 Q001 Q002 Q003 Q004 Q005 Q006 D001 C241 D002 D003 Q021 Q022 Q023 Q024 Q025 Q026 D021 D022 D023 C272 Q041 Q042 Q043 Q044 D040 D041 D042 D043 D044 Q051 Q052 Q053 Q054 D051 D052 D053 D054 L001 L002 L003 L004 L005 L006 TP2 L007 TP3 TP4 TP5 TP6 TP7 TP8 TP9 L011 L012 L013 L014 L015 L016 L017 L221 TP10 TP13 TP14 TP15 TP16 TP17 TP18 TP19 TP20 TP21 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 TP33 TP34 C301 TP36 TP38 TP39 IC301 TP40 TP41 TP42 C310 TP44 TP45 L262 TP51 TP52 TP53 TP54 TP55 TP56 C323 TP57 C324 TP58 C328 C329 L271 C330 C331 C332 Q101 Q102 TPVDA TPSOS8 TPVe2 TPVSUS TPSS1 PbF SS TNPA4605 1 1 2 3 CRNo.16 G D S 1 3 10 1 1 2 14 15 1 2 14 15 1 3 13 1 1 3 1 1 3 1 1 3 S E E R E V E R S E F O R O R D E R N O . P2 P1 PT S1 S2 G C E G C E G C E G C E G C E G C E A A K A A K A A K 1 13 1 1 3 G C E G C E G C E G C E G C E G C E A A K A A K A A K G C E G C E G C E G C E A A K A A K A A K A A K A A K G C E G C E G C E G C E A A K A A K A A K A A K 1 5 6 10 G D S G S D 1 1 3 1 1 3 Parts Location SS-BOARD (FOIL SIDE) IC16301 D-1 IC Q16001� C-3 Q16002 D-3 Q16003 D-3 Q16004 D-3 Q16005 E-3 Q16006� E-3 Q16021� G-4 Q16023� I-4 Q16024 I-4 Q16025 I-4 Q16026� I-4 Q16041 E-1 Q16042 E-1 TRANSISTOR TP2 E-1 TP3 D-1 TP4 D-1 TP5 E-1 TP6 E-1 TEST POINT VR16000 C-1 VOLUME TP7 D-2 TP8 D-2 TP9 A-1 TP10 A-1 TP13 A-3 TP14 B-2 TP15 A-3 TP16 A-3 TP17 A-3 TP18 A-3 TP19 A-3 TP20 A-3 TP21 A-3 TP24 A-4 TP25 B-4 TP26 C-4 TP27 E-4 TP28 F-4 Q16043 F-1 Q16044 F-1 Q16051 G-2 Q16052 G-2 Q16053 G-2 Q16054 H-2 Q16101 B-4 Q16102 B-4 Q16122 G-4 Q16331 A-4 TP29 G-4 TP30 I-4 TP31 I-4 TP33 A-3 TP34 A-3 TP36 I-3 TP38� C-3 TP39 D-3 TP40 H-3 TP41 I-3 TP42 B-1 TP44 A-3 TP45 A-3 TP51 A-4 TP52 I-4 TP53 A-4 TP54 I-4 TP55 I-4 TP56 A-4 TP57 F-4 TP58 D-4 TPSOS8 A-3 TPSS1 C-4 TPVDA A-1 TPVe2 B-2 TPVSUS D-1 SS-BOARD (FOIL SIDE) TXNSS1RETC TH-58PZ880C SS-BOARD TXNSS1RETC TH-58PZ880C SS-BOARD TXNSS1RETC SS 113 TH-58PZ880C A B C D E F G H I 1 2 3 4 5 6 D310 D311 D313 Q321 D320 D321 D323 D324 D325 Q331 D131 D326 D132 Q141 Q339 R101 R102 R103 R104 R105 C191 C192 C194 R109 C195 SS11 SS12 C197 R300 R301 R302 R303 R110 R304 R305 D151 R306 D152 D153 R308 Q161 R309 R116 SS21 SS22 R310 R311 R312 R313 R314 R315 R316 SS33 SS34 R321 R322 R323 L103 R324 R325 R131 R326 R132 R327 R134 R135 R136 R137 R138 L301 R331 IC241 R333 R141 R142 R143 R338 Q191 R339 SS53 SS54 SS55 SS56 R150 D191 R151 D192 R152 R153 R154 R155 VR000 Q398 Q399 R159 R161 R162 R163 C001 C002 C003 C004 C005 C006 R171 R172 R173 C201 C202 C203 C204 C205 C011 C012 C206 C013 C014 C015 C016 C018 R181 R182 R183 C021 C022 C023 C024 C025 C026 R191 R192 R195 ZA001 ZA002 ZA003 R397 R398 T301 Q001 C041 Q002 C042 Q003 C043 Q004 C044 Q005 Q006 D001 C241 D002 C242 C243 D003 C251 C252 Q021 Q022 Q023 Q024 IC251 Q025 Q026 L398 L399 D021 D022 D023 C071 C072 C272 D032 Q041 Q042 Q043 Q044 C280 D040 R001 D041 C281 D042 R002 C282 R003 D043 C283 R004 D044 C284 R005 C091 C285 Q051 R006 C092 C286 Q052 C287 Q053 Q054 C288 C289 Q055 Q056 D050 D051 Q251 D052 D053 D054 D253 D255 R021 R022 R023 R024 R025 R026 R220 R221 L001 IC131 L002 L003 L004 L005 R031 L006 R032 L007 R033 R034 R230 R231 D271 L011 L012 L013 L014 Q280 L015 R041 L016 R042 L017 R043 R044 D280 R241 D281 R242 D282 D283 D284 R051 D285 D286 R052 R053 R054 R055 R056 R057 R058 L221 R059 R251 R252 R253 R254 R060 R255 R256 R257 R258 R259 R260 R261 C101 C102 C103 C301 C302 C303 IC301 IC302 IC303 R280 R281 R282 R283 C310 R284 C311 R285 C312 R286 C313 R287 R288 R289 L262 R290 R291 R292 R293 R294 C321 C322 C323 C324 C325 C131 C326 C327 C133 C328 C329 L271 C135 C330 C331 C332 Q101 Q102 Q301 D101 Q302 Q304 C151 C152 C153 C154 C157 D300 D301 IC151 D302 D304 PC191 TPVDA TPVSUS TPSOS8 TPVe TPSS1 Discharge Discharge PbF 58�� 65�� 1 CRNo.16 TNPA4605 SS DIP 58�� 65�� SSMM1 SSMM2 D G S S G D 1 3 1 10 1 2 14 15 1 2 14 15 10 1 1 3 1 10 11 20 13 1 13 1 13 1 13 1 O R D E R N O . S1 S2 PT P2 P1 C G E C G E C G E C G E C G E C G E A A K A A K A A K 1 13 1 13 C G E C G E C G E C G E 1 4 5 8 C G E C G E A A K A A K A A K C G E C G E C G E C G E A A K A A K A A K A A K A A K C G E C G E C G E C G E 8 1 16 9 A A K A A K A A K A A K 1 8 9 16 1 8 9 16 1 5 6 10 1 3 4 5 D G S G S D 1 13 1 8 9 16 1 13 Parts Location SS-BOARD (COMPONENT SIDE) IC16131 D-3 IC16151 E-2 IC16241 I-2 IC16251 D-2 IC16301 G-1 IC16302� H-1 IC16303� I-2 IC PC16191 I-3 PHOTO COUPLER Q16001 G-4 Q16002 G-4 Q16003 F-4 Q16004 F-4 TRANSISTOR TPSOS8 I-1 TPSS1 H-4 TPVDA I-1 TPVe H-2 TPVSUS F-1 TEST POINT VR16000 G-1 VOLUME Q16101 H-4 Q16102 H-4 Q16141 D-3 Q16161 C-3 Q16191 I-3 Q16251 D-2 Q16280 A-3 Q16301 I-2 Q16302 I-2 Q16304� I-2 Q16321 H-2 Q16331 I-3 Q16339 I-3 Q16398 D-2 Q16399 F-2 Q16005 F-4 Q16006 E-4 Q16021 C-4 Q16022 C-4 Q16023 B-4 Q16024 B-4 Q16025 B-4 Q16026 A-4 Q16041 E-1 Q16042 E-1 Q16043 D-1 Q16044 D-1 Q16051 D-2 Q16052 C-2 Q16053 C-2 Q16054 C-2 Q16055� F-2 Q16056 E-2 SS-BOARD (COMPONENT SIDE) TXNSS1RETC TH-58PZ880C SS-BOARD TXNSS1RETC TH-58PZ880C SS-BOARD TXNSS1RETC SS 114 TH-58PZ880C 11.15.SS2 和 SS3 电路板 A B C D E F G H I 1 2 3 4 5 6 SS52 SS02 TNPA4610 1 SS2 P b F 1 1 3 1 1 3 S E E R E V E R S E F O R O R D E R N O . 1 5 1 2 1 4 TNPA4611 1 SS3 C16262 SS57 C16269 C16272 C16267 C16266 ZA16011 C16268 SS03 C16263 C16270 C16261 C16264 ZA16010 C16265 C16271 SS35 P b F S E E R E V E R S E F O R O R D E R N O . 1 1 3 1 1 3 1 5 1 2 1 4 1 4 SS52 SS02 TNPA4610 1 SS2 P b F 1 3 1 1 3 O R D E R N O . 1 5 1 2 1 4 SS03 SS57 TNPA4611 1 SS3 C16261 C16267 C16262 C16266 C16268 C16269 C16263 C16264 ZA16011 C16270 C16265 C16272 C16271 ZA16010 SSMM4 SSMM5 SS35 PbF 1 3 1 O R D E R N O . 1 1 3 1 5 1 2 1 4 1 4 SS3-BOARD (FOIL SIDE) TXNSS31RETC SS3-BOARD (COMPONENT SIDE) TXNSS31RETC SS2-BOARD (FOIL SIDE) TXNSS21RETC SS2-BOARD (COMPONENT SIDE) TXNSS21RETC TH-58PZ880C SS2-BOARD TXNSS21RETC SS3-BOARD TXNSS31RETC TH-58PZ880C SS2-BOARD TXNSS21RETC SS3-BOARD TXNSS31RETC SS3 SS2 115 TH-58PZ880C 12 分解图和更换部件清单 12.1. 分解图和机械更换部件清单 12.1.1. 分解图 116 TH-58PZ880C 12.1.2. 风扇组件位置 117 TH-58PZ880C 12.1.3. 附件 118 TH-58PZ880C 12.1.4. 维修部品表 参考号 部件号 部件名称及说明 数量 备注 1 EAB850AL 低音音箱 (L) 1 2 EAB850AR 低音音箱 (R) 1 3 EAS10D85J 喇叭 (SQUAWKER) 2 EAS11KH06D 高音喇叭 2 ETX2MM706NGA P 线路板 1 4 K2CK3DH00028 AC 电源线 1 5 L6FAYYYH0050 风扇 (80MM) 2 6 L6FAYYYH0052 风扇 (92MM) 2 7 MD-58MF11EL1 PDP 屏 1 8 N2QAYB000242 遥控器 1 R6PND/2SP PANASONIC 干电池 （中文） 2 9 TBLX0080-1 台座本体 1 10 TBXA54202 电源开关 1 11 TBXA54301 操作按钮 1 12 TESD078 电源开关弹簧 1 13 TKGA5468 前面玻璃 1 14 TKKC5325 LED 透光板 1 15 TKKL5231-3 M8 垫片盖 4 16 TKKL5384 调整盖 (TUNER 顶部 ) 1 17 TKPB13101 AC 接入口盖 1 18 TKPB23701 SD 透光板 1 TKPB30401 TUNER 盖 1 19 TKRA52502A 后盖把手 2 20 TKUX16704 后盖 1 21 TMKG669 海绵 (FAN) 2 22 TMKG683 海绵 ( 前面玻璃 上下 ) 2 23 TMKG684 海绵 ( 前面玻璃 左右 ) 2 24 TMKG685 海绵 (FAN) 2 TMME289 线夹 2 25 TMMJ068 橡胶 (FAN) 12 TMMJ070 橡胶 (WOOFER BOX) 8 26 TMMJ082 FAN 角用防震橡胶 16 27 TMMX142 M8 垫片 4 28 TMWC024 电源开关托架 1 TMXX049 AC 电源线夹 2 29 TMZX5152 台座安装块 2 30 TPCC50701 包装箱本体 1 31 TPCC53101 包装箱底箱 1 32 TPD3DF0001 L 型加固条 2 33 TPDA1918 顶部衬垫 1 34 TPDA1919 底部衬垫 1 35 TPDA1920 台座衬垫 1 36 TPDF2177 附件衬板 1 37 TPDF2219 顶盖 1 38 TPDX0035 箱扣 （ROHS） 4 39 TPEH370 整机保护袋 1 40 TPEH405 整机保护片 2 41 TPEP023 附件袋 1 TQD3D118001 保修证 1 42 TQZK146-1 使用说明书 1 TSXL519 FFC(C10-C20/SU11-SD11) 2 TSXL555 FFC(C26-C36) 1 TSXL686 FFC(SC20-D20) 1 TSXL687 FFC(D31-C11) 1 TSXL688 FFC(D32-C21/D33-C22) 2 43 TXALK01RETC AC 接入口 1 TXANZ01RETC TUNER 组件 1 44 TXFBL01RETC 台座附件组件 1 45 TXFKY01RETCB 面框 1 46 TXFPE01RLTU 清洁布 1 TXJ/D3RETB 线束 (D3-A3) 1 TXJ/D5RLTD 线束 (D5-A5) 1 TXJ/K1RETB 线束 (K1-A1) 1 TXJ/P2RETU 线束 (SC2-P2) 1 TXJ/P6SKTD 线束 (P6-PA5) 1 TXJ/P7RETB 线束 (P7-A7) 1 TXJ/S1RETM 线束 (S1-SS34) 1 TXJD25RETJ 线束 (D25-P25) 1 TXJFA1RETB 线束 (PA33-FAN) 1 TXJFA2RETB 线束 (PA37-FAN) 1 TXJFA3RETB 线束 (PA35-FAN) 1 TXJFA4RETB 线束 (PA36-FAN) 1 TXJG51RETM 线束 (G51-A51/A53) 1 TXJGH1RETB 线束 (GH11-A11) 1 TXJGS2RFTB 线束 (GL02-GS02) 1 TXJGS9RETM 线束 (GS09-A9) 1 TXJH13RETC 线束 (H13-SP) 1 TXJH14RETC 线束 (H14-SP) 1 TXJP11RETU 线束 (P11-SS11) 1 TXJP12RETU 线束 (P12-SS12) 1 TXJPA6RETB 线束 (PA6-A6) 1 TXJPA8RETB 线束 (PA8-A8) 1 TXJS33RETJ 线束 (SS33-C33) 1 TXJS35RETU 线束 (SS35-C35) 1 TXJSWRRETC 线束 (SP-SPR/L) 2 TXN/D1RETC D 线路板 1 TXN/G1RLTC G 线路板 1 TXN/K1RFTC K 线路板 1 TXN/S1RLTC S 线路板 1 TXNC11RETC C1 线路板 1 TXNC21RETC C2 线路板 1 TXNC31RETC C3 线路板 1 TXNGH1RFTC GH 线路板 1 TXNGL1RFTC GL 线路板 1 TXNGS1RFTC GS 线路板 1 TXNPA1RETC PA 线路板 1 TXNSC1RETC SC 线路板 1 TXNSD1RETC SD 线路板 1 TXNSS1RETC SS 线路板 1 TXNSS21RETC SS2 线路板 1 TXNSS31RETC SS3 线路板 1 TXNSU1RETC SU 线路板 1 119 TH-58PZ880C 12.2. 更换部件清单 12.2.1. 更换部件清单注意事项 120 TH-58PZ880C 12.2.2. 电器部件更换清单 参考号 部件号 部件名称及说明 件数 备注 A1 K1KA12A00317 12P 连接接头 1 A3 K1KA14A00248 14P 连接接头 1 A5 K1KB31AA0140 31P 连接接头 1 A6 K1KA20AA0009 20P 连接接头 1 A7 K1KA11AA0715 11P 连接接头 1 A8 K1KA06AA0714 6P 连接接头 1 A9 K1KA06A00508 6P 连接接头 1 A11 K1KA30AA0009 30P 连接接头 1 A12 K1KY15AA0607 15P 连接接头 1 A13 K1KY23AA0607 23P 连接接头 1 A14 K1KY23AA0607 23P 连接接头 1 A51 K1KY20A00015 20P 连接接头 1 A53 K1KA02AA0150 2P 连接接头 1 C10 K1MN20BA0231 20P 连接接头 1 C11 K1MN68BA0266 68P 连接接头 1 C20 K1MN20BA0266 20P 连接接头 1 C21 K1MN68BA0266 68P 连接接头 1 C22 K1MN68BA0266 68P 连接接头 1 C26 K1MN80BA0076 80P 连接接头 1 C33 K1KA10B00218 10P 连接接头 1 C35 K1KA04BA0107 4P 连接接头 1 C36 K1MN80BA0076 80P 连接接头 1 C858 F1J1E104A227 C 0.10UF, Z, 25V 1 C859 F1J1E104A227 C 0.10UF, Z, 25V 1 C860 F2A1E101A599 E 100UF, 25V 1 C861 F1J1E104A227 C 0.10UF, Z, 25V 1 C862 F1J1E104A227 C 0.10UF, Z, 25V 1 C869 ECA1EHG471 E 470UF, 25V 1 C1102 F1J1A106A043 C 0.010UF, K, 10V 1 C1103 F1G1C104A116 C 0.10UF, K, 16V 1 C1104 F1G1C104A116 C 0.10UF, K, 16V 1 C1106 F1G1H270A731 C 27UF, 50V 1 C1107 F1G1H220A731 C 22UF, 50V 1 C1108 F1G1C104A116 C 0.10UF, K, 16V 1 C1109 F1H1A1050032 C 10UF, 50V 1 C1111 F1H1A1050032 C 10UF, 50V 1 C1112 F1G1C104A116 C 0.10UF, K, 16V 1 C1114 F1G1C104A116 C 0.10UF, K, 16V 1 C1117 F1G1C104A116 C 0.10UF, K, 16V 1 C1122 F1G1E103A123 C 0.010UF, K, 16V 1 C1123 F1H1A1050032 C 10UF, 50V 1 C2023 F1G1C104A116 C 0.10UF, K, 16V 1 C2048 F1G1C104A116 C 0.10UF, K, 16V 1 C2049 F1G1C104A116 C 0.10UF, K, 16V 1 C2050 F1G1C104A116 C 0.10UF, K, 16V 1 C2052 F1G1C104A116 C 0.10UF, K, 16V 1 C2053 F1G1C104A116 C 0.10UF, K, 16V 1 C2054 F1J1A106A043 C 0.010UF, K, 10V 1 C2055 F1G1H150A731 C 15UF, 50V 1 C2056 F1G1H150A731 C 15UF, 50V 1 C2057 F1G1C104A116 C 0.10UF, K, 16V 1 C2058 F1G1C104A116 C 0.10UF, K, 16V 1 C2059 F1J1A106A043 C 0.010UF, K, 10V 1 C2091 F1G1H220A731 C 22UF, 50V 1 C2092 F1G1H220A731 C 22UF, 50V 1 C2096 F1G1C104A116 C 0.10UF, K, 16V 1 C2098 F2G0J2210013 E 220UF 6.3V 1 C2099 F2G0J2210013 E 220UF 6.3V 1 C2100 F1G1C104A116 C 0.10UF, K, 16V 1 C2101 F1J1A106A043 C 0.010UF, K, 10V 1 C2102 F1G1C104A116 C 0.10UF, K, 16V 1 C2105 F1G1C104A116 C 0.10UF, K, 16V 1 C2106 F1G1C104A116 C 0.10UF, K, 16V 1 C2107 F2G0J470A019 E 47UF 6.3V 1 C2108 F2G0J470A019 E 47UF 6.3V 1 C2109 F1G1C104A116 C 0.10UF, K, 16V 1 C2110 F1G1C104A116 C 0.10UF, K, 16V 1 C2111 F1H0J2250008 C 2.2UF, K, 16V 1 C2112 F1J1A106A043 C 0.010UF, K, 10V 1 C2113 F1J1A106A043 C 0.010UF, K, 10V 1 C2114 F1G1C104A116 C 0.10UF, K, 16V 1 C2115 F1G1C104A116 C 0.10UF, K, 16V 1 C2116 F1G1H471A731 C 470UF, 50V 1 C2117 F1G1C104A116 C 0.10UF, K, 16V 1 C2118 F1H1A1050032 C 10UF, 50V 1 C2119 EEEHB1A221P C 220PF, J, 10V 1 C2120 F1G1H560A731 C 56UF, 50V 1 C2121 F1G1H560A731 C 56UF, 50V 1 C2124 F1G1C104A116 C 0.10UF, K, 16V 1 C2125 F1G1E103A123 C 0.010UF, K, 16V 1 C2126 F1J1A106A043 C 0.010UF, K, 10V 1 C2127 F1G1E103A123 C 0.010UF, K, 16V 1 C2128 F1G1E103A123 C 0.010UF, K, 16V 1 C2129 F1G1E103A123 C 0.010UF, K, 16V 1 C2131 ERJ2GEJ102X M 1K OHM J 1/4W 1 C2135 F1G1E103A123 C 0.010UF, K, 16V 1 C2136 F1G1E103A123 C 0.010UF, K, 16V 1 C2137 F1J1A106A043 C 0.010UF, K, 10V 1 C2138 F1G1C104A116 C 0.10UF, K, 16V 1 C2145 F1G1C104A116 C 0.10UF, K, 16V 1 C2146 F1G1C104A116 C 0.10UF, K, 16V 1 C2151 F1J1A106A043 C 0.010UF, K, 10V 1 C2174 F1H1A1050032 C 10UF, 50V 1 C2175 F2G0J470A019 E 47UF 6.3V 1 C2176 F1G1E103A123 C 0.010UF, K, 16V 1 C2179 F2G0J470A019 E 47UF 6.3V 1 C2180 F1H1A1050032 C 10UF, 50V 1 C2184 F1G1H102A730 C 1000UF, 50V 1 C2187 F1H0J2250008 C 2.2UF, K, 16V 1 C2188 F1G1H471A730 C 470UF, 50V 1 C2189 F1H1A1050032 C 10UF, 50V 1 C2191 F1J1A106A043 C 0.010UF, K, 10V 1 C2192 F2G0J470A019 E 47UF 6.3V 1 C2195 F1G1H102A730 C 1000UF, 50V 1 C2197 F1H1E333A129 C 0.033UF, 25V 1 C2198 F1H1E333A129 C 0.033UF, 25V 1 C2201 F1G1A473A053 C 0.47UF, 10V 1 C2202 F1H0J2250008 C 2.2UF, K, 16V 1 C2203 F1H1A1050032 C 10UF, 50V 1 C2204 F1H1C105A008 C 1UF, K, 16V 1 C2213 F1G1H102A730 C 1000UF, 50V 1 C2216 F1G1C104A116 C 0.10UF, K, 16V 1 C2244 F1G1C104A116 C 0.10UF, K, 16V 1 C2245 F1G1H102A730 C 1000UF, 50V 1 C2246 F1J1A106A043 C 0.010UF, K, 10V 1 C2251 F1J1A106A043 C 0.010UF, K, 10V 1 C2261 D0GDR00Z0002 M 0 OHM, 1/10W 1 C2262 D0GDR00Z0002 M 0 OHM, 1/10W 1 C2263 F1J1A106A043 C 0.010UF, K, 10V 1 C2264 F1J1A106A043 C 0.010UF, K, 10V 1 C2265 F1G1H101A731 C 100PF, K, 50V 1 C2266 F1G1H101A731 C 100PF, K, 50V 1 C2301 F1G1C104A116 C 0.10UF, K, 16V 1 C2302 F1G1C104A116 C 0.10UF, K, 16V 1 C2393 F1K1C1060004 C 0.010UF, 16V 1 C2394 F1J1H474A757 C 0.47UF, 50V 1 C2395 F1J1H474A757 C 0.47UF, 50V 1 C2400 F1G1C104A116 C 0.10UF, K, 16V 1 C2401 F1G1H181A731 C 180UF, 50V 1 C2402 F1G1C104A116 C 0.10UF, K, 16V 1 C2403 F2G1V220A020 E 22UF, 35V 1 C2404 F1G1H102A730 C 1000UF, 50V 1 C2407 F2H0J1010009 C 100UF, 6.3V 1 C2408 F1G1C104A116 C 0.10UF, K, 16V 1 C2409 F2G0J1020022 E 1100PF, J, 6.3V 1 C2410 F1H0J2250008 C 2.2UF, K, 16V 1 C2411 ECJ1VB1H104K C 0.1UF, K, 50V 1 C2412 F2G1H100A031 E 10UF, 50V 1 C2413 F1H1A1050032 C 10UF, 50V 1 C2414 F1G1C104A116 C 0.10UF, K, 16V 1 C2415 F1G1C104A116 C 0.10UF, K, 16V 1 C2416 F1H1H330A971 C 33UF, 50V 1 C2417 F1H1H330A971 C 33UF, 50V 1 C2418 F1G1E103A123 C 0.010UF, K, 16V 1 C2419 F1G1H101A731 C 100PF, K, 50V 1 C2420 F1G1C104A116 C 0.10UF, K, 16V 1 C2427 F1H1A1050032 C 10UF, 50V 1 C2430 ECJ3YB1E106M C 10 UF, K, 25V 1 C2431 F1G1H101A731 C 100PF, K, 50V 1 C2432 F1G1H471A731 C 470UF, 50V 1 参考号 部件号 部件名称及说明 件数 备注 121 TH-58PZ880C C2437 F1G1C104A116 C 0.10UF, K, 16V 1 C2511 F1H1C104A143 C 0.1UF, K, 16V 1 C2512 F1J1A106A043 C 0.010UF, K, 10V 1 C2515 F1H1H103A970 C 0.001UF, K, 50V 1 C2521 F1H1H103A970 C 0.001UF, K, 50V 1 C2525 ECJ1VB1H102K C 1000PF, K, 50V 1 C2601 F1G1A104A012 C 0.01UF, K, 10V 1 C2602 F1G1A104A012 C 0.01UF, K, 10V 1 C2603 F1G1C103A116 C 0.010UF, K, 16V 1 C2604 F1G1A104A012 C 0.01UF, K, 10V 1 C2605 F1G1C103A116 C 0.010UF, K, 16V 1 C2608 F1G1A104A012 C 0.01UF, K, 10V 1 C2609 F1G1C103A116 C 0.010UF, K, 16V 1 C2610 F1G1C103A116 C 0.010UF, K, 16V 1 C2611 F1G1C103A116 C 0.010UF, K, 16V 1 C2612 F1G1A104A012 C 0.01UF, K, 10V 1 C2613 F1G1H180A731 C 18UF, 50V 1 C2614 F1G1H120A731 C 12UF, 50V 1 C2615 F1G1A104A012 C 0.01UF, K, 10V 1 C2616 F1G1A104A012 C 0.01UF, K, 10V 1 C2617 F1G1A104A012 C 0.01UF, K, 10V 1 C2618 F1G1A104A012 C 0.01UF, K, 10V 1 C2619 F1G1A104A012 C 0.01UF, K, 10V 1 C2620 F1G1A104A012 C 0.01UF, K, 10V 1 C2621 F1G1A104A012 C 0.01UF, K, 10V 1 C2622 F1G1A104A012 C 0.01UF, K, 10V 1 C2623 F1G1A104A012 C 0.01UF, K, 10V 1 C2624 F1G1A104A012 C 0.01UF, K, 10V 1 C2625 F1G1A104A012 C 0.01UF, K, 10V 1 C2626 F1G1A104A012 C 0.01UF, K, 10V 1 C2627 F1G1A104A012 C 0.01UF, K, 10V 1 C2628 F1G1C103A116 C 0.010UF, K, 16V 1 C2629 F1G1A104A012 C 0.01UF, K, 10V 1 C2630 F1G1A104A012 C 0.01UF, K, 10V 1 C2631 F1G1C103A116 C 0.010UF, K, 16V 1 C2632 F1G1A104A012 C 0.01UF, K, 10V 1 C2633 F1G1C103A116 C 0.010UF, K, 16V 1 C2634 F1G1A104A012 C 0.01UF, K, 10V 1 C2635 ECJ1VB1H473K C 0.047UF, K, 50V 1 C2637 EEEHB0G221P C 220PF, J, 4V 1 C2638 EEEHB0G470R C 47PF, J, 4V 1 C2639 F2G1C2200036 E 22UF, 16V 1 C2640 F2G1C2200036 E 22UF, 16V 1 C2641 F2G1C2200036 E 22UF, 16V 1 C2642 F1G1A104A012 C 0.01UF, K, 10V 1 C2643 F1G1C103A116 C 0.010UF, K, 16V 1 C2644 F1G1C103A116 C 0.010UF, K, 16V 1 C2645 F1G1A104A012 C 0.01UF, K, 10V 1 C2646 F1G1A104A012 C 0.01UF, K, 10V 1 C2647 F1G1A104A012 C 0.01UF, K, 10V 1 C2648 F1G1A104A012 C 0.01UF, K, 10V 1 C2649 F1G1A104A012 C 0.01UF, K, 10V 1 C2650 F2G1C2200036 E 22UF, 16V 1 C2651 F1G1H100A565 C 100PF, K, 50V 1 C2652 ECGRL0G680ER C 68PF, J, 4V 1 C2657 F1G1C103A116 C 0.010UF, K, 16V 1 C2658 ECJ2VB1C104K C 0.1UF, K, 16V 1 C2661 F1H1A1050032 C 10UF, 50V 1 C3099 F2G1C220A022 E 22UF, 16V 1 C3104 ECJ1VB1H104K C 0.1UF, K, 50V 1 C3107 F1H1H470A971 C 47UF, K. 50V 1 C3109 F1G1H222A730 C 2200UF, 50V 1 C3110 F2G1C1010034 E 100PF, J, 16V 1 C3115 F1G1H222A730 C 2200UF, 50V 1 C3116 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3117 F1H1H561A971 C 560UF, 50V 1 C3122 F1H1A1050032 C 10UF, 50V 1 C3123 F1H1A1050032 C 10UF, 50V 1 C3124 F1H1A1050032 C 10UF, 50V 1 C3128 F1H1H561A971 C 560UF, 50V 1 C3138 F1H1H561A971 C 560UF, 50V 1 C3139 F1H1H561A971 C 560UF, 50V 1 C3141 F1H1H561A971 C 560UF, 50V 1 C3142 F1H1H561A971 C 560UF, 50V 1 C3144 F1H1H561A971 C 560UF, 50V 1 C3145 F1H1H561A971 C 560UF, 50V 1 C3152 ECJ1VB1C105K C 0.01UF, K, 16V 1 参考号 部件号 部件名称及说明 件数 备注 C3154 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3223 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3225 ECJ1VB1H104K C 0.1UF, K, 50V 1 C3226 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3245 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3246 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3247 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3248 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3249 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3250 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3253 F1H1A1050032 C 10UF, 50V 1 C3258 F1H1A1050032 C 10UF, 50V 1 C3259 F1H1A1050032 C 10UF, 50V 1 C3260 F1H1A1050032 C 10UF, 50V 1 C3261 ECJ1VB1H104K C 0.1UF, K, 50V 1 C3262 F1H1A1050032 C 10UF, 50V 1 C3263 F1H1A1050032 C 10UF, 50V 1 C3264 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3265 EEEHB1C221UP C 220PF, J, 16V 1 C3266 ECJ1VB1H104K C 0.1UF, K, 50V 1 C3267 F1H1A1050032 C 10UF, 50V 1 C3268 F1H1A1050032 C 10UF, 50V 1 C3269 F1H1A1050032 C 10UF, 50V 1 C3270 F1H1A1050032 C 10UF, 50V 1 C3271 F1H1A1050032 C 10UF, 50V 1 C3275 F1H1A1050032 C 10UF, 50V 1 C3276 F1H1A1050032 C 10UF, 50V 1 C3277 ECJ1VB1H104K C 0.1UF, K, 50V 1 C3278 F2G1A221A149 E 220UF, 10V 1 C3281 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3297 F1J1A106A043 C 0.010UF, K, 10V 1 C3298 F1J1A106A043 C 0.010UF, K, 10V 1 C3299 F1J1A106A043 C 0.010UF, K, 10V 1 C3300 F1J1A106A043 C 0.010UF, K, 10V 1 C3302 EEEHB1C221UP C 220PF, J, 16V 1 C3308 F2G1C100A022 C 10UF J 16V 1 C3310 ECJ1VB1H104K C 0.1UF, K, 50V 1 C3311 ECJ1VB1H104K C 0.1UF, K, 50V 1 C3319 ECJ1VB1H104K C 0.1UF, K, 50V 1 C3320 F2G1C470A022 E 47UF, 16V 1 C3323 F1H1A1050032 C 10UF, 50V 1 C3701 ECJ2XC1H561K C 560PF, K, 50V 1 C3703 ECJ2XC1H561K C 560PF, K, 50V 1 C3711 ECJ2VF1H333Z C 0.033UF, Z, 50V 1 C3712 ECJ2VF1H333Z C 0.033UF, Z, 50V 1 C3750 F1J1H102A721 C 1000UF, 50V 1 C3801 F1G1C104A116 C 0.10UF, K, 16V 1 C3802 F1G1C104A116 C 0.10UF, K, 16V 1 C3803 F1H1A1050032 C 10UF, 50V 1 C3804 F1G1C104A116 C 0.10UF, K, 16V 1 C3806 F1G1C104A116 C 0.10UF, K, 16V 1 C3807 F1G1C104A116 C 0.10UF, K, 16V 1 C3808 F1G1C104A116 C 0.10UF, K, 16V 1 C3809 F1G1C104A116 C 0.10UF, K, 16V 1 C3810 F1G1C104A116 C 0.10UF, K, 16V 1 C3811 F1G1C104A116 C 0.10UF, K, 16V 1 C3812 F1G1C104A116 C 0.10UF, K, 16V 1 C3813 F1J0J106A004 C 0.010UF, K, 16V 1 C3814 F1G1C104A116 C 0.10UF, K, 16V 1 C3815 ECJ0EB1C103K C 0.010UF, K, 16V 1 C3816 ECJ0EB1C103K C 0.010UF, K, 16V 1 C3817 ECJ0EB1C103K C 0.010UF, K, 16V 1 C3818 ECJ0EB1C103K C 0.010UF, K, 16V 1 C3819 ECJ0EB1C103K C 0.010UF, K, 16V 1 C3820 ECJ0EB1C103K C 0.010UF, K, 16V 1 C3823 F1G1C104A116 C 0.10UF, K, 16V 1 C3827 F1J1A475A039 C 4.7UF, K, 10V 1 C3829 F1H1A1050032 C 10UF, 50V 1 C4005 F1G1C104A081 C 0.10UF, K, 16V 1 C4006 F1G1C104A081 C 0.10UF, K, 16V 1 C4008 F1G1C104A081 C 0.10UF, K, 16V 1 C4010 F1G1C104A081 C 0.10UF, K, 16V 1 C4011 F1G1C104A081 C 0.10UF, K, 16V 1 C4013 F1G1C104A081 C 0.10UF, K, 16V 1 C4014 F1G1C104A081 C 0.10UF, K, 16V 1 C4015 F1G1C104A081 C 0.10UF, K, 16V 1 C4016 F1J1C475A170 C 4.7UF, K, 16V 1 参考号 部件号 部件名称及说明 件数 备注 122 TH-58PZ880C C4018 F1G1C104A081 C 0.10UF, K, 16V 1 C4019 F1J1H474A757 C 0.47UF, 50V 1 C4020 F1G1C104A081 C 0.10UF, K, 16V 1 C4021 F1G1C104A081 C 0.10UF, K, 16V 1 C4022 F1J1H474A757 C 0.47UF, 50V 1 C4023 F1G1C104A081 C 0.10UF, K, 16V 1 C4024 F1G1C104A081 C 0.10UF, K, 16V 1 C4025 F1G1C104A081 C 0.10UF, K, 16V 1 C4027 F1G1C104A081 C 0.10UF, K, 16V 1 C4028 F1G1C104A081 C 0.10UF, K, 16V 1 C4030 F1G1C104A081 C 0.10UF, K, 16V 1 C4032 F1G1C104A081 C 0.10UF, K, 16V 1 C4033 F1G1C104A081 C 0.10UF, K, 16V 1 C4034 F1G1C104A081 C 0.10UF, K, 16V 1 C4035 F1H1A1050032 C 10UF, 50V 1 C4036 F1H1A1050032 C 10UF, 50V 1 C4038 F1G1C104A081 C 0.10UF, K, 16V 1 C4039 F1G1E103A123 C 0.010UF, K, 16V 1 C4040 F1G1H150A731 C 15UF, 50V 1 C4045 F1G1C104A081 C 0.10UF, K, 16V 1 C4047 F1H1A1050032 C 10UF, 50V 1 C4049 F1G1C104A081 C 0.10UF, K, 16V 1 C4050 F1H1A1050032 C 10UF, 50V 1 C4051 F1G1C104A081 C 0.10UF, K, 16V 1 C4052 F1G1C104A081 C 0.10UF, K, 16V 1 C4053 F1G1C104A081 C 0.10UF, K, 16V 1 C4054 F1K1C1060004 C 0.010UF, 16V 1 C4055 F1G1C104A116 C 0.10UF, K, 16V 1 C4056 F2G1C470A022 E 47UF, 16V 1 C4101 F1G1C104A116 C 0.10UF, K, 16V 1 C4255 F1G1C104A116 C 0.10UF, K, 16V 1 C4256 F1G1C104A116 C 0.10UF, K, 16V 1 C4257 F1G1C104A116 C 0.10UF, K, 16V 1 C4258 F1G1C104A116 C 0.10UF, K, 16V 1 C4259 F1G1C104A116 C 0.10UF, K, 16V 1 C4260 F1G1C104A116 C 0.10UF, K, 16V 1 C4261 F1G1C104A116 C 0.10UF, K, 16V 1 C4262 F1G1C104A116 C 0.10UF, K, 16V 1 C4263 F1G1C104A116 C 0.10UF, K, 16V 1 C4264 F1G1C104A116 C 0.10UF, K, 16V 1 C4265 F1G1C104A116 C 0.10UF, K, 16V 1 C4266 F1H0J1050012 C 1UF, K, 16V 1 C4267 F1G1H1020008 C 1000UF, 50V 1 C4268 F1G1H1020008 C 1000UF, 50V 1 C4270 F1G1C104A116 C 0.10UF, K, 16V 1 C4271 F1G1C104A116 C 0.10UF, K, 16V 1 C4272 F1G1C104A116 C 0.10UF, K, 16V 1 C4273 F1G1C104A116 C 0.10UF, K, 16V 1 C4274 F1G1C104A116 C 0.10UF, K, 16V 1 C4275 F1G1C104A116 C 0.10UF, K, 16V 1 C4276 F1G1C104A116 C 0.10UF, K, 16V 1 C4277 F1G1C104A116 C 0.10UF, K, 16V 1 C4278 F1G1C104A116 C 0.10UF, K, 16V 1 C4279 F1G1C104A116 C 0.10UF, K, 16V 1 C4280 F1G1C104A116 C 0.10UF, K, 16V 1 C4281 F1G1C104A116 C 0.10UF, K, 16V 1 C4282 F1G1C104A116 C 0.10UF, K, 16V 1 C4283 F1G1C104A116 C 0.10UF, K, 16V 1 C4284 F1G1C104A116 C 0.10UF, K, 16V 1 C4285 F1G1C104A116 C 0.10UF, K, 16V 1 C4286 F1G1C104A116 C 0.10UF, K, 16V 1 C4287 F1G1C104A116 C 0.10UF, K, 16V 1 C4288 F1G1C104A116 C 0.10UF, K, 16V 1 C4289 F1G1C104A116 C 0.10UF, K, 16V 1 C4290 F1G1H1020008 C 1000UF, 50V 1 C4291 F1G1C104A116 C 0.10UF, K, 16V 1 C4292 F1G1H1020008 C 1000UF, 50V 1 C4293 F1G1C104A116 C 0.10UF, K, 16V 1 C4294 F1G1H1020008 C 1000UF, 50V 1 C4295 F1G1C104A116 C 0.10UF, K, 16V 1 C4296 F1G1H1020008 C 1000UF, 50V 1 C4297 F1G1C104A116 C 0.10UF, K, 16V 1 C4298 F1G1H1020008 C 1000UF, 50V 1 C4299 F1G1C104A116 C 0.10UF, K, 16V 1 C4300 F2G0J470A019 E 47UF 6.3V 1 C4301 F1G1C104A116 C 0.10UF, K, 16V 1 C4302 F1J0J106A020 C 0.010UF, K, 16V 1 参考号 部件号 部件名称及说明 件数 备注 C4313 F1J0J106A020 C 0.010UF, K, 16V 1 C4314 F1G1C104A116 C 0.10UF, K, 16V 1 C4315 F1G1C104A116 C 0.10UF, K, 16V 1 C4316 F1G1C104A116 C 0.10UF, K, 16V 1 C4317 F1J0J106A020 C 0.010UF, K, 16V 1 C4318 F1G1C104A116 C 0.10UF, K, 16V 1 C4319 F1G1C104A116 C 0.10UF, K, 16V 1 C4320 F1G1C104A116 C 0.10UF, K, 16V 1 C4321 F1G1C104A116 C 0.10UF, K, 16V 1 C4323 F1G1C104A116 C 0.10UF, K, 16V 1 C4325 F1J0J106A020 C 0.010UF, K, 16V 1 C4326 F1J0J106A020 C 0.010UF, K, 16V 1 C4328 F1G1C104A116 C 0.10UF, K, 16V 1 C4329 F1G1C104A116 C 0.10UF, K, 16V 1 C4500 F1G1C104A116 C 0.10UF, K, 16V 1 C4501 F1G1C104A116 C 0.10UF, K, 16V 1 C4502 F1G1C104A116 C 0.10UF, K, 16V 1 C4503 F1G1C104A116 C 0.10UF, K, 16V 1 C4510 F1G1C104A116 C 0.10UF, K, 16V 1 C4511 F1G1C104A116 C 0.10UF, K, 16V 1 C4513 F1G1C104A081 C 0.10UF, K, 16V 1 C4514 F1G1C104A081 C 0.10UF, K, 16V 1 C4517 F1G1C104A081 C 0.10UF, K, 16V 1 C4520 F1J1A106A043 C 0.010UF, K, 10V 1 C4521 F1G1C104A081 C 0.10UF, K, 16V 1 C4522 F1G1C104A116 C 0.10UF, K, 16V 1 C4523 F1G1C104A081 C 0.10UF, K, 16V 1 C4524 F1G1C104A116 C 0.10UF, K, 16V 1 C4525 F1G1C104A081 C 0.10UF, K, 16V 1 C4533 F1G1H680A731 C 68UF, 50V 1 C4534 F1G1C104A116 C 0.10UF, K, 16V 1 C4535 F1G1C104A116 C 0.10UF, K, 16V 1 C4547 F1G1C104A116 C 0.10UF, K, 16V 1 C4548 F1G1C104A116 C 0.10UF, K, 16V 1 C4549 F1G1C104A116 C 0.10UF, K, 16V 1 C4550 F1G1C104A116 C 0.10UF, K, 16V 1 C4551 F1G1C104A116 C 0.10UF, K, 16V 1 C4552 F1G1C104A116 C 0.10UF, K, 16V 1 C4553 F1G1H102A730 C 1000UF, 50V 1 C4554 F2G1C470A022 E 47UF, 16V 1 C4555 F1J1A106A043 C 0.010UF, K, 10V 1 C4574 F1G1E103A123 C 0.010UF, K, 16V 1 C4575 F1H1A1050032 C 10UF, 50V 1 C4580 F1G1E103A123 C 0.010UF, K, 16V 1 C4585 F1H1A1050032 C 10UF, 50V 1 C4595 F1G1E103A123 C 0.010UF, K, 16V 1 C4596 F1G1C104A116 C 0.10UF, K, 16V 1 C4598 F1H1A1050032 C 10UF, 50V 1 C4599 F2G0J470A019 E 47UF 6.3V 1 C4600 F1G1C104A116 C 0.10UF, K, 16V 1 C4601 F2G0J470A019 E 47UF 6.3V 1 C4602 F1G1C104A116 C 0.10UF, K, 16V 1 C4603 F1H0J2250008 C 2.2UF, K, 16V 1 C4604 F1G1H471A730 C 470UF, 50V 1 C4605 F1H1A1050032 C 10UF, 50V 1 C4606 F1J1A475A039 C 4.7UF, K, 10V 1 C4607 F1J1A475A039 C 4.7UF, K, 10V 1 C4608 F1G1C104A116 C 0.10UF, K, 16V 1 C4609 F1G1C104A116 C 0.10UF, K, 16V 1 C4610 F1G1C104A116 C 0.10UF, K, 16V 1 C4611 F1G1C104A116 C 0.10UF, K, 16V 1 C4612 F1G1E103A123 C 0.010UF, K, 16V 1 C4613 F1H1A1050032 C 10UF, 50V 1 C4614 F1G1C104A116 C 0.10UF, K, 16V 1 C4615 F1G1C104A116 C 0.10UF, K, 16V 1 C4616 F1J1A475A039 C 4.7UF, K, 10V 1 C4617 F1J0G2260001 C 0.001UF, 6.3V 1 C4619 F1G1C104A116 C 0.10UF, K, 16V 1 C4624 F1G1C104A116 C 0.10UF, K, 16V 1 C4625 F1G1C104A116 C 0.10UF, K, 16V 1 C4628 F1G1C104A116 C 0.10UF, K, 16V 1 C4630 F1G1C104A116 C 0.10UF, K, 16V 1 C4632 F1H1A1050032 C 10UF, 50V 1 C4634 F1H1A1050032 C 10UF, 50V 1 C4636 F1H1A1050032 C 10UF, 50V 1 C4638 F1H1A1050032 C 10UF, 50V 1 C4640 F1H1A1050032 C 10UF, 50V 1 参考号 部件号 部件名称及说明 件数 备注 123 TH-58PZ880C C4642 F1H1A1050032 C 10UF, 50V 1 C4643 F1G1C104A116 C 0.10UF, K, 16V 1 C4644 F1G1C104A116 C 0.10UF, K, 16V 1 C4645 F1G1C104A116 C 0.10UF, K, 16V 1 C4646 F1G1C104A116 C 0.10UF, K, 16V 1 C4647 F1K1C1060004 C 0.010UF, 16V 1 C5001 F1G1C104A116 C 0.10UF, K, 16V 1 C5002 F1G1C104A116 C 0.10UF, K, 16V 1 C5003 F1G1C104A116 C 0.10UF, K, 16V 1 C5004 F1G1C104A116 C 0.10UF, K, 16V 1 C5005 F1H0J1050012 C 1UF, K, 16V 1 C5006 F1H0J1050012 C 1UF, K, 16V 1 C5007 F1J1A106A043 C 0.010UF, K, 10V 1 C5008 F1G1C104A116 C 0.10UF, K, 16V 1 C5009 F1G1C104A116 C 0.10UF, K, 16V 1 C5010 F1G1C104A116 C 0.10UF, K, 16V 1 C5011 F1G1C104A116 C 0.10UF, K, 16V 1 C5012 F1G1C104A116 C 0.10UF, K, 16V 1 C5013 F1J1A106A043 C 0.010UF, K, 10V 1 C5014 F1G1C104A116 C 0.10UF, K, 16V 1 C5015 F1G1C104A116 C 0.10UF, K, 16V 1 C5016 F1J1A106A043 C 0.010UF, K, 10V 1 C5017 F1G1C104A116 C 0.10UF, K, 16V 1 C5018 F1G1C104A116 C 0.10UF, K, 16V 1 C5019 F1G1C104A116 C 0.10UF, K, 16V 1 C5020 F1G1C104A116 C 0.10UF, K, 16V 1 C5021 F1H0J1050012 C 1UF, K, 16V 1 C5022 F1H0J1050012 C 1UF, K, 16V 1 C5023 F1H0J1050012 C 1UF, K, 16V 1 C5024 F1H0J1050012 C 1UF, K, 16V 1 C5025 F1J1A106A043 C 0.010UF, K, 10V 1 C5026 F1J1A106A043 C 0.010UF, K, 10V 1 C5027 F1G1C104A116 C 0.10UF, K, 16V 1 C5028 F1G1C104A116 C 0.10UF, K, 16V 1 C5029 F1G1C104A116 C 0.10UF, K, 16V 1 C5030 F1G1C104A116 C 0.10UF, K, 16V 1 C5031 F1G1C104A116 C 0.10UF, K, 16V 1 C5032 F1G1C104A116 C 0.10UF, K, 16V 1 C5033 F1H0J1050012 C 1UF, K, 16V 1 C5034 F1H0J1050012 C 1UF, K, 16V 1 C5035 F1H0J1050012 C 1UF, K, 16V 1 C5036 F1H0J1050012 C 1UF, K, 16V 1 C5037 F1H0J1050012 C 1UF, K, 16V 1 C5038 F1H0J1050012 C 1UF, K, 16V 1 C5039 F1J1A106A043 C 0.010UF, K, 10V 1 C5040 F1J1A106A043 C 0.010UF, K, 10V 1 C5041 F1J1A106A043 C 0.010UF, K, 10V 1 C5042 F1G1C104A116 C 0.10UF, K, 16V 1 C5043 F1G1C104A116 C 0.10UF, K, 16V 1 C5044 F1H0J1050012 C 1UF, K, 16V 1 C5045 F1H0J1050012 C 1UF, K, 16V 1 C5046 F1J1A106A043 C 0.010UF, K, 10V 1 C5047 F1H0J1050012 C 1UF, K, 16V 1 C5048 F1H0J2250008 C 2.2UF, K, 16V 1 C5049 F1G1C104A116 C 0.10UF, K, 16V 1 C5050 F1H0J1050012 C 1UF, K, 16V 1 C5051 F1J1A106A043 C 0.010UF, K, 10V 1 C5052 F1J1A106A043 C 0.010UF, K, 10V 1 C5053 F1G1C104A116 C 0.10UF, K, 16V 1 C5054 F1G1C104A116 C 0.10UF, K, 16V 1 C5055 F1G1C104A116 C 0.10UF, K, 16V 1 C5056 F1G1C104A116 C 0.10UF, K, 16V 1 C5057 F1G1C104A116 C 0.10UF, K, 16V 1 C5058 ECGRL0G680ER C 68PF, J, 4V 1 C5059 F1G1C104A116 C 0.10UF, K, 16V 1 C5060 F1G1C104A116 C 0.10UF, K, 16V 1 C5061 F1G1C104A116 C 0.10UF, K, 16V 1 C5062 F1G1C104A116 C 0.10UF, K, 16V 1 C5063 F1G1C104A116 C 0.10UF, K, 16V 1 C5064 F1G1C104A116 C 0.10UF, K, 16V 1 C5065 F1G1C104A116 C 0.10UF, K, 16V 1 C5066 F1G1C104A116 C 0.10UF, K, 16V 1 C5067 F1G1C104A116 C 0.10UF, K, 16V 1 C5072 F1G1C104A116 C 0.10UF, K, 16V 1 C5073 F1H0J2250008 C 2.2UF, K, 16V 1 C5200 F1H1H180A971 C 18PF, K, 50V 1 C5201 F1H1H180A971 C 18PF, K, 50V 1 参考号 部件号 部件名称及说明 件数 备注 C5301 F1H1A1050032 C 10UF, 50V 1 C5302 F1G1C104A081 C 0.10UF, K, 16V 1 C5303 F1H1A1050032 C 10UF, 50V 1 C5311 ECJ3YB1E106M C 10 UF, K, 25V 1 C5312 ECJ3YB1E106M C 10 UF, K, 25V 1 C5316 F1G1A473A053 C 0.47UF, 10V 1 C5317 F1H1A1050032 C 10UF, 50V 1 C5320 F1H1E104A129 C 0.1UF, 25V 1 C5321 F1G1E103A123 C 0.010UF, K, 16V 1 C5322 F1J1A475A039 C 4.7UF, K, 10V 1 C5323 F1G1H471A730 C 470UF, 50V 1 C5324 F1G1H221A730 C 220UF, 50V 1 C5325 F1G1E103A123 C 0.010UF, K, 16V 1 C5326 F1G1C104A116 C 0.10UF, K, 16V 1 C5327 F1G1C104A116 C 0.10UF, K, 16V 1 C5328 ECGRL0G680ER C 68PF, J, 4V 1 C5329 ECGRL0G680ER C 68PF, J, 4V 1 C5341 F1G1C104A116 C 0.10UF, K, 16V 1 C5395 F1J1E105A171 C 1 UF 25V 1 C5396 EEEHB1E470P C 47PF, J, 25V 1 C5397 ECJ3YB1E106M C 10 UF, K, 25V 1 C5399 ECJ3YB1E106M C 10 UF, K, 25V 1 C5432 ECJ3YB1E106M C 10 UF, K, 25V 1 C5433 F1J1A106A043 C 0.010UF, K, 10V 1 C5434 F1J1A106A043 C 0.010UF, K, 10V 1 C5435 F1G1E103A123 C 0.010UF, K, 16V 1 C5436 F1H1E104A129 C 0.1UF, 25V 1 C5441 F1H1E104A129 C 0.1UF, 25V 1 C5442 F1H1H682A970 C 6800PF, K, 50V 1 C5443 F2H0J2210005 C 220UF, 6.3V 1 C5452 ECJ3YB1E106M C 10 UF, K, 25V 1 C5453 F1J1A106A043 C 0.010UF, K, 10V 1 C5454 F1J1A106A043 C 0.010UF, K, 10V 1 C5455 F1G1E103A123 C 0.010UF, K, 16V 1 C5456 F1H1E104A129 C 0.1UF, 25V 1 C5461 F1H1E104A129 C 0.1UF, 25V 1 C5462 F1H1H392A970 C 3900PF, K, 50V 1 C5463 F1G1C104A116 C 0.10UF, K, 16V 1 C5464 F1J1A106A043 C 0.010UF, K, 10V 1 C5465 F1J1A106A043 C 0.010UF, K, 10V 1 C5466 F1J1A106A043 C 0.010UF, K, 10V 1 C5467 F1G1C104A081 C 0.10UF, K, 16V 1 C5468 F2G0G101A007 E 100UF 6.3V 1 C5469 F2G0G101A007 E 100UF 6.3V 1 C5470 F1J0J106A020 C 0.010UF, K, 16V 1 C5471 F1J0J106A020 C 0.010UF, K, 16V 1 C5472 F1G1C104A116 C 0.10UF, K, 16V 1 C5473 F2H0J1010009 C 100UF, 6.3V 1 C5474 F1G1C104A116 C 0.10UF, K, 16V 1 C5475 F2G1C1010034 E 100PF, J, 16V 1 C5476 F1G1C104A116 C 0.10UF, K, 16V 1 C5477 F2H0J1010009 C 100UF, 6.3V 1 C5478 F1G1C104A116 C 0.10UF, K, 16V 1 C5501 F2A1C471A537 E 470UF, 16V 1 C5502 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5503 F2A1C471A537 E 470UF, 16V 1 C5504 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5505 F2A1E102A220 E 1000UF, 25V 1 C5506 ECJ2VB1E104K C 0.1UF, K, 25V 1 C5521 F1G1C104A116 C 0.10UF, K, 16V 1 C5522 F1G1C104A116 C 0.10UF, K, 16V 1 C5531 F1H1A1050032 C 10UF, 50V 1 C5533 F1J1A106A043 C 0.010UF, K, 10V 1 C5541 F1H1E104A129 C 0.1UF, 25V 1 C5542 F1H1A1050032 C 10UF, 50V 1 C5543 F1G1H471A731 C 470UF, 50V 1 C5544 F1J0J106A020 C 0.010UF, K, 16V 1 C5545 F1G1A104A012 C 0.01UF, K, 10V 1 C5546 F2G0G101A007 E 100UF 6.3V 1 C5595 F2G1C2200036 E 22UF, 16V 1 C5600 F1H1A1050032 C 10UF, 50V 1 C5601 F1G1C104A116 C 0.10UF, K, 16V 1 C5602 ECGRL0G680ER C 68PF, J, 4V 1 C5603 F1G1E103A123 C 0.010UF, K, 16V 1 C5604 F1G1C223A116 C 0.022UF, K, 16V 1 C5605 F1J1A475A039 C 4.7UF, K, 10V 1 C5606 F1G1H471A730 C 470UF, 50V 1 参考号 部件号 部件名称及说明 件数 备注 124 TH-58PZ880C C5607 F1G1H221A731 C 220UF, 50V 1 C5608 F1G1C104A116 C 0.10UF, K, 16V 1 C5611 ECJ3YB1E106M C 10 UF, K, 25V 1 C5612 ECJ3YB1E106M C 10 UF, K, 25V 1 C5615 ECJ3YB1E106M C 10 UF, K, 25V 1 C5616 F1G1C223A116 C 0.022UF, K, 16V 1 C5617 F1H1A1050032 C 10UF, 50V 1 C5618 ECJ3YB1E106M C 10 UF, K, 25V 1 C5619 ECJ3YB1E106M C 10 UF, K, 25V 1 C5620 F1H1E104A129 C 0.1UF, 25V 1 C5621 F1G1A473A053 C 0.47UF, 10V 1 C5622 F1J1A475A039 C 4.7UF, K, 10V 1 C5623 F1G1H221A730 C 220UF, 50V 1 C5624 F1G1H221A730 C 220UF, 50V 1 C5625 F1G1E103A123 C 0.010UF, K, 16V 1 C5626 F1G1C104A116 C 0.10UF, K, 16V 1 C5627 F1G1C104A116 C 0.10UF, K, 16V 1 C5628 ECGRL0G680ER C 68PF, J, 4V 1 C5629 ECGRL0G680ER C 68PF, J, 4V 1 C5631 EEEHB1E470P C 47PF, J, 25V 1 C5632 F1J1E105A171 C 1 UF 25V 1 C5636 F1G1C104A116 C 0.10UF, K, 16V 1 C5637 F1G1C104A116 C 0.10UF, K, 16V 1 C5638 F1G1C104A116 C 0.10UF, K, 16V 1 C5639 F1G1C104A116 C 0.10UF, K, 16V 1 C5640 F1G1C104A116 C 0.10UF, K, 16V 1 C5641 F1G1C104A116 C 0.10UF, K, 16V 1 C5642 ECJ3YB1E106M C 10 UF, K, 25V 1 C5643 F1H1E104A129 C 0.1UF, 25V 1 C5644 F1G1E103A123 C 0.010UF, K, 16V 1 C5661 F1G1E103A123 C 0.010UF, K, 16V 1 C5662 F1G1A473A053 C 0.47UF, 10V 1 C5663 F1G1E103A123 C 0.010UF, K, 16V 1 C5688 F1H1A225A051 C 22UF, 50V 1 C5691 EEEHB1C220UR C 22PF, J, 16V 1 C5695 F2G0J470A019 E 47UF 6.3V 1 C5730 F1G1E103A123 C 0.010UF, K, 16V 1 C5731 F2G0J470A019 E 47UF 6.3V 1 C7700 F1H1C104A143 C 0.1UF, K, 16V 1 C7701 F1H1A225A051 C 22UF, 50V 1 C7702 F2G0G101A007 E 100UF 6.3V 1 C7704 F1H1A1050032 C 10UF, 50V 1 C7705 F1H1C104A143 C 0.1UF, K, 16V 1 C7706 F1H1A1050032 C 10UF, 50V 1 C7708 F1H1A1050032 C 10UF, 50V 1 C7709 F1H1A225A051 C 22UF, 50V 1 C7710 F1J0J106A020 C 0.010UF, K, 16V 1 C7711 F1J0J106A020 C 0.010UF, K, 16V 1 C7712 F1H1C104A143 C 0.1UF, K, 16V 1 C7713 F1H1H150A971 C 15PF, K, 50V 1 C7714 F1H1C104A143 C 0.1UF, K, 16V 1 C7715 F1H1H220A971 C 22PF, K, 50V 1 C7716 F1J0J106A020 C 0.010UF, K, 16V 1 C7717 F1H1C104A143 C 0.1UF, K, 16V 1 C7718 F1J0J106A020 C 0.010UF, K, 16V 1 C7719 F1H1C104A143 C 0.1UF, K, 16V 1 C7720 F1H1C104A143 C 0.1UF, K, 16V 1 C7721 F1J0J106A020 C 0.010UF, K, 16V 1 C7724 F1H1H150A971 C 15PF, K, 50V 1 C7725 F1H1H150A971 C 15PF, K, 50V 1 C7729 F1H1H150A971 C 15PF, K, 50V 1 C7731 F1H1H150A971 C 15PF, K, 50V 1 C7732 F1H1C104A144 C 0.1UF, K, 16V 1 C7733 F1H1C104A144 C 0.1UF, K, 16V 1 C7736 F1H1C104A144 C 0.1UF, K, 16V 1 C7737 F1J0J106A020 C 0.010UF, K, 16V 1 C7738 F2G0G101A007 E 100UF 6.3V 1 C7742 F1J0J106A020 C 0.010UF, K, 16V 1 C8001 F1G1A104A012 C 0.01UF, K, 10V 1 C8002 F1G1A104A012 C 0.01UF, K, 10V 1 C8003 F1G1A104A012 C 0.01UF, K, 10V 1 C8004 F1G1A104A012 C 0.01UF, K, 10V 1 C8005 F1G1A104A012 C 0.01UF, K, 10V 1 C8006 F1G1A104A012 C 0.01UF, K, 10V 1 C8007 F1G1A104A012 C 0.01UF, K, 10V 1 C8008 F1G1A104A012 C 0.01UF, K, 10V 1 C8009 F1G1A104A012 C 0.01UF, K, 10V 1 参考号 部件号 部件名称及说明 件数 备注 C8010 F1G1A104A012 C 0.01UF, K, 10V 1 C8011 F1J1A106A043 C 0.010UF, K, 10V 1 C8012 F1J1A106A043 C 0.010UF, K, 10V 1 C8014 F1G1A104A012 C 0.01UF, K, 10V 1 C8015 F1G1A104A012 C 0.01UF, K, 10V 1 C8016 F1G1A104A012 C 0.01UF, K, 10V 1 C8017 F1G1A104A012 C 0.01UF, K, 10V 1 C8018 F1G1A104A012 C 0.01UF, K, 10V 1 C8019 F1G1A104A012 C 0.01UF, K, 10V 1 C8020 F1G1A104A012 C 0.01UF, K, 10V 1 C8021 F1G1A104A012 C 0.01UF, K, 10V 1 C8022 F1G1A104A012 C 0.01UF, K, 10V 1 C8023 F1G1A104A012 C 0.01UF, K, 10V 1 C8024 F1G1A104A012 C 0.01UF, K, 10V 1 C8025 F1J1A106A043 C 0.010UF, K, 10V 1 C8026 F1J1A106A043 C 0.010UF, K, 10V 1 C8027 F1G1A104A012 C 0.01UF, K, 10V 1 C8028 F1G1A104A012 C 0.01UF, K, 10V 1 C8029 F1G1A104A012 C 0.01UF, K, 10V 1 C8030 F1G1A104A012 C 0.01UF, K, 10V 1 C8031 F1G1A104A012 C 0.01UF, K, 10V 1 C8032 F1G1A104A012 C 0.01UF, K, 10V 1 C8033 F1J1A106A043 C 0.010UF, K, 10V 1 C8034 F1G1A104A012 C 0.01UF, K, 10V 1 C8035 F1G1A104A012 C 0.01UF, K, 10V 1 C8036 F1G1A104A012 C 0.01UF, K, 10V 1 C8037 F1G1A104A012 C 0.01UF, K, 10V 1 C8038 F1G1A104A012 C 0.01UF, K, 10V 1 C8039 F1G1A104A012 C 0.01UF, K, 10V 1 C8040 F1G1A104A012 C 0.01UF, K, 10V 1 C8041 F1G1A104A012 C 0.01UF, K, 10V 1 C8042 F1G1A104A012 C 0.01UF, K, 10V 1 C8043 F1G1A104A012 C 0.01UF, K, 10V 1 C8044 F1G1A104A012 C 0.01UF, K, 10V 1 C8045 F1J1A106A043 C 0.010UF, K, 10V 1 C8046 F1J1A106A043 C 0.010UF, K, 10V 1 C8047 F1J1A106A043 C 0.010UF, K, 10V 1 C8048 F1J1A106A043 C 0.010UF, K, 10V 1 C8049 F1G1A104A012 C 0.01UF, K, 10V 1 C8050 F1G1A104A012 C 0.01UF, K, 10V 1 C8051 F1G1A104A012 C 0.01UF, K, 10V 1 C8052 F1G1A104A012 C 0.01UF, K, 10V 1 C8053 F1G1A104A012 C 0.01UF, K, 10V 1 C8054 F1G1A104A012 C 0.01UF, K, 10V 1 C8055 F1G1A104A012 C 0.01UF, K, 10V 1 C8056 F1G1A104A012 C 0.01UF, K, 10V 1 C8057 F1G1A104A012 C 0.01UF, K, 10V 1 C8058 F1G1A104A012 C 0.01UF, K, 10V 1 C8059 F1G1A104A012 C 0.01UF, K, 10V 1 C8060 F1H0J1050012 C 1UF, K, 16V 1 C8061 F1H0J1050012 C 1UF, K, 16V 1 C8062 F1G1A104A012 C 0.01UF, K, 10V 1 C8070 F1H0J1050012 C 1UF, K, 16V 1 C8071 F1H0J1050012 C 1UF, K, 16V 1 C8072 F1G1A104A012 C 0.01UF, K, 10V 1 C8073 F1H0J1050012 C 1UF, K, 16V 1 C8074 F1G1A104A012 C 0.01UF, K, 10V 1 C8075 F1H0J1050012 C 1UF, K, 16V 1 C8076 F1G1A104A012 C 0.01UF, K, 10V 1 C8077 F1G1A104A012 C 0.01UF, K, 10V 1 C8078 F1G1A104A012 C 0.01UF, K, 10V 1 C8079 F1G1A104A012 C 0.01UF, K, 10V 1 C8080 F1G1A104A012 C 0.01UF, K, 10V 1 C8081 F1G1A104A012 C 0.01UF, K, 10V 1 C8082 F1G1A104A012 C 0.01UF, K, 10V 1 C8083 F1G1A104A012 C 0.01UF, K, 10V 1 C8084 F1G1A104A012 C 0.01UF, K, 10V 1 C8085 F1G1A104A012 C 0.01UF, K, 10V 1 C8101 F1G1H180A731 C 18UF, 50V 1 C8102 F1G1H7R0A732 C 7.0UF, 50V 1 C8103 F1H0J1050012 C 1UF, K, 16V 1 C8104 F1G1C1030008 C 0.010UF, K, 16V 1 C8105 F1J1A106A043 C 0.010UF, K, 10V 1 C8106 F1G1A104A012 C 0.01UF, K, 10V 1 C8107 F1G1A104A012 C 0.01UF, K, 10V 1 C8201 F1G1A105A047 C 1UF, K, 10V 1 C8202 ECGMX0E101R E 100UF, 10V 1 参考号 部件号 部件名称及说明 件数 备注 125 TH-58PZ880C C8203 F1G1A105A047 C 1UF, K, 10V 1 C8204 F1G1A105A047 C 1UF, K, 10V 1 C8205 F1G1A105A047 C 1UF, K, 10V 1 C8206 F1G1A105A047 C 1UF, K, 10V 1 C8208 F1G1A104A012 C 0.01UF, K, 10V 1 C8209 F1G1A105A047 C 1UF, K, 10V 1 C8210 F1G1A105A047 C 1UF, K, 10V 1 C8211 F1G1A105A047 C 1UF, K, 10V 1 C8212 F1G1A105A047 C 1UF, K, 10V 1 C8213 F1G1A105A047 C 1UF, K, 10V 1 C8214 F1G1A104A012 C 0.01UF, K, 10V 1 C8215 F1G1A104A012 C 0.01UF, K, 10V 1 C8216 F1G1A104A012 C 0.01UF, K, 10V 1 C8217 F1G1A104A012 C 0.01UF, K, 10V 1 C8218 F1G1A104A012 C 0.01UF, K, 10V 1 C8219 F1G1A104A012 C 0.01UF, K, 10V 1 C8220 F1G1A104A012 C 0.01UF, K, 10V 1 C8221 F1G1A105A047 C 1UF, K, 10V 1 C8222 F1G1A105A047 C 1UF, K, 10V 1 C8223 F1G1A105A047 C 1UF, K, 10V 1 C8224 F1G1A105A047 C 1UF, K, 10V 1 C8225 F1G1A105A047 C 1UF, K, 10V 1 C8226 F1G1A104A012 C 0.01UF, K, 10V 1 C8227 F1G1A104A012 C 0.01UF, K, 10V 1 C8228 F1G1A104A012 C 0.01UF, K, 10V 1 C8229 F1G1A104A012 C 0.01UF, K, 10V 1 C8230 F1G1A105A047 C 1UF, K, 10V 1 C8231 ECGMX0E101R E 100UF, 10V 1 C8232 F1G1A105A047 C 1UF, K, 10V 1 C8233 F1G1A105A047 C 1UF, K, 10V 1 C8234 F1G1A105A047 C 1UF, K, 10V 1 C8235 F1G1A105A047 C 1UF, K, 10V 1 C8501 F2G0J470A019 E 47UF 6.3V 1 C8580 F1G1C104A116 C 0.10UF, K, 16V 1 C8581 F1G1C104A116 C 0.10UF, K, 16V 1 C8601 F1G1C104A116 C 0.10UF, K, 16V 1 C8620 F1G1A104A012 C 0.01UF, K, 10V 1 C8621 F1G1A104A012 C 0.01UF, K, 10V 1 C8622 F1G1A104A012 C 0.01UF, K, 10V 1 C8623 F1J1A106A043 C 0.010UF, K, 10V 1 C8624 F1G1A104A012 C 0.01UF, K, 10V 1 C8625 F1G1H5R0A732 C 5.0PF, K, 50V 1 C8626 F1G1H5R0A732 C 5.0PF, K, 50V 1 C8627 F1G1A104A012 C 0.01UF, K, 10V 1 C8628 F1J1A106A043 C 0.010UF, K, 10V 1 C8629 F1J1A106A043 C 0.010UF, K, 10V 1 C8630 F1G1A104A012 C 0.01UF, K, 10V 1 C8631 F1G1A104A012 C 0.01UF, K, 10V 1 C8632 F1G1A104A012 C 0.01UF, K, 10V 1 C8633 F1J1A106A043 C 0.010UF, K, 10V 1 C8634 F1G1A104A012 C 0.01UF, K, 10V 1 C8635 F1G1A104A012 C 0.01UF, K, 10V 1 C8637 F2G0J101A019 E 100UF 6.3V 1 C8638 F1H0J1050012 C 1UF, K, 16V 1 C8639 F1G1A104A012 C 0.01UF, K, 10V 1 C8640 F1J1A106A043 C 0.010UF, K, 10V 1 C8641 F1G1A104A012 C 0.01UF, K, 10V 1 C8642 F1J1A106A043 C 0.010UF, K, 10V 1 C8643 ECUV1A335KBN C 33UF 10V 1 C8644 F1G1A104A012 C 0.01UF, K, 10V 1 C8645 F1G1A104A012 C 0.01UF, K, 10V 1 C8646 F1G1A104A012 C 0.01UF, K, 10V 1 C8647 F1J1A106A043 C 0.010UF, K, 10V 1 C8648 F1G1A104A012 C 0.01UF, K, 10V 1 C8649 F1G1A104A012 C 0.01UF, K, 10V 1 C8650 F1J1A106A043 C 0.010UF, K, 10V 1 C8651 F1G1A104A012 C 0.01UF, K, 10V 1 C8652 F1G1A104A012 C 0.01UF, K, 10V 1 C8653 F1G1A104A012 C 0.01UF, K, 10V 1 C8654 F1G1A104A012 C 0.01UF, K, 10V 1 C8851 F1G1C1030008 C 0.010UF, K, 16V 1 C8852 F1G1H680A731 C 68UF, 50V 1 C8853 F1G1H680A731 C 68UF, 50V 1 C8854 F1G1H680A731 C 68UF, 50V 1 C8855 F1G1H680A731 C 68UF, 50V 1 C8856 F1G1C1030008 C 0.010UF, K, 16V 1 C9001 ECJ1VB1H104K C 0.1UF, K, 50V 1 参考号 部件号 部件名称及说明 件数 备注 C9033 F1G1C104A119 C 0.10UF, K, 16V 1 C9034 F1G1C104A119 C 0.10UF, K, 16V 1 C9035 F1J1A106A043 C 0.010UF, K, 10V 1 C9036 F1J1A106A043 C 0.010UF, K, 10V 1 C9037 F1G1E103A123 C 0.010UF, K, 16V 1 C9055 F1G1C104A119 C 0.10UF, K, 16V 1 C9056 F1G1C104A119 C 0.10UF, K, 16V 1 C9057 F1G1C104A119 C 0.10UF, K, 16V 1 C9058 F1J1A106A043 C 0.010UF, K, 10V 1 C9067 F1G1E103A123 C 0.010UF, K, 16V 1 C9068 F1G1E103A123 C 0.010UF, K, 16V 1 C9069 F1G1E103A123 C 0.010UF, K, 16V 1 C9096 F1G1C104A116 C 0.10UF, K, 16V 1 C9097 F1G1C104A116 C 0.10UF, K, 16V 1 C9098 F1G1C104A116 C 0.10UF, K, 16V 1 C9099 F1G1C104A116 C 0.10UF, K, 16V 1 C9100 F1G1C104A116 C 0.10UF, K, 16V 1 C9101 F1G1C104A116 C 0.10UF, K, 16V 1 C9102 F1G1C104A116 C 0.10UF, K, 16V 1 C9103 F1G1C104A116 C 0.10UF, K, 16V 1 C9104 F1G1C104A116 C 0.10UF, K, 16V 1 C9105 F1G1C104A116 C 0.10UF, K, 16V 1 C9106 F1G1C104A116 C 0.10UF, K, 16V 1 C9107 F1G1C104A116 C 0.10UF, K, 16V 1 C9108 F1G1C104A116 C 0.10UF, K, 16V 1 C9109 F1G1C104A116 C 0.10UF, K, 16V 1 C9110 F1G1C104A116 C 0.10UF, K, 16V 1 C9111 F1G1C104A116 C 0.10UF, K, 16V 1 C9112 F1G1C104A116 C 0.10UF, K, 16V 1 C9113 F1G1C104A116 C 0.10UF, K, 16V 1 C9114 F1G1C104A116 C 0.10UF, K, 16V 1 C9115 F1G1C104A116 C 0.10UF, K, 16V 1 C9116 F1G1C104A116 C 0.10UF, K, 16V 1 C9117 F1G1C104A116 C 0.10UF, K, 16V 1 C9119 F1G1C104A116 C 0.10UF, K, 16V 1 C9120 F1G1C104A116 C 0.10UF, K, 16V 1 C9121 F1G1C104A116 C 0.10UF, K, 16V 1 C9122 F1G1C104A116 C 0.10UF, K, 16V 1 C9123 F1G1C104A116 C 0.10UF, K, 16V 1 C9124 F1G1C104A116 C 0.10UF, K, 16V 1 C9125 F1G1C104A116 C 0.10UF, K, 16V 1 C9126 F1G1C104A116 C 0.10UF, K, 16V 1 C9127 F1G1C104A116 C 0.10UF, K, 16V 1 C9128 F1G1C104A116 C 0.10UF, K, 16V 1 C9129 F1G1C104A116 C 0.10UF, K, 16V 1 C9130 F1G1C104A116 C 0.10UF, K, 16V 1 C9131 F1G1C104A116 C 0.10UF, K, 16V 1 C9132 F1G1C104A116 C 0.10UF, K, 16V 1 C9133 F1G1C104A116 C 0.10UF, K, 16V 1 C9135 F1J1A106A043 C 0.010UF, K, 10V 1 C9136 F1G1C104A119 C 0.10UF, K, 16V 1 C9142 F1G1C104A116 C 0.10UF, K, 16V 1 C9143 F1G1C104A119 C 0.10UF, K, 16V 1 C9144 F1G1C104A116 C 0.10UF, K, 16V 1 C9145 F1G1C104A116 C 0.10UF, K, 16V 1 C9146 F1G1C104A116 C 0.10UF, K, 16V 1 C9147 F1G1C104A116 C 0.10UF, K, 16V 1 C9148 F1G1C104A116 C 0.10UF, K, 16V 1 C9149 F1G1C104A116 C 0.10UF, K, 16V 1 C9150 F1G1C104A116 C 0.10UF, K, 16V 1 C9152 F1J0J475A035 C 4.7UF, K, 16V 1 C9153 F1G1C104A119 C 0.10UF, K, 16V 1 C9154 F1G1C104A119 C 0.10UF, K, 16V 1 C9155 F1G1C104A119 C 0.10UF, K, 16V 1 C9156 F1G1C104A119 C 0.10UF, K, 16V 1 C9157 F1G1C104A119 C 0.10UF, K, 16V 1 C9158 F1G1C104A119 C 0.10UF, K, 16V 1 C9159 F1G1C104A119 C 0.10UF, K, 16V 1 C9160 F1G1C104A119 C 0.10UF, K, 16V 1 C9161 F1G1C104A119 C 0.10UF, K, 16V 1 C9162 F1G1C104A119 C 0.10UF, K, 16V 1 C9163 F1J0J475A035 C 4.7UF, K, 16V 1 C9164 F1G1C104A119 C 0.10UF, K, 16V 1 C9165 F1G1C104A119 C 0.10UF, K, 16V 1 C9168 F1G1C104A119 C 0.10UF, K, 16V 1 C9169 F1G1C104A116 C 0.10UF, K, 16V 1 C9170 F1G1C104A116 C 0.10UF, K, 16V 1 参考号 部件号 部件名称及说明 件数 备注 126 TH-58PZ880C C9171 F1G1C104A116 C 0.10UF, K, 16V 1 C9172 F1G1C104A116 C 0.10UF, K, 16V 1 C9173 F1G1C104A116 C 0.10UF, K, 16V 1 C9174 F1G1C104A116 C 0.10UF, K, 16V 1 C9175 F1G1C104A116 C 0.10UF, K, 16V 1 C9176 F1G1C104A116 C 0.10UF, K, 16V 1 C9177 F1G1C104A116 C 0.10UF, K, 16V 1 C9178 F1G1C104A116 C 0.10UF, K, 16V 1 C9179 F1G1C104A116 C 0.10UF, K, 16V 1 C9180 F1G1C104A116 C 0.10UF, K, 16V 1 C9181 F1G1C104A116 C 0.10UF, K, 16V 1 C9182 F1G1C104A116 C 0.10UF, K, 16V 1 C9183 F1G1C104A116 C 0.10UF, K, 16V 1 C9184 F1G1C104A116 C 0.10UF, K, 16V 1 C9185 F1G1C104A116 C 0.10UF, K, 16V 1 C9186 F1G1C104A116 C 0.10UF, K, 16V 1 C9187 F1G1C104A116 C 0.10UF, K, 16V 1 C9188 F1G1C104A116 C 0.10UF, K, 16V 1 C9189 F1G1C104A116 C 0.10UF, K, 16V 1 C9190 F1G1C104A116 C 0.10UF, K, 16V 1 C9191 F1G1C104A116 C 0.10UF, K, 16V 1 C9192 F1G1C104A116 C 0.10UF, K, 16V 1 C9193 F1G1C104A116 C 0.10UF, K, 16V 1 C9194 F1G1C104A116 C 0.10UF, K, 16V 1 C9195 F1G1C104A116 C 0.10UF, K, 16V 1 C9196 F1G1C104A116 C 0.10UF, K, 16V 1 C9198 F1G1C104A116 C 0.10UF, K, 16V 1 C9199 F1G1C104A116 C 0.10UF, K, 16V 1 C9200 F1G1C104A116 C 0.10UF, K, 16V 1 C9201 F1G1C104A116 C 0.10UF, K, 16V 1 C9202 F1G1C104A116 C 0.10UF, K, 16V 1 C9203 F1G1C104A116 C 0.10UF, K, 16V 1 C9204 F1G1C104A116 C 0.10UF, K, 16V 1 C9205 F1G1C104A116 C 0.10UF, K, 16V 1 C9206 F1G1C104A116 C 0.10UF, K, 16V 1 C9207 F1G1C104A116 C 0.10UF, K, 16V 1 C9208 F1G1C104A116 C 0.10UF, K, 16V 1 C9209 F1G1C104A116 C 0.10UF, K, 16V 1 C9210 F1J1A106A043 C 0.010UF, K, 10V 1 C9211 F1G1C104A116 C 0.10UF, K, 16V 1 C9212 F1J1A106A043 C 0.010UF, K, 10V 1 C9213 F1G1C104A116 C 0.10UF, K, 16V 1 C9214 F1G1C104A116 C 0.10UF, K, 16V 1 C9215 F1G1C104A116 C 0.10UF, K, 16V 1 C9216 F1G1C104A116 C 0.10UF, K, 16V 1 C9217 F1G1C104A116 C 0.10UF, K, 16V 1 C9218 F1G1C104A116 C 0.10UF, K, 16V 1 C9219 F1G1C104A116 C 0.10UF, K, 16V 1 C9220 F1G1C104A116 C 0.10UF, K, 16V 1 C9221 F1G1C104A116 C 0.10UF, K, 16V 1 C9222 F1G1C104A116 C 0.10UF, K, 16V 1 C9223 F1G1C104A116 C 0.10UF, K, 16V 1 C9224 F1G1C104A116 C 0.10UF, K, 16V 1 C9226 F1G1C104A116 C 0.10UF, K, 16V 1 C9227 F1G1C104A116 C 0.10UF, K, 16V 1 C9228 F1G1C104A116 C 0.10UF, K, 16V 1 C9230 F1G1C104A116 C 0.10UF, K, 16V 1 C9231 F1G1C104A116 C 0.10UF, K, 16V 1 C9232 F1G1C104A116 C 0.10UF, K, 16V 1 C9233 F1G1C104A116 C 0.10UF, K, 16V 1 C9234 F1G1C104A116 C 0.10UF, K, 16V 1 C9235 F1G1C104A116 C 0.10UF, K, 16V 1 C9236 F1G1C104A116 C 0.10UF, K, 16V 1 C9237 F1J1A106A043 C 0.010UF, K, 10V 1 C9239 F1G1C104A116 C 0.10UF, K, 16V 1 C9240 F1G1C104A116 C 0.10UF, K, 16V 1 C9241 F1G1C104A116 C 0.10UF, K, 16V 1 C9242 F1G1C104A116 C 0.10UF, K, 16V 1 C9243 F1G1C104A116 C 0.10UF, K, 16V 1 C9244 F1G1C104A116 C 0.10UF, K, 16V 1 C9245 F1J1A106A043 C 0.010UF, K, 10V 1 C9246 F1G1C104A116 C 0.10UF, K, 16V 1 C9247 F1J1A106A043 C 0.010UF, K, 10V 1 C9248 F1G1C104A116 C 0.10UF, K, 16V 1 C9249 F1G1C104A116 C 0.10UF, K, 16V 1 C9250 F1G1C104A116 C 0.10UF, K, 16V 1 C9303 F1J1E105A171 C 1 UF 25V 1 参考号 部件号 部件名称及说明 件数 备注 C9304 F1J1E105A171 C 1 UF 25V 1 C9305 F1J1E105A171 C 1 UF 25V 1 C9306 F1J1E105A171 C 1 UF 25V 1 C9307 F1J1E105A171 C 1 UF 25V 1 C9308 F1J1E105A171 C 1 UF 25V 1 C9309 F1J1E105A171 C 1 UF 25V 1 C9310 F1J1E105A171 C 1 UF 25V 1 C9313 F1H1A1050032 C 10UF, 50V 1 C9314 F1H1A1050032 C 10UF, 50V 1 C9317 ECJ1VB1H104K C 0.1UF, K, 50V 1 C9318 ECJ1VB1H104K C 0.1UF, K, 50V 1 C9319 ECJ1VB1H104K C 0.1UF, K, 50V 1 C9320 ECJ1VB1H104K C 0.1UF, K, 50V 1 C9321 ECJ1VB1H104K C 0.1UF, K, 50V 1 C9322 ECJ1VB1H104K C 0.1UF, K, 50V 1 C9323 ECJ1VB1H104K C 0.1UF, K, 50V 1 C9324 ECJ1VB1H104K C 0.1UF, K, 50V 1 C9333 F1J1E3340003 C 0.33UF, Z, 25V 1 C9334 F1J1E3340003 C 0.33UF, Z, 25V 1 C9335 F1J1E3340003 C 0.33UF, Z, 25V 1 C9336 F1J1E3340003 C 0.33UF, Z, 25V 1 C9337 F1H1H223A970 C 0.22UF, K, 50V 1 C9338 F1H1H223A970 C 0.22UF, K, 50V 1 C9339 F1H1H223A970 C 0.22UF, K, 50V 1 C9340 F1H1H223A970 C 0.22UF, K, 50V 1 C9341 F1J1E3340003 C 0.33UF, Z, 25V 1 C9342 F1J1E3340003 C 0.33UF, Z, 25V 1 C9343 F1J1E3340003 C 0.33UF, Z, 25V 1 C9344 F1J1E3340003 C 0.33UF, Z, 25V 1 C9345 F1H1H223A970 C 0.22UF, K, 50V 1 C9346 F1H1H223A970 C 0.22UF, K, 50V 1 C9347 F1H1H223A970 C 0.22UF, K, 50V 1 C9348 F1H1H223A970 C 0.22UF, K, 50V 1 C9353 ECJ1VB1H104K C 0.1UF, K, 50V 1 C9354 ECJ1VB1H104K C 0.1UF, K, 50V 1 C9359 ECJ1VB1H104K C 0.1UF, K, 50V 1 C9360 ECJ1VB1H104K C 0.1UF, K, 50V 1 C9361 EEEFG1E471P E 470UF, 25V 1 C9362 EEEFG1E471P E 470UF, 25V 1 C9363 ECJ3YB1E106M C 10 UF, K, 25V 1 C9364 ECJ3YB1E106M C 10 UF, K, 25V 1 C9365 F1J1H105A449 C 1.0UF, 50V 1 PPDS C9368 F1J1H105A449 C 1.0UF, 50V 1 PPDS C9375 F1H1H223A970 C 0.22UF, K, 50V 1 C9376 F1H1H223A970 C 0.22UF, K, 50V 1 C9377 F1H1H223A970 C 0.22UF, K, 50V 1 C9378 F1H1H223A970 C 0.22UF, K, 50V 1 C9379 F1H1H223A970 C 0.22UF, K, 50V 1 C9380 F1H1H223A970 C 0.22UF, K, 50V 1 C9381 F1H1H223A970 C 0.22UF, K, 50V 1 C9382 F1H1H223A970 C 0.22UF, K, 50V 1 C9383 ECJ1VC1H102K C 1000PF, K, 50V 1 C9384 ECJ1VC1H102K C 1000PF, K, 50V 1 C9385 ECJ1VC1H102K C 1000PF, K, 50V 1 C9386 ECJ1VC1H102K C 1000PF, K, 50V 1 C9387 ECJ1VC1H102K C 1000PF, K, 50V 1 C9388 ECJ1VC1H102K C 1000PF, K, 50V 1 C9389 ECJ1VC1H102K C 1000PF, K, 50V 1 C9390 ECJ1VC1H102K C 1000PF, K, 50V 1 C9406 EEEHB1E470P C 47PF, J, 25V 1 C9407 F1H1C104A143 C 0.1UF, K, 16V 1 C9408 F1J1E105A171 C 1 UF 25V 1 C9469 F1G1C104A119 C 0.10UF, K, 16V 1 C9535 F1G1C104A116 C 0.10UF, K, 16V 1 C9536 F1G1C104A116 C 0.10UF, K, 16V 1 C9537 F1G1C104A116 C 0.10UF, K, 16V 1 C9538 F1G1C104A116 C 0.10UF, K, 16V 1 C9539 F1G1C104A116 C 0.10UF, K, 16V 1 C9540 F1G1C104A116 C 0.10UF, K, 16V 1 C9541 F1G1C104A116 C 0.10UF, K, 16V 1 C9542 F1G1C104A116 C 0.10UF, K, 16V 1 C9543 F1G1C104A116 C 0.10UF, K, 16V 1 C9544 F1G1C104A116 C 0.10UF, K, 16V 1 C9545 F1G1C104A116 C 0.10UF, K, 16V 1 C9546 F1G1C104A116 C 0.10UF, K, 16V 1 C9547 F1G1C104A116 C 0.10UF, K, 16V 1 C9548 F1G1C104A116 C 0.10UF, K, 16V 1 参考号 部件号 部件名称及说明 件数 备注 127 TH-58PZ880C C9549 F1G1C104A116 C 0.10UF, K, 16V 1 C9550 F1G1C104A116 C 0.10UF, K, 16V 1 C9551 F1J1A106A043 C 0.010UF, K, 10V 1 C9552 F1J1A106A043 C 0.010UF, K, 10V 1 C9553 F1J1A106A043 C 0.010UF, K, 10V 1 C9823 ECJ3YB1E106M C 10 UF, K, 25V 1 C9825 F1G1H101A731 C 100PF, K, 50V 1 C9832 F1J1A106A043 C 0.010UF, K, 10V 1 C9837 F1J1A106A043 C 0.010UF, K, 10V 1 C9840 F1G1E103A123 C 0.010UF, K, 16V 1 C9841 F1G1C104A119 C 0.10UF, K, 16V 1 C9842 F1G1C104A119 C 0.10UF, K, 16V 1 C9844 F1G1E103A123 C 0.010UF, K, 16V 1 C9845 F1G1C104A119 C 0.10UF, K, 16V 1 C9846 F1G1C104A119 C 0.10UF, K, 16V 1 C9858 ECJ3YB1E106M C 10 UF, K, 25V 1 C9859 F1G1E103A123 C 0.010UF, K, 16V 1 C9860 F1J0J475A035 C 4.7UF, K, 16V 1 C9861 F1H1E104A129 C 0.1UF, 25V 1 C9862 F1H1E104A129 C 0.1UF, 25V 1 C9863 F1J0J475A035 C 4.7UF, K, 16V 1 C9864 F1H1E104A129 C 0.1UF, 25V 1 C9865 ECGRL0G680ER C 68PF, J, 4V 1 C9866 ECGRL0G680ER C 68PF, J, 4V 1 C9867 ECJ3YB1E106M C 10 UF, K, 25V 1 C9868 ECJ3YB1E106M C 10 UF, K, 25V 1 C9869 ECJ3YB1E106M C 10 UF, K, 25V 1 C9870 ECJ3YB1E106M C 10 UF, K, 25V 1 C9871 ECJ3YB1E106M C 10 UF, K, 25V 1 C9872 ECJ3YB1E106M C 10 UF, K, 25V 1 C9873 ECGRL0G680ER C 68PF, J, 4V 1 C9874 F1G1H680A731 C 68UF, 50V 1 C9877 F1G1H680A731 C 68UF, 50V 1 C9878 F1G1E103A123 C 0.010UF, K, 16V 1 C9879 F1G1C153A116 C 0.015UF, K, 16V 1 C9880 F1G1A563A032 C 0.56UF, 10V 1 C9881 F1G1E103A123 C 0.010UF, K, 16V 1 C9882 F1G1C822A116 C 8200UF, K, 16V 1 C9883 F1G1H101A731 C 100PF, K, 50V 1 C9884 F1G1H102A730 C 1000UF, 50V 1 C9885 F1G1H102A730 C 1000UF, 50V 1 C9886 F1H1E104A129 C 0.1UF, 25V 1 C9887 F1H1E104A129 C 0.1UF, 25V 1 C9888 F1G1H361A731 C 360UF, 50V 1 C9927 F1G1C104A116 C 0.10UF, K, 16V 1 C9928 F1G1C104A116 C 0.10UF, K, 16V 1 C9929 F1G1C104A116 C 0.10UF, K, 16V 1 C9930 F1G1C104A116 C 0.10UF, K, 16V 1 C9931 F1G1C104A116 C 0.10UF, K, 16V 1 C9932 F1G1C104A116 C 0.10UF, K, 16V 1 C9933 F1G1C104A116 C 0.10UF, K, 16V 1 C9934 F1G1C104A116 C 0.10UF, K, 16V 1 C9935 F1G1C104A116 C 0.10UF, K, 16V 1 C9936 F1G1C104A116 C 0.10UF, K, 16V 1 C9937 F1G1C104A116 C 0.10UF, K, 16V 1 C9938 F1G1C104A116 C 0.10UF, K, 16V 1 C9939 F1G1C104A116 C 0.10UF, K, 16V 1 C9940 F1G1C104A116 C 0.10UF, K, 16V 1 C9941 F1G1C104A116 C 0.10UF, K, 16V 1 C9942 F1G1C104A116 C 0.10UF, K, 16V 1 C9943 F1G1C104A116 C 0.10UF, K, 16V 1 C9944 F1G1C104A116 C 0.10UF, K, 16V 1 C9945 F1G1C104A116 C 0.10UF, K, 16V 1 C9946 F1G1C104A116 C 0.10UF, K, 16V 1 C9947 F1G1C104A116 C 0.10UF, K, 16V 1 C9948 F1G1C104A116 C 0.10UF, K, 16V 1 C9951 F1G1C104A116 C 0.10UF, K, 16V 1 C9961 F1J1A106A043 C 0.010UF, K, 10V 1 C9966 F1G1C104A116 C 0.10UF, K, 16V 1 C9971 F1G1H180A731 C 18UF, 50V 1 C9972 F1G1H150A731 C 15UF, 50V 1 C14352 F1J1C1050030 C 1UF, Z, 16V 1 C14356 F1J1C1050030 C 1UF, Z, 16V 1 C14361 F1L2E104A028 E 1000UF, 25V 1 C14364 F1J1C1050030 C 1UF, Z, 16V 1 C14368 F1J1C1050030 C 1UF, Z, 16V 1 C14371 F1L2E104A028 E 1000UF, 25V 1 参考号 部件号 部件名称及说明 件数 备注 C14373 F1G1H102A730 C 1000UF, 50V 1 C14374 F1L2E104A028 E 1000UF, 25V 1 C14376 F1L2E104A028 E 1000UF, 25V 1 C14383 F1L2E104A028 E 1000UF, 25V 1 C14386 F1L2E104A028 E 1000UF, 25V 1 C14901 F1G1H102A730 C 1000UF, 50V 1 C14902 F1J1C1050030 C 1UF, Z, 16V 1 C14904 F1J1C1050030 C 1UF, Z, 16V 1 C14906 F1J1C1050030 C 1UF, Z, 16V 1 C14908 F1J1C1050030 C 1UF, Z, 16V 1 C14910 F1J1C1050030 C 1UF, Z, 16V 1 C14912 F1J1C1050030 C 1UF, Z, 16V 1 C14919 F1L2E104A028 E 1000UF, 25V 1 C14921 F1L2E104A028 E 1000UF, 25V 1 C14923 F1L2E104A028 E 1000UF, 25V 1 C14925 F1L2E104A028 E 1000UF, 25V 1 C14927 F1L2E104A028 E 1000UF, 25V 1 C14928 F1L2E104A028 E 1000UF, 25V 1 C14930 F1L2E104A028 E 1000UF, 25V 1 C14931 F1G1H102A730 C 1000UF, 50V 1 C14935 F1L2E104A028 E 1000UF, 25V 1 C14936 F1G1H471A731 C 470UF, 50V 1 C14937 F1G1H471A731 C 470UF, 50V 1 C14938 F1G1H471A731 C 470UF, 50V 1 C14939 F1G1H471A731 C 470UF, 50V 1 C14940 F1G1H102A730 C 1000UF, 50V 1 C14941 F1G1H471A731 C 470UF, 50V 1 C14942 F1G1H471A731 C 470UF, 50V 1 C14943 F1L1E4750004 C 4.7UF, 25V 1 C14944 F1H1H102A971 C 1000PF, K, 50V 1 C14945 F1G1H101A731 C 100PF, K, 50V 1 C14950 F1G1H471A731 C 470UF, 50V 1 C14952 F1J1C1050030 C 1UF, Z, 16V 1 C14955 F1J1C1050030 C 1UF, Z, 16V 1 C14957 F1J1C1050030 C 1UF, Z, 16V 1 C14958 F1J1C1050030 C 1UF, Z, 16V 1 C14961 F1J1C1050030 C 1UF, Z, 16V 1 C14963 F1J1C1050030 C 1UF, Z, 16V 1 C14969 ECJ1VB1H104K C 0.1UF, K, 50V 1 C14970 F1G1H471A731 C 470UF, 50V 1 C14971 F1G1H471A731 C 470UF, 50V 1 C14972 F1G1H471A731 C 470UF, 50V 1 C14973 F1G1H102A730 C 1000UF, 50V 1 C14976 F1G1H102A730 C 1000UF, 50V 1 C14978 F1L2E104A028 E 1000UF, 25V 1 C14979 F1L2E104A028 E 1000UF, 25V 1 C14980 F1L2E104A028 E 1000UF, 25V 1 C14981 F1G1H471A731 C 470UF, 50V 1 C14982 F1L2E104A028 E 1000UF, 25V 1 C14984 F1L2E104A028 E 1000UF, 25V 1 C14985 F1L2E104A028 E 1000UF, 25V 1 C14987 ECJ1VB1H104K C 0.1UF, K, 50V 1 C14988 ECJ1VB1H104K C 0.1UF, K, 50V 1 C14989 F1G1H471A731 C 470UF, 50V 1 C14990 ECJ1VB1H104K C 0.1UF, K, 50V 1 C14992 F1H1C105A008 C 1UF, K, 16V 1 C16003 F1L2J562A022 C 5600UF, K,6.3V 1 C16011 F2A2T251A004 E 250UF, 220V 1 C16012 F2A2T251A004 E 250UF, 220V 1 C16013 F2A2T251A004 E 250UF, 220V 1 C16014 F2A2T251A004 E 250UF, 220V 1 C16015 F2A2T251A004 E 250UF, 220V 1 C16018 F0C2E225A231 E 0.022UF, 250V 1 C16023 F1L2J562A022 C 5600UF, K,6.3V 1 C16071 F1L2J1520001 C 1500UF, K,6.3V 1 C16092 F1L2J1520001 C 1500UF, K,6.3V 1 C16131 F1L1E4750004 C 4.7UF, 25V 1 C16133 F1L1E4750004 C 4.7UF, 25V 1 C16135 F1K1E105A029 C 1UF, Z, 25V 1 C16151 F1K1E105A029 C 1UF, Z, 25V 1 C16152 F1L1E4750004 C 4.7UF, 25V 1 C16153 F1L1E4750004 C 4.7UF, 25V 1 C16154 F1L1E4750004 C 4.7UF, 25V 1 C16157 F1L1E4750004 C 4.7UF, 25V 1 C16191 F1L1E4750004 C 4.7UF, 25V 1 C16192 ECJ1VB1E104K C 0.10UF, K, 25V 1 C16194 F1L1E4750004 C 4.7UF, 25V 1 参考号 部件号 部件名称及说明 件数 备注 128 TH-58PZ880C C16195 F1L1E4750004 C 4.7UF, 25V 1 C16197 F1L1E4750004 C 4.7UF, 25V 1 C16201 F0C2E225A231 E 0.022UF, 250V 1 C16202 F0C2E225A231 E 0.022UF, 250V 1 C16203 F0C2E225A231 E 0.022UF, 250V 1 C16204 F0C2E225A231 E 0.022UF, 250V 1 C16205 F0C2E225A231 E 0.022UF, 250V 1 C16206 F0C2E225A231 E 0.022UF, 250V 1 C16241 F2A1A101A106 E 100UF, 10V 1 C16242 F1H1C105A008 C 1UF, K, 16V 1 C16243 F1H1H103A970 C 0.001UF, K, 50V 1 C16251 F1H1C105A008 C 1UF, K, 16V 1 C16252 F1K1E105A029 C 1UF, Z, 25V 1 C16262 F2AZZ821A012 E 820UF, 80V 1 C16263 F2AZZ821A012 E 820UF, 80V 1 C16267 F2AZZ821A012 E 820UF, 80V 1 C16268 F2AZZ821A012 E 820UF, 80V 1 C16269 F2AZZ821A012 E 820UF, 80V 1 C16270 F2AZZ821A012 E 820UF, 80V 1 C16271 F0C2E405A230 E 0.040UF, 250V 1 C16272 F2A1E471A487 E 470UF, 25V 1 C16273 F0C2E405A230 E 0.040UF, 250V 1 C16280 F1K1E105A029 C 1UF, Z, 25V 1 C16284 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16285 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16288 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16289 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16301 F2A1E470A454 E 47UF, 25V 1 C16302 F1H1H471A219 C 470UF, 50V 1 C16303 ECJ1XB1C103K C 0.010UF, K, 16V 1 C16310 F2A2T251A004 E 250UF, 220V 1 C16311 F1H1A1050032 C 10UF, 50V 1 C16312 F1H1H472A970 C 4700PF, K, 50V 1 C16313 F1H1C105A008 C 1UF, K, 16V 1 C16321 F1L2E224A028 E 2200UF, 25V 1 C16322 F1L2E224A028 E 2200UF, 25V 1 C16323 F2A1E470A454 E 47UF, 25V 1 C16324 F2A1E471A487 E 470UF, 25V 1 C16325 F1L1E4750004 C 4.7UF, 25V 1 C16326 F1L1E4750004 C 4.7UF, 25V 1 C16328 F2A2D201A226 E 220UF, 200V 1 C16329 F2A2D201A226 E 220UF, 200V 1 C16331 F0C2E225A231 E 0.022UF, 250V 1 C16332 F1E2J332A002 C 3300PF, 600V 1 C16402 F1L2J562A022 C 5600UF, K,6.3V 1 C16411 F2A2T251A004 E 250UF, 220V 1 C16413 F2A2T251A004 E 250UF, 220V 1 C16414 F2A2T251A004 E 250UF, 220V 1 C16415 F2A2T251A004 E 250UF, 220V 1 C16416 F2A2T251A004 E 250UF, 220V 1 C16417 F2A2T251A004 E 250UF, 220V 1 C16419 F0C2E225A231 E 0.022UF, 250V 1 C16423 F1L2J562A022 C 5600UF, K,6.3V 1 C16471 F1L2J1520001 C 1500UF, K,6.3V 1 C16472 F1K1E105A029 C 1UF, Z, 25V 1 C16491 F1L2J1520001 C 1500UF, K,6.3V 1 C16501 F1K1E105A029 C 1UF, Z, 25V 1 C16502 F1L1E4750004 C 4.7UF, 25V 1 C16503 F2A1E471A487 E 470UF, 25V 1 C16504 F1L1E4750004 C 4.7UF, 25V 1 C16505 F1K1E105A029 C 1UF, Z, 25V 1 C16521 F1K1E105A029 C 1UF, Z, 25V 1 C16522 F1L1E4750004 C 4.7UF, 25V 1 C16523 F1L1E4750004 C 4.7UF, 25V 1 C16524 F1L1E4750004 C 4.7UF, 25V 1 C16525 F1L1E4750004 C 4.7UF, 25V 1 C16533 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16535 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16536 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16562 F1H1C105A008 C 1UF, K, 16V 1 C16563 F2A1A101A106 E 100UF, 10V 1 C16564 F1H1C105A008 C 1UF, K, 16V 1 C16565 F1H1H103A970 C 0.001UF, K, 50V 1 C16566 F1H1H103A970 C 0.001UF, K, 50V 1 C16581 F1K1E105A029 C 1UF, Z, 25V 1 C16582 F1H1C105A008 C 1UF, K, 16V 1 C16593 F1H1H102A971 C 1000PF, K, 50V 1 参考号 部件号 部件名称及说明 件数 备注 C16602 F1H1H220A971 C 22PF, K, 50V 1 C16603 F1K2J102A014 C 1000UF, K,6.3V 1 C16604 F1K2J102A014 C 1000UF, K,6.3V 1 C16605 F1H1H220A971 C 22PF, K, 50V 1 C16606 F1H1H220A971 C 22PF, K, 50V 1 C16608 F1H1H221A971 C 220UF, K, 50V 1 C16631 F0C2E225A231 E 0.022UF, 250V 1 C16632 F0C2E225A231 E 0.022UF, 250V 1 C16633 F0C2E225A231 E 0.022UF, 250V 1 C16634 F0C2E225A231 E 0.022UF, 250V 1 C16635 F0C2E225A231 E 0.022UF, 250V 1 C16636 F0C2E225A231 E 0.022UF, 250V 1 C16641 F1L2E153A029 E 0.015UF, 25V 1 C16642 F1L2E153A029 E 0.015UF, 25V 1 C16661 F1K2J102A014 C 1000UF, K,6.3V 1 C16662 F1K2J102A014 C 1000UF, K,6.3V 1 C16664 F1H1H820A971 C 82UF, 50V 1 C16665 F1H1H820A971 C 82UF, 50V 1 C16666 F1H1H820A971 C 82UF, 50V 1 C16684 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16685 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16691 F2A2C101A169 E 1000UF, 160V 1 C16692 F2A2C101A169 E 1000UF, 160V 1 C16707 F1H1H220A971 C 22PF, K, 50V 1 C16708 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16721 F2A1E221A487 E 220UF, 25V 1 C16723 F1L1E4750004 C 4.7UF, 25V 1 C16724 F1L1E4750004 C 4.7UF, 25V 1 C16725 F1L1E4750004 C 4.7UF, 25V 1 C16753 F1L1E4750004 C 4.7UF, 25V 1 C16755 F1L1E4750004 C 4.7UF, 25V 1 C16756 F1L1E4750004 C 4.7UF, 25V 1 C16771 F1H1C105A008 C 1UF, K, 16V 1 C16772 F1L1E4750004 C 4.7UF, 25V 1 C16773 F1L1E4750004 C 4.7UF, 25V 1 C16775 F1L1E4750004 C 4.7UF, 25V 1 C16791 F2A1E221A487 E 220UF, 25V 1 C16795 F2A1E471A487 E 470UF, 25V 1 C16796 F2A1E471A487 E 470UF, 25V 1 C16797 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16798 F1L2E104A028 E 1000UF, 25V 1 C16806 F2A2C101A169 E 1000UF, 160V 1 C16811 ECJ3VC1H472J C 4700PF, J, 50V 1 C16813 F2A2C101A169 E 1000UF, 160V 1 C16814 F1H1H561A971 C 560UF, 50V 1 C16821 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16822 F2A2G470A187 E 470UF, 400V 1 C16823 F1L2J562A022 C 5600UF, K,6.3V 1 C16835 F2A1E221A487 E 220UF, 25V 1 C16842 F2A2C101A169 E 1000UF, 160V 1 C16843 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16844 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16855 F1H1C105A008 C 1UF, K, 16V 1 C16856 F1H1A1050032 C 10UF, 50V 1 C16857 F1H1H472A970 C 4700PF, K, 50V 1 C16858 F1H1C104A143 C 0.1UF, K, 16V 1 C16860 F1H1A1050032 C 10UF, 50V 1 C16861 F1H1H472A970 C 4700PF, K, 50V 1 C16862 F1H1C104A143 C 0.1UF, K, 16V 1 C16863 F1H1H103A970 C 0.001UF, K, 50V 1 C16864 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16866 F1H1A1050032 C 10UF, 50V 1 C16867 F1H1H472A970 C 4700PF, K, 50V 1 C16868 F1H1C104A143 C 0.1UF, K, 16V 1 C16869 ECJ1VB1H104K C 0.1UF, K, 50V 1 C17106 F1H1A1050032 C 10UF, 50V 1 C17107 F1H1A1050032 C 10UF, 50V 1 C17108 F1H1A1050032 C 10UF, 50V 1 C17109 F1H1A1050032 C 10UF, 50V 1 C17110 F1H1A1050032 C 10UF, 50V 1 C17132 F1H1C104A143 C 0.1UF, K, 16V 1 C17133 F1H1C104A143 C 0.1UF, K, 16V 1 C17134 F1H1C104A143 C 0.1UF, K, 16V 1 C17135 F1H1C104A143 C 0.1UF, K, 16V 1 C17136 F1H1C104A143 C 0.1UF, K, 16V 1 C17137 F1H1C104A143 C 0.1UF, K, 16V 1 C17141 F1K2A474A006 C 0.47UF, 100V 1 参考号 部件号 部件名称及说明 件数 备注 129 TH-58PZ880C C17142 F1K2A474A006 C 0.47UF, 100V 1 C17143 F1K2A474A006 C 0.47UF, 100V 1 C17144 F1K2A474A006 C 0.47UF, 100V 1 C17145 F1K2A474A006 C 0.47UF, 100V 1 C17146 F1K2A474A006 C 0.47UF, 100V 1 C17147 F1K2A474A006 C 0.47UF, 100V 1 C17148 F1K2A474A006 C 0.47UF, 100V 1 C17149 F1K2A474A006 C 0.47UF, 100V 1 C17150 F1K2A474A006 C 0.47UF, 100V 1 C17201 F1H1A1050032 C 10UF, 50V 1 C17202 F1H1A1050032 C 10UF, 50V 1 C17203 F1H1A1050032 C 10UF, 50V 1 C17208 F1H1A1050032 C 10UF, 50V 1 C17209 F1H1A1050032 C 10UF, 50V 1 C17231 F1H1C104A143 C 0.1UF, K, 16V 1 C17232 F1H1C104A143 C 0.1UF, K, 16V 1 C17233 F1H1C104A143 C 0.1UF, K, 16V 1 C17234 F1H1C104A143 C 0.1UF, K, 16V 1 C17235 F1H1C104A143 C 0.1UF, K, 16V 1 C17236 F1H1C104A143 C 0.1UF, K, 16V 1 C17237 F1H1C104A143 C 0.1UF, K, 16V 1 C17238 F1H1C104A143 C 0.1UF, K, 16V 1 C17239 F1H1C104A143 C 0.1UF, K, 16V 1 C17241 F1K2A474A006 C 0.47UF, 100V 1 C17242 F1K2A474A006 C 0.47UF, 100V 1 C17243 F1K2A474A006 C 0.47UF, 100V 1 C17244 F1K2A474A006 C 0.47UF, 100V 1 C17245 F1K2A474A006 C 0.47UF, 100V 1 C17246 F1K2A474A006 C 0.47UF, 100V 1 C17247 F1K2A474A006 C 0.47UF, 100V 1 C17248 F1K2A474A006 C 0.47UF, 100V 1 C17249 F1K2A474A006 C 0.47UF, 100V 1 C17250 F1K2A474A006 C 0.47UF, 100V 1 C17304 F1H1A1050032 C 10UF, 50V 1 C17305 F1H1A1050032 C 10UF, 50V 1 C17306 F1H1A1050032 C 10UF, 50V 1 C17307 F1H1A1050032 C 10UF, 50V 1 C17310 F1H1A1050032 C 10UF, 50V 1 C17331 F1H1C104A143 C 0.1UF, K, 16V 1 C17332 F1H1C104A143 C 0.1UF, K, 16V 1 C17333 F1H1C104A143 C 0.1UF, K, 16V 1 C17334 F1H1C104A143 C 0.1UF, K, 16V 1 C17335 F1H1C104A143 C 0.1UF, K, 16V 1 C17338 F1H1C104A143 C 0.1UF, K, 16V 1 C17341 F1K2A474A006 C 0.47UF, 100V 1 C17342 F1K2A474A006 C 0.47UF, 100V 1 C17343 F1K2A474A006 C 0.47UF, 100V 1 C17344 F1K2A474A006 C 0.47UF, 100V 1 C17345 F1K2A474A006 C 0.47UF, 100V 1 C17346 F1K2A474A006 C 0.47UF, 100V 1 C17347 F1K2A474A006 C 0.47UF, 100V 1 C17348 F1K2A474A006 C 0.47UF, 100V 1 C17349 F1K2A474A006 C 0.47UF, 100V 1 C17350 F1K2A474A006 C 0.47UF, 100V 1 C17351 F1K2A474A006 C 0.47UF, 100V 1 CB1 K1MN68BA0052 68P 连接接头 1 CB2 K1MN68BA0052 68P 连接接头 1 CB3 K1MN68BA0052 68P 连接接头 1 CB4 K1MN68BA0052 68P 连接接头 1 CB5 K1MN68BA0052 68P 连接接头 1 CB6 K1MN68BA0052 68P 连接接头 1 CB7 K1MN68BA0052 68P 连接接头 1 CB8 K1MN68BA0052 68P 连接接头 1 CB9 K1MN68BA0052 68P 连接接头 1 CB10 K1MN68BA0052 68P 连接接头 1 CB11 K1MN68BA0052 68P 连接接头 1 CB12 K1MN68BA0052 68P 连接接头 1 CB13 K1MN68BA0052 68P 连接接头 1 CB14 K1MN68BA0052 68P 连接接头 1 CB15 K1MN68BA0052 68P 连接接头 1 D3 K1KA14B00129 14P 连接接头 1 D5 K1KB31BA0064 31P 连接接头 1 D6 K1KA20AA0009 20P 连接接头 1 D20 K1MN35BA0266 35P 连接接头 1 D25 K1KA13B00069 13P 连接接头 1 参考号 部件号 部件名称及说明 件数 备注 D31 K1MN68BA0266 68P 连接接头 1 D32 K1MN68BA0266 68P 连接接头 1 D33 K1MN68BA0266 68P 连接接头 1 D853 MA2J11100L 二极管 1 D855 MA2J11100L 二极管 1 D856 MA2J11100L 二极管 1 D857 MA2J11100L 二极管 1 D859 B0JCME000037 二极管 1 D860 MAZ81100ML 稳压二极管 1 D861 MA2J11100L 二极管 1 D862 MAZ80330LL 稳压二极管 1 D1107 MA3X704A0L 稳压二极管 1 D1112 MA2J72800L 稳压二极管 1 D2004 MA2J11100L 二极管 1 D2005 MA2J11100L 二极管 1 D2006 MA2J11100L 二极管 1 D2007 MA2J11100L 二极管 1 D2009 MA2J11100L 二极管 1 D2010 MA2J11100L 二极管 1 D2013 MA2J11100L 二极管 1 D2020 MA3X78900L 稳压二极管 1 D2024 B0BC03900015 稳压二极管 1 D2201 MA3X704A0L 稳压二极管 1 D2300 MA2J11100L 二极管 1 D2301 B0HCMM000014 二极管 1 D2302 B0HCMM000014 二极管 1 D2512 MAZ80560ML 稳压二极管 1 D2520 LNJ107W5PRW LED 1 D2524 MAZ80560ML 稳压二极管 1 D2530 MAZ80560ML 稳压二极管 1 D3057 B0BC01100001 稳压二极管 1 D3077 MAZ81400ML 稳压二极管 1 D3082 B0BC01100001 稳压二极管 1 D3086 MAZ81400ML 稳压二极管 1 D3090 MAZ81400ML 稳压二极管 1 D3091 MAZ81400ML 稳压二极管 1 D3092 MAZ81400ML 稳压二极管 1 D3093 MAZ81400ML 稳压二极管 1 D3702 MAZ81400ML 稳压二极管 1 D3703 MAZ81400ML 稳压二极管 1 D3704 MAZ81400ML 稳压二极管 1 D3705 MAZ81400ML 稳压二极管 1 D3706 MAZ81400ML 稳压二极管 1 D3801 EZAEG2A50AX 二极管 1 D3802 EZAEG2A50AX 二极管 1 D3803 EZAEG2A50AX 二极管 1 D3804 EZAEG2A50AX 二极管 1 D3805 EZAEG2A50AX 二极管 1 D3806 EZAEG2A50AX 二极管 1 D3807 EZJZ0V80008B 变阻器 1 D3808 EZJZ0V80008B 变阻器 1 D3809 EZAEG2A50AX 二极管 1 D3810 EZAEG2A50AX 二极管 1 D3811 EZJZ0V80008B 变阻器 1 D3813 B0HCMM000014 二极管 1 D3814 B0HCMM000014 二极管 1 D3815 EZJZ0V120JA 变阻器 1 D4502 EZAEG2A50AX 二极管 1 D4503 EZAEG2A50AX 二极管 1 D4504 EZAEG2A50AX 二极管 1 D4505 EZAEG2A50AX 二极管 1 D4506 EZAEG2A50AX 二极管 1 D4507 EZAEG2A50AX 二极管 1 D4508 EZAEG2A50AX 二极管 1 D4509 EZAEG2A50AX 二极管 1 D4510 EZAEG2A50AX 二极管 1 D4511 EZAEG2A50AX 二极管 1 D4512 EZAEG2A50AX 二极管 1 D4513 B0BC5R6A0275 二极管 1 D4514 EZAEG2A50AX 二极管 1 D4515 B0BC5R6A0275 二极管 1 D4516 EZAEG2A50AX 二极管 1 D4517 EZAEG2A50AX 二极管 1 D4518 EZAEG2A50AX 二极管 1 D4519 EZAEG2A50AX 二极管 1 D4520 EZAEG2A50AX 二极管 1 D4521 EZAEG2A50AX 二极管 1 参考号 部件号 部件名称及说明 件数 备注 130 TH-58PZ880C D4522 EZAEG2A50AX 二极管 1 D4523 EZAEG2A50AX 二极管 1 D4541 MA2J11100L 二极管 1 D4542 MA2J11100L 二极管 1 D4544 EZAEG2A50AX 二极管 1 D4545 EZAEG2A50AX 二极管 1 D4546 EZAEG2A50AX 二极管 1 D4547 EZAEG2A50AX 二极管 1 D4548 EZAEG2A50AX 二极管 1 D4549 EZAEG2A50AX 二极管 1 D4550 B0BC5R6A0275 二极管 1 D4551 EZAEG2A50AX 二极管 1 D4552 EZAEG2A50AX 二极管 1 D4553 EZAEG2A50AX 二极管 1 D4554 EZAEG2A50AX 二极管 1 D4560 MA2J11100L 二极管 1 D4561 MA2J11100L 二极管 1 D4562 MA2J11100L 二极管 1 D4563 MA2J11100L 二极管 1 D4564 MA2J11100L 二极管 1 D4565 MA2J11100L 二极管 1 D4566 B0HCMM000014 二极管 1 D5201 MA2J72800L 稳压二极管 1 D5301 MA22D3900L 二极管 1 D5302 MA22D3900L 二极管 1 D5303 B0JCDD000002 二极管 1 D5304 B0JCDD000002 二极管 1 D5307 B0BC4R000002 稳压二极管 1 D5308 B0BC4R000002 稳压二极管 1 D5406 B0JCME000037 二极管 1 D5407 B0BC4R700007 稳压二极管 1 D5408 B0BC4R700007 稳压二极管 1 D5409 B0JCME000037 二极管 1 D5410 B0BC4R700007 稳压二极管 1 D5411 B0BC4R700007 稳压二极管 1 D5502 B0BC01000035 稳压二极管 1 D5503 B0BC01100001 稳压二极管 1 D5504 B0BC6R600005 稳压二极管 1 D5521 B0ADEJ000035 稳压二极管 1 D5522 B0ADEJ000035 稳压二极管 1 D5574 B0BC3R700006 稳压二极管 1 D5575 B0BC3R700006 稳压二极管 1 D5576 MA3X152E0L 稳压二极管 1 D5577 MAZ80680LL 稳压二极管 1 D5578 MA8120M 稳压二极管 1 D5579 MAZ80680LL 稳压二极管 1 D5580 MA2J11100L 二极管 1 D5600 B0BC4R700007 稳压二极管 1 D5601 MA22D3900L 二极管 1 D5602 MA22D3900L 二极管 1 D5603 B0JCDD000002 二极管 1 D5604 B0JCDD000002 二极管 1 D5605 MA22D3900L 二极管 1 D5606 B0JCDD000002 二极管 1 D5607 B0BC4R700007 稳压二极管 1 D5608 B0BC4R700007 稳压二极管 1 D5691 B0BC6R600005 稳压二极管 1 D5692 MAZ80560LL 稳压二极管 1 D7800 B3AEB0000107 LED 1 D8901 MA2J72800L 稳压二极管 1 D8952 MA2J72800L 稳压二极管 1 D9002 K7AAAY000003 图片链接 1 D9014 MA2J11100L 二极管 1 D9017 MA2J11100L 二极管 1 D9024 B0JCCE000008 二极管 1 D9025 B0JCCE000008 二极管 1 D9026 B0JCCE000008 二极管 1 D9027 B0BC3R3A0273 稳压二极管 1 D9028 B0BC3R3A0273 稳压二极管 1 D9029 B0BC3R3A0273 稳压二极管 1 D9110 B0JCGD000002 二极管 1 D9807 B0JCCE000008 二极管 1 D9808 B0JCCE000008 二极管 1 D9812 MA22D3900L 二极管 1 D9813 B0JCGD000002 二极管 1 D9814 B0JCGD000002 二极管 1 D9815 B0JCGD000002 二极管 1 参考号 部件号 部件名称及说明 件数 备注 D9816 MA22D3900L 二极管 1 D9817 MA22D3900L 二极管 1 D14903 B0HCMM000013 二极管 1 D14904 B0HCMM000013 二极管 1 D14905 B0HCMM000013 二极管 1 D14906 B0HCMM000013 二极管 1 D14907 B0HCMM000013 二极管 1 D14908 B0HCMM000013 二极管 1 D14909 MA3X152E0L 稳压二极管 1 D14910 MA2J11100L 二极管 1 D14911 B0HCMM000013 二极管 1 D14912 B0HCMM000013 二极管 1 D14913 B0HCMM000013 二极管 1 D14914 B0HCMM000013 二极管 1 D14953 B0HCMM000013 二极管 1 D14954 B0HCMM000013 二极管 1 D14955 B0HCMM000013 二极管 1 D14956 B0HCMM000013 二极管 1 D14957 B0HCMM000013 二极管 1 D14958 B0HCMM000013 二极管 1 D14959 B0HCMM000013 二极管 1 D14960 B0HCMM000013 二极管 1 D14961 MA8056H 稳压二极管 1 D14974 MA3X152E0L 稳压二极管 1 D14975 MA2J11100L 二极管 1 D14976 MA2J11100L 二极管 1 D14977 B0HCMM000013 二极管 1 D14978 B0HCMM000013 二极管 1 D14979 MA2J11100L 二极管 1 D16001 B0FBCN000005 二极管 1 D16002 B0FBCN000005 二极管 1 D16003 B0FBCN000005 二极管 1 D16021 MA3DF30000LW 稳压二极管 1 D16022 MA3DF30000LW 稳压二极管 1 D16032 MA2J11100L 二极管 1 D16041 MA3DF46000LW 稳压二极管 1 D16042 MA3DF46000LW 稳压二极管 1 D16043 MA3DF46000LW 稳压二极管 1 D16050 B0ECKP000047 二极管 1 D16051 B0FBCN000005 二极管 1 D16052 B0FBCN000005 二极管 1 D16053 B0FBCN000005 二极管 1 D16101 MA22D3900L 二极管 1 D16131 B0ECHP000003 二极管 1 D16151 B0ECHP000003 二极管 1 D16152 B0ECKP000047 二极管 1 D16153 B0ECKP000047 二极管 1 D16191 B0ECKP000047 二极管 1 D16192 MA2J11100L 二极管 1 D16253 B3ABB0000210 LED 1 D16255 MA2J11100L 二极管 1 D16280 MA2J11100L 二极管 1 D16281 MAZ80510LL 稳压二极管 1 D16282 MAZ80680ML 稳压二极管 1 D16284 MA3X152D0L 二极管 1 D16286 MA3X152D0L 二极管 1 D16300 B0ECKP000047 二极管 1 D16301 MA3X152E0L 稳压二极管 1 D16302 MA2J11100L 二极管 1 D16304 MAZ80510LL 稳压二极管 1 D16311 MAZ81500ML 稳压二极管 1 D16313 B0ECKP000047 二极管 1 D16321 B0ECKP000047 二极管 1 D16323 MAZ80330HL 稳压二极管 1 D16324 MA3X152D0L 二极管 1 D16401 MA3DF47000LW 稳压二极管 1 D16402 MA3DF47000LW 稳压二极管 1 D16403 MA3DF47000LW 稳压二极管 1 D16407 MA22D3900L 二极管 1 D16411 MA2J11100L 二极管 1 D16421 MA3DF40000LW 稳压二极管 1 D16422 MA3DF40000LW 稳压二极管 1 D16451 B0ECKP000047 二极管 1 D16462 MA3DF46000LW 稳压二极管 1 D16463 MA3DF46000LW 稳压二极管 1 D16464 MA3DF46000LW 稳压二极管 1 D16466 MA2J11100L 二极管 1 参考号 部件号 部件名称及说明 件数 备注 131 TH-58PZ880C D16473 MA3X152D0L 二极管 1 D16474 MA2J11100L 二极管 1 D16475 MAZ80510LL 稳压二极管 1 D16476 MA2J11100L 二极管 1 D16477 MA2J11100L 二极管 1 D16478 B0HCKS000002 二极管 1 D16480 MA2J11100L 二极管 1 D16482 MA3DF46000LW 稳压二极管 1 D16483 MA3DF46000LW 稳压二极管 1 D16484 MA3DF46000LW 稳压二极管 1 D16497 B0ECKP000047 二极管 1 D16503 B0HCKS000002 二极管 1 D16522 B0ECKP000047 二极管 1 D16523 B0ECKP000047 二极管 1 D16524 B0ECKP000047 二极管 1 D16536 B0HCKS000002 二极管 1 D16583 B3ABB0000210 LED 1 D16602 MA8120M 稳压二极管 1 D16604 MA2J11100L 二极管 1 D16605 MAZ80510LL 稳压二极管 1 D16606 B0ECKM000038 二极管 1 D16607 MA2J11100L 二极管 1 D16608 MA8120M 稳压二极管 1 D16609 MA2J11100L 二极管 1 D16610 MA2J11100L 二极管 1 D16618 B0ECKP000047 二极管 1 D16619 B0ECKP000047 二极管 1 D16621 B0FBCN000006 二极管 1 D16622 B0FBCN000006 二极管 1 D16623 B0FBCN000006 二极管 1 D16631 MAZ81500ML 稳压二极管 1 D16632 MAZ81500ML 稳压二极管 1 D16633 MAZ81500ML 稳压二极管 1 D16641 MA3DF25000LW 稳压二极管 1 D16642 MA3DF25000LW 稳压二极管 1 D16643 MA3DF25000LW 稳压二极管 1 D16660 B0HCMM000014 二极管 1 D16661 MA2J11100L 二极管 1 D16662 MAZ81500ML 稳压二极管 1 D16663 MAZ81500ML 稳压二极管 1 D16664 MAZ81500ML 稳压二极管 1 D16665 MAZ80510LL 稳压二极管 1 D16667 MA2J11100L 二极管 1 D16668 MA3X152D0L 二极管 1 D16669 MA2J11100L 二极管 1 D16671 MA2J11100L 二极管 1 D16702 MA2J11100L 二极管 1 D16710 MAZ815000L 稳压二极管 1 D16711 B0HCMR000002 二极管 1 D16712 MAZ815000L 稳压二极管 1 D16713 B0HCMR000002 二极管 1 D16714 MAZ815000L 稳压二极管 1 D16715 B0HCMR000002 二极管 1 D16717 MA8330M 稳压二极管 1 D16718 MA2J11100L 二极管 1 D16719 B0ECKP000047 二极管 1 D16720 B0ECKP000047 二极管 1 D16721 B0HCKS000002 二极管 1 D16722 MA2J11100L 二极管 1 D16725 MA2J11100L 二极管 1 D16761 MA22D3900L 二极管 1 D16764 B0HCKS000002 二极管 1 D16765 B0ECKP000047 二极管 1 D16781 MA2J11100L 二极管 1 D16791 MAZ82000ML 稳压二极管 1 D16792 MA2J11100L 二极管 1 D16793 B0HCKS000002 二极管 1 D16794 MA2J11100L 二极管 1 D16820 MA3X152E0L 稳压二极管 1 D16821 MAZ82000ML 稳压二极管 1 D16822 MA2J11100L 二极管 1 D16824 MA8330M 稳压二极管 1 D16825 MA8330M 稳压二极管 1 D16835 B0ECKP000047 二极管 1 D16859 B0HCKS000002 二极管 1 D16860 B0HCKS000002 二极管 1 D16861 MA8330M 稳压二极管 1 参考号 部件号 部件名称及说明 件数 备注 D16862 MA8330M 稳压二极管 1 D16871 MAZ82000ML 稳压二极管 1 D16873 MAZ82000ML 稳压二极管 1 D16874 MAZ80510LL 稳压二极管 1 D16875 MA2J11100L 二极管 1 D17101 B0ECKM000038 二极管 1 D17102 B0ECKM000038 二极管 1 D17103 B0ECKM000038 二极管 1 D17104 B0ECKM000038 二极管 1 D17105 B0ECKM000038 二极管 1 D17201 B0ECKM000038 二极管 1 D17202 B0ECKM000038 二极管 1 D17203 B0ECKM000038 二极管 1 D17204 B0ECKM000038 二极管 1 D17205 B0ECKM000038 二极管 1 D17301 B0ECKM000038 二极管 1 D17302 B0ECKM000038 二极管 1 D17303 B0ECKM000038 二极管 1 D17304 B0ECKM000038 二极管 1 D17305 B0ECKM000038 二极管 1 FL3710 J0ZZA0000091 滤波器 1 FL3711 J0ZZA0000091 滤波器 1 FL3712 J0ZZA0000091 滤波器 1 FL3713 J0ZZA0000091 滤波器 1 FL3714 J0ZZA0000091 滤波器 1 FL4206 ECJ1VB0J474K C 0.47UF, K, 6.3V 1 FL5015 J0JAD0000028 片状电感 1 FL5016 J0JAD0000028 片状电感 1 FL5017 J0JAD0000028 片状电感 1 FL5018 J0JAD0000028 片状电感 1 FL5019 J0JAD0000028 片状电感 1 FL5020 J0JAD0000028 片状电感 1 FL5731 J0HABH000013 LC 滤波器 1 FL5732 J0HABH000013 LC 滤波器 1 FL5733 J0HABH000013 LC 滤波器 1 FL5734 J0HABH000013 LC 滤波器 1 FL9001 J0HABB000003 LC 滤波器 1 FL9002 J0HABB000003 LC 滤波器 1 FL9003 J0HABB000004 LC 滤波器 1 FL9004 J0HABB000004 LC 滤波器 1 FL9005 J0HABB000004 LC 滤波器 1 FL9803 F1J1E104A148 C 0.10UF, Z, 25V 1 FL9805 F1J1E104A148 C 0.10UF, Z, 25V 1 FL9806 F1J1E104A148 C 0.10UF, Z, 25V 1 FL17101 J0HABH000013 LC 滤波器 1 FL17201 J0HABH000013 LC 滤波器 1 G51 K1KY16BA0192 16P 连接接头 1 GH10 K1FY121E0001 连接接头 1 GH11 K1KA30AA0009 30P 连接接头 1 GL02 K1KA02B00294 2P 连接接头 1 GS02 K1KA02A00787 2P 连接接头 1 GS09 K1KA06A00508 6P 连接接头 1 H13 K1KA06AA0190 6P 连接接头 1 H14 K1KA07AA0190 7P 连接接头 1 HC12 K1KY15AA0606 15P 连接接头 1 HC13 K1KY23AA0606 23P 连接接头 1 HC14 K1KY23AA0606 23P 连接接头 1 HC15 K1KA11AA0715 11P 连接接头 1 HC16 K1KA20AA0009 20P 连接接头 1 IC850 C0DBAZF00003 IC 1 IC1100 MN103SG3FPA1 IC 1 IC1101 TVRQ306 IC 1 IC2008 C0CBCBE00001 IC 1 IC2012 C1BB00000947 IC 1 IC2013 C0DBGYY00281 IC 1 IC2106 C1AB00003015 IC 1 PPDS IC2107 C0DBFFD00003 IC 1 IC2109 C0DBGHF00001 IC 1 IC2403 C1AB00002877 IC 1 参考号 部件号 部件名称及说明 件数 备注 132 TH-58PZ880C IC2602 C3ABRY000037 IC 1 IC2603 C0DBEFH00002 IC 1 IC2604 C1AB00002930 IC 1 IC3007 AN15876A-VT IC 1 IC3009 AN15862A-VT IC 1 IC3801 C1AB00002835 IC 1 IC3802 TVRQ130 IC 1 IC4001 C1AB00002687 IC 1 IC4002 C0CBCAC00358 IC 1 IC4005 C0CBCBC00227 IC 1 IC4013 C0JBAZ002060 IC 1 IC4200 C1AB00002886 IC 1 IC4502 C0JBAU000034 IC 1 IC4503 C1AB00002929 IC 1 IC4504 C0JBAU000034 IC 1 IC4510 C1AB00002966 IC 1 IC4511 C0CBCBE00001 IC 1 IC4512 C0DBGYY00477 IC 1 IC4513 C0DBGYY00477 IC 1 IC4516 TVRQ215 IC 1 IC5001 C3ABRY000015 IC 1 IC5002 C3ABRY000015 IC 1 IC5100 MN84527 IC 1 IC5300 C0CBCBD00062 IC 1 IC5301 C0DBAYY00274 IC 1 IC5402 C0DBAYY00183 IC 1 IC5403 C0DBAYY00183 IC 1 IC5404 C0DBEHG00006 IC 1 IC5405 C0DBGYY00204 IC 1 IC5501 EHMDD9851 线状 IC 1 IC5562 C0CBCAC00282 IC 1 IC5563 C0CBCAF00032 IC 1 IC5600 C0DBAYY00273 IC 1 IC5601 C0DBAYY00274 IC 1 IC5660 C0EBM0000026 IC 1 IC7700 TVRP965 IC 1 IC7701 C0DBEHG00006 IC 1 IC7702 C1CB00002668 IC 1 IC8001 MN2WS0031CTY IC 1 IC8101 C0ZBZ0001567 IC 1 IC8201 C3ABSY000010 IC 1 IC8202 C3ABSY000010 IC 1 IC8203 C3ABRY000015 IC 1 IC8204 C3ABRY000015 IC 1 IC8580 TVRQ049AA IC 1 PPDS IC8601 TVRQ108 IC 1 PPDS IC8620 C1CB00002607 IC 1 IC8621 C0DBZYY00266 IC 1 IC9001 C1AB00002875 IC 1 IC9001 TVRQ058 IC 1 IC9002 C1AB00002875 IC 1 IC9002 C1ZBZ0003577 IC 1 IC9003 C1ZBZ0003775 IC 1 IC9003 MN103SG4GPF3 IC 1 IC9011 C0EBF0000431 IC 1 IC9013 C0JBAZ002060 IC 1 IC9019 C0JBAZ001120 IC 1 IC9300 MN84526 IC 1 IC9301 C3ABQJ000055 IC 1 IC9303 TVRQ068 IC 1 IC9400 MN84526 IC 1 IC9401 C3ABQJ000055 IC 1 IC9500 C1ZBZ0003760 IC 1 IC9802 C0JBAZ001120 IC 1 IC9803 C0JBAZ001120 IC 1 IC9805 C0DBAYY00274 IC 1 IC9806 C0DBAYY00273 IC 1 IC14901 AN16181A-VT IC 1 IC14902 AN16181A-VT IC 1 IC14903 AN16181A-VT IC 1 IC14904 AN16181A-VT IC 1 IC14905 AN16181A-VT IC 1 IC14906 AN16181A-VT IC 1 IC14907 AN16181A-VT IC 1 IC14908 AN16181A-VT IC 1 IC14951 AN16181A-VT IC 1 IC14952 AN16181A-VT IC 1 参考号 部件号 部件名称及说明 件数 备注 IC14953 AN16181A-VT IC 1 IC14954 AN16181A-VT IC 1 IC14955 AN16181A-VT IC 1 IC14956 AN16181A-VT IC 1 IC14957 AN16181A-VT IC 1 IC14958 AN16181A-VT IC 1 IC14961 C0JBAZ000994 IC 1 IC14962 C0JBAZ000994 IC 1 IC14963 C0JBAE000321 IC 1 IC14964 C0JBAA000174 IC 1 IC14965 C0JBAE000321 IC 1 IC16131 C0ZBZ0000895 IC 1 IC16151 C0ZBZ0001324 IC 1 IC16241 C0JBAZ002811 IC 1 IC16251 C0BBBA000024 IC 1 IC16301 MIP9L02MBS IC 1 IC16302 C0CBALC00012 IC 1 IC16303 C0JBAB000715 IC 1 IC16464 C0JBAB000715 IC 1 IC16465 C0JBAB000715 IC 1 IC16471 C0DBEKA00003 IC 1 IC16501 C0ZBZ0001324 IC 1 IC16521 C0ZBZ0001324 IC 1 IC16561 C0JBAZ002811 IC 1 IC16562 C0JBAZ002811 IC 1 IC16563 C0JBAZ000994 IC 1 IC16564 C0JBAB000715 IC 1 IC16581 C0BBBA000024 IC 1 IC16724 C0CBADC00072 IC 1 IC16725 C0CBADC00072 IC 1 IC16771 C0CBADC00072 IC 1 IC16772 C0ZBZ0001325 IC 1 IC16773 C0JBAB000715 IC 1 IC16784 MIP9L02MBS IC 1 IC16786 MIP9L02MBS IC 1 IC16787 C0DBEYY00078 IC 1 IC16788 MIP9L02MBS IC 1 IC16789 C0DBEYY00078 IC 1 IC16791 EHMDD9863 线状 IC 1 IC16792 C0JBAA000377 IC 1 IC16801 C0DBEYY00078 IC 1 IC17101 C0JBAZ001120 IC 1 IC17102 C0JBAZ001120 IC 1 IC17103 C0JBAZ001120 IC 1 IC17104 C0JBAZ001120 IC 1 IC17105 C0JBAZ001120 IC 1 IC17106 C0JBAZ001120 IC 1 IC17201 C0JBAZ001120 IC 1 IC17202 C0JBAZ001120 IC 1 IC17203 C0JBAZ001120 IC 1 IC17204 C0JBAZ001120 IC 1 IC17205 C0JBAZ001120 IC 1 IC17206 C0JBAZ001120 IC 1 IC17207 C0JBAZ001120 IC 1 IC17208 C0JBAZ001120 IC 1 IC17209 C0JBAZ001120 IC 1 IC17301 C0JBAZ001120 IC 1 IC17302 C0JBAZ001120 IC 1 IC17303 C0JBAZ001120 IC 1 IC17304 C0JBAZ001120 IC 1 IC17305 C0JBAZ001120 IC 1 IC17306 C0JBAZ001120 IC 1 JA3701 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA3702 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA3703 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA3704 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA3751 ERJ8GEY0R00 M 0 OHM, 1/8W 1 JA3752 ERJ8GEY0R00 M 0 OHM, 1/8W 1 JA3753 ERJ8GEY0R00 M 0 OHM, 1/8W 1 JA3754 ERJ8GEY0R00 M 0 OHM, 1/8W 1 JK3100 K1U932A00002 连接接头 1 JK3701 K4AK18B00007 端子 1 JK4500 K1FY119D0003 连接接头 1 JK4501 K1FY119D0003 连接接头 1 JK4502 K1FY119D0003 连接接头 1 参考号 部件号 部件名称及说明 件数 备注 133 TH-58PZ880C JK7702 K1NA09E00080 9P 连接接头 1 JK9001 K1FB315A0006 连接接头 1 JS851 D0GDR00Z0002 M 0 OHM, 1/10W 1 JS852 D0GDR00Z0002 M 0 OHM, 1/10W 1 JS1100 D0YAR0000007 M 0 OHM 1/4W 1 JS1107 D0YAR0000007 M 0 OHM 1/4W 1 JS2059 D0YAR0000007 M 0 OHM 1/4W 1 JS2060 D0YAR0000007 M 0 OHM 1/4W 1 JS2061 D0YAR0000007 M 0 OHM 1/4W 1 JS2320 D0YAR0000007 M 0 OHM 1/4W 1 JS3039 D0YAR0000007 M 0 OHM 1/4W 1 JS3704 D0GDR00Z0002 M 0 OHM, 1/10W 1 JS3705 D0GDR00Z0002 M 0 OHM, 1/10W 1 JS3707 D0GDR00Z0002 M 0 OHM, 1/10W 1 JS3708 D0GDR00Z0002 M 0 OHM, 1/10W 1 JS4002 D0YAR0000007 M 0 OHM 1/4W 1 JS7700 D0GBR00Z0002 M 0 OHM J 1/16W 1 JS9323 D0GBR00Z0002 M 0 OHM J 1/16W 1 JS9324 D0GBR00Z0002 M 0 OHM J 1/16W 1 JS9325 D0GBR00Z0002 M 0 OHM J 1/16W 1 JS9326 D0GBR00Z0002 M 0 OHM J 1/16W 1 K1 K1KY12B00001 12P 连接接头 1 L852 G0C150MA0056 峰化线圈 1 L1100 J0JYC0000068 片状电感 1 L2001 G1C150KA0038 感应线圈 1 L2005 J0JCC0000284 片状电感 1 L2006 J0JCC0000284 片状电感 1 L2021 G1C470MA0291 感应线圈 1 L2022 G1C100MA0072 感应线圈 1 L2025 J0JCC0000059 片状电感 1 L2026 J0JCC0000059 片状电感 1 L2030 J0JYC0000068 片状电感 1 L2031 J0JYC0000068 片状电感 1 L2032 J0JYC0000068 片状电感 1 L2033 J0JCC0000059 片状电感 1 L2034 J0JCC0000059 片状电感 1 L2036 J0JYC0000068 片状电感 1 L2300 J0JYC0000068 片状电感 1 L3032 J0JCC0000100 片状电感 1 L3033 J0JCC0000100 片状电感 1 L3036 J0JCC0000100 片状电感 1 L3037 J0JCC0000100 片状电感 1 L3040 J0JCC0000100 片状电感 1 L3041 J0JCC0000100 片状电感 1 L3042 J0JCC0000100 片状电感 1 L3043 J0JCC0000100 片状电感 1 L3044 J0JCC0000100 片状电感 1 L3045 J0JCC0000100 片状电感 1 L3046 J0JCC0000100 片状电感 1 L3047 J0JCC0000100 片状电感 1 L3048 J0JCC0000100 片状电感 1 L3049 G1C101M00018 感应线圈 1 L3050 G1C101M00018 感应线圈 1 L3700 J0JCC0000364 片状电感 1 L3701 J0JCC0000364 片状电感 1 L3707 J0JCC0000100 片状电感 1 L3708 J0JCC0000100 片状电感 1 L3801 J0JHC0000078 片状电感 1 L3804 J0JHC0000078 片状电感 1 L3805 J0JHC0000078 片状电感 1 L4002 J0JHC0000045 片状电感 1 L4004 J0JYC0000068 片状电感 1 L4006 J0JHC0000045 片状电感 1 L4008 J0JYC0000068 片状电感 1 L4009 J0JYC0000068 片状电感 1 L4212 J0JYC0000068 片状电感 1 L4216 J0JYC0000068 片状电感 1 L4217 J0JYC0000068 片状电感 1 L4219 J0JYC0000068 片状电感 1 L4220 J0JYC0000068 片状电感 1 L4502 J0JYC0000068 片状电感 1 L4503 J0JYC0000068 片状电感 1 L4504 J0JYC0000068 片状电感 1 L4505 J0JYC0000068 片状电感 1 参考号 部件号 部件名称及说明 件数 备注 L4506 J0JYC0000068 片状电感 1 L4507 J0JYC0000068 片状电感 1 L4508 J0JYC0000068 片状电感 1 L4511 J0JYC0000068 片状电感 1 L4512 J0JYC0000068 片状电感 1 L4513 J0JYC0000068 片状电感 1 L4514 J0JYC0000068 片状电感 1 L4515 J0JYC0000068 片状电感 1 L4516 J0JYC0000068 片状电感 1 L4517 J0JYC0000068 片状电感 1 L4518 J0JYC0000068 片状电感 1 L4519 J0JYC0000068 片状电感 1 L4521 J0JYC0000068 片状电感 1 L4522 J0JYC0000068 片状电感 1 L4523 J0JYC0000068 片状电感 1 L5001 J0JHC0000045 片状电感 1 L5002 J0JHC0000045 片状电感 1 L5004 J0JHC0000045 片状电感 1 L5005 J0JHC0000045 片状电感 1 L5006 J0JHC0000045 片状电感 1 L5300 G1C2R2Z00007 感应线圈 1 L5301 G1C2R2Z00007 感应线圈 1 L5302 J0JYC0000068 片状电感 1 L5304 G1C100MA0203 感应线圈 1 L5305 J0JHC0000075 片状电感 1 L5407 G1C330M00027 感应线圈 1 L5409 G1C100MA0291 感应线圈 1 L5410 G1C330M00027 感应线圈 1 L5412 J0JYC0000068 片状电感 1 L5414 G1C100MA0291 感应线圈 1 L5415 J0JYC0000068 片状电感 1 L5501 G0A2R7HA0011 扼流圈 1 L5502 G0C150MA0056 峰化线圈 1 L5503 G0C330MA0056 峰化线圈 1 L5504 G0A2R7HA0011 扼流圈 1 L5505 G0A2R7HA0011 扼流圈 1 L5600 G1C3R9Z00003 感应线圈 1 L5601 G1C3R9Z00003 感应线圈 1 L5602 G1C2R2Z00007 感应线圈 1 L5604 G1C100MA0203 感应线圈 1 L5605 J0JHC0000075 片状电感 1 L5606 G1C100MA0203 感应线圈 1 L5610 J0JHC0000035 片状电感 1 L5611 J0JHC0000035 片状电感 1 L5690 J0JYC0000068 片状电感 1 L5691 J0JYC0000068 片状电感 1 L5735 J0JYC0000068 片状电感 1 L7704 J0JHC0000045 片状电感 1 L7705 J0JHC0000045 片状电感 1 L8030 J0JHC0000045 片状电感 1 L8031 J0JHC0000045 片状电感 1 L8032 J0JHC0000045 片状电感 1 L8034 J0JHC0000045 片状电感 1 L8035 J0JHC0000045 片状电感 1 L8036 J0JHC0000045 片状电感 1 L8101 J0JHC0000045 片状电感 1 L8201 J0JHC0000045 片状电感 1 L8501 J0JHC0000045 片状电感 1 L8580 J0JHC0000075 片状电感 1 L8620 J0JHC0000045 片状电感 1 L8621 J0JHC0000045 片状电感 1 L8623 J0JHC0000045 片状电感 1 L9000 J0JHC0000078 片状电感 1 L9001 J0JHC0000078 片状电感 1 L9002 J0JHC0000078 片状电感 1 L9003 J0JHC0000078 片状电感 1 L9004 J0JHC0000078 片状电感 1 L9005 J0JHC0000078 片状电感 1 L9006 J0JHC0000078 片状电感 1 L9007 J0JHC0000078 片状电感 1 L9010 G1C220MA0291 感应线圈 1 L9011 G1C220MA0291 感应线圈 1 L9012 G1C220MA0291 感应线圈 1 L9013 G1C220MA0291 感应线圈 1 L9014 G1C220MA0291 感应线圈 1 L9015 G1C220MA0291 感应线圈 1 L9016 G1C220MA0291 感应线圈 1 参考号 部件号 部件名称及说明 件数 备注 134 TH-58PZ880C L9017 G1C220MA0291 感应线圈 1 L9018 J0JHC0000042 片状电感 1 L9019 J0JHC0000042 片状电感 1 L9023 G1C3R0ZA0156 感应线圈 1 L9800 G1C2R2Z00007 感应线圈 1 L9801 G1C1R5Z00006 感应线圈 1 L9802 G1C2R2Z00007 感应线圈 1 L16001 G0C1R4KA0118 峰化线圈 1 L16003 G0C1R4KA0118 峰化线圈 1 L16004 G0C1R4KA0118 峰化线圈 1 L16005 G0C1R4KA0118 峰化线圈 1 L16006 G0C1R4KA0118 峰化线圈 1 L16012 G0C1R4KA0118 峰化线圈 1 L16013 G0C1R4KA0118 峰化线圈 1 L16014 G0C1R4KA0118 峰化线圈 1 L16015 G0C1R4KA0118 峰化线圈 1 L16016 G0C1R4KA0118 峰化线圈 1 L16103 G0ZZ00002183 峰化线圈 1 L16221 G0ZZ00002183 峰化线圈 1 L16262 G0ZZ00002183 峰化线圈 1 L16271 G0ZZ00002183 峰化线圈 1 L16301 J0JHC0000031 片状电感 1 L16398 J0JJC0000015 片状电感 1 L16399 J0JJC0000015 片状电感 1 L16402 G0C1R4KA0118 峰化线圈 1 L16403 G0C1R4KA0118 峰化线圈 1 L16404 G0C1R4KA0118 峰化线圈 1 L16405 G0C1R4KA0118 峰化线圈 1 L16406 G0C1R4KA0118 峰化线圈 1 L16411 G0C1R4KA0118 峰化线圈 1 L16413 G0C1R4KA0118 峰化线圈 1 L16414 G0C1R4KA0118 峰化线圈 1 L16415 G0C1R4KA0118 峰化线圈 1 L16417 G0C1R4KA0118 峰化线圈 1 L16472 G0ZZ00002183 峰化线圈 1 L16473 G0ZZ00002183 峰化线圈 1 L16474 G0ZZ00002183 峰化线圈 1 L16591 G0ZZ00002183 峰化线圈 1 L16698 G0C681KA0187 峰化线圈 1 L16699 G0C331KA0187 峰化线圈 1 L16801 G0ZZ00002183 峰化线圈 1 L16851 G0ZZ00002183 峰化线圈 1 PA5 K1KA12AA0194 12P 连接接头 1 PA6 K1KA20AA0009 20P 连接接头 1 PA8 K1KA06A00452 6P 连接接头 1 PA33 K1KA04AA0192 4P 连接接头 1 PA35 K1KA03AA0192 3P 连接接头 1 PA36 K1KA04AA0192 4P 连接接头 1 PA37 K1KA03AA0192 3P 连接接头 1 PA5200 K5H5022A0023 保险丝 1 PA5400 K5H5022A0023 保险丝 1 PA5402 K5H1022A0031 保险丝 1 PA5403 K5H1022A0031 保险丝 1 PA5600 K5H5022A0023 保险丝 1 PA9800 K5H4022A0031 保险丝 1 PA9900 K5H5022A0031 保险丝 1 PC2511 B3JB00000046 IC 1 PC14951 B3PBA0000457 IC 1 PC14952 B3PBA0000457 IC 1 PC14953 B3PBA0000456 IC 1 PC16191 B3PBA0000496 IC 1 PC16461 B3PBA0000457 IC 1 PC16480 B3PBA0000223 IC 1 PC16601 B3PBA0000223 IC 1 PC16603 B3PBA0000223 IC 1 PC16684 B3PBA0000496 IC 1 PC16685 B3PBA0000496 IC 1 PC16896 B3PBA0000223 IC 1 PC16897 B3PBA0000223 IC 1 PCB TNPH0724BC 电路板 A 1 PPDS PCB TNPA4544AD 电路板 HC 1 PPDS 参考号 部件号 部件名称及说明 件数 备注 PCB TXNPA1RETC 电路板 PA 1 PPDS PCB ETX2MM706NGA 电路板 P 1 PCB TXNC11RETC 电路板 C1 1 PCB TXNC21RETC 电路板 C2 1 PCB TXNC31RETC 电路板 C3 1 PCB TXN/D1RETC 电路板 D 1 PPDS PCB TXNSC1RETC 电路板 SC 1 PCB TXNSD1RETC 电路板 SD 1 PCB TXNSS1RETC 电路板 SS 1 PCB TXNSS21RETC 电路板 SS2 1 PCB TXNSS31RETC 电路板 SS3 1 PCB TXNSU1RETC 电路板 SU 1 PCB TXN/S1RLTC 电路板 S 1 PCB TXN/G1RLTC 电路板 G 1 PCB TXNGH1RFTC 电路板 GH 1 PPDS PCB TXNGS1RFTC 电路板 GS 1 PPDS PCB TXN/K1RFTC 电路板 K 1 PPDS PCB TXNGL1RFTC 电路板 GL 1 PPDS Q2001 2SD0601ARL 三极管 1 Q2022 2SB0709ARL 三极管 1 Q2027 B1CFNG000001 FET 1 Q2028 B1CBHD000002 FET 1 Q2029 B1CBHD000002 FET 1 Q2030 2SB0709ARL 三极管 1 Q2033 2SB0709ARL 三极管 1 Q2510 2SD0601ARL 三极管 1 Q2511 2SD0601ARL 三极管 1 Q2513 2SD0601ARL 三极管 1 Q3022 2SD0601ARL 三极管 1 Q3023 2SD0601ARL 三极管 1 Q3028 2SB0709ARL 三极管 1 Q3801 2SD0601ARL 三极管 1 Q3802 2SD0601ARL 三极管 1 Q3804 2SD0601ARL 三极管 1 Q4000 2SA207700L 三极管 1 Q4001 2SA207700L 三极管 1 Q4002 2SA207700L 三极管 1 Q4017 2SD0601ASL 三极管 1 Q4500 2SD0601ASL 三极管 1 Q4501 2SD0601ASL 三极管 1 Q4502 2SD0601ARL 三极管 1 Q4503 2SD0601ARL 三极管 1 Q4514 2SB0709ASL 三极管 1 Q4515 2SB0709ASL 三极管 1 Q4516 2SB0709ASL 三极管 1 Q4517 2SB0709ASL 三极管 1 Q4520 2SD0601ARL 三极管 1 Q4522 2SD0601ARL 三极管 1 Q4523 2SD0601ASL 三极管 1 Q4524 2SD0601ASL 三极管 1 Q4528 2SB0709ASL 三极管 1 Q4529 2SB0709ASL 三极管 1 Q4530 2SB0709ASL 三极管 1 Q4531 2SB0709ASL 三极管 1 Q4801 2SD0601ASL 三极管 1 Q4802 2SD0601ASL 三极管 1 Q4803 2SD0601ASL 三极管 1 Q4831 2SD0601ASL 三极管 1 Q4832 2SD0601ASL 三极管 1 Q5301 B1MBEDA00015 FET 1 Q5302 B1MBEDA00015 FET 1 Q5501 2SD0601ASL 三极管 1 Q5522 2SB0709ARL 三极管 1 Q5531 2SD0601ARL 三极管 1 Q5532 2SD0601ARL 三极管 1 Q5533 2SD0601ARL 三极管 1 Q5534 2SD0601ARL 三极管 1 Q5561 B1DHDC000028 FET 1 Q5562 2SD0601ARL 三极管 1 参考号 部件号 部件名称及说明 件数 备注 135 TH-58PZ880C Q5563 2SD0601ARL 三极管 1 Q5564 2SD0601ARL 三极管 1 Q5565 2SD0601ASL 三极管 1 Q5600 B1MBEDA00015 FET 1 Q5601 B1MBDDA00003 FET 1 Q5602 B1MBDDA00003 FET 1 Q5603 2SD0601ARL 三极管 1 Q5604 2SD0601ARL 三极管 1 Q5691 2SD0601ARL 三极管 1 Q5693 B1DHDC000028 FET 1 Q7700 2SB0709ARL 三极管 1 Q7701 2SD0601ARL 三极管 1 Q8850 2SD0601ARL 三极管 1 Q8852 2SD0601ARL 三极管 1 Q8853 2SD0601ASL 三极管 1 Q9010 2SD0601ARL 三极管 1 Q9058 2SD0601ARL 三极管 1 Q9059 2SD0601ARL 三极管 1 Q9060 2SD0601ARL 三极管 1 Q9061 2SD0601ARL 三极管 1 Q9805 2SD0601ARL 三极管 1 Q9806 2SD0601ARL 三极管 1 Q9807 B1MBDDA00003 FET 1 Q9808 B1MBDDA00015 FET 1 Q9809 B1MBDDA00003 FET 1 Q16001 B1JAEN000004 三极管 1 Q16002 B1JAEN000004 三极管 1 Q16003 B1JAEN000004 三极管 1 Q16004 B1JAEN000004 三极管 1 Q16021 B1JAEN000004 三极管 1 Q16022 B1JAEN000004 三极管 1 Q16023 B1JAEN000004 三极管 1 Q16024 B1JAEN000004 三极管 1 Q16041 B1JAEN000003 三极管 1 Q16042 B1JAEN000003 三极管 1 Q16051 B1JAEN000003 三极管 1 Q16052 B1JAEN000003 三极管 1 Q16055 B1HFPFA00001 三极管 1 Q16056 B1HFPFA00001 三极管 1 Q16101 2SK4174000RP FET 1 Q16102 2SK4175000LZ FET 1 Q16141 B1HFPFA00001 三极管 1 Q16161 B1HFPFA00001 三极管 1 Q16191 B1HFPFA00001 三极管 1 Q16251 2SD0601ARL 三极管 1 Q16280 2SD0601ARL 三极管 1 Q16301 B1CBGD000001 FET 1 Q16302 B1CFNG000001 FET 1 Q16304 2SB0709ASL 三极管 1 Q16331 2SK4174000RP FET 1 Q16339 2SK417300L FET 1 Q16401 2PG0060A00RP 三极管 1 Q16402 2PG0060A00RP 三极管 1 Q16404 2PG0060A00RP 三极管 1 Q16406 2PG0060A00RP 三极管 1 Q16421 B1JAEP000004 三极管 1 Q16423 B1JAEP000004 三极管 1 Q16424 B1JAEP000004 三极管 1 Q16425 B1JAEP000004 三极管 1 Q16441 B1JAEP000003 三极管 1 Q16442 B1JAEP000003 三极管 1 Q16443 B1JAEP000003 三极管 1 Q16453 B1JAEP000003 三极管 1 Q16454 B1JAEP000003 三极管 1 Q16471 B1ABCF000231 三极管 1 Q16501 B1HFPFA00001 三极管 1 Q16503 B1HFPFA00001 三极管 1 Q16521 B1HFPFA00001 三极管 1 Q16523 B1HFPFA00001 三极管 1 Q16531 B1HFPFA00001 三极管 1 Q16532 B1HFPFA00001 三极管 1 Q16552 B1HFPFA00001 三极管 1 Q16601 B1DEET000002 FET 1 Q16602 2SD0601AQL 三极管 1 Q16603 2SB0709ASL 三极管 1 Q16604 B1CHPM000001 FET 1 Q16606 2SD0601AQL 三极管 1 参考号 部件号 部件名称及说明 件数 备注 Q16607 B1CBGD000001 FET 1 Q16609 B1CFHL000002 FET 1 Q16621 2SK4208000RP FET 1 Q16622 2SK4208000RP FET 1 Q16642 B1JADN000004 三极管 1 Q16643 B1JADN000004 三极管 1 Q16661 B1JAER000004 三极管 1 Q16662 2SD0601AQL 三极管 1 Q16663 2SB0709ASL 三极管 1 Q16664 B1HFPFA00001 三极管 1 Q16665 B1ABCF000231 三极管 1 Q16667 B1ADCN000007 三极管 1 Q16701 B1ADCN000007 三极管 1 Q16702 B1ABCF000231 三极管 1 Q16743 2SD0601ARL 三极管 1 Q16762 B1ADNF000006 三极管 1 Q16781 B1HFPFA00001 三极管 1 Q16795 2SD0601ARL 三极管 1 Q16796 2SC1473A 三极管 1 Q16801 B1ADCN000007 三极管 1 Q16810 B1ABCF000231 三极管 1 Q16814 B1ABCN000007 三极管 1 Q16815 B1ABCN000007 三极管 1 Q16816 2SD0601AQL 三极管 1 Q16817 2SD0601AQL 三极管 1 Q16871 2SB0709ARL 三极管 1 Q16872 2SB0709ARL 三极管 1 Q16873 B1ABCF000231 三极管 1 Q16874 B1CBGD000001 FET 1 Q16875 B1ABCF000231 三极管 1 Q16876 B1ABCF000231 三极管 1 Q16879 B1ABCF000231 三极管 1 R853 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R855 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R856 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R857 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R859 ERJ6ENF2101 M2.10KOHM, 1/10W 1 R861 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R864 D0GDR00Z0002 M 0 OHM, 1/10W 1 R869 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R871 ERJ6ENF1302 M 13KOHM, 1/10W 1 R872 ERJ6ENF3300 M 330 OHM, 1/10W 1 R874 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R880 D0GDR00Z0002 M 0 OHM, 1/10W 1 R883 D0GDR00Z0002 M 0 OHM, 1/10W 1 R884 D0GDR00Z0002 M 0 OHM, 1/10W 1 R886 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R1100 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1101 D0YAR0000007 M 0 OHM 1/4W 1 R1102 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1103 ERJ2RKD330 M 33 OHM, J, 2W 1 R1104 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1105 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1106 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1107 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1108 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1109 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1110 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1124 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1125 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1134 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1139 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1146 ERJ2GEJ102X M 1K OHM J 1/4W 1 R1147 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1148 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1153 ERJ2GEJ821 M 820 OHM, J,0.063W 1 R1157 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1162 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1164 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1166 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1169 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1170 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1171 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1172 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1173 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R1174 D0YAR0000007 M 0 OHM 1/4W 1 参考号 部件号 部件名称及说明 件数 备注 136 TH-58PZ880C R1175 D0YAR0000007 M 0 OHM 1/4W 1 R1179 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1181 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1182 ERJ2GED273X M 27KOHM ,J,0.063W 1 R1183 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1184 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1194 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1196 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1197 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1200 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1201 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1203 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1205 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1206 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1208 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1209 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1210 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1211 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1216 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1217 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1218 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1219 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1220 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1221 D1BB7151A055 M7.15KOHM, 1/10W 1 R1222 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1229 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1236 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1237 ERJ2GEJ102X M 1K OHM J 1/4W 1 R1238 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1239 D0YAR0000007 M 0 OHM 1/4W 1 R1243 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1251 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1255 ERJ2GEJ102X M 1K OHM J 1/4W 1 R2000 D0YAR0000007 M 0 OHM 1/4W 1 R2001 D0YAR0000007 M 0 OHM 1/4W 1 R2002 ERJ2GEJ681 M 680 OHM, J,0.063W 1 R2003 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R2006 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R2007 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R2008 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R2015 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2016 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2017 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2018 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2019 D1BB2002A055 M 20KOHM, 1/10W 1 R2020 D1BB2001A055 M 2KOHM, 1/10W 1 R2023 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2026 D1BB1203A055 M 120KOHM, 1/10W 1 R2027 D1BB7502A055 M 75KOHM, 1/10W 1 R2047 D1BB2002A055 M 20KOHM, 1/10W 1 R2048 D1BB2002A055 M 20KOHM, 1/10W 1 R2050 D1BB2002A055 M 20KOHM, 1/10W 1 R2051 D1BB2002A055 M 20KOHM, 1/10W 1 R2052 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R2053 D0YAR0000007 M 0 OHM 1/4W 1 R2057 ERJ2GEJ102X M 1K OHM J 1/4W 1 R2058 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2063 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R2064 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R2065 ERJ2GEJ823 M 82KOHM, J,0.063W 1 R2068 D0YAR0000007 M 0 OHM 1/4W 1 R2071 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R2072 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R2073 ERJ6GEYG681 M 680 OHM,J,1/10W 1 R2074 D1BB6802A055 M 68KOHM, 1/10W 1 R2075 D1BB1583A055 M 158KOHM, 1/10W 1 R2089 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R2090 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R2092 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2093 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2095 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2096 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2097 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R2098 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2108 ERJ6GEYJ150V M 15 OHM,J,1/10W 1 R2111 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2114 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 R2115 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R2132 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R2141 ERJ2GEJ102X M 1K OHM J 1/4W 1 R2142 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R2148 ERJ2RHD682X M 6.8KOHM, J, 2W 1 R2149 ERJ2RHD682X M 6.8KOHM, J, 2W 1 R2164 D1BB1003A055 M 100KOHM, 1/10W 1 R2165 D1BB3401A055 M 3.4KOHM, 1/10W 1 R2166 ERJ6GEYJ153V M 15KOHM,J,1/10W 1 R2172 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R2174 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R2175 D1BB5600A055 M 600 OHM, 1/10W 1 R2176 ERJ6GEYJ271V M 270 OHM J 1/10W 1 R2177 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2178 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2179 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R2204 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2205 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2207 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2208 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2211 ERJ2GEJ102X M 1K OHM J 1/4W 1 R2270 EXB28V220J 电阻阵列 1 R2271 EXB28V220J 电阻阵列 1 R2272 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2300 D1BB4701A055 M 4.7KOHM, 1/10W 1 R2506 D0GDR00Z0002 M 0 OHM, 1/10W 1 R2507 D0GDR00Z0002 M 0 OHM, 1/10W 1 R2516 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2517 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R2520 ERJ3GEYJ224 M 220KOHM,J,1/16W 1 R2524 D0GB473JA057 M 47KOHM,J,1/16W 1 R2525 D1BB60400001 M 604 OHM, 1/10W 1 R2530 D0GB473JA057 M 47KOHM,J,1/16W 1 R2531 D1BB2700A055 M 270 OHM, 1/10W 1 R2542 D0GB473JA057 M 47KOHM,J,1/16W 1 R2556 D0GB103JA041 M 10K OHM J 1/16W 1 R2557 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2601 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R2602 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R2603 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R2605 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R2606 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R2607 EXB2HV560JV 电阻阵列 1 R2608 EXB2HV560JV 电阻阵列 1 R2609 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R2610 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R2611 EXB2HV560JV 电阻阵列 1 R2612 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R2613 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R2614 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2619 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R2620 D0YAR0000007 M 0 OHM 1/4W 1 R2621 D0YAR0000007 M 0 OHM 1/4W 1 R2622 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2623 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2624 ERJ2RKD330 M 33 OHM, J, 2W 1 R2625 ERJ2RKD330 M 33 OHM, J, 2W 1 R2626 EXB2HV330JV 电阻阵列 1 R2631 ERJ2RKD330 M 33 OHM, J, 2W 1 R2632 ERJ2RKD330 M 33 OHM, J, 2W 1 R2633 EXB2HV330JV 电阻阵列 1 R2634 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R2635 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R2636 ERJ2RKD330 M 33 OHM, J, 2W 1 R2637 ERJ2RKD330 M 33 OHM, J, 2W 1 R2638 EXB2HV330JV 电阻阵列 1 R2644 ERJ2RKD330 M 33 OHM, J, 2W 1 R2645 ERJ2RKD330 M 33 OHM, J, 2W 1 R2646 EXB28V470JX 电阻阵列 1 R2647 EXB28V470JX 电阻阵列 1 R2648 EXB28V470JX 电阻阵列 1 R2649 EXB28V470JX 电阻阵列 1 R2650 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R2651 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R2652 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R2653 ERJ2GEJ240 M 24 OHM, J,0.063W 1 R2654 ERJ2GEJ240 M 24 OHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 137 TH-58PZ880C R2655 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R2656 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R2657 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R2658 EXB28V330J 电阻阵列 1 R2659 EXB28V330J 电阻阵列 1 R2660 EXB28V330J 电阻阵列 1 R2661 EXB28V330J 电阻阵列 1 R2662 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R2663 EXB28V680JX 电阻阵列 1 R2664 EXB28V680JX 电阻阵列 1 R2665 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R2666 EXB28V680JX 电阻阵列 1 R2667 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R2669 EXB28V680JX 电阻阵列 1 R2670 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R2671 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R2672 EXB28V680JX 电阻阵列 1 R2673 EXB28V680JX 电阻阵列 1 R2674 EXB28V680JX 电阻阵列 1 R2675 EXB28V680JX 电阻阵列 1 R2676 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R2677 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R2703 D1BB5R10A068 M 5.1 OHM, 1/10W 1 R2704 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R2705 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R2709 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2710 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R2711 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R2712 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2715 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2733 D0YAR0000007 M 0 OHM 1/4W 1 R3099 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3100 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3103 EXB28VR000X 电阻阵列 1 R3104 EXB28VR000X 电阻阵列 1 R3105 D0YAR0000007 M 0 OHM 1/4W 1 R3106 D0YAR0000007 M 0 OHM 1/4W 1 R3107 D0YAR0000007 M 0 OHM 1/4W 1 R3108 D0YAR0000007 M 0 OHM 1/4W 1 R3109 D0YAR0000007 M 0 OHM 1/4W 1 R3110 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R3111 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R3112 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R3113 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R3114 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R3115 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R3124 ERJ6RED750 M 75 OHM, 1/10W 1 R3125 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R3126 ERJ6RED750 M 75 OHM, 1/10W 1 R3127 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R3130 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R3131 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R3133 D0YAR0000007 M 0 OHM 1/4W 1 R3136 D0YAR0000007 M 0 OHM 1/4W 1 R3137 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3138 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3139 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3144 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3145 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3146 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3147 D0YAR0000007 M 0 OHM 1/4W 1 R3148 D0YAR0000007 M 0 OHM 1/4W 1 R3150 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3151 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3152 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3154 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3155 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3172 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3173 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3174 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3175 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3176 ERJ6RED750 M 75 OHM, 1/10W 1 R3187 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R3189 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R3208 ERJ6ENF1500 M 150 OHM, 1/10W 1 R3212 ERJ6ENF1500 M 150 OHM, 1/10W 1 R3213 ERJ6ENF1500 M 150 OHM, 1/10W 1 参考号 部件号 部件名称及说明 件数 备注 R3217 ERJ6ENF1500 M 150 OHM, 1/10W 1 R3218 ERJ6ENF1500 M 150 OHM, 1/10W 1 R3219 ERJ6ENF1500 M 150 OHM, 1/10W 1 R3220 ERJ6RED750 M 75 OHM, 1/10W 1 R3238 ERJ6RED750 M 75 OHM, 1/10W 1 R3239 ERJ6RED750 M 75 OHM, 1/10W 1 R3240 ERJ6RED750 M 75 OHM, 1/10W 1 R3343 ERJ6ENF1500 M 150 OHM, 1/10W 1 R3344 ERJ6ENF1500 M 150 OHM, 1/10W 1 R3364 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3368 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3369 ERJ6ENF1500 M 150 OHM, 1/10W 1 R3370 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3377 D0YAR0000007 M 0 OHM 1/4W 1 R3383 D0YAR0000007 M 0 OHM 1/4W 1 R3384 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3385 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3388 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3389 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3390 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3391 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3392 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R3393 ERJ6RED750 M 75 OHM, 1/10W 1 R3395 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3396 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3397 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3400 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3401 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3402 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R3403 D0YAR0000007 M 0 OHM 1/4W 1 R3404 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R3405 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R3406 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R3410 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3411 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3412 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3414 ERJ2GEJ274 M 270KOHM, J,0.063W 1 R3415 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3418 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R3419 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3420 ERJ6RED750 M 75 OHM, 1/10W 1 R3421 ERJ6RED750 M 75 OHM, 1/10W 1 R3423 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R3424 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R3439 ERJ6RED750 M 75 OHM, 1/10W 1 R3440 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3441 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R3442 ERJ3RBD361 M 360 OHM,J,1/16W 1 R3443 ERJ3RBD361 M 360 OHM,J,1/16W 1 R3449 D0YAR0000007 M 0 OHM 1/4W 1 R3450 D0YAR0000007 M 0 OHM 1/4W 1 R3451 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3452 ERJ2GEJ274 M 270KOHM, J,0.063W 1 R3457 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3458 ERJ6ENF1500 M 150 OHM, 1/10W 1 R3459 ERJ6ENF1500 M 150 OHM, 1/10W 1 R3460 ERJ6ENF1500 M 150 OHM, 1/10W 1 R3461 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R3462 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R3463 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R3465 ERJ6ENF1500 M 150 OHM, 1/10W 1 R3470 ERJ6ENF1500 M 150 OHM, 1/10W 1 R3475 D0YAR0000007 M 0 OHM 1/4W 1 R3480 D0YAR0000007 M 0 OHM 1/4W 1 R3484 ERJ6ENF1500 M 150 OHM, 1/10W 1 R3485 ERJ6ENF1500 M 150 OHM, 1/10W 1 R3489 D0YAR0000007 M 0 OHM 1/4W 1 R3490 D0YAR0000007 M 0 OHM 1/4W 1 R3491 D0YAR0000007 M 0 OHM 1/4W 1 R3492 D0YAR0000007 M 0 OHM 1/4W 1 R3495 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R3497 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R3508 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R3509 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R3511 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3512 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3513 ERJ2GEJ473 M 47KOHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 138 TH-58PZ880C R3516 D0YAR0000007 M 0 OHM 1/4W 1 R3517 D0YAR0000007 M 0 OHM 1/4W 1 R3716 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 R3717 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 R3721 D0GD103JA036 M 10KOHM,J,0.25W 1 R3751 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R3753 ERJ6ENF1741 M1.74KOHM, 1/10W 1 R3758 ERJ6ENF6651 M6.65KOHM, 1/10W 1 R3767 ERJ6ENF7151 M7.15KOHM, 1/10W 1 R3801 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3802 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3803 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R3804 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3805 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3806 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3807 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R3808 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R3809 ERJ2GEJ102X M 1K OHM J 1/4W 1 R3810 ERJ2GEJ102X M 1K OHM J 1/4W 1 R3811 D1BB4701A055 M 4.7KOHM, 1/10W 1 R3812 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3814 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3815 D0YAR0000007 M 0 OHM 1/4W 1 R3818 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3821 ERJ2RKD330 M 33 OHM, J, 2W 1 R3822 ERJ2GEJ102X M 1K OHM J 1/4W 1 R3823 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3824 D0GA2R7JA014 M 2.7OHM, J,0.063W 1 R3825 D0GA2R7JA014 M 2.7OHM, J,0.063W 1 R3826 D0GA2R7JA014 M 2.7OHM, J,0.063W 1 R3827 D0GA2R7JA014 M 2.7OHM, J,0.063W 1 R3828 D0GA2R7JA014 M 2.7OHM, J,0.063W 1 R3829 D0GA2R7JA014 M 2.7OHM, J,0.063W 1 R3830 D0GA2R7JA014 M 2.7OHM, J,0.063W 1 R3831 D0GA2R7JA014 M 2.7OHM, J,0.063W 1 R3832 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3834 D1BB49R90002 M 49 OHM, 1/10W 1 R3840 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R3841 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R3845 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3847 D0YAR0000007 M 0 OHM 1/4W 1 R4029 EXB2HV680J 电阻阵列 1 R4030 EXB2HV680J 电阻阵列 1 R4031 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4032 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4033 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4034 D1BB7500A055 M 750 OHM, 1/10W 1 R4035 D1BB1241A055 M1.24KOHM, 1/10W 1 R4036 D0YAR0000007 M 0 OHM 1/4W 1 R4037 D0YAR0000007 M 0 OHM 1/4W 1 R4038 ERJ2GEJ681 M 680 OHM, J,0.063W 1 R4039 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4040 ERJ2GEJ681 M 680 OHM, J,0.063W 1 R4041 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4042 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4043 D0GB202JA057 M 2KOHM,J,1/16W 1 R4046 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4047 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4048 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4049 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4153 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4154 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4155 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4158 D0YAR0000007 M 0 OHM 1/4W 1 R4274 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4275 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4277 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4278 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4279 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4281 D0YAR0000007 M 0 OHM 1/4W 1 R4282 D0YAR0000007 M 0 OHM 1/4W 1 R4283 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4303 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4306 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4335 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R4338 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4500 ERJ2GEJ103 M 10KOHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 R4501 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4502 ERJ2RKD330 M 33 OHM, J, 2W 1 R4503 ERJ2RKD330 M 33 OHM, J, 2W 1 R4506 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4507 D0YAR0000007 M 0 OHM 1/4W 1 R4526 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4527 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4528 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4530 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4538 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4540 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4552 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4567 D1BB4701A055 M 4.7KOHM, 1/10W 1 R4587 D1BB1241A055 M1.24KOHM, 1/10W 1 R4588 D1BB7150A055 M 715 OHM, 1/10W 1 R4589 D1BB7150A055 M 715 OHM, 1/10W 1 R4592 D1BB7150A055 M 715 OHM, 1/10W 1 R4593 D1BB8060A055 M 806 OHM, 1/10W 1 R4596 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R4597 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R4598 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R4600 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4601 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R4603 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4604 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4606 D1BB9101A055 M 9.1KOHM, 1/10W 1 R4609 D0YAR0000007 M 0 OHM 1/4W 1 R4610 D0YAR0000007 M 0 OHM 1/4W 1 R4611 D1BB5601A055 M 5.6KOHM, 1/10W 1 R4613 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4614 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4615 ERJ2RKD330 M 33 OHM, J, 2W 1 R4619 D0YAR0000007 M 0 OHM 1/4W 1 R4621 D0YAR0000007 M 0 OHM 1/4W 1 R4626 ERJ3EKF3160 M 316 OHM, 1/16W 1 R4627 ERJ3EKF3160 M 316 OHM, 1/16W 1 R4628 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4629 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4631 D1BB4990A055 M 499 OHM, 1/10W 1 R4634 ERJ3EKF3160 M 316 OHM, 1/16W 1 R4635 EXB28V680JX 电阻阵列 1 R4636 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4637 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4638 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4639 EXB28V680JX 电阻阵列 1 R4640 EXB28V680JX 电阻阵列 1 R4641 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4643 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4644 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4645 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4646 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4647 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4648 EXB28V330J 电阻阵列 1 R4650 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4651 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4652 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4653 D0YAR0000007 M 0 OHM 1/4W 1 R4656 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R4657 D0YAR0000007 M 0 OHM 1/4W 1 R4658 D0YAR0000007 M 0 OHM 1/4W 1 R4659 D0YAR0000007 M 0 OHM 1/4W 1 R4661 D0YAR0000007 M 0 OHM 1/4W 1 R4663 D0YAR0000007 M 0 OHM 1/4W 1 R4665 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4666 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4673 D0YAR0000007 M 0 OHM 1/4W 1 R4678 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4679 EXB28V680JX 电阻阵列 1 R4680 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4681 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4683 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4685 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4686 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4687 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4689 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4690 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R4691 ERJ2GEJ220 M 22 OHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 139 TH-58PZ880C R4692 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4693 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4694 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4696 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4699 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4700 EXB28V680JX 电阻阵列 1 R4701 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4704 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4705 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4706 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4707 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4708 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4711 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4712 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4713 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4714 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4715 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4716 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4717 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4720 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4721 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4722 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4723 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4724 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4726 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4727 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4728 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4729 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4731 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4732 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4733 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4736 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4737 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4742 D0YAR0000007 M 0 OHM 1/4W 1 R4743 D0YAR0000007 M 0 OHM 1/4W 1 R4749 D0YAR0000007 M 0 OHM 1/4W 1 R4750 D0YAR0000007 M 0 OHM 1/4W 1 R4755 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R4756 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R4757 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4758 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4759 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4760 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4761 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R4762 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R4763 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4764 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4765 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4766 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4810 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4811 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4812 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4813 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4814 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4817 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4832 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4833 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4834 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4841 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4842 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4844 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4853 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4854 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4856 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4857 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5024 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5025 D1BB2700A055 M 270 OHM, 1/10W 1 R5026 D1BB2700A055 M 270 OHM, 1/10W 1 R5049 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5050 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5051 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5052 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5053 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5054 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5055 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5056 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5057 ERJ2GEJ470 M 47 OHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 R5058 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5059 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5060 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5061 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5062 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5063 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5064 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5065 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5066 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5067 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R5068 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5070 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5071 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5074 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5075 D1BA75R0A014 M0.75KOHM, 1/10W 1 R5076 ERJ2GEJ301 M 300 OHM, J,0.063W 1 R5077 D0YAR0000007 M 0 OHM 1/4W 1 R5078 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R5079 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5080 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5082 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5088 ERJ3GEYJ680 M 68 OHM,J,1/16W 1 R5092 D0GBR00Z0002 M 0 OHM J 1/16W 1 R5200 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5201 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5202 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5203 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5204 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5205 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5206 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5207 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5208 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R5209 D0YAR0000007 M 0 OHM 1/4W 1 R5210 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5216 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5217 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5223 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5225 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5226 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R5227 D0GB103JA041 M 10K OHM J 1/16W 1 R5229 D0GB103JA041 M 10K OHM J 1/16W 1 R5231 EXB2HV680J 电阻阵列 1 R5232 EXB2HV680J 电阻阵列 1 R5314 D0GBR00Z0002 M 0 OHM J 1/16W 1 R5316 D0YAR0000007 M 0 OHM 1/4W 1 R5321 D1BB4702A055 M 47KOHM, 1/10W 1 R5322 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5323 D1BB5602A055 M 56KOHM, 1/10W 1 R5324 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5325 D0YAR0000007 M 0 OHM 1/4W 1 R5326 D0YAR0000007 M 0 OHM 1/4W 1 R5327 D0YAR0000007 M 0 OHM 1/4W 1 R5328 D0YAR0000007 M 0 OHM 1/4W 1 R5329 D1BB2802A055 M 28KOHM, 1/10W 1 R5330 D1BB4752A055 M47.5KOHM, 1/10W 1 R5331 D1BB3602A055 M 36KOHM, 1/10W 1 R5332 D1BB3002A055 M 30KOHM, 1/10W 1 R5333 D1BB2802A055 M 28KOHM, 1/10W 1 R5334 D1BB2402A055 M 24KOHM, 1/10W 1 R5335 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5337 D0YAR0000007 M 0 OHM 1/4W 1 R5431 D0YAR0000007 M 0 OHM 1/4W 1 R5433 D1BB1002A055 M 10KOHM, 1/10W 1 R5434 D1BB2702A055 M 27KOHM, 1/10W 1 R5435 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R5441 D0YAR0000007 M 0 OHM 1/4W 1 R5443 D1BB1002A055 M 10KOHM, 1/10W 1 R5444 D1BB2201A055 M 2.2KOHM, 1/10W 1 R5445 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5451 D1BB5602A055 M 56KOHM, 1/10W 1 R5452 D1BB4702A055 M 47KOHM, 1/10W 1 R5453 D1BB3002A055 M 30KOHM, 1/10W 1 R5456 D0YAR0000007 M 0 OHM 1/4W 1 R5459 D0YAR0000007 M 0 OHM 1/4W 1 R5503 ERJ6ENF2611 M2.61KOHM, 1/10W 1 R5504 ERJ6ENF1271 M1.27KOHM, 1/10W 1 R5506 ERJ6GEYJ103V M 10K OHM J 1/10W 1 参考号 部件号 部件名称及说明 件数 备注 140 TH-58PZ880C R5507 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R5508 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R5509 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R5515 D0GBR00Z0002 M 0 OHM J 1/16W 1 R5516 D0GBR00Z0002 M 0 OHM J 1/16W 1 R5535 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5536 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5537 ERJ2GEJ681 M 680 OHM, J,0.063W 1 R5538 ERJ2GEJ122 M 1.2KOHM, J,0.063W 1 R5542 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R5544 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R5550 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R5556 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5557 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5558 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5559 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R5560 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5561 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5565 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5566 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5567 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5569 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5570 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5571 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5572 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5573 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5574 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5575 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5576 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5577 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R5578 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5579 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5580 ERJ2GEJ102X M 1K OHM J 1/4W 1 R5581 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5582 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5583 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5587 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R5588 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R5589 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R5590 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R5591 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R5592 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R5600 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5601 D0GBR00Z0002 M 0 OHM J 1/16W 1 R5602 D0YAR0000007 M 0 OHM 1/4W 1 R5603 D0YAR0000007 M 0 OHM 1/4W 1 R5604 D1BB2802A055 M 28KOHM, 1/10W 1 R5605 D1BB3602A055 M 36KOHM, 1/10W 1 R5606 D0YAR0000007 M 0 OHM 1/4W 1 R5607 D0YAR0000007 M 0 OHM 1/4W 1 R5610 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5611 D1BB3602A055 M 36KOHM, 1/10W 1 R5612 D1BB2402A055 M 24KOHM, 1/10W 1 R5614 D0GBR00Z0002 M 0 OHM J 1/16W 1 R5616 D0YAR0000007 M 0 OHM 1/4W 1 R5620 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5621 D1BB3602A055 M 36KOHM, 1/10W 1 R5622 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5623 D1BB3602A055 M 36KOHM, 1/10W 1 R5625 D0YAR0000007 M 0 OHM 1/4W 1 R5626 D0YAR0000007 M 0 OHM 1/4W 1 R5627 D0YAR0000007 M 0 OHM 1/4W 1 R5628 D0YAR0000007 M 0 OHM 1/4W 1 R5629 D1BB4752A055 M47.5KOHM, 1/10W 1 R5630 D1BB4702A055 M 47KOHM, 1/10W 1 R5631 D1BB3002A055 M 30KOHM, 1/10W 1 R5632 D1BB1272A055 M12.7KOHM, 1/10W 1 R5633 D1BB4702A055 M 47KOHM, 1/10W 1 R5634 D1BB4702A055 M 47KOHM, 1/10W 1 R5635 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R5636 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R5637 D0YAR0000007 M 0 OHM 1/4W 1 R5638 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5641 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5644 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5646 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5647 ERJ2GEJ473 M 47KOHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 R5660 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5661 ERJ2GEJ123 M 12KOHM ,J,0.063W 1 R5662 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5663 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5664 D0YAR0000007 M 0 OHM 1/4W 1 R5691 D0GB103JA041 M 10K OHM J 1/16W 1 R5693 D0GB473JA057 M 47KOHM,J,1/16W 1 R5695 D1BB2001A055 M 2KOHM, 1/10W 1 R5697 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5698 D0GDR00Z0002 M 0 OHM, 1/10W 1 R5699 D0GDR00Z0002 M 0 OHM, 1/10W 1 R5702 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5732 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R5733 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R7701 D0GB103JA041 M 10K OHM J 1/16W 1 R7702 ERJ3EKF75R0 M 0.75HM, 1/16W 1 R7703 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R7704 D0GB102JA041 M 1KOHM,J,1/16W 1 R7705 D0GB103JA041 M 10K OHM J 1/16W 1 R7706 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R7708 D0GB104JA041 M 100KOHM J 1/16W 1 R7709 D0GB104JA041 M 100KOHM J 1/16W 1 R7710 D0GB102JA041 M 1KOHM,J,1/16W 1 R7711 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R7712 D0GB104JA041 M 100KOHM J 1/16W 1 R7713 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R7714 D1BB1202A055 M 12KOHM, 1/10W 1 R7715 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R7716 D0GB105JA041 M 1M OHM F 1/16W 1 R7717 D0GB103JA041 M 10K OHM J 1/16W 1 R7718 D0GB103JA041 M 10K OHM J 1/16W 1 R7719 D0GBR00Z0002 M 0 OHM J 1/16W 1 R7725 ERJ3GEYJ680 M 68 OHM,J,1/16W 1 R7726 D0GB103JA041 M 10K OHM J 1/16W 1 R7727 D0GB103JA041 M 10K OHM J 1/16W 1 R7733 ERJ3GEYJ680 M 68 OHM,J,1/16W 1 R7734 ERJ3GEYJ680 M 68 OHM,J,1/16W 1 R7735 ERJ3GEYJ680 M 68 OHM,J,1/16W 1 R7737 ERJ3GEYJ680 M 68 OHM,J,1/16W 1 R7738 ERJ3GEYJ680 M 68 OHM,J,1/16W 1 R7742 D0GB103JA041 M 10K OHM J 1/16W 1 R7744 D0GBR00Z0002 M 0 OHM J 1/16W 1 R7749 J0JCC0000241 片状电感 1 R7750 J0JCC0000241 片状电感 1 R7751 J0JCC0000241 片状电感 1 R7754 D0GB103JA041 M 10K OHM J 1/16W 1 R7777 D1BB3402A055 M 34KOHM, 1/10W 1 R7778 D1BB1002A055 M 10KOHM, 1/10W 1 R7779 EXB38VR000V 电阻阵列 1 R7781 D0GBR00Z0002 M 0 OHM J 1/16W 1 R7782 D0GBR00Z0002 M 0 OHM J 1/16W 1 R7800 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8001 D1BB3901A055 M 3.9KOHM, 1/10W 1 R8002 D1BB2402A055 M 24KOHM, 1/10W 1 R8003 D1BB1002A055 M 10KOHM, 1/10W 1 R8004 D1BB5601A055 M 5.6KOHM, 1/10W 1 R8005 ERJ2GEJ181 M 180 OHM, J,0.063W 1 R8006 ERJ2GEJ820 M 82 OHM, J,0.063W 1 R8007 ERJ2GEJ181 M 180 OHM, J,0.063W 1 R8008 ERJ2GEJ820 M 82 OHM, J,0.063W 1 R8016 D0GDR00Z0002 M 0 OHM, 1/10W 1 R8017 D0GDR00Z0002 M 0 OHM, 1/10W 1 R8101 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8102 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8105 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R8106 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8108 ERJ2GEJ820 M 82 OHM, J,0.063W 1 R8110 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8111 ERJ2GEJ820 M 82 OHM, J,0.063W 1 R8112 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8117 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8126 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8132 D0YAR0000007 M 0 OHM 1/4W 1 R8133 D0YAR0000007 M 0 OHM 1/4W 1 R8134 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8135 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8136 ERJ2GEJ221 M 220 OHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 141 TH-58PZ880C R8139 D0YAR0000007 M 0 OHM 1/4W 1 R8140 D0YAR0000007 M 0 OHM 1/4W 1 R8141 D0YAR0000007 M 0 OHM 1/4W 1 R8142 D0YAR0000007 M 0 OHM 1/4W 1 R8143 D1BB2700A055 M 270 OHM, 1/10W 1 R8144 D1BB2700A055 M 270 OHM, 1/10W 1 R8145 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8149 D0YAR0000007 M 0 OHM 1/4W 1 R8150 D0YAR0000007 M 0 OHM 1/4W 1 R8151 D0YAR0000007 M 0 OHM 1/4W 1 R8152 D0YAR0000007 M 0 OHM 1/4W 1 R8153 D0YAR0000007 M 0 OHM 1/4W 1 R8154 D0YAR0000007 M 0 OHM 1/4W 1 R8155 D0YAR0000007 M 0 OHM 1/4W 1 R8156 D0YAR0000007 M 0 OHM 1/4W 1 R8157 D0YAR0000007 M 0 OHM 1/4W 1 R8158 D0YAR0000007 M 0 OHM 1/4W 1 R8159 D0YAR0000007 M 0 OHM 1/4W 1 R8160 D0YAR0000007 M 0 OHM 1/4W 1 R8161 D0YAR0000007 M 0 OHM 1/4W 1 R8162 D0YAR0000007 M 0 OHM 1/4W 1 R8163 D0YAR0000007 M 0 OHM 1/4W 1 R8164 D0YAR0000007 M 0 OHM 1/4W 1 R8165 D0YAR0000007 M 0 OHM 1/4W 1 R8166 D0YAR0000007 M 0 OHM 1/4W 1 R8167 D0YAR0000007 M 0 OHM 1/4W 1 R8168 D0YAR0000007 M 0 OHM 1/4W 1 R8169 D0YAR0000007 M 0 OHM 1/4W 1 R8170 D0YAR0000007 M 0 OHM 1/4W 1 R8171 D0YAR0000007 M 0 OHM 1/4W 1 R8172 D0YAR0000007 M 0 OHM 1/4W 1 R8173 D0YAR0000007 M 0 OHM 1/4W 1 R8174 D0YAR0000007 M 0 OHM 1/4W 1 R8175 D0YAR0000007 M 0 OHM 1/4W 1 R8176 D0YAR0000007 M 0 OHM 1/4W 1 R8177 D0YAR0000007 M 0 OHM 1/4W 1 R8178 D0YAR0000007 M 0 OHM 1/4W 1 R8179 D1BB75R0A055 M 75 OHM, 1/10W 1 R8180 ERJ3GEYJ301 M 300 OHM,J,1/16W 1 R8181 D1BB75R0A055 M 75 OHM, 1/10W 1 R8182 D1BB75R0A055 M 75 OHM, 1/10W 1 R8183 D1BB75R0A055 M 75 OHM, 1/10W 1 R8184 ERJ3GEYJ301 M 300 OHM,J,1/16W 1 R8185 D1BB75R0A055 M 75 OHM, 1/10W 1 R8186 D1BB75R0A055 M 75 OHM, 1/10W 1 R8187 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8188 D1BB2700A055 M 270 OHM, 1/10W 1 R8189 D1BB2700A055 M 270 OHM, 1/10W 1 R8190 D0YAR0000007 M 0 OHM 1/4W 1 R8191 D0YAR0000007 M 0 OHM 1/4W 1 R8192 D0YAR0000007 M 0 OHM 1/4W 1 R8193 D0YAR0000007 M 0 OHM 1/4W 1 R8196 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8197 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8198 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8199 D0YAR0000007 M 0 OHM 1/4W 1 R8201 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8202 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8203 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8204 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8205 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8206 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8207 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8208 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8209 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8210 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8211 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8212 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8213 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8214 D0YAR0000007 M 0 OHM 1/4W 1 R8215 D0YAR0000007 M 0 OHM 1/4W 1 R8216 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8217 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8218 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8219 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8220 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8221 ERJ2GEJ470 M 47 OHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 R8222 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8223 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8224 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8225 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8226 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8227 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8228 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8229 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8230 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8231 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8232 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8233 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8234 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8235 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8236 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8237 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8238 D0YAR0000007 M 0 OHM 1/4W 1 R8239 D0YAR0000007 M 0 OHM 1/4W 1 R8240 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8241 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8242 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8243 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8244 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8245 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8246 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8247 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8248 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8249 D0YAR0000007 M 0 OHM 1/4W 1 R8250 D0YAR0000007 M 0 OHM 1/4W 1 R8251 D0YAR0000007 M 0 OHM 1/4W 1 R8252 D0YAR0000007 M 0 OHM 1/4W 1 R8253 D0YAR0000007 M 0 OHM 1/4W 1 R8254 D0YAR0000007 M 0 OHM 1/4W 1 R8255 D0YAR0000007 M 0 OHM 1/4W 1 R8256 D0YAR0000007 M 0 OHM 1/4W 1 R8257 D0YAR0000007 M 0 OHM 1/4W 1 R8258 D0YAR0000007 M 0 OHM 1/4W 1 R8259 D0YAR0000007 M 0 OHM 1/4W 1 R8260 D0YAR0000007 M 0 OHM 1/4W 1 R8261 D0YAR0000007 M 0 OHM 1/4W 1 R8262 D0YAR0000007 M 0 OHM 1/4W 1 R8263 D0YAR0000007 M 0 OHM 1/4W 1 R8264 D0YAR0000007 M 0 OHM 1/4W 1 R8265 D0YAR0000007 M 0 OHM 1/4W 1 R8266 D0YAR0000007 M 0 OHM 1/4W 1 R8267 D0YAR0000007 M 0 OHM 1/4W 1 R8268 D0YAR0000007 M 0 OHM 1/4W 1 R8269 D0YAR0000007 M 0 OHM 1/4W 1 R8270 D0YAR0000007 M 0 OHM 1/4W 1 R8271 D0YAR0000007 M 0 OHM 1/4W 1 R8272 D0YAR0000007 M 0 OHM 1/4W 1 R8273 D0YAR0000007 M 0 OHM 1/4W 1 R8274 D0YAR0000007 M 0 OHM 1/4W 1 R8275 D0YAR0000007 M 0 OHM 1/4W 1 R8276 D0YAR0000007 M 0 OHM 1/4W 1 R8277 D0YAR0000007 M 0 OHM 1/4W 1 R8278 D0YAR0000007 M 0 OHM 1/4W 1 R8279 D0YAR0000007 M 0 OHM 1/4W 1 R8280 D0YAR0000007 M 0 OHM 1/4W 1 R8281 D0YAR0000007 M 0 OHM 1/4W 1 R8282 D0YAR0000007 M 0 OHM 1/4W 1 R8283 D0YAR0000007 M 0 OHM 1/4W 1 R8284 D0YAR0000007 M 0 OHM 1/4W 1 R8285 D0YAR0000007 M 0 OHM 1/4W 1 R8286 D0YAR0000007 M 0 OHM 1/4W 1 R8287 D0YAR0000007 M 0 OHM 1/4W 1 R8288 D0YAR0000007 M 0 OHM 1/4W 1 R8289 D0YAR0000007 M 0 OHM 1/4W 1 R8290 D0YAR0000007 M 0 OHM 1/4W 1 R8291 D0YAR0000007 M 0 OHM 1/4W 1 R8292 D0YAR0000007 M 0 OHM 1/4W 1 R8293 D0YAR0000007 M 0 OHM 1/4W 1 R8294 D0YAR0000007 M 0 OHM 1/4W 1 R8295 D0YAR0000007 M 0 OHM 1/4W 1 R8296 D0YAR0000007 M 0 OHM 1/4W 1 R8297 D0YAR0000007 M 0 OHM 1/4W 1 R8298 D0YAR0000007 M 0 OHM 1/4W 1 参考号 部件号 部件名称及说明 件数 备注 142 TH-58PZ880C R8299 D0YAR0000007 M 0 OHM 1/4W 1 R8328 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8370 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8385 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8446 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8447 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8448 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8449 EXB2HV103JV 电阻阵列 1 R8525 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8526 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8527 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8528 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8529 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8530 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8531 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8532 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8533 ERJ2GEJ121 M 120 OHM, J,0.063W 1 R8534 ERJ2GEJ121 M 120 OHM, J,0.063W 1 R8535 ERJ2GEJ121 M 120 OHM, J,0.063W 1 R8536 ERJ2GEJ121 M 120 OHM, J,0.063W 1 R8537 D1HG1218A002 网络电阻器 1 R8538 D1HG1218A002 网络电阻器 1 R8539 D1HG1218A002 网络电阻器 1 R8540 D1HG1218A002 网络电阻器 1 R8541 ERJ2GEJ121 M 120 OHM, J,0.063W 1 R8542 ERJ2GEJ121 M 120 OHM, J,0.063W 1 R8543 ERJ2GEJ121 M 120 OHM, J,0.063W 1 R8544 ERJ2GEJ121 M 120 OHM, J,0.063W 1 R8545 ERJ2GEJ121 M 120 OHM, J,0.063W 1 R8546 ERJ2GEJ121 M 120 OHM, J,0.063W 1 R8547 ERJ2GEJ121 M 120 OHM, J,0.063W 1 R8548 ERJ2GEJ121 M 120 OHM, J,0.063W 1 R8549 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8550 ERJ2GEJ121 M 120 OHM, J,0.063W 1 R8551 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8552 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8553 ERJ2GEJ121 M 120 OHM, J,0.063W 1 R8554 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8555 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8556 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8557 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8558 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8559 ERJ2GEJ102X M 1K OHM J 1/4W 1 R8560 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R8561 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R8562 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R8563 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R8564 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R8565 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R8566 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8567 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8569 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8581 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8583 D0YAR0000007 M 0 OHM 1/4W 1 R8601 D0YAR0000007 M 0 OHM 1/4W 1 R8602 D0YAR0000007 M 0 OHM 1/4W 1 R8603 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R8604 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R8620 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8621 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R8622 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8623 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R8625 D1BA1601A026 M 1.6KOHM, 1/10W 1 R8626 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8627 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8628 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8629 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8630 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R8631 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8632 D0YAR0000007 M 0 OHM 1/4W 1 R8650 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8651 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8661 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8663 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8701 EXB2HV680J 电阻阵列 1 R8702 EXB2HV680J 电阻阵列 1 R8703 EXB2HV101J 电阻阵列 1 参考号 部件号 部件名称及说明 件数 备注 R8704 EXB2HV101J 电阻阵列 1 R8705 EXB2HV101J 电阻阵列 1 R8706 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8707 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8709 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8710 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R8711 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8715 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8716 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8718 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8719 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8720 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8721 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8722 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8723 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8724 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8725 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8726 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8727 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8728 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8732 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8733 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8734 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8735 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8736 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8737 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8738 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8739 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8740 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8741 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8742 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8743 EXB38V560JV 电阻阵列 1 R8744 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8745 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8746 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8747 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8748 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8749 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8750 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8751 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8752 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8753 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8754 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8757 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8758 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8759 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8760 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8761 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8762 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8764 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8765 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8766 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8767 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8768 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8769 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8770 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8771 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8772 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8773 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8774 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8775 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8776 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8777 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8778 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8781 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8782 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8783 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8785 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8786 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8787 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8788 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8789 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8790 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8791 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8792 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8795 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8796 ERJ2GEJ560X M 56 OHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 143 TH-58PZ880C R8798 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8799 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8806 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8807 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8809 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8811 D0YAR0000007 M 0 OHM 1/4W 1 R8812 D0YAR0000007 M 0 OHM 1/4W 1 R8813 D0YAR0000007 M 0 OHM 1/4W 1 R8816 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R8817 ERJ2GEJ562 M 5.6KOHM, J,0.063W 1 R8818 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R8821 ERJ8GEYJ472V M 4.7KOHM, J,1/8W 1 R8823 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8824 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R8825 D0YAR0000007 M 0 OHM 1/4W 1 R8826 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8829 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8830 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8831 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8832 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8833 D0YAR0000007 M 0 OHM 1/4W 1 R8834 D0YAR0000007 M 0 OHM 1/4W 1 R8835 D0YAR0000007 M 0 OHM 1/4W 1 R8837 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8838 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8839 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8850 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8851 EXB38V103JV 电阻阵列 1 R8852 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8853 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8855 EXB38VR000V 电阻阵列 1 R8856 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8857 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8859 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8860 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8861 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R8864 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8865 EXB2HV103JV 电阻阵列 1 R8866 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R8869 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8901 EXB2HV103JV 电阻阵列 1 R8902 EXB2HV103JV 电阻阵列 1 R8903 EXB2HV103JV 电阻阵列 1 R8904 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8905 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8906 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8907 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8910 EXB2HV103JV 电阻阵列 1 R8911 EXB2HV103JV 电阻阵列 1 R8912 EXB2HV103JV 电阻阵列 1 R8913 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R8914 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8915 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8916 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8917 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8918 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8920 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8921 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8922 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8923 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8924 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8925 D0YAR0000007 M 0 OHM 1/4W 1 R8926 D0YAR0000007 M 0 OHM 1/4W 1 R8927 D0YAR0000007 M 0 OHM 1/4W 1 R8928 D0YAR0000007 M 0 OHM 1/4W 1 R8929 D0YAR0000007 M 0 OHM 1/4W 1 R8930 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8931 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8932 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8933 EXB2HV560JV 电阻阵列 1 R8934 EXB2HV560JV 电阻阵列 1 R8940 D1BB91R0A055 M 91 OHM, 1/10W 1 R8941 D1BB91R0A055 M 91 OHM, 1/10W 1 R8942 D1BB91R0A055 M 91 OHM, 1/10W 1 R8950 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8954 ERJ2RKD330 M 33 OHM, J, 2W 1 R8955 ERJ2RKD330 M 33 OHM, J, 2W 1 参考号 部件号 部件名称及说明 件数 备注 R8956 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R8957 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R8959 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8960 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R8961 EXB2HV330JV 电阻阵列 1 R8962 EXB2HV330JV 电阻阵列 1 R8963 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R8964 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8965 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8966 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8970 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8972 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8973 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8974 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R9001 D0GBR00Z0002 M 0 OHM J 1/16W 1 R9002 D0GBR00Z0002 M 0 OHM J 1/16W 1 R9007 D0GBR00Z0002 M 0 OHM J 1/16W 1 R9013 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R9014 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R9015 D0GDR00Z0002 M 0 OHM, 1/10W 1 R9016 D0GDR00Z0002 M 0 OHM, 1/10W 1 R9023 D0GBR00Z0002 M 0 OHM J 1/16W 1 R9027 D0GBR00Z0002 M 0 OHM J 1/16W 1 R9028 D0GBR00Z0002 M 0 OHM J 1/16W 1 R9029 D0GBR00Z0002 M 0 OHM J 1/16W 1 R9101 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9103 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9105 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9107 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R9110 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9112 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9113 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9114 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9115 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9116 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9117 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9118 D0GDR00Z0002 M 0 OHM, 1/10W 1 R9118 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R9119 EXB38V470J 电阻阵列 1 R9120 EXB2HV103JV 电阻阵列 1 R9121 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9121 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 1 R9122 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R9122 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 1 R9123 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 1 R9123 EXB2HV470JV 电阻阵列 1 R9124 D0GDR00Z0002 M 0 OHM, 1/10W 1 R9124 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 1 R9125 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9125 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 1 R9126 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9126 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 1 R9127 D0YAR0000007 M 0 OHM 1/4W 1 R9127 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 1 R9128 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 1 R9129 D0GB100JA041 M 10 OHM J 1/16W 1 R9129 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R9130 D0GB100JA041 M 10 OHM J 1/16W 1 R9130 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9131 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9132 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9133 D0GB100JA041 M 10 OHM J 1/16W 1 R9133 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R9134 D0YAR0000007 M 0 OHM 1/4W 1 R9135 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9136 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9137 D0GB100JA041 M 10 OHM J 1/16W 1 R9137 EXB2HV220JV 电阻阵列 1 R9138 D0GB100JA041 M 10 OHM J 1/16W 1 R9138 EXB2HV220JV 电阻阵列 1 R9139 EXB2HV220JV 电阻阵列 1 R9140 EXB2HV220JV 电阻阵列 1 R9141 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9142 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9143 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9144 D0YAR0000007 M 0 OHM 1/4W 1 R9145 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 144 TH-58PZ880C R9146 EXB2HV220JV 电阻阵列 1 R9147 EXB2HV220JV 电阻阵列 1 R9148 EXB38VR000V 电阻阵列 1 R9149 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9150 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9151 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9154 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9155 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9156 D0YAR0000007 M 0 OHM 1/4W 1 R9157 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9158 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9159 ERJ2GEJ393 M 39KOHM,J,0.063W 1 R9160 ERJ2GEJ393 M 39KOHM,J,0.063W 1 R9161 D0GB100JA041 M 10 OHM J 1/16W 1 R9161 ERJ2GEJ393 M 39KOHM,J,0.063W 1 R9162 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9163 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9164 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9166 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9167 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9168 D0GDR00Z0002 M 0 OHM, 1/10W 1 R9170 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9171 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9172 D0YAR0000007 M 0 OHM 1/4W 1 R9174 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9175 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9177 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9178 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9179 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9180 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9181 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9182 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9185 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R9186 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R9187 ERJ2GED563X M 56KOHM ,J,0.063W 1 R9188 ERJ2GEJ243 M 24KOHM, J,0.063W 1 R9189 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9190 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9191 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9192 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9193 EXB2HV220JV 电阻阵列 1 R9195 EXB2HV220JV 电阻阵列 1 R9197 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9198 D0YAR0000007 M 0 OHM 1/4W 1 R9199 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9200 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R9201 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R9202 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9204 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R9205 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R9206 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9207 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9208 EXB2HV220JV 电阻阵列 1 R9209 EXB2HV220JV 电阻阵列 1 R9210 EXB2HV220JV 电阻阵列 1 R9211 EXB2HV220JV 电阻阵列 1 R9212 EXB2HV470JV 电阻阵列 1 R9213 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9214 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9215 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9216 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9217 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R9218 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9219 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9223 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R9224 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9225 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R9226 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9229 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9230 EXB38V470J 电阻阵列 1 R9231 D0YAR0000007 M 0 OHM 1/4W 1 R9232 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9233 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9234 EXB2HV470JV 电阻阵列 1 R9235 EXB2HV470JV 电阻阵列 1 R9236 ERJ2RKD330 M 33 OHM, J, 2W 1 R9237 EXB38V470J 电阻阵列 1 参考号 部件号 部件名称及说明 件数 备注 R9238 ERJ2GEJ151 M 150 OHM, J,0.063W 1 R9245 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9246 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9247 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9248 D1BB1001A055 M 1KOHM, 1/16W 1 R9249 D1BB1001A055 M 1KOHM, 1/16W 1 R9250 D1BB1001A055 M 1KOHM, 1/16W 1 R9251 D1BB1001A055 M 1KOHM, 1/16W 1 R9252 ERJ2RKD330 M 33 OHM, J, 2W 1 R9253 EXB2HV103JV 电阻阵列 1 R9254 EXB2HV103JV 电阻阵列 1 R9255 EXB2HV103JV 电阻阵列 1 R9256 EXB38V470J 电阻阵列 1 R9257 EXB38V470J 电阻阵列 1 R9258 EXB38V470J 电阻阵列 1 R9259 EXB38V470J 电阻阵列 1 R9260 EXB38V470J 电阻阵列 1 R9261 EXB38V470J 电阻阵列 1 R9262 EXB38V470J 电阻阵列 1 R9263 EXB38V470J 电阻阵列 1 R9264 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9265 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9266 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9267 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9270 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9271 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9272 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9273 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9274 EXB2HV151J 电阻阵列 1 R9275 EXB2HV151J 电阻阵列 1 R9276 EXB2HV151J 电阻阵列 1 R9277 EXB2HV151J 电阻阵列 1 R9279 D0YAR0000007 M 0 OHM 1/4W 1 R9280 EXB2HV103JV 电阻阵列 1 R9281 EXB2HV103JV 电阻阵列 1 R9282 EXB2HV103JV 电阻阵列 1 R9283 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9286 D0YAR0000007 M 0 OHM 1/4W 1 R9287 D0YAR0000007 M 0 OHM 1/4W 1 R9288 D0YAR0000007 M 0 OHM 1/4W 1 R9292 EXB2HVR000 电阻阵列 1 R9293 EXB2HV470JV 电阻阵列 1 R9295 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9296 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9297 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9298 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9299 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9300 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9301 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9302 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9303 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9304 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9308 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9309 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9310 EXB38V103JV 电阻阵列 1 R9311 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9312 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R9315 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9317 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9319 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9321 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9323 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9325 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9326 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9327 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9333 EXB38V103JV 电阻阵列 1 R9334 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9335 EXB2HV103JV 电阻阵列 1 R9337 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9341 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9342 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9343 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9344 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9345 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R9348 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9350 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9351 ERJ2GEJ101 M 100 OHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 145 TH-58PZ880C R9352 EXB2HV470JV 电阻阵列 1 R9353 EXB38V470J 电阻阵列 1 R9354 EXB2HV103JV 电阻阵列 1 R9355 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9358 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9362 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9385 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9419 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9420 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9421 D0GB103JA041 M 10K OHM J 1/16W 1 R9578 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9599 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R9600 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R9611 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R9824 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9825 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9826 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9839 EXB38V101JV 电阻阵列 1 R9840 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9846 EXB2HV103JV 电阻阵列 1 R9847 EXB2HV103JV 电阻阵列 1 R9848 EXB2HV470JV 电阻阵列 1 R9849 EXB2HV470JV 电阻阵列 1 R9854 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9859 EXB38V101JV 电阻阵列 1 R9868 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9869 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9870 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9871 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9878 D1BB1502A055 M 15KOHM, 1/10W 1 R9879 D1BB1302A055 M 13KOHM, 1/10W 1 R9886 D1BB4702A055 M 47KOHM, 1/10W 1 R9887 D1BB5102A055 M 51KOHM, 1/10W 1 R9888 D1BB1502A055 M 15KOHM, 1/10W 1 R9889 D1BB1822A055 M18.2KOHM, 1/10W 1 R9890 D1BB4752A055 M47.5KOHM, 1/10W 1 R9891 D1BB1272A055 M12.7KOHM, 1/10W 1 R9892 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9893 D1BB4302A055 M 43KOHM, 1/10W 1 R9894 D1BB2002A055 M 20KOHM, 1/10W 1 R9895 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9896 D1BB1822A055 M18.2KOHM, 1/10W 1 R9897 D1BB4752A055 M47.5KOHM, 1/10W 1 R9901 D0YAR0000007 M 0 OHM 1/4W 1 R9905 ERJ2RKD330 M 33 OHM, J, 2W 1 R9907 ERJ2GEJ151 M 150 OHM, J,0.063W 1 R9936 D1BB1001A055 M 1KOHM, 1/16W 1 R9937 D1BB1001A055 M 1KOHM, 1/16W 1 R9938 D1BB1001A055 M 1KOHM, 1/16W 1 R9939 D1BB1001A055 M 1KOHM, 1/16W 1 R9940 ERJ2RKD330 M 33 OHM, J, 2W 1 R9944 EXB38V470J 电阻阵列 1 R9945 EXB38V470J 电阻阵列 1 R9946 EXB38V470J 电阻阵列 1 R9947 EXB38V470J 电阻阵列 1 R9948 EXB38V470J 电阻阵列 1 R9949 EXB38V470J 电阻阵列 1 R9950 EXB38V470J 电阻阵列 1 R9951 EXB38V470J 电阻阵列 1 R9952 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9953 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9954 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9955 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9966 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R9969 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9972 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9973 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9974 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9975 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9980 D0YAR0000007 M 0 OHM 1/4W 1 R14349 D0GD103JA036 M 10KOHM,J,0.25W 1 R14350 D0GD101JA036 M 100 OHM,J,0.25W 1 R14351 D0GD103JA036 M 10KOHM,J,0.25W 1 R14352 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14354 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14356 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14357 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 参考号 部件号 部件名称及说明 件数 备注 R14358 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14360 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14362 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14363 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14364 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14366 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14368 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14369 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14370 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14372 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14374 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14375 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14376 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14378 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14379 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14381 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14382 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14384 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14385 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14387 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14388 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14390 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14391 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14393 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14394 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14397 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14901 D0GD101JA036 M 100 OHM,J,0.25W 1 R14902 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14903 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14904 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14905 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14906 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14907 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14908 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14909 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14910 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14911 D0GD103JA036 M 10KOHM,J,0.25W 1 R14912 D0GD103JA036 M 10KOHM,J,0.25W 1 R14913 D0GD103JA036 M 10KOHM,J,0.25W 1 R14914 D0GD103JA036 M 10KOHM,J,0.25W 1 R14915 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14916 D0GD103JA036 M 10KOHM,J,0.25W 1 R14917 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14919 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14920 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14921 ERJ8GEYJ224V M 220KOHM, J,1/8W 1 R14923 D0GD103JA036 M 10KOHM,J,0.25W 1 R14924 D0GD103JA036 M 10KOHM,J,0.25W 1 R14925 D0GD103JA036 M 10KOHM,J,0.25W 1 R14926 D0GD103JA036 M 10KOHM,J,0.25W 1 R14928 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14929 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14930 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14931 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R14932 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14934 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R14935 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R14936 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R14937 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R14939 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14940 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14942 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14943 ERJ6GEYJ470V M 47 OHM,J,1/10W 1 R14944 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R14949 ERJ6GEYJ203 M 20KOHM,J,1/10W 1 R14950 D0GD103JA036 M 10KOHM,J,0.25W 1 R14951 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14952 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14953 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14954 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14955 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14956 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14957 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14958 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14959 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14960 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14961 ERJ6GEYJ331V M 330 OHM J 1/10W 1 参考号 部件号 部件名称及说明 件数 备注 146 TH-58PZ880C R14962 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R14963 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R14964 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14965 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R14966 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14967 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14971 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R14973 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R14974 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R14975 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R14976 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R14977 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R14978 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R14979 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R14980 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14981 D0GD103JA036 M 10KOHM,J,0.25W 1 R14982 D0GD103JA036 M 10KOHM,J,0.25W 1 R14984 D0GD103JA036 M 10KOHM,J,0.25W 1 R14986 ERJ8GEYJ224V M 220KOHM, J,1/8W 1 R14987 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R14988 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R14990 D0GD103JA036 M 10KOHM,J,0.25W 1 R14991 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14992 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R14993 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R14994 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R14995 D0GD103JA036 M 10KOHM,J,0.25W 1 R14996 D0GD103JA036 M 10KOHM,J,0.25W 1 R14997 D0GD103JA036 M 10KOHM,J,0.25W 1 R14998 D0GD103JA036 M 10KOHM,J,0.25W 1 R14999 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R16001 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16002 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16003 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16004 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16021 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16022 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16023 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16024 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16031 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16032 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16033 ERJ6ENF5602 M 56KOHM, 1/10W 1 R16034 ERJ6ENF2702 M 27KOHM, 1/10W 1 R16041 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16042 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16051 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16052 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16101 ERJT06J221V M 220 OHM,F,0.25W 1 R16102 ERJT06J221V M 220 OHM,F,0.25W 1 R16103 ERJT06J100V M 10 OHM,F,0.25W 1 R16104 ERJT06J100V M 10 OHM,F,0.25W 1 R16105 ERJ8GEYJ474 M 470KOHM, J,1/8W 1 R16109 ERJT06J100V M 10 OHM,F,0.25W 1 R16110 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16116 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16131 D0GD101JA036 M 100 OHM,J,0.25W 1 R16132 D0GD101JA036 M 100 OHM,J,0.25W 1 R16134 ERJT06J750V M 75 OHM,F,0.25W 1 R16137 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16138 ERJ14Y0R00 M 0 OHM, J,1/4W 1 R16141 ERJT06J100V M 10 OHM,F,0.25W 1 R16142 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16143 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16151 D0GD101JA036 M 100 OHM,J,0.25W 1 R16152 D0GD101JA036 M 100 OHM,J,0.25W 1 R16154 ERJT06J750V M 75 OHM,F,0.25W 1 R16155 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16159 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16161 ERJT06J100V M 10 OHM,F,0.25W 1 R16162 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16163 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16171 ERJT06J100V M 10 OHM,F,0.25W 1 R16172 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16173 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16181 ERJT06J100V M 10 OHM,F,0.25W 1 R16182 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16183 ERJ6GEYF473 M 47KOHM,J,1/10W 1 参考号 部件号 部件名称及说明 件数 备注 R16191 D0GD151JA036 M 150 OHM,J,0.25W 1 R16192 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R16195 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16220 ERJ6GEYJ470V M 47 OHM,J,1/10W 1 R16221 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16230 ERJ6GEYJ470V M 47 OHM,J,1/10W 1 R16231 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16241 EXB38V470J 电阻阵列 1 R16242 EXB38V472JV 电阻阵列 1 R16251 ERJ6ENF1401 M 1.4KOHM, 1/10W 1 R16252 ERJ6ENF3902 M 39KOHM, 1/10W 1 R16253 ERJ6ENF3902 M 39KOHM, 1/10W 1 R16254 ERJ6ENF6801 M 6.8KOHM, 1/10W 1 R16255 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R16256 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R16257 D0GD273JA036 M 27KOHM,J,0.25W 1 R16258 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R16260 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16261 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R16280 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16281 D0GD103JA036 M 10KOHM,J,0.25W 1 R16282 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R16283 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16284 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R16285 EXB38V623J 电阻阵列 1 R16286 EXB38V623J 电阻阵列 1 R16289 ERJT08J334V M 330KOHM,F,0.33W 1 R16290 ERJT08J334V M 330KOHM,F,0.33W 1 R16293 ERJT08J334V M 330KOHM,F,0.33W 1 R16294 ERJT08J334V M 330KOHM,F,0.33W 1 R16300 ERJT08J102V M 1KOHM,J, 0.33W 1 R16301 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16302 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R16303 D0GD101JA036 M 100 OHM,J,0.25W 1 R16304 ERJT08J751 M750 OHM,F,0.33W 1 R16305 ERJ6GEYJ271V M 270 OHM J 1/10W 1 R16306 D0GD101JA036 M 100 OHM,J,0.25W 1 R16308 D0GD101JA036 M 100 OHM,J,0.25W 1 R16309 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R16310 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R16311 ERJ6GEYJ124V M 120KOHM,J,1/10W 1 R16312 ERJ6GEYJ124V M 120KOHM,J,1/10W 1 R16313 ERJ6ENF5232 M52.3KOHM, 1/10W 1 R16314 ERJ6ENF6192 M61.9KOHM, 1/10W 1 R16315 ERJ6ENF1241 M1.24KOHM, 1/10W 1 R16316 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R16321 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16322 ERJ6GEYF561 M 560 OHM,F,1/10W 1 R16323 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R16324 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16325 D0GDR00Z0002 M 0 OHM, 1/10W 1 R16331 ERJT06J101V M 100 OHM,F,0.25W 1 R16333 ERJ6ENF3303 M 330KOHM, 1/10W 1 R16338 ERJT06J101V M 100 OHM,F,0.25W 1 R16339 ERJ6ENF3303 M 330KOHM, 1/10W 1 R16401 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16402 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16404 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16406 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16410 ERJ6GEYG391 M 390 OHM,F,1/10W 1 R16411 ERJ6ENF2700 M 270 OHM, 1/10W 1 R16414 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R16415 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R16416 D0GD103JA036 M 10KOHM,J,0.25W 1 R16421 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16423 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16424 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16425 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16441 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16442 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16443 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16453 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16454 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16465 ERJ6ENF2702 M 27KOHM, 1/10W 1 R16466 ERJ6ENF5602 M 56KOHM, 1/10W 1 R16467 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16468 ERJ6ENF8202 M 82KOHM, 1/10W 1 参考号 部件号 部件名称及说明 件数 备注 147 TH-58PZ880C R16471 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R16472 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16473 ERJ6GEYF561 M 560 OHM,F,1/10W 1 R16474 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16475 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16476 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16478 ERJ6GEYJ562V M 5.6KOHM,J,1/10W 1 R16479 D0GD103JA036 M 10KOHM,J,0.25W 1 R16480 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16500 ERJT08J2R2V M 2.2OHM,J, 0.33W 1 R16501 D0GD101JA036 M 100 OHM,J,0.25W 1 R16502 D0GD101JA036 M 100 OHM,J,0.25W 1 R16503 ERJT06J100V M 10 OHM,F,0.25W 1 R16504 ERJT06J750V M 75 OHM,F,0.25W 1 R16506 ERJT06J100V M 10 OHM,F,0.25W 1 R16509 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16510 ERJT14J1R0U C1.0 OHM, J,1/4W 1 R16511 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16512 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16516 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16517 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16520 ERJT06J100V M 10 OHM,F,0.25W 1 R16521 D0GD101JA036 M 100 OHM,J,0.25W 1 R16522 D0GD101JA036 M 100 OHM,J,0.25W 1 R16523 ERJT06J750V M 75 OHM,F,0.25W 1 R16526 ERJT06J100V M 10 OHM,F,0.25W 1 R16527 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16528 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16529 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16530 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16531 ERJT06J100V M 10 OHM,F,0.25W 1 R16532 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16533 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16536 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16538 ERJT06J100V M 10 OHM,F,0.25W 1 R16539 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16540 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16542 ERJT06J100V M 10 OHM,F,0.25W 1 R16543 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16544 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16561 EXB38V470J 电阻阵列 1 R16562 EXB38V470J 电阻阵列 1 R16563 EXB38V470J 电阻阵列 1 R16564 EXB38V470J 电阻阵列 1 R16565 EXB38V472JV 电阻阵列 1 R16566 EXB38V472JV 电阻阵列 1 R16567 EXB38V472JV 电阻阵列 1 R16568 EXB38V472JV 电阻阵列 1 R16570 EXB38V472JV 电阻阵列 1 R16573 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R16579 EXB38V470J 电阻阵列 1 R16582 ERJ6ENF3902 M 39KOHM, 1/10W 1 R16583 ERJ6ENF3902 M 39KOHM, 1/10W 1 R16584 ERJ6ENF6801 M 6.8KOHM, 1/10W 1 R16585 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R16586 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R16587 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16588 D0GD103JA036 M 10KOHM,J,0.25W 1 R16590 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R16591 EXB38V472JV 电阻阵列 1 R16592 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16593 ERJ6ENF1401 M 1.4KOHM, 1/10W 1 R16602 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16604 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R16605 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R16606 D0GD103JA036 M 10KOHM,J,0.25W 1 R16607 ERJ6ENF7151 M7.15KOHM, 1/10W 1 R16608 ERJT08J102V M 1KOHM,J, 0.33W 1 R16609 D0GZ102JA020 M 1KOHM,J,1/16W 1 R16610 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R16611 ERJ8GEYJ683V M 68KOHM, J,1/8W 1 R16612 ERJT06J470V M 47 OHM,F,0.25W 1 R16613 ERJ8GEYJ473 M 47KOHM, J,1/8W 1 R16614 ERJ8GEYJ683V M 68KOHM, J,1/8W 1 R16615 ERJ6ENF1101 M 1.1KOHM, 1/10W 1 R16617 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16621 ERJ6GEYF561 M 560 OHM,F,1/10W 1 参考号 部件号 部件名称及说明 件数 备注 R16622 ERJ6GEYF561 M 560 OHM,F,1/10W 1 R16631 D0GD103JA036 M 10KOHM,J,0.25W 1 R16633 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R16634 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R16638 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R16642 ERJT06J330V M 33 OHM,F,0.25W 1 R16643 ERJT06J330V M 33 OHM,F,0.25W 1 R16661 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R16662 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R16663 ERJ6GEYJ562V M 5.6KOHM,J,1/10W 1 R16664 D0GZ102JA020 M 1KOHM,J,1/16W 1 R16665 ERJT06J330V M 33 OHM,F,0.25W 1 R16666 D0GD103JA036 M 10KOHM,J,0.25W 1 R16668 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16669 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16670 ERJT06J470V M 47 OHM,F,0.25W 1 R16671 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16672 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16674 D0GZ102JA020 M 1KOHM,J,1/16W 1 R16676 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16677 ERJ6RBD152 M 1.5KOHM,J,1/10W 1 R16678 ERJ8GEYJ563 M 56KOHM, J,1/8W 1 R16681 ERJT06J100V M 10 OHM,F,0.25W 1 R16682 ERJT06J100V M 10 OHM,F,0.25W 1 R16684 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R16685 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R16696 ERF5TK2R2 W 2.2 OHM, K, 5W 1 R16700 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16701 D0GD103JA036 M 10KOHM,J,0.25W 1 R16702 ERJ6GEYJ332V M 3.3K OHM J 1/10W 1 R16703 D0GD103JA036 M 10KOHM,J,0.25W 1 R16704 D0GD103JA036 M 10KOHM,J,0.25W 1 R16707 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R16711 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16712 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16717 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16719 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R16720 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R16721 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R16722 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R16723 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R16729 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16730 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16731 ERG1FJS823D M 82KOHM, J, 1W 1 R16732 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R16733 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R16734 ERJ6ENF4991 M4.99KOHM, 1/10W 1 R16735 ERJ6ENF2213 M 221KOHM, 1/10W 1 R16736 ERJ6ENF2213 M 221KOHM, 1/10W 1 R16737 ERJ6ENF2103 M 210KOHM, 1/10W 1 R16738 ERG1FJS823D M 82KOHM, J, 1W 1 R16740 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R16742 D0GD103JA036 M 10KOHM,J,0.25W 1 R16744 ERJ6ENF2003 M 200KOHM, 1/10W 1 R16745 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R16746 ERJT06J103V M 10KOHM,F,0.25W 1 R16747 ERJT06J103V M 10KOHM,F,0.25W 1 R16749 D0GD103JA036 M 10KOHM,J,0.25W 1 R16750 ERJT06J223V M 22 KOHM,F,0.25W 1 R16751 ERJT06J224V M 220KOHM,F,0.25W 1 R16752 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16753 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16756 ERJT06J223V M 22 KOHM,F,0.25W 1 R16757 ERJ6ENF2702 M 27KOHM, 1/10W 1 R16758 ERJ6ENF3241 M3.24KOHM, 1/10W 1 R16761 ERJT06J100V M 10 OHM,F,0.25W 1 R16762 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16765 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16766 ERJT06J750V M 75 OHM,F,0.25W 1 R16769 ERJT06J750V M 75 OHM,F,0.25W 1 R16774 ERG1SJ683 M 68KOHM, J, 1W 1 R16775 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16776 D0GD101JA036 M 100 OHM,J,0.25W 1 R16777 ERJT06J151V M 150 OHM,F,0.25W 1 R16778 ERF5TK2R2 W 2.2 OHM, K, 5W 1 R16781 ERJT06J470V M 47 OHM,F,0.25W 1 R16782 ERJ6GEYF473 M 47KOHM,J,1/10W 1 参考号 部件号 部件名称及说明 件数 备注 148 TH-58PZ880C R16785 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16786 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16787 ERJ6ENF3302 M 33KOHM, 1/10W 1 R16788 ERJT06J154V M 150KOHM,F,0.25W 1 R16789 D0GD103JA036 M 10KOHM,J,0.25W 1 R16791 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16794 ERJ6ENF2003 M 200KOHM, 1/10W 1 R16795 ERJ6ENF2003 M 200KOHM, 1/10W 1 R16796 ERJ6ENF5602 M 56KOHM, 1/10W 1 R16797 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R16798 D0GD103JA036 M 10KOHM,J,0.25W 1 R16799 ERJ6ENF3302 M 33KOHM, 1/10W 1 R16801 ERJ6ENF7321 M7.32KOHM, 1/10W 1 R16802 ERJ6ENF5901 M 5.9KOHM, 1/10W 1 R16804 ERJ8GEYJ563 M 56KOHM, J,1/8W 1 R16813 ERJ8GEYJ102V M 1KOHM, J,1/8W 1 R16814 ERJ6ENF3091 M3.09KOHM, 1/10W 1 R16815 ERJ6ENF1001 M 1KOHM, 1/10W 1 R16816 D0GDR00Z0002 M 0 OHM, 1/10W 1 R16818 ERJT06J683 M 68 KOHM,F,0.25W 1 R16819 ERJT06J683 M 68 KOHM,F,0.25W 1 R16820 ERJ6ENF6042 M60.4KOHM, 1/10W 1 R16821 ERJ6ENF7872 M78.7KOHM, 1/10W 1 R16822 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16823 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16824 ERJ6ENF3302 M 33KOHM, 1/10W 1 R16825 ERJT06J154V M 150KOHM,F,0.25W 1 R16826 D0GD103JA036 M 10KOHM,J,0.25W 1 R16828 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16838 ERJ14YJ563U M 56KOHM, 1/2W 1 R16841 ERJ14YJ563U M 56KOHM, 1/2W 1 R16844 ERJ6ENF1241 M1.24KOHM, 1/10W 1 R16845 ERJ6ENF4302 M 43KOHM, 1/10W 1 R16846 ERJ6ENF3902 M 39KOHM, 1/10W 1 R16851 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R16852 D0GD103JA036 M 10KOHM,J,0.25W 1 R16860 D0D28R2JA021 M 8.2 OHM,J,2W 1 R16867 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16869 ERJ8GEYJ473 M 47KOHM, J,1/8W 1 R16870 ERG2FJS333D M 33KOHM, J, 2W 1 R16871 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R16872 ERJ6GEYJ332V M 3.3K OHM J 1/10W 1 R16873 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R16874 ERJ6ENF7322 M73.2KOHM, 1/10W 1 R16875 ERJ6ENF7152 M71.5KOHM, 1/10W 1 R16886 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R16887 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R16888 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R17101 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17102 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17103 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17104 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17105 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17106 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17107 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17108 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17109 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17110 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17111 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17112 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17113 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17114 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17115 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17116 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17117 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17118 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17119 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17120 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17121 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17122 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17123 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17124 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17125 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17131 EXB38V220JV 电阻阵列 1 R17132 EXB38V220JV 电阻阵列 1 R17133 EXB38V470J 电阻阵列 1 R17134 EXB38V681J 电阻阵列 1 参考号 部件号 部件名称及说明 件数 备注 R17135 EXB38V470J 电阻阵列 1 R17136 EXB38V470J 电阻阵列 1 R17137 EXB38V470J 电阻阵列 1 R17138 EXB38V470J 电阻阵列 1 R17139 EXB38V470J 电阻阵列 1 R17140 EXB38V470J 电阻阵列 1 R17141 EXB38V470J 电阻阵列 1 R17142 EXB38V471J 电阻阵列 1 R17143 EXB38V471J 电阻阵列 1 R17144 EXB38V471J 电阻阵列 1 R17145 EXB38V471J 电阻阵列 1 R17146 EXB38V471J 电阻阵列 1 R17147 EXB38V471J 电阻阵列 1 R17148 EXB38V471J 电阻阵列 1 R17149 EXB38V681J 电阻阵列 1 R17151 D0GBR00Z0002 M 0 OHM J 1/16W 1 R17152 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R17153 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R17154 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R17155 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R17156 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R17157 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R17158 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R17159 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R17162 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R17163 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R17164 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R17199 D0GF472JA047 M 4.7KOHM,J, 0.33W 1 R17201 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17202 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17203 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17204 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17205 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17206 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17207 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17208 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17209 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17210 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17211 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17212 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17213 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17214 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17215 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17216 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17217 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17218 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17219 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17220 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17221 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17222 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17223 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17224 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17225 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17231 EXB38V220JV 电阻阵列 1 R17232 EXB38V470J 电阻阵列 1 R17233 EXB38V470J 电阻阵列 1 R17234 EXB38V220JV 电阻阵列 1 R17235 EXB38V470J 电阻阵列 1 R17236 EXB38V470J 电阻阵列 1 R17237 EXB38V470J 电阻阵列 1 R17238 EXB38V470J 电阻阵列 1 R17239 EXB38V680J 电阻阵列 1 R17240 EXB38V680J 电阻阵列 1 R17241 EXB38V680J 电阻阵列 1 R17242 EXB38V680J 电阻阵列 1 R17243 EXB38V680J 电阻阵列 1 R17244 EXB38V680J 电阻阵列 1 R17245 EXB38V681J 电阻阵列 1 R17246 EXB38V681J 电阻阵列 1 R17247 EXB38V681J 电阻阵列 1 R17248 EXB38V681J 电阻阵列 1 R17249 EXB38V681J 电阻阵列 1 R17250 EXB38V681J 电阻阵列 1 R17251 EXB38V681J 电阻阵列 1 R17252 EXB38V681J 电阻阵列 1 R17255 EXB38V471J 电阻阵列 1 R17256 EXB38V471J 电阻阵列 1 参考号 部件号 部件名称及说明 件数 备注 149 TH-58PZ880C R17257 EXB38V471J 电阻阵列 1 R17258 EXB38V471J 电阻阵列 1 R17261 EXB38V471J 电阻阵列 1 R17262 EXB38V471J 电阻阵列 1 R17263 EXB38V471J 电阻阵列 1 R17264 EXB38V471J 电阻阵列 1 R17265 EXB38V471J 电阻阵列 1 R17266 EXB38V471J 电阻阵列 1 R17267 EXB38V681J 电阻阵列 1 R17268 EXB38V681J 电阻阵列 1 R17269 EXB38V681J 电阻阵列 1 R17280 D0GBR00Z0002 M 0 OHM J 1/16W 1 R17281 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R17282 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R17283 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R17284 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R17285 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R17286 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R17287 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R17288 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R17289 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R17290 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R17291 D0GDR00Z0002 M 0 OHM, 1/10W 1 R17292 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R17301 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17302 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17303 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17304 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17305 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17306 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17307 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17308 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17309 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17310 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17311 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17312 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17313 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17314 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17315 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17316 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17317 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17318 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17319 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17320 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17321 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17322 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17323 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17324 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17325 ERJT14J6R8U C6.8 OHM, J,1/4W 1 R17328 D0GBR00Z0002 M 0 OHM J 1/16W 1 R17329 D0GBR00Z0002 M 0 OHM J 1/16W 1 R17330 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R17331 EXB38V220JV 电阻阵列 1 R17332 EXB38V220JV 电阻阵列 1 R17333 EXB38V470J 电阻阵列 1 R17334 EXB38V470J 电阻阵列 1 R17335 EXB38V470J 电阻阵列 1 R17336 EXB38V470J 电阻阵列 1 R17337 EXB38V470J 电阻阵列 1 R17338 EXB38V470J 电阻阵列 1 R17339 EXB38V470J 电阻阵列 1 R17340 EXB38V470J 电阻阵列 1 R17341 EXB38V471J 电阻阵列 1 R17342 EXB38V471J 电阻阵列 1 R17343 EXB38V471J 电阻阵列 1 R17344 EXB38V471J 电阻阵列 1 R17345 EXB38V471J 电阻阵列 1 R17346 EXB38V471J 电阻阵列 1 R17347 EXB38V471J 电阻阵列 1 R17350 EXB38V681J 电阻阵列 1 R17355 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R17356 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R17357 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R17358 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R17359 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R17360 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R17361 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 R17362 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R17363 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R17364 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R17365 D0GDR00Z0002 M 0 OHM, 1/10W 1 R17366 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R17367 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R17368 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R17399 D0GF472JA047 M 4.7KOHM,J, 0.33W 1 R2582A J0JCC0000241 片状电感 1 R2583A J0JCC0000241 片状电感 1 RM2501 B3RAD0000160 遥感器 1 S1 K1KA03AA0193 3P 连接接头 1 SC2 K1KA02A00676 2P 连接接头 1 SC20 K1MN35BA0266 35P 连接接头 1 SC41 K1KA23AA0733 23P 连接接头 1 SC42 K1KA23AA0733 23P 连接接头 1 SC46 K1KA09A00239 9P 连接接头 1 SD11 K1MN20BA0231 20P 连接接头 1 SD42 K1KB23AA0234 23P 连接接头 1 SD46 K1KY09AA0607 9P 连接接头 1 SD1B K1MNA8BA0250 8P 连接接头 1 SD5B K1MNA8BA0250 8P 连接接头 1 SD2B K1MNA8BA0250 8P 连接接头 1 SD4B K1MNA8BA0250 8P 连接接头 1 SD3B K1MNA8BA0250 8P 连接接头 1 SS02 K1KB15AA0032 15P 连接接头 1 SS03 K1KB15AA0032 15P 连接接头 1 SS11 K1KA02A00676 2P 连接接头 1 SS12 K1KA10AA0194 10P 连接接头 1 SS21 K1KY15AA0606 15P 连接接头 1 SS22 K1KY15AA0606 15P 连接接头 1 SS33 K1KA10A00416 10P 连接接头 1 SS34 K1KA03AA0193 3P 连接接头 1 SS35 K1KA04AA0193 4P 连接接头 1 SS52 K1MN13B00091 13P 连接接头 1 SS54 K1MN13B00091 13P 连接接头 1 SS55 K1MN13B00091 13P 连接接头 1 SS57 K1MN13B00091 13P 连接接头 1 SSMM2 TMME190 线夹 1 SSMM4 TMME260 线夹 1 SSMM5 TMME260 线夹 1 SU11 K1MN20BA0266 20P 连接接头 1 SU41 K1KB23AA0234 23P 连接接头 1 SU1B K1MNA8BA0250 8P 连接接头 1 SU5B K1MNA8BA0250 8P 连接接头 1 SU4B K1MNA8BA0250 8P 连接接头 1 SU2B K1MNA8BA0250 8P 连接接头 1 SU3B K1MNA8BA0250 8P 连接接头 1 SW2500 K0F162B00002 开关 1 SW3753 EVQPC105K 开关 1 SW3754 EVQPC105K 开关 1 SW3755 EVQPC105K 开关 1 SW3756 EVQPC105K 开关 1 SW3757 EVQPC105K 开关 1 T16301 ETS19AB249AC 转接变压器 1 T16697 ETS19AB249AC 转接变压器 1 TU8301A ENG39E04GF 调谐器 1 VR16000 EVMEASA00B54 控制 50KOHMB 0.3W 1 VR16600 EVMEASA00B54 控制 50KOHMB 0.3W 1 VR16602 EVMEASA00B23 控制 2KOHMB 0.3W 1 X1100 H0J100500035 晶体 1 X2010 H0J245500089 晶体 1 X2601 H0J202500019 晶体 1 X5200 H0J270500113 晶体 1 X7700 H0J240500037 晶体 1 参考号 部件号 部件名称及说明 件数 备注 150 TH-58PZ880C X8101 H0J270500061 晶体 1 X8620 H0J300500026 晶体 1 X9000 H2D100500004 晶体 1 X9200 H0J200500076 晶体 1 ZA0001 K4AZ01D00004 端子 1 ZA0002 K4AZ01D00004 端子 1 ZA0003 K4AZ01D00004 端子 1 ZA0004 K4AZ01D00004 端子 1 ZA0005 K4AZ01D00004 端子 1 ZA0006 K4AZ01D00004 端子 1 ZA0007 K4AZ01D00004 端子 1 ZA0008 K4AZ01D00004 端子 1 ZA0010 TESA169 防护夹 1 ZA0011 TESA169 防护夹 1 ZA851 K4CZ01000027 AV 端子 1 ZA852 K4CZ01000027 AV 端子 1 ZA3701 K4CZ01000027 AV 端子 1 ZA3702 K4CZ01000027 AV 端子 1 ZA3801 K4AD01D00005 端子 1 ZA3802 K4AD01D00005 端子 1 ZA9000 K4CD01000011 AV 端子 1 ZA9001 K4AZ01D00004 端子 1 ZA9002 K4AZ01D00004 端子 1 ZA14901 K4AD01Z00004 端子 1 ZA14902 K4AD01Z00004 端子 1 ZA14903 K4AD01Z00004 端子 1 ZA14951 K4AD01Z00004 端子 1 ZA14952 K4AD01Z00004 端子 1 ZA14953 K4AD01Z00004 端子 1 ZA16001 K4CD01000011 端子 1 ZA16002 K4CD01000011 AV 端子 1 ZA16003 K4CD01000011 端子 1 ZA16010 K4ZZ01000206 端子 1 ZA16011 K4ZZ01000206 端子 1 ZA16401 K4CD01000011 AV 端子 1 ZA16402 K4CD01000011 AV 端子 1 ZA16403 K4CD01000011 AV 端子 1 ZA17101 K4CD01000013 AV 端子 1 ZA17102 K4CD01000013 AV 端子 1 ZA17103 K4CD01000013 AV 端子 1 ZA17104 K4CD01000013 AV 端子 1 ZA17105 K4CD01000013 AV 端子 1 ZA17201 K4CD01000013 AV 端子 1 ZA17202 K4CD01000013 AV 端子 1 ZA17203 K4CD01000013 AV 端子 1 ZA17204 K4CD01000013 AV 端子 1 ZA17301 K4CD01000013 AV 端子 1 ZA17302 K4CD01000013 AV 端子 1 ZA17303 K4CD01000013 AV 端子 1 ZA17304 K4CD01000013 AV 端子 1 ZA17305 K4CD01000013 AV 端子 1 A601 AYRA362MSV7T 制动器 1 A602 AYRA362MSV7T 制动器 1 C201 ACKZE1H220T 50V 22PF 1 C202 ACCC3FD470JP 3kV 47PF 1 C203 ACCC3FD470JP 3kV 47PF 1 C204 ACMPEF12393H 1250V 0.039PF 1 C205 ACMPEF12393H 1250V 0.039PF 1 C207 ACDE1SL471JP 1kV 470PF 1 C208 ACDE1SL471JP 1kV 470PF 1 C209 ECQV1H224JL P 0.22UF, J, 50V 1 C210 ECQV1H224JL P 0.22UF, J, 50V 1 C231 ACKZE1H220T 50V 22PF 1 C232 ACKZE1H220T 50V 22PF 1 C251 ECQV1H104JL P 0.1UF, J, 50V 1 C252 ECQV1H224JL P 0.22UF, J, 50V 1 C254 ECQE2223SKF 250V 0.022PF 1 C255 ECQE2223SKF 250V 0.022PF 1 C256 ACKMQ220901Z 220V 900PF 1 C257 ACKMQ220901Z 220V 900PF 1 C258 ACKMQ220901Z 220V 900PF 1 C259 ACKMQ220901Z 220V 900PF 1 参考号 部件号 部件名称及说明 件数 备注 C301 ACKZE1H220T 50V 22PF 1 C302 ACRR3DD101K7 2kV 100PF 1 C303 ACRR3DD101K7 2kV 100PF 1 C304 ACMPEF12473H 1250V 0.047PF 1 C305 ACCK1B681KP 1kV 680p 1 C306 ACCK1B681KP 1kV 680p 1 C352 ACKZE1E182ST 25V 1800PF 1 C354 ECQV1H224JL P 0.22UF, J, 50V 1 C355 ECQV1H823JL 50V 0.082PF 1 C357 ACKZE1E471LT 25V 470PF 1 C358 ACKZE1E471LT 25V 470PF 1 C401 ECQE2104SKF 250V 0.1PF 1 C402 ECQE2104SKF 250V 0.1PF 1 C403 EETHC2C471HX 160V 470PF 1 C404 ACKZE1H101T 50V 100PF 1 C406 EETHC2A122JJ 100V 1200PF 1 C409 ECQE2104SKF 250V 0.1PF 1 C451 ACKZE1A471C 10V 470PF 1 C500 ACKZE1H221T 50V 220PF 1 C501 ECQU2A103MLA P 0.01UF, M,250V 1 C503 ACKMQ2W560T 450V 56PF 1 C504 ACKZE1H220T 50V 22PF 1 C505 ECQV1H224JL P 0.22UF, J, 50V 1 C506 ACKZE1H100T 50V 10PF 1 C507 ACKZE1H221T 50V 220PF 1 C508 ACKZE1H220T 50V 22PF 1 C551 ACKZE1A102LC 10V 1000PF 1 C555 ACKZE1E470T 25V 47PF 1 C558 ECQV1H224JL P 0.22UF, J, 50V 1 C559 ECQV1H474JL P 0.47UF, J, 50V 1 C602 ECQU2A104MLA P 0.1UF, M,250V 1 C603 ECKENA221KBR C 221P 250V 1 C604 ECKENA221KBR C 221P 250V 1 C605 ACDE1R102K7 1kV 680p 1 C606 AC4MPH105KA3 450V 1PF 1 C610 ECQV1H105JL 50V 1PF 1 C611 ACKZE1H220T 50V 22PF 1 C612 EETHD2W301LZ 450V 300PF 1 C613 EETHD2W301LZ 450V 300PF 1 C615 ECKENA101KBR C 100P 250V 1 C620 ECKENA101KBR C 100P 250V 1 C621 ECKENA101KBR C 100P 250V 1 C625 ACRR3AD222KP 1kV 2200PF 1 C629 AC4MPH105KA3 450V 1PF 1 C701 ACKZE1A471C 10V 470PF 1 C702 ECQV1H103JL2 50V 0.01PF 1 C801 ECQU2A104MLA P 0.1UF, M,250V 1 C802 ECKENA101KBR C 100P 250V 1 C803 ECKENA101KBR C 100P 250V 1 C807 ACDE1R102K7 1kV 680p 1 C808 AC4MPH105KA3 450V 1PF 1 C809 ACRR3AD222KP 1kV 2200PF 1 C810 ECQV1H105JL 50V 1PF 1 C811 ACKZE1H220T 50V 22PF 1 C812 EETHD2W301LZ 450V 300PF 1 C814 ECKENA101KBR C 100P 250V 1 C815 ECKENA221KBR C 221P 250V 1 C816 ECKENA221KBR C 221P 250V 1 C818 AC4MPH105KA3 450V 1PF 1 D201 VDAG01AT 二极管 1 D202 VDAG01AT 二极管 1 D251 MA165TAKU 二极管 1 D254 MA2DF3100S 二极管 1 D255 MA2DF3100S 二极管 1 D256 MA2DF3100S 二极管 1 D257 MA2DF3100S 二极管 1 D351 VDG865C08R 二极管 1 D352 VDAG01AT 二极管 1 D353 VDG865C08R 二极管 1 参考号 部件号 部件名称及说明 件数 备注 151 TH-58PZ880C D401 VDD6SBN20 二极管 1 D402 VDAG01AT 二极管 1 D403 VDYG901C3R 二极管 1 D500 VDAG01AT 二极管 1 D501 VDS1WBA80 二极管 1 D504 VXST3D82BL3 二极管 1 D505 VDAG01AT 二极管 1 D506 VDAG01AT 二极管 1 D551 VDRK39A5 二极管 1 D603 VDAP01CT 二极管 1 D604 VDAP01CT 二极管 1 D606 VDS3V60L1 二极管 1 D651 MA165TAKU 二极管 1 D652 MA165TAKU 二极管 1 D702 VDERA83-004T 二极管 1 D703 MA165TAKU 二极管 1 D801 MA165TAKU 二极管 1 D802 MA165TAKU 二极管 1 D803 VDAP01CT 二极管 1 D804 VDAP01CT 二极管 1 D805 VDS3V60L1 二极管 1 F201 HU216005BEP 250V 5A 1 F301 HU216005BEP 250V 5A 1 F601 HU215010BEP 250V 10A 1 F602 HU215010BEP 250V 10A 1 F801 HU215010BEP 250V 10A 1 F802 HU215010BEP 250V 10A 1 F803 HU382T2P 250V 2A 1 IC251 AN1431TBTA IC 1 IC352 AN1431TBTA IC 1 IC401 AN1431TBTA IC 1 IC501 MIP3E30MPSCF IC 1 IC555 AN1431TBTA IC 1 K601 ALKT329C93 继电器 1 K602 ALDJ5D2T8 继电器 1 K801 ALKT329C93 继电器 1 K802 ALDJ5D2T8 250V 8A DC5V 1 L401 AYLH8TB681K 滤波器扼流圈 1 L402 AYH221012HY 滤波器扼流圈 1 L500 EXCELDR35V 中心 1 L501 EXCELSA35 头扼流圈 1 L502 EXCELDR35V 中心 1 L503 EXCELDR35V 中心 1 L601 AYP3165208ZA 滤波器扼流圈 1 L602 AYP3165208ZA 滤波器扼流圈 1 L603 ETB50CZ14GAD 变压器 1 L604 AYP3165208ZA 滤波器扼流圈 1 L801 EXCELSA35 头扼流圈 1 L802 AYP2590204Z 滤波器扼流圈 1 L803 AYP2590204Z 滤波器扼流圈 1 L805 ETB32CZ13GAD 变压器 1 MC201 MDPPND471 组件 1 MC203 MP00R3A1 组件 1 MC204 MP00R3A1 组件 1 MC231 MDPHHA101 组件 1 MC301 MDPPND472 组件 1 MC352 MDPJFB471 组件 1 MC401 MDPPSA471 组件 1 MC451 MDPLSC471 组件 1 MC501 MDPTZA101 组件 1 MC502 MDPHHA101 组件 1 参考号 部件号 部件名称及说明 件数 备注 MC552 MDPPFC101 组件 1 MC601 MDPLPB101 组件 1 MC602 MP00P18 组件 1 MC603 MP00P28 组件 1 MC606 MP00P29 组件 1 MC701 MDPZDA471 组件 1 MC801 MP00P15A1 组件 1 MC802 MDPLPB472 组件 1 P2 AKB2P3-VH-B 2P 连接接头 1 P6 AKB12B-EH-A 12P 连接接头 1 P7 AKB11B-EH-A 11P 连接接头 1 P9 AKB03P-VL 3P 连接接头 1 P11 AKB2P3-VH-B 2P 连接接头 1 P12 AKB10B-PH-KS 10P 连接接头 1 P25 AKB13B-PH-KS 13P 连接接头 1 P51 AKB3P4VH-B-L 3P 连接接头 1 P52 AKB3P4VH-B-L 3P 连接接头 1 P53 AKB2P-VH 2P 连接接头 1 P54 AKB2P-VH 2P 连接接头 1 P55 AKB8B-PH-KS 8P 连接接头 1 P56 AKB8B-PH-KS 8P 连接接头 1 PC201 VPS2581AL1VH 光隔离器 1 PC202 VPS2581AL1VH 光隔离器 1 PC231 VPS2581AL1VH 光隔离器 1 PC301 VPS2581AL1VH 光隔离器 1 PC302 VPS2581AL1VH 光隔离器 1 PC401 VPS2581AL1VH 光隔离器 1 PC501 VPS2581AL1VH 光隔离器 1 PC502 VPS2581AL1VH 光隔离器 1 Q201 2SD21770SA 三极管 1 Q202 2SB14340SA 三极管 1 Q203 2SD21770SA 三极管 1 Q204 2SB14340SA 三极管 1 Q301 VKFMA16N55G FET 1 Q302 VKFMA16N55G FET 1 Q351 2SK3704 FET 1 Q401 2SK3607 FET 1 Q402 2SA17670Q2 三极管 1 Q403 2SA17670Q2 三极管 1 Q651 2SB1030AR 三极管 1 Q652 2SB1030AR 三极管 1 R201 ERG12SJ820J 0.5W 82 1 R202 ERQ14AJ4R7J F 4.7 OHM, J,1/4W 1 R203 ERDS2FJ334 0.25W 330k 1 R204 ERDS2FJ334 0.25W 330k 1 R205 ERDS2FJ334 0.25W 330k 1 R206 ERDS2FJ334 0.25W 330k 1 R207 ERG12SJ820J 0.5W 82 1 R208 ER0S2CKF1500 M 150 OHM, F,1/4W 1 R209 ERDS2FJ154 0.25W 150k 1 R210 ERDS2FJ154 0.25W 150k 1 R211 ERX12SJ3R3J 0.5W 3.3 1 R212 ERX12SJ3R3J 0.5W 3.3 1 R215 ERG12SJ220J 0.5W 22 1 R216 ERG12SJ220J 0.5W 22 1 R218 ERG12SJ220J 0.5W 22 1 R219 ERG12SJ220J 0.5W 22 1 R220 ER0S2CKF1690 0.25W 169 1 R251 ARRCR1F1153T 0.25W 115k 1 R252 ARRCR1F1133T 0.25W 113k 1 R253 ERDS2FJ151 0.25W 150 1 R254 ERDS2FJ102 M 1KOHM,J,1/10W 1 R256 ER0S2THD1002 0.25W 10k 1 R257 ERDS2FJ472 0.25W 4.7k 1 R258 ERDS2FJ472 0.25W 4.7k 1 R259 ERDS2FJ472 0.25W 4.7k 1 R263 ERDS2FJ220 C 22 OHM, J,1/4W 1 参考号 部件号 部件名称及说明 件数 备注 152 TH-58PZ880C 09/2008 iPress2151 中国制作 R264 ERDS2FJ102 M 1KOHM,J,1/10W 1 R265 ARRCR1F2103T 0.25W 210k 1 R266 ARRCR1F3323T 0.25W 332k 1 R267 ARRCR1F3243T 0.25W 324k 1 R302 ERQ14AJ4R7J F 4.7 OHM, J,1/4W 1 R303 ERDS2FJ334 0.25W 330k 1 R304 ERDS2FJ334 0.25W 330k 1 R308 ERG12SJ910J 0.5W 91 1 R309 ERG12SJ680J 0.5W 68 1 R310 ERG12SJ220J 0.5W 22 1 R311 ERG12SJ910J 0.5W 91 1 R351 ER0S2CHF8871 0.25W 8.87k 1 R352 ARRF5EJ30MB 5W 0.03 1 R353 ERDS2FJ561 C 560 OHM, J,1/4W 1 R354 ERDS2FJ221 C 220 OHM, J,1/4W 1 R355 ERDS2FJ222 C 2.2KOHM, J,1/4W 1 R356 ER0S2THD1002 0.25W 10k 1 R359 ER0S2THD5232 0.25W 52.3k 1 R362 ERG12SJ332J 0.5W 3.3k 1 R366 ER0S2THF6981 0.25W 6.98k 1 R367 ER0S2CHF8451 0.25W 8.45k 1 R371 ER0S2THF6981 0.25W 6.98k 1 R372 ER0S2THF1151 0.25W 1.15k 1 R403 ERG12SJ100J 0.5W 10 1 R404 ER0S2THF5492 0.25W 54.9k 1 R405 ARRF2EJR10B 2W 0.1 1 R409 ERDS2FJ473 C 47KOHM, J,1/4W 1 R411 ER0S2CKF2001 M 2KOHM, F,1/4W 1 R412 ER0S2CKF2001 M 2KOHM, F,1/4W 1 R413 ER0S2CHF3322 0.25W 33.2k 1 R417 ER0S2THF4222 0.25W 42.2k 1 R418 ER0S2THF4422 0.25W 44.2k 1 R420 ER0S2THF5620 0.25W 562 1 R421 ER0S2THF4422 0.25W 44.2k 1 R422 ER0S2CHF1272 0.25W 12.7k 1 R423 ER0S2THF1333 0.25W 133k 1 R456 ER0S2CKF1332 M13.3KOHM, F,1/4W 1 R502 ARRCR6J825M 1W 8.2M 1 R505 ERDS2FJ201 0.25W 200 1 R506 ARRCR2F1304T 0.25W 1.3M 1 R507 ARRCR2F1184T 0.25W 1.18M 1 R509 ARRCR2F1304T 0.25W 1.3M 1 R510 ARRCR2F1184T 0.25W 1.18M 1 R522 ERDS2FJ180 0.25W 18 1 R555 ER0S2CKF1052 M10.5KOHM, F,1/4W 1 R557 ERDS2TJ392 C 3.9KOHM, J,1/4W 1 R560 ERDS2FJ222 C 2.2KOHM, J,1/4W 1 R561 ER0S2CHF2152 0.25W 21.5k 1 R562 ERDS2FJ150 0.25W 15 1 R563 ERDS2FJ121 0.25W 120 1 R564 ER0S2THD1002 0.25W 10k 1 R603 ARRCR2F4753T 0.25W 475k 1 R604 ARRCR2F4023T 0.25W 402k 1 R607 ARRCR2F7503T 0.25W 750k 1 R608 ARRCR2F7503T 0.25W 750k 1 R611 ER0S2THF5112 0.25W 51.1k 1 R617 ARRF5EJR15B 5W 0.15 1 R618 ARRF5EJR15B 5W 0.15 1 R619 ARRF5EJR10B 5W 0.1 1 R622 ERDS2FJ472 0.25W 4.7k 1 R623 ERG12SJ270J 0.5W 27 1 R624 ERDS2FJ472 0.25W 4.7k 1 R625 ERG12SJ270J 0.5W 27 1 R626 ERDS2FJ472 0.25W 4.7k 1 R627 ERG12SJ270J 0.5W 27 1 R630 ARRCR1F2493T 0.25W 249k 1 R631 ARRCR1F2493T 0.25W 249k 1 R632 ARRCR1F2213T 0.25W 221k 1 R651 ERDS2FJ103 0.25W 10k 1 R652 ERDS2FJ103 0.25W 10k 1 R653 ERDS2FJ222 C 2.2KOHM, J,1/4W 1 R654 ERDS2FJ222 C 2.2KOHM, J,1/4W 1 R655 ERDS2FJ221 C 220 OHM, J,1/4W 1 R656 ERDS2FJ221 C 220 OHM, J,1/4W 1 R657 ERDS2FJ222 C 2.2KOHM, J,1/4W 1 R658 ERDS2FJ681 0.25W 680 1 R701 ERDS2FJ221 C 220 OHM, J,1/4W 1 参考号 部件号 部件名称及说明 件数 备注 R702 ERDS2FJ222 C 2.2KOHM, J,1/4W 1 R705 ERDS2FJ393 0.25W 39k 1 R706 ERDS2FJ221 C 220 OHM, J,1/4W 1 R707 ERDS2FJ222 C 2.2KOHM, J,1/4W 1 R712 ERDS2FJ221 C 220 OHM, J,1/4W 1 R713 ERDS2FJ222 C 2.2KOHM, J,1/4W 1 R801 ARRCR5J624M 0.5W 620k 1 R802 ARR5B100JC2 5W 10 OHM 1 R803 ARRCR2F7503T 0.25W 750k 1 R804 ARRCR2F7503T 0.25W 750k 1 R805 ARRCR2F7503T 0.25W 750k 1 R806 ARRCR2F7503T 0.25W 750k 1 R807 ER0S2THF3482 0.25W 34.8k 1 R809 ARRF5EJR10B 5W 0.1 1 R810 ARRF5EJR10B 5W 0.1 1 R811 ERDS2FJ472 0.25W 4.7k 1 R812 ERG12SJ270J 0.5W 27 1 R813 ERDS2FJ472 0.25W 4.7k 1 R814 ERG12SJ270J 0.5W 27 1 R815 ARRCR1F2493T 0.25W 249k 1 R816 ARRCR1F2493T 0.25W 249k 1 R817 ARRCR1F2213T 0.25W 221k 1 RF601 HUY5JA200JP 145C 20 1 RF801 HUY5JA200JP 145C 20 1 T201 ETB58LZ13GAD 变压器 1 T301 ETB50LZ1DGAD 变压器 1 T501 ETB25BG128AH 变压器 1 VR251 EVMEASA01B55 可变电阻器 1 VR401 EVMEASA01B14 可变电阻器 1 Z501 ERZVGAD471 变阻器 1 Z502 ERZVGAD471 变阻器 1 Z601 ERZVGED751 变阻器 1 Z602 ERZVGED751 变阻器 1 Z603 ERZVGAD471 变阻器 1 Z801 ERZVGED751 变阻器 1 Z802 ERZVGED751 变阻器 1 ZD201 MA4270NMTA 稳压二极管 1 ZD203 MA4270NMTA 稳压二极管 1 ZD204 MA4270NMTA 稳压二极管 1 ZD206 MA4270NMTA 稳压二极管 1 ZD207 MA4270NMTA 稳压二极管 1 ZD251 MA4330NMTA 稳压二极管 1 ZD301 MA4270NMTA 稳压二极管 1 ZD302 MA4270NMTA 稳压二极管 1 ZD305 MA4270NMTA 稳压二极管 1 ZD351 MA4330NMTA 稳压二极管 1 ZD401 MA4360NM 稳压二极管 1 ZD451 MAZ4068NMF 稳压二极管 1 ZD501 MA4300NMTA 稳压二极管 1 ZD502 MA4300NMTA 稳压二极管 1 ZD503 MA4082NM 稳压二极管 1 ZD555 MA4330NMTA 稳压二极管 1 ZD601 MA4047NM 稳压二极管 1 ZD801 MA4047NM 稳压二极管 1 参考号 部件号 部件名称及说明 件数 备注
