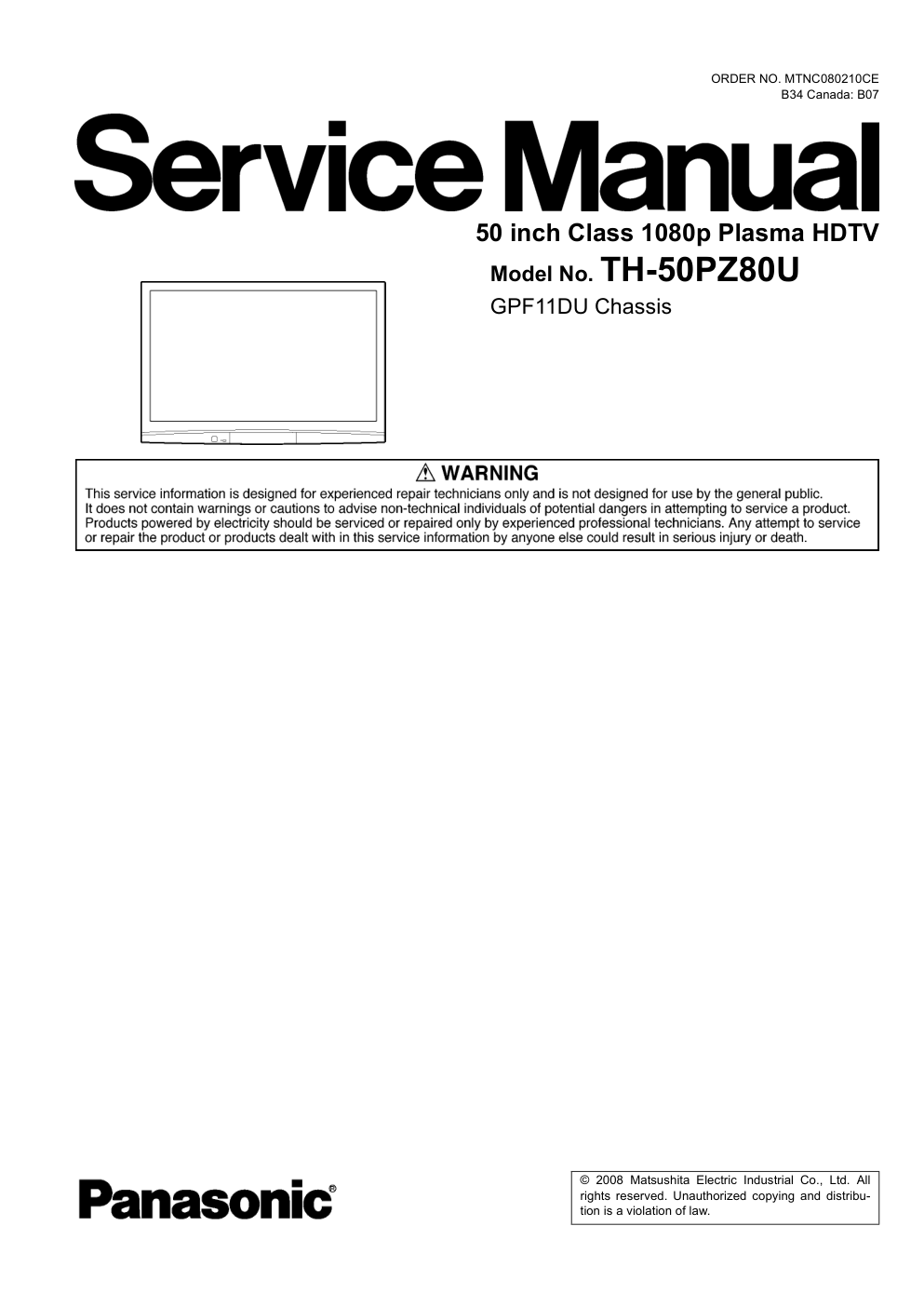

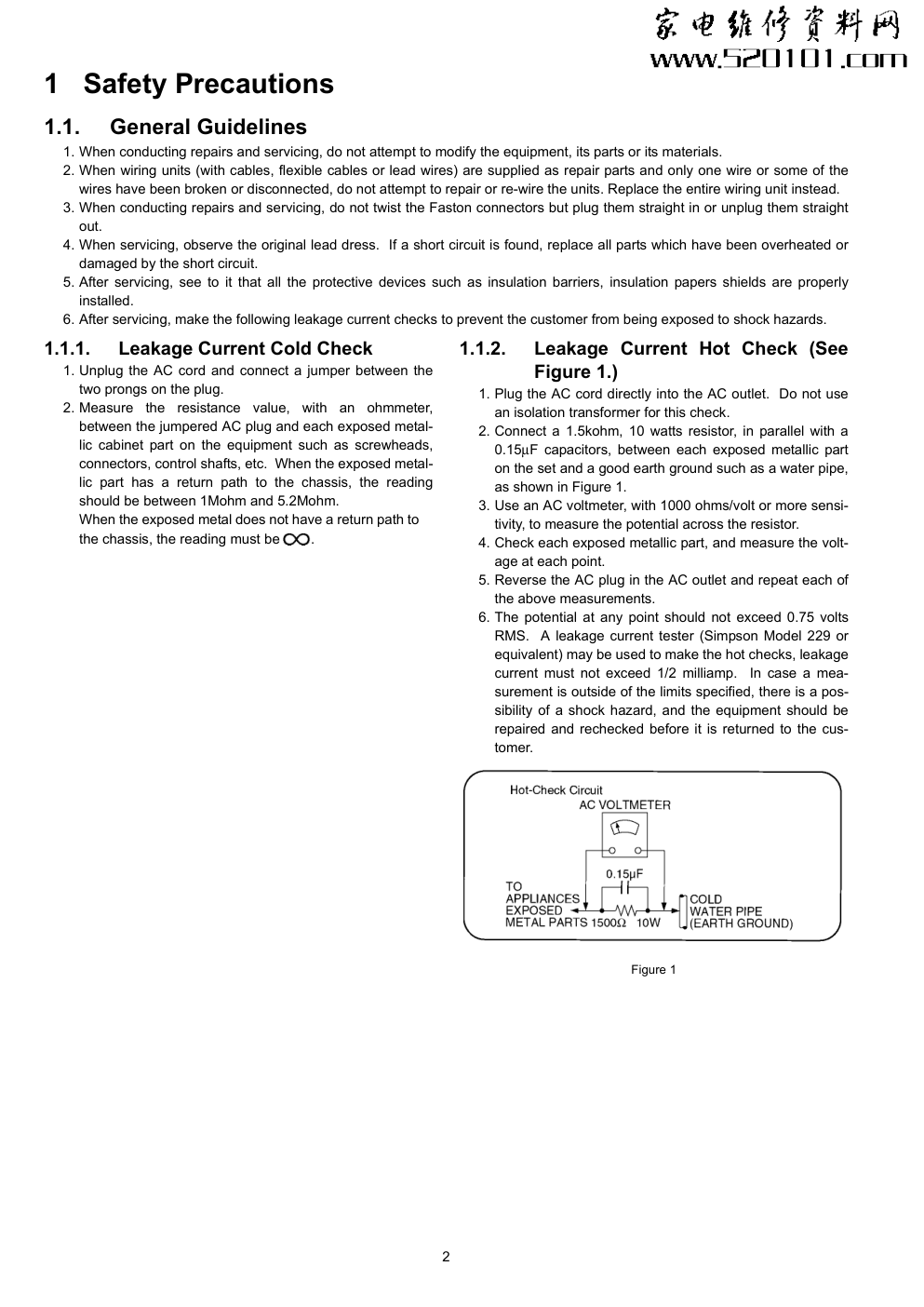

© 2008 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribu- tion is a violation of law. ORDER NO. MTNC080210CE B34 Canada: B07 50 inch Class 1080p Plasma HDTV Model No. TH-50PZ80U GPF11DU Chassis 2 1 Safety Precautions 1.1. General Guidelines 1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials. 2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units. Replace the entire wiring unit instead. 3. When conducting repairs and servicing, do not twist the Faston connectors but plug them straight in or unplug them straight out. 4. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 5. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed. 6. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards. 1.1.1. Leakage Current Cold Check 1. Unplug the AC cord and connect a jumper between the two prongs on the plug. 2. Measure the resistance value, with an ohmmeter, between the jumpered AC plug and each exposed metal- lic cabinet part on the equipment such as screwheads, connectors, control shafts, etc. When the exposed metal- lic part has a return path to the chassis, the reading should be between 1Mohm and 5.2Mohm. When the exposed metal does not have a return path to the chassis, the reading must be . 1.1.2. Leakage Current Hot Check (See Figure 1.) 1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check. 2. Connect a 1.5kohm, 10 watts resistor, in parallel with a 0.15μF capacitors, between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1. 3. Use an AC voltmeter, with 1000 ohms/volt or more sensi- tivity, to measure the potential across the resistor. 4. Check each exposed metallic part, and measure the volt- age at each point. 5. Reverse the AC plug in the AC outlet and repeat each of the above measurements. 6. The potential at any point should not exceed 0.75 volts RMS. A leakage current tester (Simpson Model 229 or equivalent) may be used to make the hot checks, leakage current must not exceed 1/2 milliamp. In case a mea- surement is outside of the limits specified, there is a pos- sibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the cus- tomer. Figure 1 3 2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD). 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test. 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alumi- num foil, to prevent electrostatic charge buildup or exposure of the assembly. 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices. 4. Use only an anti-static solder removal device. Some solder removal devices not classified as [anti-static (ESD protected)] can generate electrical charge sufficient to damage ES devices. 5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices. 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or compara- ble conductive material). 7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. Caution Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise ham less motion such as the brush- ing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device). 4 2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available. This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d suggest the use of Pb free solder as well, although Pb solder may be used. PCBs manufactured using lead free solder will have the PbF within a leaf Symbol PbF stamped on the back of PCB. Caution • Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C). • Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C). If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb sol- der. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder. • After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the opposite side. (see figure below) Suggested Pb free solder There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. How- ever, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used. 5 3 Service Navigation 3.1. Service Hint Board Name Function Board Name Function P Power Supply C1 Data Driver (Lower Right) A DC-DC Converter Speaker out, Sound Processor AV Terminal, AV Switch Digital Signal Processor, Micon, HDMI Interface Peaks Lite 2p C2 Data Driver (Lower Center) C3 Data Driver (Lower Left) SC Scan Drive SU Scan out (Upper) SD Scan out (Lower) D Format Converter, Plasma AI, Sub-Field Processor SS Sustain Drive K Remote receiver, Power LED SS2 Sustain connector S Power Switch GH HDMI3 in GS SD Card Slot G Front Terminal, Key Switch PB Fan control 6 3.2. Applicable signals * Mark: Applicable input signal for Component (Y, PB, PR) and HDMI Note • Signals other than those shown above may not be displayed properly. • The above signals are reformatted for optimal viewing on your display. horizontal frequency (kHz) vertical frequency (Hz) COMPONENT HDMI 525 (480) / 60i 15.73 59.94 * * 525 (480) /60p 31.47 59.94 * * 750 (720) /60p 45.00 59.94 * * 1,125 (1,080) /60i 33.75 59.94 * * 1,125 (1,080) /60p 67.43 59.94 * 1,125 (1,080) /60p 67.50 60.00 * 1,125 (1,080) /24p 26.97 23.98 * 1,125 (1,080) /24p 27.00 24.00 * 7 4 Specifications Power Source AC 120 V, 60 Hz Power Consumption Maximum 690 W Standby condition 0.2 W Plasma Display panel Drive method AC type Aspect Ratio 16:9 Visible screen size 50 inch class (49.9 inches measured diagonally) (W × H × Diagonal) 43.5 inch × 24.4 inch × 49.9 inch (1,106 mm × 622 mm × 1,269 mm) (No. of pixels) 2,073,600 (1,920 (W) × 1,080 (H))[5,760 × 1,080 dots] Sound Audio Output 20 W [ 10 W + 10 W ] ( 10 % THD ) Channel Capability (Digital/Analog) VHF/ UHF: 2 - 69, CATV: 1 - 135 Operating Conditions Temperature: 32 °F - 104 °F (0 °C - 40 °C) Humidity: 20 % - 80 % RH (non-condensing) Connection Terminals VIDEO IN 1-2 VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 Ω) S-VIDEO: Mini DIN 4-pin Y: 1.0 V [p-p] (75 Ω) C: 0.286 V [p-p] (75 Ω) AUDIO L-R: RCA PIN Type × 2 0.5 V [rms] COMPONENT INPUT 1-2 Y: 1.0 V [p-p] (including synchronization) PB, PR: ±0.35 V [p-p] AUDIO L-R: RCA PIN Type × 2 0.5 V [rms] HDMI 1-3 TYPE A Connector × 3 This TV supports [HDAVI Control 3] function. Card slot SD CARD slot × 1 AV PROG OUT VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 Ω) AUDIO L-R: RCA PIN Type × 2 0.5 V [rms] DIGITAL AUDIO OUT PCM / Dolby Digital, Fiber Optic FEATURES 3D Y/C FILTER CLOSED CAPTION V-Chip Photo Viewer HDAVI Control 3 Dimensions (W × H × D) Including pedestal 49.0 inch × 33.3 inch × 15.3 inch (1,244 mm × 844 mm × 387 mm) TV Set only 49.0 inch × 31.2 inch × 3.8 inch (1,244 mm × 790 mm × 95 mm) Mass Including pedestal 88.2 lb. (40 kg) TV Set only 83.8 lb. (38 kg) Note • Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate. 8 5 Service Mode 5.1. How to enter into Service Mode While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds. 5.1.1. Key command [1] button...Main items Selection in forward direction [2] button...Main items Selection in reverse direction [3] button...Sub items Selection in forward direction [4] button...Sub items Selection in reverse direction [VOL] button...Value of sub items change in forward direction ( + ), in reverse direction ( - ) 9 5.1.2. Contents of adjustment mode • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. 5.1.3. How to exit Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control. Main item Sub item Sample Data Remark ADJUST CONTRAST 000 COLOR 3C TINT 03 SUB-BRT 800 WB-ADJ R-CUT 80 G-CUT 80 B-CUT 80 R-DRV FC G-DRV F8 B-DRV D9 ALL-CUT 80 ALL-DRV FC OPTION BOOT ROM Factory Preset STBY-SET 00 EMERGENCY ON CLK MODE 00 CLOCK 000 AGING RGBW COUNT ALL WHITE ALL RED ALL GREEN ALL BLUE ON/OFF RAMP WHITE RAMP RED RAMP GREEN RAMP BLUE 1% WINDOW COLOR BAR A-ZONE B-ZONE/4 TRIO SCROLL WHITE FLAME RM-SET CODE A Fixed SRV-TOOL - See next 10 5.2. Service tool mode 5.2.1. How to access 1. Select [SRV-TOOL] in Service Mode. 2. Press [OK] button on the remote control. 5.2.2. Display of SOS History SOS History (Number of LED blinking) indication. From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment. This indication except 2nd and 1st occurrence after shipment will be cleared by [Self-check indication and forced to factory ship- ment setting]. 5.2.3. POWER ON TIME/COUNT Note : To display TIME/COUNT menu, highlight position, then press MUTE for (3sec). Time : Cumulative power on time, indicated hour : minute by decimal Count : Number of ON times by decimal Note : This indication will not be cleared by either of the self-checks or any other command. 5.2.4. Exit 1. Disconnect the AC cord from wall outlet. 11 5.3. Hotel mode 1. Purpose Restrict a function for hotels. 2. Access command to the Hotel mode setup menu In order to display the Hotel mode setup menu, please enter the following command (within 2 second). [TV] : Vol. [Down] + [REMOTE] : TV/VIDEO (3 times) Then, the Hotel mode setup menu is displayed. 3. To exit the Hotel mode setup menu Disconnect AC power cord from wall outlet. 4. Explain the Hotel mode setup menu item Function Mode Select hotel mode ON/OFF Input Select input signal modes. Set the input, when each time power is switched on. Selection: -/RF/COMP1/COMP2/HDMI1/HDMI2/HDMI3 VIDEO1/VIDEO2 • Off: give priority to a last memory. Channel Select channel when input signal is RF. Set the channel, each time power is switched on. Selection: Any channel number or [-]. [-] means the channel when turns off. Volume Adjust the volume when each time power is switched on. Range: 0 to 100 Vol. Max Adjust maximum volume. Range: 0 to 100 OSD Ctrl Restrict the OSD. Selection: OFF/PATTERN1 • OFF: No restriction • PATTERN1: restriction FP Ctrl Select front key conditions. Selection: Off/Pattern1/All • Off: altogether valid. • Pattern: only input key is valid. • All: altogether invalid. Pow Ctrl Select POWER-ON/OFF condition when AC power cord is disconnected and then con- nected. OFF: The same condition when AC power cord is disconnected. ON: Forced power ON condition. 12 6 Troubleshooting Guide Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 6.1. Check of the IIC bus lines 6.1.1. How to access Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds. Self-check indication and forced to factory shipment setting: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [MENU] button on the remote control for more than 3 seconds. 6.1.2. Exit Disconnect the AC cord from wall outlet. 6.1.3. Screen display 6.1.4. Check Point Confirm the following parts if NG was displayed. 13 6.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit. 14 6.3. No Power First check point There are following 2 states of No Power indication by power LED. 1. No lit 2. Red is lit then turns red blinking a few seconds later. (See 6.2.) 15 6.4. No Picture 16 6.5. Local screen failure Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area. Fig-1 17 7 Disassembly and Assembly Instructions 7.1. Remove the Rear cover 1. See Service Hint (Section 3) 7.2. Remove the Fan unit 1. Unlock the cable clampers to free the cable. 2. Remove the screws (×3 ). 3. Remove the relay connectors and remove the Fan unit. 4. Remove the screw (×1 ) on the back side. 5. Remove the Fan. 7.3. Remove the PB-Board 1. Unlock the cable clampers to free the cable. 2. Remove the screws (×2 ). 3. Remove a short-jumper connectors (PB31 and PB32) and re-use for new PB-Board. 4. Disconnect the connectors (PB30, PB33, PB34, PB35, PB36 and PB37) 5. Remove the PB-Board. 7.4. Remove the P(AC)-Board Caution: To remove P.C.B. wait 1 minute after power was off for dis- charge from electrolysis capacitors. 1. Unlock the cable clampers to free the cable. 2. Disconnect the connectors (P9, P51, P53 and P55). 3. Remove the screws (×6 ) and remove the P(AC)- Board. 18 7.5. Remove the P(MAIN)-Board Caution: To remove P.C.B. wait 1 minute after power was off for dis- charge from electrolysis capacitors. 1. Unlock the cable clampers to free the cable. 2. Disconnect the couplers (P2, P6, P7, P11, P12, P25, P52, P54 and P56). 3. Remove the screws (×6 ) and remove the P(MAIN)- Board unit. 4. Remove the screws (×25 ) on the back side. 5. Remove the screws (×6 ). 6. Remove the molding props (×9 ). 7. Remove the P(MAIN)-Board. Note: When assembling the P-Board, the position of each hole of the insulation sheets (A and B) is set to the position of each hole of the P-Board, then assemble them. ( marks indi- cate setting positions.) 19 7.6. Remove the Rear Terminal cover 1. Remove the screws (×4 , ×2 ). 2. Remove the Rear Terminal cover. 7.7. Remove the A-Board unit 1. Unlock the cable clampers to free the cable. 2. Disconnect the connectors (A1, A3, A5, A6, A7, A11, A12, A30, A51 and A52). 3. Remove the screws (×4 ) and remove the A-Board unit. 7.8. Remove the A-Board 1. Remove the A-Board unit. (See section 7.7.) 2. Remove the screws (×8 ) and remove the A-Board. 7.9. Remove the SU-Board 1. Remove the flexible cables (SU1, SU2, SU3, SU4 and SU5) connected to the SU-Board. 2. Remove the flexible cable (SU11-SD11) and the bridge connector (SC41-SU41). 3. Remove the molding prop (×1 ). 4. Remove the screws (×4 ) and remove the SU-Board. 7.10. Remove the SD-Board 1. Remove the flexible cables (SD1, SD2, SD3, SD4 and SD5) connected to the SD-Board. 2. Remove the flexible cable (SU11-SD11) and the bridge connectors (SC42-SD42 and SC46-SD46). 3. Remove the molding prop (×1 ). 4. Remove the screws (×4 ) and remove the SD-Board. 20 7.11. Remove the SC-Board 1. Remove the SU-Board and SD-Board. (See section 7.9. and 7.10.) 2. Unlock the cable clampers to free the cable. 3. Disconnect the connector (SC2). 4. Disconnect the flexible cable (SC20). 5. Remove the screws (×8 ) and remove the SC-Board. 7.12. Remove the SS-Board 1. Unlock the cable clampers to free the cable. 2. Disconnect the connectors (SS11, SS12, SS24, SS33 and SS35). 3. Remove a short-jumper connector SS34 and re-use for new SS-Board. 4. Disconnect the flexible cables (SS53, SS55 and SS56). 5. Remove the screws (×6 ) and remove the SS-Board. 7.13. Remove the SS2-Board 1. Disconnect the connector (SS24) and disconnect the flex- ible cable (SS58). 2. Remove the screws (×2 ) and remove the SS2-Board. 7.14. Remove the Stand brackets 1. Remove the Plasma panel section from the servicing stand and lay on a fiat surface such as a table (covered) with the Plasma panel surface facing downward. 2. Remove the Stand brackets (L, R) fastening screws (×5 each) and remove the Stand brackets (L, R). 21 7.15. Remove the D-Board 1. Remove the A-Board unit. (See section 7.7.) 2. Disconnect the connectors (D3, D5 and D25). 3. Disconnect the flexible cables (D20, D31, D32 and D33). 4. Remove the screws (×4 ) and remove the D-Board. 7.16. Remove the C1-Board 1. Remove the A-Board unit. (See section 7.7.) 2. Remove the Stand bracket L. (See section 7.14.) 3. Remove the DD-Heat-sink fastening screws (×12 ). 4. Remove the DD-Heat-sink (×6). 5. Disconnect the flexible cables (CB1, CB2, CB3, CB4, CB5 and CB6). 6. Disconnect the flexible cables (C10 and C11). 7. Remove the screws (×5 ) and remove the C1-Board. 7.17. Remove the C2-Board 1. Remove the A-Board unit. (See section 7.7.) 2. Remove the stand bracket R. (See section 7.14.) 3. Remove the DD-Heat-sink fastening screws (×10 ). 4. Remove the DD-Heat-sink (×5). 5. Disconnect the flexible cables (CB7, CB8, CB9, CB10 and CB11). 6. Disconnect the flexible cables (C20, C21, C22 and C26). 7. Remove the screws (×5 ) and remove the C2-Board. 7.18. Remove the C3-Board 1. Remove the DD-Heat-sink fastening screws (×8 ). 2. Remove the DD-Heat-sink (×4). 3. Disconnect the flexible cables (CB12, CB13, CB14 and CB15). 4. Disconnect the flexible cable (C36). 5. Disconnect the connectors (C33 and C35). 22 6. Remove the screws (×4 ) and remove the C3-Board. 7.19. Remove the Front bracket 1. Unlock the cable clampers to free the cable. 2. Disconnect the connectors (A11, A51 and A52). (See sec- tion 7.7.) 3. Remove the screws (×2 , ×2 ) and remove the Front bracket. 7.20. Remove the G-Board, GS- Board and GH-Board 1. Remove the Front bracket. (See section 7.19.) 2. Remove the screws (×2 ). 3. Remove the screws (×3 ). 4. Remove the Front shield case front. 5. Disconnect the connectors (GH11 and GS52). 6. Remove the screws (×2 ). 7. Remove the Front shield top. 8. Remove the GH-Board. 9. Remove the screws (×2 ) and remove the GS-Board. 10. Remove the screws (×3 ). 11. Disconnect the connector (G51) and remove the G- Board. 7.21. Remove the Speakers 1. Disconnect the relay connectors 2. Remove the screws (×4 each) and remove the Speaker (L, R). 7.22. Remove the Plasma panel sec- tion from the Cabinet assy (glass) 1. Remove the stand brackets (left, right) fastening screw (×1 each). 23 2. Remove the cabinet assy and the plasma panel fastening screws (×8 , ×6 ). 3. For leaving the plasma panel from the front frame, pull the bottom of the cabinet assy forward, lift, and remove. 4. Remove the spacers and spacer rings (×6 ). 7.23. Remove the S-Board 1. Remove the Cabinet assy. (See section 7.22.) 2. Disconnect the connector (S2). 3. Remove the screws (×2 ) and remove the S-Board metal frame. 4. Remove the screws (×2 ) and remove the S-Board. 7.24. Remove the K-Board 1. Remove the Cabinet assy. (See section 7.22.) 2. Remove the S-Board. (See section 7.23.) 3. Remove the screws (×2 ). 4. Disconnect the connector (K1) and Remove the K-Board. 24 7.25. Remove the plasma panel (fin- ished) 1. Place the new plasma panel (finished) on the flat surface of the table (covered by a soft cloth), with the plasma panel surface facing downward. 2. Attach the C1-Board, C2-Board and the C3-Board, con- nect the flexible cables (×15) from the plasma panel to the C1-Board, C2-Board and the C3-Board, and fit the flexi- ble cable holders. 3. Attach the Hooks (left, right) and fit the stand brackets (L, R) to the new plasma panel. 4. Place the plasma panel section on the servicing stand. 5. Attach the cabinet assy and each P.C.Board and so on, to the new plasma panel. *When fitting the cabinet assy, be careful not to allow any debris, dust or handling residue to remain between the front glass and plasma panel. 25 8 Measurements and Adjustments 8.1. Adjustment Procedure 8.1.1. Driver Set-up 8.1.1.1. Item / Preparation 1. Input a white signal to plasma video input. 2. Set the picture controls as follows. Picture menu: Vivid Normal: Set Aspect: Full Caution 1. First perform Vsus adjustment. 2. Confirmation of Vscn voltage should be performed after confirmation of Vad adjustment. When Vad= -140V, Voltage of Vscn is 5V ±4V. 8.1.1.2. Adjustments Adjust driver section voltages referring the panel data on the panel data label. Check or adjust the following voltages with the multimeter. *See the Panel label. Name Test Point Voltage Volume Remarks Vsus TPVSUS (SS) Vsus ± 2V VR251 (P) * Ve TPVE (SS) Ve ± 1V VR16000 (SS) * Vset TPVSET (SC) 325V ± 7V Fixed Vad TPVAD (SC) -140V ± 1V VR16600 (SC) Vscn TPVSCN (SC) Vad+145V ± 4V Fixed Vda TPVDA (SS) 75V + 1V, -2V Fixed 26 8.1.2. Initialization Pulse Adjust 1. Input the White signal to plasma video input. 2. Set the picture controls as follows. Picture menu : Vivid Normal : Set Aspect : Full 3. Connect Oscilloscope to TPSC1 (SC). Check the voltage (T2) at 100 us period on the down slop. 8.1.3. P.C.B. (Printed Circuit Board) exchange 8.1.3.1. Caution 1. To remove P.C.B. , wait 1 minute after power was off for discharge from electrolysis capacitors. 8.1.3.2. Quick adjustment after P.C.B. exchange Adjust the following voltages with the multimeter. *See the Panel label. Caution: Absolutely do not reduce Vsus below Ve not to damage the P.C.B. Test point Volume Level T2 TPSC1 (SC) VR16602 (SC) 250 V ± 10 V P.C.B. Name Test Point Voltage Volume Remarks P Board Vsus TPVSUS (SS) Vsus ± 2V VR251 (P) * SC Board Vad TPVAD (SC) -140V ± 1V VR16600 (SC) SS Board Ve TPVE (SS) Ve ± 1V VR16000 (SS) * A, D Board White balance and Sub brightness for NTSC, PAL, HD, PC and 625i signals 27 8.1.4. Adjustment Volume Location 8.1.5. Test Point Location 28 8.2. Adjustment 8.2.1. White balance adjustment Name of measuring instrument Connection Remarks • W/B pattern • Color analyzer (Minolta CA-100 or equivalent) Component input Panel surface Procedure Remarks • Ensure aging is adequate. • Make sure the front panel to be used on the final set is fitted. • Make sure a color signal is not being shown before adjustment. • Put the color analyzer where there is little color variation. 1. Output a white balance pattern. 2. Check that the color temperature is [Cool]. 3. Set to serviceman mode, WB-ADJ. 4. Set [R-CUT] [G-CUT] [B-CUT] the values written in table 1. 5. Attach the sensor of color analyzer to the center of highlight window. 6. Fix G drive at C0h and adjust [B-DRV] and [R-DRV] so x, y value of color analyzer become the [Color temperature High] in table 2. 7. Increase RGB together so the maximum drive value in RGB becomes FC. That is, set [ALL DRIVE] to FC. Execute adjustment again. When that, the maximum value of R/G/B DRV should be FC, and either R/G/B DRV should be FC. 8. Set color temperature to [Normal]. 9. Set [R-CUT] [G-CUT] [B-CUT] the values written in table 1. 10. Attach the sensor of color analyzer to the center of highlight window. 11. Fix G drive at C0h and adjust [B-DRV] and [R-DRV] so x, y value of color analyzer become the [Color temperature Mid] in table 2. 12. Increase RGB together so the maximum drive value in RGB becomes FC. That is, set [ALL DRIVE] to FC. Execute adjustment again. When that, the maximum value of R/G/B DRV should be FC, and either R/G/B DRV should be FC. 13. Set color temperature to [Warm]. 14. Set [R-CUT] [G-CUT] [B-CUT] the values written in table 1. 15. Attach the sensor of color analyzer to the center of highlight window. 16. Fix G drive at C0h and adjust [B-DRV] and [R-DRV] so x, y value of color analyzer become the [Color temperature Low] in table 2. 17. Increase RGB together so the maximum drive value in RGB becomes FC. That is, set [ALL DRIVE] to FC. Execute adjustment again. When that, the maximum value of R/G/B DRV should be FC, and either R/G/B DRV should be FC. 18. Set color temperature to [Cool]. - adjustment of [Normal] [Warm] by data shift from [Cool] adjust. - For [Normal] [Warm] adjustment, set values that the adjusted value of [Cool] plus the figures wrote below. 19. Copy values adjusted by HD pattern to the NTSC data area of EEPROM. 29 30 31 9 Block Diagram 9.1. Block Diagram (1/6) (LED:11TIMES) (LED:10TIMES) (LED:12TIMES) (LED:12TIMES) (LED:10TIMES) (LED:11TIMES) (LED:10TIMES) (LED:12TIMES) (LED:12TIMES) (LED:10TIMES) +3.3V(S) FSTB+15V FAN CONT L,R +9V(S) CIRCUIT FAN SOS DET A6 A51 SD CARD SLOT DCDC PB30 KEY SWITCH A30 HDMI2 DCDC KEYSCAN1 PB GS FAN CONTROL OPTICAL PANEL STATUS STB MCU G GH +15V(FAN) VIDEO1 L,R SUB+3.3V +15V(SND) OPTICAL OUT Y,C,V from P7 AI SENSOR GS52 K A7 HDMI3 IN +3.3V(S) POWER SWITCH A12 +3.3V(S) +15V(FAN) SOUND SOS DET CIRCUIT L,R SUB+9V DET +1.2V(S) +5V(STB) DCDC DIGITAL SIGNAL PROCESSOR KEY SWITCH TUNER SOS TUNER SOS DET CIRCUIT V,Y,C R/G/B Y,C,V A DDR2 MONITOR L,R SOUND TUNER SUB+5V +5V(S) PAMEL SOS V SD CARD FAN CONT +9V(S) PWM AUDIO OUT CH0 DATA FAN SOS +3.3V(STB) SLOT POWER LED SD CARD DATA FAN SOS +5V(S) FRONT TERMINAL +15V(SND) TUNER SOS SUPPORT CARD SLOT DTV_V PB31 S V A11 SOUND SOS +9/7.2V CPU BUS I/F PB37 LED(R) L,R PB32 +9V(S) SD BOOT FAN POWER HDMI1 HDMI EQUALIZER FSTB+15V +5V(S) +15V(FAN) G51 +15V(S) SUB+9V IIC1 FAN_A-C +5V(S) DTV AUDIO A1 SUB+3.3V DET SWITCH +3.3V(S) +5V(S) KEYSCAN3 ON REMOTE RECEIVER +3.3V(S) RESET PANEL STB_ON KEYSCAN1 +3.3V(S) HDMI3 L,R OUT SUB+5V DET Y,PB,PR VIDEO2 Y,PB,PR CLKGEN AUDIO +30V(BT) L,R SD CARD DATA DCDC +3.3V(STB) L,R FRONT END PROCESSOR K1 HDMI I/F RECEIVER L,R CH0 DATA COMP2 P6 GH11 10bit A/D COMP1 from SUB+1.2V OPTICAL OUT PROCESSOR OPTICAL OUT RESET A52 A3 F15V EEPROM to D3 SOUND SOS A11 MONITOR OUT RESET HDMI AUDIO SUB+1.8V Peaks Lite2p GenX5 REMOTE IN REMOTE RECEIVER POWER LED(R) +1.8V(S) POWER DIGITAL VIDEO DATA DTV AUDIO S1 AUDIO SW OSD_16bit SBO2 SBI2 DVB VIDEO R/G/B_24bit VIDEO SW OSD_6bit FPGA A5 LVDS DATA LVDS DATA to D5 DVB VIDEO R/G/B_24bit SPEAKER(R) SPEAKER(L) AUDIO AMP BT+30V +9V(S) +3.3V(STB) +30V(BT) STB+3.3V +5V(STB) +5V(S) (LED:11TIMES) (LED:12TIMES) (LED:10TIMES) TH-50PZ80U Block (1/6) Diagram TH-50PZ80U Block (1/6) Diagram 32 9.2. Block Diagram (2/6) SUSTAIN CONTROL +2.5V(P) SCAN OUT (UPPER) STANBY VOLTAGE RECTIFIER SOS6_SC1 FSTB+15V +2.5V(P) SOS8_SS SC20 +5V(P) SUSTAIN CONTROL +5V(P) D32 RESET +5V(P) +15V(P) +15V(P) SS34 D33 VSUS SOS7_SC2 +15V(P) A3,A5 VOLTAGE GENERATOR SS33 SC-BOARD FLOTING PART SOS DETECT to/from +3.3V(P) SUSTAIN CONTROL CONTROL SIGNAL +15V(P) P2 +5V(P) +5V(P) LINE FILTER MEMORY SUSTAIN PULSE SOS6_SC1 +3.3V(P) DET +15V(P) +15V(P) +3.3V(P) +5V(P) DET PANEL MICOM VIDEO DATA PS SOS SC41 +5V(P) P25 VSUS FLASH +5V(STB) +1.2V(P) +5V(STB) +5V(STB) +5V(STB) D25 POWER SOS DCDC SS11 SC2 PANEL SOS VSUS SCAN CONTROL SU41 P-BOARD SOS DETECT +5V(P) SC42 SCAN DRIVE SS-BOARD SOS DETECT +5V(P) SUSTAIN CONTROL P9 SCAN OUT (LOWER) +3.3V PROCESS VOLTAGE CONTROL D ON/OFF CONTROL SD42 SOS6_SC1 VIDEO DATA (36bit) +15V(P) SUSTAIN VOLTAGE RECTIFIER (30bit) D3 (30bit) POWER MICOM POWER SUPPLY CONTROL PULSE +15V(P) DET GenX6 SS P12 SU SS35 SOS8_SS +5V(P) SOS7_SC2 ADDRESS VOLTAGE (VE) FORMAT CONVERTER, PANEL STB_ON Vda SD11 MAIN SW1 P11 +5V(P) D5 Vda SOS8_SS SUSTAIN VOLTAGE CONTROL VIDEO DATA SC VIDEO DATA ALL OFF +1.2V(P) SD RECTIFIER PANEL READY DCDC DDR +3.3V(P) SUSTAIN DRIVE +5V(P) STANBY VOLTAGE CONTROL +5V(P) VSUS ALL OFF +15V(P) D20 ERASE PULSE VIDEO DATA SOS4_PS DCDC EEPROM AC CORD RESET RECTIFIER SOS4_PS LINE FILTER PLASMA AI PROCESSOR MAIN SW2 SOS7_SC2 SS12 SC-BOARD ENEGRY RECOVERY SOS DETECT PROCESS VOLTAGE RECTIFIER +3.3V(STB) SOS8_SS +15V(P) SU11 D31 POWER FACTOR CONTROL VIDEO DATA +5V(P) ALL OFF PANEL MAIN ON SOS8_SS SCAN PULSE P +5V(STB) SUSTAIN PULSE SCAN DRIVER VSUS (STB) SOS8_SS +5V(P) SS24 SS21 SS2 SUSTAIN CONNECTOR MAIN SW1 MAIN SW2 to P7 P6 +5V(STB) +15V(FAN) A6,A7 FSTB+15V +15V(SND) DISCHARGE CONTROL LVDS DATA H/V SYNC CONTROL PLASMA AI CPG with SS SUB-FIELD PROCESSOR LVDS RX DATA DRIVER SD46 SC46 SCAN DRIVER DATA DRIVER DATA DRIVER DATA DRIVER DATA DRIVER DATA DRIVER DATA DRIVER DATA DRIVER DATA DRIVER DATA DRIVER DATA DRIVER DATA DRIVER VIDEO DATA VIDEO DATA SUSTAIN CONTROL C33 Vda C26 +5V(P) +5V(P) +5V(P) C22 C20 SOS8_SS DATA DRIVER Vda Vda C10 SUSTAIN CONTROL VIDEO DATA +5V(P) C36 C21 C35 C11 +5V(P) DATA DRIVER (LEFT) C1 DATA DRIVER (RIGHT) C2 DATA DRIVER (CENTER) SOS8_SS DATA DRIVER DATA DRIVER DATA DRIVER C3 (LED:8TIMES) (LED:3TIMES) (LED 7 TIMES) (LED:6TIMES) (LED:2TIMES) (LED 8 TIME) (LED:4TIMES) (LED:5TIMES) (LED:7TIMES) (LED 4 TIME) (LED 6 TIMES) HOT COLD TH-50PZ80U Block (2/6) Diagram TH-50PZ80U Block (2/6) Diagram 33 9.3. Block Diagram (3/6) CH0DATA +3.3V(S) 9V(S) Q5603 +5V(S) D2301 +9V(S) +15V(SND) 5V(STB) +30V(BT) +3.3V(S) D5614 D5613 3.3V(STB) +3.3V(S) FSTB +15V D4007 D5692 +5V(S) Q5604 Q4016 +5V(S) +3.3V(S) L4000 +30V(BT) D4006 5V(S) D5615 +1.2V(S) +1.8V(S) L4001 (LED:12TIMES) R/G/B_24bit SPDIF-IN 4 AUDIO SBO2 13 OSD_6bit V2_V HDMI-SPDIF V2_R IC4000 FSTB+15V DET R/G/B_24bit SOUND PROCESSOR +1.8V IIC2 IC3001 D2_R 2 V STB_RESET +30V(BT) AUDIO SW FRONT END PROCESSOR FSTB+15V +9V +1.2V(S) D1_Y +3.3V DIGITAL SIGNAL PROCESSOR DTV_L A V1_L Y/PB/PR OSD_6bit Lite2p DTV_V JK3000A IC2107 GS IFD_OUT2 Y/C +3.3V(S) TV SD CARD SLOT +1.8V(S) VIDEO2 13 +3.3V 1 RGB_CVBS IC5606 V2_C 3 MUTE VIDEO1 R/G/B_30bit AFT L/R 9 D2 SUB OUT Y/PB/PR IC2008 CONTROL MONITOR 1 CLOCK TV D1_PR COMP2 IC8503 IFD_OUT1 +3.3V(STB) IC2301 IIC_TU SD CARD MON AV_L/R TV_L DTV2 Q2301 +9V(S) KEYSCAN1 5 5 7 MON_R Y/C/V OSD PROCESS IF_AGC IC8002,03 +1.8V R/G/B/H/V DTV RESET ANALOG ASIC 11 IC8004 TV_R COMP1 MON_L COMP2 DDR2 #0/#1 SOS +15V(SND) ON/OFF JK3701 VIDEO4 SD DATA V L/R L/R COMP1 2 IC8502 Y/PB/PR RESET D3005 +30V(BT) COMP2 FRONT TERMINAL V2 VIDEO1 4 (TS) +3.3V(S) V2_R DIGITAL DEMODULATOR +1.8V +5V(S) Peaks VIDEO2 L/R ANT IN V1 OUT 3 CLOCK GEN COMP1 SOUND SOS A12 +1.2V(S) SPDIF-OUT L/R Y/C/V +3.3V IC5600 VIDEO PROCESS IIC_IF AUDIO AMP A51 V2_C L/R V2 V2_L JK7701 VIDEO3 +5V G D2_PB MON_V V1_V SUB MONO L+R SUB+3.3V AFT A52 HDMI-SDIN V1_C +9V IIC2 NAND FLASH 7 MON KEYSCAN3 EEPROM HDMI SOUND V2_R RESET V2_C ERROR DET DDR I/F OPTICAL MAIN OUT 3 SD CARD STB_RESET SD DATA DTV_V CPU BUS I/F IIC3 VIDEO SW D2_PR SOUND SOS DET 1 V1 11 IIC_TU +15V +5V(S) KEY SWITCH D1_L IIC2 V2_V +3.3V(S) STB IC5601 VIDEO4 KEY SWITCH 4 SUB+1.2V MAIN L/R +3.3V(S) TRANSPORT DECODER DTV-SDIN RESET L/R SUB+1.8V V2_Y VIDEO STB3.3V RESET TV_V 4bit D1 D2 2 STB +3.3V D1_PB V2_Y HS/VS VIDEO2 AV L/R DTV_R TV VIDEO1 DTV1 IC8300 PC_HS/VS OUT AUDIO VIDEO3 D1 (TERRESTRIAL RECEIVER) +1.2V Y/PB/PR 9 R/G/B_30bit IF_AGC V2_L DTV-SDIN PC D1_R IIC2 OUT IIC0 Y/PB/PR L/R G51 V1_R V1_Y V2_Y GS 52 V2_L I/F Y/C SPDIF-OUT KEYSCAN1 AUDIO PROCESS V2_V IIC1 SPDIF-IN IC2106 SBI2 IC8001 D2_L D2_Y TV IC3017 L/R PC DTV1 L/R DTV_L/R L R SPEAKER_R R(-) L(+) SPEAKER_L L_OUT L(-) R(+) SPEAKER R_OUT SPEAKER OUT PWM OUT CONV. SOUND PROCESSOR CONV. CONV. OPTICAL D/A D/A A/D MONITOR OUT JK3000A TU8300 TUNER 2 1 3 4 5 6 7 8 9 10 11 12 13 14 (LED:12TIMES) TH-50PZ80U Block (3/6) Diagram TH-50PZ80U Block (3/6) Diagram 34 9.4. Block Diagram (4/6) (LED:12TIMES) (LED:10TIMES) (LED:11TIMES) (LED:10TIMES) (LED:11TIMES) D3813 +3.3V(S) Q5522 D2520A D5521 +5V(S) +5V(STB) PA5600 +3.3V(S) D3814 D5522 D1107 D861 D860 TPF0S 26 HDMI_CEC SD LED STB RESET OSD POWER LED(R) +30V(BT) SWITCH +9V(S) DRIVER 1 +3.3V OSD SYNTHETIC EEPROM HDMI EQUALIZER DET_3 +9V IC4510 A5 R/G/B_24bit HV ENHANCE FAN CONT 8 IIC_CLK2 +1.8V IC4512 +5V(STB) LVDS DATA SUB+3.3V DET +5V(HDMI) STB RESET 10 HDMI IN 2 K1 IIC2 HDMI SOUND TUNER SOS IC5401 ECO ON 7 +1.8V +5V IIC_DATA1 IIC1 IIC_DATA2 4 Y/PB/PR OSD_6bit DDC IIC 5 JK4501 DTV RESET 26 3 A7 TV SUB ON AFT 7 ERROR DET HDMI_CEC GH IIC_CLK1 P6 HDMI_CEC_ PU_ON +3.3V(STB) +15V(SND) +3.3V(S) +15V(FAN) FSTB+15V A1 SBO2 +15V(FAN) 6 HDMI3 IN 1 22 DDCA_IIC SUB+9V DET TV SUB N AFT RM2501 KEYSCAN3 PANEL SOS DET_2 +5V DDC IIC SUB+5V DET PANEL STATUS LED R TUNER SOS SBI2 PANEL STB_ON TV SUB ON PANEL SOS +9V(S) DDC IIC 18 +5V(S) IIC1 HDMI IN 3 9 HDMI_SD SERIAL SW 3 IC1100 1 A30 +3.3V(STB) TMDS DATA 5 FAN CONT IC3801 FAN SOS FAN CONT IC4800 FAN SOS REMOTE IN +3.3V(S) FAN CONTROL PB 22 IIC0 3 Q4014,15 6 LVDS IC4200 SOUND SOS FAN CONT FAN SOS IIC1 1 +15V(FAN) +1.8V Q4503 18 +5V(HDMI) +3.3V IIC3 7 TMDS DATA CLOCK REMOTE IN FSTB+15V STB MCU A6 TMDS DATA CLOCK +3.3V(S) POWER LED A11 EEPROM PANEL STB_ON HDMI I/F RECEIVER 4 12 Y/PB/PR 4 IC1101 +30V(BT) 10bit A/D TUNER SOS SOUND SOS FAN SOS POWER LED 12 DDCC_IIC +5V HDMI_CEC HDMI_CEC IC5400 G(10bit) Q4502 HDMI IN 1 9 KEYSCAN1 +5V(S) 2 7 20 KEYSCAN1 A +5V(S) REMOTE RECEIVER +9V(S) +5V(S) DIGITAL SIGNAL PROCESSOR +15V(SND) R/G/B_30bit HDMI_CEC TV SUB ON 6 9 R(10bit) DROP B(10bit) GH11 IC4513 DTV RESET 2 K KEYSCAN3 KEYSCAN3 ECO ON A3 FSTB+15V +5V(HDMI) DET 31 VOLTAGE 2 PIXEL CONV. IIC1 +15V(SND) AI GAMMA D5 VIDEO LVDS DATA +15V(SND) PROCESS TEMP SENSOR D3 11 SW2500 JK4500 7 8 2 IIC1 P7 S2 POWER +5V(STB) +5V IIC3 20 IC3802 REMOTE RECEIVER GenX5 PANEL STATUS PANEL STB_ON PANEL SOS DDC IIC 1 IC4013 I/F POWER SWITCH I/P CONV. Q3802 IC4511 DDCB_IIC +5V(HDMI) ON FPGA +3.3V(STB) S HDMI_SPDIF DET_1 RGB MATRIX TMDS DATA CLOCK 10 SD LED PANEL STATUS HDMI5V DET +1.8V +3.3V 11 GH10 A18 A17 FOR FACTORY USE FOR FACTORY USE PB37 1 PB 30 FAN(80MM)A-C 1 FAN A 1 +9/7.2V PB32 3 FAN STOP 3 PB31 +9/7.2V FAN D 3 IC850 OVEN VOLTAGE SOS DET D851 D852 D857 5 IIC HDMI AUDIO HDCP KEY HDMI PROCESSOR DECODE VIDEO INTERFACE INTERFACE A/D CONV. H/V SW 13 6 14 2 7 5 12 10 11 4 8 3 9 1 FSTB+15V FSTB+15V FSTB+15V (LED:12TIMES) (LED:10TIMES) (LED:11TIMES) (LED:10TIMES) (LED:11TIMES) TH-50PZ80U Block (4/6) Diagram TH-50PZ80U Block (4/6) Diagram Q2511 35 9.5. Block Diagram (5/6) D352 F301 D551 F602 F201 D505 D506 D402 F604 F601 F501 P12 VR251 PANEL MAIN ON IC9013 FSTB+15V IC9803 IC9400 2 IC9019 7 +3.3V 11 2 POWER CONTROL IIC_DATA2 Vda STB5V_ON PHOTO COUPLER PHOTO COUPLER A5 MC203 Vsus ERROR DET Q9805,06 6 15V_IN Vda CONTROL +15V(P) Vda PHOTO COUPLER 1 1 PHOTO COUPLER PHOTO COUPLER MC201 PC302 AC INLET MC603 AC DET 6 RECTIFIER Vsus +3.3V 1 12 PFC CONTROL FSTB+15V LVDS DATA HOT +15V ERROR DET Q401 ECO ON 2 +1.2V Vsus POWER +15V(P) L601, L602, L604, L605 IIC2 VR401 IC251 K602 +1.2V P25 1 D254-D257 +5V(STB) CONTROL T501 +2.5V POW ON +5V(P) MC301 5 15V_0CL Q301,302 P9 MC351 1 P6 AC IN P53 D32 VDATA_DET 15VON T201 3 SUPPLY 6 P55 PANEL SOS PC501 CONTROL SWITCH +5V 1 10 Vsus POWER 2 D31 1 SUS OUT 1 11 8 Vsus Q403 SCAN CONTROL 1 5 MC601 PANEL STATUS 1 PC401 IC352 +5V(P) A6 VIDEO DATA +15V(SND) LVDS DATA IC9805 12 6 28 IIC2 PC301 11 SCAN CONTROL RESET 10 PANEL STB_ON SC20 2 (LEFT) IIC2 IC9301 VIDEO DATA FORMAT CONVERTER, IC9500 7 DATA DRIVER PFC 66 CPG with SS 68 2 13 DDR(L) MEMORY +1.2V BIAS 56 POWER SOS RF601 VIDEO DATA DISCHARGE CONTROL POWER ON/OFF D3 D5 67 IIC2 IC9011 IIC2 +3.3V(P) DET CONTROL DATA H/V SYNC CONTROL SOS4_PS IIC_CLK1 IIC2 2 SUB-FIELD PROCESSOR GenX6 4 IC9401 IC9303 CONTROL DATA +2.5V 15 SUSTAIN CONTROL PLASMA AI BUS SW PANEL MICOM 67 8 +5V(P) LVDS RX +15V(P) DET CONTROL DATA SOS8_SS (RIGHT) +5V(P) 56 PANEL SOS FOR IIC1 +3.3V(STB) D25 9 A3 D6 FLASH MEMORY 5 VIDEO DATA +3.3V +3.3V BAIS_ON 3 TV SUB ON STB5V_OUT MC606 2 VIDEO DATA +5V(P) DET MAIN RELAY 31 SC2 PLASMA AI PROCESSOR C21 4 POWER SUPPLY IIC2 MC552 TEMP SENSOR A7 +5V(P) MC502 +15V(P) 29 PANEL STATUS 2 BIAS/ SUS/ MULTI IC501 SOS8_SS VIDEO DATA Vda CONTROL SOS7_SC2 +15V(SND) IC9802 D 15V_ON RUSH RELAY BUFFER P54 AC100V 9 6 1 IC9003 K601 Q351 +15V(P) FILTER MC451 68 VIDEO/PANEL CONTROL AC CORD MAIN SW C11 SOS6_SC1 IC9806 SOS7_SC2 DDR I/F P51 D33 50/60Hz 16 DDR I/F D501 IC9300 VIDEO DATA P52 48 POWER SOS CONTROL DATA FACTORY IIC_DATA1 MC401 IC9001 IC9002 68 1 IIC_CLK2 +3.3V(STB) Vsus GEN. RECTIFIER DISCHARGE CONTROL +15V(P) MULTI_ON POWER MICOM P7 RESET +15V(P) 66 COLD 10 5V_ON PANEL MAIN ON PC201 VDATA_DET SS12 IIC1 +12V Vda_ON SUSTAIN CONTROL PC502 30 SS11 +2.5V D20 IC555 62 7 COLD 2 RUSH RELAY(H) 66 Vsus_ON 5V_OUT 3 FLASH I/F HOT SOS6_SC1 MAIN RELAY(H) IIC2 9 +5V(P) PANEL MAIN ON 4 +5V(P) Vda OUT P11 +15V(P) +5V(P) STB_PS P2 P56 4 EEPROM POWER SOS 13 MC701 1 +5V(STB) USE Vsus VDA_DET Q402 +15V(P) IIC2 1 C22 T301 ECO ON IIC1 TV SUB ON D401 DDR(R) MEMORY Vda_ON IPD STB ERROR DET PC202 67 POWER CONTROL MC602 IC501 P POWER SUPPLY PHOTO COUPLER PHOTO COUPLER (LED:4TIMES) (LED:8TIMES) (LED:3TIMES) (LED:5TIMES) (LED:7TIMES) (LED:2TIMES) (LED:6TIMES) TH-50PZ80U Block (5/6) Diagram TH-50PZ80U Block (5/6) Diagram 36 9.6. Block Diagram (6/6) D16791 TPVSUS D16821 D16718 D16280 D16585 D16820 TPVSCN TPSOS7 VF_GND D16480 TPVE D16255 D14721 TPVSUS TPSC1 5V D16725 TPVSET TPVDA TPVAD D16583 D16253 D16872 TPVE2 TPSOS8 D16717 TPSS1 TPSOS6 5V CB9 VIDEO DATA CB6 61 IC17101-03 C33 39 CLOCK CB4 1 62 CONTROL DATA D33 BUFFER +5V(P)DET 1 +5V(P) 33 CLOCK VIDEO DATA +5V(P) +5V(P) VIDEO DATA 15 VIDEO DATA CB 13 VIDEO DATA SOS8_SS Vda SUSTAIN CONTROL 3 1 1 CB2 64 +5V(P) 68 20 Vda 2 66 2 39 Vda PANEL DRIVER 3 CB 10 PANEL DRIVER IC17204 C20 CB 14 CB 12 13 D31 BUFFER CB5 68 59 5 C21 CB1 BUFFER 33 20 C36 39 7 VIDEO DATA +5V(P)DET BUFFER PANEL DRIVER 5 33 1 +5V(P) C26 IC17201,02 SS33 3 35 6 +5V(P) CONTROL DATA CLOCK 59 CB 15 Vda 63 D32 37 CB7 SUSTAIN CONTROL 67 1 SUSTAIN CONTROL +5V(P) 1 CONTROL DATA BUFFER 2 IC17302-04 8 5 CB 11 1 5 CLOCK +5V(P)DET 61 67 SS35 1 BUFFER IC17301 VIDEO DATA BUFFER Vda CLOCK PLASMA PANEL 7 SOS8_SS C22 +5V(P)DET CB3 C11 3 +5V(P) 8 +5V(P) 61 +5V(P) C10 C35 17 +5V(P) SOS8_SS IC17203 21 CB8 +5V(P)DET Vda 2 +5V(P) IC17104-06 7 1 1 SS 21 6 7 SS 24 SS 58S 1 2 6 13 6 9 CML D16873 Q16661 RECOVERY P11 USH,USL Q16102 PC16710 VAD VSET2,6 VSCN SS 11 IC16151 IC14961-65 P12 F_5V_A Vsus SS 53 ERROR DET SS 34 SOS6_SC1 SD1-SD5 Vda 8 UEH,UML 1 13 USL Q16401 TRANS DRIVER 13 8 Vda IC16725 1 SCAN UEL VE Gen. Q16601 CPH Q16622-25 SU1-SU5 IC16724 (SC2) Q16339 1 2 1 LED(G) Q16641-44 DRIVER BUFFER USH VSET SEPA SS 12 SC 41 ERROR DET SOS7_SC2 SCAN CONTROL Q16331 DC/DC ENERGY 13 GEN. SU 11 Q16627-29 1 6 15 DRIVER IC16241 SD 46 Q16104 VSCN-F Q16441 2 CMH VAD SEPA 1 PHOTO COUPLER RECOVERY +5V(P) (SC1) UEH T16301A GEN. D20 +5V Q16423 2 IC14955-58 Q16875,79 5V-F_A 15 ERROR DET ELECTRODE IC16501 STB_PS 4 PLASMA PANEL 12V PC16480 SCAN Vsus 20 Q16421 IC14905-08 1 DROP SCAN VSUS Gen. SS 56 Vda SCAN CONTROL 9 IC16472 CPH2 CONVERTER AND GATE PC16705 ERROR DET P2 LED(G) 1 7 ERROR DET C35 IC16786,87 SCAN 18 D16860 +15V(P) ERROR DET SC 42 CEL SU 41 UMH USL 7 IC14901-04 IC16301 SS 35 BUFFER 1 1 UMH,UML Q16604 IC16752 +15V SC 46 +15V(P) ERROR DET DRIVER 5V_F_A VSUS Gen. SD 11 SCAN DATA SOS8_SS STB_PS 3 BUFFER USH VSET2,6 2 IC16791 CSH Q16442 DRIVER SCAN CONTROL UMH PHOTO COUPLER D16282 D16859 SUSTAIN CONTROL Vfo IC14951-54 IC16521 ENERGY IPD IC16772 10 ELECTRODES Q16403 IC16302 Q16002-04 Vfo CEL +5V IC16792 VSET OUT 1 +15V(P) Q16280 SC 20 7 20 16V-F 18 Q16647-50 IC16251 +15V(P) 7 CSL DRIVER IC16801 Q16452 8 F_5V_B 1 Q16791,94 SUSTAIN CONTROL IC16581 SD 42 VSCN PANEL SUSTAIN Q16051 VSET IC16131 PANEL SCAN SC2 12V Vscn DRIVER Q16404 DRIVER SS 33 C33 DRIVER SCAN CONTROL ERROR DET UML 21 2 2 Q16876 20 1 Q16022-24 VOLTAGE IC16561-63 +15V(P) (15V_F) SS 55 IC16191 IC16784 Q16634 UML PHOTO COUPLER D16871 +5V(P) 6 Q16424 16V_F SC30 16V_F VSET PLASMA PANEL Q16042 35 IC16788,89 Vda IC16564 DATA DRIVER (CENTER) SC SS C3 DATA DRIVER (LEFT) SUSTAIN DRIVE SCAN DRIVE C2 DATA DRIVER (RIGHT) C1 SU SCAN OUT (UPPER) SD SCAN OUT (LOWER) FOR USE FACTORY (LED:7TIMES) (LED:6TIMES) (LED:8TIMES) TH-50PZ80U Block (6/6) Diagram TH-50PZ80U Block (6/6) Diagram 37 10 Wiring Connection Diagram 10.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull. 10.2. Wiring (1) 38 10.3. Wiring (2) 39 10.4. Wiring (3) 40 10.5. Wiring (4) 41 10.6. Wiring (5) 42 10.7. Wiring (6) 43 11 Schematic Diagram 11.1. Schematic Diagram Note 44 11.2. P(AC)-Board Schematic Diagram 1000 C 3 2 B A E 6 5 7 D 1 4 F 8 9 TH-50PZ80U P(AC)-Board Schematic Diagram TH-50PZ80U P(AC)-Board Schematic Diagram TO AC CORD ! P(AC)-BOARD ETX2MM704MGB IPD POWER CONTROL TO P(MAIN)-BOARD (P52) TO P(MAIN)-BOARD (P54) TO P(MAIN)-BOARD (P56) COLD HOT COLD HOT COLD HOT STB ERROR DET ETB25AH118BH 45 11.3. P(MAIN)-Board Schematic Diagram C 3 2 B A E 6 5 7 D 1 4 F 8 9 TH-50PZ80U P(MAIN)-Board Schematic Diagram TH-50PZ80U P(MAIN)-Board Schematic Diagram COLD HOT COLD HOT COLD HOT POWER MICOM CONTROL SWITCH BIAS/PFC/MULTI CONTROL POWER CONTROL Vsus POWER CONTROL Vsus POWER SUPPLY Vda CONTROL 15V ON +5V(P) PFC CONTROL PFC RECTIFIER Vsus ERROR DET +15V ERROR DET ! P(MAIN)-BOARD ETX2MM704MGH TO SC-BOARD (SC2) TO SS-BOARD (SS11) TO SS-BOARD (SS12) TO A-BOARD (A6) TO A-BOARD (A7) TO D-BOARD (D25) TO P(AC)-BOARD (P55) TO P(AC)-BOARD (P51) TO P(AC)-BOARD (P53) COLD HOT MDPPSA103 2k 100p 46 11.4. PB-Board Schematic Diagram + + 9V C869 470u 25V C859 25V 0.1u C862 25V 0.1u PB37 1 2 3 L852 G0C101KA0167 D862 MAZ80330LL D861 MA2J11100L C860 470u 25V R874 470 C0DBAZF00003 IC850 1 Vin 2 Vout(sw) 3 GND 4 Vadj 5 ON/OFF TP853 TP850 D859 B0JCME000037 R852 4.7k C858 25V 0.1u R857 4.7k PB32 1 2 3 R859 2k D851 MA2J11100L R867 0 PB31 1 2 3 R851 4.7k R871 13k PB30 1 2 3 4 5 C861 0.1u 25V R861 4.7k D852 MA2J11100L TP852 R869 1k D860 MAZ81100ML R872 390 TP851 D857 MA2J11100L 9V GND FAN_SOS +B FOR FAN GND FOR FAN DR15V FAN CONT FAN SOS MAIN9V C 1 6 8 5 4 7 A 3 B D E 2 TO A-BOARD (A30) TO FAN PB-BOARD TNPA4243ABS ! +9/7.2V TH-50PZ80U PB-Board Schematic Diagram TH-50PZ80U PB-Board Schematic Diagram 47 11.5. G, GS, K and S-Board Schematic Diagram R V L Y C BALLAN BALLAN BALLAN D.SW W.P. + VCC GND OUT PUSH R3721 10k R3754 2.32k SW3753 EVQPC105K SW3755 EVQPC105K ZA3701 K4CZ01000027 R3751 6.65k R3753 1.62k C3750 1000p 50V D3710 MAZ80510LL ZA3702 K4CZ01000027 R3752 1.74k D3702 MAZ81400ML R3756 0 R3717 39k SW3751 EVQPC105K SW3758 EVQPC105K SW3754 EVQPC105K D3701 MAZ81400ML D3709 MAZ80510LL R3716 39k R3758 3.16k D3711 MAZ81400ML JK3701 K4AK13B00002 C Y G CY-G G R-SW R R-G L L-G V-SW V V-G SW3756 EVQPC105K SW3757 EVQPC105K R3750 14.3k G51 1 2 3 4 5 6 7 8 9 10 11 FL3710 J0ZZA0000091 1 2 3 4 FL3712 J0ZZA0000091 1 2 3 4 FL3711 J0ZZA0000091 1 2 3 4 R7709 68 R7703 68 JK7701 1 2 3 4 5 6 7 8 9 10 11 12 GS52 1 2 3 4 5 6 7 8 9 10 11 12 C7727 50V 33p C7709 16V 0.1u R7798 0 R7701 68 C7729 10u 6.3V JS7701 0 C7701 50V 33p C7705 16V 0.1u R7705 68 L7721 J0JCC0000143 R7792 0 R7793 0 R7795 0 C7702 47u 4V R7708 0 R7794 0 R7716 0 R7706 0 R7797 0 C7703 50V 33p C7726 50V 33p R7713 0 R7731 0 R7702 0 C7708 16V 0.1u R7799 0 R7710 100 R7704 68 R7796 0 R2524 22k K1 1 2 3 4 5 6 7 8 RM2501 PNA4701M07TV D2520A B3AAA0000770 R2517 47 C2515 50V 0.01u Q2510 2SD0601A0L R2542 47k D2512 MAZ80430LL C2512 6.3V 10u R2557 5.6k R2525 820 R2520 220k C2521 0.01u 50V Q2511 2SD0601A0L R2516 22k S2 1 2 SW2500 K0F122A00172 TV/VTR VOL.DN CH.DN CH.UP OK MENU 20 19 1 2 C4 (HP GND) KEY1 VOL.UP TV/VTR VOL.DN CH.DN CH.UP OK MENU 8.AV3_V_GND 3.AV3_C 2.AV3_S_DET 10.GND 1.KEYSCAN1 9.AV3_R 4.AV3_C_GND 11.AV3_L 6.AV3_Y_GND 7.AV3_V 5.AV3_Y KEY1 AV3_S_DET AV3_L AV3_R AV3_Y AV3_Y_GND AV3_C AV3_C_GND AV3_V AV3_V_GND VOL.UP G51 1 2 C E A 7 D 6 5 B 3 8 4 SDCLK SDDAT0 SDDAT2 SDDAT1 3.3V GND SDCMD GND SDDTC SDWP SDCLK GND SDDAT0 SDDAT3 SDDAT3 SDCMD GND GND SDDAT1 3.3V SDDAT2 POWER LED K-BOARD TNPA4500S R_LED_ON STBY3.3V REMOCON KEY3 GND GND KEYSCAN3(OUT) GND KEYSCAN3(IN) REMOTE RECEIVER R_LED_ON STB3.3V GND RM_IN ! POWER SW ! S-BOARD TNPA4499S ! GS-BOARD TNPA4139ADS ! G-BOARD TNPA4501S TO A-BOARD (A1) TO A-BOARD (A52) TO A-BOARD (A51) SD CARD SLOT TH-50PZ80U G, GS, K, and S-Board Schematic Diagram TH-50PZ80U G, GS, K, and S-Board Schematic Diagram 48 11.6. GH-Board Schematic Diagram D2 D1 C3816 16V 0.01u 0.1u 16V C3812 C3820 16V 0.01u C3823 0.1u 16V C3819 16V 0.01u 0.1u 16V C3809 0.1u 16V C3807 0.1u 16V C3814 C3817 16V 0.01u C3801 0.1u 16V C3815 16V 0.01u C3806 0.1u 16V C3818 16V 0.01u C3802 0.1u 16V C3827 10V 4.7u 0.1u 16V C3810 C3804 0.1u 16V 0.1u 16V C3808 C3829 1u 10V C3813 6.3V 10u C3803 1u 10V 0.1u 16V C3811 D3814 B0HCMM000014 D3813 B0HCMM000014 D3810 EZAEG2A50AX D3803 EZAEG2A50AX D3806 EZAEG2A50AX D3809 EZAEG2A50AX D3805 EZAEG2A50AX D3804 EZAEG2A50AX D3802 EZAEG2A50AX D3801 EZAEG2A50AX D3808 EZJZ0V80008B D3807 EZJZ0V80008B D3815 EZJZ0V120JA D3811 EZJZ0V80008B *IC3802 TVRP820S 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC C1AB00002835 IC3801 1 TEST 2 VCC 3 DN 4 DP 5 GND 6 SCL3 7 SDA3 8 DDCGND 9 IPACTRL 10 OPACTRL 11 VCC 12 REXT 13 ZP 14 ZN 15 GND 16 YP 17 YN 18 VCC 19 VCC 20 XP 21 XN 22 GND 23 WP 24 WN 25 CE 26 VCC 27 HPD 28 DDC5V 29 DDCGND 30 SDA5 31 SCL5 32 GND 33 AN 34 AP 35 VCC 36 RXTM 37 VCC 38 VCC 39 BN 40 BP 41 GND 42 VCC 43 VCC 44 GND 45 CN 46 CP 47 VCC 48 VCC GH11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 ZA3801 K4AD01D00005 ZA3802 K4AD01D00005 TP3801 TP3804 TP3802 TP3805 TP3803 Q3802 2SD0601A0L Q3804 2SD0601A0L Q3801 2SD0601A0L R3807 10 R3802 10k R3822 1k R3804 4.7k R3801 10k R3821 33 R3847 0 R3815 0 R3845 4.7k R3841 10 R3840 10 R3805 4.7k R3814 4.7k R3806 47k R3812 10k R3803 3.3k R3818 10k R3808 10 R3832 4.7k R3834 49.9 R3854 10k R3811 4.7k FL3802 J0MAB0000170 1 2 3 4 FL3803 J0MAB0000170 1 2 3 4 FL3804 J0MAB0000170 1 2 3 4 FL3805 J0MAB0000170 1 2 3 4 GH10 K1FY121E0001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 L3801 J0JHC0000078 L3804 J0JHC0000078 L3805 J0JHC0000078 *R3809 1k *R3810 1k DDCG Main2_3.3V Main2_3.3V SDA D0- D2+ D2+ CEC HDMI_CE1 CEC D1- D2G HDMI_5V_DET3 SCL N.C. HPDT WP CLK- D1+ D0+ Main5V HPD3 SCL DDC5V D2- CLK+ D1- CLK- D0- D0+ CLKG D1+ +5V D2- D0G CLK+ D1G SDA SCL SDA SCL 7 8 4 6 5 1 3 2 A D B C E HDMI IN 3 EEPROM SDA HDMI EQUALIZER TO A-BOARD (A11) ! GH-BOARD TNPA4603ABS TH-50PZ80U GH-Board Schematic Diagram TH-50PZ80U GH-Board Schematic Diagram 49 11.7. A-Board (1/12) Schematic Diagram S S C8030 6.3V 1u C8028 16V 0.1u C8072 16V 0.1u C8020 16V 0.1u C8074 16V 0.1u C8015 6.3V 1u C8016 6.3V 1u C8077 16V 0.1u C8080 16V 0.1u C8006 16V 0.1u C8018 16V 0.1u C8021 16V 0.1u C8027 16V 0.1u C8079 16V 0.1u C8067 16V 0.01u C8057 16V 0.1u C8013 16V 0.1u C8009 10u 10V C8076 16V 0.1u C8075 4V 22u C8011 16V 0.1u C8068 16V 0.1u C8024 10u 10V C8014 16V 0.1u C8026 16V 0.1u C8070 16V 0.1u C8031 6.3V 1u C8025 16V 0.1u C8034 16V 0.1u C8056 16V 0.1u C8073 16V 0.1u C8033 16V 0.1u C8005 1u 6.3V C8071 16V 0.1u C8022 6.3V 1u C8002 6.3V 1u C8001 16V 0.1u C8023 10u 10V C8032 10u 10V C8052 6.3V 1u C8017 10u 10V C8019 16V 0.1u C8058 10u 10V C8010 10u 10V C8012 16V 0.1u C8003 1u 6.3V C8008 16V 0.1u C8007 16V 0.1u C8078 16V 0.1u C8029 16V 0.1u C8053 16V 0.01u C8004 1u 6.3V IC8001 A1 VSS IC8001 N2 XNMIRQ IC8001 U2 EA6 IC8001 AB8 SBT0 IC8001 D24 TSTAIO IC8001 P15 VSS IC8001 K21 CK27 IC8001 AF26 VDDIO IC8001 D4 VSS IC8001 Y4 XERE IC8001 AE25 VSS IC8001 AA18 VSS IC8001 AF7 RXD0 IC8001 AC18 VDDIO IC8001 A12 DACVSS2 IC8001 T2 EA1 IC8001 M3 VI2P29 IC8001 AD3 XNFWE IC8001 N5 SCL1 IC8001 L6 VI2P21 IC8001 AD13 SDCD IC8001 AC3 XECS4 IC8001 AB25 VDDIO IC8001 AB22 VDDIO IC8001 K13 VSS IC8001 R17 VDDR IC8001 A10 IECOUT0 IC8001 AB2 ERXW IC8001 T25 VDDIO IC8001 E14 DACVDD2 IC8001 F21 LVVDD IC8001 D9 VSS IC8001 L4 VSS IC8001 P14 VSS IC8001 AD4 XNFRE IC8001 K10 VSS IC8001 E13 VSS IC8001 E21 VDD33 IC8001 M6 VI2P27 IC8001 N17 VDDR IC8001 AB19 VDDIO IC8001 F20 VDD33 IC8001 AC14 VDD12 IC8001 AB1 ECLK IC8001 AE11 CH0VAL IC8001 E23 LVVDD IC8001 P23 VSS IC8001 AB3 XEWE1 IC8001 AD7 XCTS0 IC8001 W4 ED9 IC8001 N6 VDD33 IC8001 U5 ED0 IC8001 R3 TDO IC8001 Y22 VDDIOCK IC8001 D26 TC1P IC8001 E24 VSS IC8001 H1 VI2P15 IC8001 AA5 XECS0 IC8001 K5 VI2P16 IC8001 K14 VSS IC8001 N10 VDD12 IC8001 AB13 SDDAT2 IC8001 B26 TA1P IC8001 AD15 VDDR IC8001 U16 VDDR IC8001 AC15 VDDR IC8001 K15 VSS IC8001 T16 VSS IC8001 AD10 CH1CLK IC8001 R10 VDD12 IC8001 B11 MVIREF IC8001 G25 TE1N IC8001 AD9 SMTCLK0 IC8001 T22 VSS IC8001 AB14 VDD12 IC8001 L3 VI2P25 IC8001 N15 VSS IC8001 Y2 ED11 IC8001 P11 VSS IC8001 AD8 SMTCLK1 IC8001 L5 VI2P23 IC8001 AF5 IS1DATA IC8001 H25 CLK74 IC8001 AE21 VDDIO IC8001 AD14 VDD12 IC8001 B2 VSS IC8001 AB6 NFCLE IC8001 L2 VI2P26 IC8001 D23 SBO0 IC8001 W3 ED8 IC8001 J22 VC27 IC8001 V6 ED7 IC8001 A26 VDD33 IC8001 M12 VSS IC8001 T11 VDD12 IC8001 R4 VDD33 IC8001 N24 VDDIO IC8001 H5 VI2VSYNC IC8001 AF9 SMTCMD0 IC8001 R15 VSS IC8001 N4 XIRQ1 IC8001 P10 VDD12 IC8001 AB5 XEXDMK0 IC8001 AD5 IS1CLK IC8001 V25 VSS IC8001 T3 EA3 IC8001 V4 VSS IC8001 U15 VDDA IC8001 F12 VDD33 IC8001 F22 LVVSS IC8001 F26 TD1P IC8001 U14 N.C.(DPAVDD12) IC8001 AA9 VDD33 IC8001 AD17 VDDIO IC8001 AF1 VSS IC8001 N12 VSS IC8001 D11 MVCOMP IC8001 V3 ED4 IC8001 AF8 SMTCMD1 IC8001 L10 VSS IC8001 AA11 SMTD0 IC8001 M17 VDDA IC8001 W6 VSS IC8001 D16 VDD33 IC8001 AC22 VSS IC8001 AE13 SDDAT1 IC8001 G21 LVVSS IC8001 G1 VI2P10 IC8001 T15 VDDR IC8001 AF13 SDCLK IC8001 B25 TA1N IC8001 AA25 VSS IC8001 AB4 XECS2 IC8001 AA22 VSS IC8001 T13 VDD12 IC8001 A11 SVCOMP IC8001 H22 TCPOUT IC8001 AE1 XECS7 IC8001 P3 AGAVDD IC8001 K1 VI2P24 IC8001 L15 VSS IC8001 AF15 VDDR IC8001 AE22 VSS IC8001 T6 EA2 IC8001 L1 VI2P28 IC8001 U13 VDD12 IC8001 AC20 VSS IC8001 J1 VI2CLK2 IC8001 F11 VDD33 IC8001 K6 VDD33 IC8001 AC10 VDD33 IC8001 A24 SBI2 IC8001 K16 VSS IC8001 AB11 SMTSEL0 IC8001 U17 VSS IC8001 B24 VDD33 IC8001 AD23 VSS IC8001 D18 VSS IC8001 AB17 VSS IC8001 C11 DACVSS1 IC8001 W26 VDDIO IC8001 AA2 ED15 IC8001 G4 VDD33 IC8001 U12 VDD12 IC8001 K26 VDDIO IC8001 AD12 SDCMD IC8001 U6 VDD33 IC8001 H21 MVAVDD IC8001 AF24 VSS IC8001 K2 VI2P22 IC8001 AE6 XRTS0 IC8001 C13 DACCK0 IC8001 D21 XRST IC8001 D10 VSS IC8001 AD26 VSS IC8001 AD1 XECS3 IC8001 AF20 VDDIO IC8001 L14 VSS IC8001 Y5 XEDK IC8001 K4 VI2P18 IC8001 AA10 SMTRST1 IC8001 W1 ED5 IC8001 L24 VSS IC8001 P1 XIRQ3 IC8001 F15 USBVDD IC8001 G22 LPFOUT IC8001 A25 VDD33 IC8001 P6 VDD33 IC8001 R21 VDDIO IC8001 R12 VDD12 IC8001 AA6 VSS IC8001 AA3 XEWE0 IC8001 N14 VSS IC8001 AD2 XECS6 IC8001 AA7 VSS IC8001 H3 VI2P12 IC8001 P5 AVCOIN IC8001 J6 VDD33 IC8001 R11 VDD12 IC8001 AE10 CH1PSYNC IC8001 M11 VSS IC8001 Y1 ED10 IC8001 T14 VSS IC8001 AF2 XNFWP IC8001 L13 VSS IC8001 AA1 ED14 IC8001 AB9 XDCD0 IC8001 G5 VI1P1 IC8001 AE5 IS1VAL IC8001 C23 VDD33 IC8001 C24 SBI0 IC8001 Y24 VDDIO IC8001 AC4 XECS5 IC8001 H4 VDD33 IC8001 AC11 VDD33 IC8001 K17 LVVDD12 IC8001 AA21 VDDIO IC8001 D15 DAUDIO IC8001 M10 VSS IC8001 C26 TB1P IC8001 J2 VI2P19 IC8001 K12 VSS IC8001 D19 VSS IC8001 E6 VI2P4 IC8001 AA14 VDD12 IC8001 AE9 SMTRST0 IC8001 H6 VI1P20 IC8001 AC1 ESZ1 IC8001 K11 VSS IC8001 C12 DACVDD1 IC8001 E26 TCLK1P IC8001 AE12 SDWP IC8001 E25 TCLK1N IC8001 A13 DMIX0 IC8001 M1 SDA0 IC8001 AC9 XRI0 IC8001 AD6 SBT2 IC8001 U3 EA7 IC8001 F24 VSS IC8001 M5 RMCO IC8001 T5 TDI IC8001 AF23 BOOTSWAP IC8001 V22 VDDIO IC8001 AD24 CK27D IC8001 E5 VSS IC8001 F25 TD1N IC8001 N11 VSS IC8001 J21 MVAVSS IC8001 P25 VDDIO IC8001 W21 VSS IC8001 B12 MVDACO1 IC8001 AD11 CH0PSYNC IC8001 AC2 XECS1 IC8001 P13 VSS IC8001 AE4 IS0PSYNC IC8001 M23 VDDIO IC8001 AE16 VDDIO IC8001 G24 VSS IC8001 P17 VSS IC8001 R16 N.C.(DPAVSS) IC8001 R5 ATCPOUT IC8001 AE15 VDDR IC8001 R26 VSS IC8001 T12 VDD12 IC8001 T4 VDD33 IC8001 N22 VSS IC8001 E22 LVVDD IC8001 R6 TCK IC8001 AD19 VSS IC8001 R24 VSS IC8001 M13 VSS IC8001 AF3 IS0CLK IC8001 AC6 NANDRYBY IC8001 H2 VI2P14 IC8001 AF6 XDSR0 IC8001 AB12 SDDAT0 IC8001 V2 ED2 IC8001 AA13 SDDAT3 IC8001 W2 ED6 IC8001 M21 VDDIO IC8001 AE14 VDD12 IC8001 AA15 VSS IC8001 AF4 IS0DATA IC8001 AC7 IS1PSYNC IC8001 AA8 VDD33 IC8001 R13 VDD12 IC8001 AF14 VDD12 IC8001 L16 VSS IC8001 W24 VSS IC8001 AA12 CH1VAL IC8001 AC8 XDTR0 IC8001 AC5 XNFCE IC8001 AD22 VDDIO IC8001 AE8 SMTD1 IC8001 F13 MVDACO2 IC8001 P2 AGAVSS IC8001 AB7 IS0VAL IC8001 N16 VSS IC8001 V1 ED1 IC8001 N3 SDA1 IC8001 U24 VDDIO IC8001 G23 LPFIN IC8001 AF21 VSS IC8001 U4 EA4 IC8001 AE24 DTCPOUT IC8001 M14 VSS IC8001 G3 VI2ENB IC8001 D13 USBDP IC8001 AF11 CH0DATA IC8001 W5 ED12 IC8001 AD25 VDDIO IC8001 H24 AUDCLK IC8001 AC23 VDDIO IC8001 M2 SCL0 IC8001 D25 TC1N IC8001 Y23 VSS IC8001 AB15 VDDR IC8001 H23 VSS IC8001 M25 VSS IC8001 L17 VSS IC8001 R1 TMS IC8001 J3 VI2P17 IC8001 Y3 ED13 IC8001 R14 VSS IC8001 L12 VSS IC8001 Y6 VSS IC8001 D14 USBDM IC8001 D8 VDD33 IC8001 AE18 VSS IC8001 U11 VDD12 IC8001 D22 VDD33 IC8001 AC16 VSS IC8001 M15 VSS IC8001 V5 ED3 IC8001 AE7 TXD0 IC8001 AF12 CH0CLK IC8001 P4 GTCPOUT IC8001 U1 EA5 IC8001 M4 VSS IC8001 AE2 XEXDMR0 IC8001 T1 EA0 IC8001 AC13 VSS IC8001 D17 VDD33 IC8001 U10 VDD12 IC8001 M16 VSS IC8001 J5 VI2P11 IC8001 T17 VDDA IC8001 N1 XIRQ2 IC8001 B23 SBO2 IC8001 K3 VI2P20 IC8001 C25 TB1N IC8001 G7 VSS IC8001 F6 VSS IC8001 AB21 VSS IC8001 L22 VSS IC8001 J4 VI2P13 IC8001 F1 VI2HSYNC IC8001 R2 TRST IC8001 P16 DPAVDD IC8001 AB23 VSS IC8001 L11 VSS IC8001 D12 MVDACO3 IC8001 E12 VVREF IC8001 AA4 ESZ0 IC8001 AF10 CH1DATA IC8001 AB10 SMTSEL1 IC8001 T10 VDD12 IC8001 P12 VSS IC8001 K23 VDDIO IC8001 G26 TE1P IC8001 AC25 VSS IC8001 J25 VSS IC8001 C3 VSS IC8001 B13 SRCK0 IC8001 F23 LVVSS IC8001 A7 VI1P26 IC8001 C5 VI1P28 IC8001 A2 VI1P16 IC8001 A4 VI1P29 IC8001 B5 VI1P9 IC8001 C7 VI1P5 IC8001 A9 VI1P22 IC8001 B6 VI1P7 IC8001 E2 VI1CLK2 IC8001 B9 VI1P23 IC8001 E1 VI1P11 IC8001 D1 VI1HSYNC IC8001 A3 VI1P14 IC8001 A8 VI1CKOUT IC8001 B8 VI1P24 IC8001 C6 VI1P27 IC8001 B4 VI1P12 IC8001 B1 VI1P17 IC8001 C1 VI1P19 IC8001 D2 VI1VSYNC IC8001 F2 VI1P21 IC8001 E3 VI1ENB IC8001 C9 VI1CLK IC8001 C4 VI1P13 IC8001 A5 VI1P8 IC8001 B3 VI1P15 IC8001 B7 VI1P4 IC8001 C10 VI1P3 IC8001 C8 VI1P25 IC8001 G6 VI1P0 IC8001 B10 VI1P2 IC8001 F3 VI1P10 IC8001 C2 VI1P18 IC8001 A6 VI1P6 IC8001 A16 VOP10 IC8001 B21 VOP4 IC8001 D20 VOP8 IC8001 A23 MVCLK IC8001 F16 VOP11 IC8001 C21 VOP6 IC8001 B18 VOP28 IC8001 B16 VOP0 IC8001 A21 VOP3 IC8001 B17 VOP24 IC8001 F19 VOP5 IC8001 E17 VOP22 IC8001 C17 VOP25 IC8001 C20 VOP2 IC8001 C15 VOP21 IC8001 E20 MVSYNC IC8001 A19 VOP13 IC8001 C22 MHSYNC IC8001 B19 VOP14 IC8001 E18 VOP29 IC8001 F18 VOP15 IC8001 A20 VOP17 IC8001 B20 VOP19 IC8001 E19 VOP18 IC8001 C16 VOP1 IC8001 H26 VOUTENB IC8001 A22 VOP7 IC8001 C18 VOP12 IC8001 B22 VOP9 IC8001 C19 VOP16 IC8001 A18 VOP26 IC8001 F17 VOP27 IC8001 E16 VOP20 IC8001 A17 VOP23 IC8001 E4 VI2P7 IC8001 A14 ADIN IC8001 E9 VI1CVBS0 IC8001 E8 VI1CK208F IC8001 D3 VI2P8 IC8001 A15 LCSCK IC8001 B14 ADCCK IC8001 D5 VI2P5 IC8001 F7 VI2P2 IC8001 E7 VI2P1 IC8001 D6 VI2P3 IC8001 E11 VI1CVBS3 IC8001 B15 LCSID IC8001 F10 VI1CVBS1 IC8001 F9 VI1CK204F IC8001 F8 VI2P0 IC8001 F5 VI2P6 IC8001 F4 VI2P9 IC8001 C14 DSRCK IC8001 E15 SLRCK IC8001 E10 VI1CVBS2 IC8001 AE3 NFALE IC8001 D7 VDD33 IC8001 G2 VI2CLK IC8001 AC12 VSS IC8001 N13 VSS IC8001 F14 LRCK0 C0ZBZ0001030 IC8004 1 X1 2 S0 3 S1 4 VIN 5 VDD 6 GND 7 74M 8 COMM 9 27M 10 4.9152M 11 24.576/33M 12 GND 13 VDD 14 S2 15 VDD 16 X2 L8001 J0JHC0000045 L8002 J0JHC0000045 L8007 J0JHC0000045 L8010 J0JHC0000045 L8005 J0JHC0000045 L8008 J0JHC0000045 L8004 J0JHC0000045 L8003 J0JHC0000045 L8009 J0JHC0000045 SUB3.3V SUB1.2V SUB1.2V SUB3.3V SUB1.8V SUB3.3V 1.8V_DDRI/F SUB3.3V SUB3.3V SUB1.2V SUB3.3V SUB3.3V R8764 VJUMP1005-S R8003 VJUMP1608-S TP8000 TP8001 AG_SD_BOOT_STS EA3 SDDAT1 VI2P22 ED10 VI2P20 VI1CLK VI1P11 VI1P29 VI1P10 VI1P9 XECS5 VI1P14 VI1P3 VI2P29 XIRQ1 SDWP XERE MVDACO1 ESZ1 VI2P18 XECS2 VI1ENB SBI0 ED3 VI1P22 MVDACO3 VI1P18 VI1P15 VI2P27 VI1P2 VI1P5 VI1P19 VI1P13 VI2P17 XECS3 SRCK0 VI2P12 EA4 XECS0 VI1P21 IECOUT0 VI1P4 VI1P26 EA7 VI1P7 VI1P6 VI1P8 VI1P1 XECS6 VI2P16 ED5 VI1P24 VI1CLK2 SDCD VI1P27 SDA0 VI1P23 SDA1 VI1P25 VI1P12 VI1P17 VI1P0 VI2P19 AG_DTV_VOUTENB SBO0 VOP9 ED2 ED7 VOP28 SDCMD VOP5 SBT0 EA5 VOP19 VOP21 VOP29 VI2P24 TDI VOP26 TMS VOP23 ED0 VI2P13 VOP24 VOP12 ED4 VI2CLK2 VI1P28 VI2P23 SBI2 TRST XIRQ2 VI2P26 DMIX0 ADIN ED11 SDDAT3 VOP20 VI2P15 VOP17 VOP1 VOP10 ED15 VI2ENB VOP16 VOP15 VI1HSYNC VOP11 VOP13 CH0CLK VOP8 ED14 VOP4 VOP3 VOP22 MVSYNC VOP27 EA1 VOP18 SBT2 VI2P14 VOP14 SDCLK ED12 MHSYNC MVCLK VI1P16 VOP2 VOP7 LRCK0 VI1CKOUT EA6 VI2P25 ED1 TCK MVDACO2 NANDRYBY ED9 ESZ0 ED8 SBO2 EA2 XNFWP VI2P28 XRST SCL1 XECS4 SCL0 CH0DATA SDDAT2 ED6 CH0PSYNC XEWE0 XIRQ3 ED13 SDDAT0 VOP0 EA0 VOP6 VI1VSYNC CH0VAL VOP25 R8086 100k R8106 2k R8898 10k R8087 10k L8006 0 R8094 10k R8005 10k R8002 56 R8090 10k R8006 6.8k R8004 24k R8107 100 R8091 47 R8112 2.2k R8093 47 R8001 220 X8001 H0J270500061 TP8557 TP8559 TP8556 TP8554 TP8562 TP8558 TP8555 TP8574 TP8563 TP8561 TP8560 R4330 47k PORT16[1] PORT8(3) PORT8(4) PORT8(6) PORT8(5) PORT8(7) PORT10(0) PORT10(1) PORT10(2) PORT10(3) PORT10(4) PORT10(5) PORT10[6] PORT10[7] PORT16[0] PORT6[5] PORT6[7] C EA12 LVDS I/F LOSD OUT (for HQ1) SCL2 Y PORT16(4), Pro_power_det SDA2 Cmp FOR ADV7495 PORT8(0), SBO1 SCL3 V SDA3 U CH,IS IF Y EA24 EA11 PORT16(3) EA15 NAND I/F EA16 EA10 R EA21 G EA09 EA18 EA17 EA23 EA08 EA14 EA20 FOR HQ1L VIDEO EA19 EA13 IIC I/F AUDIO IF SD CARD I/F PORT6[4] EA22 PORT5[5] PORT5[6] PORT16(6) PORT5[7] PORT15(6), POWER_DET PORT7(7), SBI1 B PORT (Sub Video Input or Address) Analog Video I/F POD,CI I/F CPU BUS I/F COMMON PORT .etc CLOCK GEN B XEAS XEAS FE_IRQ -> -> -> -> PORT14[1]: FE_XRST PORT14[2] PORT14[3] PORT14[4] HDMI_IRQ PORT16[1] RMCO DAUDIO RMCO PORT9(4): EEPROM_WP PORT16(5), FBI_ON / GC6 IRQ2 JTAG SCARD_NMIRQ SERIAL I/F SCARD_IRQ -> -> -> -> PORT16[1] PORT15[7], DISPEN LOSDOUT7 LOSDOUT0 LOSDOUT4 LOSDOUT3 LOSDOUT_CLK_O LOSDOUT1 LOSDOUT15 LOSDOUT2 PORT9[0] LOSDOUT9 LOSDOUT6 LOSDOUT_V_I LOSDOUT12 LOSDOUT10 LOSDOUT11 LOSDOUT8 LOSDOUT5 LOSDOUT_H_I LOSDOUT_CLK_I LOSDOUT_H_O LOSDOUT14 VI1P20 VI1P1 VI1P11 VI1P10 VI1P21 VI1VSYNC VI1HSYNC VI1P0 G9/Y9 R9 B9/CbCr9 VI1ENB B8/CbCr8 B7/CbCr7 B6/CbCr6 B5/CbCr5 B4/CbCr4 B3/CbCr3 B2/CbCr2 B1/CbCr1 B0/CbCr0 G8/Y8 G7/Y7 G6/Y6 G5/Y5 G4/Y4 G3/Y3 G2/Y2 G1/Y1 G0/Y0 R8 R7 R6 R5 R4 R3 R2 R1 R0 - - - PORT15[4]: ETHER_IRQ PORT7[3] PORT7[5] PORT7[4] PORT7[6] PORT16[2], DDR_CLK_SEL PORT16[1], SDBOOT PORT16[7], OSD_FLAG 7 3 F 5 4 C 1 2 B E 9 6 D 8 A CLOCK GEN Peaks Lite 2p IC8001 MN2WS0047 A-BOARD TNPH0721AFS (1/12) ! Peaks-Lite2p,DDR to (8/12) to (7/12) to (8/12) to (10/12) to (3/12) to (3/12) to (3/12) to (3/12) to (10/12) to (11/12) to (3/12) to (4/12) to (11/12) to (3/12) to (3/12) to (3/12) to (3/12) to (7/12) to (3/12) to (12/12) to (11/12) to (3/12) to (3/12) to (7/12) to (12/12) to (5/12) TH-50PZ80U A-Board (1/12) Schematic Diagram TH-50PZ80U A-Board (1/12) Schematic Diagram 50 11.8. A-Board (2/12) Schematic Diagram + S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S CH0A10 CH0A2 CH0DQ4 CH0DQ13 CH0DM0 CH0DQS1 CH0DQ12 CH0DQ24 CH0A7 CH0DQ14 CH0DQ26 CH0A7 CH0DM1 CH0DQ15 CH0A2 CH0A0 CH0BA2 CH0A8 CH0CKE CH0XCK CH0DQ3 CH0XWE CH0A6 CH0ODT CH0XWE CH0DQS3 CH0A12 CH0A4 CH0XRAS CH0XCAS CH0BA1 CH0DM2 CH0BA1 CH0A8 CH0BA0 CH0A10 CH0A8 CH0DQ28 CH0XCS1 CH0CKE CH0A9 CH0A10 CH0CK CH0DQ30 CH0DQ10 CH0DQ25 CH0DQ29 CH0A1 CH0A5 CH0DQ9 CH0DQ8 CH0A3 CH0DQ27 CH0DQ16 CH0A7 CH0DQ20 CH0A6 CH0DQ21 CH0DQ1 CH0A4 CH0DQ5 CH0A11 CH0BA0 CH0A9 CH0XWE CH0DQ19 CH0CKE CH0CKE CH0XRAS CH0A0 CH0DQ2 CH0A11 CH0A2 CH0DQ17 CH0A5 CH0A11 CH0XCAS CH0BA1 CH0BA2 CH0DQS2 CH0A5 CH0A3 CH0DM3 CH0XCS0 CH0A1 CH0DQS0 CH0BA0 CH0XCAS CH0XCS0 CH0A0 CH0DQ11 CH0XRAS CH0DQ6 CH0DQ31 CH0ODT CH0DQ22 CH0A4 CH0A12 CH0DQ7 CH0BA2 CH0A6 CH0XCS1 CH0DQ0 CH0DQ18 CH0A1 CH0XCK CH0DQ23 CH0A3 CH0ODT CH0A12 CH0A9 CH0DQ1 CH0DQ3 CH0DQ5 CH0DQ8 CH0DQ10 CH0DQ12 CH0DQ14 CH0XCK CH0DM3 CH0DQS3 CH0DQ17 CH0DQ21 CH0DQ23 CH0DQ25 CH0DQ27 CH0DQ29 CH0DQ31 CH0DQ19 CH0DM0 CH0DQS0 CH0DQS1 CH0DM1 CH0DQ0 CH0DQ2 CH0DQ4 CH0DQ6 CH0DQ7 CH0DQ9 CH0DQ11 CH0DQ13 CH0DQ15 CH0CK CH0DM2 CH0DQS2 CH0DQ16 CH0DQ18 CH0DQ20 CH0DQ22 CH0DQ24 CH0DQ26 CH0DQ28 CH0DQ30 CH0CK CH0ODT C8050 16V 0.1u C8038 16V 0.1u C8041 16V 0.1u C8046 16V 0.1u C8036 10u 10V C8049 16V 0.1u C8039 16V 0.1u C8051 16V 0.1u C8043 16V 0.1u C8035 10u 10V C8037 16V 0.1u C8044 16V 0.1u C8047 16V 0.1u C8040 16V 0.1u C8048 16V 0.1u C8045 16V 0.1u C8042 68u 4V IC8003 A1 VDD IC8002 A1 VDD IC8001 W23 MMA0 IC8003 C2 DQ9 IC8003 E2 NC IC8003 N3 A5 IC8002 C3 VDDQ IC8003 M3 A1 IC8001 T21 MMA3 IC8001 T26 MMA10 IC8003 L1 RFU IC8003 F3 LDM IC8002 B7 UDQS IC8002 L2 BA0 IC8003 B7 UDQS IC8003 P2 A7 IC8003 H9 DQ5 IC8001 V24 MMBA1 IC8001 T24 MMBA2 IC8003 E3 VSS IC8002 R2 A12 IC8003 C1 VDDQ IC8001 P22 MMDQ13 IC8003 J7 VSSDL IC8001 N26 MMDQ11 IC8002 H2 VSSQ IC8003 A7 VSSQ IC8002 B1 DQ14 IC8003 D2 VSSQ IC8001 AB24 MMMONA IC8001 AE26 MMRODT IC8003 D9 DQ13 IC8002 H8 VSSQ IC8003 K7 RAS IC8003 D1 DQ12 IC8003 R8 RFU IC8002 N2 A3 IC8001 N25 MMDQ10 IC8001 AB20 MMDQ16 IC8002 B3 UDM IC8001 AC17 MMDQ25 IC8002 B8 VSSQ IC8002 E7 VSSQ IC8003 A3 VSS IC8003 G3 VDDQ IC8002 K9 ODT IC8001 V23 MMA11 IC8001 L26 MMDQS0 IC8001 K22 MMDQ4 IC8001 P24 MMDQ14 IC8003 D3 DQ11 IC8003 K3 WE IC8003 J3 VSS IC8002 G9 VDDQ IC8002 F3 LDM IC8002 G8 DQ0 IC8003 H1 DQ4 IC8001 AF18 MMDM3 IC8001 Y25 MMA8 IC8003 J2 VREF IC8003 G7 VDDQ IC8001 K24 MMDQ3 IC8002 L3 BA1 IC8001 AD16 MMDQ30 IC8001 P21 MMDQ12 IC8001 J24 MMDQ7 IC8002 N1 VSS IC8002 L8 CS IC8003 A2 NC IC8003 K8 CK IC8002 J8 CK IC8003 R7 RFU IC8001 AB26 MMXCK IC8001 U26 MMA7 IC8001 AF19 MMDQS2 IC8001 M22 MMVREF0 IC8002 G1 VDDQ IC8001 AB18 MMVREF1 IC8003 B2 VSSQ IC8003 K9 ODT IC8001 R25 MMXWE IC8002 E3 VSS IC8002 C2 DQ9 IC8003 G2 DQ1 IC8002 J1 VDDL IC8003 J8 CK IC8003 J1 VDDL IC8003 R3 RFU IC8003 H7 DQ2 IC8001 AA16 MMDQ29 IC8001 AF16 MMDQ31 IC8002 E9 VDDQ IC8002 H9 DQ5 IC8001 AC21 TSTSEL IC8001 M24 MMDQS1 IC8001 R22 MMXCS0 IC8003 B1 DQ14 IC8001 N21 MMDQ8 IC8001 V26 MMA1 IC8003 P7 A11 IC8003 P8 A8 IC8001 AC24 MMPCLKEXT IC8003 F1 DQ6 IC8002 P9 VSS IC8001 U22 MMA5 IC8003 R2 A12 IC8003 N7 A6 IC8003 C7 VDDQ IC8002 F7 LDQS IC8001 AB16 MMDQ28 IC8002 M8 A0 IC8002 J3 VSS IC8002 H3 DQ3 IC8002 A9 VDDQ IC8003 F7 LDQS IC8002 M2 A10 IC8003 F9 DQ7 IC8003 M2 A10 IC8001 AE17 MMDQ26 IC8001 AD20 MMDQ19 IC8001 AF22 MMDQ22 IC8003 K2 CKE IC8001 R23 MMCKE IC8001 U23 MMA12 IC8003 B3 UDM IC8002 D7 DQ10 IC8001 AC26 MMCK IC8001 Y21 MMVCAL IC8002 F9 DQ7 IC8001 Y26 MMA6 IC8001 W22 MMXCS1 IC8001 M26 MMDM1 IC8001 K25 MMDQ2 IC8002 G2 DQ1 IC8001 AA20 MMDQ21 IC8002 J7 VSSDL IC8003 C8 DQ8 IC8001 U25 MMA9 IC8002 D9 DQ13 IC8001 AA23 MMMONB IC8003 P3 A9 IC8001 AD21 MMDQ23 IC8003 D8 VSSQ IC8002 P2 A7 IC8001 N23 MMDQ9 IC8001 AC19 MMDQ17 IC8003 L7 CAS IC8002 N8 A4 IC8001 V21 MMA4 IC8002 A2 NC IC8003 N1 VSS IC8002 N7 A6 IC8003 H2 VSSQ IC8003 P9 VSS IC8001 AA24 MMODT IC8002 B9 DQ15 IC8002 D3 DQ11 IC8002 R8 RFU IC8001 AA19 MMDQ20 IC8002 E8 LDQS IC8002 K7 RAS IC8002 H7 DQ2 IC8002 D8 VSSQ IC8002 P7 A11 IC8003 E8 LDQS IC8003 J9 VDD IC8002 P8 A8 IC8002 D1 DQ12 IC8001 AA17 MMDQ24 IC8003 A9 VDDQ IC8002 G7 VDDQ IC8002 M7 A2 IC8003 R1 VDD IC8002 M9 VDD IC8003 G9 VDDQ IC8003 E7 VSSQ IC8003 N2 A3 IC8001 AD18 MMDQS3 IC8001 W25 MMXRAS IC8003 E9 VDDQ IC8003 E1 VDD IC8003 M9 VDD IC8003 H8 VSSQ IC8002 P3 A9 IC8002 H1 DQ4 IC8001 U21 MMXCAS IC8001 L21 MMDQ1 IC8002 F8 VSSQ IC8001 AA26 MMA2 IC8002 K3 WE IC8002 L1 RFU IC8003 M7 A2 IC8002 K2 CKE IC8003 F8 VSSQ IC8003 N8 A4 IC8002 B2 VSSQ IC8003 D7 DQ10 IC8003 B9 DQ15 IC8002 C9 VDDQ IC8002 A3 VSS IC8003 G1 VDDQ IC8003 F2 VSSQ IC8002 J9 VDD IC8002 A8 UDQS IC8003 B8 VSSQ IC8003 A8 UDQS IC8002 D2 VSSQ IC8002 R3 RFU IC8002 M3 A1 IC8001 AF25 MMRDRV IC8002 F2 VSSQ IC8001 AF17 MMDQ27 IC8003 M8 A0 IC8001 L23 MMDQ0 IC8003 C9 VDDQ IC8002 R7 RFU IC8003 C3 VDDQ IC8003 L2 BA0 IC8003 H3 DQ3 IC8001 L25 MMDM0 IC8002 K8 CK IC8001 AE23 MCLK IC8002 L7 CAS IC8002 C8 DQ8 IC8003 L8 CS IC8001 AE19 MMDM2 IC8003 G8 DQ0 IC8002 N3 A5 IC8002 J2 VREF IC8001 J26 MMDQ6 IC8002 R1 VDD IC8002 A7 VSSQ IC8001 P26 MMDQ15 IC8001 T23 MMBA0 IC8001 J23 MMDQ5 IC8002 C7 VDDQ IC8002 E2 NC IC8002 C1 VDDQ IC8003 L3 BA1 IC8002 E1 VDD IC8001 AE20 MMDQ18 IC8002 F1 DQ6 IC8002 G3 VDDQ 1.8V_DDRI/F 1.8V_DDRI/F 1.8V_DDRI/F VREF R8015 VJUMP1005-S R8014 VJUMP1005-S R8013 VJUMP1005-S R8012 VJUMP1005-S R8011 VJUMP1005-S R8010 VJUMP1005-S R8009 VJUMP1005-S R8008 VJUMP1005-S R8007 VJUMP1005-S R8029 VJUMP1005-S R8028 VJUMP1005-S R8080 VJUMP1005-S R8079 VJUMP1005-S R8016 VJUMP1005-S R8026 VJUMP1005-S R8055 VJUMP1005-S R8054 VJUMP1005-S R8053 VJUMP1005-S R8052 VJUMP1005-S R8051 VJUMP1005-S R8050 VJUMP1005-S R8049 VJUMP1005-S R8048 VJUMP1005-S R8047 VJUMP1005-S R8046 VJUMP1005-S R8045 VJUMP1005-S R8044 VJUMP1005-S R8043 VJUMP1005-S R8042 VJUMP1005-S R8041 VJUMP1005-S R8040 VJUMP1005-S R8025 VJUMP1005-S R8024 VJUMP1005-S R8039 VJUMP1005-S R8023 VJUMP1005-S R8084 VJUMP1005-S R8022 VJUMP1005-S R8020 VJUMP1005-S R8019 VJUMP1005-S R8021 VJUMP1005-S R8018 VJUMP1005-S R8017 VJUMP1005-S R8027 VJUMP1005-S R8062 47 R8097 220 R8067 47 R8030 100 R8059 47 R8069 47 R8098 10k R8073 47 R8064 47 R8081 10k R8056 47 R8032 270 R8100 47 R8063 47 R8076 47 R8057 47 R8101 10k R8099 10k R8078 47 R8068 47 R8061 47 R8058 47 R8070 47 R8031 270 R8082 75 R8066 47 R8060 47 R8071 47 R8065 47 R8075 47 R8083 300 R8077 47 R8035 0 R8072 47 R8074 220 17 12 13 16 11 15 14 10 18 MN2WS0047 Peaks Lite 2p IC8001 C3ABSY000014 DDR2#0 512M IC8002 IC8003 DDR2#1 512M C3ABSY000014 Peaks-Lite2p,DDR ! A-BOARD TNPH0721AFS (2/12) TH-50PZ80U A-Board (2/12) Schematic Diagram TH-50PZ80U A-Board (2/12) Schematic Diagram 51 11.9. A-Board (3/12) Schematic Diagram G G G G S S AA_ED1 AA_EA6 AA_ED4 AA_ED13 AA_EA3 AA_EA10 AA_EA21 AA_EA17 AA_XERE AE_SDCLK AA_ED2 AA_XECS0 AD_SDA1 AD_SDA3 AA_ED11 AD_SDA2 A_SCL0 AA_EA8 AA_ED15 AA_EA18 AA_EA16 AD_SDA3 AA_ED14 AA_EA5 AA_ED8 AA_EA13 AD_SCL3 AD_SCL3 AA_EA2 AA_EA22 AA_EA11 AA_EA9 A_SDA0 AD_SCL2 AA_XEWE0 AD_SCL1 AA_XECS0 AA_ED12 AA_ED5 AA_EA14 AD_SDA1 A_SDA0 AA_ED10 AA_ED0 AA_XERE AA_ED6 AA_ED7 AD_SCL2 AG_DTV_XRST AA_EA7 AA_XEWE0 AE_SDCMD AA_EA15 AA_ED3 A_SCL0 AA_ED9 AD_SCL1 AA_EA4 AA_EA12 AA_EA1 AA_EA20 AA_EA19 AE_SDWP AE_SDCD XECS2 XECS2 AA_ED0 AA_EA22 AA_ED2 AA_ED13 AA_EA15 AA_ED1 AA_EA19 AA_EA23 AA_EA16 AA_EA20 AA_ED4 AA_EA12 AA_ED9 AA_EA13 AA_EA7 AA_ED10 AA_EA8 AA_ED6 AA_ED8 AA_ED12 AA_EA14 AA_ED11 AA_ED7 AA_ED14 AA_EA9 AA_EA10 AA_EA11 AA_EA21 AA_ED15 AA_EA17 AA_ED5 AA_EA18 AA_ED3 NANDRYBY AE_SDDAT0 AE_SDCMD AA_EA23 AA_EA0 AA_EA1 AA_EA2 AA_EA3 AA_EA4 AA_EA5 AA_EA6 AE_SDDAT1 AE_SDDAT2 AE_SDDAT3 XECS4 AD_SCL3 AD_SDA3 AE_SDDAT1 AE_SDDAT3 AE_SDDAT2 AE_SDDAT0 AE_SDCD AE_SDCLK XNFWP NANDRYBY XECS4 AG_DTV_XRST AD_SDA2 AE_SDWP C8506 16V 0.1u C4780 16V 0.1u C8501 16V 0.1u C8513 16V 0.01u C8519 16V 0.01u C8517 16V 0.1u FL8500 J0HAAA000013 1 2 3 4 5 6 7 8 9 10 FL8501 J0HAAA000013 1 2 3 4 5 6 7 8 9 10 *IC8503 TVRP759S 1 NC 2 NC 3 NC 4 VSS 5 SDA 6 SCL 7 WC 8 VCC TVRP753S IC8502 1 N.C. 2 A22 3 A15 4 A14 5 A13 6 A12 7 A11 8 A10 9 A9 10 A8 11 A19 12 A20 13 WE 14 RESET 15 A21 16 WP/ACC 17 RY/BY 18 A18 19 A17 20 A7 21 A6 22 A5 23 A4 24 A3 25 A2 26 A1 27 N.C. 28 N.C. 29 Vio 30 N.C. 31 A0 32 CE 33 Vss 34 OE 35 DQ0 36 DQ8 37 DQ1 38 DQ9 39 DQ2 40 DQ10 41 DQ3 42 DQ11 43 Vcc 44 DQ4 45 DQ12 46 DQ5 47 DQ13 48 DQ6 49 DQ14 50 DQ7 51 DQ15/A-1 52 Vss 53 BYTE 54 A16 55 N.C. 56 N.C. A52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 L8507 J0JHC0000045 L8500 J0JHC0000075 SUB3.3V SUB3.3V SUB3.3V SUB3.3V SUB3.3V SUB3.3V SUB3.3V SUB3.3V SUB3.3V SUB3.3V SUB3.3V R8505 VJUMP1005-S R8524 VJUMP1005-S R8568 VARAY405 TP8515 TP8510 TP8550 TP8517 TP8514 TP8546 TP8553 TP8502 TP8516 TP8544 TP8548 TP8547 TP8552 TP8551 TP8513 TP8519 TP8518 TP8511 TP8512 EA3 EA0 ESZ0 AG_SW_OFF_DET EA1 ESZ1 SBT2 XEWE0 XECS4 EA7 SCL0 EA4 EA5 XERE XECS5 SCL1 AG_DTV_XRST SDCLK EA2 EA6 XNFWP SDWP DTV_V XIRQ1 NANDRYBY A_SCL0 AD_SCL3 AD_SCL1 AD_SCL2 SDCMD VI2P14 ED9 MVDACO3 ED5 VI2P24 MVDACO1 VI2P18 VI2P27 VI2P16 ED7 VI2P13 MVDACO2 VI2ENB XECS0 ED0 TDI SBT0 ED10 TMS VI2P22 SDDAT1 TCK TRST SDA1 XECS2 VI2P12 VI2P15 ED11 VI2P28 VI2P17 AD_SDA1 ED2 ED3 SDA0 AD_SDA2 SDDAT0 SDCD ED1 SDDAT2 VI2P25 ED15 ED14 VI2P26 VI2CLK2 ED8 VI2P23 VI2P29 ED12 A_SDA0 ED6 XECS3 VI2P19 AD_SDA3 SDDAT3 ED13 ED4 R8573 EXB28V680JX R8566 EXB28V103JX R4079 EXB2HV560JV R4089 EXB2HV560JV R4090 EXB2HV560JV R4091 EXB2HV560JV R4081 EXB2HV560JV R4168 EXB2HV473JV R8570 33 R8553 1.8k R8539 22 R8564 10k R8541 22 R8504 10k R8772 10k R8770 10k R8545 22 R8661 10k R8520 33 R8769 33 R8502 0 R8722 56 R8556 4.7k R8554 22 R8563 10k R8767 75 R8565 10k R8561 33 R8540 22 R8519 33 R8562 10k R8550 3.3k R5058 1k R8574 68 R8529 56 R8765 75 R8557 3.3k R8512 10k R5069 10k R8533 10k R8538 22 R8866 91 R5137 1k R8663 10k R8555 22 R8528 56 R8532 56 R8530 56 R8844 10k R8517 33 R8544 22 R8542 22 R8793 10k R8552 1.8k R8575 82 R8558 3.3k R8548 3.3k R8721 56 R8546 3.3k R8547 3.3k R8543 22 (A23) (VIO) from LiteIIp SD_CARD PORT9[4] EEPROM_WP I2C to other devices NAND_I/F SD CARD MODE EA10, UV2 EA8, UV0 EA9. UV1 EA21, Y5 EA19, Y3 EA23, Y7 LiteIIp EA18, Y2 EA16, Y0 EA17, Y1 From PEAKS-LiteIIp EA11, UV3 EA12, UV4 EA13, UV5 EA14, UV6 EA15, UV7 EA20, Y4 EA22, Y6 SW_OFF_DET to GenX4 port to Peaks Lite 2 to H.264 board SDDAT1 GND SDWP SDDAT3 SDCMD SDDAT2 GND 3.3V GND SDDAT0 SDDTC SDCLK C U B Y Y G YC YUV RGB Comp. V R - - - Comp Power_det KEYSCAN1 GND TDI TMS TCK TRST 20 27 22 21 25 26 23 19 24 128/256Mbit NOR FLASH EEPROM LiteIIp to (1/12) TO GS-BOARD (GS52) ! DIGITAL(NAND,BOOT,ETC) B_PORT LiteIIp to (1/12) to (1/12) to (1/12) to (1/12) to (4/12)(7/12) to (12/12) to (10/12)(12/12) to (5/12)(11/12)(12/12) to (7/12)(12/12) to (1/12) to (1/12) LiteIIp to (1/12) to (1/12) to (1/12) LiteIIp to (1/12) to (1/12) to (5/12) to (7/12) A-BOARD TNPH0721AFS (3/12) TH-50PZ80U A-Board (3/12) Schematic Diagram TH-50PZ80U A-Board (3/12) Schematic Diagram 52 11.10. A-Board (4/12) Schematic Diagram + + + + S S S S S S S S SUB5V C5663 6.3V 10u C5667 50V 100p C5652 50V 1000p C5664 6.3V 10u C5412 10u 16V C5522 16V 0.1u C5521 16V 0.1u C5401 0.1u 25V C5420 10u 16V C5406 10u 25V C5402 25V 0.01u C5408 10u 10V C5418 10u 25V C5400 10u 10V C5416 25V 4700p C5413 0.1u 25V C5404 25V 3900p C5414 25V 0.01u C5417 0.1u 25V C5405 0.1u 25V C5601 0.1u 16V C5627 0.1u 16V C5611 25V 10u C5765 10V 0.047u C5615 10u 25V C5637 0.1u 16V C5625 0.01u 25V C5636 0.1u 16V C5621 0.01u 25V C5766 16V 0.01u C5624 220p 50V C5600 1u 10V C5616 0.047u 10V C5607 50V 220p C5642 10u 25V C5619 10u 25V C5622 4.7u 10V C5644 0.01u 25V C5612 25V 10u C5603 0.01u 25V C5618 10u 25V C5608 0.1u 16V C5640 0.1u 16V C5639 0.1u 16V C5626 0.1u 16V C5632 1u 25V C5617 1u 10V C5638 0.1u 16V C5688 2.2u 10V C5623 470p 50V C5606 470p 50V C5767 16V 0.01u C5605 4.7u 10V C5641 0.1u 16V C5643 0.1u 25V C5620 0.1u 25V C5604 0.01u 25V C5629 68u 4V C5628 68u 4V C5602 68u 4V C5631 25V 47u D5400 B0JCME000037 D5403 B0JCME000037 D5615 MA2J11100L D5604 B0JCDD000002 D5616 MA2J72800L D5601 MA22D3900L D5603 B0JCDD000002 D5605 MA22D3900L D5602 MA22D3900L D5613 MA2J11100L D5614 MA2J11100L D5606 B0JCDD000002 D5522 MA3X152D0L D5521 MA3X152D0L D5405 B0BC4R700007 D5573 B0BC01100001 D5404 B0BC4R700007 D5571 B0BC6R600005 D5402 B0BC4R700007 D5692 MAZ80560LL D5401 B0BC4R700007 C0EBF0000354 IC5606 4 OUT 3 CD 1 VSS 2 VDD IC3017 C0EBM0000026 1 OUT 2 Vdd 3 GND 5 Cd 4 NC IC5400 C0DBAYY00183 1 BS 2 VIN 3 SW 4 GND 5 FB 6 COMP 7 EN 8 SS IC5401 C0DBAYY00183 1 BS 2 VIN 3 SW 4 GND 5 FB 6 COMP 7 EN 8 SS C0DBAYY00273 IC5600 1 GND 2 REFIN 3 VREF 4 CS 5 COVP 6 CUVP 7 PGOOD 8 CTL 9 LSAT 10 ILIM 11 +INC 12 -INC 13 FSW 14 PGND 15 OUT-2 16 VB 17 VCC 18 VBIN 19 LX 20 OUT-1 21 CB 22 RT 23 VO 24 FB C0DBAYY00274 IC5601 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP L5605 J0JHC0000075 L5604 G1C100MA0203 L5600 G1C2R2Z00007 L5401 G1C330M00027 L5601 G1C2R2Z00007 L5602 G1C4R7Z00014 L5606 G1C100MA0203 L5405 G1C330M00027 BT30V SUB3.3V SUB3.3V SUB1.8V STB5V SUB9V F15V SUB1.2V F15V F15V STB3.3V F15V STB5V F15V SUB5V R5603 R5601 VJUMP1608-S R5409 VJUMP1005-S R5616 VJUMP1005-S R5404 VJUMP1005-S R5663 VJUMP1005-S R5614 VJUMP1608-S R5602 TPS0S TP3506 TP3504 TP5600 TP5602 TP5601 TP5400 TP3508 TP3505 TP3507 STB_RST AG_KEY3 AG_SOS AG_ODU_DET/KEY3 AG_DTV_XRST XRST Q5602 B1MBDDA00003 S1 G1 S2 G2 D2 D2 D1 D1 Q5601 B1MBDDA00003 SP8K1TB S1 G1 S2 G2 D2 D2 D1 D1 Q5600 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 Q5603 2SD0601A0L Q5604 2SD0601A0L Q5522 2SB0709A0L Q5684 2SB0709A0L R5631 36k R5646 10k R5606 0 R5641 47k R5652 100k R5610 100k R5748 12k R5405 100k R5632 30k R5667 100 R5662 10k R5600 68 R5403 10k R5644 2.2k R5665 100 R5188 470 R5408 10k R5604 47k 1% R5400 100k R5406 20k R5747 10k R5627 0 R5536 4.7k R5612 36k R5762 100 R5651 56k R5637 0 R5401 10k R5647 47k R5630 47.5k R5544 220 R5626 0 R5540 470 R5542 470 R5535 2.2k R5628 0 R5537 1.5k R5538 2.2k R5648 10k R5664 1M R5666 470 R5629 28k R5635 22k R5623 47k R5605 12.7k 1% R5402 45.3k R5638 10k R5622 100k R5636 68k R5607 0 R5625 0 R5634 28k R5633 36k R5749 47k R5611 47k R5650 56k R5621 28k R5620 68 R5407 88.7k GenX5 PEAKS-LITE2 RESET RESET IC PEAKS-LITE2 POWER 36 28 31 32 33 34 35 29 30 VREF(2.5V) SUB 5V SUB 9V 15V->3.3V DC-DC CONVERTER 15V->1.2V,15V->1.8V DC-DC CONVERTER ! POWER SUPPLY to (1/12) to (3/12)(7/12) to (7/12) to (6/12) to (7/12) to (7/12)(12/12) STB RESET A-BOARD TNPH0721AFS (4/12) TH-50PZ80U A-Board (4/12) Schematic Diagram TH-50PZ80U A-Board (4/12) Schematic Diagram 53 11.11. A-Board (5/12) Schematic Diagram + + + V MONITOR OUT V1 COMPONENT2 COMPONENT1 V R L R L Pb Pr C Y Pb R R Y L Pr Y L S S P AD_SDA2 MAIN_Y/CVBS MAIN_PB/C AD_SCL2 RGB_CVBS MAIN_PR HDMI_LRCK HDMI_SDIN HDMI_BCLK RF_R RF_L RF_V DTV_SRCK DTV_LRCK DTV_DMIX DTV_SPDIF AG_AUDIO_MUTE AG_SOUND_SOS AG_AUDIO_XRST AAM_R MON_R AAM_L MON_L A_MON_MUTE MCLK V1_Y V1_C V1_S_DET AG_VIDEO_STATUS MAIN_Y/CVBS MAIN_PB/C PC_VS MAIN_PR RGB_CVBS MON_V MAIN_R MAIN_L AAM_R AAM_L DTV_V RF_V D1_PR D1_Y D1_PB D2_PR D2_Y D2_PB D1_L D1_R D2_L D2_R V1_L V1_R DTV_L DTV_R V1_V V2_R V2_L V2_S_DET RF_L RF_R HDMI_INT2 AD_SDA2 AD_SCL2 PC_H_IN PC_V_IN D1_R D1_PR D2_R D2_L D2_Y V1_L V1_V V1_C MON_L MON_R V1_Y V1_S_DET V1_R D2_PB D2_PR D1_PB D1_Y D1_L V2_C V2_Y V2_V MON_V PC_HS AG_VIDEO_STATUS DTV_V HDMI_SPDIF C3035 10V 1u C3034 10V 1u C3033 10V 1u C3031 10V 1u C3030 10V 1u C3032 10V 1u C3028 10V 1u C3029 10V 1u C3026 10V 1u C3027 10V 1u C3024 10V 1u C3025 10V 1u C3042 10V 10u C3124 10V 10u C3011 16V 0.01u C3017 16V 0.1u C3016 10V 10u C3013 10V 10u C3008 10V 10u C3043 10V 10u C3001 10V 10u C3044 10V 10u C3045 10V 10u C3007 10V 10u C3010 16V 0.01u C3050 16V 0.1u C3046 10V 10u C3047 10V 10u C3019 16V 0.1u C3123 10V 10u C3022 16V 0.1u C3015 10V 10u C3023 10u 10V C3006 10u 10V C3020 16V 22u C3049 10V 100u C3021 10V 220u D3065 MAZ81400ML D3064 MAZ81400ML D3077 MAZ81400ML D3063 MAZ81400ML D3071 MAZ81400ML D3072 MAZ81400ML D3048 MAZ81400ML D3067 MAZ81400ML D3076 MAZ81400ML D3052 MAZ81400ML D3051 MAZ81400ML D3073 MAZ81400ML D3068 MAZ81400ML D3080 MAZ81400ML D3066 MAZ81400ML D3069 MAZ81400ML D3079 MAZ81400ML D3070 MAZ81400ML D3078 MAZ81400ML C1AB00002855 IC3001 1 Gin 2 HDin 3 Rin 4 T DET5 5 CVBSin4 6 T DET4 7 CVBSin3 8 BG 9 Yin3 10 S2 DET3 11 R2/Cin3 12 GND 13 G2/Yin2 14 S2 DET2 15 B2/Cin2 16 T DET3 17 CVBSin1 18 T DET2 19 G1/Yin1 20 S2 DET1 21 B1/Cin1 22 T DET1 23 CVBSin2 24 VCC5V 25 R1 26 State out 27 FBout/T DET10 28 SDA 29 SCL 30 GND 31 G/CY/CVBSout1 32 HD out1 33 B/PB/Cout1 34 VD out1 35 R/Prout1 36 VCC5V 37 SAG CVBSout4 38 Y/Y+C/CVBSout4 39 S2out 40 SAG CVBSout5 41 C/Y+C/CVBSout5 42 GND 43 SAG CVBSout3 44 CVBS/Y+Cout3 45 VCC9V 46 G/CY/Y/CVBSout7 47 O3 48 AU_GND 49 R4out 50 L4out 51 R3out 52 L3out 53 R2out 54 L2out 55 R1out 56 L1out 57 AU1/2Vcc 58 L1in 59 R1in 60 L2in 61 R2in 62 L3in 63 R3in 64 L4in 65 R4in 66 L5in 67 R5in 68 L6in 69 R6in 70 L7in 71 R7in 72 L8in 73 R8in 74 L9in 75 R9in 76 FBin1/O1 77 CVBSin7 78 FBin2/O2 79 CVBSin6 80 VCC9V 81 CVBSin5 82 T DET9 83 Yin4 84 T DET8 85 Cin4 86 VCC5V 87 PBin2/B3 88 L3 DET2 89 CYin2/G3 90 T DET7 91 PRin2/R3 92 T DET6 93 PBin1 94 L3 DET1 95 CYin1 96 HD VD/FBKMUTE 97 PRin1 98 GND 99 Bin 100 VDin *JK3000A K1U929A00001 V L R G C Y G Y-G C-G G V L R G Y PB PR G L R G Y PB PR G L R G L3000 J0JYC0000068 L3001 J0JYC0000068 SUB3.3V SUB5V SUB9V R3072 VJUMP1005-S R3073 VJUMP1005-S R3100 VJUMP1005-P AG_AUDIO_XRST HDMI_BCLK AG_AUDIO_MUTE HDMI_SPDIF HDMI_LRCK HDMI_SDIN MAIN_PR MAIN_PB/C AG_SOUND_SOS MAIN_Y/CVBS MCLK RGB_CVBS IECOUT0 RF_L RF_R RF_V DMIX0 AD_SCL2 SRCK0 AD_SDA2 LRCK0 HDMI_INT2 PC_VS Q3123 2SD0601A0L Q3124 2SD0601A0L Q3125 2SB0709A0L 330 R4136 R3099 68 R3085 220 R3192 39k R3148 180k R3079 220 R3080 220 R3193 39k R3124 1.8k R3082 220 R3081 220 R3151 1M R3084 220 R3098 68 R3209 75 R3059 220 R3149 100 330 R4135 R3198 75 R3147 100 R3189 75 R3152 47k R3077 220 R3087 220 R3202 39k R3061 75 R3064 75 R3066 75 R3076 75 R3083 220 R3097 68 R3096 68 R3095 68 R3150 100 R3153 1k R3146 180k R3191 39k 100 R4137 R3154 270k R3089 220 R3090 220 R3204 39k R3203 75 R3058 220 R3078 220 R3062 220 R3070 1k R3212 75 R3123 1.8k R3190 39k 330 R4134 R3208 75 R3145 100 R3063 220 R3071 220 R3067 220 R3060 220 R3065 1k R3194 75 R3107 68 R3199 75 R3211 75 R3068 220 R3088 220 R3086 220 SUB9V DTV_V PC_HS 5V :A-AVSW/A-TNR IRD IIC2p GenX4 ADV7493 3.3V:V-AVSW/ADV4422/FE/DVB-TNR << Connection Device >> Front End 24.576MHz for ADV OUT1:Main(ADV) V3/YC3:AV2 Back V5/YC4:AV3 Side RENESAS YPbPr2:Comp2 YPbPr1:Comp1 V1/YC1:AV1 Back RGB:(PC) OUT3:Monitor out Video Out OUT7:ADV(SOY) V2:Peaks DC out Video Input V4:nonuse Other: Audio Input L1/R1 RF L2/R2 Comp1 L3/R3 Comp2 L4/R4 AV1 L5/R5 Av2 L6/R6 AV3 L7/R7 (PC) V6:nonuse V7:RF L8/R8 (DVI) L9/R9 DTV OUT4:Main(ADAV) Audio Out OUT2:nonuse OUT3:Monitor out OUT1:nonuse 43 44 39 40 41 45 37 42 38 AUDIO SW VIDEO SW CONNECTOR,AVSW ! to (11/12) to (1/12) to (3/12) to (10/12) to (7/12)(12/12) to (7/12) to (3/12)(11/12)(12/12) to (7/12) 1 2 3 4 5 A-BOARD TNPH0721AFS (5/12) TH-50PZ80U A-Board (5/12) Schematic Diagram TH-50PZ80U A-Board (5/12) Schematic Diagram 54 11.12. A-Board (6/12) Schematic Diagram + DRIVE IC VCC Vin GND Thermal Pad S S S S S S S S S S S S S P V2_Y V2_V V2_R V2_C V2_S_DET V2_L AG_R_LED_ON AG_KEY3 AG_RMIN DTV_SRCK HDMI_BCLK HDMI_SPDIF HDMI_SDIN MAIN_R PWM_SQ_R+ AG_AUDIO_MUTE AG_SOUND_SOS DTV_DMIX SQ_L+ DTV_LRCK PWM_SQ_L+ MAIN_L SQ_R- PWM_SQ_R- PWM_SQ_R+ PWM_SQ_L- PWM_SQ_L+ SQ_L- PWM_SQ_L- PWM_SQ_R- HDMI_LRCK SQ_R+ DTV_SPDIF AMP_MUTE AD_SDA2 AD_SCL2 MCLK AG_SOUND_SOS S15V DTV_R DTV_L ADAV_MUTE AG_AUDIO_XRST A_MON_MUTE AMP_MUTE AG_KEY1(CON-PANE) C4075 16V 0.1u C2053 0.1u 16V C2301 16V 0.1u C2387 50V 1000p C2196 0.01u 25V C2321 0.1u 50V C2303 25V 1u C2189 1u 10V C2359 50V 0.1u C2197 0.01u 25V C2389 50V 1000p C2313 10V 1u C2337 50V 0.022u C2198 0.01u 25V C2050 0.1u 16V C2339 50V 0.022u C2213 1000p 50V C2323 0.1u 50V C2116 470p 50V C2381 50V 0.022u C2190 10u 10V C2383 50V 1000p C2379 50V 0.022u C2377 50V 0.022u C2305 25V 1u C2054 10u 10V C2181 25V 0.01u C2335 25V 0.33u C2059 10u 10V C2375 50V 0.022u C2186 0.1u 16V C2317 0.1u 50V C2106 0.1u 16V C2126 10u 10V C2187 2.2u 6.3V C2244 0.1u 16V C2264 10u 10V C2353 50V 0.1u C2105 0.1u 16V C2307 25V 1u C2188 470p 50V C2055 12p 50V C2385 50V 1000p C2180 25V 0.01u C2319 0.1u 50V C2263 10u 10V C2245 1000p 50V C3157 0.1u 16V C2251 10u 10V C2343 25V 0.33u C2345 50V 0.022u C2052 0.1u 16V C2309 25V 1u C2216 0.1u 16V C2100 0.1u 16V C2341 25V 0.33u C2118 1u 10V C2101 10u 10V C2111 2.2u 6.3V C2195 0.01u 25V C2023 0.1u 16V C2048 0.1u 16V C2302 16V 0.1u C2333 25V 0.33u C2049 0.1u 16V C2347 50V 0.022u C2058 0.1u 16V C2056 15p 50V C3532 25V 10u C2107 10u 10V C2192 10u 10V C2108 10u 10V C3530 25V 470u D2301 MA2J11100L D3005 K7AAAY000003 D3086 MAZ81400ML D3087 MAZ81400ML D3088 MAZ81400ML D3085 MAZ81400ML D3089 MAZ81400ML FL4004 J0HAAB000036 1 2 3 4 FL4003 J0HAAB000036 1 2 3 4 FL4000 J0HAAB000036 1 2 3 4 C0CBCBE00001 IC2008 1 VOUT 2 NC 3 GND 4 CNCONT 5 SUB 6 VIN 7 C0DBFFD00003 IC2107 1 2 3 4 5 6 7 C1AB00002908 IC2106 1 FILTA 2 VREF 3 AGND 4 AVDD 5 NC 6 NC 7 NC 8 NC 9 NC 10 NC 11 NC 12 NC 13 DGND 14 DVDD 15 MUTE 16 SDA 17 SCL 18 SPDIF_IN5/LRCLK2 19 SPDIF_IN6/BCLK2 20 DGND 21 DVDD 22 SDIN0 23 SDIN1 24 SDIN2 25 SPDIF_IN0/SDIN3 26 SPDIF_IN1/LRCLK0 27 SPDIF_IN2/BCLK0 28 ODGND 29 ODVDD 30 MCLK_OUT 31 DVDD 32 DGND 33 MCLKI/XIN 34 XOUT 35 SPDIF_IN4/BCLK1 36 SPDIF_IN3/LRCLK1 37 SDO0/AD0 38 SPDIF_OUT/SDO1 39 PWM_READY 40 DVDD 41 DGND 42 PWM1A 43 PWM1B 44 PWM2A 45 PWM2B 46 PWM3A 47 PWM3B 48 PWM4A 49 PWM4B 50 RESET 51 DVDD 52 DGND 53 AVDD 54 PLL_LF 55 AGND 56 AGND 57 HPOUT1L 58 HPOUT1R 59 AVDD 60 NC 61 NC 62 AUXOUT3L 63 AUXOUT3R 64 AUXOUT4L 65 AUXOUT4R 66 NC 67 FILTD 68 AVDD 69 AGND 70 AGND 71 AVDD 72 AUXOUT1L 73 AUXOUT1R 74 NC 75 NC 76 NC 77 NC 78 AUXIN1L 79 AUXIN1R 80 ISET C1AB00002875 IC2301 1 STBY 2 NC1 3 MUTE 4 NC2 5 PWM_A1 6 NC3 7 PWM_B1 8 NC4 9 VREG5 10 GND 11 NC5 12 PWM_B2 13 NC6 14 PWM_A2 15 NC7 16 NOD_THERM 17 NOD_OUTSHDN 18 NC8 19 PVD2 20 PVD2 21 OUT_CH2_P 22 BOOT_CH2_P 23 VDDA2 24 BOOT_CH2_N 25 OUT_CH2_N 26 PGND2 27 PGND2 28 PGND1 29 PGND1 30 OUT_CH1_N 31 BOOT_CH1_N 32 VDDA1 33 BOOT_CH1_P 34 OUT_CH1_P 35 PVD1 36 PVD1 37 38 39 A12 1 2 3 4 A30 1 2 3 4 5 A7 1 2 3 4 5 6 7 8 9 A1 1 2 3 4 5 6 7 8 9 A51 1 2 3 4 5 6 7 8 9 10 11 12 A6 1 2 3 4 5 6 7 8 9 10 11 12 L2038 J0JYC0000068 L3512 J0JHC0000042 L2029 J0JCC0000059 L2041 J0JYC0000068 L2304 G1C220MA0291 L2300 G1C220MA0291 L2302 G1C220MA0291 L2306 G1C220MA0291 SUB3.3V SUB5V AUD3.3V SUB3.3V SUB9V SOUND15V DVDD1.8V SUB9V STB3.3V SOUND15V F15V STB5V SUB3.3V DVDD1.8V AUD3.3V R2056 VJUMP1005-S R2355 VJUMP1005-S R3051 VJUMP1005-S R2125 VJUMP1005-S R2306 VJUMP1005-S R2317 VJUMP1005-S R2057 VJUMP1005-S R2358 VJUMP1005-S R2191 VJUMP1005-S L2020 VJUMP1005-S R3052 VJUMP1005-S R3053 VJUMP1005-S R2190 VJUMP1005-S R2374 VJUMP1005-P PA5600 K5H5022A0023 TP3521 TP3522 TP3523 TP3525 TP3524 TP2313 TP2302 TP2315 TP3528 TP2311 TP4005 TP2002 TP3501 TP3510 TP3518 TP4003 TP4002 TP2314 TP3509 TP4001 TP3527 TP3500 TP3519 TP3503 TP2000 TP3520 TP3502 TP2312 TP3526 AG_ECO_ON AG_TV_SUB_ON AG_FAN_MAX AG_RMIN AG_R_LED_ON AG_KEY3 AG_FAN_SOS Q2042 2SD0601A0L Q2041 2SD0601A0L Q2301 2SB0709A0L R2271 EXB28V220JX JS3056 0 JS3051 0 JS4010 0 JS3052 0 JS3054 0 JS3053 0 JS2088 0 JS3055 0 JS2300 0 R2301 2.2k R2117 10k 20k R2100 R2325 100 1M R2059 R2164 1k 28k R2150 R2115 10k 2k R2104 R2308 3.3 R2113 120k 10k R2110 R2138 10k 470 R2058 10k R2162 R2331 220 R2305 470 R2152 0 R2315 3.3 100 R2111 R2313 3.3 R2114 75k R2060 68 R2311 3.3 R2116 10k R2330 3.9k 10k R2163 28k R2151 R2302 2.2k H0J245500089 X2010 A_MON_MUTE AMP_MUTE *JS3058 0 AG_KEY1(CON-PANE) AV3_Y AV3_V KEYSCAN1 AV3_L AV3_V_GND AV3_R AV3_S_DET AV3_C AV3_C_GND AV3_Y_GND GND GND GND TUNER_SUB_ON GND ALL_OFF GND +15Vc AC_GOOD/KEY ECO_ON STB5V +15Vc SUB9V Fan cont FAN SOS DR15V GND S_GND F+15V F+15V +15V_S S_GND +15V_S +15V_S S_GND F+15V STB3.3V GenX5 GND GND KEYSCAN3 RM_IN SUB5V AI_SENSOR DTV_LRCLK >> HDMI_BCLK >> >> Monitor R >> RESETB DTV_BCLK >> HDMI_SDIN >> 1.8V (500mA) HDMI_LRCLK >> SOUND SOS DTV_SDIN >> HDMI_SPDIF >> MUTE OPERATE >> MAIN_R SDA2 AMP_SD(SOS_DET) OPERATE SOS MUTE PWM_READY >> Monitor L >> MAIN_L R+ L+ To SOS L- 21Pin TO WOOFER/SPEAKER R- (W-R & W-L) VIH > 2.2V => PowerDown Digital_Audio_in VIL < 0.8V => active >> RESETB from Peaks and HDMI DTV_SPDIF >> SCL2 to ADV << 24.576MHz R_LED_ON GND 53 47 50 48 51 52 46 49 54 AUD 3.3V AUDIO AMP OUT OPTICAL AUDIO DVDD1.8V SOUND PROCESSOR MUTE MUTE OPERATE OPERATE TO G-BOARD (G51) TO P-BOARD (P7) TO P-BOARD (P6) TO K-BOARD (K1) CONNECTOR,AVSW ! to (7/12) to (7/12) to (7/12) to (4/12) 2 5 3 1 4 TO PB-BOARD (PB30) A-BOARD TNPH0721AFS (6/12) to (7/12) TH-50PZ80U A-Board (6/12) Schematic Diagram TH-50PZ80U A-Board (6/12) Schematic Diagram 55 11.13. A-Board (7/12) Schematic Diagram S S S S S S S S SDA AG_HDMI_5V_DET3 SCL AG_KEY1(CON-PANE) AG_SD_BOOT_STS AG_HPD1 AG_EDID_WP PANEL_STBY/VCC_ON AG_ADV_XRST AG_AUDIO_XRST AG_AUDIO_MUTE AG_SOS AG_DTV_XRST SBO2 AG_RF_AFT1 AG_HDMI_CEC AD_SCL3 SBI2 AG_ODU_DET/KEY3 AG_R_LED_ON AG_HDMI_5V_DET1 AD_SDA3 AG_SW_OFF_DET AG_HDMI_REP_EN AG_HPD2 AG_HDMI_5V_DET2 AG_RMIN AG_A_MON_MUTE/SP_MUTE AG_TV_SUB_ON SUB5V_SENSE AG_HDMI_5V_DET1 AG_DTV_XRST AG_PANEL_ARARM AG_CONFIG_DONE PANEL_STBY/VCC_ON AG_SOUND_SOS DDCSCL0 DDCSDA0 AG_R_LED_ON AG_HPD2 AG_HPD1 DTV9V_SENSE AG_HDMI_CEC AG_ADV_XRST AG_HQ_XRST AG_ECO_ON AG_HDMI_5V_DET2 AG_SW_OFF_DET AG_EDID_WP AG_SD_BOOT_STS AG_DTV_VOUTENB AG_AUDIO_XRST DDCSCL1 DDCSDA1 AG_PANEL_READY AG_RMIN AG_ODU_DET/KEY3 AG_SOS AG_SD_LED_ON AG_SD_LED_ON DDCSCL0 DDCSDA1 DDCSCL1 DDCSDA0 AD_SDA3 AD_SCL3 AG_HDMI_REP_EN AG_HPD3 AG_HDMI_MUX_EN AG_DTV_VOUTENB AG_PANEL_READY AG_HPD4 AG_HDMI_5V_DET4 AG_HDMI_MUX_EN AG_HDMI_MUX_SEL AG_HPD4 AG_HDMI_5V_DET3 AG_HDMI_5V_DET4 AG_BACK_VOUTENB AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE MAIN9V_SENSE AG_BACK_VOUTENB SRQ-GENX SRQ-GENX SRQ-GENX IIC_SW IIC_SW AG_HPD3 AG_SYSCLK_OUT SCL SDA SCL SDA SBO2 SBI2 AG_FAN_MAX AG_HDMI_MUX_SEL AG_TV_SUB_ON AG_RF_AFT1 SD_PWR_CTRL AG_FAN_SOS AG_AI_SENSOR AG_KEY1(CON-PANE) AG_CONFIG_DONE AG_PANEL_ARARM AG_SOUND_SOS AG_ECO_ON AG_FAN_SOS AG_FAN_MAX C1122 25V 0.01u C1103 16V 0.1u C1108 16V 0.1u C1111 1u 10V C1112 16V 0.1u C1107 50V 22p C1109 1u 10V C1117 16V 0.1u C1104 16V 0.1u C1106 50V 27p C1123 1u 10V C1102 10u 10V C1114 16V 0.1u D1114 MA2J11100L D1115 MA2J11100L D1107 MA3X704A0L IC1101 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 Vcc MNZSFG3GP52 IC1100 1 P41.TMIO1 2 P42.TMIO2 3 P43_TMIO3 4 P44_TMIO4 5 P00 6 P01 7 P02 8 P03_SBT0B 9 P04_SBO0B 10 PD0_DDCSDA0 11 PD1_DDCSCL0 12 PD2_DDCSDA1 13 PD3_DDCSCL1 14 PF1 15 PF2 16 PF3 17 P65_USBO2 18 P66_USBI2 19 P26 20 P70_SDA0 21 P71_SCL0 22 VSS 23 P27 24 IVDD 25 VDD 26 P60_SBO0A 27 P61_SBT0A 28 P62_SBI0A 29 P05_IRQ6 30 P06_IRQ7 31 P07_IRQ8 32 P50_RMIN_IRQ0 33 P20_IRQ1 34 P21_IRQ2 35 P22_IRQ3 36 P23_IRQ4 37 P24_IRQ5 38 P25 39 IVDD 40 VSS 41 P10 42 P11 43 P12 44 P13 45 P14 46 P15 47 P16 48 P17 49 P72_SDA1 50 P73_SCL1 51 P30 52 P31 53 P32 54 P33 55 P34 56 P35 57 P36 58 P37 59 PE0 60 PE3 61 PE4_VPPEX 62 IVDD 63 VDD 64 RONA 65 VSS 66 OSCXO 67 OSCXI 68 IVDD 69 PD4 70 PD5 71 NBOOT 72 NRST 73 NTEST 74 SCLOCK 75 SDATA 76 EXTRG0 77 TRCCLK 78 TRCST 79 TRCD0 80 TRCD1 81 TRCD2 82 TRCD3 83 PULDSEL 84 P80_ADIN0 85 P81_ADIN1 86 P82_ADIN2 87 P83_ADIN3 88 IVDD 89 VSS 90 P84_ADIN4 91 P85_ADIN5 92 P74_CECAVL1B 93 P75_CECAVL1A 94 PF0 95 P76_CEC0 96 PE1 97 PE2 98 P63_SBO1 99 P64_SBI1 100 P40_TMIO0_SYSCLK L1100 J0JYC0000068 SUB9V STB3.3V SUB9V STB3.3V SUB5V SUB3.3V R1214 VJUMP1005-S R1181 VJUMP1005-S R1357 VJUMP1005-S R1179 VJUMP1005-S R1239 VJUMP1005-S R1256 VJUMP1005-S R1213 VJUMP1005-S R1146 VJUMP1005-S TP1100 TP1111 TP1103 TP1101 TP1102 TP1105 TP1104 TP1110 AG_ODU_DET/KEY3 AG_RMIN AG_SOUND_SOS AG_HDMI_5V_DET2 AG_HDMI_5V_DET1 STB_RST AG_HDMI_5V_DET4 AG_FAN_SOS AG_SOS AG_SRQ-GENX AG_RF_AFT1 AG_PANEL_READY AG_HDMI_5V_DET3 AG_KEY1(CON-PANE) IIC_SW AG_HPD1 AG_TV_SUB_ON AG_EDID_WP SD_PWR_CTRL AG_ECO_ON AG_HPD2 AG_ADV_XRST AG_SD_LED_ON PANEL_STBY/VCC_ON AG_SW_OFF_DET AG_DTV_XRST AG_HDMI_MUX_SEL AG_FAN_MAX AG_HDMI_REP_EN AG_SD_BOOT_STS AG_R_LED_ON AG_HPD3 AG_AUDIO_MUTE AG_AUDIO_XRST AG_DTV_VOUTENB AG_A_MON_MUTE/SP_MUTE AG_HDMI_MUX_EN AG_HPD4 SBI2 SBO2 DDCSDA1 SCL SDA AD_SCL3 AG_PANEL_ARARM DDCSCL0 AG_HDMI_CEC AG_BACK_VOUTENB AD_SDA3 DDCSCL1 DDCSDA0 R1200 4.7k R1157 47k R1237 1k *R1140 47k R1152 47k R1153 47k R1150 47k R1125 47k R1216 10k R1154 47k R1151 47k R1203 47k R1219 47k R1194 68k R1205 22 R1172 33k R1148 47k R1199 47k R1169 68k R1206 22 R1184 22 R1171 68k R1170 33k R1220 47k R1182 27k R1223 47k R1162 100 R1198 2.2k R1124 47k R1201 4.7k R1160 47k R1161 47k R1221 7.15k R1174 22 R1209 47k R1183 22 R1139 47k R1243 47k R1210 47k R1255 1k R1149 47k R1188 0 R1196 47k R1143 47k R1175 22 R1218 47k R1145 470 R1236 47k X1100 H0J100500035 R4327 47k LVDS Out IIC Lite2p ExBUS/Etc. GenX4 E2PROM LINE UART(LITE2p-GenX4) Power Supply CN to H Lite2 E2PROM LINE ADV7495 FAN_SOS SW_OFF_DET TV_SUB_ON HDMI_MUX_EN PANEL_STBY_ON DTV9V_SENSE PANEL_SOS AUDIO_XRST ODU_ON/GEMSTER_STBY_EN SOS 10MHz AUDIO_MUTE SBO HPD1 KEY1 PANEL_STATUS R_LED_ON SUB5V_SENSE (HDMI_CEC_PU_ON) RF_AFT1 PWM_POWER_ON RF_AFT2 EDID_WP ECO_ON AI_SENSOR HDMI_5V_Det2 SUB3.3V_SENSE FACT FAN_MAX SBI HPD3 MAIN3.3V_SENSE HDMI_5V_Det1 RSV4(LITE2) GenX5 RST HDMI_REP_EN (SD_LED_ON) HPD2 HQ_XRET SOUND_SOS ADV_XRST DTV_VOUTENB SRQ_GenX DTV_XRST SD_BOOT_STS A_MON_MUTE/SP_MUTE HDMI_MUX_SEL HDMI_5V_Det3 MAIN9V_SENSE CONFIG_DONE GenX-EEP_WP SYSCLK_OUT HQ1L/CN to HFD To D pri TVRP927 58 63 57 60 62 56 59 61 55 GenX5 STB MCU EEPROM ! GenX5,EEPROM to (4/12)(12/12) Power Supply to (12/12) to (10/12) to (9/12) to (10/12) to (3/12)(4/12) to (1/12) to (1/12) to (5/12)(12/12) to (6/12) to (6/12) to (6/12) to (12/12) to (6/12) to (12/12) to (5/12) to (5/12) to (4/12) to (11/12) to (12/12) to (6/12) to (6/12) to (4/12) to (6/12) to (8/12) to (3/12)(12/12) to (12/12) to (1/12) to (12/12) to (3/12) NO USE NO USE A-BOARD TNPH0721AFS (7/12) TH-50PZ80U A-Board (7/12) Schematic Diagram TH-50PZ80U A-Board (7/12) Schematic Diagram 56 11.14. A-Board (8/12) Schematic Diagram VOP19 MVCLK VOP9 VOP14 VOP29 VOP16 VOP17 VOP1 VOP15 VOP17 VOP6 VOP22 VOP21 VOP10 VOP18 VOP7 VOP11 VOP20 VOP9 VOP6 VOP26 VOP23 VOP10 VOP25 MVCLK VOP26 VOP0 VOP1 VOP20 VOP25 MHSYNC VOP18 ADIN VOP28 VOP22 VOP16 VOP11 VOP2 VOP21 VOP19 VOP24 VOP0 VOP15 VOP7 VOP8 VOP14 VOP24 MVSYNC VOP5 VOP23 VOP3 VOP5 VOP3 MVSYNC VOP29 VOP13 VOP27 VOP4 VOP28 VOP2 VOP12 VOP27 VOP4 VOP8 VOP12 VOP13 MHSYNC AG_BACK_VOUTENB ADIN AG_BACK_VOUTENB RB_E+ RB_E- RA_E+ RA_E- RCLK_E+ RCLK_E- RC_E+ RC_E- RD_E- RD_E+ RE_E- RE_E+ RC_O- RC_O+ RCLK_O- RCLK_O+ RB_O+ RB_O- RA_O+ RA_O- RE_O+ RE_O- RD_O+ RD_O- C4223 10u 6.3V C4207 16V 0.1u C4215 16V 0.1u C4205 16V 0.1u C4206 16V 0.1u 1000p 50V C4219 C4212 16V 0.1u C4208 16V 0.1u C4201 16V 0.1u C4200 16V 0.1u C4211 16V 0.1u C4202 16V 0.1u C4213 16V 0.1u C4204 16V 0.1u C4214 16V 0.1u C4210 16V 0.1u 1000p 50V C4216 C4221 10u 6.3V C4222 10u 6.3V C4203 16V 0.1u C4224 10u 6.3V FL4210 J0JAD0000028 1 2 3 4 FL4206 J0JAD0000028 1 2 3 4 FL4211 J0JAD0000028 1 2 3 4 FL4207 J0JAD0000028 1 2 3 4 FL4209 J0JAD0000028 1 2 3 4 FL4208 J0JAD0000028 1 2 3 4 C0ZBZ0001568 IC4200 1 B26/TD20 2 B27/TD21 3 VCC 4 GND 5 B28/TD22 6 B29/TD23 7 HSYNC1/TD24 8 VSYNC1/TD25 9 DE1/TD26 10 HSYNC2/TE20 11 VSYNC2/TE21 12 DE2/TE22 13 VCC 14 GND 15 CLKIN1 16 CLKIN2 17 CONT11/TE23 18 CONT12/TE24 19 CONT21/TE25 20 CONT22/TE26 21 R/F 22 RS 23 MODE3 24 MAP 25 MODE1 26 MODE0 27 MODE2 28 ASYNC 29 N/C 30 /PDWN 31 PRBS 32 Reserved 33 N/C 34 PGND 35 PVCC 36 PGND 37 LGND 38 TE2+ 39 TE2- 40 TD2+ 41 TD2- 42 LGND 43 LVCC 44 TCLK2+ 45 TCLK2- 46 TC2+ 47 TC2- 48 LGND 49 LVCC 50 TB2+ 51 TB2- 52 TA2+ 53 TA2- 54 LGND 55 LVCC 56 TE1+ 57 TE1- 58 TD1+ 59 TD1- 60 LGND 61 LVCC 62 TCLK1+ 63 TCLK1- 64 TC1+ 65 TC1- 66 LGND 67 LVCC 68 TB1+ 69 TB1- 70 TA1+ 71 TA1- 72 LGND 73 PGND 74 PVCC 75 PGND 76 R10/TA10 77 R11/TA11 78 R12/TA12 79 R13/TA13 80 R14/TA14 81 R15/TA15 82 VCC 83 GND 84 R16/TA16 85 R17/TB10 86 R18/TB11 87 R19/TB12 88 G10/TB13 89 G11/TB14 90 G12/TB15 91 G13/TB16 92 G14/TC10 93 VCC 94 GND 95 G15/TC11 96 G16/TC12 97 G17/TC13 98 G18/TC14 99 G19/TC15 100 B10/TC16 101 B11/TD10 102 B12/TD11 103 B13/TD12 104 VCC 105 GND 106 B14/TD13 107 B15/TD14 108 B16/TD15 109 N/C 110 B17/TD16 111 B18/TE10 112 B19/TE11 113 VCC 114 GND 115 R20/TE12 116 R21/TE13 117 R22/TE14 118 R23/TE15 119 R24/TE16 120 R25/TA20 121 R26/TA21 122 R27/TA22 123 R28/TA23 124 R29/TA24 125 VCC 126 GND 127 G20/TA25 128 G21/TA26 129 G22/TB20 130 G23/TB21 131 G24/TB22 132 G25/TB23 133 G26/TB24 134 G27/TB25 135 G28/TB26 136 G29/TC20 137 VCC 138 GND 139 B20/TC21 140 B21/TC22 141 B22/TC23 142 B23/TC24 143 B24/TC25 144 B25/TC26 A5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 L4201 J0JHC0000078 L4202 J0JHC0000078 L4600 J0JHC0000045 SUB3.3V TP4233 TP4219 TP4213 TP4231 TP4226 TP4228 TP4230 TP4223 TP4222 TP4229 TP4234 TP4215 TP4224 TP4218 TP4221 TP4225 TP4212 TP4216 TP4235 TP4227 TP4232 TP4220 TP4214 TP4217 TP4236 VOP12 VOP15 VOP29 VOP23 VOP25 MVCLK VOP22 VOP16 VOP9 VOP24 VOP21 VOP4 VOP13 VOP19 VOP7 VOP3 VOP6 VOP27 VOP8 VOP28 MHSYNC VOP0 VOP1 AG_BACK_VOUTENB VOP18 VOP5 VOP20 VOP26 VOP11 MVSYNC VOP10 VOP14 ADIN VOP17 VOP2 R4294 EXB28V470JX R4292 EXB28V470JX R4289 47 EXB28V470JX R4291 EXB28V470JX R4293 EXB28V470JX R4290 EXB28V470JX R4298 47 R4309 47k R4299 47 R4302 47 R4296 47 R4300 47 R4297 47 R4305 47 R4304 47 R4301 47 R4286 47k R4288 47k R4303 33 R4295 47 R4287 47k C4220 10u 6.3V LVDS-Tx GND GOE3 ROE2 PWMA GOE5 BOE6 BOE7 ROE3 ROE5 LOSD10 LOSD13 LOSD11 LOSD14 PWM5 RD_E- RCLK_E+ GND GND LVDS_DET ROE8 ROE6 ROE7 ROE9 GOE7 ROE4 GND Lite2p GOE9 PWM4 LOSD12 BOE3 BOE5 intPU after reset PWM6 BOE4 LOSD15 Hi-Z after reset GOE6 GOE8 GOE4 RC_O- RC_E- RB_O- RA_O+ RE_E+ RCLK_E- GenX5 OSDYS RB_E- RE_O- GND RD_O- RA_E+ RCLK_O+ RB-E+ RA_O- RC_0+ RB_O+ RE_O+ RA_E- RC_E+ BOE2 PWMSS RE_E- GND RD_E+ PWMANA RD_O+ BOE9 BOE8 GOE2 RCLK_O- 71 65 72 66 69 64 67 68 70 ! to (1/12) to (7/12) FPGA TO D-BOARD (D5) A-BOARD TNPH0721AFS (8/12) TH-50PZ80U A-Board (8/12) Schematic Diagram TH-50PZ80U A-Board (8/12) Schematic Diagram 57 11.15. A-Board (9/12) Schematic Diagram P P AG_HDMI_CEC AG_HDMI_5V_DET2 AG_HDMI_5V_DET1 AG_HDMI_5V_DET1 AG_HDMI_5V_DET3 AG_EDID_WP AG_HPD3 AG_HDMI_REP_EN RXC_CN RXC_CP RXC_0N RXC_0P RXC_1N RXC_1P RXC_2N RXC_2P DDCC_SCL DDCC_SDA RXA_CN RXA_CP RXA_0N RXA_0P RXA_1N RXA_1P RXA_2N RXB_CN RXB_0N RXB_1N AG_HPD1 AG_HPD2 RXB_2N DDCB_SDA RXA_2P RXB_CP RXB_0P RXB_1P RXB_2P DDCA_SDA DDCB_SCL DDCA_SCL C4500 0.1u 16V C4501 0.1u 16V D4542 MA2J11100L D4541 MA2J11100L D4502 EZAEG2A50AX D4508 EZAEG2A50AX D4514 EZAEG2A50AX D4519 EZAEG2A50AX D4523 EZAEG2A50AX D4520 EZAEG2A50AX D4516 EZAEG2A50AX D4511 EZAEG2A50AX D4510 EZAEG2A50AX D4517 EZAEG2A50AX D4503 EZAEG2A50AX D4509 EZAEG2A50AX D4504 EZAEG2A50AX D4505 EZAEG2A50AX D4522 EZAEG2A50AX D4521 EZAEG2A50AX D4507 EZAEG2A50AX D4506 EZAEG2A50AX D4512 EZAEG2A50AX D4518 EZAEG2A50AX D4515 MAZ30560ML D4513 MAZ30560ML A11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 JK4501 K1FY119D0003 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 JK4500 K1FY119D0003 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 L4504 J0JHC0000078 L4500 J0JHC0000078 L4507 J0JHC0000078 L4505 J0JHC0000078 L4502 J0JHC0000078 L4501 J0JHC0000078 L4503 J0JHC0000078 L4506 J0JHC0000078 SUB3.3V SUB5V SUB5V STB5V STB5V STB5V STB5V R4671 VJUMP1608-P R4667 VJUMP1608-P TP4500 TP4503 TP4501 TP4502 DDCSCL0 DDCSDA0 DDCSDA1 DDCSCL1 Q4523 2SD0601A0L Q4522 2SD0601A0L Q4502 2SD0601A0L Q4503 2SD0601A0L Q4530 2SB0709A0L Q4531 2SB0709A0L Q4528 2SB0709A0L Q4529 2SB0709A0L R4604 68 R4540 47k R4503 10k R4530 10k R4643 22 R4641 22 R4528 10k R4526 1k R4538 47k R4613 68 R4552 22 R4548 10k R4549 10k R4502 10k R4603 68 R4590 10k R4571 4.7k R4572 4.7k R4591 10k R4524 100k R4568 10k R4550 10k R4698 4.7k R4699 4.7k R4527 1k R4600 68 SCL CEC DDCG D2+ CLK+ N.C. SCL D2- D1G D1+ D0G D2G HPDT +5V D2G D0+ +5V CLKG N.C. D1G D0- DDCG CLK- D1- SDA CEC HPDT D1- SDA CLK- D1+ D2- D0G D0+ CLK+ D2+ CLKG D0- GenX5 HDMI1 HDMI2 HDMI_CE1 CEC SCL WP CLK- D1+ D0+ Main5V HPD3 DDC5V D2- CLK+ D1- D0- SDA Main2_3.3V Main2_3.3V D2+ HDMI_5V_DET3 GND GND GND GND GND GND HDMI_CE1 GND GND GND GND GND 80 81 76 74 79 73 75 77 78 TO GH-BOARD (GH11) ! ADV7495,HDMI-Mux 11 12 13 14 to (7/12) to (7/12) GenX5 A-BOARD TNPH0721AFS (9/12) TH-50PZ80U A-Board (9/12) Schematic Diagram TH-50PZ80U A-Board (9/12) Schematic Diagram 58 11.16. A-Board (10/12) Schematic Diagram + + + S S S S S S S S S MAIN_Y/CVBS VI1P15 HDMI_LRCK RXB_0N RXA_0P VI1P19 VI1CLK RXB_1N DDCA_SCL VI1P19 VI1P2 RXC_CN VI1P23 VI1P6 AG_HPD2 VI1P27 VI1P7 RXA_1P MAIN_PB/C VI1P7 VI1P8 HDMI_BCLK RXB_2N RXB_1P VI1P25 RXB_0P VI1P22 AG_HPD1 RXB_CP VI1P23 VI1P14 VI1P10 VI1P11 VI1ENB CLKOA VI1VSYNC VI1P5 MAIN_PR VI1P9 DDCB_SCL VI1P2 VI1P4 VI1P24 RXC_2P VI1P14 VI1P18 AG_HDMI_REP_EN VI1P10 VI1CLK2 RXC_1N VI1P26 VI1P17 VI1P6 AG_EDID_WP VI1VSYNC VI1P16 VI1P0 AG_HDMI_5V_DET2 RXC_1P VI1P16 VI1P21 RXC_0N VI1P3 VI1P17 AG_HPD3 DDCB_SDA HDMI_SPDIF CLKOA MAIN_PR MAIN_PB/C VI1P0 RXA_1N VI1P22 VI1HSYNC RXA_2P XIRQ3 VI1CLK2 VI1ENB RXB_CN VI1P24 RXA_0N DDCA_SDA AG_HDMI_CEC VI1P3 VI1CLK VI1P13 RXC_2N VI1P29 VI1P21 VI1P28 VI1P26 VI1P15 VI1P5 RXC_CP RXC_0P VI1P12 AG_HDMI_5V_DET1 RGB_CVBS RXA_CN VI1P13 VI1P25 VI1P29 RXA_2N VI1P18 RXA_CP VI1P12 VI1P8 RGB_CVBS VI1P11 VI1HSYNC VI1P9 RXB_2P AG_HDMI_5V_DET3 VI1P4 AG_ADV_XRST VI1P28 VI1P27 PC_HS PC_VS PC_VS PC_HS AG_ADV_XRST XIRQ3 DDCC_SCL MCLK DDCC_SDA MAIN_Y/CVBS HDMI_SDIN MCLK C4596 16V 0.1u C4549 16V 0.1u C4535 16V 0.1u C4580 25V 0.01u C4644 16V 0.1u C4614 16V 0.1u C4598 1u 10V C4595 25V 0.01u C4550 16V 0.1u C4616 10u 10V C4574 25V 0.01u C4642 1u 10V C4612 25V 0.01u C4619 16V 0.1u C4608 16V 0.1u C4625 16V 0.1u C4547 16V 0.1u C4605 1u 10V C4533 50V 68p C4632 1u 10V C4638 1u 10V C4628 16V 0.1u C4645 16V 0.1u C4643 16V 0.1u C4646 16V 0.1u C4602 16V 0.1u C4630 16V 0.1u C4636 1u 10V C4551 16V 0.1u C4575 1u 10V C4634 1u 10V C4613 1u 10V C4617 10u 10V C4607 10u 10V C4534 16V 0.1u C4548 16V 0.1u C4640 1u 10V C4624 16V 0.1u C4600 16V 0.1u C4606 10u 10V C4585 1u 10V C4552 16V 0.1u C4553 50V 1000p C4604 470p 50V C4603 2.2u 6.3V C4555 10V 10u C4601 47u 6.3V C4599 47u 6.3V C4554 16V 47u C0DBGYY00477 IC4513 1 CE 2 GND 3 NC 5 VOUT 4 VDD C0DBGYY00477 IC4512 1 CE 2 GND 3 NC 5 VOUT 4 VDD C0CBCBE00001 IC4511 1 VOUT 2 NC 3 GND 4 CN CONT 5 SUB 6 VIN 7 C1AB00002901 IC4510 1 CVDD 2 GND 3 DVDD 4 SPDIF 5 CLK_24.576 6 SCLK 7 LRCLK 8 I2S0 9 SDATA 10 SCL 11 GND 12 DVDDIO 13 DE 14 HS 15 VS/FIELD 16 INT1 17 SFL/SYNC_OUT/INT2 18 GND 19 DVDD 20 P0 21 P1 22 P2 23 P3 24 P4 25 P5 26 P6 27 P7 28 P8 29 P9 30 P10 31 P11 32 GND 33 DVDDIO 34 P12 35 P13 36 P14 37 P15 38 P16 39 P17 40 P18 41 P19 42 P20 43 P21 44 P22 45 P23 46 P24 47 P25 48 P26 49 P27 50 DCLKIN 51 GND 52 DVDDIO 53 LLC 54 TRIGIN/P28 55 SRL_UP/P29 56 GND 57 DVDD 58 SRL_IN/P30 59 R_ACTIVE/P31 60 P32 61 P33 62 P34 63 P35 64 RESETB 65 HS_IN 66 VS_IN 67 FB 68 AGND 69 SYNC2 70 NC 71 AIN4 72 AIN5 73 AIN6 74 NC 75 AVDD 76 AGND 77 NC 78 AIN9 79 NC 80 AGND 81 AVDD 82 REF2 83 REF1 84 AGND 85 AVDD 86 GND 87 PVDD 88 XTAL1 89 XTAL 90 PVDD 91 GND 92 CVDD 93 GND 94 TVDD 95 RxA_C- 96 RxA_C+ 97 GND 98 RxA_0- 99 RxA_0+ 100 GND 101 RxA_1- 102 RxA_1+ 103 GND 104 RxA_2- 105 RxA_2+ 106 DDCA_SCL 107 DDCA_SDA 108 TVDD 109 CVDD 110 GND 111 DDCB_SCL 112 DDCB_SDA 113 TVDD 114 RxB_C- 115 RxB_C+ 116 GND 117 RxB_0- 118 RxB_0+ 119 GND 120 RxB_1- 121 RxB_1+ 122 GND 123 RxB_2- 124 RxB_2+ 125 TVDD 126 RTERM 127 CVDD 128 GND 129 TVDD 130 RxC_C- 131 RxC_C+ 132 GND 133 RxC_0- 134 RxC_0+ 135 GND 136 RxC_1- 137 RxC_1+ 138 GND 139 RxC_2- 140 RxC_2+ 141 TVDD 142 DDCC_SCL 143 DDCC_SDA 144 GND L4512 J0JCC0000241 L4514 J0JYC0000068 L4515 J0JYC0000068 L4511 J0JHC0000078 L4516 J0JYC0000068 L4513 J0JCC0000241 L4519 J0JYC0000068 L4517 J0JYC0000068 L4518 J0JYC0000068 SUB3.3V SUB5V SUB9V R4656 VJUMP1005-S R4644 VJUMP1005-S R4628 VJUMP1005-S R4657 VJUMP1005-S R4658 VJUMP1005-S R4659 VJUMP1005-S R4672 VJUMP1005-S R4629 VJUMP1005-S R4673 VJUMP1005-S TP4512 TP4519 MAIN_PR MAIN_Y/CVBS PC_HS PC_VS MAIN_PB/C RGB_CVBS AG_HDMI_5V_DET4 HDMI_LRCK AG_HDMI_MUX_EN HDMI_BCLK HDMI_INT2 HDMI_SDIN AG_HDMI_MUX_SEL HDMI_SPDIF AG_HPD4 VI1P19 VI1P21 VI1P10 AD_SCL1 VI1P13 AG_HDMI_REP_EN VI1P14 AG_HPD3 AG_HPD1 AG_ADV_XRST VI1P9 VI1P17 VI1CKOUT VI1P27 VI1P4 VI1P7 AG_HDMI_5V_DET2 VI1P6 MCLK VI1P5 VI1P29 VI1P25 VI1VSYNC VI1P26 VI1P24 VI1P2 VI1ENB AG_EDID_WP VI1P15 VI1P16 VI1P28 AG_HDMI_CEC VI1P8 VI1CLK2 VI1P1 AG_HDMI_5V_DET3 VI1P22 AG_HPD2 VI1P18 VI1P12 VI1P23 VI1CLK AD_SDA1 VI1HSYNC AG_HDMI_5V_DET1 VI1P0 VI1P11 XIRQ3 VI1P3 Q4517 2SB0709ASL Q4515 2SB0709ASL Q4516 2SB0709ASL Q4514 2SB0709ASL R4649 EXB28V680JX R4635 EXB28V680JX R4679 EXB28V680JX R4678 EXB28V680JX R4648 EXB28V330JX R4640 EXB28V680JX R4639 EXB28V680JX R4587 604 R4627 220 R4651 68 R4626 220 R4597 1k R4636 68 R4631 499 R4609 68 R4650 68 R4637 68 *R4632 0 *R4630 0 R4638 68 R4704 47k R4705 47k R4706 47k R4703 47k R4701 47k R4700 47k R4702 47k R4625 10k R4593 2.2k R4624 10k R4615 0 R4601 1k R4588 806 R4666 47k R4606 9.1k R4646 68 R4622 0 R4610 68 R4670 68 R4598 1k R4596 1k R4620 0 R4645 68 R4634 220 R4652 47k R4592 806 R4665 47k R4611 5.6k R4589 806 B8/CbCr8 CVDD 1.8V RX_WS PVDD 1.8V RX_SCK R4 R6 G9/Y9 G0/Y0 GenX5 R2 Cb1,Cr1 B3/CbCr3 DVDDIO 3.3V VI1P11 VI1P0 Y1 CVDD 1.8V Peaks Lite IIp DVDD 1.8V R5 R7 Peaks Lite IIp R1 VI1HSYNC PVDD 1.8V PR TVDD 3.3V G6/Y6 R2 Cb8,Cr8 B5/CbCr5 Cb0,Cr0 B1/CbCr1 Cb5,Cr5 R1 VSIA G0/Y0 CN_to_H R0 R8 CLKIA AVDD 1.8V VI1ENB VI1P20 R3 G4/Y4 R1 VI1VSYNC Cb4,Cr4 G7/Y7 Cb7,Cr7 G2/Y2 AVDD 1.8V Y0 VI1P10 Cb9,Cr9 CLKOA R0 CVDD 1.8V R0 DVDD 1.8V B0/CbCr0 DTV G1/Y1 B0/CbCr0 B7/CbCr7 Cb2,Cr2 G8/Y8 VI1P1 Cb3,Cr3 AUDIO G3/Y3 B9/CbCr9 G5/Y5 R9 B2/CbCr2 R3 B1/CbCr1 RX_SD0# Cb6,Cr6 PB/C DVDDIO 3.3V B6/CbCr6 B4/CbCr4 G1/Y1 YIN VI1P21 HSIA 85 88 84 86 89 83 82 87 90 AVR 1.8V AVR 1.8V AVR 3.3V 10bit A/D HDMI I/F RECEIVER ! ADV7495,HDMI-Mux A-BOARD TNPH0721AFS (10/12) to (7/12) to (1/12) to (1/12) to (5/12) to (5/12) to (3/12)(12/12) 13 12 11 14 TH-50PZ80U A-Board (10/12) Schematic Diagram TH-50PZ80U A-Board (10/12) Schematic Diagram 59 11.17. A-Board (11/12) Schematic Diagram + + + Thermal Pad S S S S IF_Monitor 18 AD_SCL2 RF_V FE_SDA_TU CH0VAL RF_V AG_RF_AFT1 XIRQ2 FA_IF_AGC CH0VAL RF_L 5V_+B AD_SDA2 CH0CLK FE_SDA_TU CH0PSYNC FA_IF_AGC AD_SCL2 5V_VB FA_FAT_P CH0DATA AG_RF_AFT1 BT30V AD_SDA2 RF_R FE_SCL_TU CH0DATA CH0CLK XECS6 CH0PSYNC VIDEO_OUT 3.3V_D FE_SCL_TU FA_FAT_N FA_FAT_P XIRQ2 XECS6 FA_FAT_N RF_L RF_R VIDEO_OUT C8378 16V 0.01u C8305 50V 220p C8364 16V 0.1u C8354 16V 0.1u C8321 16V 0.01u C8302 16V 0.1u C8377 16V 0.1u C8380 50V 0.01u C8316 50V 12p C8337 16V 0.1u C8379 16V 0.1u C8332 16V 0.1u C8338 16V 0.1u C8374 10V 10u C8334 16V 0.1u C8339 16V 0.1u C8376 16V 0.01u C8320 50V 22p C8361 16V 0.1u C8347 16V 0.1u C8365 16V 0.1u C8326 16V 0.1u C8372 10V 10u C8352 16V 0.1u C8358 10u 10V C8343 16V 0.1u C8360 16V 0.1u C8324 50V 12p C8366 16V 0.1u C8367 16V 0.1u C8327 16V 0.1u C8301 50V 1000p C8341 16V 0.1u C8353 16V 0.1u C8318 50V 100p C8314 50V 27p 0.1u 50V C8371 C8368 16V 0.1u C8359 10u 10V C8362 16V 0.1u C8355 6.3V 1u C8325 16V 0.1u C8345 16V 0.1u C8351 16V 0.1u C8350 16V 0.1u C8381 16V 0.1u C8336 10u 10V C8322 16V 0.01u C8370 50V 1000p C8348 16V 0.1u C8349 16V 0.1u C8363 16V 0.1u C8307 16V 0.1u C8369 10u 10V C8375 10V 10u C8315 50V 12p C8313 50V 1000p C8335 16V 0.1u C8333 16V 0.1u C8319 50V 100p C8357 10u 10V C8340 16V 0.1u C8328 16V 0.1u C8382 16V 0.01u C8373 16V 0.1u C8330 16V 0.1u C8317 50V 27p C8304 50V 220p C8303 50V 0.01u C8342 16V 0.1u C8323 50V 12p C8346 16V 0.01u C8331 16V 0.1u C8386 1000p 50V C8387 1000p 50V C8312 6.3V 220u C8311 35V 22u C8310 6.3V 220u MN884350 IC8300 1 NC0 2 NC1 3 NC2 4 NC3 5 NC4 6 NC5 7 VDDA0 8 VSSA0 9 VSSA1 10 VDDL0 11 VSS0 12 NC6 13 VDDA1 14 VSSA2 15 NC7 16 NC8 17 VDDA2 18 VSSA3 19 OPN0 20 VDDA3 21 VDDL1 22 VSS1 23 VDDL2 24 XO 25 XI 26 VSS2 27 IBADIRF 28 VSSA4 29 VDDA4 30 VSSA5 31 VDDA5 32 IBAINP 33 NC9 34 IBAINN 35 NC10 36 IBADCMO 37 IBADVRL 38 NC11 39 IBADVRL2 40 IBADVRH2 41 IBADVRH 42 SADR0 43 IBMSDA 44 IBMSCL 45 VDDH0 46 GPIO0 47 GPIO1 48 VSS3 49 IBAGCIF 50 VDDL3 51 IBAGCRF 52 VSS4 53 GPIO2 54 SADR1 55 VSS5 56 NRST 57 VDDL4 58 GPIO3 59 VSS6 60 GPIO4 61 VDDH1 62 GPIO5 63 VSS7 64 GPIO6 65 VDDL5 66 GPIO7 67 FIXL0 68 VSS8 69 FIXL1 70 FIXL2 71 FIXL3 72 NC12 73 NC13 74 NC14 75 VDDL6 76 IBFSYNC 77 IBERR 78 OPN1 79 VSS9 80 VDDH2 81 OPN2 82 OPN3 83 VSS10 84 VDDL7 85 OPN4 86 OPN5 87 VSS11 88 VDDH3 89 OPN6 90 OPN7 91 VSS12 92 VDDH4 93 IBPCK 94 IBDEN 95 IBSDO 96 VSS13 97 VDDL8 98 IBSCK 99 VSS14 100 VDDH5 101 OPN8 102 OPN9 103 VSS15 104 VDDL9 105 NC15 106 INT 107 NC16 108 OPN10 109 OPN11 110 NC17 111 TRST 112 NC18 113 FIXL4 114 OPN12 115 VSS16 116 VDDL10 117 SCL 118 SDA 119 VSS17 120 VDDH6 121 GPIO8 122 VSS18 123 GPIO9 124 VDDL11 125 OPN13 126 VSS19 127 OPN14 128 VDDH7 129 GPIO10 130 GPIO11 131 VSS20 132 FIXL5 133 FIXL6 134 CSEL0 135 CSEL1 136 GPIO12 137 VDDL12 138 VSSA6 139 FIXLA0 140 FIXHA0 141 FIXLA1 142 VDDA6 143 NC19 144 NC20 L8303 J0JHC0000045 L8302 J0JHC0000045 L8310 J0JHC0000045 L8309 J0JHC0000045 L8307 J0JHC0000045 L8308 J0JHC0000045 L8301 J0JHC0000045 L8311 G1CR39JA0020 L8304 G1CR22JA0020 L8305 G1CR22JA0020 L8306 G1CR39JA0020 L8312 G1CR39JA0020 BT30V BT30V SUB1.2V SUB5V SUB3.3V SUB3.3V SUB3.3V SUB1.2V SUB5V SUB3.3V SUB5V R8332 VJUMP1005-S R8301 VJUMP1005-S R8337 VJUMP1005-S R8300 VJUMP1005-S TP8302 TP8301 TP8300 TP8303 XECS6 AD_SCL2 RF_R RF_V AG_RF_AFT1 RF_L XIRQ2 CH0PSYNC CH0VAL CH0CLK AD_SDA2 CH0DATA Q8300 2SB0709ASL R8308 5.6k R8302 47 R8316 10k R8315 1k R8334 47k R8327 47 R8313 1k R8306 100 R8324 47 R8303 47 R8320 22 R8305 100 R8309 220 R8307 5.6k R8311 220 R8319 22 R8331 0 R8336 0 R8325 47 R8314 12k R8326 47 R8317 10k R8335 68 R8304 0 R8323 100 R8321 10k R8318 22 R8333 47k TU8300 ENGE6608KF NC 1 NC 2 NC 3 L-out 4 R-out 5 RF-AGC_Monitor 7 Video-out 8 VB 9 BT_Monitor 11 BTL 12 SDA 14 SCL 15 AFT-out 16 +B 17 IF-AGC 19 IFD-out1 20 IFD-out2 21 H0J250500079 X8300 FrontEnd ANALOG TS I2C, RESET, IRQ IF_OUT_N ANALOG IF_OUT_P 25MHz FE_XRST FE_XRST 96 91 99 94 92 97 95 93 98 TUNER (TERRESTRIAL RECEIVER) FRONT END PROCESSOR ! LiteII to (1/12) to (1/12) to (1/12) to (3/12)(5/12)(12/12) to (5/12) to (7/15) A-BOARD TNPH0721AFS (11/12) ! TH-50PZ80U A-Board (11/12) Schematic Diagram TH-50PZ80U A-Board (11/12) Schematic Diagram 60 11.18. A-Board (12/12) Schematic Diagram + + S S S S S AD_SDA3 AD_SCL3 AD_SDA2 AD_SCL2 AD_SDA1 AD_SCL1 SCL SDA AG_PANEL_STBY/VCC_ON AG_PANEL_READY AG_PANEL_ARARM AG_PANEL_ARARM AD_SDA0 AD_SCL0 D_IIC_CONT VI2P20 AG_PANEL_STBY/VCC_ON D_TXD D_RXD D_IIC_CONT VI2P20 AMP_MUTE A_MON_MUTE STB_RST AG_AUDIO_MUTE D_TXD D_RXD AD_SCL0 AD_SDA0 AD_SCL1 AD_SDA1 AD_SCL2 AD_SDA2 SCL SDA AD_SCL3 AD_SDA3 AR_PANEL_SCL AR_PANEL_SDA SDA SCL A_SCL0 AD_SCL0 AD_SDA0 AD_SDA1 AD_SCL1 D_IIC_CONT AR_PANEL_SDA AR_PANEL_SCL AG_A_MON_MUTE/SP_MUTE AG_PANEL_READY C4797 50V 1000p C4796 50V 1000p C4755 16V 0.1u C4718 50V 1000p C4771 50V 1000p C4762 50V 0.01u C4711 16V 0.1u C4751 16V 0.1u C4779 16V 0.1u C4761 50V 0.01u C4772 16V 0.1u C4721 16V 0.1u C4712 16V 0.1u C4753 16V 0.1u C4742 16V 0.1u C4703 50V 1000p C4716 50V 1000p C4701 50V 1000p C4727 16V 0.1u C4795 50V 1000p C4728 16V 0.1u C4752 16V 0.1u C4726 16V 0.1u C4725 16V 0.1u C4798 50V 1000p C4775 16V 0.1u C4746 50V 1000p C4713 50V 1000p C4724 50V 1000p C4778 16V 0.1u C4702 16V 0.1u C4705 16V 0.1u C4763 50V 0.01u C4741 50V 1000p C4715 16V 0.1u C4776 50V 1000p C4722 50V 1000p C4717 50V 1000p C4744 16V 0.1u C4743 50V 1000p C4754 16V 0.1u C4719 50V 1000p C4714 50V 1000p C4777 16V 0.1u C4704 16V 0.1u C4774 16V 0.1u C4773 50V 1000p C4745 16V 0.1u C4830 16V 0.1u C4083 0.47u 50V C4086 0.47u 50V C4082 10u 16V C4090 180p 50V C4096 10V 1u C4084 0.47u 50V C4089 16V 0.1u C4087 0.47u 50V C4091 16V 0.1u C4095 2.2u 6.3V C4093 50V 1000p C4098 10V 1u C4085 0.47u 50V C4094 16V 0.1u C4101 16V 0.1u C4081 10V 220u C4092 35V 22u D4004 MA2J11100L D4000 MA2J11100L D4005 MA2J11100L D4010 MA22D3900L D4009 MA2J11100L D4002 MA2J11100L D4006 MA3X78900L D4007 B0BC03900015 IC4800 C1ZBZ0003775 1 SDA 2 SCL 3 ALERT 4 GND 5 A2 6 A1 7 A0 8 V+ IC4013 C0JBAZ002060 1 1OE 2 1A 3 1B 4 2OE 5 2A 6 2B 7 GND 8 3B 9 3A 10 3OE 11 4B 12 4A 13 4OE 14 VCC C1AB00002877 IC4000 1 DTV5VIN2 2 DTV5VIN1A 3 DTV5VIN1B 4 DTV5VOUTA 5 DTV5VOUTB 6 REF1 7 NC 8 FB1 9 FB2 10 NC 11 SFS 12 NC 13 OUT 14 GND1 15 Vref1 16 STB_RST 17 Cd 18 STB3.3V_OUT 19 REG5V_IN 20 GND2 21 MONITOR_MUTE 22 MUTE_PWR_ SENSE_IN 23 AUDIO_MUTE_IN 24 MUTE_VCC 25 PWR_SENSE_ MUTE_OUT 26 STB_RST_IN 27 A_MON_ MUTE_IN 28 AMUTE 29 MAIN9V 30 STB5V A18 1 2 3 4 5 6 7 8 9 10 11 A3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 A17 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 L4002 J0JYC0000068 L4000 G1C470MA0291 L4001 G1C100MA0072 STB3.3V BT30V SUB5V SUB5V STB5V SUB9V SUB3.3V STB5V STB3.3V STB3.3V SUB9V SUB3.3V STB5V SUB5V STB5V SUB9V STB5V STB3.3V STB5V BT30V R4750 VJUMP1005-S R4819 VJUMP1005-S R4820 VJUMP1005-S R4751 VJUMP1005-S R4151 VJUMP1608-S ZA4704 K4AZ01D00004 ZA4707 K4AZ01D00004 ZA4703 K4AZ01D00004 ZA4700 K4AZ01D00004 ZA4706 K4AZ01D00004 ZA4705 K4AZ01D00004 ZA4708 K4AZ01D00004 ZA4702 K4AZ01D00004 TP4701 TP8530 TP8504 TP8505 TP8521 TP8522 TP8523 TP8524 TP8526 TP8525 TP8527 TP8528 TP8529 TP4006 TP4105 TP8501 TP8503 TP8500 TP4700 TP4007 AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE PANEL_STBY/VCC_ON STB_RST AG_PANEL_ARARM AG_SRQ-GENX A_MON_MUTE AMP_MUTE VI2P20 AG_PANEL_READY AD_SCL3 AD_SDA2 SCL IIC_SW AD_SCL2 AD_SCL1 A_SDA0 AD_SDA3 SBI0 SBO0 SDA AD_SDA1 Q4016 B1CFNG000001 Q4014 2SD0601A0L Q4015 2SD0601A0L Q4017 2SD0601ASL JS4021 0 R4129 22 R4122 68 R2310 10k R4113 680 R4158 15k R4139 22 R4133 22 R4138 22 R4131 22 R4132 22 R4127 22 R4140 22 R4112 330 R4740 100k R4125 22 R4130 22 R4737 1k R4128 22 R4123 22 R4124 22 R4126 22 R4170 22 R4171 22 R4162 100k R4741 1k R4738 1k R4166 10k R4739 100k R4167 47k R4155 10k R4116 3.4k R4821 10k R4153 47k R4117 4.7k R4115 100k R4736 100 GenX5 IIC GenX4 Genx5 SRQ1 STB5V GND AF Lite2 SCL3 Lite2 SDA3 GenX SDA1 GenX SCL1 PANEL SCL PANEL SDA GenX4 EEPROM WRITE LiteII EEPROM WRITE C1 C3 C7 C9 TOP SIDE GENX6 SRQ LITE2_SCL0 STB3.3V LITE2_SCL2 Panel_TXD Panel_RXD SBI0_LITE2 (Diag Control) SBO0_LITE2 (Diag Control) IIC_CONT/SRQ (Device Control) LITE2_SDA2 (Device Control) (Device Control) (Device Control) (Device Control) LITE2_SCL1 LITE2_SDA1 IIC_CONT STB5V LITE2_SDA0 (Device Control) GND PANEL REM_CON PANEL LED INEXCH MUTE OPERATE MUTE MUTE MUTE MUTE C2 C4 C5 C6 C8 GenX4 PANEL SDA PANEL SCL 105 100 107 108 103 104 101 106 102 C1 C6 C8 C4 C5 C3 C7 C9 SERIAL SW TEMP SENSOR FOR FACTORY USE FOR FACTORY USE ANALOG ASIC STB3.3V STB_RESET ! CONNECTOR to (7/12) to (7/12) to (1/12) to (5/12)(7/12) to (7/12) to (6/12) to (6/15) to (4/12)(7/12) to (1/12) to (7/12) to (3/12)(7/12) to (3/12)(5/12)(11/12) to (7/12) to (3/12)(10/12) to (3/12) GND RXD GND TXD IIC_CONT GND ALARM READY IIC_CLK1 IIC_DATA1 DISPEN IIC_CLK2 IIC_DATA2 PANEL_STBY_ON TO D-BOARD (D3) A-BOARD TNPH0721AFS (12/12) TH-50PZ80U A-Board (12/12) Schematic Diagram TH-50PZ80U A-Board (12/12) Schematic Diagram 61 11.19. D-Board (1/6) Schematic Diagram + + + G G G G G G TERM SIDE FP_CSL SC_CSL SC_SID SC_SCSU SC_CLK FP_SCSU FP_CMH SC_CERS SC_CPH1 SC_OC2 SC_SIU FP_CSH FP_OC2 SC_CML SC_CSH SC_CMH SC_CSH FP_CML SC_CMH SC_CLK SC_SIU SC_OC2 FP_SID SC_CML SC_SID SC_CEL FP_CPH1 SC_CSL SC_CPH1 FP_SIU SC_SCSU P_ON/OFF SC_OC1 SC_CPH2 SC_OC1 SC_CPH2 FP_OC1 FP_CPH2 VDATA_DET FP_CLK SC_CQR SC_CEL SC_CQR FP_SC_DRV_RST FP_CERS FP_OC2B FP_CQR FP_CEL SC_OC2B SC_DRV_RST SC_CERS SC_OC2B SC_DRV_RST SOS6_SC1 SOS7_SC2 SOS4_PS SC_CQR5 PANEL_MAIN_ON FP_CQR4 FP_CQR5 FP_SC3 SC_CQR4 SC_CQR5 SC_CQR4 C9881 0.01u 25V C9867 10u 25V C9823 10u 25V C9884 1000p 50V C9869 10u 25V C9864 0.1u 25V C9860 4.7u 6.3V C9885 1000p 50V C9887 0.1u 25V C9837 10u 10V C9840 25V 0.01u C9872 10u 25V C9877 68p 50V C9861 0.1u 25V C9883 100p 50V C9841 16V 0.1u C9842 16V 0.1u C9874 68p 50V C9846 16V 0.1u C9832 10u 10V C9886 0.1u 25V C9859 25V 0.01u C9863 4.7u 6.3V C9870 10u 25V C9871 10u 25V C9878 0.01u 25V C9868 10u 25V C9858 10u 25V C9844 25V 0.01u C9845 16V 0.1u C9862 0.1u 25V C9168 16V 0.1u C9879 0.015u 16V C9882 8200p 16V C9880 8200p 16V C9888 360p 50V C9865 68u 4V C9873 68u 4V C9866 68u 4V D9813 B0JCGD000002 D9807 B0JCCE000008 D9816 MA22D3900L D9815 B0JCGD000002 D9808 B0JCCE000008 D9817 MA22D3900L D9814 B0JCGD000002 D9812 MA22D3900L F1J1E104A148 FL9806 F1J1E104A148 FL9803 F1J1E104A148 FL9805 C0JBAZ002692 IC9802 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC9803 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC9019 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0DBAYY00273 IC9806 1 GND 2 REFIN 3 VREF 4 CS 5 COVP 6 CUVP 7 PGOOD 8 CTL 9 LSAT 10 ILIM 11 +INC 12 -INC 13 FSW 14 PGND 15 OUT-2 16 VB 17 VCC 18 VBIN 19 LX 20 OUT-1 21 CB 22 RT 23 VO 24 FB C0DBAYY00274 IC9805 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP D20 23 29 30 2 12 5 33 14 32 20 28 26 4 9 11 19 22 21 25 8 13 6 31 17 10 34 24 18 1 7 27 16 15 3 35 D25 1 2 3 4 5 6 7 8 9 10 11 12 13 L9802 G1C2R2Z00007 L9800 G1C2R2Z00007 L9801 G1C1R5Z00006 P5V P3.3V P15V P5V P5V P2.5V P15V VB1_5V P15V VB1_5V P3.3V P15V_MOTO P15V STB5V_M P1.2V P15V VB1_5V P15V_MOTO P5V P5V PA9800 K5H4022A0031 PA9900 K5H5022A0031 Q9807 B1MBDDA00003 S1 G1 S2 G2 D2 D2 D1 D1 Q9808 B1MBDDA00015 S1 G1 S2 G2 D2 D2 D1 D1 Q9809 B1MBDDA00003 1 S1 2 G1 3 S2 4 G2 5 D2 6 D2 7 D1 8 D1 Q9806 2SD0601A0L Q9805 2SD0601A0L R9120 EXB2HV103JV R9847 EXB2HV103JV R9848 EXB2HV470JV R9849 EXB2HV470JV R9846 EXB2HV103JV R9350 100 R9351 100 R9116 100 R9887 51k R9890 47.5k R9892 100k R9868 100k R9888 15k R9886 47k R9197 47 R9202 47 R9895 100k R9115 100 R9889 18.2k R9893 43k R9896 18.2k R9897 47.5k R9891 12.7k R9126 100 R9870 10k R9894 20k R9232 47 R9871 10k R9900 0 R9869 10k R9879 13k R9878 15k TP9003 TP9004 STBY5V GND GND +15V +15V GND GND +5V +5V GND VDATA_DET PANEL_MAIN_ON SOS4_PS P5V OC1(CL) CPH2 GND GND GND OC2B GND GND GND CLK SIU SID SCSU OC2(CEL2) CPH1 CQR SOS6_SC1 SOS7_SC2 CEL CERS SC_DRV_RST CSL CSH CML CMH NC +15V +15V +15V GND NC CQR4 CQR5 NC F 5 A E 9 6 8 7 3 D C 1 4 2 B 15V->1.2V DC-DC CONVERTER DC-DC CONVERTER 15V->2.5V LEVEL CONVERTER LEVEL CONVERTER LEVEL CONVERTER 15V->5V TO SC-BOARD (SC20) TO P-BOARD (P25) 1 2 ! D-BOARD TNPA4439AJS (1/6) 15V->3.3V TH-50PZ80U D-Board (1/6) Schematic Diagram TH-50PZ80U D-Board (1/6) Schematic Diagram 62 11.20. D-Board (2/6) Schematic Diagram PANEL_STBY_ON STB_SCL02 STB_SDA02 IIC_CONT AR_IIC_CONT AR_RXD_PC AR_TXD_PC AR_STB_SDA02 AR_STB_SCL02 TRST AR_RXD_PC RXD_PC TXD_PC STB_SCL02 AR_STB_SCL02 STB_SDA02 AR_STB_SDA02 P3V_SCL1 ALARM READY AR_TXD_PC STB_SCL01 STB_SDA01 STB_SCL02 STB_SDA02 P3V_SCL02 P3V_SDA02 DRVMUTE P3V_SCL1 P3V_SDA1 P3V_SDA1 P3V_SCL1 AR_TXD_PC AR_STB_SDA02 FP_UEH FP_OC2B FP_CQR FP_CEL FP_OC2 FP_CERS FP_CLK FP_SC_DRV_RST FP_CSL FP_CPH1 FP_CSH FP_CML TMS FP_CMH FVSEL FP_SIU FP_OC1 FP_SCSU FP_SID DD_ODED FP_CPH2 DD_PCD2 FP_NUEL FP_UMH FP_UML FP_USH FP_USL CLKMO FPCLK TMS TCK AR_RXD_PC STB_SDA01 STB_SDA02 STB_SCL01 STB_SCL02 VDATA_DET INEXCH MCCLK REM_IN OSDVO RXD_PC ALARM OSDHO TXD_PC SOS6_SC1 FPGANRST LED_G LED_R OSDCKO DRVRST OSD_YS IIC_CONT SOS8_SS OSD_B IIC_CONT OSD_G XI_DONE OSD_R SOS7_SC2 P_ON/OFF FVSEL DMLL DMHL DSHL SFRST SFVRST SFLATCH FPDAT1 DD_PCU2 DD_CLRU DD_PCU1 DD_LEU DD_ODEU DRVMUTE DRVRST OSDVO_FP XRST FPGANRST P3V_SCL02 DD_CLRD DD_PCD1 DD_LED TDI_L TDO TCK TDO FCCLK SFVRST XI_PROG_B SFRST SIN PROG_M PANEL_MAIN_ON DSLR EEP_WR_CTL AR_IIC_CONT FPDAT0 XRST XRST REM_IN IIC_SW OSDHO_FP PANEL_STBY_ON P3V_SDA02 DSLL FP_CQR4 FP_CQR5 FP_SC3 AR_IIC_CONT LED_G LED_R P3V_SDA1 P3V_SCL02 AR_STB_SCL02 READY EEP_WR_CTL IIC_SW SOS4_PS XI_DONE TDI_FP XRST_SYS C9825 50V 100p C9037 0.01u 25V C9034 16V 0.1u C9033 16V 0.1u C9056 16V 0.1u C9055 16V 0.1u C9035 10V 10u C9057 16V 0.1u C9036 10V 10u C9058 10V 10u C9154 16V 0.1u C9159 16V 0.1u C9165 16V 0.1u C9163 4.7u 6.3V C9158 16V 0.1u C9135 10V 10u C9157 16V 0.1u C9156 16V 0.1u C9164 16V 0.1u C9136 16V 0.1u C9161 16V 0.1u C9152 6.3V 4.7u C9155 16V 0.1u C9160 16V 0.1u C9153 16V 0.1u C9143 16V 0.1u C9540 16V 0.1u C9550 16V 0.1u C9544 16V 0.1u C9542 16V 0.1u C9541 16V 0.1u C9535 16V 0.1u C9546 16V 0.1u C9547 16V 0.1u C9537 16V0.1u C9538 16V 0.1u C9536 16V0.1u C9539 16V 0.1u C9545 16V 0.1u C9548 16V 0.1u C9543 16V 0.1u C9549 16V 0.1u C9162 16V 0.1u C9552 10V 10u C9551 10V 10u C9553 10V 10u D9110 B0JCGD000002 D9029 B0BC3R3A0273 D9027 B0BC3R3A0273 D9028 B0BC3R3A0273 IC9002 C1ZBZ0003577 1 SCL 2 GND 3 A1 4 VDD 5 A0 6 SDA IC9011 C0EBF0000431 1 RESET 2 Cd 3 VOUT 4 VDD 5 GND 6 CE *IC9001 TVRP923S 1 E0 2 E1 3 E2 4 Vss 5 SDA 6 SCL 7 WC 8 Vcc IC9013 C0JBAZ002060 1 1OE 2 1A 3 1B 4 2OE 5 2A 6 2B 7 GND 8 3B 9 3A 10 3OE 11 4B 12 4A 13 4OE 14 VCC MNZSFG4GPH1 IC9003 1 P60_SBO0A 2 P61_SBT0A 3 P62_SBI0A 4 P05_IRQ6 5 P06_IRQ7 6 P07_IRQ8 7 P70_SDA0 8 P71_SCL0 9 P50_RMIN_IRQ0 10 P20 11 P21 12 P22 13 P23 14 IVDD 15 VSS 16 P10 17 P11 18 P12 19 P13 20 P14 21 P15 22 P16 23 EXCLKSEL 24 P72_SDA1 25 P73_SCL1 26 P65_SBT2 27 P66_SBI2 28 P30 29 P31 30 P32 31 P33 32 P34 33 P35 34 P36 35 P37 36 VPPEX_(N.C.) 37 IVDD 38 VDD 39 RONA 40 VSS 41 OSCXO 42 OSCXI 43 IVDD 44 P64_SBI1 45 P63_SBT1 46 NBOOT_(N.C.) 47 NRST 48 NTEST 49 SCLOCK_(UND) 50 SDATA_(UND) 51 ENTRG0_(UND) 52 ENTRG1_(UND) 53 TRCCLK_(UND) 54 TRCST_(UND) 55 TRCD0_(UND) 56 TRCD1_(UND) 57 TRCD2_(UND) 58 TRCD3_(UND) 59 P80_ADIN0 60 P81_ADIN1 61 P82_ADIN2 62 P83_ADIN3 63 IVDD 64 VSS 65 P84_ADIN4 66 P85_ADIN5 67 P86_ADIN6 68 P87_ADIN7 69 P90_ADIN8 70 P91_ADIN9 71 P92_ADIN10 72 P93_ADIN11 73 P74_SDA2 74 P75_SCL2 75 P40_TM0IO 76 P41_TM1IO 77 P42_TM2IO 78 P43_TM3IO 79 P44_TM4IO_SYSCLK 80 P00 81 P01 82 P02 83 P03_SBT0B 84 P04_SBO0B 85 P51_IRQ2 86 P52_IRQ3 87 P53_IRQ4 88 P54_IRQ5 89 PA7_VCLKOUT 90 PA6_HOUT 91 PA5_YSOUT 92 PA4_B00 93 PA3_G00 94 PA2_R00 95 PA1_VSYNC_IRQ1 96 PA0_HSYNC 97 VSS 98 OSDXI 99 IVDD 100 VDD D3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 D6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 STB3.3V P3.3V STB5V_M STB3.3V P5V P15V STB5V_M STB3.3V P3.3V STB3.3V P3.3V P3.3V P2.5V P1.2V P3.3V P3.3V STB3.3V STB3.3V P3.3V P3.3V TP9312 VIN TP9000 TP9100 HIN Q9010 2SD0601A0L R9333 EXB38V103JV R9859 EXB38V101JV R9119 EXB38V470JV R9839 EXB38V101JV R9171 10k R9600 68 R9121 100k R9105 10k R9155 10k R9233 4.7k R9198 0 R9129 68k R9840 22 R9578 4.7k R9161 39k R9143 22 R9151 10k R9167 4.7k R9186 33k R9201 10 R9187 56k R9159 39k R9215 47 R9170 4.7k R9218 47 R9854 100 R9131 4.7k R9611 68 R9219 10k R9189 100k R9142 22 R9279 0 R9355 10k R9103 10k R9207 47 R9206 1k R9135 4.7k R9362 10k R9358 10k R9348 10k R9309 10k R9166 22 R9132 4.7k R9158 47 R9344 47 R9343 1k R9174 1k R9342 1k R9188 24k R9101 1k R9337 10k R9325 10k R9107 3.3k R9172 0 R9150 10k R9164 22 R9145 4.7k R9149 4.7k R9110 1k R9824 100 R9826 100 R9223 2.7k R9160 39k R9200 10 R9825 100 R9225 2.7k R9205 330 R9141 100 R9204 22k R9117 4.7k R9185 22k R9599 68 X9000 H2D100500004 TP9005 TP9006 TP9007 TP9008 TP9009 C1ZBZ0003760 IC9500 1 PROG_B 2 IO_L01P_3 3 IO_L01N_3 4 IO_L02P_3 5 IO_L02N_3/VREF_3 6 VCCINT 7 GND 8 VCCO_3 9 IO_L03P_3/LHCLK0 10 IO_L03N_3/LHCLK1 11 IO_L04P_3/LHCLK2 12 IO_L04N_3/LHCLK3/IRDY2 13 IP 14 GND 15 IO_L05P_3/LHCLK4/TRDY2 16 IO_L05N_3/LHCLK5 17 IO_L06P_3/LHCLK6 18 IO_L06N_3/LHCLK7 19 GND 20 VCCO_3 21 VCCAUX 22 IO_L07P_3 23 IO_L07N_3 24 IO_L01P_2/CSO_B 25 IO_L01N_2/INIT_B 26 IO_L02P_2/DOUT/BUSY 27 IO_L02N_2/MOSI/CSI_B 28 VCCINT 29 GND 30 IP/VREF_2 31 VCCO_2 32 IO_L03P_2/D7/GCLK12 33 IO_L03N_2/D6/GCLK13 34 IO/D5 35 IO_L04P_2/D4/GCLK14 36 IO_L04N_2/D3/GCLK15 37 GND 38 IP_L05P_2/RDWR_B/GCLK0 39 IP_L05N_2/M2/GCLK1 40 IO_L06P_2/D2/GCLK2 41 IO_L06N_2/D1/GCLK3 42 IO/M1 43 IO_L07P_2/M0 44 IO_L07N_2/DIN/D0 45 VCCO_2 46 VCCAUX 47 IO_L08P_2/VS2 48 IO_L08N_2/VS1 49 IO_L09P_2/VS0 50 IO_L09N_2/CCLK 51 DONE 52 GND 53 IO_L01P_1 54 IO_L01N_1 55 VCCO_1 56 VCCINT 57 IO_L02P_1 58 IO_L02N_1 59 GND 60 IO_L03P_1/RHCLK0 61 IO_L03N_1/RHCLK1 62 IO_L04P_1/RHCLK2 63 IO_L04N_1/RHCLK3/TRDY1 64 GND 65 IO_L05P_1/RHCLK4/IRDY1 66 IO_L05N_1/RHCLK5 67 IO_L06P_1/RHCLK6 68 IO_L06N_1/RHCLK7 69 IP/VREF_1 70 IO_L07P_1 71 IO_L07N_1 72 GND 73 VCCO_1 74 VCCAUX 75 TMS 76 TDO 77 TCK 78 IO_L01P_0 79 IO_L01N_0 80 VCCINT 81 GND 82 VCCO_0 83 IO_L02P_0/GCLK4 84 IO_L02N_0/GCLK5 85 IO_L03P_0/GCLK6 86 IO_L03N_0/GCLK7 87 GND 88 IP_L04P_0/GCLK8 89 IP_L04N_0/GCLK9 90 IO_L05P_0/GCLK10 91 IO_L05N_0/GCLK11 92 IO 93 GND 94 IO_L06P_0 95 IO_L06N_0/VREF_0 96 VCCAUX 97 VCCO_0 98 IO_L07P_0 99 IO_L07N_0/HSWAP 100 TDI SS_PULSE SC_PULSE FPGA STB3.3V ON/OFF JTAG CHAIN DATA_DRIVER to ucom/FPGA/PD2 NCS_ASIC SOUT IIC_DATA2 IIC_CLK1 IIC_DATA1 READY DISPEN GND GND GND IIC_CLK2 IIC_CONT RXD TXD PANEL_STBY_ON ALARM SCLK InternalPD_always + O.D. PanasonicMode GENX6 NCS_FPGA DONE PROG_B ODED PCD2 NUEL UMH UML USH USL UEH FP_CQR4/DMHR FP_CQR5/DSHR DMLR DSLR DSLL DMHL DSHL INIT_B DOUT DMLL FPDATA0 SFRST SFVRST LATCH FPCLK CLKMI FPADATA1 M2 PCU2 CLRU M1 M0 DIN PCU1 LEU ODEU CCLK CQR SIU TMS OC1 CL) DONE CPH2 OC2B CEL CPH(1) CSL CLK SID SCSU OC2(CEL2) CERS DRVMUTE SC_DRV_RST XRST(NRST2) VD FVSEL DRVRST CMH CLRD HSWAP SCL CML CSH TCK TDI SDA HD FPGANRST(NRST) PCD1 LED SIN Open Drain SCL2 TCK STBY5V RXD IIC_CONT TMS IIC_INT TXD REMOCON SDA1 LED_R TDI GND LED_G GND SDA2 TDO TRST SCL1 STBY3.3V 17 14 18 12 10 16 11 15 13 TENP SENSOR EEPROM PANEL MICOM DISCHARGE CONTROL RESET STB 3.3V FOR FACTORY USE TO A-BOARD (A3) BUS SW 2 1 11 12 13 ! D-BOARD TNPA4439AJS (2/6) TH-50PZ80U D-Board (2/6) Schematic Diagram TH-50PZ80U D-Board (2/6) Schematic Diagram 63 11.21. D-Board (3/6) Schematic Diagram L8R_UB08 L8R_UA06 L8R_UA09 L8R_UC08 L8R_UA10 L8R_UB10 L8R_UC05 L8R_UB05 L8R_UB06 L8R_UC12 L8R_UC06 L8R_UC09 L8R_UA12 L8R_UB07 L8R_UB12 L8R_UA07 L8R_UC07 L8R_UA08 L8R_UB09 TMS L8R_DA04 L8R_DRVCLKD2 L8R_DB11 L8R_DA07 L8R_DRVCLKD3 TRST L8R_DB06 L8R_DA13 L8R_DRVCLKD0 L8R_DB03 L8R_DA02 L8R_DC15 L8R_DB14 L8R_DA10 L8R_DA06 L8R_DB00 L8R_DA05 L8R_DA12 L8R_DB10 L8R_DA14 L8R_DA15 L8R_DC08 L8R_DB05 L8R_DA01 L8R_DA11 L8R_DC04 L8R_DA00 L8R_DA03 L8R_DC02 L8R_DC12 TDI_FP L8R_DC14 L8R_DB09 L8R_DC07 P3V_SCL02 L8R_DB13 P3V_SDA02 L8R_DC03 L8R_DB15 L8R_DC11 XRST_SYS L8R_DC13 XRST L8R_DB01 L8R_DC10 L8R_DB08 L8R_DC06 L8R_DB07 L8R_DC09 L8R_DB04 L8R_DC00 L8R_DB12 L8R_DC05 L8R_DB02 TCK L8R_DA09 L8R_DC01 L8R_DA08 L8R_DRVCLKD1 L8R_UA07 L8R_UA06 L8R_UA05 L8R_UA01 L8R_UA03 L8R_UA00 L8R_UA04 L8R_UA02 L8R_UC10 L8R_UB03 L8R_UC09 L8R_UC00 L8R_UB12 L8R_UC08 L8R_UC15 L8R_UC01 L8R_UB11 L8R_UB10 L8R_UC03 L8R_UB09 L8R_UB00 L8R_UB08 L8R_UB15 L8R_UC07 L8R_UB07 L8R_UC06 L8R_UB06 L8R_UB05 L8R_UC02 L8R_UB02 L8R_UC04 L8R_UC14 L8R_UC12 L8R_UC13 L8R_UB14 L8R_UB04 L8R_UC05 L8R_UC11 L8R_UB01 L8R_UB13 USH D_ODED5 USL UEH DD_PCD1 FP_UEH FP_NUEL FP_USL D_CLRD6 FP_UMH D_PCD5 FP_UML D_LED6 FP_USH DD_ODED DD_PCD2 D_ODED6 NUEL D_PCD6 UMH UML D_CLRD5 RE_O+ RE_E- RD_E- RB_O- RC_E- RC_O+ RD_E+ RD_O- RA_O- RCLK_E- RB_O+ RCLK_O- RA_O+ RB_E- RCLK_O+ RCLK_E+ RB_E+ RD_O+ RE_O- RC_O- RA_E+ RC_E+ RE_E+ RA_E- RC_O+ RCLK_O+ RA_O+ RB_O- RCLK_O- RB_O+ RE_O+ RC_O- RE_O- RD_O+ RD_O- RA_O- CKMOSI CKSOMI XOUT SFLATCH SFRST SFVRST INEXCH IOSW FULL0 FULL1 L8R_DRVCLKU0 L8R_DRVCLKU1 CLKD10 D_LED5 CLKD11 TDI_R VIO CLKMO L8R_UA15 L8R_UA14 L8R_UA13 L8R_UA12 L8R_UA11 L8R_UA10 L8R_UA09 L8R_UA08 L8R_UA14 L8R_UC15 L8R_UC13 L8R_UB15 L8R_UA15 L8R_UB13 L8R_UB14 L8R_UC14 L8R_UA11 L8R_UC10 L8R_UB11 L8R_UC11 L8R_UA13 L8R_UA05 L8R_UC04 L8R_UB04 L8R_UA04 ACTV HIO DD_LEU DD_LED L8L_DIO21 L8L_DIO09 L8L_DIO19 L8L_DIO25 L8L_DIO06 L8L_DIO26 L8L_DIO22 L8L_DIO13 L8L_DIO07 L8L_DIO18 L8L_DIO03 L8L_DIO15 L8L_DIO01 L8L_DIO29 L8L_DIO05 L8L_DIO20 L8L_DIO24 L8L_DIO11 L8L_DIO08 L8L_DIO00 L8L_DIO12 L8L_DIO10 L8L_DIO27 L8L_DIO04 L8L_DIO02 L8L_DIO16 L8L_DIO28 L8L_DIO23 L8L_DIO30 L8L_DIO14 L8L_DIO17 DD_CLRD C9237 10V 10u C9247 10V 10u C9245 10V 10u C9123 0.1u 16V C9148 0.1u 16V C9149 0.1u 16V C9226 0.1u 16V C9124 0.1u 16V C9220 0.1u 16V C9250 0.1u 16V C9127 0.1u 16V C9119 0.1u 16V C9240 0.1u 16V C9128 0.1u 16V C9232 0.1u 16V C9216 0.1u 16V C9219 0.1u 16V C9221 0.1u 16V C9234 0.1u 16V C9121 0.1u 16V C9130 0.1u 16V C9224 0.1u 16V C9246 0.1u 16V C9144 0.1u 16V C9150 0.1u 16V C9230 0.1u 16V C9231 0.1u 16V C9241 16V 0.1u C9132 0.1u 16V C9243 0.1u 16V C9122 0.1u 16V C9223 0.1u 16V C9126 0.1u 16V C9239 0.1u 16V C9233 0.1u 16V C9218 0.1u 16V C9129 0.1u 16V C9235 0.1u 16V C9217 0.1u 16V C9244 0.1u 16V C9227 0.1u 16V C9236 0.1u 16V C9125 0.1u 16V C9242 16V 0.1u C9248 0.1u 16V C9222 0.1u 16V C9215 0.1u 16V C9249 16V 0.1u C9228 0.1u 16V IC9400 A19 CKSI IC9400 P22 DOUTDC06 IC9400 E16 DOUTUB09 IC9400 P25 DOUTDB06 IC9400 AB7 AVDD_D25 IC9400 K24 VDD33 IC9400 U11 VDD25 IC9400 E6 DIO4 IC9400 R10 VDD12 IC9400 AD6 VDD25 IC9400 E10 VDD12 IC9400 A24 DOUTUA00 IC9400 C9 DIO20 IC9400 L5 AVDD_PM33 IC9400 AB21 AVDD_PD33 IC9400 W24 TDI IC9400 AE2 VDD25 IC9400 L26 DOUTDC09 IC9400 C15 DOUTUB12 IC9400 B15 DOUTUA12 IC9400 F3 VDD12 IC9400 M5 AVDD_L33 IC9400 AA26 DOUTDB00 IC9400 M22 DOUTDC08 IC9400 V3 OSDBI IC9400 Y5 OSDCKO IC9400 G23 DOUTDC14 IC9400 B11 ROMCE IC9400 E25 DOUTDA13 IC9400 D21 DOUTUA03 IC9400 H2 SFLATCH IC9400 T13 VDD25 IC9400 B18 DOUTUC08 IC9400 H25 DOUTDA10 IC9400 D11 DIO29 IC9400 U26 DOUTDC04 IC9400 P4 AVDD_L33 IC9400 E9 VDD12 IC9400 P1 RCLKM IC9400 T10 VDD12 IC9400 U22 VDD33 IC9400 D16 DOUTUA10 IC9400 B19 DOUTUA06 IC9400 D2 VDD12 IC9400 C19 DOUTUB06 IC9400 D26 DOUTDB14 IC9400 E17 VDD33 IC9400 P26 DOUTDA06 IC9400 C20 DOUTUB05 IC9400 C12 ROMWE IC9400 U12 VDD25 IC9400 A23 DOUTUB02 IC9400 K25 DRVCLKD2 IC9400 B7 DIO13 IC9400 AB20 VDD25 IC9400 C8 DIO17 IC9400 W25 DOUTDB01 IC9400 L12 VDD12 IC9400 F25 DOUTDA12 IC9400 M1 RBM IC9400 AB16 AVDD_Q25 IC9400 D19 DOUTUC06 IC9400 C14 DOUTUB13 IC9400 B20 DOUTUA05 IC9400 F4 VDD12 IC9400 M10 VDD12 IC9400 AA25 TMS IC9400 V4 OSDGI IC9400 A7 DIO15 IC9400 B10 DIO26 IC9400 H3 FPDAT0 IC9400 E26 DOUTDC13 IC9400 E21 DOUTUC02 IC9400 B17 DOUTUA09 IC9400 H26 DOUTDB10 IC9400 P5 AVDD_L33 IC9400 E8 DIO14 IC9400 M26 DOUTDB08 IC9400 E1 ROMRESET IC9400 A15 DOUTUC13 IC9400 AA2 XO IC9400 D8 DIO16 IC9400 J23 DOUTDC11 IC9400 Y3 SDA IC9400 U23 DOUTDB02 IC9400 D1 VDD12 IC9400 B13 DRVCLKU2 IC9400 E18 VDD33 IC9400 C18 DOUTUA07 IC9400 L17 VDD33 IC9400 AB10 VDD25 IC9400 R1 RDM IC9400 P24 VDD33 IC9400 W3 SCL IC9400 U13 VDD25 IC9400 C25 VDD33 IC9400 K26 DRVCLKD3 IC9400 C7 DIO12 IC9400 L13 VDD12 IC9400 F26 DOUTDB12 IC9400 R23 DOUTDB05 IC9400 D13 DOUTUB14 IC9400 M2 RBP IC9400 B21 DOUTUA04 IC9400 E5 IOSW IC9400 C13 DOUTUC14 IC9400 B25 DOUTDC15 IC9400 A8 DIO19 IC9400 M11 VDD12 IC9400 AA24 VDD33 IC9400 R16 VDD33 IC9400 M24 VDD33 IC9400 V5 AVDD_PI33 IC9400 H4 FULL1 IC9400 AA5 PROG IC9400 B8 DIO18 IC9400 AD25 VDD33 IC9400 F1 CLKMO IC9400 J3 SFRST IC9400 J5 AVDD_L12 IC9400 E22 DOUTUC00 IC9400 B16 DOUTUC11 IC9400 E7 DIO8 IC9400 E12 DIO30 IC9400 T26 DOUTDA04 IC9400 N1 RCM IC9400 AC2 MCCLK IC9400 W2 OSDVO IC9400 K12 VDD12 IC9400 T24 VDD33 IC9400 A16 DOUTUA11 IC9400 T12 VDD25 IC9400 D7 DIO11 IC9400 D23 DOUTDB15 IC9400 Y4 PRCKO IC9400 AB5 VDD25 IC9400 B12 DOUTUB15 IC9400 A11 DOUTUA15 IC9400 E19 DOUTUB07 IC9400 AB9 VDD25 IC9400 C17 DOUTUC09 IC9400 R2 RDP IC9400 C24 OCKOUT IC9400 C6 DIO10 IC9400 L1 RAM IC9400 AB4 XRST IC9400 N22 VDD33 IC9400 G1 FPCLK IC9400 A10 DIO28 IC9400 AC4 VDD25 IC9400 B14 DRVCLKU0 IC9400 A5 CKMI IC9400 N26 DOUTDC07 IC9400 R17 VDD33 IC9400 D10 DIO23 IC9400 A20 CKSO IC9400 M25 DOUTDA08 IC9400 D18 DOUTUC07 IC9400 H5 VDD12 IC9400 F2 FULL0 IC9400 V22 DOUTDC00 IC9400 J4 OCK IC9400 N10 AVDD_L12 IC9400 J22 VDD33 IC9400 E23 VDD33 IC9400 G25 DOUTDC12 IC9400 D20 DOUTUB04 IC9400 B4 DIO2 IC9400 U25 DOUTDB03 IC9400 K13 VDD12 IC9400 AB15 VDD25 IC9400 AC1 XOUT IC9400 R11 VDD12 IC9400 N2 RCP IC9400 T25 DOUTDB04 IC9400 D6 DIO5 IC9400 B6 DIO9 IC9400 J25 DRVCLKD0 IC9400 A12 DOUTUA14 IC9400 AB23 VDD33 IC9400 D14 DOUTUA13 IC9400 U4 AVDD_L33 IC9400 B24 DOUTUB00 IC9400 E15 DOUTUC12 IC9400 C23 DOUTUC01 IC9400 C16 DOUTUB10 IC9400 W26 DOUTDC02 IC9400 AA1 XI IC9400 G4 VDD12 IC9400 C11 ROMOE IC9400 AD1 PROG_M IC9400 A6 CKMO IC9400 AA22 VDD33 IC9400 W5 OSDHO IC9400 L23 DOUTDA09 IC9400 V26 DOUTDC03 IC9400 D9 DIO21 IC9400 L2 RAP IC9400 C5 DIO3 IC9400 AB13 AVDD_D25 IC9400 Y25 DOUTDA00 IC9400 D12 DOUTUC15 IC9400 A21 DOUTUC05 IC9400 H22 DOUTDB13 IC9400 AB3 FVSEL IC9400 T17 VDD33 IC9400 N23 DOUTDB07 IC9400 V23 DOUTDA01 IC9400 G2 FPDAT1 IC9400 B9 DIO22 IC9400 N4 AVDD_L33 IC9400 A3 DIO1 IC9400 T4 AVDD_L33 IC9400 R25 DOUTDC05 IC9400 B3 HIO IC9400 G26 DOUTDB11 IC9400 AB14 AVDD_D25 IC9400 C22 DOUTUA02 IC9400 D5 SLVDOUTUB14 IC9400 B5 DIO7 IC9400 H24 VDD33 IC9400 A13 DRVCLKU3 IC9400 K11 VDD12 IC9400 J26 DRVCLKD1 IC9400 AE26 VDD33 IC9400 A17 DOUTUC10 IC9400 B22 DOUTUC03 IC9400 K22 DOUTDC10 IC9400 D22 DOUTUB01 IC9400 U5 AVDD_L33 IC9400 F24 DOUTDA14 IC9400 D24 VDD33 IC9400 E2 VDD12 IC9400 A26 VDD33 IC9400 R4 AVDD_L33 IC9400 M4 AVDD_L33 IC9400 C10 DIO25 IC9400 V2 OSDRI IC9400 T1 REM IC9400 M17 VDD33 IC9400 AB19 VDD25 IC9400 AD3 VDD25 IC9400 C1 VDD12 IC9400 W1 OSDYSI IC9400 C4 ACTV IC9400 H1 SFVRST IC9400 AC24 VDD33 IC9400 AB25 TDO IC9400 N25 DOUTDA07 IC9400 AB26 TCK IC9400 G3 FCCLK IC9400 M13 VDD12 IC9400 R26 DOUTDA05 IC9400 L10 VDD12 IC9400 M16 VDD33 IC9400 L25 DOUTDB09 IC9400 B26 VDD33 IC9400 G5 VDD12 IC9400 AD2 XRSTSYS IC9400 L4 AVDD_L33 IC9400 W23 TRST IC9400 E3 VDD12 IC9400 A2 DIO0 IC9400 B23 DOUTUA01 IC9400 AF1 VDD25 IC9400 Y26 DOUTDC01 IC9400 A22 DOUTUB03 IC9400 E11 DIO27 IC9400 D15 DOUTUB11 IC9400 H23 DOUTDA11 IC9400 F22 VDD33 IC9400 T22 DOUTDA03 IC9400 A25 DOUTDA15 IC9400 R5 AVDD_L33 IC9400 V24 VDD33 IC9400 N5 AVDD_L33 IC9400 P2 RCLKP IC9400 A4 DIO6 IC9400 T5 AVDD_L33 IC9400 D17 DOUTUA08 IC9400 A18 DOUTUB08 IC9400 C21 DOUTUC04 IC9400 AB8 AVDD_D25 IC9400 AB17 AVDD_D25 IC9400 A14 DRVCLKU1 IC9400 D4 VIO IC9400 T2 REP IC9400 A9 DIO24 IC9400 K5 AVDD_PO33 IC9400 V25 DOUTDA02 D5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 L9006 J0JHC0000078 L9007 J0JHC0000078 L9005 J0JHC0000078 L9004 J0JHC0000078 P2.5V P2.5V L8RAVDD3.3V L8RAVDD3.3V P1.2V P1.2V P3.3V P3.3V P3.3V L8RAVDD3.3V R9310 EXB38V103JV R9276 EXB2HV151JV R9274 EXB2HV151JV *R9293 EXB2HV470JV R9254 EXB2HV103JV R9253 EXB2HV103JV R9255 EXB2HV103JV *R9292 EXB2HVR000V R9354 EXB2HV103JV R9275 EXB2HV151JV R9277 EXB2HV151JV *R9321 22 *R9326 47 R9226 100 R9199 47 R9287 0 R9327 10k R9303 100 R9273 47 R9298 100 R9302 100 R9299 100 R9296 100 R9272 100 R9304 100 R9297 100 R9229 100 R9301 100 R9295 100 R9300 100 R9112 47 R9231 0 R9246 10k *R9323 22 RB+ RC+ RCLK- RCLK+ RD+ RA-(MSB) RA+(MSB) RD- RE-(LSB) Low Active RE+(LSB) LVDS_INPUT for LVDS_TX 20MHz(SS) IIC PD2M Right (Slave) RC- RB- RD_E- RD_E+ RC_E+ RC_E- RCLK_E+ GND RCLK_E- RA_E-(MSB) RB_E- GND RA_E+(MSB) GND RE_E+(LSB) RE_E-(LSB) RB_E+ LVDS_DET RB_O+ RE_O-(LSB) RE_O+(LSB) GND RA_O+(MSB) GND RB_O- RA_O-(MSB) RCLK_O- GND RCLK_O+ RC_O- RC_O+ RD_O+ RD_O- rromdata[06] rromdata[09] rromdata[12] rromdata[00] rromdata[01] rromdata[02] rromdata[03] rromdata[04] rromdata[07] rromdata[10] rromdata[13] rromdata[15] rromdata[05] rromdata[08] rromdata[11] rromdata[14] DIO0 DIO1 DIO2 DIO3 DIO4 DIO5 DIO6 DIO7 DIO8 DIO9 DIO10 DIO11 DIO14 DIO18 DIO23 DIO19 DIO13 DIO12 DIO15 DIO16 DIO20 DIO22 DIO21 DIO17 DIO26 DIO30 DIO25 DIO24 DIO27 DIO28 DIO29 ACTV HIO VIO IOSW Flash ROM JTAG INPUT INPUT INPUT OUTPUT 25 20 26 23 19 24 22 21 27 IC9400 VIDEO/PANEL CONTROL MN84526 TO A-BOARD (A5) 11 13 12 21 22 23 ! D-BOARD TNPA4439AJS (3/6) TH-50PZ80U D-Board (3/6) Schematic Diagram TH-50PZ80U D-Board (3/6) Schematic Diagram 64 11.22. D-Board (4/6) Schematic Diagram L8L_DIO17 L8L_DIO25 L8L_DIO22 L8L_UC15 L8L_DIO21 L8L_UC14 L8L_DIO18 L8L_DIO26 L8L_UB15 L8L_DIO30 L8L_DIO29 L8L_DIO23 L8L_ROMCE L8L_UA14 L8L_UA15 L8L_DIO20 L8L_DIO27 L8L_UB14 L8L_DIO24 L8L_DIO19 L8L_DIO28 L8L_DIO16 L8L_ROMWE L8L_ROMOE XRST L8L_ROMRST L8L_DIO00 L8L_DIO03 L8L_DIO01 L8L_DIO04 L8L_DIO02 L8L_DIO10 L8L_DIO06 L8L_DIO05 L8L_DIO07 L8L_DIO08 L8L_DIO09 L8L_DIO12 L8L_DIO13 L8L_DIO11 L8L_DIO15 L8L_DIO14 L8DR_DQ2 L8DR_DQ6 L8R_DQ5 L8DR_DQ25 L8R_DQ26 L8R_DQ29 L8DR_DQ4 L8R_DQ0 L8R_NSDCLKO L8R_DQ30 L8DR_A3 L8R_DQ20 L8DR_DQ22 L8R_DQ0 L8R_DQ25 L8DR_DQ12 L8DR_DQ20 L8R_DQ17 L8DR_A7 L8R_DQ28 L8R_A6 L8R_DQ11 L8DR_DQ10 L8DR_DQ23 L8DR_DQ11 L8R_DQ25 L8R_DQ10 L8DR_DQ22 L8DR_A11 L8R_DQ12 L8R_DQ10 L8R_DQ6 L8R_DQ3 L8R_DQ2 L8DR_DQ21 L8DR_DQ5 L8R_DQ4 L8DR_DQ26 L8R_SDCLKO L8DR_DQ9 L8R_DQS1 L8R_WE L8R_DQS1 L8R_DQS0 L8DR_BA1 L8DR_A1 L8DR_DQ2 L8R_DQ18 L8R_DQ23 L8DR_DQ5 L8DR_CLK L8DR_DQ1 L8R_A11 L8DR_DQS1 L8DR_DQ30 L8R_DQ3 L8DR_DQ0 L8DR_DQS2 L8R_DQ31 L8DR_DQ18 L8DR_DQ31 L8R_DQ19 L8DR_DQ14 L8R_DQ27 L8R_DQ23 L8DR_DQS1 L8DR_DQ16 L8R_DQ21 L8DR_DQ19 L8R_A9 L8DR_DQ8 L8DR_DQ7 L8DR_DQ27 L8DR_DQ8 L8DR_DQ13 L8DR_NCAS L8DR_DQ3 L8R_DQS0 L8R_RAS L8DR_DQ15 L8DR_DQS2 L8DR_NWE L8DR_A6 L8DR_CKE L8R_DQ4 L8R_DQ24 L8DR_DQ15 L8DR_DQS3 L8R_DQ20 L8R_DQ6 L8DR_DQ11 L8DR_A5 L8DR_DQ17 L8DR_DQ20 L8DR_DQ9 L8DR_DQ12 L8DR_DQ14 L8DR_BA0 L8R_DQ15 L8DR_DQ28 L8DR_NCLK L8DR_DQ29 L8DR_NCLK L8R_DQ14 L8DR_A0 L8DR_DQ23 L8R_CS L8DR_DQ0 L8R_CAS L8R_DQ9 L8R_DQ7 L8DR_DQ7 L8R_DQ24 L8R_DQS3 L8R_DQ12 L8R_DQ5 L8DR_DQ1 L8DR_DQS3 L8R_DQ31 L8DR_DQ4 L8DR_A4 L8R_BA1 L8R_DQ1 L8R_NSDCLKO L8DR_DQ18 L8R_DQ21 L8DR_DQ17 L8R_DQ13 L8DR_DQ3 L8R_DQ1 L8DR_NRAS L8R_DQS2 L8DR_DQS0 L8R_DQ17 L8R_DQ13 L8R_A0 L8R_DQ18 L8DR_DQS0 L8DR_DQ16 L8DR_DQ29 L8R_DQ2 L8R_DQ14 L8R_A10 L8R_DQ15 L8DR_DQ10 L8DR_DQ30 L8R_DQ9 L8R_A7 L8DR_DQ6 L8R_A3 L8DR_DQ21 L8R_DQS2 L8R_A1 L8R_DQ19 L8R_DQS3 L8R_A2 L8DR_NCS L8R_SDCKE L8DR_DQ24 L8DR_A8 L8R_BA0 L8R_A4 L8R_DQ22 L8R_DQ27 L8DR_A9 L8DR_CLK L8R_DQ8 L8DR_DQ19 L8DR_A2 L8R_A5 L8R_DQ16 L8DR_DQ28 L8R_DQ30 L8DR_A10 L8R_DQ29 L8DR_DQ13 L8DR_DQ31 L8R_DQ11 L8R_DQ28 L8R_DQ8 L8R_DQ26 L8R_SDCLKO L8R_DQ22 L8R_DQ16 L8R_DQ7 L8R_A8 0V L8DR_A0 L8DR_A6 L8R_WE L8R_A0 L8DR_A3 L8DR_A11 L8R_A1 L8DR_NCS L8R_RAS L8R_BA1 L8DR_BA1 L8R_A10 L8R_A4 L8R_SDCKE L8R_A8 L8R_A5 L8DR_NRAS L8R_A7 L8R_A3 L8DR_A9 L8DR_NWE L8DR_A2 L8DR_A1 L8DR_A8 L8R_CAS L8R_BA0 L8DR_A5 L8R_A6 L8R_CS L8DR_A4 L8R_A11 L8DR_A10 L8DR_BA0 L8R_A2 L8R_A9 L8DR_NCAS L8DR_A7 L8DR_DQ26 L8DR_DQ27 L8DR_DQ25 L8DR_DQ24 L8DR_CKE L8R_MONOUT C9469 16V 0.1u C9131 16V 0.1u C9096 16V 0.1u C9112 16V 0.1u C9100 16V 0.1u C9108 16V 0.1u C9110 16V 0.1u C9117 16V 0.1u C9114 16V 0.1u C9116 16V 0.1u C9104 16V 0.1u C9097 16V 0.1u C9113 16V 0.1u C9105 16V 0.1u C9109 16V 0.1u C9107 16V 0.1u C9099 16V 0.1u C9102 16V 0.1u C9111 16V 0.1u C9098 16V 0.1u C9106 16V 0.1u C9103 16V 0.1u C9142 16V 0.1u C9101 16V 0.1u C9120 16V 0.1u C9115 16V 0.1u IC9400 A1 VSS IC9401 B2 DQS0 IC9400 D3 VSS IC9400 K2 AVSS_L IC9400 AF8 DQ2 IC9401 G12 DQ13 IC9400 AF26 VSS IC9401 K10 VSSQ IC9401 G3 DQ18 IC9401 N5 A0 IC9400 K17 VSS IC9401 N10 A7 IC9400 F23 VSS IC9401 H7 VSS_Thermal IC9400 AE5 DQ20 IC9401 F10 VSSQ IC9401 M2 RAS IC9401 B11 VSSQ IC9401 L5 VSS IC9401 N2 CS IC9400 L11 VSS IC9401 C11 NC IC9400 L16 VSS IC9401 C13 DQ27 IC9400 AF20 VSS IC9400 AB18 VSS IC9400 AF5 VSS IC9400 AF14 AVSS_D IC9400 AC16 VSS IC9401 C8 VDDQ IC9400 AD7 AVSS_D IC9401 L6 A10 IC9400 AF25 AD4 IC9400 AE25 VSS IC9400 E13 VSS IC9400 J1 TCPOUT IC9401 B7 DQ0 IC9401 N9 A6 IC9400 E20 VSS IC9401 G11 VDDQ IC9401 J7 VSS_Thermal IC9400 N14 VSS IC9400 AC18 VSS IC9400 AA3 VSS IC9401 L4 VDD IC9400 U1 AVSS_L IC9401 D2 DQ6 IC9401 F2 DQ17 IC9400 AF13 VSS IC9401 F5 VSSQ IC9400 K3 AVSS_L IC9401 G5 VSSQ IC9401 E8 VSS IC9400 AF7 VSS IC9400 AE23 AD3 IC9401 E12 VDDQ IC9400 P23 VSS IC9401 N8 A4 IC9400 AD5 DQ16 IC9400 AD23 ID0 IC9400 C26 VSS IC9400 AE21 AD0 IC9400 L14 VSS IC9401 N13 VREF IC9401 J12 DQ11 IC9401 B9 DQ29 IC9400 R22 VSS IC9401 D8 VDD IC9401 L9 RFU IC9401 D12 DQ26 IC9401 F13 DQ14 IC9401 E5 VSS IC9401 H3 DM2 IC9401 D7 VDD IC9401 M13 NC IC9400 AF19 NRAS IC9400 AF4 DQ21 IC9401 H9 VSS_Thermal IC9400 AC15 DQ13 IC9401 C4 NC IC9401 G7 VSS_Thermal IC9400 R15 VSS IC9400 M23 VSS IC9400 Y22 TEST0 IC9400 AF24 AD11 IC9401 C2 DQ4 IC9401 B13 DQS3 IC9400 AC20 AD6 IC9400 T14 VSS IC9401 H10 VSSQ IC9401 N6 A1 IC9400 J2 AVSS_PO IC9401 B12 DM3 IC9401 L13 NC IC9400 AF11 DQ28 IC9400 AC17 VSS IC9400 AE15 DQ15 IC9401 B10 DQ28 IC9400 U2 AVSS_L IC9400 T23 VSS IC9401 E13 DQ24 IC9401 G8 VSS_Thermal IC9400 T11 VSS IC9401 G9 VSS_Thermal IC9401 J13 DQ10 IC9401 K6 VSS IC9400 AB6 VSS IC9400 U17 VSS IC9400 K4 AVSS_PM IC9400 AF6 VSS IC9401 H2 DQS2 IC9401 H12 DM1 IC9400 AD4 DQ18 IC9401 N4 BA0 IC9401 E2 DQ7 IC9400 AD22 AD8 IC9400 AE20 BA0 IC9400 L15 VSS IC9400 R14 VSS IC9401 K11 VDDQ IC9401 H6 VSS_Thermal IC9401 F9 VSS_Thermal IC9400 F5 VSS IC9401 M6 A2 IC9400 AF3 DQ22 IC9401 C6 DQ1 IC9400 AC5 DQ17 IC9401 D13 DQ25 IC9401 L12 NC IC9401 D5 VSSQ IC9400 Y23 TEST IC9400 AD18 NCAS IC9401 J8 VSS_Thermal IC9401 K9 VSS IC9400 AC19 CKE IC9400 T15 VSS IC9401 L7 VDD IC9400 AC7 VREF1 IC9400 N16 VSS IC9400 P10 VSS IC9400 AF10 DQ29 IC9401 G13 DQ12 IC9400 AE14 DQS1 IC9400 U3 AVSS_L IC9400 AF12 VSS IC9400 J24 VSS IC9400 AF18 CK IC9401 C3 VDDQ IC9401 C5 VDDQ IC9401 H8 VSS_Thermal IC9400 AB24 ID2 IC9400 P14 VSS IC9400 W4 VSS IC9401 J4 VDDQ IC9400 U14 VSS IC9400 L22 VSS IC9401 F7 VSS_Thermal IC9400 AD21 AD5 IC9400 AA23 ID1 IC9400 AB2 VSS IC9401 L11 VDD IC9401 M3 NC IC9401 E7 VSS IC9400 AE19 NCS IC9400 AE8 DQ3 IC9400 R24 VSS IC9400 M3 AVSS_L IC9400 E4 VSS IC9400 F6 VSS IC9400 M14 VSS IC9400 AE16 DQ9 IC9400 AF2 VSS IC9401 C10 VDDQ IC9401 H4 NC IC9400 Y24 VSS IC9401 L2 CAS IC9401 L8 VDD IC9400 AA4 VSS IC9401 J9 VSS_Thermal IC9400 AD17 AVSS_Q IC9400 AF22 AD2 IC9400 AE1 VSS IC9400 AD24 VSS IC9400 T16 VSS IC9401 J5 VSSQ IC9401 F4 VDDQ IC9400 AC6 AVSS_D IC9401 F6 VSS_Thermal IC9400 N17 VSS IC9400 P3 AVSS_L IC9400 T3 AVSS_L IC9401 M12 CK IC9401 J3 DQ20 IC9400 P11 VSS IC9401 E4 VDD IC9400 AE13 VSS IC9400 AF9 DQ0 IC9400 AF17 DQ8 IC9400 P15 VSS IC9401 G6 VSS_Thermal IC9401 D6 VSSQ IC9400 K10 VSS IC9401 B6 DQ2 IC9400 M15 VSS IC9400 R3 AVSS_L IC9401 E3 VDDQ IC9400 AC14 VREF0 IC9400 AD13 AVSS_D IC9400 U15 VSS IC9400 AC11 DQ25 IC9400 AB1 VSS IC9400 AD15 DQ14 IC9400 C2 VSS IC9400 AE18 AVSS_D IC9401 L10 VSS IC9400 AD16 DQ12 IC9401 K3 DQ23 IC9401 B5 DQ3 IC9401 F12 DQ15 IC9400 AF21 BA1 IC9400 AC23 VSS IC9400 AD26 TEST1 IC9401 M4 NC IC9400 N11 VSS IC9401 K8 VSS IC9401 F3 DQ16 IC9400 AF23 AD10 IC9401 J10 VSSQ IC9401 K4 VDDQ IC9400 E24 VSS IC9401 M8 A9 IC9401 G10 VSSQ IC9400 AC3 VSS IC9401 H13 DQS1 IC9400 M12 VSS IC9400 P12 VSS IC9400 K14 VSS IC9400 N3 AVSS_L IC9401 B3 DM0 IC9400 R12 VSS IC9401 K12 DQ9 IC9400 AE12 DQS3 IC9401 E9 VSSQ IC9400 N13 VSS IC9401 D4 VSSQ IC9400 P16 VSS IC9401 M5 BA1 IC9400 AF16 DQ10 IC9400 E14 VSS IC9401 C9 DQ30 IC9401 D9 VSSQ IC9400 AD14 VSS IC9400 AC9 DQ5 IC9400 AD8 DQ6 IC9400 G22 VSS IC9400 Y1 VSS IC9401 K5 VSSQ IC9400 AD9 DQ4 IC9400 AC13 VSS IC9400 AB11 VSS IC9400 AC26 MONOUT IC9401 M7 A11 IC9400 AD12 VSS IC9400 AC10 DQ27 IC9400 W22 VSS IC9401 D11 VSSQ IC9401 E11 VDD IC9400 AE7 DQS0 IC9400 AC22 AVSS_PD IC9400 L24 VSS IC9400 L3 AVSS_L IC9401 G2 DQ19 IC9401 L3 WE IC9400 AE22 AD1 IC9400 AE4 DQ23 IC9400 N24 VSS IC9400 AD20 AD9 IC9401 J6 VSS_Thermal IC9400 AD19 NWE IC9400 AE3 DQ19 IC9400 C3 VSS IC9400 V1 AVSS_PI IC9400 AD10 DQ26 IC9400 AC21 AD7 IC9401 D10 VSSQ IC9400 D25 VSS IC9400 AE6 DQS2 IC9400 AB22 VSS IC9401 N3 NC IC9401 N12 CKE IC9400 AB12 VSS IC9401 C7 VDDQ IC9401 H5 VSSQ IC9401 N7 A3 IC9400 AD11 DQ24 IC9401 F8 VSS_Thermal IC9400 U24 VSS IC9400 N12 VSS IC9401 G4 VDDQ IC9400 Y2 VSS IC9400 AC12 VSS IC9400 U10 VSS IC9400 B2 VSS IC9401 B4 VSSQ IC9401 K7 VSS IC9400 K23 VSS IC9400 AC8 DQ7 IC9401 D3 DQ5 IC9401 B8 DQ31 IC9400 P13 VSS IC9401 F11 VDDQ IC9400 AE9 DQ1 IC9400 AC25 V_TEST IC9400 K15 VSS IC9401 M11 CK IC9400 AE11 DQ30 IC9401 K13 DQ8 IC9400 B1 VSS IC9400 R13 VSS IC9400 U16 VSS IC9401 C12 VDDQ IC9401 J11 VDDQ IC9400 K1 AVSS_L IC9401 M9 A5 IC9400 AF15 DQ11 IC9400 K16 VSS IC9400 P17 VSS IC9401 N11 A8/AP IC9400 AE24 TCPOUT_D IC9401 H11 NC IC9401 M10 RFU IC9400 N15 VSS IC9400 AE10 DQ31 IC9401 K2 DQ22 IC9400 AE17 NCK IC9400 G24 VSS IC9401 J2 DQ21 IC9401 E6 VSSQ IC9401 E10 VSS TVRP924S *IC9303 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 A20 11 WE 12 RESET 13 NC 14 WP/ACC 15 RY/BY 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE 27 Vss 28 OE 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 Vcc 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 Vss 47 BYTE 48 A16 P2.5V P2.5V P2.5V P2.5V P3.3V P3.3V R9259 EXB38V470JV R9258 EXB38V470JV R9256 EXB38V470JV R9237 EXB38V470JV R9260 EXB38V470JV R9257 EXB38V470JV R9263 EXB38V470JV R9261 EXB38V470JV R9262 EXB38V470JV R9234 EXB2HV470JV R9235 EXB2HV470JV R9385 4.7k R9265 47 R9252 33 R9251 1k R9236 33 R9264 47 R9267 47 R9249 1k R9248 1k R9250 1k R9238 150 R9266 47 *R9400 4.7k R9288 0 R9324 0 to DDR DDR-Terminate FlashROM (PDROM) Vss WP#/ACC 28 33 34 35 29 30 31 32 36 PD2M Right (Master) IC9400 VIDEO/PANEL CONTROL MN84526 DDR MEMORY C3ABQJ000055 IC9401 Right FLASH MEMORY 21 22 23 31 32 33 ! D-BOARD TNPA4439AJS (4/6) TH-50PZ80U D-Board (4/6) Schematic Diagram TH-50PZ80U D-Board (4/6) Schematic Diagram 65 11.23. D-Board (5/6) Schematic Diagram TERM SIDE P3V_SDA02 P3V_SCL02 L8L_DIO08 L8L_DIO09 L8L_DIO10 L8L_DIO11 L8L_DIO12 L8L_DIO13 L8L_DIO14 L8L_DIO16 L8L_DIO17 L8L_DIO18 L8L_DIO19 L8L_DIO20 L8L_DIO21 L8L_DIO22 L8L_DIO24 L8L_DIO25 L8L_DIO26 L8L_DIO27 L8L_DIO28 L8L_DIO29 L8L_ROMRST L8L_ROMOE L8L_ROMWE L8L_ROMCE XI_PROG_B OSDHO OSDVO OSDCKO OSD_YS OSD_R OSD_B OSD_G FPCLK FPDAT1 SFRST SFVRST FVSEL PROG_M MCCLK XOUT XRST XRST_SYS TRST TMS TCK DOUTDB30 CLKD9 DOUTDA27 L8R_DB10 DOUTDB25 DOUTDB23 L8R_DA05 DOUTDB31 DOUTDC18 DOUTDA23 L8R_DC04 DOUTDC30 DOUTDC22 L8R_DB05 DOUTDB26 DOUTDA19 DOUTDC22 L8R_DC10 L8R_DB13 L8R_DA01 DOUTDC29 DOUTDC27 L8R_DB06 L8R_DC15 DOUTDA18 L8R_DA15 L8R_DB00 L8R_DA09 L8R_DA00 DOUTDA31 DOUTDB22 DOUTDC21 DOUTDC16 L8R_DC02 DOUTDB17 DOUTDB16 DOUTDA25 L8R_DC07 L8R_DB08 L8R_DC08 DOUTDB27 DOUTDC25 DOUTDB27 DOUTDC30 CLKD10 L8R_DC14 L8R_DA10 L8R_DA12 CLRD_6 L8R_DB07 DOUTDC28 L8R_DC00 DOUTDA28 L8R_DA06 DOUTDC28 DOUTDC29 L8R_DC06 DOUTDC24 DOUTDA30 DOUTDA29 L8R_DA03 CLKD11 L8R_DB04 DOUTDC31 DOUTDB19 DOUTDA25 DOUTDC26 L8R_DA02 L8R_DB02 L8R_DC11 L8R_DC03 DOUTDB26 LED_6 L8R_DB12 DOUTDB23 DOUTDB31 DOUTDB24 DMLL_C4 DOUTDA22 DOUTDC27 L8R_DB14 DOUTDB28 DOUTDB29 DOUTDA29 DOUTDA22 DSHL_C4 L8R_DC05 L8R_DA08 L8R_DC01 DOUTDA30 ODED_6 DOUTDA31 DOUTDC17 DMHL_C4 L8R_DC13 DOUTDB21 L8R_DA13 DOUTDA28 PCD_6 L8R_DA14 L8R_DB15 DOUTDA20 DOUTDB22 DOUTDB25 DOUTDA24 L8R_DB09 L8R_DB01 DOUTDC31 DOUTDC23 DMLR_C6 DOUTDA21 DOUTDA16 DOUTDB28 DOUTDA26 DOUTDA17 5V_DET6 L8R_DA07 DOUTDB20 5V_DET6 L8R_DA11 DOUTDC24 DOUTDB18 DSHR_C6 DOUTDC25 DOUTDB24 L8R_DA04 DOUTDA24 DOUTDC19 DOUTDA26 DOUTDB29 DOUTDC23 DOUTDA23 DOUTDA27 DOUTDC26 L8R_DC12 5V_SENSE DMHR_C6 L8R_DC09 CLKD8 L8R_DB11 DOUTDB30 DOUTDC20 L8R_DB03 L8L_UA02 L8L_UA03 L8L_UA14 L8L_UA07 L8L_UA06 L8L_UA13 L8L_UA11 L8L_UA12 L8L_UA10 L8L_UA00 L8L_UA05 L8L_UA04 L8L_UA08 L8L_UA15 L8L_UA09 L8L_UA01 L8L_UB13 L8L_UB03 L8L_UB14 L8L_UB02 L8L_UB09 L8L_UB07 L8L_UB10 L8L_UB11 L8L_UB04 L8L_UB01 L8L_UB00 L8L_UB06 L8L_UB05 L8L_UB15 L8L_UB12 L8L_UB08 L8L_UC07 L8L_UC14 L8L_UC01 L8L_UC05 L8L_UC08 L8L_UC12 L8L_UC15 L8L_UC03 L8L_UC10 L8L_UC13 L8L_UC06 L8L_UC02 L8L_DRVCLKU3 L8L_DRVCLKU2 L8L_UC04 L8L_UC00 L8L_UC11 L8L_UC09 L8L_DA14 L8L_DA15 L8L_DA02 L8L_DA06 L8L_DA03 L8L_DA09 L8L_DA08 L8L_DA07 L8L_DA05 L8L_DA04 L8L_DA10 L8L_DA11 L8L_DA00 L8L_DA01 L8L_DA13 L8L_DA12 L8L_DB10 L8L_DB09 L8L_DB00 L8L_DB02 L8L_DB04 L8L_DB11 L8L_DB05 L8L_DB06 L8L_DB08 L8L_DB03 L8L_DB14 L8L_DB13 L8L_DB12 L8L_DB07 L8L_DB15 L8L_DB01 L8L_DRVCLKD0 L8L_DC01 L8L_DC06 L8L_DC15 L8L_DC10 L8L_DC02 L8L_DC00 L8L_DC14 L8L_DRVCLKD1 L8L_DC13 L8L_DC05 L8L_DC12 L8L_DRVCLKD2 L8L_DC03 L8L_DRVCLKD3 L8L_DC04 L8L_DC11 L8L_DC07 L8L_DC09 L8L_DC08 RB_E+ RD_E- RD_E+ RCLK_E+ RE_E- RB_E- RC_E- RCLK_E- RE_E+ RA_E+ RC_E+ RA_E- CKSOMI CKMOSI OSDVO_FP TDI_L FULL1 FULL0 CLKD0 CLKD1 OCKOUT_RD ACTV L8L_DIO05 L8L_DIO04 L8L_DIO02 L8L_DIO30 SIN FPDAT0 FCCLK SFLATCH TDI_R L8L_DIO06 L8L_DIO23 OSDHO_FP L8L_DIO07 L8L_DIO15 L8L_DIO15 VIO HIO L8L_DIO03 L8L_DIO01 L8L_DIO00 IOSW C9961 10V 10u C9971 50V 18p C9972 50V 15p C9068 25V 0.01u C9212 10V 10u C9210 10V 10u C9181 0.1u 16V C9204 0.1u 16V C9186 0.1u 16V C9183 0.1u 16V C9211 0.1u 16V C9175 0.1u 16V C9169 0.1u 16V C9187 0.1u 16V C9184 0.1u 16V C9147 0.1u 16V C9189 0.1u 16V C9185 0.1u 16V C9182 0.1u 16V C9178 0.1u 16V C9213 0.1u 16V C9171 0.1u 16V C9203 0.1u 16V C9194 0.1u 16V C9179 0.1u 16V C9192 0.1u 16V C9193 0.1u 16V C9195 0.1u 16V C9205 0.1u 16V C9170 0.1u 16V C9207 16V 0.1u C9206 16V 0.1u C9146 0.1u 16V C9190 0.1u 16V C9188 0.1u 16V C9196 0.1u 16V C9173 0.1u 16V C9176 0.1u 16V C9214 16V 0.1u C9200 0.1u 16V C9145 0.1u 16V C9177 0.1u 16V C9172 0.1u 16V C9199 0.1u 16V C9201 0.1u 16V C9198 0.1u 16V C9202 0.1u 16V C9209 0.1u 16V C9174 0.1u 16V C9180 0.1u 16V C9191 0.1u 16V C9208 0.1u 16V D9025 B0JCCE000008 IC9300 M16 VDD33 IC9300 M13 VDD12 IC9300 M11 VDD12 IC9300 M10 VDD12 IC9300 M5 AVDD_L33 IC9300 M4 AVDD_L33 IC9300 M2 RBP IC9300 M1 RBM IC9300 L26 DOUTDC09 IC9300 L25 DOUTDB09 IC9300 L23 DOUTDA09 IC9300 L17 VDD33 IC9300 L13 VDD12 IC9300 L12 VDD12 IC9300 L10 VDD12 IC9300 L5 AVDD_PM33 IC9300 L2 RAP IC9300 L1 RAM IC9300 K26 DRVCLKD3 IC9300 K25 DRVCLKD2 IC9300 K24 VDD33 IC9300 K22 DOUTDC10 IC9300 K13 VDD12 IC9300 K12 VDD12 IC9300 K11 VDD12 IC9300 K5 AVDD_PO33 IC9300 B23 DOUTUA01 IC9300 J26 DRVCLKD1 IC9300 J25 DRVCLKD0 IC9300 J23 DOUTDC11 IC9300 J22 VDD33 IC9300 J5 AVDD_L12 IC9300 J4 OCK IC9300 J3 SFRST IC9300 H26 DOUTDB10 IC9300 H25 DOUTDA10 IC9300 H24 VDD33 IC9300 H23 DOUTDA11 IC9300 H22 DOUTDB13 IC9300 H5 VDD12 IC9300 H4 FULL1 IC9300 H3 FPDAT0 IC9300 H2 SFLATCH IC9300 H1 SFVRST IC9300 G26 DOUTDB11 IC9300 G25 DOUTDC12 IC9300 G23 DOUTDC14 IC9300 G5 VDD12 IC9300 G4 VDD12 IC9300 G3 FCCLK IC9300 G2 FPDAT1 IC9300 G1 FPCLK IC9300 F26 DOUTDB12 IC9300 F25 DOUTDA12 IC9300 F24 DOUTDA14 IC9300 F22 VDD33 IC9300 F4 VDD12 IC9300 F3 VDD12 IC9300 F2 FULL0 IC9300 F1 CLKMO IC9300 E26 DOUTDC13 IC9300 E25 DOUTDA13 IC9300 E23 VDD33 IC9300 E22 DOUTUC00 IC9300 E21 DOUTUC02 IC9300 E15 DOUTUC12 IC9300 E19 DOUTUB07 IC9300 E18 VDD33 IC9300 E17 VDD33 IC9300 E16 DOUTUB09 IC9300 L4 AVDD_L33 IC9300 B9 DIO22 IC9300 AB17 AVDD_D25 IC9300 AB16 AVDD_Q25 IC9300 AB15 VDD25 IC9300 AB14 AVDD_D25 IC9300 AB13 AVDD_D25 IC9300 AB10 VDD25 IC9300 AB9 VDD25 IC9300 B8 DIO18 IC9300 AB8 AVDD_D25 IC9300 AB7 AVDD_D25 IC9300 AB5 VDD25 IC9300 AB4 XRST IC9300 AB3 FVSEL IC9300 AA26 DOUTDB00 IC9300 AA25 TMS IC9300 AA24 VDD33 IC9300 AA22 VDD33 IC9300 AA5 PROG IC9300 AA2 XO IC9300 AA1 XI IC9300 B10 DIO26 IC9300 B5 DIO7 IC9300 A24 DOUTUA00 IC9300 B22 DOUTUC03 IC9300 A2 DIO0 IC9300 A3 DIO1 IC9300 A4 DIO6 IC9300 A5 CKMI IC9300 A6 CKMO IC9300 B21 DOUTUA04 IC9300 A8 DIO19 IC9300 A9 DIO24 IC9300 A10 DIO28 IC9300 A11 DOUTUA15 IC9300 A12 DOUTUA14 IC9300 A14 DRVCLKU1 IC9300 B20 DOUTUA05 IC9300 A15 DOUTUC13 IC9300 A16 DOUTUA11 IC9300 A17 DOUTUC10 IC9300 A18 DOUTUB08 IC9300 A19 CKSI IC9300 A20 CKSO IC9300 A21 DOUTUC05 IC9300 B19 DOUTUA06 IC9300 T22 DOUTDA03 IC9300 T10 VDD12 IC9300 AE26 VDD33 IC9300 D18 DOUTUC07 IC9300 B7 DIO13 IC9300 B4 DIO2 IC9300 B3 HIO IC9300 T12 VDD25 IC9300 AE2 VDD25 IC9300 T2 REP IC9300 B6 DIO9 IC9300 AD25 VDD33 IC9300 T1 REM IC9300 M17 VDD33 IC9300 M22 DOUTDC08 IC9300 M25 DOUTDA08 IC9300 AD6 VDD25 IC9300 AD3 VDD25 IC9300 AD2 XRSTSYS IC9300 AD1 PROG_M IC9300 AC24 VDD33 IC9300 AC4 VDD25 IC9300 AC2 MCCLK IC9300 AC1 XOUT IC9300 AB26 TCK IC9300 AB25 TDO IC9300 AB23 VDD33 IC9300 A25 DOUTDA15 IC9300 AB21 AVDD_PD33 IC9300 AB20 VDD25 IC9300 AB19 VDD25 IC9300 B18 DOUTUC08 IC9300 B17 DOUTUA09 IC9300 B16 DOUTUC11 IC9300 B15 DOUTUA12 IC9300 B14 DRVCLKU0 IC9300 B13 DRVCLKU2 IC9300 B12 DOUTUB15 IC9300 B11 ROMCE IC9300 A13 DRVCLKU3 IC9300 A7 DIO15 IC9300 A23 DOUTUB02 IC9300 A26 VDD33 IC9300 D17 DOUTUA08 IC9300 D16 DOUTUA10 IC9300 D15 DOUTUB11 IC9300 D14 DOUTUA13 IC9300 T24 VDD33 IC9300 T25 DOUTDB04 IC9300 T26 DOUTDA04 IC9300 U4 AVDD_L33 IC9300 U5 AVDD_L33 IC9300 U11 VDD25 IC9300 U12 VDD25 IC9300 U13 VDD25 IC9300 U22 VDD33 IC9300 U23 DOUTDB02 IC9300 U25 DOUTDB03 IC9300 U26 DOUTDC04 IC9300 V2 OSDRI IC9300 V3 OSDBI IC9300 V4 OSDGI IC9300 V5 AVDD_PI33 IC9300 V22 DOUTDC00 IC9300 V23 DOUTDA01 IC9300 V24 VDD33 IC9300 V25 DOUTDA02 IC9300 V26 DOUTDC03 IC9300 W1 OSDYSI IC9300 W2 OSDVO IC9300 W3 SCL IC9300 W5 OSDHO IC9300 W23 TRST IC9300 W24 TDI IC9300 W25 DOUTDB01 IC9300 W26 DOUTDC02 IC9300 Y3 SDA IC9300 Y4 PRCKO IC9300 Y5 OSDCKO IC9300 Y25 DOUTDA00 IC9300 Y26 DOUTDC01 IC9300 E12 DIO30 IC9300 E11 DIO27 IC9300 E10 VDD12 IC9300 E9 VDD12 IC9300 E8 DIO14 IC9300 E7 DIO8 IC9300 E6 DIO4 IC9300 E5 IOSW IC9300 E3 VDD12 IC9300 E2 VDD12 IC9300 E1 ROMRESET IC9300 D26 DOUTDB14 IC9300 D24 VDD33 IC9300 D23 DOUTDB15 IC9300 D22 DOUTUB01 IC9300 D21 DOUTUA03 IC9300 D20 DOUTUB04 IC9300 D19 DOUTUC06 IC9300 AF1 VDD25 IC9300 B24 DOUTUB00 IC9300 B25 DOUTDC15 IC9300 B26 VDD33 IC9300 C1 VDD12 IC9300 C4 ACTV IC9300 C5 DIO3 IC9300 C6 DIO10 IC9300 C7 DIO12 IC9300 C8 DIO17 IC9300 C9 DIO20 IC9300 A22 DOUTUB03 IC9300 C10 DIO25 IC9300 C11 ROMOE IC9300 C12 ROMWE IC9300 C13 DOUTUC14 IC9300 C14 DOUTUB13 IC9300 C15 DOUTUB12 IC9300 C16 DOUTUB10 IC9300 C17 DOUTUC09 IC9300 C18 DOUTUA07 IC9300 C19 DOUTUB06 IC9300 C20 DOUTUB05 IC9300 C21 DOUTUC04 IC9300 C22 DOUTUA02 IC9300 C23 DOUTUC01 IC9300 C24 OCKOUT IC9300 C25 VDD33 IC9300 D1 VDD12 IC9300 D2 VDD12 IC9300 D4 VIO IC9300 D5 SLVDOUTUB14 IC9300 D6 DIO5 IC9300 D7 DIO11 IC9300 D8 DIO16 IC9300 D9 DIO21 IC9300 D10 DIO23 IC9300 D11 DIO29 IC9300 D12 DOUTUC15 IC9300 D13 DOUTUB14 IC9300 T17 VDD33 IC9300 T13 VDD25 IC9300 T4 AVDD_L33 IC9300 T5 AVDD_L33 IC9300 N22 VDD33 IC9300 N23 DOUTDB07 IC9300 N25 DOUTDA07 IC9300 N26 DOUTDC07 IC9300 P1 RCLKM IC9300 P2 RCLKP IC9300 P4 AVDD_L33 IC9300 P5 AVDD_L33 IC9300 P22 DOUTDC06 IC9300 P24 VDD33 IC9300 P25 DOUTDB06 IC9300 P26 DOUTDA06 IC9300 R1 RDM IC9300 R2 RDP IC9300 R4 AVDD_L33 IC9300 R5 AVDD_L33 IC9300 R10 VDD12 IC9300 R11 VDD12 IC9300 R16 VDD33 IC9300 R17 VDD33 IC9300 R23 DOUTDB05 IC9300 R25 DOUTDC05 IC9300 R26 DOUTDA05 IC9300 M26 DOUTDB08 IC9300 N1 RCM IC9300 N2 RCP IC9300 N4 AVDD_L33 IC9300 N5 AVDD_L33 IC9300 N10 AVDD_L12 IC9300 M24 VDD33 D31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 L9003 J0JHC0000078 L9002 J0JHC0000078 L9001 J0JHC0000078 L9000 J0JHC0000078 P2.5V P2.5V P3.3V P5V L8LAVDD3.3V L8LAVDD3.3V P1.2V P1.2V P3.3V P3.3V P3.3V L8LAVDD3.3V Q9059 2SD0601A0L R9230 EXB38V470JV R9140 EXB2HV220JV R9137 EXB2HV220JV R9146 EXB2HV220JV R9147 EXB2HV220JV R9139 EXB2HV220JV R9138 EXB2HV220JV R9335 EXB2HV103JV R9281 EXB2HV103JV R9280 EXB2HV103JV R9282 EXB2HV103JV *R9319 22 *R9317 22 R9247 47 R9270 47 R9271 47 R9157 4.7k R9162 100k R9168 0 R9163 10k R9966 470 R9311 1k R9345 68 R9217 68 R9341 100 R9133 68 R9154 47 R9969 47 R9113 47 R9114 47 R9975 47 R9974 10k R9973 10k R9972 10k R9334 10k R9245 1k R9308 1k R9980 0 X9200 H0J200500076 TP9001 TP9002 LVDS_INPUT IIC rromdata[14] rromadrs[00] rromdata[06] rromdata[09] rromdata[12] rromadrs[11] rromadrs[14] rromdata[15] rromadrs[01] rromadrs[04] rromadrs[17] rromadrs[20] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[16] rromdata[00] rromdata[01] rromdata[02] rromadrs[19] rromadrs[03] rromdata[03] rromdata[04] rromdata[07] rromdata[10] rromadrs[06] rromadrs[09] rromdata[13] rromadrs[12] rromdata[05] rromadrs[15] rromadrs[18] rromadrs[02] rromadrs[05] rromadrs[08] rromdata[08] rromdata[11] RC- RB- RB+ RC+ RCLK- RCLK+ RD+ RA-(MSB) RA+(MSB) RD- RE-(LSB) for LVDS_TX 20MHz(SS) Low Active RE+(LSB) GND CLKD9(-) GND DMLL DOUTDB[31] GND GND NC/OCKOUT_RD DOUTDA[29] GND GND GND LED6 DOUTDC[24] CLKD8(+) DOUTDB[23] DOUTDC[25] DOUTDA[28] GND GND DOUTDC[27] DSHR DOUTDB[24] DOUTDA[27] DOUTDC[28] GND CLKD10(+)/DSLL DOUTDC[26] DOUTDB[26] DOUTDA[31] GND 5V_DET GND DOUTDB[27] DOUTDA[24] DOUTDB[25] DMHR GND DMLR GND CLKD11(-)/DSLR DOUTDC[23] DOUTDB[29] DOUTDC[22] DOUTDB[22] GND NC DOUTDC[29] CLRD6 DOUTDC[31] DOUTDB[30] DOUTDA[26] P5V PCD6 DOUTDB[28] DMHL GND DOUTDA[23] P5V GND DOUTDA[22] DOUTDC[30] DOUTDA[30] DOUTDA[25] ODED6 P5V GND DSHL PD2M Left (Master) to PD2M Right JTAG SCLK NCS_FPGA OUTPUT OUTPUT OUTPUT INPUT 43 44 39 38 40 41 45 37 42 TO C1-BOARD (C11) VIDEO/PANEL CONTROL MN84526 IC9300 31 32 33 41 42 43 44 ! D-BOARD TNPA4439AJS (5/6) TH-50PZ80U D-Board (5/6) Schematic Diagram TH-50PZ80U D-Board (5/6) Schematic Diagram 66 11.24. D-Board (6/6) Schematic Diagram TERM SIDE TERM SIDE L8DL_DQ28 L8L_A0 L8L_DQ9 L8DL_DQS0 L8DL_DQ31 L8L_DQ23 L8L_A6 L8DL_NCS L8L_DQ15 L8DL_A5 L8DL_A1 L8DL_NCAS L8L_A3 L8DL_A11 L8L_DQ17 L8DL_DQ21 L8DL_DQ23 L8DL_DQ22 L8DL_DQ25 L8L_DQ16 L8DL_BA1 L8L_A5 L8L_A4 L8DL_A11 L8DL_DQ10 L8L_DQ13 L8DL_DQ3 L8L_DQ24 L8L_DQ14 L8L_DQ24 L8DL_BA0 L8DL_DQ1 L8DL_DQ9 L8L_DQ10 L8DL_A7 L8DL_DQ4 L8L_SDCLKO L8DL_DQ31 L8DL_A2 L8L_BA0 L8L_DQS2 L8L_BA0 L8DL_NRAS L8L_BA1 L8DL_DQ11 L8L_DQ4 L8L_DQ31 L8DL_DQ2 L8DL_DQ26 L8DL_DQ0 L8DL_BA1 L8DL_DQ5 L8DL_DQ11 L8L_DQ0 L8L_DQ26 L8L_A4 L8L_BA1 L8L_DQ19 L8L_DQ2 L8L_DQ13 L8DL_A6 L8DL_DQS3 L8L_DQ9 L8DL_NCLK L8DL_DQ20 L8L_A2 L8L_RAS L8DL_DQ18 L8L_DQ18 L8DL_A2 L8DL_A3 L8DL_A9 L8L_DQ22 L8DL_NRAS L8L_A8 L8L_A10 L8L_A1 L8L_A1 L8DL_A3 L8L_WE L8L_A10 L8L_A0 L8L_DQS2 L8L_DQ31 L8DL_DQ7 L8DL_DQ24 L8L_SDCKE L8DL_DQ8 L8DL_DQ16 L8L_DQ3 L8L_DQ4 L8L_RAS L8DL_DQ20 L8DL_DQ6 L8L_DQ8 L8L_DQ11 L8DL_DQ19 L8DL_DQ24 L8L_A3 L8L_DQ14 L8DL_A4 L8L_DQS3 L8DL_A0 L8L_DQ1 L8DL_DQ12 L8L_A6 L8DL_A6 L8DL_DQ8 L8L_DQ23 L8L_WE L8L_DQ3 L8L_DQ10 L8DL_DQ12 L8DL_DQ2 L8L_DQ26 L8L_DQ8 L8L_DQ1 L8DL_DQ18 L8DL_DQ4 L8DL_DQ0 L8L_DQ21 L8DL_DQS2 L8DL_A1 L8DL_A0 L8DL_DQ22 L8L_A9 L8L_SDCKE L8DL_DQ6 L8DL_DQ29 L8DL_DQS0 L8L_DQ21 L8DL_DQS2 L8DL_DQ7 L8DL_DQ19 L8DL_DQ14 L8DL_DQ5 L8L_SDCLKO L8L_DQ12 L8L_DQ28 L8L_DQ30 L8DL_DQ23 L8DL_DQ14 L8L_DQ6 L8DL_CKE L8DL_DQ13 L8L_A9 L8DL_DQS1 L8DL_DQ30 L8L_DQS1 L8DL_A8 L8L_DQ22 L8DL_NCS L8L_A7 L8DL_DQ16 L8L_DQ17 L8DL_DQ17 L8L_NSDCLKO L8L_DQ5 L8L_DQ7 L8DL_DQ28 L8DL_DQ17 L8DL_DQ15 L8DL_DQ15 L8L_DQ30 L8L_DQ27 L8L_DQS3 L8L_DQ15 L8DL_A5 L8DL_DQS1 L8L_DQS0 L8L_DQ6 L8L_DQ11 L8L_DQ25 L8L_DQ29 L8L_A8 L8DL_NCAS L8DL_DQ9 L8DL_DQS3 L8DL_NWE L8L_CS L8L_DQ27 L8L_A11 L8L_NSDCLKO L8L_A7 L8L_DQ29 L8DL_A9 L8DL_A8 L8DL_DQ21 L8L_DQ12 L8L_CS L8DL_BA0 L8L_DQ20 L8DL_DQ27 L8DL_A10 L8DL_A4 L8L_DQS1 L8L_CAS L8L_DQ20 L8DL_NWE L8DL_DQ13 L8DL_CLK L8L_DQS0 L8L_A5 L8L_DQ19 L8L_DQ2 L8DL_DQ10 L8L_DQ28 L8L_DQ16 L8DL_A7 L8L_A2 L8DL_DQ30 L8L_DQ18 L8L_A11 L8DL_DQ1 L8L_CAS L8DL_DQ29 L8DL_DQ3 L8L_DQ25 L8L_DQ0 L8L_DQ5 L8L_DQ7 L8DL_A10 0V L8L_DA06 DOUTDB9 CLKD5 CLKD2 L8L_DA14 DOUTDB10 DOUTDA15 DOUTDB14 DOUTDC14 DOUTDA20 L8L_DB01 CLKD3 DOUTDC9 L8L_DC12 LED_5 DOUTDB13 L8L_DB15 DOUTDA13 L8L_DA04 L8L_DC06 DOUTDB4 L8L_DA10 L8L_DA11 DOUTDC1 DOUTDB4 DOUTDA1 L8L_DC08 DOUTDC5 DOUTDB16 L8R_DRVCLKD2 L8L_DB09 L8L_DA01 PCD_6 5V_DET5 DOUTDC12 L8L_DA13 C_NUEL L8L_DA12 CLKD5 DOUTDA5 DOUTDB17 DOUTDB0 DOUTDA1 L8L_DC14 SOS8_SS D_CLRD6 DOUTDB7 DOUTDA17 DOUTDB6 DOUTDB7 CLKD6 DOUTDC15 L8L_DB08 DOUTDB18 CLKD2 L8L_DC09 DOUTDA12 DOUTDC14 ODED_6 DOUTDC5 DOUTDC15 DOUTDC13 NUEL CLKD7 DOUTDA8 DOUTDC12 DOUTDA3 DOUTDB12 DOUTDA16 C_NUEL C_UML LED_6 DOUTDA7 DOUTDC16 DOUTDC11 DOUTDC4 DOUTDA13 CLKD8 L8L_DC03 5V_DET4 C_UEH C_UMH DOUTDB6 LED_5 L8L_DA05 DOUTDC19 DOUTDC7 L8L_DC05 CLRD_5 CLRD_5 CLKD9 DOUTDB8 DOUTDA6 DOUTDA15 L8L_DC13 DOUTDB2 DOUTDA6 D_LED6 DOUTDA11 L8L_DB14 CLKD0 USH CLKD4 DOUTDA14 L8L_DB05 L8L_DB00 SOS8_SS_C C_USL SOS8_SS_C D_ODED5 DOUTDB1 DOUTDB8 CLKD7 DOUTDC8 DOUTDA19 DOUTDB3 DOUTDA7 DOUTDC1 C_USL L8L_DB03 DOUTDC2 DOUTDC21 C_UML L8L_DA08 L8L_DC15 DOUTDA18 L8L_DC07 DOUTDA5 SOS7_DRD DOUTDC10 UMH DOUTDA3 UML ODED_5 DOUTDB19 L8L_DA15 DOUTDB15 L8R_DRVCLKD3 DOUTDB5 DOUTDA21 DOUTDB11 CLKD0 L8L_DC04 C_UEH DOUTDC20 DOUTDB13 5V_DET4 C_USH L8L_DB10 D_CLRD5 DOUTDA14 DOUTDB0 L8R_DRVCLKD0 DOUTDA0 L8L_DC00 L8L_DB13 5V_SENSE DOUTDB14 DOUTDA4 L8L_DA09 D_ODED6 L8L_DB12 UEH DOUTDA0 5V_SENSE CLKD1 DOUTDC8 DOUTDC17 DOUTDC0 DOUTDB1 DOUTDC10 L8L_DA07 DOUTDC4 DOUTDC11 DOUTDC9 C_UMH PCD_5 CLRD_6 DOUTDA2 DOUTDA11 DOUTDA12 DOUTDB9 L8L_DB02 DOUTDC2 PCD_5 ODED_5 DOUTDA10 L8L_DB06 DOUTDC13 USL CLKD3 DOUTDA9 DOUTDC6 L8L_DRVCLKD3 DOUTDA2 L8L_DB07 DOUTDB10 L8L_DA02 D_PCD6 DOUTDA10 PCD_4 DOUTDB15 L8L_DB11 DOUTDC7 DOUTDC3 DOUTDB2 L8R_DRVCLKD1 DOUTDC18 DOUTDB3 DOUTDA8 DOUTDB21 L8L_DRVCLKD2 L8L_DA00 DOUTDA4 DOUTDB12 L8L_DC02 L8L_DB04 L8L_DC11 DOUTDC6 L8L_DC01 L8L_DA03 CLKD4 DOUTDB20 DRVRST DOUTDB11 DOUTDC0 CLKD6 DOUTDC3 DOUTDB5 5V_DET5 L8L_DC10 DOUTDA9 C_USH L8L_DRVCLKD0 L8L_DRVCLKD1 CLKD10 CLKD11 5V_SENSE OCKOUT_RD L8DL_DQ26 L8DL_DQ27 L8DL_DQ25 CLKD1 D_PCD5 D_LED5 LED_4 L8L_MONOUT L8DL_CKE L8DL_CLK L8DL_NCLK C9069 25V 0.01u C9067 25V 0.01u C9929 16V 0.1u C9936 16V 0.1u C9941 16V 0.1u C9133 16V 0.1u C9931 16V 0.1u C9947 16V 0.1u C9951 16V 0.1u C9930 16V 0.1u C9933 16V 0.1u C9928 16V 0.1u C9946 16V 0.1u C9948 16V 0.1u C9937 16V 0.1u C9932 16V 0.1u C9940 16V 0.1u C9935 16V 0.1u C9927 16V 0.1u C9942 16V 0.1u C9934 16V 0.1u C9966 16V 0.1u C9945 16V 0.1u C9943 16V 0.1u C9939 16V 0.1u C9944 16V 0.1u C9938 16V 0.1u D9026 B0JCCE000008 D9024 B0JCCE000008 IC9301 B2 DQS0 IC9300 A1 VSS IC9300 M15 VSS IC9300 M14 VSS IC9300 M12 VSS IC9300 M3 AVSS_L IC9300 L24 VSS IC9300 L22 VSS IC9300 L16 VSS IC9300 L15 VSS IC9300 L14 VSS IC9300 L11 VSS IC9300 N17 VSS IC9300 L3 AVSS_L IC9300 K23 VSS IC9300 K17 VSS IC9300 K16 VSS IC9300 K15 VSS IC9300 K14 VSS IC9300 K10 VSS IC9300 K4 AVSS_PM IC9300 K3 AVSS_L IC9300 K1 AVSS_L IC9300 J24 VSS IC9300 J2 AVSS_PO IC9300 J1 TCPOUT IC9300 G24 VSS IC9300 G22 VSS IC9300 F23 VSS IC9300 F6 VSS IC9300 F5 VSS IC9300 E24 VSS IC9300 E20 VSS IC9301 K8 VSS IC9301 N12 CKE IC9301 K4 VDDQ IC9301 M5 BA1 IC9301 M12 CK IC9301 J8 VSS_Thermal IC9301 M13 NC IC9301 N2 CS IC9301 M11 CK IC9301 E5 VSS IC9301 F10 VSSQ IC9301 C12 VDDQ IC9301 B3 DM0 IC9301 F4 VDDQ IC9301 L12 NC IC9301 F13 DQ14 IC9301 N5 A0 IC9301 H11 NC IC9301 M8 A9 IC9301 L8 VDD IC9301 F9 VSS_Thermal IC9301 N13 VREF IC9301 G12 DQ13 IC9300 AC25 V_TEST IC9300 AB12 VSS IC9300 AF19 NRAS IC9300 AB11 VSS IC9300 AF18 CK IC9300 AF17 DQ8 IC9300 AF16 DQ10 IC9300 AF15 DQ11 IC9300 AB6 VSS IC9300 AB2 VSS IC9300 AB1 VSS IC9300 AA23 ID1 IC9300 AA4 VSS IC9300 AA3 VSS IC9301 K3 DQ23 IC9300 K2 AVSS_L IC9301 D13 DQ25 IC9301 N6 A1 IC9301 E6 VSSQ IC9301 D7 VDD IC9301 K9 VSS IC9301 C8 VDDQ IC9301 H10 VSSQ IC9301 B5 DQ3 IC9301 H6 VSS_Thermal IC9301 H4 NC IC9301 F2 DQ17 IC9301 E2 DQ7 IC9301 K6 VSS IC9301 C10 VDDQ IC9301 G11 VDDQ IC9301 G9 VSS_Thermal IC9301 B4 VSSQ IC9301 D3 DQ5 IC9301 G3 DQ18 IC9301 H3 DM2 IC9301 J5 VSSQ IC9301 K12 DQ9 IC9301 C4 NC IC9301 J9 VSS_Thermal IC9301 G10 VSSQ IC9301 C7 VDDQ IC9301 N4 BA0 IC9301 F7 VSS_Thermal IC9300 T11 VSS IC9301 H13 DQS1 IC9301 D11 VSSQ IC9301 B12 DM3 IC9301 E10 VSS IC9301 E9 VSSQ IC9301 F11 VDDQ IC9301 F6 VSS_Thermal IC9301 N7 A3 IC9301 B13 DQS3 IC9301 C2 DQ4 IC9301 G13 DQ12 IC9301 J12 DQ11 IC9301 B6 DQ2 IC9301 G2 DQ19 IC9301 H2 DQS2 IC9301 E7 VSS IC9301 E11 VDD IC9301 C9 DQ30 IC9301 L4 VDD IC9301 G6 VSS_Thermal IC9301 K13 DQ8 IC9301 L5 VSS IC9301 F3 DQ16 IC9300 N16 VSS IC9301 M2 RAS IC9301 N11 A8/AP IC9301 H7 VSS_Thermal IC9301 G7 VSS_Thermal IC9301 K2 DQ22 IC9301 G4 VDDQ IC9300 AF13 VSS IC9300 AF12 VSS IC9300 AF11 DQ28 IC9300 AF10 DQ29 IC9300 AF9 DQ0 IC9300 AF8 DQ2 IC9300 AF7 VSS IC9300 AF6 VSS IC9300 AF5 VSS IC9300 AF4 DQ21 IC9300 AF3 DQ22 IC9300 AF2 VSS IC9301 D2 DQ6 IC9301 H12 DM1 IC9300 T23 VSS IC9301 H5 VSSQ IC9301 C6 DQ1 IC9300 AE25 VSS IC9301 M3 NC IC9301 D12 DQ26 IC9300 AE24 TCPOUT_D IC9301 F5 VSSQ IC9300 AE23 AD3 IC9300 AE22 AD1 IC9300 AE21 AD0 IC9300 T14 VSS IC9300 AE20 BA0 IC9301 L6 A10 IC9301 L13 NC IC9300 AE19 NCS IC9300 AE18 AVSS_D IC9300 AE17 NCK IC9300 AE16 DQ9 IC9300 AE15 DQ15 IC9300 AE14 DQS1 IC9300 AE13 VSS IC9300 AE12 DQS3 IC9300 AE11 DQ30 IC9300 AE10 DQ31 IC9300 AE9 DQ1 IC9300 AE8 DQ3 IC9300 AE7 DQS0 IC9301 J6 VSS_Thermal IC9300 AE6 DQS2 IC9300 T15 VSS IC9300 B2 VSS IC9300 T16 VSS IC9300 AE4 DQ23 IC9300 B1 VSS IC9300 AE1 VSS IC9300 AD26 TEST1 IC9300 AF26 VSS IC9300 AD24 VSS IC9300 AD23 ID0 IC9300 AD22 AD8 IC9300 AD21 AD5 IC9300 AD20 AD9 IC9300 AD19 NWE IC9300 AD18 NCAS IC9300 AD17 AVSS_Q IC9300 AD16 DQ12 IC9300 M23 VSS IC9300 AD14 VSS IC9300 AF25 AD4 IC9300 AD13 AVSS_D IC9300 AF24 AD11 IC9300 AD12 VSS IC9300 AD11 DQ24 IC9300 AD10 DQ26 IC9300 AD9 DQ4 IC9300 AD8 DQ6 IC9300 AD7 AVSS_D IC9300 AD5 DQ16 IC9300 AD4 DQ18 IC9300 AF23 AD10 IC9300 AC26 MONOUT IC9301 F12 DQ15 IC9300 AC23 VSS IC9300 AC22 AVSS_PD IC9300 AC21 AD7 IC9300 AC20 AD6 IC9300 AC19 CKE IC9300 AC18 VSS IC9300 AC17 VSS IC9300 AC16 VSS IC9300 AC15 DQ13 IC9300 AC14 VREF0 IC9300 AC13 VSS IC9300 AC12 VSS IC9300 AC11 DQ25 IC9300 AC10 DQ27 IC9300 AC9 DQ5 IC9300 AC8 DQ7 IC9300 AC7 VREF1 IC9300 AC6 AVSS_D IC9300 AC5 DQ17 IC9300 AC3 VSS IC9300 AF22 AD2 IC9300 AB24 ID2 IC9300 AF21 BA1 IC9300 AB22 VSS IC9300 AF20 VSS IC9300 AB18 VSS IC9301 E8 VSS IC9301 J10 VSSQ IC9301 B10 DQ28 IC9301 C3 VDDQ IC9301 E3 VDDQ IC9301 E12 VDDQ IC9301 M9 A5 IC9301 K10 VSSQ IC9301 B9 DQ29 IC9301 L11 VDD IC9301 G5 VSSQ IC9301 M4 NC IC9301 E13 DQ24 IC9301 H8 VSS_Thermal IC9301 L3 WE IC9301 K5 VSSQ IC9301 N9 A6 IC9301 G8 VSS_Thermal IC9301 C5 VDDQ IC9300 U1 AVSS_L IC9300 U2 AVSS_L IC9300 U3 AVSS_L IC9300 U10 VSS IC9300 U14 VSS IC9300 U15 VSS IC9300 U16 VSS IC9300 U17 VSS IC9300 U24 VSS IC9300 V1 AVSS_PI IC9300 W4 VSS IC9300 W22 VSS IC9300 Y1 VSS IC9300 Y2 VSS IC9300 Y22 TEST0 IC9300 Y23 TEST IC9300 Y24 VSS IC9300 E14 VSS IC9300 E13 VSS IC9301 J2 DQ21 IC9301 D6 VSSQ IC9301 M7 A11 IC9301 D8 VDD IC9301 L9 RFU IC9300 E4 VSS IC9301 L10 VSS IC9301 B7 DQ0 IC9300 D25 VSS IC9301 J7 VSS_Thermal IC9301 J13 DQ10 IC9301 D10 VSSQ IC9301 D4 VSSQ IC9301 K7 VSS IC9301 C11 NC IC9301 H9 VSS_Thermal IC9301 L7 VDD IC9301 E4 VDD IC9301 D9 VSSQ IC9301 F8 VSS_Thermal IC9301 C13 DQ27 IC9301 D5 VSSQ IC9300 C2 VSS IC9300 C3 VSS IC9300 C26 VSS IC9301 J4 VDDQ IC9300 D3 VSS IC9301 J3 DQ20 IC9301 N3 NC IC9301 K11 VDDQ IC9301 N8 A4 IC9301 B11 VSSQ IC9301 B8 DQ31 IC9301 L2 CAS IC9301 M10 RFU IC9301 N10 A7 IC9300 AE5 DQ20 IC9301 M6 A2 IC9300 T3 AVSS_L IC9300 AE3 DQ19 IC9300 AF14 AVSS_D IC9300 N24 VSS IC9300 P3 AVSS_L IC9300 P10 VSS IC9300 P11 VSS IC9300 P12 VSS IC9300 P13 VSS IC9300 P14 VSS IC9300 P16 VSS IC9300 P17 VSS IC9300 P23 VSS IC9300 R3 AVSS_L IC9300 R12 VSS IC9300 R13 VSS IC9300 R14 VSS IC9300 R15 VSS IC9300 R22 VSS IC9300 R24 VSS IC9300 N3 AVSS_L IC9300 N11 VSS IC9300 N12 VSS IC9300 N13 VSS IC9300 N14 VSS IC9300 AD15 DQ14 IC9300 N15 VSS IC9301 J11 VDDQ IC9300 P15 VSS D33 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 D32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 P2.5V P2.5V P2.5V P2.5V P3.3V P3.3V P5V P5V ZA9000 K4CD01000011 TP9395 5V_S Q9058 2SD0601A0L Q9060 2SD0601A0L Q9061 2SD0601A0L R9950 EXB38V470JV R9951 EXB38V470JV R9947 EXB38V470JV R9945 EXB38V470JV R9944 EXB38V470JV R9948 EXB38V470JV R9949 EXB38V470JV *R9148 EXB38VR000V R9353 EXB38V470JV R9946 EXB38V470JV R9210 EXB2HV220JV R9193 EXB2HV220JV R9195 EXB2HV220JV R9209 EXB2HV220JV R9212 EXB2HV470JV R9211 EXB2HV220JV R9352 EXB2HV470JV R9123 EXB2HV470JV R9208 EXB2HV220JV R9936 1k R9938 1k R9190 4.7k R9224 22 R9940 33 R9178 22 R9216 22 R9118 0 R9180 22 R9177 22 R9192 10k R9953 47 R9124 0 R9191 100k R9136 10k R9181 22 R9937 1k R9125 4.7k R9954 47 R9952 47 R9179 22 R9214 100k R9130 100k R9213 100 R9939 1k R9286 0 *R9156 0 *R9144 0 *R9134 0 *R9127 0 R9175 100 R9907 150 R9955 47 R9905 33 R9182 22 R9152 0 DDR-Terminate to DDR D36 D31 D33 D32 D35 D34 CLRD5 DOUTDC[20] PCD_4/NC CLKD2(+) DOUTDC[8] CLKD1(-)/NC/ OCKOUT_LD DOUTDC[10] GND GND GND GND GND DOUTDC[21] DOUTDB[17] DOUTDC[17] GND GND DOUTDC[7] GND DOUTDB[16] DOUTDB[12] DOUTDC[16] GND GND DOUTDB[18] DOUTDC[9] GND DOUTDB[20] DOUTDB[2] GND GND GND GND DOUTDA[3] LED_4/NC GND NC GND DOUTDC[12] CLKD6(+) DOUTDA[20] DOUTDC[11] DOUTDB[11] DOUTDC[15] GND DOUTDC[4] DOUTDA[4] DOUTDC[2] P5V DOUTDB[13] DOUTDC[14] DOUTDB[5] DOUTDC[6] DOUTDC[5] CLKD0(+)/NC DOUTDA[1] DOUTDC[0] DOUTDA[0] CLKD3(-) DOUTDC[19] DOUTDB[21] DOUTDA[21] GND DOUTDB[8] DOUTDA[7] NC/LED5 DOUTDA[10] GND CLKD5(-) USL DOUTDA[19] DOUTDC[1] GND DOUTDA[11] DOUTDA[2] GND NC DOUTDB[1] DRVSOS8 P5V GND GND DOUTDC[18] 5V_DET UML GND GND ODED5 NUEL GND DOUTDA[5] DOUTDA[18] NC/PCD5 DOUTDA[17] UEH CLKD4(+) GND DOUTDB[10] DOUTDC[13] DOUTDB[9] DOUTDB[14] DOUTDA[14] GND DOUTDA[13] 5V_DET DOUTDB[4] GND GND DOUTDB[19] CLKD7(-) DOUTDB[15] DOUTDA[16] DOUTDA[6] DOUTDA[9] GND DOUTDB[6] UMH GND DRV_SOS7 DOUTDB[3] GND P5V DOUTDC[3] P5V DOUTDA[15] DOUTDB[7] NC DOUTDB[0] DOUTDA[12] DOUTDA[8] NC GND GND USH P5V P5V Vss 52 46 49 54 48 51 53 47 50 TO C2-BOARD (C21) TO C2-BOARD (C22) IC9300 MN84526 VIDEO/PANEL CONTROL PD2M Left (Master) DDR MEMORY IC9301 C3ABQJ000055 Left 41 42 43 44 ! D-BOARD TNPA4439AJS (6/6) TH-50PZ80U D-Board (6/6) Schematic Diagram TH-50PZ80U D-Board (6/6) Schematic Diagram 67 11.25. C1-Board (1/2) Schematic Diagram TERM SIDE TERM SIDE TERM SIDE TERM SIDE AB_PCD61 AB_DDA29 AB_NCLK4 AB_DDB31 AB_PCD61 AB_ODED61 AB_DDB28 AB_DDC24 AB_LED61 AB_ODED62 AB_CLRD61 AB_DDB29 AB_DDB26 AB_DDA31 AB_DDA24 AB_DDC31 AB_LED61 AB_NCLK3 AB_CLK4 AB_NCLK2 AB_DDC28 AB_DDC26 AB_ODED61 AB_LED62 AB_CLRD61 AB_CLRD62 AB_ODED61 AB_LED61 AB_CLK1 AB_DDB24 AB_DDC25 AB_DDC30 AB_DDC29 AB_CLK2 AB_DDA28 AB_DDB25 AB_DDB30 AB_NCLK1 AB_PCD62 AB_DDA25 AB_DDA26 AB_DDA30 AB_CLK3 AB_CLRD61 AB_PCD61 AB_DDC30 AB_DDA30 AB_DDB30 AB_DDC31 AB_DDB31 AB_DDA31 AB_DDC29 AB_DDA29 AB_DDB29 AB_DDB28 AB_DDC28 AB_DDA28 AB_DDA26 AB_DDB26 AB_DDC26 AB_DDA27 AB_DDB27 AB_DDC27 AB_DDA27 AB_DDC27 AB_DDB27 AB_DDA24 AB_DDB24 AB_DDC24 AB_DDA25 AB_DDC25 AB_DDB25 AB_DDC27 AB_DDA26 AB_DDC26 AB_DDB26 AA_DDA29 AB_DDC29 AB_DDB28 AB_DDC28 AB_DDA28 AA_DDA28 AB_DDB29 AB_DDA29 AA_DDA31 AB_DDC31 AB_DDB30 AB_DDC30 AB_DDA30 AB_DDB31 AB_DDA31 AA_DDC26 AA_DDA26 AA_DDB26 AA_DDB29 AA_DDC29 AA_DDC27 AA_DDB31 AA_DDC28 AA_DDB28 AA_DDC31 AA_DDA30 AA_DDB30 AA_DDC30 C1_5V C1_5V 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C1_5V VDA_75V C1_5V C1_5V VDA_75V VDA_75V C1_5V VDA_75V R17137 4.7k C17134 250V 0.15u C17102 10V 1u C17141 250V 0.15u C17147 10V 1u C17135 250V 0.15u C17137 250V 0.15u C17149 10V 1u F1H1A1050032 C17142 250V 0.15u C17143 250V 0.15u C17136 250V 0.15u C17159 16V 0.1u C17160 16V 0.1u C17140 250V 0.15u C17146 10V 1u C0JBAZ002692 IC17106 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc IC17105 C0JBAZ002692 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 ZA17102 K4AD01Z00001 ZA17101 K4AD01Z00001 ZA17105 K4AD01Z00001 ZA17104 K4AD01Z00001 ZA17103 K4AD01Z00001 R17179 EXB38V470JV R17174 EXB38V470JV R17182 EXB38V471JV R17181 EXB38V471JV R17176 EXB38V471JV R17173 EXB38V470JV R17175 EXB38V471JV R17180 EXB38V470JV R17109 6.8 R17108 6.8 R17120 6.8 R17119 6.8 R17121 6.8 R17110 6.8 R17107 6.8 R17122 6.8 1 C10 20 68 1 68 1 68 1 68 1 68 1 68 1 1 68 C11 A6-2 GND NC NC NC DM A2-2 NC GND GND VDD2 NC NC VDD2 VDD2 ODE NC VDD1 NC VDD1 VDD2 NC VDD2 GND GND VDD2 A4-2 NC A3-1 GND NC GND VDD2 BLK(PC) A2-2 NC GND DSEL VDD2 DM GND NC GND GND GND LEN NC GND GND A5-2 GND NC ODE VDD2 VDD1 GND VDD2 NC A4-2 BLK(PC) NC DSEL GND A5-2 VDD2 NC A2-1 NC GND GND A4-1 GND NC GND LEN GND NC VDD2 VDD2 BLK(PC) DSEL VDD2 A2-1 GND GND GND DSEL DM GND GND GND GND A6-2 GND GND NC VDD2 GND NC NC ODE NC GND NC A4-2 DM NC VDD2 A2-2 VDD2 A5-2 NC NC GND GND A3-1 CLR GND NC VDD2 NC A5-1 GND VDD2 VDD2 A1-1 A6-2 GND VDD2 VDD1 CLR A6-1 GND VDD2 DM VDD2 NC A3-2 DM GND NC NC GND VDD2 GND A1-1 NC A5-1 VDD2 DM NC VDD1 A2-2 GND NC VDD2 GND VDD2 VDD2 VDD1 GND NC FX2(+) NC A3-1 GND A5-2 VDD1 FX2(+) CLR VDD1 GND GND NC VDD1 NC GND VDD2 VDD2 VDD2 A3-2 NC GND A3-2 NC NC A4-1 GND A5-1 NC GND VDD2 VDD2 VDD2 NC FX2(+) A6-2 NC A1-2 VDD2 GND FX1(-) VDD1 VDD2 ODE FX1(-) FX2(+) GND NC VDD1 A1-2 GND VDD1 NC VDD2 VDD2 VDD2 NC VDD1 FX1(-) A4-2 VDD1 A1-1 FX1(-) NC VDD2 VDD2 CLR A3-1 NC A6-1 VDD1 GND A4-1 VDD2 VDD2 NC DM A6-1 VDD2 NC GND A1-2 VDD2 VDD2 A3-2 GND VDD1 BLK(PC) NC GND A1-1 A5-1 VDD2 A4-1 GND A6-1 GND A1-2 GND LEN VDD2 GND NC GND A2-1 LEN NC A2-1 NC NC NC 5 8 7 4 B 3 C 2 1 A E D 9 6 F BUFFER BUFFER PANEL DATA TO DRIVER CB1 DRIVER CB3 PANEL DATA TO PANEL DATA TO DRIVER CB2 PANEL DATA TO DRIVER CB4 C1-BOARD TXNC11RJTU (1/2) ! 1 2 3 4 TH-50PZ80U C1-Board (1/2) Schematic Diagram TH-50PZ80U C1-Board (1/2) Schematic Diagram 68 11.26. C1-Board (2/2) Schematic Diagram G G SIDE TERM TERM SIDE TERM SIDE TERM SIDE AA_DDC28 AA_DDA31 AA_DDB31 AA_DDC31 AA_DDA30 AA_DDB30 AA_DDB28 AA_DDA28 AA_DDC29 AA_DDA29 AA_DDB29 AA_DDB23 AA_DDA23 AA_DDC23 AA_DDA22 AA_DDB22 AA_DDC22 AA_DDB24 AA_DDC24 AA_DDA24 AA_DDC25 AA_DDB25 AA_DDA25 AA_DDC26 AA_DDB26 AA_DDA26 AA_DDC27 AA_DDB27 AA_CLK8 AA_NCLK9 AA_LED6 AA_PCD6 AA_CLRD6 AA_ODED6 AA_DDC30 AA_NCLK11 AA_CLK10 AA_DDB21 AA_DDA20 AA_DDC21 AA_DDB20 AA_DDC20 AB_PCD61 AB_CLK6 AB_LED61 AB_ODED62 AB_PCD62 AB_NCLK5 AB_NCLK6 AB_ODED61 AB_LED62 AB_CLK5 AB_CLRD62 AB_CLRD61 AB_NCLK2 AB_CLK2 AB_NCLK1 AB_NCLK3 AB_CLK3 AB_CLK1 AB_NCLK4 AB_CLK4 AA_CLK10 AA_DDC20 AA_DDC22 AA_DDB22 AB_NCLK5 AA_DDB23 AB_PCD62 AB_CLRD62 AA_DDC21 AA_DDA22 AA_DDC23 AB_ODED62 AB_LED62 AB_ODED62 AB_NCLK6 AA_DDB21 AA_DDA23 AA_DDB20 AB_LED62 AB_CLK6 AB_PCD62 AB_CLK5 AA_DDA20 AB_CLRD62 AA_DDA21 AA_DDA21 AA_NCLK11 AA_LED6 AA_NCLK9 AA_CLK8 AA_PCD6 AA_CLRD6 AA_ODED6 AA_DDC22 AA_DDA22 AA_DDB22 AA_DDA23 AA_DDC23 AA_DDB23 AA_DDA20 AA_DDC20 AA_DDB20 AA_DDB21 AA_DDA21 AA_DDC21 AB_DDA27 AB_DDB27 AA_DDA27 AA_DDB27 AA_DDA24 AA_DDC25 AA_DDB24 AA_DDA25 AA_DDB25 AB_DDA25 AB_DDA24 AB_DDC24 AB_DDB24 AB_DDC25 AB_DDB25 AA_DDA27 AA_DDC24 C1_5V C1_5V C1_5V VDA_75V C1_5V C1_5V C1_5V VDA_75V VDA_75V C1_5V C17139 250V 0.15u C17145 250V 0.15u C17113 10V 1u C17132 16V 0.1u C17133 16V 0.1u C17144 250V 0.15u C17158 16V 0.1u C17151 10V 1u C17138 250V 0.15u C17131 16V 0.1u J0HABH000013 FL17101 1 2 3 C0JBAZ002692 IC17104 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17102 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17103 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17101 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R17157 EXB38V220JV R17154 EXB38V220JV R17151 EXB38V470JV R17132 EXB38V471JV R17169 EXB38V471JV R17126 EXB38V471JV R17152 EXB38V470JV R17170 EXB38V471JV R17168 EXB38V470JV R17153 EXB38V681JV R17125 EXB38V471JV R17131 EXB38V471JV R17167 EXB38V470JV R17158 EXB38V220JV R17129 6.8 R17128 6.8 R17135 6.8 R17155 680 R17134 6.8 R17156 680 R17139 100k R17159 680 R17160 680 R17140 220k R17138 22k DOUTDC[29] GND DOUTDC[25] DOUTDC[30] DOUTDC[31] DOUTDC[27] GND DOUTDB[22] DOUTDA[31] GND DOUTDB[26] NC P5V P5V GND DOUTDB[25] DOUTDB[29] 5V_DET DOUTDA[29] ODED6 GND CLKD[8](+) CLKD[9](-) GND GND GND NC NC NC NC DOUTDC[24] NC GND NC P5V GND DOUTDA[28] DOUTDC[26] GND DOUTDB[24] DOUTDB[31] DOUTDC[28] DOUTDA[25] DOUTDB[28] GND GND PCD6 GND GND DOUTDA[27] DOUTDA[22] DOUTDA[26] DOUTDC[22] GND GND LED6 DOUTDA[23] DOUTDB[30] DOUTDA[24] DOUTDB[27] GND DOUTDA[30] DOUTDB[23] DOUTDC[23] CLRD6 NC CLKD[11](-) CLKD[10](+) GND A2-1 VDD2 A5-2 NC DM NC VDD1 VDD2 GND NC A2-2 GND GND A3-2 VDD1 NC ODE NC VDD2 GND GND A1-2 GND VDD2 NC NC VDD1 GND VDD2 NC GND NC GND NC GND VDD2 NC NC FX2(+) CLR VDD2 GND VDD1 NC A1-1 LEN VDD2 VDD2 NC NC A6-1 FX1(-) GND VDD2 GND A2-1 A2-2 A6-2 VDD2 GND VDD2 NC VDD1 GND VDD1 NC A3-2 VDD2 GND NC A1-1 VDD1 VDD2 VDD2 GND VDD2 VDD2 NC A4-1 A6-1 GND GND GND DM A1-2 GND VDD2 A4-2 A3-1 VDD2 GND VDD2 NC GND A5-1 A4-1 DSEL NC VDD1 LEN GND NC NC VDD2 NC DSEL A4-2 NC FX2(+) NC GND CLR VDD2 NC FX1(-) A3-1 VDD2 BLK(PC) BLK(PC) GND GND A5-2 GND DM GND GND A5-1 GND ODE VDD2 DM NC A6-2 DDC20 GND 5V_DET DDB20 VDA DDB21 VDA GND NC GND VDA GND NC DDC21 GND DDA21 DDA20 VDA VDA NC CLK_R NC NC 14 16 18 12 15 13 11 17 10 BUFFER BUFFER BUFFER BUFFER TO DRIVER CB5 PANEL DATA PANEL DATA CB6 TO DRIVER TO D-BOARD (D31) TO C2-BOARD (C20) C1-BOARD TXNC11RJTU (2/2) ! 2 3 1 4 TH-50PZ80U C1-Board (2/2) Schematic Diagram TH-50PZ80U C1-Board (2/2) Schematic Diagram 69 11.27. C2-Board (1/2) Schematic Diagram SIDE TERM G G TERM SIDE TERM SIDE TERM SIDE AA_DDA14 AA_DDB13 AA_DDC12 AA_DDB18 AA_ODED5 AA_DDC15 AA_CLK4 AB_ODED5 AA_DDA15 AA_DDB11 AA_DDB10 AA_DDB20 AA_DDA19 AA_DDC18 AB_NCLK8 AA_LED5 AB_NCLK8 AA_DDA17 AB_NCLK7 AA_DDC20 AA_DDC14 AA_CLK2 AB_CLK8 AA_DDB18 AA_CLRD5 AB_CLK10 AA_DDB15 AA_DDA10 AA_PCD5 AA_DDB19 AA_DDC21 AB_PCD5 AA_DDB14 AA_DDA18 AB_PCD5 AB_PCD5 AA_DDA18 AA_DDB21 AA_DDA12 AA_DDA20 AA_DDB19 AA_DDA11 AA_DDB16 AA_DDC16 AA_DDB19 AA_DDB20 AA_DDA21 AA_DDC21 AB_CLK11 AA_DDC17 AB_LED5 AA_DDA16 AB_NCLK10 AA_DDB16 AB_CLRD5_C3 AA_DDC17 AA_DDC18 AB_LED5 AA_DDB15 AB_CLK8 AA_CLK6 AA_DDC10 AA_DDA21 AA_DDC18 AB_CLRD5 AA_DDC19 AA_NCLK7 AA_CLRD5 AB_NCLK11 AB_CLRD5 AA_DDB17 AB_CLK9 AA_DDC20 AA_DDB18 AA_DDB17 AA_DDC19 AB_CLRD5 AA_DDA13 AB_CLK7 AB_NCLK9 AB_ODED5 AB_NCLK7 AB_LED5_C3 AA_DDA15 AB_ODED5 AB_PCD5_C3 AA_DDB21 AA_DDC14 AA_DDA18 AA_DDB12 AB_CLK7 AA_DDA17 AA_LED5 AA_NCLK5 AA_DDA19 AA_DDC16 AB_ODED5_C3 AA_PCD5 AA_DDB14 AA_ODED5 AA_NCLK7 AA_CLK6 AA_DDC13 AA_DDA16 AB_LED5 AA_DDC15 AA_CLK4 AA_DDC11 AA_DDA20 AA_DDC19 AA_DDA19 AA_NCLK3 AA_DDA14 AA_NCLK5 5V_DET_C2 C20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 VDA_75V C17227 250V 0.15u C17222 16V 0.1u C17226 250V 0.15u C17232 250V 0.15u C17241 10V 1u C17221 16V 0.1u C17208 10V 1u C17223 16V 0.1u C17231 250V 0.15u J0HABH000013 FL17201 1 2 3 C0JBAZ002692 IC17202 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17201 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17203 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C2_5V C2_5V C2_5V VDA_75V C2_5V P5V C2_5V C2_5V VDA_75V ZA17202 K4AD01Z00001 ZA17201 K4AD01Z00001 ZA17204 K4AD01Z00001 ZA17203 K4AD01Z00001 ZA17205 K4AD01Z00001 R17252 EXB38V470JV R17257 EXB38V220JV R17202 EXB38V471JV R17278 EXB38V471JV R17277 EXB38V471JV R17259 EXB38V220JV R17254 EXB38V470JV R17253 EXB38V681JV R17251 EXB38V470JV R17204 EXB38V471JV R17214 EXB38V471JV R17216 EXB38V471JV R17258 EXB38V681JV R17256 680 R17212 6.8 R17255 680 R17224 6.8 R17210 6.8 R17222 6.8 A3-1 GND NC GND VDD2 NC C20 A5-1 C22 20 VDD2 NC GND CLK_L GND GND A2-1 NC DOUTDB[16] P5V NC GND CLKD[6](+) DOUTDA[12] DOUTDB[12] A4-1 P5V DOUTDC[18] DOUTDC[14] DM NC DOUTDB[18] NC VDD1 VDD2 GND GND VDD2 VDA CLK_R GND VDD2 A4-2 VDD1 NC GND 68 DDC21 1 C21 VDD2 GND 68 A6-1 30 1 VDD2 C26 1 GND NC CLRD5 1 68 GND 1 VDD2 GND 68 VDD2 DOUTDA[18] VDD1 NC 1 DOUTDA[16] DOUTDC[16] VDD2 DDB21 NC(DRVSOS7) 5V_DET FX2(+) NC VDD1 ODED5 GND VDD2 DOUTDC[11] GND GND A5-1 GND GND NC CLKD[5](-) DOUTDC[12] ODE DOUTDB[11] VDD2 CLKD[4](+) A3-2 DOUTDA[19] GND LED5 GND PCD5 GND GND GND NC DOUTDA[17] NC GND GND A4-2 GND NC 68 VDD2 A2-2 VDD1 GND VDD1 NC CLKD[7](-) NC DM DOUTDC[13] VDD2 A1-1 GND NC DOUTDB[13] GND DOUTDA[13] VDD2 NC CLR FX1(-) VDD2 VDD2 GND GND BLK(PC) DDC20 A5-2 DOUTDA[10] DOUTDC[10] A3-1 DSEL DOUTDB[10] 1 DOUTDB[15] 68 DOUTDB[19] 1 DSEL DOUTDB[17] 68 1 NC GND VDA DDA21 GND VDD2 GND DDA20 GND A6-2 DDB20 DOUTDB[20] BLK(PC) NC GND DOUTDC[21] GND GND DOUTDB[21] VDD2 DOUTDA[21] LEN ODE FX2(+) GND NC DOUTDA[15] DOUTDC[17] GND GND A1-1 DOUTDB[14] DOUTDA[11] DOUTDA[20] NC NC DOUTDC[20] DOUTDC[15] A1-2 NC VDD1 GND GND P5V DOUTDA[14] GND VDD2 VDD2 DOUTDC[19] GND DM FX1(-) NC VDD2 GND A2-1 GND A6-2 A1-2 NC VDD2 A5-2 NC NC GND A2-2 A6-1 VDD2 CLR A4-1 LEN NC NC A3-2 GND GND VDA VDA DM 5V_DET GND VDA GND GND VDD1 NC NC NC GND 2 B E 9 6 8 7 3 D A 4 C 1 F 5 BUFFER BUFFER BUFFER TO C1-BOARD (C10) C2-BOARD TXNC21RJTU (1/2) ! TO D-BOARD (D32) 1 2 3 4 5 6 PANEL DATA TO DRIVER CB7 PANEL DATA CB8 TO DRIVER TH-50PZ80U C2-Board (1/2) Schematic Diagram TH-50PZ80U C2-Board (1/2) Schematic Diagram 70 11.28. C2-Board (2/2) Schematic Diagram TERM SIDE TERM SIDE TERM SIDE TERM SIDE G G TERM SIDE AA_DDB7 AB_LED5 AA_DDC10 AA_DDB2 AA_DDB11 AB_LED5 AA_DDB10 DRV_SOS8 AA_DDA11 AA_DDC10 AA_DDC8 AA_DDC13 AA_UMH AB_USH AA_DDC12 AB_CLK10 AA_DDA9 AA_DDB12 AA_DDA4 AA_DDA6 AB_LED5 AA_DDB0 AA_UEH AA_DDA13 AA_DDA13 AA_USH AB_ODED5 AA_CLK2 AA_DDA0 AA_DDC13 AA_DDB3 AA_USL AA_DDC8 AA_DDB10 AA_DDC5 AB_CLRD5 AA_NUEL AB_NCLK9 AA_DDB4 AA_DDA1 AA_DDC9 AA_DDC6 AA_DDA12 AB_UMH AA_DDC12 AA_DDA2 AA_USH AA_NCLK1 AA_DDC7 AA_DDC2 AA_DDC0 AB_NUEL AB_CLRD5 AA_DDB5 AA_DDC9 AA_UMH AA_DDA3 AA_NCLK3 AA_DDB12 AA_DDA7 AA_UML AA_DDB9 AA_DDA8 AA_DDC11 AA_DDB8 AB_CLK9 AB_USL AA_DDC11 AA_DDB13 AA_USL AA_DDA8 AA_DDC4 AB_ODED5 AA_DDC8 AA_UML AA_DDB11 AB_UML AA_DDC3 AA_DDB8 AA_DDC1 AA_DDB13 AA_DDC9 AA_CLK0 AA_DDB9 AA_DDA8 AA_DDA10 AA_DDA12 AA_DDB1 AA_DDA9 AA_UEH AB_CLK11 AA_DDA5 AA_NUEL AA_DDA9 AB_UEH AA_DDB8 AB_PCD5 AB_NCLK10 AA_DDB6 AB_PCD5 AB_PCD5 AA_DDB9 AB_ODED5 AA_DDA10 AB_CLRD5 AA_DDA11 AA_NCLK1 AA_DDC4 AA_DDB6 AA_DDB0 AB_ODED5_C3 AA_DDB3 AB_UMH AA_CLK0 AB_USL AA_DDC0 AA_DDC5 AA_DDA5 AA_DDA1 AA_DDC1 AA_DDB1 AB_UML AB_UEH AA_DDA7 AA_DDA0 AA_DDC3 AB_PCD5_C3 AA_DDB5 AB_CLRD5_C3 AA_DDA2 AA_DDC6 AA_DDC2 DRV_SOS8 AA_DDB2 AA_DDC7 AA_DDB7 AB_LED5_C3 AA_DDA6 AB_USH AA_DDA3 AB_NUEL AA_DDB4 AA_DDA4 AB_NCLK11 C17201 10V 1u C17213 10V 1u C17235 250V 0.15u C17224 16V 0.1u C17234 250V 0.15u C17229 250V 0.15u C17228 250V 0.15u C17233 250V 0.15u C17230 250V 0.15u C17207 10V 1u C0JBAZ002692 IC17204 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 VDA_75V VDA_75V C2_5V P5V VDA_75V C2_5V C2_5V C2_5V R17215 EXB38V471JV R17213 EXB38V471JV R17263 EXB38V681JV R17203 EXB38V471JV R17261 EXB38V470JV R17201 EXB38V471JV R17262 EXB38V470JV R17226 EXB38V471JV R17264 EXB38V681JV R17225 EXB38V471JV R17230 6.8 R17221 6.8 R17209 6.8 R17223 6.8 R17229 6.8 R17211 6.8 J0HABH000013 FL17202 1 2 3 R17260 220k C26 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 VDA_75V C2_5V NC VDD2 GND VDD2 GND VDD1 NC NC VDD2 VDD2 DOUTDC[7] UMH VDD2 DOUTDB[5] DOUTDA[6] NC GND NC GND DOUTDB[8] CLKD[2](+) VDD2 DOUTDA[4] A4-1 NC DOUTDC[2] UML VDD2 USL NC A5-1 GND DOUTDB[3] GND GND DOUTDA[5] GND CLR GND GND GND GND NC(URL) VDD2 DOUTDB[6] A4-2 GND DOUTDA[2] NC DOUTDA[3] NC VDD2 DM VDD1 A2-2 NC VDD2 VDD1 FX2(+) VDD1 NUEL NC A2-2 GND GND GND FX1(-) GND VDD2 A4-2 DOUTDA[7] NC DOUTDB[0] FX1(-) NC DOUTDC[6] VDD2 VDD2 GND BLK(PC) GND VDD2 NC NC GND GND NC GND GND NC DOUTDB[2] NC CLKD[3](-) A1-1 GND NC 5V_DET ODE VDD1 GND GND NC NC NC DOUTDC[4] GND GND USH VDD2 DOUTDA[8] DSEL NC NC(URH) VDD2 BLK(PC) VDD2 A3-1 NC NC GND A5-2 NC NC CLKD[1](-) CLR DM DOUTDC[1] NC A6-2 NC NC VDD2 GND GND VDD2 GND NC GND NC NC FX2(+) A4-1 NC ODE A6-1 VDD1 NC A3-2 VDD1 GND VDD2 LEN VDD1 GND DOUTDC[8] GND UEH DOUTDB[1] DOUTDC[0] VDD2 DOUTDB[4] DSEL GND GND A3-2 VDD2 DOUTDC[9] A4-1 LEN VDD1 A6-1 A2-1 DM GND VDD1 GND GND BLK(PC) DOUTDA[1] A4-2 NC GND DOUTDC[5] GND DOUTDA[0] A5-1 LEN GND DM A3-2 GND P5V GND A5-2 FX2(+) A2-2 A1-1 A3-1 VDD2 NC GND A6-1 NC GND GND NC GND NC A1-2 A2-1 VDD2 VDD2 NC VDD2 GND VDD2 GND FX1(-) A1-2 VDD2 A3-1 DM GND GND VDD2 NC A5-2 GND GND DM VDD2 GND NC A6-2 A1-2 CLR A2-1 NC VDD2 NC VDD1 A6-2 VDD2 A5-1 GND NC DSEL DRV_SOS8 GND P5V CLK_L DOUTDC[3] CLKD[0](+) GND VDD2 DOUTDB[7] DOUTDA[9] DOUTDB[9] A1-1 P5V NC GND GND GND GND VDD1 NC GND VDD2 GND VDD2 ODE VDD2 13 10 16 18 12 17 14 11 15 DOUTDA[2] VDA DOUTDB[4] LE VDA DRV_SOS8 NC DOUTDB[6] DOUTDC[4] DOUTDC[0] GND 5V_DET NC USH PC DOUTDC[5] GND DOUTDB[0] DOUTDA[4] UEH P5V CLKD[0](+) VDA VDA GND DOUTDC[6] UML DOUTDC[2] GND DOUTDB[5] P5V UMH DOUTDA[7] VDA NUEL GND GND USL DOUTDA[6] GND NC GND DOUTDB[3] DOUTDC[1] DOUTDB[7] GND VDA GND DOUTDC[7] P5V DOUTDA[3] GND DOUTDA[5] GND VDA ODE GND GND CLR DOUTDB[2] GND DOUTDB[1] VDA DOUTDA[1] CLKD[1](-) DOUTDA[0] DOUTDC[3] GND BUFFER C2-BOARD TXNC21RJTU (2/2) ! TO D-BOARD (D33) PANEL DATA CB9 TO DRIVER CB10 PANEL DATA DRIVER TO CB11 PANEL DATA DRIVER TO TO C3-BOARD (C36) 3 4 5 1 2 6 TH-50PZ80U C2-Board (2/2) Schematic Diagram TH-50PZ80U C2-Board (2/2) Schematic Diagram 71 11.29. C3-Board (1/2) Schematic Diagram G G TERM SIDE AB_NCLK12 AB_NCLK13 AB_CLK12 AB_NCLK14 AB_CLK13 AB_CLK14 AB_CLK15 AA_DDC6 AA_DDB6 AA_DDA6 AA_DDC7 AA_DDB7 AA_DDA7 AA_DDC4 AA_DDC5 AA_DDA2 AA_DDB4 AA_DDB2 AA_DDA4 AA_DDC2 AA_DDB5 AA_DDA5 AA_NCLK1 AA_CLK0 AB_UMH AB_USL AB_UEH AB_UML AB_NUEL AB_USH AA_NCLK1 AA_CLK0 AB_UML AB_NUEL AB_USH DRV_SOS8 AB_USL AB_UEH AB_UMH AB_LED5 AB_CLRD5 AB_PCD5 AB_ODED5 AA_DDA1 AA_DDC0 AA_DDB0 AA_DDA0 AA_DDC3 AA_DDB3 AA_DDC1 AA_DDA3 AA_DDB1 AB_DDC0 AB_DDA0 AB_DDA1 AB_DDB0 AB_DDB1 AB_DDC1 AB_DDA3 AB_DDB3 AA_DDA1 AA_DDB1 AA_DDC1 AA_DDA0 AA_DDB0 AA_DDC0 AA_DDA3 AA_DDB3 AA_DDA2 AA_DDC3 AB_DDA5 AB_DDA4 AA_DDC2 AA_DDB2 AA_DDA4 AB_DDB5 AB_DDC3 AA_DDC5 AB_DDC2 AA_DDB5 AB_DDC5 AB_DDA2 AB_DDB2 AA_DDA5 AA_DDB7 AA_DDA7 AB_DDC7 AA_DDC6 AB_DDB4 AB_DDB7 AA_DDA6 AA_DDB4 AB_DDC6 AB_DDA6 AB_DDB6 AA_DDC4 AA_DDB6 AB_DDC4 AB_DDA7 AA_DDC7 DRV_SOS8 AB_NCLK15 C17316 16V 0.1u C17317 100V 1u C17315 16V 0.1u C17314 16V 0.1u C17313 16V 0.1u J0HABH000013 FL17301 1 2 3 C0JBAZ002692 IC17303 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17302 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17301 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17304 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C36 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 C35 1 2 3 4 C33 1 2 3 4 5 6 7 8 9 10 C3_5V C3_5V C3_5V C3_5V VDA_75V VDA_75V C3_5V C3_5V R17345 EXB38V471JV R17343 EXB38V470JV R17346 EXB38V470JV R17348 EXB38V471JV R17350 EXB38V470JV R17351 EXB38V470JV R17353 EXB38V471JV R17358 EXB38V220JV R17352 EXB38V471JV R17357 EXB38V220JV R17344 EXB38V471JV R17349 EXB38V471JV R17347 EXB38V470JV R17342 EXB38V470JV R17360 680 R17356 220k R17355 100k R17359 680 R17354 22k GND DOUTDB[1] DOUTDB[2] 5V_DET GND GND PC DRV_SOS8 GND GND DOUTDB[4] CLKD[1](-) DOUTDC[1] DOUTDB[0] DOUTDC[6] DOUTDA[4] USL DOUTDB[3] DOUTDA[5] DOUTDA[1] DOUTDC[5] DOUTDA[0] GND P5V DOUTDB[5] DOUTDA[3] DOUTDB[7] GND GND DOUTDC[7] DOUTDB[6] P5V CLKD[0](+) P5V UMH DOUTDC[4] USH DOUTDC[0] NUEL GND DOUTDA[7] UML DOUTDA[2] DOUTDC[3] GND DOUTDA[6] DOUTDC[2] CLR UEH GND GND Vda 75V Vda 75V NC UML UMH SOS8_SS NC GND P5V NUEL UEH USL USH VDA VDA NC VDA VDA VDA NC GND GND ODE LE GND GND GND VDA VDA VDA NC 2 B E 9 6 8 7 3 D A 4 C 1 F 5 BUFFER BUFFER BUFFER BUFFER TO C2-BOARD (C26) TO SS-BOARD (SS33) TO SS-BOARD (SS35) C3-BOARD TXNC31RJTU (1/2) ! 1 2 3 TH-50PZ80U C3-Board (1/2) Schematic Diagram TH-50PZ80U C3-Board (1/2) Schematic Diagram 72 11.30. C3-Board (2/2) Schematic Diagram TERM SIDE TERM SIDE TERM SIDE TERM SIDE AB_CLK12 AB_LED5 AB_DDC7 AB_DDB7 AB_DDA7 AB_DDC6 AB_DDA6 AB_DDB6 AB_DDA7 AB_DDB7 AB_DDC7 AB_PCD5 AB_NCLK12 AB_CLRD5 AB_ODED5 AB_DDC6 AB_DDB6 AB_DDA6 AB_DDA5 AB_DDA4 AB_DDB4 AB_CLRD5 AB_DDA4 AB_DDB4 AB_DDC4 AB_NCLK13 AB_DDA5 AB_PCD5 AB_DDB5 AB_DDC5 AB_DDC5 AB_LED5 AB_CLK13 AB_DDC4 AB_ODED5 AB_DDB5 AB_DDA3 AB_DDA2 AB_DDB2 AB_CLRD5 AB_DDA2 AB_DDB2 AB_DDC2 AB_NCLK14 AB_DDA3 AB_PCD5 AB_DDB3 AB_DDC3 AB_DDC3 AB_LED5 AB_CLK14 AB_DDC2 AB_ODED5 AB_DDB3 AB_DDA1 AB_DDA0 AB_DDB0 AB_CLRD5 AB_DDA0 AB_DDB0 AB_DDC0 AB_NCLK15 AB_DDA1 AB_PCD5 AB_DDB1 AB_DDC1 AB_DDC1 AB_LED5 AB_CLK15 AB_DDC0 AB_DDB1 AB_ODED5 C17325 250V 0.15u C17326 250V 0.15u F1L2E154A009 C17319 250V 0.15u C17324 250V 0.15u C17318 250V 0.15u C17307 10V 1u C17321 250V 0.15u C17323 250V 0.15u C17320 250V 0.15u C17328 10V 1u C17327 10V 1u C17310 10V 1u F1H1A1050032 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C3_5V VDA_75V C3_5V VDA_75V C3_5V VDA_75V C3_5V VDA_75V ZA17303 K4AD01Z00001 ZA17304 K4AD01Z00001 ZA17302 K4AD01Z00001 ZA17301 K4AD01Z00001 R17310 6.8 R17322 6.8 R17316 6.8 R17311 6.8 R17323 6.8 R17341 4.7k R17317 6.8 R17304 6.8 R17305 6.8 C35 10 C33 4 1 1 68 1 68 1 68 1 68 1 68 1 GND ODE VDD2 A2-2 VDD2 GND NC VDD2 VDD2 GND NC CLR VDD2 A3-2 A1-2 VDD2 NC LEN DM NC VDD2 NC VDD2 NC VDD1 A4-2 GND VDD1 GND FX2(+) VDD2 A5-2 NC NC A6-2 NC GND DM GND GND DSEL A3-1 A5-1 A1-1 A6-1 A4-1 A2-1 NC BLK(PC) FX1(-) VDD1 VDD1 GND GND GND GND GND GND GND GND NC NC NC VDD2 VDD2 VDD2 NC C36 GND VDD2 DM NC GND GND NC NC NC NC BLK(PC) GND A5-2 GND NC GND VDD2 DSEL GND NC CLR VDD2 A3-2 A1-2 VDD2 NC A4-1 LEN A2-1 DM GND ODE NC VDD2 VDD2 A2-2 NC VDD2 NC VDD1 VDD2 GND A4-2 A3-1 GND A5-1 VDD1 GND NC VDD2 FX2(+) VDD2 FX1(-) VDD1 A1-1 A6-1 VDD2 VDD2 GND GND GND GND NC A6-2 VDD1 GND NC GND VDD2 DM NC GND GND NC NC NC NC BLK(PC) GND A5-2 GND NC GND VDD2 DSEL GND NC CLR VDD2 A3-2 A1-2 VDD2 NC A4-1 LEN A2-1 DM GND ODE NC VDD2 VDD2 A2-2 NC VDD2 NC VDD1 VDD2 GND A4-2 A3-1 GND A5-1 VDD1 GND NC VDD2 FX2(+) VDD2 FX1(-) VDD1 A1-1 A6-1 VDD2 VDD2 GND GND GND GND NC A6-2 VDD1 GND NC GND VDD2 DM NC GND GND NC NC NC NC BLK(PC) GND A5-2 GND NC GND VDD2 DSEL GND NC CLR VDD2 A3-2 A1-2 VDD2 NC A4-1 LEN A2-1 DM GND ODE NC VDD2 VDD2 A2-2 NC VDD2 NC VDD1 VDD2 GND A4-2 A3-1 GND A5-1 VDD1 GND NC VDD2 FX2(+) VDD2 FX1(-) VDD1 A1-1 A6-1 VDD2 VDD2 GND GND GND GND NC A6-2 VDD1 GND NC NC NC NC NC 13 10 16 18 12 17 14 11 15 CB12 PANEL DATA DRIVER TO CB13 PANEL DATA DRIVER TO CB14 PANEL DATA DRIVER TO CB15 PANEL DATA DRIVER TO C3-BOARD TXNC31RJTU (2/2) ! 3 1 2 TH-50PZ80U C3-Board (2/2) Schematic Diagram TH-50PZ80U C3-Board (2/2) Schematic Diagram 73 11.31. SC-Board (1/3) Schematic Diagram AA_CEL AA_SID OC2A AA_SCSU AA_OC2A AA_CML AA_CSL AA_CSH AA_OC1 AA_CSH AA_CSL AA_CML AA_CMH AA_CLK CPH1 AA_CERS CMH AA_DRV_RST AA_SIU AA_CMH OC2B OC2B CPH2 AA_CQR3 AA_CQR4 CQR4 CQR3 CSH AA_CPH2 CSL AA_CPH1 C16564 16V 1u C16491 630V 1000p C16566 50V 0.01u C16565 50V 0.01u C16480 50V 0.1u C16505 25V 1u C16593 50V 1000p *C16632 250V 4u C16562 16V 1u C16582 16V 1u *C16633 250V 4u C16424 5600p 630V C16524 25V 4.7u C16522 25V 4.7u C16581 25V 1u C16521 25V 1u C16504 25V 4.7u C16525 25V 4.7u C16502 25V 4.7u C16471 630V 1000p *C16634 250V 4u C16403 5600p 630V *C16441 50V 3900p C16442 50V 3900p C16416 2.2u 250V *C16413 220V 250u *C16414 220V 250u C16563 10V 100u D16451 B0ECKP000047 D16466 MA2J11100L D16480 MA2J11100L D16501 B0ECHP000003 D16503 B0ECKP000047 D16585 MA2J11100L D16523 B0ECKP000047 D16521 B0ECHP000003 D16522 B0ECKP000047 *D16482 B0FBCN000005 *D16481 B0FBCN000005 D16401 B0FBCN000005 D16402 B0FBCN000005 *D16462 MA3DF46000LW *D16461 MA3DF46000LW *D16421 MA3DF40000LW *D16422 MA3DF40000LW D16583 LNJ301MPUJA C0JBAA000377 IC16472 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y IC16581 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC C0ZBZ0001324 IC16521 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0ZBZ0000895 IC16501 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0JBAZ002811 IC16561 1G 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G 20 VCC C0JBAZ002811 IC16562 1G 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G 20 VCC C0JBAZ002811 IC16563 1G 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G 20 VCC SC20 23 29 30 2 12 5 33 14 32 20 28 26 4 9 11 19 22 21 25 8 13 6 31 17 10 34 24 18 1 7 27 16 15 3 35 SC2 1 3 L16591 G0ZZ00002183 *L16416 G0C1R6KA0119 *L16405 G0C1R6KA0119 *L16402 G0C1R6KA0119 *L16412 G0C1R6KA0119 *L16404 G0C1R6KA0119 *L16414 G0C1R6KA0119 *L16403 G0C1R6KA0119 *L16406 G0C1R6KA0119 *L16413 G0C1R6KA0119 *L16415 G0C1R6KA0119 VSUS 15V VSUS VSUS 15V 15V 5V 5V MAIN_STOP SOS7_SC2 MAIN_STOP 15V 15V 5V SOS7_SC2 TP7 TP8 TP23 TP18 TP27 TP24 TP16 TP20 TP15 TP37 TP12 TP10 TP6 TP26 TP72 TP3 TP70 TP1 TP71 TP52 TP19 TP39 TP34 TP21 TP22 TP32 TP82 TP35 TP5 TP25 TP2 TP4 TP40 TP9 TP88 TP89 TP38 TP28 TP36 TP90 TP91 TP33 TP93 TP17 TP30 TP29 TP14 TP46 TP11 TP31 TP92 Q16531 B1ABRD000003 Q16551 B1ABRD000003 Q16581 B1ABCF000231 *Q16452 B1JAEP000003 Q16401 B1JAEN000002 Q16403 B1JAEN000002 *Q16423 B1JAEP000002 *Q16441 B1JAEN000003 *Q16442 B1JAEN000003 Q16404 B1JAEN000002 *Q16421 B1JAEP000002 *Q16424 B1JAEP000002 Q16532 B1ADRD000001 Q16552 B1ADRD000001 Q16501 B1HFPFA00001 Q16521 B1HFPFA00001 R16561 EXB38V470JV R16579 EXB38V470JV R16565 EXB38V472JV R16567 EXB38V472JV R16570 EXB38V472JV R16563 EXB38V470JV R16568 EXB38V472JV R16564 EXB38V470JV R16566 EXB38V472JV R16562 EXB38V470JV R16591 EXB38V472JV R16465 27k R16512 47k R16588 10k R16580 2.2k R16466 56k R16452 5.6 R16582 39k R16587 2.2k R16553 47k R16424 7.5 R16507 1 R16552 47k R16516 47k R16511 47k R16583 39k R16533 47k R16585 1.2k R16521 100 R16404 7.5 R16509 1 R16510 1 R16468 82k R16421 7.5 R16586 1.5k R16541 0 R16543 0 R16442 5.6 R16592 4.7k R16403 7.5 R16517 47k R16423 7.5 75 R16504 R16503 10 R16501 100 *R16441 5.6 R16476 4.7k R16522 100 75 R16523 R16593 1.4k R16590 220 R16551 10 R16502 100 R16475 4.7k R16584 6.8k R16506 10 R16401 7.5 R16531 10 R16532 47k R16508 1 R16467 82k TP13 *L16401 G0C1R6KA0119 GND Vsus TPVSUS P5V CMH CML CSH CSL SC_DRV_RST CEL SOS7_SC2 SOS6_SC1 CPH1 OC2 SCSU SID SIU CLK OC1 TPSOS7 TPSOS6 (GREEN LED) P5V OC1(CL) CLK SIU SID SCSU OC2(CEL2) CPH1 OC2B SOS6_SC1 SOS7_SC2 CEL SC_DRV_RST CSL CSH CML CMH CPH2 GND GND GND GND GND GND CQR3 CERS CERS OC2B CQR3 NC P15V P15V P15V NC NC GND CQR5 CQR4 CQR4 CQR5 CPH2 3 C E D 1 9 6 2 5 8 F A 4 B 7 CPH2 CQR3 Vsus Gen. FET DRIVER AND GATE BUFFER BUFFER BUFFER FET DRIVER ENERGY RECOVERY COMPARATOR TO D-BOARD (D20) TO P-BOARD (P2) AND 44V OR LESS OPERATES AT 116V OR MORE 1 2 3 4 5 ! SC-BOARD TXNSC1RJTUS (1/3) VSUS:190V + + + TERM SIDE TH-50PZ80U SC-Board (1/3) Schematic Diagram TH-50PZ80U SC-Board (1/3) Schematic Diagram 74 11.32. SC-Board (2/3) Schematic Diagram + + + + AA_DRV_RST AA_CPH2 AA_CEL AA_CPH1 AA_CPH2 AA_CERS AA_SCSU C16752 25V 1u C16641 1u 250V C16662 630V 1000p C16603 630V 1000p C16724 25V 4.7u C16604 630V 1000p C16775 25V 4.7u C16723 25V 4.7u C16753 25V 4.7u C16755 25V 4.7u C16606 630V 5600p C16756 25V 4.7u C16605 630V 5600p C16773 25V 4.7u C16708 50V 0.1u C16725 25V 4.7u C16661 630V 1000p C16472 25V 1u C16608 50V 220p C16666 50V 82p C16665 50V 82p C16664 50V 82p C16721 50V 100u C16791 25V 220u C16806 160V 100u C16795 25V 470u D16721 B0HCKS000002 D16642 B0HCKS000002 D16762 MA2J11100L D16607 MA2J11100L D16497 B0ECKP000047 D16618 B0ECKP000047 D16761 MA2J11100L D16407 MA22D3900L D16765 B0ECKP000047 D16764 B0HCKS000002 D16408 MA22D3900L D16725 MA2J11100L D16667 MA2J11100L D16643 MA2J11100L D16604 MA2J11100L D16609 MA2J11100L D16619 B0ECKP000047 D16645 MA2J11100L D16763 B0ECKP000047 RF101L4STE25 D16606 B0ECKM000038 D16669 MA2J11100L D16610 MA2J11100L D16671 MA2J11100L D16661 MA2J11100L D16766 B0ECKP000047 D16659 B0HCMM000014 D16668 MA3X152D0L D16473 MA3X152D0L D16475 MAZ80510LL D16602 MAZ81500ML D16608 MAZ81200ML *D16632 MAZ81500ML D16771 MAZ80510LL D16664 MAZ81500ML D16662 MAZ81500ML D16605 MAZ80510LL D16663 MAZ81500ML D16665 MAZ80510LL *D16631 MAZ81500ML *D16633 MAZ81500ML C0DBEKA00003 IC16471 1 NC 2 A 3 K 5 A 4 REF IC16772 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB C0ZBZ0001324 IC16752 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC EHMDD9878 IC16791 1 GND 2 GND 3 VIN 4 VIN 7 COM 8 COM 9 VOUT IC16725 C0CBADC00072 VIN 3 2 COM VOUT 1 IC16724 C0CBADC00072 VIN 3 2 COM VOUT 1 15V_F VF_GND 15V_F CHA 15V 5V_F_A 16V_F 5V 5V_F_B VSUS VAD 15V 16V_F 16V_F 15V_F VSET VSCN_F_DET 16V_F SCNR_PRO PC16603 B3PBA0000223 1 2 3 4 PC16601 B3PBA0000223 1 2 3 4 PC16480 B3PBA0000223 1 2 3 4 PC16710 B3PBA0000223 1 2 3 4 PC16602 B3PBA0000443 1 2 3 4 PC16705 B3PBA0000456 1 2 3 4 5 TP97 Q16607 B1CBGD000001 Q16601 B1DEET000002 G D S Q16642 2SK4175000LZ Q16627 B1CFRM000008 Q16622 B1CFRM000008 Q16634 B1CFRM000008 Q16625 B1CFRM000008 Q16647 2SK4175000LZ Q16648 2SK4175000LZ Q16641 2SK4175000LZ Q16624 B1CFRM000008 Q16623 B1CFRM000008 Q16629 B1CFRM000008 Q16628 B1CFRM000008 Q16649 2SK4175000LZ Q16643 2SK4175000LZ Q16644 2SK4175000LZ Q16650 2SK4175000LZ Q16604 B1CHPM000001 G D S Q16606 2SD0601AQL Q16662 2SD0601AQL Q16602 2SD0601AQL Q16608 B1ABCF000231 Q16665 B1ABCF000231 Q16471 B1ABCF000231 Q16661 B1JAER000004 Q16605 2SB0709ASL Q16603 2SB0709ASL Q16762 B1ADNF000006 Q16663 2SB0709ASL Q16763 B1ADNF000006 Q16783 B1HFPFA00001 Q16664 B1HFPFA00001 Q16781 B1HFPFA00001 R16647 33 R16663 5.6k 75 R16766 R16784 47k R16669 4.7k R16684 10 R16642 33 R16612 47 R16611 100k R16707 470 R16687 10 R16473 560 R16668 47k R16672 1k R16671 47k R16771 1.8k R16627 220 R16600 10k R16615 1.1k R16869 47k R16666 10k R16682 10 R16673 0 R16617 2.2k R16689 10 R16667 470 R16717 2.2k R16664 1k R16633 22k R16634 470 R16625 220 R16706 100 R16622 220 R16604 330 R16781 47 R16471 3.9k R16686 10 R16478 5.6k R16605 1.8k R16474 1k R16688 10 R16607 7.15k R16608 1k R16602 1k R16613 47k R16601 4.7k R16606 10k R16762 47k R16681 10 R16624 220 R16472 2.2k R16776 100 R16609 1k R16769 75 R16650 33 1% R16662 2.2k R16705 100 R16648 33 R16670 47 R16644 33 R16649 33 R16660 220k R16778 1.8k R16661 1.8k R16643 33 R16603 330 R16783 47 R16628 220 R16657 6.8k R16675 1k R16480 4.7k R16623 220 R16616 0 R16763 10 R16665 33 R16629 220 R16761 10 R16683 10 R16659 220k R16630 220 R16641 33 1 R16765 R16479 10k R16777 150 R16658 100 R16834 0 R16636 4.7k R16635 10k R16764 47k 1 R16768 R16632 10k R16782 47k R16639 1 *R16619 120k R16638 1 R16610 100k *R16637 0 R16477 0 VR16602 2k 1 2 3 * INIT-F INIT-F 12 11 10 15 17 16 13 14 18 AND GATE FET DRIVER VSET SEPARATE FET DRIVER VAD SEPARATE +5V(SC1) +5V(SC2) DC/DC CONV. COLD FLOATING GND COLD FLOATING GND COLD FLOATING GND 4 2 5 3 1 ! SC-BOARD TXNSC1RJTUS (2/3) 12 13 14 11 TH-50PZ80U SC-Board (2/3) Schematic Diagram TH-50PZ80U SC-Board (2/3) Schematic Diagram 75 11.33. SC-Board (3/3) Schematic Diagram + + + + + + AA_OC1 AA_OC2A AA_SIU AA_SID AA_CLK AB_VSET23 AB_VSET23 AA_CQR3 AA_CQR4 AB_VSET6 AB_VSET6 VAD C16860 1u 10V C16868 0.1u 16V C16858 0.1u 16V C16869 50V 0.1u *C16863 50V 0.01u C16867 4700p 50V C16856 1u 10V C16861 4700p 50V C16832 50V 3900p C16857 4700p 50V C16866 1u 10V C16862 0.1u 16V C16855 16V 1u C16864 0.1u 50V C16821 0.1u 50V C16823 5600p 630V C16797 50V 0.1u C16798 250V 0.1u C16843 50V 0.1u C16844 50V 0.1u C16811 50V 4700p C16813 160V 100u 250u 220V *C16419 C16822 400V 47u 250u 220V *C16418 C16842 160V 100u C16691 160V 100u D16715 B0HCMR000002 D16839 B0ECKP000047 D16875 MA2J11100L D16872 MA2J11100L D16477 MA2J11100L D16860 B0HCKS000002 D16719 B0ECKP000047 D16859 B0HCKS000002 D16711 B0HCMR000002 D16718 MA2J11100L D16713 B0HCMR000002 D16720 B0ECKP000047 D16722 MA2J11100L D16822 MA2J11100L D16793 B0HCKS000002 D16792 MA2J11100L D16478 B0HCKS000002 D16837 MA2J11100L D16794 MA2J11100L D16820 MA3X152E0L D16874 MAZ80510LL D16791 MAZ82000ML D16836 MAZ81500ML D16821 MAZ82000ML D16714 MAZ81500ML D16824 MAZ83300ML D16861 MAZ83300ML D16717 MAZ83300ML D16830 MAZ80560HL D16862 MAZ83300ML D16710 MAZ81500ML D16825 MAZ83300ML D16712 MAZ81500ML D16838 B0BC027A0234 D16873 MAZ82000ML D16871 MAZ82000ML C0JBAB000715 IC16564 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y C0DBEYY00078 *IC16787 1 NC 2 ANODE 3 NC 5 REFERENCE 4 CATHODE C0DBEYY00078 IC16789 1 NC 2 ANODE 3 NC 5 REFERENCE 4 CATHODE C0JBAA000377 IC16792 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y C0DBEYY00078 IC16801 1 NC 2 ANODE 3 NC 5 REFERENCE 4 CATHODE MIP9L02MBS IC16786 1 SOURCE 2 BY 3 FB 5 VCC 6 GND 7 V01 8 VOUT 10 DRAIN MIP9L02MBS IC16788 1 SOURCE 2 BY 3 FB 5 VCC 6 GND 7 V01 8 VOUT 10 DRAIN MIP9L02MBS IC16784 1 SOURCE 2 BY 3 FB 5 VCC 6 GND 7 V01 8 VOUT 10 DRAIN SC30 1 2 3 4 5 6 7 8 SC46 1 2 3 4 5 6 7 8 9 SC41 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 SC42 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 L16472 G0ZZ00002183 L16801 G0ZZ00002183 L16698 G0C681KA0187 L16697 G0C102KA0187 L16699 G0C331KA0187 SOS7_SC2 SCNR_PRO 15V_F VSUS VSUS 5V 5V_F_A CHA VSCN_F SOS7_SC2 VAD 5V_F_B 5V 5V_F_B VSCN_F 5V_F_A VSCN VSCN 5V_F_B SOS7_SC2 VSCN_F 5V 5V_F_B VF_GND VAD 5V_F_B VSCN_F 5V VSCN VSET 16V_F 16V_F SOS7_SC2 ZA16422 TUXJ490 ZA16411 TUXJ490 ZA16402 K4CD01000011 ZA16401 K4CD01000011 ZA16412 TUXJ490 ZA16421 TUXJ490 ZA16403 K4CD01000011 PC16896 B3PBA0000223 1 2 3 4 PC16897 B3PBA0000223 1 2 3 4 TP54 TP57 TP51 TP55 TP45 TP64 TP44 TP79 TP78 TP59 TP60 TP65 TP80 TP84 TP86 TP56 TP58 TP81 TP41 TP94 TP95 TP96 TP61 TP42 TP43 TP66 TP63 TP85 TP83 TP62 Q16874 B1CBGD000001 Q16795 2SD0601A0L Q16814 B1ABCN000007 Q16873 B1ABCF000231 Q16811 B1ABCF000231 Q16816 2SD0601AQL Q16812 B1ABCF000231 Q16817 2SD0601AQL Q16796 2SC1473ARA Q16879 B1ABCF000231 Q16876 B1ABCF000231 Q16791 2SD0814A0L Q16805 2SC3063000RL Q16743 2SD0601A0L Q16810 B1ABCF000231 Q16806 2SC1473AEA Q16875 B1ABCF000231 Q16815 B1ABCN000007 B1ADCN000007 Q16801 Q16872 2SB0709A0L B1ADCN000007 Q16802 *Q16871 2SB0709A0L Q16794 B1ADCE000022 R16887 220k R16846 57.6k R16879 4.7k R16856 56 R16857 120k *R16872 3.3k R16775 4.7k R16888 220k R16870 33k R16740 100k *R16851 100k R16732 3.9k R16731 82k R16795 200k *R16875 71.5k R16749 10k R16700 4.7k R16838 56k R16822 82k R16730 47k R16832 100k R16701 10k R16746 10k R16744 200k *R16852 10k R16729 47k R16720 22 R16747 10k R16696 2.2 R16824 33k R16826 10k R16734 4.99k R16573 22 R16801 4.7k R16802 4.7k R16886 220k R16807 4.7k R16808 4.7k R16810 17.4k R16816 0 R16742 10k R16855 10k R16736 221k *R16873 2.49k R16735 221k R16794 200k R16841 56k R16738 82k R16850 4.7k *R16737 210k R16821 100k R16820 78.7k R16789 10k R16818 68k R16703 10k R16785 82k R16819 68k R16799 33k R16796 56k R16798 10k R16797 22 R16719 22 R16704 10k R16745 4.7k R16752 4.7k R16774 68k R16753 47k R16833 10k R16723 22 R16831 100k R16845 56.2k R16878 22k R16750 22k R16721 22 R16827 0 R16702 3.3k R16823 82k R16860 8.2 R16733 470k *R16874 71.5k R16792 10k R16811 17.4k R16805 220k *R16871 3.9k R16722 22 R16813 1k R16788 150k R16791 1k R16844 1.24k R16787 33k R16835 0 R16828 4.7k R16751 220k R16825 150k R16786 82k R16756 22k R16757 0 R16814 14.3k R16804 220k *R16880 0 VR16600 50k 1 2 3 R16815 10k * * * * * TPSC1 TPVAD TPVSET TPVSCN VSET2= 6V Vset2-6 GEN VSET3= 8V VSET4= 10V VSET5= --V AND INV SC41 SC20 SC46 SC42 SC2 19 25 21 27 20 22 24 23 26 VAD GEN. ERROR DET VSET OUT ERROR DET VSET OUT VSCN GEN. VSCN GEN. OPERATES AT 395V OR MORE VSET DET VSET2,6 VSET2,6 VSET2,6 ! SC-BOARD TXNSC1RJTUS (3/3) TO (SU41) SU-BOARD SD-BOARD (SD42) TO Vscn Vfo VF5V Vf Vf Vfo Vf Vf Vscn (SD46) TO SD-BOARD 13 14 12 OPERATES AT 21V OR MORE F16V DET 11 USE FOR FACTORY VAD:-140V VSET:325V VSCN:Vad+145V TH-50PZ80U SC-Board (3/3) Schematic Diagram TH-50PZ80U SC-Board (3/3) Schematic Diagram 76 11.34. SU-Board (1/3) Schematic Diagram SIDE TERM TERM SIDE AB_1057 AB_1055 AB_1056 AC_951 AC_952 AC_953 AC_954 AC_955 AC_956 AC_957 AC_958 AC_959 AC_960 AC_961 AC_962 AC_963 AC_964 AC_965 AC_966 AC_967 AC_968 AC_969 AC_970 AC_971 AC_972 AC_973 AC_975 AC_974 AC_976 AC_978 AC_977 AC_950 AC_949 AB_1017 AB_1018 AB_1019 AB_1020 AB_1021 AB_1022 AB_1023 AB_1024 AB_1025 AB_1026 AB_1027 AB_1028 AB_1029 AB_1030 AB_1031 AB_1032 AB_1033 AB_1034 AB_1035 AB_1036 AB_1037 AB_1038 AB_1039 AB_1040 AB_1041 AB_1042 AB_1043 AB_1044 AB_1045 AB_1046 AB_1047 AB_1048 AB_1054 AB_1053 AC_1016 AC_1015 AC_1014 AC_1013 AC_1012 AC_1011 AC_1010 AC_1009 AC_1008 AC_1007 AC_1006 AC_1005 AC_1004 AC_1003 AC_1002 AC_1001 AC_1000 AC_999 AC_998 AC_997 AC_996 AC_995 AC_994 AC_993 AC_992 AC_991 AC_990 AC_989 AC_988 AC_987 AC_986 AC_985 AC_979 AC_980 AA_SIU AA_SO1 AA_CLKU1 AA_OC2U1 AA_CLKU1 AA_OC2U1 AA_OC2U1 AA_CLKU1 AA_OC1U1 AA_OC1U1 AA_OC1U1 AA_OC1U2 AA_CLKU2 AA_OC2U2 AC_974 AB_1055 AB_1035 AB_1058 AB_1036 AC_993 AB_1053 AB_1056 AB_1033 AC_991 AB_1032 AB_1051 AB_1054 AC_989 AB_1031 AC_1014 AB_1030 AB_1049 AB_1052 AC_987 AB_1029 AC_1016 AB_1028 AB_1047 AC_985 AB_1027 AC_1012 AB_1026 AC_990 AC_1010 AC_979 AC_988 AB_1024 AC_1008 AC_977 AC_1006 AB_1022 AC_982 AC_975 AB_1025 AC_1004 AB_1020 AB_1076 AC_981 AC_973 AB_1023 AC_1002 AB_1018 AB_1074 AC_983 AC_1000 AB_1021 AB_1077 AB_1072 AC_984 AB_1019 AC_998 AB_1070 AB_1079 AB_1017 AC_1013 AC_996 AB_1068 AB_1075 AC_1015 AC_994 AB_1066 AB_1073 AC_1011 AC_992 AB_1064 AB_1071 AC_1009 AB_1050 AB_1062 AB_1069 AC_1007 AB_1048 AB_1067 AC_1005 AB_1045 AB_1065 AB_1046 AC_986 AC_1003 AB_1063 AB_1043 AB_1044 AB_1034 AC_1001 AC_980 AB_1061 AB_1041 AB_1042 AC_999 AC_978 AB_1059 AB_1039 AB_1040 AB_1078 AC_997 AC_976 AB_1057 AB_1037 AB_1038 AB_1060 AC_995 AB_1065 AB_1073 AB_1061 AB_1058 AB_1068 AB_1072 AB_1080 AB_1059 AB_1077 AB_1064 AB_1071 AB_1067 AB_1079 AB_1076 AB_1063 AB_1070 AB_1078 AB_1066 AB_1074 AB_1075 AB_1062 AB_1060 AB_1069 AA_OC1U1 AA_CLKU1 AA_CLKU2 AA_OC2U1 AA_OC2U2 AA_LATU1 AA_LATU1 AA_LATU1 AA_LATU2 AB_1049 AB_1050 AB_1051 AB_1052 AC_982 AC_981 AC_983 AC_984 AA_OC1U2 AA_LATU1 AA_LATU2 AA_LATU1 AA_OC2U2 AA_OC2U1 CHA AA_SIU AA_SO1 AA_SO2 OCM C14942 50V 470p C14940 50V 1000p C14941 50V 470p C14939 50V 470p C14904 16V 1u C14902 16V 1u C14901 50V 1000p D14910 MA2J11100L D14909 MA3X152E0L AN16182A-VT IC14902 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16182A-VT IC14901 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SU11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 SU1B B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 R14378 0 R14914 10k R14376 0 R14907 22 R14375 0 R14909 22 R14908 22 R14915 22 R14917 22 R14912 10k R14920 22 R14913 10k R14919 22 R14916 10k R14902 220 R14910 22 R14911 10k R14901 100 R14380 0 1 F E 3 4 B 5 6 D A 7 2 C 9 8 Vf VF5V VF5V Vfo PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 68bit UP SCAN ELECTRODES To 1st 108pins of 1 2 3 4 5 6 7 8 TO SD-BOARD (SD11) SU-BOARD TXNSU1RJTU (1/3) ! TH-50PZ80U SU-Board (1/3) Schematic Diagram TH-50PZ80U SU-Board (1/3) Schematic Diagram 77 11.35. SU-Board (2/3) Schematic Diagram TERM SIDE TERM SIDE AD_946 AD_945 AD_944 AD_943 AD_942 AD_941 AD_940 AD_939 AD_938 AD_937 AD_936 AD_935 AD_934 AD_933 AD_932 AD_931 AD_930 AD_929 AD_928 AD_927 AD_926 AD_925 AD_924 AD_922 AD_923 AD_921 AD_919 AD_920 AE_815 AE_816 AE_817 AE_818 AE_819 AE_820 AE_821 AE_822 AE_823 AE_824 AE_825 AE_826 AE_827 AE_828 AE_829 AE_830 AE_831 AE_832 AE_833 AE_834 AE_835 AE_836 AE_837 AE_839 AE_838 AE_840 AE_842 AE_841 AF_810 AF_809 AF_808 AF_807 AF_806 AF_805 AF_804 AF_803 AF_802 AF_801 AF_800 AF_799 AF_798 AF_797 AF_796 AF_795 AF_794 AF_793 AF_792 AF_791 AF_790 AF_789 AF_788 AF_786 AF_787 AF_785 AF_783 AF_784 AD_947 AE_813 AE_814 AF_811 AF_812 AD_881 AD_882 AD_883 AD_884 AD_885 AD_886 AD_887 AD_888 AD_889 AD_890 AD_891 AD_892 AD_893 AD_894 AD_895 AD_896 AD_897 AD_898 AD_899 AD_900 AD_901 AD_902 AD_903 AD_904 AD_906 AD_905 AD_907 AD_908 AD_909 AD_910 AD_911 AD_912 AD_918 AD_917 AE_879 AE_878 AE_877 AE_876 AE_875 AE_874 AE_873 AE_872 AE_871 AE_870 AE_869 AE_868 AE_867 AE_866 AE_865 AE_864 AE_863 AE_862 AE_861 AE_860 AE_859 AE_858 AE_857 AE_856 AE_855 AE_854 AE_853 AE_852 AE_851 AE_850 AE_849 AE_843 AE_844 AF_745 AF_746 AF_747 AF_748 AF_749 AF_750 AF_751 AF_752 AF_753 AF_754 AF_755 AF_756 AF_757 AF_758 AF_759 AF_760 AF_761 AF_762 AF_763 AF_764 AF_765 AF_766 AF_767 AF_768 AF_769 AF_770 AF_771 AF_772 AF_773 AF_774 AF_775 AF_776 AF_782 AF_781 AA_SO2 AA_SO3 AA_CLKU1 AA_CLKU1 AA_OC2U1 AD_948 AA_OC2U1 AE_880 AA_OC1U1 AA_OC1U1 AF_796 AF_807 AF_765 AE_829 AE_871 AD_933 AD_891 AD_914 AF_805 AF_794 AC_972 AF_763 AE_869 AE_827 AD_931 AD_889 AD_912 AF_803 AF_790 AC_970 AF_761 AE_867 AD_929 AE_825 AD_910 AF_801 AF_788 AD_886 AC_968 AE_865 AD_927 AC_950 AF_758 AE_844 AE_822 AF_799 AD_908 AE_863 AD_888 AC_966 AD_925 AC_952 AF_760 AE_842 AF_797 AE_824 AD_906 AE_862 AE_861 AC_964 AD_923 AD_948 AE_840 AF_795 AE_820 AE_860 AD_904 AE_859 AC_962 AD_921 AD_946 AD_938 AE_838 AF_793 AE_818 AE_858 AD_902 AE_857 AD_944 AC_960 AD_919 AF_772 AD_936 AE_816 AE_836 AF_789 AE_856 AD_900 AE_855 AD_942 AC_958 AD_917 AD_934 AF_770 AE_814 AE_834 AF_791 AE_854 AD_898 AD_940 AE_853 AC_956 AD_915 AD_932 AF_768 AF_812 AC_971 AE_832 AF_787 AE_852 AD_896 AE_851 AF_792 AD_930 AC_954 AD_913 AF_766 AF_786 AD_884 AC_969 AE_830 AF_785 AE_850 AD_892 AE_849 AD_894 AD_928 AD_911 AD_882 AF_764 AF_784 AC_967 AE_828 AF_783 AE_848 AD_890 AE_847 AD_926 AD_909 AE_880 AF_762 AF_782 AC_965 AE_826 AF_781 AE_846 AD_924 AC_951 AE_845 AE_878 AD_907 AE_821 AF_780 AC_963 AD_885 AF_779 AC_949 AD_922 AE_843 AE_876 AF_759 AD_905 AF_810 AE_823 AF_778 AC_961 AD_887 AF_777 AD_947 AD_920 AE_841 AE_874 AF_757 AF_808 AD_903 AE_819 AF_776 AC_959 AD_883 AD_943 AF_775 AD_918 AE_872 AE_839 AF_806 AE_817 AD_901 AD_881 AF_774 AC_957 AD_945 AF_773 AE_870 AE_837 AF_804 AE_815 AD_899 AE_879 AC_955 AD_941 AF_771 AE_868 AF_802 AE_835 AE_813 AD_897 AE_877 AD_939 AC_953 AE_866 AF_769 AF_800 AF_811 AE_833 AE_875 AD_895 AD_937 AE_864 AF_767 AF_798 AF_809 AE_831 AE_873 AD_893 AD_935 AD_916 AA_LATU2 AA_LATU1 AA_LATU1 AA_SO4 AA_SO4 AD_913 AD_914 AD_915 AD_916 AE_848 AE_847 AE_846 AE_845 AF_777 AF_778 AF_779 AF_780 CHA AA_SO3 AA_OC2U2 AA_CLKU2 AA_SO5 AA_OC1U2 145V C14923 250V 0.1u C14930 250V 0.1u C14910 16V 1u C14922 250V 0.1u C14906 16V 1u C14921 250V 0.1u C14932 250V 0.1u C14920 250V 0.1u C14928 250V 0.1u C14908 16V 1u C14934 250V 0.1u D14907 B0HCMM000013 D14905 B0HCMM000013 D14903 B0HCMM000013 D14912 B0HCMM000013 D14908 B0HCMM000013 D14911 B0HCMM000013 D14904 B0HCMM000013 D14906 B0HCMM000013 AN16182A-VT IC14903 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16182A-VT IC14905 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16182A-VT IC14904 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SU2B B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 SU3B B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 SU41 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 ZA14901 K4AD01Z00003 ZA14902 K4AD01Z00003 R14903 220 R14382 0 R14384 0 R14387 0 R14904 220 R14386 0 R14381 0 R14921 220k R14905 220 R14388 0 Vscn Vf Vfo VF5V 10 16 18 12 15 17 14 13 11 VF5V Vf Vf Vfo VF5V VF5V PDP SCAN DRIVER S/P 68bit PDP SCAN DRIVER S/P 68bit PDP SCAN DRIVER S/P 68bit SCAN ELECTRODES To 2nd 108pins of To 3rd 108pins of SCAN ELECTRODES UP 5 4 3 8 2 1 7 6 11 12 13 14 15 16 17 18 19 TO SC-BOARD (SC41) SU-BOARD TXNSU1RJTU (2/3) ! TH-50PZ80U SU-Board (2/3) Schematic Diagram TH-50PZ80U SU-Board (2/3) Schematic Diagram 78 11.36. SU-Board (3/3) Schematic Diagram TERM SIDE TERM SIDE AG_679 AG_680 AG_681 AG_682 AG_683 AG_684 AG_685 AG_686 AG_687 AG_688 AG_689 AG_690 AG_691 AG_692 AG_693 AG_694 AG_695 AG_696 AG_697 AG_698 AG_699 AG_700 AG_701 AG_703 AG_702 AG_704 AG_706 AG_705 AG_677 AG_678 AG_744 AG_743 AG_742 AG_741 AG_740 AG_739 AG_738 AG_737 AG_736 AG_735 AG_734 AG_733 AG_732 AG_731 AG_730 AG_729 AG_728 AG_727 AG_726 AG_725 AG_724 AG_723 AG_722 AG_721 AG_720 AG_719 AG_718 AG_717 AG_716 AG_715 AG_714 AG_713 AG_707 AG_708 AA_SO5 AA_CLKU2 AA_OC2U2 AA_OC1U2 AH_633 AH_653 AH_614 AG_728 AI_550 AG_680 AH_621 AI_600 AH_647 AH_617 AH_653 AH_665 AI_572 AH_636 AG_701 AG_743 AA_SO6 AI_547 AI_583 AH_669 AH_661 AI_596 AH_659 AG_726 AH_675 AI_606 AH_650 AI_577 AG_693 AI_580 AG_741 AH_671 AG_699 AH_611 AG_689 AI_595 AI_591 AH_674 AH_625 AI_542 AG_724 AI_543 AH_656 AI_559 AI_586 AI_544 AI_589 AI_598 AG_739 AH_614 AG_697 AH_656 AH_628 AI_574 AI_567 AH_611 AI_561 AG_722 AH_673 AG_696 AG_683 AH_622 AI_597 AI_567 AG_688 AG_737 AH_637 AH_635 AH_652 AI_561 AI_564 AH_618 AA_CLKU2 AI_590 AA_OC1U2 AI_595 AI_607 AG_720 AH_662 AH_674 AI_593 AH_643 AH_655 AG_735 AG_677 AH_615 AH_625 AI_571 AH_668 AA_OC2U2 AI_550 AH_649 AI_562 AG_718 AH_622 AH_629 AI_601 AG_733 AF_756 AI_564 AH_623 AH_646 AI_592 AA_OC2U2 AH_668 AG_682 AH_638 AH_626 AH_652 AI_566 AI_555 AI_558 AI_594 AH_646 AG_716 AG_731 AF_754 AI_548 AH_654 AH_616 AI_552 AH_659 AH_640 AH_616 AH_650 AH_619 AH_634 AH_667 AI_589 AF_752 AI_563 AA_OC1U2 AG_729 AI_592 AI_549 AI_585 AH_665 AH_661 AH_639 AH_627 AI_579 AH_655 AI_582 AF_750 AI_551 AI_547 AG_727 AH_619 AH_613 AG_691 AI_599 AH_647 AH_667 AI_546 AI_591 AI_602 AF_748 AI_565 AI_568 AI_603 AG_725 AI_606 AH_645 AH_658 AH_632 AI_568 AH_630 AI_588 AG_685 AH_676 AG_690 AH_651 AF_746 AI_549 AI_588 AI_580 AH_637 AI_563 AG_723 AI_583 AI_576 AH_664 AI_608 AH_664 AI_570 AH_645 AG_744 AH_628 AH_658 AG_702 AI_552 AG_679 AH_627 AI_602 AI_573 AG_721 AI_544 AH_648 AI_542 AH_624 AG_694 AH_669 AG_742 AH_666 AH_620 AG_700 AI_594 AH_670 AG_684 AI_570 AI_579 AG_719 AI_605 AH_612 AI_557 AH_631 AI_560 AI_603 AG_740 AH_649 AH_618 AI_554 AG_698 AH_642 AI_587 AI_577 AI_601 AI_555 AG_717 AI_582 AI_545 AH_621 AH_636 AH_648 AH_663 AG_738 AH_676 AH_629 AI_551 AG_695 AH_663 AI_553 AI_578 AG_715 AI_545 AH_609 AI_548 AH_657 AI_584 AI_607 AG_736 AH_657 AH_609 AH_615 AI_587 AI_597 AI_557 AH_662 AG_714 AI_569 AH_651 AH_634 AI_581 AG_713 AG_678 AI_604 AG_692 AI_584 AH_632 AH_660 AI_565 AI_566 AF_755 AI_599 AH_617 AG_712 AI_586 AH_654 AG_687 AI_593 AI_604 AH_673 AG_711 AI_581 AI_556 AH_639 AH_630 AI_578 AF_753 AH_640 AG_710 AH_633 AH_626 AI_572 AI_554 AH_612 AG_709 AI_546 AI_543 AG_681 AI_571 AH_672 AI_575 AF_751 AG_734 AG_708 AI_559 AI_569 AH_635 AI_608 AG_707 AI_541 AH_620 AH_631 AG_686 AI_558 AF_749 AH_660 AH_670 AG_732 AI_590 AG_706 AH_666 AI_562 AI_541 AH_672 AG_705 AI_585 AH_671 AI_553 AI_600 AH_641 AF_747 AH_610 AH_624 AG_730 AH_675 AH_623 AH_638 AG_704 AA_SO7 AI_560 AI_605 AI_598 AH_613 AI_596 AG_703 AI_556 AH_644 AF_745 AA_LATU2 AA_CLKU2 AG_712 AG_711 AG_710 AG_709 AH_642 AH_641 AH_643 AH_644 AI_574 AI_573 AI_576 AI_575 AH_610 AA_LATU2 AA_OC2U2 AA_OC1U2 AA_OC2U1 AA_CLKU1 AA_OC1U1 AA_LATU1 AA_SO7 AA_LATU2 AA_CLKU2 AA_LATU2 AA_SO6 C14912 16V 1u C14352 16V 1u C14937 50V 470p C14931 50V 1000p C14356 16V 1u C14936 50V 470p C14938 50V 470p AN16182A-VT IC14906 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16182A-VT IC14907 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16182A-VT IC14908 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SU4B B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 SU5B B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 R14924 10k R14393 0 R14394 0 R14398 0 R14923 10k R14906 220 R14928 220 R14390 0 R14925 10k R14926 10k R14929 220 R14392 0 27 24 26 21 19 22 23 20 25 Vf Vf Vfo VF5V VF5V PDP SCAN DRIVER S/P 68bit PDP SCAN DRIVER S/P 68bit PDP SCAN DRIVER S/P 68bit UP SCAN ELECTRODES To 5th 108pins of SCAN ELECTRODES To 4th 108pins of 12 18 13 17 16 15 14 11 19 SU-BOARD TXNSU1RJTU (3/3) ! TH-50PZ80U SU-Board (3/3) Schematic Diagram TH-50PZ80U SU-Board (3/3) Schematic Diagram 79 11.37. SD-Board (1/3) Schematic Diagram TERM SIDE TERM SIDE AC_475 AC_476 AC_477 AC_478 AC_479 AC_480 AC_481 AC_482 AC_483 AC_484 AC_485 AC_486 AC_487 AC_488 AC_489 AC_490 AC_491 AC_492 AC_493 AC_494 AC_495 AC_496 AC_497 AC_499 AC_498 AC_500 AC_502 AC_501 AD_470 AD_469 AD_468 AD_467 AD_466 AD_465 AD_464 AD_463 AD_462 AD_461 AD_460 AD_459 AD_458 AD_457 AD_456 AD_455 AD_454 AD_453 AD_452 AD_451 AD_450 AD_449 AD_448 AD_446 AD_447 AD_445 AD_443 AE_339 AE_340 AE_341 AE_342 AE_343 AE_344 AE_345 AE_346 AE_347 AE_348 AE_349 AE_350 AE_351 AE_352 AE_353 AE_354 AE_355 AE_356 AE_357 AE_358 AE_359 AE_360 AE_361 AE_363 AE_362 AE_364 AE_366 AE_365 AC_473 AC_474 AD_472 AD_471 AE_337 AE_338 AC_539 AC_538 AC_537 AC_536 AC_535 AC_534 AC_533 AC_532 AC_531 AC_530 AC_529 AC_528 AC_527 AC_526 AC_525 AC_524 AC_523 AC_522 AC_521 AC_520 AC_519 AC_518 AC_517 AC_516 AC_515 AC_514 AC_513 AC_512 AC_511 AC_510 AC_509 AC_504 AC_503 AD_405 AD_406 AD_407 AD_408 AD_409 AD_410 AD_411 AD_412 AD_413 AD_414 AD_415 AD_416 AD_417 AD_418 AD_419 AD_420 AD_421 AD_422 AD_423 AD_424 AD_425 AD_426 AD_427 AD_428 AD_429 AD_430 AD_431 AD_432 AD_433 AD_434 AD_435 AD_436 AD_442 AD_441 AD_444 AE_403 AE_404 AE_401 AE_400 AE_399 AE_398 AE_397 AE_396 AE_395 AE_394 AE_393 AE_392 AE_391 AE_390 AE_389 AE_388 AE_387 AE_386 AE_385 AE_384 AE_383 AE_382 AE_381 AE_380 AE_379 AE_402 AE_378 AE_377 AE_376 AE_375 AE_374 AE_373 AE_367 AE_368 AA_CLKD1 AA_OC2D1 AA_CLKD1 AA_SO13 AA_OC2D1 AA_SO13 AA_SO12 AC_540 AA_OC1D1 AA_OC1D1 AA_OC2D1 AA_CLKD1 AE_367 AD_429 AE_395 AC_520 AE_341 AC_485 AC_527 AD_448 AE_404 AC_498 AD_470 AE_389 AE_369 AD_427 AE_397 AC_518 AE_343 AC_483 AD_451 AC_525 AC_534 AD_406 AF_334 AC_519 AD_468 AE_371 AE_391 AE_399 AC_516 AC_481 AD_449 AC_523 AD_408 AF_336 AE_373 AC_517 AD_466 AE_393 AE_401 AD_454 AE_348 AC_521 AD_410 AE_390 AE_375 AC_515 AD_464 AC_538 AE_403 AD_452 AE_347 AE_377 AE_392 AC_513 AD_462 AC_536 AD_405 AD_450 AE_338 AE_349 AE_379 AC_474 AE_394 AC_511 AD_460 AC_532 AD_407 AC_540 AD_471 AE_340 AE_381 AE_351 AC_476 AD_412 AE_396 AC_509 AD_458 AC_530 AD_411 AD_469 AE_383 AE_342 AE_353 AD_472 AD_436 AE_398 AC_507 AD_456 AC_528 AD_409 AD_467 AE_385 AE_344 AE_355 AC_473 AD_434 AF_328 AC_505 AD_457 AC_526 AE_388 AD_465 AE_357 AE_387 AC_475 AD_432 AF_330 AC_503 AD_455 AC_524 AE_359 AE_364 AD_413 AD_463 AC_496 AD_430 AF_332 AC_501 AF_326 AD_453 AE_361 AE_366 AC_522 AD_447 AD_461 AC_494 AD_428 AF_333 AC_499 AE_363 AE_368 AC_539 AD_445 AD_459 AC_492 AD_422 AD_426 AF_335 AC_497 AF_325 AE_370 AE_350 AC_537 AC_514 AD_442 AD_424 AC_490 AD_420 AE_337 AF_327 AE_372 AE_352 AC_512 AD_444 AD_425 AC_488 AD_418 AF_329 AE_374 AC_478 AE_354 AC_510 AD_440 AD_423 AC_486 AD_416 AE_376 AF_331 AC_495 AE_356 AC_508 AD_438 AD_421 AC_484 AD_414 AE_378 AE_346 AE_358 AC_493 AC_506 AD_441 AC_535 AD_419 AE_380 AC_482 AD_435 AE_345 AE_360 AC_491 AC_533 AC_504 AD_443 AE_382 AD_417 AC_480 AD_433 AE_362 AC_479 AC_489 AC_531 AE_400 AC_502 AD_439 AE_384 AD_415 AD_431 AE_365 AC_477 AE_339 AC_487 AC_529 AD_446 AE_402 AC_500 AD_437 AE_386 AA_OC2D1 AA_LATD1 AA_CLKD1 AA_LATD1 AA_LATD1 AA_SO11 AE_369 AE_372 AE_371 AE_370 AD_437 AD_438 AD_439 AD_440 AC_507 AC_508 AC_506 AC_505 CHA AA_OC1D1 AA_LATD1 AA_SID AA_SO12 AA_OC1D1 C14360 250V 0.1u C14985 250V 0.1u C14984 250V 0.1u C14983 250V 0.1u C14982 250V 0.1u C14952 16V 1u C14970 50V 470p C14950 50V 470p C14973 50V 1000p C14975 250V 0.1u C14955 16V 1u C14957 16V 1u C14361 250V 0.1u C14974 250V 0.1u C14972 50V 470p C14373 50V 1000p D14953 B0HCMM000013 D14955 B0HCMM000013 D14978 B0HCMM000013 D14958 B0HCMM000013 D14954 B0HCMM000013 D14956 B0HCMM000013 D14957 B0HCMM000013 D14977 B0HCMM000013 AN16182A-VT IC14951 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16182A-VT IC14953 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16182A-VT IC14952 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SD1B B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 SD2B B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 SD42 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 VSET2_O 5V_F1_A VSET6_O 5V_F1_B ZA14951 K4AD01Z00003 ZA14952 K4AD01Z00003 R14359 0 R14357 220 R14356 0 R14354 220 R14353 0 R14351 10k R14350 100 R14980 0 R14952 0 R14986 220k R14953 0 Vfo Vscn VF C 3 F 9 E 4 6 D 8 B 1 7 A 5 2 VF S/P 68bit PDP SCAN DRIVER S/P 68bit PDP SCAN DRIVER S/P 68bit PDP SCAN DRIVER VF5V VF5V 1 2 3 4 5 6 7 8 9 10 TO SC-BOARD (SC42) SCAN ELECTRODES SCAN ELECTRODES To 1st 108pins of To 2nd 108pins of DOWN SCN_PRO SD-BOARD TXNSD1RJTU (1/3) ! TH-50PZ80U SD-Board (1/3) Schematic Diagram TH-50PZ80U SD-Board (1/3) Schematic Diagram 80 11.38. SD-Board (2/3) Schematic Diagram TERM SIDE TERM SIDE AF_334 AF_333 AF_332 AF_331 AF_330 AF_329 AF_328 AF_327 AF_326 AF_325 AF_324 AF_323 AF_322 AF_321 AF_320 AF_319 AF_318 AF_317 AF_316 AF_315 AF_314 AF_313 AF_312 AF_310 AF_311 AF_309 AF_307 AF_308 AG_203 AG_204 AG_205 AG_206 AG_207 AG_208 AG_209 AG_210 AG_211 AG_212 AG_213 AG_214 AG_215 AG_216 AG_217 AG_218 AG_219 AG_220 AG_221 AG_222 AG_223 AG_224 AG_225 AG_227 AG_226 AG_228 AG_230 AG_229 AF_336 AF_335 AG_201 AG_202 AF_269 AF_270 AF_271 AF_272 AF_273 AF_274 AF_275 AF_276 AF_277 AF_278 AF_279 AF_280 AF_281 AF_282 AF_283 AF_284 AF_285 AF_286 AF_287 AF_288 AF_289 AF_290 AF_291 AF_292 AF_293 AF_294 AF_295 AF_296 AF_297 AF_298 AF_299 AF_300 AF_305 AF_306 AG_267 AG_266 AG_265 AG_264 AG_263 AG_262 AG_261 AG_260 AG_259 AG_258 AG_257 AG_256 AG_255 AG_254 AG_253 AG_252 AG_251 AG_250 AG_249 AG_248 AG_247 AG_246 AG_245 AG_244 AG_243 AG_242 AG_241 AG_240 AG_239 AG_238 AG_237 AG_231 AG_232 AA_OC2D1 AA_CLKD1 AA_CLKD2 AA_OC2D2 AG_268 AA_SO9 AA_OC1D1 AA_OC1D2 AH_180 AH_151 AH_190 AH_181 AH_150 AH_191 AH_182 AH_149 AH_199 AH_183 AH_148 AH_200 AH_147 AH_146 AH_145 AH_169 AH_144 AH_170 AA_OC2D2 AH_143 AH_164 AH_142 AH_163 AH_141 AH_162 AH_140 AH_161 AH_139 AH_160 AH_172 AH_138 AH_159 AH_192 AH_171 AH_137 AH_135 AH_193 AH_173 AH_136 AH_158 AH_175 AH_194 AH_184 AH_157 AH_174 AA_SO8 AH_195 AA_CLKD2 AH_185 AH_156 AH_133 AH_176 AH_196 AH_186 AH_155 AH_134 AH_177 AH_197 AH_187 AH_154 AH_178 AH_198 AH_188 AH_153 AH_179 AH_152 AH_189 AH_134 AH_189 AG_231 AG_244 AG_224 AG_208 AF_304 AG_265 AF_317 AI_119 AH_155 AI_126 AH_191 AG_233 AH_141 AF_283 AG_226 AF_310 AG_210 AF_274 AH_144 AI_118 AF_285 AF_312 AH_172 AG_212 AH_176 AF_272 AH_148 AG_247 AI_115 AF_308 AF_287 AH_178 AG_214 AH_157 AI_109 AG_251 AF_280 AF_305 AH_180 AF_289 AG_216 AH_159 AI_122 AG_249 AF_309 AF_282 AH_182 AF_298 AI_132 AG_218 AH_161 AG_246 AF_311 AF_284 AH_184 AF_295 AH_136 AI_116 AH_163 AG_220 AG_248 AF_313 AH_186 AF_302 AF_286 AH_139 AH_165 AH_197 AG_252 AI_124 AI_112 AF_307 AH_188 AF_300 AF_288 AH_135 AH_167 AG_250 AH_199 AF_322 AH_190 AH_151 AF_303 AI_123 AI_129 AF_279 AH_169 AG_254 AF_271 AH_140 AG_201 AH_192 AF_301 AF_324 AH_171 AF_281 AG_253 AH_142 AI_117 AF_276 AG_203 AF_299 AH_194 AG_209 AI_111 AG_256 AI_121 AF_278 AG_205 AH_153 AF_297 AG_211 AH_196 AF_323 AG_258 AF_275 AG_207 AF_290 AH_173 AG_213 AH_174 AH_193 AH_146 AH_152 AH_143 AG_260 AG_228 AH_158 AF_277 AH_145 AF_292 AG_215 AH_195 AI_131 AH_175 AG_230 AG_262 AG_235 AH_156 AH_160 AF_273 AF_294 AG_219 AF_321 AG_221 AI_128 AH_177 AG_232 AG_264 AG_237 AH_147 AF_296 AH_162 AG_266 AF_314 AG_217 AH_179 AH_198 AG_234 AG_255 AG_239 AH_133 AI_130 AF_291 AH_164 AG_268 AF_316 AG_223 AH_181 AG_236 AH_200 AG_241 AI_127 AG_257 AF_293 AH_166 AF_270 AF_318 AH_138 AI_113 AH_183 AG_225 AG_238 AG_243 AG_202 AH_137 AG_259 AH_168 AG_267 AF_320 AI_125 AH_185 AG_227 AG_240 AG_245 AI_120 AG_204 AH_170 AG_261 AF_269 AF_319 AH_154 AH_150 AH_187 AG_229 AG_242 AH_149 AG_222 AI_114 AI_110 AG_206 AF_306 AG_263 AF_315 AA_LATD1 AA_LATD2 AA_LATD2 AA_SO11 AA_SO10 AH_168 AH_167 AH_165 AH_166 AG_236 AG_235 AG_234 AG_233 AF_301 AF_302 AF_303 AF_304 AA_CLKD1 AA_OC1D1 AA_OC2D1 AA_LATD1 AA_LATD2 AA_CLKD2 AA_OC2D2 AA_OC1D2 AA_SO10 AA_SO9 AA_OC1D2 C14963 16V 1u C14961 16V 1u C14958 16V 1u C14989 50V 470p C14976 50V 1000p C14971 50V 470p C14981 50V 470p AN16182A-VT IC14955 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16182A-VT IC14954 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16182A-VT IC14956 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SD4B B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 SD3B B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 R14368 0 R14955 0 R14365 0 R14363 220 R14362 0 R14990 10k R14951 0 R14360 220 R14366 220 R14981 10k R14982 10k R14954 0 R14984 10k 14 18 17 12 11 10 16 15 13 S/P 68bit PDP SCAN DRIVER S/P 68bit PDP SCAN DRIVER S/P 68bit PDP SCAN DRIVER VF5V VF VF5V VF Vfo VF5V Vfo VF5V VF VF 21 22 23 24 25 26 27 28 29 30 5 7 6 2 10 1 9 8 3 4 To 3rd 108pins of SCAN ELECTRODES UP SCAN ELECTRODES To 4th 108pins of DOWN SCN_PRO SCN_PRO SD-BOARD TXNSD1RJTU (2/3) ! TH-50PZ80U SD-Board (2/3) Schematic Diagram TH-50PZ80U SD-Board (2/3) Schematic Diagram 81 11.39. SD-Board (3/3) Schematic Diagram SIDE TERM TERM SIDE AI_115 AI_128 AJ_3 AI_66 AJ_25 AJ_61 AJ_45 AI_116 AI_94 AI_71 AI_129 AJ_2 AI_65 AJ_24 AJ_63 AJ_46 AJ_62 AI_117 AI_92 AI_70 AI_130 AJ_1 AJ_23 AJ_64 AI_118 AJ_47 AI_90 AI_69 AJ_22 AI_119 AJ_48 AI_91 AI_68 AJ_21 AI_131 AJ_49 AI_89 AI_67 AJ_36 AJ_20 AI_132 AJ_50 AI_95 AI_88 AJ_35 AJ_19 AJ_51 AI_96 AI_87 AJ_18 AJ_37 AI_101 AJ_52 AI_86 AJ_17 AJ_39 AI_102 AJ_53 AI_85 AJ_16 AJ_38 AI_103 AJ_54 AJ_15 AJ_40 AI_104 AJ_14 AJ_55 AJ_41 AI_78 AI_105 AA_OC1D2 AA_SO8 AJ_13 AJ_56 AJ_42 AI_106 AI_77 AA_OC2D2 AJ_12 AJ_57 AJ_43 AI_107 AI_76 AA_CLKD2 AI_120 AJ_11 AA_OC1D2 AJ_58 AI_108 AI_75 AA_CLKD2 AI_121 AJ_10 AA_SO7 AI_109 AI_84 AI_122 AJ_9 AI_110 AI_83 AI_123 AJ_8 AJ_33 AI_111 AI_82 AI_124 AJ_7 AJ_34 AI_112 AI_125 AJ_6 AI_81 AI_74 AJ_28 AI_113 AI_126 AJ_5 AI_80 AJ_59 AJ_27 AI_73 AI_114 AI_127 AJ_4 AI_79 AJ_60 AJ_44 AJ_26 AI_93 AI_72 AJ_6 AI_100 AJ_5 AJ_16 AI_102 AJ_42 AJ_13 AI_74 AJ_21 AJ_58 AJ_2 AI_87 AI_65 AI_90 AI_73 AJ_54 AJ_51 AI_91 AI_103 AJ_39 AI_97 AJ_35 AJ_10 AJ_25 AJ_3 AJ_48 AI_66 AI_78 AJ_40 AJ_11 AJ_47 AI_86 AI_72 AJ_14 AI_81 AI_101 AI_88 AJ_22 AJ_60 AJ_28 AJ_27 AI_71 AI_69 AI_107 AI_85 AJ_36 AI_96 AJ_49 AJ_52 AI_94 AI_105 AJ_38 AI_79 AI_70 AJ_30 AJ_7 AJ_19 AI_95 AJ_45 AJ_8 AI_77 AJ_55 AJ_9 AJ_59 AI_98 AJ_46 AI_99 AI_76 AJ_63 AJ_20 AJ_17 AI_89 AJ_23 AJ_31 AI_108 AI_84 AI_67 AJ_57 AJ_1 AI_93 AJ_43 AI_106 AJ_56 AJ_62 AJ_64 AJ_18 AI_104 AJ_26 AJ_37 AJ_32 AJ_33 AJ_12 AJ_44 AJ_15 AJ_50 AJ_61 AI_75 AI_92 AI_82 AI_68 AJ_53 AJ_34 AI_83 AJ_4 AJ_41 AJ_24 AJ_29 AA_OC2D2 AA_OC1U1 AA_OC2U1 AA_CLKU2 AA_CLKU1 AA_LATD2 AA_LATD2 AA_OC2U2 AI_80 AA_OC2D2 AA_OC1D2 AA_CLKD2 AA_LATD2 AA_LATU2 AJ_32 AJ_30 AJ_29 AJ_31 AI_100 AI_99 AI_98 AI_97 AA_SIU AA_OC1U2 AA_LATU1 CHA AA_SO7 AA_LATD1 AA_LATU2 AB_SID AB_CLK AA_CLKU2 AA_OC1D1 AA_OC2D1 AA_OC2D2 AA_CLKD1 AB_OC1 AB_SIU AA_OC1D2 AA_LATU1 AA_OC1U1 AA_OC1U2 AA_SIU AB_OC2A AA_OC2U2 AA_CLKD2 AA_OC2D1 AA_SID AA_OC2U1 AA_OC2D2 AA_CLKU1 AA_LATD2 AA_LATD1 AB_SID AB_SIU AB_OC2A AB_CLK AB_OC1 OCM SCN_PRO C14364 16V 1u C14368 16V 1u C14992 16V 1u C14943 25V 4.7u C14987 50V 0.1u C14945 50V 100p C14969 50V 0.1u C14990 50V 0.1u C14944 50V 1000p C14988 50V 0.1u D14976 MA2J11100L D14979 MA2J11100L D14975 MA2J11100L D14974 MA3X152E0L D14961 MAZ80560HL C0JBAE000321 IC14965 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y C0JBAE000321 IC14963 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y IC14964 C0JBAA000174 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 Vcc IC14961 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC IC14962 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC AN16182A-VT IC14957 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16182A-VT IC14958 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SD11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 SD5B B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 SD46 1 2 3 4 5 6 7 8 9 VSET2_O VSET6_O 5V_F1_A 5V_F1_B 5V 5V PC14953 B3PBA0000456 1 2 3 4 5 PC14952 B3PBA0000457 1 2 3 4 5 6 7 8 PC14951 B3PBA0000457 1 2 3 4 5 6 7 8 R14369 220 R14961 330 R14932 0 R14958 22 R14371 0 R14993 47 R14956 22 R14992 47 R14963 330 R14976 47 R14949 20k R14971 22 R14966 22 R14975 47 R14974 47 R14950 10k R14957 22 R14977 2.2k R14965 330 R14939 0 R14930 0 R14942 0 R14940 0 R14997 10k R14988 2.2k R14943 47 R14931 22 R14944 10 R14999 330 R14998 10k R14994 47 R14973 47 R14996 10k R14991 22 R14962 330 R14937 1k R14967 22 R14936 4.7k R14987 47 R14349 10k R14964 22 R14372 220 R14979 2.2k R14960 22 R14959 22 R14935 2.2k R14978 2.2k R14934 47 R14374 0 R14995 10k 20 21 26 19 22 25 23 24 27 BUFFER BUFFER BUFFER BUFFER BUFFER S/P 68bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER VF5V VF VF5V VF Vfo 29 25 28 27 26 23 24 21 22 30 TO SU-BOARD (SU11) TO SC-BOARD (SC46) SCAN ELECTRODES To 5th 108pins of DOWN SCN_PRO SD-BOARD TXNSD1RJTU (3/3) ! TH-50PZ80U SD-Board (3/3) Schematic Diagram TH-50PZ80U SD-Board (3/3) Schematic Diagram 82 11.40. SS-Board (1/2) Schematic Diagram + + + + + + + + + + + + + + AA_SOS8 AA_UMH AA_UML AA_USL AA_USH AA_NUEL AA_USL AA_UEH AA_UML AA_UMH AA_USH 5V AA_SOS8 75V 75V C16152 25V 4.7u C16251 16V 1u C16153 25V 4.7u C16092 630V 1000p C16133 25V 4.7u C16135 25V 1u C16071 630V 1000p C16003 630V 5600p C16154 25V 4.7u C16023 630V 5600p C16252 25V 1u C16131 25V 4.7u C16243 50V 0.01u C16242 16V 1u C16042 50V 3900p C16151 25V 1u *C16013 2.2u 250V *C16202 250V 4u *C16203 250V 4u *C16201 250V 4u *C16014 220V 250u C16272 25V 470u *C16011 220V 250u *C16268 100V 470u C16262 100V 470u C16263 100V 470u *C16016 220V 250u C16264 100V 470u *C16270 100V 470u C16265 100V 470u *C16267 100V 470u C16266 100V 470u *C16269 100V 470u C16241 10V 100u D16151 B0ECHP000003 D16152 B0ECKP000047 D16153 B0ECKP000047 D16032 MA2J11100L D16050 B0ECKP000047 D16132 B0ECKP000047 D16131 B0ECHP000003 D16255 MA2J11100L D16051 B0FBCN000005 *D16002 B0FBCN000005 *D16001 B0FBCN000005 D16043 MA3DF46000LW *D16021 MA3DF30000LW D16041 MA3DF46000LW *D16022 MA3DF30000LW D16253 LNJ301MPUJA IC16251 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC C0ZBZ0000895 IC16131 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0ZBZ0001324 IC16151 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0JBAZ002811 IC16241 1G 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G 20 VCC SS34 1 2 3 SS35 1 2 3 4 SS12 1 2 3 4 5 6 7 8 9 10 SS33 1 2 3 4 5 6 7 8 9 10 SS11 1 3 L16262 G0ZZ00002183 L16271 G0ZZ00002183 L16398 J0JJC0000015 L16399 J0JJC0000015 *L16002 G0C1R6KA0119 *L16005 G0C1R6KA0119 *L16014 G0C1R4KA0118 *L16013 G0C1R4KA0118 *L16001 G0C1R6KA0119 *L16003 G0C1R6KA0119 *L16011 G0C1R4KA0118 *L16012 G0C1R4KA0118 *L16004 G0C1R6KA0119 15V 5V VE2EXT165V 5V 15V VSUS 15V VEEXT160V TP14 TP34 TP13 TP5 TP12 TP7 TP6 TP21 TP37 TP2 TP15 TP10 TP16 TP19 TP20 TP41 TP40 TP38 TP39 TP17 TP3 TP9 TP18 TP33 TP11 TP22 TP1 TP8 Q16251 2SD0601A0L Q16181 B1ABRD000003 Q16171 B1ABRD000003 Q16042 B1JAEN000003 *Q16022 B1JAEN000002 Q16051 B1JAEN000003 *Q16023 B1JAEN000002 *Q16002 B1JAEN000002 *Q16004 B1JAEN000002 *Q16024 B1JAEN000002 *Q16003 B1JAEN000002 Q16182 B1ADRD000001 Q16172 B1ADRD000001 Q16161 B1HFPFA00001 Q16141 B1HFPFA00001 R16242 EXB38V472JV R16241 EXB38V470JV R16171 10 R16231 4.7k R16261 100k R16255 1.2k 75 R16134 R16256 1.5k R16132 100 R16161 10 R16004 7.5 R16031 82k 75 R16154 R16142 47k R16181 10 R16131 100 R16253 39k R16257 10k R16220 47 R16260 2.2k R16254 6.8k R16151 100 R16173 47k R16042 5.6 R16137 1 R16034 27k R16022 7.5 R16032 82k R16002 7.5 R16024 7.5 R16023 7.5 R16051 5.6 R16251 1.4k R16143 47k R16159 1 R16163 47k R16152 100 R16252 39k R16183 47k R16033 56k R16230 47 R16258 2.2k R16155 1 R16141 10 R16221 4.7k R16172 47k R16003 7.5 R16162 47k R16138 1 R16182 47k R16139 1 D16053 B0FBCN000005 *L16015 G0C1R4KA0118 TPVDA (GREEN LED) TPVSUS VSUS GND VDA VDA GND NC UML SOS8_SS UMH NUEL TPSOS8 NC (URH) P5V USH USL UEH GND - 2 6 8 4 F 7 5 A B 3 C D 1 E 9 FET DRIVER ENERGY RECOVERY VSUS Gen. DRIVER FET DRIVER BUFFER TO C3-BOARD (C33) P-BOARD TO (P12) P-BOARD TO (P11) TO (C35) C3-BOARD ERROR DET STB_PS 12V GND ! SS-BOARD TXNSS1RJTU (1/2) 1 2 VSUS:190V VDA:75V TH-50PZ80U SS-Board (1/2) Schematic Diagram TH-50PZ80U SS-Board (1/2) Schematic Diagram SHORT JUMPER 83 11.41. SS-Board (2/2) and SS2-Board Schematic Diagram + + + + + + TERM SIDE TERM SIDE TERM SIDE TERM SIDE AA_UEH AA_UML AA_SOS8 AA_UEH AA_NUEL C16197 25V 4.7u C16192 25V 4.7u C16195 25V 4.7u C16194 25V 4.7u C16321 0.22u 250V C16325 25V 4.7u C16313 16V 1u C16312 50V 4700p C16311 10V 1u C16322 0.22u 250V C16326 25V 4.7u *C16327 250V 2.2u C16337 50V 0.1u C16336 50V 1000p C16286 0.1u 50V C16287 0.1u 50V C16284 0.1u 50V C16285 0.1u 50V C16302 470p 50V C16329 220u 200V C16328 220u 200V C16301 47u 25V C16323 25V 47u C16324 470u 25V *C16310 220V 250u D16300 B0ECKP000047 *D16106 MA22D3900L D16313 B0ECKP000047 D16280 MA2J11100L D16104 MA22D3900L D16192 B0ECKP000047 D16102 MA22D3900L D16321 B0ECKP000047 D16191 B0ECKP000047 D16335 B0ECLM000006 D16336 B0ECLM000006 D16302 MA2J11100L D16331 B0ECHP000003 D16284 MA3X152D0L D16285 MA3X152D0L D16324 MA3X152D0L D16301 MA3X152E0L D16281 MAZ80510LL D16311 MAZ81500ML D16282 MAZ80680ML C0JBAC000363 IC16303 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT C0ZBZ0000895 IC16191 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC MIP9L02MBS IC16301 1 SOURCE 2 BY 3 FB 5 VCC 6 GND 7 V01 8 VOUT 10 DRAIN C0CBALC00012 IC16302 Vin 3 2 Com Vout 1 *SS56 1 2 3 4 5 6 7 8 9 10 11 12 13 *SS55 1 2 3 4 5 6 7 8 9 10 11 12 13 *SS53 1 2 3 4 5 6 7 8 9 10 11 12 13 *SS21 1 2 3 4 5 6 7 L16221 G0ZZ00002183 L16103 G0ZZ00002183 J0JJC0000015 *L16106 J0JJC0000015 L16104 J0JJC0000015 L16102 J0JHC0000031 L16301 T16301A ETS19AB249AC 1 NC 2 P1 4 PT 5 NC 6 P2 7 S1 10 S2 15V 5V 15V VSUS TP29 TP25 TP31 TP35 TP26 TP36 TP30 TP28 TP24 TP54 TP53 TP51 TP42 TP43 TP56 TP27 *Q16335 B1CERL000012 G D S Q16301 B1CBGD000001 Q16302 B1CFNG000001 *Q16331 B1CERL000012 G D S Q16339 2SK399500L G D S *Q16106 2SK399800L G D S Q16102 2SK399800L G D S Q16104 2SK399800L G D S Q16280 2SD0601A0L Q16304 2SB0709ASL Q16191 B1HFPFA00001 R16194 1 R16305 270 R16289 62k R16300 1k R16340 1.5k R16295 62k R16324 10k R16333 330k R16284 220k R16309 4.7k R16109 10 *R16106 220 R16315 1.24k R16307 100 R16191 100 R16334 100 R16314 66.5k R16302 1M R16310 5.6k R16304 680 R16339 330k R16325 0 R16311 120k R16338 100 R16303 100 R16280 2.2k R16317 0 R16306 100 R16281 10k R16293 62k R16110 47k R16312 120k R16322 560 R16321 47k R16116 47k R16323 22k R16102 220 75 R16193 R16104 220 R16301 4.7k R16308 100 R16290 330k R16292 330k R16296 330k R16294 330k R16331 100 R16283 47k R16282 220 R16195 1 R16192 100 R16336 1 *R16313 52.3k R16291 62k VR16000 50k 1 2 3 C16280 25V 1u SS58A 1 2 3 4 5 6 7 8 9 10 11 12 13 SS24 1 2 3 4 5 6 7 ZA16001 K4CD01000011 ZA16003 K4CD01000011 ZA16002 K4CD01000011 TPSS1 FPC es SOS 50FHD SS53 SS54 SS57 SS56 SS21 SS55 SS33 SS35 SS34 SS12 SS11 TPVe 16 13 18 17 14 12 11 10 15 TNPA4405S SS2-BOARD ! SUSTAIN PANEL ELECTRODE DRIVER VE Gen. FET DRIVER SUSTAIN ELECTRODE PANEL PANEL SUSTAIN ELECTRODE SUSTAIN ELECTRODE PANEL IPD NAND GATE +15V ! SS-BOARD TXNSS1RJTU (2/2) 1 2 Ve:145V TH-50PZ80U SS-Board (2/2) and SS2-Board Schematic Diagram TH-50PZ80U SS-Board (2/2) and SS2-Board Schematic Diagram 105 13 Exploded View and Replacement Parts List 13.1. Exploded View and Mechanical Replacement Parts List 13.1.1. Exploded View 106 13.1.2. Fan part location 107 13.1.3. Accessories 108 13.1.4. Mechanical Replacement Parts List 109 Safety Ref. No. Part No. Part Name & Description Q'ty Remarks 1 10030-0042000 BATTERY COVER 1 PAVCA 2 EAS16S06A SPEAKER 2 J0KG00000042 NOISE FILTER 1 3 K1RYYYA00016 F-TYPE (5C) 1 4 K2CG3YY00029 AC CORD(USA) 1 PAVCA 5 L6FAYYYH0050 FAN(80MM) 2 6 MD50F11A1J PLASMA DISPLAY PANEL 1 7 N2QAYB000221 REMOTE CONTROL 1 PAVCA 8 TBLA3614 STAND POLE LEFT 1 9 TBLA3615 STAND POLE RIGHT 1 10 TBLX0037 PEDESTAL STAND 1 PAVCA 11 TBX2AA4602 POWER BUTTON 1 PAVCA 12 TBX2AA4702 CONTROL BUTTON 1 PAVCA 13 TES2AA0191 POWER BUTTON SPRING 1 PAVCA THEJ006J SCREW 2 THEJ016J SCREW(AC INRET:2) 2 THEL037N SCREW 30 THEL0429 SCREW 17 THEL060N SCREW(STAND-TV) 4 THTD013N SCREW 6 THTF011N SCREW 56 14 TKGA5431S FRONT GLASS 1 PAVCA 15 TKK2AA7701 ADJUSTMENT COVER 1 PAVCA 16 TKK2AA8301 LED PANEL 1 PAVCA 17 TKP2AA1932 M8 SPACER CAP 4 PAVCA 18 TKP2AA7901 INLET COVER 1 PAVCA 19 TKPB20202 DOOR 1 PAVCA 20 TKR2AA00161 REAR COVER HANDLE 2 PAVCA 21 TMM2AX0111 M8 SPACER 4 PAVCA TMM6428-1 CLAMPER 1 TMM7464-2 CLAMPER 1 TMME088 CLAMPER 2 TMME199 CLAMPER 1 TMME260 CLAMPER 5 TMME287 CLAMPER 10 22 TMME289 CLAMPER 2 TMME292 CLAMPER 19 23 TMMJ068 RUBBER(FAN) 6 24 TMMJ082 SPONGE(FAN CORNER) 8 25 TMXX041 AC CORD CLAMPER 2 26 TMZX5135 STAND BRACKET LEFT 1 PAVCA 27 TMZX5136 STAND BRACKET RIGHT 1 PAVCA TPD169487 JOINT 4 110 Safety Ref. No. Part No. Part Name & Description Q'ty Remarks TPEB331 BAG (PEDESTAL STAND) 1 TPEH273 TOP PROTECT SHEET 2 28 TQB2AA0777 INSTRUCTION BOOK(ENG/FRE/SPA) 1 PAVCA TQZH983 SCREW USE HANDBILL 1 TSXL519 CABLE (C10-C20/SU11-SD11) 2 TSXL659 CABLE (SC20-D20) 1 TSXL660 CABLE (D31-C11/D32-C21/D33-C22) 3 TSXL661 CABLE (C26-C36) 1 29 TXALK01RMTU AC INLET ASSY 1 PAVCA 30 TXFKU13TSER REAR COVER 1 PAVCA 31 TXFKY01RMTU CABINET ASSY 1 PAVCA TXJA12RNTU SPEAKER LEAD (A12-SPL/SPR) 1 PAVCA TXJSWRRMTU SPEAKER LEAD (SP-SPR/L) 2 PAVCA XSB3+6FJ SCREW (LCD MTG) 2 XTB4+12GFJ SCREW 42 XTB4+12GFJK SCREW 19 XTW3+10TFJ SCREW 7 XYN3+F8FJ SCREW 17 XYN3+J12FJ SCREW 44 XYN3+J8FJ SCREW 3 XYN4+F10FJ SCREW 16 XYN4+F14FJ SCREW 6 XYN5+C15FJ SCREW 8 XYN5+F18FN SCREW (STAND POLE) 4 XZB17X19C03 POLY BAG (STAND POLE) 1 111 13.2. Electrical Replacement Parts List 13.2.1. Replacement Parts List Notes 112 13.2.2. Electrical Replacement Parts List Safety Ref. No. Part No. Part Name & Description Pcs Remarks A1 K1KA09A00220 9P CONNECTOR 1 A3 K1KA14B00129 14P CONNECTOR 1 A5 K1KB31AA0140 31P CONNECTOR 1 A6 K1KA12AA0194 12P CONNECTOR 1 A7 K1KA09AA0193 9P CONNECTOR 1 A11 K1KA30B00078 30P CONNECTOR 1 A12 K1KA04AA0190 4P CONNECTOR 1 A17 K1KA20AA0009 20P CONNECTOR 1 A18 K1KA11AA0715 11P CONNECTOR 1 A30 K1KA05AA0193 5P CONNECTOR 1 A51 K1KA11A00178 11P CONNECTOR 1 A52 K1KA14A00248 14P CONNECTOR 1 AMM1-M5 TMME292 CLAMPER 5 C10 K1MN20BA0231 20P CONNECTOR 1 C11 K1MN68BA0266 68P CONNECTOR 1 C20 K1MN20BA0266 20P CONNECTOR 1 C21,22 K1MN68BA0266 68P CONNECTOR 2 C26 K1MN68BA0266 68P CONNECTOR 1 C33 K1KA10B00218 10P CONNECTOR 1 C35 K1KA04BA0107 4P CONNECTOR 1 C36 K1MN68BA0266 68P CONNECTOR 1 C858,59 ECJ2VB1E104K C 0.1UF, K, 25V 2 C860 ECA1EHG471 E 470UF, 25V 1 C861,62 ECJ2VB1E104K C 0.1UF, K, 25V 2 C869 ECA1EHG471 E 470UF, 25V 1 C1102 F1J1A106A043 C 0.010UF, K, 10V 1 C1103,04 F1G1C104A116 C 0.10UF, K, 16V 2 C1106 F1G1H270A731 E 27UF, 50V 1 C1107 F1G1H220A731 E 22UF, 50V 1 C1108 F1G1C104A116 C 0.10UF, K, 16V 1 C1109 F1H1A1050032 E 10UF, 50V 1 C1111 F1H1A1050032 E 10UF, 50V 1 C1112 F1G1C104A116 C 0.10UF, K, 16V 1 C1114 F1G1C104A116 C 0.10UF, K, 16V 1 C1117 F1G1C104A116 C 0.10UF, K, 16V 1 C1122 F1G1E103A123 C 0.010UF, K, 16V 1 C1123 F1H1A1050032 E 10UF, 50V 1 C2023 F1G1C104A116 C 0.10UF, K, 16V 1 C2048-50 F1G1C104A116 C 0.10UF, K, 16V 3 C2052,53 F1G1C104A116 C 0.10UF, K, 16V 2 C2054 F1J1A106A043 C 0.010UF, K, 10V 1 C2055 F1G1H120A731 E 12UF, 50V 1 C2056 F1G1H150A731 E 15UF, 50V 1 C2058 F1G1C104A116 C 0.10UF, K, 16V 1 C2059 F1J1A106A043 C 0.010UF, K, 10V 1 C2100 F1G1C104A116 C 0.10UF, K, 16V 1 C2101 F1J1A106A043 C 0.010UF, K, 10V 1 C2105,06 F1G1C104A116 C 0.10UF, K, 16V 2 C2107,08 F1J1A106A043 C 0.010UF, K, 10V 2 C2111 F1H0J2250008 C 2.2UF, K, 16V 1 C2116 F1G1H471A731 E 470UF, 50V 1 C2118 F1H1A1050032 E 10UF, 50V 1 C2126 F1J1A106A043 C 0.010UF, K, 10V 1 C2180,81 F1G1E103A123 C 0.010UF, K, 16V 2 C2186 F1G1C104A116 C 0.10UF, K, 16V 1 C2187 F1H0J2250008 C 2.2UF, K, 16V 1 C2188 F1G1H471A731 E 470UF, 50V 1 C2189 F1H1A1050032 E 10UF, 50V 1 C2190 F1J1A106A043 C 0.010UF, K, 10V 1 C2192 F1J1A106A043 C 0.010UF, K, 10V 1 C2195-98 F1G1E103A123 C 0.010UF, K, 16V 4 C2213 F1G1H102A730 E 1000UF, 50V 1 C2216 F1G1C104A116 C 0.10UF, K, 16V 1 C2244 F1G1C104A116 C 0.10UF, K, 16V 1 C2245 F1G1H102A730 E 1000UF, 50V 1 C2251 F1J1A106A043 C 0.010UF, K, 10V 1 C2263,64 F1J1A106A043 C 0.010UF, K, 10V 2 C2301,02 F1G1C104A116 C 0.10UF, K, 16V 2 C2303 F1J1E105A171 C 1 UF 25V 1 C2305 F1J1E105A171 C 1 UF 25V 1 C2307 F1J1E105A171 C 1 UF 25V 1 C2309 F1J1E105A171 C 1 UF 25V 1 C2313 F1H1A1050032 E 10UF, 50V 1 C2317 ECJ1VB1H104K C 0.1UF, K, 50V 1 C2319 ECJ1VB1H104K C 0.1UF, K, 50V 1 C2321 ECJ1VB1H104K C 0.1UF, K, 50V 1 C2323 ECJ1VB1H104K C 0.1UF, K, 50V 1 C2333 F1J1E3340003 C 0.33UF, Z, 25V 1 C2335 F1J1E3340003 C 0.33UF, Z, 25V 1 C2337 F1H1H223A970 C 0.22UF, K, 50V 1 C2339 F1H1H223A970 C 0.22UF, K, 50V 1 C2341 F1J1E3340003 C 0.33UF, Z, 25V 1 C2343 F1J1E3340003 C 0.33UF, Z, 25V 1 C2345 F1H1H223A970 C 0.22UF, K, 50V 1 C2347 F1H1H223A970 C 0.22UF, K, 50V 1 C2353 ECJ1VB1H104K C 0.1UF, K, 50V 1 C2359 ECJ1VB1H104K C 0.1UF, K, 50V 1 C2375 F1H1H223A970 C 0.22UF, K, 50V 1 C2377 F1H1H223A970 C 0.22UF, K, 50V 1 C2379 F1H1H223A970 C 0.22UF, K, 50V 1 C2381 F1H1H223A970 C 0.22UF, K, 50V 1 C2383 F1G1H102A730 E 1000UF, 50V 1 C2385 F1G1H102A730 E 1000UF, 50V 1 C2387 F1G1H102A730 E 1000UF, 50V 1 C2389 F1G1H102A730 E 1000UF, 50V 1 C2512 ECJ3XB0J106M C 10UF, M,6.3V 1 C2515 F1H1H103A970 C 0.001UF, K, 50V 1 C2521 F1H1H103A970 C 0.001UF, K, 50V 1 C3001 F1J1A106A043 C 0.010UF, K, 10V 1 C3006-08 F1J1A106A043 C 0.010UF, K, 10V 3 C3010,11 F1G1C1030008 C 0.010UF, K, 16V 2 C3013 F1J1A106A043 C 0.010UF, K, 10V 1 C3015,16 F1J1A106A043 C 0.010UF, K, 10V 2 C3017 F1G1C104A116 C 0.10UF, K, 16V 1 C3019 F1G1C104A116 C 0.10UF, K, 16V 1 C3020 F2G1C220A022 E 22UF, 16V 1 C3021 F2G1A221A149 E 220UF, 10V 1 C3022 F1G1C104A116 C 0.10UF, K, 16V 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks 113 C3023 F1J1A106A043 C 0.010UF, K, 10V 1 C3024-35 F1H1A1050032 E 10UF, 50V 12 C3042-47 F1J1A106A043 C 0.010UF, K, 10V 6 C3049 F2G1A101A019 E 100UF, 10V 1 C3050 F1G1C104A116 C 0.10UF, K, 16V 1 C3123,24 F1J1A106A043 C 0.010UF, K, 10V 2 C3157 F1G1C104A081 C 0.10UF, K, 16V 1 C3530 EEEFG1E471P E 470UF, 25V 1 C3532 ECJ3YB1E106M C 10 UF, K, 25V 1 C3750 F1J1H102A721 C 1000UF, 50V 1 C3801,02 F1G1C104A116 C 0.10UF, K, 16V 2 C3803 F1H1A1050032 E 10UF, 50V 1 C3804 F1G1C104A116 C 0.10UF, K, 16V 1 C3806-12 F1G1C104A116 C 0.10UF, K, 16V 7 C3813 F1J0J106A004 C 0.010UF, K, 16V 1 C3814 F1G1C104A116 C 0.10UF, K, 16V 1 C3815-20 ECJ0EB1C103K C 0.010UF, K, 16V 6 C3823 F1G1C104A116 C 0.10UF, K, 16V 1 C3827 F1J1A475A039 C 4.7UF, K, 10V 1 C3829 F1H1A1050032 E 10UF, 50V 1 C4075 F1G1C104A116 C 0.10UF, K, 16V 1 C4081 EEEHB1A221P C 220PF, J, 10V 1 C4082 F1K1C1060004 C 0.010UF, 16V 1 C4083-87 F1J1H474A757 C 0.47UF, 50V 5 C4089 F1G1C104A116 C 0.10UF, K, 16V 1 C4090 F1G1H181A731 E 180UF, 50V 1 PAVCA C4091 F1G1C104A116 C 0.10UF, K, 16V 1 C4092 F2G1V220A020 E 22UF, 35V 1 C4093 F1G1H102A730 E 1000UF, 50V 1 C4094 F1G1C104A116 C 0.10UF, K, 16V 1 C4095 F1H0J2250008 C 2.2UF, K, 16V 1 C4096 F1H1A1050032 E 10UF, 50V 1 C4098 F1H1A1050032 E 10UF, 50V 1 C4101 F1G1C104A116 C 0.10UF, K, 16V 1 C4200-08 F1G1C104A116 C 0.10UF, K, 16V 9 C4210-15 F1G1C104A116 C 0.10UF, K, 16V 6 C4216 F1G1H1020008 E 1000UF, 50V 1 C4219 F1G1H1020008 E 1000UF, 50V 1 C4220-24 F1J0J106A021 C 0.010UF, K, 16V 5 C4500,01 F1G1C104A116 C 0.10UF, K, 16V 2 C4533 F1G1H680A731 E 68UF, 50V 1 C4534,35 F1G1C104A116 C 0.10UF, K, 16V 2 C4547-52 F1G1C104A116 C 0.10UF, K, 16V 6 C4553 F1G1H102A730 E 1000UF, 50V 1 C4554 F2G1C470A022 E 47UF, 16V 1 C4555 F1J1A106A043 C 0.010UF, K, 10V 1 C4574 F1G1E103A123 C 0.010UF, K, 16V 1 C4575 F1H1A1050032 E 10UF, 50V 1 C4580 F1G1E103A123 C 0.010UF, K, 16V 1 C4585 F1H1A1050032 E 10UF, 50V 1 C4595 F1G1E103A123 C 0.010UF, K, 16V 1 C4596 F1G1C104A116 C 0.10UF, K, 16V 1 C4598 F1H1A1050032 E 10UF, 50V 1 C4599 F2G0J470A019 E 47UF 6.3V 1 C4600 F1G1C104A116 C 0.10UF, K, 16V 1 C4601 F2G0J470A019 E 47UF 6.3V 1 C4602 F1G1C104A116 C 0.10UF, K, 16V 1 C4603 F1H0J2250008 C 2.2UF, K, 16V 1 C4604 F1G1H471A730 E 470UF, 50V 1 PAVCA C4605 F1H1A1050032 E 10UF, 50V 1 C4606,07 F1J1A106A043 C 0.010UF, K, 10V 2 C4608 F1G1C104A116 C 0.10UF, K, 16V 1 C4612 F1G1E103A123 C 0.010UF, K, 16V 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks C4613 F1H1A1050032 E 10UF, 50V 1 C4614 F1G1C104A116 C 0.10UF, K, 16V 1 C4616,17 F1J1A106A043 C 0.010UF, K, 10V 2 C4619 F1G1C104A116 C 0.10UF, K, 16V 1 C4624,25 F1G1C104A116 C 0.10UF, K, 16V 2 C4628 F1G1C104A116 C 0.10UF, K, 16V 1 C4630 F1G1C104A116 C 0.10UF, K, 16V 1 C4632 F1H1A1050032 E 10UF, 50V 1 C4634 F1H1A1050032 E 10UF, 50V 1 C4636 F1H1A1050032 E 10UF, 50V 1 C4638 F1H1A1050032 E 10UF, 50V 1 C4640 F1H1A1050032 E 10UF, 50V 1 C4642 F1H1A1050032 E 10UF, 50V 1 C4643-46 F1G1C104A116 C 0.10UF, K, 16V 4 C4701 F1G1H102A730 E 1000UF, 50V 1 C4702 F1G1C104A116 C 0.10UF, K, 16V 1 C4703 F1G1H102A730 E 1000UF, 50V 1 C4704,05 F1G1C104A116 C 0.10UF, K, 16V 2 C4711,12 F1G1C104A116 C 0.10UF, K, 16V 2 C4713,14 F1G1H102A730 E 1000UF, 50V 2 C4715 F1G1C104A116 C 0.10UF, K, 16V 1 C4716-19 F1G1H102A730 E 1000UF, 50V 4 C4721 F1G1C104A116 C 0.10UF, K, 16V 1 C4722 F1G1H102A730 E 1000UF, 50V 1 C4724 F1G1H102A730 E 1000UF, 50V 1 C4725-28 F1G1C104A116 C 0.10UF, K, 16V 4 C4741 F1G1H102A730 E 1000UF, 50V 1 C4742 F1G1C104A116 C 0.10UF, K, 16V 1 C4743 F1G1H102A730 E 1000UF, 50V 1 C4744,45 F1G1C104A116 C 0.10UF, K, 16V 2 C4746 F1G1H102A730 E 1000UF, 50V 1 C4751-55 F1G1C104A116 C 0.10UF, K, 16V 5 C4761-63 F1H1H103A970 C 0.001UF, K, 50V 3 C4771 F1G1H102A730 E 1000UF, 50V 1 C4772 F1G1C104A116 C 0.10UF, K, 16V 1 C4773 F1G1H102A730 E 1000UF, 50V 1 C4774,75 F1G1C104A116 C 0.10UF, K, 16V 2 C4776 F1G1H102A730 E 1000UF, 50V 1 C4777-80 F1G1C104A116 C 0.10UF, K, 16V 4 C4795-98 F1G1H102A730 E 1000UF, 50V 4 C4830 F1G1C104A116 C 0.10UF, K, 16V 1 C5400 F1K1A106A021 C 0.010UF, K,6.3V 1 C5401 F1H1E104A129 E 0.1UF, 25V 1 C5402 F1G1E103A123 C 0.010UF, K, 16V 1 C5404 F1G1E392A123 C 3900UF, Z, 25V 1 PAVCA C5405 F1H1E104A129 E 0.1UF, 25V 1 C5406 ECJ3YB1E106M C 10 UF, K, 25V 1 C5408 F1K1A106A021 C 0.010UF, K,6.3V 1 C5412 F1K1C1060004 C 0.010UF, 16V 1 C5413 F1H1E104A129 E 0.1UF, 25V 1 C5414 F1G1E103A123 C 0.010UF, K, 16V 1 C5416 F1G1E472A123 C 4200UF, Z, 25V 1 PAVCA C5417 F1H1E104A129 E 0.1UF, 25V 1 C5418 ECJ3YB1E106M C 10 UF, K, 25V 1 C5420 F1K1C1060004 C 0.010UF, 16V 1 C5521,22 F1G1C104A116 C 0.10UF, K, 16V 2 C5600 F1H1A1050032 E 10UF, 50V 1 C5601 F1G1C104A116 C 0.10UF, K, 16V 1 C5602 ECGRL0G680ER C 68PF, J, 4V 1 C5603,04 F1G1E103A123 C 0.010UF, K, 16V 2 C5605 F1J1A475A039 C 4.7UF, K, 10V 1 C5606 F1G1H471A730 E 470UF, 50V 1 PAVCA C5607 F1G1H221A731 E 220UF, 50V 1 PAVCA C5608 F1G1C104A116 C 0.10UF, K, 16V 1 C5611,12 ECJ3YB1E106M C 10 UF, K, 25V 2 C5615 ECJ3YB1E106M C 10 UF, K, 25V 1 C5616 F1G1A473A053 E 0.47UF, 10V 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks 114 C5617 F1H1A1050032 E 10UF, 50V 1 C5618,19 ECJ3YB1E106M C 10 UF, K, 25V 2 C5620 F1H1E104A129 E 0.1UF, 25V 1 C5621 F1G1E103A123 C 0.010UF, K, 16V 1 C5622 F1J1A475A039 C 4.7UF, K, 10V 1 C5623 F1G1H471A730 E 470UF, 50V 1 PAVCA C5624 F1G1H221A731 E 220UF, 50V 1 PAVCA C5625 F1G1E103A123 C 0.010UF, K, 16V 1 C5626,27 F1G1C104A116 C 0.10UF, K, 16V 2 C5628,29 ECGRL0G680ER C 68PF, J, 4V 2 C5631 EEEHB1E470P C 47PF, J, 25V 1 C5632 F1J1E105A171 C 1 UF 25V 1 C5636-41 F1G1C104A116 C 0.10UF, K, 16V 6 C5642 ECJ3YB1E106M C 10 UF, K, 25V 1 C5643 F1H1E104A129 E 0.1UF, 25V 1 C5644 F1G1E103A123 C 0.010UF, K, 16V 1 C5652 F1H1H102A971 C 1000PF, K, 50V 1 C5663,64 F1J0J106A020 C 0.010UF, K, 16V 2 C5667 F1G1H101A731 C 100PF, K, 50V 1 C5688 F1H1A225A051 E 22UF, 50V 1 C5765 F1G1A473A053 E 0.47UF, 10V 1 C5766,67 F1G1C1030008 C 0.010UF, K, 16V 2 C7701 F1G1H330A731 E 33UF, 50V 1 PAVCA C7702 F2G0G470A007 E 47UF 6.3V 1 C7703 F1G1H330A731 E 33UF, 50V 1 PAVCA C7705 F1G1C104A119 C 0.10UF, K, 16V 1 C7708,09 F1G1C104A119 C 0.10UF, K, 16V 2 C7726,27 F1G1H330A731 E 33UF, 50V 2 PAVCA C7729 F1J1A475A039 C 4.7UF, K, 10V 1 C8001 F1G1C104A116 C 0.10UF, K, 16V 1 C8002-05 F1H0J1050012 C 1UF, K, 16V 4 C8006-08 F1G1C104A116 C 0.10UF, K, 16V 3 C8009,10 F1J1A106A043 C 0.010UF, K, 10V 2 C8011-14 F1G1C104A116 C 0.10UF, K, 16V 4 C8015,16 F1H0J1050012 C 1UF, K, 16V 2 C8017 F1J1A106A043 C 0.010UF, K, 10V 1 C8018-21 F1G1C104A116 C 0.10UF, K, 16V 4 C8022 F1H0J1050012 C 1UF, K, 16V 1 C8023,24 F1J1A106A043 C 0.010UF, K, 10V 2 C8025-29 F1G1C104A116 C 0.10UF, K, 16V 5 C8030,31 F1H0J1050012 C 1UF, K, 16V 2 C8032 F1J1A106A043 C 0.010UF, K, 10V 1 C8033,34 F1G1C104A116 C 0.10UF, K, 16V 2 C8035,36 F1J1A106A043 C 0.010UF, K, 10V 2 C8037-41 F1G1C104A116 C 0.10UF, K, 16V 5 C8042 ECGRL0G680ER C 68PF, J, 4V 1 C8043-51 F1G1C104A116 C 0.10UF, K, 16V 9 C8052 F1H0J1050012 C 1UF, K, 16V 1 C8053 F1G1C1030008 C 0.010UF, K, 16V 1 C8056,57 F1G1C104A116 C 0.10UF, K, 16V 2 C8058 F1J1A106A043 C 0.010UF, K, 10V 1 C8067 F1G1C1030008 C 0.010UF, K, 16V 1 C8068 F1G1C104A116 C 0.10UF, K, 16V 1 C8070-74 F1G1C104A116 C 0.10UF, K, 16V 5 C8075 F1J0G2260001 C 0.001UF, 6.3V 1 C8076-80 F1G1C104A081 C 0.10UF, K, 16V 5 C8301 F1G1H102A730 E 1000UF, 50V 1 C8302 F1G1C104A116 C 0.10UF, K, 16V 1 C8303 F1G1H103A735 E 0.01UF, 50V 1 PAVCA C8304,05 F1G1H221A731 E 220UF, 50V 2 PAVCA C8307 F1G1C104A116 C 0.10UF, K, 16V 1 C8310 F2G0J2210013 E 220UF 6.3V 1 C8311 F2G1V220A020 E 22UF, 35V 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks C8312 F2G0J2210013 E 220UF 6.3V 1 C8313 F1G1H102A730 E 1000UF, 50V 1 C8314 F1G1H270A731 E 27UF, 50V 1 C8315,16 F1G1H120A731 E 12UF, 50V 2 C8317 F1G1H270A731 E 27UF, 50V 1 C8318,19 F1G1H101A731 C 100PF, K, 50V 2 C8320 F1G1H220A731 E 22UF, 50V 1 C8321,22 F1G1C1030008 C 0.010UF, K, 16V 2 C8323,24 F1G1H120A731 E 12UF, 50V 2 C8325-28 F1G1C104A116 C 0.10UF, K, 16V 4 C8330-35 F1G1C104A116 C 0.10UF, K, 16V 6 C8336 F1J1A106A043 C 0.010UF, K, 10V 1 C8337-43 F1G1C104A116 C 0.10UF, K, 16V 7 C8345 F1G1C104A116 C 0.10UF, K, 16V 1 C8346 F1G1C1030008 C 0.010UF, K, 16V 1 C8347-54 F1G1C104A116 C 0.10UF, K, 16V 8 C8355 F1H0J1050012 C 1UF, K, 16V 1 C8357-59 F1J1A106A043 C 0.010UF, K, 10V 3 C8360-68 F1G1C104A116 C 0.10UF, K, 16V 9 C8369 F1J1A106A043 C 0.010UF, K, 10V 1 C8370 F1G1H102A730 E 1000UF, 50V 1 C8371 ECJ1VB1H104K C 0.1UF, K, 50V 1 C8372 F1J1A106A043 C 0.010UF, K, 10V 1 C8373 F1G1C104A116 C 0.10UF, K, 16V 1 C8374,75 F1J1A106A043 C 0.010UF, K, 10V 2 C8376 F1G1C1030008 C 0.010UF, K, 16V 1 C8377 F1G1C104A116 C 0.10UF, K, 16V 1 C8378 F1G1C1030008 C 0.010UF, K, 16V 1 C8379 F1G1C104A116 C 0.10UF, K, 16V 1 C8380 F1G1H103A735 E 0.01UF, 50V 1 PAVCA C8381 F1G1C104A116 C 0.10UF, K, 16V 1 C8382 F1G1C1030008 C 0.010UF, K, 16V 1 C8386,87 F1G1H102A730 E 1000UF, 50V 2 C8501 F1G1C104A116 C 0.10UF, K, 16V 1 C8506 F1G1C104A116 C 0.10UF, K, 16V 1 C8513 F1G1C1030008 C 0.010UF, K, 16V 1 C8517 F1G1C104A116 C 0.10UF, K, 16V 1 C8519 F1G1C1030008 C 0.010UF, K, 16V 1 C9033,34 F1G1C104A119 C 0.10UF, K, 16V 2 C9035,36 F1J1A106A043 C 0.010UF, K, 10V 2 C9037 F1G1E103A123 C 0.010UF, K, 16V 1 C9055-57 F1G1C104A119 C 0.10UF, K, 16V 3 C9058 F1J1A106A043 C 0.010UF, K, 10V 1 C9067-69 F1G1E103A123 C 0.010UF, K, 16V 3 C9096-17 F1G1C104A116 C 0.10UF, K, 16V 22 C9119-33 F1G1C104A116 C 0.10UF, K, 16V 15 C9135 F1J1A106A043 C 0.010UF, K, 10V 1 C9136 F1G1C104A119 C 0.10UF, K, 16V 1 C9142 F1G1C104A116 C 0.10UF, K, 16V 1 C9143 F1G1C104A119 C 0.10UF, K, 16V 1 C9144-50 F1G1C104A116 C 0.10UF, K, 16V 7 C9152 F1J0J475A035 C 4.7UF, K, 16V 1 C9153-62 F1G1C104A119 C 0.10UF, K, 16V 10 C9163 F1J0J475A035 C 4.7UF, K, 16V 1 C9164,65 F1G1C104A119 C 0.10UF, K, 16V 2 C9168 F1G1C104A119 C 0.10UF, K, 16V 1 C9169-96 F1G1C104A116 C 0.10UF, K, 16V 28 C9198-09 F1G1C104A116 C 0.10UF, K, 16V 12 Safety Ref. No. Part No. Part Name & Description Pcs Remarks 115 C9210 F1J1A106A043 C 0.010UF, K, 10V 1 C9211 F1G1C104A116 C 0.10UF, K, 16V 1 C9212 F1J1A106A043 C 0.010UF, K, 10V 1 C9213-24 F1G1C104A116 C 0.10UF, K, 16V 12 C9226-28 F1G1C104A116 C 0.10UF, K, 16V 3 C9230-36 F1G1C104A116 C 0.10UF, K, 16V 7 C9237 F1J1A106A043 C 0.010UF, K, 10V 1 C9239-44 F1G1C104A116 C 0.10UF, K, 16V 6 C9245 F1J1A106A043 C 0.010UF, K, 10V 1 C9246 F1G1C104A116 C 0.10UF, K, 16V 1 C9247 F1J1A106A043 C 0.010UF, K, 10V 1 C9248-50 F1G1C104A116 C 0.10UF, K, 16V 3 C9469 F1G1C104A119 C 0.10UF, K, 16V 1 C9535-50 F1G1C104A116 C 0.10UF, K, 16V 16 C9551-53 F1J1A106A043 C 0.010UF, K, 10V 3 C9823 ECJ3YB1E106M C 10 UF, K, 25V 1 C9825 F1G1H101A731 C 100PF, K, 50V 1 C9832 F1J1A106A043 C 0.010UF, K, 10V 1 C9837 F1J1A106A043 C 0.010UF, K, 10V 1 C9840 F1G1E103A123 C 0.010UF, K, 16V 1 C9841,42 F1G1C104A119 C 0.10UF, K, 16V 2 C9844 F1G1E103A123 C 0.010UF, K, 16V 1 C9845,46 F1G1C104A119 C 0.10UF, K, 16V 2 C9858 ECJ3YB1E106M C 10 UF, K, 25V 1 C9859 F1G1E103A123 C 0.010UF, K, 16V 1 C9860 F1J0J475A035 C 4.7UF, K, 16V 1 C9861,62 F1H1E104A129 E 0.1UF, 25V 2 C9863 F1J0J475A035 C 4.7UF, K, 16V 1 C9864 F1H1E104A129 E 0.1UF, 25V 1 C9865,66 ECGRL0G680ER C 68PF, J, 4V 2 C9867-72 ECJ3YB1E106M C 10 UF, K, 25V 6 C9873 ECGRL0G680ER C 68PF, J, 4V 1 C9874 F1G1H680A731 E 68UF, 50V 1 C9877 F1G1H680A731 E 68UF, 50V 1 C9878 F1G1E103A123 C 0.010UF, K, 16V 1 C9879 F1G1C153A116 C 0.015UF, K, 16V 1 C9880 F1G1A563A032 E 0.56UF, 10V 1 C9881 F1G1E103A123 C 0.010UF, K, 16V 1 C9882 F1G1C822A116 C 8200UF, K, 16V 1 C9883 F1G1H101A731 C 100PF, K, 50V 1 C9884,85 F1G1H102A730 E 1000UF, 50V 2 C9886,87 F1H1E104A129 E 0.1UF, 25V 2 C9888 F1G1H361A731 E 360UF, 50V 1 C9927-48 F1G1C104A116 C 0.10UF, K, 16V 22 C9951 F1G1C104A116 C 0.10UF, K, 16V 1 C9961 F1J1A106A043 C 0.010UF, K, 10V 1 C9966 F1G1C104A116 C 0.10UF, K, 16V 1 C9971 F1G1H180A731 E 18UF, 50V 1 C9972 F1G1H150A731 E 15UF, 50V 1 C14352 F1J1C1050030 C 1UF, Z, 16V 1 C14356 F1J1C1050030 C 1UF, Z, 16V 1 C14360,61 F1L2E104A028 E 1000UF, 25V 2 C14364 F1J1C1050030 C 1UF, Z, 16V 1 C14368 F1J1C1050030 C 1UF, Z, 16V 1 C14373 F1J1H102A834 C 1000UF, 50V 1 C14901 F1J1H102A834 C 1000UF, 50V 1 C14902 F1J1C1050030 C 1UF, Z, 16V 1 C14904 F1J1C1050030 C 1UF, Z, 16V 1 C14906 F1J1C1050030 C 1UF, Z, 16V 1 C14908 F1J1C1050030 C 1UF, Z, 16V 1 C14910 F1J1C1050030 C 1UF, Z, 16V 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks C14912 F1J1C1050030 C 1UF, Z, 16V 1 C14920-23 F1L2E104A028 E 1000UF, 25V 4 C14928 F1L2E104A028 E 1000UF, 25V 1 C14930 F1L2E104A028 E 1000UF, 25V 1 C14931 F1J1H102A834 C 1000UF, 50V 1 C14932 F1L2E104A028 E 1000UF, 25V 1 C14934 F1L2E104A028 E 1000UF, 25V 1 C14936-39 F1J1H471A836 C 470UF, 50V 4 C14940 F1J1H102A834 C 1000UF, 50V 1 C14941,42 F1J1H471A836 C 470UF, 50V 2 C14943 F1L1E4750012 C 4.7UF, 25V 1 C14944 F1J1H102A836 C 1000UF, 50V 1 C14945 F1J1H101A836 C 100PF, K, 50V 1 PAVCA C14950 F1J1H471A836 C 470UF, 50V 1 C14952 F1J1C1050030 C 1UF, Z, 16V 1 C14955 F1J1C1050030 C 1UF, Z, 16V 1 C14957,58 F1J1C1050030 C 1UF, Z, 16V 2 C14961 F1J1C1050030 C 1UF, Z, 16V 1 C14963 F1J1C1050030 C 1UF, Z, 16V 1 C14969 F1J1H104A835 C 0.10UF, 50V 1 C14970-72 F1J1H471A836 C 470UF, 50V 3 C14973 F1J1H102A834 C 1000UF, 50V 1 C14974,75 F1L2E104A028 E 1000UF, 25V 2 C14976 F1J1H102A834 C 1000UF, 50V 1 C14981 F1J1H471A836 C 470UF, 50V 1 C14982-85 F1L2E104A028 E 1000UF, 25V 4 C14987,88 F1J1H104A835 C 0.10UF, 50V 2 C14989 F1J1H471A836 C 470UF, 50V 1 C14990 F1J1H104A835 C 0.10UF, 50V 1 C14992 F1H1C105A008 C 1UF, K, 16V 1 C16003 F1L2J562A022 C 5600UF, K,6.3V 1 C16011 F2A2T251A004 E 250UF, 220V 1 C16013 F0C2E225A230 E 0.022UF, 250V 1 C16014 F2A2T251A004 E 250UF, 220V 1 C16016 F2A2T251A004 E 250UF, 220V 1 C16023 F1L2J562A022 C 5600UF, K,6.3V 1 C16042 F1H1H392A970 C 3900PF, K, 50V 1 C16071 F1L2J1020001 C 1000UF, K,6.3V 1 C16092 F1L2J1020001 C 1000UF, K,6.3V 1 C16131 F1L1E4750012 C 4.7UF, 25V 1 C16133 F1L1E4750012 C 4.7UF, 25V 1 C16135 F1K1E105A029 C 1UF, Z, 25V 1 C16151 F1K1E105A029 C 1UF, Z, 25V 1 C16152-54 F1L1E4750012 C 4.7UF, 25V 3 C16192 F1L1E4750012 C 4.7UF, 25V 1 C16194,95 F1L1E4750012 C 4.7UF, 25V 2 C16197 F1L1E4750012 C 4.7UF, 25V 1 C16201-03 F0C2E405A230 E 0.040UF, 250V 3 C16241 F2A1A101A106 E 100UF, 10V 1 C16242 F1H1C105A008 C 1UF, K, 16V 1 C16243 F1J1H103A834 C 0.01UF, K, 50V 1 C16251 F1H1C105A008 C 1UF, K, 16V 1 C16252 F1K1E105A029 C 1UF, Z, 25V 1 C16262-70 F2A2A471A072 E 470UF, 100V 9 C16272 F2A1E471A487 E 470UF, 25V 1 C16280 F1K1E105A029 C 1UF, Z, 25V 1 C16284-87 ECJ1VB1H104K C 0.1UF, K, 50V 4 C16301 F2A1E470A454 E 47UF, 25V 1 C16302 F1H1H471A219 E 470UF, 50V 1 C16310 F2A2T251A004 E 250UF, 220V 1 C16311 F1H1A1050032 E 10UF, 50V 1 C16312 F1H1H472A970 C 4700PF, K, 50V 1 C16313 F1H1C105A008 C 1UF, K, 16V 1 C16321,22 F1L2E224A028 E 2200UF, 25V 2 C16323 F2A1E470A454 E 47UF, 25V 1 C16324 F2A1E471A487 E 470UF, 25V 1 C16325,26 F1L1E4750012 C 4.7UF, 25V 2 C16327 F0C2E225A230 E 0.022UF, 250V 1 C16328,29 F2A2D221A092 E 220UF, 200V 2 C16336 F1H1H102A970 C 1000PF, K, 50V 1 C16337 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16403 F1L2J562A022 C 5600UF, K,6.3V 1 C16413,14 F2A2T251A004 E 250UF, 220V 2 Safety Ref. No. Part No. Part Name & Description Pcs Remarks 116 C16416 F0C2E225A230 E 0.022UF, 250V 1 C16418,19 F2A2T251A004 E 250UF, 220V 2 C16424 F1L2J562A022 C 5600UF, K,6.3V 1 C16441,42 F1H1H392A970 C 3900PF, K, 50V 2 C16471 F1L2J1020001 C 1000UF, K,6.3V 1 C16472 F1K1E105A029 C 1UF, Z, 25V 1 C16480 F1J1H104A835 C 0.10UF, 50V 1 C16491 F1L2J1020001 C 1000UF, K,6.3V 1 C16502 F1L1E4750012 C 4.7UF, 25V 1 C16504 F1L1E4750012 C 4.7UF, 25V 1 C16505 F1K1E105A029 C 1UF, Z, 25V 1 C16521 F1K1E105A029 C 1UF, Z, 25V 1 C16522 F1L1E4750012 C 4.7UF, 25V 1 C16524,25 F1L1E4750012 C 4.7UF, 25V 2 C16562 F1H1C105A008 C 1UF, K, 16V 1 C16563 F2A1A101A106 E 100UF, 10V 1 C16564 F1H1C105A008 C 1UF, K, 16V 1 C16565,66 F1J1H103A834 C 0.01UF, K, 50V 2 C16581 F1K1E105A029 C 1UF, Z, 25V 1 C16582 F1H1C105A008 C 1UF, K, 16V 1 C16593 F1J1H102A836 C 1000UF, 50V 1 C16603,04 F1K2J102A014 C 1000UF, K,6.3V 2 C16605,06 F1L2J562A022 C 5600UF, K,6.3V 2 C16608 F1H1H221A971 C 220UF, K, 50V 1 C16632-34 F0C2E405A230 E 0.040UF, 250V 3 C16641 ECQE2105RKB P 1UF, 250V 1 C16661,62 F1K2J102A014 C 1000UF, K,6.3V 2 C16664-66 F1J1H820A836 C 82UF, 50V 3 C16691 ECA2CM101 E 100UF, 160V 1 C16708 F1J1H104A835 C 0.10UF, 50V 1 C16721 F2A1H101A493 E 100UF, 50V 1 C16723-25 F1L1E4750012 C 4.7UF, 25V 3 C16752 F1K1E105A029 C 1UF, Z, 25V 1 C16753 F1L1E4750012 C 4.7UF, 25V 1 C16755,56 F1L1E4750012 C 4.7UF, 25V 2 C16773 F1L1E4750012 C 4.7UF, 25V 1 C16775 F1L1E4750012 C 4.7UF, 25V 1 C16791 F2A1E221A487 E 220UF, 25V 1 C16795 F2A1E471A487 E 470UF, 25V 1 C16797 F1J1H104A835 C 0.10UF, 50V 1 C16798 F1L2E1040002 E 1000UF, 25V 1 C16806 ECA2CM101 E 100UF, 160V 1 C16811 ECJ3VC1H472J C 4700PF, J, 50V 1 C16813 ECA2CM101 E 100UF, 160V 1 C16821 F1J1H104A835 C 0.10UF, 50V 1 C16822 F2A2G470A018 E 470UF, 400V 1 C16823 F1L2J562A022 C 5600UF, K,6.3V 1 C16832 F1J1H392A834 C 3900UF, 50V 1 C16842 ECA2CM101 E 100UF, 160V 1 C16843,44 F1J1H104A835 C 0.10UF, 50V 2 C16855 F1H1C105A008 C 1UF, K, 16V 1 C16856 F1H1A1050032 E 10UF, 50V 1 C16857 F1H1H472A970 C 4700PF, K, 50V 1 C16858 F1H1C104A143 C 0.1UF, K, 16V 1 C16860 F1H1A1050032 E 10UF, 50V 1 C16861 F1H1H472A970 C 4700PF, K, 50V 1 C16862 F1H1C104A143 C 0.1UF, K, 16V 1 C16863 F1J1H103A834 C 0.01UF, K, 50V 1 C16864 F1J1H104A835 C 0.10UF, 50V 1 C16866 F1H1A1050032 E 10UF, 50V 1 C16867 F1H1H472A970 C 4700PF, K, 50V 1 C16868 F1H1C104A143 C 0.1UF, K, 16V 1 C16869 F1J1H104A835 C 0.10UF, 50V 1 C17102 F1H1A1050032 E 10UF, 50V 1 C17113 F1H1A1050032 E 10UF, 50V 1 C17131-33 F1H1C104A143 C 0.1UF, K, 16V 3 C17134-45 F1L2E154A009 E 1500UF, 25V 12 C17146,47 F1H1A1050032 E 10UF, 50V 2 C17149 F1H1A1050032 E 10UF, 50V 1 C17151 F1H1A1050032 E 10UF, 50V 1 C17158-60 F1H1C104A143 C 0.1UF, K, 16V 3 C17201 F1H1A1050032 E 10UF, 50V 1 C17207,08 F1H1A1050032 E 10UF, 50V 2 Safety Ref. No. Part No. Part Name & Description Pcs Remarks C17213 F1H1A1050032 E 10UF, 50V 1 C17221-24 F1H1C104A143 C 0.1UF, K, 16V 4 C17226-35 F1L2E154A009 E 1500UF, 25V 10 C17241 F1H1A1050032 E 10UF, 50V 1 C17307 F1H1A1050032 E 10UF, 50V 1 C17310 F1H1A1050032 E 10UF, 50V 1 C17313-16 F1H1C104A143 C 0.1UF, K, 16V 4 C17317 F1K2A105A006 C 1UF, 100V 1 C17318-21 F1L2E154A009 E 1500UF, 25V 4 C17323-26 F1L2E154A009 E 1500UF, 25V 4 C17327,28 F1H1A1050032 E 10UF, 50V 2 CB1-15 K1MN68BA0052 68P CONNECTOR 15 D3 K1KA14B00129 14P CONNECTOR 1 D5 K1KB31BA0064 31P CONNECTOR 1 D6 K1KA20AA0009 20P CONNECTOR 1 D20 K1MN35BA0266 35P CONNECTOR 1 D25 K1KA13B00069 13P CONNECTOR 1 D31-33 K1MN68BA0266 68P CONNECTOR 3 D851,52 MA2J11100L DIODE 2 D857 MA2J11100L DIODE 1 D859 B0JCME000037 DIODE 1 D860 MAZ81100ML ZENER DIODE 1 D861 MA2J11100L DIODE 1 D862 MAZ80330LL ZENER DIODE 1 D1107 MA704A DIODE 1 D1114,15 MA2J11100L DIODE 2 D2301 MA2J11100L DIODE 1 D2512 MA8043LTX ZENER DIODE 1 D2520A B3AAA0000770 LED 1 D3005 K7AAAY000003 PHOTO LINK 1 D3048 MAZ81400ML ZENER DIODE 1 D3051,52 MAZ81400ML ZENER DIODE 2 D3063-73 MAZ81400ML ZENER DIODE 11 D3076-80 MAZ81400ML ZENER DIODE 5 D3085-89 MAZ81400ML ZENER DIODE 5 D3701,02 MAZ81400ML ZENER DIODE 2 D3709,10 MAZ80510LL ZENER DIODE 2 D3711 MAZ81400ML ZENER DIODE 1 D3801-06 EZAEG2A50AX DIODE 6 D3807,08 EZJZ0V80008B VARISTOR 2 D3809,10 EZAEG2A50AX DIODE 2 D3811 EZJZ0V80008B VARISTOR 1 D3813,14 B0HCMM000014 DIODE 2 D3815 EZJZ0V120JA VARISTOR 1 PAVCA D4000 MA2J11100L DIODE 1 D4002 MA2J11100L DIODE 1 D4004,05 MA2J11100L DIODE 2 D4006 MA3X78900L ZENER DIODE 1 D4007 B0BC03900015 ZENER DIODE 1 D4009 MA2J11100L DIODE 1 D4010 MA22D3900L DIODE 1 D4502-12 EZAEG2A50AX DIODE 11 D4513 MA3056MTX ZENER DIODE 1 D4514 EZAEG2A50AX DIODE 1 D4515 MA3056MTX ZENER DIODE 1 D4516-23 EZAEG2A50AX DIODE 8 D4541,42 MA2J11100L DIODE 2 D5400 B0JCME000037 DIODE 1 D5401,02 B0BC4R700007 ZENER DIODE 2 D5403 B0JCME000037 DIODE 1 D5404,05 B0BC4R700007 ZENER DIODE 2 D5521,22 MA3X152D0L DIODE 2 D5571 B0BC6R600005 ZENER DIODE 1 D5573 B0BC01100001 ZENER DIODE 1 D5601,02 MA22D3900L DIODE 2 D5603,04 B0JCDD000002 DIODE 2 D5605 MA22D3900L DIODE 1 D5606 B0JCDD000002 DIODE 1 D5613-15 MA2J11100L DIODE 3 D5616 MA2J72800L ZENER DIODE 1 D5692 MAZ80560LL ZENER DIODE 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks 117 D9024-26 B0JCCE000008 DIODE 3 D9027-29 B0BC3R3A0273 ZENER DIODE 3 D9110 B0JCGD000002 DIODE 1 D9807,08 B0JCCE000008 DIODE 2 D9812 MA22D3900L DIODE 1 D9813-15 B0JCGD000002 DIODE 3 D9816,17 MA22D3900L DIODE 2 D14903-08 B0HCMM000013 DIODE 6 D14909 MA3X152E0L ZENER DIODE 1 D14910 MA2J11100L DIODE 1 D14911,12 B0HCMM000013 DIODE 2 D14953-58 B0HCMM000013 DIODE 6 D14961 MA8056H ZENER DIODE 1 D14974 MA3X152E0L ZENER DIODE 1 D14975,76 MA2J11100L DIODE 2 D14977,78 B0HCMM000013 DIODE 2 D14979 MA2J11100L DIODE 1 D16001,02 B0FBCN000005 DIODE 2 D16021,22 MA3DF30000LW ZENER DIODE 2 D16032 MA2J11100L DIODE 1 D16041 MA3DF46000LW ZENER DIODE 1 D16043 MA3DF46000LW ZENER DIODE 1 D16050 B0ECKP000047 DIODE 1 D16051 B0FBCN000005 DIODE 1 D16053 B0FBCN000005 DIODE 1 D16102 MA22D3900L DIODE 1 D16104 MA22D3900L DIODE 1 D16106 MA22D3900L DIODE 1 D16131 B0ECHP000003 DIODE 1 D16132 B0ECKP000047 DIODE 1 D16151 B0ECHP000003 DIODE 1 D16152,53 B0ECKP000047 DIODE 2 D16191,92 B0ECKP000047 DIODE 2 D16253 LNJ301MPUJA LED 1 D16255 MA2J11100L DIODE 1 D16280 MA2J11100L DIODE 1 D16281 MAZ80510LL ZENER DIODE 1 D16282 MAZ80680ML ZENER DIODE 1 D16284,85 MA3X152D0L DIODE 2 D16300 B0ECKP000047 DIODE 1 D16301 MA3X152E0L ZENER DIODE 1 D16302 MA2J11100L DIODE 1 D16311 MAZ81500ML ZENER DIODE 1 D16313 B0ECKP000047 DIODE 1 D16321 B0ECKP000047 DIODE 1 D16324 MA3X152D0L DIODE 1 D16331 B0ECHP000003 DIODE 1 D16335,36 B0ECLM000006 DIODE 2 D16401,02 B0FBCN000005 DIODE 2 D16407,08 MA22D3900L DIODE 2 D16421,22 MA3DF40000LW ZENER DIODE 2 D16451 B0ECKP000047 DIODE 1 D16461,62 MA3DF46000LW ZENER DIODE 2 D16466 MA2J11100L DIODE 1 D16473 MA3X152D0L DIODE 1 D16475 MAZ80510LL ZENER DIODE 1 D16477 MA2J11100L DIODE 1 D16478 B0HCKS000002 DIODE 1 D16480 MA2J11100L DIODE 1 D16481,82 B0FBCN000005 DIODE 2 D16497 B0ECKP000047 DIODE 1 D16501 B0ECHP000003 DIODE 1 D16503 B0ECKP000047 DIODE 1 D16521 B0ECHP000003 DIODE 1 D16522,23 B0ECKP000047 DIODE 2 D16583 LNJ301MPUJA LED 1 D16585 MA2J11100L DIODE 1 D16602 MAZ81500ML ZENER DIODE 1 D16604 MA2J11100L DIODE 1 D16605 MAZ80510LL ZENER DIODE 1 D16606 B0ECKM000038 DIODE 1 D16607 MA2J11100L DIODE 1 D16608 MA8120M ZENER DIODE 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks D16609,10 MA2J11100L DIODE 2 D16618,19 B0ECKP000047 DIODE 2 D16631-33 MAZ81500ML ZENER DIODE 3 D16642 B0HCKS000002 DIODE 1 D16643 MA2J11100L DIODE 1 D16645 MA2J11100L DIODE 1 D16659 B0HCMM000014 DIODE 1 D16661 MA2J11100L DIODE 1 D16662-64 MAZ81500ML ZENER DIODE 3 D16665 MAZ80510LL ZENER DIODE 1 D16667 MA2J11100L DIODE 1 D16668 MA3X152D0L DIODE 1 D16669 MA2J11100L DIODE 1 D16671 MA2J11100L DIODE 1 D16710 MAZ81500ML ZENER DIODE 1 D16711 B0HCMR000002 DIODE 1 D16712 MAZ81500ML ZENER DIODE 1 D16713 B0HCMR000002 DIODE 1 D16714 MAZ81500ML ZENER DIODE 1 D16715 B0HCMR000002 DIODE 1 D16717 MA8330M ZENER DIODE 1 D16718 MA2J11100L DIODE 1 D16719,20 B0ECKP000047 DIODE 2 D16721 B0HCKS000002 DIODE 1 D16722 MA2J11100L DIODE 1 D16725 MA2J11100L DIODE 1 D16761,62 MA2J11100L DIODE 2 D16763 B0ECKP000047 DIODE 1 D16764 B0HCKS000002 DIODE 1 D16765,66 B0ECKP000047 DIODE 2 D16771 MAZ80510LL ZENER DIODE 1 D16791 MAZ82000ML ZENER DIODE 1 D16792 MA2J11100L DIODE 1 D16793 B0HCKS000002 DIODE 1 D16794 MA2J11100L DIODE 1 D16820 MA3X152E0L ZENER DIODE 1 D16821 MAZ82000ML ZENER DIODE 1 D16822 MA2J11100L DIODE 1 D16824,25 MA8330M ZENER DIODE 2 D16830 MA8056H ZENER DIODE 1 D16836 MAZ81500ML ZENER DIODE 1 D16837 MA2J11100L DIODE 1 D16838 B0BC027A0234 ZENER DIODE 1 D16839 B0ECKP000047 DIODE 1 D16859,60 B0HCKS000002 DIODE 2 D16861,62 MA8330M ZENER DIODE 2 D16871 MAZ82000ML ZENER DIODE 1 D16872 MA2J11100L DIODE 1 D16873 MAZ82000ML ZENER DIODE 1 D16874 MAZ80510LL ZENER DIODE 1 D16875 MA2J11100L DIODE 1 FL3710-12 J0ZZA0000091 FILTER 3 PAVCA FL3802-05 J0MAB0000170 LC FILTER 4 FL4000 J0HAAB000036 LC FILTER 1 FL4003,04 J0HAAB000036 LC FILTER 2 FL4206-11 J0JAD0000028 CHIP INDUCTOR 6 FL8500,01 J0HAAA000013 LC FILTER 2 FL9803 F1J1E104A148 C 0.10UF, Z, 25V 1 FL9805,06 F1J1E104A148 C 0.10UF, Z, 25V 2 FL17101 J0HABH000013 LC FILTER 1 FL17201,0 2 J0HABH000013 LC FILTER 2 FL17301 J0HABH000013 LC FILTER 1 G51 K1KA11BA0062 11P CONNECTOR 1 GH10 K1FY121E0001 CONNECTOR 1 PAVCA GH11 K1KA30AA0009 30P CONNECTOR 1 GS52 K1KA12A00317 12P CONNECTOR 1 IC850 C0DBAZF00003 IC 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks 118 IC1100 MNZSFG3GP53 IC 1 IC1101 TVRP920S IC 1 PAVCA IC2008 C0CBCBE00001 IC 1 IC2106 C1AB00002908 IC 1 IC2107 C0DBFFD00003 IC 1 IC2301 C1AB00002875 IC 1 IC3001 C1AB00002855 IC 1 IC3017 C0EBM0000026 IC 1 IC3801 C1AB00002835 IC 1 PAVCA IC3802 C3EBDC000067 IC 1 IC4000 C1AB00002877 IC 1 IC4013 C0JBAZ002060 IC 1 IC4200 C0ZBZ0001568 IC 1 PAVCA IC4510 C1AB00002966 IC 1 IC4511 C0CBCBE00001 IC 1 IC4512,13 C0DBGYY00477 IC 2 IC4800 C1ZBZ0003775 IC 1 IC5400,01 C0DBAYY00183 IC 2 IC5600 C0DBAYY00273 IC 1 IC5601 C0DBAYY00274 IC 1 IC5606 C0EBF0000354 IC 1 IC8001 MN2WS0047 IC 1 PAVCA IC8002,03 C3ABSG000052 IC 2 IC8004 C0ZBZ0001030 IC 1 IC8300 MN884350 IC 1 PAVCA IC8502 TVRP753S IC 1 PAVCA IC8503 TVRP759S IC 1 PAVCA IC9001 TVRP923S IC 1 PAVCA IC9002 C1ZBZ0003577 IC 1 IC9003 MNZSFG4GPF1 IC 1 PAVCA IC9011 C0EBF0000431 IC 1 IC9013 C0JBAZ002060 IC 1 IC9019 C0JBAZ001120 IC 1 IC9300 MN84526 IC 1 IC9301 C3ABQJ000055 IC 1 IC9303 TVRP924S IC 1 PAVCA IC9400 MN84526 IC 1 IC9401 C3ABQJ000055 IC 1 IC9500 C1ZBZ0003760 IC 1 IC9802,03 C0JBAZ001120 IC 2 IC9805 C0DBAYY00274 IC 1 IC9806 C0DBAYY00273 IC 1 IC14901- 08 AN16182A-VT IC 8 IC14951- 58 AN16182A-VT IC 8 IC14961,6 2 C0JBAZ000994 IC 2 IC14963 C0JBAE000321 IC 1 IC14964 C0JBAA000174 IC 1 IC14965 C0JBAE000321 IC 1 IC16131 C0ZBZ0000895 IC 1 IC16151 C0ZBZ0001324 IC 1 IC16191 C0ZBZ0000895 IC 1 IC16241 C0JBAZ002811 IC 1 IC16251 C0BBBA000024 IC 1 IC16301 MIP9L02MBS IC 1 IC16302 C0CBALC00012 IC 1 IC16303 C0JBAC000363 IC 1 IC16471 C0DBEKA00003 IC 1 IC16472 C0JBAA000377 IC 1 IC16501 C0ZBZ0000895 IC 1 IC16521 C0ZBZ0001324 IC 1 IC16561- 63 C0JBAZ002811 IC 3 IC16564 C0JBAB000715 IC 1 IC16581 C0BBBA000024 IC 1 IC16724,2 5 C0CBADC00072 IC 2 IC16752 C0ZBZ0001324 IC 1 IC16772 C0ZBZ0001325 IC 1 IC16784 MIP9L02MBS IC 1 IC16786 MIP9L02MBS IC 1 IC16787 C0DBEYY00078 IC 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks IC16788 MIP9L02MBS IC 1 IC16789 C0DBEYY00078 IC 1 IC16791 EHMDD9878 LINEAR IC 1 IC16792 C0JBAA000377 IC 1 IC16801 C0DBEYY00078 IC 1 IC17101- 06 C0JBAZ001120 IC 6 IC17201- 04 C0JBAZ001120 IC 4 IC17301- 04 C0JBAZ001120 IC 4 JA1 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA1 ERJ6GEY0R00V M 0 OHM J 1/10W 1 JA2 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA2 ERJ6GEY0R00V M 0 OHM J 1/10W 1 JA3 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA3 ERJ6GEY0R00V M 0 OHM J 1/10W 1 JA4 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA4,A5 ERJ6GEY0R00V M 0 OHM J 1/10W 2 JK3000A K1U929A00001 CONNECTOR 1 PAVCA JK3701 K4AK13B00002 TERMINAL BOARD 1 PAVCA JK4500,01 K1FY119D0003 CONNECTOR 2 PAVCA JK7701 K1NA09E00080 9P CONNECTOR 1 JS2088 D0GDR00Z0002 M 0 OHM, 1/10W 1 JS2300 D0YAR0000007 M 0 OHM 1/4W 1 JS3051-56 D0GDR00Z0002 M 0 OHM, 1/10W 6 JS3058 D0GDR00Z0002 M 0 OHM, 1/10W 1 JS4010 D0GDR00Z0002 M 0 OHM, 1/10W 1 JS4021 D0GBR00Z0002 M 0 OHM J 1/16W 1 JS7701 D0GBR00Z0002 M 0 OHM J 1/16W 1 K1 K1KA08BA0061 8P CONNECTOR 1 L852 G0C101KA0167 PEAKING COIL 1 L1100 J0JYC0000068 CHIP INDUCTOR 1 L2022 J0JHC0000078 CHIP INDUCTOR 1 L2029 J0JCC0000059 CHIP INDUCTOR 1 L2038 J0JYC0000068 CHIP INDUCTOR 1 L2041 J0JYC0000068 CHIP INDUCTOR 1 L2300 G1C220MA0291 INDUCTION COIL 1 L2302 G1C220MA0291 INDUCTION COIL 1 L2304 G1C220MA0291 INDUCTION COIL 1 L2306 G1C220MA0291 INDUCTION COIL 1 L3000,01 J0JYC0000068 CHIP INDUCTOR 2 L3512 J0JHC0000042 CHIP INDUCTOR 1 L3801 J0JHC0000078 CHIP INDUCTOR 1 L3804,05 J0JHC0000078 CHIP INDUCTOR 2 L4000 G1C470MA0291 INDUCTION COIL 1 L4001 G1C100MA0072 INDUCTION COIL 1 L4002 J0JYC0000068 CHIP INDUCTOR 1 L4201,02 J0JHC0000078 CHIP INDUCTOR 2 L4500-07 J0JHC0000078 CHIP INDUCTOR 8 L4510,11 J0JHC0000078 CHIP INDUCTOR 2 L4512,13 J0JCC0000241 CHIP INDUCTOR 2 L4514-19 J0JYC0000068 CHIP INDUCTOR 6 L4600 J0JHC0000045 CHIP INDUCTOR 1 L5401 G1C330M00027 INDUCTION COIL 1 PAVCA L5405 G1C330M00027 INDUCTION COIL 1 PAVCA L5600,01 G1C2R2Z00007 INDUCTION COIL 2 L5602 G1C4R7Z00014 INDUCTION COIL 1 L5604 G1C100MA0203 INDUCTION COIL 1 L5605 J0JHC0000075 CHIP INDUCTOR 1 L5606 G1C100MA0203 INDUCTION COIL 1 L7721 J0JCC0000143 CHIP INDUCTOR 1 L8001-05 J0JHC0000045 CHIP INDUCTOR 5 L8006 D0GBR00Z0002 M 0 OHM J 1/16W 1 L8007-10 J0JHC0000045 CHIP INDUCTOR 4 L8301-03 J0JHC0000045 CHIP INDUCTOR 3 L8304,05 G1CR22JA0020 INDUCTION COIL 2 L8306 G1CR39JA0020 INDUCTION COIL 1 PAVCA L8307-10 J0JHC0000045 CHIP INDUCTOR 4 Safety Ref. No. Part No. Part Name & Description Pcs Remarks 119 L8311,12 G1CR39JA0020 INDUCTION COIL 2 PAVCA L8500 J0JHC0000075 CHIP INDUCTOR 1 L8507 J0JHC0000045 CHIP INDUCTOR 1 L9000-07 J0JHC0000078 CHIP INDUCTOR 8 L9800 G1C2R2Z00007 INDUCTION COIL 1 L9801 G1C1R5Z00006 INDUCTION COIL 1 L9802 G1C2R2Z00007 INDUCTION COIL 1 L16001-05 G0C1R6KA0119 PEAKING COIL 5 L16011-14 G0C1R4KA0118 PEAKING COIL 4 L16102 J0JJC0000015 CHIP INDUCTOR 1 L16103 G0ZZ00002183 PEAKING COIL 1 L16104 J0JJC0000015 CHIP INDUCTOR 1 L16106 J0JJC0000015 CHIP INDUCTOR 1 L16221 G0ZZ00002183 PEAKING COIL 1 L16262 G0ZZ00002183 PEAKING COIL 1 L16271 G0ZZ00002183 PEAKING COIL 1 L16301 J0JHC0000031 CHIP INDUCTOR 1 L16398,99 J0JJC0000015 CHIP INDUCTOR 2 L16402-06 G0C1R6KA0119 PEAKING COIL 5 L16412-16 G0C1R6KA0119 PEAKING COIL 5 L16472 G0ZZ00002183 PEAKING COIL 1 L16591 G0ZZ00002183 PEAKING COIL 1 L16697 G0C102KA0187 PEAKING COIL 1 L16698 G0C681KA0187 PEAKING COIL 1 L16699 G0C331KA0187 PEAKING COIL 1 L16801 G0ZZ00002183 PEAKING COIL 1 PA5600 K5H5022A0023 FUSE 1 PA9800 K5H4022A0031 FUSE 1 PA9900 K5H5022A0031 FUSE 1 PB30 K1KA05AA0193 5P CONNECTOR 1 PB31,32 K1KA03AA0192 3P CONNECTOR 2 PB37 K1KA03AA0192 3P CONNECTOR 1 PC14951,5 2 B3PBA0000457 IC 2 PC14953 B3PBA0000456 IC 1 PC16480 B3PBA0000223 IC 1 PC16601 B3PBA0000223 IC 1 PC16602 B3PBA0000443 IC 1 PC16603 B3PBA0000223 IC 1 PC16705 B3PBA0000456 IC 1 PC16710 B3PBA0000223 IC 1 PC16896,9 7 B3PBA0000223 IC 2 PCB TNPH0721AFS CIRCUIT BOARD A 1 PAVCA PCB TNPA4243ABS CIRCUIT BOARD PB 1 PAVCA PCB ETX2MM704MGB CIRCUIT BOARD P (AC) 1 PAVCA PCB ETX2MM704MGH CIRCUIT BOARD P (MAIN) 1 PAVCA PCB TXNC11RJTU CIRCUIT BOARD C1 1 PAVCA PCB TXNC21RJTU CIRCUIT BOARD C2 1 PAVCA PCB TXNC31RJTU CIRCUIT BOARD C3 1 PAVCA PCB TNPA4439AJS CIRCUIT BOARD D 1 PAVCA PCB TXNSC1RJTUS CIRCUIT BOARD SC 1 PAVCA PCB TXNSD1RJTU CIRCUIT BOARD SD 1 PAVCA PCB TXNSS1RJTU CIRCUIT BOARD SS 1 PAVCA PCB TNPA4405S CIRCUIT BOARD SS2 1 PAVCA PCB TXNSU1RJTU CIRCUIT BOARD SU 1 PAVCA PCB TNPA4501S CIRCUIT BOARD G 1 PAVCA PCB TNPA4603ABS CIRCUIT BOARD GH 1 PAVCA PCB TNPA4139ADS CIRCUIT BOARD GS 1 PAVCA PCB TNPA4500S CIRCUIT BOARD K 1 PAVCA PCB TNPA4499S CIRCUIT BOARD S 1 PAVCA Q2041,42 2SD0601ARL TRANSISTOR 2 Q2301 2SB0709ARL TRANSISTOR 1 Q2510,11 2SD0601ARL TRANSISTOR 2 Q3123,24 2SD0601ARL TRANSISTOR 2 Safety Ref. No. Part No. Part Name & Description Pcs Remarks Q3125 2SB0709ARL TRANSISTOR 1 Q3801,02 2SD0601ARL TRANSISTOR 2 Q3804 2SD0601ARL TRANSISTOR 1 Q4014,15 2SD0601ARL TRANSISTOR 2 Q4016 B1CFNG000001 FET 1 Q4017 2SD0601ASL TRANSISTOR 1 Q4502,03 2SD0601ARL TRANSISTOR 2 Q4514-17 2SB0709ARL TRANSISTOR 4 Q4522,23 2SD0601ARL TRANSISTOR 2 Q4528-31 2SB0709ARL TRANSISTOR 4 Q5522 2SB0709ARL TRANSISTOR 1 Q5600 B1MBEDA00015 FET 1 Q5601,02 B1MBDDA00003 FET 2 Q5603,04 2SD0601ARL TRANSISTOR 2 Q5684 2SB0709ARL TRANSISTOR 1 Q8300 2SB0709ARL TRANSISTOR 1 Q9010 2SD0601ARL TRANSISTOR 1 Q9058-61 2SD0601ARL TRANSISTOR 4 Q9805,06 2SD0601ARL TRANSISTOR 2 Q9807 B1MBDDA00003 FET 1 Q9808 B1MBDDA00015 FET 1 Q9809 B1MBDDA00003 FET 1 Q16002-04 B1JAEN000002 TRANSISTOR 3 Q16022-24 B1JAEN000002 TRANSISTOR 3 Q16042 B1JAEN000003 TRANSISTOR 1 Q16051 B1JAEN000003 TRANSISTOR 1 Q16102 2SK399800L FET 1 Q16104 2SK399800L FET 1 Q16106 2SK399800L FET 1 Q16141 B1HFPFA00001 TRANSISTOR 1 Q16161 B1HFPFA00001 TRANSISTOR 1 Q16171 B1ABRD000003 TRANSISTOR 1 Q16172 B1ADRD000001 TRANSISTOR 1 Q16181 B1ABRD000003 TRANSISTOR 1 Q16182 B1ADRD000001 TRANSISTOR 1 Q16191 B1HFPFA00001 TRANSISTOR 1 Q16251 2SD0601ARL TRANSISTOR 1 Q16280 2SD0601ARL TRANSISTOR 1 Q16301 B1CBGD000001 FET 1 Q16302 B1CFNG000001 FET 1 Q16304 2SB0709ARL TRANSISTOR 1 Q16331 B1CERL000012 FET 1 Q16335 B1CERL000012 FET 1 Q16339 2SK399500L FET 1 Q16401 B1JAEN000002 TRANSISTOR 1 Q16403,04 B1JAEN000002 TRANSISTOR 2 Q16421 B1JAEP000002 TRANSISTOR 1 Q16423,24 B1JAEP000002 TRANSISTOR 2 Q16441,42 B1JAEN000003 TRANSISTOR 2 Q16452 B1JAEP000003 TRANSISTOR 1 Q16471 B1ABCF000231 TRANSISTOR 1 Q16501 B1HFPFA00001 TRANSISTOR 1 Q16521 B1HFPFA00001 TRANSISTOR 1 Q16531 B1ABRD000003 TRANSISTOR 1 Q16532 B1ADRD000001 TRANSISTOR 1 Q16551 B1ABRD000003 TRANSISTOR 1 Q16552 B1ADRD000001 TRANSISTOR 1 Q16581 B1ABCF000231 TRANSISTOR 1 Q16601 B1DEET000002 FET 1 Q16602 2SD0601AQL TRANSISTOR 1 Q16603 2SB0709ARL TRANSISTOR 1 Q16604 B1CHPM000001 FET 1 Q16605 2SB0709ARL TRANSISTOR 1 Q16606 2SD0601AQL TRANSISTOR 1 Q16607 B1CBGD000001 FET 1 Q16608 B1ABCF000231 TRANSISTOR 1 Q16622-25 B1CFRM000008 FET 4 Q16627-29 B1CFRM000008 FET 3 Q16634 B1CFRM000008 FET 1 Q16641-44 2SK4175000LZ FET 4 Q16647-50 2SK4175000LZ FET 4 Q16661 B1JAER000004 TRANSISTOR 1 Q16662 2SD0601AQL TRANSISTOR 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks 120 Q16663 2SB0709ARL TRANSISTOR 1 Q16664 B1HFPFA00001 TRANSISTOR 1 Q16665 B1ABCF000231 TRANSISTOR 1 Q16743 2SD0601ARL TRANSISTOR 1 Q16762,63 B1ADNF000006 TRANSISTOR 2 Q16781 B1HFPFA00001 TRANSISTOR 1 Q16783 B1HFPFA00001 TRANSISTOR 1 Q16791 2SD0814A0L TRANSISTOR 1 PAVCA Q16794 B1ADCE000022 TRANSISTOR 1 Q16795 2SD0601ARL TRANSISTOR 1 Q16796 2SC1473ARA TRANSISTOR 1 PAVCA Q16801,02 B1ADCN000007 TRANSISTOR 2 Q16805 2SC3063000RL TRANSISTOR 1 Q16806 2SC1473AEA TRANSISTOR 1 Q16810-12 B1ABCF000231 TRANSISTOR 3 Q16814,15 B1ABCN000007 TRANSISTOR 2 Q16816,17 2SD0601AQL TRANSISTOR 2 Q16871,72 2SB0709ARL TRANSISTOR 2 Q16873 B1ABCF000231 TRANSISTOR 1 Q16874 B1CBGD000001 FET 1 Q16875,76 B1ABCF000231 TRANSISTOR 2 Q16879 B1ABCF000231 TRANSISTOR 1 R851,52 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 2 R857 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 1 R859 ERJ6ENF2001V M 2KOHM, 1/10W 1 R861 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 1 R867 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R869 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R871 ERJ6ENF1302 M 13KOHM, 1/10W 1 R872 ERJ6ENF3900 M 390 OHM, 1/10W 1 R874 ERJ6GEYJ471 M 470 OHM,J,1/ 10W 1 R1124,25 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R1139,40 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R1143 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1145 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R1148-54 ERJ2GEJ473 M 47KOHM, J,0.063W 7 R1157 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1160,61 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R1162 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1169 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1170 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1171 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1172 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1174,75 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1182 ERJ2GED273X M 27KOHM ,J,0.063W 1 R1183,84 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1188 D0YAR0000007 M 0 OHM 1/4W 1 R1194 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1196 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1198 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R1199 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1200,01 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 Safety Ref. No. Part No. Part Name & Description Pcs Remarks R1203 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1205,06 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1209,10 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R1216 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1218-20 ERJ2GEJ473 M 47KOHM, J,0.063W 3 R1221 D1BB7151A055 M7.15KOHM, 1/10W 1 R1223 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1236 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1237 ERJ2GEJ102X M 1K OHM J 1/4W 1 R1243 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1255 ERJ2GEJ102X M 1K OHM J 1/4W 1 R2058 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R2059 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R2060 ERJ2GEJ181 M 180 OHM, J,0.063W 1 R2100 D1BB2002A055 M 20KOHM, 1/10W 1 R2104 D1BB2001A055 M 2KOHM, 1/10W 1 R2110 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2111 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R2113 D1BB1203A055 M 120KOHM, 1/10W 1 R2114 D1BB7502A055 M 75KOHM, 1/10W 1 R2115-17 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R2138 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2150,51 D1BB2802A055 M 28KOHM, 1/10W 2 R2152 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2162,63 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R2164 ERJ2GEJ102X M 1K OHM J 1/4W 1 R2271 EXB28V220J RESISTOR ARRAY 1 R2301,02 ERJ2GEJ222 M 2.2KOHM, J,0.063W 2 R2305 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R2308 ERJ8GEYJ3R3V M 3.3 OHM, J,1/ 8W 1 R2310 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2311 ERJ8GEYJ3R3V M 3.3 OHM, J,1/ 8W 1 R2313 ERJ8GEYJ3R3V M 3.3 OHM, J,1/ 8W 1 R2315 ERJ8GEYJ3R3V M 3.3 OHM, J,1/ 8W 1 R2325 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R2330 ERJ2GEJ392 M 3.9KOHM, J,0.063W 1 R2331 ERJ3GEYJ221 M 220 OHM,J,1/ 16W 1 R2516 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2517 ERJ6GEYJ470V M 47 OHM,J,1/10W 1 R2520 ERJ3GEYJ224 M 220KOHM,J,1/ 16W 1 R2524 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2525 D1BB8200A055 M 820 OHM, 1/10W 1 PAVCA R2542 D0GB473JA057 M 47KOHM,J,1/16W 1 R2557 ERJ3GEYJ562 M 5.6KOHM,J,1/ 16W 1 R3058-60 ERJ2GEJ221 M 220 OHM, J,0.063W 3 R3061 D1BB75R0A055 M 75 OHM, 1/10W 1 PAVCA R3062,63 ERJ2GEJ221 M 220 OHM, J,0.063W 2 R3064 D1BB75R0A055 M 75 OHM, 1/10W 1 PAVCA R3065 ERJ2GEJ102X M 1K OHM J 1/4W 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks 121 R3066 D1BB75R0A055 M 75 OHM, 1/10W 1 PAVCA R3067,68 ERJ2GEJ221 M 220 OHM, J,0.063W 2 R3070 ERJ2GEJ102X M 1K OHM J 1/4W 1 R3071 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3076 ERJ6RED750 M 75 OHM, 1/10W 1 R3077-90 ERJ2GEJ221 M 220 OHM, J,0.063W 14 R3095-99 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R3107 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R3123,24 ERJ2GEJ182 M 1.8KOHM, J,0.063W 2 R3145 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R3146 ERJ2GEJ184 M 180KOHM, J,0.063W 1 R3147 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R3148 ERJ2GEJ184 M 180KOHM, J,0.063W 1 R3149,50 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R3151 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R3152 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3153 ERJ2GEJ102X M 1K OHM J 1/4W 1 R3154 ERJ2GEJ274 M 270KOHM, J,0.063W 1 R3189 D1BB75R0A055 M 75 OHM, 1/10W 1 PAVCA R3190-93 D0GB393JA041 M 39KOHM,J,1/16W 4 R3194 D1BB75R0A055 M 75 OHM, 1/10W 1 PAVCA R3198,99 D1BB75R0A055 M 75 OHM, 1/10W 2 PAVCA R3202 D0GB393JA041 M 39KOHM,J,1/16W 1 R3203 D1BB75R0A055 M 75 OHM, 1/10W 1 PAVCA R3204 D0GB393JA041 M 39KOHM,J,1/16W 1 R3208,09 D1BB75R0A055 M 75 OHM, 1/10W 2 PAVCA R3211,12 D1BB75R0A055 M 75 OHM, 1/10W 2 PAVCA R3716,17 ERJ6GEYJ393V M 39KOHM,J,1/10W 2 R3721 D0GD103JA036 M 10KOHM,J,0.25W 1 R3750 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R3751 ERJ6ENF6651 M6.65KOHM, 1/10W 1 R3752 ERJ6ENF1741 M1.74KOHM, 1/10W 1 R3753 ERJ6ENF1621 M1.62KOHM, 1/10W 1 R3754 ERJ6ENF2321 M2.32KOHM, 1/10W 1 R3756 D0GDR00Z0002 M 0 OHM, 1/10W 1 R3758 ERJ6ENF3161 M3.16KOHM, 1/10W 1 R3801,02 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R3803 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R3804,05 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R3806 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3807,08 ERJ2GEJ100 M 10 OHM, J,0.063W 2 R3809,10 ERJ2GEJ102X M 1K OHM J 1/4W 2 R3811 D1BB4701A055 M 4.7KOHM, 1/10W 1 R3812 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3814 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3815 D0YAR0000007 M 0 OHM 1/4W 1 R3818 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3821 ERJ2RKD330 M 33 OHM, J, 2W 1 R3822 ERJ2GEJ102X M 1K OHM J 1/4W 1 R3832 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3834 D1BB49R90002 M 49 OHM, 1/10W 1 PAVCA R3840,41 ERJ2GEJ100 M 10 OHM, J,0.063W 2 R3845 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks R3847 D0YAR0000007 M 0 OHM 1/4W 1 R3854 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4079 EXB2HV560JV D1HG5608A002 1 R4081 EXB2HV560JV D1HG5608A002 1 R4089-91 EXB2HV560JV D1HG5608A002 3 R4112 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R4113 ERJ6GEYG681 M 680 OHM,J,1/ 10W 1 R4115 D1BB1003A055 M 100KOHM, 1/10W 1 PAVCA R4116 D1BB3401A055 M 3.4KOHM, 1/10W 1 PAVCA R4117 D1BB4701A055 M 4.7KOHM, 1/10W 1 R4122 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4123-33 ERJ2GEJ220 M 22 OHM, J,0.063W 11 R4134-36 ERJ2GEJ331 M 330 OHM, J,0.063W 3 R4137 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4138-40 ERJ2GEJ220 M 22 OHM, J,0.063W 3 R4153 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4155 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4158 ERJ3GEYD153V M 15KOHM,J,1/16W 1 R4162 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4166 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4167 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4168 EXB2HV473JV RESISTOR ARRAY 1 R4170,71 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4286-88 ERJ2GEJ473 M 47KOHM, J,0.063W 3 R4289-94 EXB28V470JX RESISTOR ARRAY 6 R4295-02 ERJ2GEJ470 M 47 OHM, J,0.063W 8 R4303 ERJ2RKD330 M 33 OHM, J, 2W 1 R4304,05 ERJ2GEJ470 M 47 OHM, J,0.063W 2 R4309 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4327 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4330 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4502,03 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4524 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4526,27 ERJ2GEJ102X M 1K OHM J 1/4W 2 R4528 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4530 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4538 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4540 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4548-50 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R4552 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4568 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4571,72 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4587 D1BB60400001 M 604 OHM, 1/10W 1 R4588,89 D1BB8060A055 M 806 OHM, 1/10W 2 R4590,91 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4592 D1BB8060A055 M 806 OHM, 1/10W 1 R4593 D1BB2201A055 M 2.2KOHM, 1/10W 1 R4596-98 ERJ6GEYJ102V M 1K OHM J 1/10W 3 Safety Ref. No. Part No. Part Name & Description Pcs Remarks 122 R4600 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4601 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R4603,04 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4606 D1BB9101A055 M 9.1KOHM, 1/10W 1 R4609,10 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4611 D1BB5601A055 M 5.6KOHM, 1/10W 1 R4613 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4620 D0YAR0000007 M 0 OHM 1/4W 1 R4622 D0YAR0000007 M 0 OHM 1/4W 1 R4624,25 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4626,27 D1BB2200A055 M 220 OHM, 1/10W 2 R4630 D0YAR0000007 M 0 OHM 1/4W 1 R4631 D1BB4990A055 M 499 OHM, 1/10W 1 R4632 D0YAR0000007 M 0 OHM 1/4W 1 R4634 D1BB2200A055 M 220 OHM, 1/10W 1 R4635 EXB28V680JX RESISTOR ARRAY 1 R4636-38 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4639,40 EXB28V680JX RESISTOR ARRAY 2 R4641 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4643 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4645,46 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4648 EXB28V330J RESISTOR ARRAY 1 R4649 EXB28V680JX RESISTOR ARRAY 1 R4650,51 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4652 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4665,66 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R4670 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4678,79 EXB28V680JX RESISTOR ARRAY 2 R4698,99 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4700-06 ERJ2GEJ473 M 47KOHM, J,0.063W 7 R4736 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4737,38 ERJ2GEJ102X M 1K OHM J 1/4W 2 R4739,40 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R4741 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4821 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5058 ERJ2GEJ102X M 1K OHM J 1/4W 1 R5069 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5137 ERJ2GEJ102X M 1K OHM J 1/4W 1 R5188 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R5400 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5401 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5402 D1BB4532A055 M4.53KOHM, 1/10W 1 R5403 D1BB1002A055 M 10KOHM, 1/10W 1 R5405 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5406 ERJ2GEJ203X D0GA203JA015 1 R5407 D1BB8872A055 M8.87KOHM, 1/10W 1 R5408 D1BB1002A055 M 10KOHM, 1/10W 1 R5535 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5536 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5537 ERJ2GEJ152 M 1.5KOHM, J,0.063W 1 R5538 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks R5540 ERJ6GEYJ471 M 470 OHM,J,1/ 10W 1 R5542 ERJ6GEYJ471 M 470 OHM,J,1/ 10W 1 R5544 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R5600 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5604 D1BB4702A055 M 47KOHM, 1/10W 1 R5605 D1BB1272A055 M12.7KOHM, 1/10W 1 R5606,07 D0YAR0000007 M 0 OHM 1/4W 2 R5610 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5611 D1BB4702A055 M 47KOHM, 1/10W 1 R5612 D1BB3602A055 M 36KOHM, 1/10W 1 R5620 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5621 D1BB2802A055 M 28KOHM, 1/10W 1 R5622 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5623 D1BB4702A055 M 47KOHM, 1/10W 1 R5625-28 D0YAR0000007 M 0 OHM 1/4W 4 R5629 D1BB2802A055 M 28KOHM, 1/10W 1 R5630 D1BB4752A055 M47.5KOHM, 1/10W 1 R5631 D1BB3602A055 M 36KOHM, 1/10W 1 R5632 D1BB3002A055 M 30KOHM, 1/10W 1 R5633 D1BB3602A055 M 36KOHM, 1/10W 1 R5634 D1BB2802A055 M 28KOHM, 1/10W 1 R5635 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R5636 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R5637 D0YAR0000007 M 0 OHM 1/4W 1 R5638 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5641 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5644 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5646 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5647 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5648 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5650,51 ERJ2GED563X M 56KOHM ,J,0.063W 2 R5652 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5662 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5664 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R5665 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5666 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R5667 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5747 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5748 ERJ2GEJ123 M 12KOHM ,J,0.063W 1 R5749 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5762 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R7701 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R7702 D0YAR0000007 M 0 OHM 1/4W 1 R7703-05 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R7706 D0GBR00Z0002 M 0 OHM J 1/16W 1 R7708 D0GBR00Z0002 M 0 OHM J 1/16W 1 R7709 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R7710 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R7713 D0YAR0000007 M 0 OHM 1/4W 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks 123 R7716 D0GBR00Z0002 M 0 OHM J 1/16W 1 R7731 D0YAR0000007 M 0 OHM 1/4W 1 R7792-99 D0GBR00Z0002 M 0 OHM J 1/16W 8 R8001 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8002 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8004 D1BB2402A055 M 24KOHM, 1/10W 1 R8005 D1BB1002A055 M 10KOHM, 1/10W 1 R8006 D1BB6801A055 M 6.8KOHM, 1/10W 1 R8030 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8031,32 D1BB2700A055 M 270 OHM, 1/10W 2 R8035 D0YAR0000007 M 0 OHM 1/4W 1 R8056-73 ERJ2GEJ470 M 47 OHM, J,0.063W 18 R8074 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8075-78 ERJ2GEJ470 M 47 OHM, J,0.063W 4 R8081 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8082 D1BA75R0A014 M0.75KOHM, 1/10W 1 R8083 ERJ2GEJ301 M 300 OHM, J,0.063W 1 R8086 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R8087 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8090 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8091 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8093 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8094 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8097 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8098,99 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8100 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8101 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8106 ERJ2GEJ202 M 2KOHM, J,0.063W 1 R8107 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8112 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R8302,03 ERJ2GEJ470 M 47 OHM, J,0.063W 2 R8304 D0YAR0000007 M 0 OHM 1/4W 1 R8305,06 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R8307,08 ERJ2GEJ562 M 5.6KOHM, J,0.063W 2 R8309 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8311 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8313 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R8314 D1BB1202A055 M 12KOHM, 1/10W 1 PAVCA R8315 ERJ2GEJ102X M 1K OHM J 1/4W 1 R8316,17 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8318-20 ERJ2GEJ220 M 22 OHM, J,0.063W 3 R8321 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8323 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8324-27 ERJ2GEJ470 M 47 OHM, J,0.063W 4 R8331 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8333,34 ERJ2GEJ473 M 47KOHM, J,0.063W 2 Safety Ref. No. Part No. Part Name & Description Pcs Remarks R8335 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8336 J0JCC0000364 CHIP INDUCTOR 1 R8502 D0YAR0000007 M 0 OHM 1/4W 1 R8504 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8512 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8517 ERJ2RKD330 M 33 OHM, J, 2W 1 R8519,20 ERJ2RKD330 M 33 OHM, J, 2W 2 R8528-30 ERJ2GEJ560X M 56 OHM, J,0.063W 3 R8532 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8533 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8538-45 ERJ2GEJ220 M 22 OHM, J,0.063W 8 R8546-48 ERJ2GEJ332 M 3.3KOHM, J,0.063W 3 R8550 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R8552,53 ERJ2GEJ182 M 1.8KOHM, J,0.063W 2 R8554,55 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R8556 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8557,58 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R8561 ERJ2RKD330 M 33 OHM, J, 2W 1 R8562-65 ERJ2GEJ103 M 10KOHM, J,0.063W 4 R8566 EXB28V103JX RESISTOR ARRAY 1 R8570 ERJ2RKD330 M 33 OHM, J, 2W 1 R8573 EXB28V680JX RESISTOR ARRAY 1 R8574 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8575 ERJ2GEJ820 M 82 OHM, J,0.063W 1 R8661 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8663 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8721,22 ERJ2GEJ560X M 56 OHM, J,0.063W 2 R8765 ERJ2GEJ750X M 75 OHM, J,0.063W 1 PAVCA R8767 ERJ2GEJ750X M 75 OHM, J,0.063W 1 PAVCA R8769 ERJ2RKD330 M 33 OHM, J, 2W 1 R8770 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8772 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8793 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8844 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8866 D1BB91R0A055 M 91 OHM, 1/10W 1 PAVCA R8898 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9101 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9103 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9105 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9107 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R9110 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9112-14 ERJ2GEJ470 M 47 OHM, J,0.063W 3 R9115,16 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R9117 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9118 D0GDR00Z0002 M 0 OHM, 1/10W 1 R9119 EXB38V470JV RESISTOR ARRAY 1 PAVCA R9120 EXB2HV103JV RESISTOR ARRAY 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks 124 R9121 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9122 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R9123 EXB2HV470JV RESISTOR ARRAY 1 R9124 D0GDR00Z0002 M 0 OHM, 1/10W 1 R9125 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9126 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9127 D0YAR0000007 M 0 OHM 1/4W 1 R9129 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R9130 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9131,32 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R9133 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R9134 D0YAR0000007 M 0 OHM 1/4W 1 R9135 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9136 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9137-40 EXB2HV220JV RESISTOR ARRAY 4 R9141 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9142,43 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R9144 D0YAR0000007 M 0 OHM 1/4W 1 R9145 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9146,47 EXB2HV220JV RESISTOR ARRAY 2 R9148 EXB38VR000V RESISTOR ARRAY 1 R9149 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9150,51 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R9154 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9155 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9156 D0YAR0000007 M 0 OHM 1/4W 1 R9157 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9158 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9159-61 ERJ2GEJ393 M 39KOHM,J,0.063W 3 R9162 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9163 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9164 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9166 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9167 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9168 D0GDR00Z0002 M 0 OHM, 1/10W 1 R9170 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9171 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9172 D0YAR0000007 M 0 OHM 1/4W 1 R9174 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9175 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9177-82 ERJ2GEJ220 M 22 OHM, J,0.063W 6 R9185 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R9186 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R9187 ERJ2GED563X M 56KOHM ,J,0.063W 1 R9188 ERJ2GEJ243 M 24KOHM, J,0.063W 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks R9189 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9190 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9191 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9192 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9193 EXB2HV220JV RESISTOR ARRAY 1 R9195 EXB2HV220JV RESISTOR ARRAY 1 R9197 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9198 D0YAR0000007 M 0 OHM 1/4W 1 R9199 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9200,01 ERJ2GEJ100 M 10 OHM, J,0.063W 2 R9202 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9204 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R9205 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R9206 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9207 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9208-11 EXB2HV220JV RESISTOR ARRAY 4 R9212 EXB2HV470JV RESISTOR ARRAY 1 R9213 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9214 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9215 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9216 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9217 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R9218 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9219 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9223 ERJ2RHD272 M 27KOHM, J, 2W 1 R9224 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9225 ERJ2RHD272 M 27KOHM, J, 2W 1 R9226 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9229 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9230 EXB38V470JV RESISTOR ARRAY 1 PAVCA R9231 D0YAR0000007 M 0 OHM 1/4W 1 R9232 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9233 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9234,35 EXB2HV470JV RESISTOR ARRAY 2 R9236 ERJ2RKD330 M 33 OHM, J, 2W 1 R9237 EXB38V470JV RESISTOR ARRAY 1 PAVCA R9238 ERJ2GEJ151 M 150 OHM, J,0.063W 1 R9245 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9246 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9247 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9248-51 D1BB1001A055 M 1KOHM, 1/16W 4 R9252 ERJ2RKD330 M 33 OHM, J, 2W 1 R9253-55 EXB2HV103JV RESISTOR ARRAY 3 R9256-63 EXB38V470JV RESISTOR ARRAY 8 PAVCA R9264-67 ERJ2GEJ470 M 47 OHM, J,0.063W 4 R9270,71 ERJ2GEJ470 M 47 OHM, J,0.063W 2 R9272 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9273 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9274-77 EXB2HV151J RESISTOR ARRAY 4 Safety Ref. No. Part No. Part Name & Description Pcs Remarks 125 R9279 D0YAR0000007 M 0 OHM 1/4W 1 R9280-82 EXB2HV103JV RESISTOR ARRAY 3 R9283 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9286-88 D0YAR0000007 M 0 OHM 1/4W 3 R9292 EXB2HVR000 RESISTOR ARRAY 1 R9293 EXB2HV470JV RESISTOR ARRAY 1 R9295-04 ERJ2GEJ101 M 100 OHM, J,0.063W 10 R9308 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9309 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9310 EXB38V103JV RESISTOR ARRAY 1 R9311 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9312 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R9315 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9317 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9319 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9321 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9323 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9325 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9326 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9327 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9333 EXB38V103JV RESISTOR ARRAY 1 R9334 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9335 EXB2HV103JV RESISTOR ARRAY 1 R9337 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9341 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9342,43 ERJ2GEJ102X M 1K OHM J 1/4W 2 R9344 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9345 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R9348 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9350,51 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R9352 EXB2HV470JV RESISTOR ARRAY 1 R9353 EXB38V470JV RESISTOR ARRAY 1 PAVCA R9354 EXB2HV103JV RESISTOR ARRAY 1 R9355 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9358 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9362 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9385 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9578 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9599,00 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R9611 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R9824-26 ERJ2GEJ101 M 100 OHM, J,0.063W 3 R9839 EXB38V101JV RESISTOR ARRAY 1 R9840 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9846,47 EXB2HV103JV RESISTOR ARRAY 2 R9848,49 EXB2HV470JV RESISTOR ARRAY 2 R9854 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9859 EXB38V101JV RESISTOR ARRAY 1 R9868 ERJ2GEJ104 M 100KOHM, J,0.063W 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks R9869-71 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R9878 D1BB1502A055 M 15KOHM, 1/10W 1 R9879 D1BB1302A055 M 13KOHM, 1/10W 1 R9886 D1BB4702A055 M 47KOHM, 1/10W 1 R9887 D1BB5102A055 M 51KOHM, 1/10W 1 R9888 D1BB1502A055 M 15KOHM, 1/10W 1 R9889 D1BB1822A055 M18.2KOHM, 1/10W 1 R9890 D1BB4752A055 M47.5KOHM, 1/10W 1 R9891 D1BB1272A055 M12.7KOHM, 1/10W 1 R9892 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9893 D1BB4302A055 M 43KOHM, 1/10W 1 R9894 D1BB2002A055 M 20KOHM, 1/10W 1 R9895 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9896 D1BB1822A055 M18.2KOHM, 1/10W 1 R9897 D1BB4752A055 M47.5KOHM, 1/10W 1 R9901 D0YAR0000007 M 0 OHM 1/4W 1 R9905 ERJ2RKD330 M 33 OHM, J, 2W 1 R9907 ERJ2GEJ151 M 150 OHM, J,0.063W 1 R9936-39 D1BB1001A055 M 1KOHM, 1/16W 4 R9940 ERJ2RKD330 M 33 OHM, J, 2W 1 R9944-51 EXB38V470JV RESISTOR ARRAY 8 PAVCA R9952-55 ERJ2GEJ470 M 47 OHM, J,0.063W 4 R9966 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R9969 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9972-74 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R9975 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9980 D0YAR0000007 M 0 OHM 1/4W 1 R14349 D0GD103JA036 M 10KOHM,J,0.25W 1 R14350 D0GD101JA036 M 100 OHM,J,0.25W 1 R14351 D0GD103JA036 M 10KOHM,J,0.25W 1 R14353 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14354 ERJ6GEYJ221V M 220 OHM,J,1/ 10W 1 R14356 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14357 ERJ6GEYJ221V M 220 OHM,J,1/ 10W 1 R14359 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14360 ERJ6GEYJ221V M 220 OHM,J,1/ 10W 1 R14362 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14363 ERJ6GEYJ221V M 220 OHM,J,1/ 10W 1 R14365 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14366 ERJ6GEYJ221V M 220 OHM,J,1/ 10W 1 R14368 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14369 ERJ6GEYJ221V M 220 OHM,J,1/ 10W 1 R14371 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14372 ERJ6GEYJ221V M 220 OHM,J,1/ 10W 1 R14374-76 D0GDR00Z0002 M 0 OHM, 1/10W 3 R14378 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14380-82 D0GDR00Z0002 M 0 OHM, 1/10W 3 R14384 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14386-88 D0GDR00Z0002 M 0 OHM, 1/10W 3 R14390 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14392-94 D0GDR00Z0002 M 0 OHM, 1/10W 3 R14398 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14901 D0GD101JA036 M 100 OHM,J,0.25W 1 R14902-06 ERJ6GEYJ221V M 220 OHM,J,1/ 10W 5 R14907-10 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R14911-14 D0GD103JA036 M 10KOHM,J,0.25W 4 R14915 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14916 D0GD103JA036 M 10KOHM,J,0.25W 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks 126 R14917 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14919,20 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R14921 ERJ8GEYJ224V M 220KOHM, J,1/ 8W 1 R14923-26 D0GD103JA036 M 10KOHM,J,0.25W 4 R14928,29 ERJ6GEYJ221V M 220 OHM,J,1/ 10W 2 R14930 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14931 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R14932 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14934 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R14935 ERJ6GEYJ222V M 2.2K OHM J 1/ 10W 1 R14936 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 1 R14937 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R14939,40 D0GDR00Z0002 M 0 OHM, 1/10W 2 R14942 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14943 ERJ6GEYJ470V M 47 OHM,J,1/10W 1 R14944 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R14949 ERJ6GEYJ203 M 20KOHM,J,1/10W 1 R14950 D0GD103JA036 M 10KOHM,J,0.25W 1 R14951-55 D0GDR00Z0002 M 0 OHM, 1/10W 5 R14956-60 ERJ3GEYJ220 M 22 OHM,J,1/16W 5 R14961-63 ERJ6GEYJ331V M 330 OHM J 1/ 10W 3 R14964 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14965 ERJ6GEYJ331V M 330 OHM J 1/ 10W 1 R14966,67 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R14971 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R14973-76 ERJ3GEYJ470 M 47 OHM,J,1/16W 4 R14977-79 ERJ6GEYJ222V M 2.2K OHM J 1/ 10W 3 R14980 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14981,82 D0GD103JA036 M 10KOHM,J,0.25W 2 R14984 D0GD103JA036 M 10KOHM,J,0.25W 1 R14986 ERJ8GEYJ224V M 220KOHM, J,1/ 8W 1 R14987 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R14988 ERJ6GEYJ222V M 2.2K OHM J 1/ 10W 1 R14990 D0GD103JA036 M 10KOHM,J,0.25W 1 R14991 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14992-94 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R14995-98 D0GD103JA036 M 10KOHM,J,0.25W 4 R14999 ERJ6GEYJ331V M 330 OHM J 1/ 10W 1 R16002-04 ERJT08J7R5V M 7.5OHM,J, 0.33W 3 R16022-24 ERJT08J7R5V M 7.5OHM,J, 0.33W 3 R16031,32 ERJ6ENF8202 M 82KOHM, 1/10W 2 R16033 ERJ6ENF5602 M 56KOHM, 1/10W 1 R16034 ERJ6ENF2702 M 27KOHM, 1/10W 1 R16042 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16051 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16102 ERJT06J221V M 220 OHM,F,0.25W 1 R16104 ERJT06J221V M 220 OHM,F,0.25W 1 R16106 ERJT06J221V M 220 OHM,F,0.25W 1 R16109 ERJT06J100V M 10 OHM,F,0.25W 1 R16110 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16116 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16131,32 D0GD101JA036 M 100 OHM,J,0.25W 2 R16134 ERJT06J750V M 75 OHM,F,0.25W 1 R16137-39 ERJT08J1R0V M 1.8OHM,J, 0.33W 3 R16141 ERJT06J100V M 10 OHM,F,0.25W 1 R16142,43 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R16151,52 D0GD101JA036 M 100 OHM,J,0.25W 2 Safety Ref. No. Part No. Part Name & Description Pcs Remarks R16154 ERJT06J750V M 75 OHM,F,0.25W 1 R16155 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16159 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16161 ERJT06J100V M 10 OHM,F,0.25W 1 R16162,63 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R16171 ERJT06J100V M 10 OHM,F,0.25W 1 R16172,73 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R16181 ERJT06J100V M 10 OHM,F,0.25W 1 R16182,83 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R16191,92 D0GD101JA036 M 100 OHM,J,0.25W 2 R16193 ERJT06J750V M 75 OHM,F,0.25W 1 R16194 ERJT14J1R0U C1.0 OHM, J,1/4W 1 R16195 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16220 ERJ6GEYJ470V M 47 OHM,J,1/10W 1 R16221 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 1 R16230 ERJ6GEYJ470V M 47 OHM,J,1/10W 1 R16231 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 1 R16241 EXB38V470JV RESISTOR ARRAY 1 PAVCA R16242 EXB38V472JV RESISTOR ARRAY 1 R16251 ERJ6ENF1401 M 1.4KOHM, 1/10W 1 R16252,53 ERJ6ENF3902 M 39KOHM, 1/10W 2 R16254 ERJ6ENF6801 M 6.8KOHM, 1/10W 1 R16255 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R16256 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R16257 D0GD103JA036 M 10KOHM,J,0.25W 1 R16258 ERJ6GEYJ222V M 2.2K OHM J 1/ 10W 1 R16260 ERJ6GEYJ222V M 2.2K OHM J 1/ 10W 1 R16261 ERJ6GEYJ104V M 100KOHM,J,1/ 10W 1 R16280 ERJ6GEYJ222V M 2.2K OHM J 1/ 10W 1 R16281 D0GD103JA036 M 10KOHM,J,0.25W 1 R16282 ERJ6GEYJ221V M 220 OHM,J,1/ 10W 1 R16283 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16284 ERJ6GEYJ224 M 220KOHM,J,1/ 10W 1 R16289 ERJ6GEYJ623V M 62KOHM,J,1/10W 1 R16290 ERJT08J334V M 330KOHM,F,0.33W 1 R16291 ERJ6GEYJ623V M 62KOHM,J,1/10W 1 R16292 ERJT08J334V M 330KOHM,F,0.33W 1 R16293 ERJ6GEYJ623V M 62KOHM,J,1/10W 1 R16294 ERJT08J334V M 330KOHM,F,0.33W 1 R16295 ERJ6GEYJ623V M 62KOHM,J,1/10W 1 R16296 ERJT08J334V M 330KOHM,F,0.33W 1 R16300 ERJT08J102V M 1KOHM,J, 0.33W 1 R16301 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 1 R16302 ERJ8GEYJ105V M 1MOHM, J,1/8W 1 R16303 D0GD101JA036 M 100 OHM,J,0.25W 1 R16304 ERJT08J681V M 680 OHM,F,0.33W 1 R16305 ERJ6GEYJ271V M 270 OHM J 1/ 10W 1 R16306-08 D0GD101JA036 M 100 OHM,J,0.25W 3 R16309 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 1 R16310 ERJ6GEYJ562V M 5.6KOHM,J,1/ 10W 1 R16311,12 ERJ6GEYJ124V M 120KOHM,J,1/ 10W 2 R16313 ERJ6ENF5232 M52.3KOHM, 1/10W 1 R16314 ERJ6ENF6652 M66.5KOHM, 1/10W 1 R16315 ERJ6ENF1241 M1.24KOHM, 1/10W 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks 127 R16317 D0GDR00Z0002 M 0 OHM, 1/10W 1 R16321 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16322 ERJ6GEYF561 M 560 OHM,F,1/ 10W 1 R16323 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R16324 D0GD103JA036 M 10KOHM,J,0.25W 1 R16325 D0GDR00Z0002 M 0 OHM, 1/10W 1 R16331 ERJT06J101V M 100 OHM,F,0.25W 1 R16333 ERJ6ENF3303 M 330KOHM, 1/10W 1 R16334 ERJT06J101V M 100 OHM,F,0.25W 1 R16336 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16338 ERJT06J101V M 100 OHM,F,0.25W 1 R16339 ERJ6ENF3303 M 330KOHM, 1/10W 1 R16340 ERJT06J152V M 1.5KOHM,F,0.25W 1 R16401 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16403,04 ERJT08J7R5V M 7.5OHM,J, 0.33W 2 R16421 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16423,24 ERJT08J7R5V M 7.5OHM,J, 0.33W 2 R16441,42 ERJT08J5R6V M 5.6 OHM,F,0.33W 2 R16452 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16465 ERJ6ENF2702 M 27KOHM, 1/10W 1 R16466 ERJ6ENF5602 M 56KOHM, 1/10W 1 R16467,68 ERJ6ENF8202 M 82KOHM, 1/10W 2 R16471 ERJ6GEYG392 M 3.9KOHM,J,1/ 10W 1 R16472 ERJ6GEYJ222V M 2.2K OHM J 1/ 10W 1 R16473 ERJ6GEYF561 M 560 OHM,F,1/ 10W 1 R16474 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16475,76 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 2 R16477 D0GBR00Z0002 M 0 OHM J 1/16W 1 R16478 ERJ6GEYJ562V M 5.6KOHM,J,1/ 10W 1 R16479 D0GD103JA036 M 10KOHM,J,0.25W 1 R16480 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 1 R16501,02 D0GD101JA036 M 100 OHM,J,0.25W 2 R16503 ERJT06J100V M 10 OHM,F,0.25W 1 R16504 ERJT06J750V M 75 OHM,F,0.25W 1 R16506 ERJT06J100V M 10 OHM,F,0.25W 1 R16507-09 ERJT08J1R0V M 1.8OHM,J, 0.33W 3 R16510 ERJT14J1R0U C1.0 OHM, J,1/4W 1 R16511,12 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R16516,17 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R16521,22 D0GD101JA036 M 100 OHM,J,0.25W 2 R16523 ERJT06J750V M 75 OHM,F,0.25W 1 R16531 ERJT06J100V M 10 OHM,F,0.25W 1 R16532,33 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R16541 D0GDR00Z0002 M 0 OHM, 1/10W 1 R16543 D0GDR00Z0002 M 0 OHM, 1/10W 1 R16551 ERJT06J100V M 10 OHM,F,0.25W 1 R16552,53 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R16561-64 EXB38V470JV RESISTOR ARRAY 4 PAVCA R16565-68 EXB38V472JV RESISTOR ARRAY 4 R16570 EXB38V472JV RESISTOR ARRAY 1 R16573 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R16579 EXB38V470JV RESISTOR ARRAY 1 PAVCA R16580 ERJ6GEYJ222V M 2.2K OHM J 1/ 10W 1 R16582,83 ERJ6ENF3902 M 39KOHM, 1/10W 2 R16584 ERJ6ENF6801 M 6.8KOHM, 1/10W 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks R16585 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R16586 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R16587 ERJ6GEYJ222V M 2.2K OHM J 1/ 10W 1 R16588 D0GD103JA036 M 10KOHM,J,0.25W 1 R16590 ERJ6GEYJ221V M 220 OHM,J,1/ 10W 1 R16591 EXB38V472JV RESISTOR ARRAY 1 R16592 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 1 R16593 ERJ6ENF1401 M 1.4KOHM, 1/10W 1 R16600 D0GD103JA036 M 10KOHM,J,0.25W 1 R16601 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 1 R16602 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16603,04 ERJ6GEYJ331V M 330 OHM J 1/ 10W 2 R16605 ERJ6GEYG182 M 1.8KOHM,J,1/ 10W 1 R16606 D0GD103JA036 M 10KOHM,J,0.25W 1 R16607 ERJ6ENF7151 M7.15KOHM, 1/10W 1 R16608,09 ERJT08J102V M 1KOHM,J, 0.33W 2 R16610 ERJ6GEYJ104V M 100KOHM,J,1/ 10W 1 R16611 ERG2FJS104E M 100KOHM, J, 2W 1 PAVCA R16612 ERJT06J470V M 47 OHM,F,0.25W 1 R16613 ERJ8GEYJ473V M 47KOHM, J,1/8W 1 PAVCA R16615 ERJ6ENF1101 M 1.1KOHM, 1/10W 1 R16616 D0GDR00Z0002 M 0 OHM, 1/10W 1 R16617 ERJ6GEYJ222V M 2.2K OHM J 1/ 10W 1 R16619 ERJ6GEYJ124V M 120KOHM,J,1/ 10W 1 R16622-25 ERJ6GEYJ221V M 220 OHM,J,1/ 10W 4 R16627-30 ERJ6GEYJ221V M 220 OHM,J,1/ 10W 4 R16632 D0GD103JA036 M 10KOHM,J,0.25W 1 R16633 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R16634 ERJ6GEYJ471 M 470 OHM,J,1/ 10W 1 R16635 D0GD103JA036 M 10KOHM,J,0.25W 1 R16636 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 1 R16637 D0GBR00Z0002 M 0 OHM J 1/16W 1 R16638 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16639 ERJT14J1R0U C1.0 OHM, J,1/4W 1 R16641-44 ERJT06J330V M 33 OHM,F,0.25W 4 R16647-50 ERJT06J330V M 33 OHM,F,0.25W 4 R16657 ERJ6GEYG682 M 6.8KOHM,J,1/ 10W 1 R16658 D0D1101JA009 M 100 OHM,J,1W 1 R16659,60 ERJ6GEYJ224 M 220KOHM,J,1/ 10W 2 R16661 ERJ6GEYG182 M 1.8KOHM,J,1/ 10W 1 R16662 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R16663 ERJ6GEYJ562V M 5.6KOHM,J,1/ 10W 1 R16664 ERJT08J102V M 1KOHM,J, 0.33W 1 R16665 ERJT06J330V M 33 OHM,F,0.25W 1 R16666 D0GD103JA036 M 10KOHM,J,0.25W 1 R16667 ERJ6GEYJ471 M 470 OHM,J,1/ 10W 1 R16668 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16669 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 1 R16670 ERJT06J470V M 47 OHM,F,0.25W 1 R16671 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16672 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16673 D0GBR00Z0002 M 0 OHM J 1/16W 1 R16675 ERJT08J102V M 1KOHM,J, 0.33W 1 R16681-84 ERJT06J100V M 10 OHM,F,0.25W 4 R16686-89 ERJT06J100V M 10 OHM,F,0.25W 4 R16696 ERF5TK2R2 W 2.2 OHM, K, 5W 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks 128 R16700 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 1 R16701 D0GD103JA036 M 10KOHM,J,0.25W 1 R16702 ERJ6GEYJ332V M 3.3K OHM J 1/ 10W 1 R16703,04 D0GD103JA036 M 10KOHM,J,0.25W 2 R16705,06 D0GD101JA036 M 100 OHM,J,0.25W 2 R16707 ERJ6GEYJ471 M 470 OHM,J,1/ 10W 1 R16717 ERJ6GEYJ222V M 2.2K OHM J 1/ 10W 1 R16719-23 ERJ3GEYJ220 M 22 OHM,J,1/16W 5 R16729,30 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R16731 ERG1FJS823E M 82KOHM, J, 1W 1 PAVCA R16732 ERJ6GEYG392 M 3.9KOHM,J,1/ 10W 1 R16733 ERJ6GEYJ474 M 470KOHM,J,1/ 10W 1 R16734 ERJ6ENF4991 M4.99KOHM, 1/10W 1 R16735,36 ERJ6ENF2213 M 221KOHM, 1/10W 2 R16737 ERJ6ENF2103 M 210KOHM, 1/10W 1 R16738 ERG1FJS823E M 82KOHM, J, 1W 1 PAVCA R16740 ERJ6GEYJ104V M 100KOHM,J,1/ 10W 1 R16742 D0GD103JA036 M 10KOHM,J,0.25W 1 R16744 ERJ6ENF2003 M 200KOHM, 1/10W 1 R16745 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R16746,47 ERJT06J103V M 10KOHM,F,0.25W 2 R16749 D0GD103JA036 M 10KOHM,J,0.25W 1 R16750 ERJT06J223V M 22 KOHM,F,0.25W 1 R16751 ERJT06J224V M 220KOHM,F,0.25W 1 R16752 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 1 R16753 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16756 ERJT06J223V M 22 KOHM,F,0.25W 1 R16757 D0GDR00Z0002 M 0 OHM, 1/10W 1 R16761 ERJT06J100V M 10 OHM,F,0.25W 1 R16762 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16763 ERJT06J100V M 10 OHM,F,0.25W 1 R16764 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16765 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16766 ERJT06J750V M 75 OHM,F,0.25W 1 R16768 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16769 ERJT06J750V M 75 OHM,F,0.25W 1 R16771 ERJ6GEYG182 M 1.8KOHM,J,1/ 10W 1 R16774 ERG1FJS683E M 68KOHM, J, 1W 1 PAVCA R16775 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 1 R16776 D0GD101JA036 M 100 OHM,J,0.25W 1 R16777 ERJT06J151V M 150 OHM,F,0.25W 1 R16778 ERJ6GEYG182 M 1.8KOHM,J,1/ 10W 1 R16781 ERJT06J470V M 47 OHM,F,0.25W 1 R16782 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16783 ERJT06J470V M 47 OHM,F,0.25W 1 R16784 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16785,86 ERJ6ENF8202 M 82KOHM, 1/10W 2 R16787 ERJ6ENF3302 M 33KOHM, 1/10W 1 R16788 ERJT06J154V M 150KOHM,F,0.25W 1 R16789 D0GD103JA036 M 10KOHM,J,0.25W 1 R16791 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16792 D0GD103JA036 M 10KOHM,J,0.25W 1 R16794,95 ERJ6ENF2003 M 200KOHM, 1/10W 2 R16796 ERJ6ENF5602 M 56KOHM, 1/10W 1 R16797 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R16798 D0GD103JA036 M 10KOHM,J,0.25W 1 R16799 ERJ6ENF3302 M 33KOHM, 1/10W 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks R16801,02 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 2 R16804,05 ERJ8GEYJ224V M 220KOHM, J,1/ 8W 2 R16807,08 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 2 R16810,11 ERJ6ENF1742 M17.4KOHM, 1/10W 2 R16813 ERJ8GEYJ102V M 1KOHM, J,1/8W 1 R16814 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R16815 D1BD1002A044 M10.0KOHM, 1/10W 1 R16816 D0GDR00Z0002 M 0 OHM, 1/10W 1 R16818,19 ERJ6ENF6802 M 68KOHM, 1/10W 2 R16820 ERJ6ENF7872 M78.7KOHM, 1/10W 1 R16821 ERJ6ENF1003 M 100KOHM, 1/10W 1 R16822,23 ERJ6ENF8202 M 82KOHM, 1/10W 2 R16824 ERJ6ENF3302 M 33KOHM, 1/10W 1 R16825 ERJT06J154V M 150KOHM,F,0.25W 1 R16826 D0GD103JA036 M 10KOHM,J,0.25W 1 R16827 D0GDR00Z0002 M 0 OHM, 1/10W 1 R16828 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 1 R16831,32 ERJ6GEYJ104V M 100KOHM,J,1/ 10W 2 R16833 D0GD103JA036 M 10KOHM,J,0.25W 1 R16834,35 D0GDR00Z0002 M 0 OHM, 1/10W 2 R16838 ERJ14YJ563U M 56KOHM, 1/2W 1 R16841 ERJ14YJ563U M 56KOHM, 1/2W 1 R16844 ERJ6ENF1241 M1.24KOHM, 1/10W 1 R16845 ERJ6ENF5622 M5.62KOHM, 1/10W 1 R16846 ERJ6ENF5762 M57.6KOHM, 1/10W 1 R16850 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 1 R16851 ERJ6GEYJ104V M 100KOHM,J,1/ 10W 1 R16852 D0GD103JA036 M 10KOHM,J,0.25W 1 R16855 ERG1FJS103E M 10KOHM, J, 1W 1 PAVCA R16856 ERQ12AJW560E F 56 OHM, J,1/2W 1 R16857 ERJ12YJ124U M 120KOHM, 1/2W 1 R16860 D0D28R2JA021 M 8.2 OHM,J,2W 1 R16869 ERJ8GEYJ473V M 47KOHM, J,1/8W 1 PAVCA R16870 ERG2FJS333E M 33KOHM, J, 2W 1 PAVCA R16871 ERJ6GEYG392 M 3.9KOHM,J,1/ 10W 1 R16872 ERJ6GEYJ332V M 3.3K OHM J 1/ 10W 1 R16873 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R16874,75 ERJ6ENF7152 M71.5KOHM, 1/10W 2 R16878 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R16879 ERJ6GEYJ472V M 4.7K OHM J 1/ 10W 1 R16880 D0GBR00Z0002 M 0 OHM J 1/16W 1 R16886-88 ERJ6GEYJ224 M 220KOHM,J,1/ 10W 3 R17107-10 ERJT14J6R8U C6.8 OHM, J,1/4W 4 R17119-22 ERJT14J6R8U C6.8 OHM, J,1/4W 4 R17125,26 EXB38V471JV RESISTOR ARRAY 2 PAVCA R17128,29 ERJT14J6R8U C6.8 OHM, J,1/4W 2 R17131,32 EXB38V471JV RESISTOR ARRAY 2 PAVCA R17134,35 ERJT14J6R8U C6.8 OHM, J,1/4W 2 R17137 D0GF472JA047 M 4.7KOHM,J, 0.33W 1 R17138 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R17139 ERJ6GEYJ104V M 100KOHM,J,1/ 10W 1 R17140 ERJ6GEYJ224 M 220KOHM,J,1/ 10W 1 R17151,52 EXB38V470JV RESISTOR ARRAY 2 PAVCA R17153 EXB38V681JV RESISTOR ARRAY 1 PAVCA R17154 EXB38V470JV RESISTOR ARRAY 1 PAVCA R17155,56 ERJ3GEYJ681 M 680 OHM,J,1/ 16W 2 R17157,58 EXB38V220JV RESISTOR ARRAY 2 R17159,60 ERJ3GEYJ681 M 680 OHM,J,1/ 16W 2 R17167,68 EXB38V470JV RESISTOR ARRAY 2 PAVCA Safety Ref. No. Part No. Part Name & Description Pcs Remarks 129 R17169,70 EXB38V471JV RESISTOR ARRAY 2 PAVCA R17173,74 EXB38V470JV RESISTOR ARRAY 2 PAVCA R17175,76 EXB38V471JV RESISTOR ARRAY 2 PAVCA R17179,80 EXB38V470JV RESISTOR ARRAY 2 PAVCA R17181,82 EXB38V471JV RESISTOR ARRAY 2 PAVCA R17201-04 EXB38V471JV RESISTOR ARRAY 4 PAVCA R17209-12 ERJT14J6R8U C6.8 OHM, J,1/4W 4 R17213-16 EXB38V471JV RESISTOR ARRAY 4 PAVCA R17221-24 ERJT14J6R8U C6.8 OHM, J,1/4W 4 R17225,26 EXB38V471JV RESISTOR ARRAY 2 PAVCA R17229,30 ERJT14J6R8U C6.8 OHM, J,1/4W 2 R17251,52 EXB38V470JV RESISTOR ARRAY 2 PAVCA R17253 EXB38V681JV RESISTOR ARRAY 1 PAVCA R17254 EXB38V470JV RESISTOR ARRAY 1 PAVCA R17255,56 ERJ3GEYJ681 M 680 OHM,J,1/ 16W 2 R17257 EXB38V220JV RESISTOR ARRAY 1 R17258 EXB38V681JV RESISTOR ARRAY 1 PAVCA R17259 EXB38V220JV RESISTOR ARRAY 1 R17260 ERJ6GEYJ224 M 220KOHM,J,1/ 10W 1 R17261,62 EXB38V470JV RESISTOR ARRAY 2 PAVCA R17263,64 EXB38V681JV RESISTOR ARRAY 2 PAVCA R17277,78 EXB38V471JV RESISTOR ARRAY 2 PAVCA R17304,05 ERJT14J6R8U C6.8 OHM, J,1/4W 2 R17310,11 ERJT14J6R8U C6.8 OHM, J,1/4W 2 R17316,17 ERJT14J6R8U C6.8 OHM, J,1/4W 2 R17322,23 ERJT14J6R8U C6.8 OHM, J,1/4W 2 R17341 D0GF472JA047 M 4.7KOHM,J, 0.33W 1 R17342,43 EXB38V470JV RESISTOR ARRAY 2 PAVCA R17344,45 EXB38V471JV RESISTOR ARRAY 2 PAVCA R17346,47 EXB38V470JV RESISTOR ARRAY 2 PAVCA R17348,49 EXB38V471JV RESISTOR ARRAY 2 PAVCA R17350,51 EXB38V470JV RESISTOR ARRAY 2 PAVCA R17352,53 EXB38V471JV RESISTOR ARRAY 2 PAVCA R17354 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R17355 ERJ6GEYJ104V M 100KOHM,J,1/ 10W 1 R17356 ERJ6GEYJ224 M 220KOHM,J,1/ 10W 1 R17357,58 EXB38V220JV RESISTOR ARRAY 2 R17359,60 ERJ3GEYJ681 M 680 OHM,J,1/ 16W 2 RM2501 PNA4701M07TV REMOCON RECEIVER 1 S2 K1KA02BA0061 2P CONNECTOR 1 SC2 K1KA02A00676 2P CONNECTOR 1 SC20 K1MN35BA0266 35P CONNECTOR 1 SC30 K1KA08AA0190 8P CONNECTOR 1 SC41,42 K1KA23AA0733 23P CONNECTOR 2 SC46 K1KA09A00239 9P CONNECTOR 1 SCMM1 TMME047 CLAMPER 1 SCMM4 TMME292 CLAMPER 1 SCMM5 TMME260 CLAMPER 1 SD1B-5B K1MNA8BA0250 8P CONNECTOR 5 SD11 K1MN20BA0231 20P CONNECTOR 1 SD42 K1KB23AA0234 23P CONNECTOR 1 SD46 K1KY09AA0607 9P CONNECTOR 1 SS11 K1KA02A00676 2P CONNECTOR 1 SS12 K1KA10AA0194 10P CONNECTOR 1 SS21 K1KA07A00170 7P CONNECTOR 1 SS24 K1KB07AA0087 7P CONNECTOR 1 SS33 K1KA10A00416 10P CONNECTOR 1 SS34 K1KA03AA0193 3P CONNECTOR 1 SS35 K1KA04AA0193 4P CONNECTOR 1 SS53 K1MN13BA0258 13P CONNECTOR 1 SS55,56 K1MN13BA0258 13P CONNECTOR 2 SS58A K1MN13BA0258 13P CONNECTOR 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks SS2MM2 TMME190 CLAMPER 1 SSMM3,M4 TMME190 CLAMPER 2 SU1B-5B K1MNA8BA0250 8P CONNECTOR 5 SU11 K1MN20BA0266 20P CONNECTOR 1 SU41 K1KB23AA0234 23P CONNECTOR 1 SW2500 K0F122A00172 SWITCREMOTE CON- TROLH 1 SW3751 EVQPC105K SWITCH 1 SW3753-58 EVQPC105K SWITCH 6 T16301A ETS19AB249AC SWITCHING TRANS 1 TU8300 ENGE6608KF TUNER 1 PAVCA VR16000 EVMEASA00B54 CONTROL 50KOHMB 0.3W 1 VR16600 EVMEASA00B54 CONTROL 50KOHMB 0.3W 1 VR16602 EVMEASA00B23 CONTROL 2KOHMB 0.3W 1 X1100 H0J100500035 CRYSTAL 1 X2010 H0J245500089 CRYSTAL 1 X8001 H0J270500061 CRYSTAL 1 X8300 H0J250500079 CRYSTAL 1 PAVCA X9000 H2D100500004 CRYSTAL 1 X9200 H0J200500076 CRYSTAL 1 ZA3701,02 K4CZ01000027 AV TERMINAL 2 ZA3801,02 K4AD01D00005 TERMINAL 2 ZA4700 K4AZ01D00004 TERMINAL 1 ZA4702-08 K4AZ01D00004 TERMINAL 7 ZA9000 K4CD01000011 AV TERMINAL 1 ZA14901,0 2 K4AD01Z00003 TERMINAL 2 ZA14951,5 2 K4AD01Z00003 TERMINAL 2 ZA16001- 03 K4CD01000011 AV TERMINAL 3 ZA16401- 03 K4CD01000011 AV TERMINAL 3 ZA17102- 05 K4AD01Z00001 TERMINAL 4 ZA17201 K4AD01Z00001 TERMINAL 1 ZA17203- 05 K4AD01Z00001 TERMINAL 3 ZA17301- 04 K4AD01Z00001 TERMINAL 4 A601 AYRA652MSV8T ARRESTOR 1 C501 ECQU2A103MLA P 0.01UF, M,250V 1 C503 ACKMQ2W560T ELECTROLYTIC CAPACITOR 1 C505 ECQV1H224JL P 0.22UF, J, 50V 1 C506 ACKZE1H100T ELECTROLYTIC CAPACITOR 1 C507 ACKZE1H221T ELECTROLYTIC CAPACITOR 1 C508 ACKZE1H220T ELECTROLYTIC CAPACITOR 1 C551 ACKZE1A102LC ELECTROLYTIC CAPACITOR 1 C557 ECQV1473JM PLASTIC FILM CAPACITOR 1 C558 ECQV1H224JL P 0.22UF, J, 50V 1 C559 ECQV1H474JL P 0.47UF, J, 50V 1 C601 ECQU2A105MLA PLASTIC FILM CAPACITOR 1 D501 VDS1WBA80 DIODE 1 D504 VXST3D82BL3 POWER CLAMPER 1 D505,06 VDAG01AT DIODE 2 Safety Ref. No. Part No. Part Name & Description Pcs Remarks 130 D551 VDRK39A5 DIODE 1 D556 VDRF101A2S DIODE 1 F501 HU382T2C MICRO FUSE 1 F601,02 HU215010BEP CARTRIDGE FUSE(LEADTYPE) 2 IC501 MIP3E30MPSCF IC 1 IC555 AN1431TBTA INTEGRATED CIR- CUIT 1 L501 EXCELSA35 BEAD CHOKE 1 L502,03 EXCELDR35C BEAD CHOKE 2 L551 EXCELDR35C BEAD CHOKE 1 L601,02 AYP3165208ZA FILTER CHOKE 2 L604 AYP3165208ZA FILTER CHOKE 1 MC501 MDPTZA101 MODULE 1 P9 AKS02B-VT CONNECTOR 1 P51 AKB6P-VH CONNECTOR 1 P53 AKB2P-VH CONNECTOR 1 P55 AKB4B-EH-A CONNECTOR 1 PC502 VPS2581AL1VH OPTOISOLATOR 1 R501 ARR5B100JC2 WIREWOUND RESIS- TOR 1 R502 ARRCR6J825M METAL GLAZE FIXED RESISTOR 1 R505 ERDS2FJ561 C 560 OHM, J,1/ 4W 1 R506 ARRCR2F1304T METAL GLAZE FIXED RESISTOR 1 R507 ARRCR2F1184T METAL GLAZE FIXED RESISTOR 1 R509 ARRCR2F1304T METAL GLAZE FIXED RESISTOR 1 R510 ARRCR2F1184T METAL GLAZE FIXED RESISTOR 1 R522 ERDS2FJ180 CARBON FILM RESISTOR 1 R555 ER0S2CKF1052 M10.5KOHM, F,1/ 4W 1 R558 ER0S2CKF1503 M 150KOHM, F,1/ 4W 1 R560 ERDS2FJ222 C 2.2KOHM, J,1/ 4W 1 R562 ERDS2FJ150 CARBON FILM RESISTOR 1 R563 ERDS2FJ121 CARBON FILM RESISTOR 1 R564 ER0S2CHD1002 METAL FILM RESISTOR 1 R601 ARRCR5J624M METAL GLAZE FIXED RESISTOR 1 T501 ETB25AH118BH TRANSFORMER 1 Z501 ERZVGAD471 VARISTOR 1 Z601,02 ERZVGED751 VARISTOR 2 Z603 ERZVGAD471 VARISTOR 1 ZD501,02 MA4300NM ZENER DIODE 2 ZD503 MA4082NM ZENER DIODE 1 ZD555 MA4330NM ZENER DIODE 1 C201 ACKZE1H220T ELECTROLYTIC CAPACITOR 1 C202,03 ACCC3FD470JP CERAMIC CAPACI- TOR 2 C204,05 ACMPEF12333H PLASTIC FILM CAPACITOR 2 C206 ECKENA101KBR C 100P 250V 1 C207,08 ACDE1R681KP CERAMIC CAPACI- TOR 2 Safety Ref. No. Part No. Part Name & Description Pcs Remarks C251 ECQV1H104JL P 0.1UF, J, 50V 1 C252 ECQV1H224JL P 0.22UF, J, 50V 1 C254,55 ECQE2223SKF PLASTIC FILM CAPACITOR 2 C256-58 ACKMQ220901Z ELECTROLYTIC CAPACITOR 3 C301 ACKZE1H220T ELECTROLYTIC CAPACITOR 1 C302,03 ACRR3DD101K7 CERAMIC CAPACI- TOR 2 C304 ACMPEF12473H PLASTIC FILM CAPACITOR 1 C305,06 ACCK1B331KP CERAMIC CAPACI- TOR 2 C352 ACKZE1E182ST ELECTROLYTIC CAPACITOR 1 C354 ECQV1H224JL P 0.22UF, J, 50V 1 C355 ECQV1H823JL PLASTIC FILM CAPACITOR 1 C357,58 ACKZE1E471LT ELECTROLYTIC CAPACITOR 2 C401,02 ECQE2104SKF PLASTIC FILM CAPACITOR 2 C403 EETHC2C471HX ELECTROLYTIC CAPACITOR 1 C404 ACKZE1H101T ELECTROLYTIC CAPACITOR 1 C406 EETHC2A122JJ ELECTROLYTIC CAPACITOR 1 C407 ACRR3DD101K7 ELECTROLYTIC CAPACITOR 1 C409 ECQE2104SKF PLASTIC FILM CAPACITOR 1 C451 ACKZE1A471C ELECTROLYTIC CAPACITOR 1 C504 ACKZE1H220T ELECTROLYTIC CAPACITOR 1 C555 ACKZE1E470T ELECTROLYTIC CAPACITOR 1 C602 ECQU2A105MLA PLASTIC FILM CAPACITOR 1 C603,04 ECKENA471KBR CERAMIC CAPACI- TOR 2 C605 ACDE1R102K7 CERAMIC CAPACI- TOR 1 C606 AC4MPK105KA3 PLASTIC FILM CAPACITOR 1 C610 ECQV1H105JL PLASTIC FILM CAPACITOR 1 C611 ACKZE1H220T ELECTROLYTIC CAPACITOR 1 C612,13 EETHD2W301LZ ELECTROLYTIC CAPACITOR 2 C615 ECKENA221KBR C 221P 250V 1 C625 ACDE1R222KP CERAMIC CAPACI- TOR 1 C701 ACKZE1A471C ELECTROLYTIC CAPACITOR 1 C702 ECQV1H103JL P 0.01UF, J, 50V 1 D251 MA165KU DIODE 1 D254-57 MA2DF3100S DIODE 4 D351 VDG865C08R DIODE 1 D352 VDAG01AT DIODE 1 D353 VDG865C08R DIODE 1 D401 VDD6SBN20 DIODE 1 D402 VDAG01AT DIODE 1 D403 VDYG901C3R DIODE 1 D601,02 MA165KU DIODE 2 D603,04 VDAP01CT DIODE 2 D606 VDS3V60L1 DIODE 1 D702 VDERA83-004T DIODE 1 F201 HU216005BEP CARTRIDGE FUSE(LEADTYPE) 1 F301 HU216005BEP CARTRIDGE FUSE(LEADTYPE) 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks 131 IC251 AN1431TBTA INTEGRATED CIR- CUIT 1 IC352 AN1431TBTA INTEGRATED CIR- CUIT 1 K601 ALKT329C93 RELAY 1 K602 ALDJ5D2T8 RELAY 1 L401 AYLH8TB681K CHOKE 1 L402 AYH221012HY CHOKE 1 L603 ETB50CZ14GAD CHOKE 1 MC201 MDPPNB331 MODULE 1 MC203 MP00R3A1 MODULE 1 MC301 MDPPNB102 MODULE 1 MC352 MDPJFB101 MODULE 1 MC401 MDPPSA103 MODULE 1 MC451 MDPLSB101 MODULE 1 MC502 MDPHHA101 MODULE 1 MC552 MDPPFC101 MODULE 1 MC601 MDPLPA101 MODULE 1 MC602 MP00P18 MODULE 1 MC603 MP00P28 MODULE 1 MC606 MP00P29 MODULE 1 MC701 MDPZDA101 MODULE 1 P2 AKB2P3-VH-B CONNECTOR 1 P6 AKB12B-EH-A CONNECTOR 1 P7 AKB11B-EH-A CONNECTOR 1 P11 AKB2P3-VH-B CONNECTOR 1 P12 AKB10B-PH-KS CONNECTOR 1 P25 AKB13B-PH-KS CONNECTOR 1 P52 AKB6P-VH CONNECTOR 1 P54 AKB2P-VH CONNECTOR 1 P56 AKB4B-EH-A CONNECTOR 1 PC201,02 VPS2581AL1VH OPTOISOLATOR 2 PC301,02 VPS2581AL1VH OPTOISOLATOR 2 PC401 VPS2581AL1VH OPTOISOLATOR 1 PC501 VPS2581AL1VH OPTOISOLATOR 1 Q301,02 VKFMA16N55G FIELD EFFECT TRANSISTOR 2 Q351 2SK3704 FIELD EFFECT TRANSISTOR 1 Q401 2SK3607 FIELD EFFECT TRANSISTOR 1 Q402,03 2SA17670Q2TV TRANSISTOR 2 R202 ERQ14AJ4R7J F 4.7 OHM, J,1/ 4W 1 R203,04 ERDS2FJ334 CARBON FILM RESISTOR 2 R208 ERG12SJ910J METAL OXIDE FILM RESISTOR 1 R215 ERG12SJ680J METAL OXIDE FILM RESISTOR 1 R216 ERG12SJ220J METAL OXIDE FILM RESISTOR 1 R217 ERG12SJ910J METAL OXIDE FILM RESISTOR 1 R251,52 ARRCR2F1213T METAL GLAZE FIXED RESISTOR 2 R253 ERDS2FJ151 CARBON FILM RESISTOR 1 R254 ERDS2FJ102 M 1KOHM,J,1/10W 1 R256 ER0S2CHD1002 METAL FILM RESISTOR 1 R257-59 ERDS2FJ472 CARBON FILM RESISTOR 3 R263 ERDS2FJ220 C 22 OHM, J,1/4W 1 R264 ERDS2FJ102 M 1KOHM,J,1/10W 1 R265 ARRCR1F2703T METAL GLAZE FIXED RESISTOR 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks R266,67 ARRCR1F3323T METAL GLAZE FIXED RESISTOR 2 R302 ERQ14AJ4R7J F 4.7 OHM, J,1/ 4W 1 R303,04 ERDS2FJ334 CARBON FILM RESISTOR 2 R308 ERG12SJ910J METAL OXIDE FILM RESISTOR 1 R309 ERG12SJ680J METAL OXIDE FILM RESISTOR 1 R310 ERG12SJ220J METAL OXIDE FILM RESISTOR 1 R311 ERG12SJ910J METAL OXIDE FILM RESISTOR 1 R351 ER0S2CHF8871 M8.87KOHM, F,1/ 4W 1 R352 ARMPC5WR03J METAL PLATE RESISTOR 1 R353 ERDS2FJ561 C 560 OHM, J,1/ 4W 1 R354 ERDS2FJ221 C 220 OHM, J,1/ 4W 1 R355 ERDS2FJ222 C 2.2KOHM, J,1/ 4W 1 R356 ER0S2CHD1002 METAL FILM RESISTOR 1 R359 ER0S2CHD5232 METAL FILM RESISTOR 1 R362 ERG12SJ332J METAL OXIDE FILM RESISTOR 1 R366 ER0S2CHF6981 METAL FILM RESISTOR 1 R367 ER0S2CHF8451 METAL FILM RESISTOR 1 R371 ER0S2CHF6981 METAL FILM RESISTOR 1 R372 ER0S2CHF1151 METAL FILM RESISTOR 1 R403 ERG12SJ100J METAL OXIDE FILM RESISTOR 1 R404 ER0S2CKF6492 M64.9KOHM, F,1/ 4W 1 R405 ARRF2EJR10B METAL PLATE RESISTOR 1 R409 ERDS2FJ473 C 47KOHM, J,1/4W 1 R411 ER0S2CHF2001 METAL FILM RESISTOR 1 R412 ER0S2CKF2001 METAL FILM RESISTOR 1 R413,14 ER0S2CHF3162 METAL FILM RESISTOR 2 R417,18 ER0S2CHF4422 METAL FILM RESISTOR 2 R420 ER0S2CHF5620 METAL FILM RESISTOR 1 R421 ER0S2CHF1652 METAL FILM RESISTOR 1 R456 ER0S2CKF1332 M13.3KOHM, F,1/ 4W 1 R557 ERDS2TJ392 C 3.9KOHM, J,1/ 4W 1 R559 ER0S2CKF1623 M 162KOHM, F,1/ 4W 1 R561 ER0S2CHF2152 METAL FILM RESISTOR 1 R603 ARRCR2F4753T METAL GLAZE FIXED RESISTOR 1 R604 ARRCR2F4023T METAL GLAZE FIXED RESISTOR 1 R607,08 ARRCR2F7503T METAL GLAZE FIXED RESISTOR 2 R611 ER0S2CHF5112 METAL FILM RESISTOR 1 R617,18 ARRF5EJR15B METAL PLATE RESISTOR 2 R619 ARRF5EJR10B METAL PLATE RESISTOR 1 R622 ERDS2FJ472 CARBON FILM RESISTOR 1 R623 ERG12SJ270J METAL OXIDE FILM RESISTOR 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks 132 R624 ERDS2FJ472 CARBON FILM RESISTOR 1 R625 ERG12SJ270J METAL OXIDE FILM RESISTOR 1 R626 ERDS2FJ472 CARBON FILM RESISTOR 1 R627 ERG12SJ270J METAL OXIDE FILM RESISTOR 1 R630,31 ARRCR1F2493T METAL GLAZE FIXED RESISTOR 2 R632 ARRCR1F2213T METAL GLAZE FIXED RESISTOR 1 R701 ERDS2FJ221 C 220 OHM, J,1/ 4W 1 R702 ERDS2FJ222 C 2.2KOHM, J,1/ 4W 1 R703 ERDS2FJ221 C 220 OHM, J,1/ 4W 1 R704 ERDS2FJ222 C 2.2KOHM, J,1/ 4W 1 R706 ERDS2FJ221 C 220 OHM, J,1/ 4W 1 R707 ERDS2FJ222 C 2.2KOHM, J,1/ 4W 1 R712 ERDS2FJ221 C 220 OHM, J,1/ 4W 1 R713 ERDS2FJ222 C 2.2KOHM, J,1/ 4W 1 RF601 HUY5JA200JP THERMAL CUTOFF WITH RESISTOR 1 T201 ETB57LZ1KGAD TRANSFORMER 1 T301 ETB50LZ18GAD TRANSFORMER 1 VR251 EVMEASA01B55 VARIABLE RESIS- TOR 1 VR401 EVMEASA01B54 VARIABLE RESIS- TOR 1 ZD201 MA4270NM ZENER DIODE 1 ZD203,04 MA4270NM ZENER DIODE 2 ZD251 MA4330NM ZENER DIODE 1 ZD301,02 MA4270NM ZENER DIODE 2 ZD305 MA4270NM ZENER DIODE 1 ZD351 MA4330NM ZENER DIODE 1 ZD451 MAZ4068NMF ZENER DIODE 1 ZD601 MA4047NM ZENER DIODE 1 Safety Ref. No. Part No. Part Name & Description Pcs Remarks
