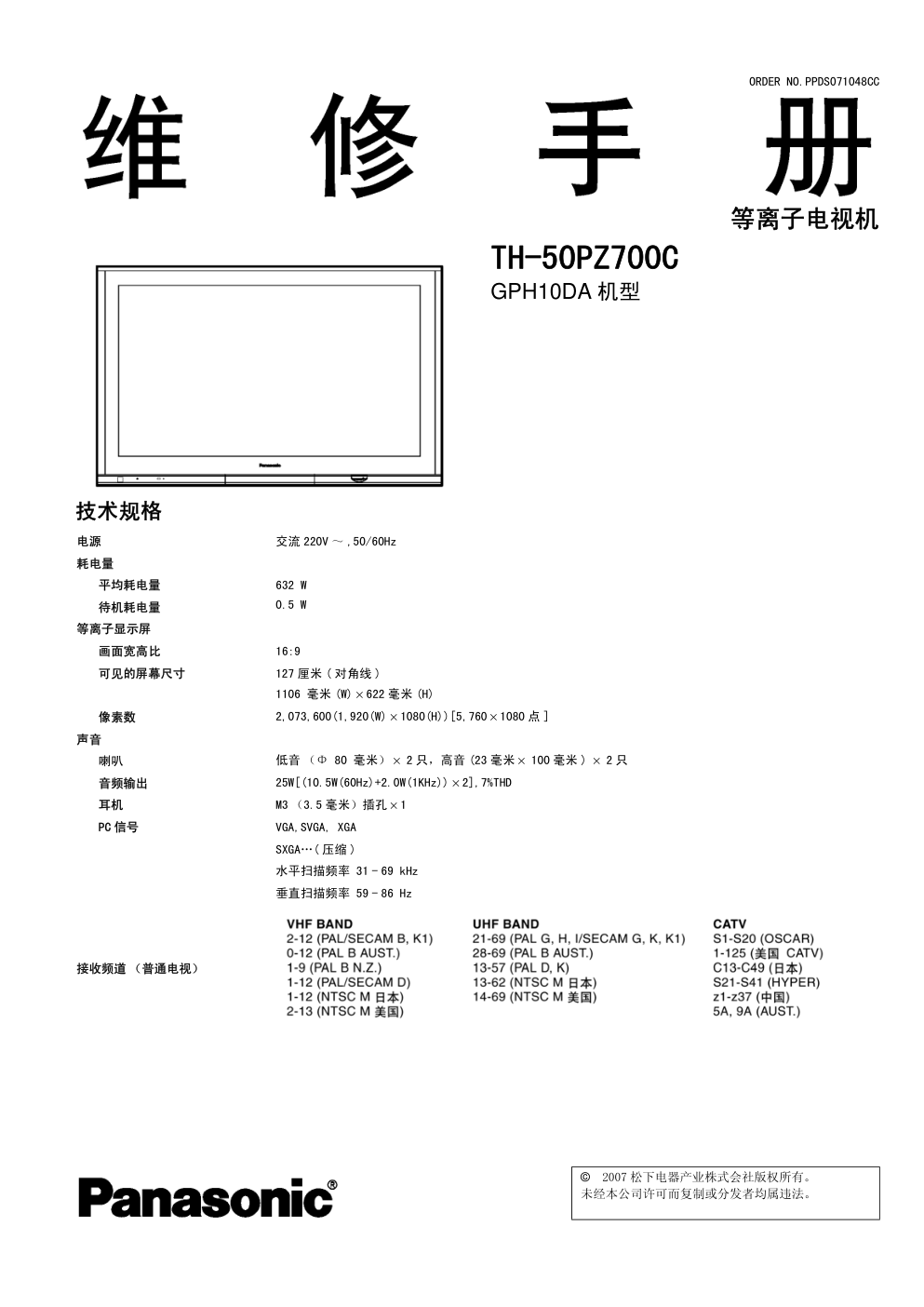

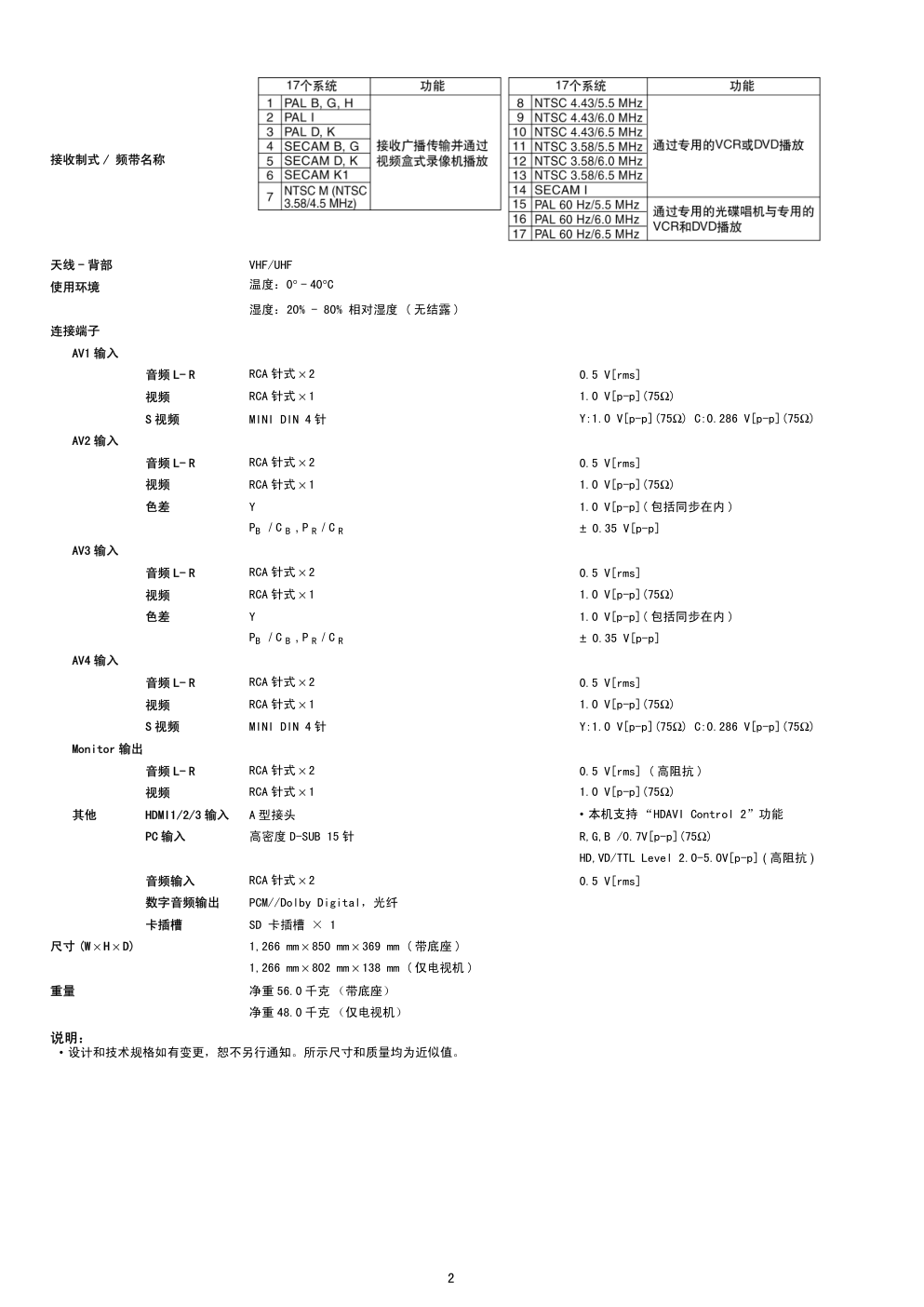

© 2007 松下电器产业株式会社版权所有。 未经本公司许可而复制或分发者均属违法。 ORDER NO.PPDS071048CC 等离子电视机 TH-50PZ700C GPH10DA 机型 技术规格 电源 交流 220V ～ ,50/60Hz 耗电量 平均耗电量 632 W 待机耗电量 0.5 W 等离子显示屏 画面宽高比 16:9 可见的屏幕尺寸 127 厘米 ( 对角线 ) 1106 毫米 (W) × 622 毫米 (H) 像素数 2,073,600(1,920(W) × 1080(H))[5,760 × 1080 点 ] 声音 喇叭 低音 （Φ 80 毫米） × 2 只，高音 (23 毫米 × 100 毫米 ) × 2 只 音频输出 25W[(10.5W(60Hz)+2.0W(1KHz)) × 2],7%THD 耳机 M3 （3.5 毫米）插孔 × 1 PC 信号 VGA,SVGA, XGA SXGA…( 压缩 ) 水平扫描频率 31 - 69 kHz 垂直扫描频率 59 - 86 Hz 接收频道 （普通电视） 2 接收制式 / 频带名称 天线 - 背部 VHF/UHF 使用环境 温度：0° - 40°C 湿度：20% - 80% 相对湿度 ( 无结露 ) 连接端子 AV1 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) S 视频 MINI DIN 4 针 Y:1.0 V[p-p](75Ω) C:0.286 V[p-p](75Ω) AV2 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) 色差 Y 1.0 V[p-p]( 包括同步在内 ) PB / C B , P R / C R ± 0.35 V[p-p] AV3 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) 色差 Y 1.0 V[p-p]( 包括同步在内 ) PB / C B , P R / C R ± 0.35 V[p-p] AV4 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) S 视频 MINI DIN 4 针 Y:1.0 V[p-p](75Ω) C:0.286 V[p-p](75Ω) Monitor 输出 音频 L- R RCA 针式 × 2 0.5 V[rms] ( 高阻抗 ) 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) 其他 HDMI1/2/3 输入 A 型接头 • 本机支持 “HDAVI Control 2”功能 PC 输入 高密度 D-SUB 15 针 R,G,B /0.7V[p-p](75Ω) HD,VD/TTL Level 2.0-5.0V[p-p] ( 高阻抗 ) 音频输入 RCA 针式 × 2 0.5 V[rms] 数字音频输出 PCM//Dolby Digital，光纤 卡插槽 SD 卡插槽 × 1 尺寸 (W × H × D) 1,266 mm × 850 mm × 369 mm ( 带底座 ) 1,266 mm × 802 mm × 138 mm ( 仅电视机 ) 重量 净重 56.0 千克 （带底座） 净重 48.0 千克 （仅电视机） 说明： • 设计和技术规格如有变更，恕不另行通知。所示尺寸和质量均为近似值。 3 目录 页数 页数 1 适用信号----------------------------------------- 5 2 安全警告----------------------------------------- 6 2.1. 一般准则 ----------------------------------- 6 2.2. 漏电检查 ----------------------------------- 6 3 静电敏感设备 (ES) 的静电放电保护 (ESD) ------------ 7 4 关于无铅焊接 (PbF) ------------------------------- 8 5 维修提示----------------------------------------- 9 6 等离子显示屏更换方式---------------------------- 10 6.1. 取下后盖 ---------------------------------- 10 6.2. 取下风扇 B/C ------------------------------ 10 6.3. 取下风扇 A -------------------------------- 10 6.4. 取下后端子盖 ------------------------------ 10 6.5. 取下 P 电路板 ------------------------------ 10 6.6. 取下调谐器组件 ---------------------------- 12 6.7. 取下 DH 电路板 ----------------------------- 12 6.8. 取下 DG 电路板 ----------------------------- 13 6.9. 取下 H 电路板 ------------------------------ 13 6.10. 取下扬声器组件 （左、右）------------------ 13 6.11. 取下 PA 电路板 ----------------------------- 14 6.12. 取下 D 电路板 ------------------------------ 14 6.13. 取下 SU 电路板 ----------------------------- 14 6.14. 取下 SD 电路板 ----------------------------- 15 6.15. 取下 SC 电路板 ----------------------------- 15 6.16. 取下 SS 电路板 ----------------------------- 15 6.17. 取下支架 ---------------------------------- 15 6.18. 取下 C1 电路板 ----------------------------- 16 6.19. 取下 C2 电路板 ----------------------------- 16 6.20. 取下 C3 电路板 ----------------------------- 16 6.21. 取下 C4 电路板 ----------------------------- 16 6.22. 取下 C5 电路板 ----------------------------- 16 6.23. 取下 C6 电路板 ----------------------------- 17 6.24. 取下前支架 -------------------------------- 17 6.25. 取下 G 和 GH 电路板 ------------------------- 17 6.26. 取下 GS 电路板 ----------------------------- 17 6.27. 取下 S 电路板 ------------------------------ 18 6.28. 取下 K 电路板 ------------------------------ 18 6.29. 取下前面框 （玻璃）上的等离子显示屏部件 --- 18 6.30. 取下内置扬声器 ---------------------------- 19 6.31. 安装等离子显示屏 （完成）------------------ 19 7 注意事项---------------------------------------- 20 7.1. 注意事项 ---------------------------------- 20 8 导线布置---------------------------------------- 21 8.1. 导线 (1) ---------------------------------- 21 8.2. 导线 (2) ---------------------------------- 22 8.3. 导线 (3) ---------------------------------- 23 9 自检功能---------------------------------------- 24 9.1. IIC 总线检测 ------------------------------ 24 9.2. 电源 LED 闪烁次数图 ------------------------ 25 9.3. 无电源 ------------------------------------ 26 9.4. 无图像 ------------------------------------ 27 9.5. 显示器局部故障 ---------------------------- 28 10 维修模式---------------------------------------- 29 10.1. 如何进入维修模式---------------------------29 10.2. 维修工具模式-------------------------------31 11 调整步骤 ----------------------------------------32 11.1. 驱动器设置---------------------------------32 11.2. 初始化脉冲调整-----------------------------33 11.3. P.C.B. （印刷电路版）更换 ------------------33 11.4. 调整点位置---------------------------------34 11.5. 测试点位置---------------------------------34 12 调整 --------------------------------------------35 12.1. 副对比度调整-------------------------------35 12.2. PAL 显示屏白平衡调整 -----------------------36 12.3. HD 白平衡调整 ------------------------------37 13 旅馆模式 ----------------------------------------38 14 导线图 ------------------------------------------39 14.1. P(Multi) 电路板 ----------------------------39 14.2. P(Sus) 电路板 ------------------------------42 14.3. PA 电路板 ----------------------------------45 14.4. G 电路板 -----------------------------------46 14.5. H 电路板 -----------------------------------47 14.6. GH 和 GS 电路板 -----------------------------49 14.7. DG 电路板 ----------------------------------50 14.8. DH 电路板 ----------------------------------53 14.9. D 电路板 -----------------------------------54 14.10. C1 电路板 ----------------------------------56 14.11. C2 电路板 ----------------------------------57 14.12. C3 电路板 ----------------------------------58 14.13. C4 电路板 ----------------------------------59 14.14. C5 电路板 ----------------------------------60 14.15. C6 电路板 ----------------------------------61 14.16. SC 电路板 ----------------------------------62 14.17. SU 电路板 ----------------------------------65 14.18. SD 电路板 ----------------------------------66 14.19. SS 电路板 ----------------------------------67 14.20. K 和 S 电路板 -------------------------------70 15 方框图和线路图 ----------------------------------71 15.1. 线路图注意事项-----------------------------71 15.2. 主要集成电路方框图-------------------------72 15.3. P 电路板 （1/2）方框图----------------------73 15.4. P 电路板 （2/2）方框图----------------------74 15.5. P 电路板 (1/2) 线路图 -----------------------75 15.6. P 电路板 (2/2) 线路图 -----------------------76 15.7. PA 电路板方框图 ----------------------------77 15.8. PA 电路板 (1/2) 线路图 ----------------------78 15.9. PA 电路板 (2/2) 线路图 ----------------------79 15.10. G，GS 和 S 电路板方框图和线路图 -------------80 15.11. H 电路板 (1/2) 方框图 -----------------------81 15.12. H 电路板 (2/2) 方框图 -----------------------82 15.13. H 电路板 (1/5) 线路图 -----------------------83 15.14. H 电路板 (2/5) 线路图 -----------------------84 15.15. H 电路板 (3/5) 线路图 -----------------------85 15.16. H 电路板 (4/5) 线路图 -----------------------86 15.17. H 电路板 (5/5) 线路图 -----------------------87 4 15.18. GH 和 K 电路板方框图和线路图---------------- 88 15.19. DG 电路板 (1/3) 方框图---------------------- 89 15.20. DG 电路板 (2/3) 方框图---------------------- 90 15.21. DG 电路板 (3/3) 方框图---------------------- 91 15.22. DG 电路板 (1/12) 线路图--------------------- 92 15.23. DG 电路板 (2/12) 线路图--------------------- 93 15.24. DG 电路板 (3/12) 线路图--------------------- 94 15.25. DG 电路板 (4/12) 线路图--------------------- 95 15.26. DG 电路板 (5/12) 线路图--------------------- 96 15.27. DG 电路板 (6/12) 线路图--------------------- 97 15.28. DG 电路板 (7/12) 线路图--------------------- 98 15.29. DG 电路板 (8/12) 线路图--------------------- 99 15.30. DG 电路板 (9/12) 线路图-------------------- 100 15.31. DG 电路板 (10/12) 线路图------------------- 101 15.32. DG 电路板 (11/12) 线路图------------------- 102 15.33. DG 电路板 (12/12) 线路图------------------- 103 15.34. DH 电路板方框图--------------------------- 104 15.35. DH 电路板 (1/4) 线路图--------------------- 105 15.36. DH 电路板 (2/4) 线路图--------------------- 106 15.37. DH 电路板 (3/4) 线路图--------------------- 107 15.38. DH 电路板 (4/4) 线路图--------------------- 108 15.39. D 电路板 (1/2) 方框图---------------------- 109 15.40. D 电路板 (2/2) 方框图---------------------- 110 15.41. D 电路板 (1/8) 线路图---------------------- 111 15.42. D 电路板 (2/8) 线路图---------------------- 112 15.43. D 电路板 (3/8) 线路图---------------------- 113 15.44. D 电路板 (4/8) 线路图---------------------- 114 15.45. D 电路板 (5/8) 线路图---------------------- 115 15.46. D 电路板 (6/8) 线路图---------------------- 116 15.47. D 电路板 (7/8) 线路图---------------------- 117 15.48. D 电路板 (8/8) 线路图---------------------- 118 15.49. C1，C2，C5 和 C6 电路板方框图-------------- 119 15.50. C2，C3，C4 和 C5 电路板方框图-------------- 120 15.51. C1 电路板 (1/2) 线路图--------------------- 121 15.52. C1 电路板 (2/2) 线路图 ---------------------122 15.53. C2 电路板 (1/2) 线路图 ---------------------123 15.54. C2 电路板 (2/2) 线路图 ---------------------124 15.55. C3 电路板 (1/2) 线路图 ---------------------125 15.56. C3 电路板 (2/2) 线路图 ---------------------126 15.57. C4 电路板 (1/2) 线路图 ---------------------127 15.58. C4 电路板 (2/2) 线路图 ---------------------128 15.59. C5 电路板 (1/2) 线路图 ---------------------129 15.60. C5 电路板 (2/2) 线路图 ---------------------130 15.61. C6 电路板 (1/2) 线路图 ---------------------131 15.62. C6 电路板 (2/2) 线路图 ---------------------132 15.63. SC 电路板方框图 ---------------------------133 15.64. SC 电路板 (1/2) 线路图 ---------------------134 15.65. SC 电路板 (2/2) 线路图 ---------------------135 15.66. SU 和 SD 电路板方框图 ----------------------136 15.67. SU 电路板 (1/3) 线路图 ---------------------137 15.68. SU 电路板 (2/3) 线路图 ---------------------138 15.69. SU 电路板 (3/3) 线路图 ---------------------139 15.70. SD 电路板 (1/3) 线路图 ---------------------140 15.71. SD 电路板 (2/3) 线路图 ---------------------141 15.72. SD 电路板 (3/3) 线路图 ---------------------142 15.73. SS 电路板方框图 ---------------------------143 15.74. SS 电路板线路图 ---------------------------144 16 部件布置及机械部件更换清单 ---------------------145 16.1. 部件布置 ----------------------------------145 16.2. 风扇分解图 --------------------------------146 16.3. 包装分解图 (1) ----------------------------147 16.4. 包装分解图 (2) ----------------------------148 16.5. 包装分解图 (3) ----------------------------149 16.6. 更换部件清单注意事项 ----------------------150 16.7. 机械部件更换清单 --------------------------151 17 电器部件更换清单--------------------------------152 17.1. 电器部件更换清单 --------------------------152 5 1 适用信号 6 2 安全警告 2.1. 一般准则 1. 进行维修和维护时，请勿试图更改设备及其部件或其材料。 2. 维修连接线 （如电缆、柔性电缆或导线）时，当仅有一条导线或几条导线损坏或断开时，请勿试图维修或重新为其连接。请更 换整条连接线。 3. 进行维修和维护时，应直接拉出或插入固定连接器，而不应将其扭曲。 4. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 5. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸屏蔽等安装正确。 6. 维修后，进行以下漏电检查，以免用户遭受触电危险。 2.2. 漏电检查 1. 将 AC 电源线直接插入 AC 电源插座。进行检查时，请勿使用隔离变压器。 2. 在设备上各外露金属部分和良好接地 （如水管）之间连接一个电流测量装置，如图 1 所示。 3. 用漏电测试仪 （Simpson 228 或类似型号）测量通过该装置的电势。 4. 检查各外露金属部件，并测量各点电压。 5. 变换 AC 插座中的 AC 插头，并重复上述各项测量。 6. 各点 （漏电）的电势表示为电压 U1 和 U2，并且不能超过以下各值： 交流：U1=35V （峰值） U2=0.35V （峰值）； 直流：U1=1.0V， 注： 与交流的 U2 限定峰值 0.35V 和直流的 U1 限定峰值 1.0V 相对应的电流峰值分别为 0.7mA 和 2.0mA。 与交流的 U1 限定峰值 35V 相对应的 100kHz 以上的电流峰值为 70mA。 7. 当测量值超出规定的限制时，可能会引起触电。所以必须在机器返回用户手中之前对其进行修理和再检测。 漏电测量电路 电阻值 （Ω） V：电压表或示波器 （r.m.s. 或峰值） 输入电阻：≥ 1MΩ 输入电容：≤ 200pF 频率范围：分别为直流 15Hz 到 1MHz 注：必须使用合适的测量设备，以便在非正弦波形时测量准确。 图 1 7 3 静电敏感设备 (ES) 的静电放电保护 (ESD) 一些半导体（固态）装置很容易被静电损坏。这些装置通称为静电敏感装置（ES）。典型的 ES 装置有集成电路和一些场效应晶体管以 及半导体 “芯片”组件。以下方法通常被用来减少由于静电释放 （ESD） 所造成的组件损坏。 1. 在处理任何半导体组件或是配备有半导体组件的设备之前，接触已知地线以排除身体上的静电。或者戴上市面上可购买到的抗静 电腕带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 在拆卸配有静电敏感装置的电气组件后，请将组件放置于导体表面上 （如铝箔），以防止聚集静电或组件外露。 3. 仅使用末端接地的烙铁焊接或拆焊静电敏感装置。 4. 仅使用防静电拆焊装置。不属于 “防静电 （静电释放保护）”的拆焊装置可能会产生足以损坏静电敏感装置的电荷。 5. 禁止使用氟里昂驱动化学物质。它们能产生足以损坏静电敏感装置的电荷。 6. 在准备立即安装之前，才能拆开静电敏感备换装置的保护性包装，取出备换静电敏感装置。（大多数备换静电敏感装置都使用导 电泡沫、铝箔或类似导电性材料包装，其导线被短接。） 7. 从备换静电敏感装置导线上取下防护性材料前，使防护性材料接触机芯或即将安装的电路组件。 注意： 确定机芯或电路无电源，并遵守其它所有安全注意事项。 8. 在处理未包装的备换静电敏感装置时，尽量减少身体活动。（否则，如衣物纤维的摩擦或从铺有地毯的地面抬起脚等动作都会产 生足以损坏静电敏感装置的静电 （静电释放））。 8 4 关于无铅焊接 (PbF) 注：在元素周期表中，铅用 Pb 表示。 在下文中，Pb 表示有铅焊接，PbF 表示无铅焊接。 在制造流程中使用和下文中介绍的无铅焊接 （Sn+Ag+Cu）。 即：锡 （Sn），银 （Ag）和铜 （Cu），其他类型也可使用。 出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维修和修理工作中最好使用无铅焊接，不过也允许使用有铅焊 接。 使用无铅焊接工艺制造的印刷电路板背面的树叶形符号 内有 PbF 字样。 注意： • 无铅焊接的熔点比标准焊接的熔点高。通常熔点超过 50-70°F （30-40°C）。 请使用高温烙铁，并将其温度设为 700±20°F （370±10°C）。 • 当温度过高 （约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。 如果必须使用有铅焊接，请在焊接前先全部去除焊脚或焊区上的无铅焊料。如果做到这点实际操作困难，则确保无铅焊料加热到熔 化后再进行有铅焊接。 • 在对双面电路板进行无铅焊接后，请检查部件侧部是否有过量焊料，否则会流到另一侧。（见下图） 推荐的无铅焊料 有几种无铅焊料可供选购。本产品使用 Sn+Ag+Cu( 锡，银，铜 ) 焊料。 也可使用 Sn+Cu （锡，铜），Sn+Zn+Bi( 锡，锌，铋 ) 焊料。 9 5 维修提示 取下后盖 电路板名称 功能 电路板名称 功能 P 主电源 GH HDMI3 端子 PA 风扇控制，DC-DC 转换器 D 格式转换，等离子 AI， 子场处理器 H 扬声器输出，声音处理器 AV 端子，AV 切换 C1 数据驱动 ( 上右 ) C2 数据驱动 ( 上中 ) DG DC-DC 转换器 数字信号处理器、 Micom HDMI 接口、峰值 Lite 2 C3 数据驱动 ( 上左 ) C4 数据驱动 ( 下左 ) C5 数据驱动 ( 下中 ) DH 全高清 C6 数据驱动 ( 下右 ) G 前端子，按键开关 SC 扫描驱动 K 遥控器接收器 电源指示灯 SU 扫描输出 ( 上 ) S 电源开关 SD 扫描输出 ( 下 ) GS SD 卡插槽 SS 维持驱动 10 6 等离子显示屏更换方式 6.1. 取下后盖 1. 参见维修提示 （请参见第 5 章节） 6.2. 取下风扇 B/C 1. 断开中继连接件。 2. 取下螺丝 （各 ×3 ）, 取下风扇。 6.3. 取下风扇 A 1. 松开线夹，取下电缆 2. 断开中继连接件。 3. 取下螺丝 （×4 ）, 取下风扇 A。 6.4. 取下后端子盖 1. 松开螺丝 （×4 ， ×12 ， ×2 ）。 2. 取下后端子盖。 6.5. 取下 P 电路板 注意： 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.C.B.。 1. 松开线夹，取下电缆。 2. 断开连接件 （P2，P5，P9，P10，P11，P12，P23 和 P25）。 3. 松开螺丝 （×7 ），并取下 P 电路板。 11 4. 松开背面的螺丝 （×28 ）。 5. 拆开连接件 （CN06-CN02,CN08-CN1602 和 CN1701-CN1601） 6. 松开螺丝 （×10 ）。 7. 取下外框支撑 （×8 ）。 8. 取下 P(Multi)- 电路板。 9. 取下外框支撑 （×5 ）。 10. 取下 P(Sus)- 电路板。 注意： 装配 P(Multi) 板和 P(Sus) 板时，绝缘板上每个孔的 位置 (A,B,C,D,E) 对准 P(Multi) 板和 P(Sus) 板的 每个孔，然后再装配。（ 表示安装位置。） 12 6.6. 取下调谐器组件 1. 松开线夹，取下电缆。 2. 断开连接件（DG1, DG11, DG35, DG52, DH5, H3, H11, H12 和 H51）。 3. 松开螺丝 （×4 ），并取下调谐器组件。 6.7. 取下 DH 电路板 1. 取下调谐器组件。（请参见 6.6 章节） 2. 松开螺丝 （×4 ），并取下 DH 电路板盖和 DH 电路板。 （取下 DH 电路板时当心连接件 （DH25-DG25） 3. 松开螺丝 （×1 ），然后从 DH 电路板盖上取下 DH 电路 板。 4. 松开螺丝 （×4 ），并取下 DH 电路板框。 13 6.8. 取下 DG 电路板 1. 取下调谐器组件。（请参见 6.6 章节） 2. 取下 DH- 电路板和 DH- 电路板框。（请参见 6.7 章节） 3. 断开连接件 （DG2 和 DG6）。 4. 松开螺丝 （×5 ），并取下 DG 电路板。 6.9. 取下 H 电路板 1. 取下调谐器组件。（请参见 6.6 章节）。 2. 取下 DH 电路板和 DH 电路板框。（请参见 6.7 章节） 3. 松开螺丝 （×1 ， ×1 ）取下调谐器固定金属片。 4. 断开连接件。（H2 和 H6） 5. 松开螺丝 （×5 ），并取下 H 电路板。 6.10. 取下扬声器组件 （左、右） 1. 松开线夹，取下电缆。 2. 断开中继连接件。 3. 松开螺丝 （×1 ），并取下左右扬声器组件。 14 6.11. 取下 PA 电路板 1. 松开线夹，取下电缆。 2. 断开连接件 （PA3，PA5，PA10，PA32，PA33 和 PA35)。 3. 松开螺丝 （×4 ），并取下 PA 电路板。 4. 松开螺丝 （×4 ），并取下 PA 电路板固定金属板。 6.12. 取下 D 电路板 1. 取下 PA 电路板固定金属板。 （请参见第 6.11 章节） 2. 断开连接件 （D3，D5，D20 和 D25）。 3. 断开柔性电缆 （D31，D32，D33，D34，D35 和 D36）。 4. 松开螺丝 （×4 ），并取下 D 电路板。 6.13. 取下 SU 电路板 1. 松开螺丝 （×2 ）。 2. 取下连接 SU 板的柔性电缆（SU1，SU2，SU3，SU4 和 SU5）， 并断开连接件 (SC45-SU45)。 3. 取下连接 SU 板的柔性电缆 （SC41-SU41 和 SC42-SU42）， 并取下 SU 板。 15 6.14. 取下 SD 电路板 1. 松开螺丝 （×2 ）。 2. 取下连接 SD 板的柔性电缆 （SD1，SD2，SD3，SD4 和 SD5），并断开连接件 (SC46-SD46)。 3. 取下连接 SD 板的柔性电缆 （SC43-SD43 和 SC44-SD44）， 并取下 SD 板。 6.15. 取下 SC 电路板 1. 松开线夹，取下电缆。 2. 取下 SU 电路板和 SD 电路板。 （请参见第 6.13 和 6.14 章 节）。 3. 松开线夹，取下电缆。 4. 断开连接件 （SC2，SC20 和 SC23）。 5. 松开螺丝 （×9 ），并取下 SC 电路板。 6.16. 取下 SS 电路板 1. 断开连接件 （SS11，SS12，SS34，SS35，SS42 和 SS44）。 2. 断开柔性电缆（SS51，SS52，SS53，SS54，SS55 和 SS56）。 3. 松开螺丝 （×7 ），并取下 SS 电路板。 6.17. 取下支架 1. 从工作台上取下等离子显示屏部分，显示屏朝下，平放在桌 子 （有顶盖的）等平台上。 2. 卸下左、右支架固定螺丝 （各 ×5 ），并取下支架。 16 6.18. 取下 C1 电路板 1. 取下风扇 A。（请参见 6.3 章节） 2. 取下柔性电缆固定器的固定螺丝 （×10 ）。 3. 断开柔性电缆 （CA1，CA2，CA3，CA4 和 CA5）。 4. 断开柔性电缆 （C10 和 C11）。 5. 松开螺丝 （×5 ），并取下 C1 电路板。 6.19. 取下 C2 电路板 1. 取下风扇 B。（请参见 6.2 章节） 2. 取下柔性电缆固定器的固定螺丝 （×10 ）。 3. 断开柔性电缆 （CA6，CA7，CA8，CA9 和 CA10）。 4. 断开柔性电缆 （C21，C22，C24 和 C25）。 5. 松开螺丝 （×5 ），并取下 C2 电路板。 6.20. 取下 C3 电路板 1. 取下风扇 C。（请参见 6.2 章节） 2. 取下柔性电缆固定器的固定螺丝 （×10 ）。 3. 断开柔性电缆 （CA11，CA12，CA13，CA14 和 CA15）。 4. 断开柔性电缆 （C31）。 5. 断开连接件 （C35）。 6. 松开螺丝 （×5 ），并取下 C3 电路板。 6.21. 取下 C4 电路板 1. 取下左扬声器组件。（请参见 6.10 章节） 2. 取下左支架。（请参见 6.17 章节） 3. 取下柔性电缆固定器的固定螺丝 （×10 ）。 4. 断开柔性电缆 （CB11，CB12，CB13，CB14 和 CB15）。 5. 断开柔性电缆 （C41）。 6. 断开连结件 （C42 和 C44）。 7. 松开螺丝 （×5 ），并取下 C4 电路板。 6.22. 取下 C5 电路板 1. 取下调谐器组件。（请参见 6.6 章节） 2. 取下柔性电缆固定器的固定螺丝 （×10 ）。 3. 断开柔性电缆 （CB6，CB7，CB8，CB9 和 CB10）。 4. 断开柔性电缆 （C51，C52，C54 和 C55）。 5. 松开螺丝 （×5 ），并取下 C5 电路板。 17 6.23. 取下 C6 电路板 1. 取下右扬声器组件。（请参见 6.10 章节） 2. 取下右支架。（请参见 6.17 章节） 3. 取下柔性电缆固定器的固定螺丝 （×10 ）。 4. 断开柔性电缆 （CB1，CB2，CB3，CB4 和 CB5）。 5. 断开柔性电缆 （C60 和 C61）。 6. 松开螺丝 （×5 ），并取下 C6 电路板。 6.24. 取下前支架 1. 松开线夹， 取下电缆。 2. 断开连接件 （G51 和 GH11）。 3. 松开螺丝 （×3 ），并取下前支架。 6.25. 取下 G 和 GH 电路板 1. 取下前支架。（请参见第 6.24 章节） 2. 松开螺丝 （×4 ），并取下前屏蔽仓。 3. 松开螺丝 （×4 ），并断开连接件 （G51 和 GH11）。 4. 取下 G 和 GH 电路板。 6.26. 取下 GS 电路板 1. 取下右支架。（请参见第 6.17 章节） 2. 松开线夹， 取下电缆。 3. 松开螺丝 （×2 ）。 4. 取下 SD 片组件。 5. 断开连接件 （GS52）。 6. 松开螺丝 （×1 ）。 7. 取下 GS 电路板。 18 6.27. 取下 S 电路板 1. 松开螺丝 （×2 ）并取下 S 电路板组件。 2. 断开连接件 （S1）。 3. 松开螺丝 （×2 ）并取下 S 电路板。 6.28. 取下 K 电路板 1. 取下左扬声器组件。（请参见第 6.10 章节） 2. 松开线夹， 取下电缆。 3. 松开螺丝 （×2 ）。 4. 断开连接件 （K1）并取下 K 电路板。 6.29. 取下前面框（玻璃）上的等离子显 示屏部件 1. 取下支架 （左，右）固定螺丝 （各 ×1 ）。 2. 取下前面框和等离子显示屏固定螺丝 （×13 ）。 3. 将等离子显示屏从前面框上取下时，拉住前面框底部，抬 起，并向前拉出。 19 6.30. 取下内置扬声器 1. 取下前面框 （请参见第 6.29 章节）。 2. 断开中继连接件。 3. 松开螺丝 （×12 ）。 4. 卸下左、右玻璃固定器。 5. 松开螺丝 （各 ×2 ）。 6. 取下内置扬声器。 6.31. 安装等离子显示屏 （完成） 1. 将新的等离子显示屏（完成）放置在类似桌子（铺有软布） 等的表面上，并且等离子显示屏表面朝下。 2. 安装 C1，C2，C3，C4，C5 和 C6 电路板，用柔性电缆 (× 30) 将等离子显示屏与 C1，C2，C3，C4，C5 和 C6 电路板连接， 并固定柔性电缆固定器。 3. 安装卡钩 （左，右） ，并将加固角 （左，右）和连接板 (A，B，C，D) 安装到新的等离子显示屏上。 4. 将等离子显示屏放置到维修架上。 5. 放置垫片及垫片环 (× 6）。 6. 将前面框和 P.C. 板等安装到新的等离子显示屏上。 * 安装机壳组件时，注意前玻璃和等离子显示屏之间不要有 碎屑、灰尘或杂质存在。 20 7 注意事项 7.1. 注意事项 注意 : 请确认所有的柔性电缆都正确束起，并且锁定在连接器内。 轻拉一下柔性电缆进行确认。 21 8 导线布置 8.1. 导线 (1) 如下图所示布置导线。 22 8.2. 导线 (2) 如下图所示布置导线。 23 8.3. 导线 (3) 如下图所示布置导线。 24 9 自检功能 应用自检功能测试本机。 1. 检测 IIC 总线 2. 电源 LED 闪烁次数 9.1. IIC 总线检测 9.1.1. 如何进入 仅自检指示： 进入 TV 接收屏幕，然后按主机 按钮的同时按下遥控器上的 [ 确定 ] 按钮 3 秒钟以上。 自检指示和恢复出厂设置： 进入 TV 接收屏幕，然后按主机 按钮的同时按下遥控器上的 [ 菜单 ] 按钮 3 秒钟以上。 9.1.2. 屏幕显示 9.1.3. 检查点 如果显示 NG，请确认检查下列部件。 9.1.4. 退出 从墙面插座上拔下 AC 电源线。 显示 参考号 说明 电路板 ADV IC4510 AD/HDMI DG 电路板 VSW IC3001 视频开关 H 电路板 ADAV IC2106 声音处理器 H 电路板 ASW IC3101 音频开关 H 电路板 GEN IC1100 GenX （STB MCU） DG 电路板 MEM1 IC1101 EEPROM （GenX） DG 电路板 MEM2 IC8601 EEPROM （Peaks） DG 电路板 TUN1 TU3200 调谐器 (Analogue) H 电路板 TUN2 TU3201 调谐器 (Sub) H 电路板 GC3FS IS4001 Globel core （Sub） DG 电路板 PDP-PANEL IC9003 MICOM D 电路板 TEMP IC4800 Temp 传感器 DG 电路板 GC5P IC5100 Globel core DH 电路板 FPGA IC5105 FPGA DH 电路板 25 9.2. 电源 LED 闪烁次数图 1. 主题 发光二极管闪烁时间图信息。 2. 内容 当设备出现异常时，保护电路将运行并将设备复位到待机状态。此时，通过本机前端的 LED 电源闪烁次数便可识别出故障部位。 26 9.3. 无电源 第一检测点 LED 无电源指示有二种情况： 1. 不亮 2. 红灯亮，几秒钟后转为红灯闪烁。（请参见第 9.2 章节） 27 9.4. 无图像 28 9.5. 显示器局部故障 等离子显示屏屏幕上可能会出现局部故障。图 1 是各局部可能会出现故障的 P.C.B. 印刷电路板。 29 10 维修模式 10.1. 如何进入维修模式 按主机 按钮的同时，在 3 秒钟内按遥控器上的 [ 显示 ] 按钮三次。 10.1.1. 主要指令 “1”按钮…正向选择主项目 “2”按钮…反向选择主项目 “3”按钮…正向选择副项目 “4”按钮…反向选择副项目 “RED”按钮…所有副项目选择反向 “GREEN”按钮…所有副项目选择正向 “VOL”按钮…正向 （+）或反向 （-）更改副项目的数据。 30 10.1.2. 调整模式内容 • 按十六进制显示数值。 • 预设值根据型号的不同而不同。 • 进入调整模式后，在开始调整前请记录各项目的值。 10.1.3. 如何退出 使用主机或遥控器上的 [POWER] 按钮关闭电源。 主项目 副项目 示例数据 备注 ADJUST CONTRAST 246 COLOR 2B TINT 00 Video-Gain2 199 SUB-BRT 800 H-POS 0 H-AMP 0 V-POS 0 V-AMP 0 WB-ADJ R-CUT 80 G-CUT 80 B-CUT 80 R-DRV E2 G-DRV E9 B-DRV FC ALL-CUT 80 ALL-DRV FC OPTION Panel-Type 50FHD Boot ROM STBY-SET 00 Emergency ON Y/C Delay 0 OPT 1 00110000 OPT 2 00100010 OPT 3 00000000 AGING RGBW All white (COUNTER) All white All red All green All blue ON/OFF Diagonal lamp W Diagonal lamp R Diagonal lamp G Diagonal lamp B 1%WINDOW COLOR BAR A B zone/checkerd4 trio SCROLL BAR 2dot SRV-TOOL 参见下页 销售地区 C 中国 选项 1 38 选项 2 E2 选项 3 6F 31 10.2. 维修工具模式 10.2.1. 如何进入 1. 选择维修模式下的 “SRV-TOOL”。 2. 按遥控器上的 [ 确定 ] 按钮。 10.2.2. 显示 SOS 历史纪录 SOS 历史纪录 （LED 闪烁次数）指示。 从左侧开始依次为：最后一次 SOS、倒数第二次、倒数第三次、出厂后第二次、出厂后第一次。通过 “自检指示和恢复出厂设置”即 可清除除出厂后第二次和第一次之外的其他指示。 10.2.3. 开启 TIME/COUNT TIME （计时）：累计开启时间，显示小时：十进制分钟 COUNT （计数）：十进制开启次数 注意：无法通过自检或任何指令清除该指示。 10.2.4. 退出 1. 从墙面插座上拔下 AC 电源线。 32 11 调整步骤 11.1. 驱动器设置 11.1.1. 项目 / 准备 1. 输入白色信号到等离子显示屏视频。 2. 如下设定图像控制： 图像菜单：最佳 PNR：关闭 宽高比：16:9 注意 1. 首先进行 Vsus 调整。 2. Vad 调整确认后，再确定 Vscn 电压。当 Vad = -90V 时，Vscn 的电压为 50V ± 4V。 11.1.2. 调整 参照显示屏数据标牌上的显示屏数据，调整驱动器各部分的电 压。 使用万用表检查或调整下列电压。 * 见显示屏标牌。 名称 测试点 电压 调整点 备注 Vsus TPVSUS(SS) Vsus±2V VR251(P) * Ve TPVE(SS) Ve±1V VR6000(SS) * Vset TPVSET(SC) 240V±7V 固定 Vad TPVAD(SC) -90V±1V VR6600(SC) Vscn TPVSCN(SC) Vad+140V±4V 固定 Vda TPVDA(SS) 75V+1V, -3V 固定 33 11.2. 初始化脉冲调整 1. 输入白色信号到等离子显示屏视频。 2. 如下设定图像控制： 图像菜单：最佳 PNR：关闭 宽高比：16:9 3. 连接示波器至测试点 TPSC1 （SC）。 检查确保平面分段 (t1) 在 40μs 以下。 检查并将每个短时脉冲 （T2）时长调整至规格范围之内。 11.3. P.C.B. （印刷电路版）更换 11.3.1. 注意 1. 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.C.B.。 11.3.2. P.C.B. 更换后进行快速调整 使用万用表调整以下电压。 * 见显示屏标牌。 注意： 请勿将 Vsus 设置到 Ve 以下，以防损坏 P.C.B 板。 测试点 调整点 等级 T2 TPSC1(SC) VR6602 (SC) 160 ± 10μ Sec P.C.B. 名称 测试点 电压 调整点 备注 P 电路板 Vsus TPVSUS (SS) Vsus ± 2V VR251(P) * SC 电路板 Vad TPVAD (SC) -90V ± 1V VR6600(SC) SS 电路板 Ve TPVE (SS) Ve ± 1V VR6000(SS) * D,DG 电路板 NTSC, PAL, HD, PC 和 625i 信号的白平衡和副亮度。 34 11.4. 调整点位置 11.5. 测试点位置 35 12 调整 12.1. 副对比度调整 仪器名称 连接 备注 RF 发生器 基带发生器 准备 （AV） 备注 1. 接收 AV1 ( 如下所示 PAL 100% 全白或彩条，如下图 )。 2. 进入维修模式。 3. 按 “1”或 “2”键，进入 “副对比度”维修模式。 AV 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为黑色。 4. 结束。 准备 （RF） 备注 1. 接收 RF (PAL 100% 全白或彩条，如下图 )。 2. 进入维修模式。 3. 按 “1”或 “2”键，进入 “副对比度”维修模式。 RF 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为黑色。 4. 结束。 准备 （HD） 备注 1. 接收分量。 (1080i/ 60Hz 或 1080i/ 50Hz, 100% 全白或彩条，如下图。) 2. 进入维修模式。 3. 按 “1”或 “2”键，进入 “副对比度”维修模式。 HD 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为黑色。 4. 结束。 36 12.2. PAL 显示屏白平衡调整 仪器名称 连接 备注 • 黑白模式 • 彩色分析仪 （Minolta CA-100 或同等产品） RF 输入 显示屏表面 用户设定：正常 步骤 备注 • 确保充分老练 15 分钟以上。 • 确保前面板已经安装在整机上。 • 确认调整之前无彩色信号显示。 • 将彩色分析仪放置在有轻微色差的地方。 通电后 10 分钟内完成调整。 通过老练等不能完成调整时，重新打开电源。 1. 显示白平衡图像。 2. 进入维修模式。 3. 使用数字键 “1”或 “2”，显示 “WB-ADJ”。 查看确保色温为 “高”。 4. 使用数字键 “3”或 “4”选择 “G-CUTOFF”项目，使用音量 “+”或 “-”键将其设置为 “80”。并将 “B-CUTOFF”和 “R-CUTOFF”也设置为 “80”。 5. 将 “G-DRIVE”设置为 “D0”。 6. 将彩色分析仪的信号接收器放到高亮窗口的中间位置，然后调整 B-DRIVE 和 R-DRIVE，将 x, y 的值调整为下表中的 “色温 - 高”的值。 7. 所有的 RGB 驱动值增大，从而最大的 RGB 驱动值变为 “FC”。（将 “ALL-DRIVE”设置为 “FC”。） 8. 使用 “7”键将色温设置为 “中”。 9. 将 G-CUTOFF、B-CUTOFF 和 R-CUTOFF 固定为 “80”。 10. 将 G-DRIVE 固定为 “D0”。 11. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 中”的值。 12. 所有的 RGB 驱动值增大，从而最大的 RGB 驱动值变为 “FC”。（将 “ALL-DRIVE”设置为 “FC”。） 13. 使用 “7”键将色温设置为 “低”。 14. 将 G-CUTOFF、B-CUTOFF 和 R-CUTOFF 固定为 “80”。 15. 将 G-DRIVE 固定为 “D0”。 16. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 低”的值。 17. 所有的 RGB 驱动值增大，从而最大的 RGB 驱动值变为 “FC”。（将 “ALL-DRIVE”设置为 “FC”。）。 图像菜单：最佳 宽高比：16:9 • 高亮显示部分 信号振幅 75% 37 12.3. HD 白平衡调整 仪器名称 连接 备注 • 1080i 黑白模式 • 彩色分析仪 （Minolta CA-100 或同等产品） RF 输入 显示屏表面 用户设定：标准 步骤 备注 • 确保充分老练 15 分钟以上。 • 确保前面板已经安装在整机上。 • 确认调整之前无彩色信号显示。 • 将彩色分析仪放置在有轻微色差的地方。 通电后 10 分钟内完成调整。 通过老练等不能完成调整时，重新打开电源。 1. 显示白平衡图像。 2. 进入维修模式。 3. 使用数字键 “1”或 “2”，显示 “WB-ADJ”。 查看确保色温为 “高”。 4. 使用数字键 “3”或 “4”选择 “G-CUTOFF”项目，使用音量 “+”或 “-”键将其设置为 “80”。并将 “B-CUTOFF”和 “R-CUTOFF”也设置为 “80”。 5. 将 “G-DRIVE”设置为 “D0”。 6. 将彩色分析仪的信号接收器放到高亮窗口的中间位置，然后调整 B-DRIVE 和 R-DRIVE，将 x, y 的值调整为下表中的 “色温 - 高”的值。 7. 所有的 RGB 驱动值增大，从而最大的 RGB 驱动值变为 “FC”。（将 “ALL-DRIVE”设置为 “FC”。） 8. 使用 “7”键将色温设置为 “中”。 9. 将 G-CUTOFF、B-CUTOFF 和 R-CUTOFF 固定为 “80”。 10. 将 G-DRIVE 固定为 “D0”。 11. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 中”的值。 12. 所有的 RGB 驱动值增大，从而最大的 RGB 驱动值变为 “FC”。（将 “ALL-DRIVE”设置为 “FC”。） 13. 使用 “7”键将色温设置为 “低”。 14. 将 G-CUTOFF、B-CUTOFF 和 R-CUTOFF 固定为 “80”。 15. 将 G-DRIVE 固定为 “D0”。 16. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 低”的值。 17. 所有的 RGB 驱动值增大，从而最大的 RGB 驱动值变为 “FC”。（将 “ALL-DRIVE”设置为 “FC”。） 图像菜单：最佳 宽高比：16:9 • 高亮部分 信号振幅 75% * 色彩平衡 COOL 与日本型号的值不同。 38 13 旅馆模式 1. 目的 设置旅馆功能。 2. 进入旅馆模式设置菜单指令 为了显示旅馆模式设置菜单，请输入以下指令 （在 2 秒钟 内）。 随后将显示旅馆模式设置菜单。 3. 若要退出旅馆模式设置菜单 从墙面插座上拔下 AC 电源线。 4. 旅馆模式设置菜单说明 项目 功能 旅馆模式 选择旅馆模式开启 / 关闭。 初始输入 选择输入信号模式。 每次接通电源后都设置此输入。 选项： Off/TV/AV1/AV2/AV3/AV4/PC/HDMI1/HDMI2/HDMI3 Off: 以最后一次存储为准。 • PC: VGA 可选 初始位置 选择频道号。 选项： Off/0 到 99 • Off: 以最后一次存储为准。 初始音量等级 每次接通电源后都设置音量 选项 / 范围： Off/0 到 100 • Off: 以最后一次储存为准。 最大音量等级 调节最大音量。 范围： 0 到 100 键锁定 选择按键键入条件。 选项： Off/SETUP/MENU/ALL • Off: 所有按键有效 • SETUP: 只有 F 键无效 （菜单中调谐状态无） • MENU: 只有 F 键无效 （只可选择音量 / 静音。） • ALL: 所有按键全部无效。 遥控锁定 选择遥控键入条件。 选项： Off/SETUP/MENU • Off: 所有按键有效 • SETUP: 只有设置菜单无效 • MENU: 图像 / 声音 / 设置菜单无效 39 14 导线图 14.1. P(Multi) 电路板 I H G F E D C B A 1 2 3 4 5 6 TH-50PZ700C P(MULTI)-BOARD ETXMM624MGH TH-50PZ700C P(MULTI)-BOARD ETXMM624MGH P(MULTI)-BOARD (FOIL SIDE) ETXMM624MGH 40 TH-50PZ700C P(MULTI)-BOARD PARTS LOCATION TH-50PZ700C P(MULTI)-BOARD PARTS LOCATION P Parts Location Parts Location P(MULTI)-BOARD (COMPONENT SIDE) IC401 IC501 MC301 MC401 MC501 MC601 MC701 MC1702 B-5 E-2 D-3 C-3 D-2 E-2 C-2 E-2 IC MODULE PHOTO COUPLER VR301 VR401 D-3 C-5 VOLUME PC401 PC505 PC1701 Q301 Q302 Q304 Q306 Q402 Q403 Q501 C-3 D-2 D-3 E-5 E-5 C-2 B-2 C-5 C-5 F-1 TRANSISTOR P(MULTI)-BOARD (FOIL SIDE) IC401 IC501 MC301 MC401 MC501 MC601 MC701 MC1701 MC1702 IC MODULE PC401 PC505 PC1701 VR301 VR401 G-5 E-2 E-3 G-3 E-2 D-2 F-2 D-4 D-3 G-3 E-2 E-3 F-2 G-5 PHOTO COUPLER VOLUME Q301 Q302 Q303 Q304 Q305 Q306 Q401 Q402 Q403 Q501 Q502 Q503 Q504 Q505 Q506 Q1701 Q1702 Q1703 Q1704 Q1705 E-5 E-5 F-2 G-2 G-2 G-2 G-3 G-5 G-5 D-1 D-2 F-1 F-1 G-2 F-1 D-2 D-3 D-3 D-3 D-5 TRANSISTOR 41 I H G F E D C B A 1 2 3 4 5 6 TH-50PZ700C P(MULTI)-BOARD ETXMM624MGH TH-50PZ700C P(MULTI)-BOARD ETXMM624MGH P(MULTI)-BOARD (COMPONENT SIDE) ETXMM624MGH 42 14.2. P(Sus) 电路板 I H G F E D C B A 1 2 3 4 5 6 TH-50PZ700C P(SUS)-BOARD ETXMM624MGH TH-50PZ700C P(SUS)-BOARD ETXMM624MGH P(SUS)-BOARD (FOIL SIDE) ETXMM624MGH 43 TH-50PZ700C P(SUS)-BOARD PARTS LOCATION TH-50PZ700C P(SUS)-BOARD PARTS LOCATION Parts Location P(SUS)-BOARD (FOIL SIDE) MODULE MC201 MC202 MC203 MC1601 MC1602 MC1603 MC1604 PC201 PC202 VR251 E-5 D-2 D-4 B-2 C-2 E-5 D-3 F-5 F-5 G-1 PHOTO COUPLER VOLUME Q201 Q202 Q203 Q204 Q1601 Q1602 Q1603 Q1604 E-3 E-4 E-3 E-4 C-2 C-2 C-3 C-3 TRANSISTOR Parts Location P(SUS)-BOARD (COMPONENT SIDE) MC201 MC1602 MC1603 MODULE PC201 PC202 VR251 D-5 G-1 F-5 D-5 C-5 C-1 PHOTO COUPLER VOLUME P 44 I H G F E D C B A 1 2 3 4 5 6 TH-50PZ700C P(SUS)-BOARD ETXMM624MGH TH-50PZ700C P(SUS)-BOARD ETXMM624MGH P(SUS)-BOARD (COMPONENT SIDE) ETXMM624MGH 45 14.3. PA 电路板 A B C D E F G H I 1 2 3 4 5 6 R5550 R5554 R5555 R5556 R5557 IC5550 IC5551 C5587 C5588 C5589 R5562 R5563 R5565 R5566 R5567 R5568 C5590 C5591 C5594 C5595 D5571 C5596 D5573 D5574 C5598 D5575 R5573 R5576 R5577 PA5 PA8 PA9 TPF9V C5401 C5402 C5403 C5404 C5405 TPH9V C5406 C5407 C5408 C5410 C5411 C5412 C5413 C5414 C5416 PA10 ZA5501 C5419 ZA5502 ZA5503 ZA5504 C5420 D5401 D5402 D5403 D5404 D5405 R5401 R5402 D5406 R5403 D5407 R5404 D5408 R5405 D5409 R5406 R5407 R5408 R5409 D5410 D5411 PA30 PA31 PA32 R5412 PA33 R5413 PA34 PA35 R5416 PA36 PA37 R5417 R5418 PA38 R5419 TPC0F R5420 R5423 TPS15V TPFA9 R5446 TPM0N L5550 L5551 TPS0F L5552 L5553 L5554 L5555 TPS0N TPS0S L5564 L5565 L5566 L5567 L5568 JS1 JS2 TPST5 C5501 C5502 TPS5V C5503 C5504 C5505 Q5501 C5506 C5507 C5508 C5509 C5510 C5519 TPM9V D5501 D5502 R5501 R5502 R5503 R5504 R5505 R5506 R5507 R5508 R5509 TPS9V L5400 L5401 R5525 TPFA15 R5526 C5551 C5552 C5553 TPF0S TP5400 D5541 D5542 R5548 R5549 TNPA4274 1 PA PbF 1 16 1 1 6 1 1 1 1 4 1 4 R E V E R S E F O R S U F F I X . S E E 1 6 1 5 1 3 1 3 1 3 1 3 1 3 1 3 1 3 1 3 R5552 R5553 R5558 IC5550 R5559 IC5551 C5587 R5560 C5589 R5561 R5564 C5590 R5569 C5595 C5596 C5597 R5570 R5571 R5572 R5574 R5575 PA3 PA5 PA8 PA9 Q5401 C5409 C5410 C5415 PA10 ZA5501 C5419 ZA5502 ZA5503 ZA5504 IC5400 D5412 PA30 PA31 PA32 PA33 PA34 PA35 PA36 PA37 PA38 R5421 R5422 R5443 L5550 L5551 L5552 L5553 L5554 L5555 R5480 R5481 R5482 R5483 R5484 R5485 R5486 R5487 L5564 L5565 L5566 L5567 L5568 C5501 C5503 C5505 Q5502 C5507 C5509 C5521 C5522 Q5521 Q5522 Q5523 Q5524 L5400 Q5541 D5521 L5401 Q5542 D5522 Q5543 D5526 D5528 D5529 R5527 C5551 C5554 D5530 Q5551 D5531 D5532 D5533 D5534 R5531 R5532 R5533 R5534 R5535 R5536 R5537 R5538 R5539 Q5561 Q5562 R5540 R5541 R5542 R5543 R5544 R5545 R5546 R5547 1 PA PAMM1 PAMM5 PAMM3 PAMM4 PAMM2 AB PAMM6 PAMM7 PAMM9 TNPA4274 AC AD AE AF AG AH AI PAMM8 PbF 1 1 6 1 1 6 1 2 3 9 4 0 1 1 1 1 4 1 4 S U F F I X . 1 6 1 5 1 5 1 3 1 3 1 3 1 3 1 3 1 3 1 3 1 3 1 5 TH-50PZ700C PA-BOARD TNPA4274AC TH-50PZ700C PA-BOARD TNPA4274AC PA-BOARD (FOIL SIDE) TNPA4274AC PA-BOARD (COMPONENT SIDE) TNPA4274AC PA Parts Location PA-BOARD IC TRANSISTOR IC5551 IC5400 IC5550 IC5550 IC5551 Q5401 Q5501 Q5502 Q5521 Q5522 Q5523 Q5524 Q5541 Q5542 Q5543 Q5551 Q5561 Q5562 TP5400 TPCOF TPF9V TPFA15 TPFA9 TPFOS TPH9V TPM9V TPMON TPS15V TPS5V TPS9V TPSOF TPSON TPSOS TPST5 B-2 B-4 E-2 C-2 D-4 B-2 B-4 D-2 F-1 F-1 F-1 E-1 D-1 D-1 D-2 F-2 E-2 E-2 E-5 A-4 E-5 E-5 E-5 F-5 B-4 A-4 A-5 A-5 A-5 A-4 A-4 A-5 A-5 A-5 TP 46 14.4. G 电路板 A B C D E F G H I 1 2 3 4 5 6 L3700 L3701 L3704 L3705 L3706 L3707 L3708 L3713 JK3701 C3701 C3702 C3703 C3704 C3705 C3706 C3707 C3708 C3711 C3712 C3713 C3714 C3715 D3701 D3702 D3703 D3704 D3705 D3706 D3707 D3708 R3705 D3709 R3706 R3709 D3710 D3711 R3710 R3711 R3712 R3713 R3714 R3716 R3717 R3718 R3719 R3720 R3721 R3732 R3736 R3737 R3738 R3739 R3740 R3741 SW3751 R3746 R3747 SW3753 R3748 SW3754 R3749 SW3755 SW3757 SW3758 FL3713 FL3714 FL3715 FL3716 FL3717 JS3700 JS3701 JS3702 JS3704 JS3705 JS3707 JS3708 JS3711 JS3712 JS3713 JS3714 JS3715 JS3716 JS3717 ZA3701 ZA3702 AB AC AD AE AF AG R3724 R3722 R3723 R3725 SW3756 PbF 1 TNPA4262 CH.UP CH.UP CH.DN CH.DN VOL.UP VOL.UP -/ VOL.DN VOL.DN TV/VTR TV/VTR F ASPECT STR OK MENU JAPAN USA EURO +/ TV/AV G L V R L V R SUFFIX. 1 2 3 4 1 2 3 4 2 3 4 1 1 2 3 4 1 2 3 4 R L V G51 JK3701 C3750 SW3751 SW3753 SW3754 SW3755 SW3757 D3750 SW3758 R3750 R3751 R3752 R3753 R3754 R3755 R3756 R3758 R3765 R3766 R3767 R3768 FL3710 FL3711 FL3712 ZA3701 TNPA4262 1 G G52 SW3756 PbF CH.UP CH.UP CH.DN TV/AV CH.DN VOL.UP +/ VOL.UP VOL.DN -/ VOL.DN TV/VTR F TV/VTR ASPECT STR OK MENU USA EURO JAPAN R L V R L V REVERSE FOR SUFFIX. SEE 1 19 20 2 1 2 R L V TH-50PZ700C G-BOARD TNPA4262AD TH-50PZ700C G-BOARD TNPA4262AD G-BOARD (FOIL SIDE) TNPA4262AD G-BOARD (COMPONENT SIDE) TNPA4262AD G 47 14.5. H 电路板 A B C D E F G H I 1 2 3 4 5 6 D3034 D3035 C3059 D3036 R3032 D3037 R288 D3038 D3039 R289 R867 C3060 R868 C3062 D3040 C3064 D3041 D3042 D3043 C3068 D3045 D3046 R296 D3047 R297 R3044 D3048 R3045 D3049 R3239 C3263 R3048 R3049 C3265 C3266 R3240 C3269 C3078 R3244 R3052 R3246 R3054 R3249 C3274 C3275 C3276 C3277 C3278 R3250 R3251 R3252 R3253 R3254 R3255 R3256 C3280 R3065 C3281 R3259 R3067 C3283 C3284 C3287 R3260 C3288 JS031 JS032 R3266 R3073 JS033 R3268 R3269 C3291 C101 R3270 C3299 Q103 R3274 JK3100 R3275 R3276 JS044 JS045 R3086 JS047 JS052 JS053 JS054 JS055 JS056 JS057 JS059 C317 C318 C319 C128 JS061 JS062 JS063 C320 JS065 C321 R106 JS066 C322 JS067 C323 JS068 C324 JS069 C325 C326 R303 JS3010 R110 R304 JS3011 R111 JS3012 R112 JS3013 JS3207 JS3014 R308 JS3015 JS3209 R309 C331 R116 C332 R117 C333 C334 C335 C336 C337 D120 JS3210 C338 C144 L001 C339 R311 L002 JS3212 R312 L003 JS3213 R313 L004 C148 R314 R315 C149 R316 L007 JS3024 L008 C340 JS279 C341 R126 C342 C343 C150 C344 C345 C152 C346 C347 C348 L011 L012 L015 JS3032 L016 R132 R327 JS098 L022 C3106 C3107 C3108 JS3040 C3109 C3301 C3302 C3303 C3110 C3304 C3111 R149 C3305 TP012 C3112 C3306 C173 TP014 C174 C3308 C3115 TP015 TP016 L036 R152 R154 C180 C181 C375 H2 C182 C376 C183 C377 L040 C3124 D3100 C184 C378 C185 C379 H8 TP606 R3102 R3103 TP608 C380 R3104 R3105 R165 TP609 C381 R3106 C382 C383 R3108 C384 D3301 C385 D3302 C386 C387 TP610 C388 TP611 C195 C389 TP612 C197 C198 R3306 R3112 R3307 TP617 R3113 R3308 C390 R3309 JK003 L3001 L3002 L3003 R3124 R184 D189 R3125 R185 R186 R3127 R187 R3128 R188 R189 L3201 L3010 L3013 L3207 R190 L3208 R191 L3209 R192 R193 R3134 R195 R196 L3211 L3212 R3141 R3142 R3143 R3144 R3145 R3146 L3220 R3149 L3222 L3223 L3224 JS300 L3225 JS301 L3226 R3350 R3160 R3168 C003 C004 C005 Q002 C006 Q003 JK3001 R3177 H51 C202 C010 C011 C205 C206 C013 C014 R3180 C016 C017 R3186 R3188 C021 C022 C219 C802 C803 C805 C806 C807 D015 D016 D017 C237 D020 C814 C238 C817 R214 C049 D025 R215 R602 R603 C050 R029 C246 C052 C053 R223 R030 R031 D035 R032 D036 R033 R034 L308 C068 R235 R236 R237 R238 C3201 R239 R047 R624 R048 Q3200 R625 R049 Q3201 R242 R050 R051 R052 TP302 R053 TP303 R054 TP304 TP305 R056 C272 TP306 R057 TP307 TP308 TP309 C3022 C3216 C3023 D3003 C088 TP310 C3029 R3001 D3005 R062 R3002 D3006 Q3027 R063 R3003 R3004 C280 TU3200 R3005 TU3201 R3006 R3007 R3008 C3030 R3009 C3226 C3227 C3228 C288 C289 R3202 R263 R3010 R265 R3205 R3012 R3206 R074 C291 C3040 C3042 C298 R3213 R3214 R3020 R3021 R3215 R3022 R3216 R277 R278 R084 R279 R280 R281 R3222 R282 CR NO.2 TNPA4279 1 H H12 H11 P b F AV3 COMPONENT AV3 AV2 COMPONENT MONITOR OUT AV1 AV2 R E V E R S E F O R S U F F I X . S E E 1 2 22 23 1 10 L R 1 2 3 4 1 2 3 4 1 5 6 10 11 15 1 2 19 20 VIDEOOUT AFTOUT BTL VB RFAGC SDA SCL BB SIFOUT AUDIOOUT +B SW1 SW2 VIDEOOUT AFTOUT SCL SDA RFAGC VB BTL +B SW2 SW1 1 4 5 1 TH-50PZ700C H-BOARD TNPA4279AC TH-50PZ700C H-BOARD TNPA4279AC H-BOARD (FOIL SIDE) TNPA4279AC H Parts Location H-BOARD (FOIL SIDE) Q2002 Q2003 Q2103 Q3027 Q3200 Q3201 B-3 B-3 C-3 D-4 F-2 E-1 TRANSISTOR TP2012 TP2014 TP2015 TP2016 TP2302 TP2302 TP2303 TP2304 TP2305 TP2306 TP2307 TP2308 TP2309 TP2310 TP2606 TP2608 TP2609 TP2610 TP2611 TP2612 TP2617 C-3 C-3 C-3 C-3 B-1 B-2 B-1 C-1 B-1 C-1 B-1 C-1 C-1 B-1 G-4 G-2 F-3 F-3 G-2 G-4 F-3 TP 48 A B C D E F G H I 1 2 3 4 5 6 R090 R860 R284 R861 R091 R285 R862 R092 R286 R093 R863 R287 R3227 R864 R094 R3228 R095 R865 R3229 R096 R866 R097 R3037 R098 R3038 R099 R869 R3039 C3063 R290 R291 R292 C3066 R293 R3233 R294 R3234 D3044 R3040 R295 R871 R3041 R872 R3236 R873 R3237 R3238 R299 C3070 C3264 C3267 C3075 C3076 R3243 R3247 C3270 C3271 C3272 C3273 R3059 C3081 C3082 C3083 C3279 C3086 C3087 R890 R3062 R3063 R3064 C3282 R3068 FL3001 R3069 C3285 FL3002 C3286 FL3003 FL3004 FL3005 C3289 FL3006 FL3007 R3070 FL3008 R3072 R3074 JS034 C3290 JS035 C3292 C3293 C100 C102 C3296 C3298 C105 Q101 C106 Q102 C107 C108 JK3100 C109 R3277 R3278 C301 C302 JS046 R3087 C303 R3088 X010 C110 C304 JS048 C111 R3089 Q301 JS049 C305 C112 C306 C113 C307 C114 C308 C115 C309 C116 C117 R3090 C118 JS050 C119 JS051 C310 C311 R3096 C312 R3097 C313 R3098 JS058 C120 C314 R3099 C121 C315 C316 C124 C126 C127 R100 JS060 C129 R104 JS064 C130 R108 C131 D301 R109 C132 D302 C133 D303 C327 C134 D304 C328 R301 C329 IC105 C135 IC106 R302 C136 C137 IC107 C138 R305 JS3206 R306 R113 R307 R114 JS3208 C330 R115 IC301 D119 IC302 IC303 R118 R119 C143 C145 C146 C147 R122 R123 JS3023 R317 R124 R318 R125 R319 R127 R128 C151 R129 C153 R320 C154 C349 R321 C155 R322 R323 C157 R130 R324 R131 R325 C159 R326 R133 JS3034 R328 C350 R134 JS3035 C351 R135 JS3036 JS096 R136 C352 JS097 JS3037 R137 C353 C3100 JS3038 C354 C160 R138 JS3039 C3101 C161 C355 C3102 C356 C162 C3103 C163 C357 R330 C164 C358 L021 R331 C359 C165 C166 L023 C167 R140 C168 R141 C169 L026 R142 L027 R143 R144 L028 C3300 C360 R145 L029 ZA3001 C361 R146 C362 ZA3002 ZA3003 C363 C170 ZA3004 C364 C171 ZA3005 C365 ZA3006 C172 ZA3007 C3113 ZA3008 C175 C3116 C176 C3117 C3118 R150 L034 L035 R151 C179 C3119 L038 L039 R156 C3120 H2 H3 C3125 D3101 D3102 C3126 H6 C186 C187 R3100 C188 H8 R160 R3101 C189 R162 TP607 R164 R166 R167 R3107 C190 R168 R169 R3109 C191 C192 C193 C194 R3301 R3302 C196 R3303 R3110 R170 C199 R3111 R3305 R171 R172 R173 R174 R3115 R175 R3116 IC3302 JK003 R3117 R178 R3118 R3119 R179 R3310 L3000 R3311 R3313 L3004 R3120 R180 R181 R3121 R3122 R3316 R182 R183 R3123 R3318 R3319 R3126 L647 L648 R3129 L649 L3201 L3206 R3130 L650 R3131 R3133 R194 R3135 R3137 R197 R3138 R198 R3139 L3212 D3334 D3335 H15 D3336 D3337 D3338 R3140 L3219 JS101 JS102 JS103 R3147 R3148 L3227 R3348 R3349 R3351 R3352 R3353 R3161 R3162 R3164 R3165 R3166 R3167 R3174 R3175 JK3001 R3176 C200 C201 H51 C203 C204 Q015 ZA101 ZA102 Q016 Q017 ZA103 ZA104 ZA105 ZA106 C213 ZA107 ZA108 C216 C023 C218 R3191 Q021 C601C602 Q023 Q024 Q025 Q026 Q027 Q028 Q029 C224 C801 IC002 IC003 C804 Q030 Q031 IC006 R203 IC007 Q033 R204 Q034 IC008 Q035 R205 R206 R207 R208 Q039 R209 IC010 IC011 IC012 C812 C813 IC013 Q040 R210 C815 Q041 Q042 C816 C048 C818 D025 C819 D026 R216 R217 D028 R218 R219 D029 R601 C244 C245 C054 R220 D031 C055 R221 IC601 D032 C056 R222 C057 D033 R224 D034 C058 C059 R225 R226 R227 R228 L300 Q635 R229 C251 L301 Q636 C252 L302 Q637 C253 L303 Q638 C060 C254 L304 C061 C255 Q639 L305 C256 C062 L306 C257 C063 L307 R230 C064 C258 IC610 C065 R231 C259 L309 R232 C066 R233 C067 Q640 R234 Q641 C069 L310 C3202 C263 C264 C070 C265 C071 C266 C072 C267 C073 C268 R628 R240 Q3011 R629 R241 Q3012 R243 Q3013 R244 Q3014 C3401 Q3015 TP301 C3402 D632 Q3017 D633 C270 Q3018 D634 Q3401 D635 C271 Q3402 D636 C273 D637 C3214 C274 R058 D638 PA3401 R059 C3021 C276 C3024 C3025 C279 R252 C3026 C3027 R253 R254 C3028 C089 R257 R064 TU3200 C281 R065 TU3201 R066 R067 R068 C091 C3031 FL001 IC3001 R069 C092 FL002 C3033 C093 FL003 Q3030 C094 FL004 C095 C3035 FL005 Q3031 C096 FL006 Q3032 C097 C098 R070 C099 R071 R072 R266 R073 C290 C3230 D3401 R075 D3402 C292 D3403 C293 C294 D3405 R3401 C295 R3402 C296 R3403 C3043 C297 R3404 R270 R3405 R271 C3047 C3049 R275 R276 R853 R854 R855 R085 R086 R856 R857 C3050 R858 R088 R859 C3051 R089 C3052 C3053 C3054 C3055 C3056 R283 B DIP A AB AD AE AF A B D D E F C F C AG AH AJ AK AL AM AN AP AQ AR AS DA DB DC DD 1 HMM1 HMM2 HMM3 HMM5 HMM4 HMM8 HMM11 CR NO.2 HMM9 G G AC H HMM13 HMM14HMM6 HMM15 TNPA4279 HMM7 HMM10 HMM12 H H E H12 H11 PbF + 1 1 AV3 COMPONENT AV3 COMPONENT AV1 AV2 AV2 MONITOR OUT 1 11 12 22 23 33 34 44 1 20 21 40 41 60 61 80 1 4 5 7 1 22 23 44 S U F F I X . 1 22 23 44 1 2 22 23 1 2 39 40 2 79 80 1 1 10 1 4 5 8 L R 1 2 3 4 2 3 4 1 1 4 1 5 6 10 11 15 1 2 19 20 1 8 9 16 1 4 5 8 1 4 5 8 1 4 5 7 1 3 4 5 1 4 5 8 1 4 5 8 1 3 4 5 1 4 5 8 1 3 4 5 SCL SDA RFAGC VB BTL AUDIOOUT SIFOUT BB +B SW1 SW2 VIDEOOUT AFTOUT VB AFTOUT VIDEOOUT SW1 SW2 +B SCL SDA RFAGC BTL 1 25 26 50 51 75 76 100 1 4 1 5 TH-50PZ700C H-BOARD TNPA4279AC TH-50PZ700C H-BOARD TNPA4279AC H-BOARD (COMPONENT SIDE) TNPA4279AC H Parts Location H-BOARD (COMPONENT SIDE) IC2002 IC2003 IC2006 IC2007 IC2008 IC2010 IC2011 IC2012 IC2013 IC2105 IC2106 IC2107 IC2301 IC2302 IC2303 IC2601 IC2610 IC3001 IC3302 B-4 E-5 A-4 B-5 B-3 B-4 C-5 C-3 C-3 F-2 B-4 B-3 E-2 E-2 D-1 B-5 B-2 D-4 C-5 IC Q2015 Q2016 Q2017 Q2021 Q2023 Q2024 Q2025 Q2026 Q2027 Q2028 Q2029 Q2030 Q2031 Q2033 Q2034 Q2035 Q2039 Q2040 Q2041 Q2042 Q2101 Q2102 Q2301 Q2635 Q2636 Q2637 Q2638 Q2639 Q2640 Q2641 Q3011 Q3012 Q3013 Q3014 Q3015 Q3017 Q3018 Q3030 Q3031 Q3032 Q3401 Q3402 C-5 B-5 B-5 C-5 C-3 C-3 C-3 C-3 E-5 E-4 E-5 E-5 E-5 E-5 F-5 F-5 F-5 F-5 F-5 F-5 B-4 B-4 D-2 A-4 A-5 A-5 A-4 B-2 B-5 B-5 D-4 D-4 D-4 C-5 A-5 C-5 D-4 C-5 B-5 B-5 A-5 A-5 TRANSISTOR TP TP2301 TP2607 D-2 A-2 49 14.6. GH 和 GS 电路板 A B C D E F G H I 1 2 3 4 5 6 D807 D808 R806 R807 R808 IC803 D812 D813 D814 R815 R819 R820 R833 R834 R835 R840 R841 GH11 FL801 JS800 JS801 JS802 JS815 JS816 ZA801 ZA802 L805 TP801 TP802 TP803 TP804 TP805 C805 C807 C808 C809 C810 C811 C812 C813 C814 C815 C816 C817 C818 C819 C820 C823 C824 C825 C826 TNPA4135 1 GH CRNO.3 AB AC AD AE AF PbF 1 4 5 8 1 30 SUFFIX. D804 D805 R801 D806 R802 R803 R804 D809 R805 R809 IC801 IC802 D810 D811 R810 R811 R812 R813 R814 R816 R817 R818 R821 R822 R823 R824 R825 R826 R827 R828 R829 R830 R831 R832 GH10 L801 L804 C801 C802 C803 C804 Q801 C806 Q802 Q804 C821 C822 D801 D802 D803 GH CRNO.3 1 TNPA4135 PbF 1 12 13 24 25 36 37 48 1 4 5 8 1 19 REVERSE FOR SUFFIX. SEE C700 C703 Q700 Q701 C705 Q702 Q703 C712 C714 C716 C717 C718 C719 C720 C721 D700 C724 C725 C726 C727 R700 R701 C729 R702 R703 R704 R705 R706 R707 IC700 R708 R709 C731 C733 IC705 C736 C737 R710 R712 R713 C742 C743 C744 R725 R726 R727 R733 R734 R735 R736 R737 R738 R742 R743 R744 R751 R752 R760 R761 R762 R777 R778 R780 JS700 L701 L702 L705 L706 TP700 TP701 TP702 TP703 TP704 TP705 TP706 TP707 TP708 TNPA4143 1 GS CR NO.7 PbF REVERSE FOR SUFFIX. SEE 1 24 25 48 1 3 4 5 JK702 C701 C702 C704 C706 C707 C708 C709 C710 C711 C713 C715 C722 C723 D701 D702 C728 C730 IC701 IC702 C732 IC703 IC704 C734 C735 C738 R711 R714 R715 R716 R717 R718 C740 R719 C741 R720 R721 R723 R724 R728 R729 R730 R731 R739 R740 R741 R745 R746 R747 R749 R750 R753 R754 R755 R758 R759 AI AB AC AD AE AF AG AH R771 R772 R773 R779 R781 R782 X700 ZA701 GS09 L703 L704 GS52 CR NO.7 GS 1 TNPA4143 PbF 1 810 9 SUFFIX. 1 5 1 32 33 64 65 96 97 128 1 8 9 16 1 8 9 16 1 6 1 14 TH-50PZ700C GH-BOARD TNPA4135AF GS-BOARD TNPA4143AG TH-50PZ700C GH-BOARD TNPA4135AF GS-BOARD TNPA4143AG GS-BOARD (FOIL SIDE) TNPA4143AG GH-BOARD (FOIL SIDE) TNPA4135AF GS-BOARD (COMPONENT SIDE) TNPA4143AG GH-BOARD (COMPONENT SIDE) TNPA4135AF Parts Location GS-BOARD Q7700 Q7701 Q7702 Q7703 D-2 D-2 A-2 A-2 TRANSISTOR IC7700 IC7701 IC7702 IC7703 IC7704 IC7705 B-2 H-2 H-1 G-2 G-2 B-2 IC TP7700 TP7701 TP7702 TP7703 TP7705 TP7706 TP7707 TP7708 A-2 B-2 D-2 D-2 D-3 C-2 C-1 D-2 TP Parts Location GH-BOARD IC3801 B-4 IC3802 IC3803 IC Q3801 Q3802 Q3804 TRANSISTOR TP3801 TP3802 TP3803 TP3804 TP3805 C-4 E-4 C-5 B-4 C-4 D-5 D-5 D-4 D-4 D-4 TP GH GS 50 14.7. DG 电路板 A B C D E F G H I 1 2 3 4 5 6 Q4000 Q4001 Q4002 Q8850 Q4200 Q8851 Q4201 Q8852 Q8853 IC4000 IC4002 IC4003 Q4800 IC4004 Q4801 IC4005 Q4802 Q4803 Q4805 TP8744 TP5670 TP8745 TP4504 JK8731 TP4505 TP4506 TP4507 TP4508 TP4512 TP4513 TP4514 TP4515 TP4517 TP4518 Q8301 IC5600 IC5601 TU8301 TP2024 IC8301 Q8911 Q8912 Q8913 TP5707 TP8404 TP8601 TP8602 TP8603 TP8604 TP8605 Q4500 Q5694 Q4501 TP8037 IC5670 Q4509 Q4511 Q4512 Q4513 Q4514 Q4515 Q4516 Q4517 Q4518 Q4519 Q4520 Q4521 TP1100 JK8401 TP1101 TP1102 TP1103 TP1104 TP1105 IC4501 IC4504 IC4506 IC4507 IC4508 IC4509 IC4513 IC4514 IC4515 IC2000 TP4200 TP8851 TP4201 TP8852 TP8853 TP8854 TP4800 TP4801 TP4802 TP4803 TP4804 TP4805 TP4806 TP4807 TP4808 TP4809 Q8403 TP4810 Q8404 TP4811 TP4818 IC8004 Q8801 Q8802 TP4451 IC8408 IC8409 IC8601 Q1100 Q1101 Q1102 Q1103 Q1104 Q1105 Q1106 Q1107 Q1108 IC8801 Q1109 TP5600 TP5601 TP5602 Q1110 Q1111 TNPA4176 1 DG IC8551 IC8552 PbF 1 3 4 5 1 3 4 5 1 3 4 5 1 3 4 5 REVERSE FOR SUFFIX. SEE 1 2 16 15 12 13 24 1 1 15 16 30 ACTIVE ANTENNA DC/DC TU BM SCL IFD2 IFD1 SDA IFA1 BB IFAGC RFAGC MON 1 16 17 32 33 48 49 64 1 3 4 5 34 33 68 67 1 2 35 36 1 4 5 8 1 4 5 8 1 4 5 7 1 3 4 5 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 8 9 16 + 1 10 11 20 1 10 11 20 1 4 5 8 1 4 5 7 1 24 25 48 24 25 1 48 C1118 R8044 TP5608 R8045 R8818 R8048 C8070 R8819 C8071 R8049 C8072 R8433 C8073 C4000 C8074 R8435 C4001 C8075 R8436 C4002 C8076 R8437 C4003 C8077 R8438 R8820 D1100 C1124 Q4000 C8078 R8821 Q4001 D1101 C8079 R8822 D1102 Q4002 R8052 D1103 R8823 R8053 D1104 R1100 R8824 R1101 D1105 R8825 R1102 R8056 R1103 D1107 R8440 R1104 C8080 C8851 R8441 R1105 R8059 R8829 C8852 R1106 C8853 R8443 R1107 C4203 C8854 Q8850 R1108 Q4200 Q8851 C8855 R1109 TP8501 Q4201 Q8852 C8856 R8446 Q8853 R8447 C4013 R8448 C4014 R8060 R8449 R8831 R8061 R8832 R8834 C4018 R1110 R1111 R1112 R1113 R8067 R8450 TP8700 R1114 R8068 C4210 R8451 TP8701 R8069 TP8702 TP8703 R8454 TP8704 C4020 TP8705 TP8706 TP8707 C4023 X4500 C4024 C4600 TP8708 TP8709 C4601 R8071 C4026 C4602 C4603 C4028 C4604 R8074 R8651 R8075 C4607 R8077 TP8710 R1124 C4608 R8078 C4609 R1125 TP8711 R8079 R8655 TP8712 R1126 R8463 TP8713 C4800 TP8714 IC4000 C4801 TP8715 C4802 IC4002 TP8716 IC4003 C4803 TP8717 C4804 Q4800 C4610 IC4004 TP8718 R4200 R8080 C4805 Q4801 C4035 IC4005 R8469 TP8719 C4611 R8081 R8852 Q4802 C4806 C4036 C4612 R4202 R8082 Q4803 C4613 R8083 R8854 C4614 R8084 R1131 R4011 C4615 Q4805 R4012 R8086 R8856 R1133 R8087 R8470 TP8720 C4618 R4014 R8088 R4208 R8859 R1135 TP8721 R8089 R4209 R8472 R1136 TP8722 R1137 TP8723 R1138 TP8724 R8474 C4041 TP8725 R1139 R8475 R8476 C4042 TP8726 R8477 C4043 TP8727 R8478 C4044 C4620 L5670 TP8728 R8090 R8479 TP8729 L8551 R8091 C4621 C4046 R8092 C4622 R8863 C4623 C4047 R8093 R1140 C4048 R8094 R1141 C4049 R8095 R8096 C4626 R1143 C4627 R8480 R8868 R4600 TP8730 R8098 C4628 R8481 TP8731 R8099 C4629 R1146 TP8732 R4026 TP8733 R4603 R1147 R4604 C4050 TP8734 R8484 R4605 TP8735 R1149 R4029 R8485 R4606 C4052 TP8736 R8486 TP8737 C4053 R8487 D4800 TP8738 R8870 R8488 R8871 TP8739 R8872 R8875 R1151 R8876 R4802 R1152 R8877 R4803 R4804 TP8740 R8879 R4805 R4611 R4229 TP8741 R4806 R4612 TP8742 R4807 TP8743 R1157 R4808 TP8744 TP5670 TP8745 R4809 R4615 TP8746 TP8747 TP8748 L5690 R8881 TP8749 L5691 R8882 L5692 R8883 R8884 R4810 L5694 R4811 R8886 R4812 L4502 R8887 R4813 L4503 R4814 L4504 TP8750 R8889 L4505 TP8751 R4816 R4622 TP8752 TP8753 L4508 R4818 TP8754 TP8755 TP8756 R4626 R4627 TP8757 TP8758 R8890 R8891 TP8759 R4241 R4242 R8893 R8894 L4510 R4244 L4512 R8896 R4246 TP8760 R4631 TP8761 L4515 L4516 TP8762 TP8763 L4517 R4634 L4518 TP8764 L4519 TP8765 TP8766 TP8767 C5600 TP4500 TP8768 C5601 TP4501 TP4502 C5603 TP4503 C5604 L4520 TP4504 C5605 L4521 JK8731 TP4505 C5606 TP4506 R1182 C5607 TP4507 C5608 L4524 TP4508 C5609 TP4509 X8001 R4835 R4836 R4837 R4838 R4839 C5610 TP4510 R4648 TP4511 TP4512 TP4513 R4840 TP4514 C8301 TP4515 C5616 C8302 TP4516 C5617 C8303 TP4517 R4844 C8304 TP4518 Q8301 TP4519 R1195 R4846 C8307 R4847 R1197 R4653 R4848 R1198 TP2000 R4654 C8309 R1199 TP2001 TP2002 TP2003 C5620 TP2004 C5621 TP2005 C5622 TP2006 C5623 TP2007 C5624 R4850 R4274 TP2008 C5625 C8311 C8505 R4851 TP2009 C8506 C5626 C8312 C5627 D5603 C8313 D5604 R5600 C8314 C8315 R4661 R4279 D5606 C8316 R4663 D5607 C8317 R5604 C8318 R4664 D5608 R4858 TP2010 R5605 C8319 R4859 TP2011 R4665 R5606 TP2012 R5607 R4667 TP2013 IC5600 C5630 R4668 R8100 TP2014 IC5601 C5631 R4669 R8101 R4281 TP2015 C5632 TP2016 C5633 R4283 TP2017 C5634 C8320 R8104 R4284 TP2018 C5635 C8321 TU8301 R4285 R8105 TP2019 C8322 R8106 R4286 C5637 R8107 R5610 C5638 R8108 R4288 R5611 R8109 R4289 R5612 C8326 R5613 R4673 R4674 TP2020 R5615 R8301 C8329 TP2021 TP2022 R4676 R5617 TP2023 R4677 R8110 C5640 R5618 R4290 TP2024 R4678 R8111 R5619 C5641 R4291 R4679 R4292 C5643 JS4000 C8330 R4870 JS4001 IC8301 JS4002 C8332 R4872 JS4003 C8333 R4873 R5620 JS4004 C8334 R4874 R4680 R5621 C8335 R4875 R4681 R5622 JS4006 C8336 R4682 R5623 R8503 R4683 R5624 C8338 Q8911 R5625 C8339 R8505 L8001 R4685 Q8912 R5626 R8506 L8002 R4686 Q8913 R5627 R8313 L8003 R8507 R4687 R5628 R8508 L8004 R4688 R5629 R8509 R4689 L8006 L8007 C8340 L8008 R8319 C8341 R8701 L8009 R8703 R5630 R8704 R8510 R4690 R5631 R8705 R5632 R8706 R5633 R4693 R5634 R8320 R4694 L8010 R8709 R5636 R4696 R5637 R4697 R8900 R8325 R8901 R8326 R8902 R8327 R8903 R8904 R8328 R8710 R8905 R8711 R8906 R8907 R8908 R8909 R5643 TP5700 TP5701 TP5702 TP5703 R8910 C5670 TP5704 R8911 TP5705 C5671 TP5706 C5672 C8552 C5673 TP5707 R8914 R8915 R8916 R8917 R8918 R8919 L8802 R8920 R8921 TP8401 R8922 TP8402 R8923 TP8403 TP8404 R8924 R1200 R1201 R8925 R8926 R8927 R8928 R1204 R8735 R8736 R8737 R1207 R8738 TP8601 TP8602 TP8603 R8930 C5690 TP8604 R8931 TP8605 C5691 R8932 R8933 R8934 R8740 D5670 R1210 R8741 R8935 R1211 D5671 C4501 R8742 R8936 R1212 R8743 R8937 R1213 D5673 C4503 R8938 R5670 R1214 Q4500 C4504 Q5694 R8745 R8939 Q4501 R5671 C4505 R8551 R1215 TP8801 R8746 R8552 TP8802 R8747 R8553 R5673 TP8803 R8748 R8554 C4508 R1218 TP8804 C4509 R1219 R8555 TP8805 R8556 TP8806 R8557 TP8037 TP8807 R8940 IC5670 TP8808 R8941 Q4509 R8942 R8943 R8944 R1220 R8945 R1221 C4511 C4512 R8946 R1222 C4513 R1223 C4514 R8948 R1224 R8949 Q4511 R1225 C4515 Q4512 R1226 C4517 R8563 R1227 Q4513 C4518 R1228 R8564 Q4514 C4519 R1229 Q4515 Q4516 R8567 Q4517 R8950 Q4518 C2000 R8951 Q4519 R8952 R4302 R4303 C4520 R1230 D5690 R4304 C4521 D5691 R4305 R4306 R4307 D5693 Q4520 R4308 D4501 Q4521 C4526 R1236 R1237 C4527 C4528 TP1100 JK8401 C4529 TP1101 R4501 TP1102 TP1103 R4503 TP1104 L4000 R4505 TP1105 R4311 R4506 R8963 L4003 R4507 R8964 L4004 C4530 L4005 C4531 IC4501 R4315 R8965 L4006 C4532 R4316 R8966 L4007 R8967 R4317 C4533 R1243 R4700 L4008 R4318 IC4504 R4701 R4319 IC4506 R4702 D4512 R4703 IC4507 C4538 IC4508 R1249 C4539 IC4509 R4705 R4706 R4707 R4320 D4518 R4708 R4709 R4324 C4540 R1250 R4325 C4541 C4542 R4326 C4543 IC4513 C4544 IC4514 C4545 R4329 IC4515 C4546 R1256 C4547 R1257 D4524 TP4000 R1258 D4525 R1259 D4526 D4527 R4524 IC2000 R4330 R4525 R4527 C4550 R1260 R1261 R1262 R1264 TP4200 TP8851 R2011 C4555 TP4201 TP8852 C4556 R2012 C4557 TP8853 D4533 TP8854 D4534 D4535 C4559 R4531 R2016 D4536 R2017 L4800 R2018 L4801 C4560 R4538 C4561 R4539 C4562 C4563 C4564 C4565 R2021 C4566 R2022 R4540 R2024 C8001 R4541 C4569 C8002 R2026 R4542 R2027 R4543 C8003 R2028 C8004 C8006 C8007 C8008 C8009 C4573 C4576 C4577 TP4800 C8010 C4579 C8011 TP4801 R4552 TP4802 C8012 ZA0013 TP4803 C8013 ZA0014 TP4804 C8014 ZA0015 C8015 TP4805 C5712 ZA0016 TP4806 C8016 ZA0017 C5713 C8017 TP4807 C5714 C4580 ZA0018 C8018 TP4808 C5715 X8301 C4581 ZA0019 C8019 TP4809 C4583 C4584 C4585 Q8403 C4587 ZA0020 C8020 TP4810 Q8404 C4589 ZA0021 TP4811 C8021 ZA0022 C8022 ZA0023 C8023 R4564 C8024 ZA0024 TP4814 R4565 C8601 C8025 TP4815 C8026 TP4816 C8027 TP4817 FL4500 R4568 C4590 C8028 TP4818 C8411 FL4501 C4591 R4569 R8001 C8029 R8002 C8412 C4592 FL4502 C8413 C4593 FL4503 C8414 C4594 FL4504 C8415 FL4505 C4595 FL4506 R8006 C4597 R8007 C4598 C8030 R8008 C8031 C8802 C8032 C8803 C8033 R4574 C8804 C5730 C8034 IC8004 R4575 C8805 C5731 Q8801 C8035 R4576 C5732 C8806 Q8802 C8036 C8807 R4577 C8037 C8808 C5734 R4578 C8038 R4579 C8809 C8039 R8011 R8012 R8015 R8016 R4580 C8040 R8019 R8401 R4581 C8041 C8812 R4582 C8042 C8043 C8813 R4583 C8814 R4584 C8044 R4585 C8045 R4586 C8046 R4587 C8047 R8020 R8408 R4588 C8048 TP4451 R4589 C8049 R8023 R8024 L5605 R8601 R8025 L5606 R8602 R8603 IC8408 R8604 R8028 C8050 IC8409 R8029 C8051 R8412 R4592 C8052 R4593 C8053 R4594 C8054 R4595 IC8601 C8055 C8056 C8057 Q1100 L5610 C8058 R8030 Q1101 C1105 R8031 Q1102 R8032 Q1103 R8033 R8034 Q1104 L8301 C1109 Q1105 R8035 L8302 R5732 Q1106 Q1107 R5733 R8037 Q1108 R8038 IC8801 JS4501 Q1109 R5735 R8039 C8061 L8306 JS4502 C8062 R2087 R5737 TP5600 R5738 TP5601 R5739 C8065 C8066 TP5602 C8067 TP5603 R8810 Q1110 C8068 R8040 TP5604 Q1111 R8811 C8069 R8041 TP5605 R8812 TP5606 R8813 L8503 TP5607 TNPA4176 B IC8551 IC8552 TH-50PZ700C DG-BOARD TNPA4176AM TH-50PZ700C DG-BOARD TNPA4176AM DG-BOARD (FOIL SIDE) TNPA4176AM 51 TH-50PZ700C DG-BOARD PARTS LOCATION TH-50PZ700C DG-BOARD PARTS LOCATION Parts Location DG-BOARD (FOIL SIDE) IC2000 IC4000 IC4002 IC4003 IC4004 IC4005 IC4501 IC4504 IC4506 IC4507 IC4508 IC4509 IC4513 IC4514 IC4515 IC5600 IC5601 IC5670 IC8004 IC8301 IC8408 IC8409 IC8601 IC8801 IC8851 IC8852 E-5 E-4 E-4 D-5 E-4 E-4 G-5 H-4 F-4 G-4 F-5 E-4 F-5 G-5 G-4 C-3 B-3 H-4 B-4 C-2 C-3 C-2 F-3 H-3 H-2 H-2 IC Q1100 Q1101 Q1102 Q1103 Q1104 Q1105 Q1106 Q1107 Q1108 Q1109 Q1110 Q1111 Q4000 Q4001 Q4002 Q4200 Q4201 Q4500 Q4501 Q4509 Q4511 Q4512 Q4513 Q4514 Q4515 Q4516 Q4517 Q4518 Q4519 Q4520 Q4521 Q4800 Q4801 Q4802 Q4803 Q4805 Q5694 Q8301 Q8403 Q8404 Q8801 Q8802 Q8850 Q8851 Q8852 Q8853 Q8911 Q8912 Q8913 H-3 H-3 G-3 G-2 G-3 G-3 G-2 G-3 G-3 G-3 G-3 G-3 E-5 E-5 E-4 B-6 B-5 G-4 H-5 H-3 F-5 F-5 F-5 F-5 E-5 F-5 F-5 E-5 E-5 G-5 H-5 B-2 A-3 A-2 A-3 C-5 F-3 E-2 D-3 E-3 H-3 H-2 D-4 E-4 E-4 D-4 H-5 H-5 H-5 TRANSISTOR TP Parts Location DG-BOARD (COMPONENT SIDE) IC1100 B-3 IC1101 B-4 IC4001 E-4 IC4500 C-5 IC4503 C-5 IC4510 C-4 IC4800 A-3 IC5660 H-3 IC5671 B-4 IC5672 D-3 IC8001 F-4 IC8002 G-4 IC8003 G-4 IC8302 H-2 IC8401 E-3 IC8402 F-3 IC8403 E-2 IC8404 F-3 IC8405 F-2 IC8406 E-3 IC8407 E-3 IC8553 B-2 IC8621 C-2 IC8622 C-2 IC8654 C-2 IC Q2000 B-3 Q2001 B-3 Q4502 B-5 Q4503 B-4 Q4504 B-6 Q4505 B-5 Q5600 G-3 Q5601 H-3 Q5602 H-3 Q5603 H-3 Q5604 H-3 Q5690 C-3 Q5691 C-3 Q5692 C-3 Q5693 D-3 Q8401 E-2 Q8402 E-2 Q8501 F-5 TRANSISTOR TP1100 H-4 TP1101 H-4 TP1102 G-4 TP1103 H-1 TP1104 H-3 TP1105 G-3 TP2024 E-6 TP4200 C-6 TP4201 C-6 TP4451 A-5 TP4504 G-5 TP4505 G-5 TP4506 H-5 TP4507 G-5 TP4508 H-5 TP4512 F-5 TP4513 F-4 TP4514 F-5 TP4515 F-4 TP4517 H-3 TP4518 F-4 TP4800 B-4 TP4801 B-4 TP4802 B-4 TP4803 B-4 TP4804 B-5 TP4805 B-4 TP4806 B-4 TP4807 B-4 TP4808 B-5 TP4809 B-4 TP4810 B-4 TP4811 B-4 TP4818 A-2 TP5600 C-3 TP5601 B-3 TP5602 B-3 TP5670 H-4 TP5707 D-6 TP8037 B-4 TP8404 E-2 TP8601 F-3 TP8602 F-3 TP8603 F-3 TP8604 G-3 TP8605 F-3 TP8744 E-3 TP8745 B-2 TP8851 H-3 TP8852 G-3 TP8853 G-4 TP8854 E-3 DG 52 A B C D E F G H I 1 2 3 4 5 6 IC8621 IC8622 IC1100 IC1101 DG11 DG23 IC4001 DG25 DG26 DG31 DG32 DG33 DG34 DG35 DG1 DG2 JK8701 DG5 DG6 JK8702 DG7 DG52 IC4800 Q5600 Q5601 JK8731 Q5602 Q5603 Q5604 Q8501 TU8301 JK4500 JK4501 IC8302 IC5660 Q5690 Q5691 Q5692 Q5693 Q4502 Q4503 Q4504 Q4505 IC5671 IC5672 IC8553 IC8554 Q2000 Q2001 JK8401 IC4500 IC4503 IC4510 JK8801 Q8401 Q8402 IC8001 IC8002 IC8003 IC8401 IC8402 IC8403 IC8404 IC8405 IC8406 IC8407 B E C F D G H J K L N M W V Q R U ( A AA B BA C D E CA DA EA FA ( ) ) F ( ) ( ) ( ) ( ) P Y X T S 1 DG TNPA4176 DGMM1 DGMM2 DGMM3 PbF 1 10 11 20 1 10 11 20 1 32 33 64 65 96 97 128 1 4 5 8 1 30 + 1 9 1 20 21 40 41 60 61 80 110 56 55 1 1 6 1 2 19 20 7 1 1 11 1 2 29 30 1 2 29 30 3 7 1 6 2 10 1 12 1 23 22 2 1 55 56 110 1 31 2 79 80 1 1 4 1 4 14 1 1 3 4 6 SUFFIX. + 1 2 16 15 + + ACTIVE ANTENNA BB DC/DC TU BM IFA1 SDA SCL IFD2 IFD1 IFAGC RFAGC MON 19 1 1 19 1 1 1 1 4 8 5 1 5 3 4 1 3 4 5 1 24 25 48 28 56 29 1 67 68 33 34 2 35 1 36 1 4 5 8 1 12 13 24 25 36 37 48 1 36 37 72 73 108 109 144 1 9 12 10 8 + A 1 1 A 1 A 1 12 13 24 1 11 20 10 1 4 6 3 1 10 11 20 1 10 11 20 10 1 11 20 1 10 11 20 R8814 R8815 C1119 R8621 R8622 R8816 R8046 R8623 R8817 R8047 R8430 R8624 R8431 R8625 R8432 R8626 R8627 R8434 R8628 C1120 R8629 IC8621 C1122 IC8622 C1123 C4004 R8050 C4005 C1125 R8051 C4006 C1126 C4007 C4008 R8630 R8054 R8631 C4009 R8055 D1106 R8632 R8826 R8827 R8633 R8057 R8634 D1108 R8828 R8058 D1109 R8635 R8636 C4010 IC1100 C4204 R8445 C4011 IC1101 C4012 C4206 D1110 R8830 C4208 C4015 D1112 C4016 R8062 R8833 C4017 D1113 R8063 R8064 C4019 R8065 R8066 DG11 R1115 R8452 R1116 R8453 R1117 R1118 R8455 R1119 C4021 R8456 C4022 R8457 R8458 R8070 R8459 C4025 R8072 C4027 R8073 R1120 R4000 C4029 R4001 R1121 C4605 R4002 C4606 R1122 R8076 R4003 R1123 R8653 R4004 R8460 R8461 R4005 R4006 R8462 DG23 R1127 R4007 C4030 R1128 D8850 R8465 C4031 IC4001 R1129 DG25 C4032 R8466 DG26 C4033 R8467 R8468 C4034 R8851 R4201 C4037 R4203 R8853 C4807 C4808 C4038 R4010 R1130 R4204 C4039 R8855 R4205 C4616 R1132 R4206 R8857 C4617 R4013 R4207 R8858 R1134 R8471 DG31 C4619 DG32 R4016 DG33 R4017 C4040 DG34 DG35 R4019 R4210 R8860 C4045 R8862 R8864 C4624 R8865 C4625 R8866 R1142 R8867 R8097 R1144 R4025 R1145 FL8801 R4601 R8869 R8482 FL8802 R4602 R8483 R4027 R4028 FL5730 R1148 FL5731 C4051 FL5732 FL5733 R4607 R4608 FL5734 DG1 R4609 DG2 R8873 R8874 R1150 R4800 JK8701 R4801 DG5 DG6 JK8702 R1153 DG7 R8878 R1154 R4034 R4610 R1155 R1156 DG52 R4613 R1158 R4614 IC4800 R1159 R4616 R4617 R8880 R4230 R4618 R4619 C4450 R1160 L4500 R8885 L4501 R1161 R1162 R1163 R4620 R8888 R1164 R4621 R4815 R1165 R1166 L4506 R4623 R4817 R1167 L4507 R4624 R4625 L4509 R1169 R4819 R4628 R4629 R8892 R1170 R4820 R1171 L4511 R8895 R1172 L4513 R1173 R8897 R4247 R1174 R4630 R8898 R8899 R1175 R4249 R4632 R1176 R1177 R4633 R1178 R1179 R4635 R4636 R4637 R4638 R4639 C5602 Q5600 R1180 Q5601 JK8731 R1181 Q5602 R4832 R4833 R1183 Q5603 R4834 R4640 R1184 Q5604 R1185 R4641 R4642 R1186 R4643 R1188 R4644 R1189 R4645 R4646 R4647 C5611 R4649 C5612 R4841 C5615 R4842 R1192 R1193 C5618 R1194 R4650 C5619 R4845 R4651 C8306 R1196 R4652 C8308 R4655 R4656 R4657 R4658 R4659 C8501 C8502 C8503 D5600 C8310 JS1100 C8504 D5601 JS1101 Q8501 D5602 JS1102 R4852 JS1103 R4853 C5628 R4660 JS1104 R4854 D5605 C5629 JS1105 R4855 R4662 JS1106 R4856 JS1107 R4857 JS1108 JS1109 D5609 R4666 R5608 R5609 R8102 R8103 JS1110 R4860 TU8301 JS1111 R4861 C5636 JS1112 R4862 C8323 JS1113 R4287 R4863 C8324 R4670 JS1114 R4864 C5639 C8325 R4671 JS1115 R4865 R4672 JS1116 R4866 C8327 JS1117 R4867 C8328 JK4500 JS1118 R4868 FL4800 R4675 JK4501 JS1119 R4869 FL4801 FL4802 R8303 R8304 R8305 R8306 C5642 R8307 R8308 JS1120 C5644 R8309 C8331 JS1121 R4871 C5645 IC8302 JS1122 JS1123 JS1124 JS4005 JS1125 R8501 R4876 JS1126 R8502 JS4007 C8337 JS1127 R8310 FL4810 R4684 R8504 R8311 FL4811 FL4812 R8312 FL4813 R8314 R8315 L8005 R8317 R8318 R8702 R4691 R8511 R4692 R8512 R8707 R8513 R8708 X1100 R8514 IC8003-A R5635 R8321 C8731 R4695 R8515 R8322 R8516 R8323 R8517 C5660 R8324 R4698 R8518 R5638 C5661 R4699 R8519 C5662 C5663 R8329 R8712 R5640 R5641 R5642 R5644 R5646 R5647 C8551 R8912 R8913 C8553 C8554 C5674 C8555 C5675 C5676 SW5660 L8801 R8731 L5735 R8732 R1202 R8733 R1203 R8734 R5660 R1205 R8929 R5661 R5662 R1206 R1208 R8739 R1209 IC5660 L8621 C5692 C5693 Q5690 C5694 C4500 Q5691 C5695 C4502 D5672 Q5692 Q5693 R8744 C4506 R5672 R1216 Q4502 Q4503 C4507 R1217 Q4504 R5674 R8749 Q4505 L1100 R8558 IC5671 R8559 IC5672 IC8553 IC8554 C4510 R8947 R8560 R8561 R8562 R8565 R8566 Q2000 R8954 Q2001 R1231 R1232 D5692 R1233 D4500 R5690 R1234 R8958 C4525 R1235 R5691 R4309 R5692 D4502 R5693 D4503 D4504 R1238 R5694 R4500 JK8401 R5695 R1239 D4505 R5696 R4502 D4506 R5697 D4507 D4508 R4504 R4310 D4509 L4001 L4002 R4312 R1240 R4508 IC4500 R4509 R1241 IC4503 D4510 C4534 R1244 D4511 R1245 C4535 C4536 R1246 C4537 D4513 R1247 D4514 R4704 R4510 R1248 R4511 D4515 R4512 D4516 R4513 D4517 R4514 R4321 R4515 D4519 R4322 R4516 R4517 R4323 IC4510 R4518 R1251 R4519 JK8801 R1252 R1253 R4327 D4520 R1254 R4328 R2000 D4521 R1255 R2001 D4522 R2002 D4523 R2003 C4548 R4520 R2004 R4521 C4549 R4522 R2006 R2007 R4523 D4528 R4526 R4528 C4551 R4529 C4552 R1263 C4553 R2010 D4530 D4531 D4532 R2013 R4530 R2014 C4558 R2015 R4532 R4533 D4537 R4535 R2019 R4536 R2020 R2023 C4567 C4568 R2025 ZA0001 ZA0002 ZA0004 R4544 R4545 ZA0005 C8005 ZA0006 R4546 ZA0007 R4547 C4570 ZA0008 C4571 ZA0009 C4572 C4574 C4575 ZA0010 C4578 ZA0011 ZA0012 C5710 C5711 C8401 C8402 C4582 C5716 C8403 C8404 C8405 Q8401 Q8402 C8406 C4586 C8407 C4588 C8408 C8409 R4561 R4562 R4563 R4567 C8410 R8003 R8004 R8005 C8416 C4596 C8417 C4599 C8801 IC8001 R8009 IC8002 IC8003 C5733 R8010 R8013 R8014 R8017 C8810 R8018 C8811 R8402 R8403 R8404 R8405 C8815 C8621 R8406 C8622 R8407 L5600 R8409 L5601 IC8401 R8021 IC8402 L5602 R8022 L5603 IC8403 IC8404 L5604 IC8405 IC8406 R8026 IC8407 R8027 R8410 R8605 R8411 R8414 D8801 IC8002-A R8416 C1102 R4596 R8417 R4597 C1103 R8418 R4598 C1104 R4599 L5611 R8419 C8059 C1106 R8802 C1107 R8803 C1108 R8804 R5730 R8805 R5731 R8806 L8303 R8807 L8304 R5734 R8808 C8060 R8421 R8809 R8422 R5736 R8423 C8063 R8424 C1110 C8064 R8425 C1111 R8426 C1112 R8427 R8428 C1114 L8501 C1116 L8502 R8042 C1117 R8043 TNPA4176 A TH-50PZ700C DG-BOARD TNPA4176AM TH-50PA700C DG-BOARD TNPA4176AM DG-BOARD (COMPONENT SIDE) TNPA4176AM 53 14.8. DH 电路板 E F G H I 1 2 3 4 5 6 Q5000 Q001 DH4 DH5 DH7 DH8 IC5000 IC003 IC007 IC008 IC009 IC014 IC015 TP910 TP911 TP912 TP913 TP914 IC851 TP916 IC100 IC102 IC103 Q900 IC104 IC105 Q901 Q902 TNPA4244 1 DH CR NO.5 Thermal pad Thermal pad Thermal pad PbF 7 1 1 31 7 1 1 21 ORDER NO. 1 4 5 8 1 32 33 64 65 96 97 128 1 4 5 8 1 4 5 8 1 4 5 8 + 1 4 5 8 1 4 5 8 1 28 29 56 A 1 2 B + A 1 2 B 1 A + + TP851 TP852 TP853 Q002 IC001 IC002 IC004 IC005 IC006 IC010 IC011 IC012 IC013 TP900 TP901 TP902 TP903 TP904 TP905 TP906 TP907 TP908 TP909 DH25 TP5000 IC900 IC901 TP001 TP002 TP003 TP004 TP027 TP028 CR NO.5 TNPA4244 1 DH Thermal pad PbF + 1 4 5 3 1 3 4 5 1 3 4 5 1 3 4 5 1 4 8 5 1 4 5 8 1 3 4 5 + + + 1 55 56 110 + + + + SEE REVERSE FOR ORDER NO. 12 13 24 1 1 15 16 30 + R5348 R5143 R5909 IC5103 CL5103 R5241 CL5875 CL5867 CL5041 R5145 C5933 R5300 R5146 R5123 R5111 R5220 DH7 CL5048 R5127 R5309 IC5100 R5249 R5206 C5912 C5306 R5091 R5157 R5301 ZA5002 CL5105 C5274 R5908 R5854 C5866 R5006 DH5 CL5112 R5005 R5176 R5225 R5013 C5363 R5106 R5247 C5039 CL5006 C5162 C5133 TP5914 R5071 R5061 CL5098 IC5000 IC5102 TP5912 R5240 R5333 C5351 CL5130 R5045 R5038 CL5870 C5016 Q5001 C5311 R5890 FL5019 CL5865 R5158 C5135 CL5107 FL5853 R5344 FL5018 R5039 CL5871 CL5081 CL5114 L5016 R5859 L5900 R5226 IC5015 R5009 R5134 R5215 IC5003 R5055 R5012 R5330 C5909 R5104 R5245 C5066 R5010 R5339 Q5900 FL5020 CL5877 CL5868 C5037 C5932 R5315 TP5913 R5008 R5883 FL5015 R5216 R5197 ZA5004 CL5108 CL5880 R5209 C5353 C5310 R5219 DH4 C5017 R5856 CL5874 D5902 R5295 R5072 CL5876 R5105 X5001 R5053 R5233 R5221 CL5005 ZA5001 R5057 R5208 CL5011 R5169 R5133 C5911 CL5109 L5901 R5228 CL5018 C5307 L5903 CL5882 R5196 C5308 R5238 Q5000 R5198 R5334 C5916 R5891 R5853 L5906 R5026 R5019 C5926 R5121 IC5104 R5858 IC5014 C5902 TP5911 C5867 R5007 CL5036 R5207 R5331 R5248 R5234 R5205 C5000 R5151 TP5910 CL5873 C5352 C5878 R5250 R5046 FL5014 R5129 IC5105 ZA5003 CL5106 R5058 R5014 C5362 R5130 CL5004 C5940 C5359 D5905 R5235 C5001 C5132 R5857 C5361 C5927 CL5878 IC5008 R5125 R5222 R5011 R5149 R5332 R5131 R5056 R5237 C5161 C5917 CL5866 R5155 C5360 R5088 IC5007 R5852 R5251 CL5872 L5000 R5884 CL5110 FL5016 L5904 C5350 R5320 C5913 FL5852 R5882 R5069 R5195 R5170 Q5902 R5068 R5214 R5156 C5357 C5134 IC5851 R5244 R5203 R5153 D5901 R5087 R5070 R5107 R5054 IC5009 R5147 C5358 R5318 X5000 R5246 CL5879 R5204 DH8 R5132 Q5901 TP5916 R5227 CL5869 D5001 R5159 R5328 C5874 L5902 CL5881 R5020 CL5111 FL5017 R5160 C5939 C5354 R5855 R5932 C5925 C5149 C5319 R5870 C5869 C5089 CL5859 C5030 CL5072 C5371 R5323 L5006 C5129 R5873 CL5104 C5290 C5281 R5050 C5248 CL5099 C5214 CL5045 C5164 R5900 JS5023 CL5120 C5291 R5051 R5231 CL5003 R5165 C5364 C5166 L5015 C5107 R5877 TP5904 R5236 R5224 CL5077 C5203 C5002 R5182 C5384 C5181 TP5014 D5908 C5347 C5907 R5881 C5298 C5285 C5082 R5229 C5049 CL5862 C5033 CL5067 R5193 C5197 C5365 R5326 C5151 C5334 R5879 C5296 C5283 R5033 C5045 CL5860 CL5855 C5219 CL5013 C5192 TP5027 C5179 R5911 C5146 C5120 JS5021 R5868 R5252 C5265 C5064 C5243 C5235 CL5031 C5395 C5185 R5150 L5024 R5137 C5339 C5119 JS5018 C5879 C5095 C5279 C5264 C5256 R5025 CL5095 C5008 CL5026 C5171 L5022 R5902 R5128 R5116 R5109 C5300 R5878 C5295 C5273 C5260 C5024 C5204 CL5058 CL5010 C5385 C5165 C5928 L5009 R5112 C5101 R5875 C5293 C5068 C5056 C5201 CL5053 C5382 R5163 R5154 R5338 L5012 L5005 C5126 R5871 R5242 C5052 IC5006 C5212 CL5042 C5189 R5347 R5142 R5139 R5321 C5918 C5123 CL5118 C5868 C5088 C5245 IC5013 CL5089 CL5853 CL5038 TP5023 TP5016 C5914 C5115 R5095 C5877 C5093 C5084 C5234 R5199 R5173 TP5025 R5920 R5140 C5160 R5312 R5867 C5289 C5855 R5048 C5257 C5242 CL5851 CL5028 R5178 C5366 R5327 C5345 C5140 C5303 CL5127 C5873 C5284 C5275 R5034 C5046 CL5091 IC5002 CL5079 C5011 CL5016 C5387 TP5022 C5369 R5329 C5924 C5338 C5138 CL5900 R5094 TP5909 C5862 C5277 R5037 R5023 CL5863 C5034 R5003 C5209 CL5020 R5171 C5380 C5378 C5168 R5907 L5001 C5118 JS5017 R5866 C5864 L5905 C5263 R5018 C5019 C5007 CL5025 C5392 C5187 R5921 C5169 C5930 R5313 C5314 R5892 CL5100 FL5006 C5086 C5266 R5230 R5027 C5236 CL5852 CL5070 CL5032 R5179 C5372 TP5011 C5344 R5117 C5329 C5301 JS5009 C5872 R5066 C5230 CL5078 C5010 CL5012 R5939 R5929 C5368 D5900 C5142 C5137 C5112 JS5012 R5862 TP5908 C5861 C5276 C5252 CL5092 C5029 C5013 R5194 C5198 TP5010 TP5005 R5325 C5342 R5115 C5900 C5106 JS5007 C5294 R5041 C5058 C5217 CL5056 R5181 R5168 R5916 C5158 L5008 R5894 JS5004 R5076 C5249 C5200 CL5049 C5397 R5935 R5925 TP5003 C5157 R5122 R5101 R5296 TP5900 R5064 C5078 C5225 CL5044 R5924 R5337 C5156 C5903 C5125 JS5001 C5099 C5859 C5076 C5246 C5238 R5201 TP5851 C5182 TP5015 R5905 L5010 C5143 R5304 C5113 R5863 C5286 C5083 C5253 C5233 C5228 R5002 CL5068 C5199 R5934 C5180 C5173 D5907 C5152 C5335 C5906 CL5128 FL5013 C5090 C5081 R5213 CL5086 C5026 CL5065 CL5017 C5194 C5379 C5178 C5938 C5145 JS5019 R5097 R5851 FL5005 C5085 C5070 C5062 C5041 CL5027 C5393 C5377 R5343 L5023 R5906 C5144 C5309 JS5015 R5865 C5863 C5278 R5239 C5060 R5218 C5040 R5004 CL5059 CL5022 C5390 R5161 R5152 R5912 TP5001 L5011 C5148 C5326 C5317 CL5117 FL5008 C5857 C5268 CL5097 C5229 CL5083 CL5071 CL5037 R5933 C5370 R5144 TP5002 C5919 C5328 C5127 C5880 R5062 C5077 R5210 C5036 CL5854 C5213 TP5852 R5917 TP5004 D5904 C5340 R5306 JS5005 R5077 C5021 CL5060 CL5052 R5936 R5919 TP5006 D5906 C5920 C5333 C5325 CL5125 TP5905 R5044 R5032 D5000 CL5064 C5004 R5928 TP5013 C5922 R5302 C5304 CL5129 C5297 C5860 C5047 C5231 CL5856 C5027 C5206 C5388 C5375 C5175 L5018 C5154 C5337 R5110 JS5013 R5093 C5299 C5092 R5022 CL5093 R5200 C5014 R5940 R5164 C5376 R5342 C5167 R5135 R5310 JS5014 R5864 C5876 C5287 C5853 CL5883 R5217 R5017 CL5069 R5172 TP5026 R5345 TP5000 C5313 R5098 C5096 R5049 C5258 CL5082 CL5030 C5394 R5349 R5914 C5356 R5100 JS5002 R5073 R5063 C5247 R5202 CL5084 CL5043 R5930 R5922 TP5009 C5931 C5155 R5314 C5122 CL5116 C5074 R5028 IC5012 CL5088 C5941 C5936 C5929 C5343 C5331 C5130 C5108 CL5124 C5871 C5272 R5043 R5031 C5023 CL5063 CL5057 R5183 R5938 R5148 R5901 R5319 R5308 C5323 C5103 JS5006 FL5010 C5057 C5216 CL5008 R5937 TP5028 R5335 R5138 C5147 C5121 JS5022 R5099 FL5007 C5856 C5072 C5259 CL5096 CL5033 CL5001 TP5024 TP5017 R5910 C5915 C5117 JS5016 R5096 C5094 C5061 C5241 IC5010 C5221 C5006 CL5024 C5391 TP5020 R5340 R5904 C5153 C5141 C5136 C5305 R5880 R5860 C5091 R5059 R5035 C5048 R5015 CL5087 C5028 C5012 R5191 C5389 C5373 TP5012 R5903 R5118 CL5126 TP5906 FL5000 C5250 R5212 C5032 C5025 C5205 CL5015 C5193 L5020 R5124 R5305 C5320 C5100 R5874 TP5902 R5052 R5232 C5055 C5038 C5215 CL5050 C5381 R5126 R5114 C5324 C5105 CL5123 C5870 C5271 R5030 C5022 CL5062 CL5009 C5190 R5931 R5923 R5336 C5355 C5349 R5120 C5318 CL5119 C5098 C5858 C5075 R5029 C5237 IC5005 C5224 CL5039 R5926 C5934 L5007 C5905 R5103 R5297 TP5901 C5282 C5079 R5211 C5031 C5020 CL5047 C5170 C5935 L5014 R5307 C5322 C5102 CL5122 TP5903 C5270 R5040 CL5061 CL5054 CL5007 R5167 C5150 C5332 C5901 C5109 JS5008 R5079 C5059 C5218 C5003 R5184 C5191 C5188 R5346 R5141 C5348 C5131 C5316 R5869 CL5101 C5087 C5073 C5050 CL5858 CL5035 C5163 L5013 R5316 C5904 C5128 R5872 R5074 C5280 R5243 C5053 C5044 CL5085 CL5073 TP5853 C5186 TP5018 TP5008 IC5900 L5002 C5312 JS5020 CL5113 C5865 C5071 C5063 IC5011 C5222 C5009 CL5029 CL5000 C5183 C5176 C5937 L5019 C5114 FL5003 C5261 C5254 C5240 CL5094 C5220 C5015 C5005 CL5021 TP5021 R5341 C5908 R5092 C5875 C5852 R5036 R5021 R5016 IC5004 R5001 C5208 C5374 C5367 L5017 C5346 R5119 C5110 JS5010 TP5907 C5851 C5251 CL5861 C5227 R5000 CL5066 CL5019 C5195 R5915 D5903 R5317 R5102 JS5003 R5075 R5065 C5054 C5239 IC5001 CL5074 CL5046 R5162 R5913 IC5901 L5004 C5327 C5124 JS5000 R5060 C5269 C5051 C5043 C5035 CL5040 R5918 L5021 C5159 C5341 C5330 C5104 R5876 R5078 C5069 R5223 CL5076 C5202 CL5055 R5180 C5383 R5324 C5139 C5321 CL5121 C5292 C5067 CL5075 CL5051 C5398 R5166 R5927 C5172 C5921 C5910 C5302 DH25 FL5012 R5067 C5080 CL5090 C5226 CL5014 C5386 C5174 C5923 C5336 R5303 C5111 JS5011 R5861 FL5001 C5232 CL5857 C5207 R5192 C5196 C5184 C5177 TP5007 R5136 R5311 C5116 CL5901 C5288 C5854 C5262 C5255 R5024 CL5864 CL5080 C5018 Q5002 CL5023 R5174 TP5019 L5003 C5315 R5893 CL5115 C5097 R5253 C5267 C5065 C5244 C5042 C5223 C5210 CL5034 CL5002 C5211 TH-50PZ700C DH-BOARD TNPA4244AE DH-BOARD (COMPONENT SIDE) TNPA4244AE DH-BOARD (FOIL SIDE) TNPA4244AE TH-50PZ700C DH-BOARD TNPA4244AE Parts Location DH-BOARD (COMPONENT SIDE) IC5000 G-1 IC5003 G-3 IC5007 G-1 IC5008 H-3 IC5009 I-3 IC5014 G-3 IC5015 H-3 IC5100 H-2 IC5102 I-1 IC5103 G-1 IC5104 G-3 IC5851 F-3 IC Q5000 H-3 Q5001 H-3 Q5900 E-1 Q5901 F-3 Q5902 E-3 TRANSISTOR TP TP5910 F-1 TP5911 E-3 TP5912 F-3 TP5913 E-2 TP5914 I-3 TP5916 I-3 Parts Location DH-BOARD (FOIL SIDE) IC5001 C-2 IC5002 B-2 IC5004 C-2 IC5005 D-2 IC5006 A-2 IC5010 C-3 IC5011 B-3 IC5012 B-2 IC5013 C-2 IC5900 D-1 IC5901 D-3 Q5002 C-2 IC TP5000 C-1 TP5001 C-1 TP5002 C-1 TP5003 B-1 TP5004 D-3 TP5005 B-3 TP5006 B-3 TP5007 B-3 TP5008 B-3 TP5009 B-3 TP5010 B-3 TP5011 B-3 TP5012 B-3 TP5013 C-3 TP5014 C-3 TP5015 C-3 TP5016 C-3 TP5017 C-3 TP5018 C-3 TP5019 C-3 TP5020 C-3 TRANSISTOR TP TP5021 C-3 TP5022 C-3 TP5023 C-3 TP5024 C-3 TP5025 C-3 TP5026 C-3 TP5027 A-3 TP5028 A-3 TP5851 D-3 TP5852 D-3 TP5853 D-3 TP5900 D-1 TP5901 E-3 TP5902 D-3 TP5903 D-1 TP5904 A-4 TP5905 A-4 TP5906 B-3 TP5907 B-3 TP5908 A-4 TP5909 C-2 DH A B C D 54 14.9. D 电路板 E F G H I 1 2 3 4 5 6 C201 C202 Q200 TP680 Q201 C028 C029 C800 IC001 C801 IC002 C802 C033 C803 C034 C804 C035 C805 C036 C037 R203 C807 C038 R204 Q805 C809 Q806 D017 D018 R208 R209 D019 IC011 C043 R210 D020 R404 C045 C817 C048 Q044 C818 C049 Q045 R216 Q048 Q049 C050 R604 C051 R605 R412 C053 R413 Q050 C055 R415 D801 C826 D802 C056 R416 C057 D804 C058 R800 D805 D035 C059 R801 R419 D806 R226 R802 C442 R227 Q057 D807 R803 C443 Q058 D808 C444 R804 D809 C445 R805 C446 R806 R807 C447 C830 C060 C448 IC800 R420 R808 C831 C061 C449 C062 R617 C063 R618 D810 Q060 C064 C065 C066 IC807 D813 C067 C838 R810 C068 C450 L501 C451 R811 C069 IC809 D815 L502 C452 R237 R813 C453 R238 L504 C454 R814 R239 L505 R815 C455 C456 R816 C457 C070 R430 C458 R625 C071 C459 R626 C072 R627 C843 C073 R628 C074 R629 C075 C846 C076 C077 R244 C460 C078 R245 C461 C079 C462 R247 C463 R248 R630 C464 R249 R631 C465 C466 R632 C467 R634 C468 C080 R635 C081 C469 R636 C082 R638 C854 C084 C855 R639 C856 C086 C857 C087 C858 C088 R831 C859 C089 R640 R641 R642 R643 R644 R450 C090 R451 C091 R646 R452 C092 C863 R647 C093 C864 C094 R648 C865 C095 C866 C096 C867 C097 R840 R070 C098 R841 C099 R650 D9 R846 R847 R848 R654 R849 R850 C496 C882 C883 C884 C885 R475 R476 C886 C887 R864 R865 R097 R098 FL800 R868 R099 R869 C891 R484 R485 C896 FL806 FL807 C897 R487 C898 R870 C899 R871 R872 R873 R875 R876 R877 R878 R490 R879 R491 R880 R883 R884 R887 R891 R892 R893 R896 R897 C101 C102 C103 C104 C105 C106 C107 C108 C109 C300 C301 C302 C303 C304 C110 Q301 C111 C305 C306 C307 C308 C309 Q500 C310 C311 C312 C313 C314 C315 C316 C317 D100 C318 D101 C319 D102 D103 R100 D105 R101 D106 C512 C513 C320 C321 C516 C322 C517 C323 R108 C518 C324 R109 D301 C519 C325 D110 C520 R110 R111 C521 C522 R112 C523 C524 R114 C525 R116 C527 R117 C528 R500 R501 R502 R503 R504 R505 R506 R120 R508 R121 C531 C532 R122 C533 R124 R125 R127 R128 R129 C926 R900 R134 R135 R136 R137 TP9000 C355 R522 C356 R523 C357 C358 R525 C359 R526 R527 R140 R528 R529 C555 C362 R530 C558 C559 C365 C368 C560 C561 R154 C370 R155 R159 R542 R545 R548 R549 R162 R166 R169 C967 R170 C968 R171 C969 R172 R178 R560 FL304 C970 R179 C971 R371 R372 R180 R374 R375 R187 R188 R189 R192 R196 R580 R199 R581 R585 R587 R589 R590 R593 R594 3 2 1 1 D CR NO.9 TNPA3983 PbF 1 4 5 8 1 3 4 6 1 4 6 3 1 12 13 24 1 12 13 24 1 12 13 24 + 1 6 SEE REVERSE FOR ORDER NO. + + TH-50PZ700C D-BOARD TNPA3983BC TH-50PZ700C D-BOARD TNPA3983BC D-BOARD (FOIL SIDE) TNPA3983BC Parts Location D-BOARD (COMPONENT SIDE) IC IC9001 E-3 IC9002 G-2 IC9011 G-3 IC9800 A-3 IC9807 A-4 IC9809 A-2 TP9000 E-3 TP9680 C-1 TP Q9044 G-3 Q9045 G-3 Q9048 G-3 Q9049 E-2 Q9050 D-2 Q9057 F-2 Q9058 F-2 Q9060 D-2 Q9200 D-2 Q9201 D-2 Q9301 D-5 Q9500 F-4 Q9805 B-5 Q9806 C-5 TRANSISTOR D A B C D 55 E F G H I 1 2 3 4 5 6 C200 X500 C600 C601 C608 C609 IC003 R200 C610 Q800 R201 Q801 R202 C806 IC007 Q803 PA800 C808 R205 C039 R206 R207 IC200 C040 R400 C041 R401 C042 C044 C815 C046 C816 C047 IC400 R215 R409 IC401 Q046 IC402 Q047 R217 R218 R600 R601 R219 R602 R603 R410 R411 C052 R606 R607 C823 R220 R608 D800 R414 C824 C825 R221 Q051 R609 R222 Q052 IC602 D803 Q053 R417 IC603 Q054 R418 R610 R611 R612 R613 R614 R809 R615 R421 IC802 C832 R616 IC803 C833 C834 R619 C835 IC806 D812 C836 C837 R428 D814 R236 L503 R620 R621 R622 R623 R624 C840 C841 C842 R433 C844 C845 C847 R437 C848 R438 R439 R823 R824 R825 R826 R827 R633 R828 R440 R829 R441 R442 R443 C083 R637 R444 R445 C085 R446 R447 R060 R830 R448 R061 R449 R062 R063 R064 R065 R066 R067 R838 C860 FL9000 R839 R645 R453 R454 R455 R456 R457 D3 C868 R458 D5 R459 D6 R842 R843 R844 R074 R845 R652 R076 R653 R460 R461 R462 R463 R464 R465 R466 R467 R468 R469 R854 C880 R470 C498 C881 R859 R471 C499 R472 R473 R474 R477 R478 R479 R094 R095 R096 R480 R481 FL803 FL804 FL805 R486 R488 R489 R492 R493 R494 R495 R496 R497 R898 R899 C100 X9000 Q100 D20 ZA001 Q300 D25 Q302 Q303 Q304 Q305 Q306 D31 D32 D33 D34 D35 D36 R102 R103 C514 R104 R105 C515 R106 R107 D300 D302 D303 D304 D305 R113 IC300 IC301 R115 C526 IC304 R118 R119 R507 IC500 IC503 R123 IC504 C534 IC505 C535 R126 C536 C537 C538 C539 R512 R514 R515 R518 R130 R519 C542 C546 C547 C353 C548 R138 C354 C550 R141 C552 R143 C553 R144 C554 C360 R145 C361 C557 R147 C363 R148 C364 R149 R531 R532 R533 L800 R534 R535 C369 L801 R536 L802 R150 R151 R539 C371 R156 C372 C373 R157 R158 C374 R540 R541 R543 L810 R544 R547 R160 R161 R165 R167 R550 R552 R553 R554 R555 R557 R558 R367 R174 R175 R176 FL302 R177 FL303 R561 FL305 R562 FL306 R563 FL307 R564 FL308 R565 FL309 R566 R567 R373 R568 R181 R569 FL501 R182 FL502 R183 FL503 FL504 R184 FL310 R185 FL311 R186 R570 R571 R572 R573 R574 R575 R576 R382 R577 TP058 R190 R578 TP059 R191 R579 R193 TP443 R194 TP444 R389 R197 TP060 R198 TP061 TP062 R390 R584 R391 R586 R392 R393 R394 R588 R395 R396 R397 R398 R399 R591 R592 R595 R596 R597 R598 R599 TP464 TP465 C001 TNPA3983 D CR NO.9 1 VD VD HD HD DCK DCK PbF 1 3 2 5 7 9 4 6 8 10 12 14 16 11 13 15 A C E G J L N R B D F H K M P T 1 20 21 40 41 60 61 80 + 1 4 5 8 1 10 11 20 + + A B C E G J L N R U W AA D F H K M P T V Y AB 1 2 3 5 7 9 11 4 6 8 10 13 15 17 19 21 12 14 16 18 20 22 13 11 9 7 5 3 12 10 8 6 4 2 B D F H K M N L J G E C 1 40 41 80 1 3 4 5 1 24 25 48 1 10 11 20 1 10 11 20 1 3 4 5 1 2 29 30 1 31 1 21 + + ORDER NO. 1 68 1 68 1 68 1 2 19 20 1 19 20 2 1 68 1 68 1 68 1 68 1 68 1 68 A B C E G J L N R U W AA D F H K M P T V Y AB 1 2 3 5 7 9 11 4 6 8 10 13 15 17 19 21 12 14 16 18 20 22 13 11 9 7 5 3 12 10 8 6 4 2 B D F H K M N L J G E C 1 24 25 48 1 10 11 20 1 10 11 20 1 10 11 20 + + + 1 68 1 68 1 68 TH-50PZ700C D-BOARD TNPA3983BC TH-50PZ700C D-BOARD TNPA3983BC D-BOARD (COMPONENT SIDE) TNPA3983BC Parts Location D-BOARD (COMPONENT SIDE) IC IC9003 B-3 IC9007 B-3 IC9200 C-4 IC9300 E-3 IC9301 E-2 IC9304 E-4 IC9400 D-3 IC9401 C-2 IC9402 C-5 IC9500 B-5 IC9503 B-4 IC9504 A-1 IC9505 B-4 IC9602 E-5 IC9603 D-5 IC9802 B-4 IC9803 A-4 IC9806 F-2 TP9058 C-2 TP9059 B-5 TP9060 B-5 TP9061 B-5 TP9062 B-5 TP9443 E-4 TP9444 E-4 TP9464 C-4 TP9465 C-4 TP Q9046 B-3 Q9047 A-3 Q9051 C-2 Q9052 B-2 Q9053 C-2 Q9054 B-2 Q9100 B-3 Q9300 A-5 Q9302 E-5 Q9303 F-2 Q9304 C-1 Q9305 E-2 Q9306 E-2 Q9800 F-3 Q9801 F-2 Q9803 G-4 TRANSISTOR D A B C D 56 14.10.C1 电路板 E F G H I 1 2 3 4 5 6 C1-BOARD (FOIL SIDE) TNPA3984 C1-BOARD (COMPONENT SIDE) TNPA3984 TH-50PZ700C C1-BOARD TNPA3984 TH-50PZ700C C1-BOARD TNPA3984 C1 1 TNPA3984 1 2 3 PbF SEE REVERSE FOR ORDER NO. C101 C102 C103 C104 C105 C106 C107 C108 C109 C110 C111 C113 C115 C116 C117 C118 C119 C120 C121 C122 C125 C126 C129 R101 R104 R107 C130 R108 IC101 C131 R109 C132 IC102 IC103 C133 IC104 C134 IC105 C135 D111 IC106 C136 D112 C137 D113 C138 D114 R110 D115 R111 D116 R112 D117 R113 D118 R114 D119 R115 R116 R117 C141 C142 C143 D120 C144 C145 C146 C147 C148 R123 R124 R125 R126 R127 R128 C150 R129 C152 R130 R131 R132 R133 R134 R135 R136 R137 R138 R139 R140 R141 R142 R143 R144 R145 R146 R147 R148 C170 R149 C172 C173 C174 C175 C176 C177 C178 R150 R151 R152 R153 R154 R155 R156 R157 R158 C181 R159 C182 C183 C184 C185 C186 C187 R160 FL101 R172 R173 R174 R175 R176 R177 R178 R179 R186 R187 R191 R193 R194 R195 CA1 R196 CA2 R197 CA3 CA4 R198 CA5 R199 ZA101 ZA102 ZA103 ZA104 ZA105 C10 C11 TNPA3984 1 C1 CR NO.7 C1MM1 PbF 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 ORDER NO. 68 1 68 1 68 1 68 1 1 68 1 20 1 68 Parts Location C1-BOARD IC7101 H-2 IC7102 E-2 IC7103 F-2 IC7104 G-2 IC7105 H-2 IC7106 I-2 IC IC C1 A B C D 57 14.11.C2 电路板 E F G H I 1 2 3 4 5 6 C2-BOARD (FOIL SIDE) TNPA3985 C2-BOARD (COMPONENT SIDE) TNPA3985 TH-50PZ700C C2-BOARD TNPA3985 TH-50PZ700C C2-BOARD TNPA3985 C21 C22 C24 C25 ZA201 ZA202 ZA203 ZA204 ZA205 CA6 CA7 CA8 CA9 C200 C201 C203 C204 C205 C206 C207 C208 C209 C210 C211 C212 C213 C214 C215 C216 C217 C218 C219 C220 C221 C222 C223 C224 C225 C226 R200 C228 C229 R201 R202 R203 R204 R205 R206 R207 R208 C230 C231 R209 IC201 IC202 C232 IC203 C233 IC204 C234 IC205 C235 D211 IC206 C236 D212 IC207 C237 D213 R210 C238 D214 D215 R211 D216 R212 R213 D217 R214 D218 D219 R215 R216 R217 R218 C240 IC211 R219 IC212 IC213 IC214 D220 IC215 R220 R221 R222 R223 R224 R225 R226 R227 R228 R229 C252 C253 R230 R231 R232 R233 R234 R235 R236 R237 CA10 R238 R239 C264 C265 C266 C267 C268 R240 C269 R241 R242 R243 R244 R245 R246 R247 R248 C270 R249 C271 C272 C273 C274 C275 C276 C277 R250 C278 C279 R251 R252 R253 R254 R255 R256 R257 R258 R259 C281 C282 C285 C286 C287 C288 R260 C289 R261 R262 R263 R264 R266 R267 R268 C290 R269 FL201 FL202 C292 FL203 C293 C296 C297 R270 C298 R271 C299 R272 R273 R274 R275 R276 R277 R278 R279 R280 R281 R282 R283 R284 R285 R286 R287 R288 R289 R290 R291 R292 R293 R294 R295 R296 TNPA3985 CR NO.7 1 C2 PbF 1 80 1 20 1 1 68 ORDER NO. 68 1 68 1 68 1 68 1 68 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 68 1 1 2 3 C2 1 TNPA3985 PbF SEE REVERSE FOR ORDER NO. Parts Location C2-BOARD IC7201 B-1 IC7202 E-2 IC7203 A-2 IC7204 C-2 IC7205 C-2 IC7206 D-2 IC7207 E-2 IC7211 D-1 IC7212 F-1 IC7213 F-1 IC7214 G-1 IC7215 H-1 IC IC C2 A B C D 58 14.12.C3 电路板 E F G H I 1 2 3 4 5 6 C3-BOARD (FOIL SIDE) TNPA3986 C3-BOARD (COMPONENT SIDE) TNPA3986 TH-50PZ700C C3-BOARD TNPA3986 TH-50PZ700C C3-BOARD TNPA3986 C31 C35 C301 C302 C303 C304 C305 C306 C307 C308 C309 C310 C311 C312 C315 C316 C319 C320 C321 C322 C323 C324 C325 C326 C327 C328 C329 R302 R303 R304 R305 R306 R307 R308 C331 R309 IC301 C332 IC302 C333 IC303 C334 IC304 C335 D311 IC305 C336 D312 IC306 C337 D313 C338 D314 R310 C339 D315 R311 D316 R312 D317 R313 D318 R314 D319 R315 R316 R317 C340 R318 C341 R319 C342 C343 D320 C344 C345 C346 C347 C348 R320 R321 R322 R323 R324 R325 R326 C351 R330 R331 R332 R333 R334 R335 R336 R337 R338 C369 C370 C371 C372 C373 C374 C375 C376 R354 R355 C380 R358 C381 R359 C382 C383 C384 C385 C386 R360 R361 R362 R363 R364 R365 R366 R367 FL301 R373 R374 R375 R376 R377 R378 R379 R380 R381 R382 R383 R384 R385 R386 R387 R390 R391 R392 R393 R394 R395 R396 R397 R398 R399 ZA301 ZA302 ZA303 ZA304 ZA305 CA11 CA12 CA13 CA14 CA15 CR NO.7 TNPA3986 1 C3 PbF 1 80 1 8 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 ORDER NO. 1 68 1 68 1 68 1 68 1 68 TNPA3986 1 C3 3 1 2 PbF SEE REVERSE FOR ORDER NO. Parts Location C3-BOARD IC7301 B-1 IC7302 E-1 IC7303 B-2 IC7304 C-1 IC7305 D-1 IC7306 D-1 IC IC C3 A B C D 59 14.13.C4 电路板 E F G H I 1 2 3 4 5 6 C4-BOARD (FOIL SIDE) TNPA3987 C4-BOARD (COMPONENT SIDE) TNPA3987 TH-50PZ700C C4-BOARD TNPA3987 TH-50PZ700C C4-BOARD TNPA3987 R490 R491 R492 R493 R494 R495 R496 R497 R498 C41 C42 C44 ZA401 ZA402 ZA403 ZA404 ZA405 CB11 CB12 CB13 CB14 CB15 C401 C402 C404 C406 C408 C409 C410 C411 C412 C413 C414 C415 C418 C419 C420 C421 C422 C423 C424 C425 C426 C427 C428 C429 R401 R402 R405 R406 R407 R408 R409 IC401 C432 IC402 C433 IC403 C434 IC404 C435 IC405 C436 IC406 C437 R410 C438 R411 C439 D415 R412 D416 R413 D417 D418 D419 R416 R417 C440 C441 C442 C443 D420 C444 D421 C445 C446 D422 C447 D423 D424 C448 R420 C449 R421 R422 R424 R425 R428 R429 C452 C453 R430 R431 R432 R433 R434 R435 R436 R438 R439 C468 C469 R445 R446 R447 C470 R448 C471 R449 C472 C473 C474 C475 R450 R451 C479 R452 R453 R454 R455 R456 R457 C480 R458 C481 R459 C482 C483 C484 C485 R460 R461 R462 R463 R464 R465 R466 R467 R468 R469 FL401 R470 R471 R472 R473 R474 R477 R478 R479 R480 R481 R482 R483 R484 R485 R486 R487 R488 TNPA3987 1 C4 CR NO.7 C4MM1 C4MM2 C4MM3 C4MM4 C4MM5 C4MM6 PbF 1 68 1 6 8 1 68 1 80 1 12 1 19 20 2 ORDER NO. 1 68 1 68 1 68 1 68 1 68 1 68 1 68 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 2 3 1 TNPA3987 C4 PbF SEE REVERSE FOR ORDER NO. Parts Location C4-BOARD IC7401 B-2 IC7402 E-2 IC7403 B-2 IC7404 C-2 IC7405 D-2 IC7406 D-2 IC IC C4 A B C D 60 14.14.C5 电路板 E F G H I 1 2 3 4 5 6 C5-BOARD (FOIL SIDE) TNPA3988 C5-BOARD (COMPONENT SIDE) TNPA3988 TH-50PZ700C C5-BOARD TNPA3988 TH-50PZ700C C5-BOARD TNPA3988 1 TNPA3988 1 2 3 C5 PbF SEE REVERSE FOR ORDER NO. C51 C52 C54 C55 C501 C502 C506 C507 C508 C509 C510 C511 C512 C513 C514 C515 C516 C517 C518 C519 C520 C521 C522 C523 C524 C525 C526 C527 C528 R501 C529 R502 R503 R504 R505 R506 R507 R508 C530 IC501 R509 C531 IC502 C532 IC503 C533 IC504 C534 C535 IC505 IC506 C536 D512 IC507 C537 D513 R510 C538 D514 R511 C539 D515 D516 R512 D517 R513 D518 R514 R515 D519 R516 R517 R518 IC511 R519 C541 IC512 IC513 C543 IC514 C544 D520 IC515 D521 IC516 C547 R520 C548 R521 C549 R522 R523 R524 R525 R526 R527 R528 R529 CB10 R530 R531 R532 R533 R534 R535 R536 R537 R538 R539 C566 C567 C568 R540 C569 R541 R542 R543 R544 R545 R546 R547 C570 R548 C571 R549 C572 C573 C574 C575 C576 C577 C578 R550 C579 R551 R552 R553 R554 R555 R556 R557 R558 C580 C581 R559 C582 C583 C584 C585 C586 C587 R560 R561 R562 R563 R564 R565 R567 R568 C591 R569 FL501 C592 FL502 FL503 C593 C594 C595 C596 C597 R570 R571 C599 R572 R573 R574 R575 R576 R577 R578 R579 R580 R581 R582 R583 R584 R585 R586 R587 R588 R589 R590 R591 R592 CB6 R593 CB7 CB8 R594 CB9 R595 R596 R597 R598 R599 R001 R002 R003 R004 ZA501 ZA502 ZA503 ZA504 ZA505 1 TNPA3988 CR NO. C5 C5MM1 C5MM2 C5MM3 7 PbF 1 80 1 20 1 68 68 1 68 1 1 10 11 20 1 6 8 1 10 11 20 1 11 20 10 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 ORDER NO. 1 68 1 6 8 1 6 8 Parts Location C5-BOARD IC7501 B-2 IC7502 D-2 IC7503 A-3 IC7504 B-2 IC7505 C-2 IC7506 C-2 IC7507 D-2 IC7511 D-2 IC7512 E-2 IC7513 E-2 IC7514 F-2 IC7515 G-2 IC7516 G-2 IC IC C5 A B C D 61 14.15.C6 电路板 E F G H I 1 2 3 4 5 6 C6-BOARD (FOIL SIDE) TNPA3989 C6-BOARD (COMPONENT SIDE) TNPA3989 TH-50PZ700C C6-BOARD TNPA3989 TH-50PZ700C C6-BOARD TNPA3989 R686 R687 R688 R689 R690 R691 R692 R693 R694 R695 R696 R697 R698 R699 C60 C61 ZA601 ZA602 ZA603 ZA604 ZA605 CB1 CB2 CB3 CB4 CB5 C601 C602 C603 C604 C605 C606 C607 C608 C609 C610 C611 C612 C613 C615 C616 C617 C618 C619 C620 C621 C622 C623 C624 C629 R604 R607 R608 C630 C631 R609 C632 C633 C634 C635 D611 C636 D612 D613 C637 D614 R610 C638 D615 R611 D616 R612 R613 D617 R614 D618 R615 D619 R616 R617 R618 C641 C642 C643 C644 D620 C645 C646 C647 C648 R623 R624 R625 R626 R627 R628 C650 R629 C654 C655 C656 C657 R630 C658 R631 C659 R632 R633 R634 R636 R637 R638 C660 R639 C661 C664 C665 C666 C667 R640 C668 R641 C669 R642 R643 R644 R645 R646 R647 C670 R648 R650 R651 R654 R655 R658 R659 R660 R661 R662 R663 R664 R665 R666 R667 FL601 TNPA3989 1 C6 CR NO.7 IC603 IC604 IC605 IC602 IC601 IC606 C6MM1 C6MM2 C6MM3 R603 R605 R606 C6MM4 PbF 1 68 1 20 ORDER NO. 1 68 1 68 1 68 1 68 1 68 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 TNPA3989 C6 3 2 1 PbF SEE REVERSE FOR ORDER NO. Parts Location C6-BOARD IC7601 G-2 IC7602 G-2 IC7603 E-2 IC7604 E-2 IC7605 F-2 IC7606 H-2 IC IC C6 A B C D 62 14.16.SC 电路板 E F G H I 1 2 3 4 5 6 SC-BOARD (FOIL SIDE) TNPA3992 TH-50PZ700C SC-BOARD TNPA3992 TH-50PZ700C SC-BOARD TNPA3992 C514 SC41 C515 SC42 C516 SC43 C517 SC44 SC45 SC46 D502 C721 L401 L402 L403 L404 L405 L406 L601 L602 L411 TP101 L412 TP102 L413 L414 L415 L416 C754 C561 C563 C592 C594 L451 L452 L453 L454 L455 L456 L457 L458 C791 C795 C796 L461 L462 D583 L463 L464 L465 L466 L467 L468 L472 L473 L481 L482 L483 L484 L485 L486 L487 L488 IC791 L491 L492 L493 L494 L495 L496 L497 L498 C400 Q401 Q402 Q403 Q404 Q405 Q406 C604 C410 C411 C412 C413 C414 C415 C416 C417 C418 C801 C419 C802 C803 C804 C806 Q804 C808 C420 C809 D401 Q421 Q422 Q423 D403 D404 Q424 Q425 Q426 C813 C814 C431 C822 Q821 Q822 R801 R802 R803 R804 Q441 R806 Q442 R807 Q443 Q444 IC803 C641 R620 D431 Q451 D432 Q452 Q453 D433 VR600 Q454 C841 VR601 C842 VR602 Q841 Q842 R821 R823 TP1 TP2 TP4 TP5 Q661 TP6 TP7 TP8 TP9 T602 R840 R844 D461 D462 D463 D464 R658 SC2 D471 D472 TP10 TP11 TP12 TP13 TP14 TP15 C691 TP16 C692 TP17 TP18 R860 TP19 D481 D482 D483 TP20 D484 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 D491 TP30 TP31 TP32 TP33 TP34 TP35 TP38 TP39 TP40 TP41 TP42 R696 TP43 R697 R698 TP44 TP45 TP46 TP47 TP48 TP49 TP50 TP51 TP52 TP53 TP54 TP55 TP56 TP57 TP58 L591 TP59 L592 TP60 TP61 TP62 TP63 TP64 TP65 TP66 TP67 TP68 TP69 SC23 TP70 TP71 TP72 SC30 C511 C512 C513 CRNo.6 1 SC 6 5 4 3 2 1 TNPA3992 PbF A39 A40 B39 B40 B1 B2 A2 A1 A39 A40 B39 B40 B1 B2 A2 A1 A39 A40 B39 B40 B1 B2 A2 A1 A39 A40 B39 B40 B1 B2 A2 A1 9 8 2 1 9 8 2 1 A A K SEE REVERSE FOR ORDER NO. 12 1 E G C E C G E C G E C G E C G E C G C B E K A A E C G E C G E C G K A A K A A E C G E C G E C G B C E B C E E C G E C G E C G E C G 5 4 3 2 1 K A A E C G K A A E C G E G C K A A G C E B C E E B C S D G P2 P1 V2 S2 V1 PT S3 S1 S4 S5 A A K A A K A A K A A K 3 1 A A K A A K K A A K A A K A A A A K A A K 3 1 8 1 A B C D 63 TH-50PZ700C SC-BOARD PARTS LOCATION TH-50PZ700C SC-BOARD PARTS LOCATION Parts Location SC-BOARD (FOIL SIDE) Q6421 F-3 Q6422 F-3 Q6423 F-3 Q6424 E-3 Q6425 E-3 Q6426 E-3 Q6441 E-2 Q6442 D-2 Q6443 D-2 Q6444 D-2 Q6451 F-2 Q6452 F-2 Q6453 E-2 Q6454 E-2 Q6641 I-2 Q6642 I-2 Q6661 G-5 Q6804 G-2 Q6821 H-4 Q6822 H-4 TRANSISTOR TP1 A-1 TP2 A-2 TP4 B-1 TP5 B-1 TP6 B-1 TP7 B-1 TP8 B-1 TP9 B-1 TP10 D-1 TP11 D-1 TP12 D-1 TP13 D-1 TP14 D-1 TP15 D-1 TP16 D-1 TP17 D-1 TP18 D-1 TP19 D-1 TP20 C-1 TP21 D-1 TP22 D-1 TP23 C-1 TP24 D-1 TP25 D-1 TP26 D-1 TP27 D-1 TP28 H-2 TP29 H-1 TP30 G-1 TP31 G-1 TP32 F-1 TP33 E-1 TP34 E-1 TP35 B-1 TP38 D-1 TP39 D-1 TP40 C-5 TP IC6791 H-3 IC6803 H-2 IC Parts Location SC-BOARD (COMPONENT SIDE) IC6471 B-3 IC6472 A-3 IC6501 F-3 IC6521 E-1 IC6561 F-1 IC6562 G-1 IC6581 H-1 IC6601 B-5 IC6602 A-3 IC6610 B-4 IC6671 D-4 IC6681 A-5 IC6682 A-3 IC6721 A-4 IC6722 A-4 IC6724 A-4 IC6725 A-4 IC6751 I-3 IC6752 I-4 IC6753 I-3 IC6771 B-3 IC6772 E-5 IC6773 A-3 IC6774 A-3 IC6791 B-4 IC6801 B-3 IC6802 B-3 IC6803 B-2 IC6821 B-4 IC6841 B-2 IC6861 B-4 IC6871 A-3 IC PC6480 A-4 PC6610 A-4 PC6701 A-4 PC6702 A-4 PC6703 A-4 PC6704 I-3 PC6705 A-3 PC6760 I-3 PC6801 B-3 PC6861 B-4 PC6871 A-3 Q6401 F-4 Q6402 F-4 Q6403 G-4 Q6404 G-4 Q6405 G-4 Q6406 H-4 Q6421 D-4 Q6422 D-4 Q6423 D-4 Q6424 E-4 Q6425 E-4 Q6426 E-4 Q6441 E-2 Q6442 F-2 Q6443 F-2 Q6444 F-2 Q6451 D-2 Q6452 E-2 Q6453 E-2 Q6454 E-2 Q6511 F-3 Q6512 G-3 Q6513 G-3 Q6514 G-3 Q6516 E-3 Q6517 D-3 Q6518 E-3 PHOTO COUPLER TRANSISTOR TP15V G-1 TPSC1 B-5 TPSOS6 G-1 TPSOS7 G-1 TPVAD B-3 TPVSCN B-2 TPVSET B-5 TPVSET2 B-3 TPVSUS I-1 Q6791 B-3 Q6803 B-3 Q6804 C-3 Q6821 B-4 Q6822 B-4 Q6824 B-4 Q6841 B-2 Q6842 A-2 TP VR6600 B-3 VR6601 B-5 VR6602 E-4 VOLUME TP41 C-5 TP42 C-5 TP43 C-5 TP44 A-5 TP45 C-5 TP46 G-5 TP47 G-5 TP48 G-5 TP49 G-5 TP50 I-5 TP51 G-5 TP52 D-1 TP53 H-3 TP54 B-5 TP55 B-5 TP56 B-5 TP57 D-5 TP58 D-5 TP59 F-5 TP60 F-5 TP61 H-5 TP62 H-5 TP63 I-5 TP64 H-4 TP65 H-5 TP66 G-5 TP67 G-5 TP68 F-5 TP69 E-5 TP70 D-5 TP71 C-5 TP72 B-5 TP101 D-5 TP102 F-5 VR6600 H-3 VR6601 H-5 VR6602 E-4 Q6518 E-3 Q6519 E-3 Q6531 E-1 Q6532 E-1 Q6551 E-1 Q6552 E-1 Q6581 H-1 Q6601 C-5 Q6602 B-5 Q6621 H-4 Q6622 H-4 Q6623 G-4 Q6624 F-4 Q6625 F-4 Q6641 E-5 Q6642 F-5 Q6643 F-5 Q6644 F-5 Q6645 G-5 Q6646 G-5 Q6647 H-5 Q6648 H-5 Q6649 H-5 Q6650 I-5 Q6661 C-5 Q6662 E-4 Q6663 D-4 Q6671 D-5 Q6672 D-5 Q6673 D-5 Q6674 E-5 Q6679 D-4 Q6680 D-4 Q6681 B-5 Q6682 B-5 Q6691 A-5 Q6742 A-5 Q6743 B-4 Q6744 A-4 Q6762 I-4 Q6781 E-5 Q6782 E-5 VOLUME SC 64 E F G H I 1 2 3 4 5 6 SC-BOARD (COMPONENT SIDE) TNPA3992 TH-50PZ700C SC-BOARD TNPA3992 TH-50PZ700C SC-BOARD TNPA3992 C708 C514 SC41 C515 Q511 SC42 Q512 C516 SC43 Q513 C517 SC44 Q514 SC45 SC46 Q516 Q517 Q518 Q519 C521 C522 C524 D501 C525 D502 C527 R500 R501 R502 R503 R504 C721 R506 C723 R507 C724 R508 C725 D701 IC501 R509 D702 C726 C727 C728 R700 R701 Q531 R702 Q532 R703 R704 R705 R511 R706 R512 R707 R513 R708 R514 R515 R516 R517 R518 R519 R710 R711 D521 L401 R712 D522 L402 R713 D523 L403 R714 D524 R520 L404 R715 R521 L405 R716 L406 R522 R717 R523 R718 R527 R528 D721 L601 IC521 L602 Q742 Q743 D723 D724 Q744 R721 D725 L411 Q551 R722 D726 L412 Q552 R723 D727 L413 D728 R724 L414 D729 R531 L415 R725 L416 R532 R726 R533 L801 IC721 PC701 L802 IC722 PC702 C752 PC703 C753 C754 IC724 D730 PC704 C755 PC705 IC725 C561 D731 D732 C562 C563 D733 D734 C564 C565 C566 Q762 R742 R743 R744 R745 R551 R746 R552 R747 R553 C771 C772 C773 C775 C581 C776 D752 C582 C777 D753 Q581 D758 R755 R561 R756 R562 R757 R563 R564 IC751 R565 R759 IC752 R566 IC753 R567 D760 R568 IC561 D761 Q781 IC562 C592 D762 Q782 C593 R760 C594 R761 L451 R762 L452 L453 L454 L455 L456 L457 L458 C791 L841 C795 D771 Q791 C796 D773 D581 L461 D582 L462 D583 L463 D584 L464 R775 D585 R581 L465 R582 R776 L466 R583 R777 L467 R584 L468 IC771 R585 IC772 R586 IC773 R587 IC774 R588 IC581 R589 R781 L472 R782 L473 R590 R591 R592 PC760 D791 R791 L481 R792 L482 R793 L483 L484 L485 L486 L487 L488 IC791 L491 L492 L493 L494 L495 L496 L497 L498 C400 C401 C402 C403 C404 C405 Q401 Q402 C406 Q403 Q404 Q405 Q406 C601 C602 C603 C604 C410 C605 Q601 C411 Q602 C412 C606 C413 C414 C415 C416 C417 C418 C801 C419 C802 C803 C804 C610 C805 C806 C612 C807 Q803 Q804 C808 C420 C809 C421 C422 C423 C424 C425 D401 Q421 Q422 C426 Q423 C427 D403 D404 Q424 C811 Q425 R401 C812 Q426 C813 R403 C814 C620 C815 R405 C816 R407 C817 Q621 D601 C431 R409 D602 Q622 D603 Q623 D604 Q624 D605 Q625 D606 R602 D607 R603 R604 R605 R411 C439 R606 C822 R607 C823 R608 C824 R609 IC601 D801 Q821 IC602 D802 Q822 D803 D804 Q824 D610 C440 D805 R801 D611 D806 R802 D612 D807 R803 D613 D808 R804 R610 D809 R805 R611 Q441 D615 R612 R806 Q442 D616 R807 R613 Q443 R808 Q444 R614 IC801 R809 R421 D619 R615 IC802 R616 IC803 R423 R617 D810 IC610 R618 D811 C641 R425 R619 D812 D813 R427 R810 D620 Q641 R811 D621 R429 Q642 R812 D622 Q643 R813 D623 Q644 R814 R620 D624 R621 Q645 D625 D431 Q451 R622 Q646 R816 D626 D432 Q452 Q647 R817 R623 Q453 D433 Q648 VR600 R624 Q454 R819 C841 VR601 Q649 R431 R625 C842 VR602 C843 D820 Q841 C845 D821 Q842 D822 D823 R820 Q650 D824 D825 R821 D826 R822 R823 R824 R630 R825 D441 R631 R826 R632 D442 R827 R633 R828 PC801 IC821 R829 R441 R443 PC610 C661 R445 C662 C663 R447 R830 Q661 D641 R831 C471 R832 D642 Q662 C472 Q663 R833 D643 R834 D644 R641 R835 D451 R642 R836 D452 R837 R643 R838 R644 R839 R645 C861 R451 R646 C862 R647 C863 R453 R648 C671 D841 R649 R455 D842 T602 D843 R457 R840 C480 R841 Q671 R842 Q672 Q673 R843 R844 R650 Q674 R845 D461 R846 D462 R847 D463 R848 D464 IC841 R849 C871 D465 Q679 C872 D466 C873 R658 C681 R659 R465 C682 R466 C683 R467 Q680 R850 R468 D661 R851 Q681 C491 SC2 D662 R852 Q682 D663 R853 R854 D664 R660 R855 D665 R661 D859 D471 R856 D666 R662 D472 R857 D667 R663 R664 R858 R665 R471 R472 R666 D477 R667 R473 D478 D860 R668 R474 C691 D861 R475 D862 R476 C692 R860 R861 Q691 IC471 IC472 R862 R863 D480 R864 R671 R865 D481 R672 R866 D482 R673 R867 D483 R674 R868 D484 R480 R675 IC861 R869 R676 IC671 D871 D872 R870 D681 R871 D682 R872 D683 R873 D684 R874 D685 R875 D491 R682 D686 R876 D687 R683 R877 R684 R878 R685 IC871 R879 R686 D497 R687 R688 IC681 R689 IC682 R499 R690 R691 R886 R887 R888 PC861 R696 R697 R698 PC480 R891 PC871 L591 L592 SC20 SC23 C502 C503 SC30 C504 C505 C506 ZA401 C701 ZA402 C702 ZA403 C703 C704 C705 C511 C706 C512 C707 C513 TPVAD TPVSUS TP15V TPVSCN TPVSET2 TPSC1 TPVSET TPSOS7 Discharge SC TNPA3992 CRNo.6 TPSOS6 DIP 1 SCMM2 SCMM1 PbF A1 A2 B1 B2 A40 A39 B40 B39 A1 A2 B1 B2 A40 A39 B40 B39 A1 A2 B1 B2 A40 B40 B39 A39 A1 A2 B1 B2 A40 A39 B40 B39 9 8 2 1 1 2 8 9 A A K 1 8 9 16 1 8 16 9 1 7 8 14 1 7 8 1 4 8 5 1 3 4 5 1 10 11 20 1 10 11 ORDER NO. 1 4 5 8 1 3 4 3 4 1 1 4 5 8 1 2 3 4 12 1 G E C C G E C G E C G E C G E C G E G S D B C E A A K C G E C G E C G E A A K A A K C G E C G E C G E G S D G S D G S D G S D G S D 1 4 5 8 B C E 4 1 3 B C E C G E C G E C G E C G E 1 2 3 4 5 1 4 5 8 G S D G S D G S D G S D G S D A A K C G E G S D A A K C G E G S D C G E A A K G S D C G E G S D B E C B C E G S D 1 2 3 4 1 2 3 4 G S D P2 P1 V2 S2 V1 PT S3 S1 S4 S5 G S D G S D G S D G S D A A K A A K A A K A A K G S D 1 3 G S D A A K A A K 1 4 1 5 A A K A A K A A K A A K 1 4 5 8 1 4 5 8 A A K 1 4 8 5 4 5 8 3 5 1 4 2 3 4 1 1 2 3 4 1 2 3 4 1 2 19 20 1 3 1 8 A B C D 65 14.17.SU 电路板 E F G H I 1 2 3 4 5 6 SU-BOARD (FOIL SIDE) TNPA3990 SU-BOARD (COMPONENT SIDE) TNPA3990 TH-50PZ700C SU-BOARD TNPA3990 TH-50PZ700C SU-BOARD TNPA3990 C6903 C6905 C6907 C6909 C40 C6921 C6923 C6925 D6901 D6902 C6927 D6904 C6929 R6901 R6903 R6905 R6907 R6909 IC6901 IC6903 D6910 IC6905 IC6907 IC6909 C6942 C6944 C6948 IC6919 R6931 R6932 R6933 R6938 C6961 R6939 C6962 C6963 C6964 C6965 C6966 C6967 C6968 SU45 C1 R6951 R6955 C6981 C6982 D1 R6960 R6963 SU1 SU2 SU3 SU4 SU5 D40 TP1 TP2 TP3 TP4 TP5 TP6 PbF TNPA3990 SU 1 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 26 50 51 75 76 100 25 1 25 26 50 51 75 76 100 1 25 26 50 51 76 100 75 1 7 8 14 A1 B1 A54 B54 A1 B1 A54 B54 A1 B1 A54 B54 1 9 8 2 A1 B1 A54 B54 ORDER NO. A1 B1 A54 B54 A1 A54 B54 B1 A1 B1 B54 A54 A1 A54 B1 B54 A1 A54 B1 B54 A1 A54 B1 B54 C6901 C6902 C6904 C6906 C6908 C41 C6922 C6924 C6926 D6903 C6928 R6902 R6904 D6909 R6906 R6908 IC6902 IC6904 IC6906 IC6908 C6941 C6943 C6945 C6946 C6947 C6949 R6934 C80 D41 D80 PbF SU 1 TNPA3990 SUMM1 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 26 50 51 75 76 100 25 SEE REVERSE FOR ORDER NO. Parts Location SU-BOARD IC6901 G-2 IC6902 C-4 IC6903 F-2 IC6904 D-4 IC6905 D-2 IC6906 F-4 IC6907 C-2 IC6908 G-4 IC6909 B-2 IC6919 B-1 IC IC TP1 G-1 TP2 G-1 TP3 D-1 TP4 D-2 TP5 A-2 TP6 A-2 TP SU A B C D 66 14.18.SD 电路板 E F G H I 1 2 3 4 5 6 SD-BOARD (FOIL SIDE) TNPA3991 SD-BOARD (COMPONENT SIDE) TNPA3991 TH-50PZ700C SD-BOARD TNPA3991 TH-50PZ700C SD-BOARD TNPA3991 C6911 A41 C6913 C6915 C6917 C6931 C6933 C6935 C6937 R6911 R6913 R6915 R6917 IC6911 IC6913 IC6915 IC6917 C6950 A80 C6952 C6954 C6956 C6958 R6944 R6949 B41 B80 D6911 D6912 D6907 PbF SD 1 TNPA3991 SDMM1 SDMM2 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 SEE REVERSE FOR ORDER NO. C6910 A40 C6912 C6914 C6916 C6918 D6905 D6906 C6930 C6932 C6934 C6936 R6910 C6938 R6912 R6914 R6916 IC6910 R6918 IC6912 IC6914 IC6916 IC6918 IC6920 C6951 C6953 A1 C6955 C6957 B1 R6941 R6942 R6943 R6948 C6971 C6972 C6973 C6974 C6975 C6976 C6977 C6978 C6983 C6984 R6964 R6968 R6972 R6976 SD46 B40 TP7 TP8 TP11 TP12 D6908 SD1 SD2 SD3 SD4 SD5 TP9 TP10 PbF TNPA3991 1 SD 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 7 8 14 ORDER NO. A1 B1 A54 B54 A1 B1 A54 B54 A1 B1 A54 B54 1 9 2 8 A1 B1 A54 B54 A1 B1 A54 B54 A1 A54 B1 B54 A1 A54 B1 B54 A1 A54 B1 B54 A1 A54 B1 B54 A1 A54 B1 B54 Parts Location SD-BOARD IC6910 H-2 IC6911 B-4 IC6912 G-2 IC6913 C-4 IC6914 E-2 IC6915 E-4 IC6916 D-2 IC6917 G-4 IC6918 B-2 IC6920 G-1 IC IC TP7 B-1 TP8 B-2 TP9 E-1 TP10 E-2 TP11 H-2 TP12 I-2 TP SD A B C D 67 14.19.SS 电路板 E F G H I 1 2 3 4 5 6 SS-BOARD (FOIL SIDE) TNPA3993 TH-50PZ700C SS-BOARD TNPA3993 TH-50PZ700C SS-BOARD TNPA3993 R115 L001 L002 L003 L004 L005 L006 CF281 L011 D132 L012 L013 D133 L014 L015 L016 SS11 SS12 L221 L222 SS34 SS35 L040 SS42 L241 SS51 SS52 SS53 SS54 SS55 SS56 L061 L062 L063 L064 L065 L066 L067 L068 L069 L262 L070 L071 L072 L073 L074 L075 L271 L272 L081 L082 L083 L084 L085 L086 L087 L088 L089 L090 L091 L092 L093 L094 L095 L096 L293 Q001 Q002 Q003 Q004 Q005 Q006 C201 C202 C203 C204 C011 C205 C012 C206 C013 C207 C014 C208 C015 C016 C017 C018 C019 C213 C214 C020 Q021 D001 Q022 Q023 D003 Q024 D004 Q025 Q026 C222 C223 C224 Q221 C031 Q222 R010 R017 R018 R019 Q041 D021 Q042 D022 Q043 D023 Q044 R020 VR000 C241 L103 Q051 Q052 R222 Q053 R223 VR200 Q054 C261 C262 C263 C264 C265 C266 C073 C272 C273 D253 TP1 D061 TP2 D062 TP3 D063 TP4 D064 TP5 TP6 TP7 TP8 TP9 D071 D072 TP904 TP905 D081 D082 D083 D084 TP910 TP911 TP913 TP10 TP13 TP14 TP918 TP15 TP919 R281 D091 TP16 R282 D092 TP17 TP18 TP19 TP920 TP921 TP922 TP923 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 TP32 TP33 TP34 L386 L387 C301 C302 C303 C304 C305 C111 C306 C112 C113 C114 1 3 2 1 SS TNPA3993 CR No.6 PbF A A K A A K 1 3 1 10 1 3 1 8 1 12 1 13 1 13 1 13 1 13 1 13 1 13 SEE REVERSE FOR ORDER NO. C G E G C E G C E G C E G C E G C E G C E A A K G C E G C E A A K G C E A A K G C E G C E B C E E C B G C E A A K G C E A A K G C E A A K G C E G C E G C E G C E G C E A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A B C D 68 TH-50PZ700C SS-BOARD PARTS LOCATION TH-50PZ700C SS-BOARD PARTS LOCATION Parts Location SS-BOARD (FOIL SIDE) Q6001 B-2 Q6002 B-2 Q6003 B-2 Q6004 B-2 Q6005 C-2 Q6006 C-2 Q6021 F-2 Q6022 F-2 Q6023 F-2 Q6024 F-2 Q6025 G-2 Q6026 G-2 Q6041 D-3 Q6042 D-3 Q6043 D-3 Q6044 C-3 Q6051 E-3 Q6052 E-3 Q6053 E-3 Q6054 E-3 Q6221 I-2 Q6222 I-2 TRANSISTOR TP1 A-4 TP2 A-4 TP3 B-4 TP4 B-4 TP5 A-4 TP6 A-4 TP7 B-4 TP8 B-4 TP9 A-4 TP10 A-4 TP13 I-4 TP14 I-4 TP15 I-4 TP16 I-4 TP17 I-4 TP18 I-4 TP19 I-4 TP20 H-4 TP21 I-4 TP22 H-4 TP23 H-4 TP24 I-1 TP25 H-1 TP26 G-2 TP27 E-1 TP28 E-1 TP29 D-1 TP30 B-1 TP31 A-1 TP32 H-3 TP33 H-4 TP34 H-4 TP VOLUME Parts Location SS-BOARD (COMPONENT SIDE) IC6131 F-2 IC6151 E-3 IC6191 C-3 IC6211 B-4 IC6221 A-2 IC6241 C-4 IC6251 C-4 IC6281 C-3 IC Q6001 I-2 Q6002 H-2 Q6003 H-2 Q6004 H-2 Q6005 H-2 Q6006 G-2 Q6007 B-3 Q6021 D-2 Q6022 D-2 Q6023 D-2 Q6024 D-2 Q6025 C-2 Q6026 C-2 Q6031 E-3 Q6041 F-3 Q6042 F-3 Q6043 G-3 Q6044 G-3 Q6051 E-3 Q6052 E-3 Q6053 E-3 Q6054 E-3 Q6101 C-2 Q6102 B-2 Q6103 C-2 Q6104 C-2 TRANSISTOR TP15V H-4 TPSOS7 B-4 TPSOS8 B-4 TPSS1 B-1 TPVDA I-3 TPVe B-3 TPVe2 B-4 TPVSUS I-4 TP VR6000 A-2 VR6200 B-3 VOLUME TP6904 A-3 TP6905 A-3 TP6910 I-3 TP6911 I-3 TP6913 H-4 TP6918 H-4 TP6919 H-4 TP6920 H-4 TP6921 H-4 TP6922 H-4 TP6923 H-4 VR6000 I-2 VR6200 H-3 Q6105 C-1 Q6106 B-1 Q6107 C-2 Q6108 B-2 Q6109 B-4 Q6110 B-4 Q6111 B-3 Q6112 B-3 Q6113 B-4 Q6114 B-4 Q6115 B-2 Q6141 F-1 Q6142 G-1 Q6143 F-1 Q6144 G-1 Q6146 F-2 Q6147 E-2 Q6148 F-1 Q6149 E-1 Q6171 F-3 Q6172 F-3 Q6181 E-3 Q6221 A-2 Q6222 B-2 Q6251 C-4 Q6281 C-4 Q6282 C-4 SS 69 E F G H I 1 2 3 4 5 6 SS-BOARD (COMPONENT SIDE) TNPA3993 TH-50PZ700C SS-BOARD TNPA3993 TH-50PZ700C SS-BOARD TNPA3993 R104 R105 D109 R106 C131 R109 C132 C134 D110 C135 D111 D112 D113 R110 R111 R112 R113 R114 R115 R116 L001 Q141 L002 Q142 L003 Q143 L004 Q144 R121 L005 R122 L006 Q146 R123 Q147 R124 Q148 R125 Q149 R126 R127 R128 R129 C151 C152 C153 C154 CF281 L011 D131 D132 L012 L013 D133 R130 L014 R131 L015 L016 R132 R133 SS11 R135 SS12 R136 R137 R138 IC131 L211 R139 L212 L213 R330 R140 R141 R142 R143 R144 R146 R147 R148 L221 R149 L222 Q171 D151 Q172 D152 D153 D154 R151 R152 R153 R157 SS34 R158 SS35 IC151 R159 L040 Q181 R160 R161 R162 SS42 SS44 L241 C192 C193 C194 C195 C196 R171 R172 R173 SS51 SS52 SS53 SS54 SS55 SS56 L061 L062 L063 L064 R181 L065 R182 L066 R183 L067 L068 L069 L262 L070 L071 D191 L072 D192 L073 D193 L074 L075 R191 R192 R193 R194 R195 R196 IC191 L271 L272 L081 L082 L083 L084 L085 L086 L087 L088 L089 L090 L091 L092 L093 L094 L095 L096 L293 C001 C002 C003 C004 Q001 C005 Q002 C006 Q003 C008 Q004 Q005 Q006 Q007 C201 C202 C203 C204 C011 C205 C012 C206 C013 C207 C014 C208 C015 C016 C017 C018 C019 C211 C212 C213 C214 C020 C215 C021 C022 C216 C023 C217 C024 C218 Q021 C025 D001 D002 Q022 C026 Q023 D003 Q024 D004 R001 Q025 C029 R002 Q026 R003 R004 R005 C221 R006 C222 R007 C223 R008 C030 C224 R009 Q221 C031 Q222 C033 D010 C034 Q031 C035 C036 C037 R010 R011 R012 R013 R014 R015 R016 R017 R018 R019 C041 D211 D212 C042 C043 C044 C045 Q041 D021 C046 Q042 D022 Q043 R213 D023 D024 Q044 R214 R020 D025 R021 D026 R022 D027 R023 R024 VR000 R025 IC211 C241 R026 C242 C243 D221 L101 L102 D222 L103 D223 R220 D224 Q051 D031 L105 R221 Q052 D032 L106 R222 L107 Q053 R223 L108 VR200 R224 Q054 R031 R225 R032 R226 R033 R227 R034 IC221 C251 C252 Q251 C257 R232 R041 R042 R043 R044 C261 C262 C263 C264 C265 C071 C266 C072 C073 R241 R242 R243 R244 R051 R052 R053 R054 IC241 C272 C273 D251 D252 D253 D254 D061 D255 R251 D062 R252 D063 R253 D064 R254 R255 R061 R256 R062 R257 R258 C281 IC251 R259 C282 Q281 C091 Q282 C092 D071 D072 D269 D271 D272 D273 D081 D082 D083 D084 D281 D282 D283 D284 R281 D091 R282 D092 R284 R286 R288 R289 IC281 R291 R294 R295 L386 L387 L398 L399 Q101 Q102 Q103 Q104 Q105 Q106 Q107 Q108 Q109 ZA001 C301 ZA002 C302 ZA003 C303 C304 C305 C111 C306 C112 C113 C114 Q110 Q111 Q112 Q113 Q114 Q115 D101 D102 R101 D105 R102 D106 R103 D107 SS Discharge TPVSUS TPVDA TPVe TP15V SSMM2 DIP TNPA3993 1 TPVe2 TPSOS8 SSMM3 SSMM4 CR No.6 TPSOS7 TPSS1 PbF A A K A A K 1 3 10 1 1 8 9 16 1 3 1 8 8 1 9 16 1 12 20 19 2 1 1 13 1 13 1 13 1 13 1 13 1 13 ORDER NO. 1 8 9 16 C G E C G E C G E C G E C G E C G E C G E A A K C G E C G E A A K C G E A A K C G E C G E E C B B C E C G E A A K C G E A A K C G E A A K C G E 4 5 8 1 C G E C G E C G E C G E 1 10 11 20 A A K A A K A A K A A K 1 4 5 8 A A K A A K A A K A A K A A K A A K A A K A A K G S D G S D G S D G S D G S D G S D G D S G S D G S D G S D A B C D 70 14.20.K 和 S 电路板 E F G H I 1 2 3 4 5 6 C2510 C2513 C2515 C2522 C2523 C2524 C2525 C2526 C2527 D2510 R2512 D2520 D2524 D2525 R2524 R2530 R2531 RM2501 R2538 PC2511 R2539 R2540 R2554 R2556 R2557 R2569 R2570 R2571 K1 R2572 K2 R2573 R2575 R2576 R2577 R2578 R2579 PbF K 1 TNPA4137 AB AC AD AE AF AG AH AJ SUFFIX. 1 2 11 12 1 2 C2511 C2512 Q2510 Q2511 C2516 Q2513 C2517 Q2518 Q2519 C2520 C2521 Q2520 Q2521 Q2522 D2511 D2512 R2516 R2517 R2519 R2520 R2521 D2526 D2528 R2525 D2530 RM2501 R2537 R2542 R2558 R2559 R2560 R2561 R2562 R2563 R2564 R2565 R2566 R2567 R2568 K1 K2 PbF K1 TNPA4137 REVERSEFORSUFFIX. SEE 1 2 11 12 1 2 SW2500 S1 TNPA4138 1 S PbF ORDER NO. 1 3 C2502 C2503 SW2500 R2506 R2507 S1 TNPA4138 1 S PbF SEE REVERSE FOR ORDER NO. 1 3 TH-50PZ700C S-BOARD TNPA4138AD K-BOARD TNPA4137AE TH-50PZ700C S-BOARD TNPA4138AD K-BOARD TNPA4137AE K-BOARD (FOIL SIDE) TNPA4137AE K-BOARD (COMPONENT SIDE) TNPA4137AE S-BOARD (FOIL SIDE) TNPA4138AD S-BOARD (COMPONENT SIDE) TNPA4138AD Parts Location K-BOARD Q2510 B-3 Q2511 D-3 Q2513 D-3 Q2518 C-3 Q2519 B-4 Q2520 B-3 Q2521 C-4 Q2522 D-3 TRANSISTOR K S A B C D 71 15 方框图和线路图 15.1. 线路图注意事项 72 15.2. 主要集成电路方框图 DH FULL HD DH5 D5 FPGA GP5P_1st (CYCLONE) DDR FAN CONTROL LINE CONTROL S.R. SUSTAIN HDMI 3 D36 *Plasma AI POWER SW W-R S.R. S.R. Vda Discharge Control(SC) ASDIO C2 28 C3 S.R. SWITCH S.R. SOS7 PULSE P5V RECTIFIER C25 *H,V Snyc Control AMP +15V +15V SOS6 PA33 DG P5V S.R W-L MICON PROCESSOR 64 AMP S.R. AUDIO IN AV SWITCH EEPROM POWER 64 +15V 64 STANDBY S.R SC2 S.R GS52 D20 64 POWER LED DG1 15V H11 +12V(s) VOLTAGE S.R. G[9:0] SPEAKER S.R. R[9:0] HDMI3 IN C4 64 ADDRESS HDMI_SPDIF VDA_75V AV3 IN S.R AD/HDMI S.R Peaks-Lite 2 DG6 S.R Data Driver Control DTV_SDIN VOLTAGE C22 VDA_75V PLASMA AI PROCESSOR S.R. SCAN DRIVE SENSOR SD PULSE SU H12 D35 64 64 D25 SS GH DG MAIN MICOM D34 FORMAT CONVERTER, C24 +15V HDMI EQ (VE) PA32 64 C1 H SD CARD SLOT DATA DRIVER(CENTER) S.R. STB_PS VOLTAGE DATA DRIVER(LEFT) G SUSTAIN TV S.R. S.R. FILTER *CLK Vda POWER_SOS RESET SUSTAIN DRIVE DATA DRIVER(CENTER) VDA_75V S.R. PROTECTION(SOS) P RECTIFIER S.R S.R. PD1-M plus L VOLTAGE WRITE PROTECT S.R H6 5V 15V SS35 DISPEN DC/DC 3.3V P5V +12V PCLK/NCLK S.R. PROCESS ERASE POWER SUPPLY 64 SUS +15V D 64 64 S1 SOS7 TEMP REMOTE/LED/KEY SW P12 SS11 *VD,HD P_ON/OFF S.R S.R *Sub Filed Processor X'tal C31 SIGNAL CONTROL HDMI IN 1 DATA DRIVER(RIGHT) AUDIO F_STB+15V DATA0 B[9:0],HD,VD SS12 DC/DC 1.8V SOS8 IIC2 SW PC IN S.R +15V (UP) 64k S.R. S.R. P5 REMOTE RECEIVER DG11 VSUS 32Mbit Flash-ROM PULSE STB5V S.R. SUSTAIN MONITOR OUT (4MByte) AI SENSOR 64 C51 S.R. S.R. FLASH CONTROL VOLTAGE DC/DC 1.2V 128Mbit DDR P1.2V 64 D32 C21 S.R. S.R. PROM C35 P25 C44 SS42 35 POWER S.R RECTIFIER P11 DATA DRIVER(LEFT) L/R Vda HDMI_SDIN S.R S.R S.R. PULSE S +15V P5V VOLTAGE DIGITAL VDA_75V D33 +5V RESET SOS8 S.R. *Discharge Control C6 STB12V 64 C60 DDR2x2 VOLTAGE DRVRST *RGB:10bit(or8bit) PROCESSOR P9 R,G,B AVR CARD SPEAKER R AV TERMINAL S.R. RELAY L/R STB3.3V ICEOUT Vda S.R. CONTROL P2 SC20 CONTROL C55 Genx4 (DOWN) CONTROL SOUND_SOS PCLK/NCLK VIDEO P3.3V FILTER V REG RESET SQ-R D5 C41 PROCESS S-VIDEO IN STBY5V_M 12V RECTIFIER C52 Discharge Control(SS) VSUS R CLOCK SOUND SUSTAIN VIDEO IN FACTOR C54 SC 64 *LVDS receiver SOS C42 VCXO 28 P5V S.R. SCAN H51 VSUS RECTIFIER BOOT ROM Y,C,V SOS6 SPEAKER MAIN_L/R PULSE SS44 Data Driver Control GENERATOR L PS_SOS GS LVDS format D31 K1 SQ-L VDA_75V L/R DRIVE KEY SCAN SW P5V Vda AC CORD Vda DATA DRIVER(RIGHT) S.R GH11 GENERATOR SD AV3 IN PA35 [27MHz] VDA_75V SCAN OUT DCLK FAN S.R K 64 VOLTAGE FAN SOS C11 S.R DG52 S.R P2.5V D3 NOR FLASH HDMI EQ VDA G51 DC/DC CONVERTER DCK S.R. SIGNAL LINE XRST S.R. S.R. MAIN SLOT C61 P10 C5 FPGA HDMI IN 2 C10 STANDBY SCAN OUT SS34 MAIN TUNER GC3FS AV3 AV1 AV2 L/R L/R L/R V,Y,C SUB DC POWER H3 H2 DG2 PA3 DC/DC CONVERTER PA5 PA10 PA DC-DC CONVERTER POWER SOS FAN_SOS FAN V SUB TUNER V,Y,Pb,Pr V,Y,Pb,Pr TH-50PZ700C Main Block Diagram TH-50PZ700C Main Block Diagram OSD 25 DH 25 DG SC23 P23 73 15.3. P 电路板 （1/2）方框图 C601 F501 R514 C504 D401 F1701 C1714 C406 D1702 D501 R511 C407 C308 F1702 L1702 RF1701 D1703 R510 R515 C307 Q302 G D S Q301 G D S L1701 C402 C508 F301 C1716 R509 R512 C511 C1717 D1701 L1709 C509 L601 C306 P+15V MC501 I+ 4 STB+5V 20 STB +5V 9 K1702 P5 ON/OFF 2 AVR 25 Vda TO SC23 14 POWER CONTROL D3 S4B COLD 7 D1 COLD 4 AC DET L1705 F STB+15V D506 1 P9 B3 P+15V 11 PFC P2 F STB+15V STB+5V S1 K1701 CN POWER CONTROL 18 4 Q403 1 F STB+15V ON/OFF TO CN02 TO SS12 5 4 3 Vda+75V 4 PFC ON/OFF 3 19 3 S4A S3 STB PS MC401 PFC ON/OFF VDET +S PANEL POWER PART SOS DET 25 D306 18 P1 Vsus ON/OFF TO CN1601 ON/OFF D307 12 T501 P2 HOT P+15V D305 Q504 HOT STB+5V SH S2B 1 Q1701 +15V VBias S1A COLD Q401 B2 12 PC1701 TO PA5 TO D25 19 PS SOS 13 33 15 Vda DET 12 Vda LOW 7 ON/OFF 2 15V D511 1 P+5V Fsw-ON 9 F STB+15V 6 10 ON/OFF 17 ON/OFF IC401 8 (+15V) P23 B6 16 G1 P10 Q501, Vsus DET D510 5 AC DET Vad(+75V)OVER VOLTAGE PFC MC701 BIAS 1 +18V 2 26 ZD401 Q1707, Vda+75V 21 S1B P25 Vda+75V P+15V D503 08 ERROR DET CN 6 Q306 Q1704 1 COLD CONTOL HOT MC1702 HOT CONT 6 Q502 P+5V 9 ON/OFF P+5V 1 HOT 6 P1 +15V 13 ON/OFF B4 ERROR DET 06 F STB+15V 17 P+15V P+15V DET 12 1 D502 B1 D507 ZD306 2 P+5V MAIN SWON/OFF STB+5V ON/OFF 1 P+5V DET S1 F STB+15V DET GH 2 ZD305 D512 P+15V ON/OFF Vsus(+185V)OVER VOLTAGE (+3.3V) LED BLINKING 4 TIMES Vda+75V HOT CONT ON/OFF 7 G3 1 PC505 VR301 7 S2 3 Vda OUT 10 P12 B5 Q303 +18V 1 TO PA10 S5 ON/OFF 1701 HOT RUSH PC401 P+5V ON/OFF 2 P+5V 1 Vda+75V Q402, (+15V) 22 IC501 2 Vsus DET VR401 STB+5V Q503 16 10 PANEL ON/OFF Q304 GATE CN1602 20 8 8 ON/OFF 10 MC301 VSUS_VCC 17 Vda OUT RELAY 14 Vsus ON/OFF P+15V Q1703, D601 P+15V Q1708 MC1701 1 AC100V P+15V DRIVE F_STB ON/OFF 11 Q305 P+15V 6 7 P+15V D513 Vda RELAY P+15V STB+5V T301 1 6 3 13 AC100V F STB+15V OVP ALL_OFF POWER STB+5V OUTPUT CONTROL ON/OFF 24 3 S3 6 5 8 P+15V 18 CN GL ON/OFF COLD S2A 9 13 D508 7 MC601 L404 Fsw POWER SUPPLY(1/2) P AC IN POWER MCU MODULE POWER CONTROL MODULE IPD Drain Source CONTROL Control DISCHG AC_N AC_L STB+5V DISCHARGE PFC CONTROL MODULE RELAY/ PFC CONTROL MODULE PFC ON/OFF BAIS ON/OFF Vda/STB POWER CONTROL MODULE Vda CONTROL MODULE PANEL_ON Vda_Low ALL_OFF PS_SOS F_STB_ON 15V_IN Vda_ON BIAS_ON PFC_ON STB_OUT + + - + + + - + + + - + L.F + L.F + + + + + L.F + + TH-50PZ700C P-Board (1 of 2) Block Diagram TH-50PZ700C P-Board (1 of 2) Block Diagram F1703 F502 74 15.4. P 电路板 （2/2）方框图 + + + - + C254 ZD1602 F1601 D1602 C253 C251 F201 D1603 D1601 D1604 RF1601 2 CN P1 (18V) G3 Vsus 185V V+ HOT MC1603 +S DRIVE (IDET) S2A S1A D255 1 HOT Vsus P1 L1603 1 PC201 7 D251 7 10 Q1602 T202 25 G1 22 Q1601, G2 1 PC202 D2 MC1602 G2 1 6 RELAY D2 Vsus ON/OFF D2 S1 T201 TO CN1701 VR251 1601 1 4 D1 RUSH VIN GL S1 VSUS K1602 T1 02 13 12 COLD Vsus 5 S1B 3 ERROR DET S2B CN (+4.7V) TO SS11 D253 SH S1A 1 GATE S1B MC201 T2 P11 (VDET) VSUS_VCC CN08 HOT 7 ON/OFF P2 ON/OFF 4 RELAY AC100V 6 S1 CONT S2A S2 Q201,Q203 14 AC100V OVP GH VCC PFC P2 Q202,Q204 S2B D3 G2 K1603 1 HOT S3 9 DRIVE Q1604, MC1601 8 D1 TO SC2 TO CN06 Q1605 MC1604 HOT VCC 3 POWER 6 D1 DRIVE COLD D254 HOT 1602 1 CN OCL 13 PFC D252 P2 S2 BIAS S2 CONT I+ 2 Vsus G1 11 9 ON/OFF G1 P POWER SUPPLY(2/2) PFC MODULE RELAY/ PFC CONTROL MODULE PFC MODULE RECTIFIER MODULE Vsus POWER CONTROL PFC ON/OFF Vsus ON/OFF PFC ON/OFF Vsus DET Vsus ON/OFF P+5V TH-50PZ700C P-Board (2 of 2) Block Diagram TH-50PZ700C P-Board (2 of 2) Block Diagram MC202 MC203 Vsus POWER SUPPLY Vsus POWER SUPPLY 75 15.5. P 电路板 (1/2) 线路图 PFC PFC CONTORL MODULE RELAY/PFC CONTROL MODULE Vda/STB POWER CONTROL MODULE POWER CONTORL MODULE IPD Vda CONTROL MODULE POWER MCU MODULE COLD HOT COLD HOT COLD HOT TH-50PZ700C P-Board (1 of 2) Schematic Diagram TH-50PZ700C P-Board (1 of 2) Schematic Diagram ! P-BOARD ETXMM624MGH (1/2) Multi TO SS-BOARD (SS12) TO SS-BOARD (SS23) TO PA-BOARD (PA5) TO PA-BOARD (PA10) TO D-BOARD (D25) TO P-BOARD(2/2) (CN02) TO P-BOARD(2/2) (CN1601) TO AC CORD TO P-BOARD(2/2) (CN1602) 76 15.6. P 电路板 (2/2) 线路图 RECTIFIER MODULE PFC MODULE PFC MODULE RELAY/ PFC CONTROL MODULE Vsus POWER CONTROL Vsus POWER SUPPLY Vsus POWER SUPPLY COLD HOT COLD HOT TH-50PZ700C P-Board (2 of 2) Schematic Diagram TH-50PZ700C P-Board (2 of 2) Schematic Diagram ! P-BOARD ETXMM624MGH (2/2) TO SC-BOARD (SC2) TO SS-BOARD (SS11) TO P-BOARD(1/2) (CN06) TO P-BOARD(1/2) (CN08) TO P-BOARD(1/2) (CN1701) Sus 77 15.7. PA 电路板方框图 R5533 D5530 R5534 Q5562 R5532 R5536 R5531 R5535 R5537 Q5521 R5538 Q5523 Q5522 C5521 C5522 Q5561 D5528 D5521 R5540 D5529 R5544 R5542 D5526 R5549 D5522 R5548 Q5524 R5546 R5547 Q5501 D5501 Q5502 D5502 R5553 R5552 D5532 D5531 D5534 D5533 R5577 R5576 D5402 D5403 D5405 D5411 D5410 OVER VOLTAGE DET SUB+5V SUB+9V (+6.8V) (+12V) SUB+5V/SUB+9V SHORT DET F STB+15V (+10V) (+10V) (+12V) (+12V) H264+9V FHD+9V FHD+9V/H264+9V S_15V S_15V S_15V FAN_15V FAN_15V 6 8 7 2 1 FHD+9V/H264+9V TV_ON OFF MAIN9V SUB9V SUB9V SUB5V 40 38 36 S_15V S_15V STB5V TO H3 31 S_15V PA3 7 1 4 5 2 SUB5V PA5 TUNER_SUB_ON FHD+9V H264+9V 9 3 13 15 1 IC5551 SOS DET ERROR DET MAIN+9V TO P5 TO P10 PA DC-DC CONVERTER 1 3 2 S_STBY S_STBY S_STBY PA 10 ERROR DET SUB+5V/SUB+9V SUB+9V SUB+5V 9 3 13 15 1 IC5550 39 37 H_9V H_9V 25 FHD_9V FHD_9V 27 19 20 SUB_ON MAIN_ON 24 SOS 14 FAN_SOS FAN_CONT 16 3 +B FOR FAN FAN_SOS PA 32 1 +B FOR FAN 3 FAN_SOS PA 33 1 +B FOR FAN 3 FAN_SOS PA 35 1 4 2 1 IC5400 FAN CONTROL TO FAN TO FAN TO FAN TH-50PZ700C PA-Board Block Diagram TH-50PZ700C PA-Board Block Diagram 78 15.8. PA 电路板 (1/2) 线路图 + + + + + + + + + + 1% R5502 1.27k EHMDD9851 IC5550 1 ON/OFF2 2 VAR2 3 VOUT2 4 SW-Node2 6 GND 7 N.C. 8 GND 9 VIN 10 N.C. 11 GND 12 SW-Node1 13 VOUT1 14 VAR1 15 ON/OFF1 16 N.C. R5525 10k PA35 1 2 3 L5553 2.7u C5504 16V 0.1u *R5417 402 1% L5565 22u C0DBAZG00034 IC5400 1 VCC 2 OUT 3 GND 4 INV 5 STBY EHMDD9851 IC5551 1 ON/OFF2 2 VAR2 3 VOUT2 4 SW-Node2 6 GND 7 N.C. 8 GND 9 VIN 10 N.C. 11 GND 12 SW-Node1 13 VOUT1 14 VAR1 15 ON/OFF1 16 N.C. C5409 25V 0.1u D5410 MAZ81100ML C5506 16V 0.1u R5507 10k D5574 B0BC01100001 R5443 0 TPF0S 1% R5503 1.27k C5509 330u 35V C5420 0.1u 25V R5506 10k C5508 16V 0.1u TP5400 PA33 1 2 3 C5595 50V 22u L5551 G0C150MA0056 C5587 470u 16V L5567 2.7u L5564 2.7u R5573 4.7k C5419 470u 25V C5501 470u 16V Q5562 2SD0601ASL D5573 B0BC01100001 C5410 470u 25V L5554 G0C150MA0056 L5555 G0C150MA0056 R5405 4.7k R5412 4.7k D5402 MA2J11100L R5527 47k 1% R5555 1.27k C5413 25V 0.1u D5411 MA2J11100L L5550 2.7u C5503 470u 16V R5509 0 Q5502 2SD0601ASL R5420 0 R5413 470 C5507 470u 16V R5572 2.2k C5505 470u 16V C5412 25V 0.1u D5575 B0BC01100001 D5412 MAZ80330LL PA32 1 2 3 R5570 10k D5405 MA2J11100L D5403 MA2J11100L C5502 16V 0.1u D5571 B0BC6R600005 TPFA15 R5508 47k TPFA9 C5510 25V 0.1u R5526 10k L5552 G0C150MA0056 R5423 1k L5401 G0C101KA0167 C5588 16V 0.1u D5409 B0JCME000037 D5501 B0BC01000035 1% R5554 2.61k R5402 4.7k R5571 47k D5502 B0BC01000035 Q5501 2SD0601ASL C5552 25V 0.1u L5568 2.7u Q5561 B1DHDC000028 R5416 2.74k 1% L5566 2.7u C5551 330u 35V R5403 4.7k R5418 22k 1% R5409 47k 1% < < < < TV_ON OFF 5V/9V FHD_9V/H264_9V +B FOR FAN GND FOR FAN FAN_SOS FAN REG TO FAN TO FAN TO FAN 4 6 7 1 5 10 3 8 2 9 F 5 2 8 7 3 D 4 B C 6 9 E A 1 MAIN9V TH-50PZ700C PA-Board (1 of 2) Schematic Diagram TH-50PZ700C PA-Board (1 of 2) Schematic Diagram ! PA-BOARD TNPA4274AC(1/2) 79 15.9. PA 电路板 (2/2) 线路图 S_GND S_GND S_GND STB_5V1 S_15V S_15V S_15V FAN_15V FAN_15V S_STBY S_STBY S_STBY GND GND GND GND GND PA5 1 2 3 4 5 6 7 8 9 10 11 TPF9V R5577 4.7k Q5523 2SD0601ASL PA3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 R5534 47k TPS0N ZA5502 K4CZ01000027 R5548 4.7k D5532 MA3X152D0L Q5522 2SA207700L TPM0N R5547 10k R5537 680 TPS0F TPST5 TPS0S D5528 MAZ81200ML D5533 MAZ81200ML TPS9V R5546 10k ZA5503 K4CZ01000027 D5530 MA2J11100L R5552 470 Q5521 2SA207700L R5532 4.7k TPS15V TPS5V D5522 MA3X152D0L R5576 4.7k TPH9V R5549 4.7k R5536 4.7k R5538 2.2k D5534 MAZ81200ML PA10 1 2 3 4 5 6 R5553 470 R5535 2.2k TPM9V R5544 220 D5529 MAZ80680LL TPC0F C5521 16V 0.1u R5542 470 D5521 MA2J11100L R5533 10k ZA5504 K4CZ01000027 D5531 MA3X152E0L R5531 2.2k R5540 470 D5526 MA3X152E0L C5522 16V 0.1u Q5524 2SD0601ASL JS2 JS1 ZA5501 K4CZ01000027 *R5481 0 AC SUFFIX JW TO H-BOARD (H3) TO P-BOARD (P5) TO P-BOARD (P10) GND GND GND_CP GND NC GND GND GND FAN_SOS MAIN_9V SUB5V GND SUB5V SUB9V GND SUB9V GND GND FAN_CONT GND GND SOS STB_5V1 GND_CP GND GND_CP GND FHD_9V GND FHD_9V Tuner_sub_on GND GND GND TunerMain_on S_15V H_9V S_15V H_9V S_15V 4 6 3 8 2 9 7 5 10 1 ! PA-BOARD TNPA4274AC(2/2) 13 10 16 12 11 18 14 15 17 TH-50PZ700C PA-Board (2 of 2) Schematic Diagram TH-50PZ700C PA-Board (2 of 2) Schematic Diagram 80 15.10.G，GS 和 S 电路板方框图和线路图 D.SW W.P. + R V L Y C R V L Y C AE_SDCLK AE_SDDAT0 AE_SDDAT3 AE_SDDAT1 AE_SDCMD AE_SDDAT2 AE_SDDTC AE_SDCMD AH_SDCMD AE_SDDAT2 AE_SDDAT3 AH_SDDAT0 AH_SDDAT1 AH_SDDAT2 AH_SDDAT3 AH_SDWP AH_SDDAT1 AE_SDWP AH_SDCMD AH_SDCLK AE_SDWP AH_SDCLK AE_SDDAT1 AH_SDWP AE_SDDAT0 AH_SDDAT0 AH_SDDAT2 AH_SDDAT3 AE_SDCLK *R7744 100 *R7730 0 C7733 16V 0.1u *R7735 68 JK7702 1 2 3 4 5 6 7 8 9 10 11 12 *C7725 50V 33p *GS52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 C7738 4V 100u R7719 0 *R7725 0 *R7758 0 C7732 16V 0.1u *R7737 68 R7751 0 *C7724 50V 33p R7749 0 *R7752 0 *R7747 0 *R7723 0 *L7701 J0JCC0000143 *C7731 50V 33p *C7737 10u 6.3V *R7759 0 *R7738 68 *C7729 50V 33p *R7733 68 R7750 0 *R7755 0 *R7702 56 *R7731 0 *R7734 68 *L7702 ERJ6GEY0R00V *R7772 0 C7742 10u 6.3V D7700 B3AEB0000107 C7736 16V 0.1u ZA7701 K4AD01D00004 TP7702 TP7706 TP7707 TP7708 *L7706 ERJ3GEY0R00V D7700 R3751 R3767 R3754 R3766 SW3755 SW3756 JK3701 C Y G CY-G G R2 R1 T NC SW R-SW R R-G L L-G V-SW V V-G R3758 SW3757 R3753 SW3753 SW3754 R3721 10k R3723 0 G51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 ZA3701 K4CZ01000027 1% R3767 3.16k R3724 0 R3711 0 FL3712 J0MAB0000199 1 2 3 4 C3701 560p 50V JS3704 0 C3715 16V 0.1u L3708 J0JCC0000100 SW3757 EVQPC105K FL3710 J0MAB0000199 1 2 3 4 JK3701C K4AK18B00001 C Y G CY-G G R2 R1 T NC SW R-SW R R-G L L-G V-SW V V-G JS3702 0 1% R3758 6.65k JS3708 0 R3755 0 C3750 1000p 50V R3710 0 C3712 50V 0.033u R3717 180k R3714 0 R3732 0 1% R3754 1.62k SW3753 EVQPC105K R3746 0 SW3755 EVQPC105K FL3711 J0MAB0000199 1 2 3 4 R3748 0 D3702 MAZ81400ML SW3756 EVQPC105K 1% R3751 14.3k R3709 0 R3722 0 L3707 J0JCC0000100 JS3705 0 C3711 50V 0.033u C3703 560p 50V R3768 0 SW3754 EVQPC105K 1% R3753 1.74k L3700 J0JCC0000364 R3716 180k 1% R3765 2.32k L3701 J0JCC0000364 R3725 0 JS3707 0 < < < < < < < < < SDDAT2 3.3V SDDAT1 GND GND SDCLK SDDAT0 SDDAT3 SDCMD SDDAT3 SDWP SDDAT0 SDDAT2 SDDAT1 3.3V GND SDCMD GND SDDTC SDCLK GND AG SDLED TO DG-BOARD (DG52) SD LED SUFFIX JW SD CARD SLOT 5 10 8 9 SDCMD 8 SDDAT0 11 3 10 12 SD DATA3 1 SD DATA1 SDDAT2 7 SD CARD W.P +3.3V 2 1 +3.3V 12 SDDAT1 5 GS 52 SDDAT3 11 SDCLK SD CLOCK 4 9 SD DATA0 SD DATA2 JK7702 7 SD CARD SOCKET SD WP SD CMD SD DTC SD LED SD LED 13 GS SD CARD SLOT 5 2 1 C D 8 7 3 4 E 9 6 B A F GS-BOARD TNPA4143AG ! TO DG52 19 AV4/HP/KEY SW AV4 1 TO H51 HP_DET 15 KEY1 V_DET AV4_C TV/AV AV4_V 12 -/ +/ STR HPOUT_L HPOUT_R AV4_Y AV4_R AV4_L AV4_S F 3 8 10 2 9 7 G 17 HEAD PHONE G 51 4.GND AD -/ F KEY1 TNPA4262AD 14.GND +/ 17.AV4_Y 7.MAIN_L/HPOUT_L 8.AV4_R 10.AV4_L 12.AV4_S 2.V_DET 15.AV4_C 19.AV4_V 18.GND TV/AV SUFFIX JW 6.GND 5.HP_GND TO H-BOARD (H51) 9.MAIN_R/HPOUT_R 3.HP_DET 11.SUB_MONO 1.KEY1 13.HP_GND STR G-BOARD ! 20.GND 16.GND TH-50PZ700C G, GS and S-Board Schematic Diagram TH-50PZ700C TO SS-BOARD (SS34) PUSH SW2500 K0F162B00002 C2502 1000p 50V S1 1 2 3 R2506 0 C2503 1000p 50V R2507 0 GND 12V STB_PS POWER SW ! S-BOARD TNPA4138AD ! G, GS and S-Board Schematic Diagram 81 15.11.H 电路板 (1/2) 方框图 DRIVE IC VCC Vin GND COMPONENT COMPONENT AV1 AV1S AV2 AV3 AV2 AV3 PR PB Y PR V L C R R L Y R L V R V V L MONITOR OUT PB Y PC_B PC_H_IN PC_V SUB_Y_OUT PC_H RGB_CVBS SUB_PR_OUT AV1_Y PC_H_IN PC_V_IN PC_G AV1_L AV1_R AV2_L AV2_R AV3_L AV3_R PC_LIN PC_RIN AV4_R AV4_L TV_R TV_L AV_R AV_L SCL0B_5V SDA0B_5V AV1_S AV1_C AV4_V AV4_S AV4_Y PC_R PC_B PC_G PC_V_IN AV1_V AV2C_Y MAIN_Y_OUT MAIN_PB_OUT MAIN_PR_OUT SUB_PB_OUT MAIN_RF_CVBS VIDEO_STATUS SCL0B_5V SDA0B_5V TUNER_MAIN_ON AV1_V AV2C_Y A_AV2_R A_AV2_L A_AV1_RSW A_AV3_L A_AV1_L AV3_V A_AV1_R A_AV3_R AV2C_YSW AV3C_YSW AV1_S A_AV2_RSW AUDIOOUT_L AV1_Y AV3C_Y AV3C_PB AV3C_PR AV2_V AV2C_PB A_AV3_RSW AV1_C AV2C_PR MONI_MUTE AV2_V AV2C_YSW AV2C_PB AV2C_PR AV3C_Y AV3_V AV3C_YSW AV3C_PB AV3C_PR AV4_C SUB_RF_CVBS AUDIOOUT_R PC_R PC_RIN PC_LIN DTV9V Q2003 *D2025 Q2002 SUB3.3V JK2003 L L-G R R-G *JK3001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 DTV9V Q3031 Q3032 JK3100 Y-SW Y G PB PR V L R-SW R G Y-SW Y G PB PR V L R-SW R G C Y G Y-G C-G G V L R-SW R G V L R G AUDIO OUT B G PC IN HD R VD Video SW L8 17 13 L6 16 R6 R8 14 R7 L7 15 11 L5 R5 12 10 6 L3 7 R3 R12 41 L12 42 ROUT1 32 33 LOUT1 35 SDA SCL 36 IC3001 V7 91 Y4 3 S12 2 C4 5 V5 95 S13 96 Y5 97 C5 99 R4 75 B4 73 G4 71 HIN2 60 VIN2 58 V4 1 G5 77 V3 8 VOUT7 44 HOUT 42 VOUT 41 OUT1(CY) 40 OUT1(Pb) 39 OUT1(Pr) 38 36 OUT2(CY) 35 OUT2(Pb) 34 OUT2(Pr) VCC4 45 HVOE 43 VCC3 25 VCC2 6 69 VCC1 84 SDA SCL 83 FLAG 85 AV1 AV2 AV3 PC AV4 TV(MAIN) 5 VCC AUDIO SW IC2105 TV PC AV2 AV1 AV3 AV4 8 2 7 4 3 1 AV TERMINAL, H AV SWITCH,MSP 5 IIC0 IIC0 LP2 78 B5 79 R5 80 V2 14 67 LP3 19 B3 R3 65 G3 63 V8 87 TV(SUB) VOUT3 33 TH-50PZ700C H-Board (1 of 2) Block Diagram TH-50PZ700C H-Board (1 of 2) Block Diagram 82 15.12.H 电路板 (2/2) 方框图 DTV2_SDIN MAIN_PR_OUT MAIN_PB_OUT MAIN_Y_OUT SUB_PR_OUT SUB_Y_OUT SDA0B TUNER_MAIN_ON AUDIO_MUTE AUDIO_XRST SP_MUTE SOUND_SOS AFC1 TUNER_SUB_ON SCL0B AV_L DTV_BCLK DTV_SDIN DTV_LRCK DTV2_SDIN HDMI_SDIN HDMI_LRCK HDMI_BCLK SCL0B_5V RGB_CVBS SUB_PB_OUT TV_SUB_ON_DELAY FAN_CONT FAN_SOS KEY SPDIF_IN HDMI_INT2 VIDEO_STATUS SQ_L- SQ_L+ W_L+ W_L- SQ_R- SQ_R+ W_R+ W_R- WO_R+ WO_L+ SQ_R+ SQ_L+ SQ_L- WO_R- WO_L- AV_R SDA0B SCL0B DTV_LRCK DTV_BCLK DTV_SDIN HDMI_SDIN HDMI_LRCK HDMI_BCLK TV_R TV_L SQ_R- HP_LOUT HP_ROUT AUDIOOUT_R AUDIOOUT_L AMUTE SOUND_SOS SDA0B_5V AFC1 AUDIO_MUTE SOUND_SOS FB PC_H PC_V TV_SUB_ON_DELAY AV4_S AV4_C AV4_Y AV4_V KEY HP_LOUT HP_ROUT MAIN_RF_CVBS AUDIO_XRST AV4_L AV4_R SPDIF_IN FAN_SOS FAN_CONT SOS TUNER_SUB_ON TUNER_MAIN_ON GENX_RST SOS AMUTE MON_MUTE AUDIO_MUTE SP_MUTE HDMI_INT2 GENX_RST SDA0B SCL0B SCL0B_5V SDA0B_5V AFC2 SUB_RF_CVBS AFC2 SCL0B_5V SDA0B_5V MAIN9V Q2636 BT30V Q2635 D2632 Q2301 SUB5V D2635 SUB3.3V D2637 SOUND12V SOUND15V STB+5V Q2638 D2301 Q2637 D2633 IC2610 Q2639 DTV9V STB+5V SUB5V SOUND12V SOUND15V SOUND12V SOUND15V SUB3.3V DTV9V BT30V DTV9V D2636 Q2101 Q2102 MAIN9V D2303 D2304 MAIN9V SUB5V STB+5V SUB9V_H264 SOUND15V DTV9V SUB3.3V FHD9V SUB3.3V SUB5V Q3402 D3404 Q3401 STB+5V D3402 PA3401 D3401 SUB5V BT30V SUB5V MAIN_Y/CVBS/G PC_V RGB_FB SCL0B_3.3V SUB_PB/C SUB_PR SUB_Y/CVBS AUDIO_MUTE SOS VIDEO_STATUS AFC1 RGB_CVBS SP_MUTE SDA0B_3.3V PC_H SOUND PROCESSOR RESET MUTE(ES2-) DTV2_SDIN DTV_LRCK DTV_BCLK DTV_SDIN HDMI_SDIN HDMI_LRCK HDMI_BCLK SUB_3.3V SHORT DET To SOS SQ_L+ SQ_R+ SQ_R- SQ_L- W_R- W_L+ W_R+ W_L- MAIN_PB/C/B MAIN_PR/R AUDIO_XRST SOUND_SOS TUNER_MAIN_ON TUNER_SUB_ON FAN_CONT FAN_SOS KEY SPDIF_IN HDMI_INT2 OPERATE RESET AC_GOOD TV_SUB_ON_DELAY BT+30V DC-DC Q2631,Q2033-Q2035 MUTE SW MUTE DTV+9V Q2039-Q2042 MONITOR MUTE HDMI INT AUDIO MUTE SPEAKER STB+5V BT30V SHORT DET 3 5 7 10 12 14 16 19 21 23 28 30 32 33 34 35 38 39 41 48 49 51 52 54 56 58 60 62 64 66 68 70 72 74 79 AVR+3.3V IC2010 AUD3.3V IC2008 SOUND12V IC2303 3 AVR 1 AMP 36 31 +15V +12V AUDIO AMP 28 5 7 SOS RESET 39 AMP IC2301 8 6 18 16 17 RESET RESET 17 16 18 IC2302 AMP 36 31 +15V +12V AUDIO AMP 28 5 7 SOS RESET 39 AMP 6 8 AMP 5 2 6 7 L R 3 1 HPOUTR1 58 HPOUTL1 57 PWM4B 49 PWM4A 48 PWM3B 47 PWM3A 46 PWM2B 45 PWM2A 44 PWM1B 43 PWM1A 42 AINL1 78 AINR1 79 SIF_IN1 8 SDA 16 MUTE 15 SCL 17 LRCLK2 18 BCLK2 19 SDIN2 24 SDIN1 23 SDIN0 22 LRCLK0 26 BCLK0 27 AUXOUTL1 72 AUXOUTR1 73 AUXOUTR2 75 AUXOUTL2 74 IC2107 DVDD1.8VV 2 5 7 MUTE 1 3 HP AMP IC2012 Q2021 Q2015 SOS OPERATE AUDIO MUTE 8 5 9 13 14 16 15 18 20 21 11 BB +B SIF_OUT SCL SDA RF_AGC VB BTL AFT_OUT VIDEO_OUT Q3200 TUNER(MAIN) TU3200 1 2 4 5 4 3 2 1 H12 H11 Q2017 Q2016 1 3 5 AVR 1 AVR 7 5 AUD3.3V SIF3.3V DVDD1.8V 7 5 1 AVR IC2106 50 4 3 5 AVR5V IC2013 AVR 8 VCC SUB_3.3V OVER VOLTAGE SPDIF_IN 39 SPDIF_OUT 38 8 14 12 9 13 MAIN9V SUB3.3V SUB5V SUB3.3V SUB5V SUB5V 2 STB5V DTV9V 23 1 DTV9V 18 21 17 FHD9V FHD9V H2 10 8 15 17 19 1 H51 To G51 AV4_R AV4_C HP_L AV4_S AV4_V AV4_L KEY AV4_Y HP_R 9 7 12 IC2011 H6 TO DG6 AGC1 1 H15 TO DG2 7 8 1 4 3 2 AV TERMINAL, H AV SWITCH,MSP TO SPEAKER L TO SPEAKER R 5 DVDD3.3V SUB9V_H264 40 SUB9V MAIN9V 37 38 7 SUB9V SUB5V H3 39 STB5V 5 3 1 1 2 4 SUB9V_H264 +15V_S +15V_S SUB5V 36 +15V_S FAN_SOS 14 FAN_CONT 16 19 SOS TUNER_SUB_ON 20 TUNER_MAIN_ON 24 FHD9V 27 25 FHD9V GENX_RST 36 GENX_RST 7 SCLA SCLB 8 SDAB LEVEL CHANGE 5V<->3.3V VCCA 1 2 3 SDAA VCCB IC2601 8 TO PA3 AFT_OUT 11 BTL SCL Q3201 VIDEO_OUT TU3201 5 12 SDA VB +B 17 RF_AGC 10 14 TUNER(SUB) 9 16 IIC0 IIC0 IIC0 IIC0 IIC0 IIC0 AGC2 3 42 AFC2 TH-50PZ700C H-Board (2 of 2) Block Diagram TH-50PZ700C H-Board (2 of 2) Block Diagram 83 15.13.H 电路板 (1/5) 线路图 + + + + R L COMPONENT COMPONENT AV1 AV1S AV2 AV3 AV2 AV3 PR PB Y PR V L C R R L Y R L V R V V L MONITOR OUT PB Y AV_L AV3_R SDA0B_5V SCL0B_5V AV4_L AV2_R AV1_R AV3_L AV1_L AV2_L AV4_R AV_R PC_RIN PC_LIN TV_L TV_R PC_B DAC_PD PC_H_IN PC_V_IN PC_G PC_R PC_LIN PC_RIN A_AV1_R AV1_V AV1_S A_AV2_RSW AV3C_YSW A_AV3_RSW AV3C_PR A_AV1_R AV2_V AV1_C AV1_Y A_AV1_L A_AV2_R A_LOUT A_AV2_L A_AV2_L A_AV1_RSW AV2C_YSW AV3C_Y A_VOUT AV2C_PB A_AV3_L A_AV2_RSW A_AV1_RSW A_AV1_V A_AV1_L AV3C_PB A_AV2_R AV3_V A_AV3_R AV2C_PR A_ROUT A_AV3_R A_AV3_RSW A_LOUT AV2C_Y A_ROUT MONITOROUT_MUTE AV3_R VOUT AV2_L AV2_R AV1_L AV1_R AUDIOOUT_L AUDIOOUT_R VOUT_FEED_B TUNER_MAIN_ON HV/FB_CONT AV3_L A_AV3_L C2166 16V 1u C2013 50V 560p C2135 16V 1u C2164 16V 1u C2167 16V 1u C2014 50V 560p C2016 50V 560p C3120 50V 0.1u C2163 16V 1u *C3100 10V 1u C2136 16V 1u C2165 16V 1u *C2157 16V 1u C2154 50V 0.1u C3060 16V 1u C2021 560p 50V *C3102 10V 1u *C2155 16V 1u C2005 50V 560p C2160 16V 1u C2017 50V 560p C2162 16V 1u C2010 50V 560p C2006 50V 560p C2159 16V 1u C2022 560p 50V C2011 50V 560p *C3101 10V 1u C3070 6.3V 220u C3119 10u 16V C2161 16V 100u C2147 16V 22u *D3338 MA2J11100L *D3334 MA2J11100L *D3335 MA2J11100L *D3337 MA2J11100L *D3336 MA2J11100L *D3102 MA2J11100L D3046 MAZ81400ML D3037 MAZ81400ML D3049 MAZ81400ML D3003 MAZ81400ML D3035 MAZ81400ML D3038 MAZ81400ML D3006 MAZ81400ML D3048 MAZ81400ML D3036 MAZ81400ML D3040 MAZ81400ML D3047 MAZ81400ML D3005 MAZ81400ML D3100 MAZ81400ML D3045 MAZ81400ML D3039 MAZ81400ML D2119 B0BC01100001 *FL3005 J0HABB000004 1 2 3 4 *FL3004 J0HABB000004 1 2 3 4 *FL3003 J0HABB000004 1 2 3 4 *FL3002 J0HABB000003 1 2 3 4 *FL3001 J0HABB000003 1 2 3 4 FL2002 J0HABB000004 1 2 3 4 FL2001 J0HABB000004 1 2 3 4 AN15862A-VT IC2105 1 L1 2 R1 3 L2 4 R2 5 VCC 6 L3 7 R3 8 L4 9 R4 10 L5 11 R5 12 L6 13 R6 14 L7 15 R7 16 L8 17 R8 18 L9 19 R9 20 L10 21 R10 22 O1 23 LOUT5 24 ROUT5 25 LOUT4 26 ROUT4 27 LOUT3 28 ROUT3 29 GND 30 LOUT2 31 ROUT2 32 LOUT1 33 ROUT1 34 ADR 35 SCL 36 SDA 37 O2 38 BIAS 39 L11 40 R11 41 L12 42 R12 43 L13 44 R13 JK2003 K2HA204A0053 L L-G R R-G JK3100 K1U936A00002 Y-SW Y G PB PR V L R-SW R G Y-SW Y G PB PR V L R-SW R G C Y G Y-G C-G G V L R-SW R G V L R G *JK3001 K1FB315A0006 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 L2003 J0JCC0000100 L3013 J0JCC0000100 L3003 J0JCC0000100 L2012 J0JCC0000100 L2001 J0JCC0000364 L3010 J0JCC0000100 L2002 J0JCC0000364 L3002 J0JCC0000100 L2011 J0JCC0000100 L2015 J0JCC0000100 L3001 J0JCC0000100 L2016 J0JCC0000100 L2004 J0JCC0000100 L2008 J0JCC0000100 L2007 J0JCC0000100 SUB9V_PRCT SUB5V DTV9V DTV9V SUB9V_PRCT SUB9V_VIDEO Q2002 2SC584500L Q3032 2SC584500L Q2003 2SC584500L Q3031 2SC584500L JS2033 JS2032 JS2031 JS3013 0 JS3010 0 JS3012 0 JS3011 0 JS3014 0 JS3015 0 R2050 2.2k R2053 100k 1% R3005 75 1% R3008 75 R3020 4.7k 1% R3004 75 1% *R3318 75 R2034 180k *R3306 4.7k *R2160 220 1% R3003 75 R3188 0 10k R3177 R2031 180k R3130 220 R2173 220 R2137 220 10k R3113 R2052 180k 1% *R3310 75 R2054 100k R2132 47k R2030 180k R3021 4.7k R2167 220 R2172 220 R2195 100k 1% R3006 75 R2174 220 R3022 4.7k 1% *R3313 75 1% R3001 75 R2154 22 1% *R3143 69.8 R2175 220 R2196 100k *R2162 220 R3131 220 R2047 330 *R3309 0 1% R3002 75 R2152 22 R2138 220 R2170 220 R2029 180k R2048 2.2k 1% R3007 75 1% R3012 75 R2235 47k R3145 100k R2164 220 10k R3107 1% R3009 75 *R3308 0 R2033 180k 1% R3010 75 R2171 220 R2032 180k R2051 180k *R3307 4.7k R2049 330 B G PC IN R Audio SW AV3 E 8 9 1 2 5 4 D 3 F A 6 C 7 B 2 3 1 H-BOARD (1/5) ! TNPA4279AC AUDIO IN TH-50PZ700C H-Board (1 of 5) Schematic Diagram TH-50PZ700C H-Board (1 of 5) Schematic Diagram 84 15.14.H 电路板 (2/5) 线路图 + + + RGB_CVBS MAIN_RGB_CVBS_OUT AV2C_Y AV2C_PB AV2C_PR MAIN_RF_CVBS MAIN_RF_GND PC_H PC_V SUB_PB_OUT AV4_VGND AV4_YGND AV3C_PB PC_G PC_R PC_B AV4_V AV4_Y AV4_S AV4_CGND SUB_TNR_SW1 SUB_Y_OUT MAIN_RGB_CVBS_OUT MAIN_Y_OUT MAIN_PB_OUT MAIN_PR_OUT SUB_PR_OUT VIDEO_STATUS SDA0B_5V AV1_Y AV2_V AV3_V AV3C_Y AV3C_PR SUB_RF_GND AV1_V AV1_S AV1_C AV3C_YSW AV2C_YSW MAIN_TNR_SW1 MAIN_TNR_SW2 SUB_TNR_SW2 MAIN_Y/CBVS/G MAIN_Y_OUT MAIN_PB/C/B MAIN_PB_OUT MAIN_PR/R MAIN_PR_OUT SUB_Y SUB_PB_OUT SUB_PB SUB_PR SUB_PR_OUT SUB_RF_CVBS SCL0B_5V PC_H_IN PC_V_IN VOUT_FEED_B VOUT HV/FB_CONT AV4_C SUB_Y_OUT P_AVSW9V P_AVSW9V2 C3033 10V 1u *C3028 10V 1u C3040 50V 0.1u C3055 10V 1u *C3031 50V 0.1u C3078 6.3V 22u C3062 16V 1u *C3106 10V 1u C3024 10V 1u C3023 10V 1u *C3029 16V 1u C3054 10V 1u C3117 50V 0.1u C3115 50V 0.1u C3051 10V 1u C3056 10V 1u *C3027 10V 1u C3116 50V 0.1u C3043 10V 1u C3026 50V 0.1u C3053 10V 1u C3064 16V 1u C3063 16V 1u C3021 10V 1u C3052 10V 1u C3059 16V 1u C3075 16V 220u C3103 16V 10u C3118 16V 47u *D3041 MAZ81400ML *D3043 MAZ81400ML D3044 B0BC01100001 *D3042 MAZ81400ML AN15876A-VT IC3001 1 V4 2 S12 3 Y4 4 S22 5 C4 6 VCC2 7 LP5 8 V3 9 O3 10 Y3 11 GND2 12 C3 13 LP4 14 V2 15 S11 16 Y2 17 S21 18 C2 19 LP3 20 V1 21 O2 22 Y1 23 O1 24 C1 25 VCC3 26 VOUT6 27 DCOUT 28 VOUT5FB 29 VOUT5 30 VOUT4FB 31 VOUT4 32 VOUT3FB 33 VOUT3 34 OUT2(Pr) 35 OUT2(Pb) 36 OUT2(CY) 37 GND3 38 OUT1(Pr) 39 OUT1(Pb) 40 OUT1(CY) 41 VOUT 42 HOUT 43 HVOE 44 VOUT7 45 VCC4 46 FBLOUT 47 FBL3 48 FBL2 49 FBL1 50 FBLOE 51 G1 52 VIN1 53 B1 54 HIN1 55 R1 56 GND4 57 G2 58 VIN2 59 B2 60 HIN2 61 R2 62 NC 63 G3 64 TEST 65 B3 66 NC 67 R3 68 NC 69 VCC1 70 NC 71 G4 72 LP1 73 B4 74 L31 75 R4 76 NC 77 G5 78 LP2 79 B5 80 L32 81 R5 82 GND1 83 SDA 84 SCL 85 FLAG 86 BIAS 87 V9 88 NC 89 V8 90 NC 91 V7 92 O4 93 V6 94 LP7 95 V5 96 S13 97 Y5 98 S23 99 C5 100 LP6 R3109 J0JGC0000021 R3103 J0JGC0000021 SUB9V_VIDEO DTV9V SUB9V_VIDEO JS3024 JS3023 JS3032 R3168 220 *R3349 68 R3111 22 R3089 330 R3065 220 1% *R3234 75 R3096 68 R3222 0 R3140 47 R3123 47 R3074 220 R3097 68 R3191 22 *R3086 220 R3133 22 R3121 47 R3087 220 R3098 68 *R3174 68 R3045 0 *R3062 220 100 R3180 *R3073 220 1% *R3119 100 *R3105 22 1% R3137 100 *R3068 75 1% *R3120 22 R3099 68 R3064 220 1% *R3135 100 *R3175 68 *R3348 68 *R3072 220 *R3112 22 R3044 0 R3090 22 1% *R3233 75 R3059 220 *R3302 100 R3069 220 *R3305 100 R3110 0 *R3176 68 R3101 68 *R3063 220 R3100 68 Video SW 11 18 14 16 17 10 13 12 15 1 2 3 12 14 13 11 TH-50PZ700C H-Board (2 of 5) Schematic Diagram TH-50PZ700C H-Board (2 of 5) Schematic Diagram H-BOARD (2/5) ! TNPA4279AC 85 15.15.H 电路板 (3/5) 线路图 + + + + + + + + + + + + + + + + + + + + + DRIVE IC VCC Vin GND WO_R+ SUB3.3V DTV_LRCK SQ_L+ SQ_R+ WO_L- WO_L+ SQ_R- SQ_L- WO_R- DTV_BCLK TV_R AUDIOOUT_R AUDIOOUT_L AV_R HDMI_SDIN HDMI_BCLK HDMI_LRCK DTV2_SDIN SOUND_SOS AUDIO_MUTE SPDIF_OUT DAC_PD TV_L AV_L SPDIF_OUT DTV_SDIN HP_ROUT HP_LOUT AGC1 SIF1 AFC1 SDA0B_5V SCL0B_5V AGC2 AGC1 MAIN_RF_CVBS MAIN_RF_GND SCL0B_5V SDA0B_5V AGC2 SUB_RF_CVBS AFC2 SUB_TNR_SW2 SUB_TNR_SW1 MAIN_TNR_SW1 MAIN_TNR_SW2 SPDIF_IN SDA0B SCL0B PWM_SQ_L+ PWM_SQ_L- WO_R+ WO_R- PWM_W_L+ PWM_W_L- SQ_L+ SQ_L- PWM_SQ_R+ SQ_R+ PWM_W_R+ SQ_R- WO_L+ PWM_W_R- WO_L- PWM_SQ_R- SUB_RF_GND AUDIO_XRST AMUTE *C3292 50V 100p *C2270 470p 50V C2114 0.1u 50V *C2202 2.2u 6.3V C2117 0.1u 50V C2118 1u 10V C2213 1000p 50V C2058 0.1u 50V C3279 16V 0.1u C2146 50V 180p *C3296 50V 0.1u C2189 1u 10V C2110 0.1u 50V *C2184 50V 1000p C2266 100p 50V C2101 10u 10V C2124 0.1u 50V *C3299 16V 0.1u C2138 0.1u 50V *C2204 1u 16V C2111 2.2u 6.3V C2263 10u 10V *C2197 25V 0.033u C2281 560p 50V C2056 12p 50V C2057 0.1u 50V C3275 16V 0.1u C2143 50V 180p *C2271 470p 50V C2289 10u 10V C2089 560p 50V *C2203 1u 10V C2106 0.1u 50V C2191 10u 10V C2265 100p 50V C2052 0.1u 50V C2272 4.7u 16V C2053 0.1u 50V C2171 0.01u 50V *C2198 25V 0.033u C2280 4.7u 10V C2097 50V 0.1u *C2180 1u 10V C2188 470p 50V *C3202 0.47u 50V C2245 1000p 50V C3276 16V 0.1u *C2195 50V 1000p *C2176 50V 0.01u C2100 0.1u 50V C2131 50V 0.1u C2244 0.1u 50V C2096 50V 0.1u *C3291 16V 0.1u C2186 0.1u 50V C3281 16V 0.1u C2153 50V 33p *C2174 1u 10V C2055 12p 50V C2049 0.1u 50V C2173 4.7u 16V C2170 50V 33p C2187 2.2u 6.3V C2105 0.1u 50V C2116 470p 50V C2121 56p 50V C2288 10u 10V C2128 50V 0.1u C2109 0.1u 50V C2216 0.1u 50V C2050 0.1u 50V *C3286 16V 0.1u C2048 0.1u 50V C2134 50V 0.01u *C3274 16V 0.1u C2120 56p 50V C2264 10u 10V C2091 50V 10p *C3305 16V 0.1u C2251 10u 10V C2102 0.1u 50V C3280 50V 100p C2092 50V 22p C2185 10u 10V C2268 100p 50V C2190 10u 10V C2088 4.7u 10V C2054 10u 10V C2130 6.3V 10u C2183 10u 10V C2126 10u 10V C2115 0.1u 50V C2246 10u 10V C3272 50V 0.1u *C3308 16V 0.1u C2267 100p 50V C2023 0.1u 50V *C3300 6.3V 100u C2151 47u 6.3V C2059 47u 6.3V *C2099 6.3V 220u C3273 10u 50V C3271 10u 16V C2108 47u 6.3V *C3298 22u 35V C2192 47u 6.3V C3270 6.3V 1000u *C2098 6.3V 220u *C2175 16V 47u C2107 47u 6.3V C2113 47u 6.3V *C3081 6.3V 100u C2133 50V 4.7u *C3293 10u 16V *C3285 6.3V 1000u C2137 47u 6.3V C2112 47u 6.3V *C2179 16V 47u D2189 MA2J11100L D2025 K7AAAY000003 C0DBGYY00281 *IC2013 1 NC 2 VSS 3 CE 5 VOUT 4 VIN C0CBCBC00190 IC2010 1 VDD 2 GND 3 CE 5 VOUT 4 NC *IC2012 C1BB00000947 1 OUT1 2 MUTE 3 IN1 4 GND 5 IN2 6 BIAS 7 OUT2 8 VCC IC2011 C0ABBB000230 1 2 3 4 5 6 7 8 C0CBCBE00001 IC2008 1 VOUT 2 NC 3 GND 4 CNCONT 5 SUB 6 VIN 7 C0DBFFD00003 IC2107 1 2 3 4 5 6 7 C1AB00002746 IC2106 1 FILTA 2 VREF 3 AGND 4 AVDD 5 SIF_REEP 6 SIF_REFCM 7 SIF_REFN 8 SIF_IN1 9 SIF_PGA_REF 10 SIF_IN2 11 AGND 12 AVDD 13 DGND 14 DVDD 15 MUTE 16 SDA 17 SCL 18 LRCLK2 19 BCLK2 20 DGND 21 DVDD 22 SDIN0 23 SDIN1 24 SDIN2 25 SDIN3 26 LRCLK0 27 BCLK0 28 ODGND 29 ODVDD 30 VDRIVE 31 DVDD 32 DGND 33 MCLKI/XIN 34 XOUT 35 BCLK1 36 LRCLK1 37 SDO0 38 SPDIF_OUT 39 SPDIF_IN 40 DVDD 41 DGND 42 PWM1A 43 PWM1B 44 PWM2A 45 PWM2B 46 PWM3A 47 PWM3B 48 PWM4A 49 PWM4B 50 RESET 51 DVDD 52 DGND 53 AVDD 54 PLL_LF 55 AGND 56 AGND 57 HPOUTL1 58 HPOUTR1 59 AVDD 60 NC 61 NC 62 NC 63 NC 64 NC 65 NC 66 VOUT_SW 67 FILTD 68 AVDD 69 AGND 70 AGND 71 AVDD 72 AUXOUTL1 73 AUXOUTR1 74 AUXOUTL2 75 AUXOUTR2 76 AINL2 77 AINR2 78 AINL1 79 AINR1 80 ISET *H15 1 2 3 4 L3207 J0JCC0000241 L3226 J0JCC0000241 L2040 J0JHC0000045 *L2034 J0JCC0000364 *L3224 J0JCC0000241 *L3219 J0JCC0000241 *L3208 J0JCC0000241 *L3223 J0JCC0000241 L3225 J0JCC0000241 *L3220 J0JCC0000241 *L3222 J0JGC0000021 L2027 J0JHC0000045 *L3227 J0JGC0000021 L3209 J0JGC0000021 L3206 J0JCC0000241 L2021 J0JHC0000078 L2029 J0JCC0000077 L3211 J0JGC0000021 L2039 J0JHC0000045 *L2035 J0JCC0000364 L2026 G1C6R8MA0061 DVDD1.8V MAIN9V SUB5V SUB5V DTV9V BT30V DTV9V SUB3.3V DVDD1.8V SUB5V SUB5V SUB5V DVDD3.3V SUB3.3V SUB3.3V BT30V AUD3.3V DVDD3.3V Q2017 2SC584500L Q2016 2SC584500L Q2102 2SC584500L Q2101 2SC584500L Q2015 2SA207700L Q3200 2SA207700L *Q3201 2SA207700L Q2021 2SA207700L *R2271 22 EXB28V220JX *R2270 22 EXB28V220JX JS2096 JS3206 0 *JS3209 0 JS3208 0 *R2237 1k *R3254 0 R3247 220 1% R2113 120k 1% R2181 22k R2097 3.3k *R2186 82k *R2185 100 *R3255 220 *R3251 1.5k 20k 1% R2151 300 R2058 20k 1% R2145 R3266 1.5k R2092 470 0 R2257 1% R2183 36k 10k R2276 20k 1% R2100 *R2233 10k R2266 560 R2189 10k R2086 470 R2296 0 R3249 1.5k *R2098 10k 1% R2166 16k 22 R2057 *R3260 560 1% 2k 1% R2104 1% R2197 68k 1% R2182 36k R2265 4.7k *R2184 100 R2209 10k 1M R2059 R3244 0 R2094 2.2k 1M R2112 R2210 10k 1% R2168 16k R2165 10k R2084 4.7k *R3250 1.5k R3240 560 1% *R3259 220 R2223 0 R2089 560 *R3206 100 R2294 0 *R2180 1k 22 R2056 R3202 0 1% R2114 75k *R2178 1k R2297 0 *R3252 270 1% R2198 158k *R3256 100 *R2099 10k 2.2k R2125 20k 1% R2146 R3205 0 1% R2169 22k *R2192 100k R2088 100 100 R2111 R2096 10k R2085 560 *R3216 0 *R2236 1k *R3253 0 R2106 0 *R2179 10k 0 *R2116 R3246 0 R2291 0 0 *R2117 R2263 0 R2149 10k 20k 1% R2150 *R2187 0 R3239 220 *R3215 0 R3243 270 R2290 0 10k R2110 R2295 0 *R2193 100k R2093 3.3k *L2022 0 *TU3201 ENG39D01GF NC 1 NC 2 SW1 3 SW2 4 +B 5 NC 6 NC 7 NC 8 SCL 9 SDA 10 RF_AGC 11 VB 12 NC 13 BTL 14 NC 15 AFT_OUT 16 VIDEO_OUT 17 *TU3200 ENGF9701GF BB 5 NC 6 SW1 7 SW2 8 +B 9 AUDIO_OUT 10 SIF_OUT 11 NC 12 SCL 13 SDA 14 RF_AGC 15 VB 16 NC 17 BTL 18 NC 19 AFT_OUT 20 VIDEO_OUT 21 H0J245500082 X2010 - R L + - + MUTE(ES2-) HP AMP AMP 5V 3.3V AUD3.3V DVDD1.8V SOUND PROCESSOR 26 20 27 22 21 19 23 24 25 14 13 11 12 21 25 24 26 23 22 ! TH-50PZ700C H-Board (3 of 5) Schematic Diagram TH-50PZ700C H-Board (3 of 5) Schematic Diagram 47k R2238 H-BOARD (3/5) ! TNPA4279AC 86 15.16.H 电路板 (4/5) 线路图 + + + + 12V_SOUND 15V_SOUND PWM_SQ_R+ PWM_SQ_R- PWM_W_L- PWM_W_L+ AMUTE SOUND_SOS MONITOROUT_MUTE AUDIO_MUTE HDMI_INT2 SP_MUTE GENX_RST PWM_SQ_L+ PWM_SQ_L- PWM_W_R+ PWM_W_R- AMUTE *C2364 50V 0.1u *C2314 50V 0.1u C2375 50V 0.022u *C2382 50V 0.022u *C2354 50V 0.1u *C2330 50V 0.1u C2331 50V 0.47u *C2380 50V 0.022u C2301 16V 0.1u C2325 50V 0.47u C2307 25V 1u C2387 50V 1000p C2345 50V 0.022u C2359 50V 0.1u *C2334 50V 0.1u *C2342 50V 0.1u *C2360 50V 0.1u *C2340 50V 0.022u C2303 25V 1u *C2310 25V 1u C2347 50V 0.022u *C2384 50V 1000p *C2308 25V 1u C2381 50V 0.022u *C2378 50V 0.022u C2352 16V 1u C2313 50V 0.1u C2317 0.033u 25V *C2348 50V 0.022u *C2318 0.033u 25V *C2311 50V 0.1u C2383 50V 1000p *C2363 50V 0.1u C2341 50V 0.1u C2309 25V 1u C2389 50V 1000p *C2390 50V 1000p *C2338 50V 0.022u *C2312 50V 0.1u C2377 50V 0.022u C2349 50V 0.1u *C2316 50V 0.1u *C2376 50V 0.022u C2305 25V 1u C2319 0.033u 25V C2355 50V 0.1u C2379 50V 0.022u *C2356 50V 0.1u *C2326 50V 0.47u *C2324 0.033u 25V C2335 50V 0.1u *C2306 25V 1u C2343 50V 0.1u *C2322 0.033u 25V *C2328 50V 0.1u *C2358 50V 0.1u C2333 50V 0.1u *C2304 25V 1u C2321 0.033u 25V C2353 50V 0.1u *C2329 50V 0.1u *C2344 50V 0.1u *C2315 50V 0.1u C2337 50V 0.022u *C2388 50V 1000p *C2386 50V 1000p C2339 50V 0.022u *C2327 50V 0.1u *C2332 50V 0.47u C2357 50V 0.1u *C2336 50V 0.1u *C2346 50V 0.022u C2302 16V 0.1u *C2320 0.033u 25V C2385 50V 1000p C2323 0.033u 25V C2119 10V 220u C2361 25V 470u C2365 220u 16V *C2362 25V 470u D2032 MA2J11100L D2026 MA2J11100L D2301 MA2J11100L D2033 MA2J11100L D2028 MA2J11100L D2029 MA2J11100L D2034 MA2J11100L D2304 MA2J11100L D2302 MA2J11100L D2031 MA2J11100L D2303 MAZ30560HL C1AB00002730 *IC2302 1 GVDD_B 44 GVDD_A 2 OTW 3 NC 4 NC 5 SD 6 PWM_A 7 RESET_AB 8 PWM_B 9 OC_ACJ 10 GND 11 AGND 12 VREG 13 M3 14 M2 15 M1 16 PWM_C 17 RESET_CD 18 PWM_D 19 NC 20 NC 21 VDD 22 GVDD_C 23 GVDD_D 24 BST_D 25 NC 26 PVDD_D 27 PVDD_D 28 OUT_D 29 GND_D 30 GND_C 31 OUT_C 32 PVDD_C 33 BST_C 34 BST_B 35 PVDD_B 36 OUT_B 37 GND_B 38 GND_A 39 OUT_A 40 PVDD_A 41 PVDD_A 42 NC 43 BST_A C1AB00002730 *IC2301 1 GVDD_B 44 GVDD_A 2 OTW 3 NC 4 NC 5 SD 6 PWM_A 7 RESET_AB 8 PWM_B 9 OC_ACJ 10 GND 11 AGND 12 VREG 13 M3 14 M2 15 M1 16 PWM_C 17 RESET_CD 18 PWM_D 19 NC 20 NC 21 VDD 22 GVDD_C 23 GVDD_D 24 BST_D 25 NC 26 PVDD_D 27 PVDD_D 28 OUT_D 29 GND_D 30 GND_C 31 OUT_C 32 PVDD_C 33 BST_C 34 BST_B 35 PVDD_B 36 OUT_B 37 GND_B 38 GND_A 39 OUT_A 40 PVDD_A 41 PVDD_A 42 NC 43 BST_A C0DBGYY00202 IC2303 VIN 3 2 VSS VOUT 1 H12 1 2 3 4 *H11 1 2 3 4 5 *L2309 J0JJC0000011 L2308 J0JJC0000011 L2310 J0JJC0000011 L2304 G1C330MA0291 L2307 G1C330MA0291 L2301 G1C330MA0291 L2303 G1C330MA0291 L2305 G1C330MA0291 L2306 G1C330MA0291 L2302 G1C330MA0291 L2300 G1C330MA0291 MAIN9V DTV9V SOUND12V MAIN9V SOUND15V SOUND15V STB+5V STB+5V ZA3008 K4CD08000002 ZA3001 K4CD08000002 ZA3003 K4CD08000002 ZA3006 K4CD08000002 ZA3007 K4CD08000002 ZA3005 K4CD08000002 ZA3002 K4CD08000002 ZA3004 K4CD08000002 *TP2308 TP2303 TP2302 TP2301 TP2310 *TP2306 *TP2309 TP2307 TP2305 *TP2304 Q2040 2SC584500L Q2034 2SC584500L Q2035 2SC584500L Q2042 2SC584500L Q2039 2SC584500L Q2031 2SA207700L Q2301 2SA207700L Q2033 2SA207700L *JS2300 *JS2301 R2325 10 *R2320 10 R2218 1k R2319 10 R2302 2.2k R2217 47k R2128 47k R2313 3.3 R2118 1M *R2309 3.3 R2311 3.3 *R2314 3.3 R2119 10k *R2318 10 R2216 10k R2122 10k R2144 10k R2156 330 R2124 10k R2305 470 R2323 10 R2194 1k R2129 10k *R2324 10 R2123 47k R2220 12k R2143 10k R2321 10 R2208 10k *R2307 68k *R2316 3.3 R2205 20k R2308 3.3 R2306 68k R2131 10k R2317 10 R2315 3.3 R2301 2.2k R2206 10k *R2322 10 R2330 1k R2127 10k *R2326 10 *R2312 3.3 R2331 2.2k Q2041 2SC584500L SQ_L+ SQ_R+ SQ_R- SQ_L- W_R- W_L+ W_R+ NC W_L- OPERATE RESET SOS OPERATE OPERATE RESET SOS OPERATE MUTE MUTE SW OPERATE MUTE MUTE MUTE MUTE MUTE MUTE TO SPEAKER R TO SPEAKER L 15V AUDIO AMP AUDIO AMP 30 32 29 28 34 33 31 35 36 22 21 24 25 26 23 31 33 34 32 35 TH-50PZ700C H-Board (4 of 5) Schematic Diagram TH-50PZ700C H-Board (4 of 5) Schematic Diagram H-BOARD (4/5) ! TNPA4279AC 87 15.17.H 电路板 (5/5) 线路图 + + AV4_YGND AV4_CGND AV4_VGND HDMI_INT2 MAIN_PR/R MAIN_PB/C/B MAIN_Y/CBVS/G RGB_CVBS PC_H PC_V SUB_PR SUB_PB SUB_Y SDA0B TUNER_MAIN_ON AUDIO_MUTE AUDIO_XRST SP_MUTE SOUND_SOS AFC1 SOS TUNER_SUB_ON GENX_RST 24V_DET KEY SCL0B FAN_SOS AFC2 FAN_CONT SCL0B VIDEO_STATUS SDA0B SOS TV_SUB_ON_DELAY DTV_BCLK DTV_SDIN DTV_LRCK DTV2_SDIN HDMI_SDIN HDMI_LRCK SPDIF_IN KEY AV4_R HP_ROUT AV4_L AV4_S AV4_C AV4_V AV4_Y TV_SUB_ON_DELAY FAN_SOS FAN_CONT SOS TUNER_SUB_ON TUNER_MAIN_ON 24V_DET SDA0B_5V HP_LOUT HDMI_BCLK SCL0B_5V C3227 50V 0.1u C2814 4700p 50V C3228 50V 0.1u C2802 0.47u 50V *C2807 0.47u 50V C3265 50V 0.1u C3230 50V 0.1u C3216 50V 0.1u C2817 50V 1000p C2813 50V 0.1u *C2805 0.47u 50V C3267 50V 0.1u C2601 50V 0.1u C2602 50V 0.1u C3263 50V 0.1u C3266 50V 0.1u C3401 16V 0.1u C3226 50V 0.1u *C2804 10u 16V C3214 50V 0.1u C2801 10u 16V *C2806 0.47u 50V C2803 0.47u 50V C3201 50V 0.1u C2815 50V 0.1u C2819 25V 47u C2816 35V 22u D2633 MA2J11100L D3405 B0JCCE000008 D2632 MA2J11100L D3401 MA2J72900L D3402 MA2J72900L D2635 MA2J11100L D2637 MA2J11100L D2634 MA3X78900L D2638 B0BC03900015 D2636 MAZ30470HL *FL2006 J0HABB000003 1 2 3 4 *FL2005 J0HABB000003 1 2 3 4 *FL2004 J0HABB000003 1 2 3 4 *FL2003 J0HABB000003 1 2 3 4 *FL3008 J0HABB000003 1 2 3 4 *FL3006 J0JAD0000028 < 1 2 3 4 *FL3007 J0JAD0000028 < 1 2 3 4 C0DBAJB00004 IC2610 1 VOUT 2 VDD 3 NC 5 EXT 4 VSS IC2601 C0JBAU000034 1 VCCA 2 SCLA 3 SDAA 4 GND 5 EN 6 SDAB 7 SCLB 8 VCCB *H51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 H3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 H2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 H6 K1KB80AA0218 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 L2650 G1C3R3ZA0083 L2648 G1C470MA0077 L2649 G1C100MA0072 SUB3.3V SUB9V_H264 MAIN9V STB+5V P12V SOUND15V DTV9V SUB5V SUB5V DTV9V SUB3.3V SUB5V MAIN9V DTV9V STB+5V STB+5V LCD3.3V BT30V SUB5V SUB3.3V LCD3.3V PA3401 K5H8012A0023 TP2606 TP2609 TP2611 TP2015 TP2012 TP2014 TP2608 TP2612 TP2617 TP2016 TP2610 TP2607 Q2639 B1CFNG000001 Q3401 2SC584500L Q2638 2SC584500L Q2635 2SC584500L Q3402 2SC584500L Q2636 2SA207700L Q2637 2SA207700L JS2049 JS2059 *JS3001 JS2060 *JS2101 0 JS3213 0 JS2064 JS2061 JS2062 JS2048 JS2051 JS2046 1% R2867 82k R2230 0 R2229 0 R2856 0 R2861 1k R2865 10k R3405 15k R2854 2.2k R2232 0 R2228 0 R2225 0 R2857 4.7k R2869 4.7k R2231 0 *R3228 0 *R3229 0 *R3236 0 *L2647 0 R2629 7.5k R2890 100k R3350 0 R2855 47k R3402 47k R2227 0 R2624 22 *R3237 0 R2860 10k R2863 1k R2628 7.5k 1% R2868 16k R3403 10k R2602 0 R2858 2.2k R2224 0 R2603 0 *R3227 0 R2625 22 *R3238 0 R3401 100k R3404 47k R2859 4.7k R2601 0 R2853 10k R2864 1k R2866 2.2k MAIN_Y/CVBS/G GND PC_V GND NC(RGB_FB) SCL0B_3.3V SUB_PB/C GND GND ALL_OFF GND GND GND SUB_PR SUB_Y/CVBS AUDIO_MUTE AC SOS GND GND GND GND GND VIDEO_STATUS TV_SUB_ON_DELAY GND GND AFC1 RGB_CVBS GND GND NC(QLINK_AV2) NC(QLINK_AV3) SUFFIX JW GND GND SP_MUTE SDA0B_3.3V GND GND GND GND GND PC_H GND DTV2_SDIN DTV_LRCK DTV_BCLK DTV_SDIN HDMI_SDIN HDMI_LRCK HDMI_BCLK ECO_ON GND GND GND GND GND GND GND MAIN_PB/C/B MAIN_PR/R GND DVB_CVBS AUDIO_XRST GENX_RST SOUND_SOS AFC2 TUNER_MAIN_ON TUNER_SUB_ON SPDIF_IN GND GND GND HDMI_INT2 GND TO G-BOARD (G51) TO DG-BOARD (DG2) FAN_CONT FAN_SOS KEY PANEL_STBY_ON GND DTV9V STB5V SUB5V SUB5V SUB3.3V GND SUB5V GND GND GND GND NC GND DTV9V GND FHD9V SUB3.3V GND FHD9V GND NC MAIN9V GND HP_R AV4_R AV4_C AV4_L NC NC GND GND GND NC HP_L GND HP_GND AV4_S HP_GND AV4_V GND GND KEY AV4_Y PDP AC_GOOD AC_GOOD MAIN_9V SUB5V GND SUB5V SUB9V GND SUB9V GND GND GND GND FAN_SOS GND FAN_CONT GND GND SOS S_15V H_9V S_15V H_9V S_15V Tuner_sub_on GND GND GND TunerMain_on FHD_9V GND FHD_9V GND GND GND_CP STB_5V1 GND_CP GND GND_CP GND GND NC TO DG-BOARD (DG6) TO PA-BOARD (PA3) LEVEL SHIFT 5V<->3.3V BT30V 44 39 42 41 45 37 40 43 38 35 34 33 32 31 TH-50PZ700C H-Board (5 of 5) Schematic Diagram TH-50PZ700C H-Board (5 of 5) Schematic Diagram H-BOARD (5/5) ! TNPA4279AC 88 15.18.GH 和 K 电路板方框图和线路图 + D2 D1 TOP D2 D1 VCC GND OUT R G VCC GND OUT R G R3825 2.7 R3803 3.3k R3808 0 R3805 4.7k TP3802 C3823 0.1u 10V L3805 J0JHC0000045 D3812 MAZ30560ML C3817 16V 0.01u D3807 EZAEG2A50AX R3818 10k D3814 B0HCMM000014 C3819 16V 0.01u TP3803 C1AB00002641 IC3801 1 TEST 2 VCC 3 BDT0N 4 BDT0P 5 GND 6 BDT1N 7 BDT1P 8 GND 9 BDT2N 10 BDT2P 11 VCC 12 REXT 13 YDT2P 14 YDT2N 15 GND 16 YDT1P 17 YDT1N 18 VCC 19 VCC 20 YDT0P 21 YDT0N 22 GND 23 YCKP 24 YCKN 25 CE 26 VCC 27 ACKN 28 ACKP 29 GND 30 ADT0N 31 ADT0P 32 GND 33 ADT1N 34 ADT1P 35 VCC 36 SEL 37 VCC 38 VCC 39 ADT2N 40 ADT2P 41 GND 42 VCC 43 VCC 44 GND 45 BCKN 46 BCKP 47 VCC 48 VCC 0.1u 10V C3814 L3801 J0JHC0000045 *Q3802 2SD0601A0L D3813 B0HCMM000014 R3820 0 R3814 1k R3810 4.7k R3830 2.7 R3829 2.7 C3806 0.1u 10V C3801 0.1u 10V 1% R3811 4.7k 0.1u 10V C3809 R3807 0 D3804 EZAEG2A50AX R3834 49.9 1% TP3804 R3828 2.7 D3811 EZAEG2A50AX TP3805 0.1u 10V C3810 IC3803 C0JBAU000034 1 VCCA 2 SCLA 3 SDAA 4 GND 5 EN 6 SDAB 7 SCLB 8 VCCB C3816 16V 0.01u R3827 2.7 R3806 47k R3821 39 0.1u 10V C3808 C3815 16V 0.01u R3801 10k D3809 EZAEG2A50AX C3813 6.3V 10u D3806 EZAEG2A50AX R3840 22 *Q3801 2SD0601A0L C3818 16V 0.01u R3802 10k R3826 2.7 D3810 EZAEG2A50AX D3802 EZAEG2A50AX D3805 EZAEG2A50AX C3802 0.1u 10V C3804 0.1u 10V R3812 10k R3823 10k D3803 EZAEG2A50AX 33u 6.3V C3805 R3809 4.7k R3841 22 *JS3816 0 D3808 EZAEG2A50AX *Q3804 2SD0601A0L GH10 K1FA121E0001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 C3824 0.1u 10V *IC3802 TVRP315 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC 0.1u 10V C3811 D3801 EZAEG2A50AX R3822 1k R3815 0 L3804 J0JHC0000045 0.1u 10V C3812 GH11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 G1 G2 G3 C3820 16V 0.01u R3832 4.7k R3819 0 R3824 2.7 0.1u 10V C3807 R3835 0 R3804 4.7k TP3801 R3831 2.7 GH10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 D3814 D3813 RM2501 B3RAD0000127 1 2 3 PC2511 B3JB00000026 1 2 3 4 Q2511 2SD0601ASL C2511 16V 1u C2521 0.01u 50V C2512 6.3V 10u D2520 LNJ107W5PRW JS2513 0 D2524 MAZ80560ML RM2501 1 2 3 R2542 47k C2515 50V 0.01u R2556 5.6k D2520 K1 1 2 3 4 5 6 7 8 9 10 11 12 R2558 0 D2510 MAZ80560ML Q2510 C2522 50V 1000p 1% R2525 910 R2578 0 C2510 6.3V 10u R2524 22k R2512 47 R2521 47 R2579 0 PC2511 1 2 3 4 R2516 22k Q2513 Q2511 D2512 MAZ80430LL D2511 MAZ80560ML R2531 270 C2524 50V 1000p R2577 0 Q2510 2SD0601ASL R2520 220k C2527 50V 1000p C2523 50V 1000p C2525 50V 1000p R2576 0 Q2513 2SD0601ASL R2557 5.6k R2517 47 R2530 22k R2575 0 C2526 50V 1000p < SUFFIX JW AF DDCG Main2_3.3V Main2_3.3V SDA D0- D2+ D2+ CEC HDMI_CE1 CEC D1- D2G HDMI_5V_DET3 SCL N.C. HPDT WP CLK- D1+ D0+ Main5V HPD3 SCL DDC5V D2- CLK+ D1- CLK- D0- D0+ CLKG D1+ +5V D2- D0G CLK+ D1G SDA TO DG-BOARD (DG11) HDMI EQ 5V->3V EEPROM 5 2 1 C D 8 7 3 4 E 9 6 B A F GH-BOARD TNPA4135AF ! SDA CEC D0- D2+ D1- HPDT SCL CLK- D0+ D1+ +5V D2- CLK+ 45 46 3 4 6 7 9 10 29 3 2 6 7 SDAB SCLB SDAA SCLA SCL 5 SDA 6 EDID EEPROM IC3802 SCL 26 SDA 27 CEC LEVEL SHIFT IC3803 5V<->3.3V 7 25 WP WC 8 VCC VCCB 8 5 VCCA 15 MAIN_5V DDC5_V 17 HDMI EQUALIZER IC3801 EQUALIZER BCKN BCKP BDT0N BDT0P BDT1P BDT1N BDT2P BDT2N YCKN 24 23 YCKP YDT0P 21 20 YDT0N 16 17 YDT1P YDT1N 13 14 YDT2P YDT2N VCC 2 3 5 6 8 9 11 21 20 12 MAIN2_3.3V MAIN2_3.3V D2+ CLK- D1+ D0+ D2- CLK+ D1- D0- HDMI_5V DET3 HDMI_5V_DET3 24 Q3802 HOT PLUG DET Q3801 23 HPD3 GH 11 TO DG11 GH FRONT HDMI HDMI3 IN AI_SENSOR GND G_LED_ON 1 REMOCON 2 PSM_LEDR Active_STB_LED GND 3 SUB5V 4 R_LED_ON/STBY_LED GND 9 12 K1 REMOTE/LED/AI REMOCON SENSOR GND STBY3.3V TO DG-BOARD (DG1) R_LED_ON C.A.T.S. SENSOR REMOCON SENSOR POWER LAMP K STBY3.3V AE SUFFIX JW ! TNPA4137AE AI_SENSOR G_LED_ON K-BOARD REMOCON POWER LAMP C.A.T.S. SENSOR TO DG1 SUB5V TH-50PZ700C GH and K-Board Schematic Diagram TH-50PZ700C GH and K-Board Schematic Diagram 89 15.19.DG 电路板 (1/3) 方框图 DAUDIO HDMI_INT2 TV_SUB_ON HDMI_SDIN STB_RST TV_SUB_ON_DELAY SDA2 AUDIO_MUTE RF_AFT1 PC_VS A_MON_MUTE/SP_MUTE TV_MAIN_ON MAIN_PB/C MAIN_PR SCL2 HDMI_LRCK HDMI_BCLK PC_HS AUDIO_XRST KEY1(CON-PANE) SOS SRCK0 SOUND_SOS PANEL_STBY/VCC_ON DMIX0 LRCK0 MAIN_Y/CVBS RXA_2N RXA_0P RXA_CP RXA_2P RXA_1P RXA_CN RXA_1N RXA_0N RXB_CN RXB_2N RXB_CP RXB_2P RXB_1N RXB_1P RXB_0N RXB_0P VI1P8 VI1P5 VI1P4 VI1P6 VI1P3 VI1P2 VI1P9 VI1P7 VI1P17 VI1HSYNC VI1P19 VI1P15 VI1VSYNC VI1P18 VI1ENB VI1P14 VI1P29 VI1P16 VI1P13 VI1P28 VI1P12 VI1CLK VI1CKOUT VI1P23 VI1P25 VI1P24 VI1P22 VI1P26 VI1P27 MAIN_PR RGB_CVBS MAIN_Y/CVBS MAIN_PB/C RGB_FB RXB_CN RXB_0P RXB_1N RXB_2P RXB_CP RXB_1P RXB_0N RXB_2N RXA_CN RXA_1P RXA_0N RXA_2P RXA_CP RXA_0P RXA_1N RXA_2N PC_HS PC_VS HDMI_5V_DET1 EDID_WP HPD1 HDMI_5V_DET2 HPD2 XIRQ3 7493_XRST RGB_CVBS RGB_FB VIDEO_STATUS SCL1 SDA1 HDMI_SPDIF HDMI_SPDIF HDMI_SDIN HDMI_LRCK HDMI_BCLK HDMI_INT2 HDMI_OPT_ENB FS_Y Y7 Y6 Y0 UV4 TRST VI2VSYNC TMS UV2 HQ1_XRST VI2CLK TCK UV3 UV1 UV5 Y2 FS_V Y5 Y3 SCL1 UV0 SDA1 UV6 Y1 Y4 TO_GC3FS_NEXT TO_HQ1L VI2HSYNC UV7 FS_U RXB_CN RXB_CP RXB_0N RXB_0P RXB_1N RXB_1P RXB_2N RXB_2P HDMI_REP_EN EDID_WP HPD3 HDMI_5V_DET3 FS_Y FS_U FS_V RXA_2P RXA_2N RXA_1P RXA_1N RXA_0P RXA_0N RXA_CP RXA_CN RXB_0N RXB_1P RXB_1N RXB_2P RXB_CP RXB_2N RXB_CN RXB_0P HDMI_MUX_SEL HDMI_MUX_EN TV_MAIN_ON IECOUT0 HDMI_CEC FAN_SOS FAN_MAX AC_GOOD MAIN9V SUB5V SUB9V(FHD) P12V STB5V DTV9V SUB3.3V SUB3.3V SUB3.3V SUB5V X4500 Q4500 JK4500 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 D4524 Q4502 D4526 Q4501 JK4501 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 Q4503 D4527 MAIN5V MAIN5V D4525 MAIN3.3V SUB3.3V MAIN_FS_1.8V SUB5V SUB3.3V MAIN_3.3V MAIN5V MAIN3.3V MAIN5V MAIN3.3V MAIN3.3V MAIN_3.3V SUB5V MAIN5V SUB5V MAIN5V TV_SUB_ON PC_V AFC1 DTV_LRCK HDMI_BCLK HDMI_LRCK AUDIO_XRST AUDIO_MUTE TV_MAIN_ON DTV_BCKL VIDEO_STATUS SCL0B SDA0B DTV2_SDIN HDMI_INT2 MAIN_PB/C/B RGB_FB KEY1 SOUND_SOS GENX_RST PC_H MAIN_Y/CVBS/G DTV_SDIN RGB_CVBS SOS SP_MUTE TO H6 MAIN_PR/R HDMI_SDIN SPDIF_IN(OPT) SUB3.3V SUB5V P12V DTV9V SUB5V P12V STB5V SUB9V(FHD) DTV9V SUB9V(FHD) SUB3.3V SUB5V MAIN9V 1 2 5 6 8 9 12 13 14 17 18 21 23 DG2 +1.8V 5 8 1 DVDD+1.8V +1.8V 5 8 1 IC4508 +1.8V 7 1 +3.3V +3.3V 5 112 113 115 116 118 119 121 122 128 129 131 132 134 135 137 138 38 39 40 41 42 43 44 45 55 58 30 28 17 29 33 27 18 25 16 26 24 32 31 65 66 51 48 53 52 46 47 ROUT0 ROUT2 ROUT1 ROUT3 CLKOA CLKIA VSIA HSIA XTAL1 XTAL YOUT6 YOUT8 YOUT4 YOUT0 YOUT3 YOUT7 YOUT1 YOUT9 YOUT5 YOUT2 UVOUT1 UVOUT6 UVOUT3 UVOUT5 UVOUT0 UVOUT8 UVOUT7 UVOUT2 UVOUT9 UVOUT4 74 80 94 99 FB 78 97 Q4517 BUFFER Q4519 BUFFER Q4514 BUFFER Q4515 BUFFER Q4516 BUFFER SDA D1G D0+ HDMI2 +5V DET D2+ HPDT D2- CEC SCL D1+ +5V DDCG CLK+ HDMI2 RESET CLKG N.C. D0G D2G CLK- D0- D1- SDA HPDT CEC HDMI1 +5V DET D0- N.C. D2+ CLK- +5V D1+ SDA CLKG D2- HDMI1 RESET D0G CLK+ SCL D0+ D1G D1- DDCG D2G 62 63 6 SCL 5 7 WC 8 VCC EEPROM EDID1 SDA EEPROM EDID2 7 SCL 6 IC4500 8 VCC 5 WC INV. Q4505 INV. Q4504 105 106 DDC_SDA0 DDC_SCL0 DDC_SCL1 DDC_SDA1 1 144 108 107 7 SCL 6 8 VCC 5 WC EEPROM KEY SDA MDA MCL 19 21 AVDD TVDD CVDD DVDD 11 12 3 5 7 10 12 14 16 28 30 32 33 34 35 36 38 39 41 48 49 54 55 58 60 62 64 66 68 70 72 74 79 DG6 4 2 5 VCC IC2000 SWITCH 1 20 8 3 2 7 HDMI_BCLK HDMI_LRCLK HDMI_SDIN HDMI_SPDIF HDMI_INT2 IC4510 AD/HDMI I2C I2C DG DIGITAL SIGNAL PROCESSOR 5 3 1 2 TO H2 8 IC4005 3 15 NRST VDDE I2C 69 BUFFER IC4004 VDDI 73 27 41 14 TDI BUFFER 4 72 +3.3V 70 +1.8V TRST (MAIN) YIN 1 1 TDO BUFFER 46 IC4001 MAIN+1.8V GC3FS-next 44 5 62 Q4001 1 45 63 MAIN+3.3V 79 TMS 5 71 18 IC4002 VIN UIN 40 3 80 SDA Q4000 5 JTAG 4 6 (MAIN) FRCLKIN 33 Q4002 3 TCK 77 SCL 61 64 78 VCC 39 12 7 65 BUFFER 2 VPO HPO 29 25 11 24 12 DG 3 2 2 23 15 26 21 20 9 6 5 2 7 2 8 11 MAIN 5V 19 21 23 SUB_PB/C/B SUB_Y/CVBS/G SUB_PR/R SDAB 7 SCLB 6 8 VCCB 5 EN 2 VCCA SCLA SDAA 3 1 MAIN5V MAIN3.3V HDMI_CE1 CEC MAIN3.3V HDMI_5V_DET3 RXB_CN RXB_CP RXB_0N RXB_0P RXB_1N RXB_1P RXB_2N RXB_2P HPD3 WP SDA SCL IC4509 IC4506 5V<->3.3V IC4501 IC4514 SCLA 7 SDAB 2 IC4513 3 1 VCCA SDAA 5V<->3.3V VCCB 5 EN SCLB 6 8 45 46 3 6 7 9 10 DDCB_SCL DDCB_SDA DDCA_SCL DDCA_SDA 24 23 21 20 13 17 16 14 25 36 27 39 28 30 31 33 34 40 4 ACKN ACKP ADT0P ADT0N ADT1P ADT1N ADT2N ADT2P BCKP BDT1N BDT2P BDT0P BDT0N BCKN BDT1P BDT2N CE SEL YCKP YDT1N YDT2P YDT0P YDT0N YCKN YDT1P YDT2N RXB_2P RXB_0N RXB_1N RXB_2N RXB_0P RXB_CN RXB_CP RXB_1P RXA_0N RXA_1N RXA_2P RXA_2N RXA_0P RXA_CN RXA_CP RXA_1P IC4504 INV. Q4520 VS_IN HS_IN SOY AIN9 AIN4 AIN8 AIN6 IC4507 MAIN+3.3V 5 1 3 +1.8V PVDD DVDDIO IC4503 HDMI IN SW 4 CLKO UBOUT0 YGOUT0 UBOUT7 DE RESET HDMI_INT1 TO GH11 HDMI1 HDMI2 B 6 7 IC4515 DELAYED OUT VCC 5 8 OUTPUT -INPUT B +INPUT B MAIN 3.3V 51 52 FAN_SOS FAN_MAX 56 AC_GOOD PANEL_STBY_ON VCC_ON 27MHz UVIN9 UVIN8 UVIN7 UVIN6 UVIN5 UVIN4 UVIN3 UVIN2 UVIN1 UVIN0 YIN9 YIN8 YIN6 YIN7 YIN4 YIN5 YIN2 YIN3 YIN0 YIN1 RIN3 RIN2 RIN1 RIN0 YGOUT7 RF_AFT2 AFC2 42 TH-50PPZ700C DG-Board (1 of 3) Block Diagram TH-50PPZ700C DG-Board (1 of 3) Block Diagram 90 15.20.DG 电路板 (2/3) 方框图 SRCK0 DMIX0 IECOUT0 DAUDIO LRCK0 SCL3 SDA3 SDA1 SCL3 SDA3 SCL1 SDA2 SCL2 TO_GC3FS_NEXT TMS TO_BA01 TCK TRST TV_MAIN_ON FPGA_XRST CNFIG_DONE HQ1_XRST HSOE LOSCLKIN VSOE LOSDHIN CLKOE LOSDVIN PEAKS_YM PEAKS_YS PEAKS_OSHIN PEAKS_OSDCKO LOSDHIN VSOE CLKOE HSOE PEAKS_OSDCKO PEAKS_OSHIN PEAKS_YS PEAKS_YM LOSDVIN LOSDCLKIN CLK74SEL SBI2 SBO0 SBO2 LVDS_EN SBI0 SD_LED_ON VOUTENB SLRCK ADCCK VI2ENB AUDCLK SD_BOOT_STS PANEL_STATUS PANEL_SOS PANEL_MUTE XRST XIRQ3 SCL0 SDA0 MAIN_ON VI1CKOUT VI1CLK VI1ENB VI1VSYNC VI1HSYNC VI2CLK VI2HSYNC VI2VSYNC DTV9V SUB1.2V SUB3.3V SUB1.8V SUB3.3V LRCK0 IECOUT0 SRCK0 DAUDIO DMIX0 SUB3.3V SCL1 SDA0 SDA2 SCL0 SDA3 SDA1 SCL2 SCL3 TMS TDI TRST TCK TDO CK27D CLK74 VC27 CK27 XIRQ3 XRST SUB3.3V SBO2 SBI0 SBI2 SBO0 VOUTENB RMCO DSRCK VI2P21 VI2P10 VI2ENB ADCCK SLRCK AUDCLK ADIN Q8911 Q8913 Q8912 1 RESET 2 PEAKS LITE2 RESET CLOCK GEN 512M DDR IC8002,03 SUB1.8V 74M CLOCK GENE. 27M 4 9 7 S2 14 VIN SUB3.3V IC8004 PEAKS_Lite 2 IC8001 IC8621,22 D-LATCH NOR FLASH IC8554 ExBUS with AUDIO DESCRIPTION DATA MAIN AUDIO DATA DIGITAL AUDIO COMMON LR/SR CLK for PHOTO OUT AUDIO IF CPU BUS I/F IC8601 EEPROM 8 7 6 5 EEPROM_WP VCC WP SCL SDA IIC I/F JTAG JTAG HDMI_IRQ I2C I2C VDD DG DIGITAL SIGNAL PROCESSOR 16 15 14 17 11 13 3 1 2 5 Sub Video Input 4 Y0-9 R0-4 UV0-7,Y0-7 IC5660 ED0-ED15 EA8-EA23 ED0-ED15 EA1-EA23 SBO1 XRTS0 ED0-ED15/EA8-EA23 EA0-EA7,EA24 37 49 GOE9 TMS,TRST MAIN3.3V VSOE SCL0 107 LOSDHIN 57 36 LOSDVIN PEAKS_YM LOSD0 LOSD15 38 TDO(TO SC) CLKOE 84 77 ROE2 95 ROE2-ROE9 ROE9 HQ1_XRST 50 TCK GOE2-GOE9 51 BOE2-BOE9 104 TDI(TO HQ1) SUB 5V 105 MAIN 3.3V TV_MAIN_ON DG25 86 59 60 102 56 34 58 TRST 53 PEAKS_OSDCKO 32 12 TDI,TDO 10 40 GOE2 11 TO DH25 TO GS52 FPGA_RST 42 63 52 65 LOSDCLKIN 35 47 7 MAIN 3.3V CNFIG_DONE OSD_FLAG 62 PEAKS_YS TMS,TCK SDA0 43 14 HSOE 2 30 1 64 JTAG PEAKS_OSHIN 74 CFG_JTAG BOE2 93 SUB9V SUB 9V SUB5V SUB 9V 75 3 BOE9 SCL0 SDA0 I2C (VI2P9)LOSD_H_I (VI2P8)LOSD_CLK_I (VI2P7)LOSD_V_I (VI2P6)LOSDOUT_YM (VI2P5)LOSDOUT_YS (VI2P2)LOSDOUT_CLKO (VI2P3)LOSDOUT_H_O HQ1L VIDEO MVCLK MHSYNC GOE9 MVSYNC BOE2-BOE9 BOE2 ROE2-ROE9 GOE2-GOE9 BOE9 LOSDO0-LOSDO15 (VOP22) (VOP29) (VOP12) (VOP19) (VOP2) (VOP9) ROE9 GOE2 ROE2 LOSDOUT0 LOSDOUT15 3 8 10 13 SDCMD 11 SDDTC SDDAT3 7 9 SDDAT0 SD_LED_ON SDWP SDDAT2 SDDAT1 5 3.3V SDCLK DG52 1 1 2 ISODATA 14 SDWP SDAT3 SD CARD SDCMD SDAT1 SD CARD I/F SDCD SDAT2 SDCLK SDAT0 6 LVDS_EN OSD_FLAG ISODATA LOSD OUT (HQ1) SERIAL I/F VMUTE SDBOOT ETHER_IRQ ETHER_IRQ RSV2(SDRAMCHK2) RSV3(SDRAM_CHK1) RSV4 RSV1(SD_ERROR) PANEL_STATUS PANEL_SOS COMMON PORT .etc UV0-9 VI1P2-9 VI1P12-19 VI1P22-29 CLKIA(VI1CLK) CLKOA(VI1CKOUT) VSIA(VI1VSYNC) HSIA(VI1HSYNC) VI1ENB Y0-7 UV0-7 VI2HSYNC VI2VSYNC VI2CKOUT B Port Address VI2CKOUT VI2HSYNC VI2VSYNC VI2P4 VI2P22-29 VI2P12-19 EA08-15 EA24 EA16-23 ADV7493 TH-50PZ700C DG-Board (2 of 3) Block Diagram TH-50PZ700C DG-Board (2 of 3) Block Diagram Q8801 Q8802 91 15.21.DG 电路板 (3/3) 方框图 + + + + SCL SDA SLRCK SDA SCL EDID_WP HDCP_WP 7493_XRST HPD3 HDMI_5V_DET3 HPD1 HDMI_5V_DET1 RF_AFT1 VIDEO_STATUS AUDIO_XRST A_MON_MUTE/SP_MUTE AUDIO_MUTE SOUND_SOS SOS BUS_CONNECT2 AVSW_OFF TV_SUB_ON_DELAY HDMI_OPT_ENB CLK74SEL SD_BOOT_STS SD_LED_ON SCL SDA SCL3 SDA3 SCL1 SDA1 SCL2 SDA2 SBI2 HDMI_CEC VI2ENB ADCCK XRST DTV_VOUTENB SBO0 PANEL_RXD SCL0 SDA0 PANEL_TXD PANEL_SCL SBI0 IIC_CONT PANEL_SDA SBO2 FAN_SOS PWM_POW_ON SCL3 SDA3 HDMI_5V_DET2 HPD2 HDMI_REP_EN HDMI_MUX_EN HDMI_MUX_SEL PANEL_STBY/VCC_ON PANEL_STBY/VCC_ON TV_MAIN_ON SW_OFF_DET SRQ-GENX D_IIC_CONT ECO_ON D_IIC_INT D_PDB1 D_PSLCT D_PDB0 D_PBUSY D_PSTB TV_SUB_ON PANEL_SOS PANEL_STATUS PANEL_TXD PANEL_MUTE PANEL_RXD PANEL_SDA PANEL_SCL ALL_OFF PANEL_STBY/VCC_ON SRQ-GENX D_PSTB D_PBUSY D_PDB0 D_PSLCT D_PDB1 D_IIC_INT ECO_ON ALL_OFF FAN_MAX CONFIG_DONE FPGA_XRST LVDS_EN HQ1_XRST HQ1_XRST KEY1 TV_SUB_ON TV_SUB_ON STB_RST TV_MAIN_ON TV_MAIN_ON TV_MAIN_ON C5691 R5695 MAIN3.3V R5697 Q5690 R5691 Q5692 R5693 R5696 R5690 SUB5V C5690 Q5691 MAIN5V R5694 D5691 C5694 D5690 Q5693 C5695 R5692 SUB3.3V STB5V D5670 D5673 D5671 SUB5V STB3.3V STB5V STB3.3V SUB5V MAIN9V MAIN3.3V X1100 MAIN5V DTV9V Q1107 Q1108 SUB1.2V DTV9V SUB3.3V SUB1.8V STB5V STB3.3V SUB5V R8870 R1235 STB5V D_15V STB3.3V MAIN3.3V SUB5V STB3.3V Q2001 Q2000 MAIN3.3V D5609 DTV9V Q5604 Q5603 D1112 RSV3(LITE2) GenX4 MAIN3.3V MAIN5V MAIN+5V ON/OFF 5 +3.3V AVR 1 (STB) STB+3.3V MAIN+3.3V ON/OFF (Lite2 E2PROM) (Device Control) LITE2_SCL1 (Device Control) SRQ STB5V (GenX4 Loarder/E2PROM) (GenX4 Loarder/E2PROM) (Device Control) GenX4_SDA LITE2_SDA1 LITE2_SDA3 GenX4_SCL LITE2_SDA2 (Lite2 E2PROM) (Device Control) LITE2_SCL2 LITE2_SCL3 RSV1(LITE2) SUB5V_SENSE SBI0A 63 64 52 33 34 35 SBO0A MAIN3.3V_SENSE 66 67 83 84 10MHz MAIN9V_SENSE 110 121 RSV4(LITE2) 93 30 DTV9V_SENSE 27 MAIN5V_SENSE RSV2(LITE2) 24 8 7 6 5 28 GenX-EEP_WP EEPROM EDID_WP HDCP_WP 106 109 69 7493_XRST 38 HPD3 HDMI_5V_Det1 55 36 HDMI_5V_Det3 53 HPD1 HDMI_CEC 65 (HDMI_CEC_PU_ON) (HDMI_CEC_PU_ON) 21 1 TV_SUB_ON 14 PWM_POWER_ON 46 TV_MAIN_ON FAN_SOS 117 RF_AFT1 111 VIDEO_STATUS 58 AUDIO_XRST 68 ECO_ON 2 126 127 AUDIO_MUTE A_MON_MUTE/SP_MUTE SOUND_SOS 118 SOS 114 25 ALL_OFF 20 (BUS_CONNECT2) 48 AVSW_OFF(US) FE_XRST 71 MODEM_XRST 72 88 DTV_VOUTENB 16 125 SD_BOOT_STS 124 DTV_XRST SRQ_GenX 26 SD_LED_ON 17 56 SD_COIN_DET SW_OFF_DET 12 92 NBOOT IC1100 SDA WC SCL VCC TO K1 (SUB) SUB+1.8V/SUB+1.2V DC-DC CONV. IC5601 +3.3V 8 (SUB) +1.8V 3 12 23 16 17 (SUB) 23 DC-DC CONV. SUB+3.3V +1.2V IC5600 1 2 4 5 6 7 8 9 10 11 DG33 2 RESET STB RESET 1 IC5671 5 7 96 9 100 11 13 15 17 19 DG31 1 3 104 102 103 99 97 TRCD1 for DEBUGER TRCCLK SCLOCK 101 SDATA STB3.3V TRCST TRCD0 TRCD2 TRCD3 STB_RST EXTRG0 95 4 CLK74SEL I2C I2C 7 (Device Control) 8 Panel_TXD 9 10 12 Panel_RXD IIC_CONT Ex IIC Panel_SDA LITE2_SCL0 19 21 STB5V LITE2_SDA0 22 24 26 27 30 28 29 DG34 1 2 I2C 4 5 6 STB3.3V Panel_SCL (Panel Dpr.E2PROM) IIC_CONT/SRQ (Panel Dpr.E2PROM) (Device Control) 3 2 1 DG7 SUB5V SBO2 SBI2 4 6 7 9 12 G_LED_ON AI_SENSOR SUB5V RMIN ACTIVE_STBY _LED_ON STB3.3V R_LED_ON KEY1 DG1 1 2 3 40 39 CFG_JTAG FOR FACTORY USED FOR FACTORY USED FOR FACTORY USED DG DIGITAL SIGNAL PROCESSOR 15 14 17 13 14 11 SOS LED BLINKING : 10TIMES SOS LED BLINKING : 12TIMES SOS LED BLINKING : 10TIMES IC1101 IC5670 HDMI_5V_Det2 54 37 HPD2 TRCST TRCD0 TRCD2 TRCD3 EXTRG0 SDATA TRCD1 TRCCLK SCLOCK NRST HDMI_MUX_EN HDMI_MUX_SEL 8 7 HDMI_REP_EN 6 SDA3 SCL3 SDA1 SCL1 HQ1_XRET 70 105 PANEL_STBY_ON IVDD STB5V IIC_SCL1 D_PSTB D_PDB1 19 IIC_CLK2 26 PANEL_STBY/VCC_ON D_15V 15 14 4 ALARM 12 D_PBUSY 25 16 8 22 ECO_ON IIC_DATA2 SCL0 6 11 STB5V 21 D_IIC_INT 23 READY 7 D_PSLCT D_RXD DISPEN 1 SDA0 IIC_SDA1 TO D3 D_PDB0 3 18 TV_SUB_ON 29 D_IIC_CONT DG35 20 D_TXD 2 ALL_OFF 27 IC4800 SDA SCL 1 6 TEMPSENSOR A0 VCC 4 5 SDA1 SCL1 I2C 45 REMOTE 89 G_LED_ON R_LED_ON 49 115 KEY1 ACTIVE_STBY_LED_ON 87 AI_SENSOR 113 18 13 16 17 14 15 D_15V D_PBUSY D_PSLCT D_PDB0 D_PSTB D_PDB1 D_IIC_INT SBI0 SBO0 MANI3.3V CFG_TCK CFG_TMS CFG_TDO CFG_TDI CFG_TRST FAN_MAX 86 FPGA_XRST 59 122 CONFIG_DONE 15 LVDS_EN TH-50PZ700C DG-Board (3 of 3) Block Diagram TH-50PZ700C DG-Board (3 of 3) Block Diagram 92 15.22.DG 电路板 (1/12) 线路图 + CH0DQ30 CH0DQ31 CH0DQ26 CH0XRAS CH0DQS0 CH0XRAS CH0A5 CH0CKE CH0A8 CH0DQ18 CH0DQ8 CH0DQ21 CH0XWE CH0XCS0 CH0CK CH0DM2 CH0A7 CH0DQ11 CH0DQ5 CH0XCAS CH0DQ9 CH0ODT CH0ODT CH0BA2 CH0XRAS CH0BA0 CH0DQ27 CH0A2 CH0A2 CH0A12 CH0DQS3 CH0BA1 CH0DM1 CH0A12 CH0BA2 CH0DM0 CH0DQ4 CH0A3 CH0DQ15 CH0A9 CH0CKE CH0A8 CH0XCS1 CH0DQ10 CH0BA2 CH0DQ1 CH0DQ14 CH0CK CH0A7 CH0DQ29 CH0A1 CH0DM3 CH0XCK CH0XWE CH0A0 CH0DQ25 CH0DQ7 CH0A5 CH0A4 CH0ODT CH0DQS3 CH0A4 CH0A11 CH0DQ0 CH0A10 CH0DM3 CH0BA1 CH0DQ12 CH0A9 CH0BA0 CH0DM2 CH0DQ20 CH0A11 CH0XCS0 CH0A6 CH0A7 CH0A11 CH0DQ2 CH0DQ23 CH0DQS0 CH0DQ22 CH0BA0 CH0A9 CH0XCAS CH0XWE CH0A10 CH0A0 CH0XCK CH0A5 CH0DQ6 CH0A2 CH0XCAS CH0A10 CH0A12 CH0A1 CH0A3 CH0A6 CH0DQ16 CH0A6 CH0DQ28 CH0DQ13 CH0A0 CH0DQS2 CH0XCS1 CH0A4 CH0DM1 CH0BA1 CH0DQ19 CH0ODT CH0DQ17 CH0DQ24 CH0A8 CH0DQS1 CH0CKE CH0DM0 CH0DQ3 CH0A3 CH0A1 CH0DQS1 CH0XCK CH0CKE CH0DQS2 CH0DQ16 CH0DQ17 CH0DQ18 CH0DQ19 CH0DQ20 CH0DQ21 CH0DQ22 CH0DQ23 CH0DQ24 CH0DQ25 CH0DQ26 CH0DQ27 CH0DQ28 CH0DQ29 CH0DQ30 CH0DQ31 CH0DQ0 CH0DQ1 CH0DQ2 CH0DQ3 CH0DQ5 CH0DQ6 CH0DQ7 CH0DQ8 CH0DQ9 CH0DQ10 CH0DQ11 CH0DQ12 CH0DQ13 CH0DQ14 CH0DQ15 CH0DQ4 CH0CK IC8001 B5 VI1P9 CH1VAL *IC8003 = E3 VSS IC8001 T24 MMBA2 IC8001 F14 LRCK0 VI2P4 IC8001 AF15 VDDR IC8001 B10 VI1P2 IC8001 AB17 VSS *IC8002 = R1 VDD VI2P8 IC8001 R15 VSS TDO IC8001 H3 VI2P12 *IC8003 = A9 VDDQ IC8001 B3 VI1P15 VI1P10 IC8001 AD24 CK27D IC8001 Y21 MMVCAL IC8001 E4 VI2P7 C8039 16V 0.1u SUB1.2V IC8001 N3 SDA1 IC8001 T13 VDD12 IC8001 V21 MMA4 IC8001 L1 VI2P28 C8071 16V 0.1u IC8001 K13 VSS IC8001 AF22 MMDQ22 IC8001 AF4 IS0DATA IC8001 B7 VI1P4 IC8001 E11 VI1CVBS3 IC8001 AB5 XEXDMK0 IC8001 T6 EA2 XNFWP IC8001 AD26 VSS IC8001 E12 VVREF *IC8002 = E1 VDD IC8001 W4 ED9 IC8001 L12 VSS EA4 IC8001 D4 VSS VI1P28 IC8001 AA4 ESZ0 VOP15 VOP10 VI2P3 IC8001 Y3 ED13 VOP27 *IC8002 = D7 DQ10 C8037 16V 0.1u VI2P24 IC8001 D12 MVDACO3 C8015 6.3V 1u *IC8003 = M2 A10 IC8001 T5 TDI IC8001 AF14 VDD12 *IC8003 = B7 UDQS IC8001 T4 VDD33 *IC8002 = K3 WE *IC8002 = P3 A9 IC8001 K23 VDDIO IC8001 G21 LVVSS IC8001 A8 VI1CKOUT IC8001 G2 VI2CLK IC8001 T14 VSS XECS0 VOP0 IC8001 V6 ED7 IC8001 D9 VSS *IC8002 = K8 CK IC8001 R5 ATCPOUT IC8001 R14 VSS IC8001 AB18 MMVREF1 IC8001 AB14 VDD12 IC8001 U26 MMA7 IC8001 AA22 VSS SMTRST1 L8007 J0JHC0000045 VI2P1 IC8001 AD5 IS1CLK IC8001 L26 MMDQS0 IC8001 M10 VSS IC8001 AA2 ED15 C8025 16V 0.1u LCSCK *IC8002 = R7 NC *IC8002 = H1 DQ4 IC8001 U2 EA6 IC8001 C21 VOP6 *IC8003 = R3 NC VOP22 IC8001 D19 VSS IC8001 V23 MMA11 C8002 6.3V 1u *IC8003 = D7 DQ10 IC8001 AA19 MMDQ20 *IC8003 = F1 DQ6 IC8001 T11 VDD12 VI1VSYNC *IC8003 = F7 LDQS *IC8003 = K3 WE *IC8002 = R2 A12 IC8001 N16 VSS TRST DSRCK IC8001 F15 VDD33 IC8001 C15 VOP21 XERE IC8001 D5 VI2P5 IC8001 K15 VSS IC8001 D2 VI1VSYNC IC8001 AD20 MMDQ19 VOP24 C8067 25V 0.01u IC8001 C5 VI1P28 IC8001 E19 VOP18 IC8001 AD12 SDCMD *IC8002 = A8 UDQS *IC8002 = K7 RAS IC8001 AA16 MMDQ29 IC8001 U3 EA7 IC8001 F24 VSS L8004 J0JHC0000045 IC8001 N23 MMDQ9 IC8001 T17 VDDA IC8001 AE7 TXD0 VI1HSYNC IC8001 T23 MMBA0 RMCO IC8001 P21 MMDQ12 CH0DATA *IC8002 = H3 DQ3 IC8001 C7 VI1P5 XNFWE XECS2 ESZ0 IC8001 AE19 MMDM2 *IC8002 = F7 LDQS IC8001 U17 VSS C8032 10u 10V VOP20 ED12 VI1P24 IC8001 M17 VDDA SUB3.3V IC8001 F21 LVVDD SUB1.2V XIRQ2 R8078 47 C8079 16V 0.1u IC8001 AB4 XECS2 XEXDMR0 R8073 47 IC8001 G6 VI1P0 DMIX0 EA0 VOP26 IC8001 AF21 VSS *IC8002 = J7 VSSDL SMTCMD0 VOUTENB *IC8002 = L2 BA0 IC8001 B11 MVIREF VOP5 R8072 47 *IC8003 = E2 NC IC8001 AB25 VDDIO IC8001 E16 VOP20 R8075 47 IC8001 N12 VSS VI2ENB IC8001 J23 MMDQ5 MVDACO3 IC8001 G23 LPFIN R8080 0 VI2P9 VOP11 IC8001 C13 DACCK0 R8065 47 C8058 10u 10V IC8001 U24 VDDIO XCTS0 IC8001 W1 ED5 IC8001 E10 VI1CVBS2 IC8001 AD7 XCTS0 C8035 10u 10V IC8001 AC7 IS1PSYNC R8081 10k IC8001 R25 MMXWE IC8001 L14 VSS SBO2 CH1PSYNC SMTSEL0 IC8001 B2 VSS *IC8002 = G9 VDDQ C8070 16V 0.1u IC8001 J26 MMDQ6 VI1P27 IC8001 AE8 SMTD1 IC8001 C12 DACVDD1 IC8001 D14 VSS *IC8003 = P2 A7 IC8001 AC6 NANDRYBY R8026 0 IC8001 C17 VOP25 IC8001 AE15 VDDR IC8001 A13 DMIX0 IC8001 M23 VDDIO IC8001 A6 VI1P6 XIRQ1 IC8001 D7 VDD33 L8008 J0JHC0000045 IC8001 A24 SBI2 IC8001 AE16 VDDIO C8014 16V 0.1u *IC8002 = C9 VDDQ IC8001 B25 TA1N IC8001 AE26 MMRODT VI2P16 C8024 10u 10V IC8001 F9 VI1CK204F IC8001 M26 MMDM1 IC8001 AC3 XECS4 IC8001 AA20 MMDQ21 *IC8003 = N3 A5 ED4 VI2P2 R8083 300 IC8001 AA8 VDD33 IC8001 AD21 MMDQ23 VI1P23 *IC8002 = E9 VDDQ IC8001 AD10 CH1CLK IC8001 AC15 VDDR TXD0 IC8001 V26 MMA1 XDCD0 IC8001 AF24 VSS VI2P5 IC8001 AE2 XEXDMR0 SDDAT1 IC8001 E5 VSS IC8001 H5 VI2VSYNC R8002 82 *IC8003 = C3 VDDQ VI2P12 BOOTSWAP *IC8002 = A2 NC IC8001 AF23 BOOTSWAP IC8001 D22 VDD33 VI2HSYNC VI2P0 IC8001 R12 VDD12 XEXDMK0 SDCD *IC8003 = J3 VSS IC8001 U15 VDDA VI1P11 VOP6 IC8001 V5 ED3 *IC8003 = G9 VDDQ R8084 0 IC8001 AB15 VDDR R8095 10k IC8001 F23 LVVSS EA5 R8090 10k IC8001 AC4 XECS5 *IC8002 = H9 DQ5 IC8001 A22 VOP7 IC8001 V3 ED4 *IC8003 = C8 DQ8 IC8001 N21 MMDQ8 1% R8004 24k IC8001 AC18 VDDIO *IC8003 = A8 UDQS IC8001 AF13 SDCLK *IC8002 = L8 CS IC8001 N24 VDDIO R8067 47 *IC8002 = B7 UDQS VI1P3 MVDACO0 XRI0 IC8001 M12 VSS IC8001 V22 VDDIO VI2P27 R8100 47 DACCK0 IC8001 AC12 VSS IC8001 AF9 SMTCMD0 IC8001 V4 VSS IC8001 R10 VDD12 IC8001 A21 VOP3 VI2P29 IC8001 E2 VI1CLK2 IC8001 AC26 MMCK IC8001 C3 VSS IC8001 K16 VSS IC8001 E22 LVVDD SUB3.3V C8020 16V 0.1u IC8001 C18 VOP12 IC8001 R6 TCK IS0DATA IC8001 L11 VSS *IC8003 C3ABSY000014 = A1 VDD R8035 0 ED1 IC8001 P22 MMDQ13 ED13 IC8001 AA25 VSS SMTCLK0 IC8001 AE13 SDDAT1 SCL0 IC8001 E6 VI2P4 IC8001 F10 VI1CVBS1 L8005 J0JHC0000045 IC8001 P23 VSS ED5 *IC8002 = E3 VSS IC8001 AA10 SMTRST1 VOP2 *IC8003 = F9 DQ7 IC8001 T10 VDD12 *IC8002 = E7 VSSQ LCSID 1% R8005 10k IC8001 F5 VI2P6 VI2P25 C8005 1u 6.3V VI1P9 *IC8003 = B2 VSSQ IC8001 AF10 CH1DATA ED14 *IC8003 = N2 A3 IS0VAL IC8001 T3 EA3 L8003 J0JHC0000045 VOP7 IC8001 B15 LCSID R8059 47 C8030 6.3V 1u ED7 XECS1 IC8001 E17 VOP22 VI2P6 IC8001 V2 ED2 VI2P23 IC8001 AA17 MMDQ24 IC8001 AA9 VDD33 C8001 16V 0.1u IC8001 J5 VI2P11 *IC8002 = B9 DQ15 IC8001 AD3 XNFWE IC8001 C26 TB1P L8006 0 R8056 47 IC8001 U1 EA5 C8052 6.3V 1u IC8001 F6 VSS IC8001 G26 TE1P R8093 47 *IC8003 = F2 VSSQ VI1P16 *IC8002 = L7 CAS VOP21 *IC8003 = F3 LDM VI1P17 VI1CVBS1 VOP23 *IC8003 = J9 VDD XECS6 IC8001 AC2 XECS1 IC8001 L25 MMDM0 IC8001 B6 VI1P7 IC8001 AF20 VDDIO ERXW IC8001 A4 VI1P29 IC8001 C4 VI1P13 IC8001 L10 VSS IC8001 AB1 ECLK IC8001 P3 AGAVDD TCK *IC8002 C3ABSY000014 = A1 VDD IC8001 U21 MMXCAS IC8001 N17 VDDR IC8001 M6 VI2P27 *IC8003 = M9 VDD IC8001 P13 VSS IC8001 R16 DPAVSS IC8001 N2 XNMIRQ NANDRYBY IC8001 U5 ED0 VI1P0 *IC8002 = N1 VSS IC8001 AF12 CH0CLK IC8001 F11 VDD33 *IC8002 = F1 DQ6 IC8001 AB9 XDCD0 VI2P19 R8066 47 IC8001 Y1 ED10 IC8001 T1 EA0 *IC8003 = M8 A0 IC8001 L4 VSS SDDAT0 *IC8002 = D8 VSSQ VI1CLK VI2P20 XIRQ3 IC8001 H25 CLK74 *IC8002 = P9 VSS *IC8003 = N1 VSS IC8001 AC14 VDD12 ED3 IC8001 F8 VI2P0 IC8001 AA13 SDDAT3 VI2P22 *IC8003 = E1 VDD IC8001 Y2 ED11 XEWE0 R8024 0 IC8001 AB3 XEWE1 R8060 47 IC8001 AA23 MMMONB ECLK IC8001 M2 SCL0 IC8001 AC1 ESZ1 R8087 10k *IC8003 = C7 VDDQ L8009 J0JHC0000045 EA6 VI1P7 IC8001 P25 VDDIO IC8001 F19 VOP5 *IC8002 = P8 A8 *IC8002 = C7 VDDQ VI2P14 IC8001 H4 VDD33 SDCLK *IC8002 = L1 NC IC8001 B8 VI1P24 IC8001 W23 MMA0 VI1P22 IC8001 C6 VI1P27 1% R8006 6.8k IC8001 W3 ED8 IC8001 B12 MVDACO1 *IC8002 = M7 A2 C8078 16V 0.1u VOP8 *IC8003 = P7 A11 *IC8002 = E8 LDQS X8001 H0J270500061 C8012 16V 0.1u IC8001 N26 MMDQ11 IC8001 N25 MMDQ10 VI2P10 XDTR0 R8058 47 IS0PSYNC IC8001 P26 MMDQ15 L8002 J0JHC0000045 VI2P28 *IC8002 = G3 VDDQ *IC8003 = R8 NC IC8001 C20 VOP2 C8003 1u 6.3V IC8001 U4 EA4 IC8001 AD23 VSS IC8001 AC25 VSS IC8001 G24 VSS IECOUT0 IC8001 E20 MVSYNC IC8001 AB6 NFCLE IC8001 AC23 VDDIO VOP18 IC8001 J22 VC27 SMTCMD1 IC8001 F12 VDD33 IC8001 F22 LVVSS *IC8003 = C2 DQ9 C8018 16V 0.1u *IC8003 = R2 A12 IS0CLK *IC8002 = D1 DQ12 IC8001 R22 MMXCS0 VI2P18 *IC8002 = F9 DQ7 *IC8002 = J2 VREF IC8001 M5 RMCO *IC8003 = A3 VSS VI2P7 IC8001 AC10 VDD33 *IC8003 = K8 CK IC8001 A10 IECOUT0 IC8001 AD9 SMTCLK0 XECS7 C8056 16V 0.1u IC8001 K5 VI2P16 *IC8003 = G2 DQ1 IC8001 AE3 NFALE 1% R8082 75 IC8001 B9 VI1P23 IC8001 P12 VSS IC8001 M4 VSS IC8001 E25 TCLK1N IC8001 AE11 CH0VAL C8007 16V 0.1u SUB1.2V IC8001 AE18 VSS SBI0 IC8001 V24 MMBA1 IC8001 C14 DSRCK IC8001 AC22 VSS IC8001 AE12 SDWP *IC8003 = A2 NC *IC8002 = D2 VSSQ IC8001 A23 MVCLK C8038 16V 0.1u *IC8003 = C1 VDDQ *IC8002 = B3 UDM VI2P11 *IC8002 = C1 VDDQ SCL1 L8010 J0JHC0000045 IC8001 A12 DACVSS2 ED0 IC8001 F17 VOP27 IC8001 K21 CK27 *IC8003 = P3 A9 1% R8032 270 IC8001 AF7 RXD0 R8097 220 VI1P26 C8044 16V 0.1u SBT2 VI1P4 IC8001 G22 LPFOUT IC8001 E23 LVVDD IC8001 C9 VI1CLK IC8001 K26 VDDIO IC8001 M14 VSS IC8001 G25 TE1N C8028 16V 0.1u R8068 47 VI1P13 IC8001 AA26 MMA2 IC8001 C19 VOP16 *IC8002 = H2 VSSQ *IC8002 = N7 A6 IC8001 C11 DACVSS1 IC8001 L5 VI2P23 XDSR0 *IC8003 = K7 RAS IC8001 K24 MMDQ3 IC8001 Y5 XEDK IC8001 B22 VOP9 IC8001 E21 VDD33 VI1CVBS3 IC8001 M13 VSS *IC8002 = D3 DQ11 *IC8003 = L2 BA0 VI2CLK *IC8002 = J1 VDDL IC8001 AF8 SMTCMD1 IC8001 A14 ADIN IC8001 AF3 IS0CLK IC8001 B24 VDD33 1% R8031 270 VOP28 IC8001 R26 VSS *IC8003 = M7 A2 IC8001 G5 VI1P1 C8045 16V 0.1u IC8001 K25 MMDQ2 IC8001 F18 VOP15 IC8001 D11 MVCOMP IC8001 K11 VSS VI1CKOUT *IC8002 = H7 DQ2 IC8001 H26 VOUTENB IC8001 J2 VI2P19 SBI2 R8074 220 C8017 10u 10V IC8001 K22 MMDQ4 IC8001 AA18 VSS R8001 180 IC8001 AC8 XDTR0 IC8001 P17 VSS IC8001 K1 VI2P24 IC8001 AB2 ERXW *IC8003 = D2 VSSQ IC8001 AC11 VDD33 IC8001 AC21 TSTSEL IC8001 AC5 XNFCE IC8001 E8 VI1CK208F C8031 6.3V 1u IC8001 E24 VSS SUB3.3V IC8001 P1 XIRQ3 IC8001 D1 VI1HSYNC C8004 1u 6.3V IC8001 F26 TD1P IC8001 AB23 VSS IC8001 D13 VSS *IC8002 = J9 VDD IC8001 U25 MMA9 IC8001 C10 VI1P3 TDI VOP4 C8023 10u 10V MHSYNC *IC8003 = D8 VSSQ IC8001 AE5 IS1VAL IC8001 A26 VDD33 VI1CK204F IC8001 L23 MMDQ0 IC8001 M21 VDDIO *IC8003 = R1 VDD VOP9 IC8001 L24 VSS EA2 *IC8002 = K9 ODT IC8001 R21 VDDIO RXD0 *IC8002 = R8 NC VOP16 1.8V_DDRI/F *IC8003 = E9 VDDQ VI1P5 *IC8003 = H9 DQ5 IC8001 AF17 MMDQ27 IC8001 P14 VSS MVCLK 1.8V_DDRI/F SMTRST0 IC8001 V25 VSS *IC8002 = F3 LDM XRTS0 IC8001 D20 VOP8 IC8001 T2 EA1 VOP14 IC8001 AE17 MMDQ26 IC8001 D23 SBO0 IC8001 M1 SDA0 IC8001 E7 VI2P1 VOP19 IC8001 B17 VOP24 R8029 0 CH0PSYNC VI1P15 R8071 47 C8026 16V 0.1u IC8001 J21 MVAVSS IC8001 N4 XIRQ1 *IC8003 = M3 A1 C8069 50V 82p IC8001 P6 VDD33 TP8037 IC8001 AD19 VSS IC8001 N15 VSS IC8001 P5 AVCOIN SDWP IC8001 AB12 SDDAT0 VI1CVBS0 IC8001 R2 TRST IC8001 L6 VI2P21 SLRCK IC8001 C1 VI1P19 IC8001 A3 VI1P14 IC8001 Y6 VSS R8057 47 *IC8002 = J3 VSS IC8001 C22 MHSYNC IC8001 AD1 XECS3 IC8001 J4 VI2P13 IC8001 J1 VI2CLK2 C8046 16V 0.1u *IC8002 = A3 VSS IC8001 R4 VDD33 IC8001 K10 VSS CLKGEN_S2 SBT0 IC8001 H1 VI2P15 IC8001 J24 MMDQ7 IC8001 W21 VSS IC8001 AD15 VDDR *IC8003 = K2 CKE *IC8002 = G2 DQ1 C8080 16V 0.1u IC8001 M11 VSS R8062 47 IC8001 Y24 VDDIO *IC8002 = N8 A4 IC8001 U16 VDDR IC8001 H23 VSS IC8001 L16 VSS IC8001 B26 TA1P *IC8002 = E2 NC IC8001 L2 VI2P26 SMTD1 CH0VAL IC8001 K12 VSS IC8001 D10 VSS IC8001 N22 VSS C8075 4V 22u *IC8002 = C2 DQ9 XNMIRQ IC8001 AD18 MMDQS3 *IC8003 = J2 VREF IC8001 AB13 SDDAT2 C8076 16V 0.1u IC8001 D24 TSTAIO VI1P6 R8023 0 SDCMD C8057 16V 0.1u *IC8003 = H2 VSSQ ADIN VI1P25 SRCK0 IC8001 AB7 IS0VAL IC8001 AE1 XECS7 ED11 IC8001 AD13 SDCD *IC8003 = A7 VSSQ IC8001 B14 ADCCK *IC8003 = N7 A6 CH1CLK IC8001 AF16 MMDQ31 ED10 C0ZBZ0001030 IC8004 1 X1 2 S0 3 S1 4 VIN 5 VDD 6 GND 7 74M 8 COMM 9 27M 10 4.9152M 11 24.576/33M 12 GND 13 VDD 14 S2 15 VDD 16 X2 IC8001 N11 VSS *IC8003 = R7 NC MVSYNC *IC8002 = C3 VDDQ IC8001 K4 VI2P18 IC8001 P4 GTCPOUT NFCLE IC8001 AF5 IS1DATA IC8001 L21 MMDQ1 IC8001 F2 VI1P21 IC8001 E14 DACVDD2 ED8 SUB1.8V XEDK IC8001 MN2WS0039AA A1 VSS IC8001 M15 VSS IC8001 C16 VOP1 C8019 16V 0.1u VI1P20 IC8001 F7 VI2P2 IC8001 AB11 SMTSEL0 IC8001 E18 VOP29 C8048 16V 0.1u *IC8003 = P8 A8 IC8001 T22 VSS *IC8002 = B8 VSSQ IC8001 M16 VSS VI2VSYNC *IC8002 = B2 VSSQ IC8001 H6 VI1P20 IC8001 G4 VDD33 IC8001 AE21 VDDIO 1.8V_DDRI/F MVDACO2 *IC8003 = C9 VDDQ *IC8003 = D9 DQ13 IC8001 W5 ED12 SUB3.3V IC8001 AD14 VDD12 IC8001 J6 VDD33 IC8001 U10 VDD12 TMS IC8001 L17 VSS C8036 10u 10V C8074 16V 0.1u C8013 16V 0.1u IC8001 R23 MMCKE C8010 10u 10V *IC8002 = M9 VDD IC8001 M22 MMVREF0 VI2P13 IC8001 E13 MVDACO0 VOP12 IC8001 L13 VSS VI2CLK2 IC8001 AE20 MMDQ18 IC8001 E1 VI1P11 IC8001 J25 VSS IC8001 N14 VSS EA3 IC8001 T25 VDDIO IC8001 R3 TDO IC8001 AD16 MMDQ30 VI1P1 IC8001 AA7 VSS IC8001 F3 VI1P10 IC8001 G1 VI2P10 IC8001 AE4 IS0PSYNC IC8001 N6 VDD33 VOP25 *IC8002 = D9 DQ13 IS1VAL *IC8003 = B1 DQ14 ADCCK IC8001 AA1 ED14 IC8001 U22 MMA5 IC8001 A7 VI1P26 C8016 6.3V 1u *IC8003 = K9 ODT *IC8002 = M3 A1 VI1P19 *IC8002 = N3 A5 IC8001 K17 LVVDD12 IC8001 L3 VI2P25 IC8001 A25 VDD33 IC8001 C25 TB1N IC8001 AD22 VDDIO IC8001 U6 VDD33 IC8001 AF19 MMDQS2 ESZ1 C8050 16V 0.1u IC8001 G3 VI2ENB XECS3 R8070 47 IC8001 U12 VDD12 C8042 68u 4V IC8001 F16 VOP11 LRCK0 C8021 16V 0.1u IC8001 R13 VDD12 SDDAT3 IC8001 D8 VDD33 ED2 IC8001 A20 VOP17 EA7 IC8001 AF18 MMDM3 *IC8003 = N8 A4 VI1CK208F SUB3.3V IC8001 B1 VI1P17 IS1DATA *IC8002 = P7 A11 *IC8002 = G1 VDDQ IC8001 D15 DAUDIO *IC8003 = B3 UDM IC8001 AC17 MMDQ25 *IC8003 = E7 VSSQ *IC8003 = J7 VSSDL IC8001 AB20 MMDQ16 R8079 0 *IC8003 = G7 VDDQ *IC8002 = F2 VSSQ IC8001 A19 VOP13 IC8001 K3 VI2P20 IC8001 AE10 CH1PSYNC IC8001 D21 XRST VOP17 IC8001 AC24 MMPCLKEXT IC8001 T26 MMA10 IC8001 H24 AUDCLK ED9 IC8001 AE14 VDD12 IC8001 AF6 XDSR0 IC8001 R24 VSS EA1 IC8001 AB8 SBT0 SMTSEL1 VI1P12 VI2P21 IC8001 G7 VSS SDDAT2 IC8001 AA21 VDDIO *IC8003 = G3 VDDQ R8003 0 SMTD0 IC8001 AF2 XNFWP SUB3.3V *IC8003 = L3 BA1 IC8001 T16 VSS IC8001 W25 MMXRAS IC8001 H22 TCPOUT R8077 47 *IC8002 = R3 NC C8049 16V 0.1u *IC8002 = P2 A7 R8039 0 IC8001 E26 TCLK1P XRST IC8001 U14 DPAVDD12 *IC8002 = M8 A0 IC8001 AD8 SMTCLK1 R8069 47 IC8001 AF25 MMRDRV *IC8003 = G8 DQ0 IC8001 T15 VDDR VI1CVBS2 C8040 16V 0.1u *IC8003 = B9 DQ15 IC8001 U11 VDD12 *IC8002 = C8 DQ8 IC8001 AA3 XEWE0 IC8001 B21 VOP4 R8101 10k IC8001 D18 VSS IC8001 AB24 MMMONA VOP29 R8098 10k IC8001 K6 VDD33 IC8001 D3 VI2P8 C8077 16V 0.1u *IC8003 = B8 VSSQ VOP1 IC8001 J3 VI2P17 IC8001 Y4 XERE *IC8002 = G7 VDDQ IC8001 AA6 VSS IC8001 AE24 DTCPOUT VI1P8 R8076 47 *IC8002 = G8 DQ0 IC8001 AD11 CH0PSYNC C8047 16V 0.1u IC8001 AD25 VDDIO IC8001 M3 VI2P29 XNFRE SDA0 IC8001 AD6 SBT2 *IC8003 = H8 VSSQ IC8001 B16 VOP0 IC8001 AF1 VSS C8006 16V 0.1u IC8001 P24 MMDQ14 IC8001 AC9 XRI0 IC8001 A18 VOP26 IC8001 R1 TMS *IC8003 = G1 VDDQ IC8001 M25 VSS IC8001 AA24 MMODT IC8001 AD2 XECS6 *IC8002 = A9 VDDQ IC8001 U13 VDD12 IC8001 H2 VI2P14 R8064 47 SDA1 IC8001 AB16 MMDQ28 ED6 *IC8003 = H3 DQ3 IC8001 C23 VDD33 R8025 0 C8022 6.3V 1u VI2P26 IC8001 AB21 VSS *IC8003 = L1 NC IC8001 A5 VI1P8 R8086 100k C8027 16V 0.1u C8073 16V 0.1u *IC8003 = J8 CK *IC8002 = A7 VSSQ *IC8003 = F8 VSSQ IC8001 AB10 SMTSEL1 IC8001 T21 MMA3 IC8001 D17 VDD33 IC8001 R11 VDD12 IC8001 A9 VI1P22 IC8001 E3 VI1ENB R8027 0 *IC8003 = L8 CS SBO0 IC8001 AC19 MMDQ17 IC8001 C24 SBI0 IC8001 AD17 VDDIO IC8001 AC16 VSS IC8001 B19 VOP14 L8001 J0JHC0000045 IC8001 AF11 CH0DATA IC8001 W6 VSS *IC8002 = B1 DQ14 IC8001 B20 VOP19 R8106 2k IC8001 AE22 VSS VI1P2 IC8001 AA15 VSS C8051 16V 0.1u XEWE1 IC8001 P11 VSS C8041 16V 0.1u C8072 16V 0.1u IC8001 AF26 VDDIO IC8001 A16 VOP10 IC8001 AE25 VSS VOP3 IC8001 AD4 XNFRE *IC8003 = E8 LDQS IC8001 AA11 SMTD0 VI1P18 IC8001 N13 VSS IC8001 AB22 VDDIO IC8001 AE9 SMTRST0 R8091 100 C8029 16V 0.1u *IC8003 = H1 DQ4 VI1CLK2 IC8001 K2 VI2P22 IC8001 B4 VI1P12 IC8001 Y25 MMA8 NFALE IC8001 Y26 MMA6 IC8001 N10 VDD12 *IC8003 = P9 VSS IC8001 AC13 VSS IC8001 B18 VOP28 C8033 16V 0.1u VI2P15 *IC8003 = D1 DQ12 C8043 16V 0.1u IC8001 AB19 VDDIO IC8001 V1 ED1 XNFCE IC8001 E9 VI1CVBS0 IC8001 P2 AGAVSS SMTCLK1 VI1P29 IC8001 AE6 XRTS0 R8030 100 *IC8002 = H8 VSSQ IC8001 A2 VI1P16 IC8001 P10 VDD12 *IC8002 = F8 VSSQ *IC8002 = J8 CK IC8001 N1 XIRQ2 IC8001 AA14 VDD12 IC8001 A15 LCSCK IC8001 Y22 VDDIOCK IC8001 R17 VDDR IC8001 AC20 VSS VOP13 IC8001 F1 VI2HSYNC IC8001 H21 MVAVDD VREF IC8001 C2 VI1P18 IC8001 AA12 CH1VAL IC8001 U23 MMA12 C8009 10u 10V CH1DATA IC8001 W22 MMXCS1 VI1ENB *IC8002 = K2 CKE IC8001 P16 DPAVDD *IC8002 = L3 BA1 IC8001 T12 VDD12 IC8001 W24 VSS IS1PSYNC VI2P17 IS1CLK *IC8003 = L7 CAS IC8001 M24 MMDQS1 IC8001 A17 VOP23 IC8001 B23 SBO2 IC8001 L15 VSS IC8001 Y23 VSS IC8001 F4 VI2P9 IC8001 D26 TC1P R8063 47 DAUDIO *IC8002 = M2 A10 IC8001 A11 SVCOMP IC8001 K14 VSS IC8001 P15 VSS 1.8V_DDRI/F IC8001 B13 SRCK0 IC8001 D16 VDD33 IC8001 F20 VDD33 *IC8003 = D3 DQ11 R8028 0 IC8001 N5 SCL1 IC8001 AB26 MMXCK CH0CLK C8011 16V 0.1u R8107 100 XECS5 IC8001 W26 VDDIO ED15 IC8001 L22 VSS XECS4 *IC8003 = H7 DQ2 C8008 16V 0.1u *IC8003 = J1 VDDL IC8001 AA5 XECS0 IC8001 C8 VI1P25 IC8001 W2 ED6 IC8001 D6 VI2P3 R8099 10k C8053 25V 0.01u R8061 47 IC8001 F13 MVDACO2 C8034 16V 0.1u MVDACO1 IC8001 E15 SLRCK IC8001 F25 TD1N C8068 16V 0.1u IC8001 D25 TC1N VI1P21 VI1P14 IC8001 AE23 MCLK *IC8002 = N2 A3 SUB3.3V *R8110 10k EA19 IIC I/F AUDIO IF XDTR0 SD CARD I/F JTAG SERIAL I/F LVDS I/F SBI1 SCL2 SDA2 SCL3 SDA3 LOSDOUT11 LOSDOUT10 LOSDOUT13 LOSDOUT12 PORT14[1] PORT14[2] PORT14[3] LOSDOUT15 RSV2(SDRAMCHK2) PORT14[4] PORT16[1] VMUTE SCARD_NMIRQ XRI0 SCARD_IRQ XDCD0 RXD0 RMCO TXD0 XCTS0 XDSR0 RSV3(SDRAM_CHK1) B PORT (Sub Video Input or Address) SBO1 XRTS0 HSVALIN Analog Video I/F HSSYNIN POD,CI I/F HSBCLKIN CPU BUS I/F COMMON PORT .etc PORT5[6] CLOCK GEN SMT_OFF RSV1(SD_ERROR) PORT5[7] PORT16[0] HSDIN0 HSDIN1 PORT15[5] NAND I/F POWER_DET HSDIN2 HSDIN3 PORT15[7] HSDIN4 EA20 FOR HQ1L VIDEO HSDIN5 EA13 HSDIN6 EA22 EA15 EA16 HSDIN7 EA10 PORT10[6] EA21 PORT10[7] LOSDOUT14 LOSDOUT9 PORT5[4] PORT5[5] LOSDOUT8 LOSDOUT7 LOSDOUT6 PORT6[4] PORT6[5] PORT6[7] SDBOOT EA12 LOSD OUT (for HQ1) C Y Cmp V EA09 FOR ADV7493 U EA18 Y EA17 LOSDOUT5 Cmp RMCO LOSDOUT4 LOSDOUT3 RSV4 LOSDOUT2 CH,IS IF LOSDOUT1 EA24 PORT9[5] LOSDOUT0 EA11 LOSDOUT_CLK_O R LOSDOUT_H_O G LOSDOUT_YS B LOSDOUT_YM Cmp PANEL_STATUS EA23 LOSDOUT_V_I LOSDOUT_CLK_I DAUDIO LOSDOUT_H_I EEPROM_WP FE_IRQ P_MAIN_SW HDMI_IRQ ETHER_IRQ PANEL_SOS EA08 EA14 CRNo.8000-8299 Peaks-Lite2/DDR2 IC8002 DDR2_0 DDR2_1 IC8003 Peaks Lite 2 IC8001 8 7 A 3 4 B 2 D E 5 F C 1 9 6 to (9/12) to (9/12) to (11/12) to (5/12) to (3/12) to (4/12) to (3/12) to (3/12) to (3/12) to (8/12) to (4/12) to (4/12) to (3/12) to (3/12) to (3/12) to (3/12) to (4/12) to (3,8/12) to (12/12) to (3/12) to (12/12) to (3/12) to (3/12) to (3,8/12) to (3,8/12) to (3/12) to (3/12) TH-50PZ700C DG-Board (1 of 12) Schematic Diagram TH-50PZ700C DG-Board (1 of 12) Schematic Diagram DG-BOARD (1/12) ! TNPA4176AM 93 15.23.DG 电路板 (2/12) 线路图 AC_CHDI0 AC_CHDI1 AC_CHDI2 AC_CHDI3 AC_CHDI4 AC_CHDI5 AC_CHDI6 AC_CHDI7 AC_CHVAL AC_CHSYNC AC_CHCLK SMTCMD0 SMTSEL0 AC_XPDWT SMTCLK0 SUB3.3V *R8475 EXB28V103JX *R8474 EXB28V103JX *R8472 EXB2HV103JV XCI_IREQ XPDCD1 XPDCD2 11 18 10 17 15 14 16 13 12 1 TH-50PZ700C DG-Board (2 of 12) Schematic Diagram TH-50PZ700C DG-Board (2 of 12) Schematic Diagram DG-BOARD (2/12) ! TNPA4176AM 94 15.24.DG 电路板 (3/12) 线路图 AA_XERE AA_ED10 AA_ED0 AC_CHCLK AA_XEAS AA_EA20 AA_ED10 AA_EA14 AA_ED7 AA_XEAS AA_XNMIRQ AA_EA19 AC_CHSYNC SMTCMD0 AA_EA17 AA_EA12 AA_ED13 AA_EA4 AA_EA22 AA_XEWE0 AA_XEWE0 AC_XEAB NET0031261 AC_XETS AA_ED6 AA_ED10 AD_TRST AA_ED12 AA_EA8 AC_CHDI3 AA_EA15 NET0031303 AA_ED6 AA_EA18 AA_EA21 AA_ED0 AD_SDA3 AA_XECS1 AG_DTV_VOUTENB AA_ED0 AD_SCL0 AA_EA9 AA_EA14 AD_TO_BA01 AA_EA11 AF_NAND_RY/BY AA_EA15 AA_ED4 AD_SCL3 AG_DTV_XRST AF_NFCLE1 AA_ED15 AA_ED5 AA_ED11 AA_ED4 AA_EA19 AA_XERE AA_EA5 AA_ESZ1 AA_ED13 AA_EA3 AA_ESZ0 AA_ED11 AA_ED2 AA_ED1 AA_EA8 AD_SCL2 AD_TO_GC3FS_NEXT AA_BOOTSWAP SMTSEL0 AA_EA7 AA_ED1 AC_IOWR AA_ED7 AA_EA16 AA_SBI0 AA_EA9 AC_XPDWE AA_ED8 AA_ERXW AA_XECS0 AF_XNFWE1 AD_SDA0 AA_ED14 AA_XIRQ1 AA_EA23 AA_EA22 AD_SDA2 AA_EA6 AA_XECS0 AA_ED9 AA_EA5 AC_IORD AA_EA21 AC_CHDI5 AA_ED5 AA_ED15 AA_EA16 AC_XPDWT AD_TMS AA_ED9 AA_ED12 AA_ED1 AA_EA10 AF_NFALE1 AA_EA6 AA_XRST AA_ED14 AD_SCL1 AA_EA2 AA_EA18 AA_EA1 AA_ED9 AA_EA13 AC_CHDI7 AA_XRST AA_ED15 AC_CHDI6 AF_XNFRE1 AA_EA10 AA_EA12 AG_SRQ-GENX AA_EA1 AF_XNFWP1 AD_TO_BA01 AA_EA11 AA_XRST AA_EA3 AA_ED2 AA_EA20 AC_CHDI2 AA_EA7 AA_ED7 AA_ED13 AC_CHDI1 AA_XEWE1 AA_ED8 AA_ED3 AC_CI_XRST AC_CHDI4 AC_XPDOE AA_ED8 AA_ED11 AC_XPDCE1 AA_EA2 AA_ED12 AA_SBO0 AA_ED14 SMTCLK0 AC_REG AA_XEDK AA_EA25 AC_CHVAL AA_EA17 AA_EA24 AA_ED5 AA_EA13 AA_ED2 AD_SDA1 AA_EA0 AA_ED4 AF_XNFCE AA_ED6 AA_ED3 AA_EA4 AC_CHDI0 AA_ED3 AD_TCK AA_XEAS AA_XECS2 AG_MODEM_LED2/CLK74SEL AA_ESZ1 AA_ESZ0 AG_SD_BOOT_STS AG_SW_OFF_DET AA_EA23 AF_NAND_RY/BY AG_TV_MAIN_ON C8621 16V 0.1u C8622 16V 0.1u C8731 25V 0.01u C8551 16V 0.1u C8552 16V 0.1u C8555 16V 0.1u C0JBAZ002845 IC8622 OE 1 2 Q0 3 D0 4 D1 5 Q1 6 Q2 7 D2 8 D3 9 Q3 10 GND 11 LE 12 Q4 13 D4 14 D5 15 Q5 16 Q6 17 D6 18 D7 19 Q7 20 Vcc C0JBAZ002845 IC8621 OE 1 2 Q0 3 D0 4 D1 5 Q1 6 Q2 7 D2 8 D3 9 Q3 10 GND 11 LE 12 Q4 13 D4 14 D5 15 Q5 16 Q6 17 D6 18 D7 19 Q7 20 Vcc *IC8554 < 1 N.C. 2 A22 3 A15 4 A14 5 A13 6 A12 7 A11 8 A10 9 A9 10 A8 11 A19 12 A20 13 WE 14 RESET 15 A21 16 WP/ACC 17 RY/BY 18 A18 19 A17 20 A7 21 A6 22 A5 23 A4 24 A3 25 A2 26 A1 27 N.C. 28 N.C. 29 Vio 30 N.C. 31 A0 32 CE 33 Vss 34 OE 35 DQ0 36 DQ8 37 DQ1 38 DQ9 39 DQ2 40 DQ10 41 DQ3 42 DQ11 43 Vcc 44 DQ4 45 DQ12 46 DQ5 47 DQ13 48 DQ6 49 DQ14 50 DQ7 51 DQ15/A-1 52 Vss 53 BYTE 54 A16 55 N.C. 56 N.C. L8551 J0JHC0000075 L8621 J0JHC0000075 STB3.3V SUB3.3V SUB3.3V SUB3.3V SUB3.3V SUB3.3V MAIN3.3V SUB3.3V SUB3.3V SUB3.3V TP8854 TP8851 TP8746 TP8853 TP8852 TP8767 4.9152M 25M 24.576M CLKGEN_S2 SMTCMD0 IS1DATA TXD0 ED6 SMTRST1 XEXDMR0 XECS2 XECS5 TDO EA0 ED10 XNFWE EA5 SMTD1 AA_SBO0 ESZ0 TRST ED9 ED2 SMTCLK1 XRI0 SMTSEL1 SBT2 SMTSEL0 NFALE SDA1 XEWE1 VI2P20 XEXDMK0 ED4 VI2ENB ED13 XIRQ1 SLRCK XECS7 ESZ1 CH0CLK SCL0 ADCCK XIRQ2 XECS4 DSRCK CH1DATA VI2P4 RXD0 ED7 SBT0 XECS3 XECS6 EA6 ERXW TMS SBI0 XECS0 ED12 VI1CLK2 SMTCLK0 IS0PSYNC ED14 TCK CH0VAL SCL1 XCTS0 XNFCE NANDRYBY EA7 XNFWP EA1 EA2 CH0PSYNC CH1PSYNC SMTD0 VOUTENB XNMIRQ ED5 BOOTSWAP CH1CLK XECS1 XNFRE ED8 ED1 XDCD0 ED3 RMCO SMTCMD1 XRST SDA0 ED11 XERE EA3 ED0 SBO0 XDTR0 CH0DATA AA_SBI0 ED15 XEDK EA4 SMTRST0 VI2P11 NFCLE ECLK XEWE0 ADIN XDSR0 TDI VI1P20 XRTS0 Q8912 2SD0601ASL Q8911 2SD0601ASL Q8913 2SD0601ASL R8865 EXB2HV680JV R8929 EXB2HVR000V R8867 EXB2HV680JV R8866 EXB2HV680JV R8869 10k R8908 10k R8900 68 R8556 68 R8855 68 R8874 10k R8914 68 R8627 68 R8891 68 R8881 68 R8746 10k R8853 0 R8635 68 R8864 68 R8868 68 R8918 68 *R8923 2.2k R8897 0 R8906 10k R8859 68 R8910 10k R8630 68 R8871 10k R8905 10k R8703 68 R8909 10k R8634 68 R8922 4.7k R8927 0 R8875 10k R8876 10k R8919 4.7k R8558 68 R8857 68 R8702 0 R8738 68 R8623 68 R8895 0 R8930 10k R8631 68 R8925 4.7k R8621 68 R8915 68 R8893 0 R8884 68 R8564 10k R8894 68 R8899 10k R8739 68 R8625 68 R8732 100 R8863 68 R8745 10k R8913 68 R8711 10k R8892 68 R8921 4.7k R8749 10k R8896 0 R8947 68 *R8924 2.2k R8561 68 R8889 68 R8551 10k R8883 68 R8870 0 R8737 68 R8555 68 R8710 68 R8860 68 R8856 68 R8879 68 R8887 68 R8735 68 R8852 0 R8624 68 R8632 68 R8878 68 R8901 68 R8904 10k R8877 68 R8926 4.7k R8916 68 R8626 68 R8854 0 R8636 68 R8888 68 R8629 68 R8933 10k R8559 68 R8882 68 R8633 68 R8880 68 R8898 10k R8622 68 R8742 10k R8948 10k R8912 68 R8932 47k R8928 47k *R8935 10k R8885 68 R8851 0 R8934 10k R8911 68 R8712 10k R8858 68 R8736 68 R8917 68 R8862 68 R8886 68 R8628 68 R8557 68 R8560 68 R8920 4.7k R8907 10k R8709 0 R8328 10k ExBUS JTAG XCI_IREQ INT.PU /EA10 INT.PU /EA9 I2C /EA11 INT.PU PORT16[7], SD_BOOT OUTPUT OUTPUT/(BOOTBT) XPDCD2 Hi-Z (XECS2,3 setting) /EA17 INT.PD INT.PU OUTPUT PORT15[4] Hi-Z RESERVED INT.PU Hi-Z CI I/F LiteII OUTPUT /EA12 INT.PU B_PORT OUTPUT PORT16[5] PORT9[5] CI_XRST /EA16 /EA14 INT.PU INT.PU INT.PD INT.PD OUTPUT (A23) /EA21 /EA22 INT.PU Hi-Z see also SDA2 for ea_pullup_sel EA24 /EA15 XPDCD1 INT.PD Reserved for NAND I/F ED/EA with Int.PU at start INT.PU NEED EXT.PU XIRQ3 for HDMI_INT in ADV sheet DUBUG/JIG TUNER SERIAL TS INT.PU Hi-Z /EA23 Hi-Z NEED EXT.PU Hi-Z INT.PD INT.PU Hi-Z Hi-Z INT.PU ExBUS Hi-Z /EA20 /EA13 CI_#CE1 non NAND I/F ADDRESS MPXed, if D-Latch INT.PU CI PARALLEL TS non PORT6[6]:PSV1 ExBUS N.C. for CLKGEN port /EA18 Reserved/(ed_pullup_sel) LiteII Hi-Z /EA19 non Hi-Z NOR FLASH /EA8 P_MAIN_SW PORT5[1] PORT5[2] RSV3 RSV2 Hi-Z Hi-Z Hi-Z XECS3,5,7: USED FOR OTHER PORPOSE PINS INT.PU PORT16[4] Hi-Z D-LATCH D-LATCH TVRP558-3 23 26 20 19 25 24 22 21 27 1 14 15 13 11 12 TH-50PZ700C DG-Board (3 of 12) Schematic Diagram TH-50PZ700C DG-Board (3 of 12) Schematic Diagram DG-BOARD (3/12) ! TNPA4176AM 95 15.25.DG 电路板 (4/12) 线路图 G G G G AH_LRCK0 DVB_CVBS AE_SDCLK AA_XRST AD_SCL2 AG_SD_LED_ON AD_TO_SC AG_SW_OFF_DET AD_TRST AD_SDA2 AH_IECOUT0 AD_SDA1 MVDACO3 AH_DAUDIO AE_SDDAT0 AG_DTV_XRST AH_DAUDIO AG_SD_BOOT_STS AE_SDDAT1 AE_SDCMD AD_SCL1 AE_SDCLK AD_TO_GC3FS_NEXT AH_DMIX0 AD_SDA3 AD_SDA0 AD_TMS AH_SRCK0 AD_SCL0 AH_IECOUT0 AH_LRCK0 AE_SDDAT3 AE_SDDAT2 AD_TCK AD_SCL3 AD_SDA3 AD_SCL3 AH_SRCK0 MVDACO3 AH_DMIX0 AE_SDCD AE_SDWP AG_MODEM_LED2/CLK74SEL STB_RST AE_SDCD AE_SDWP AG_SD_LED_ON AE_SDDAT3 AE_SDDAT1 AE_SDCMD AE_SDDAT2 AE_SDDAT0 AG_SRQ-GENX AG_DTV_VOUTENB AG_TV_MAIN_ON C8802 16V 0.1u C8601 16V 0.1u C8803 16V 0.1u FL8802 J0HAAA000013 1 2 3 4 5 6 7 8 9 10 FL8801 J0HAAA000013 1 2 3 4 5 6 7 8 9 10 *IC8601 1 A0 2 A1 3 A2 4 VSS 5 SDA 6 SCL 7 WP 8 VCC DG52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 *L8802 J0JCC0000100 L8801 J0JHC0000045 SUB3.3V SUB3.3V SUB3.3V_SD SUB3.3V DTV9V SUB3.3V TP8805 TP8808 TP8807 TP8604 TP8605 TP8802 TP8601 TP8804 TP8803 TP8806 TP8801 TP8501 TP8602 TP8603 AG_DTV_VOUTENB AG_SW_OFF_DET AG_SD_LED_ON AD_TO_SC AG_DTV_XRST AG_TV_MAIN_ON AG_SD_BOOT_STS AG_MODEM_LED2/CLK74SEL AA_XRST AD_SCL3 AD_TMS AH_SRCK0 AD_SCL0 DVB_CVBS AH_LRCK0 AD_SCL1 AH_DMIX0 AD_TRST AD_TO_GC3FS_NEXT AH_DAUDIO AD_SCL2 AH_IECOUT0 VMUTE AD_TCK AG_SRQ-GENX MVDACO3 IS0CLK VI1P1 STB_RST VI2CLK2 AD_SDA3 SRCK0 VI1P0 VI1P11 DAUDIO IS0VAL IS1PSYNC MVDACO1 SDDAT3 SDDAT0 LRCK0 VI1P21 CH1VAL SDDAT1 MVDACO2 SDWP MVDACO0 SDDAT2 AD_SDA0 SDCD VI1P10 DACCK0 DMIX0 VI1P0 IS1VAL IS0DATA SDCMD IECOUT0 AD_SDA2 SDCLK AD_SDA1 *Q8801 2SD0601ASL *Q8802 2SB0709ASL R8813 EXB28V680JX *R8818 4.7k 1% R8510 91 R8817 68 R8812 0 R8518 0 R8605 68 1% R8509 91 1% R8507 91 1% R8508 91 *R8819 4.7k R8805 10k R8502 330 R8963 10k R8601 22 R8815 68 R8506 330 R8517 0 R8802 10k R8603 47k R8816 68 R8604 0 R8504 330 R8828 10k *R8958 68 1% R8512 180 R8503 330 *R8965 68 R8809 10k R8808 10k R8832 10k R8806 10k R8655 10k R8501 100 *R8820 10k *R8821 56 R8826 68 *R8822 200 R8519 0 R8814 68 *R8833 0 *R8804 10k *R8803 10k *R8823 4.7k R8513 0 R8952 68 R8602 22 R8653 10k R8807 10k JS1115 JS1100 MAIN AUDIO DATA Comp. Comp. Comp. Hi-Z 3.3V FROM HQ1L SMTSEL0 SD_CARD OUTPUT SMART CARD I/F is removed INT.PD GENX4 RESERVED GND TO GC3FS SDDAT0 GND SDCLK for PHOTO OUT COMMON for EACH DEVICES COMMON LR/SR CLK Y Y G PORT15[6] SDCMD YC YUV RGB PORT15[4] used for CI_OCP on DT2 SDDAT2 SDDTC SDDAT3 SMTCLK0 DIGITAL AUDIO CONNECTOR JTAG SDWP GND C U B PORT9[4] EEPROM_WP to other devices SDDAT1 SC --> LiteII --> GC3FS --> HQ1L --> SC with AUDIO DESCRIPTION DATA HQ1L/FHD - V R to H-PCB Sheet No.003 CRNo.8300-8999 DTV FE 8300-8399 CI 8400-8499 AV_OUT 8500-8549 NAND/NOR 8550-8599 EEPROM 8600-8619 D-LATCH 8620-8649 SMART_CARD 8650-8699 SUPPORT_CARD 8700-8799 SD_CARD 8800-8849 MPEG 8850-8949 MODEM 8950-8999 Output Port need no Ext.PD. RXD0 TXD0 Hi-Z AG_MODEM_XRST is removed. H.264 should be L OUTPUT setting FOR H.264 BOARD Hi-Z Hi-Z PORT8[0] Hi-Z Hi-Z SMTCMD0 PORT15[7] Hi-Z if H.264 is non use Int.PU PORT5[4] SD_COIN_DET PORT7[7] PRO_SDBOOT EEPROM TVRP484 TO GS-BOARD (GS52) to (7/12) to (5/12) to (9/12) to (5,9/12) to (12/12) to (8,12/12) to (6/12) to (5,9,11,12/12) to (7,12/12) to (9,12/12) to (8,12/12) to (8/12) to (6,7,8/12) to (8,12/12) to (5,6,7,8,9/12) SUFFIX UPPER M A(AA) SUFFIX LOWER SUFFIX 36 29 30 28 33 31 32 34 35 13 14 12 11 15 TH-50PZ700C DG-Board (4 of 12) Schematic Diagram TH-50PZ700C DG-Board (4 of 12) Schematic Diagram DG-BOARD (4/12) ! TNPA4176AM 96 15.26.DG 电路板 (5/12) 线路图 AG_UB1 AG_YG0 AG_UB2 AG_UB4 AG_UB5 AG_YG0 AG_YG3 AG_VI2CLK AD_TCK AG_UB0 AD_TO_HQ1L AG_UB6 AG_YG5 AG_UB4 AG_UB3 AH_FS_U AG_TV_MAIN_ON AG_YG7 AG_YG1 0V AG_YG4 AG_YG2 AG_UB7 AG_VPO AG_UB1 AG_YG6 AG_UB5 AG_UB7 AD_TO_GC3FS_NEXT AG_YG4 AG_YG2 AG_UB3 AG_HQ1_XRST AG_YG5 AD_SDA1 AG_YG3 AG_YG7 AD_SCL1 AH_FS_V AG_UB6 AG_HPO AG_YG6 AD_TRST AG_VI2CLK AG_HPO AG_UB0 AD_TMS AG_YG1 AG_UB2 AG_VPO AH_FS_Y AD_TCK AD_TMS AD_TRST AD_TO_HQ1L AD_TO_GC3FS_NEXT *C4045 16V 0.1u *C4033 16V 0.1u VI2P29 *C4018 16V 0.1u VI2P16 *R4005 68 *C4039 25V 0.01u *JS4003 *R4019 1k *C4036 10V 1u *C4050 10V 1u *IC4005 C0CBCBC00190 1 VDD 2 GND 3 CE 5 VOUT 4 NC *C4014 16V 0.1u VI2P12 AH_FS_Y VI2VSYNC *C4049 16V 0.1u VI2P19 *L4002 J0JHC0000045 *C4006 16V 0.1u *C4051 16V 0.1u *C4046 16V 0.1u *C4030 16V 0.1u AH_FS_V MAIN_FS_1.8V *R4002 EXB2HV680JV HQ1L_FRCLKIN *Q4000 2SA207700L VI2HSYNC *R4017 1k AD_TO_HQ1L *C4053 16V 0.1u C1AB00002687 *IC4001 1 VDDE 2 VSS 3 UBOUT3 4 UBOUT2 5 VDDI 6 UBOUT1 7 UBOUT0 8 CLKO 9 VDDE 10 VSS 11 VDDI 12 FRCLKIN 13 TEST 14 SDA 15 SCL 16 CTRL0 17 CTRL1 18 NRST 19 VSS 20 VDDE 21 VPD 22 RT1 23 RB1 24 AVD1 25 AVS1 26 MON1 27 YIN 28 RT2 29 RB2 30 AVD2 31 AVS2 32 MON2 33 UIN 34 RT3 35 RB3 36 AVD3 37 AVS3 38 MON3 39 VIN 40 TDI 41 TDO 42 VDDE 43 VSS 44 TRST 45 TMS 46 TCK 47 VDDI 48 VREF 49 AVD4 50 AVS4 51 AOUT 52 VSS 53 CW358 54 VDDE 55 BXS 56 VDDI 57 PLLVS 58 PLLVD 59 VSS 60 VDDE 61 VPO 62 HPO 63 YGOUT7 64 YGOUT6 65 YGOUT5 66 VDDE 67 VSS 68 VDDI 69 YGOUT4 70 YGOUT3 71 YGOUT2 72 YGOUT1 73 YGOUT0 74 VDDI 75 VSS 76 VDDE 77 UBOUT7 78 UBOUT6 79 UBOUT5 80 UBOUT4 *C4028 16V 0.1u *R4029 100 *C4052 16V 0.1u *C4040 50V 15p AD_TCK TP4000 VI2P23 *C4016 16V 4.7u *C4019 50V 0.47u VI2P28 *R4034 10k AG_TV_MAIN_ON AD_SDA1 AD_TRST FS_FRCLKIN AD_SCL1 *JS4005 VI2P24 VI2P15 AH_FS_U VI2P27 *R4013 680 *IC4004 C0JBAZ002261 1 G 2 IN A 3 GND 5 VCC 4 OUT Y JS4002 *Q4001 2SA207700L VI2P22 *C4010 16V 0.1u AG_HQ1_XRST *L4008 J0JHC0000078 *C4005 16V 0.1u *C4047 10V 1u *C4008 16V 0.1u *C4013 16V 0.1u MAIN_FS_1.8V *C4035 10V 1u *R4006 22 *L4006 J0JHC0000045 1% *R4007 750 VI2P25 *C4027 16V 0.1u *R4016 680 *R4011 22 *C4024 16V 0.1u AD_TO_GC3FS_NEXT *R4012 22 SUB5V 1% *R4010 1.82k *JS4007 *IC4002 C0CBCAC00275 1 VDD 2 GND 3 CE 5 VOUT 4 NC *L4004 J0JHC0000078 *R4003 EXB2HV680JV AD_TMS *R4014 1k *C4038 16V 0.1u VI2P13 *C4032 16V 0.1u VI2P18 MAIN9V VI2P26 *R4028 100 *C4025 16V 0.1u VI2CLK *C4023 16V 0.1u *Q4002 2SA207700L *R4004 68 *C4015 16V 0.1u MAIN_FS_1.8V JS4001 *C4011 16V 0.1u *C4022 50V 0.47u *C4034 16V 0.1u VI2P17 *R4025 2k VI2P14 SUB3.3V *C4020 16V 0.1u *C4021 16V 0.1u *C4054 16V 10u to (1/12) EA23, Y7 EA10, UV2 GC3FS-next intPU after reset HQ1L to(9/12) EA17, Y1 GenX4 EA18, Y2 EA15, UV7 CN_to_H MAIN1.8V EA22, Y6 HQ1L Peaks Lite II DTV GenX4 EA8, UV0 ADV7493 EA19, Y3 EA21, Y5 H:ACTIV EA12, UV4 EA13, UV5 EA11, UV3 EA20, Y4 EA9. UV1 ADV7493 HQ1L HQ1L DTV JTAG CRNo.4000-4199 DTV EA14, UV6 EA16, Y0 I2C GC3FS-next LVDS_OUT MAIN3.3V BUFFER to (11/12) 42 40 39 43 44 38 45 41 37 to (7/12) to (8,9/12) to (4,9,11,12/12) to (4,9/12) to (9/12) to (4/12) to (4,6,7,8,9/12) TH-50PZ700C DG-Board (5 of 12) Schematic Diagram TH-50PZ700C DG-Board (5 of 12) Schematic Diagram DG-BOARD (5/12) ! TNPA4176AM 97 15.27.DG 电路板 (6/12) 线路图 + + + + + G G + G G G G G G + + + + G G + + AG_RMIN AG_KEY1(CON-PANE) AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON Q5600 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 C5670 10V 1u C5715 50V 0.1u R5636 68k C5621 0.01u 25V IC5660 C0EBM0000026 1 OUT 2 Vdd 3 GND 5 Cd 4 NC R5693 47k C0EBF0000376 IC5671 1 RST 2 VDD 3 GND 5 Cd 4 NC C0DBAYY00273 IC5600 1 GND 2 REFIN 3 VREF 4 CS 5 COVP 6 CUVP 7 PGOOD 8 CTL 9 LSAT 10 ILIM 11 +INC 12 -INC 13 FSW 14 PGND 15 OUT-2 16 VB 17 VCC 18 VBIN 19 LX 20 OUT-1 21 CB 22 RT 23 VO 24 FB R5604 47k 1% C5731 6.3V 47u STB5V SUB1.2V D5691 B0BC6R600005 STB5V TP5703 C5602 68u 4V C5674 10V 1u C5604 0.01u 25V R5696 10k C5616 0.047u 10V R5691 10k R5646 10k STB_RST C5628 68u 4V C5600 1u 16V L5692 C5641 0.1u 16V C5711 50V 0.1u P12V R5674 47k R5695 1k C5623 470p 50V C5638 0.1u 16V C5622 4.7u 10V D5607 MAZ802400L C5609 47u 16V C0CBCBC00190 IC5670 1 VDD 2 GND 3 CE 5 VOUT 4 NC C5627 0.1u 16V L5735 J0JHC0000078 D5601 MA22D3900L R5622 100k C5607 50V 220p C5626 0.1u 16V R5607 0 C5620 0.1u 50V C5636 0.1u 16V DTV9V Q5604 2SD0601ASL R5731 47k R5605 12.7k 1% R5730 47k C5631 16V 47u DG2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 R5647 47k TP5702 AG_RMIN C5619 10u 10V L5670 J0JHC0000078 AA_XRST R5627 0 J0HABH000013 FL5732 R5630 47.5k 1% AG_KEY2 C5617 1u 16V C5630 16V 47u TP5705 R5608 0 C5710 50V 0.1u R5626 0 C5716 50V 0.1u R5634 16k 1% R5644 2.2k STB5V C5632 1u 16V TP5600 L5601 G1C2R2ZA0083 AG_KEY1(CON-PANE) R5690 10k TP5701 TP5605 R5635 22k D5606 B0JCDD000002 J0HABH000013 FL5734 R5611 36k 1% DTV9V C5615 10u 10V D5603 B0JCDD000002 TP5604 C5618 10u 10V STB3.3V C5676 16V 0.1u AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON R5670 0 R5662 10k R5660 5.6k D5609 MAZ80560LL J0HABH000013 FL5733 R5638 10k Q5693 B1DHDC000028 R5637 0 AG_KEY3 C5637 0.1u 16V Q5692 B1DHDC000028 TP5607 C5606 470p 50V L5600 G1C2R2ZA0083 R5610 100k R5694 1k L5606 G1C100MA0077 STB3.3V C5693 50V 0.1u R5623 47k 1% D5670 MA2J11100L SUB5V D5602 MA22D3900L R5671 18k R5629 30.1k 1% R5697 10k C5644 0.01u 25V L5604 G1C100MA0077 L5691 J0JHC0000078 TP5603 TP5700 C5712 50V 0.1u TP5706 SUB3.3V R5672 0 MAIN9V AG_AI_SENSOR C5625 0.01u 25V MAIN3.3V C5605 4.7u 10V AG_TV_MAIN_ON R5620 68 R5661 47k R5625 0 SUB5V J0HABH000013 FL5731 Q5603 2SD0601ASL Q5602 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 R5609 0 AG_G_LED_ON SUB5V C5640 0.1u 16V TP5704 TP5606 D5605 MA22D3900L SUB9V(FHD) C5691 47u 6.3V Q5690 B1ABCF000138 L5690 J0JHC0000078 TP5670 R5692 47k R5631 36k 1% DTV9V SUB5V R5733 56k C5730 25V 0.01u SUB3.3V R5732 22k L5611 J0JHC0000035 L5602 G1C3R3ZA0083 C5661 25V 0.01u C5714 50V 0.1u C5663 25V 0.01u C5694 47u 6.3V L5605 C5601 0.1u 16V TP5608 MAIN5V R5628 0 D5671 B0HCMM000014 C5643 0.1u 50V C5624 220p 50V R5612 23.2k 1% C5673 10V 1u D5673 B0HCMM000014 TP5602 D5608 MAZ802400L STB3.3V C5692 50V 0.1u TP5601 L5610 J0JHC0000035 DTV9V R5606 0 C5629 68u 4V D5604 B0JCDD000002 Q5691 B1ABCF000138 MSD601-RT1G R5632 30k 1% Q5601 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 C5690 47u 6.3V R5600 68 R5633 16k 1% J0HABH000013 FL5730 D5690 B0BC6R600005 C5608 0.1u 16V SUB3.3V R5621 47k 1% C5662 10V 0.047u C5639 0.1u 16V SUB3.3V SUB1.8V C5713 50V 0.1u C5603 0.01u 25V C5695 47u 6.3V AG_R_LED_ON C5645 2.2u 10V R5641 47k DG1 1 2 3 4 5 6 7 8 9 10 11 12 TP5707 C0DBAYY00274 IC5601 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP C5610 16V 47u GenX4 From GenX4 to (8/12) SUB5V GND GND CRNo.5600-5749 SUB3.3V SUB5V GND P12V GND GND Peaks-LITE2 RST 5660-5669 GenX4 POWER/RST 5670-5689 Peaks-LITE2 POWER 5600-5659 MAIN5V/MAIN3.3V 5690-5709 DG-H Connecter 5710-5729 DG-G Connecter 5730-5749 GND GND MAIN5V P12V DTV9V DTV9V SUB3.3V GenX4 SUB5V to (4/12) MAIN3.3V to (4,7,8/12) GND to (4,5,7,8,9/12) GND MAIN9V STB5V SUB9V(FHD)/LCD3.3V SUB9V(FHD)/LCD3.3V GND G_LED_ON GND AI_SENSOR SUB5V RMIN ACTIVE_STBY_LED_ON GND STB3.3V R_LED_ON GND KEY1 GND TO H-BOARD (H2) TO K-BOARD (K1) STB+3.3V GenX4 RESET RESET SUB+1.8V/+1.2V SUB+3.3V 53 51 54 52 47 48 50 49 46 TH-50PZ700C DG-Board (6 of 12) Schematic Diagram TH-50PZ700C DG-Board (6 of 12) Schematic Diagram DG-BOARD (6/12) ! TNPA4176AM 98 15.28.DG 电路板 (7/12) 线路图 AG_A_MON_MUTE/SP_MUTE AD_SDA2 AG_VIDEO_STATUS AH_FS_U AG_TV_MAIN_ON AG_SOS AD_SCL2 MAIN_Y/CVBS AH_DMIX0 MAIN_PR AH_FS_Y AH_FS_U AH_DMIX0 MAIN_PB/C PC_VS AH_LRCK0 AG_FAN_SOS PC_VS RGB_CVBS STB_RST AH_DAUDIO HDMI_SDIN RGB_CVBS AH_LRCK0 AH_FS_V DVB_CVBS AD_SCL2 AG_RF_AFT2 AH_FS_V AG_RF_AFT1 AG_KEY1(CON-PANE) AD_SDA2 HDMI_SDIN AG_AUDIO_MUTE HDMI_INT2 HDMI_INT2 AG_ECO_ON MAIN_PR RGB_FB MAIN_PB/C AH_SRCK0 PC_HS AG_FAN_MAX/INV_PSU_ON MAIN_Y/CVBS AG_KEY1(CON-PANE) AH_SRCK0 HDMI_LRCK RGB_FB HDMI_BCLK PC_HS HDMI_LRCK AG_ALL_OFF AH_DAUDIO HDMI_BCLK AH_FS_Y AG_SOUND_SOS AG_A_MON_MUTE/SP_MUTE AG_TV_SUB_ON STB_RST AG_AUDIO_MUTE AG_AUDIO_XRST AG_VIDEO_STATUS PANEL_STBY/VCC_ON AG_RF_AFT2 AG_FAN_SOS AG_ECO_ON AG_ALL_OFF AG_QLINK1 AG_QLINK2 DVB_CVBS AG_FAN_MAX/INV_PSU_ON AH_IECOUT0 AG_TV_SUB_ON_DELAY AH_IECOUT0 PANEL_STBY/VCC_ON AG_TV_SUB_ON AG_TV_MAIN_ON AG_QLINK2 AG_QLINK1 AG_RF_AFT1 AG_SOUND_SOS AG_SOS AG_TV_SUB_ON_DELAY AG_AUDIO_XRST TP2021 TP2023 AH_DAUDIO R2010 47k DG6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 TP2016 SUB3.3V MAIN_PB/C HDMI_LRCK MAIN_PR HDMI_SPDIF TP2000 *R2001 100k TP2001 AG_TV_SUB_ON AG_BUS_CONNECT2 TP2006 AG_AUDIO_XRST TP2009 33 *R2024 STB_RST R2012 47k AG_FAN_MAX AG_TV_MAIN_ON AH_FS_Y *C2000 16V 0.1u R2013 47k RGB_FB AG_TV_SUB_ON_DELAY TP2013 DVB_CVBS TP2005 AG_RF_AFT1 HDMI_BCLK AG_KEY1(CON-PANE) HDMI_INT2 TP2003 *Q2000 2SD0601ASL R2018 47k R2011 47k TP2014 AH_SRCK0 AG_QLINK_PU_ON TP2019 TP2011 AG_VIDEO_STATUS AG_FAN_SOS AG_ECO_ON R2025 47k RGB_CVBS AG_ODU_ON/GEMSTER_STBY_EN AH_FS_V TP2017 AH_DMIX0 TP2002 AG_RF_AFT2 AG_HDMI_OPT_ENB R2015 47k PC_HS AG_QLINK1 R2020 47k TP2018 AG_AUDIO_MUTE AD_SCL2 TP2007 R2014 47k *R2007 47k TP2004 TP2022 AH_IECOUT0 AU_SBO(HOTEL) TP2024 PC_VS STB5V TP2015 AG_A_MON_MUTE/SP_MUTE AG_ODU_DET TP2010 *Q2001 2SD0601ASL R2023 47k AG_QLINK2 MAIN_Y/CVBS AG_RF_AGC1 TP2008 AU_SBI(HOTEL) 47k *R2028 AH_LRCK0 *R2027 0 AG_ALL_OFF TP2012 AG_SOS AH_FS_U PANEL_STBY/VCC_ON AG_SOUND_SOS HDMI_SDIN *R2006 10k AD_SDA2 AG_PANEL_STBY_ON/PANEL_VCC_ON TP2020 AG_AVSW_OFF C0JBAZ002261 *IC2000 1 G 2 IN A 3 GND 5 VCC 4 OUT Y *R2021 47k *R2022 47k SPDIF_IN(OPT) AFC2 FAN_SOS SUB_PB/C DTV_LRCK CRNo.2699-2999:Without AVSW AC_GOOD/24V_DET ALL_OFF TV_MAIN_ON GenX4 DTV_BCKL QLINK_AV3 to (12/12) EURO QLINK CONTROL ADV7493 GENX_RST ECO_ON MAIN_Y/CVBS/G DTV_SDIN GC3FS next USA Only SOS DVB_CVBS JPN/USA Only MAIN_PR/R HDMI_SDIN MAIN_PB/C/B KEY1 SOUND_SOS JPN LCD Only JPN Only SUB_PR JPN LCD Only PC_V AFC1 HDMI_BCLK HDMI_LRCK AUDIO_XRST FAN_MAX/INV_PSU_ON CRNo.3000-3199:AVSW DTV2_SDIN CRNo.2000-2299:Without AVSW to (4,12/12) IRD PC_H SUB_Y/CVBS RGB_CVBS SP_MUTE IIC2 QLINK_AV2 to (8/12) VIDEO_STATUS SCL0B SDA0B GenX4 HDMI_INT2 Panel_STBY_ON/Pannel_VCC_ON RGB_FB to (11/12) TV_SUB_ON (RESERVE) CN to H AUDIO_MUTE (Common) (EURO/ASIA) (ASIA) (Common) (Common) (EURO) (Common) GenX 60 59 63 56 57 55 58 61 62 to (5/12) to (4/12) to (8/12) to (8/12) to (8,9/12) to (4,5,6,8,9/12) to (8,12/12) to (4,6,8/12) to (6,8/12) to (8,12/12) to (8,12/12) TO H-BOARD (H6) TH-50PZ700C DG-Board (7 of 12) Schematic Diagram TH-50PZ700C DG-Board (7 of 12) Schematic Diagram DG-BOARD (7/12) ! TNPA4176AM 99 15.29.DG 电路板 (8/12) 线路图 AD_SCL3 AG_HDMI_CEC AG_RMIN AG_G_LED_ON AG_KEY3 AG_R_LED_ON AG_ODU_ON/GEMSTER_STBY_EN AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON AG_HPD2 AG_HDMI_REP_EN AD_SDA3 AG_HDMI_5V_DET3 SCL AU_SBI(HOTEL) TRCST AG_TV_MAIN_ON AG_SD_LED_ON SDA AG_QLINK2 AU_SBO(HOTEL) AG_CONFIG_DONE AG_DTV_XRST AG_HPD1 AG_HDCP_WP AG_HQ1_VOUTENB AG_LVDS_EN AG_HDMI_5V_DET2 AG_ECO_ON AG_FPGA_XRST AG_HDMI_MUX_EN AG_HDMI_MUX_SEL AG_HPD3 AG_HQ1_XRST AG_INVERTER_ON AG_INVERTER_SOS AG_TV_SUB_ON AG_SD_BOOT_STS AG_KEY1(CON-PANE) AG_PWM_POW_ON AG_QLINK1 AG_HDMI_5V_DET1 AG_QLINK1 AG_AVSW_OFF AG_RF_AGC1 AG_QLINK2 AG_BUS_CONNECT2 AG_ALL_OFF AG_RF_AFT1 AG_RF_AFT2 AG_SOUND_SOS AG_SOS AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE AG_AUDIO_XRST AG_FAN_MAX AG_FAN_SOS AG_QLINK_PU_ON AG_7493_XRST AG_EDID_WP SCL SDA AG_VIDEO_STATUS AG_PANEL_STBY_ON/PANEL_VCC_ON SBI2 SBO2 AD_SCL3 AD_SDA3 AG_HPD3 AG_HPD2 AG_HPD1 SUB5V_SENSE DTV9V_SENSE ADCCK AG_BUS_CONNECT2 AG_ODU_DET AG_SW_OFF_DET AG_RF_AGC1 AUDCLK SLRCK SCL SDA AG_G_LED_ON AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON AG_FAN_MAX AG_ODU_ON/GEMSTER_STBY_EN AG_AVSW_OFF AG_CONFIG_DONE AG_KEY2 AG_MODEM_LED2/CLK74SEL AUDCLK SLRCK ADCCK VI2ENB VI2ENB AG_ODU_DET MAIN9V_SENSE AG_HDMI_CEC AG_HQ1_XRST AG_7493_XRST AG_AUDIO_XRST AG_HDMI_5V_DET2 AG_SRQ-GENX MAIN5V_SENSE AG_SRQ-GENX AG_KEY2 AG_AI_SENSOR AG_SW_OFF_DET AG_HDMI_5V_DET3 AG_HDMI_5V_DET1 AG_VIDEO_STATUS AG_KEY3 AG_ECO_ON AG_HQ1_VOUTENB AG_HDMI_MUX_SEL AG_HDMI_MUX_EN AG_INVERTER_ON AG_PWM_POW_ON AG_LVDS_EN AG_DTV_VOUTENB HDMI_CEC_PU_ON AG_QLINK_PU_ON AG_ALL_OFF AG_TV_MAIN_ON AG_R_LED_ON AU_SBO(HOTEL) AU_SBI(HOTEL) AG_PANEL_STBY_ON/PANEL_VCC_ON AG_EDID_WP AG_HDCP_WP AG_RF_AFT1 AG_FAN_SOS AG_SOUND_SOS AG_FPGA_XRST AG_DTV_XRST AG_SD_BOOT_STS AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE AG_HDMI_OPT_ENB AG_TV_SUB_ON_DELAY AG_HDMI_OPT_ENB AG_TV_SUB_ON_DELAY AG_AI_SENSOR AG_KEY1(CON-PANE) SBO2 SBI2 AG_TV_SUB_ON AG_MODEM_LED2/CLK74SEL AG_INVERTER_SOS AG_SOS AG_HDMI_REP_EN AG_RF_AFT2 AG_RMIN AG_SRQ-GENX AG_DTV_VOUTENB R1184 22 R1203 47k R1255 1k AG_HDMI_5V_DET3 R1205 22 AG_QLINK2 AG_A_MON_MUTE/SP_MUTE R1109 100 AG_DTV_XRST R1134 100 AG_KEY2 R1106 100 AU_SBI(HOTEL) C1114 16V 0.1u SUB5V R1179 100 R1225 47k AG_AI_SENSOR STB3.3V AG_PWM_POW_ON TP1100 Q1108 2SD0601ASL AG_7493_XRST R1237 47k ADCCK Q1107 2SD0601ASL R1165 1.8k R1164 10k R1153 820 AG_VIDEO_STATUS R1105 100 C1108 16V 0.1u R1100 100 AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON DG7 K1KA04AA0104 1 2 3 4 AG_SW_OFF_DET R1182 27k AG_HDMI_5V_DET1 AG_HDMI_CEC L1100 J0JHC0000078 R1162 100 R1235 100k R1125 22 AG_INVERTER_SOS AG_HPD2 R1231 47k AG_SRQ-GENX AG_RF_AFT1 AG_SOUND_SOS R1227 47k R1196 33k R1172 27k R1216 33k VI2ENB SDA MAIN9V R1147 47k R1206 22 AG_RF_AFT2 R1173 200 R1222 47k R1233 47k R1201 5.6k R1234 47k R1228 47k AG_SD_BOOT_STS C1122 25V 0.01u AG_ECO_ON C1106 50V 27p R1226 47k TP1104 AG_TV_SUB_ON_DELAY R1103 33 AG_HDMI_REP_EN AG_BUS_CONNECT2 *R1243 47k STB3.3V AG_SD_LED_ON D1107 MA3X704A0L AG_SOS AG_HDCP_WP R1174 22 R1108 100 C1117 16V 0.1u AG_HDMI_5V_DET2 R1194 56k TP1103 DTV9V AG_TV_SUB_ON AG_TV_MAIN_ON AD_SCL3 R1204 0 AG_MODEM_LED2/CLK74SEL SCL R1166 100k AG_RF_AGC1 AG_FAN_MAX AG_AVSW_OFF R1183 22 AG_ALL_OFF R1195 100k AG_INVERTER_ON AG_HDMI_OPT_ENB AG_PANEL_STBY_ON/PANEL_VCC_ON R1175 22 AG_AUDIO_MUTE C1102 10u 10V AG_KEY1(CON-PANE) R1146 1k SUB5V C1104 16V 0.1u D1112 MA2J72800L AG_HQ1_XRST AG_RMIN R1163 1M R1223 47k AG_HQ1_VOUTENB R1217 56k AG_HDMI_MUX_SEL AG_HPD3 R1221 7.15k 1% C1123 1u 10V R1170 27k R1200 5.6k AG_QLINK1 R1101 0 AG_EDID_WP AG_LVDS_EN AG_FPGA_XRST R1220 10k STB3.3V R1218 10k AG_HPD1 MAIN3.3V STB3.3V C1112 16V 0.1u SBO2 AD_SDA3 AG_KEY3 R1181 100 R1229 100 SBI2 R1199 47k AG_HDMI_MUX_EN C1109 1u 10V R1219 10k R1236 47k AG_CONFIG_DONE R1107 100 C1107 50V 22p R1104 47k AG_ODU_ON/GEMSTER_STBY_EN AU_SBO(HOTEL) MAIN5V R1102 100 C1111 1u 10V AG_DTV_VOUTENB AG_R_LED_ON R1144 47k SLRCK AG_AUDIO_XRST DG31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 AG_FAN_SOS C1103 16V 0.1u R1169 56k R1122 47k R1232 47k R1209 47k AG_G_LED_ON R1124 22 AG_ODU_DET TP1102 TP1105 X1100 H0J100500035 AG_QLINK_PU_ON R1171 56k STB_RST MNZSFD7GP42 IC1100 1 P41/TMIO1 2 P42/TMIO2 3 P43/TMIO3 4 P44/TMIO4 5 P00/TMIO5 6 P01 7 P02 8 P03/SBT0B 9 P04/SBO0B 10 P51/IRQ2 11 P52/IRQ3 12 PB2 13 PB3 14 PB4 15 PB5 16 PB6 17 PB7 18 P53/IRQ4 19 P54/IRQ5 20 PA7 21 PA6 22 PA5 23 VSS 24 PA4 25 PA3 26 PA2 27 PA1/IRQ1 28 PA0 29 P45 30 P46 31 IVDD 32 VDD 33 P60/SBO0A 34 P61/SBT0A 35 P62/SBI0A 36 P05/IRQ6 37 P06/IRQ7 38 P07/IRQ8 39 P70/SDA0 40 P71/SCL0 41 N.C. 42 N.C. 43 N.C. 44 N.C. 45 P50/RMIN/IRQ0 46 P20 47 P21 48 P22 49 P23 50 IVDD 51 VSS 52 P10 53 P11 54 P12 55 P13 56 P14 57 P15 58 P16 59 P17 60 N.C. 61 N.C. 62 N.C. 63 P72/SDA1 64 P73/SCL1 65 P76/CEC0 66 P65/SBO2 67 P66/SBI2 68 P30 69 P31 70 P32 71 P33 72 P34 73 P35 74 VPPEX 75 N.C. 76 N.C. 77 N.C. 78 IVDD 79 VDD 80 N.C. 81 RONA 82 VSS 83 OSCXO 84 OSCXI 85 IVDD 86 P24 87 P25 88 P26 89 P27 90 P64/SBI1 91 P63/SBO1 92 NBOOT 93 NRST 94 NTEST 95 SCLOCK 96 SDATA 97 EXTRG0 98 EXTRG1 99 TRCCLK 100 TRCST 101 TRCD0 102 TRCD1 103 TRCD2 104 TRCD3 105 P90 106 P91 107 VSS 108 IVDD 109 P92 110 P93 111 P80/ADIN0 112 P81/ADIN1 113 P82/ADIN2 114 P83/ADIN3 115 P84/ADIN4 116 P85/ADIN5 117 P86/ADIN6 118 P87/ADIN7 119 P74/SDA2/CECAVL1B 120 P75/SCL2/CECAVL1A 121 P36 122 P37 123 P47 124 PB0 125 PB1 126 PC0 127 PC1 128 P40/TMIO0/SYSCLK TP1101 *IC1101 C3EBFC000042 1 2 3 4 5 6 7 8 TRCD1 VIDEO_STATUS CONFIG_DONE TV_MAIN_ON ODU_ON/GEMSTER_STBY_EN AVSW_OFF(US) (SD_LED_ON) ODU_DET (For LCD) (BUS_CONNECT2) (For PDP) (USA only) SUB5V_SENSE (For LCD) GenX-EEP_WP (For PDP) MAIN5V_SENSE SRQ_GenX ALL_OFF RSV2(LITE2) (QLINK_PU_ON) (HDMI_CEC_PU_ON) (ASIA/EURO) (For LCD) (For LCD) UART (HOTEL) HQ1_VOUTENB SCLOCK HDMI_MUX_SEL (For LCD) HDMI_MUX_EN HPD3 LVDS Out HDMI_5V_Det1 IIC HDMI_5V_Det2 HDMI_5V_Det3 MAIN9V_SENSE MAIN3.3V_SENSE RF_AFT1 RF_AFT2 AI_SENSOR SOS KEY2(US) KEY1 STB3.3V FAN_SOS STB_RST SOUND_SOS SBI GND PANEL_STBY_ON R_LED_ON TRCCLK EDID_WP FAN_MAX SBO HDCP_WP 7493_XRST RSV3(LITE2) HQ1_XRET GND RSV3 FE_XRST G_LED_ON PORT5[2] MODEM_XRST AUDIO_XRST PORT0[0] ETHER/1394_XRST PORT5[1] TV_SUB_ON RSV3(LITE2) Power Supply RSV4(LITE2) RSV2(LITE2) to (1/12) GND GND SYSCLK_OUT Lite2 to (7/12) UART(LITE2-GenX4) TRCD0 CN to H (ASIA) HQ1L/CN to HFD A_MON_MUTE/SP_MUTE GND AUDIO_MUTE (For LCD) to Sheet 004/005/007/009/010 Lite2 ExBUS/Etc. RSV4 RSV2 GND for DEBUGER Hand Sheke Reserve TRCD3 DTV_XRST SD_BOOT_STS USA Only SW_OFF_DET (USA Only) INVERTER_ON PWM_POWER_ON DTV_VOUTENB LVDS_EN LITE2 GND GenX4 E2PROM LINE EXTRG0 Lite2 E2PROM LINE GND Power Supply HDMI_REP_EN SDATA JPN Only RSV4(LITE2) FPGA_RST to (11/12) HPD2 GND HPD1 CRNo.1100-1999 TRCD2 GenX4,EEPROM TRCST ADV7493 ECO_ON DTV_1.5V_ON RF_AGC1 EURO Only DTV9V_SENSE EURO Only STB5V_SENSE (RESERVE) INVERTER_SOS GenX4 RST EURO Only (HDMI_CEC_PU_ON) 10MHz KEY3(TV_POWER) PORT6[6] RSV1 RSV1(LITE2) (JPN/Euro) to (12/12) 69 71 64 70 72 65 66 68 67 GenX4 STB MCU EEPROM to (1,3/12) to (4,12/12) to (4/12) to (4,12/12) to (4,12/12) to (4/12) to (4/12) to (4/12) to (4/12) to (9/12) to (9/12) to (7,12/12) to (9/12) to (9/12) to (9/12) to (9/12) to (4,5,6,7,9/12) to (9/12) to (7/12) to (6/12) to (4,6,7,/12) TH-50PZ700C DG-Board (8 of 12) Schematic Diagram TH-50PZ700C DG-Board (8 of 12) Schematic Diagram DG-BOARD (8/12) ! TNPA4176AM 100 15.30.DG 电路板 (9/12) 线路图 AD_SDA0 AD_SCL0 AD_TCK AG_TV_MAIN_ON AD_TMS PEAKS_YS AD_TCK PEAKS_OSHIN PEAKS_OSDCKOUT AD_TRST AD_TRST PANEL_MUTE AD_TO_SC PEAKS_YM AD_TO_HQ1L AG_HQ1_XRST AG_LVDS_EN VOP23 VOP22 VOP24 VOP25 VOP26 VOP27 VOP28 VOP29 VOP15 VOP14 VOP13 VOP12 VOP16 VOP17 VOP18 VOP19 VOP5 VOP6 VOP7 VOP8 BOE2 BOE3 BOE4 VOP29 VI2P9 VI1CK204F VI1CK208F VI2P1 VI2P0 VI1CVBS0 VI1CVBS1 VI1CVBS2 VI1CVBS3 VOP21 VOP10 VOP20 VOP11 VOP0 VOP1 LCSID LCSCK VOP0 VOP10 VOP20 LCSID VI1CVBS3 VI1CVBS1 VI1CK204F VI2P0 VOP1 VOP11 VOP21 LCSCK VI1CVBS2 VI1CVBS0 VI1CK208F VI2P1 BOE4 VOP5 VOP6 VOP7 VOP8 VOP9 VOP28 VOP27 VOP26 VOP25 VOP24 VOP23 VOP22 VOP19 VOP18 VOP17 VOP16 VOP15 VOP14 VOP13 VOP12 VI2P7 AG_HQ1_VOUTENB VI2P7 VI2P8 VI2P9 VI2P8 BOE3 BOE2 CLKOF HSOE VSOE IS1CLK PEAKS_OSDCKOUT PEAKS_OSHIN PEAKS_YS PEAKS_YM AD_SCL0 AD_SDA0 AD_SCL1 AD_SDA1 AG_HQ1_VOUTENB AG_HQ1_XRST PANEL_MUTE AD_TO_HQ1L AD_TO_SC AD_TMS CLKOF VSOE HSOE AG_CONFIG_DONE AG_FPGA_XRST AG_LVDS_EN AG_PWM_POW_ON AG_PWM_POW_ON AG_PANEL_STBY_ON/PANEL_VCC_ON AG_PANEL_STBY_ON/PANEL_VCC_ON AG_FPGA_XRST AG_TV_MAIN_ON AG_INVERTER_ON AG_INVERTER_ON AG_INVERTER_SOS AG_INVERTER_SOS AG_CONFIG_DONE CFG_TMS CFG_TCK CFG_TDO CFG_TRST CFG_TDI CFG_TRST CFG_TDI CFG_TDO CFG_TMS CFG_TCK IS1CLK VOP9 R4287 47k HQ1L_FRCLKIN AD_SCL1 VOP15 AG_PANEL_STBY_ON/PANEL_VCC_ON LCSCK CFG_TDO AG_FPGA_XRST *R4321 47k *R4244 0 AG_INVERTER_SOS VI2P9 CFG_TCK *R4305 33 VI1CVBS1 CFG_TMS VI2P7 AD_TRST AD_SDA0 PANEL_MUTE R4201 33 VOP1 VOP5 *R4208 EXB2HV330JV *R4291 0 *R4303 33 R4288 47k LCSID AG_LVDS_EN AG_CONFIG_DONE *R4329 47k *R4205 EXB2HV330JV R4317 47k VI1CVBS0 VOP22 *R4326 47k R4200 33 VOP20 AD_TO_SC SUB9V(FHD) VI2P3 AD_TCK *R4229 100 AD_SCL0 MAIN3.3V VI2P6 *R4323 47k VI1CVBS2 VOP11 VOP29 VOP18 *R4241 0 AG_PWM_POW_ON IS1CLK R4320 47k VOP9 *R4311 0 VOP14 VOP7 *R4230 0 TP4201 VOP3 VI2P0 *R4302 33 MHSYNC AG_TV_MAIN_ON VOP12 *R4322 47k VOP16 *R4210 33 VI1CVBS3 MVCLK VOP8 R4202 33 *R4209 EXB2HV330JV CFG_TDI VI2P8 VOP21 VOP17 VOP23 VOP6 VOP27 *R4312 0 R4328 47k VOP10 *R4308 33 *R4246 0 VOP19 AG_HQ1_VOUTENB VOP13 *R4203 0 *DG25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 VOP26 *R4292 0 AG_HQ1_XRST VI2P1 SUB5V VOP4 VOP2 CFG_TRST *R4306 33 VOP24 TP4200 VI1CK204F VI1CK208F AG_INVERTER_ON VOP0 *R4307 33 VI2P5 R4284 10k *R4309 0 AD_SDA1 *R4304 33 VI2P2 AD_TMS P12V VOP28 MVSYNC *R4325 47k *R4207 EXB2HV680JV *R4204 0 R4330 47k *R4206 EXB2HV330JV AD_TO_HQ1L *R4247 0 VOP25 *R4249 0 LOSD3 PWMSS LOSD10 FREE CLK LOSDVIN LOSD6 LOSD4 27MHz LOSDCLKOUT LOSD12 LOSD13 LVDS OUT IIC0 LOSD11 LOSD2 to (1/12) LOSD7 LOSD14 27MHzCLK from GC5 Lite2 HQ1L/CN to FHD PWM5 PWM6 LOSD15 Hi-Z after reset LOSD9 LOSDCLKIN JTAG PWMA JTAG to (1/12) to (12/12) CRNo.4200-4499 (VMUTE/DISPNE) LOSDYM (VMUTE/DISPNE) PWMANA LOSDYS LOSDHOUT LOSD5 LOSD LOSD1 LOSD8 GenX4 to (8/12) Lite2 PWM4 LOSD0 intPU after reset LOSDHIN (Used LCD) (Used PDP) BOE3 BOE4 BOE5 BOE6 BOE7 BOE9 BOE8 GOE2 ROE2 ROE3 ROE5 ROE4 ROE6 ROE7 ROE9 ROE8 GOE3 GOE4 GOE5 GOE7 GOE6 GOE9 GOE8 BOE9 BOE8 GOE2 ROE8 ROE6 ROE7 ROE9 GOE6 GOE8 GOE4 GOE9 BOE3 BOE5 BOE4 BOE6 BOE7 ROE3 ROE5 GOE7 ROE4 GOE3 ROE2 GOE5 BOE2 ROE8 ROE6 ROE7 ROE9 ROE3 ROE5 ROE4 ROE2 GOE2 GOE4 GOE3 GOE8 GOE9 GOE5 GOE7 BOE3 BOE8 BOE5 BOE7 BOE9 BOE6 BOE2 BOE4 BOE9 BOE8 GOE2 ROE8 ROE6 ROE7 ROE9 GOE6 GOE8 GOE4 GOE9 BOE3 BOE5 BOE4 BOE6 BOE7 ROE3 ROE5 GOE7 ROE4 GOE3 ROE2 GOE5 BOE2 BOE9 BOE8 GOE2 ROE8 ROE6 ROE7 ROE9 GOE6 GOE8 GOE4 GOE9 BOE3 BOE5 BOE4 BOE6 BOE7 ROE3 ROE5 GOE7 ROE4 GOE3 ROE2 GOE5 BOE2 LOSD2 LOSD14 LOSD7 LOSD3 LOSD0 LOSD9 LOSD1 LOSD10 LOSD11 LOSD6 LOSD4 LOSD12 LOSD5 LOSD8 LOSD15 LOSD13 LOSD4 LOSD12 LOSD2 LOSD14 LOSD0 LOSD13 LOSD7 LOSD3 LOSD1 LOSD6 LOSD15 LOSD5 LOSD8 LOSD10 LOSD9 LOSD11 LOSD4 LOSD12 LOSD2 LOSD14 LOSD0 LOSD13 LOSD7 LOSD3 LOSD1 LOSD6 LOSD15 LOSD5 LOSD8 LOSD10 LOSD9 LOSD11 LOSD9 LOSD11 LOSD5 LOSD4 LOSD15 LOSD8 LOSD14 LOSD0 LOSD13 LOSD7 LOSD3 LOSD2 LOSD1 LOSD6 LOSD12 LOSD10 LOSD7 LOSD14 LOSD4 LOSD15 LOSD8 LOSD5 LOSD6 LOSD12 LOSD10 LOSD9 LOSD3 LOSD2 LOSD1 LOSD11 LOSD0 LOSD13 VI2P8 VI2P7 VI2P9 LOSDHIN LOSDCLKIN LOSDVIN LOSDVIN LOSDHIN LOSDCLKIN PEAKS-YS PEACK_YM BOE2 OEBLK LVDS_EN OSD_FLAG FPGA_RST CONFIG_DONE TV_MAIN_ON OSD_FLAG GOE6 to (12/12) PORT16[3] Hi-Z OSD_FLAG TO DH-BOARD (DH25) 73 80 77 78 81 75 76 79 74 to (4,5,6,7,8/12) to (5,8/12) to (7,8/12) to (8/12) to (5/12) to (5/12) to (4/12) to (4,5/12) to (4,5/12) to (4,5/12) to (4,5,11,12/12) to (4,12/12) to (8/12) to (8/12) TH-50PZ700C DG-Board (9 of 12) Schematic Diagram TH-50PZ700C DG-Board (9 of 12) Schematic Diagram DG-BOARD (9/12) ! TNPA4176AM 101 15.31.DG 电路板 (10/12) 线路图 + + AG_HDMI_5V_DET2 RXA_1N RXA_CP DDC_SDA0 AG_EDID_WP DDC_SDA1 AG_HDMI_5V_DET1 RXA_2P DDC_SCL1 AG_HDMI_CEC AG_HPD2 RXA_0P RXA_0N RXA_1P RXA_2N RXA_CN AG_HPD1 DDC_SCL0 AG_HDMI_MUX_EN AG_HDMI_MUX_SEL R4540 47k R4543 68 C4500 0.1u 16V R4663 4.7k 33u 6.3V C4508 D4527 B0HCMM000014 D4520 EZAEG2A50AX R4676 22 TP4510 D4526 B0HCMM000014 TP4501 R4511 2.2 TP4516 R4542 68 DG32 1 2 3 4 5 6 7 R4516 2.2 JK4501 K1FY119D0002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 C4510 0.1u 16V D4516 EZAEG2A50AX D4521 EZAEG2A50AX R4507 10k Q4505 2SD0601ASL D4504 EZAEG2A50AX R4503 33 R4690 22 TP4505 TP4502 L4507 J0JHC0000078 D4511 EZAEG2A50AX D4525 B0HCMM000014 R4506 10k C1AB00002641 IC4503 1 TEST 2 VCC 3 BDT0N 4 BDT0P 5 GND 6 BDT1N 7 BDT1P 8 GND 9 BDT2N 10 BDT2P 11 VCC 12 REXT 13 YDT2P 14 YDT2N 15 GND 16 YDT1P 17 YDT1N 18 VCC 19 VCC 20 YDT0P 21 YDT0N 22 GND 23 YCKP 24 YCKN 25 CE 26 VCC 27 ACKN 28 ACKP 29 GND 30 ADT0N 31 ADT0P 32 GND 33 ADT1N 34 ADT1P 35 VCC 36 SEL 37 VCC 38 VCC 39 ADT2N 40 ADT2P 41 GND 42 VCC 43 VCC 44 GND 45 BCKN 46 BCKP 47 VCC 48 VCC R4528 10k 0.1u 16V C4521 R4532 10k Q4500 2SD0601ASL R4634 47k 0.1u 16V C4517 D4514 EZAEG2A50AX R4703 0 C4503 0.1u 16V MAIN3.3V 1% R4567 4.7k R4544 10k TP4508 R4677 22 D4524 B0HCMM000014 R4689 22 TP4500 L4504 J0JHC0000078 MAIN3.3V D4500 EZAEG2A50AX R4520 2.2 R4565 22 *IC4500 C3EBDC000067 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC L4500 J0JHC0000078 R4526 1k D4512 EZAEG2A50AX R4561 47k TP4509 L4505 J0JHC0000078 TP4507 C4506 0.1u 16V C4520 10V 10u R4513 2.2 R4502 33 R4529 4.7k D4506 EZAEG2A50AX D4532 B0HCMM000014 R4535 4.7k R4517 2.2 R4500 10k R4519 2.2 R4536 4.7k TP4517 R4687 4.7k C4515 16V 0.1u L4506 J0JHC0000078 C4507 0.1u 16V D4510 EZAEG2A50AX C4626 16V 0.1u R4688 4.7k D4523 EZAEG2A50AX TP4503 D4519 EZAEG2A50AX R4530 10k R4563 4.7k Q4502 2SD0601ASL C4621 16V 0.1u R4508 2.2 IC4504 C3EBEY000009 1 NC 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC R4525 10k C4501 0.1u 16V D4517 EZAEG2A50AX R4538 47k R4522 2.2 D4509 EZAEG2A50AX L4502 J0JHC0000078 D4518 EZAEG2A50AX D4501 EZAEG2A50AX TP4504 R4512 2.2 C4502 0.1u 16V R4552 22 R4514 2.2 R4678 22 R4518 2.2 C4511 0.1u 16V JK4500 K1FY119D0002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 Q4501 2SD0601ASL R4531 4.7k R4680 22 R4681 22 D4507 EZAEG2A50AX TP4506 R4539 68 D4505 EZAEG2A50AX Q4504 2SD0601ASL R4515 2.2 0.1u 16V C4514 D4515 MAZ30560ML R4702 0 R4523 2.2 R4521 2.2 IC4514 C0JBAU000034 1 VCCA 2 SCLA 3 SDAA 4 GND 5 EN 6 SDAB 7 SCLB 8 VCCB R4510 2.2 MAIN5V 33u 6.3V C4509 R4501 10k R4524 10k R4686 47k R4562 4.7k D4513 MAZ30560ML TP4511 R4541 68 D4528 EZAEG2A50AX L4501 J0JHC0000078 Q4503 2SD0601ASL *IC4501 C3EBDC000067 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC R4509 2.2 D4508 EZAEG2A50AX C4622 16V 0.1u R4527 1k Q4520 2SD0601ASL D4522 EZAEG2A50AX 0.1u 16V C4513 IC4513 C0JBAU000034 1 VCCA 2 SCLA 3 SDAA 4 GND 5 EN 6 SDAB 7 SCLB 8 VCCB L4503 J0JHC0000078 L4508 J0JHC0000078 D4503 EZAEG2A50AX R4679 22 R4564 22 R4533 10k R4545 10k R4547 10k C4627 16V 0.1u MAIN3.3V D4502 EZAEG2A50AX R4546 10k DDCG D0G D1+ +5V CLKG D0- D0G N.C. SCL D1+ CLKG CLK+ D1G D2+ D2G CLK+ D2- +5V N.C. D1- SDA CEC D2+ HPDT CEC DDCG SDA SCL D0+ CLK- D0- D1- CLK- D1G HPDT D2- D2G D0+ DDCA_SDA DDCA_SCL 87 85 88 82 86 90 89 83 84 24 23 22 21 25 29 27 28 26 EEPROM EDID1 5V<->3.3V 5V<->3.3V EEPROM EDID2 EEPROM KEY HDMI SW TH-50PZ700C DG-Board (10 of 12) Schematic Diagram TH-50PZ700C DG-Board (10 of 12) Schematic Diagram DG-BOARD (10/12) ! TNPA4176AM 102 15.32.DG 电路板 (11/12) 线路图 + + + TOP + VI1P25 VI1P22 VI1P28 CLKOA VI1P27 VI1P8 VI1HSYNC MAIN_PB/C AG_HDMI_5V_DET3 PC_VS RXA_1P AG_HDMI_5V_DET3 RXA_0N XIRQ3 VI1P25 AG_HDMI_5V_DET1 VI1P7 VI1ENB AG_HPD1 VI1P7 AG_HDMI_MUX_SEL AG_HDMI_5V_DET2 VI1VSYNC AG_HPD3 VI1P22 HDMI_LRCK VI1P26 VI1P19 VI1P12 VI1P29 RXA_1N VI1P9 XIRQ3 RXA_2P RXA_2N VI1P12 VI1P3 AG_HDCP_WP VI1P15 HDMI_SDIN VI1P16 FS_FRCLKIN MAIN_PB/C VI1P9 MAIN_PR RGB_CVBS PC_VS VI1P6 VI1P2 VI1CLK VI1HSYNC PC_HS VI1P24 VI1P4 VI1P13 AG_HDMI_MUX_EN AG_HDMI_CEC VI1P3 AG_EDID_WP AG_7493_XRST RXA_0P VI1P15 PC_HS VI1P29 RGB_FB VI1P2 VI1P27 VI1P18 VI1VSYNC VI1P13 VI1P24 VI1P28 VI1P26 AG_HDMI_REP_EN VI1P17 MAIN_Y/CVBS VI1P14 VI1P5 VI1P18 VI1P4 VI1P8 AG_HPD2 VI1ENB AG_EDID_WP VI1P19 VI1P23 AG_7493_XRST VI1CLK RXA_CN VI1P16 VI1P5 AG_HDMI_REP_EN VI1P6 VI1P23 RXA_CP MAIN_PR CVDD_1.8V VI1P14 VI1P17 HDMI_BCLK AG_HPD3 HDMI_SPDIF RXB_CN RXB_CP RXB_0N RXB_0P RXB_1N RXB_1P RXB_2N RXB_2P MAIN_Y/CVBS CLKOA RGB_CVBS FS_FRCLKIN DVDD_1.8V DVDDIO_3.3V R4691 22 R4641 22 C4549 50V 0.1u VI1P5 C4587 16V 0.1u R4629 100 R4635 68 EXB28V680JX C4602 16V 0.1u C4612 25V 0.01u AG_HPD2 *C4522 16V 10u R4648 EXB28V330JX R4604 7.5k 1% 1% R4654 4.7k VI1ENB C4572 16V 0.1u C4617 16V 0.1u C4546 6.3V 2.2u C0CBCBC00190 IC4507 1 VDD 2 GND 3 CE 5 VOUT 4 NC C4620 10V 1u AG_HDMI_CEC L4520 J0JHC0000078 C4527 10V 1u VI1P7 C4618 25V 0.01u R4643 22 R4650 68 R4706 1k C4607 47u 6.3V C4557 16V 0.1u R4708 1k AD_SDA1 C1AB00002753 IC4510 1 DDCB_SDA 2 SPDIF 3 I2S0 4 I2S1 5 I2S2 6 I2S3 7 LRCLK 8 SCLK 9 MCLKOUT 10 MCLKIN 11 SDA 12 SCL 13 ALSB 14 DGND 15 DVDDIO 16 DE 17 HS 18 VS/FIELD 19 INT1 20 SFL/SYNC_OUT/INT2 21 RESET 22 DGND 23 DVDD 24 P19 25 P18 26 P17 27 P16 28 P15 29 P14 30 P13 31 P12 32 P29 33 P28 34 DGND 35 DVDDIO 36 P11 37 P10 38 P9 39 P8 40 P27 41 P7 42 P6 43 P5 44 P4 45 P26 46 R_ACTIVE/P25 47 SRLIN/P24 48 DCLKIN 49 DGND 50 DVDDIO 51 LLC 52 SRLUP/P23 53 TRGIN/P22 54 P21 55 P3 56 DGND 57 DVDD 58 P2 59 P1 60 P0 61 P20 62 VS_IN 63 HS_IN 64 DGND 65 XTAL1 66 XTAL 67 DVDDIO 68 PVDD 69 PGND 70 ELPF 71 PVDD 72 PGND 73 ELPF2 74 FB 75 SOG 76 AIN7 77 AIN1 78 AIN8 79 AIN2 80 AIN9 81 AIN3 82 AGND 83 AGND 84 AVDD 85 REFOUT 86 CML 87 AGND 88 AVDD 89 BIAS 90 CAPY1 91 CAPC1 92 CAPC2 93 AIN10 94 AIN4 95 AIN11 96 AIN5 97 SOY 98 AIN12 99 AIN6 100 PGND 101 PVDD 102 ELPF3 103 CGND 104 CVDD 105 DDCA_SCL 106 DDCA_SDA 107 MDA 108 MCL 109 CVDD 110 CGND 111 TVDD 112 RXA_CN 113 RXA_CP 114 TGND 115 RXA_0N 116 RXA_0P 117 TGND 118 RXA_1N 119 RXA_1P 120 TGND 121 RXA_2N 122 RXA_2P 123 TVDD 124 RTERM 125 CVDD 126 CGND 127 TVDD 128 RXB_CN 129 RXB_CP 130 TGND 131 RXB_0N 132 RXB_0P 133 TGND 134 RXB_1N 135 RXB_1P 136 TGND 137 RXB_2N 138 RXB_2P 139 TVDD 140 CGND 141 CVDD 142 DVDD 143 DGND 144 DDCB_SCL C4531 16V 0.1u C4573 16V 0.1u IC4508 C0CBCAD00082 1 Vout 2 NC 3 Cn 4 GND 5 Cont 6 NC 7 NC 8 Vin C4559 16V 0.1u C4570 47u 6.3V C4615 25V 0.01u R4645 68 C4583 16V 0.1u R4656 2.2k C4623 16V 0.1u C4604 6.3V 2.2u 4.7k 1% R4606 C4528 16V 0.1u C4534 50V 0.1u R4598 1k AG_HDMI_5V_DET3 L4517 J0JHC0000078 R4638 68 R4636 68 X4500 H0J270500113 C4577 16V 0.1u Q4516 2SB0709ASL C4613 1u 10V VI1P8 R4665 47k R4649 68 EXB28V680JX C4544 16V 0.1u C4588 16V 0.082u RGB_FB C4598 1u 10V VI1P13 VI1P9 TP4518 R4640 68 EXB28V680JX L4521 J0JHC0000078 R4683 10k AG_HPD1 MAIN5V C4616 16V 0.1u PC_VS MAIN_PB/C R4653 10k 1% R4611 1.37k SUB5V R4637 68 VI1P14 C4565 25V 0.01u R4658 22 TP4512 1% R4615 160 R4622 100 VI1P24 R4613 22 *R4694 33 C4625 50V 0.1u 1% R4682 10k C4551 50V 0.1u C4591 1u 10V R4692 22 HDMI_SDIN C4564 25V 0.01u C4552 50V 0.1u C4611 1u 10V MAIN_Y/CVBS AG_HDMI_MUX_EN C4600 25V 0.01u AG_HDCP_WP HDMI_INT2 C4596 16V 0.1u 1% R4612 1.5k C4595 25V 0.01u HDMI_SPDIF C4585 1u 10V TP4513 AG_HDMI_MUX_SEL C4593 25V 0.01u C4589 15p 50V *C4524 16V 10u 1M R4626 C4550 16V 0.1u 1% *R4593 1k R4585 100 Q4514 2SB0709ASL MAIN_PR C4556 10V 10u VI1P19 C4543 16V 0.1u Q4517 2SB0709ASL C4590 18p 50V R4667 150 VI1P28 VI1P18 VI1P15 C4555 10V 10u R4670 68 C4566 16V 0.039u C4538 47u 6.3V R4655 100 C4575 1u 10V 1% R4631 499 C4574 25V 0.01u IC4515 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC VI1P27 IC4509 C0CBCAD00082 1 Vout 2 NC 3 Cn 4 GND 5 Cont 6 NC 7 NC 8 Vin C4629 10V 10u VI1P6 SUB5V RGB_CVBS C4568 16V 0.1u C4614 16V 0.1u L4511 J0JHC0000078 VI1CLK VI1P26 TP4515 R4698 0 Q4515 2SB0709ASL R4657 22 R4579 150 C4628 16V 0.1u C4545 16V 0.1u AG_7493_XRST C4592 1u 10V AG_HDMI_5V_DET1 VI1P22 R4647 68 MAIN9V C4541 50V 470p SUB3.3V R4578 150 L4512 J0JCC0000077 VI1P16 TP4519 C4533 50V 68p R4666 47k R4601 1k VI1P12 R4639 68 EXB28V680JX AG_EDID_WP C4563 16V 0.082u C0DBGGF00001 IC4506 1 Vo 2 NC 3 GND 4 Cn 5 Cont 6 Sub 7 Vin R4651 68 HDMI_LRCK MAIN5V C4624 50V 0.1u C4578 16V 0.1u L4524 J0JHC0000078 R4707 10k R4642 68 EXB28V680JX C4581 10V 1u VI1VSYNC VI1P2 C4539 10u 10V AG_HDMI_5V_DET2 R4628 100 *C4523 50V 0.47u TP4514 R4699 0 L4516 J0JHC0000078 VI1CKOUT VI1P17 R4597 1k VI1P23 C4609 10V 1u C4582 16V 0.1u 1% R4624 1.69k VI1HSYNC AG_HPD3 JS4501 VI1P29 C4601 25V 0.01u FS_FRCLKIN C4560 16V 0.1u R4661 100 AD_SCL1 C4569 16V 0.68u C4562 50V 8200p L4518 J0JHC0000078 VI1P25 C4548 50V 0.1u C4605 16V 0.1u 0 R4627 R4644 22 VI1P4 SUB5V C4586 25V 0.01u R4646 68 R4614 22 MAIN5V AG_HDMI_REP_EN 1% R4587 820 DG11 < 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 G1 G2 G3 C4547 16V 0.1u C4535 50V 0.1u C4553 50V 1000p HDMI_BCLK XIRQ3 MAIN3.3V VI1P3 C4576 47u 6.3V R4596 1k C4584 1u 10V PC_HS C4619 16V 0.1u C4580 25V 0.01u R4652 47k *R4659 0 *R4672 0 YIN3 RX_SD0# GenX4 YIN1 YIN2 UVIN8 CRNo.4500-4799 IN YIN4 OUT CN_to_H RIN2 UVIN9 RIN3 Peaks Lite II RIN0 Peaks Lite II DTV RIN1 YIN0 CLKOA UVIN7 HSIA UVIN4 Y UVIN2 VSIA UVIN3 CLKIA PB/C UVIN5 HPD3 HDMI_CE1 UVIN0 UVIN6 HDMI_5V_DET3 YIN GC3FS-n YIN9 PR UVIN1 WP RX_WS YIN7 RX_SCK YIN5 CN_to_H ADV7493,HDMI-Mux CN_to_H YIN6 YIN8 GC3FS-n to (7/12) to (1/12) to (5/12) to (1/12) to (8/12) to (7/12) to (4,5,9,12/12) to (7/12) TO GH-BOARD (GH11) DVDD1.8V 3.3V 1.8V AD/HDMI COMPARATOR 3.3V 99 98 96 92 94 93 97 91 95 24 27 28 26 23 22 25 29 21 TH-50PZ700C DG-Board (11 of 12) Schematic Diagram TH-50PZ700C DG-Board (11 of 12) Schematic Diagram DG-BOARD (11/12) ! TNPA4176AM 103 15.33.DG 电路板 (12/12) 线路图 VI2P21 VMUTE VI2P10 AG_TV_SUB_ON AG_ALL_OFF AG_DTV_VOUTENB PANEL_MUTE PANEL_STBY/VCC_ON AG_ECO_ON SDA AG_TV_SUB_ON AD_SDA1 AD_SDA1 AD_SCL3 AD_SCL1 AD_SDA3 AR_PANEL_RXD AD_SDA3 AD_SDA2 AR_IIC_CONT AD_SDA0 AD_SDA2 VI2P10 AD_SCL1 AD_SCL2 AG_ECO_ON AD_SDA0 AR_PANEL_TXD PANEL_MUTE AD_SCL0 AR_PANEL_RXD AD_SCL2 AD_SDA0 AR_IIC_CONT AR_PANEL_SDA SCL AD_SCL0 D_PSTB AR_PANEL_SCL AD_SCL0 D_PBUSY D_PDB1 D_IIC_INT SCL D_PSLCT VI2P21 D_PDB0 PANEL_STBY/VCC_ON AG_ALL_OFF SDA AD_SCL3 AR_PANEL_TXD AR_PANEL_SCL AR_PANEL_SDA AA_SBI0 D_IIC_INT CFG_TCK CFG_TDO D_PDB1 D_PSLCT D_PDB0 AA_SBO0 D_PBUSY D_PSTB CFG_TDI CFG_TMS CFG_TRST AD_SCL1 AD_SDA1 *R4848 1k D_15V *R4841 100k R4819 22 R4820 22 D_15V AG_ECO_ON VI2P10 CFG_TMS *R4838 100 SCL *R4832 100 STB5V STB5V AG_TV_SUB_ON CFG_TRST DG34 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 AD_SDA0 AD_SDA3 *R4845 100 IC4800 C1ZBZ0003577 1 SCL 2 GND 3 A1 4 VDD 5 A0 6 SDA R4800 0 CFG_TDI CFG_TDO AG_ALL_OFF AG_SRQ-GENX VI2P21 AD_SDA1 DG33 1 2 3 4 5 6 7 8 9 10 11 PANEL_STBY/VCC_ON AD_SCL0 CFG_TCK AA_SBO0 C4807 16V 0.1u SDA AD_SCL1 VMUTE MAIN3.3V MAIN3.3V AA_SBI0 STB3.3V AG_DTV_VOUTENB AD_SDA2 *R4844 100 STB5V AD_SCL3 *R4842 1k *DG35 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 *R4833 100k AD_SCL2 *R4834 1k PANEL_MUTE *R4846 1k GenX4 LVDS Out CRNo.4800-4999 CN to ExIIC Lite2 PANEL_STATUS PANEL_SOS PANEL_STATUS PANEL_SOS LITE2 ExBUS/Etc. HQ1L/FHD (VMUTE/DISPEN) ALARM INEXCH ECO_ON LITE2_SDA3 IIC (GenX4 Loarder/E2PROM) LITE2_SCL1 LITE2_SDA1 LITE2_SCL2 LITE2_SDA2 (GenX4 Loarder/E2PROM) (Lite2 E2PROM) (Lite2 E2PROM) READY (Device Control) (Device Control) (Device Control) GenX4 IIC_CLK1 (Device Control) Panel_SDA LITE2_SCL0 P5V SRQ IIC_CLK2 IIC_DATA1 GND LITE2_SDA0 STB3.3V IIC_CONT/SRQ Panel_SCL(Panel Dpr.E2PROM) (Device Control) (Device Control) GND (Panel Dpr.E2PROM) STB5V Panel_TXD GenX4_SDA GenX4_SCL Panel_RXD LITE2_SCL3 IIC_CONT GND STB5V IIC_DATA1 Panasonic_Mode F_STB_ON DISPEN TEMP SENSOR FOR FACTORY USED FOR FACTORY USED TO D-BOARD (D3) to (8/12) to (4,9/12) to (4,5,9,10/12) to (4,7/12) to (4,8/12) to (4/12) to (9/12) to (1/12) to (7,8/12) to (7/12) to (4,8/12) to (4,8/12) to (7,8/12) to (7,8/12) 107 100 102 104 106 101 108 103 105 TH-50PZ700C DG-Board (12 of 12) Schematic Diagram TH-50PZ700C DG-Board (12 of 12) Schematic Diagram DG-BOARD (12/12) ! TNPA4176AM 104 15.34.DH 电路板方框图 PEAKS_OSCKO PEAKS_OSHO PEAKS_OSVO PEAKS_YM PEAKS_YS PEAKS_OSDH PEAKS_OSDCK OSD_FLAG FPGA_RST CONFIG_DONE HSIA VSIA CLKIA CLKIA VSIA HSOE PEAKS_OSCKO PEAKS_OSHO PEAKS_OSVO PEAKS_YM PEAKS_YS PEAKS_OSDH PEAKS_OSDCK OSD_FLAG FPGA_RST GC_RESET LVDS_PD TV_MAIN_ON CONFIG_DONE LVDS_PD 20 D1 OUT1-1 21 -INC1 FHD9V 23 VO1 FHD3.3V LX2 9V->1.2V,9V->3.3V OUT2-1 D2 S1 25 LX1 D1 G1 FB1 G1 OVP 27 VCC 26 Q5902 24 S1 OUT1-2 CB1 G2 CB2 IC5901 S2 4 12 8 G2 D1 3 7 S2 D2 FB2 VO2 OUT2-2 Q5901 17 VB D2 -INC2 19 FHD1.2V CTL 18 11 30 D1 D2 FHD9V 95 43 14 74 75 30 PEAKS_OSDH 59 56 3 2 62 BOE2 60 63 BOE9 34 65 64 SCL0 102 1 VSIA SUB 9V SUB 9V SUB 5V 40 DG25 HSIA CLKIA PEAKS_OSVO 42 LOSD0 52 TRST MAIN 3.3V PEAKS_OSDCK MAIN 3.3V HQ1_XRST 12 CONFIG_DONE 32 TV_MAIN_ON TDO,TDI LOSD15 PEAKS_YM 84 38 10 ROE2-ROE9 GOE2-GOE9 BOE2-BOE9 11 TDO(TO SC) 104 35 105 107 JTAG 77 PEAKS_YS CFG_JTAG ROE2 TCK,TMS FPGA_RST 47 SDA0 37 TO 57 49 FHD9V 50 SUB5V 7 MAIN3.3V OSD_FLAG 58 TRST,TMS 53 36 ROE9 TCK 93 51 TDI(TO HQ1) 86 DH25 GOE2 GOE9 VSIA HSIA CLKIA RVIA0-7 BUIA0-7 GYIA0-7 PEAKS_OSHO PEAKS_OSCKO TMS TDI TCK NRST TRST TDO FHD3.3V 1 5 VOUT DDR 2.5V IC5002 VDD DAC_VDD VDD_PLL2 VDD_PLL1 VDD12 VDD AVR 3.3V IC5001 VOUT 5 1 3 SUB5V 1 VDD 3 AVR 3.3V 5 VOUT IC5012 FHD3.3V PEACKS_OSD0-OSD15 FHQVIN FHQHIN FHQCKIN FHQYIN0-9 CLK0THQ1 THQVOUT THQHOUT THQYO0-9 THQCO0-9 XTALOUT X5000 XTALIN VDDA_PLL_DDR AVDD_DDR FHQCIN0-9 SCL SDA SCL_MC SDA_MC BOE0-9 GOE0-9 ROE0-9 HS0E CLK0E VS0E PTVEN A0-A11 FHD1.2V GC5P_1st PORT-A PORT-THQ IC5100 (ADV) PEAKS_OSHO PEAKS_OSDH PEAKS_YS PEAKS_OSDCK PEAKS_YM PEAKS_OSVO PEAKS_OSCKO OSD_FLAG SDCLK0,NSDCL0 CKE,WE BA0,BA1 RAS,CAS DQS0-DQS3 CK,CK RAS,CAS DQS0-DQS3 CKE,WE BA0,BA1 A0-A11 DQ0-DQ31 (OUTPUT PORT-E FOR PANEL) DQ0-DQ31 ADDRESS BUS DATA BUS CONTROL BUS JTAG SCL0 SDA0 CLK0E ROE0-9 HS0E BOE0-9 GOE0-9 PTVEN VS0E FRCK03 FRCLKIN 27MHz VDD AVR 2.5V IC5006 VOUT 1 DDR3.3V 8 NRST SDA SCL VDDQ VDD VDD25 NCFG Q5001 Q5000 PEAKS OSD0-15 RD_E+ RE_E+ RC_E- RB O+ RCLK O+ RE O+ RD O+ RD O- RE_E- RA_E- RC_E+ RCLK E- RB_E- RB O- RC O- RA O+ RE O- RCLK E+ RCLK O- RA O- RA_E+ RB_E+ RD_E- RC O+ 5 11 2 9 10 1 7 4 6 15 14 12 23 18 21 17 26 25 29 20 28 30 24 16 31 CE CE FHD3.3V 1 VOUT AVR 2.5V IC5009 VIN 8 VDD101 VDD102 VDD104 4 FHD3.3V IC5013 VDD RESET OUT 2 1 IC5008 VIN AVR 1.5V VOUT 8 VCCINT VDDA_PLL1 VDDA_PLL2 VDD103 4 DATAO nCSO 2 5 DCLK ASDO 1 SDA0 SCL0 FRCK_FPGA 5 2 4 DH4 SCL SDA WP SCL0 SDA0 SDA SCL FHD3.3V 64k EEPROM IC5000 6 5 7 8 VCC WC FACTORY FOR USE RE,WE OSD-FIFO IC5003 VCC SRCK,SWCK DO0-DO31 RSTR,RSTW FHD3.3V CONTROL BUS DATA BUS DATA BUS TDO TMS TDI TCK CFG-JTAG VCC FHD3.3V DATA NCS DCLK ASDI 3 DH5 E-LVDS3 0-LVDS3 0-LVDS2 0+LVDS4 0-LVDS0 E+LVDSCLK 0-LVDSCLK E+LVDS1 0-LVDS4 E+LVDS4 E+LVDS3 E-LVDS1 0+LVDS2 E+LVDS0 E-LVDS2 0+LVDS3 0+LVDSCLK 0+LVDS0 0+LVDS1 0-LVDS1 E-LVDS0 E-LVDS4 E+LVDS2 E-LVDSCLK IC5010 CONFIG ROM TO D5 LVDS_DET IC5105 FPGA (CYCLONE) OSD_RE,WE OSD_DO0-31 OSD_SRCK,SWCK OSD_DI0-DI31 OSD_RSTR,RSTW DC-DC CONVERTER DDR-SDRAM IC5102 FULL HD DH DDR3.3V 6 LVDS_EN (RVIA3,5-7) (GYIA0-7) (BUIA3,4,6,7) (BUIA0-2,5) (RVIA0-2,4) 16 AVDD_DDRCLK DI0-DI31 CONF_DONE LVDS_PD TH-50PZ700C DH-Board Block Diagram TH-50PZ700C DH-Board Block Diagram 105 15.35.DH 电路板 (1/4) 线路图 + + + + + LVDS_PD PEAKS_OSVO PEAKS_OSHO PEAKS_OSCKO PEAKS_OSD14 PEAKS_OSD13 PEAKS_OSD15 PEAKS_OSD12 PEAKS_OSD11 PEAKS_OSD10 PEAKS_OSD8 PEAKS_OSD9 PEAKS_OSD7 PEAKS_OSD3 PEAKS_OSD5 PEAKS_OSD1 PEAKS_OSD2 PEAKS_OSD0 PEAKS_OSD4 PEAKS_OSD6 CFG_TCK CFG_TMS CLKIA VSIA HSIA PEAKS_OSDCK PEAKS_OSDH PEAKS_YS PEAKS_YM SCL0 SDA0 JTAG_TMS JTAG_TRST CFG_TDO CFG_TDI JTAG_TDI JTAG_TCK GYIA5 GYIA2 GYIA6 GYIA7 GYIA0 GYIA4 GYIA1 GYIA3 RVIA6 RVIA5 RVIA7 BUIA6 BUIA4 BUIA7 BUIA3 RVIA3 BUIA5 RVIA4 RVIA0 BUIA2 RVIA2 BUIA0 BUIA1 RVIA1 FPGA_RST GC_RESET JTAG_TDO OSD_FLAG CFG_DONE D5901 MA22D3900L C5923 0.01u 25V R5928 0 TP5912 R5875 47 R5929 28k C5920 4.7u 6.3V C5927 68u 4V TP5914 TP5902 TP5027 TP5906 L5021 J0JHC0000075 R5931 30.1k R5938 0 L5901 G1C3R3ZA0083 R5933 16k R5926 0 R5865 0 TP5916 FHD1.2V C5915 1u 16V TP5904 R5937 0 TP5908 TP5911 TP5910 L5900 G1C2R2ZA0083 R5930 47.5k R5877 47 R5914 0 SUB5V C5914 0.047u 10V C5925 0.1u 16V R5922 100k TP5909 C5395 1u 16V R5866 0 TP5903 DH25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 C5910 16V 47u C5924 0.1u 16V R5878 47 C5916 10u 10V D5903 B0JCDD000002 R5871 33 R5932 12.7k C5919 0.01u 25V C5926 68u 4V L5904 G1C100MA0077 R5939 0 D5904 B0JCDD000002 C5922 220p 50V TP5905 R5868 33 C5939 0.1u 16V L5905 J0JHC0000075 C0DBAYY00274 IC5901 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP R5916 0 D5907 B0BC4R700007 R5860 EXB2HV470JV R5872 33 C5912 10V 10u D5902 MA22D3900L C5911 10V 10u R5909 0 R5934 16k FHD3.3V TP5913 C5930 1u 16V Q5901 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 R5923 47k Q5902 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 C5928 16V 47u R5870 33 R5927 0 R5861 EXB2HV470JV TP5907 D5908 B0BC4R700007 R5940 0 C5921 470p 50V R5867 0 R5908 0 C5918 0.1u 25V R5925 0 TP5028 TP5901 R5876 47 DDR3.3V C5929 16V 47u R5921 47k R5920 68 C5917 10u 10V MAIN3.3V SUB9V(FHD) R5345 1k PGND PWM_POWER_ON PANEL_VCC_ON INV_ON INV_SOS TV_MAIN_ON BOE5 BOE7 BOE9 BOE6 BOE2 BOE4 BOE3 BOE8 GOE7 GOE9 GOE5 GOE6 GOE2 GOE4 GOE3 GOE8 ROE7 ROE9 ROE5 ROE6 ROE2 ROE4 ROE8 ROE3 (SCL_IIC1) (SDA_IIC1) FHD9V CFG_TRST A B 9 E 6 8 7 3 D 5 4 C 1 2 F TO DG-BOARD (DG25) 9V->1.2V,9V->3.3V DC-DC CONVERTER 2 3 4 5 6 ! DH-BOARD TNPA4244AE (1/4) TH-50PZ700C DH-Board (1 of 4) Schematic Diagram TH-50PZ700C DH-Board (1 of 4) Schematic Diagram 106 15.36.DH 电路板 (2/4) 线路图 + + + A_DDR_A2 A_DDR_DQ14 RVIA6 ROE9 SDA0 BOE7 GYIA5 RVIA0 GOE5 BUIA1 FHQYIN5-1 BUIA3 A_DDR_DQ4 FHQCIN5-1 BUIA6 A_DDR_DQ31 A_DDR_DQ7 A_DDR_CLK A_DDR_DQ17 ROE6 A_DDR_DQ15 A_DDR_A9 A_DDR_DQ12 A_DDR_DQ8 A_DDR_DQ10 JTAG_GC51_GC52 ROE8 OSDMSK A_DDR_DQ25 BUIA4 A_DDR_DQ2 ROE5 GOE2 ROE4 A_DDR_DQ6 GYIA4 FHQYIN8-1 GYIA0 FHQCIN8-1 A_DDR_RAS A_DDR_A1 A_DDR_DQ18 A_DDR_DQS1 A_DDR_DQ20 A_DDR_DQ21 RVIA4 A_DDR_DQ1 A_DDR_DQ11 A_DDR_A7 A_DDR_DQ29 GYIA2 GYIA3 FHQCIN1-1 ROE3 A_DDR_BA1 A_DDR_DQ16 BOE6 FHQCIN9-1 GYIA1 FHQYIN6-1 SCL0 ROE7 VSOE A_DDR_DQ22 A_DDR_CAS BOE3 FHQCIN2-1 FHQYIN1-1 A_DDR_DQ3 A_DDR_DQ28 RVIA5 BOE8 A_DDR_DQ26 BOE1 RVIA1 A_DDR_DQ13 GOE8 FHQYIN0-1 A_DDR_DQ23 BUIA5 FHQYIN3-1 GOE9 A_DDR_DQ0 A_DDR_A5 BOE5 A_DDR_BA0 BOE2 A_DDR_DQ27 GOE6 A_DDR_DQ24 A_DDR_DQS2 BUIA7 RVIA3 A_DDR_A3 FHQVIN-1 BOE9 A_DDR_NCLK GYIA7 JTAG_TRST A_DDR_A0 A_DDR_DQ30 PLL3.3V ROE0 A_DDR_A11 FHQCIN3-1 RVIA2 FHQYIN7-1 A_DDR_DQS3 A_DDR_DQS0 BUIA2 FHQCIN6-1 HSOE FHQCIN0-1 FHQCIN4-1 GYIA6 A_DDR_SDCKE GOE3 A_DDR_A8 A_DDR_A4 FHQCIN7-1 GOE0 GOE1 RVIA7 FHQYIN4-1 GOE4 GOE7 ROE2 A_DDR_A6 FHQYIN9-1 FHQHIN-1 JTAG_TCK A_DDR_DQ19 BOE0 BUIA0 A_DDR_A10 ROE1 A_DDR_DQ5 JTAG_TMS BOE4 A_DDR_DQ9 FHQYIN2-1 HSIA VSIA A_DDR_WE H264_CLK GC_RESET OEMUTE THQYO2-1 THQYO6-1 THQYO4-1 THQYO5-1 THQYO7-1 THQYO9-1 THQYO8-1 THQHO-1 THQCKO-1 THQVO-1 THQCO0-1 THQCO2-1 THQCO1-1 THQCO3-1 THQCO4-1 THQCO5-1 THQCO6-1 THQCO7-1 THQCO8-1 THQCO9-1 THQYO3-1 THQYO0-1 THQYO1-1 CLKOE FHD1.2V JTAG_TDI FHQCKIN-1 CLKIA FHD3.3V 1000p 50V C5105 IC5100 AC3 DQ28 IC5100 AF1 DQS1 C0CBCBC00190 IC5012 1 VDD 2 GND 3 CE 5 VOUT 4 NC IC5100 A5 THQCO3 IC5100 D10 GND 0.1u 10V C5041 IC5100 AK26 VDDW JS5000 0 1000p 50V C5085 IC5100 AF14 AVSS_DDR IC5100 AF12 GND IC5100 E18 GND R5035 2k IC5100 AK20 COMP X5000 H0J270500087 IC5100 L2 BUIA0 IC5100 B16 FHQCIN0 IC5100 AK5 A6 IC5100 T3 RVIA5 0.1u 10V C5102 1u 10V C5108 IC5100 N19 VDDW IC5100 G3 UVIB8 IC5100 Y30 BOF9 L5020 J0JCC0000077 IC5100 C30 UVIC0 IC5100 B19 OSDI10 IC5100 V14 GND IC5100 AK2 GND IC5100 B25 ENBID 0.1u 10V C5869 IC5100 AH2 DQ9 IC5100 Y2 GYIA6 IC5100 L27 GND IC5100 E21 GND IC5100 D20 VDDW IC5100 AK17 GND IC5100 AA28 BOF4 IC5100 C19 OSDI9 IC5100 N15 GND IC5100 R2 BUIA4 IC5100 E23 VDDW IC5100 B14 FHQCIN6 IC5100 AB30 BOF3 IC5100 Y28 BOF7 IC5100 P1 BUIA2 IC5100 B6 THQCO0 IC5100 E14 GND 1000p 50V C5097 IC5100 H29 HSOE 1u 10V C5075 IC5100 M2 CLKIA IC5100 R28 ROE9 IC5100 AF26 VDD12 IC5100 AE26 VDD12 IC5100 W15 VDDPLLDDR IC5100 E17 GND IC5100 AG30 ROF8 IC5100 AF8 GND IC5100 B24 OSDYMI IC5100 C12 FHQYIN1 0.1u 10V C5046 1000p 50V C5020 IC5100 M18 VDDW IC5100 AD28 GOF5 C5004 1u 10V R5027 0 IC5100 U30 ROE5 IC5100 AB27 PTVEN IC5100 Y5 GND IC5100 AH19 VCOINV2 R5000 3.3k IC5100 AH22 CPOUT2 IC5100 E9 GND IC5100 C6 THQCO1 IC5100 E10 GND IC5100 E25 GND IC5100 H28 VSOE IC5100 G2 UVIB9 IC5100 AC27 PWMK IC5100 F28 VSIC C5006 0.01u 16V IC5100 AB2 VDD25 IC5100 V19 VDD12 IC5100 A25 ALPHAI0 IC5100 K27 VDDW IC5100 AG4 GND IC5100 AG9 GND R5041 0 C5012 10V 0.1u IC5100 R5 VDDW R5028 22k 1000p 50V C5048 0.1u 10V C5057 IC5100 E13 GND R5030 100 IC5100 AH24 GND IC5100 C11 FHQYIN4 IC5100 K30 BOE6 IC5100 AD3 DQ26 IC5100 Y27 GND IC5100 AG22 GND IC5100 D9 THQYO0 IC5100 C21 OSDI3 IC5100 U4 SDA_MC IC5100 N5 GND IC5100 A10 FHQYIN9 IC5100 J28 BOE7 IC5100 D14 GND IC5100 E15 VDDW IC5100 H30 CLKOE IC5100 C24 ALPHAI1 IC5100 M28 GOE8 IC5100 AH30 ROF5 IC5100 AA2 VDD25 IC5100 T28 ROE6 IC5100 AD2 DQ27 IC5100 G4 UVIB7 1000p 50V C5870 IC5100 D17 GND IC5100 D1 UVIB0 IC5100 B5 THQCO4 IC5100 AK11 DQS2 IC5100 AK22 DDREFIN IC5100 F30 CLKIC IC5100 V18 VDD12 IC5100 T17 VDD12 IC5100 W16 GNDPLLDDR IC5100 A28 YIC4 IC5100 A7 THQYO5 R5043 0 IC5100 F29 HSIC R5319 3.3k IC5100 AG29 ROF7 IC5100 P26 VDDW IC5100 AJ11 DQ21 IC5100 AJ5 A5 IC5100 P29 GOE3 R5034 75 IC5100 T13 GND IC5100 T15 GND IC5100 AJ21 IREF IC5100 C18 OSDI12 IC5100 U14 GND R5002 22 IC5100 N4 GND IC5100 D5 THQCO6 IC5100 C28 GND IC5100 AF27 VDD12 IC5100 P12 VDD12 IC5100 AH5 A7 1000p 50V C5069 IC5100 B4 THQCO8 IC5100 AG5 AVDD_DDR L5019 J0JCC0000077 IC5100 N28 GOE5 IC5100 AJ25 SLVSEL IC5100 AH6 A9 IC5100 V26 VDDW FHD3.3V IC5100 E1 UVIB2 IC5100 AF2 DQ13 1000p 50V C5079 IC5100 H4 YIB1 IC5100 V27 VDDW IC5100 A11 FHQYIN6 IC5100 AF23 GND IC5100 AK3 SDCLKO IC5100 AH1 DQ8 IC5100 B23 OSDHSI IC5100 AK6 A11 IC5100 J30 BOE9 R5045 47 IC5100 AG18 GND_PLL1 IC5100 B17 MOSDHSO2 IC5100 N18 VDDW IC5100 J27 VDDW IC5100 T29 ROE7 IC5100 C22 OSDI0 IC5100 AF30 GOF1 1000p 50V C5103 1000p 50V C5026 IC5100 U29 ROE4 IC5100 AA27 SSOUT IC5100 AJ13 DQ16 IC5100 M5 GND 0.1u 10V C5095 IC5100 M17 GND IC5100 L5 VDDW JS5007 0 L5004 J0JHC0000078 IC5100 AK4 A8 1000p 50V C5074 IC5100 V1 GYIA3 IC5100 E24 VDDW 0.1u 10V C5062 IC5100 AD29 GOF6 IC5100 D22 GND C5017 50V 18p IC5100 AH29 ROF4 IC5100 AF19 VDD_PLL2 IC5100 N1 RVIA2 IC5100 A20 OSDI8 IC5100 AG6 VDD25 IC5100 M12 VDD12 IC5100 AF20 GND IC5100 AJ14 DQ6 R5194 0 R5022 68 IC5100 D23 TRST 1000p 50V C5077 IC5100 E28 UVIC5 IC5100 AG15 GND IC5100 C16 FRCKO2 IC5100 AH10 CAS IC5100 P15 GND R5304 82 IC5100 H1 YIB4 IC5100 AF3 DQ12 IC5100 D19 VDDW IC5100 E7 VDDW IC5100 AG14 AVDD_DDR 0.1u 10V C5061 IC5100 AJ27 ROF1 IC5100 R17 GND IC5100 V16 GNDPLLDDR IC5100 B15 FHQCIN3 IC5100 V13 VDD25 IC5100 M15 GND JS5005 0 IC5100 AE3 DQ15 FHD3.3V IC5100 G28 GND IC5100 AE30 GOF4 0.1u 10V C5101 IC5100 Y1 GYIA7 IC5100 W17 GND C5038 10V 0.1u IC5100 AA30 BOF6 IC5100 D27 GND IC5100 K5 VDDW IC5100 E29 UVIC6 IC5100 T16 VDD12 C0CBCAC00282 IC5002 1 VDD 2 GND 3 CE 5 VOUT 4 NC IC5100 E11 VDDW IC5100 AK16 DQ1 IC5100 A23 CLKID IC5100 AF29 GOF0 IC5100 C2 VDD12 JS5001 0 IC5100 Y3 GYIA5 IC5100 R12 GND IC5100 AJ2 GND R5184 10k R5181 0 IC5100 AH12 DQ19 IC5100 AF11 VDD25 IC5100 R15 VDD12 IC5100 F2 UVIB5 IC5100 AB29 BOF2 L5003 J0JCC0000077 C5002 16V 0.01u IC5100 B11 FHQYIN5 0.1u 10V C5104 0.1u 10V C5091 IC5100 C17 OSDI15 R5018 68 IC5100 T2 BUIA6 IC5100 G29 SCL 1000p 50V C5090 IC5100 C3 GND IC5100 P14 VDD12 IC5100 AK13 GND IC5100 D3 VDD12 R5025 68 IC5100 B13 FHQCIN9 IC5100 M4 GND IC5100 V28 ROE0 IC5100 D8 THQYO4 IC5100 M19 VDDW IC5100 L1 BUIA1 IC5100 AG1 DQ14 IC5100 A6 THQYO9 JS5003 0 IC5100 W1 GYIA4 IC5100 K29 BOE5 IC5100 W3 HSIA C5007 0.1u 10V R5307 82 IC5100 AH26 GND JS5009 0 R5183 10k IC5100 T12 GND R5004 22 IC5100 AD30 GOF7 JS5002 0 C5024 1u 10V IC5100 AG19 GND_PLL2 IC5100 P4 VDDW IC5100 C15 FHQCIN2 IC5100 B18 OSDI13 IC5100 C7 THQYO7 IC5100 M13 VDD12 IC5100 C29 YIC0 IC5100 C23 OSDVSI IC5100 U2 RVIA7 R5001 3.3k R5305 82 IC5100 V5 VDDW L5002 J0JCC0000077 0.1u 10V C5056 JS5006 0 IC5100 D25 TCK C5015 10V 0.1u IC5100 R27 GND IC5100 M26 GND IC5100 H27 GND IC5100 AJ9 RAS IC5100 T26 GND IC5100 AH21 GND IC5100 AE4 GND C5011 10V 0.1u IC5100 AA26 VDDW IC5100 U27 VDDW IC5100 R16 GND 1000p 50V C5098 IC5100 N2 RVIA1 1000p 50V C5063 IC5100 E8 VDDW C5397 1u 10V 0.1u 10V C5053 IC5100 AJ3 NSDCLO IC5100 D18 GND IC5100 AB1 DQ31 IC5100 A19 OSDI11 0.1u 10V C5106 IC5100 R4 VDDW IC5100 AG26 GND IC5100 D6 THQCO2 R5046 0 R5308 82 IC5100 AH13 DQ17 IC5100 A14 FHQCIN7 IC5100 E4 VDD12 IC5100 C8 THQYO3 1000p 50V C5073 IC5100 A3 THQHOUT IC5100 AK15 DQ5 1000p 50V C5070 0.1u 10V C5033 IC5100 V30 ROE2 C5065 68u 4V 1000p 50V C5044 IC5100 AG27 VDD12 IC5100 L26 GND IC5100 W12 VDD25 IC5100 C27 YIC5 IC5100 E30 UVIC7 IC5100 V17 GND 1000p 50V C5076 IC5100 AH18 GND IC5100 M29 GOE9 IC5100 AH20 GND IC5100 K26 VDDW IC5100 B27 YIC6 0.1u 10V C5084 0.1u 10V C5110 0.1u 10V C5050 IC5100 A24 OSDYSI IC5100 V4 SCL_MC C5348 10V 0.1u IC5100 B3 THQVOUT IC5100 AH14 DQ7 IC5100 AG3 DQ11 IC5100 A9 FHQCKIN IC5100 P17 GND IC5100 AK12 GND IC5100 V29 ROE1 IC5100 G30 SDA IC5100 AG7 VDD25 IC5100 B20 OSDI7 IC5100 D12 NRST IC5100 M27 GND IC5100 B2 GND IC5100 AK25 VCOIN IC5100 N13 VDD12 IC5100 B1 VDD12 IC5100 AC30 BOF0 R5029 100 IC5100 AJ20 GND IC5100 AJ29 VDD12 SUB5V IC5100 J2 YIB7 0.1u 10V C5028 IC5100 K3 HSIB C5117 6.3V 10u IC5100 AJ7 A10 IC5100 AG2 DQ10 1000p 50V C5078 IC5100 N3 RVIA0 IC5100 B28 YIC3 IC5100 AG28 ROF6 R5021 68 IC5100 F3 UVIB4 C5018 1u 10V IC5100 C1 ENBIB R5044 0 IC5100 U15 GND R5026 EXB2HV680JV IC5100 V12 VDD25 IC5100 AA1 VDD25 IC5100 AG17 TESTIO_DDR IC5100 AE28 GOF2 IC5100 AF21 GND_DAC C5066 47u 6.3V R5302 82 1000p 50V C5068 IC5100 B8 THQYO2 IC5100 AK19 IOUT IC5100 E12 VDDW IC5100 C4 THQCO9 IC5100 R30 GOE1 IC5100 B9 FHQVIN IC5100 N26 VDDW R5036 0 IC5100 N17 GND 1u 10V C5042 R5024 68 IC5100 H26 GND IC5100 AB5 VDD25 IC5100 AJ26 GND IC5100 AH23 GND IC5100 AJ12 DQ18 IC5100 E3 UVIB1 IC5100 D7 THQYO8 IC5100 T4 GND 0.1u 10V C5080 IC5100 AE29 GOF3 C5037 47u 6.3V IC5100 T1 BUIA7 IC5100 C26 TMS IC5100 R18 GND IC5100 AK14 DQS0 IC5100 A21 OSDI5 IC5100 G1 YIB0 IC5100 D28 UVIC1 IC5100 AF17 GND_PLL1 IC5100 AH7 A3 IC5100 E2 CLKIB1 IC5100 AF6 AVDD_DDRCLK IC5100 W18 VDD12 IC5100 AG13 GND IC5100 D30 UVIC3 IC5100 V3 GYIA1 0.1u 10V C5072 IC5100 AJ15 DQ4 IC5100 F4 UVIB3 IC5100 AJ10 DQ23 IC5100 E16 VDDW IC5100 AJ4 CKE IC5100 AC28 GOF8 IC5100 R29 GOE0 R5214 10k IC5100 B22 OSDI1 IC5100 B30 YIC1 IC5100 AD4 GND IC5100 AB28 BOF1 IC5100 C25 MOSDVSO IC5100 D4 GND IC5100 AG12 GND IC5100 R3 BUIA3 1u 10V C5096 IC5100 J1 YIB8 IC5100 AD26 GND IC5100 AB3 VDD25 IC5100 A16 FHQCIN1 IC5100 J29 BOE8 IC5100 N27 VDDW C5025 10V 0.1u IC5100 AJ30 ROF3 IC5100 AK29 GND IC5100 AA4 GND IC5100 C9 FHQHIN 1000p 50V C5081 C5029 10V 1u IC5100 AF9 GND IC5100 AA29 BOF5 IC5100 R26 GND IC5100 AG8 GND IC5100 AF25 GND IC5100 U5 GND IC5100 AH27 GND IC5100 K1 FRCKO3 IC5100 D29 UVIC2 R5092 10k IC5100 AG20 GND_PLL2 1000p 50V C5064 IC5100 AB26 VDDW IC5100 F6 GND IC5100 AF16 GND IC5100 E22 GND C5010 16V 0.01u IC5100 W2 VSIA C5009 1u 10V IC5100 J5 GND 0.1u 10V C5113 JS5004 0 IC5100 A18 OSDI14 R5031 0 IC5100 C20 OSDI6 IC5100 AG11 VDD25 0.1u 10V C5043 IC5100 AK18 GND IC5100 U13 GND R5019 EXB2HV680JV IC5100 W13 VDD25 IC5100 B29 GND IC5100 C14 FHQCIN5 R5033 4.75k 1000p 50V C5052 IC5100 M1 CLKOA IC5100 AE2 DQ24 0.1u 10V C5047 IC5100 E20 VDDW IC5100 AJ24 GND IC5100 L3 CLKIA2 IC5100 W27 GND 1u 10V C5114 IC5100 AH3 GND IC5100 F5 VDD12 1u 10V C5087 C5067 10V 0.1u IC5100 U1 GYIA0 IC5100 AH9 BA0 IC5100 W4 OEBLK IC5100 P5 VDDW 1000p 50V C5051 R5206 10k IC5100 K2 VSIB IC5100 AE5 AVSS_DDRCLK IC5100 AK1 GND IC5100 W19 VDD12 IC5100 AA3 GND IC5100 H3 YIB2 IC5100 N14 VDD12 IC5100 AH15 DQ3 IC5100 C13 FHQCIN8 IC5100 AG25 GND FHD1.2V IC5100 L4 TEST IC5100 Y26 GND IC5100 V2 GYIA2 IC5100 P13 VDD12 IC5100 A27 YIC7 C5034 6.3V 10u IC5100 E5 GND IC5100 AJ28 GND R5303 82 1000p 50V C5054 IC5100 AC1 DQ29 1u 10V C5060 0.1u 10V C5058 IC5100 A29 YIC2 IC5100 D26 TDO 0.1u 10V C5088 IC5100 W29 HSOF IC5100 AD1 DQ25 R5017 68 IC5100 AK9 WE 0.1u 10V C5116 1_DDR2.5V R5301 EXB2HV820JV IC5100 N16 GND 1000p 50V C5082 C5036 10V 1u IC5100 J4 YIB5 R5014 68 R5191 0 IC5100 AG21 GND_DAC IC5100 G27 GND IC5100 T5 GND 1u 10V C5049 IC5100 R1 BUIA5 IC5100 P30 GOE4 IC5100 AF24 GND 1000p 50V C5040 1000p 50V C5094 IC5100 AF18 VDD_PLL1 C5016 50V 18p IC5100 W30 CLKOF IC5100 A4 THQCO7 IC5100 D13 LCDMODE 0.1u 10V C5055 IC5100 P16 GND IC5100 AH16 DQ0 IC5100 A2 CLKOTHQ1 IC5100 P3 RVIA3 IC5100 AF5 AVSS_DDR IC5100 P27 VDDW IC5100 P2 RVIA4 C5120 10V 0.1u IC5100 L28 BOE1 IC5100 AK28 ROF2 IC5100 W5 VDDW IC5100 M30 BOE0 IC5100 L29 BOE2 R5020 EXB2HV680JV IC5100 W14 GND IC5100 T27 GND 1000p 50V C5089 IC5100 D16 MOSDVSO2 C5022 10V 0.1u IC5100 D11 VDDW IC5100 L30 BOE3 C5118 6.3V 10u IC5100 AK10 DQ22 IC5100 AJ16 DQ2 IC5100 N30 GOE7 IC5100 F1 UVIB6 IC5100 AH25 FRCLKIN C5035 6.3V 10u IC5100 E19 VDDW IC5100 U12 GND 1000p 50V C5045 IC5100 AH8 A2 1000p 50V C5115 IC5100 B26 MOSDHSO IC5100 J26 VDDW 1000p 50V C5111 C5032 10V 0.1u R5003 22 C5008 82p 50V 1000p 50V C5086 IC5100 U18 VDD12 IC5100 AJ1 VDD25 IC5100 W28 VSOF IC5100 F27 VDDW IC5100 AC4 AVDD_DDR IC5100 E26 GND 1000p 50V C5107 IC5100 U16 GND IC5100 AF7 VDD25 R5318 820 IC5100 R14 GND 1u 10V C5109 IC5100 AK21 VREF IC5100 T30 ROE8 IC5100 AJ6 A4 IC5100 AD5 GND IC5100 AG24 GND IC5100 A30 GND IC5100 P18 GND IC5100 W26 GND C5021 6.3V 10u IC5100 J3 YIB6 L5001 G1C100KA0009 IC5100 A17 CLKOD2 R5048 0 C5031 6.3V 10u IC5100 AK27 ROF0 R5032 1k IC5100 M16 GND IC5100 D24 TDI IC5100 U26 VDDW IC5100 AF10 VDD25 IC5100 F26 VDDW IC5100 E27 UVIC4 C5013 50V 68p IC5100 AK24 GND IC5100 E6 GND IC5100 H2 YIB3 1000p 50V C5083 IC5100 P28 GOE2 IC5100 AD27 CLKID2 C5121 10V 1u IC5100 A12 FHQYIN3 IC5100 H5 GND IC5100 Y4 OEMUTE 1000p 50V C5100 IC5100 AG10 VDD25 IC5100 AC5 AVSS_DDR R5038 1M R5023 68 IC5100 AK30 VDD12 IC5100 AJ18 TESTIO_PLL1 IC5100 AF4 GND IC5100 AF15 GND IC5100 V15 GND IC5100 MN84525 A1 GND IC5100 D21 GND IC5100 B12 FHQYIN2 IC5100 AK8 BA1 IC5100 AE1 DQS3 IC5100 B21 OSDI4 IC5100 AH28 VDD12 IC5100 AG16 GND C5005 0.1u 10V IC5100 AJ19 TESTIO_PLL2 IC5100 T14 GND IC5100 M3 FRCKO1 IC5100 N12 VDD12 1000p 50V C5093 IC5100 AJ17 GND IC5100 R13 GND IC5100 B10 FHQYIN8 IC5100 A13 FHQYIN0 IC5100 A26 CLKOD IC5100 AC26 GND IC5100 T18 VDD12 0.1u 10V C5071 1000p 50V C5099 IC5100 AF28 ROF9 IC5100 U28 ROE3 IC5100 AH17 GND IC5100 K4 YIB9 R5306 82 FHD3.3V IC5100 A15 FHQCIN4 L5006 J0JHC0000078 1000p 50V C5059 L5005 J0JHC0000078 IC5100 AH4 VREFSSTL2V_0 IC5100 P19 GND IC5100 K28 BOE4 C0CBCBC00190 IC5001 1 VDD 2 GND 3 CE 5 VOUT 4 NC SUB5V 1000p 50V C5112 1000p 50V C5092 C5347 6.3V 10u IC5100 M14 VDD12 R5016 68 IC5100 C10 FHQYIN7 R5040 0 IC5100 AC2 DQ30 IC5100 C5 THQCO5 IC5100 R19 GND IC5100 Y29 BOF8 IC5100 T19 VDD12 IC5100 U17 VDD12 IC5100 D15 VDDW R5300 EXB2HV820JV IC5100 AJ22 DDREFOUT IC5100 AJ8 A0 R5179 10k C5027 1u 10V IC5100 AG23 GND IC5100 B7 THQYO6 IC5100 A22 OSDI2 IC5100 N29 GOE6 IC5100 AK7 A1 IC5100 AC29 GOF9 IC5100 AF13 GND IC5100 G5 GND IC5100 AA5 GND IC5100 G26 GND IC5100 AJ23 XTALOUT IC5100 U3 RVIA6 IC5100 AE27 VDD12 IC5100 AK23 XTALIN IC5100 AB4 VDD25 IC5100 D2 CLKIB2 C5019 10V 0.1u IC5100 U19 VDD12 IC5100 AF22 DAC_VDD JS5008 0 IC5100 A8 THQYO1 IC5100 AH11 DQ20 R5015 68 R5039 0 R5347 10k R5338 10k R5340 68 PORT-C(PEAKS) GC5P-1st (PWMC) (PWMB) (PWMD) PORT-THQ PORT-D(H.264) ExBus (output for Panel) EDIRINV PORT-A(ADV ) (LVDS-EN) (LCDSS) (PWMA) (output for Panel) PORT-F PORT-E 3G DDR 2.5V PORT-B(GC3FS_next) 12 10 16 17 11 15 14 13 18 AVR 3.3V PLL 3.3V GC5P-1st MN84525 IC5100 5 6 3 4 2 11 12 13 14 15 17 18 19 20 16 TH-50PZ700C DH-Board (2 of 4) Schematic Diagram TH-50PZ700C DH-Board (2 of 4) Schematic Diagram ! DH-BOARD TNPA4244AE (2/4) R5336 10k 107 15.37.DH 电路板 (3/4) 线路图 + Thermal Pad + + B_DDR_SDCKE A_DDR_DQ6 B_DDR_A7 B_DDR_DQ6 A_DDR_A0 B_DDR_DQ31 A_DDR_BA0 B_DDR_DQ21 B_DDR_DQ3 B_DDR_A1 A_DDR_DQ27 B_DDR_BA0 B_DDR_DQ26 B_DDR_CLK B_DDR_A2 B_DDR_A6 B_DDR_WE B_DDR_DQ20 A_DDR_CLK B_DDR_A2 A_DDR_DQ25 B_DDR_DQ4 B_DDR_NCLK B_DDR_DQ13 B_DDR_DQ10 A_DDR_RAS A_DDR_A2 A_DDR_DQ24 B_DDR_DQ10 A_DDR_A5 A_DDR_DQ29 B_DDR_DQ31 B_DDR_A9 A_DDR_DQ1 B_DDR_DQ23 B_DDR_CAS A_DDR_DQ23 B_DDR_BA0 B_DDR_A0 B_DDR_DQ30 B_DDR_DQ25 B_DDR_DQ4 A_DDR_A6 A_DDR_DQ9 B_DDR_DQS0 B_DDR_DQ9 B_DDR_DQS1 B_DDR_DQ14 B_DDR_A7 B_DDR_DQ16 B_DDR_DQ11 A_DDR_DQ31 B_DDR_DQ7 B_DDR_A10 B_DDR_DQ12 A_DDR_DQ11 B_DDR_DQ25 A_DDR_DQ17 A_DDR_DQ12 B_DDR_CAS B_DDR_DQ20 A_DDR_CAS B_DDR_BA1 A_DDR_DQ30 A_DDR_DQ26 B_DDR_DQ22 B_DDR_BA1 B_DDR_DQ6 B_DDR_A8 A_DDR_DQ5 B_DDR_DQ26 B_DDR_CLK B_DDR_DQ2 B_DDR_DQ0 B_DDR_DQS2 B_DDR_DQ29 B_DDR_DQ16 B_DDR_DQ9 B_DDR_DQ17 B_DDR_DQ1 B_DDR_DQ15 B_DDR_DQS0 A_DDR_NCLK A_DDR_A3 A_DDR_DQ4 B_DDR_DQ24 B_DDR_A0 B_DDR_DQ14 A_DDR_A10 B_DDR_DQ15 A_DDR_DQ13 A_DDR_DQ19 A_DDR_DQ10 B_DDR_A10 B_DDR_DQ21 B_DDR_WE A_DDR_DQS2 B_DDR_A1 B_DDR_DQ3 A_DDR_DQ0 B_DDR_DQ7 B_DDR_DQ22 B_DDR_RAS B_DDR_DQ23 A_DDR_DQ18 B_DDR_DQ30 A_DDR_A8 B_DDR_A9 B_DDR_NCLK A_DDR_DQ7 A_DDR_SDCKE B_DDR_DQ5 B_DDR_DQS3 B_DDR_DQ29 A_DDR_DQ15 B_DDR_DQ11 B_DDR_A3 B_DDR_DQ19 A_DDR_DQS0 B_DDR_A4 B_DDR_DQ2 A_DDR_DQ3 B_DDR_A5 B_DDR_DQ12 B_DDR_DQ13 A_DDR_DQ16 B_DDR_DQ18 A_DDR_A4 B_DDR_DQ0 A_DDR_DQ8 A_DDR_DQ22 A_DDR_BA1 A_DDR_A9 B_DDR_DQ27 B_DDR_A4 B_DDR_A6 A_DDR_DQ2 B_DDR_SDCKE A_DDR_DQ28 B_DDR_DQ27 A_DDR_A1 B_DDR_DQ28 B_DDR_A11 B_DDR_DQS1 B_DDR_DQ5 A_DDR_DQ14 B_DDR_DQ24 B_DDR_A8 B_DDR_A11 A_DDR_DQ20 B_DDR_DQ8 B_DDR_DQS2 A_DDR_WE B_DDR_A3 B_DDR_DQ18 A_DDR_DQS3 B_DDR_DQS3 A_DDR_A7 B_DDR_A5 A_DDR_DQ21 B_DDR_DQ1 B_DDR_RAS B_DDR_DQ28 B_DDR_DQ17 B_DDR_DQ8 A_DDR_A11 B_DDR_DQ19 A_DDR_DQS1 JTAG_GC51_GC52 JTAG_TDO CLKOE_A CLKOE IC5102 J13 DQ10 R5128 47 C5272 10V 1u IC5102 B3 DM0 C5294 10V 0.1u IC5102 E8 VSS R5010 4.7k C5287 10V 0.1u DDR3.3V IC5102 F2 DQ17 IC5102 K6 VSS IC5102 M7 A11 IC5102 F3 DQ16 IC5102 K2 DQ22 IC5102 D5 VSSQ C5283 10V 0.1u IC5102 G8 VSS_Thermal C5280 16V 0.01u IC5102 H11 NC IC5102 K4 VDDQ IC5102 C11 NC IC5102 H12 DM1 IC5102 C6 DQ1 R5140 0 IC5102 H9 VSS_Thermal IC5102 F11 VDDQ IC5102 B4 VSSQ IC5102 M4 NC IC5102 J8 VSS_Thermal R5138 0 IC5102 F10 VSSQ TP5003 IC5102 G3 DQ18 IC5102 G11 VDDQ R5127 EXB2HV470JV C5286 10V 0.1u IC5102 N6 A1 C5291 10V 0.1u IC5102 C3 VDDQ IC5102 L5 VSS C5302 10V 0.1u IC5102 B8 DQ31 IC5102 M10 RFU R5012 22 IC5102 B10 DQ28 R5118 32.4k C5296 10V 0.1u C5268 6.3V 10u IC5102 G5 VSSQ R5117 33k IC5102 F13 DQ14 IC5102 M2 RAS DH4 1 2 3 4 5 6 7 IC5102 L3 WE R5136 1k TVRP341 IC5000 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC IC5102 C5 VDDQ C5281 10V 0.1u IC5102 L11 VDD IC5102 L6 A10 IC5102 J11 VDDQ IC5102 D2 DQ6 IC5102 G7 VSS_Thermal IC5102 B6 DQ2 IC5102 F8 VSS_Thermal C5298 10V 0.1u IC5102 C12 VDDQ R5009 22 C5279 10V 0.1u R5131 47 IC5102 F5 VSSQ R5137 1k IC5102 D3 DQ5 C5269 6.3V 10u IC5102 N4 BA0 IC5102 B11 VSSQ IC5102 L12 NC C5295 16V 0.01u C5288 16V 0.01u IC5102 G6 VSS_Thermal IC5102 C10 VDDQ IC5102 M6 A2 C5299 16V 0.01u IC5102 L4 VDD IC5102 K8 VSS IC5102 B9 DQ29 IC5102 C9 DQ30 C5290 16V 0.01u IC5102 C3ABQJ000055 B2 DQS0 IC5102 N12 CKE FHD3.3V C5270 6.3V 10u IC5102 B12 DM3 R5133 22 IC5102 E13 DQ24 IC5102 E7 VSS IC5102 N2 CS IC5102 G9 VSS_Thermal C5301 16V 0.01u C5278 16V 0.01u R5005 4.7k IC5102 M3 NC IC5102 L8 VDD IC5102 M13 NC IC5102 L9 RFU C5297 16V 0.01u IC5102 K11 VDDQ IC5102 H2 DQS2 C5271 10V 0.1u C5300 10V 0.1u IC5102 B13 DQS3 IC5102 N11 A8/AP C5275 470p 50V IC5102 F9 VSS_Thermal R5007 22 IC5102 J12 DQ11 R5123 EXB2HV470JV IC5102 F4 VDDQ C5284 16V 0.01u IC5102 F6 VSS_Thermal IC5102 J7 VSS_Thermal C5274 4V 100u IC5102 N10 A7 R5122 47 C5285 10V 0.1u IC5102 E3 VDDQ IC5102 K12 DQ9 IC5102 N13 VREF IC5102 D13 DQ25 C5293 16V 0.01u IC5102 M11 CK IC5102 G4 VDDQ IC5102 C4 NC IC5102 K5 VSSQ L5000 J0JHC0000078 IC5102 F7 VSS_Thermal R5132 22 IC5102 B7 DQ0 IC5006 C0CBCAF00031 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 NC 7 NC 8 VIN C5276 56u 4V R5135 100 IC5102 J9 VSS_Thermal IC5102 N3 NC IC5102 C13 DQ27 IC5102 C7 VDDQ IC5102 G10 VSSQ IC5102 L10 VSS IC5102 H4 NC R5125 EXB2HV470JV DDR2.5V IC5102 K13 DQ8 IC5102 J5 VSSQ IC5102 D11 VSSQ IC5102 J4 VDDQ IC5102 L7 VDD C5292 10V 0.1u IC5102 E10 VSS IC5102 E11 VDD R5139 0 IC5102 H6 VSS_Thermal IC5102 H3 DM2 IC5102 D4 VSSQ IC5102 B5 DQ3 IC5102 H8 VSS_Thermal IC5102 L2 CAS IC5102 J3 DQ20 IC5102 E2 DQ7 C5289 10V 0.1u IC5102 N5 A0 C5282 16V 0.01u R5141 0 IC5102 E5 VSS L5015 J0JHC0000078 C5000 47u 6.3V IC5102 N8 A4 IC5102 J2 DQ21 IC5102 G13 DQ12 TP5000 IC5102 K9 VSS IC5102 C2 DQ4 IC5102 C8 VDDQ IC5102 H5 VSSQ R5008 4.7k IC5102 D6 VSSQ R5129 EXB2HV470JV TP5001 IC5102 N7 A3 R5120 0 R5013 100 R5124 47 IC5102 D10 VSSQ IC5102 D12 DQ26 C5001 10V 0.1u R5130 47 IC5102 H7 VSS_Thermal IC5102 F12 DQ15 R5142 0 IC5102 M8 A9 IC5102 G12 DQ13 IC5102 E4 VDD IC5102 N9 A6 IC5102 M5 BA1 TP5002 IC5102 K10 VSSQ IC5102 M12 CK R5134 EXB2HV470JV IC5102 G2 DQ19 IC5102 L13 NC IC5102 E12 VDDQ IC5102 J10 VSSQ R5121 EXB2HV470JV C5277 10V 0.1u R5011 22 IC5102 D9 VSSQ IC5102 E6 VSSQ IC5102 K3 DQ23 IC5102 H13 DQS1 IC5102 J6 VSS_Thermal IC5102 D7 VDD IC5102 E9 VSSQ R5119 0 C5273 10V 0.1u IC5102 K7 VSS IC5102 H10 VSSQ R5126 47 C5303 16V 0.01u IC5102 M9 A5 IC5102 D8 VDD R5346 1k R5339 0 R5329 0 Must Connect Low SCL SDA GND WP EEPROM 27 21 20 19 25 26 23 24 22 DDR 2.5V IC5102 DDR-SDRAM C3ABQJ000055 31 33 34 35 11 12 13 14 15 17 18 19 20 16 32 TH-50PZ700E DH-Board (3 of 4) Schematic Diagram TH-50PZ700E DH-Board (3 of 4) Schematic Diagram ! DH-BOARD TNPA4244AE (3/4) 108 15.38.DH 电路板 (4/4) 线路图 + Thermal Pad + + Thermal Pad + GOE3 OSD_DO15 OSD_DI25 OSD_DI22 RC_E- RE_E+ RC_0- GOE4 OSD_WE PEAKS_OSD9 OSD_DI4 OSD_DI7 RE_0- RD_E- OSD_DI28 PEAKS_OSHO OSD_DI21 OSD_DI31 SCL0 OSD_DI21 OSD_DO22 RA_0- OSD_DI2 OSD_DI27 OSD_DI8 OSD_DO19 OSD_DO18 OSD_DO30 ROE8 SDA0 OSD_DI6 BOE9 OSD_DI14 OSD_DI15 RB_E+ PEAKS_OSD5 BOE0 OSD_DI11 RE_E- OSD_DO29 OSD_DO4 OSD_DO9 HSOE OSD_DI19 OSD_DI0 PEAKS_OSD8 OSD_DI26 ROE1 PEAKS_OSD1 OSD_DO27 OSD_DO15 OSD_DI31 OSD_DO22 RD_0- OSD_DI13 OSD_RE OSD_DI10 ROE9 OSD_DI15 RB_E- OSDMSK OSD_DI28 OSD_DI4 OSD_DO19 RE_E- OSD_DO13 OSD_DO21 OSD_DO21 PEAKS_OSD13 OSD_DI9 PEAKS_OSCKO ROE4 PEAKS_YM OSD_DO10 OSD_DO1 OSD_SRCK OSD_DO26 VSOE OSD_DO0 OSD_RSTW ROE7 OSD_DO25 OSD_DI19 RA_E+ CFG_TDO OSD_DI11 OSD_DO27 OSD_DO10 OSD_RE PEAKS_OSD12 OSD_DI20 OSD_SWCK RD_E+ OSD_SWCK OSD_DO16 OSD_DI2 OSD_DO6 RA_E+ OSD_DO1 PEAKS_OSD0 RB_0+ GOE1 OSD_DO14 CFG_TDI BOE4 OSD_DI23 OSD_DI17 GOE2 OSD_DO13 PEAKS_OSD10 OSD_DI9 OSD_DO24 PEAKS_OSD6 PEAKS_OSD3 RA_0+ BOE8 RCLK_E- OSD_DI13 OSD_DO16 OSD_DO8 OSD_DO23 OSD_WE RD_E+ GOE0 PEAKS_OSVO BOE3 OSD_DI10 RC_0+ OSD_DI7 OSD_DO3 OSD_DI1 OSD_DO31 CFG_TCK OSD_DI18 OSD_DO29 RE_0- OSD_DI29 OSD_DI22 OSD_SRCK RCLK_E- RCLK_E+ BOE1 RE_0+ RD_0+ OSD_DI25 OSD_DO11 RD_E- OSD_DI24 PEAKS_OSD2 RD_0+ OSD_DO20 OSD_DI24 GOE8 GOE6 OSD_RSTR ROE2 ROE5 OSD_DO2 GOE9 OSD_DI29 RD_0- PEAKS_OSD7 OSD_DO30 RB_0+ RC_0- RA_E- RB_E+ PEAKS_OSD11 OSD_DO9 RB_E- OSD_DO3 PEAKS_OSDCK OSD_DI12 OSD_DI5 OSD_DI14 CFG_TMS RB_0- GOE7 BOE6 OSD_DO4 OSD_DI1 OSD_DI5 OSD_DO8 OSD_DO25 RC_E+ BOE7 PEAKS_OSDH OSD_DI3 OSD_DI30 OSD_DI0 RA_E- OSD_DI3 OSD_DO28 OSD_DO31 OSD_DO2 OSD_RSTW OSD_DO11 OSD_DO20 ROE3 RCLK_E+ OSD_DO7 OSD_FLAG OSD_DO14 OSD_DO17 RE_E+ OSD_DI16 OSD_RSTR OSD_DO24 GOE5 RC_E- PEAKS_OSD4 OSD_DO28 OSD_DO18 RB_0- OSD_DI17 RC_0+ OSD_DO7 PEAKS_OSD15 RE_0+ OSD_DO23 OSD_DI12 PEAKS_OSD14 OSD_DI18 OSD_DO26 OSD_DI6 OSD_DO5 OSD_DI20 OSD_DI27 ROE6 OSD_DI23 OSD_DI8 BOE2 OSD_DO12 RC_E+ OSD_DO5 OSD_DO17 OSD_DO6 ROE0 BOE5 OSD_DI16 OSD_DO0 OSD_DI26 OSD_DI30 PEAKS_YS OSD_DO12 FPGA_RST LVDS_PD NCFG RCLK_O+ RCLK_O- RA_0+ RA_0- OEBLK CFG_DONE NCFG CLKOE_A GOF9_A FHD3.3V IC5105 B8 IO L5018 J0JHC0000078 IC5105 U16 IO C5380 10V 0.1u IC5105 E5 IO IC5105 F4 IO R5237 169 IC5105 E11 IO IC5105 T14 IO R5227 120 IC5105 B4 IO IC5105 K7 MSEL1 IC5105 E13 IO C3ZBN0000026 IC5003 1 DO1 2 VccQ 3 DO2 4 DO3 5 VssQ 6 DO4 7 DO5 8 VccQ 9 DO6 10 DO7 11 VssQ 12 Vss 13 SWCK 14 RSTW 15 Vcc 16 Vss 17 Vcc 18 WE 19 IE 20 WAD 21 Vss 22 VssQ 23 DO8 24 DO9 25 VccQ 26 DO10 27 DO11 28 VssQ 29 DO12 30 DO13 31 VccQ 32 DO14 33 DO15 34 VssQ 35 VccQ 36 Vcc 37 Vss 38 DI8 39 DI9 40 DI10 41 DI11 42 Vcc 43 DI12 44 DI13 45 DI14 46 DI15 47 Vss 48 Vcc 49 Vss 50 Vss 51 DI16 52 DI17 53 DI18 54 DI19 55 Vcc 56 DI20 57 DI21 58 DI22 59 DI23 60 Vss 61 Vcc 62 VccQ 63 VssQ 64 DO16 65 DO17 66 VccQ 67 DO18 68 DO19 69 VssQ 70 DO20 71 DO21 72 VccQ 73 DO22 74 DO23 75 VssQ 76 Vss 77 RAD 78 OE 79 RE 80 Vcc 81 Vss 82 Vcc 83 RSTR 84 SRCK 85 Vss 86 VssQ 87 DO24 88 DO25 89 VccQ 90 DO26 91 DO27 92 VssQ 93 DO28 94 DO29 95 VccQ 96 DO30 97 DO31 98 VssQ 99 VccQ 100 Vcc 101 Vss 102 DI24 103 DI25 104 DI26 105 DI27 106 Vcc 107 DI28 108 DI29 109 DI30 110 DI31 111 Vss 112 Vcc 113 Vss 114 Vss 115 DI0 116 DI1 117 DI2 118 DI3 119 Vcc 120 DI4 121 DI5 122 DI6 123 DI7 124 Vss 125 Vcc 126 VccQ 127 VssQ 128 DO0 DH5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 IC5105 C1 GND IC5105 E15 IO IC5105 D14 IO IC5105 T10 IO C5376 10V 0.1u R5221 120 IC5105 E7 IO FL5017 J0JAD0000028 1 2 3 4 IC5105 F18 IO IC5105 P3 IO R5216 120 IC5105 N17 IO 0.1u 10V C5132 IC5105 A1 GND R5231 120 IC5105 T5 IO C5365 10V 0.1u IC5105 M13 IO C5386 10V 0.1u C5360 50V 470p IC5105 J1 IO TP5007 IC5105 G17 IO IC5105 H7 DATA0 C5382 10V 0.1u IC5105 V14 VCCIO4 FHD3.3V IC5105 B12 IO IC5105 J18 GNDG_PLL2 TP5010 0.1u 10V C5126 IC5105 F16 IO IC5105 M5 IO R5055 EXB2HV221JV IC5105 E1 VCCIO1 R5198 22 R5250 220 IC5105 K9 GND IC5105 J7 nCE TP5026 IC5105 N9 IO IC5105 T2 IO C5343 10V 0.1u IC5105 V12 IO IC5105 V18 GND R5342 68 IC5105 P10 IO C5374 10V 0.1u IC5105 L18 IO IC5105 M16 IO IC5105 N4 IO R5233 120 IC5105 B2 GND 1000p 50V C5235 IC5105 G10 IO IC5105 E8 IO IC5105 P4 IO IC5105 C11 IO IC5105 V15 IO IC5105 H17 IO IC5105 E16 IO C5354 10V 0.1u IC5105 V4 IO IC5105 C3 IO C5384 10V 0.1u IC5105 B6 IO IC5105 P6 IO ZA5004 K4AZ01D00004 IC5105 R9 IO IC5105 U12 IO IC5105 F6 IO TP5025 R5065 0 IC5105 E2 IO Q5000 B1CBHD000002 R5228 120 IC5105 T7 IO IC5105 N8 IO IC5105 F12 IO R5088 1k IC5105 C17 IO IC5105 F3 IO IC5105 U15 IO IC5105 H14 IO IC5105 U1 VCCINT 1000p 50V C5344 IC5105 B3 IO IC5105 H16 IO IC5105 V6 IO IC5105 L14 IO IC5105 P5 IO R5224 120 IC5105 M6 IO IC5105 U7 IO IC5105 R3 IO IC5105 L5 IO C5372 10V 0.1u TP5023 IC5105 K10 VCCINT R5087 5.6k TP5016 IC5105 J12 VCCA_PLL2 IC5105 V17 VCCINT R5243 169 R5170 32.4k IC5105 K18 TCK ZA5002 K4AZ01D00004 IC5105 L15 IO IC5105 U3 IO IC5105 K17 CONF_DONE IC5105 U6 IO R5220 120 IC5105 B17 GND R5232 120 R5091 33k IC5105 R13 IO IC5105 H8 GND R5215 120 IC5105 M15 IO R5067 0 IC5105 V11 IO R5070 47 IC5105 G2 IO IC5105 D1 IO R5173 120 IC5105 F14 IO C5352 50V 470p IC5105 M1 IO IC5105 D13 IO IC5105 G12 IO IC5105 P7 IO IC5105 B7 IO IC5105 D6 IO IC5105 M18 IO TP5008 IC5105 V2 VCCINT IC5105 T8 IO FL5015 J0JAD0000028 1 2 3 4 R5203 1k R5059 47 C5378 10V 0.1u IC5105 D9 IO IC5105 E6 IO IC5105 M10 IO C5351 47u 4V R5062 47 TP5017 IC5105 E17 IO IC5105 A15 IO IC5105 U10 IO IC5105 R1 IO IC5105 J8 GND IC5105 M8 IO R5223 120 IC5105 L2 IO IC5105 G18 IO IC5105 H6 IO IC5105 A17 VCCINT IC5105 D2 IO IC5105 N3 IO 0.1u 10V C5135 IC5105 C14 IO IC5105 N11 IO TP5014 IC5105 D15 IO IC5105 L16 IO IC5105 J17 TDI IC5105 R2 IO IC5105 C9 IO IC5105 G3 IO R5176 22 IC5105 R7 IO IC5105 L4 IO IC5105 V8 IO R5251 22 IC5105 G6 IO IC5105 A16 GND 0.1u 10V C5134 IC5105 J14 IO R5248 220 IC5105 V5 VCCIO4 0.1u 10V C5146 IC5105 A14 VCCIO2 IC5105 T18 GND IC5105 K2 nCEO 0.1u 10V C5355 FL5018 J0JAD0000028 1 2 3 4 IC5105 U5 IO R5229 120 IC5105 M12 VCCIO3 C0EBD0000221 IC5013 4 OUT 3 Cd 1 GND 2 Vdd IC5105 R14 IO IC5105 C18 GND C5383 10V 0.1u IC5105 U14 IO JS5022 0 IC5105 N18 IO IC5105 U2 GND IC5105 R17 IO IC5105 J2 nCONFIG R5063 47 IC5105 J3 CLK0 0.1u 10V C5122 IC5105 D5 IO 0.1u 10V C5141 R5222 120 IC5105 B10 IO IC5105 G16 IO R5205 10k IC5105 P9 IO IC5010 TVRP342-1 1 NCS 2 DATA 3 VCC 4 GND 5 ASDI 6 DCLK 7 VCC 8 VCC IC5105 P11 VCCIO4 IC5105 L13 IO IC5105 H2 IO IC5105 N14 IO IC5105 B5 IO IC5105 U11 IO IC5105 P15 IO IC5105 M7 VCCIO1 C5371 10V 0.1u IC5105 M11 IO IC5105 U13 IO IC5105 A9 IO IC5105 F2 IO IC5105 B13 IO C5389 10V 0.1u IC5105 M4 IO 0.1u 10V C5138 C5366 10V 0.1u IC5105 B1 VCCINT R5069 1.8k IC5105 D8 IO IC5105 P12 IO IC5105 E9 VCCIO2 Q5001 B1CBHD000002 IC5105 R4 IO IC5105 V16 GND IC5105 F5 IO IC5105 L9 VCCINT IC5105 J16 CLK3 0.1u 10V C5142 IC5105 N1 IO C5367 10V 0.1u R5337 1.8k IC5105 G4 IO C5385 10V 0.1u 0.1u 10V C5140 IC5105 M9 IO R5196 1.8k R5169 3.3k IC5105 N5 IO IC5105 E4 IO IC5105 F17 IO FL5019 J0JAD0000028 1 2 3 4 IC5105 K16 IO IC5105 F13 IO IC5105 G11 IO IC5105 B18 VCCINT IC5105 P16 IO IC5105 A18 GND IC5105 A7 IO IC5105 G8 IO IC5105 K13 TDO IC5105 P1 VCCIO1 IC5105 G13 IO IC5105 C13 IO ZA5003 K4AZ01D00004 0.1u 10V C5394 IC5105 T3 IO C5350 6.3V 1u IC5105 L17 IO IC5105 B11 IO TP5005 R5200 10k R5242 169 0.1u 10V C5128 IC5105 D16 IO TP5012 C5358 6.3V 1u IC5105 M3 IO 0.1u 10V C5127 IC5105 C16 IO IC5105 D18 IO IC5105 T13 IO IC5105 A3 GND R5244 169 IC5105 C12 IO IC5105 H13 IO R5234 120 IC5105 L11 GND IC5105 V9 IO C5353 6.3V 1u R5061 47 IC5105 P8 VCCIO4 IC5105 A11 IO IC5105 R16 IO IC5105 K12 GNDA_PLL2 IC5105 K1 GNDA_PLL1 IC5105 N6 IO IC5105 N13 IO C5145 6.3V 10u IC5105 T12 IO JS5023 0 IC5105 U4 IO C5362 10V 0.1u TP5021 C5369 10V 0.1u 0.1u 10V C5356 R5202 10k IC5105 H12 VCCIO3 R5068 1.8k IC5105 C10 IO IC5105 D10 IO IC5105 N15 IO IC5105 N12 IO IC5105 T1 GND IC5105 B9 IO C5375 10V 0.1u IC5105 T6 IO IC5105 D7 IO IC5105 E18 VCCIO3 IC5105 F8 IO IC5105 E12 VCCIO2 IC5105 F7 IO IC5105 H5 IO IC5105 K6 IO R5239 169 TP5013 IC5105 V13 IO R5064 47 IC5105 C2 IO R5054 EXB2HV820JV C5388 10V 0.1u R5240 169 R5051 EXB2HV820JV IC5105 F10 IO IC5105 K15 IO 0.1u 10V C5143 TP5006 IC5105 A10 IO R5217 120 IC5105 A4 IO 0.1u 10V C5125 R5172 169 R5197 22 IC5105 U17 GND C5393 10V 0.15u IC5105 C7 IO IC5105 E3 IO IC5105 R6 IO C5381 10V 0.1u R5241 169 IC5105 R15 IO R5218 120 IC5105 K14 TMS IC5105 F15 IO IC5105 B16 IO C5144 6.3V 10u TP5022 R5060 47 IC5105 H11 GND IC5105 V1 GND IC5105 K11 GND IC5008 C0CBCAF00023 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 NC 7 NC 8 VIN IC5105 N7 IO C5387 10V 0.1u R5249 4.7k IC5105 C8 IO TP5009 IC5105 T11 IO L5017 J0JHC0000078 C5357 47u 4V C5361 10V 1u R5230 120 C5364 10V 0.1u IC5105 M14 IO 0.1u 10V C5137 IC5105 D11 IO IC5105 C6 IO IC5105 J10 GND R5238 169 IC5105 J5 VCCA_PLL1 IC5105 T9 IO IC5105 R18 IO IC5105 J6 GNDG_PLL1 IC5105 V10 IO IC5105 K5 IO IC5105 H4 IO IC5105 B14 IO FHD3.3V 0.1u 10V C5139 IC5105 N10 IO R5056 EXB2HV221JV R5235 169 IC5105 A8 IO R5201 10k TP5020 R5057 EXB2HV221JV IC5105 H1 IO IC5105 P18 VCCIO3 IC5105 J13 IO IC5105 P14 IO R5226 120 IC5105 D4 IO R5072 47 C5379 10V 0.1u IC5105 U8 IO IC5105 F9 IO R5066 0 C5390 10V 0.1u R5174 120 IC5105 G14 IO C5373 10V 0.1u 0.1u 10V C5133 C5370 10V 0.1u IC5105 D17 IO C5359 47u 4V IC5105 A6 IO IC5105 L3 IO IC5105 A2 VCCINT IC5105 A12 IO IC5105 D12 IO 0.1u 10V C5136 0.1u 10V C5123 C5345 10V 0.1u TP5011 R5058 EXB2HV221JV IC5105 R12 IO IC5105 C4 IO IC5105 H9 GND R5199 10k IC5105 R5 IO IC5105 L1 DCLK R5052 EXB2HV820JV IC5105 V7 IO IC5105 G9 IO IC5105 E10 IO IC5105 E14 IO IC5105 G15 IO TP5015 IC5105 K3 MSEL0 IC5105 G7 VCCIO1 IC5105 G1 IO IC5105 F11 IO IC5105 M17 IO IC5105 U9 IO IC5105 L8 GND IC5105 M2 IO IC5105 T4 IO TP5019 R5225 120 IC5105 R10 IO IC5105 F1 IO JS5020 0 C5377 10V 0.1u IC5105 L6 IO C5368 10V 0.1u IC5105 U18 VCCINT IC5105 T16 IO R5343 68 IC5105 L7 IO IC5105 B15 IO FL5020 J0JAD0000028 1 2 3 4 ZA5001 K4AZ01D00004 JS5021 0 IC5105 R11 IO 0.1u 10V C5130 IC5105 H15 IO IC5105 V3 GND IC5105 T15 IO TP5018 R5219 120 IC5105 P17 IO IC5105 G5 IO IC5105 A13 IO IC5105 R8 IO R5204 10k IC5105 K8 GND IC5105 K4 IO 0.1u 10V C5131 R5246 4.7k IC5105 J4 CLK1 TP5024 IC5105 T17 IO IC5105 P2 IO IC5105 J9 VCCINT C5391 10V 0.1u R5071 47 IC5105 C15 IO IC5105 N16 IO IC5105 P13 IO IC5105 H10 VCCINT 0.1u 10V C5124 IC5105 L10 GND IC5105 J11 GND IC5105 L12 nSTATUS IC5105 J15 CLK2 IC5105 H18 IO IC5105 A5 VCCIO2 C5392 6.3V 10u IC5105 N2 IO IC5105 H3 IO IC5105 C5 IO R5053 EXB2HV820JV 0.1u 10V C5129 R5236 169 IC5105 D3 IO IC5009 C0CBCAF00031 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 NC 7 NC 8 VIN C5363 47u 4V FL5016 J0JAD0000028 1 2 3 4 R5344 68 FPGA ¤FIFO ' ' VSO(LCD-Panel) Peaks '¤ FPGA OSD PTVEN GC5P ¤FPGA ROE/GOE/BOE PNL_HIZ Bank1 Bank2 CLKILV FRCLKIN 27MHz SCL HSO(LCD-Panel) FPGA(Cyclone) CLKOLV 2.5V CLK_E2DIV_OUT PWMKO PWMAO PNL_MUTE(V-MUTE) NRST nCSO O+ LVDS1 O- LVDS4 E+ LVDS0 E- LVDS2 E- LVDS1 Cyclone ¤Dprint LVDS O- LVDS1 E+ LVDS1 SDA CLK_E2DIV_in PWMKI Non-use pin Bank3(2.5V) For LCD model O+ LVDS4 OSD FIFO BLOCK ' GND O+ LVDS3 E- LVDS0 O+ LVDS2 E- LVDS3 GND LVDS_DET E+ LVDSCLK GND E+ LVDS4 O- LVDS3 O+ LVDS0 E- LVDSCLK E+ LVDS3 O+ LVDSCLK O- LVDS0 GND E- LVDS4 GND 1.5V LCD-MODE O- LVDS2 E+ LVDS2 O- LVDSCLK GND FIFO ¤FPGA ASDO FPGA ¤FIFO CONFIG ROM ' ' ' Bank4 ¤ OSD-FIFO TO D-BOARD (D5) C1ZBZ0003668 FPGA(CYCLONE) IC5105 RESET AVR 2.5V AVR 1.5V 28 30 32 34 31 36 35 33 29 31 33 34 35 32 TH-50PZ700C DH-Board (4 of 4) Schematic Diagram TH-50PZ700C DH-Board (4 of 4) Schematic Diagram ! DH-BOARD TNPA4244AE (4/4) 109 15.39.D 电路板 (1/2) 方框图 PBUSY SCLK2 LED_R P_SOS PBUSY SDA2 SOS VDA P_CTL SCLK2 P_STATUS CLKM PSLCT RM SCLK2 MAIN TXD PDB1 SDA2 PSLCT VAD SCLK2 MUTE SOS LED_G MUTE TXD IIC/INT PDB1 RM CTL SDA1 SDA2 SCLK1 P_SOS LED_R PBUSY PDB0 SDA1 SDA2 SDA2 SCLK1 IIC/INT IIC_CTL SCLK2 SDA2 SCLK1 IIC/INT IIC_CTL RXD SCLK2 SDA1 RXD PDB0 LED_G MAIN CTL IIC_CTL P_STATUS PDB1 RXD TXD PSTB PSTB P_CTL IIC/INT PSTB PSLCT PRCK D9811 R3134 P+2.5V R9870 R9868 R9220 R9127 R9221 R9871 D9802 R9222 P+1.2V Q9051 P+3.3V D9804 R9205 Q9800 D9807 P+3.3V Q9046 IC9809 IC9806 P+3.3V Q9805 R9206 Q9806 IC9801 IC9800 IC9007 IC9807 D9020 P+5V P+5V Q9044 Q9803 P+1.2V STB+5V P+1.5V P+1.2V P+15V Q9052 R9869 IC9002 R9203 R9218 Q9801 STB+5V P+15V R9217 X9000 P+15V R9207 Q9053 Q9054 R9141 IC9001 IC9003 D9808 R9219 R9215 P+2.5V IC9011 9 HD,VD 29 NCS HD 16 PBUSY SUS CONTROL S DATA1 P+15V SOS DET 19 16 REMOTE INV. MAIN ON/OFF +3.3V 4 23 (1MB) 7 +3.3V 5 5 O+ LVDS2 23 8 15 HD,VD 15 14 9 G E- LVDS0 RESET 5 TTL 1 STB+3.3V 21 6 E- LVDS3 10bit MCU PROCESSOR 23 16 ASDIO HD,VD 15 O+ LVDSCLK O+ LVDS4 S CLOCK1 TXD DCLK PSLCT O- LVDS1 10 O+ LVDS3 P+2.5V P+15V OVER VOLTAGE LED BLINKING 2 TIMES DRV_MUTE +2.5V 10bit E- LVDS1 VIDEO SIGNAL PROCESSOR +1.5V O+ LVDS0 ON/OFF 5 73 (64k) P+15V SOS DET RX 12 O+ LVDSCLK P+3.3V S CLOCK1 25 29 PDB0 PARALLE REMOTE IIC_CONT PDB1 TO DH5 E+ LVDS3 O+ LVDS1 TO P25 11 27 PSTB P+1.2V/+1.5V/+2.5V/+3.3V ON/OFF E- LVDS2 DRIVER RESET E+ LVDS2 18 VD 6 P+3.3V BUS SW 1 11 74 LVDS_DET PBUSY Q9401 LVDS_DET O+ LVDS1 R P+1.2V PANEL DRIVER 2 O- LVDSCLK 24 SOS DET RGB P+15V E+ LVDS1 Vda SOS DET DCLK 17 69 O+ LVDS2 29 O+ LVDS3 26 CONT E- LVDSCLK 25 O- LVDS0 26 IIC_INT P+2.5V 20 38 +3.3V 67 ASDIO IIC_CTL E- LVDS4 15 V MUTE 9 P+3.3V P+1.2V DATA CONTROL(U) P+1.5V D3 LED R O- LVDS4 10 TEMP SENSOR 17 PSLCT LED G POWER SOS DET E+ LVDS3 O- LVDS1 RXD 12 39 7 18 9 LED R 13 7 STB+3.3V/RESET 31 1 O- LVDS4 5 OSC 4 O- LVDS2 P+1.5V SYNC SCAN CONTROL 37 STB+5V O- LVDS2 18 18 B D5 18 21 S DATA1 68 P+3.3V SOS DET 2 6 6 14 SCAN POWER_SOS2 +5V 10 STB+3.3V O+ LVDS4 20MHz 72 17 27MHz DATA0 STB+3.3V P+2.5V D6 DRIVER RESET 6 E+ LVDSCLK 24 IIC TO DG35 DATA CONTROL(D) 3 13 DISCHARGE CONTROL 10bit 21 71 2 DRV_MUTE 66 84MHz P+5V ON/OFF RXD 20 1 1 S CLOCK2 E+ LVDS2 P+3.3V P+5V 3 P+3.3V FAIL VOLTAGE LED BLINKING 3 TIMES STB+3.3V O- LVDSCLK STB+3.3V +1.2V E- LVDS1 14 70 DCLK O+ LVDS0 26 12 E+ LVDS4 16 B O- LVDS3 2 50 51 16 6 6 27 TXD P+5V FAIL VOLTAGE LED BLINKING 5 TIMES R S CLOCK2 G 12 11 E- LVDS3 LED G STB+3.3V 3 1 36 4 14 76 ASDIO P+5V SOS DET 10bit 19 P+5V SOS DET DATA 22 Q9010 EEPROM(FPGA) E- LVDS2 1 10 P+1.5V E- LVDS0 NCS P+1.2V/+1.5V/+2.5V/+3.3V 2 IIC/INT HD,VD E- LVDS4 O- LVDS0 7 NCS S DATA2 POWER STATUS E+ LVDS0 15 SCAN ENEGRY RECOVERY_SOS1 STB PDB1 INV DATA0 20 O- LVDS3 LVDS D25 P+3.3V E+ LVDS1 4 E+ LVDS0 E+ LVDS4 28 E+ LVDSCLK 65 PANEL SOS DET DATA0 RESET ON/OFF 20 PSTB LVDS_DET E- LVDSCLK 30 EEPROM 28 8 PANEL POWER PART SOS DET 10bit 10bit S DATA2 PLASMA AI PROCESSOR FORMAT CONVERTER, D P+15V STB+5V F_STB_ON P+5V P+5V PANEL_ON Vda_Low ALL_OFF PS_SOS P+15V ECO_ON PSTB TXD DISPEN IIC_CONT PBUSY IIC_DATA2 PDB1 ECO ON P15V READY STB5V ALL_OFF PSLCT IIC/INT PANEL_STBY_ON IIC_CLK1 PDB0 RXD ALARM IIC_DATA1 IIC_CLK2 F_STB_ON FOR FACTORY USE TH-50PZ700C D-Board (1 of 2) Block Diagram TH-50PZ700C D-Board (1 of 2) Block Diagram IC9500 16 17 18 19 20 21 22 1 3 2 4 5 6 7 8 9 10 11 12 13 14 15 110 15.40.D 电路板 (2/2) 方框图 CL SDA2 CSL SIU CPH PRCK SCSU SDA2 CLKM CML CEL SCL2 PCK CEH CEL2 CSH OCK SCL2 SID CMH CLK D9302 D9300 D9301 P+2.5V D9304 P+5V P+3.3V D9305 P+1.2V D9303 (D16B,D16C,D18A D21C) CLKU1(-) P+5V 61 DATA CONTROL 8bit 1 CLK CLRU1 P+5V 57 19 DATA 14Bit 26 CLKD5(-) U29A +5V DET LEU2 1 50 P+3.3V 26 63 10bit CLKU3(-) UMH 84MHz CLKD1(-) CLKU3(-) 34 P+2.5V NUEL UML IC9200 IC9400 10bit 61 CLKU2(+) 36 42 11 IC9802,IC9803 D17A-D17C 60 25 26 2 DRV_SOS8 39 *DATA DRIVER 8 27 45 D12A-D13C DDR-IO 53 CLKU6(+) IC9602 C24 TO C24 IC9505 43 2 CSH 55 5 CPH 55 39 Q9305 68 CLKU6(+) SCAN CONTORL 13 56 D23C SUSTAIN CONTROL CLRU2 IC9402 U16A D35 U17B +5V DET D11C 13 22 11 68 P+5V 8 PCK 8 38 59 CONTROL 44 56 5 35 D32 41 C60 TO C60 IC9603 (D16A,D17A D17C) D6A-D7C U17A 14 23 52 12 R PCU2 DATA 30Bit 53 ODEU2 7 P+5V D9C DATA CLRD5 61 67 DATA 4Bit I/F 61 48 10bit CLKD7(-) 7 9 DDR-IO PROCESSOR 8 D34 43 59 36 38 D20A SC_SOS2 (U16A U17A) 6 27 P+5V 2 D14A-D14C U14C 35 U20A P+3.3V CLKU3(-) 40 59 SC_SOS1 SID 22 U19C 26 U14B DATA 6bit 5 CLKD0(+) PCU1 10 PCU1 USH PCU2 39.5MHz 66 24 27 D16A Q9304 CEL2 NOISE NR 21 CLKU4(+) 2 54 DDR-DRAM 68 2 67 23 CEL XRST CEH 64 Q9302 10 17 8 DET U26C 9 DATA 13bit P+2.5V 6 39 49 OCK RESET D28B,D28C LED6 30 OCK CONT 46 67 D27C,D28A 34 U29B CONT 13 61 U26B UMH IC9504 10 LED5 U0A 42 24 DET 66 UEH CLKU1(-) 19 CLKU5(-) 37 1 U2A CLKD6(+) 14 D29A-D29C 51 +5V D18A-D19C 13 17 B D31 P+3.3V 38 45 18 CLRD6 5 DATA PROCESS +5V DET 31 PCD6 (D22A D31C) P+5V 9 15 IIC ODED5 D0A-D1C P+2.5V 54 G CLKU2(+) 48 30 16 CML 6 DATA 30Bit IC9304 CLKU5(-) MPEG D15C 33 +5V DET P+5V 50 RST 48 P+5V 32 D15A,D15B 3 DATA 4Bit 20 CLKD0(+) 60 3 DATA 30Bit 12 PCK 9 UEH CLKU7(-) 59 U22A (U17B U21C) 42 CLKU4(+) DATA 4Bit 10 46 D16B,D16C 3.3V->5V 9 D26A-D26C DET 58 CLRD5 CLKU6(+) R U24A 31 +5V 1 14 D21C 5 5 0 47 CLKU2(+) D17A-D17C RESET U21C 30 (U0A U9C) 60MHz LED6 PLL SYNTHESIZER (D0A D9C) B IC9301 C10 TO C10 66 66 52 HD,VD 12 P+5V X9200 30 P+5V CLRU1 D22A 28 U28A 19 10 CLOCK 67 USH +5V ODEU2 CLKD4(+) CLKU1(-) D14A-D14C 37 41 U27C 30 27 U10A D5A-D5C CLKD3(-) TO SC20 USL 33.6MHz 3.3V->5V CLKD6(+) CLKD1(-) 66 10bit DATA 30Bit DATA 14Bit 49 C54 TO C54 ODED6 ODED6 *S/P CONV. 68 41 ODED5 P+5V 28 LEDU1 U4B U12A DATA 14Bit 64 19 CLKD2(+) CLKD2(+) 43 DATA 11 OCK 8 67 59 57 C55 TO C55 50 OCK 35 D33 XRST P+5V SCSU 34 U9C D30A-D31C (U22A U31C) 67 D8A P+2.5V PCK 45 D4B,D4C P+5V 55 33 8 CLKD7(-) 29 31 PDP PANEL SIGNAL PROCESSOR CL D10A (D14A D14C,D15C) P+5V 60 CLKU5(-) +5V 64 59 17 60 VDD 33 DATA C25 TO C25 +5V DET 128Mbit P+5V 2 33.6MHz 32Mbit 59 D24A-D24C 3 PCD5 18 U7A LED5 36 52 63 29 P+5V P+1.2V IC9401 11 50 64 LEDU1 9 31 CMH U17A 45 61 46 31 CLKD4(+) 27 60MHz D27A,D27B 39 D15C,D16A 66 ADR 19 16 37 1 (U14C U15C) 3 CLKU7(-) 51 68 IC9503 D25A-D25C DATA 4Bit 41 20 P+1.2V DET 47 16 60MHz 67 P+5V 2 U15C 34 14 Q9303 P+5V SUB FIELD 61 20MHz 2 8 LEU2 DDR-DRAM G 58 DET CLKD3(-) 64 6 67 10 IIC 3 DATA 14Bit 26 59 +5V DET 10bit U7B BUS SWITCH P+5V U4C 37 3.3V->5V CLRU2 2 FLASH MEMORY 64 DATA CONTROL 6bit 40 2 49 39 U14C D3C,D4A USL 24 CLKU7(-) U31C CSL P+5V 11 CLKU0(+) CLKD5(-) 58 1 36 +5V 53 38 I/F 30 CLKU0(+) P+5V 32 FLASH 43 P+5V 42 HD,VD 68 U23C ODEU1 57 CLKU4(+) 3 P+5V 39 FLASH 32 (D10A D15B) CLK OUT RESET 62 ODEU1 10bit 58 UML 28 CONT 12 DET *SF TABLE CONV. 45 NUEL 51 14 ADR 15 8 32 RESET 23 60 28 9 3 U1C D36 3.3V->5V SIU 11 24 43 U11C 4 55 PCK IC9300 D3A,D3B 67 CLK OUT 20 20 PCD6 21 18 +5V Q9301 39 24 128Mbit 18 30 (U10A U14B) D20 1 PCD5 D2A-D2C 10 CLRD6 19 10 63 58 P+3.3V 56 CLKU0(+) 5 38 21 42 17 PLASMA AI PROCESSOR D FORMAT CONVERTER, LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT PROCESSOR CLOCK *CONTOUR CORRE. PDP PANEL SIGNAL PROCESSOR *S/P CONV. *SF TABLE CONV. SUB FIELD NOISE NR *DATA DRIVER *CONTOUR CORRE. DATA PROCESS MPEG 16 17 18 19 20 21 22 1 3 2 4 5 6 7 8 9 10 11 12 13 14 15 TH-50PZ700C D-Board (2 of 2) Block Diagram TH-50PZ700C D-Board (2 of 2) Block Diagram 111 15.41.D 电路板 (1/8) 线路图 G G G G G G + + G G 18 16 14 12 10 8 6 4 2 20 21 19 17 15 13 11 9 7 5 3 1 + G G G G FP_SCSU ECO_ON SC_CEL PANEL_STBY_ON NCS FP_CEL INEXCH DATA0 RXD_PC FP_DRV_RST_O ALARM FP_CSL SC_SID TXD_PC READY SC_CSH SC_CPH STB_SDA02 SC_CMH AR_IIC_INT SC_CEL STB_SCL02 PANASONIC_MODE PDB1_2 SC_SID PSLCT_2 FP_CML PDB0_2 SC_SCSU SC_CSL FP_CL ALL_OFF ASDIO PBUSY_2 DCLK SC_CLK P3V_SCL1 PSTB_2 SC_SCSU PANEL_MAIN_ON SC_CMH SOS6_SC1 SC_CEL2 FP_CLK SC_CML P3V_SDA1 SC_CSL SOS4_PS FP_CMH SC_CL FP_SIU SC_CL SC_CSH FP_CSH SOS9_CONF ECO_ON FP_CEL2 SC_CPH FP_SID SC_CLK SC_CML SC_CEL2 SC_DRV_RST_O SC_DRV_RST_O FP_CPH ALL_OFF SC_SIU SC_SIU DCDC_ON DRVMUTE TUNER_SUB_ON DCDC_ON P3V_SCL1 AR_IIC_CONT_D4 PSTB PDB1 PSLCT PSLCT_2 LED_R AR_IIC_INT_D2 STB_SCL02_D4 PDB0_2 STB_SDA02_D4 TXD_PC_D4 PDB1_2 PDB0 PBUSY_2 RXD_PC_D4 PBUSY PSTB_2 P3V_SDA1 LED_G REM_IN VDATA_DET TUNER_SUB_ON STB_SCL02_D4 STB_SDA02_D4 TXD_PC_D4 RXD_PC_D4 STBY3.3V_ON AR_IIC_INT_D2 AR_IIC_CONT_D4 AR_IIC_CONT P_ON/OFF SOS7_SC2 CBK C9848 0.1u 25V C9883 8200p 50V R9896 0 L9800 G1C3R0MA0248 C9801 4700p 50V C9805 4.7u 6.3V R9878 39k C9028 6.3V 10u R9198 4.7k C9887 4.7u 6.3V C9809 0.1u 16V C9881 50V 1000p R9815 22k R9897 100k P5V R9807 0 R9891 47k 1% C9969 33p 50V J0HABH000013 FL9806 C9823 10u 25V R9826 100 C9825 50V 100p P3.3V R9830 10k C9884 10p 50V R9813 2.4k R9823 100 P2.5V R9840 22 P5V STB3.3V P15V R9879 20k Q9800 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 LDO_5V C9824 10u 25V J0HABH000013 FL9800 R9842 100 R9825 100 LDO_5V STB3.3V C9971 0.1u 16V R9828 100 D9801 B0JCDD000002 C9885 1000p 50V C9880 50V 1000p R9870 10k R9802 62k D9804 MA3X152K0L P15V R9872 0 R9868 100k STB5V FL9803 J0HABH000012 1 2 3 Q9805 B1ABCF000138 P15V R9201 4.7k C9840 16V 0.1u R9883 0 R9892 15k 1% P15V STB3.3V P15V R9824 100 C0DBAYY00054 IC9807 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB C9882 0.1u 16V C9802 47p 50V P15V L9810 J0JHC0000045 R9884 100k D9802 MA2J72800L Q9803 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 R9847 EXB2HV222JV C9808 10u 25V D9808 MA3X152K0L *R9898 47 C9886 0.1u 16V P15V C9897 8200p 50V C9843 16V 0.1u C9842 16V 1u C9806 68u 4V L9801 G1C2R2MA0241 STB3.3V R9202 4.7k C9847 0.1u 25V C9816 68u 4V FL9804 J0HABH000012 1 2 3 C0DBAYY00054 IC9809 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB C9898 10p 50V R9808 100k D9814 B0JCME000037 R9838 100 D6 C9891 0.1u 16V C9826 16V 0.1u LDO_5V C9970 47p 50V C9807 10u 25V R9843 100 R9803 0 IC9007 TVRP584 1 nCS 2 DATA 3 VCC 4 GND 5 ASDI 6 DCLK 7 VCC 8 VCC C9833 10u 25V P3.3V R9850 47k R9841 0 R9846 EXB2HV222JV R9816 82k STB5V_M C9838 16V 0.1u C9815 68u 4V R9806 39k C9832 10u 16V P5V C9803 4700p 50V R9804 24k R9848 EXB2HV470JV C0DBAHD00011 IC9806 1 VOUT 2 GND 3 CE 5 VDD 4 NC R9814 68k R9871 10k C9818 10u 25V R9839 100 R9849 EXB2HV470JV C9926 0.1u 16V C9899 1000p 50V R9854 100 Q9801 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 C9831 10u 16V P15V P5V R9800 13k R9880 36k R9844 100 P1.2V C0JBAZ001120 IC9802 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc J0HABH000013 FL9805 L9802 G1C2R2MA0241 C9841 16V 1u C9817 10u 25V R9801 24k R9831 10k R9099 100 C9029 6.3V 10u R9893 36k Q9100 B1ABCF000138 R9845 5.6k D9800 B0JCME000037 D3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R9827 100 P15V C9830 10u 16V R9869 10k C0DBAYY00054 IC9800 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB D25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C9967 4.7u 6.3V C9844 50V 0.01u C9837 10u 16V C9800 0.1u 16V R9810 3k C0JBAZ001120 IC9803 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R9805 30k C9846 16V 0.1u P5V LDO_5V PA9800 K5H4022A0023 STB5V C9896 0.1u 16V D9815 B0JCDD000002 Q9806 B1ABCF000138 D9807 MA3X152K0L C9845 16V 0.1u D9813 B0JCDD000002 D9812 B0JCME000037 D20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 D9035 MA2J72800L C9804 0.1u 16V FL9807 J0HABH000013 1 2 3 TP9058 R9859 EXB38V101JV SOS7_SC2/ CBK CSH ECO_ON +5V GND CML FAN_CONT CL +5V F_STBY_ON GND GND SID GND FAN_SOS +15V CEL2 +15V SOS4_PS GND STBY5V GND GND GND DRV_RST_O CEL CSL ALL_OFF P5V CLK CPH GND SCSU CMH SIU PANEL_MAIN_ON GND SOS6_SC1 AC_GOOD STBY5V GND P15V STBY3.3V IIC_CONT GND SCL1 SDA1 SCL2 SDA2 TXD RXD IIC_INT LED_G PSTB LED_R PDB0 PSLCT PDB1 PBUSY REMOCON VDATA_DET 15V->2.5V 15V->5V ALARM TUNER_SUB_ON ECO_ON INEXCH RXD STBY5V_F DISPEN PSLCT PANASONIC_MODE/ C_SEL IIC_CLK1 READY P15V IIC_INT GND PDB1 GND IIC_CONT PBUSY IIC_CLK2 TXD IIC_DATA1 IIC_DATA2 PDB0 PSTB GND ALL_OFF P5V GND GND PANEL_STBY_ON (P25) TO P-BOARD DG-BOARD TO (DG35) TO SC-BOARD (SC20) LEVEL CONVERTER FOR USE FACTORY DC-DC CONVERTER DC-DC CONVERTER 15V->1.2V DC-DC CONVERTER 15V->3.3V AVR 5V PROM(FPGA) 1 3 2 E 1 A C 3 B D 4 8 7 9 6 F 5 2 LEVEL CONVERTER D-BOARD (1/8) TNPA3983BC ! TH-50PZ700C D-Board (1 of 8) Schematic Diagram TH-50PZ700C D-Board (1 of 8) Schematic Diagram 112 15.42.D 电路板 (2/8) 线路图 RCLK_E- M_SEL1 LVDSBIT P3V_SCL1 RCLK_E+ SOS9_CONF RA_0+ RA_E- P3V_SDA1 INEXCH ALARM RB_0- RA_E+ STB_SCL01 RB_0+ SOS8_SS EEP_WR_CTL STB_SCL01 M_SEL4 RB_E- SOS4_PS STB_SDA01 XRST XRST M_SEL3 RC_0- AR_IIC_INT PANEL_MAIN_ON RB_E+ STB_SDA01 REM_IN RC_0+ P_ON/OFF RC_E- PANEL_STBY_ON SOS9_CONF RD_0- READY M_SEL3 M_SEL2 LED_R NRST RC_E+ STBY3.3V_ON M_SEL2 PANASONIC_MODE RD_0+ LED_G RD_E- RE_0- RD_E+ TXD_PC RE_0+ RCLK_0- M_SEL4 RE_E- RCLK_0+ LVDS_DET STB_SDA02 P3V_SDA02 P3V_SCL02 STB_SCL02 P3V_SCL02 XRST STB_SCL02 P3V_SDA02 STB_SDA02 RE_E+ RA_0- DRVRST SOS6_SC1 VDATA_DET LVDS_DET DCLK DATA0 ASDIO NCS STB_SCL02 STB_SDA02 FVSEL AR_IIC_CONT AR_IIC_CONT LVDS_DET C_SEL SOS7_SC2 XRST2 EEP_WR_CTL RXD_PC XRST M_SEL1 R9060 100 R9156 10k Q9058 B1CBHD000002 D9110 B0JCGD000002 R9218 10k R9175 10k R9237 10k R9160 0 R9109 10k R9141 100 D9102 B0JCGD000002 STB3.3V R9149 4.7k Q9044 B1ABCF000138 D9105 B0JCGD000002 R9155 5.6k R9221 10k R9204 4.7k R9074 100 R9134 33k C2CBJG000751 IC9003 1 2 3 4 5 6 CNV 7 8 - 9 RESET 10 XOUT 11 VSS 12 XIN 13 VCC 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 IC9011 C0EBF0000431 1 RESET 2 Cd 3 VOUT 4 VDD 5 GND 6 CE R9188 5.6k STB5V R9169 10k STB3.3V R9064 100 R9105 100 D9100 B0JCGD000002 R9066 100 R9203 1k IC9001 TVRP588-1 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 Vcc C9058 6.3V 10u R9206 1k D9019 MAZ303300L R9174 10k C9045 16V 0.1u R9185 22 R9189 10k R9120 100 R9094 10k R9113 10 R9143 100 R9192 0 C9056 16V 0.1u R9067 100 R9178 10k R9062 100 R9101 10k Q9201 B1CBHD000002 R9220 10k D9101 B0JCGD000002 C9053 16V 0.1u R9107 3.3k Q9200 B1CBHD000002 P3.3V C9052 16V 0.1u C9033 16V 0.1u Q9051 B1ABCF000138 X9000 H2D200500011 R9194 0 STB3.3V R9061 100 R9176 10k R9166 10k R9182 1k Q9050 B1ABCF000138 R9165 10k C9050 16V 0.1u C9046 16V 0.1u D5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 R9171 39k R9127 68k R9170 39k R9209 10 R9158 10k STB3.3V Q9052 B1ABCF000138 R9205 4.7k Q9054 B1ABCF000138 R9199 2.7k C9039 6.3V 10u R9247 4.7k R9190 10k C9044 16V 0.1u C9048 16V 0.1u D9018 MAZ303300L R9207 1k STB3.3V R9151 22 STB3.3V R9065 100 R9222 10k C9037 0.01u 50V R9248 4.7k C9049 16V 0.1u TP9000 R9121 100k R9187 5.6k R9177 22k R9150 22 R9063 100 *R9098 10k R9183 1k R9210 2.7k R9167 100 R9179 1k C9034 16V 0.1u P3.3V R9108 10k STB3.3V R9161 0 R9186 22 R9110 0 D9103 B0JCGD000002 R9148 10k R9145 100 C9051 16V 0.1u C9055 16V 0.1u R9236 0 D9017 MAZ303300L Q9057 B1CBHD000002 C9040 16V 0.1u R9129 68k R9140 0 STB3.3V Q9049 B1ADCE000011 R9159 10k IC9002 C1ZBZ0003577 1 SCL 2 GND 3 ADD1 4 V+ 5 ADD0 6 SDA R9181 1k R9196 10k R9184 1k R9217 10k R9144 100 R9102 100 C9057 16V 0.1u R9193 10k Q9046 B1ABCF000138 R9154 5.6k P15V R9215 12k P5V STB5V_M C9035 6.3V 10u P3.3V D9020 MA2J72800L C9036 6.3V 10u R9180 10k C9047 16V 0.1u Q9053 B1ABCF000138 P3.3V D9106 B0JCGD000002 R9076 100 R9219 10k R9172 39k R9111 22k *R9097 10k *R9157 10k IIC_CONT NC GND DRIVER_RESET SCLK(for Loader) IIC1_SCL SOS8_SS NC CE(Loader) E+ LVDS2 NC O+ LVDS3 E+ LVDS1 SOS4_PS GND XRST O+ LVDS0 RESET IIC1_SDA BUSY(for Loader) NC AVSS GND NC NC E- LVDS2 FPGA_CE NC SOS7_SC2 NC XOUT REM_IN SOUT(FPGA) GND NC O- LVDS3 NC VREF FVSEL E+ LVDS3 PLL_RST M_SEL2 SIN(FPGA) NC LSI_RST E- LVDS3 M_SEL3 O+ LVDS1 ALARM INEXCH E+ LVDS4 AC_GOOD O- LVDS1 P_ON/OFF GND NC E- LVDS4 LVDS_DET E+ LVDSCLK SOS6_SC1 O+ LVDS2 NC AVCC O- LVDS2 VSS PANEL_MAIN_ON NC E- LVDS0 SOS9_CONF GND SCLK(FPGA) EEP_WR_CTL NC O+ LVDS4 LED_GRN O- LVDS4 IIC_INT E+ LVDS0 M_SEL4 NC(ALL_OFF) IIC2_SCL SOS_INH SOS5_5V XIN NC NC(C_SEL) IIC2_SDA PANASONIC_MODE O- LVDSCLK LVDS_MODE NC NC O+ LVDSCLK VCC E- LVDSCLK NC TXD(Loader) O- LVDS0 LVDS_BIT SOS3_3V READY RXD(Loader) INT_CONF E- LVDS1 LED_RED SOS2_15V CNVSS M_SEL1 NC MAIN_CONF VDATA_DET EEPROM RESET STB 3.3V MICOM TEMPERATURE DIGITAL SENSOR 1 2 3 11 12 17 16 14 15 13 16 17 13 11 12 10 14 18 15 TO DH-BOARD (DH5) TH-50PZ700C D-Board (2 of 8) Schematic Diagram TH-50PZ700C D-Board (2 of 8) Schematic Diagram D-BOARD (2/8) TNPA3983BC ! 113 15.43.D 电路板 (3/8) 线路图 G G L8L_RI4 L8L_GI4 FP_CL L8R_RI6 AA_BYTE L8R_GI3 L8R_GI7 L8L_RI5 SOS9_CONF RD_E+ L8R_RI0 RCLK_0+ L8L_GI5 FP_CSH DD_PCD1 L8R_GI9 TDO_TO_FPGA RC_E+ L8R_GI2 RB_0- L8R_BI0 L8R_BI3 NRST RD_0+ L8L_GI6 L8R_BI8 FP_CLK L8R_BI2 FP_CSL TMS DATA0 RC_0+ SFRST FP_DRV_RST_O RB_E+ L8R_GI1 FP_CEL2 L8R_GI4 L8L_RI6 L8R_GI6 NCS L8R_GI0 RE_E+ RCLK_E+ L8L_GI7 L8L_BI4 FP_SID FP_UEH L8R_RI7 PDB0 LATCH TCK L8L_RI7 L8L_BI5 FVSEL L8L_GI8 L8L_HDI L8L_RI8 PDB1 FP_UML L8R_RI9 L8R_RI5 L8R_GI5 RA_E+ L8R_BI9 L8L_GI9 RE_0+ L8L_BI6 FPDAT1 L8L_RI9 FP_CMH PSTB RB_E- TDI_TO_68_L FP_CPH L8R_RI2 FP_UMH L8L_RI0 RD_E- L8L_BI0 L8R_RI1 L8L_BI7 FP_SCSU L8L_GI0 PBUSY RCLK_E- DD_ODED L8R_RI3 PSLCT L8L_RI1 L8L_BI1 L8L_BI8 RC_0- AA_XWE L8L_GI1 SFVRST RA_0- FP_USH RA_E- RB_0+ ASDIO RE_0- FP_NUEL DRVRST L8L_RI2 L8L_BI9 L8R_BI4 FP_CML L8L_BI2 RD_0- L8L_GI2 L8R_BI1 L8R_BI6 L8R_GI8 L8R_BI5 FP_CEL RC_E- INEXCH L8L_RI3 FP_SIU L8L_BI3 FPCLK L8R_RI8 L8R_RI4 L8L_GI3 L8R_BI7 FP_USL FPDAT0 RE_E- RA_0+ DD_PCD2 LVDSBIT L8L_VDI L8L_DCK L8L_MASK BUS_SW L8R_VDI L8R_HDI L8R_DCK L8R_MASK DD_ODEU DD_PCU1 DD_LEUR DD_PCU2 P3V_SCL02 P3V_SDA02 DRVMUTE FP_URH/CBK FP_URL DMLL DMLR DSHL DSLR DSLL DCLK DMHL DSHR DMHR DD_CLRU DD_LEDR DD_CLRD AA_XCE_L AA_XOE RCLK_0- LVDS_DET DD_LEUL DD_LEDL IC9500 C1ZBZ0003575 A1 GND IC9500 K7 - IC9500 K11 - IC9500 K8 VCCINT IC9500 P2 - IC9500 B15 GND IC9500 C3 ASDO IC9500 B2 GND IC9500 G1 TMS IC9500 N16 - R9543 10k IC9500 J15 - IC9500 P8 GND IC9500 M1 - IC9500 C10 VCCIO2 IC9500 G15 - R9531 47 IC9500 L7 - IC9500 C15 - IC9500 B14 - IC9500 A11 - IC9500 N4 - R9608 EXB2HV470JV R9609 EXB2HV470JV IC9500 P16 - IC9500 R5 - IC9500 E2 - IC9500 F13 - IC9500 D14 - C9526 6.3V 10u IC9500 N3 - IC9500 M5 VCCA_PLL1 IC9500 M10 VCCIO4 P3.3V R9877 10k IC9500 A4 - IC9500 C5 - IC9500 F3 - IC9500 L4 - R9552 47 R9534 EXB38V470JV IC9500 E1 - IC9500 D7 - IC9500 A7 - IC9500 R4 - IC9500 K3 VCCIO1 IC9500 T7 - IC9500 B16 VCCIO3 IC9500 L8 - R9549 10k R9876 10k IC9500 B9 - IC9500 D1 - IC9500 D12 GND_PLL2 L9502 J0JHC0000078 IC9500 T13 - IC9500 R1 VCCIO1 IC9500 A8 - IC9500 L3 - IC9500 C14 - R9550 10k IC9500 A13 - P3.3V IC9500 F12 GND_PLL2 IC9500 F7 - R9560 10k IC9500 H15 - C9523 16V 0.1u IC9500 P4 - L9504 J0JHC0000078 IC9500 F16 - IC9500 K13 - R9525 10k R9532 47 IC9500 M3 - IC9500 T15 VCCIO4 IC9500 E7 VCCIO2 IC9500 P14 - IC9500 P6 - IC9500 M8 GND IC9500 J7 VCCINT IC9500 E13 - IC9500 P13 - C9522 16V 0.1u IC9500 D2 - IC9500 K14 VCCIO3 IC9500 H9 GND IC9500 G14 VCCIO3 IC9500 C16 - IC9500 J16 - IC9500 H10 VCCINT IC9500 K6 - IC9500 A10 - IC9500 E6 - IC9500 A15 VCCIO2 IC9500 E9 GND IC9500 H3 GND IC9500 R3 - IC9500 M9 GND IC9500 J11 - R9542 68 R9536 47 IC9500 R10 - IC9500 B13 - IC9500 K16 - IC9500 L16 - IC9500 B1 VCCIO1 IC9500 J6 - IC9500 D9 - IC9500 H1 - IC9500 E14 - IC9500 L9 - IC9500 T8 - C9519 16V 0.1u IC9500 G16 - IC9500 G13 - C9517 16V 0.1u IC9500 G3 VCCIO1 IC9500 N7 - R9530 10k IC9500 F1 DATAO C9532 50V 100p R9604 0 IC9500 C7 VCCIO2 IC9500 L11 - R9245 100 IC9500 T14 - IC9500 M16 - IC9500 B6 - IC9500 J14 GND IC9500 B11 - IC9500 M2 - IC9500 T11 - IC9500 C12 - IC9500 J8 GND IC9500 M4 - IC9500 D4 - IC9500 F4 nCSO IC9500 T2 VCCIO4 C9559 16V 0.1u IC9500 N15 - IC9500 T3 - C9520 16V 0.1u R9610 EXB2HV470JV IC9500 N5 GND_PLL1 IC9500 N14 nCEO R9535 47 IC9500 R11 - IC9500 F6 - IC9500 P12 - R9615 EXB2HV470JV IC9500 H2 - IC9500 D8 - IC9500 D5 - IC9500 L13 CONF_DONE IC9500 F14 - IC9500 D3 - IC9500 B3 - IC9500 K15 - IC9500 F2 TCK IC9500 T6 - IC9500 R6 - IC9500 M7 VCCIO4 IC9500 C13 - IC9500 H14 GND IC9500 P11 - IC9500 L6 VCCD_PLL1 IC9500 J9 GND P3.3V IC9500 R9 - FL9504 F1J1E1040022 1 2 3 IC9500 L12 - R9554 47 IC9500 G12 - IC9500 C11 - IC9500 K5 - R9526 0 IC9500 D15 - C9516 16V 0.1u R9611 EXB2HV470JV IC9500 H11 - IC9500 N10 - IC9500 E12 VCCA_PLL2 IC9500 G2 TDO IC9500 K2 - C9524 16V 0.1u IC9500 P7 VCCIO4 IC9500 E5 - R9612 EXB2HV470JV IC9500 L5 GND_PLL1 IC9500 E15 - IC9500 N12 - IC9500 T5 - IC9500 E4 - IC9500 F11 VCCD_PLL2 IC9500 A16 GND IC9500 M13 nSTATUS IC9500 H4 DCLK IC9500 N1 - P3.3V IC9500 N11 - IC9500 T10 - IC9500 K1 - P3.3V IC9500 E10 VCCIO2 *R9647 10k IC9500 F10 - IC9500 G7 - IC9500 K4 - IC9500 L2 - C9531 6.3V 10u IC9500 G8 GND IC9500 B8 - C9528 16V 0.1u IC9500 M14 - IC9500 D13 - IC9500 B10 - IC9500 A2 VCCIO2 IC9500 F8 - C9525 16V 0.1u IC9500 J13 MSEL0 L9501 J0JHC0000078 IC9500 C8 GND IC9500 H12 - IC9500 R13 - IC9500 B4 - IC9500 M6 GNDA_PLL1 C9527 16V 0.1u IC9500 P15 - IC9500 A5 - IC9500 C1 - IC9500 R14 - R9507 56 IC9500 M12 - IC9500 E3 - IC9500 M11 - R9553 47 IC9500 J5 nCONFIG IC9500 N2 - IC9500 M15 - R9244 100 IC9500 L1 - R9523 10k IC9500 A12 - C9560 16V 0.1u IC9500 B12 - IC9500 D10 - IC9500 R7 - L9505 J0JHC0000078 IC9500 R15 GND IC9500 B7 - R9875 10k IC9500 G9 VCCINT IC9500 P3 - IC9500 P9 GND IC9500 B5 - R9506 22 C9561 16V 0.1u R9544 10k IC9500 T12 - R9630 10k IC9500 N13 INT_DONE R9548 10k IC9500 C9 GND IC9500 L14 - R9533 47 IC9500 N9 - R9614 EXB2HV470JV R9070 47 IC9500 J3 GND IC9500 R16 VCCIO3 IC9500 E11 GNDA_PLL2 IC9500 N6 - IC9500 T16 GND R9613 EXB2HV470JV IC9500 J1 - IC9500 J10 VCCINT R9629 10k IC9500 L10 - IC9500 C4 - IC9500 T1 GND IC9500 F15 - IC9500 E16 - P3.3V IC9500 F5 - IC9500 P5 - IC9500 C6 - IC9500 H6 - IC9500 G5 nCE IC9500 D11 - IC9500 J12 - IC9500 T9 - IC9500 R2 GND IC9500 K10 - IC9500 J4 - IC9500 H8 GND IC9500 K12 MSEL1 IC9500 J2 - IC9500 G11 - IC9500 P1 - IC9500 R8 - IC9500 H13 - IC9500 A6 - IC9500 G10 - IC9500 A3 - P3.3V IC9500 P10 VCCIO4 IC9500 T4 - IC9500 D16 - C9521 16V 0.1u IC9500 K9 GND IC9500 E8 GND IC9500 A9 - IC9500 H7 VCCINT IC9500 L15 - L8L1.2V IC9500 G4 - IC9500 A14 - R9529 10k IC9500 N8 - C9518 16V 0.1u IC9500 H16 - IC9500 G6 - IC9500 H5 TDI IC9500 F9 - IC9500 C2 - IC9500 R12 - R9545 300k IC9500 D6 - P3.3V TP9059 TP9060 TP9061 TP9062 *R9640 10k *R9618 10k BR[1]/A-1 VCCINT M_BOUT1 FPDATA0 UEH M_BOUT4 K_DONE ODED SID M_BOUT3 M_ROUT4 USH GR[9]/A19 PCU1 SC_PULSE CEL M_BOUT9 UMH M_ROUT7 M_GOUT7 USL DRVRST RESET M_BOUT8 CMH UML MASK_L PCD2 M_VDO_L FPCLK SS_PULSE INEXCH NUEL CML p_db1 BR[5]/DQ3 CSH RR[8]/A8 CONTROL p_db0 OTHER M_ROUT9 BR[0]/A20 p_stb f_nWE CLK BR[8]/DQ6 GR[7]/A17 NRST IIC NC M_BOUT0 SCL M_GOUT5 CL M_BOUT7 M_GOUT9 M_HDO_L TP CLK_INPUT p_slct M_GOUT1 p_busy RR[2]/A2 M_DCKO_L PRCKI M_GOUT0 SDA RR[9]/A9 M_ROUT6 XRST M_BOUT6 RR[0]/A0 GR[2]/A12 LVDS_DET MSEL0 CEL2 RR[4]/A4 JTAG fL_nCE SCSU M_BOUT5 CPH BR[7]/DQ5 SFRST M_ROUT3 RR[3]/A3 PICTURE_OUTPUT(L) GR[0]/A10 BR[2]/DQ0 M_GOUT3 f_nBYTE f_nOE RR[7]/A7 PCU2 RR[5]/A5 CLRD BR[3]/DQ1 LATCH DATA_DRIVER GR[3]/A13 FPDATA1 M_GOUT6 GR[6]/A16 LSI58 Communication BR[6]/DQ4 PCD1 RR[1]/A1 M_BOUT2 LVDS_INPUT M_ROUT2 CSL FPGA BR[4]/DQ2 LEDR GR[8]/A18 CLRU RR[6]/A6 BR[9]/DQ7 FVSEL ODEU SFVRST LEUR SIU M_GOUT2 DRV_RST_O M_ROUT0 M_ROUT5 GR[5]/A15 M_ROUT1 M_ROUT8 CLKM_IN GR[1]/A11 VCCI LVDSbit DRVMUTE GR[4]/A14 GND M_GOUT4 M_GOUT8 MASK_R M_DCKO_R M_HDO_R M_VDO_R XRST BUS_SW PICTURE_OUTPUT(R) /FLASH_CONTROL URH/CBK URL DATA ENERGY RECOVERY MSEL1 MODEL[0] MODEL[1] MODEL[2] DMHR DSHR DSLR DMLR DMHL DSHL DSLL DMLL PRCK84M Nosync LEUL LEDL MODEL SELECTION FREE RUN CLK IC9500 11 13 12 14 17 16 27 26 24 23 22 21 25 26 27 19 25 23 24 21 22 20 DISCHARGE CONTROL WB ADJ FLASH CONTROL FPGA CONTROL LVDS SYNC PROCESSING FPGA,ASIC TH-50PZ700C D-Board (3 of 8) Schematic Diagram TH-50PZ700C D-Board (3 of 8) Schematic Diagram D-BOARD (3/8) TNPA3983BC ! 15 114 15.44.D 电路板 (4/8) 线路图 G G TERM SIDE FP_UMH FP_NUEL FP_USL FP_UML UMH D_ODEU2 D_ODEU1 USH NUEL UML FP_URL FP_USH USL L8_PCK L8_OCK R8_OCK R8_PCK D_CLRD6 D_CLRD5 D_PCD5 D_PCD6 BUS_SW BUS_SW BUS_SW BUS_SW D_ODED5 D_ODED6 D_LED5 D_LED6 FP_URH/CBK FP_UEH D_LEU1 D_PCU1 D_LEU2 D_PCU2 D_CLRU1 D_CLRU2 DOUTDA29 CLKD6 DOUTDC27 DOUTDB30 DOUTDC23 DOUTDA31 DOUTDC26 CLRD_6 DOUTDB29 DOUTDA27 DOUTDA28 DOUTDB31 5V_DET6 DOUTDB28 DOUTDA25 DOUTDB23 DOUTDA24 DOUTDA22 LED_6 DOUTDC29 DOUTDB22 DOUTDC22 DOUTDC24 DOUTDB26 DOUTDC28 DOUTDB25 DOUTDC25 DOUTDC31 DOUTDB24 DOUTDA30 DOUTDB27 DOUTDC30 CLKD7 DOUTDA23 DOUTDA26 PCD_6 L8R_DA07 L8R_DB11 DOUTDC20 DOUTDA16 DOUTDA18 DOUTDA23 DOUTDB16 L8R_DA15 DOUTDB18 L8R_DB07 L8R_DC11 DOUTDC24 DOUTDA31 DOUTDC18 DOUTDC21 L8R_DB03 DOUTDB31 DOUTDA27 L8R_DC07 L8R_DA10 DOUTDA17 DOUTDB21 DOUTDC31 DOUTDB27 DOUTDB17 5V_DET6 DOUTDA21 DOUTDC17 DOUTDA30 L8R_DA06 DOUTDC27 L8R_DB10 DOUTDC16 L8R_DA01 DOUTDA19 DOUTDB30 5V_SENSE DOUTDA26 L8R_DB01 DOUTDB23 L8R_DC08 DOUTDC30 L8R_DB06 L8R_DC01 DOUTDB26 L8R_DC10 DOUTDC26 DOUTDC23 L8R_DA05 L8R_DB15 DOUTDA29 DOUTDA22 L8R_DA13 L8R_DC06 L8R_DB05 DOUTDB29 DOUTDB22 L8R_DC03 L8R_DC15 DOUTDC29 DOUTDC22 L8R_DB13 L8R_DA09 L8R_DC05 DOUTDA28 L8R_DA02 DOUTDA25 L8R_DA14 DOUTDB28 DOUTDB25 L8R_DA03 L8R_DC13 L8R_DB09 L8R_DA04 L8R_DB02 DOUTDC28 DOUTDC25 L8R_DB14 DOUTDA24 L8R_DA00 L8R_DA12 L8R_DC09 L8R_DB04 L8R_DC02 DOUTDB24 L8R_DC14 L8R_DB00 L8R_DB12 L8R_DA08 L8R_DC04 L8R_DA11 DOUTDA20 DOUTDB19 L8R_DC00 L8R_DC12 L8R_DB08 DOUTDC19 DOUTDB20 L8R_RI5 L8R_RI4 L8R_RI1 L8R_RI6 L8R_RI0 L8R_RI2 L8R_RI7 L8R_RI3 L8R_GI1 L8R_RI8 L8R_GI3 L8R_GI0 L8R_GI4 L8R_GI2 L8R_RI9 L8R_GI8 L8R_BI1 L8R_GI6 L8R_BI0 L8R_GI7 L8R_GI5 L8R_GI9 L8R_BI2 L8R_BI5 L8R_BI3 L8R_BI8 L8R_BI4 L8R_BI6 L8R_BI7 L8R_BI9 L8L_DB15 L8L_UC09 L8L_UA07 L8L_UA09 L8L_UA10 L8L_UC08 L8L_DA14 L8L_UC11 L8L_UC10 L8L_UC07 L8L_UA11 L8L_UA12 L8L_UB06 L8L_UB11 L8L_UC12 L8L_UA08 L8L_UA06 L8L_UC13 L8L_UB10 L8L_UB07 L8L_UB08 L8L_UA15 L8L_UA05 L8L_UC05 L8L_UC06 L8L_DA15 L8L_UB09 L8L_UB12 L8L_DC15 L8L_UB05 DD_PCD1 DD_PCD2 DD_PCU1 DD_PCU2 ODED_6 DD_ODEU DD_LEUR DD_CLRU DD_ODED DD_LEDL DD_CLRD DD_LEUL DD_LEDR URH URL UEH C9557 16V 1u TP9679 P3.3V C9542 16V 0.1u C1ZBZ0003473 IC9200 XT 1 2 SL0 3 SL1 4 CLK9 5 VDD1 6 VSS1 7 CLK1 8 N/C 9 CLK2 10 VSS 11 N/C 12 CLK7 13 CLK6 14 CLK5 15 VSS2 16 VDD2 17 SL2 18 STBY 19 VDD3 20 XTN TP9616 C9554 6.3V 10u TP9585 P5V TP9587 C0JBAZ001120 IC9503 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc TP9442 TP9618 TP9615 TP9547 C9548 16V 0.1u TP9550 C9552 16V 0.1u R9634 47 TP9401 TP9558 R9469 EXB2HV820JV TP9559 R9624 10k P3.3V TP9549 R9631 EXB2HV222JV R9467 EXB2HV820JV D9304 MA3X152K0L R9639 47 C9514 16V 1u TP9574 R9527 EXB2HV222JV P3.3V TP9564 TP9586 R9632 47 P5V R9471 EXB2HV820JV TP9583 Q9304 B1ABCF000138 TP9577 TP9594 X9500 H0J200500038 TP9570 TP9572 C9373 50V 0.01u TP9582 C9546 50V 12p TP9580 TP9588 C9515 16V 1u R9466 EXB2HV820JV TP9576 *R9605 0 R9625 10k TP9617 R9474 4.7k R9468 EXB2HV820JV TP9541 TP9543 TP9553 R9641 47 TP9614 R9497 10k L9503 G1C150KA0038 TP9057 TP9568 R9642 0 R9628 10k TP9592 TP9578 FL9310 J0HABH000013 1 2 3 TP9591 TP9589 TP9579 R9633 47 TP9593 TP9561 TP9581 C0JBAZ001120 IC9504 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ002614 IC9402 1 NC 2 A0 3 A1 4 A2 5 A3 6 A4 7 A5 8 A6 9 A7 10 GND 11 NC 12 A8 13 A9 14 A10 15 A11 16 A12 17 A13 18 A14 19 A15 20 GND 21 NC 22 A16 23 A17 24 A18 25 A19 26 A20 27 A21 28 A22 29 A23 30 GND 31 NC 32 A24 33 A25 34 A26 35 A27 36 A28 37 A29 38 A30 39 A31 40 GND 41 B31 42 B30 43 B29 44 B28 45 B27 46 B26 47 B25 48 B24 49 OE4 50 VCC 51 B23 52 B22 53 B21 54 B20 55 B19 56 B18 57 B17 58 B16 59 OE3 60 VCC 61 B15 62 B14 63 B13 64 B12 65 B11 66 B10 67 B9 68 B8 69 OE2 70 VCC 71 B7 72 B6 73 B5 74 B4 75 B3 76 B2 77 B1 78 B0 79 OE1 80 VCC R9637 47 TP9575 TP9544 P5V C0JBAZ001120 IC9505 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R9496 100k TP9555 TP9619 R9528 EXB2HV222JV TP9584 R9622 0 C9547 50V 12p TP9556 TP9566 R9470 EXB2HV820JV TP9590 D36 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 R9428 EXB38V103JV P5V 3.3V->5V 3.3V->5V 20SSMHz 60SSMHz/ 65SSMHz 36.6MHz 84MHz 20MHz 39.5MHz DOUTDB[30] DOUTDA[26] DMHL DOUTDA[23] GND DOUTDA[22] ODED6 DOUTDC[26] DOUTDC[28] DOUTDB[26] DOUTDB[22] NC GND GND GND GND DOUTDC[27] DOUTDB[24] 5V_DET DOUTDB[27] LED6 DOUTDC[30] DOUTDA[25] DSHL GND DMLL DOUTDA[29] GND DOUTDC[24] CLKD6(+) DSHR GND DOUTDC[31] GND DOUTDA[24] GND DOUTDA[28] GND DOUTDB[23] DOUTDC[23] DMHR CLKD7(-) PCD6 DOUTDA[30] DOUTDA[27] DOUTDB[28] CLRD6 DOUTDB[29] DOUTDA[31] DOUTDC[25] GND DOUTDB[31] P5V GND DOUTDC[29] GND GND DSLL DOUTDB[25] GND DMLR GND DSLR DOUTDC[22] GND P5V P5V A13 DQ15/A-1 A20 A11 A16 DQ5 A17 DQ1 A18 A15 A19 A5 A6 DQ6 A1 DQ2 DQ3 DQ0 DQ7 A2 A3 A7 A14 A12 A8 A4 A9 DQ4 A10 A0 A17 DQ1 A18 A15 A19 A5 A6 DQ15/A-1 A20 A11 A16 DQ5 A13 DQ6 A1 DQ2 DQ3 DQ0 DQ7 A2 A3 A7 A14 A12 A8 A4 A9 DQ4 A10 A0 NC 3.3V->5V CLOCK GENE. BUS SWITCH LEVEL CONVERTER LEVEL CONVERTER LEVEL CONVERTER 26 24 27 25 23 22 21 31 32 35 33 34 32 28 33 29 31 34 30 35 36 (C60) TO C6-BOARD TH-50PZ700C D-Board (4 of 8) Schematic Diagram TH-50PZ700C D-Board (4 of 8) Schematic Diagram D-BOARD (4/8) TNPA3983BC ! 115 15.45.D 电路板 (5/8) 线路图 L8R_DB01 L8R_BI4 L8R_UC02 L8R_RI0 L8R_BI3 L8R_DQ6 L8R_TEST0 L8R_DQ16 L8R_NSDCLKO L8R_DC04 L8R_DQ5 L8R_UC01 L8R_GI4 L8R_RI8 L8R_GI2 L8R_BA1 L8R_BI6 L8R_DC03 L8R_UC00 L8R_DQ11 L8R_DQS2 L8R_DB00 L8R_RI2 L8R_DB08 L8R_DC02 L8R_DA01 L8R_DQ23 L8R_DQ20 L8R_DQ29 L8R_UA01 L8R_DC01 L8R_DA02 L8R_DA11 L8R_WE L8R_UA02 L8R_DB10 L8R_DQ22 L8R_BI9 L8R_DC00 L8R_TEST1 L8R_GI8 L8R_GI9 L8R_DRVCLKD3 L8R_DA10 L8R_BI1 L8R_DQ2 L8R_A9 L8R_A6 L8R_DQ8 L8R_SDCLKO L8R_DRVCLKD2 L8R_RI7 L8R_BA0 L8R_DQS3 L8R_A2 L8R_DA03 L8R_DRVCLKD1 L8R_RI4 L8R_DQ31 L8R_RI3 L8R_A10 L8R_UB00 L8R_A0 L8R_DRVCLKD0 L8R_DA00 L8R_RI5 L8R_DB06 L8R_DB03 L8R_DQ30 L8R_DRVCLKU3 L8R_A11 L8R_DA05 L8R_DRVCLKU2 L8R_RI1 L8R_BI7 L8R_DA04 L8R_DRVCLKU1 L8R_DQ12 L8R_A4 L8R_GI1 L8R_DRVCLKU0 L8R_DA08 L8R_DQ27 L8R_UB02 L8R_DQ1 L8R_DA06 L8R_BI2 L8R_BI5 L8R_DC11 L8R_BI0 L8R_DQS1 L8R_UB04 L8R_RAS L8R_DQ21 L8R_DC10 L8R_DQ17 L8R_UA03 L8R_CS L8R_DB07 L8R_DQ25 L8R_DB02 L8R_RI9 L8R_DC09 L8R_DQS0 L8R_DQ18 L8R_MASK L8R_DB05 L8R_ID0 L8R_DQ3 L8R_DC08 L8R_A8 L8R_DA09 L8R_UA00 L8R_DQ24 L8R_DQ13 L8R_DC07 TCK L8R_SDIV0 L8R_DQ10 L8R_DB09 L8R_UB03 L8R_DC06 L8R_DQ14 L8R_A3 L8R_DC05 L8R_A5 TMS L8R_A1 L8R_RI6 L8R_DQ15 L8R_GI3 L8R_ID0 L8R_DQ4 L8R_DB04 L8R_DQ28 L8R_DQ7 L8R_GI0 L8R_SDIV1 L8R_GI5 L8R_A7 L8R_GI6 L8R_BI8 L8R_TCKSEL2 L8R_DQ0 L8R_CAS L8R_GI7 L8R_DA07 L8R_DQ9 L8R_UC04 L8R_DQ26 L8R_SDCKE L8R_UB01 L8R_UC03 L8R_DQ19 L8R_DB11 L8R_TEST0 L8R_TCKSEL2 L8R_TEST1 L8R_HDI L8R_VDI TDO_TO_FPGA TDO_TO_68_R L8R_MONOUT1 SFRST SFVRST LATCH P3V_SDA02 P3V_SCL02 L8R_UA04 L8R_UB05 L8R_UB06 L8R_UB07 L8R_UB08 L8R_UB09 L8R_UB10 L8R_UB11 L8R_UA05 L8R_UA06 L8R_UA07 L8R_UA08 L8R_UA09 L8R_UA10 L8R_UA11 L8R_UC05 L8R_UC06 L8R_UC07 L8R_UC08 L8R_UC09 L8R_UC10 L8R_UC11 L8R_DCK R8_OCK TRST L8R_DC15 L8R_UA15 L8R_DA14 L8R_DB15 L8R_UC15 L8R_UB14 L8R_UC13 L8R_UC12 L8R_UC14 L8R_UA14 L8R_UB15 L8R_UA13 L8R_UB12 L8R_DA15 L8R_UA12 L8R_UB13 XRST2 L8R_SDIV0 DOUTDA18 LED_5 DOUTDC18 DOUTDC13 DOUTDC17 DOUTDA21 DOUTDA19 CLRD_5 DOUTDC12 DOUTDA13 DOUTDB21 DOUTDB13 DOUTDC21 DOUTDA15 DOUTDA16 DOUTDB19 CLKD5 CLKD3 DOUTDA12 DOUTDB16 DOUTDC14 DOUTDB15 DOUTDA14 CLKD2 DOUTDC16 DOUTDA17 DOUTDB12 DOUTDA11 DOUTDB14 DOUTDC19 DOUTDC15 DOUTDB17 DOUTDB11 DOUTDB10 PCD_5 DOUTDC11 DOUTDA20 CLKD4 5V_DET5 DOUTDB20 DOUTDC10 DOUTDC20 DOUTDB18 DOUTDA10 CLKD3 L8R_DRVCLKD1 L8R_DRVCLKD3 CLKD6 CLKD2 L8R_DRVCLKD2 L8L_DRVCLKD2 L8L_DRVCLKD3 L8L_DRVCLKD0 CLKD5 L8L_DRVCLKD1 L8R_DRVCLKD0 CLKD1 CLKD4 5V_SENSE CLKD0 5V_DET5 D_PCD6 PCD_5 CLRD_6 D_ODED6 D_CLRD5 ODED_5 D_LED5 D_ODED5 D_LED6 LED_5 LED_6 ODED_6 D_CLRD6 PCD_6 D_PCD5 USL C_UMH UEH C_USH UML C_USL SOS8_SS_C USH C_UEH C_UML NUEL SOS8_SS C_URL URL C_NUEL UMH URH C_URH CLRD_5 CLKD7 L8R_DA12 L8R_DA13 L8R_DB12 L8R_DB13 L8R_DB14 L8R_DC12 L8R_DC13 L8R_DC14 ODED_5 SOS7_DRD R8_PCK L8R_SDIV1 FULL0 IC9400 M2 FULL0 IC9400 AA5 CKE IC9400 A20 DOUTUC04 IC9400 J13 VSS IC9400 L3 ID1 IC9400 M18 VDD12 R9433 2.7k TP9542 R9570 10k IC9400 D20 DOUTUB03 L8L3.3V IC9400 T2 DQ20 L8L3.3V IC9400 MN84521A-A A1 VSS IC9400 C11 DOUTUB15 IC9400 Y12 AVSS_4 TP9629 IC9400 E21 DOUTUA00 R9563 22 IC9400 M19 DOUTDC11 IC9400 M21 DOUTDB10 IC9400 A7 K_TEST IC9400 C12 DOUTUB13 IC9400 AB6 A4 IC9400 W12 AVDD25_4 IC9400 AB1 VSS IC9400 N5 VDD33 IC9400 U3 DQ6 IC9400 K19 DOUTDC14 IC9400 E1 BI0 IC9400 U1 DQS2 IC9400 C15 DOUTUB09 IC9400 D12 DOUTUA13 IC9400 K5 VDD33 TP9456 IC9400 A15 DOUTUA10 IC9400 P2 XRST IC9400 D9 TCKSEL1 IC9400 L5 VDD33 C9469 0.1u 16V IC9400 B10 SFRST IC9400 W1 DQ2 IC9400 U18 VDD33 IC9400 Y8 A1 R9569 100k TP9639 IC9400 G3 BI4 IC9400 Y20 VSS IC9400 V17 VDD33 IC9400 J1 MONOUT2 IC9400 AB16 AVDD33_2 J0HABH000013 FL9502 IC9400 AB5 BA1 IC9400 C19 DOUTUB04 C9448 0.1u 16V IC9400 C10 SFVRST P3.3V IC9400 E15 VDD12 IC9400 G5 VDD12 IC9400 AA2 VSS IC9400 U4 DQ5 IC9400 D7 RI3 IC9400 Y13 DQ14 IC9400 W8 A2 IC9400 AA18 DOUTDB00 IC9400 C20 VSS IC9400 Y18 VSS IC9400 J3 MONOUT0 IC9400 W4 VSS TP9633 C9447 0.1u 16V IC9400 Y10 DQ26 TP9604 IC9400 Y22 VDD33 C9443 0.1u 16V IC9400 J4 ENHMASK IC9400 T4 DQ7 IC9400 N4 TMS IC9400 J19 DOUTDA15 IC9400 H5 VDD12 IC9400 L1 SCL TP9464 VIN IC9400 W17 VSS IC9400 W22 DOUTDC02 IC9400 H20 DRVCLKD1 IC9400 J12 VSS C9449 0.1u 16V IC9400 N10 VSS IC9400 AB15 AVDD33_1 IC9400 A9 FPDAT1 IC9400 AB3 NCK IC9400 D6 RI7 IC9400 N13 VSS IC9400 E12 VDD33 IC9400 AA9 A8 TP9620 R9540 10k R9555 47 IC9400 W16 SDIV1 IC9400 A14 DOUTUA11 IC9400 AA1 VDD25 IC9400 R2 DQ23 IC9400 T20 DOUTDA04 IC9400 R19 DOUTDA05 IC9400 C3 VSS C9458 0.1u 16V IC9400 F2 BI1 IC9400 V12 VDD25 IC9400 V11 VDD25 IC9400 W20 VDD33 IC9400 M4 PCK L8L2.5V IC9400 AA6 A11 IC9400 W19 VSS IC9400 AB20 DOUTDB01 R9481 0 IC9400 Y19 VSS IC9400 AA10 DQ31 IC9400 C9 ROMCE L8L3.3V IC9400 L4 TIIC IC9400 AB8 A7 TP9606 IC9400 J11 VSS IC9400 L10 VSS TP9601 IC9400 L13 VSS IC9400 V7 VDD25 IC9400 E14 VDD33 R9566 22 IC9400 C7 RI0 IC9400 N11 VSS TP9554 P5V IC9400 L21 DOUTDA11 TP9638 IC9400 N9 VSS TP9626 IC9400 W14 DQ13 IC9400 H19 DRVCLKU0 L8L3.3V C9450 0.1u 16V IC9400 P21 DOUTDC08 C9534 6.3V 10u IC9400 AB17 VSS IC9400 W9 A10 IC9400 G22 DRVCLKD0 IC9400 K3 SDA C9536 6.3V 10u IC9400 V19 VDD33 TP9632 R9515 EXB2HV470JV IC9400 N21 DOUTDA08 IC9400 N18 VDD12 IC9400 R5 VDD25 IC9400 W18 VSS IC9400 C8 TEST0 IC9400 E18 VSS IC9400 AA15 AVSS1 IC9400 Y2 VDD25 IC9400 K2 VDI IC9400 E3 GI5 R9567 22 IC9400 N22 DOUTDA09 IC9400 V3 DQ4 TP9630 R9565 22 C9538 6.3V 10u IC9400 E2 GI8 IC9400 B5 RI5 IC9400 B3 GI1 IC9400 N12 VSS Q9305 B1ABCF000138 TP9624 TP9552 IC9400 V22 DOUTDA03 IC9400 F21 DRVCLKU2 IC9400 B19 DOUTUA04 IC9400 D18 DOUTUC05 L8L2.5V IC9400 M12 VSS IC9400 A12 DOUTUB14 IC9400 AA4 VREF IC9400 F3 GI9 IC9400 U5 VDD25 L8L1.2V IC9400 U21 DOUTDB04 IC9400 C6 RI4 IC9400 J5 VDD12 IC9400 M22 DOUTDC10 IC9400 A16 DOUTUA09 IC9400 L18 VDD12 IC9400 M3 FULL1 IC9400 H22 DOUTDA14 IC9400 AA3 CK R9562 22 IC9400 B1 VSS R9539 0 IC9400 P14 VSS IC9400 A13 DOUTUC13 IC9400 B7 TEST1 IC9400 A18 DOUTUB07 C9467 0.1u 16V C9451 0.1u 16V IC9400 L9 VSS IC9400 C1 VDD12 C9539 56u 4V C9512 0.1u 16V IC9400 B16 DOUTUC09 IC9400 N1 TRST IC9400 D5 GI2 IC9400 P19 DOUTDB07 IC9400 B13 DOUTUA12 TP9597 IC9400 K9 VSS TP9457 TP9625 IC9400 W15 TCPOUT IC9400 V20 DOUTDB02 IC9400 L22 DOUTDB11 IC9400 W7 NCS IC9400 Y9 A3 IC9400 K13 VSS IC9400 Y1 DQ0 IC9400 V16 VDD33 IC9400 J14 VSS IC9400 U2 AVSS_1 IC9400 K12 VSS IC9400 Y17 VSS IC9400 F20 DOUTUB00 IC9400 V2 DQ3 IC9400 A21 VSS IC9400 G21 DRVCLKD2 C9513 0.1u 16V IC9400 D4 VSS IC9400 M11 VSS IC9400 AA17 SDIV0 IC9400 J10 VSS R9558 22 IC9400 D21 DOUTUB02 IC9400 G18 VSS IC9400 F18 VSS L8L3.3V IC9400 M20 DOUTDA10 TP9609 IC9400 D17 DOUTUC06 C9462 0.1u 16V IC9400 B22 VSS IC9400 R22 DOUTDC07 TP9637 IC9400 K21 DOUTDC13 IC9400 J9 VSS C9457 0.1u 16V IC9400 B8 TCKSEL2 L8L3.3V IC9400 J18 VDD33 C9446 0.1u 16V IC9400 D19 VSS IC9400 E10 VDD33 IC9400 W13 DQ15 IC9400 C22 DOUTUB01 IC9400 T22 DOUTDC06 IC9400 H18 VDD33 IC9400 AA22 VSS IC9400 V6 AVSS_3 IC9400 L2 ID0 IC9400 M10 VSS TP9546 IC9400 V21 DOUTDC03 J0HABH000013 FL9501 IC9400 AA8 A5 IC9400 V13 VDD12 R9437 2.7k IC9400 V14 VDD12 IC9400 D2 GI4 IC9400 AB12 DQS1 IC9400 AA7 A9 TP9598 IC9400 D14 DOUTUC10 R9561 22 IC9400 A10 SFLATCH IC9400 E8 VDD12 R9568 4.7k IC9400 F6 VSS TP9608 IC9400 M1 TILD IC9400 P22 DOUTDB08 IC9400 AA16 AVSS2 IC9400 W21 VDD33 C9537 6.3V 10u R9438 2.7k IC9400 C18 DOUTUB05 IC9400 D15 DOUTUB08 IC9400 N2 TCK IC9400 C17 DOUTUA06 L8L3.3V IC9400 K4 HDI IC9400 L19 DOUTDB12 IC9400 T5 AVSS_2 IC9400 V9 VSS TP9603 IC9400 R21 DOUTDA06 IC9400 E17 VSS TP9551 IC9400 G1 BI6 IC9400 N3 TDI C9452 0.1u 16V IC9400 H21 DOUTDB15 IC9400 P18 VDD33 C9456 0.1u 16V IC9400 P4 DQ18 IC9400 Y6 NRAS C9460 0.1u 16V IC9400 M13 VSS IC9400 K11 VSS IC9400 L12 VSS IC9400 AA13 DQ11 IC9400 F19 DOUTUA01 TP9557 IC9400 AB2 VSS IC9400 J20 DOUTDC15 IC9400 R3 DQ17 IC9400 D1 GI6 TP9635 IC9400 AA11 DQ30 IC9400 T3 AVDD25_1 TP9596 C9464 0.1u 16V C9535 6.3V 10u IC9400 N19 DOUTDB09 IC9400 E11 VDD33 IC9400 Y15 VSS IC9400 U20 DOUTDB03 TP9628 IC9400 P11 VSS IC9400 B12 DOUTUC14 IC9400 AB7 A6 C9455 0.1u 16V IC9400 AB22 VSS IC9400 M5 VDD33 C9453 0.1u 16V IC9400 N14 VSS IC9400 V15 VDD12 IC9400 AA12 DQS3 IC9400 V8 VDD25 IC9400 J2 MONOUT1 IC9400 D8 OCK IC9400 D16 DOUTUC07 IC9400 P12 VSS IC9400 W11 DQ25 D9305 MA3X152K0L TP9465 HIN IC9400 B18 DOUTUB06 IC9400 B4 RI8 IC9400 D11 DOUTUA15 IC9400 C5 RI9 IC9400 P20 DOUTDA07 IC9400 AB9 VDD25 IC9400 Y16 SDSEL IC9400 W3 VDD25 TP9605 IC9400 E5 VSS IC9400 A6 OCKOUT IC9400 C16 DOUTUC08 IC9400 M14 VSS IC9400 A2 VSS IC9400 B11 DOUTUC15 R9485 1k 1% IC9400 P9 VSS C9465 0.1u 16V IC9400 G2 BI5 IC9400 K20 DOUTDB13 IC9400 A22 VSS IC9400 M9 VSS IC9400 F4 GI7 IC9400 E13 VDD33 IC9400 H2 BI9 IC9400 V5 VSS IC9400 Y4 AVDD25_2 IC9400 K18 VDD33 IC9400 E7 VDD12 TP9612 C9459 0.1u 16V TP9599 TP9548 IC9400 H4 BI7 IC9400 E22 DRVCLKU3 IC9400 E19 DOUTUC03 C9466 0.1u 16V IC9400 G19 DOUTUC00 TP9610 R9564 22 IC9400 R18 VDD33 IC9400 N20 DOUTDC09 IC9400 L11 VSS IC9400 W10 DQ27 IC9400 P1 TDO IC9400 F5 VDD12 IC9400 K1 DCK TP9545 IC9400 C4 GI3 TP9600 IC9400 R4 DQ16 C9445 0.1u 16V IC9400 Y7 A0 TP9634 C9374 50V 0.01u IC9400 U19 DOUTDA02 IC9400 T21 DOUTDB05 TP9627 IC9400 G4 BI2 IC9400 D3 VDD12 C9533 0.1u 16V L8L2.5V IC9400 A5 RI2 IC9400 K22 DOUTDA12 IC9400 W2 DQ1 IC9400 C13 DOUTUB12 IC9400 P5 VDD33 IC9400 AB14 DQ8 IC9400 E6 VSS IC9400 V4 VDD25 IC9400 AB11 DQ28 IC9400 J22 DOUTDA13 IC9400 D22 DOUTUC01 IC9400 C21 DOUTUA02 IC9400 K14 VSS IC9400 B17 DOUTUA07 IC9400 AB13 DQ10 IC9400 V18 VSS IC9400 B15 DOUTUB10 IC9400 AA20 DOUTDA01 IC9400 H3 BI8 IC9400 F1 BI3 IC9400 C14 DOUTUC11 IC9400 Y3 VSS C9442 0.1u 16V IC9400 L20 DOUTDC12 IC9400 A4 RI6 TP9631 IC9400 B20 DOUTUA03 IC9400 B14 DOUTUB11 IC9400 F22 DRVCLKD3 TP9007 IC9400 B9 FPCLK IC9400 A8 TCKSEL0 IC9400 Y14 DQ12 IC9400 Y5 NCAS IC9400 T18 VDD33 C9444 0.1u 16V IC9400 P3 DQ19 TP9636 IC9400 Y11 DQ24 TP9611 IC9400 L14 VSS IC9400 AB21 VSS IC9400 V1 DQS0 IC9400 Y21 VDD33 IC9400 E20 DOUTUC02 IC9400 E4 VDD12 IC9400 R1 DQ22 IC9400 A17 DOUTUA08 IC9400 K10 VSS IC9400 A11 DOUTUA14 IC9400 R20 DOUTDB06 IC9400 T1 DQ21 IC9400 T19 DOUTDC04 C9454 0.1u 16V IC9400 D13 DOUTUC12 FL9311 J0HABH000013 1 2 3 IC9400 A3 GI0 IC9400 P13 VSS C9463 0.1u 16V IC9400 C2 VDD12 R9430 10k IC9400 P10 VSS IC9400 E9 VDD33 IC9400 H1 MUTE TP9602 IC9400 B21 VSS TP9681 C9468 0.1u 16V IC9400 J21 DOUTDB14 C9496 16V 0.1u IC9400 B2 VSS IC9400 B6 RI1 IC9400 E16 VDD12 IC9400 U22 DOUTDC05 IC9400 AA21 VSS IC9400 AB4 BA0 IC9400 D10 FPDAT0 IC9400 V10 VDD25 IC9400 AB18 DOUTDC00 IC9400 A19 DOUTUA05 IC9400 AB19 DOUTDA00 R9484 1k 1% IC9400 AB10 DQ29 TP9607 IC9400 G20 DRVCLKU1 TP9613 IC9400 AA19 DOUTDC01 IC9400 W5 AVDD25_3 TP9595 C9461 0.1u 16V IC9400 AA14 DQ9 IC9400 W6 NWE D35 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 R9472 EXB38V820JV R9473 EXB38V820JV to DDR to DISCHARGE CONTROL FPGA from FPGA1 IIC from DISCHARGE CONTROL FPGA MN84521A-A Right rromdata[00] rromdata[03] rromdata[01] rromdata[2] rromdata[12] rromdata[15] rromdata[09] rromdata[06] rromdata[05] rromdata[14] rromdata[08] rromdata[11] rromdata[04] rromdata[07] rromdata[10] rromdata[13] rromadrs[20] rromadrs[02] rromadrs[05] rromadrs[08] rromadrs[11] rromadrs[14] rromadrs[17] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[01] rromadrs[16] rromadrs[19] rromadrs[04] rromadrs[03] rromadrs[06] rromadrs[09] rromadrs[12] rromadrs[15] rromadrs[18] rromadrs[00] rromadrs[-1] 5V_DET GND GND DOUTDB[14] DOUTDB[19] GND P5V DOUTDA[15] NC DOUTDA[12] DOUTDC[16] DOUTDB[18] GND DOUTDA[10] DOUTDC[13] GND GND DOUTDC[12] DOUTDB[11] DOUTDC[15] DOUTDC[19] DOUTDA[21] GND GND DOUTDA[18] DOUTDB[10] DOUTDB[17] GND DOUTDA[17] GND DOUTDB[16] GND LED5 DOUTDB[20] DOUTDC[14] DOUTDC[18] DOUTDC[21] DOUTDB[13] DOUTDC[17] CLKD4(+) DOUTDA[20] CLKD5(-) GND GND DOUTDC[20] DOUTDB[21] DOUTDC[10] P5V DOUTDA[16] GND GND GND DOUTDC[11] DOUTDB[12] CLRD5 DOUTDA[11] P5V CLKD3(-) DOUTDA[19] GND ODED5 PCD5 CLKD2(+) DOUTDA[14] DOUTDA[13] GND DOUTDB[15] DRV_SOS7 IC9400 33 32 35 34 31 45 46 42 43 41 44 42 37 40 43 44 41 45 39 38 FORMAT CONVERTER/RGB PROCESSOR PLASMA AI/SUB FIELD PROCESSOR/DATA DRIVER (C54) TO C5-BOARD G G + G G G G TERM SIDE TH-50PZ700C D-Board (5 of 8) Schematic Diagram TH-50PZ700C D-Board (5 of 8) Schematic Diagram D-BOARD (5/8) TNPA3983BC ! 116 15.46.D 电路板 (6/8) 线路图 G G + TERM SIDE G G TERM SIDE L8R_DQ4 L8R_DQ3 L8R_A4 L8R_DQ21 L8R_DQ17 L8R_DQS1 L8DR_DQ25 L8DR_DQ26 L8DR_A0 L8DR_DQ9 L8R_DQ25 L8R_DQ15 L8DR_DQ14 L8R_WE L8R_A3 L8R_DQ26 L8R_DQ18 L8DR_DQ6 L8R_DQ12 L8DR_DQ29 L8DR_DQ30 L8R_DQ9 L8DR_CKE L8R_DQ10 L8DR_DQ22 L8R_BA0 L8DR_DQS3 L8R_DQS3 L8R_DQ0 L8DR_DQ20 L8R_A2 L8DR_DQ21 L8R_CS L8R_DQ28 L8R_DQ27 L8R_DQ29 L8DR_A5 L8DR_DQ16 L8R_DQ6 L8DR_DQ15 L8R_DQ19 L8DR_DQ1 L8DR_DQ2 L8R_BA1 L8R_DQ22 L8R_CAS L8R_A6 L8DR_A4 L8DR_DQ10 L8R_DQ14 L8DR_A8 L8DR_NRAS L8DR_BA1 L8DR_BA0 L8DR_DQ18 L8R_DQ23 L8R_DQS0 L8DR_A11 L8DR_DQ11 L8DR_NCS L8DR_DQ24 L8DR_DQ31 L8DR_DQ8 L8DR_NCAS L8DR_A3 L8DR_DQ3 L8R_DQ11 L8R_A9 L8R_DQ5 L8R_DQS2 L8R_A11 L8R_A0 L8R_RAS L8DR_A9 L8R_DQ31 L8DR_DQ0 L8R_DQ30 L8DR_A6 L8DR_A10 L8DR_DQ27 L8R_DQ8 L8R_A8 L8DR_DQS1 L8R_SDCLKO L8R_DQ2 L8R_DQ16 L8R_DQ20 L8DR_NWE L8DR_DQ5 L8DR_DQ13 L8DR_A1 L8R_DQ24 L8DR_DQ19 L8R_SDCKE L8R_A7 L8R_DQ13 L8R_A5 L8DR_DQS2 L8DR_DQ7 L8R_DQ1 L8DR_A2 L8DR_DQ28 L8R_A10 L8DR_A7 L8DR_DQ17 L8R_DQ7 L8DR_DQ4 L8DR_DQS0 L8R_A1 L8R_NSDCLKO L8DR_DQ23 L8DR_DQ12 L8L_UC09 L8L_UA09 L8L_UA11 L8L_UA08 L8L_UB11 L8L_UC08 L8L_UA10 L8L_UB09 L8L_UA05 L8L_UB10 L8L_UB05 L8L_UC07 L8L_UC11 AA_XWE L8L_UB07 L8L_UB08 L8L_UA06 L8L_UC06 L8L_UC10 L8L_UA07 L8L_UB06 5V_SENSE L8L_DC15 L8L_UA14 L8L_UC13 L8L_UC12 L8L_UB15 L8L_DA14 L8L_UC15 L8L_UC14 L8L_UA12 L8L_UB13 L8L_UB14 L8L_UB12 L8L_UA13 L8L_DB15 DRVRST 5V_SENSE 5V_DET4 DOUTUA25 L8R_UA11 DOUTUC25 L8R_UA05 L8R_UC13 L8R_UA14 DOUTUB18 L8R_UA02 L8R_UC12 DOUTUB26 L8R_UC10 L8R_UC14 L8R_UB01 L8R_UB09 L8R_UC09 L8R_UC03 DOUTUC18 L8R_UA15 DOUTUC17 L8R_UA00 L8R_UB04 L8R_UB07 L8R_UC11 L8R_UC15 DOUTUA27 L8R_UA04 DOUTUA18 DOUTUA19 L8R_UC00 DOUTUB25 DOUTUC28 DOUTUC29 DOUTUC19 L8R_UB06 L8R_UB03 L8R_UB00 L8R_UC01 L8R_UB15 L8R_UB08 L8R_UB10 DOUTUA17 DOUTUB23 L8R_UB14 DOUTUC21 L8R_UC02 L8R_UA07 DOUTUB29 L8R_UC05 DOUTUA26 DOUTUC27 L8R_UC07 L8R_UB02 L8R_UB11 L8R_UA01 L8R_UA09 L8R_UA13 DOUTUA21 DOUTUB19 L8R_UB05 L8R_UA10 L8R_UB13 L8R_UA08 DOUTUC23 DOUTUB21 L8R_UC04 L8R_UA06 L8R_UA03 L8R_UC06 DOUTUA23 DOUTUB17 L8R_UC08 DOUTUC16 DOUTUB16 DOUTUA16 DOUTUB27 DOUTUA29 DOUTUB28 DOUTUC26 DOUTUB22 5V_DET1 DOUTUC23 DOUTUC25 DOUTUB26 DOUTUA23 DOUTUB31 DOUTUB27 CLKU7 DOUTUC22 DOUTUC30 DOUTUC26 DOUTUA22 DOUTUA28 PCU_1 DOUTUC31 CLKU6 DOUTUB24 DOUTUA26 DOUTUA31 DOUTUC29 DOUTUB29 LEU_1 DOUTUC27 CLRU_1 DOUTUC28 DOUTUA29 DOUTUB23 DOUTUB28 DOUTUB30 DOUTUA30 DOUTUB25 DOUTUA27 DOUTUA25 DOUTUC24 DOUTUA24 DOUTUC20 DOUTUB20 DOUTUA20 DOUTUC22 DOUTUB22 DOUTUA22 DOUTUC24 DOUTUB24 DOUTUA24 DOUTUA28 DOUTUC31 DOUTUB31 DOUTUA31 DOUTUC30 DOUTUB30 DOUTUA30 L8R_UB12 L8R_UA12 L8L_DA13 L8L_DB12 DOUTDC8 DOUTDB0 L8L_DA03 DOUTDA6 L8L_DA04 L8L_DA00 L8L_DC14 DOUTDA10 L8L_DA09 DOUTDC10 L8L_DB13 L8L_DC11 DOUTDB12 DOUTDA1 DOUTDB10 DOUTDB5 DOUTDB1 L8L_DB00 L8L_DC13 DOUTDB7 L8L_DB09 DOUTDA4 L8L_DB04 L8L_DC01 L8L_DC03 L8L_DC07 L8L_DA02 L8L_DA10 L8L_DA08 L8L_DB10 DOUTDC2 DOUTDC1 DOUTDC7 DOUTDC4 L8L_DC08 DOUTDC3 L8L_DA12 L8L_DB02 L8L_DC10 DOUTDB8 DOUTDB9 DOUTDA2 L8L_DA07 DOUTDA7 DOUTDB6 L8L_DB06 L8L_DB07 L8L_DC02 DOUTDA3 L8L_DA06 DOUTDA13 DOUTDA8 DOUTDC15 L8L_DB01 L8L_DC12 L8L_DB08 DOUTDC11 L8L_DB03 DOUTDB15 DOUTDA5 DOUTDC12 L8L_DA05 DOUTDA15 DOUTDA9 L8L_DC05 DOUTDB2 L8L_DC15 L8L_DA01 DOUTDA14 DOUTDB3 L8L_DB11 DOUTDA0 L8L_DB15 DOUTDC5 DOUTDB13 DOUTDB14 L8L_DC04 L8L_DA15 L8L_DB05 DOUTDA11 L8L_DA11 DOUTDC14 L8L_DC00 L8L_DC06 DOUTDC6 DOUTDA12 DOUTDC0 DOUTDC13 DOUTDC9 DOUTDB11 L8L_DC09 DOUTDB4 L8L_DB14 AA_XCE_L AA_XOE L8R_UC14 L8R_UC13 L8R_UA15 L8R_UB13 L8R_DC15 L8R_UA13 L8R_UC12 L8L_DB15 L8R_DA15 L8L_UC13 L8R_UA14 L8L_UB14 L8L_DC15 L8L_DA14 L8L_UB15 L8L_UA14 L8L_UA13 L8L_UC15 L8L_UC12 L8R_UB12 L8R_UB15 L8L_UB12 L8R_UB14 L8R_DA14 L8R_UC15 L8L_UA15 L8L_DA15 L8L_UB13 L8L_UC14 AA_BYTE L8R_UA12 L8L_UA12 AA_XCE_L L8DR_DQ0 L8DR_NCLK L8DR_CLK L8DR_DQS3 L8DR_DQ19 L8DR_DQ17 L8DR_DQ26 L8DR_DQS0 L8DR_DQ29 L8DR_DQ3 L8DR_DQ2 L8DR_DQ24 L8DR_BA1 L8DR_DQ8 L8DR_A10 L8DR_DQ18 L8DR_A6 L8DR_A2 L8DR_DQ4 L8DR_DQ12 L8DR_DQ7 L8DR_A9 L8DR_A8 L8DR_DQ21 L8DR_A7 L8DR_DQS2 L8DR_NWE L8DR_NCAS L8DR_DQ1 L8DR_NCS L8DR_CKE L8DR_A4 L8DR_A5 L8DR_A0 L8DR_NRAS L8DR_DQ23 L8DR_A11 L8DR_DQ6 L8DR_DQ31 L8DR_DQ14 L8DR_A1 L8DR_DQ10 L8DR_DQ27 L8DR_BA0 L8DR_DQ13 L8DR_DQS1 L8DR_DQ20 L8DR_DQ25 L8DR_DQ9 L8DR_DQ30 L8DR_DQ22 L8DR_A3 L8DR_DQ5 L8DR_DQ16 L8DR_DQ28 L8DR_DQ11 L8DR_DQ15 L8L_UA15 L8L_DA14 DOUTDC6 DOUTDC7 DOUTDB9 C_URL C_USL C_UMH DOUTDC5 DOUTDA5 DOUTDC9 DOUTDC0 DOUTDB3 DOUTDA9 DOUTDB1 C_UEH DOUTDC2 DOUTDB2 C_NUEL DOUTDB6 DOUTDC1 DOUTDC3 DOUTDA8 DOUTDA2 DOUTDC4 5V_DET4 C_UML DOUTDA6 DOUTDA7 DOUTDB7 DOUTDA1 CLKD0 DOUTDA4 C_URH CLKD1 DOUTDA0 DOUTDB5 DOUTDC8 DOUTDB8 DOUTDA3 DOUTDB0 DOUTDB4 C_USH ODEU_1 SOS8_SS_C L8R_DB15 L8DR_NCLK L8DR_CLK L8L_DA15 L8L_UC05 F_RST R9416 47 EXB38V470JV IC9401 F12 DQ15 IC9401 C9 DQ30 FL9307 J0HABH000013 1 2 3 IC9401 M3 NC R9462 EXB2HV820JV R9572 EXB2HV820JV R9396 EXB2HV820JV IC9401 G11 VDDQ TP9050 C9085 16V 0.1u TP9469 IC9401 B10 DQ28 C9090 16V 0.1u R9404 EXB2HV470JV 47 IC9401 N12 CKE TP9453 P3.3V R9465 10k TP9402 TP9413 IC9401 C8 VDDQ IC9401 G8 VSS_Thermal IC9401 N2 CS IC9401 E3 VDDQ IC9401 H13 DQS1 IC9401 M13 NC C9108 16V 0.1u IC9401 G7 VSS_Thermal TP9425 TP9458 TP9020 IC9401 E5 VSS TP9008 TP9048 IC9401 L2 CAS TP9041 TP9433 R9652 0 TP9528 IC9401 C7 VDDQ TP9392 TP9030 IC9401 E9 VSSQ C9096 16V 0.1u R9653 EXB2HV103JV 10k IC9401 N7 A3 P3.3V IC9401 G5 VSSQ TP9051 IC9401 L7 VDD R9415 47 EXB38V470JV TP9052 IC9401 B8 DQ31 IC9401 L9 NC TP9019 TP9399 IC9401 B6 DQ2 IC9401 G2 DQ19 IC9401 D11 VSSQ IC9401 K4 VDDQ R9421 47 EXB38V470JV TP9002 IC9401 C5 VDDQ C9608 16V 0.1u IC9401 F11 VDDQ IC9401 J11 VDDQ C9087 16V 0.1u C9088 16V 0.1u IC9401 B9 DQ29 IC9401 D8 VDD IC9401 K12 DQ9 TP9432 IC9401 H4 NC C9097 16V 0.1u IC9401 F3 DQ16 IC9602 C0EBE0000066 1 NC 2 SUB 3 GND 5 Vcc 4 Vout IC9401 L8 VDD TP9448 TP9394 TP9447 TP9406 R9491 47 IC9401 F8 VSS_Thermal R9418 47 EXB38V470JV IC9401 D7 VDD C9095 16V 0.1u R9397 EXB2HV820JV TP9431 TP9415 IC9401 B3 DM0 R9576 EXB2HV820JV IC9401 E10 VSS TVPR589 IC9304 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 IC9401 M11 CK TP9412 IC9401 E4 VDD C9107 16V 0.1u D9303 MA3X152K0L IC9401 G6 VSS_Thermal R9619 4.7k R9492 47 TP9439 P3.3V C9601 16V 0.1u TP9032 TP9035 IC9401 K3 DQ23 R9123 0 TP9005 Q9306 B1ABCF000138 TP9022 C9098 16V 0.1u IC9401 L4 VDD C9099 16V 0.1u IC9401 F6 VSS_Thermal C9104 16V 0.1u TP9441 C9610 16V 0.1u L8L2.5V *R9873 4.7k TP9037 TP9040 TP9404 C9103 16V 0.1u IC9401 E8 VSS R9620 4.7k C9086 16V 0.1u R9494 47 TP9009 IC9401 C4 NC C9105 16V 0.1u IC9401 J7 VSS_Thermal TP9015 R9122 0 IC9401 L10 VSS TP9056 IC9401 B4 VSSQ IC9401 F9 VSS_Thermal R9493 47 IC9401 C2 DQ4 IC9401 H11 NC TP9427 IC9401 F2 DQ17 IC9401 G9 VSS_Thermal TP9016 IC9401 N4 BA0 C0JBAZ002183 IC9603 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 2A1 14 2A2 15 VCC 16 2A3 17 GND 18 2A4 19 2A5 20 2A6 21 2A7 22 2A8 23 2A9 24 2A10 25 2B10 26 2B9 27 2B8 28 2B7 29 2B6 30 2B5 31 2B4 32 GND 33 2B3 34 2B2 35 2B1 36 1B10 37 1B9 38 1B8 39 1B7 40 1B6 41 GND 42 1B5 43 1B4 44 1B3 45 1B2 46 1B1 47 2OE 48 1OE IC9401 J2 DQ21 IC9401 D2 DQ6 IC9401 F5 VSSQ R9490 47 IC9401 D9 VSSQ C9372 50V 0.01u R9488 33 TP9534 IC9401 G3 DQ18 TP9407 IC9401 E2 DQ7 R9489 47 IC9401 J10 VSSQ IC9401 D10 VSSQ IC9401 C11 NC R9124 0 IC9401 K13 DQ8 TP9454 R9394 EXB2HV820JV R9420 47 EXB38V470JV IC9401 K5 VSSQ R9412 47 EXB38V470JV TP9049 TP9526 TP9034 IC9401 L11 VDD P5V TP9036 R9130 1k 1% TP9409 IC9401 D3 DQ5 TP9467 IC9401 B13 DQS3 TP9530 TP9424 IC9401 K2 DQ22 TP9025 IC9401 M9 A5 IC9401 M12 CK TP9024 IC9401 J6 VSS_Thermal IC9401 H9 VSS_Thermal R9464 100k TP9438 IC9401 B7 DQ0 TP9531 R9607 100k C9093 16V 0.1u IC9401 J9 VSS_Thermal C9111 56u 4V TP9017 TP9527 C9109 16V 0.1u IC9401 F10 VSSQ IC9401 C6 DQ1 TP9455 TP9397 TP9013 IC9401 M5 BA1 R9645 0 IC9401 K11 VDDQ IC9401 F7 VSS_Thermal IC9401 L13 NC IC9401 F13 DQ14 TP9003 IC9401 J5 VSSQ TP9042 IC9401 L5 VSS IC9401 K6 VSS L8L2.5V IC9401 H7 VSS_Thermal C9091 16V 0.1u IC9401 K10 VSSQ IC9401 C3ABQJ000051 B2 DQS0 TP9470 R9419 47 EXB38V470JV IC9401 M2 RAS TP9459 TP9043 D31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 IC9401 G10 VSSQ Q9303 B1ABCF000138 C9106 16V 0.1u R9606 100 IC9401 D13 DQ25 IC9401 B5 DQ3 C9609 6.3V 10u TP9026 IC9401 J3 DQ20 IC9401 N13 VREF TP9680 FL9000 J0HABH000013 1 2 3 TP9029 IC9401 J8 VSS_Thermal TP9033 TP9463 R9413 47 EXB38V470JV R9573 EXB2HV820JV IC9401 H12 DM1 IC9401 M10 NC IC9401 E13 DQ24 C9101 16V 0.1u IC9401 J13 DQ10 C9102 16V 0.1u TP9028 IC9401 C12 VDDQ IC9401 K7 VSS IC9401 D5 VSSQ R9575 EXB2HV820JV TP9529 IC9401 D4 VSSQ R9414 47 EXB38V470JV R9393 EXB2HV820JV IC9401 N8 A4 IC9401 E12 VDDQ IC9401 M6 A2 IC9401 E11 VDD IC9401 N9 A6 TP9055 R9577 EXB2HV820JV TP9012 P3.3V IC9401 J12 DQ11 IC9401 E6 VSSQ IC9401 K8 VSS TP9421 C9089 16V 0.1u IC9401 J4 VDDQ R9486 33 IC9401 C10 VDDQ IC9401 K9 VSS R9463 4.7k TP9011 TP9023 IC9401 N3 NC IC9401 G13 DQ12 TP9419 R9571 EXB2HV820JV IC9401 H5 VSSQ IC9401 C3 VDDQ IC9401 M7 A11 TP9006 TP9461 TP9014 TP9010 TP9450 IC9401 F4 VDDQ IC9401 H8 VSS_Thermal R9126 1k 1% R9487 150 IC9401 H6 VSS_Thermal IC9401 H2 DQS2 IC9401 H3 DM2 IC9401 H10 VSSQ TP9429 TP9460 P5V IC9401 D12 DQ26 IC9401 N10 A7 IC9401 C13 DQ27 IC9401 B11 VSSQ IC9401 N11 A8/AP IC9401 B12 DM3 R9417 47 EXB38V470JV IC9401 M8 A9 TP9004 TP9001 TP9039 TP9038 TP9435 TP9418 IC9401 E7 VSS L8L2.5V C9110 16V 0.1u IC9401 N5 A0 TP9018 R9395 EXB2HV820JV R9616 0 C9092 16V 0.1u TP9031 TP9027 IC9401 L3 WE IC9401 N6 A1 IC9401 L12 NC IC9401 M4 NC C9094 16V 0.1u IC9401 D6 VSSQ IC9401 G12 DQ13 R9495 47 TP9021 IC9401 L6 A10 IC9401 G4 VDDQ R9125 0 D34 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 DDR-Terminate NC NC GND DOUTUC[29] NC NC DOUTUB[27] DOUTUB[25] DSHR DOUTUB[24] DOUTUC[26] GND DOUTUA[28] P5V DOUTUB[26] DOUTUA[25] GND DOUTUB[22] 5V_DET P5V DMLR GND GND DOUTUA[26] DOUTUC[23] DOUTUC[31] GND GND DOUTUA[22] DOUTUC[28] DOUTUA[24] GND DOUTUA[31] DOUTUA[29] GND CLKU6(+) CLKU7(-) DOUTUA[23] GND DOUTUC[27] P5V NC DSLR ODEU1 DOUTUB[30] GND DOUTUB[28] DOUTUB[31] GND DOUTUA[30] DOUTUB[29] GND DOUTUC[22] CLRU1 DOUTUB[23] LEU1 GND PCU1 DOUTUC[30] DOUTUA[27] DOUTUC[24] DMHR GND GND DOUTUC[25] GND GND DDR-SDRAM R UMH DOUTDC[3] P5V URH CLKD0(+) GND DOUTDB[6] DOUTDA[8] URL USH P5V DOUTDB[7] DOUTDB[0] NC DOUTDB[1] UEH DOUTDB[9] GND DOUTDB[4] DOUTDC[7] GND DOUTDA[2] GND NC DOUTDC[0] NUEL DOUTDA[5] DOUTDA[6] DOUTDA[9] DOUTDC[8] NC DOUTDB[2] GND DRVSOS8 P5V 5V_DET GND DOUTDB[3] GND DOUTDC[6] DOUTDA[1] DOUTDC[9] GND GND DOUTDC[4] DOUTDB[5] DOUTDC[5] DOUTDA[0] CLKD1(-) DOUTDB[8] DOUTDA[7] USL DOUTDC[1] DOUTDA[3] GND NC GND DOUTDA[4] DOUTDC[2] GND UML GND GND GND GND GND GND NC NC FLASH MEMORY BUS SWITCH IC9401 DDR-SDRAM R RESET 45 42 44 43 46 41 55 54 52 53 51 48 53 47 49 51 52 54 46 50 (C10) TO C1-BOARD (C55) TO C5-BOARD TH-50PZ700C D-Board (6 of 8) Schematic Diagram TH-50PZ700C D-Board (6 of 8) Schematic Diagram D-BOARD (6/8) TNPA3983BC ! 117 15.47.D 电路板 (7/8) 线路图 + G G G G G G G G G G G G TERM SIDE L8L_DQ29 L8L_DQ2 L8L_DB03 L8L_BI9 L8L_A8 L8L_UB08 L8L_DC01 L8L_SDIV0 L8L_DA07 L8L_DQ28 L8L_DQ1 L8L_DB02 L8L_RI0 L8L_A7 L8L_UB09 L8L_DC02 L8L_DA06 L8L_DQ27 L8L_DQ0 L8L_DB01 L8L_RI1 L8L_A6 L8L_UB10 L8L_DC03 L8L_DA05 L8L_DQ26 L8L_DB00 L8L_RI4 L8L_A5 L8L_UB11 L8L_DC04 L8L_DA04 L8L_DQ25 L8L_RI2 L8L_UC11 L8L_A4 L8L_DC05 L8L_DA03 L8L_DQ24 L8L_VDI L8L_RI3 L8L_UC10 L8L_A3 L8L_DC06 L8L_DA02 L8L_DQ23 TMS L8L_HDI L8L_RI5 L8L_UC09 L8L_A2 L8L_DC07 L8L_DA01 L8L_DQ22 L8L_RI6 L8L_UC08 L8L_A1 L8L_DC08 L8L_DA00 L8L_DQ21 TCK L8L_GI0 L8L_RI7 L8L_UC07 L8L_A0 L8L_DC09 L8L_DQ20 L8L_GI1 L8L_RI8 L8L_UC06 L8L_DC10 L8L_DQ19 L8L_GI2 L8L_RI9 L8L_UC05 L8L_DC11 L8L_DQ18 L8L_TCKSEL2 L8L_GI3 L8L_UC04 L8L_DQ17 L8L_GI4 L8L_UC03 L8L_DQ16 L8L_RAS L8L_GI5 L8L_UC02 L8L_DQ15 L8L_GI6 L8L_UC01 L8L_DRVCLKD0 L8L_WE L8L_DQ14 L8L_TEST1 L8L_GI7 L8L_UC00 L8L_UA00 L8L_DRVCLKD1 L8L_DQ13 L8L_TEST0 L8L_GI8 L8L_DRVCLKU1 L8L_UA01 L8L_CS L8L_DQ12 L8L_GI9 L8L_DRVCLKU0 L8L_UA02 L8L_DQ11 L8L_BI0 L8L_CAS L8L_UA03 L8L_DQ10 L8L_DB11 L8L_BI1 L8L_SDCKE L8L_UB00 L8L_UA04 L8L_DQ9 SFRST L8L_DB10 L8L_BI2 L8L_NSDCLKO L8L_UB01 L8L_UA05 L8L_DQS3 L8L_DQ8 SFVRST L8L_DB09 L8L_BI3 L8L_SDCLKO L8L_UB02 L8L_UA06 L8L_DQS2 L8L_DQ7 LATCH L8L_DB08 L8L_BI4 L8L_BA1 L8L_UB03 L8L_UA07 L8L_DQS1 L8L_DQ6 FPCLK L8L_DB07 L8L_BI5 L8L_BA0 L8L_UB04 L8L_UA08 L8L_DA11 L8L_DQS0 L8L_DQ5 FPDAT0 L8L_DB06 L8L_BI6 L8L_A11 L8L_UB05 L8L_UA09 L8L_DA10 L8L_DQ31 L8L_DQ4 FPDAT1 L8L_DB05 L8L_BI7 L8L_A10 L8L_UB06 L8L_UA10 L8L_DA09 L8L_DQ30 L8L_DQ3 L8L_MONOUT1 L8L_DB04 L8L_BI8 L8L_SDIV1 L8L_A9 L8L_UB07 L8L_DC00 L8L_UA11 L8L_DA08 L8L_TEST1 L8L_TCKSEL2 L8L_DRVCLKD3 L8L_DRVCLKD2 L8L_DRVCLKU2 L8L_DRVCLKU3 L8L_MASK XRST AA_XCE_L P3V_SDA02 P3V_SCL02 L8L_DCK L8_PCK L8_OCK FULL0 TRST L8L_UB13 L8L_UC15 L8L_DB15 L8L_UB12 L8L_UA12 L8L_UA13 L8L_UC13 L8L_DC15 L8L_UB14 L8L_UA14 L8L_DA15 L8L_UC12 L8L_UB15 L8L_UA15 L8L_DA14 L8L_UC14 L8L_SDIV0 ODEU_2 CLKU5 5V_SENSE L8R_DRVCLKU1 L8L_DRVCLKU2 L8R_DRVCLKU2 D_ODEU1 L8L_DRVCLKU3 CLKU6 D_CLRU1 5V_SENSE D_PCU1 L8R_DRVCLKU3 CLRU_1 L8L_DRVCLKU0 CLKU7 D_LEU1 5V_DET2 PCU_1 CLKU1 LEU_1 D_ODEU2 L8L_DRVCLKU1 D_LEU2 D_PCU2 D_CLRU2 CLKU3 LEU_2 L8R_DRVCLKU0 PCU_2 CLKU4 CLRU_2 ODEU_1 CLKU0 DOUTUC10 DOUTUA21 DOUTUB10 DOUTUA15 DOUTUC21 DOUTUA19 DOUTUC13 DOUTUB12 CLRU_2 CLKU3 PCU_2 DOUTUB15 DOUTUB21 DOUTUC15 DOUTUB11 CLKU2 DOUTUA13 DOUTUB14 DOUTUA17 DOUTUA18 DOUTUC19 DOUTUB20 DOUTUA10 CLKU4 DOUTUC20 CLKU5 DOUTUA14 DOUTUB13 DOUTUB18 DOUTUB19 DOUTUA20 DOUTUA16 5V_DET2 DOUTUC18 DOUTUC16 DOUTUC14 LEU_2 DOUTUA11 DOUTUC11 DOUTUB16 DOUTUC12 DOUTUA12 DOUTUB17 DOUTUC17 5V_DET1 CLKU2 L8L_DA12 L8L_DA13 L8L_DB12 L8L_DB13 L8L_DB14 L8L_DC12 L8L_DC13 L8L_DC14 L8L_TEST0 ODEU_2 SOS7_DRU TDI_TO_68_L TDO_TO_68_R L8L_SDIV1 IC9300 V14 VDD12 IC9300 K9 VSS IC9300 E14 VDD33 IC9300 G2 BI5 IC9300 F21 DRVCLKU2 IC9300 G20 DRVCLKU1 IC9300 U19 DOUTDA02 C9306 0.1u 16V R9602 0 IC9300 J4 ENHMASK IC9300 Y4 AVDD25_2 IC9300 G5 VDD12 Q9300 B1ABCF000138 IC9300 L11 VSS IC9300 A20 DOUTUC04 IC9300 A7 K_TEST IC9300 K21 DOUTDC13 TP9499 L8L2.5V IC9300 V15 VDD12 IC9300 T18 VDD33 IC9300 K20 DOUTDB13 IC9300 M4 PCK L8L3.3V IC9300 L21 DOUTDA11 IC9300 W16 SDIV1 C9323 0.1u 16V IC9300 F18 VSS TP9426 IC9300 AB17 VSS IC9300 B20 DOUTUA03 IC9300 D13 DOUTUC12 TP9483 IC9300 M20 DOUTDA10 IC9300 Y7 A0 IC9300 V1 DQS0 TP9436 IC9300 T3 AVDD25_1 IC9300 H21 DOUTDB15 IC9300 D21 DOUTUB02 IC9300 C5 RI9 IC9300 M10 VSS R9475 10k IC9300 B5 RI5 IC9300 B12 DOUTUC14 IC9300 J22 DOUTDA13 TP9410 C9365 56u 4V IC9300 W17 VSS IC9300 G3 BI4 IC9300 U21 DOUTDB04 IC9300 W22 DOUTDC02 TP9492 C9324 0.1u 16V C9315 0.1u 16V IC9300 A5 RI2 TP9440 TP9449 TP9414 C9305 0.1u 16V IC9300 C8 TEST0 P3.3V C9319 0.1u 16V R9448 22 IC9300 V18 VSS P3.3V IC9300 B13 DOUTUA12 IC9300 Y21 VDD33 IC9300 AB13 DQ10 IC9300 AB15 AVDD33_1 IC9300 C15 DOUTUB09 P3.3V C9301 0.1u 16V FL9304 J0HABH000013 1 2 3 IC9300 N3 TDI IC9300 B10 SFRST R9399 100k IC9300 V12 VDD25 IC9300 C13 DOUTUB12 IC9300 Y15 VSS IC9300 AB7 A6 IC9300 AB19 DOUTDA00 IC9300 AB6 A4 L8L3.3V IC9300 V11 VDD25 TP9398 TP9444 HIN IC9300 R4 DQ16 IC9300 D6 RI7 IC9300 M22 DOUTDC10 R9580 1k 1% IC9300 C21 DOUTUA02 C9370 50V 0.01u J0HABH000013 FL9305 IC9300 AA5 CKE IC9300 AB10 DQ29 TP9053 IC9300 C1 VDD12 IC9300 Y16 SDSEL IC9300 U18 VDD33 IC9300 L14 VSS R9390 2.7k IC9300 J3 MONOUT0 IC9300 E4 VDD12 IC9300 A3 GI0 L8L3.3V C9360 6.3V 10u TP9506 J0HABH000013 FL9306 IC9300 N10 VSS IC9300 C10 SFVRST TP9478 IC9300 L22 DOUTDB11 C9311 0.1u 16V FL9308 J0HABH000013 1 2 3 IC9300 E18 VSS IC9300 P3 DQ19 IC9300 F1 BI3 IC9300 C17 DOUTUA06 IC9300 J10 VSS IC9300 J1 MONOUT2 FL9302 J0HABH000013 1 2 3 R9449 22 IC9300 D11 DOUTUA15 IC9300 K19 DOUTDC14 IC9300 AB8 A7 IC9300 AA1 VDD25 IC9300 B15 DOUTUB10 C9355 0.1u 16V IC9300 J9 VSS IC9300 AA12 DQS3 IC9300 W11 DQ25 IC9300 D5 GI2 IC9300 W13 DQ15 C9309 0.1u 16V IC9300 K13 VSS IC9300 AA20 DOUTDA01 C9369 50V 0.01u IC9300 AA14 DQ9 IC9300 T19 DOUTDC04 IC9300 P14 VSS IC9300 R20 DOUTDB06 IC9300 AA22 VSS C9368 16V 0.1u TP9504 TP9403 R9445 22 IC9300 V2 DQ3 IC9300 H18 VDD33 TP9443 VIN L8L3.3V IC9300 A14 DOUTUA11 IC9300 B1 VSS IC9300 N5 VDD33 IC9300 AA8 A5 C9316 0.1u 16V IC9300 B7 TEST1 IC9300 R22 DOUTDC07 TP9532 IC9300 N9 VSS IC9300 N21 DOUTDA08 C9304 0.1u 16V IC9300 E21 DOUTUA00 C9313 0.1u 16V IC9300 K14 VSS IC9300 K11 VSS IC9300 J2 MONOUT1 TP9485 TP9408 Q9301 B1ABCF000138 IC9300 AA4 VREF C9303 0.1u 16V IC9300 V3 DQ4 IC9300 M2 FULL0 IC9300 C7 RI0 IC9300 A12 DOUTUB14 IC9300 T4 DQ7 IC9300 T2 DQ20 IC9300 G1 BI6 IC9300 V5 VSS IC9300 AB20 DOUTDB01 R9367 180 IC9300 E9 VDD33 IC9300 U5 VDD25 IC9300 R18 VDD33 IC9300 D20 DOUTUB03 IC9300 Y3 VSS IC9300 T22 DOUTDC06 TP9490 C9321 0.1u 16V IC9300 V9 VSS IC9300 N11 VSS P1.2V C9300 0.1u 16V IC9300 AA16 AVSS2 IC9300 B22 VSS R9581 1k 1% TP9445 IC9300 Y22 VDD33 IC9300 R19 DOUTDA05 IC9300 W12 AVDD25_4 IC9300 A21 VSS P5V IC9300 P13 VSS IC9300 Y9 A3 IC9300 P11 VSS IC9300 Y13 DQ14 IC9300 Y11 DQ24 IC9300 E12 VDD33 IC9300 V17 VDD33 IC9300 W8 A2 TP9405 IC9300 V10 VDD25 IC9300 B2 VSS IC9300 U1 DQS2 IC9300 B18 DOUTUB06 IC9300 K5 VDD33 TP9502 IC9300 P19 DOUTDB07 TP9423 IC9300 B3 GI1 IC9300 M18 VDD12 IC9300 AB14 DQ8 IC9300 U20 DOUTDB03 IC9300 J11 VSS IC9300 Y2 VDD25 IC9300 E5 VSS IC9300 E6 VSS IC9300 H22 DOUTDA14 IC9300 C9 ROMCE IC9300 Y17 VSS C9310 0.1u 16V IC9300 D9 TCKSEL1 IC9300 E3 GI5 IC9300 R1 DQ22 IC9300 K1 DCK C9359 0.1u 16V L8L2.5V IC9300 M19 DOUTDC11 IC9300 AA19 DOUTDC01 IC9300 W6 NWE IC9300 W15 TCPOUT IC9300 E7 VDD12 IC9300 F22 DRVCLKD3 IC9300 F19 DOUTUA01 IC9300 U22 DOUTDC05 IC9300 K2 VDI IC9300 L1 SCL IC9300 B19 DOUTUA04 IC9300 A8 TCKSEL0 IC9300 Y12 AVSS_4 IC9300 D10 FPDAT0 IC9300 J21 DOUTDB14 IC9300 F20 DOUTUB00 IC9300 D15 DOUTUB08 TP9477 IC9300 P20 DOUTDA07 IC9300 C14 DOUTUC11 IC9300 B11 DOUTUC15 TP9416 IC9300 D4 VSS IC9300 AA17 SDIV0 IC9300 W1 DQ2 IC9300 E13 VDD33 IC9300 C6 RI4 TP9479 IC9300 B9 FPCLK IC9300 B21 VSS IC9300 L3 ID1 IC9300 N18 VDD12 IC9300 J13 VSS IC9300 Y10 DQ26 IC9300 F4 GI7 R9574 0 IC9300 A13 DOUTUC13 IC9300 G19 DOUTUC00 TP9533 L8L3.3V IC9300 J14 VSS IC9300 B6 RI1 TP9395 IC9300 Y19 VSS C9356 0.1u 16V IC9300 R5 VDD25 TP9437 IC9300 W20 VDD33 IC9300 A11 DOUTUA14 IC9300 L2 ID0 IC9300 B17 DOUTUA07 IC9300 H1 MUTE TP9480 IC9300 D19 VSS IC9300 T20 DOUTDA04 IC9300 L18 VDD12 TP9422 IC9300 AA2 VSS IC9300 AA15 AVSS1 C9318 0.1u 16V IC9300 C19 DOUTUB04 IC9300 E19 DOUTUC03 IC9300 N19 DOUTDB09 C9363 6.3V 10u IC9300 F5 VDD12 IC9300 Y8 A1 R9400 10k C9312 0.1u 16V IC9300 L19 DOUTDB12 IC9300 K18 VDD33 IC9300 AB4 BA0 C9358 0.1u 16V IC9300 T1 DQ21 TP9428 IC9300 D7 RI3 L8L3.3V IC9300 Y18 VSS IC9300 C3 VSS IC9300 M3 FULL1 IC9300 W18 VSS IC9300 U4 DQ5 C9325 0.1u 16V IC9300 W2 DQ1 IC9300 L13 VSS IC9300 M11 VSS D9301 MA3X152K0L R9444 22 IC9300 V7 VDD25 IC9300 A9 FPDAT1 IC9300 V8 VDD25 IC9300 T5 AVSS_2 IC9300 J5 VDD12 R9451 100k IC9300 C2 VDD12 L8L3.3V IC9300 G18 VSS IC9300 N22 DOUTDA09 IC9300 V21 DOUTDC03 IC9300 A22 VSS R9391 2.7k TP9411 IC9300 AB1 VSS IC9300 B16 DOUTUC09 IC9300 P5 VDD33 IC9300 AA18 DOUTDB00 IC9300 L4 TIIC IC9300 H5 VDD12 IC9300 H2 BI9 IC9300 J18 VDD33 IC9300 AA7 A9 IC9300 W5 AVDD25_3 TP9451 IC9300 A10 SFLATCH IC9300 N2 TCK R9450 4.7k TP9396 IC9300 E20 DOUTUC02 L8L2.5V IC9300 V13 VDD12 IC9300 E2 GI8 IC9300 P2 XRST IC9300 D22 DOUTUC01 IC9300 K12 VSS IC9300 E10 VDD33 R9452 10k R9603 10k IC9300 D2 GI4 P2.5V TP9446 R9447 22 IC9300 E16 VDD12 IC9300 L10 VSS IC9300 AB22 VSS L8L1.2V IC9300 G4 BI2 IC9300 AB18 DOUTDC00 IC9300 W14 DQ13 C9308 0.1u 16V TP9488 TP9400 TP9434 IC9300 AB3 NCK IC9300 R21 DOUTDA06 IC9300 Y5 NCAS R9579 0 R9442 22 IC9300 V22 DOUTDA03 C9322 0.1u 16V IC9300 C12 DOUTUB13 IC9300 T21 DOUTDB05 IC9300 J20 DOUTDC15 IC9300 E1 BI0 IC9300 N20 DOUTDC09 IC9300 E8 VDD12 R9446 22 IC9300 R3 DQ17 IC9300 AB9 VDD25 IC9300 AA13 DQ11 IC9300 Y6 NRAS IC9300 C4 GI3 IC9300 C18 DOUTUB05 IC9300 AB11 DQ28 IC9300 M1 TILD IC9300 U2 AVSS_1 TP9497 IC9300 M21 DOUTDB10 TP9417 IC9300 L12 VSS R9398 4.7k IC9300 L9 VSS IC9300 V6 AVSS_3 IC9300 AA11 DQ30 IC9300 A4 RI6 IC9300 U3 DQ6 C9364 6.3V 10u IC9300 K3 SDA IC9300 H3 BI8 IC9300 D3 VDD12 C9314 0.1u 16V IC9300 M9 VSS IC9300 F3 GI9 IC9300 M12 VSS TP9476 IC9300 W10 DQ27 IC9300 D18 DOUTUC05 TP9420 IC9300 AA21 VSS C9317 0.1u 16V IC9300 F2 BI1 FL9303 J0HABH000013 1 2 3 C9361 6.3V 10u IC9300 E17 VSS IC9300 MN84521A-A A1 VSS IC9300 W19 VSS IC9300 B8 TCKSEL2 IC9300 AA6 A11 C9307 0.1u 16V L8L3.3V C9302 0.1u 16V IC9300 P18 VDD33 IC9300 L5 VDD33 IC9300 D16 DOUTUC07 IC9300 D8 OCK IC9300 V16 VDD33 IC9300 H19 DRVCLKU0 IC9300 A18 DOUTUB07 IC9300 W7 NCS TP9494 IC9300 AB21 VSS IC9300 N4 TMS IC9300 P10 VSS IC9300 P1 TDO IC9300 E15 VDD12 IC9300 M14 VSS IC9300 K22 DOUTDA12 C9320 0.1u 16V C9357 0.1u 16V IC9300 P22 DOUTDB08 D9300 MA3X152K0L IC9300 AB16 AVDD33_2 IC9300 R2 DQ23 IC9300 C16 DOUTUC08 IC9300 V4 VDD25 IC9300 M13 VSS C9362 6.3V 10u IC9300 N14 VSS IC9300 E22 DRVCLKU3 IC9300 A15 DOUTUA10 TP9472 IC9300 A16 DOUTUA09 L8L2.5V IC9300 C11 DOUTUB15 IC9300 H4 BI7 IC9300 N13 VSS IC9300 AA3 CK IC9300 Y14 DQ12 D32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 IC9300 P9 VSS IC9300 Y20 VSS IC9300 K10 VSS IC9300 A17 DOUTUA08 IC9300 AA10 DQ31 IC9300 B4 RI8 IC9300 D12 DOUTUA13 TP9486 L8L3.3V IC9300 W3 VDD25 R9443 22 IC9300 P21 DOUTDC08 IC9300 L20 DOUTDC12 IC9300 E11 VDD33 IC9300 V19 VDD33 IC9300 K4 HDI IC9300 A2 VSS IC9300 V20 DOUTDB02 IC9300 W4 VSS IC9300 N12 VSS IC9300 AB12 DQS1 IC9300 AB2 VSS IC9300 A19 DOUTUA05 IC9300 AB5 BA1 IC9300 G21 DRVCLKD2 R9389 2.7k IC9300 C20 VSS IC9300 M5 VDD33 TP9430 IC9300 J19 DOUTDA15 IC9300 N1 TRST IC9300 W9 A10 IC9300 P4 DQ18 IC9300 C22 DOUTUB01 IC9300 D17 DOUTUC06 IC9300 W21 VDD33 IC9300 P12 VSS IC9300 G22 DRVCLKD0 IC9300 Y1 DQ0 IC9300 D1 GI6 L8L1.2V IC9300 D14 DOUTUC10 IC9300 H20 DRVCLKD1 IC9300 J12 VSS TP9393 IC9300 B14 DOUTUB11 IC9300 A6 OCKOUT IC9300 F6 VSS IC9300 AA9 A8 R9409 EXB38V820JV R9410 EXB38V820JV MN84521A-A Left from FPGA1 IIC from DISCHARGE CONTROL FPGA to DDR rromdata[00] rromdata[01] rromdata[02] rromdata[03] rromdata[04] rromdata[07] rromdata[10] rromdata[13] rromdata[05] rromdata[08] rromdata[11] rromdata[14] rromdata[06] rromdata[09] rromdata[12] rromdata[15] rromadrs[00] rromadrs[01] rromadrs[04] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[16] rromadrs[19] rromadrs[03] rromadrs[06] rromadrs[09] rromadrs[12] rromadrs[15] rromadrs[18] rromadrs[02] rromadrs[05] rromadrs[08] rromadrs[11] rromadrs[14] rromadrs[17] rromadrs[20] DOUTUB[10] DOUTUB[17] GND DOUTUB[16] GND GND DOUTUC[15] P5V GND DOUTUA[16] ODEU2 LEU2 DOUTUC[19] DOUTUC[12] DOUTUA[10] GND GND GND DOUTUA[17] DOUTUA[12] GND CLKU4(+) DOUTUA[11] DOUTUC[10] GND DOUTUB[11] GND DOUTUB[12] DOUTUC[14] DOUTUC[11] DOUTUC[21] DOUTUC[16] DOUTUB[20] DOUTUC[13] DOUTUB[19] CLKU5(-) DOUTUA[14] GND DOUTUA[19] DOUTUC[20] DOUTUA[15] DOUTUB[15] GND GND DOUTUA[20] DOUTUC[18] DOUTUA[18] DOUTUC[17] P5V DOUTUA[13] DOUTUB[21] PCU2 DOUTUB[18] DOUTUB[13] CLRU2 5V_DET CLKU2(+) GND GND GND DOUTUA[21] GND P5V DOUTUB[14] GND NC CLKU3(-) DRV_SOS7 IC9300 54 53 55 52 51 63 62 61 58 60 62 59 56 61 55 63 57 PLASMA AI/SUB FIELD PROCESSOR/DATA DRIVER FORMAT CONVERTER/RGB PROCESSOR (C24) TO C2-BOARD TH-50PZ700C D-Board (7 of 8) Schematic Diagram TH-50PZ700C D-Board (7 of 8) Schematic Diagram D-BOARD (7/8) TNPA3983BC ! 118 15.48.D 电路板 (8/8) 线路图 + G G TERM SIDE L8DL_DQS3 L8L_SDCKE L8L_DQ28 L8DL_NCAS L8DL_DQ22 L8DL_DQ25 L8DL_NRAS L8DL_DQ31 L8DL_A1 L8L_DQ12 L8DL_DQ11 L8DL_DQ4 L8L_DQS1 L8L_DQ17 L8L_A10 L8L_DQ25 L8L_DQS0 L8DL_A3 L8L_DQ10 L8DL_DQ21 L8L_CS L8L_DQ16 L8DL_DQS0 L8L_DQ24 L8DL_A4 L8DL_DQ9 L8L_DQ22 L8L_A3 L8DL_DQ13 L8L_DQ20 L8L_DQ4 L8L_SDCLKO L8L_BA0 L8L_DQ27 L8L_DQ19 L8L_NSDCLKO L8DL_DQ1 L8L_DQ3 L8L_DQ0 L8DL_DQ19 L8L_A2 L8L_DQ18 L8DL_DQ6 L8L_DQ9 L8DL_NCS L8DL_A7 L8DL_DQS1 L8DL_A6 L8L_DQS3 L8DL_DQ0 L8L_DQ5 L8DL_DQ15 L8DL_A8 L8DL_DQ30 L8DL_DQ8 L8L_A8 L8DL_DQ5 L8L_DQ23 L8DL_DQ24 L8L_BA1 L8DL_DQ14 L8DL_DQ10 L8L_CAS L8DL_A9 L8DL_DQ29 L8DL_BA1 L8L_DQ6 L8DL_CKE L8L_A7 L8DL_A10 L8L_DQ30 L8L_A9 L8L_DQ2 L8DL_DQS2 L8L_DQ21 L8DL_DQ23 L8DL_DQ27 L8L_A4 L8L_DQ29 L8DL_DQ16 L8L_WE L8DL_DQ26 L8L_A6 L8L_DQ15 L8DL_A0 L8L_DQ8 L8DL_DQ3 L8L_A11 L8DL_DQ7 L8DL_A11 L8L_DQ7 L8L_DQ1 L8L_DQS2 L8DL_DQ28 L8DL_DQ12 L8L_DQ13 L8L_A5 L8L_DQ26 L8DL_BA0 L8L_A0 L8DL_A2 L8L_DQ31 L8DL_DQ18 L8L_DQ11 L8L_DQ14 L8DL_DQ2 L8DL_NWE L8DL_A5 L8DL_DQ17 L8L_RAS L8L_A1 L8DL_DQ20 DOUTUA8 DOUTUA13 DOUTUC4 DOUTUA1 L8L_UC09 DOUTUA12 L8L_UA01 DOUTUA4 L8L_UC07 DOUTUC0 DOUTUB0 DOUTUB3 DOUTUB15 DOUTUC3 L8L_UB07 DOUTUC11 DOUTUA15 DOUTUC1 L8L_UC06 DOUTUA2 L8L_UB02 5V_DET3 L8L_UA09 DOUTUB8 DOUTUC14 DOUTUB13 L8L_UB11 L8L_UC11 L8L_UC03 L8L_UB10 DOUTUC9 DOUTUB4 L8L_UC00 L8L_UA02 DOUTUC12 L8L_UA07 DOUTUC10 L8L_UC01 L8L_UC05 DOUTUA11 L8L_UA13 DOUTUB10 L8L_UA10 L8L_UA11 DOUTUA0 DOUTUB6 L8L_UA04 DOUTUB1 L8L_UA00 DOUTUA5 DOUTUB12 DOUTUB14 DOUTUC8 5V_SENSE DOUTUA7 DOUTUC15 L8L_UB05 DOUTUC5 DOUTUA14 DOUTUB9 L8L_UB01 DOUTUA9 DOUTUB7 DOUTUB11 DOUTUC13 DOUTUC7 DOUTUB5 DOUTUA3 L8L_UC02 DOUTUC6 L8L_UB00 DOUTUA10 DOUTUC2 DOUTUA6 L8L_UC08 L8L_UA08 L8L_UB12 L8L_UA12 L8L_UC15 L8L_UB15 L8L_UA15 L8L_UC14 L8L_UB14 L8L_UA14 DOUTUB1 DOUTUA9 DOUTUA8 DOUTUB6 DOUTUB2 DOUTUA1 DOUTUA2 DOUTUC3 DOUTUC8 DOUTUA5 DOUTUB9 DOUTUA7 DOUTUB5 DOUTUB3 DOUTUC7 DOUTUA6 DOUTUA3 DOUTUC5 DOUTUC6 DOUTUC0 CLKU0 DOUTUB7 DOUTUC1 5V_DET3 CLKU1 DOUTUA0 DOUTUC4 DOUTUB4 DOUTUB8 DOUTUB0 DOUTUA4 DOUTUC2 DOUTUC9 DOUTUB2 L8DL_DQ26 L8DL_DQ11 L8DL_DQS2 L8DL_DQ0 L8DL_DQ7 L8DL_DQ12 L8DL_DQ24 L8DL_A1 L8DL_A10 L8DL_A11 L8DL_A9 L8DL_A5 L8DL_A6 L8DL_BA0 L8DL_CLK L8DL_DQ28 L8DL_DQ22 L8DL_DQ23 L8DL_DQ3 L8DL_DQ17 L8DL_DQ21 L8DL_CKE L8DL_DQ25 L8DL_DQ29 L8DL_NWE L8DL_DQ19 L8DL_DQ8 L8DL_DQ1 L8DL_DQ31 L8DL_DQ4 L8DL_DQ18 L8DL_A4 L8DL_DQ20 L8DL_A2 L8DL_DQ30 L8DL_DQ14 L8DL_A3 L8DL_DQS0 L8DL_DQ13 L8DL_DQ5 L8DL_NCLK L8DL_DQ2 L8DL_NCS L8DL_NRAS L8DL_DQ6 L8DL_A7 L8DL_A0 L8DL_BA1 L8DL_NCAS L8DL_DQS1 L8DL_DQ27 L8DL_DQS3 L8DL_DQ9 L8DL_DQ16 L8DL_DQ10 L8DL_A8 L8DL_DQ15 L8L_UC13 L8L_UB13 L8L_UC12 L8L_UC10 L8L_UB09 L8L_UB08 L8L_UB06 L8L_UA06 L8L_UB04 L8L_UC04 L8L_UA05 L8L_UB03 L8L_UA03 L8DL_CLK L8DL_NCLK TP9524 IC9301 H6 VSS_Thermal IC9301 M3 NC R9456 EXB2HV820JV TP9054 IC9301 L4 VDD IC9301 B5 DQ3 IC9301 J12 DQ11 TP9505 IC9301 J13 DQ10 IC9301 B4 VSSQ TP9496 IC9301 K4 VDDQ TP9518 TP9521 IC9301 C2 DQ4 C9066 16V 0.1u TP9484 IC9301 N11 A8/AP IC9301 D6 VSSQ R9118 1k 1% R9597 47 IC9301 L13 NC R9374 47 EXB38V470JV R9589 47 EXB38V470JV IC9301 D12 DQ26 IC9301 H7 VSS_Thermal R9588 47 EXB38V470JV C9069 16V 0.1u IC9301 M13 NC IC9301 B10 DQ28 IC9301 L10 VSS IC9301 G8 VSS_Thermal IC9301 J8 VSS_Thermal R9117 0 IC9301 J6 VSS_Thermal IC9301 D8 VDD ZA9001 K4CD01000011 TP9536 IC9301 F4 VDDQ L8L2.5V C9080 16V 0.1u R9587 47 EXB38V470JV P3.3V IC9301 C7 VDDQ D9302 MA3X152K0L TP9510 IC9301 B7 DQ0 IC9301 L11 VDD C9084 56u 4V R9455 EXB2HV820JV TP9462 R9116 0 IC9301 E11 VDD TP9491 IC9301 B6 DQ2 TP9501 IC9301 H4 NC IC9301 D10 VSSQ IC9301 M10 NC R9461 10k IC9301 B3 DM0 R9459 4.7k IC9301 N9 A6 IC9301 J3 DQ20 IC9301 G3 DQ18 R9371 EXB2HV470JV 47 IC9301 N3 NC IC9301 C3 VDDQ IC9301 D5 VSSQ R9372 47 IC9301 J7 VSS_Thermal R9119 1k 1% R9460 100k R9596 47 IC9301 C3ABQJ000051 B2 DQS0 IC9301 E6 VSSQ TP9507 IC9301 H11 NC TP9515 IC9301 F3 DQ16 R9598 47 IC9301 N8 A4 L8L2.5V IC9301 B8 DQ31 TP9498 Q9302 B1ABCF000138 IC9301 B13 DQS3 IC9301 G7 VSS_Thermal TP9512 R9595 47 EXB38V470JV IC9301 G4 VDDQ IC9301 K7 VSS IC9301 G11 VDDQ IC9301 N6 A1 C9064 16V 0.1u IC9301 C6 DQ1 IC9301 F11 VDDQ TP9481 C9075 16V 0.1u IC9301 G10 VSSQ R9592 47 EXB38V470JV IC9301 B11 VSSQ IC9301 M8 A9 C9071 16V 0.1u TP9471 TP9537 IC9301 F9 VSS_Thermal IC9301 F2 DQ17 C9059 16V 0.1u IC9301 B9 DQ29 C9083 16V 0.1u IC9301 N10 A7 C9063 16V 0.1u IC9301 J10 VSSQ IC9301 H2 DQS2 TP9474 IC9301 E12 VDDQ IC9301 K2 DQ22 C9082 16V 0.1u R9453 EXB2HV820JV IC9301 G6 VSS_Thermal TP9495 C9068 16V 0.1u TP9522 IC9301 C13 DQ27 IC9301 J11 VDDQ IC9301 J2 DQ21 IC9301 M9 A5 FL9309 J0HABH000013 1 2 3 IC9301 D7 VDD IC9301 F6 VSS_Thermal TP9539 IC9301 C10 VDDQ C9078 16V 0.1u IC9301 L5 VSS IC9301 K11 VDDQ TP9538 R9594 47 EXB38V470JV TP9540 R9586 47 IC9301 L9 NC IC9301 C4 NC TP9493 TP9535 TP9468 R9584 33 R9454 EXB2HV820JV R9375 150 IC9301 N13 VREF IC9301 D2 DQ6 IC9301 G5 VSSQ TP9513 R9114 0 IC9301 E4 VDD R9593 47 EXB38V470JV C9079 16V 0.1u IC9301 K12 DQ9 D33 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 IC9301 E9 VSSQ IC9301 G13 DQ12 IC9301 E10 VSS IC9301 H13 DQS1 IC9301 K13 DQ8 IC9301 E2 DQ7 IC9301 F13 DQ14 IC9301 L7 VDD R9585 47 IC9301 H10 VSSQ TP9487 IC9301 M5 BA1 IC9301 E7 VSS R9591 47 EXB38V470JV IC9301 K10 VSSQ IC9301 L6 A10 C9072 16V 0.1u IC9301 C11 NC IC9301 F12 DQ15 IC9301 E13 DQ24 IC9301 J4 VDDQ IC9301 G12 DQ13 IC9301 G9 VSS_Thermal TP9519 IC9301 J9 VSS_Thermal IC9301 E8 VSS C9070 16V 0.1u TP9489 P5V TP9482 IC9301 M6 A2 IC9301 N7 A3 IC9301 K8 VSS R9599 47 TP9511 R9458 EXB2HV820JV TP9523 TP9500 IC9301 N2 CS TP9503 IC9301 L2 CAS TP9514 IC9301 L3 WE C9073 16V 0.1u IC9301 M7 A11 R9373 33 IC9301 C5 VDDQ IC9301 H9 VSS_Thermal IC9301 K3 DQ23 TP9452 IC9301 C12 VDDQ IC9301 D3 DQ5 IC9301 H5 VSSQ IC9301 F10 VSSQ IC9301 D9 VSSQ IC9301 N12 CKE IC9301 G2 DQ19 TP9517 C9076 16V 0.1u C9061 16V 0.1u TP9466 IC9301 H8 VSS_Thermal IC9301 C9 DQ30 IC9301 H3 DM2 TP9520 C9060 16V 0.1u TP9475 C9081 16V 0.1u TP9509 IC9301 H12 DM1 IC9301 D11 VSSQ IC9301 C8 VDDQ IC9301 F7 VSS_Thermal IC9301 M11 CK IC9301 M12 CK C9074 16V 0.1u TP9473 IC9301 J5 VSSQ IC9301 L12 NC R9590 47 EXB38V470JV R9457 EXB2HV820JV TP9516 IC9301 K9 VSS IC9301 F5 VSSQ IC9301 M4 NC IC9301 L8 VDD IC9301 D4 VSSQ L8L2.5V TP9525 C9067 16V 0.1u C9371 50V 0.01u C9062 16V 0.1u IC9301 K5 VSSQ IC9301 N4 BA0 IC9301 N5 A0 C9065 16V 0.1u IC9301 E5 VSS IC9301 E3 VDDQ IC9301 M2 RAS R9115 0 IC9301 F8 VSS_Thermal IC9301 B12 DM3 IC9301 K6 VSS C9077 16V 0.1u TP9508 IC9301 D13 DQ25 DDR-Terminate DOUTUA[3] DOUTUC[3] CLKU1(-) GND DOUTUC[1] NC DOUTUB[6] DSLL DOUTUA[7] GND DOUTUA[2] DOUTUA[6] NC GND P5V GND NC DOUTUA[9] DOUTUB[1] DOUTUC[9] GND GND DOUTUA[5] P5V GND GND GND GND GND GND GND GND DOUTUA[4] DOUTUB[7] NC DSHL NC CLKU0(+) DOUTUC[7] 5V_DET DOUTUC[0] GND DOUTUB[3] P5V GND DOUTUB[5] DOUTUA[0] DOUTUB[8] DOUTUA[1] GND DOUTUB[0] DOUTUB[4] DOUTUC[8] DOUTUA[8] DOUTUC[4] DOUTUB[9] DMLL GND DOUTUC[6] DOUTUC[5] DOUTUC[2] DMHL DOUTUB[2] DDR-SDRAM L NC NC NC NC NC IC9301 DDR-SDRAM L 63 61 62 67 69 71 65 68 70 64 72 66 (C25) TO C2-BOARD TH-50PZ700C D-Board (8 of 8) Schematic Diagram TH-50PZ700C D-Board (8 of 8) Schematic Diagram D-BOARD (8/8) TNPA3983BC ! 119 15.49.C1，C2，C5 和 C6 电路板方框图 PCD5 CLRD5 ODED5 LED5 R7592 R7686 R7285 R7687 R7186 R7187 R7593 R7286 6bit P+5V 6bit P+5V ODEU6 DATA 35 15 6bit D27A 6bit CLK21L,22L CLKU5(-) P+5V U26C Vad+75V D23C P+5V 3 19 C61 6bit 6bit 6bit DATA DATA 48 D31C 21 35 23 42 U22A 16 D22A D22A 28 36 DA17-DC17 CB4 DATA P+5V 58 20 6bit CLK41L,42L P+5V 4bit DATA 43 16 D15A,D15B 10 41 D12A-D13C Vad+75V DA10-DC11 U17B 38 PCD5 8 U17B UC14 2bit 61 C54 P+5V 61 24 PCU2 54 59 38 8 6bit CA4 6bit 6bit CLKD6(+) DATA 50 26 CLKD5(-) CA1 UA12 CLKD6(+) U24A Vad+75V UA17 P+5V 15 IC7201 CA3 56 UA10 U19C U29C ODEU1 26 10 29 IC7601 8bit 15 18 DATA D30A-D31C D27C,D28A DATA ODED5 43 D15C P+5V CLRU1 30 U21C 12 +5V DET +5V DET U27C 8bit +5V DET 44 DATA LED5 11 NCLK31L,32L 24 IC7504 2bit 60 IC7101 D26A-D26C D15C,D16A 8bit 4bit P+5V D25C 2 ODEU1 Vad+75V P+5V D15A,D15B Vad+75V Vad+75V P+5V P+5V P+5V DATA Vad+75V CLKU7(-) P+5V DA20-DC21 LE6-10 8bit D27C U20A 6bit 2 6bit CB5 DATA 18 D36 TO D36 D20A U27C D29A-D29C U20A U24A DATA Vad+75V 6bit 18 6bit D28B,D28C Vad+75V ODEU2 61 1 DATA 1 37 DATA 6bit D27C,D28A 45 P+5V 17 32 6bit +5V DET 10 39 6bit D21C D22A 52 CA2 3 5 Vad+75V 1 ODED5 CA8 D18A-D19C 67 33 IC7205 P+5V P+5V U28A 6 DATA 60 LED6 ODEU1 68 U29B U24A P+5V 30 61 ODEU2 Vad+75V 50 C24 U22A P+5V D18A- D19C P+5V 6bit DATA P+5V 6bit 68 P+5V P+5V Vad+75V U19C P+5V D31 TO D31 P+5V DATA U17B 5 DA12-DC13 CB7 4bit P+5V DATA D17A-D17C 27 37 6bit 39 U25C 4 CLKD2(+) 2bit 51 U26C 6bit P+5V IC7106 PCD6 CLRU2 6bit Vad+75V 4 4bit P+5V CA7 U21C 50 D35 TO D35 22 UA10-UC11 CLK61R-63R UC11 6bit 1 45 Vad+75V U26A C11 U29C D26A 42 9 58 DATA P+5V 3 P+5V UC11 Vad+75V P+5V 34 49 24 Vad+75V D24A-D24C 4bit DATA 8bit P+5V PCU1 DATA P+5V CLK41L,42L 2 11 5 35 19 CLRU2 P+5V IC7605 UB14 DATA 57 CLKU3(-) LE6-10 LEDU1 P+5V 8 50 U14C-U15C DATA 3 DATA U26C D16B, D16C 59 D20A 3 6 6bit 4bit 39 DATA P+5V P+5V 27 1 P+5V P+5V CLRD5 D30A-D31C CLKU4(+) P+5V 6bit D28B,D28C CLRD6 67 IC7104 16 6bit 60 IC7203 IC7501 32 D10A 19 DA16 CB2 66 28 31 9 8 CA6 34 16 D15A,D15B 33 59 6bit LEDD6 2 Vad+75V CLRU1 6 31 CA 10 DATA 6bit D29A 42 39 6bit CLKU6(+) IC7202 38 U18A 58 CB8 8bit DATA DATA PCU2 8bit DATA D14A-D14C 13 CLKD2(+) 2 63 6bit IC7207 3 30 61 67 IC7506 D15C,D16A P+5V 6bit D16B,D16C 6bit U26B Vad+75V Vad+75V D27A,D27B U14A 46 CA9 ODEU2 C60 67 IC7604 48 U28A 6bit 36 10 U16A-U16C U21C UA10 LED5 6bit 6 IC7102 39 NCLK31L,32L P+5V 6bit 6bit 45 17 P+5V D14A-D14C D26C Vad+75V 6bit 53 P+5V DATA 6bit Vad+75V 6bit 10 IC7206 IC7105 CLRU2 P+5V P+5V D23C UB14 PCD2 Vad+75V 6bit P+5V P+5V 5 2 D12A-D13C 2bit CLRD6 6bit 36 6bit Vad+75V 63 64 CLK71R-73R P+5V 2bit D29C 11 LEDU1 D27A,D27B P+5V U17A U19C C10 P+5V UA12 D17A-D17C 61 67 31 66 14 CLRD5 4bit PCU1 CLKD3(-) D21C 6bit U30A D16B,D16C DA18-DC19 D11C 4bit C22 DATA C52 IC7103 D32 TO D32 NCLK51L,52L 19 P+5V P+5V Vad+75V D28B IC7507 CLKU7(-) D24A-D24C 19 CB1 CLKU2(+) U31C CLKD5(-) Vad+75V 6bit CLKU6(+) PCU6 Vad+75V P+5V 64 6bit 8bit D25A-D25C IC7505 23 Vad+75V ODED6 1 2bit 6bit 34 38 P+5V UC14 8bit DATA 59 52 CLK71R-73R CB 10 Vad+75V D28A 6bit 11 CLRU1 P+5V 6bit DATA D24A 56 68 DATA U20A 8bit Vad+75V U12A-U13C 6bit PCD6 37 8 18 Vad+75V 58 LE1-LE5 CLKD4(+) 59 P+5V 2bit U31C 20 68 U22A 13 DA10-DC11 67 32 IC7602 ODED2 Vad+75V U29A P+5V 6bit 55 D25A-D25C CA5 6bit D26A-D26C 26 6bit 1 IC7603 P+5V 6bit D28C U29B CLKD3(-) 51 64 DATA IC7204 LE1-LE5 CLRD2 9 CB3 17 CB6 Vad+75V Vad+75V 43 41 U26B CLKD7(-) Vad+75V LEU2 9 DATA 3 5 ODED6 28 CLRU6 60 CLKD7(-) DATA IC7503 U29A 2 57 Vad+75V P+5V 49 UA17 DATA P+5V Vad+75V Vad+75V U14B PCU2 21 U23C 33 U26B CLKD4(+) P+5V 19 LEU2 D14A-D14C 2 53 U23C IC7606 P+5V Vad+75V 20 55 DATA Vad+75V 6bit 8bit CB9 12 Vad+75V DATA CLK61R-63R 2bit PCU1 59 46 D27B CLK21L,22L 8 40 8bit D29A-D29C 6bit U17C U23C 31 5 10 30 D30A 27 P+5V 20 6bit DATA 17 6bit U31C 14 66 P+5V NCLK51L,52L 6bit 30 Vad+75V PCD5 Vad+75V U29B D23C 25 47 64 P+5V IC7502 41 6bit P+5V 5 66 C5 DATA DRIVER(CENTER) DATA DRIVER (CENTER) C2 C1 DATA DRIVER(RIGHT) C6 DATA DRIVER(RIGHT) BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER PANEL DATA DRIVER PANEL DATA DRIVER PANEL DATA DRIVER PANEL DATA DRIVER TH-50PZ700C C1, C2, C5, and C6-Board Block Diagram TH-50PZ700C C1, C2, C5, and C6-Board Block Diagram 120 15.50.C2，C3，C4 和 C5 电路板方框图 CLKD1(-) LEU3 PCU3 LEU3 NCLK1L ODEU3 ODEU3 ODEU3 CLRU3 CLKD0(+) PCU3 ODEU3 CLKU1(-) ODEU3 LEU3 PCU3 LEU3 CLKU1(-) CLRU3 CLKU0(+) CLKU0(+) LEU3 NCLK1L LEU3 CLKU1(-) PCU3 ODEU3 CLKU0(+) PCU3 CLKU1(-) CLK0L PCU3 NCLK1L CLRU3 CLKU0(+) CLRU3 CLK0L CLRU3 CLRU3 CLK0L R7386 R7490 R7387 R7491 21 5 15 D4B,D4C D0A-D1C 25 DATA 5V_DET 22 35 PCD4 63 DATA 6bit CB UMH ODED4 2bit 63 2bit 14 DOUTDA[0] U1C P+5V 10 CLKU0(+) DATA 80 P+5V C42 3 Vad+75V 42 2 P+5V 67 68 P+5V 1 54 6bit 2bit DRV_SOS8 DATA 11 DATA 67 8bit ODEU3 Vad+75V 4 Vad+75V 18 C25 6bit 54 CLRD4 CLRD4 ODEU3 IC7514 19 PCU3 49 3 9 Vad+75V 41 5 D2A-D2C LE11-LE15 1 DATA 6bit U4B 56 80 P+5V 3 IC7215 14 IC7306 6bit 64 IC7403 23 27 6bit IC7304 52 Vad+75V NUEL DATA 45 30 CLKU0(+) 13 Vad+75V 37 D6A-D7C Vad+75V U0A-U1C D2A-D2C P+5V 80 79 IC7511 P+5V 21 CLKU1(-) TO SS35 P+5V Vad+75V DATA Vad+75V DATA 60 79 USL 64 D4B,D4C CA 7 77 77 3 28 4bit 14 66 30 76 CB D2A-D2C Vad+75V 6 IC7212 76 IC7404 39 6bit CA 75 19 DATA Vad+75V 5 7 D8A P+5V 14 DATA 3 NUEL 1 5 78 IC7406 58 23 C51 54 39 USL DATA 8 P+5V PCU3 6 UMH Vad+75V P+5V Vad+75V 65 Vad+75V D5A-D5C 62 1 D34 TO D34 U2A-U3C P+5V DATA 33 14 IC7402 D2A-D2C P+5V 31 6bit 5 PCD4 P+5V NCLK11-13L IC7305 79 UEH 60 C55 TO SS44 55 Vad+75V IC7211 D4B,D4C 18 Vad+75V 72 DATA +5V DET 18 P+5V Vad+75V 62 U2A-U4B D0A-D9C 6bit 8bit D6A-D7C 78 P+5V 29 NCLK11-13L P+5V DATA P+5V U2A U1C 15 U0A 6bit 14 4bit 52 2 DRV_SOS8 DATA 48 D3C,D4A 53 C31 IC7302 4bit P+5V P+5V 7 13 Vad+75V 6 6bit Vad+75V P+5V P+5V 27 DATA 30bit 5 56 26 D9C 65 C35 3 Vad+75V D8A-D9C P+5V 61 CA 68 U0A-U1C 55 U4B 6bit C21 71 58 59 24 27 DOUTDC[9] Vad+75V 12 DATA 2 P+5V 77 20 Vad+75V 8bit U6A-U7A UML 8bit USL D4A 2 DATA CB 6bit 67 P+5V 13 38 D6A-D7C CLKU1(-) 6bit 6bit D3A,D3B 11 DOUTDC9 U9C Vad+75V 56 P+5V D3C 4 DRV_SOS8 DATA P+5V 3 IC7516 8bit CLKD1(-) 8bit IC7515 D3C,D4A CLKD0(+) 6bit P+5V U0A LEU3 Vad+75V 7 UMH P+5V 19 CB Vad+75V 8bit Vad+75V D3A,D3B P+5V +5V DET 34 1 UEH USH IC7214 6bit IC7512 P+5V U4C U4C 6bit 51 P+5V 40 USH Vad+75V 5 NUEL UML UEH 43 P+5V 25 C41 DATA P+5V DATA DATA 30bit U9C 15 TO SS42 P+5V 1 D0A-D1C 80 6bit LE11-LE15 3 D5A-D5C 2 DATA 6bit 32 ODED4 2bit Vad+75V UML U7A CLKU0(+) 1 Vad+75V 6 P+5V U7A Vad+75V P+5V 78 IC7405 Vad+75V P+5V 2 U4A,U4B DATA D6A-D7C 75 U7B,U7C 74 79 9 4 4 P+5V 45 D9C P+5V DATA 3 U0A-U1C 12 USH 6 6bit 8bit IC7513 NUEL P+5V D8A-D9C 58 61 66 UEH CLKU1(-) CB 17 P+5V U7B Vad+75V 1 8bit 6bit 8bit 69 11 43 Vad+75V 2 Vad+75V 12 78 P+5V 67 DATA 30bit UMH 67 68 13 P+5V 23 U2A DATA DATA 27 CLK0L-03L 11 6bit D5A-D5C C44 59 P+5V LED4 P+5V D4B,D4C 14 D3A,D3B DA0-DC9 36 6bit IC7301 63 CLRU3 DOUTDA0 8 P+5V U4C-U5C 16 CLRU3 4bit IC7303 DA0-DC9 61 Vad+75V 70 U7B-U9C 16 D5A-D5C Vad+75V Vad+75V U7B 10 26 42 10 6bit 47 24 D8A 6bit 62 2 CA 2 6bit P+5V 67 20 4 D33 TO D33 77 6bit 6bit UML P+5V Vad+75V 46 D3C,D4A DATA 12 4 1 DATA 16 1 P+5V 57 P+5V Vad+75V U0A-U1C 5 P+5V DATA 3 9 6bit 8bit U4C-U7A 60 CA 21 USH 20 D3A,D3B DATA 8bit +5V DET U8A-U9C 4 USL CLK0L-03L IC7213 IC7401 DATA DRIVER(LEFT) C4 DATA DRIVER(LEFT) C3 C5 DATA DRIVER (CENTER) C2 DATA DRIVER(CENTER) BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER PANEL DATA DRIVER PANEL DATA DRIVER TH-50PZ700C C2,C3, C4, and C5-Board Block Diagram TH-50PZ700C C2,C3, C4, and C5-Board Block Diagram 121 15.51.C1 电路板 (1/2) 线路图 TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE LE1 AB_DUA30 AB_DUB30 AB_DUC30 AB_DUB31 AB_DUC31 AB_PCU1 LE1 AB_DUA30 AB_DUB30 AB_DUC30 AB_DUA31 AB_DUB31 AB_DUC31 AB_PCU1 LE3 AB_DUA26 AB_DUB26 AB_DUC26 AB_DUA27 AB_DUB27 AB_DUC27 AB_PCU1 LE3 AB_DUA26 AB_DUB26 AB_DUC26 AB_DUA27 AB_DUB27 AB_DUC27 AB_PCU1 LE2 AB_DUA28 AB_DUB28 AB_DUC28 AB_DUA29 AB_DUB29 AB_DUC29 AB_PCU1 LE2 AB_DUA28 AB_DUB28 AB_DUC28 AB_DUA29 AB_DUB29 AB_DUC29 AB_PCU1 LE4 AB_DUA24 AB_DUB24 AB_DUC24 AB_DUA25 AB_DUB25 AB_DUC25 AB_PCU1 LE4 AB_DUA24 AB_DUB24 AB_DUC24 AB_DUA25 AB_DUB25 AB_DUC25 AB_PCU1 AB_DUA31 AB_CLK61R AB_NCLK71R AB_CLK61R AB_NCLK71R AB_CLK62R AB_NCLK72R AB_CLK62R AB_NCLK72R AB_CLK63R AB_NCLK73R AB_PCU1 AB_DUA22 AB_PCU1 AB_DUC23 LE5 AB_DUB23 AB_DUC23 AB_DUA23 AB_DUB23 AB_DUC22 AB_DUA23 AB_DUB22 AB_DUC22 AB_DUA22 AB_DUB22 LE5 AB_CLRU1 AB_CLRU1 AB_ODEU1 AB_ODEU1 AB_CLRU1 AB_CLRU1 AB_ODEU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 C7117 100V 0.47u 1/2W R7126 6.8 1/2W R7125 6.8 D7111 B0HCMM000014 R7101 4.7k C7115 100V 0.47u 1/2W R7111 6.8 C1_5V 1/2W R7128 6.8 C1_5V D7113 B0HCMM000014 D7112 B0HCMM000014 VDA_75V 1/2W R7138 6.8 CA1 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1/2W R7115 6.8 1/2W R7129 6.8 R7104 47 VDA_75V C1_5V R7107 47 C7126 16V 1u C7107 100V 0.47u 1/2W R7109 6.8 R7134 47 C7187 16V 1u C7102 16V 1u 1/2W R7131 6.8 C7176 16V 1u R7124 47 C7152 50V 100p D7120 B0HCMM000014 C7172 100V 0.47u 1/2W R7127 6.8 C7111 50V 100p D7117 B0HCMM000014 D7119 B0HCMM000014 R7123 47 C7185 16V 1u 1/2W R7130 6.8 VDA_75V C7170 50V 100p R7116 47 1/2W R7114 6.8 1/2W R7139 6.8 C7125 16V 1u C7118 100V 0.47u 1/2W R7132 6.8 CA2 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7117 47 C7184 16V 1u D7115 B0HCMM000014 1/2W R7108 6.8 C7113 50V 100p C7109 100V 0.47u C7173 100V 0.47u C7186 16V 1u 1/2W R7112 6.8 1/2W R7137 6.8 R7140 47 C7110 100V 0.47u D7116 B0HCMM000014 C7101 16V 1u CA3 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7116 100V 0.47u D7114 B0HCMM000014 VDA_75V VDA_75V C7108 100V 0.47u C7183 16V 1u C1_5V R7133 47 CA5 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1/2W R7110 6.8 D7118 B0HCMM000014 R7135 47 C7150 50V 100p 1/2W R7113 6.8 C1_5V 1/2W R7136 6.8 CA4 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 VDD2 VDD2 VDD2 VDD2 GND GND GND GND A2 A6 NC A3 NC NC GND DM NC GND GND VDD2 GND NC GND VDD1 GND FX GND GND A3 VDD2 A4 VDD2 VDD2 FS VDD1 VDD2 FDET1 FDET NC BLK NC A1 VDD1 VDD1 BLK FS NC NC NC NC A2 NC FX A6 DM LEN VDD2 A5 VDD2 VDD2 A5 A4 A1 LEN GND GND GND GND VDD2 BLK GND FDET GND FX VDD2 FS VDD2 A4 VDD2 DM VDD1 A5 GND NC VDD2 VDD2 VDD2 NC VDD2 GND A2 GND GND GND A2 A6 FS NC A1 LEN A3 NC NC GND DM NC NC GND GND VDD1 VDD2 GND NC BLK GND A6 VDD1 VDD2 GND FX FDET1 A1 NC VDD2 A4 GND GND VDD2 GND NC NC LEN A5 A3 NC VDD1 VDD2 BLK GND FDET GND FX VDD2 FS VDD2 A4 VDD2 DM VDD1 A5 GND NC VDD2 VDD2 VDD2 NC VDD2 GND A2 GND GND GND A2 A6 FS NC A1 LEN A3 NC NC GND DM NC NC GND GND VDD1 VDD2 GND NC BLK GND A6 VDD1 VDD2 GND FX FDET1 A1 NC VDD2 A4 GND GND VDD2 GND NC NC LEN A5 A3 NC VDD1 VDD2 BLK GND FDET GND FX VDD2 FS VDD2 A4 VDD2 DM VDD1 A5 GND NC VDD2 VDD2 VDD2 NC VDD2 GND A2 GND GND GND A2 A6 FS NC A1 LEN A3 NC NC GND DM NC NC GND GND VDD1 VDD2 GND NC BLK GND A6 VDD1 VDD2 GND FX FDET1 A1 NC VDD2 A4 GND GND VDD2 GND NC NC LEN A5 A3 NC VDD1 BLK GND FDET1 NC VDD1 VDD2 LEN A3 A1 NC NC GND VDD2 GND NC VDD2 DM VDD2 GND A2 VDD2 GND A4 A2 NC GND NC GND VDD2 VDD1 NC A6 FX GND FS LEN NC VDD1 VDD2 GND A5 GND VDD2 FDET A6 NC A4 GND A3 FS NC VDD2 A1 NC GND VDD1 DM FX GND VDD2 NC GND GND VDD2 BLK VDD2 A5 GND 2 1 PANEL DATA DRIVER TO TO PANEL DATA DRIVER TO PANEL DATA DRIVER TO PANEL DATA DRIVER TO PANEL DATA DRIVER E 6 1 F 5 3 A C 4 9 8 7 D B 2 ! C1-BOARD TNPA3984(1/2) TH-50PZ700C C1-Board (1 of 2) Schematic Diagram TH-50PZ700C C1-Board (1 of 2) Schematic Diagram 122 15.52.C1 电路板 (2/2) 线路图 SIDE TERM TERM SIDE G G AB_DUA23 AB_DUC23 AB_DUC22 AB_DUB23 AB_DUB22 AB_DUA22 AB_DUA27 AB_DUC26 AB_DUB26 AB_DUA26 AB_DUC29 AB_DUB29 AB_DUB25 AB_DUA25 AB_DUC24 AB_DUB24 AB_DUA24 AB_DUB28 AB_DUA28 AB_DUC31 AB_DUB31 AB_DUA31 AB_DUC30 AB_NCLK71R AB_CLK62R AB_NCLK72R AB_DUC27 AB_DUB27 AB_DUA29 AB_DUC28 AB_DUB30 AB_DUA30 LE1 LE2 LE3 LE4 AB_PCU1 LE5 AB_CLRU1 AB_ODEU1 AA_DUB22 AA_DUA22 AA_DUC23 AA_DUB23 AA_DUA23 AA_DUC22 AA_ODEU1 AA_CLRU1 AA_PCU1 AA_LEU1 AA_DUA22 AA_DUB22 AA_DUC22 AA_DUA23 AA_DUB23 AA_DUC23 AA_DUA24 AA_DUB24 AA_DUC24 AA_DUA25 AA_DUB25 AA_DUC25 AA_DUA26 AA_DUB26 AA_DUC26 AA_DUA27 AA_DUB27 AA_DUC27 AA_CLK6R AA_NCLK7R AA_DUA28 AA_DUB28 AA_DUC28 AA_DUA29 AA_DUB29 AA_DUC29 AA_DUA30 AA_DUB30 AA_DUC30 AA_DUA31 AA_DUB31 AA_DUC31 AA_CLRU1 AA_PCU1 AA_LEU1 AA_ODEU1 AB_CLK61R AB_DUC25 AA_DUC27 AA_DUC24 AA_DUB27 AA_DUB24 AA_DUC25 AA_DUB25 AA_DUA24 AA_DUA25 AA_DUB29 AA_DUC26 AA_DUB26 AA_DUC28 AA_DUA29 AA_DUC29 AA_DUA26 AA_DUA27 AA_DUA30 AA_DUA31 AA_DUB31 AA_DUC30 AA_DUB30 AA_DUC31 AA_DUA28 AA_DUB28 AA_CLK6R AA_NCLK7R AB_NCLK73R AB_CLK63R R7196 22 R7148 EXB38V681JV C1_5V C1_5V VDA_75V C11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C0JBAZ001120 IC7103 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc ZA7104 K4AD01Z00001 C0JBAZ001120 IC7102 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7160 EXB38V470JV 47 C7182 16V 0.1u C10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 C0JBAZ001120 IC7104 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7150 EXB38V470JV 47 C1_5V R7199 22 R7145 EXB38V681JV R7195 22 C0JBAZ001120 IC7105 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C1_5V R7186 22k ZA7101 K4AD01Z00001 C1_5V R7197 22 R7191 EXB38V681JV R7198 22 C0JBAZ001120 IC7101 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc ZA7105 K4AD01Z00001 R7187 100k R7156 EXB38V681JV R7146 EXB38V470JV 47 ZA7103 K4AD01Z00001 J0HABH000013 FL7101 1 2 3 R7158 EXB38V470JV 47 R7159 EXB38V470JV 47 C7138 16V 0.1u R7149 EXB38V681JV R7153 EXB38V681JV R7155 EXB38V470JV 47 C1_5V R7152 EXB38V681JV C1_5V C7130 16V 0.1u R7143 EXB38V681JV C7136 16V 0.1u R7157 EXB38V470JV 47 C7135 16V 0.1u ZA7102 K4AD01Z00001 C7137 16V 0.1u R7154 EXB38V470JV 47 R7193 EXB38V681JV R7147 47 EXB38V470JV R7144 EXB38V681JV R7151 EXB38V470JV 47 C0JBAZ001120 IC7106 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7194 22 P75V GND NC R-UP P75V P5V P5V DOUTUB[29] DOUTUA[29] DOUTUA[28] DOUTUC[28] GND DOUTUB[28] DOUTUA[27] DOUTUC[27] GND DOUTUB[27] DOUTUC[26] GND DOUTUB[26] DOUTUA[26] GND DOUTUC[25] GND NC DOUTUB[25] GND DOUTUA[25] NC DOUTUC[24] NC GND NC DOUTUB[24] DOUTUA[24] DOUTUC[23] GND DOUTUA[22] DOUTUC[31] GND DOUTUB[31] DOUTUA[31] GND GND GND NC(DSHR) DOUTUB[23] GND NC(DMLR) DOUTUA[30] DOUTUA[23] CLKU[6](+) NC(DMHR) DOUTUC[30] DOUTUC[22] ODEU1 GND GND DOUTUB[30] DOUTUB[22] GND 5V_DET GND CLRU1 DOUTUC[29] PCU1 GND LEU1 P5V GND GND GND GND GND NC NC NC NC NC NC NC P75V P75V P75V P75V CLKU[7](-) NC(DSLR) NC NC 68 1 C10 C11 20 1 1 6 8 1 68 1 68 68 1 1 68 BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER 2 1 TO D-BOARD (D31) TO (C22) C2-BOARD 11 12 13 10 16 18 15 17 14 TH-50PZ700C C1-Board (2 of 2) Schematic Diagram TH-50PZ700C C1-Board (2 of 2) Schematic Diagram ! C1-BOARD TNPA3984(2/2) 123 15.53.C2 电路板 (1/2) 线路图 G G TERM SIDE TERM SIDE TERM SIDE SIDE TERM TERM SIDE TERM SIDE LE6 AB_DUA20 AB_DUB20 AB_DUC20 AB_DUA21 AB_DUB21 AB_DUC21 AB_PCU2 LE6 AB_DUA20 AB_DUB20 AB_DUC20 AB_DUA21 AB_DUB21 AB_DUC21 AB_PCU2 LE8 AB_DUA14 AB_DUB14 AB_DUC14 AB_DUA15 AB_DUB15 AB_DUC15 AB_PCU2 AB_DUB17 AB_DUA17 AB_DUC16 AB_DUB16 AB_DUA16 LE8 AB_DUC17 AB_PCU2 LE7 AB_DUB18 AB_DUC18 AB_DUB19 AB_DUC19 AB_DUA18 AB_DUA19 AB_PCU2 LE7 AB_DUA18 AB_DUB18 AB_DUC18 AB_DUA19 AB_DUB19 AB_DUC19 AB_PCU2 AB_CLK41R AB_NCLK51R AB_CLK42R AB_NCLK52R AB_CLK21L AB_NCLK52R AB_DUB12 AB_DUB13 AB_DUC12 AB_DUA12 AB_PCU2 LE9 AB_DUA13 AB_NCLK31L AB_DUA12 AB_CLK21L AB_PCU2 AB_DUB12 AB_DUC13 LE9 AB_DUB13 AB_DUA13 AB_DUC13 AB_DUC12 AB_ODEU2 AB_ODEU2 AB_ODEU2 AB_CLRU2 AB_CLRU2 AB_CLRU2 AB_DUB21 AB_DUA21 AB_DUA20 AB_DUC21 AB_DUC20 AB_DUB20 AB_DUA19 AB_DUB19 AB_CLRU2 AB_ODEU2 AB_CLRU2 AB_ODEU2 AB_ODEU2 AB_CLRU2 AB_ODEU2 AB_CLRU2 AB_ODEU2 AB_CLRU2 AB_DUC19 AB_DUA18 AB_DUB18 AB_DUC18 AB_DUB17 AB_DUC17 AB_DUA12 AB_DUB12 AB_DUC12 AB_DUA13 AB_DUB13 AB_DUC13 AB_DUA14 AB_DUB14 AA_DUA10 AA_DUB10 AA_DUC10 AA_DUA11 AA_DUB11 AA_DUC11 AA_DUA12 AA_DUB12 AA_DUC12 AA_DUA13 AA_DUB13 AA_DUC13 AA_DUA14 AA_DUB14 AA_DUC14 AA_DUA15 AA_DUB15 AA_DUC15 AA_DUA16 AA_DUB16 AA_DUC16 AA_CLK2L AA_NCLK3L AA_CLK4R AA_NCLK5R AA_DUA17 AA_DUB17 AA_DUC17 AA_DUA18 AA_DUB18 AA_DUA19 AA_DUC18 AA_DUB19 AA_DUC19 AA_DUA20 AA_DUB20 AA_DUC20 AA_DUA21 AA_DUB21 AA_DUC21 AA_CLRU2 AA_PCU2 AA_LEU2 AA_ODEU2 AB_ODEU2 AB_CLRU2 AB_PCU2 LE6 LE7 LE8 LE9 LE10 AA_LEU2 AA_PCU2 AA_CLRU2 AA_ODEU2 AB_DUB16 AB_DUA16 AB_DUC15 AB_DUB15 AB_DUA15 AB_DUC14 AB_DUA17 AB_DUC16 AA_DUB16 AA_DUC16 AB_CLK21L AB_CLK41R AB_NCLK51R AB_NCLK31L AA_DUA21 AA_DUA19 AA_DUB21 AA_DUC21 AA_DUA17 AA_DUA18 AA_DUB17 AA_DUB18 AA_DUC17 AA_DUC18 AA_DUB13 AA_DUA12 AA_DUC13 AA_DUB12 AA_DUA14 AA_DUA13 AA_DUB14 AA_DUC12 AA_DUA16 AA_DUC15 AA_DUB15 AA_DUA15 AA_DUC14 AA_DUB19 AA_DUC19 AA_DUC20 AA_DUA20 AA_DUB20 AA_NCLK5R AA_CLK4R AB_NCLK52R AB_CLK42R AB_CLK22L AB_NCLK32L AA_CLK2L AA_NCLK3L C7226 100V 0.47u R7286 22k C7231 16V 0.1u C0JBAZ001120 IC7206 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C7279 50V 100p R7290 22 D7217 B0HCMM000014 C2_5V C7205 16V 1u R7234 47 1/2W R7203 6.8 1/2W R7201 6.8 C2_5V R7285 100k 1/2W R7200 6.8 1/2W R7223 6.8 VDA_75V C7214 100V 0.47u J0HABH000013 FL7202 1 2 3 VDA_75V R7247 EXB38V470JV 47 C2_5V R7251 EXB38V470JV 47 CA9 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C2_5V R7272 EXB38V681JV 680 C2_5V C24 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 R7243 47 C0JBAZ001120 IC7204 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C7238 50V 100p VDA_75V R7257 EXB38V681JV 680 C7203 16V 1u R7295 22 R7236 EXB38V681JV 680 C7222 100V 0.47u 1/2W R7249 6.8 C7297 16V 0.1u R7256 EXB38V681JV 680 C7240 50V 100p D7215 B0HCMM000014 C7275 100V 0.47u C7200 16V 1u C2_5V D7211 B0HCMM000014 R7246 EXB38V470JV 47 1/2W R7202 6.8 C2_5V D7212 B0HCMM000014 1/2W R7254 6.8 1/2W R7226 6.8 R7255 47 CA8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 D7216 B0HCMM000014 C7204 16V 1u 1/2W R7237 6.8 R7289 22 C7207 16V 1u VDA_75V C7212 16V 1u R7228 EXB38V470JV 47 1/2W R7224 6.8 CA7 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7273 EXB38V681JV 680 C7274 16V 1u R7213 47 R7230 EXB38V681JV 680 R7258 EXB38V681JV 680 R7211 47 C7208 16V 0.1u C2_5V C7253 16V 0.1u 1/2W R7253 6.8 R7229 EXB38V681JV 680 R7235 EXB38V681JV 680 R7287 22 D7213 B0HCMM000014 R7293 22 C7217 100V 0.47u C7218 100V 0.47u C7299 16V 0.1u C7213 100V 0.47u 1/2W R7225 6.8 R7222 EXB38V470JV 47 C7276 100V 0.47u C2_5V VDA_75V C0JBAZ001120 IC7203 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7276 EXB38V102JV 1k R7227 EXB38V470JV 47 1/2W R7242 6.8 R7221 EXB38V470JV 47 1/2W R7241 6.8 1/2W R7250 6.8 C2_5V C7224 16V 1u C7216 16V 0.1u R7296 22 D7218 B0HCMM000014 R7214 47 C0JBAZ001120 IC7201 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7245 47 R7288 22 C0JBAZ001120 IC7202 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7233 EXB38V470JV 47 R7232 EXB38V470JV 47 C7221 50V 100p R7252 EXB38V470JV 47 D7214 B0HCMM000014 R7231 47 C2_5V R7294 22 1/2W R7238 6.8 C0JBAZ001120 IC7205 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R L L L C-UP P75V GND NC P75V P75V P75V GND CLKU[3](-) GND DOUTUC[20] DOUTUA[10] DOUTUC[14] GND P5V GND DOUTUB[20] DOUTUC[10] DOUTUB[14] DOUTUA[21] GND DOUTUA[14] DOUTUB[21] DOUTUB[10] DOUTUC[12] GND GND DOUTUC[21] DOUTUA[12] DOUTUB[12] GND GND LEU2 DOUTUB[19] DOUTUA[19] DOUTUC[19] DOUTUA[18] DOUTUC[18] GND DOUTUB[18] P5V P5V DOUTUB[17] DOUTUA[17] DOUTUA[16] GND NC DOUTUC[16] PCU2 GND DOUTUB[16] DOUTUA[15] DOUTUC[15] GND DOUTUC[17] DOUTUB[15] CLRU2 DOUTUC[13] GND GND DOUTUB[13] DOUTUA[13] 5V_DET ODEU2 GND NC(DRVSOS7U) DOUTUC[11] GND DOUTUB[11] DOUTUA[20] DOUTUA[11] CLKU[4](+) CLKU[2](+) GND GND CLKU[5](-) NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 P75V P75V NC NC NC NC NC NC NC GND GND GND GND 3 A C 4 9 8 7 E D 6 1 B F 5 2 BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER TO PANEL DATA DRIVER TO PANEL DATA DRIVER TO PANEL DATA DRIVER TO PANEL DATA DRIVER C1-BOARD TO (C11) TO D-BOARD (D32) 1 2 3 ! C2-BOARD TNPA3985 (1/2) TH-50PZ700C C2-Board (1 of 2) Schematic Diagram TH-50PZ700C C2-Board (1 of 2) Schematic Diagram 124 15.54.C2 电路板 (2/2) 线路图 TERM SIDE G G TERM SIDE SIDE TERM AB_DUC11 AB_DUB11 AB_DUA11 AB_DUC10 AB_DUB10 AB_DUA10 AB_DUB10 AB_DUB11 AB_DUC10 AB_DUA10 AB_PCU2 LE10 AB_DUA11 AB_NCLK32L AB_DUA10 AB_CLK22L AB_PCU2 AB_DUB10 AB_DUC11 LE10 AB_DUB11 AB_DUA11 AB_DUC11 AB_DUC10 AB_ODEU2 AB_ODEU2 AB_CLRU2 AB_CLRU2 5V_DET AA_DUC9 AA_DUB9 AA_DUA9 AA_DUC8 AA_DUA6 AA_DUB6 AA_DUC6 AA_DUA7 AA_DUB7 AA_DUC7 AA_DUA8 AA_DUB8 AA_DUA0 AA_DUB0 AA_DUC0 AA_DUA1 AA_DUB1 AA_DUC1 AA_DUA2 AA_DUB2 AA_DUC2 AA_DUA3 AA_DUB3 AA_DUC3 AA_DUA4 AA_DUB4 AA_DUC4 AA_DUA5 AA_DUB5 AA_DUC5 AA_NCLK1L AA_CLK0L AB_DUC5 AB_DUC4 AB_ODEU3 AB_DUA6 AB_DUA5 AB_DUB6 AB_DUB5 AB_DUC6 AB_DUA7 AB_DUB7 AB_DUC7 AB_DUA8 AB_DUB8 AA_DUC7 AB_DUC8 AB_DUB2 AB_DUA9 AB_DUA2 AB_DUB9 AB_DUC1 AB_DUC9 AB_DUB1 AB_LEU3 AB_DUA1 AB_DUC0 AB_DUB0 AB_DUA0 AB_DUC2 AB_DUA3 AB_DUB3 AB_DUC3 AB_DUA4 AB_DUB4 AB_CLK0L AB_NCLK1L AB_NCLK1L AB_DUC6 AB_DUC3 AB_DUC4 AB_DUC2 AB_DUC1 AB_DUC7 AB_CLK0L AB_PCU3 AB_DUC5 AB_DUC0 AB_DUA0 AB_DUA1 AB_DUA2 AB_DUA3 AB_DUA4 AB_DUA5 AB_DUC8 AB_DUA6 AB_DUC9 AB_DUA8 AB_DUA9 5V_DET AB_DUA7 AB_PCU3 AB_DUB0 AB_DUB1 AB_DUB2 AB_DUB3 AB_DUB4 AB_DUB5 AB_DUB6 AB_DUB7 AB_DUB8 AB_DUB9 AB_LEU3 AB_CLRU3 AA_LEU2 AA_NCLK1L AA_CLK0L AB_CLRU3 AB_ODEU3 AA_DUC11 AA_DUB11 AA_DUA11 AA_DUB7 AA_DUB9 AA_DUC8 AA_DUB8 AA_DUC9 AA_DUA8 AA_DUA9 AA_DUB6 AA_DUA7 AA_DUB5 AA_DUC6 AA_DUA6 AA_DUC5 AA_DUC2 AA_DUA4 AA_DUA3 AA_DUB3 AA_DUC4 AA_DUA5 AA_DUC3 AA_DUB4 AA_DUC1 AA_DUB2 AA_DUA1 AA_DUC0 AA_DUA2 AA_DUB0 AA_DUA0 AA_DUB1 AA_DUC10 AA_DUA10 AA_DUB10 AA_PCU2 AA_CLRU2 AA_ODEU2 C2_5V R7209 EXB38V470JV 47 R7210 EXB38V681JV 680 VDA_75V R7267 EXB38V681JV 680 D7220 B0HCMM000014 ZA7204 K4AD01Z00001 R7263 EXB38V470JV 47 C2_5V C25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 C7209 16V 1u C7287 100V 0.47u C2_5V C7286 100V 0.47u R7283 EXB38V681JV 680 R7268 EXB38V681JV 680 1/2W R7205 6.8 R7291 22 1/2W R7206 6.8 C7290 50V 100p R7212 EXB38V681JV 680 C7225 16V 0.1u D7219 B0HCMM000014 R7271 EXB38V681JV 680 C7201 16V 1u C2_5V R7260 EXB38V470JV 47 R7239 EXB38V470JV 47 R7264 EXB38V470JV 47 C0JBAZ001120 IC7211 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7244 EXB38V470JV 47 R7292 22 R7275 EXB38V681JV 680 R7262 EXB38V470JV 47 C0JBAZ001120 IC7207 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C7266 16V 0.1u C2_5V R7274 EXB38V681JV 680 ZA7205 K4AD01Z00001 R7284 EXB38V102JV 1k 1/2W R7204 6.8 J0HABH000013 FL7201 1 2 3 R7248 0 C7270 16V 0.1u R7270 EXB38V681JV 680 C0JBAZ001120 IC7214 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc ZA7202 K4AD01Z00001 C0JBAZ001120 IC7213 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7266 EXB38V681JV 680 R7218 47 C2_5V C7268 16V 0.1u C7264 16V 0.1u C2_5V C0JBAZ001120 IC7215 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc CA10 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7272 16V 0.1u R7217 47 1/2W R7207 6.8 C2_5V R7269 EXB38V681JV 680 ZA7201 K4AD01Z00001 C7285 16V 1u C2_5V ZA7203 K4AD01Z00001 R7240 EXB38V470JV 47 R7261 EXB38V470JV 47 R7208 EXB38V470JV 47 R7259 EXB38V470JV 47 C0JBAZ001120 IC7212 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc VDA_75V C21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 L-UP L GND DOUTUB[2] GND DOUTUA[3] DOUTUB[1] DOUTUA[1] DOUTUC[1] GND DOUTUA[0] DOUTUB[9] DOUTUA[9] DOUTUC[9] DOUTUA[8] DOUTUC[8] GND DOUTUB[8] GND NC(LEU3) P5V GND P5V GND NC(PCU3) GND GND NC(CLRU3) GND GND 5V_DET CLKU[1](-) DOUTUC[7] DOUTUB[7] DOUTUA[7] DOUTUC[6] GND GND DOUTUB[6] DOUTUA[6] NC(ODEU3) DOUTUC[5] GND CLKU[0](+) DOUTUB[5] DOUTUA[5] NC DOUTUC[4] NC GND NC DOUTUB[4] NC DOUTUA[4] NC NC NC NC GND NC(DSLL) DOUTUC[3] GND DOUTUB[3] DOUTUC[0] GND DOUTUB[0] DOUTUA[2] P5V DOUTUC[2] NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 55:DOUTDA[7] 63:DOUTDA[9] 71:GND 77:P75V 79:P75V 67:5V_DET 65:DOUTDC[9] 73:NC 69:GND 59:DOUTDA[8] 28:DOUTDB[0] 62:GND 72:NC 78:P75V 66:GND 46:GND 48:DOUTDB[5] 8:GND 4:P5V 76:P75V 32:DOUTDB[1] 10:DSLH 54:GND 68:GND 40:DOUTDB[3] 50:GND 52:DOUTDB[6] 38:GND 30:GND 18:ODEU3 74:NC 24:GND 26:GND 60:DOUTDB[8] 70:GND 36:DOUTDB[2] 14:DMLH 80:P75V 12:DSHH 20:PCU3 44:DOUTDB[4] 16:DMHH 58:GND 56:DOUTDB[7] 42:GND 2:P5V 22:GND 6:NC 17:GND 53:DOUTDC[6] 75:P75V 57:DOUTDC[7] 34:GND 64:DOUTDB[9] 13:DMLL 11:DSHL 19:CLRU3 15:DMHL 1:P5V 21:LEU3 5:NC 23:CLKU[0](+) 25:CLKU[1](-) 7:NC 3:P5V 33:DOUTDC[1] 29:DOUTDC[0] 35:DOUTDA[2] 43:DOUTDA[4] 49:DOUTDC[5] 51:DOUTDA[6] 39:DOUTDA[3] 37:DOUTDC[2] 45:DOUTDC[4] 41:DOUTDC[3] 27:DOUTDA[0] 47:DOUTDA[5] 31:DOUTDA[1] 61:DOUTDC[9] 9:DSLL NC 68 1 1 68 1 68 1 1 68 68 1 80 1 C25 C24 C21 1 68 68 1 20 C22 12 13 10 11 16 18 15 17 14 BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER TO PANEL DATA DRIVER TO D-BOARD (D33) TO (C31) C3-BOARD 1 2 3 TH-50PZ700C C2-Board (2 of 2) Schematic Diagram TH-50PZ700C C2-Board (2 of 2) Schematic Diagram ! C2-BOARD TNPA3985 (2/2) 125 15.55.C3 电路板 (1/2) 线路图 TERM SIDE TERM SIDE SIDE TERM LE11 AB_DUA8 AB_DUB8 AB_DUC8 AB_DUA9 AB_DUB9 AB_DUC9 AB_PCU3 LE11 AB_DUA8 AB_DUB8 AB_DUC8 AB_DUA9 AB_DUB9 AB_DUC9 AB_PCU3 LE12 AB_DUA6 AB_DUB6 AB_DUC6 AB_DUA7 AB_DUB7 AB_DUC7 LE12 AB_DUA6 AB_DUB6 AB_DUC6 AB_DUA7 AB_DUB7 AB_DUC7 AB_PCU3 AB_DUC9 AB_DUB9 AB_DUA9 AB_DUC8 AB_DUB8 AB_DUA8 AB_CLK01L AB_NCLK11L AB_CLK02L AB_NCLK12L AB_DUC7 AB_DUB7 AB_DUA7 AB_DUC6 AB_DUB6 AB_DUA6 AB_DUC5 AB_DUB5 AB_DUA5 AB_DUC4 AB_DUB4 AB_DUA4 AB_DUC3 AB_DUB3 AB_DUA3 AB_DUC2 AB_DUB2 AB_DUA2 AB_DUC1 AB_DUB1 AB_DUA1 AB_DUC0 AB_DUB0 AB_DUA0 LE13 LE11 LE12 LE15 LE14 AB_PCU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_CLK02L AB_NCLK12L AA_DUA3 AA_DUC2 AA_DUB2 AA_DUA2 AA_DUB3 AA_DUC3 AA_DUA4 AA_DUB4 AA_DUC5 AA_DUB5 AA_DUA5 AA_DUC4 AA_DUA7 AA_DUC6 AA_DUB6 AA_DUA6 AA_DUB8 AA_DUA8 AA_DUC7 AA_DUB7 AA_DUC9 AA_DUB9 AA_DUA9 AA_DUC8 AA_DUB0 AA_DUA0 AA_DUC1 AA_DUB1 AA_DUA1 AA_DUC0 AA_DUB2 AA_DUC9 AA_PCU3 AA_DUB8 AA_LEU3 AA_DUC1 AA_DUC7 AA_DUB7 AA_DUC6 AA_DUB6 AA_DUC8 AA_DUB1 AA_DUB9 AA_LEU3 AA_DUA9 AA_DUA8 AA_DUA7 AA_DUA6 AA_DUB3 AA_DUC2 AA_DUC0 AA_DUC4 AA_DUB0 AA_DUB4 AA_DUC3 AA_DUA4 AA_DUA3 AA_DUA2 AA_DUA1 AA_DUA0 AA_DUC5 AA_DUB5 AA_DUA5 AA_NCLK1L AA_CLK0L AA_CLRU3 AA_ODEU3 AB_CLK01L AB_NCLK11L AA_ODEU3 AA_CLRU3 AA_PCU3 AA_CLK0L AA_NCLK1L AB_NCLK13L AB_CLK03L AB_PCU3 R7310 EXB38V681JV R7326 22 C7328 100V 0.47u 1/2W R7365 6.8 CA12 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7382 16V 1u VDA_75V R7303 EXB38V470JV 47 R7354 47 R7302 0 R7323 EXB38V470JV 47 C7323 50V 100p C0JBAZ001120 IC7306 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7355 47 C7301 16V 1u ZA7302 K4AD01Z00001 C7383 16V 1u C7324 100V 0.47u R7312 EXB38V470JV 47 1/2W R7359 6.8 R7387 22k C7311 16V 0.1u VDA_75V C3_5V ZA7303 K4AD01Z00001 R7324 EXB38V470JV 47 C7381 16V 0.1u R7316 EXB38V470JV 47 ZA7301 K4AD01Z00001 1/2W R7362 6.8 R7305 EXB38V681JV C7309 16V 0.1u C3_5V 1/2W R7361 6.8 C7304 16V 0.1u R7366 47 C0JBAZ001120 IC7302 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc CA11 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7326 50V 100p C0JBAZ001120 IC7304 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C7308 16V 0.1u C3_5V D7311 B0HCMM000014 C7315 16V 1u 1/2W R7358 6.8 R7321 22 R7304 EXB38V470JV 47 R7319 EXB38V470JV 47 C7325 100V 0.47u C3_5V C0JBAZ001120 IC7305 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7385 0 R7325 22 R7308 EXB38V681JV R7311 EXB38V470JV 47 D7314 B0HCMM000014 R7306 EXB38V681JV C3_5V C0JBAZ001120 IC7301 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7317 EXB38V681JV 680 D7312 B0HCMM000014 R7398 22 C3_5V 1/2W R7364 6.8 R7367 47 R7309 EXB38V681JV C7312 16V 0.1u C3_5V R7307 EXB38V681JV R7386 100k R7399 22 VDA_75V R7314 EXB38V681JV R7313 EXB38V681JV 1/2W R7363 6.8 C7316 16V 1u C3_5V R7315 EXB38V470JV 47 C3_5V C7327 100V 0.47u C31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 ZA7305 K4AD01Z00001 R7318 EXB38V681JV 680 1/2W R7360 6.8 C0JBAZ001120 IC7303 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc ZA7304 K4AD01Z00001 R7320 EXB38V470JV 47 R7322 22 D7313 B0HCMM000014 C3_5V NC A4 VDD2 DM VDD1 VDD1 A4 FS DM VDD2 GND FX NC FDET1 VDD2 A3 VDD2 A2 VDD2 VDD2 GND NC GND VDD2 GND A2 NC BLK NC LEN VDD2 GND A5 GND VDD2 NC BLK GND GND FDET VDD1 GND NC GND A1 A3 A6 NC NC GND GND LEN A5 VDD2 FX VDD2 FS GND GND GND GND NC NC NC A6 VDD1 A1 VDD2 FDET VDD2 VDD1 VDD1 DM A1 GND VDD1 VDD2 NC VDD1 GND A4 A1 FS A3 DM A6 VDD2 NC NC GND FX NC FDET1 VDD2 A4 A3 VDD2 A2 VDD2 VDD2 GND NC GND VDD2 GND A2 NC BLK NC LEN VDD2 NC GND GND LEN A5 VDD2 FX VDD2 FS GND GND A5 GND GND GND VDD2 GND NC NC BLK NC GND NC GND A6 37:DOUTDB[4] 21:DOUTDB[8] 71:DSLH 51:GND 50:DOUTDA[1] 32:DOUTDC[5] 75:NC 4:P75V 13:GND 2:P75V 70:DSHL 40:DOUTDC[3] 52:DOUTDC[0] 47:GND 44:DOUTDC[2] 20:DOUTDC[8] 23:GND 39:GND 60:LEU3 3:P75V 53:DOUTDB[0] 13:DMLL 72:DSLL 25:DOUTDB[7] 24:DOUTDC[7] 41:DOUTDB[3] 36:DOUTDC[4] 54:DOUTDA[0] 73:GND 69:DSHH 35:GND 38:DOUTDA[4] 64:GND 26:DOUTDA[7] 15:GND 1:P75V 28:DOUTDC[6] 56:CLKU[1](-) 46:DOUTDA[2] 22:DOUTDA[8] 59:GND 78:P5V 62:CLRU3 19:GND 34:DOUTDA[5] 6:P75V 29:DOUTDB[6] 66:DMHL 45:DOUTDB[2] 61:PCU3 43:GND 42:DOUTDA[3] 14:5V_DET 79:P5V 58:CLKU[0](+) 7:NC 10:GND 63:ODEU3 57:GND 11:GND 49:DOUTDB[1] 27:GND 31:GND 5:P75V 30:DOUTDA[6] 33:DOUTDB[5] 17:DOUTDB[9] 48:DOUTDC[1] 77:P5V 74:NC 16:DOUTDC[9] 55:GND 18:DOUTDA[9] 8:NC 9:NC 12:GND 65:DMHH 67:DMLH 76:NC 80:P5V 68 1 1 C31 1 68 1 68 68 1 C35 80 1 68 (C21) C2-BOARD TO BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER TO PANEL DATA DRIVER TO PANEL DATA DRIVER 1 2 3 4 9 D 5 7 A C 1 F 4 2 B E 6 8 3 ! C3-BOARD TNPA3986 (1/2) TH-50PZ700C C3-Board (1 of 2) Schematic Diagram TH-50PZ700C C3-Board (1 of 2) Schematic Diagram 126 15.56.C3 电路板 (2/2) 线路图 TERM SIDE TERM SIDE TERM SIDE LE13 AB_DUA4 AB_DUB4 AB_DUC4 AB_DUA5 AB_DUB5 AB_DUC5 AB_PCU3 LE13 AB_DUA4 AB_DUB4 AB_DUC4 AB_DUA5 AB_DUB5 AB_DUC5 AB_PCU3 LE14 AB_DUA2 AB_DUB2 AB_DUC2 AB_DUA3 AB_DUB3 AB_DUC3 LE14 AB_DUA2 AB_DUB2 AB_DUC2 AB_DUA3 AB_DUB3 AB_DUC3 AB_PCU3 AB_CLK02L AB_NCLK12L AB_CLK03L AB_NCLK13L AB_DUA1 AB_CLK03L AB_DUC0 AB_NCLK13L AB_DUB0 AB_DUA0 LE15 AB_PCU3 AB_DUC1 AB_DUB1 AB_DUA1 AB_DUC0 AB_DUB0 AB_DUC1 AB_DUA0 AB_DUB1 LE15 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_PCU3 AB_PCU3 CA13 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 VDA_75V R7330 47 C7333 100V 0.47u C7331 100V 0.47u 1/2W R7380 6.8 1/2W R7377 6.8 R7373 47 VDA_75V C7369 50V 100p R7374 47 R7336 4.7k 1/2W R7376 6.8 VDA_75V CA15 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 D7316 B0HCMM000014 C7384 16V 1u C7385 16V 1u R7383 47 D7320 B0HCMM000014 1/2W R7379 6.8 C7332 100V 0.47u 1/2W R7381 6.8 C7371 100V 0.47u D7317 B0HCMM000014 C7339 16V 1u 1/2W R7375 6.8 C7329 50V 100p C3_5V 1/2W R7334 6.8 D7319 B0HCMM000014 1/2W R7333 6.8 C7370 100V 0.47u 1/2W R7331 6.8 1/2W R7378 6.8 C7374 16V 1u R7384 47 C7351 50V 100p C7340 16V 1u C3_5V VDA_75V R7335 47 C7386 16V 1u 1/2W R7332 6.8 C3_5V D7318 B0HCMM000014 C7334 100V 0.47u CA14 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 D7315 B0HCMM000014 1/2W R7382 6.8 C35 1 2 3 4 5 6 7 8 TO SS-BOARD (SS35) Vda 75V Vda 75V NC GND FDET VDD2 VDD1 VDD1 DM A1 GND VDD1 VDD2 NC VDD1 GND A4 A1 FS A3 DM A6 VDD2 NC NC GND FX NC FDET1 VDD2 A4 A3 VDD2 A2 VDD2 VDD2 GND NC GND VDD2 GND A2 NC BLK NC LEN VDD2 NC GND GND LEN A5 VDD2 FX VDD2 FS GND GND A5 GND GND GND VDD2 GND NC NC BLK NC GND NC GND A6 FDET VDD2 VDD1 VDD1 DM A1 GND VDD1 VDD2 NC VDD1 GND A4 A1 FS A3 DM A6 VDD2 NC NC GND FX NC FDET1 VDD2 A4 A3 VDD2 A2 VDD2 VDD2 GND NC GND VDD2 GND A2 NC BLK NC LEN VDD2 NC GND GND LEN A5 VDD2 FX VDD2 FS GND GND A5 GND GND GND VDD2 GND NC NC BLK NC GND NC GND A6 GND VDD2 FX NC FS VDD2 GND GND A6 A2 VDD1 LEN A5 GND A4 A1 FS NC A3 DM VDD2 DM NC GND NC GND BLK A6 VDD1 GND VDD1 GND VDD2 VDD2 A1 GND NC FDET VDD1 GND VDD2 NC GND GND FX A5 NC FDET1 VDD2 VDD2 A4 LEN GND A3 VDD2 A2 GND NC VDD2 VDD2 BLK VDD2 GND NC NC NC GND NC GND Vda 75V Vda 75V Vda 75V TO PANEL DATA DRIVER TO PANEL DATA DRIVER TO PANEL DATA DRIVER 3 4 1 2 18 17 10 16 11 15 13 14 12 TH-50PZ700C C3-Board (2 of 2) Schematic Diagram TH-50PZ700C C3-Board (2 of 2) Schematic Diagram ! C3-BOARD TNPA3986 (2/2) 127 15.57.C4 电路板 (1/2) 线路图 TERM SIDE SIDE TERM TERM SIDE AB_NCLK12L AB_CLK02L LE11 LE12 LE13 LE14 LE12 AB_DDC6 AB_DDB6 AB_DDA6 AB_DDC7 AB_DDB7 AB_DDA7 AB_PCD4 LE12 AB_DDC6 AB_DDB6 AB_DDA6 AB_DDC7 AB_DDB7 AB_DDA7 AB_PCD4 AB_DDC8 AB_DDB8 AB_DDA8 AB_DDC9 AB_DDB9 AB_DDA9 LE11 LE11 AB_DDC8 AB_DDB8 AB_DDA8 AB_DDC9 AB_DDB9 AB_DDA9 AB_PCD4 AB_DDB1 AB_DDC1 AB_DDA0 AB_DDB0 AB_DDC0 AB_CLK02L AB_NCLK12L AB_CLK01L AB_NCLK11L AB_DDA3 AB_DDB3 AB_DDC3 AB_DDA2 AB_DDB2 AB_DDC2 AB_DDA5 AB_DDB5 AB_DDC5 AB_DDA4 AB_DDB4 AB_DDC4 AB_DDA7 AB_DDB7 AB_DDC7 AB_DDA6 AB_DDB6 AB_DDC6 AB_DDA9 AB_DDB9 AB_DDC9 AB_DDA8 AB_DDB8 AB_DDC8 AB_ODED4 AB_CLRD4 AB_CLRD4 AB_ODED4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 LE15 AB_PCD4 AB_ODED4 AB_CLRD4 AA_DDB8 AA_DDC8 AA_DDA9 AA_DDB9 AA_DDC9 AA_DDA8 AA_DDC7 AA_DDA6 AA_DDB6 AA_DDC6 AA_DDB4 AA_DDC4 AA_DDA7 AA_DDB7 AA_DDA5 AA_DDB5 AA_DDC5 AA_DDA4 AA_DDC3 AA_DDA2 AA_DDB2 AA_DDC2 AA_DDB0 AA_DDC0 AA_DDA3 AA_DDB3 AA_DDA1 AA_DDB1 AA_DDC1 AA_DDA0 AA_DDA4 AA_DDA1 DRV_SOS8 AA_DDA0 AA_DDA2 AA_DDA3 AA_DDA8 AA_DDA5 AA_DDA6 USH AA_DDA9 AA_DDA7 UEH UML USL AA_DDB1 AA_DDC1 AA_DDB0 AA_DDC0 AA_DDB3 AA_DDC3 AA_DDB2 AA_DDC2 AA_DDB5 AA_DDC5 AA_DDB4 AA_DDB7 AA_DDC7 AA_DDB6 AA_DDC6 AA_DDB9 AA_DDC9 AA_DDB8 AA_DDC8 AA_CLK0L AA_NCLK1L AA_DDC4 UMH NUEL URL URH AA_LED4 AA_PCD4 AA_CLRD4 AA_ODED4 AB_NCLK11L AB_CLK01L AA_CLK0L AA_NCLK1L AB_DDA1 AB_PCD4 AA_CLRD4 AA_ODED4 AA_LED4 AA_PCD4 AB_NCLK13L AB_CLK03L USL UEH UML URL URH DRV_SOS8 USH NUEL UMH C4_5V C4_5V R7458 EXB38V681JV C7419 16V 1u 1/2W R7468 6.8 C4_5V R7470 47 R7412 0 R7428 EXB38V470JV 47 1/2W R7462 6.8 C4_5V R7406 0 C0JBAZ001120 IC7402 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc VDA_75V C7427 100V 0.47u R7454 EXB38V681JV C0JBAZ001120 IC7406 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C4_5V C42 1 2 3 4 5 6 7 8 9 10 11 12 C0JBAZ001120 IC7404 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7439 EXB38V470JV R7495 22 C7425 100V 0.47u ZA7405 K4AD01Z00001 R7492 EXB38V681JV 1/2W R7469 6.8 CB12 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7418 16V 1u R7474 EXB38V681JV C7414 16V 0.1u C4_5V R7409 0 R7459 EXB38V681JV ZA7403 K4AD01Z00001 C4_5V R7494 22 R7408 0 R7405 0 VDA_75V R7498 22 ZA7402 K4AD01Z00001 R7416 EXB38V470JV 47 C4_5V R7424 EXB38V470JV 47 R7401 0 1/2W R7465 6.8 VDA_75V R7417 EXB38V470JV 47 1/2W R7463 6.8 C4_5V D7417 B0HCMM000014 C0JBAZ001120 IC7405 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C7424 100V 0.47u R7493 22 D7416 B0HCMM000014 R7425 EXB38V470JV 47 1/2W R7464 6.8 D7415 B0HCMM000014 R7410 0 R7413 0 R7455 EXB38V681JV C7413 16V 0.1u R7473 EXB38V681JV R7460 47 R7497 22 1/2W R7467 6.8 R7407 0 C7429 50V 100p D7418 B0HCMM000014 R7457 EXB38V681JV C7482 16V 1u C7426 100V 0.47u C7412 16V 0.1u R7420 EXB38V470JV 47 C0JBAZ001120 IC7401 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7491 100k C7406 16V 0.1u C7401 16V 1u R7438 EXB38V470JV R7461 47 C41 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 R7453 EXB38V681JV C7480 16V 0.1u CB11 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7429 EXB38V470JV 47 R7490 22k C7481 16V 1u C7428 50V 100p C4_5V R7421 EXB38V470JV 47 VDA_75V 1/2W R7466 6.8 ZA7404 K4AD01Z00001 ZA7401 K4AD01Z00001 R7496 22 C7415 16V 0.1u R7402 0 R7411 0 R7456 EXB38V681JV C44 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C0JBAZ001120 IC7403 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7471 47 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 66:GND 42:GND 34:GND 7:DRVSOS8 56:DOUTDB[6] 27:DOUTDA[1] 53:DOUTDC[7] 19:PCD4 55:DOUTDA[6] 38:GND 51:DOUTDA[7] 41:DOUTDC[2] 64:DOUTDB[8] 76:P75V 71:GND 45:DOUTDC[5] 36:DOUTDB[3] 11:USH 52:DOUTDB[7] 13:UMH 54:GND 50:GND 48:DOUTDB[4] 14:NUEL 35:DOUTDA[3] 75:P75V 8:GND 26:GND 62:GND 58:GND 72:NC 6:NC(DRVSOS7) 23:CLKD[1](-) 57:DOUTDC[6] 63:DOUTDA[8] 80:P75V 78:P75V 37:DOUTDC[3] 68:GND 73:NC 1:P5V 25:CLKD[0](+) 49:DOUTDC[4] 65:DOUTDC[8] 60:DOUTDB[9] 18:LED4 47:DOUTDA[4] 29:DOUTDC[1] 43:DOUTDA[5] 32:DOUTDB[0] 46:GND 69:GND 12:UML 21:ODED4 40:DOUTDB[2] 74:NC 59:DOUTDA[9] 16:URH 5:NC 4:P5V 24:GND 67:5V_DET 39:DOUTDA[2] 3:P5V 20:CLRD4 28:DOUTDB[1] 44:DOUTDB[5] 70:GND 9:UEH 2:P5V 33:DOUTDC[0] 79:P75V 77:P75V 15:URL 10:USL 61:DOUTDC[9] 30:GND 17:GND 31:DOUTDA[0] 22:GND GND URL UEL UEH USL URH UML DRV_SOS7 68 1 GND NC Vda 75V Vda 75V NC C41 DRV_SOS8 NC USH 1 80 Vda 75V 1 68 68 1 NC 68 NC 1 GND URL GND Vda 75V TO SS-BOARD (SS42) Vda 75V URH Vda 75V GND 68 GND 1 UMH Vda 75V GND 5V 1 2 20 19 C42 C44 1 12 BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER 1 E C D 8 6 7 9 3 4 B 5 F 2 A 3 4 1 2 TO SS-BOARD (SS44) TO C5-BOARD (C51) ! C4-BOARD TNPA3987 (1/2) TO PANEL DATA DRIVER TO PANEL DATA DRIVER TH-50PZ700C C4-Board (1 of 2) Schematic Diagram TH-50PZ700C C4-Board (1 of 2) Schematic Diagram 128 15.58.C4 电路板 (2/2) 线路图 TERM SIDE TERM SIDE TERM SIDE LE14 AB_DDC2 AB_PCD4 AB_DDA3 AB_DDB3 AB_DDC3 AB_DDA2 AB_DDB2 LE14 AB_DDB3 AB_DDC3 AB_DDA2 AB_DDB2 AB_DDC2 AB_DDA3 AB_PCD4 LE13 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 LE13 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 AB_PCD4 AB_CLK02L AB_NCLK12L AB_CLK03L AB_NCLK13L AB_NCLK13L AB_DDB0 AB_DDA0 AB_DDB1 AB_DDC1 LE15 AB_DDB1 AB_DDA1 AB_PCD4 AB_DDC0 AB_DDA1 LE15 AB_DDC0 AB_DDB0 AB_DDA0 AB_DDC1 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_CLK03L AB_PCD4 AB_PCD4 D7419 B0HCMM000014 1/2W R7485 6.8 C7484 16V 1u C7453 50V 100p D7420 B0HCMM000014 1/2W R7433 6.8 1/2W R7480 6.8 C7440 16V 1u 1/2W R7432 6.8 C7469 100V 0.47u 1/2W R7431 6.8 C7483 16V 1u 1/2W R7482 6.8 CB15 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 VDA_75V 1/2W R7479 6.8 C7468 100V 0.47u D7424 B0HCMM000014 C7475 50V 100p D7423 B0HCMM000014 VDA_75V C4_5V C7433 100V 0.47u C4_5V R7472 4.7k R7487 47 1/2W R7484 6.8 R7478 47 C7472 16V 1u 1/2W R7481 6.8 C7485 16V 1u CB13 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7435 100V 0.47u C7441 16V 1u 1/2W R7430 6.8 C7452 50V 100p D7421 B0HCMM000014 C4_5V 1/2W R7483 6.8 1/2W R7486 6.8 D7422 B0HCMM000014 R7434 47 R7422 47 C7432 100V 0.47u R7488 47 VDA_75V C7434 100V 0.47u CB14 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7477 47 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 11 10 14 12 17 18 13 15 16 3 1 2 4 TO PANEL DATA DRIVER TO PANEL DATA DRIVER TO PANEL DATA DRIVER TH-50PZ700C C4-Board (2 of 2) Schematic Diagram TH-50PZ700C C4-Board (2 of 2) Schematic Diagram ! C4-BOARD TNPA3987 (2/2) 129 15.59.C5 电路板 (1/2) 线路图 TERM SIDE TERM SIDE TERM SIDE TERM SIDE SIDE TERM G G LE7 AB_DDC18 AB_DDB18 AB_DDA18 AB_DDC19 AB_DDB19 AB_DDA19 AB_PCD5 LE7 AB_DDC18 AB_DDB18 AB_DDA18 AB_DDC19 AB_DDB19 AB_PCD5 LE6 AB_DDC20 AB_PCD5 AB_DDB20 AB_DDA20 AB_DDC21 AB_DDB21 AB_DDA21 LE6 AB_DDC20 AB_DDB20 AB_DDA20 AB_DDC21 AB_DDB21 AB_DDA21 AB_PCD5 AB_DDC17 AB_DDA16 AB_DDB16 AB_DDC16 LE8 LE8 AB_DDC15 AB_PCD5 AB_DDA15 AB_DDB15 AB_DDA19 AB_CLK41R AB_NCLK51R AB_CLK42R AB_NCLK52R AB_CLK42R AB_NCLK31L AB_ODED5 AB_CLRD5 AB_ODED5 AB_CLRD5 AB_ODED5 AB_CLRD5 AB_CLRD5 AB_ODED5 AB_CLRD5 AB_ODED5 AB_CLRD5 AB_DDA14 AB_DDB14 AB_DDC14 AB_DDA17 AB_DDB17 AB_CLK42R AB_DDB19 AB_DDA18 AB_DDC19 AB_CLK22L LE10 AB_DDB18 AB_DDC18 AB_DDA19 AB_DDB20 LE9 AB_DDA20 LE8 AB_DDA21 AB_DDC20 AB_DDC21 AB_DDB21 AA_NCLK3L AA_CLK2L AA_DDC10 AA_DDB10 AA_DDA10 AA_DDC11 AA_DDB11 AA_DDA11 AA_DDA13 AA_DDB13 AA_DDC13 AA_DDA12 AA_DDB12 AA_DDC12 AA_DDA15 AA_DDB15 AA_DDC15 AA_DDC14 AA_DDB14 AA_DDA14 AA_DDC16 AA_DDB16 AA_DDA16 AA_DDC17 AA_DDB17 AA_DDA17 AA_DDC18 AA_DDB18 AA_DDA18 AA_DDC19 AA_DDB19 AA_DDA19 AA_DDC20 AA_DDB20 AA_DDA20 AA_DDC21 AA_DDB21 AA_DDA21 AA_NCLK3L AA_CLK2L AA_NCLK5R AA_CLK4R AA_LED5 AA_PCD5 AA_CLRD5 AA_ODED5 AB_DDC16 LE6 LE6 LE7 AB_CLRD5 AB_ODED5 AA_LED5 AA_PCD5 AA_CLRD5 AA_ODED5 AB_ODED5 AB_NCLK32L AB_NCLK52R AA_CLK4R AA_NCLK5R AA_DDC21 AA_DDB21 AA_DDC20 AA_DDA21 AA_DDC19 AA_DDA20 AA_DDB20 AA_DDC18 AA_DDA18 AA_DDB18 AA_DDC16 AB_DDB16 AA_DDB16 AA_DDB19 AA_DDA19 AB_CLK21L AB_NCLK31L AB_CLK41R AB_NCLK51R AB_PCD5 1/2W R7546 6.8 ZA7501 K4AD01Z00001 C7524 100V 0.47u CB6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7003 22 1/2W R7547 6.8 R7001 22 C5_5V R7541 EXB38V681JV 680 C7506 100V 0.47u C0JBAZ001120 IC7502 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc 1/2W R7557 6.8 R7528 EXB38V470JV 47 C54 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 R7570 EXB38V102JV 1k D7515 B0HCMM000014 ZA7502 K4AD01Z00001 1/2W R7556 6.8 C5_5V C5_5V R7564 EXB38V681JV 680 VDA_75V 1/2W R7540 6.8 C7516 100V 0.47u CB8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7561 EXB38V681JV 680 C7530 16V 0.1u C7543 16V 1u R7567 EXB38V470JV 47 R7559 47 C0JBAZ001120 IC7503 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7565 EXB38V681JV 680 1/2W R7548 6.8 C7521 16V 1u R7596 22 R7562 EXB38V470JV 47 C7547 16V 1u D7514 B0HCMM000014 R7558 47 C7577 16V 0.1u R7004 22 R7597 22 D7513 B0HCMM000014 C7507 100V 0.47u R7594 22 R7002 22 1/2W R7545 6.8 C7513 16V 0.1u C7539 16V 1u C7511 16V 1u C7541 50V 100p C7523 100V 0.47u C7522 50V 100p CB7 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7575 16V 0.1u R7542 47 1/2W R7555 6.8 D7517 B0HCMM000014 R7563 EXB38V470JV 47 1/2W R7539 6.8 R7595 22 R7592 100k C7517 100V 0.47u ZA7503 K4AD01Z00001 VDA_75V R7549 EXB38V470JV 47 C0JBAZ001120 IC7504 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7526 EXB38V470JV 47 C5_5V R7593 22k ZA7504 K4AD01Z00001 R7553 47 VDA_75V C7502 16V 1u VDA_75V C5_5V C5_5V 1/2W R7554 6.8 C0JBAZ001120 IC7501 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc D7512 B0HCMM000014 1/2W R7537 6.8 R7536 47 ZA7505 K4AD01Z00001 R7560 47 C7520 50V 100p D7516 B0HCMM000014 1/2W R7538 6.8 C52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C5_5V J0HABH000013 FL7501 1 2 3 R7529 EXB38V681JV 680 C5_5V L R GND DOUTDB[20] DOUTDC[21] DOUTDB[21] GND GND DOUTDA[21] DOUTDC[17] DOUTDA[20] DOUTDB[14] DOUTDC[20] GND DOUTDA[14] DOUTDC[19] GND DOUTDA[18] DOUTDC[16] 5V_DET ODED5 DOUTDC[11] DOUTDA[15] DOUTDA[11] DOUTDC[15] P5V GND CLRD5 GND GND NC DOUTDA[16] NC(DRVSOS7) GND CLKD[3](-) DOUTDC[12] CLKD[2](+) GND GND CLKD[5](-) DOUTDC[13] DOUTDB[13] DOUTDA[13] DOUTDA[10] DOUTDC[10] DOUTDB[10] DOUTDB[15] DOUTDB[19] DOUTDB[17] GND DOUTDB[12] DOUTDC[18] DOUTDC[14] DOUTDB[18] DOUTDB[11] DOUTDA[19] PCD5 DOUTDA[17] GND GND DOUTDB[16] P5V CLKD[4](+) DOUTDA[12] P5V LED5 GND GND GND GND NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC NC NC GND NC GND GND GND NC Vda 75V NC Vda 75V NC Vda 75V Vda 75V Vda 75V GND Vda 75V NC GND R R C51 1 68 1 80 68 20 1 1 68 C52 1 68 1 68 1 68 68 1 C55 C54 1 BUFFER BUFFER BUFFER BUFFER 1 E C D 8 6 7 9 3 4 B 5 F 2 A C5-BOARD TNPA3988 (1/2) ! 4 6 1 5 3 2 TO PANEL DATA DRIVER TO PANEL DATA DRIVER TO PANEL DATA DRIVER TO C6-BOARD (C60) TO D-BOARD (D35) TH-50PZ700C C5-Board (1 of 2) Schematic Diagram TH-50PZ700C C5-Board (1 of 2) Schematic Diagram 130 15.60.C5 电路板 (2/2) 线路图 TERM SIDE SIDE TERM TERM SIDE G G TERM SIDE AB_DDA12 AB_CLK21L AB_DDB13 AB_DDC13 LE9 AB_DDA13 AB_PCD5 AB_NCLK31L AB_DDC13 LE9 AB_DDC12 AB_DDB12 AB_CLK22L AB_DDB11 LE10 AB_DDA11 AB_PCD5 AB_NCLK32L AB_DDC11 LE10 AB_ODED5 AB_CLRD5 AB_ODED5 AB_CLRD5 AB_ODED5 AB_CLRD5 AB_ODED5 AB_CLRD5 UML_N UMH_N NUEL_N USH_N USL UEH AB_DDA11 AB_DDB17 AB_DDB13 AB_DDC17 AB_DDC13 AB_DDA12 AB_DDB12 AB_DDA16 AB_DDC12 AB_DDB10 AB_DDC10 AB_DDA17 AB_DDA10 AB_DDC11 AB_DDB14 AB_DDC14 AB_DDB11 AB_DDA13 URL URH NUEL UMH UML USH UEH_N URL_N URH_N USL_N AA_DDC0 AA_DDB0 AA_DDA0 AA_DDC1 AA_DDB1 AA_DDA1 AA_DDC2 AA_DDB2 AA_DDA2 AA_DDC3 AA_DDB3 AA_DDA3 AA_DDA5 AA_DDB5 AA_DDA4 AA_DDB4 AA_DDC4 AA_DDA7 AA_DDC7 AA_DDA6 AA_DDB6 AA_DDC6 AA_DDC8 AA_DDB8 AA_DDA8 AA_DDC9 AA_DDB9 NUEL UMH UML USH USL UEH 5V_DET URH URL AB_DDA15 AB_DDB15 AB_DDC15 AA_NCLK1L AA_CLK0L AB_DDB2 AA_DDB6 AB_DDB9 AB_DDA2 AB_DDA9 AA_DDC6 AA_DDC5 AA_DDB5 AA_DDC2 AB_CLRD4 AA_DDB9 AB_ODED4 AA_DDA5 AA_DDB2 AA_DDC9 AB_DDA1 AB_DDC3 AA_DDB3 AA_DDA2 AA_DDA8 AB_DDB3 AA_DDA3 AB_DDA3 AA_DDC3 AA_DDB8 AB_DDC6 AB_DDC0 AA_DDC0 AB_DDB6 AA_DDA4 AB_DDB0 AB_LED4 AB_DDA6 AB_PCD4 AB_DDA0 AA_DDB0 AB_DDC7 AA_DDC8 AA_DDA6 AB_DDC1 AA_DDB1 AB_DDB7 AA_DDA0 AB_DDB1 AA_DDC7 AB_DDA7 AA_DDA1 AA_DDC1 AB_DDC4 AA_DDB7 AB_DDB4 AB_DDA4 AA_DDA7 AB_DDC5 AB_DDC8 AA_DDC4 AB_DDB5 AB_DDB8 AB_DDA5 AB_DDA8 AA_DDB4 AB_DDC2 AB_DDC9 AB_CLK0L AB_NCLK1L AB_DDA2 AB_DDA6 AB_DDA7 AB_DDA4 AB_DDA9 AB_DDA5 AB_DDA8 AB_DDA3 AB_NCLK1L URL_N AA_ODED5 AA_CLRD5 AA_PCD5 AA_LED5 AB_DDA1 AB_DDA0 AB_DDB1 AB_DDC1 AB_DDB0 AB_DDC0 AB_DDB3 AB_DDC3 AB_DDB2 AB_DDC2 AB_DDB5 AB_DDC5 AB_DDB4 AB_DDC4 AB_DDB7 AB_DDC7 AB_DDB6 AB_DDC6 AB_DDB9 AB_DDC9 AB_DDB8 AB_DDC8 AB_CLK0L AB_PCD4 AB_LED4 AB_ODED4 AB_CLRD4 URH_N NUEL_N UML_N UMH_N USH_N USL_N UEH_N DRV_SOS8 5V_DET AA_NCLK1L AA_CLK0L AB_DDA14 AA_DDA9 DRV_SOS8 AA_DDA9 AA_DDC5 AA_DDB7 AA_DDA17 AA_DDC17 AA_DDB17 AA_DDC15 AA_DDB15 AA_DDA15 AA_DDA14 AA_DDC13 AA_DDB12 AA_DDB14 AA_DDC14 AA_DDA13 AA_DDA12 AA_DDC12 AA_DDB13 AA_DDB10 AA_DDC10 AA_DDC11 AA_DDA11 AA_DDB11 AA_DDA10 AA_DDA16 AB_DDA13 AB_DDB13 AB_PCD5 AB_DDC12 AB_DDB12 AB_DDA12 AB_DDB10 AB_DDC10 AB_DDC11 AB_DDA10 AB_DDA11 AB_DDB11 AB_PCD5 AB_DDA10 AB_DDB10 AB_DDC10 C7582 100V 0.47u C5_5V C0JBAZ001120 IC7511 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C5_5V VDA_75V R7580 EXB38V681JV 680 C0JBAZ001120 IC7507 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C7568 16V 0.1u R7550 EXB38V681JV 680 D7520 B0HCMM000014 R7502 EXB38V470JV 47 C0JBAZ001120 IC7514 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7572 EXB38V470JV 47 R7534 EXB38V470JV 47 C7592 16V 1u C7570 16V 0.1u C5_5V C7591 50V 100p D7521 B0HCMM000014 R7506 EXB38V470JV 47 C0JBAZ001120 IC7512 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7504 EXB38V681JV 680 1/2W R7517 6.8 C7538 16V 0.1u C7527 16V 0.1u C5_5V R7575 EXB38V470JV 47 C7593 100V 0.47u 1/2W R7508 6.8 C7519 16V 0.1u R7574 EXB38V470JV 47 R7587 EXB38V681JV 680 D7518 B0HCMM000014 R7579 EXB38V681JV 680 R7544 EXB38V102JV 1k C5_5V C7566 16V 0.1u C55 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 C0JBAZ001120 IC7515 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7506 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C5_5V 1/2W R7516 6.8 C7501 16V 1u R7583 EXB38V681JV 680 C0JBAZ001120 IC7505 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C5_5V R7505 EXB38V681JV 680 VDA_75V C51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 R7585 EXB38V681JV 680 R7520 47 R7531 EXB38V470JV 47 C5_5V R7599 22 C0JBAZ001120 IC7516 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7501 0 R7527 EXB38V681JV 680 C7580 50V 100p C7594 100V 0.47u 1/2W R7509 6.8 R7535 EXB38V470JV 47 R7503 EXB38V470JV 47 R7515 47 1/2W R7510 6.8 R7586 EXB38V681JV 680 C7549 16V 1u R7573 EXB38V470JV 47 R7584 EXB38V681JV 680 R7582 EXB38V681JV 680 1/2W R7511 6.8 C7578 16V 0.1u C5_5V CB9 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7548 16V 1u C7508 16V 0.1u C7583 100V 0.47u R7581 EXB38V681JV 680 R7577 EXB38V681JV 680 R7576 EXB38V470JV 47 R7543 EXB38V681JV 680 R7512 47 C5_5V C0JBAZ001120 IC7513 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7523 EXB38V470JV 47 C7572 16V 0.1u R7598 22 R7525 EXB38V681JV 680 D7519 B0HCMM000014 R7532 EXB38V470JV 47 R7571 EXB38V470JV 47 J0HABH000013 FL7502 1 2 3 R7507 47 R7533 EXB38V470JV 47 R7530 EXB38V470JV 47 C5_5V R7578 EXB38V681JV 680 1/2W R7519 6.8 C5_5V R7524 EXB38V470JV 47 C7581 16V 1u VDA_75V C5_5V 1/2W R7518 6.8 CB10 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 L L DOUTDB[9] DOUTDA[9] DOUTDB[8] DOUTDA[8] DOUTDC[8] DOUTDC[9] NC DOUTDB[0] DOUTDC[6] USL DOUTDA[5] DOUTDA[1] DOUTDA[0] GND DOUTDB[5] DOUTDA[3] DOUTDB[7] GND DOUTDC[7] DOUTDB[4] GND DOUTDC[1] DOUTDA[4] DOUTDB[3] URL DOUTDC[5] P5V GND GND GND DOUTDB[6] P5V NC P5V DOUTDC[4] URH NUEL UMH USH DOUTDC[0] GND DOUTDA[7] UML DOUTDA[2] DOUTDC[3] GND GND DOUTDA[6] DOUTDC[2] GND UEH DOUTDB[1] DOUTDB[2] 5V_DET NC GND CLKD[1](-) CLKD[0](+) NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 20:DOUTDC[9] 74:DRVSOS8 25:DOUTDB[6] 51:GND 35:GND 12:GND 64:GND 69:UML 50:DOUTDA[0] 42:DOUTDA[2] 78:P5V 61:CLRD4 60:ODED4 41:DOUTDB[2] 10:GND 36:DOUTDC[5] 45:DOUTDB[3] 59:GND 54:DOUTDA[1] 28:DOUTDC[7] 62:PCD4 77:P5V 57:GND 14:5V_DET 40:DOUTDC[2] 17:DOUTDB[8] 5:P75V 15:GND 70:USH 29:DOUTDB[7] 68:UMH 73:GND 55:GND 19:GND 23:GND 67:NUEL 9:NC 46:DOUTDA[3] 75:NC(DRVSOS7) 6:P75V 58:CLKD[1](-) 24:DOUTDC[6] 18:DOUTDA[8] 22:DOUTDA[9] 65:URH 76:NC 1:P75V 3:P75V 44:DOUTDC[3] 13:GND 8:NC 80:P5V 56:CLKD[0](+) 72:UEH 32:DOUTDC[4] 79:P5V 16:DOUTDC[8] 48:DOUTDC[0] 21:DOUTDB[9] 63:LED4 34:DOUTDA[4] 2:P75V 4:P75V 27:GND 31:GND 26:DOUTDA[6] 52:DOUTDC[1] 33:DOUTDB[4] 53:DOUTDB[1] 43:GND 66:URL 38:DOUTDA[5] 37:DOUTDB[5] 30:DOUTDA[7] 71:USL 49:DOUTDB[0] 47:GND 7:NC 39:GND 11:GND DRV_SOS8 NC GND GND GND GND GND GND GND NC BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER 11 10 14 12 17 18 13 15 16 4 6 1 5 3 2 TO PANEL DATA DRIVER TO PANEL DATA DRIVER TO C4-BOARD (C41) TO D-BOARD (D34) TH-50PZ700C C5-Board (2 of 2) Schematic Diagram TH-50PZ700C C5-Board (2 of 2) Schematic Diagram C5-BOARD TNPA3988 (2/2) ! 131 15.61.C6 电路板 (1/2) 线路图 TERM SIDE TERM SIDE AB_DDA29 AB_PCD6 LE2 AB_DDC28 AB_DDB28 AB_DDA28 AB_DDC29 AB_DDB29 AB_DDA29 LE2 AB_DDB29 AB_DDC29 AB_DDA28 AB_DDB28 AB_DDC28 LE1 AB_DDC30 AB_DDB30 AB_DDA30 AB_DDC31 AB_DDB31 AB_DDA31 AB_PCD6 LE1 AB_DDC30 AB_DDB30 AB_DDA30 AB_DDC31 AB_DDB31 AB_DDA31 AB_PCD6 AB_PCD6 AB_CLK61R AB_NCLK71R AB_CLK61R AB_NCLK71R AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 C7612 50V 100p C7667 16V 1u R7617 47 R7604 47 VDA_75V ZA7605 K4AD01Z00001 C6_5V VDA_75V ZA7603 K4AD01Z00001 ZA7604 K4AD01Z00001 R7616 47 R7618 4.7k C7607 100V 0.47u 1/2W R7614 6.8 1/2W R7610 6.8 1/2W R7611 6.8 ZA7601 K4AD01Z00001 1/2W R7615 6.8 1/2W R7612 6.8 C7610 100V 0.47u D7611 B0HCMM000014 1/2W R7613 6.8 R7607 47 D7613 B0HCMM000014 C6_5V ZA7602 K4AD01Z00001 CB2 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7666 16V 1u C7608 100V 0.47u C7611 50V 100p CB1 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7601 16V 1u C7609 100V 0.47u D7614 B0HCMM000014 D7612 B0HCMM000014 C7602 16V 1u 1/2W R7608 6.8 1/2W R7609 6.8 NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 GND NC NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 1 68 1 1 68 1 1 C61 68 C60 1 68 68 20 68 1 1 E C D 8 6 7 9 3 4 B 5 F 2 A 1 2 C6-BOARD TNPA3989 (1/2) ! TH-50PZ700C C6-Board (1 of 2) Schematic Diagram TH-50PZ700C C6-Board (1 of 2) Schematic Diagram 132 15.62.C6 电路板 (2/2) 线路图 TERM SIDE G G TERM SIDE TERM SIDE TERM SIDE SIDE TERM AB_CLK63R LE1 LE2 LE3 LE4 AB_NCLK73R AB_CLK62R LE4 AB_DDC24 AB_DDB24 AB_DDA24 AB_DDC25 AB_DDB25 AB_DDA25 LE4 AB_DDC24 AB_DDB24 AB_DDA24 AB_DDC25 AB_DDB25 AB_DDA25 LE3 AB_DDC26 AB_DDB26 AB_DDA26 AB_DDC27 AB_DDB27 AB_DDA27 LE3 AB_DDC26 AB_DDB26 AB_DDA26 AB_DDC27 AB_DDB27 AB_DDA27 AB_PCD6 AB_PCD6 AB_DDC31 AB_DDB31 AB_DDA31 AB_DDC30 AB_DDB30 AB_DDA30 AB_CLK62R AB_DDC22 AB_PCD6 LE5 AB_DDA23 AB_DDB23 AB_DDC23 AB_DDA22 AB_PCD6 AB_DDB22 AB_DDA23 AB_DDC22 AB_DDB23 LE5 AB_DDC23 AB_DDA22 AB_DDB22 AB_DDA28 AB_DDB28 AB_DDC28 AB_DDA29 AB_DDB29 AB_DDC29 AB_DDB26 AB_DDC26 AB_DDA27 AB_DDB27 AB_DDA24 AB_DDB24 AB_DDC24 AB_DDA25 AB_DDB25 AB_DDC25 AB_DDA22 AB_DDB22 AB_DDC22 AB_DDA23 AB_DDB23 AB_DDC23 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_PCD6 AB_CLRD6 AB_ODED6 LE5 AB_DDA26 AB_DDC27 AB_NCLK72R AB_NCLK72R AB_NCLK73R AB_NCLK72R AA_ODED6 AA_CLRD6 AA_PCD6 AA_LED6 AA_DDC28 AA_DDA31 AA_DDB31 AA_DDC31 AA_DDA30 AA_DDB30 AA_DDC30 AA_DDB28 AA_DDA28 AA_DDC29 AA_DDA29 AA_DDB29 AA_DDB23 AA_DDA23 AA_DDC23 AA_DDA22 AA_DDB22 AA_DDC22 AA_DDB24 AA_DDC24 AA_DDA24 AA_DDC25 AA_DDB25 AA_DDA25 AA_DDC26 AA_DDB26 AA_DDA26 AA_DDC27 AA_DDB27 AA_DDA27 AA_CLK6R AA_NCLK7R AA_LED6 AA_ODED6 AA_PCD6 AA_CLRD6 AB_CLK63R AB_CLK62R AB_PCD6 AA_NCLK7R AA_CLK6R AA_DDB22 AA_DDA23 AA_DDB23 AA_DDA22 AA_DDC23 AA_DDC22 AA_DDC24 AA_DDC27 AA_DDB25 AA_DDB24 AA_DDA24 AA_DDC25 AA_DDB27 AA_DDA25 AA_DDA26 AA_DDB26 AA_DDC26 AA_DDB29 AA_DDA29 AA_DDA27 AA_DDC28 AA_DDC29 AA_DDB31 AA_DDB30 AA_DDA30 AA_DDC31 AA_DDA31 AA_DDA28 AA_DDB28 AA_DDC30 AB_CLK61R AB_NCLK71R AB_PCD6 R7698 22 R7696 EXB38V681JV 680 CB5 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7615 100V 0.47u R7697 22 C0JBAZ001120 IC7605 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7606 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7647 EXB38V470JV 47 R7642 EXB38V681JV 680 1/2W R7663 6.8 C0JBAZ001120 IC7604 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7643 EXB38V470JV 47 C6_5V 1/2W R7631 6.8 C7616 100V 0.47u R7623 47 R7640 EXB38V681JV 680 1/2W R7630 6.8 1/2W R7662 6.8 R7634 47 R7603 22 C7618 100V 0.47u 1/2W R7626 6.8 J0HABH000013 FL7601 1 2 3 1/2W R7661 6.8 R7686 22k R7654 EXB38V470JV 47 C0JBAZ001120 IC7601 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc 1/2W R7627 6.8 R7624 47 VDA_75V C7617 100V 0.47u C6_5V C6_5V D7620 B0HCMM000014 R7665 47 C6_5V R7606 22 C0JBAZ001120 IC7603 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C7636 16V 0.1u R7650 EXB38V470JV 47 C6_5V VDA_75V R7605 22 R7646 EXB38V470JV 47 C7630 16V 0.1u C7665 16V 0.1u R7633 47 C7654 100V 0.47u C7670 16V 1u CB3 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1/2W R7625 6.8 C7658 16V 1u CB4 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7638 EXB38V681JV 680 R7659 EXB38V470JV 47 D7615 B0HCMM000014 R7699 22 C60 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 C6_5V VDA_75V C7637 16V 0.1u R7687 100k 1/2W R7629 6.8 VDA_75V 1/2W R7632 6.8 C7635 16V 0.1u C7650 50V 100p 1/2W R7664 6.8 R7636 EXB38V470JV 47 R7641 EXB38V681JV 680 1/2W R7628 6.8 R7660 47 R7658 EXB38V470JV 47 C6_5V C6_5V C7624 16V 1u C7668 16V 1u C6_5V C7669 16V 1u C7661 50V 100p C6_5V C7613 50V 100p C61 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7651 EXB38V470JV 47 D7616 B0HCMM000014 R7655 EXB38V470JV 47 R7639 EXB38V681JV 680 R7645 EXB38V681JV 680 C7638 16V 0.1u D7619 B0HCMM000014 C7623 16V 1u C0JBAZ001120 IC7602 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc D7617 B0HCMM000014 R7637 EXB38V681JV 680 R7644 EXB38V681JV 680 C7655 100V 0.47u R7648 EXB38V681JV 680 D7618 B0HCMM000014 P75V NC GND DOUTDC[29] GND DOUTDC[25] DOUTDC[30] DOUTDC[31] DOUTDC[27] GND DOUTDB[22] DOUTDA[31] GND DOUTDB[26] NC P5V P5V GND DOUTDB[25] DOUTDB[29] 5V_DET DOUTDA[29] ODED6 GND CLKD[6](+) CLKD[7](-) GND GND GND NC NC NC NC DOUTDC[24] NC GND NC P5V NC(CLK) NC(CLK) GND DOUTDA[28] DOUTDC[26] GND DOUTDB[24] DOUTDB[31] DOUTDC[28] DOUTDA[25] DOUTDB[28] GND GND PCD6 GND GND DOUTDA[27] DOUTDA[22] DOUTDA[26] DOUTDC[22] GND GND LED6 DOUTDA[23] DOUTDB[30] DOUTDA[24] DOUTDB[27] GND DOUTDA[30] DOUTDB[23] DOUTDC[23] CLRD6 P75V NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 GND GND GND GND GND NC NC NC NC NC NC NC P75V P75V P75V P75V NC TO D-BOARD (D36) TO C5-BOARD (C52) BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER 11 10 14 12 17 18 13 15 16 2 1 TH-50PZ700C C6-Board (2 of 2) Schematic Diagram TH-50PZ700C C6-Board (2 of 2) Schematic Diagram C6-BOARD TNPA3989 (2/2) ! 133 15.63.SC 电路板方框图 + + + + + CLK CPH1 CPH2 FCLD SCSU CEL CEL2 FSID SID SID SCSU CL CLK CL FCLKU FCLKD SIU PROD SIU CEL2 FCLU FSIU CPH1 CEL PROU CPH2 R6864 D6583 P+5V C6791 VR6601 D6804 D6862 D6825 TPVAD TPVAD D6585 D6616 D6871 D6665 D6612 C6841 T6602 D6620 C6795 R6630 D6791 C6796 D6841 R6615 D6872 D6478 D6480 P+5V D6826 R6581 D6610 R6837 D6859 D6721 D6581 D6619 R6614 TPVAD Q6824 VR6602 1 2 3 D6760 TPVAD D6582 D6806 D6860 VSET VSET 1 IC6791 IC6724 Vf CEL2 DRIVER DRIVER +5V VAD IC6801 R6661 B40 3 (+50V) Vf+5V +5V(SC3) DRIVER A75 12 +15V 14 PC6701 CML B35 COMPARATOR B1 2 Vfo IC6671 +5V(SC1) FET 8 9 TPVSET +5V(SC1) SOS DET +185V A7 TPVSET2 B6 8 B1 +240V DRIVER A33 D70 TO SU45 (+8V) VSET SUPERIMPOSED R6858 LO TPSC1 WAVEFORM VSCN SUPERIMPOSED 1 LO IC6752 A1 B52 FET IC6821 Q6661 Vfo SOS DET Q6641, Q6643 Q6650 FCLU IC6772 B28 SD44 FET B1 IC6610 A1 SC44 VSCN Gen. VSET2 GEN. Q6680 A10 SC DRIVER C8 23 PC6480 INV INV B40 IC6602 TO P2 Vsus 11 Vad( 90V) B13 FSIU B40 CLK A36 IC6841 B36 SC_SOS1 SC_SOS2 ENERGY RECOVERY SOS DET VAD SUPERIMPOSED A12 OUT P+15V LED BLINKING 6 TIMES C80 +5V(SC3) SOS DET CSH FET 8 20 D28 P+15V 13 FSID PC6760 Vfo SOS DET SID B30 FCLD SC43 +5V Vf 45 A34 A1 +5V B33 Q6803 PC6801 C40 CEL2 +5V(SC1)SOS C5 1 9 3 IC6561 P+5V A40 Q6781, Q6782 A6 IC6861 IC6774 R6663 (+33V) Q6441 Q6443 2 Q6671 Q6673 CMH 1 C46 LO CSL D68 Q6679, Vf+5V IN +5V HO IN FET TPSCI B1 BUFFER A35 Q6531,Q6532 LO IC6871 3 VAD SOS DET ERROR DET P+5V TO P23 IC6501 IC6753 2 PC6704 SIU P+15V Vf+5V 4 B10 IC6472 B8 B40 (+33V) Vf+5V Y Vsus Gen. P+15V 3 +5V 5 Vf Vfo Q6451 Q6453 5 6 FET 7 P+5V (SC2) A36 (Vscn) 9 FET IC6802 Q6516 Q6519 CMH 4 LED(G) 12 B Vf Vf 7 VSET SOS B41 P+15V A33 Vf (+33V) Vf+5V 6 FET 2 P+15V Vfo PC6871 A80 B50 OUT SC41 +15V VSCN C48 10 +5V A76 A40 A30 +5V IC6771 CSH VAD CONT FCLKU (SC3) SID CONVERTER LIN CSL 105V AVR OUT IC6722 CL D29 +15V PC6703 Q6662 +15V IC6751 TPVSCN FCLKU B40 Q6551,Q6552 2 Q6602 D31 P+5V AVR SC2 R6833 R6836 Q6621 Q6624 3 SC Q6581 Q6841,Q6842 (SC1) R6662 BUFFER BUFFER A28 Vscn B51 A74 A73 FET +5V(SC1) C47 B C1 CEL2 D1 7 P+15V D40 BUFFER Q6401 Q6405 A13 C6 OSC Q6821,Q6822 13 HIN PC6702 CEH VAD GEN.( 90V) GND VF_GND HO (Vfo) +5V +5V 1 TPSOS7 Q6742,Q6743 OUT TPSOS6 Y Vf+5V B5 IC6682 +5V(SC3) 2 C41 INIT-F SIU 17 A40 +5V PC6861 FET 5 Vf CL CPH 15 FCLKD LO IN COMPARATOR 11 A 20 DRIVER SCSU CEH TO SD46 Vset SOS DET Q6681 1 FCLU GND CEL B12 INIT-F SU41 TO SU41 Q6762 SD43 TO SD44 TO SD43 Vf Vscn 1 OUT OUT +5V VSUS P+5V 1 B11 B31 Q6511 Q6514 A29 IN BUFFER 8 PROU 4 PROD Q6682 OUT IC6562 C45 6 BUFFER P+15V DRIVER A11 3 LO 30 BUFFER ENERGY RECOVERY LIN D41 B10 CML CLK FET OUT A IC6601 VSET SEPA IC6773 VSET Gen. FSIU B34 GND TO D20 IC6721 HO Vscn SOS DET P+15V +5V DC/DC BUFFER FCLKD HIN PROD VSET2 IC6681 FET PC6610 A1 A41 B11 A31 CPH2 (SC3) Q6691 18 Vscn GND FET D60 +5V(SC3) D69 BUFFER D80 IC6581 SC PROU IC6725 OUT Q6421 Q6425 TPVSUS GND +5V(SC2) Vf Vf+5V VAD SEPA C7 1 B1 SC P+5V AVR B7 BUFFER A34 2 FET +15V Vf B31 Vscn(Vad+140V) A5 7 GND GND Q6601 SC42 BUFFER ADJ. ADJ. VR6600 Vfo 1 B12 Vf HO Vf+5V FSID A40 A1 SC FCLD Vf VR6603 FET B80 HO A35 AVR IC6471 BUFFER IC6803 IN 46 PC6705 Q6791 B13 Vscn SU42 TO SU42 19 FET D71 B53 IC6521 A7 A40 3 SC SCAN DRIVE PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER COMPARATOR COMPARATOR SC FLOATING PART SOS DET LED BLINKING 7 TIMES OUT FET OUT FET TH-50PZ700C SC-Board Block Diagram TH-50PZ700C SC-Board Block Diagram 134 15.64.SC 电路板 (1/2) 线路图 + + + + + + + + + + + + + AA_CLK AA_SIU AA_SID AA_SCSU AA_CL AA_CEL CL CLK SIU SID SCSU CEL2 CPH CML CMH CSH DRVRST_O DRVRST_O CEL CSL AA_CEL2 AC_CPH1 AC_CPH2 SOS7_SC2 P5V 0-200V 200V SOS6_SC1 15V C6872 25V 1u D6791 MAZ82000ML D6463 B0HBSN000008 C6863 50V 0.01u IC6871 C0BBBA000022 1 2 3 4 5 6 7 8 Q6401 2PG0010000RP Q6423 2PG0030000RP R6517 10k L6602 G0ZZ00002183 1% R6875 3.3k 1% R6465 27k D6502 MA3DF30000LZ C6411 220V 200u TP20 C6525 25V 4.7u Q6403 2PG0010000RP D6462 B0HBSN000008 L6403 G0CR96KA0118 MAIN_STOP Q6517 1% R6862 47k C6861 16V 1u Q6514 R6518 10 TP1 C6422 630V 2700p Q6443 2PG0010000RP R6533 10k TP4 R6429 7.5 R6441 7.5 C0ZBZ0001324 IC6521 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC D6872 MA2J11100L C6419 220V 200u L6401 G0CR96KA0118 TP30 15V R6868 22k D6433 MA3DF40000LZ C6513 250V 2.2u R6592 4.7k 1% R6466 56k Q6451 2PG0030000RP Q6532 B1ADRD000001 1% R6583 39k R6867 3.9k L6467 G0ZZ00002183 L6454 G0ZZ00002183 R6520 10k D6583 LNJ301MPUJA Q6531 B1ABRD000003 Q6551 B1ABRD000003 R6508 1 R6566 EXB38V472JV C6471 630V 1000p C6522 25V 4.7u R6878 22k D6523 B0ECHP000003 TP34 15V 1% R6468 82k R6587 2.2k 1% R6467 82k D6524 B0ECHP000003 TP14 L6415 G0C1R9KA0147 L6405 G0CR96KA0118 L6411 G0C1R9KA0147 C6527 25V 4.7u C6565 50V 0.01u C6511 250V 2.2u R6425 7.5 TP28 Q6424 2PG0030000RP ZA6402 K4CD01000011 TP23 C6412 220V 200u TP21 L6485 G0ZZ00002183 VSUS C6502 25V 4.7u D6501 B0ECHP000003 R6568 EXB38V472JV L6492 G0ZZ00002183 TP2 R6443 7.5 C0JBAZ000005 IC6561 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC TP52 TP33 R6503 10 R6515 10k 1% R6865 2.2k C6871 16V 1u ZA6401 K4CD01000011 1% R6873 39k C6416 220V 200u C6521 25V 1u R6877 3.9k 1% R6872 39k L6414 G0C1R9KA0147 16V_F 1% R6585 1k D6582 MAZ83300ML R6403 7.5 Q6512 B1ADNF000006 B1ADNF000006 B1ADNF000006 B1ADNF000006 L6453 G0ZZ00002183 L6486 G0ZZ00002183 16V_F Q6405 2PG0010000RP 15V TP6 L6404 G0CR96KA0118 L6495 G0ZZ00002183 1% R6863 47k L6491 G0ZZ00002183 D6584 MAZ80510LL C6413 220V 200u TP29 Q6513 L6498 G0ZZ00002183 D6472 B0HBSN000008 R6405 7.5 L6416 G0C1R9KA0147 L6451 G0ZZ00002183 75 R6504 C6564 16V 1u TP25 D6483 B0HBSN000008 IC6581 C0BBBA000022 1 2 3 4 5 6 7 8 TP9 D6820 MA2J11100L D6461 B0HBSN000008 R6561 EXB38V470JV C6516 250V 2.2u D6441 B0ECHP000003 R6869 4.7k R6563 EXB38V470JV D6480 MA2J11100L R6551 10 Q6552 B1ADRD000001 R6409 7.5 TP39 1% R6584 9.1k L6412 G0C1R9KA0147 D6862 MA2J11100L L6466 G0ZZ00002183 TP11 L6601 G0ZZ00002183 D6871 MAZ80510LL 1% R6861 39k R6507 1 D6482 B0HBSN000008 R6445 7.5 TP18 TP26 L6452 G0ZZ00002183 TP15 D6403 B0HBSN000008 L6464 G0ZZ00002183 Q6519 C6512 250V 2.2u R6511 10k TP17 C6563 10V 100u R6476 4.7k C6582 16V 1u C6581 25V 1u R6501 100 L6592 G0ZZ00002183 5V R6475 4.7k R6516 10k MAIN_STOP R6512 10k Q6791 2SD0601A0L C0JBAA000377 IC6472 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y C6403 5600p 630V C6524 25V 4.7u SOS7_SC2 R6565 EXB38V472JV R6531 10 D6401 B0HBSN000008 TP13 TP38 R6407 7.5 R6581 10k R6879 4.7k D6581 MAZ83300ML Q6516 D6491 MA3DF40000LZ L6465 G0ZZ00002183 R6455 7.5 5V R6506 10 L6461 G0ZZ00002183 C6562 16V 1u R6427 7.5 Q6425 2PG0030000RP R6513 10 L6468 G0ZZ00002183 TP7 D6466 MA2J11100L R6567 EXB38V472JV R6502 100 TP22 15V R6588 10k D6521 B0ECHP000003 L6591 D6861 MAZ80510LL L6497 G0ZZ00002183 VSCN_F C6414 220V 200u C6514 250V 2.2u R6451 7.5 C6517 250V 2.2u R6421 7.5 Q6453 2PG0030000RP PC6861 B3PBA0000223 1 2 3 4 L6493 G0ZZ00002183 L6406 G0CR96KA0118 TP31 D6431 TP24 C6425 630V 5600p R6532 10k C0ZBZ0000895 IC6501 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC C6504 25V 4.7u Q6404 2PG0010000RP L6402 G0CR96KA0118 Q6442 2PG0010000RP C6594 25V 220u R6522 100 15V_F SC2 1 3 R6564 EXB38V470JV C6593 50V 1000p D6471 B0HBSN000008 VF_GND 75 R6523 5V TP8 TP5 L6462 G0ZZ00002183 C6505 25V 4.7u Q6441 2PG0010000RP C0JBAZ000005 IC6562 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC L6488 G0ZZ00002183 C6415 220V 200u R6553 10k Q6581 2SD0601A0L Q6402 2PG0010000RP R6480 100 ZA6403 K4CD01000011 TP19 IC6861 C0BBBA000022 1 2 3 4 5 6 7 8 C6592 25V 220u R6590 220 D6484 B0HBSN000008 C6405 2200p 630V 1% R6586 2.2k TP16 D6522 B0ECHP000003 R6509 1 C6421 630V 3900p PC6871 B3PBA0000223 1 2 3 4 Q6422 2PG0030000RP R6514 10k R6591 EXB38V472JV D6585 MA2J11100L C6561 10V 100u SC20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C6431 250V 4u Q6452 2PG0030000RP 1% R6582 39k 1% R6864 8.87k Q6421 2PG0030000RP TP32 TP10 R6562 EXB38V470JV 1% R6876 1.2k R6519 10k SOS7_SC2 1% R6866 2.2k C6480 50V 0.1u R6401 7.5 L6463 G0ZZ00002183 D6821 MA2J11100L C6401 630V 3300p L6496 G0ZZ00002183 R6453 7.5 D6432 1% R6871 39k R6793 100 D6451 B0ECHP000003 C6862 25V 1u R6792 10k L6494 G0ZZ00002183 L6487 G0ZZ00002183 R6521 100 C6515 250V 2.2u R6552 10k C6418 220V 200u L6413 G0C1R9KA0147 R6791 1k C6491 630V 1000p TP12 R6423 7.5 5V C6417 220V 200u C6566 50V 0.01u 1% R6874 9.53k SC23 1 2 3 TP27 Q6518 C6873 50V 0.01u TP35 Q6511 B1ABNF000006 B1ABNF000006 B1ABNF000006 B1ABNF00000 (GREEN LED) +15V GND + - + - TP15V +15V GND Vsus GND GND GND GND SC42 SC41 TPVSUS TUCJ5629 TPSOS7 TPSOS6 + + - - - - + + COMPONENTS OF HEATSINK Q6441 Q6443 D6464 Q6444 COMPONENTS OF HEATSINK Q6442 D6463 Q6402 Q6406 Q6405 Q6403 Q6404 D6403 D6404 Q6401 TUCJ5605 D6401 SC43 SC44 SC45 SC46 Q6621 Q6625 D6621 D6626 Q6641 Q6650 TUCJ5602 TUCJ5628 TUCJ5611 Q6661 Q6401 D6601 D6604 Q6606 Q6421 D6431 D6433 Q6426 Q6441 D6461 D6464 Q6444 Q6451 D6481 D6484 Q6454 TUCJ5602 TUCJ5629 D6462 D6461 Q6451 Q6453 D6481 Q6452 D6482 D6483 Q6421 Q6422 Q6424 Q6423 D6432 D6431 Q6426 TUCJ5628 D6433 COMPONENTS OF HEATSINK Q6425 Q6661 TUCJ5611 COMPONENTS OF HEATSINK Q6454 D6484 D6603 CMH CML CSH CSL TUCJ5463 TUCJ5463 D6471 D6491 TUCJ5463 TUCJ5463 D6491 D6471 COMPONENTS OF HEATSINK COMPONENTS OF HEATSINK TO P-BOARD (P23) TO P-BOARD (P2) TO D-BOARD (D20) D B 4 A 6 7 F 5 9 2 E C 1 8 3 4 1 5 3 2 BUFFER BUFFER FET DRIVER FET DRIVER COMPARATOR COMPARATOR COMPARATOR TH-50PZ700C SC-Board (1 of 2) Schematic Diagram TH-50PZ700C SC-Board (1 of 2) Schematic Diagram SC-BOARD (1/2) TNPA3992 ! 135 15.65.SC 电路板 (2/2) 线路图 REF K A + + + + + REF K A + + + + + + + + REF K A REF K A + + + AA_CEL AB_FCLD AB_FCLU AC_CPH1 -80V AA_CEL2 AA_SID AA_SIU AA_CLK AA_SCSU AB_FCLKU AB_FCLKD AB_PROD AB_PROU AB_FSID AB_FSIU AC_CPH2 AB_FCLU AB_FCLKU AB_PROU AB_FSIU AB_FSID AB_PROD AB_FCLKD AB_FCLD -74V AA_CL -85V -75V -90V 0V 330V T6602 ETS28AU389AC 2 P2 3 PT 4 P1 6 V1 7 V2 9 NC 10 S5 12 S3 13 S2 14 NC 15 S1 16 NC 11 S4 D6687 MA2J11100L PC6701 B3PBA0000233 1 2 3 4 5 6 7 8 R6845 62k D6684 MA2J11100L 1/2W R6841 15k R6830 220k C6723 25V 4.7u R6682 100 R6691 10k R6756 33 R6622 220 D6620 B0HCKS000002 1% R6833 56k 1% R6850 68k D6758 B0ECHP000003 R6810 33k TP59 D6613 MA2J11100L C6682 25V 4.7u R6704 470 Q6673 G D S D6625 B0HDSM000005 R6641 100 D6733 MAZ80560HL Q6661 B1DEET000002 G D S 1% R6827 8.2k R6603 100 Q6647 Q6822 2SC3063000RL Q6624 D6477 MA2J11100L TP51 D6683 MA2J11100L C6671 25V 4.7u IC6771 INPUT 3 2 COMMON OUTPUT 1 D6760 MA2J11100L TP45 2W R6844 100 R6776 100 D6622 B0HDSM000005 TP63 Q6841 2SD1263AP0LB R6811 33k R6609 1k D6725 B0ECHP000003 D6601 MAZ8240 D6666 MA2J11100L C0JBAA000377 IC6773 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y L6802 J0JJC0000011 5V R6659 220k VSUS SC46 1 2 3 4 5 6 7 8 9 1% R6834 56k Q6742 2SD0601A0L D6682 B0HCMM000014 IC6601 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB SC44 1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 2 R6623 220 D6813 B0HCMM000014 TP70 TP53 15V_F R6661 100k D6731 MAZ80560HL C6703 50V 0.1u D6611 MA2J11100L Q6649 Q6824 2SD601A R6673 5.6 R6644 100 L6473 G0ZZ00002183 C6775 25V 4.7u C6752 16V 1u R6612 47 R6471 3.9k D6603 MAZ82400ML R6759 4.7k Q6646 R6613 1M R6649 100 Q6762 B1ADNF000006 SOS7_SC2 R6847 56k Q6781 B1ABNF000006 R6700 470 TP102 C6726 16V1u TP64 R6666 100k IC6801 C0DBEMB00005 R6843 62k D6771 B0JCME000037 C6681 25V 4.7u D6810 M1FL20 Q6782 B1ADNF000006 PC6610 B3PBA0000223 1 2 3 4 R6614 11k D6665 MAZ80510LL D6667 MA2J11100L TP58 TP61 IC6721 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC D6701 MAZ80560HL SC43 1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 2 R6707 470 R6711 2.2k C6603 630V 1000p R6690 150 TP54 D6663 MAZ83300ML TP42 PC6801 B3PBA0000223 1 2 3 4 C6796 25V 220u VF_GND R6819 680 C6705 50V 0.1u D6644 B0HCKS000002 R6624 220 R6848 10k Q6641 1% R6852 2.49k C6601 25V 4.7u C6754 35V 56u C6708 50V 0.1u IC6724 C0CBADC00089 C0CBADC00089 C0CBADC00089 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 D6642 B0HCKS000002 VSCN_F R6632 3.9k C6795 25V 220u R6687 2.2k R6631 68k 1% R6812 200k 2W R6620 8.2 2W R6801 8.2 R6668 4.7k Q6644 D6626 B0HDSM000005 D6807 M1FL20 SOS7_SC2 IC6751 INPUT 3 2 COMMON OUTPUT 1 D6806 B0ECHP000003 Q6650 Q6744 2SK062000L G D S R6645 100 R6716 2.2k 1% R6826 220k SC42 1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 2 Q6821 2SD1263AP0LB C6845 50V 0.01u Q6663 B1ABNF000006 R6706 470 1% R6825 270k R6703 470 D6624 B0HDSM000005 C6692 160V 100u C6707 50V 0.1u C6725 25V 4.7u R6671 47 L6801 D6616 MA2J11100L 1% R6836 47k C6772 25V 4.7u C0DAAMH00005 IC6803 1 Drain 2 Source 3 GND 4 Vin 5 OCP/FB R6660 220k D6822 MA2J11100L TP60 1% R6619 1.5k D6843 MA2J11100L D6823 MA2J11100L D6619 B0HCKS000002 D6602 B0ECHP000003 D6732 MAZ80560HL R6820 0 3W R6697 2.2 R6715 2.2k R6718 2.2k 15V R6683 150 5V VSUS D6612 MA2J11100L C6612 25V 1u 1% R6618 12k TP69 R6672 10k C6721 50V 100u IC6802 C0DBEMB00005 C6791 25V 220u D6606 B0HCMM000014 D6604 MA2J11100L R6760 1.2k Q6662 2SD0601A0L R6807 1.2 1/2W C6841 200V 100u D6824 MAZ83300ML R6714 2.2k R6712 2.2k 1% R6835 56k 1% R6828 5.23k C6641 1u 250V Q6842 C6814 25V 220u TP55 D6727 MAZ80560HL C6771 16V 1u C0DBEKA00003 IC6471 1 NC 2 A 3 K 5 A 4 REF 1% R6814 5.6k PC6704 B3PBA0000234 1 2 3 4 5 D6497 MA2J11100L C6812 25V 4.7u D6729 MAZ80560HL C6801 250V 47u D6802 TPSMA10A C6802 630V 0.022u R6775 100 IC6671 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB IC6681 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6831 15k D6826 MA111 Q6672 G D S D6730 MAZ80560HL 15V IC6752 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6713 2.2k C6728 50V 1000p D6607 MA2J11100L 1W R6823 100k R6646 100 R6808 2.7k R6853 100 IC6725 INPUT 3 2 COMMON OUTPUT 1 C6808 1u 250V VSET C6753 25V 4.7u Q6648 R6605 100k R6870 0 R6604 150 C0JBAA000377 IC6774 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y D6728 MAZ80560HL R6747 10k D6478 B0HCKS000002 C6823 50V 0.1u TP44 C0JBAA000377 IC6682 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y TP47 D6804 B0ECHP000003 PC6703 B3PBA0000233 1 2 3 4 5 6 7 8 R6606 0 R6610 100k TP71 1% R6851 1.2k R6888 220k D6808 M1FL20 R6615 11k D6805 MA2J11100L R6674 5.6 TP101 D6723 B0JCME000037 C6822 350V 47u 1W R6658 100 C6806 160V 100u R6664 2.2k R6701 470 R6472 2.2k TP50 R6621 220 C6606 630V 1000p R6887 220k C0JBAB000715 IC6602 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y R6782 10k R6839 4.7k TP46 15V_F SOS7_SC2 IC6722 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC R6686 10k C6805 50V 1000p D6664 MAZ83300ML R6667 4.7k 1/8W 1% R6607 2.87k D6610 MAZ81500ML TP43 R6846 56k C6602 25V 4.7u R6630 11k Q6671 B1DFES000003 B1DFES000003 B1DFES000003 G D S Q6623 R6708 470 D6825 MAZ8330 Q6680 B1ADNF000006 C6804 250V 10u C6691 160V 100u 5V R6891 3.3k PC6760 B3PBA0000223 1 2 3 4 2W R6821 220 Q6679 B1ABNF000006 5V Q6602 2SD0601A0L R6858 1k C0JBAB000715 IC6753 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y L6472 G0ZZ00002183 R6824 5.6k R6721 EXB38V220JV C6620 630V 2200p IC6821 C0DBEMB00005 C6777 50V 0.1u R6675 5.6 R6689 10 SC30 1 2 3 4 5 6 7 8 R6832 4.7 R6705 470 C6701 50V 0.1u R6647 100 R6611 1M VR6600 1k 1 2 3 TP68 5V 1% R6616 15k C6661 630V 1000p D6809 B0HCMM000014 IC6610 C0BBBA000022 1 2 3 4 5 6 7 8 C6755 50V 0.1u SC45 1 2 3 4 5 6 7 8 9 C6803 2kV 220p TP49 C6706 50V 0.1u D6773 B0HCKS000002 C6724 25V 4.7u R6761 10 IC6841 C0DBEMB00005 Q6682 2SK389500L G D S R6829 220k TP67 16V_F N0BF1FB00001 IC6791 1 GND 2 GND 3 N.C. 4 VIN 5 VIN 6 N.C. 9 COM 10 COM 11 VOUT 12 VOUT PC6702 B3PBA0000233 1 2 3 4 5 6 7 8 R6688 4.7k VSET D6661 MA2J11100L C6704 50V 0.1u C6662 630V 1000p 1% R6813 9.1k L6841 J0JJC0000011 TP72 R6722 EXB38V220JV PC6705 B3PBA0000233 1 2 3 4 5 6 7 8 C6604 350V 47u D6803 B0HCKS000002 VR6602 2k 1 2 3 R6809 10k R6685 470 TP65 3W R6696 2.2 TP56 R6473 560 R6724 100 Q6681 2SK389500L G D S R6717 2.2k R6684 10 D6721 B0HCKS000002 Q6622 Q6803 2SD0814ARL R6608 1k R6743 1k D6734 MA2J11100L C6811 50V 0.01u Q6601 B1DFES000003 G D S Q6691 2SK062000L G D S R6723 2.2k D6662 MAZ83300ML TP40 R6702 470 C6815 50V 0.1u 5V R6777 150 TP66 D6641 B0HCKS000002 C6776 50V 0.1u D6686 MA2J11100L C6773 25V 4.7u C6842 160V 100u PC6480 B3PBA0000223 1 2 3 4 R6648 100 SOS7_SC2 D6841 B0HCKS000002 R6746 10k TP62 2W R6804 68k C6605 50V 0.1u D6752 B0JCME000037 TP57 R6745 4.7k Q6621 B1DFKM000001 B1DFKM000001 B1DFKM000001 B1DFKM000001 B1DFKM000001 B1DFKM000001 B1DFKM000001 B1DFKM000001 B1DFKM000001 B1DFKM000001 B1DFKM000001 B1DFKM000001 B1DFKM000001 R6886 220k D6812 B0HCMM000014 1/2W R6842 43k R6806 1.2 1/2W 2W R6803 68k R6710 2.2k C6813 160V 100u C6807 50V 470p R6781 47 D6724 B0JCME000037 1% R6837 47k SC41 1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 2 R6617 220k 1% R6816 5.6k R6755 100 R6665 47 D6859 B0ECHP000003 2W R6860 8.2 R6474 1k D6605 MAZ80510LL IC6772 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB D6702 MAZ80560HL D6726 MAZ80560HL R6742 10k C6702 50V 0.1u D6643 B0JCME000037 TP48 1% R6849 68k R6762 10k 1% R6817 5.6k C6610 50V 0.01u 1/2W R6822 100k 2W R6802 68k C6727 16V 1u Q6645 TP41 C6683 50V 0.1u D6860 B0HCKS000002 R6643 100 Q6743 2SD0601A0L R6650 100 D6761 MA2J11100L R6633 4.7k R6744 10k D6842 MA2J11100L 1% R6662 2.7k Q6643 TPVAD TPVSCN INIT-F VSET:240V TPVSET TPSC1 AB_FSIU AB_FCLU AB_FCLKU AB_PROU AB_FSID AB_FCLD AB_FCLKD INIT-F AB_PROD TPVSET2 - + - + TO SU-BOARD (SU45) TO SD-BOARD (SD46) TO SU-BOARD (SU41) TO SU-BOARD (SU42) TO SD-BOARD (SD43) TO SD-BOARD (SD44) 12 17 10 16 15 13 14 11 18 4 1 5 3 2 FET DRIVER FET DRIVER FET DRIVER FET DRIVER BUFFER BUFFER COMPARATOR FET DRIVER DC/DC CONV. POWER OSC VSCN Gen. VAD Gen. * m * * * * * * TH-50PZ700C SC-Board (2 of 2) Schematic Diagram TH-50PZ700C SC-Board (2 of 2) Schematic Diagram SC-BOARD (2/2) TNPA3992 ! 136 15.66.SU 和 SD 电路板方框图 40 SU2 CL FSIU 108 VDD S/P GND CL TO SC45 PROU CLK CLK 108 SU4 64bit 64bit SD4 64bit SO SO Vf IC6920 IC6911 CL VDD PRO VDDH 20 108 CLK LINE PRO 64bit LINE 64bit PRO IC6902 20 Vf SI S/P GND VDDH CL LINE 64bit S/P Vf+5V B53 A33 IC6905 CL CL GND Vf+5V VDD 64bit 64bit CLK C5 SU CL 108 VDDH SO B41 SC43 A34 A13 CLK C80 S/P Vf CL 108 SD43 B80 B40 B28 B8 A1 A31 SD44 D31 48 VDDH 16 BUFFER C41 16 Vf+5V 64 3 VDD SU42 B35 D40 VDD B10 44 S/P 9 SD5 108 VDDH A1 S/P A34 SI Vfo C47 A40 IC6916 A6 VDDH B51 28 B11 Vf SO GND IC6913 IC6903 D69 BUFFER PRO D68 D41 LINE SU5 Vscn CLK A1 A1 B40 CLK B50 A41 B10 SO 24 PRO SC41 C1 PRO SO SI S/P VDD SI IC6904 Vf A74 64bit 64 CL GND FCLU C48 D60 SO Vf 64 PRO C45 GND CLK IC6917 Vf 48 ELECTRODES A35 CL 64 B1 GND VDDH VDD SCAN Vf 8 SD GND IC6915 VDD B1 PRO PRO Vscn LINE Vf Vf A40 A7 A76 VDDH Vfo SD2 B1 CL 5 64bit VDDH B33 S/P VDDH 64bit CLK SO PRO GND PRO D80 S/P Vf+5V SD1 IC6909 SO SI VDD CL GND 108 SI 60 VDD 3 CL VDDH Vf+5V S/P SC44 TO SC43 TO SC44 A40 B31 B52 B1 IC6918 SI 108 4 CLK SI 7 VDD S/P SO IC6906 VDD GND C8 45 5 A30 B40 Vf+5V D70 64bit FCLKU 64bit VDDH C6 B36 CLK B5 A73 B40 FCLU PRO VDDH S/P Vscn Vf+5V CL SI CL IC6901 64bit Vf+5V 9 D1 A75 Vf+5V A1 Vf C40 A36 S/P A80 108 7 A29 CLK GND A7 540LINE LINE VDD VDDH GND 64bit A11 SO PRO A40 A35 PRO 40 FCLU 24 64bit IC6908 VDD 46 SI B13 IC6910 B12 CL CL A28 SC42 TO SC41 TO SC42 GND CLK IC6919 PRO A33 CLK SO CL VDDH CLK B12 GND Vscn SI SO 64 S/P FSIU VDDH A10 SU41 FSIU SI 4 SO 108 Vfo B7 B11 B31 SI S/P B34 CLK IC6912 PRO 1 VDDH Vfo S/P Vf+5V IC6914 SI B30 A36 B6 C46 B1 LINE PROU TO SC46 1 IC6907 VDD PROU C7 CL SO SO SU3 SI CLK 44 B13 SU1 A40 Vf A5 GND SI 60 FCLKU GND D29 CLK A12 LINE CLK LINE S/P VDD VDDH GND VDD SI 64bit VDD D28 64 64 SO FCLKU LINE 28 PRO PRO D71 8 64 B40 PRO 64bit S/P SD3 (DOWN) SCAN OUT SD (UP) SCAN OUT SU PANEL (LOWER) 540LINE (UPPER) SCAN PANEL ELECTRODES TH-50PZ700C SU and SD-Board Block Diagram TH-50PZ700C SU and SD-Board Block Diagram 137 15.67.SU 电路板 (1/3) 线路图 TERM SIDE TERM SIDE AB515 AB516 AB517 AB518 AB519 AB520 AB521 AB522 AB523 AB524 AB525 AB526 AB527 AB528 AB529 AB530 AB531 AB532 AB533 AB534 AB535 AB536 AB537 AB539 AB538 AB540 AC510 AC509 AC508 AC507 AC506 AC505 AC504 AC503 AC502 AC501 AC500 AC499 AC498 AC497 AC496 AC495 AC494 AC493 AC492 AC491 AC490 AC489 AC488 AC486 AC487 AC485 AC483 AC484 AD387 AD388 AD389 AD390 AD391 AD392 AD393 AD394 AD395 AD396 AD397 AD398 AD399 AD400 AD401 AD402 AD403 AD404 AD405 AD406 AD407 AD408 AD409 AD411 AD410 AD412 AD414 AD413 AB513 AB514 AC511 AC512 AD386 AD385 AC449 AC450 AC451 AC452 AC453 AC454 AC455 AC456 AC457 AC458 AC459 AC460 AC461 AC462 AC463 AC464 AC465 AC466 AC467 AC468 AC469 AC470 AC471 AC472 AC473 AC474 AC475 AC476 AC477 AC478 AC479 AC480 AC482 AC481 AD448 AD447 AD446 AD445 AD444 AD443 AD442 AD441 AD440 AD439 AD438 AD437 AD436 AD435 AD434 AD433 AD432 AD431 AD430 AD429 AD428 AD427 AD426 AD425 AD423 AD424 AD422 AD421 AD420 AD419 AD418 AD417 AD415 AD416 AA_SI8 AA_SI7 AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_SI8 AA_SI9 AA_SI9 AA_SI1 AA_PRO AA_CL AA_CLK AE326 AD421 AD432 AE367 AE380 AD419 AD430 AE365 AE378 AD417 AD428 AE363 AE376 AD415 AD426 AE361 AE374 AD413 AD424 AE359 AE372 AD411 AD422 AE357 AD431 AE370 AD409 AD420 AE355 AD429 AE368 AD407 AD418 AE353 AE366 AD405 AD416 AE351 AE364 AD403 AD414 AE349 AE362 AD401 AD412 AE347 AE360 AD399 AD410 AE345 AE358 AD397 AD408 AE343 AE356 AD395 AD406 AE341 AE354 AD393 AD404 AE339 AE352 AD391 AD402 AE337 AE350 AD389 AD400 AE335 AE348 AD387 AD398 AE333 AE346 AD385 AD396 AE331 AE342 AE383 AD394 AE329 AE340 AE381 AD392 AE327 AE338 AE379 AD390 AE325 AE336 AE377 AD388 AE334 AE375 AD386 AE332 AD427 AE373 AE344 AE330 AD425 AE371 AE384 AE328 AD423 AE369 AE382 AB530 AB531 AC469 AC480 AD441 AB528 AB529 AC467 AC478 AD439 AB526 AB527 AC465 AC476 AD437 AB524 AB525 AC463 AC474 AD435 AB522 AB523 AC461 AC472 AD433 AB520 AB521 AC459 AC470 AB518 AC511 AB519 AC457 AC468 AB516 AC509 AB517 AC455 AC466 AB514 AC507 AB515 AC453 AC464 AC505 AB513 AC451 AC462 AC503 AC449 AC460 AC501 AC512 AC458 AC499 AC510 AC456 AC497 AC508 AC454 AC495 AC506 AC452 AC493 AC504 AC450 AC491 AC502 AC489 AC500 AC487 AC498 AC485 AC496 AD448 AC483 AC494 AD446 AC481 AC492 AD444 AC479 AC490 AB540 AD442 AB538 AB539 AC477 AC488 AD440 AB536 AB537 AC475 AC486 AD438 AD447 AB534 AB535 AC473 AC484 AD436 AD445 AB532 AB533 AC471 AC482 AD434 AD443 D6903 B0HDRP000002 DE5LC20U C6909 16V 1u SU5 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 AN16072A-VT IC6907 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6951 EXB38V220JV C6908 16V 1u C6968 50V 0.1u TP6 R6907 220 SU45 1 2 3 4 5 6 7 8 9 AN16072A-VT IC6909 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6961 50V 1000p C6907 16V 1u C6929 50V 220p R6960 EXB38V103JV IC6919 C0JBAA000174 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 Vcc C6928 50V 220p AN16072A-VT IC6908 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D6909 B0HDRP000002 DE5LC20U TP5 C6927 50V 220p R6955 EXB38V220JV R6909 220 SU4 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 R6908 220 Vf5 AND GATE PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER ! SU-BOARD TNPA3990 (1/3) 4 6 1 5 3 2 A 5 F 1 2 C 4 D 7 8 3 9 6 E B To 4th 108pins of SCAN ELECTRODES To 5th 108pins of SCAN ELECTRODES < < TH-50PZ700C SU-Board (1 of 3) Schematic Diagram TH-50PZ700C SU-Board (1 of 3) Schematic Diagram 138 15.68.SU 电路板 (2/3) 线路图 TERM SIDE TERM SIDE AE382 AE381 AE380 AE379 AE378 AE377 AE376 AE375 AE374 AE373 AE372 AE371 AE370 AE369 AE368 AE367 AE366 AE365 AE364 AE363 AE362 AE361 AE360 AE358 AE359 AE357 AE355 AE356 AF259 AF260 AF261 AF262 AF263 AF264 AF265 AF266 AF267 AF268 AF269 AF270 AF271 AF272 AF273 AF274 AF275 AF276 AF277 AF278 AF279 AF280 AF281 AF283 AF282 AF284 AF286 AF285 AG254 AG253 AG252 AG251 AG250 AG249 AG248 AG247 AG246 AG245 AG244 AG243 AG242 AG241 AG240 AG239 AG238 AG237 AG236 AG235 AG234 AG233 AG232 AG230 AG231 AG229 AG227 AG228 AE384 AE383 AF258 AF257 AG256 AG255 AE321 AE322 AE323 AE324 AE325 AE326 AE327 AE328 AE329 AE330 AE331 AE332 AE333 AE334 AE335 AE336 AE337 AE338 AE339 AE340 AE341 AE342 AE343 AE344 AE345 AE346 AE347 AE348 AE349 AE350 AE351 AE352 AE354 AE353 AF320 AF319 AF318 AF317 AF316 AF315 AF314 AF313 AF312 AF311 AF310 AF309 AF308 AF307 AF306 AF305 AF304 AF303 AF302 AF301 AF300 AF299 AF298 AF297 AF296 AF295 AF294 AF293 AF292 AF291 AF290 AF289 AF287 AF288 AG193 AG194 AG195 AG196 AG197 AG198 AG199 AG200 AG201 AG202 AG203 AG204 AG205 AG206 AG207 AG208 AG209 AG210 AG211 AG212 AG213 AG214 AG215 AG216 AG217 AG218 AG219 AG220 AG221 AG222 AG223 AG224 AG226 AG225 AA_SI5 AA_SI6 AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AH162 AH185 AH163 AH186 AH164 AH187 AH134 AH165 AH188 AH133 AH166 AH189 AH132 AH167 AH190 AH131 AH144 AH168 AH191 AH143 AH169 AH192 AH142 AH170 AH157 AH141 AH171 AH158 AH140 AH172 AH156 AH139 AH173 AH154 AH138 AH174 AH155 AH175 AH137 AH153 AH176 AH136 AH152 AH177 AH135 AH151 AH178 AH150 AH179 AH149 AH130 AH180 AH148 AH129 AH181 AH147 AH160 AH182 AH146 AH159 AH183 AH145 AH161 AH184 AA_CLK AA_CL AA_PRO AA_SI3 AA_SI4 AA_SI4 AA_SI5 AA_SI6 AA_SI7 AH164 AH173 AI118 AI127 AG202 AG211 AH162 AH171 AI116 AI125 AG200 AG209 AH160 AH169 AI114 AI123 AG198 AG207 AH158 AH167 AI112 AI121 AG196 AG205 AH156 AH165 AI110 AI119 AG194 AG203 AH154 AH163 AI117 AG201 AH152 AH161 AI115 AG199 AH150 AH159 AI113 AG197 AH148 AH157 AI111 AG195 AH146 AH155 AI109 AG193 AH144 AH153 AH142 AH151 AH140 AH149 AH192 AH138 AH147 AH190 AH136 AH145 AH188 AH134 AH143 AH186 AH132 AH141 AH184 AH130 AH139 AH182 AH191 AH137 AH180 AH189 AH135 AH178 AH187 AH133 AG216 AH176 AH185 AH131 AG214 AH174 AH183 AH129 AI128 AG212 AH172 AH181 AI126 AG210 AH170 AH179 AI124 AG208 AH168 AH177 AI122 AG206 AG215 AH166 AH175 AI120 AG204 AG213 AF300 AF309 AG256 AE324 AF298 AF307 AG254 AE322 AF296 AF305 AG252 AF294 AF303 AG250 AF292 AF301 AG248 AF290 AF299 AG246 AG255 AF288 AF297 AG244 AG253 AF286 AF295 AG242 AG251 AF284 AF293 AG240 AG249 AF282 AF291 AG238 AG247 AF280 AF289 AG236 AG245 AF278 AF287 AG234 AG243 AF276 AF285 AG232 AG241 AF274 AF283 AG230 AG239 AF272 AF281 AG228 AG237 AF270 AF279 AG226 AG235 AF268 AF277 AG224 AG233 AF320 AF266 AF275 AG222 AG231 AF318 AF264 AF273 AG220 AG229 AF316 AF262 AF271 AG218 AG227 AF314 AF260 AF269 AG225 AF312 AF258 AF267 AG223 AF310 AF319 AF265 AE323 AG221 AF308 AF317 AF263 AE321 AG219 AF306 AF315 AF261 AG217 AF304 AF313 AF259 AF302 AF311 AF257 C6923 50V 220p R6904 220 D30 D17 D12 D14 D25 C6982 250V 1u R6938 220k D38 AN16072A-VT IC6904 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D15 D79 TP4 D64 D6 D49 D53 D72 D77 D40 C6904 16V 1u R6906 220 D8 D1 D48 D2 D80 D61 D44 C6924 50V 220p D5 C6965 250V 1u D10 D76 D58 D51 D20 D31 D21 D69 R6939 220k D42 D3 D36 D18 R6905 220 D52 D13 D66 D19 D63 D34 SU3 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 D78 D24 D62 D7 C6925 50V 220p D37 D16 D46 AN16072A-VT IC6903 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D57 D27 D45 D75 TP3 C6906 16V 1u D71 D47 D33 D50 D67 D23 D26 D43 D55 D39 D9 D11 D32 AN16072A-VT IC6905 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D68 D22 D60 D29 AN16072A-VT IC6906 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SU2 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 D4 D54 C6926 50V 220p D73 D74 R6903 220 C6903 16V 1u D6904 B0HDRP000002 C6905 16V 1u D70 D28 D59 C6964 250V 1u D41 D35 D56 D65 Vscn Vf Vfo PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER 4 3 5 6 1 2 11 12 17 16 14 15 13 TO SC-BOARD (SC42) 18 17 13 15 11 16 10 12 14 Vfo Vscn SCAN ELECTRODES To 2nd 108pins of To 3rd 108pins of SCAN ELECTRODES < < TH-50PZ700C SU-Board (2 of 3) Schematic Diagram TH-50PZ700C SU-Board (2 of 3) Schematic Diagram ! SU-BOARD TNPA3990 (2/3) 139 15.69.SU 电路板 (3/3) 线路图 TERM SIDE AI95 AI72 AI94 AI71 AI93 AI70 AI123 AI92 AI69 AI124 AI91 AI68 AI125 AI90 AI67 AI126 AI113 AI89 AI66 AI114 AI88 AI65 AI115 AI87 AI100 AI116 AI86 AI99 AI117 AI85 AI101 AI118 AI84 AI103 AI119 AI83 AI102 AI82 AI120 AI104 AI81 AI121 AI105 AI80 AI122 AI106 AI79 AI107 AI78 AI108 AI127 AI77 AI109 AI128 AI76 AI110 AI97 AI75 AI111 AI98 AI74 AI112 AI96 AI73 AJ6 AJ5 AJ4 AJ3 AJ16 AJ15 AJ14 AJ13 AJ12 AJ28 AJ11 AJ26 AJ10 AJ27 AJ9 AJ25 AJ8 AJ24 AJ7 AJ23 AJ22 AJ21 AJ2 AJ20 AJ1 AJ19 AJ18 AJ17 AA_CLK AA_CLK AA_CL AA_CL AA_PRO AA_SI1 AA_PRO AA_SI2 AA_SI2 AA_SI3 AJ29 AJ30 AJ31 AJ32 AJ33 AJ34 AJ35 AJ36 AJ37 AJ38 AJ39 AJ40 AJ41 AJ42 AJ43 AJ44 AJ45 AJ46 AJ47 AJ48 AJ49 AJ50 AJ51 AJ52 AJ53 AJ54 AJ55 AJ56 AJ57 AJ58 AJ59 AJ60 AJ61 AJ62 AJ63 AJ64 AA_CL AA_CLK AA_PRO AA_SI1 AJ51 AI71 AJ49 AI69 AJ47 AI67 AJ45 AI65 AJ43 AJ64 AJ41 AJ62 AJ39 AI106 AJ33 AJ60 AJ37 AI104 AJ24 AJ31 AJ58 AJ35 AI102 AJ22 AJ29 AJ7 AJ56 AI100 AJ20 AJ5 AJ27 AJ54 AI98 AI105 AJ18 AJ3 AJ25 AJ52 AI96 AI103 AJ16 AJ32 AJ23 AJ50 AI94 AI101 AJ14 AJ30 AJ21 AJ48 AI92 AI99 AJ12 AJ1 AJ28 AJ19 AJ46 AI90 AI97 AJ10 AJ26 AJ17 AJ44 AI88 AI95 AJ8 AJ15 AJ42 AI86 AI93 AJ6 AJ13 AJ40 AI84 AI91 AJ4 AJ11 AJ38 AI82 AI89 AJ2 AJ9 AJ36 AI80 AI87 AJ34 AI78 AI85 AJ63 AI107 AI76 AI83 AJ61 AI74 AI81 AJ59 AI72 AI79 AJ57 AI70 AI77 AJ55 AI68 AI75 AJ53 AI66 AI73 AI108 C6981 250V 1u C55 C58 C35 D6901 MAZ80560HL C73 R6902 220 C14 C38 C6902 16V 1u C72 C68 C6 C18 C52 C48 C57 C33 C44 C32 C71 C7 C42 C3 AN16072A-VT IC6902 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 TP1 C70 TP2 C56 C16 D6910 B0HDRP000002 C17 C24 C79 C22 C23 C39 C12 C75 C65 C64 C28 C34 C61 C11 C77 C51 C8 C47 C40 C50 C43 C25 C80 C78 C31 C37 R6901 100 C1 C36 C29 C30 AN16072A-VT IC6901 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C41 C49 C21 C66 C74 C27 C6922 50V 220p R6934 EXB38V103JV C9 C6901 16V 1u C69 C13 C4 C60 C62 C20 C63 D6902 MAZ80560HL C26 C45 SU1 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 C6921 50V 1000p C76 C54 C67 C53 C15 C5 C59 C46 C10 C19 C2 VF5V VF5V PDP SCAN DRIVER PDP SCAN DRIVER 14 15 16 17 11 12 13 TO SC-BOARD (SC41) 21 22 24 23 25 27 26 20 19 To 1st 108pins of SCAN ELECTRODES < TH-50PZ700C SU-Board (3 of 3) Schematic Diagram TH-50PZ700C SU-Board (3 of 3) Schematic Diagram ! SU-BOARD TNPA3990 (3/3) 140 15.70.SD 电路板 (1/3) 线路图 TERM SIDE TERM SIDE AD941 AD892 AD907 AD917 AD906 AA_PRO AD890 AD918 AD905 AD889 AD916 AD904 AD919 AD927 AD914 AD903 AD920 AD928 AD923 AD915 AD902 AA_SI16 AD921 AD929 AD924 AD913 AD901 AD922 AD930 AD925 AD900 AD931 AA_CL AD926 AD899 AA_CLK AD898 AD951 AD942 AD897 AD943 AD947 AD944 AD912 AD948 AD932 AD945 AD911 AD949 AD933 AD946 AD910 AD950 AD934 AD909 AD935 AD952 AD952 AD908 AD936 AD937 AD896 AD938 AD895 AD939 AD894 AD940 AD891 AD893 AC964 AC1013 AC998 AC988 AC999 AA_PRO AC1015 AC987 AC1000 AC1016 AC989 AC1001 AC986 AC978 AC991 AC1002 AC985 AC977 AC982 AC990 AC1003 AC984 AC976 AC981 AC992 AC1004 AC983 AC975 AC980 AC1005 AC974 AA_CL AC979 AC1006 AA_CLK AC1007 AC954 AC963 AC1008 AC962 AC958 AC961 AC993 AC957 AC973 AC960 AC994 AC956 AC972 AC959 AC995 AC955 AC971 AC996 AC970 AC953 AC953 AC997 AC969 AC968 AC1009 AC967 AC1010 AC966 AC1011 AC965 AC1014 AC1012 AB1069 AA_PRO AB1055 AB1056 AA_SI18 AB1057 AB1058 AB1053 AB1059 AA_CL AB1054 AA_CLK AB1079 AB1070 AB1071 AB1075 AB1072 AB1076 AB1060 AB1073 AB1077 AB1061 AB1074 AB1078 AB1062 AB1063 AB1080 AB1064 AB1065 AB1066 AB1067 AB1068 AA_SI15 AA_SI17 AA_SI17 AA_SI16 AB1052 AB1051 AB1050 AB1049 AB1048 AB1047 AB1046 AB1045 AB1044 AB1043 AB1042 AB1041 AB1040 AB1039 AB1038 AB1037 AB1036 AB1035 AB1034 AB1033 AB1032 AB1031 AB1030 AB1029 AB1028 AB1027 AB1026 AB1025 AB1024 AB1023 AB1022 AB1021 AB1020 AB1019 AB1018 AB1017 AA_CL AA_PRO AA_CLK AA_SI18 AB1066 AB1027 AB1045 AB1068 AB1021 AB1029 AC1005 AB1033 AB1070 AB1031 AC989 AC1007 AB1061 AB1072 AB1035 AC988 AB1063 AB1052 AC1002 AC991 AC1009 AB1037 AC990 AB1065 AB1054 AC1011 AC1004 AC993 AB1039 AB1074 AB1030 AC992 AB1067 AB1046 AB1056 AC1006 AC995 AB1076 AB1032 AC994 AB1048 AB1058 AC1008 AB1078 AC980 AB1034 AB1077 AB1060 AB1050 AB1080 AC997 AC982 AB1036 AC973 AB1079 AB1062 AC999 AC984 AC975 AB1018 AB1064 AB1069 AC1001 AC986 AC977 AB1020 AB1071 AB1022 AC1003 AC979 AB1073 AB1024 AC1010 AB1075 AB1026 AC1012 AB1038 AB1028 AC996 AC1014 AB1040 AC974 AC998 AC1016 AB1042 AC976 AC1000 AB1044 AC978 AB1047 AB1055 AC981 AB1049 AB1057 AC983 AB1051 AB1059 AC985 AB1053 AC987 AC1013 AC1015 AB1041 AB1017 AB1023 AB1025 AB1043 AB1019 AD934 AD924 AC971 AD893 AD936 AD926 AD895 AD938 AD928 AD897 AD933 AD930 AE878 AD902 AD899 AD935 AE866 AE880 AD904 AD901 AC958 AD937 AE868 AE872 AE882 AD906 AC960 AD939 AE870 AE874 AE884 AD908 AC962 AE876 AE886 AE873 AE875 AE877 AD909 AD911 AD894 AD941 AE879 AD913 AD925 AD896 AE881 AD943 AD916 AD915 AD927 AD898 AE883 AD945 AD918 AC972 AD929 AD900 AC959 AE885 AD947 AD920 AD940 AD931 AC961 AE887 AD922 AD942 AC963 AD917 AD944 AC965 AD919 AD903 AE888 AD921 AD905 AD889 AE865 AD923 AD907 AD891 AE867 AE869 AD946 AC964 AD948 AD910 AE871 AC966 AD950 AD912 AC953 AD949 AC968 AD952 AD914 AC955 AD951 AC970 AC957 AD890 AC967 AD892 AC954 AD932 AC969 AC956 A78 A47 A15 C6937 50V 220p A48 A51 A68 A74 A44 A77 A56 R6944 EXB38V103JV A12 A28 A72 AN16072A-VT IC6916 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16072A-VT IC6917 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A11 A1 A22 A59 D6906 MAZ80560HL A24 A57 A60 A80 A4 D6911 B0HDRP000002 DE5LC20U C6917 16V 1u C6918 16V 1u C6983 250V 1u A33 A30 AN16072A-VT IC6918 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A32 A2 A70 C6936 50V 220p A35 A43 A25 A66 A5 R6916 220 A41 A34 A20 A76 A50 A79 A52 A3 A49 A45 A53 A63 A14 A31 A23 C6938 50V 1000p A54 A64 A9 A7 R6918 100 A17 A36 A71 A75 A39 A46 A69 A18 A10 C6916 16V 1u A29 A8 D6908 B0HDRP000002 DE5LC20U SD2 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 A16 TP7 SD1 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 A42 R6917 220 A26 A40 A58 A13 TP8 A6 A27 A38 A61 R6948 220k A67 A37 A19 A21 D6905 MAZ80560HL A55 A62 A65 A73 PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER 4 6 7 1 5 3 2 A 5 F 1 2 C 4 D 7 8 3 9 6 E B Vf VF5V SCAN ELECTRODES To 2nd 108pins of To 1st 108pins of SCAN ELECTRODES TO SC-BOARD (SC43) < < TH-50PZ700C SD-Board (1 of 3) Schematic Diagram TH-50PZ700C SD-Board (1 of 3) Schematic Diagram ! SD-BOARD TNPA3991 (1/3) 141 15.71.SD 电路板 (2/3) 线路图 TERM SIDE TERM SIDE AE886 AE885 AE884 AE883 AE882 AE881 AE880 AE879 AE878 AE877 AE876 AE875 AE874 AE873 AE872 AE871 AE870 AE869 AE868 AE867 AE866 AE865 AE864 AE862 AE863 AE861 AE859 AE860 AF763 AF764 AF765 AF766 AF767 AF768 AF769 AF770 AF771 AF772 AF773 AF774 AF775 AF776 AF777 AF778 AF779 AF780 AF781 AF782 AF783 AF784 AF785 AF787 AF786 AF788 AF790 AF789 AG758 AG757 AG756 AG755 AG754 AG753 AG752 AG751 AG750 AG749 AG748 AG747 AG746 AG745 AG744 AG743 AG742 AG741 AG740 AG739 AG738 AG737 AG736 AG734 AG735 AG733 AG731 AE888 AE887 AF761 AF762 AG760 AG759 AE825 AE825 AE827 AE828 AE829 AE830 AE831 AE832 AE833 AE834 AE835 AE836 AE837 AE838 AE839 AE840 AE841 AE842 AE843 AE844 AE845 AE846 AE847 AE848 AE849 AE850 AE826 AE851 AE852 AE853 AE854 AE855 AE856 AE857 AE858 AF824 AF823 AF822 AF821 AF820 AF819 AF818 AF817 AF816 AF815 AF814 AF813 AF812 AF811 AF810 AF809 AF808 AF807 AF806 AF805 AF804 AF803 AF802 AF801 AF800 AF799 AF798 AF797 AF796 AF795 AF794 AF793 AF792 AF791 AG697 AG698 AG699 AG700 AG701 AG702 AG703 AG704 AG705 AG706 AG707 AG708 AG709 AG710 AG711 AG712 AG713 AG714 AG715 AG716 AG717 AG718 AG719 AG720 AG721 AG722 AG723 AG724 AG725 AG726 AG727 AG728 AG730 AG729 AG732 AA_SI15 AA_PRO AA_CL AA_CLK AA_SI14 AA_SI14 AA_CLK AA_CL AA_PRO AA_SI13 AA_SI12 AA_CLK AA_CL AA_PRO AA_SI13 AE830 AF800 AE853 AE832 AF802 AE855 AE834 AF804 AE857 AE836 AF806 AE859 AE838 AF808 AE861 AE840 AF810 AF779 AF793 AE842 AF812 AF781 AF795 AG758 AE844 AF814 AF783 AF797 AG760 AE846 AF762 AF816 AF785 AF799 AE848 AF764 AF818 AF787 AF801 AE850 AF766 AF820 AF789 AF803 AE852 AF768 AF822 AF791 AF805 AE863 AE854 AF770 AF824 AF807 AE856 AF772 AE825 AF809 AE858 AF774 AE827 AF811 AE860 AF776 AE829 AF813 AE862 AF778 AE831 AF761 AF815 AE864 AF780 AE833 AF763 AF817 AF782 AE835 AF765 AF819 AF784 AE837 AF767 AF821 AF786 AE839 AF769 AF823 AF788 AE841 AF771 AG757 AF790 AE843 AF773 AG759 AF792 AE845 AF775 AF794 AE847 AF777 AE826 AF796 AE849 AE828 AF798 AE851 AG704 AH686 AG746 AG715 AG706 AH688 AG748 AG717 AG708 AH649 AH690 AG750 AG719 AG710 AH651 AH692 AG752 AG721 AG712 AH653 AH694 AG754 AG723 AG714 AH655 AH696 AG756 AG725 AG716 AH657 AG727 AG718 AH659 AG729 AG720 AH661 AG731 AG722 AH663 AH650 AG733 AG724 AH665 AH652 AG735 AG726 AH667 AH654 AG737 AG728 AH669 AH656 AG739 AG730 AH671 AH658 AG741 AG732 AH673 AH660 AG743 AG734 AH675 AH662 AG745 AG736 AH677 AH664 AG747 AG738 AH679 AH666 AG749 AG740 AH681 AH668 AG697 AG751 AH683 AH670 AG699 AG753 AH685 AH672 AG701 AG755 AH687 AH674 AG703 AH689 AH676 AG705 AH691 AH678 AG707 AG698 AH693 AH680 AG709 AG700 AH695 AH682 AG742 AG711 AG702 AH684 AG744 AG713 140V C6975 250V 1u B8 B10 B73 B53 B56 B3 TP9 B58 B29 B68 B41 R6914 220 B52 C6984 250V 1u B34 B79 B25 B48 B13 B26 B7 C6914 16V 1u SD3 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 B19 B63 B1 B69 D6907 B0HDRP000002 DE5LC20U B45 B39 B2 B27 B71 B24 C6934 50V 220p B11 B30 B32 B57 B35 B38 R6915 220 SD4 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 B80 B9 B64 B6 B37 B4 B36 B22 B44 B20 C6915 16V 1u C6935 50V 220p B75 B54 B77 AN16072A-VT IC6915 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 B65 B18 C6913 16V 1u B42 C6974 250V 1u B47 B21 C6933 50V 220p B61 B72 B50 B33 B16 B59 B46 B62 B67 B70 B14 B17 B51 B40 B15 B23 B66 B60 B49 B5 B12 AN16072A-VT IC6913 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 TP10 B28 B74 AN16072A-VT IC6914 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 B76 B55 B43 B31 R6913 220 B78 PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER 11 12 16 14 15 13 7 4 6 5 3 1 2 18 17 13 15 11 16 10 12 14 Vscn Vfo Vf To 3rd 108pins of SCAN ELECTRODES To 4th 108pins of SCAN ELECTRODES TO SC-BOARD (SC44) < < TH-50PZ700C SD-Board (2 of 3) Schematic Diagram TH-50PZ700C SD-Board (2 of 3) Schematic Diagram ! SD-BOARD TNPA3991 (2/3) 142 15.72.SD 电路板 (3/3) 线路图 TERM SIDE AH635 AH636 AH637 AH638 AH639 AH640 AH641 AH642 AH643 AH644 AH645 AH646 AH647 AH648 AH649 AH650 AH651 AH652 AH653 AH654 AH655 AH656 AH657 AH659 AH658 AH660 AH662 AH661 AI630 AI629 AI628 AI627 AI626 AI625 AI624 AI623 AI622 AI621 AI620 AI619 AI618 AI617 AI616 AI615 AI614 AI613 AI612 AI611 AI610 AI609 AI608 AI606 AI607 AI605 AI603 AI604 AH633 AH634 AI632 AI631 AH695 AH696 AH693 AH692 AH691 AH690 AH689 AH688 AH687 AH686 AH685 AH684 AH683 AH682 AH681 AH680 AH679 AH678 AH677 AH676 AH675 AH674 AH673 AH672 AH671 AH694 AH670 AH669 AH668 AH667 AH666 AH665 AH663 AH664 AI569 AI570 AI571 AI572 AI573 AI574 AI575 AI576 AI577 AI578 AI579 AI580 AI581 AI582 AI583 AI584 AI585 AI586 AI587 AI588 AI589 AI590 AI591 AI592 AI593 AI594 AI595 AI596 AI597 AI598 AI599 AI600 AI601 AI602 AJ568 AJ567 AJ566 AJ565 AJ564 AJ563 AJ562 AJ561 AJ560 AJ559 AJ558 AJ557 AJ556 AJ555 AJ554 AJ553 AJ552 AJ551 AJ550 AJ549 AJ548 AJ547 AJ546 AJ545 AJ544 AJ543 AJ542 AJ541 AA_SI11 AA_SI12 AA_SI11 AA_SI10 AA_CLK AA_CL AA_PRO AA_CLK AA_CLK AA_CL AA_PRO AA_PRO AA_CL AA_SI10 AA_SI18 AA_PRO AA_CL AA_CLK AH645 AI603 AI594 AJ562 AH647 AI605 AI596 AH646 AJ564 AI607 AI598 AH634 AJ566 AI609 AI600 AH636 AJ541 AJ568 AI611 AI602 AH638 AJ543 AI613 AI604 AH640 AJ545 AI615 AI606 AH642 AJ547 AI617 AI608 AH644 AJ549 AI619 AI610 AH648 AJ551 AI621 AI612 AJ553 AI569 AI623 AI614 AJ555 AI571 AI625 AI616 AJ557 AI573 AI627 AI618 AJ559 AI575 AI629 AI620 AJ561 AI577 AI631 AI622 AJ563 AI579 AI570 AI624 AJ565 AI581 AI572 AI626 AJ567 AI583 AI574 AI628 AJ542 AI585 AI576 AI630 AJ544 AI587 AI578 AI632 AJ546 AI589 AI580 AJ548 AH633 AI591 AI582 AJ550 AH635 AI593 AI584 AJ552 AH637 AI595 AI586 AJ554 AH639 AI597 AI588 AJ556 AH641 AI599 AI590 AJ558 AH643 AI601 AI592 AJ560 R6972 EXB38V103JV SD5 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 C6932 50V 220p R6968 EXB38V220JV C6931 50V 220p AN16072A-VT IC6910 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6978 50V 0.1u R6910 220 R6949 220k R6964 EXB38V220JV TP12 C6910 16V 1u R6911 220 D6912 B0HDRP000002 C6911 16V 1u TP11 AN16072A-VT IC6911 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6930 50V 220p R6912 220 AN16072A-VT IC6912 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6971 50V 1000p C6912 16V 1u IC6920 C0JBAA000174 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 Vcc SD46 1 2 3 4 5 6 7 8 9 AND GATE PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER 12 15 13 11 14 16 21 22 24 23 25 27 26 20 19 To 5th 108pins of SCAN ELECTRODES < TH-50PZ700C SD-Board (3 of 3) Schematic Diagram TH-50PZ700C SD-Board (3 of 3) Schematic Diagram ! SD-BOARD TNPA3991 (3/3) 143 15.73.SS 电路板方框图 REF K A REF K A PUSH R6031 R6033 IC6281 D6113 D6112 TPSS1 D6221 D6251 R6020 D6255 D6252 R6034 IC6221 R6032 SW2500 D6253 VR6000 1 2 3 UEH Ve Gen. HO D6081- D6083 TPVDA Ve2 Gen.(+5V) Vda+75V 4 USL UEL USL Q6281, Q6282 IC6211 Vda+75V COMPARATOR SS Ve OUT 3 LED(G) LIN 3 UEL Vda+75V 5 Vda+75V PANEL 6 7 IN P+15V P+15V 3 SS51 SS_SOS8 Vda+75V P12 BUFFER ELECTRODE FET 1 Ve2 CONTROL Q6171, Q6172 10 OUTPUT P+15V Vsus Gen. Q6146-Q6149 34 UMH IC6251 SS 3 FET Ve2 OUT 6 FET SS54 USH Q6115 VE USH HIN SS52 C35 LO 3 UEH POWER SW L6011-L6014 Q6141-Q6144 Q6111 UML 9 HO Ve CONTROL LO Q6181, Q6031 UML TP15V CONTROL HIN IC6131 SUSTAIN Q6251 Q6110- Q6113 4 Q6002-Q6005 2 Vda+75V 12 P+5V C44 USL Vsus SS55 CONTROL STB+5V HO 5 UML IC6241 Q6053-Q6054 FET Vda+75V UEH 44 1 Vda+75V 2 1 35 LO STB PS STB+5V C42 Q6103, Q6104 4 TPVSUS P+15V FET D6061-D6063 TPSOS8 STB PS S1 IC6151 42 7 8 Vda+75V UML TPVe2 TPSS1 WAVEFORM LIN SS Ve2 1 VSUS 4 HO HIN DRV_SOS8 UMH Q6043-Q6044 2 1 Ve:160V UMH Vda+75V SS +5V FET Vda+75V Q6102,Q6106,Q6108 UEL FET Q6221,Q6222 P11 UMH 1 FET BUFFER 5 11 L6001-L6006 Q6022-Q6025 Q6112,Q6114 P+15V USL SS USH IC6191 8 Vda+75V SS53 1 Q6101,Q6105,Q6107 ENERGY RECOVERY SS56 P+15V SS Vda+75V Vda+75V USH TPVe LIN SUSTAIN DRIVE SS S POWER SW OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT FET DRIVER FET DRIVER FET DRIVER FET DRIVER BUFFER BUFFER BUFFER BUFFER BUFFER (+33V) LED BLINKING:8 TIMES Ve(+160V) OVER VOLTAGE ENERGY RECOVERY SOS DET Ve SOS DET (+33V) (+33V) TH-50PZ700C SS-Board Block Diagram TH-50PZ700C SS-Board Block Diagram 144 15.74.SS 电路板线路图 + REF K A + + + + TERM SIDE + + + TERM SIDE + + + + + + TERM SIDE + + + + + TERM SIDE + + + TERM SIDE + + TERM SIDE + + REF K A + DRV_SOS2 AA_USL DMLL DMHL DMHR AA_USH AA_UMH AA_UMH AA_UML AA_UEH DSLL AA_UEL AA_USH AA_USL AA_UML AA_UEH AA_UML DSHL AA_UEL SOS8 SOS8 SOS8 R6123 10k Q6031 B1ADRD000001 R6021 7.5 C6222 47u 250V C0DBEMB00005 IC6281 C6272 25V 220u R6110 10k R6146 10k R6141 10k J0JJC0000011 L6213 ZA6002 K4CD01000011 R6013 10 R6011 10 R6148 10k L6069 G0ZZ00002183 D6273 MA2J11100L C6015 220V 200u TP18 R6106 100 1% R6255 1.2k L6221 G0ZZ00002183 C6134 25V 4.7u L6107 J0JJC0000011 Q6115 2SD0601A0L TP33 R6251 10k SG73P2A D6151 B0ECHP000003 R6124 10k Q6021 2PG0010000RP G D S L6293 G0ZZ00002183 R6132 100 C6264 100V 470u R6242 EXB38V472JV 5W R6010 33 R6001 7.5 TP6918 Q6148 L6241 TP28 L6399 J0JJC0000011 R6143 10k L6101 J0JJC0000011 D6003 RF2001 R6022 7.5 R6109 10 R6221 18k L6387 G0ZZ00002183 SS11 1 3 TP31 R6138 10 D6154 B0ECHP000003 Q6141 C6203 250V 2.2u ZA6003 K4CD01000011 TP15 Q6108 B1DFKM000002 G D S L6067 G0ZZ00002183 R6220 150k C6003 630V 5600p Q6282 R6128 56k 15V C6017 220V 200u Q6023 2PG0010000RP G D S R6284 4.7k C0ZBZ0000895 IC6131 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC 1% R6256 1.5k Q6102 B1DFKM000002 G D S ZA6001 K4CD01000011 TP19 D6221 B0HDRP000003 Q6043 2PG0010000RP D6101 B0JCME000037 C6132 25V 4.7u C6035 1000p 630V J0JJC0000011 L6211 R6015 10 D6253 LNJ301MPUJA D6083 RF2001 D6192 B0ECHP000003 D6091 MA3DF300 R6116 22k D6105 M1FS4 TP6913 R6181 10 C6072 630V 470p R6113 220k D6254 MAZ80510LL SS53 1 2 3 4 5 6 7 8 9 10 11 12 13 TP10 1% R6288 2.49k Q6104 B1ADNF000006 B1ADNF000006 C6046 16V 1u L6003 G0CR96KA0118 L6271 G0ZZ00002183 R6257 10k C6071 630V 470p R6003 7.5 TP30 5V R6129 4.7k SS35 1 2 3 4 5 6 7 8 L6005 G0CR96KA0118 R6147 10k D6072 MA3DF300 R6054 7.5 C6013 220V 200u L6063 G0ZZ00002183 Q6171 B1ABRD000003 TP27 D6082 RF2001 D6191 DE5LC40 L6013 G0C1R4KA0118 L6065 G0ZZ00002183 C6243 50V 0.01u C6012 220V 200u C6016 220V 200u R6193 51 L6084 G0ZZ00002183 L6006 G0CR96KA0118 1% R6232 2.49k Q6042 2PG0010000RP Q6105 B1DFKM000002 G D S R6111 47 C6091 630V 470p Q6149 D6282 B0JCME000037 Q6003 2PG0010000RP G D S D6113 MA2J11100L D6032 MA2J11100L Q6001 2PG0010000RP G D S L6222 G0ZZ00002183 C6218 25V 4.7u SS51 1 2 3 4 5 6 7 8 9 10 11 12 13 R6043 7.5 Q6143 L6086 G0ZZ00002183 TP22 C6154 25V 4.7u C6153 25V 4.7u TP6911 D6107 M1FS4 C6305 100V 470u TP2 L6062 G0ZZ00002183 R6014 10 C6135 25V 4.7u C6114 250V 4u C6192 25V 1u D6081 RF2001 C6031 250V 4u R6171 10 C6303 100V 470u Q6005 2PG0010000RP G D S C6213 25V 1000u D6133 MA3DF300 C6022 630V 2700p Q6113 15V D6251 MAZ83300ML D6102 B0JCME000037 C6221 50V 0.1u TP6923 L6262 G0ZZ00002183 C6263 100V 470u C6014 220V 200u 1% R6225 51k C0ZBZ0001324 IC6151 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC R6330 100k L6064 G0ZZ00002183 Q6004 2PG0010000RP G D S 1% R6254 6.8k VDA75V VDA75V R6016 10 R6131 100 TP8 R6133 75 VSUS CF6281 D4DA91000001 L6012 G0C1R4KA0118 Q6052 2PG0010000RP C6195 25V 4.7u L6106 J0JJC0000011 TP32 5V C6273 25V 220u D6061 RF2001 1W R6222 10k Q6101 B1DFKM000002 G D S SS54 1 2 3 4 5 6 7 8 9 10 11 12 13 C6212 25V 4.7u R6183 10k C0JBAZ000005 IC6241 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R6102 100 R6258 2.2k 1% R6034 27k TP21 Q6024 2PG0010000RP G D S C6217 25V 4.7u C6201 250V 2.2u R6144 10k 15V C6304 100V 470u C6041 16V 1u D6224 B0ECHP000003 R6196 100k TP29 R6002 7.5 C6092 630V 470p R6244 EXB38V472JV C6301 100V 470u C6026 630V 3900p Q6054 2PG0010000RP C6204 250V 2.2u C6152 25V 4.7u D6001 RF2001 C6005 630V 2200p TP6 R6127 56k R6121 47 1% R6252 39k TP23 D6222 MA2J11100L D6211 M1FS4 D6024 D1FL40 D6062 RF2001 L6092 G0ZZ00002183 R6157 1 Q6221 2SD1263AP0LB C6215 25V 4.7u TP25 C6011 220V 200u TP14 D6109 B0JCME000037 C6257 25V 4.7u R6289 0 Q6114 G D S Q6222 2SC3063000RL TP24 D6110 MA2J11100L C6265 100V 470u SS34 1 2 3 C6266 250V 4u IC6251 C0BBBA000022 1 2 3 4 5 6 7 8 R6103 100 D6131 B0ECHP000003 R6135 10 L6011 G0C1R4KA0118 Q6106 B1DFKM000002 G D S R6104 100 1% R6033 56k C6112 200V 220u TP6910 R6126 56k Q6142 R6227 51k 1% R6044 7.5 C6045 16V 1u C0ZBZ0000895 IC6191 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC R6195 100k C6306 250V 4u TP20 TP6921 L6090 G0ZZ00002183 VR6000 10k 1 2 3 R6114 47 SS42 1 2 3 4 5 6 7 8 9 10 11 12 D6193 B0ECHP000003 1% R6032 82k R6182 10k L6040 G0ZZ00002183 R6112 47 SS44 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Q6111 B1DFKM000002 G D S Q6146 R6137 10 2W R6223 12k C6206 250V 2.2u 1% R6253 39k R6136 10 D6071 RF2001 TP34 D6281 B0JCME000037 SS55 1 2 3 4 5 6 7 8 9 10 11 12 13 R6160 1 C6281 50V 0.1u TP13 R6286 100 L6082 G0ZZ00002183 D6092 RF2001 TP5 TP6919 R6005 7.5 R6023 7.5 Q6112 B1DFKM000002 B1DFKM000002 G D S R6192 100 C6202 250V 2.2u D6021 MA3DF30000LZ Q6109 B1DFKM000002 G D S R6012 10 C6151 25V 1u C6241 10V 100u R6105 100 R6024 7.5 Q6107 H5N2307L G D S Q6025 2PG0010000RP G D S C6001 630V 3300p 1% R6226 51k R6125 0 D6223 MA2J11100L TP26 C6037 25V 4.7u TP6904 C6302 100V 470u L6071 G0ZZ00002183 R6152 100 R6122 10 C6113 200V 220u L6068 G0ZZ00002183 D6152 B0ECHP000003 L6061 G0ZZ00002183 L6105 J0JJC0000011 C6207 250V 2.2u R6062 220k SS56 1 2 3 4 5 6 7 8 9 10 11 12 13 C6043 16V 1u L6066 G0ZZ00002183 Q6002 2PG0010000RP G D S VEEXT160V TP7 C6261 100V 470u J0JJC0000011 L6212 R6042 7.5 TP16 D6112 MAZ83300ML D6106 B0JCME000037 R6053 7.5 C6205 250V 2.2u Q6103 B1ABNF000006 B1ADNF000006 B1ADNF000006 B1ADNF000006 B1ADNF000006 B1ADNF000006 B1ABNF000006 B1ABNF000006 B1ABNF000006 B1ABNF000006 B1ABNF000006 B1ABNF000006 L6108 J0JJC0000011 2W R6282 15 C6216 25V 4.7u TP17 R6004 7.5 R6241 EXB38V470JV R6142 10k C6042 16V 1u R6149 10k TP9 VSUS Q6144 C6111 200V 220u SS12 1 2 3 4 5 6 7 8 9 10 SS52 1 2 3 4 5 6 7 8 9 10 11 12 13 1% R6031 82k C6024 630V 5600p Q6281 Q6053 2PG0010000RP TP6905 Q6172 B1ADRD000001 L6103 G0ZZ00002183 R6153 75 R6243 EXB38V470JV TP4 Q6044 2PG0010000RP C6019 220V 200u R6101 100 C6018 220V 200u TP6920 D6063 RF2001 Q6110 15V R6172 10k TP6922 R6213 100 C6242 16V 1u D6025 D1FL40 D6255 MA2J11100L R6159 1 C6252 25V 1u L6102 J0JJC0000011 R6173 10k D6022 MA3DF30000LZ C6211 25V 4.7u R6151 100 C6251 16V 1u L6088 G0ZZ00002183 C0DBEMB00005 IC6221 R6214 150 L6070 G0ZZ00002183 R6158 1 Q6022 2PG0010000RP G D S C6044 16V 1u Q6181 B1ABRD000003 L6004 G0CR96KA0118 R6191 100 Q6251 2SD0601A0L TP3 1% R6291 2.49k L6001 G0CR96KA0118 L6014 G0C1R4KA0118 D6153 B0ECHP000003 L6398 J0JJC0000011 D6252 MAZ83300ML L6002 G0CR96KA0118 C6262 100V 470u R6025 7.5 TP1 Q6147 R6061 220k IC6211 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6052 7.5 DMHR TO C4-BOARD (C44) TO S-BOARD (S1) DSHL TP15V + USH GND NC(URL) TPSS1 TPSOS7 GND TO C4-BOARD (C42) TPVe STB_PS VSUS GND DSLL GND USL NC - - NC UEL NC(URH) DRV_SOS8 STB12V +15V TO P-BOARD (P12) + DMHL GND DRV_SOS7 Vda75V UEH Vda75V 5V TO C3-BOARD (C35) UML DMLL UMH TPSOS8 (GREEN LED) GND TPVSUS TPVDA GND GND VSUS190V TPVe2 SC52 SS51 SS53 SS54 SS55 SS56 TO PANEL SUSTAIN ELECTRODE TO PANEL SUSTAIN ELECTRODE TO PANEL SUSTAIN ELECTRODE TO PANEL SUSTAIN ELECTRODE TO PANEL SUSTAIN ELECTRODE TO PANEL SUSTAIN ELECTRODE SOS8 DET BUFFER FET DRIVER FET DRIVER FET DRIVER FET DRIVER Ve C 5 9 2 8 7 3 4 1 D A B E 6 F TO P-BOARD (P11) < = < = * * * TH-50PZ700C SS-Board Schematic Diagram TH-50PZ700C SS-Board Schematic Diagram ! SS-BOARD TNPA3993 145 16 部件布置及机械部件更换清单 16.1. 部件布置 146 16.2. 风扇分解图 147 16.3. 包装分解图 (1) 148 16.4. 包装分解图 (2) 149 16.5. 包装分解图 (3) 150 16.6. 更换部件清单注意事项 151 16.7. 机械部件更换清单 参考号 部品号 部品名称及说明 数量 备注 1 EAB844JL 低趑箱 ( 左 ) 1 2 EAB844JR 低趑箱 ( 右 ) 1 3 EAS10D85E 喇叭 （左右） 2 ETXMM624MGHA P 线路板 1 GQZB-42 高清标帖 1 J0KF00000038 磁芯 (SP:L/R) 2 4 K2CK3DH00028 AC 电源线 1 K5D103BMA001 保险丝 2 5 L6FAYYYH0050 风扇 (80MM) 3 6 MD-50MF9E1-R 50FHD9 PDP 屏 1 7 N2QAYB000118 遥控器 1 8 R6PND/2SP PANASONIC 干电池 （中文） 2 TBMG598 机型铭牌 1 TBMU745 后端子标贴 1 9 TBXA51103 电源按钮 1 10 TBXA51401 操作开关 1 11 TESD078 电源按钮弹簧 1 THEL0429 螺丝 29 THEL047J 螺丝 2 THEL049 螺丝 2 THTD013N 螺丝 ( 风扇 ) 10 THTF011N 螺丝 170 12 TKGA5394-1 前面玻璃 1 13 TKKL5344-1 M8 垫片盖 4 14 TKKL5384 调整盖 ( 调谐器顶部 ) 1 15 TKPB06109 门 1 16 TKPB06403 SD 门 1 17 TKPB14001 AC 电源线夹 1 18 TKRA48002 后盖把手 2 TKRA53102 孔盖 2 19 TKUX12102 后盖 1 20 TMKG647 海绵 （前面玻璃 V） 2 TMKG651 海绵 (W-SP) 4 21 TMKG661-1 海绵 （前面玻璃 H） 2 22 TMKG670 海绵 ( 风扇 ) 3 TMKG742 海绵 4 23 TMME226 AC 电源线夹 1 24 TMME258 线夹 2 TMMJ031 防震橡胶 (W-SP) 2 25 TMMJ068 橡胶 ( 风扇 ) 10 TMMJ070 橡胶 (W-SP) 4 26 TMMJ082 风扇角用防震橡胶 10 27 TMMX134 M8 垫片 4 28 TPCB95601 包装箱底箱 1 29 TPCB95703 包装箱本体 1 30 TPDA1619 顶部衬垫 中 1 31 TPDA1620 底部衬垫 中 1 32 TPDA1690 顶部衬垫 1 33 TPDA1691 底部衬垫 1 34 TPDF0764-3 附件盒 1 35 TPDF1649-1 顶盖 1 36 TPDX0035 箱扣 （ROHS） 4 37 TPEH343 顶面保护片 3 38 TPEH344A 整机保护袋 1 TQD1712010 合格票 1 TQFD070601 中国节能认证标志 1 TQFD640 ROHS 环境标签 1 TQFD945 线夹说明标签 1 TQZF163 保修证 1 39 TQZK015 说明书 1 TSXL488 FFC (D34-C55/D35-C54/D36- C60) 3 TSXL519 FFC (C11-C22/C52-C61) 2 TSXL555 FFC (C21-C31/C41-C51) 2 TSXL565 FFC (D31-C10/D32-C24/D33- C25) 3 TSXL615 FFC (DG11-GH11) 1 40 TUXL174 调谐器顶盖 1 TXAUX01HHTC 调谐器组件 1 41 TXAUX02HHTC AC 接入口 1 42 TXFKY01HHTCA 面框 1 43 TXFMZ01HHTC 台座安装块 左 1 44 TXFMZ02HHTC 台座安装块 右 1 TXJ/D3HHTB 线束 (D3-DG35) 1 TXJ/H3HHTB 线束 (H3-PA3) 1 TXJ/P2HHTU 线束 (SC2-P2) 1 TXJ/P5HHTB 线束 (P5-PA5) 1 TXJ/S1HLTB 线束 (S1-SS34) 1 TXJD20HHTU 线束 (D20-SC20) 1 TXJD25HHTU 线束 (D25-P25) 1 TXJDG1HHTA 线束 (DG1-K1) 1 TXJDH5HHTB 线束 (DH5-D5) 1 TXJFA1HHTB 线束 (PA- 风扇 B) 1 TXJFA2HHTB 线束 (PA- 风扇 A) 1 TXJFA4HHTB 线束 (PA- 风扇 C) 1 TXJG51HLTP 线束 (G51-H51) 1 TXJGS5HHTB 线束 (DG52-GS52) 1 TXJH11HHTB 线束 (H11-SP) 1 TXJH12HHTB 线束 (H12-SP) 1 TXJP10HHTB 线束 (P10-PA10) 1 TXJP11HHTU 线束 (P11-SS11) 1 TXJP12HHTU 线束 (P12-SS12) 1 TXJP23HHTU 线束 (P23-SC23) 1 TXJS35HHTU 线束 (SS35-C35) 1 TXJS42DNTU 线束 (SS42-C42) 1 TXJS44HHTU 线束 (SS44-C44) 1 TXN/D1QRTC D 线路板 1 TXN/G1HLTC G 线路板 1 TXN/K1HLTC K 线路板 1 TXN/S1HLTC S 线路板 1 TXNC11HHTC C1 线路板 1 TXNC21HHTC C2 线路板 1 TXNC31HHTC C3 线路板 1 TXNC41HHTC C4 线路板 1 TXNC51HHTC C5 线路板 1 TXNC61HHTC C6 线路板 1 TXNGH1HLTC GH 线路板 1 TXNGS1HLTC GS 线路板 1 TXNPA1HHTC PA 线路板 1 TXNSC1HHTC SC 线路板 1 TXNSD1HHTC SD 线路板 1 TXNSS1HHTC SS 线路板 1 TXNSU1HHTC SU 线路板 1 XTB4+12GFJ 螺丝 41 XTB4+12GFJK 螺丝 18 XTB4+16GFJ 螺丝 2 XTV3+10JFJK 螺钉 ( 后面 ) 6 XTW3+10TFJ 螺丝 2 XYN3+F8FJ 螺丝 （PA：4） 44 XYN3+J6FJ 螺丝 1 XYN3+J8FJ 螺丝 ( 风扇 ) 3 XYN4+F10FJ 螺丝 9 XYN4+F10FJK 螺丝 5 XYN4+F30FJK 螺丝 6 XYN5+C15FJ 带垫螺丝 （标准垫片） 8 参考号 部品号 部品名称及说明 数量 备注 152 17 电器部件更换清单 17.1. 电器部件更换清单 所有在备注栏 [PPDS] 中提到的部件均由 PPDS 提供。 参考号 部品号 部品名称 & 说明 件数 备注 F1701.1702 K5D103BMA001 延时保险丝 , 高 2 C10 K1MN68BA0076 68P 连接接头 1 C11 K1MN20BA0231 20P 连接接头 1 C21 K1MN80BA0076 80P 连接接头 1 C22 K1MN20BA0231 20P 连接接头 1 C24,25 K1MN68BA0076 68P 连接接头 2 C31 K1MN80BA0076 80P 连接接头 1 C35 K1KA08AA0714 8P 连接接头 1 C41 K1MN80BA0076 80P 连接接头 1 C42 K1KA12BA0107 12P 连接接头 1 C44 K1KA20B00155 20P 连接接头 1 C51 K1MN80BA0076 80P 连接接头 1 C52 K1MN20BA0231 20P 连接接头 1 C54,55 K1MN68BA0076 68P 连接接头 2 C60 K1MN68BA0076 68P 连接接头 1 C61 K1MN20BA0231 20P 连接接头 1 C1102 F1J1A106A043 C 0.010UF, K, 10V 1 C1103,04 F1G1C104A081 C 0.10UF, K, 16V 2 C1106 F1H1H2700008 E 27UF, 50V 1 C1107 F1H1H2200008 E 22UF, 50V 1 C1108 F1G1C104A081 C 0.10UF, K, 16V 1 C1109 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1111 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1112 F1G1C104A081 C 0.10UF, K, 16V 1 C1114 F1G1C104A081 C 0.10UF, K, 16V 1 C1117 F1G1C104A081 C 0.10UF, K, 16V 1 C1122 F1G1E1030005 C 0.01UF, Z, 25V 1 C1123 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2000 F1G1C104A081 C 0.10UF, K, 16V 1 C2005,06 F1H1H5610007 E 560UF, 50V 2 C2010,11 F1H1H5610007 E 560UF, 50V 2 C2013,14 F1H1H5610007 E 560UF, 50V 2 C2016,17 F1H1H5610007 E 560UF, 50V 2 C2021,22 F1H1H5610007 E 560UF, 50V 2 C2023 ECJ1XB1H104K C 10PF, J, 50V 1 C2048-50 ECJ1XB1H104K C 10PF, J, 50V 3 C2052,53 ECJ1XB1H104K C 10PF, J, 50V 2 C2054 F1J1A106A043 C 0.010UF, K, 10V 1 C2055,56 ECJ1VC1H120J C 12PF, J, 50V 2 C2057,58 ECJ1XB1H104K C 10PF, J, 50V 2 C2059 F2G0J470A019 E 47UF 6.3V 1 C2088 ECJ2FB1A475K C 4.7UF, K, 10V 1 C2089 F1H1H5610007 E 560UF, 50V 1 C2091 ECJ1VC1H100C C 10PF, C, 50V 1 C2092 F1H1H2200008 E 22UF, 50V 1 C2096,97 ECJ1XB1H104K C 10PF, J, 50V 2 C2098,99 EEEHB0J221UP C 220PF, J, 6.3V 2 C2100 ECJ1XB1H104K C 10PF, J, 50V 1 C2101 F1J1A106A043 C 0.010UF, K, 10V 1 C2102 ECJ1XB1H104K C 10PF, J, 50V 1 C2105,06 ECJ1XB1H104K C 10PF, J, 50V 2 C2107,08 F2G0J470A019 E 47UF 6.3V 2 C2109,10 ECJ1XB1H104K C 10PF, J, 50V 2 C2111 F1H0J2250008 C 2.2UF, K, 16V 1 C2112,13 F2G0J470A019 E 47UF 6.3V 2 C2114,15 ECJ1XB1H104K C 10PF, J, 50V 2 C2116 F1H1H471A792 E 470UF, 50V 1 C2117 ECJ1XB1H104K C 10PF, J, 50V 1 C2118 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2119 EEEHB1A221P C 220PF, J, 10V 1 C2120,21 F1H1H5600007 E 56UF, 50V 2 C2124 ECJ1XB1H104K C 10PF, J, 50V 1 C2126 F1J1A106A043 C 0.010UF, K, 10V 1 C2128 ECJ1XB1H104K C 10PF, J, 50V 1 C2130 F1J0J106A021 C 0.010UF, K, 16V 1 C2131 ECJ1XB1H104K C 10PF, J, 50V 1 C2133 EEEHB1H4R7R C 4.7PF, J, 50V 1 C2134 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2135,36 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2137 F2G0J470A019 E 47UF 6.3V 1 C2138 ECJ1XB1H104K C 10PF, J, 50V 1 C2143 F1H1H181A792 E 180UF, 50V 1 C2146 F1H1H181A792 E 180UF, 50V 1 C2147 EEEHB1C220R C 22PF, J, 16V 1 C2151 F2G0J470A019 E 47UF 6.3V 1 C2153 ECJ1VC1H330J C 33PF, J, 50V 1 C2154 ECJ1XB1H104K C 10PF, J, 50V 1 C2155 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2157 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2159,60 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2161 EEEHB1C101UP C 100PF, J, 16V 1 C2162-67 ECJ1VB1C105K C 0.01UF, K, 16V 6 C2170 ECJ1VC1H330J C 33PF, J, 50V 1 C2171 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2173 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C2174 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2175 EEEHB1C470P C 47PF, J, 16V 1 C2176 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2179 EEEHB1C470P C 47PF, J, 16V 1 C2180 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2183 F1J1A106A043 C 0.010UF, K, 10V 1 C2184 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2185 F1J1A106A043 C 0.010UF, K, 10V 1 C2186 ECJ1XB1H104K C 10PF, J, 50V 1 C2187 F1H0J2250008 C 2.2UF, K, 16V 1 C2188 F1H1H471A792 E 470UF, 50V 1 C2189 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2190,91 F1J1A106A043 C 0.010UF, K, 10V 2 C2192 F2G0J470A019 E 47UF 6.3V 1 C2195 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2197,98 ECJ1VB1C333K C 0.033UF, K, 16V 2 C2202 F1H0J2250008 C 2.2UF, K, 16V 1 C2203 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2204 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2213 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2216 ECJ1XB1H104K C 10PF, J, 50V 1 C2244 ECJ1XB1H104K C 10PF, J, 50V 1 C2245 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2246 F1J1A106A043 C 0.010UF, K, 10V 1 C2251 F1J1A106A043 C 0.010UF, K, 10V 1 C2263,64 F1J1A106A043 C 0.010UF, K, 10V 2 C2265-68 ECJ1XC1H101J C 100PF, J, 50V 4 C2270,71 F1H1H471A792 E 470UF, 50V 2 C2272 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C2280 ECJ2FB1A475K C 4.7UF, K, 10V 1 C2281 F1H1H5610007 E 560UF, 50V 1 C2288,89 F1J1A106A043 C 0.010UF, K, 10V 2 C2301,02 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C2303-10 F1J1E105A171 E 1 UF 25V 8 C2311-16 ECJ1XB1H104K C 10PF, J, 50V 6 C2317-24 ECJ1VB1C333K C 0.033UF, K, 16V 8 C2325,26 F1J1H474A757 C 0.47UF, 50V 2 C2327-30 ECJ1XB1H104K C 10PF, J, 50V 4 C2331,32 F1J1H474A757 C 0.47UF, 50V 2 C2333-36 ECJ1XB1H104K C 10PF, J, 50V 4 C2337-40 F1H1H223A219 E 0.022UF, 50V 4 C2341-44 ECJ1XB1H104K C 10PF, J, 50V 4 C2345-48 F1H1H223A219 E 0.022UF, 50V 4 C2349 ECJ1XB1H104K C 10PF, J, 50V 1 C2352 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2353-60 ECJ1XB1H104K C 10PF, J, 50V 8 C2361,62 EEEFG1E471P E 470UF, 25V 2 C2363,64 ECJ1XB1H104K C 10PF, J, 50V 2 C2365 EEEHB1C221UP C 220PF, J, 16V 1 C2375-82 F1H1H223A219 E 0.022UF, 50V 8 C2383-90 ECJ1VB1H102K C 1000UF, Z, 50V 8 C2502,03 ECJ2XB1H102K C 1000PF, K, 50V 2 C2510 F1K0J1060020 C 10UF, K,6.3V 1 C2511 ECJ2XF1C105Z C 1UF, Z, 16V 1 C2512 F1K0J1060020 C 10UF, K,6.3V 1 C2515 ECJ1VB1H103K C 0.001UF, K, 50V 1 参考号 部品号 部品名称 & 说明 件数 备注 153 C2521 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2522-27 ECJ1VB1H102K C 1000UF, Z, 50V 6 C2601,02 ECJ1XB1H104K C 10PF, J, 50V 2 C2801 ECJ3XB1C106M C 1.0UF, K, 16V 1 C2802,03 F1J1H474A757 C 0.47UF, 50V 2 C2804 ECJ3XB1C106M C 1.0UF, K, 16V 1 C2805-07 F1J1H474A757 C 0.47UF, 50V 3 C2813 ECJ1XB1H104K C 10PF, J, 50V 1 C2814 ECJ1VB1H472K C 4700PF, K, 50V 1 C2815 ECJ1XB1H104K C 10PF, J, 50V 1 C2816 EEEHB1V220P E 22UF, 35V 1 C2817 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2819 EEEHB1E470P C 47PF, J, 25V 1 C3021 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3023,24 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C3026 ECJ1XB1H104K C 10PF, J, 50V 1 C3027,28 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C3029 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3031 ECJ1XB1H104K C 10PF, J, 50V 1 C3033 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3040 ECJ1XB1H104K C 10PF, J, 50V 1 C3043 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3051-56 ECJ1VB1A105K C 0.01UF, Z, 50V 6 C3059,60 ECJ1VB1C105K C 0.01UF, K, 16V 2 C3062-64 ECJ1VB1C105K C 0.01UF, K, 16V 3 C3070 EEEHB0J221UP C 220PF, J, 6.3V 1 C3075 EEEHB1C221UP C 220PF, J, 16V 1 C3078 F1K0J226A008 C 22UF, K,6.3V 1 C3081 F2H0J1010009 C 100UF, 6.3V 1 C3100-02 ECJ1VB1A105K C 0.01UF, Z, 50V 3 C3103 EEEHB1C100R C 10PF, J, 16V 1 C3106 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3115-17 ECJ1XB1H104K C 10PF, J, 50V 3 C3118 EEEHB1C470P C 47PF, J, 16V 1 C3119 EEEHB1C100R C 10PF, J, 16V 1 C3120 ECJ1XB1H104K C 10PF, J, 50V 1 C3201 ECJ1XB1H104K C 10PF, J, 50V 1 C3202 F1J1H474A757 C 0.47UF, 50V 1 C3214 ECJ1XB1H104K C 10PF, J, 50V 1 C3216 ECJ1XB1H104K C 10PF, J, 50V 1 C3226-28 ECJ1XB1H104K C 10PF, J, 50V 3 C3230 ECJ1XB1H104K C 10PF, J, 50V 1 C3263 ECJ1XB1H104K C 10PF, J, 50V 1 C3265-67 ECJ1XB1H104K C 10PF, J, 50V 3 C3270 EEEHB0J102UP C 1100PF, J, 6.3V 1 C3271 EEEHB1C100R C 10PF, J, 16V 1 C3272 ECJ1XB1H104K C 10PF, J, 50V 1 C3273 F2G1H100A031 E 10UF, 50V 1 C3274-76 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C3279 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3280 ECJ1XC1H101J C 100PF, J, 50V 1 C3281 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3285 EEEHB0J102UP C 1100PF, J, 6.3V 1 C3286 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3291 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3292 ECJ1XC1H101J C 100PF, J, 50V 1 C3293 EEEHB1C100R C 10PF, J, 16V 1 C3296 ECJ1XB1H104K C 10PF, J, 50V 1 C3298 EEEHB1V220P E 22UF, 35V 1 C3299 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3300 F2H0J1010009 C 100UF, 6.3V 1 C3305 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3308 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3401 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3701 ECJ2XC1H561K C 560PF, K, 50V 1 C3703 ECJ2XC1H561K C 560PF, K, 50V 1 C3711,12 ECJ2VF1H333Z C 0.033UF, Z, 50V 2 C3715 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3750 F1J1H102A721 E 1000UF, 50V 1 C3801,02 F1G1A104A012 C 0.01UF, K, 10V 2 C3804 F1G1A104A012 C 0.01UF, K, 10V 1 C3805 EEEHB0J330R C 33PF, J, 6.3V 1 C3806-12 F1G1A104A012 C 0.01UF, K, 10V 7 C3813 F1J0J106A004 C 0.010UF, K, 16V 1 C3814 F1G1A104A012 C 0.01UF, K, 10V 1 C3815-20 ECJ0EB1C103K C 0.010UF, K, 16V 6 C3823,24 F1G1A104A012 C 0.01UF, K, 10V 2 参考号 部品号 部品名称 & 说明 件数 备注 C4005,06 F1G1C104A081 C 0.10UF, K, 16V 2 C4008 F1G1C104A081 C 0.10UF, K, 16V 1 C4010,11 F1G1C104A081 C 0.10UF, K, 16V 2 C4013-15 F1G1C104A081 C 0.10UF, K, 16V 3 C4016 F1J1C475A170 C 4.7UF, K, 16V 1 C4018 F1G1C104A081 C 0.10UF, K, 16V 1 C4019 F1J1H474A757 C 0.47UF, 50V 1 C4020,21 F1G1C104A081 C 0.10UF, K, 16V 2 C4022 F1J1H474A757 C 0.47UF, 50V 1 C4023-25 F1G1C104A081 C 0.10UF, K, 16V 3 C4027,28 F1G1C104A081 C 0.10UF, K, 16V 2 C4030 F1G1C104A081 C 0.10UF, K, 16V 1 C4032-34 F1G1C104A081 C 0.10UF, K, 16V 3 C4035,36 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4038 F1G1C104A081 C 0.10UF, K, 16V 1 C4039 F1G1E1030005 C 0.01UF, Z, 25V 1 C4040 F1G1H150A565 E 15UF, 50V 1 C4045,46 F1G1C104A081 C 0.10UF, K, 16V 2 C4047 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4049 F1G1C104A081 C 0.10UF, K, 16V 1 C4050 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4051-53 F1G1C104A081 C 0.10UF, K, 16V 3 C4054 ECJ3XB1C106M C 1.0UF, K, 16V 1 C4500-03 F1G1C104A081 C 0.10UF, K, 16V 4 C4506,07 F1G1C104A081 C 0.10UF, K, 16V 2 C4508,09 EEEHB0J330R C 33PF, J, 6.3V 2 C4510,11 F1G1C104A081 C 0.10UF, K, 16V 2 C4513-15 F1G1C104A081 C 0.10UF, K, 16V 3 C4517 F1G1C104A081 C 0.10UF, K, 16V 1 C4520 F1J1A106A043 C 0.010UF, K, 10V 1 C4521 F1G1C104A081 C 0.10UF, K, 16V 1 C4522 ECJ3XB1C106M C 1.0UF, K, 16V 1 C4523 F1J1H474A757 C 0.47UF, 50V 1 C4524 ECJ3XB1C106M C 1.0UF, K, 16V 1 C4527 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4528 F1G1C104A081 C 0.10UF, K, 16V 1 C4531 F1G1C104A081 C 0.10UF, K, 16V 1 C4533 F1G1H680A565 E 68UF, 50V 1 C4534,35 ECJ1XB1H104K C 10PF, J, 50V 2 C4538 F2G0J470A019 E 47UF 6.3V 1 C4539 F1J1A106A043 C 0.010UF, K, 10V 1 C4541 F1H1H471A219 E 470UF, 50V 1 C4543-45 F1G1C104A081 C 0.10UF, K, 16V 3 C4546 F1H0J2250008 C 2.2UF, K, 16V 1 C4547 F1G1C104A081 C 0.10UF, K, 16V 1 C4548,49 ECJ1XB1H104K C 10PF, J, 50V 2 C4550 F1G1C104A081 C 0.10UF, K, 16V 1 C4551,52 ECJ1XB1H104K C 10PF, J, 50V 2 C4553 F1G1H1020008 E 1000UF, 50V 1 C4555,56 F1J1A106A043 C 0.010UF, K, 10V 2 C4557 F1G1C104A081 C 0.10UF, K, 16V 1 C4559,60 F1G1C104A081 C 0.10UF, K, 16V 2 C4562 F1H1H822A219 E 8200UF, 50V 1 C4563 ECJ1VB1C823K C 0.082UF, K, 16V 1 C4564,65 F1G1E1030005 C 0.01UF, Z, 25V 2 C4566 ECJ1XB1C393K C 0.039UF, K, 16V 1 C4567 ECJ1XB1H104K C 10PF, J, 50V 1 C4568 F1G1C104A081 C 0.10UF, K, 16V 1 C4569 F1J1C684A097 C 0.68UF, Z, 16V 1 C4570 F2G0J470A019 E 47UF 6.3V 1 C4572,73 F1G1C104A081 C 0.10UF, K, 16V 2 C4574 F1G1E1030005 C 0.01UF, Z, 25V 1 C4575 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4576 F2G0J470A019 E 47UF 6.3V 1 C4577,78 F1G1C104A081 C 0.10UF, K, 16V 2 C4580 F1G1E1030005 C 0.01UF, Z, 25V 1 C4581 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4582,83 F1G1C104A081 C 0.10UF, K, 16V 2 C4584,85 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4586 F1G1E1030005 C 0.01UF, Z, 25V 1 C4587 F1G1C104A081 C 0.10UF, K, 16V 1 C4588 ECJ1VB1C823K C 0.082UF, K, 16V 1 C4589 F1G1H150A565 E 15UF, 50V 1 C4590 ECJ0EC1H180J C 180PF, K, 50V 1 C4591,92 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4593 F1G1E1030005 C 0.01UF, Z, 25V 1 C4595 F1G1E1030005 C 0.01UF, Z, 25V 1 参考号 部品号 部品名称 & 说明 件数 备注 154 C4596 F1G1C104A081 C 0.10UF, K, 16V 1 C4598 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4600,01 F1G1E1030005 C 0.01UF, Z, 25V 2 C4602 F1G1C104A081 C 0.10UF, K, 16V 1 C4604 F1H0J2250008 C 2.2UF, K, 16V 1 C4605 F1G1C104A081 C 0.10UF, K, 16V 1 C4607 F2G0J470A019 E 47UF 6.3V 1 C4609 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4611 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4612 F1G1E1030005 C 0.01UF, Z, 25V 1 C4613 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4614 F1G1C104A081 C 0.10UF, K, 16V 1 C4615 F1G1E1030005 C 0.01UF, Z, 25V 1 C4616,17 F1G1C104A081 C 0.10UF, K, 16V 2 C4618 F1G1E1030005 C 0.01UF, Z, 25V 1 C4619 F1G1C104A081 C 0.10UF, K, 16V 1 C4620 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4621-23 F1G1C104A081 C 0.10UF, K, 16V 3 C4624,25 ECJ1XB1H104K C 10PF, J, 50V 2 C4626-28 F1G1C104A081 C 0.10UF, K, 16V 3 C4629 F1J1A106A043 C 0.010UF, K, 10V 1 C4807 F1G1C104A081 C 0.10UF, K, 16V 1 C5000 F2G0J470A019 E 47UF 6.3V 1 C5001 F1G1A104A012 C 0.01UF, K, 10V 1 C5002 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5004 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5005 F1G1A104A012 C 0.01UF, K, 10V 1 C5006 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5007 F1G1A104A012 C 0.01UF, K, 10V 1 C5008 ECJ1XC1H820J C 82PF, J, 50V 1 C5009 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5010 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5011,12 F1G1A104A012 C 0.01UF, K, 10V 2 C5013 ECJ1VC1H680J C 68PF, J, 50V 1 C5015 F1G1A104A012 C 0.01UF, K, 10V 1 C5016,17 ECJ1VC1H180J C 18PF, J, 50V 2 C5018 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5019 F1G1A104A012 C 0.01UF, K, 10V 1 C5020 F1G1H1020008 C 1000PF, K, 50V 1 C5021 F1J0J1060004 C 0.010UF, K, 16V 1 C5022 F1G1A104A012 C 0.01UF, K, 10V 1 C5024 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5025 F1G1A104A012 C 0.01UF, K, 10V 1 C5026 F1G1H1020008 C 1000PF, K, 50V 1 C5027 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5028 F1G1A104A012 C 0.01UF, K, 10V 1 C5029 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5031 F1J0J1060004 C 0.010UF, K, 16V 1 C5032,33 F1G1A104A012 C 0.01UF, K, 10V 2 C5034,35 F1J0J1060004 C 0.010UF, K, 16V 2 C5036 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5037 F2G0J470A019 E 47UF 6.3V 1 C5038 F1G1A104A012 C 0.01UF, K, 10V 1 C5040 F1G1H1020008 C 1000PF, K, 50V 1 C5041 F1G1A104A012 C 0.01UF, K, 10V 1 C5042 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5043 F1G1A104A012 C 0.01UF, K, 10V 1 C5044,45 F1G1H1020008 C 1000PF, K, 50V 2 C5046,47 F1G1A104A012 C 0.01UF, K, 10V 2 C5048 F1G1H1020008 C 1000PF, K, 50V 1 C5049 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5050 F1G1A104A012 C 0.01UF, K, 10V 1 C5051,52 F1G1H1020008 C 1000PF, K, 50V 2 C5053 F1G1A104A012 C 0.01UF, K, 10V 1 C5054 F1G1H1020008 C 1000PF, K, 50V 1 C5055-58 F1G1A104A012 C 0.01UF, K, 10V 4 C5059 F1G1H1020008 C 1000PF, K, 50V 1 C5060 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5061,62 F1G1A104A012 C 0.01UF, K, 10V 2 C5063,64 F1G1H1020008 C 1000PF, K, 50V 2 C5065 ECGRL0G680ER C 68PF, J, 4V 1 C5066 F2G0J470A019 E 47UF 6.3V 1 C5067 F1G1A104A012 C 0.01UF, K, 10V 1 C5068-70 F1G1H1020008 C 1000PF, K, 50V 3 C5071,72 F1G1A104A012 C 0.01UF, K, 10V 2 C5073,74 F1G1H1020008 C 1000PF, K, 50V 2 C5075 ECJ1VB1A105K C 0.01UF, Z, 50V 1 参考号 部品号 部品名称 & 说明 件数 备注 C5076-79 F1G1H1020008 C 1000PF, K, 50V 4 C5080 F1G1A104A012 C 0.01UF, K, 10V 1 C5081-83 F1G1H1020008 C 1000PF, K, 50V 3 C5084 F1G1A104A012 C 0.01UF, K, 10V 1 C5085,86 F1G1H1020008 C 1000PF, K, 50V 2 C5087 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5088 F1G1A104A012 C 0.01UF, K, 10V 1 C5089,90 F1G1H1020008 C 1000PF, K, 50V 2 C5091 F1G1A104A012 C 0.01UF, K, 10V 1 C5092-94 F1G1H1020008 C 1000PF, K, 50V 3 C5095 F1G1A104A012 C 0.01UF, K, 10V 1 C5096 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5097-00 F1G1H1020008 C 1000PF, K, 50V 4 C5101,02 F1G1A104A012 C 0.01UF, K, 10V 2 C5103 F1G1H1020008 C 1000PF, K, 50V 1 C5104 F1G1A104A012 C 0.01UF, K, 10V 1 C5105 F1G1H1020008 C 1000PF, K, 50V 1 C5106 F1G1A104A012 C 0.01UF, K, 10V 1 C5107 F1G1H1020008 C 1000PF, K, 50V 1 C5108,09 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C5110 F1G1A104A012 C 0.01UF, K, 10V 1 C5111,12 F1G1H1020008 C 1000PF, K, 50V 2 C5113 F1G1A104A012 C 0.01UF, K, 10V 1 C5114 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5115 F1G1H1020008 C 1000PF, K, 50V 1 C5116 F1G1A104A012 C 0.01UF, K, 10V 1 C5117,18 F1J0J1060004 C 0.010UF, K, 16V 2 C5120 F1G1A104A012 C 0.01UF, K, 10V 1 C5121 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5122-43 F1G1A104A012 C 0.01UF, K, 10V 22 C5144,45 F1J0J1060004 C 0.010UF, K, 16V 2 C5146 F1G1A104A012 C 0.01UF, K, 10V 1 C5235 F1G1H1020008 C 1000PF, K, 50V 1 C5268-70 F1J0J1060004 C 0.010UF, K, 16V 3 C5271 F1G1A104A012 C 0.01UF, K, 10V 1 C5272 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5273 F1G1A104A012 C 0.01UF, K, 10V 1 C5274 EEEHB0G101R C 100PF, J, 4V 1 C5275 F1H1H471A792 E 470UF, 50V 1 C5276 EEFCD0G560ER C 56UF, K, 4V 1 C5277 F1G1A104A012 C 0.01UF, K, 10V 1 C5278 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5279 F1G1A104A012 C 0.01UF, K, 10V 1 C5280 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5281 F1G1A104A012 C 0.01UF, K, 10V 1 C5282 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5283 F1G1A104A012 C 0.01UF, K, 10V 1 C5284 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5285-87 F1G1A104A012 C 0.01UF, K, 10V 3 C5288 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5289 F1G1A104A012 C 0.01UF, K, 10V 1 C5290 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5291,92 F1G1A104A012 C 0.01UF, K, 10V 2 C5293 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5294 F1G1A104A012 C 0.01UF, K, 10V 1 C5295 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5296 F1G1A104A012 C 0.01UF, K, 10V 1 C5297 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5298 F1G1A104A012 C 0.01UF, K, 10V 1 C5299 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5300 F1G1A104A012 C 0.01UF, K, 10V 1 C5301 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5302 F1G1A104A012 C 0.01UF, K, 10V 1 C5303 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5343 F1G1A104A012 C 0.01UF, K, 10V 1 C5344 F1G1H1020008 C 1000PF, K, 50V 1 C5345 F1G1A104A012 C 0.01UF, K, 10V 1 C5347 F1J0J1060004 C 0.010UF, K, 16V 1 C5348 F1G1A104A012 C 0.01UF, K, 10V 1 C5350 F1H0J1050012 C 1UF, K, 16V 1 C5351 EEEHB0G470R C 47PF, J, 4V 1 C5352 F1H1H471A792 E 470UF, 50V 1 C5353 F1H0J1050012 C 1UF, K, 16V 1 C5354-56 F1G1A104A012 C 0.01UF, K, 10V 3 C5357 EEEHB0G470R C 47PF, J, 4V 1 C5358 F1H0J1050012 C 1UF, K, 16V 1 C5359 EEEHB0G470R C 47PF, J, 4V 1 参考号 部品号 部品名称 & 说明 件数 备注 155 C5360 F1H1H471A792 E 470UF, 50V 1 C5361 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5362 F1G1A104A012 C 0.01UF, K, 10V 1 C5363 EEEHB0G470R C 47PF, J, 4V 1 C5364-91 F1G1A104A012 C 0.01UF, K, 10V 28 C5392 F1J0J1060004 C 0.010UF, K, 16V 1 C5393 F1H1A154A012 C 0.15UF, K, 50V 1 C5394 F1G1A104A012 C 0.01UF, K, 10V 1 C5395 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5397 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5409 F1J1E104A137 C 0.10UF, Z, 25V 1 C5410 ECA1EM471 E 470UF, 25V 1 C5412,13 F1J1E104A137 C 0.10UF, Z, 25V 2 C5419 ECA1EM471 E 470UF, 25V 1 C5420 F1J1E104A137 C 0.10UF, Z, 25V 1 C5501 F2A1C471A537 E 470UF, 16V 1 C5502 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5503 F2A1C471A537 E 470UF, 16V 1 C5504 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5505 F2A1C471A537 E 470UF, 16V 1 C5506 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5507 F2A1C471A537 E 470UF, 16V 1 C5508 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5509 F2A1V331A096 E 330UF, 35V 1 C5510 F1J1E104A137 C 0.10UF, Z, 25V 1 C5521,22 ECJ2VB1C104K C 0.1UF, K, 16V 2 C5551 F2A1V331A096 E 330UF, 35V 1 C5552 F1J1E104A137 C 0.10UF, Z, 25V 1 C5587 F2A1C471A537 E 470UF, 16V 1 C5588 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5595 ECA1HM220 E 22UF, 50V 1 C5600 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5601 F1G1C104A081 C 0.10UF, K, 16V 1 C5602 ECGRL0G680ER C 68PF, J, 4V 1 C5603,04 F1G1E1030005 C 0.01UF, Z, 25V 2 C5605 F1J1A475A039 C 4.7UF, K, 10V 1 C5606 F1H1H471A219 E 470UF, 50V 1 C5607 F1G1H221A459 E 220UF, 50V 1 C5608 F1G1C104A081 C 0.10UF, K, 16V 1 C5609,10 EEEHB1C470P C 47PF, J, 16V 2 C5615 F1J1A106A043 C 0.010UF, K, 10V 1 C5616 ECJ0EB1A473K C 0.047UF, K, 10V 1 C5617 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5618,19 F1J1A106A043 C 0.010UF, K, 10V 2 C5620 ECJ1XB1H104K C 10PF, J, 50V 1 C5621 F1G1E1030005 C 0.01UF, Z, 25V 1 C5622 F1J1A475A039 C 4.7UF, K, 10V 1 C5623 ECJ0EB1H471K C 470PF, K, 50V 1 C5624 F1G1H221A459 E 220UF, 50V 1 C5625 F1G1E1030005 C 0.01UF, Z, 25V 1 C5626,27 F1G1C104A081 C 0.10UF, K, 16V 2 C5628,29 ECGRL0G680ER C 68PF, J, 4V 2 C5630,31 EEEHB1C470P C 47PF, J, 16V 2 C5632 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5636-41 F1G1C104A081 C 0.10UF, K, 16V 6 C5643 ECJ1XB1H104K C 10PF, J, 50V 1 C5644 F1G1E1030005 C 0.01UF, Z, 25V 1 C5645 F1H1A225A051 E 22UF, 50V 1 C5661 F1G1E1030005 C 0.01UF, Z, 25V 1 C5662 ECJ0EB1A473K C 0.047UF, K, 10V 1 C5663 F1G1E1030005 C 0.01UF, Z, 25V 1 C5670 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5673,74 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C5676 F1G1C104A081 C 0.10UF, K, 16V 1 C5690,91 F2G0J470A019 E 47UF 6.3V 2 C5692,93 ECJ1XB1H104K C 10PF, J, 50V 2 C5694,95 F2G0J470A019 E 47UF 6.3V 2 C5710-16 ECJ2VF1C104Z C 0.1UF, Z, 16V 7 C5730 F1G1E1030005 C 0.01UF, Z, 25V 1 C5731 F2G0J470A019 E 47UF 6.3V 1 C5869 F1G1A104A012 C 0.01UF, K, 10V 1 C5870 F1G1H1020008 C 1000PF, K, 50V 1 C5910 EEEHB1C470P C 47PF, J, 16V 1 C5911,12 F1J1A106A043 C 0.010UF, K, 10V 2 C5914 ECJ0EB1A473K C 0.047UF, K, 10V 1 C5915 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5916,17 F1J1A106A043 C 0.010UF, K, 10V 2 参考号 部品号 部品名称 & 说明 件数 备注 C5918 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5919 F1G1E1030005 C 0.01UF, Z, 25V 1 C5920 F1H0J4750004 C 4.7UF, K, 16V 1 C5921 ECJ0EB1H471K C 470PF, K, 50V 1 C5922 F1G1H221A459 E 220UF, 50V 1 C5923 F1G1E1030005 C 0.01UF, Z, 25V 1 C5924,25 F1G1C104A081 C 0.10UF, K, 16V 2 C5926,27 ECGRL0G680ER C 68PF, J, 4V 2 C5928,29 EEEHB1C470P C 47PF, J, 16V 2 C5930 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5939 F1G1C104A081 C 0.10UF, K, 16V 1 C6001 F1L2J332A022 C 3300UF, K,6.3V 1 C6003 F1L2J562A022 C 5600UF, K,6.3V 1 C6005 F1L2J222A022 C 2200UF, K,6.3V 1 C6011-19 F2A2T201A002 E 200UF, 9 C6022 F1L2J272A022 C 2700UF, K,6.3V 1 C6024 F1L2J562A022 C 5600UF, K,6.3V 1 C6026 F1L2J392A022 C 3900UF, K,6.3V 1 C6031 F0C2E405A176 E 0.040UF, 250V 1 C6035 F1L2J1020001 C 1000UF, K,6.3V 1 C6037 F1L1E4750004 C 4.7UF, 25V 1 C6041-46 TCUY1C105ZFN C 1UF, 16V 6 C6071,72 F1L2J4710001 C 470UF, K,6.3V 2 C6091,92 F1L2J4710001 C 470UF, K,6.3V 2 C6111-13 F2A2D221A022 E 220UF, 200V 3 C6114 F0C2E405A176 E 0.040UF, 250V 1 C6132 F1L1E4750004 C 4.7UF, 25V 1 C6134,35 F1L1E4750004 C 4.7UF, 25V 2 C6151 ECJ3YB1E105K C 1UF, K, 25V 1 C6152-54 F1L1E4750004 C 4.7UF, 25V 3 C6192 ECJ3YB1E105K C 1UF, K, 25V 1 C6195 F1L1E4750004 C 4.7UF, 25V 1 C6201-07 ECQE2255JF P 2.5UF, K,250V 7 C6211,12 F1L1E4750004 C 4.7UF, 25V 2 C6213 F2A1E102A220 E 1000UF, 25V 1 C6215-18 F1L1E4750004 C 4.7UF, 25V 4 C6221 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6222 F2A2E470A022 E 47UF, 250V 1 C6241 F2A1A101A439 E 100UF, 10V 1 C6242 TCUY1C105ZFN C 1UF, 16V 1 C6243 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6251 TCUY1C105ZFN C 1UF, 16V 1 C6252 ECJ3YB1E105K C 1UF, K, 25V 1 C6257 F1L1E4750004 C 4.7UF, 25V 1 C6261-65 F2A2A471A072 E 470UF, 100V 5 C6266 F0C2E405A176 E 0.040UF, 250V 1 C6272,73 F2A1E221A487 E 220UF, 25V 2 C6281 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6301-05 F2A2A471A072 E 470UF, 100V 5 C6306 F0C2E405A176 E 0.040UF, 250V 1 C6401 F1L2J332A022 C 3300UF, K,6.3V 1 C6403 F1L2J562A022 C 5600UF, K,6.3V 1 C6405 F1L2J222A022 C 2200UF, K,6.3V 1 C6411-19 F2A2T201A002 E 200UF, 9 C6421 F1L2J392A022 C 3900UF, K,6.3V 1 C6422 F1L2J272A022 C 2700UF, K,6.3V 1 C6425 F1L2J562A022 C 5600UF, K,6.3V 1 C6431 F0C2E405A176 E 0.040UF, 250V 1 C6471 F1L2J1020001 C 1000UF, K,6.3V 1 C6480 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6491 F1L2J1020001 C 1000UF, K,6.3V 1 C6502 F1L1E4750004 C 4.7UF, 25V 1 C6504,05 F1L1E4750004 C 4.7UF, 25V 2 C6511-17 ECQE2255JF P 2.5UF, K,250V 7 C6521 ECJ3YB1E105K C 1UF, K, 25V 1 C6522 F1L1E4750004 C 4.7UF, 25V 1 C6524,25 F1L1E4750004 C 4.7UF, 25V 2 C6527 F1L1E4750004 C 4.7UF, 25V 1 C6561 F2A1A101A439 E 100UF, 10V 1 C6562 TCUY1C105ZFN C 1UF, 16V 1 C6563 F2A1A101A439 E 100UF, 10V 1 C6564 TCUY1C105ZFN C 1UF, 16V 1 C6565,66 ECJ2VB1H103K C 0.01UF, K, 50V 2 C6581 ECJ3YB1E105K C 1UF, K, 25V 1 C6582 TCUY1C105ZFN C 1UF, 16V 1 C6592 F2A1E221A487 E 220UF, 25V 1 C6593 ECJ2XC1H102J C 1000PF, J, 50V 1 参考号 部品号 部品名称 & 说明 件数 备注 156 C6594 F2A1E221A487 E 220UF, 25V 1 C6601,02 F1L1E4750004 C 4.7UF, 25V 2 C6603 F1K2J102A014 C 1000UF, K,6.3V 1 C6604 F2A2V470A020 E 47UF, 350V 1 C6605 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6606 F1K2J102A014 C 1000UF, K,6.3V 1 C6610 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6612 ECJ3YB1E105K C 1UF, K, 25V 1 C6620 F1L2J222A022 C 2200UF, K,6.3V 1 C6641 ECQE2105RKB P 1UF, 250V 1 C6661,62 F1K2J102A014 C 1000UF, K,6.3V 2 C6671 F1L1E4750004 C 4.7UF, 25V 1 C6681,82 F1L1E4750004 C 4.7UF, 25V 2 C6683 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6691,92 ECA2CM101 E 100UF, 160V 2 C6701-08 ECJ2XB1H104K C 0.1UF, K, 50V 8 C6721 F2A1H101A493 E 100UF, 50V 1 C6723-25 F1L1E4750004 C 4.7UF, 25V 3 C6726,27 TCUY1C105ZFN C 1UF, 16V 2 C6728 ECJ2XC1H102J C 1000PF, J, 50V 1 C6752 TCUY1C105ZFN C 1UF, 16V 1 C6753 F1L1E4750004 C 4.7UF, 25V 1 C6754 F2A1V5600014 E 56UF, 35V 1 C6755 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6771 TCUY1C105ZFN C 1UF, 16V 1 C6772,73 F1L1E4750004 C 4.7UF, 25V 2 C6775 F1L1E4750004 C 4.7UF, 25V 1 C6776,77 ECJ2XB1H104K C 0.1UF, K, 50V 2 C6791 F2A1E221A487 E 220UF, 25V 1 C6795,96 F2A1E221A487 E 220UF, 25V 2 C6801 F2A2E470A022 E 47UF, 250V 1 C6802 ECQE6223KF P 0.022UF, K,400V 1 C6803 ECKD3D221KBP C 220PF, K, 2KV 1 C6804 F2A2E100A022 E 10UF, 250V 1 C6805 ECJ2XC1H102J C 1000PF, J, 50V 1 C6806 ECA2CM101 E 100UF, 160V 1 C6807 ECJ2XC1H471J C 470PF, J, 50V 1 C6808 ECQE2105RKB P 1UF, 250V 1 C6811 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6812 F1L1E4750004 C 4.7UF, 25V 1 C6813 ECA2CM101 E 100UF, 160V 1 C6814 F2A1E221A487 E 220UF, 25V 1 C6815 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6822 F2A2V470A020 E 47UF, 350V 1 C6823 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6841 ECA2DHG101 E 100UF, 200V 1 C6842 ECA2CM101 E 100UF, 160V 1 C6845 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6861 TCUY1C105ZFN C 1UF, 16V 1 C6862 ECJ3YB1E105K C 1UF, K, 25V 1 C6863 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6871 TCUY1C105ZFN C 1UF, 16V 1 C6872 ECJ3YB1E105K C 1UF, K, 25V 1 C6873 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6901-18 TCUY1C105ZFN C 1UF, 16V 18 C6921 ECJ2XB1H102K C 1000PF, K, 50V 1 C6922-37 ECJ2VB1H221K C 220PF, K, 50V 16 C6938 ECJ2XB1H102K C 1000PF, K, 50V 1 C6961 ECJ2XB1H102K C 1000PF, K, 50V 1 C6964,65 F1L2E105A013 E 0.10UF, 25V 2 C6968 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6971 ECJ2XB1H102K C 1000PF, K, 50V 1 C6974,75 F1L2E105A013 E 0.10UF, 25V 2 C6978 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6981-84 F1L2E105A013 E 0.10UF, 25V 4 C7101,02 TCUY1C105ZFN C 1UF, 16V 2 C7107-10 F1K2A474A006 C 0.47UF, 6.3V 4 C7111 ECJ1XC1H101J C 100PF, J, 50V 1 C7113 ECJ1XC1H101J C 100PF, J, 50V 1 C7115-18 F1K2A474A006 C 0.47UF, 6.3V 4 C7125,26 TCUY1C105ZFN C 1UF, 16V 2 C7130 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7135-38 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C7150 ECJ1XC1H101J C 100PF, J, 50V 1 C7152 ECJ1XC1H101J C 100PF, J, 50V 1 C7170 ECJ1XC1H101J C 100PF, J, 50V 1 C7172,73 F1K2A474A006 C 0.47UF, 6.3V 2 参考号 部品号 部品名称 & 说明 件数 备注 C7176 TCUY1C105ZFN C 1UF, 16V 1 C7182 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7183-87 TCUY1C105ZFN C 1UF, 16V 5 C7200,01 TCUY1C105ZFN C 1UF, 16V 2 C7203-05 TCUY1C105ZFN C 1UF, 16V 3 C7207 TCUY1C105ZFN C 1UF, 16V 1 C7208 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7209 TCUY1C105ZFN C 1UF, 16V 1 C7212 TCUY1C105ZFN C 1UF, 16V 1 C7213,14 F1K2A474A006 C 0.47UF, 6.3V 2 C7216 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7217,18 F1K2A474A006 C 0.47UF, 6.3V 2 C7221 ECJ1XC1H101J C 100PF, J, 50V 1 C7222 F1K2A474A006 C 0.47UF, 6.3V 1 C7224 TCUY1C105ZFN C 1UF, 16V 1 C7225 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7226 F1K2A474A006 C 0.47UF, 6.3V 1 C7231 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7238 ECJ1XC1H101J C 100PF, J, 50V 1 C7240 ECJ1XC1H101J C 100PF, J, 50V 1 C7253 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7264 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7266 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7268 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7270 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7272 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7274 TCUY1C105ZFN C 1UF, 16V 1 C7275,76 F1K2A474A006 C 0.47UF, 6.3V 2 C7279 ECJ1XC1H101J C 100PF, J, 50V 1 C7285 TCUY1C105ZFN C 1UF, 16V 1 C7286,87 F1K2A474A006 C 0.47UF, 6.3V 2 C7290 ECJ1XC1H101J C 100PF, J, 50V 1 C7297 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7299 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7301 TCUY1C105ZFN C 1UF, 16V 1 C7304 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7308,09 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7311,12 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7315,16 TCUY1C105ZFN C 1UF, 16V 2 C7323 ECJ1XC1H101J C 100PF, J, 50V 1 C7324,25 F1K2A474A006 C 0.47UF, 6.3V 2 C7326 ECJ1XC1H101J C 100PF, J, 50V 1 C7327,28 F1K2A474A006 C 0.47UF, 6.3V 2 C7329 ECJ1XC1H101J C 100PF, J, 50V 1 C7331-34 F1K2A474A006 C 0.47UF, 6.3V 4 C7339,40 TCUY1C105ZFN C 1UF, 16V 2 C7351 ECJ1XC1H101J C 100PF, J, 50V 1 C7369 ECJ1XC1H101J C 100PF, J, 50V 1 C7370,71 F1K2A474A006 C 0.47UF, 6.3V 2 C7374 TCUY1C105ZFN C 1UF, 16V 1 C7381 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7382-86 TCUY1C105ZFN C 1UF, 16V 5 C7401 TCUY1C105ZFN C 1UF, 16V 1 C7406 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7412-15 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C7418,19 TCUY1C105ZFN C 1UF, 16V 2 C7424-27 F1K2A474A006 C 0.47UF, 6.3V 4 C7428,29 ECJ1XC1H101J C 100PF, J, 50V 2 C7432-35 F1K2A474A006 C 0.47UF, 6.3V 4 C7440,41 TCUY1C105ZFN C 1UF, 16V 2 C7452,53 ECJ1XC1H101J C 100PF, J, 50V 2 C7468,69 F1K2A474A006 C 0.47UF, 6.3V 2 C7472 TCUY1C105ZFN C 1UF, 16V 1 C7475 ECJ1XC1H101J C 100PF, J, 50V 1 C7480 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7481-85 TCUY1C105ZFN C 1UF, 16V 5 C7501,02 TCUY1C105ZFN C 1UF, 16V 2 C7506,07 F1K2A474A006 C 0.47UF, 6.3V 2 C7508 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7511 TCUY1C105ZFN C 1UF, 16V 1 C7513 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7516,17 F1K2A474A006 C 0.47UF, 6.3V 2 C7519 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7520 ECJ1XC1H101J C 100PF, J, 50V 1 C7521 TCUY1C105ZFN C 1UF, 16V 1 C7522 ECJ1XC1H101J C 100PF, J, 50V 1 C7523,24 F1K2A474A006 C 0.47UF, 6.3V 2 参考号 部品号 部品名称 & 说明 件数 备注 157 C7527 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7530 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7538 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7539 TCUY1C105ZFN C 1UF, 16V 1 C7541 ECJ1XC1H101J C 100PF, J, 50V 1 C7543 TCUY1C105ZFN C 1UF, 16V 1 C7547-49 TCUY1C105ZFN C 1UF, 16V 3 C7566 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7568 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7570 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7572 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7575 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7577,78 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7580 ECJ1XC1H101J C 100PF, J, 50V 1 C7581 TCUY1C105ZFN C 1UF, 16V 1 C7582,83 F1K2A474A006 C 0.47UF, 6.3V 2 C7591 ECJ1XC1H101J C 100PF, J, 50V 1 C7592 TCUY1C105ZFN C 1UF, 16V 1 C7593,94 F1K2A474A006 C 0.47UF, 6.3V 2 C7601,02 TCUY1C105ZFN C 1UF, 16V 2 C7607-10 F1K2A474A006 C 0.47UF, 6.3V 4 C7611-13 ECJ1XC1H101J C 100PF, J, 50V 3 C7615-18 F1K2A474A006 C 0.47UF, 6.3V 4 C7623,24 TCUY1C105ZFN C 1UF, 16V 2 C7630 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7635-38 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C7650 ECJ1XC1H101J C 100PF, J, 50V 1 C7654,55 F1K2A474A006 C 0.47UF, 6.3V 2 C7658 TCUY1C105ZFN C 1UF, 16V 1 C7661 ECJ1XC1H101J C 100PF, J, 50V 1 C7665 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7666-70 TCUY1C105ZFN C 1UF, 16V 5 C7724,25 ECJ1VC1H330J C 33PF, J, 50V 2 C7729 ECJ1VC1H330J C 33PF, J, 50V 1 C7731 ECJ1VC1H330J C 33PF, J, 50V 1 C7732,33 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C7736 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C7737 F1J0J106A020 C 0.010UF, K, 16V 1 C7738 EEEHB0G101R C 100PF, J, 4V 1 C7742 F1J0J106A020 C 0.010UF, K, 16V 1 C8001 F1G1C104A081 C 0.10UF, K, 16V 1 C8002-05 F1H0J1050012 C 1UF, K, 16V 4 C8006-08 F1G1C104A081 C 0.10UF, K, 16V 3 C8009,10 F1J1A106A043 C 0.010UF, K, 10V 2 C8011-14 F1G1C104A081 C 0.10UF, K, 16V 4 C8015,16 F1H0J1050012 C 1UF, K, 16V 2 C8017 F1J1A106A043 C 0.010UF, K, 10V 1 C8018-21 F1G1C104A081 C 0.10UF, K, 16V 4 C8022 F1H0J1050012 C 1UF, K, 16V 1 C8023,24 F1J1A106A043 C 0.010UF, K, 10V 2 C8025-29 F1G1C104A081 C 0.10UF, K, 16V 5 C8030,31 F1H0J1050012 C 1UF, K, 16V 2 C8032 F1J1A106A043 C 0.010UF, K, 10V 1 C8033,34 F1G1C104A081 C 0.10UF, K, 16V 2 C8035,36 F1J1A106A043 C 0.010UF, K, 10V 2 C8037-41 F1G1C104A081 C 0.10UF, K, 16V 5 C8042 ECGRL0G680ER C 68PF, J, 4V 1 C8043-51 F1G1C104A081 C 0.10UF, K, 16V 9 C8052 F1H0J1050012 C 1UF, K, 16V 1 C8053 F1G1E1030005 C 0.01UF, Z, 25V 1 C8056,57 F1G1C104A081 C 0.10UF, K, 16V 2 C8058 F1J1A106A043 C 0.010UF, K, 10V 1 C8067 F1G1E1030005 C 0.01UF, Z, 25V 1 C8068 F1G1C104A081 C 0.10UF, K, 16V 1 C8069 F1G1H820A565 E 82UF, 50V 1 C8070-74 F1G1C104A081 C 0.10UF, K, 16V 5 C8075 F1J0G2260001 C 0.001UF, 6.3V 1 C8076-80 F1G1C104A081 C 0.10UF, K, 16V 5 C8551,52 F1G1C104A081 C 0.10UF, K, 16V 2 C8555 F1G1C104A081 C 0.10UF, K, 16V 1 C8601 F1G1C104A081 C 0.10UF, K, 16V 1 C8621,22 F1G1C104A081 C 0.10UF, K, 16V 2 C8731 F1G1E1030005 C 0.01UF, Z, 25V 1 C8802,03 F1G1C104A081 C 0.10UF, K, 16V 2 C9028,29 F1J0J1060004 C 0.010UF, K, 16V 2 C9033,34 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C9035,36 F1J0J1060004 C 0.010UF, K, 16V 2 参考号 部品号 部品名称 & 说明 件数 备注 C9037 ECJ1VB1H103K C 0.001UF, K, 50V 1 C9039 F1J0J1060004 C 0.010UF, K, 16V 1 C9040 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9044-53 ECJ1VF1C104Z C 0.1UF, Z, 16V 10 C9055-57 ECJ1VF1C104Z C 0.1UF, Z, 16V 3 C9058 F1J0J1060004 C 0.010UF, K, 16V 1 C9059-83 ECJ1XB1C104K C 0.1UF, Z, 16V 25 C9084 EEFCD0G560ER C 56UF, K, 4V 1 C9085-99 ECJ1XB1C104K C 0.1UF, Z, 16V 15 C9101-10 ECJ1XB1C104K C 0.1UF, Z, 16V 10 C9111 EEFCD0G560ER C 56UF, K, 4V 1 C9300-25 ECJ1XB1C104K C 0.1UF, Z, 16V 26 C9355-59 ECJ1XB1C104K C 0.1UF, Z, 16V 5 C9360-64 ECJ3XB0J106M C 10UF, M,6.3V 5 C9365 EEFCD0G560ER C 56UF, K, 4V 1 C9368 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9369-74 ECJ1VF1H103Z C 0.010UF, Z, 50V 6 C9442-69 ECJ1XB1C104K C 0.1UF, Z, 16V 28 C9496 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9512,13 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9514,15 ECJ2XF1C105Z C 1.0UF, Z, 16V 2 C9516-25 ECJ1XB1C104K C 0.1UF, Z, 16V 10 C9526 F1J0J1060004 C 0.010UF, K, 16V 1 C9527,28 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9531 F1J0J1060004 C 0.010UF, K, 16V 1 C9532 ECJ1XC1H101J C 100PF, J, 50V 1 C9533 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9534-38 ECJ3XB0J106M C 10UF, M,6.3V 5 C9539 EEFCD0G560ER C 56UF, K, 4V 1 C9542 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9546,47 ECJ1VC1H120J C 12PF, J, 50V 2 C9548 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9552 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9554 F1J0J1060004 C 0.010UF, K, 16V 1 C9557 ECJ2XF1C105Z C 1.0UF, Z, 16V 1 C9559-61 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C9608 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9609 ECJ3XB0J106M C 10UF, M,6.3V 1 C9610 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9800 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9801 ECJ1VB1H472K C 4700PF, K, 50V 1 C9802 ECJ1XC1H470J C 47PF, J, 50V 1 C9803 ECJ1VB1H472K C 4700PF, K, 50V 1 C9804 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9805 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9806 ECGRL0G680ER C 68PF, J, 4V 1 C9807,08 ECJ3YB1E106M C 10 UF, K, 25V 2 C9809 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9815,16 ECGRL0G680ER C 68PF, J, 4V 2 C9817,18 ECJ3YB1E106M C 10 UF, K, 25V 2 C9823,24 ECJ3YB1E106M C 10 UF, K, 25V 2 C9825 ECJ1XC1H101J C 100PF, J, 50V 1 C9826 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9830-32 ECJ3XB1C106M C 1.0UF, K, 16V 3 C9833 ECJ3YB1E106M C 10 UF, K, 25V 1 C9837 ECJ3XB1C106M C 1.0UF, K, 16V 1 C9838 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9840 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9841,42 ECJ2XF1C105Z C 1.0UF, Z, 16V 2 C9843 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9844 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C9845,46 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C9847,48 ECJ1VB1E104K C 0.10UF, K, 25V 2 C9880,81 ECJ1VB1H102K C 1000UF, Z, 50V 2 C9882 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9883 ECJ1VB1H822K C 8200PF, K, 50V 1 C9884 ECJ1VC1H100C C 10PF, C, 50V 1 C9885 ECJ1VB1H102K C 1000UF, Z, 50V 1 C9886 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9887 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9891 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9896 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9897 ECJ1VB1H822K C 8200PF, K, 50V 1 C9898 ECJ1VC1H100C C 10PF, C, 50V 1 C9899 ECJ1VB1H102K C 1000UF, Z, 50V 1 C9926 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9967 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 参考号 部品号 部品名称 & 说明 件数 备注 158 C9969 ECJ1VC1H330J C 33PF, J, 50V 1 C9970 ECJ1XC1H470J C 47PF, J, 50V 1 C9971 ECJ1XB1C104K C 0.1UF, Z, 16V 1 CA1-15 K1MN68BA0052 68P 连接接头 15 CB1-15 K1MN68BA0052 68P 连接接头 15 CF6281 D4DA91000001 电热调节器 1 D3 K1KA30AA0009 30P 连接接头 1 D5 K1KB31AA0140 31P 连接接头 1 D6 K1KA21A00011 21P 连接接头 1 D20 K1KA20AA0008 20P 连接接头 1 D25 K1KA20B00155 20P 连接接头 1 D31-33 K1MN68BA0076 68P 连接接头 3 D34-36 K1MN68BA0251 68P 连接接头 3 D1107 MA704A 二极管 1 D1112 MA2J72800L 二极管 1 D2025 K7AAAY000003 光纤端子 D2026 MA2J11100L 二极管 1 D2028,29 MA2J11100L 二极管 2 D2031-34 MA2J11100L 二极管 4 D2119 B0BC01100001 稳压二极管 1 D2189 MA2J11100L 二极管 1 D2301,02 MA2J11100L 二极管 2 D2303 MA3056HTX 二极管 1 D2304 MA2J11100L 二极管 1 D2510,11 MAZ80560ML 稳压二极管 2 D2512 MA8043LTX 稳压二极管 1 D2520 LNJ107W5PRW LED 1 D2524 MAZ80560ML 稳压二极管 1 D2632,33 MA2J11100L 二极管 2 D2634 MA3X78900L 稳压二极管 1 D2635 MA2J11100L 二极管 1 D2636 MA3047HTX 二极管 1 D2637 MA2J11100L 二极管 1 D2638 B0BC03900015 稳压二极管 1 D3003 MA8140M 稳压二极管 1 D3005,06 MA8140M 稳压二极管 2 D3035-43 MA8140M 稳压二极管 9 D3044 B0BC01100001 稳压二极管 1 D3045-49 MA8140M 稳压二极管 5 D3100 MA8140M 稳压二极管 1 D3102 MA2J11100L 二极管 1 D3334-38 MA2J11100L 二极管 5 D3401,02 MA2J72900L 二极管 2 D3405 B0JCCE000008 二极管 1 D3702 MA8140M 稳压二极管 1 D3801-11 EZAEG2A50AX 二极管 11 D3812 MA3056MTX 稳压二极管 1 D3813,14 B0HCMM000014 二极管 2 D4500-12 EZAEG2A50AX 二极管 13 D4513 MA3056MTX 稳压二极管 1 D4514 EZAEG2A50AX 二极管 1 D4515 MA3056MTX 稳压二极管 1 D4516-23 EZAEG2A50AX 二极管 8 D4524-27 B0HCMM000014 二极管 4 D4528 EZAEG2A50AX 二极管 1 D4532 B0HCMM000014 二极管 1 D5402,03 MA2J11100L 二极管 2 D5405 MA2J11100L 二极管 1 D5409 B0JCME000037 二极管 1 D5410 MAZ81100ML 稳压二极管 1 D5411 MA2J11100L 二极管 1 D5412 MA8033L 稳压二极管 1 D5501,02 B0BC01000035 稳压二极管 2 D5521 MA2J11100L 二极管 1 D5522 MA3X152A0L 二极管 1 D5526 MA3X152A0L 二极管 1 D5528 MA8120M 稳压二极管 1 D5529 MAZ80680LL 稳压二极管 1 D5530 MA2J11100L 二极管 1 D5531,32 MA3X152A0L 二极管 2 D5533,34 MA8120M 稳压二极管 2 D5571 B0BC6R600005 稳压二极管 1 D5573-75 B0BC01100001 稳压二极管 3 参考号 部品号 部品名称 & 说明 件数 备注 D5601,02 MA22D3900L 二极管 2 D5603,04 B0JCDD000002 二极管 2 D5605 MA22D3900L 二极管 1 D5606 B0JCDD000002 二极管 1 D5607,08 MA8024LTX 稳压二极管 2 D5609 MA8056LTX 稳压二极管 1 D5670 MA2J11100L 二极管 1 D5671 B0HCMM000014 二极管 1 D5673 B0HCMM000014 二极管 1 D5690,91 B0BC6R600005 稳压二极管 2 D5901,02 MA22D3900L 二极管 2 D5903,04 B0JCDD000002 二极管 2 D5907,08 B0BC4R700007 稳压二极管 2 D6001 B0HBSN000008 二极管 1 D6003 B0HBSN000008 二极管 1 D6021,22 MA3DF30000LZ 稳压二极管 2 D6024,25 B0ECHP000003 二极管 2 D6032 MA2J11100L 二极管 1 D6061-63 B0HBSN000008 二极管 3 D6071 B0HBSN000008 二极管 1 D6072 MA3DF30000LZ 稳压二极管 1 D6081-83 B0HBSN000008 二极管 3 D6091 MA3DF30000LZ 稳压二极管 1 D6092 B0HBSN000008 二极管 1 D6101,02 B0JCME000037 二极管 2 D6105-07 B0JCME000037 二极管 3 D6109 B0JCME000037 二极管 1 D6110 MA2J11100L 二极管 1 D6112 MA8330M 稳压二极管 1 D6113 MA2J11100L 二极管 1 D6131 B0ECHP000003 二极管 1 D6133 MA3DF30000LZ 稳压二极管 1 D6151-54 B0ECHP000003 二极管 4 D6191 B0HDRP000003 二极管 1 D6192,93 B0ECHP000003 二极管 2 D6211 B0JCME000037 二极管 1 D6221 B0HDRP000003 二极管 1 D6222,23 MA2J11100L 二极管 2 D6224 B0ECHP000003 二极管 1 D6251,52 MA8330M 稳压二极管 2 D6253 LNJ301MPUJA LED 1 D6254 MAZ80510LL 稳压二极管 1 D6255 MA2J11100L 二极管 1 D6273 MA2J11100L 二极管 1 D6281,82 B0JCME000037 二极管 2 D6401 B0HBSN000008 二极管 1 D6403 B0HBSN000008 二极管 1 D6431-33 MA3DF40000LZ 稳压二极管 3 D6441 B0ECHP000003 二极管 1 D6451 B0ECHP000003 二极管 1 D6461-63 B0HBSN000008 二极管 3 D6466 MA2J11100L 二极管 1 D6471,72 B0HBSN000008 二极管 2 D6477 MA2J11100L 二极管 1 D6478 B0HCKS000002 二极管 1 D6480 MA2J11100L 二极管 1 D6482-84 B0HBSN000008 二极管 3 D6491 MA3DF40000LZ 稳压二极管 1 D6497 MA2J11100L 二极管 1 D6501 B0ECHP000003 二极管 1 D6502 MA3DF30000LZ 稳压二极管 1 D6521-24 B0ECHP000003 二极管 4 D6581,82 MA8330M 稳压二极管 2 D6583 LNJ301MPUJA LED 1 D6584 MAZ80510LL 稳压二极管 1 D6585 MA2J11100L 二极管 1 D6601 MA8240MTX 稳压二极管 1 D6602 B0ECHP000003 二极管 1 D6603 MA8240MTX 稳压二极管 1 D6604 MA2J11100L 二极管 1 D6605 MAZ80510LL 稳压二极管 1 D6606 B0HCMM000014 二极管 1 D6607 MA2J11100L 二极管 1 D6610 MAZ81500ML 稳压二极管 1 D6611-13 MA2J11100L 二极管 3 D6616 MA2J11100L 二极管 1 D6619,20 B0HCKS000002 二极管 2 参考号 部品号 部品名称 & 说明 件数 备注 159 D6622 B0HDSM000005 二极管 1 D6624-26 B0HDSM000005 二极管 3 D6641,42 B0HCKS000002 二极管 2 D6643 B0JCME000037 二极管 1 D6644 B0HCKS000002 二极管 1 D6661 MA2J11100L 二极管 1 D6662-64 MA8330M 稳压二极管 3 D6665 MAZ80510LL 稳压二极管 1 D6666,67 MA2J11100L 二极管 2 D6682 B0HCMM000014 二极管 1 D6683,84 MA2J11100L 二极管 2 D6686,87 MA2J11100L 二极管 2 D6701,02 MA8056H 稳压二极管 2 D6721 B0HCKS000002 二极管 1 D6723,24 B0JCME000037 二极管 2 D6725 B0ECHP000003 二极管 1 D6726-33 MA8056H 稳压二极管 8 D6734 MA2J11100L 二极管 1 D6752 B0JCME000037 二极管 1 D6758 B0ECHP000003 二极管 1 D6760,61 MA2J11100L 二极管 2 D6771 B0JCME000037 二极管 1 D6773 B0HCKS000002 二极管 1 D6791 MA8200M 稳压二极管 1 D6802 B0BC01000044 稳压二极管 1 D6803 B0HCKS000002 二极管 1 D6804 B0ECHP000003 二极管 1 D6805 MA2J11100L 二极管 1 D6806 B0ECHP000003 二极管 1 D6807-10 B0HCMM000014 二极管 4 D6812,13 B0HCMM000014 二极管 2 D6820-23 MA2J11100L 二极管 4 D6824,25 MA8330M 稳压二极管 2 D6826 MA2J11100L 二极管 1 D6841 B0HCKS000002 二极管 1 D6842,43 MA2J11100L 二极管 2 D6859 B0ECHP000003 二极管 1 D6860 B0HCKS000002 二极管 1 D6861 MAZ80510LL 稳压二极管 1 D6862 MA2J11100L 二极管 1 D6871 MAZ80510LL 稳压二极管 1 D6872 MA2J11100L 二极管 1 D6901,02 MA8056H 稳压二极管 2 D6903,04 B0HDRP000002 二极管 2 D6905,06 MA8056H 稳压二极管 2 D6907-12 B0HDRP000002 二极管 6 D7111-20 B0HCMM000014 二极管 10 D7211-20 B0HCMM000014 二极管 10 D7311-20 B0HCMM000014 二极管 10 D7415-24 B0HCMM000014 二极管 10 D7512-21 B0HCMM000014 二极管 10 D7611-20 B0HCMM000014 二极管 10 D7700 B3AEB0000107 LED 1 D9017-19 MA3033 稳压二极管 3 D9020 MA2J72800L 二极管 1 D9035 MA2J72800L 二极管 1 D9100-03 B0JCGD000002 二极管 4 D9105,06 B0JCGD000002 二极管 2 D9110 B0JCGD000002 二极管 1 D9300-05 MA152K 二极管 6 D9800 B0JCME000037 二极管 1 D9801 B0JCDD000002 二极管 1 D9802 MA2J72800L 二极管 1 D9804 MA152K 二极管 1 D9807,08 MA152K 二极管 2 D9812 B0JCME000037 二极管 1 D9813 B0JCDD000002 二极管 1 D9814 B0JCME000037 二极管 1 D9815 B0JCDD000002 二极管 1 DG1 K1KA12B00151 12P 连接接头 1 DG2 K1KB23A00003 23P 连接接头 1 DG6 K1KB80AA0218 80P 连接接头 1 DG7 K1KA04AA0104 4P 连接接头 1 DG11 K1KY30A00017 30P 连接接头 1 DG25 K1KBB0A00006 连接接头 1 DG31 K1KA20AA0009 20P 连接接头 1 参考号 部品号 部品名称 & 说明 件数 备注 DG32 K1KA07AA0266 7P 连接接头 1 DG33 K1KA11AA0715 11P 连接接头 1 DG34,35 K1KA30AA0009 30P 连接接头 2 DG52 K1KA14A00248 14P 连接接头 1 DH4 K1KA07AA0266 7P 连接接头 1 DH5 K1KB31AA0140 31P 连接接头 1 DH25 K1KAB0A00011 连接接头 1 FL2001,02 J0HABB000004 LC 滤波器 2 FL2003-06 J0HABB000003 LC 滤波器 4 FL3001,02 J0HABB000003 LC 滤波器 2 FL3003-05 J0HABB000004 LC 滤波器 3 FL3006,07 J0JAD0000028 片状电感 2 FL3008 J0HABB000003 LC 滤波器 1 FL3710-12 J0MAB0000199 LC 滤波器 3 FL5015-20 J0JAD0000028 片状电感 6 FL5730-34 J0HABH000013 LC 滤波器 5 FL7101 J0HABH000013 LC 滤波器 1 FL7201,02 J0HABH000013 LC 滤波器 2 FL7501,02 J0HABH000013 LC 滤波器 2 FL7601 J0HABH000013 LC 滤波器 1 FL8801,02 J0HAAA000013 LC 滤波器 2 FL9000 J0HABH000013 LC 滤波器 1 FL9302-11 J0HABH000013 LC 滤波器 10 FL9501,02 J0HABH000013 LC 滤波器 2 FL9504 F1J1E1040022 C 0.10UF, Z, 25V 1 FL9800 J0HABH000013 LC 滤波器 1 FL9803,04 J0HABH000012 LC 滤波器 2 FL9805-07 J0HABH000013 LC 滤波器 3 G51 K1KY20A00015 20P 连接接头 1 GH10 K1FA121E0001 121P 连接接头 1 GH11 K1KY30A00017 30P 连接接头 1 GS52 K1KA14B00129 14P 连接接头 1 H2 K1KA23A00003 23P 连接接头 1 H3 K1KA40AA0009 40P 连接接头 1 H6 K1KB80AA0218 80P 连接接头 1 H11 K1KA05AA0190 5P 连接接头 1 H12 K1KA04AA0190 4P 连接接头 1 H15 K1KA04AA0714 4P 连接接头 1 H51 K1KA20AA0178 20P 连接接头 1 IC1100 MNZSFD7GP42 IC 1 IC1101 TVRP399 IC 1 IC2000 C0JBAZ002261 IC 1 IC2008 C0CBCBE00001 IC 1 IC2010 C0CBCBC00190 IC 1 IC2011 C0ABBB000230 IC 1 IC2012 C1BB00000947 IC 1 IC2013 C0DBGYY00281 IC 1 IC2105 AN15862A-VT IC 1 IC2106 C1AB00002746 IC 1 IC2107 C0DBFFD00003 IC 1 IC2301,02 C1AB00002730 IC 2 IC2303 C0DBGYY00202 IC 1 IC2601 C0JBAU000034 IC 1 IC2610 C0DBAJB00004 IC 1 IC3001 AN15876A-VT IC 1 IC3801 C1AB00002641 IC 1 IC3802 TVRP315 IC 1 IC3803 C0JBAU000034 IC 1 IC4001 C1AB00002687 IC 1 IC4002 C0CBCAC00275 IC 1 IC4004 C0JBAZ002261 IC 1 IC4005 C0CBCBC00190 IC 1 IC4500 TVRP314 IC 1 IC4501 TVRP313 IC 1 IC4503 C1AB00002641 IC 1 IC4504 C3EBEY000009 IC 1 IC4506 C0DBGGF00001 IC 1 IC4507 C0CBCBC00190 IC 1 IC4508,09 C0CBCAD00082 IC 2 IC4510 C1AB00002753 IC 1 参考号 部品号 部品名称 & 说明 件数 备注 160 IC4513,14 C0JBAU000034 IC 2 IC4515 NJM2903V IC 1 IC4800 C1ZBZ0003577 IC 1 IC5000 TVRP341 IC 1 IC5001 C0CBCBC00190 IC 1 IC5002 C0CBCAC00282 IC 1 IC5003 C3ZBN0000026 IC 1 IC5006 C0CBCAF00031 IC 1 IC5008 C0CBCAF00023 IC 1 IC5009 C0CBCAF00031 IC 1 IC5010 TVRP342-1 IC 1 IC5012 C0CBCBC00190 IC 1 IC5013 C0EBD0000221 IC 1 IC5100 MN84525 IC 1 IC5102 C3ABQJ000055 IC 1 IC5105 C1ZBZ0003668 IC 1 IC5400 C0DBAZG00034 IC 1 IC5550,51 EHMDD9851 线形 IC 2 IC5600 C0DBAYY00273 IC 1 IC5601 C0DBAYY00274 IC 1 IC5660 C0EBM0000026 IC 1 IC5670 C0CBCBC00190 IC 1 IC5671 C0EBF0000376 IC 1 IC5901 C0DBAYY00274 IC 1 IC6131 C0ZBZ0000895 IC 1 IC6151 C0ZBZ0001324 IC 1 IC6191 C0ZBZ0000895 IC 1 IC6211 C0ZBZ0001325 IC 1 IC6221 C0DBEMB00005 IC 1 IC6241 C0JBAZ000005 IC 1 IC6251 NJM2903M 集成电路 1 IC6281 C0DBEMB00005 IC 1 IC6471 C0DBEKA00003 IC 1 IC6472 C0JBAA000377 IC 1 IC6501 C0ZBZ0000895 IC 1 IC6521 C0ZBZ0001324 IC 1 IC6561,62 C0JBAZ000005 IC 2 IC6581 NJM2903M 集成电路 1 IC6601 C0ZBZ0001325 IC 1 IC6602 C0JBAB000715 IC 1 IC6610 NJM2903M 集成电路 1 IC6671 C0ZBZ0001325 IC 1 IC6681 C0ZBZ0001325 IC 1 IC6682 C0JBAA000377 IC 1 IC6721,22 C0JBAZ000994 IC 2 IC6724,25 C0CBADC00089 IC 2 IC6751 C0CBADC00089 IC 1 IC6752 C0ZBZ0001325 IC 1 IC6753 C0JBAB000715 IC 1 IC6771 C0CBADC00089 IC 1 IC6772 C0ZBZ0001325 IC 1 IC6773,74 C0JBAA000377 IC 2 IC6791 N0BF1FB00001 IC 1 IC6801,02 C0DBEMB00005 IC 2 IC6803 C0DAAMH00005 IC 1 IC6821 C0DBEMB00005 IC 1 IC6841 C0DBEMB00005 IC 1 IC6861 NJM2903M 集成电路 1 IC6871 NJM2903M 集成电路 1 IC6901-18 AN16072A-VT IC 18 IC6919,20 C0JBAA000174 IC 2 IC7101-06 C0JBAZ001120 IC 6 IC7201-07 C0JBAZ001120 IC 7 IC7211-15 C0JBAZ001120 IC 5 IC7301-06 C0JBAZ001120 IC 6 IC7401-06 C0JBAZ001120 IC 6 IC7501-07 C0JBAZ001120 IC 7 IC7511-16 C0JBAZ001120 IC 6 IC7601-06 C0JBAZ001120 IC 6 IC8001 MN2WS0039AA IC 1 IC8002,03 C3ABSG000039 IC 2 IC8004 C0ZBZ0001030 IC 1 IC8554 TVRP558-3 IC 1 IC8601 TVRP484 IC 1 PPDS IC8621,22 C0JBAZ002845 IC 2 IC9001 TVRP588-1 IC 1 IC9002 C1ZBZ0003577 IC 1 参考号 部品号 部品名称 & 说明 件数 备注 IC9003 C2CBJG000751 IC 1 IC9007 TVRP584 IC 1 IC9011 C0EBF0000431 IC 1 IC9200 C1ZBZ0003600 IC 1 IC9300 MN84524 IC 1 IC9301 C3ABQJ000055 IC 1 IC9304 TVRP589 IC 1 IC9400 MN84524 IC 1 IC9401 C3ABQJ000055 IC 1 IC9402 C0JBAZ002614 IC 1 IC9500 C1ZBZ0003575 IC 1 IC9503-05 C0JBAZ001120 IC 3 IC9603 C0JBAZ002183 IC 1 IC9800 C0DBAYY00054 IC 1 IC9802,03 C0JBAZ001120 IC 2 IC9806 C0DBAHD00011 IC 1 IC9807 C0DBAYY00054 IC 1 IC9809 C0DBAYY00054 IC 1 JK2003 K2HA204A0053 插孔 1 JK3001 K1FB315A0006 连接接头 1 JK3100 K1U936A00002 连接接头单元 1 JK3701C K4AK18B00003 端子 JK4500,01 K1FY119D0002 连接接头 2 JK7702 K1NA09E00088 9P 连接接头 1 JS1,S2 ERJ6GEY0R00V M 0 OHM, 1/10W 2 JS1100 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS1115 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS2031-33 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS2046 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS2048,49 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS2051 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS2059-62 ERJ3GEY0R00 M 0 OHM, 1/16W 4 JS2064 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS2096 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS2101 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS2300,01 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS2513 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3001 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3010-15 ERJ6GEY0R00V M 0 OHM, 1/10W 6 JS3023,24 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS3032 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3206 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3208,09 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS3213 ERJ6GEY0R00V M 0 OHM, 1/10W 1 JS3702 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3704,05 ERJ6GEY0R00V M 0 OHM, 1/10W 2 JS3707,08 ERJ6GEY0R00V M 0 OHM, 1/10W 2 JS3816 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS4001-03 D0YAR0000007 M 0.0 OHM, J,0.063W 3 JS4005 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS4007 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS4501 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS5000-09 D0YAR0000007 M 0.0 OHM, J,0.063W 10 JS5020-23 D0YAR0000007 M 0.0 OHM, J,0.063W 4 K1 K1KY12B00001 12P 连接接头 1 L1100 J0JHC0000078 片状电感 1 L2001,02 J0JCC0000364 片状电感 2 L2003,04 J0JCC0000100 扼流线圈 2 L2007,08 J0JCC0000100 扼流线圈 2 L2011,12 J0JCC0000100 扼流线圈 2 L2015,16 J0JCC0000100 扼流线圈 2 L2021 J0JHC0000078 片状电感 1 L2022 ERJ3GEY0R00 M 0 OHM, 1/16W 1 L2026 G1C6R8MA0061 感应线圈 , L2027 J0JHC0000045 片状电感 1 L2029 J0JCC0000077 片状电感 1 L2034,35 J0JCC0000364 片状电感 2 L2039,40 J0JHC0000045 片状电感 2 L2300-07 G1C330MA0291 感应线圈 L2308-10 J0JJC0000011 片状电感 3 L2647 ERJ6GEY0R00V M 0 OHM, 1/10W 1 L2648 G1C470MA0077 感应线圈 L2649 G1C100MA0072 感应线圈 参考号 部品号 部品名称 & 说明 件数 备注 161 L2650 G1C3R3ZA0083 感应线圈 L3001-03 J0JCC0000100 扼流线圈 3 L3010 J0JCC0000100 扼流线圈 1 L3013 J0JCC0000100 扼流线圈 1 L3206-08 J0JCC0000241 片状电感 3 L3209 J0JGC0000021 片状电感 1 L3211 J0JGC0000021 片状电感 1 L3219,20 J0JCC0000241 片状电感 2 L3222 J0JGC0000021 片状电感 1 L3223-26 J0JCC0000241 片状电感 4 L3227 J0JGC0000021 片状电感 1 L3700,01 J0JCC0000364 片状电感 2 L3707,08 J0JCC0000100 扼流线圈 2 L3801 J0JHC0000045 片状电感 1 L3804,05 J0JHC0000045 片状电感 2 L4002 J0JHC0000045 片状电感 1 L4004 J0JHC0000078 片状电感 1 L4006 J0JHC0000045 片状电感 1 L4008 J0JHC0000078 片状电感 1 L4500-08 J0JHC0000078 片状电感 9 L4511 J0JHC0000078 片状电感 1 L4512 J0JCC0000077 片状电感 1 L4516-18 J0JHC0000078 片状电感 3 L4520,21 J0JHC0000078 片状电感 2 L4524 J0JHC0000078 片状电感 1 L5000 J0JHC0000078 片状电感 1 L5001 TALC168T100K 片状电感线圈 1 L5002,03 J0JCC0000077 片状电感 2 L5004-06 J0JHC0000078 片状电感 3 L5015 J0JHC0000078 片状电感 1 L5017,18 J0JHC0000078 片状电感 2 L5019,20 J0JCC0000077 片状电感 2 L5021 J0JCC0000241 片状电感 1 L5401 G0C101KA0167 校正线圈 1 L5550 TALL08N2R7MA 感应线圈 L5551,52 G0C150MA0056 校正线圈 2 L5553 TALL08N2R7MA 感应线圈 L5554,55 G0C150MA0056 校正线圈 2 L5564 TALL08N2R7MA 感应线圈 L5565 G0A220GA0002 扼流线圈 1 L5566-68 TALL08N2R7MA 感应线圈 L5600,01 G1C2R2ZA0083 感应线圈 L5602 G1C3R3ZA0083 感应线圈 L5604 G1C100MA0077 感应线圈 L5605 J0JCC0000241 片状电感 1 L5606 G1C100MA0077 感应线圈 L5610,11 J0JHC0000035 片状电感 2 L5670 J0JHC0000078 片状电感 1 L5690,91 J0JHC0000078 片状电感 2 L5692 J0JCC0000241 片状电感 1 L5735 J0JHC0000078 片状电感 1 L5900 G1C2R2ZA0083 感应线圈 L5901 G1C3R3ZA0083 感应线圈 L5904 G1C100MA0077 感应线圈 L5905 J0JCC0000241 片状电感 1 L6001-06 G0CR96KA0118 校正线圈 6 L6011-14 G0C1R4KA0118 校正线圈 4 L6040 G0ZZ00002183 校正线圈 1 L6061-71 G0ZZ00002183 校正线圈 11 L6082 G0ZZ00002183 校正线圈 1 L6084 G0ZZ00002183 校正线圈 1 L6086 G0ZZ00002183 校正线圈 1 L6088 G0ZZ00002183 校正线圈 1 L6090 G0ZZ00002183 校正线圈 1 L6092 G0ZZ00002183 校正线圈 1 L6101,02 J0JJC0000011 片状电感 2 L6103 G0ZZ00002183 校正线圈 1 L6105-08 J0JJC0000011 片状电感 4 L6211-13 J0JJC0000011 片状电感 3 L6221,22 G0ZZ00002183 校正线圈 2 L6241 G0ZZ00002183 校正线圈 1 L6262 G0ZZ00002183 校正线圈 1 L6271 G0ZZ00002183 校正线圈 1 L6293 G0ZZ00002183 校正线圈 1 L6387 G0ZZ00002183 校正线圈 1 L6398,99 J0JJC0000011 片状电感 2 L6401-06 G0CR96KA0118 校正线圈 6 参考号 部品号 部品名称 & 说明 件数 备注 L6411-16 G0C1R9KA0147 校正线圈 6 L6451-54 G0ZZ00002183 校正线圈 4 L6461-68 G0ZZ00002183 校正线圈 8 L6472,73 G0ZZ00002183 校正线圈 2 L6485-88 G0ZZ00002183 校正线圈 4 L6491-98 G0ZZ00002183 校正线圈 8 L6591,92 G0ZZ00002183 校正线圈 2 L6601,02 G0ZZ00002183 校正线圈 2 L6801,02 J0JJC0000011 片状电感 2 L6841 J0JJC0000011 片状电感 1 L7701 J0JCC0000143 片状电感 1 L7702 ERJ6GEY0R00V M 0 OHM, 1/10W 1 L7706 ERJ3GEY0R00 M 0 OHM, 1/16W 1 L8001-05 J0JHC0000045 片状电感 5 L8006 ERJ3GEY0R00 M 0 OHM, 1/16W 1 L8007-10 J0JHC0000045 片状电感 4 L8551 J0JCC0000241 片状电感 1 L8621 J0JCC0000241 片状电感 1 L8801 J0JHC0000045 片状电感 1 L8802 J0JCC0000100 扼流线圈 1 L9501,02 J0JHC0000078 片状电感 2 L9503 G1C150KA0038 感应线圈 L9504,05 J0JHC0000078 片状电感 2 L9800 G1C3R0MA0248 感应线圈 L9801,02 G1C2R2MA0241 感应线圈 L9810 J0JHC0000045 片状电感 1 PA3 K1KA40AA0009 40P 连接接头 1 PA5 K1KA11AA0194 11P 连接接头 1 PA9 K1KA04AA0190 4P 连接接头 1 PA10 K1KA06A00452 6P 连接接头 1 PA32,33 K1KA03AA0192 3P 连接接头 2 PA35 K1KA03AA0192 3P 连接接头 1 PA3401 K5H8012A0023 保险丝 1 PA9800 K5H4022A0023 保险丝 1 PC2511 B3JB00000026 IC 1 PC6480 B3PBA0000223 IC 1 PC6610 B3PBA0000223 IC 1 PC6701-03 B3PBA0000233 IC 3 PC6704 B3PBA0000234 IC 1 PC6705 B3PBA0000233 IC 1 PC6760 B3PBA0000223 IC 1 PC6801 B3PBA0000223 IC 1 PC6861 B3PBA0000223 IC 1 PC6871 B3PBA0000223 IC 1 PCB TNPA4279AC H 电路板 1 PCB TXNDG1HHTC DG 电路板 1 PPDS PCB TXNDH1HHTC DH 电路板 1 PPDS PCB TNPA4274AC PA 电路板 1 PCB ETXMM624MGHA P 电路板 1 PCB TNPA3984 C1 电路板 1 PCB TNPA3985 C2 电路板 1 PCB TNPA3986 C3 电路板 1 PCB TNPA3987 C4 电路板 1 PCB TNPA3988 C5 电路板 1 PCB TNPA3989 C6 电路板 1 PCB TZTNP01HHTC D 电路板 1 PPDS PCB TNPA3992 SC 电路板 1 PCB TNPA3991 SD 电路板 1 PCB TNPA3993 SS 电路板 1 PCB TNPA3990 SU 电路板 1 PCB TNPA4262AD G 电路板 1 PCB TNPA4135AF GH 电路板 1 PCB TNPA4137AE K 电路板 1 PCB TNPA4138AD S 电路板 1 PCB TXNGS1HLTC GS 电路板 1 PPDS Q1107,08 2SD0601ARL 三极管 2 Q2000,01 2SD0601ARL 三极管 2 Q2002,03 2SC584500L 三极管 2 Q2015 2SA207700L 三极管 1 Q2016,17 2SC584500L 三极管 2 Q2021 2SA207700L 三极管 1 参考号 部品号 部品名称 & 说明 件数 备注 162 Q2031 2SA207700L 三极管 1 Q2033 2SA207700L 三极管 1 Q2034,35 2SC584500L 三极管 2 Q2039-42 2SC584500L 三极管 4 Q2101,02 2SC584500L 三极管 2 Q2301 2SA207700L 三极管 1 Q2510,11 2SD0601ARL 三极管 2 Q2513 2SD0601ARL 三极管 1 Q2635 2SC584500L 三极管 1 Q2636,37 2SA207700L 三极管 2 Q2638 2SC584500L 三极管 1 Q2639 2SK3065T100 场效应管 1 Q3031,32 2SC584500L 三极管 2 Q3200,01 2SA207700L 三极管 2 Q3401,02 2SC584500L 三极管 2 Q3801,02 2SD0601ARL 三极管 2 Q3804 2SD0601ARL 三极管 1 Q4000-02 2SA207700L 三极管 3 Q4500-05 2SD0601ARL 三极管 6 Q4514-17 2SB0709ARL 三极管 4 Q4520 2SD0601ARL 三极管 1 Q5000,01 B1CBHD000002 场效应管 2 Q5501,02 2SD0601ARL 三极管 2 Q5521,22 2SA207700L 三极管 2 Q5523,24 2SD0601ARL 三极管 2 Q5561 B1DHDC000028 三极管 1 Q5562 2SD0601ARL 三极管 1 Q5600-02 B1MBEDA00015 三极管 3 Q5603,04 2SD0601ARL 三极管 2 Q5690,91 2SD0601ARL 三极管 2 Q5692,93 B1DHDC000028 三极管 2 Q5901,02 B1MBEDA00015 三极管 2 Q6001-05 2PG0010000RP 三极管 5 Q6021-25 2PG0010000RP 三极管 5 Q6031 B1ADRD000001 三极管 1 Q6042-44 2PG0010000RP 三极管 3 Q6052-54 2PG0010000RP 三极管 3 Q6101,02 B1DFKM000002 三极管 2 Q6103 B1ABNF000006 三极管 1 Q6104 B1ADNF000006 三极管 1 Q6105-09 B1DFKM000002 三极管 5 Q6110 B1ABNF000006 三极管 1 Q6111,12 B1DFKM000002 三极管 2 Q6113 B1ADNF000006 三极管 1 Q6114 B1DFKM000002 三极管 1 Q6115 2SD0601ARL 三极管 1 Q6141 B1ABNF000006 三极管 1 Q6142 B1ADNF000006 三极管 1 Q6143 B1ABNF000006 三极管 1 Q6144 B1ADNF000006 三极管 1 Q6146 B1ABNF000006 三极管 1 Q6147 B1ADNF000006 三极管 1 Q6148 B1ABNF000006 三极管 1 Q6149 B1ADNF000006 三极管 1 Q6171 B1ABRD000003 三极管 1 Q6172 B1ADRD000001 三极管 1 Q6181 B1ABRD000003 三极管 1 Q6221 2SD1263A 三极管 1 Q6222 2SC3063 三极管 1 Q6251 2SD0601ARL 三极管 1 Q6281 B1ABNF000006 三极管 1 Q6282 B1ADNF000006 三极管 1 Q6401-05 2PG0010000RP 三极管 5 Q6421-25 2PG0030000RP 三极管 5 Q6441-43 2PG0010000RP 三极管 3 Q6451-53 2PG0030000RP 三极管 3 Q6511 B1ABNF000006 三极管 1 Q6512 B1ADNF000006 三极管 1 Q6513 B1ABNF000006 三极管 1 Q6514 B1ADNF000006 三极管 1 Q6516 B1ABNF000006 三极管 1 Q6517 B1ADNF000006 三极管 1 Q6518 B1ABNF000006 三极管 1 Q6519 B1ADNF000006 三极管 1 Q6531 B1ABRD000003 三极管 1 Q6532 B1ADRD000001 三极管 1 Q6551 B1ABRD000003 三极管 1 参考号 部品号 部品名称 & 说明 件数 备注 Q6552 B1ADRD000001 三极管 1 Q6581 2SD0601ARL 三极管 1 Q6601 B1DFES000003 三极管 1 Q6602 2SD0601ARL 三极管 1 Q6621-24 B1DFKM000001 三极管 4 Q6641 B1DFKM000001 三极管 1 Q6643-50 B1DFKM000001 三极管 8 Q6661 B1DEET000002 三极管 1 Q6662 2SD0601ARL 三极管 1 Q6663 B1ABNF000006 三极管 1 Q6671-73 B1DFES000003 三极管 3 Q6679 B1ABNF000006 三极管 1 Q6680 B1ADNF000006 三极管 1 Q6681,82 2SK389500L 场效应管 2 Q6691 2SK620 场效应管 1 Q6742,43 2SD0601ARL 三极管 2 Q6744 2SK620 场效应管 1 Q6762 B1ADNF000006 三极管 1 Q6781 B1ABNF000006 三极管 1 Q6782 B1ADNF000006 三极管 1 Q6791 2SD0601ARL 三极管 1 Q6803 2SD814A 三极管 1 Q6821 2SD1263A 三极管 1 Q6822 2SC3063 三极管 1 Q6824 2SD0601ARL 三极管 1 Q6841 2SD1263A 三极管 1 Q6842 2SC1473AEA 三极管 1 Q8801 2SD0601ARL 三极管 1 Q8802 2SB0709ARL 三极管 1 Q8911-13 2SD0601ARL 三极管 3 Q9044 2SD0601ARL 三极管 1 Q9046 2SD0601ARL 三极管 1 Q9050-54 2SD0601ARL 三极管 5 Q9057,58 B1CBHD000002 场效应管 2 Q9100 2SD0601ARL 三极管 1 Q9200,01 B1CBHD000002 场效应管 2 Q9300-06 2SD0601ARL 三极管 7 Q9800,01 B1MBEDA00015 三极管 2 Q9803 B1MBEDA00015 三极管 1 Q9805,06 2SD0601ARL 三极管 2 R1100 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1101 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1102 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1103 ERJ2RKD330 M 33 OHM, J,0.063W 1 R1104 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1105-09 ERJ2GEJ101 M 100 OHM, J,0.063W 5 R1122 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1124,25 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1134 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1144 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1146 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R1147 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1153 ERJ2GEJ821 M 820 OHM, J,0.063W 1 R1162 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1163 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R1164 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1165 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R1166 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1169 ERJ2GED563X M 56KOHM ,J,0.063W 1 R1170 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1171 ERJ2GED563X M 56KOHM ,J,0.063W 1 R1172 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1173 ERJ6ENF2000 M 200 OHM,J,1/10W 1 R1174,75 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1179 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1181 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1182 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1183,84 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1194 ERJ2GED563X M 56KOHM ,J,0.063W 1 R1195 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1196 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1199 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1200,01 ERJ2GEJ562 M 5.6KOHM, J,0.063W 2 R1203 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1204 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1205,06 ERJ2GEJ220 M 22 OHM, J,0.063W 2 参考号 部品号 部品名称 & 说明 件数 备注 163 R1209 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1216 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1217 ERJ2GED563X M 56KOHM ,J,0.063W 1 R1218-20 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R1221 ERJ3EKF7151 M 7.15KOHM, 1/16W 1 R1222,23 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R1225-28 ERJ2GEJ473 M 47KOHM, J,0.063W 4 R1229 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1231-34 ERJ2GEJ473 M 47KOHM, J,0.063W 4 R1235 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1236,37 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R1243 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1255 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R2001 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R2006 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2007 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2010-15 ERJ2GEJ473 M 47KOHM, J,0.063W 6 R2018 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2020-23 ERJ2GEJ473 M 47KOHM, J,0.063W 4 R2024 ERJ2RKD330 M 33 OHM, J,0.063W 1 R2025 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2027 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R2028 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2029-34 ERJ6GEYJ184 M 180KOHM,J,1/10W 6 R2047 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R2048 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2049 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R2050 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2051,52 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R2053,54 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2056,57 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R2058 ERJ3GEYJ301 M 300 OHM,J,1/16W 1 R2059 D0GB105JA057 M 1MOHM,J,1/16W 1 R2084 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2085 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R2086 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2088 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2089 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R2092 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2093 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2094 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2096 D0GB103JA057 M 10KOHM,J,1/16W 1 R2097 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2098,99 D0GB103JA057 M 10KOHM,J,1/16W 2 R2100 ERJ3EKF2002 M 20KOHM, 1/16W 1 R2104 ERJ3EKF2001 M 2KOHM, 1/16W 1 R2106 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2110 D0GB103JA057 M 10KOHM,J,1/16W 1 R2111 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2112 D0GB105JA057 M 1MOHM,J,1/16W 1 R2113 ERJ3EKF1203 M 120KOHM, 1/16W 1 R2114 ERJ3EKF7502 M 75KOHM, 1/16W 1 R2116,17 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2118 D0GB105JA057 M 1MOHM,J,1/16W 1 R2119 D0GB103JA057 M 10KOHM,J,1/16W 1 R2122 D0GB103JA057 M 10KOHM,J,1/16W 1 R2123 D0GB473JA057 M 47KOHM,J,1/16W 1 R2124 D0GB103JA057 M 10KOHM,J,1/16W 1 R2125 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2127 D0GB103JA057 M 10KOHM,J,1/16W 1 R2128 D0GB473JA057 M 47KOHM,J,1/16W 1 R2129 D0GB103JA057 M 10KOHM,J,1/16W 1 R2131 D0GB103JA057 M 10KOHM,J,1/16W 1 R2132 D0GB473JA057 M 47KOHM,J,1/16W 1 R2137,38 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2143,44 D0GB103JA057 M 10KOHM,J,1/16W 2 R2145,46 ERJ3EKF2002 M 20KOHM, 1/16W 2 R2149 D0GB103JA057 M 10KOHM,J,1/16W 1 R2150,51 ERJ3EKF2002 M 20KOHM, 1/16W 2 R2152 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2154 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2156 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R2160 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2162 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2164 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2165 D0GB103JA057 M 10KOHM,J,1/16W 1 R2166 ERJ3EKF1602 M16.0KOHM, 1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R2167 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2168 ERJ3EKF1602 M16.0KOHM, 1/16W 1 R2169 ERJ3EKF2202 M 22KOHM, 1/16W 1 R2170-75 ERJ3GEYJ221 M 220 OHM,J,1/16W 6 R2178 D0GB102JA057 M 1KOHM,J,1/16W 1 R2179 D0GB103JA057 M 10KOHM,J,1/16W 1 R2180 D0GB102JA057 M 1KOHM,J,1/16W 1 R2181 ERJ3EKF2202 M 22KOHM, 1/16W 1 R2182,83 ERJ3EKF3602 M 36KOHM, 1/16W 2 R2184,85 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R2186 ERJ3GEYJ823 M 82KOHM,J,1/16W 1 R2187 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R2189 D0GB103JA057 M 10KOHM,J,1/16W 1 R2192,93 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2194 D0GB102JA057 M 1KOHM,J,1/16W 1 R2195,96 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2197 ERJ3EKF6802 M 68KOHM, 1/16W 1 R2198 ERJ3EKF1583 M 158KOHM, 1/16W 1 R2205 ERJ3GEYJ203 M 20KOHM,J,1/16W 1 R2206 D0GB103JA057 M 10KOHM,J,1/16W 1 R2208-10 D0GB103JA057 M 10KOHM,J,1/16W 3 R2216 D0GB103JA057 M 10KOHM,J,1/16W 1 R2217 D0GB473JA057 M 47KOHM,J,1/16W 1 R2218 D0GB102JA057 M 1KOHM,J,1/16W 1 R2220 D0GB123JA057 M 12KOHM,J,1/16W 1 R2223-25 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R2227-32 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R2233 D0GB103JA057 M 10KOHM,J,1/16W 1 R2235 D0GB473JA057 M 47KOHM,J,1/16W 1 R2236,37 D0GB102JA057 M 1KOHM,J,1/16W 2 R2238 D0GB473JA057 M 47KOHM,J,1/16W 1 R2257 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2263 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2265 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2266 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R2270,71 EXB28V220J 电阻阵列 2 R2276 D0GB103JA057 M 10KOHM,J,1/16W 1 R2290,91 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2294-97 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R2301,02 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R2305 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2306,07 ERJ3GEYJ683 M 68KOHM,J,1/16W 2 R2308,09 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 2 R2311-16 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 6 R2317-26 ERJ6GEYJ100V M 10 OHM,J,1/10W 10 R2330 D0GB102JA057 M 1KOHM,J,1/16W 1 R2331 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2506,07 J0JHC0000096 片状电感 2 R2512 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R2516 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2517 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R2520 ERJ3GEYJ224 M 220KOHM,J,1/16W 1 R2521 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R2524 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2525 ERJ3EKF5760 M 576 OHM, 1/16W 1 R2530 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2531 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R2542 D0GB473JA057 M 47KOHM,J,1/16W 1 R2556,57 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R2558 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R2575 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2576,77 J0JCC0000241 片状电感 2 R2578,79 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2601-03 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R2624,25 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R2628,29 ERJ3GEYJ752 M 7.5KOHM,J,1/16W 2 R2853 D0GB103JA057 M 10KOHM,J,1/16W 1 R2854 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2855 D0GB473JA057 M 47KOHM,J,1/16W 1 R2856 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2857 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2858 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2859 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2860 D0GB103JA057 M 10KOHM,J,1/16W 1 R2861 D0GB102JA057 M 1KOHM,J,1/16W 1 R2863,64 D0GB102JA057 M 1KOHM,J,1/16W 2 R2865 D0GB103JA057 M 10KOHM,J,1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 164 R2866 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2867 ERJ6ENF8202 M 82KOHM, 1/10W 1 R2868 ERJ6ENF1602 M 16KOHM, 1/10W 1 R2869 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2890 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3001-10 ERJ6RED750 M 75 OHM, 1/10W 10 R3012 ERJ6RED750 M 75 OHM, 1/10W 1 R3020-22 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R3044,45 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3059 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3062-65 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R3068 ERJ6RED750 M 75 OHM, 1/10W 1 R3069 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3072-74 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R3086,87 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3089 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3090 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3096-01 ERJ3GEYJ680 M 68 OHM,J,1/16W 6 R3103 J0JGC0000021 片状电感 1 R3105 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3107 D0GB103JA057 M 10KOHM,J,1/16W 1 R3109 J0JGC0000021 片状电感 1 R3110 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3111,12 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3113 D0GB103JA057 M 10KOHM,J,1/16W 1 R3119 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3120 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3121 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R3123 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R3130,31 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3133 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3135 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3137 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3140 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R3143 ERJ6ENF69R8 M 69.8OHM, 1/10W 1 R3145 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3168 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3174-76 ERJ3GEYJ680 M 68 OHM,J,1/16W 3 R3177 D0GB103JA057 M 10KOHM,J,1/16W 1 R3180 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3188 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3191 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3202 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3205 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3206 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3215,16 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3222 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3227-29 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R3233,34 ERJ6RED750 M 75 OHM, 1/10W 2 R3236-38 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R3239 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3240 ERJ3EKF5600 M 560 OHM, 1/16W 1 R3243 ERJ6GEYG271 M 270 OHM,J,1/10W 1 R3244 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3246 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3247 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3249-51 D0GB152JA057 M 1.5KOHM,J,1/16W 3 R3252 ERJ6GEYG271 M 270 OHM,J,1/10W 1 R3253,54 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3255 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3256 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3259 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3260 ERJ3EKF5600 M 560 OHM, 1/16W 1 R3266 D0GB152JA057 M 1.5KOHM,J,1/16W 1 R3302 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R3305 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R3306,07 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R3308,09 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R3310 ERJ6RED750 M 75 OHM, 1/10W 1 R3313 ERJ6RED750 M 75 OHM, 1/10W 1 R3318 ERJ6RED750 M 75 OHM, 1/10W 1 R3348,49 ERJ3GEYJ680 M 68 OHM,J,1/16W 2 R3350 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3401 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3402 D0GB473JA057 M 47KOHM,J,1/16W 1 R3403 D0GB103JA057 M 10KOHM,J,1/16W 1 R3404 D0GB473JA057 M 47KOHM,J,1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R3405 ERJ3GEYD153V M 15KOHM,J,1/16W 1 R3709-11 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R3714 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3716,17 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3721 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R3722-25 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R3732 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3746 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3748 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3750 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3751 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R3753 ERJ6ENF1741 M1.74KOHM, 1/10W 1 R3754 ERJ6ENF1621 M1.62KOHM, 1/10W 1 R3755 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3758 ERJ6ENF6651 M6.65KOHM, 1/10W 1 R3765 ERJ6ENF2321 M2.32KOHM, 1/10W 1 R3767 ERJ6ENF3161 M3.16KOHM, 1/10W 1 R3768 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3801,02 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R3803 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R3804,05 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R3806 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3807,08 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R3809,10 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R3811 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R3812 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3814 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R3815 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R3818 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3819,20 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R3821 ERJ2GEJ390 M 39 OHM, J,0.063W 1 R3822 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R3823 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3824-31 ERJ2GEJ2R7X M 2.7OHM, J,0.063W 8 R3832 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3834 ERJ3EKF49R9 M 49.9 OHM, 1/16W 1 R3835 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R3840,41 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4002,03 EXB2HV680J 电阻阵列 2 R4004,05 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4006 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4007 ERJ3EKF7500 M 750 OHM, 1/16W 1 R4010 ERJ3EKF1821 M1.82KOHM, 1/16W 1 R4011,12 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4013 ERJ2GEJ681 M 680 OHM, J,0.063W 1 R4014 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4016 ERJ2GEJ681 M 680 OHM, J,0.063W 1 R4017 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4019 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4025 D0GB202JA057 M 2KOHM,J,1/16W 1 R4028,29 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R4034 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4200-02 ERJ2RKD330 M 33 OHM, J,0.063W 3 R4203,04 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R4205,06 D1HG33080001 排阻 2 R4207 EXB2HV680J 电阻阵列 1 R4208,09 D1HG33080001 排阻 2 R4210 ERJ2RKD330 M 33 OHM, J,0.063W 1 R4229 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4230 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4241 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4244 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4246,47 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R4249 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4284 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4287,88 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R4291,92 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R4302-08 ERJ2RKD330 M 33 OHM, J,0.063W 7 R4309 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4311,12 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4317 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4320-23 ERJ2GEJ473 M 47KOHM, J,0.063W 4 R4325,26 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R4328-30 ERJ2GEJ473 M 47KOHM, J,0.063W 3 R4500,01 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4502,03 ERJ2RKD330 M 33 OHM, J,0.063W 2 R4506,07 ERJ2GEJ103 M 10KOHM, J,0.063W 2 参考号 部品号 部品名称 & 说明 件数 备注 165 R4508-23 ERJ2GEJ2R2X M 2.2OHM, J,0.063W 16 R4524,25 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4526,27 ERJ2GEJ102X M 1KOHM, J,0.063W 2 R4528 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4529 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4530 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4531 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4532,33 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4535,36 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4538 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4539 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4540 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4541-43 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4544-47 ERJ2GEJ103 M 10KOHM, J,0.063W 4 R4552 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4561 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4562,63 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4564,65 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4567 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R4578,79 ERJ2GEJ151 M 150 OHM, J,0.063W 2 R4585 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4587 ERJ3GEYF821 M 820 OHM, 1/16W 1 R4593 ERJ3EKF1001 M 1KOHM, 1/16W 1 R4596-98 ERJ6GEYG102 M 1KOHM,J,1/10W 3 R4601 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R4604 ERJ3EKF7501 M 7.5KOHM, 1/16W 1 R4606 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R4611 ERJ3EKF1371 M 1.37KOHM, 1/16W 1 R4612 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 R4613,14 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4615 ERJ3EKF1600 M 160 OHM, 1/16W 1 R4622 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4624 ERJ3EKF1691 M1.69KOHM, 1/16W 1 R4626 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R4627 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4628,29 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R4631 ERJ3EKF4990 M 499 OHM, 1/16W 1 R4634 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4635 EXB28V680JX 电阻阵列 1 R4636-38 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4639,40 EXB28V680JX 电阻阵列 2 R4641 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4642 EXB28V680JX 电阻阵列 1 R4643,44 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4645-47 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4648 EXB28V330J 电阻阵列 1 R4649 EXB28V680JX 电阻阵列 1 R4650,51 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4652 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4653 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4654 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R4655 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4656 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R4657,58 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4659 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4661 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4663 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4665,66 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R4667 ERJ2GEJ151 M 150 OHM, J,0.063W 1 R4670 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4672 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4676-81 ERJ2GEJ220 M 22 OHM, J,0.063W 6 R4682 ERJ3EKF1002 M 10KOHM, 1/16W 1 R4683 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4686 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4687,88 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4689-92 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R4694 ERJ2RKD330 M 33 OHM, J,0.063W 1 R4698,99 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R4702,03 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R4706 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4707 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4708 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4800 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4819,20 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4832 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4833 ERJ2GEJ104 M 100KOHM, J,0.063W 1 参考号 部品号 部品名称 & 说明 件数 备注 R4834 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4838 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4841 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4842 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4844,45 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R4846 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4848 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R5000,01 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R5002-04 ERJ2GEJ220 M 22 OHM, J,0.063W 3 R5005 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5007 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R5008 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5009 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R5010 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5011,12 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R5013 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5014-18 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R5019,20 EXB2HV680J 电阻阵列 2 R5021-25 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R5026 EXB2HV680J 电阻阵列 1 R5027 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5028 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R5029,30 ERJ3EKF1000 M 100 OHM, 1/16W 2 R5031 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5032 ERJ3EKF1001 M 1KOHM, 1/16W 1 R5033 ERJ3EKF4751 M 4.75KOHM, 1/16W 1 R5034 ERJ3EKF75R0 M 0.75HM, 1/16W 1 R5035 ERJ3EKF2001 M 2KOHM, 1/16W 1 R5036 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5038 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R5039-41 D0YAR0000007 M 0.0 OHM, J,0.063W 3 R5043,44 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R5045 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5046 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5048 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5051-54 D1HG8208A002 排阻 4 R5055-58 EXB2HV221JV 电阻阵列 4 R5059-64 ERJ2GEJ470 M 47 OHM, J,0.063W 6 R5065,66 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R5067 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5068,69 ERJ2GEJ182 M 1.8KOHM, J,0.063W 2 R5070-72 ERJ2GEJ470 M 47 OHM, J,0.063W 3 R5087 ERJ3EKF5601 M 5.6KOHM, 1/16W 1 R5088 ERJ3EKF1001 M 1KOHM, 1/16W 1 R5091 ERJ3EKF3302 M 33KOHM, 1/16W 1 R5092 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5117 ERJ3EKF3302 M 33KOHM, 1/16W 1 R5118 ERJ3EKF3242 M32.4KOHM, 1/16W 1 R5119,20 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R5121 EXB2HV470JV 电阻阵列 1 R5122 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5123 EXB2HV470JV 电阻阵列 1 R5124 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5125 EXB2HV470JV 电阻阵列 1 R5126 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5127 EXB2HV470JV 电阻阵列 1 R5128 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5129 EXB2HV470JV 电阻阵列 1 R5130,31 ERJ2GEJ470 M 47 OHM, J,0.063W 2 R5132,33 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R5134 EXB2HV470JV 电阻阵列 1 R5135 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5136,37 ERJ3EKF1001 M 1KOHM, 1/16W 2 R5138-42 D0YAR0000007 M 0.0 OHM, J,0.063W 5 R5169 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R5170 ERJ3EKF3242 M32.4KOHM, 1/16W 1 R5172 ERJ3EKF1690 M 169 OHM, 1/16W 1 R5173,74 ERJ3GEYJ121 M 120 OHM,J,1/16W 2 R5176 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R5179 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5181 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5183,84 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R5191 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5194 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5196 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R5197,98 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R5199-02 ERJ2GEJ103 M 10KOHM, J,0.063W 4 参考号 部品号 部品名称 & 说明 件数 备注 166 R5203 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R5204 D0GB103JA057 M 10KOHM,J,1/16W 1 R5205,06 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R5214 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5215-34 ERJ3GEYJ121 M 120 OHM,J,1/16W 20 R5235-44 ERJ3EKF1690 M 169 OHM, 1/16W 10 R5246 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5248 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R5249 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5250 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R5251 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R5300,01 D1HG8208A002 排阻 2 R5302-08 ERJ2GEJ820 M 82 OHM, J,0.063W 7 R5318 ERJ2GEJ821 M 820 OHM, J,0.063W 1 R5319 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R5329 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5336 ERJ2GEJ103X M 10KOHM, J,0.063W 1 R5337 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R5338 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5339 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5340 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5342-44 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R5345,46 ERJ2GEJ102X M 1KOHM, J,0.063W 2 R5347 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5402,03 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R5405 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R5409 ERJ6ENF4702 M 47KOHM, 1/10W 1 R5412 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R5413 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R5416 ERJ6ENF2741 M2.74KOHM, 1/10W 1 R5417 ERJ6ENF4020 M 402 OHM, 1/10W 1 R5418 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R5420 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R5423 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R5443 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R5481 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R5502,03 ERJ6ENF1271 M1.27KOHM, 1/10W 2 R5506,07 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R5508 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R5509 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R5525,26 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R5527 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R5531 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R5532 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R5533 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R5534 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R5535 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R5536 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R5537 ERJ6GEYG681 M 680 OHM,J,1/10W 1 R5538 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R5540 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R5542 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R5544 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R5546,47 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R5548,49 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R5552,53 ERJ6GEYJ471 M 470 OHM,J,1/10W 2 R5554 ERJ6ENF2611 M2.61KOHM, 1/10W 1 R5555 ERJ6ENF1271 M1.27KOHM, 1/10W 1 R5570 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R5571 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R5572 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R5573 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R5576,77 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R5600 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5604 ERJ3GEYF473 M 47KOHM, 1/16W 1 R5605 ERJ3EKF1272 M12.7KOHM, 1/16W 1 R5606-09 D0YAR0000007 M 0.0 OHM, J,0.063W 4 R5610 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5611 ERJ3EKF3602 M 36KOHM, 1/16W 1 R5612 ERJ3EKF2322 M23.2KOHM, 1/16W 1 R5620 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5621 ERJ3GEYF473 M 47KOHM, 1/16W 1 R5622 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5623 ERJ3GEYF473 M 47KOHM, 1/16W 1 R5625-28 D0YAR0000007 M 0.0 OHM, J,0.063W 4 R5629 ERJ3EKF3012 M30.1KOHM, 1/16W 1 R5630 ERJ3EKF4752 M47.5KOHM, 1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R5631 ERJ3EKF3602 M 36KOHM, 1/16W 1 R5632 ERJ3EKF3002 M 30KOHM, 1/16W 1 R5633,34 ERJ3EKF1602 M16.0KOHM, 1/16W 2 R5635 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R5636 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R5637 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5638 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5641 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5644 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5646 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5647 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5660 ERJ2GEJ562 M 5.6KOHM, J,0.063W 1 R5661 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5662 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5670 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5671 ERJ2GEJ183 M 18KOHM ,J,0.063W 1 R5672 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5674 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5690,91 D0GB103JA057 M 10KOHM,J,1/16W 2 R5692,93 D0GB473JA057 M 47KOHM,J,1/16W 2 R5694,95 D0GB102JA057 M 1KOHM,J,1/16W 2 R5696,97 D0GB103JA057 M 10KOHM,J,1/16W 2 R5730,31 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R5732 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R5733 ERJ2GED563X M 56KOHM ,J,0.063W 1 R5860,61 EXB2HV470JV 电阻阵列 2 R5865-67 D0YAR0000007 M 0.0 OHM, J,0.063W 3 R5868 ERJ2RKD330 M 33 OHM, J,0.063W 1 R5870-72 ERJ2RKD330 M 33 OHM, J,0.063W 3 R5875-78 ERJ2GEJ470 M 47 OHM, J,0.063W 4 R5908,09 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R5914 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5916 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5920 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5921 ERJ3GEYF473 M 47KOHM, 1/16W 1 R5922 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5923 ERJ3GEYF473 M 47KOHM, 1/16W 1 R5925-28 D0YAR0000007 M 0.0 OHM, J,0.063W 4 R5929 ERJ3EKF2802 M 28KOHM, 1/16W 1 R5930 ERJ3EKF4752 M47.5KOHM, 1/16W 1 R5931 ERJ3EKF3012 M30.1KOHM, 1/16W 1 R5932 ERJ3EKF1272 M12.7KOHM, 1/16W 1 R5933,34 ERJ3EKF1602 M16.0KOHM, 1/16W 2 R5937 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5938-40 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R6001-05 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 5 R6010 ERF5TJ330 W 33 OHM, 5W 1 R6011-16 D0GD100JA059 M 10 OHM,J,0.25W 6 R6021-25 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 5 R6031,32 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6033 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6034 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6042-44 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 3 R6052-54 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 3 R6061,62 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6101-06 D0GD101JA059 M 100 OHM,J,0.25W 6 R6109 D0GD100JA059 M 10 OHM,J,0.25W 1 R6110 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6111,12 D0GD470JA059 M 47 OHM,J,0.25W 2 R6113 ERJ14YJ224 M 220KOHM, J,1/4W 1 R6114 D0GD470JA059 M 47 OHM,J,0.25W 1 R6116 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6121 D0GD470JA059 M 47 OHM,J,0.25W 1 R6122 D0GD100JA059 M 10 OHM,J,0.25W 1 R6123,24 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6125 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6126-28 ERJ6GEYJ563 M 56KOHM,J,1/10W 3 R6129 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6131,32 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6133 D0GD750JA059 M 75 OHM,J,0.25W 1 R6135-38 D0GD100JA059 M 10 OHM,J,0.25W 4 R6141-44 ERJ6GEYG103 M 10KOHM,J,1/10W 4 R6146-49 ERJ6GEYG103 M 10KOHM,J,1/10W 4 R6151,52 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6153 D0GD750JA059 M 75 OHM,J,0.25W 1 R6157-60 D0GF1R0JA047 M 1.0 OHM,J,0.33W 4 R6171 D0GD100JA059 M 10 OHM,J,0.25W 1 参考号 部品号 部品名称 & 说明 件数 备注 167 R6172,73 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6181 D0GD100JA059 M 10 OHM,J,0.25W 1 R6182,83 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6191,92 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6193 D0GD510JA059 M 51 OHM,J,0.25W 1 R6195,96 D0GD104JA059 M 100KOHM,J,0.25W 2 R6213 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6214 D0GD151JA059 M 150 OHM,J,0.25W 1 R6220 ERJ14YJ154 M 150KOHM, J,1/4W 1 R6221 ERJ6GEYG183 M 18KOHM,J,1/10W 1 R6222 ERG1FJS103D M 10KOHM, J, 1W 1 R6223 ERG2FJS123D M 12KOHM, J, 2W 1 R6225-27 ERJ6ENF5102 M 51KOHM, 1/10W 3 R6232 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6241 EXB38V470J 电阻阵列 1 R6242 EXB38V472JV 电阻阵列 1 R6243 EXB38V470J 电阻阵列 1 R6244 EXB38V472JV 电阻阵列 1 R6251 D0GD103JA059 M 10KOHM,J,0.25W 1 R6252,53 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6254 ERJ6ENF6801 M 6.8KOHM, 1/10W 1 R6255 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6256 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R6257 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6258 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6282 ERG2FJS150D M 15 OHM, J, 2W 1 R6284 D0GD472JA059 M 4.7KOHM,J,0.25W 1 R6286 D0GD101JA059 M 100 OHM,J,0.25W 1 R6288 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6289 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6291 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6330 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6401 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6403 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6405 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6407 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6409 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6421 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6423 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6425 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6427 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6429 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6441 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6443 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6445 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6451 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6453 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6455 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6465 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6466 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6467,68 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6471 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6472 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6473 ERJ6GEYF561 M 560 OHM,J,1/10W 1 R6474 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6475,76 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R6480 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6501,02 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6503 D0GD100JA059 M 10 OHM,J,0.25W 1 R6504 D0GD750JA059 M 75 OHM,J,0.25W 1 R6506 D0GD100JA059 M 10 OHM,J,0.25W 1 R6507-09 D0GF1R0JA047 M 1.0 OHM,J,0.33W 3 R6511,12 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6513 D0GD100JA059 M 10 OHM,J,0.25W 1 R6514-17 ERJ6GEYG103 M 10KOHM,J,1/10W 4 R6518 D0GD100JA059 M 10 OHM,J,0.25W 1 R6519,20 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6521,22 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6523 D0GD750JA059 M 75 OHM,J,0.25W 1 R6531 D0GD100JA059 M 10 OHM,J,0.25W 1 R6532,33 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6551 D0GD100JA059 M 10 OHM,J,0.25W 1 R6552,53 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6561-64 EXB38V470J 电阻阵列 4 R6565-68 EXB38V472JV 电阻阵列 4 R6581 D0GD103JA059 M 10KOHM,J,0.25W 1 R6582,83 ERJ6ENF3902 M 39KOHM, 1/10W 2 参考号 部品号 部品名称 & 说明 件数 备注 R6584 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R6585 ERJ6ENF1001 M 1KOHM, 1/10W 1 R6586 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R6587 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6588 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6590 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6591 EXB38V472JV 电阻阵列 1 R6592 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6603 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6604 D0GD151JA059 M 150 OHM,J,0.25W 1 R6605 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6606 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6607 ERJ6ENF2871 M2.87KOHM, 1/10W 1 R6608,09 D0GF102JA047 M 1.0 KOHM,J,0.33W 2 R6610 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6611 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R6612 D0GD470JA059 M 47 OHM,J,0.25W 1 R6613 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R6614,15 D0GF113JA047 M 11 KOHM,J, 0.33W 2 R6616 ERJ6ENF1502 M 15KOHM, 1/10W 1 R6617 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6618 ERJ6RBD123V M 12KOHM, 1/10W 1 R6619 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R6620 D0D28R2JA021 M 8.2 OHM,J,2W 1 R6621-24 ERJ6GEYG221 M 220 OHM,J,1/10W 4 R6630 D0GF113JA047 M 11 KOHM,J, 0.33W 1 R6631 ERJ6GEYG683 M 68KOHM,J,1/10W 1 R6632 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6633 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6641 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6643-50 ERJ6GEYJ101V M 100 OHM,J,1/10W 8 R6658 D0D1101JA009 M 100 OHM,J,1W 1 R6659,60 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6661 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6662 ERJ6ENF2701 M 2.7KOHM, 1/10W 1 R6664 D0GF222JA047 M 2.2KOHM,J,0.33W 1 R6665 D0GD470JA059 M 47 OHM,J,0.25W 1 R6666 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6667,68 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R6671 D0GD470JA059 M 47 OHM,J,0.25W 1 R6672 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6673-75 D0GD5R6JA059 M 5.6 OHM,J,0.25W 3 R6682 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6683 D0GD151JA059 M 150 OHM,J,0.25W 1 R6684 D0GD100JA059 M 10 OHM,J,0.25W 1 R6685 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6686 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6687 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6688 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6689 D0GD100JA059 M 10 OHM,J,0.25W 1 R6690 ERJ6GEYF151 M 150 OHM,J,1/10W 1 R6691 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6696,97 D0D32R2JA020 M 2.2 OHM,J,3W 2 R6700-08 ERJ6GEYJ471 M 470 OHM,J,1/10W 9 R6710-18 ERJ6GEYG222 M 2.2KOHM,J,1/10W 9 R6721,22 EXB38V220JV 电阻阵列 2 R6723 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6724 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6742 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6743 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6744 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6745 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6746,47 D0GD103JA059 M 10KOHM,J,0.25W 2 R6755 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6756 D0GF330JA047 M 33 OHM,J, 0.33W 1 R6759 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6760 ERJ6GEYG122 M 1.2KOHM,J,1/10W 1 R6761 D0GD100JA059 M 10 OHM,J,0.25W 1 R6762 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6775,76 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6777 D0GD151JA059 M 150 OHM,J,0.25W 1 R6781 D0GD470JA059 M 47 OHM,J,0.25W 1 R6782 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6791 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6792 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6793 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6801 ERG2FNJS8R2E M 8.2 OHM, J, 2W 1 参考号 部品号 部品名称 & 说明 件数 备注 168 R6802-04 ERG2FJS683D M 68KOHM, J, 2W 3 R6806,07 ERX12SJ1R2 M 1.2 OHM, J,1/2W 2 R6808 D0GD272JA059 M 2.7KOHM,J,0.25W 1 R6809 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6810,11 ERJ6GEYF333 M 33KOHM,J,1/10W 2 R6812 ERJ6ENF2003 M 200KOHM, 1/10W 1 R6813 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R6814 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R6816,17 ERJ6ENF5601 M 5.6KOHM, 1/10W 2 R6819 ERJ6GEYG681 M 680 OHM,J,1/10W 1 R6820 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6821 ERG2FJS221D M 220 OHM, J, 2W 1 R6822 ERJ12YJ104U M 100KOHM, 1/2W 1 R6823 ERG1FJS104D M 100KOHM, J, 1W 1 R6824 ERJ6GEYG562 M 5.6KOHM,J,1/10W 1 R6825 ERJ6ENF2703 M 270KOHM, 1/10W 1 R6826 ERJ6ENF2203 M 220KOHM, 1/10W 1 R6827 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R6828 ERJ6ENF5231 M5.23KOHM, 1/10W 1 R6829,30 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6831 ERJ6GEYG153 M 15KOHM,J,1/10W 1 R6832 D0GF4R7JA047 M 4.7 OHM,J, 0.33W 1 R6833-35 ERJ6ENF5602 M 56KOHM, 1/10W 3 R6836,37 ERJ6ENF4702 M 47KOHM, 1/10W 2 R6839 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6841 ERJ12YJ153U M 15KOHM, 1/2W 1 R6842 ERJ12YJ433U M 43KOHM, 1/2W 1 R6843 ERJ6GEYJ623 M 62KOHM,J,1/10W 1 R6844 D0D2101JA021 M 100 OHM,J,2W 1 R6845 ERJ6GEYJ623 M 62KOHM,J,1/10W 1 R6846,47 ERJ6GEYJ563 M 56KOHM,J,1/10W 2 R6848 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6849,50 ERJ6ENF6802 M 68KOHM, 1/10W 2 R6851 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6852 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6853 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6858 D0GD102JA059 M 1.0KOHM,J,0.25W 1 R6860 D0D28R2JA021 M 8.2 OHM,J,2W 1 R6861 ERJ6ENF3902 M 39KOHM, 1/10W 1 R6862,63 ERJ6ENF4702 M 47KOHM, 1/10W 2 R6864 ERJ6ENF8871 M8.87KOHM, 1/10W 1 R6865,66 ERJ6ENF2201 M 2.2KOHM, 1/10W 2 R6867 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6868 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6869 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6870 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6871-73 ERJ6ENF3902 M 39KOHM, 1/10W 3 R6874 ERJ6ENF9531 M9.53KOHM, 1/10W 1 R6875 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R6876 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6877 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6878 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6879 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6886-88 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6891 ERJ6GEYG332 M 3.3KOHM,J,1/10W 1 R6901 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6902-17 ERJ6GEYG221 M 220 OHM,J,1/10W 16 R6918 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6934 EXB38V103JV 电阻阵列 1 R6938,39 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R6944 EXB38V103JV 电阻阵列 1 R6948,49 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R6951 EXB38V220JV 电阻阵列 1 R6955 EXB38V220JV 电阻阵列 1 R6960 EXB38V103JV 电阻阵列 1 R6964 EXB38V220JV 电阻阵列 1 R6968 EXB38V220JV 电阻阵列 1 R6972 EXB38V103JV 电阻阵列 1 R7001-04 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R7101 D0GF472JA047 M 4.7KOHM,J,0.33W 1 R7104 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7107 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7108-15 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7116,17 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7123,24 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7125-32 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7133-35 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 参考号 部品号 部品名称 & 说明 件数 备注 R7136-39 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7140 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7143-45 EXB38V681J 电阻阵列 3 R7146,47 EXB38V470J 电阻阵列 2 R7148,49 EXB38V681J 电阻阵列 2 R7150,51 EXB38V470J 电阻阵列 2 R7152,53 EXB38V681J 电阻阵列 2 R7154,55 EXB38V470J 电阻阵列 2 R7156 EXB38V681J 电阻阵列 1 R7157-60 EXB38V470J 电阻阵列 4 R7186 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7187 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R7191 EXB38V681J 电阻阵列 1 R7193 EXB38V681J 电阻阵列 1 R7194-99 ERJ3GEYJ220 M 22 OHM,J,1/16W 6 R7200-07 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7208,09 EXB38V470J 电阻阵列 2 R7210 EXB38V681J 电阻阵列 1 R7211 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7212 EXB38V681J 电阻阵列 1 R7213,14 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7217,18 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7221,22 EXB38V470J 电阻阵列 2 R7223-26 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7227,28 EXB38V470J 电阻阵列 2 R7229,30 EXB38V681J 电阻阵列 2 R7231 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7232,33 EXB38V470J 电阻阵列 2 R7234 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7235,36 EXB38V681J 电阻阵列 2 R7237,38 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 2 R7239,40 EXB38V470J 电阻阵列 2 R7241,42 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 2 R7243 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7244 EXB38V470J 电阻阵列 1 R7245 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7246,47 EXB38V470J 电阻阵列 2 R7248 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R7249,50 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 2 R7251,52 EXB38V470J 电阻阵列 2 R7253,54 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 2 R7255 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7256-58 EXB38V681J 电阻阵列 3 R7259-64 EXB38V470J 电阻阵列 6 R7266-75 EXB38V681J 电阻阵列 10 R7276 EXB38V102J 电阻阵列 1 R7283 EXB38V681J 电阻阵列 1 R7284 EXB38V102J 电阻阵列 1 R7285 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R7286 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7287-96 ERJ3GEYJ220 M 22 OHM,J,1/16W 10 R7302 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R7303,04 EXB38V470J 电阻阵列 2 R7305-10 EXB38V681J 电阻阵列 6 R7311,12 EXB38V470J 电阻阵列 2 R7313,14 EXB38V681J 电阻阵列 2 R7315,16 EXB38V470J 电阻阵列 2 R7317,18 EXB38V681J 电阻阵列 2 R7319,20 EXB38V470J 电阻阵列 2 R7321,22 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7323,24 EXB38V470J 电阻阵列 2 R7325,26 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7330 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7331-34 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7335 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7336 D0GF472JA047 M 4.7KOHM,J,0.33W 1 R7354,55 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7358-65 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7366,67 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7373,74 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7375-82 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7383,84 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7385 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7386 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R7387 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7398,99 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7401 ERJ6GEY0R00V M 0 OHM, 1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 169 R7402 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7405-13 ERJ3GEY0R00 M 0 OHM, 1/16W 9 R7416,17 EXB38V470J 电阻阵列 2 R7420,21 EXB38V470J 电阻阵列 2 R7422 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7424,25 EXB38V470J 电阻阵列 2 R7428,29 EXB38V470J 电阻阵列 2 R7430-33 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7434 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7438,39 EXB38V470J 电阻阵列 2 R7453-59 EXB38V681J 电阻阵列 7 R7460,61 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7462-69 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7470,71 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7472 D0GF472JA047 M 4.7KOHM,J,0.33W 1 R7473,74 EXB38V681J 电阻阵列 2 R7477,78 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7479-86 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7487,88 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7490 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7491 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R7492 EXB38V681J 电阻阵列 1 R7493-98 ERJ3GEYJ220 M 22 OHM,J,1/16W 6 R7501 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R7502,03 EXB38V470J 电阻阵列 2 R7504,05 EXB38V681J 电阻阵列 2 R7506 EXB38V470J 电阻阵列 1 R7507 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7508-11 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7512 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7515 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7516-19 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7520 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7523,24 EXB38V470J 电阻阵列 2 R7525 EXB38V681J 电阻阵列 1 R7526 EXB38V470J 电阻阵列 1 R7527 EXB38V681J 电阻阵列 1 R7528 EXB38V470J 电阻阵列 1 R7529 EXB38V681J 电阻阵列 1 R7530-35 EXB38V470J 电阻阵列 6 R7536 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7537-40 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7541 EXB38V681J 电阻阵列 1 R7542 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7543 EXB38V681J 电阻阵列 1 R7544 EXB38V102J 电阻阵列 1 R7545-48 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7549 EXB38V470J 电阻阵列 1 R7550 EXB38V681J 电阻阵列 1 R7553 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7554-57 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7558-60 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R7561 EXB38V681J 电阻阵列 1 R7562,63 EXB38V470J 电阻阵列 2 R7564,65 EXB38V681J 电阻阵列 2 R7567 EXB38V470J 电阻阵列 1 R7570 EXB38V102J 电阻阵列 1 R7571-76 EXB38V470J 电阻阵列 6 R7577-87 EXB38V681J 电阻阵列 11 R7592 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R7593 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7594-99 ERJ3GEYJ220 M 22 OHM,J,1/16W 6 R7603 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R7604 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7605,06 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7607 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7608-15 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7616,17 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7618 D0GF472JA047 M 4.7KOHM,J,0.33W 1 R7623,24 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7625-32 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7633,34 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7636 EXB38V470J 电阻阵列 1 R7637-42 EXB38V681J 电阻阵列 6 R7643 EXB38V470J 电阻阵列 1 R7644,45 EXB38V681J 电阻阵列 2 R7646,47 EXB38V470J 电阻阵列 2 参考号 部品号 部品名称 & 说明 件数 备注 R7648 EXB38V681J 电阻阵列 1 R7650,51 EXB38V470J 电阻阵列 2 R7654,55 EXB38V470J 电阻阵列 2 R7658,59 EXB38V470J 电阻阵列 2 R7660 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7661-64 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7665 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7686 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7687 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R7696 EXB38V681J 电阻阵列 1 R7697-99 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R7702 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R7719 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7723 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7725 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7730,31 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7733-35 ERJ3GEYJ680 M 68 OHM,J,1/16W 3 R7737,38 ERJ3GEYJ680 M 68 OHM,J,1/16W 2 R7744 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R7747 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7749-52 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R7755 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7758,59 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7769 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8001 ERJ2GEJ181 M 180 OHM, J,0.063W 1 R8002 ERJ2GEJ820 M 82 OHM, J,0.063W 1 R8003 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8004 ERJ3EKF2402 M 24KOHM, 1/16W 1 R8005 ERJ3EKF1002 M 10KOHM, 1/16W 1 R8006 ERJ3EKF6801 M 6.8KOHM, 1/16W 1 R8023-29 D0YAR0000007 M 0.0 OHM, J,0.063W 7 R8030 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8031,32 ERJ3EKF2700 M 270 OHM, 1/16W 2 R8035 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8039 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8056-73 ERJ2GEJ470 M 47 OHM, J,0.063W 18 R8074 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8075-78 ERJ2GEJ470 M 47 OHM, J,0.063W 4 R8079,80 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R8081 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8082 D1BA75R0A026 M0.75KOHM, 1/10W 1 R8083 ERJ2GEJ301 M 300 OHM, J,0.063W 1 R8084 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8086 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R8087 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8090 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8091 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8093 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8095 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8097 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8098,99 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8100 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8101 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8106 ERJ2GEJ202 M 2KOHM, J,0.063W 1 R8107 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8111 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8328 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8471 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8472 D1HG1038A002 排阻 1 R8474,75 EXB28V103JX 电阻阵列 2 R8501 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8502-04 ERJ2GEJ331 M 330 OHM, J,0.063W 3 R8506 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R8507-10 ERJ3EKF91R0 M 91 OHM, 1/16W 4 R8512 ERJ3EKF1800 M 180 OHM, 1/16W 1 R8513 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8517-19 D0YAR0000007 M 0.0 OHM, J,0.063W 3 R8551 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8555-61 ERJ2GEJ680 M 68 OHM, J,0.063W 7 R8564 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8601,02 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R8603 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R8604 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R8605 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8621-36 ERJ2GEJ680 M 68 OHM, J,0.063W 16 R8653 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8655 ERJ2GEJ103 M 10KOHM, J,0.063W 1 参考号 部品号 部品名称 & 说明 件数 备注 170 R8702 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8703 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8709 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8710 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8711,12 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8732 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8735-39 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R8742 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8745,46 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8749 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8802-09 ERJ2GEJ103 M 10KOHM, J,0.063W 8 R8812 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8813 EXB28V680JX 电阻阵列 1 R8814-17 ERJ2GEJ680 M 68 OHM, J,0.063W 4 R8818,19 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R8820 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8821 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R8822 ERJ6ENF2000 M 200 OHM,J,1/10W 1 R8823 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8826 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8828 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8832 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8833 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8851-54 D0YAR0000007 M 0.0 OHM, J,0.063W 4 R8855-60 ERJ2GEJ680 M 68 OHM, J,0.063W 6 R8862-64 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R8865-67 EXB2HV680J 电阻阵列 3 R8868 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8869 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8870 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8871 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8874-76 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R8877-89 ERJ2GEJ680 M 68 OHM, J,0.063W 13 R8891,92 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R8893 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8894 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8895-97 D0YAR0000007 M 0.0 OHM, J,0.063W 3 R8898,99 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8900,01 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R8904-10 ERJ2GEJ103 M 10KOHM, J,0.063W 7 R8911-18 ERJ2GEJ680 M 68 OHM, J,0.063W 8 R8919-22 ERJ2GEJ472 M 4.7KOHM, J,0.063W 4 R8923,24 ERJ2GEJ222 M 2.2KOHM, J,0.063W 2 R8925,26 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R8927 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8928 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R8929 EXB2HVR000 电阻阵列 1 R8930 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8932 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R8933-35 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R8947 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8948 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8952 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8958 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8963 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8965 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R9060-67 ERJ3GEYJ101 M 100 OHM,J,1/16W 8 R9070 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9074 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9076 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9094 D0GB103JA057 M 10KOHM,J,1/16W 1 R9097,98 D0GB103JA057 M 10KOHM,J,1/16W 2 R9099 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9101 D0GB103JA057 M 10KOHM,J,1/16W 1 R9102 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9105 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9107 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9108,09 D0GB103JA057 M 10KOHM,J,1/16W 2 R9110 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9111 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9113 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9114-17 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9118,19 ERJ3EKF1001 M 1KOHM, 1/16W 2 R9120 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9121 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9122-25 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9126 ERJ3EKF1001 M 1KOHM, 1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R9127 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9129 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9130 ERJ3EKF1001 M 1KOHM, 1/16W 1 R9134 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R9140 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R9141 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9143-45 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 R9148 D0GB103JA057 M 10KOHM,J,1/16W 1 R9149 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9150,51 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9154,55 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9156-59 D0GB103JA057 M 10KOHM,J,1/16W 4 R9160,61 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9165,66 D0GB103JA057 M 10KOHM,J,1/16W 2 R9167 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9169 D0GB103JA057 M 10KOHM,J,1/16W 1 R9170-72 D0GB393JA041 M 39KOHM,J,1/16W 3 R9174-76 D0GB103JA057 M 10KOHM,J,1/16W 3 R9177 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9178 D0GB103JA057 M 10KOHM,J,1/16W 1 R9180 D0GB103JA057 M 10KOHM,J,1/16W 1 R9181-84 D0GB102JA057 M 1KOHM,J,1/16W 4 R9185,86 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9187,88 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9189,90 D0GB103JA057 M 10KOHM,J,1/16W 2 R9192 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9193 D0GB103JA057 M 10KOHM,J,1/16W 1 R9194 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9196 D0GB103JA057 M 10KOHM,J,1/16W 1 R9198 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9199 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9201,02 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9203 D0GB102JA057 M 1KOHM,J,1/16W 1 R9204,05 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9206,07 D0GB102JA057 M 1KOHM,J,1/16W 2 R9209 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9210 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9215 D0GB123JA057 M 12KOHM,J,1/16W 1 R9217-22 D0GB103JA057 M 10KOHM,J,1/16W 6 R9236 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9237 D0GB103JA057 M 10KOHM,J,1/16W 1 R9244,45 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9247,48 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9367 ERJ6GEYG181 M 180 OHM,J,1/10W 1 R9371 EXB2HV470JV 电阻阵列 1 R9372 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9373 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9374 EXB38V470J 电阻阵列 1 R9375 D0GB151JA057 M 150 OHM,J,1/16W 1 R9389 D0GB102JA057 M 1KOHM,J,1/16W 1 R9391 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9393-97 D1HG8208A002 排阻 5 R9398 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9399 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9400 D0GB103JA057 M 10KOHM,J,1/16W 1 R9404 EXB2HV470JV 电阻阵列 1 R9409,10 EXB38V820JV 电阻阵列 2 R9412-21 EXB38V470J 电阻阵列 10 R9428 EXB38V103JV 电阻阵列 1 R9430 D0GB103JA057 M 10KOHM,J,1/16W 1 R9433 D0GB102JA057 M 1KOHM,J,1/16W 1 R9438 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9442-49 ERJ3GEYJ220 M 22 OHM,J,1/16W 8 R9450 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9451 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9452 D0GB103JA057 M 10KOHM,J,1/16W 1 R9453-58 D1HG8208A002 排阻 6 R9459 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9460 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9461 D0GB103JA057 M 10KOHM,J,1/16W 1 R9462 D1HG8208A002 排阻 1 R9463 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9464 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9465 D0GB103JA057 M 10KOHM,J,1/16W 1 R9466-71 D1HG8208A002 排阻 6 R9472,73 EXB38V820JV 电阻阵列 2 R9474 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 171 R9476 D0GB102JA057 M 1KOHM,J,1/16W 1 R9481 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9484,85 ERJ3EKF1001 M 1KOHM, 1/16W 2 R9486 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9487 D0GB151JA057 M 150 OHM,J,1/16W 1 R9488 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9489-95 ERJ3GEYJ470 M 47 OHM,J,1/16W 7 R9496 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9497 D0GB103JA057 M 10KOHM,J,1/16W 1 R9506 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9507 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9515 EXB2HV470JV 电阻阵列 1 R9523 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9525 D0GB103JA057 M 10KOHM,J,1/16W 1 R9526 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9527,28 EXB2HV222JV 电阻阵列 2 R9529,30 D0GB103JA057 M 10KOHM,J,1/16W 2 R9531-33 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9534 EXB38V470J 电阻阵列 1 R9535,36 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9539 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9540 D0GB103JA057 M 10KOHM,J,1/16W 1 R9542 ERJ3GEYJ680 M 68 OHM,J,1/16W 1 R9543,44 D0GB103JA057 M 10KOHM,J,1/16W 2 R9545 ERJ3GEYJ304 M 300KOHM,J,1/16W 1 R9548-50 D0GB103JA057 M 10KOHM,J,1/16W 3 R9552-55 ERJ3GEYJ470 M 47 OHM,J,1/16W 4 R9558 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9560 D0GB103JA057 M 10KOHM,J,1/16W 1 R9561-67 ERJ3GEYJ220 M 22 OHM,J,1/16W 7 R9568 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9569 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9570 D0GB103JA057 M 10KOHM,J,1/16W 1 R9571-73 D1HG8208A002 排阻 3 R9574 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9575-77 D1HG8208A002 排阻 3 R9579 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9580,81 ERJ3EKF1001 M 1KOHM, 1/16W 2 R9584 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9585,86 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9587-95 EXB38V470J 电阻阵列 9 R9596-99 ERJ3GEYJ470 M 47 OHM,J,1/16W 4 R9602 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9603 D0GB103JA057 M 10KOHM,J,1/16W 1 R9604,05 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9606 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9607 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9608-15 EXB2HV470JV 电阻阵列 8 R9618 D0GB103JA057 M 10KOHM,J,1/16W 1 R9619,20 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9622 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9624,25 D0GB103JA057 M 10KOHM,J,1/16W 2 R9628-30 D0GB103JA057 M 10KOHM,J,1/16W 3 R9631 EXB2HV222JV 电阻阵列 1 R9632-34 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9637 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9639 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9640 D0GB103JA057 M 10KOHM,J,1/16W 1 R9641 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9642 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9647 D0GB103JA057 M 10KOHM,J,1/16W 1 R9652 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9653 D1HG1038A002 排阻 1 R9800 ERJ3EKF1302 M 13KOHM, 1/16W 1 R9801 ERJ3EKF2402 M 24KOHM, 1/16W 1 R9802 ERJ3EKF6202 M 62KOHM, 1/16W 1 R9803 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9804 ERJ3EKF2402 M 24KOHM, 1/16W 1 R9805 ERJ3EKF3002 M 30KOHM, 1/16W 1 R9806 ERJ3EKF3902 M 39KOHM, 1/16W 1 R9807 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9808 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9810 ERJ3EKF3001 M 3KOHM, 1/16W 1 R9813 ERJ3EKF2401 M 2.4KOHM, 1/16W 1 R9814 ERJ3EKF6802 M 68KOHM, 1/16W 1 R9815 ERJ3EKF2202 M 22KOHM, 1/16W 1 R9816 ERJ3EKF8202 M 82KOHM, 1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R9823-28 ERJ3GEYJ101 M 100 OHM,J,1/16W 6 R9830,31 D0GB103JA057 M 10KOHM,J,1/16W 2 R9838,39 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9840 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9841 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9842-44 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 R9845 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9846,47 EXB2HV222JV 电阻阵列 2 R9848,49 EXB2HV470JV 电阻阵列 2 R9850 D0GB473JA057 M 47KOHM,J,1/16W 1 R9854 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9859 EXB38V101JV 电阻阵列 1 R9868 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9869-71 D0GB103JA057 M 10KOHM,J,1/16W 3 R9872 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9875-77 D0GB103JA057 M 10KOHM,J,1/16W 3 R9878 ERJ3EKF3902 M 39KOHM, 1/16W 1 R9879 ERJ3EKF2002 M 20KOHM, 1/16W 1 R9880 ERJ3EKF3602 M 36KOHM, 1/16W 1 R9883 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9884 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9891 ERJ3GEYF473 M 47KOHM, 1/16W 1 R9892 ERJ3EKF1502 M 15KOHM, 1/16W 1 R9893 ERJ3EKF3602 M 36KOHM, 1/16W 1 R9896 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9897 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9898 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 RM2501 PNA4701M05TV 远程接收器 S1 K1KA03BA0061 3P 连接接头 1 SC2 K1KA02A00676 2P 连接接头 1 SC20 K1KA20AA0008 20P 连接接头 1 SC23 K1KA03AA0193 3P 连接接头 1 SC30 K1KA08AA0192 8P 连接接头 1 SC41-44 K1ML80B00001 80P 连接接头 4 SC45,46 K1KA09A00239 9P 连接接头 2 SCMM1 TMME260 线夹 1 SCMM2 TMME261 线夹 1 SD1-D5 K1MNA8BA0254 8P 连接接头 5 SD46 K1KB09A00045 9P 连接接头 1 SS11 K1KA02A00676 2P 连接接头 1 SS12 K1KA10AA0194 10P 连接接头 1 SS34 K1KA03AA0193 3P 连接接头 1 SS35 K1KA08AA0193 8P 连接接头 1 SS42 K1KA12AA0194 12P 连接接头 1 SS44 K1KA20AA0009 20P 连接接头 1 SS51-56 K1MN13B00020 13P 连接接头 6 SSMM2 TMM17434-2 线夹 1 SSMM4 TMME190 线夹 1 SU1-U5 K1MNA8BA0254 8P 连接接头 5 SU45 K1KB09A00045 9P 连接接头 1 SW2500 K0F162B00002 开关 1 SW3753-57 EVQPC105K 开关 5 T6602 ETS28AU389AC 转接变压器 TU3200 ENGF9701GF 调谐器 1 TU3201 ENG39D01GF 调谐器 1 VR6000 EVMEASA00B14 控制 10KOHMB 0.3W 1 VR6600 EVMEASA00B13 控制 1KOHMB 0.3W 1 VR6602 EVMEASA00B23 控制 2KOHMB 0.3W 1 X1100 H0J100500035 晶体 1 X2010 H0J245500082 晶体 1 X4500 H0J270500113 晶体 1 X5000 H0J270500087 晶体 1 X8001 H0J270500061 晶体 1 X9000 H2D200500011 晶体 1 X9500 H0J200500038 晶体 1 参考号 部品号 部品名称 & 说明 件数 备注 172 ZA0001 K4AZ01D00004 端子 ZA0002 K4CD08000002 AV 端子 ZA0004,05 K4AZ01D00004 端子 ZA0006,07 K4CD08000002 AV 端子 ZA3001-08 K4CD08000002 AV 端子 ZA3701 K4CZ01000027 与 JALCO K9 兼容 ZA5001-04 K4AZ01D00004 端子 ZA5501-04 K4CZ01000027 与 ALCO K9 兼容 ZA6001-03 K4CD01000011 AV 端子 ZA6401-03 K4CD01000011 AV 端子 ZA7101-05 K4AD01Z00001 端子 ZA7201-05 K4AD01Z00001 端子 ZA7301-05 K4AD01Z00001 端子 ZA7401-05 K4AD01Z00001 端子 ZA7501-05 K4AD01Z00001 端子 ZA7601-05 K4AD01Z00001 端子 ZA7701 K4AD01D00004 端子 ZA9001 K4CD01000011 AV 端子 A1701,02 RA362MSV7 放电管 2 C201 KZE1E470 C 470U 25V 1 C203 RR3DD101K 陶瓷电容器 1 C206 ECWH12333HV 塑料薄膜电容器 1 C208 RR3DD101K 陶瓷电容器 1 C211 ECWH12473HV 塑料薄膜电容器 1 C212,13 MBB224K2 陶瓷电容器 2 C251 KMQ220901Z 电解电容器 1 C253,54 KMQ220901Z 电解电容器 2 C256,57 ECQE6223KF P 0.022UF, K,400V 2 C301 KZE1E101 C 100UF 25V 1 C303,04 RR3DD101K 陶瓷电容器 2 C305 ECWH12333HV 塑料薄膜电容器 1 C306 KZE2A270 C 27UF 100V 1 C307,08 KZE1E182S C 1800UF 25V 2 C310 TBB475K1 陶瓷电容器 1 C312 TBB475K1 陶瓷电容器 1 C313,14 KZE1E821L C 8200UF 25V 2 C315 KZE1E101 C 100UF 25V 1 C316-18 TEB104K5 C 0.1UF 50V 3 C319 KZE1E101 C 100UF 25V 1 C320 TEB104K5 C 0.1UF 50V 1 C321 ECJ2VB1H223K C 0.022UF, K, 50V 1 C401 TAB104K2E 陶瓷电容器 1 C402 KMQ2C471H 电解电容器 1 C403 TAB104K2E 陶瓷电容器 1 C404 KZE1H221 电解电容器 1 C405 TBB224K2 陶瓷电容器 1 C406,07 KZE2A471S C 470UF 100V 2 C501 ECQU2A473ML P 0.047UF, M,250V 1 C502 TBB104K2 陶瓷电容器 1 C503 KZE1E470 C 470U 25V 1 C504 KMQ2W560 电解电容器 1 C505 KZE1E470 C 470U 25V 1 C506 YBB474K1 陶瓷电容器 1 C507 MBB103K5 陶瓷电容器 1 C508 KZE1E470 C 470U 25V 1 C509 KZE1H221 电解电容器 1 C510 ECKENA221KBR C 221P 250V 1 C511 KZE1A152 电解电容器 1 C512 TBB474K2 陶瓷电容器 1 C513 KZE1E101 C 100UF 25V 1 C515 TBB475K1 陶瓷电容器 1 C516 KZE1E101 C 100UF 25V 1 C517-19 TEB104K5 C 0.1UF 50V 3 C520 MBB103K5 陶瓷电容器 1 C521 MBB104K5 陶瓷电容器 1 C601 KZE1H221 电解电容器 1 C1601 ECQU2A105ML P 1UF, 250V 1 C1602 KZE1E470 C 470U 25V 1 C1605 KZE1E101 C 100UF 25V 1 C1606 ECQU2A224ML P 0.22UF, 250V 1 C1608 KZE1E470 C 470U 25V 1 C1610 MBB103K5 陶瓷电容器 1 C1611,12 MMXC2W474K 塑料薄膜电容器 2 C1613 TBB474K2 陶瓷电容器 1 C1614 MBB103K5 陶瓷电容器 1 参考号 部品号 部品名称 & 说明 件数 备注 C1615 KZE1H221 电解电容器 1 C1616 ECJ2XB1H102K C 1000PF, K, 50V 1 C1617 TBB224K2 陶瓷电容器 1 C1618 RR3DD101K 陶瓷电容器 1 C1619 ECQE6472B45 C 4700U 630V 1 C1620 ECQE6473RKF 塑料薄膜电容器 1 C1621-23 KMQ2W221L C 220U 450V 3 C1625 ECKENA221KBR C 221P 250V 1 C1626 MBB224K2 陶瓷电容器 1 C1701 ECQU2A474ML 塑料薄膜电容器 1 C1704 MBB104K5 陶瓷电容器 1 C1705 ECQU2A224ML P 0.22UF, 250V 1 C1706 MBB104K5 陶瓷电容器 1 C1707,08 MMXC2W474K 塑料薄膜电容器 2 C1709 TBB474K2 陶瓷电容器 1 C1710 MBB103K5 陶瓷电容器 1 C1711 MBB102K5 陶瓷电容器 1 C1712 MBB224K2 陶瓷电容器 1 C1713 KZE1H101 C 100UF 50V 1 C1714 ECQE6472B45 C 4700U 630V 1 C1715 ECQE6473RKF 塑料薄膜电容器 1 C1716,17 KMQ2W221L C 220U 450V 2 C1718 ECKENA221KBR C 221P 250V 1 C1719 KMQ2W221L C 220U 450V 1 C1720,21 ECKNNA331KB 陶瓷电容器 2 CN02 B8B-PH-KS 连接接头 1 CN06 B8B-PH-KS 连接接头 1 CN08 K1KA03A00507 连接接头 1 CN1601 B3P4VH-B-L 连接接头 1 CN1602 K1KA03A00507 连接接头 1 CN1701 B3P4VH-B-L 连接接头 1 D209,10 AG01A 二极管 2 D251 YG901C3R 二极管 1 D252 MA2J11100L 二极管 1 D253-55 YG901C3R 二极管 3 D256 MA2J11100L 二极管 1 D301,02 MA165TA5 二极管 2 D305 G805C10R 二极管 1 D306 AG01A 二极管 1 D307 G805C10R 二极管 1 D401 D15XBN20 二极管 1 D405 AG01A 二极管 1 D406 YG901C3R 二极管 1 D501 B0EBKT000007 二极管 1 D502,03 ERA22-10 二极管 2 D504 MA2J11100L 二极管 1 D505 ST3D82 二极管 1 D506 ERA91-02 二极管 1 D507 AG01A 二极管 1 D508 RK39 二极管 1 D509 MA2J11100L 二极管 1 D510,11 MA165TA5 二极管 2 D512 MA2J11100L 二极管 1 D513 RK44 二极管 1 D601 AG01A 二极管 1 D1601,02 MA2J11100L 二极管 2 D1603,04 B0EAKR000059 二极管 2 D1605 M1F60 二极管 1 D1701,02 MA2J11100L 二极管 2 D1703 B0EAKR000059 二极管 1 D1705 M1F60 二极管 1 D1706 EM1C 二极管 1 F201 216005BP 保险丝 250V 5A 1 F301 216005BP 保险丝 250V 5A 1 F501 216002BEP 保险丝盒 1 F502 215002EP 保险丝盒 1 F1601 215010BEP 保险丝盒 1 F1703 215005BEP 保险丝盒 1 IC401 C0DAEMB00003 IC 1 IC501 MIP3E30MP IC 1 IP201 ERBSE0R75U 微型保险丝 1 参考号 部品号 部品名称 & 说明 件数 备注 173 IP301 ERBSE0R75U 微型保险丝 1 K1602 DG12D1-0 继电器 1 K1603 DJ12D2-0 继电器 1 K1701 KS321M01 继电器 1 K1702 DJ12D2-0T5 继电器 1 L301,02 EXCELDR35 扼流线圈 2 L401 LH8TB681K 扼流圈 1 L402 H221012HY 扼流圈 1 L501 EXCELSA35 扼流线圈 1 L503 EXCELDR35 扼流线圈 1 L601 EXCELDR35 扼流线圈 1 L1603 H3370106Z 扼流圈 1 L1604 EXCELSA35 扼流线圈 1 L1605 EXCELSR35 扼流线圈 1 L1606 EXCELSA35 扼流线圈 1 L1701,02 P3165208Z 滤波扼流圈 2 L1703 H2747104Z 扼流圈 1 L1706 P3165208Z 滤波扼流圈 1 L1707,08 EXCCL4532U1 扼流线圈 2 MC201 MLZNC224 模块 1 MC202,03 MP00R3 模块 2 MC301 MLZNC102 模块 1 MC401 MLLSB153 模块 1 MC501 MLSZA100 模块 1 MC601 MLWNB393 模块 1 MC701 MLZDD103 模块 1 MC1601 MP00P6 模块 1 MC1602 MLLPC123 模块 1 MC1603 MLWNB393 模块 1 MC1604 MP00P13 模块 1 MC1701 MP00P15 模块 1 MC1702 MLLPC123 模块 1 P2 B2P3-VH-B 连接接头 1 P5 B11B-PH-KS 连接接头 1 P9 B03P-VL 连接接头 1 P10 B6B-PH-KS 连接接头 1 P11 B2P3-VH-B 连接接头 1 P12 B10B-PH-KS 连接接头 1 P23 B3B-PH-KS 连接接头 1 P25 B20B-PHDSS 连接接头 1 PC201,02 PS2581A 光电耦合器 2 PC401 PS2581A 光电耦合器 1 PC505 PS2581A 光电耦合器 1 PC1701 TLP421F 光电耦合器 1 Q201,02 2SB14400RL 三极管 2 Q203,04 2SD2185 三极管 2 Q301,02 FMR21N55G 场效应管 2 Q303 2SB1218A 三极管 1 Q304 2SK2903 场效应管 1 Q305 2SB1218A 三极管 1 Q306 2SK2903 场效应管 1 Q401 2SK3607 场效应管 Q402,03 2SA17670Q1TV 三极管 2 Q501 2SK3302 场效应管 1 Q502 2SK2731 场效应管 1 Q503,04 HAT1130R 场效应管 2 Q505 2SB710AQRSTX 三极管 1 Q506 2SB1218A 三极管 1 Q1601 2SB0709ARL 三极管 1 Q1602 2SD601AL 三极管 1 Q1603 2SD2185 三极管 1 Q1604 2SB14400RL 三极管 1 Q1701 2SD1819AWL 三极管 1 Q1702 2SB0709ARL 三极管 1 Q1703 2SD601AL 三极管 1 Q1704 2SD2185 三极管 1 Q1705 2SB14400RL 三极管 1 R201 ERJ12YJ820 片状电阻 1 参考号 部品号 部品名称 & 说明 件数 备注 R203,04 SG732K560 0.5W 56OHM 2 R208,09 ERJ6GEYJ334 M 330KOHM,J,1/10W 2 R210 ERQ14AJ4R7J 熔金属薄膜电阻 1 R211-13 ERJ12YJ683 M 68KOHM, 1/2W 3 R214 ERJ12YJ820 片状电阻 1 R216,17 SG732K560 0.5W 56OHM 2 R218,19 ERJ6GEYJ334 M 330KOHM,J,1/10W 2 R220 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R221 ERJ6ENF2152 M21.5KOHM, 1/10W 1 R222,23 ERJ6GEYG154 M 150KOHM,J,1/10W 2 R224,25 ERQ14AJ3R3J 熔金属薄膜电阻 2 R251 ERDS1TJ201 C 200 OHM, J,1/2W 1 R252 ERDS1TJ472 C 4.7KOHM, J,1/2W 1 R253-55 ERJ6ENF1023 M 102KOHM, 1/10W 3 R256,57 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R258-60 ERJ6ENF5492 M54.9KOHM, 1/10W 3 R261 ERJ6ENF7152 M71.5KOHM, 1/10W 1 R262 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R263 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R264 ERJ6GEYG391 M 390 OHM,J,1/10W 1 R265 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R266 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R267 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R268 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R269 ERJ6ENF1133 片状电阻 1 R270-74 ERDS1TJ622 碳膜电阻 5 R275 ERDS1TJ201 C 200 OHM, J,1/2W 1 R301 ERQ14AJ4R7J 熔金属薄膜电阻 1 R302,03 ERJ12YJ101 M 100 OHM,J, 1/2W 2 R304 SG732K560 0.5W 56OHM 1 R305 SG732K150 片状电阻 1 R306-08 ERJ12YJ683 M 68KOHM, 1/2W 3 R309,10 ERJ6GEYJ334 M 330KOHM,J,1/10W 2 R311 ERJ12YJ100 M 10 OHM,J, 1/2W 1 R312 ERJ6ENF1622 M16.2KOHM, 1/10W 1 R313 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R314 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R315,16 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R317 ERJ6GEYG153 M 15KOHM,J,1/10W 1 R318 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R319,20 ERJ6GEYJ513 M 51KOHM,J,1/10W 2 R321 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R322 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R323 ERJ6GEYG153 M 15KOHM,J,1/10W 1 R324,25 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R326-33 ERJ12YJ222 M 2.2KOHM,J, 1/2W 8 R334 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R335 ERJ6ENF5111 M5.11KOHM, 1/10W 1 R401,02 ERJ6GEYG154 M 150KOHM,J,1/10W 2 R403 ERJ12YJ100 M 10 OHM,J, 1/2W 1 R404 MPC2WR05K 金属板电阻器 1 R405 ERJ6ENF2152 M21.5KOHM, 1/10W 1 R406 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R407 ERJ6ENF2152 M21.5KOHM, 1/10W 1 R408 ERJ6GEYG330 M 33 OHM,J,1/10W 1 R409 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R410 ERJ6ENF2152 M21.5KOHM, 1/10W 1 R411,12 ERJ6GEYG152 M 1.5KOHM,J,1/10W 2 R413 ERJ6ENF1912 M19.1KOHM, 1/10W 1 R414 ERJ6ENF2212 M22.1KOHM, 1/10W 1 R415 ERJ6ENF8662 片状电阻 1 R416-19 ERJ6ENF1302 M 13KOHM, 1/10W 4 R420 ERJ6ENF1500 M 150 OHM, 1/10W 1 R421 ERJ6ENF8061 M8.06KOHM, 1/10W 1 R501,02 ERDS1TJ474 C 4.7KOHM, J,1/2W 2 R503,04 ERJ6ENF8253 M 825KOHM, 1/10W 2 R505 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R506,07 ERJ6ENF8253 M 825KOHM, 1/10W 2 R508 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R509,10 ERJ6ENF8253 M 825KOHM, 1/10W 2 R511 ERJ12YJ100 M 10 OHM,J, 1/2W 1 R512 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R513 ERJ6GEYJ202 M 2KOHM,J,1/10W 1 R514,15 ERJ6GEYG222 M 2.2KOHM,J,1/10W 2 R516 ERJ6GEYG681 M 680 OHM,J,1/10W 1 R517 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R518 ERJ6GEYF473 M 47KOHM,J,1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 174 FLE20070110001 R519 ERDS2FJ332 C 3.3KOHM, J,1/4W 1 R520 ERJ6GEYG332 M 3.3KOHM,J,1/10W 1 R521 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R522 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R523 ERJ6GEYG391 M 390 OHM,J,1/10W 1 R524 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R525 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R526 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R528 ERDS2FJ101 C 100 OHM, J,1/4W 1 R529 ERJ12YJ151 M 150 OHM,J, 1/2W 1 R531 ERJ6GEYG153 M 15KOHM,J,1/10W 1 R532,33 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R534 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R601 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R1602 R5B100J W 10 OHM, J, 5W 1 R1603 ERC12UGK185 S 1.8MOHM, K,1/2W 1 R1604-07 ERJ6ENF1213 M 121KOHM, 1/10W 4 R1608-11 RF5EJR15B 金属板电阻器 4 R1612 ERJ6GEYG183 M 18KOHM,J,1/10W 1 R1613 ERJ12YJ100 M 10 OHM,J, 1/2W 1 R1614,15 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R1616 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R1617 ERJ12YJ470 M 47 OHM, J,1/2W 1 R1618 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R1619,20 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R1621 ERJ6GEYG154 M 150KOHM,J,1/10W 1 R1622 ERJ12YJ470 M 47 OHM, J,1/2W 1 R1623 ERQ14AJ330J 熔金属薄膜电阻 1 R1624 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R1625 ERJ6GEYG154 M 150KOHM,J,1/10W 1 R1626 ERJ12YJ470 M 47 OHM, J,1/2W 1 R1627-29 ERJ6GEYG183 M 18KOHM,J,1/10W 3 R1630 ERJ6GEYG154 M 150KOHM,J,1/10W 1 R1631 ERJ6ENF2803 片状电阻 1 R1632-35 ERJ6ENF2493 M 249KOHM, 1/10W 4 R1636-38 ERJ6ENF4023 M 402KOHM, 1/10W 3 R1639,40 ERJ6GEYG154 M 150KOHM,J,1/10W 2 R1641-44 ERJ6ENF2703 M 270KOHM, 1/10W 4 R1645 ERJ6ENF2493 M 249KOHM, 1/10W 1 R1646 ERJ12YJ100 M 10 OHM,J, 1/2W 1 R1647,48 ERJ12YJ680 M 68 OHM,J, 1/2W 2 R1650 ERJ6ENF4023 M 402KOHM, 1/10W 1 R1701 ERC12UGK685 实芯电阻器 1 R1702 R5B100J W 10 OHM, J, 5W 1 R1703 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R1704 ERDS2FJ223 C 22KOHM, J,1/4W 1 R1705 ERJ6ENF3902 M 39KOHM,J,1/10W 1 R1706-09 ERJ6ENF1213 M 121KOHM, 1/10W 4 R1710,11 MPC5WR22K 金属板电阻器 2 R1712 ERDS2FJ273 C 27KOHM, J,1/4W 1 R1713 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R1714 ERJ12YJ820 片状电阻 1 R1715 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R1716 ERDS2FJ473 C 47KOHM, J,1/4W 1 R1717 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R1718 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R1719 ERJ6GEYG154 M 150KOHM,J,1/10W 1 R1720 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R1721 ERQ14AJ330J 熔金属薄膜电阻 1 R1722 ERJ12YJ820 片状电阻 1 R1723 ERJ6GEYG154 M 150KOHM,J,1/10W 1 R1724-26 ERJ6GEYG183 M 18KOHM,J,1/10W 3 R1727-31 ERJ6ENF2493 M 249KOHM, 1/10W 5 R1732 ERJ6GEYG154 M 150KOHM,J,1/10W 1 R1733-35 ERJ6ENF4023 M 402KOHM, 1/10W 3 R1736,37 ERJ6GEYG154 M 150KOHM,J,1/10W 2 R1738-41 ERJ6ENF2703 M 270KOHM, 1/10W 4 R1746 ERJ6ENF2493 M 249KOHM, 1/10W 1 R1747 ERJ12YJ100 M 10 OHM,J, 1/2W 1 R1748,49 ERJ12YJ201 片状电阻 2 R1750 ERJ6ENF4023 M 402KOHM, 1/10W 1 RF1601 A5MC100JP2 139C 10 1 RF1701 A5MC100JP2 139C 10 1 T201 ETB57LZ1AGAD 变压器 1 T202 ETB57LZ19GAD 变压器 1 参考号 部品号 部品名称 & 说明 件数 备注 T301 ETB57LZ1CGAD 变压器 1 T501 ETB25KA1G8AD 变压器 1 VR251 EVMEASA01B25 可变电阻器 1 VR301 EVMEASA01B14 可变电阻器 1 VR401 EVMEASA01B14 可变电阻器 1 Z501 ERZVGAD471 电阻器 1 Z601 ERZVGAD471 电阻器 1 Z1701 ERZVGED751 电阻器 1 Z1702 ERZVGAD471 电阻器 1 ZD201,02 MAZ4270NMF 稳压二极管 2 ZD301,02 MAZ4270NMF 稳压二极管 2 ZD305-08 MA8150 稳压二极管 4 ZD401 MA4033 稳压二极管 1 ZD402 MA8360 稳压二极管 1 ZD501 MA4082N 稳压二极管 1 ZD502 MAZ82700ML 稳压二极管 1 ZD601 MAZ82700ML 稳压二极管 1 ZD1601 MA4300N 稳压二极管 1 ZD1602 MA4047N 稳压二极管 1 ZD1701 MA4047N 稳压二极管 1 参考号 部品号 部品名称 & 说明 件数 备注
