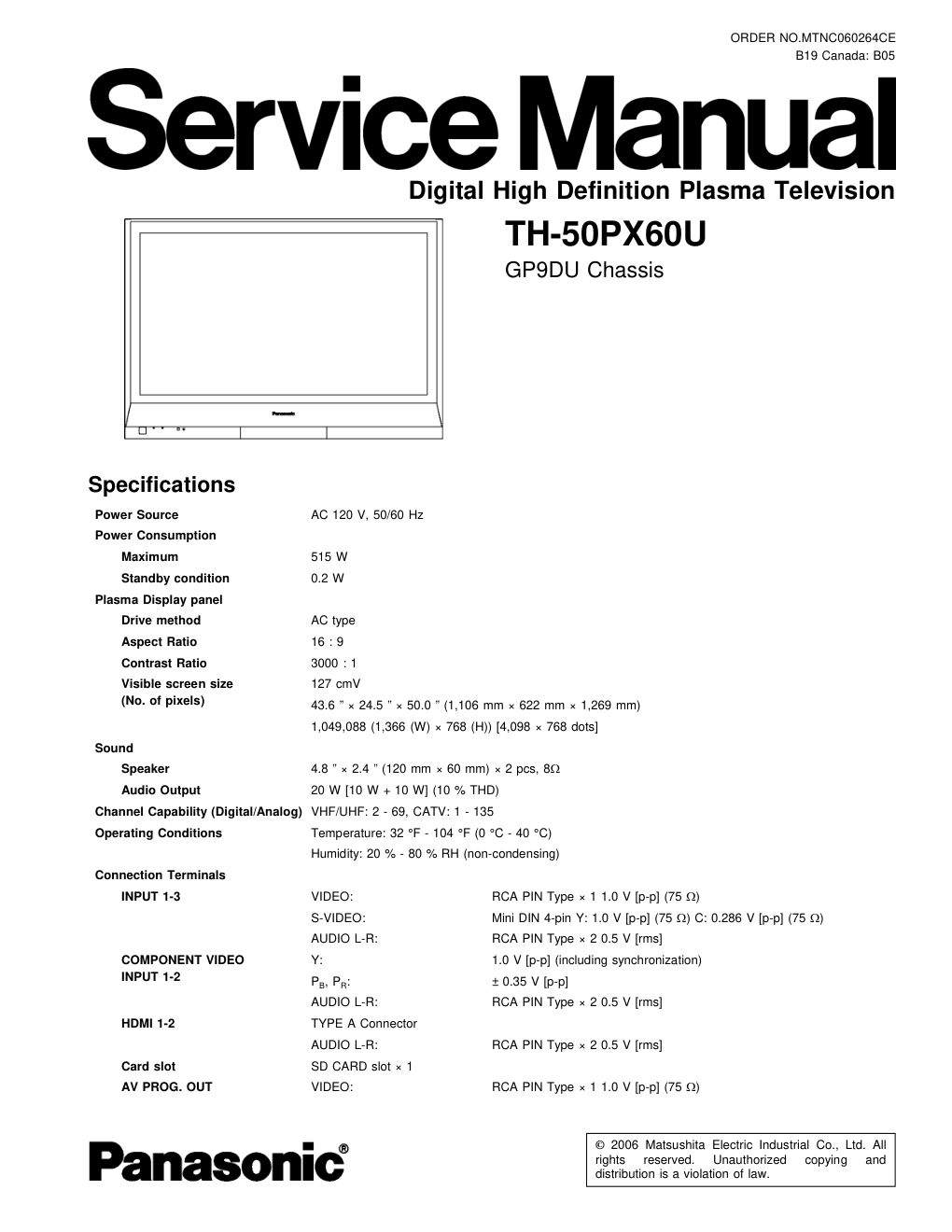

© 2006 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law. TH-50PX60U GP9DU Chassis Digital High Definition Plasma Television Specifications Power Source AC 120 V, 50/60 Hz Power Consumption Maximum 515 W Standby condition 0.2 W Plasma Display panel Drive method AC type Aspect Ratio 16 : 9 Contrast Ratio 3000 : 1 Visible screen size (No. of pixels) 127 cmV 43.6 ” × 24.5 ” × 50.0 ” (1,106 mm × 622 mm × 1,269 mm) 1,049,088 (1,366 (W) × 768 (H)) [4,098 × 768 dots] Sound Speaker 4.8 ” × 2.4 ” (120 mm × 60 mm) × 2 pcs, 8� Audio Output 20 W [10 W + 10 W] (10 % THD) Channel Capability (Digital/Analog) VHF/UHF: 2 - 69, CATV: 1 - 135 Operating Conditions Temperature: 32 °F - 104 °F (0 °C - 40 °C) Humidity: 20 % - 80 % RH (non-condensing) Connection Terminals INPUT 1-3 VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 �) S-VIDEO: Mini DIN 4-pin Y: 1.0 V [p-p] (75 �) C: 0.286 V [p-p] (75 �) AUDIO L-R: RCA PIN Type × 2 0.5 V [rms] COMPONENT VIDEO INPUT 1-2 Y: 1.0 V [p-p] (including synchronization) PB, PR: ± 0.35 V [p-p] AUDIO L-R: RCA PIN Type × 2 0.5 V [rms] HDMI 1-2 TYPE A Connector AUDIO L-R: RCA PIN Type × 2 0.5 V [rms] Card slot SD CARD slot × 1 AV PROG. OUT VIDEO: RCA PIN Type × 1 1.0 V [p-p] (75 �) ORDER NO.MTNC060264CE B19 Canada: B05 1 Applicable signals 4 2 Safety Precautions 4 2.1. General Guidelines 4 3 Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices 5 4 About lead free solder (PbF) 6 5 Service Hint 7 6 Plasma panel replacement method 8 6.1. Remove the Back cover 8 6.2. Remove the fan 8 6.3. Remove the rear terminal cover 8 6.4. Remove the P-Board 8 6.5. Remove the PA-Board 9 6.6. Remove the tuner unit 9 6.7. Remove the DT-Board 10 6.8. Remove the DG-Board 10 6.9. Remove the H-Board 11 6.10. Remove the HC-Board 11 6.11. Remove the D-Board 11 6.12. Remove the SU-Board 11 6.13. Remove the SD-Board 12 6.14. Remove the SC-Board 12 6.15. Remove the SS2-Board 12 6.16. Remove the SS3-Board 12 6.17. Remove the SS-Board 13 6.18. Remove the C1-Board 13 6.19. Remove the C2-Board 13 6.20. Remove the C3-Board 13 6.21. Remove the stand brackets 14 6.22. Remove the C4-Board 14 6.23. Remove the C5-Board 14 6.24. Remove the C6-Board 14 6.25. Remove the front bracket 15 6.26. Remove the G-Board, GK-Board and GS-Board 15 6.27. Remove the speaker L, R 15 6.28. Remove the S-Board 15 6.29. Remove the K-Board 16 6.30. Remove the Plasma panel section from the Front frame (glass) 16 6.31. Replace the plasma panel (finished) 16 7 Location of Lead Wiring 17 7.1. Lead of Wiring (1) 17 7.2. Lead of Wiring (2) 18 7.3. Lead of Wiring (3) 19 7.4. Lead of Wiring (4) 20 7.5. Lead of Wiring (5) 21 7.6. Lead of Wiring (6) 22 8 Self-check Function 23 8.1. Check of the IIC bus lines 23 8.2. Power LED Blinking timing chart 25 8.3. No Power 26 8.4. No Picture 27 8.5. Local screen failure 28 9 Serviceman Mode 29 9.1. How to enter into Serviceman Mode 29 9.2. Contents of adjustment mode 29 9.3. Memory edit mode 30 9.4. Device data mode 31 10 Adjustment Procedure 32 10.1. Driver Set-up 32 10.2. Initialization Pulse Adjust 33 10.3. P.C.B. (Printed Circuit Board) exchange 33 AUDIO L-R: RCA PIN Type × 2 0.5 V [rms] DIGITAL AUDIO OUT PCM/Dolby Digital, Fiber Optic FEATURES 3D Y/C FILTER CLOSED CAPTION V-Chip Photo Viewer Dimensions (W × H × D) Including pedestal 47.7 ” × 34.8 ” × 14.6 ” (1,210 mm × 882 mm × 371 mm) TV Set only 47.7 ” × 32.2 ” × 3.8 ” (1,210 mm × 818 mm × 95 mm) Weight Including pedestal 93.7 lb. (42.5 kg) TV Set only 88.2 lb. (40 kg) Note: Design and Specifications are subject change without notice. Weight and Dimensions shown are approximate. CONTENTS Page Page 2 TH-50PX60U 10.4. Adjustment Volume Location 34 10.5. Test Point Location 34 11 Adjustment 35 11.1. White balance adjustment 35 11.2. Sub bright adjustment 37 11.3. ABL operation level adjustment 38 12 Hotel mode 39 13 Conduct Views 41 13.1. P-Board 41 13.2. PA-Board 44 13.3. H-Board 46 13.4. G and GS-Board 48 13.5. GK, HC, K and S-Board 49 13.6. DG-Board 50 13.7. DT-Board 52 13.8. D-Board 54 13.9. C1-Board 56 13.10. C2-Board 57 13.11. C3-Board 58 13.12. C4-Board 59 13.13. C5-Board 60 13.14. C6-Board 61 13.15. SC-Board 62 13.16. SU-Board 65 13.17. SD-Board 66 13.18. SS-Board 67 13.19. SS-Board 69 14 Block and Schematic Diagram 71 14.1. Schematic Diagram Note 71 14.2. Main Block Diagram 72 14.3. P-Board Block Diagram 73 14.4. P-Board (1 of 2) Schematic Diagram 74 14.5. P-Board (2 of 2) Schematic Diagram 75 14.6. PA-Board Block Diagram 76 14.7. PA-Board (1 of 3) Schematic Diagram 77 14.8. PA-Board (2 of 3) Schematic Diagram 78 14.9. PA-Board (3 of 3) Schematic Diagram 79 14.10. H-Board Block Diagram 80 14.11. H-Board (1 of 3) Schematic Diagram 81 14.12. H-Board (2 of 3) Schematic Diagram 82 14.13. H-Board (3 of 3) Schematic Diagram 83 14.14. G, GK, HC, K and S-Board Block Diagram 84 14.15. G-Board Schematic Diagram 85 14.16. GK, K, HC and S-Board Schematic Diagram 86 14.17. DG-Board (1 of 3) Block Diagram 87 14.18. DG-Board (2 of 3) Block Diagram 88 14.19. DG-Board (3 of 3) Block Diagram 89 14.20. DG-Board (1 of 8) Schematic Diagram 90 14.21. DG-Board (2 of 8) Schematic Diagram 91 14.22. DG-Board (3 of 8) Schematic Diagram 92 14.23. DG-Board (4 of 8) Schematic Diagram 93 14.24. DG-Board (5 of 8) Schematic Diagram 94 14.25. DG-Board (6 of 8) Schematic Diagram 95 14.26. DG-Board (7 of 8) Schematic Diagram 96 14.27. DG-Board (8 of 8) Schematic Diagram 97 14.28. DT and GS-Board Block Diagram 98 14.29. DT-Board (1 of 6) Schematic Diagram 99 14.30. DT-Board (2 of 6) Schematic Diagram 100 14.31. DT-Board (3 of 6) Schematic Diagram 101 14.32. DT-Board (4 of 6) Schematic Diagram 102 14.33. DT-Board (5 of 6) Schematic Diagram 103 14.34. DT-Board (6 of 6) Schematic Diagram 104 14.35. D-Board (1 of 2) Block Diagram 105 14.36. D-Board (2 of 2) Block Diagram 106 14.37. D-Board (1 of 8) Schematic Diagram 107 14.38. D-Board (2 of 8) Schematic Diagram 108 14.39. D-Board (3 of 8) Schematic Diagram 109 14.40. D-Board (4 of 8) Schematic Diagram 110 14.41. D-Board (5 of 8) Schematic Diagram 111 14.42. D-Board (6 of 8) Schematic Diagram 112 14.43. D-Board (7 of 8) Schematic Diagram 113 14.44. D-Board (8 of 8) Schematic Diagram 114 14.45. C1, C2, C5 and C6-Block Diagram 115 14.46. C3, C4, SS, SS2 and SS3-Board Block Diagram 116 14.47. C1-Board (1 of 2) Schematic Diagram 117 14.48. C1-Board (2 of 2) Schematic Diagram 118 14.49. C2-Board (1 of 3) Schematic Diagram 119 14.50. C2-Board (2 of 3) Schematic Diagram 120 14.51. C2-Board (3 of 3) Schematic Diagram 121 14.52. C3-Board (1 of 2) Schematic Diagram 122 14.53. C3-Board (2 of 2) Schematic Diagram 123 14.54. C4-Board (1 of 2) Schematic Diagram 124 14.55. C4-Board (2 of 2) Schematic Diagram 125 14.56. C5-Board (1 of 3) Schematic Diagram 126 14.57. C5-Board (2 of 3) Schematic Diagram 127 14.58. C5-Board (3 of 3) Schematic Diagram 128 14.59. C6-Board (1 of 2) Schematic Diagram 129 14.60. C6-Board (2 of 2) Schematic Diagram 130 14.61. SS, SS2 and SS3-Board Schematic Diagram 131 14.62. SC, SU and SD-Board Block Diagram 132 14.63. SC-Board (1 of 2) Schematic Diagram 133 14.64. SC-Board (2 of 2) Schematic Diagram 134 14.65. SU-Board (1 of 2) Schematic Diagram 135 14.66. SU-Board (2 of 2) Schematic Diagram 136 14.67. SD-Board (1 of 2) Schematic Diagram 137 14.68. SD-Board (2 of 2) Schematic Diagram 138 15 Parts Location & Mechanical Replacement Parts List 139 15.1. Parts Location 139 15.2. Packing Exploded Views 140 15.3. Mechanical Replacement Parts List 141 16 Electrical Replacement Parts List 142 16.1. Replacement Parts List Notes 142 16.2. Electrical Replacement Parts List 143 3 TH-50PX60U 2.1.1. Leakage Current Cold Check 1. Unplug the AC cord and connect a jumper between the two prongs on the plug. 2. Measure the resistance value, with an ohmmeter, between the jumpered AC plug and each exposed metallic cabinet part on the equipment such as screwheads, connectors, control shafts, etc. When the exposed metallic part has a return path to the chassis, the reading should be between 1M� and 5.2M�. When the exposed metal does not have a return path to the chassis, the reading must be . Figure 1 2.1.2. Leakage Current Hot Check (See Figure 1.) 1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check. 2. Connect a 1.5k�, 10 watts resistor, in parallel with a 0.15µF capacitors, between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1. 3. Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to measure the potential across the resistor. 4. Check each exposed metallic part, and measure the voltage at each point. 5. Reverse the AC plug in the AC outlet and repeat each of the above measurements. 6. The potential at any point should not exceed 0.75 volts RMS. A leakage current tester (Simpson Model 229 or equivalent) may be used to make the hot checks, leakage current must not exceed 1/2 milliamp. In case a measurement is outside of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer. 1 Applicable signals 2 Safety Precautions 2.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed. 3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards. 4 TH-50PX60U 3 Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by electro static discharge (ESD). 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test. 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alminum foil, to prevent electrostatic charge buildup or exposure of the assembly. 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices. 4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can generate electrical charge sufficient to damage ES devices. 5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices. 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, alminum foil or comparable conductive material). 7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. Caution Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise hamless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device). 5 TH-50PX60U 4 About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available. This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d suggest the use of Pb free solder as well, although Pb solder may be used. PCBs manufactured using lead free solder will have the PbF within a leaf Symbol stamped on the back of PCB. Caution ���� ·����Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C). ���� ·����Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C). If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder. ���� ·����After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the opposite side. (see figure below) Suggested Pb free solder There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used. 6 TH-50PX60U 5 Service Hint Board Name Function Board Name Function P Power Supply C1 Data Driver (Upper Right) PA DC-DC Converter Speaker out, Audio AMP, Fan Control C2 Data Driver (Upper Center) C3 Data Driver (Upper Left) H AV Terminal, AV Switch C4 Data Driver (Lower Left) DG Digital Signal Processor, Micom, HDMI Interface C5 Data Driver (Lower Center) DT ATSC Interface C6 Data Driver (Lower Right) D Format Converter, Plasma AI, Sub-Field Processor SC Scan Drive GS SD Card Slot SU Scan out (Upper) K Remote receiver, Power LED SD Scan out (Lower) S Power Switch SS Sustain Drive G Front Terminal SS2 Sustain Connector (Upper) GK Key Switch SS3 Sustain Connector (Lower) HC Jig Connection 7 TH-50PX60U 6.1. Remove the Back cover 1. See Service Hint (Section 5) 6.2. Remove the fan 1. Disconnect the relay couplers. 2. Remove the screws (×3 each) and remove the fans. 6.3. Remove the rear terminal cover 1. Remove the screws (×8 , ×5 , ×2 ). 2. Remove the rear terminal cover. 6.4. Remove the P-Board Caution: To remove P.C.B. wait 1 minute after power was off for discharge from electrolysis capacitors. 1. Disconnect the couplers (P2, P5, P9, P10, P11, P12, P23 and P25). 2. Remove the screws (×6 ) and remove the P-Board unit. 3. Remove the screws (×9 ) on the back side. 6 Plasma panel replacement method 8 TH-50PX60U 4. Remove the screws (×5 ). 5. Remove the molding props (×8 ). 6. Remove the P-Board. Note: When assembling the P-Board, the position of each hole of the insulation sheets (A and B) is set to the position of each hole of the P-Board, then assemble them. ( marks indicate setting positions.) 6.5. Remove the PA-Board 1. Unlock the cable clampers to free the cable. 2. Disconnect the couplers (PA2, PA5, PA10, PA31, PA32, PA33, PA34 and PA40). 3. Disconnect the flexible cable (PA20). 4. Remove the screws (×4 ) and remove the earth cable. 5. Remove the PA-Board. 6.6. Remove the tuner unit 1. Unlock the cable clampers to free the cable. 2. Disconnect the couplers (DG5, G51, GS52, PA40 and earth cable). 3. Disconnect the flexible cables (DG3 and PA20). 4. Remove the screws (×4 ) remove the tuner unit. 9 TH-50PX60U 6.7. Remove the DT-Board 1. Unlock the cable clampers to free the cable. 2. Disconnect the couplers (HC06 and DT10). 3. Remove the screws (×5 ) remove the DT-Board unit. (Be careful the coupler (DT12-DG22) when remove the DT- Board unit.) 4. Disconnect the coupler (DT07). 5. Remove the screws (×2 ). 6. Remove the DT-Board metal cover and DT-Board. 6.8. Remove the DG-Board 1. Remove the DT-Board. (See section 6.7.) 2. Remove the screws (×8 ) and remove the DT-Board metal frame. 3. Disconnect the coupler (DG2). 4. Disconnect the flexible cables (DG1, DG15 and DG20). 5. Remove the screw (×1 ) remove the DG-Board. 10 TH-50PX60U 6.9. Remove the H-Board 1. Unlock the cable clampers to free the cable. 2. Disconnect the couplers (H2, H40 and H51). 3. Disconnect the flexible cable (H1). 4. Remove the screws (×6 ) and remove the H-Board. 6.10. Remove the HC-Board 1. Disconnect the couple (HC06). 2. Disconnect the flexible cable (HC15). 3. Remove the screws (×2 ) and remove the HC-Board. 6.11. Remove the D-Board 1. Remove the tuner unit. (See section 6.6.) 2. Disconnect the couplers (D5, D20 and D25). 3. Disconnect the flexible cables (D3, D31, D32, D33 and D34). 4. Remove the screws (×4 ) and remove the D-Board. 6.12. Remove the SU-Board 1. Remove the screws (×3 ). 2. Remove the flexible cables (SU1, SU2, SU3 and SU4) and remove the bridge connector (SU45). 3. Slide the SU-Board to the left to disconnect from a coupler (SC41-SU41) on the SC-Board and remove the SU-Board. 11 TH-50PX60U 6.13. Remove the SD-Board 1. Remove the screws (×3 ). 2. Remove the flexible cables (SD1, SD2, SD3 and SD4) and remove the bridge connector (SD46). 3. Slide the SD-Board to the left to disconnect from a coupler (SC42-SD42) on the SC-Board and remove the SD-Board. 6.14. Remove the SC-Board 1. Unlock the cable clampers to free the cable. 2. Disconnect the couplers (SC2, SC20 and SC23). 3. Remove the screws (×9 ) and remove the SC-Board. 6.15. Remove the SS2-Board 1. Disconnect the coupler (SS23) and disconnect the flexible cable (SS55). 2. Remove the screws (×2 ) and remove the SS2-Board. 6.16. Remove the SS3-Board 1. Disconnect the coupler (SS22) and disconnect the flexible cable (SS56). 2. Remove the screws (×2 ) and remove the SS3-Board. 12 TH-50PX60U 6.17. Remove the SS-Board 1. Remove the SS2-Board and SS3-Board. (See section 6.15. and 6.16) 2. Disconnect the couplers (SS11, SS12, SS33, SS43 and SS44). 3. Disconnect the flexible cables (SS51, SS52, SS53 and SS54). 4. Remove the screws (×7 ) and remove the SS-Board. 6.18. Remove the C1-Board 1. Remove the flexible cables holder fastening screws (×6 ). 2. Disconnect the flexible cables (CA1, CA2 and CA3). 3. Disconnect the flexible cable (C10). 4. Remove the screws (×5 ) and remove the C1-Board. 6.19. Remove the C2-Board 1. Remove the flexible cables holder fastening screws (×8 ). 2. Disconnect the flexible cables (CA4, CA5, CA6 and CA7). 3. Disconnect the flexible cables (C20, C21 and C22). 4. Remove the screws (×5 ) and remove the C2-Board. 6.20. Remove the C3-Board 1. Remove the flexible cables holder fastening screws (×8 ). 2. Disconnect the flexible cables (CA8, CA9, CA10 and CA11). 3. Disconnect the flexible cables (C31 and C32). 4. Disconnect the coupler (C33). 5. Remove the screws (×5 ) and remove the C3-Board. 13 TH-50PX60U 6.21. Remove the stand brackets 1. Remove the plasma panel section from the servicing stand and lay on a fiat surface such as a table (covered) with the plasma panel surface facing downward. 2. Remove the stand brackets (left, right) fastening screws (×6 each) and remove the stand brackets (left, right). 6.22. Remove the C4-Board 1. Remove the stand bracket (left). (See section 6.21.) 2. Remove the flexible cables holder fastening screws (×8 ). 3. Disconnect the flexible cables (CB8, CB9, CB10 and CB11). 4. Disconnect the flexible cables (C41 and C42). 5. Disconnect the couplers (C43 and C44). 6. Remove the screws (×5 ) and remove the C4-Board. 6.23. Remove the C5-Board 1. Remove the flexible cables holder fastening screws (×8 ). 2. Disconnect the flexible cables (CB4, CB5, CB6 and CB7). 3. Disconnect the flexible cables (C50, C51 and C52). 4. Remove the screws (×5 ) and remove the C5-Board. 6.24. Remove the C6-Board 1. Remove the stand bracket (right). (See section 6.21.) 2. Remove the flexible cables holder fastening screws (×6 ). 3. Disconnect the flexible cables (CB1, CB2 and CB3). 4. Disconnect the flexible cable (C60). 5. Remove the screws (×5 ) and remove the C6-Board. 14 TH-50PX60U 6.25. Remove the front bracket 1. Unlock the cable clampers to free the cable. 2. Disconnect the couplers (GS52, G1 and G51). 3. Remove the screws (×5 ) and remove the front bracket. 6.26. Remove the G-Board, GK- Board and GS-Board 1. Remove the front bracket. (See section 6.25.) 2. Remove the screws (×3 ) and remove the metal cover. 3. Remove the screws (×3 ) from front side and remove the front side metal frame. 4. Remove the screws (×5 ) and disconnect the couplers (G3-GK3). 5. Remove the G-Board, GK-Board and GS-Board. 6.27. Remove the speaker L, R 1. Remove the screws (×2 each) and remove the speaker L, R. 6.28. Remove the S-Board 1. Disconnect the coupler (S1). 2. Remove the screws (×2 ) and remove the S-Board metal frame. 3. Remove the screws (×2 ) and remove the S-Board. 15 TH-50PX60U 6.29. Remove the K-Board 1. Unlock the cable clampers to free the cable. 2. Disconnect the couplers (G1 and S1). (See section 6.25. and 6.28.) 3. Remove the screws (×2 ) and remove the K-Board. 6.30. Remove the Plasma panel section from the Front frame (glass) 1. Remove the front frame and the plasma panel fastening screws (×6 ). 2. Remove the front frame and the stand brackets fastening screws (×4 ). 3. For leaving the plasma panel from the front frame, pull the bottom of the front frame forward, lift, and remove. 6.31. Replace the plasma panel (finished) 1. Place the new plasma panel (finished) on the flat surface of the table (covered by a soft cloth), with the plasma panel surface facing downward. 2. Attach the C1, C2, C3, C4, C5 and the C6-Board, connect the flexible cables (×22) from the Plasma panel to the C1, C2, C3, C4, C5 and the C6-Board, and fit the flexible cable holders. 3. Attach the Hooks (left, right) and fit the stand brackets (L, R) to the new plasma panel. 4. Place the plasma panel section on the servicing stand. 5. Attach the front frame and each P.C.Board and so on, to the new plasma panel. * When fitting the front frame, be careful to allow any debris, dust or handling residue to remain between the front glass and plasma panel. 16 TH-50PX60U 7 Location of Lead Wiring 7.1. Lead of Wiring (1) 17 TH-50PX60U 7.2. Lead of Wiring (2) 18 TH-50PX60U 7.3. Lead of Wiring (3) 19 TH-50PX60U 7.4. Lead of Wiring (4) 20 TH-50PX60U 7.5. Lead of Wiring (5) 21 TH-50PX60U 7.6. Lead of Wiring (6) 22 TH-50PX60U Use the self-check function to test the unit. 8 Self-check Function 1. Checking the IIC bus lines 2. Power LED Blinking timing 8.1. Check of the IIC bus lines 8.1.1. How to access Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds. 8.1.2. Exit Disconnect the AC cord from wall outlet. 8.1.3. Screen display 23 TH-50PX60U 8.1.4. Check Point Confirm the following parts if NG was displayed. Display Ref.No. Description Board UV TU8200 TV Tuner DT-Board DT1 IC8211 Front Processor DT-Board DT2 IC8240 HDMSL PEAKS_Lite DT-Board SND IC2603 Sound Processor H-Board AVSWV IC2601 Video SW H-Board AVSWA IC2602 Audio SW H-Board ADV IC4019 10Bits A/D DG-Board GC5 IC4037 GC5 Processor DG-Board HDMI IC4026 HDMI I/F Reciever DG-Board MEM IC1102 EEPROM DG-Board RTC - - - PANEL IC9003 MICOM D-Board 24 TH-50PX60U 8.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinkes of the Power LED on the front panel of the unit. 25 TH-50PX60U 8.3. No Power First check point There are following 2 states of No Power indication by power LED. 1. No lit 2. Red is lit then turns red blinking a few seconds later. (See 8.2.) 1. No lit 26 TH-50PX60U 8.4. No Picture 27 TH-50PX60U 8.5. Local screen failure Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area. Fig-1 28 TH-50PX60U 9 Serviceman Mode 9.1. How to enter into Serviceman Mode While pressing [VOLUME ( - )] button of the main unit, press [RECALL] button of the remote control three times within 3 seconds. 9.1.1. Key command “1” button...Main items Selection in forward direction “2” button...Main items Selection in reverse direction “3” button...Sub items Selection in forward direction “4” button...Sub items Selection in reverse direction “VOL” button...Value of sub items change in forward direction ( + ), in reverse direction ( - ) 9.1.2. Cancellation Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control. 9.2. Contents of adjustment mode ���� ·����Value is shown as a hexadecimal number. ���� ·����Preset value differs depending on models. ���� ·����After entering the adjustment mode, take note of the value in each item before starting adjustment. Main item Sub item Sample Data Remark PCT-ADJ CONT GAIN 200 COLOR 38 TINT 05 BRIGHT 7FB RFAGC1 74 AGCADJ1 FIX RFAGC2 74 AGCADJ2 FIX WB-ADJ R CUT 80 G CUT 80 B CUT 80 R DRV EC G DRV FC B DRV DB ALL CUT 80 ALL DRV FC WB BRG 804 OPTION SD BOOT ROM OPT00 01 ANT-POW OFF POF-SET NORMAL STB-SEC SEC EMGCY OFF EEP COPY ALL CLK MODE 00 CLOCK 80 CEC-CHK OFF RM-SET CODE A STB-CAS - - 29 TH-50PX60U 9.3. Memory edit mode 9.3.1. How to access 1. Select “OPTION” in Service man Mode. 2. Press [MUTE] button on the remote control for more than 3 seconds. 9.3.2. Exit 1. Press [1] button on the remote control. 30 TH-50PX60U 9.4. Device data mode Device data display obtain IIC lead status and various processing values for the problem analysis by the market etc. 9.4.1. How to access 1. Select the memory edit mode. 2. Press [RECALL] button on the remote control. 9.4.2. Exit 1. Press [RECALL] button on the remote control. 31 TH-50PX60U 10.1. Driver Set-up 10.1.1. Item / Preparation 1. Input a white signal to plasma video input. 2. Set the picture controls as follows. Picture menu: Vivid Picture: +30 Aspect: Full Caution 1. First perform Vsus adjustment. 2. Confirmation of Vscn voltage should be performed after confirmation of Vad adjustment. When Vad=-90V, Voltage of Vscn is 30V ±3V. 10.1.2. Adjustments Adjust driver section voltages referring the panel data on the panel data label. Name Test Point Voltage Volume Remarks Vsus TPVSUS (SS) Vsus ± 2V VR251 (P) * Ve TPVE (SS) Ve ± 2V VR6000 (SS) * Vset TPVSET (SC) 280V ± 7V Fixed Vad TPVAD (SC) -105V ± 1V VR6600 (SC) Vscn TPVSCN (SC) Vad+140V ± 4V Fixed Vda TPVDA (SS) 75V ± 1V Fixed *See the Panel label. 10 Adjustment Procedure 32 TH-50PX60U 10.2. Initialization Pulse Adjust 1. Input the White signal to plasma video input. 2. Set the picture controls as follows. Picture menu : Vivid Picture : +25 Aspect : Full 3. Connect Oscilloscope to TPSC1 (T2) and adjust VR6602 for 195+10µ Sec. Test point Volume Level T2 TPSC1 (SC) VR6602 (SC) 195 ± 10µ Sec 10.3. P.C.B. (Printed Circuit Board) exchange 10.3.1. Caution 1. To remove P.C.B. , wait 1 minute after power was off for discharge from electrolysis capacitors. 10.3.2. Quick adjustment after P.C.B. exchange P.C.B. Name Test Point Voltage Volume Remarks P Board Vsus TPVSUS (SS) Vsus ± 2V VR251 (P) * SC Board Vad TPVAD (SC) -105V ± 1V VR6600 (SC) SS Board Ve TPVE (SS) Ve ± 2V VR6000 (SS) * D, DG Board White blance, Pedestal and Sub brightness for NTSC, PAL, HD, PC and 625i signals *See the Panel label. Caution: Absolutely do not reduce Vsus below Ve not to damage the P.C.B. 33 TH-50PX60U 10.4. Adjustment Volume Location 10.5. Test Point Location 34 TH-50PX60U 11 Adjustment 11.1. White balance adjustment Instrument Name Connection Remarks ���� ·����W/B pattern ���� ·����Color analyzer (Minolta CA-100 or equivalent) Component input Panel surface User setting: Normal Procedure Remarks ���� ·����Ensure aging is adequate. ���� ·����Make sure the front panel to be used on the final set is fitted. ���� ·����Make sure a color signal is not being shown before adjustment. ���� ·����Put the color analyzer where there is little color variation. 1. Output a white balance pattern. 2. Check that the color temperature is “cool”. 3. Set to factory mode, WB-ADJ. 4. Set “R-CUT” “G-CUT” “B-CUT” 80h. 5. Attach the sensor of color analyzer to the center of highlight window. 6. Fix G drive at C0h and adjust “B-DRV” and “R-DRV” so x, y value of color analyzer become the “Color temperature High” in table 1. 7. Increase RGB together so the maximum drive value in RGB becomes FCh. That is, set “ALL DRIVE” to FCh. 8. Set color temperature to “Normal”. 9. Set “R-CUT” “G-CUT” “B-CUT” 80h. 10. Attach the sensor of color analyzer to the center of highlight window. 11. Fix G drive at C0h and adjust “B-DRV” and “R-DRV” so x, y value of color analyzer become the “Color temperature Mid” in table 1. 12. Increase RGB together so the maximum drive value in RGB becomes FCh. That is, set “ALL DRIVE” to FCh. * When WB-ADJ(mid) is adjusted by data-offset, set values as follows. R-DRV : the same as R-DRV_cool G-DRV : “G-DRV_cool” -2hDAC B-DRV : “B-DRV_cool” -22hDAC 13. Set color temperature to “Warm”. 14. Set “R-CUT” “G-CUT” “B-CUT” 80h. 15. Attach the sensor of color analyzer to the center of highlight window. 16. Fix G drive at E0h and adjust “B-DRV” and “R-DRV so x, y value of color analyzer become the “Color temperature Low” in table 1. 17. Increase RGB together so the maximum drive value in RGB becomes FCh. That is, set “ALL DRIVE” to FCh. * When WB-ADJ(warm) is adjusted by data-offset, set values as follows. R-DRV : the same as R-DRV_cool G-DRV : “G-DRV_cool” -AhDAC B-DRV : “B-DRV_cool” -62hDAC 18. Set color temperature to “Cool”. 19. Copy values adjusted by HD pattern to the NTSC data area of EEPROM. Pic Menu: Vivid Picture: +30 ASPECT: FULL ���� ·����Highlight section Signal amplitude 75% 35 TH-50PX60U 36 TH-50PX60U 11.2. Sub bright adjustment Instrument Name Connection Remarks 1. NTSC signal generator The input terminal Picture menu: Vivid Color temp: Cool ASPECT: Full Procedure Remarks ���� ·����Color balance adjustment is finished for each signal. ���� ·����Do adjustments in a dark room. 1. Display the pattern for adjusting sub bright from video input. 2. Use "SUB-BRT" in "WB-ADJ" in Serviceman Mode menu. adjust so the top section shows up and the center section fades away. SUB-BRT EEPROM address : 112: sub bright (upper) 0x08 113: sub bright (lower) 0x00 TV is set to 0IRE when it is in factory mode. The pattern for adjust is made so that black level is 0IRE. 37 TH-50PX60U 11.3. ABL operation level adjustment Instrument Name Connection Remarks ���� ·����PC (RGB) signal generator (Leader: VGA/No.9 signal) ���� ·����Wattmeter ���� ·��Component 1 ���� ·����Connect the AC power of the adjustment set to the wattmeter. Procedure Remarks [condition] ���� ·����Make sure the set is aged for 30 minutes or more before adjustment. ���� ·����Voltage 120V 50/60Hz (variation within 1%) ���� ·����Volume at minimum and screen size at full ���� ·����Component 1 input, Pic. mode : Vivid (Normal : Set) 1. Connect the set’s AC power to the wattmeter. 2. Receive the VGA No.9 signal from Leader. 3. Select the PWRCTRL item in WB-ADJ in the factory mode (INTERCAT2001). 4. Adjust PWRCTRL so the set’s power consumption are as follows. Adjust to shift large to small for DAC. Factory adjustment with OSD TH-50PX60U 440 ± 5W No.9 Signal Top half: Full color bar Bottom half: Horizontal 10 steps bar Notes: 1. It is OK that falling down the power few watts when exiting the factory adjustment mode. 2. Adjust the large number for DAC when they have 2 adjustment points. 38 TH-50PX60U 1. Purpose Restrict a function for hotels. 2. Access command to the Hotel mode setup menu In order to display the Hotel mode setup menu, please enter the following command (within 2 second). [TV] : Vol. “Down” + [REMOTE] : TV/VIDEO (3 times) Then, the Hotel mode setup menu is displayed. 3. Explain the Hotel mode setup menu 4. To exit the Hotel mode Disconnect AC power cord from wall outlet. item Function Mode Select hotel mode ON/OFF Input Select input signal modes. Set the input, when each time power is switched on. Selection: OFF/RF/COMP1/COMP2/HDMI1/ HDMI2/VIDEO1/VIDEO2/VIDEO3 · OFF: give priority to a last memory. Channel Select channel when input signal is RF. Set the channel, each time power is switched on. Selection: Any channel number or “-” “-” means the channel when turns off. Volume Adjust the volume when each time power is switched on. Range: 0 to 63 Vol. Max Adjust maximum volume. Range: 0 to 63 OSD Ctrl Restrict the OSD. Selection: OFF/Pattern1 · OFF: No restriction · PATTERN1: restriction FP Ctrl Select flont key conditions. Selection: OFF/Pattern1/All · OFF: altogether valid. · Pattern: only input key is valid. · All: altogether invalid. Pow Ctrl Select POWER-ON/OFF condition when AC power cord is disconnected and then connected. OFF: The same condition when AC power cord is disconnected. ON: Forced power ON condition. 12 Hotel mode 39 TH-50PX60U 40 TH-50PX60U 13 Conduct Views 13.1. P-Board A B C D E F G H I 1 2 3 4 5 6 P-BOARD (FOIL SIDE) ETXMM610MEF TH-50PX60U P-BOARD ETXMM610MEF TH-50PX60U P-BOARD ETXMM610MEF TH-50PX60U 41 TH-50PX60U P-BOARD PARTS LOCATION TH-50PX60U P-BOARD PARTS LOCATION Parts Location Parts Location P-BOARD (COMPONENT SIDE) IC101 B-3 IC401 E-5 IC501 H-3 MC201 G-3 MC301 D-3 MC502 G-2 MC601 G-4 MC701 B-5 IC MOJULE PC503 G-4 PC505 G-4 TP VR251 H-5 VR351 D-4 VR401 E-5 VOLUME Q301 C-3 Q302 C-3 Q401 E-5 Q402 D-4 Q501 H-3 TRANSISTOR P-BOARD (FOIL SIDE) IC101 H-3 IC401 F-5 IC501 B-3 MC201 C-3 MC301 F-3 MC502 C-2 MC601 C-4 MC701 H-5 IC MOJULE PC503 C-4 PC505 C-4 PHOTO COUPLER VR251 C-5 VR351 F-4 VR401 E-5 VOLUME P TH-50PX60U 42 A B C D E F G H I 1 2 3 4 5 6 P-BOARD (COMPONENT SIDE) ETXMM610MEF TH-50PX60U P-BOARD ETXMM610MEF TH-50PX60U P-BOARD ETXMM610MEF TH-50PX60U 43 13.2. PA-Board A B C D E F G H I 1 2 3 4 5 6 TP5613 TP5615 TP5616 TP5617 L5651 L5666 PA1 PA2 PA5 TPFSOS C2300 C2301 C2302 C2303 Q2306 Q2307 Q2308 Q2309 R2303 R2307 C2332 C2333 IC2306 IC2307 C5604 C5605 C5606 C5607 C5609 Q5606 PA10 C5801 C5802 C5803 C5610 C5804 C5805 C5611 C5612 C5613 C5614 C5615 C5616 R2326 R2327 C5617 C5618 R2328 C5619 C5810 PA21 C5812 C5815 C5622 C5623 C5626 D5605 C2361 R5601 R5602 C2362 D5606 R5603 D5607 R5604 PA31 PA32 PA33 R5607 C5630 PA34 R5608 IC5601 R5609 C5631 IC5602 C5632 C5633 R2344 D5610 R2345 R5801 D5612 R5802 C5636 D5807 R5803 C5637 R5804 R5610 R5805 R5611 D5616 R5612 D5617 R5807 R5613 R5808 R5614 R5615 IC5611 C5641 C5642 C5644 C5645 R5812 C5647 R5622 R5625 R5626 R5627 C5654 R5822 R5823 R5824 R5631 R5632 R5826 R5633 R5634 R5635 R2370 R2371 C5666 C5667 C5668 R5836 R5644 D5649 R5648 C5670 C5672 C5673 TPM18 R5650 R5652 R5655 R5656 R5657 R5658 R5659 R2397 R5660 R5662 R5663 R5664 R5666 R5667 TPM33 JS2302 JS2303 D5671 R5670 R5671 R5675 R5677 R5679 JS2316 JS2317 JS2318 JS2319 R5682 R5684 JS2322 JS2323 TPS33 JS2329 R5692 TPSSOS R5693 TPMUTE TPM5 R5695 JS2330 TPM9 C2401 C2402 C2403 C2404 C2405 ZA2300 ZA2301 C2416 C2417 C2418 R2401 R2402 TP16 R2403 TP17 R2404 R2405 R2406 R2407 R2408 R2409 R2410 R2411 R2412 R2413 R2414 R2415 R2416 R2417 R2418 R2419 TPSTB5V L2300 ZA5600 ZA5601 L2301 L2302 L2303 R2420 L2304 R2421 L2305 R2422 L2306 R2423 L2307 L2308 R2424 L2309 TPS5 L2311 TPS9 L5602 L5604 L5605 L5606 L5607 L5609 L5801 L5802 L5803 L5612 L5615 TNPA3761 1 PA PbF 1 4 1 5 1 11 1 4 5 8 1 4 5 8 1 6 1 3 SEE REVERSE FOR ORDER NO. 1 3 1 3 1 3 1 3 1 16 1 16 1 16 1 5 2 4 3 1 16 TH-50PX60U PA-BOARD TXNPA1BJTUJ TH-50PX60U PA-BOARD TXNPA1BJTUJ PA-BOARD (FOIL SIDE) TXNPA1BJTUJ Parts Location PA-BOARD (FOIL SIDE) IC IC2306 B-2 IC2307 C-2 IC5601 E-2 IC5602 F-4 IC5611 D-4 Q2306 B-3 Q2307 A-2 Q2308 C-3 Q2309 B-3 Q5606 E-3 TRANSISTOR PA TH-50PX60U 44 A B C D E F G H I 1 2 3 4 5 6 L5624 L5651 L5666 PA1 PA2 PA5 C2301 C2302 C2303 Q2300 C2304 Q2301 C2305 C2306 Q2302 Q2303 C2307 Q2304 C2308 Q2305 C2309 C2310 C2311 C2312 C2313 C2314 C2315 C2316 C2317 C2318 C2319 TPM33V C2320 C2321 C2322 C2323 C2324 D2300 D2301 C2325 D2302 C2326 C2327 D2303 C2328 R2300 D2304 D2305 C2329 R2301 D2306 R2302 D2307 R2304 D2308 D2309 R2305 R2306 R2308 C2330 IC2300 C2331 IC2301 R2309 IC2302 C2332 C2333 IC2303 IC2304 C2334 C2335 IC2305 C2336 C2337 R2310 C2338 R2311 R2312 R2313 R2314 C5604 R2315 Q5601 C5605 C5606 R2316 Q5602 Q5603 R2317 C5607 Q5604 R2318 C2341 C5609 Q5605 R2319 C2342 C2343 PA10 C2344 Q5608 C2345 Q5609 C5801 C2346 C5802 C2347 C5803 C5610 R2320 C2348 C2349 R2321 C5611 C5612 R2322 R2323 R2324 Q5610 C5809 R2325 Q5611 C5615 Q5612 Q5613 C5617 C2350 R2329 C2351 C2352 C2353 PA20 C5810 C2354 C2355 C5811 PA21 C2356 C2357 C5813 C2358 C5814 R2330 R2331 C2359 C5622 R2332 R2333 R2334 R2335 R2336 R2337 C2360 R2338 R2339 C2361 TPM18V C2362 C2363 C2364 C2365 R5605 PA31 PA32 R5606 C2366 PA33 C2367 R2340 C5630 C2368 PA34 D5801 C2369 IC5601 R2341 C5631 IC5602 C5632 R2342 TPS33V C5633 R2343 D5803 IC5604 D5804 D5805 R2346 D5806 R2347 C2370 R2348 R2349 C2371 TP16V C2372 R5806 C2373 PA40 C2374 C2375 R5809 IC5801 C2376 R5617 C2377 C2378 R2350 R5619 C2379 IC5611 R2351 R2352 C5643 R2353 R2354 C5645 R2355 Q5641 Q5642 C5646 R2356 R2357 Q5643 C5647 R5620 C5648 R2358 C2380 Q5644 R5621 C2381 R2359 C2382 TP17V C2383 C2384 C2385 C2386 C2387 C2388 R2360 R2361 C2389 R2362 R2363 R2364 R2365 R2366 Q5653 R2367 R2368 C2390 D5634 R2369 D5635 C2391 D5636 C2392 C2393 D5637 C2394 D5638 C2395 D5639 C2396 R5637 R5638 R5639 R2372 R2373 D5640 R2374 D5641 R2375 R2376 D5642 C5667 D5643 R2377 R2378 D5644 R5640 R5641 R2379 D5646 R5642 R5643 D5647 R5645 R5646 R5647 R2380 R2381 R5649 R2382 C5672 R2383 R2384 C5674 R2385 R2386 R2387 R2388 R2389 R5653 R5654 D5658 D5659 R2390 R2391 R2392 R2393 R2394 R2395 R2396 R2398 R5665 R5668 JS2300 R5669 JS2301 D5672 R5672 R5673 R5676 R5678 JS2312 JS2313 JS2314 JS2315 R5683 JS2320 JS2321 JS2328 R5691 R5694 R5697 R5698 R5699 JS2331 JS5600 JS5601 JS5602 JS5603 JS5604 TPM5V ZA2300 ZA2301 TPS5V L2300 ZA5600 ZA5601 L2301 L2302 L2303 L2304 L2305 TPM9V L2306 L2307 L2308 L2309 L2311 TPS9V L5602 L5604 L5605 L5606 L5607 L5609 L5801 L5802 L5803 L5612 L5615 L5621 L5622 L5623 TNPA3761 1 DIP PA THERMAL PAD PAMM4 PAMM5 PAMM3 PAMM2 PAMM1 AE AF AD AC AB PAMM6 PAMM7 PbF 1 4 1 5 1 1 1 1 4 5 8 1 4 5 8 1 12 13 24 25 36 37 48 1 12 13 24 25 36 37 48 1 4 5 8 1 4 5 8 ORDER NO. 1 6 1 40 1 3 1 3 1 3 1 3 1 3 1 1 6 1 16 1 3 4 5 1 2 19 20 1 5 1 1 6 1 3 4 5 2 1 16 TH-50PX60U PA-BOARD TXNPA1BJTUJ TH-50PX60U PA-BOARD TXNPA1BJTUJ PA-BOARD (COMPONENT SIDE) TXNPA1BJTUJ Parts Location PA-BOARD (COMPONENT SIDE) IC IC2300 E-2 IC2301 D-2 IC2302 E-4 IC2303 E-4 IC2304 E-2 IC2305 D-3 IC5601 B-2 IC5602 A-3 IC5604 C-2 IC5611 C-4 IC5801 C-5 Q2300 F-3 Q2301 F-3 Q2303 E-3 Q2304 D-3 Q2305 E-3 Q5601 A-3 Q5602 A-3 Q5603 A-1 Q5604 C-3 Q5605 A-2 Q5608 C-4 Q5609 C-4 Q5610 C-3 Q5612 B-1 Q5613 A-1 Q5641 C-3 Q5642 C-3 Q5643 C-3 Q5644 C-3 Q5653 C-4 TRANSISTOR PA TH-50PX60U 45 13.3. H-Board A B C D E F G H I 1 2 3 4 5 6 R2860 R2861 R2864 TP9V R2699 JS2600 JS2601 JS2602 JS2603 JS2604 JS2605 JS2606 JS2607 JS2608 JS2609 JS2610 JS2611 JS2612 JS2614 JS2615 JS2616 JS2617 JS2621 C2701 C2703 C2705 TP30V C2708 JS2642 JS2643 JS2646 JS2647 JS2648 C2710 JS2649 C2712 C2715 C2717 JS2650 JS2651 JS2652 JS2653 C2723 C2725 C2726 R2127 C2730 C2732 C2734 C2735 C2736 C2738 R2719 C2741 C2743 L2600 L2601 C2746 L2602 L2603 L2604 C2748 R2721 L2605 L2606 R2723 L2607 L2608 C2750 C2757 C2760 H5 H6 H7 C2763 C2765 L2626 L2627 L2628 L2629 R2746 C2773 L2630 C2774 C2775 L2631 C2776 L2637 C2781 C2782 C2791 C2794 C2795 C2796 C2797 R2771 R2773 JK2601 JK2602 JK2603 JK2604 JS2714 JS2715 JS2716 H53 JS2717 JS2718 JS2719 JS2720 JS2721 JS2722 JS2723 JS2724 JS2725 C2602 C2624 R2600 R2601 R2602 C2630 C2635 R2806 R2809 R2810 R2819 C2656 C2662 C2665 D2641 C2666 D2642 R2836 D2647 D2648 C2670 C2672 R2841 D2652 D2653 D2657 D2658 R2848 R2849 D2659 D2660 R2850 R2851 R2855 PbF TNPA3769 1 H 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 SEE REVERSE FOR SUFFIX 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 9 1 9 1 14 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 COMPONENT1 COMPONENT2 V1 V2 MONOUT 1 5 6 10 11 15 L R 1 2 3 4 1 2 3 4 1 12 1 2 3 4 1 2 3 4 1 2 3 4 1 2 4 3 TH-50PX60U H-BOARD TNPA3769S TH-50PX60U H-BOARD TNPA3769S H-BOARD (FOIL SIDE) TNPA3769S Parts Location H-BOARD (FOIL SIDE) TP9V F-3 TP30V G-3 TP H TH-50PX60U 46 A B C D E F G H I 1 2 3 4 5 6 C2694 FL2604 FL2605 FL2606 R2862 FL2607 C2697 FL2608 R2670 C2698 FL2609 C2699 R2865 R2671 R2672 R2867 R2673 R2868 R2674 R2869 R2675 R2676 R2677 R2678 FL2610 FL2611 R2679 FL2612 FL2613 R2870 R2871 R2872 R2873 R2680 R2681 R2682 R2683 R2684 R2685 R2686 R2687 R2688 R2690 R2691 R2692 R2693 R2694 R2695 R2696 R2697 R2698 FL2630 FL2631 FL2632 R2894 JS2613 JS2618 JS2619 JS2620 JS2622 JS2623 JS2624 JS2625 JS2626 JS2629 JS2630 JS2632 JS2633 JS2634 C2700 C2701 C2702 C2704 C2706 C2707 JS2640 JS2641 C2709 JS2644 JS2645 C2711 C2713 C2714 C2716 C2718 C2719 JS2654 JS2655 JS2656 JS2657 C2720 C2721 C2722 C2724 C2725 C2726 C2727 R2700 C2728 JS2660 C2729 JS2661 R2701 JS2662 R2702 R2703 JS2663 R2704 R2705 R2706 R2707 R2708 C2731 R2709 C2732 C2733 C2735 C2737 R2710 R2711 C2739 R2712 R2713 R2714 R2715 R2716 R2717 R2718 C2740 C2742 C2744 L2600 L2601 C2745 C2746 L2602 C2747 L2603 L2604 R2720 C2748 L2605 L2606 R2722 L2607 L2608 R2724 R2725 L2609 R2726 R2727 R2728 C2750 C2751 R2729 C2752 C2753 C2754 C2755 C2756 C2757 L2613 C2758 R2730 L2615 R2731 R2732 L2616 L2617 R2733 L2618 R2734 H1 R2735 H2 R2736 R2737 C2760 R2738 C2761 R2739 H5 C2762 H6 H7 C2763 C2764 C2765 C2766 C2767 R2740 C2768 R2741 C2769 L2625 R2742 L2626 L2627 R2743 L2628 R2744 R2745 L2629 R2747 C2770 R2748 R2749 C2771 C2772 C2773 L2630 C2774 C2775 L2631 C2776 L2632 C2777 L2633 C2778 R2750 L2634 R2751 C2779 R2752 L2636 L2637 R2753 R2754 R2755 R2756 R2757 R2758 C2780 C2781 R2759 C2783 C2784 C2785 C2786 R2760 R2761 C2789 R2762 R2763 R2764 R2765 R2766 R2767 R2768 C2790 R2769 C2791 C2792 C2793 C2794 C2795 C2796 C2797 C2798 R2770 C2799 R2772 R2774 R2775 JK2601 JK2602 R2776 JK2603 R2777 R2778 JK2604 R2779 R2780 R2781 R2782 R2783 R2784 R2785 R2786 R2787 R2788 R2789 R2790 R2791 R2792 R2793 R2794 R2795 R2796 R2797 R2798 R2799 H40 FL3301 FL3302 H51 H53 C2600 C2602 C2603 C2604 Q2601 C2605 Q2602 C2606 Q2603 C2607 C2608 Q2604 Q2605 C2609 Q2606 Q2607 C2800 Q2608 C2801 Q2609 C2802 C2610 C2611 C2612 C2613 JS2740 Q2610 C2614 C2615 JS2741 Q2611 JS2742 Q2612 C2616 JS2743 C2617 Q2613 C2618 JS2744 C2619 JS2745 Q2615 Q2616 JS2746 JS2747 Q2617 Q2618 JS2748 JS2749 Q2619 C2620 C2621 C2622 C2623 JS2750 C2624 D2600 JS2751 C2625 Q2621 D2601 Q2622 C2626 D2602 D2603 Q2623 C2627 C2628 D2604 Q2624 Q2625 C2629 Q2626 Q2627 R2603 R2604 Q2628 R2605 D2609 R2606 R2607 R2608 C2631 IC2601 R2609 C2632 IC2602 C2633 IC2603 D2610 C2634 Q2630 R2800 IC2604 C2635 R2801 Q2631 D2611 D2612 C2636 IC2606 Q2632 R2802 D2613 C2637 R2803 IC2607 Q2633 IC2608 TP30 C2638 R2804 R2610 R2805 D2615 C2639 R2611 D2616 R2612 R2613 R2807 D2617 R2614 R2808 R2615 D2619 R2616 R2617 C2640 R2618 R2619 C2641 C2642 C2643 C2644 D2620 D2621 C2645 C2646 D2622 C2647 D2623 R2813 R2814 C2648 D2624 R2620 R2621 C2649 R2815 R2816 R2622 R2623 R2817 R2818 R2624 R2625 D2629 R2626 R2627 R2628 C2650 C2651 R2629 C2652 C2653 C2654 R2820 D2630 C2655 R2821 C2656 R2822 C2657 R2823 R2824 C2658 R2630 R2825 C2659 R2631 D2635 R2632 D2636 R2826 R2633 D2637 R2827 R2634 R2828 D2638 R2829 D2639 R2635 R2636 R2637 C2660 R2638 C2661 R2639 C2663 R2830 D2640 R2831 R2832 C2667 R2833 D2643 R2834 C2668 R2640 D2644 R2835 D2645 C2669 R2641 D2646 R2642 R2837 R2643 R2838 R2644 R2839 R2645 D2649 R2646 R2647 R2648 R2649 C2671 C2672 C2673 R2840 C2674 D2650 C2675 D2651 R2842 C2676 R2843 C2677 C2678 D2654 R2650 R2651 C2679 D2655 R2846 R2652 D2656 R2653 R2654 R2655 R2656 R2657 R2658 C2680 R2659 C2681 C2682 C2683 C2684 D2661 C2685 R2852 C2686 D2662 D2663 C2687 D2664 R2660 C2688 R2854 R2661 C2689 R2662 R2856 R2857 R2663 R2858 R2664 R2665 R2859 R2666 R2667 FL2600 C2690 R2668 C2691 FL2601 R2669 C2692 FL2602 FL2603 C2693 JS2664 JS2665 JS2666 D2665 PbF TNPA3769 H 1 AE AD AC AB DVI AUDIO DIP HMM1 HMM2 HMM3 HMM4 SUFFIX 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 2 3 4 1 1 2 3 4 1 80 1 11 1 9 1 9 1 14 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 COMPONENT1 COMPONENT2 V1 V2 MONOUT 1 5 6 10 11 15 L R 1 2 3 4 1 2 19 20 1 2 3 4 1 2 29 30 1 12 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 24 25 40 41 64 65 80 1 11 12 22 23 33 34 44 1 15 16 30 1 10 11 20 1 4 5 8 1 3 4 5 1 4 5 8 TH-50PX60U H-BOARD TNPA3769S TH-50PX60U H-BOARD TNPA3769S H-BOARD (COMPONENT SIDE) TNPA3769S Parts Location H-BOARD (COMPONENT SIDE) IC IC2601 E-3 IC2602 B-2 IC2603 C-2 IC2604 D-2 IC2606 B-5 IC2607 F-4 IC2608 C-2 Q2601 F-3 Q2602 F-4 Q2603 F-4 Q2604 E-4 Q2605 E-3 Q2606 E-3 Q2607 E-3 Q2608 E-3 Q2609 A-2 Q2610 E-2 Q2611 A-2 Q2612 A-2 Q2613 F-3 Q2615 F-3 Q2616 F-3 Q2617 F-3 Q2618 C-1 Q2619 D-2 Q2621 D-4 Q2622 D-4 Q2623 D-4 Q2624 F-3 Q2625 F-4 Q2626 G-3 Q2627 B-2 Q2628 B-2 Q2630 E-3 Q2631 E-2 Q2632 E-4 Q2633 E-4 TP30 G-4 TP TRANSISTOR H TH-50PX60U 47 13.4. G and GS-Board A B C D E F G H I 1 2 3 4 5 6 L3704 L3705 L3706 L3707 L3708 L3713 JK3701 C3701 C3702 C3703 C3704 C3705 C3706 C3707 C3708 C3713 C3714 D3701 D3702 D3703 D3704 D3705 D3706 D3707 D3708 D3709 R3709 D3710 D3711 R3710 R3711 R3712 R3713 R3716 R3717 R3718 R3719 R3720 R3721 R3732 R3733 JS3700 JS3701 JS3702 JS3707 JS3708 JS3711 JS3712 JS3713 JS3714 JS3715 JS3716 PbF TNPA3764 G 1 AB AC AD AE AF L V R L V R L V R L V ORDER NO. L3700 L3701 L3702 L3703 G51 JK3701 G1 G3 C3709 C3710 C3711 C3712 C3715 C3716 C3717 C3718 C3719 R3701 R3704 R3705 R3706 R3707 R3708 R3714 R3724 R3725 R3728 R3729 R3730 R3731 R3736 R3737 R3738 R3739 R3740 R3741 R3742 R3743 R3744 R3745 R3746 R3747 R3748 R3749 FL3710 FL3711 FL3712 JS3704 JS3705 ZA3701 PbF TNPA3764 1 G R L V R L V R L V 1 2 29 30 SEE REVERSE FOR ORDER NO. R L V 1 12 1 3 1 2 3 4 1 2 3 4 1 2 3 4 JK7701 C7701 C7703 C7704 C7705 C7706 C7707 C7708 C7709 C7710 C7711 C7723 D7701 R7701 R7702 R7703 R7704 R7705 R7706 R7707 R7709 R7710 R7712 R7713 R7714 R7715 R7716 R7731 R7738 R7741 R7794 R7795 R7796 R7799 JS7701 L7701 L7702 L7721 TNPA3853 1 GS 1 8 9 10 ORDER NO. C7702 C7724 R7708 R7739 R7740 R7742 R7743 R7792 R7793 R7797 R7798 GS52 PbF TNPA3853 GS 1 SEE REVERSE FOR ORDER NO. 1 12 G-BOARD (FOIL SIDE) TNPA3764ADS G-BOARD (COMPONENT SIDE) TNPA3764ADS GS-BOARD (FOIL SIDE) TNPA3853ABS GS-BOARD (COMPONENT SIDE) TNPA3853ABS TH-50PX60U G-BOARD TNPA3764ADS GS-BOARD TNPA3853ABS TH-50PX60U G-BOARD TNPA3764ADS GS-BOARD TNPA3853ABS GS G TH-50PX60U 48 13.5. GK, HC, K and S-Board A B C D E F G H I 1 2 3 4 5 6 C2510 Q2511 D2510 R2512 IC2511 D2520 D2525 R2524 RM2501 R2557 K1 K2 R2572 R2573 PbF TNPA3762 K 1 ORDER NO. 1 2 11 12 1 2 C2511 C2512 Q2510 C2515 C2516 C2517 Q2513 Q2518 Q2519 C2520 C2521 Q2520 Q2521 Q2522 D2511 D2512 R2516 R2517 R2519 IC2511 D2524 R2520 R2521 D2526 D2528 R2525 D2530 R2530 R2531 RM2501 R2537 R2538 R2539 R2540 R2542 R2554 R2556 R2558 R2559 R2560 R2561 R2562 R2563 R2564 R2565 R2566 R2567 R2568 R2569 R2570 K1 R2571 K2 PbF TNPA3762 K 1 SEE REVERSE FOR ORDER NO. 1 2 11 12 1 2 HC01 HC06 HC15 HC21 HC22 PbF TNPA3855 1 HC ORDER NO. 1 21 1 7 1 10 1 11 1 40 HC22 HC21 PbF TNPA3855 HC 1 SEE REVERSE FOR ORDER NO. 1 10 1 11 C2500 SW2500 S2 PbF TNPA3964 1 S SEE REVERSE FOR ORDER NO. 1 2 SW2500 S2 S 1 TNPA3964 ORDER NO. 1 2 SW3751 SW3752 SW3753 SW3754 SW3755 SW3756 SW3757 SW3758 GK3 MENU VOL.DN OK VOL.UP CH.DN CH.UP ORDER NO. 1 3 C3750 C3751 SW3751 SW3752 SW3753 SW3754 SW3755 SW3756 SW3757 D3750 SW3758 D3751 R3750 R3751 R3752 R3753 R3754 R3755 R3756 R3757 R3758 R3759 R3760 R3761 R3762 R3763 R3764 R3765 R3766 R3767 R3768 R3769 GK3 PbF TNPA3965 GK 1 SEE REVERSE FOR ORDER NO. 1 3 PbF TV GUIDE TV/VTR TNPA3965 GK 1 K-BOARD (COMPONENT SIDE) TNPA3762AGS HC-BOARD (FOIL SIDE) TNPA3855S S-BOARD (FOIL SIDE) TNPA3964ABS GK-BOARD (FOIL SIDE) TNPA3965ACS GK-BOARD (COMPONENT SIDE) TNPA3965ACS S-BOARD (COMPONENT SIDE) TNPA3964ABS HC-BOARD (COMPONENT SIDE) TNPA3855S K-BOARD (FOIL SIDE) TNPA3762AGS TH-50PX60U GK-BOARD TNPA3965ACS HC-BOARD TNPA3855S K-BOARD TNPA3762AGS S-BOARD TNPA3964ABS TH-50PX60U GK-BOARD TNPA3965ACS HC-BOARD TNPA3855S K-BOARD TNPA3762AGS S-BOARD TNPA3964ABS K S GK HC TH-50PX60U 49 13.6. DG-Board A B C D E F G H I 1 2 3 4 5 6 Q1125 IC1101 IC1104 Q1134 Q1135 Q1137 Q1139 IC1110 Q1140 Q1141 IC016 IC017 IC018 Q045 IC024 IC029 IC030 Q061 Q067 Q068 Q069 Q070 Q071 Q073 Q074 Q075 Q076 Q077 Q078 Q079 Q082 Q083 TP1101 TP1102 TP1103 TP1104 TP1105 TP1106 TP1107 Q918 Q919 TP1112 TP1113 TP1114 TP1115 TP1116 TP1117 TP1118 TP1119 TP1120 TP028 TP029 TP030 TP031 TP032 TP033 TP034 TP036 TP037 TP038 TP039 TP040 TP041 TP064 TP065 TP066 Q1100 Q1101 Q1102 Q1103 Q1106 Q1107 Q1111 Q1112 TNPA3903 DG 1 CR NO.4 Q065 Q066 TP1121 TP067 TP068 Q084 TP035 PbF 1 24 25 48 + 1 + 1 1 1 1 1 1 1 + SEE REVERSE FOR SUFFIX . + + TH-50PX60U DG-BOARD TNPA3903BCS TH-50PX60U DG-BOARD TNPA3903BCS DG-BOARD (FOIL SIDE) TNPA3903BCS Parts Location DG-BOARD (FOIL SIDE) IC IC1101 E-3 IC1104 F-2 IC1110 F-2 IC4016 B-3 IC4017 B-2 IC4018 B-4 IC4024 B-2 IC4029 C-4 IC4030 C-3 Q1100 E-3 Q1101 E-3 Q1102 E-3 Q1103 E-3 Q1106 E-2 Q1107 E-2 Q1111 F-2 Q1112 F-2 Q1125 E-3 Q1134 D-2 Q1135 D-2 Q1137 F-3 Q1139 E-4 Q1140 F-2 Q1141 F-2 Q4045 C-2 Q4061 D-2 Q4065 A-2 Q4066 A-2 Q4067 B-2 Q4068 A-3 Q4069 B-1 Q4070 B-1 Q4071 A-2 Q4073 B-3 Q4074 B-2 Q4075 A-2 Q4076 B-3 Q4077 A-2 Q4078 A-3 Q4079 A-3 Q4082 B-2 Q4083 B-2 Q4084 B-2 Q4918 E-3 Q4919 E-3 TRANSISTOR TP1101 F-3 TP1102 F-3 TP1103 F-2 TP1104 F-3 TP1105 F-2 TP1106 F-2 TP1107 F-2 TP1112 A-5 TP1113 C-5 TP1114 A-5 TP1115 D-5 TP1116 D-5 TP1117 C-5 TP1118 D-5 TP1119 D-5 TP1120 F-3 TP1121 D-5 TP4028 B-4 TP4029 B-3 TP4030 B-4 TP4031 A-2 TP4032 A-1 TP4033 A-3 TP4034 A-1 TP4035 B-2 TP4036 B-1 TP4037 D-4 TP4038 A-5 TP4039 B-5 TP4040 B-5 TP4041 C-4 TP4064 B-1 TP4065 B-1 TP4066 B-2 TP4067 B-2 TP4068 A-2 TRANSISTOR TP DG TH-50PX60U 50 A B C D E F G H I 1 2 3 4 5 6 Q1114 Q1115 Q1116 IC1102 IC1103 Q1130 Q1131 IC1105 Q1132 IC1106 Q1133 IC1108 DG10 DG15 IC1111 Q1142 Q1143 DG20 DG22 DG35 IC013 IC014 Q040 Q041 Q042 Q043 Q044 IC019 Q046 IC020 IC022 IC023 Q050 Q051 IC025 DG1 Q052 IC026 DG2 IC027 DG3 Q054 IC028 DG5 Q056 DG7 Q057 DG8 Q058 DG9 Q059 IC032 IC033 Q060 IC034 IC035 Q062 IC036 Q063 IC037 IC038 Q064 IC039 IC040 Q080 Q081 TP1108 TP1109 TP1110 Q1104 Q1105 Q1108 Q1109 Q1110 Q1113 TNPA3903 CR NO.4 THERMAL PAD THERMAL PAD DG THERMAL PAD THERMAL PAD BA BB BC BD BE BF BG BH BJ BK BL BM BN 1 SUFFIX Q920 Q921 PbF 1 4 5 8 1 54 55 108 109 162 163 216 1 7 8 14 1 7 8 14 1 7 1 1 40 110 56 55 1 1 7 1 4 5 8 1 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 4 5 8 1 4 5 8 1 8 9 16 1 80 1 36 37 72 73 108 109 144 1 11 1 1 4 5 8 1 21 1 19 20 2 19 1 19 1 1 4 5 8 1 4 5 8 1 8 9 16 1 4 5 8 1 16 17 33 48 49 64 32 A 1 1 A 1 4 5 8 1 NP NP NP NP + 1 40 1 40 TH-50PX60U DG-BOARD TNPA3903BCS TH-50PX60U DG-BOARD TNPA3903BCS DG-BOARD (COMPONENT SIDE) TNPA3903BCS Parts Location DG-BOARD (COMPONENT SIDE) IC IC1102 A-2 IC1103 B-3 IC1105 B-2 IC1106 B-2 IC1108 C-1 IC1111 A-2 IC4013 E-3 IC4014 D-1 IC4019 F-4 IC4020 D-3 IC4022 F-2 IC4023 F-2 IC4025 E-3 IC4026 F-2 IC4027 E-2 IC4028 E-3 IC4032 D-5 IC4033 F-5 IC4034 D-4 IC4035 E-5 IC4036 B-4 IC4037 D-4 IC4038 E-4 IC4039 C-4 IC4040 D-2 Q1104 B-2 Q1105 C-2 Q1108 B-2 Q1109 B-2 Q1110 B-2 Q1113 A-2 Q1114 B-2 Q1115 A-2 Q1116 B-2 Q1130 C-2 Q1131 C-2 Q1132 C-2 Q1133 C-2 Q1142 C-2 Q1143 B-1 Q4040 E-2 Q4041 E-1 Q4042 E-2 Q4043 E-2 Q4044 E-2 Q4046 E-2 Q4050 F-5 Q4051 D-1 Q4052 D-2 Q4054 D-2 Q4056 F-4 Q4057 F-4 Q4058 F-4 Q4059 F-5 Q4060 E-3 Q4080 F-4 Q4081 F-4 Q4920 C-2 Q4921 B-2 TRANSISTOR TP1108 A-4 TP1109 B-5 TP1110 A-5 TRANSISTOR TP DG TH-50PX60U 51 13.7. DT-Board A B C D E F G H I 1 2 3 4 5 6 L310 C648 IC230 C454 C649 L311 L312 IC232 R623 R624 R430 IC235 R431 C265 R625 R819 C266 R432 R626 C267 R433 R627 C650 R240 R628 R241 C651 R435 R629 R436 R242 R243 R437 R244 R438 C460 R820 R439 C463 R824 R630 R825 C465 R631 R826 C466 R633 IC246 IC247 R637 R444 IC249 R445 R446 R447 R448 C470 R830 R831 R449 C471 C472 R832 C473 R258 C474 R640 R834 IC251 C475 C476 R837 IC253 C477 R838 IC254 C478 R450 L141 R645 R451 R646 R452 L143 R647 R454 R648 R456 R457 R264 R265 C099 C481 R266 R267 C483 C484 R844 R650 R269 C485 R847 C294 C489 C295 R461 R462 C296 R656 R463 C297 R657 C298 R464 R658 C299 R465 R273 R274 C490 C491 R277 C493 FL210 R660 C494 R661 C495 FL211 C497 C498 C499 R471 R665 R666 R475 R282 R476 R478 R285 R287 R673 R292 R682 R492 R686 R493 R687 R688 R495 R689 R497 R498 R499 R691 R694 FL263 FL266 FL267 FL268 C300 C301 X201 C302 C303 C110 C111 C306 C307 C113 C308 C114 C309 C115 C116 C117 C500 C118 C502 C503 C310 C504 C311 C505 C312 C506 C313 C314 C509 C121 C123 C317 C318 C124 C319 C125 C127 C128 C510 C511 C129 C320 C321 C322 C516 C517 C518 C519 C325 XF200 R301 XF202 R304 R306 C525 C333 C527 C334 C528 R500 C529 C335 R502 C338 R310 C144 C339 C145 R311 R312 C531 C532 R316 C533 R317 C340 R318 C341 C535 R319 C342 C537 C343 R703 R510 C344 L201 L202 C347 L203 L204 C348 L205 R709 R515 L207 C540 L208 L209 R326 C542 R327 C543 R328 C544 R329 C351 C352 C353 C547 R138 C548 L211 C549 R521 L212 C162 L213 R717 R523 C357 R330 L214 C164 R524 C358 R331 R332 R333 R140 C551 R141 R142 R336 C552 R720 TP200 R144 C554 C360 C555 C361 TP201 R145 C556 C362 C558 R724 R148 R530 C365 L221 R725 L222 R726 R532 C367 R533 TP207 C368 R340 R728 TP208 C369 R341 R729 R537 R344 C560 R150 R345 R539 C561 R152 R346 R347 R153 C370 R730 C371 C565 TP211 R155 C372 C566 R732 R733 TP213 C567 R157 C374 R734 TP214 R158 R159 R735 TP215 C375 R541 L231 R736 C376 TP216 R542 L232 C377 TP217 R738 TP218 L234 R544 C378 TP219 R545 R351 L235 C379 R546 R352 R353 R547 R354 R548 R355 R356 R163 C573 TP220 R358 C574 C575 R165 C576 R166 C383 R744 R550 C384 L240 L241 R551 C385 C579 R746 R552 C387 R553 L244 C388 C389 R556 R362 R363 R557 R558 R364 C580 R365 C582 R366 C583 R367 TP230 C584 R368 C390 C585 TP231 R369 C391 C586 TP232 R752 TP233 R753 C587 C588 TP234 R560 L250 R561 TP235 R755 L251 C589 TP236 R756 R757 TP237 TP238 R758 R564 TP239 R371 L255 R566 L256 R373 R568 L258 C590 JK200 R374 C591 R569 R375 C592 R376 C593 R760 TP240 C594 R378 TP241 C595 C596 TP242 C597 TP243 TP244 C598 R570 TP245 C599 R571 TP246 R572 TP247 R573 TP248 L264 L265 R381 TP249 L266 R382 R577 L267 R383 L268 R578 R384 R385 R387 R388 TP250 R771 R389 R580 R581 R582 R777 R584 R390 R779 R585 L275 R391 R392 R588 L279 R589 R780 DT04 R399 L280 R590 R784 R785 L281 R786 R592 R593 R787 L283 L284 L285 R595 R596 R597 R598 R599 DT12 R792 R793 R795 R796 R797 R798 L294 L297 L298 L299 Q201 Q203 C208 C209 Q207 C400 Q208 Q209 C404 C211 C405 C212 C406 C213 C407 C215 C409 C218 C600 C219 C601 Q216 C602 C603 C604 C410 C605 C606 C413 C607 TU200 C220 C414 C608 C415 C609 C222 C223 C224 D200 C419 C225 C226 R200 C228 C610 C229 Q225 C611 D205 C612 D206 R203 C613 R204 D208 C614 C420 R205 D209 C615 C421 R206 C616 C422 R207 C617 C423 C230 C618 C424 C231 R209 C619 C425 IC202 C426 C233 IC203 C427 IC204 IC010 R400 C234 C428 IC205 Q231 C235 C429 IC206 C237 R210 C238 C620 R211 C239 C621 D216 C622 Q236 C623 R407 Q237 C624 R408 C430 C625 R409 C431 R216 C626 C432 C627 C433 R217 C434 R600 R219 C435 C241 R601 IC211 C436 C242 C243 C437 R603 C244 R410 C245 R605 R606 IC216 D223 R220 C248 IC218 R414 C249 D225 R221 R609 R415 R222 D227 R223 R417 R224 R418 C635 C441 C636 C637 R227 R228 C250 C638 R610 IC220 C445 C252 L303 C253 IC223 R613 L304 R614 L305 C255 R615 C256 L306 R616 L307 R424 C640 L308 IC228 R425 C641 C259 L309 C642 R232 R426 C643 R427 C450 R428 C451 R429 C646 C453 DT TNPA3758 1 CR NO. A A B B C D D C THERMALPAD E E F F G G 8 H H I I TP221 TP251 TP252 FL264 FL265 Q238 R849 R848 Q239 R850 C653 C654 R459 D231 R482 PbF 1 24 25 48 1 7 8 14 1 3 4 6 1 12 13 24 1 12 13 24 1 4 5 8 1 4 5 8 1 10 11 20 1 28 29 56 10 7 1 2 3 6 10 7 1 2 3 6 SEE FOR SUFFIX. REVERSE 1 6 7 12 1 6 7 12 + + 1 2 35 36 68 67 34 33 1 55 56 110 OOBOUT ANTVSUPPLY GND BTL TU GND VSUPPLY AGC SDA SCL AFT AGCOUT VIDEOOUT GND ROUT LOUT GND BV IFOUT IFSW 1 7 8 14 1 4 5 3 1 3 4 5 1 34 66 33 1 4 5 8 1 4 5 8 + 1 45 88 132 133 176 89 44 1 36 37 72 73 108 109 144 1 3 4 5 1 3 4 5 1 24 48 25 1 3 4 5 TH-50PX60U DT-BOARD TNAG167S TH-50PX60U DT-BOARD TNAG167S DT-BOARD (FOIL SIDE) TNAG167S Parts Location DT-BOARD (FOIL SIDE) IC IC8202 C-4 IC8203 C-4 IC8204 C-4 IC8205 E-5 IC8206 B-5 IC8211 D-6 IC8216 B-3 IC8218 D-3 IC8220 B-2 IC8223 D-2 IC8228 D-2 IC8230 E-4 IC8232 D-2 IC8235 D-6 IC8246 E-2 IC8247 E-6 IC8249 B-3 IC8251 D-5 IC8253 B-5 IC8254 D-2 IC8010 E-5 Q8201 B-4 Q8203 A-5 Q8207 B-1 Q8208 B-2 Q8209 D-3 Q8216 E-4 Q8225 F-4 Q8231 F-4 Q8236 B-2 Q8237 B-1 Q8238 E-2 Q8239 E-2 TP8200 B-4 TP8201 C-4 TP8207 D-3 TP8208 B-2 TP8211 F-4 TP8213 D-6 TP8214 C-6 TP8215 B-6 TP8216 B-6 TP8217 B-6 TP8218 B-6 TP8219 E-2 TP8220 E-6 TRANSISTOR TP TP8221 D-2 TP8230 D-1 TP8231 D-2 TP8232 E-2 TP8233 E-2 TP8234 E-2 TP8235 E-2 TP8236 E-2 TP8237 E-2 TP8238 F-5 TP8239 E-5 TP8240 E-2 TP8241 E-2 TP8242 C-5 TP8243 D-5 TP8244 D-3 TP8245 B-3 TP8246 D-4 TP8247 E-2 TP8248 E-4 TP8249 D-4 TP8250 D-4 TP8251 E-4 TP8252 E-4 DT TH-50PX60U 52 A B C D E F G H I 1 2 3 4 5 6 R620 R621 C455 R622 C456 R817 C457 C458 R818 C459 R434 C652 R821 C461 R822 C462 R823 C464 IC240 C272 R632 C273 C467 R827 C468 R634 R440 IC244 R828 C469 R635 R441 R829 R636 R442 R443 C660 R638 C661 R639 C662 C663 C664 R833 IC250 R641 R835 R642 R643 R644 R839 C479 L142 R453 R649 R458 C480 R840 R841 C482 R842 R843 R651 R845 R846 C486 R652 R653 C487 R460 C488 R654 R655 R270 R271 R659 R272 R466 R467 R468 R469 C492 C496 R662 R663 R470 R664 R472 R473 R667 R474 R668 R669 R477 R479 R288 R670 R289 R671 R672 R674 R480 R481 R483 R290 R678 R484 R291 R679 R485 R486 R293 R487 R488 R489 R297 R680 R681 R299 R683 R490 R684 R491 R685 R494 R496 R690 R692 R693 R695 R696 R697 R698 R699 FL262 C100 C101 C102 C103 C104 X005 C105 C106 C107 C108 C109 X200 C304 C305 C112 C501 C507 C508 C120 C315 C316 C122 C126 C512 C513 C514 C515 C323 C324 C326 C327 R300 C328 C329 R302 R303 C520 R305 C521 C522 R307 C523 C330 R308 C524 C331 R309 C332 C526 R501 C336 C337 R503 R504 R505 R506 R313 R507 C530 R314 R508 R509 R315 C534 R700 R701 C536 R702 L200 C538 R704 C345 C539 R705 R511 C346 R512 R706 R513 R707 R708 R514 R320 C349 R321 R322 R516 R323 R517 R518 R324 C541 R325 R519 C350 R710 R711 C545 R712 C546 R137 R520 C354 C355 R715 R139 C356 R522 R716 R718 R525 C359 R719 R526 R527 R528 R334 C550 R529 R335 R143 R337 C553 R338 R339 R721 R722 R146 C557 R723 R147 C363 C170 C364 C559 R531 R149 C366 R727 L223 R534 L224 L225 R535 R536 R342 R343 R538 R151 C562 C563 R154 C564 R348 R349 R156 C373 C568 R540 C569 R543 R350 L236 L237 R160 C570 L239 R161 C571 R162 C572 R357 R164 C380 R741 R359 C381 R742 C382 C577 C578 L242 C386 R747 L243 R748 R554 R360 R749 R361 R555 C581 R559 R751 C392 C393 C394 C395 C396 R562 R563 C397 L253 C398 L254 R370 R565 R759 C399 R372 R567 JK200 R377 R379 R574 R380 R575 R576 R579 R386 R583 R778 L276 R586 R587 R393 R394 R395 DT02 R396 R397 DT04 R398 R781 R782 DT07 R783 DT08 R591 L282 R594 R788 DT10 L288 L289 L096 R791 R794 L291 L293 R799 C200 C201 C202 C203 C204 C205 C206 C207 C401 C402 C403 Q210 C408 Q211 Q213 Q214 Q215 Q217 Q218 C411 Q219 C412 TU200 C416 C417 C418 Q220 D203 D204 R201 R202 Q226 Q227 D208 Q228 Q229 IC009 R208 IC200 IC201 Q230 R401 R402 R403 Q234 R404 Q235 R405 R212 R406 R213 R218 C240 C628 C629 R602 R604 C438 R411 C439 C246 IC022 R412 C247 IC217 R607 R413 C630 D224 R608 C631 D226 C632 R416 C633 R800 C634 C440 R801 R419 R802 C442 C443 L300 C444 C639 L301 R611 C446 IC222 L302 R612 C447 R420 C254 C448 C449 R421 R422 IC227 R423 R618 R619 IC229 C644 C645 C452 C647 A C D D 1 F G G J J K K A B E F C H DT TNPA3758 AG AH AP AN AM AL AK AJ B E AF AE AD AC AB H CR NO.8 FL236 FL233 FL237 FL235 FL234 FL232 FL230 FL228 FL226 FL229 FL231 FL224 FL225 FL227 FL254 FL215 FL238 FL239 FL240 R455 SUFFIX C655 D230 C666 C665 L292 L290 DT09 PbF A B C G J L N R U W AA D F H K M P T V Y AB 1 2 3 5 7 9 11 4 6 8 10 13 15 17 19 21 12 14 16 18 20 22 E 1 8 9 16 1 8 9 16 + + 1 3 36 35 2 1 68 67 34 33 1 4 1 55 56 110 13 1 BTL VIDEOOUT GND R IF OUT IF SW AGCOUT GND OOB OUT ANT GND TU GND AGC SDA SCL AFT L BV OUT OUT VSUPPLY VSUPPLY + 1 33 34 66 1 8 9 16 1 4 5 8 1 8 9 16 1 8 9 16 24 25 32 1 24 25 48 1 4 5 8 9 1 8 10 12 TH-50PX60U DT-BOARD TNAG167S TH-50PX60U DT-BOARD TNAG167S DT-BOARD (COMPONENT SIDE) TNAG167S Parts Location DT-BOARD (COMPONENT SIDE) IC IC8200 B-3 IC8201 C-3 IC8217 B-3 IC8222 C-1 IC8227 B-2 IC8229 C-3 IC8240 C-4 IC8244 B-2 IC8250 C-3 IC8009 B-5 IC8022 C-6 Q8210 D-4 Q8211 C-4 Q8213 B-4 Q8214 B-4 Q8215 B-4 Q8217 B-3 Q8218 C-3 Q8219 E-2 Q8220 D-2 Q8226 A-3 Q8227 D-6 Q8228 D-6 Q8229 B-2 Q8230 B-6 Q8234 D-2 Q8235 E-2 TRANSISTOR DT TH-50PX60U 53 13.8. D-Board A B C D E F G H I 1 2 3 4 5 6 TH-50PX60U D-BOARD TNPA3820ACS TH-50PX60U D-BOARD TNPA3820ACS D-BOARD (FOIL SIDE) TNPA3820ACS C201 C202 Q200 Q201 Q401 Q402 C600 C601 C028 C029 C800 C801 IC001 C802 IC002 C803 C033 C034 C804 C035 C805 C036 C807 C037 R203 R204 C038 C809 D017 R208 D400 D018 R209 D019 D401 IC011 C043 R403 R210 R404 D020 R405 C045 R407 Q044 C048 R408 C049 Q045 R216 R600 Q048 Q049 C050 C051 R412 C822 R413 C053 C824 Q050 D801 C055 R415 IC602 D802 R416 C826 C056 C057 C827 C058 R800 D804 D035 R801 R419 D805 D806 R226 R802 C442 R803 Q057 R227 C443 R804 Q058 C444 C445 R805 D809 R806 C446 R807 C447 R420 R808 IC800 C448 R809 C449 IC801 R616 C833 D810 Q060 R619 IC806 D813 IC807 C837 R810 C838 C450 D815 IC809 R811 C451 L501 C452 L502 R813 R237 C453 R620 R814 R238 C454 R815 R239 C455 R816 C456 C457 C458 R430 R819 C459 R625 R626 C843 R627 R628 C845 C846 R436 C847 C848 R244 C460 C849 R245 C461 R821 C462 R247 C463 C464 R248 R824 C465 R631 C466 C467 C850 C468 R828 C851 R829 R441 C469 C852 R442 R636 C853 C854 C855 R639 C856 C857 R830 C472 C473 R834 C474 R835 C475 R641 C476 R642 C477 R643 C478 C860 R645 R451 C479 R452 R646 C863 C864 C865 C866 R840 C480 R841 C481 C482 C483 C484 C485 D9 C486 R846 C487 R847 C488 R848 C489 R849 C872 R468 C490 R850 R469 C491 C492 FL402 C493 C494 C495 C496 C497 R470 C499 R471 C882 R472 C883 C884 C885 C886 C887 R864 R865 R097 R868 R098 R480 C891 R099 R481 R484 FL805 R485 C896 FL806 C897 R487 C898 C899 R876 R877 R878 R490 R879 R491 R880 R498 R883 R884 R887 R891 R892 R893 R896 R897 C300 C301 C302 C303 C304 C305 C306 C307 C308 C309 C310 C311 C312 C313 C314 C315 C316 C317 C318 C319 R100 R101 C512 C513 C320 C321 C322 R106 C516 C323 C517 C324 R108 C518 C325 R109 C519 C327 C328 C329 C520 R111 C521 C522 C523 C330 C524 C331 C525 C332 C526 C333 C527 C334 R500 C528 C335 R501 C529 C336 R503 C337 R504 C338 R505 C339 R120 C530 R121 R509 C533 C340 C534 R319 C341 C342 R127 C343 C344 R128 R511 R129 C345 C346 C347 R513 C348 C349 C926 R900 C541 C350 R134 R135 R136 C352 C353 R137 TP9000 C355 R139 C356 C357 C358 R524 C359 R527 R140 R528 R529 C361 C555 C362 C366 C367 C368 R537 R152 R153 R154 R155 R159 R549 R162 R164 R166 R550 R169 R556 C967 R557 C968 R170 C969 R171 R172 R173 R369 R176 FL303 C970 FL304 R178 C971 R179 R370 R371 R372 R374 R180 R375 R376 R378 R379 R187 R188 R189 R385 TP442 R192 R388 R196 R580 R581 R199 R585 R587 R589 R590 R593 R594 C001 CR NO.9 D 1 TNPA3820 R249 R070 D110 D106 D105 D103 D102 D101 D100 1 2 3 PbF 1 4 5 8 1 3 4 6 1 4 6 3 1 3 4 5 24 13 12 1 6 4 3 1 1 3 4 5 1 12 13 24 1 12 13 24 1 6 SEE REVERSE FOR ORDER NO. + + + + Parts Location D-BOARD(FOIL SIDE) IC IC9001 F-3 IC9002 F-5 IC9011 G-2 IC9602 C-4 IC9800 A-3 IC9801 E-4 IC9806 A-3 IC9807 B-4 IC9809 A-2 Q9044 F-3 Q9045 G-3 Q9048 F-3 Q9049 E-2 Q9050 E-3 Q9057 F-2 Q9058 F-2 Q9060 F-3 Q9200 E-3 Q9201 E-3 Q9400 E-2 Q9401 C-2 Q9402 D-2 Q9500 A-3 Q9800 G-2 Q9801 G-2 Q9803 F-4 Q9805 F-4 Q9806 E-4 TP442 C-1 TP9000 E-3 TP TRANSISTOR D TH-50PX60U 54 A B C D E F G H I 1 2 3 4 5 6 C200 Q400 X500 C608 C609 IC003 R200 Q800 Q801 R201 R202 C806 Q803 IC007 PA800 C808 Q805 C039 R205 Q806 R206 R207 IC200 C040 C041 R401 C042 R402 C044 C815 C816 R406 C046 C817 C047 C818 IC400 R215 Q046 IC402 Q047 R217 R218 R601 R219 R602 R603 R411 C052 C823 R414 D800 R220 Q051 R221 C825 R222 Q052 D803 Q053 R417 IC603 R418 Q054 D807 D808 C830 R421 C831 C832 IC802 IC803 C834 C835 D812 R426 C836 R427 D814 R428 R236 R812 L503 R621 R622 R623 R818 C840 R624 C841 C842 R432 R433 C844 R434 R435 R437 R438 R439 R823 R630 R825 R826 R632 R827 R633 R440 R634 R635 R443 R637 R444 R445 R446 R448 C470 C858 R060 R831 R449 R061 C859 R062 R063 R064 R065 R066 R067 R838 R450 R839 R453 R454 R455 D2 R456 D3 C867 R457 R458 C868 D5 R459 D6 R842 R843 R844 R074 R845 R076 C870 R460 R461 R462 R463 R464 R465 R466 R467 FL400 FL401 FL403 FL404 R854 C880 C498 C881 R859 R475 R476 R477 R478 R479 R094 R095 R096 FL800 R869 FL801 R482 FL803 R483 FL804 R486 FL807 R488 R870 R871 R489 R872 R873 R875 R492 R493 R494 R495 R496 R497 R499 C100 X9000 Q100 D20 ZA001 Q301 D25 Q302 Q500 D31 D32 D33 D34 R102 R103 R104 C514 C515 R107 D300 D301 R300 R301 R302 R303 R110 R304 R305 R306 R113 R307 IC300 R308 R309 IC304 R502 R310 R311 R312 R506 R313 R507 R508 R314 IC500 R315 C531 R316 C532 IC503 R318 IC504 C535 IC505 C536 C537 C538 R510 C539 R512 R320 R514 R515 R516 C540 R519 C542 C351 C546 C547 C354 R138 C548 R521 R522 R523 R525 R526 C550 R141 R142 C552 R143 C553 C360 R144 C554 R145 C557 R147 C363 R148 C364 R530 C365 R149 R531 R532 R533 L800 R534 L801 R535 L802 R536 R150 R538 R539 R151 R923 R156 R157 R540 R158 R541 R542 R543 L810 R544 R545 R546 R160 R548 R161 R163 R165 R167 R168 R552 R553 R554 R555 R367 FL300 R174 FL301 R175 FL302 R560 FL305 FL306 R373 R181 FL501 R182 FL502 R183 R377 FL503 R184 R185 R186 R574 R382 R578 R190 R579 R191 R386 R387 TP443 R193 R194 TP444 R389 R197 R198 R582 R583 R390 R584 R391 R392 R586 R393 R394 R588 R395 R396 R397 R398 R591 R592 R595 R596 R597 R598 R599 CR NO.9 VD HD TNPA3820 1 D R177 IC401 IC301 1 3 2 5 7 9 4 6 8 10 12 14 16 11 13 A C E G J L N R B D F H K M P T 15 1 20 21 40 41 60 61 80 + 1 4 5 8 1 10 11 20 + + A B C E G J L N R U W AA D F H K M P T V Y AB 1 2 3 5 7 9 11 4 6 8 10 13 15 17 19 21 12 14 16 18 20 22 1 40 41 80 1 10 11 20 1 10 11 20 11 20 1 10 1 2 29 30 1 31 1 21 + ORDER NO. 1 19 20 2 1 80 1 55 1 68 1 80 A B C E G J L N R U W D F H K M P T V 1 2 3 5 7 9 11 4 6 8 10 13 15 17 19 21 12 14 16 18 20 22 AB AA Y 1 24 25 48 1 10 11 20 1 10 11 20 1 10 11 20 + + + 1 2 19 20 1 40 13 11 9 7 5 3 12 10 8 6 4 2 B D F H K MN L J G E C 13 11 9 7 5 3 12 10 8 6 4 2 B D F H K L J G E C MN TH-50PX60U D-BOARD TNPA3820ACS TH-50PX60U D-BOARD TNPA3820ACS D-BOARD (COMPONENT SIDE) TNPA3820ACS Parts Location D-BOARD(COMPONENT SIDE) IC IC9003 B-2 IC9007 B-3 IC9200 C-4 IC9300 F-3 IC9301 E-2 IC9304 E-4 IC9400 D-3 IC9401 C-2 IC9402 B-4 IC9500 B-4 IC9503 B-3 IC9504 B-5 IC9505 C-3 IC9603 B-3 IC9802 B-3 IC9803 A-3 Q9046 B-3 Q9047 A-3 Q9051 E-2 Q9052 E-2 Q9053 D-2 Q9054 D-2 Q9100 D-3 Q9301 E-4 Q9302 E-4 TP443 E-3 TP444 E-3 TRANSISTOR TP D TH-50PX60U 55 13.9. C1-Board A B C D E F G H I 1 2 3 4 5 6 TNPA3821 C1 1 1 2 3 PbF SEE REVERSE FOR ORDER NO. C101 C102 C103 C104 C105 C106 C108 C109 C110 C111 C112 C113 C114 C115 C117 C118 C119 C120 C121 C122 C123 C124 C125 D101 D102 C126 D103 C127 D104 C128 R101 D105 C129 R102 D106 R103 R104 R105 R106 R107 R108 C130 IC101 R109 R110 R111 R112 R113 R114 R115 R116 R117 R118 R119 R120 R121 R122 R123 R124 R125 R126 R127 R128 R129 R130 R131 R132 R133 R134 R135 R136 R137 R138 R139 R140 R141 R142 FL101 CA1 CA2 CA3 ZA101 ZA102 ZA103 ZA104 ZA105 C10 C1MM1 TNPA3821 1 C1 CRNO.7 PbF 1 10 11 20 ORDER NO. 68 1 68 1 68 1 55 1 C1-BOARD (COMPONENT SIDE) TXNC11BHTUJ C1-BOARD (FOIL SIDE) TXNC11BHTUJ TH-50PX60U C1-BOARD TXNC11BHTUJ TH-50PX60U C1-BOARD TXNC11BHTUJ Parts Location C1-BOARD IC7101 G-1 IC C1 TH-50PX60U 56 13.10. C2-Board A B C D E F G H I 1 2 3 4 5 6 TNPA3822 1 C2 1 2 3 PbF SEE REVERSE FOR ORDER NO. C20 C21 C22 ZA201 ZA202 ZA203 ZA204 ZA205 CA4 CA5 CA6 CA7 C201 C202 C203 C204 C205 C206 C207 C208 C209 C210 C211 C212 C213 C214 C215 C216 C217 C218 C219 C220 C221 C222 C223 C224 D201 C225 D202 C226 D203 C227 R200 D204 C228 R201 D205 C229 R202 D206 R203 D207 R204 D208 R205 R206 R207 R208 C230 IC201 R209 C231 IC202 C232 IC203 C233 IC204 C234 IC205 C235 IC206 C236 IC207 C237 IC208 R210 C238 IC209 R211 C239 R212 R213 R214 R215 R216 R217 R218 C240 C241 C242 C243 C244 C245 C246 C247 R220 C248 R221 C249 R222 R223 R224 R225 R226 R227 R228 C250 R229 C251 C253 R230 R231 R232 R233 R234 R235 R236 R237 R238 R239 R240 R241 R242 R243 R244 R245 R246 R247 R248 R249 R250 R251 R252 R253 R254 R256 R257 R258 R259 R260 R261 R262 R263 R264 R265 R266 R267 R268 FL201 R269 R270 R271 R274 R275 R276 R277 R278 R279 R280 R281 R282 R283 R284 R285 CRNO.7 TNPA3822 1 C2 PbF 1 55 1 80 1 20 ORDER NO. 1 68 1 68 1 68 1 68 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 C2-BOARD (COMPONENT SIDE) TXNC21BHTUJ C2-BOARD (FOIL SIDE) TXNC21BHTUJ TH-50PX60U C2-BOARD TXNC21BHTUJ TH-50PX60U C2-BOARD TXNC21BHTUJ Parts Location C2-BOARD IC7201 H-1 IC7202 F-1 IC7203 F-2 IC7204 G-2 IC7205 H-2 IC7206 I-2 IC7207 D-1 IC7208 D-1 IC7209 E-1 IC C2 TH-50PX60U 57 13.11. C3-Board A B C D E F G H I 1 2 3 4 5 6 TNPA3823 1 C3 1 2 3 PbF SEE REVERSE FOR ORDER NO. TNPA3823 1 C3 CRNO.7 C31 C32 C33 C301 C302 C303 C304 C305 C306 C307 C308 C309 C310 C311 C312 C313 C314 C315 C316 C317 C318 C319 C320 C321 C322 C323 C324 D301 C325 D302 C326 D303 C327 D304 C328 R301 D305 C329 R302 D306 R303 D307 R304 D308 R305 R306 R307 R308 C330 IC301 R309 C331 IC302 C332 IC303 C333 IC304 C334 IC305 C335 C336 C337 R310 C338 R311 C339 R312 R313 R314 R315 R316 R317 R318 C340 R319 C341 C342 R320 R321 R322 R323 R324 R325 R326 R327 R328 R329 R330 R331 R332 R333 R334 R335 R336 R337 R338 R339 R340 R341 R342 R343 R344 R345 R346 R347 R348 R349 R350 R351 R352 R353 R354 R355 R356 R357 R358 R359 R360 R361 R362 R363 R364 R365 R366 R367 R368 FL301 R369 CA8 CA9 ZA301 ZA302 ZA303 ZA304 ZA305 CA10 CA11 C3MM2 C3MM1 PbF 1 55 1 20 1 4 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 ORDER NO. 1 68 1 68 1 68 1 68 C3-BOARD (COMPONENT SIDE) TXNC31BHTUJ C3-BOARD (FOIL SIDE) TXNC31BHTUJ TH-50PX60U C3-BOARD TXNC31BHTUJ TH-50PX60U C3-BOARD TXNC31BHTUJ C3-BOARD IC7301 B-1 IC7302 A-2 IC7303 B-2 IC7304 B-2 IC7305 B-1 IC C3 TH-50PX60U 58 13.12. C4-Board A B C D E F G H I 1 2 3 4 5 6 C4MM1 C4MM2 C4MM3 C4MM4 C4MM5 CRNO.7 C4 1 TNPA3824 C41 C42 C43 C44 ZA401 ZA402 ZA403 ZA404 ZA405 CB10 CB11 CB8 CB9 C401 C402 C403 C404 C405 C406 C407 C408 C409 C410 C411 C412 C413 C414 C415 C416 C417 C418 C419 C420 C421 C422 C423 C424 D401 C425 D402 C426 D403 C427 D404 C428 R401 D405 C429 R402 D406 R403 D407 R404 D408 R405 R406 R407 R408 C430 IC401 R409 C431 IC402 C432 IC403 C433 IC404 C434 IC405 C435 C436 C437 R410 C438 R411 C439 R412 R413 R414 R415 R416 R417 R418 C440 R419 C441 C442 C443 R420 R421 R422 R423 R424 R425 R426 R427 R428 R429 R430 R431 R432 R433 R434 R435 R436 R437 R438 R439 R440 R441 R442 R443 R444 R445 R446 R447 R448 R449 R450 R451 R452 R453 R454 R455 R456 R457 R459 R460 R461 R462 R463 R464 R465 R466 R467 R468 FL401 R469 R470 PbF 1 68 1 20 1 12 1 4 ORDER NO. 1 68 1 68 1 68 1 68 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 3 2 1 C4 TNPA3824 1 PbF SEE REVERSE FOR ORDER NO. C4-BOARD (COMPONENT SIDE) TXNC41BHTUJ C4-BOARD (FOIL SIDE) TXNC41BHTUJ TH-50PX60U C4-BOARD TXNC41BHTUJ TH-50PX60U C4-BOARD TXNC41BHTUJ C4-BOARD IC7401 B-2 IC7402 A-2 IC7403 B-2 IC7404 C-2 IC7405 C-2 IC C4 TH-50PX60U 59 13.13. C5-Board A B C D E F G H I 1 2 3 4 5 6 3 2 1 TNPA3825 1 C5 PbF SEE REVERSE FOR ORDER NO. TNPA3825 CRNO.7 C5MM1 C5MM2 C5MM3 C5MM4 1 C5 C50 C51 C52 C502 C504 C505 C506 C507 C508 C509 C510 C511 C512 C513 C514 C515 C516 C517 C518 C519 C521 C523 C524 D501 C525 D502 C526 D503 C527 D504 C528 R501 D505 C529 R502 D506 R503 D507 R504 D508 R505 C530 IC501 C531 IC502 C532 IC503 C533 IC504 C534 IC505 C535 IC506 C536 IC507 IC508 R510 IC509 R511 R512 R513 R514 R515 R516 R517 R518 R519 C541 C542 C547 R520 C548 R521 R522 R523 R524 R525 R526 R527 R528 R529 C551 C552 C553 C554 C557 R530 C558 R531 C559 R532 R533 R535 R536 R537 R538 C560 R539 C561 C562 C563 C564 C565 C566 R540 C568 R541 R542 R543 R544 R545 R546 R547 R548 R549 R550 R551 R552 R553 R554 R555 R556 R557 R558 R559 R560 R563 R564 R565 R566 R567 R568 FL501 R569 R570 R571 R572 R573 R574 R575 R577 R578 R579 R580 R581 R582 R583 R584 R585 R586 R587 R588 R589 CB4 R590 CB5 R591 CB6 CB7 ZA501 ZA502 ZA503 ZA504 ZA505 PbF 55 1 80 1 1 20 20 11 10 1 1 10 11 20 20 11 10 1 20 11 1 10 20 11 1 10 20 1 10 11 20 11 10 1 20 11 10 1 20 11 10 1 ORDER NO. 68 1 68 1 68 1 68 1 C5-BOARD (COMPONENT SIDE) TXNC51BHTUJ C5-BOARD (FOIL SIDE) TXNC51BHTUJ TH-50PX60U C5-BOARD TXNC51BHTUJ TH-50PX60U C5-BOARD TXNC51BHTUJ C5-BOARD IC7501 H-1 IC7502 E-2 IC7503 F-2 IC7504 G-2 IC7505 G-2 IC7506 I-2 IC7507 D-2 IC7508 D-2 IC7509 E-2 IC C5 TH-50PX60U 60 13.14. C6-Board A B C D E F G H I 1 2 3 4 5 6 TNPA3826 1 C6 1 2 3 PbF SEE REVERSE FOR ORDER NO. TNPA3826 1 C6 CRNO.7 C6MM1 C6MM2 C6MM3 C60 ZA601 ZA602 ZA603 ZA604 ZA605 CB1 CB2 CB3 C601 C602 C603 C604 C605 C606 C607 C608 C609 C610 C611 C612 C613 C614 C615 C616 C617 C618 C619 C620 C621 C622 C623 C624 D601 C625 D602 C626 D603 C627 D604 C628 R601 D605 R602 D606 R603 R604 R605 R606 R607 R608 IC601 R609 R610 R611 R612 R613 R614 R615 R616 R617 R618 R619 R620 R621 R622 R623 R624 R625 R626 R627 R628 R629 R630 R631 R632 R633 R634 R635 R636 R637 R638 R639 R640 R641 R642 FL601 PbF 1 55 ORDER NO. 1 68 1 68 1 68 1 10 11 20 C6-BOARD (COMPONENT SIDE) TXNC61BHTUJ C6-BOARD (FOIL SIDE) TXNC61BHTUJ TH-50PX60U C6-BOARD TXNC61BHTUJ TH-50PX60U C6-BOARD TXNC61BHTUJ Parts Location C6-BOARD IC7601 G-2 IC C6 TH-50PX60U 61 13.15. SC-Board A B C D E F G H I 1 2 3 4 5 6 C514 C515 SC41 SC42 SC45 SC46 C721 L401 L402 L403 L404 L601 L602 L411 L412 L413 L414 C754 C561 C563 C592 C791 C795 C796 L461 L462 D583 L463 L464 L465 L466 L467 L468 L472 L473 L481 L482 L483 L484 L485 L486 L487 L488 IC791 Q401 Q402 Q403 C604 C411 C412 C413 C414 C415 C416 C801 C802 C803 C804 C806 Q804 D401 Q421 Q422 Q423 D404 C813 C814 C431 C822 Q821 Q822 R801 R802 R803 R804 Q441 Q442 R806 Q443 R807 IC803 C641 R620 D431 Q451 R815 D432 Q452 Q453 VR600 C841 VR601 C842 VR602 Q841 Q842 R821 R823 TP1 TP2 TP4 TP5 Q661 R832 TP6 TP7 TP8 TP9 T602 R840 R844 D461 D462 R658 SC2 D471 TP10 TP11 TP12 TP13 TP14 TP15 C691 TP16 TP17 TP18 R860 TP19 D481 D482 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 D491 TP30 TP065 TP31 TP32 TP33 TP34 TP35 TP38 TP39 TP40 TP41 TP42 R696 TP43 R697 TP44 TP45 TP46 TP47 TP48 TP49 TP50 TP51 TP52 TP53 TP54 TP55 TP56 TP57 TP58 TP59 L591 L592 TP60 TP61 TP62 TP63 TP64 SC23 SC30 C511 C512 C513 PbF TNPA3827 1 SC 1 2 3 4 5 6 CRNo.6 A1 A2 B2 B1 B40 B39 A40 A39 A1 A2 B2 B1 B40 B39 A40 A39 1 2 8 9 1 2 8 9 SEE REVERSE FOR ORDER NO. 1 12 G C E G C E G C E E B C A A K G C E G C E G C E A A K B C E E C B G C E G C E G C E 1 2 3 4 5 A A K G C E A A K G C E G C E B C E C B E G D S S5 V2 S4 S3 S2 S1 V1 P1 P2 A A K A A K 1 3 A A K A A K A A K A A K 1 3 1 8 TH-50PX60U SC-BOARD TXNSC1BHTUJ TH-50PX60U SC-BOARD TXNSC1BHTUJ SC-BOARD (FOIL SIDE) TXNSC1BHTUJ TH-50PX60U 62 TH-50PX60U SC-BOARD PARTS LOCATION TH-50PX60U SC-BOARD PARTS LOCATION Parts Location SC-BOARD (FOIL SIDE) IC6791 H-2 IC6803 G-2 Q6401 F-4 Q6402 E-4 Q6403 E-4 Q6421 C-4 Q6422 C-4 Q6423 B-4 Q6441 E-2 Q6442 E-2 Q6443 D-2 Q6451 D-2 Q6452 D-2 Q6453 C-2 Q6804 H-2 Q6821 H-4 Q6822 H-4 Q6841 H-3 Q6842 H-3 IC TRANSISTOR TP1 B-2 TP2 B-2 TP4 A-2 TP5 A-2 TP6 A-3 TP7 A-3 TP8 B-3 TP9 A-3 TP10 G-1 TP11 G-2 TP12 G-1 TP13 H-2 TP14 G-1 TP15 H-2 TP16 H-2 TP17 H-2 TP18 H-2 TP19 H-1 TP20 G-2 TP21 H-2 TP22 H-2 TP23 G-2 TP24 G-1 TP25 G-1 TP26 G-2 TP27 G-1 TP28 H-2 TP29 I-4 TP30 I-5 TP31 F-5 TP32 B-5 TP33 A-3 TP34 E-2 TP35 D-3 TP38 H-2 TP39 G-2 TP40 D-5 TP VOLUME Parts Location SC-BOARD (COMPONENT SIDE) IC6471 B-5 IC6472 B-3 IC6501 F-4 IC6521 F-2 IC6561 B-1 IC6562 C-1 IC6581 F-2 IC6601 B-5 IC6602 A-4 IC6610 B-4 IC6671 D-4 IC6681 C-4 IC6682 A-4 IC6721 A-4 IC6722 A-4 IC6724 B-5 IC6725 B-5 IC6751 I-4 IC6752 H-4 IC6753 I-4 IC6771 C-4 IC6772 E-5 IC6773 D-4 IC6774 C-4 IC6791 B-2 IC6802 B-3 IC6803 C-2 IC6821 B-4 IC PC6480 B-4 PC6701 A-4 PC6702 A-4 PC6703 A-4 PC6704 I-4 PC6705 C-4 PC6760 I-4 PC6861 B-4 PC6871 A-2 Q6401 D-4 Q6402 E-4 Q6403 E-4 Q6421 G-4 Q6422 H-4 Q6423 H-4 Q6441 E-2 Q6442 F-2 Q6443 F-2 Q6451 F-2 Q6452 F-2 Q6453 G-2 Q6461 F-4 Q6471 B-3 Q6511 F-4 Q6512 E-4 Q6516 G-4 Q6517 G-4 Q6521 G-4 Q6531 E-2 Q6532 F-2 Q6551 F-2 Q6552 F-2 Q6581 E-2 PHOTO COUPLER TRANSISTOR TP15V I-3 TPSC1 D-5 TPSOS6 B-2 TPSOS7 B-3 TPVAD B-2 TPVSCN B-3 TPVSET C-4 TPVSET2 B-3 TPVSUS H-2 TP VR6600 C-3 VR6601 B-4 VR6602 E-4 VOLUME TP41 D-5 TP42 D-5 TP43 D-5 TP44 D-5 TP45 C-5 TP46 F-5 TP47 F-5 TP48 F-5 TP49 F-5 TP50 F-5 TP51 H-5 TP52 G-2 TP53 H-3 TP54 C-5 TP55 C-5 TP56 B-5 TP59 H-5 TP60 H-5 TP61 H-5 TP62 G-5 TP63 G-5 TP64 H-4 TP65 H-4 TP67 B-5 TP68 B-5 VR6600 G-3 VR6601 H-5 VR6602 E-4 Q6601 C-5 Q6602 C-4 Q6621 B-4 Q6622 G-4 Q6641 F-5 Q6642 F-5 Q6643 G-5 Q6644 G-5 Q6645 G-5 Q6646 H-5 Q6647 H-5 Q6648 H-5 Q6661 D-4 Q6662 E-5 Q6663 E-4 Q6671 D-4 Q6672 D-4 Q6673 D-4 Q6680 D-4 Q6681 D-4 Q6682 D-5 Q6691 D-5 Q6742 A-4 Q6743 B-5 Q6744 A-4 Q6762 H-4 Q6781 E-5 Q6782 E-5 Q6791 A-3 Q6801 C-3 Q6803 C-3 Q6804 B-2 Q6822 B-4 Q6824 C-4 Q6841 B-3 Q6842 B-3 SC TH-50PX60U 63 A B C D E F G H I 1 2 3 4 5 6 C514 C708 C515 SC41 Q511 SC42 Q512 SC45 Q516 SC46 Q517 C521 C522 C524 C525 D501 D502 C527 R501 R502 R503 R504 C721 R505 R506 R507 C723 R508 C724 R509 C725 IC501 D701 D702 C726 C727 C728 R700 Q531 R701 Q532 R702 R703 R704 R511 R705 R512 R706 R707 R708 R516 R517 R710 R711 L401 D521 R712 L402 D522 R713 L403 D523 L404 R714 D524 R521 R715 R716 R522 R717 R523 R718 R524 R525 R526 D721 L601 IC521 L602 Q742 Q743 D723 D724 Q744 L411 R721 D725 Q551 L412 R722 D726 Q552 R723 L413 D727 L414 D728 R724 R531 D729 R532 R533 L801 IC721 PC701 L802 IC722 PC702 C752 PC703 C753 PC704 C754 IC724 D730 C755 PC705 IC725 C561 D731 D732 C562 C563 D733 D734 C564 C565 C566 Q762 R742 R743 R744 R745 R551 R746 R552 R747 R553 C771 C772 C773 C775 C581 C776 D752 C582 C777 D753 Q581 D758 R755 R561 R756 R562 R757 R563 R564 R758 IC751 R565 R759 IC752 R566 IC753 R567 D760 R568 IC561 D761 Q781 IC562 C592 D762 Q782 C593 R760 R761 R762 C791 L841 C795 D771 Q791 C796 D773 L461 D581 L462 D582 D583 L463 L464 D584 R775 D585 R581 L465 R582 R776 L466 R583 R777 L467 R584 L468 IC771 R585 IC772 R586 IC773 R587 IC774 R588 IC581 R589 R781 L472 R782 L473 R590 R591 R592 PC760 D791 L481 R791 L482 R792 L483 R793 L484 L485 L486 L487 L488 IC791 C401 C402 C403 Q401 Q402 Q403 C601 C602 C603 C604 C605 C411 Q601 C606 C412 Q602 C413 C414 C415 C416 C801 C802 C803 C610 C804 C611 C805 C612 C806 C807 Q803 Q804 C421 C422 C423 C424 D401 Q421 Q422 Q423 D404 R401 C811 R402 C812 C813 R403 C814 R404 C620 C815 R405 R406 C816 Q621 D601 C431 D602 Q622 D603 D604 D605 D606 D607 R603 R604 R605 R606 C822 R607 C823 R608 R609 IC601 D801 Q821 IC602 D802 Q822 D803 D610 D804 Q824 D611 D805 R801 D612 D806 R802 D613 D807 R803 D614 D808 R804 R610 D615 D809 R805 Q441 R611 Q442 R612 R806 Q443 R807 R613 R614 R808 R615 D619 R421 IC801 R809 R616 R422 IC802 R617 IC803 R423 R618 IC610 D810 R424 R619 D811 R425 C641 R426 R810 D620 Q641 R811 D621 Q642 R812 D622 Q643 R813 D623 Q644 R814 R620 D624 D431 Q451 R621 Q645 R815 R622 Q646 R816 D432 Q452 Q453 Q647 R817 Q648 VR600 R819 C841 VR601 C842 VR602 D820 D821 Q841 C845 Q842 D822 D823 R820 C461 D825 R821 C462 D826 R822 R823 C463 C464 R824 R825 D441 R826 R827 R828 R441 PC801 IC821 R829 R442 R443 R444 R445 C661 R446 C662 C663 R830 Q661 D641 C471 R831 R832 D642 Q662 C472 Q663 R833 D643 D644 R834 R641 R835 D451 Q471 R642 R836 R837 R643 R838 R644 R839 R645 R451 C861 R646 R452 C862 R647 R453 C863 R648 R454 R455 C671 D841 T602 R456 D842 D843 R840 C480 C481 R841 Q671 C482 R842 Q672 Q673 R843 C483 C484 R844 D461 R845 R846 D462 R847 R848 IC841 R849 C871 D465 D466 C872 C873 R658 C681 R659 R465 C682 R466 C683 R467 Q680 R850 R468 C491 D661 R851 Q681 SC2 D662 R852 Q682 D663 R853 R854 D664 R660 R855 D471 D665 R661 D859 R856 D666 R662 D472 R857 D667 R663 R664 R858 R665 R471 R472 R666 D477 R667 R473 D478 D860 R668 R474 C691 D861 R475 D862 R476 R477 R860 R478 D671 R861 Q691 IC471 R479 IC472 R862 R863 D480 R864 D481 R671 R865 D482 R672 R866 R673 R867 R674 R868 R675 IC861 R869 IC671 D871 D872 D681 R871 D682 R872 D683 R873 D684 R874 D491 D685 R875 R682 D686 R876 D687 R683 R877 R684 R878 R685 IC871 R879 R686 D497 R687 R688 IC681 R689 IC682 R690 R691 R886 R887 R888 PC861 R696 R697 PC480 R891 PC871 L591 L592 SC20 SC23 C502 C503 C504 SC30 C505 ZA401 C701 ZA402 C702 ZA403 C703 C704 C705 C511 C706 C512 C513 C707 TPVAD TPVSUS TP15V TPVSCN TPVSET DIP TPSOS7 TPSOS6 SCMM1 TPSC1 TPVSET2 SCMM2 SCMM3 PbF Discharge SC 1 TNPA3827 CRNo.6 A1 A2 B1 B2 A40 A39 B40 B39 A1 A2 B1 B2 A40 A39 B40 B39 9 8 2 1 1 2 8 9 1 8 9 16 1 8 16 9 1 7 8 14 1 7 14 1 4 8 5 1 3 4 5 1 10 11 20 1 10 11 20 ORDER NO. 1 4 5 8 1 3 4 5 1 3 4 1 4 5 8 1 2 3 4 12 1 C G E C G E C G E G S D B C E A A K C G E C G E C G E A A K G S D G S D 1 4 5 8 B E C 1 3 5 B C E C G E C G E C G E 1 2 3 4 5 1 4 5 8 G S D G S D G S D G S D A A K C G E G S D G S D A A K C E G C G E G S D G S D B C E B C E 1 2 3 4 G S D S5 V2 S4 S3 S2 S1 V1 P1 P2 G S D G S D G S D A A K A A K G S D 1 3 G S D A A K 1 3 5 4 1 3 4 A A K A A K 1 4 5 8 1 4 5 8 A A K 1 4 5 8 1 4 5 8 3 4 5 1 1 2 3 4 1 2 3 4 1 2 3 4 1 2 19 20 1 3 1 8 TH-50PX60U SC-BOARD TXNSC1BHTUJ TH-50PX60U SC-BOARD TXNSC1BHTUJ SC-BOARD (COMPONENT SIDE) TXNSC1BHTUJ TH-50PX60U 64 13.16. SU-Board A B C D E F G H I 1 2 3 4 5 6 C6901 C6902 C6903 C6904 C6905 C6906 C6907 C6908 C6909 C6910 C6911 C6912 C6913 C6914 C6915 C6916 C6917 C6918 C41 D6901 D6902 D6903 D6904 R6901 R6902 R6903 R6904 R6905 R6909 IC6901 C6931 IC6902 C6932 C6933 IC6903 IC6904 C6934 IC6905 C6935 C6936 IC6906 C6937 R6913 R6917 R6924 R6931 R6932 R6933 R6934 C80 R6935 R6936 SU45 TPSU1 SU4 SU3 SU2 SU1 TPSU2 PbF TNPA3831 1 SU 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 9 8 2 ORDER NO. A1 B1 A48 B48 A1 B1 A48 B48 A1 B1 A48 B48 B48 A48 B1 A1 A1 B1 A48 B48 B48 A48 B1 A1 B48 A48 B1 A1 B48 A48 B1 A1 C40 C1 PbF SU 1 TNPA3831 1 2 3 SEE REVERSE FOR ORDER NO. SU-BOARD (COMPONENT SIDE) TXNSU1BHTUJ SU-BOARD (FOIL SIDE) TXNSU1BHTUJ TH-50PX60U SU-BOARD TXNSU1BHTUJ TH-50PX60U SU-BOARD TXNSU1BHTUJ Parts Location SU-BOARD IC6901 H-2 IC6902 G-2 IC6903 F-2 IC6904 D-2 IC6905 C-2 IC6906 B-2 IC SU TH-50PX60U 65 13.17. SD-Board A B C D E F G H I 1 2 3 4 5 6 A40 A1 PbF 1 TNPA3832 1 2 3 SD SEE REVERSE FOR ORDER NO. C6951 C6952 C6953 TPSD1 C6958 C6959 C6960 C6961 C6962 C6963 C6964 C6967 C6968 D6951 D6954 R6951 IC6951 C6981 IC6954 C6984 IC6955 C6985 C6986 IC6956 C6987 R6963 R6967 R6971 R6972 R6973 R6974 R6981 R6982 R6983 R6984 R6985 SD46 A41 A80 C6954 C6955 C6956 C6957 C6965 C6966 D6952 D6953 R6955 R6959 IC6952 C6982 IC6953 C6983 R6986 SD4 SD2 SD3 SD1 TPSD2 PbF TNPA3832 SD 1 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 9 8 2 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 ORDER NO. A1 B1 A48 B48 A1 B1 A48 B48 B48 A48 B1 A1 A1 B1 A48 B48 B48 A48 B1 A1 B48 A48 B1 A1 B48 A48 B1 A1 A1 B1 A48 B48 SD-BOARD (COMPONENT SIDE) TXNSD1BHTUJ SD-BOARD (FOIL SIDE) TXNSD1BHTUJ TH-50PX60U SD-BOARD TXNSD1BHTUJ TH-50PX60U SD-BOARD TXNSD1BHTUJ Parts Location SD-BOARD IC6951 H-2 IC6952 G-2 IC6953 F-2 IC6954 D-2 IC6955 C-2 IC6956 B-2 IC SD TH-50PX60U 66 13.18. SS-Board A B C D E F G H I 1 2 3 4 5 6 R115 L001 L002 L003 L004 L011 L012 L013 L014 SS11 SS12 SS20 SS21 L221 SS33 SS34 SS43 SS44 L241 SS51 SS52 SS53 SS54 L061 L062 L063 L064 L065 L066 L067 L068 L262 L271 L272 L081 L082 L083 L084 L085 L086 L087 L088 Q001 Q002 Q003 C201 C202 C203 C204 C205 C011 C012 C013 C014 C015 C016 C213 C214 D001 Q021 Q022 Q023 Q024 C031 Q221 Q222 Q041 D021 D022 Q042 Q043 R020 R022 VR000 C241 L103 Q051 R222 Q052 Q053 R223 C261 C262 C263 C264 C265 C266 C272 C273 D253 TP1 D061 TP2 D062 TP3 TP4 TP5 TP6 TP7 TP8 TP9 D071 D072 D081 D082 TP10 TP11 TP12 TP13 TP14 TP15 D091 TP16 TP17 TP18 TP19 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 TP32 TP33 TP34 C111 C112 C113 1 SS 1 2 3 TNPA3828 6 5 4 CRNo.6 PbF 1 3 1 10 1 2 6 7 1 2 6 7 1 4 1 3 1 12 4 1 1 13 1 13 1 13 1 13 SEE REVERSE FOR ORDER NO. G C E G C E G C E A A K G C E G C E G C E G C E E C B E C B G C E A A K A A K G C E G C E G C E G C E G C E A A K A A K A A K A A K A A K A A K A A K TH-50PX60U SS-BOARD TXNSS1BHTUJ TH-50PX60U SS-BOARD TXNSS1BHTUJ SS-BOARD (FOIL SIDE) TXNSS1BHTUJ Parts Location SS-BOARD (FOIL SIDE) Q6001 C-2 Q6002 C-2 Q6003 C-2 Q6021 G-2 Q6022 F-2 Q6023 F-2 Q6024 E-2 Q6041 D-3 Q6042 D-3 Q6043 C-3 Q6051 E-3 Q6052 E-3 Q6053 E-3 Q6221 H-1 Q6222 H-2 TRANSISTOR TP1 B-4 TP2 B-4 TP3 B-4 TP4 B-4 TP5 B-4 TP6 B-4 TP7 B-4 TP8 B-4 TP9 A-4 TP10 C-5 TP11 B-4 TP12 H-3 TP13 H-4 TP14 H-4 TP15 G-4 TP16 H-4 TP17 H-4 TP18 H-4 VR6000 H-2 TP19 H-4 TP20 H-4 TP21 H-4 TP22 G-4 TP23 G-4 TP24 H-1 TP25 G-1 TP26 F-1 TP27 E-1 TP28 D-1 TP29 C-1 TP30 C-1 TP31 B-1 TP32 G-4 TP33 H-4 TP VOLUME SS TH-50PX60U 67 A B C D E F G H I 1 2 3 4 5 6 R104 R105 R106 R107 R108 R109 C132 C134 C135 D111 R110 R111 R112 R113 R114 R115 R116 Q141 L001 L002 Q142 L003 L004 Q146 Q147 C151 C152 C153 C154 L011 D131 C155 L012 D132 L013 L014 R131 R132 R133 R134 R135 SS11 R136 SS12 IC131 L211 L212 R141 R142 SS20 SS21 R146 R147 L221 D151 Q171 D152 Q172 D153 D154 R151 R152 R153 R154 R155 R156 R157 SS33 R158 SS34 R159 IC151 Q181 Q182 R160 SS43 SS44 L241 C192 C193 C194 C195 R171 R172 R173 SS51 SS52 SS53 SS54 L061 L062 L063 L064 L065 R181 L066 R182 L067 R183 L068 L262 D191 D192 D193 R191 R192 R193 R194 R195 R196 L271 IC191 L272 L081 L082 L083 L084 L085 L086 L087 L088 C001 C002 C003 C004 Q001 Q002 Q003 C201 C202 C203 C204 C205 C011 C012 C013 C014 C015 C016 C211 C212 C213 C214 C021 C022 C023 C024 D001 Q021 Q022 Q023 Q024 R001 R002 R003 R004 R005 C221 R006 C031 Q221 Q222 D010 C041 D211 C042 D212 C043 C044 Q041 D021 D022 Q042 Q043 R213 R020 R214 R021 R022 R023 R024 VR000 R025 C241 IC211 R026 C242 C243 R027 R028 R029 L101 D221 L102 D222 D223 L103 D224 L104 Q051 D031 L105 R222 D032 Q052 Q053 R223 R224 R225 R031 R226 R032 R033 R227 R228 R034 R229 IC221 C251 C061 Q251 C062 C063 C064 R231 D041 R232 R041 R042 R043 R044 R045 C261 R046 C262 C263 C264 C071 C265 C266 R241 D051 R242 R243 R244 R051 R052 R053 R054 R055 IC241 R056 C272 C273 C081 D251 C082 D252 C083 D253 C084 D254 R251 D061 D255 R252 D062 R253 R254 R255 R061 R256 R062 R257 R258 R259 IC251 C091 R261 D071 D072 D271 D272 D081 D082 D091 D092 L398 L399 C101 C102 C103 C104 Q101 C105 Q102 Q103 Q104 Q105 Q106 ZA001 ZA002 ZA003 C111 C112 C113 Q111 Q112 Q114 D101 D102 D103 D104 R101 D105 R102 R103 CRNo.6 TPVSUS TPSS1 TPVDA TP15V Discharge DIP TPSOS8 SS 1 TNPA3828 SSMM1 TPVe PbF 1 3 1 10 1 8 9 16 1 2 6 7 1 2 6 7 1 4 1 3 1 9 16 8 1 1 2 4 1 1 13 1 13 1 13 1 13 ORDER NO. 1 8 9 16 G E C C G E C G E A A K C G E C G E C G E C G E B C E B C E C G E A A K A A K C G E C G E 1 4 5 8 C G E C G E C G E 1 10 11 20 A A K A A K 1 4 5 8 A A K A A K A A K A A K A A K G S D G S D G S D G S D G D S G S D G S D TH-50PX60U SS-BOARD TXNSS1BHTUJ TH-50PX60U SS-BOARD TXNSS1BHTUJ SS-BOARD (COMPONENT SIDE) TXNSS1BHTUJ Parts Location SS-BOARD (COMPONENT SIDE) IC6131 E-2 IC6151 E-4 IC6191 A-2 IC6211 B-4 IC6221 A-2 IC6241 B-4 IC6251 D-4 Q6001 F-1 Q6002 G-1 Q6003 G-1 Q6021 C-1 Q6022 C-1 Q6023 D-1 Q6024 D-1 Q6041 F-3 Q6042 F-3 IC TRANSISTOR Q6043 F-3 Q6051 E-3 Q6052 E-3 Q6053 D-3 Q6101 B-2 Q6102 B-3 Q6103 B-3 Q6104 B-3 Q6105 C-2 Q6106 B-3 Q6111 C-4 Q6112 B-4 Q6114 B-4 Q6141 E-2 Q6142 F-2 Q6146 D-2 Q6147 E-2 Q6171 F-3 Q6182 E-4 Q6221 B-1 Q6222 B-2 Q6251 D-4 TP15V G-4 TP34 G-4 TPSOS8 D-4 TPSS1 C-2 TPVDA H-4 TPVe B-2 TPVSUS H-4 VR6000 B-2 TP VOLUME SS TH-50PX60U 68 13.19. SS-Board A B C D E F G H I 1 2 3 4 5 6 SS23 SS55 R6220 TNPA3829 SS2 1 SS2MM1 TNPA3830 1 SS3 SS22 SS56 R6230 SS3MM1 PbF PbF 7 6 1 2 1 1 3 ORDER NO. 7 6 1 2 ORDER NO. 1 13 SS23 SS55 R6220 TNPA3829 1 SS2 TNPA3830 1 SS3 SS22 SS56 R6230 PbF PbF 7 6 1 2 1 13 SEE REVERSE FOR ORDER NO. 7 6 1 2 SEE REVERSE FOR ORDER NO. 1 13 SS3-BOARD (FOIL SIDE) TNPA3830S SS2-BOARD (FOIL SIDE) TNPA3829S SS3-BOARD (COMPONENT SIDE) TNPA3830S SS2-BOARD (COMPONENT SIDE) TNPA3829S TH-50PX60U SS2-BOARD TNPA3829S SS3-BOARD TNPA3830S TH-50PX60U SS2-BOARD TNPA3829S SS3-BOARD TNPA3830S SS2 SS3 TH-50PX60U 69 TH-50PX60U 70 14 Block and Schematic Diagram 14.1. Schematic Diagram Note TH-50PX60U 71 14.2. Main Block Diagram PA5 PLASMA AI STANDBY AC CORD CONTROL 15Vc D33 15Vd S.R +15V ADDRESS 64 CONTROL DC/DC CONVERTER P12 CONVERTER S.R CONTROL P5 PA2 GS52 SU SOS7 TUNER DG1 DT12 64 SC20 FRONT TERMINAL DISCHARGE OUT LITE IIC VSUS SUSTAIN 64 SPEAKER STBY5V_M HDMI I/F COMP2 SUSTAIN TV VOLTAGE RELAY SCAN P2.5V +15V MAIN L/R CONVERTER A/D MAIN L/R K P10 VOLTAGE DG5 ATV L/R H40 S.R SUB-FIELD EEPROM P25 L/R MONITOR DIGITAL SIGNAL PROCESSOR SCAN OUT G MEMORY TRANS- P3.3V L/R SS VIDEO1 H1 D5 RGB Y,Pb,Pr PA SOS AV3 IN D3 AUDIO FPGA VOLTAGE COMP1 S2 64 SS_SOS8 PA31 15V VOLTAGE HDMI SCAN OSD RECEIVER AMP RECEIVER DT10 V PA34 PULSE SS11 GENERATOR 64 PULSE TV VIDEO MITTER SL/SR V,Y,C MAIN CONTROL POWER SOS PA10 SOS6/ F_STB_14V RECTIFIER VOLTAGE SPEAKER S.R POWER SW SOUND SOS D25 L/R S.R P2 REMOTE S L/R D/A RGB POWER SUPPLY L/R (VE) SUSTAIN DRIVE K2 A/D VIDEO IN PULSE (GC5) SDRAM L PROCESSOR CONTROL PROCESSOR PULSE FLASH SC LVDS DATA DRIVE Y,UV PROCESSOR DG22 R IIC P1.2V H2 AV TERMINAL SUSTAIN H51 YG/UB Y,Pb,Pr P9 DG S.R L/R SS12 SD CARD SLOT INPUT PULSE KEY DC POWER R S.R DG20 VSUS FAN SOS ERASE AUDIO IN DC POWER HDSL GK VIDEO SOS7 SS44 L +5Vc D DG2 L/R 64 RECTIFIER VOLTAGE S.R Vda DC-DC CONVERTER VDA D20 64 SC2 TV SOS8 PEAKS VIDEO2 LED AUDIO SCAN OUT VOLTAGE SELECT INPUT 15Vd PICTURE SELECT VSUS BS L/R HDMI IN CONTROL VOLTAGE DAC SUSTAIN PA20 P_ON/OFF MCU SCAN CONTROL P11 K1 SCAN DRIVE SD LVDS RECTIFIER F_STB_14V RECEIVER 64 G1 STANDBY 64 S.R Y,Pb,Pr S-VIDEO IN PLASMA AI PROCESSOR 64 S.R +5V Y,C,V GS VDA ATV L/R DT PA SOS6 SW GK3 V,Y,C DC/DC D34 FORMAT CONVERTER ATSC INTERFACE MICOM PROCESS SPEAKER DG3 RECTIFIER OUTPUT H KEY 64 REMOTE RECEIVER SUSTAIN CONTROL 64 PROCESS G3 STB5V RECTIFIER SD CARD SLOT S.R OPT OUT PA40 CONTROL S.R Y,C,V PROTECTION(SOS) G51 P23 +15V P BS L/R AUDIO IN FORMAT VDA SC23 L/R AV SWITCH SOS SOUND FAN +15V FAN SOS PS_SOS POWER LED DATA VIDEO FLASH CONTROL SDRAM PROCESSOR PROCESSOR RGB DATA FORMAT CONVERTER OUTPUT VIDEO SUB-FIELD PICTURE PLASMA AI SS22 SS21 SS23 SS20 SS2 SS3 FACTOR CORRECTOR POWER RUSH/MAIN_ON/OFF FILTER LINE RELAY,PFC PFC_ON/OFF DATA DRIVER(RIGHT) C33 S.R. S.R. C32 C20 DATA DRIVER(CENTER) C2 C22 S.R. S.R. C1 S.R. C3 S.R. S.R. C10 DATA DRIVER(RIGHT) S.R. S.R. VDA S.R. VDA VDA S.R. C51 C6 S.R. S.R. S.R. S.R. DATA DRIVER(CENTER) S.R. S.R. VDA S.R. C5 C52 S.R. C4 DATA DRIVER(LEFT) S.R. VDA C42 S.R. VDA C43 S.R. C44 DATA DRIVER(RIGHT) SS44 C31 D31 D32 C21 C41 VDA VDA C50 C60 SS43 TH-50PX60U Main Block Diagram TH-50PX60U Main Block Diagram TH-50PX60U 72 14.3. P-Board Block Diagram + + 19 1 17 15Vc 7 GND VFB OVP 16 OUT 6 16 IC101 15V_OUT P23 VR251 2 L102 K101 PANEL_ON F_STB_15V P10 3 F_STB_ON 14 1 10 MC701 ALL_OFF TO PA5 VSUS 1 12 15V_IN BIAS_ON AC IN Q103 Q104 4 VSUS 12 9 6 15Vd 14 L=OK 2 VDA 15 T301 VDA 11 H=SOS 2 13 P5 P12 15V_ON 15Vd 13 SW_MAIN 15Vd 1 13 TO SC23 TO SS12 15Vs 8 8 VSUS-OUT 1 17 B1 4 SUS_OUT 9 8 1 STB_IN 2 P25 10 GND 5 B4 NEUTRAL +5VC 7 AC_DET +5VC TO D25 AC- TO SC2 7 AC- VSUS DC(+) 15Vc P2 DC(-) MC101 LIVE 7 2 STB5V 3 RECTIFIER&PFC 10 1 P9 1 4 2 MC601 P11 TO PA10 16 3 24 3 6 PS_SOS 4 1 8 GND 18 TO SS11 F15V_ON RF101 3A 18 COLD HOT COLD HOT STB_OUT PANEL_ON ALL_OFF F_STB_ON PS_SOS POWER MCU MODULE P POWER SUPPLY MAIN ON/OFF RUSH ON/OFF POWER FACTOR POWER CONTROL Vsus POWER SUPPLY P1 P2 S1 S2 D402 F101 F102 50/60Hz 100-120V L101 AC- AC+ D501 PG- STB RECTIFIER (STB) B2 L502 D508 1 4 BIAS GND MC502 RELAY/ PFC CONTROL MODULE 13 15V-ON/OFF 12 VCC-IN 8 7 6 15 14 RELAY RUSH MAIN RELAY (VCC-OUT) BIAS-PFC PFC-15V PFC-SUS 3 ON/OFF PFC 11 ON/OFF SUS 2 ON/OFF BIAS 5 10 14 MC301 Vda/STB POWER CONTROL MODULE 11 Fsw-ON 13 ON/OFF 2 1 6 9 GH SH GL I+ BIAS 12 PC503 BIAS_ON/OFF 4 10 16 3 5 VDET IDET VCC 8 CORRECTOR 7 BIAS_G VIN- 6 ON/OFF 12 9 VC A K D1 D2 L103 D104 D3 G3 S3 G2 S2 G1 S1 PFC PG F201 MC202 P1 P2 I+ 9 1 GH 2 SH 6 GL PG SL 5 10 14 12 13 BIAS ON/OFF PC505 R253 R254 R255 22 V+ Vsus MC201 POWER SUPPLY 23 24 25 STOP VCC S2 S1 D251 D255 D253 D254 OV VDD 20 PFC_ON 25 Vda_ON (VDD) 15 Vda_LOW 26 SUS_ON 2 SUS_STOP 1 STB_ON 5VC_ON 19 Vda_OUT 22 SW_MAIN 5 5VC_OUT 17 18 AC DET Vo_WP Vo_S+ 20 6 D511 GND VBias GND_S- GND_OVP PG_STB P2 P1 BIAS GND T501 S1A S1B S2A S2B D551 22 23 OV V+ VCC 25 VR351 Vda D352 S5 S4B B3 S4A D355 Q353 Q354 F15V_ON Q352 Q351 15V_ON 15Vc Q551 D554 STB- ON/OFF D555 F_STB_15V F_STB_15V D556 10 STB_PS MAIN SW PFC_ON/OFF PC506 1 Q403 Q402 Q401 Vda_ON S6 D403 Q404 Q405 SW SW Q406 L401 VR401 Vda ZD408 ZD405 ZD406 Vda DET IC401 ZD407 Q553 ZD353 4 15Vc 15Vc 15Vs 15Vs R258 R259 R260 R261 20 Vda_Low(Vda_DET) P06 P14 P03 AD1 P12 P30 P05 P02 P04 AD2 P11 AD4 P20 P10 P13 AD5 P01 P21 P22 P31 POWER MCU R307 R306 R305 Q302 BIAS Q301 Vsus 180V K102 3 2 Q106 SW 2 3 4 F301 IC 2 1 3 D G S G S D 4 6 5 B3 5V_ON Q552 P07 AD0 21 STB_ON 9 ZD351 R305 D502 3 AC_N CONTROL Q502 D503 4 4 D506 D505 IC501 F501 Q501 MODULE 5 5 7 AC_L DISCHG PG D252 P00 TH-50PX60U P-Board Block Diagram TH-50PX60U P-Board Block Diagram TH-50PX60U 73 14.4. P-Board (1 of 2) Schematic Diagram B E 9 6 8 7 3 D 4 C 1 2 F 5 A TH-50PX60U P-Board (1 of 2) Schematic Diagram TH-50PX60U P-Board (1 of 2) Schematic Diagram P-BOARD ETXMM610MEF (1/2) POWER FACTOR CORRECTOR RECTIFIER&PFC TH-50PX60U 74 14.5. P-Board (2 of 2) Schematic Diagram TO D-BOARD (D25) TO PA-BOARD (PA10) TO PA-BOARD (PA5) TO SS-BOARD (SS12) TO SC-BOARD (SC23) TO SS-BOARD (SS11) TO SC-BOARD (SC2) HOT COLD HOT COLD HOT COLD P-BOARD ETXMM610MEF (2/2) B E 9 6 8 7 3 D 4 C 1 2 F 5 A TH-50PX60U P-Board (2 of 2) Schematic Diagram TH-50PX60U P-Board (2 of 2) Schematic Diagram RELAY/ PFC CONTROL MODULE Vsus POWER SUPPLY Vda/STB POWER CONTROL MODULE POWER MCU MODULE POWER CONTROL MODULE Vsus POWER SUPPLY TH-50PX60U 75 14.6. PA-Board Block Diagram ON/OFF D5644 D5635 D5639 D5641 D5637 D5643 D5647 D5642 D5638 D5649 D5804 MAIN9V TP16 TPS9V TPS9 TPS5 TPS5V TPM5 TPM5V D2309 D5640 TPS33 TPS33V TPM33 TPM33V TPM18V TPM18 TPM9V TPM9 TP5616 TP5615 TP5617 D5634 D5805 D5806 D5807 MAIN9V D5646 6 SUB_5V Q5603 7 22 Q5602 SUB_9V-1 SUB9V PA_SOS 3 FAN_SOS F_STBY_14V 23 8 20 MAIN_5V SUB5V PA20 9 LINP 1 21 IC2306 19 W_L+ SUB_3.3V 35 W_R+ LOUTP 5 W_R- 1 LOUTN LOUTP SHUTDOWN IC2304 34 MAIN_9V(0.4A) PA2 8 SUB9V(2.2A) 26 SOUND_SOS TUNER_SUB_ON ON/OFF1 24 TUNER_MAIN_ON 3 16 3 SUB9V Q5643 SUB9V 1 SUB5V MAIN9V VOUT1 MAIN3.3V F_STBY_14V 1 TO P10 MAIN1.8V Q2306 6 NR14V 6 ROUTP RINP 1 5 27 7 OP AMP 39 VOUT1 VIN FAULT IC5601 5 PVCCR ROUTN MAIN3.3V AVR 5V/9V 13 48 40 ON/OFF1 2 2 42 ON/OFF2 9 TO SPEAKER 2 VIN Q5641 5 41 10 3 +15V VOUT2 OP AMP 14 2 4 MAIN3.3V 19 16 VOUT2 3 MAIN9V FAN_CONT PA40 6 STB5V 12 18 Q5601 MAIN1.8V MAIN5V ON/OFF2 ON/OFF 37 17 35 39 2 Q5605 MAIN5V 1 Q5644 +15V SR W_L- 7 SUB9V 32 AVCC 4 ROUTN PVCCL 15 5 IC5602 ROUTP SUB5VA PVCCL AMUTE SL 3 13 MAIN_1.8V 20 LOUTN 2 IC2302 7 46 1 44 3 MAIN_9V 33 PA5 Q2302 (W-R & W-L) F_STBY_14V PVCCR 2 34 +15V PA10 AVR 1.8V/3.3V +15V +15V FAN 3 PA32 SOS 3 FAN 1 PA33 FAN 1 FAN SOS 1 PA34 SOS 3 1 SOS PA31 3 AVR 15V Vin ON/OFF 5 1 IC5801 Q2307 SUB5VA TO P5 Q5642 PA SUB5V/MAIN5V SUB9V/ MAIN9V Q5613 STB5V1 STB5V1 TO H40 Q5604 ON/OFF TV_SUB_ON IC5604 VIN 5 AVR 3.3V VOUT 1 TO DG20 MAIN_9V(0.1A) SUB5V(1.0A) MAIN5V(0.37A) MAIN5V TUNER_MAIN_ON SPEAKER AMP Q2300 Q2301 11 SUB3.3V 13 MAIN3.3V SUB3.3V MAIN3.3V(1.55A) MAIN1.8V(1.2A) MAIN3.3V(2.5A) SUB9V(1.7A) MAIN1.8V(1.2A) SOS Vout 2 4 Vadj Q2303 15 Q5610 9 1 (sw) FAN CONTROL SPEAKER OUT/AUDIO AMP FAN CONTROL DC-DC CONVERTER LED BLINKING : 12TIMES SOUND SOS FAN SOS LED BLINKING : 11TIMES PA SOS LED BLINKING : 10TIMES TH-50PX60U PA-Board Block Diagram TH-50PX60U PA-Board Block Diagram TH-50PX60U 76 14.7. PA-Board (1 of 3) Schematic Diagram + + + + + + STB_5V 4.4V SUB_9V SUB_9V MAIN_1.8V MAIN_9V NR14V R5808 2.2k D5807 MA2J11100L R5648 3.9k R5802 13k D5634 MA2J11100L R5806 2.2k C5643 16V 0.1u L5606 22u L5622 G1C150MA0234 C5670 25V 0.1u R5644 2.2k R5627 4.7k R5650 220 R5672 10k Q5643 2SA207700L C5805 1u 16V R5805 2.2k R5641 2.2k R5836 1k C5641 16V 0.1u L5604 2.7u R5626 4.7k 1 2 3 R5634 470 R5639 2.2k R5694 47k R5695 10k D5649 MA2J11100L D5646 MA3X152E0L C5609 50V 22u R5693 33k R5633 1k Q5602 B1ABCF000138 R5662 4.7k C5637 16V 0.1u R5605 4.7k R5645 2.2k R5642 470 1 2 3 4 5 6 C5801 470u 25V L5602 2.7u R5660 0 R5646 4.7k R5692 1k R5649 100k L5801 G0C101K00023 C5642 16V 0.1u D5642 MAZ31200ML D5801 B0JCME000037 R5632 470 C5802 470u 25V C5804 0.1u 16V C5809 1u 25V R5659 470 R5822 100 R5804 TP16 D5639 MAZ30470HL R5826 100 R5609 200 Q5613 B1ABCF000138 R5637 10k R5665 47k D5643 MA3X152D0L D5638 MA3X152E0L Q5601 B1DHDC000028 R5640 4.7k Q5604 B1ABCF000138 R5606 2.2k L5624 G1C330MA0234 C5605 25V 470u R5625 4.7k R5824 100 D5635 MAZ30470HL R5621 4.7k D5606 B0BC01100001 R5801 845 R5823 100 C0DBAZF00003 IC5801 1 Vin 2 Vout(sw) 3 GND 4 Vadj 5 ON/OFF R5809 4.7k R5647 220 R5807 2.2k R5667 47k R5664 4.7k R5803 2k D5805 MA3X152E0L C5619 25V 0.1u R5643 680 1 2 3 1 2 3 Q5642 2SA207700L R5638 10k C5644 16V 0.1u L5802 100u D5804 MAZ31200ML D5640 MAZ30390HL D5641 MA3X152D0L Q5644 B1ABCF000138 D5647 MA3X152D0L D5806 MA3X152E0L R5654 10k 1 2 3 R5635 220 D5644 MAZ30680ML Q5641 2SA207700L R5601 180 C5606 16V 470u C5810 47u 25V D5637 MA3X152E0L N0BG2DE00001 IC5601 1 N.C. 2 ON/OFF2 3 VAR2 4 VOUT2 5 SW-Node2 7 GND 8 N.C. 9 GND 10 VIN 11 N.C. 12 GND 13 SW-Node1 14 VOUT1 15 VAR1 16 ON/OFF1 < F_STBY_14V F_STBY_14V NR14V GND MAIN_9V SUB_5V SUB_9V-1 GND MAIN_5V SUB_9V TO FAN SUB_3.3V GND F_STBY_14V 1 6 D E 8 B 3 2 C 4 A 7 5 MAIN3.3V SUB_5V SUB_3.3V NR14V MAIN3.3V MAIN1.8V MAIN_5V 15V 15V PA_SOS PA 31 PA 32 PA 33 PA 34 PA 10 SUB_5V FAN_SOS TO P-BOARD (P10) AVR 5V/9V FAN SOS AVR 15V FAN CONTROL MAIN_9V MAIN_5V MAIN_1.8V STB_5V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 14.0 14.0 0 14.0 0 0 PA-BOARD TXNPA1BJTUJ (1/3) TH-50PX60U PA-Board (1 of 3) Schematic Diagram TH-50PX60U PA-Board (1 of 3) Schematic Diagram TH-50PX60U 77 14.8. PA-Board (2 of 3) Schematic Diagram + + + + + + + + SOUND_SOS SOS SUB5V SUB_3.3V SUB_3.3V ODU_17V NR14V TV_SUB_ON TV_MAIN_ON MAIN_1.8V TPSTB5V TPM5V TPS33V C5646 50V 0.01u C5623 25V 0.1u D5610 B0BC4R700007 R5669 47k JS2303 0 JS2300 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 JS2302 0 TPM33V Q5605 B1ABCF000138 TPFSOS C5613 25V 0.1u TPS5V R5620 1k TPS9 R5619 33k TPSSOS D5607 B0BC6R600005 MAIN5V L5651 22u R5603 15.4k JS2319 0 L5612 2.7u Q5610 B1ABCF000138 TPMUTE R5615 10k L5621 G1C330MA0234 C5626 16V 0.1u TPM18 C0DBZGC00067 IC5604 1 VIN 2 GND 3 STBY 5 VOUT 4 NC R5668 47k TPM33 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 SUB5VA R5617 1k C5611 50V 330u TPM18V L5609 22u Q5603 B1DHDC000028 R5607 4.53k R5676 10k L5607 22u C5673 16V 0.1u C5647 16V 47u JS2331 0 TPM9 R5652 0 TPS33 L5623 G1C150MA0234 TP17V SUB3.3V C5672 50V 22u R5653 10k C5645 16V 47u C5617 16V 470u TPM5 MAIN3.3V JS5600 0 TPM9V C5618 25V 0.1u JS2301 0 TPS9V C5633 25V 220u EHMDD9851 IC5602 1 ON/OFF2 2 VAR2 3 VOUT2 4 SW-Node2 6 GND 7 N.C. 8 GND 9 VIN 10 N.C. 11 GND 12 SW-Node1 13 VOUT1 14 VAR1 15 ON/OFF1 16 N.C. MAIN9V C5616 25V 0.1u C5648 50V 0.01u C5622 16V 470u SUB9V C5612 16V 470u TPS5 L5615 15u D5612 B0BC3R700006 MAIN3.3V SUB3.3V MAIN9V SUB5VA SUB9V TP5617 TP5615 TP5616 MAIN1.8V AB SUFFIX SUB5V(0.63A) SUB9V(1.3A/0.766A) Tuner_Main_ON SUB_9V(1.7A) MAIN5V(0.37A/0.46A) ODU +B 17.5V / 0.27A TUNER_SUB_ON MAIN3.3V(1.55A/1.847A) PA_SOS SCL1(Main3.3V) SDA1(Main3.3V) MAIN_3.3V(1.55A) ODU_ON/OFF MAIN1.8V SUB9V(1.3A/0.766A) MAIN3.3V(1.55A/1.847A) MAIN_5V MAIN_3.3V SUB_5V MAIN_5V(0.37A) GND SUB_5V(1.0A) FAN_CONT FAN_SOS MAIN_1.8V (1.2A) MAIN_9V(0.1A) AMUTE SOUND_SOS MAIN9V(0.1A/NC) MAIN1.8V SR SL 8 12 11 15 13 10 14 9 SUB9V(1.3A/0.766A) SUB5V(0.63A) MAIN5V(0.37A/0.46A) MAIN3.3V(1.55A/1.847A) SUB_5V SUB_9V MAIN_5V SUB_3.3V MAIN_9V MAIN3.3V 15V 15V PA 20 PA 40 SUB_5V H-BOARD TO (H40) TO DG-BOARD (DG20) AVR 1.8V/3.3V STB_5V STB_5V 15V 5 1 4 7 13 8 10 15 3 2 16 11 12 14 6 9 31 32 33 34 35 PA-BOARD TXNPA1BJTUJ (2/3) 0 0 0 9.0 5.0 9.0 5.0 5.0 0 0 3.3 0 3.3 0 0 0 0 0 0 0 AVR 3.3V TH-50PX60U PA-Board (2 of 3) Schematic Diagram TH-50PX60U PA-Board (2 of 3) Schematic Diagram TH-50PX60U 78 14.9. PA-Board (3 of 3) Schematic Diagram + + + + Thermal Pad MAIN_9V +15V MAIN_9V Q2301 B1ABCF000138 R2406 4.7k R2357 0 C2322 1u 10V C2336 0.47u 50V R2407 1.24k C2333 25V 470u R2341 0 L2302 G0C330MA0049 R2422 787 R2421 2k R2397 0 R2404 330 R2311 0 C2320 1u 10V C2331 1u 25V C2387 1u 10V C2380 50V 0.01u C2334 0.1u 25V R2323 0 D2309 MA2J11100L R2325 10k R2312 10k C2374 10V 1u R2384 1.15k C2328 1u 25V R2398 0 R2332 10k Q2303 B1ABCF000138 C2324 0.22u 25V R2410 787 R2364 47k R2408 1.18k C2385 1u 10V C2402 10u 6.3V C2335 0.1u 25V C2330 1u 25V R2363 470 C2321 0.01u 50V C2325 0.1u 25V C2417 10u 6.3V C2373 50V 0.1u R2375 100 C2326 0.1u 25V C2327 0.47u 50V R2366 4.7k 2SA207700L Q2306 C2338 0.22u 25V ZA2300 K4CZ01000027 R2372 10k R2405 330 C2382 1u 16V IC2306 C0ABBA000168 1 2 3 4 5 6 7 8 C2394 1u 16V C2317 1u 10V R2349 100 R2373 10k R2402 330 C2301 25V 470u R2368 0 C2314 1u 16V L2301 G0C330MA0049 2SA207700L Q2307 R2361 5.6k R2329 100k PA5 1 2 3 4 5 6 7 8 9 10 11 ZA2301 K4CZ01000027 R2360 10k R2409 2k MAIN9V R2388 3.3k L2300 G0C330MA0049 Q2302 B1ABCF000138 C2393 1u 16V R2376 10k C2323 0.22u 25V C2332 25V 470u R2387 1.15k C2401 1u 10V C2342 1u 25V R2403 4.7k PA2 1 2 3 4 5 C2329 1u 25V R2383 3.3k R2369 18k R2324 0 L2303 G0C330MA0049 IC2304 C0ABBA000168 1 2 3 4 5 6 7 8 R2401 330 C2303 16V 100u L2308 3.9u R2310 0 Q2300 2SA207700L C1AB00002451 IC2302 1 NC 2 RINN 3 RINP 4 AGND 5 LINP 6 LINN 7 NC 8 GAIN0 9 GAIN1 10 MSTR/NSLV 11 SYNC 12 NC 13 NC 14 ROSC 15 VREG 16 VBYP 17 AGND 18 BSLP 19 LOUTP 20 LOUTP 21 LOUTN 22 LOUTN 23 BSLN 24 NC 25 NC 26 PVCCL 27 PVCCL 28 PGNDL 29 PGNDL 30 VCLAMPL 31 VCLAMPR 32 PGNDR 33 PGNDR 34 PVCCR 35 PVCCR 36 NC 37 NC 38 BSRN 39 ROUTN 40 ROUTN 41 ROUTP 42 ROUTP 43 BSRP 44 NSHUTDOWN 45 MUTE 46 FAULT 47 NC 48 AVCC C2337 0.22u 25V R2359 2.2k R2365 100 C2341 10u 25V C2403 50V 0.01u ZA5601 K4CZ01000027 ZA5600 K4CZ01000027 MAIN9V - GND W_L VCC TO WOOFER/SPEAKER 15V GND (W-R & W-L) +15V +15V GND GNDs GNDs R GNDs +15V W_R+ +15V W_R W_R- W-L NC W_L+ W-R W_L- + L +15V - + + L R - - + GND VCC SOUND_SOS 23 22 18 19 17 21 16 20 15V 15V TO P-BOARD (P5) OP AMP OP AMP SPEAKER AMP 34 31 33 35 32 15.0 0 0 0 0 15.0 0 15.0 15.0 15.0 15.0 PA-BOARD TXNPA1BJTUJ (3/3) 5.3 5.3 5.3 5.3 0 TH-50PX60U PA-Board (3 of 3) Schematic Diagram TH-50PX60U PA-Board (3 of 3) Schematic Diagram TH-50PX60U 79 14.10. H-Board Block Diagram V V MONITOR OUT V1 V2 COMPONENT2 COMPONENT1 C Y V R L R L Pb Pr C Y R Pb R R Y L Pr L Y L RED WHITE V1_SL V2_SR V1_S_DET HDMI_SL V2_S_DET V2_COMP V2_S_C V2_S_C V2_S_Y V2_COMP V2_S_Y V2_SL V1_SR V1_SR D2_SL D2_SR D2_SR D2_SL D1_SL D1_SR D1_SR D1_SL V2_SL V2_SR V1_SL V1_COMP V1_S_C V1_S_C V1_S_Y V1_COMP V1_S_DET D2_Y D2_PB D2_PR D2_Y D2_PB D2_PR D1_PB D1_PR D1_Y D1_PB D1_PR AV3_C AV3_Y AV3_V HDMI_SR V2_S_DET ATV_SL ATV_SR BS_SL BS_SR AV3_V AV3_Y AV3_C AV3_S_DET AV3_S_DET BS_SL BS_SR HDMI_SR HDMI_SL ATV_SL ATV_SR V1_S_Y D1_Y V L R G C Y G Y-G C-G G V L R G C Y G Y-G C-G G V L R G Y PB PR G L R G Y PB PR G L R G STB3.3V STB3.3V STB5V BT30V STB3.3V JK2601 DVI 51 V4 C4 5 VOUT3 7 Y4 79 1 27 PB2 29 PR2 31 CY2 21 PB1 23 PR1 25 CY1 S4 23 24 7 KEYSCAN1 9 KEYSCAN3 5 RM_IN H51 4 KEYSCAN3 8 2 R_LED_ON KEYSCAN1 RM_IN 5 H2 TO DG2 Y3 C3 V3 2 77 S3 MONITOR OUT 60 PBOUT1 59 PROUT1 58 YOUT1 Y1 69 67 C1 45 SDA 46 SCL SCL0B SDA0B 12 13 26 25 19 18 3 4 IN 6 7 AV1 IN 8 9 COMPONENT2 IN 10 11 COMPONENT1 IN 14 15 DVI IN AV2 MONITOR OUT IN AV2 AV1 IN COMPONENT2 IN COMPONENT1 IN JK2603 14 R_LED_ON MAIN OUT 6 3 17 V7 MONITOR OUT VIDEO2 IN IN COMPONENT1 IN COMPONENT2 L R R L R L MAIN OUT HDMI IN R L R L R L IN VIDEO IN DVB R L L R R L STB3.3V 6 IC2601 VIDEO SW IC2602 AUDIO SW H VIDEO1 IN AV TERMINAL/AV SWITCH IN TV(ANALOG) H40 5 TO PA40 SUB5V STB5V AMUTE SUB5V SUB3.3V MAIN9V SUB9V MAIN3.3V IN AV3 20 R 21 L AV3 76 75 73 Y2 C2 71 S-2 IN V2 3 1 15 7 11 13 9 36 35 SDA0B SCL0B SDA SCL 56 PBOUT2 55 PROUT2 54 YOUT2 SUB OUT TO G51 AV3_Y 18 29 AV3_L AV3_R 20 22 AV3_V AV3_C 25 27 AV3_S_DETECT S1 70 15 V6 STB5V SUB9V MAIN9V SUB5V SUB3.3V MAIN3.3V 2 VDD 1 Vout 5 EXT IC2607 BT30V Q2625 AMP 9.00V 30.00V BT30V BS IN R 17 L 16 Q2608 Q2617 STB5V Q2624 STB5V Q2611 Q2613 MUTE Q2612 D2617 MAIN9V MAIN9V MUTE MUTE CCT MUTE SW Q2609 Q2607 Q2615 SOUND IN 42 48 HDMI_SL DVB_Y 46 52 54 40 16 MAIN_R DVB_C MAIN_PR HDMI_SR MAIN_Y H1 BS_SR ATV_SR ATV_SL VIDEO_OUT 56 58 14 44 BS_SL 18 60 MAIN_L MAIN_PB 50 TO DG1 76 74 77 AUDIO MUTE A_MON_MUTE RST Q2626 SCL0B SDA0B SDA0B SCL0B 12 SUB3.3V 66 BT30V 65 STB5V SOS 1 78 80 BT30V 73 11 STB3.3V 1 4 8 3 7 IC2603 IN1a IN1b OUTb OUTa +IN-1 14 23 OUT2 8 30 SOUND PROCESSOR SCL0B SR SDA0B SDA IC2604 12 13 9 +IN-2 SCL 14 SL SL SR OUT1 AUDIO EQ AMP Q2618 Q2619 7 MAIN_L MAIN_R RST (BBE VIVA) 5 1 2 7 3 6 IC2308 OP AMP LED BLINKING : 10TIMES TUNER SOS TH-50PX60U H-Board Block Diagram TH-50PX60U H-Board Block Diagram TH-50PX60U 80 14.11. H-Board (1 of 3) Schematic Diagram + + + + + MAIN_Y MAIN_PR MAIN_PB KEYSCAN1 AI_SENSOR KEYSCAN3 KEYSCAN2 RM_IN RLED_ON V3_Y V3_S KEYSCAN3 KEYSCAN1 KEYSCAN2 RM_IN AI_SENSOR RLED_ON DVB_Y DVB_C BS_SR BS_SL MAIN_R_OPT MAIN_L_OPT ATV_SR ATV_SL VIDEO_OUT SDA0B AUDIO_MUTE A_MON_MUTE SL SL_GND SR VIDEO_OUT_GND SCL0B SP_MUTE RST SR_GND HDMI_SR HDMI_SL V3_Y_GND V3_V_GND V3_C_GND V3_C V3_V V3_SR V3_SL C2756 16V 0.1u SUB3.3V R2709 0 D2661 MA3X78900L H1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 C2783 50V 0.01u MAIN3.3V C2732 16V 100u JS2661 JS2634 0 TP30V R2894 0 FL2610 J0HABB000003 1 2 3 4 FL2607 J0HABB000003 1 2 3 4 FL2606 J0HABB000003 1 2 3 4 JS2740 0 JS2619 0 STB5V FL2608 J0HABB000003 1 2 3 4 BT30V R2791 3.3k C2757 16V 100u STB5V SUB3.3V R2714 0 JS2617 0 C2728 10V 1u R2792 6.8k MAIN9V L2632 G1C1R0MA0072 SUB5V JS2616 0 C2731 50V 0.1u BT30V C2735 16V 100u JS2642 0 D2662 B0BC03900015 C2746 16V 100u JS2741 0 FL2609 J0HABB000003 1 2 3 4 L2634 G1C470MA0077 JS2614 0 TP30 R2790 2.2k JS2633 0 STB3.3V R2720 0 JS2742 0 L2633 G1C100MA0072 R2776 2.2k JS2744 0 R2762 130 H2 1 2 3 4 5 6 7 8 9 10 11 FL2611 J0HABB000003 1 2 3 4 C2733 16V 0.1u SUB9V STB5V JS2615 0 JS2743 0 D2664 MA2J11100L H51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R2787 16.2k Q2625 B1CFNG000001 D2663 MA2J11100L JS2607 0 C0DBAJB00004 IC2607 1 VOUT 2 VDD 3 NC 5 EXT 4 VSS R2786 82k JS2606 0 R2704 0 JS2745 0 C2774 50V 10u R2803 3.3k TP9V C2790 16V 0.1u Q2626 2SA207700L R2764 100 H40 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R2763 130 BS_SR MAIN_PR GND SL_GND SL_GND GND NC STB5V GND GND AUDIO_MUTE GND SCL0B VIDEO_OUT HDMI_SL HDMI_SR SUB_Y MAIN_Y SR_GND PC_V GND GND SUB_PR DVB_Y MAIN_PB ATV_SL GND GND VIDEO_OUT_GND STB_3.3V GND SDA0B GND SR_GND GND ATV_SR A_MON_MUTE GND GND MAIN_R RST PC_B PC_R BS_SL SUB_PB PC_H GND GND NC BT30V BT30V GND GND MAIN_L SP_MUTE PC_G GND DVB_C NC NC NC NC STB3.3V(5V) RLED_ON AV3_R AV3_S RM_IN AV3_C KEYSCAN1 AV3_L AV3_Y AV3_V AI_SENSOR GND MAIN3.3V GND GND SUB9V GND STB5V SUB5V SUB5V GND GND GND GND SUB3.3V MAIN9V AMUTE GND KEYSCAN2 RM_IN GND NC RLED_ON KEYSCAN1 AI_SENSOR GND KEYSCAN3 KEYSCAN2 GND C_AFT SOS SL SL SR SR SUB_3.3V GND GND GND GND GND GND GND GND GND GND NC NC NC NC NC AV3_V_GND AV3_C_GND AV3_Y_GND KEYSCAN3 3 D 6 B 7 4 E C 5 8 A 1 2 BT30V PA-BOARD TO (PA40) DG-BOARD (DG1) TO DG-BOARD (DG2) TO G-BOARD TO (G51) 1 2 3 4 5 6 7 8 9 10 ! H-BOARD TNPA3769S (1/3) TH-50PX60U H-Board (1 of 3) Schematic Diagram TH-50PX60U H-Board (1 of 3) Schematic Diagram TH-50PX60U 81 14.12. H-Board (2 of 3) Schematic Diagram + + + + + + + SUB_PB SUB_Y MAIN_PB V1_COMP V1_S_Y MAIN_PR D1_PB SUB_PR D1_Y V1_S_C V2_COMP V1_S_DET V2_S_C V2_S_Y D2_Y D1_PR D2_PR MAIN_Y AUDIO_MUTE SCL0B RST SR_GND V3_V_GND V3_Y_GND V3_S V3_C_GND V3_V V3_Y V3_C A_MON_MUTE SCL0B SDA0B SL_GND SR DVB_Y DVB_C VIDEO_OUT VIDEO_OUT_GND D2_PB V2_S_DET SL MAIN_R MAIN_L SDA0B R2744 1k C2801 50V 0.01u JS2645 0 C1BB00001017 IC2603 1 IN1a 2 NC 3 NC 4 OUT1a 5 IN2a 6 TONE-Ha 7 TONE-La 8 OUT2a 9 AGC 10 SS-FIL 11 CVB 12 CVA 13 SDA 14 SCL 15 GND 16 Vcc 17 AUX1 18 AUX0 19 CTL 20 CTH 21 VREF 22 SR-FIL 23 OUT2b 24 TONE-Lb 25 TONE-Hb 26 IN2b 27 OUT1b 28 NC 29 NC 30 IN1b R2641 22 SUB9V R2777 75 C2679 16V 0.1u C2675 16V 0.1u R2760 220 JS2632 0 R2770 220 C2688 10V 1u R2772 220 JS2641 0 C2668 16V 0.01u R2643 1k R2733 220 C2699 50V 1000p R2605 100k R2778 75 D2601 MA2J11100L R2609 100 C2707 50V 1000p R2677 18k R2692 22k R2657 68k R2775 75 Q2617 2SC584500L C2722 16V 0.47u Q2607 2SC584500L R2659 82k C2606 3300p 50V R2759 75 IC2604 C1BB00000969 IN1-1 1 2 NF1-1 3 IN2-1 4 NF2-1 5 IN3-1 6 NF3-1 7 +IN-1 8 -IN-1 9 OUT-1 10 GND 11 Vcc 12 OUT-2 13 -IN-2 14 +IN-2 15 NF3-2 16 IN3-2 17 NF2-2 18 IN2-2 19 NF1-2 20 IN1-2 JS2640 0 R2728 18k C2729 10V 10u R2651 1.2k C2666 16V 0.1u R2751 220 R2712 75 R2729 220 C2713 50V 0.01u R2658 12k R2839 10k R2767 220 C2673 10V 10u D2602 MA2J11100L C2608 1u 10V C2768 16V 0.1u C2644 10V 10u D2600 MA2J11100L C2778 16V 2.2u R2684 20k C2706 50V 1500p R2673 82k R2685 10k C2700 10V 1u C2603 16V 0.1u R2801 100 R2679 1k C2687 10V 1u C2645 16V 0.01u R2843 10k R2703 47k Q2615 2SC584500L JS2662 0 D2603 MA2J11100L C2621 10V 1u R2727 220 C2661 10V 1u C2676 10V 1u C2777 16V 2.2u C2663 16V 0.01u R2748 22k C2646 16V 1u C2625 16V 0.1u C2612 1u 10V C2725 50V 10u R2674 5.6k C2649 16V 1u R2655 68k C2652 16V 0.1u R2756 22 MAIN9V STB5V R2726 220 MAIN9V R2741 220 C2611 1u 10V C2726 50V 10u R2724 820 R2611 1k C2798 1u 16V C2685 50V 1000p C2642 16V 0.47u R2713 75 JS2630 0 Q2618 2SD0601ARL C2617 3300p 50V JS2663 0 Q2624 2SC584500L R2769 220 R2737 1k R2642 100 R2603 22k R2732 1k R2678 68k R2783 0 R2735 18k R2771 4.7k C2680 16V 0.1u R2706 0 C2682 16V 0.1u R2761 220 C2694 16V 0.15u R2719 1k C2689 10V 1u C2686 10V 1u R2604 5.6k R2676 68k D2617 MA3X152E0L R2754 1.2k C2647 16V 1u C2681 16V 0.1u R2654 4.7k C2632 50V 0.01u R2640 22 C2636 50V 2200p C2650 16V 1u R2750 470 R2697 10k C2670 16V 0.1u C2677 16V 0.1u C2660 10V 1u C2802 1u 16V R2757 470 R2758 220 C2648 16V 0.01u R2644 0 R2718 220 R2834 63.4k R2672 12k R2730 220 R2660 5.6k R2607 470 R2736 220 C2773 50V 22u C2607 0.68u 16V R2779 75 R2785 100 R2610 180k R2749 2.7k R2802 100 R2701 47k R2781 820 C2658 16V 0.1u C2714 50V 2200p R2650 2.7k R2773 4.7k R2707 0 Q2619 2SD0601ARL Q2613 2SC584500L R2842 10k C2609 0.1u 16V R2671 4.7k L2636 J0JHC0000078 C2727 10V 1u Q2608 2SD0601ASL C1AB00002123 IC2601 1 C3 2 S-3 3 V4 4 S2-4 5 Y4 6 S-4 7 C4 8 VCC 9 V5 10 S2-5 11 Y5 12 S-5 13 C5 14 ADR 15 V6 16 BIAS 17 V7 18 GND 19 V8 20 L11 21 CY1 22 L21 23 PB1 24 L31 25 PR1 26 L12 27 CY2 28 L22 29 PB2 30 L32 31 PR2 32 L13 33 CY3 34 L23 35 PB3 36 L33 37 PR3 38 SW1 39 CY4 40 SW2 41 PB4 42 SW3 43 PR4 44 GND 45 SDA 46 SCL 47 VCC 48 VOUT4 49 DCOUT 50 COUT3 51 VOUT3 52 YOUT3 53 VCC 54 PROUT2 55 PBOUT2/COUT2 56 CYOUT2/YOUT2/VOUT2 57 VCC 58 PROUT1 59 PBOUT1/COUT1 60 CYOUT1/YOUT1/VOUT1 61 VOUT 62 GND 63 VIN 64 O1 65 V1 66 O2 67 Y1 68 S2-1 69 C1 70 S-1 71 V2 72 O3 73 Y2 74 S2-2 75 C2 76 S-2 77 V3 78 O4 79 Y3 80 S2-3 R2731 220 R2612 1k C2614 1u 10V C2615 0.1u 16V C2791 50V 47u R2840 10k R2747 22k R2755 75 C2678 10V 1u C2610 1u 10V C2667 16V 0.1u C2711 50V 1000p C2624 16V 100u R2734 220 C2616 0.68u 16V C2626 16V 2.2u R2705 0 C2709 16V 0.15u R2694 10k C2643 50V 1500p R2838 63.4k R2738 220 C2665 16V 0.1u C2657 16V 0.01u C2762 16V 2.2u R2608 100k R2753 22 C2672 50V 22u C2684 16V 0.1u C2620 10V 1u R2656 18k C2662 16V 0.1u L2625 J0JHC0000078 R2711 75 C2613 1u 10V IC2608 C0ABBA000168 1 2 3 4 5 6 7 8 C2769 16V 0.1u C2656 50V 22u MUTE CCT. STB5V R L MUTE SW R GND - L VCC + + - 11 9 14 13 8 12 15 10 VIDEO SW AUDIO EQ AMP SOUND PROCESSOR (BBE VIVA) OP AMP 1 2 3 4 21 22 23 24 25 26 27 7 6 8 9 10 5 H-BOARD TNPA3769S (2/3) ! TH-50PX60U H-Board (2 of 3) Schematic Diagram TH-50PX60U H-Board (2 of 3) Schematic Diagram TH-50PX60U 82 14.13. H-Board (3 of 3) Schematic Diagram V V MONITOR OUT V1 V2 COMPONENT2 COMPONENT1 C Y V R L R L Pb Pr C Y R Pb R R Y L Pr L Y L + + + V2_COMP V1_S_C V1_COMP D2_Y V2_S_Y V2_S_DET D1_Y D1_PB D1_PR DVI_SL D2_PB SDA0B SCL0B V2_SL V2_SR V1_SL V1_SR D2_SL D2_SR D1_SL D1_SR HDMI_SL HDMI_SR MON_SL MON_SR AAM_L MAIN_L V3_SR V3_SL DVI_SL DVI_SR BS_SR BS_SL AAM_R MON_SR AAM_L MON_SL D2_PR ATV_SL ATV_SR MAIN_L MAIN_L_OPT MAIN_R MAIN_R_OPT MON_V V1_S_Y V1_S_DET V1_SL V2_S_C V2_SR V1_SR D2_SL D2_SR D1_SL D1_SR DVI_SR V2_SL MAIN_R AAM_R PC_SL PC_SR MON_V AAM_V D2643 MAZ81400ML C2734 16V 1u C2715 16V 1u D2621 MAZ81400ML D2651 MAZ81400ML R2687 100 JS2718 0 JK2601 K1U939A00003 V L R G C Y G Y-G C-G G V L R G C Y G Y-G C-G G V L R G Y PB PR G L R G Y PB PR G L R G R2708 1k D2624 MAZ81400ML R2817 220 R2833 220 C2708 16V 1u R2859 39k C2751 10V 1u R2825 220 R2798 220 SUB9V R2797 220 C2712 16V 1u R2854 39k D2623 MAZ81400ML C2754 10V 1u R2695 100 R2835 22 R2625 220 R2861 39k JK2603 K2HA204A0041 L L-G R R-G R2864 39k D2658 MAZ81400ML C2750 50V 22u D2656 MAZ81400ML R2824 220 R2832 220 R2700 270k C2718 16V 0.1u Q2611 2SD0601A0L D2647 MAZ81400ML JS2725 0 L2616 J0JHC0000078 D2645 MAZ81400ML JS2716 0 C2744 10V 1u R2856 75 R2702 47k C2793 10V 1u D2654 MAZ81400ML R2807 220 JS2714 0 R2858 75 R2698 1.8k C2702 16V 0.1u D2648 MAZ81400ML JS2722 0 C2775 25V 470u R2818 220 C2792 10V 1u C2710 16V 1u JS2723 0 JS2724 0 R2681 180k JS2715 0 R2860 39k R2794 220 D2657 MAZ81400ML R2682 100 Q2612 2SB0709A0L R2869 75 R2606 220 C2742 10V 1u C2780 10V 1u R2804 220 C2717 16V 1u C2785 10V 1u R2690 1.8k D2652 MAZ81400ML R2822 220 R2837 22 JS2647 0 D2659 MAZ81400ML R2793 220 C2740 10V 1u D2649 MAZ81400ML D2650 MAZ81400ML R2868 75 C2741 16V 1u C2779 10V 1u JS2720 0 R2696 1M C2737 10V 1u JS2651 0 C2633 16V 2.2u R2823 220 R2855 39k D2641 MAZ81400ML JS2650 0 D2653 MAZ81400ML C2637 10V 1u D2640 MAZ81400ML R2865 75 C2747 10V 1u JS2717 0 D2622 MAZ81400ML D2619 MAZ81400ML R2862 75 D2642 MAZ81400ML R2686 75 C2752 10V 1u C2634 16V 2.2u C2703 16V 1u R2820 220 D2660 MAZ81400ML R2851 39k D2644 MAZ81400ML C2730 16V 1u JS2719 0 C2705 16V 1u JS2646 0 R2850 39k C2743 16V 1u C2701 50V 22u R2799 220 R2821 220 R2800 220 AN15862A-VT IC2602 1 L1 2 R1 3 L2 4 R2 5 VCC 6 L3 7 R3 8 L4 9 R4 10 L5 11 R5 12 L6 13 R6 14 L7 15 R7 16 L8 17 R8 18 L9 19 R9 20 L10 21 R10 22 O1 23 LOUT5 24 ROUT5 25 LOUT4 26 ROUT4 27 LOUT3 28 ROUT3 29 GND 30 LOUT2 31 ROUT2 32 LOUT1 33 ROUT1 34 ADR 35 SCL 36 SDA 37 O2 38 BIAS 39 L11 40 R11 41 L12 42 R12 43 L13 44 R13 D2646 MAZ81400ML D2655 MAZ81400ML R2849 39k R2808 220 C2723 16V 1u JS2629 0 JS2721 0 Q2609 2SD0601A0L R2693 100 R2848 39k C2784 10V 1u C2753 10V 1u C2739 10V 1u R2795 220 R2680 180k D2620 MAZ81400ML R2830 82k SUB9V D2665 MAZ81100ML DVI SOUND IN 21 16 22 19 17 18 20 23 COMPONENT2 IN IN COMPONENT1 IN VIDEO1 IN VIDEO2 OUT MONITOR AUDIO SW 22 26 25 27 24 21 23 ! H-BOARD TNPA3769S (3/3) TH-50PX60U H-Board (3 of 3) Schematic Diagram TH-50PX60U H-Board (3 of 3) Schematic Diagram TH-50PX60U 83 14.14. G, GK, HC, K and S-Board Block Diagram D2520A SW3758 VOL.DN SW3756 SW3757 CH.UP SW3754 CH.DN TV/VTR VOL.UP SW3755 STB3.3V K1 5 RM2501 Q2511 8 ON/OFF REMOTE RECEIVER/LED VCC Q2510 REMOCON RECEIVER K VOUT RM_IN KEY SWITCH GK S POWER SWITCH SW2500 PUSH POWER KEY3 7 K2 2 2 S2 KEY3 SWITCH HC15 40 38 D_STB3R3V D_IIC_CONT D_SDA2 35 D_SCL2 36 34 33 D_TXD D_RXD 29 26 D_PSTB 28 D_PBUSY 31 D_PDB1 D_IIC_INT D_PSLCT D_PDB0 32 27 REMOCON G_LED 23 22 20 25 D15V STBY5V SRQ 24 19 R_LED SCL0A 18 14 SCL0B 15 SCL1 SDA0A 17 SDA0A 12 SBI1 SBO1 5 9 SDA1 11 SCL2 SDA2 8 6 3 1 BA_SDA0 BA_SCL0 HC01 6 9 7 2 16 12 13 14 10 11 17 15 1 8 19 21 18 HC22 6 9 1 7 8 2 10 11 4 5 STBY5V SRQ SCL0B SDA0A SCL0A SDA0B SCL1 SDA1 SDA2 SCL2 5 6 7 8 9 10 1 2 3 4 SUB5V PEAKS_SBI GND PEAKS_SBO SBI1 BA_SCL0 SBO1 BA_SDA0 LITE_SBO LITE_SBI HC21 6 1 2 4 SUB5V PEAKS_SBI PEAKS_SBO GND HC06 3 5 LITE_SBI LITE_SBO TO DT07 JIG CONNECTION HC OUTPUT OF PEAKS INPUT TO PEAKS PEAKS/LOADER PEAKS/LOADER TO DG15 IIC0 EEPROM ROUT SUB ROUT DEVICE IIC0B HIGH SPEED DEVICE ROUTE IIC2 IIC1 MAIN ROUT DEVICE + PANEL MICOM (S-VIDEO) (COMPOSITE) G1 JK3701B AV3 IN G3 2 FRONT TERMINAL G TO H51 G51 GK3 2 KEY1 2 R_LED_ON 6 KEY1 AV3_L 22 18 AV3_Y AV3_V 20 7 AV3_C R_LED_ON STB3.3V 14 29 AV3_S_DETECT AV3_R 25 27 RM_IN 9 KEY3 5 8 2 7 POWER LED FACTORY USE FOR USE FOR FACTORY USE FACTORY FOR C Y V L R V V-G L-G Y CY-G C V-SW L R-G R G G TH-50PX60U G, GK, HC, K and S-Board Block Diagram TH-50PX60U G, GK, HC, K and S-Board Block Diagram 5 TH-50PX60U 84 14.15. G-Board Schematic Diagram R V L Y C R3710 0 R3716 39k JK3701B K4AK13B00001 C Y G CY-G G R-SW R R-G L L-G V-SW V V-G D3702 MAZ81400ML JS3705 0 R3711 0 JS3708 0 FL3711 J0MAB0000199 1 2 3 4 FL3710 J0MAB0000199 1 2 3 4 R3721 10k R3717 39k JS3702 0 G3 1 2 3 ZA3701 K4CD01000013 R3712 0 R3709 0 R3713 0 JS3707 0 G1 1 2 3 4 5 6 7 8 9 10 11 12 FL3712 J0MAB0000199 1 2 3 4 G51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R3732 0 JS3704 0 SUB5V G_LED_ON GND GND AI_SENSOR G_LED_ON AI_SENSOR MODEM_LED/KEY3/ Active_STBY_LED STB3.3V MODEM_LED/KEY3/Active_STB_LED STB3.3V SUB5V RM_IN RM_IN GND GND R_LED_ON/STBY_LED GND PSM_LEDR GND KEY2/KEY_EDGE KEY1 GND KEY1 PSM_LEDR/KEY2/KEYEDGE GND GND HP_DET R_LED_ON/STNBY_LED HP_GND GND MAIN_L MAIN_R SUB_MONO HP_GND AV3_C AV3_R AV3_L AV3_S V_DET AV3_Y AV3_V GND GND GND SUFFIX AD B 1 3 6 8 A C 7 E 5 2 D 4 (GK3) GK-BOARD TO TO K-BOARD (K1) (H51) H-BOARD TO AV3 IN (S-VIDEO) (COMPOSITE) G-BOARD TNPA3764ADS TH-50PX60U G-Board Schematic Diagram TH-50PX60U G-Board Schematic Diagram TH-50PX60U 85 14.16. GK, K, HC and S-Board Schematic Diagram VCC GND OUT PUSH 18 16 14 12 10 8 6 4 2 20 21 19 17 15 13 11 9 7 5 3 1 STB3.3V SBO1 BA_SDA0 BA_SCL0 SBI1 R2525 820 R2516 22k K1 1 2 3 4 5 6 7 8 9 10 11 12 R2520 220k RM2501 PNA4701M05TV 1 2 3 C2521 0.01u 50V R2557 5.6k R2517 47 Q2511 B1ABCF000138 R2542 47k Q2510 B1ABCF000138 D2524 MA8056MTX K2 1 2 D2520A LN1271RALTR R2524 22k D2512 MAZ80430LL C2512 6.3V 10u C2515 50V 0.01u SW2500 K0F122A00172 S2 1 2 R3754 2.32k R3761 0 R3762 0 R3760 0 R3758 3.16k SW3754 EVQ11G05R R3767 0 R3766 0 SW3756 EVQ11G05R R3759 0 C3750 1000p 50V GK3 1 2 3 R3763 0 SW3758 EVQ11G05R SW3755 EVQ11G05R D3750 MAZ80390HL R3756 0 SW3757 EVQ11G05R R3752 1.74k R3753 1.62k R3764 0 1 2 3 4 5 6 7 HC01 1 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 REMOTE RECEIVER POWER LED STBY3.3V GND AI_SENSOR GND REMOCON Modem_LED/KEY3 KEY3 GND Active_STB_LED GND SUB5V R_LED_ON/STBY_LED GND S-BOARD TNPA3964ABS POWER SW TV/VTR VOL.DN CH.DN CH.UP VOL.UP GND KEY KEY2/KEYEDGE GK-BOARD TNPA3965ACS K-BOARD TNPA3965AGS 5 6 D E C A 7 1 B 3 4 2 8 IIC0B SDA2 SDA2 TXD SDA1 (DG15) SBI1 TO R_LED STB5V P15V R_LED HC BA_SDA0 FOR SBO1 PEAKS/LOADER REMOCON RXD HC-BOARD TNPA3855S IIC_CONT LITE_SBO PDB1 SUB5V STBY3.3V PEAKS_SBO PEAKS_SBI 06 SCL2 USE STBY3.3V BA_SDA0 IIC_CONT SDA0A PSTB LITE_SBI SDA1 PBUSY TO IIC/INT IIC1 PDB0 FACTORY SDA0A SCL1 IIC_CLK2 SCL0B G_LED RXD SUB5V USE FACTORY FOR PSLCT USE LITE_SBO GND SCL1 SDA0B SCL0B 15 22 SCL2 PEAKS_SBI SBO1 SRQ1 STB5V P15V HC GND STB5V DG-BOARD OUTPUT OF PEAKS SDA1 IIC2 IIC_DATA2 INPUT TO PEAKS SCL0A 21 DT-BOARD LITE_SBI HC SRQ1 BA_SCL0 IIC_DATA2 IIC/INT GND PEAKS_SBO PDB0 G_LED REMOCON TXD SDA0B HC SCL1 (DT07) SCL0A GND FOR BA_SCL0 PEAKS/LOADER SBI1 PDB1 IIC_CLK2 PSLCT PBUSY PSTB FACTORY TO (G1) G-BOARD (GK3) TO GK-BOARD TH-50PX60U GK, K, HC and S-Board Schematic Diagram TH-50PX60U GK, K, HC and S-Board Schematic Diagram TH-50PX60U 86 14.17. DG-Board (1 of 3) Block Diagram HDMI_DAC_PD RX_MCLK HDMI_RST MUTE_OUT DDC_SDA 3.3V_SDA HDMI_5V_DET1 RX_SCK HPD1 RX_SD0 DDC_SCL HDMI_INT RX_WS 3.3V_SCL HDMI_CEC HSIB REFCH_HDMI VSIB CLKINB2 AP_DE HPD2 HDMI_5V_DET2 HDMI_WP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 Divider Q4065 CLK+ Q4067 6 5 CABLE IN;Hi/NORM 5 INTERFACE S1 SCL WC D1+ H:MUTE D2 AUDIO DAC SDA AUDIO MUTE TMDS DECODER D2- 1 141 WS 119 SDA AUDIO D2G ROX1+ HPDT Hi;MUTE CEC IC4025 SD0 VIDEO (TO GC5 PORT-B) Interpolator 5V YB0-YB9 HDMI IN 1 HDMI_WP S2 CABLE OUT;LOW/MUTE 2 BICK Modulator CSDA 5V SDA1 MCLK 7 TMDS DECODER Interpolator EEPROM +5V S1 1 INTERFACE ROX1- CSCL Q4069 Q4068 HDMI IN 2 AND 5V DET INT Low;DETECT HPD5V D2 D2+ 7 D1 EEPROM SCL DDCG D2+ HDCP CABLE IN;Hi/NORM CIPHER DECRYPTOR 4 ROX2- HOTPLUG D1- AND DG8 AOUTL INTERFACE 7 D2- DSDA1 MAIN5V Q4071 CEC D0+ D0+ Q4083 CLKG RECEIVER 123 +5V R RECEIVE N.C. 8X HOTPLUG SCL1 S2 DDCG DSCL1 P D0G AOUTR 3 D1 R1X0+ DG9 CLK+ D0- 142 L DDC DATA 102 Low;DETECT HPD5V Clock R1X0- Data D1G CLK- R1XC- R1X1- DSCL0 HDCP D0G DDC DATA 2 110 Q4082 Modulator MUTE OUT N.C. 3.3V D2G 104 IC4023 Q4070 132 INTERFACE CABLE OUT;LOW/MUTE R1X2- R1X1+ TMDS DATA AND D1- AUDIO MUTE CPU D0- D1+ 6 SCK 8X PDN R1X2+ AUDIO RESET ROX2+ 6 MAIN9V SCL ROXC- DSDA0 Hi;MUTE ROXC+ Q4066 3 MCLK LRCK AUDIO AMP 136 AND 5V DET CLKG D1G MAIN5V R1XC+ UB0-UB9 IC4028 TMDS DATA SCL WC CIPHER DECRYPTOR IC4022 133 HPDT 5 ROX0+ SMUTE 3.3V ROX0- SDTI CLK- 52 51 48 47 39 43 40 44 66 70 62 63 67 71 59 58 32 31 77 88 86 84 85 30 29 28 27 1 6 2 3 4 5 10 11 VSYNC HSYNC ODCK 121 97 3 1 2 MAIN 1.8V XTALIN MAIN 3.3V DE HDMI I/F RECEIVER IC4026 R0PWR5V 34 R1PWR5V 33 L R 7 MAIN 1.8V IC4027 MAIN 3.3V 5 VIN VOUT 1 MAIN1.8V CONT DIGITAL SIGNAL PROCESSOR HDMI INTERFACE DG MICOM Q4084 TH-50PX60U DG-Board (1 of 3) Block Diagram TH-50PX60U DG-Board (1 of 3) Block Diagram TH-50PX60U 87 14.18. DG-Board (2 of 3) Block Diagram MAIN_PR VIDEO_OUT RM_IN ATV_SR ATV_SL BS_SR B_DDR_CLK GC_RST MAIN_PR BS_Y(V) KEY3 MCU_RST MAIN_L MAIN_Y CVBS0 KEY1 BS_C MAIN_Y B_DDR_NCLK BS_SL MAIN_R MAIN_PB R_LED_STBY_LED MAIN_PB SL FAN_MAX SOUND_SOS TV_MAIN_ON SR FAN_SOS SOS TV_SUB_ON SW_OFF_DET CLKINB2 HSIB VSIB AP_DE REFCH_HDMI SR SL 80 SDA MATRIX VOUT HSIA MAIN_PR/B DG2 SYNC A/D 10bit 23 4 13 5 16 VDD Q1114 MAIN3.3V 5 1 DETECT 82 STB3.3V 36 SCL2 /MSP.RESET 37 I/P CONV. 625i/p 12 SCL GC5 PROCESSOR A/D 10bit TRST SR 11 STB3.3V 5 1 VDOUT 69 STBY3.3V HS 21 IC4016 KEY1 16 SOS 31 15 VIN IC4013 IC4019 27 1 110MHz STBY5V PORT-A A_DDR_CLK TCK MAIN_PB DCLK_IN SDA2 SUB3.3V RESET 74 SCL0B 1.8V AUDIO MUTE IC1108 29 KEY3 3 3D/2D com 39 (ADV7499) AVR 1.8V SDA0B 3 (FS&HDMI) 3D Y/C SDA I/F STB 1.5V MAIN_L 4 VSIA Q4057 STB1.5V ON/ NR PORT-B 78 TO 41 BT30V Q1111 RESET 4 SL BS_C VIN VDD 2 A_DDR_NCLK MIX 1 AD 3.3V Q4050,Q4058 Sync AIN4 REFCK_ADV 110MHz AVR 1.8V 5 TDO 8 BS_SR 5 MAIN_R AUDIO MUTE 73 MAIN_Y 10bit A/D(ADV7499) 76 SCL2 5 STB 3.3V STBY3.3V AD 3.3V IC4038 2 RESIZE 1080i 720p 35 IC4037 SEPA VOUT XTAL CHROMA 1 SW CLK Q1140,Q1141 8 H1 BS_Y(V) SCLK VOUT STB5V 77 VIDEO_OUT IC1110 99 25 PLL 3.3V RM_IN COLOUR H2 OUT PLL 3.3V INPUT 15 SUB5V SDA2 DIGITAL Macrovision SOS AIN6 BS_SL 14 VIN CONT STB3.3V ATV_SR 65 Q1116 (STB5V) MAIN5V IC4030 MAIN 5V A MON MUTE TMS 1.8V TO BT30V A MON_MUTE 38 63 72 RST STB5V OFF DEM. HDMI_SR STBY5V ->YUV Q4056 81 7 BT30V VS R_LED_ON MAIN_CVBS CLKIA 4 67 4 CK (DVB_C) 3 ATV_SL 110MHz 4 TDI IC1111 CLK0A 5 SELF,ID,ED2 Q1108 8 YBIN0-9,UBIN0-9 NOISE LEVEL NRST VOUT SDA0B 128M DDR SDRAM AIN5 IC4018 VOUT CK LLC1 35 Detection VDD RGB 70 MAIN3.3V SCL0B 1 A/D 10bit 525i/p Q1130,Q1134 2 5 JTAG RESET VPK VOUT 1 (DVB_Y) 33 4 HDMI_SL DG1 VIN FAN_SOS SR MAIN5V SUB5V 29 SUB9V 32 SUB 5V 8 PA_SOS MAIN3.3V MAIN9V 22 33 23 SOUND SOS DG20 28 38 SUB 5V MAIN3.3V 18 7 MAIN 1.8V 17 MAIN 5V 25 35 24 SUB_ON PA20 MAIN3.3V 40 2 TUNER 6 MAIN3.3V 21 MAIN 5V MAIN9V TO 9 FAN_MAX MAIN1.8V 4 SUB 9V SUB 9V MAIN 1.8V 39 SL SUB 9V TUNER MAIN_ON D1109 CLKINB2 VSIB AP_DE HSIB REFCK_HDMI L R VIN 1 5 1 CONT VOUT IC4032 8 MAIN1.2V IC4035 VOUT MAIN1.8V DDR 2.5V 5 CONT MAIN 1.2V VIN DDR2.5V MAIN3.3V 8 DLL 2.5V VOUT VIN MAIN3.3V 5 IC4029 DLL2.5V 1 RST STB5V (SUB5V BACK UP) PRESS POWER SW 3sec SL 78 SR 74 SOS 10 30 YIN0-YIN9 29 13 22 91 42 41 14 33 UVIN0-UVIN9 7 RIN0-RIN3 94 DIGITAL SIGNAL PROCESSOR HDMI INTERFACE DG MICOM TH-50PX60U DG-Board (2 of 3) Block Diagram TH-50PX60U DG-Board (2 of 3) Block Diagram TH-50PX60U 88 14.19. DG-Board (3 of 3) Block Diagram MAIN_L HDMI_WP HDMI_INT SOS GENX_V GENX_H RO0-R04 GC_RST HDMI_RST KEY1 BS_Y(V) VIDEO_OUT PANEL_SOS BO0-B04 A_MON_MUTE STATUS MAIN_R PEAKS_OSCK FAN_SOS ECO_ON DTV_TXD HDMI_DAC_PD PANEL_STB_ON FAN_MAX ATV_SL DISPEN TV_MAIN_ON GENX_CLK KEY3 SOUND_SOS BS_SR PEAKS_OSH OSD_YS AUDIO_MUTE TV_SUB_ON ATV_SR PANEL_STB_ON ECO_ON HDMI_CEC PEAKS_OSV DISPEN RM_IN GO0-G05 BS_C BS_SL R_LED_STBY_LED MCU_RST SW_OFF_DET OSD_YM STATUS PANEL_SOS TRST TMS TCK CVBS0 HPD1 HPD2 HDMI_5V_DET2 HDMI_5V_DET1 D_PSLCT TX_TE- 107 REMOCON 43 188 117 D_RXD 56 109 IC4037 43 SDA0B OSDXI 20 76 ATV_SL 2 PORT_E R_LED_STBY_LED PEAKS_CLKIN GAMMA TX_TD+ D_IIC_INT PEAKS_OSV 17 4 D_IIC_INT 19 SDA0B SRQ XRST BS_C BA_SCL0 51 ECO_ON 10Bit LVDS R_LED 45 JTAG_TCK IRQ4A Q1110 STBY3.3V_DET 14 SCL0B 36 42 13 TUNER_SUB_ON YSOUT 11 SCL2 SDA0A SCL2 103 MAIN3.3V_DET TX_TB- R04 PORT_D DISPEN SCL1 SUB5V DG3 4 18 BS_FORMAT 37 D_RXD D_PDB0 54 1 5 107 SWITCHING SUB9V JTAG_TMS PEAKS_VIN 13 FLASH FACTORY DG5 MAIN_R TDO SCL0A 206 3 TX_TE+ 186 BA_SDA0 Q1107 PEAKS_HIN AFT1 AV_SW/POWER SW 165 20 18 OSDYS 1 9 DT12 UVIN0~UVIN7 53 SW_OFF_DET PEAKS_CIN0 IC1105 194 GENX_H 87 105 64 Q1101,1139 1 PANEL_SCL1 DTV_SCL0B DTV_RST 109 33 32 8 209 TO 17 47 100 Q1102 SDA0A DTV_RXD 57 2 SDBOOT 208 52 3 WP 7 TX_TA+ BS_SL (F_STBY_ON) IC1106 29 TV_MAIN_ON DTV_SCL0B VOUTENB BA_SW IC1102 CECINA 4M PEAKS_OSV GO0-GO5 KEYSCAN3_KEY_EDGE FOR IIC/SERIAL 110 131 VMUTE SCL1 INV. 102 TX_TD- 5 MAIN_SW 13 14 VIDEO_OUT 33 PANEL SW ALARM(PANEL_SOS) 1 133 163 D_15V PEAKS_YIN7 (OSD INPUT) SCL0B 22 TO D_TXD 30 OSD MIX PEAKS_OSCK VSOE TX_TCLK+ X1101 D_PDB1 OUT 4 5 32 16 12 POWER_SOS 6 26 AFT1 TO D5 132 R00 SRQ 62 STB3.3V 187 22 FOR ROM(D-BOARD) 24 G_LED SBI1 (PEAKS) 53 85 HC15 130 6 D_SCL2 37 40 SCL1 1 122 SDA1 SUB5V 22 LVDS_PD 5 9 36 13 D_15V PANEL STATUS 7 14 TX_TCLK- 138 TDI 4 SDA0B D_PBUSY SUB9V Q1142,Q1143 27 15 IC1101 PANEL_STBY_ON 58 CONVERTER SCL0A MAIN_L READY(STATUS) 116 6 SDAOB SDA2 DG22 215 DTV_RST TO ATV_SR 12 Q1106 FOR 95 184 6 SDA1 RTCXO 35 SCL0A 105 3 12 PEAKS_YIN0 BT30V 5 136 BT30V 38 Q1100 112 5 FAN_SOS SCL1 5 13 EEPROM 9 GENX_CLK DTV_SDA0B 23 6 SDA0B 29 216 USE 8 15 CONT MAIN3.3V TMS D_PSTB 10 Q1109 8 3 B00 X1100 DTV_SDA0B CLKOE FORMAT_EDGE SCLOB PEAKS_CIN7 PANEL SCL1 Q1137 60 D/A OSD PIXEL CONV. DG15 111 SCL2 D_PSLCT 159 135 46 11 13 G_LED PANEL_STB_ON 61 14 20 SCL1 SCL0B SRQ VSIC 8 SUB9V REMOTE IN D3 D_IIC_CONT WP DTV_SCL0B SDA TV_SUB_ON STBY5V 13 96 SUB9V SDA0A GENX_V 2 MONITOR 26 10 Q1103 4 6 41 R_LED 211 INV. 35 D_PDB1 GC_RST 11 SUB5V_DET 97 97 21 123 IIC_CLK 1 CLKIN BS_Y(V) 2 D_SDA2 169 RO0-RO4 16 34 183 15 212 RTCXI HDMI_DAC_PD 7 210 D_IIC_CONT SDA2 HDMI_RST 3 21 SCL2 10 168 KEYSCAN1 35 11 B04 PEAKS_OSH 17 STBY5V D_STB3R3V OSCXI TX_TB+ 10 DTV_SDA0B D_BUSY ECO_ON DTV_TXD 3 27 D_STB3R3V HSOE 164 DTV_SDA0B RESET 30 SBO1 SDA1 NRST SOUND SOS BA_SDA0 SWITCHING SDA0B 6 23 PANEL SDA1 16 HDMI_WP OSDYM SUB9V_DET TCK YIN0~YIN7 33 19 HSIC DTV_TXD(SBI1) DG35 VSYNC SW_OFF_DET 8 TX_TC+ 199 BS_SR 5 D_SDA2 SUB5V TX_TA- 27 BO0-BO4 PEAKS_OSCK D_SCL2 197 80 SDA2 45 12 205 19 SCL0A 10 YMOUT 44 PANEL_SDA1 101 G00 106 BA_SCL0 24 PANEL_SOS D_PSTB 50 52 57 34 SDA1 SDA0A SUB9V Q1125 (RGB OUT) DTV_SCL0B FAN_CONT REMOCON HSYNC HDMI_INT AI SD_BOOT 128 2 16 2 A_MON_MUTE TX_TC- 15 D_TXD TRST 16 30 PEAKS_OSH SUB5V GC5 PROCESSOR SDA2 STBY5V STBY3.3V 8 SCL 110MHz 3 JTAG_TRST 207 MAIN_SW SCL0B DTV_RXD(SBO1) D_PDB0 SCL0A SDA1 7 D/A 10bit IIC_DATA1 AUDIO MUTE SDA0A 88 ROM PORT_C D/A 8bit SCL0B OSD 9 G05 D1119 CVBS0 142 HPD2 HPD1 195 196 185 HDMI 5V DET2 HDMI 5V DET1 198 OSCXO 4 5 61 59 33 38 (SERIAL) TC- TCLK- 25 TA- 24 20 31 30 TE- TD- TD+ IC4036 DATA 13 LVDS TRANSMITTER(10bit) 23 /PDWN 29 GOE0~GOE9 12 55 TE+ TB- 19 TC+ CLKIN TC5 18 22 28 LVDS TCLK+ TTL 57 21 BOE0~BOE9 TB+ TC4 TA+ 8 PARALLEL 63 40 62 42 6 11 64 9 1 ROE0~ROE9 44 46 48 50 52 54 DIGITAL SIGNAL PROCESSOR HDMI INTERFACE DG MICOM IC1103 MAIN MICOM TH-50PX60U DG-Board (3 of 3) Block Diagram TH-50PX60U DG-Board (3 of 3) Block Diagram TH-50PX60U 89 14.20. DG-Board (1 of 8) Schematic Diagram AO_A14 AQ_D13 AQ_D3 EXTRG0 AQ_D5 PANEL_STATUS AQ_D2 AO_A11 SDA0A AO_A6 ECO_ON AQ_D7 AQ_D9 AQ_D4 AO_A12 AQ_D6 AQ_D10 AO_A19 AO_A18 AP_CE AO_A9 AQ_D15 AQ_D12 TV_SUB_ON AO_A8 AO_A10 AP_OE AQ_D0 AO_A15 AQ_D11 AQ_D14 AO_A3 PANEL_SOS AP_WE AO_A17 AO_A4 AQ_D8 AO_A1 AO_A13 AQ_D1 AO_A5 AO_A2 AO_A16 AO_A7 DISPEN PANEL_STBY_ON STBY5V PANEL_SCL1 PANEL_SDA1 D_STB3R3V D_IIC_CONT D_SCL2 D_SDA2 D_TXD D_RXD D_IIC_INT D_15V D_PSTB D_PBUSY D_PDB0 D_PSLCT D_PDB1 RIMOCON R_LED G_LED SCL0A AO_A0 TP1108 R1101 100 STBY3.3V STBY3.3V R1124 3.3k C1106 10V 1u STBY3.3V TP1104 STBY5V R1123 4.7k R1102 1k R1459 100 TP1101 DG3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 IC1101 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 NC 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 L1101 J0JHC0000078 R1117 0 C1227 50V 100p R1454 0 C1111 10V 0.1u Q1137 B1ABDF000034 R1103 1k R1408 10k TP1102 TP1103 R1122 22 R1125 3.3k IC1102 1 E0 2 E1 3 E2 4 Vss 5 SDA 6 SCL 7 /WP 8 Vcc C1116 10V 0.1u R1413 100k R1116 5.6k R1412 100k C1226 6.3V 10u R1113 3.3k TP1105 R1458 100 R1121 22 R1105 1k IIC_CLK1 DISPEN FANMAX ECO_ON GND GND FANSOS PANEL_STB_ON STB5V GND GND IIC_DATA1 INEXCH READY ALL_OFF GND Tuner_Sub_ON ALARM Panasonic_Mode AC_GOOD TVRN840S TVRN846S F 5 3 C D B 9 7 1 6 4 E 2 8 A (D3) D-BOARD TO D_STB3R3V D_IIC_CONT D_SCL2 D_SDA2 D_TXD D_RXD D_IIC_INT REMOCON R_LED G_LED D_15V D_PSTB D_PBUSY D_PDB0 D_PSLCT D_PDB1 EEPROM 4M FLASH ROM 10 9 4 6 7 1 5 3 8 2 DG-BOARD TNPA3903BCS (1/8) TH-50PX60U DG-Board (1 of 8) Schematic Diagram TH-50PX60U DG-Board (1 of 8) Schematic Diagram TH-50PX60U 90 14.21. DG-Board (2 of 8) Schematic Diagram + + AO_A8 R_LED_STBY_LED DTV_SCL0B GENX_R2 SDA0A AQ_D15 LVDS_PD GENX_G0 AO_A12 EXTRG0 GENX_R1 GENX_B1 SDA1 DTV_SDA0B AP_WE KEY1 GENX_HIN GENX_R3 AUDIO_MUTE AQ_D2 SD_BOOT SCL0A SDATA AQ_D9 AO_A2 AQ_D4 AO_A19 GENX_G2 SCL2 SCL1 AO_A5 AO_A14 AO_A1 AQ_D14 PANEL_SOS AP_OE AQ_D5 PANEL_SDA1 AO_A3 SCL1 GENX_G3 SCLOCK AO_A17 SDA0B DTV_SDA0B AQ_D10 GENX_B2 PANEL_STATUS AO_A16 AQ_D12 GENX_B0 DTV_SCL0B AQ_D0 AO_A6 KEY3_KEY_EDGE GENX_YS AQ_D11 DTV_RST AQ_D7 SW_OFF_DET(EMERGENCY_RST) FORMAT_EDGE(MAIN) AO_A10 RST AQ_D8 SOS SDA1 DISPEN GENX_R0 AQ_D3 ECO_ON GENX_YM HDMI_DAC_PD AQ_D1 GENX_B3 FAN_MAX GENX_CLKIN GENX_VIN AQ_D13 AO_A15 A_MON_MUTE_MSP_RESET FAN_SOS AP_CE AQ_D6 AO_A9 GENX_G1 GENX_R4 AO_A18 AO_A7 AO_A11 AO_A4 AO_A13 SRQ MCU_RST TV_SUB_ON TV_SUB_ON SDA2 M_SDA0 HPD2 DTV_TXD DTV_RXD HDMI_INT STB1.5V MCU_RST HDMI_5V_DET2 HDMI_WP HPD1 HDMI_RST SCL0B DTV_1.5V_ON RM_IN RST GENX_B4 GENX_G4 GENX_G5 GC_RST TV_MAIN_ON TV_MAIN_ON SOUND_SOS AO_A0 PANEL_STBY_ON HDMI_A_MUTE STBY3.3V DTV_1.5V_ON PANEL_SCL1 SW_OFF_DET(EMERGENCY_RST) KEY3_KEY_EDGE MAIN_SW AFT1 CVBS1 CVBS0 DTV_BUS_CONNECT1 HDMI_CEC HDMI_5V_DET1 R1217 100 R1406 470k C1153 4V 100u C1123 10V 0.1u R1293 100k R1161 1k R1357 10 Q1108 B1ABDF000034 PA1101 K5H8012A0023 SUB5V R1453 47k Q1116 B1ABDF000034 R1184 0 C1167 10V 1u R1332 100k R1319 2.7k R1159 12k C1149 10V 0.1u R1200 EXB2HV680JV C1170 10V 0.1u R1206 47k R1356 10 L1104 J0JHC0000078 C1156 50V 22p STBY5V C1197 50V 100p C1134 50V 15p R1478 68 Q1111 B1ABDF000034 R1270 22 R1167 100 R1322 10 C1193 6.3V 10u R1130 47k C1148 10V 0.1u R1134 1k C1119 10V 0.1u C0EBF0000354 IC1108 4 OUT 3 CD 1 VSS 2 VDD MAIN3.3V R1249 47k C0EBY0000041 IC1111 1 VIN 2 VSS 3 ON/OFF 5 VOUT 4 VDOUT TP1110 SUB3.3V R1147 EXB2HV560JV R1221 3.3k C1140 10V 0.1u R1315 33k R1367 33k R1256 1k R1310 22 R1236 2.7k R1131 100 JS1102 ERJ2GE0R00X R1338 47k C1139 10V 0.1u D1119 MA3X704A0L R1198 47k STBY5V R1230 22 MAIN3.3V JS1100 ERJ2GE0R00X R1215 100 R1177 100 R1308 27k D1113 MA2J11100L R4903 0 R1275 7.15k D1106 MA2J72900L R1464 47k Q4919 B1ABDF000034 R1165 15k R1132 100 R1218 68 R1153 100 C1132 10V 0.1u C1135 10V 0.1u R1316 10k R1154 4.7k Q1107 B1ABDF000034 R1171 100 C1152 10V 0.1u R1239 12k R1400 10k R1264 100 D1111 MA2J11100L R1384 0 R1283 100 R1203 1k C1157 50V 22p Q4920 2SA207700L R1303 22 R1150 100 R1388 56k Q1101 B1ABDF000034 MAIN3.3V R1342 47k R1176 12k R1280 22 R1251 EXB2HV101JV SUB9V R1246 9.1k R1250 220k R1182 68k L1103 J0JHC0000078 R1190 47k R1368 18k R1228 22 Q1106 B1ABDF000034 R1527 47k R1189 47k R1164 12k R1390 56k C1131 10V 0.1u STBY3.3V R1410 1k R1296 47k R1328 68k R1133 1k R1290 4.7k X1100 H0J100500030 Q1139 B1ABDF000034 C1221 50V 1000p R1281 1k JS1101 ERJ2GE0R00X Q1125 2SA207700L C1133 50V 15p C0CBCAD00016 IC1110 1 Vcont 2 GND 3 Np 5 Vin 4 Vout C1129 10V 0.1u C1146 10V 0.1u C1178 10V 1u R1524 47k C1155 16V 0.01u R1166 100 Q1102 B1ABDF000034 C1171 10V 0.1u R1271 22 R1268 0 R1234 0 R1324 82k C1150 10V 0.1u R1318 2.7k Q1140 B1ABDF000034 D1107 MA2J72900L R1297 47k R1157 100 C1138 10V 0.1u Q1109 B1CBHD000002 R1467 47k D1112 MA2J11100L SUB5V R1145 100 R1470 0 R1330 47k R1405 470k C1159 10V 0.1u C1190 50V 1000p R4904 6.8k C1172 10V 0.1u R1306 22 C1121 10V 0.1u C1142 10V 0.1u R1313 2.7k TP1107 C1224 10V 0.1u R1304 22 MN103SC50RGL IC1103 1 - 2 - 3 - 4 - 5 - 6 - 7 IVSS 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 IVDD 17 - 18 - 19 - 20 - 21 MVSS 22 MVDD 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 IVDD 31 - 32 IVSS 33 - 34 - 35 - 36 - 37 - 38 - 39 - 40 - 41 - 42 - 43 - 44 - 45 - 46 - 47 - 48 IVSS 49 IVDD 50 - 51 - 52 - 53 - 54 VSS 55 VDD 56 - 57 - 58 - 59 - 60 - 61 - 62 - 63 - 64 A17 65 A16 66 A15 67 A14 68 - 69 - 70 - 71 - 72 - 73 IVDD 74 IVSS 75 A20 76 A21 77 NWE0 78 A22 79 A19 80 A18 81 RTCCNT 82 - 83 - 84 - 85 IVSS 86 - 87 - 88 IVDD 89 - 90 - 91 - 92 A2 93 NRE 94 NCS0 95 ZA1 96 VSS 103 SCL1 104 NTEST 105 HSYNC 106 IVSS 107 OSDXI 108 IVDD 118 G04 119 G03 120 G02 121 - 122 - 123 B04 124 B03 125 B02 126 B01 127 IVSS 128 - 129 IVDD 130 - 131 - 132 SDA0A 133 SCL0A 134 VSS 135 RTCXI 136 RTCXO 137 VDD 138 RMIN_IRQ0 139 ROMCNT 140 TEST 141 AVSS1 142 CVBS0 143 AVDD1 144 VREFL0 145 VREFH0 146 VCMO0 147 IREF0 148 VCMO1 149 VREFH1 150 VREFL1 151 CVBS1 152 AVSS2 153 AVDD2 154 PVDD 155 CLL 156 CLH 157 PVSS 158 IVSS 159 - 160 - 161 - 162 - 163 ADIN4 164 ADIN5 165 CECINA 166 CECINB 167 IVSS 168 OSCXO 169 OSCXI 170 IVDD 171 TRCD3 184 - 185 - 186 - 187 - 188 - 189 - 190 - 191 IVDD 192 IVSS 193 - 194 - 195 - 196 - 197 - 198 - 199 - 200 - 201 IVDD 202 IVSS 203 MVSS 204 MVDD 205 - 206 - 207 - 208 - 209 - 210 - 211 - 212 - 213 IVSS 214 IVDD 215 - 216 - 109 - 111 YSOUT 113 R03 115 R01 117 G05 110 - 112 R04 114 R02 116 - 172 TRCD2 173 TRCD1 174 TRCD0 181 VSS 182 VDD 183 - 97 NRST 98 VDD 99 PSCNT 100 SDA2 101 SCL2 102 SDA1 175 TRCST 176 TRCCLK 177 EXTRG1 178 EXTRG0 179 SDATA 180 SCLOCK STBY3.3V C1137 10V 0.1u R1292 100k R1225 22 IC1106 C0JBAS000128 1 1A 2 1B 3 2B 4 2A 5 2C 6 3C 7 GND 8 3A 9 3B 10 4B 11 4A 12 4C 13 1C 14 Vcc STBY3.3V R1263 100 X1101 H0J327200114 C1144 10V 0.1u R1214 47k R1187 EXB2HV680JV R1158 27k D1120 MA2J72800L R1466 10k C1130 10V 0.1u R1409 47k C1145 10V 0.1u R1135 10k R1232 3.3k R1174 100 R1222 33 R1326 100k R1137 100 C1158 10u 6.3V R1375 100k R1216 100 R1449 47k R1479 47k R1411 47k SUB3.3V R1307 100k STBY5V R1269 0 R1224 47k C1128 10V 0.1u SUB5V R1197 47k C1127 10V 0.1u R1199 47k R1129 47k C1136 10V 0.1u Q1141 B1ABDF000034 Q1110 B1CBHD000002 R1168 0 Q1142 B1ABDF000034 R1372 47k R1530 0 Q1103 B1ABDF000034 C1151 50V 100p Q1100 B1ABDF000034 R1181 100 R1207 100k R1220 68 R1346 47k R1386 100k IC1105 C0JBAS000128 1 1A 2 1B 3 2B 4 2A 5 2C 6 3C 7 GND 8 3A 9 3B 10 4B 11 4A 12 4C 13 1C 14 Vcc R1235 2.7k C1154 10V 0.1u Q1114 B1ABDF000034 R1311 22 R1223 1k R1233 3.3k R1321 15k R1526 1k R1175 56k D1109 B0JCCE000008 TP1106 R1309 22 STBY3.3V R1363 47k R1376 27k R1387 10k L1107 J0JHC0000078 C1194 6.3V 10u C1161 10V 1u C1169 4V 100u C1125 10V 0.1u R1231 47k C1141 10V 0.1u R1155 4.7k C1147 10V 0.1u R4905 1.5k R1312 22 C1122 10V 0.1u R1305 22 R1241 8.2k R1188 10k L1102 J0JHC0000078 R1252 EXB2HV101JV R1238 47k STBY5V R1279 22 R1343 560 R1183 EXB28V680JX R1156 100k STBY5V R1148 EXB2HV560JV C1120 10V 0.1u R1314 2.7k R1259 100 R1226 22 C1118 10V 0.1u SUB3.3V R1528 100 R1229 0 R1282 47k C1168 10V 1u YMOUT0 MEMD5/D5/IRQ6A STB5V(SUB5V BACKUP) HOUTA A4/MEMA1 ADIN3 ADIN1 MEMD28/D28 MEMD6/D6/IRQ7A A10/MEMA7 ADIN0 SCL0B MEMD19/D19 MEMD30/D30 ZMEMD20/IRQ5B ZMEMD18/IRQ3B MEMD10/D10 MEMD20/D20 G01 A11/MEMA8 STB5V MEMD8/D8 SUB5V A7/MEMA4 A8/MEMA5 ZMEMD21/IRQ6B ZMEMD23/IRQ8B MEMD29/D29 MEMD7/D7/IRQ8A (Euro:key EDGE) MEMD27/D27 SDBS1/A1 VSYNC MEMD25/D25 MEMD31/D31 MEMD16/D16 ZMEMD19/IRQ4B SDA0B ZMEMD22/IRQ7B A6/MEMA3 B00 MEMD17/D17 L1 G00 MEMD18/D18 MEMD21/D21 MEMD11/D11 VCLKOUTA ADIN2 MEMD24/D24 A5/MEMA2 A9/MEMA6 R00 MEMD22/D22 MEMD1/D1/IRQ2A ZMEMD16/NCS2B MEMD23/D23 MEMD4/D4/IRQ5A MEMD0/D0/NCS2A ZMEMD17/IRQ2B MEMD26/D26 MEMD15/D15 MEMD2/D2/IRQ3A MEMD14/D14 MEMD3/D3/IRQ4A A12/MEMA9 L1 MEMD13/D13 A13/MEMA11 MEMD9/D9 MEMD12/D12 A3/MEMA0 (ALL OFF) 16 10 14 15 11 13 18 17 12 MAIN MICOM RESET SWITCHING STB 3.3V RESET SWITCHING STB 1.5V 8 9 10 24 23 22 21 25 1 3 5 7 2 6 4 28 26 27 29 30 DG-BOARD (2/8) TNPA3903BCS STBY3.3V STBY5V STBY5V TH-50PX60U DG-Board (2 of 8) Schematic Diagram TH-50PX60U DG-Board (2 of 8) Schematic Diagram TH-50PX60U 91 14.22. DG-Board (3 of 8) Schematic Diagram + + + + + + + CVBS0 MAIN_Y/CVBS RST SDA0B SCL0B SDA1 SCL1 HDMI_L HDMI_R MAIN_PR MAIN_PB/C BS_Y(V) MAIN_R MAIN_L BS_SL BS_C TV_MAIN_ON TV_SUB_ON SOS SOUND_SOS SL SL_GND SR SR_GND SL SL_GND SR SR_GND SCL1 SDA1 SOS ATV_SR ATV_SL D_STB3R3V D_IIC_CONT D_SCL2 D_SDA2 D_TXD D_RXD D_IIC_INT SCL0A SDA0A SCL2 SDA2 SCL0B SDA0B SCL1 SDA1 SRQ AFC2_AFT2_SUB-MUTE PSM_LEDR_AFC1_KEY2 AI_SENSOR KEY1 RM_IN G_LED_POWER R_LED_STBY_LED DTV_SCL0B DTV_SDA0B FAN_SOS FAN_MAX R_LED G_LED RIMOCON D_PSTB D_PBUSY D_PDB0 D_PSLCT D_PDB1 D_15V DTV_TXD DTV_RXD KEY3_KEY_EDGE VIDEO_OUT AV_SW_POWER_SW AUDIO_MUTE A_MON_MUTE_MSP_RESET MAIN_Y/CVBS BS_SR TP1120 C1232 47u 16V R1429 0 TP1113 R1426 0 TP1115 C1228 47u 16V R1446 470 C1233 47u 16V SUB9V R1377 0 DG20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 R1436 560 TP1114 L1109 J0JHC0000078 DG 15 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 R1352 47k TP1117 R1351 100 R1354 100 R1434 470 C1234 47u 16V TP1118 SUB5V C1230 47u 16V R1333 100 TP1116 MAIN3.3V C1229 47u 16V JS4118 ERJ2GE0R00X Q1134 B1ABDF000034 STBY5V R1432 0 R1430 0 R1428 0 R1431 0 TP1119 D1117 B0BC3R5A0163 MAIN1.8V DG2 1 2 3 4 5 6 7 8 9 10 11 BT30V MAIN5V C1209 10V 1u SUB3.3V STBY3.3V C1211 50V 470p R1440 240 R1474 0 C1219 16V 10u DG1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 STBY5V R1438 68 R1472 220 Q1130 B1ABDF000034 R1427 0 MAIN9V TP1112 C1231 47u 16V C1215 50V 560p R1433 0 SUB9V MAIN1.8V(1.2A) SOUND_SOS MAIN9V SUB5V BT30V MAIN1.8V(1.2A) AUDIO_MUTE ODU_ON/OFF SUB9V 3.1V MAIN_Y/V SUB9V MAIN3.3V(2A ) Tuner_Main_ON SUB3.3V PA_SOS MAIN5V ODU +B 17.5V / 0.27A MAIN3.3V(2A ) TUNER_SUB_ON SCL1(Main3.3V) SDA1(Main3.3V) 26 20 21 22 19 24 23 27 25 TO HC-BOARD (HC-15) D_PSLCT D_PDB1 D_IIC_CONT D_TXD REMOCON D_STB3R3V D_PSTB D_BUSY G_LED SCL0A D_RXD D_SCL2 D_PDB0 D_SDA2 D_15V R_LED D_IIC_INT SRQ SDA0A SDA0B SCL0B SCL1 SDA1 SCL2 SDA2 SBI1 SBO1 BA_SCL0 BA_SDA0 TO H-BOARD (H1) HDMI_SR HDMI_SL SUB_Y SUB_PB SUB_PR MAIN_Y MAIN_PB MAIN_PR/B PC_R PC_G PC_B PC_HS PC_VS MAIN_L MAIN_R BS_SL BS_SR (DVB_Y)BS_Y(V) (DVB_C)BS_C ATV_SR ATV_SL VIDEO_OUT MAIN_Y SL SL SR SR SOS AV-SW POWER SW A MON MUTE /MSP.RESET RST SCL0B SDA0B SCL1 SDA1 SUB3.3V BT30V TO PA-BOARD (PA20) SL SR FAN_SOS FAN_MAX SUB9V SUB5V MAIN5V MAIN3.3V(2A ) STBY5V R_LED_ON KEY1 KEY2 KEY3 AFC2/AFT2 AI_SENSOR RM_IN (H2) TO H-BOARD 28 26 24 25 27 22 23 21 29 30 46 45 42 43 41 44 47 48 49 G_LED_POWER DG-BOARD TNPA3903BCS (3/8) TH-50PX60U DG-Board (3 of 8) Schematic Diagram TH-50PX60U DG-Board (3 of 8) Schematic Diagram TH-50PX60U 92 14.23. DG-Board (4 of 8) Schematic Diagram + Thermal Pad + + + UVIN0 RIN3 UVIN1 RIN2 YIN5 UVIN7 RIN1 YIN4 UVIN6 RIN0 YIN3 UVIN5 YIN6 UVIN2 UVIN4 UVIN3 CLKOA CLKIA SCL2 YIN2 SDA2 YIN0 UVIN9 YIN1 UVIN8 HSIA YIN7 YIN8 YIN9 REFCK_ADV MAIN_Y/CVBS MAIN_PB/C MAIN_PR TV_MAIN_ON GC_RST VSIA C4262 10V 0.1u C4218 50V 1000p C4256 10V 0.1u R4552 EXB28V220JX C4215 10V 0.1u C4219 10V 0.1u C4190 10V 0.1u JS4111 ERJ3GEY0R00V R4482 1.78k R4497 1k C4173 16V 0.1u R4522 22 C4204 10V 0.1u SUB9V R4520 1.69k C4263 10V 0.1u R4501 1k Q4058 2SA207700L R4495 43k C4206 16V 0.1u MAIN5V R4542 0 C4209 10V 0.1u C4201 16V 0.01u C4174 10V 0.1u C4191 10V 0.1u C4208 10V 0.1u R4498 1k R4481 2.2k R4555 EXB28V220JX R4508 0 R4024 0 C4205 16V 0.1u R4540 0 R4488 2.2k R4001 1.21k C4217 16V 0.1u JS4017 ERJ2GE0R00X L4031 J0JHC0000078 C4159 16V 0.1u JS4024 ERJ2GE0R00X C4273 10V 0.1u R4533 22 R4554 22 MAIN3.3V R4507 0 R4510 0 TP4030 C4253 47u 6.3V C4266 16V 0.01u Q4056 2SA207700L R4568 100 IC4013 C0CBCBF00009 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 NC 7 NC 8 VIN R4513 0 C4175 16V 0.1u MAIN3.3V C4185 6.3V 10u R4517 1.37k R4047 0 R4004 0 R4025 0 C4211 10V 0.1u R4502 1k C4264 10V 0.1u R4521 22 C4235 16V 0.01u R4465 220k C4272 47u 6.3V C4188 10u 6.3V R4483 1.78k C0CBCAC00275 IC4016 1 VDD 2 GND 3 CE 5 VOUT 4 NC Q4057 2SA207700L C4186 6.3V 10u R4561 EXB28V220JX C4171 50V 470p C4176 6.3V 2.2u R4008 0 L4029 J0JHC0000078 JS4022 ERJ2GE0R00X C4245 10V 0.1u MAIN9V R4474 1.21k C4160 10V 0.1u R4563 22 C4228 16V 0.01u L4038 J0JHC0000078 C4158 10V 1u Q4059 2SA207700L R4496 1k R4503 160 R4469 150 C4200 47u 6.3V R4560 EXB28V220JX R4527 22 C4180 16V 0.1u C4199 16V 0.01u C1AB00002456 IC4019 1 P32 2 P31 3 INT 4 CS/HS 5 DGND 6 DVDDIO 7 P15 8 P14 9 P13 10 P12 11 DGND 12 DVDD 13 P29 14 P28 15 SFL/SYNC_OUT 16 SCLK2 17 DGND 18 DVDDIO 19 SDA2 20 P11 21 P10 22 P9 23 P8 24 P27 25 P7 26 P6 27 P5 28 P4 29 P26 30 R_ACTIVE/P25 31 SRLIN/P24 32 SRLUP/P23 33 TRGIN/P22 34 P21 35 MEI_CK/DCLK_IN 36 BLC/LLC1 37 XTAL1 38 XTAL 39 DVDD 40 DGND 41 P3 42 P2 43 P1 44 P0 45 P20 46 ELPF 47 PVDD 48 PVDD 49 AGND 50 AGND 51 FB 52 SOG 53 AIN7 54 AIN1 55 AIN8 56 AIN2 57 AIN9 58 AIN3 59 ELPF2 60 AGND 61 CAPY1 62 CAPY2 63 AVDD 64 REFOUT 65 CML 66 AGND 67 BIAS 68 CAPC1 69 CAPC2 70 TEST0 71 AIN10 72 AIN4 73 AIN11 74 AIN5 75 AIN12 76 AIN6 77 SOY 78 RESET 79 DE_IN 80 ALSB 81 SDA 82 SCLK 83 P40 84 P39 85 VS_IN 86 HS_IN 87 P38 88 P37 89 DGND 90 DVDD 91 P19 92 P18 93 P17 94 P16 95 P36 96 P35 97 P34 98 FIELD/DE 99 VS 100 P33 R4544 22 C4172 16V 0.1u JS4016 ERJ2GE0R00X R4500 27k R4509 0 R4512 0 TP4029 C4248 10V 0.1u R4564 22 R4487 560 C4178 16V 0.039u R4499 1k C4224 10V 0.1u R4480 422 C4189 10V 0.1u Q4050 B1ABDF000034 R4550 EXB28V220JX C4168 50V 68p C4216 47u 6.3V R4565 22 C4269 10V 1u C4244 10V 1u L4023 J0JHC0000078 C0CBCAC00275 IC4018 1 VDD 2 GND 3 CE 5 VOUT 4 NC C4544 16V 1u R4511 0 C4165 10V 0.1u C4227 16V 0.082u L4073 J0JHC0000078 TP4028 JS4023 ERJ2GE0R00X C4177 16V 0.68u MAIN1.8V Y Xtal1; Left as NC SYS_RST(L_3.3V) 36 32 30 29 34 35 31 33 28 10bit A/D(ADV7499) AD 3.3V 1.8V AVR 1.8V AVR 1.8V PB PR 65 66 67 64 63 68 62 61 42 47 46 48 41 43 49 45 44 MAIN DG-BOARD TNPA3903BCS (4/8) TH-50PX60U DG-Board (4 of 8) Schematic Diagram TH-50PX60U DG-Board (4 of 8) Schematic Diagram TH-50PX60U 93 14.24. DG-Board (5 of 8) Schematic Diagram + + + Thermal Pad + + SCL1 HPD1 HDMI_DAC_PD UBIN3 UBIN2 UBIN9 YBIN6 UBIN0 YBIN2 UBIN7 YBIN4 HDMI_5V_DET2 HDMI_5V_DET2 UBIN6 HDMI_5V_DET1 VSIB AP_DE SDA1 YBIN3 UBIN1 HSIB YBIN7 YBIN0 UBIN5 YBIN9 UBIN4 UBIN8 YBIN5 HPD2 HPD2 YBIN8 DDC_SDA0 DDC_SCL0 DDC_SCL1 DDC_SDA1 MAIN1.8V YBIN1 MAIN3.3V CLKINB2 HDMI_L HDMI_R HDMI_WP HDMI_RST REFCK_HDMI HDMI_CEC HDMI_INT R4605 10k D4049 B0HCMM000014 C4304 1u 10V L4050 J0JHC0000078 D4024 EZJZ0V80008B R4901 100 C4341 16V 47u C0DBFFD00003 IC4027 1 2 3 4 5 6 7 R4593 2.2 R4631 4.7k R4101 10k C4336 0.1u 10V R4655 33 R4589 2.2 R4271 0 R4272 0 Q4068 B1ABDF000034 C4354 0.01u 16V R4600 2.2 C4026 0.1u 10V C4299 1u 10V D4027 EZJZ0V80008B R4622 56 Q4066 B1ABDF000034 D4025 EZJZ0V80008B R4673 10k R4668 68 C4315 6.3V 10u R4604 2.2 C4307 0.1u 10V C4349 16V 0.01u R4642 22 C4301 1u 10V 33u 6.3V C4290 R4680 22k D4023 EZJZ0V80008B C4343 16V 10u D4029 EZJZ0V80008B C1AB00002535 IC4026 1 DE 2 HSYNC 3 VSYNC 4 IOGND 5 IOVCC 6 NC 7 NC 8 NC 9 EVNODD 10 NC 11 NC 12 NC 13 NC 14 NC 15 IOGND 16 IOVCC 17 NC 18 NC 19 NC 20 NC 21 CGND 22 CVCC18 23 CVCC18 24 CGND 25 IOGND 26 IOVCC 27 CSDA 28 CSCL 29 DSDA1 30 DSCL1 31 DSDA0 32 DSCL0 33 R1PWR5V 34 R0PWR5V 35 CVCC18 36 CGND 37 PVCC0 38 AVCC 39 R0XC- 40 R0XC+ 41 AGND 42 AVCC 43 R0X0- 44 R0X0+ 45 AGND 46 AVCC 47 R0X1- 48 R0X1+ 49 AGND 50 AVCC 51 R0X2- 52 R0X2+ 53 AGND 54 TMDSPGND 55 PVCC1 56 RSVD_A 57 AVCC 58 R1XC- 59 R1XC+ 60 AGND 61 AVCC 62 R1X0- 63 R1X0+ 64 AGND 65 AVCC 66 R1X1- 67 R1X1+ 68 AGND 69 AVCC 70 R1X2- 71 R1X2+ 72 AGND 73 CGND 74 CVCC18 75 IOGND 76 IOVCC 77 MUTEOUT 78 SPDIF 79 CVCC18 80 CGND 81 NC 82 NC 83 NC 84 SD0 85 WS 86 SCK 87 NC 88 MCLK 89 IOVCC 90 IOGND 91 CGND 92 CVCC18 93 NC 94 AUDPVCC18 95 AUDPGND 96 XTALOUT 97 XTALIN 98 XTALVCC 99 REGVCC 100 NC 101 RSVDL 102 RESET# 103 SCDT 104 INT 105 CVCC18 106 CGND 107 CLK48B 108 IOGND 109 IOVCC 110 Q23 111 Q22 112 Q21 113 Q20 114 CVCC18 115 CGND 116 Q19 117 Q18 118 Q17 119 Q16 120 IOGND 121 ODCK 122 IOVCC 123 Q15 124 Q14 125 Q13 126 Q12 127 CGND 128 CVCC18 129 Q11 130 Q10 131 Q9 132 Q8 133 Q7 134 IOVCC 135 IOGND 136 Q6 137 Q5 138 CGND 139 CVCC18 140 Q4 141 Q3 142 Q2 143 Q1 144 Q0 R4603 2.2 R4595 2.2 D4048 MAZ30560ML R4286 0 D4021 EZJZ0V80008B L4046 J0JHC0000078 IC4023 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC R4620 56 L4043 J0JHC0000078 C4309 0.1u 10V R4645 22 JS4104 C4284 0.1u 10V MAIN3.3V R4596 2.2 R4633 22 TP4033 R4629 4.7k R4636 10k R4584 39 Q4070 B1MBACA00008 G1 D1 S1 G2 D2 S2 C4298 1u 10V R4682 33k TP4064 L4076 J0JHC0000078 R4010 0 C4303 1u 10V D4051 B0HCMM000014 C4306 1u 10V C4331 6.3V 10u R4630 4.7k D4026 EZJZ0V80008B R4643 22 R4610 10k D4034 EZJZ0V80008B D4035 EZJZ0V80008B R4027 1k L4040 J0JHC0000078 C4313 0.1u 10V C4541 0.1u 10V R4045 0 C4345 10u 6.3V C4322 0.1u 10V R4032 10k C4335 0.1u 10V C4311 0.1u 10V Q4083 2SK137400L R4026 1k R4621 47k DG8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 C4332 1u 10V C4283 0.1u 10V TP4036 C4281 0.1u 10V C4320 0.1u 10V R4679 22k R4594 2.2 C4348 16V 47u R4628 10k MAIN5V L4044 J0JHC0000078 R4639 10k R4669 EXB2HV220JV C4325 0.1u 10V R4640 22 R4591 2.2 R4634 22 R4602 2.2 D4045 EZJZ0V80008B R4665 EXB2HV220JV R4590 2.2 DG9 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 C4351 50V 180p R4040 0 R4657 1.8k Q4082 2SK137400L C4318 0.1u 10V TP4032 R4601 2.2 L4048 J0JHC0000078 C4292 0.1u 10V C4334 0.1u 10V C4339 2.2u 6.3V R4648 33 D4038 EZJZ0V80008B R4606 10k D4052 B0HCMM000014 TP4034 R4626 56 D4022 EZJZ0V80008B C4287 0.1u 10V C4308 0.1u 10V R4677 18k C4342 0.1u 10V Q4071 B1MBACA00008 G1 D1 S1 G2 D2 S2 C4288 0.1u 10V C4352 50V 33p R4619 47k R4662 22 D4047 MAZ30560ML R4624 56 R4641 EXB28V330JX C4317 0.1u 10V D4020 EZJZ0V80008B D4031 EZJZ0V80008B D4019 EZJZ0V80008B R4681 33k R4597 2.2 C4327 0.1u 10V R4583 39 L4071 J0JBC0000080 C4353 50V 33p R4599 2.2 C4296 6.3V 10u D4041 EZJZ0V80008B R4617 4.7k L4075 J0JHC0000078 L4042 J0JHC0000078 R4658 22 IC4022 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC TP4031 Q4067 B1ABDF000034 C4316 0.1u 10V TP4065 D4033 EZJZ0V80008B R4637 33 R4900 100 R4613 4.7k D4044 EZJZ0V80008B L4078 J0JHC0000078 C4337 0.1u 10V L4052 J0JHC0000045 D4050 B0HCMM000014 R4632 4.7k C4297 0.1u 10V Q4069 B1ABDF000034 33u 6.3V C4289 L4045 J0JHC0000078 C4350 50V 180p R4647 22 R4672 10k L4041 J0JHC0000078 C4340 470p 50V TP4067 C4314 0.1u 10V D4028 EZJZ0V80008B Q4084 B1ABDF000034 C4300 1u 10V C4329 0.1u 10V C4302 1u 10V R4598 2.2 L4049 J0JBC0000080 C4347 1u 10V D4030 EZJZ0V80008B D4037 EZJZ0V80008B R4612 4.7k C4282 0.1u 10V C0FBBK000047 IC4025 1 MCLK 2 BICK 3 SDTI 4 LRCK 5 PDN 6 SMUTE/CSN 7 ACKS/CCLK 8 DIF0/CDTI 9 P/S 10 AOUTR 11 AOUTL 12 VCOM 13 VSS 14 VDD 15 DZFR 16 DZFL C4344 10u 6.3V TP4068 C4333 0.1u 10V C4330 0.1u 10V R4644 22 C4305 1u 10V C4291 0.1u 10V L4051 J0JHC0000078 R4661 4.7k C4321 0.1u 10V R4607 22 C4346 0.1u 10V Q4065 B1ABDF000034 C4310 0.01u 16V TP4035 R4609 10k R4031 10k R4675 18k C4338 0.1u 10V D4032 EZJZ0V80008B R4592 2.2 R4667 EXB2HV220JV IC4028 C0ABBB000230 1 2 3 4 5 6 7 8 MAIN9V D4036 EZJZ0V80008B R4618 4.7k DDCG CEC D0+ CLKG D2- DDCG CEC D2+ GND +5V Cn D0+ CLK+ D0G D1- HDMI_SCL D1+ D2G L CLKG HDMI_SDA HDMI_Y0 HDMI_Y1 - HDMI_Y2 N.C. 1 5 D2- HPDT 1 R 3 D1G 4 HDMI_Y3 2 D0- 6 3 HDMI_Y4 +5V HDMI_Y5 + H=Mute/L=Normal L - SDA SCL CLK- HDMI_UV0 HDMI_UV2 NC 6 HDMI_Y6 D1G HDMI_UV6 HDMI_Y7 HDMI_CLK RX_MCLK RX_SCK R RX_WS HDMI_L_AUDIO + HDMI_R_AUDIO SDA Vin sub SCL HDMI_UV4 CLK- HDMI_UV3 CONT RX_SD0# HDMI_UV5 Vo HDMI_UV1 4 HDMI_UV7 D0- 5 HIGH:MUTE HDMI_VS 2 HDMI_DE HDMI_HS D2+ N.C. CLK+ HPDT D0G D1- D1+ D2G G D S S G D TVRN856S 37 43 45 44 39 41 40 38 42 HDMI IN 2 HDMI IN 1 EEPROM AUDIO DAC AUDIO AMP HDMI I/F RECEIVER EEPROM MAIN 1.8V 64 68 67 61 65 66 62 85 82 87 81 84 86 83 63 TVRN857S DG-BOARD TNPA3903BCS (5/8) TH-50PX60U DG-Board (5 of 8) Schematic Diagram TH-50PX60U DG-Board (5 of 8) Schematic Diagram TH-50PX60U 94 14.25. DG-Board (6 of 8) Schematic Diagram + A_DDR_DQ2 CLKIA PEAKS-CIN6 A_DDR_DQ18 YBIN2 A_DDR_DQ1 VSIA CLKINB PEAKS-CIN2 A_DDR_DQ17 A_DDR_DQ0 YBIN4 CLKOA PEAKS-CIN5 UVIN0 A_DDR_DQ16 A_DDR_DQ19 YBIN7 PEAKS-CIN4 YIN1 A_DDR_DQ20 PEAKS-CIN7 RIN1 AP_DE A_DDR_DQ21 PEAKS-YIN0 UVIN1 VSIB A_DDR_DQ22 HSIA UVIN3 PEAKS-YIN1 A_DDR_RAS RIN0 YBIN1 HSIB RIN2 YIN9 A_DDR_WE PEAKS-YIN2 A_DDR_DQ23 YIN0 YBIN6 UBIN3 UVIN9 A_DDR_BA0 PEAKS-YIN3 RIN3 YBIN9 A_DDR_BA1 UBIN2 PEAKS-YIN4 YIN3 PEAKS-YIN5 UBIN7 YIN7 REFCK_ADV A_DDR_DQ25 PEAKS-YIN6 A_DDR_A8 UVIN6 A_DDR_DQ26 PEAKS-YIN7 YIN6 A_DDR_A7 JTAG_TRST A_DDR_NCLK A_DDR_DQ27 A_DDR_A5 YIN2 JTAG_TCK A_DDR_CLK A_DDR_DQ28 A_DDR_A6 A_DDR_DQ10 UBIN1 UVIN7 A_DDR_DQS1 A_DDR_DQ9 JTAG_TMS A_DDR_A1 REFCK_HDMI A_DDR_DQ29 A_DDR_DQS3 UBIN9 YIN5 A_DDR_A9 A_DDR_DQ30 A_DDR_DQS2 JTAG_FS_GC5 UVIN2 UBIN6 A_DDR_DQ8 A_DDR_A2 A_DDR_SDCKE UVIN4 PEAKS-CLKIN UBIN4 A_DDR_DQ15 A_DDR_A0 A_DDR_DQ24 A_DDR_CAS PEAKS-HIN A_DDR_DQ3 A_DDR_A4 UBIN8 A_DDR_DQ31 PEAKS-VIN A_DDR_A3 A_DDR_DQS0 A_DDR_DQ4 UBIN0 A_DDR_DQ14 UVIN5 A_DDR_A11 A_DDR_DQ5 UBIN5 A_DDR_DQ13 A_DDR_A10 UVIN8 A_DDR_DQ6 A_DDR_DQ12 YBIN0 PEAKS-CIN0 YIN8 A_DDR_DQ11 YBIN3 CLKINB2 PEAKS-CIN1 A_DDR_DQ7 YIN4 YBIN8 PEAKS-CIN3 GENX_VIN MAIN1.2V PEAKS_OSCKIN PEAKS_OSVIN PEAKS_OSHIN GENX_YS GENX_R4 GENX_R3 GENX_R1 GENX_G5 GENX_G3 GENX_B1 GENX_B3 GENX_G0 GENX_G2 GENX_G4 GENX_R0 GENX_R2 GENX_B2 GENX_B4 GENX_G1 GENX_YM YBIN5 GENX_HIN GENX_CLKIN GENX_B0 IC4037 E3 UVIB1 IC4037 AK15 DQ5 IC4037 AB5 VDD25 IC4037 AH8 A2 IC4037 D9 THQYO0 IC4037 E14 GND IC4037 M5 GND C4360 10V 1u IC4037 AB4 VDD25 IC4037 U17 VDD12 IC4037 AA1 VDD25 IC4037 AF26 VDD12 IC4037 N13 VDD12 IC4037 AJ15 DQ4 IC4037 U14 GND IC4037 AC2 DQ30 0.1u 10V C4382 IC4037 AF7 VDD25 IC4037 F5 VDD12 IC4037 AE5 AVSSCK IC4037 A9 FHQCKIN IC4037 AD4 GND IC4037 T19 VDD12 IC4037 P12 VDD12 IC4037 N17 GND IC4037 C10 FHQYIN7 IC4037 AJ4 CKE IC4037 AE2 DQ24 IC4037 F6 GND IC4037 AG15 GND 1u 10V C4399 0.1u 10V C4117 MAIN1.2V IC4037 Y1 GYIA7 IC4037 V18 VDD12 IC4037 AK4 A8 IC4037 Y5 GND IC4037 E9 GND IC4037 V2 GYIA2 IC4037 M16 GND IC4037 AF10 VDD25 C4367 10V 0.1u IC4037 A24 OSDYSI IC4037 AK9 WE 1u 10V C4391 IC4037 E27 UVIC4 IC4037 R18 GND 1000p 50V C4394 IC4037 AF5 AVSS_DDR IC4037 AK29 GND IC4037 T3 RVIA5 IC4037 AD27 CLKID2 IC4037 A20 OSDI8 IC4037 AG6 VDD25 IC4037 B2 GND IC4037 A17 CLKOD2 IC4037 AH24 GND IC4037 L4 TEST IC4037 E25 GND IC4037 E28 UVIC5 IC4037 T13 GND IC4037 AF1 DQS1 IC4037 D26 TDO IC4037 N5 GND IC4037 C27 YIC5 IC4037 B4 THQCO8 C4362 6.3V 10u IC4037 B23 OSDHSI IC4037 AD3 DQ26 IC4037 N2 RVIA1 IC4037 AK30 VDD12 IC4037 A25 ALPHAI0 R4711 10k IC4037 R2 BUIA4 IC4037 AK6 A11 IC4037 P3 RVIA3 IC4037 AC3 DQ28 IC4037 AJ12 DQ18 IC4037 AK11 DQS2 IC4037 T16 VDD12 IC4037 M26 GND IC4037 T14 GND IC4037 R1 BUIA5 IC4037 D25 TCK R4287 0 IC4037 L27 GND IC4037 H4 YIB1 1u 10V C4373 R4712 0 IC4037 AK14 DQS0 0.1u 10V C4374 R4719 68 C4363 10V 0.1u IC4037 AC5 AVSS_DDR IC4037 AC1 DQ29 IC4037 AJ1 VDD25 IC4037 B24 OSDYMI IC4037 N15 GND IC4037 AG23 GND IC4037 G26 GND IC4037 D28 UVIC1 IC4037 V15 GND IC4037 AD2 DQ27 IC4037 AH14 DQ7 IC4037 AK3 SDCLKO 1000p 50V C4402 1000p 50V C4393 1000p 50V C4380 0.1u 10V C4364 IC4037 D3 VDD12 IC4037 AG7 VDD25 IC4037 MN84522-A A1 GND IC4037 AH16 DQ0 R4038 EXB2HV103JV IC4037 T5 GND IC4037 AJ5 A5 IC4037 AH23 GND IC4037 AJ14 DQ6 IC4037 AE4 GND IC4037 V12 VDD25 IC4037 AK5 A6 IC4037 V17 GND IC4037 AK17 GND R4727 0 IC4037 J3 YIB6 1000p 50V C4383 R4042 22 IC4037 B22 OSDI1 IC4037 E10 GND IC4037 AG3 DQ11 IC4037 AA4 GND IC4037 AF16 GND IC4037 D7 THQYO8 IC4037 AF8 GND IC4037 T1 BUIA7 IC4037 AG13 GND IC4037 AJ11 DQ21 0.1u 10V C4372 MAIN_2.5V R4713 EXB2HV221JV IC4037 R15 VDD12 IC4037 AJ7 A10 IC4037 B9 FHQVIN IC4037 A16 FHQCIN1 IC4037 AG27 VDD12 IC4037 G3 UVIB8 IC4037 B28 YIC3 IC4037 V13 VDD25 IC4037 C20 OSDI6 IC4037 AH11 DQ20 IC4037 AK12 GND IC4037 D1 UVIB0 C4004 6.3V 10u 0.1u 10V C4386 IC4037 B21 OSDI4 IC4037 B7 THQYO6 IC4037 W13 VDD25 IC4037 AC4 AVDD_DDR IC4037 A2 CLKOTHQ1 IC4037 AE27 VDD12 IC4037 E5 GND IC4037 D4 GND IC4037 E1 UVIB2 IC4037 D23 TRST IC4037 C18 OSDI12 IC4037 M3 FRCKO1 IC4037 P2 RVIA4 IC4037 D5 THQCO6 IC4037 C25 MOSDVSO 0.1u 10V C4377 IC4037 C15 FHQCIN2 IC4037 AB1 DQ31 IC4037 AG11 VDD25 IC4037 AG24 GND IC4037 Y27 GND IC4037 K4 YIB9 IC4037 AD1 DQ25 IC4037 A22 OSDI2 IC4037 M12 VDD12 1000p 50V C4396 IC4037 AJ26 GND IC4037 AG10 VDD25 L4053 J0JHC0000078 IC4037 N16 GND IC4037 A11 FHQYIN6 IC4037 W26 GND IC4037 A15 FHQCIN4 IC4037 A6 THQYO9 IC4037 T27 GND C4014 6.3V 10u IC4037 B5 THQCO4 IC4037 B25 ENBID 0.1u 10V C4408 IC4037 T18 VDD12 IC4037 AH20 GND IC4037 AG26 GND IC4037 M13 VDD12 IC4037 C14 FHQCIN5 IC4037 AA3 GND 1000p 50V C4375 IC4037 D8 THQYO4 R4706 0 IC4037 W14 GND IC4037 K1 FRCKO3 IC4037 AJ2 GND 1000p 50V C4414 IC4037 B13 FHQCIN9 IC4037 K2 VSIB IC4037 AK7 A1 IC4037 A8 THQYO1 0.1u 10V C4389 IC4037 L3 CLKIA2 IC4037 AH9 BA0 1000p 50V C4406 IC4037 C8 THQYO3 IC4037 AF27 VDD12 IC4037 A5 THQCO3 IC4037 AH7 A3 1000p 50V C4390 IC4037 AF14 AVSS_DDR IC4037 A10 FHQYIN9 IC4037 D10 GND IC4037 D16 MOSDVSO2 IC4037 E21 GND R4701 68 IC4037 AG9 GND IC4037 C11 FHQYIN4 R4708 150 IC4037 AF23 GND IC4037 D18 GND IC4037 P15 GND IC4037 N1 RVIA2 IC4037 B6 THQCO0 IC4037 A14 FHQCIN7 IC4037 AH21 GND MAIN3.3V IC4037 H5 GND 0.1u 10V C4384 IC4037 Y2 GYIA6 C4379 10V 0.1u IC4037 A29 YIC2 IC4037 AF2 DQ13 1000p 50V C4403 IC4037 C3 GND C4365 10V 1u R4043 22 IC4037 AH15 DQ3 IC4037 F3 UVIB4 IC4037 AK8 BA1 IC4037 AJ17 GND IC4037 C1 ENBIB IC4037 A4 THQCO7 IC4037 T26 GND IC4037 M14 VDD12 1000p 50V C4376 IC4037 AH2 DQ9 L4054 J0JHC0000078 IC4037 W1 GYIA4 IC4037 V14 GND IC4037 K3 HSIB IC4037 AJ16 DQ2 IC4037 J2 YIB7 IC4037 AH1 DQ8 IC4037 E17 GND IC4037 E26 GND IC4037 B19 OSDI10 IC4037 B18 OSDI13 IC4037 AJ13 DQ16 IC4037 U18 VDD12 IC4037 B1 VDD12 IC4037 D17 GND IC4037 R27 GND IC4037 AD26 GND 1000p 50V C4409 0.1u 10V C4407 0.1u 10V C4411 IC4037 C29 YIC0 IC4037 AH28 VDD12 IC4037 T15 GND R4044 100 IC4037 D30 UVIC3 IC4037 P16 GND IC4037 W19 VDD12 0.1u 10V C4404 1u 10V C4405 IC4037 R13 GND IC4037 P13 VDD12 IC4037 B8 THQYO2 IC4037 N4 GND IC4037 U2 RVIA7 IC4037 A3 THQHOUT 1000p 50V C4413 IC4037 M2 CLKIA IC4037 R26 GND IC4037 AH27 GND IC4037 G4 UVIB7 IC4037 H27 GND IC4037 A19 OSDI11 0.1u 10V C4412 0.1u 10V C4397 IC4037 F2 UVIB5 IC4037 U19 VDD12 IC4037 AF4 GND IC4037 AF12 GND IC4037 R19 GND IC4037 U1 GYIA0 IC4037 A18 OSDI14 IC4037 D22 GND IC4037 H1 YIB4 IC4037 P1 BUIA2 IC4037 AK13 GND IC4037 B20 OSDI7 IC4037 E6 GND IC4037 B10 FHQYIN8 IC4037 D29 UVIC2 IC4037 J4 YIB5 IC4037 AH4 VREFSSTL2V_0 IC4037 AG22 GND IC4037 B17 MOSDHSO2 IC4037 F29 HSIC IC4037 E22 GND IC4037 R16 GND IC4037 U3 RVIA6 IC4037 AG4 GND 1000p 50V C4371 IC4037 AJ29 VDD12 IC4037 AF3 DQ12 IC4037 B16 FHQCIN0 IC4037 C6 THQCO1 IC4037 N3 RVIA0 IC4037 AF25 GND IC4037 AD5 GND IC4037 AG2 DQ10 IC4037 AK18 GND IC4037 AG12 GND IC4037 C5 THQCO5 IC4037 AG16 GND IC4037 AH13 DQ17 R4720 68 IC4037 B12 FHQYIN2 IC4037 C13 FHQCIN8 IC4037 N12 VDD12 1u 10V C4400 IC4037 AK1 GND IC4037 V3 GYIA1 R4714 EXB2HV221JV IC4037 W3 HSIA IC4037 F1 UVIB6 IC4037 P17 GND IC4037 AJ6 A4 IC4037 B29 GND IC4037 AH6 A9 IC4037 R12 GND 0.1u 10V C4395 R4041 0 IC4037 AG25 GND IC4037 J5 GND IC4037 P18 GND IC4037 AG5 AVDD_DDR IC4037 G1 YIB0 IC4037 W2 VSIA IC4037 AJ3 NSDCLO IC4037 F4 UVIB3 JS4027 ERJ2GE0R00X 0.1u 10V C4392 IC4037 AK2 GND IC4037 AE26 VDD12 IC4037 E29 UVIC6 IC4037 M4 GND IC4037 B30 YIC1 IC4037 AF15 GND IC4037 B3 THQVOUT IC4037 P14 VDD12 C4015 6.3V 10u 0.1u 10V C4381 IC4037 AK16 DQ1 IC4037 B27 YIC6 IC4037 A13 FHQYIN0 IC4037 W12 VDD25 IC4037 AH26 GND IC4037 F30 CLKIC IC4037 H3 YIB2 IC4037 AK24 GND IC4037 C26 TMS IC4037 C2 VDD12 IC4037 E4 VDD12 IC4037 AH12 DQ19 IC4037 W27 GND IC4037 E13 GND IC4037 AF11 VDD25 IC4037 L26 GND IC4037 T4 GND IC4037 AF9 GND IC4037 AC26 GND IC4037 E18 GND IC4037 A21 OSDI5 IC4037 AJ9 RAS IC4037 AE3 DQ15 IC4037 C12 FHQYIN1 IC4037 V1 GYIA3 IC4037 AB2 VDD25 IC4037 Y3 GYIA5 IC4037 G27 GND R4705 220 IC4037 M1 CLKOA IC4037 AH10 CAS IC4037 T17 VDD12 *R4710 0 IC4037 AJ20 GND IC4037 AF24 GND IC4037 AG1 DQ14 IC4037 H26 GND IC4037 A27 YIC7 IC4037 B14 FHQCIN6 C4366 47u 6.3V IC4037 AH5 A7 IC4037 V19 VDD12 R4037 EXB2HV103JV IC4037 AH17 GND IC4037 G2 UVIB9 IC4037 M17 GND IC4037 AH18 GND IC4037 Y26 GND IC4037 C9 FHQHIN IC4037 C19 OSDI9 IC4037 C22 OSDI0 IC4037 C28 GND IC4037 G28 GND JS4028 ERJ2GE0R00X 1u 10V C4410 IC4037 R17 GND IC4037 M15 GND IC4037 E30 UVIC7 R4718 68 IC4037 AG14 AVDD_DDR IC4037 U12 GND IC4037 AF20 GND IC4037 C17 OSDI15 IC4037 AB3 VDD25 IC4037 A23 CLKID R4898 10k IC4037 D6 THQCO2 IC4037 N14 VDD12 IC4037 B26 MOSDHSO IC4037 J1 YIB8 IC4037 W17 GND IC4037 AJ10 DQ23 IC4037 E2 CLKIB1 IC4037 AJ8 A0 IC4037 AK10 DQ22 IC4037 D21 GND IC4037 T2 BUIA6 IC4037 D27 GND R4715 0 IC4037 R14 GND IC4037 A7 THQYO5 IC4037 L2 BUIA0 IC4037 F28 VSIC IC4037 C30 UVIC0 IC4037 AG8 GND IC4037 P19 GND R4704 220 IC4037 U5 GND IC4037 AH3 GND 0.1u 10V C4401 IC4037 AF13 GND C4027 1u 10V 1000p 50V C4385 R4039 EXB2HV103JV IC4037 C21 OSDI3 IC4037 C16 FRCKO2 IC4037 C23 OSDVSI IC4037 M27 GND IC4037 AJ28 GND 0.1u 10V C4398 IC4037 B15 FHQCIN3 IC4037 D2 CLKIB2 C4388 10V 1u IC4037 AA2 VDD25 C4003 6.3V 10u IC4037 AE1 DQS3 IC4037 H2 YIB3 1000p 50V C4387 IC4037 U15 GND R4709 150 IC4037 R3 BUIA3 IC4037 C7 THQYO7 IC4037 A26 CLKOD IC4037 G5 GND IC4037 L1 BUIA1 IC4037 U13 GND IC4037 T12 GND IC4037 D14 GND IC4037 B11 FHQYIN5 IC4037 A28 YIC4 IC4037 W18 VDD12 IC4037 D24 TDI IC4037 C4 THQCO9 IC4037 AJ24 GND IC4037 A30 GND IC4037 AF6 AVDDCK IC4037 AA5 GND IC4037 C24 ALPHAI1 IC4037 U16 GND IC4037 A12 FHQYIN3 C0CBCAC00282 IC4029 1 VDD 2 GND 3 CE 5 VOUT 4 NC PORT-C(PEAKS) PORT-D(OSD INPUT) PORT-A(ADV7499) PORT-B(FS&HDMI) PORT-FHQ(GC3E&HQ1) 27MHz 27MHz LADDER RESISTER DELETED LADDER RESISTER DELETED 48 51 54 53 47 46 52 50 49 IC4037 MN84522-A GC5 PROCESSOR DLL 2.5V 86 83 82 87 84 85 81 103 104 105 107 108 101 102 106 DG-BOARD TNPA3903BCS (6/8) TH-50PX60U DG-Board (6 of 8) Schematic Diagram TH-50PX60U DG-Board (6 of 8) Schematic Diagram TH-50PX60U 95 14.26. DG-Board (7 of 8) Schematic Diagram Thermal Pad + + + Thermal Pad ROE0 B_DDR_DQ10 B_DDR_DQ12 VSOE B_DDR_A2 ROE1 B_DDR_DQ29 B_DDR_A10 B_DDR_DQ19 B_DDR_NCLK B_DDR_DQS2 B_DDR_CLK A_DDR_DQ4 B_DDR_A7 A_DDR_DQ8 B_DDR_CAS B_DDR_CLK A_DDR_DQ3 A_DDR_DQ9 A_DDR_DQ29 B_DDR_DQ26 A_DDR_NCLK B_DDR_DQ3 B_DDR_DQS3 B_DDR_NCLK A_DDR_SDCKE B_DDR_DQ4 ROE8 B_DDR_DQ16 A_DDR_CLK B_DDR_BA0 A_DDR_CAS B_DDR_DQ0 B_DDR_DQ30 B_DDR_DQ11 B_DDR_DQ27 ROE7 A_DDR_A10 B_DDR_A1 B_DDR_A0 A_DDR_DQ17 A_DDR_DQ14 ROE5 GOE8 B_DDR_DQ21 B_DDR_CAS B_DDR_A2 B_DDR_DQS3 B_DDR_DQ28 B_DDR_DQ1 B_DDR_DQ25 ROE6 GOE7 A_DDR_DQ28 B_DDR_DQ15 B_DDR_DQ4 A_DDR_A1 A_DDR_DQ2 ROE2 GOE5 B_DDR_DQ21 A_DDR_DQ21 B_DDR_WE ROE3 GOE6 B_DDR_A9 B_DDR_DQ5 B_DDR_WE B_DDR_DQ18 B_DDR_DQ13 GOE2 B_DDR_DQ8 B_DDR_A5 B_DDR_DQ0 B_DDR_RAS A_DDR_DQS0 B_DDR_A7 ROE9 GOE3 B_DDR_DQ3 A_DDR_DQ25 A_DDR_DQ10 B_DDR_DQ22 B_DDR_A11 B_DDR_DQ22 A_DDR_DQ30 GOE4 A_DDR_A7 A_DDR_DQ6 B_DDR_SDCKE B_DDR_DQ27 A_DDR_A2 A_DDR_DQ12 GOE9 GC_RST B_DDR_DQS1 B_DDR_A4 B_DDR_DQS0 B_DDR_BA1 B_DDR_A6 B_DDR_DQ29 A_DDR_A0 B_DDR_DQ6 A_DDR_DQ16 B_DDR_DQ9 B_DDR_DQ28 B_DDR_DQ16 B_DDR_A8 B_DDR_DQ12 B_DDR_RAS GOE0 B_DDR_DQ9 B_DDR_DQ14 B_DDR_DQ8 B_DDR_DQS1 B_DDR_DQ25 A_DDR_DQ13 A_DDR_DQS3 GOE1 B_DDR_DQ2 B_DDR_DQ18 A_DDR_BA1 B_DDR_DQ6 B_DDR_DQ13 B_DDR_DQ10 B_DDR_A5 A_DDR_BA0 BOE0 A_DDR_WE A_DDR_A8 A_DDR_DQ11 B_DDR_A4 B_DDR_DQ14 B_DDR_DQS2 A_DDR_DQ22 BOE1 B_DDR_DQ24 B_DDR_DQ31 B_DDR_A10 A_DDR_DQ19 B_DDR_DQ2 A_DDR_DQS1 B_DDR_BA1 BOE2 B_DDR_DQ23 A_DDR_DQ27 A_DDR_A11 A_DDR_DQ24 B_DDR_A1 A_DDR_DQ31 BOE7 A_DDR_DQ15 B_DDR_DQ30 B_DDR_DQ17 BOE3 A_DDR_DQ5 A_DDR_A5 A_DDR_DQ0 A_DDR_RAS BOE8 B_DDR_A11 B_DDR_DQ20 BOE4 A_DDR_A9 A_DDR_DQS2 B_DDR_DQ17 BOE9 A_DDR_DQ20 B_DDR_A3 B_DDR_DQ23 A_DDR_A4 A_DDR_DQ23 BOE5 B_DDR_A8 B_DDR_A0 B_DDR_DQ20 B_DDR_DQ5 A_DDR_A3 BOE6 B_DDR_DQS0 B_DDR_DQ24 A_DDR_DQ18 B_DDR_DQ19 B_DDR_DQ7 A_DDR_A6 A_DDR_DQ7 B_DDR_DQ11 OSDMSK B_DDR_BA0 A_DDR_DQ26 B_DDR_DQ26 B_DDR_A9 A_DDR_DQ1 B_DDR_A3 B_DDR_DQ1 B_DDR_DQ7 B_DDR_SDCKE HSOE B_DDR_DQ31 B_DDR_DQ15 B_DDR_A6 SDA2 SCL2 MAIN3.3V PLL3.3V CLKOE ROE4 IC4037 AB27 PTVEN IC4038 H2 DQ20 0.1u 10V C4426 IC4035 C0CBCAF00031 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 NC 7 NC 8 VIN IC4038 M2 NC IC4038 E11 DQ15 IC4038 A3 VSSQ R4732 4.75k R4749 EXB2HV680JV IC4037 AG18 GND_PLL1 IC4037 Y30 BOF9 IC4037 AB26 VDDW C4466 0.01u 16V DDR2.5V IC4038 C12 DQ25 C4447 1u 10V IC4038 M6 A3 1000p 50V C4451 IC4037 AK20 COMP C4513 10V 0.1u C4483 50V 15p IC4038 K3 VDD IC4037 D19 VDDW 0.1u 10V C4459 IC4037 Y29 BOF8 IC4038 L6 A11 L4066 J0JHC0000078 1000p 50V C4442 IC4038 G5 VSS_Thermal R4739 4.7k IC4037 AK27 ROF0 IC4037 P28 GOE2 C4509 10V 0.1u IC4037 P4 VDDW 1000p 50V C4476 IC4038 D3 VDD IC4038 C3ABQJ000048 A1 DQS0 IC4037 AE29 GOF3 IC4038 L1 RAS 1000p 50V C4437 IC4038 F10 VDDQ IC4037 K30 BOE6 L4065 J0JHC0000078 IC4038 G10 NC R4758 68 IC4038 C5 VSSQ R4808 0 IC4037 P29 GOE3 R4033 10k 1000p 50V C4457 IC4037 P5 VDDW IC4037 AD30 GOF7 IC4037 G30 SDA 1000p 50V C4479 IC4037 W30 CLKOF IC4038 F1 DQ19 IC4037 AF28 ROF9 JS4037 ERJ2GE0R00X IC4037 E15 VDDW 0.1u 10V C4425 IC4037 AH19 VCOINV2 IC4038 A5 DQ2 L4077 J0JCC0000077 MAIN3.3V IC4038 M7 A4 IC4037 AG28 ROF6 IC4038 F12 DQ12 IC4038 C10 VSSQ IC4038 G1 DQS2 R4342 0 MAIN1.2V 0.1u 10V C4440 R4779 47 IC4038 B4 VDDQ IC4037 U30 ROE5 R4745 68 R4729 100 R4776 EXB2HV470JV C4522 10V 0.1u C4524 10V 0.1u IC4037 R30 GOE1 IC4038 A9 DQ28 IC4037 AH22 CPOUT2 R4796 EXB2HV470JV IC4037 AJ19 TESTIO_PLL2 IC4038 A10 VSSQ IC4037 F27 VDDW C4470 10V 1u IC4037 W28 VSOF R4339 0 IC4038 K6 VDD IC4037 AB30 BOF3 IC4038 G12 DQS1 IC4037 AB28 BOF1 IC4038 B7 VDDQ R4775 47 IC4038 D6 VSS L4061 J0JCC0000077 IC4037 K26 VDDW 1000p 50V C4475 IC4037 V29 ROE1 IC4037 AJ23 XTALOUT IC4038 E2 DQ16 IC4038 K4 VSS IC4037 E24 VDDW IC4038 B3 NC IC4037 U29 ROE4 C4511 10V 0.1u IC4037 J28 BOE7 IC4037 W29 HSOF 1000p 50V C4460 IC4037 H30 CLKOE IC4038 B11 VDDQ IC4037 W5 VDDW IC4037 N30 GOE7 IC4038 L9 RFU2 1000p 50V C4422 IC4038 L12 MCL IC4037 H28 VSOE IC4038 J5 VSS IC4038 E7 VSS_Thermal 1000p 50V C4480 C4482 50V 18p 1000p 50V C4430 MAIN3.3V IC4037 Y28 BOF7 C4523 16V 0.01u C4505 10V 0.1u IC4037 N26 VDDW 1000p 50V C4441 IC4038 A6 DQ0 TP4037 IC4038 C3 VSSQ IC4037 U27 VDDW IC4038 L4 BA1 IC4038 C9 VSSQ C4464 1u 10V R4804 100 1000p 50V C4427 IC4037 U26 VDDW IC4038 E6 VSS_Thermal IC4037 D20 VDDW IC4037 K28 BOE4 IC4037 M29 GOE9 IC4038 M12 VREF R4046 0 IC4038 B12 DQ27 R4777 47 IC4037 AJ21 IREF C4510 10V 0.1u 1000p 50V C4453 IC4037 D13 LCDMODE C4418 1u 10V R4733 75 R4784 22 IC4038 M3 BA0 C4515 10V 0.1u IC4038 F7 VSS_Thermal R4731 1k R4338 0 IC4038 G7 VSS_Thermal C4028 16V 0.01u IC4037 AA28 BOF4 C0CBCBC00190 IC4030 1 VDD 2 GND 3 CE 5 VOUT 4 NC IC4038 K8 RFU1 IC4038 C2 DQ5 IC4037 E8 VDDW IC4037 E7 VDDW MAIN1.8V C4461 82p 50V IC4037 AG19 GND_PLL2 IC4037 M28 GOE8 IC4037 AH25 FRCLKIN R4810 0 IC4038 E5 VSS_Thermal IC4037 V16 GNDPLLDDR IC4038 C11 DQ26 R4750 EXB2HV680JV JS4035 ERJ2GE0R00X R4782 22 IC4037 M30 BOE0 IC4037 AA27 SSOUT 1000p 50V C4454 IC4037 AK22 DDREFIN 1000p 50V C4436 IC4038 G9 VSSQ IC4037 AJ18 TESTIO_PLL1 IC4038 M11 CKE IC4038 H9 VSSQ IC4038 D10 VDD IC4037 V4 SCL_MC C4519 16V 0.01u IC4037 AF18 VDD_PLL1 1000p 50V C4438 C4428 10V 0.1u R4806 1k R4763 0 L4057 J0JCC0000077 IC4038 F9 VSSQ C4521 16V 0.01u 1000p 50V C4481 IC4037 J29 BOE8 R4744 68 MAIN3.3V TH-50PX60U DG-Board (7 of 8) Schematic Diagram TH-50PX60U DG-Board (7 of 8) Schematic Diagram C4419 1u 10V R4738 4.7k IC4038 M10 A8/AP C4498 470p 50V IC4037 AC27 PWMK IC4038 F4 VSSQ IC4037 AB29 BOF2 IC4037 P27 VDDW IC4038 C1 DQ6 IC4038 J1 DQ22 1000p 50V C4429 IC4038 K9 VSS IC4038 H1 DQ21 R4756 68 IC4038 C8 VSSQ IC4037 AF17 GND_PLL1 IC4038 A7 DQ31 R4257 33k R4734 22k C4525 16V 0.01u IC4037 N27 VDDW R4764 0 IC4038 J9 VSSQ R4743 68 R4772 EXB2HV470JV IC4038 D2 VDDQ IC4038 C6 VDD IC4038 H3 VDDQ R4293 0 C4526 10V 0.1u R4021 0 IC4038 F3 VDDQ IC4037 W15 VDDPLLDDR IC4038 J12 DQ8 R4785 4.7k IC4037 V30 ROE2 MAIN5V 1u 10V C4435 R4746 68 IC4038 F2 DQ18 IC4037 K29 BOE5 IC4038 D8 VSSQ IC4038 D12 DQ24 IC4038 B5 DQ1 IC4038 K10 VDD IC4038 A11 DM3 R4788 EXB2HV470JV IC4038 H5 VSS_Thermal IC4037 P26 VDDW C4520 10V 0.1u C4112 6.3V 10u IC4037 N19 VDDW IC4038 J3 VDDQ 1u 10V C4478 C4499 56u 4V R4792 47 C4474 10V 1u IC4038 H4 VSSQ 1000p 50V C4439 IC4037 E12 VDDW IC4037 AK19 IOUT C4503 10V 0.1u IC4037 AH29 ROF4 R4793 22 IC4037 AF21 GND_DAC IC4038 H6 VSS_Thermal IC4038 D11 VDDQ IC4038 K1 CAS IC4037 AF22 DAC_VDD IC4037 D11 VDDW IC4038 E8 VSS_Thermal IC4037 E20 VDDW IC4038 A2 DM0 IC4037 W16 GNDPLLDDR IC4038 M8 A6 IC4037 AG17 TESTIO_DDR IC4037 AK28 ROF2 R4811 0 IC4037 U4 SDA_MC C4496 10V 0.1u IC4037 R29 GOE0 IC4037 AJ27 ROF1 C4448 16V 0.01u X4004 H0J270500087 IC4037 AD28 GOF5 1u 10V C4455 R4759 68 IC4037 J30 BOE9 IC4037 M19 VDDW IC4037 G29 SCL IC4037 N18 VDDW IC4038 F8 VSS_Thermal R4805 1k C4518 10V 0.1u C4514 16V 0.01u IC4038 L5 A2 IC4037 E16 VDDW 1000p 50V C4424 IC4038 G6 VSS_Thermal IC4038 J11 DQ9 IC4037 AF19 VDD_PLL2 IC4037 AJ22 DDREFOUT IC4037 AF30 GOF1 IC4038 M4 A0 0.1u 10V C4452 IC4038 G11 DM1 IC4038 C7 VDD IC4038 A12 DQS3 C4502 16V 0.01u L4060 J0JCC0000077 IC4037 AK26 VDDW IC4037 AE28 GOF2 IC4037 V5 VDDW R4757 68 IC4037 AC30 BOF0 R4760 68 R4730 100 IC4037 U28 ROE3 IC4038 H12 DQ10 C4506 16V 0.01u IC4038 L2 NC C4497 4V 100u IC4037 AA26 VDDW IC4038 B9 VDDQ IC4037 AD29 GOF6 IC4037 V28 ROE0 IC4038 B10 NC L4056 J0JCC0000077 IC4037 AH30 ROF5 C4508 16V 0.01u IC4037 E11 VDDW IC4038 M1 CS IC4037 T28 ROE6 R4783 4.7k R4773 47 IC4038 L3 NC IC4037 AK23 XTALIN IC4037 J27 VDDW IC4037 AG30 ROF8 IC4038 J6 VSS R4778 EXB2HV470JV C4417 47u 6.3V R4735 2k IC4038 K12 NC IC4038 L7 A9 IC4037 T30 ROE8 C4493 10V 0.1u IC4037 F26 VDDW IC4037 K27 VDDW IC4038 H10 VDDQ R4791 47 IC4032 C0DBGYY00052 1 VOUT 2 NC 3 GND 4 NC 5 CONT 6 NC 7 NC 8 VIN IC4037 V27 VDDW IC4038 F11 DQ13 C4467 0.1u 10V C4512 16V 0.01u IC4037 AF29 GOF0 IC4038 B1 DQ4 IC4038 M5 A1 IC4038 E1 DQ17 IC4038 D5 VSSQ IC4037 AJ30 ROF3 IC4038 G2 DM2 JS4039 ERJ2GE0R00X IC4038 D7 VSS C4005 6.3V 10u C4023 6.3V 10u JS4033 ERJ2GE0R00X C4517 16V 0.01u L4055 J0JHC0000078 IC4038 F5 VSS_Thermal IC4037 AK21 VREF C4008 6.3V 10u IC4038 L11 CK IC4038 L8 A5 C4507 10V 0.1u IC4037 E19 VDDW IC4038 L10 CK IC4037 AK25 VCOIN IC4037 AG20 GND_PLL2 IC4037 AE30 GOF4 R4747 68 IC4037 R4 VDDW IC4038 J10 VDDQ C4415 10V 0.1u IC4037 D15 VDDW R4752 22 IC4038 K2 WE IC4037 N28 GOE5 R4340 0 IC4037 V26 VDDW IC4038 G8 VSS_Thermal IC4037 N29 GOE6 IC4037 P30 GOE4 IC4037 AA29 BOF5 C4006 6.3V 10u IC4038 K5 A10 IC4038 H8 VSS_Thermal IC4037 L5 VDDW C4007 6.3V 10u R4753 22 TP4041 JS4040 ERJ2GE0R00X IC4038 J4 VSSQ IC4037 R5 VDDW IC4037 E23 VDDW R4754 22 IC4038 A8 DQ29 IC4038 M9 A7 IC4037 R28 ROE9 IC4038 E9 VSSQ R4737 0 IC4038 K11 NC R4341 0 C4516 10V 0.1u IC4038 H11 DQ11 R4774 EXB2HV470JV IC4037 L28 BOE1 1000p 50V C4458 IC4037 AG29 ROF7 1000p 50V C4423 0.1u 10V C4477 C4462 10V 0.1u C4504 16V 0.01u R4265 32.4k IC4037 H29 HSOE IC4038 E12 DQ14 IC4037 L29 BOE2 R4269 0 IC4038 J7 VSS IC4037 L30 BOE3 IC4038 K7 VDD R4807 0 IC4038 E4 VSSQ R4751 22 R4809 0 JS4038 ERJ2GE0R00X IC4037 Y4 OEMUTE 1000p 50V C4434 IC4038 H7 VSS_Thermal IC4038 F6 VSS_Thermal IC4038 B8 DQ30 IC4038 C4 VSSQ IC4037 M18 VDDW JS4034 ERJ2GE0R00X IC4038 D4 VSS IC4037 AA30 BOF6 IC4038 G4 VSSQ C4527 16V 0.01u R4762 EXB2HV680JV R4794 22 IC4037 AG21 GND_DAC IC4037 AC29 GOF9 IC4038 E3 VDDQ C4420 10V 0.1u IC4038 J8 VSS IC4037 K5 VDDW IC4038 B6 VDDQ IC4038 A4 DQ3 IC4037 AJ25 EXCLKIN IC4037 W4 OEBLK R4765 0 IC4037 AC28 GOF8 IC4037 T29 ROE7 C4501 10V 0.1u IC4037 J26 VDDW C4421 10V 0.1u IC4038 E10 VDDQ IC4037 D12 NRST IC4038 D9 VSS JS4036 ERJ2GE0R00X 0.1u 10V C4456 IC4038 D1 DQ7 IC4038 G3 NC C4465 0.1u 10V IC4038 B2 VDDQ C4494 10V 1u IC4038 J2 DQ23 Must Connect Low FOR GC5 0.49-0.51VDDQ (PWMC) (PWMD) (PWMB) (LVDS-EN) (LCDSS) (PWMA) PORT-E PORT-F(out) (output for FHD&PWM) (output for Panel) 59 55 58 63 60 62 61 56 57 IC4038 DDR 2.5V 128M DDR SDRAM PLL 3.3V MAIN 1.2V IC4037 GC5 PROCESSOR MN84522-A 126 122 123 124 125 121 127 108 101 105 106 107 104 102 103 C3ABQJ000048 DG-BOARD TNPA3903BCS (7/8) TH-50PX60U 96 14.27. DG-Board (8 of 8) Schematic Diagram G G G G G G + + ROE1 GOE9 ROE6 GOE7 ROE9 ROE5 BOE3 GOE0 BOE9 ROE0 BOE6 ROE2 BOE7 ROE3 BOE8 GOE6 BOE5 ROE7 GOE3 BOE2 ROE8 GOE2 ROE4 GOE5 BOE1 OSDMSK CLKOE VSOE PEAKS_OSHIN MAIN_R PEAKS-HIN PEAKS-CIN0 PEAKS-VIN PEAKS-YIN0 PEAKS-YIN1 PEAKS-CIN1 PEAKS_OSVIN PEAKS-YIN2 PEAKS-CIN2 PEAKS-CLKIN PEAKS-YIN3 PEAKS-CIN3 PEAKS-YIN4 PEAKS-CIN4 PEAKS-YIN5 PEAKS-CIN5 MAIN_L PEAKS-YIN6 PEAKS-CIN6 PEAKS-CIN7 PEAKS-YIN7 PEAKS_OSCKIN SD_BOOT DTV_VOUTENB DTV_1.5V_ON DTV_RST SW_OFF_DET(EMERGENCY_RST) LVDS_PD SRQ DTV_RXD MAIN_SW DTV_TXD SDA0B VIDEO_OUT BS_Y(V) BS_SR BS_SL BS_C DTV_SCL0B DTV_SDA0B MAIN3.3V BOE0 GOE1 GOE4 GOE8 HSOE JTAG_TCK TMS_CON FORMAT_EDGE(MAIN) ATV_SR ATV_SL SCL0B AFT1 JTAG_TRST BOE4 R4017 1k R4838 1.1k C4532 10V 0.1u R4816 22k ZA4004 K4CD08000002 R4824 EXB38VR000V C4530 50V 1000p ZA4013 TESA169 ZA4012 TESA169 L4069 J0JHC0000078 SUB5V J0HABH000012 FL4011 1 2 3 C4540 50V 1000p ZA4008 TESA169 R4830 0 R4833 22 J0HABH000012 FL4010 1 2 3 R4823 EXB38VR000V DG22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 R4841 0 J0HABH000012 FL4009 1 2 3 R4343 0 DG5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 C4539 1u 10V ZA4011 TESA169 R4827 EXB2HVR000V C4531 50V 1000p ZA4007 TESA169 C4538 10V 0.1u L4070 J0JHC0000078 R4825 EXB38VR000V BT30V C4535 10V 0.1u C4528 47u 6.3V L4068 J0JHC0000078 R4831 0 R4832 82 R4814 10k ZA4005 K4CD08000002 R4819 22k R4822 10k C4537 4V 100u R4826 EXB2HVR000V ZA4014 TESA169 ZA4009 TESA169 R4817 22k R4837 22 R4835 100 ZA4003 K4CD08000002 C4536 1u 10V R4847 82 IC4036 C0JBAP000020 1 TD5 2 GND 3 TD6 4 TE0 5 TE1 6 TE2 7 VCC 8 TE3 9 TE4 10 GND 11 TE5 12 CLKIN 13 /PDWN 14 PLL_GND 15 PLL_VCC 16 TE6 17 LVDS_GND 18 TE+ 19 TE- 20 TD+ 21 TD- 22 TCLK+ 23 TCLK- 24 TC+ 25 TC- 26 LVDS_GND 27 LVDS_VCC 28 TB+ 29 TB- 30 TA+ 31 TA- 32 LVDS_GND 33 TA0 34 TA1 35 TA2 36 TA3 37 TA4 38 TA5 39 GND 40 TA6 41 TB0 42 TB1 43 RS 44 TB2 45 TB3 46 TB4 47 GND 48 TB5 49 TB6 50 TC0 51 VCC 52 TC1 53 TC2 54 TC3 55 TC4 56 GND 57 TC5 58 TC6 59 TD0 60 R/F 61 TD1 62 TD2 63 TD3 64 TD4 SUB9V JS4088 MAIN3.3V C4529 10V 0.1u C4533 10V 0.1u C4534 50V 1000p R4846 82 ZA4001 K4CD08000002 (SW_OFF_DET) OPTICAL SOUND OUT BSD MONITOR OUT AVSW SUFFIX BC 0ohm deleted Shield metal TOP side Over IC4036 Under IC4036 Bottom side Shield metal 69 67 70 64 66 65 72 71 68 LVDS TRANSMITTER (10bit) TO DT-BOARD (DT12) TX_TA- TX_TB- TX_TC+ TX_TCLK+ TX_TD+ TX_TD- TX_TE+ TX_TE- TX_TCLK- TX_TC- TX_TA+ TX_TB+ 122 126 125 121 123 127 124 TO D-BOARD (D5) DG-BOARD TNPA3903BCS (8/8) < < < TH-50PX60U DG-Board (8 of 8) Schematic Diagram TH-50PX60U DG-Board (8 of 8) Schematic Diagram TH-50PX60U 97 14.28. DT and GS-Board Block Diagram TCK FAT_P FAT_N DATA2 DATA3 SDWP SDCD CLK CMD DATA0 DATA1 MAIN_R SD_BOOT POWER_DET XRST SDBOOT SDA_TV SCL_TV TRST TMS AFT TCK MAIN_SW R_OUT L_OUT SCL_TV SDA_TV SCL_FE MAIN_SW SBI1 POWER_DET SBI1 SBO1 SBO1 SDA_FE D_A_SW L_OUT R_OUT L_ANALOG R_ANALOG SDWP DATA2 DATA1 DATA3 CMD CLK SDCD DATA0 VIDEO_OUT R_ANALOG L_ANALOG TRST TMS TCK TMS AFT/VIDEO_OUT VIDEO_OUT AFT XRST ISOCLK ISOSYNC CLK HSYNC MAIN_L VSYNC ISOVAL ADCCK ADIN DSRCK PDWN SLRCK PSYNC0 ENABLE0 PSYNC0 SCHDATA0 PSYNC0 ENABLE0 SCHDATA0 SCHCLK0 X8005 X8200 96 88 97 105 MVCLK0(PAEKS_CLK) MHSYNC0(PEAKS_H) MVSYNC0(PEAKS_V) 20 VOUTENB DC(BS_C) 45 47 DY(BS_Y) 23 SBO1(RXD1) 18 SBI1(TXD1) 19 30V(BT30V) 8 SUB 9V 51 52 SUB 9V 53 SUB 9V 54 SUB 5V 57 SUB 5V 5V_SUB 5V_A 9V_SUB MVY0 (PEAKS_Y0) MVY7 (PEAKS_Y7) MVC0 (PEAKS_C0) MVC7 (PEAKS_C7) 107 106 109 SRQ 30V MVY7 MVY0 MVC7 MVC0 MHSYNC0 MVSYNC0 MVCLK0 IEC_OUT MVY0 MVC0 MVY7 MVC7 XSRQ DY DC SDA1 SCL0 SDA0 SCL1 SCL0 SDA1 SDA0 SCL1 TD0 TCK TDI TMS VDDQ 2.5V (DDR SDRAM) AVDD MVAVDD SVAVDD MAVDD DAVDD AAVDD VDD33 VDD12 2.5V SD_DATA0 SD_DATA2 SD_DATA1 SDCLK SDWP SDCMD SDCD SD_DATA3 1.2V 3.3V PEAKS_Lite(2/3) HDSL PEAKS_Lite IC8240 256M DDR SDRAM IC8009,IC8010 IC8254 ED31 ED16 XEWE2 XECS0L EA23 EA1 9 74M 7 VIN 27M X1 16 X2 1 IC8022 VCXO VC27 62 63 53 54 RF_AGC OBMSCL IF_AGC OBMSDA Q8209 XEREL RE CLE ALE XWP WE NOR FLASH ROM I/F PEAKS_Lite(3/3) PEAKS_Lite(1/3) JTAG I/F DATA BUS ADDRESS BUS CONTROL BUS DATA BUS ADDRESS BUS CONTROL BUS XRST ATSC INTERFACE Test Group Joint Action H 1 D_A_SW L 4 OFF CONT I/0 ON O/I L/H CHECK 2 IC8204 CONT O/I I/0 L/H CHECK IC8203 1 4 BTL R_OUT TU8200 SDA IF_SW 2 16 4 ANT_V SUPPLY 7 VIDEO_OUT IF_OUT SCL 19 11 AFT L_OUT V_SUPPLY 20 8 AGC OUT TUNER 15 13 BV 12 9 18 10 AGC DT10 SBI0 1 DT07 2 SBO0 3 +5V XF8200 AGC CTL 36 XI AGC AMP(IF STRIP) 176 6 XO IBAINP IC8206 OUT1 40 AGC_CONT 4 3 OUT2 X9303P 35 39 7 2 7 3 AGC AMP 2 5 IC8205 1 6 11 9 SERIAL SW 2 L IC8202 DIGITAL 3 12 8 10 H Q8217 ANALOG 4 6 5 D_A_SW 1 13 OUT-2 G2 5V_SUB 17 S1 D1 21 20 D2 5 16 LX VCC VIN VDD 18 G1 IC8246 S2 DC-DC CONVERTER XIRQ1 FRONT XFERST0 SBI0 SBO0 D8208 DIGITAL 3.3V MMA13 MMDQ0 MMDQ31 MMA0 58 AINR 1 2 MAIN_L AINL MAIN_R 60 4 MCK27 10 133M CLK74 3.3V XRST 1 4 SUB 9V 2 VDD VOUT IC8227 SD_BOOT VDD POWER_DET XRST RESET 2 IC8228 2 RESET OUT POWER_DET 22 XRST(DTV_RST) 15 16 SDBOOT (SW_OFF) PSYNC0 ENABLE0 SCHDATA0 SCHCLK0 INT 84 68 NRST Q8220 SER_DATA 106 91 MPEG_PKT_SYNC 94 MPEG_DATA_EN 93 MPEG_ERR 108 MPEG_CLK DT 32 SCL1(DTV_SCL0B) (SDA0B) TCK 41 DG22 43 33 L_OUT(BS_SL) SDA1(DTV_SDA0B) (SCL0B) 13 AFT(AFT1) 36 R_OUT(BS_SR) 26 34 SDA_TV 35 MAIN_SW 27 VIDEO_OUT SCL_TV DT12 30 TMS TRST(JTAG_TRST) 37 1 OOB OUT TRST 136 TMS 135 TCK 134 JTAG SDA SDA 87 6 SCL SCL IC8229 5 EEPROM 88 IC8211 FRONT PROCESSOR (TERRESTRIAL RECEIVER) MCLK LRCK AOUTL 2 3 2 AUDIO AMP IC8200 LRCK 9V SUB 6 5 1 5 DMIX BICK 3 1 10 DACRST 11 AUDIO DAC IC8201 7 SDTI AOUTR DACCK PDN 4 SRCK SBO1 SBI1 SCL1 SDA1 ED16-ED31 D_A_SW SCL1 SDA1 MAIN_SW L DIGITAL H ANALOG AUDIO OUT IBAINN 137 TDI TO SBI2 SBO2 IR A0-A22 DQ0-DQ15 EA1-EA23 24 FORMAT EDGE FORMAT EDGE 7 SDDAT3 9 5 1 10 JK7701 4 2 3.3V SDCMD 9 SLOT 11 7 SD CARD 8 1 12 SDCLK 5 SDDAT0 3 8 D.SW SD CARD SLOT W.P. GS GS52 IF_AGC DIGITAL RF AGC ANALOG RF AGC Q8219 Q8218 OFF L ON H IF_SW TO HC06 5V_SUB C8413,8414 C8432-8436 L8303-8305 FILTER SDCMD DATA0 7 DATA3 SDCLK DATA1 SDWP 3 12 10 5 11 SDCD 9 8 DATA2 3.3V 1 3.3V 128M FLASH ROM FWP PEAKS_Lite(1/3) TD2S MCP2L AM33(200MHz) NTSC ENC. PERIPHERAL VIDEO DAC 9V 3.3V 9V_POWER 9 CTL 19 OUT-1 D2 D1 VO 23 24 FB 3.3V 9V_SUB 9V_POWER -INC 13 19 OUT-2 G2 5V_SUB 17 D2 S1 9 D1 21 20 D1 23 VO 9V_SUB D2 9V_POWER 9V_POWER 5 16 LX VCC VIN VDD 24 18 G1 IC8247 S2 FB DC-DC CONVERTER 13 OUT-1 -INC CTL 9V 1.2V Q8211 Q8210 ATV_SR 62 ATV_SL 64 2 3.3V 3.3V 5V_A 30V TO FRONT ISOCLK ISOSYNC ISOVAL 80 VSYNC 85 CLK HSYNC 87 CB CB 1.2V 3.3V 1 6 VDD IC8235 AVR 2.5V VOUT Q8229 Q8230 SDA_TUNER SCL_TUNER 10 LRCK MCLK 13 ADIN PDWN SLRCK SCLK PDN 11 ADCCK 9 12 SDTO DSRCK 16Bit AUDIO A/D IC8244 TH-50PX60U DT and GS-Board Block Diagram TH-50PX60U DT and GS-Board Block Diagram TH-50PX60U 98 14.29. DT-Board (1 of 6) Schematic Diagram + + + + + AD_SCL_TUNER AP_IF_AGC AP_FAT_P AH_D_A_SW AP_RF_AGC AH_IFSW 5V_A AH_IFSW 30V 0V AH_R_ANALOG AH_D_A_SW(I2C)2 AH_D_A_SW(I2C)1 AD_SDA_FE AP_FAT_N AD_SDA_TUNER 5V_ANALOG AD_SCL_FE AH_L_ANALOG 5V_ANALOG AD_SDA_TUNER AD_SCL_TUNER AH_AFT 3.3V_A AH_VIDEO_OUT AD_SDA_TV AD_SCL_TV C8244 10V 1u L8201 J0JHC0000045 R8217 5.6k C8219 10V 0.1u 5V_ANALOG L8285 J0JHC0000045 R8756 0 R8201 0 L8304 G1CR22JA0020 R8210 0 L8203 J0JHC0000045 C8212 10V 0.1u C8234 10V 0.1u C8633 50V 150p C1AB00002471 IC8206 1 VCC 2 IN1 3 IN2 4 AGC 5 GND2 6 OUT2 7 OUT1 8 GND1 R8218 10k C8653 6.3V 1u C8203 10V 0.1u C8211 0 C8202 10V 0.1u L8202 J0JHC0000045 C8433 50V 100p 5V_ANALOG R8757 0 C8654 6.3V 1u R8211 4.7k C8635 50V 10p C8436 50V 47p C0JBAS000223 IC8203 1 I/O 2 O/I 3 VSS 5 VDD 4 CONT C8206 6.3V 220u IC8202 C0JBAS000245 1 1I/O 2 1O/I 3 2O/I 4 2I/O 5 2C 6 3C 7 GND 8 3I/O 9 3O/I 10 4O/I 11 4I/O 12 4C 13 1C 14 VCC R8462 100 C8222 50V 1000p R8228 0 C8225 16V 0.01u IC8205 C0ABBA000025 1 A_OUT 2 A-IN 3 A+IN 4 GND 5 B+IN 6 B-IN 7 B_OUT 8 V+ L8303 G1CR22JA0020 R8206 0 C8664 50V 1000p C0JBAS000223 IC8204 1 I/O 2 O/I 3 VSS 5 VDD 4 CONT C8235 10V 0.1u C8207 6.3V 220u C8239 16V 0.01u C8233 50V 1000p TU8200 ENGE6408DF OOB_OUT 1 ANT_V_SUPPLY 2 GND 3 BTL 4 TU 5 GND 6 V_SUPPLY 7 AGC 8 SDA 9 SCL 10 AFT 11 AGC_OUT 12 VIDEO_OUT 13 GND 14 R_OUT 15 L_OUT 16 GND 17 BV 18 IF_OUT 19 IF_SW 20 TP8200 TP8201 C8432 50V 27p R8463 100 R8202 0 L8211 ELJNA1R0JFB C8361 50V 27p R8216 4.7k C8255 50V 1000p C8434 50V 100p C8241 50V 1000p C8208 0 C8636 50V 10p 3.3V_A R8219 15k C8435 50V 47p C8205 50V 22u C8200 10V 0.1u C8237 10V 0.1u C8253 50V 1000p C8414 50V 12p R8203 0 9V_SUB L8305 G1CR39JA0020 C8220 50V 1000p C8228 16V 0.01u C8299 16V 0.01u L8284 J0JHC0000045 C8495 50V 2p L8200 J0JHC0000045 C8226 6.3V 47u R8220 1k XF8200 J0C4405B0004 3 G 8 NC 9 NC 10 NC 11 NC 12 NC 7 NC 4 NC 1 IN_H 2 IN_L 5 OUT 6 OUT C8646 50V 1000p C8224 16V 0.01u 5V_ANALOG R8209 27k C8238 16V 0.01u C8201 50V 0.01u L8283 J0JHC0000045 C8218 10V 0.1u R8207 5.6k C8624 16V 0.01u C8634 50V 150p C8229 16V 0.01u C8204 6.3V 220u C8231 10V 0.1u C8298 16V 0.01u R8208 10k 9V_SUB L8209 J0JHC0000045 C8413 50V 12p R8200 0 RF_AGC DIGITAL_RF_AGC ANALOG_RF_AGC IF_OUT AGC Cont. ANALOG DIGITAL L D_A_SW H L ON H OFF IFSW H OFF D_A_SW L ON A C 1 2 B 7 F 3 5 E 8 9 D 4 6 L/H CHECK L/H CHECK AGC AMP(IF STRIP) SERIAL SW AGC AMP 1 2 3 ! TUNER ! DT-BOARD TNAG167S (1/6) TH-50PX60U DT-Board (1 of 6) Schematic Diagram TH-50PX60U DT-Board (1 of 6) Schematic Diagram TH-50PX60U 99 14.30. DT-Board (2 of 6) Schematic Diagram + Thermal Pad + + + AO_POD_DRX AP_FAT_P AO_MPEG_ERR AO_POD_CRX AD_SCL1 AD_SDA1 AP_FAT_N AD_XIRQ1 AJ_XFERST0 AJ_PSYNC0 AJ_ENABLE0 AJ_SCHCLK0 AJ_SCHDATA0 AD_TCK AD_TMS AD_TRST AD_TO_FRONT AO_IBFSYNC AO_MPEG_ERR AO_MPEG_PKT_SYNC AO_MPEG_DATA_EN AO_MPEG_CLK AO_SER_DATA AO_MPEG_CLK AO_MPEG_DATA_EN AO_MPEG_PKT_SYNC AP_IF_AGC AD_SDA_FE AP_FDC_AGC AP_FDC_RFAGC AP_FS_OUT_N AP_FS_OUT_P AP_RF_AGC AP_FDC_P AP_FDC_N AP_AGC_CONT 3.3V_A 1.2V_FE AA_ED18 AA_EA17 AA_EA5 AA_NAND_RY/BY AA_EA23 AA_EA8 AA_ED22 AA_ED31 AA_EA12 AA_ED25 AA_EA11 AA_XECS0 AA_ED17 AA_ED29 AA_EA20 AA_EA10 AA_EA1 AA_EA7 AA_EA4 AA_ED21 AA_ED23 AA_ED24 AA_EA6 AA_EA9 AA_ED27 AA_ED28 AA_EA3 AA_EA15 AA_ED20 AA_ED16 AA_EA16 AA_XEWE2 AA_ED19 AA_EA2 AA_EA14 AA_EA22 AA_XERE AA_XRST AA_EA19 AA_EA21 AA_FWP AA_ED26 AA_EA13 AA_EA18 AA_ED30 AD_SCL_FE AO_SER_DATA AA_ED31 AA_ED22 AA_ED21 AA_ED30 AA_ED29 AA_ED19 AA_ED17 AA_ED27 AA_ED24 AA_ED23 AA_ED16 AA_ED20 AA_ED28 AA_ED25 AA_ED18 AA_ED26 *R8366 0 R8841 1.8k C8652 10V 10u C8374 10V 0.1u *R8368 0 C8357 10V 0.1u R8277 12k C8315 10V 0.1u C8362 10V 0.1u C8316 16V 10u C8310 10V 0.1u R8300 2.7k *R8838 10k *R8837 10k C8350 10V 0.1u C8332 50V150p R8301 0 LNJ208R8ARA D8204 L8221 J0JHC0000045 R8335 100 C8329 10V 0.1u L8223 J0JHC0000045 *R8367 0 R8315 4.7k R8333 100 L8224 J0JHC0000045 *R8369 0 C8333 10V 0.1u C8322 10V 0.1u C8317 10V 0.1u C8369 10V 0.1u R8285 2.7k 3.3V_A R8289 10k C8351 10V 0.1u Q8227 B1ADDF000005 Q8228 B1ADDF000005 R8351 3.9k R8324 100 C8353 10V 0.1u R8303 2.7k C8644 6.3V 1u R8272 0 C8323 10V 0.1u C8331 10V 0.1u C8371 10V 0.1u C8336 10V 0.1u R8290 10k R8334 100 C8639 6.3V 1u R8323 100 R8270 220 C8309 10V 0.1u R8273 51 C8311 6.3V 1u R8291 0 C8347 10V 0.1u R8304 0 5V_ANALOG R8793 0 C8320 6.3V 1u R8354 3.9k R8305 0 R8839 6.8k R8288 0 C8312 6.3V 1u C8344 10V 0.1u C8334 10V 0.1u C8645 6.3V 1u C8629 10V 0.1u LNJ208R8ARA D8203 C8348 10V 0.1u R8844 0 C8373 10V 0.1u C8346 16V 0.1u R8274 51 R8317 0 C8308 10V 0.1u C8318 10V 0.1u R8843 1.8k C8321 10V 0.1u MN884321B IC8211 1 VSSA0 2 OBDAVRF 3 OBDAIRF 4 OBDACMP 5 VDDA0 6 OBAON 7 OBAOP 8 VDDA1 9 VSSA1 10 VDDA2 11 PTCPO 12 VSSA2 13 VDDA3 14 OBAINP 15 OBAINN 16 OBADVRH 17 OBADVRM 18 OBADVRL 19 VSSA3 20 VDDL0 21 VSS0 22 VDDL1 23 VSS1 24 VDDH0 25 VSS2 26 VSS3 27 VDDL2 28 VDDA4 29 LCKN 30 LCKP 31 VSSA4 32 VDDA5 33 STCPO 34 VSSA5 35 XO 36 XI 37 VDDA6 38 VSSA6 39 IBAINP 40 IBAINN 41 VSSA7 42 VDDA7 43 IBADVRFH 44 IBADVRFL 45 IBADIRF 46 IBADCMO 47 VDDL3 48 VSS4 49 IBEN0 50 IBEN1 51 IBMSDA 52 IBMSCL 53 IBAGCRF 54 IBAGCIF 55 VDDH1 56 SCKO 57 VSS5 58 OBAGCRF 59 OBAGCIF 60 OBEN0 61 OBEN1 62 OBMSDA 63 OBMSCL 64 VDDH2 65 VSS6 66 VDDL4 67 VSS7 68 NRST 69 TEST0 70 TEST1 71 TEST2 72 TEST3 73 TEST4 74 VDDL5 75 VSS8 76 GPIO0 77 GPIO1 78 VDDH3 79 VSS9 80 GPIO2 81 GPIO3 82 GPIO4 83 GPIO5 84 INT 85 SADDR0 86 SADDR1 87 SDA 88 SCL 89 VDDH4 90 VSS10 91 IBPCK 92 IBFSYNC 93 IBERR 94 IBDEN 95 IBBCK 96 IBDO0 97 VDDH5 98 VSS11 99 IBDO1 100 IBDO2 101 IBDO3 102 VDDL6 103 VSS12 104 IBDO4 105 IBDO5 106 IBDO6 107 VDDH6 108 IBDO7 109 VSS13 110 GPIO6 111 GPIO7 112 GPIO8 113 GPIO9 114 OBCRX 115 OBDRX 116 VDDH7 117 VSS14 118 GPIO10 119 GPIO11 120 VDDL7 121 VSS15 122 GPIO12 123 GPIO13 124 GPIO14 125 GPIO15 126 OBITX 127 VDDH8 128 VSS16 129 OBQTX 130 OBETX 131 OBCKO 132 GPIO16 133 TDO 134 TCK 135 TMS 136 TRST 137 TDI 138 GPIO17 139 GPIO18 140 GPIO19 141 GPIO20 142 GPIO21 143 VDDH9 144 VSS17 145 GPIO22 146 VDDL8 147 VSS18 148 GPIO23 149 GPIO24 150 GPIO25 151 GPIO26 152 GPIO27 153 VSS19 154 PCKO 155 VDDH10 156 GPIO28 157 GPIO29 158 PCSEL0 159 PCSEL1 160 GPIO30 161 GPIO31 162 GPIO32 163 GPIO33 164 VDDH11 165 VSS20 166 GPIO34 167 GPIO35 168 VDDL9 169 VSS21 170 PCKI 171 VDDH12 172 VSS22 173 OBDOE 174 OBPGAEN 175 OBPGASCL 176 OBPGASDA R8297 1k C8302 16V 0.01u H0J250500050 X8200 C8330 10V 0.1u C8319 10V 0.1u R8316 0 C8313 10V 0.1u C8372 10V 0.1u R8792 0 L8225 J0JHC0000045 R8336 100 C8368 10V 0.1u C8303 6.3V 47u R8314 4.7k C8360 10V 0.1u R8287 2.7k R8313 0 R8293 10k C8358 10V 0.1u C8352 10V 0.1u C8327 16V 10u R8791 3.3k 5V_SUB C8349 10V 0.1u C8343 10V 0.1u R8325 100 C8446 50V 1800p C8370 10V 0.1u R8282 1k C8630 10V 0.1u C8314 10V 0.1u R8318 0 C8304 50V 15p C8342 10V 0.1u R8322 100 C8338 10V 0.1u C8345 16V 0.1u C8305 50V 15p C8337 16V 10u C8306 10V 0.1u C8440 10V 0.1u *R8460 4.7k L8239 J0JHC0000075 *R8461 0 C8445 10V 0.1u C8437 10V 0.1u R8470 0 C8441 10V 0.1u R8471 4.7k *IC8254 1 N.C. 2 A22 3 A15 4 A14 5 A13 6 A12 7 A11 8 A10 9 A9 10 A8 11 A19 12 A20 13 WE 14 RESET 15 A21 16 WP/ACC 17 RY/BY 18 A18 19 A17 20 A7 21 A6 22 A5 23 A4 24 A3 25 A2 26 A1 27 N.C. 28 N.C. 29 Vio 30 N.C. 31 A0 32 CE 33 Vss 34 OE 35 DQ0 36 DQ8 37 DQ1 38 DQ9 39 DQ2 40 DQ10 41 DQ3 42 DQ11 43 Vcc 44 DQ4 45 DQ12 46 DQ5 47 DQ13 48 DQ6 49 DQ14 50 DQ7 51 DQ15/A-1 52 Vss 53 BYTE 54 A16 55 N.C. 56 N.C. R8468 0 R8465 EXB2HV104JV R8464 EXB2HV104JV 3.3V FRONT LSI +1.2V +3.3V 25MHz Near IC8211 18 11 15 13 14 12 17 10 16 (A23) +1.2V +3.3V (VIO) +3.3V +1.2V +3.3V FRONT PROCESSOR (TERRESTRIAL RECEIVER) 128M FLASH ROM 1 3 2 11 12 13 14 15 16 TVRN838 DT-BOARD TNAG167S (2/6) ! TH-50PX60U DT-Board (2 of 6) Schematic Diagram TH-50PX60U DT-Board (2 of 6) Schematic Diagram TH-50PX60U 100 14.31. DT-Board (3 of 6) Schematic Diagram G G G G + + D.SW W.P. AE_SDCD AE_SDCMD AE_SDCLK AD_SCL1 AD_SDA1 AA_ED22 AA_ED21 AA_ED20 AA_ED19 AA_ED18 AA_ED17 AA_ED16 AA_ED28 AA_ED27 AA_ED26 AA_ED25 AA_ED24 AA_ED23 AA_ED31 AA_ED30 AA_ED29 AA_EA11 AA_EA4 AA_EA10 AA_EA3 AA_EA9 AA_EA2 AA_EA21 AA_EA20 AA_EA19 AA_EA24 AA_EA23 AA_EA22 AA_EA18 AA_EA1 AA_EA0 AA_EA17 AA_EA16 AA_EA15 AA_EA8 AA_EA14 AA_EA7 AA_EA13 AA_EA6 AA_EA12 AA_EA5 AA_XRST AA_XECS2 AA_XEWE2 AA_XEWE3 AA_NAND_RY/BY AD_TMS AA_XEAS AA_XEDK AJ_ENABLE0 AJ_PSYNC0 AJ_SCHCLK0 AA_POWER_DET AA_XERE AA_XECS1 AA_ESZ0 AA_XIRQ2 AA_XNMIRQ AD_TCK AA_ERXW AA_ERXW 0V AE_SDDAT0 AE_SDDAT1 AE_SDDAT2 AE_SDDAT3 AD_XIRQ1 AA_XIRQ3 AD_TO_PEAKS AT_ADIN AT_SLRCK AT_DSRCK AT_XADCRST AH_MAIN_R AH_MAIN_L AL_LOCLK AL_LHSYNC AL_LVSYNC AE_SDDAT3 AE_SDDAT1 AE_SDDAT2 AE_SDDAT0 AE_SDCMD AE_SDCLK AA_ESZ1 AT_ADCCK AT_DSRCK AJ_XFERST0 AT_ADCCK AD_SDA0 AD_SCL0 AA_XPODRST AE_SDCD AE_SDWP AA_SBO0 AD_SBO1 AA_SBI0 AJ_SCHDATA0 AD_TO_FRONT AD_SBI1 AA_XIRQ0 AE_SDWP AD_SDBOOT AA_XERE AA_XVBIRST AA_BOOTSWAP AA_FWP AA_SDCMD AA_SDDAT1 AA_SDDAT0 AA_SDCLK AA_SDDAT2 AA_SDDTC AA_SDDTC AA_SDCMD AA_SDDAT3 AA_SDDAT2 AA_SDDAT0 AA_SDDAT1 AA_SDWP AA_SDWP AA_SDCLK AA_SDDAT3 IC8240 K18 CHPSYNC0 R8597 EXB2HV330JV TP8230 R8539 0 *R8440 10k IC8240 M2 CLK74 IC8240 K3 DRSTMSK IC8240 A5 EA29 IC8240 XCTS2 B22 ED3 IC8240 SDDAT1 B20 ED9 IC8240 M3 VC27 R8512 10k IC8240 XDTR2 D2 XEWE0 R8576 33 IC8240 J1 TDO R8605 10k IC8240 SDWP B21 ED6 *R8498 56 R8602 56 R8801 10k R8515 10k R8503 5.6k R8607 10k IC8240 D22 XRI2 IC8240 A19 ED14 R8572 56 IC8240 L3 XRSTOUT IC8240 B11 EA9 IC8240 E22 SDA0 R8518 10k IC8240 C14 ED30 IC8240 D17 ED18 IC8240 C11 EA7 R8532 56 IC8240 C12 EA4 R8514 10k IC8240 B16 ED24 R8526 10k R8519 3.9k IC8240 P3 SMTSEL0 R8551 0 IC8240 F4 SBI1 R8571 56 R8570 56 5V_SUB IC8240 A3 XECS0 IC8240 SBO2 D20 ED2 R8615 10k IC8240 D16 ED25 IC8240 E3 BOOTSWAP R8573 56 R8494 100 *R8427 10k R8538 100 IC8240 C15 ED26 IC8240 H22 CHDATA2 IC8240 A16 ED23 R8541 56 IC8240 C22 ED0 IC8240 K1 EVTRG IC8240 J3 TCK IC8240 H1 XIRQ3 IC8240 A9 EA15 IC8240 SDDAT2 C19 ED10 R8596 EXB2HV330JV R8558 56 IC8240 H18 CHCLK1 3.3V R8781 10k R8505 10k IC8240 H3 XIRQ4 R8545 56 R8559 EXB38V560JV R8578 33 R8513 10k *R8497 56 IC8240 A6 EA26 IC8240 C3 XECS4 C8451 10V 4.7u IC8240 H21 CHDATA1 IC8240 D8 EA17 IC8244 C0FBAK000024 1 AINR 2 AINL 3 CKS1 4 VCOM 5 AGND 6 VA 7 VD 8 DGND 9 SDTO 10 LRCK 11 MCLK 12 SCLK 13 PDN 14 DIF 15 CKS2 16 CKS0 *L8241 J0JHC0000045 R8507 5.6k IC8240 C9 EA14 IC8240 C7 EA22 *R8611 10k IC8240 G21 IS0CLK R8525 10k R8488 10k IC8240 F2 SBT1 TP8235 R8567 56 3.3V IC8240 C16 ED22 TP8246 IC8240 D6 EA28 IC8240 SDDAT3 A20 ED11 IC8240 L1 XRST L8297 J0JHC0000045 R8802 10k IC8240 J20 CHVAL0 R8584 33 IC8240 N1 SMTCLK0 IC8240 B7 EA24 *R8795 56 R8845 10k R8560 56 IC8240 B15 ED28 IC8240 J2 TDI R8534 56 IC8240 SDDAT0 A21 ED8 IC8240 G19 IS0SYNC R8506 10k IC8240 N3 SMTRST0 IC8240 C4 XECS1 IC8240 A2 XECS3 IC8240 XDSR2 D19 ED5 R8527 3.9k *R8428 10k IC8240 C10 EA10 3.3V R8601 10k C8456 6.3V 4.7u IC8240 J21 CHDATA6 R8585 33 R8591 33 IC8240 F20 SCL0 R8509 10k IC8240 E21 SDA1 R8492 100 R8588 33 IC8240 D5 ESZ0 *FL8211 J0HAAA000013 1 2 3 4 5 6 7 8 9 10 3.3V R8508 10k IC8240 A18 ED17 TP8236 R8536 10k *R8798 56 R8599 EXB2HV560JV IC8240 H20 CHDATA3 R8594 33 IC8240 C17 ED19 1 2 3 4 5 6 7 8 9 10 11 12 13 R8531 EXB38V560JV IC8240 B8 EA20 IC8240 F19 SCL1 IC8240 G4 SBT0 IC8240 C1 ECLK IC8240 E20 XNFRE TP8231 IC8240 M18 DCLK IC8240 SDCD C20 ED7 IC8240 A10 EA11 IC8240 P4 SMTCMD0 IC8240 SDCMD B19 ED12 3.3V IC8240 B6 EA27 R8517 10k IC8240 D9 EA13 R8540 10k R8552 56 R8610 10k IC8240 A4 ESZ1 IC8240 A13 EA2 IC8240 K19 CHCLK0 IC8240 C2 XEWE3 R8455 56 R8504 10k IC8240 A11 EA8 R8586 33 IC8240 H19 CHDATA0 IC8240 N18 MCLK R8421 10k R8574 10k R8547 56 IC8240 B18 ED16 IC8240 B5 EA30 IC8240 R19 MTCPOUT IC8240 B10 EA12 IC8240 D7 EA21 R8800 10k R8511 47k IC8240 E5 ERXW R8489 100 IC8240 A7 EA23 IC8240 B17 ED21 IC8240 D1 XEXDMR0 IC8240 F3 SBI0 *R8796 56 R8535 56 3.3V R8557 10k IC8240 B4 XEAS IC8240 B12 EA6 IC8240 A15 ED27 R8593 33 IC8240 G5 XEBGT IC8240 A8 EA19 IC8240 A12 EA5 IC8240 E1 SBO1 IC8240 XRTS2 D3 XEWE1 R8546 56 IC8240 C6 EA25 *FL8210 J0HAAA000013 1 2 3 4 5 6 7 8 9 10 R8587 33 R8577 33 IC8240 SDCLK D18 ED13 R8543 56 R8780 10k R8529 10k R8606 10k IC8240 G2 XNMIRQ *R8495 56 IC8240 B2 XECS5 R8565 10k R8583 33 R8524 2.2k R8595 33 IC8240 SBI2 D21 ED1 3.3V IC8240 E2 XEXDMK0 TP8234 TP8232 IC8240 F22 IS0VAL IC8240 G3 XIRQ1 R8614 10k C8453 10V 0.1u R8592 33 R8612 10k R8799 10k IC8240 F21 IS0DATA0 TP8233 IC8240 C8 EA18 R8600 EXB2HV560JV IC8240 B14 EA0 TP8237 R8608 10k R8548 0 *R8562 10k R8544 56 IC8240 D4 XERE R8516 10k IC8240 XDCD2 C21 ED4 *R8564 10k IC8240 A17 ED20 *R8797 56 IC8240 B9 EA16 C8450 10V 4.7u R8568 10k *R8499 56 R8537 0 IC8240 A14 ED31 IC8240 K2 TMS R8542 56 R8589 33 R8613 10k 3.3V IC8240 E4 XEDK *R8426 10k R8533 56 C8452 10V 4.7u R8493 100 IC8240 P20 DTCPOUT IC8240 C13 EA1 IC8240 J18 CHDATA4 IC8240 B13 EA3 R8491 100 IC8240 J19 CHDATA5 R8530 10k IC8240 E19 XNFWE IC8240 H2 XIRQ2 IC8240 D15 ED29 IC8240 B3 XECS2 IC8240 C18 ED15 IC8240 F1 SBO0 R8598 EXB2HV560JV R8582 33 IC8240 F5 XEBRQ C8457 6.3V 4.7u IC8240 J22 CHDATA7 IC8240 M1 CK27 IC8240 B1 XEWE2 IC8240 N2 SMTD0 IC8240 C5 EA31 IC8240 G1 XIRQ0 IC8240 L2 TSTSEL 3.3V X8005 H0J270500061 C8356 16V 0.01u C8247 16V 0.01u C8246 47u 4V C8272 10V 0.1u C8245 16V 0.01u 3.3V C8170 10u 10V C8273 10V 0.1u C8254 16V 0.01u *R8338 10k R8343 180 R8347 220 C8240 6.3V 1u R8349 100k C8355 10V 0.1u C0ZBZ0001052 IC8022 1 X1 2 S0 3 S1 4 VIN 5 VDD 6 GND 7 74M 8 NC 9 27M 10 133M 11 24.576M 12 GND 13 VDD 14 S2 15 VDD 16 X2 L8096 J0JHC0000045 *R8345 10k *R8344 10k R7704 120 R7701 120 R7796 0 L7721 J0JCC0000089 C7702 47u 4V C7708 50V 0.01u C7703 50V 33p R7706 0 R7710 100 R7702 0 C7709 16V 0.1u R7731 120 C7701 50V 33p R7709 47 R7797 0 1 2 3 4 5 6 7 8 9 10 11 12 R7705 120 C7705 16V 0.1u C7704 50V 33p R7794 0 R7713 47 R7793 0 R7799 0 JK7701 K1NA09E00080 1 2 3 4 5 6 7 8 9 10 11 12 R7703 120 R7798 0 R7708 0 C7707 0.1u 16V JS7701 0 C7711 50V 33p R7795 0 R7716 0 R7792 0 SDDAT3 SDWP SDDAT0 SDDAT2 SDDAT1 3.3V GND SDCMD GND SDCD SDCLK GND +3.3V PEAKS_Lite 1/3 CPU_BUS LA7 POWER_DET NAND XWP NAND ALE XNFCS NAND RY/BY SDBOOT ASIC SD_CARD IRSYS TSSSW1 FWP SPORT CARD BOOT ROM SCHDATA0 ENABLE0 SCHCLK0 PSYNC0 XFERST0 DSRCK(DIT) ADCCK(DIT) ASIC +1.2V FRONT VBI ASIC ASIC VBI_RST SDLED CLOCK GEN 27M 20M +3.3V +1.2V +3.3V +1.2V SDCMD GND GND SDDAT3 SDDAT1 3.3V SDDAT2 SDCLK SDDAT0 SD CARD SLOT DT 10 GS 52 ! GS-BOARD TNPA3853ABS 16Bit AUDIO A/D MN2WS0025B-A IC8240 19 26 25 27 23 24 20 21 22 13 11 12 14 16 15 31 32 33 34 35 36 ! DT-BOARD TNAG167S (3/6) TH-50PX60U DT-Board (3 of 6) and GS-Board Schematic Diagram TH-50PX60U DT-Board (3 of 6) and GS-Board Schematic Diagram TH-50PX60U 101 14.32. DT-Board (4 of 6) Schematic Diagram + + AD_SDA1 AD_SCL1 AA_EEPWP AA_XRST AA_XDACRST AA_EEPWP AA_FORMAT_EDGE AM_MVY0 AM_MVY1 AM_MVY2 AM_MVY3 AM_MVY4 AM_MVY5 AM_MVY6 AM_MVY7 AM_MVC0 AM_MVC1 AM_MVC2 AM_MVC3 AM_MVC4 AM_MVC5 AM_MVC6 AM_MVC7 AH_SRCK AT_XADCRST AH_DACCK AH_LRCK AH_DMIX AD_SRQ AM_MVSYNCO AM_MHSYNCO PE_MMDQ0 PE_MMDQ1 PE_MMDQ2 PE_MMDQ3 PE_MMDQ4 PE_MMDQ5 PE_MMDQ6 PE_MMDQ7 PE_MMDQ8 PE_MMDQ9 PE_MMDQ10 PE_MMDQ11 PE_MMDQ12 PE_MMDQ13 PE_MMDQ14 PE_MMDQ15 PE_MMDQ16 PE_MMDQ17 PE_MMDQ18 PE_MMDQ19 PE_MMDQ20 PE_MMDQ21 PE_MMDQ22 PE_MMDQ23 PE_MMDQ24 PE_MMDQ25 PE_MMDQ26 PE_MMDQ27 PE_MMDQ28 PE_MMDQ29 PE_MMDQ30 PE_MMDQ31 PE_MMA0 PE_MMA1 PE_MMA2 PE_MMA3 PE_MMA4 PE_MMA5 PE_MMA6 PE_MMA7 PE_MMA8 PE_MMA9 PE_MMA10 PE_MMA11 PE_MMA12 PE_MMA13 AT_ADIN AT_SLRCK AM_MVCLKO AG_MMA10 PE_MMDQ2 PE_MMDQ7 PE_MMA1 AC_MMDQ23 AG_MMA9 AG_MMA2 AC_MMDQ3 PE_MMA6 PE_MMDQ15 AG_MMA6 AC_MMDQ4 AC_MMDQ30 AG_MMA4 AG_MMA7 AG_MMA9 AG_MMA7 PE_MMDQ5 AG_MMA12 AG_MMA13 PE_MMDQ22 AG_MMA3 AC_MMDQ5 AC_MMDQ31 PE_MMDQ27 AC_MMDQ1 AG_MMA8 AC_MMDQ29 PE_MMDQ18 PE_MMDQ0 AG_MMA12 PE_MMA8 AC_MMDQ11 PE_MMA2 AG_MMA4 AG_MMA7 PE_MMA12 AC_MMDQ0 AG_MMA2 PE_MMDQ11 PE_MMA9 AG_MMA6 AC_MMDQ2 AG_MMA9 PE_MMDQ14 PE_MMDQ4 AG_MMA1 AC_MMDQ11 AC_MMDQ23 AC_MMDQ14 AC_MMDQ10 AC_MMDQ2 AG_MMA6 PE_MMDQ28 AC_MMDQ6 AC_MMDQ20 AG_MMA3 AG_MMA3 AC_MMDQ0 AG_MMA5 PE_MMDQ19 AC_MMDQ19 AC_MMDQ13 AC_MMDQ29 PE_MMA0 AC_MMDQ3 PE_MMDQ25 PE_MMDQ23 AC_MMDQ16 AC_MMDQ4 AG_MMA8 PE_MMDQ9 AC_MMDQ9 AC_MMDQ15 AG_MMA11 AC_MMDQ26 PE_MMDQ26 AG_MMA1 PE_MMDQ1 AC_MMDQ24 AG_MMA10 AC_MMDQ19 PE_MMDQ29 AG_MMA5 AC_MMDQ17 AC_MMDQ25 AC_MMDQ18 AG_MMA10 PE_MMA4 PE_MMDQ3 PE_MMA13 AC_MMDQ25 AC_MMDQ28 AG_MMA12 AC_MMDQ8 PE_MMDQ16 AG_MMA8 AC_MMDQ30 AC_MMDQ7 AC_MMDQ15 AC_MMDQ14 PE_MMDQ30 PE_MMA10 PE_MMA5 AC_MMDQ31 AG_MMA0 AC_MMDQ12 AG_MMA1 PE_MMDQ20 AC_MMDQ10 AG_MMA11 PE_MMDQ31 AC_MMDQ7 AC_MMDQ8 AC_MMDQ27 PE_MMDQ24 AC_MMDQ26 AC_MMDQ17 AC_MMDQ28 AC_MMDQ22 AC_MMDQ27 PE_MMDQ12 AG_MMA11 PE_MMA3 PE_MMDQ10 AG_MMA0 AC_MMDQ13 AG_MMA4 AG_MMA2 AG_MMA5 AC_MMDQ6 AC_MMDQ9 AC_MMDQ16 AC_MMDQ12 PE_MMDQ13 PE_MMDQ21 PE_MMA7 AC_MMDQ24 PE_MMDQ17 AC_MMDQ20 AC_MMDQ18 AC_MMDQ22 AC_MMDQ21 AC_MMDQ5 PE_MMDQ6 PE_MMDQ8 AC_MMDQ1 AG_MMA0 PE_MMA11 AC_MMDQ21 AA_SBO0 AA_SBI0 5V_SUB AA_XDACRST Q8209 B1ADDF000005 IC8240 G22 SLRCK IC8240 U3 MMDQ15 IC8240 Y11 MMDQ28 IC8240 AA18 MVC2 IC8240 U2 MMUDQS0 IC8240 Y22 AVCOIN R8653 10k R8458 10k IC8240 V21 MVIREF R8654 56 IC8240 W12 MMDQ23 IC8240 T21 SVVREF R8656 10k R8649 75 R8643 56 IC8240 AB10 MMDQ26 IC8240 AB11 MMUDQS1 IC8240 K22 HSSYNCIN IC8240 W15 MVY4 IC8240 AB7 MMA9 IC8240 T2 MMLDQS0 IC8240 K21 HSVALIN R8657 27k IC8240 AA7 MMA11 IC8240 W13 MMDQ18 IC8240 AA13 MMDQ20 IC8240 W11 MMDQ29 IC8240 W21 MVVREF IC8240 T4 MMDQ5 IC8240 Y6 MMA12 IC8240 K20 HSBCLKIN R8647 10k TP8221 IC8240 AB5 XMMCS IC8240 Y7 MMA10 IC8240 L19 HSDIN4 IC8240 V22 MVDACO1 IC8240 AA9 MMA4 IC8240 N20 IECOUT IC8240 L18 HSDIN3 IC8240 M20 DMIX IC8240 R1 MMDQ4 IC8240 AB18 MVC4 IC8240 AA19 MHSYNCO IC8240 G20 ADIN IC8240 W1 MMDQ12 IC8240 R22 SVDACO1 IC8240 Y19 MVSYNCO IC8240 U21 SVCOMP R8650 56 R8633 56 IC8240 U22 MVDACO2 C8477 10V 0.1u R8645 0 R8651 100 R8629 10k IC8240 T22 SVDACO0 C8468 16V 0.01u TP8242 9V_SUB IC8240 Y4 MMVREF C0EBE0000336 IC8227 4 OUT 3 Cd 1 GND 2 Vdd IC8240 T3 MMDQ6 C8430 50V 5p IC8240 Y5 XMMRAS IC8240 W20 ATVROUT IC8240 R21 SVIREF IC8240 AB15 MVY6 IC8240 W16 MVY0 IC8240 AA15 MVY7 R8646 75 R8630 0 IC8240 L22 HSDIN1 R8636 56 IC8240 M19 HSDIN5 C8475 6.3V1u IC8240 Y21 MVCOMP IC8240 Y14 MMDQ16 IC8240 W17 MVC3 IC8240 AB12 MMLDQS1 IC8240 AB4 XMMWE IC8240 R2 MMDQ3 R8631 75 R8342 10k IC8240 R3 MMDQ2 IC8240 R4 MMDQ1 IC8240 W3 MMDQ10 IC8240 AA3 MMCK IC8240 W10 MMDQ27 IC8240 AA8 MMA7 R8632 56 IC8240 U1 MMDQMU0 R8658 56 IC8240 W8 MMA0 IC8240 W22 MVDACO0 IC8240 Y8 MMA8 IC8240 R5 MMDQ0 R8635 56 IC8240 Y1 MMDQ9 IC8240 AA5 MMCKE R8648 0 IC8240 Y13 MMDQ19 C8476 6.3V 1u IC8240 Y15 MVY5 IC8240 N19 SRCK C8479 16V 0.01u IC8240 V12 MMDQ31 IC8240 V10 MMA1 IC8240 N21 LRCK IC8240 W2 MMDQ11 IC8240 T1 MMDQML0 C8467 16V 0.01u IC8240 AA11 MMDQMU1 IC8240 W18 AUDCLK IC8240 Y12 MMDQ22 R8640 0 R8634 56 IC8240 AB20 MVCLKO L8242 J0JCC0000078 IC8240 M21 HSDIN6 R8641 56 3.3V IC8240 Y10 MMDQ24 R8637 56 R8312 0 IC8240 AB8 MMA6 IC8240 AA17 MVC6 TP8244 IC8240 N22 DACCK IC8240 Y16 MVY1 IC8240 V4 MMDQ13 IC8240 U4 MMDQ7 IC8240 AA12 MMDQML1 IC8240 AB17 MVC7 3.3V IC8240 L21 HSDIN0 C8474 16V 0.01u IC8240 Y9 MMA5 IC8240 AB3 XMMCK C3EBJC000055 IC8229 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC IC8240 P22 SVDACO2 IC8240 V3 MMDQ14 IC8240 AB13 MMDQ21 IC8240 W6 MMBS0 IC8240 L20 HSDIN2 IC8240 M22 HSDIN7 3.3V C8469 6.3V 0.33u IC8240 AA4 XMMCAS IC8240 Y18 MVC0 TP8243 IC8240 W7 MMBS1 R8652 3.3k IC8240 V11 MMDQ30 IC8240 W5 MMA13 IC8240 AA20 ATCPOUT IC8240 AA10 MMDQ25 IC8240 AB9 MMA3 C8359 0 IC8240 AB16 MVY2 IC8240 Y17 MVC5 IC8240 W14 MMDQ17 C8478 6.3V 1u IC8240 AB19 MVC1 R8655 56 IC8228 C0EBM0000027 1 Vout 2 VDD 3 VSS 5 NC 4 NC IC8240 Y2 MMDQ8 IC8240 W9 MMA2 IC8240 AA16 MVY3 C8128 16V 0.01u R8157 39 R8163 56 0.1u 10V C8114 C8099 10V 0.1u R8147 EXB2HV560JV R8152 39 R8155 39 R8164 56 2.5V_1 R8156 39 R8160 39 0.1u 10V C8104 IC8010 C3ABRG000060 1 VDD 2 DQ0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 NC 15 VDDQ 16 LDQS 17 NC 18 VDD 19 NC 20 LDM 21 WE 22 CAS 23 RAS 24 CS 25 NC 26 BA0 27 BA1 28 A10/AP 29 A0 30 A1 31 A2 32 A3 33 VDD 34 VSS 35 A4 36 A5 37 A6 38 A7 39 A8 40 A9 41 A11 42 A12 43 NC 44 CKE 45 CK 46 CK 47 UDM 48 VSS 49 VREF 50 NC 51 UDQS 52 VSSQ 53 NC 54 DQ8 55 VDDQ 56 DQ9 57 DQ10 58 VSSQ 59 DQ11 60 DQ12 61 VDDQ 62 DQ13 63 DQ14 64 VSSQ 65 DQ15 66 VSS 0.1u 10V C8100 R8148 EXB2HV390JV L8143 0 ERJ3GEY0R00V L8142 0 0.1u 10V C8103 R8141 1k R8165 56 R8140 1k R8162 39 0.1u 10V C8111 0.1u 10V C8120 1u 6.3V C8106 R8151 39 R8149 EXB2HV390JV 0.1u 10V C8116 R8146 EXB2HV560JV 1u 6.3V C8112 R8144 EXB2HV560JV 0.1u 10V C8108 R8159 39 C8129 16V 0.01u C8109 4V 100u R8153 39 R8161 39 R8158 39 0.1u 10V C8113 IC8009 C3ABRG000060 1 VDD 2 DQ0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 NC 15 VDDQ 16 LDQS 17 NC 18 VDD 19 NC 20 LDM 21 WE 22 CAS 23 RAS 24 CS 25 NC 26 BA0 27 BA1 28 A10/AP 29 A0 30 A1 31 A2 32 A3 33 VDD 34 VSS 35 A4 36 A5 37 A6 38 A7 39 A8 40 A9 41 A11 42 A12 43 NC 44 CKE 45 CK 46 CK 47 UDM 48 VSS 49 VREF 50 NC 51 UDQS 52 VSSQ 53 NC 54 DQ8 55 VDDQ 56 DQ9 57 DQ10 58 VSSQ 59 DQ11 60 DQ12 61 VDDQ 62 DQ13 63 DQ14 64 VSSQ 65 DQ15 66 VSS 0.1u 10V C8118 C8105 4V 100u 1u 6.3V C8107 L8141 0 1u 6.3V C8102 0.1u 10V C8115 R8145 EXB2HV560JV C8121 10V 0.1u R8154 39 R8137 120 0.1u 10V C8110 R8166 56 0.1u 10V C8117 1u 6.3V C8101 R8150 39 TP8239 C8626 16V 0.01u FL8264 J0HAAC000045 1 2 3 4 TP8238 FL8265 J0HAAC000045 1 2 3 4 5V_SUB C8627 16V 0.01u C8628 16V 0.01u 1 2 3 4 IIC_BUS +3.3V +3.3V AUDIO IC8240 PEAKS_Lite 3/3 POWER_OFF XDACRST XSRQ RESET 2 RESET PORT3(7) PORT3(6) FORMAT_EDGE FAN_SOS PDOWN EEPWP XMMCK MMCK REAL_TIME_CLOCK ADIN(DIT) SLRCLK(DIT) SLRCK:48kHz +1.2V +1.2V HD_Pr HD_Pb HD_Y COMPOSITE DC DY EEPROM +3.3V +5V SBO0 SBI0 256M DDR SDRAM 256M DDR SDRAM MN2WS0025B-A TO HC-BOARD (HC06) 29 32 28 30 36 33 31 35 34 DT 07 36 35 32 33 31 34 51 52 54 53 55 56 57 58 59 61 60 62 63 DT-BOARD TNAG167S (4/6) ! TH-50PX60U DT-Board (4 of 6) Schematic Diagram TH-50PX60U DT-Board (4 of 6) Schematic Diagram TH-50PX60U 102 14.33. DT-Board (5 of 6) Schematic Diagram + + DRIVE IC VCC Vin GND + AH_SRCK AH_DMIX AH_LRCK AH_DACCK AA_POWER_DET AA_XDACRST AL_MVY2 AL_MVY1 AL_MVY3 AL_MVY6 AL_MVY5 AL_MVY4 AL_MVY7 AL_MVY0 9VA AL_MHSYNCO AL_MVSYNCO AD_TO_PEAKS AH_D_A_SW AH_MAIN_SW AH_DY AH_DC AH_D_A_SW(I2C)2 AH_MAIN_R AH_MAIN_L AD_TCK AD_TMS AD_TO_DT12 AD_SCL1 AD_SDA1 AD_SDA_TV AD_SCL_TV AH_AFT AH_L_OUT AH_R_OUT AH_DY AH_DC AH_D_A_SW(I2C)1 AL_MVC4 AL_MVC3 AL_MVC2 AL_MVC1 AL_MVC0 AL_MVY7 AL_MVY6 AL_MVY5 AL_MVY4 AL_MVY0 AL_MVY1 AL_MVY2 AL_MVY3 AL_VOUTENB AA_XRST AD_SRQ AA_FORMAT_EDGE AD_SDBOOT AH_D_A_SW AM_MVC7 AM_MVC6 AM_MVC5 AM_MVC4 AM_MVC3 AM_MVC2 AM_MVC1 AM_MVC0 AM_MVY7 AM_MVY6 AM_MVY5 AM_MVY4 AM_MVY3 AM_MVY2 AM_MVY1 AM_MVY0 AM_MHSYNCO AM_MVSYNCO AM_MVCLKO AL_MVCLKO AH_VIDEO_OUT AL_LOCLK AL_MVC7 AL_MVC6 AL_MVC5 AL_MVC4 AL_MVC3 AL_MVC2 AL_MVC1 AL_MVC0 AH_R_ANALOG AH_L_ANALOG AD_TRST AL_MVC7 AL_MVC6 AL_MVC5 AH_L_OUT AH_MAIN_SW AL_MHSYNCO AL_MVSYNCO AL_LHSYNC AL_LVSYNC AD_SBO1 AD_SBI1 AL_MVCLKO AH_R_OUT AH_IFSW R8553 0 R8788 0 L8306 J0JHC0000045 R8817 47k R8715 47k C8535 10V 0.1u C8517 50V 5p FL8224 J0HAAC000045 1 2 3 4 C8504 10V 0.1u C8503 10V 0.1u TP8216 R8784 EXB38VR000V R8706 10k R8687 10k TP8214 R8692 51k R8726 0 R8719 0 3.3V FL8215 J0HAAC000045 1 2 3 4 R8310 0 C8523 50V 39p R8818 47k FL8227 J0HAAC000045 1 2 3 4 TP8211 TP8245 FL8226 J0HAAC000045 1 2 3 4 R8697 22k C8520 50V 180p R8711 2.2k R8785 EXB38VR000V Q8220 B1ABDF000034 C8488 50V 100p R8705 2.2k R8690 33k L8244 J0JHC0000045 R8712 4.7k 9V_SUB R8669 330 C8480 16V 0.01u TP8252 R8710 47k L8253 J0JCC0000100 TP8249 C8507 10V 4.7u IC8201 C0ABBB000190 1 OUT1 2 -IN1 3 +IN1 4 GND 5 +IN2 6 -IN2 7 OUT2 8 VCC FL8230 J0HAAC000045 1 2 3 4 FL8232 J0HAAC000045 1 2 3 4 R8702 100 C8534 16V 0.1u FL8233 J0HAAC000045 1 2 3 4 FL8229 J0HAAC000045 1 2 3 4 TP8215 C8483 50V 100p C8533 16V 0.1u R8689 0 R8716 10k TP8251 9V_SUB R8673 EXB2HVR000V R8418 EXB2HV121JV Q8218 B1ABDF000034 R8704 100 C8518 16V 0.01u R8659 10k J0MAB0000164 FL8262 1 2 3 4 C8538 50V 0.1u R8700 4.7k FL8234 J0HAAC000045 1 2 3 4 J0MAB0000164 FL8263 1 2 3 4 FL8231 J0HAAC000045 1 2 3 4 C8515 16V 0.01u C8509 47u 16V 5V_SUB FL8237 J0HAAC000045 1 2 3 4 R8672 1k R8311 0 Q8210 B1ADDF000005 R8566 0 C8500 10V 4.7u C8536 50V 1000p R8665 EXB2HVR000V R8666 0 L8256 J0JCC0000100 L8298 J0JCC0000100 L8254 J0JCC0000100 R8671 1k C8521 50V 180p L8255 J0JCC0000100 R8693 33k 30V Q8219 B1ABDF000034 FL8225 J0HAAC000045 1 2 3 4 B1ABDF000034 Q8217 FL8236 J0HAAC000045 1 2 3 4 9V_SUB 3.3V R8686 10k R8696 51k R8528 0 R8561 0 R8786 EXB38VR000V R8783 EXB38VR000V R8842 0 L8243 0 R8708 2.2k TP8250 R8417 EXB2HV121JV TP8241 R8698 4.7k 9V_SUB R8433 0 5V_SUB C8516 47u 6.3V C8482 10V 0.1u TP8218 C8487 50V 150p C0FBBK000047 IC8200 1 MCLK 2 BICK 3 SDTI 4 LRCK 5 PDN 6 SMUTE/CSN 7 ACKS/CCLK 8 DIF0/CDTI 9 P/S 10 AOUTR 11 AOUTL 12 VCOM 13 VSS 14 VDD 15 DZFR 16 DZFL R8667 330 C8510 50V 5p FL8228 J0HAAC000045 1 2 3 4 DT12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 R8794 0 R8688 0 C8508 10V 4.7u R8782 EXB38VR000V L8299 J0JCC0000100 R8787 EXB38VR000V R8481 0 R8695 22k C8522 50V 39p R8707 47k TP8217 R8550 0 D8208 K7JAAAB00001 TP8240 5V_SUB R8691 0 Q8211 B1ADDF000005 L8250 J0JHC0000045 C8505 16V 0.01u C8506 47u 16V 5V_SUB 0.01u 16V C8501 MAINL DC DY TRST TDO TDI TMS TCK SDA SCL - + + - L R C Y +3.3V MAINR +1.2V H L ANALOG_AUDIO DIGITAL_AUDIO D_A_SW H L DIGITAL ANALOG MAIN_SW SRQ RESET AUDIO AMP AUDIO DAC +3.3V +3.3V +1.2V +3.3V DIGITAL AUDIO OUT TO DG-BOARD (DG22) 41 45 37 42 38 39 43 44 40 53 52 62 56 57 54 59 55 61 60 51 63 58 71 72 73 DT-BOARD TNAG167S (5/6) ! TH-50PX60U DT-Board (5 of 6) Schematic Diagram TH-50PX60U DT-Board (5 of 6) Schematic Diagram TH-50PX60U 103 14.34. DT-Board (6 of 6) Schematic Diagram + + + + + + + + *R8737 0 R8661 68k IC8240 P2 AVSS R8752 0 IC8240 AA21 GND C8484 0.1u 10V IC8240 P21 DAVDD R8478 0 C8601 10V 0.1u IC8240 AA1 GND L8290 G1C3R3ZA0083 R8720 0 C8553 10V 0.1u IC8240 Y3 GND IC8240 P1 AVDD C8556 4.7u 6.3V IC8240 N10 GND IC8240 M10 GND IC8240 AA2 GND IC8240 V16 VDD12 IC8240 J4 VDD12 R8755 0 IC8240 M14 GND IC8240 U18 MVAVSS IC8240 U20 SVAVDD IC8240 A1 GND L8264 J0JHC0000045 C8554 10V 0.1u IC8240 E10 VDD33 C8603 16V 0.01u IC8240 H5 VDD12 IC8240 P13 GND IC8240 K9 GND IC8240 L5 VDD12 C8594 68u 4V IC8240 AA14 AVSS IC8240 D11 VDD33 IC8240 E8 GND R8496 0 R8823 0 R8822 0 IC8240 E18 GND C8486 10u 10V C8558 16V 0.01u IC8240 M5 VDD12 C8661 10V 0.1u IC8240 N9 GND R8747 0 R8678 0 IC8240 F18 GND C8420 50V 1000p IC8240 U19 MVAVSS IC8240 M12 GND IC8240 V19 MVAVDD C8537 470p 50V 9V_SUB C8581 10V 0.1u IC8240 L4 VDD12 R8829 0 R8724 0 Q8229 B1MBDDA00003 S1 G1 S2 G2 D2 D2 D1 D1 IC8240 AB2 VDDQ C8375 0.1u 10V C8611 10V 0.1u IC8240 E11 VDD33 C8622 68u 4V IC8240 E14 VDD33 C8612 10V 0.1u C8421 50V 1000p IC8240 K11 GND IC8240 E16 GND R8777 0 L8293 G1C100MA0077 IC8240 P11 GND 9V_POWER IC8240 V15 VDD12 L8291 G1C100MA0077 L8289 J0JHC0000045 R8824 0 IC8240 J10 GND C8365 0.22u 10V IC8240 P9 GND 9V_POWER D8224 B0JCME000037 C8605 10V 0.1u 2.5V_1 IC8240 M13 GND R8779 0 IC8240 T19 SVAVSS C8615 10V 0.1u IC8240 T5 AVSS R8733 35.7k IC8240 AB6 VDDQ C8377 0.022u 16V C8559 47u 16V IC8240 M4 VDD12 R8744 36k 1% C8144 10V 0.1u C8578 10V 0.1u C8496 68u 4V IC8240 J11 GND 5V_SUB IC8240 AB21 AAVSS C8621 16V 0.01u C8600 16V 0.01u IC8240 E13 VDD33 C8598 16V 0.01u TP8248 C8616 10V 0.1u R8831 0 C8609 10V 0.1u C8561 16V 0.01u IC8240 N11 GND R8749 10k IC8240 K12 GND IC8240 V5 VDDQ IC8240 V9 VDDQ C8492 47u 16V R8510 0 D8227 B0JCDD000002 IC8240 N4 VDD12 C8145 16V 0.01u 2.5V_2 IC8240 V2 GND TP8220 IC8240 V8 VDDQ D8226 B0JCME000037 C8567 68u 4V IC8240 J14 GND C8617 16V 0.01u C8547 10V 0.1u C8531 1u 16V R8825 0 IC8240 P19 DAVSS C8568 10u 6.3V IC8240 P14 GND C8529 0.1u 10V R8490 0 IC8240 W19 GND R8501 0 IC8240 D14 VDD33 R8746 49.9k 1% C8590 10V 0.1u R8435 6.19k IC8240 E7 GND TP8213 IC8240 D13 VDD33 IC8240 L11 GND D8225 B0JCDD000002 C8162 16V 0.01u R8741 0 IC8240 Y20 GND R8751 0 R8721 0 TP8247 C0DBAYY00054 IC8246 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB R8732 0 C8560 47u 16V C8584 10V 0.1u R8827 0 IC8240 L10 GND 5V_SUB IC8240 R20 MAVDD IC8240 L14 GND L8292 G1C1R5ZA0083 IC8240 V18 GND IC8240 N12 GND IC8240 H4 VDD12 IC8235 C0DBZFF00004 1 VOUT 2 GND 3 CE 4 NC 5 GND 6 VDD C8563 16V 0.01u IC8240 V1 VDDQ R8717 0 C8485 4.7u 6.3V IC8240 T18 SVAVSS 2.5V_2 IC8240 J9 GND R8722 0 IC8240 V6 VDDQ C8607 10V 0.1u IC8240 A22 GND C8660 10V 0.1u R8738 68k IC8240 AA6 GND IC8240 M11 GND C8608 16V 0.01u IC8240 K10 GND R8709 12.7k L8294 J0JHC0000034 R8723 0 R8753 0 C8532 0.022u 16V IC8240 V20 MVAVDD L8268 J0JHC0000045 IC8240 D12 VDD33 IC8240 E12 VDD33 IC8240 R18 MAVSS R8826 0 C8552 1u 16V C8614 16V 0.01u R8425 9.31k IC8240 L12 GND C8164 16V 0.01u R8431 0 IC8240 E6 GND 2.5V_2 R8742 0 IC8240 AA22 AAVDD IC8240 P10 GND C8577 50V 27p C8610 16V 0.01u IC8240 N5 VDD12 IC8240 V17 VDD12 IC8240 AB14 AVDD L8288 J0JHC0000045 R8832 0 R8748 0 L8267 J0JHC0000045 C8595 16V 0.01u C8604 16V 0.01u C8376 0.1u 10V IC8240 N14 GND IC8240 K4 VDD12 C8551 16V 0.01u 5V_SUB IC8240 G18 GND R8355 0 IC8240 E17 GND C8555 0.1u 10V Q8230 B1MBDDA00003 S1 G1 S2 G2 D2 D2 D1 D1 R8736 0 IC8240 J12 GND C8592 10V 0.1u R8727 0 IC8240 D10 VDD33 IC8240 K5 VDD12 C8550 10V 0.1u IC8240 J5 VDD12 C8511 0.1u 10V IC8240 AB22 GND C8662 50V 1000p IC8240 K14 GND C8663 50V 1000p C0DBAYY00054 IC8247 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB C8620 10V 0.1u IC8240 M9 GND TP8219 C8530 68u 4V IC8240 K13 GND R8821 0 C8419 1u 16V IC8240 L13 GND IC8240 P5 VDD12 C8597 10V 0.1u IC8240 N13 GND IC8240 E9 GND IC8240 P18 GND L8265 J0JHC0000045 R8682 47k IC8240 V7 VDDQ R8830 0 IC8240 J13 GND R8734 32.4k C8542 16V 0.01u L8258 J0JHC0000045 C8613 6.3V 1u C8573 10u 6.3V L8266 J0JHC0000045 R8828 0 C8596 16V 0.01u C8546 10V 0.1u C8557 10u 10V IC8240 L9 GND R8424 27.4k C8606 16V 0.01u C8572 10V 0.1u C8602 16V 0.01u R8725 0 R8436 46.4k IC8240 AB1 GND C8415 470p 50V IC8240 P12 GND IC8240 V13 VDD12 R8674 0 IC8240 T20 SVAVDD IC8240 F6 GND IC8240 W4 GND R8735 100k R8476 100k 3.3V IC8240 E15 GND IC8240 U5 AVDD IC8240 V14 VDD12 AB PEAKS_Lite 2/3 RIGHT-DOWN LEFT-UP LOCATION PARTS SIDE SOLDER SIDE RIGHT-UP LEFT-DOWN CENTER-UP 9V 3.3V DC-DC CONVERTER DC-DC CONVERTER 9V 1.2V +3.3V +1.2V +3.3V MN2WS0025B-A IC8240 AVR 2.5V 46 49 54 52 48 51 53 47 50 SUFFIX: 72 73 71 ! DT-BOARD TNAG167S (6/6) TH-50PX60U DT-Board (6 of 6) Schematic Diagram TH-50PX60U DT-Board (6 of 6) Schematic Diagram TH-50PX60U 104 14.35. D-Board (1 of 2) Block Diagram LED_G ALARM LED_R READY PANEL_MAIN_ON REMOCON LED_R TUNER_SUB_ON TXD_PC ECO_ON TUNER_SUB_ON REMOCON ECO_ON IIC_CONT SOS4_PS RXD_PC TXD_PC VDATA_DET IIC_INT LED_G RXD_PC ALL_OFF AC_GOOD ALL_OFF AC_GOOD LED_G LED_R READY ALARM PANEL_MAIN_ON SOS8_SS SOS6_SC1 STB_SCL01 SOS7_SC2 STB_SDA01 IIC_INT IIC_CONT RXD_PC STB_SDA02 REMOCON TXD_PC VDATA_DET SOS4-PS STB_SCL02 IIC_CONT IIC_INT D9035 D9804 RA_E ,RB_E ,RC_E ,RD_E ,RE_E E+LVDS2 (RX_TC+) 6 RCLK_E E-LVDSCLK (RX_TCLK-) E+LVDS0 (RX_TA+) 10 D5 2 E-LVDS0 (RX_TA-) TO DG5 14 E+LVDSCLK (RX_TCLK+) E-LVDS2 (RX_TC-) E-LVDS1 (RX_TB-) 12 11 LVDS_DET 15 E+LVDS3 (RX_TD+) 7 5 9 16 E+LVDS4 (RX_TE+) E-LVDS3 (RX_TD-) E+LVDS1 (RX_TB+) 1 E-LVDS4 (RX_TE-) 4 LED_R PDB1 PDB0 17 14 P5V 14 29 2 LED_G 16 18 REMOCON VDATA_DET LED_G 13 D3 37 TO DG3 STBY 3.3V 15 STB5V_M 7 D25 STB 3.3V +5V 20 2 STBY3.3V REMOCON 9 ALARM LED_R DISPEN IIC_CONT IIC_INT 1 11 P3V_SCL1 P3V_SDA1 PSLCT 10 PBUSY STB3.3V SDA2 9 TXD D6 18 ALL OFF 5 STB 5V_M 33 SCL1 FOR FACTORY SCL2 10 3 STBY5V 16 12 P15V 15 21 USE 27 34 STB_SCL02 STB_SDA02 1 P15V PANEL_STBY_ON 30 17 TO P25 6 P15V STB5V_M IIC_DATA1 F_STBY_ON +15V STBY5V 15 IIC_CLK1 RXD +5V 35 21 20 P3V_SCL1 TUNER_SUB_ON 8 Q9044 6 TXD 1 7 STB_SDA02 10 STB_SCL02 SDA1 ALL OFF P3V_SDA1 23 PDB0 ECO_ON 22 READY 9 SOS4_PS 13 ECO_ON PSLCT PSTB +15V 4 16 STBY 5V 17 IIC_CLK2 IIC_DATA2 PSTB PANEL_MAIN_ON IIC/INT IIC_CONT 13 19 P15V RXD 19 8 PDB1 5 2 4 PBUSY 19 AC GOOD AC GOOD 11 TEMPERATURE VO RESET 13 12 23 73 VO 15 IC9001 FB G2 76 P15V Voltage 6 24 D2 50 10 VCC SOS7_SC2 25 EEPROM AVR P1.5V 5 LX P15V D1 P2.5V SDA VOUT VCC 51 15V 2.5V SENSOR 6 P1.5V 24 SCL 26 STB 3.3V/RESET FB 5 IC9801 Q9058 PROM(FPGA) P_ON/OFF Q9057 S2 20 DC-DC CONVERTER XRST 74 DRVMUTE 65 CTL 6 Q9051 CB NRST D2 Control DATA(D) P5V 20 SOS6_SC1 16 P3.3V D2 23 VO 21 Q9050 NCS LED_R 1 VDD 70 OUT1 REM_IN OUT1 G1 23 X9000 DRV_RST LDO_5V Q9800 1 S1 SOS3_3V D2 9.216MHz CTL 19 SOS2_15V CB DATA SDA P3V_SDA1 69 15V 3.3V ADSI IC9011 LX D2 LX P15V 24 R10-R19(R) P2.5V DATA DRIVER STB3.3V G10-G19(R) 21 OUT2 IIC1_SCL VIN 13 CONTROL IC9807 VDD G2 3 SOS9_CONF ALARM 34 DC-DC CONVERTER 9 SS PULSE VD D1 LVDS Differential 1 LVDS 18 S2 SYNC PROCESSING DRVRST WB ADJ 66 16 SCL DISCHARGE CONTROL D2 SCAN OUT 21 P1.2V 24 OUT1 P15V 1 VOUT 2 VOUT FLASH CONTROL 67 RESET SOS4-PS Q9801 FB SC PULSE P15V Q9201 VDATA_DET IC9806 5 LDO_5V Signaling 6 3 IIC2_SDA IC9800 RECEIVER 4 S2 -INC 14 Q9200 9 21 68 AVR 5V IC9500 NCS 5 22 LDO_5V VIN FPGA,ASIC ADD1 VDD CE LSI_RST VDD XRST 36 G2 1 37 DPCLK1 VDD TSET P3V_SCL1 ADD0 IC9003 6 DC-DC CONVERTER S1 STB5V 15V 1.2V 19 1 MICOM EEP_WR_CTL P3V_SDA02 18 XIN ASDIO B10-B19(R) 17 38 XOUT Q9805 TERMINAL WP Q9806 P3V_SCL02 17 G1 5 Q9046 9 D1 STB3.3V D1 D1 HD -INC -INC OUT2 DCK S1 16 PICTURE P3.3V OUTPUT 18 TXD1 17 IC9002 9 DCLK 27 RESET RXD1 5 STB_SDA02 IIC_CONT 20 STB_SCL02 DATA0 IIC_INT CTL 16 19 DCLK CB LVDS INPUT READY Q9803 VIN R 10bit 71 DIGITAL LDO_5V SOS5_5V 5 IIC1_SDA 23 Q9054 28 G 10bit IC9809 Low Q9053 20 39 SOS8_SS IC9007 B 10bit FPGA CONTROL Q9052 IIC2_SCL 13 5 LED_G VCC VDD Q9100 29 72 OUT2 G1 PANEL_MAIN_ON D1 DCK PICTURE OUTPUT R10-R19(L) G10-G19(L) R 10bit VD G 10bit B 10bit B10-B19(L) HD JTAG DISCHARGE CONTROL FLASH CONTROL XCE-L,XOE DCLK DATA0 NCS ASDIO FPGA IIC SCL SDA FPGA XRST PLL_RST 2 XRST2 DC-DC ON DIGITAL SIGNAL PROCESSOR PLASMA AI SUB-FIELD PROCESSOR FORMAT CONVERTER D Control DATA(U) LVDSCLK2 PRCKI XCE-R,XWE BYTE BUS SW NO SYNC 12 13 3 11 16 9 10 6 5 15 8 1 7 2 20 21 18 17 19 DISCHARGE CONTROL VD HD DCK 4 JTAG FLASH CONTROL BUS SW VD HD DCK 14 SFRST,SFVRST,LATCH FPCLK,FPDAT0,FPDAT1 TD0,TD1,TMS,TCK SS PULSE SC PULSE Control DATA(U) SS PULSE Control DATA(D) SC PULSE SOS9_C0NF DRV_RST SOS6,7,8 P+15V SOS / LED BLINKING : 2TIMES P+3.3V SOS / LED BLINKING : 3TIMES P+5V SOS / LED BLINKING : 5TIMES TH-50PX60U D-Board (1 of 2) Block Diagram TH-50PX60U D-Board (1 of 2) Block Diagram TH-50PX60U 105 14.36. D-Board (2 of 2) Block Diagram PCU1 LEU PCU2 CLRU CLKU0 CLKU3 CLKU1 CLKU2 LEU CLRU PCD1 CLKD0 SOS7_SC2 SOS6_SC1 CLKD1 LED CLRD SOS8_SS ODEU-R CLKU0 CLKU1 CLKU2 CLKU3 ODEU-L CLKD3 CLKD3 CLKD2 CLRD PCD2 LED CLKD1 CLKD2 CLKD0 ODED-R FREE_RUN CLKM_IN ODED_L TP063 TP065 TP9402 TP066 X9500 B 10bit st-r IC9400 CONVERTER XRST CTI/TINT WB-ADJ I/P CONVERTER COLOR FPCLK FPDAT0 FPDAT1 XRST2 SFVRST LATCH CONTRAST FORMAT SFRST Video DATA 36bit DA00-DC11 FORMAT CONVERTER/RGB PROCESSOR IC9401 DATA ROMDATA00-03 DA14,DA15-DC15 DDR SDRAM(128M) PCK OCK SUB-FIELD PLASMA AI/SUB FIELD PROCESSOR/DATA DRIVER R 10bit JTAG DCK R 10bit ROMDATA04-15 UA12-UC15 PLASMA AI G 10bit NEW DRVCLKU0-U3,DRVCLKD0-D3 HD G 10bit B 10bit VD PROCESSOR DRIVER PD1-M B 10bit st-r IC9300 CONVERTER XRST CTI/TINT WB-ADJ I/P CONVERTER COLOR FPCLK FPDAT0 FPDAT1 XRST SFVRST LATCH CONTRAST FORMAT SFRST Video DATA 36bit DA00-DC11 FORMAT CONVERTER/RGB PROCESSOR IC9301 DATA ROMDATA00-03 DA14,DA15-DC15 DDR SDRAM(128M) SUB-FIELD PLASMA AI/SUB FIELD PROCESSOR/DATA DRIVER R 10bit JTAG DCK R 10bit ROMDATA04-15 UA12-UC15 PLASMA AI G 10bit NEW DRVCLKU0-U3,DRVCLKD0-D3 HD G 10bit B 10bit VD PROCESSOR DRIVER PD1-M TO C21 PCU1 TO C31 16 P5V 80 5VDET L-UP R-UP D31 12 19 14 10 9 P5V ODEU Q9301 PCU2 12bit UA08-UC11 DOUTUC23 55 52 DOUTUA8 36 CLKU2-L DOUTUA0 DOUTUC7 CLRU CLKU3-L 52 50 P5V 48 1 ODEU LEU 51 CLKU0-L CLKU1-L 53 Q9302 5VDET 18 CLRU 47 21 4 D32 P5V 17 LEU 12 31 1 PCD1 TO C41 40 SCAN 2 45 5VDET L-DOWN DATA 43 SUSTAIN 37 42 1 9 DATA P5V SOS6-SC1 ODED 52 P5V Q9400 46 SOS7-SC2 1 DOUTDA0 DOUTDC7 4 58 SOS8_SS 11 TO SC20 CLKD0-L CLKD1-L 12 13 38 CLRD 20 D20 35 9 D33 P5V P5V 39 LED Video DATA 36bit UA00-UC11 Video DATA 36bit UA00-UC11 58 77 CLKU0-R 33 34 CLKU1-R CLKU2-R 55 56 CLKU3-R 36bit UA00-UC11 47 CLKD1-R CLKD2-R CLRD CLKD3-L 31 71 72 P5V 1 69 R-DOWN D34 29 DOUTDC23 TO C51 33 CLKD2-L 30 77 P5V 45 ODED-R LED 4 23 CLKD3-R 80 36bit DA00-DC11 CLKD0-R 50 48 28 Q9402 PCD2 5VDET 12bit DA08-DC11 DOUTDA8 25 26 24bit UA00-UC07 24bit DA00-DC07 Q9401 IC9504 LEVEL CONVERTER 3.3V 5V IC9505 LEVEL CONVERTER 3.3V 5V IC9503 LEVEL CONVERTER 3.3V 5V IC9802,03 3.3V 5V LEVEL CONVERTER CLOCK GENE. CLK7 12 CLK5 CLK6 14 13 4 CLK9 XT 1 20 XTN IC9200 IC9304 16M FLASH MEMORY RESET 4 5 VOUT VCC IC9602 RESET P3.3V DQ4-DQ15 A0-A19 DQ0-DQ3 IC9402 BUS SWITCH BUS SW ODED-R,ODED-L,PCD1,PCD2,LED,CLRD UMH,UML,USH,USL,UEH,NUEL,URH,URL CL,CLK,SIU,SID,SCSU,CEL2,CPH,CEL,CBK,CSL,CSH,CML,CMH Sustain Control DATA 8bit Scan Control DATA 13bit ODEU-R,ODEU-L,PCU1,PCU2,LEU,CLRU PCK OCK XCE-R XCE-L BYTE XWE XOE R10-R19,G10-G19,B10-B19 UA05-UC12,UC13,UA15 DA14,DA15-DC15 UA12-UC12,UC13,UA15 UA05-UC11 DA14,DA15-DC15 UA12-UC15 UA05-UC10,UB11,UC11 XCE-L 20MHz 84MHz 36.6MHz 60MHz VD HD DCK DISCHARGE CONTROL BUS SW JTAG FLASH CONTROL VD HD DCK 3 11 16 9 10 6 5 15 8 1 7 2 20 21 18 17 19 4 12 13 14 Control DATA(D) Control DATA(U) SS PULSE SC PULSE TD0,TD1,TMS,TCK SOS9_C0NF DRV_RST SOS6,7,8 SUB-FIELD PROCESSOR FORMAT CONVERTER D DIGITAL SIGNAL PROCESSOR PLASMA AI TH-50PX60U D-Board (2 of 2) Block Diagram TH-50PX60U D-Board (2 of 2) Block Diagram TH-50PX60U 106 14.37. D-Board (1 of 8) Schematic Diagram G G + G G 18 16 14 12 10 8 6 4 2 20 21 19 17 15 13 11 9 7 5 3 1 G G G G G G + + G G G G STB_SCL02_D4 FP_SCSU ECO_ON SC_CEL PANEL_STBY_ON FAN_SOS NCS FP_CEL INEXCH DATA0 RXD_PC FP_CBK ALARM FP_CSL SC_SID STBY3.3V TUNER_SUB_ON TUNER_SUB_ON TXD_PC READY SC_CSH SC_CPH STB_SDA02 DISPEN_D2 SC_CMH AR_IIC_INT SC_CEL STB_SCL02 PANASONIC_MODE AR_IIC_CONT PDB1_2 SC_SID RXD_PC_D4 FAN_SOS PSLCT_2 FP_CML PANEL_STBY_ON_D2 FAN_CONT PDB0_2 SC_SCSU SC_CSL FP_CL ALL_OFF FAN_CONT ASDIO PBUSY_2 DCLK SC_CLK P3V_SCL1 P3V_SCL1 PSTB_2 SC_SCSU PANEL_MAIN_ON SC_CMH SOS6_SC1 SC_CEL2 FP_CLK STB_SDA02_D4 SOS7_SC2 SC_CML P3V_SDA1 P3V_SDA1 SC_CSL SOS4_PS FP_CMH SC_CL STBY3.3V_ON FP_SIU SC_CL INEXCH_D2 P_ON/OFF SC_CSH FP_CSH AR_IIC_INT_D2 ECO_ON FP_CEL2 SC_CPH FP_SID ALARM_D2 SC_CLK TXD_PC_D4 SC_CML SC_CEL2 STBY5V_D2 READY_D2 SC_CBK SC_CBK FP_CPH ALL_OFF ALL_OFF SC_SIU SC_SIU DCDC_ON AC_GOOD DRVMUTE AC_GOOD TUNER_SUB_ON DCDC_ON REMOCON LED_R LED_G P3V_SCL1 AR_IIC_CONT_D4 PSTB PSLCT PSLCT_2 LED_R AR_IIC_INT_D2 STB_SCL02_D4 PDB0_2 STB_SDA02_D4 TXD_PC_D4 PDB0 PBUSY_2 RXD_PC_D4 PBUSY PSTB_2 P3V_SDA1 LED_G REM_IN REMOCON VDATA_DET C_SEL AR_IIC_CONT_D4 AR_IIC_CONT_D4 SOS9_CONF PDB1 PDB1_2 R9868 100k P5V Q9100 B1ABCF000138 R9896 0 P1.2V J0HABH000013 FL9800 STB5V_M R9839 100 C9898 10p 50V STB3.3V R9849 EXB2HV470JV D9808 MA3X152K0L C9845 16V 0.1u R9801 24k R9826 100 P5V P5V C9807 10u 25V C9802 47p 50V Q9801 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 D3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 R9897 100k C9971 0.1u 16V R9893 36k D9812 B0JCME000037 P5V C9822 6.3V 10u C9926 0.1u 16V R9870 10k R9815 22k P15V R9830 10k P15V C9816 68u 4V C9882 0.1u 16V STB5V_M C9897 8200p 50V LDO_5V R9803 0 P15V_MOTO R9859 EXB38V101JV R9879 20k C9967 4.7u 6.3V D9815 B0JCDD000002 C0DBAYY00054 IC9809 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB C9825 50V 100p C9837 10u 16V C9843 16V 0.1u Q9800 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 STB3.3V FL9803 J0HABH000012 1 2 3 D6 R9869 10k C9830 10u 16V C9847 0.1u 25V C9886 0.1u 16V C9800 0.1u 16V P3.3V LDO_5V R9884 100k R9802 62k R9823 100 Q9806 B1ABCF000138 P15V D9802 MA2J72800L R9850 47k C9846 16V 0.1u C9899 1000p 50V R9806 39k C9805 4.7u 6.3V D9801 B0JCDD000002 LDO_5V FL9807 J0HABH000013 1 2 3 R9808 100k C9841 16V 1u C9824 10u 25V C9883 8200p 50V R9878 39k D25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 D9800 B0JCME000037 P15V L9800 G1C3R0MA0248 R9202 4.7k Q9805 B1ABCF000138 R9800 13k R9827 100 C9826 16V 0.1u C9880 50V 1000p R9847 EXB2HV272JV R9848 EXB2HV470JV R9892 15k R9843 100 C9823 10u 25V R9880 36k P15V P2.5V IC9007 1 NCS 2 DATA 3 VCC 4 GND 5 ASDI 6 DCLK 7 VCC 8 VCC P15V_MOTO R9831 10k D9813 B0JCDD000002 C9831 10u 16V J0HABH000013 FL9806 C9801 4900p 25V R9099 100 D9804 MA3X152K0L P2.5V FL9801 J0HABH000013 1 2 3 C0DBAYY00054 IC9807 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB L9801 G1C2R2MA0241 R9824 100 C9891 0.1u 16V C9815 68u 4V C9838 16V 0.1u IC9801 C0DBZFG00066 1 VOUT 2 GND 3 CE 4 NC 5 GND 6 VDD P15V D9035 MA2J72800L R9872 0 C9806 68u 4V R9807 0 C0DBAHD00011 IC9806 1 VOUT 2 GND 3 CE 5 VDD 4 NC C9833 10u 25V C9817 10u 25V R9828 100 D20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C9844 50V 0.01u R9821 10k P3.3V STB3.3V R9810 3k C9808 10u 25V R9804 24k D9814 B0JCME000037 C9827 6.3V 10u P5V_MOTO R9842 100 R9883 0 C9885 1000p 50V R9845 5.6k P3.3V C0JBAZ000856 IC9802 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc PA9800 K5H4022A0023 C9803 4700p 50V J0HABH000013 FL9805 C9818 10u 25V P5V_MOTO P15V P15V R9871 10k C9881 50V 1000p R9201 4.7k C0JBAZ000856 IC9803 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C9029 6.3V 10u R9198 4.7k R9846 EXB2HV272JV C9884 10p 50V R9825 100 P5V R9854 100 L9802 G1C2R2MA0241 C9804 0.1u 16V D9807 MA3X152K0L P1.5V STB5V_M C9840 16V 0.1u R9844 100 R9816 82k STB3.3V C0DBAYY00054 IC9800 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB C9832 10u 16V R9840 22 C9842 16V 1u R9814 68k C9896 0.1u 16V C9028 6.3V 10u R9838 100 R9891 47k FL9804 J0HABH000012 1 2 3 L9810 J0JHC0000045 R9813 2.4k C9848 0.1u 25V LDO_5V STB3.3V C9809 0.1u 16V P15V Q9803 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 R9805 30k C9887 4.7u 6.3V R9841 0 SOS7_SC2 ALARM CSH INEXCH ECO_ON DISPEN GND +5V GND CML GND FAN_CONT GND CL +5V F_STBY_ON GND GND GND GND SID GND GND GND FAN_SOS GND +15V ECO_ON FAN_SOS CEL2 +15V SOS4_PS PBUSY GND PDB0 PSTB STBY5V GND PSLCT PANASONIC_MODE GND FAN_CONT 15V->1.2V 2.5V->1.5V GND +2.5V CBK CEL CSL ALL_OFF PDB1 IIC/INT P15V P5V CLK CPH GND IIC_DATA2 SCSU IIC_CLK2 IIC_CONT IIC_CLK1 STBY3.3V CMH SIU PANEL_MAIN_ON CTL GND TXD IIC_DATA1 SOS6_SC1 ALL_OFF PANEL_STBY_ON TUNER_SUB_ON RXD STBY5V READY AC_GOOD AC_GOOD LED_G REMOCON LED_R STBY5V GND P15V STBY3.3V IIC_CONT GND SCL1 SDA1 SCL2 SDA2 TXD RXD IIC_INT LED_G PSTB LED_R PDB0 PSLCT PDB1 PBUSY REMOCON VDATA_DET P5V CTL 15V->3.3V FB=0.7V CTL 15V->2.5V 15V->5V B 4 F 1 2 E 9 7 3 C D 6 8 A 5 LEVEL CONVERTER LEVEL CONVERTER P-BOARD (P25) TO DG-BOARD TO (DG3) TO SC-BOARD (SC20) FOR USE FACTORY 15V 3.3V DC-DC CONVERTER 15V 1.2V DC-DC CONVERTER DC-DC CONVERTER 15V 2.5V AVR 5V 1 2 3 TVRN814 PROM(FPGA) AVR 1.5V D-BOARD TNPA3820ACS (1/8) TH-50PX60U D-Board (1 of 8) Schematic Diagram TH-50PX60U D-Board (1 of 8) Schematic Diagram TH-50PX60U 107 14.38. D-Board (2 of 8) Schematic Diagram RCLK_E- SOS7_SC2 EEP_WR_CTL M_SEL1 LVDSBIT P3V_SCL1 RCLK_E+ SOS9_CONF RA_0+ RA_E- P3V_SDA1 INEXCH ALARM RB_0- SOS6_SC1 RA_E+ STB_SCL01 RB_0+ SOS8_SS EEP_WR_CTL STB_SCL01 M_SEL4 RB_E- SOS4_PS STB_SDA01 XRST XRST M_SEL3 RC_0- PANEL_MAIN_ON RB_E+ STB_SDA01 REM_IN RC_0+ C_SEL P_ON/OFF PANEL_STBY_ON SOS9_CONF RD_0- M_SEL2 LED_R NRST RC_E+ STBY3.3V_ON M_SEL2 PANASONIC_MODE RD_0+ LED_G RD_E- RE_0- RD_E+ TXD_PC RE_0+ RE_E- RXD_PC LVDS_DET STB_SDA02 P3V_SDA02 P3V_SCL02 STB_SCL02 P3V_SCL02 XRST STB_SCL02 P3V_SDA02 STB_SDA02 RE_E+ RA_0- DRVRST XRST2 XRST2 DCLK DATA0 ASDIO NCS STB_SCL02 STB_SDA02 READY VDATA_DET LVDS_MODE M_SEL4 D5_DETO RC_E- FVSEL XRST AR_IIC_CONT AR_IIC_INT M_SEL1 M_SEL3 R9108 10k *R9157 10k R9145 100 R9172 39k R9188 5.6k R9143 100 R9148 10k R9109 10k R9121 100k R9222 10k STB5V P15V R9171 39k R9102 100 STB3.3V R9175 10k R9141 100 R9140 0 R9205 4.7k R9181 1k R9101 10k R9152 4.7k R9167 100 C9046 16V 0.1u P5V R9204 4.7k C9039 6.3V 10u R9217 10k C9033 16V 0.1u C9056 16V 0.1u R9247 4.7k R9156 10k TP9000 C9044 16V 0.1u R9190 10k C9052 16V 0.1u STB3.3V Q9200 B1CBHD000002 IC9011 C0EBF0000431 1 RESET 2 Cd 3 VOUT 4 VDD 5 GND 6 CE R9184 1k R9063 100 R9166 10k R9155 5.6k R9111 22k D9017 MAZ303300L R9203 1k R9183 1k C9051 16V 0.1u Q9057 B1CBHD000002 R9074 100 Q9046 B1ABCF000138 R9107 3.3k R9189 10k R9064 100 C9050 16V 0.1u Q9053 B1ABCF000138 R9178 10k R9100 10k R9221 10k R9207 1k R9066 100 R9120 100 *R9199 2.7k R9161 0 TVRN805-1 IC9003 1 2 3 4 5 6 CNVSS 7 8 9 RESET 10 XOUT 11 VSS 12 XIN 13 VCC 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 AVSS 76 77 VREF 78 79 80 R9150 22 *R9209 10 Q9054 B1ABCF000138 Q9058 B1CBHD000002 Q9044 B1ABCF000138 R9185 22 C9053 16V 0.1u D9020 MA2J72800L STB3.3V R9218 10k R9179 1k C9049 16V 0.1u R9067 100 R9142 100 Q9201 B1CBHD000002 C9045 16V 0.1u P3.3V R9248 4.7k R9192 0 R9180 10k R9076 100 R9164 10k R9165 10k R9129 68k R9153 4.7k R9097 10k STB3.3V R9095 10k Q9052 B1ABCF000138 C9037 0.01u 50V D9019 MAZ303300L R9173 10k R9144 100 P3.3V R9236 0 X9000 H2D200500011 R9113 10 Q9049 B1ADCE000011 P3.3V R9151 22 R9237 10k R9127 10k R9062 100 C9034 16V 0.1u R9174 10k C9047 16V 0.1u C9036 6.3V 10u R9159 10k R9196 10k *R9210 2.7k IC9001 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 Vcc R9193 10k Q9051 B1ABCF000138 D5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 R9149 4.7k IC9002 C0ZBZ0001330 1 SCL 2 GND 3 ADD1 4 V+ 5 ADD0 6 SDA P3.3V R9206 1k R9106 10k R9065 100 R9160 0 C9040 16V 0.1u R9110 100 R9219 10k C9055 16V 0.1u R9220 10k R9182 1k R9215 12k R9154 5.6k STB3.3V R9186 22 R9060 100 R9169 10k R9170 39k R9134 33k C9048 16V 0.1u R9187 5.6k R9194 0 R9061 100 STB3.3V C9057 16V 0.1u D9018 MAZ303300L C9035 6.3V 10u R9158 10k Q9050 B1ABCF000138 R9168 100 C9058 6.3V 10u STB3.3V D9101 B0JCGD000002 D9100 B0JCGD000002 D9102 B0JCGD000002 D9103 B0JCGD000002 D9106 B0JCGD000002 D9105 B0JCGD000002 D9110 B0JCGD000002 STB5V_M R9177 22k IIC_CONT NC GND DRIVER_RESET SCLK(for Loader) IIC1_SCL SOS8_SS NC CE(Loader) E+ LVDS2 NC O+ LVDS3 E+ LVDS1 SOS4_PS GND XRST O+ LVDS0 RESET IIC1_SDA BUSY(for Loader) NC GND NC NC E- LVDS2 FPGA_CE NC SOS7_SC2 NC XOUT REM_IN SOUT(FPGA) GND NC O- LVDS3 NC FVSEL E+ LVDS3 PLL_RST M_SEL2 SIN(FPGA) NC LSI_RST E- LVDS3 M_SEL3 O+ LVDS1 ALARM INEXCH E+ LVDS4 AC_GOOD O- LVDS1 P_ON/OFF STB3.3V ON/OFF GND NC E- LVDS4 LVDS_DET E+ LVDSCLK SOS6_SC1 O+ LVDS2 NC AVCC O- LVDS2 VSS PANEL_MAIN_ON NC E- LVDS0 SOS9_CONF GND SCLK(FPGA) EEP_WR_CTL NC O+ LVDS4 LED_GRN O- LVDS4 IIC_INT E+ LVDS0 M_SEL4 NC(ALL_OFF) IIC2_SCL SOS_INH SOS5_5V XIN NC(C_SEL) IIC2_SDA PANASONIC _MODE O- LVDSCLK LVDS_MODE NC NC O+ LVDSCLK VCC E- LVDSCLK NC TXD(Loader) O- LVDS0 LVDS_BIT SOS3_3V READY RXD(Loader) INT_CONF E- LVDS1 LED_RED SOS2_15V M_SEL1 NC MAIN_CONF VDATA_DET 14 13 15 18 16 10 11 12 17 NC MICOM EEPROM SENSOR TEMPERATURE DIGITAL TO DG-BOARD (DG5) 1 3 2 12 13 14 15 16 17 11 D-BOARD TNPA3820ACS (2/8) TVRN811 TH-50PX60U D-Board (2 of 8) Schematic Diagram TH-50PX60U D-Board (2 of 8) Schematic Diagram STB 3.3V RESET TH-50PX60U 108 14.39. D-Board (3 of 8) Schematic Diagram L8L_RI4 L8L_GI4 FP_CL L8R_RI6 AA_BYTE A_XCE_L L8R_GI3 L8R_GI7 L8L_RI5 SOS9_CONF RD_E+ L8R_RI0 L8L_GI5 FP_CSH DD_PCD1 L8R_GI9 TDO_TO_FPGA RC_E+ L8R_GI2 RB_0- L8R_BI0 L8R_BI3 NRST RD_0+ L8L_GI6 L8R_BI8 FP_CLK L8R_BI2 FP_CSL TMS DATA0 RC_0+ SFRST FP_CBK RB_E+ L8R_GI1 FP_CEL2 L8R_GI4 L8L_RI6 L8R_GI6 NCS L8R_GI0 RE_E+ RCLK_E+ L8L_GI7 L8L_BI4 FP_SID DD_LED FP_UEH L8R_RI7 PDB0 LATCH TCK L8L_RI7 L8L_BI5 FVSEL LVDS_MODE L8L_GI8 L8L_HDI L8L_RI8 PDB1 FP_UML L8R_RI9 L8R_RI5 L8R_GI5 RA_E+ L8R_BI9 L8L_GI9 RE_0+ L8L_BI6 FPDAT1 L8L_RI9 FP_CMH PSTB RB_E- TDI_TO_68_L FP_CPH L8R_RI2 FP_UMH L8L_RI0 RD_E- L8L_BI0 L8R_RI1 L8L_BI7 FP_SCSU L8L_GI0 PBUSY RCLK_E- DD_ODED_L L8R_RI3 PSLCT L8L_RI1 L8L_BI1 L8L_BI8 RC_0- DD_CLRD AA_XWE L8L_GI1 SFVRST RA_0- FP_USH RA_E- RB_0+ LVDS_DET ASDIO RE_0- FP_NUEL DRVRST L8L_RI2 L8L_BI9 L8R_BI4 FP_CML L8L_BI2 RD_0- L8L_GI2 L8R_BI1 L8R_BI6 L8R_GI8 L8R_BI5 FP_CEL RC_E- INEXCH L8L_RI3 FP_SIU L8L_BI3 FPCLK L8R_RI8 L8R_RI4 L8L_GI3 L8R_BI7 FP_USL FPDAT0 RE_E- RA_0+ DD_PCD2 LVDSBIT L8L_VDI L8L_DCK L8L_MASK AA_XCE_R DD_ODEU_R BUS_SW L8R_HDI L8R_MASK DD_ODEU_L DD_CLRU DD_PCU1 DD_LEU DD_PCU2 P3V_SCL02 P3V_SDA02 DRVMUTE D5_DETO FP_URH FP_URL DD_ODED_R FP_DSHL FP_DSLL FP_DMHR FP_DMLL FP_DMHL L8R_VDI L8R_DCK AA_XOE DCLK IC9500 B7 LVDS21n IC9500 H3 nCONFIG IC9500 F8 GND IC9500 E13 LVDS37n R9546 10k IC9500 J5 GNDG_PLL1 IC9500 F2 LVDS8p IC9500 N8 LVDS62p IC9500 B14 LVDS33n C9520 16V 0.1u IC9500 C3 LVDS14n R9556 10k IC9500 N15 LVDS49n IC9500 L6 GND IC9500 C13 LVDS33p IC9500 G1 LVDSCLK1p IC9500 N7 LVDS64n IC9500 A5 GND IC9500 E14 LVDS38p IC9500 B8 LVDS23p R9506 22 IC9500 C7 LVDS22p IC9500 D8 LVDS24p IC9500 G12 VREF0B3 R9532 47 IC9500 R16 LVDS50p IC9500 R4 LVDS69p IC9500 H10 GND IC9500 D7 LVDS22n IC9500 B13 LVDS32n IC9500 F10 VCCIO2 IC9500 R14 LVDS53p IC9500 M9 IO R9530 10k IC9500 H14 TDI IC9500 A15 LVDS34p IC9500 B9 LVDS26p IC9500 G4 nCSO IC9500 T13 LVDS54p IC9500 P14 LVDS51p IC9500 J13 nSTATUS IC9500 C4 LVDS16n IC9500 K8 GND IC9500 R8 LVDS63p IC9500 P13 LVDS53n IC9500 T4 LVDS69n R9525 10k C9521 16V 0.1u IC9500 T5 GND IC9500 C14 LVDS35n IC9500 J3 MSEL0 C9517 16V 0.1u IC9500 A9 LVDS26n IC9500 R12 LVDS55n IC9500 K15 PLL2_OUTn R9523 10k IC9500 M11 VREF0B4 P3.3V IC9500 B3 LVDS16p IC9500 J9 GND R9552 47 IC9500 N1 LVDS4p IC9500 A12 GND IC9500 R9 LVDS61p IC9500 H8 GND C9525 16V 0.1u IC9500 D16 LVDS39p IC9500 R5 LVDS68p IC9500 H7 VCCINT IC9500 M2 LVDS4n IC9500 E11 VREF0B2 IC9500 N12 LVDS56n R9548 10k IC9500 A3 VCCIO2 IC9500 E1 LVDS8n R9875 10k C9530 16V 0.1u IC9500 A6 LVDS21p C9526 6.3V 10u IC9500 C9 LVDS25p IC9500 H11 VCCA_PLL2 IC9500 H9 VCCINT IC9500 K7 VCCINT C9522 16V 0.1u IC9500 T9 LVDS61n IC9500 G14 LVDS43n IC9500 L5 DPCLK0 IC9500 P4 LVDS70n IC9500 B6 LVDS20n IC9500 H5 VREF1B1 IC9500 P5 LVDS68n C9523 16V 0.1u IC9500 T7 VCCINT R9534 EXB38V470JV IC9500 M10 VREF1B4 IC9500 H16 LVDSCLK2n IC9500 K2 PLL1_OUTn IC9500 R7 LVDS65n R9553 47 IC9500 M13 LVDS48p C9532 50V 100p IC9500 D4 LVDS14p(INIT_DONE) IC9500 J15 TMS IC9500 F15 LVDS40n R9536 47 IC9500 F6 GND IC9500 M16 LVDS46p IC9500 A4 LVDS17n IC9500 M5 DPCLK7 IC9500 D12 LVDS30n IC9500 T16 GND IC9500 R3 LVDS70p IC9500 M7 IO IC9500 C12 LVDS31p IC9500 B11 LVDS29p IC9500 D10 LVDS27p IC9500 F11 GND P3.3V R9543 10k C9524 16V 0.1u IC9500 F9 GND R9544 10k R9244 100 IC9500 B4 LVDS17p R9877 10k IC9500 L16 LVDS44n IC9500 D6 LVDS19n IC9500 P10 LVDS58n IC9500 A11 LVDS28n IC9500 B1 LVDS13n IC9500 P2 LVDS1n IC9500 M4 LVDS2p IC9500 F4 IO IC9500 F3 LVDS9p IC9500 T1 GND P3.3V IC9500 M6 VREF2B4 IC9500 R11 LVDS57p IC9500 F1 LVDS7n IC9500 J4 nCE IC9500 D9 LVDS25n P3.3V IC9500 L2 LVDS5p IC9500 T6 LVDS65p IC9500 E16 LVDS40p IC9500 D3 LVDS12p IC9500 M8 IO R9549 10k IC9500 N6 LVDS67n IC9500 D14 LVDS37p IC9500 C15 LVDS36p IC9500 P7 LVDS64p IC9500 C6 LVDS20p IC9500 F12 DPCLK4 IC9500 K4 DCLK R9554 47 IC9500 F7 VCCIO2 IC9500 G3 LVDS9n IC9500 T11 LVDS59n IC9500 G6 VCCIO1 IC9500 L14 LVDS45n IC9500 E9 IO C9527 16V 0.1u IC9500 J16 PLL2_OUTp IC9500 A10 VCCINT IC9500 P6 LVDS66p IC9500 C5 LVDS18n IC9500 P1 VCCIO1 IC9500 D1 LVDS10n IC9500 K11 VCCIO3 IC9500 A14 VCCIO2 IC9500 N16 LVDS49p IC9500 K1 LVDS6p R9630 10k IC9500 B15 LVDS34n IC9500 A13 LVDS32p IC9500 G5 VREF0B1 IC9500 B10 LVDS28p IC9500 D13 LVDS35p IC9500 G8 VCCINT IC9500 B5 LVDS18p IC9500 L12 DPCLK5 IC9500 P9 LVDS60p IC9500 D15 LVDS38n IC9500 G13 LVDS43p IC9500 C1 VCCIO1 IC9500 P16 VCCIO3 IC9500 E10 VREF1B2 IC9500 G15 LVDS42n R9529 10k IC9500 K9 VCCINT IC9500 L8 GND R9535 47 IC9500 K14 IO IC9500 E6 VREF2B2 IC9500 L7 VCCIO4 IC9500 E15 LVDS39n IC9500 J10 VCCINT IC9500 N4 LVDS0n P3.3V IC9500 P12 LVDS55p IC9500 D2 LVDS11n IC9500 B12 LVDS31n IC9500 M14 LVDS47n IC9500 N5 LVDS67p IC9500 P8 LVDS62n IC9500 R15 LVDS52n IC9500 R1 LVDS1p IC9500 J14 TCK IC9500 A16 GND P1.5V IC9500 P3 LVDS0p R9560 10k IC9500 F13 LVDS41p C9519 16V 0.1u IC9500 H1 LVDSCLK1n IC9500 E2 LVDS10p IC9500 G9 GND R9531 47 IC9500 P15 LVDS50n IC9500 C16 VCCIO3 IC9500 J8 VCCINT IC9500 P11 LVDS57n IC9500 A2 LVDS15n IC9500 T14 VCCIO4 IC9500 C8 LVDS24n IC9500 J6 GNDA_PLL1 IC9500 F16 LVDS42p IC9500 J2 MSEL1 IC9500 E12 DPCLK3 IC9500 K12 VREF2B3 IC9500 F5 DPCLK1 IC9500 T12 GND IC9500 L13 LVDS47p IC9500 L9 GND C9528 16V 0.1u IC9500 L4 IO L9501 J0JHC0000078 IC9500 E3 LVDS11p IC9500 T3 VCCIO4 IC9500 L10 VCCIO4 IC9500 D11 LVDS30p R9876 10k IC9500 R13 LVDS54n IC9500 R6 LVDS66n IC9500 M12 DPCLK6 IC9500 C2 LVDS13p(CLKUSR) IC9500 C10 LVDS27n IC9500 J12 GNDG_PLL2 IC9500 N10 LVDS58p IC9500 K5 VREF2B1 C9516 16V 0.1u IC9500 H4 nCEO IC9500 M1 LVDS5n R9533 47 IC9500 N3 LVDS2n IC9500 B2 LVDS15p IC9500 K16 LVDS44p IC9500 L1 LVDS6n C9518 16V 0.1u IC9500 L3 IO R9550 10k R9507 56 IC9500 G11 GND IC9500 G10 VCCINT IC9500 T15 LVDS52p IC9500 K3 ASDO IC9500 A8 LVDS23n IC9500 J11 GNDA_PLL2 P3.3V IC9500 R2 LVDS71p P3.3V IC9500 D5 LVDS19p R9245 100 IC9500 N2 LVDS3p IC9500 H6 VCCA_PLL1 C9531 6.3V 10u IC9500 T8 LVDS63n IC9500 N14 LVDS48n L9502 J0JHC0000078 IC9500 H2 DATA0 IC9500 J1 PLL1_OUTp IC9500 K13 CONF_DONE IC9500 N9 LVDS60n IC9500 T2 LVDS71n IC9500 L15 LVDS45p IC9500 G16 LVDSCLK2p IC9500 N13 LVDS51n IC9500 C11 LVDS29n IC9500 J7 GND IC9500 L11 GND IC9500 R10 LVDS59p IC9500 T10 VCCINT IC9500 A1 GND R9537 10k IC9500 K6 GND IC9500 M15 LVDS46n IC9500 A7 VCCINT IC9500 E8 IO IC9500 H15 TDO C9529 16V 0.1u IC9500 N11 LVDS56p IC9500 M3 LVDS3n IC9500 H13 IO IC9500 G2 LVDS7p IC9500 G7 GND IC9500 E5 DPCLK2 IC9500 E4 LVDS12n IC9500 H12 VREF1B3 IC9500 E7 IO IC9500 K10 GND IC9500 F14 LVDS41n IC9500 B16 LVDS36n R9542 68 R9545 300k R9526 0 R9070 47 B[1]_R/rromadrs[01] VCCINT M_BOUT1 FPDATA0 UEL M_BOUT4 Nosync ODED SID M_BOUT3 M_ROUT4 USH G[9]_R/rromadrs[03] PCU SC_PULSE CEL M_BOUT9 UMH M_ROUT7 M_GOUT7 USL DRVRST RESET M_BOUT8 CMH UML MASK_L PCD2 M_VDO_L FPCLK SS_PULSE INEXCH NUEL CML p_db1 B[5]_R/rromadrs[02] CSH R[8]_R/rromadrs[15] CONTROL p_db0 OTHER M_ROUT9 B[0]_R/rromadrs[00] p_stb rrom_WE CLK B[8]_R/rromdata[02] G[7]_R/rromdata[07] NRST IIC NC M_BOUT0 DMHR SCL M_GOUT5 CL M_BOUT7 M_GOUT9 M_HDO_L TP CLK_INPUT p_slct M_GOUT1 p_busy R[2]_R/rromadrs[14] SID2 M_DCKO_L PRCKI M_GOUT0 FREE RUN CLK SDA R[9]_R/rromadrs[17] M_ROUT6 DMHL TEST M_BOUT6 R[0]_R/rromadrs[19] G[2]_R/rromadrs[09] LVDS_DET MODEL[0] CEL2 R[4]_R/rromadrs[20] rrom_CE_L SCSU M_BOUT5 CPH B[7]_R/rromdata[03] SFRST M_ROUT3 R[3]_R/rromadrs[-1] PICTURE_OUTPUT(L) G[0]_R/rromadrs[10] B[2]_R/rromdata[06] M_GOUT3 rrom_BYTE rrom_OE R[7]_R/rromadrs[18] PCU2 R[5]_R/rromadrs[12] CLRD B[3]_R/rromdata[04] LATCH DATA_DRIVER G[3]_R/rromadrs[08] FPDATA1 M_GOUT6 DMLL G[6]_R/rromadrs[05] LSI58 B[6]_R/rromdata[00] PCD R[1]_R/rromadrs[13] M_BOUT2 LVDS_INPUT M_ROUT2 CSL SIU2 B[4]_R/rromdata[05] LED G[8]_R/rromadrs[06] CLRU R[6]_R/rromadrs[16] B[9]_R/rromdata[01] FVSEL ODEU SFVRST LEU SIU LVDSmode M_GOUT2 CBK M_ROUT0 M_ROUT5 G[5]_R/rromadrs[04] M_ROUT1 M_ROUT8 CLKM_IN G[1]_R/rromadrs[07] VCCI LVDSbit DRVMUTE G[4]_R/rromadrs[11] GND M_GOUT4 M_GOUT8 rrom_CE_R MASK_R M_DCKO_R M_HDO_R M_VDO_R DSLL DSHL XRST BUS_SW PICTURE_OUTPUT(R) /FLASH_CONTROL URH URL D5_DETO WHITE SIGNAL ODEU ODED 27 21 24 22 23 25 26 20 19 WB ADJ FPGA CONTROL SYNC PROCESSING DISCHARGE CONTROL FLASH CONTROL LVDS FPGA,ASIC IC9500 C1ZBZ0002599 15 13 17 11 14 16 12 31 32 33 34 35 36 37 38 MODEL SELECTION D-BOARD TNPA3820ACS (3/8) TH-50PX60U D-Board (3 of 8) Schematic Diagram TH-50PX60U D-Board (3 of 8) Schematic Diagram TH-50PX60U 109 14.40. D-Board (4 of 8) Schematic Diagram FP_UMH FP_NUEL FP_USL FP_UML UMH USH NUEL UML URL FP_URL FP_USH USL L8R_RI3 L8R_BI0 L8R_BI1 L8R_BI5 L8R_GI9 L8R_GI5 L8R_GI6 L8R_GI8 L8R_GI1 L8R_GI3 L8R_GI2 L8R_GI0 L8R_GI4 L8R_RI5 L8R_RI1 L8R_RI2 L8R_RI8 L8R_RI6 L8R_RI9 L8R_RI7 L8R_RI0 L8R_RI4 L8R_BI6 L8R_BI9 L8R_BI8 L8R_BI7 L8R_BI3 L8R_BI4 L8R_BI2 L8R_GI7 L8_PCK L8_OCK R8_OCK R8_PCK DD_ODED_R DD_PCD2 ODED_R D-PCD2 D-CLRD ODED_L DD_ODED_L L8L_UB07 L8L_UA05 L8L_UC06 L8L_UB09 L8L_UB05 L8L_UC09 L8L_UA09 L8L_UC08 L8L_UC11 L8L_UC07 L8L_UB11 L8L_UA08 L8L_UB10 L8L_UA07 L8L_UA10 L8L_UC10 L8L_UA11 L8L_UB06 L8L_UA06 L8L_UB08 L8L_UC05 BUS_SW BUS_SW BUS_SW BUS_SW L8L_UB12 L8L_UA15 L8L_DC15 L8L_UA12 L8L_DA14 L8L_DA15 L8L_UC12 L8L_UC13 L8L_DB15 DD_CLRD D-LED D-PCD1 DD_ODEU_R DD_CLRU DD_PCU2 DD_LEU DD_ODEU_L DD_PCU1 FP_URH FP_UEH DD_LED DD_PCD1 URH UEH ODEU_R D-PCU2 D-CLRU D-LEU ODEU_L D-PCU1 C0JBAZ000856 IC9503 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C9514 16V 1u C9547 50V 12p X9500 H0J200500038 C1ZBZ0003186 IC9200 XT 1 2 SL0 3 SL1 4 CLK9 5 VDD1 6 VSS1 7 CLK1 8 N/C 9 CLK2 10 VSS 11 N/C 12 CLK7 13 CLK6 14 CLK5 15 VSS2 16 VDD2 17 SL2 18 STBY 19 VDD3 20 XTN L9503 G1C150KA0038 R9625 10k R9633 47 C9548 16V 0.1u R9641 47 P3.3V R9643 0 R9632 47 C9546 50V 12p C9557 16V 1u C9552 16V 0.1u R9624 10k P3.3V R9639 47 R9527 EXB2HV272JV R9628 10k R9428 EXB38V103JV R9637 47 C9554 6.3V 10u R9622 0 R9634 47 C0JBAZ000856 IC9505 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ000856 IC9504 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R9631 EXB2HV272JV C9542 16V 0.1u C0JBAZ002614 IC9402 1 NC 2 A0 3 A1 4 A2 5 A3 6 A4 7 A5 8 A6 9 A7 10 GND 11 NC 12 A8 13 A9 14 A10 15 A11 16 A12 17 A13 18 A14 19 A15 20 GND 21 NC 22 A16 23 A17 24 A18 25 A19 26 A20 27 A21 28 A22 29 A23 30 GND 31 NC 32 A24 33 A25 34 A26 35 A27 36 A28 37 A29 38 A30 39 A31 40 GND 41 B31 42 B30 43 B29 44 B28 45 B27 46 B26 47 B25 48 B24 49 OE4 50 VCC 51 B23 52 B22 53 B21 54 B20 55 B19 56 B18 57 B17 58 B16 59 OE3 60 VCC 61 B15 62 B14 63 B13 64 B12 65 B11 66 B10 67 B9 68 B8 69 OE2 70 VCC 71 B7 72 B6 73 B5 74 B4 75 B3 76 B2 77 B1 78 B0 79 OE1 80 VCC C9515 16V 1u R9528 EXB2HV272JV P5V P5V P5V CPG 20SSMHz 60SSMHz 36.6MHz 84MHz 20MHz 39.5MHz 28 33 36 32 31 30 29 34 35 LEVEL CONVERTER LEVEL CONVERTER LEVEL CONVERTER CLOCK GENE. 51 52 53 54 55 37 33 34 35 32 38 31 36 BUS SWITCH D-BOARD TNPA3820ACS (4/8) TH-50PX60U D-Board (4 of 8) Schematic Diagram TH-50PX60U D-Board (4 of 8) Schematic Diagram TH-50PX60U 110 14.41. D-Board (5 of 8) Schematic Diagram + G G G G G G G G SIDE TERM G G G G L8R_DB01 L8R_BI4 L8R_UC02 L8R_RI0 L8R_BI3 L8R_DQ6 L8R_TEST0 L8R_DQ16 L8R_NSDCLKO L8R_DC04 L8R_DQ5 L8R_UC01 L8R_GI4 L8R_RI8 L8R_GI2 L8R_BA1 L8R_BI6 L8R_K_TEST L8R_DC03 L8R_SDSEL L8R_UC00 L8R_DQ11 L8R_DQS2 L8R_DB00 L8R_RI2 L8R_OCKOUT L8R_DB08 L8R_DC02 L8R_TIIC L8R_DA01 L8R_DQ23 L8R_DQ20 L8R_DQ29 L8R_UA01 L8R_DC01 L8R_DA02 L8R_DA11 L8R_WE L8R_UA02 L8R_DB10 L8R_DQ22 L8R_BI9 L8R_DC00 L8R_TEST1 L8R_GI8 L8R_MUTE L8R_GI9 L8R_DRVCLKD3 L8R_DA10 L8R_BI1 L8R_TILD L8R_DQ2 L8R_A9 L8R_A6 L8R_DQ8 L8R_SDCLKO L8R_DRVCLKD2 L8R_RI7 L8R_BA0 L8R_DQS3 L8R_A2 L8R_DA03 L8R_DRVCLKD1 L8R_RI4 L8R_DQ31 L8R_RI3 L8R_A10 L8R_UB00 L8R_A0 L8R_DRVCLKD0 L8R_DA00 L8R_RI5 L8R_DB06 L8R_DB03 L8R_DQ30 L8R_DRVCLKU3 L8R_TCKSEL1 L8R_TCKSEL0 L8R_A11 L8R_DA05 L8R_DRVCLKU2 L8R_RI1 L8R_BI7 L8R_DA04 L8R_DRVCLKU1 L8R_DQ12 L8R_A4 L8R_GI1 L8R_TCPOUT L8R_DRVCLKU0 L8R_DA08 L8R_DQ27 L8R_UB02 L8R_DQ1 L8R_DA06 L8R_BI2 L8R_BI5 L8R_DC11 L8R_BI0 L8R_DQS1 L8R_UB04 L8R_RAS L8R_DQ21 L8R_DC10 L8R_DQ17 L8R_UA03 L8R_CS L8R_DB07 L8R_DQ25 L8R_DB02 L8R_RI9 L8R_DC09 L8R_DQS0 L8R_DQ18 L8R_MASK L8R_TCKSEL0 L8R_DB05 L8R_ID0 L8R_DQ3 L8R_DC08 L8R_A8 L8R_DA09 L8R_UA00 L8R_DQ24 L8R_DQ13 L8R_DC07 TCK L8R_SDIV0 L8R_DQ10 L8R_DB09 L8R_MONOUT2 L8R_K_TEST L8R_UB03 L8R_DC06 L8R_DQ14 L8R_A3 L8R_DC05 L8R_A5 TMS L8R_A1 L8R_RI6 L8R_DQ15 L8R_GI3 L8R_ID0 L8R_DQ4 L8R_DB04 L8R_DQ28 L8R_DQ7 L8R_GI0 L8R_SDIV1 L8R_GI5 L8R_A7 L8R_GI6 L8R_BI8 L8R_TCKSEL2 L8R_DQ0 L8R_CAS L8R_GI7 L8R_DA07 L8R_DQ9 L8R_UC04 L8R_DQ26 L8R_SDCKE L8R_UB01 L8R_FULL1 L8R_MUTE L8R_UC03 L8R_DQ19 L8R_MONOUT0 L8R_DB11 L8R_TEST0 L8R_TCKSEL1 L8R_TCKSEL2 L8R_TEST1 L8L_DB09 L8L_DC08 L8L_DC09 L8L_DA08 L8L_DB08 L8L_DA09 L8L_DB11 L8L_DC10 L8L_DC11 L8L_DA11 L8L_DA10 L8L_DB10 L8R_DA00 L8R_DA01 L8R_DB01 L8R_DC01 L8R_DC00 L8R_DB00 L8R_DC03 L8R_DB03 L8R_DA03 L8R_DC02 L8R_DB02 L8R_DA02 L8R_DC05 L8R_DB05 L8R_DA05 L8R_DC04 L8R_DB04 L8R_DA04 L8R_DC07 L8R_DA07 L8R_DB07 L8R_DC06 L8R_DA06 L8R_DB06 L8R_DC09 L8R_DA09 L8R_DB09 L8R_DC08 L8R_DA08 L8R_DB08 L8R_DC11 L8R_DA11 L8R_DB11 L8R_DC10 L8R_DA10 L8R_DB10 DOUTDA9 DOUTDB8 DOUTDB9 DOUTDA8 DOUTDC8 DOUTDC9 DOUTDB10 DOUTDB11 DOUTDA11 DOUTDA10 DOUTDC11 DOUTDC10 DOUTDB12 DOUTDB13 DOUTDA13 DOUTDA12 DOUTDC13 DOUTDC12 DOUTDB14 DOUTDB15 DOUTDA15 DOUTDA14 DOUTDC15 DOUTDC14 DOUTDC17 DOUTDA17 DOUTDB17 DOUTDC16 DOUTDA16 DOUTDB16 DOUTDC19 DOUTDA19 DOUTDB19 DOUTDC18 DOUTDA18 DOUTDB18 DOUTDC21 DOUTDA21 DOUTDB21 DOUTDC20 DOUTDA20 DOUTDB20 DOUTDC23 DOUTDA23 DOUTDB23 DOUTDC22 DOUTDA22 DOUTDB22 CLKD3_L CLKD2_L CLKD2_L CLKD3_L DOUTDC9 DOUTDA8 DOUTDB9 DOUTDB8 DOUTDA9 DOUTDC8 DOUTDA11 DOUTDB11 DOUTDC11 DOUTDC13 DOUTDA12 DOUTDA13 DOUTDB13 DOUTDC10 DOUTDA10 DOUTDB10 DOUTDC12 DOUTDB12 CLKD0_R CLKD1_R CLKD0_R CLKD1_R DOUTDC14 DOUTDC15 DOUTDA14 DOUTDB17 DOUTDA15 DOUTDA17 DOUTDB15 DOUTDB14 DOUTDB16 DOUTDA16 DOUTDC16 DOUTDC17 LED PCD2 CLRD_R ODED_RR LED PCD2 CLRD_R ODED_RR CLKD2_R CLKD3_R CLKD3_R CLKD2_R DOUTDA18 DOUTDC18 DOUTDB19 DOUTDA19 DOUTDC19 DOUTDB21 DOUTDA21 DOUTDB18 DOUTDA22 DOUTDB20 DOUTDB23 DOUTDA23 DOUTDA20 DOUTDC20 DOUTDC21 DOUTDC23 DOUTDC22 DOUTDB22 L8L_DRVCLKD2 L8L_DRVCLKD3 L8R_DRVCLKD0 L8R_DRVCLKD1 L8R_DRVCLKD3 L8R_HDI L8R_VDI D-PCD2 D-LED D-CLRD ODED_R 5V_DET4 5V_SENSE AA_XCE_R TDO_TO_FPGA TDO_TO_68_R SFRST SFVRST LATCH FULL0 P3V_SDA02 P3V_SCL02 L8R_UA04 L8R_UB05 L8R_UB06 L8R_UB07 L8R_UB08 L8R_UB09 L8R_UB10 L8R_UB11 L8R_UA05 L8R_UA06 L8R_UA07 L8R_UA08 L8R_UA09 L8R_UA10 L8R_UA11 L8R_UC05 L8R_UC06 L8R_UC07 L8R_UC08 L8R_UC09 L8R_UC10 L8R_UC11 L8R_DCK R8_PCK R8_OCK 5V_DET4 L8R_FULL1 L8R_DRVCLKD2 TRST L8L_DC15 L8L_UA15 L8L_DA14 L8L_DB15 L8L_UC15 L8L_UB14 L8L_UC13 L8L_UC12 L8L_UC14 L8L_UA14 L8L_UB15 L8L_UA13 L8L_UB12 L8L_DA15 L8L_UA12 L8L_UB13 XRST2 L8R_SDIV0 L8R_SDIV1 L8R_TIIC L8R_TILD L8R_MONOUT1 IC9400 P21 DOUTDC08 IC9400 D3 VDD12 IC9400 F2 BI1 IC9400 Y11 DQ24 IC9400 Y21 VDD33 TP011 IC9400 B20 DOUTUA03 IC9400 L14 VSS C9539 56u 4V IC9400 AA11 DQ30 IC9400 K12 VSS IC9400 P9 VSS TP061 R9437 10k IC9400 Y19 VSS IC9400 AB15 AVDD33_1 IC9400 AB18 DOUTDC00 IC9400 J13 VSS IC9400 E19 DOUTUC03 IC9400 V21 DOUTDC03 IC9400 G3 BI4 IC9400 D18 DOUTUC05 TP014 C9442 0.1u 16V D9401 MA3X152K0L IC9400 A10 SFLATCH C9460 0.1u 16V IC9400 D9 TCKSEL1 IC9400 H4 BI7 IC9400 E1 BI0 IC9400 N14 VSS IC9400 D15 DOUTUB08 IC9400 N13 VSS IC9400 A5 RI2 IC9400 C17 DOUTUA06 IC9400 AB3 NCK P1.2V TP047 IC9400 E15 VDD12 IC9400 V12 VDD25 IC9400 F1 BI3 IC9400 V3 DQ4 R9451 22 C9534 6.3V 10u IC9400 D17 DOUTUC06 IC9400 E11 VDD33 TP018 IC9400 M11 VSS IC9400 R19 DOUTDA05 IC9400 B6 RI1 IC9400 L22 DOUTDB11 IC9400 MN84521-A A1 VSS IC9400 AA8 A5 P2.5V IC9400 W2 DQ1 IC9400 F20 DOUTUB00 TP013 IC9400 R18 VDD33 IC9400 Y7 A0 IC9400 R5 VDD25 P3.3V IC9400 Y14 DQ12 C9458 0.1u 16V IC9400 Y3 VSS R9463 EXB38V820JV IC9400 E16 VDD12 C9541 50V 0.01u IC9400 V20 DOUTDB02 IC9400 W11 DQ25 IC9400 B15 DOUTUB10 C9468 0.1u 16V IC9400 G22 DRVCLKD0 IC9400 D2 GI4 IC9400 P19 DOUTDB07 IC9400 AA17 SDIV0 IC9400 A18 DOUTUB07 R9480 0 C9496 16V 0.1u IC9400 AA22 VSS IC9400 V18 VSS IC9400 L20 DOUTDC12 C9467 0.1u 16V IC9400 P11 VSS C9450 0.1u 16V L8R1.2V R9455 EXB2HV820JV IC9400 G21 DRVCLKD2 IC9400 A3 GI0 TP035 IC9400 A8 TCKSEL0 IC9400 W15 TCPOUT C9536 6.3V 10u IC9400 N19 DOUTDB09 P5V R9438 10k IC9400 W5 AVDD25_3 IC9400 N3 TDI IC9400 C21 DOUTUA02 IC9400 W19 VSS IC9400 F22 DRVCLKD3 L8R2.5V IC9400 A7 K_TEST TP007 C9513 0.1u 16V IC9400 E21 DOUTUA00 R9466 82 IC9400 AA20 DOUTDA01 IC9400 J4 ENHMASK TP054 IC9400 V2 DQ3 IC9400 T2 DQ20 IC9400 A13 DOUTUC13 IC9400 R20 DOUTDB06 IC9400 V5 VSS J0HABH000013 FL9502 IC9400 P2 XRST IC9400 N1 TRST IC9400 W8 A2 IC9400 AB14 DQ8 IC9400 C10 SFVRST IC9400 D11 DOUTUA15 IC9400 B5 RI5 IC9400 T19 DOUTDC04 IC9400 V13 VDD12 IC9400 AB11 DQ28 TP038 IC9400 K5 VDD33 TP029 IC9400 L18 VDD12 TP060 TP032 IC9400 J19 DOUTDA15 TP048 TP057 IC9400 F5 VDD12 TP036 IC9400 T3 AVDD25_1 R9459 82 IC9400 G18 VSS C9445 0.1u 16V IC9400 M9 VSS IC9400 T18 VDD33 TP045 TP021 L8R2.5V TP024 IC9400 L1 SCL IC9400 B13 DOUTUA12 IC9400 AA3 CK R9465 22 C9462 0.1u 16V IC9400 D16 DOUTUC07 IC9400 V9 VSS C9448 0.1u 16V C9447 0.1u 16V IC9400 V7 VDD25 IC9400 D7 RI3 IC9400 C13 DOUTUB12 IC9400 W13 DQ15 IC9400 T5 AVSS_2 IC9400 U2 AVSS_1 IC9400 M3 FULL1 IC9400 M1 TILD IC9400 J3 MONOUT0 TP005 IC9400 F18 VSS IC9400 Y15 VSS IC9400 E20 DOUTUC02 FL9401 J0HABH000013 1 2 3 IC9400 B3 GI1 IC9400 N2 TCK IC9400 B19 DOUTUA04 IC9400 G20 DRVCLKU1 IC9400 V17 VDD33 IC9400 M21 DOUTDB10 IC9400 W14 DQ13 IC9400 W7 NCS IC9400 B12 DOUTUC14 IC9400 L13 VSS IC9400 U21 DOUTDB04 R9472 100k IC9400 J9 VSS TP031 IC9400 V11 VDD25 TP026 IC9400 M2 FULL0 IC9400 J21 DOUTDB14 R9433 10k IC9400 W12 AVDD25_4 IC9400 C16 DOUTUC08 IC9400 M13 VSS IC9400 Y10 DQ26 IC9400 V22 DOUTDA03 IC9400 H21 DOUTDB15 TP009 IC9400 T21 DOUTDB05 IC9400 H3 BI8 IC9400 D6 RI7 IC9400 C1 VDD12 IC9400 A6 OCKOUT IC9400 N12 VSS IC9400 P22 DOUTDB08 FL9403 F1J1E1040022 1 2 3 IC9400 K20 DOUTDB13 IC9400 L11 VSS L8R1.2V TP041 IC9400 Y18 VSS IC9400 K21 DOUTDC13 IC9400 N20 DOUTDC09 IC9400 J12 VSS R9456 EXB2HV820JV IC9400 G4 BI2 IC9400 AB5 BA1 IC9400 C8 TEST0 IC9400 W10 DQ27 IC9400 P4 DQ18 C9461 0.1u 16V IC9400 A14 DOUTUA11 IC9400 J14 VSS IC9400 AB10 DQ29 IC9400 P5 VDD33 TP059 C9537 6.3V 10u IC9400 H20 DRVCLKD1 IC9400 AA2 VSS IC9400 W9 A10 IC9400 H19 DRVCLKU0 IC9400 C15 DOUTUB09 IC9400 K9 VSS IC9400 J2 MONOUT1 IC9400 M4 PCK IC9400 AA9 A8 IC9400 C14 DOUTUC11 C9456 0.1u 16V IC9400 E8 VDD12 C9446 0.1u 16V IC9400 E3 GI5 IC9400 E9 VDD33 IC9400 J18 VDD33 TP062 IC9400 W22 DOUTDC02 IC9400 P14 VSS IC9400 K2 VDI IC9400 N22 DOUTDA09 IC9400 E22 DRVCLKU3 IC9400 AB6 A4 IC9400 W17 VSS IC9400 U4 DQ5 IC9400 AA18 DOUTDB00 R9464 22 TP051 TP010 IC9400 B9 FPCLK TP052 TP030 L8R3.3V IC9400 V8 VDD25 C9463 0.1u 16V IC9400 R21 DOUTDA06 IC9400 N11 VSS IC9400 T1 DQ21 IC9400 Y2 VDD25 IC9400 AA7 A9 IC9400 AB19 DOUTDA00 IC9400 K10 VSS IC9400 E5 VSS IC9400 Y12 AVSS_4 IC9400 H5 VDD12 IC9400 C2 VDD12 IC9400 AB12 DQS1 IC9400 P20 DOUTDA07 IC9400 A17 DOUTUA08 IC9400 E17 VSS IC9400 N10 VSS IC9400 D14 DOUTUC10 IC9400 L10 VSS IC9400 K19 DOUTDC14 C9449 0.1u 16V R9452 22 IC9400 Y5 NCAS TP019 IC9400 R2 DQ23 IC9400 Y20 VSS TP016 IC9400 AA6 A11 IC9400 J10 VSS IC9400 AA5 CKE IC9400 H18 VDD33 IC9400 D8 OCK IC9400 U18 VDD33 IC9400 D13 DOUTUC12 IC9400 E18 VSS TP022 IC9400 H2 BI9 IC9400 R3 DQ17 IC9400 U20 DOUTDB03 TP025 TP028 IC9400 AA12 DQS3 IC9400 W18 VSS IC9400 P1 TDO IC9400 F19 DOUTUA01 FL9404 F1J1E1040022 1 2 3 IC9400 B16 DOUTUC09 C9444 0.1u 16V IC9400 W6 NWE IC9400 C22 DOUTUB01 IC9400 B21 VSS IC9400 AB20 DOUTDB01 IC9400 L5 VDD33 IC9400 AB4 BA0 TP053 R9485 1k IC9400 M22 DOUTDC10 IC9400 AA10 DQ31 IC9400 D21 DOUTUB02 R9454 EXB2HV820JV IC9400 P18 VDD33 IC9400 M5 VDD33 IC9400 L4 TIIC IC9400 AB22 VSS IC9400 Y9 A3 IC9400 E7 VDD12 IC9400 D5 GI2 L8R3.3V C9465 0.1u 16V IC9400 A19 DOUTUA05 C9443 0.1u 16V IC9400 N4 TMS IC9400 M19 DOUTDC11 IC9400 V1 DQS0 IC9400 C5 RI9 C9466 0.1u 16V IC9400 C7 RI0 IC9400 K22 DOUTDA12 IC9400 E4 VDD12 IC9400 AB17 VSS D34 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 IC9400 E14 VDD33 IC9400 D22 DOUTUC01 IC9400 A9 FPDAT1 IC9400 U1 DQS2 IC9400 D19 VSS IC9400 V14 VDD12 IC9400 A22 VSS TP033 IC9400 AA13 DQ11 IC9400 A21 VSS IC9400 C12 DOUTUB13 IC9400 V15 VDD12 R9484 1k IC9400 W20 VDD33 C9533 0.1u 16V IC9400 L12 VSS FL9402 F1J1E1040022 1 2 3 IC9400 W3 VDD25 L8R3.3V IC9400 C18 DOUTUB05 TP027 TP056 L8R3.3V IC9400 B18 DOUTUB06 IC9400 C9 ROMCE IC9400 K1 DCK R9430 10k IC9400 A20 DOUTUC04 IC9400 W4 VSS IC9400 P13 VSS IC9400 D20 DOUTUB03 TP003 IC9400 U3 DQ6 IC9400 V19 VDD33 IC9400 M10 VSS IC9400 B10 SFRST IC9400 L9 VSS R9458 82 TP037 R9462 EXB38V820JV L8R2.5V TP040 IC9400 A2 VSS IC9400 K13 VSS IC9400 AA21 VSS TP004 TP008 IC9400 B17 DOUTUA07 R9514 0 IC9400 AB7 A6 C9457 0.1u 16V TP042 TP050 IC9400 V10 VDD25 IC9400 J5 VDD12 IC9400 R1 DQ22 IC9400 N9 VSS C9464 0.1u 16V IC9400 A15 DOUTUA10 IC9400 F4 GI7 IC9400 B8 TCKSEL2 IC9400 U22 DOUTDC05 C9459 0.1u 16V IC9400 D4 VSS IC9400 T20 DOUTDA04 IC9400 G19 DOUTUC00 IC9400 B1 VSS TP015 IC9400 G2 BI5 IC9400 M18 VDD12 IC9400 C20 VSS IC9400 AA14 DQ9 IC9400 K11 VSS IC9400 R4 DQ16 IC9400 U5 VDD25 IC9400 L21 DOUTDA11 IC9400 C11 DOUTUB15 IC9400 J22 DOUTDA13 IC9400 T22 DOUTDC06 IC9400 AA1 VDD25 IC9400 AA16 AVSS2 IC9400 K18 VDD33 TP049 IC9400 Y1 DQ0 IC9400 K14 VSS J0HABH000013 FL9501 IC9400 W21 VDD33 IC9400 M14 VSS IC9400 AB1 VSS C9469 0.1u 16V IC9400 N21 DOUTDA08 IC9400 R22 DOUTDC07 C9535 6.3V 10u IC9400 AB9 VDD25 IC9400 AB8 A7 TP039 C9454 0.1u 16V IC9400 A12 DOUTUB14 IC9400 D1 GI6 TP006 IC9400 C3 VSS C9538 6.3V 10u L8R3.3V IC9400 AB16 AVDD33_2 IC9400 P12 VSS IC9400 AB13 DQ10 IC9400 G1 BI6 TP046 Q9402 B1ABCF000138 TP020 TP058 IC9400 AA15 AVSS1 C9451 0.1u 16V IC9400 AA19 DOUTDC01 R9467 82 TP017 P3.3V IC9400 M20 DOUTDA10 IC9400 B22 VSS IC9400 B2 VSS IC9400 B4 RI8 IC9400 AA4 VREF IC9400 Y4 AVDD25_2 IC9400 Y22 VDD33 IC9400 Y17 VSS IC9400 AB2 VSS IC9400 G5 VDD12 IC9400 E6 VSS IC9400 E2 GI8 IC9400 D10 FPDAT0 IC9400 E10 VDD33 IC9400 P10 VSS IC9400 E12 VDD33 L8R2.5V IC9400 A4 RI6 TP023 IC9400 N18 VDD12 TP044 C9453 0.1u 16V IC9400 C6 RI4 IC9400 E13 VDD33 TP043 IC9400 Y13 DQ14 IC9400 H22 DOUTDA14 IC9400 C4 GI3 IC9400 U19 DOUTDA02 IC9400 F6 VSS IC9400 Y16 SDSEL IC9400 F3 GI9 R9461 22 IC9400 V16 VDD33 R9453 EXB2HV820JV IC9400 AB21 VSS L8R3.3V R9457 EXB2HV820JV IC9400 B7 TEST1 TP012 IC9400 L3 ID1 IC9400 A11 DOUTUA14 IC9400 H1 MUTE L8R3.3V IC9400 L19 DOUTDB12 IC9400 Y8 A1 IC9400 B14 DOUTUB11 IC9400 N5 VDD33 IC9400 A16 DOUTUA09 R9460 22 IC9400 W16 SDIV1 IC9400 L2 ID0 IC9400 D12 DOUTUA13 IC9400 J20 DOUTDC15 IC9400 K3 SDA C9512 0.1u 16V IC9400 F21 DRVCLKU2 IC9400 M12 VSS C9452 0.1u 16V R9470 4.7k R9471 10k IC9400 Y6 NRAS TP034 TP055 IC9400 V4 VDD25 IC9400 V6 AVSS_3 IC9400 J1 MONOUT2 IC9400 W1 DQ2 IC9400 K4 HDI C9455 0.1u 16V IC9400 P3 DQ19 IC9400 J11 VSS IC9400 T4 DQ7 IC9400 B11 DOUTUC15 TP002 R9539 0 IC9400 C19 DOUTUB04 to DDR from FPGA1 IIC from FPGA MN84521 Right DOUTDA[12] ODED DOUTDA[13] DOUTDB[11] DOUTDB[8] DOUTDC[13] GND DOUTDC[9] DOUTDB[13] CLK[2](+)_L GND DOUTDC[8] DOUTDA[11] LED PCD2 GND DOUTDA[8] CLK[3](-)_L DOUTDA[9] DOUTDB[9] DOUTDC[10] DOUTDC[11] DOUTDA[10] GND CLRD DOUTDB[10] GND DRV_RST GND DOUTDB[12] DOUTDC[14] DOUTDB[15] 5V_DET DOUTDA[14] DOUTDA[15] DOUTDC[12] DOUTDB[14] DOUTDC[15] GND N.C P5V P5V P5V P5V CLK[0](+)_R CLK[1](-)_R DOUTDA[17] DOUTDB[16] DOUTDC[17] GND DOUTDC[16] DOUTDB[17] DOUTDA[16] CLK[3](-)_R CLK[2](+)_R GND DOUTDC[22] GND DOUTDA[22] DOUTDC[23] DOUTDC[19] DOUTDB[23] DOUTDC[18] DOUTDA[21] GND DOUTDA[18] DOUTDA[19] DOUTDB[19] DOUTDC[20] DOUTDC[21] DOUTDA[20] DOUTDB[20] DOUTDA[23] DOUTDB[21] DOUTDB[18] GND DOUTDB[22] GND GND rromdata[00] rromdata[03] rromdata[01] rromdata[2] rromdata[12] rromdata[15] rromdata[09] rromdata[06] rromdata[05] rromdata[14] rromdata[08] rromdata[11] rromdata[04] rromdata[07] rromdata[10] rromdata[13] rromadrs[20] rromadrs[02] rromadrs[05] rromadrs[08] rromadrs[11] rromadrs[14] rromadrs[17] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[01] rromadrs[16] rromadrs[19] rromadrs[04] rromadrs[03] rromadrs[06] rromadrs[09] rromadrs[12] rromadrs[15] rromadrs[18] rromadrs[00] N.C rromadrs[-1] 42 45 37 41 39 40 44 38 43 to FPGA PLASMA AI RGB PROCESSOR FORMAT CONVERTER IC9400 SUB FIELD PROCESSOR MN84521-A(LSI58) DATA DRIVER RIGHT TO (C51) C5-BOARD 53 52 55 51 54 61 62 63 64 65 66 D-BOARD TNPA3820ACS (5/8) TH-50PX60U D-Board (5 of 8) Schematic Diagram TH-50PX60U D-Board (5 of 8) Schematic Diagram TH-50PX60U 111 14.42. D-Board (6 of 8) Schematic Diagram G G + TERM SIDE L8R_DQ4 L8R_DQ3 L8DR_DQ30 L8DR_A0 L8DR_DQS2 L8R_A4 L8DR_DQ4 L8R_DQ21 L8R_DQ17 L8DR_DQ20 L8R_DQS1 L8DR_DQ25 L8DR_DQ26 L8DR_DQ23 L8DR_A0 L8DR_DQ9 L8DR_A2 L8R_DQ25 L8DR_DQ8 L8R_DQ15 L8DR_NCLK L8DR_DQ14 L8R_WE L8R_A3 L8R_DQ26 L8DR_DQ18 L8R_DQ18 L8DR_A4 L8DR_DQ6 L8R_DQ12 L8DR_DQ29 L8DR_A10 L8DR_DQ30 L8R_DQ9 L8DR_CKE L8R_DQ10 L8DR_NCS L8DR_DQ22 L8R_BA0 L8DR_DQS3 L8DR_DQ29 L8R_DQS3 L8R_DQ0 L8DR_DQ20 L8R_A2 L8DR_CLK L8DR_DQ15 L8DR_DQ21 L8DR_A7 L8DR_DQ7 L8DR_A6 L8DR_DQ24 L8R_CS L8R_DQ28 L8R_DQ27 L8R_DQ29 L8DR_A5 L8DR_DQ16 L8DR_A5 L8R_DQ6 L8DR_DQ15 L8DR_DQ28 L8R_DQ19 L8DR_DQ1 L8DR_DQ2 L8R_BA1 L8R_DQ22 L8DR_DQ25 L8DR_BA0 L8DR_A11 L8DR_DQ31 L8R_CAS L8R_A6 L8DR_A4 L8DR_DQ10 L8R_DQ14 L8DR_A8 L8DR_NRAS L8DR_BA1 L8DR_BA0 L8DR_DQS3 L8DR_DQ18 L8R_DQ23 L8R_DQS0 L8DR_A11 L8DR_DQ11 L8DR_NCS L8DR_DQ24 L8DR_DQ5 L8DR_DQ31 2.5V L8DR_DQ8 L8DR_DQ6 L8DR_DQ21 L8DR_DQS1 L8DR_NCAS L8DR_A3 L8DR_DQ3 L8DR_DQ11 L8R_DQ11 L8DR_CKE L8R_A9 L8R_DQ5 L8R_DQS2 L8R_A11 L8DR_DQ10 L8R_A0 L8R_RAS L8DR_A9 L8DR_NWE L8R_DQ31 L8DR_DQ0 L8DR_A3 L8R_DQ30 L8DR_A6 L8DR_A10 L8DR_DQ27 L8DR_DQ13 L8R_DQ8 L8R_A8 L8DR_DQ26 L8DR_DQS1 L8R_SDCLKO L8R_DQ2 L8DR_A8 L8R_DQ16 L8R_DQ20 L8DR_DQ14 L8DR_NRAS L8DR_NWE L8DR_DQ5 L8DR_DQ13 L8DR_A9 L8DR_DQ3 L8DR_A1 L8R_DQ24 L8DR_DQ19 L8R_SDCKE L8R_A7 L8DR_A1 L8R_DQ13 L8R_A5 L8DR_DQS2 L8DR_DQS0 L8DR_DQ19 L8DR_DQ7 L8R_DQ1 L8DR_DQ27 L8DR_A2 L8DR_DQ28 L8R_A10 L8DR_A7 L8DR_BA1 L8DR_DQ17 L8DR_DQ16 L8R_DQ7 L8DR_DQ4 L8DR_DQS0 L8DR_DQ9 L8R_A1 L8DR_DQ1 L8DR_DQ12 L8DR_DQ17 L8R_NSDCLKO L8DR_DQ2 L8DR_DQ22 L8DR_NCAS L8DR_DQ23 L8DR_DQ12 L8DR_DQ0 L8L_UC09 L8L_UA09 L8L_UA11 L8L_UA08 L8L_UB11 L8L_UC08 L8L_UA10 L8L_UB09 L8L_UA05 L8L_UB10 L8L_UB05 L8L_UC05 AA_XOE AA_XCE_L L8L_UC07 L8L_UC11 AA_XWE L8L_UB07 L8L_UB08 AA_BYTE L8L_UA06 L8L_UC06 L8L_UC10 L8L_UA07 L8L_UB06 DOUTDB2 C_UML L8L_DC03 DOUTDC1 5V_SENSE DOUTDB3 L8L_DC04 L8L_DB00 L8L_DC05 DOUTDC7 DOUTDA1 L8L_DB04 L8L_DA04 L8L_DC07 ODED_L L8L_DC06 L8L_DA03 DOUTDC2 L8L_DB03 SOS8_SS DOUTDA2 DOUTDA3 D-LED L8L_DA07 L8L_DA06 DOUTDA0 L8L_DB02 C_UMH 5V_DET3 C_NUEL DOUTDA5 L8L_DA01 CLKD0_L LED_L DOUTDC5 DOUTDB4 D-PCD1 L8L_DB06 CLKD1_L DOUTDC6 DOUTDA6 PCD1 UEH DOUTDB5 L8L_DB07 USL ODED_LL USH C_DRV_SOS8 L8L_DA00 L8L_DB01 DOUTDB0 UML DOUTDC3 DOUTDB7 UMH L8L_DC02 DOUTDC4 CLRD_L DOUTDB1 L8L_DA02 L8L_DB05 DOUTDB6 NUEL D-CLRD C_UEH L8L_DC01 DOUTDA4 C_USL DOUTDC0 L8L_DC00 DOUTDA7 C_USH L8L_DA05 DOUTDA6 DOUTDA5 DOUTDC3 DOUTDA2 DOUTDC6 DOUTDB6 DOUTDA3 DOUTDA7 DOUTDB0 DOUTDC2 DOUTDB3 DOUTDB7 DOUTDA0 DOUTDC0 DOUTDC7 DOUTDB2 L8L_DRVCLKD0 L8L_DRVCLKD1 C_URH URH URL C_URL L8L_DC15 L8L_UA14 L8L_DA15 L8L_UC13 L8L_UC12 L8L_UB15 L8L_DA14 L8L_UC15 L8L_UA15 L8L_UC14 L8L_UA12 L8L_UB13 L8L_UB14 L8L_UB12 L8L_UA13 L8L_DB15 C_DMHR C_DMLL C_DMHL C_DSLL C_DSHL DOUTDB5 DOUTDC5 DOUTDA4 DOUTDB4 DOUTDC4 DOUTDC1 DOUTDB1 DOUTDA1 ODED_LL CLRD_L PCD1 LED_L CLKD1_L CLKD0_L C_DRV_SOS8 C_URL C_NUEL C_UMH C_UML C_USH C_USL C_UEH C_URH 5V_DET3 C_DRV_SOS7 F_RST L8DR_NCLK L8DR_CLK DRVRST IC9401 D9 VSS IC9401 C5 VSSQ L8R2.5V R9419 EXB38V470JV IC9401 B9 VDDQ FL9400 J0HABH000013 1 2 3 IC9401 F10 VDDQ C9473 16V 0.1u TP9414 R9412 EXB38V470JV IC9401 B11 VDDQ IC9401 E2 DQ16 TP9439 IC9401 B6 VDDQ IC9401 D6 VSS TP9407 IC9401 L5 A2 C9485 16V 0.1u C9482 16V 0.1u P3.3V TP9402 C9477 16V 0.1u IC9401 J4 VSSQ IC9401 F1 DQ19 TP9417 IC9401 C3ABQJ000051 A1 DQS0 R9404 EXB2HV470JV TP9400 IC9401 M11 CKE TP9411 IC9401 J2 DQ23 R9493 47 TP9426 IC9401 C7 VDD TP9431 IC9401 E11 DQ15 IC9401 B2 VDDQ IC9401 D8 VSSQ IC9401 D3 VDD TP9403 IC9401 J9 VSSQ IC9401 D12 DQ24 IC9401 K6 VDD IC9401 M9 A7 IC9401 L12 MCL IC9401 H9 VSSQ IC9401 L8 A5 R9450 EXB2HV820JV IC9401 E4 VSSQ IC9401 M8 A6 IC9401 M6 A3 C9491 16V 0.1u IC9401 J5 VSS IC9401 F12 DQ12 IC9401 L2 NC TP9453 IC9401 H1 DQ21 R9415 EXB38V470JV IC9401 M12 VREF IC9401 L9 RFU2 TP9429 C9472 16V 0.1u P3.3V IC9401 D10 VDD C9490 16V 0.1u IC9401 G10 NC R9645 0 R9468 100 TP9441 TP9448 IC9401 A3 VSSQ IC9401 A12 DQS3 IC9401 J12 DQ8 IC9401 E9 VSSQ IC9401 K8 RFU1 IC9401 K12 NC Q9401 B1ABCF000138 TP9419 IC9401 M10 A8/AP C9476 16V 0.1u IC9401 F8 VSS_Thermal IC9401 C2 DQ5 IC9401 C4 VSSQ TP9435 C9475 16V 0.1u C9494 16V 0.1u C9608 16V 0.1u TP9420 IC9401 G2 DM2 IC9401 K3 VDD IC9401 M2 NC TP9408 R9414 EXB38V470JV C9486 16V 0.1u IC9401 A2 DM0 IC9401 J10 VDDQ IC9401 J11 DQ9 TP9437 IC9401 K10 VDD R9620 4.7k TP9410 C9481 16V 0.1u R9443 100k IC9401 H8 VSS_Thermal TP9418 IC9401 A6 DQ0 R9442 10k IC9401 H6 VSS_Thermal IC9401 F6 VSS_Thermal IC9401 G12 DQS1 TP9451 TP9447 IC9401 H5 VSS_Thermal IC9401 H11 DQ11 TP9440 TP9409 C9492 16V 0.1u IC9401 G3 NC IC9401 A11 DM3 IC9401 E8 VSS_Thermal R9445 22 IC9401 C12 DQ25 TP9442 IC9401 B4 VDDQ C9487 16V 0.1u IC9401 B8 DQ30 IC9401 B1 DQ4 IC9401 L11 CK R9448 22 IC9401 F7 VSS_Thermal IC9401 F5 VSS_Thermal R9444 EXB2HV820JV TP9452 IC9401 D4 VSS R9440 EXB2HV470JV R9441 4.7k IC9401 E12 DQ14 IC9401 H2 DQ20 TP9449 R9482 1k IC9304 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 IC9401 A4 DQ3 C9497 56u 4V TP9424 IC9401 G8 VSS_Thermal IC9401 D1 DQ7 C9470 16V 0.1u IC9401 H4 VSSQ TP9413 TP9422 C9484 16V 0.1u IC9401 K5 A10 C9488 16V 0.1u IC9401 M4 A0 TP9438 L8R2.5V IC9401 B12 DQ27 TP9446 IC9401 F11 DQ13 IC9401 C6 VDD IC9401 J7 VSS IC9401 D5 VSSQ TP9450 R9418 EXB38V470JV R9483 1k IC9401 D7 VSS TP9406 TP9423 TP9405 R9416 EXB38V470JV IC9401 F3 VDDQ IC9401 H3 VDDQ R9421 EXB38V470JV P5V TP9434 IC9401 E3 VDDQ IC9401 L3 NC IC9401 F2 DQ18 IC9401 K9 VSS D9400 MA3X152K0L R9616 0 IC9401 E6 VSS_Thermal C9480 16V 0.1u TP9454 TP9425 IC9401 K2 WE TP9433 C9601 16V 0.1u R9515 47 TP9428 R9494 47 IC9401 H12 DQ10 IC9401 B10 NC C9474 16V 0.1u TP9430 IC9401 F4 VSSQ IC9401 H7 VSS_Thermal IC9401 M7 A4 IC9401 L6 A11 IC9401 M5 A1 IC9401 L4 BA1 IC9401 A5 DQ2 IC9401 C1 DQ6 C9495 16V 0.1u TP9416 IC9401 G6 VSS_Thermal IC9401 E7 VSS_Thermal IC9401 K4 VSS IC9401 B5 DQ1 IC9401 G5 VSS_Thermal R9619 4.7k C9478 16V 0.1u IC9401 H10 VDDQ C9540 50V 0.01u IC9401 J1 DQ22 D33 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 IC9401 L7 A9 R9449 EXB2HV820JV C9489 16V 0.1u R9413 EXB38V470JV IC9401 K11 NC R9489 47 R9492 47 P3.3V IC9401 C9 VSSQ R9446 EXB38V820JV IC9401 M3 BA0 C9479 16V 0.1u R9486 33 IC9401 L10 CK IC9401 A10 VSSQ IC9401 D11 VDDQ IC9401 E5 VSS_Thermal L8R2.5V IC9401 E10 VDDQ IC9401 K7 VDD IC9401 J8 VSS R9487 150 IC9401 C11 DQ26 IC9401 G9 VSSQ TP9415 IC9401 K1 CAS TP9436 IC9401 C8 VSSQ IC9401 G1 DQS2 IC9401 C3 VSSQ C9493 16V 0.1u R9490 47 R9417 EXB38V470JV R9491 47 R9488 33 IC9401 G4 VSSQ IC9401 L1 RAS TP9432 TP9404 TP9421 IC9401 G11 DM1 R9495 47 IC9401 A9 DQ28 IC9401 A8 DQ29 IC9401 J6 VSS TP9427 IC9401 G7 VSS_Thermal IC9401 E1 DQ17 IC9401 F9 VSSQ IC9602 C0EBE0000066 1 NC 2 SUB 3 GND 5 Vcc 4 Vout R9420 EXB38V470JV IC9401 B7 VDDQ IC9401 M1 CS Q9400 B1ABCF000138 IC9401 A7 DQ31 IC9401 J3 VDDQ TP9445 C9483 16V 0.1u TP9455 IC9401 C10 VSSQ IC9401 D2 VDDQ R9469 100k IC9401 B3 NC TP9412 DDR-Terminate 16M FLASH MEMORY P5V GND GND UMH GND DRV_RST DOUTDA[3] DOUTDC[2] GND DOUTDB[4] DOUTDA[4] DOUTDB[0] DOUTDC[6] CLK[0](+)_L LED UEH DOUTDC[3] DOUTDB[3] DOUTDB[2] GND USH DOUTDA[2] CLRD ODED DOUTDA[5] C_URL DOUTDB[7] DOUTDC[5] P5V 5V_DET DOUTDC[1] DOUTDB[5] CLK[1](-)_L DOUTDA[6] USL UML DOUTDA[7] DOUTDC[4] P5V NUEL GND GND GND DOUTDC[0] PCD1 GND DOUTDA[0] DOUTDB[6] DOUTDC[7] P5V DRV_SOS8 DOUTDA[1] DOUTDB[1] GND N.C 47 50 53 51 54 48 46 49 52 DDR SDRAM_R(128M) IC9401 TO (C41) C4-BOARD 61 63 64 66 62 65 81 82 83 84 TVRN825 RESET D-BOARD TNPA3820ACS (6/8) TH-50PX60U D-Board (6 of 8) Schematic Diagram TH-50PX60U D-Board (6 of 8) Schematic Diagram TH-50PX60U 112 14.43. D-Board (7 of 8) Schematic Diagram SIDE TERM G G G G G G G G G G G G L8L_DQ29 L8L_DQ2 L8L_DB03 L8L_BI9 L8L_A8 L8L_UB08 L8L_DC01 L8L_SDIV0 L8L_DA07 L8L_DQ28 L8L_DQ1 L8L_DB02 L8L_RI0 L8L_A7 L8L_UB09 L8L_DC02 L8L_DA06 L8L_DQ27 L8L_DQ0 L8L_DB01 L8L_RI1 L8L_A6 L8L_UB10 L8L_DC03 L8L_DA05 L8L_DQ26 L8L_DB00 L8L_RI4 L8L_A5 L8L_UB11 L8L_DC04 L8L_DA04 L8L_DQ25 L8L_RI2 L8L_UC11 L8L_A4 L8L_DC05 L8L_DA03 L8L_DQ24 L8L_VDI L8L_RI3 L8L_UC10 L8L_A3 L8L_DC06 L8L_DA02 L8L_DQ23 TMS L8L_HDI L8L_RI5 L8L_UC09 L8L_A2 L8L_DC07 L8L_DA01 L8L_DQ22 L8L_RI6 L8L_UC08 L8L_A1 L8L_DC08 L8L_DA00 L8L_DQ21 TCK L8L_GI0 L8L_RI7 L8L_UC07 L8L_A0 L8L_DC09 L8L_DQ20 L8L_GI1 L8L_RI8 L8L_UC06 L8L_DC10 L8L_DQ19 L8L_GI2 L8L_RI9 L8L_UC05 L8L_DC11 L8L_DQ18 L8L_TCKSEL2 L8L_GI3 L8L_UC04 L8L_DQ17 L8L_TCKSEL1 L8L_GI4 P3V_SCL02 L8L_UC03 L8L_DQ16 L8L_RAS L8L_TCKSEL0 L8L_GI5 L8L_UC02 L8L_DQ15 L8L_K_TEST L8L_GI6 L8L_UC01 L8L_DRVCLKD0 L8L_WE L8L_DQ14 L8L_TEST1 L8L_TIIC L8L_GI7 L8L_UC00 L8L_UA00 L8L_DRVCLKD1 L8L_DQ13 L8L_TEST0 L8L_TILD L8L_GI8 L8L_DRVCLKU1 L8L_UA01 L8L_CS L8L_DQ12 L8L_MUTE L8L_OCKOUT L8L_GI9 L8L_DRVCLKU0 L8L_UA02 L8L_DQ11 L8L_MONOUT2 L8L_BI0 L8L_CAS L8L_UA03 L8L_DQ10 L8L_MONOUT0 L8L_DB11 L8L_BI1 L8L_SDCKE L8L_UB00 L8L_UA04 L8L_DQ9 SFRST L8L_DB10 L8L_BI2 L8L_NSDCLKO L8L_UB01 L8L_UA05 L8L_DQS3 L8L_DQ8 SFVRST L8L_DB09 L8L_BI3 L8L_SDCLKO L8L_UB02 L8L_UA06 L8L_DQS2 L8L_DQ7 LATCH L8L_DB08 L8L_BI4 L8L_BA1 L8L_UB03 L8L_UA07 L8L_DQS1 L8L_DQ6 L8L_TCPOUT FPCLK L8L_DB07 L8L_BI5 L8L_BA0 L8L_UB04 L8L_UA08 L8L_DA11 L8L_DQS0 L8L_DQ5 FPDAT0 L8L_SDSEL L8L_DB06 L8L_BI6 L8L_A11 L8L_UB05 L8L_UA09 L8L_DA10 L8L_DQ31 L8L_DQ4 FPDAT1 L8L_DB05 L8L_FULL1 L8L_BI7 L8L_A10 L8L_UB06 L8L_UA10 L8L_DA09 L8L_DQ30 L8L_DQ3 L8L_MONOUT1 L8L_DB04 L8L_BI8 L8L_SDIV1 L8L_A9 L8L_UB07 L8L_DC00 L8L_UA11 L8L_DA08 L8L_TEST0 L8L_TEST1 L8L_TCKSEL2 CLKU2_L CLKU3_L DOUTUC8 DOUTUB8 DOUTUA9 DOUTUA8 DOUTUB9 DOUTUC9 DOUTUA10 DOUTUC11 DOUTUB11 DOUTUA11 DOUTUC10 DOUTUB10 DOUTUC13 DOUTUB13 DOUTUA13 DOUTUA12 DOUTUC12 DOUTUB12 CRKU1_R CRKU0_R DOUTUA15 DOUTUC14 DOUTUA14 DOUTUB15 DOUTUC15 DOUTUB14 DOUTUC16 DOUTUB16 DOUTUA16 DOUTUA17 DOUTUB17 DOUTUC17 LEU_R PCU2 CLRU_R ODEU_RR CRKU2_R CRKU3_R DOUTUA19 DOUTUC18 DOUTUB18 DOUTUA18 DOUTUB19 DOUTUC19 DOUTUC21 DOUTUA20 DOUTUC20 DOUTUA21 DOUTUB21 DOUTUB20 DOUTUA23 DOUTUC22 DOUTUC23 DOUTUB23 DOUTUA22 DOUTUB22 CLKU3_L CLKU2_L DOUTUC9 DOUTUB9 DOUTUA9 DOUTUA8 DOUTUC8 DOUTUB8 DOUTUC10 DOUTUB10 DOUTUA10 DOUTUA11 DOUTUB11 DOUTUC11 DOUTUA13 DOUTUC12 DOUTUA12 DOUTUB13 DOUTUC13 DOUTUB12 CRKU0_R CRKU1_R DOUTUA15 DOUTUC14 DOUTUB14 DOUTUA14 DOUTUB15 DOUTUC15 DOUTUC17 DOUTUA16 DOUTUC16 DOUTUA17 DOUTUB17 DOUTUB16 PCU2 ODEU_RR CLRU_R LEU_R CRKU2_R CRKU3_R DOUTUA19 DOUTUC18 DOUTUC19 DOUTUB19 DOUTUA18 DOUTUB18 DOUTUA20 DOUTUB20 DOUTUC21 DOUTUA21 DOUTUC20 DOUTUB21 DOUTUC23 DOUTUB22 DOUTUC22 DOUTUA22 DOUTUA23 DOUTUB23 L8L_UC09 L8L_UC08 L8L_UA08 L8L_UB08 L8L_UA09 L8L_UB09 L8L_UC11 L8L_UC10 L8L_UA10 L8L_UB10 L8L_UA11 L8L_UB11 L8R_UA00 L8R_UB00 L8R_UC00 L8R_UB01 L8R_UC01 L8R_UA01 L8R_UB02 L8R_UC02 L8R_UA02 L8R_UB03 L8R_UC03 L8R_UA03 L8R_UB04 L8R_UC04 L8R_UA04 L8R_UB05 L8R_UC05 L8R_UA05 L8R_UB06 L8R_UC06 L8R_UA06 L8R_UB07 L8R_UC07 L8R_UA07 L8R_UB08 L8R_UC08 L8R_UA08 L8R_UB11 L8R_UC11 L8R_UA11 L8R_UB10 L8R_UC10 L8R_UA10 L8R_UB09 L8R_UC09 L8R_UA09 L8L_DRVCLKD3 L8L_DRVCLKD2 L8L_DRVCLKU2 L8L_DRVCLKU3 L8L_DRVCLKU2 L8L_DRVCLKU3 L8R_DRVCLKU0 L8R_DRVCLKU1 L8R_DRVCLKU2 L8R_DRVCLKU3 L8L_MASK D-LEU D-CLRU ODEU_R D-PCU2 5V_SENSE 5V_DET1 AA_XCE_L TDO_TO_68_R P3V_SDA02 TDI_TO_68_L L8L_DCK L8_PCK L8_OCK FULL0 5V_DET1 L8L_FULL1 TRST L8L_UB13 L8L_UC15 L8L_DB15 L8L_UB12 L8L_UA12 L8L_UA13 L8L_UC13 L8L_DC15 L8L_UB14 L8L_UA14 L8L_DA15 L8L_UC12 L8L_UB15 L8L_UA15 L8L_DA14 L8L_UC14 L8L_SDIV0 L8L_SDIV1 L8L_MUTE L8L_K_TEST L8L_TCKSEL0 L8L_TCKSEL1 XRST L8L_TIIC L8L_TILD L8L1.2V IC9300 E19 DOUTUC03 R9319 100k IC9300 P5 VDD33 IC9300 AB22 VSS L8L1.2V IC9300 T21 DOUTDB05 IC9300 G3 BI4 IC9300 T4 DQ7 IC9300 W1 DQ2 TP121 L8L3.3V IC9300 AA1 VDD25 IC9300 D6 RI7 IC9300 AA8 A5 IC9300 R18 VDD33 IC9300 L13 VSS IC9300 C13 DOUTUB12 IC9300 K14 VSS IC9300 B14 DOUTUB11 TP083 IC9300 M9 VSS TP084 IC9300 P1 TDO IC9300 B21 VSS IC9300 Y11 DQ24 IC9300 A10 SFLATCH C9306 0.1u 16V IC9300 Y3 VSS IC9300 V7 VDD25 IC9300 K19 DOUTDC14 IC9300 AB19 DOUTDA00 IC9300 K20 DOUTDB13 IC9300 P11 VSS IC9300 P21 DOUTDC08 IC9300 V11 VDD25 IC9300 N2 TCK IC9300 V22 DOUTDA03 IC9300 H1 MUTE IC9300 N3 TDI IC9300 W14 DQ13 IC9300 A17 DOUTUA08 IC9300 AB11 DQ28 D31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 IC9300 C17 DOUTUA06 IC9300 R5 VDD25 R9312 82 IC9300 U20 DOUTDB03 IC9300 L18 VDD12 IC9300 W7 NCS IC9300 H21 DOUTDB15 R9304 22 IC9300 K18 VDD33 IC9300 U1 DQS2 IC9300 E3 GI5 IC9300 D9 TCKSEL1 C9316 0.1u 16V IC9300 AB13 DQ10 IC9300 J10 VSS IC9300 B18 DOUTUB06 R9305 22 L8L2.5V IC9300 H19 DRVCLKU0 TP101 P3.3V IC9300 AB8 A7 IC9300 W5 AVDD25_3 TP075 IC9300 N22 DOUTDA09 IC9300 Y14 DQ12 P1.2V IC9300 B16 DOUTUC09 TP072 C9300 0.1u 16V IC9300 H2 BI9 IC9300 MN84521-A A1 VSS IC9300 AB6 A4 IC9300 G1 BI6 R9475 10k IC9300 W13 DQ15 IC9300 J21 DOUTDB14 TP096 TP106 IC9300 F4 GI7 IC9300 F6 VSS TP077 IC9300 U18 VDD33 IC9300 F5 VDD12 TP108 TP120 R9303 EXB2HV820JV IC9300 N13 VSS TP099 IC9300 C22 DOUTUB01 IC9300 U4 DQ5 IC9300 P13 VSS IC9300 AA14 DQ9 IC9300 C1 VDD12 IC9300 L10 VSS TP086 IC9300 W18 VSS C9365 56u 4V TP113 TP065 IC9300 A3 GI0 IC9300 D14 DOUTUC10 C9360 6.3V 10u IC9300 M19 DOUTDC11 R9512 0 IC9300 M3 FULL1 C9313 0.1u 16V L8L3.3V IC9300 D4 VSS C9305 0.1u 16V IC9300 Y20 VSS IC9300 M10 VSS TP085 IC9300 G5 VDD12 IC9300 V10 VDD25 IC9300 J14 VSS R9318 4.7k R9301 82 L8L3.3V FL9303 F1J1E1040022 1 2 3 R9316 22 IC9300 Y21 VDD33 C9322 0.1u 16V IC9300 Y18 VSS TP110 IC9300 V3 DQ4 IC9300 B10 SFRST R9310 22 IC9300 K11 VSS IC9300 G18 VSS IC9300 Y9 A3 IC9300 A19 DOUTUA05 L8R3.3V C9361 6.3V 10u IC9300 K9 VSS IC9300 E20 DOUTUC02 IC9300 H22 DOUTDA14 IC9300 J1 MONOUT2 TP092 TP9444 HIN IC9300 B8 TCKSEL2 IC9300 A18 DOUTUB07 IC9300 W2 DQ1 Q9302 B1ABCF000138 IC9300 F20 DOUTUB00 IC9300 W3 VDD25 TP078 C9314 0.1u 16V IC9300 C2 VDD12 P2.5V IC9300 C4 GI3 IC9300 K10 VSS IC9300 AB21 VSS C9304 0.1u 16V C9357 0.1u 16V IC9300 A16 DOUTUA09 IC9300 V15 VDD12 IC9300 J13 VSS TP097 IC9300 A6 OCKOUT IC9300 E13 VDD33 C9311 0.1u 16V IC9300 R2 DQ23 IC9300 AA18 DOUTDB00 IC9300 R1 DQ22 IC9300 D10 FPDAT0 L8L2.5V IC9300 H18 VDD33 IC9300 B13 DOUTUA12 IC9300 B1 VSS IC9300 P19 DOUTDB07 L8L3.3V IC9300 R19 DOUTDA05 C9324 0.1u 16V IC9300 C19 DOUTUB04 IC9300 P9 VSS IC9300 C14 DOUTUC11 IC9300 AB15 AVDD33_1 IC9300 M22 DOUTDC10 IC9300 R20 DOUTDB06 J0HABH000013 FL9305 IC9300 E8 VDD12 IC9300 M5 VDD33 IC9300 F1 BI3 IC9300 K2 VDI IC9300 G21 DRVCLKD2 TP126 IC9300 AA15 AVSS1 IC9300 C10 SFVRST TP125 IC9300 AA10 DQ31 R9581 1k IC9300 T20 DOUTDA04 IC9300 Y2 VDD25 C9362 6.3V 10u IC9300 M21 DOUTDB10 C9317 0.1u 16V TP103 IC9300 V13 VDD12 IC9300 AA19 DOUTDC01 IC9300 D15 DOUTUB08 FL9301 J0HABH000013 1 2 3 IC9300 H20 DRVCLKD1 C9355 0.1u 16V IC9300 C12 DOUTUB13 IC9300 W20 VDD33 R9315 22 IC9300 B17 DOUTUA07 IC9300 Y6 NRAS R9578 0 IC9300 A12 DOUTUB14 R9302 EXB2HV820JV C9356 0.1u 16V IC9300 P2 XRST IC9300 U2 AVSS_1 IC9300 V8 VDD25 IC9300 U5 VDD25 R9308 EXB2HV820JV TP9443 VIN P5V TP081 IC9300 A9 FPDAT1 IC9300 Y12 AVSS_4 IC9300 G19 DOUTUC00 D9301 MA3X152K0L IC9300 A7 K_TEST TP071 IC9300 M14 VSS IC9300 L1 SCL IC9300 F18 VSS TP068 IC9300 M1 TILD IC9300 A5 RI2 R9307 EXB38V820JV IC9300 A21 VSS IC9300 B2 VSS IC9300 P3 DQ19 IC9300 K21 DOUTDC13 IC9300 AB9 VDD25 IC9300 V17 VDD33 IC9300 W8 A2 C9321 0.1u 16V IC9300 B7 TEST1 IC9300 M2 FULL0 IC9300 Y22 VDD33 IC9300 D7 RI3 L8L3.3V IC9300 R22 DOUTDC07 IC9300 A20 DOUTUC04 IC9300 B3 GI1 IC9300 F2 BI1 C9310 0.1u 16V TP111 IC9300 W12 AVDD25_4 TP122 IC9300 Y4 AVDD25_2 TP069 IC9300 K3 SDA IC9300 T19 DOUTDC04 IC9300 D12 DOUTUA13 IC9300 G20 DRVCLKU1 IC9300 G2 BI5 IC9300 Y13 DQ14 IC9300 A13 DOUTUC13 L8L2.5V IC9300 U21 DOUTDB04 IC9300 B11 DOUTUC15 IC9300 G4 BI2 L8L2.5V IC9300 P12 VSS IC9300 M20 DOUTDA10 IC9300 AA16 AVSS2 R9389 10k IC9300 T1 DQ21 IC9300 N9 VSS TP091 IC9300 C9 ROMCE R9602 0 IC9300 W15 TCPOUT R9574 0 IC9300 D2 GI4 IC9300 K22 DOUTDA12 IC9300 N5 VDD33 IC9300 AB18 DOUTDC00 IC9300 A11 DOUTUA14 IC9300 J9 VSS IC9300 Y10 DQ26 C9368 16V 0.1u IC9300 M13 VSS IC9300 V18 VSS IC9300 K12 VSS IC9300 J12 VSS IC9300 P4 DQ18 IC9300 Y15 VSS IC9300 G22 DRVCLKD0 C9363 6.3V 10u TP118 TP109 C9364 6.3V 10u TP105 IC9300 AA13 DQ11 IC9300 C8 TEST0 TP117 IC9300 AA17 SDIV0 IC9300 E21 DOUTUA00 IC9300 E15 VDD12 IC9300 P14 VSS C9325 0.1u 16V IC9300 D3 VDD12 IC9300 AA12 DQS3 IC9300 U22 DOUTDC05 IC9300 N18 VDD12 IC9300 W22 DOUTDC02 IC9300 W11 DQ25 IC9300 E2 GI8 TP076 R9311 82 C9312 0.1u 16V IC9300 N20 DOUTDC09 IC9300 D21 DOUTUB02 IC9300 V19 VDD33 TP098 IC9300 A2 VSS IC9300 B20 DOUTUA03 TP112 TP104 IC9300 L9 VSS IC9300 V4 VDD25 IC9300 M4 PCK IC9300 E1 BI0 C9318 0.1u 16V IC9300 J4 ENHMASK IC9300 D18 DOUTUC05 C9320 0.1u 16V IC9300 N19 DOUTDB09 C9301 0.1u 16V IC9300 E12 VDD33 IC9300 H3 BI8 IC9300 J22 DOUTDA13 IC9300 W17 VSS TP093 IC9300 D22 DOUTUC01 C9307 0.1u 16V IC9300 V9 VSS IC9300 L12 VSS IC9300 AA5 CKE TP095 IC9300 E14 VDD33 IC9300 H5 VDD12 IC9300 E22 DRVCLKU3 IC9300 P10 VSS TP107 C9359 0.1u 16V IC9300 T2 DQ20 IC9300 J5 VDD12 IC9300 V20 DOUTDB02 IC9300 V16 VDD33 IC9300 T5 AVSS_2 IC9300 AA20 DOUTDA01 IC9300 P18 VDD33 FL9302 F1J1E1040022 1 2 3 C9315 0.1u 16V IC9300 AA6 A11 C9323 0.1u 16V IC9300 W9 A10 C9309 0.1u 16V IC9300 E16 VDD12 IC9300 F21 DRVCLKU2 IC9300 B12 DOUTUC14 IC9300 N1 TRST TP094 IC9300 L11 VSS C9308 0.1u 16V IC9300 N21 DOUTDA08 IC9300 AA7 A9 IC9300 U19 DOUTDA02 IC9300 J11 VSS IC9300 Y16 SDSEL IC9300 V21 DOUTDC03 IC9300 AA11 DQ30 R9367 180 IC9300 N11 VSS IC9300 D17 DOUTUC06 TP116 IC9300 E6 VSS TP124 IC9300 W21 VDD33 TP115 IC9300 E18 VSS TP066 IC9300 B5 RI5 IC9300 V6 AVSS_3 IC9300 J3 MONOUT0 TP070 IC9300 J2 MONOUT1 IC9300 AA4 VREF IC9300 V1 DQS0 IC9300 V2 DQ3 IC9300 K4 HDI IC9300 L22 DOUTDB11 IC9300 Y5 NCAS IC9300 C7 RI0 IC9300 D1 GI6 IC9300 C20 VSS R9306 EXB38V820JV IC9300 T3 AVDD25_1 IC9300 C11 DOUTUB15 IC9300 F19 DOUTUA01 TP080 IC9300 B6 RI1 IC9300 N10 VSS IC9300 E9 VDD33 IC9300 AB14 DQ8 TP088 L8L3.3V IC9300 K5 VDD33 TP090 IC9300 D19 VSS P3.3V IC9300 E11 VDD33 IC9300 N14 VSS TP114 IC9300 W19 VSS IC9300 A8 TCKSEL0 IC9300 E10 VDD33 IC9300 N4 TMS IC9300 L14 VSS IC9300 P22 DOUTDB08 IC9300 AA2 VSS IC9300 D13 DOUTUC12 IC9300 B9 FPCLK J0HABH000013 FL9306 TP073 IC9300 M11 VSS IC9300 D5 GI2 IC9300 C21 DOUTUA02 TP123 IC9300 F3 GI9 IC9300 AB1 VSS IC9300 T22 DOUTDC06 IC9300 AB16 AVDD33_2 IC9300 AA22 VSS IC9300 J18 VDD33 IC9300 C15 DOUTUB09 C9367 50V 0.01u C9319 0.1u 16V IC9300 V5 VSS R9391 10k IC9300 H4 BI7 IC9300 AB7 A6 IC9300 D8 OCK IC9300 E5 VSS IC9300 B19 DOUTUA04 IC9300 V14 VDD12 IC9300 K13 VSS IC9300 A22 VSS IC9300 T18 VDD33 IC9300 Y1 DQ0 IC9300 W16 SDIV1 IC9300 AB10 DQ29 R9580 1k R9313 EXB2HV820JV IC9300 AB4 BA0 IC9300 Y8 A1 IC9300 C5 RI9 IC9300 J20 DOUTDC15 IC9300 C16 DOUTUC08 IC9300 AB17 VSS IC9300 AB2 VSS IC9300 U3 DQ6 IC9300 B22 VSS IC9300 AA21 VSS TP074 TP082 C9302 0.1u 16V IC9300 L4 TIIC R9314 EXB2HV820JV IC9300 Y7 A0 IC9300 R3 DQ17 IC9300 A14 DOUTUA11 IC9300 R21 DOUTDA06 IC9300 E4 VDD12 IC9300 L21 DOUTDA11 IC9300 A15 DOUTUA10 IC9300 N12 VSS IC9300 AB12 DQS1 IC9300 W4 VSS IC9300 D20 DOUTUB03 FL9304 F1J1E1040022 1 2 3 C9303 0.1u 16V IC9300 E17 VSS R9309 22 L8L3.3V TP119 IC9300 M12 VSS IC9300 AB20 DOUTDB01 IC9300 AA9 A8 IC9300 C18 DOUTUB05 IC9300 F22 DRVCLKD3 TP087 IC9300 Y17 VSS IC9300 D11 DOUTUA15 IC9300 V12 VDD25 IC9300 W10 DQ27 IC9300 J19 DOUTDA15 IC9300 AB3 NCK IC9300 C3 VSS IC9300 C6 RI4 IC9300 L3 ID1 IC9300 L5 VDD33 IC9300 A4 RI6 IC9300 L2 ID0 IC9300 AB5 BA1 R9300 82 R9390 10k IC9300 K1 DCK IC9300 P20 DOUTDA07 TP089 IC9300 R4 DQ16 IC9300 M18 VDD12 R9320 10k IC9300 L20 DOUTDC12 IC9300 W6 NWE IC9300 Y19 VSS IC9300 B15 DOUTUB10 C9358 0.1u 16V IC9300 E7 VDD12 IC9300 AA3 CK IC9300 B4 RI8 IC9300 L19 DOUTDB12 TP102 IC9300 D16 DOUTUC07 TP100 TP079 from FPGA1 IIC from FPGA to DDR DOUTUA[15] DOUTUC[12] DOUTUB[14] DOUTUC[15] GND N.C P5V CLK[3](-)_R DOUTUB[16] GND CLK[2](+)_R DOUTUA[23] GND DOUTUC[22] DOUTUA[22] DOUTUC[17] GND DOUTUC[16] DOUTUB[17] DOUTUA[16] GND DOUTUA[12] P5V CLK[1](-)_R CLK[0](+)_R P5V P5V DOUTUA[17] GND DOUTUC[23] DOUTUC[19] DOUTUB[23] DOUTUC[18] DOUTUA[21] GND DOUTUC[13] DOUTUA[18] GND DOUTUA[19] DOUTUC[9] DOUTUB[19] DOUTUB[13] DOUTUC[20] CLK[2](+)_L DOUTUC[21] GND DOUTUA[20] DOUTUB[20] DOUTUC[8] DOUTUA[11] LEU PCU2 GND DOUTUA[8] CLK[3](-)_L DOUTUA[9] DOUTUB[9] DOUTUC[10] DOUTUC[11] GND DOUTUA[10] GND CLRU DOUTUB[21] DOUTUB[10] ODEU DOUTUA[13] DOUTUB[11] DOUTUB[8] DOUTUB[18] GND DRV_RST GND DOUTUB[22] DOUTUB[12] DOUTUC[14] DOUTUB[15] 5V_DET DOUTUA[14] rromdata[00] rromdata[01] rromdata[02] rromdata[03] rromdata[04] rromdata[07] rromdata[10] rromdata[13] rromdata[05] rromdata[08] rromdata[11] rromdata[14] rromdata[06] rromdata[09] rromdata[12] rromdata[15] rromadrs[00] rromadrs[01] rromadrs[04] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[16] rromadrs[19] rromadrs[03] rromadrs[06] rromadrs[09] rromadrs[12] rromadrs[15] rromadrs[18] rromadrs[02] rromadrs[05] rromadrs[08] rromadrs[11] rromadrs[14] rromadrs[17] rromadrs[20] N.C 57 60 63 55 58 59 61 62 56 DATA DRIVER PLASMA AI MN84521-A(LSI58) SUB FIELD PROCESSOR IC9300 RGB PROCESSOR FORMAT CONVERTER LEFT TO (C21) C2-BOARD 84 83 81 82 91 92 93 MN84521 Left D-BOARD TNPA3820ACS (7/8) TH-50PX60U D-Board (7 of 8) Schematic Diagram TH-50PX60U D-Board (7 of 8) Schematic Diagram TH-50PX60U 113 14.44. D-Board (8 of 8) Schematic Diagram + G G TERM SIDE L8DL_DQS3 L8L_SDCKE L8DL_A3 L8L_DQ28 L8DL_CLK L8DL_A9 L8DL_NCAS L8DL_DQ22 L8DL_DQ25 L8DL_NRAS L8DL_DQ26 L8DL_DQ31 L8DL_A1 L8L_DQ12 L8DL_NWE L8DL_DQ24 L8DL_DQ7 L8DL_DQ11 L8DL_DQ4 L8DL_DQ0 L8DL_NCAS L8L_DQS1 L8DL_CKE L8DL_DQ11 L8DL_DQ9 L8L_DQ17 L8L_A10 L8L_DQ25 L8L_DQS0 L8DL_DQ23 L8DL_A3 L8L_DQ10 L8DL_DQ21 L8L_CS L8L_DQ16 L8DL_DQS0 L8DL_DQ2 L8L_DQ24 L8DL_A4 L8DL_DQ9 L8L_DQ22 L8L_A3 L8DL_DQ13 L8L_DQ20 L8L_DQ4 L8DL_NCLK L8L_SDCLKO L8L_BA0 L8DL_DQS3 L8L_DQ27 L8L_DQ19 L8L_NSDCLKO L8DL_DQS2 L8DL_DQ1 L8L_DQ3 L8L_DQ0 L8DL_DQ29 L8DL_DQ19 L8L_A2 L8L_DQ18 L8DL_DQ6 L8L_DQ9 L8DL_NCS L8DL_DQ28 L8DL_A7 L8DL_DQS1 L8DL_A10 L8DL_A6 L8L_DQS3 L8DL_DQ14 L8DL_DQ0 L8DL_DQ8 L8DL_DQ19 L8L_DQ5 L8DL_DQ30 L8DL_DQ15 L8DL_A8 L8DL_DQ30 L8DL_DQ5 L8DL_DQ8 L8L_A8 L8DL_DQ5 L8DL_DQ27 L8L_DQ23 L8DL_DQ24 L8L_BA1 L8DL_DQ14 L8DL_A1 L8DL_DQ12 L8DL_DQ10 L8DL_DQS1 L8DL_DQ10 L8DL_DQ13 L8DL_A5 L8DL_NCS L8DL_DQ4 L8L_CAS L8DL_A9 L8DL_A2 L8DL_DQ29 L8DL_DQ16 L8DL_BA1 L8DL_BA1 L8DL_DQ1 L8L_DQ6 L8DL_DQ22 L8DL_CKE L8L_A7 L8DL_DQS0 2.5V L8DL_A10 L8L_DQ30 L8L_A9 L8DL_A0 L8DL_DQ25 L8L_DQ2 L8DL_BA0 L8DL_DQS2 L8L_DQ21 L8DL_DQ20 L8DL_DQ23 L8DL_DQ27 L8L_A4 L8L_DQ29 L8DL_DQ16 L8L_WE L8DL_DQ26 L8L_A6 L8DL_DQ21 L8L_DQ15 L8DL_DQ3 L8DL_DQ15 L8DL_A0 L8DL_A4 L8L_DQ8 L8DL_NRAS L8DL_DQ3 L8DL_DQ31 L8L_A11 L8DL_DQ7 L8DL_A11 L8DL_A11 L8L_DQ7 L8L_DQ1 L8L_DQS2 L8DL_DQ28 L8DL_DQ12 L8L_DQ13 L8L_A5 L8DL_A8 L8L_DQ26 L8DL_BA0 L8L_A0 L8DL_A6 L8DL_A2 L8L_DQ31 L8DL_DQ6 L8DL_DQ18 L8L_DQ11 L8DL_DQ18 L8L_DQ14 L8DL_DQ2 L8DL_NWE L8DL_A5 L8DL_DQ17 L8DL_DQ17 L8L_RAS L8L_A1 L8DL_DQ20 L8DL_A7 D-LEU L8L_UB05 L8L_UC00 D-PCU1 DOUTUC7 L8L_UA05 L8L_UB00 D-CLRU DOUTUA5 ODEU_L DOUTUC4 L8L_UC04 L8L_UA00 ODEU_LL DOUTUB4 DOUTUB2 CLRU_L DOUTUA4 L8L_UB04 DOUTUA2 PCU1 DOUTUC3 DOUTUC1 LEU_L DOUTUB3 L8L_UA04 DOUTUB1 DOUTUA3 DOUTUA1 L8L_DRVCLKU1 L8L_UC03 DOUTUC2 DOUTUC0 CLKU1_L DOUTUB0 L8L_UB03 L8L_UB02 DOUTUC5 DOUTUA0 L8L_DRVCLKU0 5V_DET2 DOUTUB5 L8L_UA03 CLKU0_L L8L_UA02 DOUTUB6 L8L_UC07 L8L_UC02 L8L_UC01 DOUTUA6 DOUTUC6 L8L_UB07 L8L_UB01 DOUTUB7 DOUTUA7 L8L_UA07 L8L_UA01 L8L_UC06 L8L_UB06 L8L_UA06 5V_SENSE L8L_UC05 DOUTUA2 DOUTUB2 DOUTUA7 LEU_L CLKU1_L DOUTUB6 DOUTUC5 DOUTUB1 DOUTUC6 DOUTUA0 DOUTUC4 DOUTUB0 CLKU0_L DOUTUB3 DOUTUC7 DOUTUB7 DOUTUB4 DOUTUA5 DOUTUA3 DOUTUC1 PCU1 DOUTUC3 CLRU_L DOUTUA1 DOUTUC0 DOUTUA4 DOUTUC2 DOUTUB5 ODEU_LL DOUTUA6 L8DL_CLK 5V_DET2 L8DL_NCLK IC9301 A7 DQ31 IC9301 E3 VDDQ IC9301 F3 VDDQ R9597 47 R9373 33 R9394 EXB2HV820JV IC9301 M8 A6 TP9311 IC9301 C10 VSSQ IC9301 A10 VSSQ IC9301 J7 VSS IC9301 L5 A2 IC9301 F12 DQ12 IC9301 K12 NC C9336 16V 0.1u IC9301 E5 VSS_Thermal IC9301 F10 VDDQ ZA9001 K4CD01000011 R9595 EXB38V470JV P5V IC9301 J2 DQ23 IC9301 E9 VSSQ IC9301 G5 VSS_Thermal IC9301 J4 VSSQ IC9301 M6 A3 IC9301 C2 DQ5 IC9301 J1 DQ22 IC9301 B11 VDDQ IC9301 D3 VDD IC9301 G9 VSSQ TP9321 IC9301 F6 VSS_Thermal C9346 16V 0.1u R9585 47 TP9317 IC9301 M3 BA0 C9339 16V 0.1u TP063 TP9329 C9332 16V 0.1u IC9301 K4 VSS IC9301 F8 VSS_Thermal IC9301 A6 DQ0 IC9301 D8 VSSQ IC9301 L11 CK TP9318 IC9301 G11 DM1 IC9301 F9 VSSQ IC9301 E10 VDDQ IC9301 B4 VDDQ TP9323 IC9301 A4 DQ3 C9348 16V 0.1u IC9301 C12 DQ25 C9329 16V 0.1u IC9301 E8 VSS_Thermal IC9301 K8 RFU1 C9352 56u 4V IC9301 A11 DM3 P3.3V TP9333 C9342 16V 0.1u C9334 16V 0.1u IC9301 J10 VDDQ IC9301 E11 DQ15 TP9320 R9497 4.7k L8L2.5V IC9301 J6 VSS IC9301 B2 VDDQ R9582 1k C9338 16V 0.1u TP9322 IC9301 B7 VDDQ IC9301 G12 DQS1 TP9316 TP9326 IC9301 L10 CK C9350 16V 0.1u IC9301 K10 VDD R9592 EXB38V470JV IC9301 M2 NC IC9301 H11 DQ11 IC9301 M7 A4 C9331 16V 0.1u IC9301 D9 VSS IC9301 D10 VDD IC9301 H5 VSS_Thermal IC9301 L7 A9 IC9301 J12 DQ8 IC9301 A5 DQ2 IC9301 L1 RAS TP9313 IC9301 D11 VDDQ IC9301 E7 VSS_Thermal IC9301 K2 WE IC9301 B8 DQ30 TP9304 IC9301 H9 VSSQ IC9301 C11 DQ26 R9375 150 IC9301 B12 DQ27 IC9301 E4 VSSQ IC9301 A9 DQ28 R9593 EXB38V470JV IC9301 F4 VSSQ IC9301 M10 A8/AP C9335 16V 0.1u R9591 EXB38V470JV IC9301 D6 VSS TP9309 R9398 EXB38V820JV C9347 16V 0.1u IC9301 C9 VSSQ R9393 EXB2HV820JV IC9301 C7 VDD R9372 47 IC9301 H3 VDDQ IC9301 D1 DQ7 IC9301 B9 VDDQ C9327 16V 0.1u R9498 100k IC9301 G7 VSS_Thermal IC9301 B6 VDDQ TP064 TP9319 TP9306 IC9301 B3 NC IC9301 L9 RFU2 IC9301 G8 VSS_Thermal IC9301 D5 VSSQ IC9301 L8 A5 IC9301 E1 DQ17 IC9301 F7 VSS_Thermal R9396 22 IC9301 F11 DQ13 FL9300 F1J1E1040022 1 2 3 IC9301 M11 CKE IC9301 E2 DQ16 C9328 16V 0.1u R9374 EXB38V470JV IC9301 C6 VDD Q9301 B1ABCF000138 R9583 1k C9351 16V 0.1u D32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 R9496 10k IC9301 C5 VSSQ IC9301 K7 VDD C9330 16V 0.1u IC9301 H10 VDDQ IC9301 G6 VSS_Thermal R9590 EXB38V470JV R9594 EXB38V470JV IC9301 B5 DQ1 IC9301 K11 NC IC9301 E6 VSS_Thermal IC9301 B10 NC IC9301 H2 DQ20 IC9301 D12 DQ24 IC9301 L2 NC IC9301 D2 VDDQ R9371 EXB2HV470JV IC9301 F1 DQ19 IC9301 B1 DQ4 IC9301 K9 VSS D9300 MA3X152K0L IC9301 C4 VSSQ C9345 16V 0.1u IC9301 A8 DQ29 TP9315 IC9301 L12 MCL IC9301 G3 NC IC9301 J3 VDDQ C9341 16V 0.1u TP9330 IC9301 C8 VSSQ IC9301 J11 DQ9 R9588 EXB38V470JV C9366 50V 0.01u TP9310 R9584 33 IC9301 M9 A7 TP9305 L8L2.5V C9344 16V 0.1u IC9301 L4 BA1 IC9301 M1 CS IC9301 K3 VDD TP9312 IC9301 G4 VSSQ TP9324 IC9301 F5 VSS_Thermal IC9301 G1 DQS2 IC9301 A2 DM0 IC9301 C3ABQJ000051 A1 DQS0 R9587 EXB38V470JV C9349 16V 0.1u IC9301 C1 DQ6 TP9328 R9599 47 IC9301 D4 VSS C9343 16V 0.1u IC9301 H7 VSS_Thermal R9397 22 IC9301 L6 A11 IC9301 D7 VSS IC9301 G10 NC IC9301 K5 A10 IC9301 A12 DQS3 IC9301 H4 VSSQ IC9301 F2 DQ18 L8L2.5V IC9301 K1 CAS IC9301 J5 VSS IC9301 E12 DQ14 R9586 47 TP9307 TP9308 IC9301 M4 A0 IC9301 L3 NC IC9301 H1 DQ21 IC9301 H8 VSS_Thermal IC9301 G2 DM2 IC9301 C3 VSSQ TP9302 C9340 16V 0.1u C9337 16V 0.1u TP9332 IC9301 J9 VSSQ IC9301 M5 A1 C9333 16V 0.1u R9598 47 IC9301 H12 DQ10 TP9303 TP9314 R9596 47 IC9301 J8 VSS TP9325 IC9301 A3 VSSQ IC9301 M12 VREF IC9301 H6 VSS_Thermal IC9301 K6 VDD TP9327 R9395 EXB2HV820JV R9589 EXB38V470JV DDR-Terminate DDR-SDRAM L DOUTUB[6] DOUTUA[0] DOUTUA[2] DOUTUA[5] DOUTUA[3] DOUTUB[3] DOUTUA[4] DOUTUA[7] GND GND DOUTUC[5] GND P5V DOUTUC[3] GND DOUTUB[2] DOUTUA[1] DOUTUA[6] DOUTUB[5] DOUTUC[6] DOUTUC[0] P5V DRV_RST CLK[1](-)_L P5V DOUTUB[4] CLK[0](+)_L DOUTUB[0] GND DOUTUC[2] DOUTUB[1] GND GND DOUTUB[7] 5V_DET P5V DOUTUC[7] DOUTUC[4] DOUTUC[1] N.C N.C N.C N.C N.C N.C N.C GND GND ODEU GND CLRU LEU PCU1 N.C N.C 72 65 66 68 69 71 70 64 67 DDR SDRAM_L(128M) IC9301 (C31) TO C3-BOARD 91 93 92 D-BOARD TNPA3820ACS (8/8) TH-50PX60U D-Board (8 of 8) Schematic Diagram TH-50PX60U D-Board (8 of 8) Schematic Diagram TH-50PX60U 114 14.45. C1, C2, C5 and C6-Block Diagram P+5V CLKU2R P+5V CLKU3R CLKU3R CLKU2R CLKU3R CLKU2R P+5V LEU P+5V P+5V P+5V CLKU2L LEU CLKU3L LEU CLKU0R CLKU1R PCU2 LEU PCU2 CLRU CLRU PCU2 ODEU ODEU LEU CLKD2R CLKD2 CLKD3 P+5V PCD2 CLRD CLKD3R CLRD CLKD3R PCD2 ODED ODED LED CLKD2R LED P+5V LED CLKU2R CLRU CLKU3R PCU2 ODEU LEU CLKU2R PCU2 CLRU CLKU3R CLRU CLKU3R PCU2 ODEU ODEU CLKU2R CLKU1R CLKU0R CLKU3L CLKU2L VDA75V VDA75V VDA75V VDA75V ODEU CLRU PCU2 PCL PCR ODEU CLRU ODEU PCU2 CLRU LEU LEU CLKD2R PCU2 CLKD2L CLKD1R CLKD3L CLKD0R CLKD0R ODED LED CLKD1R VDA75V PCD2 VDA75V CLKD2R CLKD3L ODED ODED PCD2 CLRD CLRD CLKD3R CLRD P+5V CLKD3R P+5V PCR ODED PCD2 CLRD CLRD LED LED PCU2 PCL CLKD2L VDA75V VDA75V CLKD2R P+5V ODED P+5V LED ODED LED PCD2 CLKD3R CLRD R7133 R7134 R7632 R7633 UA20-UC21 C10 C60 16 CA3 VCC VCC 6bit 6bit 6bit 6bit 6bit CA5 27 CA6 25 CA4 6bit 40 6bit 42 1 6bit VCC UA14-UC15 6bit UA12-UC13 URA10-URC11 VCC 1/2 UA18-UC19 6bit UA16-UC17 DATA VCC 6bit P+5V CA2 CA1 C20 55 6bit UA16-UC21 6bit 6bit 14 UA16 UA16-UC21 18bit UC21 6bit VCC CA7 6bit 6bit P+5V 6bit UA8-UC9 VCC +5V_DET +5V_DET +5V_DET IC7101 IC7202 IC7201 IC7203 IC7204 IC7206 2/2 IC7201 6bit BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER C22 4-18,29-35 UA18 UC17 UA20 UC19 IC7208 VCC IC7207 BUFFER IC7209 UA16 UC21 52 55 VDA75V 15 20 23 22 20 21 ODEU CLRU PCU2 1 VDA75V 34 VDA75V DC21 4 ODED +5V_DET 16 DA16-DC21 DATA IC7601 DA16-DC17 55 DA18-DC19 36 35 31 33 14 6bit 18bit VCC DA16 6bit 29 P+5V 6bit BUFFER P+5V DA20-DC21 21-27,38-52 CLRD PCD2 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit VDA75V VDA75V LEU PCU2 CLKU3R CLKU2R DOUTUA18-UC23 DOUTUA14-UC17 DOUTUA8-UC13 C21 TO D31 30 28 29 25 31 26 21-27,38-52 34 36 35 31 29 CLRU ODEU CLKU0R 47 48 CLKU1R 71 72 CLKU3L CLKU2L 77 80 P+5V P+5V 6bit 6bit ULA10-ULC11 VCC IC7205 BUFFER 6bit 6bit DATA UA18 18bit UC23 UA14 12bit UC17 DATA 18bit DATA UC13 UA8 4 1 VDA75V 6bit 18bit DATA UA16 18bit UC21 33 ODEU CLRU PCU2 C52 VDA75V 6bit 15 53 20 52 6bit 50 55 4-18,29-35 DA18 VCC 1 IC7502 IC7501 CLRD DOUTDA14-DC17 DA12-DC13 DOUTDA8-DC13 CLRD 6bit ODED C51 CB6 CLKD0R DC19 TO D34 DLA10-DLC11 34 BUFFER 51 IC7508 VCC 33 BUFFER IC7505 6bit VCC CLKD1R BUFFER BUFFER IC7507 VCC 10 9 CLKD3L CLKD2L CLKD3R 1 4 12bit VCC P+5V CB7 P+5V 6bit 6bit 18bit 6bit DATA DA8-DC9 VCC 6bit 6bit 18bit 18bit 6bit UA16-UC21 1/2 C50 DATA DC23 CLKD2R UA16 6bit DA14-DC15 52 6bit +5V_DET 6bit IC7503 DC17 IC7504 IC7506 2/2 IC7501 CB4 DA18 DOUTDA18-DC23 DC17 6bit DA20 VCC LED CA5 BUFFER BUFFER BUFFER BUFFER IC7509 PCD2 DA16 55 DC21 DATA VCC DA14 DATA 18bit VDA75V PCU2 6bit DC13 UC21 DA8 6bit 6bit 6bit +5V_DET DRA10-DRC11 ODED CB1 CB3 CB2 25 27 23 22 20 21 40 42 58-77 36-48 12-31 33-45 50-69 4-23 56 +5V_DET +5V_DET 1 +5V_DET 80 +5V_DET PANEL DATA DRIVER PANEL DATA DRIVER PANEL DATA DRIVER PANEL DATA DRIVER TO C32 TO C42 UPPER CENTER (FRONT VIEW) C2 DATA DRIVE DATA DRIVE UPPER RIGHT (FRONT VIEW) C1 LOWER CENTER (FRONT VIEW) C5 DATA DRIVE C6 LOWER RIGHT (FRONT VIEW) DATA DRIVE TH-50PX60U C1, C2, C5 and C6-Board Block Diagram TH-50PX60U C1, C2, C5 and C6-Board Block Diagram TH-50PX60U 115 14.46. C3, C4, SS, SS2 and SS3-Board Block Diagram LEU UEH USH CLKD0L LED CLKD1L LEU CLKU0L PCU1 CLKU1L CLKD1L CLKD0L LED PCD1 PCD1 PCU1 USL CLKU0L CLKU1L UML UMH NUEL SS_SOS8 NUEL UEH USL USH UMH SS_SOS8 UML ODEU CLRU ODED CLRD R7460 R7361 R7360 R7461 D6255 TPVSUS TPSS1 TPVE TPVDA D6253 R6113 D6221 TP15V 29 17 19 VCC 55 DA6-DC7 C33 2 1 P+5V 18 DA4-DC5 C44 68 C41 TO D33 6bit 1 6bit 65 UA6-UC7 CB9 6bit CB8 6bit 6bit CA 1 26 CA9 6bit CA8 6bit DA0 24bit 44 6bit DC7 UA0 6bit 30 6bit 20 24bit 4 DA2-DC3 6bit UC7 6bit 6bit 6bit UA4-UC5 1 6bit 6bit 6bit 39 21 42 UA2-UC3 DA0-DC1 UA0-UC1 2 DATA 40 27 C31 DATA TO D32 22 24 C43 SS43 1 NUEL UML UMH UEH USH USL +5V_DET +5V_DET VCC IC7302 IC7303 VCC VCC IC7304 VCC IC7305 IC7301 IC7401 VCC VCC IC7405 VCC IC7404 VCC IC7403 VCC IC7402 10 11 CA 10 CB 11 CB BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER CLKU0L P+5V P+5V LEU PCU1 DOUTUA0-UC7 CLKU1L C32 VDA75V 15 20 VDA75V VDA75V 20 VDA75V C42 15 CLKD0L P+5V LED PCD1 DOUTD0A-D7C CLKD1L SS_SOS8 UMH UEH USH USL NUEL UML P+5V 6bit 6bit 6bit 6bit 6bit 6bit 6bit 9-35 CLRU ODEU 37 38 Q6001-Q6003 Q6101,Q6102 (+165V) SS_SOS8 Q6146-Q6147 USH 1 TO P11 OUTPUT DRIVER VSUS Vsus Gen. TPSS1 L6001-L6004 VE Gen. VE 3 TPVE UMH IC6221 TO C43 UEH IC6151 Ve Gen. Q6221,Q6222 SS_SOS8 UML 5V VCC FET Q6052,Q6053 VCC USL NUEL L6011-L6014 VR6000 ENERGY RECOVERY FET OUTPUT VCC IC6211 (+5V) OUTPUT FET Q6141-Q6142 IN COMPARATOR IC6251 Q6111,Q6112 11 Ve2 Gen. FET DRIVER 1 Q6041-Q6043 FET DRIVER IC6131 LED(G) OUTPUT Ve2 FET DRIVER VCC FET BUFFER VCC SS IC6241 FET 2 SUSTAIN DRIVE 4 7 6 Vsus 43 SS Adj. Q6021-Q6023 5 IC6191 VCC TPSS1 SIGNAL WAVE 11 SS 4 3 Vda 1 8 1 +15V Vda STB12V STB PS 12 TO P12 34 SS 10 2 SS SS 2 Vda Vda 33 1 SS56 SS55 SS54 SS53 SS52 SS51 SS20 SS21 SS22 SS23 SUSTAIN ELECTRODE PANEL SS 2 Vda Vda 44 1 Q6114 Q6103-Q6104 Q6105,Q6106 3 2 4 7 6 11 5 SS_SOS8 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit PANEL DATA DRIVER PANEL DATA DRIVER 31 CLRD ODED 32 SS2 SS3 TO C52 TO C22 NO USE C3 DATA DRIVE UPPER LEFT (FRONT VIEW) LOWER LEFT (FRONT VIEW) C4 DATA DRIVE ENERGY RECOVERY SOS DET LED BLINKING : 8 TIMES TH-50PX60U C3, C4, SS, SS2 and SS3-Board Block Diagram TH-50PX60U C3, C4, SS, SS2 and SS3-Board Block Diagram 34-60 TH-50PX60U 116 14.47. C1-Board (1 of 2) Schematic Diagram TERM SIDE TERM SIDE AB_CLK2P1 AB_CLK2P2 AB_LEU1 AB_DUA20 AB_DUB20 AB_DUC20 AB_DUB21 AB_DUC21 AB_PCU2 AB_LEU1 AB_DUA20 AB_DUB20 AB_DUC20 AB_DUA21 AB_DUB21 AB_DUC21 AB_PCU2 AB_LEU2 AB_DUA18 AB_DUB18 AB_DUC18 AB_DUA19 AB_DUB19 AB_DUC19 AB_PCU2 AB_LEU2 AB_DUA18 AB_DUB18 AB_DUC18 AB_DUA19 AB_DUB19 AB_DUC19 AB_PCU2 AB_DUA21 AB_CLK3N2 AB_ODEU AB_CLRU AB_CLRU AB_ODEU AB_ODEU AB_CLRU AB_ODEU AB_CLRU AB_CLK3N1 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7105 16V 1u R7105 6.8 VDA_75V C7108 50V 100p C1_5V 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7115 6.8 R7104 6.8 VDA_75V R7116 6.8 R7113 6.8 C7112 100V 0.47u R7103 6.8 C7106 100V 0.47u C7117 50V 100p R7108 0 C1_5V R7118 0 R7131 1k R7106 6.8 R7120 0 C7114 16V 1u R7114 6.8 R7110 0 C7103 100V 0.47u C7115 100V 0.47u C7109 16V 1u C7118 16V 1u VDD2 VDD2 VDD2 VDD2 GND GND GND GND A2 A6 NC A3 NC ODE GND DM NC GND GND VDD2 GND NC GND VDD1 GND FX GND GND A3 VDD2 A4 VDD2 VDD2 FS VDD1 VDD2 FDET1 FDET NC BLK NC A1 VDD1 VDD1 BLK FS ODE CLR NC CLR A2 NC FX A6 DM LEN VDD2 A5 VDD2 VDD2 A5 A4 A1 LEN GND GND GND GND VDD2 BLK GND FDET GND FX VDD2 FS VDD2 A4 VDD2 DM VDD1 A5 GND NC VDD2 VDD2 VDD2 CLR VDD2 GND A2 GND GND GND A2 A6 FS NC A1 LEN A3 NC ODE GND DM NC NC GND GND VDD1 VDD2 GND NC BLK GND A6 VDD1 VDD2 GND FX FDET1 A1 ODE VDD2 A4 GND GND VDD2 GND NC NC LEN A5 A3 CLR VDD1 CA1 CA2 C 1 6 8 2 7 4 5 A D B 3 E PANEL DATA TO DRIVER PANEL DATA TO DRIVER 1 2 3 4 5 C1-BOARD TXNC11BHTUJ (1/2) TH-50PX60U C1-Board (1 of 2) Schematic Diagram TH-50PX60U C1-Board (1 of 2) Schematic Diagram TH-50PX60U 117 14.48. C1-Board (2 of 2) Schematic Diagram TERM SIDE TERM SIDE AB_LEU3 AB_DUA16 AB_DUB16 AB_DUC16 AB_DUA17 AB_DUB17 AB_DUC17 AB_LEU3 AB_DUA16 AB_DUB16 AB_DUC16 AB_DUA17 AB_DUB17 AB_DUC17 AB_PCU2 AB_CLK2P2 AB_CLK3N2 AB_LEU3 AB_LEU2 AB_LEU1 AB_ODEU AB_CLRU AB_ODEU AB_CLRU AB_CLK2P2 AB_CLK3N2 AB_CLK3N1 AB_CLK2P1 AB_DUC21 AB_DUB21 AB_DUA21 AB_DUC20 AB_DUB20 AB_DUA20 AB_DUA19 AB_DUB18 AB_DUB19 AB_DUA18 AB_DUC19 AB_DUC18 AB_DUB16 AB_DUA16 AB_DUC17 AB_DUB17 AB_DUA17 AB_DUC16 AA_CLK3N AB_ODEU AB_PCU2 AB_CLRU AA_LEU2 AB_PCU2 AA_CLK2P AA_CLK2P AA_CLK3N AA_LEU2 ZA7101 K4CD01000013 R7134 100k C7128 16V 1u ZA7103 K4CD01000013 R7135 EXB38V471JV C7124 100V 0.47u C10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 R7128 0 R7124 6.8 ZA7104 K4CD01000013 ZA7105 K4CD01000013 R7142 47 R7139 22 C1_5V C1_5V R7133 22k R7126 6.8 R7125 6.8 C7121 100V 0.47u R7132 0 R7136 22 R7123 6.8 R7140 47 C7126 50V 100p R7137 22 C7123 16V 1u C7130 16V 0.1u C0JBAZ002692 IC7101 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7141 47 C1_5V R7138 22 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7130 0 ZA7102 K4CD01000013 VDA_75V VDA_75V C7127 16V 1u VDD2 BLK GND FDET GND FX VDD2 FS VDD2 A4 VDD2 DM VDD1 A5 GND NC VDD2 VDD2 VDD2 CLR VDD2 GND A2 GND GND GND A2 A6 FS NC A1 LEN A3 NC ODE GND DM NC NC GND GND VDD1 VDD2 GND NC BLK GND A6 VDD1 VDD2 GND FX FDET1 A1 ODE VDD2 A4 GND GND VDD2 GND NC NC LEN A5 A3 CLR VDD1 GND GND GND DOUTDB[16] DOUTDB[17] DOUTDA[17] DOUTDB[21] VDA75 ODEU GND DOUTDB[20] DOUTDC[17] DOUTDA[20] DOUTDB[18] DOUTDC[21] DOUTDB[19] CLRU DOUTDC[20] 5V_DET DOUTDA[18] PCU2 DOUTDC[19] DOUTDA[21] P5V DOUTDC[18] DOUTDC[16] DOUTDA[16] P5V P5V DOUTDA[19] GND GND LEU2 CLK[3](-)N2 CLK[2](+)P2 GND GND GND VDA75 VDA75 VDA75 CA3 NC NC NC NC NC NC(DRV_RST) GND GND GND GND GND NC GND GND 11 9 14 10 13 15 8 12 BUFFER PANEL DATA TO DRIVER TO (C20) C2-BOARD 3 5 1 2 4 C1-BOARD TXNC11BHTUJ (2/2) TH-50PX60U C1-Board (2 of 2) Schematic Diagram TH-50PX60U C1-Board (2 of 2) Schematic Diagram TH-50PX60U 118 14.49. C2-Board (1 of 3) Schematic Diagram TERM SIDE G G SIDE TERM AB_DUB18 AB_DUB21 AB_DUA19 AB_DUA21 AB_DUC18 AB_DUC19 AB_DUC21 AB_DUB19 AB_DUA18 AB_DUA16 AB_DUB16 AB_DUC16 AB_DUA17 AB_DUB17 AB_DUC17 AB_ODE_R_C1 AB_ODE_R_C1 AA_ODE_R AA_CLR_R AA_CLK2_P_R AA_CLK3_N_R AA_LER AB_DUA16 AB_DUC17 AB_DUB16 AB_DUB17 AB_DUA17 AB_DUC16 AB_DUC20 AB_DUC21 AB_DUB21 AB_DUA21 AB_CLR_R_C1 AB_CLR_R_C1 AB_DUA20 AB_DUB20 AB_DUA19 AB_DUB19 AB_DUC18 AB_DUC19 AB_DUB18 AB_DUA18 AA_DUA17 AA_DUC16 AA_DUB16 AA_DUC17 AA_DUB17 AA_PCR AA_DUA18 AA_DUB18 AA_DUC18 AA_DUA19 AA_DUB19 AA_DUC19 AA_DUA20 AA_DUB20 AA_DUC20 AA_DUA21 AA_DUB21 AA_DUC21 AB_DUA20 AB_DUC20 AB_DUB20 AB_PCR_C1 AA_DUL_A11 AA_DUA16 AA_CLK2_P_R AA_DUL_B11 AA_DUB16 AA_DUL_C11 AA_CLK0_P_R AA_DUC16 AA_DUR_A10 AA_DUA17 AA_DUR_B10 AA_DUB17 AA_DUR_C10 AA_DUC17 AA_DUR_A11 AA_DUA18 AA_CLK1_N_R AA_DUR_B11 AA_DUB18 AA_DUR_C11 AA_DUC18 AA_PCR AA_DUA21 AA_DUA8 AA_DUA12 AA_DUA19 AA_DUC14 AA_DUB8 AA_DUB12 AA_DUB19 AA_DUC8 AA_DUC12 AA_DUC19 AA_DUA9 AA_DUA13 AA_DUA20 AA_DUB9 AA_DUB13 AA_DUB20 AA_DUC9 AA_DUA14 AA_DUC20 AA_CLK0_P_L AA_DUL_A10 AA_DUA15 AA_DUB21 AA_CLK1_N_L AA_DUL_B10 AA_DUB14 AA_DUB15 AA_DUC21 AA_LER AA_DUC13 AA_DUL_C10 AA_DUC15 AA_CLK3_N_R AA_ODE_R AA_CLR_R AA_DUA16 C0JBAZ002692 IC7207 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7280 EXB38V470JV C0JBAZ002692 IC7208 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7278 EXB38V471JV C7249 16V 0.1u R7281 EXB38V470JV R7285 EXB38V470JV VDA_75V R7276 EXB38V471JV R7283 EXB38V470JV C20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 R7275 EXB38V471JV C2_5V C0JBAZ002692 IC7209 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C2_5V R7282 EXB38V470JV C7201 16V 1u C7251 16V 0.1u C2_5V R7277 EXB38V471JV R7279 EXB38V471JV C7247 16V 0.1u R7274 EXB38V471JV C2_5V R7284 EXB38V470JV C2_5V J0HABH000013 FL7201 1 2 3 C21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 VDA75 VDA75 VDA75 VDA75 GND GND GND GND P5V P5V P5V 5V_DET NC(DRV_RST) GND DOUTDC[16] CLK[3](-)_N2 DOUTDA[16] DOUTDC[17] DOUTDB[16] DOUTDA[17] DOUTDB[17] CLK[2](+)_P2 GND GND PCU2 GND LEU2 ODEU CLRU GND DOUTDC[18] DOUTDB[18] DOUTDB[19] DOUTDA[18] DOUTDC[19] DOUTDA[19] GND GND NC DOUTDC[21] DOUTDB[21] DOUTDA[20] DOUTDB[20] DOUTDC[20] DOUTDA[21] NC NC NC NC NC GND GND GND GND GND 8 4 2 1 7 3 B C 6 D E A 5 DOUTUC[12] CLK[2](+)_R DOUTUB[12] DOUTUC[15] GND GND DOUTUB[19] DOUTUC[11] DOUTUB[21] DOUTUC[10] DOUTUB[17] GND DOUTUB[13] DOUTUA[11] DOUTUB[11] ODEU CLK[3](-)_R DOUTUC[20] DOUTUB[18] DRV_RST N.C DOUTUC[8] GND CLK[0](+)_L GND DOUTUA[15] DOUTUB[20] GND CLK[0](+)_R DOUTUB[22] GND N.C CLK[1](-)_R DOUTUC[9] DOUTUA[10] GND DOUTUA[9] CLK[1](-)_L DOUTUA[23] DOUTUA[14] DOUTUA[21] GND P5V DOUTUA[8] P5V DOUTUB[8] DOUTUB[14] CLRU P5V 5V_DET DOUTUA[18] P5V DOUTUB[16] DOUTUA[13] GND DOUTUC[14] DOUTUA[20] DOUTUB[10] DOUTUA[12] R-UP DOUTUB[9] GND DOUTUA[16] DOUTUA[19] DOUTUC[13] DOUTUC[22] GND DOUTUC[23] DOUTUC[21] DOUTUC[19] DOUTUC[16] DOUTUA[17] GND DOUTUB[23] DOUTUC[18] DOUTUA[22] DOUTUC[17] DOUTUB[15] GND PCU2 LEU BUFFER BUFFER BUFFER (C10) C1-BOARD TO TO (D31) D-BOARD 1 2 3 C2-BOARD TXNC21BHTUJ (1/3) TH-50PX60U C2-Board (1 of 3) Schematic Diagram TH-50PX60U C2-Board (1 of 3) Schematic Diagram TH-50PX60U 119 14.50. C2-Board (2 of 3) Schematic Diagram TERM SIDE TERM SIDE AB_LE5 AB_DUA12 AB_DUB12 AB_DUC12 AB_DUA13 AB_DUB13 AB_DUC13 AB_PCR AB_LE5 AB_DUA12 AB_DUB12 AB_DUC12 AB_DUA13 AB_DUB13 AB_DUC13 AB_PCR AB_CLK0_P_R AB_CLK1_N_R AB_CLK1_N_L AB_DUA12 AB_DUB13 AB_DUC13 AB_DUA13 AB_DUC12 AB_DUB12 AB_DUB15 AB_PCR AB_DUA15 AB_DUC15 AB_DUC14 AB_DUB15 AB_DUB14 AB_DUA15 AB_DUA14 AB_LE4 AB_DUC14 AB_DUB14 AB_DUA14 AB_CLK0_P_R AB_CLK1_N_R AB_ODE_R AB_CLR_R AB_CLR_R AB_ODE_R AB_DUC14 AB_DUA15 AB_DUC15 AB_DUB14 AB_DUA14 AB_DUB15 AB_LE4 AB_CLR_R AB_CLR_R AB_ODE_R AB_ODE_R AB_DUC15 AB_LE5 AB_CLK1_N_R AB_LE4 AB_CLK0_P_L AB_CLK0_P_R AB_LE6_R AB_PCR AB_ODE_R AB_CLR_R AB_PCR AA_DUC15 AA_DUB15 AA_DUA15 AA_DUC14 AA_DUA14 AA_DUB14 AA_DUC13 AA_DUB13 AA_DUA13 AA_DUC12 AA_DUB12 AA_DUA12 AA_PCR AA_CLK0_P_L AA_CLK1_N_L AA_CLK0_P_R AA_CLK1_N_R AA_LER AA_CLR_R AA_ODE_R C7238 100V 0.47u R7201 10k R7258 22 R7211 EXB38V471JV VDA_75V C2_5V R7204 6.8 C2_5V R7264 EXB38V470JV R7262 47 C2_5V R7241 EXB38V471JV R7210 47 R7221 6.8 R7259 22 R7209 47 R7257 22 C7226 100V 0.47u R7243 EXB38V471JV C7229 100V 0.47u C7221 50V 100p R7203 6.8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7228 16V 1u R7261 47 R7225 6.8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7228 47 C7205 16V 0.1u R7242 EXB38V471JV VDA_75V C7240 16V 1u R7260 22 C2_5V R7263 47 R7267 EXB38V470JV C0JBAZ002692 IC7203 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7223 6.8 C7243 16V 0.1u C7241 100V 0.47u R7224 6.8 C0JBAZ002692 IC7201 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7205 6.8 C7225 50V 100p R7222 6.8 R7244 EXB38V471JV R7266 EXB38V470JV C2_5V C7210 16V 0.1u R7265 EXB38V470JV R7207 47 C0JBAZ002692 IC7202 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7202 16V 1u C7203 16V 1u R A5 GND VDD2 NC VDD2 GND VDD2 GND LEN VDD1 GND VDD2 FX VDD2 LEN GND FS GND VDD2 GND A4 GND GND GND GND VDD1 VDD1 A6 A1 NC VDD2 FDET FDET1 ODE A2 NC NC VDD2 GND CLR NC VDD1 VDD2 VDD2 A5 A3 DM GND A2 VDD2 CLR NC A3 GND NC VDD2 BLK A1 A4 FX GND GND A6 DM NC FS BLK ODE VDD2 GND FX FDET1 GND A1 A2 GND ODE VDD2 A4 A1 LEN VDD2 GND A3 BLK NC NC LEN A5 A3 VDD1 A5 GND FDET GND NC VDD2 VDD2 NC ODE A6 GND FS NC GND DM FX NC VDD2 NC FS VDD2 DM GND GND VDD2 VDD2 GND A4 GND VDD1 VDD2 GND NC CLR VDD1 VDD2 BLK GND CLR GND GND VDD2 A6 A2 VDD1 R 8 12 15 10 14 11 9 13 BUFFER BUFFER BUFFER PANEL DATA TO DRIVER DRIVER PANEL DATA TO CA4 CA5 3 1 2 11 12 13 14 15 16 17 18 19 20 21 22 23 C2-BOARD TXNC21BHTUJ (2/3) TH-50PX60U C2-Board (2 of 3) Schematic Diagram TH-50PX60U C2-Board (2 of 3) Schematic Diagram TH-50PX60U 120 14.51. C2-Board (3 of 3) Schematic Diagram TERM SIDE TERM SIDE SIDE TERM AB_LE7 AB_DUA8 AB_DUB8 AB_DUC8 AB_DUA9 AB_DUB9 AB_DUC9 AB_PCL AB_DUB9 AB_DUA9 AB_DUC8 AB_DUB8 AB_DUA8 AB_LE7 AB_DUC9 AB_DUL_B10 AB_DUL_C10 AB_DUL_B11 AB_DUL_C11 AB_DUL_A10 AB_DUL_A11 AB_LE6_R AB_DUR_B10 AB_DUR_C10 AB_DUR_C11 AB_CLK1_N_L AB_CLK0_P_L AB_DUR_B11 AB_DUR_C11 AB_DUR_A11 AB_DUR_C10 AB_DUR_A10 AB_DUR_B10 AB_DUA8 AB_DUB8 AB_DUC8 AB_DUA9 AB_DUB9 AB_DUC9 AB_LE6_L AB_DUR_A11 AB_DUR_B11 AB_CLK1_N_R AB_CLK0_P_L AB_ODE_L AB_CLR_L AB_ODE_L AB_CLR_L AB_ODE_L AB_CLR_R AB_ODE_R AB_CLR_L AB_PCL AA_ODE_R AA_CLR_R AB_CLR_L AB_ODE_L AB_LE6_L AB_LE7 AB_DUL_B10 AB_DUL_A10 AB_DUL_C10 AB_DUL_A11 AB_DUL_C11 AB_DUL_B11 LEL_INT AB_PCR AB_PCL AB_DUR_A10 AA_PCR AB_PCL AA_DUR_C11 AA_DUR_B11 AA_DUR_A11 AA_DUR_C10 AA_DUR_B10 AA_DUR_A10 AA_DUL_B11 AA_DUL_C11 AA_DUL_A11 AA_DUL_C10 AA_DUL_B10 AA_DUL_A10 AA_DUB8 AA_DUA8 AA_DUC9 AA_DUB9 AA_DUA9 AA_DUC8 R7253 6.8 C0JBAZ002692 IC7206 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7233 100V 0.47u R7234 6.8 C2_5V VDA_75V R7251 6.8 R7212 EXB38V471JV R7254 0 R7216 EXB38V470JV R7235 6.8 R7238 6.8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7246 EXB38V471JV C7236 16V 1u C2_5V C0JBAZ002692 IC7204 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7208 16V 0.1u VDA_75V ZA7205 K4CD01000013 C7222 50V 100p R7249 EXB38V471JV R7239 6.8 C7213 50V 100p R7268 EXB38V470JV R7240 0 VDA_75V R7269 EXB38V470JV C7234 100V 0.47u ZA7201 K4CD01000013 R7213 EXB38V471JV R7256 0 C7237 100V 0.47u C2_5V C0JBAZ002692 IC7205 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7230 100V 0.47u R7247 EXB38V471JV C7218 16V 0.1u ZA7202 K4CD01000013 R7271 EXB38V470JV 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 ZA7204 K4CD01000013 R7229 47 R7245 0 C7232 16V 1u R7252 6.8 ZA7203 K4CD01000013 C7216 16V 0.1u R7215 EXB38V470JV R7250 6.8 C22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7270 EXB38V470JV R7248 EXB38V471JV C2_5V C2_5V C7215 16V 1u C7206 16V 1u VDD2 FX GND CLR GND VDD1 A5 CLR DM NC A4 FS GND VDD2 BLK VDD2 A2 NC A3 VDD2 GND A1 A4 VDD2 VDD2 VDD2 GND GND GND NC FX VDD2 VDD2 GND NC DM GND GND GND VDD1 A1 A3 VDD2 A6 GND FX ODE GND FS VDD2 VDD2 BLK VDD2 NC NC LEN GND NC A5 GND A6 DM FS GND VDD1 GND GND GND VDD1 VDD1 A2 GND A2 GND FDET1 DM NC VDD2 GND FDET1 A1 A1 A3 FDET BLK ODE GND NC LEN GND NC VDD2 VDD1 VDD2 VDD2 FDET NC GND VDD2 NC BLK GND VDD2 A6 GND NC NC VDD2 A4 A5 VDD2 GND GND GND LEN NC FS LEN ODE GND CLR A2 VDD1 ODE A4 VDD1 A5 VDD2 FX VDD2 VDD2 GND A6 NC A3 CLR NC NC NC GND Vda75V GND Vda75V GND Vda75V NC Vda75V Vda75V Vda75V NC NC NC GND GND GND NC 21 16 22 20 18 23 19 17 BUFFER BUFFER BUFFER L L DRIVER CA6 PANEL DATA TO DRIVER PANEL DATA TO CA7 TO C3-BOARD (C32) 19 13 16 17 20 21 14 12 22 18 23 11 15 C2-BOARD TXNC21BHTUJ (3/3) TH-50PX60U C2-Board (3 of 3) Schematic Diagram TH-50PX60U C2-Board (3 of 3) Schematic Diagram TH-50PX60U 121 14.52. C3-Board (1 of 2) Schematic Diagram TERM SIDE G G TERM SIDE SIDE TERM TERM SIDE AB_LEU8 AB_DUB6 AB_DUC6 AB_DUA7 AB_DUB7 AB_DUC7 AB_PCU1 AB_PCU1 AB_LEU9 AB_DUA4 AB_DUB4 AB_DUC4 AB_DUA5 AB_DUB5 AB_DUC5 AB_PCU1 AB_CLK0P1 AB_CLK1N1 AB_CLK0P1 AB_CLK1N1 AB_DUB7 AB_DUA6 AB_DUB6 AB_DUC7 AB_DUA7 AB_DUC6 AB_CLK1N1 AB_LEU10 AB_CLK0P2 AB_CLK1N2 AB_LEU8 AB_LEU9 AB_LEU11 AB_ODEU1 AB_CLRU AB_CLRU AB_ODEU1 AB_CLRU AB_ODEU1 AB_ODEU1 AB_CLRU AB_CLRU AB_ODEU1 AB_CLK0P1 AA_DUA5 AA_DUB1 AA_DUB5 AA_DUC1 AA_DUC5 AA_DUA2 AA_DUB2 AA_DUC2 AA_DUA6 AA_DUA3 AA_DUB6 AA_LEU AA_DUB3 AA_DUC6 AA_DUC3 AA_DUA7 AA_DUB7 AA_DUC7 AA_DUA0 AA_DUA4 AA_DUB0 AA_DUB4 AA_DUC0 AA_DUC4 AA_DUA1 AB_DUA6 AA_CLK1N AA_CLK0P AA_ODEU1 AA_LEU AA_CLK1N AA_CLK0P AA_PCU1 AA_CLRU AB_DUA6 AB_DUB7 AB_DUA7 AB_DUC6 AB_DUB6 AB_DUC5 AB_DUB5 AB_DUA5 AB_DUC4 AB_DUB4 AB_DUA4 AB_LEU9 AB_DUC7 AB_LEU8 AB_PCU1 AA_DUC7 AA_DUB7 AA_DUA7 AA_DUC6 AA_DUB6 AA_DUA6 R7343 6.8 C7335 100V 0.47u R7327 22 VDA_75V C0JBAZ002692 IC7301 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7360 100k C3_5V R7333 47 R7344 6.8 C3_5V C7337 16V 1u C31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 R7340 6.8 C3_5V R7338 6.8 VDA_75V R7339 6.8 R7337 6.8 R7334 47 R7328 22 R7329 22 C7313 50V 100p C7314 50V 100p C3_5V R7346 0 VDA_75V R7362 EXB38V471JV R7361 22k J0HABH000013 FL7301 1 2 3 C3_5V C7338 100V 0.47u R7301 EXB38V470JV C3_5V C7306 16V 0.1u R7336 0 C7334 100V 0.47u R7309 EXB38V471JV C7333 16V 1u R7335 0 R7363 EXB38V471JV 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ002692 IC7302 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7302 EXB38V470JV R7341 6.8 R7342 6.8 C7302 16V 0.1u R7345 0 C7331 100V 0.47u R7330 47 R7326 22 R7331 47 C32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7311 16V 1u C7312 16V 1u A4 A6 CLR GND VDD2 A5 GND NC NC VDD2 VDD1 FS A3 GND VDD1 BLK GND NC A5 VDD2 GND VDD2 A1 GND FX FDET GND LEN VDD2 A6 A2 VDD1 VDD2 GND GND BLK FS CLR VDD1 DM GND A1 VDD2 NC ODE NC ODE FX GND VDD2 VDD2 A4 NC NC NC VDD2 FDET1 GND A3 VDD2 GND GND GND A2 GND VDD2 DM LEN A4 A6 CLR GND VDD2 A5 GND NC NC VDD2 VDD1 FS A3 GND VDD1 BLK GND NC A5 VDD2 GND VDD2 A1 GND FX FDET GND LEN VDD2 A6 A2 VDD1 VDD2 GND GND BLK FS CLR VDD1 DM GND A1 VDD2 NC ODE NC ODE FX GND VDD2 VDD2 A4 NC NC NC VDD2 FDET1 GND A3 VDD2 GND GND GND A2 GND VDD2 DM LEN NC GND GND Vda 75V NC NC NC GND GND NC GND Vda 75V GND NC Vda 75V Vda 75V Vda 75V Vda 75V NC NC GND P5V NC DOUTUB[1] GND CLK[0](+) 5V_DET DOUTUC[2] DOUTUC[7] GND DOUTUA[2] DOUTUB[5] ODEU1 DOUTUA[5] DOUTUB[7] LEU DOUTUB[4] GND DOUTUB[6] PCU1 DOUTUA[7] DOUTUC[0] GND DOUTUA[1] DOUTUC[6] DOUTUB[2] CLK[1](-) GND GND DOUTUC[1] P5V DOUTUA[6] CLRU DOUTUB[3] GND DOUTUB[0] GND GND DOUTUC[4] P5V DOUTUA[4] DOUTUA[0] P5V DOUTUC[3] DOUTUC[5] DOUTUA[3] CA8 CA9 C 1 6 8 2 7 4 5 A D B 3 E BUFFER BUFFER PANEL DATA TO DRIVER PANEL DATA TO DRIVER C3-BOARD TXNC31BHTUJ (1/2) 1 2 3 4 5 6 7 8 9 10 C2-BOARD TO (C22) D-BOARD TO (D32) TH-50PX60U C3-Board (1 of 2) Schematic Diagram TH-50PX60U C3-Board (1 of 2) Schematic Diagram TH-50PX60U 122 14.53. C3-Board (2 of 2) Schematic Diagram TERM SIDE TERM SIDE AA_DUA2 AA_DUB3 AA_DUC2 AA_DUC5 AA_DUB5 AA_DUA5 AA_DUC4 AA_DUA4 AA_DUB4 AA_DUC3 AA_DUA3 AA_DUB2 AA_DUC1 AA_DUB1 AA_DUA1 AA_DUC0 AA_DUB0 AB_LEU10 AB_DUA2 AB_DUB2 AB_DUC2 AB_DUA3 AB_DUB3 AB_DUC3 AB_PCU1 AB_LEU10 AB_DUA2 AB_DUB2 AB_DUC2 AB_DUA3 AB_DUB3 AB_DUC3 AB_PCU1 AB_LEU11 AB_DUA0 AB_DUB0 AB_DUC0 AB_DUA1 AB_DUB1 AB_DUC1 AB_PCU1 AB_LEU11 AB_DUA0 AB_DUB0 AB_DUC0 AB_DUA1 AB_DUB1 AB_DUC1 AB_PCU1 AB_CLK1N2 AB_DUB5 AB_DUC5 AB_DUA5 AB_DUC4 AB_DUA4 AB_DUB4 AB_DUB2 AB_DUB3 AB_DUC3 AB_DUA3 AB_DUC2 AB_DUA2 AB_DUB1 AB_DUA0 AB_DUB0 AB_DUC1 AB_DUA1 AB_DUC0 AA_DUA0 AB_ODEU1 AB_CLRU AB_ODEU1 AB_CLRU AB_ODEU1 AB_CLRU AB_ODEU1 AB_CLRU AB_CLK1N2 AB_CLK0P2 AA_PCU1 AB_PCU1 AB_CLK0P2 C7309 16V 0.1u R7358 0 C7341 16V 1u R7350 6.8 C33 1 2 3 4 R7353 6.8 R7347 0 C3_5V C7342 100V 0.47u R7308 EXB38V470JV C7310 16V 0.1u ZA7301 K4CD01000013 R7303 EXB38V470JV R7367 EXB38V471JV C0JBAZ002692 IC7305 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7304 EXB38V470JV C7339 100V 0.47u R7368 EXB38V471JV C7319 100V 0.47u R7355 6.8 R7365 EXB38V471JV ZA7302 K4CD01000013 R7356 6.8 C3_5V R7364 EXB38V471JV VDA_75V R7348 0 R7305 EXB38V470JV ZA7305 K4CD01000013 R7366 EXB38V471JV C7321 16V 1u R7307 EXB38V470JV VDA_75V C7322 100V 0.47u ZA7303 K4CD01000013 C7307 16V 0.1u R7357 0 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7354 6.8 C0JBAZ002692 IC7304 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7351 6.8 C3_5V VDA_75V R7349 6.8 ZA7304 K4CD01000013 C3_5V C0JBAZ002692 IC7303 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7306 EXB38V470JV C7315 50V 100p R7369 EXB38V471JV C3_5V R7332 0 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7359 1k C7318 50V 100p R7352 6.8 C7316 16V 1u C7317 16V 1u A4 A6 CLR GND VDD2 A5 GND NC NC VDD2 VDD1 FS A3 GND VDD1 BLK GND NC A5 VDD2 GND VDD2 A1 GND FX FDET GND LEN VDD2 A6 A2 VDD1 VDD2 GND GND BLK FS CLR VDD1 DM GND A1 VDD2 NC ODE NC ODE FX GND VDD2 VDD2 A4 NC NC NC VDD2 FDET1 GND A3 VDD2 GND GND GND A2 GND VDD2 DM LEN A4 A6 CLR GND VDD2 A5 GND NC NC VDD2 VDD1 FS A3 GND VDD1 BLK GND NC A5 VDD2 GND VDD2 A1 GND FX FDET GND LEN VDD2 A6 A2 VDD1 VDD2 GND GND BLK FS CLR VDD1 DM GND A1 VDD2 NC ODE NC ODE FX GND VDD2 VDD2 A4 NC NC NC VDD2 FDET1 GND A3 VDD2 GND GND GND A2 GND VDD2 DM LEN Vda 75V NC Vda 75V GND CA10 CA11 11 9 14 10 13 15 8 12 BUFFER BUFFER BUFFER PANEL DATA TO DRIVER PANEL DATA TO DRIVER C3-BOARD TXNC31BHTUJ (2/2) 3 4 5 6 7 8 10 1 9 2 TO (SS33) SS-BOARD TH-50PX60U C3-Board (2 of 2) Schematic Diagram TH-50PX60U C3-Board (2 of 2) Schematic Diagram TH-50PX60U 123 14.54. C4-Board (1 of 2) Schematic Diagram TERM SIDE TERM SIDE TERM SIDE SIDE TERM AA_DDA7 AA_DDB7 AA_DDC7 AA_DDA6 AB_LED9 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 AB_PCD1 AB_LED9 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 AB_PCD1 AB_DDC6 AB_DDB6 AB_DDA6 AB_DDC7 AB_DDB7 AB_DDA7 AB_LED8 AB_LED8 AB_DDC6 AB_DDB6 AB_DDA6 AB_DDC7 AB_DDB7 AB_DDA7 AB_PCD1 AB_CLK0P1 AB_CLK0P1 AB_CLK1N1 AB_LED10 AB_DDB5 AB_DDB7 AB_DDC6 AB_DDB6 AB_DDA6 AB_DDC7 AB_DDA7 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDA5 AB_LED11 AB_LED9 AB_LED8 AB_CLK0P1 AB_CLK0P2 AB_CLK1N1 AB_ODED1 AB_CLRD AB_CLRD AB_ODED1 AB_ODED1 AB_CLRD AB_CLRD AB_ODED1 AB_CLK1N2 AB_ODED1 AB_CLK1N1 AB_CLRD AA_DDC1 AA_DDB2 AA_DDB1 DRV_SOS8 AA_DDA1 URL AA_CLRD AA_DDC2 UEL AA_DDC4 AA_DDC3 UMH USH USL AA_DDA3 UML AA_DDA7 AA_DDB3 UEH AA_DDA5 AA_DDA0 AA_DDB7 AA_DDA4 AA_ODED1 AA_DDA6 AA_DDB5 AA_DDC6 AA_DDC7 AA_DDC0 AA_DDC5 AA_DDB4 AA_DDB0 AA_DDA2 AA_DDB6 AA_DDC4 AA_DDB5 AA_DDC5 AA_DDA4 AA_DDB4 AA_DDA5 AA_LED AA_PCD1 AA_CLK1N AA_CLK0P AB_PCD1 URH AA_LED AA_CLK0P AA_CLK1N AA_DDC6 AA_DDB6 AA_CLRD AA_ODED1 C4_5V C4_5V C4_5V R7460 22k R7441 22 R7418 0 C7433 16V 1u R7468 EXB38V681JV C4_5V R7467 EXB38V681JV C7413 16V 1u R7413 6.8 C4_5V VDA_75V C7405 16V 1u R7416 6.8 R7470 EXB38V681JV R7466 EXB38V681JV R7455 EXB38V470JV R7448 47 R7420 0 R7405 6.8 C4_5V R7447 47 R7449 47 C7441 16V 0.1u VDA_75V C7403 100V 0.47u R7408 0 R7443 22 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7446 47 R7454 EXB38V470JV R7404 6.8 C0JBAZ002692 IC7403 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7469 EXB38V681JV C7411 100V 0.47u R7444 22 C7415 50V 100p C41 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 R7456 EXB38V470JV C7435 16V 0.1u R7461 100k R7403 6.8 R7457 EXB38V470JV C7407 50V 100p R7445 0 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7442 16V 0.1u R7410 0 C0JBAZ002692 IC7401 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7414 100V 0.47u C7406 100V 0.47u C4_5V VDA_75V R7406 6.8 C42 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C0JBAZ002692 IC7402 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7442 22 R7414 6.8 R7415 6.8 C7408 16V 1u C7416 16V 1u A5 VDD1 VDD1 VDD2 VDD2 GND A2 GND NC FX VDD2 A1 GND NC DM VDD2 GND FS NC NC GND NC A1 VDD2 CLR FX GND ODE A4 VDD1 VDD1 VDD2 VDD2 BLK GND LEN BLK NC A3 VDD2 GND VDD2 VDD2 A5 FDET1 GND FS GND CLR A6 GND GND A3 A6 LEN VDD2 GND GND GND DM A2 ODE VDD2 NC A4 NC GND FDET A5 VDD1 VDD1 VDD2 VDD2 GND A2 GND NC FX VDD2 A1 GND NC DM VDD2 GND FS NC NC GND NC A1 VDD2 CLR FX GND ODE A4 VDD1 VDD1 VDD2 VDD2 BLK GND LEN BLK NC A3 VDD2 GND VDD2 VDD2 A5 FDET1 GND FS GND CLR A6 GND GND A3 A6 LEN VDD2 GND GND GND DM A2 ODE VDD2 NC A4 NC GND FDET UEH GND DOUTUA[3] DRV_SOS8 P5V DOUTUC[4] DOUTUC[6] DOUTUB[7] DOUTUA[4] CLRD DOUTUC[7] USH USL DOUTUB[0] P5V LED DOUTUB[1] PCD1 GND GND UEL DOUTUA[6] P5V N.C UMH DOUTUB[3] DOUTUA[2] GND URH DOUTUB[6] N.C CLK[1](-)_L DOUTUB[2] DOUTUA[0] DOUTUC[2] URL GND ODED1 P5V CLK[0](+)_L UML DOUTUC[1] DOUTUB[5] DOUTUC[3] GND DOUTUA[7] GND DOUTUB[4] DOUTUA[5] DOUTUA[1] DOUTUC[5] DOUTUC[0] GND GND GND GND Vda 75V NC GND Vda 75V NC NC GND NC NC GND GND Vda 75V NC NC NC Vda 75V Vda 75V Vda 75V CB8 CB9 5V_DET GND GND GND NC NC NC DSLL DMHL DSHL DMLL DMHR DRV_SOS7 NC 3 A D 4 C 1 6 8 2 E 7 5 B TO DRIVER PANEL DATA TO DRIVER PANEL DATA C4-BOARD TXNC41BHTUJ (1/2) 1 2 3 4 5 6 7 8 9 10 11 BUFFER BUFFER BUFFER TO (D33) D-BOARD (C52) C5-BOARD TO TH-50PX60U C4-Board (1 of 2) Schematic Diagram TH-50PX60U C4-Board (1 of 2) Schematic Diagram TH-50PX60U 124 14.55. C4-Board (2 of 2) Schematic Diagram TERM SIDE TERM SIDE AB_LED11 AB_DDC0 AB_PCD1 AB_DDA1 AB_DDB1 AB_DDC1 AB_DDA0 AB_DDB0 AB_LED11 AB_DDB1 AB_DDC1 AB_DDA0 AB_DDB0 AB_DDC0 AB_DDA1 AB_PCD1 AB_LED10 AB_DDC2 AB_DDB2 AB_DDA2 AB_DDC3 AB_DDB3 AB_DDA3 AB_PCD1 AB_LED10 AB_DDC2 AB_DDB2 AB_DDA2 AB_DDC3 AB_DDB3 AB_DDA3 AB_PCD1 AB_CLK1N2 AB_CLK0P2 AB_DDB1 AB_PCD1 AB_DDB3 AB_DDB2 AB_DDA2 AB_DDC3 AB_DDA3 AB_DDC0 AB_DDB0 AB_DDA0 AB_DDC1 AB_DDA1 UMH AB_ODED1 AB_CLRD AB_CLRD AB_ODED1 AB_ODED1 AB_CLRD AB_CLRD AB_ODED1 AB_CLK1N2 AB_DDC2 AA_DDA2 AA_DDC2 AA_DDC3 AA_DDB2 AA_DDB3 AA_DDA3 AA_DDC1 AA_DDA0 AA_DDB0 AA_DDA1 AA_DDC0 AA_DDB1 URH UEH UEL URL AB_CLK0P2 UML AA_PCD1 DRV_SOS8 USH USL C0JBAZ002692 IC7404 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C4_5V C7423 50V 100p R7453 EXB38V470JV R7428 0 C44 1 2 3 4 R7435 6.8 C43 1 2 3 4 5 6 7 8 9 10 11 12 VDA_75V R7440 0 R7464 EXB38V681JV R7423 6.8 C7443 16V 0.1u 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7421 16V 1u R7430 0 ZA7402 K4CD01000013 R7463 EXB38V681JV R7450 EXB38V470JV R7433 6.8 C4_5V C7431 50V 100p C4_5V R7438 0 R7436 6.8 C4_5V C0JBAZ002692 IC7405 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7459 1k R7465 EXB38V681JV ZA7401 K4CD01000013 C7427 100V 0.47u 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7451 EXB38V470JV ZA7405 K4CD01000013 R7462 EXB38V681JV R7434 6.8 ZA7404 K4CD01000013 C7440 16V 0.1u VDA_75V R7424 6.8 C4_5V ZA7403 K4CD01000013 C7422 100V 0.47u R7425 6.8 R7426 6.8 C7430 100V 0.47u C7429 16V 1u C7419 100V 0.47u VDA_75V R7452 EXB38V470JV C7424 16V 1u C7432 16V 1u A5 VDD1 VDD1 VDD2 VDD2 GND A2 GND NC FX VDD2 A1 GND NC DM VDD2 GND FS NC NC GND NC A1 VDD2 CLR FX GND ODE A4 VDD1 VDD1 VDD2 VDD2 BLK GND LEN BLK NC A3 VDD2 GND VDD2 VDD2 A5 FDET1 GND FS GND CLR A6 GND GND A3 A6 LEN VDD2 GND GND GND DM A2 ODE VDD2 NC A4 NC GND FDET A5 VDD1 VDD1 VDD2 VDD2 GND A2 GND NC FX VDD2 A1 GND NC DM VDD2 GND FS NC NC GND NC A1 VDD2 CLR FX GND ODE A4 VDD1 VDD1 VDD2 VDD2 BLK GND LEN BLK NC A3 VDD2 GND VDD2 VDD2 A5 FDET1 GND FS GND CLR A6 GND GND A3 A6 LEN VDD2 GND GND GND DM A2 ODE VDD2 NC A4 NC GND FDET NC GND Vda 75V Vda 75V USL UEH UMH USH UML DRV_SOS8 URL GND GND UEL 5V URH CB10 CB11 14 10 13 11 8 12 9 15 TO DRIVER PANEL DATA PANEL DATA TO DRIVER C4-BOARD TXNC41BHTUJ (2/2) 2 6 1 7 8 9 3 10 4 11 5 BUFFER BUFFER (SS43) TO SS-BOARD SS-BOARD (SS44) TO 3.7 0 0.5 0 0.5 5.0 0.6 0.9 0.4 0 0 1.7 75.5 75.5 0 0 TH-50PX60U C4-Board (2 of 2) Schematic Diagram TH-50PX60U C4-Board (2 of 2) Schematic Diagram TH-50PX60U 125 14.56. C5-Board (1 of 3) Schematic Diagram TERM SIDE G G SIDE TERM AB_DDB21 AB_DDA20 AB_DDC20 AB_DDC21 AB_DDB20 AB_DDA21 AB_DDC18 AB_DDB18 AB_CLR_R_C1 AB_ODE_R_C1 AA_LER AB_DDA17 AB_DDC16 AB_DDB16 AB_DDA16 AB_DDC17 AB_DDB17 AB_DDC19 AB_DDA19 AB_DDB19 AA_CLK3_N_R AA_CLK2_P_R AA_DDA18 AA_DDB18 AA_DDA21 AA_DDC18 AA_DDB21 AA_DDB17 AA_DDA20 AA_DDB20 AA_DDC20 AA_DDA19 AA_DDB19 AA_DDC17 AA_DDC19 AA_DDA16 AA_DDB16 AA_DDC16 AA_DDC21 AA_CLR_R AA_ODE_R AA_PCR AB_DDB21 AB_DDA21 AB_DDA20 AB_DDC21 AB_ODE_R_C1 AB_DDB20 AB_DDC20 AB_CLR_R_C1 AB_DDA17 AB_DDB17 AB_DDC17 AB_DDA16 AB_DDB16 AB_DDC16 AB_DDA19 AB_DDB19 AB_DDC19 AB_DDA18 AB_DDB18 AB_DDC18 AB_DDA18 AB_PCR_C1 AA_DDC15 AA_DDC21 AA_PCR AA_DDB9 AA_DDR_B11 AA_CLK2_P_R AA_CLK0_P_R AA_DDA14 AA_DDC9 AA_DDR_C11 AA_CLK1_N_R AA_DDC19 AA_DDB14 AA_DDA8 AA_DDR_A10 AA_DDA18 AA_DDC14 AA_DDB8 AA_DDR_B10 AA_DDB18 AA_DDA17 AA_DDC8 AA_DDR_C10 AA_DDC18 AA_DDL_A11 AA_DDB17 AA_DDA13 AA_DDA20 AA_DDA21 AA_DDL_B11 AA_DDC17 AA_DDB13 AA_DDB20 AA_DDL_C11 AA_DDC16 AA_DDC13 AA_DDC20 AA_DDB12 AA_DDA12 AA_DDL_A10 AA_DDA19 AA_DDC12 AA_ODE_R AA_DDL_B10 AA_DDB19 AA_CLK0_P_L AA_CLR_R AA_DDA15 AA_CLK1_N_L AA_DDB16 AA_DDL_C10 AA_DDB21 AA_DDB15 AA_LER AA_DDA9 AA_DDA16 AA_DDR_A11 AA_CLK3_N_R AA_DDA17 R7589 EXB38V470JV C5_5V R7585 EXB38V681JV C5_5V C5_5V C7564 16V 0.1u C5_5V C7562 16V 0.1u R7586 EXB38V470JV C7566 16V 0.1u R7582 EXB38V681JV C0JBAZ002692 IC7509 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7583 EXB38V681JV R7590 EXB38V470JV R7580 EXB38V681JV R7591 EXB38V470JV C50 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 C0JBAZ002692 IC7508 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7587 EXB38V470JV C0JBAZ002692 IC7507 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7588 EXB38V470JV R7584 EXB38V681JV VDA_75V R7581 EXB38V681JV J0HABH000013 FL7501 1 2 3 C5_5V C51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 DOUTDC[17] DOUTDA[20] DOUTDB[18] DOUTDB[19] DOUTDC[21] GND GND GND DOUTDB[16] DOUTDB[17] DOUTDA[17] DOUTDB[21] VDA75 GND ODED VDA75 VDA75 VDA75 GND GND GND CLK[3](-)N2 GND CLK[2](+)P2 LED2 GND DOUTDA[19] P5V P5V DOUTDA[16] GND GND DOUTDC[16] DOUTDC[18] P5V DOUTDA[21] PCD2 NC(DRV_RST) DOUTDC[19] DOUTDA[18] 5V_DET GND CLRD DOUTDC[20] DOUTDB[20] NC GND GND NC NC NC NC NC GND GND 5 D E 4 2 B 1 C 8 A 7 6 3 DOUTDB[8] DOUTDB[15] CLK[1](-)_R DOUTDC[8] DOUTDB[11] DOUTDC[23] GND GND DOUTDC[22] DOUTDA[23] DOUTDB[19] DOUTDA[16] DOUTDA[22] DOUTDB[20] DOUTDA[18] GND DOUTDA[11] CLK[3](-)_R GND DOUTDA[20] DOUTDC[11] DOUTDA[21] GND P5V DOUTDC[21] CLK[0](+)_R DOUTDC[20] DOUTDB[16] GND CLK[0](+)_L DRV_RST N.C CLRD CLK[2](+)_R DOUTDB[18] DOUTDB[23] DOUTDC[15] DOUTDC[18] GND DOUTDA[13] LED PCD2 GND CLK[1](-)_L DOUTDC[12] DOUTDA[9] DOUTDA[17] DOUTDC[14] DOUTDB[13] DOUTDC[17] 5V_DET P5V GND GND N.C DOUTDA[12] DOUTDC[19] DOUTDC[13] GND DOUTDC[16] DOUTDB[10] DOUTDB[14] GND DOUTDC[10] P5V DOUTDA[10] DOUTDB[17] DOUTDA[8] DOUTDB[9] DOUTDC[9] DOUTDB[21] GND ODED DOUTDB[22] DOUTDA[14] DOUTDB[12] DOUTDA[19] GND P5V DOUTDA[15] BUFFER BUFFER BUFFER D-BOARD (D34) TO (C60) TO C6-BOARD 1 2 3 C5-BOARD TXNC51BHTUJ (1/3) TH-50PX60U C5-Board (1 of 3) Schematic Diagram TH-50PX60U C5-Board (1 of 3) Schematic Diagram TH-50PX60U 126 14.57. C5-Board (2 of 3) Schematic Diagram TERM SIDE TERM SIDE AA_DDR_A10 AA_DDR_B11 AA_DDR_C10 AA_DDR_A11 AA_DDR_C11 AA_DDR_B10 AB_LE5 AB_DDC12 AB_PCR AB_DDB12 AB_DDA12 AB_DDC13 AB_DDB13 AB_DDA13 AB_LE5 AB_DDC12 AB_DDB12 AB_DDA12 AB_DDC13 AB_DDB13 AB_DDA13 AB_PCR AB_CLK0_P_R AB_CLK1_N_R AB_DDB13 AB_DDR_B11 AB_DDR_A11 AB_DDR_C11 AB_DDR_A10 AB_DDR_B10 AB_DDR_C10 AB_DDA13 AB_DDC13 AB_DDA12 AB_DDB12 AB_DDC12 AB_CLK1_N_R AB_PCR AB_LE4 AB_CLK0_P_R AB_LE4 AB_DDA15 AB_DDB15 AB_DDA15 AB_DDC15 AB_PCR AB_DDA14 AB_DDB14 AB_DDC14 AB_DDB15 AB_DDC15 AB_DDA14 AB_DDB14 AB_DDC14 AB_DDB14 AB_DDC14 AB_DDA14 AB_DDC15 AB_DDA15 AB_DDB15 AB_CLR_R AB_ODE_R AB_CLR_R AB_CLR_R AB_ODE_R AB_CLR_R AB_ODE_R AB_ODE_R AA_DDC13 AA_DDA13 AA_DDB13 AA_DDA12 AB_CLR_L AA_DDA14 AA_DDC15 AA_DDB15 AA_DDA15 AB_ODE_L AA_ODE_R AA_CLR_R AB_CLR_R AB_ODE_R AB_PCR AA_DDC14 AA_DDB14 AA_CLR_R AA_ODE_R AA_DDB12 AA_DDC12 AA_PCR R7559 6.8 R7548 EXB38V470JV C5_5V R7549 EXB38V470JV C7513 16V 0.1u C7508 16V 0.1u C7523 16V 0.1u R7530 EXB38V681JV C0JBAZ002692 IC7503 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7560 47 R7556 6.8 R7512 6.8 R7526 EXB38V681JV R7550 EXB38V470JV C7525 100V 0.47u C0JBAZ002692 IC7504 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C5_5V C7521 50V 100p VDA_75V R7531 EXB38V681JV C7529 100V 0.47u R7514 47 R7529 EXB38V681JV R7547 EXB38V470JV C5_5V R7510 6.8 R7558 6.8 C7528 100V 0.47u R7503 47 C7524 50V 100p R7557 6.8 C7527 16V 1u R7527 EXB38V681JV R7552 EXB38V470JV VDA_75V C7531 16V 1u R7511 6.8 C5_5V CB4 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C5_5V R7555 47 R7513 6.8 R7528 EXB38V681JV C0JBAZ002692 IC7502 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7551 EXB38V470JV C7532 100V 0.47u CB5 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7502 16V 1u C7518 16V 1u R A3 A6 A6 FX VDD2 NC A5 NC VDD2 NC VDD2 VDD2 BLK VDD2 NC LEN VDD1 ODE A1 BLK CLR FS NC GND A2 GND GND GND GND DM GND A2 VDD2 DM VDD2 ODE GND FS FX A5 A4 VDD1 VDD1 NC GND GND VDD1 LEN VDD2 GND FDET1 NC GND A4 VDD2 VDD2 NC VDD2 GND GND A3 A1 CLR GND GND VDD2 FDET GND A3 A6 A6 FX VDD2 NC A5 NC VDD2 NC VDD2 VDD2 BLK VDD2 NC LEN VDD1 ODE A1 BLK CLR FS NC GND A2 GND GND GND GND DM GND A2 VDD2 DM VDD2 ODE GND FS FX A5 A4 VDD1 VDD1 NC GND GND VDD1 LEN VDD2 GND FDET1 NC GND A4 VDD2 VDD2 NC VDD2 GND GND A3 A1 CLR GND GND VDD2 FDET GND R CB5 CB4 12 8 11 13 14 9 15 10 BUFFER BUFFER BUFFER PANEL DATA TO DRIVER PANEL DATA TO DRIVER 1 2 3 11 12 13 14 15 16 17 18 19 20 21 C5-BOARD TXNC51BHTUJ (2/3) TH-50PX60U C5-Board (2 of 3) Schematic Diagram TH-50PX60U C5-Board (2 of 3) Schematic Diagram TH-50PX60U 127 14.58. C5-Board (3 of 3) Schematic Diagram TERM SIDE TERM SIDE SIDE TERM AA_DDB9 AA_DDA8 AA_DDA9 AA_DDC9 AB_LE6_R AB_DDR_B10 AB_DDR_A10 AB_DDR_B11 AB_DDR_A11 AB_PCR AB_LE6_L AB_DDL_C10 AB_DDL_A10 AB_DDL_C11 AB_DDL_B11 AB_PCL AB_DDA9 AB_DDB9 AB_DDC9 AB_DDA8 AB_DDB8 AB_DDC8 AB_LE7 AB_LE7 AB_DDC8 AB_DDC9 AB_DDA8 AB_PCL AB_DDA9 AB_DDB9 AB_DDL_A11 AB_CLK0_P_L AB_DDB9 AB_DDA9 AB_DDC9 AB_DDA8 AB_DDB8 AB_DDC8 AB_DDR_C11 AB_DDL_B10 AB_CLK0_P_R AB_DDR_C10 AB_CLR_L AB_ODE_L AB_CLR_L AB_ODE_L AB_CLR_R AB_ODE_L AB_CLR_L AB_ODE_R AB_CLK1_N_L AB_LE5 AB_LE4 AA_DDB8 AA_DDC8 AB_DDL_C11 AB_DDL_B11 AB_DDL_A11 AA_DDL_B11 AA_DDL_A10 AA_DDL_C11 AA_DDL_A11 AB_DDL_C10 AB_DDL_B10 AB_DDL_A10 AA_CLK0_P_L AA_CLK1_N_L AA_CLK0_P_R AA_CLK1_N_R AB_LE7 AB_LE6_L AA_LER LEL_INT AB_PCL AB_DDB8 AA_DDL_C10 AA_DDL_B10 AB_CLK1_N_L AB_PCL AB_LE6_R AB_CLK1_N_R AB_CLK0_P_R AB_CLK1_N_L AB_CLK0_P_L AA_PCR 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7519 6.8 VDA_75V C5_5V R7538 0 ZA7502 K4CD01000013 R7536 22 R7532 EXB38V681JV ZA7501 K4CD01000013 C7559 16V 1u C7506 16V 0.1u R7525 0 C5_5V R7546 47 VDA_75V C0JBAZ002692 IC7501 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7501 EXB38V681JV R7504 EXB38V470JV C7511 50V 100p R7545 47 C5_5V ZA7503 K4CD01000013 R7535 10k R7541 22 R7505 EXB38V470JV C5_5V VDA_75V R7515 EXB38V681JV R7543 22 C0JBAZ002692 IC7506 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7523 6.8 C5_5V R7553 EXB38V470JV ZA7505 K4CD01000013 C7535 16V 1u C7509 50V 100p 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7554 EXB38V470JV R7524 6.8 R7542 22 C7560 100V 0.47u C7517 16V 0.1u C7514 16V 0.1u C0JBAZ002692 IC7505 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7536 100V 0.47u R7544 47 R7520 0 R7575 10k C7557 100V 0.47u R7522 6.8 R7521 6.8 R7577 0 R7516 6.8 C7533 100V 0.47u R7518 6.8 R7537 47 R7502 EXB38V681JV R7517 6.8 R7533 EXB38V681JV C52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 ZA7504 K4CD01000013 C7504 16V 1u C7510 16V 1u L L A3 A6 A6 FX VDD2 NC A5 NC VDD2 NC VDD2 VDD2 BLK VDD2 NC LEN VDD1 ODE A1 BLK CLR FS NC GND A2 GND GND GND GND DM GND A2 VDD2 DM VDD2 ODE GND FS FX A5 A4 VDD1 VDD1 NC GND GND VDD1 LEN VDD2 GND FDET1 NC GND A4 VDD2 VDD2 NC VDD2 GND GND A3 A1 CLR GND GND VDD2 FDET GND A3 A6 A6 FX VDD2 NC A5 NC VDD2 NC VDD2 VDD2 BLK VDD2 NC LEN VDD1 ODE A1 BLK CLR FS NC GND A2 GND GND GND GND DM GND A2 VDD2 DM VDD2 ODE GND FS FX A5 A4 VDD1 VDD1 NC GND GND VDD1 LEN VDD2 GND FDET1 NC GND A4 VDD2 VDD2 NC VDD2 GND GND A3 A1 CLR GND GND VDD2 FDET GND GND GND NC NC NC NC NC GND Vda75V Vda75V GND NC Vda75V NC GND Vda75V Vda75V Vda75V GND NC CB7 CB6 20 22 18 23 21 16 19 17 BUFFER BUFFER BUFFER PANEL DATA TO DRIVER PANEL DATA TO DRIVER C4-BOARD (C42) TO 18 11 21 14 17 20 13 16 15 19 12 C5-BOARD TXNC51BHTUJ (3/3) TH-50PX60U C5-Board (3 of 3) Schematic Diagram TH-50PX60U C5-Board (3 of 3) Schematic Diagram TH-50PX60U 128 14.59. C6-Board (1 of 2) Schematic Diagram TERM SIDE TERM SIDE AB_DDA19 AB_PCD2 AB_LED2 AB_DDC18 AB_DDB18 AB_DDA18 AB_DDC19 AB_DDB19 AB_DDA19 AB_LED2 AB_DDB19 AB_DDC19 AB_DDA18 AB_DDB18 AB_DDC18 AB_LED1 AB_DDC20 AB_DDB20 AB_DDA20 AB_DDC21 AB_DDB21 AB_DDA21 AB_PCD2 AB_LED1 AB_DDC20 AB_DDB20 AB_DDA20 AB_DDC21 AB_DDB21 AB_DDA21 AB_PCD2 AB_PCD2 AB_CLK2P1 AB_CLK3N1 AB_CLK3N2 AB_ODED AB_CLRD AB_ODED AB_CLRD AB_ODED AB_CLRD AB_ODED AB_CLRD AB_CLK2P2 C7613 16V 1u C7607 50V 100p R7610 0 R7613 6.8 VDA_75V C7603 100V 0.47u C6_5V R7616 6.8 R7604 6.8 C7605 16V 1u C7614 100V 0.47u R7608 0 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7618 0 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C6_5V R7605 6.8 C7606 100V 0.47u R7603 6.8 R7631 1k VDA_75V R7620 0 C7615 50V 100p R7606 6.8 C7611 100V 0.47u R7615 6.8 R7614 6.8 C7616 16V 1u C7608 16V 1u GND GND A3 VDD1 VDD2 A4 GND VDD2 VDD2 FS A5 VDD1 VDD1 VDD2 FDET1 FDET A1 VDD2 NC VDD2 BLK VDD2 NC LEN VDD1 ODE BLK CLR FS NC A1 CLR GND GND GND A2 GND GND A2 A6 NC NC NC A3 FX NC ODE GND A6 DM GND GND DM GND FX A4 GND LEN GND VDD2 VDD2 GND A5 NC VDD2 GND VDD2 VDD2 GND GND A3 VDD1 VDD2 A4 GND VDD2 VDD2 FS A5 VDD1 VDD1 VDD2 FDET1 FDET A1 VDD2 NC VDD2 BLK VDD2 NC LEN VDD1 ODE BLK CLR FS NC A1 CLR GND GND GND A2 GND GND A2 A6 NC NC NC A3 FX NC ODE GND A6 DM GND GND DM GND FX A4 GND LEN GND VDD2 VDD2 GND A5 NC VDD2 GND VDD2 VDD2 CB1 CB2 3 A D 4 C 1 6 8 2 E 7 5 B 1 2 3 4 5 6 PANEL DATA DRIVER TO DRIVER TO PANEL DATA C6-BOARD TXNC61BHTUJ (1/2) TH-50PX60U C6-Board (1 of 2) Schematic Diagram TH-50PX60U C6-Board (1 of 2) Schematic Diagram TH-50PX60U 129 14.60. C6-Board (2 of 2) Schematic Diagram TERM SIDE TERM SIDE AB_LED3 AB_DDC16 AB_DDB16 AB_DDA16 AB_DDC17 AB_PCD2 AB_LED3 AB_DDB17 AB_DDA17 AB_PCD2 AB_CLK2P2 AB_CLK3N2 AB_ODED AB_CLRD AB_ODED AB_CLRD AB_DDA21 AB_DDA20 AB_DDC21 AB_DDC20 AB_DDB20 AB_DDA17 AB_DDB17 AB_DDC17 AB_DDA16 AB_DDB16 AB_DDC16 AB_DDB19 AB_DDB18 AB_DDA19 AB_DDC19 AB_DDA18 AB_DDC18 AB_LED3 AB_LED1 AB_LED2 AA_LED2 AB_CLRD AB_ODED AA_CLK3N AA_LED2 AB_PCD2 AA_CLK2P AA_CLK3N AB_CLK3N2 AB_CLK2P2 AB_CLK3N1 AB_CLK2P1 AB_DDA16 AB_DDB16 AB_DDC16 AB_DDC17 AB_DDA17 AB_DDB17 AB_DDB21 AA_CLK2P C7625 16V 1u VDA_75V VDA_75V C7619 100V 0.47u C7623 50V 100p R7636 22 C7622 100V 0.47u R7641 47 R7640 47 R7635 22 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C6_5V C6_5V R7625 6.8 R7633 22k C6_5V R7638 22 ZA7604 K4CD01000013 C60 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 R7637 22 ZA7605 K4CD01000013 C0JBAZ002692 IC7601 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7621 16V 1u ZA7602 K4CD01000013 ZA7603 K4CD01000013 C6_5V R7628 0 R7624 6.8 C7626 16V 0.1u ZA7601 K4CD01000013 R7639 47 R7630 0 R7623 6.8 R7634 0 R7632 100k R7642 EXB38V681JV R7626 6.8 C7624 16V 1u GND GND A3 VDD1 VDD2 A4 GND VDD2 VDD2 FS A5 VDD1 VDD1 VDD2 FDET1 FDET A1 VDD2 NC VDD2 BLK VDD2 NC LEN VDD1 ODE BLK CLR FS NC A1 CLR GND GND GND A2 GND GND A2 A6 NC NC NC A3 FX NC ODE GND A6 DM GND GND DM GND FX A4 GND LEN GND VDD2 VDD2 GND A5 NC VDD2 GND VDD2 VDD2 GND DOUTDB[16] DOUTDB[17] DOUTDA[17] DOUTDB[21] VDA75 ODED GND DOUTDB[20] DOUTDC[17] DOUTDA[20] DOUTDB[18] DOUTDC[21] DOUTDB[19] CLRD DOUTDC[20] DOUTDA[18] PCD2 DOUTDC[19] DOUTDA[21] P5V DOUTDC[18] DOUTDC[16] DOUTDA[16] GND P5V P5V DOUTDA[19] GND GND LED2 CLK[3](-)N2 CLK[2](+)P2 GND GND GND VDA75 VDA75 VDA75 CB3 NC GND 5V_DET GND GND GND GND GND NC GND GND NC NC NC NC NC 14 10 13 11 8 12 9 15 3 4 6 1 2 5 TO PANEL DATA DRIVER BUFFER C6-BOARD TXNC61BHTUJ (2/2) C5-BOARD TO (C50) TH-50PX60U C6-Board (2 of 2) Schematic Diagram TH-50PX60U C6-Board (2 of 2) Schematic Diagram TH-50PX60U 130 14.61. SS, SS2 and SS3-Board Schematic Diagram TERM SIDE + TERM SIDE + + + + + + + + + + REF K A + TERM SIDE + TERM SIDE TERM SIDE TERM SIDE + 70V 200V 200V 0-200V 15V 200V 5V C6201 250V 4u D6105 MA2J11100L R6223 12k C6204 250V 4u R6256 1.5k 100 R6194 R6021 15 C6192 25V 1u C0ZBZ0000895 IC6131 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC R6032 82k R6110 10k TP32 L6004 G0CR82KA0147 C6221 50V 0.1u R6142 10k SS53 1 2 3 4 5 6 7 8 9 10 11 12 13 D6101 B0JCME000037 150 R6134 D6081 B0HBSN000008 Q6101 B1DFKM000002 G D S R6243 EXB38V470JV D6082 B0HBSN000008 L6103 G0ZZ00002183 R6222 10k C6112 200V 220u R6156 0 R6031 82k R6002 15 150 R6133 1 2 3 4 5 6 7 8 9 10 Q6022 B1JADN000001 C6153 25V 4.7u R6041 10 TP20 R6255 1.2k C6132 25V 4.7u R6046 10 R6141 10k Q6111 2SK326800L G D S TP13 L6083 G0ZZ00002183 1 2 3 4 R6257 10k D6001 B0HBSN000008 SS54 1 2 3 4 5 6 7 8 9 10 11 12 13 TP5 C6154 25V 4.7u R6227 16k L6399 J0JJC0000011 L6221 G0ZZ00002183 R6055 10 L6241 G0ZZ00002183 L6088 G0ZZ00002183 L6065 G0ZZ00002183 D6152 B0ECHP000003 C6043 16V 1u R6253 39k L6272 G0ZZ00002183 C6152 25V 4.7u J0JJC0000011 L6105 VR6000 10k 1 2 3 L6081 G0ZZ00002183 R6228 5.6k C6242 16V 1u C6012 220V 200u L6061 G0ZZ00002183 1 R6160 L6014 1.4u L6067 G0ZZ00002183 R6226 16k C6135 25V 4.7u 1 R6157 D6211 B0JCME000037 L6086 G0ZZ00002183 R6258 2.2k D6255 MA2J11100L 100k R6196 R6023 15 L6271 G0ZZ00002183 R6027 15 Q6141 B1ABNF000006 J0JJC0000011 L6211 150 R6154 TP17 TP15 C6155 25V 4.7u R6131 100 C6262 100V 470u C6014 220V 200u C6044 16V 1u TP27 R6025 15 R6024 15 1 2 3 4 5 6 7 8 9 10 11 12 R6113 220k TP29 D6154 B0ECHP000003 Q6222 2SC3063000RL L6063 G0ZZ00002183 ZA6002 K4CD01000011 C6213 25V 1000u TP8 D6131 B0ECHP000003 1 2 3 D6103 B0JCME000037 L6398 J0JJC0000011 Q6147 B1ADNF000006 Q6052 B1JADN000002 Q6053 B1JADN000002 C6263 100V 470u R6242 EXB38V472JV R6043 10 Q6103 B1ABNF000006 R6026 15 D6104 B0JCME000037 C6273 25V 220u C6202 250V 4u C6111 200V 220u C6013 220V 200u TP24 C6251 16V 1u TP16 TP28 Q6171 B1ABRD000003 L6087 G0ZZ00002183 R6152 100 C0JBAZ000005 IC6241 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R6045 10 D6091 MA3DF30000LZ C6042 16V 1u L6085 G0ZZ00002183 R6054 10 D6062 B0HBSN000008 D6221 B0ECHP000003 C6023 630V 5600p L6011 1.4u IC6251 C0BBBA000022 1 2 3 4 5 6 7 8 C6134 25V 4.7u Q6172 B1ADRD000001 R6155 0 J0JJC0000011 L6102 1 R6158 C6194 25V 4.7u R6001 15 R6042 10 C6015 220V 200u L6064 G0ZZ00002183 D6072 MA3DF30000LZ D6254 MAZ80510LL C6203 250V 4u D6061 B0HBSN000008 TP2 C6272 25V 220u L6062 G0ZZ00002183 TP11 R6183 10k Q6002 B1JADN000001 R6034 27k D6223 MA2J11100L 150 R6214 C0ZBZ0001324 IC6151 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC TP34 L6082 G0ZZ00002183 C6031 250V 4u R6151 100 C0DBEMB00002 IC6221 R6116 10k TP3 R6173 10k D6051 B0ECHP000003 D6153 B0ECHP000003 TP23 C6001 630V 5600p D6191 B0ECHP000003 Q6182 B1ADRD000001 TP12 D6192 B0ECHP000003 R6192 100 Q6181 B1ABRD000003 Q6146 B1ABNF000006 C6016 220V 200u TP14 L6012 1.4u C6211 25V 4.7u TP10 Q6021 B1JADN000001 SS51 1 2 3 4 5 6 7 8 9 10 11 12 13 R6044 10 Q6104 B1ADNF000006 D6071 MA3DF30000LZ J0JJC0000011 L6212 L6002 G0CR82KA0147 TP9 R6061 220k C6243 50V 0.01u R6053 10 R6231 0 Q6105 B1DFKM000002 G D S R6244 EXB38V472JV Q6112 B1DFKM000002 G D S R6159 1 TP26 TP21 B0ECHP000003 D6092 R6147 10k TP19 C6011 220V 200u J0JJC0000011 L6101 R6252 39k R6056 10 R6213 100 C6041 16V 1u D6151 B0ECHP000003 D6212 B0ECHP000003 D6021 B0HBSN000008 R6182 10k TP25 L6003 G0CR82KA0147 IC6211 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB TP31 R6241 EXB38V470JV Q6251 2SD0601A0L Q6102 B1DFKM000002 G D S L6068 G0ZZ00002183 R6062 220k D6222 MA2J11100L L6066 G0ZZ00002183 R6006 15 R6232 1.2k Q6023 B1JADN000001 D6032 MA2J11100L Q6003 B1JADN000001 C0ZBZ0000895 IC6191 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC R6033 56k TP6 R6172 10k D6102 B0JCME000037 Q6106 B1DFKM000002 G D S R6191 100 Q6114 B1DFKM000002 G D S ZA6001 K4CD01000011 TP33 Q6142 B1ADNF000006 R6146 10k TP18 D6041 B0ECHP000003 R6004 15 J0JJC0000011 L6104 C6105 25V 4.7u TP7 L6084 G0ZZ00002183 Q6221 2SD1263A L6013 1.4u R6005 15 L6262 G0ZZ00002183 1 2 3 4 SS52 1 2 3 4 5 6 7 8 9 10 11 12 13 R6003 15 D6022 B0HBSN000008 Q6001 B1JADN000001 Q6042 B1JADN000002 100 R6193 Q6043 B1JADN000002 R6229 16k ZA6003 K4CD01000011 R6261 100k TP22 150 R6153 R6132 100 TP1 C6212 25V 4.7u TP30 D6132 B0ECHP000003 Q6041 B1JADN000002 C6195 25V 4.7u 1 2 3 1 2 3 4 5 6 7 1 2 3 4 5 6 7 SS56 1 2 3 4 5 6 7 8 9 10 11 12 13 0 R6230 1 2 3 4 5 6 7 0 R6220 1 2 3 4 5 6 7 SS55 1 2 3 4 5 6 7 8 9 10 11 12 13 R6020 100 R6022 100 R6102 100 R6104 100 R6106 100 R6108 100 R6254 6.8k R6109 10 R6111 47 R6112 47 R6114 47 R6135 10 R6136 10 R6171 10 R6181 10 100k R6195 R6225 20k R6251 10k D6253 LNJ301MPUJA D6251 MAZ83300ML D6252 MAZ83300ML C6151 25V 1u D6193 B0ECHP000003 C6241 25V 470u * * * * TP15V TPVDA - + - + TPSS1 TPVe TPVSUS GND VDA VDA NC GND VDA VDA NC UEL TPSOS8 SS 12 SS 34 33 SS 44 SS 43 SS C3-BOARD (C33) TO C4-BOARD (C44) TO C4-BOARD (C43) TO P-BOARD (P12) TO UEL 5V UMH USH UML DRV_SOS8 URL UEH URH USL GND GND SS-BOARD TTXNSS1BHTUJ Vda Vda NC STB12V +15V STB PS NC GND GND GND STB12V NC STB PS P-BOARD SS (P11) 11 TO GND VSUS NC 6 F 5 9 C 2 4 A 8 7 3 D 1 E B SS 21 20 SS UP SS2-BOARD TNPA3829S SS3-BOARD TNPA3830S DOWN SS 23 SS 22 BUFFER COMPARATOR FET DRIVER VE GEN. FET DRIVER FET DRIVER FET DRIVER (GREEN LED) NO USE TH-50PX60U SS, SS2 and SS3-Board Schematic Diagram TH-50PX60U SS, SS2 and SS3-Board Schematic Diagram TH-50PX60U 131 14.62. SC, SU and SD-Board Block Diagram + + PROU SCSU SID CPH1 FCLKD FSIU CLK CL SIU CLK SCSU PROD SID FSID CEL CEL CEL2 CL CPH1 SIU FCLU FCLD FCLKU CEL2 CPH2 CPH2 D6826 D6583 R6839 VSUS 15V 15V_F D6963 D6421 D6806 16V_F D6903 VSUS D6620 5V D6862 D6804 Q6743 VSET Q6824 T6602 VSUS VSET Q6742 TPVSUS TP15V D6859 D6585 15V D6480 D6841 R6837 D6872 16V_F R6838 D6860 D6825 D6760 PC6760 GND A42 SU2 PC6480 VDD CLK LINE LINE PRO (Vfo) Q6452,Q6453 SI VDDH VDDH P+5V VCC GND TPSOS6 IC6722 1 SU FET 64 TPSOS7 +5V VDD VDD CL HO VSET2 64 SI PHOTO 64bit 64bit GND VAD SD42 S/P SC SD3 L6411 C34 PRO A1 A70 FACTORY 32 TPVSET C48 32 A6 FET VSET Gen. 64 SU4 HO VDDH RATOR A5 VAD SEPARATE 11 C75 Vscn(VAD+140V) S/P FSIU ELECTRODES SO IN C33 VCC PRO IC6871 VR6600 DRIVER COUPLER B6 (SC1) Vscn FCLD PHOTO SC41 R6834 VDDH SO VSCN SUPERIMEPOSED CEL2 B8 1 Vf Vf 2 CLK GND CLK OUTFET (+140V) 1 COUPLER PC6705 Vsus 3 GND Vf+5V FCLU FOR A7 USE A34 Vf+5V CMH Vfo FCLKU Q6680 CSL 1 23 VDDH (LOWER) GND CL IC6903 SU41 SID 96 A39 Q6616,Q6617 LO DRIVER 19 PRO L6401 Vscn 9 DRIVEB IC6682 VDDH BUFFER IC6953 20 +5V(SC1) IC6581 IC6724 COUPLER VDD GND 7 8 FET VAD SLOPE C1 CLK IC6901 Q6531,Q6532 Q6803 LINE CMH FET (SC3) Vfo LED(G) Vf+5V OUT COMPAR- FET +5V CSH LO SCAN Q6601,Q6602 FET OUT SC42 SO PC6702 Q6421-Q6423 64 CLK 9 PROU FET OUT COUPLER C41 A2 IC6956 IC6601 SD2 IC6954 VSUS CEL2 IN 8 VCC IC6951 FET PROD PC6703 AVR 64bit C74 7 VCC +5V FCLD PHOTO 1 +5V(SC2) VSET CL VDD VDD Vf 2 64bit SI Q6691 3 Q6644,Q6645 IC6904 VDD B33 Vad( 105V) IC6902 PRO A46 VOUT 20 SO COM IC6801 3 IN GND Vfo C73 Vf+5V SI CLK (SC3) (Vad 105V) CL GND VDDH C35 5 B36 S/P CLK 64bit 46 32 Q6762 ENERGY RECOVERY FET VDD CPH 96 VDD GND LO 1 6 CL IC6955 A72 GND +5V(SC3) B34 B5 64bit 9 DRIVER FET AVR SO A6 CLK FCLU OUTFET IC6802 PROU CML A40 HO B2 2 +5V(SC1) SIU COUPLER 8 9 4 C10 PHOTO CL 1 IC6773 CLK GND B1 VDD A33 SC2 AVR 8 A11 HIN 45 B33 Vscn VSET2 Gen. B8 VDD A32 45 IN A9 S/P A33 CLK A31 FSID Q6647,Q6648 A30 S/P PHOTO SO 1 SI SO Vsus Gen. SO COUPLER (Vf+5V) POWER OSC A5 LIN IC6521 IC6841 A33 HIN GND B30 LO 18 64 Adj. 64bit PC6801 C51 +15V Q6441-Q6443 VAD CONST Vf VSET SLOPE +5V(SC3) DRIVER Q6511,Q6512 LINE VDDH C36 16V_F Q6581 GND A40 SC30 32 VDD Q6821,Q6822 VCC (UPPER) COUPLER SD1 C11 PHOTO Vf A8 PROD TO P2 3 SO PRO CLK 5 Vf+5V VDDH B31 VDDH COUPLER RATOR IC6803 +5V 96 IC6561,6562 FCLKD PRO 3 A80 LINE 3 1 CLK 2 96 BUFFER SC 64bit VCC COUPLER IC6771 IC6751 SID CLK SI 5 OUTFET IC6861 (+280V) PC6704 C39 A45 SD4 IC6774 PC6701 OUTFET C49 HO LIN 3 VSET SEPARATE Vf+5V CL PHOTO LO C9 SU3 Vad 105V A47 GND IC6752 CL VSCN Gen. Q6682 S/P IC6821 CLK A71 IC6681 VIN 96 TO P23 +5V(SC3) Q6661-Q6663 64bit TO D20 96 IC6906 Vf VCC 13 TPVSCN 2 S/P SI Q6681 B39 64bit Vsus GND IC6753 64 +15V DRIVER CSL C76 CSH SI VSCN IC6791 FET SC PANEL VDDH SO S/P FSID S/P A8 Vf SC LINE PHOTO C79 SO GND A35 IC6952 PC6871 CML LINE VDD SD 64bit SO LINE GND GND R6835 A2 FSIU Q6641,Q6642 GND A31 GND 7 COUPLER 32 64 Vf+5V A10 96 Vf 3 SC_SOS7 (+8V) Q6671-Q6673 CEL 32 B11 VAD Gen.( 105V) Q6401-Q6403 L6404 384LINE 2 (SC2) DRIVER IC6725 Vf+5V 64bit R6836 IC6905 IC6671 IN IC6721 VCC SI B32 HO 32 DC/DC CONV. C50 TPSCI SCSU VCC S/P 5 TPVAD S/P 1 A48 OUT VCC C8 CL A32 Q6781 SC_SOS6 Vfo IC6772 7 Q6841,Q6842 SCAN IC6501 LO PRO 1 PANEL 32 BUFFER PRO A8 SU1 46 PHOTO 384LINE VDD GND COMPAR- AVR SIU 4 8 2 PC6861 CL BUFFER Vscn A30 L6414 Q6621,Q6622 FCLKD Q6782 B40 12 96 PRO VSETSOS DET CL A7 COMPARATOR B7 OUT PHOTO PRO 3 CL FET BUFFER 1 VCC S/P A36 17 SI SC SCAN DRIVE 64 B9 CL R6833 FET CL 9 VSET VDD TPSC1 SIGNAL WAVE FCLKU OUT (Vscn) B10 GND PRO VDDH Q6551,Q6552 A73 FET 8 B35 ELECTRODES 7 OUT L6402 SU SCAN OUT (UPPER) SD SCAN OUT (LOWER) ENERGY RECOVERY SOS DET FLOATING GND COLD COLD FLOATING GND LED BLINKING : 6 TIMES SC FLOATING PART SOS DET LED BLINKING : 7 TIMES TH-50PX60U SC, SU and SD-Board Block Diagram TH-50PX60U SC, SU and SD-Board Block Diagram TH-50PX60U 132 14.63. SC-Board (1 of 2) Schematic Diagram + + + + + + + + + AA_CLK AA_SIU AA_SID AA_SCSU AA_CL AA_CEL CEL2 CPH CBK CEL AA_CEL2 AC_CPH1 AC_CPH2 SOS6_SC1 SOS7_SC2 CMH CSH CML CSL 5V 15V 15V 0-305V 200V 200V 100V C6527 25V 4.7u TP13 R6525 0 C6871 16V 1u C6525 25V 4.7u L6464 G0ZZ00002183 C6565 50V 0.01u R6521 100 L6482 G0ZZ00002183 D6401 B0HBSN000008 C6582 16V 1u R6877 3.9k R6476 4.7k C6480 50V 0.1u IC6861 C0BBBA000022 1 2 3 4 5 6 7 8 TP1 SOS7_SC2 TP27 D6502 B0ECHP000003 TP10 C6403 2200p 630V R6424 15 TP23 TP14 R6517 10k D6583 LNJ301MPUJA D6523 B0ECHP000003 R6512 10k R6565 EXB38V472JV TP21 L6465 G0ZZ00002183 C6412 220V 200u C6513 250V 4u D6472 B0ECHP000003 R6587 2.2k C6514 250V 4u L6483 G0ZZ00002183 TP24 R6444 10 C0JBAA000377 IC6472 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y C6872 25V 1u C6515 250V 4u TP35 TP32 5V R6401 15 C6421 630V 2200p D6521 B0ECHP000003 R6871 39k D6451 B0ECHP000003 200u 220V C6416 C0ZBZ0001324 IC6521 M81707FP-DB0J DUAL Hi DRIVER 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC Q6552 B1ADRD000001 D6585 MA2J11100L L6463 G0ZZ00002183 MAIN_STOP R6863 47k 150 R6504 R6403 15 R6406 15 C6505 25V 4.7u R6465 27k R6875 3.3k TP8 R6585 1.2k R6426 15 D6872 MA2J11100L 1 2 3 TP19 R6475 4.7k R6867 3.9k Q6452 B1JADP000002 C6472 50V 0.1u D6522 B0ECHP000003 C6424 630V 2200p TP33 D6584 MAZ80510LL Q6442 B1JADN000002 C6562 16V 1u TP20 L6481 G0ZZ00002183 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 D6481 B0HBSN000008 D6462 B0HBSN000008 TP31 D6862 MA2J11100L Q6403 B1JADN000001 Q6511 B1ABNF000006 D6441 B0ECHP000003 L6484 G0ZZ00002183 Q6471 2SJ463A-T1-A G D S 16V_F 15V 5V R6516 10k R6468 82k L6487 G0ZZ00002183 R6792 10k Q6443 B1JADN000002 C6566 50V 0.01u 200u 220V C6415 D6791 MAZ82000ML C6862 25V 1u R6552 10k Q6423 B1JAEP000001 R6553 10k R6862 47k R6874 8.2k R6404 15 C6431 250V 4u C6563 10V 100u R6590 220 TP12 R6511 10k R6879 4.7k R6793 100 R6582 39k VF_GND R6567 EXB38V472JV VSUS TP25 C6561 10V 100u TP2 R6563 EXB38V470JV 5V C6402 2200p 630V L6486 G0ZZ00002183 R6873 39k D6480 MA2J11100L R6568 EXB38V472JV D6871 MAZ80510LL 150 R6524 D6501 B0ECHP000003 C6524 25V 4.7u R6478 4.7k Q6421 B1JAEP000001 R6564 EXB38V470JV R6446 10 C6512 250V 4u D6404 B0HBSN000008 R6561 EXB38V470JV SOS7_SC2 Q6531 B1ABRD000003 L6466 G0ZZ00002183 D6582 MAZ83300ML R6588 10k R6591 EXB38V472JV TP34 1 R6509 R6423 15 PC6871 B3PBA0000223 1 2 3 4 Q6402 B1JADN000001 C6564 16V 1u R6405 15 TP17 C6581 25V 1u Q6453 B1JADP000002 R6443 10 PC6861 B3PBA0000223 1 2 3 4 L6591 G0ZZ00002183 R6402 15 R6442 10 D6466 MA2J11100L TP39 Q6517 B1ADNF000006 R6791 1k TP4 TP6 R6868 22k C6422 630V 2200p TP7 C6504 25V 4.7u TP26 Q6516 B1ABNF000006 C6861 16V 1u MAIN_STOP TP38 R6861 39k R6526 0 C6873 50V 0.01u C6863 50V 0.01u C6423 630V 2200p R6562 EXB38V470JV TP11 C6522 25V 4.7u D6581 MAZ83300ML 150 R6523 L6602 G0ZZ00002183 15V Q6441 B1JADN000002 IC6871 C0BBBA000022 1 2 3 4 5 6 7 8 R6453 10 R6455 10 R6583 39k Q6551 B1ABRD000003 R6456 10 C6592 25V 470u C0JBAZ000005 IC6561 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R6466 56k 5V TP22 R6522 100 15V_F R6454 10 C6413 220V 200u 150 R6505 R6592 4.7k TP15 R6866 2.2k R6532 10k TP9 R6865 2.2k C6411 220V 200u 15V D6524 B0ECHP000003 R6566 EXB38V472JV TP28 D6431 B0HBSP000019 D6482 B0HBSN000008 D6491 B0HBSP000019 Q6401 B1JADN000001 G D S TP29 R6878 22k R6479 100k R6425 15 D6432 B0HBSP000019 TP5 D6861 MAZ80510LL TP52 TP30 C6401 630V 2200p Q6512 B1ADNF000006 C0JBAZ000005 IC6562 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C0ZBZ0000895 IC6501 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC C6414 220V 200u C6502 25V 4.7u L6485 G0ZZ00002183 R6422 15 16V_F R6872 39k R6467 82k C6593 50V 1000p R6869 4.7k Q6422 B1JAEP000001 IC6581 C0BBBA000022 1 2 3 4 5 6 7 8 Q6791 2SD0601A0L R6441 10 TP16 Q6581 2SD0601A0L R6477 1k VSCN_F SC2 1 3 TP18 1 R6507 R6421 15 D6471 MA3DF30000LZ R6501 100 L6488 G0ZZ00002183 L6592 G0ZZ00002183 L6462 G0ZZ00002183 R6533 10k 15V L6467 G0ZZ00002183 D6461 B0HBSN000008 R6864 9.1k R6876 1.2k 1 R6508 R6445 10 L6461 G0ZZ00002183 L6601 G0ZZ00002183 L6468 G0ZZ00002183 R6502 100 R6586 1.8k Q6532 B1ADRD000001 R6584 8.2k R6503 10 R6506 10 R6531 10 R6551 10 R6581 10k D6820 MA2J11100L D6821 MA2J11100L C6521 25V 1u IC6610 C0BBBA000022 1 2 3 4 5 6 7 8 R6614 24k C6610 25V 1u C6612 25V 1u R6615 24k D6614 MA2J11100L R6618 12k R6619 1.5k R6616 15k D6613 MA2J11100L D6611 MA2J11100L TP065 C6611 50V 0.01u 15V_F D6610 MAZ81500ML R6617 1M D6612 MA2J11100L (GREEN LED) +15V GND + - + - TP15V +15V GND Vsus GND GND GND TPVSUS + + - - - - + + SC-BOARD TXNSC1BHTUJ (1/2) 5 6 8 7 3 4 D B 9 A 2 C F E 1 CLK SIU SCSU P5V CL SID GND SC 20 TPSOS7 TPSOS6 BUFFER BUFFER G S D D G S S G D D S G G S D COMPARATOR COMPARATOR COMPARATOR FET DRIVER ENERGY RECOVERY Vsus Gen. FET DRIVER (P2) TO P-BOARD P-BOARD (P23) TO D-BOARD (D20) TO SC 23 3 4 5 6 8 COLD FLOATING GND + - + - 2 1 9 COMPARATOR 7 192.0 0 0 15.0 15.0 0 5.3 0 0 4.3 0 2.2 0.7 0.8 2.9 3.9 0 0.1 0.9 0 0 5.0 0 0 2.8 0.5 TH-50PX60U SC-Board (1 of 2) Schematic Diagram TH-50PX60U SC-Board (1 of 2) Schematic Diagram 0-200V L6411 1.4u L6404 0.82u L6401 0.82u L6402 0.82u L6413 1.4u L6414 1.4u L6412 1.4u TH-50PX60U 133 14.64. SC-Board (2 of 2) Schematic Diagram REF K A REF K A + + + + + + + + + + + REF K A + + REF K A + + AA_CEL AB_FCLD AB_FCLU AC_CPH1 AA_CEL2 AA_SID AA_SIU AA_CLK AA_CL AA_SCSU AB_FCLKU AB_FCLKD AB_PROD AB_PROU AB_FSID AB_FSIU AC_CPH2 460V 260-460V 35V AB_FCLU AB_FCLKU AB_PROU AB_FCLKD AB_FSIU AB_FCLD 460V 30V AB_PROD 15V 350V 215V -105V -90V AB_FSID +330V +330V C6707 50V 0.1u IC6841 C0DBEMB00005 R6812 240k R6703 470 PC6705 B3PBA0000233 1 2 3 4 5 6 7 8 VF_GND R6839 4.7k TP55 IC6771 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 SC41 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 IC6801 C0DBEMB00005 Q6743 2SD0601A0L C6754 35V 47u R6803 56k R6665 47 R6744 10k R6781 47 C6802 630V 0.022u VR6600 1k 1 2 3 SC42 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 C6777 50V 0.1u Q6691 2SK062000L G D S D6806 B0ECHP000003 R6777 150 16V_F R6745 4.7k R6641 10 R6648 10 R6708 470 R6642 10 5V R6702 470 R6658 100 C6775 25V 4.7u L6802 J0JJC0000011 R6697 2.2 R6668 4.7k C6752 16V 1u R6609 1k R6721 EXB38V220JV C6842 160V 100u Q6661 B1DEET000002 G D S C6806 160V 100u C6606 630V 1000p R6700 470 D6661 MA2J11100L R6810 43k R6802 68k R6689 10 TP42 IC6772 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6830 220k D6607 MA2J11100L R6807 1.2 C6753 25V 4.7u R6762 10k C6724 25V 4.7u D6671 MA2J11100L R6644 10 C6727 16V 1u TP63 R6846 56k R6474 1k PC6760 B3PBA0000223 1 2 3 4 R6850 68k D6802 B0BC01000044 R6806 1.2 IC6752 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6888 220k C6662 630V 1000p TP43 15V_F R6686 10k TP53 Q6602 2SD0601A0L R6822 100k D6641 B0HCKS000002 D6667 MA2J11100L TP45 Q6824 2SD601A R6829 220k D6477 MA2J11100L R6852 2.49k 15V Q6648 B1DFKM000001 TP50 D6733 MAZ80560HL Q6647 B1DFKM000001 R6684 10 Q6622 B1DFKM000001 Q6742 2SD0601A0L R6853 100 R6743 1k N0BF1FB00001 IC6791 1 GND 2 GND 3 N.C. 4 VIN 5 VIN 6 N.C. 9 COM 10 COM 11 VOUT 12 VOUT D6721 B0HCKS000002 D6663 MAZ83300ML R6717 2.2k C0DAAMH00005 IC6803 1 Drain 2 Source 3 GND 4 Vin 5 OCP/FB R6608 1k R6643 10 D6727 MAZ80560HL R6824 5.6k C6706 50V 0.1u R6473 560 R6711 2.2k D6623 B0HDSM000005 1 2 3 4 5 6 7 8 9 C0JBAA000377 IC6682 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y R6834 56k R6827 27k D6728 MAZ80560HL R6706 470 D6603 MAZ82400ML R6756 100 C6682 25V 4.7u D6642 B0HCKS000002 R6886 220k C6813 160V 100u Q6672 B1DEDS000001 G D S R6603 100 5V R6758 100 R6471 3.9k D6621 B0HDSM000005 TP40 D6624 B0HDSM000005 R6704 470 D6606 B0HCMM000014 D6601 MAZ82400ML R6722 EXB38V220JV R6613 1M TP60 PC6704 B3PBA0000234 1 2 3 4 5 R6661 100k TP41 Q6842 2SC1473AEA R6710 2.2k C0JBAB000715 IC6602 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y C6701 50V 0.1u R6604 150 C6755 50V 0.1u C6791 25V 220u R6847 56k D6724 B0JCME000037 Q6662 2SD0601A0L D6773 B0HCKS000002 R6776 100 D6478 B0HCKS000002 R6755 100 C6603 630V 1000p D6843 MA2J11100L D6643 MA2J11100L R6671 47 PC6703 B3PBA0000233 1 2 3 4 5 6 7 8 C6683 50V 0.1u C6796 25V 220u TP62 D6731 MAZ80560HL R6718 2.2k D6826 MA2J11100L D6841 B0HCKS000002 C6602 25V 4.7u R6667 4.7k C6795 25V 220u R6823 100k R6691 10k R6705 470 D6860 B0HCKS000002 C6772 25V 4.7u R6837 51k R6606 0 L6841 J0JJC0000011 R6757 100 Q6682 2SK389500L G D S C6822 350V 10u TP46 Q6645 B1DFKM000001 IC6601 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB Q6781 B1ABNF000006 C6841 200V 100u SC30 1 2 3 4 5 6 7 8 C6703 50V 0.1u R6723 2.2k D6702 MAZ80560HL D6605 MAZ80510LL R6820 0 L6473 G0ZZ00002183 R6622 220 D6805 MA2J11100L R6821 220 IC6722 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC D6701 MAZ80560HL Q6782 B1ADNF000006 SOS7_SC2 D6808 B0HCMM000014 TP49 C6708 50V 0.1u D6825 MAZ8330 VSET SOS7_SC2 VSCN_F D6842 MA2J11100L R6607 5.36k R6675 5.6 T6602 ETS25AZ149AD 1 S5 2 S4 4 S2 5 S1 7 P1 10 V2 9 V1 3 S3 6 P2 D6810 B0HCMM000014 VSUS C6807 50V 470p R6672 10k C6814 35V 150u R6612 47 C6601 25V 4.7u R6715 2.2k R6660 220k C6845 50V 0.01u D6822 MA2J11100L VSCN_F C0JBAA000377 IC6773 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y Q6671 B1DEDS000001 G D S D6809 B0HCMM000014 D6620 B0HCKS000002 D6758 B0ECHP000003 C6691 160V 100u PC6480 B3PBA0000223 1 2 3 4 R6836 56k IC6725 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 C0DBEKA00003 IC6471 1 NC 2 A 3 K 5 A 4 REF R6841 15k D6686 MA2J11100L R6831 15k Q6644 B1DFKM000001 5V 5V C6726 16V 1u R6849 68k D6730 MAZ80560HL C6776 50V 0.1u R6712 2.2k R6742 10k 5V D6687 MA2J11100L D6723 B0JCME000037 D6726 MAZ80560HL R6666 100k VSET R6833 56k R6825 270k R6832 4.7 R6611 1M R6688 4.7k C6705 50V 0.1u VSUS R6713 2.2k L6472 G0ZZ00002183 C0JBAA000377 IC6774 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y D6807 B0HCMM000014 C6671 25V 4.7u SOS7_SC2 VF_GND 15V R6835 56k IC6821 C0DBEMB00005 R6801 8.2 D6761 MA2J11100L Q6663 2SD21850RL C6812 25V 4.7u Q6673 B1DEDS000001 G D S TP58 Q6762 B1ADNF000006 C6641 1u 250V R6687 2.2k R6759 4.7k R6674 5.6 C6801 250V 47u R6696 2.2 C6661 630V 1000p C6771 16V 1u R6724 100 C6725 25V 4.7u R6610 100k R6813 9.1k TP61 R6605 100k D6734 MA2J11100L VR6602 5k 1 2 3 C6620 630V 2200p TP44 Q6681 2SK389500L G D S D6771 B0JCME000037 D6622 B0HDSM000005 C6723 25V 4.7u D6729 MAZ80560HL R6782 10k Q6641 B1DFKM000001 TP47 D6752 B0JCME000037 R6811 43k D6666 MA2J11100L C0JBAB000715 IC6753 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y D6760 MA2J11100L Q6643 B1DFKM000001 R6690 150 TP59 D6604 MA2J11100L C6815 50V 0.1u C6804 250V 10u ZA6403 K4CD01000011 R6848 10k IC6802 C0DBEMB00005 C6681 25V 4.7u TP54 D6662 MAZ83300ML R6819 680 D6803 B0HCKS000002 R6828 5.1k D6684 MA2J11100L D6725 B0ECHP000003 R6891 3.3k IC6681 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6621 220 R6701 470 R6714 2.2k D6823 MA2J11100L C6721 50V 100u R6663 10k Q6621 B1DFKM000001 R6685 470 C6604 350V 47u R6647 10 TP57 D6497 MA2J11100L R6645 10 D6683 MA2J11100L TP64 Q6642 B1DFKM000001 ZA6402 K4CD01000011 Q6601 B1DEDS000001 G D S R6760 1.2k R6472 2.2k PC6701 B3PBA0000233 1 2 3 4 5 6 7 8 D6804 B0ECHP000003 Q6821 2SD1263AP0LB R6707 470 R6682 100 R6887 220k 1 2 3 4 5 6 7 8 9 R6673 5.6 IC6751 UA78L05ACPK INPUT 3 2 COMMON OUTPUT 1 R6620 8.2 R6860 8.2 D6619 B0HCKS000002 C6803 2kV 220p Q6841 2SD1263AP0LB C6773 25V 4.7u C6605 50V 0.1u TP56 IC6724 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 ZA6401 K4CD01000011 R6683 150 IC6671 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB L6801 J0JJC0000011 R6826 270k D6859 B0ECHP000003 PC6702 B3PBA0000233 1 2 3 4 5 6 7 8 C6805 50V 1000p Q6822 2SC3063000RL R6851 1.2k R6842 43k C6728 50V 1000p C6811 50V 0.01u Q6680 B1ADNF000006 D6665 MAZ80510LL Q6744 2SK062000L G D S D6682 B0HCMM000014 C6702 50V 0.1u R6761 10 R6716 2.2k TP48 C6823 50V 0.01u R6662 3k R6775 100 IC6721 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC R6814 5.6k D6732 MAZ80560HL D6664 MAZ83300ML C6704 50V 0.1u R6659 220k PC6801 B3PBA0000223 1 2 3 4 R6809 10k R6664 2.2k D6602 B0ECHP000003 TP51 R6808 2.7k R6816 39k R6817 13k R6858 1k D6644 B0HCKS000002 R6746 10k R6747 10k R6843 62k R6845 62k Q6803 2SD0814ARL R6844 100 VAD TPVAD TPVSCN INIT-F VSET TPVSET TPSC1 AB_FSIU AB_FCLU AB_FCLKU AB_PROU AB_FSID AB_FCLD AB_FCLKD Vset SOS DET INIT-F AB_PROD TPVSET2 18 15 10 11 12 16 17 14 13 Vfo(Vscn Out) Vf(High Voltage Floting GND) Vf(High Voltage Floting GND) Vfo(Vscn Out) VF5V (Vscn voltage) Vf(High Voltage Floting GND) DC/DC CONV. BUFFER BUFFER FET DRIVER SUPERIMEPOSED VSCN FET DRIVER VSET SEPARATE FET DRIVER VSET SLOPE FET DRIVER VAD SEPARATE VAD CONST FET DRIVER VAD Gen. VSET2 Gen. SC-BOARD TXNSC1BHTUJ (2/2) POWER OSC COLD FLOATING GND SU-BOARD (SU41) TO (SD42) SD-BOARD TO TO (SU45) SC 45 SU-BOARD TO SD-BOARD (SD46) SC 46 3 7 5 8 6 COLD FLOATING GND FLOATING GND COLD 2 1 9 4 * m * * * TH-50PX60U SC-Board (2 of 2) Schematic Diagram TH-50PX60U SC-Board (2 of 2) Schematic Diagram (Vscn voltage) TH-50PX60U 134 14.65. SU-Board (1 of 2) Schematic Diagram TERM SIDE TERM SIDE AB_766 AB_765 AB_764 AB_763 AB_762 AB_761 AB_760 AB_759 AB_758 AB_757 AB_756 AB_755 AB_754 AB_753 AB_752 AB_751 AB_750 AB_749 AB_748 AB_747 AB_746 AB_745 AB_744 AB_742 AB_743 AB_741 AB_739 AB_740 AC_702 AC_701 AC_700 AC_699 AC_698 AC_697 AC_696 AC_695 AC_694 AC_693 AC_692 AC_691 AC_690 AC_689 AC_688 AC_687 AC_686 AC_685 AC_684 AC_683 AC_682 AC_681 AC_680 AC_678 AC_679 AC_677 AC_675 AC_676 AD_638 AD_637 AD_636 AD_635 AD_634 AD_633 AD_632 AD_631 AD_630 AD_629 AD_628 AD_627 AD_626 AD_625 AD_624 AD_623 AD_622 AD_621 AD_620 AD_619 AD_618 AD_617 AD_616 AD_614 AD_615 AD_613 AD_611 AD_612 AB_705 AB_707 AB_709 AB_711 AB_713 AB_715 AB_717 AB_719 AB_721 AB_723 AB_725 AB_727 AB_729 AB_731 AB_733 AB_735 AB_737 AB_739 AB_741 AB_743 AB_745 AB_747 AB_749 AB_751 AB_753 AB_755 AB_757 AB_759 AB_761 AB_763 AB_767 AB_765 AB_706 AB_708 AB_710 AB_712 AB_714 AB_716 AB_718 AB_720 AB_722 AB_724 AB_726 AB_728 AB_730 AB_732 AB_734 AB_736 AB_738 AB_740 AB_742 AB_744 AB_746 AB_748 AB_750 AB_752 AB_754 AB_756 AB_758 AB_760 AB_762 AB_764 AB_768 AB_766 AC_641 AC_643 AC_645 AC_647 AC_649 AC_651 AC_653 AC_655 AC_657 AC_659 AC_661 AC_663 AC_665 AC_667 AC_671 AC_669 AC_673 AC_675 AC_677 AC_679 AC_681 AC_683 AC_685 AC_687 AC_689 AC_691 AC_693 AC_695 AC_697 AC_699 AC_703 AC_701 AC_642 AC_644 AC_646 AC_648 AC_650 AC_652 AC_654 AC_656 AC_658 AC_660 AC_662 AC_664 AC_666 AC_668 AC_670 AC_674 AC_676 AC_678 AC_680 AC_682 AC_684 AC_686 AC_688 AC_690 AC_692 AC_694 AC_696 AC_698 AC_700 AC_704 AC_702 AD_577 AD_579 AD_581 AD_583 AD_585 AD_587 AD_589 AD_591 AD_593 AD_595 AD_597 AD_599 AD_601 AD_603 AD_605 AD_607 AD_609 AD_611 AD_613 AD_615 AD_617 AD_619 AD_621 AD_623 AD_625 AD_627 AD_629 AD_633 AD_631 AD_635 AD_637 AD_639 AD_578 AD_580 AD_584 AD_586 AD_588 AD_590 AD_592 AD_594 AD_596 AD_598 AD_600 AD_602 AD_604 AD_606 AD_608 AD_610 AD_612 AD_614 AD_616 AD_618 AD_620 AD_622 AD_624 AD_626 AD_628 AD_630 AD_632 AD_634 AD_636 AD_640 AD_638 AB_768 AB_767 AC_703 AC_704 AD_639 AD_640 AD_582 AC_672 AB_705 AB_706 AB_707 AB_708 AB_709 AB_710 AB_711 AB_712 AB_713 AB_714 AB_715 AB_716 AB_717 AB_718 AB_719 AB_720 AB_721 AB_722 AB_723 AB_724 AB_725 AB_726 AB_727 AB_728 AB_729 AB_730 AB_731 AB_732 AB_733 AB_734 AB_735 AB_736 AB_738 AB_737 AC_641 AC_642 AC_643 AC_644 AC_645 AC_646 AC_647 AC_648 AC_649 AC_650 AC_651 AC_652 AC_653 AC_654 AC_655 AC_656 AC_657 AC_658 AC_659 AC_660 AC_661 AC_662 AC_663 AC_664 AC_665 AC_666 AC_667 AC_668 AC_669 AC_670 AC_671 AC_672 AC_674 AC_673 AD_577 AD_578 AD_579 AD_580 AD_581 AD_582 AD_583 AD_584 AD_585 AD_586 AD_587 AD_588 AD_589 AD_590 AD_591 AD_592 AD_593 AD_594 AD_595 AD_596 AD_597 AD_598 AD_599 AD_600 AD_602 AD_601 AD_603 AD_604 AD_605 AD_606 AD_607 AD_608 AD_610 AD_609 AA_SI AA_SO1 AA_SO2 AA_SO3 AA_SI AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_PRO AA_CL AA_SO1 AA_SO2 C6901 50V 1000p R6931 10k C6904 16V 1u D6901 MAZ80560HL R6934 10k C6931 50V 1000p C6906 16V 1u IC6903 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6905 220 C6902 16V 1u R6932 10k IC6902 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SU2 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 1 2 3 4 5 6 7 8 9 R6909 220 R6901 100 R6933 10k IC6901 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SU1 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 R6903 22 R6902 22 R6904 22 C6914 50V 220p C6915 50V 220p AN16071A-VT AN16071A-VT AN16071A-VT 3 8 1 A B D E C 7 4 2 5 6 SC-BOARD TO (SC45) SU 45 SCAN ELECTRODES To 1st 96pins of To 2nd 96pins of SCAN ELECTRODES UP Vfo Vf5 Vf Vf5 Vf PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit SU-BOARD TXNSU1BHTUJ (1/2) 3 2 6 4 1 5 PRO FSI FCLK FCL FCL PRO FCLK FSI VF5V VF5V TH-50PX60U SU-Board (1 of 2) Schematic Diagram TH-50PX60U SU-Board (1 of 2) Schematic Diagram TH-50PX60U 135 14.66. SU-Board (2 of 2) Schematic Diagram TERM SIDE TERM SIDE AE_574 AE_573 AE_572 AE_571 AE_570 AE_569 AE_568 AE_567 AE_566 AE_565 AE_564 AE_563 AE_562 AE_561 AE_560 AE_559 AE_558 AE_557 AE_556 AE_555 AE_554 AE_553 AE_552 AE_550 AE_551 AE_549 AE_547 AE_548 AF_510 AF_509 AF_508 AF_507 AF_506 AF_505 AF_504 AF_503 AF_502 AF_501 AF_500 AF_499 AF_498 AF_497 AF_496 AF_495 AF_494 AF_493 AF_492 AF_491 AF_490 AF_489 AF_488 AF_486 AF_487 AF_485 AF_483 AF_484 AG_446 AG_445 AG_444 AG_443 AG_442 AG_441 AG_440 AG_439 AG_438 AG_437 AG_436 AG_435 AG_434 AG_433 AG_432 AG_431 AG_430 AG_429 AG_428 AG_427 AG_426 AG_425 AG_424 AG_422 AG_423 AG_421 AG_419 AG_420 AE_513 AE_515 AE_517 AE_519 AE_521 AE_523 AE_525 AE_527 AE_529 AE_531 AE_533 AE_535 AE_537 AE_539 AE_541 AE_543 AE_545 AE_547 AE_549 AE_551 AE_553 AE_555 AE_557 AE_559 AE_561 AE_563 AE_565 AE_567 AE_569 AE_571 AE_575 AE_573 AE_514 AE_516 AE_518 AE_520 AE_522 AE_524 AE_526 AE_528 AE_530 AE_532 AE_534 AE_536 AE_538 AE_540 AE_542 AE_544 AE_546 AE_548 AE_550 AE_552 AE_554 AE_556 AE_558 AE_560 AE_562 AE_564 AE_566 AE_568 AE_570 AE_572 AE_576 AE_574 AF_449 AF_451 AF_453 AF_455 AF_457 AF_459 AF_461 AF_463 AF_465 AF_467 AF_469 AF_471 AF_473 AF_475 AF_479 AF_477 AF_481 AF_483 AF_485 AF_487 AF_489 AF_491 AF_493 AF_495 AF_497 AF_499 AF_501 AF_503 AF_505 AF_507 AF_511 AF_509 AF_450 AF_452 AF_454 AF_456 AF_458 AF_460 AF_462 AF_464 AF_466 AF_468 AF_470 AF_472 AF_474 AF_476 AF_478 AF_482 AF_484 AF_486 AF_488 AF_490 AF_492 AF_494 AF_496 AF_498 AF_500 AF_502 AF_504 AF_506 AF_508 AF_512 AF_510 AG_385 AG_387 AG_389 AG_391 AG_393 AG_395 AG_397 AG_399 AG_401 AG_403 AG_405 AG_407 AG_409 AG_411 AG_413 AG_415 AG_417 AG_419 AG_421 AG_423 AG_425 AG_427 AG_429 AG_431 AG_433 AG_435 AG_437 AG_439 AG_441 AG_443 AG_445 AG_447 AG_386 AG_388 AG_390 AG_392 AG_394 AG_396 AG_398 AG_400 AG_402 AG_404 AG_406 AG_408 AG_410 AG_412 AG_414 AG_416 AG_418 AG_420 AG_422 AG_424 AG_426 AG_428 AG_430 AG_432 AG_434 AG_436 AG_438 AG_440 AG_442 AG_444 AG_448 AG_446 AE_576 AE_575 AF_511 AF_512 AG_448 AG_447 AF_480 AE_513 AE_514 AE_515 AE_516 AE_517 AE_518 AE_519 AE_520 AE_521 AE_522 AE_523 AE_524 AE_525 AE_526 AE_527 AE_528 AE_529 AE_530 AE_531 AE_532 AE_533 AE_534 AE_535 AE_536 AE_537 AE_538 AE_539 AE_540 AE_541 AE_542 AE_543 AE_544 AE_546 AE_545 AF_449 AF_450 AF_451 AF_452 AF_453 AF_454 AF_455 AF_456 AF_457 AF_458 AF_459 AF_460 AF_461 AF_462 AF_463 AF_464 AF_465 AF_466 AF_467 AF_468 AF_469 AF_470 AF_471 AF_472 AF_473 AF_474 AF_475 AF_476 AF_477 AF_478 AF_479 AF_480 AF_482 AF_481 AG_385 AG_386 AG_387 AG_388 AG_389 AG_390 AG_391 AG_392 AG_393 AG_394 AG_395 AG_396 AG_397 AG_398 AG_399 AG_400 AG_401 AG_402 AG_403 AG_404 AG_405 AG_406 AG_407 AG_408 AG_409 AG_410 AG_411 AG_412 AG_413 AG_414 AG_415 AG_416 AG_418 AG_417 AA_SO4 AA_SO5 AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO 140V(DC) 140V AA_SO3 AA_SO4 AA_SO5 C50 C67 IC6906 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C44 C37 SU3 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C17 C29 C28 SU4 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C40 C7 IC6905 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6910 16V 1u C31 C22 C80 C6934 250V 1u C41 C14 C19 C3 C66 D6902 MAZ80560HL C20 C46 C6932 250V 1u C6935 250V 1u C18 C30 C6908 16V 1u C16 C70 C35 C45 C38 C1 C15 C75 C6 C42 C57 C68 R6917 220 C21 C60 C62 C52 C5 C32 C25 C34 C23 C63 C74 C61 C8 C26 C78 C58 C2 C73 IC6904 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C59 C79 C24 C12 C64 C55 C76 C36 C56 C33 R6935 220k C53 C49 C71 C9 C65 C10 C27 C6933 250V 1u C4 C54 C69 C11 C6912 16V 1u C51 C39 C13 D6903 B0ECHP000003 C47 R6924 220 C48 C43 D6904 B0ECHP000003 C72 C77 R6913 220 R6936 220k C6916 50V 220p C6917 50V 220p C6918 50V 220p VF5V VF5V AN16071A-VT AN16071A-VT AN16071A-VT 15 11 10 13 8 14 12 9 SCAN ELECTRODES To 3rd 96pins of SCAN ELECTRODES To 4th 96pins of UP FOIL SIDE (UPPER) COMPONENT SIDE (LOWER) (Vscn voltage) Vf(High Voltage Floting GND) Vf(High Voltage Floting GND) Vfo(Vscn Out) Vscn Vf5 Vf Vfo Vf Vf5 SU41(Card Edge 80Pin) TO SC-BOARD (SC41) PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit SU-BOARD TXNSU1BHTUJ (2/2) 5 6 3 1 4 2 TH-50PX60U SU-Board (2 of 2) Schematic Diagram TH-50PX60U SU-Board (2 of 2) Schematic Diagram TH-50PX60U 136 14.67. SD-Board (1 of 2) Schematic Diagram TERM SIDE TERM SIDE AB_382 AB_381 AB_380 AB_379 AB_378 AB_377 AB_376 AB_375 AB_374 AB_373 AB_372 AB_371 AB_370 AB_369 AB_368 AB_367 AB_366 AB_365 AB_364 AB_363 AB_362 AB_361 AB_360 AB_358 AB_359 AB_357 AB_355 AB_356 AC_318 AC_317 AC_316 AC_315 AC_314 AC_313 AC_312 AC_311 AC_310 AC_309 AC_308 AC_307 AC_306 AC_305 AC_304 AC_303 AC_302 AC_301 AC_300 AC_299 AC_298 AC_297 AC_296 AC_294 AC_295 AC_293 AC_291 AC_292 AD_254 AD_253 AD_252 AD_251 AD_250 AD_249 AD_248 AD_247 AD_246 AD_245 AD_244 AD_243 AD_242 AD_241 AD_240 AD_239 AD_238 AD_237 AD_236 AD_235 AD_234 AD_233 AD_232 AD_230 AD_231 AD_229 AD_227 AB_365 AB_367 AB_369 AB_371 AB_373 AB_375 AB_377 AB_379 AB_381 AB_383 AB_366 AB_368 AB_370 AB_372 AB_374 AB_376 AB_380 AB_382 AB_341 AB_343 AB_345 AB_347 AB_349 AB_351 AB_353 AB_355 AB_357 AB_359 AB_361 AB_363 AB_342 AB_344 AB_346 AB_348 AB_350 AB_352 AB_354 AB_356 AB_358 AB_360 AB_362 AB_364 AB_321 AB_323 AB_325 AB_327 AB_329 AB_331 AB_333 AB_335 AB_337 AB_339 AB_322 AB_324 AB_326 AB_328 AB_330 AB_332 AB_334 AB_336 AB_338 AB_340 AC_319 AC_317 AC_316 AC_320 AC_318 AB_384 AB_383 AC_293 AC_295 AC_297 AC_299 AC_301 AC_303 AC_305 AC_307 AC_309 AC_311 AC_313 AC_315 AC_294 AC_296 AC_298 AC_300 AC_302 AC_304 AC_306 AC_308 AC_310 AC_312 AC_314 AC_281 AC_283 AC_287 AC_285 AC_282 AC_284 AC_288 AC_286 AC_289 AC_291 AC_257 AC_259 AC_261 AC_263 AC_265 AC_267 AC_269 AC_271 AC_273 AC_275 AC_277 AC_279 AC_258 AC_260 AC_262 AC_264 AC_266 AC_268 AC_270 AC_272 AC_274 AC_276 AC_278 AC_280 AD_256 AC_320 AC_319 AD_254 AD_252 AD_250 AD_248 AD_246 AD_244 AD_242 AD_240 AD_238 AD_236 AD_234 AD_232 AD_253 AD_255 AD_251 AD_249 AD_247 AD_245 AD_243 AD_241 AD_239 AD_237 AD_235 AD_233 AD_230 AD_228 AD_226 AD_224 AD_222 AD_220 AD_218 AD_216 AD_214 AD_212 AD_210 AD_208 AD_231 AD_229 AD_227 AD_225 AD_223 AD_221 AD_219 AD_217 AD_215 AD_213 AD_211 AD_209 AD_206 AD_204 AD_202 AD_200 AD_198 AD_196 AD_194 AD_207 AD_205 AD_203 AD_201 AD_199 AD_197 AD_195 AD_193 AD_256 AD_255 AB_378 AB_384 AC_292 AC_290 AB_321 AB_323 AB_324 AB_325 AB_326 AB_327 AB_328 AB_329 AB_330 AB_331 AB_332 AB_333 AB_334 AB_335 AB_336 AB_337 AB_338 AB_339 AB_340 AB_341 AB_342 AB_343 AB_344 AB_345 AB_346 AB_322 AB_347 AB_348 AB_349 AB_350 AB_351 AB_352 AB_353 AB_354 AC_257 AC_258 AC_259 AC_260 AC_261 AC_262 AC_263 AC_264 AC_265 AC_266 AC_267 AC_268 AC_269 AC_270 AC_271 AC_272 AC_273 AC_274 AC_275 AC_276 AC_277 AC_278 AC_279 AC_280 AC_281 AC_282 AC_283 AC_284 AC_285 AC_286 AC_287 AC_288 AC_289 AC_290 AD_193 AD_194 AD_195 AD_196 AD_197 AD_198 AD_199 AD_200 AD_201 AD_202 AD_203 AD_204 AD_205 AD_206 AD_207 AD_208 AD_209 AD_210 AD_211 AD_212 AD_213 AD_214 AD_215 AD_216 AD_217 AD_218 AD_219 AD_220 AD_221 AD_222 AD_223 AD_224 AD_226 AD_225 AD_228 AA_SO11 AA_SO10 AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CL AA_CLK AA_PRO AA_SO9 140V 140V AA_SO11 AA_SO10 A55 A21 A70 A3 A62 A68 A5 A38 A57 A15 A28 A33 R6951 220 A32 A31 A60 A7 A45 A12 A67 A53 A64 A8 C6957 16V 1u IC6952 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A77 A19 A9 A46 A42 R6981 10k A78 A50 D6953 B0ECHP000003 A24 A39 A52 C6955 16V 1u A44 A54 A18 C6952 16V 1u R6955 220 A20 A1 A13 A26 C6983 250V 1u A47 A49 A48 A22 A66 A65 A69 A59 A23 A40 A76 A17 D6952 MAZ80560HL A58 IC6953 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A6 A30 C6982 250V 1u A10 A61 A43 R6959 220 IC6951 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A80 A71 A56 A73 A74 R6982 10k A14 A75 A36 A72 A25 A63 A41 C6984 250V 1u A16 A37 C6985 250V 1u A4 A11 A34 A79 A27 D6954 B0ECHP000003 A35 R6983 10k A51 A2 R6986 220k A29 SD1 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 SD2 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C6964 50V 220p C6965 50V 220p C6966 50V 220p AN16071A-VT AN16071A-VT AN16071A-VT A B D E C 8 1 3 7 4 2 5 6 COMPONENT SIDE (LOWER) FOIL SIDE (UPPER) SD-BOARD TXNSD1BHTUJ (1/2) SCAN ELECTRODES To 2nd 96pins of DOWN To 1st 96pins of SCAN ELECTRODES Vf Vf Vfo Vf5 Vscn 1 4 6 5 3 2 Vf(High Voltage Floting GND) Vfo(Vscn Out) (Vscn voltage) Vf(High Voltage Floting GND) (SC42) SD42(Card Edge 80Pin) TO SC-BOARD VF5V VF5V PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit TH-50PX60U SD-Board (1 of 2) Schematic Diagram TH-50PX60U SD-Board (1 of 2) Schematic Diagram TH-50PX60U 137 14.68. SD-Board (2 of 2) Schematic Diagram TERM SIDE TERM SIDE AE_190 AE_189 AE_188 AE_187 AE_186 AE_185 AE_184 AE_183 AE_182 AE_181 AE_180 AE_179 AE_178 AE_177 AE_176 AE_175 AE_174 AE_173 AE_172 AE_171 AE_170 AE_169 AE_168 AE_166 AE_167 AE_165 AE_163 AE_164 AF_126 AF_125 AF_124 AF_123 AF_122 AF_121 AF_120 AF_119 AF_118 AF_117 AF_116 AF_115 AF_114 AF_113 AF_112 AF_111 AF_110 AF_109 AF_108 AF_107 AF_106 AF_105 AF_104 AF_102 AF_103 AF_101 AF_99 AF_100 AG_62 AG_61 AG_60 AG_59 AG_58 AG_57 AG_56 AG_55 AG_54 AG_53 AG_52 AG_51 AG_50 AG_49 AG_48 AG_47 AG_46 AG_45 AG_44 AG_43 AG_42 AG_41 AG_40 AG_38 AG_39 AG_37 AG_35 AG_36 AE_187 AE_185 AE_183 AE_188 AE_186 AE_184 AE_182 AE_191 AE_189 AE_190 AE_175 AE_173 AE_181 AE_179 AE_177 AE_176 AE_174 AE_172 AE_180 AE_178 AE_161 AE_159 AE_163 AE_164 AE_162 AE_160 AE_158 AE_165 AE_171 AE_169 AE_167 AE_170 AE_168 AE_166 AE_151 AE_157 AE_155 AE_153 AE_149 AE_152 AE_156 AE_154 AE_148 AE_150 AE_192 AE_191 AE_137 AE_135 AE_140 AE_138 AE_136 AE_134 AE_141 AE_143 AE_145 AE_147 AE_144 AE_146 AE_139 AE_142 AE_133 AE_131 AE_129 AF_127 AF_125 AF_123 AE_132 AE_130 AF_128 AF_126 AF_124 AF_113 AF_111 AF_114 AF_112 AF_110 AF_117 AF_121 AF_119 AF_122 AF_120 AF_115 AF_116 AF_118 AF_109 AF_107 AF_105 AF_103 AF_101 AF_99 AF_108 AF_106 AF_104 AF_102 AF_100 AF_97 AF_98 AF_94 AF_96 AF_92 AF_90 AF_93 AF_95 AF_91 AF_128 AF_127 AF_88 AF_86 AF_84 AF_82 AF_80 AF_78 AF_76 AF_74 AF_72 AF_70 AF_68 AF_66 AF_89 AF_87 AF_85 AF_83 AF_81 AF_79 AF_77 AF_75 AF_73 AF_71 AF_69 AF_67 AG_61 AG_63 AG_59 AG_57 AG_55 AG_53 AG_51 AG_49 AG_47 AG_45 AG_43 AG_41 AG_64 AG_62 AG_60 AG_58 AG_56 AG_54 AG_52 AG_50 AG_48 AG_46 AG_44 AG_42 AF_65 AG_39 AG_37 AG_35 AG_33 AG_31 AG_29 AG_27 AG_25 AG_23 AG_21 AG_19 AG_17 AG_40 AG_38 AG_36 AG_34 AG_32 AG_30 AG_28 AG_26 AG_24 AG_22 AG_20 AG_18 AG_64 AG_63 AG_15 AG_13 AG_11 AG_9 AG_7 AG_5 AG_3 AG_1 AG_16 AG_14 AG_12 AG_10 AG_8 AG_6 AG_4 AG_2 AE_130 AE_129 AE_132 AE_133 AE_134 AE_135 AE_136 AE_137 AE_138 AE_139 AE_140 AE_141 AE_142 AE_143 AE_144 AE_145 AE_146 AE_147 AE_148 AE_149 AE_150 AE_151 AE_152 AE_153 AE_154 AE_131 AE_155 AE_156 AE_157 AE_158 AE_159 AE_160 AE_162 AE_161 AF_65 AF_66 AF_67 AF_68 AF_69 AF_70 AF_71 AF_72 AF_73 AF_74 AF_75 AF_76 AF_77 AF_78 AF_79 AF_80 AF_81 AF_82 AF_83 AF_84 AF_85 AF_86 AF_87 AF_88 AF_89 AF_90 AF_91 AF_92 AF_93 AF_94 AF_95 AF_96 AF_97 AF_98 AG_1 AG_2 AG_3 AG_4 AG_5 AG_6 AG_7 AG_8 AG_9 AG_10 AG_11 AG_12 AG_13 AG_14 AG_15 AG_16 AG_17 AG_18 AG_19 AG_20 AG_21 AG_22 AG_23 AG_24 AG_25 AG_26 AG_27 AG_28 AG_29 AG_30 AG_31 AG_32 AG_34 AG_33 AA_SO9 AA_SO8 AA_SO7 AA_SI AA_SI AA_CLK AA_CL AA_PRO AA_CL AA_CLK AA_CLK AA_CL AA_PRO AA_PRO AA_CLK AA_PRO AA_CL AE_192 AA_SO8 AA_SO7 C6951 50V 1000p R6984 10k IC6955 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6971 100 R6974 22 R6972 22 C6981 50V 1000p IC6954 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6963 16V 1u R6973 22 R6967 220 C6961 16V 1u IC6956 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 1 2 3 4 5 6 7 8 9 R6963 220 SD3 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 SD4 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 R6985 220k D6951 MAZ80560HL C6958 16V 1u C6967 50V 220p C6968 50V 220p AN16071A-VT AN16071A-VT AN16071A-VT 15 11 10 13 8 14 12 9 SD-BOARD TXNSD1BHTUJ (2/2) To 3rd 96pins of SCAN ELECTRODES To 4th 96pins of SCAN ELECTRODES DOWN Vf Vfo Vf5 Vf Vf5 1 4 6 5 3 2 PRO FSI FCLK FCL 46 SC-BOARD SD (SC46) TO FSI FCL FCLK PRO VF5V VF5V PDP SCAN DRIVER S/P 64bit S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit TH-50PX60U SD-Board (2 of 2) Schematic Diagram TH-50PX60U SD-Board (2 of 2) Schematic Diagram TH-50PX60U 138 15 Parts Location & Mechanical Replacement Parts List 15.1. Parts Location 139 TH-50PX60U 15.2. Packing Exploded Views 140 TH-50PX60U Note: All parts except parts mentioned [PAVCA] in the Remarks column are supplied by PAVC-CSG. Parts mentioned [PAVCA] are supplied by PAVCA. Ref. No. Part No. Part Name & Description Pcs Remarks 1 EAS12S10A SPEAKER 2 PAVCA 2 EUR7737Z20 REMOTE CONTROL 1 PAVCA K1YD68000002 68P CONNECTOR 1 K1YD80000002 80P CONNECTOR 1 3 K2AHYH000002 AC-INLET 1 PAVCA 4 K2CG3DH00025 AC CORD 1 5 L6FAYYYH0011 FAN UNIT (80MM) 3 PAVCA 6 MD50H09A1J PLASMA DISPLAY PANEL 1 TBMA186 PANASONIC BADGE 1 PAVCA 7 TBX2AA3601 CONTROL BUTTON 1 PAVCA 8 TXFBX02QSER ASSY POWER BUTTON 1 PAVCA 19 TES2AA0161 LEAF SPRING 1 PAVCA 9 TKGA5265 FRONT GLASS 1 PAVCA 10 TKK2AA7001 PANEL LIGHT 1 PAVCA 11 TKP2AA1921 ADJUSTMENT COVER 1 PAVCA 12 TKPA94301 INLET COVER 1 13 TKRA46201 REAR COVER HANDLE 2 14 TKR2AA00114 FRONT DOOR 1 TBL2AX00051 PACKED PEDESTAL STAND 1 15 TQB2AA0663 INSTRUCTION BOOK (ENG/FRE/SPA) 1 PAVCA TSXL514 CABLE (D32-C31) 1 TSXL515 CABLE (D33-C41) 1 TSXL516 CABLE (D31-C21) 1 TSXL517 CABLE (D34-C51) 1 TSXL518 CABLE (C10- C20/C50-C60) 2 TSXL519 CABLE (C22- C32/C52-C42) 2 TSXL520 CABLE (DG1-H1) 1 TSXL521 CABLE (DG15-HC15) 1 TSXL524 CABLE (DG3-D3) 1 TSXL525 CABLE (DG20-PA20) 1 16 TXFKU05QSER REAR COVER 1 PAVCA TBLA3416 STAND POLE 2 TXFMM01CXTW STOPPER 1 17 TXFKY21QSER ASSY ESCUTCHEON 1 PAVCA 18 TES4G204 POWER BUTTON SPRING 1 15.3. Mechanical Replacement Parts List 141 TH-50PX60U 16 Electrical Replacement Parts List 16.1. Replacement Parts List Notes 142 TH-50PX60U 16.2. Electrical Replacement Parts List Note: All parts except parts mentioned [PAVCA] in the Remarks column are supplied by PAVC-CSG. Parts mentioned [PAVCA] are supplied by PAVCA. Ref. No. Part No. Part Name & Description Pcs Remarks F101.10 2 K5D103BMA001 TIME LAG FUSE HIGH 2 A101,02 RA362MSV7 ARRESTOR 2 C10 K1MN55BA0076 55P CONNECTOR 1 C20 K1MN55BA0076 55P CONNECTOR 1 C21 K1MN80BA0076 80P CONNECTOR 1 C22 K1MN20BA0231 20P CONNECTOR 1 C31 K1MN55BA0076 55P CONNECTOR 1 C32 K1MN20BA0231 20P CONNECTOR 1 C33 K1KA04AA0150 4P CONNECTOR 1 C41 K1MN68BA0076 68P CONNECTOR 1 C42 K1MN20BA0231 20P CONNECTOR 1 C43 K1KA12BA0107 12P CONNECTOR 1 C44 K1KA04BA0107 4P CONNECTOR 1 C50 K1MN55BA0076 55P CONNECTOR 1 C51 K1MN80BA0076 80P CONNECTOR 1 C52 K1MN20BA0231 20P CONNECTOR 1 C60 K1MN55BA0076 55P CONNECTOR 1 C101 ECQU2A105ML P 1UF, 250V 1 C102 ECQU2A224ML P 0.22UF, 250V 1 C103,04 ECKENA101KBR C 100P 250V 2 C106,07 MMXC2W105K C 1P 450V 2 C108 ECJ2XB1H223K C 0.022UF, K, 50V 1 C109 ECJ2FB1H104K C 0.1UF, K, 50V 1 C110 ECJ2XC1H471J C 470PF, J, 50V 1 C111 ECJ2XB1H102K C 1000PF, K, 50V 1 C112 KZE1E470 C 470U 25V 1 C113 ECJ2XC1H471J C 470PF, J, 50V 1 C114 ECJ2XC1H101J C 100PF, J, 50V 1 C115 ECQE6472B45 C 4700U 630V 1 C116,17 KMQ2W221L C 220U 450V 2 C118 ECJ2FB1H104K C 0.1UF, K, 50V 1 C119 ECKDNA331KB7 C 330PF, Z, 1 C120 ECJ2FB1H104K C 0.1UF, K, 50V 1 C121 ECJ2XB1H223K C 0.022UF, K, 50V 1 C122,23 ECJ2FB1H104K C 0.1UF, K, 50V 2 C127 KMQ2W221L C 220U 450V 1 C128 TBB106K1A C 10U 10V 1 C129 ECJ2FB1H104K C 0.1UF, K, 50V 1 C201,02 KZE1E470 C 470U 25V 2 C203,04 RR3DD101K7 C 100P 2KV 2 C206 ECWH8473HV P 0.047PF, J, 8KV 1 C251 KMQ220901Z C 900U 220V 1 C253,54 KMQ220901Z C 900U 220V 2 C256,57 ECQE2473SKF C 0.047U 250V 2 C301 KZE1E470 C 470U 25V 1 C302,03 RR3DD101K7 C 100P 2KV 2 C305 ECWH8183HV C 0.018UF 800V 1 C306 KZE1E470 C 470U 25V 1 C351-53 KZE1E182S C 1800UF 25V 3 C354,55 ECQV1H474JL P 0.47UF, J, 50V 2 C356 KZE1E821L C 8200UF 25V 1 C357 TEB104K5 C 0.1UF 50V 1 C358 KZE1E331S C 330UF 25V 1 C359 TEB104K5 C 0.1UF 50V 1 C360 KZE1E101 C 100UF 25V 1 C361 TEB104K5 C 0.1UF 50V 1 C363 KZE1E821L C 8200UF 25V 1 C364 TEB104K5 C 0.1UF 50V 1 C365 KZE2A270 C 27UF 100V 1 C401 KZE2A270 C 27UF 100V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C402 KZE2A471S C 470UF 100V 1 C404,05 KZE2A471S C 470UF 100V 2 C501 ECQU2A473ML P 0.047UF, M,250V 1 C502,03 ECJ2FB1H104K C 0.1UF, K, 50V 2 C504 KZE1E101 C 100UF 25V 1 C505 KZE1E470 C 470U 25V 1 C506 KXG2W330 C 330UF 450V 1 C508 ECJ2FB1H104K C 0.1UF, K, 50V 1 C509 ECJ2XB1H103K C 0.01UF, K, 50V 1 C510 KZE1H101 C 100UF 50V 1 C514 KZE1E101 C 100UF 25V 1 C515 ECJ2FB1H104K C 0.1UF, K, 50V 1 C551 ECKENA221KBR C 220P 250V 1 C552 KZE1E331S C 330UF 25V 1 C555 TBB474K2 C 0.47UF 25V 1 C556 KZE1E101 C 100UF 25V 1 C557 TBB475K1 C 4.7UF 16V 1 C558 KZE1A471 C 470UF 10V 1 C559-61 TEB104K5 C 0.1UF 50V 3 C1106 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1111 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1116 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1118- 23 ECJ0EB1A104K C 0.1UF, K, 10V 6 C1125 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1127- 32 ECJ0EB1A104K C 0.1UF, K, 10V 6 C1133,3 4 ECJ1XC1H150J C 15PF, J, 50V 2 C1135- 42 ECJ0EB1A104K C 0.1UF, K, 10V 8 C1144- 50 ECJ0EB1A104K C 0.1UF, K, 10V 7 C1151 ECJ0EB1H101K C 100PF, K, 50V 1 C1152 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1153 EEEHB0G101R C 100PF, J, 4V 1 C1154 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1155 ECJ0EB1C103K C0.010UF, K, 16V 1 C1156,5 7 ECJ1XC1H220J C 22PF, J, 50V 2 C1158 F1J0J1060004 C 0.010UF, K, 16V 1 C1159 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1161 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1167,6 8 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C1169 EEEHB0G101R C 100PF, J, 4V 1 C1170- 72 ECJ0EB1A104K C 0.1UF, K, 10V 3 C1178 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1190 ECJ0EB1H102K C 1000PF, K, 50V 1 C1193,9 4 F1J0J1060004 C 0.010UF, K, 16V 2 C1197 ECJ0EB1H101K C 100PF, K, 50V 1 C1209 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1211 ECJ1XC1H471J C 470PF, J, 50V 1 C1215 ECJ1XC1H561J C 560PF, J, 50V 1 C1219 EEEHP1C100R C 10PF, J, 16V 1 C1221 ECJ0EB1H102K C 1000PF, K, 50V 1 C1224 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1226 F1J0J1060004 C 0.010UF, K, 16V 1 C1227 ECJ0EB1H101K C 100PF, K, 50V 1 C1228- 34 EEEHB1C470P C 47PF, J, 16V 7 C2301 ECA1EHG471 E 470UF, 25V 1 C2303 ECA1CMH101 E 100UF, 16V 1 C2314 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2317 ECJ2FB1A105K C 1UF, K, 10V 1 C2320 ECJ2FB1A105K C 1UF, K, 10V 1 C2321 ECJ2XB1H103K C 0.01UF, K, 50V 1 C2322 ECJ2FB1A105K C 1UF, K, 10V 1 C2323,2 4 ECJ2FB1E224K C 22UF, K, 25V 2 C2325,2 6 ECJ1VB1E104K C 0.10UF, K, 25V 2 C2327 F1J1H474A757 C 0.47UF, 50V 1 143 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks C2328- 31 ECJ2FB1E105K C 1UF, K, 25V 4 C2332,3 3 ECA1EHG471 E 470UF, 25V 2 C2334,3 5 ECJ1VB1E104K C 0.10UF, K, 25V 2 C2336 F1J1H474A757 C 0.47UF, 50V 1 C2337,3 8 ECJ2FB1E224K C 22UF, K, 25V 2 C2341 ECJ3YB1E106M C 10 UF, K, 25V 1 C2342 ECJ2FB1E105K C 1UF, K, 25V 1 C2373 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C2374 ECJ1VF1A105Z C 1UF, Z, 10V 1 C2380 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2382 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2385 ECJ2FB1A105K C 1UF, K, 10V 1 C2387 ECJ2FB1A105K C 1UF, K, 10V 1 C2393,9 4 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2401 ECJ2FB1A105K C 1UF, K, 10V 1 C2402 ECJ2FB0J106M C 10UF, Z,6.3V 1 C2403 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2417 ECJ2FB0J106M C 10UF, Z,6.3V 1 C2512 ECJ3XB0J106M C 10UF, M,6.3V 1 C2515 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2521 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2603 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C2606 ECJ1VB1H332K C 3300PF, K, 50V 1 C2607 ECJ2FB1C684K C 68UF, Z, 16V 1 C2608 ECJ1VF1A105Z C 1UF, Z, 10V 1 C2609 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C2610- 14 ECJ1VF1A105Z C 1UF, Z, 10V 5 C2615 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C2616 ECJ2FB1C684K C 68UF, Z, 16V 1 C2617 ECJ1VB1H332K C 3300PF, K, 50V 1 C2620,2 1 ECJ1VF1A105Z C 1UF, Z, 10V 2 C2624 ECA1CMH101 E 100UF, 16V 1 C2625 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C2626 TCUY1C225ZFN C 2.2UF, 16V 1 C2632 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2633,3 4 TCUY1C225ZFN C 2.2UF, 16V 2 C2636 ECJ1XB1H102K C 1000UF, Z, 50V 1 C2637 ECJ1VF1A105Z C 1UF, Z, 10V 1 C2642 ECJ2FB1C474K C 0.47UF, Z, 16V 1 C2643 ECJ1VB1H152K C 1500PF, K, 50V 1 C2644 F1J1A106A043 C 0.010UF, K, 16V 1 C2645 ECJ1VB1C103K C 0.010UF, K, 16V 1 C2646,4 7 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2648 ECJ1VB1C103K C 0.010UF, K, 16V 1 C2649,5 0 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2652 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C2656 ECA1HHG220 E 22UF, 50V 1 C2657 ECJ1VB1C103K C 0.010UF, K, 16V 1 C2658 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C2660,6 1 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2662 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2663 ECJ1VB1C103K C 0.010UF, K, 16V 1 C2665,6 6 ECJ2VF1C104Z C 0.1UF, Z, 16V 2 C2667 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C2668 ECJ1VB1C103K C 0.010UF, K, 16V 1 C2670 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2672 ECA1HHG220 E 22UF, 50V 1 C2673 F1J1A106A043 C 0.010UF, K, 16V 1 C2675 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C2676 ECJ2FB1A105K C 1UF, K, 10V 1 C2677 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C2678 ECJ2FB1A105K C 1UF, K, 10V 1 C2679- 82 ECJ1XB1C104K C 0.1UF, Z, 16V 4 Ref. No. Part No. Part Name & Description Pcs Remarks C2684 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C2685 ECJ1XC1H102J C 1000PF, J, 50V 1 C2686- 89 ECJ2FB1A105K C 1UF, K, 10V 4 C2694 ECJ2XB1C154K C 0.15PF, K, 16V 1 C2699 ECJ1XC1H102J C 1000PF, J, 50V 1 C2700 ECJ1VF1A105Z C 1UF, Z, 10V 1 C2701 ECA1HHG220 E 22UF, 50V 1 C2702 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C2703 ECJ2VF1C105Z C 1UF, Z, 16V 1 C2705 ECJ2VF1C105Z C 1UF, Z, 16V 1 C2706 ECJ1VB1H152K C 1500PF, K, 50V 1 C2707 ECJ1XC1H102J C 1000PF, J, 50V 1 C2708 ECJ2VF1C105Z C 1UF, Z, 16V 1 C2709 ECJ2XB1C154K C 0.15PF, K, 16V 1 C2710 ECJ2VF1C105Z C 1UF, Z, 16V 1 C2711 ECJ1XC1H102J C 1000PF, J, 50V 1 C2712 ECJ2VF1C105Z C 1UF, Z, 16V 1 C2713 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2714 ECJ1XB1H102K C 1000UF, Z, 50V 1 C2715 ECJ2VF1C105Z C 1UF, Z, 16V 1 C2717 ECJ2VF1C105Z C 1UF, Z, 16V 1 C2718 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C2722 ECJ2FB1C474K C 0.47UF, Z, 16V 1 C2723 ECJ2VF1C105Z C 1UF, Z, 16V 1 C2725,2 6 ECA1HHG100 E 10UF, 50V 2 C2727,2 8 ECJ1VF1A105Z C 1UF, Z, 10V 2 C2729 F1J1A106A043 C 0.010UF, K, 16V 1 C2730 ECJ2VF1C105Z C 1UF, Z, 16V 1 C2731 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C2732 ECA1CMH101 E 100UF, 16V 1 C2733 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C2734 ECJ2VF1C105Z C 1UF, Z, 16V 1 C2735 ECA1CMH101 E 100UF, 16V 1 C2737 ECJ1VF1A105Z C 1UF, Z, 10V 1 C2739,4 0 ECJ1VF1A105Z C 1UF, Z, 10V 2 C2741 ECJ2VF1C105Z C 1UF, Z, 16V 1 C2742 ECJ1VF1A105Z C 1UF, Z, 10V 1 C2743 ECJ2VF1C105Z C 1UF, Z, 16V 1 C2744 ECJ1VF1A105Z C 1UF, Z, 10V 1 C2746 ECA1CMH101 E 100UF, 16V 1 C2747 ECJ1VF1A105Z C 1UF, Z, 10V 1 C2750 ECA1HHG220 E 22UF, 50V 1 C2751- 54 ECJ1VF1A105Z C 1UF, Z, 10V 4 C2756 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C2757 ECA1CMH101 E 100UF, 16V 1 C2762 TCUY1C225ZFN C 2.2UF, 16V 1 C2768,6 9 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C2773 ECA1HHG220 E 22UF, 50V 1 C2774 ECA1HHG100 E 10UF, 50V 1 C2775 ECA1EHG471 E 470UF, 25V 1 C2777,7 8 TCUY1C225ZFN C 2.2UF, 16V 2 C2779,8 0 ECJ1VF1A105Z C 1UF, Z, 10V 2 C2783 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2784,8 5 ECJ1VF1A105Z C 1UF, Z, 10V 2 C2790 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C2791 F2A1H4700036 E 47UF, 50V 1 PAVCA C2792,9 3 ECJ1VF1A105Z C 1UF, Z, 10V 2 C2798 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2801 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2802 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3750 ECJ2XC1H102K C 1000PF, K, 50V 1 C4003- 08 F1J0J1060004 C 0.010UF, K, 16V 6 C4014,1 5 F1J0J1060004 C 0.010UF, K, 16V 2 144 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks C4023 F1J0J1060004 C 0.010UF, K, 16V 1 C4026 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4027 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4028 ECJ0EB1C103K C0.010UF, K, 16V 1 C4112 F1J0J1060004 C 0.010UF, K, 16V 1 C4117 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4158 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4159 F1H1C104A065 C 0.1UF, K, 16V 1 C4160 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4165 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4168 ECJ1XC1H680J C 68PF, J, 50V 1 C4171 ECJ1XC1H471J C 470PF, J, 50V 1 C4172,7 3 F1H1C104A065 C 0.1UF, K, 16V 2 C4174 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4175 F1H1C104A065 C 0.1UF, K, 16V 1 C4176 ECJ1VB0J225K C 2.2UF, K, 6.3V 1 C4177 ECJ2FB1C684K C 68UF, Z, 16V 1 C4178 ECJ1XB1C393K C 0.039UF, K, 16V 1 C4180 F1H1C104A065 C 0.1UF, K, 16V 1 C4185,8 6 ECJ3XB0J106M C 10UF, M,6.3V 2 C4188 F1J0J1060004 C 0.010UF, K, 16V 1 C4189- 91 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4199 ECJ0EB1C103K C0.010UF, K, 16V 1 C4200 EEEHB1C470P C 47PF, J, 16V 1 C4201 ECJ0EB1C103K C0.010UF, K, 16V 1 C4204 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4205,0 6 F1H1C104A065 C 0.1UF, K, 16V 2 C4208,0 9 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4211 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4215 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4216 EEEHB1C470P C 47PF, J, 16V 1 C4217 F1H1C104A065 C 0.1UF, K, 16V 1 C4218 ECJ0EB1H102K C 1000PF, K, 50V 1 C4219 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4224 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4227 ECJ1VB1C823K C 0.082UF, K, 16V 1 C4228 ECJ0EB1C103K C0.010UF, K, 16V 1 C4235 ECJ0EB1C103K C0.010UF, K, 16V 1 C4244 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4245 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4248 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4253 EEEHB1C470P C 47PF, J, 16V 1 C4256 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4262- 64 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4266 ECJ0EB1C103K C0.010UF, K, 16V 1 C4269 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4272 EEEHB1C470P C 47PF, J, 16V 1 C4273 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4281- 84 ECJ0EB1A104K C 0.1UF, K, 10V 4 C4287,8 8 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4289,9 0 EEEHB0J330R C 33PF, J, 6.3V 2 C4291,9 2 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4296 F1J0J1060004 C 0.010UF, K, 16V 1 C4297 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4298- 06 ECJ1VB1A105K C 0.01UF, Z, 50V 9 C4307- 09 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4310 ECJ0EB1C103K C0.010UF, K, 16V 1 C4311 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4313,1 4 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4315 F1J0J1060004 C 0.010UF, K, 16V 1 C4316- 18 ECJ0EB1A104K C 0.1UF, K, 10V 3 Ref. No. Part No. Part Name & Description Pcs Remarks C4320- 22 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4325 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4327 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4329,3 0 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4331 F1J0J1060004 C 0.010UF, K, 16V 1 C4332 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4333- 38 ECJ0EB1A104K C 0.1UF, K, 10V 6 C4339 ECJ1VB0J225K C 2.2UF, K, 6.3V 1 C4340 ECJ1XC1H471J C 470PF, J, 50V 1 C4341 EEEHB1C470P C 47PF, J, 16V 1 C4342 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4343 EEEHB1C100R C 10PF, J, 16V 1 C4344,4 5 F1J0J1060004 C 0.010UF, K, 16V 2 C4346 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4347 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4348 EEEHB1C470P C 47PF, J, 16V 1 C4349 ECJ0EB1C103K C0.010UF, K, 16V 1 C4350,5 1 ECJ1XC1H181J C 180PF, J, 50V 2 C4352,5 3 ECJ1XC1H330J C 33PF, J, 50V 2 C4354 ECJ0EB1C103K C0.010UF, K, 16V 1 C4360 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4362 F1J0J1060004 C 0.010UF, K, 16V 1 C4363,6 4 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4365 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4366 EEEHB1C470P C 47PF, J, 16V 1 C4367 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4371 ECJ0EB1H102K C 1000PF, K, 50V 1 C4372 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4373 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4374 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4375,7 6 ECJ0EB1H102K C 1000PF, K, 50V 2 C4377 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4379 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4380 ECJ0EB1H102K C 1000PF, K, 50V 1 C4381,8 2 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4383 ECJ0EB1H102K C 1000PF, K, 50V 1 C4384 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4385 ECJ0EB1H102K C 1000PF, K, 50V 1 C4386 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4387 ECJ0EB1H102K C 1000PF, K, 50V 1 C4388 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4389 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4390 ECJ0EB1H102K C 1000PF, K, 50V 1 C4391 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4392 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4393,9 4 ECJ0EB1H102K C 1000PF, K, 50V 2 C4395 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4396 ECJ0EB1H102K C 1000PF, K, 50V 1 C4397,9 8 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4399,0 0 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4401 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4402,0 3 ECJ0EB1H102K C 1000PF, K, 50V 2 C4404 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4405 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4406 ECJ0EB1H102K C 1000PF, K, 50V 1 C4407,0 8 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4409 ECJ0EB1H102K C 1000PF, K, 50V 1 C4410 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4411,1 2 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4413,1 4 ECJ0EB1H102K C 1000PF, K, 50V 2 145 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks C4415 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4417 EEEHB1C470P C 47PF, J, 16V 1 C4418,1 9 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4420,2 1 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4422- 24 ECJ0EB1H102K C 1000PF, K, 50V 3 C4425,2 6 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4427 ECJ0EB1H102K C 1000PF, K, 50V 1 C4428 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4429,3 0 ECJ0EB1H102K C 1000PF, K, 50V 2 C4434 ECJ0EB1H102K C 1000PF, K, 50V 1 C4435 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4436- 39 ECJ0EB1H102K C 1000PF, K, 50V 4 C4440 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4441,4 2 ECJ0EB1H102K C 1000PF, K, 50V 2 C4447 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4448 ECJ0EB1C103K C0.010UF, K, 16V 1 C4451 ECJ0EB1H102K C 1000PF, K, 50V 1 C4452 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4453,5 4 ECJ0EB1H102K C 1000PF, K, 50V 2 C4455 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4456 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4457,5 8 ECJ0EB1H102K C 1000PF, K, 50V 2 C4459 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4460 ECJ0EB1H102K C 1000PF, K, 50V 1 C4461 ECJ1XC1H820J C 82PF, J, 50V 1 C4462 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4464 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4465 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4466 ECJ0EB1C103K C0.010UF, K, 16V 1 C4467 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4470 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4474 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4475,7 6 ECJ0EB1H102K C 1000PF, K, 50V 2 C4477 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4478 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4479- 81 ECJ0EB1H102K C 1000PF, K, 50V 3 C4482 ECJ1XC1H180J C 18PF, J, 50V 1 C4483 ECJ1XC1H150J C 15PF, J, 50V 1 C4493 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4494 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4496 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4497 EEEHB0G101R C 100PF, J, 4V 1 C4498 ECJ1XC1H471J C 470PF, J, 50V 1 C4499 EEFCD0G560ER 56UF, 1 C4501 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4502 ECJ0EB1C103K C0.010UF, K, 16V 1 C4503 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4504 ECJ0EB1C103K C0.010UF, K, 16V 1 C4505 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4506 ECJ0EB1C103K C0.010UF, K, 16V 1 C4507 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4508 ECJ0EB1C103K C0.010UF, K, 16V 1 C4509- 11 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4512 ECJ0EB1C103K C0.010UF, K, 16V 1 C4513 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4514 ECJ0EB1C103K C0.010UF, K, 16V 1 C4515,1 6 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4517 ECJ0EB1C103K C0.010UF, K, 16V 1 C4518 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4519 ECJ0EB1C103K C0.010UF, K, 16V 1 C4520 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4521 ECJ0EB1C103K C0.010UF, K, 16V 1 C4522 ECJ0EB1A104K C 0.1UF, K, 10V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C4523 ECJ0EB1C103K C0.010UF, K, 16V 1 C4524 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4525 ECJ0EB1C103K C0.010UF, K, 16V 1 C4526 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4527 ECJ0EB1C103K C0.010UF, K, 16V 1 C4528 EEEHB1C470P C 47PF, J, 16V 1 C4529 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4530,3 1 ECJ0EB1H102K C 1000PF, K, 50V 2 C4532,3 3 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4534 ECJ0EB1H102K C 1000PF, K, 50V 1 C4535 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4536 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4537 EEEHB0G101R C 100PF, J, 4V 1 C4538 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4539 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4540 ECJ0EB1H102K C 1000PF, K, 50V 1 C4541 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4544 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5605 EEUFC1E471 E 470UF, 25V 1 C5606 ECA1CM471 E 470UF, 16V 1 C5609 ECA1HM220 E 22UF, 50V 1 C5611 F2A1H331A257 E 330UF, 50V 1 C5612 ECA1CM471 E 470UF, 16V 1 C5613 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5616 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5617 ECA1CM471 E 470UF, 16V 1 C5618,1 9 ECJ1VB1E104K C 0.10UF, K, 25V 2 C5622 ECA1CM471 E 470UF, 16V 1 C5623 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5626 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5633 ECA1EM221 E 220UF, 25V 1 C5637 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5641- 44 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C5645 ECA1CHG470 E 47UF, 16V 1 C5646 ECJ1VB1H103K C 0.001UF, K, 50V 1 C5647 ECA1CHG470 E 47UF, 16V 1 C5648 ECJ1VB1H103K C 0.001UF, K, 50V 1 C5670 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5672 ECA1HHG100 E 10UF, 50V 1 C5673 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5801,0 2 EEUFC1E471 E 470UF, 25V 2 C5804 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5805 ECJ2VF1C105Z C 1UF, Z, 16V 1 C5809 ECJ3XF1E105Z C 1UF, Z, 25V 1 C5810 ECA1EHG470 E 47UF, 25V 1 C6001 F1L2J562A022 C 5600UF, K,6.3V 1 C6011- 16 F2A2T201A001 E 200UF, 6 C6023 F1L2J562A022 C 5600UF, K,6.3V 1 C6031 F0C2E405A176 E 0.040UF, 250V 1 C6041- 44 TCUY1C105ZFN C 1UF, 16V 4 C6105 F1L1E4750004 C 4.7UF, 25V 1 C6111,1 2 F2A2D221A022 E 220UF, 200V 2 C6132 F1L1E4750004 C 4.7UF, 25V 1 C6134,3 5 F1L1E4750004 C 4.7UF, 25V 2 C6151 ECJ3YB1E105K C 1UF, K, 25V 1 C6152- 55 F1L1E4750004 C 4.7UF, 25V 4 C6192 ECJ3YB1E105K C 1UF, K, 25V 1 C6194,9 5 F1L1E4750004 C 4.7UF, 25V 2 C6201- 04 F0C2E405A176 E 0.040UF, 250V 4 C6211,1 2 F1L1E4750004 C 4.7UF, 25V 2 C6213 F2A1E102A220 E 1000UF, 25V 1 C6221 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6241 ECA1EM471 E 470UF, 25V 1 146 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks C6242 TCUY1C105ZFN C 1UF, 16V 1 C6243 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6251 TCUY1C105ZFN C 1UF, 16V 1 C6262,6 3 F2A2A471A072 E 470UF, 100V 2 C6272,7 3 EEUFC1E221 E 220UF, 25V 2 C6401- 03 F1L2J222A022 C 2200UF, K,6.3V 3 C6411- 16 F2A2T201A001 E 200UF, 6 C6421- 24 F1L2J222A022 C 2200UF, K,6.3V 4 C6431 F0C2E405A176 E 0.040UF, 250V 1 C6472 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6480 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6502 F1L1E4750004 C 4.7UF, 25V 1 C6504,0 5 F1L1E4750004 C 4.7UF, 25V 2 C6512- 15 F0C2E405A176 E 0.040UF, 250V 4 C6521 ECJ3YB1E105K C 1UF, K, 25V 1 C6522 F1L1E4750004 C 4.7UF, 25V 1 C6524,2 5 F1L1E4750004 C 4.7UF, 25V 2 C6527 F1L1E4750004 C 4.7UF, 25V 1 C6561 F2A1A1010074 E 100UF, 10V 1 C6562 TCUY1C105ZFN C 1UF, 16V 1 C6563 F2A1A1010074 E 100UF, 10V 1 C6564 TCUY1C105ZFN C 1UF, 16V 1 C6565,6 6 ECJ2XB1H103K C 0.01UF, K, 50V 2 C6581 ECJ3YB1E105K C 1UF, K, 25V 1 C6582 TCUY1C105ZFN C 1UF, 16V 1 C6592 ECA1EM471 E 470UF, 25V 1 C6593 ECJ2XC1H102J C 1000PF, J, 50V 1 C6601,0 2 F1L1E4750004 C 4.7UF, 25V 2 C6603 F1K2J102A014 C 1000UF, K,6.3V 1 C6604 F2A2V470A020 E 47UF, 350V 1 C6605 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6606 F1K2J102A014 C 1000UF, K,6.3V 1 C6610 ECJ3YB1E105K C 1UF, K, 25V 1 C6611 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6612 ECJ3YB1E105K C 1UF, K, 25V 1 C6620 ECJ3XB2J222K C 2200PF, K,630V 1 C6641 ECQE2105RKB P 1UF, 250V 1 C6661,6 2 F1K2J102A014 C 1000UF, K,6.3V 2 C6671 F1L1E4750004 C 4.7UF, 25V 1 C6681,8 2 F1L1E4750004 C 4.7UF, 25V 2 C6683 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6691 ECA2CM101 E 100UF, 160V 1 C6701- 08 ECJ2XB1H104K C 0.1UF, K, 50V 8 C6721 ECA1HM101 E 100UF, 50V 1 C6723- 25 F1L1E4750004 C 4.7UF, 25V 3 C6726,2 7 TCUY1C105ZFN C 1UF, 16V 2 C6728 ECJ2XC1H102J C 1000PF, J, 50V 1 C6752 TCUY1C105ZFN C 1UF, 16V 1 C6753 F1L1E4750004 C 4.7UF, 25V 1 C6754 ECA1VM470 E 47UF, 35V 1 C6755 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6771 TCUY1C105ZFN C 1UF, 16V 1 C6772,7 3 F1L1E4750004 C 4.7UF, 25V 2 C6775 F1L1E4750004 C 4.7UF, 25V 1 C6776,7 7 ECJ2XB1H104K C 0.1UF, K, 50V 2 C6791 EEUFC1E221 E 220UF, 25V 1 C6795,9 6 EEUFC1E221 E 220UF, 25V 2 C6801 F2A2E470A022 E 47UF, 250V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C6802 ECQE6223KF P 0.022UF, K,400V 1 C6803 ECKD3D221KBP C 220PF, K, 2KV 1 C6804 F2A2E100A022 E 10UF, 250V 1 C6805 ECJ2XC1H102J C 1000PF, J, 50V 1 C6806 ECA2CM101 E 100UF, 160V 1 C6807 ECJ2XC1H471J C 470PF, J, 50V 1 C6811 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6812 F1L1E4750004 C 4.7UF, 25V 1 C6813 ECA2CM101 E 100UF, 160V 1 C6814 ECA1VM151 E 150UF, 35V 1 C6815 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6822 F2A2V100A019 E 10UF, 350V 1 C6823 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6841 ECA2DHG101 E 100UF, 200V 1 C6842 ECA2CM101 E 100UF, 160V 1 C6845 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6861 TCUY1C105ZFN C 1UF, 16V 1 C6862 ECJ3YB1E105K C 1UF, K, 25V 1 C6863 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6871 TCUY1C105ZFN C 1UF, 16V 1 C6872 ECJ3YB1E105K C 1UF, K, 25V 1 C6873 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6901 ECJ2XB1H102K C 1000PF, K, 50V 1 C6902 TCUY1C105ZFN C 1UF, 16V 1 C6904 TCUY1C105ZFN C 1UF, 16V 1 C6906 TCUY1C105ZFN C 1UF, 16V 1 C6908 TCUY1C105ZFN C 1UF, 16V 1 C6910 TCUY1C105ZFN C 1UF, 16V 1 C6912 TCUY1C105ZFN C 1UF, 16V 1 C6914- 18 ECJ2XB1H221K C 220PF, K, 50V 5 C6931 ECJ2XB1H102K C 1000PF, K, 50V 1 C6932- 35 F1L2E105A013 E 0.10UF, 25V 4 C6951 ECJ2XB1H102K C 1000PF, K, 50V 1 C6952 TCUY1C105ZFN C 1UF, 16V 1 C6955 TCUY1C105ZFN C 1UF, 16V 1 C6957,5 8 TCUY1C105ZFN C 1UF, 16V 2 C6961 TCUY1C105ZFN C 1UF, 16V 1 C6963 TCUY1C105ZFN C 1UF, 16V 1 C6964- 68 ECJ2XB1H221K C 220PF, K, 50V 5 C6981 ECJ2XB1H102K C 1000PF, K, 50V 1 C6982- 85 F1L2E105A013 E 0.10UF, 25V 4 C7103 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7105 TCUY1C105ZFN C 1UF, 16V 1 C7106 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7108 ECJ1XC1H101J C 100PF, J, 50V 1 C7109 TCUY1C105ZFN C 1UF, 16V 1 C7112 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7114 TCUY1C105ZFN C 1UF, 16V 1 C7115 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7117 ECJ1XC1H101J C 100PF, J, 50V 1 C7118 TCUY1C105ZFN C 1UF, 16V 1 C7121 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7123 TCUY1C105ZFN C 1UF, 16V 1 C7124 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7126 ECJ1XC1H101J C 100PF, J, 50V 1 C7127,2 8 TCUY1C105ZFN C 1UF, 16V 2 C7130 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7201- 03 TCUY1C105ZFN C 1UF, 16V 3 C7205 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7206 TCUY1C105ZFN C 1UF, 16V 1 C7208 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7210 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7213 ECJ1XC1H101J C 100PF, J, 50V 1 C7215 TCUY1C105ZFN C 1UF, 16V 1 C7216 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7218 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7221,2 2 ECJ1XC1H101J C 100PF, J, 50V 2 147 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks C7225 ECJ1XC1H101J C 100PF, J, 50V 1 C7226 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7228 TCUY1C105ZFN C 1UF, 16V 1 C7229,3 0 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7232 TCUY1C105ZFN C 1UF, 16V 1 C7233,3 4 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7236 TCUY1C105ZFN C 1UF, 16V 1 C7237,3 8 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7240 TCUY1C105ZFN C 1UF, 16V 1 C7241 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7243 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7247 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7249 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7251 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7302 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7306,0 7 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7309,1 0 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7311,1 2 TCUY1C105ZFN C 1UF, 16V 2 C7313- 15 ECJ1XC1H101J C 100PF, J, 50V 3 C7316,1 7 TCUY1C105ZFN C 1UF, 16V 2 C7318 ECJ1XC1H101J C 100PF, J, 50V 1 C7319 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7321 TCUY1C105ZFN C 1UF, 16V 1 C7322 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7331 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7333 TCUY1C105ZFN C 1UF, 16V 1 C7334,3 5 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7337 TCUY1C105ZFN C 1UF, 16V 1 C7338,3 9 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7341 TCUY1C105ZFN C 1UF, 16V 1 C7342 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7403 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7405 TCUY1C105ZFN C 1UF, 16V 1 C7406 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7407 ECJ1XC1H101J C 100PF, J, 50V 1 C7408 TCUY1C105ZFN C 1UF, 16V 1 C7411 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7413 TCUY1C105ZFN C 1UF, 16V 1 C7414 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7415 ECJ1XC1H101J C 100PF, J, 50V 1 C7416 TCUY1C105ZFN C 1UF, 16V 1 C7419 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7421 TCUY1C105ZFN C 1UF, 16V 1 C7422 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7423 ECJ1XC1H101J C 100PF, J, 50V 1 C7424 TCUY1C105ZFN C 1UF, 16V 1 C7427 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7429 TCUY1C105ZFN C 1UF, 16V 1 C7430 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7431 ECJ1XC1H101J C 100PF, J, 50V 1 C7432,3 3 TCUY1C105ZFN C 1UF, 16V 2 C7435 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7440- 43 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C7502 TCUY1C105ZFN C 1UF, 16V 1 C7504 TCUY1C105ZFN C 1UF, 16V 1 C7506 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7508 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7509 ECJ1XC1H101J C 100PF, J, 50V 1 C7510 TCUY1C105ZFN C 1UF, 16V 1 C7511 ECJ1XC1H101J C 100PF, J, 50V 1 C7513,1 4 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7517 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7518 TCUY1C105ZFN C 1UF, 16V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C7521 ECJ1XC1H101J C 100PF, J, 50V 1 C7523 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7524 ECJ1XC1H101J C 100PF, J, 50V 1 C7525 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7527 TCUY1C105ZFN C 1UF, 16V 1 C7528,2 9 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7531 TCUY1C105ZFN C 1UF, 16V 1 C7532,3 3 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7535 TCUY1C105ZFN C 1UF, 16V 1 C7536 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7557 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7559 TCUY1C105ZFN C 1UF, 16V 1 C7560 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7562 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7564 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7566 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7603 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7605 TCUY1C105ZFN C 1UF, 16V 1 C7606 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7607 ECJ1XC1H101J C 100PF, J, 50V 1 C7608 TCUY1C105ZFN C 1UF, 16V 1 C7611 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7613 TCUY1C105ZFN C 1UF, 16V 1 C7614 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7615 ECJ1XC1H101J C 100PF, J, 50V 1 C7616 TCUY1C105ZFN C 1UF, 16V 1 C7619 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7621 TCUY1C105ZFN C 1UF, 16V 1 C7622 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7623 ECJ1XC1H101J C 100PF, J, 50V 1 C7624,2 5 TCUY1C105ZFN C 1UF, 16V 2 C7626 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7701 ECJ1XC1H330J C 33PF, J, 50V 1 C7702 EEEHB0G470R C 47PF, J, 4V 1 C7703,0 4 ECJ1XC1H330J C 33PF, J, 50V 2 C7705 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C7707 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C7708 ECJ1VB1H103K C 0.001UF, K, 50V 1 C7709 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C7711 ECJ1XC1H330J C 33PF, J, 50V 1 C8099,0 0 ECJ0EB1A104K C 0.1UF, K, 10V 2 C8101,0 2 ECJ1XB0J105K C 1UF, K, 16V 2 C8103,0 4 ECJ0EB1A104K C 0.1UF, K, 10V 2 C8105 EEEHB0G101R C 100PF, J, 4V 1 C8106,0 7 ECJ1XB0J105K C 1UF, K, 16V 2 C8108 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8109 EEEHB0G101R C 100PF, J, 4V 1 C8110,1 1 ECJ0EB1A104K C 0.1UF, K, 10V 2 C8112 ECJ1XB0J105K C 1UF, K, 16V 1 C8113- 18 ECJ0EB1A104K C 0.1UF, K, 10V 6 C8120,2 1 ECJ0EB1A104K C 0.1UF, K, 10V 2 C8128,2 9 ECJ0EB1C103K C0.010UF, K, 16V 2 C8144 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8145 ECJ0EB1C103K C0.010UF, K, 16V 1 C8162 ECJ0EB1C103K C0.010UF, K, 16V 1 C8164 ECJ0EB1C103K C0.010UF, K, 16V 1 C8170 F1J1A106A043 C 0.010UF, K, 16V 1 C8200 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8201 ECJ1VB1H103K C 0.001UF, K, 50V 1 C8202,0 3 ECJ0EB1A104K C 0.1UF, K, 10V 2 C8204 EEEHB0J221P C 220PF, J, 6.3V 1 C8205 EEEHB1H220P C 22PF, J, 50V 1 148 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks C8206,0 7 EEEHB0J221P C 220PF, J, 6.3V 2 C8208 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 C8211 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 C8212 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8218,1 9 ECJ0EB1A104K C 0.1UF, K, 10V 2 C8220 ECJ0EB1H102K C 1000PF, K, 50V 1 C8222 ECJ0EB1H102K C 1000PF, K, 50V 1 C8224,2 5 ECJ0EB1C103K C0.010UF, K, 16V 2 C8226 EEEHB1C470P C 47PF, J, 16V 1 C8228,2 9 ECJ0EB1C103K C0.010UF, K, 16V 2 C8231 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8233 ECJ0EB1H102K C 1000PF, K, 50V 1 C8234,3 5 ECJ0EB1A104K C 0.1UF, K, 10V 2 C8237 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8238,3 9 ECJ0EB1C103K C0.010UF, K, 16V 2 C8240 ECJ1XB0J105K C 1UF, K, 16V 1 C8241 ECJ0EB1H102K C 1000PF, K, 50V 1 C8244 ECJ1VF1A105Z C 1UF, Z, 10V 1 C8245 ECJ0EB1C103K C0.010UF, K, 16V 1 C8246 EEEHB0G470R C 47PF, J, 4V 1 C8247 ECJ0EB1C103K C0.010UF, K, 16V 1 C8253 ECJ0EB1H102K C 1000PF, K, 50V 1 C8254 ECJ0EB1C103K C0.010UF, K, 16V 1 C8255 ECJ0EB1H102K C 1000PF, K, 50V 1 C8272,7 3 ECJ0EB1A104K C 0.1UF, K, 10V 2 C8298,9 9 ECJ0EB1C103K C0.010UF, K, 16V 2 C8302 ECJ0EB1C103K C0.010UF, K, 16V 1 C8303 EEEHB1C470P C 47PF, J, 16V 1 C8304,0 5 ECJ0EC1H150J C 15PF, K, 50V 2 C8306 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8308- 10 ECJ0EB1A104K C 0.1UF, K, 10V 3 C8311,1 2 ECJ1XB0J105K C 1UF, K, 16V 2 C8313- 15 ECJ0EB1A104K C 0.1UF, K, 10V 3 C8316 EEEHB1C100R C 10PF, J, 16V 1 C8317- 19 ECJ0EB1A104K C 0.1UF, K, 10V 3 C8320 ECJ1XB0J105K C 1UF, K, 16V 1 C8321- 23 ECJ0EB1A104K C 0.1UF, K, 10V 3 C8327 EEEHB1C100R C 10PF, J, 16V 1 C8329- 31 ECJ0EB1A104K C 0.1UF, K, 10V 3 C8332 ECJ0EC1H151J C 180PF, K, 50V 1 C8333,3 4 ECJ0EB1A104K C 0.1UF, K, 10V 2 C8336 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8337 EEEHB1C100R C 10PF, J, 16V 1 C8338 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8342- 44 ECJ0EB1A104K C 0.1UF, K, 10V 3 C8345,4 6 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C8347- 53 ECJ0EB1A104K C 0.1UF, K, 10V 7 C8355 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8356 ECJ0EB1C103K C0.010UF, K, 16V 1 C8357,5 8 ECJ0EB1A104K C 0.1UF, K, 10V 2 C8359 ERJ3GEY0R00 M 0 OHM, 1/16W 1 C8360 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8361 ECJ0EC1H270J C 270PF, K, 50V 1 C8362 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8365 ECJ1VB1A224K C 0.22UF, Z, 50V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C8368- 76 ECJ0EB1A104K C 0.1UF, K, 10V 9 C8377 ECJ0EB1C223K C 0.022UF, K, 16V 1 C8413,1 4 ECJ0EC1H120J C 120PF, K, 50V 2 C8415 ECJ0EB1H471K C 470PF, K, 50V 1 C8419 ECJ1VB1C105K C 0.01UF, K, 16V 1 C8420,2 1 ECJ0EB1H102K C 1000PF, K, 50V 2 C8430 ECJ0EC1H050C C 5PF, D, 50V 1 C8432 ECJ0EC1H270J C 270PF, K, 50V 1 C8433,3 4 ECJ0EC1H101J C 100PF, K, 50V 2 C8435,3 6 ECJ0EC1H470J C 470PF, K, 50V 2 C8437 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8440,4 1 ECJ0EB1A104K C 0.1UF, K, 10V 2 C8445 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8446 ECJ0EB1H182K C 1800UF, Z, 50V 1 C8450- 52 ECJ2FF1A475Z C 4.7UF, Z, 10V 3 C8453 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8456,5 7 F1J0J475A035 C 4.7UF, K, 16V 2 C8467,6 8 ECJ0EB1C103K C0.010UF, K, 16V 2 C8469 ECJ1VB0J334K C 0.33UF, K,6.3V 1 C8474 ECJ0EB1C103K C0.010UF, K, 16V 1 C8475,7 6 ECJ1XB0J105K C 1UF, K, 16V 2 C8477 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8478 ECJ1XB0J105K C 1UF, K, 16V 1 C8479,8 0 ECJ0EB1C103K C0.010UF, K, 16V 2 C8482 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8483 ECJ0EC1H101J C 100PF, K, 50V 1 C8484 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8485 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C8486 F1J1A106A043 C 0.010UF, K, 16V 1 C8487 ECJ0EC1H151J C 180PF, K, 50V 1 C8488 ECJ0EC1H101J C 100PF, K, 50V 1 C8492 EEEHB1C470P C 47PF, J, 16V 1 C8495 ECJ0EC1H020C C 2PF, D, 50V 1 PAVCA C8496 ECGRL0G680ER C 68PF, J, 4V 1 C8500 ECJ2FF1A475Z C 4.7UF, Z, 10V 1 C8501 ECJ0EB1C103K C0.010UF, K, 16V 1 C8503,0 4 ECJ0EB1A104K C 0.1UF, K, 10V 2 C8505 ECJ0EB1C103K C0.010UF, K, 16V 1 C8506 EEEHB1C470P C 47PF, J, 16V 1 C8507,0 8 ECJ2FF1A475Z C 4.7UF, Z, 10V 2 C8509 EEEHB1C470P C 47PF, J, 16V 1 C8510 ECJ0EC1H050C C 5PF, D, 50V 1 C8511 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8515 ECJ0EB1C103K C0.010UF, K, 16V 1 C8516 EEEHB1C470P C 47PF, J, 16V 1 C8517 ECJ0EC1H050C C 5PF, D, 50V 1 C8518 ECJ0EB1C103K C0.010UF, K, 16V 1 C8520,2 1 ECJ0EC1H181J C 180PF, K, 50V 2 C8522,2 3 ECJ0EC1H390J C 390PF, K, 50V 2 C8529 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8530 ECGRL0G680ER C 68PF, J, 4V 1 C8531 ECJ1VB1C105K C 0.01UF, K, 16V 1 C8532 ECJ0EB1C223K C 0.022UF, K, 16V 1 C8533,3 4 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C8535 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8536 ECJ1XB1H102K C 1000UF, Z, 50V 1 C8537 ECJ0EB1H471K C 470PF, K, 50V 1 C8538 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C8542 ECJ0EB1C103K C0.010UF, K, 16V 1 149 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks C8546,4 7 ECJ0EB1A104K C 0.1UF, K, 10V 2 C8550 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8551 ECJ0EB1C103K C0.010UF, K, 16V 1 C8552 ECJ1VB1C105K C 0.01UF, K, 16V 1 C8553- 55 ECJ0EB1A104K C 0.1UF, K, 10V 3 C8556 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C8557 F1J1A106A043 C 0.010UF, K, 16V 1 C8558 ECJ0EB1C103K C0.010UF, K, 16V 1 C8559,6 0 EEEHB1C470P C 47PF, J, 16V 2 C8561 ECJ0EB1C103K C0.010UF, K, 16V 1 C8563 ECJ0EB1C103K C0.010UF, K, 16V 1 C8567 ECGRL0G680ER C 68PF, J, 4V 1 C8568 ECJ2FB0J106M C 10UF, Z,6.3V 1 C8572 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8573 ECJ2FB0J106M C 10UF, Z,6.3V 1 C8577 ECJ0EC1H270J C 270PF, K, 50V 1 C8578 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8581 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8584 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8590 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8592 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8594 ECGRL0G680ER C 68PF, J, 4V 1 C8595,9 6 ECJ0EB1C103K C0.010UF, K, 16V 2 C8597 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8598 ECJ0EB1C103K C0.010UF, K, 16V 1 C8600 ECJ0EB1C103K C0.010UF, K, 16V 1 C8601 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8602- 04 ECJ0EB1C103K C0.010UF, K, 16V 3 C8605 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8606 ECJ0EB1C103K C0.010UF, K, 16V 1 C8607 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8608 ECJ0EB1C103K C0.010UF, K, 16V 1 C8609 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8610 ECJ0EB1C103K C0.010UF, K, 16V 1 C8611,1 2 ECJ0EB1A104K C 0.1UF, K, 10V 2 C8613 ECJ1XB0J105K C 1UF, K, 16V 1 C8614 ECJ0EB1C103K C0.010UF, K, 16V 1 C8615,1 6 ECJ0EB1A104K C 0.1UF, K, 10V 2 C8617 ECJ0EB1C103K C0.010UF, K, 16V 1 C8620 ECJ0EB1A104K C 0.1UF, K, 10V 1 C8621 ECJ0EB1C103K C0.010UF, K, 16V 1 C8622 ECGRL0G680ER C 68PF, J, 4V 1 C8624 ECJ0EB1C103K C0.010UF, K, 16V 1 C8626- 28 ECJ0EB1C103K C0.010UF, K, 16V 3 C8629,3 0 ECJ0EB1A104K C 0.1UF, K, 10V 2 C8633,3 4 ECJ0EC1H151J C 180PF, K, 50V 2 C8635,3 6 ECJ0EC1H100D C 10PF, K, 50V 2 C8639 ECJ1XB0J105K C 1UF, K, 16V 1 C8644,4 5 ECJ1XB0J105K C 1UF, K, 16V 2 C8646 ECJ0EB1H102K C 1000PF, K, 50V 1 C8652 ECJ2FF1A106Z C 0.001UF, Z, 10V 1 C8653,5 4 ECJ1XB0J105K C 1UF, K, 16V 2 C8660,6 1 ECJ0EB1A104K C 0.1UF, K, 10V 2 C8662- 64 ECJ0EB1H102K C 1000PF, K, 50V 3 C8665,6 6 ECJ1VF1H104Z C 0.1UF, Z, 50V 2 C9028,2 9 F1J0J1060004 C 0.010UF, K, 16V 2 C9033,3 4 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9035,3 6 F1J0J1060004 C 0.010UF, K, 16V 2 Ref. No. Part No. Part Name & Description Pcs Remarks C9037 ECJ1VB1H103K C 0.001UF, K, 50V 1 C9039 F1J0J1060004 C 0.010UF, K, 16V 1 C9040 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9044- 53 ECJ1XF1C104Z C 0.1UF, Z, 16V 10 C9055- 57 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9058 F1J0J1060004 C 0.010UF, K, 16V 1 C9300- 25 ECJ1XB1C104K C 0.1UF, Z, 16V 26 C9327- 51 ECJ1XB1C104K C 0.1UF, Z, 16V 25 C9352 EEFCD0G560ER 56UF, 1 C9355- 59 ECJ1XB1C104K C 0.1UF, Z, 16V 5 C9360- 64 ECJ3XB0J106M C 10UF, M,6.3V 5 C9365 EEFCD0G560ER 56UF, 1 C9366,6 7 ECJ1VF1H103Z C 0.010UF, Z, 50V 2 C9368 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9442- 70 ECJ1XB1C104K C 0.1UF, Z, 16V 29 C9472- 96 ECJ1XB1C104K C 0.1UF, Z, 16V 25 C9497 EEFCD0G560ER 56UF, 1 C9512,1 3 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9514,1 5 ECJ2VF1C105Z C 1UF, Z, 16V 2 C9516- 25 ECJ1XB1C104K C 0.1UF, Z, 16V 10 C9526 F1J0J1060004 C 0.010UF, K, 16V 1 C9527- 30 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C9531 F1J0J1060004 C 0.010UF, K, 16V 1 C9532 ECJ1XC1H101K C 100PF, K, 50V 1 C9533 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9534- 38 ECJ3XB0J106M C 10UF, M,6.3V 5 C9539 EEFCD0G560ER 56UF, 1 C9540,4 1 ECJ1VF1H103Z C 0.010UF, Z, 50V 2 C9542 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9546,4 7 ECJ1VC1H120J C 12PF, J, 50V 2 C9548 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9552 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9554 F1J0J1060004 C 0.010UF, K, 16V 1 C9557 ECJ2VF1C105Z C 1UF, Z, 16V 1 C9601 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9608 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9800 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9801 ECJ1VB1H472K C 4700PF, K, 50V 1 C9802 ECJ1XC1H470J C 47PF, J, 50V 1 C9803 ECJ1VB1H472K C 4700PF, K, 50V 1 C9804 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9805 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9806 ECGRL0G680ER C 68PF, J, 4V 1 C9807,0 8 ECJ3YB1E106M C 10 UF, K, 25V 2 C9809 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9815,1 6 ECGRL0G680ER C 68PF, J, 4V 2 C9817,1 8 ECJ3YB1E106M C 10 UF, K, 25V 2 C9822 F1J0J1060004 C 0.010UF, K, 16V 1 C9823,2 4 ECJ3YB1E106M C 10 UF, K, 25V 2 C9825 ECJ1XC1H101K C 100PF, K, 50V 1 C9826 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9827 F1J0J1060004 C 0.010UF, K, 16V 1 C9830- 32 ECJ3XB1C106M C 1.0UF, K, 16V 3 C9833 ECJ3YB1E106M C 10 UF, K, 25V 1 C9837 ECJ3XB1C106M C 1.0UF, K, 16V 1 C9838 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 150 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks C9840 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9841,4 2 ECJ2VF1C105Z C 1UF, Z, 16V 2 C9843 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9844 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C9845,4 6 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9847,4 8 ECJ1VB1E104K C 0.10UF, K, 25V 2 C9880,8 1 ECJ1XB1H102K C 1000UF, Z, 50V 2 C9882 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9883 ECJ1VB1H822K C 8200PF, K, 50V 1 C9884 ECJ1VC1H100C C 10PF, C, 50V 1 C9885 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9886 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9887 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9891 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9896 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9897 ECJ1VB1H822K C 8200PF, K, 50V 1 C9898 ECJ1VC1H100C C 10PF, C, 50V 1 C9899 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9926 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9967 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9971 ECJ1XB1C104K C 0.1UF, Z, 16V 1 CA1-11 K1MN68BA0002 68P CONNECTOR 11 CB1-11 K1MN68BA0002 68P CONNECTOR 11 D3 K1KY40B00003 40P CONNECTOR 1 D5 K1KB31BA0064 31P CONNECTOR 1 D6 K1KA21A00011 21P CONNECTOR 1 D20 K1KA20BA0296 20P CONNECTOR 1 D25 K1KA20AA0009 20P CONNECTOR 1 D31 K1MN80BA0076 80P CONNECTOR 1 D32 K1MN55BA0076 55P CONNECTOR 1 D33 K1MN68BA0076 68P CONNECTOR 1 D34 K1MN80BA0076 80P CONNECTOR 1 D101,02 MA111 DIODE 2 D104 S3V60 DIODE 1 D107 MA111 DIODE 1 D109 ERA15-10 DIODE 1 D201,02 MA165 DIODE 2 D203,04 MA728 DIODE 2 D251 YG901C3R DIODE 1 D252 MA111 DIODE 1 D253-55 YG901C3R DIODE 3 D301,02 MA165 DIODE 2 D303,04 MA728 DIODE 2 D351,52 YG805C06R DIODE 2 D355 AG01A DIODE 1 D401 YG901C3R DIODE 1 D402 AG01 DIODE 1 D403 YG901C3R DIODE 1 D501 S1WBA80 DIODE 1 D502,03 ERA22-10 DIODE 2 D505 MA111 DIODE 1 D506 ST3D82 DIODE 1 D508 AG01A DIODE 1 D511 ERA91-02 DIODE 1 D551 RK39 DIODE 1 D554 MA165 DIODE 1 D555 MA111 DIODE 1 D556 MA165 DIODE 1 D1106,0 7 MA729 DIODE 2 D1109 B0JCCE000008 DIODE 1 D1111- 13 MA111 DIODE 3 D1117 MA3036L ZENER DIODE 1 D1119 MA704A DIODE 1 D1120 MA728 DIODE 1 D2309 MA111 DIODE 1 Ref. No. Part No. Part Name & Description Pcs Remarks D2512 MA8043LTX ZENER DIODE 1 D2520A LN1271RALTR LED 1 D2524 MA8056-M ZENER DIODE 1 D2600- 03 MA111 DIODE 4 D2617 MA152 DIODE 1 D2619- 24 MA8140M ZENER DIODE 6 D2640- 60 MA8140M ZENER DIODE 21 D2661 MA3X78900L ZENER DIODE 1 D2662 B0BC03900015 ZENER DIODE 1 D2663,6 4 MA111 DIODE 2 D2665 MA8110M ZENER DIODE 1 D3702 MA8140M ZENER DIODE 1 D3750 MA8039H ZENER DIODE 1 D4019- 38 EZJZ0V80008B VARISTOR 20 D4041 EZJZ0V80008B VARISTOR 1 D4044,4 5 EZJZ0V80008B VARISTOR 2 D4047,4 8 MA3056M ZENER DIODE 2 D4049- 52 B0HCMM000014 DIODE 4 D5606 B0BC01100001 ZENER DIODE 1 D5607 B0BC6R600005 ZENER DIODE 1 D5610 B0BC4R700007 ZENER DIODE 1 D5612 B0BC3R700006 ZENER DIODE 1 D5634 MA111 DIODE 1 D5635 MA3047H ZENER DIODE 1 D5637,3 8 MA152 DIODE 2 D5639 MA3047H ZENER DIODE 1 D5640 MA3039H ZENER DIODE 1 D5641 MA152 DIODE 1 D5642 MA3120M ZENER DIODE 1 D5643 MA152 DIODE 1 D5644 MA3068M ZENER DIODE 1 D5646,4 7 MA152 DIODE 2 D5649 MA111 DIODE 1 D5801 B0JCME000037 DIODE 1 D5804 MA3120M ZENER DIODE 1 D5805,0 6 MA152 DIODE 2 D5807 MA111 DIODE 1 D6001 B0HBSN000008 DIODE 1 D6021,2 2 B0HBSN000008 DIODE 2 D6032 MA111 DIODE 1 D6041 B0ECHP000003 DIODE 1 D6051 B0ECHP000003 DIODE 1 D6061,6 2 B0HBSN000008 DIODE 2 D6071,7 2 B0HBSN000008 DIODE 2 D6081,8 2 B0HBSN000008 DIODE 2 D6091 B0HBSN000008 DIODE 1 D6092 B0ECHP000003 DIODE 1 D6101- 04 B0JCME000037 DIODE 4 D6105 MA111 DIODE 1 D6131,3 2 B0ECHP000003 DIODE 2 D6151- 54 B0ECHP000003 DIODE 4 D6191- 93 B0ECHP000003 DIODE 3 D6211 B0JCME000037 DIODE 1 D6212 B0ECHP000003 DIODE 1 D6221 B0ECHP000003 DIODE 1 D6222,2 3 MA111 DIODE 2 151 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks D6251,5 2 MA8330M ZENER DIODE 2 D6253 LNJ301MPUJA LED 1 D6254 MA8051L ZENER DIODE 1 D6255 MA111 DIODE 1 D6401 B0HBSN000008 DIODE 1 D6404 B0HBSN000008 DIODE 1 D6431,3 2 B0HBSP000019 DIODE 2 D6441 B0ECHP000003 DIODE 1 D6451 B0ECHP000003 DIODE 1 D6461,6 2 B0HBSN000008 DIODE 2 D6466 MA111 DIODE 1 D6471 B0HBSN000008 DIODE 1 D6472 B0ECHP000003 DIODE 1 D6477 MA111 DIODE 1 D6478 B0HCKS000002 DIODE 1 D6480 MA111 DIODE 1 D6481,8 2 B0HBSN000008 DIODE 2 D6491 B0HBSP000019 DIODE 1 D6497 MA111 DIODE 1 D6501,0 2 B0ECHP000003 DIODE 2 D6521- 24 B0ECHP000003 DIODE 4 D6581,8 2 MA8330M ZENER DIODE 2 D6583 LNJ301MPUJA LED 1 D6584 MA8051L ZENER DIODE 1 D6585 MA111 DIODE 1 D6601 MA8240M ZENER DIODE 1 D6602 B0ECHP000003 DIODE 1 D6603 MA8240M ZENER DIODE 1 D6604 MA111 DIODE 1 D6605 MA8051L ZENER DIODE 1 D6606 B0HCMM000014 DIODE 1 D6607 MA111 DIODE 1 D6610 MAZ81500ML ZENER DIODE 1 D6611- 14 MA111 DIODE 4 D6619,2 0 B0HCKS000002 DIODE 2 D6621- 24 B0HDSM000005 DIODE 4 D6641,4 2 B0HCKS000002 DIODE 2 D6643 MA111 DIODE 1 D6644 B0HCKS000002 DIODE 1 D6661 MA111 DIODE 1 D6662- 64 MA8330M ZENER DIODE 3 D6665 MA8051L ZENER DIODE 1 D6666,6 7 MA111 DIODE 2 D6671 MA111 DIODE 1 D6682 B0HCMM000014 DIODE 1 D6683,8 4 MA111 DIODE 2 D6686,8 7 MA111 DIODE 2 D6701,0 2 MA8056H ZENER DIODE 2 D6721 B0HCKS000002 DIODE 1 D6723,2 4 B0JCME000037 DIODE 2 D6725 B0ECHP000003 DIODE 1 D6726- 33 MA8056H ZENER DIODE 8 D6734 MA111 DIODE 1 D6752 B0JCME000037 DIODE 1 D6758 B0ECHP000003 DIODE 1 D6760,6 1 MA111 DIODE 2 D6771 B0JCME000037 DIODE 1 D6773 B0HCKS000002 DIODE 1 Ref. No. Part No. Part Name & Description Pcs Remarks D6791 MA8200M ZENER DIODE 1 D6802 B0BC01000044 ZENER DIODE 1 D6803 B0HCKS000002 DIODE 1 D6804 B0ECHP000003 DIODE 1 D6805 MA111 DIODE 1 D6806 B0ECHP000003 DIODE 1 D6807- 10 B0HCMM000014 DIODE 4 D6820- 23 MA111 DIODE 4 D6825 MA8330M ZENER DIODE 1 D6826 MA111 DIODE 1 D6841 B0HCKS000002 DIODE 1 D6842,4 3 MA111 DIODE 2 D6859 B0ECHP000003 DIODE 1 D6860 B0HCKS000002 DIODE 1 D6861 MA8051L ZENER DIODE 1 D6862 MA111 DIODE 1 D6871 MA8051L ZENER DIODE 1 D6872 MA111 DIODE 1 D6901,0 2 MA8056H ZENER DIODE 2 D6903,0 4 B0ECHP000003 DIODE 2 D6951,5 2 MA8056H ZENER DIODE 2 D6953,5 4 B0ECHP000003 DIODE 2 D8203,0 4 LNJ208R8ARA LED 2 D8208 K7JAAAB00001 DIODE 1 D8224 B0JCME000037 DIODE 1 D8225 B0JCDD000002 DIODE 1 D8226 B0JCME000037 DIODE 1 D8227 B0JCDD000002 DIODE 1 D9017- 19 MA3033 ZENER DIODE 3 D9020 MA728 DIODE 1 D9035 MA728 DIODE 1 D9100- 03 B0JCGD000002 DIODE 4 D9105,0 6 B0JCGD000002 DIODE 2 D9110 B0JCGD000002 DIODE 1 D9300,0 1 MA152K DIODE 2 D9400,0 1 MA152K DIODE 2 D9800 B0JCME000037 DIODE 1 D9801 B0JCDD000002 DIODE 1 D9802 MA728 DIODE 1 D9804 MA152K DIODE 1 D9807,0 8 MA152K DIODE 2 D9812 B0JCME000037 DIODE 1 D9813 B0JCDD000002 DIODE 1 D9814 B0JCME000037 DIODE 1 D9815 B0JCDD000002 DIODE 1 DG1 K1KY80A00011 80P CONNECTOR 1 DG2 K1KA11B00083 11P CONNECTOR 1 DG3 K1KY40B00003 40P CONNECTOR 1 DG5 K1KB21BA0063 21P CONNECTOR 1 DG8,G9 K1FY119D0001 CONNECTOR 2 DG15 K1KY40B00003 40P CONNECTOR 1 DG20 K1MN40B00045 40P CONNECTOR 1 DG22 K1KBB0A00009 CONNECTOR 1 DT07 K1KA04BA0050 4P CONNECTOR 1 DT10 K1KA13AA0105 13P CONNECTOR 1 DT12 K1KAB0A00011 CONNECTOR 1 F201 216005BP FUSE 250V 5A 1 F301 216005BP FUSE 250V 5A 1 F501 216002BP FUSE 250V 2A 1 152 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks FL2606- 11 J0HABB000003 LC FILTER 6 FL3710- 12 J0MAB0000199 LC FILTER 3 FL4009- 11 J0HABH000012 LC FILTER 3 FL7201 J0HABH000013 LC FILTER 1 FL7301 J0HABH000013 LC FILTER 1 FL7501 J0HABH000013 LC FILTER 1 FL8210, 11 J0HAAA000013 LC FILTER 2 FL8215 J0HAAC000045 LC FILTER 1 FL8224- 34 J0HAAC000045 LC FILTER 11 FL8236, 37 J0HAAC000045 LC FILTER 2 FL8262, 63 J0MAB0000164 LC FILTER 2 FL8264, 65 J0HAAC000045 LC FILTER 2 FL9300 F1J1E1040022 LC FILTER 1 FL9301 J0HABH000013 LC FILTER 1 FL9302- 04 F1J1E1040022 LC FILTER 3 FL9305, 06 J0HABH000013 LC FILTER 2 FL9400, 01 J0HABH000013 LC FILTER 2 FL9402- 04 F1J1E1040022 LC FILTER 3 FL9501, 02 J0HABH000013 LC FILTER 2 FL9800, 01 J0HABH000013 LC FILTER 2 FL9803, 04 J0HABH000012 LC FILTER 2 FL9805- 07 J0HABH000013 LC FILTER 3 G1 K1KA12A00317 12P CONNECTOR 1 G3 K1KA03BA0047 3P CONNECTOR 1 G51 K1KA30AA0009 30P CONNECTOR 1 GK3 K1KA03BA0061 3P CONNECTOR 1 GS52 K1KA12A00317 12P CONNECTOR 1 H1 K1KY80A00011 80P CONNECTOR 1 H2 K1KA11AA0105 1P CONNECTOR 1 H40 K1KA20AA0009 20P CONNECTOR 1 H51 K1KA30AA0009 30P CONNECTOR 1 HC01 K1KA21A00011 21P CONNECTOR 1 HC06 K1KA07BA0047 7P CONNECTOR 1 HC15 K1KY40B00003 40P CONNECTOR 1 HC21 K1KA10AA0194 10P CONNECTOR 1 HC22 K1KA11AA0194 11P CONNECTOR 1 IC101 FA5502P CONTROL 1 IC401 AN1431T LINEAR IC 1 IC501 MIP3E30MP CONTROL 1 IC1101 TVRN840 IC 1 PAVCA IC1102 TVRN846 IC 1 PAVCA IC1103 MN103SC50RGL IC 1 IC1105, 06 C0JBAS000128 IC 2 IC1108 C0EBF0000354 IC 1 IC1110 C0CBCAD00016 IC 1 IC1111 C0EBY0000041 IC 1 IC2302 C1AB00002451 IC 1 IC2304 C0ABBA000168 IC 1 IC2306 C0ABBA000168 IC 1 IC2601 C1AB00002123 IC 1 IC2602 AN15862A-VT IC 1 IC2603 C1BB00001017 IC 1 Ref. No. Part No. Part Name & Description Pcs Remarks IC2604 C1BB00000969 IC 1 IC2607 C0DBAJB00004 IC 1 IC2608 C0ABBA000168 IC 1 IC4013 C0CBCBF00009 IC 1 IC4016 C0CBCAC00275 IC 1 IC4018 C0CBCAC00275 IC 1 IC4019 C1AB00002456 IC 1 IC4022 TVRN856S IC 1 PAVCA IC4023 TVRN857S IC 1 PAVCA IC4025 C0FBBK000038 IC 1 IC4026 C1AB00002535 IC 1 IC4027 C0DBFFD00003 IC 1 IC4028 C0ABBB000230 IC 1 IC4029 C0CBCAC00282 IC 1 IC4030 C0CBCBC00190 IC 1 IC4032 C0DBGYY00052 IC 1 IC4035 C0CBCAF00031 IC 1 IC4036 C0JBAP000020 IC 1 IC4037 MN84522-A IC 1 IC4038 C3ABQJ000048 IC 1 IC5601 N0BG2DE00001 IC 1 IC5602 EHMDD9851 LINEAR IC 1 IC5604 C0DBZGC00067 IC 1 IC5801 C0DBAZF00003 IC 1 IC6131 C0ZBZ0000895 IC 1 IC6151 C0ZBZ0001324 IC 1 IC6191 C0ZBZ0000895 IC 1 IC6211 C0ZBZ0001325 IC 1 IC6221 AN1431M LINEAR IC 1 IC6241 C0JBAZ000005 IC 1 IC6251 NJM2903M INTEGRATED CIRCUIT 1 IC6471 C0DBEKA00003 IC 1 IC6472 C0JBAA000377 IC 1 IC6501 C0ZBZ0000895 IC 1 IC6521 C0ZBZ0001324 IC 1 IC6561, 62 C0JBAZ000005 IC 2 IC6581 NJM2903M INTEGRATED CIRCUIT 1 IC6601 C0ZBZ0001325 IC 1 IC6602 C0JBAB000715 IC 1 IC6610 NJM2903M INTEGRATED CIRCUIT 1 IC6671 C0ZBZ0001325 IC 1 IC6681 C0ZBZ0001325 IC 1 IC6682 C0JBAA000377 IC 1 IC6721, 22 C0JBAZ000994 IC 2 IC6724, 25 C0CBADC00089 IC 2 IC6751 C0CBADC00089 IC 1 IC6752 C0ZBZ0001325 IC 1 IC6753 C0JBAB000715 IC 1 IC6771 C0CBADC00089 IC 1 IC6772 C0ZBZ0001325 IC 1 IC6773, 74 C0JBAA000377 IC 2 IC6791 N0BF1FB00001 IC 1 IC6801, 02 C0DBEMB00005 IC 2 IC6803 C0DAAMH00005 IC 1 IC6821 C0DBEMB00005 IC 1 IC6841 C0DBEMB00005 IC 1 IC6861 NJM2903M INTEGRATED CIRCUIT 1 IC6871 NJM2903M INTEGRATED CIRCUIT 1 IC6901- 06 AN16071A-VT IC 6 IC6951- 56 AN16071A-VT IC 6 IC7101 C0JBAZ001120 IC 1 IC7201- 09 C0JBAZ001120 IC 9 IC7301- 05 C0JBAZ001120 IC 5 IC7401- 05 C0JBAZ001120 IC 5 153 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks IC7501- 09 C0JBAZ001120 IC 9 IC7601 C0JBAZ001120 IC 1 IC8009, 10 C3ABRG000061 IC 2 IC8022 C0ZBZ0001052 IC 1 IC8200 C0FBBK000038 IC 1 IC8201 C0ABBB000190 IC 1 IC8202 C0JBAS000245 IC 1 IC8203, 04 C0JBAS000223 IC 2 IC8205 C0ABBA000025 IC 1 IC8206 C1AB00002471 IC 1 PAVCA IC8211 MN884321B IC 1 IC8227 C0EBE0000336 IC 1 IC8228 C0EBM0000027 IC 1 IC8229 C3EBJC000055 IC 1 IC8235 C0DBZFF00004 IC 1 IC8240 MN2WS0025B-A IC 1 IC8244 C0FBAK000024 IC 1 IC8246, 47 C0DBAYY00054 IC 2 IC8254 TVRN838S IC 1 PAVCA IC9001 TVRN811 IC 1 IC9002 C0ZBZ0001330 IC 1 IC9003 TVRN805-1 IC 1 PAVCA IC9007 TVRN814 IC 1 IC9011 C0EBF0000431 IC 1 IC9200 C1ZBZ0003186 IC 1 IC9300 MN84521-A IC 1 IC9301 C3ABQJ000051 IC 1 IC9304 TVRN825 IC 1 IC9400 MN84521-A IC 1 IC9401 C3ABQJ000051 IC 1 IC9402 C0JBAZ002614 IC 1 IC9500 C1ZBZ0002599 IC 1 IC9503- 05 C0JBAZ001120 IC 3 IC9602 PST9128NR IC (LOGIC) 1 IC9800 C0DBAYY00054 IC 1 IC9801 C0DBZFG00066 IC 1 IC9802, 03 C0JBAZ001120 IC 2 IC9806 C0DBAHD00011 IC 1 IC9807 C0DBAYY00054 IC 1 IC9809 C0DBAYY00054 IC 1 JK2601 K1U939A00003 TERMINAL BOARD 1 PAVCA JK2603 K2HA204A0041 JACK 1 JK3701B K4AK13B00001 TERMINAL BOARD 1 PAVCA JK7701 K1NA09E00080 9P CONNECTOR 1 PAVCA JS1100- 02 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 JS2300- 03 ERJ6GEY0R00 M 0 OHM, 1/10W 4 JS2319 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS2331 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS2606, 07 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS2614- 17 ERJ6GEY0R00 M 0 OHM, 1/10W 4 JS2619 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS2629, 30 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS2632- 34 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS2640- 42 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS2645- 47 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS2650, 51 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS2661- 63 ERJ6GEY0R00 M 0 OHM, 1/10W 3 Ref. No. Part No. Part Name & Description Pcs Remarks JS2714- 25 ERJ6GEY0R00 M 0 OHM, 1/10W 12 JS2740- 45 ERJ6GEY0R00 M 0 OHM, 1/10W 6 JS3702 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3704, 05 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS3707, 08 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS4016, 17 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 JS4022- 24 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 JS4027, 28 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 JS4033- 40 ERJ2GE0R00 M 0.0 OHM, J,0.063W 8 JS4088 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 JS4104 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 JS4111 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS4118 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 JS5600 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS7701 ERJ3GEY0R00 M 0 OHM, 1/16W 1 K1 K1KY12B00001 12P CONNECTOR 1 K2 K1KA02BA0061 2P CONNECTOR 1 K101 DG12D1-0 RELAY 1 K102 DLS12D1-0 RELAY 1 L101,02 P3180207Z CHOKE COIL 2 L103 ETB44CZ129AD TRANS 1 L104 EXCELSR35T BEAD CHOKE 1 L106 EXCELSR35T BEAD CHOKE 1 L108 EXCELSR35T BEAD CHOKE 1 L352,53 EXCELDR35C BEAD CHOKE 2 L501 EXCELSA35 BEAD CHOKE 1 L502 EXCELDR35C BEAD CHOKE 1 L1101- 04 J0JHC0000078 CHIP INDUCTOR 4 L1107 J0JHC0000078 CHIP INDUCTOR 1 L1109 J0JHC0000078 CHIP INDUCTOR 1 L2300- 03 G0C330MA0049 PEAKING COIL 4 L2308 TALL08N3R9MA INDUCTION COIL 1 L2616 J0JHC0000078 CHIP INDUCTOR 1 L2625 J0JHC0000078 CHIP INDUCTOR 1 L2632 G0A2R7ZA0021 CHOKE COIL 1 L2633 G1C100MA0072 INDUCTION COIL 1 L2634 G1C470MA0077 INDUCTION COIL 1 L2636 J0JHC0000078 CHIP INDUCTOR 1 L4023 J0JHC0000078 CHIP INDUCTOR 1 L4029 J0JHC0000078 CHIP INDUCTOR 1 L4031 J0JHC0000078 CHIP INDUCTOR 1 L4038 J0JHC0000078 CHIP INDUCTOR 1 L4040- 46 J0JHC0000078 CHIP INDUCTOR 7 L4048 J0JHC0000078 CHIP INDUCTOR 1 L4049 J0JBC0000080 CHIP INDUCTOR 1 L4050,5 1 J0JHC0000078 CHIP INDUCTOR 2 L4052 J0JHC0000045 CHIP INDUCTOR 1 L4053- 55 J0JHC0000078 CHIP INDUCTOR 3 L4056,5 7 J0JCC0000077 CHIP INDUCTOR 2 L4060,6 1 J0JCC0000077 CHIP INDUCTOR 2 L4065,6 6 J0JHC0000078 CHIP INDUCTOR 2 L4068- 70 J0JHC0000078 CHIP INDUCTOR 3 L4071 J0JBC0000080 CHIP INDUCTOR 1 L4073 J0JHC0000078 CHIP INDUCTOR 1 154 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks L4075,7 6 J0JHC0000078 CHIP INDUCTOR 2 L4077 J0JCC0000077 CHIP INDUCTOR 1 L4078 J0JHC0000078 CHIP INDUCTOR 1 L5602 TALL08N2R7MA INDUCTION COIL 1 L5604 TALL08N2R7MA INDUCTION COIL 1 L5606,0 7 G0A220GA0002 CHOKE COIL 2 L5609 G0A220GA0002 CHOKE COIL 1 L5612 TALL08N2R7MA INDUCTION COIL 1 L5615 TALL08N150KA INDUCTION COIL 1 L5621 G1C330MA0234 INDUCTION COIL 1 L5622,2 3 G1C150MA0234 INDUCTION COIL 2 L5624 G1C330MA0234 INDUCTION COIL 1 L5651 G0A220GA0002 CHOKE COIL 1 L5801 G0C101K00023 PEAKING COIL 1 L5802 TALL08N101KA INDUCTION COIL 1 L6002- 04 G0CR82KA0147 CHOKE COIL 3 L6011- 14 G0A1R4MA0003 CHOKE COIL 4 L6061- 68 G0ZZ00002183 PEAKING COIL 8 L6081- 88 G0ZZ00002183 PEAKING COIL 8 L6101,0 2 J0JJC0000011 CHIP INDUCTOR 2 L6103 G0ZZ00002183 PEAKING COIL 1 L6104,0 5 J0JJC0000011 CHIP INDUCTOR 2 L6211,1 2 J0JJC0000011 CHIP INDUCTOR 2 L6221 G0ZZ00002183 PEAKING COIL 1 L6241 G0ZZ00002183 PEAKING COIL 1 L6262 G0ZZ00002183 PEAKING COIL 1 L6271,7 2 G0ZZ00002183 PEAKING COIL 2 L6398,9 9 J0JJC0000011 CHIP INDUCTOR 2 L6401,0 2 G0CR82KA0147 CHOKE COIL 2 L6404 G0CR82KA0147 CHOKE COIL 1 L6411- 14 G0A1R4MA0003 CHOKE COIL 4 L6461- 68 G0ZZ00002183 PEAKING COIL 8 L6472,7 3 G0ZZ00002183 PEAKING COIL 2 L6481- 88 G0ZZ00002183 PEAKING COIL 8 L6591,9 2 G0ZZ00002183 PEAKING COIL 2 L6601,0 2 G0ZZ00002183 PEAKING COIL 2 L6801,0 2 J0JJC0000011 CHIP INDUCTOR 2 L6841 J0JJC0000011 CHIP INDUCTOR 1 L7721 J0JCC0000089 CHIP INDUCTOR 1 L8096 J0JHC0000045 CHIP INDUCTOR 1 L8141- 43 ERJ3GEY0R00 M 0 OHM, 1/16W 3 L8200- 03 J0JHC0000045 CHIP INDUCTOR 4 L8209 J0JHC0000045 CHIP INDUCTOR 1 L8211 ELJNA1R0JFB INDUCTION COIL 1 L8221 J0JHC0000045 CHIP INDUCTOR 1 L8223- 25 J0JHC0000045 CHIP INDUCTOR 3 L8239 J0JCC0000241 CHIP INDUCTOR 1 L8241 J0JHC0000045 CHIP INDUCTOR 1 L8242 J0JCC0000078 CHIP INDUCTOR 1 L8243 ERJ3GEY0R00 M 0 OHM, 1/16W 1 L8244 J0JHC0000045 CHIP INDUCTOR 1 L8250 J0JHC0000045 CHIP INDUCTOR 1 L8253- 56 TSK1032 BEAD CHOKE 4 L8258 J0JHC0000045 CHIP INDUCTOR 1 Ref. No. Part No. Part Name & Description Pcs Remarks L8264- 68 J0JHC0000045 CHIP INDUCTOR 5 L8283- 85 J0JHC0000045 CHIP INDUCTOR 3 L8288,8 9 J0JHC0000045 CHIP INDUCTOR 2 L8290 G1C3R3ZA0083 INDUCTION COIL 1 L8291 G1C100MA0077 INDUCTION COIL 1 L8292 G1C1R5ZA0083 INDUCTION COIL 1 L8293 G1C100MA0077 INDUCTION COIL 1 L8294 J0JHC0000034 CHIP INDUCTOR 1 L8297 J0JHC0000045 CHIP INDUCTOR 1 L8298,9 9 TSK1032 BEAD CHOKE 2 L8303,0 4 G1CR22JA0020 INDUCTION COIL 2 PAVCA L8305 G1CR39JA0020 INDUCTION COIL 1 PAVCA L8306 J0JHC0000045 CHIP INDUCTOR 1 L9501,0 2 J0JHC0000078 CHIP INDUCTOR 2 L9503 G1C150KA0038 INDUCTION COIL 1 L9800 G1C3R0MA0248 INDUCTION COIL 1 L9801,0 2 G1C2R2MA0241 INDUCTION COIL 2 L9810 J0JHC0000045 CHIP INDUCTOR 1 MC101 MP00P7 MODULE 1 MC201 MLZNC101 MODULE 1 MC202 MP00R1 MODULE 1 MC301 MLZNC221 MODULE 1 MC502 MLWNB103 MODULE 1 MC601 MLSZA100 MODULE 1 MC701 MLZDC103 MODULE 1 P2 B2P3-VH-B CONNECTOR 1 P5 B11B-PH-KS CONNECTOR 1 P9 B3P4VH-B-L CONNECTOR 1 P10 B6B-PH-KS CONNECTOR 1 P11 B2P3-VH-B CONNECTOR 1 P12 B10B-PH-KS CONNECTOR 1 P23 B3B-PH-KS CONNECTOR 1 P25 B20B-PHDSS CONNECTOR 1 PA2 K1KA05AA0192 5P CONNECTOR 1 PA5 K1KA11AA0194 11P CONNECTOR 1 PA10 K1KA06A00452 6P CONNECTOR 1 PA20 K1MN40A00024 40P CONNECTOR 1 PA31-34 K1KA03AA0192 3P CONNECTOR 4 PA40 K1KA20AA0009 20P CONNECTOR 1 PA1101 K5H8012A0023 FUSE 1 PAVCA PA9800 K5H4022A0023 FUSE 1 PC503 PS2581A PHOTO CAPLER 1 PC505,0 6 PS2581A PHOTO CAPLER 2 PC6480 B3PBA0000223 IC 1 PC6701- 03 B3PBA0000233 IC 3 PC6704 B3PBA0000234 IC 1 PC6705 B3PBA0000233 IC 1 PC6760 B3PBA0000223 IC 1 PC6801 B3PBA0000223 IC 1 PC6861 B3PBA0000223 IC 1 PC6871 B3PBA0000223 IC 1 Q103 2SD2185 TRANSISTOR 1 Q104 2SB1440 TRANSISTOR 1 Q106 2SD1819A TRANSISTOR 1 Q301,02 2SK3568 FET 2 Q351,52 2SK3813 FET 2 Q353,54 2SB1218A TRANSISTOR 2 Q401 2SA1699 TRANSISTOR 1 Q402 2SK3302 FET 1 Q403 2SD601A TRANSISTOR 1 Q404,05 2SK2391 FET 2 155 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks Q406 2SD601A TRANSISTOR 1 Q501 2SK3302 FET 1 Q502 2SK2731T FET 1 Q551,52 HAT1130R FET 2 Q553 2SB710A TRANSISTOR 1 Q1100- 03 2SC584500L TRANSISTOR 4 Q1106- 08 2SC584500L TRANSISTOR 3 Q1109,1 0 B1CBHD000002 FET 2 Q1111 2SC584500L TRANSISTOR 1 Q1114 2SC584500L TRANSISTOR 1 Q1116 2SC584500L TRANSISTOR 1 Q1125 2SA207700L TRANSISTOR 1 Q1130 2SC584500L TRANSISTOR 1 Q1134 2SC584500L TRANSISTOR 1 Q1137 2SC584500L TRANSISTOR 1 Q1139- 43 2SC584500L TRANSISTOR 5 Q2300 2SA207700L TRANSISTOR 1 Q2301- 03 2SD601A TRANSISTOR 3 Q2306,0 7 2SA207700L TRANSISTOR 2 Q2510,1 1 2SD601A TRANSISTOR 2 Q2607 2SC584500L TRANSISTOR 1 Q2608,0 9 2SD601A TRANSISTOR 2 Q2611 2SD601A TRANSISTOR 1 Q2612 2SB709A TRANSISTOR 1 Q2613 2SC584500L TRANSISTOR 1 Q2615 2SC584500L TRANSISTOR 1 Q2617 2SC584500L TRANSISTOR 1 Q2618,1 9 2SD601A TRANSISTOR 2 Q2624 2SC584500L TRANSISTOR 1 Q2625 2SK3065T100 FET 1 Q2626 2SA207700L TRANSISTOR 1 Q4050 2SC584500L TRANSISTOR 1 Q4056- 59 2SA207700L TRANSISTOR 4 Q4065- 69 2SC584500L TRANSISTOR 5 Q4070,7 1 B1MBACA00008 TRANSISTOR 2 Q4082,8 3 2SK137400L TRANSISTOR 2 Q4084 B1ABCF000138 TRANSISTOR 1 Q4919 2SC584500L TRANSISTOR 1 Q4920 2SA207700L TRANSISTOR 1 Q5601 B1DHDC000028 TRANSISTOR 1 Q5602 2SD601A TRANSISTOR 1 Q5603 B1DHDC000028 TRANSISTOR 1 Q5604,0 5 2SD601A TRANSISTOR 2 Q5610 2SD601A TRANSISTOR 1 Q5613 2SD601A TRANSISTOR 1 Q5641- 43 2SA207700L TRANSISTOR 3 Q5644 2SD601A TRANSISTOR 1 Q6001- 03 B1JADN000001 TRANSISTOR 3 Q6021- 23 B1JADN000001 TRANSISTOR 3 Q6041- 43 B1JADN000002 TRANSISTOR 3 Q6052,5 3 B1JADN000002 TRANSISTOR 2 Q6101,0 2 B1DFKM000002 TRANSISTOR 2 Q6103 B1ABNF000006 TRANSISTOR 1 Q6104 B1ADNF000006 TRANSISTOR 1 Q6105,0 6 B1DFKM000002 TRANSISTOR 2 Q6111 2SK326800L FET 1 Ref. No. Part No. Part Name & Description Pcs Remarks Q6112 B1DFKM000002 TRANSISTOR 1 Q6114 B1DFKM000002 TRANSISTOR 1 Q6141 B1ABNF000006 TRANSISTOR 1 Q6142 B1ADNF000006 TRANSISTOR 1 Q6146 B1ABNF000006 TRANSISTOR 1 Q6147 B1ADNF000006 TRANSISTOR 1 Q6171 2SD2185 TRANSISTOR 1 Q6172 B1ADRD000001 TRANSISTOR 1 Q6181 2SD2185 TRANSISTOR 1 Q6182 B1ADRD000001 TRANSISTOR 1 Q6221 2SD1263A TRANSISTOR 1 Q6222 2SC3063 TRANSISTOR 1 Q6251 2SD601A TRANSISTOR 1 Q6401- 03 B1JADN000001 TRANSISTOR 3 Q6421- 23 B1JAEP000001 TRANSISTOR 3 Q6441- 43 B1JADN000002 TRANSISTOR 3 Q6452,5 3 B1JADP000002 TRANSISTOR 2 Q6471 B1CHGD000006 TRANSISTOR 1 Q6511 B1ABNF000006 TRANSISTOR 1 Q6512 B1ADNF000006 TRANSISTOR 1 Q6516 B1ABNF000006 TRANSISTOR 1 Q6517 B1ADNF000006 TRANSISTOR 1 Q6531 2SD2185 TRANSISTOR 1 Q6532 B1ADRD000001 TRANSISTOR 1 Q6551 2SD2185 TRANSISTOR 1 Q6552 B1ADRD000001 TRANSISTOR 1 Q6581 2SD601A TRANSISTOR 1 Q6601 B1DEDS000001 TRANSISTOR 1 Q6602 2SD601A TRANSISTOR 1 Q6621,2 2 B1DFKM000001 TRANSISTOR 2 Q6641- 45 B1DFKM000001 TRANSISTOR 5 Q6647,4 8 B1DFKM000001 TRANSISTOR 2 Q6661 B1DEET000002 TRANSISTOR 1 Q6662 2SD601A TRANSISTOR 1 Q6663 2SD2185 TRANSISTOR 1 Q6671- 73 B1DEDS000001 TRANSISTOR 3 Q6680 B1ADNF000006 TRANSISTOR 1 Q6681,8 2 2SK389500L FET 2 Q6691 2SK620 FET 1 Q6742,4 3 2SD601A TRANSISTOR 2 Q6744 2SK620 FET 1 Q6762 B1ADNF000006 TRANSISTOR 1 Q6781 B1ABNF000006 TRANSISTOR 1 Q6782 B1ADNF000006 TRANSISTOR 1 Q6791 2SD601A TRANSISTOR 1 Q6803 2SD814A TRANSISTOR 1 Q6821 2SD1263A TRANSISTOR 1 Q6822 2SC3063 TRANSISTOR 1 Q6824 2SD601A TRANSISTOR 1 Q6841 2SD1263A TRANSISTOR 1 Q6842 2SC1473A TRANSISTOR 1 Q8209- 11 B1ADDF000005 TRANSISTOR 3 Q8217- 20 B1ABCF000138 TRANSISTOR 4 Q8227,2 8 B1ADDF000005 TRANSISTOR 2 Q8229,3 0 B1MBDDA00003 TRANSISTOR 2 Q9044 2SD601A TRANSISTOR 1 Q9046 2SD601A TRANSISTOR 1 Q9049 2SB709A TRANSISTOR 1 Q9050- 54 2SD601A TRANSISTOR 5 Q9057,5 8 B1CBHD000002 FET 2 156 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks Q9100 2SD601A TRANSISTOR 1 Q9200,0 1 B1CBHD000002 FET 2 Q9301,0 2 2SD601A TRANSISTOR 2 Q9400- 02 2SD601A TRANSISTOR 3 Q9800,0 1 B1MBEDA00015 TRANSISTOR 2 Q9803 B1MBEDA00015 TRANSISTOR 1 Q9805,0 6 2SD601A TRANSISTOR 2 R101 ERC12UGK185 S 1.8MOHM, K,1/2W 1 R103 R5B100J W 10 OHM, J, 5W 1 R104-06 ERJ6ENF1213 M 121KOHM, 1/10W 3 R107 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R108 ERJ6ENF1213 M 121KOHM, 1/10W 1 R109-11 RF5EJR18B F 0.18OHM, J, 5W 3 R113 ERJ6ENF3302 M 33KOHM, 1/10W 1 R114 ERJ6ENF2701 M 2.7KOHM, 1/10W 1 R115 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R116 ERJ12YJ470 M 47 OHM, J,1/2W 1 R117 ERJ12YJ330 M 33 OHM,J, 1/2W 1 R118 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R119 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R120 ERJ12YJ470 M 47 OHM, J,1/2W 1 R122 ERJ6GEYJ154 M 150KOHM,J,1/10W 1 R123 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R125 ERJ12YJ470 M 47 OHM, J,1/2W 1 R127-29 ERJ6GEYJ183 M 18KOHM,J,1/10W 3 R130 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R131 ER0S2CKF4993 M 499KOHM, F,1/4W 1 R132,33 ERJ6ENF2493 M 249KOHM, 1/10W 2 R134 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R135 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R136 ERJ6ENF3162 M31.6KOHM, 1/10W 1 R137 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R138 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R139 ERJ6ENF3302 M 33KOHM, 1/10W 1 R140-42 ERJ6ENF5493 M 549KOHM, 1/10W 3 R143 ERJ6ENF6041 M6.04KOHM, 1/10W 1 R144 ERJ6ENF6191 M6.19KOHM, 1/10W 1 R145 ERJ6GEYJ204 M 200KOHM,J,1/10W 1 R146 ERJ6GEYJ684 M 680KOHM,J,1/10W 1 R147 ERJ6GEYJ393 M 39KOHM,J,1/10W 1 R149 ERJ6GEYJ393 M 39KOHM,J,1/10W 1 R150,51 ERJ6ENF2493 M 249KOHM, 1/10W 2 R201,02 ERJ12YJ221U M 220 OHM,J, 1/2W 2 R203,04 ERJ12YJ220 M 22 OHM,J, 1/2W 2 R205-07 ERJ12YJ683 M 68KOHM, 1/2W 3 R208,09 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R210 ERX12SJ1R0 M 0.1 OHM, J,1/2W 1 R251,52 ERG2SJ183H M 18KOHM, J, 2W 2 R253-55 ERJ6GEYJ114 M 110KOHM,J,1/10W 3 R256,57 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 2 R258-61 ERJ6ENF6192 M61.9KOHM, 1/10W 4 R262 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R301,02 ERJ12YJ101 M 100 OHM,J, 1/2W 2 R303,04 ERJ12YJ220 M 22 OHM,J, 1/2W 2 R305-07 ERJ12YJ683 M 68KOHM,J, 1/2W 3 R308,09 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R310 ERX12SJ1R0 M 0.1 OHM, J,1/2W 1 R351 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R353 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R354 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R356,57 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R358 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R359,60 ERJ6GEYJ223 M 22KOHM,J,1/10W 2 R361 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R362 ERDS2TJ101 C 100 OHM, J,1/4W 1 R363 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R364 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R365-67 ERJ6GEYJ223 M 22KOHM,J,1/10W 3 Ref. No. Part No. Part Name & Description Pcs Remarks R368 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R369,70 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 2 R371 ERJ6ENF1622 M16.2KOHM, 1/10W 1 R372 ERJ6GEYJ1R0 M 1 OHM,J,1/10W 1 R373 ERDS2TJ471 C 470 OHM, J,1/4W 1 R401 ERJ12YJ100 M 10 OHM,J, 1/2W 1 R402,03 ERJ12YJ104U M 100KOHM, 1/2W 2 R404 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R405,06 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R407 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R408 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R409 ERG2SJ682 M 6.8KOHM, J, 2W 1 R410 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R412 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R413 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R414-17 ERJ6GEYJ123 M 12KOHM,J,1/10W 4 R418 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R420 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R421 ERJ6ENF4751 M4.75KOHM, 1/10W 1 R422 ERJ6ENF1581 M1.58KOHM, 1/10W 1 R423,24 ERJ6ENF7152 M71.5KOHM, 1/10W 2 R425 ERJ6ENF3002 M 30KOHM, 1/10W 1 R426 RF2EJR47B W0.47 OHM, J, 2W 1 R428 ERJ6ENF6342 M6.34KOHM, 1/10W 1 R429 ERJ6ENF5362 M5.36KOHM, 1/10W 1 R430 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R474 ERJ6ENF1052 M10.5KOHM, 1/10W 1 R477-80 ERJ6ENF1052 M10.5KOHM, 1/10W 4 R501 ERJ12YJ474 M 470KOHM, 1/2W 1 R503 ERJ12YJ474 M 470KOHM, 1/2W 1 R505 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R507,08 ERJ6GEYJ334 M 330KOHM,J,1/10W 2 R509-12 ERJ6ENF8253 M 825KOHM, 1/10W 4 R514,15 ERJ6ENF8253 M 825KOHM, 1/10W 2 R518 ERJ12YJ100 M 10 OHM,J, 1/2W 1 R519 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R528,29 ERJ6ENF2703 M 270KOHM, 1/10W 2 R530 ER0S2TKF5363 M 536KOHM, F,1/4W 1 R531 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R560 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R561 ERDS2TJ332 C 3.3KOHM, J,1/4W 1 R563 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R564 ERJ6GEYJ391 M 390 OHM,J,1/10W 1 R565 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R566 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R567 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R568 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R569,70 ERJ12YJ151 M 150 OHM,J, 1/2W 2 R571 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R572,73 ERJ6ENF2703 M 270KOHM, 1/10W 2 R574 ER0S2TKF5363 M 536KOHM, F,1/4W 1 R580 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R1101 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1102,0 3 ERJ2GEJ102 M 1KOHM, J,0.063W 2 R1105 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1113 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R1116 ERJ2GEJ562 M 5.6KOHM,J,0.063W 1 R1117 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1121,2 2 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1123 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1124,2 5 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R1129,3 0 ERJ2GEJ473 M 47KOHM,J,0.063W 2 R1131,3 2 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1133,3 4 ERJ2GEJ102 M 1KOHM, J,0.063W 2 R1135 ERJ2GEJ103 M 10KOHM, J,0.063W 1 157 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks R1137 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1145 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1147,4 8 D1HG5608A002 NETWORK RESISTER 2 R1150 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1153 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1154,5 5 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R1156 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1157 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1158 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1159 ERJ2GEJ123X M 12KOHM ,J,0.063W 1 R1161 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1164 ERJ2GEJ123X M 12KOHM ,J,0.063W 1 R1165 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R1166,6 7 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1168 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1171 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1174 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1175 ERJ2GEJ563 M 56KOHM ,J,0.063W 1 R1176 ERJ2GEJ123X M 12KOHM ,J,0.063W 1 R1177 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1181 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1182 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1183 EXB28V680JX RESISTOR ARRAY 1 R1184 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1187 EXB2HV680J RESISTOR ARRAY 1 R1188 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1189,9 0 ERJ2GEJ473 M 47KOHM,J,0.063W 2 R1197- 99 ERJ2GEJ473 M 47KOHM,J,0.063W 3 R1200 EXB2HV680J RESISTOR ARRAY 1 R1203 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1206 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1207 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1214 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1215- 17 ERJ2GEJ101 M 100 OHM, J,0.063W 3 R1218 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R1220 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R1221 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R1222 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R1223 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1224 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1225,2 6 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1228 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1229 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1230 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1231 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1232,3 3 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R1234 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1235,3 6 ERJ2GEJ272 M 2.7KOHM, J,0.063W 2 R1238 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1239 ERJ3EKF1202 M 12KOHM, 1/16W 1 R1241 ERJ2GEJ822 M 8.2KOHM, J,0.063W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R1246 ERJ2GEJ912 M 9.1KOHM, J,0.063W 1 R1249 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1250 ERJ2GEJ224 M 220KOHM, J,0.063W 1 R1251,5 2 EXB2HV101J RESISTOR ARRAY 2 R1256 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1259 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1263,6 4 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1268,6 9 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R1270,7 1 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1275 ERJ3EKF7151 M7.15KOHM, 1/16W 1 R1279,8 0 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1281 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1282 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1283 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1290 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1292,9 3 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R1296,9 7 ERJ2GEJ473 M 47KOHM,J,0.063W 2 R1303- 06 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R1307 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1308 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1309- 12 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R1313,1 4 ERJ2GEJ272 M 2.7KOHM, J,0.063W 2 R1315 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1316 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1318,1 9 ERJ2GEJ272 M 2.7KOHM, J,0.063W 2 R1321 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R1322 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R1324 ERJ2GEJ823 M 82KOHM, J,0.063W 1 R1326 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1328 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1330 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1332 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1333 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1338 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1342 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1343 ERJ2GEJ561 M 60 OHM, J,0.063W 1 R1346 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1351 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1352 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1354 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1356,5 7 ERJ2GEJ100 M 10 OHM, J,0.063W 2 R1363 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1367 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1368 ERJ2GEJ183 M 18KOHM ,J,0.063W 1 R1372 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1375 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1376 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1377 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R1384 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1386 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1387 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1388 ERJ2GEJ563 M 56KOHM ,J,0.063W 1 158 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks R1390 ERJ2GEJ563 M 56KOHM ,J,0.063W 1 R1400 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1405,0 6 ERJ2GEJ474 M 470KOHM, J,0.063W 2 R1408 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1409 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1410 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1411 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1412,1 3 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R1426- 33 ERJ8GEY0R00 M 0 OHM, 1/8W 8 R1434 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R1436 ERJ2GEJ561 M 60 OHM, J,0.063W 1 R1438 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R1440 ERJ2GEJ241 M 240 OHM, J,0.063W 1 R1446 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R1449 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1453 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1454 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1458,5 9 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1464 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1466 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1467 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1470 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1472 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R1474 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R1478 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R1479 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1524 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1526 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1527 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1528 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1530 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R2310,1 1 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2312 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2323,2 4 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2325 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2329 ERJ3EKF1003 M 100KOHM, 1/16W 1 R2332 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2341 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2349 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2357 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2359 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2360 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2361 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R2363 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2364 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2365 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2366 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2368 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2369 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R2372,7 3 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R2375 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2376 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2383 ERJ3EKF3301 M 3.3KOHM, 1/16W 1 R2384 ERJ3EKF1151 M1.15KOHM, 1/16W 1 R2387 ERJ3EKF1151 M1.15KOHM, 1/16W 1 R2388 ERJ3EKF3301 M 3.3KOHM, 1/16W 1 R2397,9 8 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R2401,0 2 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2403 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R2404,0 5 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2406 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2407 ERJ3EKF1241 M1.24KOHM, 1/16W 1 R2408 ERJ3EKF1181 M1.18KOHM, 1/16W 1 R2409 ERJ3EKF2001 M 2KOHM, 1/16W 1 R2410 ERJ3EKF7870 M 787 OHM, 1/16W 1 R2421 ERJ3EKF2001 M 2KOHM, 1/16W 1 R2422 ERJ3EKF7870 M 787 OHM, 1/16W 1 R2516 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2517 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R2520 ERJ3GEYJ224 M 220KOHM,J,1/16W 1 R2524 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2525 ERJ3EKF8200 M 820 OHM, 1/16W 1 R2542 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2557 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R2603 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2604 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R2605 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2606 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2607 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2608 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2609 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2610 ERJ3GEYJ184 M 180KOHM,J,1/16W 1 R2611,1 2 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R2625 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2640,4 1 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R2642 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2643 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2644 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2650 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 R2651 ERJ3EKF1201 M 1.2KOHM, 1/16W 1 R2654 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2655 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R2656 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R2657 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R2658 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 R2659 ERJ3GEYJ823 M 82KOHM,J,1/16W 1 R2660 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R2671 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2672 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 R2673 ERJ3GEYJ823 M 82KOHM,J,1/16W 1 R2674 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R2676 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R2677 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R2678 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R2679 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2680,8 1 ERJ3GEYJ184 M 180KOHM,J,1/16W 2 R2682 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2684 ERJ3GEYJ203 M 20KOHM,J,1/16W 1 R2685 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2686 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R2687 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2690 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1 R2692 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2693 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2694 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2695 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2696 ERJ3GEYJ105 M 1MOHM,J,1/16W 1 R2697 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2698 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1 R2700 ERJ3GEYJ274 M 270KOHM,J,1/16W 1 R2701- 03 ERJ3GEYJ473 M 47KOHM,J,1/16W 3 R2704- 07 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R2708 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2709 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2711- 13 ERJ6ENF75R0 M 75 OHM, 1/10W 3 R2714 ERJ3GEY0R00 M 0 OHM, 1/16W 1 159 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks R2718 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2719 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R2720 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2724 ERJ14YJ821 M 820 OHM,J,1/16W 1 R2726,2 7 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2728 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R2729- 31 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R2732 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2733,3 4 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2735 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R2736 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2737 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2738 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2741 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2744 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2747,4 8 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R2749 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 R2750 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2751 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2753 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2754 ERJ3EKF1201 M 1.2KOHM, 1/16W 1 R2755 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R2756 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2757 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2758 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2759 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R2760,6 1 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2762,6 3 ERJ3EKF1300V M 130 OHM, 1/16W 2 R2764 ERJ3EKF1000 M 100 OHM, 1/16W 1 R2767 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2769,7 0 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2771 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2772 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2773 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2775 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R2776 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R2777- 79 ERJ6ENF75R0 M 75 OHM, 1/10W 3 R2781 ERJ3GEYJ821 M 820 OHM,J,1/16W 1 R2783 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2785 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2786 ERJ3EKF8202 M 82KOHM, 1/16W 1 R2787 ERJ3EKF1622V M16.2KOHM, 1/16W 1 PAVCA R2790 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R2791 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2792 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R2793- 95 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R2797- 00 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R2801,0 2 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R2803 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2804 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2807,0 8 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2817,1 8 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2820- 25 ERJ3GEYJ221 M 220 OHM,J,1/16W 6 R2830 ERJ3GEYJ823 M 82KOHM,J,1/16W 1 R2832,3 3 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2834 ERJ3EKF6342 M6.34KOHM, 1/16W 1 R2835 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2837 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2838 ERJ3EKF6342 M6.34KOHM, 1/16W 1 R2839 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2840 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R2842 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2843 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2848- 51 ERJ6GEYJ393 M 39KOHM,J,1/10W 4 R2854 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R2855 ERJ6GEYJ393 M 39KOHM,J,1/10W 1 R2856 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R2858 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R2859 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R2860,6 1 ERJ6GEYJ393 M 39KOHM,J,1/10W 2 R2862 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R2864 ERJ6GEYJ393 M 39KOHM,J,1/10W 1 R2865 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R2868,6 9 ERJ6ENF75R0 M 75 OHM, 1/10W 2 R2894 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3709- 13 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R3716,1 7 ERJ6GEYJ393 M 39KOHM,J,1/10W 2 R3721 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R3732 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3752 ERJ6ENF1741 M1.74KOHM, 1/10W 1 R3753 ERJ6ENF1621 M1.62KOHM, 1/10W 1 R3754 ERJ6ENF2321 M2.32KOHM, 1/10W 1 R3756 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3758 ERJ6ENF3161 M3.16KOHM, 1/10W 1 R3759- 64 ERJ6GEY0R00 M 0 OHM, 1/10W 6 R3766,6 7 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R4001 ERJ3EKF1211 M1.21KOHM, 1/16W 1 R4004 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4008 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4010 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4017 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R4021 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4024,2 5 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4026,2 7 ERJ2GEJ102 M 1KOHM, J,0.063W 2 R4031- 33 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R4037- 39 D1HG1038A002 NETWORK RESISTER 3 R4040,4 1 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4042,4 3 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4044 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4045,4 6 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4047 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4101 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4257 ERJ3EKF3302 M 33KOHM, 1/16W 1 R4265 ERJ3EKF3242 M32.4KOHM, 1/16W 1 R4269 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4271,7 2 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4286,8 7 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4293 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4338- 43 ERJ2GE0R00 M 0.0 OHM, J,0.063W 6 R4465 ERJ2GEJ224 M 220KOHM, J,0.063W 1 R4469 ERJ3EKF1500 M 150 OHM, 1/16W 1 R4474 ERJ3EKF1211 M1.21KOHM, 1/16W 1 R4480 ERJ3EKF4220 M 422 OHM, 1/10W 1 160 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks R4481 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R4482,8 3 ERJ3EKF1781 M1.78KOHM, 1/16W 2 R4487 ERJ3EKF5600 M 560 OHM, 1/16W 1 R4488 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R4495 ERJ3EKF4302 M 43KOHM, 1/16W 1 R4496- 99 ERJ6GEYJ102 M 1KOHM,J,1/10W 4 R4500 ERJ3EKF2702V M27.0KOHM, 1/16W 1 R4501,0 2 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R4503 ERJ3EKF1600 M 160 OHM, 1/16W 1 R4507- 13 ERJ2GE0R00 M 0.0 OHM, J,0.063W 7 R4517 ERJ3EKF1371 M 13.7 OHM, 1/16W 1 R4520 ERJ3EKF1691 M1.69KOHM, 1/16W 1 R4521,2 2 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4527 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4533 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4540 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4542 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4544 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4550 EXB28V220J RESISTOR ARRAY 1 R4552 EXB28V220J RESISTOR ARRAY 1 R4554 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4555 EXB28V220J RESISTOR ARRAY 1 R4560,6 1 EXB28V220J RESISTOR ARRAY 2 R4563- 65 ERJ2GEJ220 M 22 OHM, J,0.063W 3 R4568 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4583,8 4 ERJ2GEJ390 M 39 OHM, J,0.063W 2 R4589- 04 ERJ2GEJ2R2X M 2.2OHM, J,0.063W 16 R4605,0 6 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4607 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4609,1 0 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4612,1 3 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4617,1 8 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4619 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R4620 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4621 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R4622 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4624 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4626 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4628 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4629- 32 ERJ2GEJ472 M 4.7KOHM, J,0.063W 4 R4633,3 4 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4636 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4637 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R4639 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4640 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4641 EXB28V330J RESISTOR ARRAY 1 R4642- 45 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R4647 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4648 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R4655 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R4657 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R4658 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4661 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4662 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4665 EXB2HV220JV RESISTOR ARRAY 1 R4667 EXB2HV220JV RESISTOR ARRAY 1 Ref. No. Part No. Part Name & Description Pcs Remarks R4668 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4669 EXB2HV220JV RESISTOR ARRAY 1 R4672,7 3 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4675 ERJ3EKF1802 M 18KOHM, 1/16W 1 R4677 ERJ3EKF1802 M 18KOHM, 1/16W 1 R4679,8 0 ERJ3EKF2202 M 22KOHM, 1/16W 2 R4681,8 2 ERJ3EKF3302 M 33KOHM, 1/16W 2 R4701 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4704,0 5 ERJ2GEJ221 M 220 OHM, J,0.063W 2 R4706 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4708,0 9 ERJ2GEJ151 M 150 OHM, J,0.063W 2 R4710 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4711 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4712 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4713,1 4 EXB2HV221JV RESISTOR ARRAY 2 R4715 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4718- 20 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4727 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4729,3 0 ERJ3EKF1000 M 100 OHM, 1/16W 2 R4731 ERJ3EKF1001 M 1KOHM, 1/16W 1 R4732 ERJ3EKF4751 M4.75KOHM, 1/16W 1 R4733 ERJ3EKF75R0 M 0.75HM, 1/16W 1 R4734 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R4735 ERJ3EKF2001 M 2KOHM, 1/16W 1 R4737 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4738,3 9 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4743- 47 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R4749,5 0 EXB2HV680J RESISTOR ARRAY 2 R4751- 54 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R4756- 60 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R4762 EXB2HV680J RESISTOR ARRAY 1 R4763- 65 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 R4772 EXB2HV470JV RESISTOR ARRAY 1 R4773 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4774 EXB2HV470JV RESISTOR ARRAY 1 R4775 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4776 EXB2HV470JV RESISTOR ARRAY 1 R4777 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4778 EXB2HV470JV RESISTOR ARRAY 1 R4779 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4782 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4783 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4784 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4785 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4788 EXB2HV470JV RESISTOR ARRAY 1 R4791,9 2 ERJ2GEJ470 M 47 OHM, J,0.063W 2 R4793,9 4 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4796 EXB2HV470JV RESISTOR ARRAY 1 R4804 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4805,0 6 ERJ3EKF1001 M 1KOHM, 1/16W 2 R4807- 11 ERJ2GE0R00 M 0.0 OHM, J,0.063W 5 161 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks R4814 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4816,1 7 ERJ2GEJ223 M 22KOHM, J,0.063W 2 R4819 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R4822 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4823- 25 EXB38VR000 RESISTOR ARRAY 3 R4826,2 7 EXB2HVR000 RESISTOR ARRAY 2 R4830,3 1 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4832 ERJ2GEJ820 M 82 OHM, J,0.063W 1 R4833 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4835 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4837 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4838 ERJ2GEJ112 M 1.1KOHM, J,0.063W 1 R4841 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4846,4 7 ERJ2GEJ820 M 82 OHM, J,0.063W 2 R4898 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4900,0 1 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R4903 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4904 ERJ2GEJ682 M 6.8KOHM, J,0.063W 1 R4905 ERJ2GEJ152 M 1.5KOHM, J,0.063W 1 R5601 ERJ3EKF1800 M 180 OHM, 1/16W 1 R5603 ERJ3EKF1542 M15.4KOHM, 1/16W 1 R5605 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5606 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5607 ERJ3EKF4531 M4.53KOHM, 1/16W 1 R5609 ERJ3EKF2000 M 200 OHM, 1/16W 1 R5615 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5617 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5619 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R5620 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5621 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5625- 27 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R5632 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R5633 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5634 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R5635 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5637,3 8 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R5639 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5640 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5641 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5642 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R5643 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5644 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5645 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R5646 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R5647 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5648 ERJ3GEYJ392 M 3.9KOHM,J,1/16W 1 R5649 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R5650 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5652 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5653,5 4 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R5659 ERJ3EKF4700 M 470 OHM, 1/16W 1 R5660 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5662 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5664 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5665 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R5667- 69 ERJ3GEYJ473 M 47KOHM,J,1/16W 3 R5672 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5676 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5692 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5693 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R5694 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R5695 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5801 ERJ3EKF8450 M 845 OHM, 1/16W 1 R5802 ERJ3EKF1302 M 23KOHM, 1/16W 1 R5803 ERJ3EKF2001 M 2KOHM, 1/16W 1 R5804 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5805- 08 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 4 R5809 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5822- 24 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 R5826 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R5836 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R6001- 06 ERJ14YJ150U M 15 OHM, J,1/4W 6 R6020 ERG3FJS101D M 100 OHM, J, 3W 1 R6021 ERJ14YJ150U M 15 OHM, J,1/4W 1 R6022 ERG3FJS101D M 100 OHM, J, 3W 1 R6023- 27 ERJ14YJ150U M 15 OHM, J,1/4W 5 R6031,3 2 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6033 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6034 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6041- 46 ERJ14YJ100 M 10 OHM, J,1/4W 6 R6053- 56 ERJ14YJ100 M 10 OHM, J,1/4W 4 R6061,6 2 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6102 D0GD101JA036 M 10 OHM,J,0.25W 1 PAVCA R6104 D0GD101JA036 M 10 OHM,J,0.25W 1 PAVCA R6106 D0GD101JA036 M 10 OHM,J,0.25W 1 PAVCA R6108 D0GD101JA036 M 10 OHM,J,0.25W 1 PAVCA R6109 D0GD100JA036 M 10 OHM,J,0.25W 1 PAVCA R6110 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6111,1 2 D0GD470JA036 M 47 OHM,J,0.25W 2 PAVCA R6113 ERJ14YJ224 M 220KOHM, J,1/4W 1 R6114 D0GD470JA036 M 47 OHM,J,0.25W 1 PAVCA R6116 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6131,3 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6133,3 4 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6135,3 6 D0GD100JA036 M 10 OHM,J,0.25W 2 PAVCA R6141,4 2 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6146,4 7 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6151,5 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6153,5 4 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6155,5 6 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R6157- 60 D0GF1R0JA047 M 1.0 OHM,J, 0.33W 4 R6171 D0GD100JA036 M 10 OHM,J,0.25W 1 PAVCA R6172,7 3 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6181 D0GD100JA036 M 10 OHM,J,0.25W 1 PAVCA R6182,8 3 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6191- 94 ERJ6GEYJ101 M 100 OHM,J,1/10W 4 R6195 D0GD104JA036 M 100KOHM,J,0.25W 1 PAVCA R6196 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6213 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6214 D0GD151JA036 M 150 OHM,J,0.25W 1 R6220 ERDS2TC0 C 0 OHM, 1/4W 1 R6222 ERG1FJS103D M 10KOHM, J, 1W 1 R6223 ERG2FJS123D M 12KOHM, J, 2W 1 R6225 D0GD203JA036 M 20KOHM,J,0.25W 1 PAVCA R6226,2 7 ERJ6GEYJ163 M 16KOHM,J,1/10W 2 162 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks R6228 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R6229 ERJ6GEYJ163 M 16KOHM,J,1/10W 1 R6230 ERDS2TC0 C 0 OHM, 1/4W 1 R6231 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6232 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6241 EXB38V470J RESISTOR ARRAY 1 R6242 EXB38V472J RESISTOR ARRAY 1 R6243 EXB38V470J RESISTOR ARRAY 1 R6244 EXB38V472J RESISTOR ARRAY 1 R6251 D0GD103JA036 M 10KOHM,J,0.25W 1 PAVCA R6252,5 3 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6254 ERJ6ENF6801 M 6.8KOHM, 1/10W 1 R6255 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6256 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R6257 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6258 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6261 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6401- 06 ERJ14YJ150U M 15 OHM, J,1/4W 6 R6421- 26 ERJ14YJ150U M 15 OHM, J,1/4W 6 R6441- 46 ERJ14YJ100 M 10 OHM, J,1/4W 6 R6453- 56 ERJ14YJ100 M 10 OHM, J,1/4W 4 R6465 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6466 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6467,6 8 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6471 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6472 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6473 ERJ6GEYJ561 M 560 OHM,J,1/10W 1 R6474 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6475,7 6 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R6477 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6478 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6479 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6501,0 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6503 D0GD100JA036 M 10 OHM,J,0.25W 1 PAVCA R6504,0 5 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6506 D0GD100JA036 M 10 OHM,J,0.25W 1 PAVCA R6507- 09 D0GF1R0JA047 M 1.0 OHM,J, 0.33W 3 R6511,1 2 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6516,1 7 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6521,2 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6523,2 4 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6525,2 6 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R6531 D0GD100JA036 M 10 OHM,J,0.25W 1 PAVCA R6532,3 3 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6551 D0GD100JA036 M 10 OHM,J,0.25W 1 PAVCA R6552,5 3 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6561- 64 EXB38V470J RESISTOR ARRAY 4 R6565- 68 EXB38V472J RESISTOR ARRAY 4 R6581 D0GD103JA036 M 10KOHM,J,0.25W 1 PAVCA R6582,8 3 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6584 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R6585 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6586 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R6587 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6588 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6590 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6591 EXB38V472J RESISTOR ARRAY 1 Ref. No. Part No. Part Name & Description Pcs Remarks R6592 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6603 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6604 D0GD151JA036 M 150 OHM,J,0.25W 1 R6605 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6606 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6607 ERJ6ENF5361 M5.36KOHM, 1/10W 1 R6608,0 9 D0GF102JA047 M 1.0 KOHM,J,0.33W 2 R6610 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6611 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R6612 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6613 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R6614,1 5 D0GF243JA047 M 24 KOHM,J,0.33W 2 PAVCA R6616 ERJ6ENF1502 M 15KOHM, 1/10W 1 R6617 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R6618 ERJ6ENF1202 M 12KOHM, 1/10W 1 R6619 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R6620 D0D28R2JA021 M 8.2 OHM,J,5W 1 R6621,2 2 ERJ6GEYJ221 M 220 OHM,J,1/10W 2 R6641- 45 ERJ6GEYJ100 M 10 OHM,J,1/10W 5 R6647,4 8 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6658 D0D1101JA009 M 100 OHM,J,1W 1 R6659,6 0 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6661 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6662 ERJ6ENF3001 M 3KOHM, 1/10W 1 R6663 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6664 D0GF222JA047 M 2.2 KOHM,J,0.33W 1 R6665 ERJ14YJ470 M 47 OHM,J, 1/2W 1 R6666 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6667,6 8 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R6671 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6672 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6673- 75 D0GD5R6JA059 M 5.6 OHM,J,0.25W 3 R6682 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6683 D0GD151JA036 M 150 OHM,J,0.25W 1 R6684 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6685 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6686 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6687 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6688 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6689 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6690 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6691 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6696,9 7 D0D32R2JA020 M 2.2 OHM,J,5W 2 R6700- 08 ERJ6GEYJ471 M 470 OHM,J,1/10W 9 R6710- 18 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 9 R6721,2 2 EXB38V220J RESISTOR ARRAY 2 R6723 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6724 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6742 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6743 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6744 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6745 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6746,4 7 D0GD103JA036 M 10KOHM,J,0.25W 2 PAVCA R6755 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6756- 58 D0GD101JA059 M 100 OHM,J,0.25W 3 R6759 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6760 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 R6761 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6762 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6775,7 6 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6777 D0GD151JA036 M 150 OHM,J,0.25W 1 163 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks R6781 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6782 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6791 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6792 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6793 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6801 ERX3FJS8R2D M 8.2 OHM, J, 3W 1 R6802 ERG2FJS683D M 68KOHM, J, 2W 1 R6803 ERG2FJS563D M 56KOHM, J, 2W 1 R6806,0 7 ERX12SJ1R2 M 1.2 OHM, J,1/2W 2 R6808 D0GD272JA059 M 2.7KOHM,J,1/10W 1 PAVCA R6809 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6810,1 1 ERJ6GEYJ433 M 43KOHM,J,1/10W 2 R6812 ERJ6ENF2403 M 240KOHM, 1/10W 1 R6813 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R6814 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R6816 ERJ6ENF3902 M 39KOHM, 1/10W 1 R6817 ERJ6ENF1302 M 13KOHM, 1/10W 1 R6819 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R6820 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6821 ERG2FJS221D M 220 OHM, J, 2W 1 R6822 ERJ12YJ104U M 100KOHM, 1/2W 1 R6823 ERG1FJS104D M 100KOHM, J, 1W 1 R6824 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R6825,2 6 ERJ6ENF2703 M 270KOHM, 1/10W 2 R6827 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6828 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R6829,3 0 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6831 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R6832 ERDS1FJ4R7 C 4.7 OHM, J,1/2W 1 R6833- 36 ERJ6ENF5602 M 56KOHM, 1/10W 4 R6837 ERJ6ENF5102 M 51KOHM, 1/10W 1 R6839 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6841 ERJ12YJ153U M 15KOHM, 1/2W 1 R6842 ERJ14YJ433U M 43KOHM, 1/2W 1 R6843 ERJ6GEYJ623 M 62KOHM,J,1/10W 1 R6844 D0D2101JA021 M 100 OHM,J,2W 1 R6845 ERJ6GEYJ623 M 62KOHM,J,1/10W 1 R6846,4 7 ERJ6GEYJ563 M 56KOHM,J,1/10W 2 R6848 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6849,5 0 ERJ6ENF6802 M 68KOHM, 1/10W 2 R6851 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6852 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6853 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6858 D0GD102JA059 M 1KOHM,J,1/10W 1 PAVCA R6860 D0D28R2JA021 M 8.2 OHM,J,5W 1 R6861 ERJ6ENF3902 M 39KOHM, 1/10W 1 R6862,6 3 ERJ6ENF4702 M 47KOHM, 1/10W 2 R6864 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R6865,6 6 ERJ6ENF2201 M 2.2KOHM, 1/10W 2 R6867 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6868 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6869 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6871- 73 ERJ6ENF3902 M 39KOHM, 1/10W 3 R6874 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R6875 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R6876 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6877 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6878 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6879 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6886- 88 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6891 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6901 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6902- 04 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 Ref. No. Part No. Part Name & Description Pcs Remarks R6905 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6909 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6913 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6917 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6924 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6931- 34 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6935,3 6 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R6951 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6955 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6959 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6963 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6967 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6971 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6972- 74 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R6981- 84 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6985,8 6 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R7103- 06 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7108 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7110 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7113- 16 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7118 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7120 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7123- 26 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7128 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7130 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7131 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7132 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7133 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7134 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7135 EXB38V471J RESISTOR ARRAY 1 R7136- 39 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R7140- 42 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R7201 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7203- 05 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 3 R7207 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7209,1 0 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7211- 13 EXB38V471J RESISTOR ARRAY 3 R7215,1 6 EXB38V470J RESISTOR ARRAY 2 R7221- 25 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 5 R7228,2 9 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7234,3 5 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 2 R7238,3 9 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 2 R7240 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7241- 44 EXB38V471J RESISTOR ARRAY 4 R7245 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7246- 49 EXB38V471J RESISTOR ARRAY 4 R7250- 53 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7254 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7256 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7257- 60 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R7261- 63 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R7264- 71 EXB38V470J RESISTOR ARRAY 8 R7274- 79 EXB38V471J RESISTOR ARRAY 6 164 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks R7280- 85 EXB38V470J RESISTOR ARRAY 6 R7301- 08 EXB38V470J RESISTOR ARRAY 8 R7309 EXB38V471J RESISTOR ARRAY 1 R7326- 29 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R7330,3 1 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7332 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7333,3 4 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7335,3 6 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7337- 44 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 8 R7345- 48 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R7349- 56 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 8 R7357,5 8 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7359 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7360 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7361 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7362- 69 EXB38V471J RESISTOR ARRAY 8 R7403- 06 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7408 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7410 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7413- 16 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7418 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7420 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7423- 26 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7428 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7430 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7433- 36 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7438 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7440 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7441- 44 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R7445 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7446- 49 ERJ3GEYJ470 M 47 OHM,J,1/16W 4 R7450- 57 EXB38V470J RESISTOR ARRAY 8 R7459 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7460 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7461 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7462- 70 EXB38V681J RESISTOR ARRAY 9 R7501,0 2 EXB38V681J RESISTOR ARRAY 2 R7503 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7504,0 5 EXB38V470J RESISTOR ARRAY 2 R7510- 13 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7514 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7515 EXB38V681J RESISTOR ARRAY 1 R7516- 19 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7520 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7521- 24 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7525 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7526- 33 EXB38V681J RESISTOR ARRAY 8 R7535 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7536 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R7537 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7538 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7541- 43 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 Ref. No. Part No. Part Name & Description Pcs Remarks R7544- 46 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R7547- 54 EXB38V470J RESISTOR ARRAY 8 R7555 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7556- 59 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7560 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7575 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7577 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7580- 85 EXB38V681J RESISTOR ARRAY 6 R7586- 91 EXB38V470J RESISTOR ARRAY 6 R7603- 06 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7608 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7610 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7613- 16 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7618 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7620 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7623- 26 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7628 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7630 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7631 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R7632 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7633 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7634 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7635- 38 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R7639- 41 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R7642 EXB38V681J RESISTOR ARRAY 1 R7701 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R7702 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7703- 05 ERJ3GEYJ121 M 120 OHM,J,1/16W 3 R7706 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7708 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7709 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7710 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R7713 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7716 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7731 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R7792- 99 ERJ3GEY0R00 M 0 OHM, 1/16W 8 R8137 ERJ2GEJ121 M 120 OHM, J,0.063W 1 R8140,4 1 ERJ3EKF1001 M 1KOHM, 1/16W 2 R8144- 47 D1HG5608A002 NETWORK RESISTER 4 R8148,4 9 D1HG3908A002 NETWORK RESISTER 2 R8150- 62 ERJ2GEJ390 M 39 OHM, J,0.063W 13 R8163- 66 ERJ2GEJ560 M 56 OHM, J,0.063W 4 R8200- 03 ERJ2GE0R00 M 0.0 OHM, J,0.063W 4 R8206 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8207 ERJ2GEJ562 M 5.6KOHM,J,0.063W 1 R8208 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8209 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R8210 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8211 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8216 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8217 ERJ2GEJ562 M 5.6KOHM,J,0.063W 1 R8218 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8219 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R8220 ERJ2GEJ102 M 1KOHM, J,0.063W 1 165 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks R8228 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8270 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8272 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8273,7 4 ERJ3GEYJ510 M 51 OHM,J,1/16W 2 R8277 ERJ3EKF1202 M 12KOHM, 1/16W 1 R8282 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R8285 ERJ2GEJ272 M 2.7KOHM, J,0.063W 1 R8287 ERJ2GEJ272 M 2.7KOHM, J,0.063W 1 R8288 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8289,9 0 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8291 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8293 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8297 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R8300 ERJ2GEJ272 M 2.7KOHM, J,0.063W 1 R8301 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8303 ERJ2GEJ272 M 2.7KOHM, J,0.063W 1 R8304,0 5 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R8310,1 1 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R8312 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8313 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8314,1 5 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R8316- 18 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 R8322- 25 ERJ2GEJ101 M 100 OHM, J,0.063W 4 R8333- 36 ERJ2GEJ101 M 100 OHM, J,0.063W 4 R8338 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8342 ERJ3EKF1002 M 10KOHM, 1/16W 1 R8343 ERJ2GEJ181 M 180 OHM, J,0.063W 1 R8344,4 5 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8347 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8349 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R8351 ERJ2GEJ392 M 3.9KOHM, J,0.063W 1 R8354 ERJ2GEJ392 M 3.9KOHM, J,0.063W 1 R8355 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8366- 69 ERJ2GE0R00 M 0.0 OHM, J,0.063W 4 R8380 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8417,1 8 D1HG1218A002 NETWORK RESISTER 2 R8421 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8424 ERJ3EKF2742 M27.4KOHM, 1/16W 1 R8425 ERJ3EKF9311 M9.31KOHM, 1/16W 1 R8426- 28 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R8431 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8433 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R8435 ERJ3EKF6191 M6.19KOHM, 1/16W 1 R8436 ERJ3EKF4642 M46.4KOHM, 1/16W 1 R8440 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8455 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R8458 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8460 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R8461 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8462,6 3 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R8464,6 5 EXB2HV104JV RESISTOR ARRAY 2 R8468 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8470 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8471 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8476 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R8478 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8481 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R8488 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8489 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8490 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8491- 94 ERJ2GEJ101 M 100 OHM, J,0.063W 4 R8495 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R8496 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8497- 99 ERJ3GEYJ560 M 56 OHM,J,1/16W 3 R8501 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8503 ERJ3EKF1002 M 10KOHM, 1/16W 1 R8504- 06 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R8507- 09 ERJ3EKF1002 M 10KOHM, 1/16W 3 R8510 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8511 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R8512- 18 ERJ2GEJ103 M 10KOHM, J,0.063W 7 R8519 ERJ2GEJ392 M 3.9KOHM, J,0.063W 1 R8524 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R8525,2 6 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8527 ERJ2GEJ392 M 3.9KOHM, J,0.063W 1 R8528 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R8529,3 0 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8531 EXB38V560J RESISTOR ARRAY 1 R8532- 35 ERJ2GEJ560 M 56 OHM, J,0.063W 4 R8536 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8537 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8538 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8539 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8540 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8541- 47 ERJ2GEJ560 M 56 OHM, J,0.063W 7 R8548 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8550,5 1 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R8552 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R8553 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8557 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8558 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R8559 EXB38V560J RESISTOR ARRAY 1 R8560 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R8561 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R8562 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8564,6 5 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8566 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R8567 ERJ2GEJ560 M 56 OHM, J,0.063W 1 166 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks R8568 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8570- 73 ERJ2GEJ560 M 56 OHM, J,0.063W 4 R8574 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8576- 78 ERJ2GEJ330 M 33 OHM, J,0.063W 3 R8582- 89 ERJ2GEJ330 M 33 OHM, J,0.063W 8 R8591- 95 ERJ2GEJ330 M 33 OHM, J,0.063W 5 R8596,9 7 D1HG33080001 NETWORK RESISTER 2 R8598- 00 D1HG5608A002 NETWORK RESISTER 3 R8601 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8602 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R8605- 08 ERJ2GEJ103 M 10KOHM, J,0.063W 4 R8610- 15 ERJ2GEJ103 M 10KOHM, J,0.063W 6 R8629 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8630 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8631 ERJ3EKF75R0 M 0.75HM, 1/16W 1 R8632- 37 ERJ2GEJ560 M 56 OHM, J,0.063W 6 R8640 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8641 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R8643 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R8645 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8646 ERJ3EKF75R0 M 0.75HM, 1/16W 1 R8647 ERJ3EKF1002 M 10KOHM, 1/16W 1 R8648 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8649 ERJ3EKF75R0 M 0.75HM, 1/16W 1 R8650 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R8651 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8652 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R8653 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8654,5 5 ERJ2GEJ560 M 56 OHM, J,0.063W 2 R8656 ERJ3EKF1002 M 10KOHM, 1/16W 1 R8657 ERJ3EKF2702V M27.0KOHM, 1/16W 1 R8658 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R8659 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8661 ERJ3EKF6802 M 68KOHM, 1/16W 1 R8665 EXB2HVR000 RESISTOR ARRAY 1 R8666 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8667 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R8669 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R8671,7 2 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R8673 EXB2HVR000 RESISTOR ARRAY 1 R8674 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8678 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8682 ERJ3EKF4702 M 47KOHM, 1/16W 1 R8686,8 7 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8688,8 9 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R8690 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R8691 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8692 ERJ3EKF5102 M51.0KOHM, 1/16W 1 R8693 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R8695 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R8696 ERJ3EKF5102 M51.0KOHM, 1/16W 1 R8697 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R8698 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8700 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R8702 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8704 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8705 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R8706 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8707 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R8708 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R8709 ERJ3EKF1272 M12.7KOHM, 1/16W 1 R8710 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R8711 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R8712 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8715 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R8716 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8717 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8719 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8720- 25 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R8726 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8727 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8732 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8733 ERJ3EKF3572 M35.7KOHM, 1/16W 1 R8734 ERJ3EKF3242 M32.4KOHM, 1/16W 1 R8735 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R8736,3 7 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R8738 ERJ3EKF6802 M 68KOHM, 1/16W 1 R8741,4 2 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R8744 ERJ3EKF3602 M 36KOHM, 1/16W 1 R8746 ERJ3EKF4992 M 49.9KOHM, 1/16W 1 R8747,4 8 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R8749 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8751- 53 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R8755 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8756,5 7 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R8777 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8779 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8780,8 1 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8782- 87 EXB38VR000 RESISTOR ARRAY 6 R8788 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8791 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R8792,9 3 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R8794 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R8795- 98 ERJ3GEYJ560 M 56 OHM,J,1/16W 4 R8799- 02 ERJ2GEJ103 M 10KOHM, J,0.063W 4 R8817,1 8 ERJ2GEJ473 M 47KOHM,J,0.063W 2 R8821- 26 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R8837,3 8 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8839 ERJ3EKF6801 M 6.8KOHM, 1/16W 1 R8841 ERJ3EKF1801 M 1.8KOHM, 1/16W 1 R8842 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8843 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R8844 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R8845 ERJ2GEJ103 M 10KOHM, J,0.063W 1 167 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks R9060- 67 ERJ3GEYJ101 M 100 OHM,J,1/16W 8 R9070 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9074 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9076 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9095 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9097 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9099 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9100,0 1 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9102 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9106 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9107 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9108,0 9 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9110 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9111 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9113 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9120 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9121 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9127 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9129 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9134 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R9140 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9141- 45 ERJ3GEYJ101 M 100 OHM,J,1/16W 5 R9148 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9149 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9150,5 1 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9152,5 3 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9154,5 5 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9156- 59 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R9160,6 1 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9164- 66 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9167,6 8 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9169 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9170- 72 ERJ3GEYJ393 M 39KOHM,J,1/16W 3 R9173- 75 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9177 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9178 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9179 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9180 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9181- 84 ERJ3GEYJ102 M 1KOHM,J,1/16W 4 R9185,8 6 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9187,8 8 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9189,9 0 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9192 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9193 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9194 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9196 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9198 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9199 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9201,0 2 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9203 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9204,0 5 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9206,0 7 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R9209 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9210 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9215 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 R9217- 22 ERJ3GEYJ103 M 10KOHM,J,1/16W 6 Ref. No. Part No. Part Name & Description Pcs Remarks R9236 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9237 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9244,4 5 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9247,4 8 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9300,0 1 ERJ3GEYJ820 M 82 OHM,J,1/16W 2 R9302,0 3 D1HG8208A002 NETWORK RESISTER 2 R9304,0 5 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9306,0 7 EXB38V820J RESISTOR ARRAY 2 R9308 D1HG8208A002 NETWORK RESISTER 1 R9309,1 0 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9311,1 2 ERJ3GEYJ820 M 82 OHM,J,1/16W 2 R9313,1 4 D1HG8208A002 NETWORK RESISTER 2 R9315,1 6 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9318 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9319 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9320 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9367 ERJ3GEYJ181 M 180 OHM,J,1/16W 1 R9371 EXB2HV470JV RESISTOR ARRAY 1 R9372 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9373 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9374 EXB38V470J RESISTOR ARRAY 1 R9375 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9389- 91 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9393- 95 D1HG8208A002 NETWORK RESISTER 3 R9396,9 7 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9398 EXB38V820J RESISTOR ARRAY 1 R9404 EXB2HV470JV RESISTOR ARRAY 1 R9412- 21 EXB38V470J RESISTOR ARRAY 10 R9428 EXB38V103J RESISTOR ARRAY 1 R9430 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9433 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9437,3 8 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9440 EXB2HV470JV RESISTOR ARRAY 1 R9441 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9442 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9443 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9444 D1HG8208A002 NETWORK RESISTER 1 R9445 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9446 EXB38V820J RESISTOR ARRAY 1 R9448 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9449,5 0 D1HG8208A002 NETWORK RESISTER 2 R9451,5 2 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9453- 57 D1HG8208A002 NETWORK RESISTER 5 R9458,5 9 ERJ3GEYJ820 M 82 OHM,J,1/16W 2 R9460,6 1 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9462,6 3 EXB38V820J RESISTOR ARRAY 2 R9464,6 5 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9466,6 7 ERJ3GEYJ820 M 82 OHM,J,1/16W 2 R9468 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9469 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9470 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9471 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9472 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9475 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 168 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks R9480 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9482- 85 ERJ3EKF1001 M 1KOHM, 1/16W 4 R9486 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9487 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9488 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9489- 95 ERJ3GEYJ470 M 47 OHM,J,1/16W 7 R9496 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9497 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9498 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9506 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9507 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9512 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9514 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9515 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9523 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9525 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9526 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9527,2 8 EXB2HV272JV RESISTOR ARRAY 2 R9529,3 0 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9531- 33 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9534 EXB38V470J RESISTOR ARRAY 1 R9535,3 6 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9537 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9539 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9542 ERJ3GEYJ680 M 68 OHM,J,1/16W 1 R9543,4 4 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9545 ERJ3GEYJ304V M 300KOHM,J,1/16W 1 R9546 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9548- 50 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9552- 54 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9556 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9560 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9574 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9578 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9580- 83 ERJ3EKF1001 M 1KOHM, 1/16W 4 R9584 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9585,8 6 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9587- 95 EXB38V470J RESISTOR ARRAY 9 R9596- 99 ERJ3GEYJ470 M 47 OHM,J,1/16W 4 R9602 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9616 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9619,2 0 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9622 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9624,2 5 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9628 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9630 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9631 EXB2HV272JV RESISTOR ARRAY 1 R9632- 34 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9637 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9639 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9641 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9643 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9645 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9800 ERJ3EKF1302 M 23KOHM, 1/16W 1 R9801 ERJ3EKF2402 M 24KOHM, 1/16W 1 R9802 ERJ3EKF6202 M 62KOHM, 1/16W 1 R9803 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9804 ERJ3EKF2402 M 24KOHM, 1/16W 1 R9805 ERJ3EKF3002 M 30KOHM, 1/16W 1 R9806 ERJ3EKF3902 M 39KOHM, 1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R9807 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9808 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9810 ERJ3EKF3001 M 3KOHM, 1/16W 1 R9813 ERJ3EKF2401 M 2.4KOHM, 1/16W 1 R9814 ERJ3EKF6802 M 68KOHM, 1/16W 1 R9815 ERJ3EKF2202 M 22KOHM, 1/16W 1 R9816 ERJ3EKF8202 M 82KOHM, 1/16W 1 R9821 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9823- 28 ERJ3GEYJ101 M 100 OHM,J,1/16W 6 R9830,3 1 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9838,3 9 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9840 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9841 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9842- 44 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 R9845 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9846,4 7 EXB2HV272JV RESISTOR ARRAY 2 R9848,4 9 EXB2HV470JV RESISTOR ARRAY 2 R9850 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9854 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9859 EXB38V101J RESISTOR ARRAY 1 R9868 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9869- 71 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9872 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9875- 77 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9878 ERJ3EKF3902 M 39KOHM, 1/16W 1 R9879 ERJ3EKF2002 M 20KOHM, 1/16W 1 R9880 ERJ3EKF3602 M 36KOHM, 1/16W 1 R9883 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9884 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9891 ERJ3EKF4702 M 47KOHM, 1/16W 1 R9892 ERJ3EKF1502 M 15KOHM, 1/16W 1 R9893 ERJ3EKF3602 M 36KOHM, 1/16W 1 R9896 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9897 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 RF101 A5MC100JP2 139C 10 1 RM2501 PNA4701M05TV REMOCO RECEIVER 1 RTL TNAG167S CIRCUIT BOARD DT 1 PAVCA RTL TNPA3769S CIRCUIT BOARD H 1 PAVCA RTL TNPA3855S CIRCUIT BOARD HC 1 PAVCA RTL TNPA3903BCS CIRCUIT BOARD DG 1 PAVCA RTL TXNPA1BJTUJ CIRCUIT BOARD PA 1 PAVCA RTL ETXMM610MEF CIRCUIT BOARD P 1 RTL TXNC11BHTUJ CIRCUIT BOARD C1 1 PAVCA RTL TXNC21BHTUJ CIRCUIT BOARD C2 1 PAVCA RTL TXNC31BHTUJ CIRCUIT BOARD C3 1 PAVCA RTL TXNC41BHTUJ CIRCUIT BOARD C4 1 PAVCA RTL TXNC51BHTUJ CIRCUIT BOARD C5 1 PAVCA RTL TXNC61BHTUJ CIRCUIT BOARD C6 1 PAVCA RTL TNPA3820ACS CIRCUIT BOARD D 1 PAVCA RTL TXNSC1BHTUJ CIRCUIT BOARD SC 1 PAVCA RTL TXNSD1BHTUJ CIRCUIT BOARD SD 1 PAVCA RTL TNPA3829S CIRCUIT BOARD SS2 1 PAVCA RTL TXNSS1BHTUJ CIRCUIT BOARD SS 1 PAVCA RTL TNPA3830S CIRCUIT BOARD SS3 1 PAVCA RTL TXNSU1BHTU CIRCUIT BOARD SU 1 PAVCA RTL TNPA3764ADS CIRCUIT BOARD G 1 PAVCA RTL TNPA3965ACS CIRCUIT BOARD GK 1 PAVCA RTL TNPA3853ABS CIRCUIT BOARD GS 1 PAVCA RTL TNPA3762AGS CIRCUIT BOARD K 1 PAVCA RTL TNPA3964ABS CIRCUIT BOARD S 1 PAVCA S2 K1KA02BA0061 2P CONNECTOR 1 SC2 K1KA02A00626 2P CONNECTOR 1 169 TH-50PX60U Ref. No. Part No. Part Name & Description Pcs Remarks SC20 K1KA20AA0008 20P CONNECTOR 1 SC23 K1KA03AA0193 3P CONNECTOR 1 SC30 K1KA08AA0192 8P CONNECTOR 1 SC41,42 K1ML80B00001 80P CONNECTOR 2 SC45,46 K1KA09A00239 9P CONNECTOR 2 SD1-D4 K1MN96B00006 96P CONNECTOR 4 SD46 K1KB09A00045 9P CONNECTOR 1 SS11 K1KA02A00626 2P CONNECTOR 1 SS12 K1KA10AA0194 10P CONNECTOR 1 SS20,21 K1KA07A00170 7P CONNECTOR 2 SS22,23 K1KB07AA0087 7P CONNECTOR 2 SS33 K1KA04AA0193 4P CONNECTOR 1 SS34 K1KA03AA0193 3P CONNECTOR 1 SS43 K1KA12AA0194 12P CONNECTOR 1 SS44 K1KA04AA0193 4P CONNECTOR 1 SS51-56 K1MN13B00020 13P CONNECTOR 6 SU1-U4 K1MN96B00006 96P CONNECTOR 4 SU45 K1KB09A00045 9P CONNECTOR 1 SW2500 K0F122A00172 SWITCH 1 SW3754- 58 EVQ11G05R SWITCH 5 T201 ETB57LZ156AD TRANS 1 T301 ETB50LZ116AD TRANS 1 T501 ETB25KA1C6AD TRANS 1 T6602 ETS25AZ149AD TRANS 1 TU8200 ENGE6408DF TUNER 1 PAVCA VR251 EVMEASA01B54 VARIABLE RESISTOR 1 VR351 EVMEASA01B14 VARIABLE RESISTOR 1 VR401 EVMEASA01B34 VARIABLE RESISTOR 1 VR6000 EVMEASA00B14 CONTROL 10KOHMB 0.3W 1 VR6600 EVMEASA00B13 CONTROL 1KOHMB 0.3W 1 VR6602 EVMEASA00B53 CONTROL 5KOHMB 0.3W 1 X1100 H0J100500030 CRYSTAL 1 X1101 H0J327200114 CRYSTAL 1 X4004 H0J270500087 CRYSTAL 1 X8005 H0J270500061 CRYSTAL 1 X8200 H0J250500050 CRYSTAL 1 X9000 H2D200500011 CRYSTAL 1 X9500 H0J200500038 CRYSTAL 1 XF8200 J0C4405B0004 LC FILTER 1 Z101 TND14V751 VARISTOR 1 Z102 ERZVGAD471 VARISTOR 1 Z501 ERZVGAD471 VARISTOR 1 ZA2300, 01 K4CZ01000027 COMPATIBLE WITH JALCO K9 2 ZA3701 K4CD01000013 TERMINAL 1 ZA4001 K4CD08000002 TERMINAL 1 ZA4003- 05 K4CD08000002 TERMINAL 3 ZA4007- 09 TESA169 SHIELD CLIP 3 ZA4011- 14 TESA169 SHIELD CLIP 4 ZA5600, 01 K4CZ01000027 COMPATIBLE WITH JALCO K9 2 ZA6001- 03 K4CD01000011 TERMINAL 3 ZA6401- 03 K4CD01000011 TERMINAL 3 ZA7101- 05 K4CD01000013 TERMINAL 5 Ref. No. Part No. Part Name & Description Pcs Remarks ZA7201- 05 K4CD01000013 TERMINAL 5 ZA7301- 05 K4CD01000013 TERMINAL 5 ZA7401- 05 K4CD01000013 TERMINAL 5 ZA7501- 05 K4CD01000013 TERMINAL 5 ZA7601- 05 K4CD01000013 TERMINAL 5 ZA9001 K4CD01000011 TERMINAL 1 ZD101 MA8051 ZENER DIODE 1 ZD351- 54 MA8150 ZENER DIODE 4 ZD405,0 6 MA4300N ZENER DIODE 2 ZD407 MA4120N ZENER DIODE 1 ZD408 MA8220 ZENER DIODE 1 ZD501 MA8270 ZENER DIODE 1 ZD502 MA4300N ZENER DIODE 1 170 TH-50PX60U
