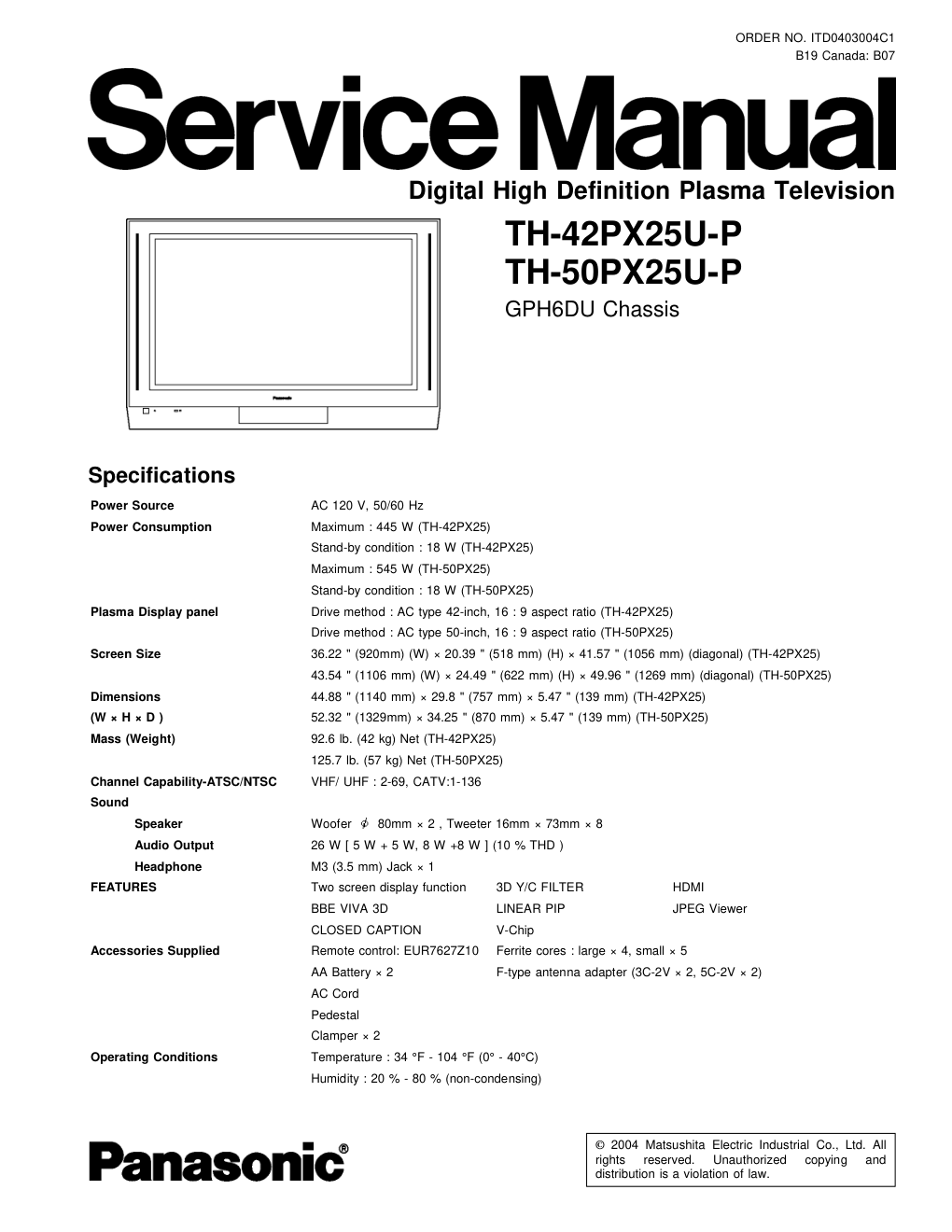

© 2004 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law. TH-42PX25U-P TH-50PX25U-P GPH6DU Chassis Digital High Definition Plasma Television Specifications Power Source AC 120 V, 50/60 Hz Power Consumption Maximum : 445 W (TH-42PX25) Stand-by condition : 18 W (TH-42PX25) Maximum : 545 W (TH-50PX25) Stand-by condition : 18 W (TH-50PX25) Plasma Display panel Drive method : AC type 42-inch, 16 : 9 aspect ratio (TH-42PX25) Drive method : AC type 50-inch, 16 : 9 aspect ratio (TH-50PX25) Screen Size 36.22 " (920mm) (W) × 20.39 " (518 mm) (H) × 41.57 " (1056 mm) (diagonal) (TH-42PX25) 43.54 " (1106 mm) (W) × 24.49 " (622 mm) (H) × 49.96 " (1269 mm) (diagonal) (TH-50PX25) Dimensions (W × H × D ) 44.88 " (1140 mm) × 29.8 " (757 mm) × 5.47 " (139 mm) (TH-42PX25) 52.32 " (1329mm) × 34.25 " (870 mm) × 5.47 " (139 mm) (TH-50PX25) Mass (Weight) 92.6 lb. (42 kg) Net (TH-42PX25) 125.7 lb. (57 kg) Net (TH-50PX25) Channel Capability-ATSC/NTSC VHF/ UHF : 2-69, CATV:1-136 Sound Speaker Woofer 80mm × 2 , Tweeter 16mm × 73mm × 8 Audio Output 26 W [ 5 W + 5 W, 8 W +8 W ] (10 % THD ) Headphone M3 (3.5 mm) Jack × 1 FEATURES Two screen display function 3D Y/C FILTER HDMI BBE VIVA 3D LINEAR PIP JPEG Viewer CLOSED CAPTION V-Chip Accessories Supplied Remote control: EUR7627Z10 Ferrite cores : large × 4, small × 5 AA Battery × 2 F-type antenna adapter (3C-2V × 2, 5C-2V × 2) AC Cord Pedestal Clamper × 2 Operating Conditions Temperature : 34 °F - 104 °F (0° - 40°C) Humidity : 20 % - 80 % (non-condensing) ORDER NO. ITD0403004C1 B19 Canada: B07 1 Applicable signals (VIDEO/ COMPONENT/ RGB/ PC/ HDMI input signals) 5 2 Safety Precautions 6 2.1. General Guidelines 6 3 Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices 7 4 About lead free solder (PbF) 8 5 Service Hint 9 6 P.C.Board and Plasma panel replacement method 10 7 Location of Lead Wiring 20 7.1. Lead of Wiring (1) 20 7.2. Lead of Wiring (2) 21 7.3. Lead of Wiring (3) 22 7.4. Lead of Wiring (4) 23 7.5. Lead of Wiring (5) 24 7.6. Lead of Wiring (6) 25 8 Self-check Function 26 8.1. Self-check of the microcomputer control system (bus line) 26 8.2. Power LED Blinking timing chart 27 8.3. No Power 28 8.4. No Picture 28 8.5. Local screen failure 29 9 Serviceman Mode (Electronic Controls) 31 10 CAT (Computer Aided Test) mode 34 10.1. IIC mode 34 10.2. CD mode 35 10.3. SD mode 35 10.4. IIC mode structure (following items value is sample data.) 36 11 Adjustment Procedure 37 11.1. Driver Set-up 37 11.2. Initialization Pulse Adjust 38 11.3. P.C.B. (Printed Circuit Board) exchange 39 11.4. Test Point & Adjustment Volume Location (TH-42PX25) 39 11.5. Test Point & Adjustment Volume Location (TH-50PX25) 40 12 Adjustment 41 12.1. Pedestal setting 41 12.2. NTSC panel white balance 42 12.3. HD panel white balance 43 12.4. Sub brightness setting 44 12.5. ABL Level 44 Connection Terminals RGB input D-SUB 15pin R, G, B /0.7 Vp-p (75�) HD, VD /1.0 -5.0 Vp-p (high impedance) AV INPUT 1-3 VIDEO (Phono Jack Type) 1.0 Vp-p (75�) S-VIDEO (Mini DIN 4-pin) Y :1.0 Vp-p (75�), C : 0.286 Vp-p (75�) AUDIO L-R (Phono Jack Type × 2) 0.5 Vrms AV PROG.OUT VIDEO (Phono Jack Type) 1.0 Vp-p (75�) AUDIO L-R (Phono Jack Type × 2) 0.5 Vrms TO AUDIO AMP AUDIO L-R (Phono Jack Type × 2) 0.5 Vrms COMPONENT VIDEO Y 1.0 Vp-p (including synchronization) INPUT1-2 PB /PR ± 0.35 Vp-p AUDIO L-R (Phono Jack Type × 2) 0.5 Vrms HDMI HDMI type A Connector AUDIO L-R (Phono Jack Type × 2) 0.5 Vrms DIGITAL AUDIO OUT PCM / Dolby Digital, Fiber Optic Note: Design and Specifications are subject to change without notice.Weight and Dimensions shown are approximate. CONTENTS Page Page 2 TH-42PX25U-P / TH-50PX25U-P 13 Hotel mode 45 14 Conductor Views 47 14.1. PF-Board 47 14.2. P-Board (TH-42PX25U/P) 49 14.3. P-Board (TH-50PX25U/P) 52 14.4. PA-Board 55 14.5. D-Board 57 14.6. DG-Board 59 14.7. DV-Board 61 14.8. H-Board 62 14.9. TB and JA-Board 64 14.10. C1-Board (TH-42PX25U/P) 65 14.11. C1-Board (TH-50PX25U/P) 66 14.12. C2-Board (TH-42PX25U/P) 67 14.13. C2-Board (TH-50PX25U/P) 68 14.14. C3-Board (TH-42PX25U/P) 69 14.15. C3-Board (TH-50PX25U/P) 70 14.16. C4-Board (TH-42PX25U/P) 71 14.17. C4-Board (TH-50PX25U/P) 72 14.18. C5-Board (TH-50PX25U/P) 73 14.19. C6-Board (TH-50PX25U/P) 74 14.20. SC-Board (TH-42PX25U/P) 75 14.21. SC-Board (TH-50PX25U/P) 78 14.22. SD-Board (TH-42PX25U/P) 81 14.23. SD-Board (TH-50PX25U/P) 82 14.24. SU-Board (TH-42PX25U/P) 83 14.25. SU-Board (TH-50PX25U/P) 84 14.26. SS, SS2 and SS3-Board (TH-42PX25U/P) 85 14.27. SS, SS2 and SS3-Board (TH-50PX25U/P) 87 14.28. JG-Board 89 14.29. G-Board 91 14.30. K and S-Board 92 14.31. DT-Board 93 15 Block and Schematic Diagrams 95 15.1. Schematic Diagram Notes 95 15.2. Main Block Diagram (TH-42PX25U/P) 96 15.3. Main Block Diagram (TH-50PX25U/P) 97 15.4. PF-Board Block Diagram 98 15.5. PF-Board Schematic Diagram 99 15.6. P-Board Block Diagram (TH-42PX25U/P) 100 15.7. P-Board (1 of 6) Schematic Diagram (TH-42PX25U/P) 101 15.8. P-Board (2 of 6) Schematic Diagram (TH-42PX25U/P) 102 15.9. P-Board (3 of 6) Schematic Diagram (TH-42PX25U/P) 103 15.10. P-Board (4 of 6) Schematic Diagram (TH-42PX25U/P) 104 15.11. P-Board (5 of 6) Schematic Diagram (TH-42PX25U/P) 105 15.12. P-Board (6 of 6) Schematic Diagram (TH-42PX25U/P) 106 15.13. P-Board Block Diagram (TH-50PX25U/P) 107 15.14. P-Board (1 of 6) Schematic Diagram (TH-50PX25U/P) 108 15.15. P-Board (2 of 6) Schematic Diagram (TH-50PX25U/P) 109 15.16. P-Board (3 of 6) Schematic Diagram (TH-50PX25U/P) 110 15.17. P-Board (4 of 6) Schematic Diagram (TH-50PX25U/P) 111 15.18. P-Board (5 of 6) Schematic Diagram (TH-50PX25U/P) 112 15.19. P-Board (6 of 6) Schematic Diagram (TH-50PX25U/P) 113 15.20. PA and G-Board Block Diagram 114 15.21. PA-Board (1 of 2) Schematic Diagram 115 15.22. PA-Board (2 of 2) Schematic Diagram 116 15.23. G-Board Schematic Diagram 117 15.24. DG-Board Block Diagram 118 15.25. DG-Board (1 of 7) Schematic Diagram 120 15.26. DG-Board (2 of 7) Schematic Diagram 121 15.27. DG-Board (3 of 7) Schematic Diagram 122 15.28. DG-Board (4 of 7) Schematic Diagram 123 15.29. DG-Board (5 of 7) Schematic Diagram 124 15.30. DG-Board (6 of 7) Schematic Diagram 125 15.31. DG-Board (7 of 7) Schematic Diagram 126 15.32. DV-Board Block Diagram 127 15.33. DV-Board (1 of 3) Schematic Diagram 128 15.34. DV-Board (2 of 3) Schematic Diagram 129 15.35. DV-Board (3 of 3) Schematic Diagram 130 15.36. DT and JA-Board Block Diagram 131 15.37. H and TB-Board Block Diagram 133 15.38. DT-Board (1 of 8) Schematic Diagram 134 15.39. DT-Board (2 of 8) Schematic Diagram 135 15.40. DT-Board (3 of 8) Schematic Diagram 136 15.41. DT-Board (4 of 8) Schematic Diagram 137 15.42. DT-Board (5 of 8) Schematic Diagram 138 15.43. DT-Board (6 of 8) Schematic Diagram 139 15.44. DT-Board (7 of 8) Schematic Diagram 140 15.45. DT-Board (8 of 8) Schematic Diagram 141 15.46. H-Board (1 of 2) Schematic Diagram 142 15.47. H-Board (2 of 2) Schematic Diagram 143 15.48. JA and TB-Board Schematic Diagram 144 15.49. JG-Board Block Diagram 145 15.50. JG-Board (1 of 2) Schematic Diagram 146 15.51. JG-Board (2 of 2) Schematic Diagram 147 15.52. D-Board Block Diagram 148 15.53. D-Board (1 of 14) Schematic Diagram 150 15.54. D-Board (2 of 14) Schematic Diagram 151 15.55. D-Board (3 of 14) Schematic Diagram 152 15.56. D-Board (4 of 14) Schematic Diagram 153 15.57. D-Board (5 of 14) Schematic Diagram 154 15.58. D-Board (6 of 14) Schematic Diagram 155 15.59. D-Board (7 of 14) Schematic Diagram 156 15.60. D-Board (8 of 14) Schematic Diagram 157 15.61. D-Board (9 of 14) Schematic Diagram 158 15.62. D-Board (10 of 14) Schematic Diagram 159 15.63. D-Board (11 of 14) Schematic Diagram 160 15.64. D-Board (12 of 14) Schematic Diagram 161 15.65. D-Board (13 of 14) Schematic Diagram 162 15.66. D-Board (14 of 14) Schematic Diagram 163 15.67. C1, C2, C3, C4, K and S-Board Block Diagram (TH- 42PX25U/P) 164 15.68. C1-Board (1 of 2) Schematic Diagram (TH-42PX25U/P) 165 15.69. C1-Board (2 of 2) Schematic Diagram (TH-42PX25U/P) 166 15.70. C2-Board (1 of 2) Schematic Diagram (TH-42PX25U/P) 167 3 TH-42PX25U-P / TH-50PX25U-P 15.71. C2-Board (2 of 2) Schematic Diagram (TH-42PX25U/P) 168 15.72. C3-Board (1 of 2) Schematic Diagram (TH-42PX25U/P) 169 15.73. C3-Board (2 of 2) Schematic Diagram (TH-42PX25U/P) 170 15.74. C4-Board (1 of 2) Schematic Diagram (TH-42PX25U/P) 171 15.75. C4-Board (2 of 2) Schematic Diagram (TH-42PX25U/P) 172 15.76. C1, C2, C5, and C6-Board Block Diagram (TH- 50PX25U/P) 173 15.77. C3, C4, K and S-Board Block Diagram (TH-50PX25U/P) 174 15.78. C1-Board (1 of 2) Schematic Diagram (TH-50PX25U/P) 175 15.79. C1-Board (2 of 2) Schematic Diagram (TH-50PX25U/P) 176 15.80. C2-Board Schematic Diagram (TH-50PX25U/P) 177 15.81. C3-Board (1 of 2) Schematic Diagram (TH-50PX25U/P) 178 15.82. C3-Board (2 of 2) Schematic Diagram (TH-50PX25U/P) 179 15.83. C4-Board (1 of 2) Schematic Diagram (TH-50PX25U/P) 180 15.84. C4-Board (2 of 2) Schematic Diagram (TH-50PX25U/P) 181 15.85. C5-Board Schematic Diagram (TH-50PX25U/P) 182 15.86. C6-Board (1 of 2) Schematic Diagram (TH-50PX25U/P) 183 15.87. C6-Board (2 of 2) Schematic Diagram (TH-50PX25U/P) 184 15.88. K and S-Board Schematic Diagram 185 15.89. SC-Board Block Diagram (TH-42PX25U/P) 186 15.90. SC-Board (1 of 2) Schematic Diagram (TH-42PX25U/P) 187 15.91. SC-Board (2 of 2) Schematic Diagram (TH-42PX25U/P) 188 15.92. SC-Board Block Diagram (TH-50PX25U/P) 189 15.93. SC-Board (1 of 3) Schematic Diagram (TH-50PX25U/P) 190 15.94. SC-Board (2 of 3) Schematic Diagram (TH-50PX25U/P) 191 15.95. SC-Board (3 of 3) Schematic Diagram (TH-50PX25U/P) 192 15.96. SU-Board Block Diagram 193 15.97. SU-Board (1 of 2) Schematic Diagram (TH-42PX25U/P) 194 15.98. SU-Board (2 of 2) Schematic Diagram (TH-42PX25U/P) 195 15.99. SU-Board (1 of 2) Schematic Diagram (TH-50PX25U/P) 196 15.100. SU-Board (2 of 2) Schematic Diagram (TH-50PX25U/P) 197 15.101. SD-Board Block Diagram 198 15.102. SD-Board (1 of 2) Schematic Diagram (TH-42PX25U/P) 199 15.103. SD-Board (2 of 2) Schematic Diagram (TH-42PX25U/P) 200 15.104. SD-Board (1 of 2) Schematic Diagram (TH-50PX25U/P) 201 15.105. SD-Board (2 of 2) Schematic Diagram (TH-50PX25U/P) 202 15.106. SS, SS2 and SS3-Board Block Diagram (TH-42PX25U/P) 203 15.107. SS-Board (1 of 2) Schematic Diagram (TH-42PX25U/P) 204 15.108.SS-Board (2 of 2), SS2-Board and SS3-Board Schematic Diagram (TH-42PX25U/P) 205 15.109. SS, SS2 and SS3-Board Block Diagram (TH-50PX25U/P) 206 15.110. SS-Board (1 of 2) Schematic Diagram (TH-50PX25U/P) 207 15.111.SS-Board (2 of 2), SS2-Board and SS3-Board Schematic Diagram (TH-50PX25U/P) 208 16 Parts Location 209 17 Packing Exploded View 210 18 Mechanical Replacement Parts List 213 19 Replacement Parts List 215 19.1. Replacement Parts List Notes 215 19.2. Electrical Replacement Part List (TH-50PX25U/P) 216 19.3. Electrical Replacement Part List (TH-42PX25U/P) 251 4 TH-42PX25U-P / TH-50PX25U-P 1 Applicable signals (VIDEO/ COMPONENT/ RGB/ PC/ HDMI input signals) 5 TH-42PX25U-P / TH-50PX25U-P 2.1.1. Leakage Current Cold Check 1. Unplug the AC cord and connect a jumper between the two prongs on the plug. 2. Measure the resistance value, with an ohmmeter, between the jumpered AC plug and each exposed metallic cabinet part on the equipment such as screwheads, connectors, control shafts, etc. When the exposed metallic part has a return path to the chassis, the reading should be between 1M� and 5.2M�. When the exposed metal does not have a return path to the chassis, the reading must be . Figure 1 2.1.2. Leakage Current Hot Check (See Figure 1.) 1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check. 2. Connect a 1.5k�, 10 watts resistor, in parallel with a 0.15µF capacitors, between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1. 3. Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to measure the potential across the resistor. 4. Check each exposed metallic part, and measure the voltage at each point. 5. Reverse the AC plug in the AC outlet and repeat each of the above measurements. 6. The potential at any point should not exceed 0.75 volts RMS. A leakage current tester (Simpson Model 229 or equivalent) may be used to make the hot checks, leakage current must not exceed 1/2 milliamp. In case a measurement is outside of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer. 2 Safety Precautions 2.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed. 3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards. 6 TH-42PX25U-P / TH-50PX25U-P 3 Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by electro static discharge (ESD). 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test. 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alminum foil, to prevent electrostatic charge buildup or exposure of the assembly. 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices. 4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can generate electrical charge sufficient to damage ES devices. 5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices. 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, alminum foil or comparable conductive material). 7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. Caution Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise hamless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device). 7 TH-42PX25U-P / TH-50PX25U-P 4 About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available. This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d suggest the use of Pb free solder as well, although Pb solder may be used. PCBs manufactured using lead free solder will have the PbF within a leaf Symbol stamped on the back of PCB. Caution ���� ·����Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C). ���� ·����Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C). If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder. ���� ·����After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the opposite side. (see figure below) Suggested Pb free solder There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used. 8 TH-42PX25U-P / TH-50PX25U-P Stand the unit used for pedestal. Remove the Rear Cover. Remove the AV Connector Cover. Service position. (TH-42PX25U-P) Service position. (TH-50PX25U-P) Board Name Function C1 DATA DRIVER (UPPER RIGHT) C2 DATA DRIVER (UPPER LEFT) C3 DATA DRIVER (LOWER LEFT) C4 DATA DRIVER (LOWER RIGHT) C1 DATA DRIVER (UPPER RIGHT) C2 DATA DRIVER (UPPER CENTER) C3 DATA DRIVER (UPPER LEFT) C4 DATA DRIVER (LOWER LEFT) C5 DATA DRIVER (LOWER CENTER) C6 DATA DRIVER (LOWER RIGHT) D DIGITAL SIGNAL PROCESS DG DIGITAL CORE, MICOM DT ATSC INTERFACE DV HDMI A/V INTERFACE G FRONT TERMINAL, SWITCH H REAR TERMINAL JA DG-DT CONNECTION JG SD CARD/PC CARD, JPEG I/F D/A K LED, REMOTE, POWER SWITCH P POWER SUPPLY PA DC/DC, AUDIO PF LINE FILTER S POWER SWITCH SC SCAN DRIVE SD SCAN OUT (DOWN) SS SUSTAIN DRIVE SS2 SUSTAIN CONNECTION (UP) SS3 SUSTAIN CONNECTION (DOWN) SU SCAN OUT (UP) T TUNER 5 Service Hint 9 TH-42PX25U-P / TH-50PX25U-P ���� To replace the plasma panel (finished), place the unit on the servicing stand, remove the front frame (finished), and replace the panel, being careful not to scratch the plasma panel surface. 1. Remove the rear cover and the AV connector cover. 2. Remove the P-Board. a. Remove the couplers (P2, P5, P7, P9, P11, P12, P23, P25, P27). b. Remove the screws (×8) and remove the P-Board. 3. Remove the PA-Board. a. Remove the couplers (PA1~PA15, PA18). b. Remove the screws (×4 ) and remove the PA-Board with the PA-Board Bracket. c. Remove the screws (×6 ) and remove the PA-Board. 4. Remove the D-Board. a. Disconnect the couplers (D3, D4, D12, D20, D25, D27) and the flexible cables (D31~D34). b. Remove the screws (×7) and remove the D-Board with the bracket. 5. Remove the DG-Board, the H-Board, the DV-Board, the DT-Board and the TB-Board. a. Remove a coupler (H7), the screws (×4 ) fastening the DV-Board bracket and remove the DV- Board with bracket. b. Remove the screw (×3 ) and remove the DV- Board. a. Remove a coupler (JA18), an antenna cable. b. Remove the screws (×4 ) fastening the DT- Board bracket, disconnect the connector (JA23- DG23) and remove the DT-Board with JA-Board. c. Remove the JA-Board from the DT-Board (which connected by the connector (JA8007)). 6 P.C.Board and Plasma panel replacement method 10 TH-42PX25U-P / TH-50PX25U-P a. Remove the couplers (DG2, DG3, DG6, DG7, DG8, DG12, DG31), and the screws (×5 ). b. Remove the DG-Board/ the H-Board/ the T-Board with the bracket. c. Disconnect the bridge connectors (DG1-H1) and remove the screws (×5 ) on the DG-Board. d. Remove the DG-Board. e. Remove the screws (×3 ) on the H-Board. f. Remove the coupler (H10) and remove the TB- Board connected to the connectors (H21, H22). g. Remove the H-Board. 6. Remove the PF-Board. a. Remove the couplers (PF2, PF10). b. Remove the screws (×5 ), and remove the PF-Board with the Bracket. c. Remove the coupler (PF1) and remove the screws (×5 ). d. Remove the PF-Board. 7. Remove the SU-Board. a. Remove the screws (×2). b. Slide the SU-Board to the left and disconnect from the couplers (SC41, SC42, SC45) on the SC-Board. c. Remove the flexible cables (SU1, SU2, SU3, SU4) connected to the SU-Board, and remove the SU-Board. a. Remove the screws (×3). b. Slide the SU-Board to the left and disconnect from the couplers (SC41, SC42, SC45) on the SC-Board. 11 TH-42PX25U-P / TH-50PX25U-P c. Remove the flexible cables (SU1, SU2, SU3, SU4) connected to the SU-Board, and remove the SU-Board. 8. Remove the SD-Board. a. Remove the screws (×2). b. Slide the SD-Board to the left and disconnect from the couplers (SC43, SC44, SC46) on the SC-Board. c. Remove the flexible cables (SD1, SD2, SD3, SD4) connected to the SD-Board, and remove the SD-Board. a. Remove the screws (×3). b. Slide the SD-Board to the left and disconnect from the couplers (SC43, SC44, SC46) on the SC-Board. c. Remove the flexible cables (SD1, SD2, SD3, SD4) connected to the SD-Board, and remove the SD-Board. 12 TH-42PX25U-P / TH-50PX25U-P 9. Remove the SC-Board. a. Remove the couplers (SC2, SC20, SC23, SC45, SC46) the screws (×7) and remove the SC-Board. a. Remove the couplers (SC2, SC12, SC13, SC20, SC23, SC45, SC46, SC62) and the screws (×9) to remove the SC-Board. 10. Remove the SS2-Board. a. Remove the coupler (SS23), and remove the flexible cables (SS55, SS56). b. Remove the screws (×2), and remove the SS2-Board. a. Remove the coupler (SS21), and remove the flexible cable (SS41). b. Remove the screws (×2), and remove the SS2-Board. 11. Remove the SS3-Board. a. Remove the coupler (SS22) and the flexible cables (SS57, SS58). b. Remove the screws (×2), and remove the SS3-Board. 13 TH-42PX25U-P / TH-50PX25U-P a. Remove the coupler (SS31) and the flexible cable (SS48). b. Remove the screws (×2), and remove the SS3-Board. 12. Remove the SS-Board. a. Remove the couplers (SS11, SS12, SS34, SS42), and remove the flexible cable (SS22, SS23) on the SS3- Board and SS2-Board. b. Remove the flexible cables (SS51~SS54). c. Remove the screws (×7), and remove the SS-Board, SS2-Board and SS3-Board. a. Remove the couplers (SS11, SS12, SS32, SS34, SS35, SS42). b. Remove the flexible cables (SS51~SS56). c. Remove the screws (×7), and remove the SS-Board. 13. Remove the speaker (L, R) a. Remove the relay connectors (L, R). b. Remove the screws (×5 ) and remove the speaker (L, R). 14 TH-42PX25U-P / TH-50PX25U-P 14. Remove the C1-Board a. Remove the fans (×2) located on the C1-Board. b. Remove the flexible cable holder fastening screws (×8 ) and remove the flexible cables (CA1~CA4). c. Remove the flexible cables (C11, C12), remove the screws (×3 ) and remove the C1-Board. 15. Remove the C2-Board a. Remove the fans (×2) located on the C2-Board. b. Remove the flexible cable holder fastening screws (×8 ) and remove the flexible cables (CA5~CA8). c. Remove a coupler (C32) and a flexible cable (C21, C22), remove the screws (×3 ) and remove the C2- Board. 16. Remove the C3-Board. a. Remove the flexible cable holder fastening screws (×8 ), and remove the flexible cables (CB5~CB8). b. Remove the couplers (C42, C44), a flexible cable (C31, C33) and release the speaker cables from the clamper on the C3-Board. c. Remove the screws (×3 ), and remove the C3- Board. 17. Remove the C4-Board. a. Remove the flexible cable holder fastening screws (×8 ) and remove the flexible cables (CB1~CB4). b. Remove the flexible cables (C41, C43) and release the speaker cables from the clampers (×3) on the C4- Board. c. Remove the screws (×3 ), and remove the C4- Board. 18. Remove the C1-Board. a. Remove the coupler (PA11) on the PA-Board and remove the screws (×3 ) and remove the fan A. b. Remove the flexible cable holder fastening screws (×8 ) and remove the flexible cables (CA1, CA2, CA3, CA4). c. Remove the couplers (C12, C13) and the flexible cable (C10, C11). d. Remove the screws (×5 ) and remove the C1-Board. 15 TH-42PX25U-P / TH-50PX25U-P 19. Remove the C2-Board a. Remove the couplers (PA12, PA13) on the PA-Board and remove the screws (×6 ) and remove the fan B, C. b. Remove the flexible cable holder fastening screws (×6 ) and remove the flexible cables (CA5, CA6, CA7). c. Remove the flexible cable (C20~ C25). d. Remove the screws (×5 ) and remove the C2-Board. 20. Remove the C3-Board a. Remove the coupler (PA11) on the PA-Board and remove the screws (×3 ) and remove the fan D. b. Remove the flexible cable holder fastening screws (×8 ) and remove the flexible cables (CA8~CA11). c. Remove the couplers (C32, C35) and the flexible cable (C31, C33). d. Remove the screws (×5 ) and remove the C3-Board. 21. Remove the C4-Board. a. Lay down the main unit so that the rear face upward and remove the stand brackets. b. Remove the flexible cable holder fastening screws (×8 ) and remove the flexible cables (CB8, CB9, CB10, CB11). c. Unlock the cable clampers to free the cable. d. Remove the couplers (C42, C44) and the flexible cable (C41, C43). e. Remove the screws (×5 ) and remove the C4-Board. 16 TH-42PX25U-P / TH-50PX25U-P 22. Remove the C5-Board. a. Lay down the main unit so that the rear face upward and remove the stand brackets. b. Remove the flexible cable holder fastening screws (×6 ) and remove the flexible cables (CB5, CB6, CB7). c. Unlock the cable clampers to free the cable. d. Remove the flexible cable (C50~C55). e. Remove the screws (×5 ) and remove the C5-Board. 23. Remove the C6-Board. a. Lay down the main unit so that the rear face upward and remove the stand brackets. b. Remove the flexible cable holder fastening screws (×8 ) and remove the flexible cables (CB1~CB4). c. Unlock the cable clampers to free the cable. d. Remove the coupler (C62) and the flexible cable (C60, C61). e. Remove the screws (×5 ) and remove the C6-Board. 24. Remove the JG-Board and G-Board. a. Remove the screws (×7) fixing the woofer speakers, the interconnecting couplers (×4, to woofer and tweeter) and remove the woofer speakers (right and left). b. Disconnect the couplers (DG7, DG31), and the couplers of interconnecting connector (from H10 to G10 and PA9 to G5). c. Remove the screws (×8 ) and remove the JG-Board and G-Board with the Bracket. d. Remove the screws (×7 ) and remove the JG-Board with Bracket. e. Remove the screws (×2 ) and remove the Shield case of JG-Board. f. Remove the screws (×5) and remove the JG-Board. g. Remove the screws (×2) and remove the G-Board. 25. Remove the Front frame (glass). a. Remove the front frame and the plasma panel fastening screws (×11 ), and remove the front frame and the stand bracket fastening screws(×6 ). 17 TH-42PX25U-P / TH-50PX25U-P b. Release all cables from the clamper on the bracket of the front frame. c. For leaving the plasma panel from the front frame, pull the bottom of the front frame forward, lift, and remove. a. Remove the front frame and the plasma panel fastening screws (×12 ), and remove the front frame and the stand bracket fastening screws(×8 ). b. Release all cables from the clamper on the bracket of the front frame. c. For leaving the the plasma panel from the front frame, pull the bottom of the front frame forward, lift, and remove. 26. Remove the stand brackets. a. Remove the plasma panel section from the servicing stand and lay on a surface such as a table (covered), with the plasma panel surface facing downward. Spread a soft cloth or similar on the table for protection, so the panel surface is not scratched. b. Remove the stand bracket (left, right) fastening screws (×4 each) and remove the stand brackets (left, right). 18 TH-42PX25U-P / TH-50PX25U-P 27. Replace the plasma panel (finished). a. Place the new plasma panel (finished) on the flat surface of the table (covered by a soft cloth), with the plasma panel surface facing downward. b. Fit the stand brackets (left, right) to the new plasma panel. c. Place the plasma panel section on the servicing stand. d. Attach the front frame and the each P.C.Board and so on, to the new plasma panel. * When fitting the front frame to the plasma panel, be careful not to allow any debris, dust or handling residues to remain between the front glass and the plasma panel. 19 TH-42PX25U-P / TH-50PX25U-P 7 Location of Lead Wiring 7.1. Lead of Wiring (1) 20 TH-42PX25U-P / TH-50PX25U-P 7.2. Lead of Wiring (2) 21 TH-42PX25U-P / TH-50PX25U-P 7.3. Lead of Wiring (3) 22 TH-42PX25U-P / TH-50PX25U-P 7.4. Lead of Wiring (4) 23 TH-42PX25U-P / TH-50PX25U-P 7.5. Lead of Wiring (5) 24 TH-42PX25U-P / TH-50PX25U-P 7.6. Lead of Wiring (6) 25 TH-42PX25U-P / TH-50PX25U-P 8 Self-check Function When symptoms like “the power fails sometimes” or “sometimes there is no picture and/or sound” can not be confirmed at the time of servicing, the self-check function can be used to confirm the occurrence and to find the defective circuit. In case of “power failure”, flashing of the “POWER” indication (red) at the front of the unit can be used to narrow down the +B line. 8.1. Self-check of the microcomputer control system (bus line) Indicaton method Press the “OK” button in the control panel of the unit simultaneously with the “POWER” button in the control panel of the unit. Hold them a few seconds. Return to he normal screen Press any button on the unit or in the remote control. Screen Display Display Ref. No. Description Board MEMORY IC002 EEPROM for Main MPU DG SOUND IC2401 Sound Control PA YUV_SW IC4302 YUV switch H GC2S1 IC4502 Global Core 2 for sub DG EXDAC2 IC5011 EXDAC DV PANEL - - - - - Panel - - - - - SOUND2 IC4203 BBE VIVA H TNR1 TNR8000 Tuner 1 DT MTS IC8008 NXTWARE DT GC2M1 IC4501 Global Core 2 for main DG GC2S2 IC9305 New Plasma AI (Slave) D HDMI IC5003 HDMI Recelver DV JPEG IC6013 JPEG I/F JG DTVMPU IC8024 HDsL Peaks DT TNR2 TNR251 Tuner 2 TB AVSW IC4301 AV switch H GC2M2 IC9455 New Plasma AI (Master) D EXDAC IC3003 External I/O DG CONV IC3801 Convert Micom DG 26 TH-42PX25U-P / TH-50PX25U-P 8.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinkes of the Power LED on the front panel of the unit. 27 TH-42PX25U-P / TH-50PX25U-P 8.3. No Power First check point There are following 3 states of No Power indication by power LED. 1. No lit 2. Green is lit then turns red blinking a few seconds later. 3. Only red is lit. 1. No lit 8.4. No Picture 28 TH-42PX25U-P / TH-50PX25U-P 8.5. Local screen failure Plasma display may have local area failure on the screen. Fig - 1 and Fig - 2 are the possible defect P.C.B. for each local area. Fig - 1 29 TH-42PX25U-P / TH-50PX25U-P Fig - 2 30 TH-42PX25U-P / TH-50PX25U-P 9 Serviceman Mode (Electronic Controls) This Receiver has electronic technology using the I2C BUS Concept. It performs as a control function and it replaces many mechanical controls. Instead of adjusting mechanical controls individually, many of the control function are now performed by using “On Screen Display Menu”. (The Serviceman Adjustment Mode.) Note It is suggested that the technician reads all the way through and understand the following the procedure for Entering/Exiting the Serviceman Mode; then proceed with the instructions working the Receiver. When becoming familiar with the procedure, the Flow Chart for Serviceman Mode may be used as a quick guide. Quick Entry to Serviceman Mode: At times when minor adjustments need to be done to the electronic controls, the method of Entering the serviceman Mode without removal of the cabinet back is as follows using the Remote Control: 1. Press the MENU button to display the Main menu, select SET-UP icon and then select the Program CH to set “Cable only” (Input Setup) mode. 2. Return to the Main menu, press MENU button twice and select TIMER icon, press OK to set SLEEP time for 30 Min with press the Vo1 . 3. Press MENU button twice to exit menus. 4. Tune to the Channel 124. 5. Adjust VOLUME to minimum (0). 6. Press the VOL button (decrease) on Set. Red “CHK” appears in upper corner. 7. Press the Power Button on the Remote Control to select one of six Serviceman Adjustment Modes. 31 TH-42PX25U-P / TH-50PX25U-P For Adjustments: Exiting the Serviceman Mode: Press the Power button on the Receiver. 1. Press Channel Up/Down on the Remote Control to select one of the available Service Adjustments and press the OK button. Note: Write Down the original value set for each address before modifying anything. It is easy to erroneously adjust the wrong item. 2. Press Volume Up/Down on the Remote Control to adjust the level of the selected Service Adjustment. 32 TH-42PX25U-P / TH-50PX25U-P MAIN ITEM SUB ITEM ORIGINAL VALUE EEPROM ADRESS DEFAULT LEVEL SLEEVE SUB VIDEO COLOR 00 1A 15 TINT 00 1B 01 BRIGH 00 20 09 B0 CONT 00 24 02 85 B-Y-G 00 1C 3E CUT G 00 28 80 CUT R 00 2E 01 00 CUT B 00 31 01 00 BRT 00 A5 09 B0 R DR 00 46 7D B DR 00 47 7E R-Y-A 00 1D 00 H H POS 15 24 FD H WID 15 23 08 HP OF 15 81 00 HW OF 15 80 00 V V POS 15 26 08 V WID 15 25 15 VP OF 15 83 00 VW OF 15 82 00 EW-SW 00 9E 00 VTOP 00 9E B8 OTHER SOSSW 01 97 01 JPEG 00 F1 00 POFWT 15 89 0A PSRVS 15 85 00 SPDYN 15 86 00 EEP AREA 15 9C ALL IN EX 15 9D EX IN 15 9E 33 TH-42PX25U-P / TH-50PX25U-P 10 CAT (Computer Aided Test) mode To exit the CAT mode, access the ID mode and switch off the main power. 10.1. IIC mode Select the IIC mode by Up/Down button (channel) on the remote control at the front page of CAT mode then press the OK button on the remote control. “IIC mode structure”. To exit the IIC mode, press the EXIT or MENU button on the remote control. 34 TH-42PX25U-P / TH-50PX25U-P 10.2. CD mode Select the CD mode by Up/Down button on the remote control at the front page of CAT mode then press the Mute button on the remote control more than 5 sec. Micom software version (IC9705), this version can be upgrade by 1. replace of new version IC 2. Loading the new version software from loader tool, TZSC07036. Memory data change To exit the CD mode, press the EXIT button on the remote control. 10.3. SD mode Select the SD mode by Up/Down (channel) button on the remote control at the front page of CAT mode then press the OK button on the remote control. To exit the SD mode, press the EXIT button on the remote control. 35 TH-42PX25U-P / TH-50PX25U-P 10.4. IIC mode structure (following items value is sample data.) 36 TH-42PX25U-P / TH-50PX25U-P 11.1. Driver Set-up 11.1.1. Item / Preparation 1. Input an APL 100 % white signal. 2. Set the picture controls: - Picture mode: Normal White balance: Cool Aspect: 16:9 11.1.2. Adjustments Adjust driver section voltages referring the panel data on the panel data label. Caution: Never make Vsus voltage lower than Ve or Vbk not to damage the circuit. Name Test Point Voltage Volume Remarks Vsus TPVSUS (SS) 170V ± 2V VR641 (P) Ve TPVE (SS) 150V ± 1V R6770 (SS) Vset TPVSET (SC) 220V ± 5V --- Vad TPVAD (SC) -90V ± 1V R6477 (SC) Vscn TPVSCN (SC) Vad*+118V + 3V, -2V --- Vda TPVDA (SS) 67V ± 1V VR665 (P) *See the Panel label. Name Test Point Voltage Volume Remarks Vsus TPVSUS (SS) 173V ± 2V VR641 (P) Ve TPVe (SS) 150V ± 1V VR6770 (SS) Vset TPVSET (SC) 220V ± 5V --- Vbk TPVBK (SC) 140V ± 1V VR6670 (SC) Vad TPVAD (SC) -85V ± 1V VR6477 (SC) Vscn TPVSCN (SC) Vad*+118V + 3V, -2V --- Vda TPVDA (SS) 75V ± 1V VR665 (P) *See the Panel label. 11 Adjustment Procedure 37 TH-42PX25U-P / TH-50PX25U-P 11.2. Initialization Pulse Adjust 1. Input a Cross hatch signal. 2. Set the picture controls: - Picture mode: Normal White balance: Cool Adjust the indicated test point (T2) for the specified waveform. Test point Volume Level T1 TPSC1 (SC) --- 20 ± 15µ Sec T2 TPSS1 (SS) R6557 (SC) 170 ± 20µ Sec 38 TH-42PX25U-P / TH-50PX25U-P 11.3. P.C.B. (Printed Circuit Board) exchange 11.3.1. Caution 1. To remove P.C.B. , wait 1 minute after power was off for discharge from electrolysis capacitors. 11.3.2. Quick adjustment after P.C.B. exchange P.C.B. Name Test Point Voltage Volume Remarks P Board Vsus TPVSUS (SS) 170V ± 1V VR641 (P) TH-42PX25 Vsus TPVSUS (SS) 173V ± 2V VR641 (P) TH-50PX25 Vda TPVDA (SS) 67V ± 1V VR665 (P) TH-42PX25 Vda TPVDA (SS) 75V ± 1V VR665 (P) TH-50PX25 SC Board Vad TPVAD (SC) -90V ± 1V R6477 (SC) TH-42PX25 Vad TPVAD (SC) -85V ± 1V VR6477 (SC) TH-50PX25 Vset TPVSET (SC) 220V ± 6V --- Vscn TPVSCN (SC) Vad + 118 + 3V, -2V --- Vbk TPVBK (SC) 140V ± 1V VR6670 (SC) TH-50PX25 SS Board Ve TPVE (SS) 150V ± 1V R6770 (SS) TH-42PX25 Ve TPVe (SS) 150V ± 1V VR6770 (SS) TH-50PX25 D, DG Board White blance, Pedestal and Sub brightness for NTSC, PAL, HD, PC and 625i signals *See the Panel label. 11.4. Test Point & Adjustment Volume Location (TH-42PX25) 39 TH-42PX25U-P / TH-50PX25U-P 11.5. Test Point & Adjustment Volume Location (TH-50PX25) 40 TH-42PX25U-P / TH-50PX25U-P 12 Adjustment 12.1. Pedestal setting 41 TH-42PX25U-P / TH-50PX25U-P 12.2. NTSC panel white balance 42 TH-42PX25U-P / TH-50PX25U-P 12.3. HD panel white balance 43 TH-42PX25U-P / TH-50PX25U-P 12.4. Sub brightness setting 12.5. ABL Level 44 TH-42PX25U-P / TH-50PX25U-P 1. Purpose Restrict a function for hotels. 2. Access command ���� ·����Enter to the Service Mode. ���� ·����Press MUTE button on remote control. Hold few seconds. ���� ·����Press the ch “UP” or “DOWN” and Vol “UP” or “DOWN” to set the data of EEPROM(ADDRESS 1584) to 01. Push the Power switch(button) off/on the set(the remote control) to turn the set off/on. It can be made Hotel mode. 3. Exit command ���� ·����First, set the data of EEPROM (ADDRESS 1584) to 00. Next, Push the Power switch(button) off/on the set(the remote control) to turn the set off/on. Then, it is no longer hotel mode. 4. Access command to the Hotel mode setup menu ���� ·���� : It is conditions that the data of EEPROM(ADDRESS 1584) is 01. In order to display the Hotel mode setup menu, please enter the following command (within 2 second). [TV]:Vol “Down” + [REMOTE]:TV/VIDEO (3 times) Then, the Hotel mode setup menu is displayed. 5. Explain the Hotel mode setup menu CAUTION This setup is not valid, unless data of EEPROM (ADDRESS 1584) will be 01, even if each settings were done. item Function INITIAL INPUT Select input signal modes. Set this signal, each time power is switched on. : Off/TV/COMP1/COMP2/DIGITAL/VIDEO1/V IDEO2/VIDEO3/PC/JPEG ���� ·����Off: give priority to a last memory. ���� ·����PC: selectable with VGA option INITIAL VOL LEVEL Adjust output Volume. Set this volume, each time power is switched on. If the value of InitVol is changed, volume will change. However, priority is given to a last memory when InitVol is Off. When "InitVol" is larger than "MaxVol", make "InitVol" and "MaxVol" the same. : Off/0 to 63 ���� ·����Off: give priority to a last memory MAXIMUM VOL LEVEL Adjust maximum volume. Set this max. volume, each time power is switched on. When "MaxVol" is smaller than "InitVol", make "MaxVol" and "InitVol" the same, if "InitVol" is not Off. : 0 to 63 INITIAL CH Select program number. Set this program number, each time power is switched on. : Off/0 to C125 ���� ·����Off: give priority to a last memory BUTTON LOCK Select local key conditions. Set this condition, each time power is switched on. : Off/SETUPMENU/All ���� ·����Off: altogether valid ���� ·����Action: restrict ACTION-key selection ���� ·����All: altogether invalid. REMOCON LOCK Select remote control key conditions. Set this condition, each time power is switched on. : Off/SETUP/MENU ���� ·����Off: altogether valid ���� ·����Action: menu is invalid 13 Hotel mode 45 TH-42PX25U-P / TH-50PX25U-P 46 TH-42PX25U-P / TH-50PX25U-P 14 Conductor Views 14.1. PF-Board A B C D E F G H I 1 2 3 4 5 6 PF-BOARD(FOIL SIDE) TXNPF1UHSU(FOR TH-42PX25U/P) TXNPF1UGSU(FOR TH-50PX25U/P) TH-42PX25U/P PF-BOARD TXNPF1UHSU TH-50PX25U/P PF-BOARD TXNPF1UGSU TH-42PX25U/P PF-BOARD TXNPF1UHSU TH-50PX25U/P PF-BOARD TXNPF1UGSU IC920 B-5 IC921 C-5 IC970 D-5 Q990 A-4 TP901 B-5 TP903 A-4 TP904 A-5 TP977 D-5 TP978 D-5 TP979 D-5 Parts Location PF-BOARD (FOIL SIDE) IC TP TRANSISTOR IC920 IC921 T920 LF909A LF909B LF909C CF901 CF902 D970 D971 D973 D990 IC970 TP901 TP903 TP904 F900 F901 F902 PF1 PF2 PF3 RL901 LF911A JS10 JS11 JS12 JS13 JS14 JS15 JS16 JS17 JS18 JS19 JS20 JS21 JS22 JS23 JS24 JS25 JS26 LF915A LF915B LF915C TP977 TP978 TP979 J2 J3 J4 L920 J5 L921 J6 L922 LF916A JS70 R901 JS71 R902 JS72 JS73 R904 JS80 JS81 R922 R923 L970 R924 L971 R925 L972 R926 L973 R927 R928 R929 Q990 JS9 R934 R935 C901 C902 C903 R940 C906 C907 C908 C909 C910 C911 C914 C915 C916 C917 LF904 LF905 C920 C921 LF909 C922 C923 C924 C925 S901 C926 S902 S903 C928 S904 LF911 S905 S906 S907 S908 LF915 S909 LF916 ZA901 C932 R970 S910 R971 S911 R972 S912 R973 S913 R974 S914 R975 R976 R980 R981 R982 R983 R984 R990 R992 R993 R994 PF10 C970 C971 LF904A C972 LF904B C973 LF904C C974 C975 D920 D921 D922 D925 D926 C990 C991 T8AH 250V T8AH 250V CAUTION CAUTION T3.15AL 250V CAUTION COLD COLD HOT LIVE CIRCUIT TNPA2885 2 PF LIVE CIRCUIT HOT COLD 3 8A 8A 3.15A 1 5 2 4 S4 S2A V1 S3 S1A S2B V2 P1 PT P2 S1B SEE REVERSE FOR ORDERNO. 1 4 1 4 1 2 1 10 + - PF TH-42PX25U-P / TH-50PX25U-P 47 A B C D E F G H I 1 2 3 4 5 6 PF-BOARD(COMPONENT SIDE) TXNPF1UHSU(FOR TH-42PX25U/P) TXNPF1UGSU(FOR TH-50PX25U/P) TH-42PX25U/P PF-BOARD TXNPF1UHSU TH-50PX25U/P PF-BOARD TXNPF1UGSU TH-42PX25U/P PF-BOARD TXNPF1UHSU TH-50PX25U/P PF-BOARD TXNPF1UGSU IC920 D-5 IC921 C-5 Parts Location PF-BOARD (COMPONENT SIDE) IC PF DIP IC920 IC921 T920 LF909A LF909B LF909C CF901 CF902 D970 D971 F900 F901 F902 PF1 PF2 PF3 RL901 LF911A JS10 JS11 JS12 JS13 JS14 JS15 JS16 JS17 JS18 JS19 JS20 JS21 JS22 JS23 JS24 JS25 JS26 LF915A LF915B LF915C J2 J3 J4 L920 J5 L921 J6 L922 LF916A JS70 R901 JS71 R902 JS72 JS73 R904 JS80 JS81 R922 R923 L970 R924 L971 L972 L973 JS9 C901 C902 C903 C906 C907 C908 C909 C910 C911 C914 C915 C916 C917 LF904 LF905 C920 C921 LF909 C923 S901 C928 LF911 LF915 LF916 ZA901 PF10 C970 C971 LF904A C972 LF904B C973 LF904C D920 D921 C990 T8AH 250V CAUTION CAUTION T3.15AL 250V T8AH 250V CAUTION COLD HOT COLD TNPA2885 2 PF LIVE CIRCUIT COLD HOT LIVE CIRCUIT K A 3 HOT LIVE CIRCUIT 1 2 10 4 7 3 2 9 6 1 5 8 1 12 8 4 7 15 11 2 5 9 13 3 6 14 11 15 1 5 12 16 6 2 3 9 17 7 8 13 10 4 14 18 1 2 3 1 2 3 4 5 6 1 2 3 5 6 3 4 2 1 94V-0 3.15A 8A 8A A K PbF 1 2 5 4 S4 S2A V1 S3 S1A S2B V2 P1 PT P2 S1B ORDERNO. 1 4 1 4 1 2 1 10 + - TH-42PX25U-P / TH-50PX25U-P 48 14.2. P-Board (TH-42PX25U/P) A B C D E F G H I 1 2 3 4 5 6 P-BOARD(FOIL SIDE) TNPA2889AB TH-42PX25U/P P-BOARD TNPA2889AB TH-42PX25U/P P-BOARD TNPA2889AB TH-42PX25U-P / TH-50PX25U-P 49 TH-42PX25U/P P-BOARD PARTS LOCATION TH-42PX25U/P P-BOARD PARTS LOCATION P IC406 D-2 IC409 C-3 IC504 B-4 IC511 C-5 IC512 D-6 Q406 E-3 Q410 G-1 Q412 D-4 Q413 E-4 Q414 G-2 Q415 H-1 Q527 D-5 Q531 D-5 Parts Location P-BOARD (COMPONENT SIDE) IC TRANSISTOR Parts Location P-BOARD (FOIL SIDE) IC IC401 H-3 IC402 H-3 IC403 H-3 IC404 H-3 IC406 F-2 IC408 G-3 IC409 G-3 IC501 H-5 IC502 H-5 IC503 H-4 IC504 H-4 IC511 G-5 IC512 F-6 IC520 G-4 IC521 B-3 IC522 B-3 IC523 G-4 TP2 D-3 TP3 D-3 TP4 D-3 TP5 E-2 TP6 E-2 TP7 E-2 TP8 E-2 TP9 C-6 TP10 C-6 TP10 D-2 TP11 C-6 TP12 C-6 TP13 F-4 Q401 F-1 Q403 G-3 Q404 D-2 Q406 D-3 Q407 E-1 Q410 D-1 Q411 D-1 Q412 E-4 Q413 E-4 Q414 C-2 Q415 B-1 Q416 H-2 Q420 F-1 Q421 F-3 Q501 H-4 Q502 H-4 Q503 H-5 Q504 B-2 Q506 B-3 Q508 G-5 Q509 G-5 Q510 G-5 Q511 B-4 Q512 B-3 Q513 B-3 Q514 B-2 Q515 B-2 TRANSISTOR Q516 C-3 Q517 B-3 Q518 F-4 Q519 F-4 Q520 B-3 Q521 H-4 Q522 H-5 Q524 G-4 Q525 B-2 Q527 F-5 Q528 B-3 Q530 F-5 Q531 F-5 Q532 G-5 Q535 H-5 Q537 G-5 Q540 G-4 Q541 G-4 Q542 F-5 Q543 G-4 Q544 G-5 Q545 F-4 Q546 G-5 Q547 H-4 Q550 H-5 Q551 H-5 Q552 H-5 Q553 G-6 Q554 G-6 TP TH-42PX25U-P / TH-50PX25U-P 50 A B C D E F G H I 1 2 3 4 5 6 P-BOARD(COMPONENT SIDE) TNPA2889AB TH-42PX25U/P P-BOARD TNPA2889AB TH-42PX25U/P P-BOARD TNPA2889AB TH-42PX25U-P / TH-50PX25U-P 51 14.3. P-Board (TH-50PX25U/P) A B C D E F G H I 1 2 3 4 5 6 P-BOARD(FOIL SIDE) TNPA2890AB TH-50PX25U/P P-BOARD TNPA2890AB TH-50PX25U/P P-BOARD TNPA2890AB TH-42PX25U-P / TH-50PX25U-P 52 TH-50PX25U/P P-BOARD PARTS LOCATION TH-50PX25U/P P-BOARD PARTS LOCATION P IC406 D-2 IC409 C-3 IC504 B-4 IC511 C-5 IC512 D-6 Q406 E-3 Q410 G-1 Q412 D-4 Q413 E-4 Q414 G-2 Q415 H-1 Q527 D-5 Q531 D-5 Parts Location P-BOARD (COMPONENT SIDE) IC TRANSISTOR Parts Location P-BOARD (FOIL SIDE) IC IC401 H-3 IC402 H-3 IC403 H-3 IC404 H-3 IC406 F-2 IC408 G-3 IC409 G-3 IC501 H-5 IC502 H-5 IC503 H-4 IC504 H-4 IC511 F-5 IC512 F-6 IC520 G-4 IC521 B-3 IC522 B-3 IC523 G-4 TP1 D-2 TP2 C-3 TP3 D-3 TP4 D-3 TP5 E-2 TP6 E-2 TP7 E-1 TP8 E-2 TP9 C-6 TP10 B-6 TP11 C-6 TP12 C-6 TP13 F-4 Q401 F-1 Q404 D-2 Q406 E-3 Q407 E-1 Q409 G-3 Q410 D-1 Q411 D-1 Q412 E-4 Q413 E-4 Q414 C-2 Q415 B-1 Q416 H-2 Q420 F-1 Q421 F-3 Q501 H-4 Q502 H-4 Q503 H-5 Q504 B-2 Q506 B-3 Q508 G-5 Q509 G-5 Q510 G-5 Q511 B-4 Q512 B-3 Q513 B-3 Q514 B-2 Q515 B-2 TRANSISTOR Q516 C-3 Q517 B-3 Q518 F-4 Q519 F-4 Q520 B-3 Q521 H-4 Q522 H-5 Q524 G-4 Q525 B-2 Q527 F-5 Q528 B-3 Q530 F-5 Q531 F-5 Q532 G-5 Q535 H-5 Q537 G-5 Q540 G-4 Q541 G-4 Q542 F-5 Q544 G-5 Q545 F-4 Q546 G-6 Q547 H-4 Q549 G-4 Q550 H-6 Q551 H-5 Q552 H-5 Q553 G-6 Q554 G-6 TP TH-42PX25U-P / TH-50PX25U-P 53 A B C D E F G H I 1 2 3 4 5 6 P-BOARD(COMPONENT SIDE) TNPA2890AB TH-50PX25U/P P-BOARD TNPA2890AB TH-50PX25U/P P-BOARD TNPA2890AB TH-42PX25U-P / TH-50PX25U-P 54 14.4. PA-Board A B C D E F G H I 1 2 3 4 5 6 PA-BOARD(FOIL SIDE) TXNPA1UHSU TH-42/50PX25U/P PA-BOARD TXNPA1UHSU TH-42/50PX25U/P PA-BOARD TXNPA1UHSU PA L7581 TPB7501 TPB7502 TPB7503 TPB7504 TPB7505 TPB7506 TPB7507 TPB7508 ZA7001 ZA7002 ZA7003 ZA7004 ZA7005 PA1 ZA7006 PA3 ZA7007 PA4 PA5 PA7 C7501 PA9 C7502 C7503 C7504 C7505 C7506 Q7504 C2301 C7509 C2302 Q7507 C2303 JS2430 C2304 C2305 Q2301 C2306 Q2302 Q2303 C2307 Q2304 C7510 C2308 Q2305 C7511 C2309 C7512 C7513 C7514 Q2308 C7516 C7517 C7518 C2310 C2311 C7519 C2312 C2313 C2314 Q2311 C2315 C2316 C2317 C2318 C7521 C7522 C7523 C7524 C7525 C7526 D7502 D7503 R7501 C2321 D7505 D7506 R7502 C2322 C2323 R7503 C2324 R7504 D7508 R7505 D2301 D7509 C2325 R7506 D2302 C2326 D2303 R7507 C2327 D2304 R7508 C7530 C2328 R2301 R7509 C7531 IC7501 D2305 C2329 R2302 C7532 IC7502 D2307 R2303 C7533 IC7503 D2308 R2304 C7534 IC7504 C7535 D7511 IC7505 C7536 C7537 D7513 R7510 D7514 C2330 C2331 R7511 R2309 IC2301 R7512 C2332 IC2302 C2333 R7514 C2334 C2335 IC2305 D2312 R7516 C2336 IC2306 C2337 D2314 C2338 R2310 C7541 D2315 R7519 R2311 C2339 C7542 R2312 C7543 R2313 C7544 R2314 Q7541 R2315 Q7542 R2316 Q7543 R7521 R7522 C2342 R7523 R7524 C2344 PA10 R7525 C2345 PA11 R7526 C2346 PA12 R7527 PA13 C2347 PA14 C2348 R2321 PA15 C2349 R2322 R2323 PA18 R2324 R2325 D7532 R2326 R2327 R2328 R2329 R7531 R7532 C2352 R7533 D7537 D7538 R7534 R7535 C2355 PA21 R7536 PA22 R7537 PA23 R2330 PA24 R2331 R7539 C7561 R2332 C7562 R2333 C7563 R2334 C7564 R2335 D7541 C7565 C7566 D7542 R2336 R2337 D7543 C7567 D7544 R2338 R7540 C7568 R7541 D7545 R2339 C7569 D7546 R7542 R7543 D7547 R7544 R7545 D7549 R7546 R7547 R7548 R2340 C7570 R7549 C7574 R7551 R7559 C7581 C7582 Q7581 D7561 C7585 D7562 D7563 D7564 C7588 R7561 C2381 R7562 D7566 C2382 R7563 C2383 C2384 R7564 C2385 C2386 C2387 C2388 C2389 R7570 C2390 R7571 C2391 C2392 C2393 C2394 C2397 R7578 C2398 R7579 R2371 C2399 R2372 R2373 R2374 R2375 D7581 R2376 R2377 R2378 R7583 R7588 R7589 R2385 R2386 R2388 R7590 R7591 R7594 R7595 R2390 R2392 R2393 R2395 R2396 R2398 JS2301 JS2302 JS2304 JS2305 JS2309 JS2310 C2400 C2401 C2402 C2403 C2404 C2407 C2408 C2410 C2412 C2413 C2415 C2416 C2417 C2418 C2419 C2420 C2421 C2422 C2423 C2424 D2401 C2425 D2402 C2426 C2427 C2428 R2401 C2429 R2402 R2403 R2404 R2405 R2406 R2408 C2430 R2409 IC2401 C2431 R2412 R2413 R2414 R2415 L7501 R2416 L7502 R2417 L7503 R2418 L7504 R2419 L7505 L7506 C2443 L7507 L7508 L7509 L2301 L2302 R2420 R2421 R2422 R2423 L2307 L2308 L7510 L7511 L7512 R2427 L7513 R2428 L7514 L7515 R2431 R2435 TPB7520 TPB7521 TPB7522 TPB7523 R2440 R2443 R2444 R2445 TPB7511 TPB7512 TPB7515 TPB7516 TPB7517 TPB7518 TPB7519 L7561 L7562 L7563 1 PA TNPA3181 D2311 1 5 1 4 1 12 1 11 1 4 1 6 E C B E C B 1 5 2 4 3 1 5 2 4 3 1 5 2 4 3 1 5 2 4 3 SEE REVERSE FOR ORDERNO. 1 5 2 4 3 28 14 15 1 28 14 15 1 28 14 15 1 28 14 15 1 1 10 1 3 1 7 1 3 1 3 1 3 1 8 1 7 1 12 1 8 1 7 1 16 17 32 IC2301 D-5 IC2302 C-5 IC2305 E-5 IC2306 E-5 IC2401 B-5 IC7501 E-4 IC7502 D-4 IC7503 D-4 IC7504 C-3 IC7505 B-3 Q2301 D-5 Q2302 C-5 Q2303 B-5 Q2304 B-5 Q2305 C-4 Q2308 B-5 Q2311 C-4 Q7504 A-4 Q7507 F-3 Q7541 A-4 Q7542 A-4 Q7543 A-4 Q7581 B-3 TPB7501 E-3 TPB7502 D-3 TPB7503 A-3 TPB7504 C-3 TPB7505 B-3 TPB7506 B-2 TPB7507 E-3 TPB7508 D-3 TPB7511 B-4 TPB7512 E-3 TPB7515 A-3 Parts Location PA-BOARD (FOIL SIDE) IC TP TRANSISTOR TH-42PX25U-P / TH-50PX25U-P 55 A B C D E F G H I 1 2 3 4 5 6 PA-BOARD(COMPONENT SIDE) TXNPA1UHSU TH-42/50PX25U/P PA-BOARD TXNPA1UHSU TH-42/50PX25U/P PA-BOARD TXNPA1UHSU PA R2494 L7581 L7582 ZA7001 ZA7002 ZA7003 ZA7004 ZA7005 PA1 PA2 ZA7006 PA3 ZA7007 PA4 PA5 PA6 PA7 PA8 C7501 PA9 C7502 C7505 Q7501 Q7502 C7506 C7509 Q7506 Q7508 C2305 Q7509 Q2301 C2306 Q2302 C2307 C7510 C2308 C7511 C2309 Q2306 C7512 Q7510 Q2309 C7516 C7517 C2310 C2313 Q2310 C2314 C2315 C2316 Q2312 Q2313 C2317 C2318 Q2314 C7521 C7522 C7525 D7501 D7502 D7504 C2321 D7505 C2322 D7507 D7508 C2325 C2326 C2327 C7530 C2328 C7531 IC7501 D2305 C2329 C7532 IC7502 C7533 IC7503 C7534 D7510 IC7504 D7511 IC7505 R2305 R2306 D7512 R2307 D7513 C2330 C7538 R2308 D7515 R2309 IC2301 IC2302 C2333 C2334 IC2304 IC2305 IC2306 C2337 C2338 R2310 R2311 C2339 D2316 R2312 R2313 R2314 R2315 R2316 R2317 R2318 R7520 Q7544 R2319 C2342 C2344 PA10 C2345 PA11 C2346 PA12 PA13 C2347 PA14 R2320 C2348 PA15 C2349 R2323 PA18 R2324 R2325 R2326 R2327 R2328 R7530 C2352 C2355 D7539 PA21 PA22 PA23 R7538 PA24 C7561 C7562 C7563 C7564 D7540 Q7561 C7565 Q7562 Q7563 Q7564 C7568 Q7565 Q7567 D7548 C7573 D7550 R2346 R2347 R2348 R7550 R7553 C7581 C7583 C7584 C7585 Q7582 C7586 Q7583 C7587 Q7584 C7588 Q7585 C2381 D7565 D7566 Q7586 C2382 D7567 D7568 C2385 R7565 R7566 C2386 C2387 R7567 R7568 C2388 C2389 R7569 IC7561 IC7562 C2390 R2368 C2391 R7572 C2392 C2393 R7573 C2394 R7574 C2395 R7575 C2396 R7577 C2397 C2398 C2399 D7582 R7581 R7582 R7584 R7585 R7586 R7587 IC7581 R2387 R2389 R7596 R7597 R7598 R7599 R2391 R2394 JS2101 JS2102 JS2103 R2397 JS2104 JS2105 R2399 JS2106 JS2107 JS2303 JS2309 JS2310 JS7521 JS7522 JS7523 JS7524 C2400 C2403 C2404 C2408 C2413 C2414 R7602 R7603 R7606 R7607 C2428 C2430 C2432 IC2402 C2433 IC2403 C2436 C2437 L7501 L7502 L7503 C2440 L7504 C2441 L7505 C2442 L7506 C2443 L7507 L7508 C2444 L7509 L2301 C2445 L2302 L2306 L2307 L2308 L7510 L7511 L7512 L7513 L7514 L7515 R2430 R2434 R2439 R2442 L7561 L7562 L7563 TNPA3181 PA 1 AB AC AD AE AF A A PAMM1 PbF 1 5 1 2 39 40 1 4 1 12 1 11 2 20 1 4 1 2 19 20 1 6 B C E B C E NP NP B C E B C E 1 3 4 5 2 1 3 4 5 2 1 3 4 5 2 1 3 4 5 2 1 3 4 5 2 14 28 15 1 14 28 15 1 14 28 15 1 14 28 15 1 1 1 0 1 3 ORDERNO. 1 7 1 3 1 3 1 3 NP 1 8 NP 1 7 1 12 1 8 1 7 G D S 1 5 1 5 1 4 5 8 NP NP 1 4 5 8 1 4 5 8 IC2301 D-5 IC2302 D-5 IC2304 A-5 IC2305 B-5 IC2306 C-5 IC2402 E-4 IC2403 C-4 IC7501 B-4 IC7502 C-4 IC7503 D-4 IC7504 D-3 IC7505 E-3 IC7561 B-2 IC7562 B-3 IC7581 F-3 Q2301 C-5 Q2302 D-5 Q2306 D-4 Q2309 D-4 Q2310 D-4 Q2312 D-4 Q2313 B-5 Q2314 B-5 Q7501 C-3 Q7502 C-3 Q7506 A-3 Q7508 A-4 Q7509 D-3 Q7510 D-3 Q7544 F-3 Q7561 B-2 Q7562 B-2 Q7563 B-4 Q7564 A-4 Q7565 B-4 Q7567 B-4 Q7582 F-3 Q7583 C-4 Q7584 B-4 Q7585 D-2 Q7586 A-4 Parts Location PA-BOARD (COMPONENT SIDE) IC TRANSISTOR TH-42PX25U-P / TH-50PX25U-P 56 14.5. D-Board A B C D E F G H I 1 2 3 4 5 6 C201 C202 C203 C204 C011 C012 C013 C014 C015 C016 C017 C018 C019 C020 C021 C022 C023 C024 C601 D001 C602 C026 C603 D003 C027 C604 C028 Q601 C029 Q602 R002 R003 C030 IC001 C031 C032 C033 IC003 C034 IC004 C035 R202 C036 IC006 C613 C037 IC007 R204 IC008 C038 R205 C039 R013 R015 R016 R018 IC010 C040 R400 R019 R401 R402 IC012 C042 R403 IC013 C043 R404 IC014 R405 R406 IC016 IC017 R020 C048 IC018 C049 C626 R022 C627 R217 R023 R600 R218 R024 R601 R602 R603 R604 R028 C050 R029 C051 C052 C053 IC023 R608 R220 C054 R609 IC601 R221 D802 IC602 C056 IC603 C057 IC604 R800 R418 C058 R030 R801 R419 C059 R802 IC606 C636 R032 R227 C637 R033 R803 R610 R228 R804 IC608 C638 R229 R611 C639 R805 R612 R806 R613 R614 C060 R809 R615 C061 C062 R617 R618 R230 C640 R425 R231 R619 C641 L309 R426 R427 R233 C067 R428 R234 C068 C451 R041 C069 R236 C452 C453 R620 R814 C454 R044 R621 R815 C455 R622 R046 R623 R048 R624 C070 R049 R431 R819 C071 C072 C073 R240 C074 R629 R241 C075 C076 R243 C077 R820 R050 C078 R821 R051 C079 R246 R822 R052 R247 R823 C463 R053 R824 R054 R825 R055 R632 R826 R056 R827 R828 R634 C080 R441 R829 C081 R442 R443 C083 C084 C085 C086 R447 C087 R830 C470 R060 C088 R449 R061 R831 C089 R062 C473 R064 R640 R834 C474 R835 R641 C475 R065 R836 C476 R066 R643 C477 R067 R838 C478 C090 R839 R451 C479 C091 R452 C092 R453 C093 R454 C094 R649 R456 C096 C097 R840 C098 C480 R841 IC451 C481 R842 C482 C483 R650 C484 R651 C485 R652 C486 R653 C487 R848 R460 C488 R849 R655 C489 R656 R657 R658 R659 R467 R850 C490 C491 R852 C492 R083 R853 R084 R660 C495 R661 C496 R662 R663 R470 R664 R665 R666 R667 R668 R669 R475 R476 R477 R478 R479 R862 R866 R673 R674 R676 R482 R677 R483 R678 R484 R679 R485 R486 R487 R870 R488 R871 R489 R490 R879 L951 R491 L952 L953 R494 L954 R689 R495 R496 R497 R498 R881 R499 R690 R884 R885 R691 R692 R693 R694 R695 R696 R697 R698 R699 R897 R898 C100 C101 C106 C107 C108 C109 C301 C110 Q301 C111 C112 C114 C115 C120 C315 C121 C316 C123 C318 C700 C124 C125 Q701 C706 Q703 Q704 R104 R105 R106 Q707 C323 R107 R108 C324 Q709 C325 C326 C327 C328 C711 C329 R302 C714 R110 R111 C715 R305 C716 C717 R307 R113 Q714 R114 C330 C719 Q715 R115 R309 C331 R116 Q716 C332 Q717 R117 C333 R118 C334 R119 C335 Q719 C336 C337 R310 C338 R311 C339 L001 L002 C146 L003 R507 C147 C724 R120 C148 R508 R315 C149 C726 C727 R123 R317 R700 C728 L008 C340 R124 D704 C729 R125 C341 L009 D705 R126 D706 C342 D707 C343 R510 D708 C345 D709 C346 R513 C153 R707 R514 C154 C730 L010 R708 R515 C731 R709 C156 IC702 R322 C157 IC703 C733 R517 R130 C734 IC704 C158 R900 D710 R131 IC705 C159 R901 D711 R132 IC706 D712 R133 R903 IC707 C737 D713 D714 R134 IC708 R904 R710 R135 D715 C739 R905 R329 R711 R136 R906 R712 R137 R907 R713 C160 D718 R908 R714 C161 R909 D719 R715 C162 R716 C163 R717 R718 C164 IC710 C740 R330 C165 C741 IC711 R719 C166 C167 C743 C168 R910 C744 D720 R911 C745 X451 D721 C746 X452 D722 C747 D723 R913 R914 R338 C748 R720 R339 R915 R721 R722 D727 R917 R723 C170 R918 R724 D729 R725 R919 C172 R532 R726 C173 R727 C750 R340 R728 R729 R535 C176 R342 C177 R537 D730 C178 R344 C754 R538 C179 R151 R921 C755 R345 R152 C756 R153 R923 C757 R347 R154 C758 R348 R730 R155 C759 R925 R731 R157 R733 R928 R734 C180 R929 R735 R541 R736 IC152 R737 C760 IC154 R544 C954 R738 C185 R739 C955 R352 IC156 C957 C187 IC157 C763 R547 R354 R548 R930 R931 R355 C189 C766 R356 R932 C767 R933 C768 R934 R935 C769 R166 R936 R167 R937 R744 C960 R168 C191 C961 R169 R939 C192 R746 R552 C193 R553 R360 R554 C195 R361 R555 R556 R362 R557 R364 R558 R940 C198 R941 C199 R942 R174 R945 R946 R177 R560 R948 R179 R949 C972 R562 R563 R564 R758 R565 R566 D952 R372 R567 D953 R373 R568 R180 R569 R951 R376 R952 R377 R183 R953 R378 R184 R954 Q591 R761 R379 R955 C596 Q592 R956 L452 C597 Q593 R957 C598 Q594 R764 R958 C599 R571 R959 IC951 D769 Q596 R572 Q597 R573 Q598 R380 R574 Q599 R575 R381 R576 R382 R577 R383 R578 R960 R384 R579 R961 D771 R385 R962 R387 R964 R770 R388 R197 R580 R198 R581 R582 R583 R584 R585 R391 R586 R392 R587 R588 R394 R589 R395 R396 R973 R397 R974 R398 R975 R399 R783 R590 R784 R979 R592 R593 R594 R595 R789 R596 R597 R598 R981 R599 R982 R983 R790 R791 R985 R793 R989 R797 R798 R799 R990 R991 R992 R993 R994 C001 C002 C003 C004 C005 C006 CR NO.9 1 5 1 2 3 D 1 TNPA2824 PbF 1 3 4 5 1 3 4 5 1 4 5 8 1 3 4 5 1 3 4 5 1 28 29 56 1 3 4 5 1 3 4 5 1 4 5 8 1 10 11 20 1 3 4 5 1 3 4 5 1 28 29 56 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 3 4 5 1 20 21 40 41 60 61 80 SEE REVERSE FOR ORDERNO. 1 10 11 20 1 4 5 8 1 10 11 20 1 20 21 40 1 22 23 44 1 10 11 20 1 3 4 5 1 4 5 8 1 4 5 8 1 4 5 8 1 3 4 5 1 10 11 20 1 4 5 8 1 7 8 14 + D-BOARD(FOIL SIDE) TZTNP01QKSU(FOR TH-42PX25U/P) TZTNP01QNSU(FOR TH-50PX25/UP) TH-42PX25U/P D-BOARD TZTNP01QKSU TH-50PX25U/P D-BOARD TZTNP01QNSU TH-42PX25U/P D-BOARD TZTNP01QKSU TH-50PX25U/P D-BOARD TZTNP01QNSU D Parts Location D-BOARD (FOIL SIDE) IC IC9001 D-2 IC9003 E-2 IC9004 D-3 IC9006 D-1 IC9007 D-1 IC9008 D-3 IC9010 E-1 IC9012 E-2 IC9013 D-2 IC9014 C-3 IC9016 C-2 IC9017 E-1 IC9018 D-2 IC9023 E-2 IC9152 E-4 IC9154 C-4 IC9156 C-4 IC9157 C-4 IC9451 B-4 IC9601 D-6 IC9602 E-5 Q9301 C-6 Q9591 B-1 Q9592 C-1 Q9593 C-1 Q9594 B-1 Q9596 A-6 Q9597 A-6 Q9598 C-6 Q9599 C-6 Q9601 D-5 Q9602 D-5 Q9701 F-4 Q9703 F-3 Q9704 F-2 Q9707 E-5 Q9709 C-5 Q9714 B-4 Q9715 B-4 Q9716 B-4 Q9717 B-4 Q9719 F-2 IC9603 D-6 IC9604 D-5 IC9606 D-5 IC9608 E-3 IC9702 F-6 IC9703 E-5 IC9704 E-5 IC9705 E-6 IC9706 C-5 IC9707 C-6 IC9708 B-6 IC9710 B-6 IC9711 F-2 IC9951 F-4 TRANSISTOR TH-42PX25U-P / TH-50PX25U-P 57 A B C D E F G H I 1 2 3 4 5 6 TH-42PX25U/P D-BOARD TZTNP01QKSU TH-50PX25U/P D-BOARD TZTNP01QNSU TH-42PX25U/P D-BOARD TZTNP01QKSU TH-50PX25U/P D-BOARD TZTNP01QNSU D-BOARD(COMPONENT SIDE) TZTNP01QKSU(FOR TH-42PX25U/P) TZTNP01QNSU(FOR TH-50PX25/UP) C200 C010 C205 C206 C400 X302 Q400 C025 C605 R001 C606 C607 C608 R004 C609 R005 R006 R007 R008 C800 X701 R009 C801 X702 IC002 C802 X703 C803 C610 R200 C804 C611 R201 IC005 C805 C612 C806 R203 C614 R010 C615 R011 IC009 C616 R012 C617 C618 R014 C619 R017 IC011 C041 C620 R210 C044 R211 C621 C045 IC015 R212 C622 C046 C623 R213 R407 C047 C624 R214 R408 R215 C625 R409 IC019 R216 C628 R219 C629 R025 R026 R027 R410 R605 R411 R606 R607 R413 C630 R414 D800 C631 R415 C055 D801 R416 C632 R222 C633 R417 R223 C634 R224 R225 IC605 C635 R031 R226 IC607 R034 X151 R035 R036 R807 R037 R420 R038 C448 R808 IC800 C449 R421 R039 R422 R616 R423 C063 C064 C065 R232 C066 R810 C450 R040 R811 C646 R812 R042 C647 R813 R043 R239 R045 R816 C456 R817 C457 R047 R818 C458 R625 C459 R432 R626 R433 R627 R434 R628 R435 L701 R436 R242 R437 R438 R244 C460 R439 R245 C461 C462 R630 R248 C464 R631 C465 C466 R633 C467 R057 R440 C468 R058 R635 C469 R059 R636 C082 R637 R444 R638 R445 R639 R446 C471 R832 C472 R063 R833 R642 R837 R644 R450 R645 R646 R647 R648 R455 C095 R457 D3 R458 D4 D5 C099 R459 IC452 D6 R843 IC453 R844 IC454 R845 IC455 IC456 R846 R847 IC457 R654 IC458 IC459 R461 R462 R463 R464 L155 R465 R466 R468 R851 R469 C493 TP0887 C494 R854 R855 TP0889 R856 R857 C497 R858 C498 C499 R859 R472 R473 R474 R860 R861 R863 R670 R864 R671 R865 R672 R867 R868 R480 R675 R869 R481 R872 R873 R680 R874 R681 R875 R682 R876 R683 R877 R684 R878 R685 R686 R492 R687 R493 R688 L955 L956 R880 R882 R883 R886 R887 R888 R889 R890 R891 R892 R893 R894 R895 R896 R899 D10 D12 C102 C103 C104 C105 D20 D22 C302 C303 C304 C305 D25 C306 D27 C307 C113 C308 C309 C310 D31 C311 D32 C312 D33 C313 D34 C314 C122 C317 C319 C701 C702 C703 C705 Q702 C707 C708 C320 C321 C709 Q706 C322 Q708 R109 C710 R301 C712 C713 R303 R304 Q710 R112 R306 C718 R308 IC301 IC302 IC303 R500 IC304 R501 IC305 IC306 R502 R503 C720 R504 R505 R312 C722 R506 R313 C723 R314 C725 R121 R509 R122 R316 R318 R319 R701 R702 R127 R703 C344 R704 R128 C151 R511 R129 R705 C152 R512 R706 C347 R320 IC701 C155 R321 C732 R516 R323 R324 R518 R325 R519 R326 R902 R327 R328 IC709 D716 D717 R520 R521 R522 R523 R524 R331 R525 IC712 R332 C742 R526 R527 R333 R528 R334 L601 C169 R529 R335 R336 R912 X453 R337 D724 C749 R916 D728 R530 C171 R531 R533 R534 C174 D150 L800 C175 C751 R341 C752 R536 R343 C753 R920 R539 R922 R346 R924 R349 R926 R732 R927 TP0767 R540 TP0768 IC151 C951 C181 C952 R542 C182 R543 IC153 C183 C953 R350 C184 R351 R545 C761 IC155 C762 C186 C956 R546 R353 C958 C764 C188 C959 C765 R549 R357 R740 R358 R164 R741 R165 R359 R742 R743 C190 R550 R938 R745 R551 C962 R747 R748 C194 C964 R749 C771 C965 C772 C196 C966 C773 R363 C197 C967 R170 C774 C968 R171 C775 R365 C969 R559 R172 R366 R173 R367 R943 R750 R944 R368 R751 R369 R176 R753 R947 R754 R178 C970 R755 R561 C971 R756 R757 R370 R759 R371 R950 R374 D954 R181 R375 D955 R182 R760 R762 R763 R187 R765 R766 IC952 R767 R768 R769 L459 R190 R191 R192 R386 R193 R963 L460 R194 L461 R771 R389 R195 R965 L462 R196 R772 R966 L463 R773 R967 R774 R968 R199 R775 R969 R776 R777 R778 R390 R779 R393 R970 R971 R972 R780 R781 R782 R976 R977 R978 R591 R785 R786 R787 R788 R980 R984 R792 R986 R987 R794 R988 R795 R796 R995 R996 R997 R998 Q001 Q002 C007 C008 C009 CR NO. TNPA2824 1 D TP_HDM TP_VDM TP_HDS TP_VDS 9 Thermal pad PbF 1 28 29 56 1 28 29 56 1 20 21 40 41 60 61 80 1 28 29 56 1 28 29 56 1 20 21 40 41 60 61 80 1 52 53 104 105 156 157 208 8 5 4 1 1 8 9 16 ORDER NO. 1 2 39 40 1 12 1 31 1 4 5 8 1 21 1 5 1 30 31 50 51 80 100 81 AB C D EF GH J K L M N P R T U V W YAA AB AC 2 1 4 3 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 1 24 25 48 1 10 11 20 1 10 11 20 1 28 29 56 1 12 1 7 1 2 19 20 1 11 1 8 1 9 A1 A40 B1 B40 A1 A40 B1 B40 A1 A40 B1 B40 A1 A40 B1 B40 1 4 5 8 1 3 4 5 1 8 9 16 1 30 31 50 51 80 100 81 A B C D E F G H J K L M N P R T U V W Y AAABAC 2 1 4 3 5 6 7 8 910 11 12 13 14 15 16 17 18 19 20 21 22 23 1 24 25 48 1 40 41 80 81 120 121 160 1 16 17 32 33 48 49 64 1 4 5 8 A B C D E F G H J K L M N P R T U V W YAAABAC 2 1 4 3 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 1 5 1 43 44 86 1 8 9 16 D Parts Location D-BOARD (COMPONENT SIDE) IC IC9002 B-3 IC9005 C-3 IC9009 C-2 IC9011 B-2 IC9015 C-2 IC9019 C-2 IC9153 D-4 IC9156 C-3 IC9301 E-4 IC9302 E-4 IC9303 E-4 IC9304 D-2 IC9305 D-4 IC9306 D-4 IC9452 E-4 IC9453 E-2 IC9454 F-2 IC9455 F-3 IC9456 F-4 IC9457 E-6 IC9458 E-2 TP0767 D-3 TP0768 D-3 TP0887 E-3 TP0889 E-3 Q9001 C-3 Q9002 C-2 Q9400 F-5 Q9702 A-4 Q9706 A-4 Q9708 D-6 Q9710 A-5 TRANSISTOR IC9459 F-4 IC9515 C-4 IC9605 C-6 IC9607 D-5 IC9701 B-6 IC9709 E-5 IC9712 A-6 IC9800 F-5 TP TH-42PX25U-P / TH-50PX25U-P 58 14.6. DG-Board A B C D E F G H I 1 2 3 4 5 6 DG-BOARD(FOIL SIDE) TNPA3177 TH-42/50PX25U/P DG-BOARD TNPA3177 TH-42/50PX25U/P DG-BOARD TNPA3177 DG IC003 C-2 IC004 C-2 IC4503 D-4 IC4504 D-4 IC4508 E-5 IC4509 C-3 IC4511 C-4 IC4512 C-5 IC4516 C-5 IC4518 C-5 IC4522 C-4 IC4530 E-1 IC8054 B-4 IC8200 B-5 Q003 D-3 Q004 D-3 Q005 D-3 Q025 E-2 Q026 E-2 Q030 D-3 Q2251 C-3 Q2252 C-3 Q2253 C-3 Q2255 C-2 Q2258 C-3 Q3802 B-3 Q3803 B-3 Q3804 D-3 Q3805 C-2 Q4501 E-4 Q4502 E-5 Q4503 E-4 Q4504 E-4 Q4505 E-4 Q4506 E-4 Q4507 E-4 Q4508 E-4 Q4509 E-4 Q4511 E-4 Q4512 E-4 Q4513 E-4 Q4522 E-5 Q4523 E-5 Q4524 E-5 Q4525 E-5 Q4526 E-5 Q4527 E-5 Q4528 E-5 Q4529 E-5 Q4530 E-5 Q4531 E-5 Q4532 E-5 Q4533 E-5 Q4553 C-5 Q4554 C-5 Q4555 C-5 Q4556 C-5 Q4557 C-5 Q4558 C-5 Q4559 E-4 Q4560 E-4 Q4570 E-4 TP013 D-2 TP021 D-3 TP023 D-2 TP024 D-2 TP028 D-2 TP029 D-2 TP030 D-2 TP031 D-2 TP040 D-2 TP041 D-2 TP045 D-2 TP046 D-3 TP047 D-2 TP048 D-2 TP049 D-2 TP054 D-3 TP2253 C-3 TP2254 D-3 TP3801 C-2 TP4301 E-1 TP4539 C-4 TP4553 C-5 TP4559 C-4 TP4578 E-6 TP8023 B-5 TP8024 B-5 TP8025 B-5 TP8065 B-5 TP8079 B-5 TP8083 B-5 TP8100 D-1 TP8358 B-4 TP8368 B-5 TP8378 B-5 Parts Location DG-BOARD (FOIL SIDE) IC TRANSISTOR TP TH-42PX25U-P / TH-50PX25U-P 59 A B C D E F G H I 1 2 3 4 5 6 DG-BOARD(COMPONENT SIDE) TNPA3177 TH-42/50PX25U/P DG-BOARD TNPA3177 TH-42/50PX25U/P DG-BOARD TNPA3177 DG Parts Location DG-BOARD (COMPONENT SIDE) IC IC001 C-3 IC002 C-2 IC005 C-2 IC3003 F-4 IC3004 E-2 IC3401 E-2 IC3517 F-2 IC3699 D-2 IC3801 E-2 IC3802 E-3 IC3803 E-3 IC4501 D-4 IC4502 D-5 IC4504 C-5 IC4505 C-4 IC4506 C-5 IC4507 C-4 IC4510 D-4 IC4513 C-5 IC4514 C-6 IC4515 C-5 IC4517 E-5 IC4519 C-4 IC4520 C-4 IC4521 C-4 IC4810 B-6 IC4811 C-4 IC8008 F-3 IC8009 F-4 IC8030 E-2 IC8031 F-4 IC8054 E-4 IC8071 F-3 IC8076 E-5 IC8201 F-5 TP011 D-3 TP012 D-3 TP014 D-2 TP015 D-3 TP016 F-3 TP017 F-3 TP018 F-3 TP019 F-3 TP020 D-3 TP022 D-3 TP0221 F-2 TP025 D-2 TP026 C-2 TP027 C-3 TP032 C-3 TP033 D-2 TP034 D-2 TP043 C-2 TP055 E-3 TP057 E-3 TP066 E-4 TP067 E-4 TP073 E-4 TP075 E-4 TP077 E-4 TP079 E-4 TP082 E-4 TP084 F-4 TP085 F-4 TP086 F-4 TP087 E-2 TP088 E-2 TP089 E-2 TP090 E-2 TP091 E-2 TP093 E-4 TP094 D-4 TP096 E-4 TP099 E-4 TP101 E-4 TP103 E-4 TP106 E-4 TP113 E-3 TP114 E-3 TP154 F-4 TP155 F-4 TP156 F-4 TP157 F-4 TP3802 E-2 TP4411 B-6 TP4501 B-5 TP4502 B-4 TP4503 B-4 TP4505 E-4 TP4506 D-4 TP4507 D-4 TP4508 D-4 TP4509 D-4 TP4510 D-4 TP4513 D-4 TP4519 D-4 TP4522 D-4 TP4528 D-4 TP4555 D-6 TP4556 D-6 TP4570 E-4 TP4573 D-4 TP4574 D-4 TP4575 C-2 TP8001 F-5 TP8002 E-5 TP8003 F-5 TP8004 E-5 TP8006 F-3 TP8017 E-5 TP8018 E-5 TP8035 F-3 TP8036 F-3 TP8037 F-3 TP8038 F-3 TP8039 F-2 TP8040 F-3 TP8042 F-4 TP8043 F-4 TP8044 F-3 TP8045 F-3 TP8056 E-5 TP8062 E-6 TP8063 E-6 TP8073 E-5 TP8076 E-4 TP8078 E-5 TP8080 E-5 TP8082 E-5 TP8084 E-5 TP8315 F-3 TP8327 F-3 TP8328 F-3 TP8329 F-3 TP8330 F-3 TP8331 F-3 TP8332 F-3 TP8333 F-3 TP8374 E-5 TP8375 E-5 TP8376 E-5 TP8377 F-3 Q001 D-3 Q006 C-3 Q009 C-3 Q020 D-2 Q021 D-2 Q022 C-3 Q023 C-3 Q024 C-3 Q027 C-1 Q4510 C-5 Q4521 D-5 Q4534 C-4 Q4535 C-4 Q4536 C-4 Q4537 C-4 Q4538 C-4 Q4539 C-4 Q4540 C-4 Q4541 C-4 Q4542 C-4 Q8011 F-2 Q8012 F-2 Q8013 F-3 Q8014 F-3 Q8015 E-3 Q8352 E-2 Q8353 E-2 TRANSISTOR TP TH-42PX25U-P / TH-50PX25U-P 60 14.7. DV-Board A B C D E F G H I 1 2 3 4 5 6 DV-BOARD(FOIL SIDE) TXNDV1UHSU DV-BOARD(COMPONENT SIDE) TXNDV1UHSU TH-42/50PX25U/P DV-BOARD TXNDV1UHSU TH-42/50PX25U/P DV-BOARD TXNDV1UHSU DV R167 R168 R169 R172 R173 JK001 R181 R182 R183 R184 R185 C003 Q002 Q003 C007 Q007 Q008 Q009 Q011 Q013 C017 C018 C019 Q016 Q017 Q018 D006 D007 D008 R007 R008 R009 C032 D011 IC006 D012 C037 D013 R010 R011 D015 R012 R013 R014 D018 R015 R016 R017 R018 C045 R020 C048 R021 R022 R023 C050 C051 R030 R031 R032 R033 R034 C063 C064 C065 C066 C067 R049 C074 C075 R050 R051 R052 R056 R057 R058 C083 C085 C086 C087 C088 C089 R062 R063 R064 JS009 R065 C090 JS010 JS011 JS012 C096 C097 JS013 JS014 C099 R075 JS019 R076 R077 R078 R085 R086 R087 R088 R089 R090 R094 R096 TP023 TP024 TP027 TP029 TP030 TP031 TP032 TP033 C100 TP034 C101 TP01 TP02 C104 C105 TP05 TP06 C108 C109 C112 C113 R100 R101 R105 R106 R107 C130 R109 C131 C132 C133 C135 C136 C137 R110 R111 R112 R113 R114 R115 R116 R117 R118 R119 L003 L004 R120 R121 L006 R122 L007 R123 L008 R124 L009 R125 R126 R127 R128 L010 L013 L014 R130 L015 R131 L016 L017 R133 L018 R134 L019 R135 R136 R137 R138 R139 L020 L021 R140 R141 L027 R143 L028 R144 L029 R145 R146 L030 L031 L034 R150 L035 L036 L037 L038 R154 R157 R158 L041 L047 TNPA3175 DV CR No.5 1 TP025 TP026 TP022 TP020 TP021 TP018 TP017 TP019 TP016 TP015 TP014 PbF 1 8 9 16 + + SEEREVERSEFORORDERNO. JS108 R164 L048 JS109 R165 L049 R166 L050 L051 L052 R170 R171 JK001 R176 R177 R186 R187 R188 R189 R190 R191 R192 R193 R194 R195 R196 C001 C002 C004 Q001 C005 C006 Q004 C008 Q005 C009 Q006 C010 C011 C012 C013 C014 Q010 C015 C016 Q012 Q014 ZA101 Q015 ZA102 ZA103 ZA104 ZA105 Q019 C020 C021 C022 C023 C024 D001 C025 C026 D003 C027 D004 C028 R001 D005 C029 R004 R005 R006 C030 IC001 C031 IC002 C033 IC003 IC004 C034 IC005 C035 C036 IC007 C038 IC008 D014 IC009 C039 IC010 C040 R019 C041 IC011 C042 IC012 C043 IC013 C044 C046 C047 C049 R024 R025 R026 R029 C052 C053 C054 C055 C056 C057 C058 C059 R035 R036 R037 R038 R039 R040 C068 R041 C069 R042 R043 R048 C070 C071 C072 C073 C076 C077 C078 C079 R053 R054 R055 C080 C081 C082 C084 JS001 JS002 JS003 JS004 JS005 JS006 JS007 JS008 R066 R067 R068 C091 R069 C092 C093 C094 C095 R070 C098 R071 JS015 R072 JS016 R073 JS017 R074 JS018 R079 JS020 JS021 R080 R081 R082 R083 R084 R091 R092 R093 R095 R097 R098 DV3 DV7 X001 C102 C103 C106 C107 ZA001 ZA002 ZA003 C110 C111 C114 C115 C116 C117 C118 C119 C120 C121 C122 C123 C124 C125 C126 C127 C128 C129 R102 R103 R104 R108 C134 L001 L002 L005 R129 R132 L022 L023 L024 L025 L026 R142 R147 R148 L032 L033 R151 R152 R153 L039 R155 R156 R159 L040 JS101 L042 JS102 L043 JS103 R160 L044 JS104 JS105 R161 L045 JS106 R162 L046 JS107 R163 TNPA3175 DV CR No.5 THERMAL PAD AE AB AC AD 1 AF AG AH AI AJ 1 2 3 4 1 2 3 4 1 2 3 4 1 19 ORDER NO. + + + 1 4 5 8 + 1 3 4 5 1 25 26 50 51 75 76 100 1 3 4 5 1 3 4 5 1 4 5 8 1 8 9 16 1 5 1 5 1 8 9 16 + 1 4 5 8 1 7 8 14 + + 1 3 1 2 39 40 NP NP IC5006 D-2 Q5002 C-3 Q5003 C-4 Q5007 C-2 Q5008 C-3 Q5009 C-3 Q5011 B-2 Q5013 B-2 Q5016 B-2 Q5017 B-2 Q5018 B-2 TP01 B-3 TP014 A-3 TP015 A-3 TP016 A-3 TP017 A-3 TP018 A-3 TP019 A-3 TP02 B-3 TP020 A-3 TP021 A-3 TP022 A-3 TP023 A-3 TP024 A-4 TP025 A-4 TP026 A-4 TP027 B-4 TP029 B-2 TP030 B-2 TP031 B-2 TP032 C-4 TP033 C-4 TP034 B-4 TP05 B-4 TP06 B-4 Parts Location DV-BOARD (FOIL SIDE) IC TP TRANSISTOR IC5001 G-3 IC5002 G-3 IC5003 F-3 IC5004 F-2 IC5005 G-3 IC5007 G-2 IC5008 H-3 IC5009 H-2 IC5010 H-3 IC5011 H-2 IC5012 G-4 IC5013 G-4 Q5001 G-3 Q5004 G-3 Q5005 G-2 Q5006 G-2 Q5010 H-3 Q5012 H-3 Q5014 H-2 Q5015 H-3 Q5019 H-2 Parts Location DV-BOARD (COMPONENT SIDE) IC TRANSISTOR TH-42PX25U-P / TH-50PX25U-P 61 14.8. H-Board A B C D E F G H I 1 2 3 4 5 6 H-BOARD(FOIL SIDE) TNPA3178 TH-42/50PX25U/P H-BOARD TNPA3178 TH-42/50PX25U/P H-BOARD TNPA3178 H IC4202 F-4 IC4203 F-2 IC4301 D-3 IC4302 E-3 Q4207 F-2 Q4208 F-2 Q4303 D-2 Q4600 F-2 Q4601 F-2 TP4221 F-2 TP4226 E-2 TP4301 D-2 TP4302 D-3 TP4303 D-3 TP4304 E-2 TP4305 E-2 TP4306 E-2 TP4307 E-3 TP4308 E-3 TP4310 F-3 TP4312 F-3 TP4313 F-3 TP4314 E-2 TP4322 F-3 TP4330 F-3 TP4335 F-3 TP4337 F-3 TP4343 F-3 TP4350 E-2 TP4351 E-2 TP4354 F-3 TP4355 E-3 TP4356 F-3 TP4358 E-2 TP4359 E-2 TP4360 E-2 TP4361 E-2 TP4362 E-2 TP4363 E-2 TP4364 E-2 TP4741 F-3 Parts Location H-BOARD (FOIL SIDE) IC TP TRANSISTOR TH-42PX25U-P / TH-50PX25U-P 62 A B C D E F G H I 1 2 3 4 5 6 H-BOARD(COMPONENT SIDE) TNPA3178 TH-42/50PX25U/P H-BOARD TNPA3178 TH-42/50PX25U/P H-BOARD TNPA3178 H IC4201 B-4 Q4201 B-4 Q4202 A-2 Q4203 B-2 Q4204 B-4 Q4205 A-2 Q4206 B-3 TP4338 D-3 TP4339 D-3 TP4340 D-3 Q4514 C-2 Q4515 C-2 Q4516 C-2 Q4517 C-2 Q4518 C-2 Q4519 C-2 Parts Location H-BOARD (COMPONENT SIDE) IC TRANSISTOR TRANSISTOR TH-42PX25U-P / TH-50PX25U-P 63 14.9. TB and JA-Board A B C D E F G H I 1 2 3 4 5 6 TB-BOARD(FOIL SIDE) TNPA3179 JA-BOARD(FOIL SIDE) TNPA3180 JA-BOARD(COMPONENT SIDE) TNPA3180 TB-BOARD(COMPONENT SIDE) TNPA3179 TH-42/50PX25U/P TB-BOARD TNPA3179 JA-BOARD TNPA3180 TH-42/50PX25U/P TB-BOARD TNPA3179 JA-BOARD TNPA3180 TB JA TH-42PX25U-P / TH-50PX25U-P 64 14.10. C1-Board (TH-42PX25U/P) A B C D E F G H I 1 2 3 4 5 6 TH-42PX25U/P C1-BOARD TNPA3059 TH-42PX25U/P C1-BOARD TNPA3059 C1-BOARD(FOIL SIDE) TNPA3059 C1-BOARD(COMPONENT SIDE) TNPA3059 C1 IC7101 G-2 IC7105 G-2 IC7106 F-2 IC7107 F-1 IC7108 H-1 Parts Location C1-BOARD (COMPONENT SIDE) IC 3 2 1 C1 1 TNPA3059 SEE REVERSE FOR ORDER NO. C7101 C7102 C7103 C7104 C7105 C7106 C7107 C7111 C7112 C7113 C7114 C7115 C7116 C7117 C7118 C7125 C7126 C7129 R7105 R7106 R7107 R7108 C7130 R7109 IC7101 C7133 C7134 IC7105 IC7106 IC7107 C7137 IC7108 C7138 C7139 R7111 R7112 R7113 R7114 R7115 R7116 R7117 C7140 R7118 C7141 R7119 C7142 C7143 C7144 C7145 C7146 R7120 R7121 R7122 R7123 R7124 R7125 R7126 C7150 C7151 C7152 C7153 C7154 C7155 C7156 R7130 R7131 R7132 R7133 R7134 R7135 R7136 R7137 R7138 C7160 R7139 C7161 C7164 C7165 C7166 C7167 C7168 R7140 R7141 C7169 R7142 R7143 R7144 R7147 R7148 C7176 C7177 C7178 C7179 R7158 R7159 R7160 R7161 R7162 R7163 R7164 R7165 R7174 R7175 R7176 R7177 R7178 R7179 R7180 R7181 R7190 R7191 R7192 R7193 R7194 CA1 R7195 CA2 R7196 CA3 R7197 CA4 L7107 L7108 R7224 L7109 R7225 R7226 R7227 R7228 R7229 L7110 L7111 R7230 R7231 R7232 R7233 R7234 R7235 R7236 C11 C12 TNPA3059 1 C1 A A PbF 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 5 ORDERNO. 1 55 1 55 1 55 1 55 A1 A40 B1 B40 1 20 TH-42PX25U-P / TH-50PX25U-P 65 14.11. C1-Board (TH-50PX25U/P) A B C D E F G H I 1 2 3 4 5 6 TH-50PX25U/P C1-BOARD TNPA2903 TH-50PX25U/P C1-BOARD TNPA2903 C1-BOARD(FOIL SIDE) TNPA2903 C1-BOARD(COMPONENT SIDE) TNPA2903 C1 IC7101 E-2 IC7102 H-2 IC7103 G-1 IC7104 G-1 IC7105 F-1 IC7106 F-1 Parts Location C1-BOARD (COMPONENT SIDE) IC C1 TNPA2903 1 2 3 CRNO.7 2 SEE REVERSE FOR ORDER NO. DL101 C101 C102 C103 C104 C105 C106 C107 C108 C109 C110 C111 C112 C113 C114 C115 C116 C117 C118 C119 C120 C121 C122 C123 C124 C125 D101 C126 D102 D103 C127 C128 D104 C129 R101 D105 D106 R102 D107 R103 R104 D108 R105 R106 R107 C130 R108 C131 IC101 R109 IC102 C132 C133 IC103 C134 IC104 C135 IC105 C136 IC106 C137 C138 R110 C139 R111 R112 R113 R114 R115 R116 R117 C140 R118 R119 C141 C142 C143 C144 C145 C146 C147 R120 C148 R121 R122 R123 R124 R125 R126 R127 R128 R129 R130 R131 R132 R133 R134 R135 R136 R137 R138 R139 R140 R141 R142 R143 R144 R145 R146 R147 R148 R149 R150 R151 R152 R153 R154 R155 R156 R157 R158 R159 R160 R161 R162 R163 R164 R165 R166 R167 R168 R169 R170 R171 R172 R173 R174 R175 R176 R177 R178 R179 R180 R181 R182 R183 R184 R185 R186 R187 CA1 CA2 CA3 CA4 L101 L102 L103 L104 L105 L106 L107 L108 C10 C11 C12 C13 TNPA2903 CRNO.7 2 C1 C1MM1 PbF 1 5 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 ORDERNO. 1 55 1 55 1 55 1 55 A1 A40 B1 B40 1 20 1 6 1 8 TH-42PX25U-P / TH-50PX25U-P 66 14.12. C2-Board (TH-42PX25U/P) A B C D E F G H I 1 2 3 4 5 6 TH-42PX25U/P C2-BOARD TNPA3060 TH-42PX25U/P C2-BOARD TNPA3060 C2-BOARD(FOIL SIDE) TNPA3060 C2-BOARD(COMPONENT SIDE) TNPA3060 C2 IC7301 A-1 IC7305 C-2 IC7306 C-2 IC7307 C-2 IC7308 A-2 Parts Location C2-BOARD (COMPONENT SIDE) IC C2 1 TNPA3060 2 3 1 SEE REVERSE FOR ORDERNO. C21 C22 C32 C7301 C7302 C7303 C7304 C7305 C7306 C7307 C7310 C7311 C7312 C7313 C7314 C7315 C7316 C7317 C7318 C7321 C7322 C7323 C7325 C7326 C7329 R7306 R7307 C7330 R7308 IC7301 R7309 C7333 C7334 IC7305 IC7306 IC7307 C7337 IC7308 C7338 R7311 C7339 R7312 R7315 R7316 C7340 R7319 C7341 C7342 C7343 C7344 C7345 C7346 R7320 R7323 R7324 R7327 C7350 C7351 C7352 C7353 C7354 C7355 C7356 R7330 R7331 R7332 R7333 R7334 R7335 R7336 R7337 R7338 C7360 R7339 C7361 C7364 C7365 C7366 C7367 R7340 C7368 R7341 C7369 R7347R7348 R7358 R7359 R7360 R7361 R7362 R7363 R7364 R7365 R7368 R7369 R7374 R7375 R7376 R7377 R7378 R7379 R7380 R7381 R7386 R7387 R7389 CA5 CA6 CA7 R7390 CA8 R7391 R7392 R7393 R7394 R7395 R7396 R7397 R7400 R7401 R7404 R7405 R7406 R7407 R7408 R7409 R7410 R7411 R7412 R7413 R7414 R7415 R7416 R7417 R7423 R7424 L7309 R7427 R7428 L7310 L7311 L7312 TNPA3060 1 C2 L7308 L7307 PbF A1 A40 B1 B40 1 20 1 12 1 10 11 20 1 10 11 20 1 10 11 20 ORDER NO. 1 10 11 20 1 5 1 55 1 55 1 55 1 55 TH-42PX25U-P / TH-50PX25U-P 67 14.13. C2-Board (TH-50PX25U/P) A B C D E F G H I 1 2 3 4 5 6 TH-50PX25U/P C2-BOARD TNPA2904 TH-50PX25U/P C2-BOARD TNPA2904 C2-BOARD(FOIL SIDE) TNPA2904 C2-BOARD(COMPONENT SIDE) TNPA2904 C2 C20 C21 C22 C23 C24 C25 L201 L202 L203 L204 L205 L206 CA5 CA6 CA7 DL201 DL202 C201 C202 C203 C204 C205 C206 C207 C208 C209 C210 C211 C212 C213 C214 C215 C216 C217 C218 C219 C220 C221 C222 C223 C224 C225 D201 C226 D202 C227 D203 C228 D204 C229 D205 R201 R202 D206 R203 R204 R205 R206 R207 C230 R208 C231 IC201 R209 C232 IC202 C233 IC203 C234 IC204 C235 IC205 C236 C237 R210 R211 R212 R213 R214 R215 R216 R217 R218 R219 R220 R221 R222 R223 R224 R225 R226 R227 R228 R229 R230 R231 R232 R233 R234 R235 R236 R237 R238 R239 R240 R241 R242 R243 R244 R245 R246 R247 R248 R249 R250 R251 R252 R253 R254 R255 R256 R257 R258 R259 R260 R261 R262 R263 R264 R265 R266 R267 R268 R269 PbF C2 TNPA2904 2 CRNO.7 A1 A40 B1 B40 A1 A40 B1 B40 1 20 1 20 A1 A40 B1 B40 A1 A40 B1 B40 ORDERNO. 1 55 1 55 1 55 1 10 11 20 1 5 1 10 11 20 1 10 11 20 1 10 11 20 IC7201 C-1 IC7202 D-1 IC7203 B-2 IC7204 C-2 IC7205 C-2 Parts Location C2-BOARD (COMPONENT SIDE) IC TNPA2904 2 C2 2 3 1 SEEREVERSE FOR ORDER NO. TH-42PX25U-P / TH-50PX25U-P 68 14.14. C3-Board (TH-42PX25U/P) A B C D E F G H I 1 2 3 4 5 6 TH-42PX25U/P C3-BOARD TNPA3061 TH-42PX25U/P C3-BOARD TNPA3061 C3-BOARD(FOIL SIDE) TNPA3061 C3-BOARD(COMPONENT SIDE) TNPA3061 C3 IC7501 B-1 IC7505 C-2 IC7506 C-1 IC7507 C-2 IC7508 B-2 Q7561 G-2 Q7562 G-2 Parts Location C3-BOARD (COMPONENT SIDE) IC TRANSISTOR TNPA3061 1 C3 1 2 3 SEE REVERSE FOR ORDERNO. C31 C33 C42 C44 C7501 C7502 C7503 C7504 C7505 C7506 C7507 C7510 C7511 C7512 C7513 C7514 C7515 C7516 C7517 C7518 C7525 D7501 C7526 D7502 D7503 D7504 C7529 R7506 R7507 C7530 R7508 IC7501 C7533 C7534 IC7505 IC7506 C7537 IC7507 C7538 R7510 IC7508 R7511 C7539 R7512 R7515 R7516 C7540 R7519 C7541 C7542 C7543 C7544 C7545 C7546 R7520 R7523 R7524 R7527 C7550 C7551 C7552 C7553 C7554 C7555 C7556 R7530 R7531 R7532 R7533 R7534 R7535 R7536 R7537 R7538 R7539 C7562 C7563 Q7561 C7566 Q7562 C7567 C7568 R7540 C7569 R7541 R7542 R7543 R7544 R7545 R7547 C7570 R7548 C7571 C7572 C7573 C7574 C7575 R7558 R7559 R7560 R7561 R7562 R7563 R7564 R7565 R7568 R7569 R7574 R7575 R7576 R7577 R7578 R7579 R7580 R7581 R7586 R7587 R7589 R7590 R7591 CB5 R7592 CB6 R7593 CB7 R7594 CB8 R7595 R7596 R7597 R7600 R7601 R7604 R7605 R7606 R7607 R7608 R7609 R7610 R7611 R7612 R7613 R7614 R7615 R7616 R7617 R7622 R7624 R7626 R7628 L7512 L7513 L7514 L7515 TNPA3061 1 C3 C3MM2 C3MM3 C3MM1 L7508 L7507 PbF A1 A40 B1 B40 1 20 1 4 1 8 ORDERNO. 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 5 1 55 1 55 1 55 1 5 5 TH-42PX25U-P / TH-50PX25U-P 69 14.15. C3-Board (TH-50PX25U/P) A B C D E F G H I 1 2 3 4 5 6 TH-50PX25U/P C3-BOARD TNPA2905 TH-50PX25U/P C3-BOARD TNPA2905 C3-BOARD(FOIL SIDE) TNPA2905 C3-BOARD(COMPONENT SIDE) TNPA2905 C3 IC7301 C-2 IC7302 C-2 IC7303 D-2 IC7304 D-2 IC7305 B-2 IC7306 D-2 Parts Location C3-BOARD (COMPONENT SIDE) IC C3 TNPA2905 1 2 3 2 CRNO.7 SEE REVERSE FOR ORDER NO. C31 C32 C33 C35 DL301 C301 C302 C303 C304 C305 C306 C307 C308 C309 C310 C311 C312 C313 C314 C315 C316 C317 C318 C319 C320 C321 C322 C323 C324 D301 C325 D302 C326 D303 C327 D304 C328 D305 R301 C329 R302 D306 R303 D307 R304 D308 R305 R306 R307 R308 C330 IC301 C331 R309 C332 IC302 IC303 C333 IC304 C334 IC305 C335 IC306 C336 C337 R310 C338 R311 C339 R312 R313 R314 R315 R316 R317 R318 C340 C341 R319 C342 C343 C344 C345 C346 C347 C348 R320 R321 R322 R323 R324 R325 R326 R327 R328 R329 R330 R331 R332 R333 R334 R335 R336 R337 R338 R339 R340 R341 R342 R343 R344 R345 R346 R347 R348 R349 R350 R351 R352 R353 R354 R355 R356 R357 R358 R359 R360 R361 R362 R363 R364 R365 R366 R367 R368 R369 R370 R371 R372 R373 R374 R375 R376 R377 R378 R379 R380 R381 R382 R383 R384 R385 R386 R387 CA8 CA9 L301 L302 L303 L304 L305 L306 L307 L308 CA10 CA11 TNPA2905 C3 2 CRNO.7 PbF A1 A40 B1 B40 1 2 19 20 1 20 1 8 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 ORDERNO. 1 5 1 55 1 55 1 55 1 55 TH-42PX25U-P / TH-50PX25U-P 70 14.16. C4-Board (TH-42PX25U/P) A B C D E F G H I 1 2 3 4 5 6 TH-42PX25U/P C4-BOARD TNPA3062 TH-42PX25U/P C4-BOARD TNPA3062 C4-BOARD(FOIL SIDE) TNPA3062 C4-BOARD(COMPONENT SIDE) TNPA3062 C4 IC7701 G-2 IC7705 F-2 IC7706 F-1 IC7707 G-1 IC7708 G-1 Parts Location C4-BOARD (COMPONENT SIDE) IC TNPA3062 1 C4 1 2 3 SEE REVERSE FOR ORDER NO. C43 C7701C7702 C7703 C7704 C7705 C7706 C7707 C7711 C7712 C7713 C7714 C7715 C7716 C7717 C7718 C7725 C7726 C7729 R7705 R7706 R7707 C7730 R7708 IC7701 C7733 C7734 IC7705 IC7706 C7737 IC7707 C7738 R7710 IC7708 R7711 R7712 R7715 R7716 R7719 R7720 R7723 R7724 C7750 C7751 C7752 R7730 R7731 R7732 R7733 R7734 R7735 R7736 R7737 R7738 R7739 C7762 C7763 C7766 C7767 C7768 R7740 C7769 R7747 C7770 R7748 C7771 C7772 C7773 C7774 C7775 C7776 C7777 C7778 C7779 R7758 R7759 R7760 R7761 R7762 R7763 R7764 R7765 R7766 R7768 R7770 R7772 R7774 R7775 R7776 R7777 R7778 R7779 R7780 CB1 R7781 CB2 CB3 CB4 R7790 R7791 R7792 R7793 R7794 R7795 R7796 R7797 R7798 R7799 R7800 R7801 R7802 R7803 R7804 R7805 R7810 R7812 R7814 R7815 R7816 R7817 R7818 R7821 R7822 R7823 R7824 R7825 R7826 TNPA3062 1 C4 C4MM1 C7744 C7743 L7710 C41 L7711 C7745 C7746 L7708 C7740 C7739 C7741 C7742 L7709 L7707 PbF A1 A40 B1 B40 1 20 ORDERNO. 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 5 1 55 1 55 1 55 1 55 TH-42PX25U-P / TH-50PX25U-P 71 14.17. C4-Board (TH-50PX25U/P) A B C D E F G H I 1 2 3 4 5 6 TH-50PX25U/P C4-BOARD TNPA2906 TH-50PX25U/P C4-BOARD TNPA2906 C4-BOARD(FOIL SIDE) TNPA2906 C4-BOARD(COMPONENT SIDE) TNPA2906 C4 IC7401 D-2 IC7402 C-2 IC7403 C-2 IC7404 B-2 IC7405 B-2 IC7406 E-1 Q7401 H-2 Q7402 H-2 Parts Location C4-BOARD (COMPONENT SIDE) IC TRANSISTOR C4 TNPA2906 1 2 3 2 CRNO.7 SEE REVERSE FOR ORDER NO. R490 R491 C41 C42 C43 C44 L401 L402 L403 L404 L405 L406 L407 L408 CB10 CB11 CB8 CB9 DL401 C401 C402 C403 C404 Q401 C405 C406 Q402 C407 C408 C409 C410 C411 C412 C413 C414 C415 C416 C417 C418 C419 C420 C421 C422 C423 C424 D401 C425 D402 C426 C427 D403 D404 C428 R401 D405 C429 R402 D406 R403 D407 R404 D408 D409 R405 R406 R407 R408 C430 IC401 C431 R409 C432 IC402 IC403 C433 IC404 D410 C434 IC405 D411 C435 IC406 D412 C436 C437 R410 C438 R411 C439 R412 R413 R414 R415 R416 R417 R418 C440 R419 C441 C442 C443 C444 C445 C446 C447 C448 R420 C449 R421 R422 R423 R424 R425 R426 R427 R428 R429 R430 R431 R432 R433 R434 R435 R436 R437 R438 R439 R440 R441 R442 R443 R444 R445 R446 R447 R448 R449 R450 R451 R452 R453 R454 R455 R456 R457 R458 R459 R460 R461 R462 R463 R464 R465 R466 R467 R468 R469 R470 R471 R472 R473 R474 R475 R476 R477 R478 R479 R480 R481 R482 R483 R484 R485 R486 R487 R488 R489 C4 TNPA2906 C4MM1 2 CRNO.7 PbF A1 A40 B1 B40 1 8 1 20 1 8 ORDER NO. 1 5 5 1 55 1 5 5 1 5 5 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 5 TH-42PX25U-P / TH-50PX25U-P 72 14.18. C5-Board (TH-50PX25U/P) A B C D E F G H I 1 2 3 4 5 6 TH-50PX25U/P C5-BOARD TNPA2907 TH-50PX25U/P C5-BOARD TNPA2907 C5-BOARD(FOIL SIDE) TNPA2907 C5-BOARD(COMPONENT SIDE) TNPA2907 C5 IC7501 D-2 IC7502 C-2 IC7503 B-2 IC7504 C-2 IC7505 C-2 Parts Location C5-BOARD (COMPONENT SIDE) IC TNPA2907 2 C5 2 3 1 SEEREVERSE FOR ORDER NO. C50 C51 C52 C53 C54 C55 DL501 DL502 DL503 C501 C502 C503 C504 C505 C506 C507 C508 C509 C510 C511 C512 C513 C514 C515 C516 C517 C518 C519 C520 C521 C522 C523 C524 D501 C525 D502 C526 D503 C527 D504 C528 R501 D505 C529 R502 D506 R503 R504 R505 R506 R507 R508 C530 IC501 R509 C531 IC502 C532 IC503 C533 IC504 C534 IC505 C535 C536 R510 R511 R512 R513 R514 R515 R516 R517 R518 R519 R520 R521 R522 R523 R524 R525 R526 R527 R528 R529 R530 R531 R532 R533 R534 R535 R536 R537 R538 R539 R540 R541 R542 R543 R544 R545 R546 R547 R548 R549 R550 R551 R552 R553 R554 R555 R556 R557 R558 R559 R560 R561 R562 R563 R564 R565 R566 R567 R568 R569 CB5 CB6 CB7 L501 L502 L503 L504 L505 L506 PbF C5MM1 C5 TNPA2907 2 CRNO.7 A1 A40 B1 B40 A1 A40 B1 B40 1 20 1 2 0 A1 A40 B1 B40 A1 A40 B1 B40 1 5 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 55 1 55 1 55 ORDER NO. TH-42PX25U-P / TH-50PX25U-P 73 14.19. C6-Board (TH-50PX25U/P) A B C D E F G H I 1 2 3 4 5 6 TH-50PX25U/P C6-BOARD TNPA2908 TH-50PX25U/P C6-BOARD TNPA2908 C6-BOARD(FOIL SIDE) TNPA2908 C6-BOARD(COMPONENT SIDE) TNPA2908 C6 IC7601 E-1 IC7602 F-2 IC7603 G-2 IC7604 G-2 IC7605 H-2 IC7606 H-2 Parts Location C6-BOARD (COMPONENT SIDE) IC C6 TNPA2908 1 2 3 CRNO.7 2 SEE REVERSEFOR ORDER NO. R680 R681 R682 R683 R684 R685 R686 R687 C60 C61 C62 L601 L602 L603 L604 L605 L606 L607 L608 CB1 CB2 CB3 CB4 DL601 C601 C602 C603 C604 C605 C606 C607 C608 C609 C610 C611 C612 C613 C614 C615 C616 C617 C618 C619 C620 C621 C622 C623 C624 C625 D601 C626 D602 C627 D603 C628 D604 C629 D605 R601 D606 R602 D607 R603 D608 R604 R605 R606 R607 C630 R608 IC601 C631 R609 IC602 C632 C633 IC603 C634 IC604 C635 IC605 C636 IC606 C637 C638 R610 C639 R611 R612 R613 R614 R615 R616 R617 C640 R618 R619 C641 C642 C643 C644 C645 C646 C647 R620 C648 R621 R622 R623 R624 R625 R626 R627 R628 R629 R630 R631 R632 R633 R634 R635 R636 R637 R638 R639 R640 R641 R642 R643 R644 R645 R646 R647 R648 R649 R650 R651 R652 R653 R654 R655 R656 R657 R658 R659 R660 R661 R662 R663 R664 R665 R666 R667 R668 R669 R670 R671 R672 R673 R674 R675 R676 R677 R678 R679 C6 TNPA2908 2 C6MM1 CRNO.7 PbF A1 A40 B1 B40 1 20 1 6 ORDERNO. 1 55 1 55 1 5 5 1 5 5 1 5 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 TH-42PX25U-P / TH-50PX25U-P 74 14.20. SC-Board (TH-42PX25U/P) A B C D E F G H I 1 2 3 4 5 6 TH-42PX25U/P SC-BOARD TXNSC20QJS TH-42PX25U/P SC-BOARD TXNSC20QJS SC-BOARD(FOIL SIDE) TXNSC20QJS SC41 SC42 SC43 SC44 C522 C526 R511 R512 R523 C550 L601 L603 Q550 L604 Q552 L609 L611 L612 L613 L614 L615 L616 L618 L619 L620 L621 L622 L623 L624 L625 L626 L627 L628 L629 R557 L630 L631 L632 L633 L634 L635 L636 L637 R565 L644 L645 C598 L650 L651 D583 L472 C601 C602 C603 C604 Q601 C605 Q602 C606 C607 Q603 Q604 Q605 Q606 Q607 Q608 C610 Q621 Q622 Q624 R600 Q625 C435 R602 C436 D615 D616 D617 D618 D623 C455 C456 D627 C459 R434 C461 TP1 TP2 TP3 TP4 TP6 TP7 TP8 TP9 C475 C476 R454 D650 R464 R465 C683 C684 C492 SC2 Q491 Q492 TP10 TP11 TP12 TP13 TP14 R474 TP15 TP16 R477 T431 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 R687 R688 R498 T451 R499 TP40 TP41 TP42 TP43 TP44 TP45 TP46 TP47 TP48 TP49 TP50 TP51 TP54 TP55 TP56 TP57 TP58 TP59 T471 TP60 TP61 TP62 TP63 SC23 TP70 TP76 TP77 TP80 TP81 TP83 TP84 C701 C702 C703 C704 C705 C513 CR No.6 2 SC TNPA2913 2 1 3 A1 A2 B2 B1 B20 B19 A20 A19 A1 A2 B2 B1 B20 B19 A20 A19 A1 A2 B2 B1 B20 B19 A20 A19 A1 A2 B2 B1 B20 B19 A20 A19 E B C S D G SEE REVERSE FOR ORDERNO. S S S D G D G D G S D G S D G S D G S D G S D G S D G S D G S D G S D G A A K A A K A A K A A K A A K A A K A A K 1 6 E C B E B C 1 5 6 10 1 3 TH-42PX25U-P / TH-50PX25U-P 75 TH-42PX25U/P SC-BOARD PARTS LOCATION TH-42PX25U/P SC-BOARD PARTS LOCATION SC Parts Location SC-BOARD (FOIL SIDE) TRANSISTOR Q6491 F-3 Q6492 G-3 Q6550 C-5 Q6552 F-4 Q6601 B-4 Q6602 C-4 Q6603 C-4 Q6604 C-4 Q6605 D-4 Q6606 E-4 Q6607 E-4 Q6608 F-4 Q6621 D-2 Q6622 C-2 Q6624 G-2 Q6625 F-2 TP41 A-5 TP42 A-5 TP43 B-5 TP44 H-5 TP45 B-5 TP46 H-5 TP47 H-5 TP48 H-5 TP49 H-5 TP50 B-5 TP51 H-5 TP54 H-5 TP55 H-5 TP56 H-5 TP57 B-5 TP58 F-5 TP59 D-5 TP60 B-5 TP61 C-5 TP62 C-5 TP63 C-5 TP70 H-5 TP76 H-4 TP77 G-3 TP80 E-5 TP81 E-5 TP83 D-5 TP84 D-5 TP1 A-2 TP2 A-2 TP3 A-2 TP4 A-2 TP6 A-2 TP7 A-2 TP8 B-1 TP9 B-2 TP10 I-2 TP11 E-2 TP12 E-2 TP13 E-2 TP14 E-2 TP16 E-2 TP20 E-1 TP20 I-2 TP21 E-1 TP22 E-2 TP23 E-2 TP24 E-2 TP26 E-1 TP26 E-1 TP27 E-2 TP28 E-2 TP30 E-2 TP31 F-2 TP40 A-5 TP Parts Location SC-BOARD (COMPONENT SIDE) IC IC6431 C-4 IC6434 C-4 IC6451 B-3 IC6452 B-3 IC6453 B-5 IC6454 B-5 IC6455 B-4 IC6471 B-4 IC6472 B-4 IC6491 C-3 IC6501 A-5 IC6502 A-5 IC6511 B-5 IC6512 C-5 IC6521 E-4 IC6541 E-5 IC6542 B-5 IC6543 B-5 IC6581 A-2 IC6601 F-3 IC6602 F-2 IC6603 D-2 IC6604 E-2 IC6605 D-2 IC6606 E-2 Q6543 F-5 Q6544 F-5 Q6545 G-5 Q6546 G-5 Q6547 G-5 Q6548 H-5 Q6549 H-5 Q6551 D-5 Q6552 D-4 Q6554 H-4 Q6555 H-4 Q6556 H-5 Q6557 H-5 Q6560 G-5 Q6561 B-5 Q6562 C-4 Q6563 D-4 Q6564 D-4 Q6581 A-2 Q6601 H-4 Q6602 G-4 Q6603 G-4 Q6604 G-4 Q6605 E-4 Q6606 E-4 Q6607 E-4 Q6608 D-4 Q6611 F-3 Q6612 F-3 Q6613 E-3 Q6614 E-3 Q6616 E-2 Q6617 E-1 Q6621 F-2 Q6622 G-2 Q6624 C-2 Q6625 D-2 Q6627 F-2 Q6628 F-2 Q6629 C-2 Q6630 D-2 TP16V H-1 TPSC1 C-5 TPSOS1 D-1 TPSOS2 D-2 TPVAD A-4 TPVSCN B-4 TPVSET C-3 TPVSUS I-3 Q6431 C-4 Q6432 B-4 Q6435 B-4 Q6451 B-3 Q6452 A-3 Q6454 A-3 Q6455 B-3 Q6471 C-3 Q6472 B-3 Q6474 B-3 Q6475 B-3 Q6476 A-4 Q6477 A-3 Q6491 C-3 Q6492 C-3 Q6501 B-5 Q6502 C-5 Q6503 E-5 Q6504 D-5 Q6511 C-5 Q6512 C-5 Q6520 D-4 Q6521 E-4 Q6523 E-4 Q6524 D-5 Q6525 E-5 Q6526 E-5 Q6530 E-4 Q6531 F-4 Q6532 F-4 Q6533 F-4 Q6534 F-4 Q6535 G-4 Q6536 G-4 Q6537 G-4 Q6538 H-4 Q6539 H-4 Q6540 E-5 Q6541 F-5 Q6542 F-5 TRANSISTOR TP TH-42PX25U-P / TH-50PX25U-P 76 A B C D E F G H I 1 2 3 4 5 6 TH-42PX25U/P SC-BOARD TXNSC20QJS TH-42PX25U/P SC-BOARD TXNSC20QJS SC-BOARD(COMPONENT SIDE) TXNSC20QJS C514 SC41 Q511 C515 SC42 Q512 C516 SC43 C517 SC44 SC45 SC46 C521 C522 Q520 C524 D500 D501 Q521 C525 D502 C526 D503 Q523 D504 Q524 R500 D505 R501 Q525 D506 R502 Q526 D507 R503 D508 R504 R505 D509 R506 R507 R508 IC501 R509 IC502 Q530 D510 Q531 D511 Q532 D512 Q533 D513 Q534 R510 D514 Q535 R511 D515 Q536 R512 D516 Q537 R513 D517 Q538 R514 D518 Q539 R515 R516 R517 R518 C540 R519 C541 IC511 C542 IC512 C543 Q540 C544 D520 Q541 D521 C545 Q542 D522 C546 Q543 D523 C547 Q544 R520 D524 Q545 R521 D525 Q546 R522 D526 Q547 R523 D527 Q548 R524 Q549 R525 R526 R527 R528 C550 L601 R529 IC521 L603 Q550 L604 D531 Q551 Q552 D532 L607 R530 Q554 L609 R531 Q555 R532 Q556 R533 Q557 R534 R535 R536 R537 R538 R539 L611 L612 L613 D540 L614 Q561 L615 D541 L616 D542 Q562 D543 Q563 L618 R540 D544 Q564 L619 R541 D545 R542 D546 R543 D547 R544 D548 R545 D549 R546 R547 L620 R548 R549 L621 C571 IC541 L622 IC542 L623 IC543 D550 L624 C575 L625 L431 C576 L626 D552 D553 C577 L627 R550 C578 L628 R551 L629 R552 R553 R554 R555 R556 R557 R558 C580 L630 R559 C581 L631 L632 L633 C584 L634 Q581 C585 L635 L636 L637 R560 R561 R562 R563 R564 R565 R566 R567 R568 R569 L644 D570 L451 L645 D572 R570 C598 R571 R572 R573 R574 R575 R576 R577 L650 R578 L651 R579 D582 D583 R580 D584 R581 D585 R582 D586 R583 R584 R585 R586 R587 R588 IC581 R589 L661 L662 L471 L472 R590 R591 R592 R593 R594 R595 R596 R597 R598 R599 C600 C601 C602 C603 C604 Q601 C605 Q602 C606 C607 Q603 Q604 Q605 C609 Q606 Q607 Q608 C610 C611 C612 C613 C614 C615 Q611 C616 Q612 C617 Q613 C618 Q614 C619 Q616 Q617 C620 C621 C622 C623 C624 D600 C625 D601 Q621 C626 D602 Q622 C432 C627 D603 C433 C628 Q624 R600 D604 C434 C629 D605 Q625 R601 Q431 C435 R602 D606 Q432 C436 D607 R603 Q627 C437 D608 R604 Q628 R605 Q629 Q435 R606 R607 C630 R608 C631 IC601 R609 C632 IC602 C633 IC603 C634 IC604 Q630 C635 IC605 R801 D611 C636 IC606 R802 C637 R803 D613 R804 R610 C638 R611 D615 C639 R805 R612 R806 D616 R613 D617 R807 R614 R808 D618 R615 R616 R617 R618 C640 R619 C641 C642 C643 C452 D623 C453 R620 C454 R815 R621 C649 Q451 C455 R816 R622 Q452 C456 D432 D627 D433 Q454 C458 R625 C459 Q455 R431 D435 R626 R432 D436 R627 R433 R628 C650 R434 R629 C651 R435 C652 R436 R437 C460 R438 C461 IC431 R439 C462 C463 C464 R630 IC434 C465 R631 R632 C466 R633 C467 R634 R440 R635 R441 R636 R442 R637 R443 R638 R449 C472 C473 C474 R641 C669 Q471 C475 R642 D452 Q472 C476 D453 R643 D648 D454 Q474 R450 R644 D455 D649 Q475 R645 R452 D456 Q476 R646 R453 Q477 R647 R454 D458 C670 R648 R455 C671 D459 R649 R456 C672 R457 C674 R458 D650 C675 IC451 R459 D651 IC452 IC453 IC454 D460 R650 D461 C679 IC455 R652 D462 R653 D463 R460 D465 R656 R462 D466 R657 R463 D467 R658 R464 D468 C680 R659 R465 D469 C681 C682 C683 R467 C490 C684 R468 C491 R469 C492 SC2 C493 D470 Q491 D472 Q492 D473 R470 D474 R471 D475 R472 D476 R473 D477 R474 D478 R475 D479 R476 R477 R478 IC471 R479 T431 IC472 D480 D481 D482 D483 R480 R481 D485 R482 D486 R483 D487 R484 D488 R485 D489 R486 R487 R488 R489 D490 D491 D492 D493 R490 D494 R491 D495 R492 R687 R493 R688 R494 R689 R495 D499 R496 R497 R498 T451 IC491 R499 R690 R691 R692 R693 R694 R695 R696 R697 R698 T471 SC20 SC23 C501 C502 C503 C504 C505 Q501 C506 Q502 C507 Q503 C508 Q504 C509 C701 C702 C703 C704 C510 C511 C705 C512 C513 TNPA2913 SC 2 CR No.6 TP15V TPVSUS TPVSCN TPVAD TPVSET TPSC1 DIP TPSOS1 TPSOS2 PbF A1 A2 B1 B2 A20 A19 B20 B19 G D S A1 A2 B1 B2 A20 A19 B20 B19 G D S A1 A2 B1 B2 A20 A19 B20 B19 A1 A2 B1 B2 A20 A19 B20 B19 2 10 1 9 2 10 1 9 G S D 1 7 8 14 1 7 8 14 G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D 1 4 5 8 G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D 1 4 5 8 B C E S D G G S D G S D G S D G S D G S D G S D G S D 1 4 5 8 1 4 5 8 ORDER NO. 1 4 5 8 S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G B C E 1 8 9 16 1 8 9 16 1 8 9 16 1 7 8 14 1 10 11 20 1 10 11 20 A A K A A K A A K A A K A A K B C E A A K 1 2 3 4 B C E 1 2 3 4 1 2 3 4 A A K 1 2 3 4 1 2 3 4 1 6 B C E B C E 1 2 3 4 1 5 6 10 1 2 3 4 1 4 5 8 1 4 5 8 1 2 19 20 1 3 TH-42PX25U-P / TH-50PX25U-P 77 14.21. SC-Board (TH-50PX25U/P) A B C D E F G H I 1 2 3 4 5 6 TH-50PX25U/P SC-BOARD TXNSC10QNS TH-50PX25U/P SC-BOARD TXNSC10QNS SC-BOARD(FOIL SIDE) TXNSC10QNS SC41 SC42 SC43 SC44 C522 C526 C535 C536 SC62 R511 R512 C550 L601 L602 L603 Q550 L604 Q552 L802 L610 C561 L611 C562 L612 L807 C563 L613 L808 C564 L614 C565 L615 C566 L616 C567 L617 C568 L618 L619 VR523 L620 L621 L623 L624 L625 L626 L627 L628 L629 TP804 TP805 R557 TP808 TP809 L636 L637 TP810 L638 TP811 L639 TP813 TP814 TP815 R565 L832 TP818 L640 TP819 L641 L642 L643 L644 L645 L646 L647 L453 TP820 L648 C598 TP821 L649 TP823 L650 L651 VR557 D583 L472 C600 C601 C602 C603 C604 C605 Q601 C606 Q602 C607 Q603 C608 Q604 Q605 Q606 Q607 Q608 C801 Q609 C803 C610 Q610 C809 C810 C815 C816 C819 Q621 Q622 C627 C628 R600 Q624 Q625 C629 C631 Q821 D615 D616 D617 D618 C832 C833 Q641 Q642 D623 C455 C456 D627 C841 C459 R434 C461 L518 TP1 TP2 TP3 TP4 TP6 TP7 TP8 TP9 C475 C476 R454 D650 Q671 Q672 Q673 R845 R846 R464 R465 C683 C684 SC2 C492 Q491 Q492 TP10 TP11 TP12 TP14 R474 TP15 TP16 TP17 R477 T431 R671 R672 R673 TP20 TP21 R675 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 R687 R688 R498 R499 T451 VR477 VR670 TP40 TP41 TP42 TP43 TP44 TP45 TP46 TP47 TP48 TP49 TP50 TP51 TP54 TP55 TP56 TP57 TP58 TP59 T471 SC12 SC13 TP60 TP61 TP62 TP63 SC23 TP70 TP71 TP72 TP73 TP74 TP75 TP76 TP77 TP80 TP81 TP83 TP84 C513 SC 2 3 2 1 TNPA2914 CR No.6 PbF A1 A2 B2 B1 B20 B19 A20 A19 A1 A2 B2 B1 B20 B19 A20 A19 A1 A2 B2 B1 B20 B19 A20 A19 A1 A2 B2 B1 B20 B19 A20 A19 1 6 E B C S D G SEE REVERSE FOR ORDERNO. G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S E C B A A K A A K A A K A A K S D G S D G A A K A A K A A K E C B E C B E B C 1 6 E C B E B C 1 5 6 10 1 6 1 8 1 3 TH-42PX25U-P / TH-50PX25U-P 78 TH-50PX25U/P SC-BOARD PARTS LOCATION TH-50PX25U/P SC-BOARD PARTS LOCATION SC Parts Location SC-BOARD (FOIL SIDE) TRANSISTOR Q6491 H-3 Q6492 H-3 Q6550 D-5 Q6552 F-4 Q6601 F-4 Q6602 F-4 Q6603 E-4 Q6604 E-4 Q6605 D-4 Q6606 D-4 Q6607 C-4 Q6608 C-4 Q6609 C-4 Q6610 B-4 Q6621 D-3 Q6622 D-3 Q6624 F-3 Q6625 F-3 Q6641 A-4 Q6642 B-4 Q6671 A-4 Q6672 A-3 Q6673 A-4 Q6821 I-2 TP55 D-5 TP56 D-5 TP57 E-5 TP58 E-5 TP59 F-5 TP60 F-5 TP61 G-5 TP62 G-5 TP63 H-5 TP70 E-5 TP71 A-4 TP72 B-4 TP73 A-4 TP74 A-4 TP75 A-5 TP76 H-3 TP77 G-3 TP80 E-5 TP81 E-5 TP83 E-5 TP84 E-5 TP6804 A-3 TP6806 A-3 TP6808 E-4 TP6809 A-2 TP6810 A-5 TP6811 A-4 TP6813 A-4 TP6814 I-3 TP6815 A-3 TP6818 A-4 TP6819 A-4 TP6820 A-4 TP6821 A-4 TP6823 B-2 TP1 B-2 TP2 D-2 TP3 A-2 TP4 E-4 TP6 A-2 TP7 A-2 TP8 H-2 TP9 I-3 TP10 E-2 TP11 E-2 TP12 E-2 TP14 E-2 TP15 E-2 TP16 E-2 TP17 E-2 TP20 B-3 TP21 E-2 TP22 E-2 TP23 E-2 TP24 E-2 TP25 E-2 TP26 E-2 TP27 E-2 TP28 E-2 TP29 E-2 TP30 I-5 TP31 E-5 TP40 B-5 TP41 B-5 TP42 B-5 TP43 B-5 TP44 B-5 TP45 B-5 TP46 H-5 TP47 H-5 TP48 H-5 TP49 H-5 TP50 H-5 TP51 C-5 TP54 C-5 TP Parts Location SC-BOARD (COMPONENT SIDE) IC IC6431 B-5 IC6434 A-5 IC6451 B-3 IC6452 B-4 IC6453 B-5 IC6454 B-5 IC6455 B-5 IC6456 A-4 IC6457 B-5 IC6458 A-4 IC6459 B-4 IC6467 B-4 IC6471 B-4 IC6472 B-4 IC6480 A-4 IC6491 B-3 IC6501 A-5 IC6502 B-5 IC6503 B-5 IC6504 C-5 IC6505 A-5 IC6506 A-5 IC6507 A-5 IC6508 A-5 IC6509 A-5 IC6510 B-4 IC6511 C-5 IC6512 B-4 IC6521 E-5 IC6541 E-5 IC6542 C-5 IC6543 B-5 IC6581 B-2 IC6601 E-4 IC6602 F-2 IC6603 D-2 IC6604 H-5 IC6605 E-2 IC6606 D-2 IC6607 E-2 IC6671 I-5 Q6541 F-5 Q6542 F-5 Q6543 F-5 Q6544 F-5 Q6545 F-5 Q6546 G-5 Q6547 G-5 Q6548 G-5 Q6549 G-5 Q6550 F-5 Q6551 D-5 Q6552 C-4 Q6553 G-4 Q6554 H-4 Q6555 G-5 Q6556 C-5 Q6558 H-5 Q6561 C-5 Q6562 C-5 Q6563 C-5 Q6564 C-5 Q6567 B-5 Q6581 C-2 Q6590 E-4 Q6600 E-5 Q6601 D-4 Q6602 D-4 Q6603 D-4 Q6604 E-4 Q6605 F-4 Q6606 F-4 Q6607 G-4 Q6609 G-4 Q6610 G-4 Q6611 E-4 Q6612 E-4 Q6613 E-4 Q6614 E-4 Q6616 E-2 Q6617 E-2 Q6621 E-3 Q6622 F-3 TP6803 I-4 TP15V I-2 TPAVAD B-4 TPCVDA C-2 TPSC1 D-5 TPSC4 F-2 TPSOS1 E-2 TPSOS2 I-4 TPVBK H-5 TPVDA B-2 TPVSCN B-4 TPVSET C-3 TPVSUS H-3 Q6624 D-3 Q6625 D-3 Q6627 F-2 Q6628 F-2 Q6629 D-2 Q6630 D-2 Q6641 H-4 Q6642 H-4 Q6645 H-5 Q6646 H-5 Q6671 H-4 Q6672 H-4 Q6673 I-5 Q6811 D-2 Q6812 C-2 Q6813 G-2 Q6814 G-2 Q6815 F-2 Q6816 F-2 Q6817 G-2 Q6818 G-2 Q6819 F-2 Q6820 F-2 Q6821 A-2 Q6822 D-2 Q6823 D-2 Q6824 C-2 Q6308 G-4 Q6431 A-4 Q6432 A-5 Q6435 A-5 Q6451 A-3 Q6453 A-3 Q6458 A-3 Q6471 A-4 Q6472 A-4 Q6474 A-4 Q6475 A-4 Q6476 B-5 Q6477 B-5 Q6491 B-3 Q6492 B-3 Q6512 C-5 Q6513 B-5 Q6520 D-5 Q6521 E-5 Q6522 B-4 Q6523 E-4 Q6524 D-5 Q6525 E-5 Q6526 E-5 Q6530 E-4 Q6531 F-4 Q6532 F-4 Q6533 F-4 Q6534 F-4 Q6535 F-4 Q6536 G-4 Q6537 G-4 Q6538 G-4 Q6539 G-4 Q6540 E-5 TRANSISTOR TP IC6801 I-3 IC6802 D-2 IC6803 G-2 IC6804 H-4 IC6805 C-2 TH-42PX25U-P / TH-50PX25U-P 79 A B C D E F G H I 1 2 3 4 5 6 TH-50PX25U/P SC-BOARD TXNSC10QNS TH-50PX25U/P SC-BOARD TXNSC10QNS SC-BOARD(COMPONENT SIDE) TXNSC10QNS C514 C515 SC41 Q511 C516 SC42 Q512 C517 Q513 SC43 SC44 SC45 SC46 C521 C522 C524 Q520 C525 Q521 Q522 C526 Q523 R500 Q524 Q525 R501 Q526 R502 R503 R504 D509 R505 R506 R507 R508 R509 IC501 C532 IC502 C533 IC503 C534 IC504 D510 Q530 C535 IC505 Q531 D511 C536 IC506 Q532 D512 SC62 C537 IC507 Q533 D513 IC508 Q534 D514 R510 IC509 D515 Q535 R511 D516 Q536 R512 Q537 R513 R708 Q538 R514 Q539 R515 R516 R517 IC510 C540 R518 IC511 C541 R519 IC512 C542 C543 D520 C544 Q540 C545 Q541 D521 C546 Q542 D522 D523 Q543 C547 Q544 D524 R520 Q545 D525 R521 Q546 D526 R522 D527 Q547 Q548 R524 Q549 R525 R526 R527 C550 R528 IC521 R529 L601 L602 L603 Q550 L604 Q551 Q552 Q553 L607 Q554 R530 L608 Q555 R531 Q556 R532 Q557 R533 Q558 R534 R535 L802 R536 L803 R537 L610 L804 R538 C561 L805 R539 L611 C562 L806 L612 L807 C563 L613 L808 C564 L614 D540 C565 D541 L615 Q561 C566 Q562 D542 L616 C567 L617 Q563 D543 C568 Q564 D544 R540 L618 L619 D545 R541 D546 R542 D547 R543 D548 R544 D549 R545 R546 VR523 R547 L620 R548 L621 IC541 C571 R549 IC542 L816 IC543 L623 L817 L624 L818 C574 D550 L431 L625 L819 C575 D552 L626 C576 L627 C577 D553 L628 C578 R550 L629 R551 R552 TP803 R553 L820 R554 L821 R555 L822 R556 R557 L823 C580 R558 L825 C581 R559 L826 L827 L828 C584 C585 Q581 L636 L637 R560 L638 R561 L639 R562 R563 L830 R564 L831 R565 R566 L832 R567 R568 L640 R569 L641 L642 L643 D570 L644 Q590 L645 L451 L646 D572 L647 L453 L648 C598 R570 L649 R571 R572 R573 R574 R575 R576 R577 R578 L650 R579 L651 VR557 D582 D583 D584 R580 D585 R581 D586 R582 R583 R584 R585 R586 R587 R588 L661 R589 IC581 L662 L471 L472 R590 R591 R592 R593 R594 R595 R596 R597 R598 R599 C600 C601 C602 C603 C604 Q600 C605 Q601 C606 Q602 C607 Q603 C608 Q604 C609 Q605 Q606 Q607 Q608 C801 Q609 C803 C804 C610 C805 C611 C612 C807 C613 C808 C614 Q610 C615 Q611 C809 C616 Q612 C617 Q613 C618 Q614 C619 Q616 Q617 C810 C811 C812 C813 C620 C815 Q811 C621 C816 Q812 C622 C817 Q813 C623 C818 Q814 D600 C624 C819 Q815 C625 Q621 D601 Q816 Q622 C626 D602 Q817 C627 D603 Q818 C628 D604 R600 Q624 Q431 Q819 Q625 C629 D605 R601 Q432 D606 R602 Q627 R603 D607 C820 Q628 R604 D608 Q435 C821 Q629 D609 R605 C822 R606 R607 Q820 R608 C630 C631 Q821 R609 IC601 D802 IC602 Q822 C827 IC603 Q823 C828 Q630 D610 IC604 Q824 R801 C829 D805 D611 IC605 R802 D612 D806 IC606 R803 D807 D613 IC607 D614 R610 R805 D615 C639 R611 R806 D616 R612 R807 D617 R613 C830 D618 R614 IC801 R809 C831 R615 C832 IC802 R616 C833 IC803 R617 IC804 C640 R618 IC805 D811 C641 R619 D812 C642 D813 R810 D814 D815 R811 Q641 D816 R812 C452 Q642 D817 R813 C453 D623 D818 R814 C454 R620 C455 Q451 C649 Q645 R621 D432 R816 C456 Q452 Q646 R622 D433 R817 D627 R623 C840 C458 Q454 R624 Q455 D435 C841 C459 R625 D436 R626 R433 R627 R434 D820 C650 R628 R435 D821 C651 R629 R436 D822 C652 D823 R437 R438 D824 R820 C460 R439 IC431 R821 D631 C461 D826 R822 C462 D632 D827 R823 C463 D633 IC434 D828 R824 D634 R630 C464 D829 R825 R631 C465 C466 R632 C467 R827 R633 R440 L518 R828 R634 R441 R829 R635 R442 R636 R443 R637 R444 R638 R445 R639 R446 R447 R830 R448 R831 R449 R832 C472 R833 C473 R640 C474 D451 R835 C669 C475 Q471 R641 R836 C476 Q472 D452 R642 R643 R837 D453 R644 R838 Q474 Q475 R451 R645 R839 D649 D455 R452 R646 Q476 D456 Q477 R453 R647 C670 R454 R648 C671 D459 R455 R649 C672 R456 R457 C480 R840 D650 R458 C481 R841 D651 Q671 R459 IC451 C482 R842 Q672 IC452 C483 C677 R843 Q673 IC453 C484 C678 R844 D460 IC454 R650 C485 C679 IC455 R845 D461 R651 C486 IC456 R846 D462 R652 C487 IC457 D463 R653 R847 C488 IC458 R460 R654 C489 IC459 R655 D465 R849 R462 D466 R656 R463 R657 C680 D468 R464 R658 C681 R465 R659 C682 R466 R467 C683 R468 C684 C490 C491 C685 R469 SC2 C686 C492 C493 C687 C494 D470 R660 C688 Q491 R661 C689 Q492 D472 R662 IC467 D473 R663 R664 R470 R665 D475 R471 R666 R472 D476 R667 R473 D477 R668 D478 C690 R474 R669 D479 R475 C691 R476 C692 C693 R477 R478 C694 C695 R479 IC471 T431 IC472 C696 R670 D481 R671 D482 R672 D483 R673 D484 R480 R674 D485 R481 R675 D486 R482 R676 D487 R483 R677 D488 R484 R678 D489 R485 R679 IC671 R486 R487 IC480 R488 R489 D490 R680 D491 R681 D492 R682 D493 R683 R490 R684 D495 R491 R685 R492 R686 D497 R493 R687 D498 R494 R688 D499 R495 R689 R496 R497 R498 R499 IC491 T451 VR477 R690 R691 R692 R693 VR670 R694 R695 R696 R697 R698 T471 SC12 SC13 SC20 SC23 C501 C502 C503 C504 C505 C506 C507 C508 C509 C510 C511 C512 C513 TNPA2914 2 SC TPVSUS TPVAD TPVBK TPSC1 TPVSET TPVSCN CR No.6 TPSC4 TPCVDA TPVDA TPSOS1 TPSOS2 TP15V Discharge PbF A1 A2 B1 B2 A20 A19 B20 B19 G D S A1 A2 B1 B2 A20 A19 B20 B19 G D S A1 A2 B1 B2 A20 A19 B20 B19 A1 A2 B1 B2 A20 A19 B20 B19 2 10 1 9 2 10 1 9 G S D 1 7 8 14 1 7 8 14 G S D G S D G S D 1 6 G S D G S D G S D G S D G S D G S D G S D 1 4 5 8 G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D 1 4 5 8 B C E S D G G S D G S D G S D G S D G S D G S D G S D 1 4 5 8 1 4 5 8 ORDER NO. G S D 1 4 5 8 G S D G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G S D G S D G S D G S D G S D G D S G S D G D S G D S B C E G D S B C E 1 8 9 16 1 8 9 16 1 8 9 1 6 1 8 9 16 G S D 1 10 11 20 1 10 11 20 1 7 8 14 A A K A A K A A K A A K 1 10 11 20 1 8 9 16 1 8 9 16 1 4 5 8 1 8 9 16 S D G S D G A A K B C E A A K 1 2 3 4 B C E A A K B C E B C E B C E 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 6 B C E B C E 1 2 3 4 1 5 6 10 1 2 3 4 1 4 5 8 1 4 5 8 1 6 1 8 1 2 19 20 1 3 TH-42PX25U-P / TH-50PX25U-P 80 14.22. SD-Board (TH-42PX25U/P) A B C D E F G H I 1 2 3 4 5 6 SD TH-42PX25U/P SD-BOARD TNPA3105 TH-42PX25U/P SD-BOARD TNPA3105 SD-BOARD(FOIL SIDE) TNPA3105 SD-BOARD(COMPONENT SIDE) TNPA3105 TNPA3105 1 1 2 3 SD PbF SEE REVERSE FOR ORDERNO. TPSD1 TPSD2 C6421 C6422 C6423 C6424 C6425 C6426 SD46 C6427 C6428 C6431 C6432 C6433 C6434 C6435 D6411 C6436 D6412 IC6407 C6437 D6413 IC6408 D6414 C6438 IC6409 C6439 IC6410 C6440 IC6411 IC6412 R6421 R6422 R6423 R6424 R6425 R6426 R6431 R6432 R6433 R6434 R6435 R6436 SD1 SD2 SD3 SD4 TNPA3105 1 SD PbF ORDERNO. 1 10 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 IC6407 A-2 IC6408 B-2 IC6409 C-2 IC6410 D-2 IC6411 E-2 IC6412 F-2 TPSD1 C-2 TPSD2 E-2 Parts Location SD-BOARD (COMPONENT SIDE) IC TP TH-42PX25U-P / TH-50PX25U-P 81 14.23. SD-Board (TH-50PX25U/P) A B C D E F G H I 1 2 3 4 5 6 SD TH-50PX25U/P SD-BOARD TNPA3129 TH-50PX25U/P SD-BOARD TNPA3129 SD-BOARD(FOIL SIDE) TNPA3129 SD-BOARD(COMPONENT SIDE) TNPA3129 TNPA3129 SD 3 2 1 1 PbF SEE REVERSE FOR ORDERNO. TPSD1 TPSD2 C6420 C6421 C6422 C6423 C6424 C6425 SD46 C6426 C6427 C6428 C6429 C6430 C6431 C6432 C6433 C6434 D6411 C6435 D6412 C6436 C6437 D6413 C6438 D6414 D6415 D6416 D6417 D6418 D6419 IC6411 IC6412 IC6413 IC6414 IC6415 IC6416 R6421 R6422 R6423 R6424 R6425 R6426 R6427 R6428 R6429 R6430 R6431 R6432 SD1 SD2 SD3 SD4 CL5 CL6 CL7 CL8 SD TNPA3129 1 PbF ORDER NO. 1 10 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 IC6411 A-2 IC6412 B-2 IC6413 C-2 IC6414 D-2 IC6415 E-2 IC6416 F-2 TPSD1 B-2 TPSD2 E-2 Parts Location SD-BOARD (COMPONENT SIDE) IC TP TH-42PX25U-P / TH-50PX25U-P 82 14.24. SU-Board (TH-42PX25U/P) A B C D E F G H I 1 2 3 4 5 6 TH-42PX25U/P SU-BOARD TNPA3104 TH-42PX25U/P SU-BOARD TNPA3104 SU-BOARD(FOIL SIDE) TNPA3104 SU-BOARD(COMPONENT SIDE) TNPA3104 SU TNPA3104 1 SU 1 2 3 SUMM1 PbF SEE REVERSE FOR ORDERNO. SU45 SU1 SU2 SU3 SU4 C6401 C6402 C6403 C6404 C6405 C6406 C6407 C6408 C6411 C6412 C6413 C6414 C6415 C6416 C6417 C6418 C6419 C6420 D6401 D6402 D6403 D6404 R6401 R6402 R6403 R6404 R6405 R6406 IC6401 IC6402 IC6403 IC6404 IC6405 IC6406 R6411 R6412 R6413 R6414 R6415 R6416 TPSU1 TPSU2 TNPA3104 1 SU PbF 1 10 ORDERNO. A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 IC6401 B-2 IC6402 B-2 IC6403 C-2 IC6404 D-2 IC6405 E-2 IC6406 F-2 TPSU1 C-2 TPSU2 E-2 Parts Location SU-BOARD (COMPONENT SIDE) IC TP TH-42PX25U-P / TH-50PX25U-P 83 14.25. SU-Board (TH-50PX25U/P) A B C D E F G H I 1 2 3 4 5 6 SU TH-50PX25U/P SU-BOARD TNPA3128 TH-50PX25U/P SU-BOARD TNPA3128 SU-BOARD(FOIL SIDE) TNPA3128 SU-BOARD(COMPONENT SIDE) TNPA3128 TNPA3128 SU 3 2 1 1 PbF SEE REVERSE FOR ORDERNO. SU45 SU1 SU2 SU3 SU4 C6400 C6401 C6402 C6403 C6404 C6405 C6406 C6407 C6408 C6409 C6410 C6411 C6412 C6413 C6414 C6415 C6416 C6417 C6418 D6401 D6402 D6403 D6404 D6405 R6401 D6406 R6402 R6403 D6407 R6404 D6408 D6409 R6405 R6406 R6407 R6408 IC6401 R6409 IC6402 IC6403 IC6404 IC6405 IC6406 R6410 R6411 R6412 TPSU1 TPSU2 CL1 CL2 CL3 CL4 TNPA3128 SU 1 PbF 1 10 ORDERNO. A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 IC6401 A-2 IC6402 B-2 IC6403 C-2 IC6404 D-2 IC6405 E-2 IC6406 F-2 TPSU1 B-2 TPSU2 E-2 Parts Location SU-BOARD (COMPONENT SIDE) IC TP TH-42PX25U-P / TH-50PX25U-P 84 14.26. SS, SS2 and SS3-Board (TH-42PX25U/P) A B C D E F G H I 1 2 3 4 5 6 TH-42PX25U/P SS-BOARD TXNSS10QJS SS2-BOARD TNPA2916 SS3-BOARD TNPA2917 TH-42PX25U/P SS-BOARD TXNSS10QJS SS2-BOARD TNPA2916 SS3-BOARD TNPA2917 SS-BOARD(FOIL SIDE) TXNSS10QJS SS3-BOARD(FOIL SIDE) TNPA2917 SS2-BOARD(FOIL SIDE) TNPA2916 C710 C711 C712 C713 C714 C715 Q711 Q712 Q713 Q714 C718 Q715 Q716 Q717 Q718 C720 C721 C722 C723 C724 Q721 D701 C726 Q722 Q723 R700 Q724 R701 R702 R703 Q727 Q728 D711 Q731 D712 SS11 D715 SS12 D716 Q738 Q739 C743 C744 SS20 SS21 D728 D729 SS32 SS34 SS42 R749 SS51 SS52 SS53 D757 SS54 D760 D764 R760 R761 R770 R817 R818 L701 L702 L703 L704 L705 L706 TP1 TP2 L712 TP3 L713 TP4 L714 TP5 L715 TP6 L716 TP7 L717 TP8 L718 TP9 L719 L720 L721 L722 L723 L724 L725 L726 L727 L728 L729 L730 L731 L732 L733 L734 L735 L736 L737 TP10 TP11 TP12 TP13 TP14 TP15 TP16 TP17 TP18 TP19 TP20 TP21 TP22 TP23 TP24 TP25 TP26 L752 TP27 L753 TP28 L754 TP29 L755 TP30 TP31 TP32 TP33 L768 C701 C702 C703 C704 C705 TNPA2915 SS 1 CR No.6 2 3 1 PbF S D G S D G S D G S D G S D G S D G S D G S D G S D G A A K S D G S D G S D G S D G S D G A A K E C B A A K 1 7 A A K 1 10 A A K E B C E B C 1 2 6 7 1 2 6 7 A A K A A K 1 12 1 3 1 4 1 13 1 13 1 13 1 13 SEE REVERSE FOR ORDERNO. SS23 SS55 SS56 SS2 1 TNPA2916 3 2 1 PbF 7 6 1 2 1 13 1 13 SEE REVERSE FOR ORDERNO. SS22 SS57 SS58 SS3 1 TNPA2917 3 2 1 PbF 7 6 1 2 1 13 1 13 SEE REVERSE FOR ORDERNO. SS2 SS SS3 Parts Location SS-BOARD (FOIL SIDE) TRANSISTOR Q6711 B-2 Q6712 C-2 Q6713 C-2 Q6714 C-2 Q6715 D-2 Q6716 E-2 Q6717 E-2 Q6718 E-2 Q6721 D-3 Q6722 C-3 Q6723 E-3 Q6724 D-3 Q6727 F-2 Q6728 F-3 Q6731 F-2 Q6738 G-2 Q6739 G-2 TP18 A-2 TP19 A-2 TP20 A-3 TP21 A-3 TP22 A-3 TP23 A-3 TP24 F-2 TP25 A-4 TP26 G-3 TP27 F-3 TP28 G-4 TP29 D-1 TP30 B-3 TP31 G-2 TP32 A-3 TP33 A-2 TP2 B-4 TP3 A-3 TP4 B-4 TP5 B-3 TP6 B-3 TP7 B-4 TP8 B-4 TP9 B-4 TP10 C-4 TP11 A-4 TP11 A-3 TP12 A-3 TP13 A-2 TP14 D-4 TP15 A-2 TP16 A-2 TP17 A-2 TP TH-42PX25U-P / TH-50PX25U-P 85 A B C D E F G H I 1 2 3 4 5 6 TH-42PX25U/P SS-BOARD TXNSS10QJS SS2-BOARD TNPA2916 SS3-BOARD TNPA2917 TH-42PX25U/P SS-BOARD TXNSS10QJS SS2-BOARD TNPA2916 SS3-BOARD TNPA2917 SS-BOARD(COMPONENT SIDE) TXNSS10QJS SS3-BOARD(COMPONENT SIDE) TNPA2917 SS2-BOARD(COMPONENT SIDE) TNPA2916 C708 C709 C710 C711 C712 C713 C714 C715 Q711 Q712 Q713 C717 Q714 C718 Q715 Q716 Q717 Q718 C720 C721 C722 C723 C724 Q721 D701 C726 Q722 Q723 C727 C728 R700 Q724 C729 R701 Q725 R702 R703 Q727 Q728 R704 Q729 R705 R706 R707 C730 C731 IC701 C732 IC702 C733 IC703 C734 Q730 IC704 D710 C735 D711 Q731 IC705 C736 IC706 Q732 D712 C737 IC707 Q733 D713 C738 R710 Q734 SS11 C739 IC709 R711 D715 Q735 SS12 R712 D716 R713 R714 Q738 R715 Q739 R716 R717 C740 R718 C741 R719 C742 C743 C744 Q740 Q741 C747 R720 C748 Q744 SS20 R721 C749 Q745 SS21 R722 D728 R725 D729 R726 R727 R728 C750 R729 C751 C752 C753 D730 D731 C755 D732 C756 D733 C757 R730 D734 C758 R731 D735 C759 R732 D736 SS32 D737 R733 SS34 R734 R735 R736 R737 C760 R738 C761 C762 C763 D740 C764 C765 C766 R741 C769 R742 SS42 R744 D749 R747 R748 C770 R749 C771 D750 D751 D752 D753 R750 D754 R751 SS51 D755 R752 SS52 D756 SS53 D757 R753 SS54 R754 D758 R755 D759 R756 R757 R758 R759 C782 C783 D760 C784 D761 C785 D762 C786 D763 D764 R760 D765 R761 D766 R762 D767 R763 R764 D768 R765 D769 R766 R767 R768 R769 D770 D771 D772 D773 R770 R771 R772 R773 R774 R775 R776 R777 R778 R779 R780 R781 R782 R783 R784 R785 R786 R787 R788 R789 R790 R791 D795 C800 C801 C802 C803 C804 C805 C806 C807 R817 R818 R819 L701 L702 L703 L704 R820 L705 L706 R822 R823 R824 L712 L713 L714 R830 L715 L716 L717 L718 L719 L720 L721 L722 L723 L724 L725 L726 L727 L728 L729 L730 L731 L732 L733 L734 R850 L735 L736 L737 L752 L753 L754 L755 L758 L759 L761 L762 L768 C701 C702 C703 C704 C705 Q701 Q702 1 SS TNPA2915 CR No.6 TP15V TPVDA TPVe TPSS1 TPVSUS TPSOS3 SS22 SS57 SS58 TNPA2917 1 SS3 SS23 SS55 SS56 TNPA2916 1 SS2 PbF PbF PbF S D G S D G S D G S D G S D G S D G S D G S D G S D G A A K S D G S D G S D G S D G S D G G D S 1 8 9 16 1 8 9 16 1 8 9 16 G D S 1 8 9 16 A A K B C E 1 4 5 8 1 10 11 20 A A K 1 4 5 8 1 7 A A K 1 10 A A K B C E B C E 1 2 6 7 1 2 6 7 A A K A A K 1 12 1 3 1 4 1 13 1 13 1 13 1 13 ORDERNO. 7 6 1 2 1 13 1 13 ORDERNO. 7 6 1 2 1 13 1 13 ORDERNO. SS2 SS SS3 Parts Location SS-BOARD (COMPONENT SIDE) IC IC6701 D-2 IC6702 D-3 IC6703 C-3 IC6704 A-2 IC6705 B-4 IC6706 G-2 IC6707 C-4 IC6709 A-2 Q6721 D-3 Q6722 E-3 Q6723 C-3 Q6724 D-3 Q6725 B-4 Q6727 B-2 Q6728 B-3 Q6729 B-4 Q6730 B-4 Q6731 B-2 Q6732 E-2 Q6733 E-2 Q6734 D-2 Q6735 D-2 Q6738 A-2 Q6739 A-2 Q6740 B-4 Q6741 C-4 Q6744 D-3 Q6745 D-3 TP15V F-4 TPSOS3 G-2 TPSS1 B-2 TPVDA F-4 TPVe A-2 TPVSUS G-3 Q6701 E-3 Q6702 E-3 Q6711 F-2 Q6712 E-2 Q6713 E-2 Q6714 E-2 Q6715 D-2 Q6716 C-2 Q6717 C-2 Q6718 C-2 TRANSISTOR TP TH-42PX25U-P / TH-50PX25U-P 86 14.27. SS, SS2 and SS3-Board (TH-50PX25U/P) A B C D E F G H I 1 2 3 4 5 6 TH-50PX25U/P SS-BOARD TXNSS20RTS SS2-BOARD TNPA2919 SS3-BOARD TNPA2920 TH-50PX25U/P SS-BOARD TXNSS20RTS SS2-BOARD TNPA2919 SS3-BOARD TNPA2920 SS-BOARD(FOIL SIDE) TXNSS20RTS SS3-BOARD(FOIL SIDE) TNPA2920 SS2-BOARD(FOIL SIDE) TNPA2919 SS2 SS SS3 Parts Location SS-BOARD (FOIL SIDE) TRANSISTOR Q6711 C-2 Q6712 C-2 Q6713 C-2 Q6714 C-2 Q6715 D-2 Q6716 E-2 Q6717 E-2 Q6718 E-2 Q6719 E-2 Q6720 F-2 Q6721 C-3 Q6722 C-3 Q6723 E-3 Q6724 E-3 Q6731 F-2 Q6738 G-2 Q6739 F-2 Q6921 G-3 TP23 A-2 TP24 B-2 TP25 C-2 TP26 E-2 TP27 E-2 TP28 F-2 TP29 D-2 TP30 A-2 TP31 G-2 TP32 A-2 TP33 A-2 TP6904 A-3 TP6905 G-3 TP6910 G-3 TP6911 A-2 TP6913 A-3 TP6914 A-3 TP6915 G-3 TP6918 A-2 TP6919 A-2 TP6920 A-2 TP6921 A-2 TP6923 A-3 TP1 A-4 TP2 A-4 TP3 A-4 TP4 F-2 TP5 B-4 TP6 A-4 TP7 B-4 TP8 B-4 TP9 B-4 TP10 B-4 TP11 A-3 TP12 B-4 TP13 A-2 TP14 A-2 TP15 A-2 TP16 A-2 TP17 A-2 TP18 A-2 TP19 A-2 TP20 A-2 TP21 A-2 TP22 A-2 TP C708 C901 C902 C903 C710 C711 C712 C713 C714 Q711 C715 Q712 C716 Q713 Q714 C718 Q715 C719 Q716 Q717 Q718 C910 Q719 C721 C915 C722 C916 C723 Q720 C724 Q721 D701 C919 Q722 C726 Q723 R700 Q724 R701 R702 R703 Q921 Q731 D711 D712 D715 SS11 D716 SS12 Q738 Q739 C932 C933 D728 D729 C941 SS34 SS35 C767 C768 SS42 C771 R945 SS51 R946 SS52 SS53 D757 SS54 SS55 SS56 SS57 SS58 R759 D760 R760 D764 R761 VR770 R818 L700 L701 L702 L703 L704 L705 L706 L707 L708 L902 L904 TP1 L905 L712 TP2 L713 TP3 L714 TP4 L715 TP5 L716 TP6 L717 TP7 L718 TP8 L719 TP9 L720 L721 L722 L723 L724 L725 L726 L727 L728 L729 TP904 TP905 L730 L731 L732 L733 L734 L735 L736 L737 TP910 TP911 TP913 R857 TP10 TP914 TP11 TP915 TP12 TP13 TP14 TP918 TP15 TP919 TP16 TP17 TP18 TP19 TP920 TP921 TP923 TP20 TP21 TP22 TP23 TP24 TP25 L752 TP26 L753 TP27 L947 L754 TP28 L755 TP29 TP30 TP31 TP32 TP33 L767 L768 L769 L770 C701 C702 C703 C704 C705 C706 C707 TNPA2918 SS 1 CR No.6 2 3 1 PbF G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S A A K G D S G D S G D S E C B E C B A A K A A K A A K 1 7 A A K 1 10 E B C E B C A A K A A K 1 3 1 8 1 8 1 13 1 13 1 13 1 13 1 13 1 13 1 2 6 7 1 2 6 7 SEE REVERSE FOR ORDERNO. SS21 SS41 TNPA2919 SS2 1 1 2 3 PbF 7 6 1 2 1 13 SEE REVERSE FOR ORDERNO. SS31 SS48 TNPA2920 SS3 1 1 2 3 PbF 7 6 1 2 1 13 SEE REVERSE FOR ORDERNO. TH-42PX25U-P / TH-50PX25U-P 87 A B C D E F G H I 1 2 3 4 5 6 TH-50PX25U/P SS-BOARD TXNSS20RTS SS2-BOARD TNPA2919 SS3-BOARD TNPA2920 TH-50PX25U/P SS-BOARD TXNSS20RTS SS2-BOARD TNPA2919 SS3-BOARD TNPA2920 SS-BOARD(COMPONENT SIDE) TXNSS20RTS SS3-BOARD(COMPONENT SIDE) TNPA2920 SS2-BOARD(COMPONENT SIDE) TNPA2919 SS2 SS SS3 Parts Location SS-BOARD (COMPONENT SIDE) IC IC6701 D-2 IC6702 E-3 IC6703 C-3 IC6704 A-2 IC6705 B-4 IC6706 G-2 IC6707 C-3 IC6709 A-2 IC6901 G-3 IC6902 D-4 IC6903 E-4 IC6904 A-4 IC6905 C-4 Q6718 C-2 Q6719 C-2 Q6720 B-2 Q6721 D-3 Q6722 E-3 Q6723 C-3 Q6724 C-3 Q6725 B-4 Q6727 B-2 Q6728 B-3 Q6729 A-3 Q6730 A-4 Q6731 A-2 Q6732 D-3 Q6733 D-2 Q6734 D-2 Q6735 D-2 Q6736 A-2 Q6737 A-2 Q6738 A-2 Q6739 B-2 Q6740 B-3 Q6741 C-3 Q6744 C-3 Q6745 C-3 Q6911 D-4 TP6903 B-4 TP15V F-4 TPSOS2 A-4 TPSOS3 F-3 TPSS1 B-2 TPSS4 E-4 TPSVDA C-4 TPVDA B-4 TPVDA F-4 TPVe A-2 TPVSUS G-4 Q6912 B-4 Q6913 F-4 Q6914 E-4 Q6915 E-4 Q6916 E-4 Q6917 E-4 Q6918 E-4 Q6919 E-4 Q6920 E-4 Q6921 A-3 Q6922 C-4 Q6923 C-4 Q6924 B-4 Q6701 E-3 Q6702 E-3 Q6711 E-2 Q6712 E-2 Q6713 E-2 Q6714 E-2 Q6715 D-2 Q6716 C-2 Q6717 C-2 TRANSISTOR TP C708 C709 C901 C902 C903 C710 C904 C711 C905 C712 C713 C907 C714 C908 Q711 C715 Q712 C716 Q713 C717 Q714 C718 Q715 C719 Q716 Q717 Q718 C910 Q719 C911 C912 C913 C721 Q911 C915 C722 Q912 C916 C723 Q913 C917 Q720 C724 Q914 C918 Q721 D701 Q915 C919 Q722 Q916 C726 Q723 C727 Q917 C728 R700 Q724 Q918 R701 C729 Q919 Q725 R702 R703 Q727 Q728 R704 C920 R705 C921 Q729 R706 C922 R707 C730 Q920 IC701 C731 Q921 IC702 C732 D902 Q922 C733 IC703 C927 Q923 C734 D710 C928 IC704 Q730 Q924 Q731 C735 D711 D905 C929 IC705 IC706 Q732 C736 D712 D906 R902 IC707 Q733 C737 D713 D907 R903 Q734 C738 R710 IC709 R711 Q735 C739 D715 R905 SS11 R712 Q736 D716 SS12 R906 R713 Q737 R907 R714 Q738 C930 R715 Q739 C931 IC901 R716 IC902 C932 R717 IC903 C933 R718 C740 IC904 R719 C741 D911 IC905 C742 D912 C743 D913 C744 D914 Q740 Q741 C745 R911 D915 C746 R912 D916 C747 R913 D917 R720 C748 Q744 R914 D918 R721 C749 Q745 R722 R916 R723 R917 R724 D728 C940 R725 D729 C941 R726 R727 R728 C750 D920 R729 C751 D921 C752 D922 D923 C753 D730 R920 D924 D731 C755 R921 D732 C756 R922 D926 D733 C757 R923 D927 R730 D734 C758 R924 D928 R731 D735 C759 R925 D929 R732 D736 SS32 D737 R733 R927 SS34 D738 R734 R928 R735 D739 R929 SS35 R736 R737 R738 C760 C761 C762 C763 D740 C764 R930 C765 R931 C766 R932 C767 R933 C768 R741 C769 R935 R742 R936 SS42 R937 R938 D749 R939 R747 C770 R748 R749 C771 C772 C773 D750 R940 D751 R941 D752 R942 D753 R943 R944 D754 R750 R751 R945 SS51 D755 R752 R946 SS52 D756 R753 SS53 D757 R947 R754 D758 SS54 D759 R755 SS55 R949 SS56 R756 SS57 R757 SS58 R758 R759 C782 C783 D760 C784 D761 C785 D762 C786 D763 R760 D764 R761 D765 R762 D766 R763 D767 R764 D768 R765 D769 R766 R767 R768 C790 R769 C791 C792 C793 D770 C794 D771 C795 D772 C796 D773 C797 C798 R771 C799 R772 R773 R774 R775 R776 R777 R778 R779 R780 R781 R782 R783 R784 R785 R786 R787 R788 R789 R790 R791 D795 R792 R793 R794 VR770 R795 R796 R797 R818 R819 L700 L701 L702 L703 L704 L705 L706 L707 L708 L900 L901 L902 L903 L904 L905 L712 L906 L713 L714 L715 L716 L717 L718 L719 L720 L721 L722 L916 L723 L917 L724 L918 L725 L919 L726 L727 L728 L729 TP903 L920 L921 L922 L923 L730 L731 L925 L732 L926 L733 L734 R850 L735 R851 L736 R852 L737 R853 R854 R857 L930 L931 L932 L933 L752 L753 L947 L754 R870 L755 R872 R873 L758 R874 L759 L761 L762 L767 L768 L769 L770 C701 C702 C703 C704 C705 Q701 C706 Q702 C707 1 SS TNPA2918 CR No.6 TPSS1 TPVe TP15V TPVDA TPVSUS TPSS4 TPVDA TPSVDA TPSOS3 TPSOS2 Discharge PbF G D S G D S G D S G D S G D S G D S G D S G D S G D S G S D G S D G S D G D S G S D G D S A A K G S D G D S G S D G D S G D S G S D G S D G D S 1 8 9 16 B C E 1 8 9 16 1 8 9 16 1 8 9 16 G D S G S D B C E A A K 1 4 5 8 1 10 11 20 A A K 1 4 5 8 A A K 1 7 A A K 1 10 B C E B C E 1 10 11 20 1 8 9 16 1 8 9 16 1 4 5 8 1 8 9 16 A A K A A K 1 2 19 20 1 3 1 8 1 8 1 13 1 13 1 13 1 13 1 13 1 13 1 2 6 7 1 2 6 7 ORDERNO. SS21 SS41 TNPA2919 SS2 1 PbF 7 6 1 2 1 13 ORDERNO. SS31 SS48 TNPA2920 SS3 1 PbF 7 6 1 2 1 1 3 ORDERNO. TH-42PX25U-P / TH-50PX25U-P 88 14.28. JG-Board A B C D E F G H I 1 2 3 4 5 6 JG-BOARD(FOIL SIDE) TNPA3151AC TH-42/50PX25U/P JG-BOARD TNPA3151AC TH-42/50PX25U/P JG-BOARD TNPA3151AC JG R105 R107 R108 R300 R303 R304 R110 R305 R111 R306 R307 R113 R308 R309 R116 R119 R310 L001 R311 L002 R312 L003 R313 R314 R120 L005 R315 R316 R122 R317 R123 R318 L009 R319 R125 R126 R129 R320 R130 R326 R133 R328 R134 R329 R135 R138 R139 TP002 R330 R331 R332 TP006 R333 TP007 R334 TP008 R335 TP009 R141 R336 R337 R338 R144 R339 R147 TP010 TP011 TP012 TP013 R340 TP014 R341 TP015 R342 TP016 R343 TP017 R344 R150 R345 R346 R347 R153 R348 R349 R155 R156 R157 R158 R159 R350 R351 R160 R180 R181 R182 R183 R184 JG1 JG2 R187 R188 JG5 R191 R192 R196 R198 R199 C002 C003 C004 Q001 C005 Q002 C006 Q003 C007 Q004 C008 Q005 Q006 Q007 Q008 Q009 Q010 C016 C017 C018 C019 D001 C025 C028 R001 R002 R007 C032 IC003 C033 R200 C034 R201 C035 R202 IC006 C036 R203 C037 R204 IC008 C038 R205 R206 R207 R208 R209 IC013 R210 R211 IC015 R212 C047 IC018 C048 R215 C049 R216 R026 R027 R028 R029 C053 R220 C054 R221 C055 R222 R223 R030 C058 R031 R226 R227 R228 C063 C064 R236 C075 C076 R244 R245 C079 R246 R247 R248 R249 C080 C081 C083 R250 R252 R253 R254 C088 R256 R257 R259 C090 FL001 C092 C093 R260 C094 R261 C096 FL007 R263 FL008 R264 R071 R269 R076 R077 R078 R079 R272 R273 R274 R080 R275 R081 R276 R082 R277 R083 R278 R084 R279 R085 R280 R281 R283 R284 R285 R286 R287 R288 R289 R290 R291 R292 R293 R294 R295 JS002 R296 R297 JS004 R298 JS005 JS007 JS008 JS009 JS018 JS019 JS020 JS021 JS022 JS023 JS024 JS025 JS026 JS027 C105 C111 C112 R101 R103 TNPA3151 2 JG CR NO.6 A A PbF SEE REVERSEFOR ORDERNO. 1 35 34 68 1 10 9 11 12 13 14 + 1 24 25 48 1 7 8 14 1 10 11 20 A B C 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 E G J L N R U D F H K M P T 1 16 17 32 33 48 49 64 1 3 4 5 IC6003 A-3 IC6006 A-4 IC6008 A-3 IC6013 E-3 IC6015 F-4 IC6018 E-2 Q6001 F-4 Q6002 F-4 Q6003 F-4 Q6004 E-4 Q6005 E-2 Q6006 E-2 Q6007 E-4 Q6008 E-4 Q6009 E-4 Q6010 E-4 TP6002 E-4 TP6006 D-4 TP6007 E-4 TP6008 E-4 TP6009 E-4 TP6010 E-4 TP6011 D-4 TP6012 E-4 TP6013 E-4 TP6014 E-4 TP6015 E-4 TP6016 E-4 TP6017 E-4 Parts Location JG-BOARD (FOIL SIDE) IC TP TRANSISTOR TH-42PX25U-P / TH-50PX25U-P 89 A B C D E F G H I 1 2 3 4 5 6 JG-BOARD(COMPONENT SIDE) TNPA3151AC TH-42/50PX25U/P JG-BOARD TNPA3151AC TH-42/50PX25U/P JG-BOARD TNPA3151AC JG R301 R302 R114 R117 L004 L006 L007 L008 R127 L010 L011 R321 L012 R322 R323 L013 R324 R325 R131 R137 TP001 TP003 TP004 TP005 R142 R145 R148 R151 R152 R154 R161 R162 R163 R164 R165 R166 R167 R168 R169 R170 R171 R172 R173 R174 R175 R176 R177 R178 R179 R185 R186 JG3 JG4 R189 R190 R193 R194 R195 R197 C001 C009 C010 C011 C012 C013 C014 C015 C020 C021 C022 C023 C024 C026 C027 C029 R003 R004 R005 R006 R008 C030 IC001 R009 C031 IC002 IC004 IC005 IC007 R010 IC009 R011 C039 R012 R013 R014 R015 R016 R017 IC010 R018 C040 IC011 R019 C041 IC012 C042 C043 IC014 C044 C045 IC016 C046 R213 IC017 R214 R020 R021 R022 R217 R023 R218 R024 R219 R025 C050 C051 C052 C056 C057 R224 R225 C059 R032 R033 R034 R035 R036 R037 R038 C060 R039 C061 C062 C065 C066 C067 R040 C068 R041 C069 R042 R043 R044 R045 R046 R047 R048 C070 R049 C071 C072 C073 C074 C077 R050 C078 R051 R052 R053 R054 R055 R056 R057 R058 R059 C082 C084 R251 C085 C086 C087 R060 R255 R061 C089 R062 R063 R258 R064 R065 R066 R067 R068 R069 C091 FL002 FL003 FL004 C095 FL005 R262 FL006 C097 R070 C098 FL009 R265 C099 R266 R072 R267 R073 R268 R074 R075 FL010 FL011 FL012 FL013 R270 R271 R086 R087 R088 R089 R282 R090 R091 R092 R093 R094 R095 R096 JS001 JS003 R299 JS006 JS010 JS011 JS012 JS013 C100 X001 C101 C102 C103 C104 C106 C107 C108 C109 C110 TNPA3151 2 JG AB AC AD AE CR NO.6 ORDERNO. 1 2 19 20 1 2 10 9 1 7 8 14 1 7 8 14 1 5 1 7 8 14 1 10 11 20 1 10 11 20 1 7 8 14 1 3 4 5 1 24 25 48 1 27 28 54 1 3 4 5 1 3 4 5 1 2 3 4 1 2 3 4 IC6001 F-3 IC6002 E-3 IC6004 D-4 IC6005 E-2 IC6007 F-2 IC6009 F-3 IC6010 C-2 IC6011 B-3 IC6012 E-3 IC6014 B-3 IC6016 B-4 IC6017 B-3 TP6001 D-4 TP6003 B-2 TP6004 B-4 TP6005 B-2 Parts Location JG-BOARD (COMPONENT SIDE) IC TP TH-42PX25U-P / TH-50PX25U-P 90 14.29. G-Board A B C D E F G H I 1 2 3 4 5 6 G-BOARD(FOIL SIDE) TXN/G1UHSU G-BOARD(COMPONENT SIDE) TXN/G1UHSU TH-42/50PX25U/P G-BOARD TXN/G1UHSU TH-42/50PX25U/P G-BOARD TXN/G1UHSU G G10 TP3737 JK3709 ZA1 L3767 L3768 L3769 JK3714 L3770 L3778 L3779 L3780 L3781 L3782 L3783 L3784 L3785 G5 C3712 C3713 C3714 C3715 C3718 C3719 R3701 R3702 R3703 R3704 R3705 R3706 R3707 R3708 D3713 R3710 D3715 R3711 D3716 R3712 D3717 R3713 R3714 D3719 R3715 R3716 R3720 D3724 R3721 D3725 R3722 R3724 R3725 S3701 R3726 S3702 R3727 S3703 R3728 S3704 S3705 S3706 S3707 R3733 R3734 R3735 R3736 C3772 C3773 C3774 C3775 C3776 D3767 D3768 D3769 R3767 R3768 D3770 D3771 D3772 D3773 D3774 R3770 R3797 JS3701 JS3702 JS3703 JS3704 JS3707 JS3709 JS3710 JS3711 JS3713 TNPA3176 G 1 CH.UP CH.DN VOL.UP VOL.DN TV/VTR ASPECT D3721 D3730 D3731 PbF 1 6 R L V SEE REVERSE FOR ORDERNO. 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 6 G10 JK3709 ZA1 JK3714 L3772 L3773 L3775 L3776 L3777 L3778 L3779 L3780 L3781 L3782 L3783 L3784 L3785 G5 G7 G8 C3710 C3716 C3717 D3726 R3723 D3727 S3701 S3702 S3703 S3704 S3705 S3706 S3707 R3730 R3731 D3764 D3765 D3766 D3767 D3768 D3769 D3770 D3771 D3772 D3773 D3774 R3794 R3795 R3796 JS3705 JS3706 JS3712 JS3714 JS3715 TNPA3176 1 G CH.UP CH.DN VOL.UP VOL.DN TV/VTR ASPECT R3732 D3732 D3733 1 6 ORDERNO. R L V 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 6 1 15 1 10 TH-42PX25U-P / TH-50PX25U-P 91 14.30. K and S-Board A B C D E F G H I 1 2 3 4 5 6 K S TH-42/50PX25U/P K-BOARD TXN/K1QKSU S-BOARD TNPA2990AB TH-42/50PX25U/P K-BOARD TXN/K1QKSU S-BOARD TNPA2990AB S-BOARD(FOIL SIDE) TNPA2990AB K-BOARD(FOIL SIDE) TXN/K1QKSU K-BOARD(COMPONENT SIDE) TXN/K1QKSU S-BOARD(COMPONENT SIDE) TNPA2990AB IC300 A-4 Q300 E-3 Q301 E-3 Q303 E-4 Q304 E-3 Q305 B-4 Q307 C-3 Parts Location K-BOARD (FOIL SIDE) IC TRANSISTOR Q308 C-2 Q309 C-2 Q310 C-2 Q311 C-2 Parts Location K-BOARD (COMPONENT SIDE) TRANSISTOR JS300 JS301 JS302 JS303 JS304 Q306 R315 R316 C304 1 S TNPA2990 S34 S300 D307 PbF 1 3 SEE REVERSE FOR ORDERNO. C302 C303 TNPA2990 S 1 S34 S4 R320 S300 ORDER NO. 1 3 1 7 JS305 D009 Q300 Q301 Q303 Q304 Q305 Q307 RM300 R300 R301 R302 R303 R304 R305 R306 R307 R308 R311 R312 R313 R314 R317 R318 R319 R322 R323 R324 C307 C308 D303 D309 D311 D312 IC300 TNPA2988 1 K PbF SEE REVERSE FOR ORDERNO. K12 K24 Q308 Q309 Q310 Q311 R310 R321 R325 R326 R327 R328 R329 R330 R331 C300 C301 C307 C309 D300 D301 D302 D308 D310 D312 D313 D314 D315 D316 D317 TNPA2988 1 K 1 9 1 8 ORDERNO. TH-42PX25U-P / TH-50PX25U-P 92 14.31. DT-Board A B C D E F G H I 1 2 3 4 5 6 C454 R238 R044 R814 C455 R045 R815 C456 R622 R046 R816 C457 R623 R817 L120 R430 C070 R431 R049 C071 IC041 R432 C072 IC042 R433 C267 C073 R434 C268 C074 IC044 R435 C269 C075 IC045 R629 R436 R242 C076 R437 R243 C077 R050 R438 R244 C078 L511 R051 R439 R245 C079 IC049 R052 L512 R822 R246 R247 R053 R248 R054 C270 R824 R249 R055 C271 R825 R056 C272 R057 C273 R633 R440 R058 C080 R059 C081 IC051 R442 C082 IC052 C083 IC053 IC054 R444 R250 C278 C084 R638 IC055 R445 R251 C085 R639 R446 R252 C086 R447 R253 C087 R448 R254 R060 C088 R449 R255 R061 C089 R831 R062 R832 R063 R833 R064 R834 R641 R065 R835 R066 R643 R067 R644 R450 R068 C090 R645 R451 C285 C091 R646 R452 C286 C092 R647 R453 C093 R454 C288 C094 R649 R455 C289 C095 R456 C096 C097 R458 C098 R070 R459 C099 R071 R072 R073 R650 R268 R651 R269 R075 R652 R076 C292 R653 R077 C293 R654 R078 C294 R655 R461 R079 C295 R656 R462 R657 R463 R658 R464 R270 R659 R465 R466 R467 R468 R080 R469 R081 R082 R083 R660 R084 R661 R085 R855 R086 R856 R857 R470 R088 R858 R471 R089 R859 R472 R473 R474 R475 R477 R090 R860 R479 R285 R091 R861 R092 R862 R287 R093 R863 R288 R094 R864 R289 R095 R865 R096 R097 R867 R480 R868 R099 R869 R482 R483 R290 R485 R291 R486 R487 R293 R294 R870 R871 R296 R872 R297 R873 R298 R874 R299 R875 R876 R877 R490 R878 R491 R879 R492 R493 R688 R689 R495 R496 R497 R880 R499 R881 R882 R883 R691 R692 R693 R694 R695 R697 R699 R898 R899 X8000 C100 C101 C102 X003 C103 C104 C105 C106 C107 C108 C109 C110 C111 C112 C113 C114 C115 C116 C117 C118 LC005 C119 C507 C120 C508 C315 C121 C122 C317 C123 C318 C124 C319 C125 C126 C127 C128 R101 C129 C512 C513 C320 C321 C322 R107 C323 ZB8000 C324 C130 R109 C325 C131 C519 C326 C327 R300 C328 R301 R303 R305 R111 C522 R307 R501 C335 R502 C336 R503 C337 R504 R310 R505 R311 C339 R506 R312 L003 R313 R314 C530 R315 C531 R316 C532 R317 C533 L008 R318 C340 L009 C341 C342 C343 C344 R705 R129 R706 C346 R707 R513 C347 R514 R320 R515 R321 L012 R516 R322 L013 R518 L015 R131 R325 L016 R902 R133 R327 R903 R710 L018 R904 L019 R135 R136 R906 R137 TP000 R520 R138 C160 R908 TP001 R715 C355 C161 R521 TP002 R716 C356 TP003 C357 R523 TP004 L020 R330 C358 C164 TP005 L021 R331 C359 TP006 L022 R526 TP007 L023 R333 TP008 L024 R334 R140 R528 R910 TP009 R335 R141 C169 R911 R142 R912 C552 L027 R143 R913 R338 R144 C554 R721 R339 R145 C361 C555 R146 C556 R723 R147 C363 R917 C557 R724 TP010 R148 C364 C558 R725 R149 C365 R919 C559 TP011 R726 R532 C366 TP012 R727 R533 TP013 R728 L030 R534 C174 TP014 R729 L031 R535 C369 TP015 L032 TP016 L033 R343 C177 TP017 R538 R344 R150 C178 C560 TP018 L035 R345 R151 C561 TP019 L036 R346 R152 R922 C562 L037 R347 R153 R923 R730 L038 R154 C370 TNR8000 R731 L039 C371 R925 R732 R926 R733 C373 R927 R734 C374 C180 R928 C568 TP020 R735 R541 R159 R929 C569 TP021 R736 R542 C376 TP022 R737 R543 C377 R738 R544 C378 R545 C379 R546 TP026 L043 R547 C187 C570 L044 R548 R354 R160 C188 R930 C571 L045 R549 R355 C189 R931 L046 R356 R932 L047 R357 R740 L048 R358 C380 R741 L049 R359 R165 C381 R935 R742 R166 C382 R743 C577 R167 C578 R938 R550 R168 C384 C190 C579 R551 R169 C385 C191 R552 C192 R553 L050 R554 R360 C388 L051 R555 C389 R556 C196 L053 R557 R363 C580 R558 R170 C581 R559 R171 C199 DT1 R366 R172 DT2 R173 R944 R174 R945 DT5 R369 R175 JK002 DT6 R946 DT7 R947 JK003 C393 DT8 R560 R561 R562 JK007 R563 R564 R565 C399 LC092 R566 R567 C590 R568 C591 R569 L065 LC095 C592 C593 C594 JK010 C595 R379 R955 R956 R957 R570 R958 R571 R189 R959 R572 R573 R574 R380 L071 R575 R381 L072 R576 L073 R577 L074 R578 R384 R190 R960 R579 R961 R192 R962 R387 R963 R388 R194 R389 R195 R196 R198 R581 R583 R584 R390 R585 R586 L082 R587 L083 R588 L084 R589 L085 L088 R590 R591 R592 R593 R594 L090 R595 L091 L092 L093 L094 R598 R599 L098 L099 R795 R796 R797 R798 C001 C005 Q003 Q004 Q005 X100 C201 X101 C203 C011 C205 C207 C013 C014 C016 Q013 C017 C018 C019 C401 C403 C405 C211 C212 C407 C213 C020 C214 C409 C021 C022 C023 C217 C218 Q020 C024 Q021 R8000 R001 D005 C411 Q025 R002 D006 Q026 R003 D007 C413 Q027 R004 D008 C414 C220 Q028 Q029 R005 D009 C415 C221 R006 C222 R007 C223 IC8000 C224 R008 C225 C226 IC003 C227 C610 R200 IC004 D010 C228 Q030 Q419 C611 C229 Q031 C612 IC006 D012 C036 C613 D013 R204 C614 IC008 C420 C038 R205 C615 IC009 R011 C421 C039 R206 R012 C422 R207 D017 R013 R208 Q420 R014 C424 C230 R209 Q421 R015 C425 C231 R016 C426 C232 R017 C427 C233 IC010 R018 C428 C234 R019 IC011 C429 C235 C041 C236 C042 R403 C237 C043 R404 R210 C238 R211 C239 R406 R212 R407 R213 R408 R214 R020 R021 R409 R215 R022 R023 R600 C434 C240 R601 C241 R602 C436 C242 R603 R027 C243 L100 R604 R410 R028 C244 R605 R411 IC021 R029 C245 IC022 C246 R607 IC023 C247 R608 C248 C054 R609 R415 C249 C055 R222 IC026 C056 C826 R223 IC027 C057 C827 R224 R030 R800 R031 R225 C829 R032 C442 R802 R227 R803 R034 R610 R228 C444 C250 R804 R035 R611 C445 C251 R036 R612 C252 C446 R613 R037 C253 R614 IC030 R038 C060 R808 C449 R039 C061 R809 C062 C063 C064 C065 R426 R232 C066 R427 C067 R428 R234 IC038 R040 C068 R429 IC039 R041 C069 R042 R237 R043 C CR.NO8 D D B B C A A E E TNP2AA144 5 G G DT I I H H 1 8 9 16 1 8 9 16 1 7 8 14 1 4 5 8 1 4 5 8 1 3 4 5 1 4 5 8 1 3 4 5 1 3 4 6 1 5 SEE REVERSE FOR ORDER NO. + GND AGC GND SDA SCL IF1 BTL +B TU ADRS TP BV AFT AGCOUT AGCCONT VIDEOOUT ST SAP R L IFSW TP MODE F-MONO MUTE 1 4 1 4 1 2 1 2 35 36 68 67 34 33 1 2 1 3 1 8 9 2 3 4 5 6 7 1 5 1 2 10 5 15 20 35 25 30 40 45 64 65 50 60 55 1 3 1 9 10 18 1 9 10 18 + + + 1 7 8 14 1 4 5 8 1 4 5 8 1 4 5 8 1 38 39 64 65 102 103 128 + 1 36 37 72 73 108 109 144 1 4 5 8 1 10 11 20 1 27 28 54 1 8 9 16 1 3 4 5 1 4 5 8 + 1 8 9 1 3 4 5 1 5 1 5 DT-BOARD(FOIL SIDE) TNP2AA144ACS TH-42PX25U/P DT-BOARD TNP2AA144ACS TH-42PX25U/P DT-BOARD TNP2AA144ACS DT Parts Location DT-BOARD (FOIL SIDE) IC IC8000 B-4 IC8003 C-4 IC8004 B-3 IC8006 C-4 IC8008 D-4 IC8009 B-3 IC8010 B-2 IC8011 B-2 IC8021 D-3 IC8022 D-5 IC8023 E-3 IC8026 E-3 IC8027 E-3 IC8030 F-2 IC8038 E-4 IC8039 F-3 IC8041 F-2 IC8042 E-3 IC8044 C-2 IC8045 C-2 IC8049 C-4 IC8051 E-1 IC8052 E-3 IC8053 F-2 IC8054 C-5 IC8055 B-5 Q8003 B-4 Q8004 F-3 Q8005 E-3 Q8013 E-2 Q8020 C-4 Q8021 D-5 Q8025 C-4 Q8026 B-5 Q8027 B-4 Q8028 B-4 Q8029 C-1 Q8030 B-5 Q8031 B-5 Q8419 B-2 Q8420 A-1 Q8421 B-1 TRANSISTOR TP000 B-2 TP001 B-2 TP002 B-2 TP003 B-2 TP004 B-2 TP005 C-2 TP006 C-1 TP007 C-1 TP008 B-2 TP009 C-2 TP010 C-2 TP011 E-3 TP012 F-2 TP013 F-2 TP014 F-3 TP015 E-4 TP016 D-3 TP017 D-4 TP018 F-3 TP019 D-4 TP020 B-5 TP021 F-2 TP022 C-5 TP026 D-2 TP TH-42PX25U-P / TH-50PX25U-P 93 A B C D E F G H I 1 2 3 4 5 6 R620 C260 R621 R239 C261 C262 R047 C263 L508 IC040 R048 C264 R624 L509 C265 R625 C266 R626 IC043 R627 R240 R628 R241 C464 R631 R632 C467 C274 R634 R441 C275 R635 C276 R636 R443 C277 R637 C279 C280 R258 C281 R642 C282 C283 C284 R069 C287 R260 R262 R457 R264 R266 C290 C291 R460 C296 C297 C298 R271 C299 R272 R273 R274 R275 R276 R277 R278 R279 R662 R280 R281 R476 R282 R283 R284 R286 R292 R488 R489 R295 R687 R690 R884 R885 R886 R887 R888 R889 R696 R698 R890 R891 R892 R893 R894 X005 C300 C301 C302 C303 C304 C305 C306 C307 C308 C309 LC002 C500 C501 C502 LC007 C503 LC008 C310 C504 LC009 C311 C505 C312 C506 C313 C509 C316 LC010 LC011 LC012 LC013 LC014 C510 LC015 C511 LC016 LC017 C514 C515 C516 C517 ZB8000 C518 C329 R304 LC024 C520 LC025 C521 LC027 C523 LC028 C330 C524 R309 C331 C332 C333 R500 C334 L8000 C338 L001 LC031 L002 LC032 R507 L004 R508 L005 R509 L006 L007 R700 R701 R319 R510 R511 C345 R512 R708 L010 C348 L011 R709 C349 R517 R323 R324 R900 R519 R901 R326 L017 C350 R711 C351 R905 R712 C352 R713 C353 R714 C354 R909 R717 R525 R332 L025 L026 R336 R337 C360 R722 C362 R916 R530 R918 C367 R340 C368 R341 R536 R342 R537 L034 C563 R348 TNR8000 R924 R349 C372 C567 C375 R350 C184 R739 R351 C185 C186 R352 TP027 C572 C573 R933 C574 R934 C575 C576 R936 R937 C383 R939 C193 C194 R361 C195 LC082 L052 R362 C197 LC083 R940 L054 R364 C198 LC084 R941 L055 R365 DT1 LC085 C582 R942 L056 DT2 LC086 C583 R943 L057 R367 LC087 C584 L058 R368 C390 C585 DT5 JK001 L059 C391 JK002 DT6 C586 C392 DT7 C587 DT8 C588 R948 R949 JK006 JK007 C397 LC090 L060 C398 JK008 LC091 L061 L062 LC093 L063 R950 L064 LC094 R180 R951 R181 R952 L066 R953 L067 R954 L068 R378 JK010 L069 C596 C597 C598 C599 L070 R382 L075 R385 R386 L078 R580 R582 L081 R391 R392 R393 R394 R395 R396 R397 R398 R399 R596 R597 L095 L096 L097 C8000 C002 C003 C004 C006 C007 C008 C009 C200 C202 X102 C204 C010 C206 C012 Q010 Q011 C015 Q012 Q014 Q015 Q016 Q017 C210 Q018 Q019 C406 C408 C215 C216 C600 D8000 C601 D001 C219 C602 D002 C026 C603 D003 Q023 C604 D004 C410 Q024 C605 C606 C412 C607 C608 C609 C416 C417 C418 C419 IC001 R009 R201 D011 R202 R203 IC007 R010 D014 D015 C616 D016 D017 C423 R400 R401R402 R405 IC015 IC016 IC017 C818 IC018 C430 C819 IC019 C431 R216 C432 R217 C433 R024 R218 R219 C435 C437 IC020 C438 L101 C439 C822 L102 R412 C823 L103 R413 C824 L104 R220 IC024 C825 L105 R221 IC025 L106 R416 L107 R417 L108 R418 IC028 C440 C058 L109 R419 C441 C059 R801 R226 C443 R805 R806 R807 L110 R420 C254 R421 IC031 C255 R616 R422 IC032 C256 R617 R423 C257 R618 R424 IC034 C258 R619 R425 IC035 C259 C836 IC036 C837 R233 IC037 R810 R235 R811 R812 R813 TNP2AA1 5 B CR NO.8 A A B C C D D E E F F DT G G H H 4 4 I I J J K K 1 5 1 5 ORDER NO. L R SAP ST VIDEOOUT AGCCONT AGCOUT AFT BV TP ADRS TU +B BTL IF1 SCL SDA GND AGC GND IFSW TP MODE F-MONO MUTE 1 4 1 4 2 1 1 50 51 100 36 35 2 1 68 67 34 33 1 3 1 5 1 55 56 110 1 2 10 20 30 64 65 40 50 60 1 2 19 20 1 3 1 9 18 1 4 5 8 1 4 5 8 1 4 5 8 A B C DEF GH 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 28 29 56 + 1 28 29 56 + 1 2 7 28 54 + + 1 5 1 0 15 20 25 A E H J N P T W Y AA AF A B C D E F G H J 1 3 5 7 2 6 1 12 13 24 + 1 36 37 72 73 108 109 144 1 8 9 16 1 8 9 16 1 16 17 32 33 48 49 64 1 4 5 8 1 12 13 24 25 36 37 48 DT-BOARD(COMPONENT SIDE) TNP2AA144ACS TH-42PX25U/P DT-BOARD TNP2AA144ACS TH-42PX25U/P DT-BOARD TNP2AA144ACS DT Parts Location DT-BOARD (COMPONENT SIDE) IC IC8001 E-5 IC8007 D-5 IC8015 B-3 IC8016 D-3 IC8017 D-3 IC8018 D-3 IC8019 D-3 IC8020 C-3 IC8024 C-2 IC8025 C-2 IC8028 C-2 IC8031 B-2 IC8032 A-1 IC8034 B-1 IC8035 B-3 IC8036 B-1 IC8037 B-3 IC8040 C-4 IC8043 D-3 Q8010 B-1 Q8011 B-1 Q8012 C-1 Q8014 A-2 Q8015 A-2 Q8016 B-3 Q8017 B-3 Q8018 D-2 Q8019 D-5 Q8023 D-5 Q8024 E-5 TRANSISTOR TP027 E-2 TP TH-42PX25U-P / TH-50PX25U-P 94 15 Block and Schematic Diagrams 15.1. Schematic Diagram Notes TH-42PX25U-P / TH-50PX25U-P 95 15.2. Main Block Diagram (TH-42PX25U/P) TH-42PX25U/P Main Block Diagram TH-42PX25U/P Main Block Diagram INITIALIZE PULSE 64 64 S.R S.R S.R 64 S.R 64 64 S.R 64 S.R CONTROL PULSE VOLTAGE SCAN SC20 D20 CONTROL DISCHARGE MAIN MPU SUB MPU ROM A/D BUS 24bit FORMAT CONVERTER RGB PROCESSOR PROCESSOR SUB-FIELD PLASMA AI SDRAM D34 D33 P25 D25 P27 D27 P9 P12 P11 SS11 SS12 SS42 SS20 SS22 SUSTAIN PULSE ERASE PULSE ADDRESS VOLTAGE (VE) 5V UR12V STB7V D3 SDRAM PROCESS VOLTAGE RECTIFIER CONTROL SUSTAIN VOLTAGE RECTIFIER SUSTAIN VOLTAGE VDA 15V 5V 12V P23 P2 VSUS LINE FILTER STAND BY PF1 PF10 PF2 POWER SWITCH SC SU SD CONTROL D P SOS ON/OFF STB5V S4 S VDA SS PF SS2 SS3 AC IN AC IN 15V 64 64 S.R S.R S.R 64 S.R 64 64 S.R 64 S.R PRIMARY CIRCUIT SS23 SS21 D31 D32 SUB-FIELD PLASMA AI PROCESSOR SDRAM ROM RECTIFIER POWER RELAY FACTOR CONTROL VOLTAGE PROCESS CONTROL VOLTAGE STANDBY RECTIFIER CONTROL VOLTAGE RECTIFIER STANDBY LOW VOLTAGE PROTECTOR VOLTAGE HIGH PROTECTOR SYNC PROCESSOR/ HD/VD VD HD VSUS M P30-P33 FAN RGB/PC SELECT DG3 DG6 DG2 DG7 GC2S MICOM MICOM CONVERT EEPROM RGB AMP DG1 TEXT DG SDRAM GC2M SDRAM TUNER 30V PA2 CONVERTER PA5 PA7 SPEAKER R OUT PA PA6 PRE AMP SPEAKER PA1 PA3 DC/DC L OUT SD CARD I/F JG Y/C OUT PC CARD DG31 TV ON P7 P5 +12Vs 12V STB5V 15V K24 VDA C4 C3 K S.R. S.R. S.R. C43 S.R. C33 C44 C42 POWER ON STAND BY G R LED REMCOM RECEIVER SENSOR CAT S.R. S.R. C41 S.R. S.R. S.R. C2 C12 S.R. S.R. S.R. S.R. S.R. S.R. C22 S.R. C1 C32 SC2 SC23 SS32 JG3 MONI OUT VIDEO2 H7 DTV1 H10 H VIDEO1 DTV2 INPUT H1 YPbPr SELECT SELECT H21 DT DIGITAL JA8007 TUNER DG23 JA23 JA8007 JA G8 G7 G10 HEADPHONE G5 KEYSCAN VIDEO3 PC IN G TUNER TB DVI IN DVI T21 RECIVER DV DV7 SUB PA9 DG12 C11 C21 C31 PA10 NR 21V STB 5V NR 14V TH-42PX25U-P / TH-50PX25U-P 96 15.3. Main Block Diagram (TH-50PX25U/P) TH-50PX25U/P Main Block Diagram TH-50PX25U/P Main Block Diagram INITIALIZE PULSE 64 64 S.R S.R S.R 64 S.R 64 64 S.R 64 S.R CONTROL PULSE VOLTAGE SCAN SC20 D20 CONTROL DISCHARGE MAIN MPU SUB MPU ROM A/D BUS 24bit FORMAT CONVERTER RGB PROCESSOR PROCESSOR SUB-FIELD PLASMA AI SDRAM D34 D33 P25 D25 P27 D27 P9 P12 P11 SS11 SS12 SS42 SS57 SS31 SUSTAIN PULSE ERASE PULSE ADDRESS VOLTAGE (VE) 5V UR12V STB7V D3 SDRAM PROCESS VOLTAGE RECTIFIER CONTROL SUSTAIN VOLTAGE RECTIFIER SUSTAIN VOLTAGE VDA 15V 5V 12V P23 P2 VSUS LINE FILTER STAND BY PF1 PF10 PF2 POWER SWITCH SC SU SD CONTROL D P SOS ON/OFF STB5V S4 S VDA SS PF SS2 SS3 AC IN AC IN 15V 64 64 S.R S.R S.R 64 S.R 64 64 S.R 64 S.R PRIMARY CIRCUIT SS21 SS58 SS35 D31 D32 SUB-FIELD PLASMA AI PROCESSOR SDRAM ROM RECTIFIER POWER RELAY FACTOR CONTROL VOLTAGE PROCESS CONTROL VOLTAGE STANDBY RECTIFIER CONTROL VOLTAGE RECTIFIER STANDBY LOW VOLTAGE PROTECTOR VOLTAGE HIGH PROTECTOR SYNC PROCESSOR/ HD/VD VD HD VSUS M P30-P33 FAN RGB/PC SELECT DG3 DG6 DG2 DG7 GC2S MICOM MICOM CONVERT EEPROM RGB AMP DG1 TEXT DG SDRAM GC2M SDRAM TUNER 30V PA2 CONVERTER PA5 PA7 SPEAKER R OUT PA PA6 PRE AMP SPEAKER PA1 PA3 DC/DC L OUT SD CARD I/F JG Y/C OUT PC CARD DG31 TV ON P7 P5 +12Vs 12V STB5V 15V K24 VDA C6 C4 K S.R. S.R. S.R. C61 S.R. C60 C43 C41 C44 C42 POWER ON STAND BY G R LED REMCOM RECEIVER SENSOR CAT S.R. S.R. SC62 C51 S.R. C5 C53 S.R. S.R. C54 C55 C52 S.R. C50 C62 S.R. S.R. C3 C21 C11 C2 S.R. S.R. C22 S.R. S.R. S.R. S.R. S.R. C20 S.R. C24 C33 S.R. S.R. C25 C1 C23 C10 C12 C31 C13 C35 C32 SC2 SC23 SC13 SC12 SS32 JG3 MONI OUT VIDEO2 H7 DTV1 H10 H VIDEO1 DTV2 INPUT H1 YPbPr SELECT SELECT H21 DT DIGITAL JA8007 TUNER DG23 JA23 JA8007 JA G8 G7 G10 HEADPHONE G5 KEYSCAN VIDEO3 PC IN G TUNER TB DVI IN DVI T21 RECIVER DV DV7 SUB PA9 DG12 PA10 NR 21V STB 5V NR 14V TH-42PX25U-P / TH-50PX25U-P 97 15.4. PF-Board Block Diagram + L.F L.F - + + + OVP Q Vref - Soft - VOVP Thermal Vcc(start) S IF/B + R GND Q comp Detection + UVLO Vcc comp Zero Current Limit F/B Current Limit Z/C drive On Time Timer + R On Dead Timer D Timer comp VUL + Stand-By Peak S - - + Restart Latch-stop Current /Vcc(startup on) UVLO Vcc(startup off) - S Startup comp Burst Peak Startup Shutdown /Vcc(stop) L.F + + L.F 400V DC187V AC120V R928 C971 R925 C974 LF904A 1 CF902 CF901 R924 R901 L921 C924 R940 C921 D925 R934 C911 C970 RL901 S901 IC921 LF909A 1 C910 C915 R975 C914 C926 F901 D920 R974 C922 C920 D922 R929 C925 C902 R904 C928 F902 K5D312BK0012 F900 R976 D970 C903 D926 R935 IC920 3 1 4 5 2 R927 R972 R973 LF911 1 2 3 4 C901 R971 C975 R970 D990 R990 R992 Q990 C990 C972 C973 D971 LF915A 1 2 3 4 T920 2 S3 3 S4 5 S1A 7 S2A 8 S2B 10 V1 11 V2 12 NC 13 NC 14 P1 15 NC 16 PT 17 NC 18 P2 6 S1B C916 C917 T3.15AL 250V HOT COLD HOT COLD HOT 3 COLD HOT COLD HOT IC970 ERROR VOLTAGE DET POWER CONTROL 4 PF2 FEED BACK 1 1 4 PF1 LIVE LIVE TO P9 NEUTRAL NEUTRAL LIVE T8AH 250V K2AH3H000028 1 2 24V(UN Reg) 3 10.5V(UN Reg) 4 REF_2.5V NEUTRAL T8AH 250V TO PA10 POWER ON/OFF CTL. STAND-BY 5V 9 PF10 1 7 2 5 AC CORD K2CG3DH00034 AC100V GND AC INLET Line Filter/F.STB Board NR 10.5V NR 10.5V NR 24V STAND BY 5V PF AC ON/OFF 4 3 2 4 3 2 # $ 3 2 1 TH-42/50PX25U/P PF-Board Block Diagram TH-42/50PX25U/P PF-Board Block Diagram PF TH-42PX25U-P / TH-50PX25U-P 98 15.5. PF-Board Schematic Diagram + + L.F + + + OVP Q Vref - Soft - VOVP Thermal Vcc(start) S IF/B + R GND Q comp Detection + UVLO Vcc comp Zero Current Limit F/B Current Limit Z/C drive On Time Timer + R On Dead Timer D Timer comp VUL + Stand-By Peak S - - + Restart Latch-stop Current /Vcc(startup on) UVLO Vcc(startup off) - S Startup comp Burst Peak Startup Shutdown /Vcc(stop) L.F L.F - + L.F 400Vp 400V 400V DC400V -140Vp DC187V Q990 2SD13280TL R904 1.8 ** ** CF901 ERZV10V621P2 R934 13k C924 50V 1000p C903 1u * * C928 25V 220u JS12 R974 7.5k R924 22 D971 B0HAPM000012 GT GT C915 0.22u * * S901 J0LT00000009 D921 B0EAKT000018 R973 1k C971 16V 5600u T920 ETS29AK7J5AD 2 S3 3 S4 5 S1A 7 S2A 8 S2B 10 V1 11 V2 12 NC 13 NC 14 P1 * 15 NC 16 PT 17 NC 18 P2 * 6 S1B LF911 G0B353G00001 1 * 2 * 3 * 4 * TP979 0 R994 PF2 1 ** 3 4 ** R990 3.3k K5D312BL0008 F902 D970 B0JARG000010 * * PF10 1 2 3 4 5 6 7 8 9 10 C901 1u * * JS9 TP904 TP977 TP903 R935 10 L922 EXCELDR35V C920 200V 560u ** ** ZA901 K4ZZ01000121 *C914 470p R971 470 R976 2.2k C990 50V 10u C926 50V 100p C923 400V 0.01u L970 EXCELSA24T R922 220k L973 10u D925 B0HCMM000001 F900 K5D802BNA003 L921 EXCELSA24T C973 35V 680u C922 50V 0.1u C970 1kV 330p R992 47k JS20 C917 1000p JS70 CF902 ERZVG7Z361 C0DACZH00002 IC920 3 1 4 5 2 TP978 R926 9.31k LF915A G0B702K00002 1 * 2 * 3 * 4 ** RL901 K6B1ADA00023 * * JS10 IC970 AN1431M-E1 CATHODE 3 1 REF ANODE 2 *R923 10 D922 MAZ31000ML LF909A G0B702K00002 1 * 2 * 3 * 4 * D920 B0EBNT000002 * * * * JS11 JS81 JS22 R925 10k C975 50V 0.047u 0 R993 R928 3.9k LF904A G0B702K00002 1 * 2 ** 3 * 4 * L972 0 JS19 TP901 JS73 R972 100 R929 100 C916 1000p JS21 R970 560 F901 K5D802BNA003 R901 1M * * C902 0.22u * * R940 6.8k C921 2kV 1500p * * D990 MA3X152K0L D926 MA3X152K0L IC921 B3PAA0000261 C974 50V 2200p L971 10u R975 2.32k C972 1kV 330p C925 50V 2200p R927 100 L920 J0JKB0000038 * * PF1 1 ** 3 4 ** C911 220p C910 220p NR_10.5V N LIVE T3.15AL-250V 4 3 2 1 GND PF_AC_ON/OFF NR_24V HOT LIVE CIRCUIT N LIVE COLD HOT T8AH 250V LIVE CIRCUIT COLD STAND-BY 5V GND 1 2 3 4 ERROR COLD T8AH 250V GND GND GND TO S914 1.8mm S902 1.8mm S903 1.8mm S904 1.8mm S905 1.8mm S906 1.8mm S907 1.8mm S908 1.8mm S910 1.8mm S911 1.8mm NR_10.5V D 3 E 2 7 5 A B C 8 4 1 6 PA-BOARD (PA10) POWER CONTROL AC CORD TO HOT FEED BACK VOLTAGE DET 0 24.0 0 0 10.0 10.0 2.0 0 5.0 0 TO P-BOARD (P9) PF-BOARD TXNPF1UGSU(TH-50PX25U/P) TXNPF1UHSU(TH-42PX25U/P) S * < * < TH-42/50PX25U/P PF-Board Schematic Diagram TH-42/50PX25U/P PF-Board Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 99 15.6. P-Board Block Diagram (TH-42PX25U/P) - + - + D404 D401 NEUTRAL 350V LIVE D410 D409 D510 D511 D557 D434 350V L403 F405 PFC DC400V PR401 Q414 Q415 Q412 Q413 D419 D420 D539 D537 DC180V D555 X501 4NHz D521 D530 D563 D531 Q527 DC85V D534 D536 D533 D543 D541 R665 R443 DC75V DC15V DC15V DC12V DC5V D535 PR509 D564 R661 1 2 3 R608 PR510 D549 D554 D565 D506 D505 PR502 D553 R641 8 6 T410 5 IC409 4 2 1 4 3 1 2 3 4 IC408 Q403 Q416 14 15 13 10 R K A IC504 STB7V 4 3 5 8 7 2 1 6 4 2 1 3 1 3 4 2 1 3 4 2 IC404 IC403 IC401 STB7V 3 9 8 14 4 2 16 10 T401 5 8 7 6 VCC MOS DRIVE CURR DET CURR COMP 2 1 3 4 IC402 Q407 PFC Q420 Q401 AMP Q404 Q406 L402 D415 Q410 Q411 DRIVE IC406 POWER FACTOR CONTROL 2 8 16 T405 5 12 10 7 6 9 2 T403 9 1 8 5 7 10 T402 Q504 3 Q514 RL401 RL402 Q535 Q501 Q522 Q503 Q502 8 6 10 7 5 9 2 3 4 1 11 15 20 14 18 19 12 13 17 16 VDD VSS XIN XOUT RESET P21 P20 D3 D2 P00 P01 P02 P03 P10 P11 P12 P13 D0 D1 IC501 3 1 IC502 RESET CLR PR 7 3 1 6 Q CK 2 D IC521 5 Q Q515 Q525 Q528 1 3 6 4 IC522 2 1 4 6 Q512 Q517 Q551 Q513 Q506 Q511 3 T407 5 11 2 9 12 8 T404 14 13 7 Q519 Q545 Q518 Q510 D544 D545 R K A IC512 Vda 1 4 5VAVR IC511 1 3 6 4 IC520 Q CK 2 D IC523 5 Q CLR PR 7 3 1 6 Q516 Q540 Q543 Q521 Q542 Q541 Q509 Q508 Q524 Vlow Vsus Q520 Csus 1 2 4 +75 TO SS12 P12 +75 +15V +15V 1 2 P7 +15V +12V TO 1 2 7 PA5 P5 +12V +12Vs 3 5V +12Vs 8 +15V 11 1 +15V 2 +15V P23 TO SC23 SS11 P11 3 2 Vsus TO TO P2 SC2 2 1 Vsus Vsus Vsus PS SOS ALL OFF 4 8 STB5V TO FAN SOS 2 7 P27 D27 TV ON/OFF 6 FAN CONT STB7V 2 8 +12V TO 5V 1 7 P25 D25 +12V 5 Q544 PS SOS TV ON/OFF ALL OFF Q537 Q552 3 1 P33 P32 3 1 P31 3 1 P30 3 VCC 1 FAN SOS FAN SOS VCC VCC FAN SOS FAN SOS VCC Q531 Q530 Q532 Q421 POWER MCA COLD HOT COLD HOT P Power Supply Board Q546 ALL OFF 10 STB_PS NEURTAL 3 1 LIVE P9 TO PA7 4 STB 5V TH-42PX25U/P P-Board Block Diagram TH-42PX25U/P P-Board Block Diagram TO PF2 TH-42PX25U-P / TH-50PX25U-P 100 15.7. P-Board (1 of 6) Schematic Diagram (TH-42PX25U/P) 1 A 5 6 D 4 E 3 7 C B 2 8 TH-42PX25U/P P-Board (1 of 6) Schematic Diagram TH-42PX25U/P P-Board (1 of 6) Schematic Diagram P-BOARD TNPA2889AB (1/6) (TH-42PX25U/P) ! TO PF-BOARD (PF2) TO P-BOARD (3/6) TH-42PX25U-P / TH-50PX25U-P 101 15.8. P-Board (2 of 6) Schematic Diagram (TH-42PX25U/P) 10 11 12 13 8 14 9 15 P-BOARD TNPA2889AB (2/6) (TH-42PX25U/P) TH-42PX25U/P P-Board (2 of 6) Schematic Diagram TH-42PX25U/P P-Board (2 of 6) Schematic Diagram ! TO SS-BOARD (SS11) TO SC-BOARD (SC2) 0 0 0 0 190.0 190.0 0 0 0 0 190.0 190.0 0 2.0 4.5 0 2.0 5.5 5.5 0.3 4.9 -5.2 0 0.3 0 0 2.0 0 4.3 4.8 4.8 4.4 4.4 0 0 0 3.8 4.3 4.9 4.1 0 0 0 2.0 4.3 0.8 4.7 0 4.1 4.7 0 0 4.8 2.4 2.4 0 4.8 4.8 4.8 2.4 2.3 2.3 0 0 2.2 2.2 14.3 0 0 0 14.3 0 TO P-BOARD (4/6) TH-42PX25U-P / TH-50PX25U-P 102 15.9. P-Board (3 of 6) Schematic Diagram (TH-42PX25U/P) 1 A 5 6 D 4 E 3 7 C B 2 8 TH-42PX25U/P P-Board (3 of 6) Schematic Diagram TH-42PX25/U/P P-Board (3 of 6) Schematic Diagram P-BOARD TNPA2889AB (3/6) (TH-42PX25U/P) ! 5.2 -32.4 4.2 -32.4 0 0 0 11.5 0 0 0 110.5 0 0 2.2 TO P-BOARD (5/6) TO P-BOARD (1/6) TH-42PX25U-P / TH-50PX25U-P 103 15.10. P-Board (4 of 6) Schematic Diagram (TH-42PX25U/P) P-BOARD TNPA2889AB (4/6) (TH-42PX25U/P) ! TO SC-BOARD (SC23) TO SS-BOARD (SS12) TO P-BOARD (P5) TO PA-BOARD (PA7) TO D-BOARD (D25) 10 11 12 13 8 14 9 15 TH-42PX25U/P P-Board (4 of 6) Schematic Diagram TH-42PX25U/P P-Board (4 of 6) Schematic Diagram 0 4.8 4.8 4.8 2.4 2.4 4.8 2.3 4.9 4.3 4.1 0 0 0 2.3 2.3 0 0 2.2 2.2 2.0 14.6 0 14.6 2.0 0 4.8 0 14.5 4.8 4.4 4.8 4.3 4.4 4.3 0 3.7 2.0 4.3 4.1 0 2.4 4.4 1.2 2.0 4.5 0 2.0 5.5 5.5 0 0 14.6 14.5 0 14.6 2.5 0 0 0 0 5.0 12.0 5.0 0 1.5 2.2 15.2 0 2.1 0 15.0 15.0 0 75.0 75.0 0 0 15.0 - 0 0 0 5.0 12.0 12.0 0 0 5.0 0 12.0 12.0 0 12.0 12.0 0 5.0 0 7.0 6.7 0 0 15.0 15.0 0 15.0 68.2 67.7 66.7 TO P-BOARD (6/6) TO P-BOARD (2/6) TH-42PX25U-P / TH-50PX25U-P 104 15.11. P-Board (5 of 6) Schematic Diagram (TH-42PX25U/P) 1 A 5 6 D 4 E 3 7 C B 2 8 TH-42PX25U/P P-Board (5 of 6) Schematic Diagram TH-42PX25U/P P-Board (5 of 6) Schematic Diagram P-BOARD TNPA2889AB (5/6) (TH-42PX25U/P) ! TO D-BOARD (D27) 0 0 0.7 0 0 0.7 4.8 4.8 0 4.8 0 0.7 0 0 4.8 0 0 4.8 4.8 0 0 0 0 0.6 4.8 0 4.8 0 0 0.6 4.9 5.5 11.4 0.9 4.9 4.9 4.5 4.5 12.1 4.5 13.5 5.1 12.8 13.5 12.9 12.1 12.1 12.8 11.8 2.3 5.1 0 16.1 16.3 2.9 5.1 4.8 16.3 3.7 0 3.6 16.1 0 16.3 0 16.3 5.1 16.3 5.1 0 5.0 15.2 0 2.2 4.2 4.7 4.8 4.2 0 5.0 0 0 0 4.3 11.9 0 4.3 11.9 0 4.3 11.9 0 4.3 11.9 0 TO P-BOARD (3/6) TH-42PX25U-P / TH-50PX25U-P 105 15.12. P-Board (6 of 6) Schematic Diagram (TH-42PX25U/P) 10 11 12 13 8 14 9 15 P-BOARD TNPA2889AB (6/6) (TH-42PX25U/P) TH-42PX25U/P P-Board (6 of 6) Schematic Diagram TH-42PX25U/P P-Board (6 of 6) Schematic Diagram ! TO P-BOARD (4/6) TH-42PX25U-P / TH-50PX25U-P 106 15.13. P-Board Block Diagram (TH-50PX25U/P) - + - + D404 D401 NEUTRAL 350V LIVE D410 D409 D510 D511 D557 D434 350V L403 F405 PFC DC400V PR401 Q414 Q415 Q412 Q413 D419 D420 D539 D537 DC180V D555 X501 4NHz D521 D530 D563 D531 Q527 DC85V D534 D536 D533 D543 D541 R665 R443 DC75V DC15V DC15V DC12V DC5V D535 PR509 D564 R661 1 2 3 R608 PR510 D549 D554 D565 D506 D505 PR502 D553 R641 LIVE NEURTAL 3 1 P9 8 6 T410 5 IC409 4 2 1 4 3 1 2 3 4 IC408 Q403 Q416 14 15 13 10 R K A IC504 STB7V 4 3 5 8 7 2 1 6 4 2 1 3 1 3 4 2 1 3 4 2 IC404 IC403 IC401 STB7V 3 9 8 14 4 2 16 10 T401,T406 5 8 7 6 VCC MOS DRIVE CURR DET CURR COMP 2 1 3 4 IC402 Q407 PFC Q420 Q401 AMP Q404 Q406 L402 D415 Q410 Q411 DRIVE IC406 POWER FACTOR CONTROL 2 8 16 T405 5 12 10 7 6 9 2 T403 9 1 8 5 7 10 T402 Q504 3 Q514 RL401 RL402 Q535 Q501 Q522 Q503 Q502 8 6 10 7 5 9 2 3 4 1 11 15 20 14 18 19 12 13 17 16 VDD VSS XIN XOUT RESET P21 P20 D3 D2 P00 P01 P02 P03 P10 P11 P12 P13 D0 D1 IC501 3 1 IC502 RESET STB5V CLR PR 7 3 1 6 Q CK 2 D 5 Q Q515 Q525 Q528 1 3 6 4 IC522 2 5 1 4 6 Q512 Q517 Q551 Q513 Q506 Q511 3 T407 5 11 2 9 12 8 T404 14 13 7 Q519 Q545 Q518 Q510 D544 D545 R K A IC512 Vda 1 4 5VAVR IC511 1 3 6 4 IC520 Q CK 2 D IC523 5 Q CLR PR 7 3 1 6 Q516 Q540 Q543 Q521 Q542 Q541 Q509 Q508 Q524 Vlow Vsus Q520 Csus 1 2 4 +75 TO SS12 P12 +75 +15V +15V 1 2 P7 +15V +12V TO 1 2 7 PA5 P5 +12V +12Vs 3 5V +12Vs 8 +15V 11 1 +15V 2 +15V P23 TO SC23 TO PA7 SS11 P11 2 1 Vsus TO TO P2 SC2 2 1 Vsus Vsus Vsus PS SOS ALL OFF 4 8 STB5V TO FAN SOS 2 7 P27 D27 TV ON/OFF 6 FAN CONT STB7V 2 8 +12V TO 5V 1 7 P25 D25 +12V 5 Q544 PS SOS TV ON/OFF ALL OFF Q537 Q552 3 1 P33 P32 3 1 P31 3 1 P30 3 VCC 1 FAN SOS FAN SOS VCC VCC FAN SOS FAN SOS VCC Q531 Q530 Q532 Q421 POWER MPC COLD HOT COLD HOT P Power Supply Board 3 M.POWER Q546 ALL OFF 10 STB_PS V SUS STB5V STB7V TH-50PX25U/P P-Board Block Diagram TH-50PX25U/P P-Board Block Diagram TH-42PX25U-P / TH-50PX25U-P 107 15.14. P-Board (1 of 6) Schematic Diagram (TH-50PX25U/P) 1 A 5 6 D 4 E 3 7 C B 2 8 TH-50PX25U/P P-Board (1 of 6) Schematic Diagram TH-50PX25U/P P-Board (1 of 6) Schematic Diagram P-BOARD TNPA2890AB (1/6) (TH-50PX25U/P) ! TO PF-BOARD (PF9) TO P-BOARD (3/6) TH-42PX25U-P / TH-50PX25U-P 108 15.15. P-Board (2 of 6) Schematic Diagram (TH-50PX25U/P) 10 11 12 13 8 14 9 15 P-BOARD TNPA2890AB (2/6) (TH-50PX25U/P) TH-50PX25U/P P-Board (2 of 6) Schematic Diagram TH-50PX25U/P P-Board (2 of 6) Schematic Diagram ! TO SS-BOARD (SS11) TO SC-BOARD (SC2) 14.3 0 0 0 14.3 0 2.3 2.3 0 0 2.2 2.2 4.7 0 0 4.8 2.4 2.4 0 4.8 4.8 4.8 2.4 4.3 4.9 4.1 0 0 0 4.3 4.8 4.8 4.4 4.4 0 0 0 3.8 2.0 4.3 0.8 4.7 0 4.1 2.0 4.5 0 2.0 5.5 5.5 0.3 4.9 -5.2 0 0.3 0 0 2.0 0 190.0 190.0 0 0 0 0 190.0 0 190.0 0 0 0 0 TO P-BOARD (4/6) TH-42PX25U-P / TH-50PX25U-P 109 15.16. P-Board (3 of 6) Schematic Diagram (TH-50PX25U/P) 1 A 5 6 D 4 E 3 7 C B 2 8 TH-50PX25U/P P-Board (3 of 6) Schematic Diagram TH-50PX25U/P P-Board (3 of 6) Schematic Diagram P-BOARD TNPA2890AB (3/6) ! (TH-50PX25U/P) 0 0 0 11.5 0 0 0 110.5 0 0 2.2 5.2 4.2 -32.4 -32.4 TO P-BOARD (5/6) TO P-BOARD (1/6) TH-42PX25U-P / TH-50PX25U-P 110 15.17. P-Board (4 of 6) Schematic Diagram (TH-50PX25U/P) 10 11 12 13 8 14 9 15 P-BOARD TNPA2890AB (4/6) (TH-50PX25U/P) TH-50PX25U/P P-Board (4 of 6) Schematic Diagram TH-50PX25U/P P-Board (4 of 6) Schematic Diagram ! TO SC-BOARD (SC23) TO SS-BOARD (SS12) TO Z-BOARD (Z5) TO D-BOARD (D25) 2.4 4.8 4.8 4.9 4.1 4.3 4.9 0 0 0 0 2.4 2.4 4.8 12.0 5.0 0 1.5 2.2 15.2 0 2.1 15.0 15.0 0 75.0 75.0 0 15.0 0 0 0 0 - 0 12.0 12.0 5.0 5.0 0 0 12.0 12.0 12.0 12.0 0 0 15.0 15.0 0 0 5.0 0 6.7 7.0 0 0 15.0 14.6 0 2.0 14.6 0 2.0 2.3 4.8 4.8 4.4 4.3 4.1 4.3 0 4.3 0 0 3.7 4.4 4.4 2.4 5.5 5.5 2.0 2.0 4.5 0 14.5 0 2.5 2.5 0 0 0 0 0 14.6 14.6 0 1.2 2.3 4.1 4.3 0 0 0 2.2 2.2 68.2 67.7 61.7 TO P-BOARD (2 /6) TO P-BOARD (6/6) TH-42PX25U-P / TH-50PX25U-P 111 15.18. P-Board (5 of 6) Schematic Diagram (TH-50PX25U/P) 1 A 5 6 D 4 E 3 7 C B 2 8 TH-50PX25U/P P-Board (5 of 6) Schematic Diagram TH-50PX25U/P P-Board (5 of 6) Schematic Diagram P-BOARD TNPA2890AB (5/6) (TH-50PX25U/P) ! TO D-BOARD (D27) 11.8 2.3 5.1 0 16.1 16.3 2.9 5.1 4.8 16.3 3.7 0 3.6 16.1 0 16.3 0 16.3 5.1 16.3 5.1 0 5.0 15.2 0 2.2 4.7 4.2 4.8 5.0 0 4.2 0 0 0 0 0 0 0.7 0.7 4.8 4.8 0.7 4.8 0 0 0 4.8 0 0 0 0.6 4.9 4.9 4.9 0 0 0 0 0.6 0.9 5.5 11.4 4.8 0 0 0 0 4.8 4.8 13.5 4.5 4.5 4.5 5.1 12.1 12.1 12.1 12.9 12.8 12.8 13.5 4.3 11.9 0 4.3 11.9 0 4.3 11.9 0 4.3 11.9 0 TO P-BOARD (3/6) TH-42PX25U-P / TH-50PX25U-P 112 15.19. P-Board (6 of 6) Schematic Diagram (TH-50PX25U/P) 10 11 12 13 8 14 9 15 P-BOARD TNPA2890AB (6/6) (TH-50PX25U/P) TH-50PX25U/P P-Board (6 of 6) Schematic Diagram TH-50PX25U/P P-Board (6 of 6) Schematic Diagram ! TO P-BOARD (4/6) TH-42PX25U-P / TH-50PX25U-P 113 15.20. PA and G-Board Block Diagram JK3709 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 MUTE IC7581 A MUTE Q7581 L IN TO Q7582 25 24 L OUT R OUT BT 30V 1 IC2401 SOUND CTRL Q2312 IC2403 11 11 IN IN STB5V OUT+ 17 16 OUT- OUT+ PA12 17 2 33 IC2305 SQUAWKER AMP-L 7 4 MAIN 2.5V IC2306 1 SP L+ 3 PA IC7503 TXD RXD SP L- MAIN 5V IC7502 16 1 SP R+ 4 OUT- 2 AVR 9V IC7504 PA3 SP R- MAIN 2.5V Q7502 9V Q7509 Q7501 Q7510 MAIN 9V 12 TV ON 36 32 MAIN 9V SUB 5V AC ON/OFF 12 MAIN 5.0V PA21 BEEP PA2 MAIN 2.5V 15 3 RXD 5 12V 21 4 12V 23 BT30V STB5V BEEP PA6 7 1 19 13 3 SUB 5V 11 13 MAIN 5.0V 14 TXD 16 MAIN 2.5V 19 25 18 1 20 27 Speaker out,Regulator Board STB5V Q2306 L IN 4 R IN Q2305 SDA1 STB5V SCL1 DG6 SP MUTE STB5V DG2 Q2304 TO Q2303 SQUAWKER Q2308 TO RESET IC7505 Q2311 POFF DEF AMP Q2309 MAIN DEF 30 5 2 Q7542 3 1 STB SW 31 SOS R IN AMP SCL STB SW SDA SDA3 VPP 2 1 11 SDA3 LOADER SDA3 PA8 SCL0 TXD 17 SRQ RXD 7 LOADER STB5V SCL0 SRQ SDA0 6 5 VPP 8 PA24 SDA0 SRQ RXD STB5V TO DG8 9 SRQ 3 VPP TXD SCL3 8 14 TXD 4 12 STB5V RXD SDA0 SDA0 SCL3 4 PA23 LOADER 10 SCL3 TX VPP 3 1 STB5V SCL3 SCL0 SRQ SCL0 7 RX SDA3 15 STB5V LOADER 4 5 PA22 7 8 11 SCL2 IRQ 9 4 STB5V IIC CONT SCL3 RST SDA3 SCL2 2 RST SDA1 SCL1 SDA3 6 SDA1 SDA2 SCL3 1 SCL1 STB5V SDA2 IRQ 10 PA4 IIC CONT 5 SDA2 7 SCL2 SCL1 10 IRQ SCL2 SDA1 STB5V 4 SDA1 RST 5 11 IRQ STB5V 1 RST SDA2 6 SCL1 SCL3 IIC CONT SDA3 IIC CONT 8 SDA3 9 2 SCL3 SCL3(PANEL) 18 SCL3(PANEL) SDA3(PANEL) 6 IIC CONT SDA3(PANEL) 19 IIC CONT SRQ 12V 12V 7 RXD STB5V 3 TXD TXD RXD STB5V 1 5 STB5V 1 +15Vs 2 TO P7 +15Vs PA7 TO D4 TO STB5V 1 NR24V 2 NR10V STB5V TO 5 7 +15Vs +15Vs NR10V 2 1 IC7501 AVR 5V 5VD1 3 5 5VD1 5VD1 OUT- HP OUT OUT+ 1 17 28 HP IN IC2302 WOOFER AMP-R 4 AMP 12 11 BEEP STB SW 16 IN ACTIVE FL 400Hz HPF IC2402 200Hz LPF ACTIVE FL BEEP 28 STB SW HP IN 1 17 16 IN HP OUT IC2301 WOOFER AMP-L 12 11 4 AMP OUT- OUT+ Q2310 W R+ PA1 5 W R- WOOFER TO 2 W L+ 4 W L- 1 PA9 6 HP L 4 HP R 6 Front Input Board B L 10 VOL.UP S3707 V TO KEYSCAN1 S3701 G10 KEYSCAN2 S3703 2 4 3 5 G C 6 Y S3705 H10 IN S3706 CH.DN CH.UP TO G5 VIDEO3 13 PRESET C V G VOL.DN 4 PC VD 4 SW HP TV/VTR SR 1 L Y OUT R R S3704 11 DG7 SL PC HP G8 8 JK3714 9 R (fH=31.5kHz) VGA PC IN 2 S3702 ASPECT TO G7 DG7 Q7543 Q7541 Q7504 Q7544 5 2 1 5 2 1 5 1 2 Q7585 Q7586 PA13 MAIN 9V 3 NR10V 1 SUB 8.3V 2 NR10V NR10V 7 4 12V 1 +12Vs 2 12V STB5V 7 PA10 PA18 PA5 8 +12Vs SUB 8.3V 8 Q7508 Q7584 Q7583 PF AC ON/OFF 9 TO Q7507 Q7506 17 NR10V 1 3 PA14 1 3 PA15 1 3 PA11 1 3 5 2 1 4 IN OART ON/OFF OUT Q7562 Q7561 Q7563 FAN SOS FAN ON/OFF FAN Max/Min 37 38 39 IC2304 3 AVR 9V 1 D12 PF10 P5 FAN1 TO FAN2 TO FAN3 TO FAN4 TO TO JA18 +9V +9V MUTE MUTE STB5V +12Vs IC7561 FAN 9V/7.2V MAIN 9V STB5V SQUAWKER AMP-L TH-42/50PX25U/P PA and G-Board Block Diagram TH-42/50PX25U/P PA and G-Board Block Diagram TH-42PX25U-P / TH-50PX25U-P 114 15.21. PA-Board (1 of 2) Schematic Diagram + + NP + + + + + + + + Thermal Pad + NP + NP + Thermal Pad + + NP + Thermal Pad + + + NP + + + + + + + + + + NP + + + Thermal Pad + + + + + +15Vs +9V +9V STB5V +9V +9V +9V +9V +14.3Vs +12Vs R2348 10k R2423 47k IC2402 C0ABBA000073 1 2 3 4 5 6 7 8 R2393 0 R2374 100k C2325 25V 470u R2417 56k C2323 50V 1000p PA1 1 2 3 4 5 C2312 50V 6800p JS2304 C2346 35V 47u R2303 100 R2327 2.2 R2415 100k R2391 6.8k Q2308 2SD0601A0L C2395 50V 1000p C2422 560p 50V R2414 47k C2412 16V 0.1u R2323 2.2 C2330 50V 0.1u Q2306 2SD0601A0L C2402 50V 1800p C2419 0.033u 25V R2311 2.2 D2307 B0JCNE000004 Q2309 2SD0601A0L Q2304 2SD0601A0L C2355 2.2u 50V C2337 16V 100u C2311 50V 6800p D2303 B0JCME000025 R2305 2.2k AN7709SP-E1 IC2304 OUT 3 2 COMMON IN 1 R2314 2.2 R2396 0 R2385 820 C2304 16V 1u R2405 22 R2326 2.2 R2390 1k C2388 35V 220u R2334 0 D2308 B0JCNE000004 C2441 0.012u 50V C2331 25V 0.1u R2402 5.6k R2336 0 C2327 50V 0.1u R2409 4.7k C2307 50V 22u R2413 56k C2382 16V 100u PA9 1 2 3 4 5 6 C2313 50V 2.2u R2412 100k R2434 22k C2436 0.027u 16V C2390 25V 470u R2439 22k R2335 0 R2330 20k R2321 100k C1BB00000800 IC2401 1 Lin 2 Rin 3 ADDout 4 Bout 5 Sout 6 ADDin 7 DIFin 8 SWin 9 HPout 10 HPin 11 PeqL11 12 PeqL12 13 PeqR11 14 PeqR12 15 PeqL21 16 PeqL22 17 PeqR21 18 PeqR22 19 PeqL31 20 PeqL32 21 PeqR31 22 PeqR32 23 SWout 24 Rout 25 Lout 26 Vcc 27 Vref 28 ADJ 29 PORT 30 SCL 31 SDA 32 GND PA7 1 2 3 4 C2326 25V 470u R2312 2.2 R2406 22 R2375 10k R2403 22k C2348 50V 22u C2383 50V 6800p R2373 5.6k C1BA00000278 IC2306 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 R2421 39k Q2311 2SD0601A0L C2334 25V 470u R2416 100k JS2310 0 R2331 0 C2349 2.2u 50V R2304 100 C2426 1800p 50V R2419 100k C2332 25V 0.1u C2423 0.033u 25V R2398 1k IC2403 C0ABBA000073 1 2 3 4 5 6 7 8 JS2107 L2301 220u L2307 220u C2442 0.012u 50V C2401 50V 1800p D2315 MA2J11100L C2413 50V 47u R2332 0 C2302 16V 1u C2309 2.2u 50V R2408 39k C2328 50V 0.1u JS2430 0 C2428 100u 16V C2407 5600p 50V R2307 1k L2302 220u R2337 27 C2416 560p 50V R2333 0 C1BA00000278 IC2305 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 D2302 B0JCME000025 R2325 2.2 L2308 220u C2440 50V 0.01u C2306 35V 47u C2339 50V 10u R2395 27k R2329 20k C2404 50V 4.7u R2444 1k C2444 0.012u 50V C2431 50V 0.01u R2430 22k R2431 22k PA5 1 2 3 4 5 6 7 8 9 10 11 R2320 2.2k L2306 ELJPA100KF C2314 50V 2.2u C2397 50V 0.1u C1BA00000278 IC2301 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 C2408 47u 16V R2401 5.6k R2318 270 D2301 B0JCME000025 C2333 25V 470u D2311 MA3X152K0L Q2303 2SD0601A0L C2385 50V 2.2u 1/2W R2494 820 C2421 0.033u 25V R2399 0 C2424 1800p 50V R2443 47k C2310 2.2u 50V C2427 1800p 50V R2347 47k C2394 25V 470u R2317 270 C2400 50V 0.1u Q2301 2SD1266AQ0LB D2314 MA2J11100L C2384 50V 6800p C2417 0.033u 25V C2305 35V 47u C2389 25V 470u PA3 1 2 3 4 R2368 47k C2432 0.027u 16V R2316 2.2 C2381 50V 10u D2312 MA3X152K0L R2422 39k C2387 35V 220u R2310 10 C2443 16V 100u R2440 47k Q2314 B1BBCF000013 C2316 50V 0.047u C2324 50V 1000p C2414 16V 47u C2399 50V 0.1u R2371 180k C2318 35V 220u C2338 16V 100u R2313 2.2 R2445 1k C2321 50V 2.2u R2302 100k R2394 6.8k C2308 50V 22u C2403 50V 4.7u R2377 470 JS2303 C2352 16V 100u C2437 0.047u 16V R2338 27 C2317 35V 220u C2386 50V 2.2u R2418 47k JS2106 Q2312 2SD0601A0L C1BA00000278 IC2302 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 R2328 2.2 D2304 B0JCME000025 R2420 47k Q2302 2SD1266AQ0LB R2386 1k R2427 100 R2378 100k C2433 0.047u 16V C2445 0.012u 50V D2305 B0HAPM000037 C2303 16V 1u C2301 16V 1u R2372 22k C2315 50V 0.047u R2404 22k R2435 22k C2429 50V 0.01u C2420 560p 50V R2442 22k R2322 100k C2391 50V 2.2u C2415 16V 0.1u C2329 50V 0.1u R2319 2.2k C2342 50V 10u R2315 2.2 C2398 50V 0.1u C2345 35V 47u C2392 50V 2.2u Q2305 2SD0601A0L C2425 1800p 50V Q2313 B1BBCF000013 PA6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R2308 1k R2397 0 R2389 560 R2392 27k R2376 22k R2428 100 R2306 2.2k C2396 50V 1000p JS2309 0 C2430 16V 100u R2346 47k C2347 50V 22u R2301 100k R2324 2.2 C2393 25V 470u R2309 10 Q2310 2SD0601A0L C2418 560p 50V C2322 50V 2.2u R2387 560 R2340 3.9k (HP_SUB) R L R L NC GND GND 5V STB5V +12Vs 12V 12V GNDs GNDs +12Vs AUDIOSOS SCL1 STB5V GND SP_MUTE MAIN_DEF (AMUTE) NC MAIN_DEF R_IN L_IN POFF_DEF SDA2 SCL2 SDA1 (GND) GND HP_R GND HP_L W_L- W_L+ W_R- W_R+ GND POFF-DEF RESET AMP FILTER LIPPLE STB SW H/P HP IN STB SW SW REG.PART POWER GND POWER GND BEEP IN HLS NC PRE GND NC ON TIME NC NC NC FILTER LIPPLE HP OUT 6dB SW GND OUT- OUT+ POWER GND SW DRIVE Vcc Vcc(SW) OUT SW E SW B SW 6dB HP OUT LIPPLE FILTER NC HP IN SW REG.PART NC SW GND SW B SW E SW OUT Vcc(SW) Vcc NC ON TIME NC PRE GND NC HLS DRIVE SW H/P STB SW LIPPLE FILTER STB SW AMP IN POWER GND BEEP OUT+ OUT- POWER GND POWER GND NC GND GND GND GND RESET SOUND CTRL R-IN SDA1 L-IN SCL1 NC MUTE CCT. SW REG.PART POWER GND ON TIME POWER GND NC NC BEEP NC IN FILTER HLS LIPPLE HP OUT NC 6dB PRE GND SW GND NC OUT- OUT+ DRIVE SW H/P STB SW LIPPLE FILTER STB SW AMP IN POWER GND BEEP OUT+ OUT- POWER GND POWER GND R 6dB L HP OUT LIPPLE R FILTER L NC HP IN SW REG.PART NC SW GND SW B POWER GND SW DRIVE Vcc Vcc(SW) OUT SW E SW B SW SW AMP E SW FILTER OUT LIPPLE Vcc(SW) STB SW Vcc H/P NC HP IN ON TIME STB SW NC PRE GND NC HLS +15Vs GNDs GNDs +15Vs SP_R- SP_R+ SP_L- SP_L+ TO WOOFER (P7) TO SQUAWKER TO DG-BOARD TO - + - + VCC GND - + - + GND VCC L R L R (W-R & W-L) (SP-R & SP-L) WOOFER AMP-L WOOFER AMP-R SQUAWKER AMP-L SQUAWKER AMP-R MUTE SW 200Hz LPF 400Hz HPF AVR 9V NC F 5 D A B E 9 6 8 7 3 4 C 1 2 3 1 2 PA-BOARD TXNPA1UHSU (1/2) P-BOARD TO G-BOARD (G5) P-BOARD (P5) TO (DG6) 3.3 0 0 11.6 3.2 0 0 0 0 3.3 0 2.7 0 0 12.6 3.4 3.5 0 0 0 0.3 0 0 1.7 1.7 3.4 12.5 12.6 11.6 3.3 0 2.7 0 3.2 0 0 0 0 0 0 0 3.3 12.6 3.4 3.4 3.5 0 0 0.3 0 0 1.8 1.8 3.4 12.5 12.6 2.7 0 14.6 3.2 0 0 0 3.3 0 0 0 3.3 0 0 15.7 3.4 3.4 3.5 0 0 0.3 0 0 1.7 1.7 3.4 15.6 15.7 0 0 0 3.3 0 3.3 0 0 0 0 14.6 3.2 2.7 0 15.7 3.5 3.4 3.5 0 0 0.4 0 0 1.7 1.8 3.4 15.6 15.7 1.7 1.7 1.7 1.7 15.0 0 0 15.0 1.7 1.7 1.7 1.7 0 3.5 3.4 15.7 3.4 15.7 3.5 3.4 15.7 3.5 0.6 0 0 0 0 3.2 0 0 3.2 3.2 0 0 4.4 4.4 4.4 4.5 4.4 9.0 4.4 0 4.4 4.4 0 4.4 9 3.6 4.4 4.4 4.4 4.4 4.4 3.8 0.6 4.4 4.4 4.5 4.4 0 4.5 4.4 4.4 4.4 4.5 4.4 4.5 4.4 4.4 4.4 4.4 4.4 4.4 4.4 0 5.0 4.0 0 0 3.2 0 0 0 0 3.9 3.5 0 0 3.9 0 0 4.5 0 0 13.9 9.0 0 0 0 12.0 5.0 15.0 12.0 12.0 5.0 0 0 12.0 3.2 2.6 5.0 0.6 0 0 0 8.9 0 4.4 9.0 4.4 4.4 4.4 1.1 0 4.4 0 0 3.2 0 0 3.2 3.4 15.7 3.5 # # M = # # M # M # M # # M M # M M M M # M # # M TH-42/50PX25U/P PA-Board (1 of 2) Schematic Diagram TH-42/50PX25U/P PA-Board (1 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 115 15.22. PA-Board (2 of 2) Schematic Diagram + + + + + + + + + + + + + + + + + + + + + + + FAN7.2V 12V SUB9V SUB9V NR24V NR24V NR24V NR24V NR24V MAIN5V_2 MAIN5V_2 MAIN5V_2 MAIN5V_2 NR_24V NR_24V NR_24V MAIN5V_1 MAIN5V_1 MAIN5V_1 5VD1 5VD1 5VD1 MAIN2.5V MAIN2.5V MAIN2.5V MAIN9V MAIN9V MAIN9V BT30V NR10V NR10V NR10V NR10V NR_10V NR_10V R7525 4.7k ZA7004 K4ZZ01000121 C7537 16V 0.47u R7564 12k C7584 50V 270p C7522 16V 820u R7561 12k C7521 25V 470u TPB7523 R7597 12k R7539 2.2k R7586 1.37k TPB7517 1% R7546 2.2k D7513 MAZ20510A0LS PA23 1 2 3 4 5 6 7 8 D7512 MA2Q73700L C7513 50V 0.01u R7603 0 Q7502 UNR221400L ZA7002 K4ZZ01000121 ZA7005 K4ZZ01000121 R7505 22k Q7510 UNR221400L C7518 50V 0.01u L7506 33u C7535 16V 0.47u Q7541 2SB0709A0L PA21 1 2 3 4 5 6 7 L7513 G0C101K00023 R7606 33k R7527 4.7k R7550 470 TPB7511 D7501 B0JCNE000004 TPB7504 Q7582 B1ABPF000005 L7512 22u C7536 16V 0.47u R7553 1k L7561 220u TPB7518 C7574 50V 0.01u R7590 0 R7565 3.92k C7585 50V 10u R7541 2.2k R7548 2.2k D7545 MA2J11100L 1% R7545 2.2k R7566 820 D7562 MA2J11100L C7588 50V 10u R7503 806 R7514 2.2k L7515 22u L7503 33u D7541 MA2J11100L ZA7003 K4ZZ01000121 C7512 35V 470u PA11 1 2 3 R7533 1k C7582 16V 0.22u R7569 1k D7546 MA3X152E0L L7562 G0ZZ00001913 R7543 1k R7536 470 R7598 1k R7537 10k D7564 MA2J11100L D7565 MA2Q73700L PA8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 D7539 MAZ30620HL R7538 10k R7588 0 R7509 806 L7507 G0C101K00023 IC7504 C0DAAZG00006 1 V IN 2 SW out 3 GND 4 VO S 5 ON/OFF D7511 MAZ20680A0LS Q7581 UNR521100L R7504 3.92k C7533 16V 330u L7508 100u Q7583 UNR221400L D7581 MA2J11100L C7541 16V 0.1u 1% R7512 604 Q7585 2SD0601A0L IC7581 C0DBAMA00015 1 EaIn 2 SCP 3 VCC 4 BR/CTL 5 Out 6 GND 7 OSC 8 FB R7571 47k Q7506 B1DHDD000013 L7514 100u TPB7502 Q7584 2SD0601A0L PA22 1 2 3 4 5 6 7 8 9 10 11 12 PA15 1 2 3 PA4 1 2 3 4 5 6 7 8 9 10 11 12 Q7501 B1DHDD000013 ZA7007 K4ZZ01000121 R7579 68k Q7544 2SD0601A0L IC7502 C0DAAZG00006 1 V IN 2 SW out 3 GND 4 VO S 5 ON/OFF D7547 MA2J11100L R7584 5.1k D7540 MAZ30390HL D7510 B0ECKM000003 Q7508 UNR221400L C7563 16V 470u R7607 22k C7581 50V 4.7u C7567 50V 0.01u R7534 470 R7587 47k C7530 16V 330u Q7561 UNR221400L C7570 50V 0.01u R7530 0 PA12 1 2 3 4 5 6 7 IC7561 C0DBCMG00001 1 VIN 2 VO 3 COM 4 OADJ 5 ON/OFF 6 COM D7544 MA2J11100L L7504 G0C101K00023 D7582 MA3X78900L C7542 16V 0.1u C7503 50V 0.01u TPB7512 C7506 35V 560u L7510 G0C101K00023 R7524 0 TPB7505 Q7563 2SD0601A0L D7543 MA2J11100L C7501 35V 470u R7519 33k D7515 B0JCNE000004 R7502 1.87k D7508 MAZ20680A0LS D7507 B0JCNE000004 PA2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 R7595 0 L7509 22u C7561 25V 470u C7568 50V 22u 1% R7511 820 R7591 56k TPB7501 IC7501 C0DAAZG00006 1 V IN 2 SW out 3 GND 4 VO S 5 ON/OFF R7596 1k IC7503 C0DAAZG00006 1 V IN 2 SW out 3 GND 4 VO S 5 ON/OFF L7581 33u R7551 1.2k Q7504 UNR221400L C7505 35V 560u C7517 25V 820u L7505 100u Q7543 2SB0709A0L R7585 82k R7532 470 R7542 1k D7561 MA2J11100L R7506 2.2k TPB7506 D7537 MA2J11100L R7599 12k C7543 16V 0.1u Q7507 UNR221400L C7534 16V 330u R7508 1.87k C7511 35V 470u D7563 MA2J11100L R7510 1.87k D7549 MA2J11100L C7509 50V 10u L7563 220u R7507 820 C7583 50V 0.1u R7583 1k PA18 1 2 3 4 5 6 7 8 R7535 220 ZA7006 K4ZZ01000121 C7544 16V 0.1u TPB7520 TPB7515 R7568 10k PA13 1 2 3 D7505 MAZ21200A0LS R7540 4.7k R7570 10k R7547 1k C7525 50V 10u L7502 100u PA24 1 2 3 4 5 6 7 IC7505 C0DAAZG00006 1 V IN 2 SW out 3 GND 4 VO S 5 ON/OFF R7563 12k R7522 0 C7532 16V 330u TPB7508 C7523 50V 0.01u R7516 22k R7526 4.7k TPB7507 TPB7519 D7550 MA2J11100L C7502 35V 470u L7511 100u R7559 8.2k Q7509 2SD0601A0L TPB7503 1% R7574 2.7k C7516 35V 470u Q7586 B1DHFG000002 D7504 B0JCNE000004 PA10 1 2 3 4 5 6 7 8 9 10 L7501 G0C101K00023 C7562 16V 470u C7573 16V 1u R7520 1k TPB7516 R7562 12k R7549 100k D7548 MA2J11100L D7538 MA2J11100L R7501 820 D7542 MA2J11100L D7502 MAZ20680A0LS Q7542 2SB0709A0L PA14 1 2 3 R7544 2.2k Q7562 2SD0601A0L L7582 G1C101M00018 TPB7521 TPB7522 (DG8) STB5V STB5V LOADER_IN_SEL D-BOARD TO MAIN 2.5V FAN 9V/7.2V GND TXD RXD GND LOADER_IN_SEL GND STB5V SRQ SCL2 SDA2 VPP SCL3(PANEL) SDA3(PANEL) SRQ GND SCL1 SDA1 SRQ GND SCL1 SDA1 SCL2 SDA2 VPP RXD TXD GND 12V STB5V GND IIC_CONT SDA3 SCL3 SCL1 SDA2 SCL2 SDA1 GND STB5V GND RST IRQ TVON MAIN9V MAIN_5V2 MAIN 5V AVR 5V DGON_INV AVR 9V FAN ON/OFF 47k 10k FAN SOS (PF10) GND TO FAN1 TO FAN2 TO FAN3 TO FAN4 GND FAN+B GND TX RX GND IIC_CONT GND BT30V 5VD1 5VD1 (5VD2) MAIN5V_2 (UNREG7V) MAIN5V_1 (MAIN5V) NR10V GND GND GND MAIN9V(SUB9V) MAIN2.5V GND MAIN2.5V (MAIN5V) TVON AC_ON/OFF SOS FANONOFF FANMax/Min FANSOS SDHD_DET (H:HD,L:SD) (ODUONOFF) GND MAIN9V GND GND GND GND GND GND GND GND GND MAIN5V_1 MAIN5V_2 NR_24V NR_10V NR_10V NR_10V NR_10V NR_10V GND GND GND GND GND STB5V PF_AC_ON/OFF MAIN 5V MAIN9V(SUB9V) MAIN9V MAIN9V SUB8.3V SUB8.3V GND GND GND OPEN: ON LOW: OFF ON/OFF TVON TV-ON TVON TVON LOW: OFF OPEN: ON (JA18) (DG2) 17 12 18 14 10 16 11 15 13 3 1 2 PA-BOARD TXNPA1UHSU (2/2) JA-BOARD TO PF-BOARD TO DG-BOARD TO DG-BOARD TO TO (D4) D-BOARD (D12) BT30V 24.0 0 0 10.0 10.0 0 0 2.0 5.0 10.0 10.0 10.0 0 0 0 3.3 3.3 5.2 1.6 2.4 24.0 0 9.0 1.6 2.4 24.0 0 2.4 0 1.6 24.0 5.0 4.2 4.8 4.9 4.9 0 4.8 0 4.9 0 2.0 0 0 0 3.3 5.0 0 1.2 7.8 9.0 12.3 9.0 4.4 4.3 4.3 4.3 0 12.0 4.8 0 0 4.9 5.0 4.8 0 5.0 12.0 0 4.8 0 4.8 0 5.0 4.9 4.8 4.7 0 4.8 4.8 4.8 4.5 0.5 4.8 0 5.0 4.9 4.8 4.7 0 4.8 4.8 4.8 4.5 0.5 3.2 0 0 0 5.0 12.3 0 0 3.7 3.2 4.8 5.0 0 3.8 4.8 4.8 0 0 3.9 4.6 7.2 0 0 3.2 0 4.7 5.0 4.8 0 12.2 3.6 3.8 0.3 0.2 0 0 0 5.0 5.0 5.0 0 5.0 0 5.0 2.7 0 0 9.0 0 2.5 0 2.5 3.3 0 0 14.0 0 3.3 9.0 0.3 7.0 0 2.7 0 0 0 2.0 3.3 0 0 9.0 5.0 12.0 0 30.0 0.1 0.3 0 0.5 8.5 0.5 0.3 0.3 2.3 5.0 24.0 1.5 0 2.3 2.5 24.0 1.5 0 0 0 2.8 8.1 0 0 0 TH-42/50PX25U/P PA-Board (2 of 2) Schematic Diagram TH-42/50PX25U/P PA-Board (2 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 116 15.23. G-Board Schematic Diagram BALLAN BALLAN BALLAN BALLAN BALLAN BALLAN BALLAN L R G R V L Y C BALLAN R3706 9.1k R3721 4.7k S3706 EVQ23405R R3795 0 R3736 0 R3723 100 L3781 G0B101Y00001 1 2 3 4 L3780 G0B101Y00001 1 2 3 4 L3778 G0B101Y00001 1 2 3 4 R3701 13k JS3706 G5 1 2 3 4 5 6 D3764 MAZ31100ML R3733 0 R3731 56 L3783 G0B101Y00001 1 2 3 4 R3725 0 R3705 5.1k S3703 EVQ23405R G8 1 2 3 4 5 6 7 8 9 10 C3712 16V 1u R3710 1k R3716 180k JS3705 S3701 EVQ23405R R3796 0 R3724 100 R3728 0 R3794 0 D3715 MAZ31400ML R3734 0 R3730 1k L3779 G0B101Y00001 1 2 3 4 R3720 4.7k S3707 EVQ23405R S3705 EVQ23405R D3766 MAZ31100ML JK3709 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 L3782 G0B101Y00001 1 2 3 4 R3703 2.2k R3732 56 R3707 0 R3704 3.3k R3727 0 L3784 G0B101Y00001 1 2 3 4 R3735 0 S3704 EVQ23405R JK3714 K4BK29A00006 C Y G Y-G C-G G R2 SW4 NC4 SW3 NC3 R1 T NC1 SW1 NC2 SW2 R-SW R R-G L L-G V-SW V V-G S3702 EVQ23405R R3726 0 L3785 G0B101Y00001 1 2 3 4 R3715 180k G7 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 G10 1 2 3 4 5 6 R3711 10k LOUT ROUT HPDET B G SL SR R SUB_OUT GND_HP K1FB315A0001 HPDET LG S2 KEYSCAN1 SW C V V3_DET ROUT GND_HP GND_HP LOUT PRESET ASPECT TV/VTR VOL.UP VOL.DN CH.DN CH.UP KEYSCAN R G B KEYSCAN2 NC C2 NC(SWSV) RG NC NC Y_G C_G V_G Y PC_HD PC_VD 8 A 6 1 3 5 2 D B C 4 E 7 G-BOARD TXN/G1UHSU PA-BOARD (PA9) TO DG-BOARD (DG7) TO H-BOARD (H10) TO DG-BOARD (DG7) TO HP OUT VIDEO3 IN PC IN 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1.3 0 0 0 1.3 0 0 2.3 2.3 2.3 0 0 0 0 9.0 TH-42/50PX25U/P G-Board Schematic Diagram TH-42/50PX25U/P G-Board Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 117 15.24. DG-Board Block Diagram ATSC_PB ATSC_L ATSC_R ATSC_PR MAIN_PB MAIN_PR ATSC_L ATSC_R ATSC_V ATSC_PR ATSC_PB BBE_R BBE_L SL SR S3 MAIN_L MAIN_R MAIN_L MAIN_R SOS2 AC_TVON POFF_DEF MAIN_DEF RST JPEG_C ATSC_V AFC2 SOS VA0_MUTE HDMI_AUDIO_MUTE HDMI_INT SUB_PR SUB_PB SUB_Y MAIN_Y MAIN_PR MAIN_PB ATSC_Y JPEG_Y HP_DET HP_DET TVON_OPT MAIN_Y FAN_CONT ATSC_Y DA_SW AFC1 XRST GC_H LOSD_YS LOSD_YM LOSD_R LOSD_G LOSD_B GC_V ATSCINT TV/VIDEO_PC BBE_R BBE_L 413 306 213 405 215 SUB_Y SUB_PB ATSC_PB 107 MAIN_PB ATSC_PR MAIN_PR ATSC_Y 312 307 MAIN_Y ATSC_L TO H1 314 206 ATSC_R 407 DG1 SUB_PR 103 101 Q4531 Q4533 Q4522 Q4526 Q4527 Q4530 89 Q4523 Q4529 Q4532 Q4524 60MHz VIN1 CLK GC2S+ A/D 8bit 525i/p 1080i 189 60MHz CONTROL Noise level NR/IP VIN2 RGB-> YUV SYNC GAIN ADJ IC4502 Sync Macrovision 60MHz MEMORY 135 Detection RO I/F 625i/p YUV RGB 144 VIN3 720p CHROMA DEM. SUPER YUV 2D COM A/D 8bit PROGRESSIVE H SCALEER 180 I/F A/D 8bit SEPA COLOUR DETECT self,ID,ED2 MULTI CLK IN 177 179 178 VP IN HP IN 171 UV 162 Y 157 148 IC4518 Main/Sub-Mix 64Mbit SDRAM P-NR 18 15 SDA SCL RST 17 IC4501 SELF,ID,ED2 1080i A/D 10bit VPK COLOUR DETECT 30MHz 30MHz A/D 10bit VPO1 Macrovision 625i/p A/D 10bit MATRIX NOISE LEVEL GC2M+ 15 14 RGB-> YUV CHROMA DEM. 720p 95 VIN1 16 MAIN-Y LCLK1 VIN3 MAIN-PB Sync 83 VIN2 SEPA 30MHz Detection 3D/2D com HPO1 525i/p MAIN-PR 72 SYNC CLK SW TBC I/F FF IP NR JUST NR I/P FF 36 UV 32 Y 45 22 4 RO 13 YUV 58 49 Q4508 Q4501 Q4506 Q4513 Q4503 A/D IC4515 10bit A/D 17 YUV 22 9 VIN SUB PB SUB PR SUB Y SOS2 32 JPEG Y 111 JPEG C 211 ATSC_V 114 SW AR 112 SW AL 411 SCL2 SDA2 217 SCLHDMI 205 SDAHDMI 417 105 SCL2 SDA2 HDMI_INT HDMI_AUDIO_MUTE 316 415 VA0(FA0) MUTE 104 304 AFC2 210 L3 R3 310 S3 408 AUDIO L 103 AUDIO R 303 SDA1 R IN L IN SCL1 3 13 14 DG6 18 1 SP MUTE RESET POFF DEF 16 19 MAIN DEF 20 TO PA6 33 34 DG2 32 TO PA2 36 39 38 FANMax/Min SOS AC ON/OFF FAN_SOS TVON 110 BBE_L 107 SDA1(SDA_TV) ATSC_V 106 ATSC_PR BBE_R TO JA23 108 ATSC_Y 112 105 101 ATSC_R DG23 102 ATSC_L 103 ATSC_PB 2 1 IC8031 EX.I/O SW1 SW0 15 14 SDA SCL SWGC_PC SDA2 AVR 9V IC4811 1 9V 9V 12V AVR 12V IC4810 5 1 NR14V 3.3V AVR 3.3V IC4511 5 1 3 5V 2.5V PLL 2.5V IC4509 5 1 3 5V 3.3V AVR 3.3V IC4507 5 1 3 5V AD 2.5V AD 2.5V IC4505 3 1 2 5V FRCLK 13 207 FRCLK DG Micom,Digtal Signal Processor SCLHDMI SDAHDMI SCL2 SDA2 37 1 3 7 19 11 13 15 17 21 23 25 27 FANON/OFF BT30 5VD1 SUB5V MAIN5V MAIN5V MAIN9V MAIN14V SUB9V SUB9V MAIN2.5V MAIN2.5V BT30 5VD1 SUB5V MAIN5V MAIN9V NR14V SUB9V MAIN2.5V REG 2 Q4510 Q4511 Q4505 Q4509 Q4502 Q4512 3.3V AVR 3.3V IC4508 5 1 3 5V 6 7 DAC1 DAC2 9 SCL2 SW2 DA_SWPKS 111 113 SCL1(SCL_TV) 114 AFT1 214 SCL2(SCL_TV1) 413 SDA2(SDA_TV1) 401 XRSTPKS SDA1 SCL1 SCL2 SDA2 GC_H(OSDH) 402 LOSDYS 403 LOSDYM 404 LOSDR 405 LOSDG 406 LOSDB 407 GC_V(OSDV) 412 H57RST 312 SCL0 SDA0 FA1 408 409 414 AD 2.5V AD 2.5V IC4513 3 1 2 5V 3.3V AVR 3.3V IC4514 5 1 3 5V 2.5V AVR 2.5V IC4516 5 1 3 5V 3 5V IC4517 5 1 AVR 3.3V 3.3V 3 5V IC4521 5 1 AVR 3.3V 3.3V 3 5V 1 IC4522 5 DA 2.5V DA 2.5V 4 IC4530 AVR 3.3V 5 3.3V 5V 3 DG62 SCL0 SDA0 FA1 1 3 4 3.3V AVR 3.3V IC4503 5 1 MAIN5.0V SUB Y SUB PR SUB PB 25 28 VPIN2 CLKOUT 161 173 172 21 VPO 20 HPO 32 CLKOUT HPIN2 SCL1 SDA1 X4501 4 RESET IC4506 116 SCL1 SDA1 117 65 212 210 SCL SDA RST XIN XOUT IC4504 5M FIF0 MEMORY 6 3 PLL 1 2 3 TH-42/50PX25U/P DG-Board Block Diagram TH-42/50PX25U/P DG-Board Block Diagram TH-42PX25U-P / TH-50PX25U-P 118 TH-42/50PX25U/P DG-Board Block Diagram TH-42/50PX25U/P DG-Board Block Diagram CONTRAST CLP VD HD CLP TV_ON_OPT REMO LEDCTRL_SOS OSD_R OSD_G OSD_B VIDEO_MUTE OSD_YS JPEG_Y JPEG_C LEDCTRL_SOS KEY2 REMO AFC2 AFC1 AC_TVON SDS2 RXD_TUO TXD_TUO SDA3 SCL3 SDA3 SCL3 TXD_TU0 RXD_TU0 SDA3 SCL3 SDA3 SCL3 SCL3 SDA3 GC_HD GC-VD HD VD CLP GREEN SWGC_PC PC_H PC_V GC_HP GC_VP SDA2 SLC2 SDA1 SCL1 TVON_OPT XRST DA_SW HP_DET VA0_MUTE POFF_DEF MAIN_DEF OSD_YM R G B VIDEO_MUTE VIDEO_MUTE OSD_R LOSD_R OSD_G OSD_G LOSD_G LOSD_B OSD_B OSD_B OSD_YS OSD_YM LOSD_YS LOSD_YM OSD_YM OSD_YS OSD_R HP_DET KEY2 KEY1 S3 SR SL PCV PCH GREEN GC_VP GC_HP ATSCINT FUN_CONT RESET TV_VIDEO_PC KEY1 25 LPF 17 LPF 1 14 5 11 LPF 22 21 G R B B R YS G OSD OUT DATA ADJ R/G/B 13 15 17 4 9 5 9 9 11 2 3 23 21 22 20 203 11 16 3 9 8 5 14 6 1 2 7 12 7 3 27 1 YM SW1 SW2 SW3 4 1 2 8 3 9 5 13 6 24 VD_S 22 21 NCLP 5 15 17 REMOCON LEDCTRL_SOS POW STATUS 7 TXD TU RXD TU HD_S 9 D/A OSD 2 CONT 110MHz 3 D/A 10bit D/A 8bit IMPROVEMENT PICTURE RGB PROCESSOR TO D3 26 30 28 ROUT GOUT BOUT DG3 CTI,CRI AI DSC B G R 240 237 248 199 198 BDV RDV 148 CNT IC4512 RGB PROCESSOR HCLP IC8201 RGB-LPF I1 VP HP CLP 9 13 O5 8 1 I6 10 2 O1 I4 BUFFER IC8076 O4 AFC1 SCL0 HDMI AUDIO MUTE 27 12 80 Q2258 44 AUDIO MUTE IC005 IC001 X1 EXRGBMUTE 1 KEYSCAN2 8 51 KEYSCAN1 67 66 14 OSD_B 79 Y1 HP DET AFC2 VIDEO MUTE OSD_R 13 24 SDA0 65 78 61 55 26 HDMI INT 5 3 FA1 72 60 X0 OSD_YS 62 PANEL_SOS 9 OSD_G 10 REM IN MAIN MICON XRSTPKS Q021 Q020 17 Q030 TO JG3 DG31 TXD 3 RXD 1 IDO 5 RST 9 Y 15 C 19 1 82 SB0JPG JPEG INT 59 SB1JPG 22 14 CONVERT MICON 14 Y1 19 SDA1 TXD SDA 17 18 SCL2 PANEL SCL3 SCL3 6 PA8 TO RST SDA3 PANEL SDA3 11 7 SCL2 Y SDA2 12 SCL1 X0 SCL1 SDA1 SCL DG35 SRQ 10 IC3802 2 1 A X RESET SRQ 12 SRQ 15 54 19 53 RXD1 RXD1 10 14 4 9 DG8 RXD 13 3 X1 LOADER 5 SDA2 3 Y0 LOADER IN SELECT IC3801 IC3803 2 OUT 5 6 SCL SDA CARD DATA EEPROM IC3699 14 15 SCL SDA DAC(SLOT DET) IC3004 7 SRQ 5 1 6 2 ICC SW IC3517 SDA SCL DAC(EXPAND I/O) 15 IC3003 14 7 3 1 COM IC8071 SYNC SELECT X1 13 Y1 12 Y Q8015 15 5 6 VIN IC8008 13 2CH MULTIPLEXER GIN 8 HIN 4 HD- VD- SYNC SEP IC8054 HD VD 14 X 1 Y0 3 X0 CLP 5 6 I1 I0 17 IC8009 CLPO G_IN SELECT 6 5 SEL CS(S) 3 10 9 A B 5 LPF(S) (TX) (RX) IN SEL 6 SYNC INH INH 6 Q8012 Q8011 Q8014 Q8013 5 3 6 4 IC8076 BUFFER VPO3 162 161 HPO3 (1/2) RESET 4 VO IC003 6 5 7 6 IC002 SDA EEPROM WP SCL Y0 SDA2 SCL2 LOADER IN SEL 68 WP 71 SDA1 70 SCL1 SCL1 SDA1 SDA2 SCL2 HDMI AUDIO MUTE HDMI INT RESET 5 Q025 Q026 TVON OPT 53 SDS2 69 Q023 48 AC ON/OFF Q024 MAIN5V POWDET_5V 52 MAIN9V Q2254 Q2255 13 DA_SWPKS Q2251 Q2253 25 AUDIO MUTE25 Q2252 23 OSD_YM IC8200 RGB-GC/PC Q4554 Q4557 Q4555 Q4558 Q4556 Q4553 Q4521 Q4537 Q4534 Q4540 Q4539 Q4536 Q4542 Q4538 Q4541 Q4535 SELECT 2 1 A OUT B 4 2 B 1 A 4 OUT TO DG7 KEY1 KEY2 HP DET 4 2 6 G7 S3 7 SR 13 SL 11 28 PC_HD PC_VD 30 PC_B PC_G 23 21 PC_R 25 G8 TO IC8030 DG30 R_OUT 4 G_OUT 6 B_OUT 8 HP 10 Q029 XRSTJPG 49 2 12 RSYNC ATSCINT 6 HSYNC 16 FAN_CONT (2/2) 73 POWER LED 64 G LED 18 SCLHDMI 19 SDAHDMI 76 OSC1 75 OSC2 X001 SDAHDMI SCLHDMI 3 STB_LED 2 DG12 ON_LED(G) (RED) Q027 TO K12 RXD_TU1 TXD_TU1 LOADER IN SEL PC_H PC_V AC OFF MUTE 5V 3 4 IC004 STB 3.3V 5 3.3V STB LOADER IN SELECT TEST SW 1 2 3 IC4520 OR GATE OR GATE IC4519 TO S4 1 KEY SCAN1 IC4501 GC2M+ TH-42PX25U-P / TH-50PX25U-P 119 15.25. DG-Board (1 of 7) Schematic Diagram NP NP TXD_TU0 RXD_TU0 TXD_TU1 RXD_TU1 SCLHDMI LOADER_MODE SDA1 KEY_SCAN2 SCL1 HDMIINT CVT_TXD REMOTE_BC KEY_SCAN1 ATSCONOFF VPP12V RESET CVT_RXD RXD_TU1 LEDCTRL_SOS SUB_Y_CC RXD_TU0 VAO_MUTE MAIN_Y_1 SDAHDMI SCLHDMI TXD_TU0 XRSTJPG SUB_Y_1 AD_MODE GC_HP LOADER_IN_SEL LOADER_IN_SEL TXD_TU1 TVON_OPT JPGINT MAIN_Y_CC SBOJPG MAIN_Y_1 GC_HFR OSD_G SCL1 SBOPKS AUDIO_MUTE25 DA_SWPKS SDA2 SUB_Y_1 FA1 SBIPKS AFC2 SCL2 SDA1 AUDIO_MUTE V_MUTE OSD_YM HP_DET SCL2 SDAHDMI SCL2 ATSCINT AUDIO_MUTE25 HDMIINT GC_VP EXRGBMUTE XRSTPKS SBIJPG OSD_R HDMI_AUDIOMUTE AUDIO_MUTE SDHD_DET REMOTE AFC1 OSD_YS MAIN_DEF SDA2 POFF_DEF OSD_B SDA2 SOS2 SCL1 SDA1 REMOTE_BC SDA2 FA1 SCL2 KEY_SCAN1 AC_TVON HDMI_AUDIOMUTE SCL1 SDA1 SCL2 SDA2 2RF_SW SUB5V LOADER_IN_SEL OSD_CLK C021 1/50V C033 1/50V C026 1/50V C003 100/10V C001 100/10V C008 47/16V C006 47/16V C2251 100/10V C037 100/6.3V C004 50V 1/50V IC001 MN102HF75KBF 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 D2254 MA3X152K0L D2255 MA3X152K0L C029 47/6.3V C032 47/6.3V IC004 PQ1L333M2SP 1 2 3 5 4 IC002 BR24C64F-E2 1 2 3 4 5 6 7 8 Q2258 2SD1819A-TX Q007 2SD1819A-TX Q006 2SD1819A-TX Q008 2SD1819A-TX Q009 2SD1819A-TX Q001 2SD1819A-TX C2253 0.01 C038 1 C044 470P C042 560P C040 10V 1 C039 10V 1 C043 470P C041 560P[JC] C035 16V 0.1 C024 0.01 C027 1000P C017 0.01 C019 0.01 C028 100P C030 22P C031 22P C023 27P C020 22P C016 100P C018 100P C015 6.3V 6.8 C009 0.01 C007 16V 0.1 C005 16V 0.1 C002 0.01 Q2251 2SB1218A-TX_M Q2255 2SB1218A-TX_M JS001 R045 0 R043 0 R039 0 R026 220 R2254 22K R2251 22K R2257 18K R2260 1K R2259 270 R2265 47K R2261 2200 R093 100 R094 100 R096 1K R104 220 R098 240 R102 12K R101 10K R103 220 R097 240 R095 1K R099 10K R100 12K R077 10K R080 1K R073 0 R055 680 R052 510 R067 33K R051 910 R057 6800 R062 1K R065 10K R068 10K R066 1K R063 1K R058 1K R049 1K R060 1200 R054 2700 R059 2700 R032 100 R030 3300 R025 100 R022 100 R015 220 R028 100 R048 2700 R001 22 R003 22K R004 0 C3813 33P[JC] Q3802 2SD1819A-TX R3825 10K IC3801 M38047M6-C15FP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 C3811 2.2 Q3801 2SB1218A-TX_M R3826 47K R3832 0 R3837 1M R3818 10K R3819 10K R3824 10K R3830 10K R3817 10K D3801 MA3X152K0L R3827 10K R3831 0 C3810 1000P Q3803 2SD1819A-TX R3836 1K R3802 3300 R3815 0 R3816 10K IC3803 M51957BFP-600C 1 2 3 4 5 6 7 8 C3805 47/16V R3821 3300 R3801 5600 C3814 33P[JC] C3802 16V 0.1 R3803 27K C3801 16V 0.1 R3835 10K R3812 22 R3820 10K R3813 22 R3828 0 C3815 0.056 C3803 6.3V 100 R3823 3300 R3804 220K R3814 100 R3834 10K R3822 100 Q020 2SD1819A-TX R122 10K R123 100K R121 100K R120 100 C022 100P R3829 10K L3801 10U C3809 0.01 C3808 16V 47/16V C025 47/16V Q3804 2SB1218A-TX_M R3809 330 R3806 1K Q004 2SB1218A-TX_M R072 47K Q005 2SB1218A-TX_M R092 10K C3806 0.01 C3807 0.01 R3810 10K R019 220 R038 1K R021 100 R027 1K R020 220 R085 0 R087 1K R083 100 R081 1K R089 1K R090 1K R011 220 R074 1K IC3802 C0JBAR000241 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 R071 1K R070 0 R037 0 R040 100 R044 100 R046 100 C012 100P C013 100P C014 3900P R016 150 R012 0 R013 0 R008 2700 R009 2700 R082 2200 R069 100 D2252 MA3X152K0L Q2252 2SB1218A-TX_M R2252 22K C2252 0.01 Q2253 2SD1819A-TX R2258 47K D2251 MA3X152K0L R075 47K R3805 22K R3811 10K C3812 16V 0.1 X3801 NX1255GA9.216MHZ C011 4R7 R007 3900 IC003 PST9128NR 1 2 3 5 4 D001 MAZ30360HL R050 4700 TP014 TP013 R130 47K R132 2200 C034 6.8 R139 0 Q027 2SD1819A-TX R141 5600 Q029 2SD1819A-TX R152 22K R149 4700 R148 220 X001 LN-M8-335 R162 56 R161 56 R163 4700 R158 1200 Q030 2SD1819A-TX R164 15K R166 6800 R165 6800 R047 4700 R053 2700 IC005 C0JBAR000241 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 C047 0.01 R159 56 R160 56 C049 0.1 R023 10K D3802 MA3X152K0L C3816 1000P R018 100 R041 4700 C036 0.01 R107 4700 R171 1K C2255 100/10V Q026 2SD1819A-TX C051 0.1 Q025 2SD1819A-TX R143 1K R142 4700 R084 4700 DG41 1 2 3 4 5 6 7 8 9 DG12 1 2 3 4 5 6 7 8 9 R140 0 D002 MAZ30910ML Q023 2SD1819A-TX R137 4700 Q024 2SD1819A-TX C3804 16V 0.1 R088 4700 Q2254 2SB1218A-TX_M EXRGBMUTE HFR XRSTPKS XRSTJPG INT0JPG VIDEO_MUTE (TVON_OPT) FANSW RF_FILON POWER_LED SBIJPG 2RF_SW DA_SWPKS SCLHDMI HDMI_AUDIOMUTE (CEC_OUT) AD_MODE RELAY(AC_ON/OFF) STB 3.3V AC OFF MUTE EEPROM VSS A1 A2 A0 SCL SDA VCC WP NC NO USE VDD(VPP) CLH VREFHS CVBS0 CVBS1 VSS POWDET_5V SBIPKS SBTPKS FANSOS(HP_DET) (ATSCONOFF) SBOPKS AUDIO_MUTE NO USE OSD_R OSD_G OSD_B YM AUDIO_MUTE SDHD_ DET VREFLS CLL AVDD COMP IREF VREF WP SOS2 KEYSCAN1 KEYSCAN2 G_LED AFC1 HDMIINT JPGINT SDHD_DET SCL1 SDA1 NC PANEL_SOS AFC2 NO USE SCL0 FA1 SDA0 NC VSS RMIN OSC2 OSC1 VDD /HSYNC SYSCLK YS SDAHDMI PDO VCOI /RESET NC /TEST ATSCINT /VSYNC SBOJPG GND Nr ON/OFF Vin Vo 21.P40/INT40/XCOUT P21 P44/RXD1 P37/_SRDY3 1.P62/AN2 /CNTR2 P63/AN3 2.P61/AN1 47.P01/AN9 P22 P32/SDA P47/_SRDY1 P15 P25 18.CNVSS/VPP P50/_SIN2 P64/AN4 P12 3.P60/AN0 P07/AN15 P57/INT3 P24 20.P41/INT00/XCIN P23 P13 VCC P34/RXD3 33.P17 P35/TXD3 P20 CONVERT MICON XOUT 48.P00/AN8 17.P42/INT1 P31/DA2 P27 VSS P66/AN6 P06/AN14 P54/CNTR0 P52/_SCLK2 P10/INT41 P11/INT01 P05/AN13 P14 P67/AN7 P30/DA1 P56/PWM P26 P65/AN5 45.P03/AN11 P43/INT2 P36/SCLK3 AVSS XIN P33/SCL P46/SCLK1 19._RESET VREF P04/AN12 46.P02/AN10 P16 P45/TXD1 P51/_SOUT2 P55/CNTR1 P53/_SRDY2 VAO MUTE 5V 3.3V VDD X1 B VSS X2 X X0 Y1 Y0 Y X3 INH Y2 Y3 A VEE MAIN_DEF VAO SOUND DEFEAT MAIN MICON VCC NC SUB GND VO KEY1 STB_LED(RED) ON_LED(Gr) GND GND STB5V SUB5V MODEMLED SW5V Y1 VEE X X3 X1 VDD VSS X0 X2 B A Y3 Y INH Y0 Y2 OSDXI OSDXO I2C SCL1/SDA1 I2C SCL2/SDA2 RESET LOADER IN SELECT TO K-BOARD (K12) LOADER IN SELECT RESET DG-BOARD TNPA3177 (1/7) 1 2 3 4 5 6 7 8 9 5 B 9 1 7 C D 2 8 4 F 6 A 3 E TO S-BOARD (S4) 3.2 3.2 3.2 2.3 4.7 0 2.7 4.7 5.0 5.0 0 0 0 0 0 5.0 0 0 TH-42/50PX25U/P DG-Board (1 of 7) Schematic Diagram TH-42/50PX25U/P DG-Board (1 of 7) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 120 15.26. DG-Board (2 of 7) Schematic Diagram L.F TOP L.F TOP TOP SCL1 SDA1 SCL2 FA1 LOSDB LOSDR LOSDG LOSDYS_AT LOSDYM_AT XRSTPKS SCL2 DA_SWPKS SBOJPG SBIJPG SBOPKS SBIPKS AFC1 SCL2 SDA2 AB_SDA3 AB_SCL3 RXD_TU1 SDA2 SDA2 SCL1 MAIN_Y SUB_PR SUB_PB SUB_Y MAIN_PR AUDIO_R AUDIO_L GC_HP ATSCINT GC_VP ATSC_PB BBE_R ATSC_L MAIN_PB JPEG_C JPEG_Y JPGINT XRSTJPG VAO_MUTE VAO_MUTE BBE_L RESET POFF_DEF MAIN_DEF ATSC_Y ATSC_PR 2RF_SW ATSC_R ATSC_V SDA1 XRST OSDH LOSDYS OSDG OSDB TXD_TU1 LOADER_IN_SEL BT30 SUB5V STB5V LC4351 K212T256AL 1 2 3 4 LC4339 K212T256AL 1 2 3 4 LC4348 K212T256AL 1 2 3 4 LC4337 K212T256AL 1 2 3 4 LC4349 K212T256AL 1 2 3 4 LC4338 K212T256AL 1 2 3 4 LC4344 K212T256AL 1 2 3 4 LC4347 K212T256AL 1 2 3 4 LC4345 K212T256AL 1 2 3 4 LC4350 K212T256AL 1 2 3 4 LC4340 K212T256AL 1 2 3 4 LC4336 K212T256AL 1 2 3 4 L4559 J0JHC0000035 R167 27K L4560 J0JHC0000035 L4561 J0JHC0000035 TP4301 C4846 47/16V C4840 100/4V C4844 47/16V C4842 100/4V C4845 16V 0.1 IC4530 PQ1L333M2SP 1 2 3 5 4 C4841 0.01 C4843 0.01 TP4580 C4847 16V 0.1 LC4314 K212T256AL 1 2 3 4 L4558 J0JHC0000035 T602 J0MAB0000081 1 4 3 2 DG14 1 2 3 DG8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 LC4330 K212T256AL 1 2 3 4 T601 J0MAB0000081 1 4 3 2 LC4308 K212T256AL 1 2 3 4 LC4309 K212T256AL 1 2 3 4 LC4305 K212T256AL 1 2 3 4 LC4304 K212T256AL 1 2 3 4 TP8100 DG31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 DG6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 LC4353 K212T256AL 1 2 3 4 LC4334 K212T256AL 1 2 3 4 R168 18K LC4411 K212T256AL 1 2 3 4 LC4355 K212T256AL 1 2 3 4 LC4357 K212T256AL 1 2 3 4 R4817 100 DG23 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 LC4317 K212T256AL 1 2 3 4 LC4311 K212T256AL 1 2 3 4 LC4322 K212T256AL 1 2 3 4 LC4318 K212T256AL 1 2 3 4 LC4313 K212T256AL 1 2 3 4 LC4315 K212T256AL 1 2 3 4 DG62 1 2 3 4 L4557 J0JHC0000035 LC4362 K212T256AL 1 2 3 4 LC4361 K212T256AL 1 2 3 4 LC4358 K212T256AL 1 2 3 4 LC4359 K212T256AL 1 2 3 4 LC4360 K212T256AL 1 2 3 4 LC4371 J0HAAB000012 1 2 3 4 LC4414 J0HAAB000012 1 2 3 4 LC4413 J0HAAB000012 1 2 3 4 R4832 220 LC4369 J0HAAB000012 1 2 3 4 LC4367 J0HAAB000012 1 2 3 4 R4831 220 LC4366 J0HAAB000012 1 2 3 4 R4833 220 LC4325 ERJ6GEY0R00V_C LC4324 ERJ6GEY0R00V_C TO STB5V R_IN GND SP_MUTE SDA1 GND L_IN MAIN_DEF (AMUTE) SCL1 GND POFF_DEF GND RESET GNDz FAN+B RX GND GND TX TO ATSC IIC_CONT GND VPP D_A_SW SCL_TV SCL_TV1 SDA_TV AFT SDA_TV1 BT30V SDA0 SCL0 SBO1 SBI1 H57RST OSDB OSDG OSDR LOSDYM LOSDYS OSDH XRST GND SUBMUTE SUBVOL SUBMONO EQONOFF SDA1 SCL1 SDA2 LODER_IN_SEL SCL2 GND GND SRQ STB5V GND TX(PANEL_SDA3) RX(PANEL_SCL3) 2RFSW OSDV 5V Y C YGND CGND GND GND GND GND 5V 9V 9V PCCVON TXD RXD 3.3V 3.3V ID0 INT0 RST FA1 HD ON/OFF Vin GND Vo Nr PA-BOARD (PA6) PA-BOARD (PA8) (JG3) JG-BOARD TO AVR 3.3V SDA0 SCL0 FA1 SBO1 SBI1 H57RST OSDV JA-BOARD (JA23) TO DG-BOARD TNPA3177 (2/7) 1 6 5 4 2 3 7 8 9 11 12 13 14 15 16 17 18 19 20 21 23 24 25 22 13 16 11 17 15 18 14 12 10 0 5.0 4.0 0 0 3.2 0 0 0 0 3.9 3.5 0 0 3.9 0 0 4.5 0 0 4.8 0 0 3.9 4.6 7.2 0 0 3.2 0 4.7 5.0 4.8 0 12.2 3.6 3.8 0.3 0.2 0 3.3 3.3 3.1 3.2 0 3.2 5.0 5.0 3.2 0 0 0 9.0 0 0 1.6 0 9.0 0 2.0 0.2 0 3.2 3.3 0 3.3 0.6 0 0.6 1.0 0 0 0 0.7 2.1 2.1 0 4.8 0.6 1.0 0 2.6 2.2 2.4 30.0 0.6 3.1 0.6 3.3 3.3 1.6 7.2 0 0 TH-42/50PX25U/P DG-Board (2 of 7) Schematic Diagram TH-42/50PX25U/P DG-Board (2 of 7) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 121 15.27. DG-Board (3 of 7) Schematic Diagram NP NP TOP SUB_Y_CC MAIN_Y_CC AI_FIL1 AB_VCLP AB_YCLP AB_UCLP AT_YUV7 AT_YUV6 AT_CLK KEY_SCAN2 MAIN_9V BT30 JPEG_Y ATSC_V ATSC_V AUDIO_R AFC2_2 AFC_1ST_TNR_1 SDA2_2 MAIN_PB MAIN_PR SUB_Y SUB_PR S3 5V LOSDYS_AT LOSDYM_AT OSD_YS OSD_YM M_YS M_YM SOS2 ATSCONOFF AC_TVON FANONOFF FANMax/Min FANSOS OSD_G M_OSD_G TVON_OPT SCL2_2 SDA2_2 S3 PC_VD AFC_1ST_TNR R3 L3 HDMIINT LOSDB HDMI_AUDIOMUTE PC_R PC_B PC_G SDHD_DET POWER_ STATUS SCL2 SDA2 AUDIO_L VAO_MUTE SCL2_2 MAIN_Y BBE_R SUB9V ATSC_R SDAHDMI SCLHDMI ATSC_PR ATSC_L ATSC_PB JPEG_C L3 ATSC_Y BBE_L R3 SUB_PB LOSDG AFC_1ST_TNR_1 AFC2 AFC2_2 KEY_SCAN1 PC_HD 3.3V M_OSD_B M_OSD_R LOSDR OSD_R OSD_B MAIN_Y SUB_Y MAIN_PB MAIN_PR MAIN_Y AT_YUV8 AT_YUV9 AT_YUV5 AT_YUV4 AT_YUV3 AT_YUV2 AT_YUV1 AT_YUV0 AD_MODE SUB9V HP_DET SW9V C4525 4V 100 C4537 4V 100 C4502 10V 33/10V C4514 10V 33/10V C4518 10 C4516 10 IC4508 C0CBCBD00006 1 2 3 5 4 Q4510 2SD1819A-TX Q4513 2SD10300TL Q4512 2SD10300TL Q4511 2SD10300TL Q4507 2SD1819A-TX C4529 16V 0.1 C4512 10V 1[ZF] C4521 0.1 C4522 10V 1[ZF] C4523 16V 0.01 C4530 10V 1 C4532 1 C4535 10V 1[ZF] C4536 10V 1[ZF] C4519 6.3V 10 C4501 0.01 C4506 5P[CC] C4511 22p C4513 100p C4507 22p C4509 120p C4510 120p C4508 22p Q4509 2SB1218A-TX_M Q4504 2SB1218A-RTX Q4506 2SB1218A-RTX Q4505 2SB1218A-RTX Q4508 2SB1218A-RTX R4539 0 R4527 150 R4534 330 R4543 0 R4524 0 R4532 33 R4538 470 R4525 0 R4531 33 R4537 470 R4530 10K R4526 0 R4535 470 R4529 33 R4521 220 R4519 2.2k R4516 10K R4515 10K R4520 2.2k R4513 330 R4517 2.4k R4514 330 R4518 2.4k R4523 2.2k R4522 750 L4506 JW L4507 JW L4501 JW L4502 1.5 L4505 3.3 L4503 5.6 L4504 5.6 LC4403 J0HAAB000012 1 2 3 4 LC4404 J0HAAB000012 1 2 3 4 LC4402 J0HAAB000012 1 2 3 4 R4820 10K LC4370 J0HAAB000012 1 2 3 4 JS4394 JS4392 JS4393 LC4405 K212T256AL 1 2 3 4 LC4406 K212T256AL 1 2 3 4 C4818 4V 100 R4816 1.37k IC4811 PQ09TZ11 1 2 3 4 5 6 C4817 16V 1 C4814 16V 0.1 C4813 10V 33/10V R4815 1.5k L4812 10 IC4520 C0JBAE000146 R4746 100 R4741 820 R4753 470 Q4538 XN0650100L Q4535 2SB1218ARL R4744 680 R4755 100 R4739 100 R4758 100 R4757 100 IC4519 C0JBAE000146 R4738 100 R4756 100 C4799 16V 47 L4556 J0JGC0000021 C4801 16V 1 C4802 0.01[KB] C4800 16V 1 C4804 0.1 IC4521 PQ1X331M2ZP 1 2 3 5 4 C4803 4V 100 R4736 120 C4831 47/16V C4829 47/16V IC4810 PQ12SZ1T C4830 0.01 C4828 0.01 LC4407 K212T256AL 1 2 3 4 TP4578 TP4411 R4819 0 LC4435 ELKE103FA 1 2 3 4 R4907 0 C4798 39P LC4431 ELKE103FA 1 2 3 4 LC4436 ELKE103FA 1 2 3 4 LC4433 ELKE103FA 1 2 3 4 LC4434 ELKE103FA 1 2 3 4 R006 100 DG1 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 R4906 0 LC4385 J0HAAB000012 1 2 3 4 LC4387 J0HAAB000012 1 2 3 4 LC4383 ERJ6GEY0R00V_C LC4381 ERJ6GEY0R00V_C LC4380 J0HAAB000012 1 2 3 4 LC4372 ERJ6GEY0R00V_C 1 2 3 4 LC4368 K212T256AL 1 2 3 4 LC4363 K212T256AL 1 2 3 4 LC4365 K212T256AL 1 2 3 4 R4834 2200 LC4384 J0HAAB000012 1 2 3 4 LC4388 J0HAAB000012 1 2 3 4 LC4391 J0HAAB000012 1 2 3 4 LC4393 J0HAAB000012 1 2 3 4 LC4395 J0HAAB000012 1 2 3 4 Q4539 XN0650100L R4754 470 R4748 100 R4751 100 C4796 39P R4745 680 R4742 820 Q4536 2SB1218ARL R4737 120 R4750 100 R4747 100 R4749 100 R4740 820 R4743 680 Q4534 2SB1218ARL C4794 39P Q4537 XN0650100L R4752 470 R4905 0 R4735 120 C4833 6.3V 6.8 C4834 6.3V 6.8 R4824 470 R4823 10K R4822 10K R4821 10K R4825 470 Q4560 2SD1819A-TX R4827 1k Q4559 2SD1819A-TX R4826 1k R4502 220 Q4502 2SD1819A-TX R4506 0 R4507 680 R4511 220 C4504 47p C4505 47p R4503 220 R4508 0 Q4503 2SD1819A-TX R4509 680 R4512 220 R4501 220 R4504 0 Q4501 2SD1819A-TX R4505 680 R4510 240 C4503 5P[CC] DG7 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R005 1K R4544 EXB38VR000V R4545 EXB38VR000V R4546 EXB38VR000V IC4515 C0FBAF000040 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 C4531 1 R4542 1k R4540 22 C4528 0.1 R4536 22 C4527 16V 0.1 LC4400 J0HAAB000012 1 2 3 4 DG2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 Vin Vo Nr ON/OFF GND AGND3 VINC VINT AGND2 AVDD2 AVDD1 AGND1 REFOUT REFSENSE OFS/GAIN OTR A/D AD9214 Y MAIN 10bit DRVGND2 DRVDD2 D2 D3 D4 D5 D6 D7 D8 D9 HD_Y PDWN CLK AVDD3 80MSPS DRVGND1 DRVDD1 D0 D1 30MHz 14MHz V3_DET PC_HD SL S2 SR GND GND GND NC SW HP_DET SUB MAIN (G7,G8) (MAIN_Y,PB,PR+SUB_Y,PB,PR SYNCY_OUT) MAIN2.5V KEYSCAN2 SW GND PQ07VZ012ZP IN AVR 9V OUT Vadj ON/OFF Vin GND Vo Nr 3.3V B A GND B A GND OUT OUT GND VIN VO BT30 SUB5V GND 5VD1 NC GND MAIN5V GND GND NC GND MAIN5V GND MAIN9V GND NR_14V GND GND SUB5V GND SUB9V GND SUB9V GND MAIN2.5V MAIN2.5V GND (MAIN5V) GND (MAIN5V) TVON SOS ODUONOFF (ATSCONOFF) SDHD_DET AC_ON/OFF FANMax/Min FANONOFF FANSOS MAIN2.5V NC STB3.3V NC NC NC NC NC NC NC PC_B GND PC_G GND GND GND GND PC_VD KEYSCAN1 NC PC_R H-BOARD TO (H1) G-BOARD TO TO PA-BOARD (PA2) AVR 12V AVR 3.3V OR GATE OR GATE AVR 3.3V DG-BOARD TNPA3177 (3/7) 22 23 24 25 16 13 14 15 17 18 19 20 21 12 11 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 48 49 47 25 27 20 19 24 22 26 21 23 5.0 0 5.0 0 5.0 2.7 0 0 9.0 0 2.5 0 2.5 3.3 0 0 14.0 0 3.3 9.0 0.3 7.0 0 2.7 0 0 0 2.0 3.3 0 0 9.0 5.0 12.0 0 30.0 0 0 5.0 5.0 0 0 2.3 2.3 2.3 0 0 0 0 9.0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 2 5 3 4 6 1 2 5 3 4 1 2 5 3 4 1 2 3 6 1 2 5 3 4 6 1 2 5 3 4 TH-42/50PX25U/P DG-Board (3 of 7) Schematic Diagram TH-42/50PX25U/P DG-Board (3 of 7) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 122 15.28. DG-Board (4 of 7) Schematic Diagram AT_CLK_S-M AT_UV9 AT_UV8 AT_UV7 AT_UV6 AT_UV5 AT_UV4 AT_UV3 AT_UV2 AT_UV1 AT_UV0 AT_VP_S-M AT_HP_S-M AT_Y9 AT_Y8 AT_Y7 AT_Y6 AT_Y5 AT_Y4 AT_Y3 AT_Y2 AT_Y1 AT_Y0 AT_YUV9 AT_YUV8 AT_YUV7 AT_YUV6 AT_YUV5 AT_YUV4 AT_YUV3 AT_YUV2 AT_YUV1 AT_YUV0 GC_HFR AB_UCLP AB_VCLP AB_YCLP M_YS SCL1 SDA1 AP_BOW AT_CLK AT_CLK_M-S AT_RO5 AT_RO6 AT_RO7 AT_RO8 AT_RO9 AT_VP_M-S AT_HP_M-S AT_RO2 AT_RO3 AT_RO4 AT_RO0 AT_RO1 AX_FI2 AX_FO0 AX_FO1 AX_FO2 AX_FI0 AX_FI1 AX_RR AX_FO3 AX_FI4 AX_FO4 AX_RE AX_FI3 AX_FI8 AX_FI9 AX_FO7 AX_FO8 AX_FO9 AX_FI7 AX_CLK AX_FI6 AX_WE AX_FO5 AX_FO6 AX_FI5 AX_WR AX_FO9 AX_FO8 AX_FO7 AX_FI9 AX_FI8 AX_FI7 AX_FI6 AX_CLK AX_WE AX_WR AX_RR AX_RE AX_FO4 AX_FO5 AX_FI5 AX_FO6 AX_FI2 AX_FI1 AX_FI0 AX_FO2 AX_FO1 AX_FO0 AP_OSDCNT AX_FO3 AX_FI4 AX_FI3 GC_VP GC_HP AP_BOW AP_BDV AP_RDV AP_BLK AP_HCLP GCF BCF GCF RCF V_MUTE V_MUTE RCF BCF AP_OSDCNT AP_RDV AP_HCLP AP_BDV M_OSD_R M_OSD_G M_OSD_B M_YM M_YS 2.5V 3.3V 3.3V 3.3V C4542 4V 100 C4549 10V 33/10V C4560 4V 100 C4564 4V 100 C4588 4V 100 C4642 4V 100 C4653 4V 100 C4687 16V 10 L4510 J0JGC0000021 L4511 J0JCC0000241 L4513 J0JCC0000241 L4512 J0JCC0000241 L4515 J0JGC0000021 L4516 J0JCC0000241 L4514 J0JCC0000241 L4517 J0JCC0000241 IC4501 MB87J8641PFF-G-BND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 D4502 MA3X70400L D4504 MA3X152K0L IC4504 MS81V05200-13TA 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 IC4503 PQ1X331M2ZP 1 2 3 5 4 IC4506 PST9128NR 1 2 3 5 4 IC4507 PQ1X331M2ZP 1 2 3 5 4 IC4509 PQ1X251M2ZP 1 2 3 5 4 IC4511 PQ1X331M2ZP 1 2 3 5 4 IC4510 TC74HC221AF(ELNEW) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 IC4505 PQ07VZ012ZP 1 2 3 4 5 6 X4501 LN-M8-349 C4619 1 C4608 1 C4604 1 C4655 16V 0.022 C4632 1[ZF] C4652 15p C4651 15p C4644 1 C4647 1000p C4543 1 C4545 1 C4544 1 C4540 0.1 C4539 16V 1 C4541 0.01 C4534 16V 1 C4548 1 C4547 1 C4546 1 C4550 16V 0.1 C4551 6.3V 6.8 C4552 16V 1 C4553 1 C4554 1 C4555 1 C4558 1 C4557 1 C4556 1 C4559 16V 0.1 C4561 16V 1 C4562 0.1 C4563 16V 1 C4585 0.1 C4584 0.1 C4566 0.1 C4565 0.1 C4572 0.1 C4573 0.1 C4576 0.1 C4568 0.1 C4567 0.1 C4575 0.1 C4574 0.1 C4579 0.1 C4578 0.1 C4577 0.1 C4569 0.1 C4570 0.1 C4571 0.1 C4582 0.1 C4581 0.1 C4593 0.1 C4592 0.1 C4597 0.1 C4596 0.1 C4586 0.1 C4587 16V 1 C4583 16V 1 C4580 6.3V 6.8 C4599 0.1 C4598 0.1 C4603 1 C4602 0.1 C4601 16V 0.1 C4600 0.1 C4618 0.1 C4609 0.1 C4607 0.1 C4615 1 C4611 16V 0.1 C4606 1[ZF] C4614 0.1 C4613 0.1 C4612 0.1 C4617 33p C4616 0.1 C4625 1 C4627 1[ZF] C4626 1 C4623 1[ZF] C4620 0.1 C4629 1[ZF] C4630 1[ZF] C4636 1[ZF] C4624 1[ZF] C4628 1[ZF] C4631 1[ZF] C4639 1[ZF] C4648 1[ZF] C4649 1[ZF] C4640 1 C4641 1[ZF] C4633 0.1 C4656 0.01 C4637 0.1 C4634 0.1 C4635 0.1 C4621 470p C4638 0.1 C4646 0.1 C4622 68p C4650 68p C4645 33p C4658 16V 0.1 C4654 16V 1 C4661 0.1 C4660 16V 1 C4666 6.3V 1 C4667 6.3V 1 C4668 6.3V 1 C4665 6.3V 1 C4663 6.3V 1 C4669 6.3V 1 C4684 0.1 C4683 16V 0.1 Q4521 2SB1218ARL R4627 2.2k R4574 10K R4573 10K R4577 100 R4576 100 R4575 100 R4590 3.3k R4596 15k R4571 12k R4622 10k R4623 10k R4547 1.5k R4553 1k R4551 0 R4550 1.37k R4552 120 R4565 0 R4563 150 R4554 33 R4559 33 R4564 150 R4561 33 R4560 33 R4556 33 R4562 150 R4555 33 R4558 56 R4557 56 R4566 0 R4581 180 R4578 0 R4579 0 R4583 56 R4586 1.8k R4582 180 R4618 10 R4609 1.1k R4611 1.4k R4591 2.7K R4597 200 R4598 75[F] R4616 10 R4617 10 R4606 1.4k R4607 1.1k R4592 2.7K R4599 75[F] R4600 75[F] R4601 470 R4614 1.4k R4612 1K[F] R4593 2.7K R4628 2.2k R4605 470 R4615 1.4k R4613 1K[F] R4594 2.7K R4595 0 R4602 0 R4620 100 R4587 470 R4589 470 R4603 470 R4610 470 R4641 470 R4646 2200 R4651 33k R4647 33k R4648 33k R4650 33k R4645 33k R4642 33k R4604 22 L4509 10 R4580 150 C4589 6.3V 6.8 C4591 0.1 IC4522 PQ1X251M2ZP 1 2 3 5 4 C4590 16V 1 R4567 0 C4657 4V 56 L4508 J0JGC0000021 C4533 16V 47 R4584 10K IC4512 AN15935A-VF 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 1% R4643 10k 1% R4644 10k 1% R4636 10k R4652 10K 1% R4640 10k 1% R4639 10k 1% R4638 10k R4637 100 R4673 0 C4674 0.1 C4675 0.1 C4676 0.1 C4677 0.1 R4669 0 R4670 150 C4594 16V 1 R4549 0 R4548 0 Vin Vo Nr ON/OFF GND 5M_FIFO_MEMORY RST VDD PQ07VZ012ZP OUT SW IN AD 2.5V Vin Vo Nr ON/OFF GND VCC VCC VSS VSS VSS VSS NC NC NC NC NC NC OE RE RSTR SRCK DI3 DI4 DO4 RSTW SWCK IE WE DI5 DI6 DO5 VCC VCC VCC VCC VCC VCC VCC VCC VCC VSS VSS VSS VSS VSS VSS VSS NC NC NC NC NC NC DI0 DI1 DI2 DO3 DO2 DO1 DO0 DO6 DO9 DO8 DO7 DI9 DI8 DI7 VCC VSS NC NC NC NC CS CSMODE GND Vadj VDDE_3.3 VDDI_2.5 LCDSW AVDAD12 BCLK HFR YUV6 YUV7 YUV8 YUV9 NC VSS NC VIN1 VRL1 VRH1 AVSAD11 AVDAD11 NRST AVSAD12 ADMacro NC VRL2 NC NC NC VRH2 NC NC VIN2 AVDAD31 AVSAD32 AVDAD32 AVSAD31 AVSAD21 AVDAD21 AVDAD22 AVSAD22 YCLP VCLP NC VIN3 NC VRL3 NC NC VRH3 NC MST AVDCLP AVSCLP UCLP VDDE_3.3 VSS VDDI_2.5 FO5 VDDE_3.3 VSS VDDI_2.5 XSM XTST FO7 FO8 FIN9 FIN8 FO6 FIN5 FO9 FIN6 FIN7 SCL SDA VSS VDDE_3.3 VPIN1 HPIN1 SCS VPD SMCK WE WR FCKR RR RE FO4 YIN6 YIN5 YIN1 YIN2 YIN3 YIN4 VDDE_3.3 VDDI_2.5 VSS YUV4 YUV3 YUV2 YUV1 YUV0 YIN9 YUV5 YIN7 YIN8 ver.2_for_Main_processor Global_tvsiginal_processing_CoreLSI VDDI_2.5 FOR EHT FOR DEF OSDCNT VDDE_3.3 HO2 HO1 INTLC VDAF EWO VSS FIN0 FO3 FIN3 FIN2 FIN4 FO2 FO1 FO0 FIN1 PLL 2.5V Vin Vo Nr ON/OFF GND UVIN0 UVIN1 VPIN2 HPIN2 VDDE_3.3 VDDI_2.5 VSS YIN0 CLKIN UVIN9 UVIN8 UVIN6 UVIN7 UVIN2 UVIN3 UVIN4 UVIN5 GC2M+ AVDPL3 Macro For BurstLock PLL FOR BOW(pararel) FOR HDAF FOR InnerPing LCLK2(RBL) OSD_CLK CPO3 VGS3 VDDI HPO2 VPO2 VPO3 HPO3 PSO HDO CW358 BXS3 HINP VSS HTRAP VDDE AVSDA5 COMP5 AOUT6 AOUT5 AVSDA6 VRO6 AVDDA6 UV1 UV0 VDDE_3.3 VDDI_2.5 VSS COMP6 VREF6 RO0 RO1 RO3 RO4 RO6 RO5 RO7 LCLK1 VPO1 HPO1 RO2 VSS VDDI_2.5 VDDE_3.3 AOUT3 AVSDA4 AVDDA3 AVSDA3 AOUT2 AVDDA2 VREF2 VRO2 AVSDA2 AOUT4 AVDDA4 VRO4 VREF4 COMP4 COMP3 AVDDA5 DA Macro EHT2 AVDAD YUVOE AVSAD AOUT1 AVSDA1 AVDDA1 VRO1 VREF1 VDDE_3.3 ACL EHT MP XTAL Macro AD Macro HPO4 VPO4 HCLP VDDE_3.3 FRCLK VDDI VGS1 VDDE_3.3 POUT VSS AVSPL1 AVDPL1 VDDI_2.5 AVSPL3 Macro Macro For FBP For Mid_CLK PLL PLL AVSPL2 AVDPL2 CPO1 FBPIN CPO2 HREF VGS2 VSS VSS VDDI FBPMO VDDE VDDE BXS2 1Q 1Ce TC74HC221 1Q 1CLR VCC 1Re 1A 1B NC NC TEST VSS VMYS VR AIN3 AIN4 AIN2 AIN1 BLK VDDE XIN VSS BCF GCF RCF VSAW RDV BDV XOUT 2A 2B 2Q 2CLR GND 2Ce 2Re 2Q B_OUT G_OUT R_OUT Vin Vo Nr ON/OFF GND RGB PROCESSOR YM YS OSD-Rin OSD-Gin OSD-Bin SPOTkiller 9v ROUT OUTPUT9v GOUT BOUT BrightS/H GND CONTRAST Drv-B Drv-R CLP BLK COF-B Bin COF-G Gin COF-R Rin MAIN5.0V MAIN5.0V DA 2.5V Nr Vin GND ON/OFF Vo AVR 3.3V AVR 3.3V FLIP FLOP RESET AVR 3.3V DG-BOARD TNPA3177 (4/7) 42 40 38 33 41 37 36 43 31 34 32 39 35 49 44 45 48 46 47 51 52 53 54 55 56 57 58 59 60 61 62 64 65 66 67 68 63 29 33 35 28 32 34 30 36 31 TH-42/50PX25U/P DG-Board (4 of 7) Schematic Diagram TH-42/50PX25U/P DG-Board (4 of 7) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 123 15.29. DG-Board (5 of 7) Schematic Diagram AI_FIL2 AQ_UCLP AQ_YCLP AT_HP_M-S AT_VP_M-S AQ_VCLP AQ_YCLP AQ_UCLP AT_YUV9 AT_YUV8 AT_YUV7 AT_YUV6 AT_YUV5 AT_YUV4 AT_YUV3 AT_YUV2 AT_CLK AT_Y1 AT_Y2 AT_Y3 AT_Y4 AT_Y5 AT_Y6 AT_Y7 AT_Y0 AT_Y8 AT_Y9 AT_YUV1 AT_YUV0 SCL1 SDA1 AI_FIL2 AI_FIL1 AT_HP_S-M AT_VP_S-M AT_UV0 AT_UV1 AT_UV2 AT_UV3 AT_CLK_M-S AT_UV4 AT_UV5 AT_UV6 AT_CLK_S-M AT_UV7 AT_UV8 AT_UV9 AY_DQ0 AY_DQ1 AY_DQ2 AY_DQ3 AY_DQ4 AY_DQ5 AY_DQ6 AY_DQ7 AY_BS AY_RAS AY_CAS AY_WE AY_DQ16 AY_DQ17 AY_DQ18 AY_DQ19 AY_A10 AY_A0 AY_A1 AY_A2 AY_DQ23 AY_DQ24 AY_A3 AY_A4 AY_DQ25 AY_DQ26 AY_DQ27 AY_DQ28 AY_DQ29 AY_DQ30 AY_DQ31 AY_DQ20 AY_DQ21 AY_DQ22 AY_CKE AY_DQ8 AY_DQ9 AY_DQ10 AY_DQ11 AY_DQ12 AY_DQ13 AY_DQ14 AY_DQ15 AY_A9 AY_A5 AY_A6 AY_A7 AY_A8 AT_RO0 AT_RO1 AT_RO2 AT_RO3 AT_RO4 AT_RO5 AT_RO6 AT_RO7 AT_RO8 AT_RO9 AY_DQ10 AY_DQ11 AY_DQ9 AY_DQ12 AY_DQ13 AY_DQ14 AY_DQ15 AY_DQ8 AY_DQ2 AY_DQ1 AY_DQ3 AY_DQ6 AY_DQ5 AY_DQ4 AY_DQ7 AY_DQ0 AY_A5 AY_A6 AY_A7 AY_A8 AY_A9 AY_CKE AY_CLK AY_A4 AY_A0 AY_A10 AY_BS AY_RAS AY_CAS AY_WE AY_A1 AY_DQ26 AY_DQ27 AY_DQ31 AY_DQ24 AY_DQ25 AY_DQ28 AY_DQ29 AY_DQ30 AY_A3 AY_DQ21 AY_DQ20 AY_DQ16 AY_DQ23 AY_DQ22 AY_DQ19 AY_DQ17 AY_DQ18 AY_A2 AY_CLK GC_R GC_B GC_G SUB_PR SUB_PB SUB_Y AQ_VCLP MAIN2.5V C4682 10V 33/10V C4701 16V 47 C4704 10V 33/10V C4703 10V 33/10V C4715 4V 220 C4712 4V 220 C4709 4V 100 C4749 4V 100 C4787 4V 100 C4785 4V 100 L4524 J0JGC0000021 L4528 J0JGC0000021 L4526 J0JCC0000241 L4527 J0JCC0000241 L4529 J0JGC0000021 L4531 J0JCC0000241 L4530 J0JCC0000241 L4532 J0JGC0000021 IC4502 MB87J8651PFF-G-BND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 IC4514 C0CBCBD00006 1 2 3 5 4 IC4516 C0CBCAD00006 1 2 3 5 4 IC4517 C0CBCBD00006 1 2 3 5 4 R4733 EXB38V820JV R4734 EXB38V820JV R4731 EXB38V820JV R4732 EXB38V820JV R4730 EXB38V820JV R4729 EXB38V820JV R4728 EXB38V820JV R4727 EXB38V820JV IC4513 PQ07VZ012ZP 1 2 3 4 5 6 Q4524 2SD1819A-TX Q4528 2SD1819A-TX Q4530 2SD10300TL Q4522 2SD1819A-TX Q4533 2SD10300TL Q4532 2SD10300TL C4770 1 C4756 1 C4710 1 C4673 33p C4680 5P[CC] C4692 27p C4691 100p C4693 6.3V 1 C4694 6.3V 1 C4670 1[ZF] C4672 47p C4686 120p C4679 22p C4678 22p C4685 120p C4671 47p C4737 0.1[KB] C4695 6.3V 1 C4696 6.3V 1 C4700 1 C4697 6.3V 6.8 C4707 0.1 C4706 16V 1 C4702 16V 1 C4705 0.1 C4714 1[ZF] C4730 1[ZF] C4717 1[ZF] C4731 0.1 C4729 1[ZF] C4711 1[ZF] C4718 0.1 C4724 0.1 C4719 0.1 C4720 0.1 C4708 10V 1[ZF] C4721 0.1 C4723 0.1 C4722 0.1 C4726 0.1 C4732 0.1 C4727 0.1 C4725 0.1 C4733 0.1 C4728 0.1 C4735 33p C4734 68p C4740 0.1 C4736 0.1 C4738 0.1 C4741 0.1 C4739 0.1 C4747 16V 1 C4743 1 C4748 0.1 C4746 0.1 C4745 0.1 C4751 0.1 C4750 0.1 C4744 0.1 C4742 0.1 C4753 0.1 C4752 0.1 C4755 0.1 C4754 0.1 C4764 50V 470p C4761 1[ZF] C4757 50V 0.01[KB] C4765 0.1 C4759 0.1 C4758 0.1 C4766 0.1 C4767 0.1 C4768 0.1 C4769 0.1 C4762 0.1 C4763 0.1 C4788 16V 1 C4776 16V 1 C4789 1 C4777 1 C4778 1 C4779 1 C4771 0.1 C4786 0.1 C4790 1 C4780 1 C4773 0.1 C4772 0.1 C4791 1 C4792 1 C4782 1 C4783 1 C4784 1 C4781 1 C4774 0.1 C4775 0.1 Q4525 2SB1218A-RTX Q4529 2SB1218A-RTX Q4527 2SB1218A-RTX Q4526 2SB1218A-RTX Q4531 2SB1218A-RTX R4655 220 R4660 0 R4661 680 R4664 240 R4775 22k R4672 22k R4679 220 R4680 750 R4681 2.2k R4682 0 R4683 33 R4686 470 R4658 0 R4659 680 R4663 220 R4678 2.2k R4668 330 R4675 2.4k R4656 0 R4657 680 R4662 220 R4667 330 R4674 2.4k R4677 2.2k R4689 0 R4692 33 R4685 33 R4690 10K R4694 470 R4688 33 R4693 330 R4687 0 R4695 1.5k R4704 470 R4700 330 R4705 2.7K R4701 1.4k R4702 1K[F] R4706 33 R4707 33 R4708 33 R4697 0 R4696 1.5k R4709 33 R4703 33 R4710 33 R4698 0 R4699 120 R4715 470 R4712 150 R4713 150 R4714 150 R4723 56 R4722 56 R4717 0 R4718 0 R4719 0 R4720 0 R4716 56 R4725 330 R4724 180 R4726 0 L4522 4.7 LC4523 0 L4521 5.6 L4520 5.6 L4525 10 IC4518 K4S643232F-TC60 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 C4659 4V 56 C4760 1[ZF] Q4556 2SD1819A-TX R4788 2200 C4821 4R7 R4779 1K C4819 16V 0.1 C4820 16V 47 R4780 1800 R4776 120 Q4553 2SB1218A-RTX R4777 120 Q4554 2SB1218A-RTX R4782 1800 R4781 1K Q4557 2SD1819A-TX R4789 2200 C4823 4R7 Q4558 2SD1819A-TX R4783 1K R4784 1800 Q4555 2SB1218A-RTX R4778 120 R4790 2200 C4825 4R7 R4654 220 Q4523 2SD1819A-TX R4653 220 R4568 0 R4711 470 L:fc 7MHz H:fc 14MHz FIL2 Vin Vo Nr ON/OFF GND OUT SW IN Vadj GND for FRONT PLL_A AVSDA1 AOUT1 AVDDA1 AVDCLP VREF1 VRO1 NC NC AVDPL3 AVSPL3 VDDI_2.5 BS2UVIN8 VSS VDDE_3.3 BS2UVIN6 BS2UVIN7 BS2UVIN5 BS2UVIN9 BS2CLKIN BS2HPIN BS2VPIN BXS1 VDDE_3.3 VSS CW358 VGS3 CPO3 YCLP VCLP NC AVSAD1 VRH1 VRH2 VRL1 VIN1 NC NC NC NC NC NC AVDAD1 Macro AVSCLP UCLP NC VRL2 VSS NC AVDAD3 NC VIN3 AVSAD3 VRL3 VIN2 NC VRH3 VDDI_2.5 VDDE_3.3 TEST NC AVSAD2 AVDAD2 AD VDDI_2.5 VSS VDDE_3.3 XTST XSM BSUVIN7 BSUVIN6 BSUVIN5 BSUVIN4 BSUVIN3 BSUVIN2 BSYIN7 BSCLKIN BSVPIN BSHPIN VSS VDDI_2.5 VDDE_3.3 BSUVIN1 BSUVIN0 BSYIN6 BSYIN5 BSYIN4 BSYIN3 BSYIN2 BSYIN1 BSYIN0 YIN1 IOCTRL SADR SMCK MST Vin Vo Nr ON/OFF GND VDDI_2.5 BS2UVIN0 VSS VDDE_3.3 BS2YIN8 BS2YIN7 BS2YIN6 BS2YIN2 BS2YIN1 BS2YIN3 BS2YIN4 BS2YIN5 BS2YIN9 BS2UVIN1 BS2UVIN4 BS2UVIN2 BS2UVIN3 GC2S+ YOUT9 VSS VDDI_2.5 VDDI_2.5 VDDE_3.3 YOUT8 YOUT7 YOUT6 YOUT5 YOUT4 YOUT3 YOUT2 YOUT1 YOUT0 VSS VDDE_3.3 YIN0 For FC READ PLL_C VDDI_2.5 TP0 TP2 TP3 TP1 PLLNRST SCL SDA VSS TP5 TP4 TP6 VDDE_3.3 Macro BS2YIN0 EXVPO EXHPO EXCLKOUT VPO VSS VDDI_2.5 VDDE_3.3 UVOUT6 UVOUT5 UVOUT4 UVOUT3 UVOUT2 UVOUT1 UVOUT0 HPO CLKIN UVOUT9 CLKOUT UVOUT7 UVOUT8 PLL_B NC CPO2 AVSPL2 AVDPL2 VGS2 DQ0 VSS DQ7 DQ6 DQ5 DQ4 DQ3 DQ2 DQ1 Macro VDDI_2.5 NRST VPD VSS FRCLKIN VDDE_3.3 For SDRAM VDDI_2.5 VSS VDDE_3.3 RAS CAS SDWE DQ19 VDDI_2.5 VDDE_3.3 VSS DQ18 DQ17 DQ16 A2 A1 A0 A10 BS VDDI_2.5 VDDE_3.3 VGS1 CPO1 AVDPL1 AVSPL1 DQ24 DQ23 DQ31 A3 VDDI_2.5 VDDE_3.3 VSS A5 A4 DQ29 DQ28 DQ27 DQ26 DQ25 DQ30 DQ20 DQ21 DQ22 DQ15 VDDI_2.5 VDDE_3.3 VSS YUVIN5 YUVIN4 YUVIN3 YUVIN2 YUVIN1 YUVIN0 DQ14 DQ13 DQ12 DQ11 DQ10 DQ9 DQ8 SDCLK CKE A8 A7 A6 A9 YUVIN7 YUVIN9 VDDE_3.3 VDDI_2.5 VSS YUVIN8 YUVIN6 VPIN HPIN Vin Vo Nr ON/OFF GND 64Mbit SDRAM VDD NC NC NC DQ7 NC NC VSSQ DQ6 DQ5 VDDQ DQ4 DQ3 VSSQ DQ2 DQ1 VDDQ DQ0 VDD /CS /RAS /CAS /WE VSSQ DQ16 DQS2 DM2 A2 A1 A0 A10/AC BA1 BA0 DM0 VDD VDD DQ23 VDDQ DQ22 DQ21 DQ17 DQ18 VDDQ DQ19 DQ20 VSSQ VSSQ DQ10 DQ9 VDDQ DQ8 DQ11 DQ12 VDDQ VSS DQ13 DQ14 VSSQ DQ15 VSS DQ30 VDDQ DQ31 DQS3 DM3 A3 A4 A5 A7 A6 A8 A9 CKE CLK DM1 VSS VSS DQ24 VSSQ DQ25 DQ26 VDDQ DQ27 DQ28 VSSQ DQ29 MAIN5.0V AVR 3.3V AVR 3.3V AVR 2.5V AVR 2.5V DG-BOARD TNPA3177 (5/7) 67 65 68 66 64 54 58 53 63 60 62 56 55 52 51 59 61 57 71 72 73 74 71 75 76 77 78 41 38 45 42 40 43 39 37 44 TH-42/50PX25U/P DG-Board (5 of 7) Schematic Diagram TH-42/50PX25U/P DG-Board (5 of 7) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 124 15.30. DG-Board (6 of 7) Schematic Diagram L.F L.F L.F TOP NP NP NP PC_G1 PC_R1 SDA2 PC_HD55 PC_VD55 PC_VD55 PC_HD PC_VD GC_B TXD_TU0 VD_S HD_S HD_S VD_S1 LPF_G LPF_B LPF_B1 HD_S1 LEDCTRL_SOS FAN_CONT REMOTE RXD_TU0 POWER_STATUS PC_B PC_B1 GC_R SCL2 FANONOFF FAN_CONT FANMAX/MIN FANMAX/MIN FANSOS SW_CLP SW_VP SW_VP LPF_G LPF_G LPF_B LPF_B GC_G SWB PC_B1 SW_HP SW_VP VD_S SWGC-PC LPF_R LPF_G LPF_B LPF_R PC_G PC_R1 PC_G1 PC_R SWR VFC VFC G_OUT4 G_OUT4 SWG LPF_R LPF_R HD_S HD_S SW_HP SW_HP JS6 JS7 JS8 JS50 JS57 JS49 JS56 JS51 JS52 JS53 JS58 JS62 JS64 JS66 JS59 JS60 JS55 JS68 JS70 R8210 1.5k C8201 16V 47 R8212 1.5k C8203 0.01 R8211 1.5k R8001 75 D8002 MAZ31100ML Q8011 2SD1819A-TX R8058 4.7k C8018 10[KB] C8017 10[KB] Q8012 2SB1218A-TX_M D8001 MAZ31100ML R8062 3.3 Q8014 2SB1218A-TX_M R8061 3.3 R8059 3.3 Q8013 2SD1819A-TX R8056 4.7k R8002 75 D8005 MA3X15300L R8057 4.7k D8003 MAZ31100ML D8004 MA3X15300L R8060 3.3 R8003 75 R8055 4.7k C8025 16V 47 R8075 22 R8073 22 IC8031 CXA1315M-T4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 C8026 0.01 C8220 16V 47 L8203 EXCCL3225U1 C8218 16V 0.1 L8204 EXCCL3225U1 R8222 0 L8201 EXCCL3225U1 R8224 820 R8067 0 R8066 0 R8065 10K SW9V LC8001 10U C8023 0.01 C8024 470p R8078 0 R8079 0 JS8205 R8071 0 R8070 0 R8074 10K R8077 10K JS8100 JS8102 JS8101 JS8105 JS8103 JS8104 LC8201 J0HAAB000012 1 2 3 4 LC8200 J0HAAB000012 1 2 3 4 LC8206 J0HAAB000012 1 2 3 4 T8201 J0MAB0000081 1 4 3 2 T8202 J0MAB0000081 1 4 3 2 T8203 J0MAB0000081 1 4 3 2 DG3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R8223 220 R8234 330 R8231 100 R8108 100 R8232 100 R8236 220 R8251 220 R8250 10K C8010 0.01 R8254 1M IC8200 M52055FP-70BD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 R8214 220 R8213 220 R8215 220 L8200 EXCCL3225U1 R8239 0 R8240 0 C8221 10V 470 R8228 75 C8222 10V 470 C8223 10V 470 R8230 75 R8229 75 C8006 25V 22 R8006 22 R8005 22 C8004 25V 22 R8004 22 C8002 25V 22 IC8201 C1AB00001720 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 C8214 16V 0.1 C8219 16V 0.1 R8227 0 C8215 10 L8202 EXCCL3225U1 C8217 16V 0.1 C8216 16V 4R7 C8209 16V 0.1 C8208 16V 0.1 C8210 10 C8212 10 C8207 16V 0.1 R8217 0 R8255 1M R8253 1M C8206 16V 0.1 R8216 0 C8211 16V 0.1 R8218 4700 C8213 16V 0.1 C8011 16V 47/16V OUT2 GND3 GND1 SW OUT3 TV,VIDEO SW2 IN3B SW3 PC VCC OUT1 GND2 IN3A IN1B IN2A IN2B SW1 IN1A SW1 VCC DAC2 SCL SW2 GND DAC3 SAD0 SW3 DAC0 DAC4 SAD1 SW0 DAC1 SDA SAD2 RFC VCC2 ROUT/YOUT DISABLE BINA/VINA NC VFC GND1 VCC4 RINB/YINB GND3 GSB1 GSG1 MUXSEL GOUT/UOUT VCC1 RINA/YINA BOUT/VOUT BINB/VINB GINB/UINB SYNCIN GND2 GND4 GINA/UINA VCC3 NC NC GSR1 PC_VD PC_HD EX.I/O 1 0 X2 PC ------------- SW3 sw2 0 0 X0 GC RGB-GC/PC SELECT RGB-LPF LEDCTRL_SOS RXD_PC GND GND GND CABLE DET POWER STATUS FAN_CONT RESET TXD_PC STB_ON RXD_TU REMOCON_OUT GND TXD_TU GND NC NCLP VD_S HD_S R B G LEDCTRL_SOS NC RGB_ENB (D3) D-BOARD TO DG-BOARD TNPA3177 (6/7) 71 73 74 72 76 75 71 77 78 81 82 83 84 85 86 87 88 89 90 54 50 52 51 47 46 48 49 53 0 0 0 0 0 4.8 5.0 2.4 0 4.9 0 4.9 0 4.8 0 5.0 0 4.0 4.4 0 3.9 0 4.8 0 2.0 6.7 0 0 0 0 TH-42/50PX25U/P DG-Board (6 of 7) Schematic Diagram TH-42/50PX25U/P DG-Board (6 of 7) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 125 15.31. DG-Board (7 of 7) Schematic Diagram NP AC_SDA3 AD_SW_SCL3 G_SIG AC_SCL3 R_SIG G_SIG R_SIG AC_SDA3 AD_SW_SDA3 AD_SW_SDA3 AD_SW_SCL3 B_SIG B_SIG AC_SCL3 AC_SDA3 AC_SCL3 AC_SDA3 PC_VD2 AC_SCL3 AB_SCL3 AC_SCL3 AC_SDA3 GC_VP GC_HP G_OUT4 G_OUT4 VFC HD_S LPF_R LPF_G LPF_B SW_HP SW_CLP AFC2 AFC1 EXRGBMUTE AB_SDA3 SW_VP PC_HD2 12V C8032 16V 47 STB5V C8047 25V 22 IC8054 C1AA00000395 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 D8302 MA2J11100L D8304 MA2J11100L IC8009 C0JBAS000109 1 2 3 4 5 6 7 8 IC8008 C0JBAR000111 1 2 3 4 5 6 7 8 IC3699 C3EBDC000046 1 2 3 4 5 6 7 8 IC3517 C0JBAS000109 1 2 3 4 5 6 7 8 Q8015 2SD1819A-TX C3042 0.1 C8044 16V 2.2 C8045 33p C8046 16V 0.1 C8039 1000P C8034 1000p C8037 100p C8031 0.01 C8341 16V 10 C8347 16V 10 C8022 16V 0.47 C8354 0.01 C8014 16V 0.1 C8020 0.01 C8348 6.3V 4.7 C8366 0.01 C8008 470p C8336 0.01 C8051 0.1 C8050 0.01 C3010 16V 0.1 C3041 16V 0.1 C3040 0.1 DG35 1 2 3 4 5 6 7 8 JS4025 JS4024 JS104 JS110 JS8093 R8020 5.6k R3142 10k R8106 15k R8105 10k R8103 2.7k R8102 3.3k R8104 270 R8320 100 R8371 100 R8051 2.2k R8049 2.2k R8046 2.2k R8038 4700 R8040 4700 R8044 1k R8042 18K R8030 3300 R8032 2200[F] R8034 100k R8096 JW R8027 330 R8024 2.2k R8028 330 R8022 2.2k R8098 10k R8099 10k R8090 1k R8094 100 R3036 330 R3034 330 R3035 330 R3082 100 R3026 10k R3045 10k R3047 10k R3039 330 R3043 0 R3042 0 R3041 330 R3040 330 R3033 0 R3028 10k R3032 0 R3140 47k R3141 47k IC3003 C1AB00000441 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 IC3004 C1AB00000454 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 L8004 10 L3005 10 R3254 4700 R3257 1500 R8116 1.5k R8113 33 R8111 100 R8101 100 IC8076 C0JBAB000417 1 2 3 4 5 6 7 8 9 10 11 12 13 14 R8117 1.5k R8115 1.5k R8109 100 C8048 16V 1 R8112 33 R8114 100 R8110 100 IC8030 MC14066BF 1 2 3 4 5 6 7 8 9 10 11 12 13 14 DG30 1 2 3 4 5 6 7 8 9 10 C8303 6.3V 4.7 C8304 6.3V 4.7 C8302 6.3V 4.7 R8301 10K R8302 10K R8303 10K C8301 16V 10 R8405 1K R8306 1K R8307 1K R8308 1K R8309 22K R8411 22K R8311 22K R8312 22K R8313 22K R8314 22K C8055 100P[JC] LC8003 10U C3011 16V 0.1 IC8071 C0JBAR000241 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 R462 10k R8015 0 R8008 0 R8505 0 R8014 0 L8002 10 C8334 0.1 C8332 16V 47 R8410 100 H.STATE V.STATE G_SEP_FIL G_IN GND COMP/H_IN COMP/H_DEP VERT_IN VERT_DET CLP_TIM V.POL H.POL CLP_OUT VCC HD- HD+ VD+ D-GND V_S/S_IN V_S/S_ADJ HD VD VSS VDD H:ON SEL I1 VEE GND I0 VCC COM INH SDA SCL SRQ SAD0 SW3 SW2 SAD2 SAD1 SCL SDA VCC DAC0 DAC1=SYNC_INH(S) GND DAC3=FAN_CONT DAC2=LPF(S) DAC4=CS(S) SW0 SW1 SYNC SELECT Y0 Y2 VSS INH VEE Y3 Y1 Y VDD X2 B X3 A X X0 X1 SW3 SL3_DET=SW2 SAD2 SAD1 SAD0 SCL SDA VCC DAC2 DAC0 DAC1 SW1=SL2_DET SW0=SL1_DET DAC3=IICSW DAC4=IICSW GND EEPROMJ VDD VSS H:ON I3 O6 VP O2 I2 O1 GND O5 HP O4 NCLP I6 O3 I4 I1 I5 VCC GC_HD_IN GC_VD_IN HP B_OUT G_OUT R_OUT SYNC SEP TEST SW BUFFER IIC SW Green input / conposite sync G-IN select G-IN SELECT DG-BOARD TNPA3177 (7/7) 83 84 85 82 81 88 86 89 90 87 59 61 57 60 55 58 62 56 63 CARD DATA EEPROM DAC(SLOT DET) DAC(EXPAND I/O) 2CH MULTIPLEXER 4.8 4.8 0 4.2 4.3 0 0 0 1.0 0 4.5 0 0 0 4.5 0 0 1.7 TH-42/50PX25U/P DG-Board (7 of 7) Schematic Diagram TH-42/50PX25U/P DG-Board (7 of 7) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 126 15.32. DV-Board Block Diagram SCL1 SDA1 SDA0 SCL0 SDA1 SCL1 15 6 1 6 2 R5122 10 96 Q5002 5 97 7 86 R5129 3 2 JK5001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 32 6 7 31 14 4 Q5018 6 30 Q5011 R5138 Q5014 R5132 2 R5127 12 84 83 26 87 Q5013 11 Q5016 5 1 15 92 7 1 3 Q5019 R5177 R5125 5 91 R5128 R5144 89 11 40 67 64 23 47 56 100 21 14 95 80 82 1 6 17 93 71 6 3 1 2 13 12 R5143 Q5017 8 5 1 3 6 2 8 14 77 76 75 74 Q5003 72 4 16 H N.C. CLK+ 3 H - 18 5 AMP WP LATCH Q5004,5008 7 8 AMP AND 9 Q5005,5009 + 6 AMP SDA0 + Q5006,5007 IC5011 - AMP IC5008 + AMP LATCH - Q5015 SYNCHRONIZATION + Q5012 DV7 LATCH EX.I/O Hi=> MUTE R OUT - TMDS SEL AUDIO 16 + S_CLOCK1 22 DECODER A DAC PD 23 14 HPD AUDIO DAC - DATA RECOVERY SCL0 PLL PANEL D0+ IC5001 IC5006 D1G DVI Y L DDC EEPROM INTERFACE IC5003 MCLK SCL DVI PB SCL1 BICK HPDT SDTI SDA LRCK 27 AOUT L WP AOUT R DDCG DVI/HDMI SELECT 28 SMUTE/CSN SCL PDN CLKG DVI PR D1- SDA1 D0G D2G D0- D1+ +5V DVI I/F RECEIVER + DDC DATA AUDIO MUTE - CLK- S_DATA1 26 16 AUDIO MUTE CEC L OUT 1 3 2 AUDIO AMP L IC5007 D2- D2+ VCC PVCC OVCC DACVCCG VCC DACVCCR OVCC OVCC DACVCC AVCC AVCC OVCC AVCC DACVCCB PLLVCC VCC VCC AVCC 25 INT IC5010 AVR 3.3V +3.3V SAD2 SAD1 13 VCC 32 34 VCC L IN R IN RESET IC5005 SUB5V SUB5V 8 9 AVR 5V IC5009 VCC VDD +5V TO VCC HDMI Interface Board Q5001 3.3V SDA 3.3V SCL DSDA DSCL CSDA CSCL SDA0 SCL0 VCC H7 SUB9V SUB9V 11 12 ON/OFF IN OUT OUT OUT ON/OFF IN OUT OUT MUTE FOR CABLE IN/OUT TH-42/50PX25U/P DV-Board Block Diagram TH-42/50PX25U/P DV-Board Block Diagram DV TH-42PX25U-P / TH-50PX25U-P 127 15.33. DV-Board (1 of 3) Schematic Diagram Thermal Pad + + + + + + + + + + 5V 3.3V 3.3V 5V 3.3V 3.3V 3.3V C5034 16V 0.1u C5035 50V 0.01u R5189 3.9 IC5003 1 DACVCC 2 DACGND 3 NC 4 NC 5 DACGNDR 6 DACVCCR 7 AnRPr 8 COMP 9 RSET 10 DACGNDG 11 DACVCCG 12 AnGY 13 DACGNDB 14 DACVCCB 15 AnBPb 16 GND 17 VCC 18 RSVDL 19 RSVDO 20 RSVDO 21 OVCC 22 PGND2 23 PVCC2 24 PLLIN 25 NC 26 MCLKOUT 27 MCLKIN 28 OGND 29 SPDIF 30 SD0 31 WS 32 SCK 33 HSYNC 34 VSYNC 35 DE 36 Q23 37 Q22 38 Q21 39 Q20 40 VCC 41 GND 42 Q19 43 Q18 44 Q17 45 OGND 46 ODCK 47 OVCC 48 Q16 49 Q15 50 Q14 51 Q13 52 Q12 53 Q11 54 Q10 55 Q9 56 OVCC 57 OGND 58 Q8 59 Q7 60 Q6 61 Q5 62 Q4 63 Q3 64 VCC 65 GND 66 OGND 67 OVCC 68 Q2 69 Q1 70 Q0 71 INT 72 RESET# 73 RSVDL 74 CSCL 75 CSDA 76 DSDA 77 DSCL 78 OGND 79 PGND1 80 PVCC1 81 EXT_RES 82 AVCC 83 RXC- 84 RXC+ 85 AGND 86 RX0- 87 RX0+ 88 AGND 89 AVCC 90 AGND 91 RX1- 92 RX1+ 93 AVCC 94 AGND 95 AVCC 96 RX2- 97 RX2+ 98 AGND 99 GND 100 VCC DV3 1 2 3 D5007 MA3X152A0L C5036 16V 0.1u ZA5103 TESA169 C5020 16V0.1u C5045 6.3V 47u R5019 47 C5032 50V 0.01u JK5001 K1FA119E0001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 R5194 3.9 C5029 50V 0.01u R5017 33k Q5001 B1MBACA00004 G1 D1 S1 G2 D2 S2 ZA5105 TESA169 R5186 0 C5039 16V 0.1u IC5005 C0EBE0000066 1 GND 2 SUB 3 NC 5 Vcc 4 Out C5063 50V 0.01u C5012 6.3V 47u ZA5001 K4CD01000002 C51303.3u R5011 0 C5003 16V 1u 1% R5031 124 D5012 MAZ30560ML C5002 16V 1u R5004 1k R5191 3.9 R5038 33 R5025 22 C5040 16V 0.1u C5135 16V 1u C5005 16V 0.1u L5007 EXCCL4532U1 ZA5101 TESA169 C5131 3.3u R5040 EXB38V330JV C5018 16V 0.1u C5046 16V 0.047u C5006 16V 10u C5057 50V 100p C5054 6.3V 47u C5013 6.3V 47u L5004 EXCCL4532U1 R5032 4.7k R5023 68 C5033 16V 0.1u R5041 33 Q5002 2SD0601A0L R5176 0 L5008 EXCCL4532U1 D5011 MAZ30560ML R5187 0 C5030 16V 0.1u R5006 0 C5027 16V 0.1u R5036 33 R5010 0 R5001 0 1% R5026 390 L5001 EXCCL3225U1 R5029 4.7k R5049 1k L5002 ELJPA2R2MF TP032 C5042 6.3V 47u C5019 50V1000p C5026 16V 0.1u C5015 50V 1000p C5132 16V 1u R5008 10k R5042 33 R5190 3.9 C5048 50V 1000p C5007 16V 0.1u R5195 3.9 L5006 EXCCL4532U1 C5134 16V 0.1u C5031 6.3V 47u Q5003 2SD0601A0L D5008 MA3X152A0L C5049 16V 0.1u C5023 6.3V 47u R5043 33 R5018 10k R5030 10k C5028 50V 0.01u R5035 3.9k L5009 EXCCL4532U1 R5005 0 ZA5102 TESA169 C5037 6.3V 47u C5017 16V 0.1u R5039 EXB38V220JV ZA5003 K4CD01000002 ZA5002 K4CD01000002 C5014 16V 0.1u D5004 B0KB00000023 1 6 4 5 2 3 C5050 3.3u R5015 4.7k R5142 0 D5003 B0KB00000023 1 6 4 5 2 3 R5192 3.9 R5016 56 R5196 10k IC5001 C3EBDC000061 1 A0 2 A1 3 A2 4 VSS 5 SDA 6 SCL 7 WP 8 VCC R5021 10k R5013 47k D5013 MAZ30360HL C5044 16V 0.1u D5005 B0KB00000023 1 6 4 5 2 3 TP034 R5188 3.9 C5038 50V 0.01u D5001 B0KB00000023 1 6 4 5 2 3 R5020 2.7k C5056 16V 0.1u L5005 EXCCL4532U1 R5048 220 TP033 ZA5104 TESA169 R5007 0 C5133 16V 1u R5022 15k C5041 50V 1000p C5047 50V 1000p C5025 50V 1000p C5001 16V 10u R5024 22 C5022 16V 0.1u L5003 EXCCL4532U1 C5021 50V 0.01u R5009 0 C5004 16V 1u C5051 50V 0.01u R5193 3.9 C5024 16V 1u R5014 4.7k C5016 50V0.01u CLK+ D0G D1- D1+ D2G D0- D0+ D1G D2- D2+ N.C. +5V DDC DATA CLK- CEC HPDT DDCG SCL CLKG GND SCL SDA EEPROM DDC Level-Shifting CABLE IN -> Hi : Norm CABLE OUT -> Low : Mute MUTE FOR CABLE IN AND OUT Hi : MUTE FOR DDC RESET PLL1 RXC- RXC+ RX0- RX0+ RX1- RX1+ RX2- RX2+ DVI I/F RECEIVER D 2 5 E 3 A 4 7 B 1 6 8 C RESET 14 15 13 5 6 4 2 3 1 11 12 10 8 9 7 DV-BOARD TXNDV1UHSU (1/3) 0 0 0 0 4.8 4.8 3.0 5.0 3.3 3.3 3.3 4.7 3.3 4.7 3.3 3.3 3.3 3.3 0 0 3.3 3.3 3.3 3.3 3.3 0 3.3 3.3 3.3 0 3.3 3.3 3.3 0 0 0 3.3 3.3 0 0.1 0 0 0 0 0 0 3.3 3.3 3.3 0 0 0 0 3.3 0 0 3.3 3.3 0 0 3.3 0 3.3 3.3 0 0 0 0 0 3.3 0 3.3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 2.7 0 0 0 0 0 0 0 3.3 0 0 0 0 3.3 0 3.3 0 3.3 0 0 0 0 0.6 0 2.8 0 0 2.7 3.3 0 0 4.8 3.0 0 TH-42/50PX25U/P DV-Board (1 of 3) Schematic Diagram TH-42/50PX25U/P DV-Board (1 of 3) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 128 15.34. DV-Board (2 of 3) Schematic Diagram + + + + + + NP NP 9V 5V 9V 5V 9V 5V TP018 TP05 Q5019 2SD0601A0L TP022 R5147 470 IC5008 C1AB00000735 1 IN1B 2 SW1 3 OUT1 4 GND2 5 OUT2 6 OUT3 7 SW3 8 IN3A 9 IN3B 10 GND3 11 IN2A 12 SW2 13 VCC 14 IN2B 15 GND1 16 IN1A Q5012 2SD0601A0L C5091 16V 47u C5088 16V 4.7u C5100 50V 33p R5139 1k R5064 75 R5074 270 Q5018 2SD0601A0L TP015 Q5011 2SD0601A0L R5085 560 R5123 47k R5073 560 R5075 22 Q5013 2SD0601A0L C5104 16V 4.7u C5083 16V 0.1u R5140 1k R5063 75 C5082 16V 4.7u L5050 J0MAB0000081 1 2 3 4 D5015 MAZ31100ML L5026 J0HABB000004 1 2 3 4 R5086 560 R5105 330 R5120 1.2k C5102 50V 0.01u L5024 J0HABB000004 1 2 3 4 R5087 560 TP026 R5078 22 L5033 ELJPA2R2MF C5095 16V 22u L5032 ELJPA2R2MF R5084 220 R5070 270 C5098 50V 0.01u R5092 0 L5034 EXCCL3225U1 C5089 16V 0.1u C5074 16V 1u R5091 33 R5141 10k R5083 220 C5093 50V 0.01u L5025 J0HABB000004 1 2 3 4 L5029 J0HABB000004 1 2 3 4 TP027 L5051 J0MAB0000081 1 2 3 4 IC5006 C0FBBK000038 1 MCLK 2 BICK 3 SDTI 4 LRCK 5 PDN 6 SMUTE/CSN 7 ACKS/CCLK 8 DIF0/CDTI 9 P/S 10 AOUTR 11 AOUTL 12 VCOM 13 VSS 14 VDD 15 DZFR 16 DZFL R5144 330 R5117 1k R5088 0 C5103 16V 47u JS016 R5110 22k JS019 L5022 J0HABB000004 1 2 3 4 TP016 Q5006 2SB0709A0L JS018 C5086 16V 4.7u R5173 0 Q5008 2SB0709A0L TP017 TP020 R5102 10k C5078 16V 0.1u R5111 22k R5124 0 R5093 0 C5101 50V 33p R5054 0 R5133 1k L5027 J0HABB000004 1 2 3 4 L5037 ELJPA1R0MF R5114 39k DV7 K1KA40B00062 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 Q5017 2SD0601A0L R5126 330 R5137 68 R5119 1.2k C5096 50V 180p IC5007 BA15218FDXE2 1 2 3 4 5 6 7 8 C5085 16V 4.7u R5122 10k R5109 33k R5097 180k Q5007 2SB0709A0L C5090 16V 0.1u TP014 Q5016 2SD0601A0L TP031 R5094 0 R5130 330 C5077 16V 0.1u R5136 68 C5109 50V 2700p C5092 16V 47u C5084 16V 10u R5107 33k R5067 220 R5090 0 R5135 1k R5068 220 C5075 16V 0.1u L5028 J0HABB000004 1 2 3 4 R5103 10k C5099 50V 180p R5138 10k C5076 6.3V 47u R5104 330 R5132 10k C5097 50V 0.01u R5115 39k TP021 R5113 22k R5127 0 R5143 330 TP029 TP019 R5062 75 JS017 R5121 1.2k L5052 J0MAB0000081 1 2 3 4 C5087 16V 4.7u TP030 R5072 270 R5172 0 TP06 TP023 C5094 50V 0.01u R5071 560 R5177 22k R5129 10k L5030 J0HABB000004 1 2 3 4 R5098 180k C5106 10u TP025 C5108 50V 2700p R5146 47k C5107 10u R5069 560 Q5014 2SB0709A0L R5128 10k R5125 47k R5148 470 TP024 R5112 22k R5118 100 R5077 22 Q5009 2SB0709A0L C5105 16V 4.7u JS015 L5031 EXCCL3225U1 Q5015 2SD0601A0L Q5005 2SB0709A0L R5145 47k C5081 16V 4.7u R5089 0 Q5004 2SB0709A0L R5053 0 R5055 0 R5066 220 R5082 220 D5014 MAZ31100ML R5116 100 SCL0 SDA0 SCL1 SDA1 SUB 9V SUB 9V SUB 5V SUB 5V GND GND GND GND Y_GND Pb_GND Pr_GND GND GND GND GND GND GND GND (ONLY HDMI) (ONLY HDMI) CEC PR_OUT PB_OUT Y_OUT AUDIO MUTE INT# L_OUT R_OUT L R - + + - L R fcut off=220MHz AUDIO DAC L R DVI/HDMISELECT L H A B Y BA15218FDXE2 GND GND L_IN R_IN GND GND GND GND GND GND 12 13 14 10 11 8 15 9 AUDIO AMP 3 1 11 12 10 8 9 7 15 13 14 5 6 4 2 22 21 25 30 31 29 32 27 28 26 24 23 DV-BOARD TXNDV1UHSU (2/3) H-BOARD (H7) TO 1.4 3.3 0 0 1.4 0 0 4.8 0 0 0 4.9 2.5 0 9.0 0 4.9 0 0 2.5 9.0 3.3 0 3.3 0 0 0 1.4 0 4.8 0 0 0 0 0 0 0 0 0 0 0.7 0 0 0.1 0 0.7 0.7 1.4 0 0.7 1.4 0 0.7 0 0.1 0 0.7 0.1 3.2 0 5.0 0 5.0 0 0 0.1 0 0 0 3.8 5.0 5.0 0.1 3.8 4.5 0 4.5 4.5 4.5 4.5 8.9 4.5 4.6 0.1 0 4.6 4.6 4.6 0 8.9 4.6 3.1 0.1 3.1 3.1 4.6 0.1 0 0.3 1.4 0 0.6 0 0 0.1 0.1 4.2 0 0 0.6 0 0 0.6 0 0.8 0 0.8 0 0 3.1 9.0 2.5 3.1 9.0 2.5 TH-42/50PX25U/P DV-Board (2 of 3) Schematic Diagram TH-42/50PX25U/P DV-Board (2 of 3) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 129 15.35. DV-Board (3 of 3) Schematic Diagram + + + + + + + 3.3V 9V 9V R5163 2.43k C5126 10V 33u R5159 1k L5039 EXCCL4532U1 C5119 16V 0.1 C5124 16V 47u JS021 C5123 16V 1u C5122 16V 0.1u IC5011 C1AB00000441 1 SW1 2 SW0 3 DAC4 4 DAC3 5 DAC2 6 DAC1 7 DAC0 8 GND 9 SW2 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 Vcc C5117 10V 33u R5169 0 C5114 16V 0.1u C5129 16V 4.7u L5042 EXCCL3225U1 C5118 50V 0.01u R5158 39k L5041 EXCCL4532U1 R5162 3k R5165 56 R5166 56 R5161 1.5k C5128 16V 0.1 R5157 39k L5038 EXCCL3225U1 R5153 68 C5111 6.3V 47u C5121 16V 1u JS020 C5113 16V 1u TP02 C5120 16V 4.7u C5116 16V 47u C5127 50V 0.01u R5151 68 R5154 68 R5155 68 L5040 EXCCL3225U1 IC5009 C0DBEZG00004 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT R5156 68 C5110 10V 33u C5115 16V 0.1u IC5010 C0DBEZG00004 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT C5125 16V 47u TP01 C5112 16V 1u 23 19 20 22 17 18 21 16 AVR 3.3V AVR 5V EX.I/O 21 22 24 23 31 29 32 27 28 26 25 30 DV-BOARD TXNDV1UHSU (3/3) 0.4 0.1 0 5.0 8.7 0.5 0 0.5 8.9 8.9 8.9 4.7 0 4.8 2.3 2.3 5.0 5.0 9.0 9.0 1.2 0 3.3 0 1.2 4.9 4.9 3.3 TH-42/50PX25U/P DV-Board (3 of 3) Schematic Diagram TH-42/50PX25U/P DV-Board (3 of 3) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 130 15.36. DT and JA-Board Block Diagram TH-42/50PX25U/P DT-Board Block Diagram TH-42/50PX25U/P DT-Board Block Diagram SBO0 SBO1 TMS TCK TRSTEN XFERST CHDATA0 TCK TMS TDI TDO TRSTEN DIGITAL_RF_AGC SDA_FE IF_AGC RF_AGC R_OUT L_OUT SDA_TV1 SCL_TV1 AFT SCL_TV1 SDA_TV1 R_OUT ANALOG_RF_AGC ANALOG_V SCL_FE RF_AGC IF_AGC SDA_FE SCL_FE L R R L 133M DIGITAL_V VIDEO_OUT DA_SW SDA1 SCL1 SDA1 SCL1 L_OUT SR SL SBO0 XFE_RST POD_DRX POD_CRX SER_DATA MPEG_DATA_EN MPEG_PXT_SYNC MPEG_CLK DMIX LRSK SRCK DACCK XHEGRST XS1D5RST SLRCK AD X8005 X8003 1 2 4 3 8 9 10 11 13 5 6 12 2 13 12 11 6 10 3 8 5 1 9 4 JK8006 52 59 81 35 51 46 65 60 57 1 54 32 103 46 37 43 44 82 29 30 27 83 84 28 8 110 10 101 24 88 53 58 55 AGC SCL SDA 1 4 5 7 9 8 16 13 11 17 21 18 22 26 27 +5.0V +3.3V +5.0V +3.3V 3 2 1 5 7 6 7 6 3 5 1 2 IC8000 SERIAL SW AUDIO INPUT SW(D/A) IC8044 OP AMP IC8036 AMP IC8004 + - - + 5 6 2 1 8 IN1 IN2 2 3 AGC CTL 4 7 8 OUT1 OUT2 AGC AMP(IF STR/P) IC8003 8 IC8006 3 AGC CTL 7 2 OUT1 IN1 AGC AMP(IF STR/P) 4 IN2 OUT2 8 1 5 2 6 IC8001 AGC SW Q8028 Q8003 X8100 X8101 VIDEO SW(D/A) IC8045 - + + - 28 119 50 36 38 27 55 35 120 FDC INP FDC INN FS OUTP FS OUTN FDC AGC RF AGC IF AGC GPIO0 GPIO1 FAT INN 9 FAT INP 10 AUX AGC 53 VHF OSC2 9 IF OUT 2 1 VHF OSC1 VHF IN1 13 Q8023 Q8019 Q8024 IC8022 3 VOUT B VOUT 4 6 VIN VIN B 7 IF GAIN CONTROLLED AMP IC8007 X8102 Q8025,Q8026,Q8027 AOUTR 11 10 AOUTL 1 PDN MCLK BICK 2 5 3 4 LRCK SDTI AUDIO DAC IC8034 IC8032 2 1 10 LRCK AINL SDTO 13 SCLK 9 AINR 12 PD 16Bit AUDIO A/D MCLK 11 74 P0D DRX MPEG DATA EN P0D CRX MPEG DATA7 75 63 64 112 MPEG PXT SYNC MPEG CLK 70 79 POWER RESET 52 PDET COMP IN PDET REF OUT 49 SCL 58 SDA 59 64 63 +B IF SW BTL IF 1 AGC OUT BV ST VIDEO OUT AFT SAP R L TV TUNER TNR8000 ED16 ED31 EA0 EA26 XERE XECS0 XEWE2 SDA1 SCL1 SDA0 SCL0 CPU BUS IIC BUS SBO2 SBI2 CHDATA0 TD0/SBO0 TDI/SBI0 TMS TCK TRSTEN JTAG XFERST 1 7 5 6 3 2 2 3 DT9 SBI2 SBO2 TCK TMS TDI TDO XRST TRDTEN SBO0 CS0 RE WE2 RST CE WE OE A0 A23 DQ0 DQ15 RESET 128Mbit SDRAM IC8018 SCL0 SDA1 SCL1 SDA0 ED16 ED31 EA26 EA0 SDA1 SCL1 TD0 TRSTEN TD1 TMS TCK SCL0 FA1 SDA0 SBI0 SBO0 SDA0 2 4 SCL0 FA1 5 DT8 2 SBI0 3 DT2 SBO0 DT3 - + 2 1 3 PEAK/POWER COMPARATOR IC8049 DQB0 DQB7 DQA7 DQA0 RQ7 RQ0 CTMN CTM SCK,CMD,SID CTMN RQ0 CTM RQ7 SCK,CMD,SID DQB7 DQA7 DQA0 DQB0 7 2 20 18 5 CLKB SYNCLK CLK PCLKM REFCLK SYNCLK PCLKM REFCLK SDA1 SCL1 UCLK MCLK CLK75 CLK270 VC270 HDSL PEARK IC8024(1/5) HDSL PEARK IC8024(4/5) 128Mbit D-RDRAM IC8025 IC8028 RAM BUS CLOCK 133M CLKIN 74.125M IC8027 1 3PLL CLOCK 7 9 4 66.5M 1 5 8 3 Q0 XTB VC XT IC8026 IC for VCXO IC8008 +5.0V +3.3V XRST A5.0V +30V DT1 3 2 A5V ZB8000 CABLE TV +9V Q8029 SDA SCL 5 6 EEPROM IC8015 SCL1 SDA1 SDA1 SCL1 36 76 XS1D5RST XHEGRST 5 3 VO 1 VIN VO 6 AVR 5V IC8038 +5V A5V A9V 9.5V AVR 9V 6 IC8039 VO 1 VIN VO 3 +1.8V +2.5V AVR 1.2V 6 IC8043 VO 1 VIN VO AVR 1.8V 6 IC8040 +1.2V VO 1 VIN VO 3 3 +5V +5V AVR 5V 6 IC8056 VO 1 VIN VO 3 1 VIN STB5V +5V AVR 5V 6 IC8055 VO VO 3 1 VOUT AVR 3.3V 3 VIN IC8030 4 AVR 2.5V 1 6 IC8054 +3.3V 2.5VA +2.5V +5V SCL0 SDA0 XRST SUPPORT CARD SLOT XRST DATA BUS ADDRESS BUS CONTROL BUS FOR TUNER MIXED AND OSDILLATOR RF PEAK/POWER DETECTOR INV. INV. ADDRESS BUS DATA BUS 1 2 4 3 6 7 GENERATOR DTV Cable and Terrestrial Receiver DT ATSC interface TH-42PX25U-P / TH-50PX25U-P 131 TH-42/50PX25U/P DT and JA-Board Block Diagram TH-42/50PX25U/P DT and JA-Board Block Diagram DT ATSC interface DRIVE IC VCC Vin GND TDI SBIO TCK TMS TRSTEN HD_Y HD_PB HD_CR SD_Y SD_C SD_COMPOSITE TRSTEN TCK TMS TD0 SBO0 CHDATA0 133M P0D_DRX P0D_CRX MPEG_DATA_EN SER_DATA MPEG_CLK MPEG_PXT_SYNC SDA_TV SCL_TV1 AFT VIDEO_OUT SDA_TV1 L_OUT R_OUT SR DA_SW OSDV OSDH OSDB OSDG OSDR SL SCL_TV AD SLRCK DACCK SRCK DMIX LRCK XS1D5RST XHEGRST OSDYS OSDYM PLL OSDH OSDV YS YM OSDB OSDG OSDR PLL DIGITAL_V D8017 B3ZAZ0000011 1 2 3 83 88 82 89 90 TRST TDI TMS TCK TDO A0,A1 A6,A7 A23,A24 70 72 71 76 73 OSDCLKI OSDCLK0 OSDHIN OSDH OSDV 67 50 LOSD15 LOSD0 44 DACRST 81 77 45 SCL SETH NTSCRST 93 94 SDA SCL1 SDA1 SETV PLLCLK1 105 112 DACR0 DACG0 115 DACB0 118 106 YS0 Q8010 Q8011 Q8012 107 YM0 LVSYNCI LOCKO LHSYNCO LHSYNCI LOCKI LOSD0 LOSD15 SLRCK ADIN DACCK SRCK DMIX LRCK SVD0 SVD7 MVY7 MVY0 MVC7 MVC0 MHSYNC0 MVSYNC0 SVCLK0 MVCLK0 AUDIO VIDEO IEC OUT IC8031 8bit D/A CONVERTER HDSL PEARK IC8024(5/5) DG15 DG0 128Mbit CPU SDRAM IC8020 128Mbit WORK CPU SDRAM IC8021 MMDQ0 MMDQ15 MMDQ16 MMDQ31 XIRQ19 SDRAM I/F SDDATA0 SDDATA1 SDDATA2 SDDATA3 SDCMD SDCLK CARD SD SDCD SDWP IC8024(2/5) HDSL PEARK FB1 2 1 OUT1 14 16 DL1 DH1 15 CS1 10 CS2 9 11 DL2 DH2 8 7 FB2 OUT2 53 62 S9 S2 13 4 Y9 Y2 5 V+ 16 30 C9 C2 P HSYNC 23 P VSYNC 24 CLKIN A 32 CLKIN B 63 RESET 33 DACD 39 DACE 38 DACF 37 DACB 43 DACC 42 DACA 44 SDA 21 SCLK 22 5 AY IN 8 1 Cr IN 3 Cb IN DY IN AC IN 10 12 SD COMPOSITE 12C DATA 18 17 12C CLOCK IC8035 VIDEO ENCODER IC8041 DC-DC CONV. 3.3V/1.5V 14 16 15 CS1 CS2 IC8042 10 9 DL1 DH1 V+ 5 DL2 DH2 8 7 5V/2.5V 11 FB2 OUT2 2 1 OUT1 DC-DC CONV. FB1 Cb OUT 36 AC OUT 26 DY OUT AY OUT 29 Cr OUT 33 39 25 S2 23 CPS OUT 40 AFT1 42 SCL TV(SCL1) SDA TV(SDA1) SDA TV1(SDA2) 48 34 VIDEO OUT(ATSC-R) 44 SCL TV1(SCL2) 46 R OUT(ATSC-R) 24 L OUT(ATSC-L) 26 20 SR(BBE-R) 36 DA SWPKS SL(BBE-L) 22 12 SD Y HD PR 18 HD Y(ATSC-Y) 14 10 HD PB 16 SD C 33 SCL0 SDA0 OSDH(GC-H) 19 25 31 OSDR(LOSD-R) OSDV(GC-V) 39 OSDG(LOSD-G) 27 OSDB(LOSD-B) 29 21 OSDYS(LOSD-YS) 23 OSDYM(LOSD-YM) RIN- 63 65 RIN+ JK8007 DT7 TO K3 FAN 1 SD DATA0 9 8 SD DATA1 SD DATA2 7 2 SD CMD 5 SD CLK SD DATA3 1 D SW WP 109 117 ED7 ED0 TRSTEN 3 TCK 1 TMS 34 TDO 4 TDI 105 BE DATA 131 124 CLKIN133 120 FE DRX 128 FE CRX FE EN 56 FE DATA FE 51 FE CLK 54 49 FE SYNC 79 88 MOD D0 MOD D7 PLDs (Programmable Logic Device) FPGA (Field Programmable Gate Array) MOD MDO0 MOD MDO7 78 73 72 69 63 A25 A0 47 36 33 67 102 118 119 89 29 MOD CD1n 30 MOD CD2n 22 MOD RESET 27 MOD IREQn EN VPP3 9 8 EN VPP5 5 10 EN1 1 VIN1 4 VIN2 EN2 7 6 VIN2 VIN1 OUT1 18 15 17 16 14 OUT2 13 16 RESET 67 58 CD1 CD2 IREQ(READY) 36 30 32 2 6 64 66 37 41 19 29 10 14 53 56 46 50 8 A0 A25 D0 D7 MDO0 MDO7 (D8 D15) CXT,IXT FTX,QTX CRX,DRX MCLK0,MCLK1 MIVAL,MISTRT MDI0 MDI7 IC8011 POWER MANEGEMENT IC8009 (Point of Deployment) PC CARD I/F,POD A0 A12 MMA12 MMA0 DG15 DG0 A0 A12 Q8014 Q8015 Q8017 Q8016 +3.3V +1.5V +5.0V +2.5V SDA1 SCL1 9.5V 9.5V XS1D5RST XHEGRST SMTSEL1 JK8006 5 SDA1 SCL1 VIDEO OUT I/F IC8037 +3.3V +5V 2ch SWITCH 17 18 +3.3V Q8419 Q8420 Q8421 +3.3V +30V 1 RIN+ 2 RIN- LVDS RX IC8057 ROUT 7 VDD VOUT IC8051 RESET 2 1 9.5V JA8007 50 51 61 3 58 64 59 52 4 53 60 42 44 40 46 48 20 24 22 26 34 36 10 16 18 12 14 2 3 1 8 7 114 113 107 413 105 214 106 108 110 111 101 112 102 103 115 JA18 JA23 405 401 408 412 409 402 19 33 25 17 31 39 407 403 406 404 23 27 29 21 SCL0 LOSD R LOSD G XRSTPKS SDA0 GC VD GC HD ATSC V BBE R BBE L ATSC R SDA2 ATSC L DA SWPKS SCL2 AFT1 SCL1 SDA1 BT30V ATSC 9.5V 63 65 ATSC 9.5V SPLITTER 8V ATSC 9.5V SPLITTER 8V ATSC Y ATSC Pb ATSC Pr LOSD B LOSD YS LOSD YM NC NC NC NC ADDRESS BUS DATA BUS DATA BUS CONTROL BUS ADDRESS BUS DATA BUS DATA BUS DATA BUS ADDRESS BUS 4 2 1 JK8003 SD CARD SLOT CABLE CARD SLOT XRST 3 6 7 Digital Audio Out +5V TO PA18 TO DG23 58 53 60 50 51 61 64 59 52 SPLITTER 8V ATSC 9.5V BT30V BT30V ATSC 9.5V ATSC 9.5V ATSC 9.5V ATSC 9.5V ATSC 9.5V ATSC 9.5V ATSC 9.5V 3 4 BT30V ATSC 9.5V SPLITTER 8V 17 XRST(XRSTPKS) JA DT-DG connection TH-42PX25U-P / TH-50PX25U-P 132 15.37. H and TB-Board Block Diagram TH-42/50PX25U/P H and TB-Board Block Diagram TH-42/50PX25U/P H and TB-Board Block Diagram C Y C Y S2 S1 V2 L1 R2 V1 L2 R1 L3 R3 S3 JPEG_C JPEG_Y ATSC_V ATSC_PR ATSC_PB ATSC_L ATSC_Y ATSC_R MAIN_PR MAIN_PB MAIN_Y SUB_PB SUB_PR SUB_Y ATSC_Y ATSC_PB ATSC_PR S3 R3 L3 ATSC_V JPEG_Y JPEG_C MAIN_Y MAIN_PB MAIN_PR SUB_Y SUB_PR SUB_PB BBE_L BBE_R ATSC_R ATSC_L JK001 C-G C G Y Y-G G V1 V1-G L1 L1-G R1 R1-G C-G C G Y Y-G G V2 V2-G L2 L2-G R2 R2-G 63 IC4302 NTSC OUT R2 SC 7 L3 Pb3 Y3 MAIN 5 Pb2 11 66 L2 Y2 64 67 R3 57 SUB 12 SY MAIN INPUT SELECT 59 OUT SUB NTSC Pr3 9 DTV1 IN DTV2 IN 78 SC CV/SY R6 75 L6 SY 74 79 76 40 46 44 PBOUT 1 43 ROUT 1 YOUT 1 41 PROUT 1 LOUT 1 36 35 23 24 38 50 52 54 L1 55 Pb1 Pr1 48 R1 Y1 PrOUT 2 YOUT 2 PbOUT 2 LOUT 3 ROUT 3 OUT FA ATSC IN IN 16 DV1/HDMI 14 R4 21 Y4 Pr4 Pb4 20 18 L4 ROUT 1 IN 5 LOUT 1 V5 IC4301 52 YPbPr SELECT 56 3 LV5 60 SD YOUT 1 JPEG 54 AV1 61 C1 RV5 Y1 59 2 SDA 3 SCL SCL2 SDA2 24 23 RV4 25 LV4 V4 26 22 C4 Y4 18 Y3 16 17 V3 15 C3 19 IN RV3 LV3 AV2 28 S4 21 S3 58 COUT 1 14 11 S2 Y2 AV3 9 10 V2 8 C2 12 IN RV2 LV2 63 TV TV2 IN TV1/ ATSC NTSC1 OUT YOUT 2 COUT 2 39 37 NTSC2 OUT VOUT 1 53 33 SCL 34 SCL2 SDA SDA2 Q4206 Q4201 Pb Y R L Pr R L R L V INa 1 INb 30 BBE 4 5 8 TONE OUTa 27 26 23 AUX1 17 AUX0 18 OUTa INa BBE OUTb INb TONE OUTb 5 13 12 6 3 2 4 1 9 10 8 11 IN1 20 18 16 5 3 1 -2 -2 IN2 IN3 -2 IN1 -1 -1 -1 IN2 IN3 14 -2 PFBIN 12 OUT2 7 9 PFBIN -1 105 205 210 310 408 211 114 111 304 103 303 306 206 307 407 107 405 314 215 413 312 213 411 112 104 316 415 417 217 9 2nd TUNER 13 TNR251 15 16 9V 8 13 9 15 14 14 13 8 18 SCL2 3 15 30V 4 15 +5V SDA2 5 7 9 2 6 4 H10 Y C V Q4303 Q4514,Q4517 R L Pr Pb Y Q4204 VTV2 9 AFC2 9 H1 H22 T22 T21 H21 Q4515,Q4518 Q4516,Q4519 AFC2 SCL2 R3 L3 SDA2 S3 JPEG-C ATSC-V JPEG-Y ATSC-Y ATSC-PR AUDIO L ATSC-R ATSC-L ATSC-PB AUDIO R MAIN Y MAIN PB MAIN PR SUB Y SUB PB SUB PR 30V SUB5V 9V 22 23 25 26 SW AR SW AL FAO MUTE HDMI INT HDMI AUDIO MUTE SDA HDMI SCL HDMI HDMI INT SCL HDMI SDA HDMI HDMI AUDIO MUTE 18 Y IN 16 PB IN 14 PR IN Q4207 Q4208 IC4202 SWITCHING TONE CONTROL IC4201 IC4203 BBE VIVA Q4205 Q4203 Q4202 Q4600 Q4601 MUTE MUTE MUTE MUTE H7 5 L IN 3 R IN L IN(DV) 32 34 R IN(DV) JK003 JK004 VIDEO1 VIDEO2 DTV1 DTV2 JK4001 AUDIO IN MONTOR JK002 OUT G10 TO VIDEO3 DG TO DV7 TO H21-15 SCL2 SDA2 SDA2 SCL2 OUT1 H Rear terminal TB Tuner TH-42PX25U-P / TH-50PX25U-P 133 15.38. DT-Board (1 of 8) Schematic Diagram TH-42/50PX25U/P DT-Board (1 of 8) Schematic Diagram TH-42/50PX25U/P DT-Board (1 of 8) Schematic Diagram + + + A5V AH_D_A_SW AA_SCL_FE AH_SCL_TV AA_SCL_TUNNER AF_AUX_AGC AF_PDET_COMP_IN AF_PDET_REF_OUT AF_FAT_N AF_FAT_P AA_SDA_FE AH_SDA_TV AA_SDA_TUNNER AF_IF_AGC AF_FS_OUT_P AF_FS_OUT_N AF_FDC_P AF_FDC_N AH_IFSW AH_VIDEO_OUT AH_AFT AH_R_OUT AH_L_OUT AA_SCL_TUNNER AA_SDA_TUNNER AH_SDA_TV1 AH_SCL_TV1 A5V AF_FDC_AGC A5V +30V A5V A5V AF_RF_AGC A5V A9V +5V STBY5V C8505 50V 27p C8004 10V 220u C8614 16V 0.1u C8057 50V 1000p R8860 4.7k R8039 1k L8007 ELJNA47NMF R8802 390 C8514 50V 1000p IC8001 DG642DY-T1 1 2 3 4 5 6 7 8 C8557 50V 1000p R8047 0 C8454 16V 1u R8810 1k UPC3217GV-E1 IC8003 1 VCC 2 INPUT1 3 INPUT2 4 VAGC 5 GND2 6 OUTPUT2 7 OUTPUT1 8 GND1 Q8003 2SD601ATX Q8027 B1ABBB000052 R8807 1k R8861 1k L8000 J0JHC0000035 R8042 576 R8049 1.2k C8036 16V 0.1u R8053 200 R8046 2.2k R8834 0 C8504 50V 56p C8523 50V 1000p R8868 0 R8054 200 C8513 50V 1000p C8517 50V 0.01u C8056 50V 1000p L8085 ELJPA1R0MF C8508 50V 12p J0C4405B0001 X8100 17 NC 9 G 18 G 1 G 2 3 4 G 5 G 6 G 7 8 16 NC 15 G 14 G 13 G 12 NC 11 NC 10 G R8859 390k L8004 ELJNA82NMF R8856 12k C8512 50V 1000p J0C4405B0003 X8102 17 NC 9 18 1 2 3 4 5 6 7 8 16 NC 15 14 13 12 NC 11 NC 10 R8007 100 Q8025 B1ABBB000052 R8044 0 IC8004 LMC6482IMX 1 OUTPUTA 2 INPUTA- 3 INPUTA+ 4 V- 5 INPUTB+ 6 INPUTB- 7 OUTPUTB 8 V+ C8561 50V 1000p R8863 12k C8559 50V 1000p L8078 ELJPA1R0MF R8045 0 C8058 10V 1u R8803 2.2k R8020 2.2k C8519 50V 1000p C8500 50V 27p C8002 50V 22u IC8049 LMC6482IMX 1 OUTPUTA 2 INPUTA- 3 INPUTA+ 4 V- 5 INPUTB+ 6 INPUTB- 7 OUTPUTB 8 V+ L8017 ELJPA1R0MF C8503 50V 270p C8026 50V 0.01u C8516 50V 2200p R8874 0 R8014 0 C8023 16V 0.1u C8041 16V 2.2u R8925 47k C1CB00001591 IC8007 RF3330TR7 1 VCC 2 GND 3 VOUT 4 VOUTB 5 VAGC 6 VINB 7 VIN 8 VCC Q8019 B1BBAB000012 L8001 J0JHC0000035 C8449 50V 1000p C8464 50V 0.01u R8913 0 R8862 4.7k C8024 50V 1000p Q8023 B1BBAB000012 R8835 0 R8865 75k C8043 50V 1000p R8857 0 R8029 1k C8055 50V 1000p Q8024 2SD601ATX R8038 1.05k R8872 0 C8015 50V 0.01u R8811 15 L8005 ELJNA47NMF C0JBAR000248 IC8000 1 2 3 4 5 6 7 8 9 10 11 12 13 14 L8002 ELJPA560KF L8012 J0JHC0000035 L8083 ELJPA1R0MF C8467 50V 18p C8501 50V 27p R8006 100 R8048 0 R8867 0 R8804 1k C8532 16V 0.1u C8000 10V 220u R8027 1k R8814 0 1% R8030 287 R8698 1k C8003 50V 0.01u C8455 50V 1000p UPC3217GV-E1 IC8006 1 VCC 2 INPUT1 3 INPUT2 4 VAGC 5 GND2 6 OUTPUT2 7 OUTPUT1 8 GND1 R8806 2.2k R8805 100 L8082 ELJNA1R0JF R8926 2.2k C1AB00001860 IC8022 1 VHFOSC1 2 VHFOSC2 3 VOSC 4 UHFOSC1 5 UHFOSC2 6 GND 7 OSCOUT 8 U/V SW 9 IFOUT 10 VCC 11 MIXOUT1 12 MIXOUT2 13 VHFIN1 14 VHFIN2 15 UHFIN1 16 UHFIN2 R8697 2.2k R8701 15 R8057 0 C8533 16V 0.1u R8041 0 R8801 0 R8858 2.7k L8081 ELJFAR56MF C8005 16V 0.1u C8502 50V 20p C8054 16V 0.1u R8699 100 1% R8028 390 C8554 50V 0.01u C8507 50V 100p L8006 ELJNA56NMF Q8026 B1ABBB000052 L8013 J0JHC0000035 R8700 33 R8002 0 R8037 1k C8558 16V 0.1u L8110 ELJPA330KF J0C4405B0002 X8101 17 NC 9 G 18 G 1 G 2 3 4 G 5 G 6 G 7 8 16 NC 15 G 14 G 13 G 12 NC 11 NC 10 G C8552 50V 0.01u R8908 47k C8038 50V 0.01u R8001 0 C8560 10V 10u R8003 0 C8515 50V 2200p L8015 ELJNA2R2JF R8809 100 C8017 50V 0.01u R8040 0 C8059 50V 1000p C8042 16V 0.1u TXJDT40RS3 ZB8000 R8808 2.7k C8518 50V 1000p L8088 ELJNA2R2JF R8944 10k C8511 50V 1000p C8506 50V 22p C8556 16V 0.1u C8039 50V 1000p R8864 20k L8009 ELJNAR10MF Q8028 2SD601ATX C8562 50V 1000p C8555 50V 1000p C8001 16V 0.1u B0DDGG000001 D8015 C8520 50V 1000p R8855 12k R8056 0 ENGE6111D TNR8000 AGC 1 TU 2 ADRS 3 SCL 4 SDA 5 NC 6 +B 7 IF SW 8 BTL 9 NC 10 IF1 11 TP 12 BV 13 TP 14 GND 15 AFT 16 AGC OUT 17 VIDEO OUT 18 AGC CONT 19 GND 20 ST 21 SAP 22 MODE 23 F-MONO 24 MUTE 25 R 26 L 27 A9V +5V +30V A5V VP-81S IF I2C,SERIAL,JTAG YS SW1 SW2 MC14066BF VSS C3 C2 I2 O2 O1 I1 SW2 L H OFF ON ON OFF SW1 YS RF_AGC NTSCAGCT A5V +30V I3 O3 O4 I4 C4 C1 VDD ANALOG_RF_AGC DIGITAL_RF_AGC IF_OUTPUT_NB NTSCAGCT AGC Cont. + + - - + + - - NJM2540V AGC Cont. OOB_INBAND No change SERIAL SW AGC SW D 4 B C E A 9 6 8 7 3 F 5 1 2 AGC AMP (IF STR/P) RF PEAK/POWER DETECTOR AMP PEAK/POWER COMPARATOR AGC AMP (IF STR/P) MIXED AND OSCILLATOR FOR TV TUNER IF GAIN CONTROLLED AMP TV TUNER 2 3 1 8 7 5 6 4 DT-BOARD TNP2AA144AC (1/8) OUT OUT CONT THIS IS FOR REFERENCE USE ONLY. THIS MUST BE REPLACED WITH AN EXCHANGE UNIT ONLY. TH-42PX25U-P / TH-50PX25U-P 134 15.39. DT-Board (2 of 8) Schematic Diagram TH-42/50PX25U/P DT-Board (2 of 8) Schematic Diagram TH-42/50PX25U/P DT-Board (2 of 8) Schematic Diagram + + + + D.SW W.P. AB_CLK133_PEAKS AM_MPEG_ERR AC_IREQ(READY) AC_WAIT AC_CD1 AC_CD2 AC_INPACK AC_IOIS16(WP) AA_TMS AC_MIVAL(A16) AM_MPEG_CLK AM_MPEG_DATA_EN AM_SER_DATA AM_MPEG_PKT_SYNC AC_MDO2(D10) AC_MOSTRT(BVD2) AC_MDO7(D15) AC_MDO6(D14) AC_MDO5(D13) AC_MCLK0(A14) AC_MDO4(D12) AC_MDO3(D11) AC_MOVAL(BVD2) AC_MDO0(D8) AC_MDO1(D9) AE_POD_VPP0 AE_POD_VPP1 AE_POD_VCC0 AE_POD_XOC AE_POD_VS1_N AA_SBO0 AD_XECS2 AD_EA2 AD_XERE AM_POD_CRX AM_POD_DRX AR_A0 AR_A1 AD_ED23 AD_ED22 AD_ED21 AD_ED20 AD_ED19 AD_ED18 AD_ED17 AD_ED16 AA_TCK AR_D0 AR_D2 AR_D1 AR_D7 AR_D3 AR_D4 AR_D5 AR_D6 AR_A13 AR_CRX(A8) AR_DRX(A9) AR_A12 AR_QTX(A7) AR_ETX(A6) AR_ITX(A5) AR_A11 AR_A10 AR_A3 AR_A2 AR_CTX(A4) AC_CE2 AC_RESET AC_CE1 AC_REG AC_WE AC_IORD AC_IOWR AC_OE AA_TDO 2.5VD +1.2V +1.2V +3.3V AC_MDI7(A25) AC_MDI6(A24) AC_MDI0(A18) AC_MDI1(A19) AC_MDI2(A20) AC_MDI3(A21) AC_MDI4(A22) AC_MDI5(A23) AC_MCLK1(A15) AF_PDET_REF_OUT AF_IF_AGC AF_AUX_AGC AF_RF_AGC AF_PDET_COMP_IN AA_SCL_FE AA_SDA_FE AC_MISTRT(A17) AM_SER_DATA AM_MPEG_DATA_EN AM_MPEG_PKT_SYNC AM_MPEG_CLK AM_MPEG_ERR AM_POD_CRX AM_POD_DRX AK_XFERST AA_SCL1 AD_XSID5RST AD_INTN AD_PORT0_5 AD_XEDK AD_XEWE2 AD_ECLK_SPC AK_CHERR0 AK_CHPSYNC0 AK_CHVAL0 AK_CHCLK0 AK_CHDATA0 AA_SDA1 AA_SCL0 AA_SDA0 AF_FS_OUT_P AF_FS_OUT_N AJ_SDCD AJ_SDDAT1 AJ_SDWP AJ_SDDAT0 AJ_SDCLK AJ_SDCMD AJ_SDDAT3 AJ_SDDAT2 +3.3V AA_SCL1 AA_SDA1 AF_FDC_N AF_FDC_P AF_FAT_P AF_FAT_N AF_FDC_AGC 2.5VA +2.5V AA_TRSTEN 2.5VA +3.3V +2.5V +5V +3.3V R8085 1k C8085 16V 0.1u R8082 10k PQ1R25 IC8054 1 2 3 4 5 6 R8062 2.7k R8149 56 R8076 10k J0JHC0000035 L8101 J0JHC0000035 L8100 C8019 16V 10u C8066 16V 0.1u R8207 EXB38V560JV C8076 10V 10u L8022 J0JHC0000035 C8112 50V 8p 1% R8831 1k C8094 16V0.1u R8065 10k L8024 J0JHC0000035 C8121 16V0.1u C8069 16V 0.1u C8571 10V 100u C8531 16V 0.1u C8119 16V 0.1u R8705 0 R8078 200 R8083 1k R8192 56 TP8022 R8204 EXB2HV560JV C8074 10V 10u C8061 16V 0.1u R8876 0 C8570 6.3V 100u C8020 16V 10u R8086 1k C8062 16V 0.1u R8879 0 R8833 0 C8104 16V 0.1u L8039 J0JHC0000045 R8146 56 C8084 16V 0.1u R8136 22k C8098 50V 0.01u C8117 16V 0.1u R8075 3.9k R8145 56 R8738 0 R8832 510 R8190 56 R8639 0 R8206 EXB2HV560JV L8023 J0JHC0000035 R8143 56 C8105 16V 0.1u R8194 56 R8092 56 R8195 56 R8107 4.7k DT1 1 2 3 4 R8875 0 R8135 22k C8111 50V 10p R8077 200 C8106 16V 0.1u C8184 50V 0.01u R8147 56 R8175 0 C8088 16V 0.1u C8530 16V 0.1u C8068 16V 0.1u C1ZBZ0002437 IC8009 1 TCK 2 2.5V 3 TRST 4 TDO 5 3.3V 6 GND 7 SIMTEST 8 EN_VPP3 9 EN_VPP5 10 CTRL_VCC3 11 ATPGEN 12 OC_VCCVPP 13 MOD_VS1n 14 FIFOTEST 15 GND 16 2.5V 17 MOD_OEn 18 MOD_WEn 19 MOD_IORDn 20 MOD_IOWRn 21 MOD_REGn 22 MOD_RESET 23 MOD_CE1n 24 3.3V 25 GND 26 MOD_CE2n 27 MOD_IREQn 28 MOD_WAITn 29 MOD_CD1n 30 MOD_CD2n 31 MOD_INPACKn 32 MOD_IOIS16n 33 MOD_MISTRT 34 TMS 35 GND 36 MOD_MIVAL 37 MOD_MDI7 38 MOD_MDI6 39 MOD_MCLKI 40 GND 41 MOD_MDI5 42 MOD_MDI4 43 MOD_MDI3 44 MOD_MDI2 45 3.3V 46 MOD_MDI1 47 MOD_MDI0 48 MOD_VS2n 49 FE_SYNC 50 2.5V 51 FE_DATA 52 GND 53 2.5V 54 FE_CLK 55 SYSCLKIN1 56 FE_EN 57 GND 58 GND 59 3.3V 60 FE_ERR 61 3.3V 62 MOD_MOSTRT 63 MOD_MDO7 64 MOD_MDO6 65 MOD_MDO5 66 GND 67 MOD_MCLKO 68 MOD_MDO4 69 MOD_MDO3 70 MOD_MOVAL 71 3.3V 72 MOD_MDO2 73 MOD_MDO1 74 3.3V 75 2.5V 76 SCANEN 77 GND 78 MOD_MDO0 79 MOD_D7 80 MOD_D6 81 MOD_D5 82 MOD_D4 83 MOD_D3 84 GND 85 2.5V 86 MOD_D2 87 MOD_D1 88 MOD_D0 89 MOD_A13 90 MOD_A12 91 MOD_DRX 92 MOD_CRX 93 GND 94 3.3V 95 MOD_CTX 96 MOD_QTX 97 MOD_ETX 98 MOD_ITX 99 MOD_A11 100 MOD_A10 101 MOD_A3 102 MOD_A2 103 2.5V 104 GND 105 TDI 106 CLKSEL 107 3.3V 108 GND 109 ED0 110 ED1 111 ED2 112 ED3 113 ED4 114 ED5 115 3.3V 116 ED6 117 ED7 118 MOD_A1 119 MOD_A0 120 FE_DRX 121 GND 122 RESETn 123 GND 124 CLKIN133 125 SYSCLKIN2 126 ECLK 127 2.5V 128 FE_CRX 129 GND 130 BE_CLK 131 BE_DATA 132 BE_EN 133 BE_SYNC 134 3.3V 135 BE_ERR 136 GND 137 2.5V 138 INTN 139 GND 140 XEDKN 141 XEREN 142 XEWEN0 143 EA 144 XECS R8205 EXB2HV560JV C8115 16V0.1u R8109 22k R8088 56 C8065 16V0.1u C8090 16V 0.1u TP8027 1% R8068 16.5k C8063 16V 0.1u C8118 16V 0.1u R8064 10k R8734 0 R8091 56 R8211 100 R8726 0 C8022 16V 0.1u R8093 56 IC8015 1 A0 2 A1 3 A2 4 VSS 5 SDA 6 SCL 7 WP 8 VCC C8086 16V 0.1u C8108 16V 0.1u C8081 16V 0.1u R8111 0 R8210 3.3k R8200 56 R8081 1k R8731 0 C8093 10V 10u R8094 56 L8021 J0JHC0000035 C8092 16V 0.1u C8073 16V 0.1u C808016V0.1u R8878 0 D8004 LNJ208R8ARA C8099 50V 0.01u J0JHC0000045 L8027 R8736 0 R8101 0 C8095 16V 0.1u J0JHC0000035 L8098 C8075 16V 0.1u R8059 3.9k L8020 J0JHC0000035 R8213 3.3k R8717 56 R8740 0 C8064 16V0.1u R8063 2.7k C8070 10V 10u C8089 10V 10u C8110 16V 0.1u R8727 0 R8877 0 R8869 0 R8137 22k R8131 22k R8084 1k JK8003 1 2 3 4 5 6 7 8 9 10 W.P. 11 12 D.SW C8083 10V 10u C8071 16V 0.1u C8060 16V 0.1u R8198 56 C8100 16V 0.1u C8103 16V 0.1u R8742 0 C8114 16V0.1u J0JHC0000035 L8099 C8097 16V 0.1u C8109 16V 0.1u C8087 16V 0.1u C8091 10V 10u R8737 0 C8079 16V0.1u R8089 56 R8148 56 R8212 10k LNJ208R8ARA D8001 C8102 16V 0.1u R8079 1k C8116 16V 0.1u R8133 22k R8129 22k R8741 0 R8150 4.7k R8870 0 C8101 16V 0.1u L8019 J0JHC0000035 R8144 56 R8189 56 H0J251500003 X8003 R8196 56 C8120 16V 0.1u C8072 16V 0.1u C8078 16V 0.1u R8072 200 R8073 200 C8096 16V 0.1u C8077 10V 10u C1AB00001859 IC8008 1 AGND 2 DVDD_PLL 3 AVDD_PLL 4 DGND 5 AGND 6 FAT_VREF_N 7 FAT_VREF_P 8 FAT_INCM 9 FAT_INP 10 FAT_INN 11 AVDD_FAT 12 AVDD_FAT 13 AVDD_FAT 14 AGND 15 AGND 16 AGND 17 VDD1.2 18 VDD2.5 19 DGND 20 DGND 21 AGND 22 AGND 23 AGND 24 AVDD_FDC 25 AVDD_FDC 26 AVDD_FDC 27 FDC_INN 28 FDC_INP 29 FDC_INCM 30 FDC_VREF_P 31 FDC_VREF_N 32 VDD1.2 33 DGND 34 AGND 35 FS_OUTP 36 FS_OUTN 37 DGND 38 FDC_AGC 39 VDD2.5 40 AVDD 41 AGND 42 OSC_CLK 43 OSC_XTAL_IN 44 OSC_XTAL_OUT 45 AVDD_OSC 46 NC 47 VDD3.3 48 VDD1.2 49 PDET_REF_OUT 50 IF_AGC 51 DGND 52 PDET_COMP_IN 53 AUX_AGC 54 DGND 55 RF_AGC 56 UC_EN 57 VDD1.2 58 I2C_SCL 59 I2C_SDA 60 VDD3.3 61 DGND 62 VDD1.2 63 POD_DRX 64 POD_CRX 65 GPIO_7 66 DGND 67 GPIO_6 68 MPEG_ERR 69 VDD3.3 70 MPEG_CLK 71 VDD1.2 72 MPEG_PKT_SYNC 73 DGND 74 MPEG_DATA_EN 75 MPEG_DATA_7 76 DGND 77 MPEG_DATA_6 78 VDD3.3 79 /POWER_RESET 80 DGND 81 DGND 82 DGND 83 MPEG_DATA_5 84 VDD1.2 85 VDD2.5 86 DGND 87 MPEG_DATA_4 88 MPEG_DATA_3 89 DGND 90 MPEG_DATA_2 91 MPEG_DATA_1 92 VDD3.3 93 MPEG_DATA_0 94 DGND 95 DGND 96 DGND 97 DGND 98 VDD1.2 99 GPIO_13 100 DGND 101 GPIO_12 102 GPIO_11 103 I2C_SLAVE_ADDR_1 104 I2C_SLAVE_ADDR_0 105 VDD3.3 106 GPIO_9 107 GPIO_10 108 GPIO_8 109 VDD1.2 110 DGND 111 DGND 112 DGND 113 GPIO_5 114 DGND 115 GPIO_4 116 GPIO_3 117 VDD3.3 118 GPIO_2 119 GPIO_0 120 GPIO_1 121 VDD1.2 122 DGND 123 DGND 124 NC 125 AVDD 126 DGND 127 AVDD 128 BIAS_RES R8729 0 R8095 0 R8138 56 R8080 1k C8107 16V 0.1u C8067 16V 0.1u R8099 0 C8082 16V 0.1u R8141 56 R8151 22k R8142 56 R8090 56 L8035 J0HABB000018 1 2 3 4 L8038 J0HABB000018 1 2 3 4 L8033 J0HABB000018 1 2 3 4 L8032 J0HABB000018 1 2 3 4 L8036 J0HABB000018 1 2 3 4 L8031 J0HABB000018 1 2 3 4 L8030 J0HABB000018 1 2 3 4 L8037 J0HABB000018 1 2 3 4 1.5 2 A9V +3.3V +5V +2.5V +1.2V +30V A5V A9V K1NA12E00001 CPU_BUS TUNER_OUT SDCARD SDCARD A NXT2003 A OOB_INBAND B MPEG_CTL B 25.14M CLK_BUS I2C,SERIAL,JTAG TUNER_OUT CHDATA CPU_BUS A5V +30V +1.2V +2.5V +5V +3.3V PEAKS_CLKMON I2C,SERIAL,JTAG Nxtwave 14 12 10 16 11 18 17 15 13 SDCARD EEPROM AVR 2.5V DTV Cable and Terrestrial Receiver PC CARD I/F,POD (Point of Depooy ment) PLDs (Programmable logic devices) FPGA (Field Programmable Gate Array) SDWP SDCD SDDAT1 SDDAT0 SDCLK SDCMD SDDAT3 SDDAT2 WP CLK DATA0 DATA2 DATA3 DATA1 CMD CD GND +3.3V GND 6 11 12 17 24 18 16 4 23 19 14 15 13 22 20 21 25 27 28 26 2 5 3 7 1 8 DT-BOARD TNP2AA144AC (2/8) THIS IS FOR REFERENCE USE ONLY. THIS MUST BE REPLACED WITH AN EXCHANGE UNIT ONLY. TH-42PX25U-P / TH-50PX25U-P 135 15.40. DT-Board (3 of 8) Schematic Diagram TH-42/50PX25U/P DT-Board (3 of 8) Schematic Diagram TH-42/50PX25U/P DT-Board (3 of 8) Schematic Diagram PC-CARD + + AC_MDO4(D12) AC_MDO3(D11) AC_MDO5(D13) AC_MDO6(D14) AC_MOVAL(BVD2) AC_MDO7(D15) AC_MOSTRT(BVD2) AC_MDO0(D8) AC_MDO1(D9) AC_MDO2(D10) AD_XFLASHWP AC_MDI0(A18) AC_MDI1(A19) AC_MDI2(A20) AC_MDI3(A21) AC_MDI4(A22) AC_MDI5(A23) AC_MDI6(A24) AC_MDI7(A25) AC_RESET AC_WAIT AC_CE2 AC_IORD AC_IOWR AE_POD_VS2_N AC_MISTRT(A17) AE_POD_VS1_N AC_INPACK AC_REG AC_CD2 AC_CD1 AR_A3 AR_A2 AR_A1 AC_IOIS16(WP) AR_A0 AR_D0 AR_D1 AR_D2 AR_A12 AC_MIVAL(A16) AC_MCLK1(A15) AC_WE AC_IREQ(READY) AR_DRX(A9) AR_CRX(A8) AR_A13 AC_OE AR_A10 AR_D4 AR_D5 AR_D6 AR_D7 AC_CE1 AR_D3 AR_A11 +5V AD_ED23 AD_ED22 AD_ED21 AD_ED20 AD_ED19 AD_ED18 AD_ED17 AD_XEAS AD_ERXW AD_XERE AD_XEWE3 AD_XEWE2 AD_XEWE1 AD_XEWE0 AD_XECS5 AD_XECS4 AD_XECS3 AD_XECS2 AD_XECS1 AD_XECS0 AD_ESZ1 AD_ESZ0 AD_ECLK_SPC AD_EA26 AD_EA25 AD_EA24 AD_EA23 AD_EA22 AD_EA21 AD_EA20 AD_EA19 AD_EA18 AD_EA17 AD_EA16 AD_EA15 AD_EA14 AD_EA13 AD_EA12 AD_EA11 AD_EA10 AD_EA9 AD_EA8 AD_EA7 AD_EA6 AD_EA5 AD_EA4 AD_EA3 AD_EA2 AD_EA1 AD_EA0 AD_ED31 AD_ED30 AD_ED29 AD_ED28 AD_ED27 AD_ED26 AD_ED25 AD_ED24 AD_BOOTSWAP AD_XEDK AA_TRSTEN AA_SBI1 AD_XNMIRQ AD_XSPCIRQ AA_TMS AA_SBI0 AA_SBI0 AA_SBO0 AA_SBO1 AK_CHDATA3 AK_CHDATA2 AK_CHDATA1 AA_SCL1 AA_SDA1 AA_SCL0 AA_SDA0 AA_TCK AD_ED16 AK_XFERST AK_CHDATA0 AK_CHDATA4 AK_CHDATA5 AK_CHDATA6 AK_CHDATA7 AK_CHCLK0 AK_CHVAL0 AK_CHPSYNC0 AK_CHERR0 AE_POD_VPP1 AD_XFLASHWP AD_XRST AD_ESZ1 AD_ESZ0 AR_QTX(A7) AR_CTX(A4) AR_ETX(A6) AR_ITX(A5) AC_MCLK0(A14) AD_XECS2 AD_XEWE3 AD_XECS5 AD_XECS3 AD_XEWE0 AD_XEWE1 AD_XEWE2 AD_EA17 AD_EA23 AD_EA16 AD_EA15 AD_EA14 AD_ED30 AD_ED22 AD_ED29 AD_ED21 AD_ED28 AD_ED20 AD_ED27 AD_ED19 AD_ED26 AD_ED18 AD_ED25 AD_ED17 AD_ED31 AD_ED23 AD_EA11 AD_EA10 AD_EA9 AD_EA20 AD_EA21 AD_XEWE2 AD_EA22 AD_EA19 AD_EA18 AD_EA8 AD_EA13 AD_EA12 AD_ED16 AD_XERE AD_EA1 AD_ED24 AD_EA6 AD_EA5 AD_EA4 AD_EA3 AD_EA2 AD_EA7 AE_POD_VPP0 +3.3V AD_XECS0_0 AE_POD_XOC +3.3V +3.3V +3.3V +3.3V +3.3V AE_POD_VS2_N IC8024 N25 EA18 R8243 56 R8238 100 IC8024 J26 EA7 IC8024 G1 ISODATA5 IC8024 V23 XEXDMK0 IC8024 A24 ED16 J0JHC0000035 L8097 IC8024 B21 ED5 IC8024 W22 XEXDMR1 IC8024 V22 XEXDMR0 IC8024 AF22 XDCD2 IC8024 P23 ESZ1 C8187 16V 0.1u IC8024 H25 EA5 R8201 10k IC8024 D25 ED25 R8691 10k R8160 56 R8223 10k R8170 2.7k C8186 16V 0.1u IC8024 G3 ISODATA7 IC8024 J2 ISODATA0 IC8024 E7 EVTRG R8241 100 IC8024 F24 ED30 IC8024 D23 TDO R8693 10k IC8024 M4 CLKMON C8127 50V 0.01u IC8024 L24 EA13 IC8024 K1 SDA0 R8296 47k IC8024 G26 EA1 IC8024 M24 EA16 IC8024 K4 ISOCLK R8224 10k IC8024 E23 TMS C8126 16V 0.1u R8222 10k IC8024 R22 XERE IC8024 H26 EA4 IC8024 B25 ED20 R8225 10k C8191 16V 0.1u IC8024 E1 CHCLK0 R8266 EXB2HV330JV R8234 10k IC8024 D3 CHDATA4 IC8024 B1 CHDATA7 R8034 4.7k IC8024 E20 ED3 R8293 10k IC8024 K25 EA9 IC8024 H2 ISODATA3 IC8024 U26 XEWE3 IC8024 B22 ED10 IC8024 K22 EA27 IC8024 C24 ED18 R8227 10k IC8024 T25 XEWE2 IC8024 U23 XEBGT IC8024 M22 EA24 R8262 EXB2HV330JV R8216 10k IC8024 C26 ED23 R8281 33 IC8024 C23 ED15 R8233 56 IC8024 B26 ED21 R8294 10k IC8024 AF23 SBI2 R8250 10k R8242 100 IC8024 R25 XECS0 IC8024 R24 XECS1 R8239 100 IC8024 C1 CHDATA5 IC8024 M25 EA15 R8658 47k R8217 10k R8209 EXB38V560JV IC8024 P22 ESZ0 IC8024 C21 ED6 R8282 33 C8125 16V 0.1u IC8024 AE25 XIRQ17 IC8024 D2 CHDATA3 IC8024 D24 ED24 R8656 47k R8248 10k IC8024 F2 CHPSYNC0 R8272 33 R8159 56 IC8024 L26 EA11 IC8024 E5 CHERR2 IC8024 K24 EA10 C8190 16V 0.1u R8254 10k J0JHC0000035 L8095 R8202 10k R8292 10k R8228 4.7k IC8024 P26 EA20 R8032 0 R8166 EXB38V560JV JK8002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 IC8024 H22 EA29 R8284 33 IC8024 N26 EA17 IC8024 F26 EA0 IC8024 F22 TCK R8264 EXB2HV330JV R8066 0 C8185 16V 0.1u R8226 10k R8271 0 IC8024 E24 ED27 IC8024 C20 ED1 IC8024 B23 ED14 R8203 10k C8130 16V 47u IC8024 D5 TRSTEN R8275 33 IC8024 V25 XECS4 IC8024 T24 XECS2 C8124 50V 0.01u IC8024 E2 CHDATA0 R8260 EXB2HV330JV IC8024 G25 EA2 C8128 16V 0.1u R8273 33 R8280 33 R8169 4.7k R8286 33 IC8024 R23 ERXW IC8024 J3 ISODATA1 IC8024 J4 ISOVAL IC8024 T26 XEWE1 R8258 EXB2HV330JV IC8024 E22 TDI R8276 33 R8277 33 IC8024 N24 EA19 R8659 0 R8291 10k R8240 100 IC8024 K2 SCL0 IC8024 F3 CHERR0 IC8024 G23 EA30 IC8024 L3 SCL1 IC8024 N23 EA21 C8129 6.3V 100u R8172 4.7k IC8024 AE22 XRI2 IC8024 U24 BOOTSWAP IC8024 G2 ISODATA6 IC8024 H24 EA6 R8171 2.2k R8247 10k IC8024 AC21 XRTS2 IC8024 E4 CHCLK2 IC8024 U22 XEBRQ IC8024 AB21 XDSR2 IC8024 J5 ISOSYNC C8189 16V 0.1u IC8024 T22 XEAS C8131 16V 0.1u R8279 33 C8188 16V 0.1u IC8024 AC24 XIRQ13 IC8024 M23 EA23 IC8024 AD22 XCTS2 IC8011 C0ZBZ0000782 MB3842PFV-G-BND-ERE1 EN1 1 2 SS1 3 CS1 4 VIN1 5 VIN1 6 VIN2 7 VIN2 8 CS2 9 SS2 10 EN2 11 GND 12 OS2 13 OUT2 14 OUT2 15 OUT2 16 OUT1 17 OUT1 18 OUT1 19 OC1 20 GND IC8024 W23 XEXDMK1 R8270 33 IC8024 D21 ED7 IC8024 AE26 XIRQ15 R8269 33 IC8024 A25 ED19 IC8024 A23 ED13 IC8024 E26 ED29 IC8024 V26 XECS5 IC8024 H4 PHYCTRL IC8024 F1 CHVAL0 IC8024 M26 EA14 IC8024 A21 ED4 IC8024 E21 ED8 R8287 10k IC8024 L25 EA12 IC8024 P24 XEWE0 R8655 33 TP8026 R8283 33 IC8024 AE23 SBO2 R8218 10k IC8024 H3 ISODATA4 R8970 0 IC8024 D22 ED12 C8192 16V 0.1u R8290 10k R8214 3.3k IC8024 AD25 XIRQ14 IC8024 AD24 XIRQ16 R8285 33 IC8024 B20 ED0 R8165 4.7k IC8024 L2 SDA1 IC8024 N22 EA22 IC8024 D20 ED2 R8692 10k R8252 10k IC8024 D26 ED26 IC8024 K5 ISOPLL IC8024 C22 ED11 R8295 10k IC8024 G24 EA3 IC8024 K26 EA8 R8221 10k IC8024 F5 CHCLK1 IC8024 B2 XFERST IC8024 G22 EA31 IC8024 R26 XEDK R8168 56 IC8024 G5 TTXDATA IC8024 U25 XECS3 R8215 3.3k IC8024 B24 ED17 J0JHC0000035 L8096 IC8024 D1 CHDATA2 R8244 56 R8278 33 IC8024 H1 ISODATA2 IC8024 F25 ED31 IC8024 E25 ED28 IC8024 C2 CHDATA6 IC8024 L22 EA25 R8654 100 R8268 33 IC8024 H5 LINKCTRL IC8024 C25 ED22 IC8024 H23 EA28 R8289 10k IC8024 G4 TTXREQ R8208 EXB38V560JV IC8024 AC22 XDTR2 IC8024 A22 ED9 IC8024 AF25 XNMIRQ R8274 33 R8237 56 IC8024 K23 EA26 R8245 10k IC8024 E3 CHDATA1 IC8024 P25 ECLK R8974 10k IC8018 1 N.C. 2 A22 3 A15 4 A14 5 A13 6 A12 7 A11 8 A10 9 A9 10 A8 11 A19 12 A20 13 WE 14 RESET 15 A21 16 WP/ACC 17 RY/BY 18 A18 19 A17 20 A7 21 A6 22 A5 23 A4 24 A3 25 A2 26 A1 27 N.C. 28 N.C. 29 Vccq 30 N.C. 31 A0 32 CE 33 Vss 34 OE 35 DQ0 36 DQ8 37 DQ1 38 DQ9 39 DQ2 40 DQ10 41 DQ3 42 DQ11 43 Vcc 44 DQ4 45 DQ12 46 DQ5 47 DQ13 48 DQ6 49 DQ14 50 DQ7 51 DQ15/A-1 52 Vss 53 BYTE 54 A16 55 N.C. 56 N.C. DT9 K1KA04A00199 1 2 3 4 1.5 K1NA68B00036 A9V A9V A9V SERIAL MODE SERIAL:1 PARALLEL:1 TUNER SERIARU MODE SERIAL:2 TUNER PARALLEL TUNER CLK_BUS I2C,SERIAL,JTAG TUNER_OUT CHDATA CPU_BUS SDCARD CLK_BUS 3.3V AND 5V SDCARD I2C,SERIAL,JTAG TUNER_OUT CPU_BUS A5V A5V A5V +30V +30V +30V +1.2V +1.2V +1.2V +2.5V +5V +3.3V +2.5V +5V +3.3V +2.5V +5V +3.3V POD MB3841PF-G-BND IS2SYNC IS2PLL IS2VAL IS2DATA IS2CLK IS1PLL IS1CLK IS1SYNC IS1VAL IS1DATA PEAKS_I2C #0:EEPROM,VDAC #1:FrontEND CHDATA1 CHPSYNC1 CHERR1 CHVAL1 CHCLK1 CHERR0 CHPSYNC0 CHVAL0 CHCLK0 CHDATA0 XFERST CHDATA5 CHDATA4 CHDATA3 CHDATA2 CHDATA1 CHDATA0 XFERST CHPSYNC1 CHDATA1 CHVAL1 CHERR1 CHCLK1 CHERR0 CHPSYNC0 CHVAL0 CHCLK0 CHDATA7 CHDATA6 1394LINK 1394LINK IS0PLL IS0SYNC IS0VAL IS0CLK IS0DATA SERIAL,JTAG /SBI1 /SBT1 /SBO1 /SBT0 /SBI0 /SBO0 CHDATA CPU_BUS IIC_BUS Interrupt SERIAL Channel JTAG 1394_I/F CPU_BUS CPU_BUS +5V SBO2 SBI2 MN2WS012AA-A MN2WS0010 Fujitsu CLK_BUS 25 27 20 19 22 21 26 23 24 CABLE CARD SLOT POWER MANEGEMENT 2-CH SWITCH 128Mbit SDRAM IC8024 AVR 3.3V/5V 14 22 15 24 25 43 41 39 40 38 37 31 36 32 13 42 35 33 34 20 21 12 27 17 11 18 16 26 28 23 19 DT-BOARD TNP2AA144AC (3/8) THIS IS FOR REFERENCE USE ONLY. THIS MUST BE REPLACED WITH AN EXCHANGE UNIT ONLY. TH-42PX25U-P / TH-50PX25U-P 136 15.41. DT-Board (4 of 8) Schematic Diagram TH-42/50PX25U/P DT-Board (4 of 8) Schematic Diagram TH-42/50PX25U/P DT-Board (4 of 8) Schematic Diagram + + + + + + AA_FA1 AD_H57RST AA_FA1 AA_FA1 AD_XECS5_1 +1.5V AP_MMDQ0 AP_MMDQ1 AP_MMDQ2 AP_MMDQ3 AP_MMDQ4 AP_MMDQ5 AP_MMDQ6 AP_MMDQ7 AO_MMDQML0 AO_XMMWE AO_XMMCAS AO_XMMRAS AO_XMMCS AN_MMBS0 AN_MMBS1 AN_MMA10 AN_MMA0 AN_MMA1 AN_MMA2 AN_MMA3 AN_MMA4 AN_MMA5 AN_MMA6 AN_MMA7 AN_MMA8 AN_MMA9 AN_MMA11 AN_MMA12 AO_MMCKE2 AO_MMCK AO_MMDQMU0 AN_MMA13 AP_MMDQ8 AP_MMDQ9 AP_MMDQ10 AP_MMDQ11 AP_MMDQ12 AP_MMDQ13 AP_MMDQ14 AP_MMDQ15 AP_MMDQ31 AP_MMDQ30 AP_MMDQ29 AP_MMDQ28 AP_MMDQ27 AP_MMDQ26 AP_MMDQ25 AP_MMDQ24 AN_MMA13 AO_MMDQMU1 AO_MMCK AO_MMCKE2 AN_MMA12 AN_MMA11 AN_MMA9 AN_MMA8 AN_MMA7 AN_MMA6 AN_MMA5 AN_MMA4 AN_MMA3 AN_MMA2 AN_MMA1 AN_MMA0 AN_MMA10 AN_MMBS1 AN_MMBS0 AO_XMMCS AO_XMMRAS AO_XMMCAS AO_XMMWE AO_MMDQML1 AP_MMDQ23 AP_MMDQ22 AP_MMDQ21 AP_MMDQ20 AP_MMDQ19 AP_MMDQ18 AP_MMDQ17 AP_MMDQ16 AA_SDA0 AA_SCL0 AG_FAN_CTL2 AG_FAN_CTL1 +3.3V AD_OSDV AD_XFLASHWP AD_PORT0_5 AD_XSID5RST AD_XHEGRST AD_XRST AO_MMDQML1 AO_MMDQML0 AO_MMDQMU1 AO_MMDQMU0 AO_XMMWE AO_XMMCAS AO_XMMRAS AO_XMMCS AO_MMCKE AN_MMBS0 AN_MMA12 AN_MMA11 AN_MMBS1 AN_MMA10 AN_MMA9 AN_MMA8 AN_MMA7 AN_MMA6 AN_MMA5 AN_MMA4 AN_MMA3 AN_MMA2 AN_MMA1 AN_MMA0 AP_MMDQ31 AP_MMDQ30 AP_MMDQ29 AP_MMDQ28 AP_MMDQ27 AP_MMDQ26 AP_MMDQ25 AP_MMDQ24 AP_MMDQ23 AP_MMDQ22 AP_MMDQ21 AP_MMDQ20 AP_MMDQ19 AP_MMDQ18 AP_MMDQ17 AP_MMDQ16 AP_MMDQ15 AP_MMDQ14 AP_MMDQ13 AP_MMDQ12 AP_MMDQ11 AP_MMDQ10 AP_MMDQ9 AP_MMDQ8 AP_MMDQ7 AP_MMDQ6 AO_MMCK AP_MMDQ5 AP_MMDQ4 AP_MMDQ3 AP_MMDQ2 AP_MMDQ1 AP_MMDQ0 AD_ED17 AD_ED21 AD_ED23 AD_ED25 AD_ED27 AD_ED29 AD_ED31 AD_EA9 AD_EA7 AD_EA5 AD_EA1 AD_EA3 AD_EA23 AD_EA19 AD_EA21 AD_EA17 AD_EA11 AD_EA13 AD_EA15 AD_EA25 AD_USBRST AD_ECLK_SPC AD_XECS3 AD_XECS1 AD_XEAS AD_XSID5RST AD_XECS5 AD_LA7 AD_ERXW AD_XNMIRQ AD_XEWE1 AD_XEWE3 AD_ESZ1 AA_TDO AA_SCL0 AA_SDA0 AA_SBI0 AA_TMS AA_TRSTEN AA_TDI AD_XRST AD_XHEGRST AJ_SDCMD AJ_SDCLK AJ_SDDAT3 AJ_SDDAT3 AJ_SDDAT2 AJ_SDDAT2 AJ_SDDAT1 AJ_SDDAT1 AJ_SDDAT0 AJ_SDDAT0 AJ_SDCD AJ_SDWP AD_INTN AD_BOOTSWAP AD_XEDK AD_XERE AD_XEWE2 AD_ESZ0 AD_EA26 AD_EA24 AD_EA22 AD_EA20 AD_EA18 AD_EA16 AD_EA14 AD_EA12 AD_EA10 AD_EA8 AD_EA6 AD_EA4 AD_EA2 AD_EA0 AD_ED30 AD_ED28 AD_ED26 AD_ED24 AD_ED22 AD_ED20 AD_ED18 AD_ED16 AD_XSPCIRQ AO_MMCKE AO_MMCKE2 AA_SRQ AA_SBI0 AA_TCK AD_XEWE0 AD_XECS4 AD_XECS2 AD_XECS0 AA_SDA1 AA_SCL1 AA_SBO0 AA_TCK AA_TMS AA_TRSTEN AD_XRST AA_TDI AA_TDO AA_SBO0 AD_ED19 +3.3V +3.3V +1.5V A1.5V A1.5V +3.3V +3.3V +3.3V +3.3V +5V +5V IC8024 R14 GND IC8024 M17 AVDDMPLL C8250 16V 0.1u R8365 10k IC8024 AA22 SMTCLK1 IC8024 D19 XMMCAS IC8024 A26 GND IC8024 T23 GND IC8024 A15 MMA13 IC8024 A10 MMDQ11 IC8024 AE20 VSSRAC_14 R8348 56 IC8024 AE14 VSSRAC_8 C8197 16V 0.1u IC8024 AC9 VSSRAC_18 IC8024 M14 GND IC8024 E18 MMDQMU1 IC8024 L13 GND IC8024 A20 MMA4 IC8024 V24 SDDAT0 C8223 16V 0.1u C8235 10V 1u J0JHC0000035 L8511 IC8024 B3 HSD6 R8330 56 IC8024 M13 GND IC8024 P17 GND IC8024 P12 GND IC8024 C5 HSD1 C8249 16V 0.1u IC8024 A16 MMA11 IC8024 L15 VDD33 IC8024 M16 AVSSMPLL C8213 50V 4700p C8215 16V 0.1u C8229 16V 0.1u IC8024 E6 TSTSEL J0JHC0000035 L8094 R8379 56 C8205 16V 0.1u IC8024 AE15 VSSRAC_9 IC8024 AC18 VSSRAC_27 IC8024 R11 VDD15 IC8024 B6 HSVAL IC8024 D13 GND IC8024 B15 MMA12 IC8024 AC17 VSSRAC_26 IC8024 K16 VDD33 R8320 56 IC8024 AD23 RMCO IC8024 A4 HSD2 R8338 10k IC8024 AE7 VSSRAC_1 R8009 56 C8195 16V 0.1u IC8024 C17 MMA0 IC8024 C9 MMDQ4 R8969 0 IC8024 C12 MMDQMU0 IC8024 M11 GND IC8024 A7 MMDQ0 IC8024 AC16 VSSRAC_25 IC8024 A2 HSD7 IC8024 U13 VDD15 IC8024 L11 GND IC8024 AF26 GND IC8024 N15 GND C8231 10V 1u R8321 EXB2HV560JV R8307 56 C8245 16V 0.1u IC8024 Y22 SMTVPP1 C8211 16V 0.1u C8233 10V 1u IC8024 E16 MMDQ24 C8214 50V 0.01u IC8024 A13 GND IC8024 M15 VDD33 DT8 K1KA05A00138 1 2 3 4 5 IC8023 PST9228NR 1 2 3 5 4 C8228 16V 0.1u C8217 4V 56u C8220 4V 56u IC8024 D9 MMDQ31 IC8024 D6 MINTEST IC8024 F6 GND C8237 10V 1u IC8024 E12 MMDQ27 R8345 100 IC8024 AC23 SMTRST1 IC8024 C8 MMDQ13 IC8024 AB8 VDDRAC_1 R8351 56 IC8024 Y25 SDWP IC8024 AC15 VSSRAC_24 R8334 10k C8203 16V 0.1u DT2 K1KA04A00194 1 2 3 4 IC8024 AC12 VSSRAC_21 IC8024 B8 MMDQ2 R8311 56 IC8024 AA24 SMTRST0 IC8024 C15 MMBS0 R8350 56 IC8024 U17 GND R8309 47 R8687 10k IC8024 B7 MMDQ15 IC8024 P16 GND R8381 56 C8243 10V 1u C8248 16V 0.1u IC8024 A6 HSERR IC8024 AB23 SMTSEL1 IC8024 D14 MMDQ22 IC8024 W24 SDDAT3 IC8024 T11 VDD15 IC8024 N11 GND R8362 10k IC8024 U12 VDD15 R8324 56 R8696 10k R8341 56 IC8024 A14 MMCK IC8024 AC20 XHEGRST C8207 16V 0.1u IC8024 D7 GND IC8024 C16 MMA9 IC8024 L10 GND IC8024 A18 MMA7 IC8024 A19 MMA2 R8052 15 C8230 10V 1u C8224 16V 0.1u IC8024 D15 MMDQ23 C8246 16V 0.1u IC8024 E14 MMDQ21 IC8024 T4 GND IC8024 AC11 VSSRAC_20 IC8024 R16 GND C8244 16V 0.1u IC8024 C13 GND IC8024 AC14 VSSRAC_23 C8232 10V 1u IC8024 L14 VDD33 IC8024 A9 MMDQ3 IC8024 W25 SDDAT2 IC8024 AF1 GND IC8020 C3ABQG000034 1 VDD 2 DG0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 VDD 15 DQML 16 WE# 17 CAS# 18 RAS# 19 CS# 20 BA0 21 BA1 22 A10 23 A0 24 A1 25 A2 26 A3 27 VDD 28 VSS 29 A4 30 A5 31 A6 32 A7 33 A8 34 A9 35 A11 36 NC 37 CKE 38 CLK 39 DQMH 40 NC 41 VSS 42 DQ8 43 VDDQ 44 DQ9 45 DQ10 46 VSSQ 47 DQ11 48 DQ12 49 VDDQ 50 DQ13 51 DQ14 52 VSSQ 53 DQ15 54 VSS R8366 10k R8322 56 IC8024 K13 VDD33 IC8024 C3 HSBCLK IC8024 C10 MMDQ10 R8332 56 R8361 EXB38V103JV IC8024 AB17 VDDRAC_6 IC8024 B14 MMCKI R8008 56 IC8024 E19 MMCKE IC8024 N10 VDD15 IC8024 U11 AVDDAPLL IC8024 T14 GND IC8024 N16 AVSSUPLL IC8024 F4 GND IC8024 R15 GND C8206 16V 0.1u C8236 10V 1u IC8024 AE13 VSSRAC_7 IC8024 P14 GND C8210 16V 0.1u R8358 0 IC8024 A5 HSSYNC IC8024 L16 VDD33 IC8024 A3 HSD5 IC8024 AA23 GND IC8024 B11 MMDQ9 IC8024 M12 GND IC8024 C7 MMDQ1 C8227 16V 0.1u IC8024 AC8 VSSRAC_17 IC8024 D18 XMMRAS R8346 56 C8241 10V 1u IC8024 R12 VDD15 C8242 10V 1u IC8024 D10 MMDQ19 IC8024 Y23 SMTCMD1 IC8024 AE16 VSSRAC_10 IC8024 B5 HSD0 C8247 6.3V 33u IC8024 B16 MMBS1 R8310 56 C8240 10V 1u C8226 16V 0.1u IC8024 B13 GND R8323 EXB2HV560JV IC8024 E13 GND IC8024 D12 MMDQ28 IC8024 C19 MMA3 C8198 16V 0.1u IC8024 M10 GND IC8024 T12 VDD15 C8239 10V 1u IC8024 B17 MMA8 IC8024 AC26 SMTD0 C8234 10V 1u IC8024 N12 GND IC8024 P10 VDD15 IC8024 AE18 VSSRAC_12 R8347 56 IC8024 AE11 VSSRAC_5 IC8024 AC13 VSSRAC_22 IC8024 AE21 VSSRAC_15 R8333 0 IC8024 C18 MMA6 R8336 56 IC8024 A11 MMDQ6 IC8024 N17 AVDDUPLL IC8024 U15 GND IC8024 AB19 VDDRAC_7 IC8024 L4 GND IC8024 K15 VDD33 R8364 10k R8314 56 IC8024 N14 GND IC8024 T16 GND IC8024 A12 MMDQ8 IC8024 AB24 SMTCMD0 IC8024 Y24 SDCD C8216 16V 0.1u IC8024 L12 GND IC8024 U14 VDD15 IC8024 D4 XRST IC8024 U16 GND IC8024 L23 GND IC8024 B19 MMA5 IC8024 AE8 VSSRAC_2 IC8024 E10 MMDQ18 IC8024 K11 GND IC8024 AB14 VDDIO_1 IC8024 AF24 RMCI0 IC8024 AB20 VDDRAC_8 IC8024 B10 MMDQ5 C8196 16V 0.1u R8313 56 IC8024 AC10 VSSRAC_19 R8380 56 IC8024 A17 MMA10 IC8024 AB10 VDDRAC_3 IC8024 U10 AVSSAPLL IC8024 R17 GND IC8024 AB15 VDDRAC_4 IC8024 D11 MMDQ20 IC8024 P11 VDD15 IC8024 L17 AVDD33UPLL IC8024 N13 GND IC8024 AB22 SMTD1 R8384 0 IC8024 B12 MMDQML0 R8331 56 C8202 16V 0.1u IC8024 K17 VDD33 IC8021 C3ABQG000034 1 VDD 2 DG0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 VDD 15 DQML 16 WE# 17 CAS# 18 RAS# 19 CS# 20 BA0 21 BA1 22 A10 23 A0 24 A1 25 A2 26 A3 27 VDD 28 VSS 29 A4 30 A5 31 A6 32 A7 33 A8 34 A9 35 A11 36 NC 37 CKE 38 CLK 39 DQMH 40 NC 41 VSS 42 DQ8 43 VDDQ 44 DQ9 45 DQ10 46 VSSQ 47 DQ11 48 DQ12 49 VDDQ 50 DQ13 51 DQ14 52 VSSQ 53 DQ15 54 VSS IC8024 Y26 SDCLK IC8024 W26 SDDAT1 R8318 56 R8363 10k C8218 4V 56u R8349 EXB38V560JV C8225 16V 0.1u R8023 0 IC8024 T10 VDD15 IC8024 AA26 SDCMD R8968 0 IC8024 C11 MMDQ7 IC8024 AB16 VDDRAC_5 R8315 56 C8221 16V 0.1u IC8024 AC7 VSSRAC_16 IC8024 AB7 VDDRAC_0 MN2WS012AA-A IC8024 A1 GND IC8024 AB13 AVDDRAC_1 IC8024 AE19 VSSRAC_13 IC8024 AB18 VDDIO_2 IC8024 D8 MMDQ17 IC8024 AB26 SMTCLK0 IC8024 P13 GND IC8024 C4 HSD4 R8312 56 IC8024 T15 GND C8222 16V 0.1u R8319 EXB2HV560JV IC8024 K10 GND IC8024 AA4 GND IC8024 AC25 XIRQ18 C8212 50V 0.01u R8340 56 IC8024 E15 MMDQ26 R8339 10k R8316 56 IC8024 AE17 VSSRAC_11 IC8024 AE10 VSSRAC_4 IC8024 AE6 VSSRAC_0 R8305 0 IC8024 E8 MMDQ16 IC8024 AE9 VSSRAC_3 R8022 0 R8325 EXB2HV560JV C8199 16V 0.1u R8335 0 IC8024 AE24 RMCI1 R8367 10k IC8024 E9 MMDQ30 IC8024 K12 GND IC8024 E17 MMDQML1 IC8024 R10 VDD15 C8219 25V 33u IC8024 K14 VDD33 R8024 22 IC8024 C14 XMMCS C8193 16V 0.1u IC8024 R13 GND R8317 56 IC8024 D16 MMDQ25 R8327 EXB2HV560JV C8251 6.3V 33u R8326 56 IC8024 B4 HSD3 R8337 56 IC8024 D17 XMMWE C8238 10V 1u IC8024 P15 GND IC8024 T17 GND IC8024 AC19 XRSTOUT IC8024 AB12 AVDDRAC_0 IC8024 AD26 XIRQ19 IC8024 AA25 SMTSEL0 L8043 J0JHC0000045 R8368 10k IC8024 A8 MMDQ14 C8201 16V 0.1u IC8024 C6 HSEN IC8024 F23 GND JK8006 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 IC8024 AB9 VDDRAC_2 IC8024 T13 VDD15 IC8024 AE12 VSSRAC_6 C8200 16V 0.1u C8204 16V 0.1u IC8024 B18 MMA1 J0JHC0000035 L8093 IC8024 B9 MMDQ12 IC8024 E11 MMDQ29 IC8024 AB11 VDDIO_0 IC8024 AB25 SMTVPP0 DT3 K1KA07A00189 1 2 3 4 5 6 7 SDR RST K4S281632D-UC75 K4S281632D-UC75 FA1 M2V28S40ATP-6 MT48LC8M16A2TG-75 K4S281632D-TC75 MITSUBISHI MICRON SAMSUNG SAMSUNG A9V A9V A9V SOLDER SIDE TEST LAND:SOLDER SIDE SUPPORT CARD 1.5V RESET NEAR SDRAM NEAR SDRAM MT48LC8M16A2TG-75 M2V28S40ATP-6 K4S281632D-TC75 CLK_BUS CLK_BUS CPU WORK SDRAM 1/2 SAMSUNG MICRON 128Mbit CPU WORK SDRAM 2/2 I/O,RESET I2C,SERIAL,JTAG TUNER_OUT CPU_BUS I/O,RESET SDCARD I2C,SERIAL,JTAG TUNER_OUT CPU_BUS A5V A5V A5V +30V +30V +30V +1.2V +1.2V +1.2V +1.5V +2.5V +5V +3.3V +1.5V +2.5V +5V +3.3V +2.5V +5V +3.3V BANKSIZE0 TC SUB GND Vcc Vout RESET IC +3.3V HS_DATA SDRAM_DATA SDRAM_ADRS SDRAM_CTRL SDRAM RESET REMOCON IC_CARD SD_CARD 1.44 1.63V 128Mbit MITSUBISHI SAMSUNG MN2WS012AA-A MN2WS0010 MN2WS012AA-A MN2WS0010 34 35 29 30 31 36 28 33 32 128Mbit CPU SDRAM 128Mbit CPU WORK IC8024 (CPU) IC8024 40 37 35 36 64 65 63 55 62 56 54 61 57 52 53 39 51 43 42 38 60 58 59 34 41 32 33 31 DT-BOARD TNP2AA144AC (4/8) THIS IS FOR REFERENCE USE ONLY. THIS MUST BE REPLACED WITH AN EXCHANGE UNIT ONLY. TH-42PX25U-P / TH-50PX25U-P 137 15.42. DT-Board (5 of 8) Schematic Diagram TH-42/50PX25U/P DT-Board (5 of 8) Schematic Diagram TH-42/50PX25U/P DT-Board (5 of 8) Schematic Diagram + + + + + AB_CLK67_PEAKS AB_CLK74_PEAKS AT_SYNCLKN AT_PCLKM AT_REFCLK AB_CLK133_PEAKS AT_DQB7 AT_DQB6 AT_DQB5 AT_DQB4 AT_DQB1 AT_DQB2 AT_RQ0 AT_DQB0 AT_RQ1 AT_RQ2 AT_RQ3 AT_DQA0 AT_DQA1 AT_DQA4 AT_DQA5 AT_DQA6 AT_DQA7 AB_CLK67_PEAKS AT_VCMOS AT_DQA2 AT_RQ5 AT_RQ4 AT_RQ6 AT_DQA3 +1.4V AT_CFMN AA_CLKEN AB_CLK74_PEAKS AT_CTM AT_CTMN AT_REFCLK AT_PCLKM AT_SYNCLKN AT_SIO AT_SIO AT_CMD AT_SCK AT_VCMOS AT_SCK AT_CFMN AT_CMD AT_CFM AT_SCK AT_CMD AT_DQA7 AT_DQA6 AT_DQA3 AT_DQA4 AT_DQA5 AT_DQA1 AT_DQA0 AT_CFM AT_DQA2 AT_CTMN AT_RQ7 AT_CTM AT_RQ5 AT_RQ6 AT_RQ1 AT_RQ4 AT_RQ3 AT_RQ2 AT_DQB6 AT_DQB3 AT_DQB4 AT_DQB5 AT_DQB2 AT_RQ0 AT_DQB0 AT_DQB1 AT_VCMOS AT_DQB7 AT_DQA1 AT_DQA0 AT_CTMN AT_CTM AT_CFMN AT_CFM AT_DQB5 AT_DQB4 AT_DQB3 AT_DQB2 AT_DQB0 AT_DQB1 AT_DQA7 AT_DQA6 AT_DQA5 AT_DQA4 AT_DQA3 AT_DQA2 AT_RQ7 AT_RQ6 AT_RQ5 AT_RQ4 AT_RQ3 AT_RQ2 AT_RQ1 AT_RQ0 AT_DQB7 AT_DQB6 AT_RQ7 AT_DQB3 +3.3V +2.5V +3.3V +3.3V +1.8V +3.3V +3.3V R8408 4.7k R8409 22 C8282 10V 1u IC8025 D5 GNDA IC8024 AF20 DQB4 R8399 EXB38V390JV R8398 IC8024 AD9 DQA2 IC8025 D3 GND IC8024 AF9 DQA0 IC8025 G6 DQB1 C8303 16V 0.1u R8394 0 C8262 16V 0.1u C8305 50V 68p IC8024 AD15 RQ3 C8616 16V 4.7u C8278 16V 0.1u R8715 56 IC8025 E7 RQ5 R8395 100 IC8026 C0JBZZ000293 1 XTB 2 Nc 3 Vc 4 VSS 5 Q0 6 VDD 7 STB 8 XT R8397 EXB38V390JV IC8024 AF17 RQ1 IC8025 A3 SCK IC8025 C3ABQG000066 A1 NC C8256 10V 1u IC8025 H2 DQB6 R8423 56 L8044 J0JHC0000075 IC8025 C1 DQA0 IC8024 AE5 REFCLK R8396 22 R8417 0 C8311 50V 15p L8045 J0JHC0000045 C8296 16V 0.1u C8268 16V 0.1u IC8025 J3 SIO1 C8297 50V 68p C8259 16V 0.1u C8280 10V 1u C8257 16V 0.1u C8253 10V 100u IC8024 AF5 SCK C8292 10V 1u IC8024 AF12 CTMN 1% R8385 1.6k IC8025 G1 RQ0 IC8025 J1 NC IC8025 B1 DQA3 IC8024 AD7 DQA6 IC8025 G5 VDD R8391 39 R8389 4.7k C8255 10V 1u IC8024 AF10 CFM IC8024 AF18 DQB0 1% R8386 5.6k C8270 16V 0.1u R8424 56 R8413 4.7 IC8024 AD16 RQ0 R8402 C8298 50V 68p C8266 16V 0.1u IC8024 AF21 DQB7 IC8025 C2 DQA1 IC8025 D6 VDDA IC8025 E1 CTM TP8011 IC8024 AF13 CTM C8313 50V 0.01u IC8025 F3 VDD IC8024 AF8 DQA3 IC8025 B6 DQA5 R8406 100k IC8025 H1 DQB3 C8269 16V 0.1u IC8024 AF15 RQ5 IC8025 J7 DQB7 C8309 16V 0.1u IC8025 D2 VREF C8281 16V 0.1u R8420 110 R8411 22 R8403 10k IC8024 AD13 RQ7 C8300 10V 100u IC8025 E5 VDD IC8025 B3 GND IC8024 L5 VC271 R8400 C8312 50V 15p C8286 10V 100u 1% R8388 4.7k IC8025 A5 CMD IC8025 B7 DQA4 C8293 16V 0.1u R8421 110 C8299 16V 0.1u C8279 16V 0.1u IC8024 AD21 SIO IC8027 C0ZBZ0000881 ICS422AG-12LFT 1 74.125M 2 VDD 3 GND 4 CLKIN 5 NC 6 27M 7 133M 8 NC 9 66.5M 10 NC 11 GND 12 S0 13 S1 14 VDD 15 S2 16 OE IC8025 E3 GND IC8024 AD10 DQA1 C8284 16V 0.1u IC8024 AD17 DQB1 C8306 16V 0.1u IC8025 J6 GND IC8025 F6 RQ2 IC8024 AF11 CFMN IC8025 H7 DQB4 1% R8387 1.8k R8425 0 IC8024 AD19 DQB5 L8046 J0JHC0000045 IC8024 AD12 VREFRAC_0 H0J270500059 X8005 IC8024 AF7 DQA4 R8392 39 IC8025 D1 CTMN C8275 10V 1u R8390 4.7k IC8024 AD5 PCLKM IC8025 F7 RQ3 IC8024 J22 MCLK C8271 16V 0.1u IC8025 D7 CFMN IC8025 E6 RQ6 IC8025 C6 DQA2 C8265 10V 1u C8307 16V 0.1u IC8025 G7 DQB0 C8260 10V 1u R8941 0 IC8025 C5 GND R8410 22 IC8025 H5 VDD IC8025 B5 VDD IC8024 AF4 SYNCLKN J0JHC0000035 L8092 IC8025 A7 DQA7 C8252 16V 0.1u IC8025 G3 GND IC8024 M5 CLK271 IC8024 AD18 DQB2 IC8024 J24 UTCPOUT IC8025 A6 GND R8927 0 C8615 16V 4.7u IC8024 J25 MTCPOUT IC8025 F2 RQ1 IC8024 AD14 RQ4 IC8024 K3 VC270 C8267 16V 0.1u IC8025 B2 DQA6 IC8025 F5 GND C8277 10V 1u C8263 10V 1u C0ZBZ0000695 IC8028 1 VDDIR 2 REFCLK 3 VDDP 4 GNDP 5 GNDI 6 PCLKM 7 SYNCLKN 8 GNDC 9 VDDC 10 VDDIPD 11 STOPB 12 PWRDNB 13 S2 14 MULT1 15 MULT0 16 VDDO 17 GNDO 18 CLKB 19 NC 20 CLK 21 GNDO 22 VDDO 23 S1 24 S0 IC8024 AF6 DQA7 C8294 50V 0.01u C8264 16V 0.1u IC8025 C3 VDD IC8024 J1 CLK270 IC8024 AD11 VREFRAC_1 C8273 16V 0.1u C8258 10V 1u R8393 0 IC8024 AD20 DQB6 C8301 10V 100u IC8024 AD8 DQA5 IC8025 G2 DQB2 IC8025 F1 RQ4 C8302 16V 0.1u IC8025 H6 DQB5 C8283 10V 1u R8418 10k IC8024 AF16 RQ2 C8287 16V 0.1u IC8024 AF14 RQ6 C8308 16V 0.1u IC8025 J5 SIO0 C8285 4V 100u C8304 50V 68p IC8025 J2 VCMOS IC8024 L1 CLK75 IC8024 AF19 DQB3 IC8025 C7 CFM R8943 0 R8407 0 IC8025 H3 GND R8401 R8422 0 C8261 10V 1u IC8024 AD6 CMD C8274 16V 0.1u IC8025 E2 RQ7 IC8025 A2 VCMOS C8276 10V 1u C8295 16V 0.1u R8415 22 IC8024 J23 UCLK 2 K4R271669E-TCS8 A9V A9V A9V SOLDER SIDE TEST LAND L4 2.5V CLK_BUS CLK_BUS I/O,RESET SDCARD I2C,SERIAL,JTAG TUNER_OUT CPU_BUS I/O,RESET SDCARD I2C,SERIAL,JTAG TUNER_OUT CPU_BUS A5V A5V A5V +30V +30V +30V +1.2V +1.2V +1.2V +1.5V +2.5V +5V +3.3V +1.8V +1.5V +2.5V +5V +3.3V +1.8V +1.5V +2.5V +5V +3.3V +1.8V KA5SDKAS01TS D-RDRAM +2.5V VTERM_1.8V VREFRAC_1.4V VDDMEM_2.5V VREFRAC_1.4V PULL DOWNED SIGNALS VDDMEM_2.5V VDDMEM_2.5V GND VDDMEM_2.5V VTERM DQA3 DQA6 GND DQA4 VDD DQA5 VCMOS DQA8 SCK DQA7 CMD GND VDD DQA1 DQA0 CFM DQA2 GND GND GND RQ7 CTM RQ5 RQ6 VDD GND VREF CTMN CFMN VDDa GNDa VDD RQ1 RQ4 RQ3 RQ2 GND GND DQB2 RQ0 DQB0 DQB1 VDD SIO1 VCMOS DQB8 DQB7 GND SIO0 GND DQB6 DQB3 DQB4 DQB5 VDD VREFRAC_1.4V CTMN CTM VCC_3.3V VCC_3.3V 27MHz CLOCK (TD) (TD) (TD) (TD) 27MHz CLK_BUS MN2WS012AA-A MN2WS0010 ICS 128Mbit x 1 43 44 38 42 39 40 41 45 37 IC for VCXO 3 PLL CLOCK RAMBUS CLOCK GENERATOR IC8024 58 56 63 73 72 71 75 53 74 59 60 80 81 57 79 51 82 77 78 64 76 85 83 84 52 61 65 54 55 62 DT-BOARD TNP2AA144AC (5/8) THIS IS FOR REFERENCE USE ONLY. THIS MUST BE REPLACED WITH AN EXCHANGE UNIT ONLY. TH-42PX25U-P / TH-50PX25U-P 138 15.43. DT-Board (6 of 8) Schematic Diagram TH-42/50PX25U/P DT-Board (6 of 8) Schematic Diagram TH-42/50PX25U/P DT-Board (6 of 8) Schematic Diagram + + DRIVE IC VCC Vin GND AS_MVC3 AS_MVC2 AS_MVC1 AS_MVC0 AS_MHSYNCO AS_MVSYNCO AS_MVCLKO AS_LOCKI AS_LHSYNCI AS_LOSD15 AS_LOSD14 AS_LOSD13 AS_LOSD12 AS_LOSD11 AS_LOSD10 AS_LOSD9 AS_LVSYNCI AS_LOSD8 AS_LOSD7 AS_LOSD6 AS_LOSD5 AS_LOSD4 AS_LOSD3 AS_LOSD2 AS_LOSD1 AS_LOSD0 AS_LOCKO AS_LHSYNCO AL_ADIN AL_SLRCK AL_DACCK AL_SRCK AL_LRCK AD_IECOUT_LINK AL_DMIX AD_XECS0_2 AD_XECS0_1 AD_XECS0_0 AQ_OSDH AD_LA7 AD_USBRST AQ_LOSDYS AQ_LOSDYM AQ_OSDB AQ_OSDG AQ_OSDR AS_YSSTIL AS_SVD7 AS_SVD6 AS_SVD5 AS_SVD4 AS_SVD3 AS_SVD2 AS_SVD1 AS_SVD0 AS_SVCLKO AS_MVY7 AS_MVY6 AS_MVY5 AS_MVY4 AS_MVY3 AS_MVY2 AS_MVY1 AS_MVY0 AS_MVC7 AS_MVC6 AS_MVC5 AS_MVC4 AA_CLKEN AD_XECS0_3 AA_SBI0 AA_TDI AS_LVSYNCI AD_OSDV +5V AS_YSOSD AL_ADIN AL_DACCK AL_SRCK AL_SLRCK AA_SCL1 AA_SDA1 AA_SRQ AA_TMS AA_TRSTEN AA_TCK A5V AD_XECS2 AS_LOCKO AS_YSSTIL AS_LHSYNCO AS_LHSYNCI AS_LOCKI AS_LOSD11 AS_LOSD10 AS_LOSD9 AS_LOSD8 AS_LOSD7 AS_LOSD6 AS_LOSD5 AS_LOSD4 AS_LOSD3 AS_LOSD2 AS_LOSD0 AS_LOSD1 AS_LOSD15 AS_LOSD14 AS_LOSD13 AS_LOSD12 AD_XECS0 AD_XECS5_1 AD_ECLK_SPC AD_XEWE3 AD_XEWE2 AD_XSID5RST AD_ESZ0 AS_YSOSD AD_ESZ1 AD_EA24 AD_XECS5 AD_EA0 AD_EA1 AD_EA6 AD_EA7 AD_EA23 GURAD_CL GURAD_CL AB_RIN+ AD_IECOUT_LINK AB_RIN- +3.3V +5V +3.3V 3.3V +3.3V A9V A9V R8440 140 1% C8340 50V 220p IC8024 AB2 LOSD10 R8450 4.7k R8439 140 1% R8518 56 IC8024 W3 VOUTENB C8347 16V 0.1u IC8024 AE2 DMIX C8341 16V 4.7u IC8024 U2 SVD6 R8429 1.5k R8662 56 R8426 75 R8901 0 C8316 16V 47u IC8024 AA2 LOSD6 IC8024 N5 MVC7 R8453 4.7k R8482 0 R8427 75 IC8024 R2 MVY4 TP8021 C8326 16V 0.1u IC8024 AD1 ADOUT2 R8503 56 C8569 16V 0.1u R8476 56 IC8024 R4 MVY2 L8050 ELJPA330KF IC8024 AD2 ADOUT1 C8320 50V 0.01u IC8024 P3 MVC0 R8902 0 R8430 1.5k IC8024 W4 LVSYNCI R8500 10k R8491 100 IC8024 AB6 AUDCLK R8530 EXB2HV820JV IC8024 Y5 LOSD4 R8505 56 IC8024 AC1 LOSD13 R8515 56 1% R8966 220 IC8024 P2 MVC1 IC8024 M1 MVCLKO IC8024 Y3 LOSD2 R8486 0 IC8024 U3 SVD5 C8345 50V 0.01u 47u 16V C8835 IC8024 N2 MVC4 R8454 100 IC8024 V3 SVD0 IC8024 P4 MVY7 C8315 16V 0.1u IC8024 AE3 LRCK R8473 100 IC8024 AF3 AVCOIN IC8024 AC5 ADIN IC8030 PQ1X331M2ZP 1 VIN 2 GND 3 ON/OFF 5 Vo 4 Nr C8337 16V 0.22u R8428 75 R8431 1.5k C8351 50V 0.01u C8348 50V 0.01u IC8024 AC4 DEEMP IC8024 U4 SVD4 R8438 140 1% C8339 50V 220p C8330 50V 0.01u R8474 0 R8488 470 IC8024 V2 SVD1 R8517 56 R8519 56 C8353 16V 4.7u C8323 10V 10u IC8024 R1 MVY5 R8468 100 IC8024 AC3 LOSD15 C8346 16V 4.7u R8975 200 R8526 EXB2HV820JV R8477 1k R8520 56 R8493 0 1% R8441 4.99k R8472 100 IC8024 AD3 SRCK C8332 50V 0.01u R8504 56 R8904 0 IC8024 AA5 LOSD8 IC8024 AF2 DACCK R8521 EXB2HV820JV R8688 100 R8508 0 L8051 ELJPA330KF C1AB00001694 IC8031 MB87L4610PFV-G-BND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 R8528 EXB2HV560JV IC8024 AC6 ATVROUT R8514 330 R8513 1k C8350 1u 10V R8489 470 IC8024 T1 MVY0 C0FBAK000003 IC8032 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 IC8024 U1 SVD7 IC8024 AE4 ATCPOUT IC8024 AB1 LOSD9 R8695 10k R8899 10k Q8011 2SB709ARTX R8455 100 R8502 56 IC8024 V4 LHSYNCO Q8010 2SB709ARTX C8324 50V 0.01u C8342 16V 4.7u R8449 4.7k IC8024 Y4 LOSD3 Q8013 2SB709ARTX R8903 0 R8661 56 IC8024 T3 YSOSD C8325 50V 0.01u R8496 10k R8051 0 R8470 100 C8331 50V 0.01u IC8024 T5 SVCLKO R8536 56 R8433 470 C8319 50V 0.01u R8469 56 R8479 5.1k IC8024 U5 SVD3 R8532 56 C1DB00000846 IC8057 DS90LV018ATMX 1 RIN- 2 RIN+ 3 NC 4 NC 5 GND 6 NC 7 ROUT 8 VCC R8507 10k C8343 16V 0.1u R8497 0 R8537 56 R8533 56 R8935 0 R8689 100 L8091 J0JHC0000045 C8318 1u 10V R8461 100 IC8024 N4 MVC6 L8049 J0JHC0000045 R8965 200 IC8024 W5 LHSYNCI C8327 50V 0.01u C8322 16V 0.1u C8338 50V 0.01u L8047 ELJPA330KF R8509 0 IC8024 M3 MHSYNCO C8321 1u 10V C8329 50V 0.01u IC8024 R5 MVY1 R8463 10k IC8024 W1 LOCKO IC8024 T2 YSSTIL R8906 56 IC8024 AA3 LOSD7 IC8024 AC2 LOSD14 C8446 16V 0.01u R8523 EXB2HV820JV R8466 100 C8334 50V 0.01u R8501 0 C8355 50V 0.01u R8535 56 IC8024 W2 LOCKI IC8024 AA1 LOSD5 IC8024 AE1 ADOUT0 IC8024 AD4 IECOUT IC8024 P5 MVY6 IC8024 Y2 LOSD1 IC8024 V5 LVSYNCO C8349 1u 10V IC8024 AB3 LOSD11 R8495 10k R8487 100 IC8024 R3 MVY3 IC8024 AB5 SLRCK R8516 56 1% R8442 2.49k R8898 10k R8483 0 R8534 56 IC8024 AB4 LOSD12 R8485 100 R8435 470 Q8012 2SB709ARTX IC8024 M2 MVSYNCO R8905 56 IC8024 N3 MVC5 C8356 10V 1u R8443 2.7k C8834 10V 1u IC8024 P1 MVC2 C8335 16V 4.7u IC8024 N1 MVC3 C8317 50V 0.01u R8437 470 R8010 0 R8464 100 R8035 10k D8017 B3ZAZ0000011 1 2 3 IC8024 V1 SVD2 IC8024 Y1 LOSD0 2 A9V CS0MODE AK5353VT-E2 MAIN_OUT VIDEO_OUT I2C,SERIAL,JTAG TUNER_OUT CPU_BUS I/O,RESET SDCARD I2C,SERIAL,JTAG TUNER_OUT CPU_BUS A5V +30V +1.2V +1.5V +2.5V +5V +3.3V +1.8V SL SR FlashROM_SIZE CS0MODE[1:0] 0 0 0 1 1 0 64Mbit 128Mbit 256Mbit GND VCC DACRVSS DACGVDD DACGVSS DACBVDD DACBVSS GND DACRVDD DACGO DACVRO DACVREF DACBO VDD SDA SCL IPTC1 IPTC2 IPTC3 IPTC4 IPTC5 PLLHO PFD_INGIBIT REFHO VCO_INHIBIT VDD PLLCLKI YSO YMO DACRO VDD SID5 GND AMODE1 AMODE0 VPD I958OUT1 CSMODE1 CSMODE0 ES512 PWND OPTC3 OPTC4 OPTC5 OPTC6 OPTC7 OPTC8 OPTC9 OPTC10 OPTC11 VDD DACDEF XCS2_1 XCS2_0 XCS2 ADDAT DCLK GND RESETI NSBHE LA7 NWR SZ0 GND VCC I958IN ADFS64 ADFS OPTC1 I958OUT2 VDD TMS TCK TDI TDO TRST GND GND GND CPO VCI PLLVSS PLLVDD VDD LOSD7 LOSD6 LOSD5 LOSD4 LOSD3 LOSD2 LOSD1 LOSD0 VDD OSDCLKO OSDV OSDH OSDHIN YSI YMI OSDCLKI SETV VDD SETHS SETH A23 GND A7 A1 A0 GND GND 8LADD ICCARD CLKEN VDD DACRST NTSCRST VDD LOSD15 LOSD14 LOSD13 LOSD12 LOSD11 LOSD10 LOSD9 LOSD8 GND SZ1 WD0 WD1 RD ECLK XCS5 CS5_0 CS5_1 GND XCS0 XCS0_0 XCS0_1 XCS0_2 XCS0_3 A24 A6 VDD VDD VDAC AUDIO VIDEO MN2WS012AA-A MN2WS0010 SLV[48] IPTC2 TNP2AA144 TNP2AA189 OPEN GND 46 49 54 48 50 51 52 53 47 AVR 3.3V LVDS RX 8bit D/A CONVERTER 16bit AUDIO A/D DIGITAL AUDIO OUT IC8024 TST TTL DIF PD SCLK MCLK LRCK SDT0 AINR AINL VREF VCOM AGND VA VD DGND 71 75 85 74 84 79 81 78 97 95 96 100 93 82 73 91 72 92 99 76 98 94 101 83 102 103 104 105 107 108 109 110 106 112 113 111 80 77 DT-BOARD TNP2AA144AC (6/8) THIS IS FOR REFERENCE USE ONLY. THIS MUST BE REPLACED WITH AN EXCHANGE UNIT ONLY. TH-42PX25U-P / TH-50PX25U-P 139 15.44. DT-Board (7 of 8) Schematic Diagram TH-42/50PX25U/P DT-Board (7 of 8) Schematic Diagram TH-42/50PX25U/P DT-Board (7 of 8) Schematic Diagram + + + + + + + + + AA_FA1 9.5V AG_FAN_CTL2 AD_OSDV AQ_OSDB AQ_OSDG AQ_OSDR AQ_LOSDYM AQ_LOSDYS AQ_OSDH AH_VIDEO_OUT AH_D_A_SW AH_IFSW AH_AFT AH_SCL_TV AH_SDA_TV AH_D_A_SW AH_R_OUT AH_L_OUT AH_SDA_TV1 AH_SCL_TV1 AS_SVCLKO AS_SVD0 AS_SVD1 AS_SVD2 AS_SVD3 AS_SVD4 AS_SVD5 AS_SVD6 AS_SVD7 AD_XRST AD_XRST AD_H57RST AA_SBO1 AA_SBI1 AA_SCL0 AA_SDA0 AS_MVY6 AS_MVY7 AA_SCL1 AA_SDA1 AS_MVSYNCO AS_MHSYNCO AS_MVC1 AS_MVC2 AS_MVC3 AS_MVC4 AS_MVC5 AS_MVC6 AS_MVC7 AS_MVC0 AS_MVY5 AS_MVY4 AS_MVY3 AS_MVY2 AS_MVY1 AS_MVY0 AS_MVCLKO GUARD_CL AB_RIN- GUARD_CL AB_RIN+ AL_DACCK AL_SRCK AL_DMIX AL_LRCK A5V A5V +30V +2.5V STBY5V +3.3V AH_D_A_SW +3.3V A9V A9V +2.5V A5V +30V R8643 0 R8555 680 C8359 16V 0.1u R8180 0 ERJ3GEY0R00V L8105 1% R8552 240 R8572 33k R8911 0 R8796 120k R8579 10k C8385 16V 0.1u R8723 0 L8055 J0JHC0000045 R8909 47k L8065 ELJPA1R0MF TP8020 R8624 2.2k 1% R8937 150 C8567 50V 0.01u R8951 150 L8075 J0JHC0000035 C8398 16V 0.1u C8378 50V 180p C8611 10V 100u R8542 10k L8056 J0JHC0000045 R8644 0 DT5 K1KA02A00188 1 2 R8725 0 C0FBBK000038 IC8034 AK4384VT-E2 1 MCLK 2 BICK 3 SDTI 4 LRCK 5 PDN 6 SMUTE/CSN 7 ACKS/CCLK 8 DIF0/CDTI 9 P/S 10 AOUTR 11 AOUTL 12 VCOM 13 VSS 14 VDD 15 DZFR 16 DZFL L8509 ELJPA100KF C8368 16V 4.7u R8583 10k C8372 16V 47u C8389 16V 0.1u C8366 16V 0.1u R8589 150 1% R8559 300 1% R8551 2.8k ERJ3GEY0R00V L8106 R8945 100k L8066 EXC3BB221H LC8087 0 R8556 33k C8373 16V 0.1u C8369 16V 0.1u R8587 1k R8645 0 R8910 0 TP8008 R8571 100 LC8084A J0HAAB000024 1 2 3 1% R8550 240 L8508 ELJPA100KF ERJ3GEY0R00V L8109 L8054 J0JHC0000045 R8560 22k R8635 4.7k R8939 10k R8545 0 TP8006 C8370 16V 0.1u C0ABBB000190 IC8036 1 2 3 4 5 6 7 8 C8374 50V 0.01u IC8045 DG642DY-T1 1 2 3 4 5 6 7 8 TP8005 1% R8582 150 C8365 16V 0.1u TP8003 R8590 150 R8721 0 C8388 16V 0.1u C8381 50V 33p C8829 50V 4p R8797 100k R8646 0 L8074 EXC3BB221H R8564 22k C8360 16V 47u C8397 16V 0.1u R8557 33k R8588 150 1% R8561 300 C8823 6.3V 220u R8573 4.7k C8357 16V 0.1u Q8421 2SD601ARTX R8591 150 J0JHC0000035 L8016 ERJ3GEY0R00V L8102 1% R8565 300 R8569 39k C8363 16V 4.7u Q8018 2SD601ATX TP8007 R8950 150 L8069 EXC3BB221H R8798 100k TP8009 R8548 10k C8613 10V 100u TP8001 JK8007 K1KA65B00003 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 R8952 150 L8067 EXC3BB221H R8916 10k C8016 16V 0.1u LC8083A J0HAAB000024 1 2 3 IC8051 C0EBM0000027 1 Vout 2 VDD 3 VSS 5 NC 4 NC R8953 150 J0JHC0000035 L8120 R8641 10k R8575 4.7k R8568 39k TP8010 C8382 50V 0.01u C8367 16V 4.7u C8390 10V 100u AN13301A-VT IC8037 1 DY_input 2 ctrl3_input 3 Cb_input 4 DC_shift 5 Cr_input 6 Vcc 7 Vcc 8 AY_input 9 DC_shift 10 AC_input 11 Line1_output 12 CPS_input 13 N.C. 14 N.C. 15 Line2_output 16 GND 17 I2C_data/ctrl2_input 18 I2C_clock/ctrl1_input 19 Line3_output 20 N.C. 21 GND 22 CPS_Sag_compensation 23 CPS_output 24 GND 25 S2_output 26 AC_output 27 Vcc 28 AY_Sag_compensation 29 AY_output 30 GND 31 GND 32 Cr_Sag_compensation 33 Cr_output 34 Vcc 35 Cb_Sag_compensation 36 Cb_output 37 GND 38 DY_Sag_compensation 39 DY_output 40 GND 41 N.C. 42 Mute_input 43 GND 44 GND 45 Det_input 46 Mix/CPS_input 47 N.C. 48 N.C. R8585 1k R8546 10k C8375 10V 100u C8380 50V 33p R8724 0 L8070 EXC3BB221H C8377 50V 820p C0JBAR000248 IC8044 1 2 3 4 5 6 7 8 9 10 11 12 13 14 C8376 50V 3900p R8647 0 R8954 150 TP8000 R8562 22k C8610 16V 0.1u L8053 ELJPA330KF ERJ3GEY0R00V L8104 R8971 0 R8580 1k R8570 100 Q8419 B1CFMD000001 G D S TP8004 R8822 10k R8543 10k LC8086 0 L8073 EXC3BB221H ERJ3GEY0R00V L8108 1% R8549 2.8k C8822 16V 0.1u L8071 EXC3BB221H R8949 0 IC8055 PQ05DZ5U 1 2 3 4 5 6 R8637 4.7k R8577 10k C8379 50V 180p R8554 10k R8584 150 1% R8563 300 R8586 1k C8014 16V 0.1u R8956 0 L8072 EXC3BB221H R8553 10k 1% R8567 300 C8371 16V 0.1u Q8029 2SD601ATX ERJ3GEY0R00V L8107 C8384 16V 0.1u R8795 0 ERJ3GEY0R00V L8103 L8025 J0JHC0000045 TP8002 LC8085A J0HAAB000024 1 2 3 R8566 22k R8547 10k C8819 6.3V 100u R8722 2.7k C8383 16V 47u R8581 1k C8827 10V 1u Q8420 2SB709ARTX IC8035 C1AB00001858 1 VDD_IO 2 Y0 3 Y1 4 Y2 5 Y3 6 Y4 7 Y5 8 Y6 9 Y7 10 VDD 11 DGND 12 Y8 13 Y9 14 C0 15 C1 16 C2 17 C3 18 C4 19 I2C 20 ALSB 21 SDA 22 SCLK 23 P_HSYNC 24 P_VSYNC 25 P_BLANK 26 C5 27 C6 28 C7 29 C8 30 C9 31 RTC_SCR_TR 32 CLKIN_A 33 RESET 34 EXT_LF 35 RSET2 36 COMP2 37 DACF 38 DACE 39 DACD 40 AGND 41 VAA 42 DACC 43 DACB 44 DACA 45 COMP1 46 VREF 47 RSET1 48 S_BLANK 49 S_VSYNC 50 S_HSYNC 51 S0 52 S1 53 S2 54 S3 55 S4 56 VDD 57 DGND 58 S5 59 S6 60 S7 61 S8 62 S9 63 CLKIN_B 64 GND_IO C8358 16V 0.1u R8962 0 C8018 16V 0.1u L8068 EXC3BB221H 1% R8558 300 R8947 10k R8574 33k C8612 16V 0.1u DT7 K1KA03A00170 1 2 3 LC8016 J0HAAB000004 1 2 3 4 J0MAB0000164 LC8094 1 2 3 4 LC8007 J0HAAB000004 1 2 3 4 LC8032 J0HAAB000004 1 2 3 4 LC8024 J0HAAB000004 1 2 3 4 J0MAB0000164 LC8090 1 2 3 4 LC8010 J0HAAB000004 1 2 3 4 J0HAAB000004 LC8093 1 2 3 4 LC8008 J0HAAB000004 1 2 3 4 LC8025 J0HAAB000004 1 2 3 4 LC8082 J0HAAB000004 1 2 3 4 LC8005 J0HAAB000004 1 2 3 4 LC8031 J0HAAB000004 1 2 3 4 LC8017 J0HAAB000004 1 2 3 4 LC8013 J0HAAB000004 1 2 3 4 LC8015 J0HAAB000004 1 2 3 4 LC8014 J0HAAB000004 1 2 3 4 LC8028 J0HAAB000004 1 2 3 4 J0MAB0000164 LC8092 1 2 3 4 LC8011 J0HAAB000004 1 2 3 4 LC8009 J0HAAB000004 1 2 3 4 LC8012 J0HAAB000004 1 2 3 4 J0MAB0000164 LC8091 1 2 3 4 LC8027 J0HAAB000004 1 2 3 4 LC8002 J0HAAB000004 1 2 3 4 FLL FLR 2 ADV7310 (TO FAN) THERE ARE NEAR BY IC8000. 2 2 2 2 2 2 VIDEO Encoder:ADV7310 A9V A9V L H OFF ON ON OFF YS SW1 SW2 ANALOG_V SW1 YS DIGITAL_V SW2 2 2 2 2 2 SCL1 SDA1 VIDEO VIDEO L_OUT R_OUT L_IN R_IN MC14066BF MAIN_OUT I2C,SERIAL,JTAG CPU_BUS MAIN_OUT I2C,SERIAL,JTAG TUNER_OUT CPU_BUS A A DR DL SD_C SD_Y HD_Pr HD_Pb HD_Y A5V A5V +30V +30V +5V +1.2V +1.2V +1.5V +2.5V +3.3V +1.8V +1.5V +2.5V +5V +3.3V +1.8V R L RSET2=1.52kohm RSET1=760ohm HD_Y HD_Pr HD_Pb SD_C SD_Y LINE1 HD_Pr HD_Pb HD_Y SD_C SD_Y SD_Composite R L - + + - R AUDIO DAC L IIC_BUS VDAC SD_C SD_Y SD_Composite HD_Pr HD_Pb HD_Y VDAC(HD/SD) 63 57 60 58 62 56 59 61 55 VIDEO ENCODER OP AMP VIDEO OUT I/F VIDEO SW (D/A) AUDIO INPUT SWITCH(D/A) RESET AVR 5V (JA8007) TO JA-BOARD TO FAN 121 127 128 129 126 98 102 103 94 109 101 93 100 106 95 92 113 97 111 99 91 112 108 105 96 110 107 122 123 124 104 125 DT-BOARD TNP2AA144AC (7/8) < < < THIS IS FOR REFERENCE USE ONLY. THIS MUST BE REPLACED WITH AN EXCHANGE UNIT ONLY. TH-42PX25U-P / TH-50PX25U-P 140 15.45. DT-Board (8 of 8) Schematic Diagram TH-42/50PX25U/P DT-Board (8 of 8) Schematic Diagram TH-42/50PX25U/P DT-Board (8 of 8) Schematic Diagram + + + + + + + + + + + + + + + + + + A5V A9V +1.8V +1.2V +3.3V +1.5V 6V +2.5V +5V +2.5V 9.5V 9.5V L8062 G1C6R8MA0078 C8423 16V 0.1u C8406 10V 100u R8604 0 C8426 10V 100u 1% R8613 15k C8431 16V 10u IC8040 C0DBFFG00004 1 VIN 2 VC 3 VO 4 VADJ 5 GND 6 VO R8622 0 R8594 1M C8430 16V 10u R8611 51k TP8019 R8620 0 D8010 MAZ80390LL C8420 10V 100u IC8056 PQ05DZ5U 1 2 3 4 5 6 R8605 0 R8631 0 D8011 MAZ802400L R8602 0 IC8039 PQ09DZ5U 1 2 3 4 5 6 C8444 16V 0.1u R8616 0 R8713 0 R8633 0 C0DBAHZ00009 IC8042 1 FB1 2 OUT1 3 REF 4 ON2 5 V+ 6 ON1 7 OUT2 8 FB2 9 DH2 10 CS2 11 DL2 12 GND 13 VL 14 DL1 15 CS1 16 DH1 1% R8610 10k C8409 16V 0.1u C8440 6.3V 100u R8627 0 R8617 0 C8830 16V 0.1u J0JHC0000035 L8011 C8831 10V 100u TP8015 R8603 0 L8057 J0JHC0000035 C8417 16V 47u C8408 16V 100u C8421 16V 1u R8712 0 C8434 10V 100u L8064 G1C6R8MA0078 C8445 16V 0.1u C8413 16V 0.1u C8436 10V 100u R8612 10k R8623 0 R8708 0 L8121 J0JHC0000035 C8833 10V 100u 1% R8607 23.2k R8709 0 C8424 16V 0.1u D8013 MAZ80300LL D8012 MAZ80750LL 1% R8608 10k R8593 10 R8625 0 IC8043 C0DBZFF00002 1 VIN 2 VB 3 VO 4 VC 5 GND 6 VO C8435 16V 0.1u R8619 0 C8425 16V 0.1u L8059 G1C100MA0077 TP8012 R8626 0 C0DBAHZ00009 IC8041 1 FB1 2 OUT1 3 REF 4 ON2 5 V+ 6 ON1 7 OUT2 8 FB2 9 DH2 10 CS2 11 DL2 12 GND 13 VL 14 DL1 15 CS1 16 DH1 TP8014 R8618 0 TP8017 R8628 0 TP8028 C8439 8V 68u R8598 0 B1DZDD000003 Q8016 C8832 16V 0.1u R8714 0 C8427 16V 0.1u IC8038 C0DBZHG00005 1 VIN 2 ON/OFF 3 VO 4 NC 5 GND 6 VO R8601 0 TP8016 R8599 0 B1DZDD000003 Q8017 R8711 0 C8411 16V 0.1u C8438 6.3V 100u L8061 G1C100MA0078 R8592 10 R8707 0 R8710 0 C8441 16V 0.1u C8415 16V 1u C8412 16V 100u R8621 0 L8060 G1C470MA0077 R8600 0 C8410 16V 100u C8414 16V 1u B1DZDD000003 Q8015 L8058 J0JHC0000035 C8432 16V 10u C8442 16V 0.1u R8632 0 C8437 6.3V 100u 1% R8614 10k R8595 1M C8418 16V 47u C8407 16V 0.1u R8642 0 C8433 16V 10u B1DZDD000003 Q8014 1% R8609 5.1k C8443 16V 0.1u C8422 16V 1u C8429 16V 4.7u L8063 G1C100MA0078 TP8018 TP8013 R8629 0 C8419 16V 47u C8428 16V 4.7u C8416 16V 47u L8080 J0JHC0000035 TPC8403(TE12L) TPC8403(TE12L) TPC8403(TE12L) 2 2 2 PQ012FZ5MZ PQ018EZ01ZP +5V +5V +1.2V +3.3V +2.5V +1.5V +1.2V +1.5V +2.5V +3.3V +1.8V 2 67 72 66 69 71 65 68 70 64 AVR 5V AVR 5V AVR 9V AVR 1.8V AVR 1.2V DC-DC CONV. 3.3V/1.5V DC-DC CONV. 5V/2.5V 127 123 124 126 122 128 121 125 129 DT-BOARD TNP2AA144AC (8/8) THIS IS FOR REFERENCE USE ONLY. THIS MUST BE REPLACED WITH AN EXCHANGE UNIT ONLY. TH-42PX25U-P / TH-50PX25U-P 141 15.46. H-Board (1 of 2) Schematic Diagram NP NP L.F TOP TOP R L R L V C Y C Y S2 S1 V2 L1 R2 V1 L2 R1 R L Pr Pb Y R L Pr Pb Y AUDIO_L BBE_R BBE_L S2 C2 R2 Y2 L2 GND NTSC_R NTSC_L FAO_R FAO_L SCL2 SDA2 L3 R3 NTSC_C1 NTSC_VY1 VTV2 GND GND GND S2 S1 V2 Y1 V1 Y2 DTV_Y2 DTV_PB2 DTV_PR1 DTV_PB1 DTV_Y1 ATSC_L ATSC_R ATSC_V V3 SDA2 SCL2 AUDIO_R FAO_L DTV_L2 V2 GND GND DVI_PB DVI_PR DVI_Y SCLHDMI SDAHDMI STB3.3V STB3.3V HDMI_AUDIOMUTE SDA2 VTV2 9V 9V AFC2 SCL2 C1 NTSC_C2 NTSC_VY2 S3 Y_SD C_SD V1 S1 Y1 R1 C1 L1 DVI_R DVI_L HDMIINT R2 C2 L2 R1 L1 FAO_R P_OUT DTV_L1 DTV_R1 DTV_R2 DTV_PR2 P_OUT SDA2 SCL2 FAO_MUTE 9V 9V 9V Y3 C3 C4214 25V 4R7 C4230 25V 4R7 C4242 16V 100 C4239 16V100 C4241 10V 100/16V C4317 16V 47 C4249 16V 10 C4201 16V 10 Q4201 2SD1819A0L Q4204 2SD1819A0L Q4202 2SD1819A0L Q4203 2SD1819A0L Q4205 2SD1819A0L Q4206 2SD1819A0L C4240 10V 1 C4369 0.01[ZF] C4204 0.01 C4205 0.022 C4206 0.1 C4203 10 C4208 0.015 C4209 0.022 C4210 0.068 C4207 1000P C4236 0.015 C4237 0.022 C4238 0.068 C4225 10V 1 C4212 3300p C4211 1 C4228 3300p C4227 1 C4213 16V 0.033 C4215 0.1 C4216 1 C4217 0.1 C4219 1 C4218 1 C4229 16V 0.033 C4231 0.1 C4232 0.1 C4233 1 C4234 1 C4235 1 C4226 0.01 C4224 10 C4243 1000P C4246 0.01 C4247 0.022 C4248 16V 0.1 Q4303 2SB1218A0L R4208 47K R4240 3300 R4214 10K R4238 47K R4207 3300 R4245 4700 R4201 4700 R4233 10K 1% R4380 68 R4381 470 R4384 470 R4382 470 R4383 470 R4209 2200 R4202 91K R4210 91K R4211 91K R4204 2200 R4203 470 R4206 1800 R4219 4700 R4230 4700 R4218 100 R4217 100 R4216 180K R4223 100 R4222 1K R4225 1800 R4229 180K R4234 2200 R4235 91K R4236 91K R4241 91K R4242 470 R4243 2200 R4244 680 R4247 1K R4246 680 R4248 1K R4239 100 R4237 1K R4336 220 R4330 82 R4311 220 IC4201 M5243AFP09-600D 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 L4201 10 R4378 220 R4377 220 R4376 220 C3031 1500p 1% R3004 75 R3022 180K R3001 180K R3012 75 1% R3008 75 C3051 1500p R3013 75 T3003 G0BYYYY00016 1 2 3 4 5 6 1% R3009 75 R3018 75 T3002 G0B250D00001 1 2 3 4 5 6 7 8 1% R3010 75 C3037 1500p C3049 1500p C3043 1500p R3007 180K R3021 180K 1% R3003 75 T3004 G0BYYYY00016 1 2 3 4 5 6 R3002 180K C3035 1500p C3045 1500p C3033 1500p T3001 G0B250D00001 1 2 3 4 5 6 7 8 T3005 G0B600G00001 1 2 3 4 R3014 10K R3019 75 R3017 75 R3015 180K R3005 180K R3020 10K R3016 180K D3035 MAZ81100ML D3033 MAZ81100ML D3034 MAZ81100ML D3031 MAZ81100ML D3032 MAZ81100ML D3036 MAZ81100ML D3018 MAZ81100ML D3037 MAZ81100ML D3019 MAZ81100ML D3038 MAZ81100ML D3020 MAZ81100ML D3039 MAZ81100ML D3021 MAZ81100ML D3040 MAZ81100ML D3022 MAZ81100ML D3041 MAZ81100ML D3023 MAZ81100ML D3042 MAZ81100ML D3024 MAZ81100ML D3043 MAZ81100ML D3025 MAZ81100ML D3044 MAZ81100ML D3026 MAZ81100ML D3011 MAZ81100ML D3001 MAZ81100ML D3008 MAZ81100ML D3012 MAZ81100ML D3014 MAZ81100ML D3048 MAZ81100ML D3007 MAZ81100ML D3009 MAZ81100ML D3015 MAZ81100ML D3016 MAZ81100ML D3045 MAZ81100ML D3005 MAZ81100ML D3006 MAZ81100ML D3013 MAZ81100ML D3010 MAZ81100ML D3047 MAZ81100ML D3046 MAZ81100ML D3004 MAZ81100ML D3003 MAZ81100ML D3002 MAZ81100ML D3030 MAZ81100ML R4329 75 R4328 75 R4400 75 C4374 1 C4375 1 C4376 1 C4377 1 D4104 MAZ81100ML D4105 MAZ81100ML D4102 MAZ81100ML D4103 MAZ81100ML R4850 220 Q4519 2SB1218A-TX_M R4852 560 C4860 16V 0.1 IC4203 NJW1147AM-TE1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 IC4202 TC74HC4066AF(EL) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 R3011 75 R4838 220 Q4516 2SD1819A-TX R4841 560 R4844 68 LC4428 J0HAAB000012 1 2 3 4 R4837 220 Q4515 2SD1819A-TX R4840 560 Q4514 2SD1819A-TX R4836 220 R4839 560 R4842 68 LC4426 J0HAAB000012 1 2 3 4 R4843 68 LC4427 J0HAAB000012 1 2 3 4 R4845 200 R4846 200 R4847 200 R4849 220 Q4518 2SB1218A-TX_M R4848 220 R4853 560 R4851 560 Q4517 2SB1218A-TX_M H21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 H22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 C4312 0.01 C4315 16V 47 C4861 47/16V JK4001 K2HA204A0041 R4120 180K R4119 180K JK002 K2HA306A0024 V V-G L L-G R R-G JK001 K1U824A00002 C-G C G Y Y-G G V1 V1-G L1 L1-G R1 R1-G C-G C G Y Y-G G V2 V2-G L2 L2-G R2 R2-G IC4301 CXA2079Q 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 R4316 82 C4370 16V 1 R4318 82 C4316 16V 1 R4317 220 R4314 220 R4315 220 R4312 220 R4313 220 R4322 220 R4324 220 R4326 220 R4323 220 R4327 220 R4325 220 C4313 1 C4311 1 R4319 220 R4320 220 C4301 1 R4307 220 R4305 220 C4303 1 R4309 220 C4304 1 R4306 220 R4310 220 R4308 220 C4302 1 C4305 1 H7 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 JK003 K2HA510A0002 Y Y-G Pb Pb-G Pr Pr-G L L-G R R-G JK004 K2HA510A0002 Y Y-G Pb Pb-G Pr Pr-G L L-G R R-G 1% R3006 75 C3059 10V 1000 H10 1 2 3 4 5 6 C4306 1 C4307 1 C4309 1 C4308 1 C4310 1 C4319 1 C4321 1 C4322 1 C4320 16V 1 C4318 16V 1 R4332 82 R4331 82 AUX0 AUX1 Lo Lo Lo Lo Hi Hi Hi Hi GEQ ON Through PROHIBIT PROHIBIT THROUGH_R EQ_R THROUGH_L EQ_L 4 3 2 1 R L BBE VIVA IN1-2 IN1-1 NF1-2 NF1-1 IN2-2 IN2-1 NF2-1 NF2-2 IN3-1 IN3-2 NF3-1 NF3-2 PFBIN-2 PFBIN-1 NFBIN-2 NFBIN-1 OUT2 OUT1 VCC GND OUTa OUTb AGC SR-FIL SS-FIL VREFF CVB CTH CVA CTL SDA SCL GND AUX0 AUX1 Vcc INa INb BBE1a BBE1b BBE2a BBE2b BBEOUTa BBEOUTb TONEINa TONEINb TONE-Ha TONE-Hb TONE-La TONE-Lb R L VIDEO-3 NTSC1 TV2 TV1 AUDIO NTSC2 IIC2 TV2 VIDEO-2 Pb Y DTV2 PROG. OUT VIDEO1 VIDEO2 DTV1 Y1 V1 Y2 V2 Y Pb Pr Pr TV2 NC GND GND GND GND SC2 SD2 +5V 30 9V GND GND GND AFC2 GND SUB9V SUB5V AUDIO-L AUDIO-R S2-1 V3 LV3 V1 V3IN=AV2 V2IN=AV3 SDA Y3 C3 VGND AGND2 COUT1 LV5 YOUT1 VOUT2 LOUT1 COUT2 S2-2 DCOUT V5 NC V5IN=TV1 RV5 AGND NC ADR S-4 SCL TV =TV2 S2-3 V4IN=AV1 CIN1 BIAS YOUT2 Y2 RV2 LOUT2 MUTE S2-4 C4 RV4 RTV TV NC V4 CIN2 S-3 C2 ROUT2 LV4 TRAP1 YIN2 RV3 YIN1 ROUT1 V1IN=AV4 NC NC Y1 VOUT1 Y4 LTV S-1 v2 LV2 VCC LV1 RV1 C1 S-2 VIDEO-1 TB-BOARD (T21) TO TB-BOARD (T22) TO TO DV-BOARD (DV7) 3 C E 7 2 8 6 9 D 1 F A 5 4 B (G10) TO G-BOARD H-BOARD TNPA3178 (1/2) 11 12 10 6 2 3 1 4 14 15 13 16 17 8 9 7 5 TONE CONTROL SWITCHING BBE VIVA INPUT SELECT VIDEO1 VIDEO2 MONITOR OUT HDMI AUDIO IN DTV2 DTV1 1.4 3.3 0 0 1.4 0 0 4.8 0 0 0 4.9 2.5 0 9.0 0 4.9 0 0 2.5 9.0 3.3 0 3.3 0 0 0 0 0 4.8 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 9.0 30.0 5.0 0 4.8 0 0 0 0 0 0 0 0 4.8 0 0 0 0 0 0 0 0 0 0 TH-42/50PX25U/P H-Board (1 of 2) Schematic Diagram TH-42/50PX25U/P H-Board (1 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 142 15.47. H-Board (2 of 2) Schematic Diagram AUDIO_R FAO_MUTE AFC2 SDA2 SUB_Y SUB_PB SUB_PR SCL2 MAIN_Y MAIN_PB MAIN_PR ATSC_PB ATSC_L ATSC_R ATSC_V ATSC_V AUDIO_L ATSC_Y C_SD HDMI_AUDIOMUTE HDMIINT GND GND S3 Y_SD NTSC_C1 DVI_Y DTV_L1 DTV_PR1 DTV_L2 NTSC_C2 DTV_PB2 DTV_R2 NTSC_VY2 DTV_PR2 DTV_PB1 MAIN_PR DTV_Y1 MAIN_PB MAIN_Y DVI_R DVI_L DTV_Y2 SDA2 NTSC_L 9V SCL2 NTSC_R ATSC_R SUB_PB SUB_PR ATSC_Y ATSC_PB SUB_Y BBE_R ATSC_PR ATSC_L BBE_L DVI_PB NTSC_VY1 DVI_PR DTV_R1 SUB9V R3 ATSC_PR L3 5V SUB5V 30V STB3.3V SDAHDMI SCLHDMI H1 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 R4903 1K R4902 1800 R4906 180K C4403 10V 10 Q4601 2SD1819A0L Q4600 2SD1819A0L R4900 100 R4901 180K R4904 100 C4401 10 R4907 1K R4909 1800 Q4207 2SD1819A0L R4251 1K R4249 680 R4252 1K R4250 680 Q4208 2SD1819A0L R4259 0 R4260 0 C4342 1 C4336 1 C4337 1 C4364 1 R4385 1K C4368 1 C4350 1 R4359 1K R4370 0 R4389 1K R4349 1K C4323 1 R4387 1K C4329 1 R4345 1K C4349 1 C4331 1000P[KB] R4367 1K TP4226 R4372 330 C4353 1 C4365 1 C4355 1000P C4332 16V 0.1 C4351 0.1 R4358 1K C4330 1000P[KB] R4355 1500 R4386 1K R4350 1K R4353 22 R4388 1K C4327 1 R4371 330 R4368 0 R4369 1K C4324 1 C4358 16V 1.0 C4356 16V 0.1 R4354 1K R4343 1500 C4352 1 C4328 1 C4354 1000P C4357 16V 0.1 R4373 0 C4361 1000P[KB] R4362 1K C4345 1 L4302 10 R4404 1500 IC4302 AN15852A-VT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 C4343 1000P C4359 10V 100/16V C4339 1 C4363 1000P[KB] R4342 1500 C4344 1 C4333 6.3V 100/6.3V C4341 1000P C4335 1 C4325 1 C4334 16V 0.1 R4361 1K R4403 1500 C4360 16V 10 R4356 1K R4360 1K R4346 1K C4338 1 R4344 1K C4340 1 C4326 1 R4341 1K R4375 0 R4374 0 R4364 1K R4365 0 R4357 1500 R4340 1K TP4227 C4347 1 R4351 22 L4301 10 C4362 1 R4406 1500 R4405 1500 C4367 1 MAIN_PR AUDIO_GND SUB_PB 30V AFC2 GND GND R3 GND ATSC_R ATSC_PB GND JPEG_C NC GND GND SDA2 SW_AR GND GND GND GND ATSC_V AUDIO_R FMTRAP L3 GND S3 MAIN_Y GND SUB9V JPEG_Y GND ATSC_Y SUB9V GND AFC1 NC SUB_Y GND AUDIO_GND GND ATSC_L FAO_MUTE SUB_PR SUB5V GND STB3.3 GND SUB5V GND NC AUDIO_L SW_AL GND MAIN_PB ATSC_PR SCL2 GND GND HDMIWP GND SDAHDMI NC SCLHDMI GND GND HDMIINT FAO_MUTE L R L R FAO_MUTE BIAS IGND L5 Y4 VGND3 V_VCC AVCC SCL Lout1 APD4 AGND5 PDD3 SY_S NTSC_MAIN VGND2 Pbout3 R5 DCOUT Pb2 Pbout1 Pr2 Prout1 Lout3 VGND4 APD1 APD2 PDD1 SLV_ADD Y2 AGND2 Pbout2 APD3 Pb1 SUB R1 VGND5 VGND7 VGND8 I_VCC Pb3 L4 Yout1 SY_M NTSC_SUB Y1 L3 AGND1 VGND6 L2 CV/SY_S VGND9 CV/SY_M Rout1 VGND1 DTV2 AGND6 VGND8 Rout3 MAIN DVI/HDMI Pb4 Pr3 PDD4 R6 L1 R4 SC_S Pr1 AGND4 R3 VGND7 L6 Prout2 DTV1 Prout3 ATSC-YPbPr Yout2 L2 SDA AGND9 R2 R2 Y3 Pr4 SC_M AGND3 Yout3 DG-BOARD (DG1) TO 16 10 12 13 15 14 17 11 18 H-BOARD TNPA3178 (2/2) 11 14 15 13 16 17 8 9 12 7 10 6 2 3 1 4 5 YPbPr SELECT TH-42/50PX25U/P H-Board (2 of 2) Schematic Diagram TH-42/50PX25U/P H-Board (2 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 143 15.48. JA and TB-Board Schematic Diagram TERM SIDE TERM SIDE SCL2_2 SDA2_2 AGND2 SCL2_2 SDA2_2 AGND2 TV2V TV2V R251 100 C254 50V 2.2 R252 100 C258 ECJ1VC1H101J C255 50V 4R7/50V JS251 C252 50V 0.22 C253 35V 47/35V C251 16V 100/16V C257 10V 470 TNR251 ENG36620G 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 LC251 ELKE103FA 1 2 3 4 LC252 ELKE103FA 1 2 3 4 C259 0.1 C260 0.1 C261 0.1 C262 0.1 JS252 T21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 T22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 2nd TUNER I2C +30V +9V AFC2 VIDEO +5V +5V +30V +9V GND GND GND AFC2 GND GND GND GND GND GND GND GND TV2 GND NC SC2 SD2 GND GND GND GND GND GND GND GND GND GND TB-BOARD TNPA3179 H-BOARD (H21) TO H-BOARD (H22) TO A E 2 4 B 8 7 6 1 3 5 C D 0 4.8 0 0 0 0 0 0 0 0 4.8 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 9.0 30.0 5.0 OUT 2RFSW ATSC_Y ATSC_Pb ATSC_Pr XRSTPKS GC_HD BBE_R LOSD_YS BBE_L ATSC_R ATSC_L ATSC_V DA_SWPKS SDA1 SCL1 AFT1 SCL2 SDA2 LOSD_YM LOSD_R LOSD_G LOSD_B SBOPKS SBIPKS GC_VD ATSCINT ATSC_Y ATSC_Pb ATSC_Pr 2RFSW BBE_R BBE_L ATSC_R ATSC_L ATSC_V DA_SWPKS SDA1 SCL1 XRSTPKS GC_HD LOSD_YS LOSD_YM LOSD_R LOSD_G LOSD_B SBOPKS SBIPKS GC_VD SDA2 ATSCINT SCL2 BT30V BT30V BT30V FA1 SDA0 SCL0 SDA0 SCL0 FA1 AFT1 JA8007 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 JA23 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 217 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 JA18 1 2 3 4 5 6 7 8 BT30V ATSC_9.5V Splitter 8V NC NC ATSC_9.5V NC NC DG-BOARD TO (DG23) JA-BOARD TNPA3180 (PA18) PA-BOARD TO DT-BOARD (JK8007) TO 0 0 0 0 2.1 0.6 2.1 0.6 0 0.6 0 3.3 0 3.3 2.2 3.3 3.2 3.3 0 0 2.4 0 2.6 0 1.6 0 4.8 0 4.7 0 9.5 9.5 9.5 9.5 0 0 0 0 9.5 9.5 9.5 9.5 0 0 8.0 0 0 1.0 0 0.2 0 0 0 4.8 0 3.2 0 0 1.0 0.8 0 0 0.7 30.0 30.0 9.5 9.5 9.5 0 0 0 8.0 8.0 0.6 0 0.6 3.2 0 0.2 0.6 3.3 0 1.0 2.1 0.7 0 1.0 0 2.1 1.6 2.4 30.0 2.2 2.6 3.1 4.8 0 0.6 3.3 3.3 0 3.3 0.6 0 TH-42/50PX25U/P JA and TB-Board Schematic Diagram TH-42/50PX25U/P JA and TB-Board Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 144 15.49. JG-Board Block Diagram 3 5 9 TXD RXD JG3 15 19 1 Y C IDO RST TO DG31 Q6001,Q6008 Q6003,Q6010 IC6015 DA ENCODER(NTSC) Y C PC/SD Card Interface JG YD0 YD7 CD0 CD7 Y7 Y0 C7 C0 IC6013 MCU(JPEG) YC OUT RST ENC RST TXD SYSIDO Q6005,Q6006 MRESET RESET IC6018 IC6014 128Mbit SDRAM SDRAM I/F RXD SYSRST IC6001 D3.3V (12-11) (10-11) WP XCD OPEN CARD IN NO CARD NO CARD WRITE ENABLE CLOSE WRITE ABLE OPEN CLOSE CLOSE JG2 4 3.3V CMD 2 5 CLK DAT0 7 XCD 10 11 WP 12 IC6001 1bit SD CARD IC6010 SD3.3V RDY/BSY REG BVD1 SD CARD I/F SDCENA SDCD SDWP PCCENA 8Mbit FLASH IC6012 FD15 FD0 FA19 FA0 SYSRST DATA BUS ADDRESS BUS JG1 6 2 32 30 41 37 66 64 BUFFER IC6003 D15 D0 DATA BUS ADDRESS BUS GPIO D15 D0 DATA BUFFER IC6006,IC6008 ADDRESS A10 A1 12 8 22 29 11 36 67 SD CARD SLOT SLOT CARD PC D7 D3 D2 D0 D15 D11 D10 D8 A10 A9,A8 A7 A0 CD1 CD2 INVERTER IC6005 IC6001 DIRECTION CONTROL IC6002 BUFFER IC6009 BUFFER IC6007 OE OE OE OE A1 A10 OE OE CONTROL CONTROL CONTROL SIGNAL CONTROL SIGNAL REG,RESET,IOWR,IORD,PWE,FOE,CE1,CE2 WAIT,RDYBSY,WP,BVD1,BVD2,INPACK IORD,FOE CE1,CE2 CD2 CD1 PC CARD I/F DIRECTION CONTROL DIRECTION CONTROL DIRECTION CONTROL TH-42/50PX25U/P JG-Board Block Diagram TH-42/50PX25U/P JG-Board Block Diagram TH-42PX25U-P / TH-50PX25U-P 145 15.50. JG-Board (1 of 2) Schematic Diagram + + SLOT FOR 68 PC CARD 68pin PC-CARD SLOT + + PC-CARD D.SW W.P. + AA_CD2 AA_CE2 AL_FA9 AA_IORD AA_FOE AL_FA6 AL_FA2 AA_CE1 AL_FA8 AA_CE1 AA_CE2 AA_IORD AA_FOE AA_CD1 AA_CD1 AA_SDCD AN_PCC_VS1 AN_PCC_VS2 AA_VS2 AA_VS1 AA_INPACK AA_BVD2 AA_BVD1 AA_WP AA_WAIT AA_FWE AA_IOWR AA_RESET AA_REG AL_FA10 AL_FA7 AL_FA5 AL_FA4 AN_PCC_WP AM_CLK 5V AA_PCCENA AL_FA0 AL_FA1 AB_PCC_A4 AA_BVD1 AA_RDYBSY AM_DAT0 AA_SDWP AM_WP AA_SDCDIN D3.3V D3.3V AN_PCC_CD2 AN_PCC_WP AN_PCC_BVD1 AN_PCC_INPACK AN_PCC_BVD2 D3.3V AN_PCC_RB AN_PCC_CD1 AN_PCC_WAIT AB_PCC_CE1 AB_PCC_WE AB_PCC_OE AB_PCC_CE2 AB_PCC_IORD AB_PCC_REG AB_PCC_RESET AB_PCC_IOWR AB_PCC_A9 AB_PCC_A10 AB_PCC_A8 AB_PCC_A5 AB_PCC_A6 AB_PCC_A7 AB_PCC_A3 AB_PCC_A0 AB_PCC_A1 AB_PCC_A2 AN_PCC_BVD1 AN_PCC_BVD2 AN_PCC_CD2 AO_PCC_D8 AO_PCC_D9 AO_PCC_D10 AB_PCC_REG AN_PCC_VS2 AN_PCC_WAIT AN_PCC_INPACK AB_PCC_RESET AN_PCC_VS1 AO_PCC_D15 AO_PCC_D14 AO_PCC_D13 AO_PCC_D12 AB_PCC_IOWR AB_PCC_IORD AB_PCC_CE2 AN_PCC_CD1 AO_PCC_D11 AO_PCC_D0 AO_PCC_D1 AO_PCC_D2 AB_PCC_A2 AB_PCC_A1 AB_PCC_A0 AB_PCC_A3 AB_PCC_A4 AB_PCC_A5 AB_PCC_A6 AB_PCC_A7 AO_PCC_D5 AO_PCC_D6 AO_PCC_D7 AB_PCC_WE AB_PCC_CE1 AB_PCC_OE AB_PCC_A10 AB_PCC_A8 AB_PCC_A9 AO_PCC_D3 AO_PCC_D4 AO_PCC_D0 AO_PCC_D1 AO_PCC_D2 AO_PCC_D3 AO_PCC_D4 AO_PCC_D5 AO_PCC_D6 AO_PCC_D7 AO_PCC_D8 AO_PCC_D9 AO_PCC_D13 AO_PCC_D12 AO_PCC_D11 AO_PCC_D10 AO_PCC_D14 AO_PCC_D15 5V D3.3V AK_FD9 AK_FD8 AK_FD7 AK_FD6 AK_FD5 AK_FD4 AK_FD3 AK_FD2 AK_FD1 AK_FD0 AK_FD15 AK_FD14 AK_FD13 AK_FD12 AK_FD11 AK_FD10 AA_REG AN_PCC_RB PC9V D3.3V AAAND_RXD AA_PCCENA AA_RXD AA_CD1 AA_CD2 AA_CD1 AC_SUB_RST PCC5V PCC5V AL_FA3 AA_RDYBSY AM_CMD AM_CLK AM_DAT0 AM_WP AA_SDCDIN AM_CMD D3.3V SD3.3V AA_SDCENA AA_PCCVON AA_CD2 R6049 47 C6017 16V 0.1u C6032 10u 6.3V C6009 16V 0.1u R6093 4.7k R6073 10k R6009 4.7k 5V R6041 10k C6034 16V 0.1u R6042 22k R6053 47 L6004 J0JHC0000035 R6003 47 R6007 100 R6001 10k R6064 47 R6325 10k R6084 22k R6059 47 R6005 100 C6014 16V 0.1u C6110 10V 100u R6024 47 C6042 16V 0.1u R6065 100 TP6002 C6006 10u 6.3V R6046 47 R6082 22k R6072 100 R6012 47 R6075 150 R6016 47 R6033 22k D3.3V C0JBAE000231 IC6002 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 Vcc R6030 10 C6008 16V 0.1u TP6003 R6010 47 R6068 100 L6001 J0JHC0000035 R6067 100 C0DBZHE00019 IC6004 1 Vin 2 Vc 3 Vo 4 NC 5 GND 6 Vo R6089 22 C6043 100u 4V R6069 100 C6005 10u 6.3V C6035 16V 0.1u TP6001 IC6007 C0JBAZ001590 1 OE1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc JS6004 C6031 16V 0.1u IC6006 C0JBAZ001713 1 1OE 2 1A 3 1Y 4 2OE 5 2A 6 2Y 7 GND 8 3Y 9 3A 10 3OE 11 4Y 12 4A 13 4OE 14 VCC R6051 47 5V R6070 100 C6026 50V 0.01u C6044 16V 0.1u R6063 47 R6034 22k R6079 1k C6023 50V 0.01u L6003 J0JHC0000035 R6090 22 C6021 50V 0.01u R6071 100 C0JBAZ002059 IC6003 1 1DIR 2 1B1 3 1B2 4 GND 5 1B3 6 1B4 7 VCCB(3.3V_5V) 8 1B5 9 1B6 10 GND 11 1B7 12 1B8 13 2B1 14 2B2 15 GND 16 2B3 17 2B4 18 VCCB(3.3V_5V) 19 2B5 20 2B6 21 GND 22 2B7 23 2B8 24 2DIR 25 2OE# 26 2A8 27 2A7 28 GND 29 2A6 30 2A5 31 VCCA(2.5V_3.3V) 32 2A4 33 2A3 34 GND 35 2A2 36 2A1 37 1A8 38 1A7 39 GND 40 1A6 41 1A5 42 VCCA(2.5V_3.3V) 43 1A4 44 1A3 45 GND 46 1A2 47 1A1 48 1OE# C6010 16V 0.1u R6038 10k K1YY68000007 IC11SM5-BUR-EJLM R6054 47 R6091 0 R6017 47 C6016 1u 16V C6040 220u 6.3V R6076 0 R6045 47 C6028 16V 0.1u R6031 10k D3.3V R6006 100 9V D3.3V R6011 47 C6024 50V 0.01u R6032 22k C6022 50V 0.01u D3.3V C0CBCBD00004 IC6011 1 Nr 2 GND 3 ON/OFF 5 Vo 4 Vin R6028 10 C6039 16V 0.1u C6030 16V 0.1u IC6010 C0JBAZ002060 1 1OE 2 1A 3 1B 4 2OE 5 2A 6 2B 7 GND 8 3B 9 3A 10 3OE 11 4B 12 4A 13 4OE 14 VCC R6037 22k R6081 1k R6061 47 R6087 22 R6027 10 D3.3V R6047 47 R6036 22k R6013 47 R6062 47 R6055 22k R6026 10k C6018 6.3V 47u R6021 47 R6058 47 R6004 47 R6002 10k R6039 10k R6035 22k R6086 22 IC6008 C0JBAZ001120 1 _OE1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 _OE2 20 Vcc R6056 22k SD3.3V R6025 47 R6050 47 R6023 47 R6040 10k R6022 47 R6057 47 JS6009 R6074 10k R6060 47 C0JBAA000244 IC6001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 C6019 16V 0.1u D3.3V R6043 22k R6085 22 L6002 J0JHC0000035 R6092 0 C6041 16V 0.1u SD3.3V R6008 10k R6020 47 PCC5V D3.3V R6014 47 IC6009 C0JBAZ001120 1 _OE1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 _OE2 20 Vcc C0JBAB000408 IC6005 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC JG1 K1NA68E00071 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 R6029 10 5V JG2 K1NA09E00042 1 2 3 4 5 6 7 8 9 10 11 12 R6052 47 R6044 47 R6019 47 C6027 50V 0.01u C6020 16V 0.1u C6013 10V 100u R6066 100 R6018 47 R6048 47 R6015 47 C6002 16V 0.1u C6003 16V 0.1u C6007 16V 0.1u GND WP_I D2_IO D1_IO D0_IO A0_O A1_O A2_O A3_O A4_O A5_O A6_O A7_O A12_O A15_O A16_O VPP1 VCC READY_I WE#_O A14_O A13_O A8_O A9_O A11_O OE#_O A10_O CE1#_O D7_IO D6_IO D5_IO GND D3_IO D4_IO 1bit SD CARD WP XCD DAT1 DAT0 CLK CMD CD/DAT3 DAT2 SD CARD SLOT PCCENA PCCENA PCCENA BUFFER FOR PC CARD GND BVD1 I BVD2 I CD2#_I REG#_O D10_IO D9_IO D8_IO A25_O A24_O A23_O A22_O VPP2 VCC A21_O INPACK_I WAIT_I RESET_O VS2#_I A20_O A19_O A18_O A17_O IOWR#_O IORD#_O VS1#_I CE2#_O D15_IO D14_IO D13_IO D12_IO CD1#_I D11_IO PCC 5V PC CARD SLOT DIRECTION CONTROL GND VCC DATA BUSS CONTROL SIGNAL 150mArms IC6515(NTSC Enc) IC6515(NTSC Enc) JG5 BUFFER DATA BUSS CONTROL SIGNAL BUFFER BUFFER BUFFER BUFFER 1 6 4 5 B 8 D 3 A 9 2 C 7 E F ADDRESS BUS DATA BUS CONTROL SIGNAL 2 3 1 4 JG-BOARD TNPA3151AC (1/2) INVERTER AVR 3.3V DIRECTION CONTROL 3.3 3.2 3.2 3.2 3.3 3.3 0 3.3 3.3 3.2 3.2 3.2 3.3 3.3 3.2 3.3 3.3 3.2 0 3.3 3.2 3.3 3.2 3.3 3.3 3.2 3.3 0 0 0 0 0 0 0 0 0 0 0 0 3.3 3.2 3.2 3.2 1.3 0 2.1 3.2 0 3.3 1.6 3.3 1.8 1.6 3.2 1.6 1.5 0 3.2 1.2 0 0 3.2 3.3 3.2 0 3.3 0 0 0 0 5.0 0 0 0 0 0 9.0 0 5.0 0 0 5.0 3.3 0 3.2 3.2 0 0 3.2 3.3 0 0 3.3 3.2 0 0 0 0 0 0 0 0 0 0 0 0 3.3 3.3 0 3.3 3.2 3.3 3.2 3.3 3.3 5.0 0 0 0 0 0 0 0 0 3.2 5.0 0 0 0 3.2 3.3 3.2 3.2 0 0 0 0 0 0 0 0 0 0 0 3.2 5.0 0 1.1 2.2 1.8 1.4 1.8 2.2 1.0 0 0 3.3 1.5 0 3.3 1.5 0 0 5.0 3.2 1.8 0 3.3 1.1 0 3.3 0 0 3.2 0 0 3.2 0 0 3.2 3.3 0 0 0 0 0 3.3 0 0 3.2 3.2 0 0 0 0 3.3 5.0 0 1.2 3.3 5.0 TH-42/50PX25U/P JG-Board (1 of 2) Schematic Diagram TH-42/50PX25U/P JG-Board (1 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 146 15.51. JG-Board (2 of 2) Schematic Diagram + + + + + + + AL_FA4 AL_FA5 AL_FA1 AL_FA3 AL_FA7 AL_FA0 AL_FA10 AA_SYS_RST AA_FWR AL_FA19 AL_FA8 AL_FA9 AL_FA11 AL_FA12 AL_FA13 AL_FA14 AL_FA15 AA_FLBUSY AL_FA18 AL_FA17 AL_FA6 AL_FA2 AA_FCS0 AA_FRD AK_FD0 AK_FD8 AK_FD1 AK_FD9 AK_FD2 AK_FD10 AK_FD3 AK_FD11 AK_FD4 AK_FD12 AK_FD5 AK_FD13 AK_FD6 AK_FD14 AK_FD7 AK_FD15 AL_FA16 AH_LD0 AH_LD1 AH_LD2 AH_LD3 AH_LD4 AH_LD5 AH_LD6 AH_LD7 AF_MA4 AF_MA5 AF_MA6 AF_MA7 AF_MA8 AF_MA9 AF_MA11 AE_CKE AE_SDCLK AE_DQMU AH_UD0 AH_UD1 AH_UD2 AH_UD3 AH_UD4 AH_UD5 AH_UD6 AH_UD7 AG_C7 AG_C6 AG_C5 AG_C4 AG_C3 AG_C2 AG_C1 AG_C0 AG_Y6 AG_Y5 AG_Y4 AG_Y3 AG_Y2 AG_Y1 AG_Y0 AG_Y7 AG_VBLK AG_HBLK AG_FLD AG_PCLKO AA_SYS_INT0 AA_SYS_IO0 AA_TXD AA_REG AA_REG AE_SDCLK AG_PCLKO 5V AA_SYS_INT1 AH_UD7 AH_UD6 AH_UD5 AH_UD4 AH_UD0 AH_UD1 AH_UD2 AH_UD3 AF_MA11 AF_MA10 AF_MA9 AF_MA8 AF_MA7 AF_MA6 AF_MA5 AF_MA4 AF_MA3 AF_MA2 AF_MA1 AF_MA0 AA_ENC_RST AA_SYS_IO0 AA_ENC_RST AJ_C AJ_Y 1.8V AI_TDO AI_TDI AI_TMS AI_TCK AC_SUB_RST AE_CKE AE_DQML AE_DQMU AE_WE AE_CAS AH_LD7 AH_LD6 AH_LD5 AH_LD4 AH_LD3 AH_LD2 AH_LD1 AH_LD0 AF_MA13 AF_MA12 AG_FLD AG_HBLK AG_VBLK AG_C7 AG_C6 AG_C5 AG_C4 AG_C3 AG_C2 AG_C1 AG_C0 AG_Y7 AG_Y6 AG_Y5 AG_Y4 AG_Y3 AG_Y2 AG_Y1 AG_Y0 AA_TXD AA_FLBUSY AK_FD15 AK_FD14 AK_FD13 AK_FD12 AK_FD11 AK_FD10 AK_FD9 AK_FD8 AK_FD7 AK_FD6 AK_FD5 AK_FD4 AK_FD3 AK_FD2 AK_FD1 AK_FD0 AL_FA19 AL_FA18 AL_FA17 AL_FA16 AL_FA15 AL_FA14 AL_FA13 AL_FA12 AL_FA11 AL_FA10 AL_FA9 AL_FA8 AL_FA7 AL_FA6 AL_FA5 AL_FA4 AL_FA3 AL_FA2 AL_FA1 AL_FA0 AA_SYS_RST AA_SDC_INT3 AA_SYS_INT0 AA_VS1 AA_VS2 AA_PCCVON AA_PCCENA AA_SDCD AA_SDCENA AA_SDWP AA_CD2 AA_WP AA_INPACK AA_IORD AA_CE2 AA_CD1 AA_IOWR AA_RESET AA_FWE AA_FOE AA_BVD2 AA_BVD1 AA_VS1 AA_WAIT AA_RDYBSY AA_CE1 AA_FRD AA_FWR AA_FCS0 AA_BVD2 AA_BVD1 AA_WP AA_WAIT AA_RDYBSY AA_INPACK AA_IOWR AA_RESET AA_IORD AA_FWE AA_FOE AA_CE2 AA_CE1 AA_SYS_RST AA_SDC_INT3 AA_SYS_INT1 AA_SYS_INT0 AK_FD15 AK_FD14 AK_FD13 AK_FD12 AK_FD11 AK_FD10 AK_FD9 AK_FD8 AK_FD7 AK_FD6 AK_FD5 AK_FD4 AK_FD3 AK_FD2 AK_FD1 AK_FD0 AF_MA13 AF_MA12 AF_MA10 AF_MA0 AF_MA1 AF_MA2 AF_MA3 1.8V AI_TDO AI_TCK AI_TMS AI_TDI AC_SUB_RST AC_SUB_RST AA_RXD DA5V D3.3V MD3.3V M3.3V AE_DQML AE_WE AE_CAS AE_RAS AJ_C AJ_Y A3.3V ND3.3V AE_RAS AA_SYS_RST AAAND_RXD MD3.3V R6313 100 R6194 22 IC6013 L17 FA13 R6249 10k IC6013 N17 FWR IC6013 D7 VDDP IC6013 G15 FA2 R6269 100 R6199 22 IC6013 K3 P37 IC6013 N2 C5 R6324 0 R6103 10k R6137 4.7k C6061 16V 0.1u R6192 22 R6277 100 IC6013 J17 FA5 IC6013 H3 VDDC R6094 4.7k R6101 10k R6253 100 C6059 16V 0.1u IC6013 L14 FA16 IC6013 T13 FOE R6178 22 C6052 16V 0.1u IC6013 L3 P36 R6250 100 C6058 16V 0.1u R6203 0 IC6013 T1 VDDP IC6013 F15 FD13 R6310 33k IC6013 T6 P23 TP6016 5V R6244 47 R6107 10k R6278 100 IC6013 F1 HBLK R6322 0 IC6013 K14 FA12 IC6013 M4 NC R6303 240 IC6013 A8 CKE IC6013 R17 P32 R6264 100 1% R6301 6.8k R6160 22 IC6013 H16 VBLK R6154 10k R6202 0 R6159 0 R6153 10k R6147 22k IC6015 C1AB00001815 1 YD0 2 YD1 3 YD2 4 YD3 5 YD4 6 YD5 7 YD6 8 YD7 9 GND 10 VDD 11 CBF 12 BKANK_ 13 V 14 H 15 VRTENB 16 FIELD 17 KEY 18 GD3 19 GD2 20 GD1 21 GD0 22 CS_ 23 RS 24 RD_ 25 WR_ 26 RESET_ 27 GND 28 VDD 29 D7 30 D6 31 D5 32 D4 33 GND 34 CLOCK 35 VDD 36 D3 37 D2 38 D1 39 D0 40 GND 41 VDD 42 TEST 43 SUSPEND 44 AVDD 45 AGND 46 VREF 47 VCS 48 AGND 49 C 50 NC 51 NC 52 AVDD 53 Y 54 AGND 55 GND 56 VDD 57 CD0 58 CD1 59 CD2 60 CD3 61 CD4 62 CD5 63 CD6 64 CD7 R6166 22 R6268 100 R6150 10k IC6013 P8 P21 IC6013 E15 FD9 C6089 16V 10u TP6010 R6320 100 IC6013 J14 FA8 IC6013 P13 P13 9V IC6013 T2 P47 C3FBKD000104 IC6012 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 NC 10 NC 11 WE 12 RESET 13 NC 14 NC 15 RY/BY 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE 27 Vss 28 OE 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 Vss 47 BYTE 48 A16 IC6013 U17 GNDP R6222 0 IC6013 U3 P46 R6212 0 C6097 4V 100u R6280 100 R6145 10k C6049 16V 0.1u FL6007 J0HABB000018 1 2 3 4 IC6013 C2 RXD IC6013 B2 SCS R6096 4.7k C6050 16V 0.1u IC6013 C5 MA1 R6223 0 IC6013 P4 TEST IC6013 C11 LD6 IC6013 A4 MA6 IC6013 R10 POR C6051 16V 0.1u C6071 16V 1u IC6013 R1 C0 IC6013 J15 FA7 IC6013 B12 LD5 IC6013 D16 FD4 R6114 10k R6187 22 IC6013 P5 NC R6274 100 TP6013 R6155 10k R6172 22 FL6004 ELKE103FA 1 2 3 IC6013 T11 INPACK R6254 100 IC6013 A13 UD3 IC6013 A5 MA7 IC6013 P15 NC L6009 G1C8R2K00009 IC6013 L4 NC R6127 10k R6163 22 IC6013 H4 GNDC R6292 100 R6129 4.7k R6217 0 IC6013 A6 MA9 MD3.3V MD3.3V Q6003 2SA207700L R6144 10k R6321 0 C6104 4V 220u IC6013 A14 UD5 FL6001 J0HAAC000010 1 2 3 R6319 100 IC6013 D1 SO C6062 16V 0.1u IC6013 D6 NC Q6006 2SC584500L IC6013 C8 MA12 R6287 10k C6047 16V 0.1u R6309 33k IC6013 E14 FD10 IC6013 T16 P33 1/8W R6348 1k TP6015 IC6013 E17 FD7 R6296 0 IC6013 B15 LD0 IC6013 U2 MCLKI R6198 22 R6262 100 IC6013 G16 FA1 R6142 10k L6011 J0JHC0000035 D3.3V R6183 22 R6157 4.7k IC6013 G1 PCLKO IC6013 M17 FRD C6093 16V 0.1u R6214 100 IC6013 E3 TDI R6191 22 C6067 16V 0.1u C6102 16V 0.01u C6068 16V 0.1u IC6013 B16 FD0 R6170 22 R6134 10k IC6013 T15 USBP IC6013 C15 LD1 IC6013 B8 RAS IC6013 R16 P31 IC6013 B14 UD6 R6293 1k R6323 0 IC6013 B4 MA2 IC6013 B3 MA3 R6131 10k C6066 16V 0.1u R6224 10k IC6013 P1 C2 R6133 4.7k R6259 100 IC6013 G3 ECNT IC6013 D17 FD3 IC6013 U5 P25 IC6013 N4 NC TP6007 IC6013 B6 MA10 IC6013 M16 FA17 R6151 1k R6105 10k IC6013 T7 RDY/BSY R6201 0 C6112 16V 0.1u Q6005 2SC584500L IC6013 C1AB00001816 A1 GNDP IC6013 A16 P40 IC6013 U8 BVD1 R6186 22 IC6013 T3 P45 C6073 10V 10u R6176 22 R6291 75 IC6013 L15 FA15 R6196 22 D3.3V R6164 22 IC6013 N15 VDDP IC6013 A10 DQMU R6275 100 IC6016 C0CBCBD00005 1 Cont 2 GND 3 Noise 5 Vo 4 Vin IC6013 L2 Y1 IC6013 A15 UD7 R6185 22 IC6013 C7 MA14 IC6013 C13 LD3 R6197 22 TP6014 IC6013 F2 VBLK D3.3V IC6013 R6 P24 R6248 10k IC6013 N16 CCS0 IC6013 T12 FWE IC6013 H17 FA3 R6189 22 IC6013 T4 GNDP R6336 0 R6255 100 L6010 J0JHC0000035 TP6008 R6122 10k X6001 H1A4905B0001 1CONT 2 G 3 OUT 4VDD C6054 16V 0.1u IC6013 M3 P35 IC6013 D15 FD5 IC6013 J4 GNDP 1/8W R6337 1k IC6013 B10 DQML R6220 0 IC6013 J16 FA6 IC6013 G4 TRST IC6013 U13 WP IC6013 C12 LD4 R6276 100 IC6013 R9 P16 R6193 22 R6266 100 IC6013 T5 P26 IC6013 E4 INT2 R6314 0 R6215 0 R6169 22 IC6013 M15 FA18 R6125 4.7k TP6011 IC6013 G17 FA0 IC6013 U10 CD2 R6213 100 FL6012 J0HABB000018 1 2 3 4 TP6006 Q6001 2SA207700L IC6013 T14 P11 R6219 0 IC6013 A11 UD0 IC6013 A3 MA4 R6271 100 C6096 16V 0.1u IC6013 U4 P44 R6175 22 R6211 220 IC6013 J3 VDDP Q6008 2SA207700L IC6013 E16 FD8 R6117 10k R6171 22 JG3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 IC6013 E1 FLD IC6013 B13 UD4 IC6013 U14 D+ C6088 50V 47p IC6013 C4 MA5 R6126 10k C6060 16V 0.1u R6263 100 FL6003 ELKE103FA 1 2 3 IC6013 D12 NC IC6013 B17 VDDP IC6013 A12 UD2 R6123 10k IC6013 U16 VDDP R6190 22 C6105 16V 0.1u R6312 33k IC6013 F17 FD11 R6225 0 FL6011 J0HABB000018 1 2 3 4 R6110 10k R6285 100 IC6013 H14 GNDC R6350 10 R6116 10k R6221 100 IC6013 R3 INT0 R6206 0 IC6013 H2 Y7 IC6013 T10 CE1 IC6013 B7 MA13 R6227 0 R6179 22 IC6013 C3 P41 R6139 10k IC6013 B1 SCK TP6012 IC6013 D8 GNDP R6174 22 TP6009 IC6013 R2 C1 IC6013 P2 C3 FL6002 ELKE103FA 1 2 3 IC6013 R14 P12 R6218 0 IC6013 M14 FA19 R6148 10k IC6013 H1 Y6 IC6013 R4 P27 C6063 16V 0.1u IC6013 D13 NC MD3.3V L6008 J0JHC0000035 1.8V R6168 22 IC6013 D5 P43 IC6013 R8 P20 R6247 47 C6078 16V 1u C6106 6.3V 220u IC6013 C6 MA8 D3.3V IC6013 D9 GNDC IC6013 U11 BVD2 IC6013 F4 TCK IC6013 K4 NC R6245 47 C6064 16V 0.1u IC6013 P16 GNDP R6120 10k R6209 0 R6205 0 C3ABQG000069 IC6014 1 VDD 2 DQ0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 VDD 15 LDQM 16 WE 17 CAS 18 RAS 19 CS 20 BA0 21 BA1 22 A10/AP 23 A0 24 A1 25 A2 26 A3 27 VDD 28 VSS 29 A4 30 A5 31 A6 32 A7 33 A8 34 A9 35 A11 36 N.C 37 CKE 38 CLK 39 UDQM 40 N.C/RFU 41 VSS 42 DQ8 43 VDDQ 44 DQ9 45 DQ10 46 VSSQ 47 DQ11 48 DQ12 49 VDDQ 50 DQ13 51 DQ14 52 VSSQ 53 DQ15 54 VSS IC6013 T9 VDDC IC6013 C1 SI R6152 10k FL6009 J0HABB000018 1 2 3 4 C6101 4V 100u IC6013 P17 P30 IC6013 P10 GNDC R6316 1k IC6013 C16 FD2 R6113 10k IC6013 B11 UD1 D3.3V FL6010 J0HABB000018 1 2 3 4 R6282 100 1/8W R6305 100 IC6013 B5 MA0 IC6013 D3 INT3 R6267 100 L6006 J0JHC0000035 IC6013 C17 FD1 IC6013 G2 PXOE R6283 100 IC6013 K16 FA10 R6173 22 R6162 22 IC6013 P12 P14 C6046 16V 0.1u TP6004 R6195 22 IC6013 T17 UCLKI IC6018 C0EBE0000066 1 GND 2 SUB 3 NC 5 Vcc 4 Out IC6013 E2 TDO IC6013 U9 CD1 IC6013 D11 NC C6048 16V 0.1u IC6013 N3 P34 IC6013 K15 FA11 IC6013 C9 WE C6053 16V 0.1u C6075 50V 47p R6188 22 C6065 16V 0.1u IC6013 R13 WAIT C6087 16V 0.1u C6107 6.3V 220u C6095 16V 0.1u R6347 0 R6200 0 C6055 16V 0.1u IC6013 D10 VDDC R6281 100 R6141 10k R6294 220 IC6013 R12 IOWR R6270 100 IC6013 R5 VDDP C6083 16V 0.1u R6095 4.7k FL6013 J0HABB000018 1 2 3 4 R6204 0 IC6013 A9 SDCLK R6279 100 R6246 47 C6077 16V 0.1u R6130 10k R6351 10 IC6013 U7 REG R6161 22 R6290 10k IC6013 A2 VDDP IC6013 M1 C6 R6318 100 C6080 16V 0.1u R6119 10k IC6013 F14 FD14 C6100 16V 1u IC6013 K1 Y2 IC6013 T8 RESET IC6013 P11 P15 R6288 10k L6013 J0JHC0000035 IC6013 A7 MA11 Q6010 2SA207700L IC6013 P7 WKP C6091 16V 0.1u IC6013 P6 MRESET R6265 100 D3.3V 1% R6302 5.1k C6111 16V 0.1u R6184 22 IC6013 R11 IORD IC6013 U12 VS1 IC6013 C10 LD7 C6090 50V 27p IC6013 J1 Y4 R6210 0 C6056 50V 0.01u R6289 10k R6261 100 R6167 22 IC6013 D4 P42 R6284 100 R6256 100 IC6013 P9 P17 IC6013 F3 TMS IC6013 D14 FD6 IC6013 G14 FD15 IC6013 P14 CCS1 IC6013 R15 P10 IC6013 K2 Y3 R6272 100 IC6013 U1 GNDP 1/8W R6306 100 IC6013 F16 FD12 IC6013 A17 GNDP R6165 22 R6258 100 IC6013 U15 D- IC6013 N1 C4 R6207 0 IC6013 L16 FA14 C6103 16V 0.1u C6081 16V 0.1u D3.3V 1% R6299 1k R6317 100 C6094 16V 0.1u IC6013 L1 Y0 R6216 0 IC6013 N14 NC FL6008 J0HABB000018 1 2 3 4 IC6013 P3 INT1 IC6013 B9 CAS 1.8V R6251 100 R6181 22 R6135 10k R6257 100 IC6013 H15 VDDC L6005 J0JHC0000035 R6286 10k IC6017 C0CBCAD00015 1 Vcont 2 GND 3 Np 5 Vin 4 Vout C6057 50V 0.1u R6295 75 9V R6308 0 IC6013 R7 P22 R6273 100 IC6013 M2 C7 R6108 10k C6086 16V 0.01u MD3.3V C6092 50V 150p TP6017 IC6013 D2 TXD IC6013 J2 Y5 R6180 22 R6260 100 IC6013 K17 FA9 R6297 100 IC6013 U6 CE2 R6138 22k C6082 4V 100u R6208 0 IC6013 C14 LD2 C6072 16V 0.1u R6252 100 R6177 22 R6182 22 L6012 J0JHC0000035 R6300 1k R6111 10k R6228 D1HG4708A002 R6236 D1HG4708A002 C6069 16V 0.1u C6070 16V 0.1u C6084 16V 0.1u C6074 16V 0.1u TP6005 5V MCU(JPEG) AVR 3.3V RST VDD C Y 128Mbit SDRAM 1.8V:100mA SDRAM I/F CONTROL JTAG NC SDRAM I/F DATA BUS SDRAM I/F ADDRESS BUS GND OV I/O GND 1.8V VDD 3.3V VDD USB SERIAL CAMERA I/F YC OUT NC SYSTEM I/F INTERRUPTION USART GPIO CE2 EXT. SRAM I/F CE1 REG CARD I/F BUS CONTROL EXT.SRAM I/F DATA BUS ADRESS BUS EXT.SRAM I/F 8Mbit FLASH NC GND YGND GND GND CGND GND GND Y C PCCVON MAIN_9V MAIN_9V MAIN_5V MAIN_5V MAIN_3.3V MAIN_3.3V TXD(M2) RXD(M2) ID0 INT0 RST DATA BUS CONTROL SIGNAL ADDRESS BUS ADDRESS BUS DATA BUS CONTROL SIGNAL CONTROL SIGNAL ADDRESS BUS DATA BUS DA ENCODER(NTSC) 16 10 11 15 18 13 12 14 17 2 3 1 4 JG-BOARD TNPA3151AC (2/2) RESET AVR 1.8V (DG31) DG-BOARD TO 3.2 3.3 3.2 0 3.3 3.3 1.6 3.2 0 3.3 0 3.2 0 3.2 3.2 3.2 3.2 3.2 3.2 3.3 3.2 3.2 3.2 0 1.4 0.6 2.6 0.6 2.6 1.0 2.2 1.6 0 0 3.3 3.3 0 0 3.2 0 0 1.4 1.8 2.1 1.0 1.1 1.6 1.6 0 0 0 0 0 0 0 0 0 3.3 0 1.6 0 0 0 0 0 3.3 0 0 0 0 0 0 0 0 0 0 0 0 3.3 3.3 0 0 0 3.3 0 0 0 0 0 3.3 0 0 0 0 3.3 0 3.3 3.2 3.2 0 0 0 1.2 0 5.0 1.8 3.3 0.7 0 1.3 1.3 0 1.9 1.0 0 0.3 0.9 0 1.6 0 3.3 0 0.8 0 0 0 0 0 0.3 0 3.3 0 0 0 1.2 0 0 3.3 0 3.3 0 0 0 3.3 0 0 0 0 3.2 0 0 0 3.3 3.3 0 1.3 0 0 1.3 0 0 0 0 3.3 0 3.3 3.3 0 0 0 0 0 3.3 0 3.3 0 3.3 0 0 3.3 3.3 0 3.3 0.5 0 0 0 3.3 0 5.0 0 1.2 3.3 5.0 0 0 0 3.2 3.2 3.2 3.3 3.2 3.3 3.3 5.0 3.2 5.0 4.0 9.0 1.3 9.0 0 0 1.6 0 0 0 1.9 0 Vo Vin TH-42/50PX25U/P JG-Board (2 of 2) Schematic Diagram TH-42/50PX25U/P JG-Board (2 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 147 15.52. D-Board Block Diagram SMM CABLE_DET CABLE_DET SMM HS VS VD HD 1 SDA1(IIC 5V) 5 Q9719 St-r 4 5V->3.3V IIC_CONT /Y Pb Pr 3.3V 5V->3.3V IC9151 IIC_CONT OSC IN COLOR OSC OUT FORMAT CONVERTER(I/P) NV IN 2 D00 PLL M 8BIT WB-Adj A0 30 8BIT A8 36 CTI/TINT IC9605 IC9009 G D15 HD IC9157 48 R WE 56 VD F.CLP 40 SERIAL 38 OE CLK 110M 57 VD 31 RAS CONVERTER DG3 OSD 5 CAS RGB (3.3V)SCL2 VDS I/O 8 CE OSD G0 19 77 5V->3.3V (100MHz) 5 Y/G IN PR S DATA IC9023 6 SDRAM I/F 70 OSD SCL CONTRAST 54 SDA2 SDA ADC 43 Y S 23 IC9702 FORMAT B7 HDS I/O EEPROM 3.3V->5V CLAMP Q9707 IC9154 VS OUT SDA1 8 SDA3 5V->3.3V SYNC/SEPA PB S CLP SCL2 IC9014 (3.3V)SDA2 SCL1 HS C1 SDA2 DIGITAL C D3 R(8Bit) 9 SDA1 32 A/D CONVERTER(SUB) DCKC HD SCL3 9 VD VS C1 SCL1 66 SCL2 OCK PLL SCL3 7 R0 34 64M SDRAM SDA3 HD S 27 IC9155 DCKC 64 55 B0-B7,G0-G7,R0-R7 AVR 3.3V VD S B 1 IC9001 27 VRAM(1Mbit) CLKC G7 SOUND MAIN MUTE P5V 29 NCLP IC9704 12 5 38 FLASH MEMORY 4 Pr/R IN IC9705 CABLE DET 3.3V (8M ROM) 13 AVR 3.3V CLP IC9006 12 TXC- 15 P5V VS OUT SCL3 17 5 26 B(8Bit) Q9704 13 4 TXC+ Q9703 HS OUT 3.3V 3 SCL2(3.3V) LEFT(MASTER)RGB 8bit HSYNC AVR 3.3V D6 SDA2(3.3V) ADC IC9007 19 132 Pb/B IN 5 P5V 12 SDA1 133 TO 9 3 5 SCL1 SCL2(3.3V) CLP CLK OUT 7 SDA2(3.3V) G 4 Q9001 6 18 B CLP SCL2 17 R HD 17 SDA2 SCL I/O 2 87 16 SDA I/O IC9711 88 TX2+ MCVD SDA1 7 TX0+ (I/P SDA2 MCHD 5 8 CONVERTER) SCL1 LVDS:Low Voltage Differential Signaling SCL2 TX1- 38 12 39 TTL PARALLEL TO LVDS OSC OUT 6 OSC IN TX3+ 113 TX3- 100 IC9002 71 2 106 3 4 18 61 6 206 BUS SWITCH 70 IC9004 11 NH IN 3 205 11 AD1 1 15 MICRO PROCESSOR 7 15 SDA3 2 IC9003 IC9706 5 2 SCL3 OE 5 SOUND MUTE IC9008 4 67 B0-B7,G0-G7,R0-R7 14 9 BUS SWITCH IC9606 PLL R/G/B RIGHT(SLAVE)RGB 8bit 10 OE RESET INV. 89 110M RESET 9 90 G(8Bit) 3.3V->5V TX2- 68 77 24 IC9703 10 111 31 SYNC PROCESSOR 15 HS OUT VSYNC 17 TX0- B0 3 IC9005 SDA3 5 9 R7 5V->3.3V TX1+ 3 IC9602 6 SCL2(IIC 5V) 3 IC9153 PLL 3.3V 1 3.3V UNREG 14V P5V AVR 3.3V 5 4 IC9152 3.3V 5 4 P5V IC9302 3.3V AVR 3.3V LVDS/TTL(PARALLEL) INVERTER SWITCHING SWITCHING SDA2 SCL2 X9701 X9703 OSD IN0 (1/2) 24.5MHz SMM OSD 74 75 185 OSD IN7 CABLE_DET A01 A19 20MHz SDA2 SCL2 SCL2(3.3V) SDA2(3.3V) R/G/B 182 179 178 1 6 IC9301 5 CLK2 CLK1 XIN IC9303 X OUT 8 OSC 6 CLKE 4 5 IN OUT OSC CLKD 7 50MHz A/D SEL. HD,VD CLK VD HD X9302 20MHz 60MHz 65MHz 50MHz MC CLK 85 104 FPGA-LD 5V<->3.3V IC9701 21 20 MC CLK FPGA-LD 147 RESET 16 MCDATA RESET MCDATA IC9709 42 (1/2) CONVERT RESET SW Q9706 86 MCCLK 10 11 9 LSI RESET RESET DATA IN DATA OUT MC CLK (1/2) HDD VDD DCKS 50MHz CLK 20 75 IIC CONT Q9710 99 CATS EYE CATS_EYE NRST 147 RESET NRST NRST 1 MICRO PROCESSOR PLL SYNTHESIZER PLL SYNTHESIZER PLL 2 3 4 5 6 7 8 9 10 TH-42/50PX25U/P D-Board Block Diagram TH-42/50PX25U/P D-Board Block Diagram D TH-42PX25U-P / TH-50PX25U-P 148 IIC_CONT SMM CABLE_DET SMM IIC_CONT CABLE_DET STB_ON POW_STATUS TXD_TU RXD_TU RTC_INT TXD_PC RXD_PC TXD_PC RXD_PC RXD_PC TXD_PC RTC_INT RXD_TU TXD_TU POW_STATUS STB_ON LED_R LED_G REMOCON RUSH_ON/OFF TV_ON/OFF M_POWER KILL_SOS FAN_SOS PS_SOS ALL_OFF1 SOS3 SOS1 SOS2 RUSH_ON/OFF KILL_SOS FAN_SOS PS_SOS TV_ON/OFF ALL_OFF1 M_POWER DRVRST SOS3 CATS_EYE SOS3 LED_G LED_R CATS_EYE REMOCON DRVRST_5V DG3 D3 19 17 27 21 23 IC9455 NEW PLASMA AI P27 15 28 TO TO (3.3V->2.5V) 26 25 11 5 D25 P25 7 TO 2 1 DC DC CONVERTER IC9800 (1.8V) DC DC CONVERTER IC9952 (1.8V) 1.8V UNREG 14V UNREG 14V 1.8V UNREG 14V DC DC CONVERTER 3.3V 2.5V IC9951 (3.3V) DC DC CONVERTER IC9453 64Mbit SDRAM IC9454 32MbitFLASH IC9456 Plasma AI control IC9459 BUS SW Q9400 BUS RELEASE RESET 10bit PROCESSOR SUB-FIELD PROCESSOR (L Master) SLV44h FC RAM I/F FLASH ROM I/F DATA DRIVER FPGA I/F DATA DRIVER IC9305 NEW PLASMA AI DATA DRIVER (R Slave) SLV42h FLASH ROM I/F 10bit PROCESSOR DATA DRIVER FPGA I/F SUB-FIELD PROCESSOR FC RAM I/F DISCHARGE CONTROL IC9605 IC9709 (2/2) IC9304 IC9601 3.3V->5V IC9603 IC9604 5 6 SCL SDA IC9708 9 11 3.3V->5V IC9703 TO C21 Q9702 Q9701 STB5V_M STB5V_S LEFT(MASTER)RGB 8bit RIGHT(SLAVE)RGB 8bit 23 X9702 9,216MHz 22 31 15 51 52 20 4 14 35 21 100 DRVRST D32 A3 A33 (42inch) DRVRST-5V DRVRST DRVRST-5V B3 A38 D33 DRVRST B37 A37 A34 A36 D31 L-UP A3 B38 DRVRST-5V DRVRST DRVRST-5V B3 A38 D34 DRVRST 12 D20 SOS2 11 TO SC-BOARD SOS1 REMOCON 26 61 64 28 1 6 7 STB 5V RESET IC9710 RESET REMOCON_OUT FAN_CONT RESET FAN_CONT 15V 15V 5V 15V 15V 5V RESET 42 55 8 4 2 IC9707 32 54 53 SCL3 SDA3 Q9596 Q9597 Q9594 Q9591 Q9598 Q9599 Q9592 Q9593 19 41 Q9301 PS SOS 7 TV ON/OFF 1 2 ALL OFF1 8 4 RUSH ON/OFF KILL SOS 3 D27 M POWER 6 FAN SOS STB5V STB5V 5 37 46 63 33 45 44 Plasma AI Sub-Field Processor D (2/2) 12 RESET SC20 L-DOWN R-UP R-DOWN POWER_STATUS RESET RXD_TU RXD_PC STB_ON TXD_TU REAL TIME/INPUT TXD_PC REMOCON_OUT FAN_CONT B0-B7,G0-G7,R0-R7 B0-B7,G0-G7,R0-R7 OR EEPROM FAN CONT X IN X OUT 29 1 Q9708 REMOCON OUT REMOCON INH DATA DRIVE DATA DRIVE DATA DRIVE DATA DRIVE SCAN OUT CEL, CBK, CSL, CSH, CML, CMH, PCU, PCD CL, CLK, SIU, SID, SCSU, CPL CPH UEH, USL, USH, UML, UMH, NUEL, (UBK) CEL CER HD,VD 50MHz 60MHz 65MHz CLK 55 56 2OE 1OE 47 CLK 60MHz 50MHz 65MHz HD,VD HD,VD FPGA I/F HD,VD (3.3V)SCA (3.3V)SDA SDA SCA SDA SCA (3.3V)SDA (3.3V)SCA CONTROL DATA SUS SCAN SCAN SUSTAIN CON. DATA 8bit SCAN CON. DATA 13bit SCAN CON. DATA 13bit 60 (2/2) D12 1 3 PA12 TO OR A B INV. 40 INV. Q9709 47 (2/2) A15 A14 CEL PCL(PCU) PCL(PCD) B27 CEL B26 CER A19 A18 PCR(PCU) B22 CER CLK NRST CATS-EYE 9 11 3.3V<-5V IC9706 NRST RXD_PC TXD_PC 12V STB5V 5 7 STB5V 12V DRVRST 5V B40 CEL, PCU D8~D11, CLKL, NCLKL CEL, PCD OPT D19~D22, CKD1, CKD2 CER, PCU D2~D5, CLKR, NCLKR B23 PCR(PCD) CER, PCD 3.3V->5V 3.3V->5V D13~D16, CKD1, CKD2 PCD PCU PCU PCD NRST PCU PCD NRST CEL, CER SOS IC9457 3.3V->5V DSLL DMLL DMHL DSHL DMHR DMLR DSLR DSHR TH-50PX25U/P only 64Mbit SDRAM CONVERT PROCESSOR MICRO 4 5 6 7 8 9 10 2 1 3 TO C25 (50inch) (50inch) TO C31 TO C55 (42inch) TO C11 TO C24 (50inch) (42inch) TO C41 TO C54 (50inch) (42inch) TH-42/50PX25U/P D-Board Block Diagram TH-42/50PX25U/P D-Board Block Diagram TH-42PX25U-P / TH-50PX25U-P 149 15.53. D-Board (1 of 14) Schematic Diagram + + + + AL_NCLP_S AAF_DPMS_HD AAF_DPMS_VD AA_SOS_STATUS AM_R AL_VD_S AA_ALL_OFF1 AA_FAN_CONT AK_SCL2 AK_SDA2 AK_IIC_CONT AK_SCL1 AK_SDA1 AK_SCL3 AK_SDA3 AM_B AM_G AA_STB_ON AA_REMOCON_OUT AR_RXD_TU AR_RXD_PC AR_TXD_PC AR_TXD_TU AV_B7 AV_B6 AV_B5 AV_B4 AV_B3 AV_B2 AV_B1 AV_B0 AV_G7 AV_G6 AV_G5 AV_G4 AV_G3 AV_G2 AV_G1 AV_G0 AV_R7 AV_R6 AV_R5 AV_R4 AV_R3 AV_R2 AV_R1 AV_R0 3.3V AAT_TX3+ AAT_TX3- AAS_TXC+ AAS_TXC- AAN_TX2+ AAN_TX2- AAR_TX1+ AAR_TX1- AAU_TX0+ AAU_TX0- C C C C C 3.3V 3.3V AU_VDID_S AU_HDID_S 5V AV_R5 AV_R4 AV_R3 AV_R2 C C C C C AT_B7 AT_B6 AT_B5 AT_B4 AT_B3 AT_B2 AT_B1 AT_B0 AT_G7 AT_G6 AT_G5 AT_G4 AT_G3 AT_G2 AT_G1 AT_G0 AT_R7 AT_R6 AT_R5 AT_R4 AT_R3 AT_R2 AT_R1 AT_R0 3.3V AV_B3 AV_B1 AV_B0 AV_B7 AV_R0 AV_B6 AV_B5 AV_B4 AV_B2 AV_G7 AV_G6 AV_G5 AV_G4 AV_G3 AV_G2 AV_R7 AV_R1 AV_R6 AV_G1 AV_G0 AL_HD_S C9022 16V 0.1u L9002 ELKE103FA 1 2 3 C9016 16V 0.1u C9010 4V 220u R9006 EXB38V470JV C9007 4V 220u L9003 ELKE103FA 1 2 3 P5V C9029 16V 0.1u P5V C9020 16V 0.1u C9017 16V 0.1u IC9004 C0JBAS000109 1 2 3 4 5 6 7 8 C9028 6.3V 10u R9016 56 R9008 100 IC9003 C0JBAB000550 1 NC 2 A 3 GND 5 VCC 4 Y C9003 16V 0.1u C9011 16V 0.1u C9005 16V 0.1u *R9929 100 C9013 16V 0.1u C9014 16V 0.1u R9005 100 R9728 0 R9010 EXB38V470JV R9009 100 P5V R9131 100 L9001 ELKE103FA 1 2 3 D9001 MAZ30360HL R9002 0 R9004 EXB38V470JV R9011 100 R9014 10k R9727 EXB38VR000V C9023 16V 0.1u R9003 0 R9007 100 R9730 100 R9012 EXB38V470JV R9726 0 C9004 6.3V 10u C9006 16V 0.1u R9132 100 C9009 4V 220u C9001 6.3V 10u R9018 0 R9130 100 R9731 100 C9027 16V 0.1u C9002 16V 0.1u R9001 EXB38V470JV R9026 47k C9008 4V 220u R9015 33 D3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 C9012 16V 0.1u R9017 EXB38V470JV R9025 10k R9027 330 IC9002 C0ZBZ0000551 1 D22 2 D23 3 D24 4 GND 5 D25 6 D26 7 D27 8 LVDS GND 9 Y0- 10 Y0+ 11 Y1- 12 Y1+ 13 LVDS VCC 14 LVDS GND 15 Y2- 16 Y2+ 17 CLKIN- 18 CLKIN+ 19 Y3- 20 Y3+ 21 LVDS GND 22 PLL GND 23 PLL VCC 24 PLL GND 25 /PDWN 26 CLK OUT 27 D0 28 GND 29 D1 30 D2 31 VCC 32 D3 33 D4 34 D5 35 D6 36 GND 37 D7 38 D8 39 D9 40 VCC 41 D10 42 D11 43 D12 44 GND 45 D13 46 D14 47 D15 48 VCC 49 D16 50 D17 51 D18 52 GND 53 D19 54 D20 55 D21 56 VCC IC9001 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout Q9001 2SD0601A0L 0 R9984 0 R9985 0 R9986 0 R9987 0 R9988 D6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 IC9005 C0JBAZ001992 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE 5V GND GND GND GND GND GND STB5V IIC_CONT SCL1 SDA2 SCL2 SDA1 GND SDA3 SCL3 RESET POWER STATUS TXD_TU RXD_TU CABLE DET GND GND GND SOUND MAIN MUTE ALL_OFF TXD_PC RXD_PC GND GND FAN_CONT REMOCON_OUT PR_S HD_S VD_S NCLP_S STB_ON REAL TIME /INTRA Y_S PB_S TX0G GND GND DPMS_VD GND TX3+ TX3- TX3G TXC+ TXC- TXCG TXG2+ TXG2- TX2G TX1+ TX1- TX1G TX0+ DPMS_HD TX0- GND DS90CF386MTDX H:HI-Z H:ON VSS VDD HS VS T1+ T0- T0+ T1- TCLK- T2- T2+ T3- TCLK+ T3+ 100MHz FOR DVI DG-BOARD TO (DG3) D-BOARD (1/14) TZTNP01QKSU(TH-42PX25U/P) TZTNP01QNSU(TH-50PX25U/P) H:ON LVDS/TTL (PARALLEL) BUS SWITCH SWITCHING INVERTER AVR 3.3V TO D-BOARD (7/14) 6 5 4 2 3 1 7 A B C D E F G H I J 9 2 3 7 1 8 5 C F 4 B A 6 D E 0 4.9 0 4.8 0 4.8 0 2.0 6.7 0 0 0 0 5.0 0 4.0 4.4 0 3.9 0 0 0 0 0 0 0 5.0 0 0 0 0 0 0 0 0 4.8 5.0 2.4 0 4.9 TH-42/50PX25U/P D-Board (1 of 14) Schematic Diagram TH-42/50PX25U/P D-Board (1 of 14) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 150 15.54. D-Board (2 of 14) Schematic Diagram AS_R0 AS_R1 AS_R2 AS_R3 AS_R4 AS_R5 AS_R6 AS_R7 AJ_SCL2 AJ_SDA2 AS_R1 AS_R0 AS_R2 AS_R3 AS_R4 AS_R5 AS_R6 AS_R7 AS_G1 AS_G0 AS_G2 AS_G3 AS_G4 AS_G5 AS_G6 AS_G7 AS_B0 AS_B1 AS_B2 AS_B3 AS_B4 AS_B5 AS_B6 AS_B7 AU_HD_S AU_VD_S AU_NCLP_S AU_HD_M AU_VD_M AU_NCLP_M AL_NCLP_S AL_HD_S AL_VD_S AU_HDIA_S AU_VDIA_S AT_G4 AT_G5 AT_G6 AT_G7 AT_B0 AT_B1 AT_B2 AT_B3 AT_B4 AT_B5 AT_B6 AT_B7 AT_R0 AT_R1 AT_R2 AT_R3 AT_R4 AT_R5 AT_R6 AT_R7 AT_G0 AT_G1 AT_G2 AT_G3 5V 5V 5V AU_CLP_S AU_HD_ADS AU_VD_ADS AS_B1 AS_B0 AS_B3 AS_B4 AS_B5 AS_B6 AS_B7 AS_B2 AS_G0 AS_G1 AS_G2 AS_G3 AS_G4 AS_G5 AS_G6 AS_G7 AM_B AM_G AM_R 3.3V R9030 4.7k C9037 6.3V 10u R9023 75 C9035 16V 0.1u R9028 0 C9056 16V 0.1u R9113 0 C9045 16V 0.1u C9050 6.3V 10u R9104 0 C9052 16V 0.1u C9034 16V 0.1u C9030 6.3V 10u C9033 16V 0.1u C9046 16V 0.1u IC9006 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout IC9007 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout R9029 3.3k C9042 25V 0.047u R9019 0 C9053 50V 3900p C9077 16V 0.1u C9044 50V 1000p P5V R9105 0 C9041 16V 0.1u C9038 16V 0.1u C9032 16V 0.1u R9110 0 C9043 25V 0.047u R9115 0 C9048 16V 0.1u C9049 16V 0.1u C9054 16V 0.1u C9051 16V 0.039u C9040 25V 0.047u C9036 6.3V 10u R9024 75 3.3V 3.3V IC9009 C0FBAD000069 1 GND 2 GREEN<7> 3 GREEN<6> 4 GREEN<5> 5 GREEN<4> 6 GREEN<3> 7 GREEN<2> 8 GREEN<1> 9 GREEN<0> 10 GND 11 VDD 12 BLUE<7> 13 BLUE<6> 14 BLUE<5> 15 BLUE<4> 16 BLUE<3> 17 BLUE<2> 18 BLUE<1> 19 BLUE<0> 20 GND 21 GND 22 VDD 23 VDD 24 GND 25 GND 26 VD 27 VD 28 GND 29 COAST 30 HSYNC 31 VSYNC 32 GND 33 FILT 34 PVD 35 PVD 36 GND 37 MIDSCV 38 CLAMP 39 VD 40 GND 41 GND 42 VD 43 BAIN 44 GND 45 VD 46 VD 47 GND 48 GAIN 49 SOGIN 50 GND 51 VD 52 VD 53 GND 54 RAIN 55 A0 56 SCL 57 SDA 58 REF BYPASS 59 VD 60 GND 61 GND 62 VD 63 GND 64 VSOUT 65 SOGOUT 66 HSOUT 67 DATACK 68 GND 69 VDD 70 RED<7> 71 RED<6> 72 RED<5> 73 RED<4> 74 RED<3> 75 RED<2> 76 RED<1> 77 RED<0> 78 VDD 79 VDD 80 GND R9022 75 R9114 0 C9055 16V 0.1u C9031 6.3V 10u IC9023 C0JBAZ000545 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R9020 0 C9039 16V 0.1u 0 *R9066 0 *R9067 0 *R9065 IC9008 C0JBAZ001992 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE P5V 74LCX244MTCX 5V->3.3V 100MHz HI:HI-Z 1A2 1Y3 2Y1 2Y3 2A2 2Y4 1Y2 GND 2A3 1A1 1Y1 1A4 2A4 VCC 2OE 1A3 1Y4 1OE 2Y2 2A1 BUS SWITCH A/D CONVERTER(SUB) AVR 3.3V AVR 3.3V D-BOARD (2/14) (8/14) D-BOARD TO 13 11 12 7 1 3 2 4 5 6 15 11 16 13 14 10 12 18 17 AA AB AC TZTNP01QKSU(TH-42PX25U/P) TZTNP01QNSU(TH-50PX25U/P) TH-42/50PX25U/P D-Board (2 of 14) Schematic Diagram TH-42/50PX25U/P D-Board (2 of 14) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 151 15.55. D-Board (3 of 14) Schematic Diagram + + + + + + + Thermal Pad + + + + Thermal Pad + AA_KILL_SOS AA_PS_SOS AA_FAN_SOS AA_TV_ON/OFF AA_RUSH_ON/OFF AA_FAN_CONT AA_ALL_OFF1 ABH_G2 ABH_G0 ABH_G1 ABH_R2 ABH_R0 ABH_R1 AT_G2 AT_G1 AT_G0 AT_R2 AT_R1 AT_R0 AT_B2 AT_B1 AT_B0 ABH_G7 ABH_G6 ABH_G5 ABH_R7 AT_G7 ABH_R6 ABH_R5 AT_G6 AT_G5 ABH_G4 ABH_G3 ABH_R4 AT_G4 ABH_R3 AT_G3 AT_R7 AT_R6 AT_R5 AT_R4 AT_R3 AT_B7 AT_B6 AT_B5 AT_B4 AT_B3 ABH_B2 ABH_B1 ABH_B0 ABH_B7 ABH_B6 ABH_B5 ABH_B4 ABH_B3 C9466 4V 220u R9962 1k C9955 16V 0.1u C9952 16V 47u C9969 16V 4.7u C9465 16V 0.1u C9951 16V 47u C9971 50V 2200p R9998 10k D9952 B0JCME000025 R9959 4.7k R9966 0 C9957 16V 4.7u C9471 16V 0.1u C9970 25V 0.1u R9961 1.62k C9960 16V 0.1u R9157 EXB2HVR000V D9953 MA3X152K0L C9958 25V 220u R9954 0 R9480 1k R9481 1k D25 1 2 3 4 5 6 7 8 3.3V C9959 25V 220u C9961 4V 120u IC9951 C0DBAMH00006 1 Vin 2 Vout 3 COM 4 Oadj 5 Vsoft 6 COM C9965 16V 0.1u R9153 EXB2HVR000V 2.5V C9964 16V 0.1u L9955 G1C470M00012 C9956 50V 0.01u L9953 ELKE103FA 1 2 3 C9953 16V 47u C9472 6.3V 10u L9954 ELKE103FA 1 2 3 D27 1 2 3 4 5 6 7 8 9 R9960 4.7k C9954 16V 0.1u R9969 0 D9954 B0JCME000025 R9957 0 1.8V_S IC9453 C0DBEZG00004 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT L9952 ELKE103FA 1 2 3 R9971 0 STB5V_S C0DBAFH00021 IC9952 1 GND 2 BOOST 3 VIN 4 VIN 5 SW 6 SW 7 NC 8 GND 9 GND 10 NC 11 SHDN 12 FB 13 VC 14 SYNC 15 NC 16 GND R9952 0 R9963 0 L9951 ELKE103FA 1 2 3 R9154 EXB2HVR000V C9967 6.3V 10u C9709 16V 47u UNREG14V R9956 0 R9964 0 L9956 G1C1R5Z00002 D9955 B0JCPD000010 R9965 1k R9955 0 R9951 0 C9966 4V 220u C9968 16V 47u P5V R9902 1k R9912 0 C9803 16V 4.7u C9801 6.3V 10u 1.5u G1C1R5Z00002 L9800 C9805 50V 2200p C9804 25V 0.1u 1.8V D9801 B0JCME000025 C9802 16V 47u C0DBAFH00021 IC9800 1 GND 2 BOOST 3 VIN 4 VIN 5 SW 6 SW 7 NC 8 GND 9 GND 10 NC 11 SHDN 12 FB 13 VC 14 SYNC 15 NC 16 GND R9854 0 C9806 16V 0.1u C9800 4V 220u R9892 10k D9800 B0JCPD000010 STB5V GND 3.3V->2.5V M_POWER 1.8V LT1765EFE-1.8 15V 15V GND 5V GND GND FAN_CONT RUSH_ON/OFF TV_ON/OFF GND FAN_SOS KILL_SOS PS_SOS ALL_OFF1 3.3V 1.8V LT1765EFE-1.8 TO (P25) P-BOARD TO (P27) P-BOARD D-BOARD (3/14) (9/14) D-BOARD TO 12 11 13 BC BA BB 25 20 23 27 24 21 22 26 19 TZTNP01QKSU(TH-42PX25U/P) TZTNP01QNSU(TH-50PX25U/P) 12.0 12.0 0 0 5.0 0 0 6.0 4.3 4.3 4.2 4.8 0 0 0 0 0 TH-42/50PX25U/P D-Board (3 of 14) Schematic Diagram TH-42/50PX25U/P D-Board (3 of 14) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 152 15.56. D-Board (4 of 14) Schematic Diagram + ABX_HPLO ABX_HFBC ABX_OHOLD R9203 22 R9232 330 R9184 1k R9183 3k C9085 16V 0.1u C9191 50V 0.01u C9169 16V 0.1u R9220 150 UNREG14V C9174 16V 0.1u IC9014 C0JBAZ000545 OE1 1 2 I0 3 O7 4 I1 5 O6 6 I2 7 O5 8 I3 9 O4 10 GND 11 I4 12 O3 13 I5 14 O2 15 I6 16 O1 17 I7 18 O0 19 OE2 20 VCC R9219 10 R9063 10 R9123 0 C9171 16V 47u C9175 6.3V 10u R9221 150 C9198 16V 0.1u C9177 16V 0.1u IC9157 C0ABFA000012 1 DVDD 2 SEL 3 VCOout 4 FinA 5 FinB 6 PFDout 7 VSS 8 (NC) 9 PFDinh 10 VCOinh 11 AVSS 12 VCOin 13 Rbias 14 AVDD R9218 0 R9228 150 R9224 2.2k C9195 16V 1u 3.3V C9192 16V 1u R9231 2.7k IC9154 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C9197 25V 0.056u R9191 0 C9196 16V 1u IC9153 C0DBZHE00019 1 Vin 2 Vc 3 Vo 4 NC 5 GND 6 Vo 5V->3.3V 2Y1 1OE VCC 1A1 2Y4 1A2 1A3 1A4 GND 2Y3 2Y2 2OE 1Y1 1Y2 1Y3 1Y4 2A4 2A3 2A2 2A1 3.3V->5V 100MHz PLLM PLL 3.3V D-BOARD (4/14) (10/14) D-BOARD TO CA CB 32 34 28 36 29 30 35 31 33 TZTNP01QKSU(TH-42PX25U/P) TZTNP01QNSU(TH-50PX25U/P) TH-42/50PX25U/P D-Board (4 of 14) Schematic Diagram TH-42/50PX25U/P D-Board (4 of 14) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 153 15.57. D-Board (5 of 14) Schematic Diagram ABP_AD0 ABP_AD1 ABP_AD2 ABP_BA1 ABP_AD10 ABP_AD3 ABP_IO20 ABP_IO21 ABP_BA0 ABP_RAS ABP_WE ABP_CAS ABP_IO23 ABP_IO22 ABP_CS ABP_IO19 ABP_IO18 ABP_IO17 ABP_IO16 ABP_IO7 ABP_IO6 ABP_IO5 ABP_IO4 ABP_IO3 ABP_IO1 ABP_IO2 ABP_IO0 ABP_IO9 ABP_IO8 ABP_IO10 ABP_IO11 ABP_IO12 ABP_IO13 ABP_IO14 ABP_IO15 ABP_IO24 ABP_IO25 ABP_IO26 ABP_IO28 ABP_IO27 ABP_IO31 ABP_IO29 ABP_IO30 ABP_AD8 ABP_AD9 ABP_AD4 ABP_AD5 ABP_AD7 ABP_AD6 C9335 16V 0.1u C9327 16V 4.7u IC9304 C3ABPJ000043 1 DQ3 2 VDDQ 3 DQ4 4 DQ5 5 VSSQ 6 DQ6 7 DQ7 8 VDDQ 9 DQ16 10 DQ17 11 VSSQ 12 DQ18 13 DQ19 14 VDDQ 15 VDD 16 VSS 17 DQ20 18 DQ21 19 VSSQ 20 DQ22 21 DQ23 22 VDDQ 23 DM0 24 DM2 25 ^WE 26 ^CAS 27 ^RAS 28 ^CS 29 BA0 30 BA1 31 A0 32 A1 33 A2 34 A3 35 VDD 36 A10 37 N.C 38 N.C 39 N.C 40 N.C 41 N.C 42 N.C 43 N.C 44 N.C 45 A9 46 VSS 47 A4 48 A5 49 A6 50 A7 51 A8/AP 52 N.C 53 CKE 54 ^CLK 55 CLK 56 DM1 57 DM3 58 VREF 59 VDDQ 60 DQ8 61 DQ9 62 VSSQ 63 DQ10 64 DQ11 65 VDD 66 VSS 67 VDDQ 68 DQ12 69 DQ13 70 VSSQ 71 DQ14 72 DQ15 73 VDDQ 74 DQ24 75 DQ25 76 VSSQ 77 DQ26 78 DQ27 79 VDDQ 80 DQ28 81 DQ29 82 VSSQ 83 DQ30 84 DQ31 85 VSS 86 VDDQ 87 N.C 88 N.C 89 N.C 90 N.C 91 N.C 92 VSSQ 93 N.C 94 DQS 95 VDDQ 96 VDD 97 DQ0 98 DQ1 99 VSSQ 100 DQ2 R9397 1k R9398 1k C9338 16V 0.1u 2.5V C9332 16V 0.1u 64Mbit SDRAM D-BOARD (5/14) (12/14) D-BOARD TO DA DE DF DD DB DC 53 48 46 54 50 47 52 49 51 21 TZTNP01QKSU(TH-42PX25U/P) TZTNP01QNSU(TH-50PX25U/P) TH-42/50PX25U/P D-Board (5 of 14) Schematic Diagram TH-42/50PX25U/P D-Board (5 of 14) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 154 15.58. D-Board (6 of 14) Schematic Diagram AAA_DMHR AAA_DMLR AAA_DSHR AAA_DSLR AAB_DMHL AAB_DMLL AAB_DSHL AAB_DSLL AX_DSLR AX_DMHR AX_DMLR AX_DSHR AX_DSLL AX_DSHL AX_DMLL AX_DMHL ABS_IO3 ABS_IO2 ABS_IO1 ABS_IO20 ABS_IO21 ABS_IO16 ABS_IO7 ABS_IO6 ABS_IO5 ABS_IO4 ABS_IO17 ABS_IO18 ABS_IO19 ABS_AD0 ABS_AD1 ABS_AD2 ABS_IO22 ABS_RAS ABS_WE ABS_CAS ABS_IO23 ABS_BA1 ABS_BA0 ABS_CS ABS_IO0 ABS_AD10 ABS_AD3 ABS_IO28 ABS_IO29 ABS_IO31 ABS_IO30 ABS_IO10 ABS_IO11 ABS_IO15 ABS_IO24 ABS_IO25 ABS_IO26 ABS_IO27 ABS_IO14 ABS_IO13 ABS_IO12 ABS_IO9 ABS_IO8 ABS_AD8 ABS_AD7 ABS_AD5 ABS_AD6 ABS_AD4 ABS_AD9 2.5V C9485 16V 0.1u C9482 16V 0.1u *C9499 16V 0.1u C9474 16V 4.7u R9487 1k P5V C9479 16V 0.1u R9486 1k IC9454 C3ABPJ000043 1 DQ3 2 VDDQ 3 DQ4 4 DQ5 5 VSSQ 6 DQ6 7 DQ7 8 VDDQ 9 DQ16 10 DQ17 11 VSSQ 12 DQ18 13 DQ19 14 VDDQ 15 VDD 16 VSS 17 DQ20 18 DQ21 19 VSSQ 20 DQ22 21 DQ23 22 VDDQ 23 DM0 24 DM2 25 ^WE 26 ^CAS 27 ^RAS 28 ^CS 29 BA0 30 BA1 31 A0 32 A1 33 A2 34 A3 35 VDD 36 A10 37 N.C 38 N.C 39 N.C 40 N.C 41 N.C 42 N.C 43 N.C 44 N.C 45 A9 46 VSS 47 A4 48 A5 49 A6 50 A7 51 A8/AP 52 N.C 53 CKE 54 ^CLK 55 CLK 56 DM1 57 DM3 58 VREF 59 VDDQ 60 DQ8 61 DQ9 62 VSSQ 63 DQ10 64 DQ11 65 VDD 66 VSS 67 VDDQ 68 DQ12 69 DQ13 70 VSSQ 71 DQ14 72 DQ15 73 VDDQ 74 DQ24 75 DQ25 76 VSSQ 77 DQ26 78 DQ27 79 VDDQ 80 DQ28 81 DQ29 82 VSSQ 83 DQ30 84 DQ31 85 VSS 86 VDDQ 87 N.C 88 N.C 89 N.C 90 N.C 91 N.C 92 VSSQ 93 N.C 94 DQS 95 VDDQ 96 VDD 97 DQ0 98 DQ1 99 VSSQ 100 DQ2 IC9457 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 2.5V 2Y1 1OE VCC 1A1 2Y4 1A2 1A3 1A4 GND 2Y3 2Y2 2OE 1Y1 1Y2 1Y3 1Y4 2A4 2A3 2A2 2A1 SN74ACT244PWR 3.3V->5V 64Mbit SDRAM TH-50PX25U/P ONLY D-BOARD (6/14) D-BOARD (14/14) TO ED EA EB EC EE EF 55 57 58 61 56 62 59 63 60 21 TZTNP01QKSU(TH-42PX25U/P) TZTNP01QNSU(TH-50PX25U/P) TH-42/50PX25U/P D-Board (6 of 14) Schematic Diagram TH-42/50PX25U/P D-Board (6 of 14) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 155 15.59. D-Board (7 of 14) Schematic Diagram + + + AA_SOS1 AA_SOS2 AA_DRVMUTE _M5V AK_SDA3 AK_SCL3 AK_SDA2 AK_SCL2 AK_SDA1 AK_SCL1 AR_SDA2 AR_SCL2 AR_SDA3 AR_SCL3 AR_IIC_INT AA_CATS_EYE AR_SDA2 AR_SCL2 AR_SDA1 AR_SCL1 AR_SCL1 AN_NO_SYNC AJ_SDA2 AJ_SCL2 AAZ_CML AAZ_CMH AAZ_CEH AAY_CL AAY_CPL AAZ_CEL AAZ_CSL AAY_CLK AAY_SIU AAY_SID AAY_SCSU AAY_CPH AAZ_CSH AAE_MCLD AAE_MCDATA AAE_MCCLK AR_SCL1 AR_SDA1 AR_SCL3 AR_SDA3 AR_IIC_INT ABL_VA0 ABL_VA4 ABL_VA6 ABL_VA7 ABL_VA8 ABL_VA5 ABL_VA1 ABL_VA2 ABL_VA3 ABI_J ABI_I ABI_D AR_SDA1 AR_SCL1 AO_A5 AO_A6 AO_A12 AO_A13 AO_A14 AO_A15 AO_A16 AO_A17 AO_A18 AO_A7 AO_A8 AO_A9 AO_A10 AO_A11 AO_A4 AO_A3 AO_A2 AO_A1 AO_A0 ABV_D15 ABV_D14 ABV_D13 ABV_D12 ABV_D11 ABV_D10 ABV_D09 ABV_D08 ABV_D07 ABV_D06 ABV_D05 ABV_D04 ABV_D03 ABV_D02 ABI_A ABI_B ABI_C AK_IIC_CONT AR_SDA2 AR_SCL2 AJ_IIC_CONT ABV_D01 ABV_D00 AA_CABLE_DET AN_CLKC C9710 16V 47u R9721 150 D9713 MAZ30620ML R9750 1k R9787 1k R9751 EXB38V103JV C9727 16V 0.1u C9706 16V 0.1u R9756 2.7k R9790 1.5k R9743 4.7k R9777 470 R9766 0 R9702 68 C9705 50V 1000p C9703 50V 100p R9718 0 R9734 1k R9773 100 R9700 0 D9715 MAZ30620ML R9712 150 R9737 1k P5V R9776 10k R9717 0 D9710 MAZ30620ML R9757 56 R9732 100 IC9701 MN102L230 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 R9701 100 R9725 22k C9715 50V 100p R9714 150 STB5V_M C9714 50V 100p R9791 4.7k R9708 100 R9806 1k STB5V_M R9703 100 R9754 EXB38V272JV R9759 56 C9723 10p R9723 150 R9736 2.7k R9781 10k R9761 1k R9747 1k R9786 EXB38VR000V C9701 16V 0.1u R9758 10k C9716 50V 100p R9769 EXB38VR000V D9709 MAZ30620ML C9726 16V 4.7u 3.3V D9712 MAZ30620ML R9779 10k D20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R9996 0 R9762 EXB38V103JV C9722 10p STB5V_S R9739 2.7k R9788 0 L9701 ELKE103FA 1 2 3 R9749 4.7k R9783 56 R9710 150 R9707 100 C9725 6.3V 10u C9719 16V 4.7u STB5V_S D9708 MAZ30620ML X9701 H0J245500024 D9716 MA2J11100L R9704 100 Q9702 2SB14400HL R9784 56 C9707 16V 0.1u R9738 2.7k R9888 10k R9735 10k R9748 0 R9789 470 R9741 4.7k D9705 MAZ30620ML R9753 100 R9765 100 R9774 10k C9712 50V 100p R9775 10k R9706 100 R9768 EXB38V470JV R9745 10k R9719 150 C9702 16V 47u R9767 100 R9715 150 STB5V_M D9706 MAZ30620ML R9722 150 C9724 16V 0.1u D9711 MAZ30620ML R9771 EXB38VR000V D4 1 2 3 4 5 6 7 8 9 10 11 12 D9707 MAZ30620ML IC9711 C0JBAS000109 1 2 3 4 5 6 7 8 R9949 10k R9755 2.7k R9716 150 C9720 16V 0.1u R9782 5.6k C9718 16V 0.1u R9709 47k R9763 10k R9724 150 C9713 50V 100p R9785 EXB38VR000V C9717 50V 100p C9708 16V 47u R9711 150 R9705 100 IC9702 C3EBJC000038 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC R9733 5.6k R9713 150 C9700 16V 0.1u X9703 H0J200500016 R9720 150 R9795 1M Q9701 2SD0601A0L Q9710 2SB0709A0L Q9707 2SB0709A0L Q9703 B1CBHD000001 G D S Q9704 B1CBHD000001 G D S Q9719 B1CBHD000001 G D S CABLE_DET SOS1 SOS2 H:ON VSS VDD CLK SIU CL CPH SCSU SID CPL CEH CEL CSL CSH CML CMH RES AD4 84.MUSID 83.MUSIB 82.MUSKIK 81.TESTIN AD1 AD2 AD3 AD6 AD7 SDA3 SCL3 P03 80.VSS 79.VDD 78.P27 V-MUTE(DRIVER) 77.NIRQ2 76.NIRQ1 IIC_INT 75.P16 IIC EX CONT P12 SDA1 P11 SCL1 P10 P07 P06 P02 P01 P23 FPGA_CHIP SEL TO Jpr GND SDA1 SCL2 SDA2 IIC_CONT SCL1 STB5V SCL3 SDA3 IRQ RST GND IIC 5V IIC 5V A15 A14 A16 VDD A20 A19 A18 A17 A21 A22 A23 P00 A-MUTE A13 A12 A10 A11 A09 VSS P15 P05 NO_SYNC P04 RESET_OUT P14 P13 VDD A00 A01 D09 D10 D11 D13 D14 D15 D12 A02 A04 A03 SYSCLK NRST A05 A08 A07 VDD OSCI OSCO VSS A06 SDA2 SCL2 VDD ADVSS ADVDD NSBT NSBD AD5 VA6 NWEL D03 D04 D02 NRE NWEH NCS0 NCS1 VDD VSS D01 DOSCI DOSCO D00 D05 D06 D07 D08 VSS VA0 SID14 SID15 SID05 SID06 SID07 SID08 SID09 SID10 SID11 SID12 SID13 VA5 VA2 VA3 VA4 VA1 NDCAS VA7 VA8 NDRAS AVSS ECLK NVCAS NVRAS RW601 NDTOE SID00 SID01 SID02 SID03 SID04 POW_STATUS(TUNER) P24 FPGA DATA FPGA_LD P25 YS YMWR YM P26 NVIN NVOUT NHIN NHOUT CS601 RMIN VREF GOUT BOUT IREF ROUT YMCS IRQ0 VSS P20 P21 P22 AD0 AVDD SC VDD H:ON MICRO PROCESSOR SWITCHING EEPROM D-BOARD (7/14) TO (1/14) D-BOARD B 2 1 3 D 7 9 8 6 4 F 5 A C E 39 40 38 37 31 36 32 35 33 34 43 41 48 44 47 45 46 50 42 49 51 52 H I J A B C D E F G TO (SC20) SC-BOARD TZTNP01QKSU(TH-42PX25U/P) TZTNP01QNSU(TH-50PX25U/P) 5.0 4.9 0 4.8 4.8 4.8 4.8 4.7 4.5 0.5 4.8 0 5.0 2.2 1.4 4.9 0 0 3.1 3.7 0 0 0 0 0 3.7 0 0 0.6 0 3.7 0.3 TH-42/50PX25U/P D-Board (7 of 14) Schematic Diagram TH-42/50PX25U/P D-Board (7 of 14) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 156 15.60. D-Board (8 of 14) Schematic Diagram + AA_SOS1 AR_RXD_TU AR_TXD_TU AAE_MCDATA AA_SOS3 AA_SOS2 VPP12V AAO_MCHD AAO_MCVD AAE_MCCLK AAE_MCLD AA_DRVMUTE_S5V AA_DRVMUTE_M AA_DRVMUTE_S AA_DRVMUTE_S5V AA_DRVMUTE_M5V AA_DRVRST_5V AA_NRST AA_CABLE_DET AA_KEY AH_REM_OUT AAE_MCCLK AAO_MCCLKO AAO_MCLDO AAO_MCDATAO ABV_D04 ABV_D08 AO_A14 ABV_D15 AO_A2 AA_STB_ON AR_IIC_INT AAF_DPMS_VD AAF_DPMS_HD AA_ALL_OFF1 AA_PS_SOS AA_FAN_SOS AH_REM_OUT AH_REM_INH AA_RUSH_ON/OFF AA_TV_ON/OFF AA_KILL_SOS AR_SCL3 AR_SDA3 AH_REM_INH AA_LED_R AA_LED_G ABV_D15 ABV_D12 ABV_D14 ABV_D13 ABV_D05 ABV_D06 ABV_D07 AR_TXD_PC AR_RXD_PC AAH_SD08 AAH_SD09 AAH_SD11 AO_A18 ABI_I ABI_J ABI_D ABV_D09 ABV_D10 ABV_D11 AAH_SD10 ABI_A ABI_B ABI_D ABL_VA6 ABL_VA8 ABI_C ABL_VA4 ABL_VA5 AAH_SD12 AAH_SD13 AAH_SD14 AAH_SD15 ABV_D13 ABV_D12 ABL_VA0 ABL_VA1 ABV_D14 ABL_VA2 ABL_VA3 ABL_VA7 AO_A4 AO_A5 AO_A6 AO_A7 AO_A17 ABV_D01 ABV_D02 ABV_D08 ABV_D09 AO_A1 AO_A3 AO_A0 ABV_D00 ABV_D11 ABV_D03 ABV_D10 AO_A12 AO_A11 AO_A10 AO_A9 AO_A8 AO_A16 AO_A15 AO_A13 AAE_MCDATA AA_DRVRST_5V AA_SOS_STATUS AA_RTC_INT AJ_IIC_CONT AA_REMOCON AA_REMOCON_OUT AR_TXD_PC AR_RXD_PC STB5V_M R9919 10k C9760 16V 0.056u R9818 100 R9857 1k C9756 50V 1000p R9803 100 D9724 MA2J11100L R9823 56 R9872 0 R9840 100 R9809 10k R9890 10k R9910 100 R9833 39k R9804 100 IC9707 C0JBAE000283 1 IN B 2 IN A 3 GND 5 VCC 4 C9741 16V 0.1u R9921 100 R9913 22k R9843 10k R9794 2.7k R9897 10k STB5V_S R9876 10k C9742 16V 47u R9856 100 D9719 MAZ30620ML R9917 10k R9941 330 R9907 10k D9730 MA3X152K0L R9853 10k R9852 10k R9814 10 R9898 0 D9727 MA3X152K0L R9851 22k C9751 0.01u UNREG14V R9908 100 R9932 1k C9733 16V 0.1u IC9710 C0EBB0000024 1 2 IN 3 4 GND 5 6 OUT 7 VCC 8 R9855 39k R9893 100 R9878 100 R9811 0 R9936 5.6k R9882 100 R9873 4.7k R9904 10k C9766 6.3V 10u 1.8V R9889 100 C9753 0.1u R9826 100 R9909 10k C9765 16V 0.1u R9834 56 R9844 10k C9754 0.1u R9846 10k R9820 4.7k R9940 10k R9894 100 R9860 100 R9901 0 D9720 MAZ30620ML R9824 56 C9729 16V 4.7u R9798 5.6k R9819 100 R9839 100 R9805 0 R9934 10k R9925 0 R9816 1k C9755 1000p R9800 0 R9900 100 R9935 5.6k IC9708 C3EBGC000018 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC C9749 16V 0.1u C9737 16V 0.1u R9918 0 R9924 22k C9769 16V 0.1u C9740 16V 0.1u C9750 16V 4.7u 3.3V R9886 100 C9767 16V 1u R9867 33 R9895 100 C9730 16V 0.1u R9864 100 R9829 39k STB5V_S R9869 100 D9769 MA3X152K0L C9761 50V 33p R9945 10 R9861 10k R9943 100 R9859 1k D12 1 2 3 4 5 6 7 R9868 4.7k D9723 MAZ30620ML R9930 100 R9905 10k R9799 5.6k R9922 100 R9914 1k R9875 100 IC9706 C0JBAZ000545 OE1 1 2 I0 3 O7 4 I1 5 O6 6 I2 7 O5 8 I3 9 O4 10 GND 11 I4 12 O3 13 I5 14 O2 15 I6 16 O1 17 I7 18 O0 19 OE2 20 VCC R9850 100 R9848 EXB38V103JV C9759 16V 0.1u R9942 10k R9577 0 R9849 100 R9880 100 R9825 1k R9838 0 R9946 10 R9871 1k C9762 50V 33p R9832 10k R9944 1k IC9703 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R9858 100 R9906 100 C9748 16V 0.1u R9885 EXB38V103JV R9931 10k P5V R9903 10k R9883 100 3.3V C9752 0.01u R9817 0 C9728 16V 0.1u C9768 16V 1u R9920 1M R9827 3.3k C9743 16V 1u R9937 330 R9835 56 R9916 0 R9933 330 R9879 100 P5V R9887 10k R9923 100 R9744 0 R9896 100 R9836 100 C9732 16V 0.1u D9771 MA3X152K0L R9837 10k X9702 H0J921400003 R9770 10k R9874 100 C3FBLD000039 IC9705 1 RY/BY 44 RESET 2 A18 3 A17 4 A7 5 A6 6 A5 7 A4 8 A3 9 A2 10 A1 11 A0 12 CE 13 VSS 14 OE 15 DQ0 16 DQ8 17 DQ1 18 DQ9 19 DQ2 20 DQ10 21 DQ3 22 DQ11 23 VCC 24 DQ4 25 DQ12 26 DQ5 27 DQ13 28 DQ6 29 DQ14 30 DQ7 31 DQ15/A-1 32 VSS 33 BYTE 34 A16 35 A15 36 A14 37 A13 38 A12 39 A11 40 A10 41 A9 42 A8 43 WE R9847 10k R9939 330 R9810 0 Q9715 2SD0601A0L Q9714 2SD0601A0L Q9709 2SD0601A0L Q9708 2SD0601A0L Q9716 2SD0601A0L IC9709 C2BBGF000491 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 R9991 10k Q9717 2SD0601A0L R9990 330 R9992 330 R9993 10k D9714 MA3X152K0L 1.8V_S Q9706 B1CBHD000001 G D S IC9704 C3HAHC000006 4 SI/O2 8 I/O1 9 1/O2 6 DT/OE 3 SI/O1 2 SI/O0 10 I/O3 11 VCC 12 WE 7 I/O0 13 NC 14 RAS 1 SC 15 NC 16 A8 17 A6 5 SI/O3 18 A5 19 A4 20 VCC 26 QSF 40 VSS 28 NC 27 CAS 39 SI/O7 29 DSF 38 SI/O6 37 SI/O5 36 SI/O4 35 SE 34 1/O7 33 I/O6 32 I/O5 31 I/O4 22 A3 21 A7 23 A2 30 VSS 24 A1 25 A0 STB5V_S C9731 16V 0.1u 5V->3.3V NC MAIN_RESET P53/SRDY2 3.AN0 15V_DET 1.P62/AN2 SC_SOS GND TXD RXD GND STB5V 12V 31.P21 STB_ON 4.P57/INT3 RTC_INT NC P54/CNTR0 DPMS VD P55/CNTR1 DPMS HD 21.P40/INT40/XCOUT SCL 20.P41/INT00/XCIN SDA KEY_SCAN NC DRV_SOS POWER_SOS NC IICINT IIC SEL 48.P00/AN8 A_MUTE 47.P01/AN9 M_POWER 46.P02/AN10 KILL_SOS IICCONT P31/DA2 RUSH_ON/OFF P04/AN12 DRIVER_MUTE P06/AN14 NC DRVER_RST POWER_SNS P11/INT01 P12 NC P13 NC P14 CABLE_Z P24 LED_R P15 POWER STAT P17 ALL_OFF1 P16 SOS_INH 29.REM_INH 30.P22LODER_MD 32.P20_REM OUT P25MAIN_CONF P26 LED_G P27 INT_SERIAL XOUT XIN VSS 18.CNVSS/VPP 19._RESET 17.P42/INT1 FPGA CS /CNTR2 PRG RST P47/_SRDY1 P50/_SIN2 DIN P51/_SOUT2 DOUT P52/_SCLK2 CLK 5.P56/PWM NC OR P63/AN3 P64/AN4 P65/AN5 P66/AN6 P67/AN7 AVSS VREF VCC P30/DA1 P32/SDA P33/SCL P34/RXD3 P35/TXD3 P36/SCLK3 P37/_SRDY3 P44/RXD1 RXD_TU P45/TXD1 TXD_TU P46/SCLK1 PROG_CTL P43/INT2 2.AN1 5V_DET P10/INT41 REM_IN P07/AN15 P05/AN13 45.P03/AN11 9.216M VRAM(1Mbit) 8M ROM FLASH MEMORY 2Y1 1OE VCC 1A1 2Y4 1A2 1A3 1A4 GND 2Y3 2Y2 2OE 1Y1 1Y2 1Y3 1Y4 2A4 2A3 2A2 2A1 3.3V->5V TVRJ950 EEPROM RESET CONVERT MICRO PROCESSOR OR D-BOARD (8/14) TO (2/14) D-BOARD 10 17 13 15 12 14 18 16 11 68 66 69 64 65 63 62 61 67 40 39 38 37 31 36 32 35 33 34 43 41 44 45 46 42 51 47 49 52 50 48 AB AA AC TO (PA12) PA-BOARD TZTNP01QKSU(TH-42PX25U/P) TZTNP01QNSU(TH-50PX25U/P) 4.8 5.0 0 12.0 4.8 0 2.2 TH-42/50PX25U/P D-Board (8 of 14) Schematic Diagram TH-42/50PX25U/P D-Board (8 of 14) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 157 15.61. D-Board (9 of 14) Schematic Diagram AN_REFCK AN_VDO_M AN_HDO_M AN_CLKC AN_DOE AN_DOUT AU_VD_S AU_HD_S AA_NRST AU_HDIA_S AU_VDIA_S AU_VDID_S AU_HDID_S AA_DRVMUTE_S AB_PCD AB_PCU AD_CSL AD_CSH AD_PCD AD_PCU AD_PCD AD_PCU AAC_HP AAC_VP AD_SCSU AD_SCSU AU_CLP_S AU_VD_ADS AU_HD_ADS AU_CLP_M AU_VD_ADM AU_HD_ADM ABA_SFVRST ABA_FPCLK ABA_FPDAT0 ABA_FPDAT1 AAG_SD10 AAG_SD11 AAG_SD12 AAG_SD13 AAG_SD14 AAG_SD15 AAX_UBK AAX_NUEL AAX_UMH AAX_UML AAX_USH AAX_USL AAX_UEH AD_CMH AD_CML AD_CBK AD_CEL AD_CL AD_CLK AD_SIU AD_SID AD_CPH AD_CPL AD_SCSU AAO_MCDATAO AAO_MCVD AF_SBU6 AF_SCU6 AA_DRVRST AA_DRV MUTE_M AF_SAU6 AAH_SD11 AAH_SD14 AP_HZ AX_DMLR AX_DMHR AX_DSLR AX_DSHR AX_DMLL AX_DMHL AX_DSLL AX_DSHL AD_CBK AD_CPL AD_CPH AD_SIU AD_SID AD_CLK AD_CL AD_CMH AD_CML AD_CSH AD_CSL AAX_USH AAX_NUEL AAX_USL AAX_UEH AAX_UMH AN_NO_SYNC ABB_CER AAC_N_VD47 AP_BLKL AP_CEL AN_HDO_S AN_VDO_S AAD_OSD9 AAD_OSD10 AAD_OSD11 AAD_OSD12 AAD_OSD13 AAD_OSD14 AAD_OSD8 AAD_OSD7 AAD_OSD6 AAD_OSD5 AAD_OSD4 AAD_OSD3 AAD_OSD2 AAD_OSD1 AAD_OSD0 AAD_YS AAD_CKO AAD_HO AAD_VO AAD_OSD15 AAG_SD08 AAG_SD09 AAO_MCLDO AAO_MCCLKO AAX_UML AAX_UBK AAO_MCHD AAZ_CML AAZ_CMH AAY_SCSU AAY_CPL AAY_CPH AAH_SD12 AAH_SD13 AAH_SD15 AAH_SD08 AAH_SD09 AAH_SD10 AAG_SD10 AAG_SD11 AAG_SD09 AAG_SD08 AAG_SD15 AAG_SD14 AAG_SD13 AAG_SD12 AD_CPH AJ_SCL2 AJ_SDA2 AAX_UBK AAX_USH AAX_UML AAX_UMH AAX_USL AAX_UEH AD_SID AD_CMH AD_SIU AD_CLK AB_UBK AD_CSL AD_CML AD_CSH AB_UMH AB_UE2H AAY_CL AAY_CLK AAY_SIU AAZ_CEL AAY_SID AAZ_CEH AAZ_CSH AAZ_CSL AB_UML AB_UEH AB_USL AB_USH AAD_HI AAD_CKI AC_BLKD AD_CEL AF_XWE AF_XOE AD_CPL 3.3V 1.8V R9245 0 R9632 0 STB5V_M R9671 0 R9565 0 R9976 10k C9607 16V 0.1u C9621 16V 0.1u R9579 0 R9640 0 C9620 16V 0.1u R9613 0 R9599 EXB38V103JV R9631 0 IC9603 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C9635 16V 0.1u R9608 0 R9648 10k R9651 EXB38V103JV R9653 EXB38V103JV R9618 22k R9679 0 R9670 0 C9611 16V 4.7u R9602 0 R9625 560 R9585 0 IC9606 C0EBE0000066 1 GND 2 SUB 3 NC 5 Vcc 4 Out R9652 EXB38V103JV R9672 0 C9613 50V 0.01u C9632 16V 0.1u R9643 0 R9569 0 R9650 EXB38V103JV C9612 16V 0.1u R9568 10k R9615 0 IC9601 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R9635 0 IC9602 C0JBAZ000545 OE1 1 2 I0 3 O7 4 I1 5 O6 6 I2 7 O5 8 I3 9 O4 10 GND 11 I4 12 O3 13 I5 14 O2 15 I6 16 O1 17 I7 18 O0 19 OE2 20 VCC R9609 0 C9630 16V 0.1u R9676 0 R9642 4.7k R9607 0 IC9604 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R9654 0 R9633 0 R9683 0 R9688 0 C9623 16V 0.1u R9604 0 R9598 EXB38V103JV R9620 10k R9601 0 R9627 0 R9655 0 R9641 0 3.3V C9616 16V 0.1u C9603 16V 0.1u P5V R9675 0 R9674 0 R9611 0 R9603 0 R9621 10k R9614 0 R9628 0 R9685 0 R9979 10k C9602 16V 0.1u C9629 16V 0.1u R9637 10k R9947 4.7k C9601 16V 0.1u R9612 0 R9687 0 R9605 0 C9625 16V 0.1u R9677 0 R9244 0 R9678 0 R9686 0 C9605 16V 0.1u R9634 0 R9109 0 R9972 10k R9624 100 3.3V C9604 16V 0.1u Q9601 2SD0601A0L Q9602 2SD0601A0L IC9605 C1ZBZ0002402 1 GND 2 NC 3 NC 4 HD_ADM 5 VD_ADM 6 CLP_M 7 HD_ADS 8 VD_ADS 9 CLP_S 10 NC 11 SCO 12 GND 13 VDD 14 NC 15 NC 16 MCDATA 17 MCHD 18 MCVD 19 GND 20 MCCLK 21 MCLD 22 NC 23 HDIA_S 24 VDIA_S 25 GND 26 VDD 27 HDID_S 28 NC 29 VDID_S 30 OSDIN[7] 31 OSDIN[6] 32 GND 33 OSDIN[5] 34 OSDIN[4] 35 OSDIN[3] 36 OSDIN[2] 37 NC 38 VDD 39 GND 40 OSDIN[1] 41 OSDIN[0] 42 OSD[15] 43 NC 44 OSD[14] 45 OSD[13] 46 OSD[12] 47 OSD[11] 48 OSD[10] 49 OSD[9] 50 NC 51 GND 52 NC 53 VDD 54 NC 55 OSD[8] 56 OSD[7] 57 OSD[6] 58 OSD[5] 59 OSD[4] 60 TOUKB 61 TOUKC 62 OSD[3] 63 OSD[2] 64 OSD[1] 65 GND 66 VDD 67 NC 68 OSD[0] 69 YS 70 CKI 71 OSDHO 72 GND 73 SYNCRST 74 HDO_S 75 VDO_S 76 NC 77 DCKC 78 VDD 79 GND 80 OSDCK 81 OSDVD 82 OSDHD 83 NC 84 ROM47AD[0] 85 GND 86 SOT 87 FPDATA[1] 88 FPDATA[0] 89 FPCLK 90 NC 91 VDD 92 GND 93 SFRST 94 SFVRST 95 LATCH 96 CONTM 97 NDONE 98 ROM47AD[2] 99 ROM47AD[1] 100 DRVRST 101 DRVMUTE_M 102 CBK 103 GND 104 NC 105 VDD 106 NC 107 SCK 108 CEL 109 CSL 110 CSH 111 CML 112 CMH 113 CL 114 NC 115 CLK 116 SID 117 GND 118 VDD 119 NC 120 AMC 121 SCSU 122 CEL2 123 CPH 124 GND 125 UEH 126 USL 127 USH 128 NC 129 SIU 130 VDD 131 GND 132 SDA 133 SCL 134 UML 135 UMH 136 NUEL 137 GND 138 UBK 139 PCD 140 LED 141 BLKD 142 NC 143 VDD 144 GND 145 PCU 146 LEU 147 NRST 148 BLKU 149 CGL 150 DMLR1 151 DMHR1 152 NC 153 NC 154 SMC 155 NC 156 VDD 157 SIN 158 GND 159 NC 160 DSLR1 161 DSHR1 162 DMLL1 163 DMHL1 164 VER0 165 VER1 166 DSLL1 167 DSHL1 168 NC 169 CLK20M 170 GND 171 VDD 172 NC 173 HDO_M 174 VDO_M 175 176 N_VD47 177 GND 178 XNVD 179 XNHD 180 181 182 183 GND 184 VDD 185 DCKB 186 NC 187 HDIA_M 188 VDIA_M 189 SLAV 190 GND 191 NC 192 DOE 193 REFCK 194 DIN 195 NC 196 VDD 197 GND 198 HDID_M 199 VDID_M 200 TESTL 201 DCTEST 202 HD_M 203 VD_M 204 NC 205 VD_S 206 HD_S 207 NC 208 VDD R9600 0 P5V P5V R9567 0 DRVMUTE_S 3.3V->5V 3.3V->5V 3.3V->5V 5V->3.3V LAC RESERVE4 RESERVE4 2Y1 1OE VCC 1A1 2Y4 1A2 1A3 1A4 GND 2Y3 2Y2 2OE 1Y1 1Y2 1Y3 1Y4 2A4 2A3 2A2 2A1 2Y1 1OE VCC 1A1 2Y4 1A2 1A3 1A4 GND 2Y3 2Y2 2OE 1Y1 1Y2 1Y3 1Y4 2A4 2A3 2A2 2A1 2Y1 1OE VCC 1A1 2Y4 1A2 1A3 1A4 GND 2Y3 2Y2 2OE 1Y1 1Y2 1Y3 1Y4 2A4 2A3 2A2 2A1 CLKM_IN GND SCO GND GND GND SYNC PROCESSOR/ OSD/ DISCHARGE CONTROL TH-50PX25U/P ONLY TH-42PX25U/P ONLY D-BOARD (9/14) TO (3/14) D-BOARD 20 22 24 25 21 19 23 26 27 61 63 62 66 67 65 68 64 69 73 72 71 75 74 80 79 77 78 76 81 82 83 BA BB BC TZTNP01QKSU(TH-42PX25U/P) TZTNP01QNSU(TH-50PX25U/P) RESET TH-42/50PX25U/P D-Board (9 of 14) Schematic Diagram TH-42/50PX25U/P D-Board (9 of 14) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 158 15.62. D-Board (10 of 14) Schematic Diagram + + AN_CLKB AAC_VP AAC_HP AAD_HI AAD_CKI AN_CLKC AN_VDO_S AN_HDO_S AN_VDO_M AN_HDO_M 5V AAD_HO AAD_VO AAD_CKO ABU_B7 ABU_G7 ABU_R7 AN_DOE AN_DOUT AN_REFCK ABH_R3 ABH_R4 ABH_R5 ABH_R6 ABH_R7 ABH_R0 ABH_R1 ABH_R2 ABH_G0 ABH_G1 ABH_G2 ABH_G3 ABH_G4 ABH_G5 ABH_G6 ABH_G7 AJ_SDA2 AJ_SCL2 ABH_B0 ABH_B1 ABH_B2 ABH_B3 ABH_B4 ABH_B5 ABH_B6 ABH_B7 AAD_OSD0 AAD_OSD1 AAD_OSD2 AAD_OSD3 AAD_OSD4 AAD_OSD5 AAD_OSD6 AAD_OSD7 AAD_OSD8 AAD_OSD9 AAD_OSD10 AAD_OSD11 AAD_OSD12 AAD_OSD13 AAD_OSD14 AAD_OSD15 AAD_YS AAD_YM ABW_DQ0 ABW_DQ1 ABW_DQ2 ABW_DQ4 ABW_DQ3 ABW_DQ5 ABW_DQ6 ABW_A0 ABW_A1 ABW_A2 ABW_A3 ABW_A4 ABW_A5 ABW_A6 ABW_DQ7 ABW_DQ8 ABW_DQ9 ABW_DQ10 ABW_DQ11 ABW_DQ12 ABW_DQ13 ABW_DQ14 ABW_DQ15 ABW_DQ16 ABW_DQ17 ABW_DQ18 ABW_CAS ABW_RAS ABW_DQM ABW_CS0 ABW_BA1 ABW_BA0 ABW_A7 ABW_A8 ABW_A9 ABW_A10 ABW_DQ19 ABW_DQ20 ABW_DQ21 ABW_DQ22 ABW_DQ23 ABW_DQ24 ABW_DQ25 ABW_DQ26 ABW_DQ27 ABW_DQ28 ABW_DQ29 ABW_DQ30 ABW_WE ABW_SCK0 ABW_DQ31 ABX_HFBC ABX_HPLO ABX_OHOLD ABT_R7 ABT_R6 ABT_R5 ABT_R4 ABT_R2 ABT_R1 ABT_R0 ABT_R3 ABU_R2 ABU_R1 ABU_R0 ABU_R6 ABU_R5 ABU_R4 ABU_R3 ABT_B7 ABT_B6 ABT_B5 ABT_B4 ABT_G7 ABT_G6 ABT_G5 ABT_G4 ABT_B3 ABT_B2 ABT_B1 ABT_B0 ABT_G3 ABT_G2 ABT_G1 ABT_G0 ABU_B2 ABU_B1 ABU_B0 ABU_G2 ABU_G1 ABU_G0 ABU_B6 ABU_B5 ABU_B4 ABU_G6 ABU_G5 ABU_G4 ABU_B3 ABU_G3 AAD_YM AA_NRST 3.3V 3.3V IC9151 H8 VSS C915816V 0.1u IC9151 M1 SDD4 IC9151 T23 VSS IC9151 AC7 ORA6 IC9151 L1 VSS IC9151 Y23 VSS IC9151 Y13 OBB4 IC9151 K15 VSS IC9151 L19 GYIC4 IC9151 A21 YREFL C915916V 0.1u IC9151 W4 BANK0 IC9151 C23 VSS IC9151 U21 OSD7 IC9151 AB10 VSS IC9151 H11 VDD18 IC9151 U5 VDD33 IC9151 AA8 OGA1 IC9151 B23 VSS IC9151 R21 OSD14 IC9151 M14 VSS IC9151 AA2 VSS IC9151 B8 RVIB5 IC9151 H4 ADRS7 IC9151 U1 SDD24 IC9151 C8 XSYNCRST IC9151 Y6 OBA3 IC9151 AC21 OFPO IC9151 E11 VDD33 C9168 16V 0.1u C9172 16V 0.1u IC9151 AB1 VSS IC9151 L21 GYIC2 IC9151 F21 XRST IC9151 W21 MDIV0 IC9151 G19 DVC IC9151 N20 MFPI IC9151 AA15 OBB1 C9166 16V 0.1u IC9151 Y1 VSS IC9151 W15 VDD33 IC9151 N4 SDD13 R9199 10k C9162 6.3V 10u IC9151 AB19 ORB3 IC9151 B20 YREFM IC9151 Y12 FJP R9168 10k IC9151 E7 VDD18 IC9151 AC10 OCKOA IC9151 P4 SDD16 IC9151 AB18 ORB7 IC9151 D21 ZTILD IC9151 G21 RVIC6 IC9151 AC22 VSS IC9151 M15 VSS IC9151 R23 OSDCKI IC9151 Y11 VDD33 IC9151 F20 I2CSLAV2 IC9151 P5 VDD33 IC9151 AB3 HPLO IC9151 J11 VSS IC9151 M21 MVD5I IC9151 AA14 OBB6 IC9151 F1 ADRS6 IC9151 W11 VDD33 C9164 16V 0.1u IC9151 R11 VSS IC9151 N21 OSDHO IC9151 W5 VSS IC9151 C13 GYIB3 IC9151 C19 UREFL IC9151 A15 VSS IC9151 K3 SDD0 R9240 33 IC9151 L8 VDD18 IC9151 U20 OSD2 IC9151 AB2 VSS IC9151 A17 VSS IC9151 Y17 OGB0 IC9151 K11 VSS IC9151 D11 BUIB2 IC9151 V5 DQM IC9151 K23 GYIC6 R9213 0 IC9151 N12 VSS IC9151 AA4 HFBC R9205 0 IC9151 AA1 0CKREF IC9151 K4 NCS1 IC9151 C9 RVIB3 IC9151 K1 SCKO1 IC9151 D8 DVIDE IC9151 T2 SDD20 IC9151 E3 SDIV0 IC9151 T10 VDD18 IC9151 K20 BUIC2 IC9151 AC12 PWMOUT IC9151 A8 RVIB4 IC9151 L9 VSS C9154 16V 0.1u IC9151 W13 VDD33 C9173 16V 0.1u IC9151 D17 CLL IC9151 A18 VREFM IC9151 C4 TEST4 IC9151 M3 SDD5 IC9151 D5 TEST2 IC9151 E23 VSS IC9151 N16 VDD18 IC9151 H13 VDD18 IC9151 Y18 ORB4 R9211 0 IC9151 P13 VSS IC9151 M20 OVD5I C9179 16V 0.1u IC9151 L5 VDD33 IC9151 N5 VDD33 IC9151 M13 VSS IC9151 B22 VSS IC9151 C3 VSS IC9151 R20 OSD11 IC9151 AC5 OBA0 R9234 10k IC9151 A12 GYIB6 IC9151 AA11 ORA0 IC9151 AB16 OGB7 IC9151 B9 RVIB2 IC9151 N8 VDD18 IC9151 D10 RVIB0 IC9151 U23 OSD9 IC9151 P14 VSS IC9151 A22 VSS IC9151 D1 VSS IC9151 H16 VSS IC9151 K21 GYIC7 IC9151 M2 SDD6 IC9151 N11 VSS IC9151 J5 VDD33 IC9151 D20 VSS IC9151 U4 SDD27 IC9151 AC6 OGA2 IC9151 M12 VSS IC9151 AB7 OGA4 C9152 6.3V 33u IC9151 AA21 VSS IC9151 Y9 ORA7 IC9151 AC20 ORB2 IC9151 T1 SDD19 R9190 10k IC9151 J1 VSS IC9151 P9 VSS R9355 10 IC9151 R14 VSS IC9151 L11 VSS C9167 16V 0.1u IC9151 N14 VSS IC9151 A5 REFCK IC9151 D12 GYIB7 IC9151 C17 VREFH IC9151 AC1 VSS IC9151 H5 AVDD IC9151 AC13 VSS IC9151 B3 MINTEST IC9151 V22 OSD3 R9179 0 IC9151 AB12 BLOUT IC9151 AC17 OGB6 IC9151 G5 ADRS0 IC9151 AA7 OGA6 R9216 10k IC9151 J4 ADRS11 IC9151 H9 VDD18 IC9151 B5 SDWUSE IC9151 AA10 ORA1 IC9151 A19 BUI IC9151 Y22 MDIV1 IC9151 C14 GYIB0 R9177 22 IC9151 Y20 VSS IC9151 AA23 MCKREF IC9151 A13 VSS IC9151 B7 OMASK IC9151 L23 GYIC3 IC9151 P23 VSS IC9151 D16 RVI IC9151 C18 XADPDN IC9151 C12 GYIB5 IC9151 P21 YM IC9151 H12 VDD18 IC9151 W10 VDD33 IC9151 N19 VDD33 IC9151 D2 SDIV2 IC9151 P8 VDD18 IC9151 W7 VDD33 IC9151 V19 MPLLPDN IC9151 G1 VSS IC9151 W6 VDD33 IC9151 F22 RVIC7 IC9151 A14 DCKB IC9151 M8 VDD18 IC9151 D7 RATEOUT IC9151 L20 GYIC1 IC9151 J14 VSS IC9151 B12 BUIB0 IC9151 B6 XTGLRST R9215 0 IC9151 E17 AVDD IC9151 M5 VDD33 IC9151 AB14 VSS C9178 16V 0.1u P5V IC9151 C11 BUIB4 IC9151 Y5 OBA7 IC9151 AC11 VSS R9212 0 IC9151 B13 GYIB4 IC9151 D13 GYIB1 IC9151 W19 VSS IC9151 AA6 OBA2 IC9151 T9 VDD18 IC9151 L2 SDD2 IC9151 A7 RVIB6 IC9151 V4 SDD31 C9187 16V 0.1u R9236 10k R9182 0 IC9151 G20 DHC IC9151 L10 VSS IC9151 N23 OSDCKO IC9151 N3 SDD11 IC9151 L15 VSS IC9151 T13 VDD18 IC9151 AB20 OVD50 IC9151 R19 OSD10 IC9151 R5 VDD33 IC9151 B10 BUIB7 IC9151 R4 SDD22 IC9151 T20 OSD6 IC9151 D18 UREFM IC9151 F19 I2CSCL IC9151 H20 RVIC1 IC9151 J12 VSS IC9151 L13 VSS IC9151 T11 VDD18 IC9151 AB23 VSS IC9151 R3 SDD18 IC9151 M23 VSS IC9151 G2 ADRS8 IC9151 W12 VDD33 IC9151 D22 I2CSLAV1 IC9151 M22 GYIC0 IC9151 M10 VSS IC9151 AA20 MVD5O IC9151 U19 HPLBC IC9151 AC9 VSS IC9151 AC4 OBA4 IC9151 AA19 ORB1 IC9151 J8 AVSS IC9151 J9 VSS IC9151 A10 BUIB5 IC9151 A9 RVIB1 IC9151 AB22 VSS IC9151 AC19 ORB6 IC9151 C6 SCANEN IC9151 B19 UREFH IC9151 J22 BUIC3 IC9151 W17 VDD33 IC9151 J10 VSS IC9151 B14 GYIB2 IC9151 AA22 VSS IC9151 F3 ADRS2 IC9151 J2 NCS0 IC9151 Y10 ORA3 IC9151 C22 ZTSEL C9170 16V 0.1u IC9151 E22 I2CSLAV0 IC9151 H19 RVIC5 IC9151 L12 VSS IC9151 J3 ADRS10 IC9151 AC15 VSS R9443 0 IC9151 Y7 OGA7 IC9151 E15 VDD33 IC9151 Y14 OBB5 IC9151 AB5 OBA1 C9176 16V 0.1u IC9151 H2 VSS IC9151 AA17 OGB12 R9167 10k IC9151 C10 RUIB6 IC9151 AC18 OGB2 IC9151 AB6 OGA5 IC9151 H21 RVIC0 IC9151 N22 OSDVO IC9151 K12 VSS C9156 6.3V 10u IC9151 U2 SDD25 IC9151 H14 AVSS IC9151 R1 SDD15 IC9151 N15 VSS R9202 10k IC9151 D3 SDIV3 IC9151 L3 SDD3 IC9151 AC3 OBA6 3.3V IC9151 E6 VDD18 IC9151 C1 SCKREF IC9151 J16 VDD18 IC9151 J23 BUIC1 IC9151 C5 TEST0 IC9151 T14 VDD18 IC9151 K14 VSS IC9151 B21 VSS IC9151 C7 RATEOE IC9151 K13 VSS R9214 0 IC9152 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout IC9151 W22 MCPOUT IC9151 Y15 DOBB0 R9229 0 IC9151 A16 DCKA IC9151 H23 BUIC6 IC9151 W14 VDD33 IC9151 AB9 ORA2 IC9151 U3 SDD26 IC9151 E4 SDIV1 IC9151 W23 DOSD0 IC9151 B18 VREFL IC9151 AB15 OBB2 IC9151 T22 OSD13 IC9151 W8 VDD33 C9163 16V 0.1u IC9151 W20 MDIV2 IC9151 N1 SDD8 IC9151 B15 DHB IC9151 P20 YS IC9151 R16 AVDD IC9151 P1 SDD10 IC9151 AC23 VSS IC9151 V21 OSD1 IC9151 E5 VSS R9118 0 IC9151 AA12 VP IC9151 AC2 VSS IC9151 J15 VSS IC9151 Y21 MDIV3 R9178 0 IC9151 L14 VSS IC9151 K2 VSS IC9151 W9 VDD33 IC9151 B2 VSS IC9151 Y19 ORB0 R9187 10k IC9151 R15 VSS IC9151 W1 NRAS IC9151 C15 DVA IC9151 AB4 OHOLD IC9151 E2 SPLLPDN R9204 0 IC9151 H15 AVSS IC9151 D19 GYI R9352 10 IC9151 D14 DVB IC9151 AB17 OGB3 IC9151 Y3 XOUTRST IC9151 R12 VSS IC9151 D9 RVIB7 IC9151 R13 VSS IC9151 G23 RVIC2 IC9151 AB21 MFPO IC9151 B1 VSS IC9151 E18 AVDD IC9151 K19 VDD33 IC9151 A6 VSS IC9151 H22 BUIC7 IC9151 G22 RVIC4 IC9151 B17 HFBA IC9151 P3 SDD14 IC9151 P12 VSS IC9151 T4 SDD23 IC9151 P15 VSS IC9151 F2 ADRS4 IC9151 M16 VDD18 IC9151 E12 VDD33 IC9151 AA13 OBB7 C9157 16V 0.1u IC9151 G3 ADRS5 IC9151 AB11 HP IC9151 Y16 OGB4 IC9151 T19 OSD4 IC9151 AA16 OGB5 R9247 0 IC9151 T16 VSS IC9151 AA18 0RB5 IC9151 T8 VSS IC9151 J13 VSS IC9151 T12 VDD18 IC9151 E19 VSS 1.8V IC9151 F5 XPLLRST IC9151 V2 SDD29 IC9151 V23 OSD5 IC9151 W3 NWE IC9151 P16 AVSS IC9151 G4 ADRS3 IC9151 R2 SDD17 IC9151 P10 VSS IC9151 E14 VDD33 IC9151 E13 VDD33 IC9151 AA3 VSS IC9151 R10 VSS C9151 16V 0.1u IC9151 N10 VSS IC9151 P22 OSDHI IC9151 P2 SDD12 IC9151 H10 VDD18 IC9151 K22 BUIC0 IC9151 F23 RVIC3 IC9151 C16 PLLHD IC9151 D6 OCKOBUSE IC9151 D15 DHA IC9151 J21 BUIC5 IC9151 V3 SDD30 IC9151 T21 OSD12 R9230 0 IC9151 C2 VSS IC9151 AB8 OGA0 C9153 6.3V 10u IC9151 AB13 ENOUT R9241 33 IC9151 T3 SDD21 R9172 10k IC9151 E16 VDD18 IC9151 W18 VDD33 IC9151 E10 VDD33 IC9151 E20 ZLPFON IC9151 R9 VSS IC9151 L4 SDD1 IC9151 T15 VSS IC9151 B16 HOLD IC9151 N2 SDD9 IC9151 A4 VSS IC9151 K16 VDD18 IC9151 E21 I2CSDA IC9151 A20 CLH IC9151 K9 VSS IC9151 M19 OFPI IC9151 C21 VSS R9760 0 IC9151 MN845041-A A1 VSS IC9151 H3 ADRS9 C9160 16V 0.1u IC9151 Y4 VSS IC9151 V20 HFBB IC9151 M4 SDD7 IC9151 K10 VSS IC9151 D23 DCKC IC9151 J20 BUIC4 C9155 16V 47u R9171 10k IC9151 P11 VSS IC9151 AC16 OBB3 IC9151 AC8 ORA5 IC9151 J19 VDD33 IC9151 W2 NCAS IC9151 A2 VSS C9165 16V 0.1u IC9151 N13 VSS IC9151 U22 OSD8 IC9151 H1 SDCKO0 C9161 16V 0.1u IC9151 W16 VDD33 IC9151 AC14 OCKOB IC9151 Y2 BANK1 IC9151 E9 VDD33 R9441 0 IC9151 AA9 ORA4 IC9151 C20 YREFH IC9151 B11 BUIB1 R9180 10 IC9151 A23 VSS C9180 16V 0.1u IC9151 D4 VSS IC9151 A11 BUIB3 IC9151 Y8 OGA3 IC9151 K5 VDD33 IC9151 E8 VDD33 IC9151 T5 VDD33 IC9151 L22 GYIC5 IC9151 F4 SCPOUT IC9151 R22 OSD15 IC9151 M9 VSS IC9151 L16 VDD18 IC9151 AA5 OBA5 IC9151 B4 TEST3 R9226 10k IC9151 K8 VDD18 IC9151 M11 VSS IC9151 A3 TEST1 IC9151 R8 VDD18 IC9151 P19 VDD33 IC9151 V1 SDD28 IC9151 N9 VSS IC9151 E1 ADRS1 R9136 0 R9111 33 R9112 33 R001 100 Digital-B Digital-C 100MHz IIC Analog To micom OSD A/D PLL MCK PLL SD-RAM I/F 166MHz OCK PLL TEST SCK PLL For many use Output - A LEFT(Master) Output - B RIGHT(Slave) AVR 3.3V IC9151 D-BOARD (10/14) TO (4/14) D-BOARD 31 30 29 34 35 28 33 36 32 73 71 75 74 80 82 72 81 79 77 78 76 83 97 95 96 100 93 91 92 99 98 94 101 102 103 104 105 106 107 108 CB CA TZTNP01QKSU(TH-42PX25U/P) TZTNP01QNSU(TH-50PX25U/P) FORMAT CONVERTER (I/P) TH-42/50PX25U/P D-Board (10 of 14) Schematic Diagram TH-42/50PX25U/P D-Board (10 of 14) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 159 15.63. D-Board (11 of 14) Schematic Diagram + TERM SIDE TERM SIDE AA_DRVRST_5V AA_DRVRST_5V AB_PCU AB_PCD 5V AA_SOS2 5V ABC_CKD1 ABC_CKD2 AC_BLKD ABC_CKD1 ABC_CKD2 AQ_CLKR AQ_NCLKR AP_HZ AP_CEL AP_BLKL AQ_NCLKR AQ_CLKR AP_HZ ABB_CER AA_DRVRST AAP_D134 AAP_D132 AAP_D126 AAP_D124 AAP_D122 AAP_D121 AAP_D123 AAP_D125 AAP_D131 AAP_D133 AAP_D135 AAP_D136 AAP_D166 AAP_D165 AAP_D163 AAP_D161 AAP_D155 AAP_D153 AAP_D145 AAP_D151 AAP_D143 AAP_D141 ABD_D055 ABD_D053 ABD_D051 ABD_D045 ABD_D043 ABD_D041 ABD_D035 ABD_D033 ABD_D031 ABD_D025 ABD_D023 ABD_D021 ABD_D015 ABD_D013 ABD_D011 ABJ_AD9 ABJ_BD9 ABJ_AD8 ABJ_BD8 ABJ_CD9 ABJ_CD8 ABJ_BD4 ABJ_CD4 ABJ_BD7 ABJ_CD7 ABJ_CD6 ABJ_BD6 ABJ_AD6 ABJ_AD7 ABJ_CD3 ABJ_AD2 ABJ_CD2 ABJ_AD4 ABJ_AD5 ABJ_CD5 ABJ_BD2 ABJ_BD5 ABJ_AD1 ABJ_BD1 ABJ_AD0 ABJ_BD3 ABJ_BD0 ABJ_AD3 ABJ_CD1 ABJ_CD0 AAP_D166 AAP_D165 AAP_D163 AAP_D155 AAP_D162 AAP_D156 AAP_D154 AAP_D153 AAP_D151 AAP_D143 AAP_D146 AAP_D144 AAP_D142 AAP_D141 AAP_D135 AAP_D134 AAP_D131 AAP_D132 AAP_D126 AAP_D125 AAP_D123 AAP_D122 AAW_CU8 AAW_CU9 AAW_AU8 AAW_BU9 AAW_AU9 AAW_BU8 AAW_BU5 AAW_AU5 AAW_BU6 AAW_AU6 AAW_CU7 AAW_AU7 AAW_BU7 AAW_CU6 AAW_AU2 AAW_CU3 AAW_AU3 AAW_CU5 AAW_AU4 AAW_CU4 AAW_BU4 AAW_BU3 AAW_CU0 AAW_BU0 AAW_CU1 AAW_BU1 AAW_BU2 AAW_CU2 AAW_AU0 AAW_AU1 ABD_D056 ABD_D055 ABD_D053 ABD_D052 ABD_D045 ABD_D046 ABD_D044 ABD_D043 ABD_D041 ABD_D033 ABD_D034 ABD_D036 ABD_D032 ABD_D031 ABD_D025 ABD_D024 ABD_D023 ABD_D021 ABD_D016 ABD_D013 ABD_D014 ABD_D012 ABD_D011 AAA_DMHR AAA_DSLR AAA_DMLR AAA_DSHR AAP_D146 AAP_D144 AAP_D142 AAP_D164 AAP_D162 AAP_D156 AAP_D154 AAP_D152 AB_PCD ABB_CER AP_HZ ABU_R7 ABU_R6 ABU_R5 ABU_R4 ABU_R3 ABU_R2 ABU_R1 ABU_R0 ABQ_R7 ABQ_R6 ABQ_R5 ABQ_R4 ABQ_R3 ABQ_R2 ABQ_R0 ABQ_R1 ABU_G7 ABU_G6 ABU_G5 ABU_G4 ABU_G3 ABU_G2 ABU_G1 ABU_G0 ABQ_G7 ABQ_G6 ABQ_G5 ABQ_G4 ABQ_G3 ABQ_G2 ABQ_G0 ABQ_G1 ABU_B7 ABU_B6 ABU_B5 ABU_B4 ABU_B3 ABU_B2 ABU_B1 ABU_B0 ABQ_B7 ABQ_B6 ABQ_B5 ABQ_B4 ABQ_B3 ABQ_B2 ABQ_B1 ABQ_B0 AAP_D124 AAP_D121 AAP_D136 AAP_D133 AAP_D161 AAP_D152 AAP_D145 AAP_D164 ABD_D036 ABD_D034 ABD_D014 ABD_D016 ABD_D032 ABD_D026 ABD_D024 ABD_D022 ABD_D012 ABD_D015 ABD_D056 ABD_D054 ABD_D052 ABD_D046 ABD_D044 ABD_D042 AP_CEL AB_PCU ABD_D026 ABD_D022 AP_HZ ABD_D042 ABD_D051 ABD_D035 ABD_D054 3.3V ABW_WE ABW_DQ13 ABW_DQ25 ABW_DQ7 ABW_DQ14 ABW_DQ24 ABW_DQ6 ABW_DQ15 ABW_DQ5 ABW_DQM ABW_CS0 ABW_A4 ABW_A5 ABW_A6 ABW_A7 ABW_A8 ABW_DQ23 ABW_A9 ABW_DQ22 ABW_DQ8 ABW_DQ21 ABW_DQ9 ABW_DQ20 ABW_DQ10 ABW_DQ19 ABW_DQ18 ABW_DQM ABW_DQ17 ABW_SCK0 ABW_DQ16 ABW_A2 ABW_A1 ABW_DQ4 ABW_A3 ABW_A0 ABW_DQ3 ABW_DQ31 ABW_A10 ABW_DQ2 ABW_DQ30 ABW_BA1 ABW_DQ1 ABW_DQ29 ABW_BA0 ABW_DQ0 ABW_DQ28 ABW_RAS ABW_DQ11 ABW_DQ27 ABW_CAS ABW_DQ12 ABW_DQ26 R9327 EXB38V680JV R9354 47 C9308 16V 0.1u R9315 10k P5V C9304 16V 4.7u C9301 50V 0.01u C9316 16V 0.1u C9309 6.3V 10u R9377 EXB2HVR000V R9332 EXB38V680JV R9318 EXB38V470JV R9350 0 R9322 10k R9365 EXB38V680JV C9310 50V 33p R9324 EXB38V680JV R9548 0 R9378 EXB2HVR000V R9368 EXB38V680JV C9596 50V 0.01u R9586 100k R9321 EXB38V470JV R9329 10 R9336 10 R9335 0 R9369 EXB38V680JV R9362 10k R9323 EXB38V680JV R9363 EXB38V680JV R9359 EXB38V680JV R9349 EXB38V680JV R9319 EXB38V470JV R9425 4.7k C9311 16V 0.1u R9312 0 R9320 EXB38V470JV R9597 100 C9302 16V 0.1u R9371 0 R9357 EXB38V680JV R9346 0 R9348 10 R9596 10k R9342 47 R9341 47 R9514 100 C9317 16V 0.1u R9460 10 R9122 0 R9330 10 R9304 0 R9358 EXB38V680JV R9309 0 3.3V R9328 47 R9337 0 C9307 16V 0.1u R9317 0 C9318 16V 4.7u R9347 10 R9311 10k R9302 0 C9305 6.3V 10u C9314 16V 4.7u R9338 47 R9310 22k R9339 10k 3.3V R9462 10 R9351 EXB38V680JV R9379 EXB2HVR000V 3.3V R9314 0 R9431 4.7k C9315 16V 4.7u P5V R9373 0 C9303 16V 47u 3.3V IC9302 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout R9513 10k R9461 10 R9367 0 D34 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C9599 50V 0.01u D31 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 P5V R9595 100k R9331 47 X9302 H0J200500016 Q9598 2SD0601A0L Q9593 2SD0601A0L Q9301 2SD0601A0L Q9592 2SD0601A0L Q9599 2SD0601A0L IC9301 C1ZBZ0002358 1 XIN 2 VDD 3 PD# 4 VSS 5 CLK1 6 CLK2 7 SSON 8 XOUT C1ZBZ0002357 IC9303 1 CLKC 2 VDD 3 AGND 4 XTALIN 5 XTALOUT 6 XBUF 7 CLKD 8 CLKE 9 CLKB 10 CLKA 11 GND 12 S0 13 S1 14 AVDD 15 S2/SUSPEND 16 SHUTDOWN/OE IC9155 C3ABPJ000042 1 Vcc 2 DQ0 3 VccQ 4 DQ1 5 DQ2 6 VssQ 7 DQ3 8 DQ4 9 VccQ 10 DQ5 11 DQ6 12 VssQ 13 DQ7 14 NC 15 Vcc 16 DQM0 17 /WE 18 /CAS 19 /RAS 20 /CS 21 NC 22 BS0 23 BS1 24 A10/AP 25 A0 26 A1 27 A2 28 DQM2 29 Vcc 30 NC 31 DQ16 32 VssQ 33 DQ17 34 DQ18 35 VccQ 36 DQ19 37 DQ20 38 VssQ 39 DQ21 40 DQ22 41 VccQ 42 DQ23 43 Vcc 44 Vss 45 DQ24 46 VssQ 47 DQ25 48 DQ26 49 VccQ 50 DQ27 51 DQ28 52 VssQ 53 DQ29 54 DQ30 55 VccQ 56 DQ31 57 NC 58 Vss 59 DQM3 60 A3 61 A4 62 A5 63 A6 64 A7 65 A8 66 A9 67 CKE 68 CLK 69 NC 70 NC 71 DQM1 72 Vss 73 NC 74 DQ8 75 VccQ 76 DQ9 77 DQ10 78 VssQ 79 DQ11 80 DQ12 81 VccQ 82 DQ13 83 DQ14 84 VssQ 85 DQ15 86 Vss C9199 16V 0.1u C9182 16V0.1u C9200 16V 0.1u C9181 16V 0.1u 5V_DET 5V_DET DRVRST DRVRST CER CLKR NCLKR BLKR CY25000 CY22392ZC-335T DRIVER RESET SOS GND GND GND GND GND GND GND D12-1 D12-2 D12-3 D12-4 D12-5 D12-6 D13-1 D13-2 D13-4 D13-3 D13-5 D13-6 D14-1 D14-2 D14-3 D14-4 D14-5 D14-6 D15-1 D15-2 D15-3 D15-4 D15-5 D15-6 GND GND GND GND GND GND D16-2 D16-1 D16-3 D16-5 D16-4 D16-6 PCR CLK3R CLK4R GND GND GND GND HZ GND GND GND GND GND GND NC NC NC NC GND GND GND GND DSLR DSHR DMHR DMLR 5V 5V 5V 5V GND SOS GND GND GND GND GND GND D1-4 D1-3 D1-6 D1-5 D2-2 D2-1 D2-4 D2-3 D2-6 D2-5 D3-2 D3-1 D3-4 D3-3 D3-6 D3-5 D1-2 D1-1 GND GND GND GND GND D4-2 D4-1 D4-3 D4-4 D4-5 D4-6 D5-2 D5-1 D5-4 D5-3 D5-6 D5-5 GND CER BLKR NCLKR CLKR PCR CLK3R CLK4R GND GND GND GND GND GND NC NC NC GND NC SCL2 SDA2 GND GND GND GND HZ DSLR DSHR DMLR DMHR 3.3V R-UP 5V 5V 5V 5V AVR 3.3V PLL SYNTHESIZER PLL SYNTHESIZER R-DOWN 64M SDRAM 166MHz TH-50PX25U/P ONLY D-BOARD (11/14) 42 45 37 41 39 40 44 38 43 97 105 107 95 106 104 100 92 94 93 103 98 99 108 91 101 102 96 112 113 114 115 111 117 118 119 120 116 122 123 124 125 121 132 127 128 129 133 130 126 134 135 131 TZTNP01QKSU(TH-42PX25U/P) TZTNP01QNSU(TH-50PX25U/P) (C41) C4-BOARD (TH-42PX25U/P) TO (C54) C5-BOARD (TH-50PX25U/P) TO (C11) C1-BOARD (TH-42PX25U/P) TO (C24) C2-BOARD (TH-50PX25U/P) TO 0 TH-42/50PX25U/P D-Board (11 of 14) Schematic Diagram TH-42/50PX25U/P D-Board (11 of 14) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 160 15.64. D-Board (12 of 14) Schematic Diagram ABJ_CD9 ABJ_CD8 ABJ_CD7 ABJ_BD9 ABJ_BD8 ABJ_BD7 ABJ_CD6 ABJ_CD5 ABJ_CD4 ABJ_CD3 ABJ_CD2 ABJ_CD0 ABJ_CD1 ABJ_BD6 ABJ_BD5 ABJ_BD4 ABJ_BD3 ABJ_BD2 ABJ_BD0 ABJ_BD1 AAW_CU9 AAW_BU9 AAW_CU8 AAW_CU7 AAW_CU6 AAW_CU5 AAW_CU4 AAW_CU3 AAW_BU8 AAW_BU7 AAW_BU6 AAW_BU5 AAW_BU4 AAW_BU3 AAW_CU2 AAW_CU1 AAW_CU0 AAW_BU2 AAW_BU1 AAW_BU0 ABP_IO24 ABP_IO16 ABP_IO31 ABP_IO30 ABP_IO29 ABP_IO28 ABP_IO23 ABP_IO22 ABP_IO21 ABP_IO20 ABP_IO27 ABP_IO26 ABP_IO25 ABP_IO19 ABP_IO18 ABP_IO17 ABJ_AD9 ABJ_AD8 ABJ_AD7 ABJ_AD6 ABJ_AD5 ABJ_AD4 ABJ_AD3 ABJ_AD2 ABJ_AD1 ABJ_AD0 AQ_NCLKR AAW_AU9 AAW_AU8 AAW_AU7 AAW_AU6 AAW_AU5 AAW_AU4 AAW_AU3 AAW_AU2 AAW_AU1 AAW_AU0 ABP_IO8 ABP_IO15 ABP_IO14 ABP_IO13 ABP_IO12 ABP_IO11 ABP_IO10 ABP_IO9 AW_D13 AW_D12 AW_D11 AW_D10 AW_D15 AW_D14 AW_D9 AW_D8 ABP_AD8 ABP_AD10 ABP_AD9 ABP_IO0 ABP_IO7 ABP_IO6 ABP_IO5 ABP_IO4 ABP_IO3 ABP_IO2 ABP_IO1 AW_D5 AW_D4 AW_D3 AW_D2 AW_D7 AW_D6 AW_D0 AW_D1 ABP_AD0 ABP_AD7 ABP_AD6 ABP_AD5 ABP_AD4 ABP_AD3 ABP_AD2 ABP_AD1 ABP_CS ABP_BA1 ABP_BA0 ABP_WE ABP_CAS ABP_RAS AJ_SCL2 AJ_SDA2 1.25V ABA_SFRST ABA_LATCH ABQ_B7 ABQ_B6 ABQ_B0 ABQ_B5 ABQ_B4 ABQ_B3 ABQ_B2 ABQ_B1 ABQ_G7 ABQ_G6 ABQ_G0 ABQ_G5 ABQ_G4 ABQ_G3 ABQ_G2 ABQ_G1 AA_NRST ABQ_R7 ABQ_R6 ABQ_R0 ABQ_R5 ABQ_R4 ABQ_R3 ABQ_R2 ABQ_R1 ABC_CKD2 ABC_CKD1 AQ_CLKR AAC_N_VD47 AF_D3 AF_D13 AF_D14 AF_D15 AW_D2 AW_D12 AW_D6 AF_D12 AW_D3 AF_D8 AF_D9 AF_D11 AF_D10 AW_D14 AF_D4 AW_D15 AF_D5 AW_D5 AW_D10 AF_D0 AW_D11 AF_D2 AF_D6 AF_D7 AW_D7 AW_D1 AW_D0 AW_D8 AW_D13 AW_D4 AW_D9 AF_D1 AAC_HP IC9305 W18 VDD18 IC9305 W12 VDD33 IC9305 J14 VSS IC9305 A16 ROMD1 IC9305 J12 VSS IC9305 AA21 FCIO18 IC9305 Y8 VDD33 IC9305 T19 VDD33 IC9305 T10 VSS IC9305 R15 VSS IC9305 J4 VSS IC9305 F4 AVDD IC9305 H14 VDD18 IC9305 C5 FPDAT0 IC9305 J16 VSS C9345 16V 0.1u IC9305 C23 RSTDRAM IC9305 B19 ACKSEL1 IC9305 D7 VDI IC9305 C7 BI6 IC9305 L4 VDD25 C9340 16V 0.1u IC9305 R1 BA2 IC9305 A15 ROMD5 IC9305 K1 VSS IC9305 W14 VDD33 IC9305 D4 VSS IC9305 L13 VSS R9392 1k IC9305 B17 NC IC9305 P19 DOUTBU9 IC9305 AC11 DOUTCD9 IC9305 N15 VSS C9321 6.3V 10u IC9305 G3 FCADR6 IC9305 L12 VSS IC9305 AB19 DOUTAD0 IC9305 D14 ROMD7 IC9305 C21 VSS R9403 56 IC9305 B4 ID0 IC9305 L15 VSS IC9305 L2 VSS IC9305 U3 FCIO7 IC9305 P10 VSS IC9305 M10 VSS IC9305 Y19 VDD18 IC9305 R22 DOUTAU8 IC9305 Y4 VSS IC9305 AA23 DOUTAU2 IC9305 Y16 VDD33 IC9305 W22 DOUTAU3 IC9305 L23 VSS IC9305 N11 VSS IC9305 T8 VDD25 IC9305 Y1 FCIO11 IC9305 AC9 DOUTCD11 R939010k IC9305 M9 VSS IC9305 AC16 DOUTAD4 IC9305 G4 FCADR5 IC9305 B10 GI2 IC9305 W10 VDD33 IC9305 H15 VDD18 IC9305 A14 ROMD10 IC9305 C12 RI1 IC9305 W13 VDD33 IC9305 H3 DQS2 L9309 ELJFA1R0KF IC9305 A17 TILD R9385 100 IC9305 U4 VDD25 IC9305 J20 DRVCLKD4 IC9305 E18 VDD18 IC9305 W23 DOUTAU4 IC9305 AB8 DOUTBD12 IC9305 D13 ROMD12 IC9305 W1 FCIO9 IC9305 B6 HDI IC9305 E17 VSS IC9305 E12 ROMCE IC9305 Y17 DOUTAD1 IC9305 W7 VDD18 IC9305 AA7 FCIO29 C9324 16V 0.1u IC9305 A7 BI4 IC9305 D10 GI1 IC9305 AC8 DOUTAD11 IC9305 W16 VDD33 IC9305 E20 VDD18D C9347 16V 4.7u IC9305 V23 DOUTBU5 IC9305 AA8 DOUTBD13 IC9305 L20 VSS IC9305 F22 DLLRST IC9305 L9 VSS IC9305 L3 VSS IC9305 P20 DOUTAU9 IC9305 Y3 FCIO19 IC9305 H20 VSS IC9305 B22 VSS IC9305 H8 VSS IC9305 R16 VSS IC9305 Y9 DOUTCD13 IC9305 E4 AVDD IC9305 M19 VDD33 IC9305 Y5 VDD18 R9396 10k IC9305 B18 TEST2 R9405 56 IC9305 H11 VDD33 IC9305 H22 VSS IC9305 AB6 FCIO30 IC9305 B13 ROMD14 IC9305 J10 VSS IC9305 P12 VSS IC9305 N21 DOUTAU11 IC9305 T13 VSS IC9305 F5 AVSS R9388 0 C9344 16V 0.1u IC9305 G20 AUP IC9305 J9 VSS IC9305 AC1 VSS IC9305 L14 VSS IC9305 Y14 VDD33 IC9305 T21 DOUTAU6 IC9305 A21 TIOCTL1 IC9305 AB14 DOUTBD6 IC9305 M22 DOUTBU13 IC9305 T4 FCIO6 IC9305 C10 GI0 IC9305 AB4 FCIO24 IC9305 V3 FCIO12 IC9305 D11 RI4 IC9305 H2 DQS3 IC9305 E9 VSS IC9305 R13 VSS IC9305 L16 VSS IC9305 AB16 DOUTCD4 IC9305 K2 NCLK IC9305 H9 VDD18 IC9305 T16 VSS IC9305 C9 GI4 IC9305 W2 FCIO13 IC9305 E21 PTESTDRAM1 IC9305 C14 ROMD8 IC9305 AB18 DOUTBD2 IC9305 B3 SRL C9333 16V 0.1u IC9305 AC17 DOUTBD3 IC9305 AC6 VSS IC9305 G5 AVSS IC9305 A2 VSS IC9305 L10 VSS IC9305 B5 FPDAT1 IC9305 J23 DRVCLKD1 IC9305 N5 VDD25 IC9305 AA15 DOUTCD5 IC9305 E6 VDD18 IC9305 G22 FCDDRSEL0 IC9305 M14 VSS IC9305 W5 VSS IC9305 M5 VDD25 R9389 10k IC9305 V1 VSS C9346 16V 0.1u IC9305 E13 ROMD11 IC9305 C22 SCANE IC9305 T20 FCIO3 IC9305 K22 DRVCLKU2 IC9305 F19 VDD18D IC9305 R4 VDD25 IC9305 C13 ROMD13 IC9305 W8 VDD33 IC9305 D23 NTDRAM IC9305 N19 DOUTCU11 IC9305 P9 VSS IC9305 P16 VSS IC9305 A9 GI7 IC9305 T12 VSS IC9305 A23 VSS IC9305 K9 VSS IC9305 J21 DRVCLKD3 IC9305 AC14 VSS IC9305 E1 FCADR1 IC9305 H1 CS IC9305 H5 VSS IC9305 P21 DOUTCU10 IC9305 AC5 FCIO31 IC9305 A5 DCK IC9305 P4 BA1 IC9305 L19 VDD33 IC9305 AA17 DOUTAD2 IC9305 Y10 VDD33 IC9305 P13 VSS IC9305 U19 FCIO4 R9375 0 IC9305 AA16 DOUTAD3 IC9305 D8 BI3 IC9305 AB22 VSS R9391 1k C9342 16V 0.1u IC9305 V4 FCIO14 IC9305 AA18 DOUTCD2 IC9305 W4 VDD18 IC9305 H19 VDD33D IC9305 G23 LATCH IC9305 M3 FCADR9 IC9305 N1 FCADRX IC9305 L8 VSS IC9305 R8 VSS IC9305 C20 TIOCTL2 IC9305 W20 DOUTAU1 IC9305 H4 DQS1 IC9305 Y20 FCIO16 IC9305 K21 DRVCLKU3 IC9305 F2 FCADR3 IC9305 N16 VSS IC9305 AB20 DOUTCU0 C9330 16V 0.1u IC9305 AB5 FCIO28 IC9305 E22 OCK C9331 6.3V 10u IC9305 U2 FCIO5 IC9305 AC22 VSS IC9305 AB15 DOUTBD5 IC9305 AC23 VSS IC9305 R19 VDD33 IC9305 J5 VSS IC9305 H12 VDD33 IC9305 A20 MCKSEL1 IC9305 U1 VSS IC9305 A6 BI7 IC9305 P2 WE IC9305 AA11 DOUTAD9 IC9305 L5 VDD25 R9374 0 IC9305 M11 VSS IC9305 AB7 DOUTAD13 IC9305 T5 FCIO8 IC9305 A12 RI3 IC9305 M20 DOUTAU12 IC9305 AA22 DOUTBU1 IC9305 AC20 DOUTCD1 IC9305 D21 MINTEST IC9305 Y18 VDD18 IC9305 W19 VSS IC9305 D19 MCKSEL2 IC9305 P14 VSS IC9305 D9 GI6 IC9305 R11 VSS IC9305 E15 VSS IC9305 K8 VSS IC9305 E8 VSS IC9305 C18 TEST1 IC9305 W21 DOUTBU2 IC9305 B11 RI6 IC9305 Y13 DOUTCD7 IC9305 D17 TEST4 IC9305 AB11 DOUTBD9 IC9305 F20 VDD18D IC9305 P1 VSS IC9305 D15 ROMD2 IC9305 AC19 DOUTBD1 IC9305 N4 VDD25 IC9305 P5 VDD25 IC9305 J11 VSS IC9305 L11 VSS IC9305 AB13 DOUTBD7 IC9305 M12 VSS IC9305 C19 ACKSEL0 IC9305 M2 FCADR8 IC9305 B8 BI0 IC9305 E16 VSS IC9305 T15 VSS IC9305 B14 ROMD9 IC9305 C6 FPCLK IC9305 K12 VSS IC9305 D20 VSS IC9305 AC2 VSS IC9305 E10 VDD33 IC9305 E23 SFRST IC9305 P23 DOUTAU10 TP0768 R9393 10k C9323 50V 100p IC9305 V5 VDD18 IC9305 C17 TEST5 IC9305 AA6 FCIO26 IC9305 R2 FCIO0 IC9305 E5 VSS IC9305 N10 VSS IC9305 D6 SCL IC9305 E14 ROMD6 IC9305 C15 ROMD3 IC9305 AB12 DOUTBD8 IC9305 N23 DOUTBU12 C9329 16V 0.1u R9470 0 IC9305 F21 PTESTDRAM0 IC9305 N20 DOUTBU11 IC9305 D16 NC IC9305 P3 BA0 IC9305 T23 DOUTBU7 C9343 16V 0.1u IC9305 N8 VSS IC9305 C2 PCK IC9305 B2 VSS IC9305 AC3 FCIO22 IC9305 N14 VSS C9334 16V 0.1u R9386 22 R9401 22 IC9305 C8 BI1 IC9305 U23 DOUTBU6 IC9305 AA13 DOUTAD6 IC9305 B9 GI5 IC9305 AA19 DOUTBD0 IC9305 AC4 FCIO25 IC9305 W6 VDD18 IC9305 AB23 VSS IC9305 AA14 DOUTAD5 IC9305 B1 VSS IC9305 AC7 DOUTAD12 IC9305 H23 VSS IC9305 A3 NRST IC9305 A19 NC IC9305 V21 DOUTCU4 IC9305 K14 VSS IC9305 U22 DOUTCU6 IC9305 E2 FCADR0 IC9305 P22 DOUTBU10 IC9305 K3 CLK IC9305 T22 DOUTCU7 IC9305 C16 NC IC9305 J19 VSS IC9305 AC18 VSS IC9305 U21 DOUTAU5 IC9305 K5 VDD25 IC9305 P11 VSS IC9305 H16 VSS IC9305 R5 VDD25 IC9305 D2 DLLCKIN IC9305 T1 FCIO2 IC9305 R23 DOUTCU9 IC9305 AA4 FCIO21 IC9305 J2 VSS TP0767 IC9305 N12 VSS IC9305 K13 VSS IC9305 AB1 VSS IC9305 W17 VDD18 IC9305 T3 DOUTAU7 IC9305 U5 VDD25 IC9305 AB10 DOUTBD10 IC9305 N3 CAS C9328 16V 0.1u IC9305 W11 VDD33 IC9305 AA2 VSS IC9305 J3 VSS IC9305 B23 VSS IC9305 K20 DRVCLKU4 IC9305 H21 VSS IC9305 MN84510-A A1 VSS IC9305 AB17 DOUTCD3 IC9305 A8 BI2 IC9305 K10 VSS IC9305 M16 VSS IC9305 T9 VSS IC9305 T2 VDD33 IC9305 L21 VSS IC9305 L1 VSS IC9305 Y12 VDD33 IC9305 F3 FCADR2 IC9305 R14 VSS IC9305 A10 GI3 R9402 22 IC9305 L22 VSS IC9305 A18 TEST3 IC9305 M8 VSS IC9305 R21 DOUTBU8 IC9305 K23 DRVCLKU1 IC9305 J15 VSS IC9305 B20 MCKSEL0 IC9305 R9 VSS IC9305 C1 TCPOUT IC9305 E19 VSS C9339 16V 0.1u IC9305 V19 VDD18 IC9305 Y7 FCIO27 IC9305 A4 SDA IC9305 C3 VSS C9341 16V 0.1u IC9305 K4 VSS IC9305 K15 VSS IC9305 C11 RI5 IC9305 AC13 DOUTAD7 IC9305 T11 VSS IC9305 G1 DQS0 IC9305 B12 RI2 IC9305 B21 TIOCTL0 IC9305 R10 VSS IC9305 J22 DRVCLKD2 IC9305 F1 FCADR4 IC9305 AA3 VSS C9325 16V 4.7u IC9305 AC15 DOUTCD6 IC9305 E11 VDD33 IC9305 AA9 DOUTCD12 IC9305 K19 VDD18 IC9305 N2 RAS R9408 56 IC9305 AB3 FCIO20 IC9305 C4 ID1 IC9305 B7 BI5 R9399 10 IC9305 A13 ROMD15 IC9305 B15 ROMD4 IC9305 Y2 VSS IC9305 AB2 VSS IC9305 D3 NRESET IC9305 P8 VSS IC9305 AC10 VSS IC9305 P15 VSS IC9305 M21 DOUTCU13 IC9305 Y15 DOUTBD4 3.3V IC9305 AA12 DOUTAD8 IC9305 AB21 DOUTBU0 IC9305 J13 VSS R9400 10 IC9305 K11 VSS IC9305 AB9 DOUTBD11 IC9305 D12 RI0 IC9305 H13 VDD33 IC9305 V20 DOUTBU3 IC9305 M4 FCADR10 IC9305 W9 VDD33 IC9305 D1 TIDDQ IC9305 Y6 VDD18 IC9305 W3 FCIO15 IC9305 T14 VSS IC9305 E7 MUTE IC9305 AC21 DOUTCD0 IC9305 U20 DOUTCU5 IC9305 F23 SFVRST IC9305 V22 DOUTBU4 IC9305 K16 VSS IC9305 Y21 DOUTCU1 R9395 10k R9421 56 IC9305 Y22 DOUTCU2 IC9305 A22 VSS IC9305 R3 FCIO1 IC9305 N22 DOUTCU12 IC9305 AA20 DOUTAU0 IC9305 A11 RI7 IC9305 V2 FCIO10 IC9305 R12 VSS IC9305 N9 VSS IC9305 B16 ROMD0 IC9305 D18 TEST0 IC9305 M1 VREF IC9305 M23 DOUTAU13 IC9305 W15 VDD33 IC9305 G2 FCADR7 IC9305 D22 DRAMCK IC9305 N13 VSS IC9305 AA10 DOUTAD10 IC9305 E3 DLLPOUT IC9305 R20 DOUTCU8 IC9305 AA5 FCIO23 IC9305 J8 VSS IC9305 J1 VSS IC9305 Y23 DOUTCU3 IC9305 G21 FCDDRSEL1 IC9305 AA1 FCIO17 C9319 16V 0.1u IC9305 M13 VSS IC9305 AC12 DOUTCD8 IC9305 Y11 DOUTCD10 IC9305 D5 TIIC IC9305 G19 VDD18D IC9305 H10 VDD18 IC9305 M15 VSS 1.8V_S R9382 0 2.5V 2.5V R9437 0 R9435 0 R9439 0 3.3V R9394 10k 3.3V 3.3V R9494 EXB38VR000V R9495 EXB38VR000V R9493 EXB38VR000V R9492 EXB38VR000V MN84510-A 50MHz clk to DATA Driver IC9651 FC RAM I/F Flash ROM I/F IIC 130MHz CKOUT TEST FPGA I/F other PLL RST CONTROL 130MHz DLL DRAM clk 65MHz clk CLK From LSI43 to lsi47 D-BOARD (12/14) TO (5/14) D-BOARD 51 54 48 46 49 52 47 50 53 132 127 128 129 131 123 120 117 125 118 121 124 119 134 135 133 130 122 126 115 114 116 111 112 113 147 148 149 150 146 142 143 144 145 141 157 152 153 154 155 151 156 DB DD DA DC DE DF TZTNP01QKSU(TH-42PX25U/P) TZTNP01QNSU(TH-50PX25U/P) FORMAT CONVERTER(I/P) TH-42/50PX25U/P D-Board (12 of 14) Schematic Diagram TH-42/50PX25U/P D-Board (12 of 14) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 161 15.65. D-Board (13 of 14) Schematic Diagram + AA_NRST AF_SAU6 AF_SBU6 AI_AU0 AI_CU5 AI_BU5 AI_AU5 AI_CU4 AI_BU4 AI_AU4 AI_CU3 AI_BU3 AI_AU3 AI_CU2 AI_BU2 AI_AU2 AI_CU1 AI_BU1 AI_AU1 AI_CU0 AI_BU0 AF_BYTE AF_SCU6 AF_SCU3 AF_SAU4 AF_SBU4 AF_SCU4 AF_SAU5 AF_SCU2 AF_SAU3 AF_SBU3 AF_SBU2 AF_SCU5 AF_XWE AF_RD_XBY AF_SBU1 AF_SCU1 AF_SAU2 AF_SBU0 AF_SCU0 AF_SAU1 AF_XCE AF_SBU0 AF_SCU0 AF_SAU1 AF_SBU1 AF_SCU1 AF_SAU2 AF_SBU2 AF_SCU2 AF_SAU3 AF_SBU3 AF_SCU3 AF_SAU4 AF_SCU4 AF_SBU4 AF_SAU5 AF_SBU5 AF_SCU5 AF_SAU6 AF_SBU6 AF_SCU6 AF_SAU0 AF_XCE AF_XOE AF_BYTE AF_D0 AF_D8 AF_D1 AF_D9 AF_D2 AF_D10 AF_D3 AF_D11 AF_D4 AF_D12 AF_D5 AF_D13 AF_D6 AF_D14 AF_D7 AF_D15 AP_CLKL AF_SBU5 ABA_SFRST ABA_SFVRST ABA_LATCH ABA_FPDAT1 ABA_FPDAT0 ABA_FPCLK AJ_SDA2 AJ_SCL2 AF_D6 AF_D5 AF_D7 AF_D4 AF_D3 AF_D2 ABK_AD11 ABK_AD8 ABK_AD7 ABK_AD9 ABK_AD10 AF_D14 AF_D13 AF_D15 AF_D12 AF_D11 AF_D10 ABK_BD11 ABK_CD11 ABK_BD8 ABK_BD7 ABK_CD8 ABK_CD7 ABK_BD9 ABK_BD10 ABK_CD9 ABK_CD10 1.25V AF_D0 AF_D1 ABK_AD0 ABK_AD4 ABK_AD3 ABK_AD2 ABK_AD1 ABK_AD5 AF_D8 ABK_AD6 AF_D9 ABK_BD0 ABK_BD4 ABK_BD3 ABK_BD2 ABK_BD1 ABK_BD5 ABK_CD0 ABK_CD4 ABK_CD3 ABK_CD2 ABK_CD1 ABK_CD5 ABK_BD6 ABK_CD6 AP_NCLKL ABR_R6 ABR_R7 ABR_G6 ABR_G7 ABR_B6 ABR_B7 AI_AU4 AI_AU3 AI_AU11 AI_AU10 AI_AU9 AI_AU8 AI_AU7 AI_AU6 AI_AU5 AI_BU4 AI_BU3 AI_CU4 AI_CU3 AI_BU11 AI_BU10 AI_BU9 AI_CU11 AI_CU10 AI_CU9 AI_BU8 AI_BU7 AI_BU6 AI_BU5 AI_CU8 AI_CU7 AI_CU6 AI_CU5 ABR_R3 ABR_R5 ABR_R4 ABR_R0 ABR_R2 ABR_R1 ABR_G3 ABR_G5 ABR_G4 ABR_B3 ABR_B5 ABR_B4 ABR_G0 ABR_B0 ABR_G2 ABR_G1 ABR_B2 ABR_B1 AI_AU1 AI_AU0 AI_AU2 AI_BU1 AI_BU0 AI_BU2 AI_CU1 AI_CU0 AI_CU2 ABS_BA1 ABS_BA0 ABS_CS ABS_RAS ABS_WE ABS_CAS ABS_AD8 ABS_AD9 ABS_AD10 ABS_AD7 ABS_AD6 ABS_AD5 ABS_AD4 ABS_AD0 ABS_AD1 ABS_AD3 ABS_AD2 ABS_IO7 ABS_IO6 ABS_IO5 ABS_IO4 ABS_IO15 ABS_IO14 ABS_IO13 ABS_IO12 ABS_IO0 ABS_IO1 ABS_IO3 ABS_IO2 ABS_IO8 ABS_IO9 ABS_IO11 ABS_IO10 ABS_IO23 ABS_IO22 ABS_IO21 ABS_IO20 ABS_IO31 ABS_IO30 ABS_IO29 ABS_IO28 ABS_IO16 ABS_IO24 ABS_IO17 ABS_IO19 ABS_IO18 ABS_IO25 ABS_IO27 ABS_IO26 ABT_R3 ABT_R2 ABT_R1 ABT_R0 ABR_R3 ABR_R2 ABR_R0 ABR_R1 ABT_G3 ABT_G2 ABT_G1 ABT_G0 ABR_G3 ABR_G2 ABR_G0 ABR_G1 ABT_R7 ABT_R6 ABT_R5 ABT_R4 ABR_R7 ABR_R6 ABR_R5 ABR_R4 ABT_G7 ABT_G6 ABT_G5 ABT_G4 ABR_G7 ABR_G6 ABR_G5 ABR_G4 ABT_B3 ABT_B2 ABT_B1 ABT_B0 ABR_B3 ABR_B2 ABR_B1 ABR_B0 ABT_B7 ABT_B6 ABT_B5 ABT_B4 ABR_B7 ABR_B6 ABR_B5 ABR_B4 AF_SAU0 ABF_CKD1 ABF_CKD2 C9469 4V 220u IC9455 E15 VSS IC9455 Y14 VDD33 IC9455 AC15 DOUTCD6 IC9455 P20 DOUTAU9 IC9455 AC10 VSS C9491 16V 0.1u IC9455 E21 PTESTDRAM1 IC9455 P9 VSS IC9455 C21 VSS IC9455 AA10 DOUTAD10 IC9455 K12 VSS IC9455 G20 AUP IC9455 W12 VDD33 IC9455 J14 VSS IC9455 N2 RAS IC9455 R16 VSS IC9455 W17 VDD18 IC9455 G19 VDD18D IC9455 H3 DQS2 IC9455 T23 DOUTBU7 IC9455 J15 VSS IC9455 E12 ROMCE IC9455 D7 VDI IC9455 W15 VDD33 IC9455 AA19 DOUTBD0 IC9455 E17 VSS IC9455 V21 DOUTCU4 R9485 1k R9445 0 IC9455 AC5 FCIO31 IC9455 R20 DOUTCU8 IC9455 W5 VSS IC9455 V23 DOUTBU5 IC9455 M10 VSS IC9455 E10 VDD33 R9447 0 R9468 EXB2HVR000V IC9455 AC3 FCIO22 IC9455 B7 BI5 IC9455 W23 DOUTAU4 IC9455 P3 BA0 IC9455 E23 SFRST C9470 50V 100p IC9455 K5 VDD25 IC9455 C6 FPCLK IC9455 W19 VSS R9488 10 IC9455 K2 NCLK IC9455 N20 DOUTBU11 IC9455 P5 VDD25 R9479 100 C9467 16V 0.1u IC9455 Y20 FCIO16 IC9455 R15 VSS IC9455 F22 DLLRST IC9455 U4 VDD25 IC9455 AC13 DOUTAD7 R9475 1k R9476 22 IC9455 E18 VDD18 IC9455 E3 DLLPOUT IC9455 K23 DRVCLKU1 IC9455 D3 NRESET IC9455 P8 VSS IC9455 L16 VSS C9488 16V 0.1u R9466 EXB2HVR000V IC9455 J3 VSS IC9455 R21 DOUTBU8 IC9455 H4 DQS1 IC9455 AA18 DOUTCD2 IC9455 K4 VSS IC9455 V5 VDD18 R9491 22 IC9455 V2 FCIO10 IC9455 B14 ROMD9 IC9455 AA13 DOUTAD6 IC9455 T1 FCIO2 IC9455 W22 DOUTAU3 R9496 56 IC9455 B23 VSS IC9455 T10 VSS IC9455 P2 WE IC9455 E7 MUTE IC9455 D11 RI4 IC9455 B16 ROMD0 IC9455 AC6 VSS IC9455 Y10 VDD33 IC9455 T13 VSS IC9455 D20 VSS IC9455 J9 VSS IC9455 E13 ROMD11 IC9455 B21 TIOCTL0 IC9455 E22 OCK IC9455 P14 VSS IC9455 AA5 FCIO23 IC9455 U21 DOUTAU5 IC9455 V4 FCIO14 IC9455 W20 DOUTAU1 C9450 6.3V 10u IC9455 E4 AVDD IC9455 M3 FCADR9 IC9455 D2 DLLCKIN IC9455 H15 VDD18 IC9455 K14 VSS IC9455 M21 DOUTCU13 IC9455 A22 VSS R9415 4.7k C9455 16V 4.7u IC9455 AA21 FCIO18 IC9455 J11 VSS IC9455 C20 TIOCTL2 IC9455 N21 DOUTAU11 IC9455 AC20 DOUTCD1 IC9455 T12 VSS IC9455 T16 VSS IC9455 J16 VSS IC9455 R11 VSS IC9455 L2 VSS IC9455 MN84510-A A1 VSS IC9455 R3 FCIO1 IC9455 T20 FCIO3 IC9455 T21 DOUTAU6 IC9455 AC8 DOUTAD11 IC9455 F20 VDD18D IC9455 C11 RI5 IC9455 P15 VSS IC9455 E11 VDD33 IC9455 Y17 DOUTAD1 IC9455 AC14 VSS IC9455 AB23 VSS IC9455 B19 ACKSEL1 IC9455 AB3 FCIO20 IC9455 R9 VSS IC9455 AC21 DOUTCD0 IC9455 L8 VSS IC9455 K10 VSS IC9455 N13 VSS IC9455 T3 DOU TAU7 IC9455 AC4 FCIO25 IC9455 B18 TEST2 C9489 16V 0.1u IC9455 L1 VSS IC9455 T11 VSS IC9455 D15 ROMD2 IC9455 A16 ROMD1 IC9455 C22 SCANE IC9455 U20 DOUTCU5 IC9455 C15 ROMD3 IC9455 H19 VDD33D IC9455 A5 DCK IC9455 M8 VSS IC9455 AB4 FCIO24 R9420 47k IC9455 U22 DOUTCU6 IC9455 D19 MCKSEL2 IC9455 J1 VSS IC9455 B10 GI2 IC9455 Y3 FCIO19 IC9455 AA17 DOUTAD2 R9489 10 IC9455 AB14 DOUTBD6 IC9455 J21 DRVCLKD3 IC9455 W14 VDD33 IC9455 F2 FCADR3 IC9455 D16 NC IC9455 C7 BI6 IC9455 P22 DOUTBU10 IC9455 R8 VSS IC9455 T2 VDD33 IC9455 N10 VSS IC9455 C23 RSTDRAM IC9455 C14 ROMD8 IC9455 AA23 DOUTAU2 IC9455 V20 DOUTBU3 IC9455 A9 GI7 IC9455 A17 TILD R9484 1k IC9455 B2 VSS IC9455 D12 RI0 IC9455 A3 NRST IC9455 AB11 DOUTBD9 IC9455 E2 FCADR0 IC9455 AA16 DOUTAD3 IC9455 E5 VSS IC9455 AC1 VSS IC9455 G23 LATCH IC9455 A13 ROMD15 C9449 16V 0.1u IC9455 H16 VSS IC9455 U3 FCIO7 IC9455 P19 DOUTBU9 IC9455 A23 VSS C9487 16V 0.1u IC9455 R22 DOUTAU8 C9476 16V 0.1u IC9455 C5 FPDAT0 IC9455 AB9 DOUTBD11 IC9455 N15 VSS IC9455 W9 VDD33 IC9455 M14 VSS IC9455 Y4 VSS IC9455 M20 DOUTAU12 IC9455 U1 VSS IC9455 D8 BI3 IC9455 L12 VSS IC9455 Y13 DOUTCD7 IC9455 T4 FCIO6 IC9455 D9 GI6 IC9455 J10 VSS IC9455 H2 DQS3 IC9455 L3 VSS IC9455 AB19 DOUTAD0 IC9455 AB6 FCIO30 IC9455 N19 DOUTCU11 IC9455 M15 VSS IC9455 AB22 VSS TP0889 IC9455 P13 VSS IC9455 D21 MINTEST IC9455 G4 FCADR5 IC9455 L13 VSS IC9455 AB1 VSS C9477 16V 0.1u IC9455 Y19 VDD18 IC9455 W6 VDD18 IC9455 AB16 DOUTCD4 IC9455 F23 SFVRST R9449 0 IC9455 AC19 DOUTBD1 IC9455 AB20 DOUTCU0 IC9455 Y6 VDD18 IC9455 A11 RI7 IC9455 A14 ROMD10 IC9455 V19 VDD18 IC9455 Y5 VDD18 R9490 22 IC9455 W18 VDD18 IC9455 U23 DOUTBU6 IC9455 L21 VSS IC9455 K3 CLK IC9455 P16 VSS IC9455 K20 DRVCLKU4 IC9455 AC12 DOUTCD8 IC9455 G21 FCDDRSEL1 IC9455 C9 GI4 IC9455 G2 FCADR7 IC9455 A12 RI3 R9501 56 IC9455 W16 VDD33 IC9455 AA2 VSS IC9455 N16 VSS IC9455 N14 VSS IC9455 G3 FCADR6 IC9455 D6 SCL IC9455 D5 TIIC IC9455 AB7 DOUTAD13 IC9455 AC23 VSS IC9455 K19 VDD18 IC9455 H20 VSS IC9455 H13 VDD33 P5V IC9455 R19 VDD33 IC9455 A2 VSS IC9455 T9 VSS IC9455 AA14 DOUTAD5 IC9455 R14 VSS IC9455 N4 VDD25 IC9455 E1 FCADR1 IC9455 A21 TIOCTL1 IC9455 W7 VDD18 IC9455 AB2 VSS IC9455 J22 DRVCLKD2 IC9455 V22 DOUTBU4 IC9455 AA3 VSS IC9455 P11 VSS IC9455 A15 ROMD5 IC9455 H8 VSS IC9455 AC16 DOUTAD4 IC9455 AC22 VSS IC9455 L10 VSS IC9455 AA11 DOUTAD9 R9483 0 IC9455 C12 RI1 IC9455 E20 VDD18D IC9455 A19 NC IC9455 H14 VDD18 C9490 16V 0.1u C9494 16V 4.7u IC9455 L19 VDD33 IC9455 Y15 DOUTBD4 IC9455 E8 VSS IC9455 AB12 DOUTBD8 IC9455 K22 DRVCLKU2 IC9455 M23 DOUTAU13 IC9455 D22 DRAMCK IC9455 D23 NTDRAM IC9455 F19 VDD18D C9454 16V 4.7u IC9455 AC18 VSS IC9455 C10 GI0 C9493 16V 0.1u IC9455 J23 DRVCLKD1 IC9455 P1 VSS IC9455 B17 NC IC9455 R4 VDD25 IC9455 M22 DOUTBU13 IC9455 A7 BI4 IC9455 B1 VSS IC9455 N23 DOUTBU12 IC9455 P23 DOUTAU10 R9413 330 R9469 0 IC9455 W13 VDD33 IC9455 AC11 DOUTCD9 IC9455 P12 VSS IC9455 T5 FCIO8 IC9455 B5 FPDAT1 IC9455 R23 DOUTCU9 IC9455 C17 TEST5 IC9455 M2 FCADR8 IC9455 C4 ID1 R9417 0 IC9455 U2 FCIO5 IC9455 E14 ROMD6 IC9455 D18 TEST0 IC9455 N11 VSS IC9455 M13 VSS IC9455 J5 VSS IC9455 L11 VSS IC9455 C8 BI1 IC9455 W1 FCIO9 IC9455 A4 SDA IC9455 R1 BA2 R9498 56 IC9455 A6 BI7 IC9455 AB8 DOUTBD12 IC9455 G22 FCDDRSEL0 IC9455 AA1 FCIO17 IC9455 T19 VDD33 IC9455 L15 VSS IC9455 L14 VSS C9480 16V 0.1u IC9455 AA20 DOUTAU0 IC9455 N1 FCADRX IC9455 L23 VSS IC9455 K16 VSS IC9455 Y18 VDD18 R9503 56 IC9455 H10 VDD18 IC9455 M9 VSS IC9455 B3 SRL IC9455 H22 VSS IC9455 AA8 DOUTBD13 IC9455 K8 VSS IC9455 R10 VSS IC9455 V3 FCIO12 IC9455 AC17 DOUTBD3 IC9455 N3 CAS IC9455 D13 ROMD12 R9459 0 IC9455 AA12 DOUTAD8 C9492 16V 0.1u IC9455 H23 VSS IC9455 AB10 DOUTBD10 IC9455 AB13 DOUTBD7 IC9455 Y21 DOUTCU1 IC9455 M12 VSS R9444 0 IC9455 H11 VDD33 IC9455 C18 TEST1 IC9455 M19 VDD33 IC9455 AB15 DOUTBD5 IC9455 C1 TCPOUT IC9455 L4 VDD25 IC9455 B20 MCKSEL0 IC9455 J20 DRVCLKD4 IC9455 J13 VSS IC9455 H9 VDD18 IC9455 W4 VDD18 IC9455 Y22 DOUTCU2 IC9455 N9 VSS IC9455 N8 VSS IC9455 B12 RI2 C9453 16V 0.1u IC9455 N5 VDD25 IC9455 H21 VSS IC9455 E16 VSS IC9455 C19 ACKSEL0 IC9455 B9 GI5 IC9455 A8 BI2 IC9455 M16 VSS IC9455 K13 VSS IC9455 F4 AVDD IC9455 E6 VDD18 IC9455 W3 FCIO15 IC9455 G5 AVSS IC9455 J8 VSS IC9455 K11 VSS IC9455 Y2 VSS IC9455 L20 VSS IC9455 F21 PTESTDRAM0 IC9455 AA6 FCIO26 IC9455 K1 VSS IC9455 C3 VSS IC9455 M1 VREF C9475 16V 0.1u IC9455 R12 VSS IC9455 F5 AVSS IC9455 Y8 VDD33 IC9455 AB18 DOUTBD2 L9452 ELJFA1R0KF IC9455 W10 VDD33 IC9455 T15 VSS IC9455 Y16 VDD33 IC9455 E9 VSS IC9455 H12 VDD33 IC9455 B22 VSS 1.8V_S IC9455 P10 VSS IC9455 J2 VSS IC9455 Y9 DOUTCD13 IC9455 J4 VSS IC9455 V1 VSS IC9455 Y11 DOUTCD10 IC9455 T14 VSS IC9455 J12 VSS IC9455 G1 DQS0 IC9455 Y12 VDD33 IC9455 M4 FCADR10 IC9455 AB5 FCIO28 IC9455 D1 TIDDQ IC9455 D4 VSS IC9455 L22 VSS IC9455 A20 MCKSEL1 IC9455 D17 TEST4 IC9455 K15 VSS IC9455 AA22 DOUTBU1 IC9455 B13 ROMD14 IC9455 B4 ID0 IC9455 L9 VSS C9478 6.3V 10u R9411 4.7k R9478 10k IC9455 F3 FCADR2 IC9455 C2 PCK IC9455 L5 VDD25 IC9455 Y1 FCIO11 IC9455 K9 VSS R9477 10k IC9455 W2 FCIO13 IC9455 B15 ROMD4 IC9455 AB17 DOUTCD3 IC9455 A18 TEST3 IC9455 D14 ROMD7 IC9455 B6 HDI C9486 16V 0.1u IC9455 K21 DRVCLKU3 R9440 0 IC9455 AC7 DOUTAD12 IC9455 N12 VSS IC9455 AA9 DOUTCD12 IC9455 R5 VDD25 IC9455 J19 VSS IC9455 B8 BI0 IC9455 R2 FCIO0 IC9455 W11 VDD33 IC9455 N22 DOUTCU12 IC9455 R13 VSS IC9455 P21 DOUTCU10 IC9455 Y23 DOUTCU3 IC9455 D10 GI1 IC9455 E19 VSS IC9455 AC2 VSS IC9455 AC9 DOUTCD11 C9481 16V 0.1u 3.3V R9465 EXB2HVR000V IC9455 C13 ROMD13 IC9455 AA4 FCIO21 IC9455 T22 DOUTCU7 IC9455 H5 VSS IC9455 W21 DOUTBU2 IC9455 W8 VDD33 IC9455 H1 CS IC9455 AA15 DOUTCD5 IC9455 M5 VDD25 IC9455 AB21 DOUTBU0 IC9455 C16 NC IC9455 F1 FCADR4 IC9455 M11 VSS IC9455 AA7 FCIO29 IC9455 A10 GI3 IC9455 P4 BA1 IC9455 U19 FCIO4 IC9455 B11 RI6 IC9455 U5 VDD25 IC9455 T8 VDD25 IC9455 Y7 FCIO27 Q9400 2SD0601A0L R9422 0 IC9456 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE 12 RESET 13 NC 14 NC 15 RY/BY 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE 27 GND 28 OE 29 Q0 30 Q8 31 Q1 32 Q9 33 Q2 34 Q10 35 Q3 36 Q11 37 VCC 38 Q4 39 Q12 40 Q5 41 Q13 42 Q6 43 Q14 44 Q7 45 Q15/A-1 46 GND 47 BYTE 48 A16 IC9459 C0JBAZ001992 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE 2.5V 2.5V R9455 0 TP0887 2.5V 2.5V MN84510-A 50MHz clk VDI HDI PLL RST FPGA I/F IIC to lsi47 TEST Flash ROM I/F 65MHz clk CLK DRAM clk 60MHz 130MHz DLL other From LSI43 L master to DATA Driver 130MHz CKOUT IC9601 FC RAM I/F TVRJ957 (50") TVRJ954 (42") 32Mbit FLASH BUS SW D-BOARD (13/14) (5/14) D-BOARD TO 55 58 56 59 61 57 60 62 63 143 144 157 152 148 147 150 155 153 154 151 146 156 149 145 142 141 167 168 169 170 166 162 163 164 165 161 EB ED EA EC EE EF TZTNP01QKSU(TH-42PX25U/P) TZTNP01QNSU(TH-50PX25U/P) TH-42/50PX25U/P D-Board (13 of 14) Schematic Diagram TH-42/50PX25U/P D-Board (13 of 14) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 162 15.66. D-Board (14 of 14) Schematic Diagram TERM SIDE TERM SIDE AA_SOS2 AB_PCD AA_SOS3 AB_PCU AP_BLKL 5V AA_KEY AA_LED_G AA_LED_R ABF_CKD1 ABF_CKD2 AC_BLKD AP_CLKL AP_NCLKL AP_NCLKL AP_CLKL ABF_CKD1 ABF_CKD2 AP_CEL AP_HZ AP_HZ ABB_CER AA_CATS_EYE ABG_D112 ABG_D102 ABG_D106 ABG_D104 ABG_D114 ABG_D116 ABG_D101 ABG_D103 ABG_D105 ABG_D111 ABG_D113 ABG_D115 ABG_D082 ABG_D076 ABG_D074 ABG_D084 ABG_D086 ABG_D096 ABG_D094 ABG_D092 ABG_D072 ABG_D073 ABG_D075 ABG_D083 ABG_D085 ABG_D095 ABG_D093 ABG_D091 ABG_D081 ABG_D062 ABG_D064 ABG_D066 ABG_D071 ABG_D061 ABG_D063 ABG_D065 ABE_D225 ABE_D223 ABE_D221 ABE_D215 ABE_D213 ABE_D211 ABE_D205 ABE_D203 ABE_D201 ABE_D195 ABE_D193 ABE_D191 ABE_D185 ABE_D183 ABE_D181 ABE_D175 ABE_D173 ABE_D171 ABE_D226 ABE_D224 ABE_D222 ABE_D216 ABE_D214 ABE_D212 ABE_D206 ABE_D204 ABE_D202 ABE_D196 ABE_D194 ABE_D192 ABE_D186 ABE_D184 ABE_D182 ABE_D176 ABE_D174 ABE_D172 ABK_AD1 ABK_BD1 ABK_AD0 ABK_BD0 ABK_BD3 ABK_AD3 ABK_CD3 ABK_AD2 ABK_CD2 ABK_AD5 ABK_AD4 ABK_CD5 ABK_BD4 ABK_CD4 ABK_BD7 ABK_CD7 ABK_CD6 ABK_BD6 ABK_AD9 ABK_BD9 ABK_AD8 ABK_BD8 ABK_BD11 ABK_AD11 ABK_CD11 ABK_AD10 ABK_CD10 ABK_CD1 ABK_CD0 ABK_BD2 ABK_AD7 ABK_BD5 ABK_AD6 ABK_CD8 ABK_CD9 ABE_D226 ABE_D225 ABE_D223 ABE_D222 ABE_D215 ABE_D216 ABE_D214 ABE_D213 ABE_D211 ABE_D206 ABE_D203 ABE_D204 ABE_D202 ABE_D201 ABE_D195 ABE_D194 ABE_D191 ABE_D192 ABE_D186 ABE_D185 ABE_D183 ABE_D182 ABE_D175 ABE_D176 ABE_D174 ABE_D173 ABE_D171 AI_CU0 AI_CU1 AI_AU0 AI_BU1 AI_AU1 AI_BU2 AI_AU2 AI_AU3 AI_BU3 AI_CU4 AI_BU4 AI_CU5 AI_BU5 AI_BU6 AI_CU6 AI_AU6 AI_CU7 AI_AU7 AI_CU8 AI_BU8 AI_CU9 AI_BU9 AI_BU10 AI_CU10 AI_AU10 AI_CU11 AI_AU11 AI_BU0 AI_CU2 AI_CU3 AI_AU5 AI_AU4 AI_AU9 AI_BU7 AI_AU8 AI_BU11 ABG_D116 ABG_D113 ABG_D114 ABG_D112 ABG_D111 ABG_D105 ABG_D104 ABG_D101 ABG_D102 ABG_D096 ABG_D095 ABG_D093 ABG_D092 ABG_D085 ABG_D086 ABG_D084 ABG_D083 ABG_D081 ABG_D075 ABG_D076 ABG_D073 ABG_D072 ABG_D065 ABG_D066 ABG_D064 ABG_D063 ABG_D061 AA_REMOCON ABG_D062 ABG_D074 ABG_D082 ABG_D071 AP_CEL AB_PCU AP_BLKL ABG_D094 ABG_D091 AP_HZ AB_UBK AB_UMH AB_USH AB_UML AB_UEH AB_UE2H AB_USL AAB_DSLL AAB_DMHL AAB_DMLL AAB_DSHL ABG_D103 ABG_D106 ABG_D115 ABE_D181 ABE_D184 ABE_D193 ABE_D196 ABE_D205 ABB_CER AB_PCD AC_BLKD ABE_D212 ABE_D221 ABE_D224 AP_HZ ABK_BD10 ABE_D172 AA_DRVRST_5V 3.3V R9313 0 R9511 10k R9564 10k R9540 EXB38V470JV R9556 150 C9597 50V 0.01u R9553 EXB38V680JV P5V D32 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R9515 100k R9523 EXB38V680JV R9559 EXB38V470JV R9551 EXB38V470JV R9561 EXB38V470JV R9517 0 R9538 0 R9554 150 R9519 EXB38V680JV R9533 47 R9542 0 R9543 EXB38V470JV R9526 EXB38V680JV R9545 47 C9497 16V 0.1u P5V R9510 10k R9539 0 R9547 47 R9558 150 R9549 EXB38V680JV R9532 47 R9512 10k R9520 EXB38V680JV R9376 4.7k R9594 100 R9522 EXB38V680JV R9529 EXB38V680JV R9516 0 R9552 150 3.3V R9506 EXB38V103JV R9557 150 D33 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R9527 EXB38V680JV R9504 EXB38V103JV R9536 47 R9518 EXB38V680JV R9562 150 R9544 47 R9563 100 R9525 EXB38V680JV C9495 16V 4.7u R9550 EXB38V470JV R9541 0 R9509 10k R9530 EXB38V680JV R9521 EXB38V680JV R9325 0 STB5V_S R9560 150 R9534 47 C9598 50V 0.01u L9459 ELKE103FA 1 2 3 R9524 EXB38V680JV R9535 47 R9537 47 C9498 16V 4.7u C9496 16V 0.1u R9593 10k Q9594 2SD0601A0L Q9597 2SD0601A0L Q9596 2SD0601A0L Q9591 2SD0601A0L R9380 4.7k R9592 100k 5V_DET 5V_DET OPT ~DRVRST DRVRST GND SOS D6-5 D6-6 D6-3 D6-4 D6-1 D6-2 GND D9-6 D9-4 D9-2 D9-5 D9-3 D9-1 GND GND D8-5 D8-6 D8-3 D8-4 GND GND D8-2 D8-1 D7-5 D7-6 D7-3 D7-4 GND GND D7-1 D7-2 D11-6 D11-5 D11-3 D11-4 D11-2 D11-1 GND NCLKL BLKL CEL PCL GND GND GND D10-6 GND D10-5 D10-4 D10-2 D10-1 D10-3 GND CLK3L CLK4L 5V 5V HZ CLKL GND URL URH DMHL GND DMLL DSHL DSLL UMH UBK USH UML UEH USL UEL 5V 5V L-UP GND SOS D17-2 D17-1 D17-4 D17-3 D17-6 D17-5 GND GND GND GND GND GND GND D20-2 D20-1 D20-3 D20-6 D20-5 D20-4 D19-2 D19-1 D19-4 D19-3 D19-6 D19-5 D18-2 D18-4 D18-3 D18-6 D18-5 D18-1 GND NCLKL BLKL PCL GND CEL D22-6 D22-5 D22-4 D22-3 D22-1 GND GND D22-2 GND GND D21-2 D21-1 D21-4 D21-3 D21-6 D21-5 CLK3L CLK4L 5V 5V GND 5V 5V REMOCON STB5V HZ CLKL GND GND DMHL DMLL DSHL DSLL LED_G LED_R KEY_SW GND NC L-DOWN TH-50PX25U/P ONLY D-BOARD (14/14) 64 67 65 68 70 66 69 71 72 161 162 167 168 165 163 164 166 169 170 TZTNP01QKSU(TH-42PX25U/P) TZTNP01QNSU(TH-50PX25U/P) TO (C21) C2-BOARD (TH-42PX25U/P) TO (C25) C2-BOARD (TH-50PX25U/P) (C31) C3-BOARD (TH-42PX25U/P) TO (C55) C5-BOARD (TH-50PX25U/P) TO TH-42/50PX25U/P D-Board (14 of 14) Schematic Diagram TH-42/50PX25U/P D-Board (14 of 14) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 163 15.67. C1, C2, C3, C4, K and S-Board Block Diagram (TH-42PX25U/P) UML IC7105 C1 CLKR USL CA2 D4 D3 UMH 17 UEH 19 CLK C12 20 D3 BUFFER D2 CA3 CLK Board (Front View) FROM D31 CA1 D5 C11 UEL D4 Data drive (Upper Right) USH CLK 18 D2 CLK CA4 D5 IC7106 BUFFER IC7107 BUFFER IC7101 CLOCK D9 Board (Front View) FROM D32 BUFFER CA5 D11 D11 CA8 CLK C21 IC7307 IC7305 BUFFER IC7301 CLOCK C2 CLKL CA6 D10 Data drive (Upper Left) CLK D9 4 2 D10 C22 D8 1 3 CLK BUFFER CLK D8 IC7306 CA7 UML USL UEL UMH USH UEH 5 12 3 7 SS32 Vda75V 6 TO 8 C32 4 9 SOS UML USL UEL UMH USH UEH USH UEH UML USL UEL UMH SOS Vda75V Vda75V Vda75V Vda75V IC7701 IC7706 BUFFER IC7707 CLOCK Vda75V FROM D34 BUFFER Vda75V Vda75V Vda75V BUFFER IC7705 Board (Front View) C3 Data drive (Lower Left) C4 Board (Front View) Data drive (Lower Right) D16 C41 D15 D14 D13 CLKR 20 1 18 3 C33 4 2 C43 17 19 CLK CB4 CLK CB1 D16 CB3 D15 CLK CLK D14 D13 CB2 CB5 CLK CB7 CB8 CLK D22 D20 D21 D19 CLK CLK CB6 IC7506 CLOCK BUFFER IC7507 IC7505 IC7501 BUFFER BUFFER CLKL D21 D22 D20 D19 LED_R REMOCON 6 Q7562 LED_G AKOPT C44 2 3 C31 Q7561 7 FROM D33 2 1 C42 SS42 TO Vda75V Vda75V CATS SENSOR 5V 7 STBY5V IC300 Q301 RM300 G R D302 VOUT VIN STBY5V Q300 6 REMOCON SENSOR K24 2 3 Q305 Remocon Senser K ON-LED(LED-G) K12 TO 2 3 DG12 STB-LED(LED-R) LED R LED G REMOCON OPT LED R LED G REMOCON OPT TH-42PX25U/P C1,C2,C3,C4,K and S-Board Block Diagram TH-42PX25U/P C1,C2,C3,C4,K and S-Board Block Diagram PUSH 1 Power Switch Board S POWER SWITCH S300 S4 TO DG12 TH-42PX25U-P / TH-50PX25U-P 164 15.68. C1-Board (1 of 2) Schematic Diagram (TH-42PX25U/P) TERM SIDE TERM SIDE AA_CLK11 AA_PCR AA_CLK11 AA_CLK21 AA_PCR 75V 75V 75V 75V 75V AH_BD21 AH_BD22 AH_BD23 AH_BD24 AH_BD25 AH_BD26 AA_LE2 AA_PCR AA_LE2 AA_PCR AI_BD15 AI_BD11 AI_BD12 AI_BD13 AI_BD14 AI_BD16 AA_PCR AA_LE1 AA_PCR AA_LE1 AA_CLK21 75V C7103 16V 1u C7141 100V 0.1u C7114 100V 0.1u CA2 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 R7133 22 R7131 22 R7126 220 R7125 220 R7113 220 C7104 16V1u C7112 100V 0.1u R7116 22 CA1 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 C7113 100V 0.1u R7111 22 R7114 220 R7112 22 C7154 50V 100p R7115 22 C7111 100V 0.1u C7153 50V 100p J0JJC0000011 L7109 R7132 22 R7130 22 J0JJC0000011 L7108 C7139 100V 0.1u R7105 1k 5V 5V DATA TO DRIVER DATA TO DRIVER C1-BOARD TNPA3059 (1/2) 3 7 1 8 4 2 A 5 6 D E C B 1 2 3 4 5 6 7 8 (TH-42PX25U/P) TH-42PX25U/P C1-Board (1 of 2) Schematic Diagram TH-42PX25U/P C1-Board (1 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 165 15.69. C1-Board (2 of 2) Schematic Diagram (TH-42PX25U/P) TERM SIDE SIDE TERM TERM SIDE TERM SIDE AA_PCR AA_CLK11 AA_CLK21 AA_CLK11 AA_CLK21 AA_CLK21 AA_CLK11 AA_PCR AE_CER AE_PCR AA_LE2 AA_LE3 AA_LE4 AA_LE1 AB_D034 AE_CER AE_NCLKR AE_CLKR AE_NCLKR AE_CLKR AB_D031 AB_D023 AB_D022 AB_D021 AB_D034 AB_D026 AB_D025 AB_D024 AC_D042 AC_D041 AC_D033 AC_D032 AC_D045 AC_D044 AC_D036 AC_D035 AG_D053 AG_D052 AG_D051 AG_D043 AG_D056 AG_D055 AG_D054 AG_D046 75V 75V 75V 75V 75V 75V 75V AF_BD41 AF_BD43 AF_BD44 AF_BD42 AF_BD45 AF_BD46 AA_PCR AA_LE4 AA_PCR AA_LE4 AF_BD41 AF_BD42 AF_BD43 AD_BD33 AD_BD32 AD_BD31 AH_BD23 AH_BD22 AH_BD21 AI_BD13 AI_BD12 AI_BD11 AF_BD44 AF_BD45 AF_BD46 AD_BD36 AG_D055 AG_D056 AD_BD35 AD_BD34 AH_BD26 AH_BD25 AB_D023 AB_D025 AG_D053 AG_D051 AG_D054 AG_D052 AC_D036 AB_D026 AB_D024 AH_BD24 AI_BD16 AI_BD15 AI_BD14 AG_D046 AC_D033 AC_D032 AB_D031 AC_D044 AG_D043 AC_D042 AC_D041 AC_D045 AC_D035 AB_D021 AB_D022 AD_BD31 AD_BD34 AD_BD32 AD_BD33 AD_BD35 AD_BD36 AA_PCR AA_LE3 AA_PCR AA_LE3 75V 5V AA_PCR R7181 47 R7179 47 R7230 0 J0JJC0000011 L7111 R7122 120 R7195 47 C7116 100V 0.1u CA4 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 C7155 50V 100p R7178 47 R7193 47 R7196 47 IC7105 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7194 47 R7109 0 R7177 47 C7152 16V 1u R7197 47 R7192 47 C7177 6.3V 10u CA3 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 R7121 120 C7101 16V1u C7102 6.3V 10u R7119 22 R7106 220k R7164 47 R7134 22 C7143 100V 0.1u R7137 22 R7191 47 R7159 47 C7115 100V 0.1u IC7101 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7226 47 R7147 22k C7117 100V 0.1u DL7107 ELKE103FA 1 2 3 C7106 16V1u R7180 47 J0JJC0000011 L7110 R7124 22 C7179 50V 100p C7145 100V 0.1u R7117 120 C7150 16V 1u R7224 47 R7120 22 C7176 6.3V 10u C7151 16V 1u IC7106 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7165 47 R7118 120 R7163 47 R7107 0 R7136 22 C7118 100V 0.1u C7107 100V 0.1u R7229 0 C11 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 IC7107 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7174 47 R7135 22 R7225 47 C7178 6.3V 10u R7236 0 R7161 47 R7108 0 R7162 47 R7227 47 R7148 100k R7158 47 R7176 47 R7175 47 C7105 16V 1u R7190 47 C7156 50V 100p R7160 47 R7123 22 (SN74ACT244PWR) (SN74ACT244PWR) 2A1 2A2 2A3 2A4 1Y4 1Y3 1Y2 1Y1 ^2OE 2Y2 2Y3 GND 1A4 1A3 1A2 2Y4 1A1 VCC 1OE 2Y1 (SN74ACT244PWR) 2A1 2A2 2A3 2A4 1Y4 1Y3 1Y2 1Y1 ^2OE 2Y2 2Y3 GND 1A4 1A3 1A2 2Y4 1A1 VCC 1OE 2Y1 (SN74ACT244PWR) 2A1 2A2 2A3 2A4 1Y4 1Y3 1Y2 1Y1 ^2OE 2Y2 2Y3 GND 1A4 1A3 1A2 2Y4 1A1 VCC 1OE 2Y1 5V DET 5V DRVRST SCL2 SDA2 5V 5V 5V 5V GND GND GND GND GND NC NC NC NC 3.3V NCLKR CLKR GND GND GND GND GND HZ BLKR PCR GND CER D5-4 D5-5 D5-6 GND GND GND CLK4R CLK3R GND DMHR DMLR DSHR DSLR D4-1 D4-2 D4-3 D2-3 D2-4 D4-4 D4-5 D2-5 D2-6 D4-6 D5-1 D3-1 D3-2 D5-2 D5-3 D3-3 D3-4 D3-5 D3-6 GND GND GND GND GND GND SOS D2-1 D2-2 D1-1 D1-2 D1-3 D1-4 D1-5 D1-6 GND GND GND Vda75V Vda75V Vda75V Vda75V Vda75V 5V NC NC NC NC NC NC NC NC NC NC GND GND GND GND GND GND 2Y1 1OE VCC 1A1 2Y4 1A2 1A3 1A4 GND 2Y3 2Y2 2OE 1Y1 1Y2 1Y3 1Y4 2A4 2A3 2A2 2A1 5V BUFFER BUFFER BUFFER CLOCK DATA TO DRIVER DATA TO DRIVER TO (C22) C2-BOARD TO D-BOARD (D31) C1-BOARD TNPA3059 (2/2) 13 10 11 9 14 15 12 8 1 2 3 4 5 6 7 8 (TH-42PX25U/P) 75.0 0 0 0 75.0 0 0 0 75.0 0 0 0 0 75.0 0 0 0 0 0 0 TH-42PX25U/P C1-Board (2 of 2) Schematic Diagram TH-42PX25U/P C1-Board (2 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 166 15.70. C2-Board (1 of 2) Schematic Diagram (TH-42PX25U/P) TERM SIDE TERM SIDE SIDE TERM TERM SIDE AE_CLK11 AE_CLK21 AE_PCL AE_PCL AE_CLK11 AE_CLK21 AE_CLK21 AE_CLK11 AE_PCL AF_PCL AE_LE8 AE_LE7 AE_LE6 AE_LE5 AG_D102 AG_D101 AG_D103 AI_D096 AI_D094 AI_D095 AD_BD54 AD_BD56 AD_BD55 AC_BD64 AC_BD65 AC_BD66 AI_D091 AI_D092 AI_D093 AK_UMH AK_UML AK_USH AK_USL AK_UEH AK_UEL AH_D113 AH_D112 AH_D111 AH_D116 AH_D115 AH_D114 AG_D106 AG_D105 AJ_D083 AJ_D082 AJ_D081 AJ_D086 AJ_D085 AJ_D084 75V 75V 75V 75V AB_BD75 AB_BD74 AB_BD76 AA_BD84 AA_BD85 AA_BD86 AC_BD66 AC_BD61 AC_BD63 AC_BD64 AC_BD65 AC_BD62 AD_BD51 AD_BD52 AD_BD53 AD_BD54 AD_BD55 AD_BD56 AF_NCLKL AF_CLKL AE_LE6 AE_PCL AE_LE6 AE_PCL AF_CEL AE_PCL AE_LE5 AE_PCL AE_LE5 AD_BD51 AA_BD81 AA_BD83 AA_BD82 AB_BD72 AB_BD71 AC_BD62 AB_BD73 AC_BD61 AC_BD63 AH_D116 AH_D115 AH_D114 AH_D112 AH_D111 AH_D113 AG_D102 AG_D101 AG_D104 AG_D103 AG_D106 AG_D105 AI_D092 AI_D091 AI_D093 AI_D095 AI_D096 AI_D094 AJ_D082 AJ_D081 AJ_D084 AJ_D083 AJ_D086 AJ_D085 AF_CEL AF_NCLKL AF_CLKL AD_BD52 AD_BD53 75V AK_URL AK_USL AK_UMH AK_UML AK_USH AK_UEH AK_UEL AK_URH AK_URH AK_URL 5V AG_D104 75V R7396 47 R7331 22 R7390 47 C21 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C7353 50V 100p J0JJC0000011 L7310 R7312 22 R7407 0 R7330 22 IC7307 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C7313 100V 0.1u R7379 47 R7406 0 R7315 22 J0JJC0000011 L7309 R7332 22 C7321 6.3V 10u R7362 47 R7306 220k R7378 47 IC7301 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7427 120 R7316 22 C7322 6.3V 10u R7413 47 R7374 47 C7303 16V 1u R7311 22 DL7307 ELKE103FA 1 2 3 R7363 47 C7307 100V 0.1u CA5 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 R7376 47 C7354 50V 100p R7308 0 R7410 47 C7341 100V 0.1u C7312 100V 0.1u R7358 47 R7389 120 R7417 0 R7348 100k R7364 47 R7359 47 R7347 22k R7380 47 C7301 16V 1u IC7306 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C7311 100V 0.1u R7375 47 C22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7397 47 DL7308 ELKE103FA 1 2 3 R7395 47 R7391 47 R7307 0 IC7305 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 CA6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 R7361 47 R7424 120 C7351 16V 1u R7412 47 R7392 47 C32 1 2 3 4 5 6 7 8 9 10 11 12 R7394 47 C7302 6.3V 10u R7360 47 C7314 100V 0.1u R7365 47 C7310 50V 100p C7304 16V1u R7377 47 R7309 0 C7323 6.3V 10u R7393 47 R7381 47 R7411 47 R7423 120 C7339 100V 0.1u C7352 16V 1u R7333 22 C7350 16V 1u (SN74ACT244PWR) (SN74ACT244PWR) 2A1 2A2 2A3 2A4 1Y4 1Y3 1Y2 1Y1 ^2OE 2Y2 2Y3 GND 1A4 1A3 1A2 2Y4 1A1 VCC 1OE 2Y1 (SN74ACT244PWR) 2A1 2A2 2A3 2A4 1Y4 1Y3 1Y2 1Y1 ^2OE 2Y2 2Y3 GND 1A4 1A3 1A2 2Y4 1A1 VCC 1OE 2Y1 (SN74ACT244PWR) 2A1 2A2 2A3 2A4 1Y4 1Y3 1Y2 1Y1 ^2OE 2Y2 2Y3 GND 1A4 1A3 1A2 2Y4 1A1 VCC 1OE 2Y1 5V DET Vda75V Vda75V Vda75V Vda75V 5V Vda75V Vda75V 2Y1 1OE VCC 1A1 2Y4 1A2 1A3 1A4 GND 2Y3 2Y2 2OE 1Y1 1Y2 1Y3 1Y4 2A4 2A3 2A2 2A1 5V NC NC NC GND GND GND GND GND NC NC NC NC NC NC NC GND 5V DRVRST CLK4L GND GND GND GND GND GND GND GND GND GND CLK3L GND GND GND GND D7-6 D9-6 D9-5 D7-5 D9-4 D7-4 D9-3 D7-3 D9-2 D7-2 D7-1 D9-1 D8-6 D6-6 D10-6 D8-5 D6-5 D10-5 D10-4 D8-4 D6-4 D6-3 D8-3 D10-3 D10-2 D8-2 D6-2 D8-1 D10-1 D6-1 D11-6 D11-5 D11-4 D11-3 D11-2 D11-1 CEL GND PCL BLKL HZ DSLL DSHL DMLL DMHL UEL USL UEH UML USH URH UBK URL UMH GND 5V 5V 5V 5V CLKL NCLKL SOS UEL UEH 5V URH USL USH SOS URL GND UMH UML Vda75V A 5 6 D E 1 C 8 7 B 2 4 3 C2-BOARD TNPA3060 (1/2) BUFFER BUFFER BUFFER CLOCK D-BOARD (D32) TO TO DRIVER DATA TO DRIVER DATA (C12) C1-BOARD TO SS-BOARD (SS32) TO 1 2 3 4 5 6 7 8 (TH-42PX25U/P) 75.0 0 0 0 0 0 0 0 0 0 0 0 75.0 0 75.0 75.0 0 0 0 0 5.0 3.1 3.7 0.6 0.3 0.5 0.3 75.0 0 0 0 0 TH-42PX25U/P C2-Board (1 of 2) Schematic Diagram TH-42PX25U/P C2-Board (1 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 167 15.71. C2-Board (2 of 2) Schematic Diagram (TH-42PX25U/P) TERM SIDE TERM SIDE AE_CLK11 AE_CLK21 AE_PCL AE_CLK11 AE_CLK21 AE_PCL 75V AE_LE8 AA_BD82 AA_BD83 AA_BD84 AE_PCL AA_BD85 AE_LE8 AA_BD81 75V AE_PCL AA_BD86 75V 75V AB_BD72 AB_BD73 AB_BD74 AB_BD75 AB_BD71 AB_BD76 AE_LE7 AE_PCL AE_LE7 AE_PCL C7315 100V 0.1u R7334 22 CA7 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 C7356 50V 100p C7306 16V 1u C7343 100V 0.1u C7318 100V 0.1u R7320 22 CA8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 R7400 220 R7428 220 C7355 50V 100p J0JJC0000011 L7312 C7345 100V 0.1u R7327 1k C7317 100V 0.1u R7401 220 C7316 100V 0.1u R7336 22 R7404 220 R7335 22 J0JJC0000011 L7311 C7305 16V 1u R7337 22 R7324 22 R7323 22 R7319 22 5V 5V 15 12 8 14 9 13 10 11 C2-BOARD TNPA3060 (2/2) TO DRIVER DATA TO DRIVER DATA 2 1 7 8 3 4 6 5 (TH-42PX25U/P) TH-42PX25U/P C2-Board (2 of 2) Schematic Diagram TH-42PX25U/P C2-Board (2 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 168 15.72. C3-Board (1 of 2) Schematic Diagram (TH-42PX25U/P) SIDE TERM TERM SIDE TERM SIDE TERM SIDE AJ_PCL AJ_CLK12 AJ_CLK22 AJ_PCL AJ_CLK12 AJ_CLK22 AJ_CLK22 AJ_CLK12 AJ_PCL AE_PCL AJ_LE8 AJ_LE7 AJ_LE6 AJ_LE5 AC_BD54 AC_BD56 AC_BD55 AF_D201 AF_D202 AF_D203 AD_BD64 AD_BD66 AD_BD65 AB_BD85 AB_BD86 AB_BD84 AA_BD76 AA_BD75 AA_BD74 AH_D213 AH_D212 AK_OPT AK_KEY_SW AK_REMOCON AI_D222 AH_D212 AH_D216 AH_D214 AI_D224 AI_D226 AE_CEL AE_CLKL AH_D211 AH_D213 AH_D215 AI_D221 AI_D223 AI_D225 AE_NCLKL AG_D192 AG_D194 AG_D196 AF_D206 AF_D204 AF_D202 AG_D193 AG_D195 AF_D205 AF_D203 AF_D201 AG_D191 AG_D193 AG_D192 AG_D191 AG_D196 AG_D195 AG_D194 AF_D206 AF_D205 AF_D204 AH_D216 AH_D215 AH_D211 AI_D223 AI_D222 AI_D221 AH_D214 AI_D226 AI_D225 AI_D224 75V 75V 75V 75V 75V 75V AK_KEY_SW AK_REMOCON AK_OPT AC_BD51 AC_BD53 AC_BD54 AC_BD56 AC_BD52 AC_BD55 AD_BD61 AD_BD62 AD_BD65 AD_BD63 AD_BD64 AD_BD66 AE_NCLKL AE_CLKL AJ_LE5 AJ_PCL AJ_LE5 AJ_PCL AJ_LE6 AJ_PCL AJ_LE6 AJ_PCL 75V AD_BD61 AD_BD62 AC_BD53 AC_BD52 AC_BD51 AA_BD71 AB_BD81 AB_BD83 AB_BD82 AA_BD72 AA_BD73 AD_BD63 AE_CEL 75V 5V AE_PCL 5V R7608 47 IC7506 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 J0JJC0000011 L7513 R7579 47 R7590 47 C33 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7614 0 C7550 16V 1u C7572 6.3V 10u R7609 47 R7593 47 R7561 47 C7551 16V 1u R7565 47 R7615 0 C7574 6.3V 10u R7591 47 R7559 47 R7606 47 R7595 47 R7532 22 D7503 MA3X152K0L R7578 47 R7558 47 CB6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 R7576 47 R7624 120 R7506 220k C7504 16V 1u R7542 10k R7507 0 IC7507 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7541 10k D7504 MA3X152K0L R7564 47 R7516 22 D7501 MA3X152K0L R7577 47 R7563 47 C31 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R7511 22 R7581 47 C7510 16V 1u R7574 47 R7547 22k R7612 0 IC7505 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C7541 100V 0.1u C7514 100V 0.1u C42 1 2 3 4 R7575 47 DL7508 ELKE103FA 1 2 3 Q7562 2SB0709A0L C7575 50V 100p R7594 47 R7543 10k R7626 120 Q7561 2SB0709A0L J0JJC0000011 L7512 R7544 10k IC7501 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C7502 6.3V 10u R7548 100k DL7507 ELKE103FA 1 2 3 R7589 120 R7596 47 C7511 100V 0.1u R7512 22 D7502 MA3X152K0L R7622 120 C7503 16V 1u CB5 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 C44 1 2 3 4 5 6 7 8 C7552 16V 1u R7560 47 C7573 6.3V 10u C7512 100V 0.1u R7533 22 R7562 47 C7501 16V 1u R7530 22 R7508 0 C7539 100V 0.1u C7554 50V 100p R7597 47 R7510 0 R7592 47 R7607 47 R7580 47 R7531 22 C7553 50V 100p R7515 22 C7507 100V 0.1u C7513 100V 0.1u (SN74ACT244PWR) Vda 75V Vda 75V (SN74ACT244PWR) 2A1 2A2 2A3 2A4 1Y4 1Y3 1Y2 1Y1 ^2OE 2Y2 2Y3 GND 1A4 1A3 1A2 2Y4 1A1 VCC 1OE 2Y1 (SN74ACT244PWR) 2A1 2A2 2A3 2A4 1Y4 1Y3 1Y2 1Y1 ^2OE 2Y2 2Y3 GND 1A4 1A3 1A2 2Y4 1A1 VCC 1OE 2Y1 (SN74ACT244PWR) 2A1 2A2 2A3 2A4 1Y4 1Y3 1Y2 1Y1 ^2OE 2Y2 2Y3 GND 1A4 1A3 1A2 2Y4 1A1 VCC 1OE 2Y1 5V DET NC 5V 5V DRVRST OPT OPT NC NC NC NC Vda75V Vda75V Vda75V Vda75V NC NC NC NC NC NC GND GND GND GND GND GND 2Y1 1OE VCC 1A1 2Y4 1A2 1A3 1A4 GND 2Y3 2Y2 2OE 1Y1 1Y2 1Y3 1Y4 2A4 2A3 2A2 2A1 GND 5V 5V GND 5V 5V REMOCON STB5V GND LED_G LED_R KEY_SW GND DMHL DMLL GND HZ NCLKL BLKL PCL CLKL GND CEL D22-6 D22-5 D22-4 D22-3 D22-1 GND GND D22-2 GND GND DSHL DSLL D21-6 D21-5 CLK3L CLK4L GND GND D19-2 D19-1 D18-3 D18-6 D18-5 GND GND GND GND D21-2 D21-1 D21-4 D21-3 D20-2 D20-1 D20-3 D20-6 D20-5 D20-4 D19-4 D19-3 D19-6 D19-5 D18-4 GND GND GND SOS D18-2 D18-1 D17-2 D17-1 D17-4 D17-3 D17-6 D17-5 STB5V LED_G LED_R KEY_SW REMOCON GND GND Vda 75V Vda 75V A 5 6 D E C 8 3 B 7 1 4 2 TO (D33) D-BOARD TO (K24) K-BOARD TO (C43) C4-BOARD TO (SS42) SS-BOARD DRIVER DATA TO DRIVER DATA TO 6 5 4 1 2 3 C3-BOARD TNPA3061 (1/2) CLOCK BUFFER BUFFER BUFFER BUFFER (TH-42PX25U/P) 0 0 0 75.0 0 0 0 0 0 0 0 0 0 75.0 0 0 75.0 75.0 0 0 TH-42PX25U/P C3-Board (1 of 2) Schematic Diagram TH-42PX25U/P C3-Board (1 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 169 15.73. C3-Board (2 of 2) Schematic Diagram (TH-42PX25U/P) TERM SIDE TERM SIDE AJ_CLK12 AJ_CLK22 AJ_PCL AJ_PCL AJ_CLK12 AJ_CLK22 75V 75V 75V 75V 75V 75V AA_BD75 AA_BD72 AA_BD76 AA_BD71 AA_BD73 AA_BD74 AB_BD85 AB_BD86 AB_BD81 AB_BD84 AB_BD82 AB_BD83 AJ_LE7 AJ_PCL AJ_LE7 AJ_PCL AJ_LE8 AJ_PCL AJ_LE8 AJ_PCL R7523 22 C7506 16V 1u R7536 22 C7516 100V 0.1u R7520 22 R7537 22 R7519 22 C7555 50V 100p R7604 220 R7524 22 R7534 22 R7535 22 C7505 16V 1u R7628 220 C7515 100V 0.1u C7545 100V 0.1u J0JJC0000011 L7514 C7517 100V 0.1u C7518 100V 0.1u C7543 100V 0.1u CB7 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 R7600 220 R7601 220 R7527 1k J0JJC0000011 L7515 C7556 50V 100p CB8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 5V 5V Vda 75V Vda 75V 12 10 13 15 11 14 9 8 TO DRIVER DATA DRIVER DATA TO 5 4 6 1 2 3 C3-BOARD TNPA3061 (2/2) (TH-42PX25U/P) TH-42PX25U/P C3-Board (2 of 2) Schematic Diagram TH-42PX25U/P C3-Board (2 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 170 15.74. C4-Board (1 of 2) Schematic Diagram (TH-42PX25U/P) TERM SIDE TERM SIDE AB_PCR AB_CLK12 AB_CLK22 AB_CLK12 AB_CLK22 AB_PCR 75V AB_LE1 AF_BD11 AF_BD14 AB_PCR AF_BD15 AB_LE1 AF_BD12 75V AB_PCR AF_BD16 AF_BD13 75V AB_LE2 AE_BD21 AE_BD24 AB_PCR AB_LE2 AE_BD22 75V AB_PCR AE_BD26 AE_BD25 AE_BD23 75V 75V R7768 220 CB2 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 CB1 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 R7705 1k C7703 16V 1u R7732 22 R7733 22 R7766 220 R7711 22 J0JJC0000011 L7708 C7739 100V 0.1u C7712 100V 0.1u C7775 50V 100p C7714 100V 0.1u R7716 22 C7713 100V 0.1u C7711 100V 0.1u C7704 16V 1u C7741 100V 0.1u R7715 22 R7712 22 J0JJC0000011 L7709 R7730 22 R7812 220 R7810 220 R7731 22 C7776 50V 100p 5V 5V 3 1 8 A 6 2 5 E D 4 C B 7 C4-BOARD TNPA3062 (1/2) DATA TO DRIVER DATA TO DRIVER 5 6 4 2 3 1 8 7 (TH-42PX25U/P) TH-42PX25U/P C4-Board (1 of 2) Schematic Diagram TH-42PX25U/P C4-Board (1 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 171 15.75. C4-Board (2 of 2) Schematic Diagram (TH-42PX25U/P) TERM SIDE TERM SIDE SIDE TERM TERM SIDE AB_CLK12 AB_CLK22 AB_PCR AB_CLK12 AB_CLK22 AB_CLK12 AB_PCR AB_LE3 AB_LE4 AB_LE1 AB_LE2 AC_PCR AH_D163 AH_D162 AH_D161 AH_D153 AH_D166 AH_D165 AH_D164 AH_D156 AI_D152 AI_D151 AI_D143 AI_D142 AI_D155 AI_D154 AI_D146 AI_D145 AG_D141 AG_D133 AG_D132 AG_D131 AG_D144 AG_D136 AG_D135 AG_D134 75V 75V 75V 75V 75V 75V 75V AE_BD26 AE_BD25 AD_BD36 AA_BD44 AD_BD34 AD_BD35 AA_BD45 AA_BD46 AF_BD16 AF_BD15 AF_BD14 AE_BD24 AG_D132 AG_D131 AG_D134 AG_D133 AG_D136 AG_D135 AG_D141 AG_D144 AI_D142 AI_D143 AI_D145 AI_D151 AI_D152 AI_D154 AI_D155 AI_D146 AC_CLKR AC_NCLKR AC_CER AH_D165 AH_D166 AH_D163 AH_D164 AH_D161 AH_D162 AH_D153 AH_D156 AF_BD13 AF_BD12 AF_BD11 AE_BD23 AE_BD22 AE_BD21 AD_BD32 AD_BD31 AD_BD33 AA_BD41 AA_BD42 AA_BD43 AC_CER AD_BD34 AD_BD31 AD_BD32 AD_BD33 AD_BD35 AD_BD36 AA_BD42 AA_BD45 AA_BD41 AA_BD43 AA_BD44 AA_BD46 AC_NCLKR AC_CLKR AB_PCR AB_LE3 AB_LE3 AB_PCR AB_LE4 AB_PCR AB_LE4 AB_CLK22 AB_PCR AB_PCR 75V R7794 47 IC7707 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C7707 100V 0.1u R7826 47 IC7705 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C7752 16V 1u C7705 16V 1u R7719 22 R7707 0 C7701 16V1u C7779 50V 100p C7743 100V 0.1u R7724 22 R7737 22 R7772 120 J0JJC0000011 L7710 R7706 220k R7778 47 R7710 0 R7781 47 R7824 47 R7770 120 C41 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C7772 6.3V 10u R7821 120 R7761 47 C7702 6.3V 10u CB3 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 R7799 0 R7748 100k R7795 47 C7774 6.3V 10u IC7701 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7759 47 R7823 47 R7708 0 R7723 22 C43 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C7751 16V 1u R7734 22 R7825 47 R7818 120 R7762 47 R7791 47 C7715 100V 0.1u R7801 0 C7717 100V 0.1u R7793 47 R7720 22 R7779 47 R7775 47 C7773 6.3V 10u C7718 100V 0.1u CB4 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 J0JJC0000011 L7711 C7750 16V 1u R7765 47 R7797 47 R7777 47 C7716 100V 0.1u DL7707 ELKE103FA 1 2 3 R7764 47 R7763 47 R7796 47 R7747 22k R7776 47 R7803 0 R7758 47 C7706 16V 1u C7745 100V 0.1u R7790 47 R7792 47 C7777 50V 100p C7778 50V 100p R7774 47 R7735 22 R7780 47 IC7706 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7736 22 R7760 47 Vda75V Vda75V Vda75V Vda75V (SN74ACT244PWR) (SN74ACT244PWR) 2A1 2A2 2A3 2A4 1Y4 1Y3 1Y2 1Y1 ^2OE 2Y2 2Y3 GND 1A4 1A3 1A2 2Y4 1A1 VCC 1OE 2Y1 (SN74ACT244PWR) 2A1 2A2 2A3 2A4 1Y4 1Y3 1Y2 1Y1 ^2OE 2Y2 2Y3 GND 1A4 1A3 1A2 2Y4 1A1 VCC 1OE 2Y1 (SN74ACT244PWR) 2A1 2A2 2A3 2A4 1Y4 1Y3 1Y2 1Y1 ^2OE 2Y2 2Y3 GND 1A4 1A3 1A2 2Y4 1A1 VCC 1OE 2Y1 5V DET 5V 5V 5V DRVRST NC NC NC NC NC NC NC NC NC NC GND GND GND GND GND GND 2Y1 1OE VCC 1A1 2Y4 1A2 1A3 1A4 GND 2Y3 2Y2 2OE 1Y1 1Y2 1Y3 1Y4 2A4 2A3 2A2 2A1 D16-2 D16-6 D16-5 D16-4 D16-3 D16-1 CLK4R CLK3R GND SOS D12-6 D13-6 D14-6 D13-5 D14-5 D14-4 D12-4 D13-4 D13-3 D14-3 D12-2 D14-2 D13-2 D14-1 D13-1 GND GND GND GND GND GND NCLKR CLKR GND GND HZ BLKR PCR CER D15-6 D15-5 D15-4 D15-3 D15-2 D15-1 GND GND GND GND GND NC NC GND NC NC GND DMHR DMLR DSHR DSLR GND GND GND GND GND GND GND GND GND GND GND 5V 5V 5V 5V 10 11 12 15 8 9 13 14 C4-BOARD TNPA3062 (2/2) (C33) C3-BOARD TO D-BOARD TO (D34) DATA TO DRIVER DATA TO DRIVER CLOCK BUFFER BUFFER BUFFER 4 2 3 1 7 5 6 8 (TH-42PX25U/P) TH-42PX25U/P C4-Board (2 of 2) Schematic Diagram TH-42PX25U/P C4-Board (2 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 172 15.76. C1, C2, C5, and C6-Board Block Diagram (TH-50PX25U/P) CA2 D3 17 19 CLK C11 20 D2 CA3 CLK CA1 CLK 18 D1 CLK CA4 D4 C10 12 14 11 13 B30 B29 A29 A30 A1 3 1 2 4 6 C12 TO SC12 1 2 Vda75V 5 C13 TO SC13 4 78V_L C1 C6 Board (Rear View) Board (Rear View) Data drive (Upper Left) Data drive (Lower Left) TO SC62 CLK 5 18 D15 CLK CB1 D12 12 CB4 78V CLK C61 20 D13 D14 11 17 13 19 C62 14 CB2 CLK 6 CB3 C60 B12 C20 B11 A11 2 9 7 A12 B40 4 1 C22 3 8 10 B29 A30 A29 C24 A1 B30 CA5 D5 CLKR C25 CA6 CLKL D6 CLKL CA7 D7 13 78V_R UMH B6 DMHL D11 B7 A9 A10 URL A7 DMLL CLKL USL 11 A4 UML 78V_R A40 UEL URH B5 B37 78V_R C21 B4 14 D8 Vda75V DSLL C23 B10 78V_R A8 A6 D9 DSHL 19 Vda75V SOS2 B9 20 USH 18 12 D10 Vda75V Vda75V 17 UEH SOS3 B31 B34 B37 A36 A35 A34 B32 A1 A37 A31 B33 B35 A32 TO C31 Vda75V SOS D3 D1 D2 D4 CLKR DSHR DMLR DMHR Vda75V 78V_L Vda75V 78V_L Vda75V 78V_L DSLR 78V_L D12 C54 D13 CLKR D22 CLK C55 CB7 D18 CLK D21 D19 D20 D16 CB6 CB5 CLK D16 CLKL D18 D17 D17 D15 D14 9 D15 3 C50 C52 D12 10 CLKR D14 D13 4 8 1 2 7 7 2 78V_R D22 LED_G 78V_R Vda75V REMOCON 3 LED_R D20 D21 B37 4 Vda75V A36 A37 A7 8 Vda75V 1 OPT Vda75V D19 78V_R C51 78V_R 10 CLKL 9 C53 78V_L Vda75V Vda75V Vda75V 78V_L Vda75V 78V_L 78V_L TO C41 C5 (Lower Center) Data drive Data drive C2 (Upper Center) TO D31 TO D34 TO D32 TO D33 OPT LED_G RMCN LED_R A4 B4 B5 B7 TO C33 TO C43 DSLR DMLR DMHR Vda75V DSHR DSLR SOS2 DSHR DMLR DMHR D4 D3 D1 D2 CLKR D5 CLKL D6 D7 D11 D10 D8 D9 URL DMLL USL UML UEL URH UMH DMHL UEH SOS3 DSLL DSHL USH IC7104 BUFFER IC7105 BUFFER IC7106 BUFFER IC7103 BUFFER CLOCK IC7102 BUFFER IC7203 CLOCK IC7201 BUFFER IC7204 IC7205 BUFFER BUFFER IC7503 CLOCK IC7502 IC7504 BUFFER IC7505 BUFFER CLOCK BUFFER BUFFER IC7606 IC7604 BUFFER IC7603 IC7605 BUFFER IC7602 TH-50PX25U/P C1,C2,C5 and C6-Board Block Diagram TH-50PX25U/P C1,C2,C5 and C6-Board Block Diagram Board Board TH-42PX25U-P / TH-50PX25U-P 173 15.77. C3, C4, K and S-Board Block Diagram (TH-50PX25U/P) Data drive (Upper Right) C3 Board (Rear View) TO SS35 CLK 4 A36 3 D11 CLK CA8 D8 A35 B34 B33 9 2 CA11 78V_R CLK C33 1 D9 D10 10 4 8 B31 B37 B35 2 A37 A4 C35 A31 A32 B32 7 A1 CA9 CLK 5 CA10 A34 C31 1 Vda75V 15 2 USH UEL UMH URL UML SOS2 UEH 4 USL URH DSHL 6 5 10 3 9 14 16 SOS3 17 8 DSLL DMHL DMLL 19 7 C32 TO SS32 12 Vda75V LED_R REMOCON LED_G OPT 9 TO C51 CB8 D19 3 C41 D22 CLK CB11 CLK C43 D19 CB10 D22 CLK CLK Data drive (Lower Right) D21 CB9 10 CLKL D20 D21 4 8 1 D20 2 Board (Rear View) C4 7 TO SS42 78V_R 5 1 Vda75V 2 C42 4 C44 2 6 3 7 A4 B5 B4 B34 Q7401 Q7402 LED_G LED_R OPT REMOCON D10 78V_R D9 78V_R Vda75V 78V_R CLKL D8 Vda75V Vda75V 78V_R TO C21 Vda75V D11 TO C23 TO C53 7 STBY5V Remocon Senser K ON-LED(LED-G) K12 TO 6 REMOCON SENSOR K24 2 3 2 Q305 3 DG12 STB-LED(LED-R) IC300 Q301 RM300 G R D302 VOUT VIN STBY5V CATS SENSOR Q300 5V CLOCK BUFFER BUFFER IC7305 IC7303 BUFFER IC7302 IC7304 BUFFER IC7301 BUFFER IC7402 IC7404 BUFFER IC7401 IC7403 BUFFER CLOCK BUFFER IC7405 DMHL URH DSLL UEL URL USH DSHL UMH UEH SOS2 USL SOS3 DMLL UML 78V_R Vda75V Vda75V Vda75V 78V_R Vda75V 78V_R 78V_R LED_G LED_R OPT REMOCON TH-50PX25U/P C3,C4,K and S-Board Block Diagram TH-50PX25U/P C3,C4,K and S-Board Block Diagram PUSH 1 Power Switch Board S POWER SWITCH S300 S4 TO DG12 TH-42PX25U-P / TH-50PX25U-P 174 15.78. C1-Board (1 of 2) Schematic Diagram (TH-50PX25U/P) TERM SIDE SIDE TERM TERM SIDE TERM SIDE TERM SIDE AA_BD36 LE4 AA_BD45 AA_BD12 AA_BD24 PCR_N AA_BD31 AA_BD35 AA_BD14 AA_BD44 AA_BD11 CLK11 AA_BD45 LE2 PCR_N AA_BD32 AA_BD16 LE1 AA_BD11 AA_BD15 PCR_N PCR_N AA_BD34 AA_BD23 AA_BD13 CLK12 AA_BD44 AA_BD14 AA_BD22 PCR_N AA_BD22 AA_BD42 AA_BD35 CLK21 LE2 AA_BD12 LE3 LE3 AA_BD36 AA_BD43 AA_BD33 AA_BD32 AA_BD21 LE4 AA_BD26 PCR_N AA_BD23 AA_BD46 CLK12 AA_BD41 AA_BD41 AA_BD16 PCR_N AA_BD26 AA_BD42 AA_BD31 AA_BD24 AA_BD25 PCR_N CLK11 LE1 AA_BD33 PCR_N AA_BD34 CLK22 AA_BD46 AA_BD15 AA_BD21 AA_BD43 CLK22 AA_BD25 AA_BD13 PCR_N CLK21 PCR_N PCR_N R7101 1k C7102 16V 1u 1/2W R7131 2.2 1/2W R7113 2.2 CA2 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 L7107 J0JJC0000011 R7133 100 C7125 16V 1u 1/2W R7132 2.2 C11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 L7106 J0JJC0000011 L7101 J0JJC0000011 R7117 220 C7118 100V 0.1u R7107 220 D7106 B0HCMM000009 C7113 50V 100p R7116 220 L7102 J0JJC0000011 1/2W R7128 2.2 L7103 J0JJC0000011 CA4 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 D7101 B0HCMM000009 D7105 B0HCMM000009 C7126 16V 1u CA1 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 C7114 50V 100p C7101 16V 1u C7110 100V 0.1u L7104 J0JJC0000011 CA3 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 1/2W R7115 2.2 D7102 B0HCMM000009 D7104 B0HCMM000009 D7103 B0HCMM000009 R7134 100 C7117 100V 0.1u L7108 J0JJC0000011 C13 1 2 3 4 5 6 7 8 1/2W R7127 2.2 C7107 100V 0.1u C7108 100V 0.1u R7123 100 L7105 J0JJC0000011 C7111 50V 100p 1/2W R7111 2.2 R7124 100 D7107 B0HCMM000009 R7104 220 C7112 50V 100p D7108 B0HCMM000009 C7109 100V 0.1u C7115 100V 0.1u 1/2W R7109 2.2 C7116 100V 0.1u GND Vda 75V Vda 75V GND GND GND 78V_L Vda 75V NC 78V_L 78V_L 78V_L 5V Vda 75V 5V 78V_L 5V Vda 75V 78V_L GND 5V GND NC NC 15V GND NC Vda 75V GND NC NC NC 1 8 7 A 5 6 D E C 4 B 2 3 5 6 4 2 3 1 C1-BOARD TNPA2903 (1/2) (TH-50PX25U/P) 0 0 0 0 0 0 75.0 0 0 0 0 75.0 75.0 75.0 78.0 78.0 78.0 78.0 0 0 TO (C22) C2-BOARD TO (SC13) SC-BOARD 0 0 78.0 78.0 75.0 75.0 0 0 TH-50PX25U/P C1-Board (1 of 2) Schematic Diagram TH-50PX25U/P C1-Board (1 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 175 15.79. C1-Board (2 of 2) Schematic Diagram (TH-50PX25U/P) TERM SIDE AA_BD12 DSHR DSHR AA_D031 AA_D022 AA_BD43 AA_BD16 AA_BD11 AA_BD15 AA_D015 AA_D044 AA_D045 DSLR AA_D043 DMHR AA_BD31 AA_BD32 LE1 AA_BD36 CLKR NCLKR CLK11 AA_BD35 AA_D016 AA_D026 AA_D025 AA_D013 AA_BD14 AA_D014 AA_D036 AA_D011 AA_D033 LE4 AA_BD42 AA_D021 AA_BD22 AA_D046 AA_BD24 AA_BD46 CLK21 AA_BD41 CLK22 AA_D012 AA_BD25 AA_BD45 AA_D024 AA_BD23 AA_D022 LE2 LE3 AA_BD13 DMLR AA_D041 AA_D034 AA_BD44 AA_BD34 AA_D023 AA_BD26 CLK12 AA_D042 CER AA_D035 AA_D032 AA_D032 AA_BD33 AA_BD21 PCR AA_D012 PCR_N DMLR DMHR DSLR CER NCLKR CLKR AA_D043 AA_D042 AA_D046 AA_D045 AA_D044 AA_D041 AA_D033 AA_D031 AA_D036 AA_D035 AA_D034 AA_D011 AA_D023 AA_D021 AA_D026 AA_D025 AA_D024 AA_D016 AA_D015 AA_D014 AA_D013 IC7104 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R7184 0 R7161 47 R7152 47 C7140 50V 100p R7168 47 C12 1 2 3 4 5 6 C7137 6.3V 10u C7131 16V 1u R7171 0 R7186 22k R7174 47 R7179 0 C7138 6.3V 10u R7154 47 R7159 47 IC7105 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R7167 47 R7150 47 IC7106 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R7185 0 C7130 6.3V 10u C7136 6.3V 10u R7157 47 R7146 47 C7139 16V 1u IC7102 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R7173 47 R7175 47 IC7103 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R7163 0 C7135 6.3V 10u R7153 47 R7176 0 R7177 0 R7141 47 C10 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C7129 16V 1u C7133 16V 1u R7151 47 R7147 47 C7134 16V 1u R7160 47 R7169 47 R7138 47 R7178 0 R7187 100k R7170 47 R7155 47 R7140 47 C7132 16V 1u R7139 47 R7149 47 R7172 47 R7148 47 R7156 47 R7158 47 5V GND GND 5V SCL2 GND GND GND DMHR D2-6 GND GND D4-6 GND GND GND CLKR GND NC D5-1 D3-1 STB5V D1-1 NC D2-5 GND DRST SOS DMLR CER HZ DSHR 5V DSLR D4-1 GND D4-4 D2-1 GND D4-2 5V D2-3 D2-4 D1-5 D3-4 D3-5 D5-4 D5-5 D1-4 D3-2 D5-2 NC D2-2 NC 5V DET PCR GND GND D1-2 GND D4-3 GND SOS GND DRST GND D5-3 D1-6 D4-5 NC D3-6 D3-3 GND D5-6 D1-3 GND BLKR GND GND NCLKR GND GND SDA2 15 14 12 13 9 10 11 8 2 3 1 6 5 4 C1-BOARD TNPA2903 (2/2) BUFFER BUFFER BUFFER BUFFER CLOCK (TH-50PX25U/P) 0 4.5 0.3 0.2 0.4 0 0 0.3 5.0 0 0.6 0 0 0.3 0.2 0 0 0 0.2 0 0 0 0 0.4 0.2 0 0.6 0 0 0.2 4.8 0.4 4.8 0.5 0 2.6 4.8 0 4.8 0 5.0 3.1 0.9 0 4.1 4.8 0.8 4.8 4.1 4.8 0 0 0 0 0 0 0 0 0 0 5.0 0 0 0 0 0 0 0 3.0 0 0.6 0 0.8 0 0 0 0 0 0 0 5.0 0.4 0.2 0 0 0 0 0.4 0 0 0.3 0 0.2 0.2 0 0 0.4 0 0.2 0 1.6 1.0 0 1.8 0.6 1.5 0 0 5.0 0 5.0 0 0.5 0 0 0 1.8 0 1.8 0 0 0 0.6 0 0 0 0 0 0 0 0 0 0 0 0.8 0.5 0 0 0 0.2 0.4 0.2 0 0 0 0 5.0 0 0 0 0 0 0 0 0 0 0 0.3 0 0 0.7 0 0 0 0 0 0 0 0 0 0.6 5.0 0 0 1.1 0 0 0 0 0 0 0 0 0.3 0 0 TO (C20) C2-BOARD TO (SC12) SC-BOARD TH-50PX25U/P C1-Board (2 of 2) Schematic Diagram TH-50PX25U/P C1-Board (2 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 176 15.80. C2-Board Schematic Diagram (TH-50PX25U/P) SIDE TERM TERM SIDE SIDE TERM TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE A_HZ AB_D051 CLKR1 AA_D072 AB_D052 AA_D065 CEL AA_D051 15V AA_D064 AA_D065 LE6 AB_D054 AB_D064 AA_D076 AB_D066 AA_D075 DSHR CER AB_D064 PCR AB_D051 AB_D065 AA_D066 AB_D061 CLKL AB_D056 D022 CER AA_D061 AB_D065 BLKR AB_D062 AB_D064 CLKL2 AB_D056 AB_D051 NCLKL CLKR2 CLKL1 AB_D066 D012 AA_D063 AB_D061 CLKR AA_D076 AA_D062 LE7 AB_D053 D042 AA_D072 AB_D053 AB_D052 AA_D062 AB_D054 LE5 AA_D063 AA_D073 AB_D056 AB_D063 AA_D066 AB_D076 D032 AB_D053 AB_D065 AA_D071 AB_D055 AB_D055 AB_D066 AB_D061 AB_D052 LE5 AB_D054 AA_D053 AA_D071 AA_D056 AB_D055 AB_D062 AA_D052 AB_D075 AA_D055 AA_D061 AA_D064 NCLKR AB_D063 CLKR AB_D063 AA_D074 AA_D073 AA_D054 AB_D062 PCR DSHR DSLR DMLR DMHR A_HZ CLKR CER BLKR AA_D056 AA_D055 AA_D054 AA_D053 AA_D052 NCLKR PCR D011 D012 D013 D014 D015 D016 D021 D022 D023 D024 D025 D026 D031 D032 D033 D034 D035 D036 D041 D042 D043 D044 D045 D046 AA_D051 DMHL DSLL DSHL D082 D116 D113 D101 D102 D103 D111 D112 D091 D092 D093 D081 D083 D106 D096 AA_D075 AA_D074 DMLL CLKL NCLKL PCL B_HZ BLKL CEL D115 D114 D105 D104 D095 D094 D086 D085 D084 DMLL DSLL DMHL CLKL B_HZ DSHL NCLKL PCL D081 D082 D083 D084 D085 D086 D091 D092 D093 D094 D096 D095 D101 D102 D103 D104 D105 D106 D111 D112 D113 D114 D116 D115 CEL BLKL PCL DMLR D043 D033 D023 D013 D046 D045 D044 D041 D036 D035 D034 D031 D025 D024 D021 D016 D026 D015 D014 D011 NCLKR PCR LE5 CLKR1 CLKR2 PCR AB_D071 AB_D072 AB_D073 AB_D074 PCR CLKL2 PCL_N CLKL1 PCL_N LE6 PCL_N DSLR DMHR AB_D072 AB_D074 AB_D076 PCL_N AB_D076 CLKL2 PCL_N LE7 AB_D075 AB_D071 AB_D073 PCL_N LE7 CLKL1 AB_D074 AB_D075 AB_D071 AB_D073 AB_D072 LE6 PCL_N 75V C7212 16V 1u C23 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C7223 16V 1u R7241 0 R7245 47 R7215 0 L7202 J0JJC0000011 D7202 B0HCMM000009 D7206 B0HCMM000009 R7231 47 IC7204 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C7231 6.3V 10u R7247 47 1/2W R7266 2.2 1/2W R7227 2.2 R7251 100 R7259 47 L7205 J0JJC0000011 C7201 16V 1u IC7205 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C7222 100V 0.1u C21 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 D7204 B0HCMM000009 1/2W R7244 2.2 R7252 47 R7225 0 C22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C7206 16V 1u R7248 47 R7208 0 D7205 B0HCMM000009 R7238 100 C7215 16V 1u C7208 6.3V 10u R7269 0 C7227 50V 100p R7257 47 R7235 100 R7263 47 C7218 100V 0.1u L7201 J0JJC0000011 R7260 47 R7219 0 R7207 0 DL7201 ELKE103FA 1 2 3 1/2W R7230 2.2 C7216 6.3V 10u R7211 100 R7232 47 C7202 50V 100p C25 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C7226 100V 0.1u R7258 47 C7217 100V 0.1u DL7202 ELKE103FA 1 2 3 L7206 J0JJC0000011 C7225 6.3V 10u R7239 47 R7233 47 R7246 47 CA5 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 1/2W R7250 2.2 C7203 16V 1u R7234 47 CA6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 R7218 0 IC7203 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C7213 100V 0.1u R7206 47 L7203 J0JJC0000011 R7216 47 C7230 16V 1u C24 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 IC7201 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC 1/2W R7262 2.2 D7203 B0HCMM000009 R7253 47 D7201 B0HCMM000009 R7264 47 C7214 100V 0.1u R7240 47 R7217 47 C20 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 L7204 J0JJC0000011 R7267 100 R7256 100 C7221 50V 100p CA7 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 C7224 16V 1u CLKL DRST Vda 75V D9-2 D10-4 GND D5-1 R-UP D11-5 D5-5 GND GND D2-5 CEL NC GND D11-3 CEL GND Vda 75V D2-5 DSLL GND DMHR D11-1 DMLL GND D2-4 78V_L NC GND D11-3 78V_R D9-2 UMH D1-1 GND PCL D4-6 DSHL D3-2 GND D6-5 D10-1 NC 78V_R NC D9-4 D7-6 NC D5-1 GND GND DMLL GND GND CLKR 5V D11-5 GND DSHL D4-4 D3-1 D6-2 GND GND STB5V SDA2 HZ DRST URH GND CLK3L HZ D2-2 NCLKL GND GND UEL SCL2 DRST BLKL GND GND D2-4 D11-6 78V_L GND DMHR D10-6 SCL2 NC GND PCR DMHL D10-2 GND 78V_L GND L-UP DMHL D8-6 URH NC D9-3 D5-2 Vda 75V USH GND GND GND NC GND D1-2 NC GND NC GND D1-5 GND NCLKR GND GND UML D4-4 D10-6 NC D2-2 D9-6 D6-2 5V PCR GND UBK D4-5 D7-4 D4-3 GND GND 5V D10-2 DSHR D6-3 5V DMLR D5-3 SOS2 GND 5V DET GND SOS3 GND D9-5 UBK D3-3 GND NCLKL D10-3 78V_L D2-3 D3-2 GND D11-6 GND HZ D4-2 UMH DRST D9-1 BLKR D1-3 GND CLKR D8-3 CLK4L 5V DET GND D7-1 CLK4R D3-5 CER D9-6 GND 15V D3-1 5V DSLR 5V D8-3 GND D7-2 D4-1 5V DET GND GND D9-4 D7-4 GND D8-4 D2-1 GND NC NC NC D6-6 DRST SOS2 HZ GND 5V D6-4 GND D5-5 D3-4 D8-2 GND GND NC USL D6-1 D3-6 D8-5 USL GND D8-1 GND GND UEL 15V D8-2 GND Vda 75V GND D1-2 5V 78V_R GND D5-4 GND GND Vda 75V D2-3 GND UEH 5V NC GND GND D1-1 SOS2 GND D6-6 Vda 75V D5-4 USH NC D5-3 GND D8-6 D11-4 DSLR D1-6 GND NC D8-1 URL Vda 75V DMLR D3-5 UEH NCLKR D11-2 GND D10-5 D1-4 GND GND URL CLK4L D6-1 SOS3 5V DET D4-2 3.3V D9-1 D10-4 5V D1-3 BLKL D7-5 GND D6-4 Vda 75V PCL D4-1 D11-1 BLKR GND GND D2-6 D11-2 GND D5-6 NC D8-4 D4-6 D10-5 D2-1 5V CLK3R GND GND D1-6 UML GND D3-3 GND GND GND D7-6 GND GND GND GND GND D3-6 NC CER GND 78V_R D9-3 D7-5 D8-5 SDA2 D10-1 CLKL NC GND GND GND D3-4 D11-4 D4-3 D7-3 D1-5 D5-6 DSHR 5V GND NC D1-4 D5-2 D6-3 DSLL D10-3 5V D9-5 5V GND D2-6 D4-5 GND CLK3L 5V 5V 1 7 8 A 5 6 D E C 2 B 4 3 C2-BOARD TNPA2904 BUFFER BUFFER BUFFER CLOCK (C31) (TH-50PX25U/P) 0 0 0 5.0 0.6 0 5.0 0 0 0.5 0 0 5.0 0 0 1.8 0 0 0 0 0.3 0 0 0 0 0 0 0 0 0.8 0.5 0 0 0.3 0 0 0.7 0 0 1.1 0 0 0 0 0 0.2 0 0 0.4 0 0 0 0.6 0 5.0 0 0 1.8 0 0.2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 78.0 78.0 75.0 0 0 0 78.0 78.0 0 75.0 0 0 0 75.0 75.0 0 0 0 0 0 78.0 78.0 75.0 0 0 0 78.0 78.0 0 75.0 0 0 0 75.0 75.0 0 0 15.0 0 0 4.8 2.6 4.1 3.1 0.5 0 0 0.8 4.8 0 5.0 3.1 0.8 0 4.8 0.5 4.1 0 4.8 2.6 1.0 0 3.0 0 0.7 0 0 1.0 0 0 0 0.7 1.1 0 0 0.7 5.0 0.6 3.0 1.1 0.4 0.3 0.3 0 0.7 0.2 0 0 0.3 0 0 0.7 0.2 0.3 0.4 0 0.2 5.0 0.2 0 0 0 0.9 0 0 0 0.3 0 0.3 0.6 0 1.0 0.2 0 0.6 0 0 5.0 0.3 0 (C10) C1-BOARD TO (D31) D-BOARD TO (D32) D-BOARD TO (C33) C3-BOARD TO (C11) C1-BOARD TO 0.4 0 0 0 0.5 0.6 0 0.5 0.5 0 3.2 0.5 0 0 0.4 0.5 0 0.4 0.4 0.4 0 0 0 1.3 0.6 0 5.0 0 1.8 0 5.0 3.1 0 5.0 0 0 0 0 0 0 0 0.4 0 0 0.6 0 0 5.0 0 0.4 0.5 0 0 0 0 1.2 0 0.4 0 0.3 3.8 0.5 0.4 0.4 0 1.5 0 0 0 0 0 0 0 0.4 0 0.2 0 0.6 0 3.0 C3-BOARD TO TH-50PX25U/P C2-Board Schematic Diagram TH-50PX25U/P C2-Board Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 177 15.81. C3-Board (1 of 2) Schematic Diagram (TH-50PX25U/P) TERM SIDE DMHL AB_D082 UML NCLKL LE10 AB_D113 AA_D112 AA_D093 URL CEL CLK21 CLK11 AB_D105 AB_D103 AA_D083 AB_D093 AA_D113 USH NCLKL AB_D085 CEL UEL AA_D093 UEH DMLL URL AB_D111 DSLL AA_D082 DSHL CLK22 AA_D102 USH AB_D092 PCL AB_D101 AA_D112 AA_D113 CLKL CLK12 AB_D104 AA_D091 AB_D095 AA_D101 AA_D082 AB_D091 UMH AA_D094 AB_D083 AA_D092 AA_D092 AB_D106 AA_D102 CLKL AA_D103 AA_D114 USL AA_D104 AB_D096 URH LE9 AB_D084 AA_D103 AB_D081 AB_D114 LE11 DMLL LE8 USL AA_D111 AA_D083 AB_D086 AB_D102 AB_D112 AA_D081 AA_D084 URH UMH UML UEH UEL DSHL DSLL DMHL AA_D116 AA_D115 AA_D114 AA_D111 AA_D106 AA_D105 AA_D104 AA_D101 AA_D096 AA_D095 AA_D094 AA_D091 AA_D086 AA_D085 AA_D084 AA_D081 AA_D086 AA_D095 AA_D096 AA_D106 AA_D105 AA_D115 AA_D116 PCL PCL_N AB_D115 AB_D116 AA_D085 AB_D094 IC7301 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C7307 16V 1u R7325 47 R7347 0 R7335 47 R7341 0 R7319 47 R7321 47 R7317 47 R7303 47 R7386 100k R7333 47 R7334 47 R7304 47 R7306 47 R7387 22k R7322 47 C7302 50V 100p R7339 0 R7311 47 R7320 47 R7340 0 R7336 47 C7304 6.3V 10u R7330 47 R7305 47 R7329 0 R7302 0 C7301 16V 1u R7313 47 C7309 6.3V 10u C7308 6.3V 10u R7331 47 R7337 47 C7306 16V 1u IC7303 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C7305 16V 1u IC7304 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R7316 47 C7311 6.3V 10u R7332 47 IC7305 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C31 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R7346 0 R7324 47 C7312 6.3V 10u C7310 16V 1u C32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7312 47 R7338 0 R7323 47 R7315 47 IC7302 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C7303 16V 1u R7314 47 R7326 47 R7318 47 D9-4 GND D10-5 GND SOS3 5V GND NC GND GND USL 5V GND GND D10-3 PCL D8-4 D6-2 D7-6 GND UMH D6-3 DSHL 5V UEL D11-4 DRST DMLL UEH UML D6-6 D10-6 D9-2 HZ D11-2 NC SOS2 D6-1 D7-4 GND D9-3 GND CLKL D10-2 UBK D10-1 D9-1 USH D11-3 D8-6 GND CLK4L GND DSLL D8-2 CEL USL UEL GND UEH 5V DMHL URL URH D9-5 D8-1 GND D8-3 DRST CLK3L GND D10-4 D6-4 GND URH SOS3 NCLKL GND 5V BLKL UML SOS2 GND D11-5 GND D9-6 NC D11-1 USH URL D11-6 D8-5 UMH D7-5 1 7 8 A 5 6 D E C 2 B 4 3 4 2 5 6 3 1 C3-BOARD TNPA2905 (1/2) TO NEXT PAGE BUFFER BUFFER BUFFER BUFFER CLOCK (TH-50PX25U/P) 0.5 0.4 0.4 0.4 0.5 0 1.3 0.4 0 0 0 0 0 0 0 0 5.0 0 0.4 0.5 0 0 0 0 1.2 0.4 0 0.5 0.6 0 5.0 5.0 0 0 0 1.5 0 0 0 0.4 0 0.2 0 0 0 0 0 0 0.3 3.8 0 0 0.6 0 0 0 0 0.4 0.6 0 5.0 1.8 0.4 0.5 0 0.4 0.5 0.5 0 3.2 0 0.6 0 3.0 3.1 0 0 0 0.4 0 0.5 0.4 0.7 0 0.4 0.6 0 0.7 0 0 5.0 0.3 0.6 0 0 0 0.7 0.3 0 0 0.7 0 0.7 0 0.5 0.7 0 0.7 0 0 5.0 0.5 0.7 0 0 0 0.7 0.4 2.9 0.4 4.8 0.5 4.8 0 0.5 4.8 0 4.8 0 0 5.0 3.1 0.9 0 4.1 4.8 0.8 4.8 4.1 4.8 4.8 2.6 4.1 3.1 0.5 0 0 0.8 4.8 0 5.0 3.1 0.8 0 4.8 0.5 4.1 0 4.8 2.6 4.8 2.6 4.1 3.1 0.5 0 0 0.8 4.8 0 5.0 3.1 0.8 0 4.8 0.5 4.1 0 4.8 2.6 TO C2-BOARD (C21) TO SS-BOARD (SS32) 5.0 0 3.1 0.6 3.7 0.3 0.3 0.5 0 0 0 0 1.5 0 0.6 1.8 1.0 0 0 0 TH-50PX25U/P C3-Board (1 of 2) Schematic Diagram TH-50PX25U/P C3-Board (1 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 178 15.82. C3-Board (2 of 2) Schematic Diagram (TH-50PX25U/P) TERM SIDE TERM SIDE TERM SIDE TERM SIDE SIDE TERM AB_D114 AB_D113 AB_D112 AB_D102 AB_D092 LE11 AB_D092 PCL_N AB_D094 AB_D094 PCL_N AB_D093 AB_D116 AB_D105 AB_D104 AB_D102 CLK21 AB_D115 AB_D106 PCL_N PCL_N PCL_N AB_D103 AB_D113 AB_D116 AB_D115 LE9 AB_D101 AB_D103 AB_D096 AB_D093 LE9 CLK11 AB_D091 CLK12 AB_D095 AB_D096 CLK22 AB_D114 AB_D095 AB_D091 AB_D104 AB_D111 AB_D106 AB_D111 AB_D101 PCL_N AB_D112 LE11 PCL_N AB_D105 AB_D086 AB_D085 AB_D084 AB_D083 AB_D082 AB_D081 AB_D086 AB_D085 AB_D084 AB_D083 AB_D082 AB_D081 CLK21 PCL_N LE8 CLK11 PCL_N LE8 PCL_N CLK22 PCL_N LE10 PCL_N LE10 CLK12 C7323 50V 100p D7302 B0HCMM000009 C7331 100V 0.1u R7365 2.2 R7367 100 C7325 100V 0.1u C7340 16V 1u R7385 1k R7377 2.2 C7316 16V 1u C7339 16V 1u L7301 J0JJC0000011 C7328 100V 0.1u D7305 B0HCMM000009 C7332 100V 0.1u C7333 100V 0.1u R7373 220 L7307 J0JJC0000011 D7308 B0HCMM000009 L7304 J0JJC0000011 D7304 B0HCMM000009 D7306 B0HCMM000009 R7374 220 L7302 J0JJC0000011 CA10 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 R7360 2.2 R7384 220 D7307 B0HCMM000009 CA9 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 C7327 100V 0.1u R7366 100 CA11 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 C7329 50V 100p D7303 B0HCMM000009 C7326 50V 100p C35 1 2 3 4 5 6 7 8 CA8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 L7305 J0JJC0000011 R7381 2.2 R7354 100 C7330 50V 100p R7361 2.2 R7364 2.2 C33 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7355 100 R7378 2.2 C7334 100V 0.1u R7383 220 D7301 B0HCMM000009 L7303 J0JJC0000011 L7306 J0JJC0000011 C7315 16V 1u C7324 100V 0.1u R7382 2.2 L7308 J0JJC0000011 GND 5V GND GND NC Vda 75V NC GND 78V_R 78V_R NC GND NC GND GND 5V 78V_R 5V Vda 75V Vda 75V Vda 75V 78V_R GND Vda 75V 5V NC Vda 75V NC 78V_R 15V 78V_R NC 11 14 15 9 12 8 13 10 6 2 5 1 4 3 C3-BOARD TNPA2905 (2/2) BACK PAGE TO (TH-50PX25U/P) TO SS-BOARD (SS35) C2-BOARD (C23) TO 0 78.0 0 0 0 0 78.0 75.0 78.0 0 0 0 0 75.0 0 78.0 0 75.0 75.0 0 0 0 78.0 75.0 75.0 0 78.0 0 TH-50PX25U/P C3-Board (2 of 2) Schematic Diagram TH-50PX25U/P C3-Board (2 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 179 15.83. C4-Board (1 of 2) Schematic Diagram (TH-50PX25U/P) TERM SIDE AB_D214 PCL AA_D223 LE10 CLK21 AA_D202 CLKL AB_D215 AA_D225 OPTOPT AB_D204 CLKL AA_D214 AA_D201 REMOCON AA_D195 AA_D225 AA_D194 AA_D213 AA_D221 AB_D225 LE11 AA_D205 AB_D212 AA_D203 CEL PCL AA_D211 AA_D214 CLK11 AB_D211 AB_D194 AA_D193 AA_D224 AB_D226 AB_D223 AA_D204 AA_D205 LE9 AB_D192 CLK22 AA_D216 AB_D195 AB_D205 KEY_SW AA_D226 AB_D221 AA_D224 NCLKL AA_D222 AB_D196 AB_D206 CLK12 CEL AA_D206 AB_D222 AA_D192 AB_D191 LE8 AB_D216 AA_D191 AB_D213 AA_D204 NCLKL AB_D201 AB_D224 AA_D194 AB_D193 AA_D215 AB_D203 AB_D202 AA_D212 AA_D191 AA_D192 AA_D193 AA_D196 AA_D201 AA_D202 AA_D203 AA_D206 AA_D211 AA_D212 AA_D213 AA_D216 AA_D221 AA_D222 AA_D223 AA_D226 OPT REMOCON KEY_SW PCL_N AA_D215 AA_D196 AA_D195 R7426 47 C7406 6.3V 10u R7411 47 R7433 47 R7436 47 R7491 100k R7425 47 R7438 47 R7435 47 R7437 47 R7430 47 R7427 47 C7413 6.3V 10u C7402 16V 1u R7444 0 R7423 47 C7401 16V 1u IC7402 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R7439 47 IC7404 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R7419 47 R7440 0 C7404 16V 1u R7490 22k C7409 16V 1u D7404 MA3X152K0L R7412 47 C7408 16V 1u IC7405 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R7422 47 R7401 0 R7420 47 R7432 47 D7403 MA3X152K0L R7414 10k D7402 MA3X152K0L D7401 MA3X152K0L R7443 0 Q7401 2SB0709A0L C7415 6.3V 10u C7403 50V 100p R7404 0 C41 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C7412 6.3V 10u R7434 47 R7418 47 R7429 47 R7402 10k IC7403 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC Q7402 2SB0709A0L R7428 47 R7431 47 R7417 47 C7410 16V 1u IC7401 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C7414 6.3V 10u R7410 47 R7454 0 C7411 16V 1u R7416 47 R7421 47 R7424 47 R7441 0 R7415 10k R7413 47 R7409 10k R7442 0 C44 1 2 3 4 5 6 7 8 LED_G CLK4L GND D22-6 5V OPT NC D21-1 D22-5 D21-4 D22-4 D18-6 D20-4 BLKL D21-6 D21-3 5V D18-5 5V DET D22-3 DSHL D17-4 D19-4 D22-1 5V REMOCON D19-3 D19-6 GND GND CLKL GND GND GND D19-2 D19-5 GND GND STB5V D20-5 D22-2 CEL DSLL D21-5 SOS D21-2 DMLL 5V D20-2 GND D19-1 DMHL PCL GND DRST D17-3 CLK3L GND NC D17-5 D20-6 D20-1 GND GND D17-6 GND LED_R D20-3 GND GND KEY_SW GND NC DRST GND D17-2 HZ D17-1 GND GND NCLKL KEY_SW STB5V GND LED_R OPT LED_G REMOCON GND 1 7 8 A 5 6 D E C 2 B 4 3 4 2 5 6 3 1 C4-BOARD TNPA2906 (1/2) BUFFER BUFFER BUFFER BUFFER CLOCK (TH-50PX25U/P) TO (C51) C5-BOARD TO (K24) K-BOARD TH-50PX25U/P C4-Board (1 of 2) Schematic Diagram TH-50PX25U/P C4-Board (1 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 180 15.84. C4-Board (2 of 2) Schematic Diagram (TH-50PX25U/P) TERM SIDE TERM SIDE SIDE TERM TERM SIDE TERM SIDE LE11 AB_D211 PCL_N AB_D216 PCL_N AB_D224 AB_D196 CLK12 AB_D225 AB_D223 AB_D194 AB_D202 AB_D206 AB_D191 AB_D222 AB_D226 PCL_N AB_D214 LE9 PCL_N CLK11 AB_D201 LE8 PCL_N AB_D215 AB_D222 AB_D204 AB_D216 AB_D203 AB_D201 AB_D214 AB_D226 AB_D224 LE9 LE10 AB_D221 AB_D195 PCL_N AB_D203 AB_D213 LE8 AB_D202 LE10 LE11 AB_D225 AB_D211 PCL_N AB_D223 AB_D192 AB_D193 AB_D194 PCL_N AB_D204 AB_D221 CLK21 AB_D193 PCL_N PCL_N AB_D195 AB_D212 AB_D205 AB_D215 AB_D191 AB_D192 AB_D205 AB_D213 PCL_N AB_D212 AB_D196 CLK22 AB_D206 PCL_N CLK11 CLK21 CLK22 CLK12 C7432 100V 0.1u D7406 B0HCMM000009 R7486 2.2 C7440 16V 1u R7487 220 CB10 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 R7469 2.2 R7488 220 R7485 2.2 C7425 100V 0.1u R7461 100 C7418 16V 1u R7472 1k C7430 50V 100p D7411 B0HCMM000009 C7433 100V 0.1u C7435 100V 0.1u R7465 2.2 CB9 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 R7460 100 D7412 B0HCMM000009 R7468 2.2 C43 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 D7409 B0HCMM000009 R7477 220 C7424 100V 0.1u R7482 2.2 L7401 J0JJC0000011 L7405 J0JJC0000011 L7402 J0JJC0000011 C7441 16V 1u D7408 B0HCMM000009 C7427 100V 0.1u L7408 J0JJC0000011 R7471 100 R7478 220 D7410 B0HCMM000009 L7404 J0JJC0000011 R7470 100 CB11 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 CB8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 R7481 2.2 D7405 B0HCMM000009 C7419 16V 1u C7426 100V 0.1u L7407 J0JJC0000011 D7407 B0HCMM000009 C7434 100V 0.1u R7464 2.2 L7406 J0JJC0000011 C7428 50V 100p C7429 50V 100p L7403 J0JJC0000011 C42 1 2 3 4 5 6 7 8 C7431 50V 100p GND Vda 75V 78V_R 78V_R NC GND GND GND 5V NC 5V 5V 15V NC NC NC 78V_R GND Vda 75V GND Vda 75V 78V_R Vda 75V 5V GND GND 78V_R Vda 75V Vda 75V 78V_R NC NC 11 14 15 9 12 8 13 10 6 3 1 4 2 5 C4-BOARD TNPA2906 (2/2) (TH-50PX25U/P) TO (C53) C5-BOARD TO (SS42) SS-BOARD TH-50PX25U/P C4-Board (2 of 2) Schematic Diagram TH-50PX25U/P C4-Board (2 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 181 15.85. C5-Board Schematic Diagram (TH-50PX25U/P) TERM SIDE TERM SIDE TERM SIDE SIDE TERM SIDE TERM TERM SIDE TERM SIDE TERM SIDE TERM SIDE D134 AB_D164 AB_D172 CLKR AB_D171 AB_D186 PCR CLKL LE6 LE6 CLKR D124 AB_D186 CER AA_D173 AA_D161 AB_D166 AB_D185 AB_D164 AB_D162 AB_D175 AB_D185 PCL_N LE7 AB_D171 AB_D174 D193 LE5 AB_D162 PCR CLKR AB_D181 AB_D163 PCR D203 D192 AB_D176 CLKR1 AB_D183 LE5 AB_D161 NCLKL D144 CLKL1 DSHL AB_D174 D154 LED_G D154 CLKL1 AB_D181 BLKR AB_D161 AB_D173 B_HZ AB_D165 AB_D164 CLKL2 CEL PCR AB_D166 D144 D213 D222 REMOCON AB_D172 AA_D164 AA_D162 AB_D182 AB_D182 D212 KEY DMLR PCL_N KEY AA_D164 CLKR2 LE7 AB_D173 AB_D173 CLKL D124 AA_D175 AA_D171 AB_D175 AA_D163 AB_D185 AB_D162 AB_D175 AA_D181 AA_D182 D202 AA_D183 AA_D184 A_HZ AA_D186 A_HZ PCL_N AB_D166 CLKR1 DMLR CEL DMLL AB_D172 AB_D176 AB_D186 CER AA_D176 AB_D176 AA_D174 LE5 NCLKR NCLKR LE7 BLKL AB_D174 AB_D184 AA_D184 AB_D161 AB_D184 PCL_N AB_D165 AB_D163 AA_D174 AA_D185 AA_D172 AB_D165 D134 AB_D183 AB_D163 LED_G PCL_N CLKR2 D125 D135 D145 D155 D121 D122 D123 D126 D131 D132 D133 D136 D141 D142 D143 D146 D151 D152 D153 D156 AA_D165 AA_D161 AA_D162 AA_D163 AA_D166 PCR NCLKR DSHR DSLR DMHR CLKL2 AA_D175 AA_D171 AA_D172 AA_D173 AA_D176 AA_D185 AA_D181 AA_D182 AA_D183 AA_D186 D193 D213 D223 D191 D194 D195 D196 D201 D203 D204 D206 D205 D211 D214 D216 D215 D221 D226 D225 D224 NCLKL PCL DSLL BLKL CLKL B_HZ DSHL DMHL REMOCON CLKL2 PCR D125 D135 D145 D155 D121 D122 D123 D126 D131 D132 D133 D136 D141 D142 D143 D146 D151 D152 D153 D156 CER BLKR DMHR DSLR DSHR PCL_N LE6 CLKL1 AA_D165 AA_D166 PCL PCL_N CEL AB_D184 AB_D183 AB_D182 AB_D181 LED_R DMLL DMHL DSLL NCLKL PCL D222 D212 D202 D192 D226 D225 D224 D223 D221 D216 D215 D214 D211 D206 D205 D204 D201 D196 D195 D194 D191 LED_R C7520 50V 100p C51 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R7550 47 C7516 100V 0.1u R7506 0 R7529 47 L7502 J0JJC0000011 R7565 47 C54 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C7502 16V 1u L7504 J0JJC0000011 R7538 47 C7521 16V 1u R7525 100 DL7503 ELKE103FA 1 2 3 R7557 2.2 R7562 47 R7520 0 R7541 2.2 C7529 16V 1u R7514 2.2 D7506 B0HCMM000009 C55 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 D7505 B0HCMM000009 R7552 47 R7554 47 R7544 0 R7522 100 R7569 0 R7555 47 C53 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 D7503 B0HCMM000009 IC7504 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R7549 100 R7536 47 R7537 47 R7526 0 R7553 47 IC7505 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C7522 50V 100p R7551 47 L7503 J0JJC0000011 L7501 J0JJC0000011 R7528 47 R7504 0 DL7502 ELKE103FA 1 2 3 C7519 6.3V 10u C52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C7511 16V 1u R7545 47 R7559 2.2 C7507 100V 0.1u R7546 47 C7524 100V 0.1u R7566 47 R7560 47 R7561 47 L7506 J0JJC0000011 D7502 B0HCMM000009 R7517 2.2 R7564 100 L7505 J0JJC0000011 R7521 0 R7539 47 C7512 16V 1u IC7502 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C7527 6.3V 10u C7517 100V 0.1u CB5 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 R7503 100 C7523 100V 0.1u R7535 2.2 R7527 0 IC7503 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C7501 50V 100p C7518 16V 1u CB7 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 D7501 B0HCMM000009 R7543 100 C7513 6.3V 10u C50 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 D7504 B0HCMM000009 CB6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 DL7501 ELKE103FA 1 2 3 R7519 47 R7563 47 C7525 16V 1u C7530 6.3V 10u C7506 100V 0.1u GND 5V DMHR GND KEY_SW D22-3 HZ GND REMOCON GND D12-5 D12-4 GND GND DSHL GND GND GND SOS DSHR GND STB5V D22-1 GND GND GND GND 5V D21-6 HZ D19-6 GND GND GND GND DRST GND Vda 75V 78V_L D21-5 GND GND D15-1 GND D20-2 78V_L GND D21-3 GND SOS NC DMLL D19-5 D21-3 D13-6 CLKR D20-1 D19-3 D13-3 78V_L GND D18-1 GND GND NC D17-1 D13-1 D19-2 D21-6 GND NC CLK3L NCLKL Vda 75V D14-3 D17-2 D13-5 D17-4 GND OPT BLKL GND D14-5 5V D17-3 GND 5V D21-4 D19-1 78V_R GND D18-2 PCL GND DSLR D12-6 D21-1 5V D17-6 D20-3 D15-4 CLK3R NC D17-4 D12-1 Vda 75V 78V_L GND GND 5V CLKL 5V D12-6 LED_G 5V NC 5V GND D17-5 BLKR 5V NC DSLR D19-2 CER D13-1 D17-3 GND GND OPT D20-6 D15-6 NC DMLR 78V_R D19-5 D21-2 NCLKL NC D16-4 PCR DMLL D22-2 GND CLK4R GND GND GND 78V_R SOS DSLL 5V DET D14-6 PCR GND DMHR D21-1 D13-3 NC D13-6 NCLKR LED_R DRST GND CER BLKR SOS D13-5 GND BLKL 5V D15-1 NC GND Vda 75V GND CLK3L D19-4 GND NC DMLR D17-2 D22-2 D16-2 GND NC HZ 5V DET CEL GND GND PCL 5V GND GND GND D20-5 D16-5 NC GND GND GND DSHR CLKL D14-1 GND GND DRST NC GND D20-5 GND D12-1 5V GND CLK4R D13-2 CEL DSHR 5V DET NC GND GND D17-6 D14-1 D22-6 D20-4 GND 15V D16-1 78V_R D12-2 STB5V GND GND D14-2 GND NC D14-2 D21-5 5V DET GND D15-3 D22-5 D13-4 GND OPT 5V D15-2 D17-5 15V D20-3 D18-6 GND GND GND D15-4 CLK4L GND NC GND D12-4 DMHL GND D22-4 D15-2 GND D14-4 DSHL D13-2 D22-3 GND NC D22-1 NC GND LED_G D16-6 D14-5 D17-1 D14-6 D13-4 DRST DSLL GND LED_R GND D20-1 D19-4 KEY_SW GND NC CLKR GND GND D19-1 GND D12-2 GND DMHL NC DRST GND D12-5 5V 5V D16-1 D19-3 GND GND D16-3 D21-2 GND D15-6 GND GND GND D12-3 D20-6 Vda 75V D18-4 D15-5 DMHL D14-3 D22-6 5V DSHL GND GND D20-2 NCLKR CLK4L Vda 75V D14-4 D18-3 D22-5 CLK3R GND D16-3 D16-2 REMOCON 5V GND D15-5 D18-6 D20-4 GND Vda 75V GND GND GND D19-6 GND D22-4 GND 15V D18-5 5V GND GND GND D12-3 HZ D15-3 DMHR D21-4 Vda 75V NC A 5 6 D E C B 7 2 3 1 4 8 C5-BOARD TNPA2907 CLOCK BUFFER BUFFER BUFFER TO C4-BOARD (C43) TO (TH-50PX25U/P) D-BOARD (D34) TO (D33) D-BOARD TO (C41) C4-BOARD TO (C61) C6-BOARD TO (C60) C6-BOARD TH-50PX25U/P C5-Board Schematic Diagram TH-50PX25U/P C5-Board Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 182 15.86. C6-Board (1 of 2) Schematic Diagram (TH-50PX25U/P) TERM SIDE TERM SIDE TERM SIDE SIDE TERM TERM SIDE AB_D134 AB_D123 AB_D142 AB_D145 AB_D145 AB_D155 AB_D146 AB_D144 AB_D156 AB_D121 AB_D154 PCR_N AB_D153 PCR_N AB_D144 AB_D146 AB_D136 AB_D126 PCR_N CLK22 LE3 AB_D143 AB_D124 AB_D122 AB_D133 AB_D132 LE4 AB_D131 AB_D126 AB_D154 CLK12 AB_D151 PCR_N AB_D141 AB_D131 PCR_N LE2 CLK11 AB_D135 CLK11 AB_D142 AB_D134 AB_D152 LE2 AB_D156 AB_D151 AB_D125 AB_D122 PCR_N AB_D155 AB_D141 LE3 AB_D133 AB_D123 LE1 AB_D153 LE4 AB_D136 CLK12 PCR_N AB_D152 AB_D124 AB_D135 AB_D121 AB_D132 AB_D143 PCR_N PCR_N AB_D125 CLK21 LE1 CLK22 CLK21 PCR_N PCR_N PCR_N CB4 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 R7616 220 C7602 16V 1u C7624 16V 1u D7604 B0HCMM000009 L7602 J0JJC0000011 D7605 B0HCMM000009 C7614 50V 100p R7634 100 R7613 2.2 C7607 100V 0.1u R7633 100 R7609 2.2 C7618 100V 0.1u L7607 J0JJC0000011 L7601 J0JJC0000011 CB2 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 L7603 J0JJC0000011 R7611 2.2 R7604 220 CB3 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 C7617 100V 0.1u C7611 50V 100p C7612 50V 100p L7606 J0JJC0000011 R7618 1k D7601 B0HCMM000009 R7628 2.2 D7608 B0HCMM000009 C7601 16V 1u L7608 J0JJC0000011 D7603 B0HCMM000009 D7607 B0HCMM000009 R7627 2.2 C7613 50V 100p C7609 100V 0.1u R7607 220 D7602 B0HCMM000009 L7604 J0JJC0000011 R7631 2.2 R7617 220 R7615 2.2 R7632 2.2 R7623 100 C7615 100V 0.1u C7608 100V 0.1u L7605 J0JJC0000011 D7606 B0HCMM000009 C7616 100V 0.1u C62 1 2 3 4 5 6 C7610 100V 0.1u C7623 16V 1u C61 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 CB1 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 25 26 27 29 30 31 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 51 52 53 55 R7624 100 Vda 75V GND GND GND NC 15V NC NC NC 78V 78V Vda 75V Vda 75V NC NC GND 78V_L NC GND GND 78V_L 78V_L 78V_L 5V 5V 5V 5V GND Vda 75V GND 8 7 2 A 5 6 D E C B 4 3 1 C6-BOARD TNPA2908 (1/2) 5 6 4 2 3 1 (TH-50PX25U/P) TO (C52) C5-BOARD TO (SC62) SC-BOARD TH-50PX25U/P C6-Board (1 of 2) Schematic Diagram TH-50PX25U/P C6-Board (1 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 183 15.87. C6-Board (2 of 2) Schematic Diagram (TH-50PX25U/P) TERM SIDE AA_D142 AB_D146 AA_D136 PCR_N AA_D125 AB_D145 CLKR AA_D155 AA_D156 CLK22 AA_D133 LE2 AB_D152 AA_D151 LE1 LE4 AA_D126 AB_D132 AA_D145 AB_D151 CLK11 AA_D144 AB_D156 AA_D132 AB_D124 CER AA_D124 AA_D135 CLK21 NCLKR AA_D152 AA_D134 AA_D143 AB_D154 AB_D121 LE3 AB_D155 AA_D121 AA_D146 AA_D134 AA_D144 AA_D131 AA_D123 AA_D141 PCR AB_D134 AA_D124 AA_D122 AA_D155 AA_D154 CLK12 CLKR AA_D145 AB_D136 AB_D131 AB_D135 AB_D125 AA_D125 AB_D144 AB_D141 AB_D126 AB_D143 NCLKR AB_D122 AA_D153 AB_D133 AB_D123 AB_D142 AB_D153 AA_D154 AA_D135 AA_D156 AA_D151 AA_D152 AA_D153 AA_D146 AA_D143 AA_D141 AA_D142 AA_D136 AA_D133 AA_D131 AA_D132 AA_D126 AA_D121 AA_D122 AA_D123 PCR R7656 47 IC7605 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C7636 6.3V 10u R7659 47 R7653 47 R7661 47 R7665 47 C7629 16V 1u C7633 16V 1u C7630 6.3V 10u C7635 6.3V 10u R7638 47 IC7604 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R7670 47 R7680 0 R7667 47 IC7603 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C60 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C7631 16V 1u R7647 47 IC7606 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R7685 0 C7638 6.3V 10u R7673 0 R7674 0 R7637 47 C7637 6.3V 10u R7635 47 R7636 47 R7646 47 R7654 47 R7643 0 R7650 47 R7687 100k R7649 47 R7651 47 R7669 47 C7632 16V 1u R7671 47 R7655 47 R7686 22k R7657 47 R7672 0 IC7602 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C7639 50V 100p R7664 47 R7658 47 C7640 16V 1u R7677 0 C7634 16V 1u R7668 47 R7675 0 R7660 47 R7648 47 R7666 47 R7652 47 GND GND 5V D16-3 GND 5V GND SOS GND GND CLK3R D12-6 GND NC DRST D13-6 5V DET GND D14-6 NC D13-5 NC GND GND D12-5 PCR NC CER BLKR D14-5 D15-6 D15-4 NC GND D14-4 D15-5 DMHR DRST DSHR D16-4 DSLR D12-4 GND D12-2 D13-4 GND D13-3 NCLKR GND DMLR CLKR D13-1 GND GND GND GND GND HZ GND GND D14-2 D13-2 D14-1 D12-1 D15-3 D16-2 D15-2 D15-1 GND D12-3 D16-1 GND GND 5V GND GND D14-3 GND GND 5V 12 8 13 14 10 11 9 15 C6-BOARD TNPA2908 (2/2) 1 5 6 4 2 3 BUFFER BUFFER BUFFER BUFFER CLOCK (TH-50PX25U/P) TO (C50) C5-BOARD TH-50PX25U/P C6-Board (2 of 2) Schematic Diagram TH-50PX25U/P C6-Board (2 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 184 15.88. K and S-Board Schematic Diagram TH-42/50PX25U/P K and S-Board Schematic Diagram TH-42/50PX25U/P K and S-Board Schematic Diagram + R G PUSH 5V 5V 5V STB5V,STBY5V STB5V,STBY5V 5V D309 MA3X152K0L D308 MA8056MTX Q305 2SD0601A0L R302 470 D310 MA3X152K0L IC300 B3L000000020 Q301 B1ABCF000010 D311 MA8056MTX D303 MA3X152K0L *R314 47 Q300 B1ABCF000010 C300 16V 47u R312 0 D302 LNJ107W5PRW K24 1 2 3 4 5 6 7 8 D009 MA8056MTX R313 1k R310 47 R301 22k R306 1k R300 5.6k C301 6.3V 10u *R307 47 R311 220k R304 22k D301 MA3X152K0L JS305 0 RM300 PNA4601M05TV VOUT GND VCC D300 MA3X152K0L R317 5.6k K12 1 2 3 4 5 6 7 8 9 C309 50V 0.01u D317 MAZ30620ML *K13 1 2 3 R320 0 S4 1 2 3 4 5 6 7 S300 K0F162B00002 JS301 C304 50V 0.01u S34 1 2 3 JS304 JS302 CATS SENSOR REMOTE SENSOR CPU_GND STBY5V LED_R REMOCON POWER LED ON_LED STB_LED 5V GND ALL_OFF STB_LED ON_LED GND (LED_R) (LED_G) 5V MODEM LED STB5V LED_G TO STB3.3V K-BOARD TXN/K1QKSU 4 D C 8 A 6 E 5 2 1 3 7 B DG-BOARD (DG12) TO (C34) C3-BOARD C4-BOARD (C44) TO (TH-42PX25U/P) (TH-50PX25U/P) 0 0 0 0 5.0 5.0 0 3.3 0 0 0 0 5.0 0 4.8 4.8 0 0 0.6 0 3.4 0 0 3.6 0 0 0.6 0 0 SWITCH TNPA2990AB POWER S-BOARD GND 0 0 0 NC STB_PS 0 ALL_OFF 0 0 LAST MEM 5.0 SW5V 0 (DG12) TO 0 DG-BOARD 0 ALL_OFF (SS34) TO SS-BOARD TH-42PX25U-P / TH-50PX25U-P 185 15.89. SC-Board Block Diagram (TH-42PX25U/P) TPVSCN TPSC1 TPVSET PHOTO COUPLE Q6611 3 5 4 6 9 8 11 10 1 2 13 12 FCLD FCLU FCLKD FCLKU PHOTO COUPLE PHOTO COUPLE 2 PHOTO COUPLE 4 1 2 3 4 D6505 D6506 D6507 D6508 8 9 11 10 PHOTO COUPLE D6501 FSIU FSID PROU PROD 12 8 14 1 12 8 12 8 Q6612 Q6613 Q6601 Q6608 Q6604 Q6605 9 4 16 6 14 17 3 11 IC6602 FET DRIVER FET DRIVER IC6601 19 14 18 17 2 7 13 6 18 14 4 16 15 8 5 12 IC6502 BUFFER IC6501 2 4 7 IC6511 Q6476, Q6477 Q6511 Q6512 7 2 4 IC6521 IC6541 2 7 4 VAD+15V Q6523 Q6521 Q6520 Q6530~ Q6539 Q6540~ Q6549 PHOTO COUPLE D6502 PHOTO COUPLE D6503 Q6551 Q6552 D6504 PHOTO COUPLE IC6542 2 4 2 4 2 4 2 4 1 4 1 4 1 4 2 Q6561 VSCN Q6614 S2 CMH S3 CML CSL CSH 1/2 Vo VSUS A1 A3 A4 A5 B3 B5 B1 B3 A7 A6 B7 B6 A8 A20 B8 B20 A10 A1 B10 B1 B11 A11 B12 A12 B13 A13 B20 A20 B18 A14 B1 B17 A1 A18 A17 B14 A13 A16 B13 A19 B19 B16 B8 B1 A1 A8 B20 A20 A11 B11 B10 A10 B9 A9 Vf FCLD FCLKD PROD VF5V Vf Vf VSCN D6454 Q6452 Q6451 Q6455 Q6454 T6451 IC6451 IC6454 3 1 IC6455 3 1 Q6474 IC6471 D6474 Q6475 Q6472 Q6471 SCSU VAD INSERT VAD VSET2 INSERT CEL VSET INSERT CPH VSCN GEN VSET VAD GEN Q6491 Q6492 IC6491 VSET REG. VSUS SC20 9 11 L6611,12,13 L6614,15,16 2 4 8 11 IC6605 BUFFER IC6606 BUFFER 3 6 9 7 CSH CSL CML CEH SOS1 CEL2 CL CLK SIU SID CPH SCSU Q6581 IC6581 D6458 D6467 D6469 D6480 Vf5 SOS Vfo SOS VSCAN SOS VAD SOS D6459 D6468 D6470 D6479 D6584 Vfo FSIU FCLU FCLKU PROU VF5V Vf Vf Vfo Vf FCLD FCLKD PROD VF5V Vf Vf Vfo Vf Vf Vfo FCLKU FSIU VF5V PROU FCLU VSCN VSCN VSCN VSCN VSCN Scan Drive Board SC SC44 SC43 SC41 SC42 TO SD52 TO SD51 TO SU51 TO SU52 TO D20 D6583 (RED LED) SC SC CPH CEL 4 VSET IC6452 T6431 Q6431 D6434 Q6432 Q6435 IC6431 F15V T6471 IC6472 Q6501 6 5 Q6502 Q6503 Q6504 SOS2 12 15 5 20 CMH 8 12 13 CEL Q6617 Q6616 CLK SIU SID CL CEL2 CPH CEL SCSU 3 4 6 1 13 11 2 12 5 IC6603 FET DRIVER 3 17 Q6628 Q6627 Q6630 Q6629 Q6622 Q6621 Q6625 Q6624 IC6604 BUFFER D6618 D6617 D6616 D6615 S1 FSID A2 B2 FSID Vf A20 B20 A15 B15 Vf Q6562 Q6564 Q6525 Q6526 AVR 15V IC6452 3 1 +15V(HT1) IC6453 3 1 15V Q6524 5V Q6557 Q6556 Q6554 Q6555 +15V 2 +15V 1 SC23 TO P23 SC2 TO P2 Vsus 2 Vsus 1 7 5 3 1 2 9 6 4 10 8 SC46 1 5 6 8 7 9 2 10 3 4 SC45 TO SD46 TO SU45 VF5 VF5 PR0 FCLK VF VF FCL FSI VF VF VF VF FSI VF PR0 FCLK VF FCL VF5 VF5 Vsus +15V BUFFER FET DRIVER FET DRIVER FET DRIVER FET DRIVER +5V(HT1) +5V(HT2) TH-42PX25U/P SC-Board Block Diagram TH-42PX25U/P SC-Board Block Diagram TH-42PX25U-P / TH-50PX25U-P 186 15.90. SC-Board (1 of 2) Schematic Diagram (TH-42PX25U/P) TH-42PX25U/P SC-Board (1 of 2) Schematic Diagram TH-42PX25U/P SC-Board (1 of 2) Schematic Diagram + + + + + + + + + AB_CPH AB_CL SCSU AB_CEL2 AB_CLK CMH CEH AB_CEL AB_SIU CL AB_SID AB_SCSU CML CSL CSH CEL SOS2 5V TP2 R6584 22k L6612 0.6u C6651 25V 4.7u C6628 630V 2200p R6657 1k TP4 C6681 16V 1u R6462 0 C6613 630V 2200p R6471 33k Q6606 2SK3559000SQ G D S D6491 B0ECHP000001 R6589 10k R6604 10 R6610 10k D6649 B0ECHP000001 R6642 100 D6584 MA2J11100L C6602 200V 220u C6610 25V 220u Q6629 2SD21850RL R6695 EXB38V471JV R6638 5.6 D6648 B0ECHP000001 R6499 8.2 R6628 10 L6604 G0ZZ00002183 TP28 C6652 16V 1u TP20 R6631 5.6 L6651 G0ZZ00002183 R6696 EXB38V473JV C0JBAZ000005 IC6606 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC D6582 MAZ80510LL L6634 G0ZZ00002183 1/2W R6689 22 SC23 1 2 3 L6631 G0ZZ00002183 D6608 B0JCME000025 TP8 C6680 16V 0.1u L6628 G0ZZ00002183 Q6602 2SK3559000SQ G D S R6636 5.6 D6600 B0ECHP000001 C6584 25V 1u C6643 250V 0.1u Q6630 2SB1073001TV R6633 5.6 TP6 L6661 J0JJC0000011 D6585 MAZ83300ML R6626 10 C6640 16V 1u L6609 G0ZZ00002183 L6636 G0ZZ00002183 L6624 G0ZZ00002183 Q6617 2SK062000L G D S L6637 G0ZZ00002183 C6650 25V 4.7u C6641 25V 4.7u R6613 10 R6658 1k D6623 SF20LC30F10 TP21 C6705 250V 2u R6618 10 TP23 D6617 SF20LC30F10 C6611 630V 2200p Q6627 2SD21850RL D6466 MAZ83300ML R6693 EXB38V471JV D6606 B0JCME000025 C6609 25V 1u TP27 TP1 L6607 J0JJC0000021 L6618 G0ZZ00002183 TP26 D6627 SF20LC30F10 C6605 200V 220u C6490 630V 2200p C6682 16V 1u R6583 100k C6600 16V 1u Q6607 2SK3559000SQ G D S L6645 G0ZZ00002183 C6606 200V 220u C6679 16V 0.1u R6698 EXB38V473JV R6612 10 L6620 G0ZZ00002183 R6632 5.6 L6629 G0ZZ00002183 R6621 47 D6650 SF20LC30F10 Q6608 2SK3559000SQ G D S R6692 EXB38V473JV R6587 10k D6465 MAZ83300ML L6662 J0JJC0000011 R6582 100k Q6603 2SK3559000SQ G D S TP10 L6626 G0ZZ00002183 TP11 L6621 G0ZZ00002183 L6627 G0ZZ00002183 C6623 16V 1u C0ZBZ0000562 IC6603 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC L6619 G0ZZ00002183 R6687 0.22 Q6605 2SK3559000SQ G D S L6650 G0ZZ00002183 R6625 10k R6586 1.5k Q6616 2SK062000L G D S R6489 4.7k C6702 250V 2u C6631 630V 2200p C6684 25V 47u R6635 5.6 Q6622 2SK3637000VE G D S TP13 TP12 D6615 SF20LC30F10 D6607 B0JCME000025 L6614 0.6u R6619 47 TP9 IC6581 C0BBBA000043 1 2 3 4 5 6 7 8 C0JBAZ000005 IC6605 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC D6467 B3PBA0000062 1 2 3 4 C0ZBZ0000562 IC6602 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC TP31 Q6601 2SK3559000SQ G D S R6608 10 TP7 R6629 100 C6622 25V 4.7u C6704 250V 2u L6630 G0ZZ00002183 R6634 5.6 L6633 G0ZZ00002183 R6617 10 Q6611 2SD21850RL R6694 EXB38V473JV R6600 0 Q6621 2SK3637000VE G D S C6614 630V 2200p L6644 G0ZZ00002183 R6611 10 L6616 0.6u L6632 G0ZZ00002183 D6618 SF20LC30F10 TP29 R6609 10k R6588 2.2k L6625 G0ZZ00002183 TP14 D6613 B0ECHP000001 R6659 1k Q6614 2SB1073001TV D6611 B0ECHP000001 R6620 47 C6601 200V 220u IC6604 C0JBAA000195 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 VCC C6604 200V 220u D6651 B0ECHP000001 C6642 25V 4.7u L6622 G0ZZ00002183 L6611 0.6u D6586 MAZ83300ML C6638 25V 4.7u R6614 10 R6641 100 SC20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Q6581 2SD0601A0L C6683 25V 47u Q6628 2SB1073001TV R6630 100 C6603 200V 220u L6623 G0ZZ00002183 D6583 LNJ201LPQJA R6603 10k C6619 630V 2200p Q6604 2SK3559000SQ G D S R6615 10 TP15 Q6612 2SB1073001TV C0ZBZ0000562 IC6601 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC R6688 0.22 SC2 1 2 3 4 5 6 D6616 SF20LC30F10 C6612 630V 2200p 1/2W R6690 22 R6815 0 C6607 250V 2u R6585 1.5k C6625 630V 2200p R6697 EXB38V471JV D6468 MA2J11100L TP30 C6585 16V 1u R6616 10 C6621 25V 4.7u Q6613 2SD21850RL TP24 R6637 5.6 C6701 250V 2u ECWF2205KSP TP22 L6603 G0ZZ00002183 TP25 R6622 47 C6639 250V 0.1u Q6625 2SK3637000VE G D S L6635 G0ZZ00002183 R6627 10k L6613 0.6u L6615 0.6u R6691 EXB38V471JV R6470 33k TP3 TP16 Q6624 2SK3637000VE G D S D6605 B0JCME000025 SCSU CEL CMH CSH CPH +17V +17V NC GND GND (RED LED) + - + - GND GND Vsus Vsus 6 4 2 3 1 8 7 5 SC-BOARD TXNSC20QJS (1/2) TO (P2) P-BOARD TO (P23) P-BOARD TO (D20) D-BOARD FET DRIVER BUFFER BUFFER FET DRIVER COMPARETER BUFFER FET DRIVER 2 E 8 7 4 C D 1 9 6 B A F 5 3 (TH-42PX25U/P) 0 0 0 190.0 190.0 0 15.0 15.0 0 0 1.4 0 4.9 0 2.2 5.0 0 0 0 0 0.3 3.7 0.6 3.7 0 0 3.3 0 3.7 * * TH-42PX25U-P / TH-50PX25U-P 187 15.91. SC-Board (2 of 2) Schematic Diagram (TH-42PX25U/P) TH-42PX25U/P SC-Board (2 of 2) Schematic Diagram TH-42PX25U/P SC-Board (2 of 2) Schematic Diagram + Nd N1 N2 + + + + + Nd N1 N2 + + + + + + + + AB_CEL AA_PROD AA_PROU AA_FCLU AA_FCLKU AB_SCSU AB_CEL2 AB_SID AB_SIU AB_CLK AB_CL AB_CPH AA_FCLKD AA_FCLD AA_FSID AA_FSIU AA_FCLD AA_FCLKU AA_FCLKD AA_FCLD AA_FSID AA_FSID AA_PROD AA_PROD AA_FCLU AA_FSIU AA_FCLKD AA_PROU C6576 16V 1u Q6491 2SD1263AP0LB R6550 47 R6454 220 R6548 10 C6455 25V 220u C6541 25V 4.7u D6500 MA2J11100L D6461 B0HCKS000001 R6534 47 R6570 100k C6521 25V 4.7u R6500 1.2k Q6531 2SK349400L G D S R6522 0 R6525 100k Q6504 2SK062000L G D S Q6550 2SC1473AEA D6486 MAZ80560HL D6550 MA2J11100L D6525 MA2J11100L D6522 MA2J11100L R6577 470 D6543 MAZ80510LL D6458 B3PBA0000062 1 2 3 4 IC6501 C0JBAB000417 1 2 3 4 5 6 7 8 9 10 11 12 13 14 R6650 1k Q6435 2SD0601A0L R6596 4.7k D6513 MA2J11100L C6432 50V 4700p R6536 47 R6484 4.7k D6517 B0JCME000025 R6805 68 D6553 MA2J11100L 1% R6457 10k Q6455 2SD0601A0L R6437 0 R6542 10 IC6451 AN1431M-E1 CATHODE 3 1 REFERENCE ANODE 2 R6486 10k Q6511 B1DFGL000005 G D S 1/2W R6449 1 D6473 MA2J11100L R6483 2.7k R6469 2.2k Q6477 2SD0601A0L D6489 MAZ80560HL D6455 MA2J11100L C6493 630V 2200p Q6532 2SK349400L G D S IC6502 C0JBAB000417 1 2 3 4 5 6 7 8 9 10 11 12 13 14 T6451 G4D1A0000072 PDPT-5 1 2 3 4 5 6 7 8 D6510 B0JCME000025 R6555 100k D6547 MAZ83300ML C6525 200V 1000p R6572 470 R6474 220 IC6434 B3PBA0000062 1 2 3 4 R6567 100k Q6554 2SK349400L G D S R6647 10 R6442 10k R6646 10 C6502 16V 1u D6532 MAZ80510LL Q6537 2SK349400L G D S D6454 B3PBA0000062 1 2 3 4 R6516 10 C6516 25V 4.7u R6560 47 C6492 350V 10u Q6475 2SD0601A0L Q6545 2SK373100L G D S Q6476 2SD0601A0L Q6472 2SB0709ARL C6544 200V 1000p D6477 MA2J11100L 1% R6456 453k D6572 B0ECHP000001 R6549 10 R6480 10k R6593 220k 2W R6464 27k AN78L15ME1 IC6452 IN 3 2 COMMON OUT 1 Q6546 2SK373100L G D S R6571 470 R6503 2.2k C6466 25V 4.7u R6531 47 R6533 47 Q6502 2SK062000L G D S R6524 1.8k D6469 B3PBA0000062 1 2 3 4 R6453 22k R6806 68 R6579 150 R6435 3.3k R6473 22k C6510 25V 4.7u D6492 B0ECHP000001 Q6539 2SK349400L G D S R6517 470 R6552 100 R6573 470 Q6530 2SK349400L G D S C6459 25V 47u Q6431 B1BBCJ000003 R6546 10 D6479 MA2J11100L C6463 25V 4.7u D6487 MAZ80560HL D6521 B0ECHP000001 C6436 50V 220u R6601 150 R6520 10k D6482 MAZ83300ML Q6512 B1DFGL000005 G D S D6460 B0HCKS000001 D6499 B0JCME000025 C6456 160V 100u R6493 220k 1/2W R6496 1 R6602 470 R6468 4.7k C6512 25V 4.7u C6506 16V 1u C6514 16V 1u Q6540 2SK373100L G D S R6568 100k R6477 5k 1 2 3 R6538 47 R6564 5.6 R6558 10k R6578 470 D6524 MAZ80510LL T6431 ETS13TB139AP N4 N2 1 2 3 NC 4 5 6 NC 7 9 10 NC Q6542 2SK373100L G D S R6541 10 TP76 R6460 10k IC6491 AN1431M-E1 CATHODE 3 1 REFERENCE ANODE 2 R6561 47 R6599 100 R6479 100k R6551 10k R6485 10k Q6547 2SK373100L G D S R6433 100k R6559 2.2k R6545 10 R6807 68 Q6541 2SK373100L G D S C6545 200V 1000p 1/2W R6450 1 C6462 25V 4.7u R6592 220k 1/2W R6490 1 R6478 6.98k IC6543 AN78L05M-E1 IN 3 2 COMMON OUT 1 D6523 B0ECHP000001 D6512 MA2J11100L R6488 10k L6431 J0JJC0000021 IC6521 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb R6563 5.6 C6575 16V 1u C6546 25V 4.7u IC6472 AN1431M-E1 CATHODE 3 1 REFERENCE ANODE 2 Q6561 2SB1073001TV R6498 8.2 Q6564 B1DFES000001 G D S 3W R6512 2.2 C6458 25V 4.7u IC6542 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb Q6492 2SC1473AEA D6493 MAZ80560HL L6471 J0JJC0000021 C6453 16V 1u Q6548 2SK373100L G D S IC6511 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb D6509 MA2J11100L R6804 68 C6473 16V 1u D6502 B3PBA0000191 1 2 3 4 5 R6518 10k R6492 220k R6644 47 IC6541 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb R6497 10k R6507 2.2k C6515 25V 4.7u R6532 47 3W R6511 2.2 R6594 100k R6648 1k Q6523 2SB1073001TV D6490 MAZ80560HL Q6534 2SK349400L G D S Q6533 2SK349400L G D S R6527 1k D6470 MA2J11100L C6522 35V 47u R6504 2.2k R6455 3.3k Q6552 B1DADU000001 G D S R6543 10 R6581 100 D6453 MA2J11100L R6459 100k R6595 4.7k T6471 G4D1A0000072 PDPT-5 1 2 3 4 5 6 7 8 Q6521 B1DFES000001 G D S C6461 50V 100u D6549 MA2J11100L C6571 16V 1u Q6452 2SB0709ARL R6562 5.6 R6501 2.2k Q6562 B1DFES000001 G D S R6432 1 Q6432 2SB0709ARL C6507 16V 1u C6472 50V 0.01u D6495 B0HCKS000001 C6465 50V 0.1u Q6536 2SK349400L G D S R6528 1k R6431 1 D6436 B0JCKG000001 R6510 100 C6504 16V 1u D6514 MA2J11100L D6501 B3PBA0000191 1 2 3 4 5 R6649 1k R6487 4.7k R6808 68 R6566 0 Q6454 2SD814ATX 2W R6465 8.2 Q6543 2SK373100L G D S C6454 50V 0.01u D6548 MAZ83300ML R6438 22k TP70 L6451 J0JJC0000021 R6436 154k R6553 150 C6517 16V 1u D6474 B3PBA0000062 1 2 3 4 Q6525 2SD21850RL Q6526 2SB1073001TV R6530 47 AN78L15ME1 IC6453 IN 3 2 COMMON OUT 1 C6511 25V 4.7u R6569 10k Q6524 2SD21850RL D6488 MAZ80560HL D6478 B0HCKS000001 D6552 B0JCME000025 C6501 16V 1u R6643 1k D6435 MA2J11100L R6491 100k D6507 B3PBA0000191 1 2 3 4 5 C6503 16V 1u D6503 B3PBA0000191 1 2 3 4 5 R6803 68 Q6557 2SK373100L G D S C6505 16V 1u C6578 16V 1u R6539 47 R6440 2.2k C6542 25V 4.7u R6443 4.7k Q6563 B1DFES000001 G D S R6476 324k C6433 16V 1u C6475 25V 220u C6526 250V 47u R6508 2.2k C6524 200V 1000p TP77 D6511 B0HCMM000009 R6591 100 Q6520 2SD0601A0L R6554 100k C6581 16V 1u D6481 MAZ83300ML Q6474 2SD814ATX R6509 2.2k D6485 MAZ80560HL Q6503 2SK062000L G D S R6495 5.23k R6472 0 R6537 47 Q6471 B1BBCJ000003 R6556 3.9k R6590 100 R6439 2.2k IC6455 AN78L05M-E1 IN 3 2 COMMON OUT 1 D6541 B0HCKS000001 IC6431 AN1431M-E1 CATHODE 3 1 REFERENCE ANODE 2 R6481 2.7k R6502 2.2k 1% R6458 10k R6540 10 R6494 14.3k C6509 50V 1000p Q6538 2SK349400L G D S D6518 B0JCME000025 Q6555 2SK349400L G D S Q6556 2SK373100L G D S R6574 470 D6476 B0ECHP000001 R6513 10 R6529 10 R6467 1.2k R6801 68 D6544 MA2J11100L R6506 2.2k D6515 MAZ82400ML C6476 160V 100u IC6471 AN1431M-E1 CATHODE 3 1 REFERENCE ANODE 2 C6467 25V 4.7u C6435 25V 220u Q6535 2SK349400L G D S C6452 50V 0.01u D6459 MA2J11100L D6505 B3PBA0000191 1 2 3 4 5 D6542 MA2J11100L R6575 470 AN78L05M-E1 IC6454 IN 3 2 COMMON OUT 1 Q6451 B1BBCJ000003 R6505 2.2k C6577 16V 1u R6645 47 C6434 50V 0.01u D6520 MA2J11100L D6531 MAZ80510LL D6545 MAZ80510LL C6580 16V 1u D6483 B0JCME000025 L6472 G0ZZ00002183 C6437 50V 0.1u R6515 100k D6526 B0HCMM000009 C6543 200V 1000p D6494 MAZ80560HL R6434 220 D6480 B3PBA0000062 1 2 3 4 R6526 47 R6521 100k R6514 470 R6547 10 R6802 68 D6433 MA2J11100L R6482 4.7k R6441 2.2k Q6544 2SK373100L G D S R6519 100 Q6501 2SK062000L G D S Q6549 2SK373100L G D S R6557 10k 1 2 3 C6508 16V 1u Q6551 2SD0601A0L R6535 47 D6475 MA2J11100L D6546 MAZ83300ML C6474 50V 0.01u R6576 470 C6550 160V 100u R6544 10 C6513 160V 100u IC6512 AN78L05M-E1 IN 3 2 COMMON OUT 1 D6456 B0ECHP000001 D6504 B3PBA0000191 1 2 3 4 5 R6565 3.3k D6508 B3PBA0000191 1 2 3 4 5 D6506 B3PBA0000191 1 2 3 4 5 R6580 10k R6475 3.3k TP61 TP43 SC45 1 2 3 4 5 6 7 8 9 10 R6607 220k TP40 TP62 SC43 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 TP56 TP49 TP83 TP80 TP57 TP54 C6598 160V 100u TP44 SC42 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 TP48 SC41 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 TP42 TP47 TP63 TP46 TP51 TP58 TP84 TP50 TP45 TP55 R6606 220k SC44 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 TP60 SC46 1 2 3 4 5 6 7 8 9 10 TP59 D6570 B0HCMM000009 R6605 220k TP41 TP81 VAD VSCN INIT-R INIT-F 4 6 2 3 1 8 7 5 SC-BOARD TXNSC20QJS (2/2) TO (SU51) SU-BOARD TO (SD51) SD-BOARD TO (SU52) SU-BOARD TO (SD52) SD-BOARD BUFFER BUFFER +5V(HT3) +5V(HT4) +5V(HT2) +5V(HT1) VSET +15V(HT1) VSCN VSET VSET FET DRIVER FET DRIVER FET DRIVER SCN AVR15V 12 14 15 16 10 11 18 13 17 TO (SD46) SD-BOARD TO (SU45) SU-BOARD (TH-42PX25U/P) VAD F15V FET DRIVER # * * * = = * TH-42PX25U-P / TH-50PX25U-P 188 15.92. SC-Board Block Diagram (TH-50PX25U/P) TPVSCN TPSC1 TPVSET PHOTO COUPLER Q6611 3 5 4 6 9 8 11 10 1 2 13 12 FCLD FCLU FCLKD FCLKU PHOTO COUPLER PHOTO COUPLER 2 PHOTO COUPLER 4 1 2 3 4 IC6505 IC6506 IC6507 IC6508 8 9 11 10 PHOTO COUPLER IC6509 FSIU FSID PROU PROD 12 8 14 1 12 8 12 8 Q6612 Q6613 Q6601 Q6610 Q6604 Q6605 9 4 16 6 14 17 3 11 IC6602 FET DRIVER FET DRIVER IC6601 19 14 18 17 2 7 13 6 18 14 4 16 15 8 5 12 IC6502 BUFFER BUFFER IC6501 2 4 7 IC6511 Q6476, Q6477 Q6511 Q6512 7 2 4 IC6521 IC6541 2 7 4 VAD+15V Q6523 Q6521 Q6520 Q6530~ Q6539 Q6540~ Q6549 PHOTO COUPLER IC6510 PHOTO COUPLER IC6503 Q6551 Q6552 IC6504 PHOTO COUPLER IC6542 2 4 2 4 2 4 1 4 1 4 1 4 1 4 2 Q6561 VSCN Q6614 S2 CMH S3 CML CSL CSH 1/2 Vo VSUS A1 A3 A4 A5 B3 B5 B1 B3 A7 A6 B7 B6 A8 A20 B8 B20 A10 A1 B10 B1 B11 A11 B12 A12 B13 A13 B20 A20 B18 A14 B1 B17 A1 A18 A17 B14 A13 A16 B13 A19 B19 B16 B8 B1 A1 A8 B20 A20 A11 B11 B10 A10 B9 A9 Vf FCLD FCLKD PROD VF5V Vf Vf VSCN IC6458 Q6452 Q6451 Q6455 Q6454 T6451 IC6451 +5V(HT1) IC6454 3 1 IC6455 3 1 Q6474 IC6471 IC6459 Q6475 Q6472 Q6471 SCSU VAD INSERT VAD VSET2 INSERT CEL VSET INSERT CPH VSCN GEN VSET VAD GEN Q6491 Q6492 IC6491 VSET REG. VSUS SC20 9 11 L6611~6615 2 4 8 11 IC6606 BUFFER IC6605 BUFFER 3 6 9 7 CSH CSL CML CBK SOS1 CEL2 CL CLK SIU SID CPH SCSU Q6581 IC6581 IC6457 IC6467 IC6458 IC6480 Vf5 SOS Vfo SOS VSCAN SOS VAD SOS D6459 D6468 D6470 D6479 D6584 Vfo FSIU FCLU FCLKU PROU VF5V Vf Vf Vfo Vf FCLD FCLKD PROD VF5V Vf Vf Vfo Vf Vf Vfo FCLKU FSIU VF5V PROU FCLU VSCN VSCN VSCN VSCN VSCN Scan Drive Board SC SC44 SC43 SC41 SC42 TO SD52 TO SD51 TO SU51 TO SU52 TO D20 D6583 (RED LED) SC SC CPH CEL 4 VSET IC6452 T6431 Q6431 D6434 Q6432 Q6435 IC6431 F15V T6471 IC6472 Q6513 6 5 Q6522 Q6557 Q6558 15 5 20 CMH 8 12 13 CEL Q6617 Q6616 CLK SIU SID CL CEL2 CPH CEL SCSU 3 4 6 1 13 11 2 12 5 IC6603 FET DRIVER 3 17 Q6628 Q6627 Q6630 Q6629 Q6622 Q6621 Q6625 Q6624 IC6607 BUFFER D6618 D6617 D6616 D6615 S1 FSID A2 B2 FSID Vf A20 B20 A15 B15 Vf Q6562 Q6564 Q6525 Q6526 AVR 15V IC6452 3 1 +15V(HT1) IC6453 3 1 15V Q6524 5V Q6556 Q6555 Q6553 Q6554 2 Vsus Vsus TO P2 1 Vsus SC2 TPVSUS 10 9 8 12 8 FET DRIVER IC6604 Q6645 Q6642 Q6641 Q6646 IC6671 Q6672 Q6671 Q6673 VR6670 1 2 3 Vsus TPVBK CL221 FSID FCLD TO SD46 2 SC46 4 6 8 PROD FCLKD 10 5V 5V 9 5V TO SU45 2 SC45 4 8 PROU FCLKU 5V 5V 9 FCLU 6 FSIU 5V 10 +15V +15V TO P23 1 +15V 2 TP15V Q6812 Q6814 Q6813 Q6816 Q6815 Q6821 L6825~L6828 TPCVDA TPVDA SC-BOARD IC6804 SOS DET TPSC4 2 TO C13 1 SC13 Vda 75V Vda 75V 5 4 78V 78V TO C62 6 SC62 5 78V 78V 1 DSHR 2 DSLR 3 DMHR 4 DMLR 6 SOS2 BUFFER IC6801 2 18 4 16 FET DRIVER 12 IC6802 8 FET DRIVER IC6805 8 12 FET DRIVER IC6803 8 12 1 14 6 14 8 12 Q6811 Q6820 Q6819 Q6818 Q6817 Q6824 TO C12 SC23 SC12 FET DRIVER FET DRIVER FET DRIVER FET DRIVER +5V(HT2) TH-50PX25U/P SC-Board Block Diagram TH-50PX25U/P SC-Board Block Diagram TH-42PX25U-P / TH-50PX25U-P 189 15.93. SC-Board (1 of 3) Schematic Diagram (TH-50PX25U/P) + + + + + + + + + + + + + AC_CBK AC_CEL2 CMH CSL AC_SIU CL AC_SCSU CEL CBK CML AC_SID SCSU CSH AC_CPH AC_CL AC_CLK SOS2 AC_CBK AC_CEL 5V R6662 0 R6635 5.6 SC2 1 2 3 4 5 6 C6600 200V 220u R6623 47 C0ZBZ0000562 IC6602 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC IC6671 AN1431M-E1 CATHODE 3 1 REFERENCE ANODE 2 R6657 1k R6687 0.22 TP21 Q6645 2SD21850RL TP26 R6625 10k R6688 0.22 R6589 10k R6615 10 C6625 25V 4.7u Q6629 2SD21850RL D6633 B0JCME000025 C6618 630V 2200p C6616 630V 2200p Q6673 2SC1473AEA TP2 C6627 25V 47u C6585 16V 1u R6611 10 R6582 100k D6631 B0ECHP000001 Q6614 2SB1073001TV Q6642 2SK3192000LB G D S TP7 C6568 250V 2u TP28 IC6607 C0JBAA000195 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 VCC R6632 5.6 L6619 G0ZZ00002183 D6582 MAZ80510LL Q6617 2SK062000L G D S R6663 0 D6650 B0HBSN000007 L6639 G0ZZ00002183 D6651 B0ECHP000001 D6609 B0JCME000025 R6621 47 TP20 D6608 B0JCME000025 C6682 16V 1u L6645 G0ZZ00002183 R6586 1.5k Q6611 2SD21850RL L6608 J0JJC0000021 C6683 25V 47u TP29 R6683 47 R6681 100 L6641 G0ZZ00002183 R6629 100 L6518 G0ZZ00002183 L6626 G0ZZ00002183 R6633 5.6 R6612 10 R6636 5.6 D6600 B0ECHP000001 C6562 250V 2u R6652 0 R6580 10k R6677 0 R6619 47 L6637 G0ZZ00002183 C6565 250V 2u C6615 630V 2200p Q6604 B1DEJM000005 G D S Q6630 2SB1073001TV Q6607 B1DEJM000005 G D S L6613 1u IC6604 M63991FP-E2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 D6634 B0JCME000025 Q6622 B1DEJM000003 G D S L6638 G0ZZ00002183 TP72 1/2W R6690 22 C6604 200V 220u R6654 0 C6620 630V 2200p R6627 10k D6606 B0JCME000025 R6618 10 C6641 25V 4.7u R6661 0 TP25 D6618 B0HBSN000007 C6684 25V 47u C6640 16V 1u L6614 1u D6607 B0JCME000025 R6693 EXB38V471JV C6611 630V 2200p C6626 25V 1u R6616 10 L6618 G0ZZ00002183 R6463 0 R6696 EXB38V473JV D6583 LNJ201LPQJA L6624 G0ZZ00002183 C6605 200V 220u Q6613 2SD21850RL D6627 B0HBSN000007 C6610 25V 470u L6453 G0ZZ00002183 R6588 2.2k D6617 B0HBSN000007 L6627 G0ZZ00002183 L6603 G0ZZ00002183 TP22 Q6608 B1DEJM000005 G D S R6653 0 R6638 5.6 C6491 630V 2200p R6642 100 TP12 C6650 25V 4.7u TP24 L6611 1u Q6671 2SB0940AP0LB TP15 R6613 10 C6621 25V 4.7u L6607 J0JJC0000021 R6655 0 Q6603 B1DEJM000005 G D S Q6616 2SK062000L G D S R6634 5.6 R6583 100k C6614 630V 2200p L6644 G0ZZ00002183 TP3 R6470 33k R6614 10 SC20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 TP73 C6564 250V 2u L6651 G0ZZ00002183 R6685 100 C6681 16V 1u D6605 B0JCME000025 R6587 10k D6468 MA2J11100L L6623 G0ZZ00002183 D6586 MAZ83300ML Q6606 B1DEJM000005 G D S Q6609 B1DEJM000005 G D S TP9 L6615 1u TP71 TP14 L6628 G0ZZ00002183 L6642 G0ZZ00002183 D6585 MAZ83300ML D6614 B0ECHP000001 D6612 B0ECHP000001 D6465 MAZ83300ML Q6624 B1DEJM000003 G D S R6684 10k Q6627 2SD21850RL TP4 R6678 3.3k L6662 J0JJC0000021 D6613 B0ECHP000001 L6625 G0ZZ00002183 TP11 C0ZBZ0000562 IC6603 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC R6585 1.5k C0JBAZ000005 IC6606 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C6563 250V 2u D6584 MA2J11100L C6602 200V 220u D6491 B0ECHP000001 R6637 5.6 C6561 250V 2u C6624 16V 1u C6622 25V 4.7u C6606 200V 220u L6661 J0JJC0000021 R6675 22k C6601 200V 220u 1W R6499 8.2 C6639 250V 0.1u L6612 1u R6584 22k C6629 200V 150u D6623 B0HBSN000007 Q6605 B1DEJM000005 G D S R6604 10 R6682 47 R6630 100 D6616 B0HBSN000007 D6466 MAZ83300ML VR6670 10k 1 2 3 IC6467 B3PBA0000062 1 2 3 4 C6584 25V 1u L6636 G0ZZ00002183 D6610 B0JCME000025 R6603 10k D6615 B0HBSN000007 L6629 G0ZZ00002183 C6617 630V 2200p R6624 47 R6660 0 C6609 25V 1u L6649 G0ZZ00002183 SC23 1 2 3 L6621 G0ZZ00002183 C6567 250V 2u R6694 EXB38V473JV Q6646 2SB1073001TV R6449 33k TP10 Q6610 B1DEJM000005 G D S TP8 R6639 0 R6622 47 L6602 G0ZZ00002183 R6600 0 R6671 82 C0ZBZ0000562 IC6601 M63992FP-200D 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC R6609 10k R6608 10 TP30 Q6621 B1DEJM000003 G D S R6626 10 IC6581 C0BBBA000043 1 2 3 4 5 6 7 8 C6566 250V 2u Q6602 B1DEJM000005 G D S R6617 10 D6632 B0ECHP000001 R6673 10k R6656 0 Q6628 2SB1073001TV L6643 G0ZZ00002183 C6623 16V 1u R6697 EXB38V471JV C6608 250V 2u C6619 630V 2200p L6648 G0ZZ00002183 TP16 C6612 630V 2200p C6603 200V 220u R6651 0 R6628 10 R6686 100 L6650 G0ZZ00002183 C6490 630V 2200p D6611 B0ECHP000001 C6642 25V 4.7u R6631 5.6 R6698 EXB38V473JV R6672 8.2 R6659 1k Q6641 2SK3192000LB G D S R6674 100 C6651 25V 4.7u R6641 100 C6628 25V 47u Q6625 B1DEJM000003 G D S R6676 47k L6640 G0ZZ00002183 Q6612 2SB1073001TV L6620 G0ZZ00002183 C0JBAZ000005 IC6605 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R6695 EXB38V471JV C6680 16V 0.1u R6679 1k TP17 TP27 Q6672 2SD1263AP0LB R6489 4.7k TP74 R6620 47 C6613 630V 2200p TP31 R6691 EXB38V471JV D6649 B0ECHP000001 C6607 250V 2u TP75 R6692 EXB38V473JV L6647 G0ZZ00002183 Q6601 B1DEJM000005 G D S TP1 R6658 1k L6646 G0ZZ00002183 TP23 Q6581 2SD0601A0L C6652 16V 1u TP6 1/2W R6689 22 +15V +15V NC GND GND LOUT VCC NC HOUT VB VS NC GND NC LIN NC NC NC VDD HIN GND + - + - GND GND Vsus Vsus SCSU CEL CMH CSH CPH B E 9 6 8 7 3 D 4 C 1 2 F 5 A SC-BOARD TXNSC10QNS (1/3) 1 2 9 7 8 4 6 5 3 BUFFER BUFFER BUFFER FET DRIVER FET DRIVER COMPARATOR FET DRIVER FET DRIVER (TH-50PX25U/P) 190.0 190.0 0 0 0 0 15.0 15.0 0 2.2 5.0 0 1.4 0 4.9 0 3.7 0 0 3.3 0 3.7 0 0 0 0 0.3 3.7 0.6 TO (P23) P-BOARD TO (P2) P-BOARD TO (D20) D-BOARD * * * * * * * TH-50PX25U/P SC-Board (1 of 3) Schematic Diagram TH-50PX25U/P SC-Board (1 of 3) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 190 15.94. SC-Board (2 of 3) Schematic Diagram (TH-50PX25U/P) + + + + + + + Nd N1 N2 Nd N1 N2 + + + + + + AC_CEL AC_CL AC_CLK AC_SID AA_PROU AA_PROD AC_SCSU AC_CPH AC_SIU AC_CEL2 AA_FCLKU AA_FCLKD AA_FCLU AA_FCLD AA_FSID AA_FSIU C6541 25V 4.7u R6590 1.8k R6536 47 Q6491 2SD1263AP0LB IC6512 AN78L05M-E1 IN 3 2 COMMON OUT 1 R6501 2.2k R6801 100 IC6502 C0JBAB000417 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Q6531 2SK349400L G D S D6490 MAZ80560HL Q6511 B1DFGL000005 G D S C6543 200V 1000p R6578 470 R6665 68 D6513 MA2J11100L R6484 4.7k R6573 470 R6497 10k R6439 2.2k R6513 10 R6535 47 D6523 B0ECHP000001 Q6552 B1DADU000001 G D S R6544 10 Q6537 2SK349400L G D S D6483 MAZ80560HL D6476 B0ECHP000001 C6505 16V 1u R6453 22k R6575 470 Q6547 2SK373100L G D S C6456 160V 100u D6548 MAZ83300ML Q6536 2SK349400L G D S D6492 B0ECHP000001 R6452 0 C6461 50V 100u R6505 2.2k Q6452 2SB0709ARL C6455 25V 220u Q6543 2SK373100L G D S C6515 25V 4.7u C6542 25V 4.7u R6561 47 R6480 10k R6482 4.7k D6498 B0JCME000025 C6472 50V 0.01u R6457 10k IC6456 B3PBA0000062 1 2 3 4 Q6542 2SK373100L G D S R6553 150 IC6472 AN1431M-E1 CATHODE 3 1 REFERENCE ANODE 2 IC6471 AN1431M-E1 CATHODE 3 1 REFERENCE ANODE 2 R6435 3.3k Q6545 2SK373100L G D S D6521 B0ECHP000001 D6459 MA2J11100L R6546 10 R6525 100k R6559 2.2k C6537 50V 0.1u R6538 47 D6514 MA2J11100L Q6549 2SK373100L G D S IC6458 B3PBA0000062 1 2 3 4 C6467 25V 4.7u D6482 MAZ83300ML C6522 35V 47u R6581 100 D6524 MAZ80510LL 1% R6524 1.8k R6565 3.3k D6478 B0HCKS000001 R6539 47 C6462 25V 4.7u D6509 MA2J11100L R6532 47 R6515 100k Q6561 2SB1073001TV IC6480 B3PBA0000062 1 2 3 4 D6522 MA2J11100L R6444 10k R6516 10 D6455 MA2J11100L R6459 100k R6564 5.6 D6525 MA2J11100L R6540 10 D6572 B0ECHP000001 R6512 2.2 C6506 16V 1u IC6542 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb D6552 B0JCME000025 C6459 25V 47u R6496 1k R6593 220k R6551 1k C6574 16V 1u R6509 2.2k D6511 B0HCMM000009 D6453 MA2J11100L R6563 5.6 1% R6493 220k R6479 100k Q6558 2SK062000L G D S Q6540 2SK373100L G D S Q6435 2SD0601A0L D6516 MAZ82400ML IC6491 AN1431M-E1 CATHODE3 1 REFERENCE ANODE 2 D6510 B0JCME000025 R6486 10k D6479 MA2J11100L D6485 MAZ80560HL D6481 MAZ83300ML Q6564 B1DEDS000001 G D S R6517 470 L6431 J0JJC0000021 Q6557 2SK062000L G D S R6487 4.7k Q6554 2SK349400L G D S R6520 10k D6547 MAZ83300ML R6567 100k R6549 10 1% R6495 5.23k C6524 200V 1000p Q6471 B1BBCJ000003 D6475 MA2J11100L Q6454 2SD814ATX R6592 220k R6591 1.8k Q6472 2SB0709ARL R6550 47 R6522 0 R6521 100k Q6524 2SD21850RL C6475 25V 220u R6534 47 R6436 154k Q6521 B1DEDS000001 G D S D6487 MAZ80560HL R6571 470 Q6534 2SK349400L G D S D6433 MA2J11100L Q6539 2SK349400L G D S Q6544 2SK373100L G D S TP77 R6542 10 R6594 100k Q6512 B1DFGL000005 G D S C6514 16V 1u R6566 0 R6507 2.2k C6580 16V 1u D6542 MA2J11100L C6507 16V 1u TP76 Q6563 B1DEDS000001 G D S R6579 10 C6453 16V 1u C6504 16V 1u R6514 470 C6532 50V 4700p R6469 0 R6508 2.2k C6466 25V 4.7u D6460 B0HCKS000001 Q6538 2SK349400L G D S D6484 MAZ80560HL D6488 MAZ80560HL C6536 50V 220u Q6532 2SK349400L G D S Q6525 2SD21850RL R6441 1 T6451 G4D1A0000072 1 2 3 4 5 6 7 8 R6485 10k D6550 MA2J11100L Q6530 2SK349400L G D S R6552 100 R6454 220 R6474 220 T6471 G4D1A0000072 1 2 3 4 5 6 7 8 R6460 10k C6493 630V 2200p IC6434 B3PBA0000062 1 2 3 4 R6475 3.3k IC6455 AN78L05M-E1 IN 3 2 COMMON OUT 1 IC6541 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb IC6511 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb D6499 B0JCME000025 R6500 1.8k R6643 1k R6556 3.9k R6471 0 R6498 8.2 C6492 350V 10u R6502 2.2k VR6557 10k 1 2 3 R6541 10 R6668 68 R6473 22k L6472 G0ZZ00002183 Q6541 2SK373100L G D S R6572 470 R6646 10k R6562 5.6 R6569 10k C6510 25V 4.7u R6458 10k Q6432 2SB0709ARL R6511 2.2 Q6535 2SK349400L G D S D6512 MA2J11100L Q6548 2SK373100L G D S C6458 25V 4.7u D6495 B0HCKS000001 D6461 B0HCKS000001 Q6546 2SK373100L G D S D6553 MA2J11100L C6503 16V 1u R6577 470 IC6459 B3PBA0000062 1 2 3 4 D6473 MA2J11100L R6708 68 C6473 16V 1u R6504 2.2k 1/2W R6434 220 R6456 453k R6440 2.2k C6454 50V 0.01u Q6474 2SD814ATX C6525 200V 1000p D6545 MAZ80510LL Q6513 2SK062000L G D S C6511 25V 4.7u L6471 J0JJC0000021 C6581 16V 1u D6549 MA2J11100L IC6431 AN1431M-E1 CATHODE 3 1 REFERENCE ANODE 2 R6518 10k C6474 50V 0.01u R6483 2.2k C6526 250V 47u R6464 27k D6486 MAZ80560HL R6527 1k C6513 160V 100u R6666 68 C6550 160V 100u C6571 16V 1u C6501 16V 1u Q6551 2SD0601A0L Q6492 2SC1473AEA R6664 68 Q6550 2SC1473AEA C6521 25V 4.7u Q6555 2SK373100L G D S R6446 150 R6644 1k D6470 MA2J11100L C6577 16V 1u R6437 0 R6554 100k R6530 47 R6510 100 IC6457 B3PBA0000062 1 2 3 4 D6515 MAZ82400ML T6431 ETS13TB139AP N4 N2 1 2 3 NC 4 5 6 NC 7 9 10 NC R6503 2.2k Q6556 2SK373100L G D S 1% R6492 220k R6543 10 R6506 2.2k D6544 MA2J11100L D6497 B0JCME000025 C6463 25V 4.7u D6436 B0JCKG000001 C6533 16V 1u Q6522 2SK062000L G D S Q6526 2SB1073001TV Q6455 2SD0601A0L R6526 47 Q6562 B1DEDS000001 G D S C6509 50V 1000p D6451 B0JCME000025 R6803 100 D6543 MAZ80510LL R6568 100k D6477 MA2J11100L Q6476 2SD0601A0L C6476 160V 100u C6508 16V 1u R6438 22k D6541 B0HCKS000001 R6555 100k R6670 68 C6465 50V 0.1u R6491 100k D6526 B0HCMM000009 IC6452 AN78L15ME1 IN 3 2 COMMON OUT 1 R6669 68 R6547 10 Q6431 B1BBCJ000003 R6448 0 Q6523 2SB1073001TV C6516 25V 4.7u IC6543 AN78L05M-E1 IN 3 2 COMMON OUT 1 R6645 10k D6489 MAZ80560HL R6443 4.7k R6488 10k R6548 10 R6528 1k R6468 4.7k R6601 47 C6545 200V 1000p C6546 25V 4.7u R6596 4.7k Q6475 2SD0601A0L R6574 470 C6512 25V 4.7u R6466 2.2k TP70 Q6520 2SD0601A0L C6452 50V 0.01u R6490 10 IC6501 C0JBAB000417 1 2 3 4 5 6 7 8 9 10 11 12 13 14 C6578 16V 1u 1% R6476 324k R6442 1 R6667 68 D6456 B0ECHP000001 R6467 1.8k R6576 470 Q6451 B1BBCJ000003 R6531 47 IC6454 AN78L05M-E1 IN 3 2 COMMON OUT 1 VR6477 5k 1 2 3 R6445 150 IC6453 AN78L15ME1 IN 3 2 COMMON OUT 1 C6544 200V 1000p R6595 4.7k Q6553 2SK349400L G D S D6546 MAZ83300ML R6455 3.3k R6519 100 C6576 16V 1u R6533 47 D6435 MA2J11100L R6560 47 R6802 100 1% R6494 14.3k Q6533 2SK349400L G D S C6502 16V 1u D6463 MAZ80560HL Q6477 2SD0601A0L L6451 J0JJC0000021 R6558 10k R6602 47 C6517 16V 1u C6535 25V 220u R6529 68 D6520 MA2J11100L R6537 47 R6433 100k IC6521 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb C6534 50V 0.01u R6451 0 1% R6478 6.98k R6545 10 IC6505 B3PBA0000191 1 2 3 4 5 IC6506 B3PBA0000191 1 2 3 4 5 IC6507 B3PBA0000191 1 2 3 4 5 IC6508 B3PBA0000191 1 2 3 4 5 IC6509 B3PBA0000191 1 2 3 4 5 IC6510 B3PBA0000191 1 2 3 4 5 R6557 470 D6493 MA2J11100L IC6503 B3PBA0000191 1 2 3 4 5 IC6504 B3PBA0000191 1 2 3 4 5 R6465 8.2 IC6451 AN1431M-E1 CATHODE 3 1 REFERENCE ANODE 2 C6575 16V 1u INIT-R INIT-F 18 14 12 10 16 11 15 13 17 SC-BOARD TXNSC10QNS (2/3) 3 1 2 9 7 8 4 6 5 11 12 10 17 16 14 15 13 BUFFER BUFFER 5V REG 5V REG +15V(HT1) AVR 15V (TH-50PX25U/P) FET DRIVER FET DRIVER FET DRIVER FET DRIVER +5V(HT1) +5V(HT2) VAD VAD F15V VSCN * # # # * * TH-50PX25U/P SC-Board (2 of 3) Schematic Diagram TH-50PX25U/P SC-Board (2 of 3) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 191 15.95. SC-Board (3 of 3) Schematic Diagram (TH-50PX25U/P) + + + + + + + + AA_FCLKU 55V 55V 93V DSHR DSLR DMHR DMLR AA_FSID AA_FCLD AA_FCLKD AA_PROD AA_FSIU AA_FCLU AA_PROU DSHR DSLR DMHR DMLR 40V 40V 75V 78V AA_FSIU AA_FCLU AA_FCLKU AA_PROU AA_FSID AA_FCLD AA_FCLKD AA_PROD 78V 78V 15V 5V L6816 J0JJC0000011 C6812 25V 4.7u R6841 13k Q6818 2SB1073001TV R6817 100k Q6819 2SD21850RL R6605 220k R6816 5.6 L6804 J0JJC0000021 Q6822 2SD21850RL TP60 TP6810 D6814 B0HDSM000004 TP6813 TP6804 L6819 J0JJC0000011 TP43 C0ZBZ0000562 IC6802 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC Q6823 2SB1073001TV IC6804 C0BBBA000043 1 2 3 4 5 6 7 8 TP44 TP6808 C6821 25V 4.7u C6828 50V 0.01u R6811 100 D6807 B0HDSM000004 TP84 TP57 D6816 B0HDSM000004 D6818 B0ECHP000001 C6820 16V 1u R6814 22 R6825 22 Q6816 2SK326900L G D S TP81 L6817 J0JJC0000011 TP41 Q6815 2SK326900L G D S R6849 5.6 R6844 220 R6845 33 L6826 1u R6830 100 SC13 1 2 3 4 5 6 7 8 D6829 B0JCME000025 C6817 25V 4.7u TP6814 R6813 10k C0ZBZ0000562 IC6803 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC TP58 Q6812 2SK326900L G D S C6811 16V1u D6824 B0JCME000025 R6831 470k L6828 1u R6835 38.3k R6832 2.2k SC62 1 2 3 4 5 6 D6805 B0ECHP000001 SC42 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 TP6803 D6813 B0ECHP000001 C6841 100V 100u TP56 C0ZBZ0000562 IC6805 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC C6832 25V 220u C6598 160V 100u TP48 L6825 1u C6813 25V 4.7u R6823 22 TP59 TP6820 C6807 16V1u R6606 220k R6812 100 L6827 1u L6808 G0ZZ00002183 TP47 C6831 50V 0.01u SC43 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 C0JBAZ000005 IC6801 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC L6832 G0ZZ00002183 D6821 B0HDSM000004 C6827 16V 1u D6811 B0ECHP000001 TP6815 TP6819 Q6821 2SB1193000LB TP40 C6808 250V 0.1u L6805 J0JJC0000021 SC12 1 2 3 4 5 6 TP83 L6806 J0JJC0000021 R6839 10 C6816 250V 2u R6836 10k R6838 10k R6607 220k R6829 4.7k D6828 B0JCME000025 R6820 100 Q6824 2SK326900L G D S L6821 J0JJC0000011 C6809 25V 220u L6822 J0JJC0000011 TP6805 TP6809 TP6821 L6803 J0JJC0000011 TP42 R6842 22k C6840 250V 0.1u R6821 100 D6802 B0ECHP000001 C6822 25V 4.7u D6827 B0JCME000025 D6823 MA3X152E0L TP49 C6815 250V 2u TP61 D6820 B0HDSM000004 SC44 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 TP63 D6806 B0ECHP000001 R6810 EXB38V473JV Q6813 2SK326900L G D S C6803 100V 100u C6810 25V 220u Q6814 2SK326900L G D S R6840 10k C6833 100V 100u L6818 J0JJC0000011 TP80 L6820 J0JJC0000011 D6812 B0ECHP000001 C6830 50V 0.01u R6846 33 TP6823 R6805 100k TP62 C6801 100V 100u R6824 22 R6828 11.8k TP55 R6822 22 TP51 TP46 Q6817 2SD21850RL D6570 B0HCMM000009 SC41 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 R6827 69.8k D6815 B0HDSM000004 R6837 10 R6847 10 TP6818 L6807 G0ZZ00002183 R6843 22k TP45 R6809 EXB38V471JV D6817 B0HDSM000004 R6833 2.2k D6826 B0JCME000025 TP50 C6829 50V 0.01u Q6820 2SB1073001TV Q6811 2SK326900L G D S D6822 MA3X152E0L L6823 J0JJC0000011 TP6811 TP54 L6802 G0ZZ00002183 C6818 25V 4.7u SC45 1 2 3 4 5 6 7 8 9 10 SC46 1 2 3 4 5 6 7 8 9 10 NC + + - - Vda_75V 15V GND Vda 75V Vda 75V 78V 78V GND 78V 78V GND SOS2 5V GND GND DMLR DMHR DSLR DSHR NC NC NC 27 22 21 25 26 23 20 24 19 SC-BOARD TXNSC10QNS (3/3) 17 11 12 16 14 15 10 13 FET DRIVER FET DRIVER FET DRIVER BUFFER COMPARATOR (TH-50PX25U/P) C1-BOARD (C13) TO C6-BOARD (C62) TO C1-BOARD (C12) TO 78.0 78.0 0 0 0 0 78.0 0 75.0 75.0 0 78.0 0 0 0 1.5 1.0 0.6 1.8 1.6 TO SU-BOARD (SU45) TO SD-BOARD (SD46) TH-50PX25U/P SC-Board (3 of 3) Schematic Diagram TH-50PX25U/P SC-Board (3 of 3) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 192 15.96. SU-Board Block Diagram SU2 A48 FCL Vf5 Vf FCLK IC6401 PRO Vfo PDP SCAN DRIVER IC6402 SHIFT RESISTOR LATCH FSO1 FSO2 FSO2 FSO3 Vf5 Vf Vfo VSCN SU FSI Scan Out (up) Board FCL FCLK Vfo PRO Vf VF5V PRO 64 PIN Vf VF5V OUTPUT FCLK A8 64 PIN OUTPUT A7 OUTPUT A6 64 PIN PRO A47 FCL PRO FSI 89 FCL 90 VSCN To 1st 96pins of PDP SCAN DRIVER PDP SCAN DRIVER 91 Vf SCAN ELECTRODES IC6403 FCLK SU52 A32 To 2nd 96pins of FSI B48 TO SC41 SCAN ELECTRODES B32 TO SC42 B33 B47 A33 A47 A5 A4 Vf5 A2 A48 A3 A17 SU51 A16 A1 86 A2 B1 B2 FCLK 88 FCL B48 B17 B16 B47 SU1 85 A1 A2 B1 SELECTOR B2 A22 A23 A24 A25 A26 A27 A28 A40 A20 Vf A1 A21 Vf B1 B10 B11 B12 B13 B20 B40 B33 B32 B31 B30 B21 B48 B2 64 PIN OUTPUT SCAN ELECTRODES B32 OUTPUT B33 B47 64 PIN A33 A47 FCLK PRO A47 FCL Vf5 FSO4 B48 FCLK A48 FSO5 FCL B17 FSO5 B16 A17 Vf5 A16 A48 FCL B47 PRO SU3 A1 A2 IC6404 FSO3 IC6405 PRO B1 A1 To 3rd 96pins of PDP SCAN DRIVER PDP SCAN DRIVER SU4 A2 PDP SCAN DRIVER SCAN ELECTRODES 64 PIN B1 IC6406 Vf5 OUTPUT A32 FCLK To 4th 96pins of B2 FS01 FSO4 8 7 9 2 TO SC45 VF5V VF5V 1 5 10 6 3 4 FCL SU45 FSI VF VF PR0 FCLK VF VF HV63 HV01 HV03 HV02 100 30 99 77 76 1 46 HV62 HV64 75 96 32 80 43 44 33 79 97 39 41 40 37 83 84 82 93 87 38 92 36 94 35 85 Vfo HV63 HV01 HV03 87 HV02 38 86 92 36 94 80 35 75 91 32 90 39 41 40 37 83 84 76 82 1 93 46 43 HV62 44 HV64 33 96 79 97 LATCH SHIFT RESISTOR 100 30 99 77 Vf SELECTOR 89 88 85 Vfo HV63 HV01 HV03 87 HV02 38 86 92 36 94 80 35 75 91 32 90 39 41 40 37 83 84 76 82 1 93 46 43 HV62 44 HV64 33 96 79 97 LATCH SHIFT RESISTOR 100 30 99 77 Vf SELECTOR 89 88 85 Vfo HV63 HV01 HV03 87 HV02 38 86 92 36 94 80 35 75 91 32 90 39 41 40 37 83 84 76 82 1 93 46 43 HV62 44 HV64 33 96 79 97 LATCH SHIFT RESISTOR 100 30 99 77 Vf SELECTOR 89 88 85 Vfo HV63 HV01 HV03 87 HV02 38 86 92 36 94 80 35 75 91 32 90 39 41 40 37 83 84 76 82 1 93 46 43 HV62 44 HV64 33 96 79 97 LATCH SHIFT RESISTOR 100 30 99 77 Vf SELECTOR 89 88 85 Vfo HV63 HV01 HV03 87 HV02 38 86 92 36 94 80 35 75 91 32 90 39 41 40 37 83 84 76 82 1 93 46 43 HV62 44 HV64 33 96 79 97 LATCH SHIFT RESISTOR 100 30 99 77 Vf SELECTOR 89 88 TH-42/50PX25U/P SU-Board Block Diagram TH-42/50PX25U/P SU-Board Block Diagram TH-42PX25U-P / TH-50PX25U-P 193 15.97. SU-Board (1 of 2) Schematic Diagram (TH-42PX25U/P) UP TH-42PX25U/P SU-Board (1 of 2) Schematic Diagram TH-42PX25U/P SU-Board (1 of 2) Schematic Diagram Thermal Pad Thermal Pad Thermal Pad TERM SIDE TERM SIDE AA_SO5 AA_SO5 AA_SO4 AA_SO4 AA_SO3 AB_382 AB_381 AB_380 AB_379 AB_378 AB_377 AB_376 AB_375 AB_374 AB_373 AB_372 AB_371 AB_370 AB_369 AB_368 AB_367 AB_366 AB_365 AB_364 AB_363 AB_362 AB_361 AB_360 AB_358 AB_359 AB_357 AB_355 AB_356 AC_318 AC_317 AC_316 AC_315 AC_314 AC_313 AC_312 AC_311 AC_310 AC_309 AC_308 AC_307 AC_306 AC_305 AC_304 AC_303 AC_302 AC_301 AC_300 AC_299 AC_298 AC_297 AC_296 AC_294 AC_295 AC_293 AC_291 AC_292 AD_254 AD_253 AD_252 AD_251 AD_250 AD_249 AD_248 AD_247 AD_246 AD_245 AD_244 AD_243 AD_242 AD_241 AD_240 AD_239 AD_238 AD_237 AD_236 AD_235 AD_234 AD_233 AD_232 AD_230 AD_231 AD_229 AD_227 AB_365 AB_367 AB_369 AB_371 AB_373 AB_375 AB_377 AB_379 AB_381 AB_383 AB_366 AB_368 AB_370 AB_372 AB_374 AB_376 AB_380 AB_382 AB_341 AB_343 AB_345 AB_347 AB_349 AB_351 AB_353 AB_355 AB_357 AB_359 AB_361 AB_363 AB_342 AB_344 AB_346 AB_348 AB_350 AB_352 AB_354 AB_356 AB_358 AB_360 AB_362 AB_364 AA_PRO AA_CLK AA_CL AB_321 AB_323 AB_325 AB_327 AB_329 AB_331 AB_333 AB_335 AB_337 AB_339 AB_322 AB_324 AB_326 AB_328 AB_330 AB_332 AB_334 AB_336 AB_338 AB_340 AC_319 AC_317 AC_316 AC_320 AC_318 AB_384 AB_383 AC_293 AC_295 AC_297 AC_299 AC_301 AC_303 AC_305 AC_307 AC_309 AC_311 AC_313 AC_315 AC_294 AC_296 AC_298 AC_300 AC_302 AC_304 AC_306 AC_308 AC_310 AC_312 AC_314 AC_281 AC_283 AC_287 AC_285 AC_282 AC_284 AC_288 AC_286 AC_289 AC_291 AA_CL AA_PRO AA_CLK AC_257 AC_259 AC_261 AC_263 AC_265 AC_267 AC_269 AC_271 AC_273 AC_275 AC_277 AC_279 AC_258 AC_260 AC_262 AC_264 AC_266 AC_268 AC_270 AC_272 AC_274 AC_276 AC_278 AC_280 AD_256 AC_320 AC_319 AD_254 AD_252 AD_250 AD_248 AD_246 AD_244 AD_242 AD_240 AD_238 AD_236 AD_234 AD_232 AD_253 AD_255 AD_251 AD_249 AD_247 AD_245 AD_243 AD_241 AD_239 AD_237 AD_235 AD_233 AD_230 AD_228 AD_226 AD_224 AD_222 AD_220 AD_218 AD_216 AD_214 AD_212 AD_210 AD_208 AD_231 AD_229 AD_227 AD_225 AD_223 AD_221 AD_219 AD_217 AD_215 AD_213 AD_211 AD_209 AA_PRO AA_CL AA_CLK AD_206 AD_204 AD_202 AD_200 AD_198 AD_196 AD_194 AD_207 AD_205 AD_203 AD_201 AD_199 AD_197 AD_195 AD_193 AD_256 AD_255 AB_378 AB_384 AC_292 AC_290 AB_321 AB_323 AB_324 AB_325 AB_326 AB_327 AB_328 AB_329 AB_330 AB_331 AB_332 AB_333 AB_334 AB_335 AB_336 AB_337 AB_338 AB_339 AB_340 AB_341 AB_342 AB_343 AB_344 AB_345 AB_346 AB_322 AB_347 AB_348 AB_349 AB_350 AB_351 AB_352 AB_353 AB_354 AC_257 AC_258 AC_259 AC_260 AC_261 AC_262 AC_263 AC_264 AC_265 AC_266 AC_267 AC_268 AC_269 AC_270 AC_271 AC_272 AC_273 AC_274 AC_275 AC_276 AC_277 AC_278 AC_279 AC_280 AC_281 AC_282 AC_283 AC_284 AC_285 AC_286 AC_287 AC_288 AC_289 AC_290 AD_193 AD_194 AD_195 AD_196 AD_197 AD_198 AD_199 AD_200 AD_201 AD_202 AD_203 AD_204 AD_205 AD_206 AD_207 AD_208 AD_209 AD_210 AD_211 AD_212 AD_213 AD_214 AD_215 AD_216 AD_217 AD_218 AD_219 AD_220 AD_221 AD_222 AD_223 AD_224 AD_226 AD_225 AD_228 120V 120V 120V(DC) 0V FLOTING_GND 0V B3 C6405 16V 1u B4 B29 B13 B11 R6405 220 B27 C6404 16V 1u C0HBC0000007 IC6406 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 C6418 250V 0.1u C0HBC0000007 IC6404 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 C0HBC0000007 IC6405 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 B32 B26 B2 B38 B34 B28 B37 B15 B21 C6406 16V 1u B24 C6417 250V 0.1u B6 B35 B14 B9 B7 B39 B10 R6404 220 B30 B33 B40 B16 B31 B17 B36 B5 B25 B20 SU3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 SU4 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 R6416 220k B12 B22 B8 R6406 220 B19 B18 B1 D6403 B0ECHP000001 B23 Vfo Vf5 Vscn COMPONENT SIDE (LOWER) FOIL SIDE (UPPER) TO (SC42) SC-BOARD DRIVER PDP SCAN TO PANEL DRIVER TO PANEL DRIVER SU-BOARD TNPA3104 (1/2) A 4 2 B 7 1 D 3 8 E C 6 5 4 2 3 1 6 5 (TH-42PX25U/P) DRIVER PDP SCAN SU52 (Card Edge) SU52 DRIVER PDP SCAN TH-42PX25U-P / TH-50PX25U-P 194 15.98. SU-Board (2 of 2) Schematic Diagram (TH-42PX25U/P) TH-42PX25U/P SU-Board (2 of 2) Schematic Diagram TH-42PX25U/P SU-Board (2 of 2) Schematic Diagram Thermal Pad Thermal Pad Thermal Pad TERM SIDE TERM SIDE AA_SO3 AA_SO2 AA_SO2 AA_SO1 AA_SI AA_SO1 AA_CL AA_CLK AA_SI AA_PRO 5V(DC) 5V(DC) 5V(DC) AE_190 AE_189 AE_188 AE_187 AE_186 AE_185 AE_184 AE_183 AE_182 AE_181 AE_180 AE_179 AE_178 AE_177 AE_176 AE_175 AE_174 AE_173 AE_172 AE_171 AE_170 AE_169 AE_168 AE_166 AE_167 AE_165 AE_163 AE_164 AF_126 AF_125 AF_124 AF_123 AF_122 AF_121 AF_120 AF_119 AF_118 AF_117 AF_116 AF_115 AF_114 AF_113 AF_112 AF_111 AF_110 AF_109 AF_108 AF_107 AF_106 AF_105 AF_104 AF_102 AF_103 AF_101 AF_99 AF_100 AG_62 AG_61 AG_60 AG_59 AG_58 AG_57 AG_56 AG_55 AG_54 AG_53 AG_52 AG_51 AG_50 AG_49 AG_48 AG_47 AG_46 AG_45 AG_44 AG_43 AG_42 AG_41 AG_40 AG_38 AG_39 AG_37 AG_35 AG_36 AE_187 AE_185 AE_183 AE_188 AE_186 AE_184 AE_182 AE_191 AE_192 AE_189 AE_190 AE_175 AE_173 AE_181 AE_179 AE_177 AE_176 AE_174 AE_172 AE_180 AE_178 AE_161 AE_159 AE_163 AE_164 AE_162 AE_160 AE_158 AE_165 AE_171 AE_169 AE_167 AE_170 AE_168 AE_166 AE_151 AE_157 AE_155 AE_153 AE_149 AE_152 AE_156 AE_154 AE_148 AE_150 AE_192 AE_191 AA_PRO AA_CLK AA_CL AE_137 AE_135 AE_140 AE_138 AE_136 AE_134 AE_141 AE_143 AE_145 AE_147 AE_144 AE_146 AE_139 AE_142 AE_133 AE_131 AE_129 AF_127 AF_125 AF_123 AE_132 AE_130 AF_128 AF_126 AF_124 AF_113 AF_111 AF_114 AF_112 AF_110 AF_117 AF_121 AF_119 AF_122 AF_120 AF_115 AF_116 AF_118 AF_109 AF_107 AF_105 AF_103 AF_101 AF_99 AF_108 AF_106 AF_104 AF_102 AF_100 AF_97 AF_98 AF_94 AF_96 AF_92 AF_90 AF_93 AF_95 AF_91 AF_128 AA_CLK AA_CL AA_PRO AF_127 AF_88 AF_86 AF_84 AF_82 AF_80 AF_78 AF_76 AF_74 AF_72 AF_70 AF_68 AF_66 AF_89 AF_87 AF_85 AF_83 AF_81 AF_79 AF_77 AF_75 AF_73 AF_71 AF_69 AF_67 AG_61 AG_63 AG_59 AG_57 AG_55 AG_53 AG_51 AG_49 AG_47 AG_45 AG_43 AG_41 AG_64 AG_62 AG_60 AG_58 AG_56 AG_54 AG_52 AG_50 AG_48 AG_46 AG_44 AG_42 AF_65 AA_CLK AG_39 AG_37 AG_35 AG_33 AG_31 AG_29 AG_27 AG_25 AG_23 AG_21 AG_19 AG_17 AG_40 AG_38 AG_36 AG_34 AG_32 AG_30 AG_28 AG_26 AG_24 AG_22 AG_20 AG_18 AG_64 AA_CL AA_PRO AG_63 AG_15 AG_13 AG_11 AG_9 AG_7 AG_5 AG_3 AG_1 AG_16 AG_14 AG_12 AG_10 AG_8 AG_6 AG_4 AG_2 AE_130 AE_129 AE_132 AE_133 AE_134 AE_135 AE_136 AE_137 AE_138 AE_139 AE_140 AE_141 AE_142 AE_143 AE_144 AE_145 AE_146 AE_147 AE_148 AE_149 AE_150 AE_151 AE_152 AE_153 AE_154 AE_131 AE_155 AE_156 AE_157 AE_158 AE_159 AE_160 AE_162 AE_161 AF_65 AF_66 AF_67 AF_68 AF_69 AF_70 AF_71 AF_72 AF_73 AF_74 AF_75 AF_76 AF_77 AF_78 AF_79 AF_80 AF_81 AF_82 AF_83 AF_84 AF_85 AF_86 AF_87 AF_88 AF_89 AF_90 AF_91 AF_92 AF_93 AF_94 AF_95 AF_96 AF_97 AF_98 AG_1 AG_2 AG_3 AG_4 AG_5 AG_6 AG_7 AG_8 AG_9 AG_10 AG_11 AG_12 AG_13 AG_14 AG_15 AG_16 AG_17 AG_18 AG_19 AG_20 AG_21 AG_22 AG_23 AG_24 AG_25 AG_26 AG_27 AG_28 AG_29 AG_30 AG_31 AG_32 AG_34 AG_33 0V C6402 16V 1u A26 A39 C6408 50V 1000p C0HBC0000007 IC6402 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 R6413 10k A8 A33 R6401 220 A31 A5 A22 A37 A10 SU45 K1KA10B00209 1 2 3 4 5 6 7 8 9 10 A38 A32 A30 A25 A7 A12 A21 A36 A29 A18 C0HBC0000007 IC6401 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 R6412 10k A4 A1 C6403 16V 1u A15 A16 R6403 220 C0HBC0000007 IC6403 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 R6411 10k A35 A14 A19 SU2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 R6415 220k A28 R6414 10k A6 D6402 MAZ80560HL A13 A40 A3 A23 A27 D6401 MAZ80560HL A17 A24 A11 A20 A2 SU1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 D6404 B0ECHP000001 A34 C6407 50V 2200p C6401 16V 1u C6420 250V 0.1u A9 R6402 220 C6419 250V 0.1u UP Vf VF5V FSI VF5V FCL PRO FCLK FOIL SIDE (UPPER) COMPONENT SIDE (LOWER) TO (SC45) SC-BOARD TO (SC41) SC-BOARD TO PANEL DRIVER TO PANEL DRIVER SU-BOARD TNPA3104 (2/2) 12 8 14 10 11 15 9 13 4 2 3 1 6 5 (TH-42PX25U/P) DRIVER PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN SU51 SU51(Card Edge) TH-42PX25U-P / TH-50PX25U-P 195 15.99. SU-Board (1 of 2) Schematic Diagram (TH-50PX25U/P) UP TH-50PX25U/P SU-Board (1 of 2) Schematic Diagram TH-50PX25U/P SU-Board (1 of 2) Schematic Diagram Thermal Pad Thermal Pad TERM SIDE Thermal Pad TERM SIDE AG_FSI AG_FCLK AG_FCL AD_192 AD_190 AD_189 AD_188 AD_187 AD_186 AD_185 AD_184 AD_183 AD_182 AD_181 AD_180 AD_179 AD_178 AD_177 AD_176 AD_175 AD_174 AD_173 AD_172 AD_171 AD_170 AD_169 AD_168 AD_166 AD_167 AE_128 AE_126 AE_125 AE_124 AE_123 AE_122 AE_121 AE_120 AE_119 AE_118 AE_117 AE_116 AE_115 AE_114 AE_113 AE_112 AE_111 AE_110 AE_109 AE_108 AE_107 AE_106 AE_105 AE_104 AE_102 AE_103 AF_64 AF_62 AF_61 AF_60 AF_59 AF_58 AF_57 AF_56 AF_55 AF_54 AF_53 AF_52 AF_51 AF_50 AF_49 AF_48 AF_47 AF_46 AF_45 AF_44 AF_43 AF_42 AF_41 AF_40 AF_38 AF_39 AD_191 AD_189 AD_187 AD_185 AD_192 AD_190 AD_188 AD_186 AD_184 AD_182 AD_180 AD_178 AD_176 AD_174 AD_172 AD_170 AD_168 AD_166 AD_164 AD_162 AD_160 AD_158 AD_156 AD_154 AD_152 AD_150 AD_148 AD_146 AD_144 AD_142 AD_140 AD_138 AD_136 AD_134 AD_132 AD_130 AD_183 AD_181 AD_179 AD_177 AD_175 AD_173 AD_171 AD_169 AD_167 AD_165 AD_163 AD_161 AD_159 AD_157 AD_155 AD_153 AD_151 AD_149 AD_147 AD_145 AD_143 AD_141 AD_139 AD_137 AD_135 AD_133 AD_129 AD_131 AE_128 AE_126 AE_124 AE_122 AE_120 AE_118 AE_116 AE_114 AE_112 AE_110 AE_108 AE_106 AE_104 AE_102 AE_98 AE_100 AE_127 AE_125 AE_123 AE_121 AE_119 AE_117 AE_115 AE_113 AE_111 AE_109 AE_107 AE_105 AE_103 AE_101 AE_99 AE_97 AE_94 AE_92 AE_90 AE_88 AE_86 AE_84 AE_82 AE_80 AE_78 AE_76 AE_74 AE_72 AE_70 AE_68 AE_66 AE_95 AE_93 AE_91 AE_89 AE_87 AE_85 AE_83 AE_81 AE_79 AE_77 AE_75 AE_73 AE_71 AE_69 AE_67 AE_65 AF_64 AF_62 AF_60 AF_58 AF_56 AF_54 AF_52 AF_50 AF_48 AF_46 AF_44 AF_42 AF_40 AF_38 AF_36 AF_34 AF_32 AF_30 AF_28 AF_26 AF_24 AF_22 AF_20 AF_18 AF_16 AF_14 AF_12 AF_10 AF_8 AF_6 AF_2 AF_4 AF_63 AF_61 AF_59 AF_57 AF_55 AF_53 AF_51 AF_49 AF_47 AF_45 AF_43 AF_41 AF_39 AF_37 AF_35 AF_33 AF_31 AF_29 AF_27 AF_25 AF_23 AF_21 AF_19 AF_17 AF_15 AF_13 AF_11 AF_9 AF_7 AF_5 AF_3 AF_1 AD_165 AE_127 AG_FSO2 AE_99 AE_100 AE_101 AG_FCL AG_PRO AG_FCLK AF_37 AF_36 AF_35 AG_FSO1 AF_63 AG_FSO1 AD_164 AD_163 AG_FCLK AG_FCL AG_PRO AG_FSO3 AG_FSO2 AD_191 AE_96 AG_PRO AG_FCLK 5V AG_FCL AG_FSI AF_1 AF_3 AF_4 AF_5 AF_6 AF_7 AF_8 AF_9 AF_10 AF_11 AF_12 AF_13 AF_14 AF_15 AF_16 AF_17 AF_18 AF_19 AF_20 AF_21 AF_22 AF_23 AF_24 AF_25 AF_26 AF_2 AF_27 AF_28 AF_29 AF_30 AF_31 AF_32 AF_34 AF_33 AE_65 AE_66 AE_67 AE_68 AE_69 AE_70 AE_71 AE_72 AE_73 AE_74 AE_75 AE_76 AE_77 AE_78 AE_79 AE_80 AE_81 AE_82 AE_83 AE_84 AE_85 AE_86 AE_87 AE_88 AE_89 AE_90 AE_91 AE_92 AE_93 AE_94 AE_95 AE_96 AE_98 AE_97 AD_129 AD_130 AD_131 AD_132 AD_133 AD_134 AD_135 AD_136 AD_137 AD_138 AD_139 AD_140 AD_141 AD_142 AD_143 AD_144 AD_145 AD_146 AD_147 AD_148 AD_149 AD_150 AD_151 AD_152 AD_153 AD_154 AD_155 AD_156 AD_157 AD_158 AD_159 AD_160 AD_161 AD_162 AG_PRO 120V 0V FLOTING_GND 5V(DC) A35 A15 A16 C0HBC0000007 IC6402 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 A29 A20 R6402 220 A11 A19 A25 A22 A14 A10 A3 A21 C6400 50V 2200p R6403 220 D6409 B0ECHP000001 C6402 16V 1u A13 D6401 MAZ80560HL A24 A30 A26 R6411 220k A37 R6407 10k A6 A1 A12 C6418 250V 0.1u D6402 MAZ80560HL R6410 10k C0HBC0000007 IC6403 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 A9 A2 SU1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 C6408 50V 2200p C6401 16V 1u R6412 10k A8 A36 A17 C0HBC0000007 IC6401 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 A4 A27 A28 R6408 10k A7 A40 A33 A31 SU45 1 2 3 4 5 6 7 8 9 10 C6417 250V 0.1u A5 A18 A32 SU2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 A38 C6403 16V 1u A39 A34 R6401 220 A23 CLU FCL SIU FSI Vf5 VF5V PROU CLKU PRO FCLK VF5V Vf Vfo Vf SU51(Card Edge) Vscn B 2 8 A 1 6 5 7 D E 3 C 4 3 1 6 4 2 5 FOIL SIDE (UPPER) COMPONENT SIDE (LOWER) (SC41) SC-BOARD TO TO (SC45) SC-BOARD SU-BOARD TNPA3128 (1/2) TO PANEL DRIVER TO PANEL DRIVER PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER (TH-50PX25U/P) TH-42PX25U-P / TH-50PX25U-P 196 15.100. SU-Board (2 of 2) Schematic Diagram (TH-50PX25U/P) UP TH-50PX25U/P SU-Board (2 of 2) Schematic Diagram TH-50PX25U/P SU-Board (2 of 2) Schematic Diagram TERM SIDE TERM SIDE Thermal Pad Thermal Pad Thermal Pad AA_384 AA_382 AA_381 AA_380 AA_379 AA_378 AA_377 AA_376 AA_375 AA_374 AA_373 AA_372 AA_371 AA_370 AA_369 AA_368 AA_367 AA_366 AA_365 AA_364 AA_363 AA_362 AA_361 AA_360 AA_358 AA_359 AB_320 AB_318 AB_317 AB_316 AB_315 AB_314 AB_313 AB_312 AB_311 AB_310 AB_309 AB_308 AB_307 AB_306 AB_305 AB_304 AB_303 AB_302 AB_301 AB_300 AB_299 AB_298 AB_297 AB_296 AB_294 AB_295 AC_256 AC_254 AC_253 AC_252 AC_251 AC_250 AC_249 AC_248 AC_247 AC_246 AC_245 AC_244 AC_243 AC_242 AC_241 AC_240 AC_239 AC_238 AC_237 AC_236 AC_235 AC_234 AC_233 AC_232 AC_230 AC_231 AB_288 AA_384 AA_382 AA_380 AA_378 AA_376 AA_374 AA_372 AA_370 AA_368 AA_366 AA_362 AA_364 AA_383 AA_381 AA_379 AA_377 AA_375 AA_373 AA_371 AA_369 AA_367 AA_365 AA_363 AA_361 AA_359 AA_357 AA_355 AA_353 AA_351 AA_349 AA_347 AA_345 AA_360 AA_358 AA_356 AA_354 AA_352 AA_350 AA_348 AA_346 AA_344 AA_321 AA_323 AA_325 AA_327 AA_329 AA_331 AA_333 AA_335 AA_337 AA_339 AA_341 AA_343 AA_342 AA_340 AA_338 AA_336 AA_334 AA_332 AA_330 AA_328 AA_326 AA_322 AA_324 AB_319 AB_317 AB_315 AB_313 AB_311 AB_309 AB_307 AB_305 AB_303 AB_301 AB_299 AB_297 AB_295 AB_293 AB_291 AB_289 AB_320 AB_318 AB_316 AB_314 AB_312 AB_310 AB_308 AB_306 AB_304 AB_302 AB_300 AB_298 AB_296 AB_294 AB_290 AB_292 AB_286 AB_284 AB_282 AB_280 AB_278 AB_276 AB_274 AB_272 AB_270 AB_268 AB_266 AB_264 AB_262 AB_260 AB_258 AB_287 AB_285 AB_283 AB_281 AB_279 AB_277 AB_275 AB_273 AB_271 AB_269 AB_267 AB_265 AB_263 AB_261 AB_259 AB_257 AC_255 AC_253 AC_251 AC_249 AC_247 AC_245 AC_243 AC_239 AC_241 AC_237 AC_235 AC_233 AC_231 AC_229 AC_227 AC_225 AC_223 AC_221 AC_219 AC_217 AC_215 AC_213 AC_211 AC_209 AC_207 AC_205 AC_203 AC_201 AC_199 AC_197 AC_193 AC_195 AC_256 AC_254 AC_252 AC_250 AC_248 AC_246 AC_244 AC_242 AC_240 AC_238 AC_236 AC_234 AC_232 AC_230 AC_228 AC_226 AC_224 AC_222 AC_220 AC_218 AC_216 AC_214 AC_210 AC_212 AC_208 AC_206 AC_204 AC_202 AC_200 AC_198 AC_194 AC_196 AG_FCL AC_228 AG_FSO5 AG_PRO AG_FCL AG_FCLK AG_FSO4 AG_FCLK AC_255 AG_PRO AG_FCL AC_227 AC_229 AG_FSO5 AG_PRO AG_FSO4 AG_FCLK AA_357 AA_356 AA_355 AB_319 AB_293 AB_291 AB_292 AG_FSO3 AA_383 AC_193 AC_194 AC_195 AC_196 AC_197 AC_198 AC_199 AC_200 AC_201 AC_202 AC_203 AC_204 AC_205 AC_206 AC_207 AC_208 AC_209 AC_210 AC_211 AC_212 AC_213 AC_214 AC_215 AC_216 AC_217 AC_218 AC_219 AC_220 AC_221 AC_222 AC_223 AC_224 AC_225 AC_226 AB_257 AB_258 AB_259 AB_260 AB_261 AB_262 AB_263 AB_264 AB_265 AB_266 AB_267 AB_268 AB_269 AB_270 AB_271 AB_272 AB_273 AB_274 AB_275 AB_276 AB_277 AB_278 AB_279 AB_280 AB_281 AB_282 AB_283 AB_284 AB_285 AB_286 AB_287 AB_288 AB_290 AB_289 AA_321 AA_322 AA_323 AA_324 AA_325 AA_326 AA_327 AA_328 AA_329 AA_330 AA_331 AA_332 AA_333 AA_334 AA_335 AA_336 AA_337 AA_338 AA_339 AA_340 AA_341 AA_342 AA_343 AA_344 AA_345 AA_346 AA_347 AA_348 AA_349 AA_350 AA_351 AA_352 AA_354 AA_353 R6409 220k B20 B1 B35 B31 B12 B36 R6405 220 B10 B34 B25 B15 R6404 220 C6410 250V 0.1u B23 B30 SU3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B7 C6409 250V 0.1u B13 B38 C6405 16V 1u SU4 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B4 B19 B33 B8 B3 B22 B32 B6 B14 B24 D6408 B0ECHP000001 B9 C0HBC0000007 IC6405 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 B5 B40 B21 B17 C0HBC0000007 IC6404 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 C6406 16V 1u B28 B37 B2 B29 B39 C6404 16V 1u B27 C0HBC0000007 IC6406 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 B18 B11 B16 R6406 220 B26 SU52 Vfo (Card Edge) 10 11 8 12 9 15 14 13 1 6 4 2 5 3 FOIL SIDE (UPPER) COMPONENT SIDE (LOWER) (SC42) TO SC-BOARD SU-BOARD TNPA3128 (2/2) TO PANEL DRIVER TO PANEL DRIVER PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER (TH-50PX25U/P) TH-42PX25U-P / TH-50PX25U-P 197 15.101. SD-Board Block Diagram FSO9 To 4th 96pins of C30 B2 88 C31 VF5V OUTPUT C40 FSI SCAN ELECTRODES FCL B32 B48 B48 SD2 Vf 79 B17 FSO7 PRO TO SC44 B16 39 44 PRO SCAN ELECTRODES OUTPUT B32 FCL OUTPUT FS07 87 FSO9 B47 FSO10 B33 B47 IC6411 TO SC43 96 PRO 37 B33 SD1 PDP SCAN DRIVER SHIFT RESISTOR IC6407 85 32 B47 Scan Out (down) Board A1 PRO SD3 A33 Vf5 43 A47 B1 B47 A2 FCL 36 33 B1 Vf5 80 A48 Vf SELECTOR FSI FCLK 64 PIN B2 A1 89 A33 A17 D39 FCL A47 SD52 A48 41 A16 90 83 VSCN 64 PIN A1 To 1st 96pins of FCLK A1 PDP SCAN DRIVER 86 To 3rd 96pins of PDP SCAN DRIVER A2 A2 91 VSCN PDP SCAN DRIVER IC6410 Vf FCLK B1 SCAN ELECTRODES PDP SCAN DRIVER 35 PRO IC6408 FSO8 97 94 Vfo IC6409 Vfo B2 FCLK A47 FCLK SD51 FCL Vf5 A32 FSO10 To 2nd 96pins of Vf5 B48 38 FCLK SD OUTPUT FSO8 A48 SD4 FSO11 FCL A2 PDP SCAN DRIVER LATCH OUTPUT B17 Vf FSO11 B16 64 PIN D38 64 PIN A17 D37 PRO D36 A47 SCAN ELECTRODES D35 64 PIN D34 B1 D33 D21 FCL Vf5 Vf A16 84 D40 40 IC6412 C11 A48 C10 Vf5 92 B48 PRO B2 OUTPUT 64 PIN 93 A32 C21 FCLK Vfo C28 82 C29 D1 D18 D17 D16 D19 D15 D14 D13 D20 C20 C9 C8 C1 75 99 HV03 HV01 1 HV02 HV62 76 HV64 HV63 77 VF PR0 FCLK VF VF FCL FCLK PRO VF5V 7 8 Vf 9 2 TO SC46 10 VF5 6 Vf VF5 3 1 4 5 FCL SD46 FSI VF FSI 100 30 46 84 HV63 97 77 94 89 Vf 35 86 39 SHIFT RESISTOR SELECTOR 90 83 32 41 40 96 37 82 80 93 87 100 30 1 HV02 HV62 46 76 38 HV64 43 Vfo 92 91 88 44 33 79 36 85 75 99 HV03 HV01 LATCH 84 HV63 97 77 94 89 Vf 35 86 39 SHIFT RESISTOR SELECTOR 90 83 32 41 40 96 37 82 80 93 87 100 30 1 HV02 HV62 46 76 38 HV64 43 Vfo 92 91 88 44 33 79 36 85 75 99 HV03 HV01 LATCH 84 HV63 97 77 94 89 Vf 35 86 39 SHIFT RESISTOR SELECTOR 90 83 32 41 40 96 37 82 80 93 87 100 30 1 HV02 HV62 46 76 38 HV64 43 Vfo 92 91 88 44 33 79 36 85 75 99 HV03 HV01 LATCH 84 HV63 97 77 94 89 Vf 35 86 39 SHIFT RESISTOR SELECTOR 90 83 32 41 40 96 37 82 80 93 87 100 30 1 HV02 HV62 46 76 38 HV64 43 Vfo 92 91 88 44 33 79 36 85 75 99 HV03 HV01 LATCH 84 HV63 97 77 94 89 Vf 35 86 39 SHIFT RESISTOR SELECTOR 90 83 32 41 40 96 37 82 80 93 87 100 30 1 HV02 HV62 46 76 38 HV64 43 Vfo 92 91 88 44 33 79 36 85 75 99 HV03 HV01 LATCH IC6411 IC6412 IC6413 IC6416 IC6415 IC6414 TH-50PX25U/P TH-42PX25U/P TH-50PX25U/P TH-42PX25U/P TH-50PX25U/P TH-42PX25U/P TH-50PX25U/P TH-42PX25U/P TH-50PX25U/P TH-42PX25U/P TH-50PX25U/P TH-42PX25U/P TH-42/50PX25U/P SD-Board Block Diagram TH-42/50PX25U/P SD-Board Block Diagram TH-42PX25U-P / TH-50PX25U-P 198 15.102. SD-Board (1 of 2) Schematic Diagram (TH-42PX25U/P) DOWN TERM SIDE Thermal Pad TERM SIDE Thermal Pad Thermal Pad AA_SO11 AA_SO11 AA_SO10 AA_SO10 AA_SO9 AB_766 AB_765 AB_764 AB_763 AB_762 AB_761 AB_760 AB_759 AB_758 AB_757 AB_756 AB_755 AB_754 AB_753 AB_752 AB_751 AB_750 AB_749 AB_748 AB_747 AB_746 AB_745 AB_744 AB_742 AB_743 AB_741 AB_739 AB_740 5V 5V AC_702 AC_701 AC_700 AC_699 AC_698 AC_697 AC_696 AC_695 AC_694 AC_693 AC_692 AC_691 AC_690 AC_689 AC_688 AC_687 AC_686 AC_685 AC_684 AC_683 AC_682 AC_681 AC_680 AC_678 AC_679 AC_677 AC_675 AC_676 AD_638 AD_637 AD_636 AD_635 AD_634 AD_633 AD_632 AD_631 AD_630 AD_629 AD_628 AD_627 AD_626 AD_625 AD_624 AD_623 AD_622 AD_621 AD_620 AD_619 AD_618 AD_617 AD_616 AD_614 AD_615 AD_613 AD_611 AD_612 AB_705 AB_707 AB_709 AB_711 AB_713 AB_715 AB_717 AB_719 AB_721 AB_723 AB_725 AB_727 AB_729 AB_731 AB_733 AB_735 AB_737 AB_739 AB_741 AB_743 AB_745 AB_747 AB_749 AB_751 AB_753 AB_755 AB_757 AB_759 AB_761 AB_763 AB_767 AB_765 AB_706 AB_708 AB_710 AB_712 AB_714 AB_716 AB_718 AB_720 AB_722 AB_724 AB_726 AB_728 AB_730 AB_732 AB_734 AB_736 AB_738 AB_740 AB_742 AB_744 AB_746 AB_748 AB_750 AB_752 AB_754 AB_756 AB_758 AB_760 AB_762 AB_764 AB_768 AB_766 AC_641 AC_643 AC_645 AC_647 AC_649 AC_651 AC_653 AC_655 AC_657 AC_659 AC_661 AC_663 AC_665 AC_667 AC_671 AC_669 AC_673 AC_675 AC_677 AC_679 AC_681 AC_683 AC_685 AC_687 AC_689 AC_691 AC_693 AC_695 AC_697 AC_699 AC_703 AC_701 AC_642 AC_644 AC_646 AC_648 AC_650 AC_652 AC_654 AC_656 AC_658 AC_660 AC_662 AC_664 AC_666 AC_668 AC_670 AC_674 AC_676 AC_678 AC_680 AC_682 AC_684 AC_686 AC_688 AC_690 AC_692 AC_694 AC_696 AC_698 AC_700 AC_704 AC_702 AD_577 AD_579 AD_581 AD_583 AD_585 AD_587 AD_589 AD_591 AD_593 AD_595 AD_597 AD_599 AD_601 AD_603 AD_605 AD_607 AD_609 AD_611 AD_613 AD_615 AD_617 AD_619 AD_621 AD_623 AD_625 AD_627 AD_629 AD_633 AD_631 AD_635 AD_637 AD_639 AD_578 AD_580 AD_584 AD_586 AD_588 AD_590 AD_592 AD_594 AD_596 AD_598 AD_600 AD_602 AD_604 AD_606 AD_608 AD_610 AD_612 AD_614 AD_616 AD_618 AD_620 AD_622 AD_624 AD_626 AD_628 AD_630 AD_632 AD_634 AD_636 AD_640 AD_638 AA_CL AA_PRO AA_CLK AB_768 AB_767 AA_CLK AA_PRO AA_CL AC_703 AC_704 AA_SI AA_CL AA_CL AA_CLK AA_CLK AA_PRO AD_639 AD_640 AA_PRO AD_582 AC_672 AB_705 AB_706 AB_707 AB_708 AB_709 AB_710 AB_711 AB_712 AB_713 AB_714 AB_715 AB_716 AB_717 AB_718 AB_719 AB_720 AB_721 AB_722 AB_723 AB_724 AB_725 AB_726 AB_727 AB_728 AB_729 AB_730 AB_731 AB_732 AB_733 AB_734 AB_735 AB_736 AB_738 AB_737 AC_641 AC_642 AC_643 AC_644 AC_645 AC_646 AC_647 AC_648 AC_649 AC_650 AC_651 AC_652 AC_653 AC_654 AC_655 AC_656 AC_657 AC_658 AC_659 AC_660 AC_661 AC_662 AC_663 AC_664 AC_665 AC_666 AC_667 AC_668 AC_669 AC_670 AC_671 AC_672 AC_674 AC_673 AD_577 AD_578 AD_579 AD_580 AD_581 AD_582 AD_583 AD_584 AD_585 AD_586 AD_587 AD_588 AD_589 AD_590 AD_591 AD_592 AD_593 AD_594 AD_595 AD_596 AD_597 AD_598 AD_599 AD_600 AD_602 AD_601 AD_603 AD_604 AD_605 AD_606 AD_607 AD_608 AD_610 AD_609 0V FLOTING_GND 0V D14 D31 R6433 10k D2 D40 D27 D12 R6426 220 D5 D28 D8 D3 D1 D13 C6426 16V 1u D16 D6411 MAZ80560HL D34 D38 D37 D26 D36 D39 R6432 10k C6428 50V 1000p D4 D11 SD3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 C6425 16V 1u C0HBC0000007 IC6411 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 D9 R6424 220 D21 D33 R6425 220 D10 D32 D6 SD4 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 C0HBC0000007 IC6410 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 D22 D20 D7 C0HBC0000007 IC6412 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 D35 D30 D17 R6434 10k D29 D25 SD46 K1KA10B00209 1 2 3 4 5 6 7 8 9 10 D15 D18 D24 D23 D19 C6424 16V 1u Vf5 Vf SD-BOARD TNPA3105 (1/2) TO PANEL DRIVER TO PANEL DRIVER DRIVER PDP SCAN TO (SC44) SC-BOARD FOIL SIDE (UPPER) COMPONENT SIDE (LOWER) TO (SC46) SC-BOARD 7 1 8 B 3 6 5 A D 4 2 E C 4 5 2 3 1 (TH-42PX25U/P) SD52(Card Edge) TH-42PX25U/P SD-Board (1 of 2) Schematic Diagram TH-42PX25U/P SD-Board (1 of 2) Schematic Diagram DRIVER PDP SCAN DRIVER PDP SCAN TH-42PX25U-P / TH-50PX25U-P 199 15.103. SD-Board (2 of 2) Schematic Diagram (TH-42PX25U/P) DOWN TH-42PX25U/P SD-Board (2 of 2) Schematic Diagram TH-42PX25U/P SD-Board (2 of 2) Schematic Diagram TERM SIDE Thermal Pad TERM SIDE Thermal Pad Thermal Pad AA_SO9 AA_SO8 AA_SO8 AA_SO7 AA_SI 120V(DC) AE_574 AE_573 AE_572 AE_571 AE_570 AE_569 AE_568 AE_567 AE_566 AE_565 AE_564 AE_563 AE_562 AE_561 AE_560 AE_559 AE_558 AE_557 AE_556 AE_555 AE_554 AE_553 AE_552 AE_550 AE_551 AE_549 AE_547 AE_548 AF_510 AF_509 AF_508 AF_507 AF_506 AF_505 AF_504 AF_503 AF_502 AF_501 AF_500 AF_499 AF_498 AF_497 AF_496 AF_495 AF_494 AF_493 AF_492 AF_491 AF_490 AF_489 AF_488 AF_486 AF_487 AF_485 AF_483 AF_484 AG_446 AG_445 AG_444 AG_443 AG_442 AG_441 AG_440 AG_439 AG_438 AG_437 AG_436 AG_435 AG_434 AG_433 AG_432 AG_431 AG_430 AG_429 AG_428 AG_427 AG_426 AG_425 AG_424 AG_422 AG_423 AG_421 AG_419 AG_420 AE_513 AE_515 AE_517 AE_519 AE_521 AE_523 AE_525 AE_527 AE_529 AE_531 AE_533 AE_535 AE_537 AE_539 AE_541 AE_543 AE_545 AE_547 AE_549 AE_551 AE_553 AE_555 AE_557 AE_559 AE_561 AE_563 AE_565 AE_567 AE_569 AE_571 AE_575 AE_573 AE_514 AE_516 AE_518 AE_520 AE_522 AE_524 AE_526 AE_528 AE_530 AE_532 AE_534 AE_536 AE_538 AE_540 AE_542 AE_544 AE_546 AE_548 AE_550 AE_552 AE_554 AE_556 AE_558 AE_560 AE_562 AE_564 AE_566 AE_568 AE_570 AE_572 AE_576 AE_574 AF_449 AF_451 AF_453 AF_455 AF_457 AF_459 AF_461 AF_463 AF_465 AF_467 AF_469 AF_471 AF_473 AF_475 AF_479 AF_477 AF_481 AF_483 AF_485 AF_487 AF_489 AF_491 AF_493 AF_495 AF_497 AF_499 AF_501 AF_503 AF_505 AF_507 AF_511 AF_509 AF_450 AF_452 AF_454 AF_456 AF_458 AF_460 AF_462 AF_464 AF_466 AF_468 AF_470 AF_472 AF_474 AF_476 AF_478 AF_482 AF_484 AF_486 AF_488 AF_490 AF_492 AF_494 AF_496 AF_498 AF_500 AF_502 AF_504 AF_506 AF_508 AF_512 AF_510 AG_385 AG_387 AG_389 AG_391 AG_393 AG_395 AG_397 AG_399 AG_401 AG_403 AG_405 AG_407 AG_409 AG_411 AG_413 AG_415 AG_417 AG_419 AG_421 AG_423 AG_425 AG_427 AG_429 AG_431 AG_433 AG_435 AG_437 AG_439 AG_441 AG_443 AG_445 AG_447 AG_386 AG_388 AG_390 AG_392 AG_394 AG_396 AG_398 AG_400 AG_402 AG_404 AG_406 AG_408 AG_410 AG_412 AG_414 AG_416 AG_418 AG_420 AG_422 AG_424 AG_426 AG_428 AG_430 AG_432 AG_434 AG_436 AG_438 AG_440 AG_442 AG_444 AG_448 AG_446 AA_PRO AA_CLK AA_CL AE_576 AE_575 AA_PRO AA_CL AA_CLK AF_511 AF_512 AA_CLK AA_CL AA_PRO AG_448 AG_447 AF_480 AE_513 AE_514 AE_515 AE_516 AE_517 AE_518 AE_519 AE_520 AE_521 AE_522 AE_523 AE_524 AE_525 AE_526 AE_527 AE_528 AE_529 AE_530 AE_531 AE_532 AE_533 AE_534 AE_535 AE_536 AE_537 AE_538 AE_539 AE_540 AE_541 AE_542 AE_543 AE_544 AE_546 AE_545 AF_449 AF_450 AF_451 AF_452 AF_453 AF_454 AF_455 AF_456 AF_457 AF_458 AF_459 AF_460 AF_461 AF_462 AF_463 AF_464 AF_465 AF_466 AF_467 AF_468 AF_469 AF_470 AF_471 AF_472 AF_473 AF_474 AF_475 AF_476 AF_477 AF_478 AF_479 AF_480 AF_482 AF_481 AG_385 AG_386 AG_387 AG_388 AG_389 AG_390 AG_391 AG_392 AG_393 AG_394 AG_395 AG_396 AG_397 AG_398 AG_399 AG_400 AG_401 AG_402 AG_403 AG_404 AG_405 AG_406 AG_407 AG_408 AG_409 AG_410 AG_411 AG_412 AG_413 AG_414 AG_415 AG_416 AG_418 AG_417 120V AA_SO7 C38 C15 SD2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 C7 C6422 16V 1u C29 R6421 220 C30 C6437 250V 0.1u C21 C33 R6422 220 C3 C6421 16V 1u C31 C18 C9 D6413 B0ECHP000001 C36 C6440 250V 0.1u C34 R6423 220 C17 C25 C6438 250V 0.1u C14 C5 C16 C0HBC0000007 IC6409 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 C22 SD1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 R6431 10k C39 C11 C12 R6435 220k C10 C19 D6414 B0ECHP000001 C2 C6423 16V 1u C26 C28 C37 C23 C8 C13 C20 C35 C27 D6412 MAZ80560HL C6439 250V 0.1u C24 C4 R6436 220k C0HBC0000007 IC6407 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 C6427 50V 2200p C0HBC0000007 IC6408 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 C1 C32 C40 C6 Vscn Vfo SD-BOARD TNPA3105 (2/2) TO PANEL DRIVER TO PANEL DRIVER TO (SC43) SC-BOARD FOIL SIDE (UPPER) COMPONENT SIDE (LOWER) 14 9 15 12 13 8 10 11 3 1 4 5 2 (TH-42PX25U/P) SD51(Card Edge) PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER TH-42PX25U-P / TH-50PX25U-P 200 15.104. SD-Board (1 of 2) Schematic Diagram (TH-50PX25U/P) DOWN Thermal Pad TERM SIDE Thermal Pad Thermal Pad TERM SIDE AG_FSI AD_576 AD_574 AD_573 AD_572 AD_571 AD_570 AD_569 AD_568 AD_567 AD_566 AD_565 AD_564 AD_563 AD_562 AD_561 AD_560 AD_559 AD_558 AD_557 AD_556 AD_555 AD_554 AD_553 AD_552 AD_550 AD_551 AE_512 AE_510 AE_509 AE_508 AE_507 AE_506 AE_505 AE_504 AE_503 AE_502 AE_501 AE_500 AE_499 AE_498 AE_497 AE_496 AE_495 AE_494 AE_493 AE_492 AE_491 AE_490 AE_489 AE_488 AE_486 AE_487 AF_448 AF_446 AF_445 AF_444 AF_443 AF_442 AF_441 AF_440 AF_439 AF_438 AF_437 AF_436 AF_435 AF_434 AF_433 AF_432 AF_431 AF_430 AF_429 AF_428 AF_427 AF_426 AF_425 AF_424 AF_422 AF_423 AD_575 AD_573 AD_571 AD_567 AD_569 AD_576 AD_574 AD_572 AD_570 AD_566 AD_568 AD_564 AD_562 AD_560 AD_558 AD_556 AD_554 AD_552 AD_550 AD_548 AD_546 AD_544 AD_542 AD_540 AD_538 AD_536 AD_534 AD_532 AD_530 AD_528 AD_526 AD_524 AD_522 AD_520 AD_518 AD_516 AD_514 AD_565 AD_563 AD_561 AD_559 AD_557 AD_555 AD_553 AD_551 AD_549 AD_547 AD_545 AD_543 AD_541 AD_539 AD_537 AD_535 AD_533 AD_531 AD_529 AD_527 AD_525 AD_523 AD_521 AD_519 AD_517 AD_515 AD_513 AE_511 AE_509 AE_507 AE_505 AE_503 AE_501 AE_499 AE_497 AE_495 AE_493 AE_491 AE_489 AE_487 AE_485 AE_481 AE_483 AE_512 AE_510 AE_508 AE_506 AE_504 AE_502 AE_500 AE_498 AE_496 AE_494 AE_492 AE_490 AE_488 AE_486 AE_482 AE_484 AE_479 AE_477 AE_475 AE_473 AE_471 AE_469 AE_467 AE_465 AE_463 AE_461 AE_459 AE_457 AE_455 AE_453 AE_449 AE_451 AE_478 AE_476 AE_474 AE_472 AE_470 AE_468 AE_466 AE_464 AE_462 AE_460 AE_458 AE_456 AE_454 AE_452 AE_450 AF_447 AF_445 AF_443 AF_441 AF_439 AF_437 AF_435 AF_433 AF_431 AF_448 AF_446 AF_444 AF_442 AF_440 AF_438 AF_436 AF_432 AF_434 AF_430 AF_428 AF_426 AF_424 AF_422 AF_420 AF_418 AF_416 AF_414 AF_412 AF_410 AF_408 AF_406 AF_404 AF_402 AF_400 AF_398 AF_396 AF_394 AF_392 AF_390 AF_386 AF_388 AF_429 AF_427 AF_425 AF_423 AF_421 AF_419 AF_417 AF_415 AF_413 AF_411 AF_409 AF_407 AF_405 AF_403 AF_401 AF_399 AF_397 AF_395 AF_393 AF_391 AF_389 AF_385 AF_387 AD_549 AD_548 AD_547 AE_485 AE_484 AE_483 AF_421 AF_420 AF_419 AG_FCLK AE_511 AG_FSO2 AG_PRO AG_FCL AG_FCL AG_PRO AG_FCLK AG_FSO1 AF_447 AG_FSO1 AG_FCLK AG_FCL AG_PRO AG_FSO3 AG_FSO2 AD_575 AE_480 AF_385 AF_386 AF_387 AF_388 AF_389 AF_390 AF_391 AF_392 AF_393 AF_394 AF_395 AF_396 AF_397 AF_398 AF_399 AF_400 AF_401 AF_402 AF_403 AF_404 AF_405 AF_406 AF_407 AF_408 AF_409 AF_410 AF_411 AF_412 AF_413 AF_414 AF_415 AF_416 AF_418 AF_417 AE_449 AE_450 AE_451 AE_452 AE_453 AE_454 AE_455 AE_456 AE_457 AE_458 AE_459 AE_460 AE_461 AE_462 AE_463 AE_464 AE_465 AE_466 AE_467 AE_468 AE_469 AE_470 AE_471 AE_472 AE_473 AE_474 AE_475 AE_477 AE_476 AE_478 AE_479 AE_480 AE_482 AE_481 AD_513 AD_514 AD_515 AD_516 AD_517 AD_518 AD_519 AD_520 AD_521 AD_522 AD_523 AD_524 AD_525 AD_526 AD_527 AD_528 AD_529 AD_530 AD_531 AD_532 AD_533 AD_534 AD_535 AD_536 AD_537 AD_538 AD_539 AD_540 AD_541 AD_542 AD_543 AD_544 AD_546 AD_545 0V FLOTING_GND 5V(DC) 120V C27 R6431 220k C8 C30 C37 C35 C5 R6421 220 C3 C6420 50V 2200p C9 C36 C6423 16V 1u C1 C39 C15 C6427 250V 0.1u C33 C29 C10 C25 R6422 220 C13 C0HBC0000007 IC6413 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 SD1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 C6 C22 C32 C4 C23 D6418 B0ECHP000001 C24 R6423 220 C6428 250V 0.1u C18 C11 C28 C16 C7 C31 C2 C26 C21 R6432 220k C17 C12 C6422 16V 1u C38 C0HBC0000007 IC6411 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 C20 C6421 16V 1u C34 C0HBC0000007 IC6412 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 SD2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 C14 C40 R6430 10k C19 D6412 MAZ80560HL (Card Edge) SD51 Vfo Vf Vfo Vf FOIL SIDE (UPPER) COMPONENT SIDE (LOWER) SC-BOARD TO (SC43) 6 5 A 2 8 B 7 1 4 3 D E C PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER SD-BOARD TNPA3129 (1/2) TO PANEL DRIVER TO PANEL DRIVER 3 1 6 4 2 5 (TH-50PX25U/P) TH-50PX25U/P SD-Board (1 of 2) Schematic Diagram TH-50PX25U/P SD-Board (1 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 201 15.105. SD-Board (2 of 2) Schematic Diagram (TH-50PX25U/P) Thermal Pad Thermal Pad TERM SIDE TERM SIDE Thermal Pad AG_FCLK AG_FCL AG_PRO AA_768 AA_766 AA_765 AA_764 AA_763 AA_762 AA_761 AA_760 AA_759 AA_758 AA_757 AA_756 AA_755 AA_754 AA_753 AA_752 AA_751 AA_750 AA_749 AA_748 AA_747 AA_746 AA_745 AA_744 AA_742 AA_743 AB_704 AB_702 AB_701 AB_700 AB_699 AB_698 AB_697 AB_696 AB_695 AB_694 AB_693 AB_692 AB_691 AB_690 AB_689 AB_688 AB_687 AB_686 AB_685 AB_684 AB_683 AB_682 AB_681 AB_680 AB_678 AB_679 AC_640 AC_638 AC_637 AC_636 AC_635 AC_634 AC_633 AC_632 AC_631 AC_630 AC_629 AC_628 AC_627 AC_626 AC_625 AC_624 AC_623 AC_622 AC_621 AC_620 AC_619 AC_618 AC_617 AC_616 AC_614 AC_615 AA_768 AA_766 AA_764 AA_762 AA_760 AA_758 AA_756 AA_754 AA_752 AA_750 AA_748 AA_746 AA_744 AA_767 AA_765 AA_763 AA_761 AA_759 AA_757 AA_755 AA_753 AA_751 AA_749 AA_747 AA_745 AA_743 AA_741 AA_739 AA_737 AA_735 AA_731 AA_733 AA_742 AA_740 AA_738 AA_736 AA_734 AA_732 AA_730 AA_728 AA_726 AA_724 AA_722 AA_720 AA_718 AA_716 AA_714 AA_712 AA_710 AA_708 AA_706 AA_729 AA_727 AA_725 AA_723 AA_721 AA_719 AA_717 AA_715 AA_713 AA_711 AA_709 AA_707 AA_705 AB_704 AB_702 AB_700 AB_698 AB_696 AB_694 AB_692 AB_690 AB_688 AB_686 AB_684 AB_682 AB_680 AB_678 AB_674 AB_676 AB_703 AB_701 AB_699 AB_697 AB_695 AB_693 AB_691 AB_689 AB_687 AB_685 AB_683 AB_681 AB_679 AB_673 AB_675 AB_671 AB_669 AB_667 AB_665 AB_663 AB_661 AB_659 AB_657 AB_655 AB_653 AB_651 AB_649 AB_647 AB_645 AB_643 AB_641 AB_670 AB_668 AB_666 AB_664 AB_662 AB_660 AB_658 AB_656 AB_654 AB_652 AB_650 AB_648 AB_646 AB_644 AB_642 AC_640 AC_638 AC_636 AC_634 AC_632 AC_630 AC_628 AC_626 AC_624 AC_620 AC_622 AC_639 AC_637 AC_635 AC_633 AC_631 AC_629 AC_627 AC_625 AC_623 AC_619 AC_621 AC_618 AC_616 AC_614 AC_612 AC_610 AC_608 AC_606 AC_604 AC_602 AC_600 AC_598 AC_596 AC_594 AC_592 AC_590 AC_588 AC_586 AC_584 AC_582 AC_578 AC_580 AC_617 AC_615 AC_613 AC_611 AC_609 AC_607 AC_605 AC_603 AC_601 AC_599 AC_597 AC_595 AC_593 AC_591 AC_589 AC_587 AC_585 AC_583 AC_581 AC_577 AC_579 AB_677 AB_676 AB_675 AA_741 AA_740 AA_739 AC_613 AC_612 AC_611 AG_FSO5 AG_PRO AG_FCL AG_FCLK AG_FSO4 AG_FCLK AC_639 AG_PRO AG_FCL AG_FSO5 AG_FSO4 AB_703 AG_FSO3 AA_767 AB_672 AB_677 AG_FSI AG_FCL AG_FCLK AG_PRO 5.5V AC_577 AC_578 AC_579 AC_580 AC_581 AC_582 AC_583 AC_584 AC_585 AC_586 AC_587 AC_588 AC_589 AC_590 AC_591 AC_592 AC_593 AC_594 AC_595 AC_596 AC_597 AC_598 AC_599 AC_600 AC_601 AC_602 AC_603 AC_604 AC_605 AC_606 AC_607 AC_608 AC_610 AC_609 AB_641 AB_642 AB_643 AB_644 AB_645 AB_646 AB_647 AB_648 AB_649 AB_650 AB_651 AB_652 AB_653 AB_654 AB_655 AB_656 AB_657 AB_658 AB_659 AB_660 AB_661 AB_662 AB_663 AB_664 AB_665 AB_666 AB_667 AB_668 AB_669 AB_670 AB_671 AB_672 AB_674 AB_673 AA_705 AA_706 AA_707 AA_708 AA_709 AA_710 AA_711 AA_712 AA_713 AA_714 AA_715 AA_716 AA_717 AA_718 AA_719 AA_720 AA_721 AA_722 AA_723 AA_724 AA_725 AA_726 AA_727 AA_728 AA_729 AA_730 AA_731 AA_732 AA_733 AA_734 AA_735 AA_736 AA_738 AA_737 C6424 16V 1u C0HBC0000007 IC6415 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 D23 D34 C6437 250V 0.1u D31 SD46 1 2 3 4 5 6 7 8 9 10 D39 D22 D4 D40 D25 D37 R6429 10k D6419 B0ECHP000001 D15 C0HBC0000007 IC6414 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 D9 R6427 10k D26 D11 D19 D32 C6430 50V 2200p C6425 16V 1u D24 D17 D21 D29 D20 SD3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 D35 D38 D10 D13 D7 D14 D6411 MAZ80560HL D3 R6425 220 R6428 10k D8 D28 SD4 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 D18 D12 C0HBC0000007 IC6416 SN755866PZP 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 D5 D16 C6438 250V 0.1u R6424 220 D2 D30 D33 D27 D36 D6 C6426 16V 1u R6426 220 D1 SD52(Card Edge) DOWN FCLK PRO FSI FCL PROD VF5V VF5V SID CLD CLKD Vf5 FOIL SIDE (UPPER) COMPONENT SIDE (LOWER) TO (SC46) SC-BOARD TO (SC44) SC-BOARD 13 15 14 9 10 11 12 8 PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER SD-BOARD TNPA3129 (2/2) TO PANEL DRIVER TO PANEL DRIVER 3 1 6 4 2 5 (TH-50PX25U/P) TH-50PX25U/P SD-Board (2 of 2) Schematic Diagram TH-50PX25U/P SD-Board (2 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 202 15.106. SS, SS2 and SS3-Board Block Diagram (TH-42PX25U/P) + 1 SS23 12 8 Q6733 R6770 Q6732 Ve Q6735 SOS Q6734 VDA 6 VSUS Q6711 VSUS Q6714 VDA Q6715 +15V Q6718 FET DRIVER L6713 8 L6715 12 12 IC6702 15V 8 UMH UML S2 9 S3 12 D6711,12 11 D6715,16 8 S1 IC6707 USH Q6741 USL DISCHARGE L6701 1/2 Vo L6706 FET DRIVER IC6704 Sustain Drive Board 12 SS 8 TO P12 TO P11 14 TO C32 6 4 SS2 2 7 BUFFER IC6705 IC6706 FET DRIVER +15V D6764 (RED LED) D6760 UEH (RED LED) VE Q6729 INSERT Q6730 UEL UEL TPSS1 SS-BOARD Q6728 SOS DET Q6727 SS54 SS53 SS21 SS51 SS52 SS20 16 4 SS3 3 UEL 9 USL 12 5 SS11 8 3 UEH 2 SS12 SS32 2 UMH 4 7 Q6738 4 USH Q6739 UML IC6709 6 TPVSUS 5 TP15V 7 TPVDA 15 TPVe 13 VE FET DRIVER GENERATOR 14 IC6701 Q6731 FET DRIVER IC6703 Q6702 Q6701 Q6745 Q6744 Q6724 Q6723 Q6722 Q6721 SS22 TPSOS3 SS42 1 4 2 1 VDA VDA VDA +15V TO C42 Sustain Connection (Upper) Board (Lower) Board Sustain Connection Q6725 SS55 SS56 SS57 SS58 TH-42PX25U/P SS,SS2 and SS3-Board Block Diagram TH-42PX25U/P SS,SS2 and SS3-Board Block Diagram TH-42PX25U-P / TH-50PX25U-P 203 15.107. SS-Board (1 of 2) Schematic Diagram (TH-42PX25U/P) + + + + + + + + + + + + + USL UML USL USH UMH UML UEL UEL UEH USH UMH UEH UML L6752 G0ZZ00002183 R6788 EXB38V473JV R6830 100 R6824 22 C6807 630V 2200p R6767 1k D6701 SF20LC30F10 Q6702 2SB1073001TV IC6707 C0BBBA000043 1 2 3 4 5 6 7 8 R6717 10 R6721 47 D6769 B0ECHP000001 TP2 R6705 10 R6726 10k R6742 100 L6727 G0ZZ00002183 TP10 L6729 G0ZZ00002183 C0ZBZ0000562 IC6704 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC Q6723 2SK3637000VE G D S Q6718 2SK3559000SQ G D S R6766 33k Q6733 2SB1073001TV C6704 250V 2u L6718 G0ZZ00002183 Q6722 2SK3637000VE G D S L6728 G0ZZ00002183 Q6714 2SK3559000SQ G D S R6775 220k C6749 16V 1u L6735 G0ZZ00002183 R6750 0 R6722 47 R6763 10k R6753 1k TP1 L6704 0.6u D6761 MAZ80510LL C6713 200V 220u L6759 J0JJC0000021 R6776 10k R6730 100 R6781 1.5k C6753 25V 1u R6787 EXB38V471JV R6734 5.6 Q6725 2SK062000L G D S TP16 R6719 47 D6764 LNJ201LPQJA SS11 1 2 3 4 5 6 7 C6722 160V 100u D6737 B0JCME000025 L6730 G0ZZ00002183 D6751 B0ECHP000001 C6705 250V 2u R6701 0.22 Q6729 2SK326800L G D S C6718 25V 220u D6762 MA2J11100L D6773 B0ECHP000001 L6715 G0ZZ00002183 C6723 160V 100u TP4 R6772 1.2k TP6 L6714 G0C101K00023 C0JBAZ000005 IC6706 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC D6772 MA2J11100L D6771 MA2J11100L L6736 G0ZZ00002183 C6743 200V 220u R6714 10 C6784 630V 2200p D6760 LNJ201LPQJA TP8 C6750 25V 4.7u R6770 10k 1 2 3 Q6721 2SK3637000VE G D S Q6712 2SK3559000SQ G D S R6716 10 Q6713 2SK3559000SQ G D S C6805 630V 2200p C6748 25V 4.7u Q6739 2SC1473AEA Q6735 2SB1073001TV SS42 1 2 3 4 R6761 12k R6758 10k L6719 G0ZZ00002183 C6804 630V 2200p Q6727 2SK3192000LB G D S TP19 C6764 16V 1u L6702 0.6u Q6745 2SB1073001TV R6850 0 R6732 5.6 D6712 SF20LC30F10 C6762 16V 1u Q6732 2SD21850RL C6747 25V 4.7u D6750 B0JCME000025 C6733 630V 2200p SS12 1 2 3 4 5 6 7 8 9 10 D6740 B0ECHP000001 L6762 J0JJC0000011 C6717 25V 1u C6711 200V 220u D6711 SF20LC30F10 R6715 10 TP3 D6753 B0ECHP000001 L6723 G0ZZ00002183 Q6715 2SK3559000SQ G D S R6744 100 R6757 100 Q6724 2SK3637000VE G D S R6718 10 Q6717 2SK3559000SQ G D S L6734 G0ZZ00002183 L6720 G0ZZ00002183 L6737 G0ZZ00002183 C6727 630V 2200p L6724 G0ZZ00002183 Q6744 2SD21850RL C6701 250V 2u C6731 630V 2200p C6751 25V 4.7u R6728 10k Q6734 2SD21850RL R6765 33k R6706 10 R6752 100 L6754 G0ZZ00002183 TP14 C6726 25V 560u C6724 200V 220u L6703 0.6u R6704 10k TP18 R6751 100 R6729 100 C6757 25V 4.7u C6721 25V 100u L6733 G0ZZ00002183 D6766 MA2J11100L R6712 10 R6783 2.2k Q6731 2SD1263AP0LB R6784 100k TP13 TP12 D6728 SF20LC30F10 C6771 16V 1u R6720 47 D6713 B0ECHP000001 TP20 L6761 J0JJC0000011 R6736 5.6 C6759 25V 1u D6734 B0JCME000025 R6713 10 C6744 200V 220u R6785 EXB38V471JV Q6728 2SK3192000LB G D S Q6738 2SC1473AEA D6795 B0ECHP000001 R6759 47 C6708 250V 0.1u R6727 10 R6760 4.7k C0ZBZ0000562 IC6701 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC L6758 J0JJC0000021 L6732 G0ZZ00002183 D6735 B0JCME000025 Q6716 2SK3559000SQ G D S TP22 L6753 G0ZZ00002183 TP32 C6714 200V 220u L6705 0.6u R6707 10k L6701 0.6u C6756 25V 4.7u C6761 25V 1u C6760 25V 1u L6717 G0ZZ00002183 R6741 100 R6731 5.6 R6710 100 L6755 G0ZZ00002183 R6786 EXB38V473JV C6752 16V 1u C6712 200V 220u L6713 G0ZZ00002183 R6778 100k D6759 MAZ83300ML TP17 D6749 B0JCME000025 R6702 0.22 TP15 C6729 630V 2200p D6736 B0JCME000025 D6752 B0ECHP000001 TP5 R6777 100k R6700 0 R6756 47 R6779 22k SS34 1 2 3 C6720 25V 220u L6722 G0ZZ00002183 D6715 SF20LC30F10 C0ZBZ0000562 IC6703 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC R6711 10 C6709 250V 0.1u D6729 SF20LC30F10 D6768 B0ECHP000001 R6725 10 R6703 0.22 R6782 10k C0ZBZ0000562 IC6702 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC L6726 G0ZZ00002183 TP33 R6764 22k TP7 C6755 16V 1u TP11 R6733 5.6 D6756 B0JCME000025 R6818 0.22 D6763 MA2J11100L R6769 0 R6754 100 D6716 SF20LC30F10 D6758 MAZ83300ML R6738 5.6 TP23 R6737 5.6 C6806 630V 2200p R6762 220k L6721 G0ZZ00002183 R6817 0.22 L6731 G0ZZ00002183 C6702 250V 2u Q6730 2SK326800L G D S D6710 B0ECHP000001 C6715 250V 2u R6747 100 L6716 G0ZZ00002183 Q6741 2SD0601A0L SS32 1 2 3 4 5 6 7 8 9 10 11 12 C6763 16V 1u R6755 47 TP9 TP21 R6780 1.5k L6706 0.6u C6758 25V 1u IC6709 AN1431M-E1 CATHODE 3 1 REFERENCE ANODE 2 Q6701 2SD21850RL L6725 G0ZZ00002183 R6735 5.6 R6823 22 Q6711 2SK3559000SQ G D S IC6705 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb SOS UML USH GND USL UEH + - - + NC VSUS VSUS NC GND GND GND +15V VDA VDA GNDa GNDa GNDa NC STB_PS GND +15V NC Vda75V Vda75V UEL URH 5V UMH VDA GND URL NC STB_PS GND 2 7 1 4 8 A 5 6 D E C B 3 SS-BOARD TXNSS10QJS (1/2) 1 TO (P11) P-BOARD TO (P12) P-BOARD TO (C42) C3-BOARD TO (C32) C2-BOARD FET DRIVER FET DRIVER FET DRIVER FET DRIVER FET DRIVER BUFFER COMPARETER ERROR DET VE GENERATOR USL USH Ve Vsus Ve2 (TH-42PX25U/P) TO S-BOARD (S34) 0 - 200.0 200.0 - 0 0 75.0 75.0 0 15.0 0 0 0 0 - 0 0 - 0 75.0 - 15.0 75.0 5.0 0 3.1 3.7 0.6 0.3 0.5 0.3 0 0 0 75.0 2.4 0 10.1 11.5 11.0 107.5 0 0 107.3 165.1 151.2 150.6 152.6 129.6 140.5 133.3 129.6 140.2 12.4 3.1 4.9 0 3.1 4.4 0 2.6 0.2 0 0.3 0 0 4.3 0 0.4 0 4.4 0 0.3 0 0.3 2.6 0.3 0 5.0 0 162.0 164.4 0 0 100.0 5.0 0.2 0 0 0.8 15.0 5.0 5.0 0 0 0 0 0 0 5.0 5.0 5.0 0.2 1.0 0 15.0 0 0 25.1 39.4 25.8 15.0 0.6 4.9 7.5 0 0 10.3 7.5 0 3.8 0 5.0 0 0 0 0.5 0 1.5 15.0 0 15.0 140.6 144.5 129.6 0 5.9 15.0 6.9 0 2.7 10.3 17.4 0 0 5.0 5.0 5.0 0 0 0.3 0.8 0 15.0 0 0 200.0 146.6 149.8 133.2 0 1.3 133.2 0 1.3 133.2 0 1.3 133.2 0 1.3 133.2 133.8 170.3 133.2 133.8 170.3 133.2 133.8 170.3 133.2 133.8 170.3 140.0 133.9 147.8 133.2 134.0 133.9 1.5 15.2 1.5 1.5 1.5 0 30.0 79.4 30.4 31.8 30.9 79.4 44.7 31.8 31.8 30.6 31.8 31.8 143.2 79.5 81.3 79.5 81.3 143.2 93.7 81.3 81.3 81.3 79.5 81.3 0.6 0 0 3.1 7.9 4.9 * * * * TH-42PX25U/P SS-Board (1 of 2) Schematic Diagram TH-42PX25U/P SS-Board (1 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 204 15.108. SS-Board (2 of 2), SS2-Board and SS3-Board Schematic Diagram (TH-42PX25U/P) TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE SS51 1 2 3 4 5 6 7 8 9 10 11 12 13 TP31 R6790 220k TP28 R6789 220k SS21 1 2 3 4 5 6 7 TP27 TP26 SS20 1 2 3 4 5 6 7 TP30 SS53 1 2 3 4 5 6 7 8 9 10 11 12 13 SS52 1 2 3 4 5 6 7 8 9 10 11 12 13 SS54 1 2 3 4 5 6 7 8 9 10 11 12 13 TP29 TP24 TP25 SS55 1 2 3 4 5 6 7 8 9 10 11 12 13 SS56 1 2 3 4 5 6 7 8 9 10 11 12 13 SS23 1 2 3 4 5 6 7 SS58 1 2 3 4 5 6 7 8 9 10 11 12 13 SS22 1 2 3 4 5 6 7 SS57 1 2 3 4 5 6 7 8 9 10 11 12 13 9 15 12 8 14 13 10 11 UP DOWN TNPA2916 SS2-BOARD TNPA2917 SS3-BOARD SS-BOARD TXNSS10QJS (2/2) 1 TO (SS55) SS2-BOARD TO (SS56) SS2-BOARD (SS57) SS3-BOARD TO (SS58) SS3-BOARD TO (TH-42PX25U/P) TH-42PX25U/P SS-Board (2 of 2),SS2-Board and SS3-Board Schematic Diagram TH-42PX25U/P SS-Board (2 of 2),SS2-Board and SS3-Board Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 205 15.109. SS, SS2 and SS3-Board Block Diagram (TH-50PX25U/P) + 1 SS21 12 8 Q6733 VR6770 Q6732 Ve Q6735 SOS3 Q6734 6 VSUS Q6711 VSUS Q6714 VDA Q6715 +15V Q6720 FET DRIVER L6713 8 L6715 12 12 IC6702 15V 8 UMH UML S2 9 S3 12 D6711,12 11 D6715,16 8 S1 IC6707 USH Q6741 USL DISCHARGE L6701 1/2 Vo L6704 FET DRIVER IC6704 Sustain Drive Board 12 SS 8 TO P12 14 TO P11 14 TO C32 6 4 SS2 2 7 BUFFER IC6705 IC6706 FET DRIVER +15V D6764 (RED LED) D6760 UEH (RED LED) VE Q6729 INSERT Q6730 UEL UEL TPSS1 SS-BOARD Q6728 SOS DET Q6727 SS55 SS54 SS58 SS51 SS52 SS57 16 4 SS3 3 UEL 9 USL 5 SS11 8 3 UEH 2 SS12 SS32 2 UMH 4 7 Q6738 4 USH Q6739 UML IC6709 6 TPVSUS 5 TP15V 7 TPVDA 15 TPVe 13 VE FET DRIVER GENERATOR 14 IC6701 Q6731 FET DRIVER IC6703 Q6702 Q6701 Q6745 Q6744 Q6724 Q6723 Q6722 Q6721 SS31 TPSOS3 1 VDA Sustain Connection (Upper) Board (Lower) Board Sustain Connection 1 Q6725 SS41 SS48 L6767 Q6736 Q6737 SS53 SS56 BUFFER IC6901 2 18 4 16 FET DRIVER 12 IC6902 8 FET DRIVER IC6905 8 12 FET DRIVER IC6903 8 12 1 14 6 14 8 12 Q6911 Q6923 Q6922 Q6920 Q6919 Q6918 Q6917 Q6924 Q6912 Q6914 Q6913 Q6916 Q6915 Q6921 L6930~L6933 L6925 TPSVDA TPVDA SS-BOARD IC6904 SOS DET TPSS4 2 TO 1 SS35 Vda 75V Vda 75V 5 4 78V 78V C35 2 5 1 SS42 Vda 75V Vda 75V 4 78V 78V 14 DSHL 15 DSLL 16 DMHL 17 DMLL 19 SOS2 C42 TO TH-50PX25U/P SS,SS2 and SS3-Board Block Diagram TH-50PX25U/P SS,SS2 and SS3-Board Block Diagram TH-42PX25U-P / TH-50PX25U-P 206 15.110. SS-Board (1 of 2) Schematic Diagram (TH-50PX25U/P) + + + + + + + + + + + + + + AA_UEH AA_UMH AA_USH DSLL DMHL DMLL AA_UML AA_UEL AA_UEH AA_USL AA_UEL SOS2 AA_USH AA_USL AA_UMH AA_UML AA_UML DSHL R6753 10 C6716 250V 2u TP11 R6764 22k L6717 G0ZZ00002183 TP6913 L6754 G0ZZ00002183 D6752 B0ECHP000001 Q6728 B1DFHM000002 G D S C6771 200V 220u L6730 G0ZZ00002183 D6756 B0JCME000025 TP6919 TP16 Q6724 B1DEJM000003 G D S R6767 1k L6703 1u Q6732 2SD21850RL R6728 10k TP33 D6771 MA2J11100L C6750 25V 4.7u TP8 Q6725 2SK062000L G D S R6734 5.6 IC6707 C0BBBA000043 1 2 3 4 5 6 7 8 R6795 0 L6732 G0ZZ00002183 D6750 B0JCME000025 Q6735 2SB1073001TV R6730 100 R6851 0 D6738 B0JCME000025 TP3 D6739 B0JCME000025 L6715 G0ZZ00002183 D6712 B0HBSN000007 Q6727 B1DFHM000002 G D S R6818 0.22 C6773 25V 1u Q6737 2SB1073001TV AN1431M-E1 IC6709 CATHODE 3 1 REFERENCE ANODE 2 L6759 J0JJC0000021 R6854 0 L6705 G0ZZ00002183 L6722 G0ZZ00002183 C6727 630V 2200p SS32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 D6716 B0HBSN000007 D6701 B0HBSN000007 R6727 10 TP5 TP19 R6703 0.22 D6764 LNJ201LPQJA Q6721 B1DEJM000003 G D S Q6720 B1DEJM000005 G D S TP6921 R6731 5.6 L6737 G0ZZ00002183 C0ZBZ0000562 IC6701 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC R6726 10k D6772 MA2J11100L C6755 16V 1u C6741 630V 2200p L6724 G0ZZ00002183 R6780 1.5k D6737 B0JCME000025 C6762 16V 1u R6702 0.22 Q6716 B1DEJM000005 G D S Q6738 2SC1473AEA L6701 1u L6704 1u R6736 5.6 Q6744 2SD21850RL C6712 200V 220u Q6713 B1DEJM000005 G D S C6709 250V 0.1u R6722 47 R6715 10 TP14 C6729 630V 2200p C0ZBZ0000562 IC6704 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC C6759 25V 4.7u R6796 0 TP4 R6732 5.6 R6747 47 D6763 MA2J11100L C6719 25V 220u C6717 25V 1u TP10 R6784 10k Q6734 2SD21850RL L6755 G0ZZ00002183 L6736 G0ZZ00002183 C6749 16V 1u C6718 25V 220u R6788 EXB38V473JV C6752 16V 1u TP15 R6721 47 L6752 G0ZZ00002183 TP17 C6739 630V 2200p Q6730 2SK326800L G D S D6728 B0HBSN000007 Q6736 2SD21850RL TP32 Q6729 2SK326800L G D S D6762 MA2J11100L Q6718 B1DEJM000005 G D S R6769 0 Q6715 B1DEJM000005 G D S L6725 G0ZZ00002183 Q6712 B1DEJM000005 G D S C6761 16V 1u L6767 1u R6775 220k SS11 1 2 3 4 5 6 7 C6768 200V 220u R6741 100 C6731 630V 2200p C6772 25V 1u C6784 630V 2200p R6733 5.6 SS34 1 2 3 TP6923 L6733 G0ZZ00002183 C6711 200V 220u C6737 630V 2200p Q6702 2SB1073001TV L6702 1u R6781 1.5k R6720 47 C6763 16V 1u D6795 B0ECHP000001 R6787 EXB38V471JV TP22 R6850 0 C6714 200V 220u D6713 B0ECHP000001 R6750 0 VR6770 10k 1 2 3 C6757 25V 4.7u TP18 L6708 G0ZZ00002183 D6760 LNJ201LPQJA TP13 Q6719 B1DEJM000005 G D S R6712 10 R6853 0 L6719 G0ZZ00002183 TP21 R6874 22 L6762 J0JJC0000021 C6751 25V 4.7u L6731 G0ZZ00002183 TP2 C6724 200V 220u R6725 10 R6793 0 D6773 B0ECHP000001 L6716 G0ZZ00002183 L6758 J0JJC0000021 R6713 10 C6721 25V 100u D6759 MAZ83300ML R6749 1k R6792 0 L6761 J0JJC0000021 R6857 0.22 R6757 100 D6710 B0ECHP000001 R6777 100k R6772 1.2k R6701 0.22 R6705 10 TP6 R6716 10 R6760 4.7k L6721 G0ZZ00002183 C6745 630V 2200p D6729 B0HBSN000007 IC6705 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb L6726 G0ZZ00002183 C0ZBZ0000562 IC6702 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC Q6714 B1DEJM000005 G D S R6738 5.6 C6767 200V 220u R6723 47 R6791 0 R6700 0 R6782 10k TP9 R6752 100 D6734 B0JCME000025 R6852 0 R6710 100 L6735 G0ZZ00002183 TP1 C6735 630V 2200p R6790 220k R6756 47 R6776 10k Q6741 2SD0601A0L D6766 MA2J11100L R6763 10k L6714 G0C101K00023 TP23 L6707 G0ZZ00002183 D6751 B0ECHP000001 C6758 25V 1u R6754 100 C6760 25V 4.7u R6766 33k R6786 EXB38V473JV R6789 220k L6727 G0ZZ00002183 Q6733 2SB1073001TV R6707 10k L6723 G0ZZ00002183 R6704 10k R6737 5.6 Q6722 B1DEJM000003 G D S R6729 100 L6713 G0ZZ00002183 C6756 25V 4.7u D6753 B0ECHP000001 Q6745 2SB1073001TV Q6711 B1DEJM000005 G D S D6761 MAZ80510LL SS12 1 2 3 4 5 6 7 8 9 10 D6711 B0HBSN000007 R6719 47 R6759 100 R6717 10 D6736 B0JCME000025 D6740 B0ECHP000001 R6779 22k Q6717 B1DEJM000005 G D S C6726 25V 560u R6714 10 Q6723 B1DEJM000003 G D S R6742 100 R6765 33k L6720 G0ZZ00002183 D6715 B0HBSN000007 TP6920 R6724 47 R6706 10 C6753 25V 4.7u D6749 B0JCME000025 TP7 Q6731 2SD1263AP0LB R6785 EXB38V471JV L6718 G0ZZ00002183 D6758 MAZ83300ML L6729 G0ZZ00002183 R6758 10k R6751 100 R6711 10 C0JBAZ000005 IC6706 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C6764 16V 1u L6947 G0ZZ00002183 Q6701 2SD21850RL C6748 25V 4.7u R6783 2.2k L6728 G0ZZ00002183 C6733 630V 2200p C6713 200V 220u C6747 25V 4.7u R6762 220k R6718 10 L6734 G0ZZ00002183 R6755 100 R6873 22 TP6918 L6753 G0ZZ00002183 TP12 R6794 0 C0ZBZ0000562 IC6703 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC Q6739 2SC1473AEA R6735 5.6 C6715 250V 2u R6778 100k L6706 G0ZZ00002183 TP20 D6769 B0ECHP000001 D6754 MAZ82400ML C6743 630V 2200p R6761 12k D6735 B0JCME000025 C6703 250V 2u C6706 250V 2u C6707 250V 2u C6702 250V 2u C6704 250V 2u C6701 250V 2u C6705 250V 2u C6708 250V 2u C6722 160V 100u C6723 160V 100u GNDa GNDa GNDa NC STB_PS GND +15V NC Vda75V Vda75V + - - + NC ED ED ED ED VSUS VSUS NC GND GND GND SOS2 NC USL UEH UEL UML UMH GND URL URH 5V SOS3 USH DSHL DSLL DMHL DMLL GND GND ED NC STB_PS GND A 5 6 D E C B 7 2 3 1 4 8 2 3 1 5 4 SS-BOARD TXNSS20RTS (1/2) FET DRIVER FET DRIVER BUFFER COMPARATOR FET DRIVER FET DRIVER FET DRIVER TO S-BOARD (S34) (TH-50PX25U/P) 0.8 0 15.0 0 0 200.0 146.6 149.8 5.0 5.0 5.0 0 0 0.3 0 0 1.0 0 15.0 0 0 25.1 39.4 25.8 5.0 5.0 5.0 0.2 0 0 0 0 0 0 162.0 164.4 100.0 5.0 0.8 15.0 5.0 5.0 0 0 0.2 0 0 0 0.5 15.0 140.6 144.5 129.6 5.0 1.5 15.0 0 0 0 0 3.8 0 0 0 15.0 6.9 0 5.9 0 2.7 10.3 17.4 0 4.3 0 0.4 2.6 0.2 0 0.3 0 0 0 0.3 0 0.3 2.6 0.3 0 4.4 0 5.0 0 4.9 7.5 0 10.3 7.5 0.6 15.0 2.4 0 10.1 200.0 200.0 - 0 0 0 - 75.0 75.0 0 15.0 0 0 0 0 - 0 5.0 0 3.1 3.7 0.6 0.3 0.5 0.3 0 0 0 0 0 1.5 0.6 1.0 1.8 0 0 0 0 - 0 133.7 44.7 170.4 170.3 31.8 30.6 133.9 133.2 31.8 31.8 31.8 133.2 133.9 170.3 133.3 133.2 133.8 170.3 0 1.3 133.2 133.2 0 1.3 133.2 0 1.3 133.2 0 1.3 133.3 0 1.3 1.3 133.3 0 30.9 79.4 30.0 79.3 30.4 31.8 143.2 79.5 81.3 81.3 143.2 79.5 3.1 7.9 4.9 140.2 133.3 129.6 152.6 129.6 140.5 12.4 3.1 4.9 0 3.1 4.4 165.1 151.2 150.6 140.0 133.9 147.8 133.8 133.2 134.0 1.5 15.2 1.5 1.4 1.5 0 144.5 140.4 140.7 140.4 140.8 129.7 107.5 11.5 11.0 107.3 0 0 0.6 0 0 93.7 81.3 81.3 81.3 79.5 81.3 TO P-BOARD (P12) TO P-BOARD (P11) TO (C32) C3-BOARD * * TH-50PX25U/P SS-Board (1 of 2) Schematic Diagram TH-50PX25U/P SS-Board (1 of 2) Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 207 15.111. SS-Board (2 of 2), SS2-Board and SS3-Board Schematic Diagram (TH-50PX25U/P) TERM SIDE + + + + TERM SIDE + + TERM SIDE TERM SIDE TERM SIDE TERM SIDE + TERM SIDE TERM SIDE 55V DMHL DMLL DSHL DSLL 78V 40V 40V 78V 75V SOS2 78V 5V 15V 90V C0JBAZ000005 IC6901 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R6922 22 C6922 25V 4.7u L6904 G0ZZ00002183 SS51 1 2 3 4 5 6 7 8 9 10 11 12 13 TP6915 R6914 22 L6902 G0ZZ00002183 Q6919 2SD21850RL C6921 25V 4.7u TP6905 L6918 J0JJC0000011 C6910 25V 220u Q6924 2SK326900L G D S R6920 100 C6918 25V 4.7u L6921 J0JJC0000011 R6942 22k R6930 100 R6947 10 SS57 1 2 3 4 5 6 7 R6902 EXB38V471JV R6921 100 C6916 250V 2u SS42 1 2 3 4 5 6 7 8 C6928 50V 0.01u D6906 B0ECHP000001 C6913 25V 4.7u D6921 B0HDSM000004 C6912 25V 4.7u TP31 C6929 50V 0.01u TP6903 R6913 10k TP25 TP6911 L6920 J0JJC0000011 C6940 250V 0.1u R6924 5.6 D6920 B0HDSM000004 C0ZBZ0000562 IC6902 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC Q6920 2SB1073001TV R6912 100 SS58 1 2 3 4 5 6 7 Q6921 2SB1193000LB L6931 1u C6933 100V 100u R6905 100k L6917 J0JJC0000011 R6927 69.8k R6936 10k L6905 G0ZZ00002183 R6939 10 D6922 MA3X152E0L L6906 J0JJC0000021 C6930 50V 0.01u SS35 1 2 3 4 5 6 7 8 Q6912 2SK326900L G D S C6941 100V 100u R6940 10k R6911 100 D6927 B0JCME000025 C6920 16V 1u Q6923 2SB1073001TV L6903 J0JJC0000011 Q6917 2SD21850RL R6945 33 C6903 100V 100u R6933 2.2k D6912 B0ECHP000001 C0ZBZ0000562 IC6903 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC IC6904 C0BBBA000043 1 2 3 4 5 6 7 8 L6932 1u L6919 J0JJC0000011 Q6916 2SK326900L G D S L6930 1u R6941 13k TP6914 R6943 22k C6907 16V 1u TP27 Q6913 2SK326900L G D S L6916 J0JJC0000011 SS55 1 2 3 4 5 6 7 8 9 10 11 12 13 D6902 B0ECHP000001 L6933 1u R6916 5.6 C6932 25V 220u Q6918 2SB1073001TV D6914 B0HDSM000004 D6926 B0JCME000025 D6913 B0ECHP000001 TP6904 R6923 22 C6915 250V 2u TP30 C0ZBZ0000562 IC6905 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC Q6911 2SK326900L G D S C6911 16V 1u C6901 100V 100u R6935 38.3k R6931 470k D6916 B0HDSM000004 D6915 B0HDSM000004 R6949 5.6 Q6914 2SK326900L G D S L6923 J0JJC0000011 Q6922 2SD21850RL C6927 16V 1u L6925 1u TP24 C6908 250V 0.1u D6907 B0HDSM000004 TP29 R6929 4.7k SS54 1 2 3 4 5 6 7 8 9 10 11 12 13 R6903 EXB38V473JV L6900 J0JJC0000021 TP26 D6911 B0ECHP000001 R6925 5.6 D6918 B0ECHP000001 SS56 1 2 3 4 5 6 7 8 9 10 11 12 13 R6938 10k SS52 1 2 3 4 5 6 7 8 9 10 11 12 13 L6901 J0JJC0000021 SS53 1 2 3 4 5 6 7 8 9 10 11 12 13 D6917 B0HDSM000004 L6922 J0JJC0000011 TP28 R6944 220 D6924 B0JCME000025 C6917 25V 4.7u TP6910 R6932 2.2k R6928 11.8k R6917 100k R6946 33 R6937 10 D6905 B0ECHP000001 D6923 MA3X152E0L C6931 50V 0.01u C6902 25V 220u Q6915 2SK326900L G D S SS21 1 2 3 4 5 6 7 SS41 1 2 3 4 5 6 7 8 9 10 11 12 13 SS48 1 2 3 4 5 6 7 8 9 10 11 12 13 SS31 1 2 3 4 5 6 7 - + - + Vda_75V GND GND Vda 75V Vda 75V 78V 78V NC NC NC NC Vda 75V 78V 78V GND GND Vda 75V UP TNPA2919 SS2-BOARD DOWN TNPA2920 SS3-BOARD 14 13 12 9 10 11 8 15 3 2 1 5 4 FET DRIVER FET DRIVER BUFFER FET DRIVER COMPARATOR SS-BOARD TXNSS20RTS (2/2) (TH-50PX25U/P) 0 1.5 0 0.6 0 1.0 0 1.8 0 0 0 1.8 0 1.0 0 0.6 0 1.5 0 5.0 0 0 15.0 0 0 20.0 34.1 24.0 5.0 5.0 5.0 1.5 0 0 0 0 5.5 0 15.0 0 0 78.0 15.0 37.8 5.0 5.0 5.0 1.0 0 0 0 0 0 4.9 7.5 0 10.4 7.5 0.5 15.0 0 0 15.0 0 0 39.5 52.8 41.4 5.0 5.0 5.0 0.6 0 0 0 0 75.0 75.0 - 78.0 78.0 - 0 0 75.0 0 78.0 75.0 0 - 78.0 - 39.2 23.7 19.8 52.3 39.4 41.4 75.2 34.5 37.4 75.2 34.5 37.6 34.5 5.3 0 34.4 0 5.4 49.1 37.7 37.6 0.5 34.5 37.6 5.4 15.2 0.2 5.4 0.2 0 52.6 0 41.4 41.3 39.5 0 52.5 39.4 41.3 C3-BOARD (C35) TO TO (C42) C4-BOARD TH-42PX25U/P SS-Board (2 of 2),SS2-Board and SS3-Board Schematic Diagram TH-50PX25U/P SS-Board (2 of 2),SS2-Board and SS3-Board Schematic Diagram TH-42PX25U-P / TH-50PX25U-P 208 16 Parts Location 209 TH-42PX25U-P / TH-50PX25U-P 17 Packing Exploded View 210 TH-42PX25U-P / TH-50PX25U-P 211 TH-42PX25U-P / TH-50PX25U-P 212 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks EAB827AL2 SPEAKER(LEFT) 1 EAB827AR2 SPEAKER(RIGHT) 1 1 EAK7H12AL2 SPEAKER(SQUAWKER:L EFT) 1 2 EAK7H12AR2 SPEAKER(SQUAWKER:R IGHT) 1 3 EUR7627Z10 REMOTE CONTROL 1 FBL08A12LS FAN 2 J0KD00000071 FLAT CORE 4 4 J0KF00000018 FILTER 5 5 J0KG00000014 FILTER 6 K1KA02A00104 2P CONNECTOR 1 TH-50PX25U/P K1KA03A00172 3P CONNECTOR 4 TH-50PX25U/P K1KA03A00213 3P CONNECTOR 1 TH-50PX25U/P K1KA04A00242 4P CONNECTOR 1 TH-50PX25U/P K1KA06A00180 6P CONNECTOR 1 TH-50PX25U/P K1KA07A00096 7P CONNECTOR 1 TH-50PX25U/P K1KA09A00099 9P CONNECTOR 1 TH-50PX25U/P K1KA09A00126 9P CONNECTOR 1 K1KA10A00259 10P CONNECTOR 1 TH-50PX25U/P K1KA11A00073 11P CONNECTOR 1 TH-50PX25U/P K1KA15B00044 15P CONNECTOR 2 K1KA20A00180 20P CONNECTOR 1 K1KA20B00103 20P CONNECTOR 1 K1KA21B00005 21P CONNECTOR 1 K1KA30A00106 30P CONNECTOR 1 K1KA30B00054 30P CONNECTOR 1 K1KA40A00140 40P CONNECTOR 1 K1KA40B00062 40P CONNECTOR 1 K1KA60A00083 60P CONNECTOR 1 K1KA68B00029 68P CONNECTOR 1 K1KB15A00024 15P CONNECTOR 2 K1KB60B00011 60P CONNECTOR 1 K1KB65A00002 65P CONNECTOR 1 K1KB68A00024 68P CONNECTOR 1 K2AH3H000028 AC INLET 1 6 K2CG3DH00025 AC CORD 1 K4DJD0000017 F TERMINAL 2 7 MD42H06B1J PLASMA DISPLAY PANEL 1 TH-42PX25U/P 7 MD50H06A1J PLASMA DISPLAY PANEL 1 TH-50PX25U/P 8 TBXA39901 POWER BUTTON 1 9 TBXA40001 CONTROL BUTTON 1 10 TEK6935 DOOR SWITCH 1 11 TEKC011 DAMPER 1 12 TES4G204 SPRING 1 13 TESD060 SPRING 1 THEL023Z SCREW 28 TH-50PX25U/P THEL023Z SCREW 24 TH-42PX25U/P THEL027N SCREW 3 THEL035N SCREW 163 TH-50PX25U/P THEL035N SCREW 126 TH-42PX25U/P THEL036N SCREW 8 TH-42PX25U/P THTD010N SCREW 6 THTD010N SCREW 9 TH-42PX25U/P THTD011 SCREW 3 THTF003Y SCREW 41 TH-50PX25U/P THTF003Y SCREW 37 TH-42PX25U/P TJS1A8840 8P CONNECTOR 1 TH-50PX25U/P TJS3A8380 8P CONNECTOR 1 K1KA08B00161 TJS3A9880 8P CONNECTOR 1 K1KA08A00179 TJS3A9890 9P CONNECTOR 1 K1KA09A00074 TJSD00401 F TERMINAL 2 K1RGZBA00001 TJSF12506 6P CONNECTOR 1 K1KA06A00149 TJSF31010 10P CONNECTOR 1 K1KA10A00170 14 TKGA5124 FRONT GLASS 1 TH-42PX25U/P 14 TKGA5126 FRONT GLASS 1 TH-50PX25U/P 15 TKKC5175-1 PANEL LIGHT 1 16 TKKL5231-1 COVER 4 Ref. No. Part No. Part Name & Description Pcs Remarks 17 TKKL5269-1 COVER 1 18 TKKL5275 TERMINAL COVER 1 19 TKKL5276 DOOR 1 20 TKKL5277-1 HOLE CAP 2 21 TKPA80002 BOTTOM DOOR 1 22 TKPA80701 PHOTO IC RECEIVER PANEL 1 23 TKRA19904A HANDLE 2 TMM15414-2 CLAMPER 3 TMM17499 CLAMPER 1 TMM23416 SPACER 12 TMM23417 CLAMPER 1 TMM25401 CLAMPER 6 TH-50PX25U/P TMM25401 CLAMPER 7 TH-42PX25U/P TMM6463-1 CLAMPER 3 TMM7464-2 CLAMPER 3 TH-50PX25U/P TMM7464-2 CLAMPER 1 TH-42PX25U/P TMM7468-1 CLAMPER 2 TH-50PX25U/P TMM81488 CLAMPER 1 TMME047 CLAMPER 6 TH-50PX25U/P TMME047 CLAMPER 4 TH-42PX25U/P TMME061 CLAMPER 5 TH-50PX25U/P TMME061 CLAMPER 2 TH-42PX25U/P TMME075 EADG SADOLE 5 TMME077 CLAMPER 1 TMME084 CLAMPER 1 TMME108 CABLE STRAP 1 TMME144 CLAMPER 2 TH-42PX25U/P TMME152 CLAMPER 1 TMME190 CLAMPER 4 TH-50PX25U/P TMME190 CLAMPER 3 TH-42PX25U/P TMME199 CLAMPER 6 TH-50PX25U/P TMME199 CLAMPER 3 TH-42PX25U/P TMME206 CLAMPER 2 24 TMMJ044 SPEAKER RUBBER 7 TMMJ082 CUSHION (RUBBER) 8 TH-50PX25U/P TMMJ082 CUSHION (RUBBER) 12 TH-42PX25U/P TMMX067 CAP 4 TH-50PX25U/P TMMX095 BRACKET 2 TH-42PX25U/P 25 TMXX021-1 CORE HOLDER 4 26 TPCB61301 CARTON BOX 1 TH-42PX25U/P 27 TPCB61401 BOTTOM CARTON 1 TH-42PX25U/P 26 TPCB61501 CARTON BOX 1 TH-50PX25U/P 27 TPCB61601 BOTTOM CARTON 1 TH-50PX25U/P 28 TPD169487 JOINT 8 29 TPDA1010 CUSHION(UPPER) 1 30 TPDA1011 CUSHION(BOTTOM) 1 31 TPDA1012 CUSHION 1 TPDA0862 CORNER PAD(RIGHT) 1 TPDA0863 CORNER PAD(LEFT) 1 TPDF0737 PAPER BOX 1 32 TPDF1253 UPPER PAD 1 TH-42PX25U/P 32 TPDF1254 UPPER PAD 1 TH-50PX25U/P 33 TPDF1259 BOTTOM PAD 1 TH-50PX25U/P 34 TPEH170 PROTECT COVER 1 35 TQBC0737 INSTRUCTION BOOK(ENGLISH) 1 35 TQBC0739 INSTRUCTION BOOK(SPANISH) 1 TQBC7060-2 SERVICE CENTER LIST 1 TQEF035 POLY BAG 2 TSXL212 CABLE 2 TH-50PX25U/P TSXL214 CABLE 1 TH-42PX25U/P TSXL222 CABLE 4 TH-50PX25U/P TSXL222 CABLE 2 TH-42PX25U/P TSXL223 CABLE 4 TH-50PX25U/P TSXL289 CABLE 1 TH-42PX25U/P TSXL290 CABLE 2 TH-50PX25U/P TSXL290 CABLE 1 TH-42PX25U/P 18 Mechanical Replacement Parts List 213 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks TSXL308 CABLE 1 TH-42PX25U/P 36 TTEA0171 ESCUTCHEON 1 TH-42PX25U/P 36 TTEA0173 ESCUTCHEON 1 TH-50PX25U/P 37 TTUA0873 REAR COVER 1 TH-42PX25U/P 37 TTUA0875 REAR COVER 1 TH-50PX25U/P TXFMZ010QKSA STAND POOL BRACKET 2 TH-50PX25U/P TXFMZ010QNSA STAND POOL BRACKET(LEFT) 1 TH-50PX25U/P TXFMZ020QNSA STAND POOL BRACKET(RIGHT) 1 TH-50PX25U/P TXJPA30QKS SPEAKER LEAD (LEFT/RIGHT) 1 TH-42PX25U/P TXJPA30QNSU SPEAKER LEAD (LEFT/RIGHT) 1 TH-50PX25U/P TXJTU2UHSU RF CABLE 1 XSS6+10F SCREW 10 XTB4+10A SCREW 26 TH-50PX25U/P XTB4+10A SCREW 22 TH-42PX25U/P XTB4+12AFZ SCREW 22 TH-50PX25U/P XTB4+12AFZ SCREW 20 TH-42PX25U/P XTB4+12J SCREW 29 XTB4+15A SCREW 10 TH-50PX25U/P XTB4+15A SCREW 6 TH-42PX25U/P XTB4+15AFZ SCREW 10 XTB4+20A SCREW 17 TH-50PX25U/P XTB4+20A SCREW 4 TH-42PX25U/P XTS3+10J SCREW 1 XTS4+12J SCREW(STAND) 11 XTV3+10JFZ SCREW 5 XTV3+6J SCREW 1 XTW3+6J SCREW 5 XTW3+8T SCREW 2 XTW4+Z15D SCREW 7 XVG3+J10 SCREW 18 TH-50PX25U/P XVG3+J12 SCREW 1 TH-50PX25U/P XYC4+FJ35FZ SCREW 11 TH-42PX25U/P XYN3+F10 SCREW 8 TH-50PX25U/P XYN3+F10 SCREW 3 TH-42PX25U/P XYN3+F10FZ SCREW 2 XYN3+F6 SCREW 2 XYN3+F8 SCREW 47 TH-50PX25U/P XYN3+F8 SCREW 44 TH-42PX25U/P XYN3+J8 SCREW 8 TH-50PX25U/P XYN3+J8 SCREW 9 TH-42PX25U/P XYN4+E8 SCREW 1 XYN5+C20 SCREW 8 XYN6+F20 SCREW 12 XZBT6506 POLY BAG 1 214 TH-42PX25U-P / TH-50PX25U-P 19 Replacement Parts List 19.1. Replacement Parts List Notes 215 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks F902 K5D312BK0012 FUSE 1 F900,90 1 K5Y802B00001 FUSE 2 C10 K1MN80B00002 CONNECTOR 1 C11 K1MN20B00043 20P CONNECTOR 1 C12 K1KA06A00183 6P CONNECTOR 1 C13 K1KA08A00293 8P CONNECTOR 1 C20,21 K1MN80B00002 CONNECTOR 2 C22,23 K1MN20B00043 20P CONNECTOR 2 C24,25 K1MN80B00002 CONNECTOR 2 C31 K1MN80B00002 CONNECTOR 1 C32 K1KA20A00180 20P CONNECTOR 1 C33 K1MN20B00043 20P CONNECTOR 1 C35 K1KA08A00293 8P CONNECTOR 1 C41 K1MN80B00002 CONNECTOR 1 C42 K1KA08A00293 8P CONNECTOR 1 C43 K1MN20B00043 20P CONNECTOR 1 C44 K1KA08A00232 8P CONNECTOR 1 C50,51 K1MN80B00002 CONNECTOR 2 C52,53 K1MN20B00043 20P CONNECTOR 2 C54,55 K1MN80B00002 CONNECTOR 2 C60 K1MN80B00002 CONNECTOR 1 C61 K1MN20B00043 20P CONNECTOR 1 C62 K1KA06A00183 6P CONNECTOR 1 C300 EEVHB1C470P E 47UF, 16V 1 C301 ECJ3XB0J106M C 10UF, M,6.3V 1 C304 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C309 ECJ1VB1H103K C 0.01UF, K, 50V 1 C401 F0CAF105A021 C 1UF, 250V 1 C402 ECJ2XC1H391J C 390PF, J, 50V 1 C403 ECKCNA222MEB C 2200PF, M 1 C404 F0CAF105A021 C 1UF, 250V 1 C407 EEUEB2W220B E 22UF, 450V 1 C408 F2A1H470A123 E 47UF, 50V 1 C409 F0CAF105A021 C 1UF, 250V 1 C410 F2A1H470A123 E 47UF, 50V 1 C411 F2A1H100A123 E 10UF, 50V 1 C412 ECJ2XB1H103K C 0.01UF, K, 50V 1 C413 F1J1C1050011 C 1UF, Z, 50V 1 C416 F1J1V474A001 C 0.47UF, 35V 1 C417 F2A1H100A123 E 10UF, 50V 1 C419 ECJ2XB1H104K C 0.1UF, K, 50V 1 C421,22 ECJ2XB1H103K C 0.01UF, K, 50V 2 C423 ECJ2XB1H472K C 4700PF, K, 50V 1 C424,25 ECJ3YB1E105K C 1UF, K, 25V 2 C426 ECJ2XC1H471J C 470PF, J, 50V 1 C427 F1J1A1050002 C 1UF, Z, 50V 1 C428 ECJ2XC1H221J C 220PF, J, 50V 1 C429,30 F1K2J1530002 C 0.15PF, J,630V 2 C431 ECJ2XB1H102K C 1000PF, K, 50V 1 C432 F1J1C1050011 C 1UF, Z, 50V 1 C436 F1J1C1050011 C 1UF, Z, 50V 1 C440 F2A1H100A123 E 10UF, 50V 1 C443,44 F1A3A102A040 C 1000PF, J, 1KV 2 C445 F1J1C1050011 C 1UF, Z, 50V 1 C446 F2B2W4710005 C 470UF, 450V 1 C448 F2B2W4710005 C 470UF, 450V 1 C449,50 F1A3A102A040 C 1000PF, J, 1KV 2 C451 F1A3A101A040 C 100PF, J, 1KV 1 C455 F1A3A221A040 E 220UF, 1KV 1 C457 ECWH8203RHV P 0.020PF, J, 8KV 1 C458 ECWH8683RHV P 0.068PF, J, 8KV 1 C459 F1K2J1530002 C 0.15PF, J,630V 1 C460,61 F1A3A331A039 E 330UF, 1KV 2 C462 ECJ3YB1E105K C 1UF, K, 25V 1 C463 ECJ2XC1H220J C 22UF, J, 50V 1 C464 ECJ2XB1H104K C 0.1UF, K, 50V 1 C465 ECKCNA221KB7 C 220PF, M, 1 C501,02 ECJ2XB1H103K C 0.01UF, K, 50V 2 Ref. No. Part No. Part Name & Description Pcs Remarks C503,04 ECJ2XB1H104K C 0.1UF, K, 50V 2 C506-08 ECJ2XB1H103K C 0.01UF, K, 50V 3 C509 F2A1E101A097 E 100UF 25V 1 C511 F1J1C1050011 C 1UF, Z, 50V 1 C513,14 ECJ2XC1H471J C 470PF, J, 50V 2 C515 EEUFC1A102 E 1000UF, 10V 1 C516 F1J1A1050002 C 1UF, Z, 50V 1 C517 EEUFC1A221 E 220UF, 10V 1 C518 F2A1E470A097 E 47UF, 25V 1 C521 F2A1H100A123 E 10UF, 50V 1 C522 ECJ2XB1H103K C 0.01UF, K, 50V 1 C523 F2A1E101A097 E 100UF 25V 1 C524 EEUEB1H220SB E 22UF, 50V 1 C525 ECJ2XB1H103K C 0.01UF, K, 50V 1 C526 ECJ2XB1H104K C 0.1UF, K, 50V 1 C527 ECJ2XB1H102K C 1000PF, K, 50V 1 C528 ECJ2XB1H104K C 0.1UF, K, 50V 1 C529 F2A1E101A097 E 100UF 25V 1 C530 ECJ2VB1H333K C 0.033UF, K, 50V 1 C531,32 ECJ2XB1H104K C 0.1UF, K, 50V 2 C534 ECJ2XC1H681J C 680PF, J, 50V 1 C535 ECJ2XB1H103K C 0.01UF, K, 50V 1 C536 ECJ2XB1H104K C 0.1UF, K, 50V 1 C537 ECJ2XB1H102K C 1000PF, K, 50V 1 C538 ECJ2XB1H103K C 0.01UF, K, 50V 1 C539 ECJ2VB1H333K C 0.033UF, K, 50V 1 C540 ECJ2XC1H152J C 1500PF, J, 50V 1 C541 F1J1C1050011 C 1UF, Z, 50V 1 C544 F1J1C1050011 C 1UF, Z, 50V 1 C546 F2A1E101A097 E 100UF 25V 1 C547 ECJ2VB1H333K C 0.033UF, K, 50V 1 C549 F1J2E1030004 C 0.1PF, J,250V 1 C550 F2A1E681A099 E 680UF, 25V 1 C552 F1J1C1050011 C 1UF, Z, 50V 1 C553,54 ECJ2XB1H104K C 0.1UF, K, 50V 2 C556 F2A1C152A126 E 1500UF, 16V 1 C557 F2A1E681A099 E 680UF, 25V 1 C558 F2B2D2220003 E 2200UF,@ 200V 1 C559 ECJ2XB1H104K C 0.1UF, K, 50V 1 C560 ECA2AHG102 E 1000UF, 100V 1 C561 ECJ2XB1H103K C 0.01UF, K, 50V 1 C562 F2B2D2220003 E 2200UF,@ 200V 1 C565 F2A1E471A097 E 470UF, 25V 1 C573 F1J1C1050011 C 1UF, Z, 50V 1 C574 EEUFC0J122 E 1200UF, 6.3V 1 C576 F2A1E470A097 E 47UF, 25V 1 C577 F2A2A330A022 E 33UF, 100V 1 C578 F2A1E470A097 E 47UF, 25V 1 C579 ECJ2XB1H223K C 0.022UF, K, 50V 1 C580 ECJ2XB1H103K C 0.01UF, K, 50V 1 C581 ECJ2XB1H223K C 0.022UF, K, 50V 1 C583 ECJ2XB1H103K C 0.01UF, K, 50V 1 C585,86 ECJ2XB1H104K C 0.1UF, K, 50V 2 C587 ECJ2XB1H103K C 0.01UF, K, 50V 1 C598 F2A1E470A097 E 47UF, 25V 1 C599 ECJ2XB1H104K C 0.1UF, K, 50V 1 C600,01 ECJ2XB1H103K C 0.01UF, K, 50V 2 C602 ECJ2XB1H102K C 1000PF, K, 50V 1 C603,04 ECJ2XB1H104K C 0.1UF, K, 50V 2 C605 ECJ2XB1H103K C 0.01UF, K, 50V 1 C606 ECJ2XB1H102K C 1000PF, K, 50V 1 C607 F1J1C1050011 C 1UF, Z, 50V 1 C608,09 ECJ2XB1H103K C 0.01UF, K, 50V 2 C901 ECQU2A105BN9 P 1UF, 250V 1 C902 ECQU2A224BN9 P 0.22UF, 250V 1 C903 ECQU2A105BN9 P 1UF, 250V 1 C910,11 ECKDNB221MB C 220PF, Z, 2 C914 ECKDNA471KB7 C 470PF, Z, 1 C915 ECQU2A224BN9 P 0.22UF, 250V 1 C916,17 ECKDNB102KB C 1000PF, Z, 2 C920 EETHC2D561H E 560UF, 200V 1 19.2. Electrical Replacement Part List (TH-50PX25U/P) 216 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks C921 ECKD3D152KBP C 1500PF, K, 2KV 1 C922 ECJ2VF1H104Z C 0.1UF, Z, 50V 1 C923 ECQF4103JZ P 0.01UF, J,400V 1 C924 ECJ2XC1H102J C 1000PF, J, 50V 1 C925 ECJ2XC1H222J C 2200PF, J, 50V 1 C926 ECJ2XC1H101J C 100PF, J, 50V 1 C928 EEUFC1E221 E 220UF, 25V 1 C970 ECKD3A331KBP C 330PF, K, 1KV 1 C971 EEUFC1C562 E 5600UF, 16V 1 C972 ECKD3A331KBP C 330PF, K, 1KV 1 C973 EEUFC1V681 E 680UF, 35V 1 C974 ECJ2XC1H222J C 2200PF, J, 50V 1 C975 ECJ2XB1H473K C 0.047UF, K, 50V 1 C990 ECA1HHG100 E 10UF, 50V 1 C2301- 04 ECJ2XB1H682K C 6800PF, K, 50V 4 C2305,0 6 ECA1VHG470 E 47UF, 35V 2 C2307,0 8 ECA1HHG220 E 22UF, 50V 2 C2309,1 0 ECA1HEN2R2 E 2.2UF, 50V 2 C2311,1 2 ECJ2XB1H682K C 6800PF, K, 50V 2 C2313,1 4 ECA1HHG2R2 E 2.2UF, 50V 2 C2315,1 6 ECQV1H473JM P 0.047UF, J, 50V 2 C2317,1 8 ECA1VHG221 E 220UF, 35V 2 C2321,2 2 ECQV1H225JM P 2.2UF, J, 50V 2 C2323,2 4 ECJ2XC1H102J C 1000PF, J, 50V 2 C2325,2 6 ECA1EHG471 E 470UF, 25V 2 C2327- 30 ECQV1H104JM P 0.1UF, J, 50V 4 C2331,3 2 ECJ2XB1E104K C 0.1UF, K, 25V 2 C2333,3 4 ECA1EHG471 E 470UF, 25V 2 C2337,3 8 ECA1CHG221 E 220UF, 16V 2 C2339 ECA1HHG100 E 10UF, 50V 1 C2342 ECA1HHG100 E 10UF, 50V 1 C2344 ECA1CHG221 E 220UF, 16V 1 C2345,4 6 ECA1VHG470 E 47UF, 35V 2 C2347,4 8 ECA1HHG220 E 22UF, 50V 2 C2349 ECA1HEN2R2 E 2.2UF, 50V 1 C2352 ECA1CHG101 E 100UF, 16V 1 C2355 ECA1HEN2R2 E 2.2UF, 50V 1 C2381 ECA1HHG100 E 10UF, 50V 1 C2382 ECA1CHG101 E 100UF, 16V 1 C2383,8 4 ECJ2XB1H682K C 6800PF, K, 50V 2 C2385,8 6 ECA1HHG2R2 E 2.2UF, 50V 2 C2387,8 8 ECA1VHG221 E 220UF, 35V 2 C2389,9 0 ECA1EHG471 E 470UF, 25V 2 C2391,9 2 ECQV1H225JM P 2.2UF, J, 50V 2 C2393,9 4 ECA1EHG471 E 470UF, 25V 2 C2395,9 6 ECJ2XC1H102J C 1000PF, J, 50V 2 C2397- 00 ECQV1H104JM P 0.1UF, J, 50V 4 C2401,0 2 ECJ1VB1H182K C 1800PF, K, 50V 2 C2403,0 4 ECA1HEN4R7 E 4.7UF, 50V 2 C2407 ECJ1VB1H562K C 5600PF, K, 50V 1 C2408 ECA1CHG470 E 47UF, 16V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C2412 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C2413 ECA1HHG470 E 47UF, 50V 1 C2414 EEEHB1C470P C 47PF, J, 16V 1 C2415 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C2416 ECJ1XC1H561J C 560PF, J, 50V 1 C2417 ECJ1VB1E333K C 0.33UF, K, 25V 1 C2418 ECJ1XC1H561J C 560PF, J, 50V 1 C2419 ECJ1VB1E333K C 0.33UF, K, 25V 1 C2420 ECJ1XC1H561J C 560PF, J, 50V 1 C2421 ECJ1VB1E333K C 0.33UF, K, 25V 1 C2422 ECJ1XC1H561J C 560PF, J, 50V 1 C2423 ECJ1VB1E333K C 0.33UF, K, 25V 1 C2424- 27 ECJ1VB1H182K C 1800PF, K, 50V 4 C2428 ECA1CHG101 E 100UF, 16V 1 C2429 ECJ1VB1H103K C 0.01UF, K, 50V 1 C2430 ECA1CHG101 E 100UF, 16V 1 C2431 ECJ1VB1H103K C 0.01UF, K, 50V 1 C2432 ECJ1VB1C273K C 0.027UF, K, 16V 1 C2433 ECJ1VB1C473K C 0.047UF, K, 16V 1 C2436 ECJ1VB1C273K C 0.027UF, K, 16V 1 C2437 ECJ1VB1C473K C 0.047UF, K, 16V 1 C2440 ECJ1VB1H103K C 0.01UF, K, 50V 1 C2441,4 2 ECJ1VB1H123K C 0.12UF, K, 50V 2 C2443 ECA1CHG101 E 100UF, 16V 1 C2444,4 5 ECJ1VB1H123K C 0.12UF, K, 50V 2 C3712 ECJ2XB1H682K C 6800PF, K, 50V 1 C5001 EEEHB1C100R C 10PF, J, 16V 1 C5002- 04 ECJ2XB1H682K C 6800PF, K, 50V 3 C5005 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5006 EEEHB1C100R C 10PF, J, 16V 1 C5007 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5012,1 3 EEFCD0J470R 47UF 2 C5014 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5015 ECJ1XC1H102J C 1000PF, J, 50V 1 C5016 ECJ1VB1H103K C 0.01UF, K, 50V 1 C5017,1 8 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C5019 ECJ1XC1H102J C 1000PF, J, 50V 1 C5020 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5021 ECJ1VB1H103K C 0.01UF, K, 50V 1 C5022 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5023 EEFCD0J470R 47UF 1 C5024 ECJ2XB1H682K C 6800PF, K, 50V 1 C5025 ECJ1XC1H102J C 1000PF, J, 50V 1 C5026,2 7 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C5028,2 9 ECJ1VB1H103K C 0.01UF, K, 50V 2 C5030 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5031 EEFCD0J470R 47UF 1 C5032 ECJ1VB1H103K C 0.01UF, K, 50V 1 C5033,3 4 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C5035 ECJ1VB1H103K C 0.01UF, K, 50V 1 C5036 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5037 EEFCD0J470R 47UF 1 C5038 ECJ1VB1H103K C 0.01UF, K, 50V 1 C5039,4 0 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C5041 ECJ1XC1H102J C 1000PF, J, 50V 1 C5042 EEFCD0J470R 47UF 1 C5044 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5045 EEFCD0J470R 47UF 1 C5046 ECJ1VB1C473K C 0.047UF, K, 16V 1 C5047,4 8 ECJ1XC1H102J C 1000PF, J, 50V 2 C5049 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5050 ECJ2YB0J335K C 3.3UF, Z,6.3V 1 C5051 ECJ1VB1H103K C 0.01UF, K, 50V 1 C5054 EEFCD0J470R 47UF 1 217 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks C5056 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5057 ECJ1XC1H101J C 100PF, J, 50V 1 C5063 ECJ1VB1H103K C 0.01UF, K, 50V 1 C5074 ECJ2XB1H682K C 6800PF, K, 50V 1 C5075 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5076 EEFCD0J470R 47UF 1 C5077,7 8 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C5081,8 2 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 C5083 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5084 EEEHB1C100R C 10PF, J, 16V 1 C5085- 88 ECJ3XF1C475Z C 4.7UF, Z, 16V 4 C5089,9 0 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C5091,9 2 EEEHB1C470P C 47PF, J, 16V 2 C5093 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C5094 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C5095 EEEHB1C220R C 22PF, J, 16V 1 C5096 ECJ1XC1H181J C 180PF, J, 50V 1 C5097,9 8 ECJ2VF1H103Z C 0.01UF, Z, 50V 2 C5099 ECJ1XC1H181J C 180PF, J, 50V 1 C5100,0 1 ECJ1XC1H330J C 33PF, J, 50V 2 C5102 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C5103 EEEHB1C470P C 47PF, J, 16V 1 C5104,0 5 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 C5106,0 7 EEEHP1C100R C 10PF, J, 16V 2 C5108,0 9 ECJ1VB1H272K C 2700PF, K, 50V 2 C5110 EEEHB1A330R C 33PF, J, 10V 1 C5111 EEEHB0J470R C 47PF, J, 6.3V 1 C5112,1 3 ECJ2XB1H682K C 6800PF, K, 50V 2 C5114,1 5 ECJ2VB1C104K C 0.1UF, K, 16V 2 C5116 EEEHB1C470P C 47PF, J, 16V 1 C5117 EEEHB1A330R C 33PF, J, 10V 1 C5118 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C5119 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C5120 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C5121 ECJ2XB1H682K C 6800PF, K, 50V 1 C5122 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5123 ECJ2XB1H682K C 6800PF, K, 50V 1 C5124,2 5 EEEHB1C470P C 47PF, J, 16V 2 C5126 EEEHB1A330R C 33PF, J, 10V 1 C5127 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C5128 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C5129 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C5130,3 1 ECJ2YB0J335K C 3.3UF, Z,6.3V 2 C5132,3 3 ECJ2XB1H682K C 6800PF, K, 50V 2 C5134 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5135 ECJ2XB1H682K C 6800PF, K, 50V 1 C6002,0 3 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C6005,0 6 ECJ3XB0J106M C 10UF, M,6.3V 2 C6007- 10 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C6013 EEEHB1A101P C 100PF, J, 10V 1 C6014 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6016 ECJ2XB1H682K C 6800PF, K, 50V 1 C6017 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6018 EEFCD0J470R 47UF 1 C6019,2 0 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C6021- 24 ECJ1VF1H103Z C 0.01UF, Z, 50V 4 Ref. No. Part No. Part Name & Description Pcs Remarks C6026,2 7 ECJ1VF1H103Z C 0.01UF, Z, 50V 2 C6028 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6030,3 1 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C6032 ECJ3XB0J106M C 10UF, M,6.3V 1 C6034,3 5 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C6039 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6040 EEEHB0J221UP C 220PF, J, 6.3V 1 C6041,4 2 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C6043 EEEHB0G101R C 100PF, J, 4V 1 C6044 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C6046- 55 ECJ1XF1C104Z C 0.1UF, Z, 16V 10 C6056 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C6057 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C6058- 70 ECJ1XF1C104Z C 0.1UF, Z, 16V 13 C6071 ECJ1VF1C105Z C 1UF, Z, 10V 1 C6072 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6073 ECJ3YB1A106M C 10UF, M,6.3V 1 C6074 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6075 ECJ1XC1H470J C 47PF, J, 50V 1 C6077 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6078 ECJ1VF1C105Z C 1UF, Z, 10V 1 C6080,8 1 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C6082 EEEHB0G101R C 100PF, J, 4V 1 C6083,8 4 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C6086 ECJ1VB1C103K C 0.01UF, K, 16V 1 C6087 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6088 ECJ1XC1H470J C 47PF, J, 50V 1 C6089 EEEHB1C100R C 10PF, J, 16V 1 C6090 ECJ1VC1H270J C 27PF, J, 50V 1 C6091 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6092 ECJ1XC1H151J C 150PF, J, 50V 1 C6093- 96 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C6097 EEEHB0G101R C 100PF, J, 4V 1 C6100 ECJ1VF1C105Z C 1UF, Z, 10V 1 C6101 EEEHB0G101R C 100PF, J, 4V 1 C6102 ECJ1VB1C103K C 0.01UF, K, 16V 1 C6103 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6104 EEEHB0G221P C 220PF, J, 4V 1 C6105 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6106,0 7 EEEHB0J221UP C 220PF, J, 6.3V 2 C6110 EEEHB1A101P C 100PF, J, 10V 1 C6111,1 2 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C6400 ECJ2XB1H222K C 2200PF, K, 50V 1 C6401- 06 TCUY1C105ZFN C 1UF, 16V 6 C6408 ECJ2XB1H222K C 2200PF, K, 50V 1 C6409,1 0 F1L2E1040002 E 1000UF, 25V 2 C6417,1 8 F1L2E1040002 E 1000UF, 25V 2 C6420 ECJ2XB1H222K C 2200PF, K, 50V 1 C6421- 26 TCUY1C105ZFN C 1UF, 16V 6 C6427,2 8 F1L2E1040002 E 1000UF, 25V 2 C6430 ECJ2XB1H222K C 2200PF, K, 50V 1 C6437,3 8 F1L2E1040002 E 1000UF, 25V 2 C6452 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6453 TCUY1C105ZFN C 1UF, 16V 1 C6454 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6455 EEUFC1E221 E 220UF, 25V 1 C6456 ECA2CM101 E 100UF, 160V 1 C6458 ECJ4XB1E475M C 4.7UF, M, 25V 1 C6459 EEUFC1E470 E 47UF, 25V 1 218 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks C6461 ECA1HM101 E 100UF, 50V 1 C6462,6 3 ECJ4XB1E475M C 4.7UF, M, 25V 2 C6465 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6466,6 7 ECJ4XB1E475M C 4.7UF, M, 25V 2 C6472 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6473 TCUY1C105ZFN C 1UF, 16V 1 C6474 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6475 EEUFC1E221 E 220UF, 25V 1 C6476 ECA2CM101 E 100UF, 160V 1 C6490,9 1 F1K2J222A014 C 2200UF, K,6.3V 2 C6492 EEUED2V100 E 10UF, 1 C6493 ECJ3XB2J222K C 2200PF, K,630V 1 C6501- 08 TCUY1C105ZFN C 1UF, 16V 8 C6509 ECJ2XC1H102J C 1000PF, J, 50V 1 C6510- 12 ECJ4XB1E475M C 4.7UF, M, 25V 3 C6513 ECA2CM101 E 100UF, 160V 1 C6514 TCUY1C105ZFN C 1UF, 16V 1 C6515,1 6 ECJ4XB1E475M C 4.7UF, M, 25V 2 C6517 TCUY1C105ZFN C 1UF, 16V 1 C6521 ECJ4XB1E475M C 4.7UF, M, 25V 1 C6522 ECA1VM470 E 47UF, 35V 1 C6524,2 5 ECJ3FC2D102J C 1000PF, J,200V 2 C6526 ECA2EHG470 E 47UF, 250V 1 C6532 ECJ2XB1H472K C 4700PF, K, 50V 1 C6533 TCUY1C105ZFN C 1UF, 16V 1 C6534 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6535 EEUFC1E221 E 220UF, 25V 1 C6536 ECA1HM221 E 220UF, 50V 1 C6537 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6541,4 2 ECJ4XB1E475M C 4.7UF, M, 25V 2 C6543- 45 ECJ3FC2D102J C 1000PF, J,200V 3 C6546 ECJ4XB1E475M C 4.7UF, M, 25V 1 C6550 ECA2CM101 E 100UF, 160V 1 C6561- 68 ECWF2205JS P 2UF, 250V 8 C6571 TCUY1C105ZFN C 1UF, 16V 1 C6574- 78 TCUY1C105ZFN C 1UF, 16V 5 C6580,8 1 TCUY1C105ZFN C 1UF, 16V 2 C6584 ECJ3YB1E105K C 1UF, K, 25V 1 C6585 TCUY1C105ZFN C 1UF, 16V 1 C6598 ECA2CM101 E 100UF, 160V 1 C6600- 06 ECA2DHG221 E 220UF, 200V 7 C6607,0 8 ECWF2205JS P 2UF, 250V 2 C6609 ECJ3YB1E105K C 1UF, K, 25V 1 C6610 ECA1EM471 E 470UF, 25V 1 C6611- 20 F1K2J222A014 C 2200UF, K,6.3V 10 C6621,2 2 ECJ4XB1E475M C 4.7UF, M, 25V 2 C6623,2 4 TCUY1C105ZFN C 1UF, 16V 2 C6625 ECJ4XB1E475M C 4.7UF, M, 25V 1 C6626 ECJ3YB1E105K C 1UF, K, 25V 1 C6627,2 8 EEUFC1E470 E 47UF, 25V 2 C6629 F2A2D1510004 E 150UF, 200V 1 C6639 F1L2E1040002 E 1000UF, 25V 1 C6640 TCUY1C105ZFN C 1UF, 16V 1 C6641,4 2 ECJ4XB1E475M C 4.7UF, M, 25V 2 C6650,5 1 ECJ4XB1E475M C 4.7UF, M, 25V 2 C6652 TCUY1C105ZFN C 1UF, 16V 1 C6680 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C6681,8 2 TCUY1C105ZFN C 1UF, 16V 2 C6683,8 4 EEUFC1E470 E 47UF, 25V 2 C6701- 08 ECWF2205JS P 2UF, 250V 8 C6709 F1L2E1040002 E 1000UF, 25V 1 C6711- 14 ECA2DHG221 E 220UF, 200V 4 C6715,1 6 ECWF2205JS P 2UF, 250V 2 C6717 ECJ3YB1E105K C 1UF, K, 25V 1 C6718,1 9 EEUFC1E221 E 220UF, 25V 2 C6721 ECA1EM101 E 100UF, 25V 1 C6722,2 3 ECA2CM101 E 100UF, 160V 2 C6724 ECA2DHG221 E 220UF, 200V 1 C6726 EEUFC1E102 E 1000UF, 25V 1 C6727 F1K2J222A014 C 2200UF, K,6.3V 1 C6729 F1K2J222A014 C 2200UF, K,6.3V 1 C6731 F1K2J222A014 C 2200UF, K,6.3V 1 C6733 F1K2J222A014 C 2200UF, K,6.3V 1 C6735 F1K2J222A014 C 2200UF, K,6.3V 1 C6737 F1K2J222A014 C 2200UF, K,6.3V 1 C6739 F1K2J222A014 C 2200UF, K,6.3V 1 C6741 F1K2J222A014 C 2200UF, K,6.3V 1 C6743 F1K2J222A014 C 2200UF, K,6.3V 1 C6745 F1K2J222A014 C 2200UF, K,6.3V 1 C6747,4 8 ECJ4XB1E475M C 4.7UF, M, 25V 2 C6749 TCUY1C105ZFN C 1UF, 16V 1 C6750,5 1 ECJ4XB1E475M C 4.7UF, M, 25V 2 C6752 TCUY1C105ZFN C 1UF, 16V 1 C6753 ECJ4XB1E475M C 4.7UF, M, 25V 1 C6755 TCUY1C105ZFN C 1UF, 16V 1 C6756,5 7 ECJ4XB1E475M C 4.7UF, M, 25V 2 C6758 ECJ3YB1E105K C 1UF, K, 25V 1 C6759,6 0 ECJ4XB1E475M C 4.7UF, M, 25V 2 C6761- 64 TCUY1C105ZFN C 1UF, 16V 4 C6767,6 8 ECA2DHG221 E 220UF, 200V 2 C6771 ECA2DHG221 E 220UF, 200V 1 C6772,7 3 ECJ3YB1E105K C 1UF, K, 25V 2 C6784 ECJ3XB2J222K C 2200PF, K,630V 1 C6801 ECA2AHG101 E 100UF, 100V 1 C6803 ECA2AHG101 E 100UF, 100V 1 C6807 TCUY1C105ZFN C 1UF, 16V 1 C6808 F1L2E1040002 E 1000UF, 25V 1 C6809,1 0 EEUFC1E221 E 220UF, 25V 2 C6811 TCUY1C105ZFN C 1UF, 16V 1 C6812,1 3 F1L1E4750004 C 4.7UF, 25V 2 C6815,1 6 ECWF2205JS P 2UF, 250V 2 C6817,1 8 F1L1E4750004 C 4.7UF, 25V 2 C6820 TCUY1C105ZFN C 1UF, 16V 1 C6821,2 2 F1L1E4750004 C 4.7UF, 25V 2 C6827 TCUY1C105ZFN C 1UF, 16V 1 C6828- 31 ECJ2XB1H103K C 0.01UF, K, 50V 4 C6832 EEUFC1E221 E 220UF, 25V 1 C6833 ECA2AHG101 E 100UF, 100V 1 C6840 F1L2E1040002 E 1000UF, 25V 1 C6841 ECA2AHG101 E 100UF, 100V 1 C6901 EEUFC2A101LE E 100UF, 100V 1 C6902 EEUFC1E221 E 220UF, 25V 1 C6903 EEUFC2A101LE E 100UF, 100V 1 C6907 TCUY1C105ZFN C 1UF, 16V 1 219 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks C6908 F1L2E1040002 E 1000UF, 25V 1 C6910 EEUFC1E221 E 220UF, 25V 1 C6911 TCUY1C105ZFN C 1UF, 16V 1 C6912,1 3 F1L1E4750004 C 4.7UF, 25V 2 C6915,1 6 ECWF2205JS P 2UF, 250V 2 C6917,1 8 F1L1E4750004 C 4.7UF, 25V 2 C6920 TCUY1C105ZFN C 1UF, 16V 1 C6921,2 2 F1L1E4750004 C 4.7UF, 25V 2 C6927 TCUY1C105ZFN C 1UF, 16V 1 C6928- 31 ECJ2XB1H103K C 0.01UF, K, 50V 4 C6932 EEUFC1E221 E 220UF, 25V 1 C6933 EEUFC2A101LE E 100UF, 100V 1 C6940 F1L2E1040002 E 1000UF, 25V 1 C6941 ECA2AHG101 E 100UF, 100V 1 C7101,0 2 TCUY1C105ZFN C 1UF, 16V 2 C7107- 10 F1K2A1040004 C 0.1UF, 100V 4 C7111- 14 ECJ1XC1H101J C 100PF, J, 50V 4 C7115- 18 F1K2A1040004 C 0.1UF, 100V 4 C7125,2 6 TCUY1C105ZFN C 1UF, 16V 2 C7129 TCUY1C105ZFN C 1UF, 16V 1 C7130 ECJ3XB0J106M C 10UF, M,6.3V 1 C7131- 34 TCUY1C105ZFN C 1UF, 16V 4 C7135- 38 ECJ3XB0J106M C 10UF, M,6.3V 4 C7139 TCUY1C105ZFN C 1UF, 16V 1 C7140 ECJ1XC1H101J C 100PF, J, 50V 1 C7201 TCUY1C105ZFN C 1UF, 16V 1 C7202 ECJ1XC1H101J C 100PF, J, 50V 1 C7203 TCUY1C105ZFN C 1UF, 16V 1 C7206 TCUY1C105ZFN C 1UF, 16V 1 C7208 ECJ3XB0J106M C 10UF, M,6.3V 1 C7212 TCUY1C105ZFN C 1UF, 16V 1 C7213,1 4 F1K2A1040004 C 0.1UF, 100V 2 C7215 TCUY1C105ZFN C 1UF, 16V 1 C7216 ECJ3XB0J106M C 10UF, M,6.3V 1 C7217,1 8 F1K2A1040004 C 0.1UF, 100V 2 C7221 ECJ1XC1H101J C 100PF, J, 50V 1 C7222 F1K2A1040004 C 0.1UF, 100V 1 C7223,2 4 TCUY1C105ZFN C 1UF, 16V 2 C7225 ECJ3XB0J106M C 10UF, M,6.3V 1 C7226 F1K2A1040004 C 0.1UF, 100V 1 C7227 ECJ1XC1H101J C 100PF, J, 50V 1 C7230 TCUY1C105ZFN C 1UF, 16V 1 C7231 ECJ3XB0J106M C 10UF, M,6.3V 1 C7301 TCUY1C105ZFN C 1UF, 16V 1 C7302 ECJ1XC1H101J C 100PF, J, 50V 1 C7303 TCUY1C105ZFN C 1UF, 16V 1 C7304 ECJ3XB0J106M C 10UF, M,6.3V 1 C7305- 07 TCUY1C105ZFN C 1UF, 16V 3 C7308,0 9 ECJ3XB0J106M C 10UF, M,6.3V 2 C7310 TCUY1C105ZFN C 1UF, 16V 1 C7311,1 2 ECJ3XB0J106M C 10UF, M,6.3V 2 C7315,1 6 TCUY1C105ZFN C 1UF, 16V 2 C7323 ECJ1XC1H101J C 100PF, J, 50V 1 C7324,2 5 F1K2A1040004 C 0.1UF, 100V 2 C7326 ECJ1XC1H101J C 100PF, J, 50V 1 C7327,2 8 F1K2A1040004 C 0.1UF, 100V 2 Ref. No. Part No. Part Name & Description Pcs Remarks C7329,3 0 ECJ1XC1H101J C 100PF, J, 50V 2 C7331- 34 F1K2A1040004 C 0.1UF, 100V 4 C7339,4 0 TCUY1C105ZFN C 1UF, 16V 2 C7401,0 2 TCUY1C105ZFN C 1UF, 16V 2 C7403 ECJ1XC1H101J C 100PF, J, 50V 1 C7404 TCUY1C105ZFN C 1UF, 16V 1 C7406 ECJ3XB0J106M C 10UF, M,6.3V 1 C7408- 11 TCUY1C105ZFN C 1UF, 16V 4 C7412- 15 ECJ3XB0J106M C 10UF, M,6.3V 4 C7418,1 9 TCUY1C105ZFN C 1UF, 16V 2 C7424- 27 F1K2A1040004 C 0.1UF, 100V 4 C7428- 31 ECJ1XC1H101J C 100PF, J, 50V 4 C7432- 35 F1K2A1040004 C 0.1UF, 100V 4 C7440,4 1 TCUY1C105ZFN C 1UF, 16V 2 C7501 ECJ1XC1H101J C 100PF, J, 50V 1 (C5) C7501,0 2 EEUFC1V471 E 470UF, 35V 2 (PA) C7502 TCUY1C105ZFN C 1UF, 16V 1 (C5) C7503 ECJ2XB1H103K C 0.01UF, K, 50V 1 (PA) C7505,0 6 EEUFC1V561 E 560UF, 35V 2 C7507 F1K2A1040004 C 0.1UF, 100V 1 C7509 ECA1HHG100 E 10UF, 50V 1 C7511 EEUFC1V471 E 470UF, 35V 1 (PA) C7511 TCUY1C105ZFN C 1UF, 16V 1 (C5) C7512 EEUFC1V471 E 470UF, 35V 1 (PA) C7512 TCUY1C105ZFN C 1UF, 16V 1 (C5) C7513 ECJ2XB1H103K C 0.01UF, K, 50V 1 (PA) C7513 ECJ3XB0J106M C 10UF, M,6.3V 1 (C5) C7516 EEUFC1V471 E 470UF, 35V 1 (PA) C7516 F1K2A1040004 C 0.1UF, 100V 1 (C5) C7517 EEUFC1E821 E 820UF, 25V 1 (PA) C7517 F1K2A1040004 C 0.1UF, 100V 1 (C5) C7518 ECJ2XB1H103K C 0.01UF, K, 50V 1 (PA) C7518 TCUY1C105ZFN C 1UF, 16V 1 (C5) C7519 ECJ3XB0J106M C 10UF, M,6.3V 1 C7520 ECJ1XC1H101J C 100PF, J, 50V 1 C7521 EEUFC1E471 E 470UF, 25V 1 (PA) C7521 TCUY1C105ZFN C 1UF, 16V 1 (C5) C7522 ECJ1XC1H101J C 100PF, J, 50V 1 (C5) C7522 EEUFC1C821 E 820UF, 16V 1 (PA) C7523 ECJ2XB1H103K C 0.01UF, K, 50V 1 C7524 F1K2A1040004 C 0.1UF, 100V 1 C7525 ECA1HHG100 E 10UF, 50V 1 (PA) C7525 TCUY1C105ZFN C 1UF, 16V 1 (C5) C7527 ECJ3XB0J106M C 10UF, M,6.3V 1 C7529 TCUY1C105ZFN C 1UF, 16V 1 C7530 ECJ3XB0J106M C 10UF, M,6.3V 1 (C5) C7530 EEUFC1C331 E 330UF, 16V 1 (PA) C7532- 34 EEUFC1C331 E 330UF, 16V 3 C7535- 37 ECJ2VF1C474Z C 0.47UF, Z, 16V 3 C7541- 44 ECJ2VF1C104Z C 0.1UF, Z, 16V 4 C7561 EEUFC1E471 E 470UF, 25V 1 C7562,6 3 EEUFC1C471 E 470UF, 16V 2 C7567 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C7568 ECA1HHG220 E 22UF, 50V 1 C7570 ECJ2XB1H103K C 0.01UF, K, 50V 1 C7573 ECJ2XB1H682K C 6800PF, K, 50V 1 C7574 ECJ2XB1H103K C 0.01UF, K, 50V 1 C7581 ECA1HHG4R7 E 4.7UF, 50V 1 C7582 ECJ2VB1C224K C 0.22UF, K, 16V 1 220 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks C7583 ECJ2VF1H104Z C 0.1UF, Z, 50V 1 C7584 ECJ2XC1H271J C 270PF, J, 50V 1 C7585 EEUFC1H100L E 10UF, 50V 1 C7588 ECA1HHG100 E 10UF, 50V 1 C7601,0 2 TCUY1C105ZFN C 1UF, 16V 2 C7607- 10 F1K2A1040004 C 0.1UF, 100V 4 C7611- 14 ECJ1XC1H101J C 100PF, J, 50V 4 C7615- 18 F1K2A1040004 C 0.1UF, 100V 4 C7623,2 4 TCUY1C105ZFN C 1UF, 16V 2 C7629 TCUY1C105ZFN C 1UF, 16V 1 C7630 ECJ3XB0J106M C 10UF, M,6.3V 1 C7631- 34 TCUY1C105ZFN C 1UF, 16V 4 C7635- 38 ECJ3XB0J106M C 10UF, M,6.3V 4 C7639 ECJ1XC1H101J C 100PF, J, 50V 1 C7640 TCUY1C105ZFN C 1UF, 16V 1 C9001 ECJ3XB0J106M C 10UF, M,6.3V 1 C9002 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9003 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9004 ECJ3XB0J106M C 10UF, M,6.3V 1 C9005,0 6 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9007- 10 EEVHB0G221 E 220UF, 4V 4 C9011- 14 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C9016,1 7 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9020 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9022 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9023 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9027 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9028 ECJ3XB0J106M C 10UF, M,6.3V 1 C9029 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9030,3 1 ECJ3XB0J106M C 10UF, M,6.3V 2 C9032,3 3 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9034,3 5 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9036,3 7 ECJ3XB0J106M C 10UF, M,6.3V 2 C9038,3 9 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9040 ECJ2VB1E473K C 0.047UF, K, 25V 1 C9041 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9042,4 3 ECJ2VB1E473K C 0.047UF, K, 25V 2 C9044 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9045,4 6 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9048,4 9 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9050 ECJ3XB0J106M C 10UF, M,6.3V 1 C9051 ECJ1XB1C393K C 0.039UF, K, 16V 1 C9052 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9053 ECJ1VB1H392K C 3900PF, K, 50V 1 C9054- 56 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9077 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9085 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9151 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9152 EEVHB0J330 E 33UF, 6.3V 1 C9153 ECJ3XB0J106M C 10UF, M,6.3V 1 C9154 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9155 EEVHB1C470 E 47UF, 16V 1 C9156 ECJ3XB0J106M C 10UF, M,6.3V 1 C9157- 60 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C9161 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9162 ECJ3XB0J106M C 10UF, M,6.3V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C9163- 70 ECJ1XF1C104Z C 0.1UF, Z, 16V 8 C9171 EEVHB1C470 E 47UF, 16V 1 C9172- 74 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9175 ECJ3XB0J106M C 10UF, M,6.3V 1 C9176- 82 ECJ1XF1C104Z C 0.1UF, Z, 16V 7 C9187 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9191 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9192 TCUY1C105ZFN C 1UF, 16V 1 C9195 TCUY1C105ZFN C 1UF, 16V 1 C9196 ECJ3VB1C104K C 0.10UF, K, 16V 1 C9197 ECJ2VB1E563K C 0.056UF, K, 25V 1 C9198 ECJ2VB1C104K C 0.1UF, K, 16V 1 C9199,0 0 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9301 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9302 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9303 EEVHB1C470 E 47UF, 16V 1 C9304 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9305 ECJ3XB0J106M C 10UF, M,6.3V 1 C9307 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9308 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9309 ECJ3XB0J106M C 10UF, M,6.3V 1 C9310 ECJ1XC1H330J C 33PF, J, 50V 1 C9311 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9314,1 5 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 C9316,1 7 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9318 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9319 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9321 ECJ3XB0J106M C 10UF, M,6.3V 1 C9323 ECJ1XC1H101J C 100PF, J, 50V 1 C9324 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9325 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9327 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9328- 30 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9331 ECJ3XB0J106M C 10UF, M,6.3V 1 C9332- 35 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C9338- 46 ECJ1XF1C104Z C 0.1UF, Z, 16V 9 C9347 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9449 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9450 ECJ3XB0J106M C 10UF, M,6.3V 1 C9453 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9454,5 5 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 C9465 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9466 EEVHB0G221 E 220UF, 4V 1 C9467 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9469 EEVHB0G221 E 220UF, 4V 1 C9470 ECJ1XC1H101J C 100PF, J, 50V 1 C9471 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9472 ECJ3XB0J106M C 10UF, M,6.3V 1 C9474 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9475- 77 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9478 ECJ3XB0J106M C 10UF, M,6.3V 1 C9479- 82 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C9485- 93 ECJ1XF1C104Z C 0.1UF, Z, 16V 9 C9494,9 5 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 C9496,9 7 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9498 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9499 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9596- 99 ECJ1VF1H103Z C 0.01UF, Z, 50V 4 C9601- 05 ECJ1XF1C104Z C 0.1UF, Z, 16V 5 221 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks C9607 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9611 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9612 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9613 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9616 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9620,2 1 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9623 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9625 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9629,3 0 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9632 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9635 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9700,0 1 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9702 EEVHB1C470 E 47UF, 16V 1 C9703 ECJ1XC1H101J C 100PF, J, 50V 1 C9705 ECJ1XF1H102Z C 1000PF, Z, 50V 1 C9706,0 7 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9708- 10 EEVHB1C470 E 47UF, 16V 3 C9712- 17 ECJ1XC1H101J C 100PF, J, 50V 6 C9718 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9719 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9720 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9722,2 3 ECJ1XC1H100D C 10PF, D, 50V 2 C9724 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9725 ECJ3XB0J106M C 10UF, M,6.3V 1 C9726 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9727,2 8 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9729 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9730- 33 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C9737 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9740,4 1 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9742 EEVHB1C470 E 47UF, 16V 1 C9743 TCUY1C105ZFN C 1UF, 16V 1 C9748,4 9 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9750 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9751,5 2 ECJ1VF1H103Z C 0.01UF, Z, 50V 2 C9753,5 4 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9755,5 6 ECJ1XF1H102Z C 1000PF, Z, 50V 2 C9759 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9760 ECJ1VB1C563K C 0.056UF, K, 16V 1 C9761,6 2 ECJ1XC1H330J C 33PF, J, 50V 2 C9765 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9766 ECJ3XB0J106M C 10UF, M,6.3V 1 C9767,6 8 TCUY1C105ZFN C 1UF, 16V 2 C9769 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9800 EEVHB0G221 E 220UF, 4V 1 C9801 ECJ3XB0J106M C 10UF, M,6.3V 1 C9802 EEVHB1C470 E 47UF, 16V 1 C9803 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9804 ECJ2XB1E104K C 0.1UF, K, 25V 1 C9805 ECJ2XC1H222J C 2200PF, J, 50V 1 C9806 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9951- 53 EEVHB1C470 E 47UF, 16V 3 C9954,5 5 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9956 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9957 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9958,5 9 F2H1E221A007 E 2.2UF, 25V 2 C9960 ECJ3VB1C104K C 0.10UF, K, 16V 1 C9961 EEFUD0G121ER 120UF 1 Ref. No. Part No. Part Name & Description Pcs Remarks C9964,6 5 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9966 EEVHB0G221 E 220UF, 4V 1 C9967 ECJ3XB0J106M C 10UF, M,6.3V 1 C9968 EEVHB1C470 E 47UF, 16V 1 C9969 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9970 ECJ2XB1E104K C 0.1UF, K, 25V 1 C9971 ECJ2XC1H222J C 2200PF, J, 50V 1 CA1-11 K1MN48A00002 CONNECTOR 11 CB1-11 K1MN48A00002 CONNECTOR 11 CF901 ERZV10V621P2 VARISTOR 1 CF902 ERZV07D361 VARISTOR 1 D3 K1KA40A00140 40P CONNECTOR 1 D4 K1KA12A00227 12P CONNECTOR 1 D6 K1KA21A00007 21P CONNECTOR 1 D009 MA8056M ZENER DIODE 1 D12 K1KA07A00189 7P CONNECTOR 1 D20 K1KA20A00180 20P CONNECTOR 1 D25 K1KA08A00293 8P CONNECTOR 1 D27 K1KA09A00077 9P CONNECTOR 1 D31-34 K1MN80B00002 CONNECTOR 4 D300,01 MA152K DIODE 2 D302 LNJ107W5PRW LED 1 D303 MA152K DIODE 1 D308 MA8056M ZENER DIODE 1 D309,10 MA152K DIODE 2 D311 MA8056M ZENER DIODE 1 D317 MA3062M ZENER DIODE 1 D401 B0FBBR000020 DIODE 1 D402 MA4082M ZENER DIODE 1 D404 S1WBA80Z DIODE 1 D408 MA4180M ZENER DIODE 1 D409 B0HAMM000072 DIODE 1 D410 MA188 DIODE 1 D411 B0BB17000006 DIODE 1 D412 MA165 DIODE 1 D414 MA165 DIODE 1 D415 B0JAME000081 DIODE 1 D418 MA4082M ZENER DIODE 1 D419,20 B0HBSR000005 DIODE 2 D421 MA4150M ZENER DIODE 1 D423-26 B0JAME000081 DIODE 4 D431 RB520S30TE61 DIODE 1 D433,34 MA4051NM ZENER DIODE 2 D503,04 MA165 DIODE 2 D505,06 B0JAME000081 DIODE 2 D507 MA165 DIODE 1 D510 B0HAMM000072 DIODE 1 D511 B0JAME000078 DIODE 1 D513 MA4100M ZENER DIODE 1 D515 MA4056M ZENER DIODE 1 D517-20 MA165 DIODE 4 D521 MA188 DIODE 1 D528,29 MA153 DIODE 2 D530 MA4100M ZENER DIODE 1 D531 B0HDRM000001 DIODE 1 D532 MA3J142D0L DIODE 1 D533,34 MA3D752A DIODE 2 D535 MA188 DIODE 1 D536 MA3D752A DIODE 1 D537 B0HBRP000006 DIODE 1 D538 MA4051NM ZENER DIODE 1 D539 B0HBRP000006 DIODE 1 D540,41 MA188 DIODE 2 D543-45 MA3200 ZENER DIODE 3 D546 B0JCND000005 DIODE 1 D547 MA3150M ZENER DIODE 1 D548 MA4075M ZENER DIODE 1 D549 MA188 DIODE 1 222 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks D550 MA4068M ZENER DIODE 1 D551 MA4075M ZENER DIODE 1 D552 MA4051NM ZENER DIODE 1 D553 MA165 DIODE 1 D554 ERA15-01 DIODE 1 D555 MA4075M ZENER DIODE 1 D557 MA111 DIODE 1 D561 MA3075MTX ZENER DIODE 1 D563,64 MA111 DIODE 2 D565 B0JAME000081 DIODE 1 D920 D4SB80Z DIODE 1 D921 B0EAKT000017 DIODE 1 D922 MA3100M ZENER DIODE 1 D925 B0HCMM000001 DIODE 1 D926 MA152K DIODE 1 D970 B0JARJ000010 DIODE 1 D971 RL3Z DIODE 1 D990 MA152K DIODE 1 D2301- 04 M1FS4 DIODE 4 D2305 S3L20U DIODE 1 D2307,0 8 B0JCNE000004 DIODE 1 D2311,1 2 MA152K DIODE 2 D2314,1 5 MA111 DIODE 2 D3715 MA3140M ZENER DIODE 1 D3764 MA3140M ZENER DIODE 1 D3766 MA3140M ZENER DIODE 1 D5001 B0KB00000023 DIODE 1 D5003- 05 B0KB00000023 DIODE 3 D5007,0 8 MA152 DIODE 2 D5011,1 2 MA3056M ZENER DIODE 2 D5013 MA3036H ZENER DIODE 1 D5014,1 5 MA3140M ZENER DIODE 2 D6401,0 2 MA8056H ZENER DIODE 2 D6408,0 9 D1FL40F4063 DIODE 2 D6411,1 2 MA8056H ZENER DIODE 2 D6418,1 9 D1FL40F4063 DIODE 2 D6433 MA111 DIODE 1 D6435 MA111 DIODE 1 D6436 B0JCKG000001 DIODE 1 D6451 M1FS4 DIODE 1 D6453 MA111 DIODE 1 D6455 MA111 DIODE 1 D6456 D1FL40F4063 DIODE 1 D6459 MA111 DIODE 1 D6460,6 1 B0HCKS000001 DIODE 2 D6463 MA8056H ZENER DIODE 1 D6465,6 6 MA8330M ZENER DIODE 2 D6468 MA111 DIODE 1 D6470 MA111 DIODE 1 D6473 MA111 DIODE 1 D6475 MA111 DIODE 1 D6476 D1FL40F4063 DIODE 1 D6477 MA111 DIODE 1 D6478 B0HCKS000001 DIODE 1 D6479 MA111 DIODE 1 D6481,8 2 MA8330M ZENER DIODE 2 D6483- 90 MA8056H ZENER DIODE 8 D6491,9 2 D1FL40F4063 DIODE 2 D6493 MA111 DIODE 1 Ref. No. Part No. Part Name & Description Pcs Remarks D6495 B0HCKS000001 DIODE 1 D6497- 99 M1FS4 DIODE 3 D6509 MA111 DIODE 1 D6510 M1FS4 DIODE 1 D6511 M1FL20UF4063 DIODE 1 D6512- 14 MA111 DIODE 3 D6515,1 6 MA8240M ZENER DIODE 2 D6520 MA111 DIODE 1 D6521 D1FL40F4063 DIODE 1 D6522 MA111 DIODE 1 D6523 D1FL40F4063 DIODE 1 D6524 MA8051L ZENER DIODE 1 D6525 MA111 DIODE 1 D6526 M1FL20UF4063 DIODE 1 D6541 B0HCKS000001 DIODE 1 D6542 MA111 DIODE 1 D6543 MA8051L ZENER DIODE 1 D6544 MA111 DIODE 1 D6545 MA8051L ZENER DIODE 1 D6546- 48 MA8330M ZENER DIODE 3 D6549,5 0 MA111 DIODE 2 D6552 M1FS4 DIODE 1 D6553 MA111 DIODE 1 D6570 M1FL20UF4063 DIODE 1 D6572 D1FL40F4063 DIODE 1 D6582 MA8051L ZENER DIODE 1 D6583 LNJ201LPQJA LED 1 D6584 MA111 DIODE 1 D6585,8 6 MA8330M ZENER DIODE 2 D6600 D1FL40F4063 DIODE 1 D6605- 10 M1FS4 DIODE 6 D6611- 14 D1FL40F4063 DIODE 4 D6615- 18 B0HBSN000007 DIODE 4 D6623 B0HBSN000007 DIODE 1 D6627 B0HBSN000007 DIODE 1 D6631,3 2 D1FL40F4063 DIODE 2 D6633,3 4 M1FS4 DIODE 2 D6649 D1FL40F4063 DIODE 1 D6650 B0HBSN000007 DIODE 1 D6651 D1FL40F4063 DIODE 1 D6701 B0HBSN000007 DIODE 1 D6710 D1FL40F4063 DIODE 1 D6711,1 2 B0HBSN000007 DIODE 2 D6713 D1FL40F4063 DIODE 1 D6715,1 6 B0HBSN000007 DIODE 2 D6728,2 9 B0HBSN000007 DIODE 2 D6734- 39 M1FS4 DIODE 6 D6740 D1FL40F4063 DIODE 1 D6749,5 0 M1FS4 DIODE 2 D6751- 53 D1FL40F4063 DIODE 3 D6754 MA8240M ZENER DIODE 1 D6756 M1FS4 DIODE 1 D6758,5 9 MA8330M ZENER DIODE 2 D6760 LNJ201LPQJA LED 1 D6761 MA8051L ZENER DIODE 1 D6762,6 3 MA111 DIODE 2 D6764 LNJ201LPQJA LED 1 D6766 MA111 DIODE 1 223 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks D6769 D1FL40F4063 DIODE 1 D6771,7 2 MA111 DIODE 2 D6773 D1FL40F4063 DIODE 1 D6795 D1FL40F4063 DIODE 1 D6802 D1FL40F4063 DIODE 1 D6805,0 6 D1FL40F4063 DIODE 2 D6807 B0HDSM000004 DIODE 1 D6811- 13 D1FL40F4063 DIODE 3 D6814- 17 B0HDSM000004 DIODE 4 D6818 D1FL40F4063 DIODE 1 D6820,2 1 B0HDSM000004 DIODE 2 D6822,2 3 MA152 DIODE 2 D6824 M1FS4 DIODE 1 D6826- 29 M1FS4 DIODE 4 D6902 D1FL40F4063 DIODE 1 D6905,0 6 D1FL40F4063 DIODE 2 D6907 B0HDSM000004 DIODE 1 D6911- 13 D1FL40F4063 DIODE 3 D6914- 17 B0HDSM000004 DIODE 4 D6918 D1FL40F4063 DIODE 1 D6920,2 1 B0HDSM000004 DIODE 2 D6922,2 3 MA152 DIODE 2 D6924 M1FS4 DIODE 1 D6926,2 7 M1FS4 DIODE 2 D7101- 08 M1FL20UF4063 DIODE 8 D7201- 06 M1FL20UF4063 DIODE 6 D7301- 08 M1FL20UF4063 DIODE 8 D7401- 04 MA152K DIODE 4 D7405- 12 M1FL20UF4063 DIODE 8 D7501 B0JCNE000004 DIODE 1 D7502 M1FL20UF4063 DIODE 1 (C5) D7502 MA2068A ZENER DIODE 1 (PA) D7503 M1FL20UF4063 DIODE 1 D7504 B0JCNE000004 DIODE 1 D7505 M1FL20UF4063 DIODE 1 (C5) D7505 MA2120A ZENER DIODE 1 (PA) D7506 M1FL20UF4063 DIODE 1 D7507 B0JCNE000004 DIODE 1 D7508 MA2068A ZENER DIODE 1 D7510 B0ECKM000003 1 D7511 MA2068A ZENER DIODE 1 D7512 MA737 DIODE 1 D7513 MA2051A ZENER DIODE 1 D7515 B0JCNE000004 DIODE 1 D7537,3 8 MA111 DIODE 2 D7539 MA3062H ZENER DIODE 1 D7540 MA3039H ZENER DIODE 1 D7541- 45 MA111 DIODE 5 D7546 MA152 DIODE 1 D7547- 50 MA111 DIODE 4 D7561- 64 MA111 DIODE 4 D7565 MA737 DIODE 1 D7581 MA111 DIODE 1 D7582 MA3X78900L ZENER DIODE 1 Ref. No. Part No. Part Name & Description Pcs Remarks D7601- 08 M1FL20UF4063 DIODE 8 D9001 MA3036H ZENER DIODE 1 D9705- 13 MA3062M ZENER DIODE 9 D9714 MA152K DIODE 1 D9715 MA3062M ZENER DIODE 1 D9716 MA111 DIODE 1 D9719,2 0 MA3062M ZENER DIODE 2 D9723 MA3062M ZENER DIODE 1 D9724 MA111 DIODE 1 D9727 MA152K DIODE 1 D9730 MA152K DIODE 1 D9769 MA152K DIODE 1 D9771 MA152K DIODE 1 D9800 B0JCPD000010 DIODE 1 D9801 M1FS4 DIODE 1 D9952 M1FS4 DIODE 1 D9953 MA152K DIODE 1 D9954 M1FS4 DIODE 1 D9955 B0JCPD000010 DIODE 1 DL7201, 02 ELKE103FA NOISE FILTER 2 DL7501- 03 ELKE103FA NOISE FILTER 3 DV3 K1KA03B00098 3P CONNECTOR 1 DV7 K1KA40B00062 40P CONNECTOR 1 F405 P130A FUSE 1 F900- 1,-2 EYF-52BC FUSE HOLDER 2 F901- 1,-2 EYF-52BC FUSE HOLDER 2 F902- 1,-2 EYF-52BC FUSE HOLDER 2 FL6001 TAX10088 EMI FILTER 1 FL6002- 04 ELKE103FA NOISE FILTER 3 FL6007- 13 TLK20LFA473M EMI FILTER 7 G5 K1KA06B00117 6P CONNECTOR 1 G7 K1KA15B00045 15P CONNECTOR 1 G8 K1KA10B00126 10P CONNECTOR 1 G10 K1KA06B00049 6P CONNECTOR 1 IC300 B3L000000020 IC 1 IC401 CNC1S171R IC 1 IC402 NJM2903V IC 1 IC403,0 4 CNC1S171R IC 2 IC406 C0DAZZZ00019 IC 1 IC408 CNC1S171R IC 1 IC409 MIP2E2DMPSCF IC 1 IC501 C2ABDA000040 IC 1 IC502 C0EBH0000190 IC 1 IC503 C0ZBZ0000383 IC 1 IC504 TA76431ASTP6 IC 1 IC511 C0DAAZG00010 IC 1 IC512 TA76431ASTP6 IC 1 IC520 C0JBAZ002056 IC 1 IC521 C0JBAF000367 IC 1 IC522 C0JBAZ002056 IC 1 IC523 C0JBAF000367 IC 1 IC920 C0DACZH00002 IC 1 IC921 B3PAA0000261 IC 1 IC970 AN1431M LINEAR IC 1 IC2301, 02 LA4901 IC 2 IC2304 AN7709SP IC 1 IC2305, 06 LA4901 IC 2 224 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks IC2401 C1BB00000800 IC 1 IC2402, 03 NJM2904M LINEAR IC 2 IC5001 C3EBDC000046 IC 1 IC5005 PST9128NR IC (LOGIC) 1 IC5006 C0FBBK000038 IC 1 IC5007 BA15218FDX IC 1 IC5008 M52055FP LINEAR IC 1 IC5009, 10 PQ07VZ012ZP IC 2 IC5011 CXA1315M LINEAR IC 1 IC6001 C0JBAA000244 IC 1 IC6002 C0JBAE000231 IC 1 IC6003 C0JBAZ002059 IC 1 IC6004 C0DBZHE00019 IC 1 IC6005 C0JBAB000408 IC 1 IC6006 C0JBAZ001713 IC 1 IC6007 C0JBAZ001590 IC 1 IC6008, 09 C0JBAZ001120 IC 2 IC6010 C0JBAZ002060 IC 1 IC6011 C0CBCBD00004 IC 1 IC6012 TVRN178 IC 1 IC6013 C1AB00001816 IC 1 IC6014 C3ABQG000069 IC 1 IC6015 C1AB00001815 IC 1 IC6016 C0CBCBD00008 IC 1 IC6017 C0CBCAD00015 IC 1 IC6018 PST9128NR IC (LOGIC) 1 IC6401- 06 C0HBC0000007 IC 6 IC6411- 16 C0HBC0000007 IC 6 IC6431 AN1431M LINEAR IC 1 IC6434 TLP181 PHOTO COUPLER 1 IC6451 AN1431M LINEAR IC 1 IC6452, 53 AN78L15M LINEAR IC 2 IC6454, 55 AN78L05M LINEAR IC 2 IC6456- 59 TLP181 PHOTO COUPLER 4 IC6467 TLP181 PHOTO COUPLER 1 IC6471, 72 AN1431M LINEAR IC 2 IC6480 TLP181 PHOTO COUPLER 1 IC6491 AN1431M LINEAR IC 1 IC6501, 02 TC74HC14AF IC 2 IC6503- 10 B3PBA0000191 IC 8 IC6511 C0ZBZ0000735 IC 1 IC6512 AN78L05M LINEAR IC 1 IC6521 C0ZBZ0000735 IC 1 IC6541, 42 C0ZBZ0000735 IC 2 IC6543 AN78L05M LINEAR IC 1 IC6581 NJM2903M INTEGRATED CIRCUIT 1 IC6601- 03 C0ZBZ0000138 IC 3 IC6604 M63991FP LINEAR IC 1 IC6605, 06 C0JBAZ000005 IC 2 IC6607 TC74HC08AF IC 1 IC6671 AN1431M LINEAR IC 1 IC6701- 04 C0ZBZ0000138 IC 4 IC6705 C0ZBZ0000735 IC 1 IC6706 C0JBAZ000005 IC 1 IC6707 NJM2903M INTEGRATED CIRCUIT 1 IC6709 AN1431M LINEAR IC 1 IC6801 C0JBAZ000005 IC 1 IC6802, 03 C0ZBZ0000138 IC 2 IC6804 NJM2903M INTEGRATED CIRCUIT 1 IC6805 C0ZBZ0000138 IC 1 Ref. No. Part No. Part Name & Description Pcs Remarks IC6901 C0JBAZ000005 IC 1 IC6902, 03 C0ZBZ0000138 IC 2 IC6904 NJM2903M INTEGRATED CIRCUIT 1 IC6905 C0ZBZ0000138 IC 1 IC7102- 06 C0JBAZ001604 IC 5 IC7201 C0JBAZ001604 IC 1 IC7203- 05 C0JBAZ001604 IC 3 IC7301- 05 C0JBAZ001604 IC 5 IC7401- 05 C0JBAZ001604 IC 5 IC7501, 02 C0DAAZG00006 IC 2 (PA) IC7502 C0JBAZ001604 IC 1 (C5) IC7503 C0DAAZG00006 IC 1 (PA) IC7503 C0JBAZ001604 IC 1 (C5) IC7504 C0DAAZG00006 IC 1 (PA) IC7504 C0JBAZ001604 IC 1 (C5) IC7505 C0DAAZG00006 IC 1 (PA) IC7505 C0JBAZ001604 IC 1 (C5) IC7561 PQ1CZ21H2ZP IC 1 IC7581 C0DBAMA00014 IC 1 IC7602- 06 C0JBAZ001604 IC 5 IC9001 C0CBCBD00008 IC 1 IC9002 C0ZBZ0000551 IC 1 IC9003 C0JBAB000550 IC 1 IC9004 AHC2G66HDCTR INTEGRATED CIRCUIT 1 IC9005 C0JBAZ001992 IC 1 IC9006, 07 C0CBCBD00008 IC 2 IC9008 C0JBAZ001992 IC 1 IC9009 C0FBAD000069 IC 1 IC9014 C0JBAZ000855 IC 1 IC9023 C0JBAZ000855 IC 1 IC9151 MN845041-A IC 1 IC9152 C0CBCBD00008 IC 1 IC9153 C0DBZHE00019 IC 1 IC9154 C0JBAZ001604 IC 1 IC9155 C3ABPJ000017 IC 1 IC9157 TLC2933IPWL INTEGRATED CIRCUIT 1 IC9301 C1ZBZ0002358 IC 1 IC9302 C0CBCBD00008 IC 1 IC9303 C1ZBZ0002357 IC 1 IC9304 C3ABPJ000043 IC 1 IC9305 MN84510-A IC 1 IC9453 PQ07VZ012ZP IC 1 IC9454 C3ABPJ000043 IC 1 IC9455 MN84510-A IC 1 IC9456 TVRJ957-2 IC 1 IC9457 C0JBAZ001604 IC 1 IC9459 C0JBAZ001992 IC 1 IC9601 C0JBAZ001604 IC 1 IC9602 C0JBAZ000855 IC 1 IC9603, 04 C0JBAZ001604 IC 2 IC9605 C1ZBZ0002402 IC 1 IC9606 PST9128NR IC (LOGIC) 1 IC9701 MN102L230 IC 1 IC9702 TVRN225 IC 1 IC9703 C0JBAZ001604 IC 1 IC9704 HM538123BJ8Z IC 1 IC9705 TVRJ953-4 IC 1 IC9706 C0JBAZ000855 IC 1 IC9707 C0JBAE000283 IC 1 IC9708 C3EBGC000018 IC 1 IC9709 C2BBGF000491 IC 1 IC9710 M51957BFP LINEAR IC 1 IC9711 AHC2G66HDCTR INTEGRATED CIRCUIT 1 IC9800 C0DBAFH00021 IC 1 IC9951 C0DBAMH00006 IC 1 IC9952 C0DBAFH00021 IC 1 225 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks JG1 K1NA68E00071 68P CONNECTOR 1 JG2 K1NA09E00042 9P CONNECTOR 1 JG3 K1KA20A00180 20P CONNECTOR 1 JG5 K1YY68000007 PC CARD CONNECTOR 1 JK3709 K1FB315A0001 CONNECTOR 1 JK3714 K4BK29A00006 AV TERMENAL 1 JK5001 K1FA119E0001 CONNECTOR 1 JS015,1 6 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS017,1 8 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS019- 21 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS301,0 2 ERJ8GEY0R00 M 0 OHM, 1/8W 2 JS304,0 5 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS2106, 07 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS2303, 04 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS2309, 10 ERD25V0T M OHM, 1/10W 2 JS2430 ERJ8GEY0R00 M 0 OHM, 1/8W 1 JS3705, 06 ERJ8GEY0R00 M 0 OHM, 1/8W 2 JS6004 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS6009 ERJ3GEY0R00 M 0 OHM, 1/16W 1 K12 TJSF43709 9P CONNECTOR 1 K13 TJS6A8780 3P CONNECTOR 1 K24 K1KA08B00005 8P CONNECTOR 1 L401 EXCELDR25C BEAD CHOKE 1 L402 EXCELSA24 BEAD CHOKE 1 L403 EXCELSA35 BEAD CHOKE 1 L404 J0JBC0000032 CHIP INDUCTOR 1 L502 EXCELDR25C BEAD CHOKE 1 L503 ELELN100KA CHIP INDUCTOR 1 L504 G0A151ZA0038 CHOKE COIL 1 L505-07 EXCELDR25C BEAD CHOKE 3 L510 EXCELDR25C BEAD CHOKE 1 L920 EXCELDR25C BEAD CHOKE 1 L921 EXCELSA24 BEAD CHOKE 1 L922 EXCELDR35C BEAD CHOKE 1 L970 EXCELSA24 BEAD CHOKE 1 L971 G0A100GA0013 CHOKE COIL 1 L973 G0A100GA0013 CHOKE COIL 1 L2301,0 2 G0A221ZA0038 CHOKE COIL 2 L2306 ELJPA100KB CHIP INDUCTOR 1 L2307,0 8 G0A221ZA0038 CHOKE COIL 2 L3778- 85 TSK1040 FERRITE CORE 8 L5001 EXCCL3225U1 EMI FILTER 1 L5002 ELJPA2R2MF CHIP INDUCTOR 1 L5003- 09 EXCCL4532U1 BEAD CHOKE 7 L5022 J0HABB000004 LC FILTER 1 L5024- 30 J0HABB000004 LC FILTER 7 L5031 EXCCL3225U1 EMI FILTER 1 L5032,3 3 ELJPA2R2MF CHIP INDUCTOR 2 L5034 EXCCL3225U1 EMI FILTER 1 L5037 ELJPA1R0MB INDUCTION COIL 1 L5038 EXCCL3225U1 EMI FILTER 1 L5039 EXCCL4532U1 BEAD CHOKE 1 L5040 EXCCL3225U1 EMI FILTER 1 L5041 EXCCL4532U1 BEAD CHOKE 1 L5042 EXCCL3225U1 EMI FILTER 1 Ref. No. Part No. Part Name & Description Pcs Remarks L5050- 52 TSK1025 FERRITE CORE 3 L6001- 06 J0JHC0000035 CHIP INDUCTOR 6 L6008 J0JHC0000035 CHIP INDUCTOR 1 L6009 G1C8R2K00009 INDUCTOR COIL 1 L6010- 13 J0JHC0000035 CHIP INDUCTOR 4 L6431 J0JJC0000021 CHIP INDUCTOR 1 L6451 J0JJC0000021 CHIP INDUCTOR 1 L6453 G0ZZ00002183 PEAKING COIL 1 L6471 J0JJC0000021 CHIP INDUCTOR 1 L6472 G0ZZ00002183 PEAKING COIL 1 L6518 G0ZZ00002183 PEAKING COIL 1 L6602,0 3 G0ZZ00002183 PEAKING COIL 2 L6607,0 8 J0JJC0000021 CHIP INDUCTOR 2 L6611- 15 G0A1R0L00001 CHOKE COIL 5 L6618- 21 G0ZZ00002183 PEAKING COIL 4 L6623- 29 G0ZZ00002183 PEAKING COIL 7 L6636- 51 G0ZZ00002183 PEAKING COIL 16 L6661,6 2 J0JJC0000021 CHIP INDUCTOR 2 L6701- 04 G0A1R0L00001 CHOKE COIL 4 L6705- 08 G0ZZ00002183 PEAKING COIL 4 L6713 G0ZZ00002183 PEAKING COIL 1 L6714 G0C101K00023 PEAKING COIL 1 L6715- 37 G0ZZ00002183 PEAKING COIL 23 L6752- 55 G0ZZ00002183 PEAKING COIL 4 L6758,5 9 J0JJC0000021 CHIP INDUCTOR 2 L6761,6 2 J0JJC0000021 CHIP INDUCTOR 2 L6767 G0A1R0L00001 CHOKE COIL 1 L6802 G0ZZ00002183 PEAKING COIL 1 L6803 J0JJC0000011 CHIP INDUCTOR 1 L6804- 06 J0JJC0000021 CHIP INDUCTOR 3 L6807,0 8 G0ZZ00002183 PEAKING COIL 2 L6816- 23 J0JJC0000011 CHIP INDUCTOR 8 L6825- 28 TLPF097 CHOKE COIL 4 L6832 G0ZZ00002183 PEAKING COIL 1 L6900,0 1 J0JJC0000021 CHIP INDUCTOR 2 L6902 G0ZZ00002183 PEAKING COIL 1 L6903 J0JJC0000011 CHIP INDUCTOR 1 L6904,0 5 G0ZZ00002183 PEAKING COIL 2 L6906 J0JJC0000021 CHIP INDUCTOR 1 L6916- 23 J0JJC0000011 CHIP INDUCTOR 8 L6925 TLPF097 CHOKE COIL 1 L6930- 33 TLPF097 CHOKE COIL 4 L6947 G0ZZ00002183 PEAKING COIL 1 L7101- 08 J0JJC0000011 CHIP INDUCTOR 8 L7201- 06 J0JJC0000011 CHIP INDUCTOR 6 L7301- 08 J0JJC0000011 CHIP INDUCTOR 8 L7401- 08 J0JJC0000011 CHIP INDUCTOR 8 L7501 G0C101K00023 PEAKING COIL 1 (PA) L7501 J0JJC0000011 CHIP INDUCTOR 1 (C5) L7502 G0A101ZA0038 CHOKE COIL 1 226 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks L7503 J0JJC0000011 CHIP INDUCTOR 1 (C5) L7503 TALL08N330KA INDUCTION COIL 1 (PA) L7504 G0C101K00023 PEAKING COIL 1 (PA) L7504 J0JJC0000011 CHIP INDUCTOR 1 (C5) L7505 G0A101ZA0038 CHOKE COIL 1 L7506 J0JJC0000011 CHIP INDUCTOR 1 (C5) L7506 TALL08N330KA INDUCTION COIL 1 (PA) L7507 G0C101K00023 PEAKING COIL 1 L7508 G0A101ZA0038 CHOKE COIL 1 L7509 G0A220GA0002 CHOKE COIL 1 L7510 G0C101K00023 PEAKING COIL 1 L7511 G0A101ZA0038 CHOKE COIL 1 L7512 G0A220GA0002 CHOKE COIL 1 L7513 G0C101K00023 PEAKING COIL 1 L7514 G0A101ZA0038 CHOKE COIL 1 L7515 G0A220GA0002 CHOKE COIL 1 L7561 TALL08N221KA INDUCTION COIL 1 L7562 G0ZZ00001913 COIL 1 L7563 TALL08N221KA INDUCTION COIL 1 L7581 TALL08N330KA INDUCTION COIL 1 L7582 G1C101M00018 INDUCTION COIL 1 L7601- 08 J0JJC0000011 CHIP INDUCTOR 8 L9001- 03 ELKE103FA NOISE FILTER 3 L9309 ELJFA1R0KF CHIP COIL 1 L9452 ELJFA1R0KF CHIP COIL 1 L9459 ELKE103FA NOISE FILTER 1 L9701 ELKE103FA NOISE FILTER 1 L9800 G1C1R5Z00002 INDUCTION COIL 1 L9951- 54 ELKE103FA NOISE FILTER 4 L9955 G1C470M00012 INDUCTOR COIL 1 L9956 G1C1R5Z00002 INDUCTION COIL 1 LF904A G0B702K00002 CHOKE COIL 1 LF909A G0B702K00002 CHOKE COIL 1 LF911 G0B353G00001 CHOKE COIL 1 LF915A G0B702K00002 CHOKE COIL 1 PA1 K1KA05A00139 5P CONNECTOR 1 PA2 K1KA40A00140 40P CONNECTOR 1 PA3 K1KA04A00195 4P CONNECTOR 1 PA4 K1KA12A00176 12P CONNECTOR 1 PA5 K1KA11A00073 11P CONNECTOR 1 PA6 K1KA20A00180 20P CONNECTOR 1 PA7 K1KA04A00242 4P CONNECTOR 1 PA8 K1KA20A00180 20P CONNECTOR 1 PA9 K1KA06A00220 6P CONNECTOR 1 PA10 TJS3A9900 10P CONNECTOR 1 PA11 K1KA03A00172 3P CONNECTOR 1 PA12 K1KA07A00056 7P CONNECTOR 1 PA13-15 K1KA03A00172 3P CONNECTOR 3 PA18 TJS1A8840 8P CONNECTOR 1 PA21 K1KA07A00056 7P CONNECTOR 1 PA22 K1KA12A00176 12P CONNECTOR 1 PA23 TJS3A9880 8P CONNECTOR 1 PA24 K1KA07A00096 7P CONNECTOR 1 PF1,F2 K1KA03A00181 3P CONNECTOR 2 PF10 TJS118670 PHONO PIN 1 PR401 K5Y502B00007 FUSE 1 PR502 ICP-N50T104 PROTECTOR 1 PR509,1 0 K5H501Z00005 FUSE 2 Q300,01 2SC2412K TRANSISTOR 2 Q305 2SD601A TRANSISTOR 1 Q401 B1DHBD000002 TRANSISTOR 1 Q403 2SD1819A TRANSISTOR 1 Q404 2SB1386RT100 TRANSISTOR 1 Q406 B1DELQ000002 TRANSISTOR 1 Q407 XP4601 TRANSISTOR 1 Ref. No. Part No. Part Name & Description Pcs Remarks Q410 B1CEJQ000001 TRANSISTOR 1 Q411 UN5213 TRANSISTOR 1 Q412,13 B1DEER000003 TRANSISTOR 2 Q414,15 B1DEGQ000030 TRANSISTOR 2 Q416 XP4601 TRANSISTOR 1 Q420,21 2SD1819A TRANSISTOR 2 Q501,02 2SD1820A TRANSISTOR 2 Q503 UN5111 TRANSISTOR 1 Q504 2SK3065T100 FET 1 Q506 XP4401 TRANSISTOR 1 Q508 B1GBCFNA0010 TRANSISTOR 1 Q509 XP4401 TRANSISTOR 1 Q510 2SB1218ARL TRANSISTOR 1 Q511 B1CBGD000001 TRANSISTOR 1 Q512 B1DHBD000002 TRANSISTOR 1 Q513 B1CBGD000001 TRANSISTOR 1 Q514 B1MBACA00005 TRANSISTOR 1 Q515 2SK3065T100 FET 1 Q516 B1DHBD000002 TRANSISTOR 1 Q517 XP4401 TRANSISTOR 1 Q518 B1MBACA00005 TRANSISTOR 1 Q519 2SK3065T100 FET 1 Q520 B1HFCFA00015 TRANSISTOR 1 Q521 2SD1819A TRANSISTOR 1 Q522 UN5111 TRANSISTOR 1 Q524 2SD1819A TRANSISTOR 1 Q525 XP4601 TRANSISTOR 1 Q527 B1DAFM000003 TRANSISTOR 1 Q528 2SD1819A TRANSISTOR 1 Q530 XP4501TX TRANSISTOR 1 Q531 2SD23750P TRANSISTOR 1 Q532 2SD1819A TRANSISTOR 1 Q535 2SD1819A TRANSISTOR 1 Q537 B1CHND000003 TRANSISTOR 1 Q540 B1DHBD000002 TRANSISTOR 1 Q541 B1CBGD000001 TRANSISTOR 1 Q542 XP4601 TRANSISTOR 1 Q543 XP4401 TRANSISTOR 1 Q544 UN5111 TRANSISTOR 1 Q545 2SK3065T100 FET 1 Q546 2SD1819A TRANSISTOR 1 Q547 2SD1119 TRANSISTOR 1 Q550-52 UN5213 TRANSISTOR 3 Q990 2SD13280TL TRANSISTOR 1 Q2301,0 2 2SD1266A TRANSISTOR 2 Q2303- 06 2SD601A TRANSISTOR 4 Q2308- 12 2SD601A TRANSISTOR 5 Q2313,1 4 2SD1802ST TRANSISTOR 2 Q5001 B1MBACA00004 TRANSISTOR 1 Q5002,0 3 2SD601A TRANSISTOR 2 Q5004- 09 2SB709A TRANSISTOR 6 Q5011- 13 2SD601A TRANSISTOR 3 Q5014 2SB709A TRANSISTOR 1 Q5015- 19 2SD601A TRANSISTOR 5 Q6001 2SA207700L TRANSISTOR 1 Q6003 2SA207700L TRANSISTOR 1 Q6005,0 6 2SC584500L TRANSISTOR 2 Q6008 2SA207700L TRANSISTOR 1 Q6010 2SA207700L TRANSISTOR 1 Q6431 B1BBCJ000003 TRANSISTOR 1 Q6432 2SB0709A TRANSISTOR 1 Q6435 2SD601A TRANSISTOR 1 Q6451 B1BBCJ000003 TRANSISTOR 1 Q6452 2SB0709A TRANSISTOR 1 Q6454 2SD814A TRANSISTOR 1 Q6455 2SD601A TRANSISTOR 1 227 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks Q6471 B1BBCJ000003 TRANSISTOR 1 Q6472 2SB0709A TRANSISTOR 1 Q6474 2SD814A TRANSISTOR 1 Q6475- 77 2SD601A TRANSISTOR 3 Q6491 2SD1263A TRANSISTOR 1 Q6492 2SC1473A TRANSISTOR 1 Q6511,1 2 B1DFGL000005 TRANSISTOR 2 Q6513 2SK620 FET 1 Q6520 2SD601A TRANSISTOR 1 Q6521 B1DEDS000001 TRANSISTOR 1 Q6522 2SK620 FET 1 Q6523 2SB1073001TV TRANSISTOR 1 Q6524,2 5 2SD2185 TRANSISTOR 2 Q6526 2SB1073001TV TRANSISTOR 1 Q6530- 39 2SK349400L FET 10 Q6540- 49 2SK373100L TRANSISTOR 10 Q6550 2SC1473A TRANSISTOR 1 Q6551 2SD601A TRANSISTOR 1 Q6552 B1DADU000001 TRANSISTOR 1 Q6553,5 4 2SK349400L FET 2 Q6555,5 6 2SK373100L TRANSISTOR 2 Q6557,5 8 2SK620 FET 2 Q6561 2SB1073001TV TRANSISTOR 1 Q6562- 64 B1DEDS000001 TRANSISTOR 3 Q6581 2SD601A TRANSISTOR 1 Q6601- 10 B1DEJM000005 TRANSISTOR 10 Q6611 2SD2185 TRANSISTOR 1 Q6612 2SB1073001TV TRANSISTOR 1 Q6613 2SD2185 TRANSISTOR 1 Q6614 2SB1073001TV TRANSISTOR 1 Q6616,1 7 2SK620 FET 2 Q6621,2 2 B1DEJM000003 TRANSISTOR 2 Q6624,2 5 B1DEJM000003 TRANSISTOR 2 Q6627 2SD2185 TRANSISTOR 1 Q6628 2SB1073001TV TRANSISTOR 1 Q6629 2SD2185 TRANSISTOR 1 Q6630 2SB1073001TV TRANSISTOR 1 Q6641,4 2 2SK3192000LB FET 2 Q6645 2SD2185 TRANSISTOR 1 Q6646 2SB1073001TV TRANSISTOR 1 Q6671 2SB940A TRANSISTOR 1 Q6672 2SD1263A TRANSISTOR 1 Q6673 2SC1473A TRANSISTOR 1 Q6701 2SD2185 TRANSISTOR 1 Q6702 2SB1073001TV TRANSISTOR 1 Q6711- 20 B1DEJM000005 TRANSISTOR 10 Q6721- 24 B1DEJM000003 TRANSISTOR 4 Q6725 2SK620 FET 1 Q6727,2 8 B1DFHM000002 TRANSISTOR 2 Q6729,3 0 2SK326800L FET 2 Q6731 2SD1263A TRANSISTOR 1 Q6732 2SD2185 TRANSISTOR 1 Q6733 2SB1073001TV TRANSISTOR 1 Q6734 2SD2185 TRANSISTOR 1 Q6735 2SB1073001TV TRANSISTOR 1 Q6736 2SD2185 TRANSISTOR 1 Q6737 2SB1073001TV TRANSISTOR 1 Q6738,3 9 2SC1473A TRANSISTOR 2 Ref. No. Part No. Part Name & Description Pcs Remarks Q6741 2SD601A TRANSISTOR 1 Q6744 2SD2185 TRANSISTOR 1 Q6745 2SB1073001TV TRANSISTOR 1 Q6811- 16 2SK326900L FET 6 Q6817 2SD2185 TRANSISTOR 1 Q6818 2SB1073001TV TRANSISTOR 1 Q6819 2SD2185 TRANSISTOR 1 Q6820 2SB1073001TV TRANSISTOR 1 Q6821 2SB1193000LB TRANSISTOR 1 Q6822 2SD2185 TRANSISTOR 1 Q6823 2SB1073001TV TRANSISTOR 1 Q6824 2SK326900L FET 1 Q6911- 16 2SK326900L FET 6 Q6917 2SD2185 TRANSISTOR 1 Q6918 2SB1073001TV TRANSISTOR 1 Q6919 2SD2185 TRANSISTOR 1 Q6920 2SB1073001TV TRANSISTOR 1 Q6921 2SB1193000LB TRANSISTOR 1 Q6922 2SD2185 TRANSISTOR 1 Q6923 2SB1073001TV TRANSISTOR 1 Q6924 2SK326900L FET 1 Q7401,0 2 2SB709A TRANSISTOR 2 Q7501 B1DHDD000012 TRANSISTOR 1 Q7502 UN2214 TRANSISTOR 1 Q7504 UN2214 TRANSISTOR 1 Q7506 B1DHDD000012 TRANSISTOR 1 Q7507,0 8 UN2214 TRANSISTOR 2 Q7509 2SD601A TRANSISTOR 1 Q7510 UN2214 TRANSISTOR 1 Q7541- 43 2SB709A TRANSISTOR 3 Q7544 2SD601A TRANSISTOR 1 Q7561 UN2214 TRANSISTOR 1 Q7562,6 3 2SD601A TRANSISTOR 2 Q7581 UN5211 TRANSISTOR 1 Q7582 B1ABPF000005 TRANSISTOR 1 Q7583 UN2214 TRANSISTOR 1 Q7584,8 5 2SD601A TRANSISTOR 2 Q7586 B1DHFG000002 TRANSISTOR 1 Q9001 2SD601A TRANSISTOR 1 Q9301 2SD601A TRANSISTOR 1 Q9400 2SD601A TRANSISTOR 1 Q9591- 94 2SD601A TRANSISTOR 4 Q9596- 99 2SD601A TRANSISTOR 4 Q9601,0 2 2SD601A TRANSISTOR 2 Q9701 2SD601A TRANSISTOR 1 Q9702 2SB1440 TRANSISTOR 1 Q9703,0 4 2SK2731T146 TRANSISTOR 2 Q9706 2SK2731T146 TRANSISTOR 1 Q9707 2SB709A TRANSISTOR 1 Q9708,0 9 2SD601A TRANSISTOR 2 Q9710 2SB709A TRANSISTOR 1 Q9714- 17 2SD601A TRANSISTOR 4 Q9719 2SK2731T146 TRANSISTOR 1 R300 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R301 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R302 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R304 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R306 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R307 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R308 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R310 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R311 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 228 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R312 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R313 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R314 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R317 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R320 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R401-03 ERJ6ENF2003 M 200KOHM, 1/10W 3 R405-07 ERJ6ENF2003 M 200KOHM, 1/10W 3 R409 ERJ6ENF3602 M 36KOHM, 1/10W 1 R410 ERF10TJ200 W 20 OHM, 10W 1 R411 D1FZ100E0002 F 10 OHM 1 R412 ERF10TJ200 W 20 OHM, 10W 1 R413 D1FZ100E0002 F 10 OHM 1 R414 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R415 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R417 ERJ6ENF4303 M 430KOHM, 1/10W 1 R421 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R423 ERJ6GEYJ2R2 M 2.2 OHM,J,1/10W 1 R424 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R425 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R426 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R427 ERJ8GEYJ4R7 M 4.7 OHM, J,1/8W 1 R428 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R429 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R430 ERJ6ENF4303 M 430KOHM, 1/10W 1 R431 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R432 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R433 ERJ6ENF1202 M 12KOHM, 1/10W 1 R434 ERJ8GEYJ2R2 M 2.2 OHM, J,1/8W 1 R435 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R436 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R437 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R438 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R439 ERJ14YJ120 M 12 OHM, J,1/4W 1 R440 ERJ8GEYJ474 M 470KOHM, J,1/8W 1 R441,42 ERJ6EKF6803 M 680KOHM, 1/10W 2 R443 EVMAASA00B23 CONTROL 2KOHMB 1 R444 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R445 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R448-50 D0XGR10JA007 RESISTOR ARRAY 3 R451 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R452 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R454 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R456 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R458 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R462 ERJ6ENF4303 M 430KOHM, 1/10W 1 R463 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R464 ERJ6ENF3302 M 33KOHM, 1/10W 1 R465 ERJ6ENF5603 M 560KOHM, 1/10W 1 R466 D0C3104JA014 M 100KOHM,J,1/3W 1 R467 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R468-70 ERJ6GEYJ474 M 470KOHM,J,1/10W 3 R471 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R472,73 ERJ6ENF5603 M 560KOHM, 1/10W 2 R474 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R475 ERJ6EKF6803 M 680KOHM, 1/10W 1 R476,77 ERJ8GEYJ300 M 30 OHM, J,1/8W 2 R478 ERJ8GEYJ681 M 680 OHM, J,1/8W 1 R481 ERJ14YJ621 M 620 OHM, J,1/4W 1 R482 ERJ8GEYJ681 M 680 OHM, J,1/8W 1 R483 ERJ14YJ621 M 620 OHM, J,1/4W 1 R484,85 ERJ8GEYJ300 M 30 OHM, J,1/8W 2 R486 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R489 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R493 ERJ14YJ120 M 12 OHM, J,1/4W 1 R494-96 ERJ6ENF5603 M 560KOHM, 1/10W 3 R497 ERJ6ENF2402 M 24KOHM, 1/10W 1 R498 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R499 ERJ8GEYJ4R7 M 4.7 OHM, J,1/8W 1 R500 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R501 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R502,03 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R504 ERDS2TJ102 C 1KOHM, J,1/4W 1 R505 ERDS2TJ220 C 22 OHM, J,1/4W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R506 ERDS2TJ102 C 1KOHM, J,1/4W 1 R507 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R508 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R509 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R510 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R512 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R513,14 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R515 ERDS2TJ102 C 1KOHM, J,1/4W 1 R516 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R517 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R518 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R519,20 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R521,22 ERJ8GEYJ100 M 10 OHM, J,1/8W 2 R524 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R527 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R528 ERDS2TJ102 C 1KOHM, J,1/4W 1 R529 ERJ6ENF1002 M 10KOHM, 1/10W 1 R530 ERJ6ENF9531 M9.53KOHM, 1/10W 1 R532 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R534-36 ERJ6GEYJ104 M 100KOHM,J,1/10W 3 R537 ERJ6ENF5602 M 56KOHM, 1/10W 1 R538-40 ERJ6GEYJ104 M 100KOHM,J,1/10W 3 R541-44 ERJ1TRQJR47 M 0.47KHM,J, 1W 4 R545 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R546 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R547-50 ERJ6GEYJ223 M 22KOHM,J,1/10W 4 R551 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R553 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R554 ERJ6ENF1002 M 10KOHM, 1/10W 1 R555,56 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 2 R557 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R558 ERJ6ENF2702 M 27KOHM, 1/10W 1 R559 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R563 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R564 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R565 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R566 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R567 ERJ6ENF1202 M 12KOHM, 1/10W 1 R568 ERJ1TRQJR47 M 0.47KHM,J, 1W 1 R569 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R570 ERJ6ENF1003 M 100KOHM, 1/10W 1 R571 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R572 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R573 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R574 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R575 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R576 ERJ6ENF1002 M 10KOHM, 1/10W 1 R577 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R578 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R579 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R580 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R581 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R582 ERJ6ENF1002 M 10KOHM, 1/10W 1 R583 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R584 ERJ6ENF1002 M 10KOHM, 1/10W 1 R585 ERJ6ENF3302 M 33KOHM, 1/10W 1 R586 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R587 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R588 ERJ6ENF4420 M 442 OHM, 1/10W 1 R589 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R590 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R592 ERJ6ENF3001 M 3KOHM, 1/10W 1 R593 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R594 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R595 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R596 ERJ6ENF1002 M 10KOHM, 1/10W 1 R597 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R598 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R599 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R600 ERJ8ENF3900 M 390 OHM, 1/8W 1 R601 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R602,03 ERJ6ENF1002 M 10KOHM, 1/10W 2 R604 ERJ6GEYJ391 M 390 OHM,J,1/10W 1 229 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R605,06 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 2 R608 D3CA61020010 M1.0 KOHM,J,0.5W 1 R609 ERJ6GEYJ822 M 8.2KOHM,J,1/10W 1 R610 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R611 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R612 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R613 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R614 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R615 ERJ6ENF3302 M 33KOHM, 1/10W 1 R624 ERX1SJR47P M0.47 OHM, J, 1W 1 R631 ERJ8GEYJ243 M 24KOHM, J,1/8W 1 R632 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R634 ERJ6ENF4700 M 470 OHM, 1/10W 1 R635 ERJ6ENF1071 M1.07KOHM, 1/10W 1 R636-39 ERJ8ENF3902 M 39K OHM, 1/8W 4 R640 ERJ6ENF3001 M 3KOHM, 1/10W 1 R641 EVMAASA00B33 CONTROL 3KOHMB 1 R642-45 ERJ8ENF3902 M 39K OHM, 1/8W 4 R646 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R649 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R650 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R651 ERG1SJ221 M 220 OHM, J, 1W 1 R652 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R653,54 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 2 R656,57 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 2 R658 ERJ6ENF6201 M 6.2KOHM, 1/10W 1 R659 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R660 ERJ6ENF1202 M 12KOHM, 1/10W 1 R661 EVMAASA00B53 CONTROL 5KOHMB 1 R662 ERJ6ENF1503 M 150KOHM, 1/10W 1 R663 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R664 ERJ6ENF9531 M9.53KOHM, 1/10W 1 R665 EVMAASA00B23 CONTROL 2KOHMB 1 R666 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R667 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R668 ERJ6ENF2401 M 2.4KOHM, 1/10W 1 R669 ERJ6ENF1503 M 150KOHM, 1/10W 1 R670,71 ERJ6ENF2202 M 2.2KOHM, 1/10W 2 R672 ERJ6ENF1502 M 15KOHM, 1/10W 1 R673 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R674,75 ERJ8GEYJ124 M 120KOHM, J,1/8W 2 R676 ERJ8GEYJ243 M 24KOHM, J,1/8W 1 R677 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R678 ERDS2TJ223 C 22KOHM, J,1/4W 1 R679,80 ERJ6ENF2202 M 2.2KOHM, 1/10W 2 R681 ERJ6GEYJ154 M 150KOHM,J,1/10W 1 R682,83 ERJ3GEYJ2R2 M 2.2 OHM,J,1/16W 2 R685 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R686 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R687 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R688 ERJ6GEYJ154 M 150KOHM,J,1/10W 1 R689 ERG3SJ101 M 100 OHM, J, 3W 1 R690 ERJ6ENF3002 M 30KOHM, 1/10W 1 R691-93 ERJ8GEYJ124 M 120KOHM, J,1/8W 3 R694 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R695-97 ERJ8GEYJ124 M 120KOHM, J,1/8W 3 R698 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R699 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R901 ERC12ZGK105 S 1MOHM, K,1/2W 1 R904 ERF5ZXK1R8 W 1.8 OHM, 5W 1 R922 ERDS2TJ224 C 220KOHM, J,1/4W 1 R923 ERG2FJS100D M 10 OHM, J, 2W 1 R924 ERDS1FJ220 C 22 OHM, J,1/2W 1 R925 ERJ6ENF1002 M 10KOHM, 1/10W 1 R926 ERJ6ENF9311 M9.31KOHM, 1/10W 1 R927 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R928 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R929 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R934 ERJ6ENF1302 M 13KOHM, 1/10W 1 R935 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R940 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1 R970 ERJ6GEYJ561 M 560 OHM,J,1/10W 1 R971 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R972 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R973 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R974 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R975 ERJ6ENF2321 M2.32KOHM, 1/10W 1 R976 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R990 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R992 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R993,94 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R2301,0 2 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R2303,0 4 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R2305,0 6 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 2 R2307,0 8 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R2309,1 0 ERDS1FJ100 C 10 OHM, J,1/2W 2 R2311- 16 ERDS1FJ2R2 C 2.2 OHM, J,1/2W 6 R2317,1 8 ERJ6GEYJ271 M 270 OHM,J,1/10W 2 R2319,2 0 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 2 R2321,2 2 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R2323- 28 ERDS1FJ2R2 C 2.2 OHM, J,1/2W 6 R2329,3 0 ERJ6GEYJ203 M 20KOHM,J,1/10W 2 R2331,3 2 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2333,3 4 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R2335,3 6 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2337,3 8 ERJ6GEYJ270 M 27 OHM,J,1/10W 2 R2340 ERJ8GEYJ392 M 3.9KOHM, J,1/8W 1 R2346,4 7 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R2348 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2368 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R2371 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 R2372 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R2373 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R2374 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R2375 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2376 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R2377 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2378 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R2385 ERJ6GEYJ821 M 820 OHM,J,1/10W 1 R2386 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R2387 ERJ6GEYJ561 M 560 OHM,J,1/10W 1 R2389 ERJ6GEYJ561 M 560 OHM,J,1/10W 1 R2390 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R2391 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1 R2392 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R2393 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2394 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1 R2395 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R2396,9 7 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R2398 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R2399 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2401,0 2 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R2403,0 4 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R2405,0 6 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R2408 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R2409 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2412 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2413 ERJ3GEYJ563 M 56KOHM,J,1/16W 1 R2414 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 230 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R2415,1 6 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2417 ERJ3GEYJ563 M 56KOHM,J,1/16W 1 R2418 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2419 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2420 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2421,2 2 ERJ3GEYJ393 M 39KOHM,J,1/16W 2 R2423 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2427,2 8 TAJAAH0101JV M 100 OHM,J,1/16W 2 R2430,3 1 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R2434,3 5 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R2439 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2440 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2442 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2443 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2444,4 5 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R2494 ERJ12YJ821 M 820 OHM,J, 1/2W 1 R3701 ERJ6GEYJ133 M 13KOHM,J,1/10W 1 R3703 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R3704 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R3705 ERJ6GEYJ512 M 5.1KOHM,J,1/10W 1 R3706 ERJ6GEYJ912 M 9.1KOHM,J,1/10W 1 R3707 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3710 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3711 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R3715,1 6 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3720,2 1 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R3723,2 4 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3725- 28 ERJ6GEY0R00 M 0 OHM, 1/10W 4 R3730 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3731,3 2 ERJ12YJ560 M 56 OHM,J, 1/2W 2 R3733- 36 ERJ8GEY0R00 M 0 OHM, 1/8W 4 R3794- 96 ERJ6GEY0R00 M 0 OHM, 1/10W 3 R5001 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5004 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5005- 07 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R5008 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5009- 11 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R5013 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R5014,1 5 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R5016 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R5017 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R5018 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R5019 TAJAAH0470JV M 47 OHM,J,1/16W 1 R5020 ERJ6GEYJ272 M 2.7KOHM,J,1/10W 1 R5021 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R5022 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R5023 TAJAAH0680JV M 68 OHM,J,1/16W 1 R5024,2 5 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R5026 ERJ3EKF3900 M 390 0HM, 1/16W 1 R5029 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5030 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R5031 ERJ6ENF1240 M 124OHM, 1/10W 1 R5032 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5035 ERJ3GEYJ392 M 3.9KOHM,J,1/16W 1 R5036 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R5038 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R5039 EXB38V220J RESISTOR ARRAY 1 R5040 EXB38V330J RESISTOR ARRAY 1 Ref. No. Part No. Part Name & Description Pcs Remarks R5041- 43 ERJ3GEYJ330 M 33 OHM,J,1/16W 3 R5048 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5049 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5053- 55 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R5062- 64 ERJ6ENF75R0 M 75 OHM, 1/10W 3 R5066- 68 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R5069 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R5070 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R5071 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R5072 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R5073 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R5074 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R5075 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R5077,7 8 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R5082- 84 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R5085- 87 ERJ3GEYJ561 M 560 OHM,J,1/16W 3 R5088- 90 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R5091 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R5092- 94 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R5097,9 8 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R5102,0 3 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R5104,0 5 ERJ6GEYJ331 M 330 OHM,J,1/10W 2 R5107 ERJ3GEYF333 M 33KOHM, 1/16W 1 R5109 ERJ3GEYF333 M 33KOHM, 1/16W 1 R5110 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R5111,1 2 ERJ3GEYF223 M 22KOHM, 1/16W 2 R5113 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R5114,1 5 ERJ3GEYJ393 M 39KOHM,J,1/16W 2 R5116 TAJAAH0101JV M 100 OHM,J,1/16W 1 R5117 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R5118 TAJAAH0101JV M 100 OHM,J,1/16W 1 R5119- 21 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 3 R5122 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5123 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R5124 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5125 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R5126 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R5127 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5128,2 9 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R5130 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R5132 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5133 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R5135 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R5136,3 7 ERJ6GEYJ680 M 68 OHM,J,1/10W 2 R5138 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5139,4 0 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R5141 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5142 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5143,4 4 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R5145,4 6 ERJ3GEYJ473 M 47KOHM,J,1/16W 2 R5147,4 8 ERJ6GEYJ471 M 470 OHM,J,1/10W 2 R5151 TAJAAH0680JV M 68 OHM,J,1/16W 1 R5153- 56 TAJAAH0680JV M 68 OHM,J,1/16W 4 R5157,5 8 ERJ6GEYJ393 M 39KOHM,J,1/10W 2 231 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R5159 ERJ6ENF1001 M 1KOHM, 1/10W 1 R5161 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R5162 ERJ6ENF3001 M 3KOHM, 1/10W 1 R5163 ERJ6ENF2431 M2.43KOHM, 1/10W 1 R5165,6 6 ERJ6GEYJ560 M 56 OHM,J,1/10W 2 R5169 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R5172,7 3 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R5176 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5177 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R5186,8 7 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R5188- 95 ERJ3GEYJ3R9 M 3.9HM,J,1/16W 8 R5196 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6001,0 2 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6003,0 4 TAJAAH0470JV M 47 OHM,J,1/16W 2 R6005- 07 TAJAAH0101JV M 100 OHM,J,1/16W 3 R6008 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6009 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R6010- 25 TAJAAH0470JV M 47 OHM,J,1/16W 16 R6026 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6027- 30 ERJ1TYJ100 M 10OHM, J, 1W 4 R6031 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6032- 37 ERJ3GEYJ223 M 22KOHM,J,1/16W 6 R6038- 41 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R6042,4 3 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R6044- 54 TAJAAH0470JV M 47 OHM,J,1/16W 11 R6055,5 6 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R6057- 64 TAJAAH0470JV M 47 OHM,J,1/16W 8 R6065- 72 TAJAAH0101JV M 100 OHM,J,1/16W 8 R6073,7 4 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6075 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R6076 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R6079 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R6081 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R6082 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R6084 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R6085- 87 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R6089,9 0 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R6091,9 2 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R6093- 96 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 4 R6101 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6103 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6105 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6107,0 8 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6110,1 1 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6113,1 4 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6116,1 7 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6119,2 0 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6122,2 3 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6125 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R6126,2 7 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 Ref. No. Part No. Part Name & Description Pcs Remarks R6129 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R6130,3 1 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6133 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R6134,3 5 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6137 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R6138 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R6139 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6141,4 2 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6144,4 5 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6147 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R6148 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6150 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6151 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R6152- 55 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R6157 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R6159 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R6160- 99 ERJ3GEYJ220 M 22 OHM,J,1/16W 40 R6200- 10 ERJ3GEY0R00 M 0 OHM, 1/16W 11 R6211 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R6212 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R6213,1 4 TAJAAH0101JV M 100 OHM,J,1/16W 2 R6215- 20 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R6221 TAJAAH0101JV M 100 OHM,J,1/16W 1 R6222,2 3 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R6224 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6225 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R6227 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R6228 D1HG4708A002 NETWORK RESISTER 1 R6236 D1HG4708A002 NETWORK RESISTER 1 R6244- 47 TAJAAH0470JV M 47 OHM,J,1/16W 4 R6248,4 9 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6250- 85 TAJAAH0101JV M 100 OHM,J,1/16W 36 R6286- 90 ERJ3GEYJ103 M 10KOHM,J,1/16W 5 R6291 ERJ3GEYJ750 M 75 OHM,J,1/16W 1 R6292 TAJAAH0101JV M 100 OHM,J,1/16W 1 R6293 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R6294 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R6295 ERJ3GEYJ750 M 75 OHM,J,1/16W 1 R6296 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R6297 TAJAAH0101JV M 100 OHM,J,1/16W 1 R6299 ERJ3EKF1001 M 1KOHM, 1/16W 1 R6300 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R6301 ERJ3EKF6801 M 6.8KOHM, 1/16W 1 R6302 ERJ3EKF5101 M 5.1KOHM, 1/16W 1 R6303 ERJ3GEYJ241 M 240 OHM,J,1/16W 1 R6305,0 6 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6308 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R6309,1 0 ERJ3GEYJ333 M 33KOHM,J,1/16W 2 R6312 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R6313 TAJAAH0101JV M 100 OHM,J,1/16W 1 R6314 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R6316 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R6317- 20 TAJAAH0101JV M 100 OHM,J,1/16W 4 R6321- 24 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R6325 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6336 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R6337 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6347 ERJ3GEY0R00 M 0 OHM, 1/16W 1 232 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R6348 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6350,5 1 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R6401- 06 ERJ6GEYJ221 M 220 OHM,J,1/10W 6 R6407,0 8 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6409 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6410 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6411 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6412 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6421- 26 ERJ6GEYJ221 M 220 OHM,J,1/10W 6 R6427- 30 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6431,3 2 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6433 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6434 ERDS1FJ221 C 220 OHM, J,1/2W 1 R6435 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6436 ERJ6ENF1543 M 154KOHM, 1/10W 1 R6437 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6438 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R6439,4 0 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 2 R6441,4 2 ERJ12YJ1R0 M 1 OHM, J,1/2W 2 R6443 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6444 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6445,4 6 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6448 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6449 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R6451,5 2 ERJ12Y0R00 M 0 OHM,J, 1/2W 2 R6453 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6454 ERDS1FJ221 C 220 OHM, J,1/2W 1 R6455 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6456 ERJ6ENF4533 M 453KOHM, 1/10W 1 R6457,5 8 ERJ6ENF1002 M 10KOHM, 1/10W 2 R6459 ERJ14YJ104 M 100KOHM, J,1/4W 1 R6460 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6463 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6464 ERG2FJS273D M 27KOHM, J, 2W 1 R6465 ERX2FJS8R2D M 8.2 OHM, J, 2W 1 R6466 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6467 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R6468 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6469 ERJ12Y0R00 M 0 OHM,J, 1/2W 1 R6470 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R6471 ERJ12Y0R00 M 0 OHM,J, 1/2W 1 R6473 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6474 ERDS1FJ221 C 220 OHM, J,1/2W 1 R6475 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6476 ERJ6ENF3243 M 324KOHM, 1/10W 1 R6478 ERJ6ENF6981 M6.98KOHM, 1/10W 1 R6479 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6480 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6482 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6483 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6484 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6485,8 6 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6487 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6488 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6489 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6490 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6491 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6492,9 3 ERJ6ENF2203 M 220KOHM, 1/10W 2 R6494 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R6495 ERJ6ENF5231 M5.23KOHM, 1/10W 1 R6496 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6497 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R6498,9 9 ERX1FJS8R2D M 8.2 OHM, J, 1W 2 R6500 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R6501- 09 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 9 R6510 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6511,1 2 ERX3FJS2R2D M 2.2 OHM, J, 3W 2 R6513 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6514 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6515 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6516 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6517 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6518 ERJ6GEYF103 M 10KOHM,F,1/10W 1 R6519 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6520 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6521 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6522 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6524 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R6525 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6526 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6527 ERJ14YJ102 M 1KOHM, J,1/4W 1 R6528 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6529 ERJ6GEYJ680 M 68 OHM,J,1/10W 1 R6530- 39 ERJ6GEYJ470 M 47 OHM,J,1/10W 10 R6540- 49 ERJ6GEYJ100 M 10 OHM,J,1/10W 10 R6550 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6551 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6552 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6553 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6554,5 5 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6556 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6557 ERG1FJS471D M 470 OHM, J, 1W 1 R6558 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6559 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6560,6 1 ERJ6GEYJ470 M 47 OHM,J,1/10W 2 R6562- 64 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 3 R6565 ERG1FJS332D M 3.3KOHM, J, 1W 1 R6566 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6567,6 8 ERJ6ENF1003 M 100KOHM, 1/10W 2 R6569 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6571- 78 ERJ6GEYJ471 M 470 OHM,J,1/10W 8 R6579 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6580 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6581 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6582,8 3 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6584 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6585,8 6 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 2 R6587 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6588 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6589 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6590,9 1 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 2 R6592,9 3 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6594 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6595,9 6 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R6600 ERD25V0T M OHM, 1/10W 1 R6601,0 2 ERJ6GEYJ470 M 47 OHM,J,1/10W 2 R6603 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6604 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6605- 07 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6608 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6609 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 233 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R6611- 18 ERJ6GEYJ100 M 10 OHM,J,1/10W 8 R6619- 24 ERJ6GEYJ470 M 47 OHM,J,1/10W 6 R6625 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6626 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6627 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6628 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6629,3 0 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6631- 38 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 8 R6639 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R6641,4 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6643,4 4 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R6645,4 6 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6651- 56 ERJ12Y0R00 M 0 OHM,J, 1/2W 6 R6657- 59 ERJ6GEYJ102 M 1KOHM,J,1/10W 3 R6660- 63 ERJ12Y0R00 M 0 OHM,J, 1/2W 4 R6664- 70 ERJ6GEYJ680 M 68 OHM,J,1/10W 7 R6671 ERG2FJS820D M 82 OHM, J, 2W 1 R6672 ERX1FJS8R2D M 8.2 OHM, J, 1W 1 R6673 ERG1FJS103D M 10KOHM, J, 1W 1 R6674 ERJ12YJ101 M 100 OHM,J, 1/2W 1 R6675 ERG2FJS223D M 22KOHM, J, 2W 1 R6676 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R6677 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6678 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6679 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6681 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6682,8 3 ERJ6GEYJ470 M 47 OHM,J,1/10W 2 R6684 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6685,8 6 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6687,8 8 ERX2FJSR22D M0.22 OHM, J, 2W 2 R6689,9 0 ERJ12YJ220 M 22 OHM,J, 1/2W 2 R6691 EXB38V471J RESISTOR ARRAY 1 R6692 EXB38V473J RESISTOR ARRAY 1 R6693 EXB38V471J RESISTOR ARRAY 1 R6694 EXB38V473J RESISTOR ARRAY 1 R6695 EXB38V471J RESISTOR ARRAY 1 R6696 EXB38V473J RESISTOR ARRAY 1 R6697 EXB38V471J RESISTOR ARRAY 1 R6698 EXB38V473J RESISTOR ARRAY 1 R6700 ERD25V0T M OHM, 1/10W 1 R6701- 03 ERX3FJSR22D M 2.2 OHM, J, 3W 3 R6704 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6705,0 6 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6707 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6708 ERJ6GEYJ680 M 68 OHM,J,1/10W 1 R6710 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6711- 18 ERJ6GEYJ100 M 10 OHM,J,1/10W 8 R6719- 24 ERJ6GEYJ470 M 47 OHM,J,1/10W 6 R6725 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6726 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6727 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6728 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6729,3 0 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6731- 38 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 8 R6741,4 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 Ref. No. Part No. Part Name & Description Pcs Remarks R6747 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6749 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6750 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6751,5 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6753 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6754,5 5 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6756 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6757 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6758 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6759 ERG2FJS101D M 100 OHM, J, 2W 1 R6760 ERG1FJS472D M 4.7KOHM, J, 1W 1 R6761 ERG2FJS123D M 12KOHM, J, 2W 1 R6762 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6763 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6764 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6765,6 6 ERJ6GEYJ333 M 33KOHM,J,1/10W 2 R6767 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6769 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6772 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6775 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6776 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6777,7 8 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6779 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6780,8 1 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 2 R6782 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6783 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6784 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6785 EXB38V471J RESISTOR ARRAY 1 R6786 EXB38V473J RESISTOR ARRAY 1 R6787 EXB38V471J RESISTOR ARRAY 1 R6788 EXB38V473J RESISTOR ARRAY 1 R6789,9 0 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6791- 96 ERJ12Y0R00 M 0 OHM,J, 1/2W 6 R6801- 03 ERJ6GEYJ101 M 100 OHM,J,1/10W 3 R6805 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6809 EXB38V471J RESISTOR ARRAY 1 R6810 EXB38V473J RESISTOR ARRAY 1 R6811,1 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6813 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6814 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R6816 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 1 R6817 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6818 ERX2FJSR22D M0.22 OHM, J, 2W 1 R6820,2 1 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6822- 25 ERJ6GEYJ220 M 22 OHM,J,1/10W 4 R6827 ERJ6ENF6982 M69.8KOHM, 1/10W 1 R6828 ERJ6ENF1182 M11.8KOHM, 1/10W 1 R6829 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R6830 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6831 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R6832,3 3 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 2 R6835 ERJ6ENF3832 M38.3KOHM, 1/10W 1 R6836 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6837 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6838 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6839 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6840 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6841 ERJ6ENF1302 M 13KOHM, 1/10W 1 R6842,4 3 ERJ6ENF2202 M 2.2KOHM, 1/10W 2 R6844 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6845,4 6 ERF15ZXJ330 W 33 OHM, J, 15W 2 R6847 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 234 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R6849 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 1 R6850 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6851- 54 ERJ12Y0R00 M 0 OHM,J, 1/2W 4 R6857 ERX2FJSR22D M0.22 OHM, J, 2W 1 R6873,7 4 ERJ12YJ220 M 22 OHM,J, 1/2W 2 R6902 EXB38V471J RESISTOR ARRAY 1 R6903 EXB38V473J RESISTOR ARRAY 1 R6905 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6911,1 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6913 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6914 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R6916 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 1 R6917 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6920,2 1 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6922,2 3 ERJ6GEYJ220 M 22 OHM,J,1/10W 2 R6924,2 5 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 2 R6927 ERJ6ENF6982 M69.8KOHM, 1/10W 1 R6928 ERJ6ENF1182 M11.8KOHM, 1/10W 1 R6929 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R6930 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6931 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R6932,3 3 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 2 R6935 ERJ6ENF3832 M38.3KOHM, 1/10W 1 R6936 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6937 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6938 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6939 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6940 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6941 ERJ6ENF1302 M 13KOHM, 1/10W 1 R6942,4 3 ERJ6ENF2202 M 2.2KOHM, 1/10W 2 R6944 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6945,4 6 ERF15ZXJ330 W 33 OHM, J, 15W 2 R6947 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6949 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 1 R7101 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7104 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R7107 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R7109 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7111 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7113 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7115 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7116,1 7 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R7123,2 4 TAJAAH0101JV M 100 OHM,J,1/16W 2 D0GB101JA006 R7127,2 8 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7131,3 2 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7133,3 4 TAJAAH0101JV M 100 OHM,J,1/16W 2 R7138- 41 TAJAAH0470JV M 47 OHM,J,1/16W 4 R7146- 61 TAJAAH0470JV M 47 OHM,J,1/16W 16 R7163 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7167- 70 TAJAAH0470JV M 47 OHM,J,1/16W 4 R7171 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7172- 75 TAJAAH0470JV M 47 OHM,J,1/16W 4 R7176- 79 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R7184,8 5 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R7186 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7187 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7206 TAJAAH0470JV M 47 OHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R7207,0 8 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7211 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7215 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7216,1 7 TAJAAH0470JV M 47 OHM,J,1/16W 2 R7218,1 9 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7225 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7227 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7230 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7231- 34 TAJAAH0470JV M 47 OHM,J,1/16W 4 R7235 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7238 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7239,4 0 TAJAAH0470JV M 47 OHM,J,1/16W 2 R7241 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7244 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7245- 48 TAJAAH0470JV M 47 OHM,J,1/16W 4 R7250 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7251 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7252,5 3 TAJAAH0470JV M 47 OHM,J,1/16W 2 R7256 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7257- 60 TAJAAH0470JV M 47 OHM,J,1/16W 4 R7262 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7263,6 4 TAJAAH0470JV M 47 OHM,J,1/16W 2 R7266 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7267 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7269 ERJ12Y0R00 M 0 OHM,J, 1/2W 1 R7302 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7303- 06 TAJAAH0470JV M 47 OHM,J,1/16W 4 R7311- 26 TAJAAH0470JV M 47 OHM,J,1/16W 16 R7329 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7330- 37 TAJAAH0470JV M 47 OHM,J,1/16W 8 R7338- 41 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R7346,4 7 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R7354,5 5 TAJAAH0101JV M 100 OHM,J,1/16W 2 R7360,6 1 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7364,6 5 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7366,6 7 TAJAAH0101JV M 100 OHM,J,1/16W 2 R7373,7 4 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R7377,7 8 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7381,8 2 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7383,8 4 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R7385 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7386 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7387 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7401 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7402 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R7404 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7409 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R7410- 13 TAJAAH0470JV M 47 OHM,J,1/16W 4 R7414,1 5 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R7416- 39 TAJAAH0470JV M 47 OHM,J,1/16W 24 R7440- 43 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R7444 ERJ6GEY0R00 M 0 OHM, 1/10W 1 235 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R7454 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7460,6 1 TAJAAH0101JV M 100 OHM,J,1/16W 2 R7464,6 5 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7468,6 9 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7470,7 1 TAJAAH0101JV M 100 OHM,J,1/16W 2 R7472 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7477,7 8 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R7481,8 2 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7485,8 6 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7487,8 8 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R7490 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7491 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7501 ERJ6ENF8200 M 820 OHM, 1/10W 1 R7502 ERJ6ENF1871 M1.87KOHM, 1/10W 1 R7503 ERJ6ENF8060 M 806 OHM, 1/10W 1 (PA) R7503 TAJAAH0101JV M 100 OHM,J,1/16W 1 (C5) R7504 ERJ6ENF3921 M3.92KOHM, 1/10W 1 (PA) R7504 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (C5) R7505 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7506 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (C5) R7506 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 (PA) R7507 ERJ6ENF8200 M 820 OHM, 1/10W 1 R7508 ERJ6ENF1871 M1.87KOHM, 1/10W 1 R7509 ERJ6ENF8060 M 806 OHM, 1/10W 1 R7510 ERJ6ENF1871 M1.87KOHM, 1/10W 1 R7511 ERJ6ENF8200 M 820 OHM, 1/10W 1 R7512 ERJ6ENF6040 M 604 OHM, 1/10W 1 R7514 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 (C5) R7514 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 (PA) R7516 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7517 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7519 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 (PA) R7519 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C5) R7520 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (C5) R7520 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 (PA) R7521 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7522 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (PA) R7522 TAJAAH0101JV M 100 OHM,J,1/16W 1 (C5) R7524 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7525 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 (PA) R7525 TAJAAH0101JV M 100 OHM,J,1/16W 1 (C5) R7526 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (C5) R7526 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 (PA) R7527 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (C5) R7527 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 (PA) R7528,2 9 TAJAAH0470JV M 47 OHM,J,1/16W 2 R7530 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7532 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R7533 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7534 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R7535 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 (C5) R7535 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 (PA) R7536 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 (PA) R7536 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C5) R7537 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 (PA) R7537 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C5) R7538 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 (PA) R7538 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C5) R7539 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 (PA) R7539 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C5) R7540 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 (PA) R7541 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 (C5) R7541 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 (PA) R7542,4 3 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 (PA) R7543 TAJAAH0101JV M 100 OHM,J,1/16W 1 (C5) Ref. No. Part No. Part Name & Description Pcs Remarks R7544 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (C5) R7544 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 (PA) R7545 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 (PA) R7545 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C5) R7546 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 (PA) R7546 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C5) R7547 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7548 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R7549 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 (PA) R7549 TAJAAH0101JV M 100 OHM,J,1/16W 1 (C5) R7550 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 (PA) R7550 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C5) R7551 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 R7552 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7553 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7555 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7557 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7559 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 (C5) R7559 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 (PA) R7560 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7561 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 (PA) R7561 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C5) R7562 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 (PA) R7562 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C5) R7563 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 (PA) R7563 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C5) R7564 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 (PA) R7564 TAJAAH0101JV M 100 OHM,J,1/16W 1 (C5) R7565 ERJ6ENF3921 M3.92KOHM, 1/10W 1 (PA) R7565 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C5) R7566 ERJ6ENF8200 M 820 OHM, 1/10W 1 (PA) R7566 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C5) R7568 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R7569 ERJ12Y0R00 M 0 OHM,J, 1/2W 1 (C5) R7569 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 (PA) R7570 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R7571 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R7574 ERJ6ENF2701 M 2.7KOHM, 1/10W 1 R7579 ERJ6GEYJ683 M 68KOHM,J,1/10W 1 R7583 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7584 ERJ6GEYJ512 M 5.1KOHM,J,1/10W 1 R7585 ERJ6ENF8202 M 82KOHM, 1/10W 1 R7586 ERJ6ENF1371 M1.37KOHM, 1/10W 1 R7587 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R7588 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7590 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7591 ERJ6GEYJ563 M 56KOHM,J,1/10W 1 R7595 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7596 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7597 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R7598 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7599 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R7603 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7604 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R7606 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R7607 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 (C6) R7607 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 (PA) R7609 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7611 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7613 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7615 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7616,1 7 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R7618 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7623,2 4 TAJAAH0101JV M 100 OHM,J,1/16W 2 D0GB101JA006 R7627,2 8 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7631,3 2 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7633,3 4 TAJAAH0101JV M 100 OHM,J,1/16W 2 R7635- 38 TAJAAH0470JV M 47 OHM,J,1/16W 4 236 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R7643 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7646- 61 TAJAAH0470JV M 47 OHM,J,1/16W 16 R7664- 71 TAJAAH0470JV M 47 OHM,J,1/16W 8 R7672- 75 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R7677 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7680 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7685 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7686 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7687 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R9001 EXB38V470J RESISTOR ARRAY 1 R9002,0 3 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9004 EXB38V470J RESISTOR ARRAY 1 R9005 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9006 EXB38V470J RESISTOR ARRAY 1 R9007- 09 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9010 EXB38V470J RESISTOR ARRAY 1 R9011 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9012 EXB38V470J RESISTOR ARRAY 1 R9014 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9015 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9016 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9017 EXB38V470J RESISTOR ARRAY 1 R9018- 20 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9022- 24 ERJ3GEYJ750 M 75 OHM,J,1/16W 3 R9025 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9026 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9027 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9028 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9029 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9030 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9063 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9065- 67 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9104,0 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9109,1 0 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R9111,1 2 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 R9113 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9114,1 5 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R9118 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9122,2 3 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R9130- 32 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9136 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9153,5 4 EXB2HVR000 RESISTOR ARRAY 2 R9157 EXB2HVR000 RESISTOR ARRAY 1 R9167,6 8 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9171,7 2 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9176 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9177 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9178,7 9 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9180 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9182 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9183 ERJ6ENF3001 M 3KOHM, 1/10W 1 R9184 ERJ6ENF1001 M 1KOHM, 1/10W 1 R9187 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9190 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9191 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9199 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9202 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9203 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R9204,0 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9211- 15 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R9216 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9218 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9219 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9220,2 1 ERJ3GEYJ151 M 150 OHM,J,1/16W 2 R9224 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R9226 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9228 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9229,3 0 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9231 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9232 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9234 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9236 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9240,4 1 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 R9244,4 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9247 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9302 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9304 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9309 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9310 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9311 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9312- 14 ERJ6GEY0R00 M 0 OHM, 1/10W 3 R9315 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9317 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9318- 21 EXB38V470J RESISTOR ARRAY 4 R9322 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9323,2 4 EXB38V680J RESISTOR ARRAY 2 R9325 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9327 EXB38V680J RESISTOR ARRAY 1 R9328 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9329,3 0 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R9331 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9332 EXB38V680J RESISTOR ARRAY 1 R9335 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9336 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9337 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9338 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9339 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9341,4 2 TAJAAH0470JV M 47 OHM,J,1/16W 2 R9346 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9347,4 8 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R9349 EXB38V680J RESISTOR ARRAY 1 R9350 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9351 EXB38V680J RESISTOR ARRAY 1 R9352 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9354 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9355 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9357- 59 EXB38V680J RESISTOR ARRAY 3 R9362 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9363 EXB38V680J RESISTOR ARRAY 1 R9365 EXB38V680J RESISTOR ARRAY 1 R9367 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9368,6 9 EXB38V680J RESISTOR ARRAY 2 R9371 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9373- 75 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9376 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9377- 79 EXB2HVR000 RESISTOR ARRAY 3 R9380 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9382 ERJ3GEY0R00 M 0 OHM, 1/16W 1 237 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R9385 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9386 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9388 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9389,9 0 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9391,9 2 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R9393- 96 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R9397,9 8 ERJ6ENF1001 M 1KOHM, 1/10W 2 R9399,0 0 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R9401,0 2 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9403 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9405 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9408 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9411 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9413 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9415 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9417 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9420 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9421 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9422 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9425 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9431 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9435 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9437 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9439- 41 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9443- 45 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9447 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9449 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9455 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9459 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9460- 62 ERJ3GEYJ100 M 10 OHM,J,1/16W 3 R9465,6 6 EXB2HVR000 RESISTOR ARRAY 2 R9468 EXB2HVR000 RESISTOR ARRAY 1 R9469,7 0 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9475 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9476 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9477,7 8 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9479 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9480,8 1 ERJ6ENF1001 M 1KOHM, 1/10W 2 R9483 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9484,8 5 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R9486,8 7 ERJ6ENF1001 M 1KOHM, 1/10W 2 R9488,8 9 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R9490,9 1 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9492- 95 EXB38VR000 RESISTOR ARRAY 4 R9496 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9498 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9501 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9503 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9504 EXB38V103J RESISTOR ARRAY 1 R9506 EXB38V103J RESISTOR ARRAY 1 R9509- 13 ERJ3GEYJ103 M 10KOHM,J,1/16W 5 R9514 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9515 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9516,1 7 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9518- 27 EXB38V680J RESISTOR ARRAY 10 Ref. No. Part No. Part Name & Description Pcs Remarks R9529,3 0 EXB38V680J RESISTOR ARRAY 2 R9532- 37 TAJAAH0470JV M 47 OHM,J,1/16W 6 R9538,3 9 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9540 EXB38V470J RESISTOR ARRAY 1 R9541,4 2 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9543 EXB38V470J RESISTOR ARRAY 1 R9544,4 5 TAJAAH0470JV M 47 OHM,J,1/16W 2 R9547 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9548 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9549 EXB38V680J RESISTOR ARRAY 1 R9550,5 1 EXB38V470J RESISTOR ARRAY 2 R9552 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9553 EXB38V680J RESISTOR ARRAY 1 R9554 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9556- 58 ERJ3GEYJ151 M 150 OHM,J,1/16W 3 R9559 EXB38V470J RESISTOR ARRAY 1 R9560 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9561 EXB38V470J RESISTOR ARRAY 1 R9562 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9563 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9564 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9565 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9568 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9569 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9577 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9579 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9585 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9586 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9592 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9593 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9594 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9595 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9596 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9597 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9598,9 9 EXB38V103J RESISTOR ARRAY 2 R9600- 05 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R9607- 09 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9611- 15 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R9618 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9620,2 1 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9624 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9625 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R9627,2 8 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9631- 35 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R9637 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9640,4 1 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9642 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9643 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9648 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9650- 53 EXB38V103J RESISTOR ARRAY 4 R9654,5 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9670- 72 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9674- 79 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R9683 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9685- 88 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9700 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9701 TAJAAH0101JV M 100 OHM,J,1/16W 1 238 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R9702 TAJAAH0680JV M 68 OHM,J,1/16W 1 R9703- 08 TAJAAH0101JV M 100 OHM,J,1/16W 6 R9709 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9710- 16 ERJ3GEYJ151 M 150 OHM,J,1/16W 7 R9717,1 8 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9719- 24 ERJ3GEYJ151 M 150 OHM,J,1/16W 6 R9725 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9726 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9727 EXB38VR000 RESISTOR ARRAY 1 R9728 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9730- 32 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9733 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9734 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9735 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9736 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9737 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9738,3 9 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R9741 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9743 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9744 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9745 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9747 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9748 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9749 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9750 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9751 EXB38V103J RESISTOR ARRAY 1 R9753 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9754 EXB38V272J RESISTOR ARRAY 1 R9755,5 6 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R9757 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9758 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9759 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9760 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9761 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9762 EXB38V103J RESISTOR ARRAY 1 R9763 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9765 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9766 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9767 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9768 EXB38V470J RESISTOR ARRAY 1 R9769 EXB38VR000 RESISTOR ARRAY 1 R9770 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9771 EXB38VR000 RESISTOR ARRAY 1 R9773 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9774- 76 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9777 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R9779 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9781 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9782 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9783,8 4 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R9785,8 6 EXB38VR000 RESISTOR ARRAY 2 R9787 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9788 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9789 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R9790 ERJ3GEYJ152 M 1.5KOHM,J,1/16W 1 R9791 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9794 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9795 ERJ3GEYJ105 M 1MOHM,J,1/16W 1 R9798,9 9 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9800 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9803,0 4 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9805 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9806 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R9809 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9810,1 1 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9814 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9816 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9817 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9818,1 9 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9820 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9823,2 4 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R9825 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9826 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9827 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9829 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R9832 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9833 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R9834,3 5 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R9836 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9837 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9838 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9839,4 0 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9843,4 4 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9846,4 7 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9848 EXB38V103J RESISTOR ARRAY 1 R9849,5 0 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9851 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9852,5 3 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9854 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9855 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R9856 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9857 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9858 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9859 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9860 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9861 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9864 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9867 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9868 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9869 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9871 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9872 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9873 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9874,7 5 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9876 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9878- 80 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9882,8 3 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9885 EXB38V103J RESISTOR ARRAY 1 R9886 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9887,8 8 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9889 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9890 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9892 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9893- 96 TAJAAH0101JV M 100 OHM,J,1/16W 4 R9897 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9898 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9900 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9901 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9902 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9903- 05 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9906 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9907 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9908 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9909 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 239 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R9910 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9912 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9913 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R9914 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9916 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9917 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9918 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9919 ERJ6ENF1002 M 10KOHM, 1/10W 1 R9920 ERJ3GEYJ105 M 1MOHM,J,1/16W 1 R9921- 23 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9924 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9925 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9929,3 0 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9931 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9932 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9933 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9934 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9935,3 6 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9937 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9939 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9940 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9941 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9942 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9943 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9944 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9945,4 6 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R9947 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9949 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9951,5 2 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9954- 57 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9959,6 0 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9961 ERJ6ENF1621 M1.62KOHM, 1/10W 1 R9962 ERJ6ENF1001 M 1KOHM, 1/10W 1 R9963 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9964 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9965 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9966 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9969 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9971 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9972 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9976 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9979 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9984- 88 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R9990 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9991 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9992 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9993 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9996 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9998 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 RL401 K6B1AGA00086 RELAY 1 RL402 K6B1AGA00177 REALY 1 RL901 K6B1ADA00023 RELAY 1 RM300 PNA4601M05TV REMOCON RECEIVER 1 RTL TNPA3177 CIRCUIT BOARD DG 1 RTL TNPA3178 CIRCUIT BOARD H 1 RTL TNPA3179 CIRCUIT BOARD TB 1 RTL TNPA3180 CIRCUIT BOARD JA 1 RTL TXNDV1UHSU CIRCUIT BOARD DV 1 RTL TXNPA1UHSU CIRCUIT BOARD PA 1 RTL TXNPF1UGSU CIRCUIT BOARD PF 1 RTL TNPA2890 CIRCUIT BOARD P 1 RTL TNPA3128 CIRCUIT BOARD SU 1 RTL TNPA3129 CIRCUIT BOARD SD 1 RTL TNP2AA144ACS CIRCUIT BOARD DT 1 Ref. No. Part No. Part Name & Description Pcs Remarks RTL TNPA2903 CIRCUIT BOARD C1 1 RTL TNPA2904 CIRCUIT BOARD C2 1 RTL TNPA2905 CIRCUIT BOARD C3 1 RTL TNPA2906 CIRCUIT BOARD C4 1 RTL TNPA2907 CIRCUIT BOARD C5 1 RTL TNPA2908 CIRCUIT BOARD C6 1 RTL TZTNP01QNSU CIRCUIT BOARD D 1 RTL TXNSC10QNS CIRCUIT BOARD SC 1 RTL TXNSS20RTS CIRCUIT BOARD SS 1 RTL TNPA2919 CIRCUIT BOARD SS2 1 RTL TNPA2920 CIRCUIT BOARD SS3 1 RTL TNPA2990AB CIRCUIT BOARD S 1 RTL TNPA3151 CIRCUIT BOARD JG 1 RTL TXN/G1UHSU CIRCUIT BOARD G 1 RTL TXN/K1QKSU CIRCUIT BOARD K 1 S4 K1KA07B00006 7P CONNECTOR 1 S34 K1KA03A00213 3P CONNECTOR 1 S300 K0F122A00172 SWITCH REMOTE CONTROL H 1 S901 J0LT00000009 SWITCH 1 S3701- 07 EVQ23405R SWITCH 7 SC2 K1KA06A00180 6P CONNECTOR 1 SC12 K1KA06A00220 6P CONNECTOR 1 SC13 TJS1A8840 8P CONNECTOR 1 SC20 K1KA20A00180 20P CONNECTOR 1 SC23 K1KA03A00213 3P CONNECTOR 1 SC41-44 K1KB40B00015 40P CONNECTOR 4 SC45,46 K1KA10A00194 10P CONNECTOR 2 SC62 K1KA06A00220 6P CONNECTOR 1 SD1-D4 K1MN96B00001 CONNECTOR 4 SD46 K1KA10B00209 10P CONNECTOR 1 SS11 K1KA07A00096 7P CONNECTOR 1 SS12 K1KA10A00259 10P CONNECTOR 1 SS21 K1KB07A00037 7P CONNECTOR 1 SS31 K1KB07A00037 7P CONNECTOR 1 SS32 K1KA20A00180 20P CONNECTOR 1 SS34 K1KA03A00213 3P CONNECTOR 1 SS35 TJS1A8840 8P CONNECTOR 1 SS41 K1MN13B00020 13P CONNECTOR 1 SS42 TJS1A8840 8P CONNECTOR 1 SS48 K1MN13B00020 13P CONNECTOR 1 SS51-56 K1MN13B00020 13P CONNECTOR 6 SS57,58 K1KA07A00170 7P CONNECTOR 2 SU1-U4 K1MN96B00001 CONNECTOR 4 SU45 K1KA10B00209 10P CONNECTOR 1 T401 G4D4A0000072 SWITCHING TRANSFORMER 1 T402,03 ETS19AB1T6AG SWITCHING TRANS 2 T404 ETS28LZ126AD SWITCHING TRANS 1 T405 ETS49LM126AD SWITCHING TRANS 1 T406 G4D4A0000072 SWITCHING TRANSFORMER 1 T407 ETQ11K5AZ CHOKE TRANS 1 T410 ETS25AD1J6AH SWITCHING TRANS 1 T920 ETS29AK7J5AD SWITCHING TRANS 1 T6431 ETS13TB139AP SWITCHING TRANS 1 T6451 G4D1A0000072 SWITCHING TRANS 1 T6471 G4D1A0000072 SWITCHING TRANS 1 VR6477 EVMEASA00B53 CONTROL 5KOHMB 0.3W 1 VR6557 EVMEASA00B14 CONTROL 10KOHMB 0.3W 1 VR6670 EVMEASA00B14 CONTROL 10KOHMB 0.3W 1 VR6770 EVMEASA00B14 CONTROL 10KOHMB 0.3W 1 240 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks X501 H2B400400021 CRYSTAL 1 X6001 H1A4905B0001 CRYSTAL 1 X9302 H0J200500016 CRYSTAL 1 X9701 H0J245500013 CRYSTAL 1 X9702 H0J921400003 CRYSTAL 1 X9703 H0J200500016 CRYSTAL 1 ZA901 K4ZZ01000121 EARTH LUG 1 ZA5001- 03 K4CD01000002 TERMINAL 3 ZA5101- 05 TESA169 SHIELD CLIP 5 ZA7002- 07 K4ZZ01000121 EARTH LUG 6 ZN401,0 2 D4EAD6210001 VARISTOR 2 C001 EEEHB1A101P C 100PF, J, 10V 1 C002 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C003 EEEHB1A101P C 100PF, J, 10V 1 C004 EEEHB1H1R0R C 1.0PF, J, 50V 1 C005 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C006 EEEHB1C470P C 47PF, J, 16V 1 C007 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C008 EEEHB1C470P C 47PF, J, 16V 1 C009 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C011 ECJ3YB0J475M C 0.047UF, K, 25V 1 C012,13 ECJ1XC1H101J C 100PF, J, 50V 2 C014 ECJ1VB1H392K C 3900PF, K, 50V 1 C015 TCUY0J685MBM C 6.8UF, 6.3V 1 C016 ECJ1XC1H101J C 100PF, J, 50V 1 C017 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C018 ECJ1XC1H101J C 100PF, J, 50V 1 C019 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C020 ECJ1XC1H220J C 22PF, J, 50V 1 C021 EEEHB1H1R0R C 1.0PF, J, 50V 1 C022 ECJ1XC1H101J C 100PF, J, 50V 1 C023 ECJ1VC1H270J C 27PF, J, 50V 1 C024 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C025 EEEHB1C470P C 47PF, J, 16V 1 C026 EEEHB1H1R0R C 1.0PF, J, 50V 1 C027 ECJ1XB1H102K C 1000UF, Z, 50V 1 C028 ECJ1XC1H101J C 100PF, J, 50V 1 C029 EEEHP0J470P C 47PF, J,6.3V 1 C030,31 ECJ1XC1H220J C 22PF, J, 50V 2 C032 EEEHP0J470P C 47PF, J,6.3V 1 C033 EEEHB1H1R0R C 1.0PF, J, 50V 1 C034 TCUY0J685MBM C 6.8UF, 6.3V 1 C035 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C036 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C037 EEEHB0J101P C 100PF, J, 6.3V 1 C038 ECJ2XB1H682K C 6800PF, K, 50V 1 C039,40 ECJ1VF1A105Z C 1UF, Z, 10V 2 C041,42 ECJ1XC1H561J C 560PF, J, 50V 2 C043,44 ECJ1XC1H471J C 470PF, J, 50V 2 C047 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C049 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C051 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C2251 EEEHB1A101P C 100PF, J, 10V 1 C2252,5 3 ECJ2VF1H103Z C 0.01UF, Z, 50V 2 C2255 EEEHB1A101P C 100PF, J, 10V 1 C3010,1 1 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3040- 42 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C3801,0 2 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3803 EEEHB0J101P C 100PF, J, 6.3V 1 C3804 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3805 EEEHB1C470P C 47PF, J, 16V 1 C3806,0 7 ECJ2VF1H103Z C 0.01UF, Z, 50V 2 C3808 EEEHB1C470P C 47PF, J, 16V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C3809 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C3810 ECJ2XC1H102J C 1000PF, J, 50V 1 C3811 TCUY1C225KBM C 2.2UF, 16V 1 C3812 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3813,1 4 ECJ1XC1H330J C 33PF, J, 50V 2 C3815 ECJ2XB1H563K C 0.056UF, K, 50V 1 C3816 ECJ2XB1H102K C 1000PF, K, 50V 1 C4501 ECJ1VB1H103K C 0.01UF, K, 50V 1 C4502 EEEHB1A330R C 33PF, J, 10V 1 C4503 ECJ1XC1H050C C 5PF, C, 50V 1 C4504,0 5 ECJ1XC1H470J C 47PF, J, 50V 2 C4506 ECJ1XC1H050C C 5PF, C, 50V 1 C4507,0 8 ECJ1XC1H220J C 22PF, J, 50V 2 C4509,1 0 ECJ1XC1H121J C 120PF, J, 50V 2 C4511 ECJ1XC1H220J C 22PF, J, 50V 1 C4512 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4513 ECJ1XC1H101J C 100PF, J, 50V 1 C4514 EEEHB1A330R C 33PF, J, 10V 1 C4516 EEEHP1E100P C 10PF 1 C4518 EEEHP1E100P C 10PF 1 C4519 ECJ3XB0J106M C 10UF, M,6.3V 1 C4521 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4522 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4523 ECJ1VB1H103K C 0.01UF, K, 50V 1 C4524,2 5 EEEHB0G101R C 100PF, J, 4V 2 C4526 ECJ1VB1H471K C 470PF, K, 50V 1 C4527,2 8 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4529 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4530- 32 ECJ1VF1A105Z C 1UF, Z, 10V 3 C4533 EEEHB1C470P C 47PF, J, 16V 1 C4534 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4535,3 6 ECJ1VF1A105Z C 1UF, Z, 10V 2 C4537 EEEHB0G101R C 100PF, J, 4V 1 C4538 ECJ1VC1H080C C 8PF, C, 50V 1 C4539 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4540 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4541 ECJ1VB1H103K C 0.01UF, K, 50V 1 C4542 EEEHB0G101R C 100PF, J, 4V 1 C4543- 48 ECJ1VF1A105Z C 1UF, Z, 10V 6 C4549 EEEHB1A330R C 33PF, J, 10V 1 C4550 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4551 TCUY0J685MBM C 6.8UF, 6.3V 1 C4552 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4553- 58 ECJ1VF1A105Z C 1UF, Z, 10V 6 C4559 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4560 EEEHB0G101R C 100PF, J, 4V 1 C4561 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4562 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4563 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4564 EEEHB0G101R C 100PF, J, 4V 1 C4565- 79 ECJ1XF1C104Z C 0.1UF, Z, 16V 15 C4580 TCUY0J685MBM C 6.8UF, 6.3V 1 C4581,8 2 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C4583 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4584- 86 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C4587 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4588 EEEHB0G101R C 100PF, J, 4V 1 C4589 TCUY0J685MBM C 6.8UF, 6.3V 1 C4590 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4591- 93 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C4594 ECJ1VF1C105Z C 1UF, Z, 10V 1 241 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks C4596- 00 ECJ1XF1C104Z C 0.1UF, Z, 16V 5 C4601 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4602 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4603 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4604 ECJ1XB0J105K C 1UF, K, 16V 1 C4606 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4607 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4608 ECJ1XB0J105K C 1UF, K, 16V 1 C4609 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4611 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4612- 14 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C4615 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4616 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4617 ECJ1XC1H330J C 33PF, J, 50V 1 C4618 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4619 ECJ1XB0J105K C 1UF, K, 16V 1 C4620 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4621 ECJ1XC1H471J C 470PF, J, 50V 1 C4622 ECJ1XC1H680J C 68PF, J, 50V 1 C4623- 32 ECJ1VF1A105Z C 1UF, Z, 10V 10 C4633- 35 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C4636 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4637,3 8 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C4639- 41 ECJ1VF1A105Z C 1UF, Z, 10V 3 C4642 EEEHB0G101R C 100PF, J, 4V 1 C4643 EEEHP1E100P C 10PF 1 C4644 ECJ3XB1C105K C 1UF, K, 16V 1 C4645 ECJ1XC1H330J C 33PF, J, 50V 1 C4646 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4647 ECJ1XC1H102J C 1000PF, J, 50V 1 C4648,4 9 ECJ1VF1A105Z C 1UF, Z, 10V 2 C4650 ECJ1XC1H680J C 68PF, J, 50V 1 C4651,5 2 ECJ1XC1H150J C 15PF, J, 50V 2 C4653 EEEHB0G101R C 100PF, J, 4V 1 C4654 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4655 ECJ1XB1C223K C 0.022UF, K, 16V 1 C4656 ECJ1VB1H103K C 0.01UF, K, 50V 1 C4657 EEFCD0G560R 56UF, 1 C4658 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4659 EEFCD0G560R 56UF, 1 C4660 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4661 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4663 ECJ1XB0J105K C 1UF, K, 16V 1 C4665- 69 ECJ1XB0J105K C 1UF, K, 16V 5 C4670 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4671,7 2 ECJ1XC1H470J C 47PF, J, 50V 2 C4673 ECJ1XC1H330J C 33PF, J, 50V 1 C4674- 77 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C4678,7 9 ECJ1XC1H220J C 22PF, J, 50V 2 C4680 ECJ1XC1H050C C 5PF, C, 50V 1 C4681,8 2 EEEHB1A330R C 33PF, J, 10V 2 C4683 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4684 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4685,8 6 ECJ1XC1H121J C 120PF, J, 50V 2 C4687 EEEHB1C100R C 10PF, J, 16V 1 C4691 ECJ1XC1H101J C 100PF, J, 50V 1 C4692 ECJ1VC1H270J C 27PF, J, 50V 1 C4693- 96 ECJ1XB0J105K C 1UF, K, 16V 4 C4697 TCUY0J685MBM C 6.8UF, 6.3V 1 C4700 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4701 EEEHB1C470P C 47PF, J, 16V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C4702 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4703,0 4 EEEHB1A330R C 33PF, J, 10V 2 C4705 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4706 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4707 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4708 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4709 EEEHB0G101R C 100PF, J, 4V 1 C4710 ECJ1XB0J105K C 1UF, K, 16V 1 C4711 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4712 EEEHB0G221P C 220PF, J, 4V 1 C4714 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4715 EEEHB0G221P C 220PF, J, 4V 1 C4717 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4718- 28 ECJ1XF1C104Z C 0.1UF, Z, 16V 11 C4729,3 0 ECJ1VF1A105Z C 1UF, Z, 10V 2 C4731- 33 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C4734 ECJ1XC1H680J C 68PF, J, 50V 1 C4735 ECJ1XC1H330J C 33PF, J, 50V 1 C4736 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4737 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4738- 42 ECJ1XF1C104Z C 0.1UF, Z, 16V 5 C4743 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4744- 46 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C4747 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4748 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4749 EEEHB0G101R C 100PF, J, 4V 1 C4750- 55 ECJ1XF1C104Z C 0.1UF, Z, 16V 6 C4756 ECJ1XB0J105K C 1UF, K, 16V 1 C4757 ECJ1VB1H103K C 0.01UF, K, 50V 1 C4758,5 9 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C4760,6 1 ECJ1VF1A105Z C 1UF, Z, 10V 2 C4762,6 3 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C4764 ECJ1VB1H471K C 470PF, K, 50V 1 C4765- 69 ECJ1XF1C104Z C 0.1UF, Z, 16V 5 C4770 ECJ1XB0J105K C 1UF, K, 16V 1 C4771- 75 ECJ1XF1C104Z C 0.1UF, Z, 16V 5 C4776 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4777- 84 ECJ1VF1A105Z C 1UF, Z, 10V 8 C4785 EEEHB0G101R C 100PF, J, 4V 1 C4786 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4787 EEEHB0G101R C 100PF, J, 4V 1 C4788 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4789- 92 ECJ1VF1A105Z C 1UF, Z, 10V 4 C4799 EEEHB1C470P C 47PF, J, 16V 1 C4800,0 1 ECJ1VF1C105Z C 1UF, Z, 10V 2 C4802 ECJ1VB1H103K C 0.01UF, K, 50V 1 C4803 EEEHB0G101R C 100PF, J, 4V 1 C4804 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4813 EEEHB1A330R C 33PF, J, 10V 1 C4814 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4817 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4818 EEEHB0G101R C 100PF, J, 4V 1 C4819 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4820 EEEHB1C470P C 47PF, J, 16V 1 C4821 ECJ3YB1C475K C 0.047UF, K, 16V 1 C4823 ECJ3YB1C475K C 0.047UF, K, 16V 1 C4825 ECJ3YB1C475K C 0.047UF, K, 16V 1 C4828 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C4829 EEEHB1C470P C 47PF, J, 16V 1 C4830 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C4831 EEEHB1C470P C 47PF, J, 16V 1 242 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks C4833,3 4 TCUY0J685MBM C 6.8UF, 6.3V 2 C4840 EEEHB0G101R C 100PF, J, 4V 1 C4841 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C4842 EEEHB0G101R C 100PF, J, 4V 1 C4843 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C4844 EEEHB1C470P C 47PF, J, 16V 1 C4845 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4846 EEEHB1C470P C 47PF, J, 16V 1 C4847 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8001 ECJ2XB1H682K C 6800PF, K, 50V 1 C8002 EEEHP1E220P C 22PF 1 C8003 ECJ2XB1H682K C 6800PF, K, 50V 1 C8004 EEEHP1E220P C 22PF 1 C8005 ECJ2XB1H682K C 6800PF, K, 50V 1 C8006 EEEHP1E220P C 22PF 1 C8008 ECJ1VB1H471K C 470PF, K, 50V 1 C8010 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C8011 EEEHB1C470P C 47PF, J, 16V 1 C8014 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8017,1 8 ECJ3XB0J106M C 10UF, M,6.3V 2 C8020 ECJ1VB1H103K C 0.01UF, K, 50V 1 C8022 ECJ3VB1C474K C 0.47UF, K, 16V 1 C8023 ECJ1VB1H103K C 0.01UF, K, 50V 1 C8024 ECJ1VB1H471K C 470PF, K, 50V 1 C8025 EEEHB1C470P C 47PF, J, 16V 1 C8026 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C8031 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8032 EEEHB1C470P C 47PF, J, 16V 1 C8034 ECJ1XC1H102J C 1000PF, J, 50V 1 C8037 ECJ1XC1H101J C 100PF, J, 50V 1 C8039 ECJ2XC1H102J C 1000PF, J, 50V 1 C8044 TCUY1C225KBM C 2.2UF, 16V 1 C8045 ECJ1XC1H330J C 33PF, J, 50V 1 C8046 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8047 EEEHP1E220P C 22PF 1 C8048 ECJ2XB1H682K C 6800PF, K, 50V 1 C8050 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C8051 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8055 ECJ1XC1H101J C 100PF, J, 50V 1 C8201 EEEHB1C470P C 47PF, J, 16V 1 C8203 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C8206- 09 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C8210 ECJ3XB0J106M C 10UF, M,6.3V 1 C8211 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8212 ECJ3XB0J106M C 10UF, M,6.3V 1 C8213,1 4 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C8215 ECJ3XB0J106M C 10UF, M,6.3V 1 C8216 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C8217- 19 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C8220 EEEHB1C470P C 47PF, J, 16V 1 C8221- 23 EEEHB1A471P C 470PF, J, 10V 3 C8301 ECJ3XB0J106M C 10UF, M,6.3V 1 C8302- 04 ECJ3YB1A475K C 0.047UF, K, 10V 3 C8332 EEEHB1C470P C 47PF, J, 16V 1 C8334 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C8336 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8341 ECJ3XB0J106M C 10UF, M,6.3V 1 C8347 ECJ3XB0J106M C 10UF, M,6.3V 1 C8348 ECJ3YB1A475K C 0.047UF, K, 10V 1 C8354 ECJ1VB1H103K C 0.01UF, K, 50V 1 C8366 ECJ1VB1H103K C 0.01UF, K, 50V 1 D001 MA3036H ZENER DIODE 1 D002 MA3091M ZENER DIODE 1 D2251,5 2 MA152K DIODE 2 D2254,5 5 MA152K DIODE 2 Ref. No. Part No. Part Name & Description Pcs Remarks D3801,0 2 MA152K DIODE 2 D4502 MA704 DIODE 1 D4504 MA152K DIODE 1 D8001- 03 MA3140M ZENER DIODE 3 D8004,0 5 MA153 DIODE 2 D8302 MA111 DIODE 1 D8304 MA111 DIODE 1 IC001 MN102HF75KBF IC 1 IC002 C3EBJC000037 1 IC003 PST9128NR IC (LOGIC) 1 IC004 C0CBCBD00004 IC 1 IC005 MC14052BF MOS IC (CMOS GATE ARRLY) 1 IC3003 CXA1315M LINEAR IC 1 IC3004 CXA1875AM LINEAR IC 1 IC3517 AHC2G66HDCTR INTEGRATED CIRCUIT 1 IC3699 LSUQ0061 IC 1 IC3801 C2BBFE000138 IC 1 IC3802 MC14052BF MOS IC (CMOS GATE ARRLY) 1 IC3803 M51957BFP LINEAR IC 1 IC4501 C1AB00001702 IC 1 IC4502 C1AB00001703 IC 1 IC4503 C0CBCBD00006 IC 1 IC4504 C3HBKZ000001 IC 1 IC4505 PQ07VZ012ZP IC 1 IC4506 PST9128NR IC (LOGIC) 1 IC4507, 08 C0CBCBD00006 IC 2 IC4509 C0CBCAD00006 IC 1 IC4510 C0JBAM000095 IC 1 IC4511 C0CBCBD00006 IC 1 IC4512 AN15935A-VF IC 1 IC4513 PQ07VZ012ZP IC 1 IC4514 C0CBCBD00006 IC 1 IC4515 C0FBAF000040 IC 1 IC4516 C0CBCAD00006 IC 1 IC4517 C0CBCBD00006 IC 1 IC4518 C3ABPJ000048 IC 1 IC4519, 20 TC7SH32F IC 2 IC4521 C0CBCBD00006 IC 1 IC4522 C0CBCAD00006 IC 1 IC4530 C0CBCBD00004 IC 1 IC4810 PQ12SZ1T IC 1 IC8008 TC4W53FEL IC 1 IC8009 AHC2G66HDCTR INTEGRATED CIRCUIT 1 IC8030 MC14066BF MOS IC (LOGIC) 1 IC8031 CXA1315M LINEAR IC 1 IC8054 M52346SP LINEAR IC 1 IC8071 MC14052BF MOS IC (CMOS GATE ARRLY) 1 IC8076 TC74HC14AF IC 1 IC8200 M52055FP LINEAR IC 1 IC8201 C1AB00001720 IC 1 JS001 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS4024, 25 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS4392- 94 ERJ6GEY0R00 M 0 OHM, 1/10W 3 JS8093 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS8205 ERJ6GEY0R00 M 0 OHM, 1/10W 1 L3005 G1C100KA0008 INDUCTOR COIL 1 L3801 G1C100KA0008 INDUCTOR COIL 1 L4501 ERJ6GEY0R00 M 0 OHM, 1/10W 1 L4502 TALC168T1R5K CHIP INDUCTOR COIL 1 L4503,0 4 TALC168T5R6K CHIP INDUCTOR COIL 2 L4505 TALC168T3R3K CHIP INDUCTOR COIL 1 243 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks L4506,0 7 ERJ3GEY0R00 M 0 OHM, 1/16W 2 L4508 J0JGC0000021 CHIP INDUCTOR COIL 1 L4509 G1C100KA0008 INDUCTOR COIL 1 L4510 J0JGC0000021 CHIP INDUCTOR COIL 1 L4511- 14 J0JCC0000241 CHIP INDUCTOR 4 L4515 J0JGC0000021 CHIP INDUCTOR COIL 1 L4516,1 7 J0JCC0000241 CHIP INDUCTOR 2 L4520,2 1 TALC168T5R6K CHIP INDUCTOR COIL 2 L4522 TALC168T4R7K CHIP INDUCTOR COIL 1 L4524 J0JGC0000021 CHIP INDUCTOR COIL 1 L4525 G1C100KA0008 INDUCTOR COIL 1 L4526,2 7 J0JCC0000241 CHIP INDUCTOR 2 L4528,2 9 J0JGC0000021 CHIP INDUCTOR COIL 2 L4530,3 1 J0JCC0000241 CHIP INDUCTOR 2 L4532 J0JGC0000021 CHIP INDUCTOR COIL 1 L4556 J0JGC0000021 CHIP INDUCTOR COIL 1 L4558- 61 J0JHC0000035 CHIP INDUCTOR 4 L4812 G1C100KA0008 INDUCTOR COIL 1 L8002 G1C100KA0008 INDUCTOR COIL 1 L8004 G1C100KA0008 INDUCTOR COIL 1 L8200- 04 EXCCL3225U1 EMI FILTER 5 LC4304, 05 TLK212T256AL EMI FILTER 2 LC4308, 09 TLK212T256AL EMI FILTER 2 LC4311 TLK212T256AL EMI FILTER 1 LC4313- 15 TLK212T256AL EMI FILTER 3 LC4317, 18 TLK212T256AL EMI FILTER 2 LC4322 TLK212T256AL EMI FILTER 1 LC4324- 27 ERJ6GEY0R00 M 0 OHM, 1/10W 4 LC4329 ERJ6GEY0R00 M 0 OHM, 1/10W 1 LC4330 TLK212T256AL EMI FILTER 1 LC4333 ERJ6GEY0R00 M 0 OHM, 1/10W 1 LC4334 TLK212T256AL EMI FILTER 1 LC4335 ERJ6GEY0R00 M 0 OHM, 1/10W 1 LC4336- 40 TLK212T256AL EMI FILTER 5 LC4344, 45 TLK212T256AL EMI FILTER 2 LC4347- 51 TLK212T256AL EMI FILTER 5 LC4352 ERJ6GEY0R00 M 0 OHM, 1/10W 1 LC4353 TLK212T256AL EMI FILTER 1 LC4355 TLK212T256AL EMI FILTER 1 LC4357- 63 TLK212T256AL EMI FILTER 7 LC4365- 72 TLK212T256AL EMI FILTER 8 LC4380 TLK212T256AL EMI FILTER 1 LC4381 ERJ6GEY0R00 M 0 OHM, 1/10W 1 LC4383 ERJ6GEY0R00 M 0 OHM, 1/10W 1 LC4384, 85 TLK212T256AL EMI FILTER 2 LC4387, 88 TLK212T256AL EMI FILTER 2 LC4391 TLK212T256AL EMI FILTER 1 LC4393 TLK212T256AL EMI FILTER 1 LC4395 TLK212T256AL EMI FILTER 1 LC4400 TLK212T256AL EMI FILTER 1 LC4402- 07 TLK212T256AL EMI FILTER 6 LC4411 TLK212T256AL EMI FILTER 1 LC4413, 14 TLK212T256AL EMI FILTER 2 Ref. No. Part No. Part Name & Description Pcs Remarks LC4431 ELKE103FA NOISE FILTER 1 LC4433- 36 ELKE103FA NOISE FILTER 4 LC4523 ERJ3GEY0R00 M 0 OHM, 1/16W 1 LC8001 G1C100KA0008 INDUCTOR COIL 1 LC8003 G1C100KA0008 INDUCTOR COIL 1 LC8004- 06 J0HABB000004 LC FILTER 3 LC8200, 01 TLK212T256AL EMI FILTER 2 LC8206 TLK212T256AL EMI FILTER 1 Q001 2SD1819A0L TRANSISTOR 1 Q004,05 2SB1218A0L TRANSISTOR 2 Q006-09 2SD1819A0L TRANSISTOR 4 Q020 2SD1819A0L TRANSISTOR 1 Q023-27 2SD1819A0L TRANSISTOR 5 Q029,30 2SD1819A0L TRANSISTOR 2 Q2251,5 2 2SB1218A0L TRANSISTOR 2 Q2253 2SD1819A0L TRANSISTOR 1 Q2254,5 5 2SB1218A0L TRANSISTOR 2 Q2258 2SD1819A0L TRANSISTOR 1 Q3801 2SB1218A0L TRANSISTOR 1 Q3802,0 3 2SD1819A0L TRANSISTOR 2 Q3804 2SB1218A0L TRANSISTOR 1 Q4501- 03 2SD1819A0L TRANSISTOR 3 Q4504- 06 2SB1218ARL TRANSISTOR 3 Q4507 2SD1819A0L TRANSISTOR 1 Q4508 2SB1218ARL TRANSISTOR 1 Q4509 2SB1218A0L TRANSISTOR 1 Q4510 2SD1819A0L TRANSISTOR 1 Q4511- 13 2SD1030 TRANSISTOR 3 Q4521 2SB1218ARL TRANSISTOR 1 Q4522- 24 2SD1819A0L TRANSISTOR 3 Q4525- 27 2SB1218ARL TRANSISTOR 3 Q4528 2SD1819A0L TRANSISTOR 1 Q4529 2SB1218ARL TRANSISTOR 1 Q4530 2SD1030 TRANSISTOR 1 Q4531 2SB1218ARL TRANSISTOR 1 Q4532,3 3 2SD1030 TRANSISTOR 2 Q4534- 36 2SB1218ARL TRANSISTOR 3 Q4537- 39 XN6501 TRANSISTOR 3 Q4553- 55 2SB1218ARL TRANSISTOR 3 Q4556- 60 2SD1819A0L TRANSISTOR 5 Q8011 2SD1819A0L TRANSISTOR 1 Q8012 2SB1218A0L TRANSISTOR 1 Q8013 2SD1819A0L TRANSISTOR 1 Q8014 2SB1218A0L TRANSISTOR 1 Q8015 2SD1819A0L TRANSISTOR 1 R001 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R003 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R004 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R005 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R006 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R007 ERJ3GEYJ392 M 3.9KOHM,J,1/16W 1 R008,09 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R011 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R012,13 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R015 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R016 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R018 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R019,20 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 244 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R021,22 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R023 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R025 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R026 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R027 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R028 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R030 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R032 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R037 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R038 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R039 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R040 ERJ3EKF1000 M 100 OHM, 1/16W 1 R041 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R043 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R044 ERJ3EKF1000 M 100 OHM, 1/16W 1 R045 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R046 ERJ3EKF1000 M 100 OHM, 1/16W 1 R048 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R049 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R050 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R051 ERJ3EKF9100 M 910 OHM, 1/16W 1 R052 ERJ3GEYF5100 M 510 OHM, 1/16W 1 R054 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R055 ERJ3EKF6800 M 680 OHM, 1/16W 1 R057 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R058 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R059 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R060 ERJ3GEYJ122 M 1.2KOHM,J,1/16W 1 R062,63 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R065 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R066 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R067 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R068 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R069 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R070 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R071 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R072 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R073 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R074 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R075 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R077 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R080,81 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R082 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R083 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R084 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R085 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R087 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R088 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R089,90 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R092 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R093,94 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R095,96 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R097,98 ERJ3GEYJ241 M 240 OHM,J,1/16W 2 R099 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R100 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 R101 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R102 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 R103,04 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R107 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R120 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R121 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R122 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R123 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R130 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R132 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R137 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R139,40 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R141 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R142 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R143 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R148 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R149 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R152 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R158 ERJ3GEYJ122 M 1.2KOHM,J,1/16W 1 R159-62 ERJ3GEYJ560 M 56 OHM,J,1/16W 4 R163 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R164 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R165,66 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 2 R167 ERJ3GEYJ273 M 27KOHM,J,1/16W 1 R168 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R171 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R462 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2251,5 2 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R2254 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2257 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R2258 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2259 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R2260 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2261 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2265 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3026 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3028 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3032,3 3 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3034- 36 ERJ3GEYJ331 M 330 OHM,J,1/16W 3 R3039- 41 ERJ3GEYJ331 M 330 OHM,J,1/16W 3 R3042,4 3 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3045 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3047 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3082 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3140,4 1 ERJ3GEYJ473 M 47KOHM,J,1/16W 2 R3142 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3254 ERJ3GEYF472 M 4.7KOHM, 1/16W 1 R3257 ERJ3GEYF152 M 1.5KOHM, 1/16W 1 R3801 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R3802 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R3803 ERJ3GEYJ273 M 27KOHM,J,1/16W 1 R3804 ERJ3GEYJ224 M 220KOHM,J,1/16W 1 R3805 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R3806 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3809 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3810,1 1 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3812,1 3 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3814 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3815 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3816- 20 ERJ3GEYJ103 M 10KOHM,J,1/16W 5 R3821 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R3822 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3823 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R3824,2 5 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3826 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3827 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3828 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3829,3 0 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3831,3 2 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3834,3 5 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3836 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3837 ERJ3GEYJ105 M 1MOHM,J,1/16W 1 R4501- 03 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R4504 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4505 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R4506 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4507 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R4508 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4509 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R4510 ERJ3EKF2400 M 240 OHM, 1/16W 1 245 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R4511,1 2 ERJ3EKF2200 M 220 OHM, 1/16W 2 R4513,1 4 ERJ3EKF3300 M 330 OHM, 1/16W 2 R4515,1 6 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R4517,1 8 ERJ3EKF2401 M 2.4KOHM, 1/16W 2 R4519,2 0 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R4521 ERJ3EKF2200 M 220 OHM, 1/16W 1 R4522 ERJ3EKF7500 M 750 OHM, 1/16W 1 R4523 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R4524- 26 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R4527 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R4529 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R4530 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4531,3 2 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 R4534 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R4535 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R4536 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4537,3 8 ERJ6GEYJ471 M 470 OHM,J,1/10W 2 R4539 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4540 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4542 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R4543 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4544- 46 EXB38VR000 RESISTOR ARRAY 3 R4547 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R4548,4 9 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4550 ERJ6ENF1371 M1.37KOHM, 1/10W 1 R4551 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4552 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R4553 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R4554- 56 ERJ3EKF33R0 M 33 OHM, 1/16W 3 R4557,5 8 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R4559- 61 ERJ3EKF33R0 M 33 OHM, 1/16W 3 R4562- 64 ERJ3EKF1500 M 150 OHM, 1/16W 3 R4565,6 6 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4567,6 8 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R4571 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 R4573,7 4 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R4575- 77 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 D0GB101JA002 R4578,7 9 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4580 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R4581,8 2 ERJ3GEYJ181 M 180 OHM,J,1/16W 2 R4583 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R4584 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4585 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4586 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1 R4587 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R4588 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4589 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R4590 ERJ3EKF3301 M 3.3KOHM, 1/16W 1 R4591- 94 ERJ3EKF2701 M 2.7KOHM, 1/16W 4 R4595 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4596 ERJ3EKF1502 M 15KOHM, 1/16W 1 R4597 ERJ3EKF2000 M 200 OHM, 1/16W 1 R4598- 00 ERJ3EKF75R0 M 0.75HM, 1/16W 3 R4601 ERJ3EKF4700 M 470 OHM, 1/16W 1 R4602 ERJ3GEY0R00 M 0 OHM, 1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R4603 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R4604 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4605 ERJ3EKF4700 M 470 OHM, 1/16W 1 R4606 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R4607 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 R4609 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 R4610 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R4611 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R4612,1 3 ERJ3EKF1001 M 1KOHM, 1/16W 2 R4614,1 5 ERJ3EKF1401 M 1.4KOHM, 1/16W 2 R4616- 18 ERJ3GEYJ100 M 10 OHM,J,1/16W 3 R4620 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4622,2 3 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R4627,2 8 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R4632,3 3 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4636 ERJ3EKF1002 M 10KOHM, 1/16W 1 R4637 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4638- 40 ERJ3EKF1002 M 10KOHM, 1/16W 3 R4641 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R4642 ERJ3EKF3302 M 33KOHM, 1/16W 1 R4643,4 4 ERJ3EKF1002 M 10KOHM, 1/16W 2 R4645 ERJ3EKF3302 M 33KOHM, 1/16W 1 R4646 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R4647,4 8 ERJ3EKF3302 M 33KOHM, 1/16W 2 R4650,5 1 ERJ3EKF3302 M 33KOHM, 1/16W 2 R4652 ERJ3EKF1002 M 10KOHM, 1/16W 1 R4653- 55 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R4656 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4657 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R4658 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4659 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R4660 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4661 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R4662,6 3 ERJ3EKF2200 M 220 OHM, 1/16W 2 R4664 ERJ3EKF2400 M 240 OHM, 1/16W 1 R4667,6 8 ERJ3EKF3300 M 330 OHM, 1/16W 2 R4669 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4670 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R4672 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R4673 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4674,7 5 ERJ3EKF2401 M 2.4KOHM, 1/16W 2 R4677,7 8 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R4679 ERJ3EKF2200 M 220 OHM, 1/16W 1 R4680 ERJ3EKF7500 M 750 OHM, 1/16W 1 R4681 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R4682 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4683 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R4685 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R4686 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R4687 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4688 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R4689 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4690 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4692 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R4693 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R4694 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R4695,9 6 ERJ6ENF1501 M 1.5KOHM, 1/10W 2 R4697,9 8 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4699 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 246 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R4700 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R4701 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R4702 ERJ3EKF1001 M 1KOHM, 1/16W 1 R4703 ERJ3EKF33R0 M 33 OHM, 1/16W 1 R4704 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R4705 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 R4706- 10 ERJ3EKF33R0 M 33 OHM, 1/16W 5 R4711 ERJ3EKF4700 M 470 OHM, 1/16W 1 R4712- 14 ERJ3EKF1500 M 150 OHM, 1/16W 3 R4715 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R4716 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R4717- 20 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R4722,2 3 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R4724 ERJ3GEYJ181 M 180 OHM,J,1/16W 1 R4725 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R4726 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4727- 34 EXB38V820J RESISTOR ARRAY 8 R4735- 37 ERJ3EKF1200 M 120 OHM, 1/16W 3 R4738,3 9 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R4740- 42 ERJ3EKF8200 M 820 OHM, 1/16W 3 R4743- 45 ERJ3EKF4700 M 470 OHM, 1/16W 3 R4746- 51 ERJ3EKF1000 M 100 OHM, 1/16W 6 R4752- 54 ERJ3EKF4700 M 470 OHM, 1/16W 3 R4755,5 6 ERJ3EKF1000 M 100 OHM, 1/16W 2 R4757,5 8 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R4775 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R4776- 78 ERJ3GEYJ121 M 120 OHM,J,1/16W 3 R4779 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4780 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R4781 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4782 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R4783 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4784 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R4788- 90 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 3 R4815 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R4816 ERJ6ENF1371 M1.37KOHM, 1/10W 1 R4817 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4819 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4820- 23 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R4824,2 5 ERJ3GEYJ471 M 470 OHM,J,1/16W 2 R4826,2 7 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R4831- 33 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R4834 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R4905- 07 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R8001- 03 ERJ6ENF75R0 M 75 OHM, 1/10W 3 R8004- 06 ERJ6GEYJ220 M 22 OHM,J,1/10W 3 R8008 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8014,1 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R8020 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R8022 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8024 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8027,2 8 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R8030 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R8032 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R8034 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R8038 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R8040 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R8042 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R8044 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R8046 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8049 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8051 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8055- 58 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 4 R8059- 62 ERJ6GEYJ3R3 M 3.3KOHM,J,1/10W 4 R8065 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8066,6 7 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R8070,7 1 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R8073 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R8074 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8075 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R8077 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8078,7 9 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R8090 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R8094 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R8098,9 9 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R8101 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8102 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R8103 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R8104 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R8105 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8106 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R8108- 11 ERJ3GEYJ101 M 100 OHM,J,1/16W 4 R8112,1 3 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 R8114 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8115- 17 ERJ3GEYJ152 M 1.5KOHM,J,1/16W 3 R8210- 12 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 3 R8213- 15 ERJ6GEYJ221 M 220 OHM,J,1/10W 3 R8216,1 7 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R8218 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R8222 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8223 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R8224 ERJ6ENF8200 M 820 OHM, 1/10W 1 R8227 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8228- 30 ERJ8ENF75R0 M 75 OHM, 1/8W 3 R8231,3 2 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R8234 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R8236 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R8239,4 0 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R8250 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8251 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R8253- 55 ERJ6GEYJ105 M 1MOHM,J,1/10W 3 R8301- 03 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R8306- 08 ERJ3GEYJ102 M 1KOHM,J,1/16W 3 R8309 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R8311- 14 ERJ3GEYJ223 M 22KOHM,J,1/16W 4 R8320 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8371 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8405 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R8410 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8411 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R8505 ERJ3GEY0R00 M 0 OHM, 1/16W 1 247 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks T601,02 TSK1025 FERRITE CORE 2 T8201- 03 TSK1025 FERRITE CORE 3 X001 TSSA104 CRYSTAL 1 X3801 H0J921400003 CRYSTAL 1 X4501 H0J202500002 CRYSTAL 1 C3031 ECJ2XB1H152K C 1500PF, K, 50V 1 C3033 ECJ2XB1H152K C 1500PF, K, 50V 1 C3035 ECJ2XB1H152K C 1500PF, K, 50V 1 C3037 ECJ2XB1H152K C 1500PF, K, 50V 1 C3043 ECJ2XB1H152K C 1500PF, K, 50V 1 C3045 ECJ2XB1H152K C 1500PF, K, 50V 1 C3049 ECJ2XB1H152K C 1500PF, K, 50V 1 C3051 ECJ2XB1H152K C 1500PF, K, 50V 1 C3059 ECA1AM102B 1 C4201 EEEHP1C100R C 10PF, J, 16V 1 C4203 ECJ3YB1A106M C 10UF, M,6.3V 1 C4204 ECJ1VB1H103K C 0.01UF, K, 50V 1 C4205 ECJ1XB1C223K C 0.022UF, K, 16V 1 C4206 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4207 ECJ1XB1H102K C 1000UF, Z, 50V 1 C4208 ECJ1VB1H153K C 0.15UF, K, 50V 1 C4209 ECJ1XB1C223K C 0.022UF, K, 16V 1 C4210 ECJ1VB1C683K C 0.068UF, K, 16V 1 C4211 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4212 ECJ1VB1H332K C 3300PF, K, 50V 1 C4213 ECJ1VB1C333K C 0.033UF, K, 16V 1 C4214 EEEHB1E4R7R C 4.7PF, J, 25V 1 C4215 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4216 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4217 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4218,1 9 ECJ1VF1C105Z C 1UF, Z, 10V 2 C4224 ECJ3YB1A106M C 10UF, M,6.3V 1 C4225 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4226 ECJ1VB1H103K C 0.01UF, K, 50V 1 C4227 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4228 ECJ1VB1H332K C 3300PF, K, 50V 1 C4229 ECJ1VB1C333K C 0.033UF, K, 16V 1 C4230 EEEHB1E4R7R C 4.7PF, J, 25V 1 C4231,3 2 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4233- 35 ECJ1VF1C105Z C 1UF, Z, 10V 3 C4236 ECJ1VB1H153K C 0.15UF, K, 50V 1 C4237 ECJ1XB1C223K C 0.022UF, K, 16V 1 C4238 ECJ1VB1C683K C 0.068UF, K, 16V 1 C4239 EEEHB1C101P C 100PF, J, 16V 1 C4240 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4241,4 2 EEEHB1C101P C 100PF, J, 16V 2 C4243 ECJ1XB1H102K C 1000UF, Z, 50V 1 C4246 ECJ1VB1H103K C 0.01UF, K, 50V 1 C4247 ECJ1XB1C223K C 0.022UF, K, 16V 1 C4248 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4249 EEEHP1C100R C 10PF, J, 16V 1 C4301- 11 ECJ1VF1C105Z C 1UF, Z, 10V 11 C4312 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C4313 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4315 EEEHB1C470P C 47PF, J, 16V 1 C4316 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4317 EEEHB1C470P C 47PF, J, 16V 1 C4318- 29 ECJ1VF1C105Z C 1UF, Z, 10V 12 C4330,3 1 ECJ1XB1H102K C 1000UF, Z, 50V 2 C4332 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4333 EEEHB0J101P C 100PF, J, 6.3V 1 C4334 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4335- 40 ECJ1VF1C105Z C 1UF, Z, 10V 6 C4341 ECJ1XB1H102K C 1000UF, Z, 50V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C4342 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4343 ECJ1XB1H102K C 1000UF, Z, 50V 1 C4344,4 5 ECJ1VF1C105Z C 1UF, Z, 10V 2 C4347 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4349,5 0 ECJ1VF1C105Z C 1UF, Z, 10V 2 C4351 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4352,5 3 ECJ1VF1C105Z C 1UF, Z, 10V 2 C4354,5 5 ECJ1XB1H102K C 1000UF, Z, 50V 2 C4356,5 7 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4358 ECJ2XB1H682K C 6800PF, K, 50V 1 C4359 EEEHB1C101P C 100PF, J, 16V 1 C4360 EEEHB1C100R C 10PF, J, 16V 1 C4361 ECJ1XB1H102K C 1000UF, Z, 50V 1 C4362 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4363 ECJ1XB1H102K C 1000UF, Z, 50V 1 C4364,6 5 ECJ1VF1C105Z C 1UF, Z, 10V 2 C4367,6 8 ECJ1VF1C105Z C 1UF, Z, 10V 2 C4369 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C4370 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4374- 77 ECJ1VF1C105Z C 1UF, Z, 10V 4 C4401 ECJ3YB1A106M C 10UF, M,6.3V 1 C4403 ECJ3YB1A106M C 10UF, M,6.3V 1 C4860 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4861 EEEHB1C470P C 47PF, J, 16V 1 D3001- 16 MA8110M ZENER DIODE 16 D3018- 26 MA8110M ZENER DIODE 9 D3030- 48 MA8110M ZENER DIODE 19 D4102- 05 MA8110M ZENER DIODE 4 IC4201 C1BB00000510 IC 1 IC4202 TC74HC4066AF MOS IC (CMOS S/LOGIC) 1 IC4203 C1BB00000772 IC 1 IC4301 CXA2079Q LINEAR IC 1 IC4302 AN15852A IC 1 JK3001 K1U824A00002 CONNECTOR 1 JK3002 K2HA306A0024 JACK 1 JK3003, 04 K2HA510A0002 JACK 2 JK4001 K2HA204A0041 JACK 1 L4201 G1C100KA0008 INDUCTOR COIL 1 L4301,0 2 G1C100KA0008 INDUCTOR COIL 2 LC4426- 28 TLK212T256AL EMI FILTER 3 Q4201- 08 2SD1819A0L TRANSISTOR 8 Q4303 2SB1218A0L TRANSISTOR 1 Q4514- 16 2SD1819A0L TRANSISTOR 3 Q4517- 19 2SB1218A0L TRANSISTOR 3 Q4600,0 1 2SD1819A0L TRANSISTOR 2 R3001,0 2 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3003,0 4 ERJ6ENF75R0 M 75 OHM, 1/10W 2 R3005 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 248 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R3006 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3007 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 R3008- 13 ERJ6ENF75R0 M 75 OHM, 1/10W 6 R3014 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R3015,1 6 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3017- 19 ERJ6ENF75R0 M 75 OHM, 1/10W 3 R3020 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3021,2 2 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R4119,2 0 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R4201 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R4202 ERJ3GEYJ913 M 91KOHM,J,1/16W 1 R4203 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R4204 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R4206 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R4207 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R4208 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R4209 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R4210,1 1 ERJ3GEYJ913 M 91KOHM,J,1/16W 2 R4214 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4216 ERJ3GEYJ184 M 180KOHM,J,1/16W 1 R4217,1 8 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R4219 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R4222 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4223 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R4225 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R4229 ERJ3GEYJ184 M 180KOHM,J,1/16W 1 R4230 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R4233 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4234 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R4235,3 6 ERJ3GEYJ913 M 91KOHM,J,1/16W 2 R4237 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4238 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R4239 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R4240 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R4241 ERJ3GEYJ913 M 91KOHM,J,1/16W 1 R4242 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R4243 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R4244 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R4245 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R4246 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R4247,4 8 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R4249,5 0 ERJ3GEYJ681 M 680 OHM,J,1/16W 2 R4251,5 2 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R4259,6 0 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R4305- 15 ERJ3GEYJ221 M 220 OHM,J,1/16W 11 R4316 ERJ3GEYJ820 M 82 OHM,J,1/16W 1 R4317 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R4318 ERJ3GEYJ820 M 82 OHM,J,1/16W 1 R4319,2 0 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R4322- 27 ERJ3GEYJ221 M 220 OHM,J,1/16W 6 R4328,2 9 ERJ6ENF75R0 M 75 OHM, 1/10W 2 R4330- 32 ERJ3GEYJ820 M 82 OHM,J,1/16W 3 R4336 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R4340,4 1 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R4342,4 3 ERJ3EKF1501 M 1.5KOHM, 1/16W 2 R4344- 46 ERJ3GEYJ102 M 1KOHM,J,1/16W 3 Ref. No. Part No. Part Name & Description Pcs Remarks R4349,5 0 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R4351 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4353 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4354 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R4355 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 R4356 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R4357 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 R4358- 62 ERJ3GEYJ102 M 1KOHM,J,1/16W 5 R4364 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R4365 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4367 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R4368 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4369 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R4370 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4371,7 2 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R4373- 75 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R4376- 78 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R4380 ERJ6ENF68R0 M 68 OHM, 1/10W 1 R4381- 84 ERJ6GEYJ471 M 470 OHM,J,1/10W 4 R4385- 89 ERJ3GEYJ102 M 1KOHM,J,1/16W 5 R4400 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R4403- 06 ERJ3EKF1501 M 1.5KOHM, 1/16W 4 R4836- 38 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R4839- 41 ERJ3GEYJ561 M 560 OHM,J,1/16W 3 R4842- 44 ERJ3EKF68R0 M 68 OHM,J,1/16W 3 R4845- 47 ERJ3EKF2000 M 200 OHM, 1/16W 3 R4848- 50 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R4851- 53 ERJ3GEYJ561 M 560 OHM,J,1/16W 3 R4900 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4901 ERJ3GEYJ184 M 180KOHM,J,1/16W 1 R4902 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1 R4903 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4904 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4906 ERJ3GEYJ184 M 180KOHM,J,1/16W 1 R4907 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4909 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1 T3001,0 2 TSKX027 CHOKE COIL 2 T3003,0 4 TSKX026 CHOKE COIL 2 T3005 G0B600G00001 CHOKE COIL 1 C251 ECA1CM101 E 100UF, 16V 1 C252 ECA1HMR22 E 0.22UF, 50V 1 C253 ECA1VM470 E 47UF, 35V 1 C254 ECA1HM2R2 E 2.2UF, 50V 1 C255 ECA1HM4R7 E 4.7UF, 50V 1 C257 EEUFC1A471 E 470UF, 10V 1 C258 ECJ1XC1H101J C 100PF, J, 50V 1 C259,60 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C261 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C262 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 JS251,5 2 ERJ6GEY0R00 M 0 OHM, 1/10W 2 LC251,5 2 ELKE103FA NOISE FILTER 2 R251,52 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 249 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks TNR251 ENG36620G TUNER 1 250 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks F902 K5D312BK0012 FUSE 1 F900,90 1 K5Y802B00001 FUSE 2 C11 K1MN80B00002 CONNECTOR 1 C12 K1MN20B00043 20P CONNECTOR 1 C21 K1MN80B00002 CONNECTOR 1 C22 K1MN20B00043 20P CONNECTOR 1 C31 K1MN80B00002 CONNECTOR 1 C32 K1KA12A00227 12P CONNECTOR 1 C33 K1MN20B00043 20P CONNECTOR 1 C41 K1MN80B00002 CONNECTOR 1 C42 K1KA04A00199 4P CONNECTOR 1 C43 K1MN20B00043 20P CONNECTOR 1 C44 K1KA08A00232 8P CONNECTOR 1 C300 EEVHB1C470P E 47UF, 16V 1 C301 ECJ3XB0J106M C 10UF, M,6.3V 1 C304 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C309 ECJ1VB1H103K C 0.01UF, K, 50V 1 C401 F0CAF105A021 C 1UF, 250V 1 C402 ECJ2XC1H101J C 100PF, J, 50V 1 C403 ECKCNA222MEB C 2200PF, M 1 C404 F0CAF105A021 C 1UF, 250V 1 C407 EEUEB2W220B E 22UF, 450V 1 C408 F2A1H470A123 E 47UF, 50V 1 C409 F0CAF105A021 C 1UF, 250V 1 C410 F2A1H470A123 E 47UF, 50V 1 C411 F2A1H100A123 E 10UF, 50V 1 C412 ECJ2XB1H103K C 0.01UF, K, 50V 1 C413 ECJ2XB1H104K C 0.1UF, K, 50V 1 C416 F1J1V474A001 C 0.47UF, 35V 1 C417 F2A1H100A123 E 10UF, 50V 1 C419 ECJ2XB1H104K C 0.1UF, K, 50V 1 C421,22 ECJ2XB1H103K C 0.01UF, K, 50V 2 C423 ECJ2XB1H472K C 4700PF, K, 50V 1 C424,25 ECJ3YB1E105K C 1UF, K, 25V 2 C426 ECJ2XC1H471J C 470PF, J, 50V 1 C427 F1J1A1050002 C 1UF, Z, 50V 1 C428 ECJ2XC1H221J C 220PF, J, 50V 1 C429,30 F1K2J1530002 C 0.15PF, J,630V 2 C431 ECJ2XB1H102K C 1000PF, K, 50V 1 C432 F1J1C1050011 C 1UF, Z, 50V 1 C436 F1J1C1050011 C 1UF, Z, 50V 1 C440 F2A1H100A123 E 10UF, 50V 1 C443,44 F1A3A102A040 C 1000PF, J, 1KV 2 C445 F1J1C1050011 C 1UF, Z, 50V 1 C446 F2B2W3310006 C 330UF, 450V 1 C448 F2B2W3310006 C 330UF, 450V 1 C449,50 F1A3A102A040 C 1000PF, J, 1KV 2 C451 F1A3A101A040 C 100PF, J, 1KV 1 C455 F1A3A221A040 E 220UF, 1KV 1 C457 ECWH8203RHV P 0.020PF, J, 8KV 1 C458 ECWH8683RHV P 0.068PF, J, 8KV 1 C459 F1K2J1530002 C 0.15PF, J,630V 1 C460,61 F1A3A331A039 E 330UF, 1KV 2 C462 ECJ3YB1E105K C 1UF, K, 25V 1 C463 ECJ2XC1H220J C 22UF, J, 50V 1 C464 ECJ2XB1H104K C 0.1UF, K, 50V 1 C465 ECKDNA471KB7 C 470PF, Z, 1 C501,02 ECJ2XB1H103K C 0.01UF, K, 50V 2 C503,04 ECJ2XB1H104K C 0.1UF, K, 50V 2 C506-08 ECJ2XB1H103K C 0.01UF, K, 50V 3 C509 F2A1E101A097 E 100UF 25V 1 C511 F1J1C1050011 C 1UF, Z, 50V 1 C513,14 ECJ2XC1H471J C 470PF, J, 50V 2 C515 EEUFC1A102 E 1000UF, 10V 1 C516 F1J1A1050002 C 1UF, Z, 50V 1 C517 EEUFC1A221 E 220UF, 10V 1 C518 F2A1E470A097 E 47UF, 25V 1 C521 F2A1H100A123 E 10UF, 50V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C522 ECJ2XB1H103K C 0.01UF, K, 50V 1 C523 F2A1E101A097 E 100UF 25V 1 C524 EEUEB1H220SB E 22UF, 50V 1 C525 ECJ2XB1H103K C 0.01UF, K, 50V 1 C526 ECJ2XB1H104K C 0.1UF, K, 50V 1 C527 ECJ2XB1H102K C 1000PF, K, 50V 1 C528 ECJ2XB1H104K C 0.1UF, K, 50V 1 C529 F2A1E101A097 E 100UF 25V 1 C530 ECJ2VB1H333K C 0.033UF, K, 50V 1 C531,32 ECJ2XB1H104K C 0.1UF, K, 50V 2 C534 ECJ2XC1H681J C 680PF, J, 50V 1 C535 ECJ2XB1H103K C 0.01UF, K, 50V 1 C536 ECJ2XB1H104K C 0.1UF, K, 50V 1 C537 ECJ2XB1H102K C 1000PF, K, 50V 1 C538 ECJ2XB1H103K C 0.01UF, K, 50V 1 C539 ECJ2VB1H333K C 0.033UF, K, 50V 1 C540 ECJ2XC1H152J C 1500PF, J, 50V 1 C541 F1J1C1050011 C 1UF, Z, 50V 1 C544 F1J1C1050011 C 1UF, Z, 50V 1 C546 F2A1E101A097 E 100UF 25V 1 C547 ECJ2VB1H333K C 0.033UF, K, 50V 1 C549 F1J2E1030004 C 0.1PF, J,250V 1 C550 F2A1E681A099 E 680UF, 25V 1 C552 F1J1C1050011 C 1UF, Z, 50V 1 C553,54 ECJ2XB1H104K C 0.1UF, K, 50V 2 C555 ECA2AHG102 E 1000UF, 100V 1 C556 F2A1C152A126 E 1500UF, 16V 1 C557 F2A1E681A099 E 680UF, 25V 1 C558 F2B2D1720001 E 1700UF,@ 200V 1 C559 ECJ2XB1H104K C 0.1UF, K, 50V 1 C560 ECA2AHG102 E 1000UF, 100V 1 C561 ECJ2XB1H103K C 0.01UF, K, 50V 1 C562 F2B2D1720001 E 1700UF,@ 200V 1 C565 F2A1E4710065 E 470UF, 25V 1 C573 F1J1C1050011 C 1UF, Z, 50V 1 C574 EEUFC0J122 E 1200UF, 6.3V 1 C576 F2A1E470A097 E 47UF, 25V 1 C577 F2A2A101A023 E 100UF, 100V 1 C578 F2A1E470A097 E 47UF, 25V 1 C579 ECJ2XB1H223K C 0.022UF, K, 50V 1 C580 ECJ2XB1H103K C 0.01UF, K, 50V 1 C581 ECJ2XB1H223K C 0.022UF, K, 50V 1 C583 ECJ2XB1H103K C 0.01UF, K, 50V 1 C585,86 ECJ2XB1H104K C 0.1UF, K, 50V 2 C587 ECJ2XB1H103K C 0.01UF, K, 50V 1 C598 F2A1E470A097 E 47UF, 25V 1 C599 ECJ2XB1H104K C 0.1UF, K, 50V 1 C600,01 ECJ2XB1H103K C 0.01UF, K, 50V 2 C602 ECJ2XB1H102K C 1000PF, K, 50V 1 C603,04 ECJ2XB1H104K C 0.1UF, K, 50V 2 C605 ECJ2XB1H103K C 0.01UF, K, 50V 1 C606 ECJ2XB1H102K C 1000PF, K, 50V 1 C607 F1J1C1050011 C 1UF, Z, 50V 1 C608,09 ECJ2XB1H103K C 0.01UF, K, 50V 2 C901 ECQU2A105BN9 P 1UF, 250V 1 C902 ECQU2A224BN9 P 0.22UF, 250V 1 C903 ECQU2A105BN9 P 1UF, 250V 1 C910,11 ECKDNB221MB C 220PF, Z, 2 C914 ECKDNA471KB7 C 470PF, Z, 1 C915 ECQU2A224BN9 P 0.22UF, 250V 1 C916,17 ECKDNB102KB C 1000PF, Z, 2 C920 EETHC2D561H E 560UF, 200V 1 C921 ECKD3D152KBP C 1500PF, K, 2KV 1 C922 ECJ2VF1H104Z C 0.1UF, Z, 50V 1 C923 ECQF4103JZ P 0.01UF, J,400V 1 C924 ECJ2XC1H102J C 1000PF, J, 50V 1 C925 ECJ2XC1H222J C 2200PF, J, 50V 1 C926 ECJ2XC1H101J C 100PF, J, 50V 1 C928 EEUFC1E221 E 220UF, 25V 1 C970 ECKD3A331KBP C 330PF, K, 1KV 1 C971 EEUFC1C562 E 5600UF, 16V 1 19.3. Electrical Replacement Part List (TH-42PX25U/P) 251 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks C972 ECKD3A331KBP C 330PF, K, 1KV 1 C973 EEUFC1V681 E 680UF, 35V 1 C974 ECJ2XC1H222J C 2200PF, J, 50V 1 C975 ECJ2XB1H473K C 0.047UF, K, 50V 1 C990 ECA1HHG100 E 10UF, 50V 1 C2301- 04 ECJ2XB1H682K C 6800PF, K, 50V 4 C2305,0 6 ECA1VHG470 E 47UF, 35V 2 C2307,0 8 ECA1HHG220 E 22UF, 50V 2 C2309,1 0 ECA1HEN2R2 E 2.2UF, 50V 2 C2311,1 2 ECJ2XB1H682K C 6800PF, K, 50V 2 C2313,1 4 ECA1HHG2R2 E 2.2UF, 50V 2 C2315,1 6 ECQV1H473JM P 0.047UF, J, 50V 2 C2317,1 8 ECA1VHG221 E 220UF, 35V 2 C2321,2 2 ECQV1H225JM P 2.2UF, J, 50V 2 C2323,2 4 ECJ2XC1H102J C 1000PF, J, 50V 2 C2325,2 6 ECA1EHG471 E 470UF, 25V 2 C2327- 30 ECQV1H104JM P 0.1UF, J, 50V 4 C2331,3 2 ECJ2XB1E104K C 0.1UF, K, 25V 2 C2333,3 4 ECA1EHG471 E 470UF, 25V 2 C2337,3 8 ECA1CHG221 E 220UF, 16V 2 C2339 ECA1HHG100 E 10UF, 50V 1 C2342 ECA1HHG100 E 10UF, 50V 1 C2344 ECA1CHG221 E 220UF, 16V 1 C2345,4 6 ECA1VHG470 E 47UF, 35V 2 C2347,4 8 ECA1HHG220 E 22UF, 50V 2 C2349 ECA1HEN2R2 E 2.2UF, 50V 1 C2352 ECA1CHG101 E 100UF, 16V 1 C2355 ECA1HEN2R2 E 2.2UF, 50V 1 C2381 ECA1HHG100 E 10UF, 50V 1 C2382 ECA1CHG101 E 100UF, 16V 1 C2383,8 4 ECJ2XB1H682K C 6800PF, K, 50V 2 C2385,8 6 ECA1HHG2R2 E 2.2UF, 50V 2 C2387,8 8 ECA1VHG221 E 220UF, 35V 2 C2389,9 0 ECA1EHG471 E 470UF, 25V 2 C2391,9 2 ECQV1H225JM P 2.2UF, J, 50V 2 C2393,9 4 ECA1EHG471 E 470UF, 25V 2 C2395,9 6 ECJ2XC1H102J C 1000PF, J, 50V 2 C2397- 00 ECQV1H104JM P 0.1UF, J, 50V 4 C2401,0 2 ECJ1VB1H182K C 1800PF, K, 50V 2 C2403,0 4 ECA1HEN4R7 E 4.7UF, 50V 2 C2407 ECJ1VB1H562K C 5600PF, K, 50V 1 C2408 ECA1CHG470 E 47UF, 16V 1 C2412 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C2413 ECA1HHG470 E 47UF, 50V 1 C2414 EEEHB1C470P C 47PF, J, 16V 1 C2415 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C2416 ECJ1XC1H561J C 560PF, J, 50V 1 C2417 ECJ1VB1E333K C 0.33UF, K, 25V 1 C2418 ECJ1XC1H561J C 560PF, J, 50V 1 C2419 ECJ1VB1E333K C 0.33UF, K, 25V 1 C2420 ECJ1XC1H561J C 560PF, J, 50V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C2421 ECJ1VB1E333K C 0.33UF, K, 25V 1 C2422 ECJ1XC1H561J C 560PF, J, 50V 1 C2423 ECJ1VB1E333K C 0.33UF, K, 25V 1 C2424- 27 ECJ1VB1H182K C 1800PF, K, 50V 4 C2428 ECA1CHG101 E 100UF, 16V 1 C2429 ECJ1VB1H103K C 0.01UF, K, 50V 1 C2430 ECA1CHG101 E 100UF, 16V 1 C2431 ECJ1VB1H103K C 0.01UF, K, 50V 1 C2432 ECJ1VB1C273K C 0.027UF, K, 16V 1 C2433 ECJ1VB1C473K C 0.047UF, K, 16V 1 C2436 ECJ1VB1C273K C 0.027UF, K, 16V 1 C2437 ECJ1VB1C473K C 0.047UF, K, 16V 1 C2440 ECJ1VB1H103K C 0.01UF, K, 50V 1 C2441,4 2 ECJ1VB1H123K C 0.12UF, K, 50V 2 C2443 ECA1CHG101 E 100UF, 16V 1 C2444,4 5 ECJ1VB1H123K C 0.12UF, K, 50V 2 C3712 ECJ2XB1H682K C 6800PF, K, 50V 1 C5001 EEEHB1C100R C 10PF, J, 16V 1 C5002- 04 ECJ2XB1H682K C 6800PF, K, 50V 3 C5005 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5006 EEEHB1C100R C 10PF, J, 16V 1 C5007 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5012,1 3 EEFCD0J470R 47UF 2 C5014 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5015 ECJ1XC1H102J C 1000PF, J, 50V 1 C5016 ECJ1VB1H103K C 0.01UF, K, 50V 1 C5017,1 8 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C5019 ECJ1XC1H102J C 1000PF, J, 50V 1 C5020 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5021 ECJ1VB1H103K C 0.01UF, K, 50V 1 C5022 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5023 EEFCD0J470R 47UF 1 C5024 ECJ2XB1H682K C 6800PF, K, 50V 1 C5025 ECJ1XC1H102J C 1000PF, J, 50V 1 C5026,2 7 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C5028,2 9 ECJ1VB1H103K C 0.01UF, K, 50V 2 C5030 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5031 EEFCD0J470R 47UF 1 C5032 ECJ1VB1H103K C 0.01UF, K, 50V 1 C5033,3 4 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C5035 ECJ1VB1H103K C 0.01UF, K, 50V 1 C5036 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5037 EEFCD0J470R 47UF 1 C5038 ECJ1VB1H103K C 0.01UF, K, 50V 1 C5039,4 0 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C5041 ECJ1XC1H102J C 1000PF, J, 50V 1 C5042 EEFCD0J470R 47UF 1 C5044 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5045 EEFCD0J470R 47UF 1 C5046 ECJ1VB1C473K C 0.047UF, K, 16V 1 C5047,4 8 ECJ1XC1H102J C 1000PF, J, 50V 2 C5049 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5050 ECJ2YB0J335K C 3.3UF, Z,6.3V 1 C5051 ECJ1VB1H103K C 0.01UF, K, 50V 1 C5054 EEFCD0J470R 47UF 1 C5056 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5057 ECJ1XC1H101J C 100PF, J, 50V 1 C5063 ECJ1VB1H103K C 0.01UF, K, 50V 1 C5074 ECJ2XB1H682K C 6800PF, K, 50V 1 C5075 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5076 EEFCD0J470R 47UF 1 C5077,7 8 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C5081,8 2 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 252 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks C5083 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5084 EEEHB1C100R C 10PF, J, 16V 1 C5085- 88 ECJ3XF1C475Z C 4.7UF, Z, 16V 4 C5089,9 0 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C5091,9 2 EEEHB1C470P C 47PF, J, 16V 2 C5093 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C5094 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C5095 EEEHB1C220R C 22PF, J, 16V 1 C5096 ECJ1XC1H181J C 180PF, J, 50V 1 C5097,9 8 ECJ2VF1H103Z C 0.01UF, Z, 50V 2 C5099 ECJ1XC1H181J C 180PF, J, 50V 1 C5100,0 1 ECJ1XC1H330J C 33PF, J, 50V 2 C5102 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C5103 EEEHB1C470P C 47PF, J, 16V 1 C5104,0 5 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 C5106,0 7 EEEHP1C100R C 10PF, J, 16V 2 C5108,0 9 ECJ1VB1H272K C 2700PF, K, 50V 2 C5110 EEEHB1A330R C 33PF, J, 10V 1 C5111 EEEHB0J470R C 47PF, J, 6.3V 1 C5112,1 3 ECJ2XB1H682K C 6800PF, K, 50V 2 C5114,1 5 ECJ2VB1C104K C 0.1UF, K, 16V 2 C5116 EEEHB1C470P C 47PF, J, 16V 1 C5117 EEEHB1A330R C 33PF, J, 10V 1 C5118 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C5119 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5120 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C5121 ECJ2XB1H682K C 6800PF, K, 50V 1 C5122 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5123 ECJ2XB1H682K C 6800PF, K, 50V 1 C5124,2 5 EEEHB1C470P C 47PF, J, 16V 2 C5126 EEEHB1A330R C 33PF, J, 10V 1 C5127 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C5128 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5129 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C5130,3 1 ECJ2YB0J335K C 3.3UF, Z,6.3V 2 C5132,3 3 ECJ2XB1H682K C 6800PF, K, 50V 2 C5134 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5135 ECJ2XB1H682K C 6800PF, K, 50V 1 C6002,0 3 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C6005,0 6 ECJ3XB0J106M C 10UF, M,6.3V 2 C6007- 10 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C6013 EEEHB1A101P C 100PF, J, 10V 1 C6014 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6016 ECJ2XB1H682K C 6800PF, K, 50V 1 C6017 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6018 EEFCD0J470R 47UF 1 C6019,2 0 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C6021- 24 ECJ1VF1H103Z C 0.01UF, Z, 50V 4 C6026,2 7 ECJ1VF1H103Z C 0.01UF, Z, 50V 2 C6028 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6030,3 1 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C6032 ECJ3XB0J106M C 10UF, M,6.3V 1 C6034,3 5 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C6039 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6040 EEEHB0J221UP C 220PF, J, 6.3V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C6041,4 2 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C6043 EEEHB0G101R C 100PF, J, 4V 1 C6044 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C6046- 55 ECJ1XF1C104Z C 0.1UF, Z, 16V 10 C6056 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C6057 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C6058- 70 ECJ1XF1C104Z C 0.1UF, Z, 16V 13 C6071 ECJ1VF1C105Z C 1UF, Z, 10V 1 C6072 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6073 ECJ3YB1A106M C 10UF, M,6.3V 1 C6074 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6075 ECJ1XC1H470J C 47PF, J, 50V 1 C6077 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6078 ECJ1VF1C105Z C 1UF, Z, 10V 1 C6080,8 1 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C6082 EEEHB0G101R C 100PF, J, 4V 1 C6083,8 4 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C6086 ECJ1VB1C103K C 0.01UF, K, 16V 1 C6087 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6088 ECJ1XC1H470J C 47PF, J, 50V 1 C6089 EEEHB1C100R C 10PF, J, 16V 1 C6090 ECJ1VC1H270J C 27PF, J, 50V 1 C6091 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6092 ECJ1XC1H151J C 150PF, J, 50V 1 C6093- 96 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C6097 EEEHB0G101R C 100PF, J, 4V 1 C6100 ECJ1VF1C105Z C 1UF, Z, 10V 1 C6101 EEEHB0G101R C 100PF, J, 4V 1 C6102 ECJ1VB1C103K C 0.01UF, K, 16V 1 C6103 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6104 EEEHB0G221P C 220PF, J, 4V 1 C6105 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C6106,0 7 EEEHB0J221UP C 220PF, J, 6.3V 2 C6110 EEEHB1A101P C 100PF, J, 10V 1 C6111,1 2 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C6401- 06 TCUY1C105ZFN C 1UF, 16V 6 C6407 ECJ2XB1H222K C 2200PF, K, 50V 1 C6408 ECJ2XB1H102K C 1000PF, K, 50V 1 C6417- 20 F1L2E1040002 E 1000UF, 25V 4 C6421- 26 TCUY1C105ZFN C 1UF, 16V 6 C6427 ECJ2XB1H222K C 2200PF, K, 50V 1 C6428 ECJ2XB1H102K C 1000PF, K, 50V 1 C6432 ECJ2XB1H472K C 4700PF, K, 50V 1 C6433 TCUY1C105ZFN C 1UF, 16V 1 C6434 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6435 EEUFC1E221 E 220UF, 25V 1 C6436 ECA1HM221 E 220UF, 50V 1 C6437 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6437- 40 F1L2E1040002 E 1000UF, 25V 4 C6452 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6453 TCUY1C105ZFN C 1UF, 16V 1 C6454 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6455 EEUFC1E221 E 220UF, 25V 1 C6456 ECA2CM101 E 100UF, 160V 1 C6458 F1L1E4750004 C 4.7UF, 25V 1 C6459 EEUFC1E470 E 47UF, 25V 1 C6461 ECA1HM101 E 100UF, 50V 1 C6462,6 3 F1L1E4750004 C 4.7UF, 25V 2 C6465 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6466,6 7 F1L1E4750004 C 4.7UF, 25V 2 C6472 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6473 TCUY1C105ZFN C 1UF, 16V 1 253 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks C6474 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6475 EEUFC1E221 E 220UF, 25V 1 C6476 ECA2CM101 E 100UF, 160V 1 C6490 F1K2J222A014 C 2200UF, K,6.3V 1 C6492 EEUED2V100 E 10UF, 1 C6493 ECJ3XB2J222K C 2200PF, K,630V 1 C6501- 08 TCUY1C105ZFN C 1UF, 16V 8 C6509 ECJ2XC1H102J C 1000PF, J, 50V 1 C6510- 12 F1L1E4750004 C 4.7UF, 25V 3 C6513 ECA2CM101 E 100UF, 160V 1 C6514 TCUY1C105ZFN C 1UF, 16V 1 C6515,1 6 F1L1E4750004 C 4.7UF, 25V 2 C6517 TCUY1C105ZFN C 1UF, 16V 1 C6521 F1L1E4750004 C 4.7UF, 25V 1 C6522 ECA1VM470 E 47UF, 35V 1 C6524,2 5 ECJ3FC2D102J C 1000PF, J,200V 2 C6526 ECA2EHG470 E 47UF, 250V 1 C6541,4 2 F1L1E4750004 C 4.7UF, 25V 2 C6543- 45 ECJ3FC2D102J C 1000PF, J,200V 3 C6546 F1L1E4750004 C 4.7UF, 25V 1 C6550 ECA2CM101 E 100UF, 160V 1 C6571 TCUY1C105ZFN C 1UF, 16V 1 C6575- 78 TCUY1C105ZFN C 1UF, 16V 4 C6580,8 1 TCUY1C105ZFN C 1UF, 16V 2 C6584 ECJ3YB1E105K C 1UF, K, 25V 1 C6585 TCUY1C105ZFN C 1UF, 16V 1 C6598 ECA2CM101 E 100UF, 160V 1 C6600 TCUY1C105ZFN C 1UF, 16V 1 C6601- 06 F2A2D221A022 E 220UF, 200V 6 C6607 ECWF2205JS P 2UF, 250V 1 C6609 ECJ3YB1E105K C 1UF, K, 25V 1 C6610 EEUFC1E221 E 220UF, 25V 1 C6611- 14 F1K2J222A014 C 2200UF, K,6.3V 4 C6619 F1K2J222A014 C 2200UF, K,6.3V 1 C6621,2 2 F1L1E4750004 C 4.7UF, 25V 2 C6623 TCUY1C105ZFN C 1UF, 16V 1 C6625 F1K2J222A014 C 2200UF, K,6.3V 1 C6628 F1K2J222A014 C 2200UF, K,6.3V 1 C6631 F1K2J222A014 C 2200UF, K,6.3V 1 C6638 F1L1E4750004 C 4.7UF, 25V 1 C6639 F1L2E1040002 E 1000UF, 25V 1 C6640 TCUY1C105ZFN C 1UF, 16V 1 C6641,4 2 F1L1E4750004 C 4.7UF, 25V 2 C6643 F1L2E1040002 E 1000UF, 25V 1 C6650,5 1 F1L1E4750004 C 4.7UF, 25V 2 C6652 TCUY1C105ZFN C 1UF, 16V 1 C6679,8 0 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C6681,8 2 TCUY1C105ZFN C 1UF, 16V 2 C6683,8 4 EEUFC1E470 E 47UF, 25V 2 C6701 ECWF2205JS P 2UF, 250V 1 C6702 ECWF2205JS P 2UF, 250V 1 C6702 ECWF2205JS P 2UF, 250V 1 C6704 ECWF2205JS P 2UF, 250V 1 C6705 ECWF2205JS P 2UF, 250V 1 C6705 ECWF2205JS P 2UF, 250V 1 C6708,0 9 F1L2E1040002 E 1000UF, 25V 2 C6711- 14 F2A2D221A022 E 220UF, 200V 4 C6715 ECWF2205JS P 2UF, 250V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C6717 ECJ3YB1E105K C 1UF, K, 25V 1 C6718 EEUFC1E221 E 220UF, 25V 1 C6720 EEUFC1E221 E 220UF, 25V 1 C6721 ECA1EM101 E 100UF, 25V 1 C6722,2 3 ECA2CM101 E 100UF, 160V 2 C6724 F2A2D221A022 E 220UF, 200V 1 C6726 EEUFC1E561 E 560UF, 25V 1 C6727 F1K2J222A014 C 2200UF, K,6.3V 1 C6729 F1K2J222A014 C 2200UF, K,6.3V 1 C6731 F1K2J222A014 C 2200UF, K,6.3V 1 C6733 F1K2J222A014 C 2200UF, K,6.3V 1 C6743,4 4 F2A2D221A022 E 220UF, 200V 2 C6747,4 8 F1L1E4750004 C 4.7UF, 25V 2 C6749 TCUY1C105ZFN C 1UF, 16V 1 C6750,5 1 F1L1E4750004 C 4.7UF, 25V 2 C6752 TCUY1C105ZFN C 1UF, 16V 1 C6753 ECJ3YB1E105K C 1UF, K, 25V 1 C6755 TCUY1C105ZFN C 1UF, 16V 1 C6756,5 7 F1L1E4750004 C 4.7UF, 25V 2 C6758- 61 ECJ3YB1E105K C 1UF, K, 25V 4 C6762- 64 TCUY1C105ZFN C 1UF, 16V 3 C6771 TCUY1C105ZFN C 1UF, 16V 1 C6784 ECJ3XB2J222K C 2200PF, K,630V 1 C6804- 07 F1K2J222A014 C 2200UF, K,6.3V 4 C7101 TCUY1C105ZFN C 1UF, 16V 1 C7102 ECJ3XB0J106M C 10UF, M,6.3V 1 C7103- 06 TCUY1C105ZFN C 1UF, 16V 4 C7107 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7111- 18 ECJ3XB2A104K C 0.10UF, Z, 6.3V 8 C7139 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7141 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7143 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7145 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7150- 52 TCUY1C105ZFN C 1UF, 16V 3 C7153- 56 ECJ1XC1H101J C 100PF, J, 50V 4 C7176- 78 ECJ3XB0J106M C 10UF, M,6.3V 3 C7179 ECJ1XC1H101J C 100PF, J, 50V 1 C7301 TCUY1C105ZFN C 1UF, 16V 1 C7302 ECJ3XB0J106M C 10UF, M,6.3V 1 C7303- 06 TCUY1C105ZFN C 1UF, 16V 4 C7307 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7310 ECJ1XC1H101J C 100PF, J, 50V 1 C7311- 18 ECJ3XB2A104K C 0.10UF, Z, 6.3V 8 C7321- 23 ECJ3XB0J106M C 10UF, M,6.3V 3 C7339 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7341 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7343 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7345 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7350- 52 TCUY1C105ZFN C 1UF, 16V 3 C7353- 56 ECJ1XC1H101J C 100PF, J, 50V 4 C7501 EEUFC1V471 E 470UF, 35V 1 (PA) C7501 TCUY1C105ZFN C 1UF, 16V 1 (C3) C7502 ECJ3XB0J106M C 10UF, M,6.3V 1 (C3) C7502 EEUFC1V471 E 470UF, 35V 1 (PA) C7503 ECJ2XB1H103K C 0.01UF, K, 50V 1 C7504 TCUY1C105ZFN C 1UF, 16V 1 C7505 EEUFC1V561 E 560UF, 35V 1 (PA) C7505 TCUY1C105ZFN C 1UF, 16V 1 (C3) 254 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks C7506 EEUFC1V561 E 560UF, 35V 1 (PA) C7506 TCUY1C105ZFN C 1UF, 16V 1 (C3) C7507 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7509 ECA1HHG100 E 10UF, 50V 1 C7510 TCUY1C105ZFN C 1UF, 16V 1 C7511 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 (C3) C7511 EEUFC1V471 E 470UF, 35V 1 (PA) C7512 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 (C3) C7512 EEUFC1V471 E 470UF, 35V 1 (PA) C7513 ECJ2XB1H103K C 0.01UF, K, 50V 1 C7516 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 (C3) C7516 EEUFC1V471 E 470UF, 35V 1 (PA) C7517 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 (C3) C7517 EEUFC1E821 E 820UF, 25V 1 (PA) C7518 ECJ2XB1H103K C 0.01UF, K, 50V 1 (PA) C7518 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 (C3) C7521 EEUFC1E471 E 470UF, 25V 1 C7522 EEUFC1C821 E 820UF, 16V 1 C7523 ECJ2XB1H103K C 0.01UF, K, 50V 1 C7525 ECA1HHG100 E 10UF, 50V 1 C7530 EEUFC1C331 E 330UF, 16V 1 C7532- 34 EEUFC1C331 E 330UF, 16V 3 C7535- 37 ECJ2VF1C474Z C 0.47UF, Z, 16V 3 C7539 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7541 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 (PA) C7541 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 (C3) C7542,4 3 ECJ2VF1C104Z C 0.1UF, Z, 16V 2 (PA) C7543 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 (C3) C7544 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C7545 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7550- 52 TCUY1C105ZFN C 1UF, 16V 3 C7553- 56 ECJ1XC1H101J C 100PF, J, 50V 4 C7561 EEUFC1E471 E 470UF, 25V 1 C7562,6 3 EEUFC1C471 E 470UF, 16V 2 C7567 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C7568 ECA1HHG220 E 22UF, 50V 1 C7570 ECJ2XB1H103K C 0.01UF, K, 50V 1 C7572 ECJ3XB0J106M C 10UF, M,6.3V 1 C7573 ECJ2XB1H682K C 6800PF, K, 50V 1 (PA) C7573 ECJ3XB0J106M C 10UF, M,6.3V 1 (C3) C7574 ECJ2XB1H103K C 0.01UF, K, 50V 1 (PA) C7574 ECJ3XB0J106M C 10UF, M,6.3V 1 (C3) C7575 ECJ1XC1H101J C 100PF, J, 50V 1 C7581 ECA1HHG4R7 E 4.7UF, 50V 1 C7582 ECJ2VB1C224K C 0.22UF, K, 16V 1 C7583 ECJ2VF1H104Z C 0.1UF, Z, 50V 1 C7584 ECJ2XC1H271J C 270PF, J, 50V 1 C7585 EEUFC1H100 E 10UF, 50V 1 C7588 ECA1HHG100 E 10UF, 50V 1 C7701 TCUY1C105ZFN C 1UF, 16V 1 C7702 ECJ3XB0J106M C 10UF, M,6.3V 1 C7703- 06 TCUY1C105ZFN C 1UF, 16V 4 C7707 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7711- 18 ECJ3XB2A104K C 0.10UF, Z, 6.3V 8 C7739 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7741 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7743 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7745 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7750- 52 TCUY1C105ZFN C 1UF, 16V 3 C7772- 74 ECJ3XB0J106M C 10UF, M,6.3V 3 C7775- 79 ECJ1XC1H101J C 100PF, J, 50V 5 C9001 ECJ3XB0J106M C 10UF, M,6.3V 1 C9002 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9003 ECJ1XB1C104K C 0.1UF, Z, 16V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C9004 ECJ3XB0J106M C 10UF, M,6.3V 1 C9005,0 6 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9007- 10 EEVHB0G221 E 220UF, 4V 4 C9011- 14 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C9016,1 7 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9020 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9022 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9023 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9027 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9028 ECJ3XB0J106M C 10UF, M,6.3V 1 C9029 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9030,3 1 ECJ3XB0J106M C 10UF, M,6.3V 2 C9032,3 3 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9034,3 5 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9036,3 7 ECJ3XB0J106M C 10UF, M,6.3V 2 C9038,3 9 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9040 ECJ2VB1E473K C 0.047UF, K, 25V 1 C9041 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9042,4 3 ECJ2VB1E473K C 0.047UF, K, 25V 2 C9044 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9045,4 6 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9048,4 9 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9050 ECJ3XB0J106M C 10UF, M,6.3V 1 C9051 ECJ1XB1C393K C 0.039UF, K, 16V 1 C9052 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9053 ECJ1VB1H392K C 3900PF, K, 50V 1 C9054- 56 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9077 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9085 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9151 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9152 EEVHB0J330 E 33UF, 6.3V 1 C9153 ECJ3XB0J106M C 10UF, M,6.3V 1 C9154 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9155 EEVHB1C470 E 47UF, 16V 1 C9156 ECJ3XB0J106M C 10UF, M,6.3V 1 C9157- 60 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C9161 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9162 ECJ3XB0J106M C 10UF, M,6.3V 1 C9163- 70 ECJ1XF1C104Z C 0.1UF, Z, 16V 8 C9171 EEVHB1C470 E 47UF, 16V 1 C9172- 74 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9175 ECJ3XB0J106M C 10UF, M,6.3V 1 C9176- 82 ECJ1XF1C104Z C 0.1UF, Z, 16V 7 C9187 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9191 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9192 TCUY1C105ZFN C 1UF, 16V 1 C9195 TCUY1C105ZFN C 1UF, 16V 1 C9196 ECJ3VB1C104K C 0.10UF, K, 16V 1 C9197 ECJ2VB1E563K C 0.056UF, K, 25V 1 C9198 ECJ2VB1C104K C 0.1UF, K, 16V 1 C9199,0 0 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9301 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9302 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9303 EEVHB1C470 E 47UF, 16V 1 C9304 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9305 ECJ3XB0J106M C 10UF, M,6.3V 1 C9307 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9308 ECJ1XB1C104K C 0.1UF, Z, 16V 1 255 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks C9309 ECJ3XB0J106M C 10UF, M,6.3V 1 C9310 ECJ1XC1H330J C 33PF, J, 50V 1 C9311 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9314,1 5 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 C9316,1 7 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9318 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9319 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9321 ECJ3XB0J106M C 10UF, M,6.3V 1 C9323 ECJ1XC1H101J C 100PF, J, 50V 1 C9324 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9325 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9327 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9328- 30 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9331 ECJ3XB0J106M C 10UF, M,6.3V 1 C9332- 35 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C9338- 46 ECJ1XF1C104Z C 0.1UF, Z, 16V 9 C9347 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9449 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9450 ECJ3XB0J106M C 10UF, M,6.3V 1 C9453 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9454,5 5 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 C9465 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9466 EEVHB0G221 E 220UF, 4V 1 C9467 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9469 EEVHB0G221 E 220UF, 4V 1 C9470 ECJ1XC1H101J C 100PF, J, 50V 1 C9471 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9472 ECJ3XB0J106M C 10UF, M,6.3V 1 C9474 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9475- 77 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9478 ECJ3XB0J106M C 10UF, M,6.3V 1 C9479- 82 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C9485- 93 ECJ1XF1C104Z C 0.1UF, Z, 16V 9 C9494,9 5 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 C9496,9 7 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9498 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9596- 99 ECJ1VF1H103Z C 0.01UF, Z, 50V 4 C9601- 05 ECJ1XF1C104Z C 0.1UF, Z, 16V 5 C9607 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9611 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9612 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9613 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9616 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9620,2 1 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9623 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9625 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9629,3 0 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9632 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9635 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9700,0 1 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9702 EEVHB1C470 E 47UF, 16V 1 C9703 ECJ1XC1H101J C 100PF, J, 50V 1 C9705 ECJ1XF1H102Z C 1000PF, Z, 50V 1 C9706,0 7 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9708- 10 EEVHB1C470 E 47UF, 16V 3 C9712- 17 ECJ1XC1H101J C 100PF, J, 50V 6 C9718 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9719 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C9720 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9722,2 3 ECJ1XC1H100D C 10PF, D, 50V 2 C9724 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9725 ECJ3XB0J106M C 10UF, M,6.3V 1 C9726 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9727,2 8 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9729 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9730- 33 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C9737 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9740,4 1 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9742 EEVHB1C470 E 47UF, 16V 1 C9743 TCUY1C105ZFN C 1UF, 16V 1 C9748,4 9 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9750 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9751,5 2 ECJ1VF1H103Z C 0.01UF, Z, 50V 2 C9753,5 4 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9755,5 6 ECJ1XF1H102Z C 1000PF, Z, 50V 2 C9759 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9760 ECJ1VB1C563K C 0.056UF, K, 16V 1 C9761,6 2 ECJ1XC1H330J C 33PF, J, 50V 2 C9765 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9766 ECJ3XB0J106M C 10UF, M,6.3V 1 C9767,6 8 TCUY1C105ZFN C 1UF, 16V 2 C9769 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9800 EEVHB0G221 E 220UF, 4V 1 C9801 ECJ3XB0J106M C 10UF, M,6.3V 1 C9802 EEVHB1C470 E 47UF, 16V 1 C9803 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9804 ECJ2XB1E104K C 0.1UF, K, 25V 1 C9805 ECJ2XC1H222J C 2200PF, J, 50V 1 C9806 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9951- 53 EEVHB1C470 E 47UF, 16V 3 C9954,5 5 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9956 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9957 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9958,5 9 F2H1E221A007 E 2.2UF, 25V 2 C9960 ECJ3VB1C104K C 0.10UF, K, 16V 1 C9961 EEFUD0G121ER 120UF 1 C9964,6 5 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9966 EEVHB0G221 E 220UF, 4V 1 C9967 ECJ3XB0J106M C 10UF, M,6.3V 1 C9968 EEVHB1C470 E 47UF, 16V 1 C9969 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9970 ECJ2XB1E104K C 0.1UF, K, 25V 1 C9971 ECJ2XC1H222J C 2200PF, J, 50V 1 CA1-A8 K1MN48A00002 CONNECTOR 8 CB1-B8 K1MN48A00002 CONNECTOR 8 CF901 ERZV10V621P2 VARISTOR 1 CF902 ERZV07D361 VARISTOR 1 D3 K1KA40A00140 40P CONNECTOR 1 D4 K1KA12A00227 12P CONNECTOR 1 D6 K1KA21A00007 21P CONNECTOR 1 D009 MA8056M ZENER DIODE 1 D12 K1KA07A00189 7P CONNECTOR 1 D20 K1KA20A00180 20P CONNECTOR 1 D25 K1KA08A00293 8P CONNECTOR 1 D27 K1KA09A00077 9P CONNECTOR 1 D31-34 K1MN80B00002 CONNECTOR 4 256 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks D300,01 MA152K DIODE 2 D302 LNJ107W5PRW LED 1 D303 MA152K DIODE 1 D308 MA8056M ZENER DIODE 1 D309,10 MA152K DIODE 2 D311 MA8056M ZENER DIODE 1 D317 MA3062M ZENER DIODE 1 D401 B0FBBR000020 DIODE 1 D402 MA4082M ZENER DIODE 1 D404 S1WBA80Z DIODE 1 D408 MA4180M ZENER DIODE 1 D409 B0HAMM000072 DIODE 1 D410 MA188 DIODE 1 D411 B0BB17000006 DIODE 1 D412 MA165 DIODE 1 D414 MA165 DIODE 1 D415 B0JAME000081 DIODE 1 D418 MA4082M ZENER DIODE 1 D419,20 B0HBRR000001 DIODE 2 D421 MA4150M ZENER DIODE 1 D423-26 B0JAME000081 DIODE 4 D431 B0JCDD000002 DIODE 1 D433,34 MA4051NM ZENER DIODE 2 D503,04 MA165 DIODE 2 D505,06 B0JAME000081 DIODE 2 D507 MA165 DIODE 1 D510 B0HAMM000072 DIODE 1 D511 AK06 DIODE 1 D513 MA4100M ZENER DIODE 1 D515 MA4056M ZENER DIODE 1 D517-20 MA165 DIODE 4 D521 MA188 DIODE 1 D528,29 MA153 DIODE 2 D530 MA4100M ZENER DIODE 1 D531 B0HDRM000001 DIODE 1 D532 MA3J142D0L DIODE 1 D533,34 MA752A DIODE 2 D535 MA188 DIODE 1 D536 MA752A DIODE 1 D537 B0HBRP000006 DIODE 1 D538 MA4051NM ZENER DIODE 1 D539 B0HBRP000006 DIODE 1 D540,41 MA188 DIODE 2 D543-45 MA3180H ZENER DIODE 3 D546 B0JCND000005 DIODE 1 D547 MA3150M ZENER DIODE 1 D548 MA4075M ZENER DIODE 1 D549 MA188 DIODE 1 D550 MA4068M ZENER DIODE 1 D551 MA4075M ZENER DIODE 1 D552 MA4051NM ZENER DIODE 1 D553 MA165 DIODE 1 D554 ERA15-01V5 DIODE 1 D555 MA4075M ZENER DIODE 1 D557 MA111 DIODE 1 D561 MA3075MTX ZENER DIODE 1 D563,64 MA111 DIODE 2 D565 B0JAME000081 DIODE 1 D920 D4SB80Z DIODE 1 D921 B0EAKT000017 DIODE 1 D922 MA3100M ZENER DIODE 1 D925 B0HCMM000001 DIODE 1 D926 MA152K DIODE 1 D970 B0JARJ000010 DIODE 1 D971 RL3Z DIODE 1 D990 MA152K DIODE 1 D2301- 04 M1FS4 DIODE 4 D2305 S3L20U DIODE 1 D2307,0 8 B0JCNE000004 DIODE 2 D2311,1 2 MA152K DIODE 2 Ref. No. Part No. Part Name & Description Pcs Remarks D2314,1 5 MA111 DIODE 2 D3715 MA3140M ZENER DIODE 1 D3764 MA3140M ZENER DIODE 1 D3766 MA3140M ZENER DIODE 1 D5001 B0KB00000023 DIODE 1 D5003- 05 B0KB00000023 DIODE 3 D5007,0 8 MA152 DIODE 2 D5011,1 2 MA3056M ZENER DIODE 2 D5013 MA3036H ZENER DIODE 1 D5014,1 5 MA3140M ZENER DIODE 2 D6401,0 2 MA8056H ZENER DIODE 2 D6403,0 4 D1FL40F4063 DIODE 2 D6411,1 2 MA8056H ZENER DIODE 2 D6413,1 4 D1FL40F4063 DIODE 2 D6433 MA111 DIODE 1 D6435 MA111 DIODE 1 D6436 B0JCKG000001 DIODE 1 D6453 MA111 DIODE 1 D6454 TLP181 PHOTO COUPLER 1 D6455 MA111 DIODE 1 D6456 D1FL40F4063 DIODE 1 D6458 TLP181 PHOTO COUPLER 1 D6459 MA111 DIODE 1 D6460,6 1 B0HCKS000001 DIODE 2 D6465,6 6 MA8330M ZENER DIODE 2 D6467 TLP181 PHOTO COUPLER 1 D6468 MA111 DIODE 1 D6469 TLP181 PHOTO COUPLER 1 D6470 MA111 DIODE 1 D6473 MA111 DIODE 1 D6474 TLP181 PHOTO COUPLER 1 D6475 MA111 DIODE 1 D6476 D1FL40F4063 DIODE 1 D6477 MA111 DIODE 1 D6478 B0HCKS000001 DIODE 1 D6479 MA111 DIODE 1 D6480 TLP181 PHOTO COUPLER 1 D6481,8 2 MA8330M ZENER DIODE 2 D6483 M1FS4 DIODE 1 D6485- 90 MA8056H ZENER DIODE 6 D6491,9 2 D1FL40F4063 DIODE 2 D6493,9 4 MA8056H ZENER DIODE 2 D6495 B0HCKS000001 DIODE 1 D6499 M1FS4 DIODE 1 D6500 MA111 DIODE 1 D6501- 08 B3PBA0000191 IC 8 D6509 MA111 DIODE 1 D6510 M1FS4 DIODE 1 D6511 M1FL20UF4063 DIODE 1 D6512- 14 MA111 DIODE 3 D6515 MA8240MTX ZENER DIODE 1 D6517,1 8 M1FS4 DIODE 2 D6520 MA111 DIODE 1 D6521 D1FL40F4063 DIODE 1 D6522 MA111 DIODE 1 D6523 D1FL40F4063 DIODE 1 D6524 MA8051L ZENER DIODE 1 D6525 MA111 DIODE 1 257 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks D6526 M1FL20UF4063 DIODE 1 D6531,3 2 MA8051L ZENER DIODE 2 D6541 B0HCKS000001 DIODE 1 D6542 MA111 DIODE 1 D6543 MA8051L ZENER DIODE 1 D6544 MA111 DIODE 1 D6545 MA8051L ZENER DIODE 1 D6546- 48 MA8330M ZENER DIODE 3 D6549,5 0 MA111 DIODE 2 D6552 M1FS4 DIODE 1 D6553 MA111 DIODE 1 D6570 M1FL20UF4063 DIODE 1 D6572 D1FL40F4063 DIODE 1 D6582 MA8051L ZENER DIODE 1 D6583 LNJ201LPQJA LED 1 D6584 MA111 DIODE 1 D6585,8 6 MA8330M ZENER DIODE 2 D6600 D1FL40F4063 DIODE 1 D6605- 08 M1FS4 DIODE 4 D6611 D1FL40F4063 DIODE 1 D6613 D1FL40F4063 DIODE 1 D6615- 18 SF20LC30F10 DIODE 4 D6623 SF20LC30F10 DIODE 1 D6627 SF20LC30F10 DIODE 1 D6648,4 9 D1FL40F4063 DIODE 2 D6650 SF20LC30F10 DIODE 1 D6651 D1FL40F4063 DIODE 1 D6701 SF20LC30F10 DIODE 1 D6710 D1FL40F4063 DIODE 1 D6711,1 2 SF20LC30F10 DIODE 2 D6713 D1FL40F4063 DIODE 1 D6715,1 6 SF20LC30F10 DIODE 2 D6728,2 9 SF20LC30F10 DIODE 2 D6734- 37 M1FS4 DIODE 4 D6740 D1FL40F4063 DIODE 1 D6749,5 0 M1FS4 DIODE 2 D6751- 53 D1FL40F4063 DIODE 3 D6756 M1FS4 DIODE 1 D6758,5 9 MA8330M ZENER DIODE 2 D6760 LNJ201LPQJA LED 1 D6761 MA8051L ZENER DIODE 1 D6762,6 3 MA111 DIODE 2 D6764 LNJ201LPQJA LED 1 D6766 MA111 DIODE 1 D6768,6 9 D1FL40F4063 DIODE 2 D6771,7 2 MA111 DIODE 2 D6773 D1FL40F4063 DIODE 1 D6795 D1FL40F4063 DIODE 1 D7501 B0JCNE000004 DIODE 1 D7502 MA152K DIODE 1 (C3) D7502 MA2068A ZENER DIODE 1 (PA) D7503 MA152K DIODE 1 D7504 B0JCNE000004 DIODE 1 (PA) D7504 MA152K DIODE 1 (C3) D7505 MA2120A ZENER DIODE 1 D7507 B0JCNE000004 DIODE 1 D7508 MA2068A ZENER DIODE 1 D7510 B0ECKM000003 1 D7511 MA2068A ZENER DIODE 1 Ref. No. Part No. Part Name & Description Pcs Remarks D7512 MA737 DIODE 1 D7513 MA2051A ZENER DIODE 1 D7515 B0JCNE000004 DIODE 1 D7537,3 8 MA111 DIODE 2 D7539 MA3062H ZENER DIODE 1 D7540 MA3039H ZENER DIODE 1 D7541- 45 MA111 DIODE 5 D7546 MA152 DIODE 1 D7547- 50 MA111 DIODE 4 D7561- 64 MA111 DIODE 4 D7565 MA737 DIODE 1 D7581 MA111 DIODE 1 D7582 MA3X78900L ZENER DIODE 1 D9001 MA3036H ZENER DIODE 1 D9705- 13 MA3062M ZENER DIODE 9 D9714 MA152K DIODE 1 D9715 MA3062M ZENER DIODE 1 D9716 MA111 DIODE 1 D9719,2 0 MA3062M ZENER DIODE 2 D9723 MA3062M ZENER DIODE 1 D9724 MA111 DIODE 1 D9727 MA152K DIODE 1 D9730 MA152K DIODE 1 D9769 MA152K DIODE 1 D9771 MA152K DIODE 1 D9800 B0JCPD000010 DIODE 1 D9801 M1FS4 DIODE 1 D9952 M1FS4 DIODE 1 D9953 MA152K DIODE 1 D9954 M1FS4 DIODE 1 D9955 B0JCPD000010 DIODE 1 DV3 K1KA03B00098 3P CONNECTOR 1 DV7 K1KA40B00062 40P CONNECTOR 1 F405 P130A FUSE 1 F900- 1,-2 EYF-52BC FUSE HOLDER 2 F901- 1,-2 EYF-52BC FUSE HOLDER 2 F902- 1,-2 EYF-52BC FUSE HOLDER 2 FL6001 TAX10088 EMI FILTER 1 FL6002- 04 ELKE103FA NOISE FILTER 3 FL6007- 13 TLK20LFA473M EMI FILTER 7 G5 K1KA06B00117 6P CONNECTOR 1 G7 K1KA15B00045 15P CONNECTOR 1 G8 K1KA10B00126 10P CONNECTOR 1 G10 K1KA06B00049 6P CONNECTOR 1 IC300 B3L000000020 IC 1 IC401 CNC1S171R IC 1 IC402 NJM2903V IC 1 IC403,0 4 CNC1S171R IC 2 IC406 C0DAZZZ00019 IC 1 IC408 CNC1S171R IC 1 IC409 MIP2E2DMPSCF IC 1 IC501 C2ABDA000040 IC 1 IC502 C0EBH0000190 IC 1 IC503 C0ZBZ0000383 IC 1 IC504 TA76431ASTP6 IC 1 IC511 C0DAAZG00010 IC 1 IC512 TA76431ASTP6 IC 1 IC520 C0JBAZ002056 IC 1 258 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks IC521 C0JBAF000367 IC 1 IC522 C0JBAZ002056 IC 1 IC523 C0JBAF000367 IC 1 IC920 C0DACZH00002 IC 1 IC921 B3PAA0000261 IC 1 IC970 AN1431M LINEAR IC 1 IC2301, 02 LA4901 IC 2 IC2304 AN7709SP IC 1 IC2305, 06 LA4901 IC 2 IC2401 C1BB00000800 IC 1 IC2402, 03 NJM2904M LINEAR IC 2 IC5001 TVRJ969 IC 1 IC5005 PST9128NR IC (LOGIC) 1 IC5006 C0FBBK000038 IC 1 IC5007 BA15218FDX IC 1 IC5008 M52055FP LINEAR IC 1 IC5009, 10 PQ07VZ012ZP IC 2 IC5011 CXA1315M LINEAR IC 1 IC6001 C0JBAA000244 IC 1 IC6002 C0JBAE000231 IC 1 IC6003 C0JBAZ002059 IC 1 IC6004 C0DBZHE00019 IC 1 IC6005 C0JBAB000408 IC 1 IC6006 C0JBAZ001713 IC 1 IC6007 C0JBAZ001590 IC 1 IC6008, 09 C0JBAZ001120 IC 2 IC6010 C0JBAZ002060 IC 1 IC6011 C0CBCBD00004 IC 1 IC6012 TVRN178-1 IC 1 IC6013 C1AB00001816 IC 1 IC6014 C3ABQG000069 IC 1 IC6015 C1AB00001815 IC 1 IC6016 C0CBCBD00008 IC 1 IC6017 C0CBCAD00015 IC 1 IC6018 PST9128NR IC (LOGIC) 1 IC6401- 12 C0HBC0000007 IC 12 IC6431 AN1431M LINEAR IC 1 IC6434 TLP181 PHOTO COUPLER 1 IC6451 AN1431M LINEAR IC 1 IC6452, 53 AN78L15M LINEAR IC 2 IC6454, 55 AN78L05M LINEAR IC 2 IC6471, 72 AN1431M LINEAR IC 2 IC6491 AN1431M LINEAR IC 1 IC6501, 02 TC74HC14AF IC 2 IC6511 C0ZBZ0000735 IC 1 IC6512 AN78L05M LINEAR IC 1 IC6521 C0ZBZ0000735 IC 1 IC6541, 42 C0ZBZ0000735 IC 2 IC6543 AN78L05M LINEAR IC 1 IC6581 NJM2903M INTEGRATED CIRCUIT 1 IC6601- 03 C0ZBZ0000138 IC 3 IC6604 TC74HC08AF IC 1 IC6605, 06 C0JBAZ000005 IC 2 IC6701- 04 C0ZBZ0000138 IC 4 IC6705 C0ZBZ0000735 IC 1 IC6706 C0JBAZ000005 IC 1 IC6707 NJM2903M INTEGRATED CIRCUIT 1 IC6709 AN1431M LINEAR IC 1 IC7101 C0JBAZ001604 IC 1 IC7105- 07 C0JBAZ001604 IC 3 IC7301 C0JBAZ001604 IC 1 Ref. No. Part No. Part Name & Description Pcs Remarks IC7305- 07 C0JBAZ001604 IC 3 IC7501 C0DAAZG00006 IC 1 (PA) IC7501 02 C0JBAZ001604 IC 1 (C3) IC7502- 05 C0DAAZG00006 IC 4 IC7507 C0JBAZ001604 IC 1 IC7561 PQ1CZ21H2ZP IC 1 IC7581 C0DBAMA00014 IC 1 IC7701 C0JBAZ001604 IC 1 IC7705- 07 C0JBAZ001604 IC 3 IC9001 C0CBCBD00008 IC 1 IC9002 C0ZBZ0000551 IC 1 IC9003 C0JBAB000550 IC 1 IC9004 AHC2G66HDCTR INTEGRATED CIRCUIT 1 IC9005 C0JBAZ001992 IC 1 IC9006, 07 C0CBCBD00008 IC 2 IC9008 C0JBAZ001992 IC 1 IC9009 C0FBAD000069 IC 1 IC9014 TC74LCX244F MOS IC (CMOS S/LOGIC) 1 IC9023 TC74LCX244F MOS IC (CMOS S/LOGIC) 1 IC9151 MN845041-A IC 1 IC9152 C0CBCBD00008 IC 1 IC9153 C0DBZHE00019 IC 1 IC9154 C0JBAZ001604 IC 1 IC9155 C3ABPJ000017 IC 1 IC9157 TLC2933IPWL INTEGRATED CIRCUIT 1 IC9301 C1ZBZ0002358 IC 1 IC9302 C0CBCBD00008 IC 1 IC9303 C1ZBZ0002357 IC 1 IC9304 C3ABPJ000043 IC 1 IC9305 MN84510-A IC 1 IC9453 PQ07VZ012ZP IC 1 IC9454 C3ABPJ000043 IC 1 IC9455 MN84510-A IC 1 IC9456 TVRJ952-3 IC 1 IC9459 C0JBAZ001992 IC 1 IC9601 C0JBAZ001604 IC 1 IC9602 TC74LCX244F MOS IC (CMOS S/LOGIC) 1 IC9603, 04 C0JBAZ001604 IC 2 IC9605 C1ZBZ0002402 IC 1 IC9606 PST9128NR IC (LOGIC) 1 IC9701 MN102L230 IC 1 IC9702 TVRN226 IC 1 IC9703 C0JBAZ001604 IC 1 IC9704 HM538123BJ8Z IC 1 IC9705 TVSA0320 IC 1 IC9706 TC74LCX244F MOS IC (CMOS S/LOGIC) 1 IC9707 C0JBAE000283 IC 1 IC9708 C3EBGC000018 IC 1 IC9709 C2BBGF000491 IC 1 IC9710 M51957BFP LINEAR IC 1 IC9711 AHC2G66HDCTR INTEGRATED CIRCUIT 1 IC9800 C0DBAFH00021 IC 1 IC9951 C0DBAMH00006 IC 1 IC9952 C0DBAFH00021 IC 1 JG1 K1NA68E00071 68P CONNECTOR 1 JG2 K1NA09E00042 9P CONNECTOR 1 JG3 K1KA20A00180 20P CONNECTOR 1 JG5 K1YY68000007 PC CARD CONNECTOR 1 JK3709 K1FB315A0001 CONNECTOR 1 JK3714 K4BK29A00006 AV TERMENAL 1 JK5001 K1FA119E0001 CONNECTOR 1 259 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks JS015,1 6 J0JCC0000100 CHIP INDUCTOR 2 JS017,1 8 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS019- 21 J0JCC0000100 CHIP INDUCTOR 3 JS301,0 2 ERJ8GEY0R00 M 0 OHM, 1/8W 2 JS304,0 5 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS2106, 07 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS2303, 04 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS2309, 10 ERD25V0T M OHM, 1/10W 2 JS2430 ERJ8GEY0R00 M 0 OHM, 1/8W 1 JS3705, 06 ERJ8GEY0R00 M 0 OHM, 1/8W 2 JS6004 J0JCC0000100 CHIP INDUCTOR 1 JS6009 J0JCC0000100 CHIP INDUCTOR 1 K12 TJSF43709 9P CONNECTOR 1 K13 TJS6A8780 3P CONNECTOR 1 K24 K1KA08B00005 8P CONNECTOR 1 L401 EXCELDR25C BEAD CHOKE 1 L402 EXCELSA24 BEAD CHOKE 1 L403 EXCELSA35 BEAD CHOKE 1 L502 EXCELDR25C BEAD CHOKE 1 L503 ELELN100KA CHIP INDUCTOR 1 L504 G0A151ZA0038 CHOKE COIL 1 L505-07 EXCELDR25C BEAD CHOKE 3 L510 EXCELDR25C BEAD CHOKE 1 L920 EXCELDR25C BEAD CHOKE 1 L921 EXCELSA24 BEAD CHOKE 1 L922 EXCELDR35C BEAD CHOKE 1 L970 EXCELSA24 BEAD CHOKE 1 L971 G0A100GA0013 CHOKE COIL 1 L973 G0A100GA0013 CHOKE COIL 1 L2301,0 2 G0A221ZA0038 CHOKE COIL 2 L2306 ELJPA100KB CHIP INDUCTOR 1 L2307,0 8 G0A221ZA0038 CHOKE COIL 2 L3778- 85 TSK1040 FERRITE CORE 8 L5001 EXCCL3225U1 EMI FILTER 1 L5002 ELJPA2R2MF CHIP INDUCTOR 1 L5003- 09 EXCCL4532U1 BEAD CHOKE 7 L5022 J0HABB000004 LC FILTER 1 L5024- 30 J0HABB000004 LC FILTER 7 L5031 EXCCL3225U1 EMI FILTER 1 L5032,3 3 ELJPA2R2MF CHIP INDUCTOR 2 L5034 EXCCL3225U1 EMI FILTER 1 L5037 ELJPA1R0MB INDUCTION COIL 1 L5038 EXCCL3225U1 EMI FILTER 1 L5039 EXCCL4532U1 BEAD CHOKE 1 L5040 EXCCL3225U1 EMI FILTER 1 L5041 EXCCL4532U1 BEAD CHOKE 1 L5042 EXCCL3225U1 EMI FILTER 1 L5050- 52 TSK1025 FERRITE CORE 3 L6001- 06 J0JHC0000035 CHIP INDUCTOR 6 L6008 J0JHC0000035 CHIP INDUCTOR 1 L6009 G1C8R2K00009 INDUCTOR COIL 1 L6010- 13 J0JHC0000035 CHIP INDUCTOR 4 L6431 J0JJC0000021 CHIP INDUCTOR 1 L6451 J0JJC0000021 CHIP INDUCTOR 1 L6471 J0JJC0000021 CHIP INDUCTOR 1 L6472 G0ZZ00002183 PEAKING COIL 1 Ref. No. Part No. Part Name & Description Pcs Remarks L6603,0 4 G0ZZ00002183 PEAKING COIL 2 L6607 J0JJC0000021 CHIP INDUCTOR 1 L6609 G0ZZ00002183 PEAKING COIL 1 L6611- 16 G0AR60MA0001 CHOKE COIL 6 L6618- 37 G0ZZ00002183 PEAKING COIL 20 L6644,4 5 G0ZZ00002183 PEAKING COIL 2 L6650,5 1 G0ZZ00002183 PEAKING COIL 2 L6661,6 2 J0JJC0000011 CHIP INDUCTOR 2 L6701- 06 G0AR60MA0001 CHOKE COIL 6 L6713 G0ZZ00002183 PEAKING COIL 1 L6714 G0C101K00023 PEAKING COIL 1 L6715- 37 G0ZZ00002183 PEAKING COIL 23 L6752- 55 G0ZZ00002183 PEAKING COIL 4 L6758,5 9 J0JJC0000021 CHIP INDUCTOR 2 L6761,6 2 J0JJC0000011 CHIP INDUCTOR 2 L7107 ELKE103FA NOISE FILTER 1 L7108- 11 J0JJC0000011 CHIP INDUCTOR 4 L7307,0 8 ELKE103FA NOISE FILTER 2 L7309- 12 J0JJC0000011 CHIP INDUCTOR 4 L7501 G0C101K00023 PEAKING COIL 1 L7502 G0A101ZA0038 CHOKE COIL 1 L7503 TALL08N330KA INDUCTION COIL 1 L7504 G0C101K00023 PEAKING COIL 1 L7505 G0A101ZA0038 CHOKE COIL 1 L7506 TALL08N330KA INDUCTION COIL 1 L7507 ELKE103FA NOISE FILTER 1 (C3) L7507 G0C101K00023 PEAKING COIL 1 (PA) L7508 ELKE103FA NOISE FILTER 1 (C3) L7508 G0A101ZA0038 CHOKE COIL 1 (PA) L7509 G0A220GA0002 CHOKE COIL 1 L7510 G0C101K00023 PEAKING COIL 1 L7511 G0A101ZA0038 CHOKE COIL 1 L7512 G0A220GA0002 CHOKE COIL 1 (PA) L7512 J0JJC0000011 CHIP INDUCTOR 1 (C3) L7513 G0C101K00023 PEAKING COIL 1 (PA) L7513 J0JJC0000011 CHIP INDUCTOR 1 (C3) L7514 G0A101ZA0038 CHOKE COIL 1 (PA) L7514 J0JJC0000011 CHIP INDUCTOR 1 (C3) L7515 G0A220GA0002 CHOKE COIL 1 (PA) L7515 J0JJC0000011 CHIP INDUCTOR 1 (C3) L7561 TALL08N221KA INDUCTION COIL 1 L7562 G0ZZ00001913 COIL 1 L7563 TALL08N221KA INDUCTION COIL 1 L7581 TALL08N330KA INDUCTION COIL 1 L7582 G1C101M00018 INDUCTION COIL 1 L7707 ELKE103FA NOISE FILTER 1 L7708- 11 J0JJC0000011 CHIP INDUCTOR 4 L9001- 03 ELKE103FA NOISE FILTER 3 L9309 ELJFA1R0KF CHIP COIL 1 L9452 ELJFA1R0KF CHIP COIL 1 L9459 ELKE103FA NOISE FILTER 1 L9701 ELKE103FA NOISE FILTER 1 L9800 G1C1R5Z00002 INDUCTION COIL 1 L9951- 54 ELKE103FA NOISE FILTER 4 L9955 G1C470M00012 INDUCTOR COIL 1 L9956 G1C1R5Z00002 INDUCTION COIL 1 LF904A G0B702K00002 CHOKE COIL 1 LF909A G0B702K00002 CHOKE COIL 1 260 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks LF911 G0B353G00001 CHOKE COIL 1 LF915A G0B702K00002 CHOKE COIL 1 P2 K1KA06A00180 6P CONNECTOR 1 P5 K1KA11A00073 11P CONNECTOR 1 P7 K1KA04A00242 4P CONNECTOR 1 P9 K1KA02A00104 2P CONNECTOR 1 P11 K1KA07A00096 7P CONNECTOR 1 P12 K1KA10A00259 10P CONNECTOR 1 P23 K1KA03A00213 3P CONNECTOR 1 P25 TJS1A8840 8P CONNECTOR 1 P27 K1KA09A00099 9P CONNECTOR 1 P30-33 K1KA03A00172 3P CONNECTOR 4 PA1 K1KA05A00139 5P CONNECTOR 1 PA2 K1KA40A00140 40P CONNECTOR 1 PA3 K1KA04A00195 4P CONNECTOR 1 PA4 K1KA12A00176 12P CONNECTOR 1 PA5 K1KA11A00073 11P CONNECTOR 1 PA6 K1KA20A00180 20P CONNECTOR 1 PA7 K1KA04A00242 4P CONNECTOR 1 PA8 K1KA20A00180 20P CONNECTOR 1 PA9 K1KA06A00220 6P CONNECTOR 1 PA10 TJS3A9900 10P CONNECTOR 1 PA11 K1KA03A00172 3P CONNECTOR 1 PA12 K1KA07A00056 7P CONNECTOR 1 PA13-15 K1KA03A00172 3P CONNECTOR 3 PA18 TJS1A8840 8P CONNECTOR 1 PA21 K1KA07A00056 7P CONNECTOR 1 PA22 K1KA12A00176 12P CONNECTOR 1 PA23 TJS3A9880 8P CONNECTOR 1 PA24 K1KA07A00096 7P CONNECTOR 1 PF1,F2 K1KA03A00181 3P CONNECTOR 2 PF10 TJS118670 PHONO PIN 1 PMM1 TMM7464-2 CLAMPER 1 PMM2 TMME190 CLAMPER 1 PMM3,M4 TMME047 CLAMPER 2 PMM5 TMM7464-2 CLAMPER 1 PR401 K5Y502B00007 FUSE 1 PR502 ICP-N50T104 PROTECTOR 1 PR509,1 0 K5H501Z00005 FUSE 2 Q300,01 2SC2412K TRANSISTOR 2 Q305 2SD601A TRANSISTOR 1 Q401 B1DHBD000002 TRANSISTOR 1 Q403 2SD1819A TRANSISTOR 1 Q404 2SB1386RT100 TRANSISTOR 1 Q406 B1DELQ000002 TRANSISTOR 1 Q407 XP4601 TRANSISTOR 1 Q410 B1CEJQ000001 TRANSISTOR 1 Q411 UN5213 TRANSISTOR 1 Q412,13 B1DEER000003 TRANSISTOR 2 Q414,15 B1DEGQ000030 TRANSISTOR 2 Q416 XP4601 TRANSISTOR 1 Q420,21 2SD1819A TRANSISTOR 2 Q501,02 2SD1820A TRANSISTOR 2 Q503 UN5111 TRANSISTOR 1 Q504 2SK3065T100 FET 1 Q506 XP4401 TRANSISTOR 1 Q508 UN5210RTX TRANSISTOR 1 Q509 XP4401 TRANSISTOR 1 Q510 2SB1218ARL TRANSISTOR 1 Q511 B1CBGD000001 TRANSISTOR 1 Q512 B1DHBD000002 TRANSISTOR 1 Q513 B1CBGD000001 TRANSISTOR 1 Q514 B1MBACA00005 TRANSISTOR 1 Q515 2SK3065T100 FET 1 Q516 B1DHBD000002 TRANSISTOR 1 Q517 XP4401 TRANSISTOR 1 Ref. No. Part No. Part Name & Description Pcs Remarks Q518 B1MBACA00005 TRANSISTOR 1 Q519 2SK3065T100 FET 1 Q520 B1HFCFA00015 TRANSISTOR 1 Q521 2SD1819A TRANSISTOR 1 Q522 UN5111 TRANSISTOR 1 Q524 2SD1819A TRANSISTOR 1 Q525 XP4601 TRANSISTOR 1 Q527 B1DEHL000015 TRANSISTOR 1 Q528 2SD1819A TRANSISTOR 1 Q530 XP4501TX TRANSISTOR 1 Q531 2SD23750P TRANSISTOR 1 Q532 2SD1819A TRANSISTOR 1 Q535 2SD1819A TRANSISTOR 1 Q537 B1CHND000003 TRANSISTOR 1 Q540 B1DHBD000002 TRANSISTOR 1 Q541 B1CBGD000001 TRANSISTOR 1 Q542 XP4601 TRANSISTOR 1 Q543 XP4401 TRANSISTOR 1 Q544 UN5111 TRANSISTOR 1 Q545 2SK3065T100 FET 1 Q546 2SD1819A TRANSISTOR 1 Q547 2SD1119 TRANSISTOR 1 Q550-52 UN5213 TRANSISTOR 3 Q990 2SD13280TL TRANSISTOR 1 Q2301,0 2 2SD1266A TRANSISTOR 2 Q2303- 06 2SD601A TRANSISTOR 4 Q2308- 12 2SD601A TRANSISTOR 5 Q2313,1 4 2SD1802ST TRANSISTOR 2 Q5001 B1MBACA00004 TRANSISTOR 1 Q5002,0 3 2SD601A TRANSISTOR 2 Q5004- 09 2SB709A TRANSISTOR 6 Q5011- 13 2SD601A TRANSISTOR 3 Q5014 2SB709A TRANSISTOR 1 Q5015- 19 2SD601A TRANSISTOR 5 Q6001 2SA207700L TRANSISTOR 1 Q6003 2SA207700L TRANSISTOR 1 Q6005,0 6 2SC584500L TRANSISTOR 2 Q6008 2SA207700L TRANSISTOR 1 Q6010 2SA207700L TRANSISTOR 1 Q6431 B1BBCJ000003 TRANSISTOR 1 Q6432 2SB709A TRANSISTOR 1 Q6435 2SD601A TRANSISTOR 1 Q6451 B1BBCJ000003 TRANSISTOR 1 Q6452 2SB709A TRANSISTOR 1 Q6454 2SD814A TRANSISTOR 1 Q6455 2SD601A TRANSISTOR 1 Q6471 B1BBCJ000003 TRANSISTOR 1 Q6472 2SB709A TRANSISTOR 1 Q6474 2SD814A TRANSISTOR 1 Q6475- 77 2SD601A TRANSISTOR 3 Q6491 2SD1263A TRANSISTOR 1 Q6492 2SC1473A TRANSISTOR 1 Q6501- 04 2SK620 FET 4 Q6511,1 2 B1DFGL000005 TRANSISTOR 2 Q6520 2SD601A TRANSISTOR 1 Q6521 B1DFES000001 TRANSISTOR 1 Q6523 2SB1073001TV TRANSISTOR 1 Q6524,2 5 2SD2185 TRANSISTOR 2 Q6526 2SB1073001TV TRANSISTOR 1 Q6530- 39 2SK349400L FET 10 Q6540- 49 2SK373100L TRANSISTOR 10 261 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks Q6550 2SC1473A TRANSISTOR 1 Q6551 2SD601A TRANSISTOR 1 Q6552 B1DADU000001 TRANSISTOR 1 Q6554,5 5 2SK349400L FET 2 Q6556,5 7 2SK373100L TRANSISTOR 2 Q6561 2SB1073001TV TRANSISTOR 1 Q6562- 64 B1DFES000001 TRANSISTOR 3 Q6581 2SD601A TRANSISTOR 1 Q6601- 08 2SK3559000SQ TRANSISTOR 8 Q6611 2SD2185 TRANSISTOR 1 Q6612 2SB1073001TV TRANSISTOR 1 Q6613 2SD2185 TRANSISTOR 1 Q6614 2SB1073001TV TRANSISTOR 1 Q6616,1 7 2SK620 FET 2 Q6621,2 2 2SK3637000VE TRANSISTOR 2 Q6624,2 5 2SK3637000VE TRANSISTOR 2 Q6627 2SD2185 TRANSISTOR 1 Q6628 2SB1073001TV TRANSISTOR 1 Q6629 2SD2185 TRANSISTOR 1 Q6630 2SB1073001TV TRANSISTOR 1 Q6701 2SD2185 TRANSISTOR 1 Q6702 2SB1073001TV TRANSISTOR 1 Q6711- 18 2SK3559000SQ TRANSISTOR 8 Q6721- 24 2SK3637000VE TRANSISTOR 4 Q6725 2SK620 FET 1 Q6727,2 8 2SK3192000LB FET 2 Q6729,3 0 2SK326800L FET 2 Q6731 2SD1263A TRANSISTOR 1 Q6732 2SD2185 TRANSISTOR 1 Q6733 2SB1073001TV TRANSISTOR 1 Q6734 2SD2185 TRANSISTOR 1 Q6735 2SB1073001TV TRANSISTOR 1 Q6738,3 9 2SC1473A TRANSISTOR 2 Q6741 2SD601A TRANSISTOR 1 Q6744 2SD2185 TRANSISTOR 1 Q6745 2SB1073001TV TRANSISTOR 1 Q7501 B1DHDD000012 TRANSISTOR 1 Q7502 UN2214 TRANSISTOR 1 Q7504 UN2214 TRANSISTOR 1 Q7506 B1DHDD000012 TRANSISTOR 1 Q7507,0 8 UN2214 TRANSISTOR 2 Q7509 2SD601A TRANSISTOR 1 Q7510 UN2214 TRANSISTOR 1 Q7541- 43 2SB709A TRANSISTOR 3 Q7544 2SD601A TRANSISTOR 1 Q7561 2SB709A TRANSISTOR 1 (C3) Q7561 UN2214 TRANSISTOR 1 (PA) Q7562 2SB709A TRANSISTOR 1 (C3) Q7562,6 3 2SD601A TRANSISTOR 2 (PA) Q7581 UN5211 TRANSISTOR 1 Q7582 B1ABPF000005 TRANSISTOR 1 Q7583 UN2214 TRANSISTOR 1 Q7584,8 5 2SD601A TRANSISTOR 2 Q7586 B1DHFG000002 TRANSISTOR 1 Q9001 2SD601A TRANSISTOR 1 Q9301 2SD601A TRANSISTOR 1 Q9400 2SD601A TRANSISTOR 1 Q9591- 94 2SD601A TRANSISTOR 4 Ref. No. Part No. Part Name & Description Pcs Remarks Q9596- 99 2SD601A TRANSISTOR 4 Q9601,0 2 2SD601A TRANSISTOR 2 Q9701 2SD601A TRANSISTOR 1 Q9702 2SB1440 TRANSISTOR 1 Q9703,0 4 2SK2731T146 TRANSISTOR 2 Q9706 2SK2731T146 TRANSISTOR 1 Q9707 2SB709A TRANSISTOR 1 Q9708,0 9 2SD601A TRANSISTOR 2 Q9710 2SB709A TRANSISTOR 1 Q9714- 17 2SD601A TRANSISTOR 4 Q9719 2SK2731T146 TRANSISTOR 1 R300 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R301 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R302 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R304 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R306 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R307 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R308 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R310 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R311 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R312 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R313 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R314 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R317 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R320 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R401-03 ERJ6ENF2003 M 200KOHM, 1/10W 3 R405-07 ERJ6ENF2003 M 200KOHM, 1/10W 3 R409 ERJ6ENF3602 M 36KOHM, 1/10W 1 R410 D0D5200JA032 M 22 OHM,J,1/5W 1 R411 D1FZ100E0001 F 10 OHM 1 R412 D0D5200JA032 M 22 OHM,J,1/5W 1 R413 D1FZ100E0001 F 10 OHM 1 R414 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R415 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R417 ERJ6ENF4303 M 430KOHM, 1/10W 1 R421 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R423 ERJ6GEYJ2R2 M 2.2 OHM,J,1/10W 1 R424 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R425 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R426 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R427 ERJ8GEYJ4R7 M 4.7 OHM, J,1/8W 1 R428 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R429 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R430 ERJ6ENF4303 M 430KOHM, 1/10W 1 R431 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R432 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R433 ERJ6ENF1202 M 12KOHM, 1/10W 1 R434 ERJ8GEYJ2R2 M 2.2 OHM, J,1/8W 1 R436 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R437 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R438 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R439 ERJ14YJ120 M 12 OHM, J,1/4W 1 R440 ERJ8GEYJ474 M 470KOHM, J,1/8W 1 R441,42 ERJ6EKF6803 M 680KOHM, 1/10W 2 R443 EVMAASA00B23 CONTROL 2KOHMB 1 R444 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R448-50 D0XGR10JA007 RESISTOR ARRAY 3 R451 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R452 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R454 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R456 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R458 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R462 ERJ6ENF4303 M 430KOHM, 1/10W 1 R463 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R464 ERJ6ENF3302 M 33KOHM, 1/10W 1 R465 ERJ6ENF5603 M 560KOHM, 1/10W 1 R466 D0C3104JA014 M 100KOHM,J,1/3W 1 R467 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 262 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R468-70 ERJ6GEYJ474 M 470KOHM,J,1/10W 3 R471 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R472,73 ERJ6ENF5603 M 560KOHM, 1/10W 2 R474 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R475 ERJ6EKF6803 M 680KOHM, 1/10W 1 R476,77 ERJ8GEYJ300 M 30 OHM, J,1/8W 2 R478 ERJ8GEYJ681 M 680 OHM, J,1/8W 1 R481 ERJ14YJ621 M 620 OHM, J,1/4W 1 R482 ERJ8GEYJ681 M 680 OHM, J,1/8W 1 R483 ERJ14YJ621 M 620 OHM, J,1/4W 1 R484,85 ERJ8GEYJ300 M 30 OHM, J,1/8W 2 R486 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R489 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R493 ERJ14YJ120 M 12 OHM, J,1/4W 1 R494-96 ERJ6ENF5603 M 560KOHM, 1/10W 3 R497 ERJ6ENF2402 M 24KOHM, 1/10W 1 R498 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R499 ERJ8GEYJ4R7 M 4.7 OHM, J,1/8W 1 R500 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R501 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R502,03 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R504 ERDS2TJ102 C 1KOHM, J,1/4W 1 R505 ERDS2TJ220 C 22 OHM, J,1/4W 1 R506 ERDS2TJ102 C 1KOHM, J,1/4W 1 R507 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R508 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R509 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R510 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R512 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R513,14 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R515 ERDS2TJ102 C 1KOHM, J,1/4W 1 R516 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R517 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R518 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R519,20 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R521,22 ERJ8GEYJ100 M 10 OHM, J,1/8W 2 R524 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R527 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R528 ERDS2TJ102 C 1KOHM, J,1/4W 1 R529 ERJ6ENF1002 M 10KOHM, 1/10W 1 R530 ERJ6ENF9531 M9.53KOHM, 1/10W 1 R532 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R534-36 ERJ6GEYJ104 M 100KOHM,J,1/10W 3 R537 ERJ6ENF5602 M 56KOHM, 1/10W 1 R538-40 ERJ6GEYJ104 M 100KOHM,J,1/10W 3 R541-44 ERJ1TRQJR47 M 0.47KHM,J, 1W 4 R545 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R546 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R547-50 ERJ6GEYJ223 M 22KOHM,J,1/10W 4 R551 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R553 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R554 ERJ6ENF1002 M 10KOHM, 1/10W 1 R555,56 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 2 R557 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R558 ERJ6ENF2702 M 27KOHM, 1/10W 1 R559 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R563 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R564 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R565 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R566 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R567 ERJ6ENF1202 M 12KOHM, 1/10W 1 R569 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R570 ERJ6ENF1003 M 100KOHM, 1/10W 1 R571 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R572 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R573 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R574 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R575 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R576 ERJ6ENF1002 M 10KOHM, 1/10W 1 R577 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R578 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R579 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R580 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R581 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R582 ERJ6ENF1002 M 10KOHM, 1/10W 1 R583 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R584 ERJ6ENF1002 M 10KOHM, 1/10W 1 R585 ERJ6ENF3302 M 33KOHM, 1/10W 1 R586 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R587 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R588 ERJ6ENF4420 M 442 OHM, 1/10W 1 R589 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R590 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R592 ERJ6ENF3001 M 3KOHM, 1/10W 1 R593 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R594 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R595 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R596 ERJ6ENF1002 M 10KOHM, 1/10W 1 R597 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R598 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R599 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R600 ERJ8ENF3900 M 390 OHM, 1/8W 1 R601 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R602,03 ERJ6ENF1002 M 10KOHM, 1/10W 2 R604 ERJ6GEYJ391 M 390 OHM,J,1/10W 1 R605,06 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 2 R608 D3CA61020010 M1.0 KOHM,J,0.5W 1 R609 ERJ6GEYJ822 M 8.2KOHM,J,1/10W 1 R610 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R611 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R612 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R613 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R614 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R615 ERJ6ENF3302 M 33KOHM, 1/10W 1 R624 ERX1SJR22 M0.22 OHM, J, 1W 1 R631 ERJ8GEYJ123 M 12KOHM, J,1/8W 1 R632 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R634 ERJ6ENF4700 M 470 OHM, 1/10W 1 R635 ERJ6ENF1071 M1.07KOHM, 1/10W 1 R636-39 ERJ8ENF3902 M 39K OHM, 1/8W 4 R640 ERJ6ENF3001 M 3KOHM, 1/10W 1 R641 EVMAASA00B33 CONTROL 3KOHMB 1 R642-45 ERJ8ENF3902 M 39K OHM, 1/8W 4 R646 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R649 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R650 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R651 ERG1SJ221 M 220 OHM, J, 1W 1 R652 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R653,54 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 2 R656,57 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 2 R658 ERJ6ENF6201 M 6.2KOHM, 1/10W 1 R659 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R660 ERJ6ENF1202 M 12KOHM, 1/10W 1 R661 EVMAASA00B53 CONTROL 5KOHMB 1 R662 ERJ6ENF1303 M 130KOHM, 1/10W 1 R663 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R664 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R665 EVMAASA00B23 CONTROL 2KOHMB 1 R666 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R667 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R668 ERJ6ENF2401 M 2.4KOHM, 1/10W 1 R669 ERJ6ENF1303 M 130KOHM, 1/10W 1 R670,71 ERJ6ENF2202 M 2.2KOHM, 1/10W 2 R672 ERJ6ENF1502 M 15KOHM, 1/10W 1 R673 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R674,75 ERJ8GEYJ124 M 120KOHM, J,1/8W 2 R676 ERJ8GEYJ123 M 12KOHM, J,1/8W 1 R677 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R678 ERDS2TJ223 C 22KOHM, J,1/4W 1 R679,80 ERJ6ENF2202 M 2.2KOHM, 1/10W 2 R681 ERJ6GEYJ154 M 150KOHM,J,1/10W 1 R682,83 ERJ3GEYJ2R2 M 2.2 OHM,J,1/16W 2 R685 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R686 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R687 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R688 ERJ6GEYJ154 M 150KOHM,J,1/10W 1 263 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R689 ERG3SJ101 M 100 OHM, J, 3W 1 R690 ERJ6ENF3002 M 30KOHM, 1/10W 1 R692 ERJ8GEYJ124 M 120KOHM, J,1/8W 1 R694 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R695-97 ERJ8GEYJ124 M 120KOHM, J,1/8W 3 R698 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R699 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R901 ERC12ZGK105 S 1MOHM, K,1/2W 1 R904 ERF5ZXK1R8 W 1.8 OHM, 5W 1 R922 ERDS2TJ224 C 220KOHM, J,1/4W 1 R923 ERG2FJS100D M 10 OHM, J, 2W 1 R924 ERDS1FJ220 C 22 OHM, J,1/2W 1 R925 ERJ6ENF1002 M 10KOHM, 1/10W 1 R926 ERJ6ENF9311 M9.31KOHM, 1/10W 1 R927 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R928 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R929 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R934 ERJ6ENF1302 M 13KOHM, 1/10W 1 R935 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R940 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1 R970 ERJ6GEYJ561 M 560 OHM,J,1/10W 1 R971 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R972 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R973 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R974 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R975 ERJ6ENF2321 M2.32KOHM, 1/10W 1 R976 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R990 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R992 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R993,94 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R2301,0 2 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R2303,0 4 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R2305,0 6 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 2 R2307,0 8 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R2309,1 0 ERDS1FJ100 C 10 OHM, J,1/2W 2 R2311- 16 ERDS1FJ2R2 C 2.2 OHM, J,1/2W 6 R2317,1 8 ERJ6GEYJ271 M 270 OHM,J,1/10W 2 R2319,2 0 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 2 R2321,2 2 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R2323- 28 ERDS1FJ2R2 C 2.2 OHM, J,1/2W 6 R2329,3 0 ERJ6GEYJ203 M 20KOHM,J,1/10W 2 R2331,3 2 J0JCC0000100 CHIP INDUCTOR 2 R2333,3 4 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R2335,3 6 J0JCC0000100 CHIP INDUCTOR 2 R2337,3 8 ERJ6GEYJ270 M 27 OHM,J,1/10W 2 R2340 ERJ8GEYJ392 M 3.9KOHM, J,1/8W 1 R2346,4 7 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R2348 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2368 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R2371 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 R2372 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R2373 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R2374 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R2375 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2376 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R2377 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2378 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R2385 ERJ6GEYJ821 M 820 OHM,J,1/10W 1 R2386 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R2387 ERJ6GEYJ561 M 560 OHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R2389 ERJ6GEYJ561 M 560 OHM,J,1/10W 1 R2390 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R2391 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1 R2392 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R2393 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2394 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1 R2395 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R2396,9 7 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R2398 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R2399 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2401,0 2 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R2403,0 4 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R2405,0 6 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R2408 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R2409 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2412 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2413 ERJ3GEYJ563 M 56KOHM,J,1/16W 1 R2414 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2415,1 6 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2417 ERJ3GEYJ563 M 56KOHM,J,1/16W 1 R2418 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2419 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2420 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2421,2 2 ERJ3GEYJ393 M 39KOHM,J,1/16W 2 R2423 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2427,2 8 TAJAAH0101JV M 100 OHM,J,1/16W 2 R2430,3 1 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R2434,3 5 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R2439 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2440 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2442 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2443 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2444,4 5 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R2494 ERJ12YJ821 M 820 OHM,J, 1/2W 1 R3701 ERJ6GEYJ133 M 13KOHM,J,1/10W 1 R3703 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R3704 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R3705 ERJ6GEYJ512 M 5.1KOHM,J,1/10W 1 R3706 ERJ6GEYJ912 M 9.1KOHM,J,1/10W 1 R3707 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3710 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3711 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R3715,1 6 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3720,2 1 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R3723,2 4 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3725- 28 ERJ6GEY0R00 M 0 OHM, 1/10W 4 R3730 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3731,3 2 ERJ12YJ560 M 56 OHM,J, 1/2W 2 R3733- 36 ERJ8GEY0R00 M 0 OHM, 1/8W 4 R3794- 96 ERJ6GEY0R00 M 0 OHM, 1/10W 3 R5001 J0JCC0000100 CHIP INDUCTOR 1 R5004 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5005- 07 J0JCC0000100 CHIP INDUCTOR 3 R5008 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5009- 11 J0JCC0000100 CHIP INDUCTOR 3 R5013 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R5014,1 5 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 264 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R5016 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R5017 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R5018 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R5019 TAJAAH0470JV M 47 OHM,J,1/16W 1 R5020 ERJ6GEYJ272 M 2.7KOHM,J,1/10W 1 R5021 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R5022 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R5023 TAJAAH0680JV M 68 OHM,J,1/16W 1 R5024,2 5 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R5026 ERJ3EKF3900 M 390 0HM, 1/16W 1 R5029 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5030 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R5031 ERJ6ENF1240 M 124OHM, 1/10W 1 R5032 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5035 ERJ3GEYJ392 M 3.9KOHM,J,1/16W 1 R5036 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R5038 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R5039 EXB38V220J RESISTOR ARRAY 1 R5040 EXB38V330J RESISTOR ARRAY 1 R5041- 43 ERJ3GEYJ330 M 33 OHM,J,1/16W 3 R5048 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5049 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5053- 55 J0JCC0000100 CHIP INDUCTOR 3 R5062- 64 ERJ6ENF75R0 M 75 OHM, 1/10W 3 R5066- 68 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R5069 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R5070 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R5071 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R5072 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R5073 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R5074 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R5075 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R5077,7 8 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R5082- 84 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R5085- 87 ERJ3GEYJ561 M 560 OHM,J,1/16W 3 R5088- 90 J0JCC0000100 CHIP INDUCTOR 3 R5091 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R5092- 94 J0JCC0000100 CHIP INDUCTOR 3 R5097,9 8 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R5102,0 3 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R5104,0 5 ERJ6GEYJ331 M 330 OHM,J,1/10W 2 R5107 ERJ3GEYF333 M 33KOHM, 1/16W 1 R5109 ERJ3GEYF333 M 33KOHM, 1/16W 1 R5110 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R5111,1 2 ERJ3GEYF223 M 22KOHM, 1/16W 2 R5113 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R5114,1 5 ERJ3GEYJ393 M 39KOHM,J,1/16W 2 R5116 TAJAAH0101JV M 100 OHM,J,1/16W 1 R5117 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R5118 TAJAAH0101JV M 100 OHM,J,1/16W 1 R5119- 21 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 3 R5122 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5123 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R5124 J0JCC0000100 CHIP INDUCTOR 1 R5125 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R5126 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R5127 J0JCC0000100 CHIP INDUCTOR 1 R5128,2 9 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R5130 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R5132 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5133 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R5135 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R5136,3 7 ERJ6GEYJ680 M 68 OHM,J,1/10W 2 R5138 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5139,4 0 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R5141 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5142 J0JCC0000100 CHIP INDUCTOR 1 R5143,4 4 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R5145,4 6 ERJ3GEYJ473 M 47KOHM,J,1/16W 2 R5147,4 8 ERJ6GEYJ471 M 470 OHM,J,1/10W 2 R5151 TAJAAH0680JV M 68 OHM,J,1/16W 1 R5153- 56 TAJAAH0680JV M 68 OHM,J,1/16W 4 R5157,5 8 ERJ6GEYJ393 M 39KOHM,J,1/10W 2 R5159 ERJ6ENF1001 M 1KOHM, 1/10W 1 R5161 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R5162 ERJ6ENF3001 M 3KOHM, 1/10W 1 R5163 ERJ6ENF2431 M2.43KOHM, 1/10W 1 R5165,6 6 ERJ6GEYJ560 M 56 OHM,J,1/10W 2 R5169 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R5172,7 3 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R5176 J0JCC0000100 CHIP INDUCTOR 1 R5177 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R5186,8 7 J0JCC0000100 CHIP INDUCTOR 2 R5188- 95 ERJ3GEYJ3R9 M 3.9HM,J,1/16W 8 R5196 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6001,0 2 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6003,0 4 TAJAAH0470JV M 47 OHM,J,1/16W 2 R6005- 07 TAJAAH0101JV M 100 OHM,J,1/16W 3 R6008 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6009 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R6010- 25 TAJAAH0470JV M 47 OHM,J,1/16W 16 R6026 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6027- 30 ERJ1TYJ100 M 10OHM, J, 1W 4 R6031 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6032- 37 ERJ3GEYJ223 M 22KOHM,J,1/16W 6 R6038- 41 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R6042,4 3 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R6044- 54 TAJAAH0470JV M 47 OHM,J,1/16W 11 R6055,5 6 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R6057- 64 TAJAAH0470JV M 47 OHM,J,1/16W 8 R6065- 72 TAJAAH0101JV M 100 OHM,J,1/16W 8 R6073,7 4 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6075 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R6076 J0JCC0000100 CHIP INDUCTOR 1 R6079 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R6081 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R6082 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R6084 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R6085- 87 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R6089,9 0 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 265 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R6091,9 2 J0JCC0000100 CHIP INDUCTOR 2 R6093- 96 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 4 R6101 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6103 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6105 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6107,0 8 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6110,1 1 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6113,1 4 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6116,1 7 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6119,2 0 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6122,2 3 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6125 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R6126,2 7 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6129 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R6130,3 1 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6133 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R6134,3 5 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6137 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R6138 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R6139 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6141,4 2 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6144,4 5 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6147 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R6148 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6150 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6151 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R6152- 55 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R6157 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R6159 J0JCC0000100 CHIP INDUCTOR 1 R6160- 99 ERJ3GEYJ220 M 22 OHM,J,1/16W 40 R6200- 10 J0JCC0000100 CHIP INDUCTOR 11 R6211 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R6212 J0JCC0000100 CHIP INDUCTOR 1 R6213,1 4 TAJAAH0101JV M 100 OHM,J,1/16W 2 R6215- 20 J0JCC0000100 CHIP INDUCTOR 6 R6221 TAJAAH0101JV M 100 OHM,J,1/16W 1 R6222,2 3 J0JCC0000100 CHIP INDUCTOR 2 R6224 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6225 J0JCC0000100 CHIP INDUCTOR 1 R6227 J0JCC0000100 CHIP INDUCTOR 1 R6228 D1HG4708A002 NETWORK RESISTER 1 R6236 D1HG4708A002 NETWORK RESISTER 1 R6244- 47 TAJAAH0470JV M 47 OHM,J,1/16W 4 R6248,4 9 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R6250- 85 TAJAAH0101JV M 100 OHM,J,1/16W 36 R6286- 90 ERJ3GEYJ103 M 10KOHM,J,1/16W 5 R6291 ERJ3GEYJ750 M 75 OHM,J,1/16W 1 R6292 TAJAAH0101JV M 100 OHM,J,1/16W 1 R6293 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R6294 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R6295 ERJ3GEYJ750 M 75 OHM,J,1/16W 1 R6296 J0JCC0000100 CHIP INDUCTOR 1 R6297 TAJAAH0101JV M 100 OHM,J,1/16W 1 R6299 ERJ3EKF1001 M 1KOHM, 1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R6300 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R6301 ERJ3EKF6801 M 6.8KOHM, 1/16W 1 R6302 ERJ3EKF5101 M 5.1KOHM, 1/16W 1 R6303 ERJ3GEYJ241 M 240 OHM,J,1/16W 1 R6305,0 6 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6308 J0JCC0000100 CHIP INDUCTOR 1 R6309,1 0 ERJ3GEYJ333 M 33KOHM,J,1/16W 2 R6312 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R6313 TAJAAH0101JV M 100 OHM,J,1/16W 1 R6314 J0JCC0000100 CHIP INDUCTOR 1 R6316 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R6317- 20 TAJAAH0101JV M 100 OHM,J,1/16W 4 R6321- 24 J0JCC0000100 CHIP INDUCTOR 4 R6325 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R6336 J0JCC0000100 CHIP INDUCTOR 1 R6337 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6347 J0JCC0000100 CHIP INDUCTOR 1 R6348 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6350,5 1 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R6401- 06 ERJ6GEYJ221 M 220 OHM,J,1/10W 6 R6411- 14 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6415,1 6 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6421- 26 ERJ6GEYJ221 M 220 OHM,J,1/10W 6 R6431 ERJ12YJ1R0 M 1 OHM, J,1/2W 1 R6431 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6432 ERJ12YJ1R0 M 1 OHM, J,1/2W 1 R6432,3 3 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6433 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6434 ERDS1FJ221 C 220 OHM, J,1/2W 1 R6434 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6435 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6435 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6436 ERJ6ENF1543 M 154KOHM, 1/10W 1 R6436 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6437 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6438 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R6439- 41 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 3 R6442 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6443 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6449,5 0 ERJ12YJ1R0 M 1 OHM, J,1/2W 2 R6453 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6454 ERDS1FJ221 C 220 OHM, J,1/2W 1 R6455 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6456 ERJ6ENF4533 M 453KOHM, 1/10W 1 R6457,5 8 ERJ6ENF1002 M 10KOHM, 1/10W 2 R6459 ERJ14YJ104 M 100KOHM, J,1/4W 1 R6460 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6462 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6464 ERG2FJS273D M 27KOHM, J, 2W 1 R6465 ERX2FJS8R2D M 8.2 OHM, J, 2W 1 R6467 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 R6468 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6469 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6470,7 1 ERJ6GEYJ333 M 33KOHM,J,1/10W 2 R6472 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6473 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6474 ERDS1FJ221 C 220 OHM, J,1/2W 1 R6475 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6476 ERJ6ENF3243 M 324KOHM, 1/10W 1 R6477 EVMEASA00B53 CONTROL 5KOHMB 0.3W 1 R6478 ERJ6ENF6981 M6.98KOHM, 1/10W 1 266 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R6479 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6480 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6481 ERJ6GEYJ272 M 2.7KOHM,J,1/10W 1 R6482 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6483 ERJ6GEYJ272 M 2.7KOHM,J,1/10W 1 R6484 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6485,8 6 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6487 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6488 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6489 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6490 ERJ12YJ1R0 M 1 OHM, J,1/2W 1 R6491 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6492,9 3 ERJ6ENF2203 M 220KOHM, 1/10W 2 R6494 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R6495 ERJ6ENF5231 M5.23KOHM, 1/10W 1 R6496 ERJ12YJ1R0 M 1 OHM, J,1/2W 1 R6497 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6498,9 9 ERX1FJS8R2D M 8.2 OHM, J, 1W 2 R6500 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 R6501- 09 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 9 R6510 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6511,1 2 ERX3FJS2R2D M 2.2 OHM, J, 3W 2 R6513 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6514 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6515 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6516 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6517 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6518 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6519 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6520 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6521 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6522 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6524 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R6525 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6526 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6527 ERJ14YJ102 M 1KOHM, J,1/4W 1 R6528 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6529 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6530- 39 ERJ6GEYJ470 M 47 OHM,J,1/10W 10 R6540- 49 ERJ6GEYJ100 M 10 OHM,J,1/10W 10 R6550 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6551 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6552 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6553 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6554,5 5 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6556 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6557 EVMEASA00B14 CONTROL 10KOHMB 0.3W 1 R6558 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6559 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6560,6 1 ERJ6GEYJ470 M 47 OHM,J,1/10W 2 R6562- 64 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 3 R6565 ERG1FJS332D M 3.3KOHM, J, 1W 1 R6566 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6567,6 8 ERJ6ENF1003 M 100KOHM, 1/10W 2 R6569 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6570 ERJ6ENF1003 M 100KOHM, 1/10W 1 R6571- 78 ERJ6GEYJ471 M 470 OHM,J,1/10W 8 R6579 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6580 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6581 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6582,8 3 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6584 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R6585,8 6 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 2 R6587 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6588 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6589 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6590,9 1 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6592,9 3 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6594 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6595,9 6 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R6599 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6600 ERD25V0T M OHM, 1/10W 1 R6601 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6602 ERG1FJS471D M 470 OHM, J, 1W 1 R6603 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6604 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6605- 07 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6608 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6609,1 0 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6611- 18 ERJ6GEYJ100 M 10 OHM,J,1/10W 8 R6619- 22 ERJ6GEYJ470 M 47 OHM,J,1/10W 4 R6625 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6626 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6627 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6628 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6629,3 0 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6631- 38 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 8 R6641,4 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6643 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6644,4 5 ERJ6GEYJ470 M 47 OHM,J,1/10W 2 R6646,4 7 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6648- 50 ERJ6GEYJ102 M 1KOHM,J,1/10W 3 R6657- 59 ERJ6GEYJ102 M 1KOHM,J,1/10W 3 R6687,8 8 ERX2FJSR22D M0.22 OHM, J, 2W 2 R6689,9 0 ERJ12YJ220 M 22 OHM,J, 1/2W 2 R6691 EXB38V471J RESISTOR ARRAY 1 R6692 EXB38V473J RESISTOR ARRAY 1 R6693 EXB38V471J RESISTOR ARRAY 1 R6694 EXB38V473J RESISTOR ARRAY 1 R6695 EXB38V471J RESISTOR ARRAY 1 R6696 EXB38V473J RESISTOR ARRAY 1 R6697 EXB38V471J RESISTOR ARRAY 1 R6698 EXB38V473J RESISTOR ARRAY 1 R6700 ERD25V0T M OHM, 1/10W 1 R6701- 03 ERX3FJSR22D M 2.2 OHM, J, 3W 3 R6704 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6705,0 6 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6707 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6710 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6711- 18 ERJ6GEYJ100 M 10 OHM,J,1/10W 8 R6719- 22 ERJ6GEYJ470 M 47 OHM,J,1/10W 4 R6725 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6726 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6727 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6728 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6729,3 0 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 267 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R6731- 38 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 8 R6741,4 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6744 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6747 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6750 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6751,5 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6753 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6754 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6755,5 6 ERJ6GEYJ470 M 47 OHM,J,1/10W 2 R6757 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6758 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6759 ERJ12YJ470 M 47 OHM, J,1/2W 1 R6760 ERG1FJS472D M 4.7KOHM, J, 1W 1 R6761 ERG2FJS123D M 12KOHM, J, 2W 1 R6762 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6763 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6764 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6765,6 6 ERJ6GEYJ333 M 33KOHM,J,1/10W 2 R6767 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6769 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6770 EVMEASA00B14 CONTROL 10KOHMB 0.3W 1 R6772 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6775 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6776 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6777,7 8 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6779 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6780,8 1 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 2 R6782 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6783 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6784 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6785 EXB38V471J RESISTOR ARRAY 1 R6786 EXB38V473J RESISTOR ARRAY 1 R6787 EXB38V471J RESISTOR ARRAY 1 R6788 EXB38V473J RESISTOR ARRAY 1 R6789,9 0 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6801- 08 ERJ6GEYJ680 M 68 OHM,J,1/10W 8 R6815 J0JCC0000100 CHIP INDUCTOR 1 R6817,1 8 ERX2FJSR22D M0.22 OHM, J, 2W 2 R6823,2 4 ERJ12YJ220 M 22 OHM,J, 1/2W 2 R6830 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6850 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7105 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7106 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7107 J0JCC0000100 CHIP INDUCTOR 1 R7108 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7109 J0JCC0000100 CHIP INDUCTOR 1 R7111,1 2 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7113,1 4 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R7115,1 6 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7117,1 8 ERJ3GEYJ121 M 120 OHM,J,1/16W 2 R7119,2 0 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7121,2 2 ERJ3GEYJ121 M 120 OHM,J,1/16W 2 R7123,2 4 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7125,2 6 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R7130- 37 ERJ14YJ220 M 22 OHM, J,1/4W 8 R7147 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R7148 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7158- 65 TAJAAH0470JV M 47 OHM,J,1/16W 8 R7174- 81 TAJAAH0470JV M 47 OHM,J,1/16W 8 R7190- 97 TAJAAH0470JV M 47 OHM,J,1/16W 8 R7224- 27 TAJAAH0470JV M 47 OHM,J,1/16W 4 R7229,3 0 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R7236 J0JCC0000100 CHIP INDUCTOR 1 R7306 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7307 J0JCC0000100 CHIP INDUCTOR 1 R7308 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7309 J0JCC0000100 CHIP INDUCTOR 1 R7311,1 2 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7315,1 6 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7319,2 0 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7323,2 4 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7327 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7330- 37 ERJ14YJ220 M 22 OHM, J,1/4W 8 R7347 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7348 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7358- 65 TAJAAH0470JV M 47 OHM,J,1/16W 8 R7374- 81 TAJAAH0470JV M 47 OHM,J,1/16W 8 R7389 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R7390- 97 TAJAAH0470JV M 47 OHM,J,1/16W 8 R7400,0 1 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R7404 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R7406,0 7 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R7410- 13 TAJAAH0470JV M 47 OHM,J,1/16W 4 R7417 J0JCC0000100 CHIP INDUCTOR 1 R7423,2 4 ERJ3GEYJ121 M 120 OHM,J,1/16W 2 R7427 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R7428 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R7501 ERJ6ENF8200 M 820 OHM, 1/10W 1 R7502 ERJ6ENF1871 M1.87KOHM, 1/10W 1 R7503 ERJ6ENF8060 M 806 OHM, 1/10W 1 R7504 ERJ6ENF3921 M3.92KOHM, 1/10W 1 R7505 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7506 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 (PA) R7506 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 (C3) R7507 ERJ6ENF8200 M 820 OHM, 1/10W 1 (PA) R7507 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (C3) R7508 ERJ6ENF1871 M1.87KOHM, 1/10W 1 (PA) R7508 J0JCC0000100 CHIP INDUCTOR 1 (C3) R7509 ERJ6ENF8060 M 806 OHM, 1/10W 1 R7510 ERJ6ENF1871 M1.87KOHM, 1/10W 1 (PA) R7510 J0JCC0000100 CHIP INDUCTOR 1 (C3) R7511 ERJ14YJ220 M 22 OHM, J,1/4W 1 (C3) R7511 ERJ6ENF8200 M 820 OHM, 1/10W 1 (PA) R7512 ERJ14YJ220 M 22 OHM, J,1/4W 1 (C3) R7512 ERJ6ENF6040 M 604 OHM, 1/10W 1 (PA) R7514 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R7515,0 2 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7516 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7519 ERJ14YJ220 M 22 OHM, J,1/4W 1 (C3) R7519 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 (PA) R7520 ERJ14YJ220 M 22 OHM, J,1/4W 1 (C3) R7520 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 (PA) R7522 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7523,0 2 ERJ14YJ220 M 22 OHM, J,1/4W 2 268 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R7524 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7525,2 6 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R7527 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 (C3) R7527 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 (PA) R7530 ERJ14YJ220 M 22 OHM, J,1/4W 1 (C3) R7530 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (PA) R7531,0 2 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7532 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R7533 ERJ14YJ220 M 22 OHM, J,1/4W 1 (C3) R7533 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 (PA) R7534 ERJ14YJ220 M 22 OHM, J,1/4W 1 (C3) R7534 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 (PA) R7535 ERJ14YJ220 M 22 OHM, J,1/4W 1 (C3) R7535 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 (PA) R7536 ERJ14YJ220 M 22 OHM, J,1/4W 1 (C3) R7536 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 (PA) R7537 ERJ14YJ220 M 22 OHM, J,1/4W 1 (C3) R7537,3 8 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 (PA) R7539 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R7540 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R7541 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 (C3) R7541 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 (PA) R7542 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7542 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 (C3) R7543 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 (PA) R7544 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 (C3) R7544 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 (PA) R7545,4 6 ERJ6ENF2201 M 2.2KOHM, 1/10W 2 R7547 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 (PA) R7547 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 (C3) R7548 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 (C3) R7548 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 (PA) R7549 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7550 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R7551 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 R7553 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7558 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7559 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R7560 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7561 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 (PA) R7561 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C3) R7562 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 (PA) R7562 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C3) R7563 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 (PA) R7563 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C3) R7564 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 (PA) R7564 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C3) R7565 ERJ6ENF3921 M3.92KOHM, 1/10W 1 (PA) R7565 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C3) R7566 ERJ6ENF8200 M 820 OHM, 1/10W 1 R7568 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R7569 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7570 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R7571 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R7574 ERJ6ENF2701 M 2.7KOHM, 1/10W 1 R7578 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7579 ERJ6GEYJ683 M 68KOHM,J,1/10W 1 R7581 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7583 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7584 ERJ6GEYJ512 M 5.1KOHM,J,1/10W 1 R7585 ERJ6ENF8202 M 82KOHM, 1/10W 1 R7586 ERJ6ENF1371 M1.37KOHM, 1/10W 1 R7587 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R7588 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7589 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R7590 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (PA) R7590 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C3) R7591 ERJ6GEYJ563 M 56KOHM,J,1/10W 1 R7594 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7595 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (PA) Ref. No. Part No. Part Name & Description Pcs Remarks R7595 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C3) R7596 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 (PA) R7596 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C3) R7597 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 (PA) R7597 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C3) R7598 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7599 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R7600,0 1 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R7603 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7604 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R7606 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 (PA) R7606 TAJAAH0470JV M 47 OHM,J,1/16W 1 (C3) R7607 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7609 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7612 J0JCC0000100 CHIP INDUCTOR 1 R7614,1 5 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R7622 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R7624 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R7626 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R7628 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R7705 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7706 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7707 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7708 J0JCC0000100 CHIP INDUCTOR 1 R7710 J0JCC0000100 CHIP INDUCTOR 1 R7711,1 2 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7715,1 6 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7719,2 0 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7723,2 4 ERJ14YJ220 M 22 OHM, J,1/4W 2 R7730- 37 ERJ14YJ220 M 22 OHM, J,1/4W 8 R7747 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7748 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7758- 65 TAJAAH0470JV M 47 OHM,J,1/16W 8 R7766 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R7768 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R7770 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R7772 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R7774- 81 TAJAAH0470JV M 47 OHM,J,1/16W 8 R7790- 97 TAJAAH0470JV M 47 OHM,J,1/16W 8 R7799 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7801 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7803 J0JCC0000100 CHIP INDUCTOR 1 R7810 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R7812 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R7818 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R7821 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R7823- 26 TAJAAH0470JV M 47 OHM,J,1/16W 4 R9001 EXB38V470J RESISTOR ARRAY 1 R9002,0 3 J0JCC0000100 CHIP INDUCTOR 2 R9004 EXB38V470J RESISTOR ARRAY 1 R9005 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9006 EXB38V470J RESISTOR ARRAY 1 R9007- 09 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9010 EXB38V470J RESISTOR ARRAY 1 R9011 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9012 EXB38V470J RESISTOR ARRAY 1 R9014 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9015 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9016 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9017 EXB38V470J RESISTOR ARRAY 1 R9018- 20 J0JCC0000100 CHIP INDUCTOR 3 269 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R9022- 24 ERJ3GEYJ750 M 75 OHM,J,1/16W 3 R9025 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9026 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9027 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9028 J0JCC0000100 CHIP INDUCTOR 1 R9029 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9030 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9063 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9065- 67 J0JCC0000100 CHIP INDUCTOR 3 R9104,0 5 J0JCC0000100 CHIP INDUCTOR 2 R9109,1 0 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R9111,1 2 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 R9113 J0JCC0000100 CHIP INDUCTOR 1 R9114,1 5 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R9118 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9122,2 3 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R9130- 32 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9136 J0JCC0000100 CHIP INDUCTOR 1 R9153,5 4 EXB2HVR000 RESISTOR ARRAY 2 R9157 EXB2HVR000 RESISTOR ARRAY 1 R9167,6 8 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9171,7 2 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9176 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9177 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9178,7 9 J0JCC0000100 CHIP INDUCTOR 2 R9180 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9182 J0JCC0000100 CHIP INDUCTOR 1 R9183 ERJ6ENF3001 M 3KOHM, 1/10W 1 R9184 ERJ6ENF1001 M 1KOHM, 1/10W 1 R9187 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9190 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9191 J0JCC0000100 CHIP INDUCTOR 1 R9199 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9202 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9203 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9204,0 5 J0JCC0000100 CHIP INDUCTOR 2 R9211- 15 J0JCC0000100 CHIP INDUCTOR 5 R9216 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9218 J0JCC0000100 CHIP INDUCTOR 1 R9219 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9220,2 1 ERJ3GEYJ151 M 150 OHM,J,1/16W 2 R9224 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R9226 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9228 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9229,3 0 J0JCC0000100 CHIP INDUCTOR 2 R9231 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9232 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9234 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9236 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9240,4 1 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 R9244,4 5 J0JCC0000100 CHIP INDUCTOR 2 R9247 J0JCC0000100 CHIP INDUCTOR 1 R9302 J0JCC0000100 CHIP INDUCTOR 1 R9304 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9309 J0JCC0000100 CHIP INDUCTOR 1 R9310 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9311 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9312- 14 ERJ6GEY0R00 M 0 OHM, 1/10W 3 Ref. No. Part No. Part Name & Description Pcs Remarks R9315 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9317 J0JCC0000100 CHIP INDUCTOR 1 R9318- 21 EXB38V470J RESISTOR ARRAY 4 R9322 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9323,2 4 EXB38V680J RESISTOR ARRAY 2 R9325 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9327 EXB38V680J RESISTOR ARRAY 1 R9328 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9329,3 0 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R9331 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9332 EXB38V680J RESISTOR ARRAY 1 R9335 J0JCC0000100 CHIP INDUCTOR 1 R9336 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9337 J0JCC0000100 CHIP INDUCTOR 1 R9338 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9339 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9341,4 2 TAJAAH0470JV M 47 OHM,J,1/16W 2 R9346 J0JCC0000100 CHIP INDUCTOR 1 R9347,4 8 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R9349 EXB38V680J RESISTOR ARRAY 1 R9350 J0JCC0000100 CHIP INDUCTOR 1 R9351 EXB38V680J RESISTOR ARRAY 1 R9352 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9354 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9355 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9357 EXB38V680J RESISTOR ARRAY 1 R9359 EXB38V680J RESISTOR ARRAY 1 R9362 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9363 EXB38V680J RESISTOR ARRAY 1 R9365 EXB38V680J RESISTOR ARRAY 1 R9367 J0JCC0000100 CHIP INDUCTOR 1 R9368,6 9 EXB38V680J RESISTOR ARRAY 2 R9371 J0JCC0000100 CHIP INDUCTOR 1 R9373- 75 J0JCC0000100 CHIP INDUCTOR 3 R9376 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9377- 79 EXB2HVR000 RESISTOR ARRAY 3 R9380 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9382 J0JCC0000100 CHIP INDUCTOR 1 R9385 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9386 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9388 J0JCC0000100 CHIP INDUCTOR 1 R9389,9 0 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9391,9 2 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R9393- 96 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R9397,9 8 ERJ6ENF1001 M 1KOHM, 1/10W 2 R9399,0 0 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R9401,0 2 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9403 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9405 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9408 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9411 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9413 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9415 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9417 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9420 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9421 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9422 J0JCC0000100 CHIP INDUCTOR 1 R9425 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9431 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9435 J0JCC0000100 CHIP INDUCTOR 1 R9437 J0JCC0000100 CHIP INDUCTOR 1 270 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R9439- 41 J0JCC0000100 CHIP INDUCTOR 3 R9443- 45 J0JCC0000100 CHIP INDUCTOR 3 R9447 J0JCC0000100 CHIP INDUCTOR 1 R9449 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9455 J0JCC0000100 CHIP INDUCTOR 1 R9459 J0JCC0000100 CHIP INDUCTOR 1 R9460- 62 ERJ3GEYJ100 M 10 OHM,J,1/16W 3 R9465,6 6 EXB2HVR000 RESISTOR ARRAY 2 R9468 EXB2HVR000 RESISTOR ARRAY 1 R9469,7 0 J0JCC0000100 CHIP INDUCTOR 2 R9475 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9476 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9477,7 8 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9479 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9480,8 1 ERJ6ENF1001 M 1KOHM, 1/10W 2 R9483 J0JCC0000100 CHIP INDUCTOR 1 R9484,8 5 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R9486,8 7 ERJ6ENF1001 M 1KOHM, 1/10W 2 R9488,8 9 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R9490,9 1 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9492- 95 EXB38VR000 RESISTOR ARRAY 4 R9496 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9498 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9501 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9503 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9504 EXB38V103J RESISTOR ARRAY 1 R9506 EXB38V103J RESISTOR ARRAY 1 R9509- 13 ERJ3GEYJ103 M 10KOHM,J,1/16W 5 R9514 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9515 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9516,1 7 J0JCC0000100 CHIP INDUCTOR 2 R9518- 27 EXB38V680J RESISTOR ARRAY 10 R9529,3 0 EXB38V680J RESISTOR ARRAY 2 R9532- 37 TAJAAH0470JV M 47 OHM,J,1/16W 6 R9538,3 9 J0JCC0000100 CHIP INDUCTOR 2 R9540 EXB38V470J RESISTOR ARRAY 1 R9541,4 2 J0JCC0000100 CHIP INDUCTOR 2 R9543 EXB38V470J RESISTOR ARRAY 1 R9544,4 5 TAJAAH0470JV M 47 OHM,J,1/16W 2 R9547 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9548 J0JCC0000100 CHIP INDUCTOR 1 R9550,5 1 EXB38V470J RESISTOR ARRAY 2 R9552 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9553 EXB38V680J RESISTOR ARRAY 1 R9554 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9556- 58 ERJ3GEYJ151 M 150 OHM,J,1/16W 3 R9559 EXB38V470J RESISTOR ARRAY 1 R9560 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9561 EXB38V470J RESISTOR ARRAY 1 R9562 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9563 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9564 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9565 J0JCC0000100 CHIP INDUCTOR 1 R9567 J0JCC0000100 CHIP INDUCTOR 1 R9569 J0JCC0000100 CHIP INDUCTOR 1 Ref. No. Part No. Part Name & Description Pcs Remarks R9577 J0JCC0000100 CHIP INDUCTOR 1 R9579 J0JCC0000100 CHIP INDUCTOR 1 R9585 J0JCC0000100 CHIP INDUCTOR 1 R9586 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9592 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9593 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9594 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9595 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9596 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9597 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9598,9 9 EXB38V103J RESISTOR ARRAY 2 R9600- 05 J0JCC0000100 CHIP INDUCTOR 6 R9607- 09 J0JCC0000100 CHIP INDUCTOR 3 R9611- 15 J0JCC0000100 CHIP INDUCTOR 5 R9618 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9620,2 1 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9624 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9625 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R9627,2 8 J0JCC0000100 CHIP INDUCTOR 2 R9631- 35 J0JCC0000100 CHIP INDUCTOR 5 R9637 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9640,4 1 J0JCC0000100 CHIP INDUCTOR 2 R9642 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9643 J0JCC0000100 CHIP INDUCTOR 1 R9648 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9650- 53 EXB38V103J RESISTOR ARRAY 4 R9654,5 5 J0JCC0000100 CHIP INDUCTOR 2 R9670- 72 J0JCC0000100 CHIP INDUCTOR 3 R9674- 79 J0JCC0000100 CHIP INDUCTOR 6 R9683 J0JCC0000100 CHIP INDUCTOR 1 R9685- 88 J0JCC0000100 CHIP INDUCTOR 4 R9700 J0JCC0000100 CHIP INDUCTOR 1 R9701 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9702 TAJAAH0680JV M 68 OHM,J,1/16W 1 R9703- 08 TAJAAH0101JV M 100 OHM,J,1/16W 6 R9709 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9710- 16 ERJ3GEYJ151 M 150 OHM,J,1/16W 7 R9717,1 8 J0JCC0000100 CHIP INDUCTOR 2 R9719- 24 ERJ3GEYJ151 M 150 OHM,J,1/16W 6 R9725 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9726 J0JCC0000100 CHIP INDUCTOR 1 R9727 EXB38VR000 RESISTOR ARRAY 1 R9728 J0JCC0000100 CHIP INDUCTOR 1 R9730- 32 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9733 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9734 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9735 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9736 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9737 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9738,3 9 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R9741 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9743 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9744 J0JCC0000100 CHIP INDUCTOR 1 R9745 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9747 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9748 J0JCC0000100 CHIP INDUCTOR 1 R9749 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9750 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 271 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R9751 EXB38V103J RESISTOR ARRAY 1 R9753 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9754 EXB38V272J RESISTOR ARRAY 1 R9755,5 6 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R9757 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9758 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9759 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9760 J0JCC0000100 CHIP INDUCTOR 1 R9761 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9762 EXB38V103J RESISTOR ARRAY 1 R9763 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9765 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9766 J0JCC0000100 CHIP INDUCTOR 1 R9767 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9768 EXB38V470J RESISTOR ARRAY 1 R9769 EXB38VR000 RESISTOR ARRAY 1 R9770 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9771 EXB38VR000 RESISTOR ARRAY 1 R9773 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9774- 76 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9777 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R9779 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9781 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9782 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9783,8 4 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R9785,8 6 EXB38VR000 RESISTOR ARRAY 2 R9787 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9788 J0JCC0000100 CHIP INDUCTOR 1 R9789 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R9790 ERJ3GEYJ152 M 1.5KOHM,J,1/16W 1 R9791 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9794 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9795 ERJ3GEYJ105 M 1MOHM,J,1/16W 1 R9798,9 9 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9800 J0JCC0000100 CHIP INDUCTOR 1 R9803,0 4 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9805 J0JCC0000100 CHIP INDUCTOR 1 R9806 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9809 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9810,1 1 J0JCC0000100 CHIP INDUCTOR 2 R9814 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9816 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9817 J0JCC0000100 CHIP INDUCTOR 1 R9818,1 9 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9820 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9823,2 4 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R9825 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9826 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9827 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9829 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R9832 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9833 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R9834,3 5 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R9836 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9837 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9838 J0JCC0000100 CHIP INDUCTOR 1 R9839,4 0 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9843,4 4 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9846,4 7 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9848 EXB38V103J RESISTOR ARRAY 1 R9849,5 0 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9851 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R9852,5 3 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9854 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9855 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R9856 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9857 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9858 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9859 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9860 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9861 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9864 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9867 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9868 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9869 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9871 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9872 J0JCC0000100 CHIP INDUCTOR 1 R9873 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9874,7 5 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9876 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9878- 80 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9882,8 3 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9885 EXB38V103J RESISTOR ARRAY 1 R9886 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9887,8 8 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9889 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9890 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9892 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9893- 96 TAJAAH0101JV M 100 OHM,J,1/16W 4 R9897 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9898 J0JCC0000100 CHIP INDUCTOR 1 R9900 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9901 J0JCC0000100 CHIP INDUCTOR 1 R9902 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9903- 05 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9906 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9907 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9908 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9909 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9910 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9912 J0JCC0000100 CHIP INDUCTOR 1 R9913 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R9914 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9916 J0JCC0000100 CHIP INDUCTOR 1 R9917 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9918 J0JCC0000100 CHIP INDUCTOR 1 R9919 ERJ6ENF1002 M 10KOHM, 1/10W 1 R9920 ERJ3GEYJ105 M 1MOHM,J,1/16W 1 R9921- 23 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9924 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9925 J0JCC0000100 CHIP INDUCTOR 1 R9929,3 0 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9931 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9932 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9933 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9934 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9935,3 6 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9937 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9939 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9940 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9941 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9942 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9943 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9944 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9945,4 6 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R9947 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 272 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R9949 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9951,5 2 J0JCC0000100 CHIP INDUCTOR 2 R9954- 57 J0JCC0000100 CHIP INDUCTOR 4 R9959,6 0 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9961 ERJ6ENF1621 M1.62KOHM, 1/10W 1 R9962 ERJ6ENF1001 M 1KOHM, 1/10W 1 R9963 J0JCC0000100 CHIP INDUCTOR 1 R9964 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9965 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9966 J0JCC0000100 CHIP INDUCTOR 1 R9969 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9971 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9972 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9976 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9979 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9984- 88 J0JCC0000100 CHIP INDUCTOR 5 R9990 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9991 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9992 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9993 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9996 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9998 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 RL401 K6B1AGA00086 RELAY 1 RL402 K6B1AGA00177 REALY 1 RL901 K6B1ADA00023 RELAY 1 RM300 PNA4601M05TV REMOCON RECEIVER 1 RTL TNPA3177 CIRCUIT BOARD DG 1 RTL TNPA3178 CIRCUIT BOARD H 1 RTL TNPA3179 CIRCUIT BOARD TB 1 RTL TNPA3180 CIRCUIT BOARD JA 1 RTL TXNDV1UHSU CIRCUIT BOARD DV 1 RTL TXNPA1UHSU CIRCUIT BOARD PA 1 RTL TXNPF1UHSU CIRCUIT BOARD PF 1 RTL TNPA2889 CIRCUIT BOARD P 1 RTL TNPA3104 CIRCUIT BOARD SU 1 RTL TNPA3105 CIRCUIT BOARD SD 1 RTL TNPA3059 CIRCUIT BOARD C1 1 RTL TNPA3060 CIRCUIT BOARD C2 1 RTL TNPA3061 CIRCUIT BOARD C3 1 RTL TNPA3062 CIRCUIT BOARD C4 1 RTL TZTNP01QKSU CIRCUIT BOARD D 1 RTL TXNSC20QJS CIRCUIT BOARD SC 1 RTL TXNSS10QJS CIRCUIT BOARD SS 1 RTL TNPA2916 CIRCUIT BOARD SS2 1 RTL TNPA2917 CIRCUIT BOARD SS3 1 RTL TNPA2990AB CIRCUIT BOARD S 1 RTL TNPA3151 CIRCUIT BOARD JG 1 RTL TXN/G1UHSU CIRCUIT BOARD G 1 RTL TXN/K1QKSU CIRCUIT BOARD K 1 RTL TNP2AA144ACS CIRCUIT BOARD DT 1 S4 K1KA07B00006 7P CONNECTOR 1 S34 K1KA03A00213 3P CONNECTOR 1 S300 K0F122A00172 SWITCH REMOTE CONTROL H 1 S901 J0LT00000009 SWITCH 1 S3701- 07 EVQ23405R SWITCH 7 SC2 K1KA06A00180 6P CONNECTOR 1 SC20 K1KA20A00180 20P CONNECTOR 1 SC23 K1KA03A00213 3P CONNECTOR 1 SC41-44 K1KB40B00015 40P CONNECTOR 4 SC45,46 K1KA10A00194 10P CONNECTOR 2 SD1-D4 K1MN96B00001 CONNECTOR 4 SD46 K1KA10B00209 10P CONNECTOR 1 Ref. No. Part No. Part Name & Description Pcs Remarks SS11 K1KA07A00096 7P CONNECTOR 1 SS12 K1KA10A00259 10P CONNECTOR 1 SS20,21 K1KA07A00170 7P CONNECTOR 2 SS22,23 K1KB07A00037 7P CONNECTOR 2 SS32 K1KA12A00176 12P CONNECTOR 1 SS34 K1KA03A00213 3P CONNECTOR 1 SS42 K1KA04A00242 4P CONNECTOR 1 SS51-58 K1MN13B00020 13P CONNECTOR 8 SU1-U4 K1MN96B00001 CONNECTOR 4 SU45 K1KA10B00209 10P CONNECTOR 1 T401 G4D4A0000073 SWITCHING TRANSFORMER 1 T402,03 ETS19AB1T6AG SWITCHING TRANS 2 T404 ETS28LZ116AD SWITCHING TRANS 1 T405 ETS42LZ116AD SWITCHING TRANS 1 T407 ETQ11K5AZ CHOKE TRANS 1 T410 ETS25AD1J6AH SWITCHING TRANS 1 T920 ETS29AK7J5AD SWITCHING TRANS 1 T6431 ETS13TB139AP SWITCHING TRANS 1 T6451 G4D1A0000072 SWITCHING TRANS 1 T6471 G4D1A0000072 SWITCHING TRANS 1 X501 H2B400400021 CRYSTAL 1 X6001 H1A4905B0001 CRYSTAL 1 X9302 H0J200500016 CRYSTAL 1 X9701 H0J245500013 CRYSTAL 1 X9702 H0J921400003 CRYSTAL 1 X9703 H0J200500016 CRYSTAL 1 Z415 TMM23417 CLAMPER 3 ZA901 K4ZZ01000121 EARTH LUG 1 ZA5001- 03 K4CD01000002 TERMINAL 3 ZA5101- 05 TESA169 SHIELD CLIP 5 ZA7002- 07 K4ZZ01000121 EARTH LUG 6 ZN401,0 2 D4EAD6210001 VARISTOR 2 S34 K1KA03A00213 3P CONNECTOR 1 S300 K0F122A00172 SWITCH REMOTE CONTROL H 1 C001 EEEHB1A101P C 100PF, J, 10V 1 C002 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C003 EEEHB1A101P C 100PF, J, 10V 1 C004 EEEHB1H1R0R C 1.0PF, J, 50V 1 C005 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C006 EEEHB1C470P C 47PF, J, 16V 1 C007 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C008 EEEHB1C470P C 47PF, J, 16V 1 C009 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C011 ECJ3YB0J475M C 0.047UF, K, 25V 1 C012,13 ECJ1XC1H101J C 100PF, J, 50V 2 C014 ECJ1VB1H392K C 3900PF, K, 50V 1 C015 TCUY0J685MBM C 6.8UF, 6.3V 1 C016 ECJ1XC1H101J C 100PF, J, 50V 1 C017 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C018 ECJ1XC1H101J C 100PF, J, 50V 1 C019 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C020 ECJ1XC1H220J C 22PF, J, 50V 1 C021 EEEHB1H1R0R C 1.0PF, J, 50V 1 C022 ECJ1XC1H101J C 100PF, J, 50V 1 C023 ECJ1VC1H270J C 27PF, J, 50V 1 C024 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C025 EEEHB1C470P C 47PF, J, 16V 1 C026 EEEHB1H1R0R C 1.0PF, J, 50V 1 C027 ECJ1XB1H102K C 1000UF, Z, 50V 1 273 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks C028 ECJ1XC1H101J C 100PF, J, 50V 1 C029 EEEHP0J470P C 47PF, J,6.3V 1 C030,31 ECJ1XC1H220J C 22PF, J, 50V 2 C032 EEEHP0J470P C 47PF, J,6.3V 1 C033 EEEHB1H1R0R C 1.0PF, J, 50V 1 C034 TCUY0J685MBM C 6.8UF, 6.3V 1 C035 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C036 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C037 EEEHB0J101P C 100PF, J, 6.3V 1 C038 ECJ2XB1H682K C 6800PF, K, 50V 1 C039,40 ECJ1VF1A105Z C 1UF, Z, 10V 2 C041,42 ECJ1XC1H561J C 560PF, J, 50V 2 C043,44 ECJ1XC1H471J C 470PF, J, 50V 2 C047 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C049 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C051 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C2251 EEEHB1A101P C 100PF, J, 10V 1 C2252,5 3 ECJ2VF1H103Z C 0.01UF, Z, 50V 2 C2255 EEEHB1A101P C 100PF, J, 10V 1 C3010,1 1 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3040- 42 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C3801,0 2 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3803 EEEHB0J101P C 100PF, J, 6.3V 1 C3804 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3805 EEEHB1C470P C 47PF, J, 16V 1 C3806,0 7 ECJ2VF1H103Z C 0.01UF, Z, 50V 2 C3808 EEEHB1C470P C 47PF, J, 16V 1 C3809 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C3810 ECJ2XC1H102J C 1000PF, J, 50V 1 C3811 TCUY1C225KBM C 2.2UF, 16V 1 C3812 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3813,1 4 ECJ1XC1H330J C 33PF, J, 50V 2 C3815 ECJ2XB1H563K C 0.056UF, K, 50V 1 C3816 ECJ2XB1H102K C 1000PF, K, 50V 1 C4501 ECJ1VB1H103K C 0.01UF, K, 50V 1 C4502 EEEHB1A330R C 33PF, J, 10V 1 C4503 ECJ1XC1H050C C 5PF, C, 50V 1 C4504,0 5 ECJ1XC1H470J C 47PF, J, 50V 2 C4506 ECJ1XC1H050C C 5PF, C, 50V 1 C4507,0 8 ECJ1XC1H220J C 22PF, J, 50V 2 C4509,1 0 ECJ1XC1H121J C 120PF, J, 50V 2 C4511 ECJ1XC1H220J C 22PF, J, 50V 1 C4512 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4513 ECJ1XC1H101J C 100PF, J, 50V 1 C4514 EEEHB1A330R C 33PF, J, 10V 1 C4516 EEEHP1E100P C 10PF 1 C4518 EEEHP1E100P C 10PF 1 C4519 ECJ3XB0J106M C 10UF, M,6.3V 1 C4521 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4522 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4523 ECJ1VB1H103K C 0.01UF, K, 50V 1 C4524,2 5 EEEHB0G101R C 100PF, J, 4V 2 C4526 ECJ1VB1H471K C 470PF, K, 50V 1 C4527,2 8 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4529 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4530- 32 ECJ1VF1A105Z C 1UF, Z, 10V 3 C4533 EEEHB1C470P C 47PF, J, 16V 1 C4534 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4535,3 6 ECJ1VF1A105Z C 1UF, Z, 10V 2 C4537 EEEHB0G101R C 100PF, J, 4V 1 C4538 ECJ1VC1H080C C 8PF, C, 50V 1 C4539 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4540 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C4541 ECJ1VB1H103K C 0.01UF, K, 50V 1 C4542 EEEHB0G101R C 100PF, J, 4V 1 C4543- 48 ECJ1VF1A105Z C 1UF, Z, 10V 6 C4549 EEEHB1A330R C 33PF, J, 10V 1 C4550 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4551 TCUY0J685MBM C 6.8UF, 6.3V 1 C4552 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4553- 58 ECJ1VF1A105Z C 1UF, Z, 10V 6 C4559 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4560 EEEHB0G101R C 100PF, J, 4V 1 C4561 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4562 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4563 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4564 EEEHB0G101R C 100PF, J, 4V 1 C4565- 79 ECJ1XF1C104Z C 0.1UF, Z, 16V 15 C4580 TCUY0J685MBM C 6.8UF, 6.3V 1 C4581,8 2 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C4583 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4584- 86 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C4587 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4588 EEEHB0G101R C 100PF, J, 4V 1 C4589 TCUY0J685MBM C 6.8UF, 6.3V 1 C4590 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4591- 93 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C4594 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4596- 00 ECJ1XF1C104Z C 0.1UF, Z, 16V 5 C4601 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4602 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4603 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4604 ECJ1XB0J105K C 1UF, K, 16V 1 C4606 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4607 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4608 ECJ1XB0J105K C 1UF, K, 16V 1 C4609 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4611 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4612- 14 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C4615 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4616 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4617 ECJ1XC1H330J C 33PF, J, 50V 1 C4618 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4619 ECJ1XB0J105K C 1UF, K, 16V 1 C4620 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4621 ECJ1XC1H471J C 470PF, J, 50V 1 C4622 ECJ1XC1H680J C 68PF, J, 50V 1 C4623- 32 ECJ1VF1A105Z C 1UF, Z, 10V 10 C4633- 35 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C4636 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4637,3 8 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C4639- 41 ECJ1VF1A105Z C 1UF, Z, 10V 3 C4642 EEEHB0G101R C 100PF, J, 4V 1 C4643 EEEHP1E100P C 10PF 1 C4644 ECJ3XB1C105K C 1UF, K, 16V 1 C4645 ECJ1XC1H330J C 33PF, J, 50V 1 C4646 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4647 ECJ1XC1H102J C 1000PF, J, 50V 1 C4648,4 9 ECJ1VF1A105Z C 1UF, Z, 10V 2 C4650 ECJ1XC1H680J C 68PF, J, 50V 1 C4651,5 2 ECJ1XC1H150J C 15PF, J, 50V 2 C4653 EEEHB0G101R C 100PF, J, 4V 1 C4654 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4655 ECJ1XB1C223K C 0.022UF, K, 16V 1 C4656 ECJ1VB1H103K C 0.01UF, K, 50V 1 274 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks C4657 EEFCD0G560R 56UF, 1 C4658 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4659 EEFCD0G560R 56UF, 1 C4660 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4661 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4663 ECJ1XB0J105K C 1UF, K, 16V 1 C4665- 69 ECJ1XB0J105K C 1UF, K, 16V 5 C4670 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4671,7 2 ECJ1XC1H470J C 47PF, J, 50V 2 C4673 ECJ1XC1H330J C 33PF, J, 50V 1 C4674- 77 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C4678,7 9 ECJ1XC1H220J C 22PF, J, 50V 2 C4680 ECJ1XC1H050C C 5PF, C, 50V 1 C4681,8 2 EEEHB1A330R C 33PF, J, 10V 2 C4683 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4684 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4685,8 6 ECJ1XC1H121J C 120PF, J, 50V 2 C4687 EEEHB1C100R C 10PF, J, 16V 1 C4691 ECJ1XC1H101J C 100PF, J, 50V 1 C4692 ECJ1VC1H270J C 27PF, J, 50V 1 C4693- 96 ECJ1XB0J105K C 1UF, K, 16V 4 C4697 TCUY0J685MBM C 6.8UF, 6.3V 1 C4700 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4701 EEEHB1C470P C 47PF, J, 16V 1 C4702 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4703,0 4 EEEHB1A330R C 33PF, J, 10V 2 C4705 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4706 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4707 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4708 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4709 EEEHB0G101R C 100PF, J, 4V 1 C4710 ECJ1XB0J105K C 1UF, K, 16V 1 C4711 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4712 EEEHB0G221P C 220PF, J, 4V 1 C4714 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4715 EEEHB0G221P C 220PF, J, 4V 1 C4717 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4718- 28 ECJ1XF1C104Z C 0.1UF, Z, 16V 11 C4729,3 0 ECJ1VF1A105Z C 1UF, Z, 10V 2 C4731- 33 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C4734 ECJ1XC1H680J C 68PF, J, 50V 1 C4735 ECJ1XC1H330J C 33PF, J, 50V 1 C4736 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4737 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4738- 42 ECJ1XF1C104Z C 0.1UF, Z, 16V 5 C4743 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4744- 46 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C4747 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4748 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4749 EEEHB0G101R C 100PF, J, 4V 1 C4750- 55 ECJ1XF1C104Z C 0.1UF, Z, 16V 6 C4756 ECJ1XB0J105K C 1UF, K, 16V 1 C4757 ECJ1VB1H103K C 0.01UF, K, 50V 1 C4758,5 9 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C4760,6 1 ECJ1VF1A105Z C 1UF, Z, 10V 2 C4762,6 3 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C4764 ECJ1VB1H471K C 470PF, K, 50V 1 C4765- 69 ECJ1XF1C104Z C 0.1UF, Z, 16V 5 Ref. No. Part No. Part Name & Description Pcs Remarks C4770 ECJ1XB0J105K C 1UF, K, 16V 1 C4771- 75 ECJ1XF1C104Z C 0.1UF, Z, 16V 5 C4776 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4777- 84 ECJ1VF1A105Z C 1UF, Z, 10V 8 C4785 EEEHB0G101R C 100PF, J, 4V 1 C4786 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4787 EEEHB0G101R C 100PF, J, 4V 1 C4788 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4789- 92 ECJ1VF1A105Z C 1UF, Z, 10V 4 C4799 EEEHB1C470P C 47PF, J, 16V 1 C4800,0 1 ECJ1VF1C105Z C 1UF, Z, 10V 2 C4802 ECJ1VB1H103K C 0.01UF, K, 50V 1 C4803 EEEHB0G101R C 100PF, J, 4V 1 C4804 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4813 EEEHB1A330R C 33PF, J, 10V 1 C4814 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4817 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4818 EEEHB0G101R C 100PF, J, 4V 1 C4819 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4820 EEEHB1C470P C 47PF, J, 16V 1 C4821 ECJ3YB1C475K C 0.047UF, K, 16V 1 C4823 ECJ3YB1C475K C 0.047UF, K, 16V 1 C4825 ECJ3YB1C475K C 0.047UF, K, 16V 1 C4828 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C4829 EEEHB1C470P C 47PF, J, 16V 1 C4830 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C4831 EEEHB1C470P C 47PF, J, 16V 1 C4833,3 4 TCUY0J685MBM C 6.8UF, 6.3V 2 C4840 EEEHB0G101R C 100PF, J, 4V 1 C4841 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C4842 EEEHB0G101R C 100PF, J, 4V 1 C4843 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C4844 EEEHB1C470P C 47PF, J, 16V 1 C4845 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4846 EEEHB1C470P C 47PF, J, 16V 1 C4847 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8001 ECJ2XB1H682K C 6800PF, K, 50V 1 C8002 EEEHP1E220P C 22PF 1 C8003 ECJ2XB1H682K C 6800PF, K, 50V 1 C8004 EEEHP1E220P C 22PF 1 C8005 ECJ2XB1H682K C 6800PF, K, 50V 1 C8006 EEEHP1E220P C 22PF 1 C8008 ECJ1VB1H471K C 470PF, K, 50V 1 C8010 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C8011 EEEHB1C470P C 47PF, J, 16V 1 C8014 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8017,1 8 ECJ3XB0J106M C 10UF, M,6.3V 2 C8020 ECJ1VB1H103K C 0.01UF, K, 50V 1 C8022 ECJ3VB1C474K C 0.47UF, K, 16V 1 C8023 ECJ1VB1H103K C 0.01UF, K, 50V 1 C8024 ECJ1VB1H471K C 470PF, K, 50V 1 C8025 EEEHB1C470P C 47PF, J, 16V 1 C8026 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C8031 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8032 EEEHB1C470P C 47PF, J, 16V 1 C8034 ECJ1XC1H102J C 1000PF, J, 50V 1 C8037 ECJ1XC1H101J C 100PF, J, 50V 1 C8039 ECJ2XC1H102J C 1000PF, J, 50V 1 C8044 TCUY1C225KBM C 2.2UF, 16V 1 C8045 ECJ1XC1H330J C 33PF, J, 50V 1 C8046 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8047 EEEHP1E220P C 22PF 1 C8048 ECJ2XB1H682K C 6800PF, K, 50V 1 C8050 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C8051 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8055 ECJ1XC1H101J C 100PF, J, 50V 1 C8201 EEEHB1C470P C 47PF, J, 16V 1 C8203 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 275 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks C8206- 09 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C8210 ECJ3XB0J106M C 10UF, M,6.3V 1 C8211 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8212 ECJ3XB0J106M C 10UF, M,6.3V 1 C8213,1 4 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C8215 ECJ3XB0J106M C 10UF, M,6.3V 1 C8216 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C8217- 19 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C8220 EEEHB1C470P C 47PF, J, 16V 1 C8221- 23 EEEHB1A471P C 470PF, J, 10V 3 C8301 ECJ3XB0J106M C 10UF, M,6.3V 1 C8302- 04 ECJ3YB1A475K C 0.047UF, K, 10V 3 C8332 EEEHB1C470P C 47PF, J, 16V 1 C8334 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C8336 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8341 ECJ3XB0J106M C 10UF, M,6.3V 1 C8347 ECJ3XB0J106M C 10UF, M,6.3V 1 C8348 ECJ3YB1A475K C 0.047UF, K, 10V 1 C8354 ECJ1VB1H103K C 0.01UF, K, 50V 1 C8366 ECJ1VB1H103K C 0.01UF, K, 50V 1 D001 MA3036H ZENER DIODE 1 D002 MA3091M ZENER DIODE 1 D2251,5 2 MA152K DIODE 2 D2254,5 5 MA152K DIODE 2 D3801,0 2 MA152K DIODE 2 D4502 MA704 DIODE 1 D4504 MA152K DIODE 1 D8001- 03 MA3140M ZENER DIODE 3 D8004,0 5 MA153 DIODE 2 D8302 MA111 DIODE 1 D8304 MA111 DIODE 1 IC001 MN102HF75KBF IC 1 IC002 C3EBJC000037 1 IC003 PST9128NR IC (LOGIC) 1 IC004 C0CBCBD00004 IC 1 IC005 MC14052BF MOS IC (CMOS GATE ARRLY) 1 IC3003 CXA1315M LINEAR IC 1 IC3004 CXA1875AM LINEAR IC 1 IC3517 AHC2G66HDCTR INTEGRATED CIRCUIT 1 IC3699 LSUQ0061 IC 1 IC3801 C2BBFE000138 IC 1 IC3802 MC14052BF MOS IC (CMOS GATE ARRLY) 1 IC3803 M51957BFP LINEAR IC 1 IC4501 C1AB00001702 IC 1 IC4502 C1AB00001703 IC 1 IC4503 C0CBCBD00006 IC 1 IC4504 C3HBKZ000001 IC 1 IC4505 PQ07VZ012ZP IC 1 IC4506 PST9128NR IC (LOGIC) 1 IC4507, 08 C0CBCBD00006 IC 2 IC4509 C0CBCAD00006 IC 1 IC4510 C0JBAM000095 IC 1 IC4511 C0CBCBD00006 IC 1 IC4512 AN15935A-VF IC 1 IC4513 PQ07VZ012ZP IC 1 IC4514 C0CBCBD00006 IC 1 IC4515 C0FBAF000040 IC 1 IC4516 C0CBCAD00006 IC 1 IC4517 C0CBCBD00006 IC 1 IC4518 C3ABPJ000048 IC 1 Ref. No. Part No. Part Name & Description Pcs Remarks IC4519, 20 TC7SH32F IC 2 IC4521 C0CBCBD00006 IC 1 IC4522 C0CBCAD00006 IC 1 IC4530 C0CBCBD00004 IC 1 IC4810 PQ12SZ1T IC 1 IC8008 TC4W53FEL IC 1 IC8009 AHC2G66HDCTR INTEGRATED CIRCUIT 1 IC8030 MC14066BF MOS IC (LOGIC) 1 IC8031 CXA1315M LINEAR IC 1 IC8054 M52346SP LINEAR IC 1 IC8071 MC14052BF MOS IC (CMOS GATE ARRLY) 1 IC8076 TC74HC14AF IC 1 IC8200 M52055FP LINEAR IC 1 IC8201 C1AB00001720 IC 1 JS001 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS4024, 25 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS4392- 94 ERJ6GEY0R00 M 0 OHM, 1/10W 3 JS8093 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS8205 ERJ6GEY0R00 M 0 OHM, 1/10W 1 L3005 G1C100KA0008 INDUCTOR COIL 1 L3801 G1C100KA0008 INDUCTOR COIL 1 L4501 ERJ6GEY0R00 M 0 OHM, 1/10W 1 L4502 TALC168T1R5K CHIP INDUCTOR COIL 1 L4503,0 4 TALC168T5R6K CHIP INDUCTOR COIL 2 L4505 TALC168T3R3K CHIP INDUCTOR COIL 1 L4506,0 7 ERJ3GEY0R00 M 0 OHM, 1/16W 2 L4508 J0JGC0000021 CHIP INDUCTOR COIL 1 L4509 G1C100KA0008 INDUCTOR COIL 1 L4510 J0JGC0000021 CHIP INDUCTOR COIL 1 L4511- 14 J0JCC0000241 CHIP INDUCTOR 4 L4515 J0JGC0000021 CHIP INDUCTOR COIL 1 L4516,1 7 J0JCC0000241 CHIP INDUCTOR 2 L4520,2 1 TALC168T5R6K CHIP INDUCTOR COIL 2 L4522 TALC168T4R7K CHIP INDUCTOR COIL 1 L4524 J0JGC0000021 CHIP INDUCTOR COIL 1 L4525 G1C100KA0008 INDUCTOR COIL 1 L4526,2 7 J0JCC0000241 CHIP INDUCTOR 2 L4528,2 9 J0JGC0000021 CHIP INDUCTOR COIL 2 L4530,3 1 J0JCC0000241 CHIP INDUCTOR 2 L4532 J0JGC0000021 CHIP INDUCTOR COIL 1 L4556 J0JGC0000021 CHIP INDUCTOR COIL 1 L4558- 61 J0JHC0000035 CHIP INDUCTOR 4 L4812 G1C100KA0008 INDUCTOR COIL 1 L8002 G1C100KA0008 INDUCTOR COIL 1 L8004 G1C100KA0008 INDUCTOR COIL 1 L8200- 04 EXCCL3225U1 EMI FILTER 5 LC4304, 05 TLK212T256AL EMI FILTER 2 LC4308, 09 TLK212T256AL EMI FILTER 2 LC4311 TLK212T256AL EMI FILTER 1 LC4313- 15 TLK212T256AL EMI FILTER 3 LC4317, 18 TLK212T256AL EMI FILTER 2 LC4322 TLK212T256AL EMI FILTER 1 LC4324- 27 ERJ6GEY0R00 M 0 OHM, 1/10W 4 LC4329 ERJ6GEY0R00 M 0 OHM, 1/10W 1 LC4330 TLK212T256AL EMI FILTER 1 276 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks LC4333 ERJ6GEY0R00 M 0 OHM, 1/10W 1 LC4334 TLK212T256AL EMI FILTER 1 LC4335 ERJ6GEY0R00 M 0 OHM, 1/10W 1 LC4336- 40 TLK212T256AL EMI FILTER 5 LC4344, 45 TLK212T256AL EMI FILTER 2 LC4347- 51 TLK212T256AL EMI FILTER 5 LC4352 ERJ6GEY0R00 M 0 OHM, 1/10W 1 LC4353 TLK212T256AL EMI FILTER 1 LC4355 TLK212T256AL EMI FILTER 1 LC4357- 63 TLK212T256AL EMI FILTER 7 LC4365- 72 TLK212T256AL EMI FILTER 8 LC4380 TLK212T256AL EMI FILTER 1 LC4381 ERJ6GEY0R00 M 0 OHM, 1/10W 1 LC4383 ERJ6GEY0R00 M 0 OHM, 1/10W 1 LC4384, 85 TLK212T256AL EMI FILTER 2 LC4387, 88 TLK212T256AL EMI FILTER 2 LC4391 TLK212T256AL EMI FILTER 1 LC4393 TLK212T256AL EMI FILTER 1 LC4395 TLK212T256AL EMI FILTER 1 LC4400 TLK212T256AL EMI FILTER 1 LC4402- 07 TLK212T256AL EMI FILTER 6 LC4411 TLK212T256AL EMI FILTER 1 LC4413, 14 TLK212T256AL EMI FILTER 2 LC4431 ELKE103FA NOISE FILTER 1 LC4433- 36 ELKE103FA NOISE FILTER 4 LC4523 ERJ3GEY0R00 M 0 OHM, 1/16W 1 LC8001 G1C100KA0008 INDUCTOR COIL 1 LC8003 G1C100KA0008 INDUCTOR COIL 1 LC8004- 06 J0HABB000004 LC FILTER 3 LC8200, 01 TLK212T256AL EMI FILTER 2 LC8206 TLK212T256AL EMI FILTER 1 Q001 2SD1819A0L TRANSISTOR 1 Q004,05 2SB1218A0L TRANSISTOR 2 Q006-09 2SD1819A0L TRANSISTOR 4 Q020 2SD1819A0L TRANSISTOR 1 Q023-27 2SD1819A0L TRANSISTOR 5 Q029,30 2SD1819A0L TRANSISTOR 2 Q2251,5 2 2SB1218A0L TRANSISTOR 2 Q2253 2SD1819A0L TRANSISTOR 1 Q2254,5 5 2SB1218A0L TRANSISTOR 2 Q2258 2SD1819A0L TRANSISTOR 1 Q3801 2SB1218A0L TRANSISTOR 1 Q3802,0 3 2SD1819A0L TRANSISTOR 2 Q3804 2SB1218A0L TRANSISTOR 1 Q4501- 03 2SD1819A0L TRANSISTOR 3 Q4504- 06 2SB1218ARL TRANSISTOR 3 Q4507 2SD1819A0L TRANSISTOR 1 Q4508 2SB1218ARL TRANSISTOR 1 Q4509 2SB1218A0L TRANSISTOR 1 Q4510 2SD1819A0L TRANSISTOR 1 Q4511- 13 2SD1030 TRANSISTOR 3 Q4521 2SB1218ARL TRANSISTOR 1 Q4522- 24 2SD1819A0L TRANSISTOR 3 Q4525- 27 2SB1218ARL TRANSISTOR 3 Q4528 2SD1819A0L TRANSISTOR 1 Q4529 2SB1218ARL TRANSISTOR 1 Ref. No. Part No. Part Name & Description Pcs Remarks Q4530 2SD1030 TRANSISTOR 1 Q4531 2SB1218ARL TRANSISTOR 1 Q4532,3 3 2SD1030 TRANSISTOR 2 Q4534- 36 2SB1218ARL TRANSISTOR 3 Q4537- 39 XN6501 TRANSISTOR 3 Q4553- 55 2SB1218ARL TRANSISTOR 3 Q4556- 60 2SD1819A0L TRANSISTOR 5 Q8011 2SD1819A0L TRANSISTOR 1 Q8012 2SB1218A0L TRANSISTOR 1 Q8013 2SD1819A0L TRANSISTOR 1 Q8014 2SB1218A0L TRANSISTOR 1 Q8015 2SD1819A0L TRANSISTOR 1 R001 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R003 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R004 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R005 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R006 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R007 ERJ3GEYJ392 M 3.9KOHM,J,1/16W 1 R008,09 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R011 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R012,13 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R015 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R016 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R018 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R019,20 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R021,22 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R023 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R025 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R026 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R027 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R028 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R030 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R032 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R037 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R038 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R039 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R040 ERJ3EKF1000 M 100 OHM, 1/16W 1 R041 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R043 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R044 ERJ3EKF1000 M 100 OHM, 1/16W 1 R045 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R046 ERJ3EKF1000 M 100 OHM, 1/16W 1 R048 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R049 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R050 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R051 ERJ3EKF9100 M 910 OHM, 1/16W 1 R052 ERJ3GEYF5100 M 510 OHM, 1/16W 1 R054 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R055 ERJ3EKF6800 M 680 OHM, 1/16W 1 R057 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R058 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R059 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R060 ERJ3GEYJ122 M 1.2KOHM,J,1/16W 1 R062,63 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R065 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R066 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R067 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R068 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R069 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R070 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R071 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R072 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R073 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R074 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R075 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R077 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R080,81 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R082 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 277 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R083 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R084 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R085 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R087 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R088 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R089,90 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R092 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R093,94 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R095,96 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R097,98 ERJ3GEYJ241 M 240 OHM,J,1/16W 2 R099 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R100 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 R101 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R102 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 R103,04 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R107 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R120 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R121 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R122 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R123 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R130 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R132 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R137 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R139,40 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R141 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R142 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R143 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R148 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R149 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R152 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R158 ERJ3GEYJ122 M 1.2KOHM,J,1/16W 1 R159-62 ERJ3GEYJ560 M 56 OHM,J,1/16W 4 R163 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R164 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R165,66 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 2 R167 ERJ3GEYJ273 M 27KOHM,J,1/16W 1 R168 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R171 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R462 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2251,5 2 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R2254 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2257 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R2258 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2259 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R2260 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2261 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2265 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3026 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3028 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3032,3 3 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3034- 36 ERJ3GEYJ331 M 330 OHM,J,1/16W 3 R3039- 41 ERJ3GEYJ331 M 330 OHM,J,1/16W 3 R3042,4 3 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3045 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3047 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3082 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3140,4 1 ERJ3GEYJ473 M 47KOHM,J,1/16W 2 R3142 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3254 ERJ3GEYF472 M 4.7KOHM, 1/16W 1 R3257 ERJ3GEYF152 M 1.5KOHM, 1/16W 1 R3801 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R3802 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R3803 ERJ3GEYJ273 M 27KOHM,J,1/16W 1 R3804 ERJ3GEYJ224 M 220KOHM,J,1/16W 1 R3805 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R3806 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3809 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R3810,1 1 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3812,1 3 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3814 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3815 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3816- 20 ERJ3GEYJ103 M 10KOHM,J,1/16W 5 R3821 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R3822 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3823 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R3824,2 5 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3826 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3827 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3828 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3829,3 0 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3831,3 2 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3834,3 5 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3836 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3837 ERJ3GEYJ105 M 1MOHM,J,1/16W 1 R4501- 03 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R4504 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4505 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R4506 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4507 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R4508 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4509 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R4510 ERJ3EKF2400 M 240 OHM, 1/16W 1 R4511,1 2 ERJ3EKF2200 M 220 OHM, 1/16W 2 R4513,1 4 ERJ3EKF3300 M 330 OHM, 1/16W 2 R4515,1 6 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R4517,1 8 ERJ3EKF2401 M 2.4KOHM, 1/16W 2 R4519,2 0 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R4521 ERJ3EKF2200 M 220 OHM, 1/16W 1 R4522 ERJ3EKF7500 M 750 OHM, 1/16W 1 R4523 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R4524- 26 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R4527 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R4529 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R4530 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4531,3 2 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 R4534 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R4535 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R4536 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4537,3 8 ERJ6GEYJ471 M 470 OHM,J,1/10W 2 R4539 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4540 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4542 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R4543 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4544- 46 EXB38VR000 RESISTOR ARRAY 3 R4547 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R4548,4 9 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4550 ERJ6ENF1371 M1.37KOHM, 1/10W 1 R4551 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4552 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R4553 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R4554- 56 ERJ3EKF33R0 M 33 OHM, 1/16W 3 R4557,5 8 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R4559- 61 ERJ3EKF33R0 M 33 OHM, 1/16W 3 278 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R4562- 64 ERJ3EKF1500 M 150 OHM, 1/16W 3 R4565,6 6 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4567,6 8 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R4571 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 R4573,7 4 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R4575- 77 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 R4578,7 9 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4580 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R4581,8 2 ERJ3GEYJ181 M 180 OHM,J,1/16W 2 R4583 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R4584 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4585 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4586 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1 R4587 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R4588 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4589 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R4590 ERJ3EKF3301 M 3.3KOHM, 1/16W 1 R4591- 94 ERJ3EKF2701 M 2.7KOHM, 1/16W 4 R4595 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4596 ERJ3EKF1502 M 15KOHM, 1/16W 1 R4597 ERJ3EKF2000 M 200 OHM, 1/16W 1 R4598- 00 ERJ3EKF75R0 M 0.75HM, 1/16W 3 R4601 ERJ3EKF4700 M 470 OHM, 1/16W 1 R4602 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4603 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R4604 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4605 ERJ3EKF4700 M 470 OHM, 1/16W 1 R4606 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R4607 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 R4609 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 R4610 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R4611 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R4612,1 3 ERJ3EKF1001 M 1KOHM, 1/16W 2 R4614,1 5 ERJ3EKF1401 M 1.4KOHM, 1/16W 2 R4616- 18 ERJ3GEYJ100 M 10 OHM,J,1/16W 3 R4620 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4622,2 3 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R4627,2 8 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R4632,3 3 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4636 ERJ3EKF1002 M 10KOHM, 1/16W 1 R4637 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4638- 40 ERJ3EKF1002 M 10KOHM, 1/16W 3 R4641 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R4642 ERJ3EKF3302 M 33KOHM, 1/16W 1 R4643,4 4 ERJ3EKF1002 M 10KOHM, 1/16W 2 R4645 ERJ3EKF3302 M 33KOHM, 1/16W 1 R4646 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R4647,4 8 ERJ3EKF3302 M 33KOHM, 1/16W 2 R4650,5 1 ERJ3EKF3302 M 33KOHM, 1/16W 2 R4652 ERJ3EKF1002 M 10KOHM, 1/16W 1 R4653- 55 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R4656 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4657 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R4658 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4659 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R4660 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4661 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R4662,6 3 ERJ3EKF2200 M 220 OHM, 1/16W 2 R4664 ERJ3EKF2400 M 240 OHM, 1/16W 1 R4667,6 8 ERJ3EKF3300 M 330 OHM, 1/16W 2 R4669 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4670 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R4672 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R4673 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4674,7 5 ERJ3EKF2401 M 2.4KOHM, 1/16W 2 R4677,7 8 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R4679 ERJ3EKF2200 M 220 OHM, 1/16W 1 R4680 ERJ3EKF7500 M 750 OHM, 1/16W 1 R4681 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R4682 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4683 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R4685 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R4686 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R4687 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4688 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R4689 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4690 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4692 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R4693 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R4694 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R4695,9 6 ERJ6ENF1501 M 1.5KOHM, 1/10W 2 R4697,9 8 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4699 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R4700 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R4701 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R4702 ERJ3EKF1001 M 1KOHM, 1/16W 1 R4703 ERJ3EKF33R0 M 33 OHM, 1/16W 1 R4704 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R4705 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 R4706- 10 ERJ3EKF33R0 M 33 OHM, 1/16W 5 R4711 ERJ3EKF4700 M 470 OHM, 1/16W 1 R4712- 14 ERJ3EKF1500 M 150 OHM, 1/16W 3 R4715 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R4716 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R4717- 20 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R4722,2 3 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R4724 ERJ3GEYJ181 M 180 OHM,J,1/16W 1 R4725 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R4726 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4727- 34 EXB38V820J RESISTOR ARRAY 8 R4735- 37 ERJ3EKF1200 M 120 OHM, 1/16W 3 R4738,3 9 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R4740- 42 ERJ3EKF8200 M 820 OHM, 1/16W 3 R4743- 45 ERJ3EKF4700 M 470 OHM, 1/16W 3 R4746- 51 ERJ3EKF1000 M 100 OHM, 1/16W 6 R4752- 54 ERJ3EKF4700 M 470 OHM, 1/16W 3 R4755,5 6 ERJ3EKF1000 M 100 OHM, 1/16W 2 R4757,5 8 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R4775 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R4776- 78 ERJ3GEYJ121 M 120 OHM,J,1/16W 3 R4779 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4780 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R4781 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4782 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 279 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R4783 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4784 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R4788- 90 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 3 R4815 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R4816 ERJ6ENF1371 M1.37KOHM, 1/10W 1 R4817 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4819 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4820- 23 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R4824,2 5 ERJ3GEYJ471 M 470 OHM,J,1/16W 2 R4826,2 7 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R4831- 33 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R4834 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R4905- 07 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R8001- 03 ERJ6ENF75R0 M 75 OHM, 1/10W 3 R8004- 06 ERJ6GEYJ220 M 22 OHM,J,1/10W 3 R8008 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8014,1 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R8020 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R8022 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8024 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8027,2 8 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R8030 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R8032 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R8034 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R8038 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R8040 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R8042 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R8044 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R8046 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8049 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8051 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8055- 58 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 4 R8059- 62 ERJ6GEYJ3R3 M 3.3KOHM,J,1/10W 4 R8065 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8066,6 7 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R8070,7 1 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R8073 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R8074 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8075 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R8077 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8078,7 9 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R8090 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R8094 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R8098,9 9 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R8101 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8102 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R8103 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R8104 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R8105 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8106 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R8108- 11 ERJ3GEYJ101 M 100 OHM,J,1/16W 4 R8112,1 3 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 R8114 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8115- 17 ERJ3GEYJ152 M 1.5KOHM,J,1/16W 3 R8210- 12 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 3 R8213- 15 ERJ6GEYJ221 M 220 OHM,J,1/10W 3 Ref. No. Part No. Part Name & Description Pcs Remarks R8216,1 7 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R8218 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R8222 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8223 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R8224 ERJ6ENF8200 M 820 OHM, 1/10W 1 R8227 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8228- 30 ERJ8ENF75R0 M 75 OHM, 1/8W 3 R8231,3 2 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R8234 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R8236 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R8239,4 0 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R8250 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8251 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R8253- 55 ERJ6GEYJ105 M 1MOHM,J,1/10W 3 R8301- 03 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R8306- 08 ERJ3GEYJ102 M 1KOHM,J,1/16W 3 R8309 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R8311- 14 ERJ3GEYJ223 M 22KOHM,J,1/16W 4 R8320 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8371 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8405 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R8410 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8411 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R8505 ERJ3GEY0R00 M 0 OHM, 1/16W 1 T601,02 TSK1025 FERRITE CORE 2 T8201- 03 TSK1025 FERRITE CORE 3 X001 TSSA104 CRYSTAL 1 X3801 H0J921400003 CRYSTAL 1 X4501 H0J202500002 CRYSTAL 1 C3031 ECJ2XB1H152K C 1500PF, K, 50V 1 C3033 ECJ2XB1H152K C 1500PF, K, 50V 1 C3035 ECJ2XB1H152K C 1500PF, K, 50V 1 C3037 ECJ2XB1H152K C 1500PF, K, 50V 1 C3043 ECJ2XB1H152K C 1500PF, K, 50V 1 C3045 ECJ2XB1H152K C 1500PF, K, 50V 1 C3049 ECJ2XB1H152K C 1500PF, K, 50V 1 C3051 ECJ2XB1H152K C 1500PF, K, 50V 1 C3059 ECA1AM102B 1 C4201 EEEHP1C100R C 10PF, J, 16V 1 C4203 ECJ3YB1A106M C 10UF, M,6.3V 1 C4204 ECJ1VB1H103K C 0.01UF, K, 50V 1 C4205 ECJ1XB1C223K C 0.022UF, K, 16V 1 C4206 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4207 ECJ1XB1H102K C 1000UF, Z, 50V 1 C4208 ECJ1VB1H153K C 0.15UF, K, 50V 1 C4209 ECJ1XB1C223K C 0.022UF, K, 16V 1 C4210 ECJ1VB1C683K C 0.068UF, K, 16V 1 C4211 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4212 ECJ1VB1H332K C 3300PF, K, 50V 1 C4213 ECJ1VB1C333K C 0.033UF, K, 16V 1 C4214 EEEHB1E4R7R C 4.7PF, J, 25V 1 C4215 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4216 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4217 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4218,1 9 ECJ1VF1C105Z C 1UF, Z, 10V 2 C4224 ECJ3YB1A106M C 10UF, M,6.3V 1 C4225 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4226 ECJ1VB1H103K C 0.01UF, K, 50V 1 C4227 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4228 ECJ1VB1H332K C 3300PF, K, 50V 1 C4229 ECJ1VB1C333K C 0.033UF, K, 16V 1 C4230 EEEHB1E4R7R C 4.7PF, J, 25V 1 280 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks C4231,3 2 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4233- 35 ECJ1VF1C105Z C 1UF, Z, 10V 3 C4236 ECJ1VB1H153K C 0.15UF, K, 50V 1 C4237 ECJ1XB1C223K C 0.022UF, K, 16V 1 C4238 ECJ1VB1C683K C 0.068UF, K, 16V 1 C4239 EEEHB1C101P C 100PF, J, 16V 1 C4240 ECJ1VF1A105Z C 1UF, Z, 10V 1 C4241,4 2 EEEHB1C101P C 100PF, J, 16V 2 C4243 ECJ1XB1H102K C 1000UF, Z, 50V 1 C4246 ECJ1VB1H103K C 0.01UF, K, 50V 1 C4247 ECJ1XB1C223K C 0.022UF, K, 16V 1 C4248 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4249 EEEHP1C100R C 10PF, J, 16V 1 C4301- 11 ECJ1VF1C105Z C 1UF, Z, 10V 11 C4312 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C4313 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4315 EEEHB1C470P C 47PF, J, 16V 1 C4316 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4317 EEEHB1C470P C 47PF, J, 16V 1 C4318- 29 ECJ1VF1C105Z C 1UF, Z, 10V 12 C4330,3 1 ECJ1XB1H102K C 1000UF, Z, 50V 2 C4332 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4333 EEEHB0J101P C 100PF, J, 6.3V 1 C4334 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4335- 40 ECJ1VF1C105Z C 1UF, Z, 10V 6 C4341 ECJ1XB1H102K C 1000UF, Z, 50V 1 C4342 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4343 ECJ1XB1H102K C 1000UF, Z, 50V 1 C4344,4 5 ECJ1VF1C105Z C 1UF, Z, 10V 2 C4347 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4349,5 0 ECJ1VF1C105Z C 1UF, Z, 10V 2 C4351 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4352,5 3 ECJ1VF1C105Z C 1UF, Z, 10V 2 C4354,5 5 ECJ1XB1H102K C 1000UF, Z, 50V 2 C4356,5 7 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4358 ECJ2XB1H682K C 6800PF, K, 50V 1 C4359 EEEHB1C101P C 100PF, J, 16V 1 C4360 EEEHB1C100R C 10PF, J, 16V 1 C4361 ECJ1XB1H102K C 1000UF, Z, 50V 1 C4362 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4363 ECJ1XB1H102K C 1000UF, Z, 50V 1 C4364,6 5 ECJ1VF1C105Z C 1UF, Z, 10V 2 C4367,6 8 ECJ1VF1C105Z C 1UF, Z, 10V 2 C4369 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C4370 ECJ1VF1C105Z C 1UF, Z, 10V 1 C4374- 77 ECJ1VF1C105Z C 1UF, Z, 10V 4 C4401 ECJ3YB1A106M C 10UF, M,6.3V 1 C4403 ECJ3YB1A106M C 10UF, M,6.3V 1 C4860 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4861 EEEHB1C470P C 47PF, J, 16V 1 D3001- 16 MA8110M ZENER DIODE 16 D3018- 26 MA8110M ZENER DIODE 9 D3030- 48 MA8110M ZENER DIODE 19 D4102- 05 MA8110M ZENER DIODE 4 IC4201 C1BB00000510 IC 1 Ref. No. Part No. Part Name & Description Pcs Remarks IC4202 TC74HC4066AF MOS IC (CMOS S/LOGIC) 1 IC4203 C1BB00000772 IC 1 IC4301 CXA2079Q LINEAR IC 1 IC4302 AN15852A IC 1 JK3001 K1U824A00002 CONNECTOR 1 JK3002 K2HA306A0024 JACK 1 JK3003, 04 K2HA510A0002 JACK 2 JK4001 K2HA204A0041 JACK 1 L4201 G1C100KA0008 INDUCTOR COIL 1 L4301,0 2 G1C100KA0008 INDUCTOR COIL 2 LC4426- 28 TLK212T256AL EMI FILTER 3 Q4201- 08 2SD1819A0L TRANSISTOR 8 Q4303 2SB1218A0L TRANSISTOR 1 Q4514- 16 2SD1819A0L TRANSISTOR 3 Q4517- 19 2SB1218A0L TRANSISTOR 3 Q4600,0 1 2SD1819A0L TRANSISTOR 2 R3001,0 2 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3003,0 4 ERJ6ENF75R0 M 75 OHM, 1/10W 2 R3005 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 R3006 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3007 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 R3008- 13 ERJ6ENF75R0 M 75 OHM, 1/10W 6 R3014 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R3015,1 6 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3017- 19 ERJ6ENF75R0 M 75 OHM, 1/10W 3 R3020 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3021,2 2 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R4119,2 0 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R4201 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R4202 ERJ3GEYJ913 M 91KOHM,J,1/16W 1 R4203 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R4204 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R4206 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R4207 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R4208 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R4209 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R4210,1 1 ERJ3GEYJ913 M 91KOHM,J,1/16W 2 R4214 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4216 ERJ3GEYJ184 M 180KOHM,J,1/16W 1 R4217,1 8 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R4219 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R4222 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4223 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R4225 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R4229 ERJ3GEYJ184 M 180KOHM,J,1/16W 1 R4230 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R4233 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4234 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R4235,3 6 ERJ3GEYJ913 M 91KOHM,J,1/16W 2 R4237 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4238 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R4239 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R4240 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 281 TH-42PX25U-P / TH-50PX25U-P Ref. No. Part No. Part Name & Description Pcs Remarks R4241 ERJ3GEYJ913 M 91KOHM,J,1/16W 1 R4242 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R4243 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R4244 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R4245 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R4246 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R4247,4 8 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R4249,5 0 ERJ3GEYJ681 M 680 OHM,J,1/16W 2 R4251,5 2 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R4259,6 0 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R4305- 15 ERJ3GEYJ221 M 220 OHM,J,1/16W 11 R4316 ERJ3GEYJ820 M 82 OHM,J,1/16W 1 R4317 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R4318 ERJ3GEYJ820 M 82 OHM,J,1/16W 1 R4319,2 0 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R4322- 27 ERJ3GEYJ221 M 220 OHM,J,1/16W 6 R4328,2 9 ERJ6ENF75R0 M 75 OHM, 1/10W 2 R4330- 32 ERJ3GEYJ820 M 82 OHM,J,1/16W 3 R4336 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R4340,4 1 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R4342,4 3 ERJ3EKF1501 M 1.5KOHM, 1/16W 2 R4344- 46 ERJ3GEYJ102 M 1KOHM,J,1/16W 3 R4349,5 0 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R4351 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4353 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4354 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R4355 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 R4356 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R4357 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 R4358- 62 ERJ3GEYJ102 M 1KOHM,J,1/16W 5 R4364 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R4365 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4367 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R4368 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4369 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R4370 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4371,7 2 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R4373- 75 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R4376- 78 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R4380 ERJ6ENF68R0 M 68 OHM, 1/10W 1 R4381- 84 ERJ6GEYJ471 M 470 OHM,J,1/10W 4 R4385- 89 ERJ3GEYJ102 M 1KOHM,J,1/16W 5 R4400 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R4403- 06 ERJ3EKF1501 M 1.5KOHM, 1/16W 4 R4836- 38 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R4839- 41 ERJ3GEYJ561 M 560 OHM,J,1/16W 3 R4842- 44 ERJ3EKF68R0 M 68 OHM,J,1/16W 3 R4845- 47 ERJ3EKF2000 M 200 OHM, 1/16W 3 R4848- 50 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R4851- 53 ERJ3GEYJ561 M 560 OHM,J,1/16W 3 R4900 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4901 ERJ3GEYJ184 M 180KOHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R4902 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1 R4903 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4904 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4906 ERJ3GEYJ184 M 180KOHM,J,1/16W 1 R4907 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4909 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1 T3001,0 2 TSKX027 CHOKE COIL 2 T3003,0 4 TSKX026 CHOKE COIL 2 T3005 G0B600G00001 CHOKE COIL 1 C251 ECA1CM101 E 100UF, 16V 1 C252 ECA1HMR22 E 0.22UF, 50V 1 C253 ECA1VM470 E 47UF, 35V 1 C254 ECA1HM2R2 E 2.2UF, 50V 1 C255 ECA1HM4R7 E 4.7UF, 50V 1 C257 EEUFC1A471 E 470UF, 10V 1 C258 ECJ1XC1H101J C 100PF, J, 50V 1 C259,60 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C261 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C262 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 JS251,5 2 ERJ6GEY0R00 M 0 OHM, 1/10W 2 LC251,5 2 ELKE103FA NOISE FILTER 2 R251,52 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 TNR251 ENG36620G TUNER 1 282 TH-42PX25U-P / TH-50PX25U-P
