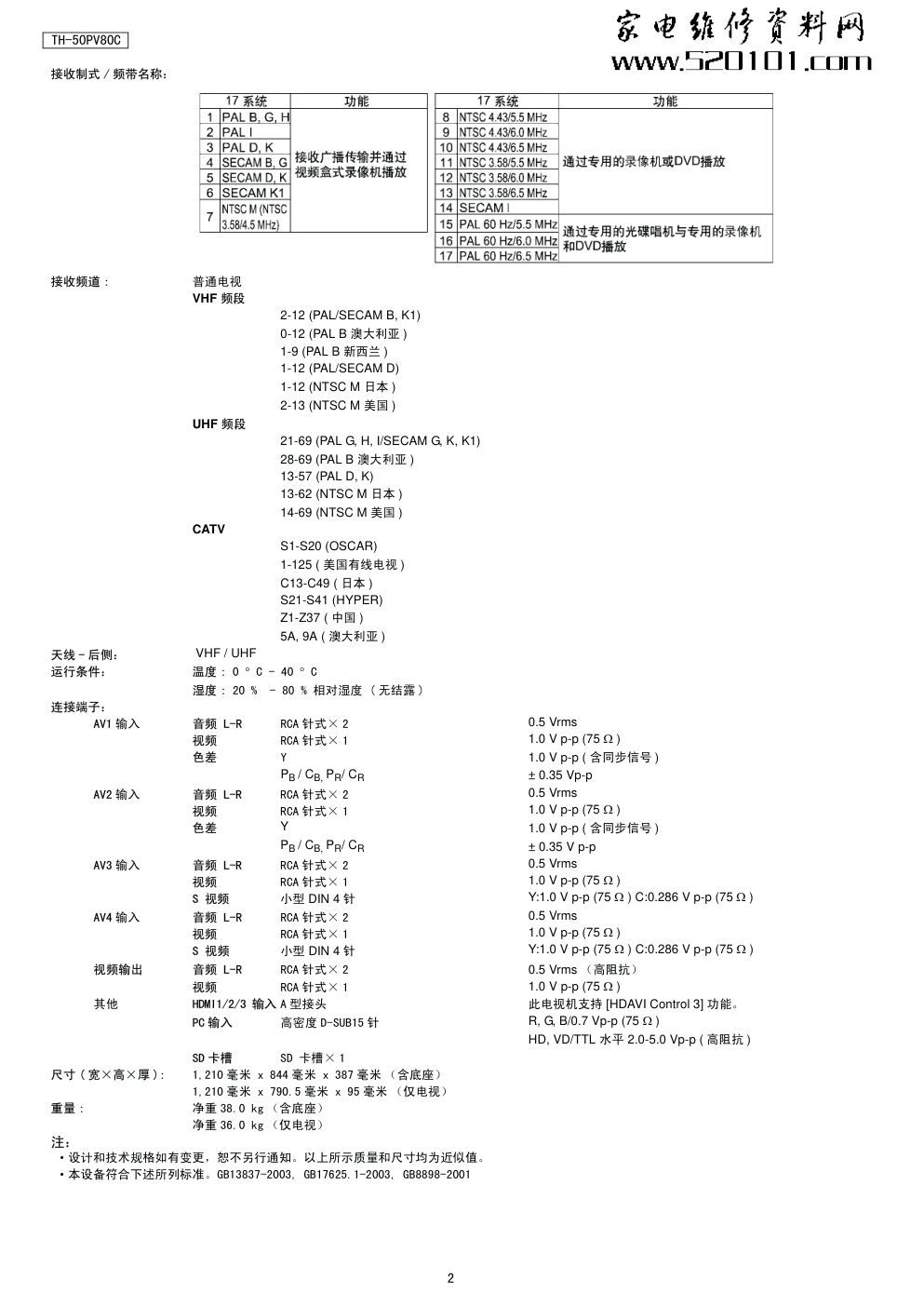

© 2008 松下电器产业株式会社版权所有。 未经本公司许可而复制或分发者均属违法。 ORDER NO. PPDS080568CC 等离子电视机 TH-50PV80C GPH11DA 机芯 技术规格 电源： 交流 220 V, 50/60 Hz 功耗： 平均使用 500 W 待机状态 0.5 W 等离子显示屏： 屏幕宽高比 16:9 可视屏幕尺寸 127 厘米 （对角线） 1,106 毫米 （W）x 622 毫米 （H） 像素数 1,049,088 （1,366 （W）x 768 （H））[4,098 x 768 点 ] 声音： 扬声器 160 毫米 x 42 毫米 x 2 只 ,8Ω 音频输出 16 W (8W + 8W),7% THD 耳机 M3 (3.5 毫米）插孔 x 1 PC 信号： VGA, SVGA, XGA SXGA .......( 压缩格式 ) 水平扫描频率 : 31-69 KHz 垂直扫描频率 : 59-86 Hz 2 TH-50PV80C 接收制式 / 频带名称： 接收频道 : 普通电视 VHF 频段 2-12 (PAL/SECAM B, K1) 0-12 (PAL B 澳大利亚 ) 1-9 (PAL B 新西兰 ) 1-12 (PAL/SECAM D) 1-12 (NTSC M 日本 ) 2-13 (NTSC M 美国 ) UHF 频段 21-69 (PAL G, H, I/SECAM G, K, K1) 28-69 (PAL B 澳大利亚 ) 13-57 (PAL D, K) 13-62 (NTSC M 日本 ) 14-69 (NTSC M 美国 ) CATV S1-S20 (OSCAR) 1-125 ( 美国有线电视 ) C13-C49 ( 日本 ) S21-S41 (HYPER) Z1-Z37 ( 中国 ) 5A, 9A ( 澳大利亚 ) 天线 - 后侧： VHF / UHF 运行条件： 温度 : 0 ° C - 40 ° C 湿度 : 20 % - 80 % 相对湿度 ( 无结露 ) 连接端子： AV1 输入 音频 L-R RCA 针式× 2 0.5 Vrms 视频 RCA 针式× 1 1.0 V p-p (75 Ω ) 色差 Y 1.0 V p-p ( 含同步信号 ) PB / CB, PR/ CR ± 0.35 Vp-p AV2 输入 音频 L-R RCA 针式× 2 0.5 Vrms 视频 RCA 针式× 1 1.0 V p-p (75 Ω ) 色差 Y 1.0 V p-p ( 含同步信号 ) PB / CB, PR/ CR ± 0.35 V p-p AV3 输入 音频 L-R RCA 针式× 2 0.5 Vrms 视频 RCA 针式× 1 1.0 V p-p (75 Ω ) S 视频 小型 DIN 4 针 Y:1.0 V p-p (75 Ω ) C:0.286 V p-p (75 Ω ) AV4 输入 音频 L-R RCA 针式× 2 0.5 Vrms 视频 RCA 针式× 1 1.0 V p-p (75 Ω ) S 视频 小型 DIN 4 针 Y:1.0 V p-p (75 Ω ) C:0.286 V p-p (75 Ω ) 视频输出 音频 L-R RCA 针式× 2 0.5 Vrms （高阻抗） 视频 RCA 针式× 1 1.0 V p-p (75 Ω ) 其他 HDMI1/2/3 输入 A 型接头 此电视机支持 [HDAVI Control 3] 功能。 PC 输入 高密度 D-SUB15 针 R, G, B/0.7 Vp-p (75 Ω ) HD, VD/TTL 水平 2.0-5.0 Vp-p ( 高阻抗 ) SD 卡槽 SD 卡槽× 1 尺寸 ( 宽×高×厚 ): 1,210 毫米 x 844 毫米 x 387 毫米 （含底座） 1,210 毫米 x 790.5 毫米 x 95 毫米 （仅电视） 重量 : 净重 38.0 kg （含底座） 净重 36.0 kg （仅电视） 注： • 设计和技术规格如有变更，恕不另行通知。以上所示质量和尺寸均为近似值。 • 本设备符合下述所列标准。GB13837-2003, GB17625.1-2003, GB8898-2001 3 TH-50PV80C 目录 页数 页数 1 安全警告 ---------------------------------------- 4 1.1. 一般准则 ----------------------------------- 4 2 警告--------------------------------------------- 5 2.1. 对静电灵敏设备 （ES）的静电放电保护 （ESD）-- 5 2.2. 无铅焊接 （PbF）---------------------------- 6 3 维修指南----------------------------------------- 7 3.1. 维修提示 ----------------------------------- 7 3.2. 适用信号 ----------------------------------- 8 4 维修模式----------------------------------------- 9 4.1. 怎样进入维修模式 --------------------------- 9 4.2. 维修工具模式 ------------------------------ 11 4.3. 旅馆模式 ---------------------------------- 12 5 故障检修---------------------------------------- 13 5.1. 检测 IIC 总线 ------------------------------ 13 5.2. 无电源 ------------------------------------ 15 5.3. 无图像 ------------------------------------ 16 5.4. 显示屏局部故障 ---------------------------- 17 6 拆卸与组装指南---------------------------------- 18 6.1. 取下后盖 ---------------------------------- 18 6.2. 取下后端子盖 ------------------------------ 18 6.3. 取下 P 板 ---------------------------------- 18 6.4. 取下调谐器组件 ---------------------------- 18 6.5. 取下 A 板 ---------------------------------- 18 6.6. 取下 SU 板 --------------------------------- 19 6.7. 取下 SD 板 --------------------------------- 19 6.8. 取下 SC 板 --------------------------------- 20 6.9. 取下 SS2 板 -------------------------------- 20 6.10. 取下 SS3 板 -------------------------------- 20 6.11. 取下 SS 板 --------------------------------- 20 6.12. 取下支架 ---------------------------------- 21 6.13. 取下 C1 板 --------------------------------- 21 6.14. 取下 C2 板 --------------------------------- 21 6.15. 取下 C3 板 --------------------------------- 21 6.16. 取下前端支架 ------------------------------ 21 6.17. 取下 G 板 , GH 板 和 GS 板 ------------------ 22 6.18. 取下扬声器 -------------------------------- 22 6.19. 从面框组件中取出等离子显示屏 -------------- 22 6.20. 取下 S 板 ---------------------------------- 23 6.21. 取下 K 板 ---------------------------------- 24 6.22. 更换完成等离子显示屏 ---------------------- 24 7 测量、调整-------------------------------------- 25 7.1. 驱动器设置 -------------------------------- 25 8 方框图 ----------------------------------------- 27 8.1. 方框图 （1/5）----------------------------- 27 8.2. 方框图 （2/5）----------------------------- 28 8.3. 方框图 （3/5）----------------------------- 29 8.4. 方框图 （4/5）----------------------------- 30 8.5. 方框图 （5/5）----------------------------- 31 9 配线连接图 ------------------------------------- 33 9.1. 注意事项 ---------------------------------- 33 9.2. 配线 -------------------------------------- 33 10 线路图------------------------------------------ 35 10.1. 线路图注意事项 --------------------------- 35 10.2. G, GS, GH 和 K 电路板线路图 ---------------- 36 10.3. A 电路板 （1/19）线路图---------------------37 10.4. A 电路板 （2/19）线路图---------------------38 10.5. A 电路板 （3/19）线路图---------------------39 10.6. A 电路板 （4/19）线路图---------------------40 10.7. A 电路板 （5/19）线路图---------------------41 10.8. A 电路板 （6/19）线路图---------------------42 10.9. A 电路板 （7/19）线路图---------------------43 10.10. A 电路板 （8/19）线路图---------------------44 10.11. A 电路板 （9/19）线路图---------------------45 10.12. A 电路板 （10/19）线路图--------------------46 10.13. A 电路板 （11/19）线路图--------------------47 10.14. A 电路板 （12/19）线路图--------------------48 10.15. A 电路板 （13/19）线路图--------------------49 10.16. A 电路板 （14/19）线路图--------------------50 10.17. A 电路板 （15/19）线路图--------------------51 10.18. A 电路板 （16/19）线路图--------------------52 10.19. A 电路板 （17/19）线路图--------------------53 10.20. A 电路板 （18/19）线路图--------------------54 10.21. A 电路板 （19/19）线路图--------------------55 10.22. C1 电路板 （1/2）线路图 --------------------56 10.23. C1 电路板 （2/2）线路图 --------------------57 10.24. C2 电路板 （1/2）线路图 --------------------58 10.25. C2 电路板 （2/2）线路图 --------------------59 10.26. C3 电路板 （1/2）线路图 --------------------60 10.27. C3 电路板 （2/2）线路图 --------------------61 10.28. SC 电路板 （1/3）线路图 --------------------62 10.29. SC 电路板 （2/3）线路图 --------------------63 10.30. SC 电路板 （3/3）线路图 --------------------64 10.31. SU 电路板 （1/2）线路图 --------------------65 10.32. SU 电路板 （2/2）线路图 --------------------66 10.33. SD 电路板 （1/2）线路图 --------------------67 10.34. SD 电路板 （2/2）线路图 --------------------68 10.35. SS （1/2）和 S 电路板线路图 -----------------69 10.36. SS2，SS3 和 SS （2/2）电路板线路图 ----------70 11 导线图 -----------------------------------------70 11.1. G, GS, K 和 S 电路板 ------------------------71 11.2. A 电路板-----------------------------------72 11.3. C1 电路板 ----------------------------------75 11.4. C2 电路板 ----------------------------------76 11.5. C3 电路板 ----------------------------------77 11.6. SC 电路板 ----------------------------------78 11.7. SU 电路板 ----------------------------------81 11.8. SD 电路板----------------------------------82 11.9. SS 电路板----------------------------------83 11.10. SS2 和 SS3 电路板---------------------------85 11.11. GH 电路板----------------------------------86 12 分解图和更换部件清单 ----------------------------87 12.1. 分解图和机械更换部件清单-------------------87 12.2. 更换部件清单 ------------------------------90 4 TH-50PV80C 1 安全警告 1.1. 一般准则 1. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 2. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸、屏蔽等安装正确。 3. 维修后，进行以下漏电检查，以免用户遭受触电危险。 1.1.1. 漏电检查 1. 将 AC 电源线直接插入 AC 电源插座。进行检查时，请勿使用分离变压器。 2. 在设备上各外露金属部分和良好接地 （如水管）之间连接一个电流测量装置，如图 1 所示。 3. 用漏电测试仪 （Simpson 228 或类似型号）测量通过该装置的电势。 4. 检查各外露金属部件 , 并测量各点的电压。 5. 变换 AC 插座中的 AC 插头，并重复上述各项测量。 6. 各点 （漏电）的电势表示为电压 U1 和 U2，并且不能超过以下各值： 交流：U1 = 35 V （峰值） U2 = 0.35 V （峰值）； 直流：U1=1.0V 注： 与交流的 U2 限定峰值 0.35V 和直流的 U1 限定峰值 1.0V 相对应的电流峰值分别为 0.7mA 和 2.0mA。 与交流的 U1 限定峰值 35V 相对应的 100kHz 以上的电流峰值为 70mA。 7. 当测量值超出规定的限制时，可能会引起触电。所以必须在设备返回用户手中之前对其进行修理和再检测。 图 1 5 TH-50PV80C 2 警告 2.1. 对静电灵敏设备 （ES）的静电放电保护 （ESD） 一些半导体（固态）装置很容易遭静电损坏。这些组件通常被称为静电灵敏装置（ES）. 典型的 ES 装置有集成电路和一些场效应晶体 管以及半导体芯片摂组件。以下方法通常被用来减少由于静电放电 （ESD）所产生的组件损坏。 1. 处理任何半导体组件或是配备有半导体组件的设备之前，应立即接地 （已知） ，去静电。或者戴上市场上出售的抗静电放电腕 带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 移动配有静电灵敏装置的电器组件之后，要将该组件放置于导体表面上 （如铝箔），以防组件静电电荷的产生或辐射。 3. 只采用一块接地端烙铁来联结或断开静电灵敏装置。 4. 只采用抗静电联结移动装置。一些不属于抗静电（静电放电保护）摂范围的联结移动装置会产生足以损坏静电灵敏装置的电荷。 5. 切勿使用类似氟利昂推进剂的化学物质。这些化学物质会产生足以损坏静电灵敏装置的电荷。 6. 准备即刻安装之前才能拆开静电灵敏替代装置的保护性包装。（大多数静电灵敏替代装置都是采用铅制包装，通过与传导泡沫、 铝箔或是类似的导体材料一起造成短路）。 7. 拆掉静电灵敏替代装置上的铅制保护性材料之前，立刻将保护性材料与即将安装该装置的机芯或是电路组件相接触。 注意 确定机芯或电路无电源，并遵守其它所有的安全措施。 8. 当处理未包装的静电灵敏替代装置时，尽量减小身体的动作幅度。（否则，一些无关紧要的动作如：衣服织物一起掠过或是从铺 有地毯的地板上抬起脚，都会产生足以损坏静电灵敏装置的静电 （静电放电））。 6 TH-50PV80C 2.2. 无铅焊接 （PbF） 注：在元素周期表中，铅用 Pb 表示。 在下文中，Pb 表示有铅焊接，PbF 表示无铅焊接。 制造过程中使用及下文中讨论的无铅焊接皆指 (Sn+Ag+Cu)。 即：锡 （Sn），银 （Ag）和铜 （Cu），但其它种类也可使用。 出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维修和修理工作中最好使用无铅焊接，尽管有铅焊接也可使用。 使用无铅焊接工艺制造的印刷电路板背面的树叶形符号 内有 PbF 字样。 注意 • 无铅焊接的熔点比标准焊接的高。通常熔点高 50 ～ 70°F (30 ～ 40°C)。 请使用高温电烙铁，并将其温度设为 700 ± 20°F (370 ± 10°C)。 • 加热过度 （约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。 如果必须使用有铅焊接，请在焊接前先全部去除焊脚或焊接区上的无铅焊料。如果做到这点有实际困难，则确保无铅焊料加热到熔 化之后再进行有铅焊接。 • 在对双面电路板进行无铅焊接后，请检查部件侧部是否有过量焊料，否则会流到另一侧去。（见下图） 推荐的无铅焊料 有几种无铅焊料可供选购。本产品使用的是 Sn+Ag+Cu （锡＋银＋铜）焊料。 但也可使用 Sn+Cu （锡＋铜）和 Sn+Zn+Bi （锡＋锌＋铋）焊料。 7 TH-50PV80C 3 维修指南 3.1. 维修提示 电路板名称 功能 电路板名称 功能 P 主电源 C1 数据驱动 （右下） A 直流－直流转换器 C2 数据驱动 （中下） 扬声器输出，声音处理器 C3 数据驱动 （左下） AV 端子， AV 切换 SC 扫描驱动 数据信号处理器，微电脑，HDMI 界面 SU 扫描输出 （上） 峰值 Lite 2p SD 扫描输出 （下） 格式转换器，等离子 AI 处理器，子场处理器 SS 维持驱动 K 遥控接收器，电源指示灯 G 按键开关，前置端子 S 电源开关 GS SD 卡槽 SS2 维持输出 （上） GH HDMI3 SS3 维持输出 （下） 8 TH-50PV80C 3.2. 适用信号 9 TH-50PV80C 4 维修模式 4.1. 怎样进入维修模式 按住主机的 [ 音量 ( - )] 按钮时，并同时在 2 秒钟内快速按下遥控器上的 [ ] 按钮三次。 4.1.1. 按键命令 按键 [1] ... 主项目 正向选择 按键 [2] ... 主项目 反向选择 按键 [3] ... 子项目 正向选择 按键 [4] ... 子项目 反向选择 按键 [ 红色 ] ... 所有子项目 正向选择 按键 [ 绿色 ] ... 所有子项目 反向选择 按键 [ 音量 ] ... 子项目正 （＋）反 （－）方向变化值 10 TH-50PV80C 4.1.2. 调整模式内容 • 数值显示为十六进制。 • 预设值根据型号不同而不同。 • 进入调整模式后，调整启动之前，请注意每个项目值。 4.1.3. 如何退出 按主机或遥控器的 [ ] 键可关闭电源退出。 11 TH-50PV80C 4.2. 维修工具模式 4.2.1. 怎样进入 1. 在维修模式中选择 [SRV-TOOL]。 2. 按遥控器的 [ 确定 ] 按钮。 4.2.2. 显示 SOS 历史 SOS 历史由指示灯闪烁次数表示。 从左侧开始依次为：最后一次 SOS，倒数第二次，倒数第三次，出厂后第二次，出场后第一次。 通过 “自检指示和恢复出厂设置”即可清除该指示。 4.2.3. 启动电源时间 / 计数 注：按住静音按键三秒钟，可以显示时间 / 计数菜单，显著部位。 时间：加电时间，表示为小时：十进制分钟 计数：启动次数以十进制计。 注：此显示不会被自检或其他命令清除。 4.2.4. 退出 1. 从壁装电源插座中拔出交流电源线。 12 TH-50PV80C 4.3. 旅馆模式 1. 目的 对旅馆限制功能。 2. 使用命令进入旅馆模式设置菜单 为显示旅馆模式设置菜单，请在两秒钟内使用以下命令。 主机上的音量[－]按钮 + 遥控器上的[视频]按钮（3次） 接着显示旅馆模式设置菜单。 3. 退出旅馆模式设置菜单 从壁装电源插座中拔出交流电源线。 4. 旅馆模式设置菜单说明 项目 功能 旅馆模式 选择旅馆模式开 / 关 初始输入 选择输入信号模式。 每当电源接通时，可设置输入。 选择： 关 /TV/AV1/AV2/AV3/AV4/PC/HDMI1/HDMI2/HDMI3 • 关：优先上次记忆。 • PC：与 VGA 选项可选 初始 POS 选择节目号码。 选择： 关 /0 至 99 • 关：优先上次记忆。 初始音量等级 每当电源接通时，可调节音量。 选择 / 范围： 关 /0 至 100 • 关：优先上次记忆。 最大音量等级 设定最大音量。 范围： 0 至 100 键锁定 选择当前按键状态。 选择： 关 / 设置 / 菜单 / 所有 • 关：全部有效 • 设置：仅 F 键无效 （转向引导菜单不可选） • 菜单：仅 F 键无效 仅音量 / 静音可选 • 所有：全部无效 遥控器锁定 选择遥控器按键状态。 选择： 关 / 设置 / 菜单 • 关：全部有效 • 设置：仅设置菜单无效 • 菜单：图像 / 声音 / 设置菜单无效 13 TH-50PV80C 5 故障检修 使用自检功能检测整机。 1. 检测 IIC 总线 2. 电源指示灯闪烁间隔 5.1. 检测 IIC 总线 5.1.1. 怎样进入 自检功能仅显示： 按下主机上的 [ 音量 （－）] 按钮，并按遥控器的 [ 确定 ] 按键超过三秒，电视接收屏幕出现。 自检指示并强制出厂运输设置： 按下主机上的 [ 音量 （－）] 按钮，并按遥控器的 [ 菜单 ] 按钮超过三秒，电视接收屏幕出现。 5.1.2. 屏幕显示 5.1.3. 检测点 如果屏幕显示异常，请确认下面部分。 5.1.4. 退出 从壁装电源插座中拔出交流电源线。 14 TH-50PV80C 5.1.5. 电源指示灯闪烁间隔表 1. 主题 电源指示灯闪烁间隔表信息。 2. 内容 当设备出现异常时，保护电路将运行并将设备复位到待机状态。此时，通过本机前端的电源指示灯闪烁次数便可识别出故障部 位。 15 TH-50PV80C 5.2. 无电源 第一检查点 电源指示灯的无电源指示有 2 种情况： 1. 不亮。 2. 红灯亮，几秒钟后转为红灯闪烁。（见 5.1.5） 16 TH-50PV80C 5.3. 无图像 17 TH-50PV80C 5.4. 显示屏局部故障 等离子显示器屏幕上可能会出现局部故障。图 1 是各局部可能会出现故障的 P.C.B. 印刷电路板。 图 1 18 TH-50PV80C 6 拆卸与组装指南 6.1. 取下后盖 1. 见维修提示 （第 3 节） 6.2. 取下后端子盖 1. 卸下螺丝 （× 2 , × 2 ）。 2. 取下后盖端子。 6.3. 取下 P 板 注意： 由于电解电容器放电原因，电源切断一分钟后再取下P.C.B.。 1. 解开线夹，放出电线。 2. 断开连接件 (P2, P6, P7, P9, P11, P12 和 P25)。 3. 卸下 11 枚螺丝 （ ），然后取下 P 板。 6.4. 取下调谐器组件 1. 解开线夹，放出电线。 2. 断开连接件 (A1, A7, A11, A12, A25, A31, A32, A51, A52)。 3. 卸下螺丝 （× 4 , × 1 ），然后取下调谐器组件。 6.5. 取下 A 板 1. 取下调谐器组件。（见 6.4） 2. 卸下 7 枚螺丝 （ ）和 1 枚螺丝 （ ），然后取下 A 板。 19 TH-50PV80C 6.6. 取下 SU 板 1. 断开连接 SU 板的柔性电缆 (SU1, SU2, SU3 和 SU4)。 2. 断开柔性电缆 (SU11-SD11) 和连接件 (SC41-SU41)。 3. 取下成型螺旋 1 枚 （ ）。 4. 卸下螺丝 （× 2 , × 2 ），然后取下 SU 板。 6.7. 取下 SD 板 1. 断开连接 SD 板的柔性电缆 (SD1, SD2, SD3 和 SD4)。 2. 断开柔性电缆 (SU11-SD11) 和连接件 (SC42-SD42 及 SC46- SD46)。 3. 取下成型螺旋 1 枚 （ ）。 4. 卸下螺丝 （× 2 , × 2 ），然后取下 SD 板。 20 TH-50PV80C 6.8. 取下 SC 板 1. 取下 SU,SD 板 （见 6.6 和 6.7） 2. 解开线夹，放出电线。 3. 断开连接件 （SC2）。 4. 断开柔性电缆 （SC20）。 5. 卸下 6 枚螺丝 （ ），然后取下 SC 板。 6.9. 取下 SS2 板 1. 断开连接件 （SS02）和柔性电缆 （SS52）。 2. 卸下 2 枚螺丝 （ ），然后取下 SS2 板。 6.10. 取下 SS3 板 1. 断开连接件 （SS03）和柔性电缆 （SS57）。 2. 卸下 2 枚螺丝 （ ），然后取下 SS3 板。 6.11. 取下 SS 板 1. 解开线夹，放出电线。 2. 断开连接件 （SS02 和 SS03）。 3. 断开连接件 （SS11, SS12, SS23 和 SS34）。 4. 断开柔性电缆 (SS54 和 SS55)。 5. 松开支撑件 1 枚 （ ）。 6. 卸下 5 枚螺丝 （ ），然后取下 SS 板。 21 TH-50PV80C 6.12. 取下支架 1. 从维修台座上取下等离子显示屏，显示屏表面朝下放置于 水平表面，如工作台，表面覆盖。 2. 卸下左右支架分别紧固的 5 枚螺丝 （ ），然后将左右支 架取下。 6.13. 取下 C1 板 1. 取下调谐器组件。（见 6.4） 2. 取下右支架 （见 6.12） 3. 卸下紧固柔性电缆固定器的 10 枚螺丝 （ ）。 4. 断开柔性电缆 (CB1, CB2, CB3, CB4 和 CB5)。 5. 断开柔性电缆 (C10 和 C11)。 6. 卸下 6 枚螺丝 （ ），然后取下 C1 板。 6.14. 取下 C2 板 1. 取下调谐器组件。（见 6.4） 2. 取下左支架 （见 6.12）。 3. 卸下紧固柔性电缆固定器的 6 枚螺丝 （ ）。 4. 断开柔性电缆 (CB6, CB7 和 CB8)。 5. 断开柔性电缆 (C20 和 C21)。 6. 断开连接件 （C22）。 7. 卸下 4 枚螺丝 （ ），然后取下 C2 板。 6.15. 取下 C3 板 1. 取下调谐器组件。（见 6.4） 2. 卸下紧固柔性电缆固定器的 6 枚螺丝 （ ）。 3. 断开柔性电缆 (CB9, CB10 和 CB11)。 4. 断开柔性电缆 （C32）。 5. 断开连接件 （C33）。 6. 卸下 4 枚螺丝 （ ），然后取下 C3 板。 6.16. 取下前端支架 1. 解开线夹，放出电线。 2. 断开连接件 （A51）。（见 6.4） 3. 卸下螺丝 （× 2 , × 2 ），然后取下前端支架。 22 TH-50PV80C 6.17. 取下 G 板 , GH 板 和 GS 板 1. 取下前端支架和前防护罩组件。（见 6.16） 2. 卸下 3 枚螺丝 （ ），取下前防护罩前部。 3. 卸下 7 枚螺丝（ ），断开连接件 (G51, GH11 和 GS52)。 4. 取下 G 板 , GH 板 和 GS 板。 6.18. 取下扬声器 1. 断开继电器连接件。 2. 卸下左右各 4 枚螺丝 （ ），取下左右扬声器。 6.19. 从面框组件中取出等离子显示屏 1. 卸下紧固左右支架的 2 枚螺丝 （ ）。 2. 取下紧固面框组件和等离子显示屏的 8 枚螺丝 （ ）。 23 TH-50PV80C 3. 将面框底部拉出，上提，并从前框中取下等离子显示屏。 4. 取下垫片和垫圈 6 个 （ ）。 注意： • 在更换等离子显示屏时，请确认左右 BC 钩，垫片和垫圈的安装 位置。更换新的等离子显示屏后，将左右 BC 钩，垫片和垫圈 安装在初始位置。 6.20. 取下 S 板 1. 取下面框组件 （见 6.19）。 2. 断开连接件 （S1）。 3. 卸下 2 枚螺丝 （ ），然后取下 S 板金属框。 4. 卸下 2 枚螺丝 （ ），然后取下 S 板。 24 TH-50PV80C 6.21. 取下 K 板 1. 取下面框组件 （见 6.19） 2. 取下 S 板。（见 6.20） 3. 卸下 2 枚螺丝 （ ）。 4. 断开连接件 （K1），取下 K 板。 6.22. 更换完成等离子显示屏 1. 把新完成等离子显示屏正面朝下放置于覆有软布工作台的 水平表面。 2. 装上 C1, C2, C3 板，连接从等离子显示屏至 C1，C2，C3 板 之间的 11 根柔性电缆， 安装柔性电缆固定器。 3. 装上 BC 钩 （左右），把左右支架安装到等离子显示屏上。 4. 把等离子显示屏放置于维修台座。 5. 安装面框组件和每个 P.C. 板等于新等离子显示屏上。 * 安装面框组件时，注意切勿让任何碎片，灰尘或操作残骸 滞留于前部玻璃和等离子显示屏之间。 25 TH-50PV80C 7 测量、调整 7.1. 驱动器设置 7.1.1. 项目 / 准备 1. 输入白色信号到等离子显示屏视频。 2. 如下设定图像控制： 图像菜单：动态 PNR: 关 屏幕宽高比： 16:9 注意 1. 首先进行 Vsus 调整。 2. Vad 调整确认后，再确定 Vscn 电压。 当 Vad=-149V 时，Vscn 的电压为 -4V±4V。 7.1.2. 调整 参照显示屏数据标牌上的显示屏数据，调整驱动器各部分的电 压。 用万能表检测或调整以下电压。 * 见显示屏标牌。 26 TH-50PV80C 7.1.3. P.C.B ． （印刷电路板）更换 7.1.3.1. 注意 1. 由于电解电容器放电原因，电源切断一分钟后再取下 P.C.B.。 7.1.3.2. P.C.B. 更换后进行快速调整 用万能表调整以下电压。 * 见显示屏标牌。 注意： 请勿将 Vsus 设置到 Ve 以下，以防损坏 PCB 板。 7.1.4. 调整电压位置 7.1.5. 测试点位置 P.C.B. 名称 测试点 电压 调整点 备注 P 电路板 Vsus TPVSUS(SS) Vsus ± 2V VR561(P) * SC 电路板 Vad TPVAD(SC) -149V ± 1V VR16600(SC) SS 电路板 Ve TPVE(SS) Ve ± 1V VR16000(SS) * 27 TH-50PV80C 8 方框图 8.1. 方框图 （1/5） A7 HDMI2 HDMI Rx A/D CONV. HDMI1 A1 SD CARD I/F +3.3V(S) K GS52 A52 LED/RMT REMOTE RESET LED L,R +3.3V(STB) +5V(S) +3.3V(S) G51 V,Y,PB,PR HP PWM AUDIO AMP Dig/Ana Tuner MONITOR L,R +1.8V(S) SUB+3.3V SIF,AM SUB+1.2V HP L/R +3.3V(S) DTV DCDC KEY1 +15V(S) KEY SCAN DCDC +1.2V(S) SUB+1.8V FRONT TERMINAL Y,C,V IECOUT R_LED_ON STANDBY MPU SD CARD SLOT G GS A51 from L,R P6P7 PC K1 SD BOOT SBO2 SBI2 (MAIN MPU+VIDEO PROCESSOR) Peaks Lite2p +3.3V(STB) GenX5 +5V(S) RESET REMOTE EEPROM SOUND+15V SOUND_SOS BT+30V +30V(BT) +9V(P) KEY L,R Y,C,V HDMI L,R RF A12 AV3 VIDEO AUDIO SWITCH HEADPHONE AV1 R,G,B AUDIO PROCESSOR SPEAKER(R) SOUND SOS AV2 SPEAKER(L) PANEL_STB_ON PANEL SIDE SOS PANEL_STATUS SOUND SOS DET DIGITAL MAIN A SD DATA DTV IEC OUT Digital Video Signal LVDS SERIAL L,R Y,C,V RESET IIC1 DDR +5V(P) +3.3V(P) DET MAIN ON/OFF POWER SOS +3.3VSTB) CPG with SS FLASH MEMORY +5V(P) SUSTAIN CONTROL +15V(P) DET +5V(STB) A32 +15V(P) POWER_SOS +15V(P) A25 MPU DCDC DCDC Plasma AI H/V Sync Control +5V(P) +1.2V(P) Sub Filed Processor +3.3V(P) +5V(P) DET +3.3V(P) +1.2V(P) SOS6_SC1 PANEL STATUS EEPROM +2.5V(P) Ready,ALARM +3.3V(STB) SOS8_SS SOS7_SC2 +2.5V(P) DCDC LVDS Rx PANEL STB_ON LVDS FPGA +3.3V(P) VIDEO DATA +15V(P) SOS8_SS A31 +5V(P) VIDEO DATA +5V(P) +15V(P) A20 to/from P25 to C11 to/from C21 +5V(STB) +15V(F_STB) +15V(SOUND) SC20 to/from SCAN CONTROL L,R ALL OFF DDR2 CLOCK GEN +3.3V(M) SUB+5V SENSE +5V(S) SUB+5V SENSE MAIN+3.3V SENSE MAIN+9V SENSE +9V(M) +3.3V(S) DTV+9V SENSE +9V(S) Thermal sensor L,R (ATV or DTV) MONITOR OUT G_LED_ON PD2-M Dischrge Control Genx6 DVB_CVBS FOR FACTORY USE A33 A35 FOR FACTORY USE A34 FOR FACTORY USE EEPROM HDMI EQUALIZER HDMI3 GH11 +5V(S) HDMI3 IN GH +3.3V(S) +3.3V(S) A11 +5V(S) V,Y,PB,PR AV3 L,R V (LED:11 TIMES) (LED:12 TIMES) (LED:3 TIMES) (LED:7 TIMES) (LED:5 TIMES) (LED:8 TIMES) (LED:2 TIMES) (LED:6 TIMES) (LED:4 TIMES) TH-50PV80C Block (1/5) Diagram TH-50PV80C Block (1/5) Diagram 28 TH-50PV80C 8.2. 方框图 （2/5） (LED 8 TIME) (LED 6 TIMES) (LED 7 TIMES) HOT COLD (LED 4 TIME) C21 C10 C32 +5V(P) C22 +5V(P) C20 C11 SS34 SC42 VSUS SOS6_SC1 SD42 SS12 SC2 SOS7_SC2 SC41 SU11 Main Block(Tuner side) SD11 SC20 SU41 A31 SS23 A32 SS11 A20 VSUS SS21 SS02 SS03 SS22 C33 +5V(P) +5V(STB) VSUS MAIN SW2 Vda VSUS RELAY LINE FILTER LINE FILTER RECTIFIER RECTIFIER STANBY VOLTAGE CONTROL P11 P-BOARD SOS DETECT MAIN SW1 P2 +5V(P) Vda +15V(P) +15V(P) F+15V P9 SUSTAIN VOLTAGE CONTROL SUSTAIN VOLTAGE RECTIFIER PROCESS VOLTAGE RECTIFIER POWER FACTOR CONTROL PROCESS VOLTAGE CONTROL P12 STANBY VOLTAGE RECTIFIER ADDRESS VOLTAGE (VE) ERASE PULSE +15V(P) MAIN SW1 Vda MAIN SW1 MAIN SW2 SUSTAIN PULSE SOS8_SS SS-BOARD SOS DETECT SUSTAIN CONTROL +5V(P) MAIN SW2 VIDEO DATA Vda Vda SOS8_SS +5V(P) SUSTAIN CONTROL +5V(P) VIDEO DATA SC-BOARD FLOTING PART SOS DETECT SC-BOARD ENEGRY RECOVERY SOS DETECT +5V(P) +15V(P) SOS8_SS SUSTAIN CONTROL Vda VIDEO DATA DATA DRIVER DATA DRIVER DATA DRIVER DATA DRIVER DATA DRIVER DATA DRIVER DATA DRIVER DATA DRIVER DATA DRIVER DATA DRIVER DATA DRIVER SCAN CONTROL SCAN OUT (LOWER) SC DATA DRIVER (CENTER) DATA DRIVER (RIGHT) C2 P C1 SCAN OUT (UPPER) POWER SUPPLY SCAN DRIVE SU SD SUSTAIN DRIVE SS DATA DRIVER (LEFT) C3 SUSTAIN SS3 CONNECTOR (LOWER) CONNECTOR SUSTAIN (UPPER) SS2 CONTROL PULSE SCAN PULSE VOLTAGE GENERATOR SCAN DRIVER SUSTAIN PULSE A7 F+15V +15V(SND) P6 +5V(STB) P25 PS SOS +5V(P) A5 +15V(P) POWER MICOM ON/OFF CONTROL SC46 SCAN DRIVER SD46 P7 AC CORD (LED 8 TIME) (LED 6 TIMES) (LED 7 TIMES) HOT COLD (LED 4 TIME) TH-50PV80C Block Diagram (2/5) TH-50PV80C Block Diagram (2/5) 29 TH-50PV80C 8.3. 方框图 （3/5） MAIN9V SUB3.3V SUB5V SOUND15V STB5V STB5V F15V MAIN9V SUB5V DTV9V D5521 D5522 D5612 SUB3.3V SUB1.8V SUB1.2V MAIN5V MAIN3.3V D2017 D2014 D1107 SUB3.3V DTV9V STB3.3V STB5V SUB5V MAIN9V BT30V D3813 D3814 SOUND15V AV1 AV2 AV1_V AV1_Y AV1_PB AV1_PR AV1_LIN AV1_RIN AV2_V AV2_Y AV2_PB AV2_PR AV2_LIN AV2_RIN A51 4 15 2 10 1 3 9 3 2 6 4 G51 HEADPHONE 1 AV3_L 6 AV3_C CONTROL BUTTON AV3_V AV3 HP_L 10 15 AV3_Y KEY1 HP_R AV3_R 9 AV3 ROUT V Y LOUT C LIN RIN PC IN B JK3001 G R IC3001 RF AV SW TV/DTV AV1 V,R,G,B L,R V,Y,C,R,G,B AV2 L,R Y,PB,PR COMP/PC R,G,B L,R L,R V,Y,C AV3 L,R VOUT CVBS/S/YUV /RGB(PC) MAIN TU8301 SUB+5V SIF,AM BT+30V RF Dig/Ana Tuner L,R IC2106 AUDIO PROCESSOR L,R SIF,AM TV_LR/DTV_LR L,ROUT HP L,R IC2012 HP AMP IC2013 L(+) 3 A12 2 SOS DET R(-) AUDIO AMP 1 +15V 4 IC2301 SPEAKER OUT R(+) SPEAKER L,R L(-) SP L,R IIC2 +3.3V IC2008 +1.8V IC2107 +1.8V +3.3V IIC2 PWM HEADPHONE HDMI Audio +5V(HDMI) HDMI_CEC CEC DET3 +5V(HDMI) 5V<->3.3V DDC IIC +5V(HDMI) IC4514 DDC_IIC1 TMDS IC4515 DDC_IIC0 CEC LEVEL SHIFT 5V<->3.3V +5V DET2 LEVEL SHIFT Q4503 DDC IIC HDMI1 Q4502 TMDS HDMI2 +5V DET1 JK4500 JK4501 TUNER_SUB_ON ECO_ON STB5V +15V_S F+15V F+15V +15V_S F+15V +15V_S 1 2 3 10 P7 A7 12 15 13 17 14 IC5401 IC5400 +5V SUB+5V +9V SUB+9V SHOTO SOS BT+30V Q5522 Norm:Low Ab:high DTV+9V SUB+5V +1.8V IC5600 IC5601 Norm:Low Ab:high Q5606,07 SUB+3.3V F+15V DET +1.2V +3.3V +5V +9V +5V IC5660 RESET XRST SOUND SOS Q2022 SOS:Low KEY1 PANEL STATUS (READY) XRST PANEL STB_ON HDMI_CEC_PU_ON HDMI_CEC IC1100 STANDBY_MPU SOUND_SOS STB+3.3V IIC PANEL SOS (ARARM) +5V(HDMI) DET1,2,3 TUNER_SUB_ON GenX5 SOS ECO_ON SUB3.3V_SENSE MAIN3.3V_SENSE SUB5V_SENSE MAIN9V_SENSE DTV_9V_SENSE G_LED_ON RMIN AI_SENSOR R_LED_ON EEPROM IC1101 SBI2 SBO2 IIC3 IIC3 IIC_TUNER STB_RST IC1102 BUFFER IC2403 STB3.3V STB_RESET STB +3.3V +9V BT30V Q2027 STB_RST SD BOOT IIC SW IC4811 VOUT MONITOR MONITOR OUT DET_3 26 EEPROM 22 +5V(HDMI) HDMI5V DET HDMI_CEC MAIN+3.3V TMDS DATA 20 A11 26 DDC IIC GH10 +5V 22 18 GH +5V(S) IC3801 GH11 20 HDMI_CEC DDC IIC HDMI EQUALIZER HDMI IN 3 Q3802 MAIN+3.3V HDMI3 IN TMDS DATA CLOCK IC3802 18 12 12 JK3100 JK3701 9 17 18 16 19 14 13 20 1 5 8 3 2 4 6 7 12 23 22 21 (LED:3 TIMES) (+5.6V) (LED:12 TIMES) (LED:10 TIMES) (LED:12 TIMES) TH-50PV80C Block (3/5) Diagram TH-50PV80C Block (3/5) Diagram 30 TH-50PV80C 8.4. 方框图 （4/5） G R SUB3.3V SUB5V P15V P5V SUB3.3V SUB1.8V P3.3V P2.5V D2520 P3.3V P2.5V P1.2V STB_D3.3V +1.8V HDMI Digtal Video Signal IC4511 +3.3V IC4513 +3.3V IC4518 EEPROM Digtal Audio Signal DECORD +1.8V IIC1 HDMI PROCESSOR HDMI2 HDMI Rx/AD CONV. A/D AUDIO DDCA_IIC IC4512 VIDEO DDCB_IIC SW HDMI1 HDMI3 +1.8V Analog video signal DDCC_IIC +1.8V IC4510 A25 P25 +15V SOS4_PS VDATA_DET PANEL_MAIN_ON +15V +5V +5V 1 2 5 6 9 10 11 IC9900 SD DATA 8 11 4bit SUB+3.3V 11 1 A52 8 1 GS 52 JK7701 SD CARD SLOT IIC1 +1.2V IIC2 EEPROM IC8004 XRST DDR2 SDRAM DDR2 I/F +1.8V NAND I/F +3.3V BUS CONTROL IC8554 IC8001 Peaks-lite2 IC8002,03 CLOCK CPU BUS I/F FLASH MEMORY CLOCK GEN IC8601 LVDS SERIAL I/F SD BOOT (MAIN MCU+VIDEO SIGNAL PROCESSOR) IIC0 *PLASMA AI *CPG with SS *H/V Sync Control *Sub Filed Processor *Plasma AI PD2-M FLASH I/F +1.2V DDR I/F +2.5V +3.3V IC9303 FLASH MEMORY ADDR/DATA DDR IC9901 +5V(P) A32 3 +5V(P) 68 SUSTAIN CONTROL 2 CONTROL DATA VIDEO DATA +5V(P) VIDEO DATA VIDEO DATA 14 7 C11 54 CONTROL DATA 1 C21 A31 +5V(P) VIDEO DATA 55 53 SOS8_SS 40 54 +5V(P) +5V(P) 30 1 +15V(P) 16 SOS7_SC2 SOS8_SS A20 SOS6_SC1 +15V(P) 28 SCAN CONTROL SOS6_SC1 +5V(P) 29 +15V(P) SC20 SOS7_SC2 15 PANEL SOS EEPROM +5V(P) DET IIC1 PANEL MAIN ON VDATA_DET RESET PANEL MICOM +15V(P) DET +3.3V(P) DET +3.3V(STB) GenX6 POWER ON/OFF IC9001 PANEL STATUS IC9003 IC9013 IIC2 IIC SW POWER SOS 4 G_LED_ON 9 AI SENSOR AI_SENSOR R_LED_ON 1 12 3 K1 REMOTE 9 POWER LED 4 RMIN 2 A1 STB+3.3V 12 1 SUB+5V 3 2 RM2501 PC2511 IC9011 STB+3.3V/RESET PANEL STB_ON IC9806 +1.2V +3.3V IC9805 +2.5V IC9802,03 LEVEL SHIFTER IC9002 IIC2 TEMP SENSOR DISCHARGE CONTROL IC9500 SCAN CONTROL SUSTAIN CONTROL CONTROL DATA IIC2 +1.2V +2.5V +3.3V OSD I/F OSD I/F +3.3V RESET IIC1 TEMP SENSOR IC4800 A35 FOR FACTORY USE FOR FACTORY USE A34 FOR FACTORY USE A33 IIC3 IIC2 IIC1 DISPEN DISPEN DRVRST FPGARST XRST XRST, XRSTSYS Config(DONE) IIC2 Config(CCLK,DDTATA,PROGB), FPCLK,FPDATA[1:0],FVSEL SD DATA SD I/F 21 19 18 20 23 22 16 17 14 9 12 13 4 6 7 8 3 2 1 5 (LED:7 TIMES) (LED:6 TIMES) (LED:8 TIMES) (LED:4 TIMES) (LED:2 TIMES) (LED:3 TIMES) (LED:5 TIMES) TH-50PV80C Block (4/5) Diagram TH-50PV80C Block (4/5) Diagram 31 TH-50PV80C 8.5. 方框图 （5/5） + 5V TPVAD D16480 D16725 VF_GND TPVSCN D16717 D16255 D16253 TPVSUS D16821 D16585 5V TPVE2 TPSOS7 TPVDA TPSC1 TPSOS6 D14721 TPVSET D16321 D16583 TPVSUS TPVE TPSS1 D16718 D16820 D604 D603 D104 D013 D151 D102 D602 D615 D519 D251 F002 D601 D451 F001 F003 D551,552 D605 D607 D16280 D16282 NUEL VSCN-F Vda D16873 19 VSET IC16581 SS 23 P11 SW2500 16V-F D16871 3 13 4 SC2 1 +5V IC16788,89 IC16501 7 10 Q16876 Vda 15 6 NUEL 1 USH CMH CEL +15V Q16339 Q16335 CML (SC1) SS 55 15 7 SD 11 ON Q16604 1 13 SD 46 IC16561,62 Q16621-23 +5V(P) 15 IC16151 30 Q16661 Vscn F_5V_A 17 SS 11 UEH 9 SS 34 IC14901-03 IC14954-56 Vsus 2 SU 41 SC 41 Q16331 Q16601 Vsus Q16051 16 SC 46 2 SS 12 VSET Q16451 SC 20 Q16441 3 5 SU 11 CSH Q16422 UMH IC16241 SD 42 IC14951-53 Vfo IC16791 UML IC16303 IC16786,87 Vfo IC16784 1 Q16401-03 SS 54 +15V(P) VSCN 17 IPD 1 1 IC16251 1 8 9 SC 42 C33 Q16421 PLASMA PANEL PC16705 IC16752 IC14904-06 1 STB_PS +15V(P) IC16772 CPH 5V_F_A SC30 3 Q16875,79 IC16725 USL A20 P12 +15V(P) SOS6_SC1 12 IC16302 1 Q16001,2 +5V(P) PC16480 16V_F PC16710 P2 UEH 1 1 CEL 1 +15V(P) 2 SOS7_SC2 Q16641-45 Vda IC16521 2 19 IC16131 (SC2) S1 Vda Q16041 CPH2 +15V(P) T16301A 1 12V 2 +5V SOS8_SS IC16472 6 IC16191 IC16301 IC14961-63 F_5V_B 5V-F_A (15V_F) IC16724 CSL LED(G) Q16021,2 CB 10 1 55 Vda Vda 67 2 5 54 Vda 66 5 51 1 C33 20 Vda C20 +5V(P) 6 CB 11 +5V(P) C22 2 Vda CB6 SOS8_SS C32 SOS8_SS 55 CB8 SOS8_SS Vda 15 14 +5V(P) SS23 C21 A32 +5V(P) +5V(P) IC17201,02 1 50 68 1 12 CB9 55 +5V(P) CB7 IC17203 IC17302-04 IC17301 16 3 7 C11 CB5 C10 CB1 +5V(P) CB3 CB2 CB4 A31 +5V(P) 1 IC17101,02 1 +5V(P) PLASMA PANEL 49 2 C10 C20 Vda Vda Q16104 Q16102 13 1 1 SS 03 7 SS 22 1 7 2 2 SS 57 2 SS 02 1 13 2 7 SS 52 1 7 2 SS 21 2 1 DRIVER NAND GATE POWER SWITCH ERROR DET BUFFER TRANS SUSTAIN CONTROL VSUS Gen. ENERGY DRIVER SUSTAIN CONTROL ERROR DET VE Gen. RECOVERY ELECTRODE PANEL SUSTAIN VIDEO DATA CONTROL DATA PANEL DRIVER PANEL DRIVER PANEL DRIVER PLASMA PANEL BUFFER BUFFER BUFFER BUFFER CONTROL DATA VIDEO DATA SUSTAIN CONTROL SUSTAIN CONTROL VIDEO DATA CONTROL DATA SUSTAIN CONTROL SCAN CONTROL SCAN CONTROL PHOTO COUPLER PHOTO COUPLER BUFFER AND GATE DC/DC DRIVER ENERGY GEN. VSCN RECOVERY ERROR DET VSUS Gen. DRIVER ERROR DET DRIVER VAD SEPA GEN. PHOTO COUPLER VAD ERROR DET CONVERTER VSET SEPA BUFFER SCAN DRIVER SCAN DRIVER SCAN DRIVER SCAN DRIVER SCAN CONTROL PANEL SCAN PLASMA PANEL ELECTRODES SCAN DATA 12V STB_PS ERROR DET VSET OUT DROP ERROR DET VOLTAGE C1 SCAN DRIVE C3 SCAN OUT (UPPER) SC SUSTAIN DRIVE DATA DRIVER (LEFT) SU SCAN OUT (LOWER) DATA DRIVER (RIGHT) S SS SD POWER SWITCH C2 DATA DRIVER (CENTER) FOR FACTORY USE Vda_DET PFC 1 PFC_ ON/OFF 2 L005 VDA_DET 10 RL002 15V_ON/OFF 2 L 6 T8AH 250V Vda+75V D001 STB5V_ ON/OFF +15V(P) P2 TV SUB ON 2 9 PC461 9 1 +15V(SND) SS12 D016 +5V(P) D017 +15V ERROR DET Q151 IC251 +5V(STB) PC201 D011,012 Q281 N MAIN SW L001 L002 ERROR DET OUT Vda ERROR DET Q220,222 PC491 IC451 Q200,201,202 AC CORD Vda CONTROL Vda_ ON/OFF 8 IC501 D009,010 VSUS ON/OFF T201 VR561 13 P25 +5V(P) P11 T630mAL 250V 4 5 P6 T501 POWER SOS Vsus_OUT 1 +5V(STB) 5 VDA_DET 12 RL001 Vda PC502 Vsus IC471 L003 8 T8AH 250V 1 11 T101 TV SUB ON P12 ALL_OFF +15V(P) +15V(P) +15V(P) IC120 Vsus Vda PC501 PC101 MAIN SW F+15V PC801 STB5V_ OUT STB_IN A25 15V_OUT Q451 Vsus OUT Q501,520,522 POWER Vsus SS11 ALL OFF 5V_ ON/OFF F+15V +15V(P) +5V_PRE +5V_ PRE_OUT A7 F+15V +15V(SND) 10 6 7 POWER MAIN ON IC601 1 Q171 F+15V +5V(P) P7 P9 D002 VSUS 1 Q881 Vsus +15V(P) 3 +5V(STB) IC561 VR451 Vda PFC CONT. PC803 POWER MICOM SC2 IC801 +5V(P) PHOTO COUPLER PHOTO COUPLER COUPLER PHOTO PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER Vsus POWER CONT. RECTIFIER FILTER FILTER RECTIFIER CONT. STB POWER RUSH RELAY(H) MAIN RELAY(H) POWER SOS PANEL MAIN ON +12V P POWER SUPPLY A7 Q16280 LED(G) SU1-SU4 SD1-SD4 D16335 (LED:8TIMES) (LED:7TIMES) (LED:6TIMES) HOT HOT COLD COLD (LED:4TIMES) TH-50PV80C Block (5/5) Diagram TH-50PV80C Block (5/5) Diagram 32 TH-50PV80C 33 TH-50PV80C 9 配线连接图 9.1. 注意事项 注意： 确认所有柔性电缆正确装配。 并确保它们均固定在接插件上。 可轻轻拉动柔性电缆以证实是否锁定。 9.2. 配线 34 TH-50PV80C 35 TH-50PV80C 10 线路图 10.1. 线路图注意事项 36 TH-50PV80C 10.2. G, GS, GH 和 K 电路板线路图 D2 D1 R G VCC GND OUT P P P P P R V L Y C P P + D.SW W.P. C3816 16V 0.01u 0.1u 16V C3812 C3820 16V 0.01u C3823 0.1u 16V C3819 16V 0.01u 0.1u 16V C3809 0.1u 16V C3807 0.1u 16V C3814 C3817 16V 0.01u C3801 0.1u 16V C3815 16V 0.01u C3828 4.7u 6.3V C3806 0.1u 16V C3818 16V 0.01u C3802 0.1u 16V 0.1u 16V C3810 C3804 0.1u 16V 0.1u 16V C3808 C3829 1u 10V C3813 6.3V 10u *C3803 1u 10V 0.1u 16V C3811 D3814 B0HCMM000014 D3813 B0HCMM000014 D3810 EZAEG2A50AX D3803 EZAEG2A50AX D3806 EZAEG2A50AX D3809 EZAEG2A50AX D3805 EZAEG2A50AX D3804 EZAEG2A50AX D3802 EZAEG2A50AX D3801 EZAEG2A50AX D3808 EZJZ0V80008B D3807 EZJZ0V80008B D3815 EZJZ0V120JA D3811 EZJZ0V80008B *IC3802 TVRP962 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC C1AB00002835 IC3801 1 TEST 2 VCC 3 DN 4 DP 5 GND 6 SCL3 7 SDA3 8 DDCGND 9 IPACTRL 10 OPACTRL 11 VCC 12 REXT 13 ZP 14 ZN 15 GND 16 YP 17 YN 18 VCC 19 VCC 20 XP 21 XN 22 GND 23 WP 24 WN 25 CE 26 VCC 27 HPD 28 DDC5V 29 DDCGND 30 SDA5 31 SCL5 32 GND 33 AN 34 AP 35 VCC 36 RXTM 37 VCC 38 VCC 39 BN 40 BP 41 GND 42 VCC 43 VCC 44 GND 45 CN 46 CP 47 VCC 48 VCC GH11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 *GH10 K1FY121E0001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 L3801 J0JHC0000078 L3805 J0JHC0000078 L3804 J0JHC0000078 *ZA3801 K4AD01D00005 *ZA3802 K4AD01D00005 TP3801 TP3804 TP3802 TP3805 TP3803 Q3802 2SD0601A0L Q3804 2SD0601A0L Q3801 2SD0601A0L R3807 10 R3826 2.7 R3810 1k R3802 10k R3822 1k R3828 2.7 R3804 4.7k *R3801 10k *R3821 33 R3847 0 R3815 0 R3809 1k *R3823 10k R3845 4.7k R3841 10 R3830 2.7 R3831 2.7 R3840 10 R3805 4.7k R3814 4.7k R3827 2.7 R3806 47k R3812 10k R3803 3.3k R3818 10k R3808 10 R3825 2.7 R3824 2.7 R3829 2.7 R3832 4.7k R3834 49.9 1% 1% R3811 4.7k R2524 47k C2511 16V 0.1u 1% R2525 604 D2520 LNJ107W5PRW R2556 10k R2530 47k R2579 0 K1 1 2 3 4 5 6 7 8 9 10 11 12 R2576 0 R2517 47 C2512 6.3V 10u C2526 50V 1000p C2527 50V 1000p Q2513 2SD0601A0L R2557 22k R2520 220k PC2511 B3JB00000046 1% R2531 270 Q2511 2SD0601A0L C2525 50V 1000p Q2510 2SD0601A0L RM2501 PNA4701M07TV 1 2 3 C2521 0.01u 50V D2530 MAZ80560ML C2515 50V 0.01u C2523 50V 1000p JS2512 0 R2577 0 C2524 50V 1000p R2542 47k D2524 MAZ80560ML D2512 MAZ80560ML R2516 22k C2522 50V 1000p R3732 L3700 J0JCC0000364 L3708 J0JCC0000100 JS3704 0 R3709 D3710 MAZ81400ML R3716 180k SW3754 EVQPC105K 1% R3758 6.65k ZA3701 K4CZ01000027 C3701 560p 50V D3709 MAZ81400ML FL3712 J0ZZA0000091 1 2 3 4 C3712 50V 0.033u R3746 R3710 D3711 MAZ81400ML SW3757 EVQPC105K L3707 J0JCC0000100 L3701 J0JCC0000364 FL3714 J0ZZA0000091 1 2 3 4 R3755 JK3701 K4AK19B00002 C Y G CY-G G R2 R1 T NC SW R-SW R R-G L L-G V-SW V V-G SW3753 EVQPC105K R3717 180k SW3755 EVQPC105K G51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 C3711 50V 0.033u FL3711 J0ZZA0000091 1 2 3 4 R3721 10k D3701 MAZ81400ML R3748 JS3708 0 JS3705 0 JS3707 0 SW3756 EVQPC105K R3711 FL3710 J0ZZA0000091 1 2 3 4 C3703 560p 50V 1% R3767 7.15k 1% R3753 1.74k 1% R3751 14.3k JS3713 0 JS3712 0 FL3713 J0ZZA0000091 1 2 3 4 D3702 MAZ81400ML C3750 1000p 50V C7726 50V 33p R7798 0 C7702 47u 4V GS52 1 2 3 4 5 6 7 8 9 10 11 12 C7703 50V 33p R7704 68 R7706 0 C7705 16V 0.1u C7708 16V 0.1u R7795 0 R7713 0 C7727 50V 33p JS7701 0 R7716 0 R7793 0 R7797 0 C7701 50V 33p R7703 68 R7708 0 R7799 0 C7709 16V 0.1u R7792 0 R7710 100 R7709 68 C7729 10u 6.3V L7721 J0JCC0000143 R7701 68 R7796 0 JK7701 K1NA09E00080 1 2 3 4 5 6 7 8 9 10 11 12 R7731 0 R7705 68 R7794 0 R7702 0 < < < < < < < DDCG Main2_3.3V Main2_3.3V SDA D0- D2+ D2+ CEC CEC D1- D2G HDMI_5V_DET3 SCL N.C. HPDT WP CLK- D1+ D0+ Main5V HPD3 SCL DDC5V D2- CLK+ D1- CLK- D0- D0+ CLKG D1+ +5V D2- D0G CLK+ D1G SDA SDA SCL SDA SCL TO A-BOARD (A11) EEPROM HDMI EQUALIZER 6 9 8 C E 2 A 7 4 3 F B 5 D 1 POWER LED GND R_LED_ON/STBY_LED GND GND PSM_LEDR Active_STB_LED GND ! REMOCON Modem_LED/KEY3 K-BOARD SUB5V STBY3.3V TXN/K1RRTC AI_SENSOR G_LED_ON SUFFIX JW AD C.A.T.S. SENSOR Remote control receiver GND(V) GND(C) +/ HP_L HP_R HP_GND FRONT_AV_Y FRONT_AV_R FRONT_AV_L FRONT_AV_S FRONT_AV_C FRONT_AV_V GND GND GND(Y) KEY TO A-BOARD (A51) STR TV/AV -/ F HP_GND ! G-BOARD TXN/G1RRTC GH-BOARD TXNGH1RRTC ! SDDAT1 3.3V SDDAT2 SDDAT1 GND SDCMD GND SDDAT0 SDCLK SDDTC GND SDWP SDDAT0 SD CARD SLOT 3.3V SDDAT3 SDCMD SDDAT3 GND SDDAT2 TO A-BOARD (A52) GND ! GS-BOARD TXNGS1RRTC SDCLK TH-50PV80C G, GH, GS and K-Board Schematic Diagram TH-50PV80C G, GH, GS and K-Board Schematic Diagram 37 TH-50PV80C 10.3. A 电路板 （1/19）线路图 S S S S S S S S S S S S S S AV-SW_SDA R8601 ZA0007 K4AZ01D00004 ADV_SCL R008 10k AD_SDA3 *R2146 0 ADAV_SCL R8916 68 R1184 GENX-EEP_SDA ZA0002 K4AZ01D00004 R8918 68 R8924 3.3k SDA ADAV_SDA AD_SCL1 R1175 TCK TMP-SENS_SDA ZA0001 K4AZ01D00004 R8914 68 *R2178 0 AA_SDA0 SCL1 R4819 TDI TUNER_SCL R3130 22 ZA0008 K4AZ01D00004 AV-SW_SCL R1200 4.7k PD2M_TCK R1174 AD_SCL2 SDA1 ZA0003 K4AZ01D00004 SCL GENX_SCL0 R004 ADV_SDA PD2M_TRST TP0193 R1201 4.7k SBT2 TRST SUB3.3V R1205 R8923 3.3k R8921 4.7k TMP-SENS_SCL R8911 68 TP0194 XECS5 PD2M_TMS R8919 4.7k R001 STB_D3.3V R3131 22 SUB3.3V TP0191 *Q2028 B1CBHD000002 XECS3 LITE2-EEP_SDA STB3.3V SUB3.3V R8912 68 TP0192 R8917 68 AA_SCL0 *R2148 7.5k R8926 4.7k GENX_SCL1 R1183 R2000 22 *Q2029 B1CBHD000002 TP0190 R8920 4.7k R8915 68 GENX_SDA0 SBT0 R4820 TMS MAIN3.3V R4657 GENX-EEP_SCL R007 10k AD_SCL3 P3.3V *R2147 0 R8602 R002 R8922 4.7k R8913 68 R006 10k LITE2-EEP_SCL AD_SDA1 PD2M_TDO R1206 SUB3.3V R005 TDO R003 10k PD2M_TDI *R2149 7.5k AD_SDA2 *R2177 0 R8925 4.7k GENX_SDA1 R4658 ZA0004 K4AZ01D00004 R2001 22 R009 10k SDA0 TUNER_SDA SCL0 IIC2 Line LOCATION OF EARTH RAG SDA2 AV-SW Ana Tu. SDA3 IIC3 Line IC1100 PeaksLite2p SCL2 Lite2p E2PROM LINE IC8601 ADV7495 to IIC SW GenX5 E2PROM LINE 8k ADAV/AVSW/Tuner/FE etc. GenX-EEP LITE2p-EEP IC8001 IC4510 IIC0 Line IIC1 Line IC4800 I2C CI SCL3 Pin Jack GenX5 Tuner TDI TMS TDO TCK TRST Lite2p PD2M TO 14/19 TO 2/19 TO 2/19 TO 8/19 TO 9/19 JTAG CONNECTION TO 18/19 IIC CONNECTION TO 11/19 TO 18/19 ADV/TMP-SENS TO 4/19 TU8301 TO 6/19 IC2106 TO 6/19 ADAV4622 TO 9/19 Dig/Ana Tu. 16k IC3001 TMP_SENSOR D F 5 A 8 7 9 E 1 4 C 3 2 B 6 A-BOARD (1/19) TNPH0713DC ! TH-50PV80C A-Board (1/19) Schematic Diagram TH-50PV80C A-Board (1/19) Schematic Diagram 38 TH-50PV80C 10.4. A 电路板 （2/19）线路图 + CH0DQ20 CH0DQ12 CH0A6 CH0DQ25 CH0DQ0 CH0BA0 CH0A1 CH0DQ31 CH0DQS2 CH0A2 CH0DQ10 CH0DQ3 CH0A7 CH0A5 CH0DQ5 CH0A1 CH0DQ30 CH0XWE CH0DQ29 CH0XCK CH0CK CH0DM2 CH0BA2 CH0DM0 CH0A4 CH0DQ22 CH0A0 CH0DQ13 CH0DQ30 CH0DQ18 CH0A5 CH0DQ27 CH0DM3 CH0A0 CH0ODT CH0A4 CH0DQ14 CH0DQS0 CH0BA1 CH0DQ31 CH0CKE CH0DQ21 CH0XRAS CH0DQ26 CH0A5 CH0ODT CH0A8 CH0A6 CH0DQS1 CH0CK CH0A1 CH0DQ9 CH0DQ8 CH0DQ17 CH0DQ28 CH0A7 CH0DQ26 CH0A3 CH0A3 CH0DQ29 CH0BA1 CH0DQ21 CH0DQ8 CH0XCS0 CH0DQ6 CH0DQS0 CH0DQ4 CH0BA2 CH0DQS1 CH0DQS2 CH0DQ11 CH0XCS0 CH0CK CH0A7 CH0DQ16 CH0DM3 CH0A8 CH0DM2 CH0DM1 CH0DQ13 CH0XCS1 CH0A10 CH0BA1 CH0ODT CH0DQ27 CH0DQ0 CH0DQ20 CH0XCS1 CH0DQ1 CH0DQ24 CH0DM0 CH0DQ5 CH0A6 CH0DQ9 CH0DQ1 CH0A4 CH0A9 CH0DQ4 CH0A2 CH0XCK CH0A12 CH0DQ19 CH0DQS3 CH0A12 CH0A10 CH0A9 CH0DQ24 CH0DQ15 CH0DQ15 CH0XRAS CH0A2 CH0A10 CH0DQ14 CH0DQ2 CH0CKE CH0A9 CH0DQ3 CH0CKE CH0DM1 CH0A11 CH0DQ16 CH0DQ17 CH0BA0 CH0DQ25 CH0DQ19 CH0XCAS CH0DQ10 CH0DQ23 CH0XWE CH0DQS3 CH0DQ11 CH0A12 CH0XRAS CH0DQ6 CH0A11 CH0ODT CH0DQ7 CH0DQ2 CH0BA2 CH0CKE CH0A0 CH0A8 CH0A3 CH0DQ23 CH0DQ28 CH0XCK CH0A11 CH0XCAS CH0BA0 CH0XWE CH0DQ18 CH0DQ12 CH0XCAS CH0DQ22 CH0DQ7 IC8001 L22 VSS IC8003 = E8 LDQS IC8001 R4 VDD33 VI2P12 SBO0 IC8002 = E3 VSS IC8001 AF9 SMTCMD0 IC8001 D20 VOP8 IC8003 = L3 BA1 TD1P C8015 6.3V 1u IC8001 L12 VSS IC8001 AB15 VDDR C8055 50V 7p IC8001 AA9 VDD33 IC8002 = D1 DQ12 C8012 16V 0.1u IC8001 AF4 IS0DATA IC8001 H23 VSS IC8001 AA7 VSS IC8001 T25 VDDIO IC8003 = C3 VDDQ ED5 VI2P15 R4284 10k IC8001 M4 VSS IC8002 = A2 NC IC8001 V24 MMBA1 IC8001 U23 MMA12 ED13 R8074 220 IC8001 AA22 VSS IC8001 D18 VSS IC8003 = E2 NC IC8001 N4 XIRQ1 IC8001 C22 MHSYNC IC8001 D7 VDD33 SDA0 IC8001 A13 DMIX0 IC8001 A14 ADIN IC8001 B26 TA1P IC8001 L13 VSS VI1P23 IC8001 V2 ED2 IC8001 Y6 VSS IC8001 AF20 VDDIO IC8001 M6 VI2P27 SUB3.3V IC8001 AD6 SBT2 IC8001 U26 MMA7 IC8001 AF3 IS0CLK IC8001 J4 VI2P13 IC8001 T16 VSS IC8001 R5 ATCPOUT IC8001 C16 VOP1 IC8001 AF19 MMDQS2 IC8001 K21 CK27 IC8001 B8 VI1P24 IC8001 AE18 VSS TE1N VI2P16 IC8003 = E1 VDD IC8001 A15 LCSCK IC8001 V25 VSS IC8002 = E7 VSSQ XECS1 C8034 16V 0.1u C8069 50V 82p IC8001 H1 VI2P15 IC8003 = D7 DQ10 SDCD R8066 47 IC8002 = L8 CS ED0 C8023 10u 10V IC8001 P1 XIRQ3 IC8002 = L3 BA1 IC8003 = P2 A7 IC8001 K24 MMDQ3 XIRQ1 SDWP IC8001 T12 VDD12 IC8001 G2 VI2CLK IC8001 AD5 IS1CLK IC8003 = B3 UDM IC8001 AB26 MMXCK R8098 10k SMTD1 IC8001 AE20 MMDQ18 C8019 16V 0.1u IC8002 = N2 A3 IC8001 C20 VOP2 IC8002 = J7 VSSDL IC8001 AC25 VSS VI2CLK2 EA7 IC8001 M25 VSS C8022 6.3V 1u IC8001 AE25 VSS R8065 47 IC8001 AD24 CK27D IC8001 D3 VI2P8 IC8001 E9 VI1CVBS0 EA5 IC8002 = F1 DQ6 IC8001 AA2 ED15 IC8001 L3 VI2P25 IC8001 AA25 VSS IC8003 = L1 RFU IC8001 N6 VDD33 IC8001 A24 SBI2 IC8002 = J1 VDDL IC8001 D19 VSS VI1VSYNC VI2P25 IC8003 = N8 A4 SUB3.3V IC8001 J2 VI2P19 IC8001 Y4 XERE IC8001 AA18 VSS IC8001 N17 VDDR IC8001 H2 VI2P14 IC8001 L16 VSS IC8001 AA14 VDD12 IC8001 A20 VOP17 IC8001 AE2 XEXDMR0 1% R8004 24k IC8001 D14 USBDM C8050 16V 0.1u IC8001 AA8 VDD33 IC8001 B12 MVDACO1 IC8001 K2 VI2P22 IC8001 AD16 MMDQ30 IC8001 E15 SLRCK IC8001 V21 MMA4 R8095 10k R8026 0 VI1P2 TCK IC8003 = H8 VSSQ IC8001 F3 VI1P10 IC8001 K22 MMDQ4 IC8001 H4 VDD33 R8062 47 TA1P IC8001 B23 SBO2 IC8001 C9 VI1CLK IC8002 A1 VDD IC8003 = K8 CK C8074 16V 0.1u IC8001 H25 CLK74 C8042 68u 4V IC8003 = F1 DQ6 VI2P11 R8084 0 IC8001 G22 LPFOUT CH0VAL L8001 J0JHC0000045 L8004 J0JHC0000045 IC8001 D2 VI1VSYNC IC8002 = F7 LDQS R8069 47 IC8001 R21 VDDIO IC8001 J22 VC27 ESZ1 VI2P29 IC8002 = N7 A6 R8071 47 R8101 10k IC8003 = R8 NC IC8001 U6 VDD33 R8107 100 IC8001 R6 TCK IECOUT0 IC8001 AA20 MMDQ21 IC8001 AA5 XECS0 C8049 16V 0.1u R8075 47 IC8001 D13 USBDP IC8001 M14 VSS IC8001 D8 VDD33 VI2P13 SDA1 IC8002 = D7 DQ10 IC8001 K3 VI2P20 IC8001 A8 VI1CKOUT SCL0 IC8003 = J3 VSS IC8001 L4 VSS IC8001 N26 MMDQ11 C0ZBZ0001567 IC8004 1 X1 2 S0 3 S1 4 VIN 5 VDD1 6 GND1 7 CLK1 8 CLK2 9 REFOUT 10 CLK3 11 CLK4 12 GND2 13 VDD2 14 S2 15 VDD3 16 X2 R8077 47 IC8001 B13 SRCK0 R4330 10k R8079 0 IC8003 = K2 CKE IC8001 T23 MMBA0 TD1N ERXW IC8001 R16 N.C.(DPAVSS) IC8001 AB12 SDDAT0 IC8001 AE3 NFALE IC8001 L25 MMDM0 IC8001 AF12 CH0CLK IC8001 E8 VI1CK208F IC8001 T1 EA0 IC8001 U12 VDD12 IC8003 = M7 A2 IC8001 D17 VDD33 IC8001 G21 LVVSS IC8001 G3 VI2ENB IC8001 F23 LVVSS IC8001 T5 TDI IC8001 AB10 SMTSEL1 IC8002 = L2 BA0 R8070 47 IC8001 B18 VOP28 IC8001 F8 VI2P0 IC8001 B20 VOP19 IC8001 AD1 XECS3 SMTCMD0 MVDACO3 IC8001 E1 VI1P11 IC8001 AC12 VSS IC8003 = D2 VSSQ IC8002 = L1 RFU R8099 10k C8027 16V 0.1u IC8001 U24 VDDIO XIRQ2 XRTS0 IC8002 = B3 UDM IC8003 = J2 VREF IC8001 L10 VSS IC8001 J26 MMDQ6 IC8002 = B2 VSSQ R8076 47 R8036 0 BOOTSWAP SDCMD IC8001 AC18 VDDIO IC8001 AE7 TXD0 IC8001 M22 MMVREF0 IC8001 C25 TB1N SBT2 C8053 25V 0.01u IC8003 = R7 RFU IC8001 AB4 XECS2 IC8002 = C7 VDDQ TB1N DAUDIO IC8002 = F2 VSSQ C8054 50V 18p IC8001 AC3 XECS4 IC8002 = E1 VDD IC8001 D25 TC1N IC8001 T17 VDDA IC8001 A4 VI1P29 IC8001 F7 VI2P2 IC8001 H21 MVAVDD IC8003 = E3 VSS VI1P27 IC8001 AE12 SDWP IC8001 M15 VSS IC8001 AC21 TSTSEL IC8001 AB11 SMTSEL0 IC8001 AE17 MMDQ26 IC8003 = R1 VDD IC8001 AF22 MMDQ22 IC8001 AD17 VDDIO DMIX0 IC8001 R14 VSS IC8001 C13 DACCK0 IC8001 AD11 CH0PSYNC SBI0 IC8002 = H2 VSSQ IC8001 AD12 SDCMD IC8001 T14 VSS IC8001 AF11 CH0DATA IC8001 AA10 SMTRST1 IC8001 AB20 MMDQ16 IC8001 M12 VSS IC8001 P5 AVCOIN IC8001 D23 SBO0 IC8001 V23 MMA11 IC8001 R24 VSS IC8001 B5 VI1P9 C8045 16V 0.1u IC8001 AE5 IS1VAL IC8001 P12 VSS VI2P18 IC8001 J24 MMDQ7 VI1P6 IC8002 = J8 CK C8047 16V 0.1u IC8001 W3 ED8 IC8001 F10 VI1CVBS1 IC8002 = J2 VREF IC8002 = G2 DQ1 IC8001 P22 MMDQ13 IC8003 = C9 VDDQ IC8001 AF25 MMRDRV IC8001 K25 MMDQ2 IC8003 = H7 DQ2 C8026 16V 0.1u IC8002 = G7 VDDQ SDDAT3 IC8001 A21 VOP3 IC8001 AD9 SMTCLK0 C8014 16V 0.1u SDDAT1 IC8001 M5 RMCO R8081 10k IC8003 = L7 CAS IC8002 = K2 CKE R8093 47 C8058 10u 10V C8052 6.3V 1u MVDACO2 ED2 IC8001 K5 VI2P16 IC8003 = F2 VSSQ IC8002 = B1 DQ14 IC8002 = P7 A11 IC8001 E4 VI2P7 R4323 10k VI1P18 IC8001 T13 VDD12 IC8001 A11 SVCOMP IC8003 = D3 DQ11 IC8001 AC16 VSS IC8001 M16 VSS XNMIRQ VI1P29 IC8001 AA12 CH1VAL VI1P12 L8010 J0JHC0000045 IC8001 Y23 VSS IC8001 K15 VSS IC8001 B19 VOP14 IC8001 F1 VI2HSYNC C8078 16V 0.1u IC8003 = G8 DQ0 C8048 16V 0.1u IC8001 E24 VSS IC8001 AC14 VDD12 VI1P15 VI1P7 IC8001 M26 MMDM1 IC8001 A16 VOP10 IC8001 AC8 XDTR0 IC8001 AF24 VSS R8029 0 IC8001 AD14 VDD12 IC8001 U5 ED0 IC8001 T3 EA3 IC8001 A19 VOP13 IC8002 = R3 RFU VI2P20 IC8001 Y1 ED10 IC8001 AE14 VDD12 IC8001 U2 EA6 IC8001 AD23 VSS IC8001 J3 VI2P17 IC8001 N2 XNMIRQ IC8001 AE22 VSS IC8001 W25 MMXRAS VREF IC8003 = N2 A3 VI2P26 IC8001 F5 VI2P6 VI1P16 IC8001 E20 MVSYNC IC8001 AA24 MMODT IC8003 = C7 VDDQ IC8001 J21 MVAVSS C8075 4V 22u IC8001 D11 MVCOMP C8018 16V 0.1u IC8003 = H1 DQ4 IC8001 L14 VSS C8016 6.3V 1u EA0 IC8001 B14 ADCCK C8035 10u 10V IC8002 = R8 NC IC8002 = B9 DQ15 ED9 IC8001 L26 MMDQS0 C8033 16V 0.1u IC8001 M21 VDDIO IC8003 = C8 DQ8 IC8001 N12 VSS IS1VAL XECS0 IC8003 = A3 VSS IC8001 AC19 MMDQ17 IC8001 E2 VI1CLK2 IC8001 H26 VOUTENB IC8001 P16 DPAVDD VI1P13 IC8001 C19 VOP16 IC8001 E26 TCLK1P IC8001 AA3 XEWE0 IC8001 AA19 MMDQ20 R8039 0 TC1P IS1DATA IC8002 = B7 UDQS X8001 H0J270500061 IC8001 E14 DACVDD2 IC8003 = K3 WE IC8001 C4 VI1P13 IC8001 L1 VI2P28 IC8001 C24 SBI0 VI2P19 IC8001 B11 MVIREF IC8002 = N3 A5 IC8001 T22 VSS IC8001 A7 VI1P26 IC8001 F4 VI2P9 IC8001 F20 VDD33 IC8001 T4 VDD33 IC8001 AE9 SMTRST0 IC8001 A12 DACVSS2 IC8001 AF13 SDCLK IC8001 AA26 MMA2 IC8001 F22 LVVSS IC8001 AB19 VDDIO EA3 IC8003 = H3 DQ3 VI1P4 1% R8031 270 IC8001 E7 VI2P1 IC8001 G26 TE1P IC8001 F9 VI1CK204F IC8001 C12 DACVDD1 IS1CLK IC8002 = M8 A0 IC8001 P6 VDD33 IC8002 = G3 VDDQ IC8001 B4 VI1P12 IC8001 U13 VDD12 IC8001 F19 VOP5 C8021 16V 0.1u IC8001 E12 VVREF IC8001 A25 VDD33 IC8001 U11 VDD12 IC8001 T24 MMBA2 IC8001 E18 VOP29 IC8002 = L7 CAS IC8001 B25 TA1N IC8001 U3 EA7 IC8001 Y3 ED13 IC8003 = F8 VSSQ VI1P17 IC8001 H3 VI2P12 LRCK0 IC8001 T6 EA2 1% R8032 270 SUB1.2V IC8001 V6 ED7 IC8003 = F9 DQ7 IC8001 R12 VDD12 IC8001 W26 VDDIO R8097 220 IC8002 = P9 VSS C8044 16V 0.1u VI2P23 IC8001 K11 VSS IC8001 C17 VOP25 VI1P19 C8004 1u 6.3V IC8002 = G9 VDDQ IC8002 = K7 RAS IC8003 = J9 VDD XECS4 IC8002 = H8 VSSQ VOUTENB IC8003 = G1 VDDQ IC8001 D16 VDD33 R8028 0 R8059 47 IC8002 = F8 VSSQ R4291 10k VI1P11 L8007 J0JHC0000045 IC8001 AC11 VDD33 L8008 J0JHC0000045 IC8001 Y22 VDDIOCK L8009 J0JHC0000045 IC8001 AD3 XNFWE IC8001 E25 TCLK1N IC8001 P10 VDD12 XDCD0 ED10 IC8003 = J8 CK IC8001 P21 MMDQ12 IC8002 = A3 VSS IC8001 AE21 VDDIO R8061 47 R8086 100k EA1 IC8001 AA4 ESZ0 R8080 0 R8108 22k IC8001 AB2 ERXW IC8001 D4 VSS C8039 16V 0.1u IC8001 AE13 SDDAT1 IC8003 = G3 VDDQ IC8001 E21 VDD33 IC8001 AE24 DTCPOUT IC8001 W1 ED5 IC8001 C23 VDD33 VI1P28 ED15 R8025 0 IC8001 L2 VI2P26 IC8001 N21 MMDQ8 VI2P28 IC8001 E11 VI1CVBS3 IC8003 = D1 DQ12 IC8001 R26 VSS IC8001 B3 VI1P15 R8024 0 IC8001 F24 VSS IC8001 E19 VOP18 R8100 47 IC8001 AB21 VSS IC8001 R11 VDD12 IC8001 K17 LVVDD12 SUB3.3V C8001 16V 0.1u IC8003 = K9 ODT IC8001 F18 VOP15 IC8001 N24 VDDIO ED1 XRST IC8003 = H2 VSSQ IC8001 C2 VI1P18 IC8001 G6 VI1P0 IC8001 N13 VSS R8001 220 IC8001 Y26 MMA6 IC8002 = J9 VDD VI1P9 IC8001 H5 VI2VSYNC IC8002 = D3 DQ11 ED11 R8002 56 IC8003 = E9 VDDQ C8002 6.3V 1u R8091 100 IC8001 AB23 VSS IC8001 AC5 XNFCE L8003 J0JHC0000045 IC8001 AC15 VDDR IC8003 = D8 VSSQ EA4 XIRQ3 R4287 47k IC8001 K12 VSS XEWE0 IC8003 = B1 DQ14 IC8001 L21 MMDQ1 IC8001 K16 VSS IC8001 AC26 MMCK IC8002 = R1 VDD C8070 16V 0.1u IC8001 AE16 VDDIO SUB3.3V IC8001 R17 VDDR TDI ED3 IC8001 AB3 XEWE1 IC8001 D24 TSTAIO IC8001 E3 VI1ENB IC8003 = A9 VDDQ R4286 47k C8071 16V 0.1u ED6 IC8001 N14 VSS IC8001 C7 VI1P5 IC8003 = G7 VDDQ IC8001 AB18 MMVREF1 C8072 16V 0.1u IC8001 E16 VOP20 IC8002 = A8 UDQS IC8001 E13 VSS IC8001 AD4 XNFRE IC8001 F17 VOP27 IC8001 W2 ED6 IC8001 J6 VDD33 IC8001 B2 VSS IC8001 G24 VSS IC8001 F15 USBVDD VI2P27 IC8001 AE26 MMRODT SCL1 IC8001 AF17 MMDQ27 IC8001 U17 VSS IC8001 U10 VDD12 IC8001 AD20 MMDQ19 TMS IC8001 P24 MMDQ14 IC8001 AB8 SBT0 IC8001 R10 VDD12 IC8001 M23 VDDIO IC8001 A3 VI1P14 IC8001 B16 VOP0 IC8001 B1 VI1P17 IC8001 D10 VSS IC8001 F16 VOP11 IC8001 AC22 VSS IC8003 = N1 VSS IC8001 R23 MMCKE IC8002 = F3 LDM IC8001 P4 GTCPOUT IC8002 = H9 DQ5 VI1P5 VI1P8 IC8002 = N1 VSS IC8001 F26 TD1P IC8001 AE8 SMTD1 IC8002 = G8 DQ0 IC8001 G7 VSS IC8001 AA23 MMMONB IC8001 D12 MVDACO3 IC8001 R1 TMS IC8003 = R2 A12 IC8001 AA11 SMTD0 IC8001 A18 VOP26 C8046 16V 0.1u IC8002 = K9 ODT IC8001 F12 VDD33 SUB3.3V EA6 IC8001 A5 VI1P8 IC8002 = E2 NC C8076 16V 0.1u IC8001 M13 VSS VI2P17 IC8003 = M3 A1 IC8001 AB9 XDCD0 SUB3.3V SDDAT2 TRST IC8003 = F7 LDQS IC8002 = E9 VDDQ C8005 1u 6.3V VI1P0 R4322 10k IC8001 U1 EA5 C8041 16V 0.1u C8010 10u 10V IC8001 U15 VDDA IC8001 N23 MMDQ9 IC8001 AE4 IS0PSYNC IC8001 A26 VDD33 ED14 XEWE1 IC8001 A9 VI1P22 IC8001 F2 VI1P21 IC8001 W21 VSS IC8002 = H1 DQ4 IC8001 A23 MVCLK IC8001 G5 VI1P1 R8087 10k IC8002 = D8 VSSQ VI1P3 IC8001 P3 AGAVDD IC8001 K6 VDD33 IC8002 = N8 A4 IC8003 = E7 VSSQ IC8001 AD7 XCTS0 IC8001 A22 VOP7 IC8001 AF8 SMTCMD1 IC8001 P26 MMDQ15 IC8002 = H7 DQ2 IC8001 AE23 MCLK IC8001 F13 MVDACO2 VI2P4 IC8001 M17 VDDA IC8001 W23 MMA0 VI1ENB IC8001 AD8 SMTCLK1 IC8001 N22 VSS IC8001 MN2WS0047 A1 VSS IC8001 AC23 VDDIO IC8001 P23 VSS MVDACO0 IC8001 C15 VOP21 IC8002 = D9 DQ13 IC8003 = M2 A10 C8068 16V 0.1u IC8001 T10 VDD12 IC8001 K10 VSS IC8001 M1 SDA0 IC8001 V4 VSS IC8001 T15 VDDR CH1VAL TXD0 C8051 16V 0.1u IC8001 C8 VI1P25 IC8001 L15 VSS C8067 25V 0.01u IC8003 = H9 DQ5 1.8V_DDRI/F IC8001 AF5 IS1DATA IC8001 AE19 MMDM2 SUB1.8V C8073 16V 0.1u IC8003 = P3 A9 IC8001 AA13 SDDAT3 MVDACO1 1.8V_DDRI/F IC8002 = M9 VDD SDDAT0 IC8001 B9 VI1P23 IC8002 = F9 DQ7 IC8001 L23 MMDQ0 C8007 16V 0.1u IC8003 = L2 BA0 IC8001 K4 VI2P18 IC8001 T11 VDD12 EA2 VI2ENB C8079 16V 0.1u XDTR0 IC8002 = G1 VDDQ IC8001 U25 MMA9 IC8001 F25 TD1N IC8001 B21 VOP4 IC8001 AB5 XEXDMK0 C8006 16V 0.1u IC8002 = M7 A2 IC8001 AF6 XDSR0 VI1P25 IC8003 = B9 DQ15 VI1CLK2 IC8001 H24 AUDCLK IC8001 AF26 VDDIO TDO IC8001 AF23 BOOTSWAP IC8001 R25 MMXWE IC8003 = C1 VDDQ IC8001 D26 TC1P C8003 1u 6.3V XECS2 C8040 16V 0.1u IC8001 A6 VI1P6 IC8001 AF18 MMDM3 IC8001 W24 VSS IC8001 G1 VI2P10 IC8001 J23 MMDQ5 IC8003 = D9 DQ13 IC8001 W5 ED12 IC8001 D21 XRST TCLK1N IC8001 AB22 VDDIO IC8001 AC20 VSS R4288 47k XRI0 IC8001 AC1 ESZ1 IC8001 L17 VSS IC8001 AD21 MMDQ23 IC8002 = C2 DQ9 IC8002 = P2 A7 IC8001 K14 VSS IC8001 AE10 CH1PSYNC ED8 IC8001 AE11 CH0VAL IC8001 AC2 XECS1 IC8001 Y5 XEDK IC8001 AA21 VDDIO IC8001 AF1 VSS IC8001 L11 VSS IC8001 AA16 MMDQ29 IC8001 P25 VDDIO IC8001 AE1 XECS7 IC8003 = M8 A0 IC8001 AB13 SDDAT2 IC8001 C14 DSRCK VI1P10 NANDRYBY R8064 47 IC8001 AD25 VDDIO IC8003 = B8 VSSQ IC8001 C11 DACVSS1 IC8001 D9 VSS IC8001 AF7 RXD0 R8057 47 IC8001 H22 TCPOUT C8080 16V 0.1u IC8001 K1 VI2P24 SUB3.3V IC8002 = M3 A1 IC8001 P13 VSS IC8001 AB25 VDDIO IC8002 = E8 LDQS SUB1.2V IC8001 P11 VSS IC8001 W4 ED9 IC8001 AD19 VSS TC1N C8031 6.3V 1u TP8037 IC8003 = N3 A5 R8072 47 VI1P14 IC8002 = P3 A9 IC8001 E5 VSS IC8002 = C1 VDDQ IC8001 H6 VI1P20 R8060 47 L8005 J0JHC0000045 C8032 10u 10V VI2P14 C8057 16V 0.1u VI2P22 IC8003 = N7 A6 C8030 6.3V 1u R8073 47 IC8002 = H3 DQ3 SRCK0 C8024 10u 10V IC8001 P14 VSS IC8001 AD22 VDDIO VI2CLK IC8003 = J1 VDDL IC8001 K23 VDDIO TCLK1P VI1P26 IC8001 C18 VOP12 IC8001 AF14 VDD12 IC8001 AD18 MMDQS3 SBO2 IC8001 B15 LCSID IC8003 = G2 DQ1 IC8001 AB6 NFCLE IC8001 B6 VI1P7 R4292 10k IC8001 AF10 CH1DATA IC8001 Y21 MMVCAL IC8003 = G9 VDDQ ED4 R8068 47 IC8001 U16 VDDR XNFWE IC8001 F21 LVVDD IC8001 N11 VSS 1% R8005 10k IC8001 C5 VI1P28 IC8001 N5 SCL1 C8013 16V 0.1u IC8001 T2 EA1 1% R8082 75 IC8001 AB1 ECLK R8063 47 SMTD0 IC8001 N25 MMDQ10 IC8002 = C3 VDDQ IC8001 AC24 MMPCLKEXT IC8001 E22 LVVDD IC8001 AB16 MMDQ28 IC8002 = C9 VDDQ VI2P24 IC8001 V26 MMA1 XECS3 C8037 16V 0.1u IC8001 AC6 NANDRYBY IC8003 = A7 VSSQ IC8001 B22 VOP9 R8056 47 IC8001 R3 TDO SUB1.2V IC8002 = K3 WE IC8001 T26 MMA10 IC8001 T21 MMA3 IC8001 V22 VDDIO IC8001 AA17 MMDQ24 IC8001 M3 VI2P29 1% R8006 6.8k XERE IC8002 = P8 A8 R8078 47 R8058 47 R8027 0 XEDK IC8003 = K7 RAS IC8003 A1 VDD L8002 J0JHC0000045 IC8001 J1 VI2CLK2 IC8001 AA6 VSS R8083 300 IC8003 = P7 A11 C8025 16V 0.1u ESZ0 TB1P IC8002 = D2 VSSQ R8106 2k C8017 10u 10V IC8002 = M2 A10 IC8003 = A8 UDQS IS0VAL IC8001 M10 VSS R8035 0 IC8001 L6 VI2P21 IC8001 M2 SCL0 C8056 16V 0.1u R8067 47 IC8001 Y24 VDDIO IC8001 U4 EA4 IC8001 C6 VI1P27 IC8001 AF16 MMDQ31 VI1P21 CH0DATA IC8001 AC10 VDD33 IC8003 = B7 UDQS IC8001 AC17 MMDQ25 IC8001 V5 ED3 IC8001 D5 VI2P5 VI2P10 IC8001 C1 VI1P19 IC8001 F11 VDD33 IC8001 U14 N.C.(DPAVDD12) R8090 10k IC8002 = A7 VSSQ R8030 100 IC8001 N1 XIRQ2 IC8001 K26 VDDIO RXD0 VI1HSYNC IC8001 W6 VSS IC8001 E17 VOP22 C8008 16V 0.1u IC8001 C10 VI1P3 IC8001 R22 MMXCS0 C8011 16V 0.1u IC8001 B17 VOP24 IC8001 A2 VI1P16 TA1N IC8003 = R3 RFU IC8001 Y25 MMA8 CLKGEN_S2 IC8001 AE6 XRTS0 IC8001 AB14 VDD12 IC8001 F14 LRCK0 IC8001 AD10 CH1CLK IC8001 G4 VDD33 IC8001 A17 VOP23 IC8001 C21 VOP6 IC8001 AD15 VDDR IC8001 AB24 MMMONA SDCLK 1.8V_DDRI/F IC8001 W22 MMXCS1 IC8001 B24 VDD33 IC8001 P2 AGAVSS VI1P24 IC8001 AD2 XECS6 IC8001 B7 VI1P4 IC8001 AF2 XNFWP IC8001 AA15 VSS IC8001 V3 ED4 IC8001 R2 TRST IC8001 F6 VSS IC8001 J5 VI2P11 IC8003 = M9 VDD IC8001 J25 VSS IC8002 = A9 VDDQ IC8001 E23 LVVDD IC8002 = B8 VSSQ IC8001 R15 VSS ECLK IC8001 M11 VSS C8009 10u 10V ED12 IC8003 = B2 VSSQ IC8001 Y2 ED11 IC8003 = L8 CS IC8001 G23 LPFIN C8036 10u 10V CH0PSYNC ED7 IC8002 = R2 A12 R4321 10k CH0CLK C8077 16V 0.1u IC8001 D15 DAUDIO IC8002 = J3 VSS XECS5 IC8002 = C8 DQ8 IC8001 D22 VDD33 SBT0 IC8001 U21 MMXCAS IC8001 U22 MMA5 IC8003 = J7 VSSDL IC8001 L24 VSS IC8001 C3 VSS VI1CLK C8038 16V 0.1u IC8003 = P8 A8 IC8001 N16 VSS IC8001 P17 VSS IC8001 G25 TE1N IC8001 D6 VI2P3 IC8002 = R7 RFU R4325 10k SMTSEL0 SMTCLK1 IC8001 N15 VSS IC8001 AB7 IS0VAL IC8001 M24 MMDQS1 IC8001 P15 VSS IC8001 AE15 VDDR IC8001 AF15 VDDR IS1PSYNC IC8001 AD13 SDCD IC8003 = A2 NC IC8001 AF21 VSS IC8001 C26 TB1P R4290 10k IC8001 AB17 VSS IC8001 AA1 ED14 C8043 16V 0.1u IC8001 AC4 XECS5 IC8001 B10 VI1P2 XDSR0 IS0CLK IC8003 = P9 VSS R8023 0 1.8V_DDRI/F IC8001 L5 VI2P23 IC8001 R13 VDD12 IC8001 K13 VSS IC8001 V1 ED1 IC8003 = F3 LDM IC8001 AD26 VSS IC8001 E10 VI1CVBS2 C8020 16V 0.1u IC8001 A10 IECOUT0 IC8001 AC13 VSS VI1P22 XCTS0 IC8001 N10 VDD12 IC8002 = K8 CK IC8001 AC9 XRI0 C8028 16V 0.1u SBI2 IC8001 E6 VI2P4 IC8003 = C2 DQ9 C8029 16V 0.1u TE1P SMTRST1 IC8001 AC7 IS1PSYNC VI1CKOUT IC8001 N3 SDA1 IC8001 D1 VI1HSYNC = = EA14 PORT8[0] EA17 HSDIN4 HSDIN1 JTAG FE_SW LOSDOUT_YS CLOCK GEN 6/13 Lite2p DDR I/F PORT15[4], ETHER_IRQ PORT7[6], XETS G9/Y9 PWM2/PORT5[5] LOSDOUT8 PORT15[0] IIC I/F VI1P21 PORT16[4] PORT7[7] PORT7[2] W WINDOW: B PORT OTHER: ADRESS LOSDOUT5 HSDIN5 PORT14[5], CI_RESET VI1P1 LOSDOUT0 SCARD_NMIRQ VI1P0 SCL3 Analog Video I/F PORT7[5] EA13 PORT16[3] SD CARD I/F XPDWT FOR ADV7493 LOSDOUT6 PORT15[5], GC6_IRQ CH,IS IF PORT7[3] SCARD_IRQ FE_IRQ VI1P10 XEDBA PORT14[4], XPDWE PORT7[0] EA23 HSDIN7 VI1P11 PORT16[5] HSDIN3 HSDIN0 DDR2 #0 DDR2 #1 POD,CI I/F EA25 LOSDOUT4 LOSDOUT11 SDA3 PORT14[6], ETHER_XRST XPDCE2 PORT14[7], FE_XRST PORT16[7], OSD_FLAG EA22 PORT15[6],POWER_DET LOSDOUT_YM HSDIN2 EA19 SDA2 EA20 PORT15[7], DISPEN HSBCLKIN XPDCD2 EA11 PORT7[4] PORT16[1],SDBOOT IC8002 VI1HSYNC PORT7[1] XPDIOWR, (PORT10[7]) C3ABRY000015 LOSDOUT12 AUDIO IF IC8003 LOSDOUT7 XPDCD1 PORT5[4], CI_POWER_ON HSVALIN FOR HQ1L VIDEO EA09 Peaks-Lite2+ LOSDOUT_V_I PWM1/PORT5[6] LOSD OUT (for HQ1) SCL2 NAND I/F PORT0[0]/PWM3 LOSDOUT_CLK_O PORT16[2] PORT9[4], EEPROM_WP LOSDOUT1 R9 EA24 PORT5[7], XEAB B9/CbCr9 HDMI_IRQ VI1P20 VI1VSYNC CPU BUS I/F LOSDOUT10 EA12 HSDIN6 LOSDOUT2 LOSDOUT_CLK_I C3ABRY000015 IC8001 MN2WS0047 DAUDIO EA10 EA16 PORT16[6], CI_IREQ HSSYNIN LOSDOUT9 LOSDOUT_H_I LOSDOUT_H_O EA18 LOSDOUT3 EA21 EA15 XPDIORD, (PORT10[6]) LVDS I/F COMMON PORT .etc B PORT (Sub Video Input or Address) W WINDOW: B PORT OTHER: ADRESS EA08 CLOCK GEN LOSDOUT14 PORT14[3], XPDOE TO 4/19 TO 4/19 TO 1/19 TO 4/19 TO 6/19 SERIAL I/F TO 4/19 TO 1/19 TO 14/19 TO 8/19 TO 4/19 TO 4/19 TO 4/19 TO 8/19 TO 4/19 TO 4/19 TO 14/19 TO 4/19 TO 4/19 12 13 17 14 18 15 16 10 11 ! TNPH0713DC A-BOARD (2/19) TH-50PV80C A-Board (2/19) Schematic Diagram TH-50PV80C A-Board (2/19) Schematic Diagram 39 TH-50PV80C 10.5. A 电路板 （3/19）线路图 AA_XERE AA_ED14 AA_EA13 AA_EA23 AA_EA9 AA_ED1 AA_EA8 AA_EA19 AA_EA1 AA_ED4 AA_EA7 AA_EA4 AA_ED7 AA_EA14 AA_XRST AA_ESZ0 AA_ED10 AA_EA12 AA_ED12 AA_ED9 AA_EA15 AA_EA17 AA_XEWE0 AA_ED13 AA_ED6 AA_EA24 AA_EA16 AA_ED2 AA_EA10 AA_EA11 AA_EA5 AA_ED0 AA_EA21 AA_XRST AA_ED5 AA_EA3 AA_ED15 AA_ESZ1 AA_EA22 AA_EA18 AA_EA20 AA_ED8 AA_ED3 AA_EA6 AA_XECS0 AA_ED11 AA_EA2 L8551 J0JHC0000075 C8555 16V 0.1u R8564 10k SUB3.3V TP8745 R8566 0 R8712 10k SUB3.3V R8711 10k TVRP798-5 IC8554 1 A23 2 A22 3 A15 4 A14 5 A13 6 A12 7 A11 8 A10 9 A9 10 A8 11 A19 12 A20 13 WE# 14 RESET# 15 A21 16 WP#/ACC 17 RY/BY# 18 A18 19 A17 20 A7 21 A6 22 A5 23 A4 24 A3 25 A2 26 A1 27 NC 28 NC 29 Vio 30 NC 31 A0 32 CE# 33 Vss 34 OE# 35 DQ0 36 DQ8 37 DQ1 38 DQ9 39 DQ2 40 DQ10 41 DQ3 42 DQ11 43 Vcc 44 DQ4 45 DQ12 46 DQ5 47 DQ13 48 DQ6 49 DQ14 50 DQ7 51 DQ15/A-1 52 Vss 53 BYTE# 54 A16 55 NC 56 NC (VIO) (A24) NOR FLASH (A23) 20 19 25 22 27 21 26 23 24 1 ! TNPH0713DC A-BOARD (3/19) TH-50PV80C A-Board (3/19) Schematic Diagram TH-50PV80C A-Board (3/19) Schematic Diagram 40 TH-50PV80C 10.6. A 电路板 （4/19）线路图 G G S G G S S P S S AC_XPDWT AH_IECOUT0 AG_CLK74SEL AA_EA11 AC_CHDI6 IS1CLK SMTSEL0 AA_ECLK SMTSEL0 AH_DMIX0 AC_CHCLK AA_EA16 AG_DTV_VOUTENB AA_XECS1 AE_SDDAT3 AA_XERE AA_ED13 AA_ED4 AC_CHCLK AE_SDCMD AG_CLK74SEL AH_IECOUT0 AA_EA21 AA_ERXW AA_EA1 AA_ESZ0 AE_SDDAT2 CH1VAL AA_ED2 AC_CHDI1 AA_EA8 AG_SD_BOOT_STS AC_CHDI2 AA_ED3 AC_CHDI3 AC_CHDI7 AE_SDDAT1 AG_SD_BOOT_STS AG_SW_OFF_DET CH1VAL AC_CHDI3 AA_XRST AA_EA6 AE_SDDAT2 AA_ED6 AA_EA20 AC_CHSYNC AA_ED11 AH_SRCK0 AH_SRCK0 AA_ED7 AA_ED9 AH_LRCK0 AA_ESZ1 AH_DAUDIO AA_XEDK AE_SDWP AA_ED0 AA_EA5 AE_SDCD AA_XEWE1 AA_EA7 AC_CHDI4 AA_ED10 AA_XIRQ1 AA_EA12 AE_SDDAT3 AC_CHVAL AA_EA24 AC_CHDI0 AE_SDCLK AC_XPDWT AE_SDDAT1 AC_CHDI0 SMTCMD0 AH_DMIX0 AA_ED14 AH_LRCK0 AE_SDCD MVDACO3 AA_XNMIRQ AA_ED8 AA_ED5 MVDACO3 AC_CHVAL AE_SDDAT0 SMTCMD0 AA_ED1 AA_EA3 AA_EA17 AA_ED15 AA_EA18 AC_CHDI7 AA_EA22 AA_EA19 AC_CHDI6 AC_CHDI2 IS1CLK AH_DAUDIO AE_SDDAT0 AA_EA4 AA_EA10 AA_EA13 AA_XECS0 AC_CHDI5 AA_EA9 AA_EA14 AA_BOOTSWAP AA_ED12 AA_EA15 AG_DTV_VOUTENB AE_SDCLK AA_XEAS AE_SDWP AA_XIRQ2 AA_EA2 AC_CHDI5 AC_CHDI4 AG_SW_OFF_DET AA_EA23 AA_XEWE0 AC_CHSYNC AE_SDCMD AC_CHDI1 AA_EA0 IS1PSYNC VI2P23 FL8802 J0HAAA000013 1 2 3 4 5 6 7 8 9 10 R8811 0 AA_SBI0 SUB3.3V R8815 68 1% R8510 91 TP8804 R8901 68 LITE2-EEP_SCL 1% R8508 91 AG_CLK74SEL R8960 68 ERXW R8854 SMTD0 TP8807 R8556 10k R8878 68 R8814 68 DMIX0 ED9 EA6 R8958 10k IECOUT0 R8809 10k TP8802 R8813 EXB28V680JX VI2P14 R8935 10k VI2P11 SMTSEL0 WP_PL2_CN XIRQ2 AH_IECOUT0 ESZ0 XEWE1 VI2P22 R8897 0 R8875 10k R8851 0 IS0CLK FL8801 J0HAAA000013 1 2 3 4 5 6 7 8 9 10 CLKGEN_S2 SUB3.3V TP8501 R8503 330 R8803 10k R8889 68 VI2P28 R8900 68 SMTRST1 R8873 10k C8601 16V 0.1u NANDRYBY R8908 10k ED12 CH0DATA R8658 22 XRI0 CH0CLK XIRQ1 SBO0 R8471 10k ED1 1% R8509 91 SDDAT2 XDSR0 SDDAT0 XRTS0 AA_SBO0 ESZ1 A52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 VI2P24 R8909 10k SMTCMD0 IS0VAL TP8803 R8887 68 VI2P18 R8751 10k R8808 10k AA_SBI1 R8603 47k AG_DTV_VOUTENB DAUDIO AG_SW_OFF_DET R8927 0 R8507 VI2P25 R8895 VI2P4 R8504 330 R8804 10k RXD0 *R8475 EXB28V103JX ED0 LRCK0 ED3 ED6 R8833 0 AA_SBO1 R8890 68 R8885 68 R8879 68 R8710 68 VI2P12 R8963 10k SUB3.3V MVDACO0 AH_LRCK0 R8892 68 R8953 EXB2HV680JV VI2P27 TP8801 R8880 68 SUB3.3V R8876 10k SDDAT1 VI2P26 XCTS0 R8865 EXB2HV680JV AH_DAUDIO AG_SD_BOOT_STS VI2P10 R8604 EA4 VI2ENB R8956 EA3 SMTD1 R8906 10k R8807 10k SDDAT3 ED10 SUB3.3V MVDACO3 R8904 10k ED8 XEWE0 SDCD R8868 68 XECS0 VI2P19 VI2CLK R8882 68 ED2 R8891 68 BOOTSWAP R8877 68 EA1 IC8601 TVRP957 1 A0 2 A1 3 A2 4 VSS 5 SDA 6 SCL 7 WP 8 VCC EA5 R8805 10k SUB3.3V R8802 10k VI2CLK2 IS1VAL VI2P16 TP8851 SDWP R8806 10k *R8472 EXB2HV103JV VI2P17 XECS4 VI2P15 CH1VAL SRCK0 R8852 0 AH_DMIX0 R8866 EXB2HV680JV TP8806 L8801 J0JHC0000045 R8905 10k ED11 SBI0 EA0 R8826 R8952 EXB2HV680JV R8861 10k R8884 68 ED14 EA2 ED5 R8810 EXB28VR000X VI2P29 R8957 10k R8907 10k CH0PSYNC R8816 68 MVDACO3 XNMIRQ CH0VAL R8886 68 MVDACO2 XECS2 ED7 AH_SRCK0 SDCMD R8959 68 R8867 EXB2HV680JV XDTR0 *R8328 10k R8817 68 R8657 10k XEDK TP8805 SUB3.3V R8501 100 R8812 0 R8506 330 XDCD0 IS1DATA R8888 68 SUB3.3V ED4 LITE2-EEP_SDA TP8808 AA_XRST ECLK ED15 R8896 0 R8853 0 SUB3.3V VOUTENB R8910 10k R8894 68 *R8474 EXB28V103JX TXD0 R8898 10k SDCLK EA7 R8883 68 R8871 10k VI2P13 R8502 330 MVDACO1 XECS1 R8605 68 IS1CLK XERE R8929 EXB2HVR000V ED13 SMTCLK1 TO 9/19 TO 9/19 INT.PU Hi-Z /EA8 INT.PU JTAG NEED EXT.PU TUNER SERIAL TS INT.PU /EA23 Hi-Z INT.PU OUTPUT MAIN AUDIO DATA for PHOTO OUT INT.PU TO 2/19 INT.PD SBI1 PORT15[6], POWER_DET, Hi-Z SDDTC /EA21 TO 2/19 SD_CARD TO 2/19 NO PU/PD DIGITAL AUDIO TO 6/19 /EA12 TO 11/19 COMMON LR/SR CLK see also SDA2 for ea_pullup_sel OUTPUT/(BOOTBT) CI PARALLEL TS OUTPUT ADDRESS MPXed, if D-Latch XPDCD2 EA19 /EA17 EA20 EA13 EA22 EA15 SDCMD EA16 GND EA10 GND EA21 INT.PU /EA20 EA12 /EA16 EA09 EA18 GENX5 NEED EXT.PU INT.PU OUTPUT ExBUS EA17 with AUDIO DESCRIPTION DATA EA11 /EA19 SDWP EA23 /EA15 EA08 DVB_CVBS LiteII SDCLK GND /EA13 A_MON_MUTE EA14 PORT9[4] EEPROM_WP ExBUS (XECS2,3 setting) LiteII EA24 EA[8:23] for No FS board /EA18 ED/EA with Int.PU at start XCI_IREQ DUBUG/JIG PORT16[1], SDBOOT, INT_PD INT.PU PORT7[4] OUTPUT XPDCD1 3.3V OUTPUT LITEII EEPROM WP LiteII /EA14 /EA10 CI I/F I2C XECS3,5,7: USED FOR OTHER PORPOSE PINS IIC3 TO 1/19 AUDIO_MUTE PORT16[6], CI_XIREQ XIRQ3 for HDMI_INT in ADV sheet ExBUS B_PORT /EA22 Hi-Z EEPROM SDDAT0 TO GS-BOARD (GS52) SDDAT3 SDDAT2 Reserved for ETHER/(ed_pullup_sel) CI_OCP OUTPUT /EA9 ExBUS /EA11 SDDAT1 PORT7[3] TO 9/19 SBO1 Hi-Z 33 29 30 31 34 35 32 36 28 1 TO 5/19 ! TNPH0713DC A-BOARD (4/19) TH-50PV80C A-Board (4/19) Schematic Diagram TH-50PV80C A-Board (4/19) Schematic Diagram 41 TH-50PV80C 10.7. A 电路板 （5/19）线路图 + P P P + + + P P + *C5731 6.3V 47u MAIN9V R5661 12k AG_AI_SENSOR L5606 G1C100MA0077 C5663 25V 0.01u TP5606 R5610 100k C5626 0.1u 16V L5602 G1C4R7Z00014 L5690 J0JYC0000068 C5641 0.1u 16V D5608 B0BC4R000002 C5637 0.1u 16V C5704 100p 50V C0DBAYY00273 IC5600 1 GND 2 REFIN 3 VREF 4 CS 5 COVP 6 CUVP 7 PGOOD 8 CTL 9 LSAT 10 ILIM 11 +INC 12 -INC 13 FSW 14 PGND 15 OUT-2 16 VB 17 VCC 18 VBIN 19 LX 20 OUT-1 21 CB 22 RT 23 VO 24 FB R5614 PA5600 K5H5022A0023 R5646 10k C5615 10u 25V AA_XRST C5625 0.01u 25V R5604 47k 1% R5647 47k D5603 B0JCDD000002 STB5V R5660 10k TP5700 TP5706 AG_R_LED_ON C5605 4.7u 10V SUB3.3V D5605 MA22D3900L R5658 47k R5612 36k 1% MAIN3.3V R5607 0 R5629 28k 1% R5626 0 *R5733 56k C5616 0.047u 10V SUB3.3V C5640 0.1u 16V C5604 0.01u 25V AG_ON_TIMER_LED_ON/ACTIVE_STB_LED_ON R5630 47.5k 1% TP5603 TP5605 AG_G_LED_ON STB3.3V C5661 25V 0.01u R5606 0 SUB1.2V D5607 B0BC4R000002 R5702 2.2k L5601 G1C2R2Z00007 D5600 B0BC4R000002 R5616 R5623 47k 1% C5606 470p 50V C5643 0.1u 25V IC5660 C0EBM0000026 1 OUT 2 Vdd 3 GND 5 Cd 4 NC L5691 J0JYC0000068 C5657 2.2u 10V C5611 25V 10u SUB5V *C5730 25V 0.01u TP5604 Q5602 B1MBDDA00003 S1 G1 S2 G2 D2 D2 D1 D1 C5617 1u 10V R5627 0 C5642 10u 25V Q5607 2SD0601A0L AG_RMIN MAIN5V D5602 MA22D3900L R5662 47k R5605 12.7k 1% C0DBAYY00274 IC5601 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP *R5732 22k C5623 470p 50V C5638 0.1u 16V C5600 1u 10V R5634 28k 1% TP5608 C5636 0.1u 16V R5625 0 XRST D5606 B0JCDD000002 F15V C5621 0.01u 25V R5632 30k 1% R5664 0 R5657 2.2k C5639 0.1u 16V SUB3.3V Q5606 2SD0601A0L C5624 220p 50V D_PCB_MODE D5612 MAZ80560LL R5635 22k R5631 36k 1% R5636 68k TP5602 TP5705 R5602 R5637 0 C5622 4.7u 10V TP5601 C5699 25V 10u L5604 G1C100MA0203 Q5600 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 C5629 68u 4V C5703 100p 50V C5658 0.01u 25V SUB5V C5601 0.1u 16V C5697 1u 25V L5605 J0JHC0000075 C5602 68u 4V R5621 47k 1% TP5600 F15V L5600 G1C2R2Z00007 F15V C5628 68u 4V TP5702 R5601 TP5660 C5608 0.1u 16V C5607 50V 220p D5601 MA22D3900L C5627 0.1u 16V SUB1.8V DTV9V Q5601 B1MBDDA00003 S1 G1 S2 G2 D2 D2 D1 D1 C5603 0.01u 25V A1 1 2 3 4 5 6 7 8 9 10 11 R5763 100 TP5701 R5633 28k 1% R5628 0 D5604 B0JCDD000002 R5600 68 TP5607 SUB5V SUB3.3V R5611 47k 1% AG_KEY1(CON-PANE) C5612 25V 10u R5622 100k R5620 68 R5603 C5662 10V 0.047u C5620 0.1u 25V R5659 10k C5696 25V 47u C5700 25V 10u AG_DTV_XRST RMIN GND STB3.3V R_LED_ON SUB3.3V SUB1.8V/1.2V TO K-BOARD (K1) GND KEY1 D-PCB-MODE RESET G_LED_ON AI_SENSOR SUB5V MAIN5V MAIN3.3V TO 9,14/19 TO 6,11/19 TO 6/19 TO 6/19 TO 6,14/19 TO 4/19 TO 6/19 TO 2/19 43 44 38 39 40 42 37 41 45 ! TNPH0713DC A-BOARD (5/19) TH-50PV80C A-Board (5/19) Schematic Diagram TH-50PV80C A-Board (5/19) Schematic Diagram 42 TH-50PV80C 10.8. A 电路板 （6/19）线路图 S S S S S S S S S AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE AG_AUDIO_XRST AG_EDID_WP AG_SRQ-GENX AG_CONFIG_DONE AG_A_MON_MUTE/SP_MUTE SBI2 AG_DTV_VOUTENB AG_PANEL_STBY/VCC_ON AG_ECO_ON DDCSDA1 AG_HPD1 DDCSCL1 AG_HPD2 DDCSDA0 AG_SD_LED_ON DDCSCL1 DDCSCL0 AG_HDMI_5V_DET2 DDCSDA1 AG_RF_AFT1 AG_HDMI_REP_EN AG_CLK74SEL DDCSCL0 AG_RF_AFT2 AG_HPD4 AG_R_LED_ON DDCSDA0 AG_SRQ-GENX AG_RF_AFT2 AG_FAN_MAX AG_SW_OFF_DET AG_PANEL_ARARM AG_AI_SENSOR AG_PANEL_READY AG_SD_BOOT_STS AG_SOUND_SOS AG_PANEL_READY AG_KEY1(CON-PANE) AG_ADV_XRST AG_HPD3 AG_SD_BOOT_STS AG_SOS AG_QLINK2 AG_HPD3 AG_DTV_XRST AG_FAN_MAX AG_FAN_SOS AG_HDMI_5V_DET4 AG_HPD2 AG_QLINK2 AG_PANEL_STBY/VCC_ON AG_HDMI_5V_DET4 AG_AI_SENSOR AG_EDID_WP SBO2 AG_HPD1 AG_CONFIG_DONE AG_QLINK1 AG_DTV_VOUTENB AG_SOS AG_RMIN AG_KEY1(CON-PANE) AG_DTV_XRST SBI2 AG_CLK74SEL AG_G_LED_ON AG_HDMI_5V_DET1 AG_HPD4 AG_SRQ2-GENX AG_HDMI_CEC AG_HDMI_5V_DET1 AG_QLINK1 AG_RF_AFT1 AG_SD_LED_ON AG_HDMI_CEC AG_HDMI_5V_DET2 AG_TV_SUB_ON AG_G_LED_ON AG_ECO_ON AG_SRQ2-GENX AG_HDMI_REP_EN AG_FAN_SOS AG_ON_TIMER_LED_ON/ACTIVE_STB_LED_ON AG_SW_OFF_DET AG_GRAB_MODULE_IIC/PWM_POWER_ON AG_GRAB_MODULE_IIC/PWM_POWER_ON AG_SOUND_SOS AG_AUDIO_XRST AG_TV_SUB_ON SBO2 AG_R_LED_ON AG_AUDIO_MUTE AG_PANEL_ARARM AG_ADV_XRST AG_RMIN STB_RST C1136 50V 1000p R1220 10k GENX_SDA1 D1107 MA3X704A0L R1104 47k TP1104 AG_FAN_SOS C1127 16V 0.1u R1225 10k AG_ADV_XRST C1129 50V 100p R1124 R1194 68k AG_A_MON_MUTE/SP_MUTE AG_HDMI_REP_EN AG_HDMI_5V_DET2 GENX_SCL1 C1123 1u 10V AG_HDMI_5V_DET4 R1182 27k TP1105 C1117 16V 0.1u GENX-EEP_SDA AG_PANEL_STBY/VCC_ON AG_SOUND_SOS MAIN9V R1230 47k R4327 47k R1162 R1224 10k R1197 10k AG_AI_SENSOR C1138 50V 56p AG_FAN_MAX DDCSDA0 R1213 C1108 16V 0.1u R1236 47k R1243 47k AG_RMIN R1210 47k TP1103 C1112 16V 0.1u R1221 7.15k 1% C1109 1u 10V AG_QLINK2 AG_SOS MAIN3.3V R1170 33k AG_G_LED_ON R1179 IC1102 C0JBAZ002261 1 G 2 IN A 3 GND 5 VCC 4 OUT Y AG_KEY1(CON-PANE) AG_SRQ-GENX C1133 50V 1000p TP1107 DDCSCL1 STB3.3V X1100 H0J100500035 R1218 10k AG_RF_AFT1 R1217 100k AG_SD_BOOT_STS R1164 10k AG_RF_AFT2 SUB3.3V CLK_GENX R1209 47k R1146 R1171 68k R1153 820 GENX-EEP_SCL AG_TV_SUB_ON C1111 1u 10V AG_HPD1 AG_PANEL_ARARM STB_D3.3V DDCSCL0 C1104 16V 0.1u GENX_SCL0 R1216 10k C1122 25V 0.01u AG_EDID_WP R1172 33k SUB3.3V_SD MN103SG3FPA1 IC1100 1 P41.TMIO1 2 P42.TMIO2 3 P43_TMIO3 4 P44_TMIO4 5 P00 6 P01 7 P02 8 P03_SBT0B 9 P04_SBO0B 10 PD0_DDCSDA0 11 PD1_DDCSCL0 12 PD2_DDCSDA1 13 PD3_DDCSCL1 14 PF1 15 PF2 16 PF3 17 P65_USBO2 18 P66_USBI2 19 P26 20 P70_SDA0 21 P71_SCL0 22 VSS 23 P27 24 IVDD 25 VDD 26 P60_SBO0A 27 P61_SBT0A 28 P62_SBI0A 29 P05_IRQ6 30 P06_IRQ7 31 P07_IRQ8 32 P50_RMIN_IRQ0 33 P20_IRQ1 34 P21_IRQ2 35 P22_IRQ3 36 P23_IRQ4 37 P24_IRQ5 38 P25 39 IVDD 40 VSS 41 P10 42 P11 43 P12 44 P13 45 P14 46 P15 47 P16 48 P17 49 P72_SDA1 50 P73_SCL1 51 P30 52 P31 53 P32 54 P33 55 P34 56 P35 57 P36 58 P37 59 PE0 60 PE3 61 PE4_VPPEX 62 IVDD 63 VDD 64 RONA 65 VSS 66 OSCXO 67 OSCXI 68 IVDD 69 PD4 70 PD5 71 NBOOT 72 NRST 73 NTEST 74 SCLOCK 75 SDATA 76 EXTRG0 77 TRCCLK 78 TRCST 79 TRCD0 80 TRCD1 81 TRCD2 82 TRCD3 83 PULDSEL 84 P80_ADIN0 85 P81_ADIN1 86 P82_ADIN2 87 P83_ADIN3 88 IVDD 89 VSS 90 P84_ADIN4 91 P85_ADIN5 92 P74_CECAVL1B 93 P75_CECAVL1A 94 PF0 95 P76_CEC0 96 PE1 97 PE2 98 P63_SBO1 99 P64_SBI1 100 P40_TMIO0_SYSCLK AG_HPD2 R1207 100 R1214 R1204 33 R1125 AG_HDMI_CEC AG_DTV_XRST C1114 16V 0.1u GENX_SDA0 STB3.3V C1107 50V 22p C1131 50V 100p R1169 68k C1103 16V 0.1u AG_AUDIO_MUTE R1237 1k R1255 1k AG_CLK74SEL DDCSDA1 AG_R_LED_ON R1219 10k R1251 47k AG_ON_TIMER_LED_ON/ACTIVE_STB_LED_ON SUB3.3V *R1173 330 R1181 STB3.3V SBI2 C1106 50V 27p AG_AUDIO_XRST R1203 47k R1212 47k SUB3.3V AG_PANEL_READY SUB5V AG_QLINK1 R1208 10k DTV9V AG_SW_OFF_DET AG_DTV_VOUTENB AG_HDMI_5V_DET1 R1134 C1102 10u 10V TP1102 R1196 47k SUB5V IC1101 TVRP930-2 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 Vcc SBO2 R1211 47k R1166 100k *D1112 MA2J72800L AG_HPD4 AG_GRAB_MODULE_IIC/PWM_POWER_ON AG_ECO_ON L1100 J0JYC0000068 MAIN3.3V_SENSE Active_ANT_DET TO 14/19 QLINK2 RMIN QLINK1 RF_AFT1 SCL HDMI_CEC_PU_ON SDA HDMI_CEC HPD4 PANEL_READY SD_PWR_CTR PANEL_ALARM DTV_9V_SENSE CLK74SEL SD_COIN_DET (INV_PSU_ON) Lite2p ExBUS/Etc. KEY1 SUB5V_SENSE HPD2 SBO SBI SRQ_GenX HDMI_5V_Det2 SOS TV_MAIN_ON PANEL_STBY_ON RF_AFT2 ECO_ON CONFIG_DONE GRAB_MODULE_IIC/PWM_POWER_ON HDMI_REP_EN AUDIO_XRST AUDIO_MUTE ADV_XRST R_LED_ON HQ_XRST G_LED_ON GenX-EEP_WP SD_LED_ON TV_SUB_ON ODU_ON/ACTIVE_ANT_ON HPD3 HPD1 CRNo.1100-1999 (ASIA) 10MHz TO 9/19 TO 1/19 IIC3 GenX5 EEPROM BUFFER TO 5/19 TO 9/19 FACT PANEL_STATUS PANEL_SOS FAN_SOS AI_SENSOR GC_XRST BACK_VOUTENB TO 4/19 MID_VOUTENB HDMI_5V_DET3 MAIN9V_SENSE HDMI_5V_DET4 DTV_XRST SD_BOOT_STS SW_OFF_DET DTV_VOUTENB EDID_WP SOUND_SOS TO 14/19 HDMI_MUX_SEL HDMI_MUX_EN HDMI_5V_Det1 (PANEL_SOS) EDID EEP IIC GenX5,EEPROM (PANEL_STATUS) EDID EEP IIC TO 2/19 HDMI1 FAN_MAX HDMI2 A_MON_MUTE/SP_MUTE TO 1/19 TO 1/19 IIC Lite2p (ASIA/EURO) HQ1L/CN to HFD SUB3.3V_SENSE TO 7/19 TO 8/19 TO 8,11/19 TO 11/19 TO 19/19 DCDC_PA TO 12/19 TO 5/19 TO 5,11/19 TO 5,14/19 TO 7,19/19 46 49 54 48 52 51 53 47 50 ! TNPH0713DC A-BOARD (6/19) TH-50PV80C A-Board (6/19) Schematic Diagram TH-50PV80C A-Board (6/19) Schematic Diagram 43 TH-50PV80C 10.9. A 电路板 （7/19）线路图 S S S S P S S S S S S S S S P S S P S S S P S S AG_HPD1 DDCB_SDA RXB_2P DDCC_SDA RXB_0P DDCC_SCL RXB_1P RXB_CP RXC_0P RXC_CP RXC_0N RXC_CN RXC_1N RXC_2N RXB_2N DDCC_SCL RXB_1N DDCB_SDA AG_HDMI_5V_DET1 AG_HDMI_5V_DET1 RXB_0N DDCB_SCL RXC_1P RXB_CN AG_HPD2 RXC_2P DDCC_SDA AG_HDMI_CEC AG_HDMI_5V_DET2 IC4514 C0JBAZ002301 1 OE1 2 A1 3 B2 4 GND 5 A2 6 B1 7 OE2 8 Vcc D4552 MA2J11100L D4517 EZAEG2A50AX DDCSCL1 R4613 L4503 J0JYC0000068 TP4505 R4511 R4515 Q4503 2SD0601A0L R4517 D4508 EZAEG2A50AX STB5V D4513 B0BC5R6A0275 R4671 D4541 MA2J11100L TP4500 C4627 16V 0.1u STB5V R4591 10k STB_RST R4600 R4514 R4603 D4523 EZAEG2A50AX JK4500 K1FY119D0003 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 D4510 EZAEG2A50AX Q4501 2SD0601A0L R4503 33 D4542 MA2J11100L D4507 EZAEG2A50AX R4501 10k R4520 L4505 J0JYC0000068 R4521 R4502 33 R4509 STB5V C4510 0.1u 16V D4514 EZAEG2A50AX TP4507 L4504 J0JYC0000068 R4552 22 D4521 EZAEG2A50AX MAIN5V R4526 1k C4626 16V 0.1u R4513 R4523 Q4500 2SD0601A0L R4525 0 R4512 D4515 B0BC5R6A0275 C4501 0.1u 16V D4502 EZAEG2A50AX L4501 VJUMP1608-P R4530 10k TP4504 D4511 EZAEG2A50AX C4503 0.1u 16V L4506 J0JYC0000068 R4590 10k D4522 EZAEG2A50AX DDCSCL0 D4509 EZAEG2A50AX MAIN5V R4510 R4524 0 R4519 IC4515 C0JBAZ002301 1 OE1 2 A1 3 B2 4 GND 5 A2 6 B1 7 OE2 8 Vcc L4500 VJUMP1608-P R4508 R4540 47k D4503 EZAEG2A50AX TP4502 R4527 1k D4505 EZAEG2A50AX C4502 0.1u 16V JK4501 K1FY119D0003 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 D4551 MA2J11100L D4516 EZAEG2A50AX R4516 C4511 0.1u 16V R4518 R4528 10k R4538 47k TP4503 STB5V D4519 EZAEG2A50AX D4512 EZAEG2A50AX C4500 0.1u 16V R4667 L4507 J0JYC0000068 DDCSDA0 R4604 Q4502 2SD0601A0L D4504 EZAEG2A50AX R4500 10k D4520 EZAEG2A50AX R4522 TP4501 DDCSDA1 L4502 J0JYC0000068 D4506 EZAEG2A50AX D4518 EZAEG2A50AX D1- SCL CLK- DDCG DDCG CLK+ D1G CLKG +5V D0+ D0- SCL CLKG D0+ SDA D2+ D0- D1G LEVEL SHIFT LEVEL SHIFT D0G N.C. D2- CEC SDA D2- D1+ D1- CLK- HPDT N.C. D2+ D2G CLK+ +5V HPDT HDMI1 HDMI2 D2G D0G D1+ CEC TO 6,19/19 TO 6/19 TO 6/19 55 61 63 59 60 62 57 56 58 11 12 14 15 13 ! TNPH0713DC A-BOARD (7/19) TH-50PV80C A-Board (7/19) Schematic Diagram TH-50PV80C A-Board (7/19) Schematic Diagram 44 TH-50PV80C 10.10.A 电路板 （8/19）线路图 S S S + S + S S + S S S VI1P8 CLKOA VI1P14 XIRQ3 VI1P23 VI1P29 VI1P11 AG_EDID_WP VI1P5 DDCA_SDA VI1P10 AG_HDMI_CEC VI1P25 AG_HDMI_REP_EN VI1P2 VI1P21 RXA_2P VI1ENB VI1P0 VI1P18 VI1P3 RXA_2N VI1P21 VI1P15 RXC_1P AG_HPD4 RXA_1P VI1P0 VI1P22 VI1P9 RXC_2N RXA_1N VI1VSYNC VI1P23 VI1P17 AG_HDMI_5V_DET4 RXC_2P MAIN_PR RXA_0P VI1HSYNC RXC_CN RXA_0N VI1CLK2 MCLK MAIN_PB/C RXC_CP VI1P10 AG_ADV_XRST RXA_CP VI1P11 VI1P28 RGB_CVBS AG_EDID_WP RGB_CVBS VI1P9 PC_HS DDCC_SDA AG_HPD4 DDCA_SCL RXB_2P RXB_2N RXB_1P VI1P4 XIRQ3 VI1P8 MAIN_PR RXB_1N VI1P22 VI1P27 RXB_0P MAIN_Y/CVBS VI1P12 VI1P13 VI1P7 RXB_0N RXC_0N VI1P13 VI1P26 MAIN_PB/C VI1P6 RXB_CP RXA_CN RXC_1N PC_HS VI1P18 VI1P16 PC_VS DDCB_SDA VI1P5 RXB_CN AG_HDMI_5V_DET2 RXC_0P DDCB_SCL VI1P16 VI1P29 VI1P4 MAIN_Y/CVBS AG_HDMI_5V_DET1 RXA_CN VI1P14 CLKOA VI1P26 RGB_FB RXA_1P VI1P17 MCLK VI1P19 RXA_2P VI1CLK2 VI1P2 AG_HPD2 VI1P15 VI1ENB AG_HDMI_5V_DET4 VI1CLK RXA_0N VI1P27 VI1P19 AG_HDMI_REP_EN VI1HSYNC VI1P12 RXA_1N VI1P7 VI1CLK DDCC_SCL VI1VSYNC VI1P24 RXA_CP VI1P28 VI1P24 DDCA_SDA VI1P6 RXA_2N PC_VS VI1P25 DDCA_SCL VI1P3 RXA_0P AG_ADV_XRST AG_HPD1 C4605 1u 10V R4704 47k VI1P7 C4612 25V 0.01u ADV_SDA R4601 1k L4512 J0JCC0000241 C4628 16V 0.1u VI1ENB R4699 68 R4670 68 L4513 J0JCC0000241 R4648 EXB28V330JX R4673 PC_VS AH_HDMI_BCLK *R4720 C4619 16V 0.1u C4644 16V 0.1u L4518 J0JYC0000068 VI1P14 1% R4589 806 C4624 16V 0.1u VI1P27 *R4721 VI1P16 R4625 10k *A11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R4640 68 EXB28V680JX L4519 J0JYC0000068 R4701 47k C4551 16V 0.1u ADV_SCL R4636 68 HDMI_SPDIF C4600 16V 0.1u C1AB00002901 IC4510 1 CVDD 2 GND 3 DVDD 4 SPDIF 5 CLK_24.576 6 SCLK 7 LRCLK 8 I2S0 9 SDATA 10 SCL 11 GND 12 DVDDIO 13 DE 14 HS 15 VS/FIELD 16 INT1 17 SFL/SYNC_OUT/INT2 18 GND 19 DVDD 20 P0 21 P1 22 P2 23 P3 24 P4 25 P5 26 P6 27 P7 28 P8 29 P9 30 P10 31 P11 32 GND 33 DVDDIO 34 P12 35 P13 36 P14 37 P15 38 P16 39 P17 40 P18 41 P19 42 P20 43 P21 44 P22 45 P23 46 P24 47 P25 48 P26 49 P27 50 DCLKIN 51 GND 52 DVDDIO 53 LLC 54 TRIGIN/P28 55 SRL_UP/P29 56 GND 57 DVDD 58 SRL_IN/P30 59 R_ACTIVE/P31 60 P32 61 P33 62 P34 63 P35 64 RESETB 65 HS_IN 66 VS_IN 67 FB 68 AGND 69 SYNC2 70 NC 71 AIN4 72 AIN5 73 AIN6 74 NC 75 AVDD 76 AGND 77 NC 78 AIN9 79 NC 80 AGND 81 AVDD 82 REF2 83 REF1 84 AGND 85 AVDD 86 GND 87 PVDD 88 XTAL1 89 XTAL 90 PVDD 91 GND 92 CVDD 93 GND 94 TVDD 95 RxA_C- 96 RxA_C+ 97 GND 98 RxA_0- 99 RxA_0+ 100 GND 101 RxA_1- 102 RxA_1+ 103 GND 104 RxA_2- 105 RxA_2+ 106 DDCA_SCL 107 DDCA_SDA 108 TVDD 109 CVDD 110 GND 111 DDCB_SCL 112 DDCB_SDA 113 TVDD 114 RxB_C- 115 RxB_C+ 116 GND 117 RxB_0- 118 RxB_0+ 119 GND 120 RxB_1- 121 RxB_1+ 122 GND 123 RxB_2- 124 RxB_2+ 125 TVDD 126 RTERM 127 CVDD 128 GND 129 TVDD 130 RxC_C- 131 RxC_C+ 132 GND 133 RxC_0- 134 RxC_0+ 135 GND 136 RxC_1- 137 RxC_1+ 138 GND 139 RxC_2- 140 RxC_2+ 141 TVDD 142 DDCC_SCL 143 DDCC_SDA 144 GND R4651 68 R4652 47k C4548 16V 0.1u VI1P29 C4601 47u 6.3V C4614 16V 0.1u L4514 J0JYC0000068 AG_HPD2 C4547 16V 0.1u SUB3.3V C0CBCBE00001 IC4511 1 VOUT 2 NC 3 GND 4 CNCONT 5 SUB 6 VIN 7 AG_HDMI_5V_DET4 C4636 1u 10V VI1P24 R4650 68 Q4515 2SB0709ASL VI1P2 *R4609 1.2k C0DBGYY00477 IC4512 1 CE 2 GND 3 NC 5 VOUT 4 VDD TP4512 R4703 47k R4678 68 EXB28V680JX C4607 4.7u 10V C4555 10V 10u SUB5V C0DBGYY00477 IC4513 1 CE 2 GND 3 NC 5 VOUT 4 VDD C4604 470p 50V C4575 1u 10V R4548 VI1P26 AG_ADV_XRST R4666 47k 1% R4626 220 VI1HSYNC R4598 1k C4642 1u 10V C4596 16V 0.1u VI1P21 R4646 68 Q4516 2SB0709ASL MAIN_PB/C C4643 16V 0.1u C4640 1u 10V VI1P8 R4637 68 XIRQ3 AG_HDMI_REP_EN C4608 16V 0.1u 1% R4587 604 C4553 50V 1000p L4515 J0JYC0000068 VI1P12 C4550 16V 0.1u C4535 16V 0.1u VI1P9 R4649 68 EXB28V680JX C4598 1u 10V AH_HDMI_SDIN VI1P3 C4549 16V 0.1u C4599 47u 6.3V R4629 R4679 68 EXB28V680JX MAIN5V VI1P5 VI1CLK2 C4646 16V 0.1u VI1P4 C4634 1u 10V R4624 10k 1% R4631 499 R4665 47k VI1P19 R4645 68 VI1P10 C4606 4.7u 10V AG_HPD1 VI1P6 R4614 L4511 J0JYC0000068 C4602 16V 0.1u VI1CKOUT R4680 68 C4580 25V 0.01u VI1P22 Q4517 2SB0709ASL 1% R4592 806 MAIN3.3V VI1P13 C4533 50V 68p R4639 68 EXB28V680JX AG_HPD4 VI1P28 R4597 1k MCLK C4603 2.2u 6.3V PC_HS R4656 2.2k R4596 1k C4613 1u 10V AG_HDMI_CEC R4635 68 EXB28V680JX C4630 16V 0.1u MAIN9V VI1CLK R4705 47k VI1P0 C4617 22u 4V R4638 68 Q4514 2SB0709ASL 1% R4588 806 C4645 16V 0.1u L4516 J0JYC0000068 C4534 16V 0.1u VI1P23 VI1P18 AG_HDMI_5V_DET1 MAIN_Y/CVBS C4554 16V 47u VI1VSYNC R4628 *R4641 22 C4552 16V 0.1u C4585 1u 10V 1% R4627 220 RGB_FB R4702 47k C4625 16V 0.1u VI1P25 RGB_CVBS 1% R4611 5.6k 22 *R4643 C4632 1u 10V C4574 25V 0.01u 1% R4606 9.1k VI1P11 AH_HDMI_LRCK C4595 25V 0.01u R4610 C4616 4.7u 10V L4517 J0JYC0000068 1% R4634 220 R4647 47k VI1P17 AG_EDID_WP R4644 MAIN_PR 1% *R4593 2.2k VI1P15 C4638 1u 10V AG_HDMI_5V_DET2 *R4659 0 Y1 Y IN YIN PB/C HSIA R5 UVIN7 UVIN0 CLKIA YIN4 UVIN2 YIN6 RIN4 UVIN4 Cb0,Cr0 Cb4,Cr4 Cb5,Cr5 Cb7,Cr7 UVIN5 Cb6,Cr6 UVIN6 A/D CONV. HDMI-Mux PR Peaks Lite II GenX5 YIN2 CLKOA YIN0 Y3 Y6 Y7 Y5 YIN DDC5V PB/C SDA PR HDMI_CEC RGB_CVBS 3.3V 1.8V 1.8V SCL R2 YIN3 YIN5 YIN7 UVIN8 Cb8,Cr8 YIN1 Cb1,Cr1 UVIN1 UVIN9 RIN5 YIN8 VI1VSYNC VI1HSYNC VI1P21 G1 G0 B0 YIN9 Cb3,Cr3 B1 R0 Cb2,Cr2 R1 Cb9,Cr9 Y0 GIN1 GIN0 RIN0 CbCrIN9 RIN1 R3 VI1P20 Y9 BIN1 VI1P1 Y4 UVIN3 BIN0 R4 RIN2 VI1P0 Y2 Peaks Lite II VSIA VI1P10 Y8 RIN3 VI1P11 TO GH-BOARD (GH11) TO 11/19 TO 1/19 IIC1 TO 19/19 TO 19/19 HDMI_IRQ TO 2/19 TO 6/19 TO 6,11/19 TO 2/19 71 69 66 72 64 65 67 70 68 12 15 13 14 11 ! TNPH0713DC A-BOARD (8/19) TH-50PV80C A-Board (8/19) Schematic Diagram TH-50PV80C A-Board (8/19) Schematic Diagram 45 TH-50PV80C 10.11.A 电路板 （9/19）线路图 S AA_SDA0 REMOCON LED_R AD_SCL1 AD_SDA0 SDA LED_R AD_SCL2 IIC_CONT/C_SEL SDA AR_TXD_PC AD_SCL1 AD_SCL2 AA_SCL0 SCL AR_TXD_PC SCL D_PCB_MODE AD_SDA0 SDA REMOCON SCL AD_SCL0 AD_SCL0 AD_SDA1 AR_RXD_PC AD_SCL3 AR_RXD_PC AD_SDA3 AD_SDA3 AA_SDA0 AD_SDA0 D_PCB_MODE AD_SCL0 AA_SCL0 AD_SDA2 AD_SCL3 AD_SDA1 D_PCB_MODE AD_SDA2 STB3.3V STB3.3V TP4828 A35 1 2 3 4 TMP-SENS_SDA REMOCON D_PCB_MODE AG_GRAB_MODULE_IIC/PWM_POWER_ON STB3.3V AR_TXD_PC AA_SBO0 A33 1 2 3 4 5 6 7 8 9 10 11 AG_SRQ-GENX A34 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 AR_STB_SCL02 TP4825 C4831 16V 0.1u Q4811 2SD0601ASL R4834 47k R4835 10k TP4822 SDA IC4800 C1ZBZ0003775 1 SDA 2 SCL 3 ALERT 4 GND 5 A2 6 A1 7 A0 8 V+ TP4821 AD_SDA3 TP4835 AD_SDA0 R4821 10k TP1043 WP_PL2_CN TP1042 SCL TP4840 TP4837 MAIN3.3V TP4826 AD_SDA2 TP4831 STB5V AD_SCL1 AD_SCL3 AA_SCL0 TP4829 AA_SDA0 SUB5V TP4832 AD_SCL2 AA_SBI0 TP4836 TP4827 R4800 AD_SCL0 AA_SBI1 IIC_CONT/C_SEL AD_SDA1 TMP-SENS_SCL C4807 16V 0.1u LED_R TP4830 AR_RXD_PC STB5V AR_STB_SDA02 R4833 47k IC4811 C0JBAZ002060 1 1OE 2 1A 3 1B 4 2OE 5 2A 6 2B 7 GND 8 3B 9 3A 10 3OE 11 4B 12 4A 13 4OE 14 VCC AA_SBO1 GenX5_SCL LITE2_SCL2 LITE2_SCL3 LITE2_SDA2 IIC_CONT (Device Control) GenX5 EEPROM TO 4/19 TO 4/19 GND STB5V GenX5_SDA LITE2_SCL1 LITE2_SDA1 LITE2 EEP_WP TO 6/19 GenX5 D_PCB_MODE Panel_SCL CRNo.4800-4999 Lite2p SCL0 Lite2p SDA0 GenX6 SCL IIC SW GenX6 SDA SDA SCL GenX5 Panel_SCL (Panel Dpr.E2PROM) SBI1 LVDS Out Panel_SDA SBO1 SDA DUBUG/JIG GenX6 REMOCON SCL LED_R GenX6 IIC (GenX5 Loarder/E2PROM) GenX6_SRQ (Panel Dpr.E2PROM) Panel_SDA (Panel Dpr.E2PROM) GND (Panel Dpr.E2PROM) SBI0_LITE2 (Diag Control) SBO0_LITE2 (Diag Control) STB5V SBO0 TEMP SENSOR SBI0 Panel_TXD D_PCB_MODE Panel_RXD (GenX5 Loarder/E2PROM) Lite2p EEPROM_WP (Lite2p E2PROM) +5V (Lite2p E2PROM) TO 4/19 GND TO 1/19 (Device Control) (Device Control) (Device Control) (Device Control) TO 1/19 (Device Control) IIC1 CN to ExIIC GenX5 LITE2_SCL0 GenX5_SRQ LITE2_SDA0 LITE2_SDA3 STB3.3V IIC_CONT/SRQ TO 1/19 TO 6/19 TO 14/19 TO 5,14/19 77 74 79 73 76 81 75 78 80 ! TNPH0713DC A-BOARD (9/19) TH-50PV80C A-Board (9/19) Schematic Diagram TH-50PV80C A-Board (9/19) Schematic Diagram 46 TH-50PV80C 10.12.A 电路板 （10/19）线路图 S S + S S AV3 AV3S AV1 AV2 PR PB Y PR V L C R R L Y R L V R V V L MONITOR OUT PB Y S S S S S S S S RCA_AUDIOOUT_L_ A_AV2_L E_YPBPR_Y/A_AV1C_Y_ A_AV2_V E_PC_LIN/A_AV1_LIN A_AV3_L A_AV2_L E_AV1_BLUE/A_AV2C_PB_ RCA_AUDIOOUT_R_ A_AV2_R E_PC_RIN/A_AV1_RIN E_YPBPR_PR/A_AV1C_PR PC_V_IN RCA_AUDIOOUT_L_ A_AV2_R E_YPBPR_PB/A_AV1C_PB E_AV1_V/A_AV2_V E_AV1_GREEN/A_AV2C_Y_ A_AV2_V E_YPBPR_Y/A_AV1C_Y MONITOROUT_MUTE A_AV3_R E_AV2_RED_C/A_AV3S_C A_AV3_R E_AV1_RED/A_AV2C_PR_ A_AV1_V A_AV3_V A_AV3_L RCA_AUDIOOUT_L A_AV1C_YSW E_AV1_BLUE/A_AV2C_PB A_VOUT E_PC_LIN/A_AV1_LIN_ A_AV2C_YSW E_YPBPR_PB/A_AV1C_PB_ E_AV1_GREEN/A_AV2C_Y A_AV2C_YSW_ A_AV1_V_ A_AV3S_S_ E_AV1_RED/A_AV2C_PR E_PC_RIN/A_AV1_RIN_ E_AV1_LIN/E_AV2_LIN E_AV2_RED_C/A_AV3S_C RCA_AUDIOOUT_R A_AV3S_C A_AV3S_S A_AV3S_Y_ A_AV1C_YSW_ A_AV3S_S_ E_AV2_RIN/A_AV3_RIN A_AV2C_YSW_ PC_G A_AV3S_C A_AV3_V E_AV1_GREEN/A_AV2C_Y_ PC_H_IN E_AV1_VOUT/A_VOUT_FEED_B E_AV1_BLUE/A_AV2C_PB_ E_PC_RIN/A_AV1_RIN_ E_AV2_V_Y/A_AV3_V E_AV1_RIN/A_AV2_RIN E_AV1_RED/A_AV2C_PR_ A_AV3S_Y_ E_PC_LIN/A_AV1_LIN_ A_AV1C_YSW_ E_AV2_LIN/A_AV3_LIN E_YPBPR_PR/A_AV1C_PR_ A_AV3S_Y E_YPBPR_Y/A_AV1C_Y_ E_YPBPR_PR/A_AV1C_PR_ E_AV1_VOUT/A_VOUT A_AV1_V_ E_YPBPR_PB/A_AV1C_PB_ PC_R A_VOUT PC_B RCA_AUDIOOUT_R_ R3005 22k Q3001 2SD0601A0L JS3013 JS3010 1% *R3074 75 R3004 22k D3047 MAZ81200ML 1% *R3077 75 C3007 50V 560p C3014 50V 560p *FL3004 J0HABB000004 1 2 3 4 C3008 50V 560p Q3000 2SD0601A0L 1% *R3075 75 *R3101 4.7k 1% *R3234 75 L3011 J0JCC0000100 D3006 MAZ81200ML *R3103 4.7k C3095 16V 100u JS3008 JS3000 C3010 50V 560p R3169 100k *JK3100 K1U932A00002 Y-SW Y G PB PR V L R G Y-SW Y G PB PR V L R G C Y G Y-G C-G G V L R G V L R G C3011 50V 560p *R3147 4.7k 1% *R3076 75 SUB9V_VIDEO R3228 1% *R3097 75 1% *R3232 75 *JK3001 K1FB315A0006 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 *FL3001 J0HABB000003 1 2 3 4 R3025 100k 1% R3085 75 C3002 50V 560p L3002 J0JCC0000100 L3003 J0JCC0000100 R3158 0 L3006 J0JCC0000100 *C3107 10V 10u *C3108 10V 10u L3015 J0JCC0000100 1% R3086 75 1% R3084 75 *C3098 16V 1u *L3024 J0JCC0000100 L3017 J0JCC0000100 R3001 22k JS3014 1% *R3078 75 JS3009 *FL3005 J0HABB000004 1 2 3 4 R3019 2.2k R3000 22k 1% *R3149 75 1% *R3230 75 R3229 JS3012 D3051 MAZ81200ML L3010 J0JCC0000100 SUB9V_PRCT R3002 22k *C3109 10V 10u L3018 J0JCC0000100 *FL3002 J0HABB000003 1 2 3 4 *L3023 J0JCC0000100 C3003 50V 560p R3159 0 R3021 2.2k 1% *R3148 75 L3007 J0JCC0000100 *L3019 J0JCC0000100 *FL3003 J0HABB000004 1 2 3 4 1% R3167 75 R3024 100k C3013 50V 560p JS3001 JS3007 R3003 22k R3199 L3014 J0JCC0000100 *R3227 4.7k *R3226 4.7k < R IN VIDEO IN HD PC IN G L IN B R VD 87 82 83 85 86 88 84 90 89 24 23 21 ! TNPH0713DC A-BOARD (10/19) CRNo.3000-.3399 AVSW,REAR TERMINAL TH-50PV80C A-Board (10/19) Schematic Diagram TH-50PV80C A-Board (10/19) Schematic Diagram 47 TH-50PV80C 10.13.A 电路板 （11/19）线路图 S S S S S S S S + S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S AV-SW_SDA TV_L A_AV3S_S AV_L MAIN_TNR_SW2 FRONT_AVS_CGND MAIN_PB/C AV-SW_SCL TV_R MONITOROUT_MUTE MAIN_TNR_SW1 A_AV1C_YSW FRONT_AVS_Y AG_ADV_XRST MAIN_Y/CVBS AV_R MAIN_TNR_SW2 E_YPBPR_PR/A_AV1C_PR MAIN_RF_CVBS E_AV1_LIN/E_AV2_LIN MAIN_TNR_SW1 E_AV1_VOUT/A_VOUT E_AV1_RIN/A_AV2_RIN FRONT_AVS_CGND AG_ADV_XRST E_AV1_RED/A_AV2C_PR E_AV1_VOUT/A_VOUT_FEED_B E_YPBPR_PB/A_AV1C_PB HP_LOUT E_AV2_LIN/A_AV3_LIN E_AV1_GREEN/A_AV2C_Y E_AV2_RIN/A_AV3_RIN AV_R FRONT_AVS_C AV_L E_AV2_SLOW E_AV2_RED_C/A_AV3S_C FRONT_AVS_S FRONT_AV_LIN A_AV2C_YSW MVDACO3 FRONT_AV_RIN MAIN_PB/C MAIN_RF_CVBS FRONT_AVS_S E_PC_LIN/A_AV1_LIN HP_ROUT RGB_FB FRONT_AV_LIN PC_R TV_R E_PC_RIN/A_AV1_RIN FRONT_AV_VGND PC_HS PC_G RGB_FB FRONT_AV_V PC_H_IN PC_HS PC_V_IN PC_VS PC_B FRONT_AVS_YGND E_YPBPR_Y/A_AV1C_Y HP_LOUT TV_L FRONT_AV_VGND FRONT_AVS_Y MAIN_Y/CVBS E_AV1_BLUE/A_AV2C_PB HP_ROUT MVDACO3 RCA_AUDIOOUT_R MAIN_PR RCA_AUDIOOUT_L PC_VS E_AV1_SLOW FRONT_AVS_YGND E_QLINK_AV1 E_QLINK_AV2 RGB_CVBS E_AV2_V_Y/A_AV3_V AUDIOOUT_L FRONT_AV_V A_AV3S_Y AUDIOOUT_L RGB_CVBS E_AV2_RED_C/A_AV3S_C MAIN_PR AUDIOOUT_R E_AV1_V/A_AV2_V AUDIOOUT_R FRONT_AV_RIN FRONT_AVS_C A_AV1_V FL3014 J0HABB000003 1 2 3 4 R3219 C3048 10V 1u MONITOROUT_MUTE DTV9V C3049 10V 1u R3136 C3025 10V 1u MAIN_TNR_SW2 R3138 R3049 C3145 16V 0.1u TP3020 C3141 16V 0.1u A51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 R3129 R3111 1% *R3187 75 AV_L R3120 330 SUB5V *R1013 47k R3037 R3211 C3044 10V 1u TP3015 TV_R C3103 47u 16V MAIN_TNR_SW1 TP3017 TP3000 SUB9V_VIDEO R3125 PC_VS *FL3008 J0HABB000003 1 2 3 4 R3206 C3117 10u 10V *R3152 22 TP3014 C3088 10V 10u TP3004 AG_QLINK2 R3140 *C3078 10V 10u TP3008 C3140 16V 0.1u FL3011 J0HABB000003 1 2 3 4 C3070 10V 10u R3239 R3038 R3238 C3043 10V 1u R3216 R3236 68 MAIN_Y/CVBS R3210 TV_L C3024 10V 1u R3052 R3128 R3051 C3039 10V 1u TP3013 *R3124 220 TP3005 C3084 10V 10u AG_QLINK1 C3083 10V 10u *R1014 47k C3090 10V 10u JS3003 0 HP_ROUT R3050 R3223 R3047 R3033 R3189 R3133 C3143 16V 0.1u AG_KEY1(CON-PANE) TP3003 C3086 10V 10u R3121 75 1% TP3001 AG_ADV_XRST C3092 10V 10u C3071 10V 10u C3072 16V 0.1u C3093 10V 10u C3047 10V 1u MAIN_RF_CVBS C3075 10V 1u FL3013 J0HABB000003 1 2 3 4 R3116 R3118 C3091 10V 10u C3114 10u 10V TP3007 R3123 R3139 R3096 VARAY405 MVDACO3 R3191 PC_HS R3110 R3043 C3147 10u 10V TP3002 C3074 10V 10u *R3151 22 R3146 330 C3144 10V 10u MAIN_PR MAIN_PB/C C3046 10V 1u AUDIOOUT_R C3077 16V 0.1u R3209 C3146 10u 10V R3214 TP3006 R3208 R3048 R3225 R3034 R3132 R3088 VARAY405 R3113 0 RGB_FB AV-SW_SCL FL3012 J0HABB000003 1 2 3 4 TP3021 AUDIOOUT_L *R3201 0 R3237 68 1% *R3186 75 R3112 0 TP3019 RGB_CVBS AV-SW_SDA C1AB00002855 IC3001 1 Gin 2 HDin 3 Rin 4 T DET5 5 CVBSin4 6 T DET4 7 CVBSin3 8 BG 9 Yin3 10 S2 DET3 11 R2/Cin3 12 GND 13 G2/Yin2 14 S2 DET2 15 B2/Cin2 16 T DET3 17 CVBSin1 18 T DET2 19 G1/Yin1 20 S2 DET1 21 B1/Cin1 22 T DET1 23 CVBSin2 24 VCC5V 25 R1 26 State out 27 FBout/T DET10 28 SDA 29 SCL 30 GND 31 G/CY/CVBSout1 32 HD out1 33 B/PB/Cout1 34 VD out1 35 R/Prout1 36 VCC5V 37 SAG CVBSout4 38 Y/Y+C/CVBSout4 39 S2out 40 SAG CVBSout5 41 C/Y+C/CVBSout5 42 GND 43 SAG CVBSout3 44 CVBS/Y+Cout3 45 VCC9V 46 G/CY/Y/CVBSout7 47 O3 48 AU_GND 49 R4out 50 L4out 51 R3out 52 L3out 53 R2out 54 L2out 55 R1out 56 L1out 57 AU1/2Vcc 58 L1in 59 R1in 60 L2in 61 R2in 62 L3in 63 R3in 64 L4in 65 R4in 66 L5in 67 R5in 68 L6in 69 R6in 70 L7in 71 R7in 72 L8in 73 R8in 74 L9in 75 R9in 76 FBin1/O1 77 CVBSin7 78 FBin2/O2 79 CVBSin6 80 VCC9V 81 CVBSin5 82 T DET9 83 Yin4 84 T DET8 85 Cin4 86 VCC5V 87 PBin2/B3 88 L3 DET2 89 CYin2/G3 90 T DET7 91 PRin2/R3 92 T DET6 93 PBin1 94 L3 DET1 95 CYin1 96 HD VD/FBKMUTE 97 PRin1 98 GND 99 Bin 100 VDin C3041 10V 1u R3207 HP_LOUT C3139 16V 0.1u *R3218 0 R3119 R3190 C3115 10u 10V R3045 TP3018 R3134 C3026 10V 1u R3117 C3116 10u 10V C3073 10V 10u TP3009 R3215 AV_R C3085 10V 10u R3240 C3022 10V 1u KEY MAIN_PB/C/B FRONT_AV_Y FRONT_AV_R TO 6/19 AVSW TO G-BOARD (G51) DVB_CVBS HP_R HP_GND TO 1/19 IIC2 TO 18/19 TO 5,6/19 GND_C DVB_CVBS HP_L CRNo.3000-.3399 AVSW,REAR TERMINAL GND_Y KEY FRONT_AV_L FRONT_AV_S RGB_FB PC_V TO 6,8/19 FRONT_AV_C FRONT_AV_V QLINK_AV2 TO 8/19 MAIN_PR/R MAIN_Y/CVBS/G PC_H DVB_CVBS HP_GND RGB_CVBS GND_V QLINK_AV3 GND GND TO 4/19 91 97 92 99 93 98 95 96 94 24 23 21 ! TNPH0713DC A-BOARD (11/19) TH-50PV80C A-Board (11/19) Schematic Diagram TH-50PV80C A-Board (11/19) Schematic Diagram 48 TH-50PV80C 10.14.A 电路板 （12/19）线路图 P G G G G P R5586 47k R5542 470 F15V C5404 50V 3900p SOS4_PS TPS0N C5511 10u 25V C5408 10u 10V C5521 16V 0.1u R5406 20k R5536 4.7k TP5510 1% R5408 10k D5403 B0JCME000037 D5405 B0BC4R700007 R5581 47k C5412 10u 16V TPS0S R5401 10k R5544 220 DTV9V D5401 B0BC4R700007 R5404 A7 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 STB5V 0.1u F1J1E104A148 FL5510 C5402 25V 0.01u C5401 0.1u 25V TPC0F C5416 50V 4700p 0.1u F1J1E104A148 FL5511 R5407 88.7k 1% D5402 B0BC4R700007 F15V R5535 2.2k C5418 10u 25V TP5400 R5512 100 L5407 J0JYC0000068 D5400 B0JCME000037 IC5401 C0DBAYY00183 1 BS 2 VIN 3 SW 4 GND 5 FB 6 COMP 7 EN 8 SS BT30V L5405 G1C330M00027 C5522 16V 0.1u R5510 100 AG_ECO_ON C5512 25V 0.01u PANEL_MAIN_ON C5596 50V 1000p C5405 0.1u 25V AG_TV_SUB_ON C5517 16V 0.1u R5538 2.2k R5537 1.5k C5406 10u 25V C5400 10u 10V TPS15V AG_FAN_MAX R5582 47k Q5522 2SB0709A0L R5511 100 C5413 0.1u 25V C5597 50V 1000p D5522 B0ADEJ000035 R5402 45.3k 1% MAIN9V R5583 47k C5417 0.1u 25V 1% R5403 10k P5V D5573 B0BC01100001 D5521 B0ADEJ000035 R5546 470 SUB5V D5404 B0BC4R700007 TPEC0 L5401 G1C330M00027 AG_FAN_SOS C5516 10u 10V A25 1 2 3 4 5 6 7 8 9 10 11 PA5510 K5H4022A0023 P15V R5405 100k P15V_MOTO C5420 10u 16V C5414 25V 0.01u D5571 B0BC6R600005 IC5400 C0DBAYY00183 1 BS 2 VIN 3 SW 4 GND 5 FB 6 COMP 7 EN 8 SS AG_SOS S_15V VDATA_DET TP5500 R5409 R5400 100k ALL_OFF ECO_ON +15Vc_FAN STB5V SUB5V PANEL_MAIN_ON +15V GND +5V +5V SUB5V TO P-BOARD (P25) TO P-BOARD (P7) TO 6/19 +15V GenX5 SOS4_PS GND VDATA_DET GND GND TO 13/19 GND GND +15Vc_FAN TUNER_SUB_ON F+15V +15V_S F+15V +15V_S S_GND GND GND F+15V DCDC_PA CRNo.5400-5599 SOS GND +15V_S S_GND S_GND TO 6/19 GenX5 103 106 101 108 102 105 104 100 107 TNPH0713DC ! A-BOARD (12/19) TH-50PV80C A-Board (12/19) Schematic Diagram TH-50PV80C A-Board (12/19) Schematic Diagram 49 TH-50PV80C 10.15.A 电路板 （13/19）线路图 + + + TERM SIDE P P P P P SC_CSL SC_DRV_RST SC_SID SC_SCSU SC_CLK FP_SCSU FP_CMH SC_CBK FP_CBK SC_CPH1 SC_OC2 SC_SIU FP_CSH FP_OC2 SC_CML SC_CSH SC_CMH SC_CSH FP_CML SC_CMH SC_CLK FP_SC_DRV_RST SC_SIU SC_OC2 FP_SID SC_CML SC_SID SC_CBK FP_CPH1 SC_CSL SC_DRV_RST SC_CPH1 FP_SIU SC_SCSU P_ON/OFF SC_OC1 SC_CPH2 SC_OC1 SC_CPH2 FP_OC1 FP_CPH2 FP_CLK SC_LAT SC_CEL FP_LAT FP_CEL SC_LAT SC_CEL SOS6_SC1 SOS7_SC2 FP_CSL SOS4_PS VDATA_DET PANEL_MAIN_ON C9881 0.01u 25V C9867 10u 25V C9884 1000p 50V C9869 10u 25V C9864 0.1u 25V C9860 4.7u 6.3V C9885 1000p 50V C9887 0.1u 25V C9840 25V 0.01u C9872 10u 25V C9877 68p 50V C9861 0.1u 25V C9883 100p 50V C9874 68p 50V C9882 8200p 25V C9832 10u 10V C9886 0.1u 25V C9859 25V 0.01u C9863 4.7u 6.3V C9880 0.056u 10V C9870 10u 25V C9871 10u 25V C9888 360p 50V C9878 0.01u 25V C9868 10u 25V C9858 10u 25V C9862 0.1u 25V C9879 0.015u 16V C9842 16V 0.1u C9841 16V 0.1u C9865 68u 4V C9873 68u 4V C9866 68u 4V D9817 MA22D3900L D9808 B0JCCE000008 D9812 MA22D3900L D9816 MA22D3900L D9813 B0JCGD000002 D9815 B0JCGD000002 D9814 B0JCGD000002 D9807 B0JCCE000008 C0JBAZ002692 IC9802 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC9803 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0DBAYY00273 IC9806 1 GND 2 REFIN 3 VREF 4 CS 5 COVP 6 CUVP 7 PGOOD 8 CTL 9 LSAT 10 ILIM 11 +INC 12 -INC 13 FSW 14 PGND 15 OUT-2 16 VB 17 VCC 18 VBIN 19 LX 20 OUT-1 21 CB 22 RT 23 VO 24 FB C0DBAYY00274 IC9805 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP A20 K1KY30BA0090 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 L9802 G1C2R2Z00007 L9801 G1C1R5Z00006 L9800 G1C2R2Z00007 P15V_MOTO P15V P5V P2.5V P15V P5V P3.3V P5V P15V P1.2V VB1_5V VB1_5V P15V P3.3V VB1_5V R9851 R9855 R9853 R9852 R9856 PA9900 K5H5022A0023 SOS4_PS PANEL_MAIN_ON VDATA_DET Q9809 B1MBDDA00003 1 S1 2 G1 3 S2 4 G2 5 D2 6 D2 7 D1 8 D1 Q9808 B1MBDDA00015 S1 G1 S2 G2 D2 D2 D1 D1 Q9807 B1MBDDA00003 S1 G1 S2 G2 D2 D2 D1 D1 Q9805 2SD0601A0L Q9806 2SD0601A0L R9846 EXB2HV103JV R9848 EXB2HV470JV R9847 EXB2HV103JV R9849 EXB2HV470JV R9110 100 R9895 100k R9871 10k R9879 13k 1% R9891 12.7k 1% R9870 10k R9142 100 R9887 51k 1% R9889 18.2k 1% R9888 15k 1% R9893 43k 1% R9894 20k 1% R9878 15k 1% R9886 47k 1% R9869 10k R9890 47.5k 1% R9892 100k R9868 100k R9897 47.5k 1% R9850 0 R9896 18.2k 1% P5V OC1 CPH2 GND GND GND GND GND GND GND CLK SIU SID SCSU OC2 CPH1 LAT SOS6_SC1 SOS7_SC2 CEL CERS SC_DRV_RST CSL CSH CML CMH NC +15V +15V +15V P2.5V BUFFER BUFFER P3.3V/P1.2V TO SC-BOARD (SC20) TO 12/19 109 114 117 115 112 116 111 110 113 31 32 ! A-BOARD (13/19) TNPH0713DC TH-50PV80C A-Board (13/19) Schematic Diagram TH-50PV80C A-Board (13/19) Schematic Diagram 50 TH-50PV80C 10.16.A 电路板 （14/19）线路图 S S S S S S S S S P P P STB_SCL02 IIC_CONT/C_SEL_D RXD_PC VDATA_DET AD_SDA0 AD_SCL0 AR_RXD_PC AR_TXD_PC AR_STB_SCL02 AR_STB_SDA02 TE1P TE1N TD1P TD1N TCLK1P TCLK1N TC1P TC1N TB1N TA1N DRVRST FPGARST EEP_WR_CTL MCCLK IIC_CONT/C_SEL_D PANEL_MAIN_ON SIN SFRST SFVRST OSD_HIN OSD_VIN OSD_CLKIN FVSEL OSD_R OSD_G OSD_B OSD_YS D_XRST D_XRST P_ON/OFF SOS6_SC1 SOS7_SC2 SOS4_PS XI_DONE AR_TXD_PC AR_STB_SDA02 AR_STB_SCL02 AR_RXD_PC STB_SDA02 STB_SCL02 TXD_PC RXD_PC AG_PANEL_READY AG_PANEL_ARARM VI2P20 TA1P TB1P INEXCH PD2M_TRST PD2M_TDI PD2M_TMS PD2M_TCK P3V_SDA02 PD2M_TDO STB_SCL02 P3V_SCL02 P3V_SDA02 STB_SDA01 AD_SDA0 AD_SCL0 STB_SCL01 STB_SDA01 STB_SCL01 AG_PANEL_STBY/VCC_ON PROG_M STB_SDA02 XRST_SYS IIC_SW IIC_SW P3V_SCL02 TXD_PC SOS8_SS STB_SDA02 IIC_CONT/C_SEL_D STB_SCL02 EEP_WR_CTL STB_SDA02 AG_PANEL_ARARM AG_PANEL_READY C9825 50V 100p C9061 16V 0.1u C9062 4.7u 6.3V C9044 6.3V 4.7u C9033 16V 0.1u C9035 10V 10u C9037 0.01u 25V C9036 10V 10u C9064 16V 0.1u C9053 16V 0.1u C9034 16V 0.1u C9056 16V 0.1u C9045 16V 0.1u C9057 16V 0.1u C9055 16V 0.1u C9049 16V 0.1u C9046 16V 0.1u C9065 16V 0.1u C9047 16V 0.1u C9040 16V 0.1u C9048 16V 0.1u C9052 16V 0.1u C9050 16V 0.1u C9051 16V 0.1u C9063 16V 0.1u D9021 B0JCCE000008 D9019 B0BC3R3A0273 D9018 B0BC3R3A0273 D9017 B0BC3R3A0273 IC9002 C1ZBZ0003577 1 SCL 2 GND 3 A1 4 VDD 5 A0 6 SDA IC9011 C0EBF0000431 1 RESET 2 Cd 3 VOUT 4 VDD 5 GND 6 CE IC9013 C0JBAZ002301 1 OE1 2 A1 3 B2 4 GND 5 A2 6 B1 7 OE2 8 Vcc IC9001 TVRP935-2 1 E0 2 E1 3 E2 4 Vss 5 SDA 6 SCL 7 WC 8 Vcc MN103SG4GPH3 IC9003 1 P60_SBO0A 2 P61_SBT0A 3 P62_SBI0A 4 P05_IRQ6 5 P06_IRQ7 6 P07_IRQ8 7 P70_SDA0 8 P71_SCL0 9 P50_RMIN_IRQ0 10 P20 11 P21 12 P22 13 P23 14 IVDD 15 VSS 16 P10 17 P11 18 P12 19 P13 20 P14 21 P15 22 P16 23 EXCLKSEL 24 P72_SDA1 25 P73_SCL1 26 P65_SBT2 27 P66_SBI2 28 P30 29 P31 30 P32 31 P33 32 P34 33 P35 34 P36 35 P37 36 VPPEX_(N.C.) 37 IVDD 38 VDD 39 RONA 40 VSS 41 OSCXO 42 OSCXI 43 IVDD 44 P64_SBI1 45 P63_SBT1 46 NBOOT_(N.C.) 47 NRST 48 NTEST 49 SCLOCK_(UND) 50 SDATA_(UND) 51 ENTRG0_(UND) 52 ENTRG1_(UND) 53 TRCCLK_(UND) 54 TRCST_(UND) 55 TRCD0_(UND) 56 TRCD1_(UND) 57 TRCD2_(UND) 58 TRCD3_(UND) 59 P80_ADIN0 60 P81_ADIN1 61 P82_ADIN2 62 P83_ADIN3 63 IVDD 64 VSS 65 P84_ADIN4 66 P85_ADIN5 67 P86_ADIN6 68 P87_ADIN7 69 P90_ADIN8 70 P91_ADIN9 71 P92_ADIN10 72 P93_ADIN11 73 P74_SDA2 74 P75_SCL2 75 P40_TM0IO 76 P41_TM1IO 77 P42_TM2IO 78 P43_TM3IO 79 P44_TM4IO_SYSCLK 80 P00 81 P01 82 P02 83 P03_SBT0B 84 P04_SBO0B 85 P51_IRQ2 86 P52_IRQ3 87 P53_IRQ4 88 P54_IRQ5 89 PA7_VCLKOUT 90 PA6_HOUT 91 PA5_YSOUT 92 PA4_B00 93 PA3_G00 94 PA2_R00 95 PA1_VSYNC_IRQ1 96 PA0_HSYNC 97 VSS 98 OSDXI 99 IVDD 100 VDD STB_D3.3V P3.3V STB_D3.3V STB_D3.3V STB5V P3.3V P3.3V P15V STB_D3.3V STB5V STB_D3.3V P3.3V P3.3V P5V STB_D3.3V R9084 R9200 R9185 R9201 R9186 R9150 R9151 R9840 R9083 R9073 R9152 R9153 TP4811 TP4802 TP4807 TP4806 TP9000 TP4803 TP9011 TP4800 TP4801 TP4808 TP4804 TP4810 TP4805 TP4809 AG_RMIN PD2M_TDI PD2M_TDO TA1P TC1N AR_STB_SDA02 AR_RXD_PC TD1N REMOCON TCLK1P TA1N TE1N TC1P TCLK1N TE1P TD1P TB1N AD_SDA0 AG_PANEL_ARARM AG_PANEL_READY AR_TXD_PC AG_PANEL_STBY/VCC_ON D_PCB_MODE AD_SCL0 CLK_GENX PD2M_TMS TB1P PD2M_TCK LED_R PD2M_TRST AR_STB_SCL02 VI2P20 IIC_CONT/C_SEL Q9058 2SD0601A0L Q9010 2SD0601A0L Q9057 2SD0601A0L Q9046 2SD0601A0L Q9044 2SD0601A0L R9122 EXB38V103JV R9839 EXB38V101JV R9119 EXB38V470JV R9129 47k R9225 2.2k R9206 56k R9163 10k R9133 1k R9130 47 R9125 1k R9124 47 R9123 1k R9127 68k R9164 10k R9828 47k R9105 10k R9223 2.2k R9149 4.7k R9205 33k R9134 33k R9159 10k R9172 39k R9158 10k R9215 100k R9166 10k R9161 100 R9070 10k R9126 1k R9071 22k R9207 24k R9162 10k R9986 1k R9141 100 R9121 100k R9188 4.7k R9072 1k R9170 39k R9107 3.3k R9171 39k R9203 22k R9062 100 R9067 100 R9066 100 R9065 100 R9064 100 R9063 100 R9068 10k R9189 10k R9132 4.7k R9088 100k R9089 10k R9090 10k R9080 10k R9187 4.7k R9128 0 R9131 100k = RD- RD+ RC+ RC- RCLK+ RCLK- RA-(MSB) RB- IIC_CLK2 IIC_CONT RA+(MSB) RXD TXD PANEL_STBY_ON ALARM IIC_DATA2 IIC_CLK1 IIC_DATA1 READY DISPEN RE+(LSB) RE-(LSB) RB+ EXCLKSEL Genx6 PANEL_SOS PANEL_STATUS PANEL_MUTE STB3.3V/RESET IIC SW EEPROM TEMP SENSOR TO 9/19 TO 5,9/19 TO 1/19 TO 5,6/19 TO 9/19 TO 9/19 TO 2/19 TO 6/19 TO 2/19 TO 6/19 118 123 126 124 121 125 120 119 122 31 32 43 41 42 ! A-BOARD (14/19) TNPH0713DC TH-50PV80C A-Board (14/19) Schematic Diagram TH-50PV80C A-Board (14/19) Schematic Diagram 51 TH-50PV80C 10.17.A 电路板 （15/19）线路图 P P L8R_UC15 L8R_UC14 L8R_UB15 L8R_ROMCE L8R_UA14 L8R_UA15 L8R_UB14 0V L8R_ROMWE L8R_ROMOE D_XRST DD_PCD4 FP_URH DD_PCD1 USL_C2 DD_LED1 DD_PCD3 FP_LAT D_XRST D-LED1 FP_CEL FP_OC2 DD_LED2 FP_USL FP_CBK FP_CLK FP_UMH FP_SC_DRV_RST UML_C2 FP_CSL FP_CPH1 FP_CSH FP_CML FP_CMH DD_LED1 DD_CLRD2 NUEL_C2 DD_PCD1 DD_PCD2 FP_UEH DD_ODED1 DD_ODED2 FP_USH DD_CLRD1 FP_SIU DD_LED2 DRVRST UMH_C2 DD_PCD3 FPGARST DD_PCD4 FP_OC1 DD_CLRD1 DD_ODED2 URH_C2 FP_NUEL D-CLRD1 FP_SCSU UEH_C2 FP_SID DD_CLRD2 FP_CPH2 FP_UMH DD_ODED1 FP_UML D-ODED1 FP_URH FP_USH D-PCD2 FP_USL FP_UML DD_PCD2 FP_UEH D-PCD1 FP_NUEL USH_C2 P3V_SCL02 P3V_SDA02 L8R_FPCLK VI2P20 SFLATCH L8R_CLKMO L8R_ROMRST L8R_DIO16 L8R_DIO30 L8R_DIO27 L8R_DIO28 L8R_DIO29 L8R_DIO26 L8R_DIO23 L8R_DIO17 L8R_DIO18 L8R_DIO20 L8R_DIO19 L8R_DIO21 L8R_DIO22 L8R_DIO25 L8R_DIO24 XI_DONE L8R_FCCLK L8R_PROG L8R_FPDAT1 SFRST SFVRST FVSEL OSD_HIN OSD_VIN L8R_DIO05 L8R_DIO06 L8R_DIO10 L8R_DIO02 L8R_DIO04 L8R_DIO01 L8R_DIO03 L8R_DIO00 L8R_DIO07 L8R_DIO08 L8R_DIO09 L8R_DIO12 L8R_DIO13 L8R_DIO11 L8R_DIO15 L8R_DIO14 D-PCD3 D-LED2 D-PCD4 D-CLRD2 D-ODED2 L8R_FPDAT0 C9548 16V 0.1u C9539 16V 0.1u C9541 16V 0.1u C9549 16V 0.1u C9543 16V 0.1u C9540 16V 0.1u C9547 16V 0.1u C9544 16V 0.1u C9535 16V 0.1u C9537 16V 0.1u C9538 16V 0.1u C9545 16V 0.1u C9536 16V 0.1u C9550 16V 0.1u C9542 16V 0.1u C9546 16V 0.1u C9469 16V 0.1u TVRP939-1 IC9303 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 C1ZBZ0003759 IC9500 1 PROG_B 2 IO_L01P_3 3 IO_L01N_3 4 IO_L02P_3 5 IO_L02N_3/VREF_3 6 VCCINT 7 GND 8 VCCO_3 9 IO_L03P_3/LHCLK0 10 IO_L03N_3/LHCLK1 11 IO_L04P_3/LHCLK2 12 IO_L04N_3/LHCLK3 13 IP 14 GND 15 IO_L05P_3/LHCLK4 16 IO_L05N_3/LHCLK5 17 IO_L06P_3/LHCLK6 18 IO_L06N_3/LHCLK7 19 GND 20 VCCO_3 21 VCCAUX 22 IO_L07P_3 23 IO_L07N_3 24 IO_L01P_2/CSO_B 25 IO_L01N_2/INIT_B 26 IO_L02P_2/DOUT/BUSY 27 IO_L02N_2/MOSI/CSI_B 28 VCCINT 29 GND 30 IP/VREF_2 31 VCCO_2 32 IO_L03P_2/D7/GCLK12 33 IO_L03N_2/D6/GCLK13 34 IO/D5 35 IO_L04P_2/D4/GCLK14 36 IO_L04N_2/D3/GCLK15 37 GND 38 IP_L05P_2/RDWR_B/GCLK0 39 IP_L05N_2/M2/GCLK1 40 IO_L06P_2/D2/GCLK2 41 IO_L06N_2/D1/GCLK3 42 IO/M1 43 IO_L07P_2/M0 44 IO_L07N_2/DIN/D0 45 VCCO_2 46 VCCAUX 47 IO_L08P_2/VS2 48 IO_L08N_2/VS1 49 IO_L09P_2/VS0 50 IO_L09N_2/CCLK 51 DONE 52 GND 53 IO_L01P_1 54 IO_L01N_1 55 VCCO_1 56 VCCINT 57 IO_L02P_1 58 IO_L02N_1 59 GND 60 IO_L03P_1/RHCLK0 61 IO_L03N_1/RHCLK1 62 IO_L04P_1/RHCLK2 63 IO_L04N_1/RHCLK3 64 GND 65 IO_L05P_1/RHCLK4 66 IO_L05N_1/RHCLK5 67 IO_L06P_1/RHCLK6 68 IO_L06N_1/RHCLK7 69 IP/VREF_1 70 IO_L07P_1 71 IO_L07N_1 72 GND 73 VCCO_1 74 VCCAUX 75 TMS 76 TDO 77 TCK 78 IO_L01P_0 79 IO_L01N_0 80 VCCINT 81 GND 82 VCCO_0 83 IO_L02P_0/GCLK4 84 IO_L02N_0/GCLK5 85 IO_L03P_0/GCLK6 86 IO_L03N_0/GCLK7 87 GND 88 IP_L04P_0/GCLK8 89 IP_L04N_0/GCLK9 90 IO_L05P_0/GCLK10 91 IO_L05N_0/GCLK11 92 IO 93 GND 94 IO_L06P_0 95 IO_L06N_0/VREF_0 96 VCCAUX 97 VCCO_0 98 IO_L07P_0 99 IO_L07N_0/HSWAP 100 TDI L9076 J0JYC0000068 P1.2V P2.5V P3.3V P3.3V P3.3V R9078 R9077 TP9312 VIN TP9311 HIN R9403 EXB2HV103JV R9405 EXB2HV103JV R9609 EXB2HV470JV R9406 EXB2HV103JV R9610 EXB2HV470JV R9608 EXB2HV470JV R9404 EXB2HV103JV R9588 4.7k R9586 47 R9616 47 R9587 47 R9618 330 R9385 4.7k R9578 4.7k R9611 68 R9402 47 R9086 4.7k R9085 4.7k R9604 10k FPGA PD1M_ROM FPDAT0 DIN 127 132 135 133 130 134 129 128 131 43 42 41 54 52 53 51 ! A-BOARD (15/19) TNPH0713DC TH-50PV80C A-Board (15/19) Schematic Diagram TH-50PV80C A-Board (15/19) Schematic Diagram 52 TH-50PV80C 10.18.A 电路板 （16/19）线路图 G G G G TERM SIDE TERM SIDE S S L8R_UA15 L8R_UA14 L8R_UA05 L8R_DA03 L8R_DA11 L8R_DA15 L8R_DA12 L8R_DA06 L8R_DA02 L8R_DA13 L8R_DA07 L8R_DA04 L8R_DA08 L8R_DA09 L8R_DA00 L8R_DA01 L8R_DA14 L8R_DA05 L8R_DA10 L8R_UB14 L8R_UB15 L8R_UB05 L8R_DB02 L8R_DB12 L8R_DB04 L8R_DB07 L8R_DB08 L8R_DB01 L8R_DB15 L8R_DB13 L8R_DB09 L8R_DB05 L8R_DB10 L8R_DB00 L8R_DB14 L8R_DB03 L8R_DB06 L8R_DB11 L8R_UC14 L8R_DC01 L8R_UC05 L8R_DC05 L8R_DC00 L8R_DC09 L8R_UC15 L8R_DC06 L8R_DC10 L8R_DC11 L8R_DC13 L8R_DC03 L8R_DC07 L8R_DC14 L8R_DC12 L8R_DC02 L8R_DC04 L8R_DC08 L8R_DC15 L8R_DRVCLKD0 L8R_DRVCLKD3 L8R_DRVCLKD2 L8R_DRVCLKD1 L8R_UA03 L8R_UA02 L8R_UA00 L8R_UA01 L8R_UA04 L8R_UB00 L8R_UB01 L8R_UB02 L8R_UB03 L8R_UB04 L8R_UC04 L8R_UC03 L8R_UC02 L8R_UC00 L8R_UC01 L8R_DQ9 L8R_DQ23 L8R_A6 L8R_A5 L8R_A4 L8R_DQ13 L8R_DQ24 L8R_BA0 L8R_DQS2 L8R_BA1 L8R_DQ4 L8R_DQ2 L8R_RAS L8R_DQ18 L8R_A1 L8R_A10 L8R_A0 L8R_DQ31 L8R_DQ8 L8R_A3 L8R_DQ14 L8R_DQS3 L8R_WE L8R_DQ3 L8R_DQ10 L8R_DQ26 L8R_DQ1 L8R_SDCKE L8R_DQ21 L8R_SDCLKO L8R_DQ12 L8R_DQ28 L8R_DQ30 L8R_DQ6 L8R_A9 L8R_DQS1 L8R_DQ22 L8R_A7 L8R_DQ17 L8R_NSDCLKO L8R_DQ5 L8R_DQ15 L8R_DQ11 L8R_DQ25 L8R_DQ29 L8R_A8 L8R_DQ27 L8R_A11 L8R_CS L8R_DQ20 L8R_DQS0 L8R_DQ19 L8R_DQ16 L8R_A2 L8R_CAS L8R_DQ0 L8R_DQ7 L8R_DRVCLKU0 L8R_DRVCLKU1 L8R_DRVCLKU2 L8R_DRVCLKU3 L8R_DRVCLKD3 L8R_DRVCLKD2 L8R_DRVCLKD0 L8R_DRVCLKD1 L8R_DRVCLKU1 L8R_DRVCLKU0 L8R_DRVCLKU3 L8R_DRVCLKU2 DDA20 DDB20 DDB21 DDC20 DDC21 DDA21 DDC19 DDA18 DDA19 DDB19 DDC18 DDB18 DDB17 DDA16 DDC16 DDC17 DDB16 DDA17 DDA15 DDC15 DDC14 DDA14 DDB14 DDB15 DDC13 DDA12 DDA13 DDC12 DDB13 DDB12 CLKD_0P CLKD_1N CLKD_2P DDA01 DDB01 DDC01 DDA00 DDB00 DDC00 DDA03 DDB03 DDC03 DDA02 DDB02 DDC02 DDA04 DDB04 DDC04 DDA05 DDB05 DDC05 DDA07 DDB07 DDC07 DDA06 DDB06 DDC06 DDC09 DDA08 DDB08 DDC08 DDA09 DDB09 DDA10 DDC11 DDB11 DDA11 DDB10 CLKD_3N CLKD_2P CLKU_1N CLKU_2P CLKU_3N CLKD_0P CLKU_0P CLKU_1N DDC10 D-LED1 UMH_C2 UML_C2 USH_C2 USL_C2 UEH_C2 NUEL_C2 D-PCD1 D-PCD2 D-ODED1 D-LED1 D-PCD1 D-ODED1 D-CLRD1 D-LED2 D-PCD4 D-PCD3 D-ODED2 D-LED2 D-PCD3 URH_C2 CLKD_1N CLKD_3N D-PCD4 D-ODED2 C_5V_DET DRVRST D-PCD2 D-CLRD1 D-CLRD2 D-CLRD2 CLKU_3N CLKU_2P L8R_DIO00 L8R_DIO01 L8R_DIO02 L8R_DIO03 L8R_DIO04 L8R_DIO05 L8R_DIO06 L8R_DIO07 L8R_DIO08 L8R_DIO09 L8R_DIO10 L8R_DIO11 L8R_DIO12 L8R_DIO13 L8R_DIO14 L8R_DIO15 L8R_DIO16 L8R_DIO17 L8R_DIO18 L8R_DIO19 L8R_DIO20 L8R_DIO21 L8R_DIO22 L8R_DIO23 L8R_DIO24 L8R_DIO25 L8R_DIO26 L8R_DIO27 L8R_DIO28 L8R_DIO29 L8R_DIO30 L8R_ROMRST L8R_ROMOE L8R_ROMWE L8R_ROMCE L8R_PROG L8R_FCCLK L8R_FPCLK L8R_FPDAT1 SFLATCH PROG_M MCCLK D_XRST XRST_SYS TA1N TB1P TB1N TC1P TC1N TCLK1P TCLK1N TD1P TD1N TA1P TE1P TE1N SOS8_SS SIN SFRST SFRST SFVRST SFVRST FVSEL FVSEL OSD_CLKIN OSD_YS OSD_R OSD_B OSD_G L8R_CLKMO PD2M_TRST PD2M_TMS PD2M_TCK L8R_FPDAT0 L8R_DB01 DDA17 L8R_DC02 DDA16 DDA21 DDA15 L8R_DA04 L8R_DC01 DDB17 DDC17 DDC19 DDA20 L8R_DB02 DDA18 DDC16 DDC14 L8R_DC06 DDB16 DDB19 DDC15 DDB18 L8R_DB05 L8R_DC04 DDA14 L8R_DB03 DDB15 L8R_DA05 DDC20 DDC21 L8R_DB06 DDA19 L8R_DA06 DDB20 L8R_DA03 L8R_DB04 L8R_DA02 L8R_DC05 L8R_DB07 L8R_DC03 L8R_DA07 L8R_DB00 L8R_DC00 DDC18 L8R_DC07 L8R_DA00 DDB14 L8R_DA01 DDB21 L8R_DB08 DDA13 L8R_DA08 DDC13 L8R_DB09 L8R_DA09 DDA12 L8R_DC08 DDB13 DDB12 DDC12 L8R_DC09 L8R_DB10 DDA07 DDA11 L8R_DA11 DDC04 DDB11 DDB04 DDC10 L8R_DC11 DDA04 DDC11 DDC05 DDA10 DDB02 DDC08 DDB05 DDB08 DDA02 L8R_UB03 L8R_DC15 DDA05 DDC03 DDC02 L8R_DB11 DDB03 DDC01 L8R_UA05 DDA03 L8R_DC14 DDB01 DDC00 DDA01 DDB00 L8R_DA10 DDA00 DDC07 L8R_UA01 DDA08 DDC09 DDB09 DDA09 L8R_DB12 DDC06 DDB06 L8R_UA00 DDA06 L8R_DC10 DDB07 DDB10 L8R_DC12 L8R_DA12 L8R_DC13 L8R_DB13 L8R_DA13 L8R_DB14 L8R_DA14 L8R_DB15 L8R_DA15 L8R_UC00 L8R_UB00 L8R_UC01 L8R_UB01 L8R_UC02 L8R_UB02 L8R_UA02 L8R_UC03 L8R_UA03 L8R_UC04 L8R_UB04 L8R_UA04 L8R_UC05 L8R_UB05 PD2M_TDI P3V_SDA02 P3V_SCL02 PD2M_TDO OSD_VIN OSD_VIN OSD_HIN OSD_HIN L8R_MONOUT C9923 0.1u 16V C9913 0.1u 16V C9924 0.1u 16V C9950 16V 0.1u C9915 0.1u 16V C9914 0.1u 16V C9925 0.1u 16V C9902 0.1u 16V C9967 0.1u 16V C9956 0.1u 16V C9908 0.1u 16V C9959 0.1u 16V C9962 10V 10u C9921 0.1u 16V C9949 16V 0.1u C9910 0.1u 16V C9903 0.1u 16V C9912 0.1u 16V C9920 0.1u 16V C9907 0.1u 16V C9961 10V 10u C9906 0.1u 16V C9468 25V 0.01u C9905 0.1u 16V C9904 0.1u 16V C9919 0.1u 16V C9916 0.1u 16V C9909 0.1u 16V C9955 0.1u 16V C9918 0.1u 16V C9917 0.1u 16V C9958 0.1u 16V C9911 0.1u 16V C9900 0.1u 16V C9922 0.1u 16V C9957 0.1u 16V C9901 0.1u 16V C9971 50V 18p C9972 50V 15p C9968 0.1u 16V C9953 0.1u 16V C9954 0.1u 16V C9965 0.1u 16V C9966 10V 10u C9970 16V 0.1u C9973 0.1u 16V C9974 0.1u 16V C9975 0.1u 16V C9976 0.1u 16V C9977 0.1u 16V C9978 0.1u 16V C9979 0.1u 16V C9980 0.1u 16V C9952 0.1u 16V FL9300 F1J1E104A148 1 2 3 FL9301 F1J1E104A148 1 2 3 IC9900 A1 VSS IC9900 T17 VDD33 IC9900 AA3 VSS IC9900 H2 SFLATCH IC9900 AD17 AVSS_Q IC9900 D16 DOUTUA10 IC9900 AB15 VDD25 IC9900 AE24 TCPOUT_D IC9900 P26 DOUTDA06 IC9900 P5 AVDD_L33 IC9900 AF23 AD10 IC9900 AB13 AVDD_D25 IC9900 AF9 DQ0 IC9900 AF20 VSS IC9900 H3 FPDAT0 IC9900 C14 DOUTUB13 IC9900 H25 DOUTDA10 IC9900 C24 OCKOUT IC9900 Y3 SDA IC9900 N5 AVDD_L33 IC9900 J5 AVDD_L12 IC9900 AF4 DQ21 IC9900 N1 RCM IC9900 F24 DOUTDA14 IC9900 M25 DOUTDA08 IC9900 K22 DOUTDC10 IC9900 V4 OSDGI IC9900 C22 DOUTUA02 IC9900 AD11 DQ24 IC9900 T15 VSS IC9900 K10 VSS IC9900 G5 VDD12 IC9900 G1 FPCLK IC9900 AE17 NCK IC9900 AE10 DQ31 IC9900 C8 DIO17 IC9900 J4 OCK IC9900 T24 VDD33 IC9900 D25 VSS IC9900 A15 DOUTUC13 IC9900 B6 DIO9 IC9900 V22 DOUTDC00 IC9900 L26 DOUTDC09 IC9900 AB11 VSS IC9900 K17 VSS IC9900 B23 DOUTUA01 IC9900 C21 DOUTUC04 IC9900 AF7 VSS IC9900 E26 DOUTDC13 IC9900 AB24 ID2 IC9900 B15 DOUTUA12 IC9900 E18 VDD33 IC9900 AE25 VSS IC9900 D1 VDD12 IC9900 U16 VSS IC9900 P14 VSS IC9900 AC4 VDD25 IC9900 C17 DOUTUC09 IC9900 AB19 VDD25 IC9900 E20 VSS IC9900 AF16 DQ10 IC9900 W22 VSS IC9900 AB14 AVDD_D25 IC9900 B1 VSS IC9900 D18 DOUTUC07 IC9900 L23 DOUTDA09 IC9900 U2 AVSS_L IC9900 B22 DOUTUC03 IC9900 R23 DOUTDB05 IC9900 A21 DOUTUC05 IC9900 AA22 VDD33 IC9900 A26 VDD33 IC9900 AB26 TCK IC9900 E17 VDD33 IC9900 T10 VDD12 IC9900 P1 RCLKM IC9900 V26 DOUTDC03 IC9900 K14 VSS IC9900 M14 VSS IC9900 R22 VSS IC9900 AE6 DQS2 IC9900 A4 DIO6 IC9900 AE5 DQ20 IC9900 W3 SCL IC9900 F6 VSS IC9900 D5 SLVDOUTUB14 IC9900 AF8 DQ2 IC9900 M16 VDD33 IC9900 L11 VSS IC9900 C15 DOUTUB12 IC9900 W23 TRST IC9900 T13 VDD25 IC9900 V25 DOUTDA02 IC9900 AD8 DQ6 IC9900 AC23 VSS IC9900 P4 AVDD_L33 IC9900 M1 RBM IC9900 AF24 AD11 IC9900 E2 VDD12 IC9900 K1 AVSS_L IC9900 E10 VDD12 IC9900 G2 FPDAT1 IC9900 N23 DOUTDB07 IC9900 T23 VSS IC9900 K25 DRVCLKD2 IC9900 AD16 DQ12 IC9900 C19 DOUTUB06 IC9900 J2 AVSS_PO IC9900 AF3 DQ22 IC9900 C13 DOUTUC14 IC9900 G3 FCCLK IC9900 K15 VSS IC9900 H1 SFVRST IC9900 A17 DOUTUC10 IC9900 AF14 AVSS_D IC9900 C20 DOUTUB05 IC9900 K5 AVDD_PO33 IC9900 AF21 BA1 IC9900 AB9 VDD25 IC9900 U24 VSS IC9900 G25 DOUTDC12 IC9900 AC16 VSS IC9900 A2 DIO0 IC9900 B19 DOUTUA06 IC9900 AE15 DQ15 IC9900 D3 VSS IC9900 T2 REP IC9900 A14 DRVCLKU1 IC9900 N10 AVDD_L12 IC9900 V2 OSDRI IC9900 AB17 AVDD_D25 IC9900 A13 DRVCLKU3 IC9900 R5 AVDD_L33 IC9900 F22 VDD33 IC9900 W4 VSS IC9900 B3 HIO IC9900 A18 DOUTUB08 IC9900 AE16 DQ9 IC9900 AC9 DQ5 IC9900 R12 VSS IC9900 AC19 CKE IC9900 R26 DOUTDA05 IC9900 D11 DIO29 IC9900 P24 VDD33 IC9900 C1 VDD12 IC9900 AC2 MCCLK IC9900 AC7 VREF1 IC9900 AD13 AVSS_D IC9900 L14 VSS IC9900 D7 DIO11 IC9900 P12 VSS IC9900 AC25 V_TEST IC9900 AB7 AVDD_D25 IC9900 H4 FULL1 IC9900 AD22 AD8 IC9900 AE8 DQ3 IC9900 B18 DOUTUC08 IC9900 AE3 DQ19 IC9900 V23 DOUTDA01 IC9900 F26 DOUTDB12 IC9900 P3 AVSS_L IC9900 AF6 VSS IC9900 L13 VDD12 IC9900 AD3 VDD25 IC9900 AB3 FVSEL IC9900 T12 VDD25 IC9900 A22 DOUTUB03 IC9900 R14 VSS IC9900 E9 VDD12 IC9900 C10 DIO25 IC9900 P22 DOUTDC06 IC9900 AC17 VSS IC9900 F25 DOUTDA12 IC9900 L2 RAP IC9900 D22 DOUTUB01 IC9900 U22 VDD33 IC9900 K13 VDD12 IC9900 U17 VSS IC9900 AF17 DQ8 IC9900 D17 DOUTUA08 IC9900 B21 DOUTUA04 IC9900 B8 DIO18 IC9900 L17 VDD33 IC9900 K11 VDD12 IC9900 E7 DIO8 IC9900 Y25 DOUTDA00 IC9900 K12 VDD12 IC9900 AD18 NCAS IC9900 W24 TDI IC9900 U11 VDD25 IC9900 V1 AVSS_PI IC9900 L1 RAM IC9900 AC6 AVSS_D IC9900 AF19 NRAS IC9900 AE20 BA0 IC9900 AD14 VSS IC9900 AE1 VSS IC9900 F3 VDD12 IC9900 AC12 VSS IC9900 C3 VSS IC9900 M22 DOUTDC08 IC9900 U4 AVDD_L33 IC9900 AD12 VSS IC9900 E15 DOUTUC12 IC9900 AD6 VDD25 IC9900 V24 VDD33 IC9900 N2 RCP IC9900 L25 DOUTDB09 IC9900 F2 FULL0 IC9900 AA1 XI IC9900 AE14 DQS1 IC9900 AA2 XO IC9900 AC10 DQ27 IC9900 AE11 DQ30 IC9900 AB16 AVDD_Q25 IC9900 AE21 AD0 IC9900 P25 DOUTDB06 IC9900 D6 DIO5 IC9900 AE12 DQS3 IC9900 D21 DOUTUA03 IC9900 N12 VSS IC9900 L16 VSS IC9900 D13 DOUTUB14 IC9900 AA24 VDD33 IC9900 P11 VSS IC9900 M2 RBP IC9900 U14 VSS IC9900 G24 VSS IC9900 M11 VDD12 IC9900 C26 VSS IC9900 AD7 AVSS_D IC9900 N3 AVSS_L IC9900 N16 VSS IC9900 AA23 ID1 IC9900 J3 SFRST IC9900 AD20 AD9 IC9900 AC8 DQ7 IC9900 M15 VSS IC9900 AC26 MONOUT IC9900 M13 VDD12 IC9900 AC15 DQ13 IC9900 A12 DOUTUA14 IC9900 R2 RDP IC9900 Y5 OSDCKO IC9900 AC13 VSS IC9900 C4 ACTV IC9900 K4 AVSS_PM IC9900 K16 VSS IC9900 W5 OSDHO IC9900 N13 VSS IC9900 AD19 NWE IC9900 B9 DIO22 IC9900 A11 DOUTUA15 IC9900 U23 DOUTDB02 IC9900 U1 AVSS_L IC9900 AD24 VSS IC9900 T25 DOUTDB04 IC9900 E23 VDD33 IC9900 N4 AVDD_L33 IC9900 AF22 AD2 IC9900 T11 VSS IC9900 L24 VSS IC9900 N22 VDD33 IC9900 AE26 VDD33 IC9900 AE19 NCS IC9900 F23 VSS IC9900 AC14 VREF0 IC9900 AB10 VDD25 IC9900 E6 DIO4 IC9900 B17 DOUTUA09 IC9900 G22 VSS IC9900 D10 DIO23 IC9900 E24 VSS IC9900 R13 VSS IC9900 P10 VSS IC9900 U13 VDD25 IC9900 AF2 VSS IC9900 E4 VSS IC9900 R24 VSS IC9900 AF18 CK IC9900 K23 VSS IC9900 AB8 AVDD_D25 IC9900 Y23 TEST IC9900 N15 VSS IC9900 AD9 DQ4 IC9900 E21 DOUTUC02 IC9900 K24 VDD33 IC9900 B7 DIO13 IC9900 AC18 VSS IC9900 D9 DIO21 IC9900 N24 VSS IC9900 E8 DIO14 IC9900 H22 DOUTDB13 IC9900 P15 VSS IC9900 C16 DOUTUB10 IC9900 AE13 VSS IC9900 C6 DIO10 IC9900 AE4 DQ23 IC9900 W1 OSDYSI IC9900 C2 VSS IC9900 M26 DOUTDB08 IC9900 M5 AVDD_L33 IC9900 J1 TCPOUT IC9900 AD4 DQ18 IC9900 H5 VDD12 IC9900 V5 AVDD_PI33 IC9900 C23 DOUTUC01 IC9900 AA4 VSS IC9900 B26 VDD33 IC9900 A23 DOUTUB02 IC9900 M3 AVSS_L IC9900 J26 DRVCLKD1 IC9900 W25 DOUTDB01 IC9900 H26 DOUTDB10 IC9900 M12 VSS IC9900 R15 VSS IC9900 AC24 VDD33 IC9900 B25 DOUTDC15 IC9900 AF26 VSS IC9900 Y1 VSS IC9900 T26 DOUTDA04 IC9900 A5 CKMI IC9900 C11 ROMOE IC9900 AF5 VSS IC9900 AB22 VSS IC9900 L22 VSS IC9900 M10 VDD12 IC9900 AF15 DQ11 IC9900 M23 VSS IC9900 A3 DIO1 IC9900 AE22 AD1 IC9900 E25 DOUTDA13 IC9900 Y4 PRCKO IC9900 H23 DOUTDA11 IC9900 M4 AVDD_L33 IC9900 AC1 XOUT IC9900 A6 CKMO IC9900 D4 VIO IC9900 T14 VSS IC9900 M24 VDD33 IC9900 AF25 AD4 IC9900 U26 DOUTDC04 IC9900 J22 VDD33 IC9900 R1 RDM IC9900 U12 VDD25 IC9900 M17 VDD33 IC9900 U25 DOUTDB03 IC9900 C7 DIO12 IC9900 P16 VSS IC9900 AC3 VSS IC9900 A10 DIO28 IC9900 L4 AVDD_L33 IC9900 AB2 VSS IC9900 AC5 DQ17 IC9900 E13 VSS IC9900 U5 AVDD_L33 IC9900 AB5 VDD25 IC9900 E3 VDD12 IC9900 P13 VSS IC9900 P23 VSS IC9900 AB21 AVDD_PD33 IC9900 Y26 DOUTDC01 IC9900 D8 DIO16 IC9900 A7 DIO15 IC9900 P17 VSS IC9900 D20 DOUTUB04 IC9900 AF10 DQ29 IC9900 AF1 VDD25 IC9900 E12 DIO30 IC9900 N25 DOUTDA07 IC9900 P2 RCLKP IC9900 G4 VDD12 IC9900 D23 DOUTDB15 IC9900 AD2 XRSTSYS IC9900 T5 AVDD_L33 IC9900 F4 VDD12 IC9900 D2 VDD12 IC9900 AB23 VDD33 IC9900 E19 DOUTUB07 IC9900 AB4 XRST IC9900 L5 AVDD_PM33 IC9900 C18 DOUTUA07 IC9900 W26 DOUTDC02 IC9900 R17 VDD33 IC9900 A25 DOUTDA15 IC9900 G26 DOUTDB11 IC9900 F1 CLKMO IC9900 E1 ROMRESET IC9900 B20 DOUTUA05 IC9900 AA5 PROG IC9900 L15 VSS IC9900 B11 ROMCE IC9900 L10 VDD12 IC9900 N14 VSS IC9900 A20 CKSO IC9900 K26 DRVCLKD3 IC9900 AB6 VSS IC9900 B24 DOUTUB00 IC9900 J25 DRVCLKD0 IC9900 H24 VDD33 IC9900 R25 DOUTDC05 IC9900 C12 ROMWE IC9900 AB18 VSS IC9900 E16 DOUTUB09 IC9900 B10 DIO26 IC9900 B13 DRVCLKU2 IC9900 R11 VDD12 IC9900 AE18 AVSS_D IC9900 B16 DOUTUC11 IC9900 AC22 AVSS_PD IC9900 B12 DOUTUB15 IC9900 D14 DOUTUA13 IC9900 A16 DOUTUA11 IC9900 R3 AVSS_L IC9900 Y24 VSS IC9900 AB12 VSS IC9900 V3 OSDBI IC9900 D24 VDD33 IC9900 AF11 DQ28 IC9900 E22 DOUTUC00 IC9900 T4 AVDD_L33 IC9900 D19 DOUTUC06 IC9900 F5 VSS IC9900 B5 DIO7 IC9900 A19 CKSI IC9900 AE2 VDD25 IC9900 B14 DRVCLKU0 IC9900 R16 VDD33 IC9900 D15 DOUTUB11 IC9900 L3 AVSS_L IC9900 K3 AVSS_L IC9900 W2 OSDVO IC9900 U15 VSS IC9900 AE7 DQS0 IC9900 A9 DIO24 IC9900 AA25 TMS IC9900 D12 DOUTUC15 IC9900 AD23 ID0 IC9900 D26 DOUTDB14 IC9900 AC20 AD6 IC9900 B2 VSS IC9900 AD25 VDD33 IC9900 Y2 VSS IC9900 C5 DIO3 IC9900 U3 AVSS_L IC9900 AD5 DQ16 IC9900 A24 DOUTUA00 IC9900 AB1 VSS IC9900 J24 VSS IC9900 AD10 DQ26 IC9900 AC11 DQ25 IC9900 E14 VSS IC9900 AB25 TDO IC9900 L12 VDD12 IC9900 T1 REM IC9900 AA26 DOUTDB00 IC9900 G23 DOUTDC14 IC9900 N17 VSS IC9900 AD15 DQ14 IC9900 C25 VDD33 IC9900 AD1 PROG_M IC9900 N26 DOUTDC07 IC9900 AB20 VDD25 IC9900 AD26 TEST1 IC9900 AF12 VSS IC9900 J23 DOUTDC11 IC9900 A8 DIO19 IC9900 N11 VSS IC9900 T22 DOUTDA03 IC9900 AD21 AD5 IC9900 AC21 AD7 IC9900 U10 VSS IC9900 AF13 VSS IC9900 R10 VDD12 IC9900 K2 AVSS_L IC9900 T3 AVSS_L IC9900 Y22 TEST0 IC9900 C9 DIO20 IC9900 E11 DIO27 IC9900 E5 IOSW IC9900 B4 DIO2 IC9900 R4 AVDD_L33 IC9900 T16 VSS IC9900 AE9 DQ1 IC9900 AE23 AD3 A31 K1MN55BA0266 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 A32 K1MN68BA0266 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 L9902 D0GBR00Z0002 L9903 J0JHC0000078 L9901 J0JHC0000078 L9900 J0JHC0000078 P1.2V L8R1.2V L8R3.3V L8R1.2V L8R3.3V P2.5V P5V L8R1.2V L8R2.5V P3.3V L8R2.5V L8R3.3V L8R2.5V P5V L8R3.3V P3.3V L8RAVDD3.3V L8RAVDD3.3V L8RAVDD3.3V L8R2.5V R9393 R9392 TP9010 Q9302 2SD0601A0L Q9301 2SD0601A0L R9356 EXB2HV220JV *R9352 EXB2HV470JV R9353 EXB2HV220JV *R9357 EXB2HV220JV R9348 EXB2HV220JV *R9358 EXB2HV470JV R9347 EXB2HV220JV *R9359 EXB2HV470JV R9354 EXB2HV220JV *R9355 EXB2HV470JV R9116 100 R9956 0 R9966 680 R9972 10k R9983 47 R9371 100k R9957 0 R9401 1k R9977 47 R9975 47 R9397 47 R9369 4.7k R9598 47 R9317 1k R9391 100k R9968 47 R9362 47 R9970 47 R9370 10k R9398 47 R9969 47 R9988 47 R9361 47 R9399 47 R9396 47 R9936 1k 1% R9351 47 R9350 47 R9958 0 R9967 47 R9937 1k 1% X9900 H0J200500076 LVDS_INPUT IIC PD2-M DOUTDA[5] DOUTDB[3] DOUTDC[2] P5V DOUTDA[20] DOUTDC[9] P5V UMH P5V DOUTDB[20] DOUTDB[4] DOUTDA[4] DOUTDB[1] UML DOUTDA[9] DOUTDC[1] DOUTDB[9] DOUTDC[8] DOUTDA[2] DOUTDC[5] PC1_C1 DOUTDA[0] DOWN_LEFT DOUTDA[8] GND ODE_C1 DOUTDB[8] CLR_C1 DOUTDC[11] DOUTDC[12] DOUTDB[2] DOUTDA[11] DOUTDB[11] DOUTDC[20] DOUTDC[10] DOUTDA[3] USH SOS8_SS DOUTDA[10] DOUTDB[10] DOUTDA[1] DOUTDC[13] DOUTDA[12] DOUTDC[0] DOUTDA[13] USL DOUTDB[12] UEH DOUTDB[13] CLK1N_C1 CLK0P_C1 DOUTDC[3] DOUTDC[4] DOUTDB[0] DOUTDB[5] LE_C1 DOWN_RIGHT DOUTDB[6] DOUTDA[6] DOUTDC[6] DOUTDC[7] DOUTDB[7] DOUTDA[7] rromdata[14] rromadrs[00] rromdata[06] rromdata[09] rromdata[12] rromadrs[11] rromadrs[14] rromdata[15] rromadrs[01] rromadrs[04] rromadrs[17] rromadrs[20] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[16] rromdata[00] rromdata[01] rromdata[02] rromadrs[19] rromadrs[03] rromdata[03] rromdata[04] rromdata[07] rromdata[10] to DDR rromadrs[06] rromadrs[09] rromdata[13] rromadrs[12] rromdata[05] rromadrs[15] rromadrs[18] rromadrs[02] rromadrs[05] rromadrs[08] rromdata[08] rromdata[11] DOUTDC[21] DOUTDB[21] DOUTDA[21] DOUTDC[19] DOUTDA[19] DOUTDC[18] DOUTDB[19] DOUTDB[18] DOUTDA[18] DOUTDB[17] DOUTDC[16] DOUTDB[16] DOUTDA[17] DOUTDA[16] DOUTDC[17] DOUTDB[15] DOUTDC[14] DOUTDB[14] DOUTDA[15] DOUTDC[15] DOUTDA[14] GND GND GND GND GND GND GND P5V P5V P5V UEL GND NC NC LE_C2 ODE_C2 PC3_C2 CLR_C2 CLK0P_C2 CLK1N_C2 GND GND GND CLK2P_C1 CLK3N_C1 CLK2P_C2 CLK3N_C2 GND GND GND GND GND GND GND URH RC- RB- RB+ RC+ RCLK- RCLK+ RD+ RA-(MSB) RA+(MSB) RD- RE-(LSB) GND GND GND C_5V_DET PC4_C2 PC2_C1 to FLASH 20MHz(SS) CCLK for FPGA CDAT for FPGA SOUT for ucom SIN for ucom NCS for ucom Low Active RE+(LSB) MN84526 IC9900 TO C2-BOARD (C21) TO C1-BOARD (C11) 136 141 144 142 139 143 138 137 140 51 53 52 54 61 ! A-BOARD (16/19) TNPH0713DC TH-50PV80C A-Board (16/19) Schematic Diagram TH-50PV80C A-Board (16/19) Schematic Diagram 53 TH-50PV80C 10.19.A 电路板 （17/19）线路图 L8DR_DQ28 L8DR_DQS0 L8DR_DQ31 L8R_DQ15 L8DR_A5 L8DR_NCAS L8DR_A11 L8R_DQ17 L8DR_DQ21 L8DR_DQ23 L8DR_DQ22 L8DR_DQ25 L8R_DQ16 L8DR_DQ10 L8DR_DQ3 L8R_DQ14 L8DR_DQ1 L8DR_DQ9 L8R_DQ10 L8DR_A7 L8DR_DQ4 L8R_SDCLKO L8DR_DQ31 L8DR_A2 L8DR_NRAS L8DR_DQ11 L8R_DQ31 L8DR_DQ2 L8DR_DQ26 L8DR_DQ0 L8DR_BA1 L8DR_DQ5 L8DR_DQ11 L8R_DQ0 L8R_DQ19 L8R_DQ13 L8DR_A6 L8DR_DQS3 L8R_DQ9 L8DR_NCLK L8DR_DQ20 L8DR_DQ18 L8DR_A3 L8R_DQ22 L8R_A8 L8R_DQS2 L8DR_DQ7 L8DR_NCLK L8DR_DQ8 L8DR_DQ16 L8R_DQ3 L8R_DQ4 L8DR_DQ20 L8DR_DQ6 L8R_DQ11 L8DR_DQ19 L8DR_DQ24 L8DR_A4 L8DR_A0 L8R_DQ1 L8DR_DQ12 L8R_A6 L8DR_A6 L8DR_DQ8 L8R_DQ23 L8DR_DQ12 L8DR_DQ2 L8R_DQ8 L8DR_DQ18 L8DR_DQ4 L8DR_DQ0 L8R_DQ21 L8DR_DQS2 L8DR_A1 L8DR_DQ22 L8DR_DQ6 L8DR_DQ29 L8DR_DQS0 L8DR_DQS2 L8DR_DQ7 L8DR_DQ19 L8DR_DQ14 L8DR_DQ5 L8DR_DQ23 L8DR_DQ14 L8DR_CKE L8DR_DQ13 L8DR_DQS1 L8DR_DQ30 L8DR_A8 L8DR_NCS L8DR_DQ16 L8DR_DQ17 L8R_DQ7 L8DR_DQ28 L8DR_DQ17 L8DR_DQ15 L8DR_DQ15 L8R_DQ30 L8R_DQS3 L8DR_A5 L8DR_DQS1 L8R_DQS0 L8R_DQ6 L8DR_DQ9 L8DR_DQS3 L8DR_NWE L8R_NSDCLKO L8R_A7 L8R_DQ29 L8DR_A9 L8DR_A8 L8DR_DQ21 L8R_DQ12 L8DR_BA0 L8R_DQ20 L8DR_DQ27 L8R_DQS1 L8DR_DQ13 L8DR_CLK L8R_A5 L8DR_CLK L8R_DQ2 L8DR_DQ10 L8R_DQ28 L8DR_A7 L8DR_DQ30 L8R_DQ18 L8DR_DQ1 L8DR_DQ29 L8DR_DQ3 L8R_DQ5 L8DR_A10 L8R_DQ27 L8R_DQ26 L8R_DQ25 L8R_DQ24 L8DR_DQ27 L8DR_DQ26 L8DR_DQ25 L8DR_DQ24 L8DR_A4 L8R_A4 L8R_A11 L8DR_A11 L8R_A3 L8DR_A3 L8R_A10 L8DR_A10 L8R_A1 L8DR_A1 L8R_A2 L8DR_A2 L8DR_A0 L8R_A0 L8R_A9 L8R_BA1 L8R_BA0 L8R_CS L8R_RAS L8R_SDCKE L8DR_A9 L8DR_NRAS L8DR_NCS L8DR_BA0 L8DR_BA1 L8R_MONOUT L8DR_CKE L8DR_NCAS L8DR_NWE L8R_CAS L8R_WE C9927 16V 0.1u C9948 16V 0.1u C9944 16V 0.1u C9935 16V 0.1u C9951 16V 0.1u C9947 16V 0.1u C9929 16V 0.1u C9941 16V 0.1u C9937 16V 0.1u C9946 16V 0.1u C9945 16V 0.1u C9933 16V 0.1u C9939 16V 0.1u C9934 16V 0.1u C9943 16V 0.1u C9940 16V 0.1u C9938 16V 0.1u C9932 16V 0.1u C9936 16V 0.1u C9942 16V 0.1u C9928 16V 0.1u C9930 16V 0.1u C9931 16V 0.1u IC9901 C3ABQJ000055 B2 DQS0 IC9901 E2 DQ7 IC9901 F5 VSSQ IC9901 L13 NC IC9901 F7 VSS_Thermal IC9901 N9 A6 IC9901 M5 BA1 IC9901 M13 NC IC9901 K11 VDDQ IC9901 B12 DM3 IC9901 M2 RAS IC9901 D4 VSSQ IC9901 G4 VDDQ IC9901 L9 RFU IC9901 J12 DQ11 IC9901 J5 VSSQ IC9901 C5 VDDQ IC9901 J2 DQ21 IC9901 C4 NC IC9901 G3 DQ18 IC9901 L6 A10 IC9901 N12 CKE IC9901 J6 VSS_Thermal IC9901 C2 DQ4 IC9901 H5 VSSQ IC9901 M8 A9 IC9901 C11 NC IC9901 L4 VDD IC9901 G7 VSS_Thermal IC9901 K12 DQ9 IC9901 K9 VSS IC9901 C9 DQ30 IC9901 E9 VSSQ IC9901 F8 VSS_Thermal IC9901 N8 A4 IC9901 E11 VDD IC9901 E12 VDDQ IC9901 N4 BA0 IC9901 C8 VDDQ IC9901 F6 VSS_Thermal IC9901 B6 DQ2 IC9901 M9 A5 IC9901 K6 VSS IC9901 F13 DQ14 IC9901 H2 DQS2 IC9901 F11 VDDQ IC9901 B8 DQ31 IC9901 K5 VSSQ IC9901 J7 VSS_Thermal IC9901 L5 VSS IC9901 C10 VDDQ IC9901 E10 VSS IC9901 G6 VSS_Thermal IC9901 N10 A7 IC9901 M11 CK IC9901 F12 DQ15 IC9901 M10 RFU IC9901 E6 VSSQ IC9901 M7 A11 IC9901 G10 VSSQ IC9901 L2 CAS IC9901 D2 DQ6 IC9901 D13 DQ25 IC9901 L10 VSS IC9901 L8 VDD IC9901 H10 VSSQ IC9901 N5 A0 IC9901 G12 DQ13 IC9901 K2 DQ22 IC9901 D12 DQ26 IC9901 B9 DQ29 IC9901 B3 DM0 IC9901 G13 DQ12 IC9901 K4 VDDQ IC9901 B5 DQ3 IC9901 J10 VSSQ IC9901 N2 CS IC9901 H8 VSS_Thermal IC9901 K8 VSS IC9901 N6 A1 IC9901 E3 VDDQ IC9901 N7 A3 IC9901 H12 DM1 IC9901 L11 VDD IC9901 H4 NC IC9901 H3 DM2 IC9901 K7 VSS IC9901 H7 VSS_Thermal IC9901 E8 VSS IC9901 M4 NC IC9901 D7 VDD IC9901 L7 VDD IC9901 F9 VSS_Thermal IC9901 L3 WE IC9901 G8 VSS_Thermal IC9901 D6 VSSQ IC9901 H9 VSS_Thermal IC9901 N13 VREF IC9901 B4 VSSQ IC9901 D9 VSSQ IC9901 B13 DQS3 IC9901 C3 VDDQ IC9901 F3 DQ16 IC9901 B10 DQ28 IC9901 G2 DQ19 IC9901 D5 VSSQ IC9901 C12 VDDQ IC9901 K3 DQ23 IC9901 D3 DQ5 IC9901 D11 VSSQ IC9901 M12 CK IC9901 B11 VSSQ IC9901 H11 NC IC9901 N3 NC IC9901 G11 VDDQ IC9901 M6 A2 IC9901 K13 DQ8 IC9901 F4 VDDQ IC9901 H13 DQS1 IC9901 K10 VSSQ IC9901 J11 VDDQ IC9901 J9 VSS_Thermal IC9901 F10 VSSQ IC9901 E13 DQ24 IC9901 J4 VDDQ IC9901 C6 DQ1 IC9901 J8 VSS_Thermal IC9901 G5 VSSQ IC9901 D10 VSSQ IC9901 N11 A8/AP IC9901 L12 NC IC9901 J3 DQ20 IC9901 E7 VSS IC9901 C13 DQ27 IC9901 M3 NC IC9901 B7 DQ0 IC9901 F2 DQ17 IC9901 E4 VDD IC9901 J13 DQ10 IC9901 C7 VDDQ IC9901 H6 VSS_Thermal IC9901 E5 VSS IC9901 G9 VSS_Thermal IC9901 D8 VDD L8R2.5V L8R2.5V L8R2.5V R9947 47 EXB38V470JV R9945 47 EXB38V470JV R9948 47 EXB38V470JV R9950 47 EXB38V470JV R9906 47 EXB38V470JV R9949 47 EXB38V470JV R9946 47 EXB38V470JV R9944 47 EXB38V470JV R9951 47 EXB38V470JV R9943 EXB2HV470JV 47 R9903 EXB2HV470JV 47 R9905 33 R9907 150 R9954 47 R9952 47 R9939 1k 1% R9940 33 R9938 1k 1% R9953 47 R9955 47 R9989 3.3k R9990 10k DDR-Terminate DDR-SDRAM IC9901 145 150 153 151 148 152 147 146 149 61 ! A-BOARD (17/19) TNPH0713DC TH-50PV80C A-Board (17/19) Schematic Diagram TH-50PV80C A-Board (17/19) Schematic Diagram 54 TH-50PV80C 10.20.A 电路板 （18/19）线路图 + P S S + + P S S + S + P S + S S + P + S + S + S MAIN_RF_CVBS SQ_R+ HP_ROUT SQ_L- HP_LOUT PWM_SQ_L+ AUDIOOUT_L SQ_L+ TV_R HP_ROUT AUDIOOUT_R ADAV_SCL AH_HDMI_LRCK TV_L AMUTE TV_R ADAV_SDA AH_DMIX0 SQ_R- SQ_L- PWM_SQ_R+ SQ_R+ TV_L AG_RF_AFT1 PWM_SQ_L- AH_SRCK0 AH_IECOUT0 MCLK SQ_L+ AG_AUDIO_XRST PWM_SQ_R- SQ_R- AH_DAUDIO AH_HDMI_BCLK SPDIF_OUT HDMI_SPDIF AH_HDMI_SDIN AUDIOOUT_R AH_LRCK0 HP_LOUT AUDIOOUT_L C2059 10u 10V AV_L C2420 16V 0.1u R2072 100k MAIN_TNR_SW1 C2055 15p 50V C2175 6.3V 47u 680 R2002 C2100 0.1u 16V C2091 50V 10p TV_R R2057 1k C2120 56p 50V C2049 0.1u 16V IC2012 C1BB00000947 1 OUT1 2 MUTE 3 IN1 4 GND 5 IN2 6 BIAS 7 OUT2 8 VCC R2183 C0CBCBE00001 IC2008 1 VOUT 2 NC 3 GND 4 CNCONT 5 SUB 6 VIN 7 C2111 2.2u 6.3V DVDD1.8V C2204 1u 10V R2029 C2118 1u 10V *L2034 J0JCC0000269 C2109 0.1u 16V C2191 10u 10V L2005 J0JCC0000284 C2125 25V 0.01u R2176 270 HP_LOUT R2007 220 R2008 470 C1AB00002909 IC2106 1 FILTA 2 VREF 3 AGND 4 AVDD 5 SIF_REFP 6 SIF_REFCM 7 SIF_REFN 8 SIF_IN1 9 SIF_PGA_REF 10 SIF_IN2 11 AGND 12 AVDD 13 DGND 14 DVDD 15 MUTE 16 SDA 17 SCL 18 SPDIF_IN5/LRCLK2 19 SPDIF_IN6/BCLK2 20 DGND 21 DVDD 22 SDIN0 23 SDIN1 24 SDIN2 25 SPDIF_IN0/SDIN3 26 SPDIF_IN1/LRCLK0 27 SPDIF_IN2/BCLK0 28 ODGND 29 ODVDD 30 MCLK_OUT 31 DVDD 32 DGND 33 MCLKI/XIN 34 XOUT 35 SPDIF_IN4/BCLK1 36 SPDIF_IN3/LRCLK1 37 SDO0/AD0 38 SPDIF_OUT/SDO1 39 PWM_READY 40 DVDD 41 DGND 42 PWM1A 43 PWM1B 44 PWM2A 45 PWM2B 46 PWM3A 47 PWM3B 48 PWM4A 49 PWM4B 50 RESET 51 DVDD 52 DGND 53 AVDD 54 PLL_LF 55 AGND 56 AGND 57 HPOUT1L 58 HPOUT1R 59 AVDD 60 HPOUT2L 61 HPOUT2R 62 AUXOUT3L 63 AUXOUT3R 64 AUXOUT4L 65 AUXOUT4R 66 NC 67 FILTD 68 AVDD 69 AGND 70 AGND 71 AVDD 72 AUXOUT1L 73 AUXOUT1R 74 AUXOUT2L 75 AUXOUT2R 76 AUXIN2L 77 AUXIN2R 78 AUXIN1L 79 AUXIN1R 80 ISET L2001 G1C150KA0038 C2058 0.1u 16V SUB3.3V Q2030 2SB0709A0L C2129 25V 0.01u JS2311 C2114 0.1u 16V C2057 0.1u 16V SUB5V C2054 10u 10V *C2261 0 C2098 6.3V 220u C2414 16V 0.1u 20k 1% R2047 10k R2023 L2031 J0JYC0000068 AUDIOOUT_R *R2193 C2244 0.1u 16V C2213 1000p 50V R2089 15k C2184 50V 1000p *C2266 100p 50V C2116 470p 50V 1% R2026 120k C2151 10u 10V AUD3.3V *C2417 50V 33p C2023 0.1u 16V C2099 6.3V 220u DVDD1.8V TV_L C2203 1u 10V C2264 10u 10V ADAV_SDA 1M R2003 R2189 C2117 0.1u 16V R2174 220 R2271 22 EXB28V220JX C0DBFFD00003 IC2107 1 2 3 4 5 6 7 C2188 470p 50V DVDD3.3V C2198 25V 0.033u R2068 L2028 J0JYC0000068 R2016 10k SPDIF_OUT C2197 25V 0.033u L2025 J0JCC0000269 TUNER_SDA C2128 25V 0.01u MAIN_TNR_SW2 C2102 0.1u 16V C2195 50V 1000p R2111 10k R2071 100k R2092 10k R2031 1% R2027 75k C2112 10u 10V R2058 10k C2113 10u 10V C2411 50V 0.1u R2179 220 C2124 0.1u 16V C2176 25V 0.01u C2187 2.2u 6.3V TUNER_SCL C2409 6.3V 1000u C2180 1u 10V 1% R2075 158k R2030 *TU8301A ENG39E04GF NC 5 NC 6 SW1 7 SW2 8 +B 9 AUDIO_OUT 10 SIF_OUT 11 NC 12 SCL 13 SDA 14 RF_AGC_MONITOR 15 VB 16 NC 17 BTL 18 NC 19 AFT_OUT 20 VIDEO_OUT 21 R2064 100 C2126 10u 10V *C2416 50V 33p C2174 1u 10V D2201 MA3X704A0L 20k 1% R2050 C2110 0.1u 16V C2245 1000p 50V ADAV_SCL C2053 0.1u 16V C2106 0.1u 16V MAIN9V C2202 2.2u 6.3V C2127 25V 0.01u R2006 470 R2175 560 *C2262 0 C2192 47u 6.3V R2204 R2093 10k C2418 25V 0.01u 20k 1% R2019 SUB5V C2115 0.1u 16V C2419 50V 100p R2065 82k 68 R2172 C2056 18p 50V JS2313 C2189 1u 10V C2108 47u 6.3V C2101 10u 10V R2015 10k R2033 SUB5V L2006 J0JCC0000284 C2048 0.1u 16V C2415 16V 0.1u C2216 0.1u 16V R2032 C2107 47u 6.3V C2246 10u 10V R2063 100 20k 1% R2051 20k 1% R2048 C2251 10u 10V Q2001 2SD0601A0L R2017 10k 2k 1% R2020 H0J245500089 X2010 C2092 50V 22p C2096 16V 0.1u C2052 0.1u 16V C2121 56p 50V C2135 25V 0.01u R2132 470 R2207 C2412 10u 50V JS2303 VJUMP1005-S R2211 1k AUD3.3V C2136 25V 0.01u D2013 MA2J11100L C2050 0.1u 16V AUDIOOUT_L C2138 0.1u 16V C2263 10u 10V C2201 10V 0.047u C2179 6.3V 47u R2090 15k L2032 J0JYC0000068 1% R2074 68k AV_R R2066 C2407 6.3V 100u HP_ROUT DVDD3.3V L2030 J0JYC0000068 C2105 0.1u 16V C2137 10u 10V R2018 10k R2034 C0DBGYY00281 IC2013 1 NC 2 VSS 3 CE 5 VOUT 4 VIN *L2033 J0JCC0000269 0 L2026 J0JCC0000269 *C2265 100p 50V TO 11/19 HDMI_BCLK >> HDMI_LRCLK >> TO 11/19 DTV2_SDIN >> Lin DTV_BCLK >> IIC2(5V) TO 1/19 DTV_LRCLK >> TO 11/19 AUDIO DSP 1.8V HP AMP DTV_SDIN >> << SPDIF_IN, OUT>> HDMI_SDIN >> 5V 3.3V IIC2 TO 1/19 154 159 162 160 157 161 156 155 158 72 71 75 74 73 ! ! A-BOARD (18/19) TNPH0713DC TH-50PV80C A-Board (18/19) Schematic Diagram TH-50PV80C A-Board (18/19) Schematic Diagram 55 TH-50PV80C 10.21.A 电路板 （19/19）线路图 Thermal Pad + + + S + AH_DAUDIO AG_SOUND_SOS A_MON_MUTE/SP_MUTE AH_SRCK0 MAIN_RF_CVBS AG_SOUND_SOS AG_AUDIO_XRST AG_RF_AFT1 PWM_SQ_L- MONITOROUT_MUTE AUDIO_MUTE MONITOROUT_MUTE PWM_SQ_R+ AMUTE AH_HDMI_SDIN AH_IECOUT0 PWM_SQ_R- STB_RST PWM_SQ_L+ MCLK A_MON_MUTE/SP_MUTE AH_HDMI_BCLK STB_RST HDMI_SPDIF AH_DMIX0 AUDIO_MUTE AH_LRCK0 AMUTE AH_HDMI_LRCK C2413 10V 1u R2073 680 C2341 25V 0.33u AH_HDMI_SDIN C1AB00002875 IC2301 1 STBY 2 NC1 3 MUTE 4 NC2 5 PWM_A1 6 NC3 7 PWM_B1 8 NC4 9 VREG5 10 GND 11 NC5 12 PWM_B2 13 NC6 14 PWM_A2 15 NC7 16 NOD_THERM 17 NOD_OUTSHDN 18 NC8 19 PVD2 20 PVD2 21 OUT_CH2_P 22 BOOT_CH2_P 23 VDDA2 24 BOOT_CH2_N 25 OUT_CH2_N 26 PGND2 27 PGND2 28 PGND1 29 PGND1 30 OUT_CH1_N 31 BOOT_CH1_N 32 VDDA1 33 BOOT_CH1_P 34 OUT_CH1_P 35 PVD1 36 PVD1 TP2012 R2141 1k STB5V C2395 0.47u 50V C2402 16V 0.1u C2375 50V 0.022u R2129 10 C2343 25V 0.33u AH_SRCK0 AG_RF_AFT1 SUB5V C2353 50V 0.1u R2142 2.2k MAIN_RF_CVBS L2010 G1C220MA0291 TP2010 R2096 47k D2020 MA3X78900L C2119 10V 220u AG_A_MON_MUTE/SP_MUTE D2007 MA2J11100L D2014 MA2J11100L AH_DAUDIO AH_HDMI_LRCK C2309 25V 1u C1AB00002877 IC2403 1 DTV5VIN2 2 DTV5VIN1A 3 DTV5VIN1B 4 DTV5VOUTA 5 DTV5VOUTB 6 REF1 7 NC 8 FB1 9 FB2 10 NC 11 SFS 12 NC 13 OUT 14 GND1 15 Vref1 16 STB_RST 17 Cd 18 STB3.3V_OUT 19 REG5V_IN 20 GND2 21 MONITOR_MUTE 22 MUTE_PWR_SENSE_IN 23 AUDIO_MUTE_IN 24 MUTE_VCC 25 PWR_SENSE_MUTE_OUT 26 STB_RST_IN 27 A_MON_MUTE_IN 28 AMUTE 29 MAIN9V 30 STB5V C2339 50V 0.022u C2406 25V 47u D2010 MA2J11100L MONITOROUT_MUTE C2361 25V 470u R2094 STB5V AG_SOUND_SOS STB3.3V C2303 25V 1u C2389 50V 1000p TP2014 1% R2165 3.4k R2121 3.3 JS2061 AH_LRCK0 AH_HDMI_BCLK C2410 2.2u 6.3V STB5V JS2060 MCLK L2021 G1C470MA0291 C2333 25V 0.33u R2127 3.3 R2137 10 C2347 50V 0.022u 1% R2164 100k C2427 10V 1u R2097 1M C2317 0.1u 50V SOUND15V R2114 2.2k AG_AUDIO_MUTE SUB5V AG_RF_AFT2 C2400 16V 0.1u TP2008 C2319 0.1u 50V STB_RST C2305 25V 1u DTV9V C2379 50V 0.022u C2321 0.1u 50V D2004 MA2J11100L AG_AUDIO_XRST L2023 G1C3R0ZA0156 L2022 G1C100MA0072 DTV9V D2009 MA2J11100L C2362 10u 25V R2180 47k TP2032 R2118 470 C2364 10u 25V D2301 B0HCMM000014 AH_DMIX0 D2302 B0HCMM000014 R2052 330 JS2062 Q2027 B1CFNG000001 L2300 J0JYC0000068 C2393 10u 16V R2095 47k C2335 25V 0.33u Q2033 2SB0709A0L L2014 G1C220MA0291 C2313 1u 10V JS2059 C2359 50V 0.1u C2381 50V 0.022u S_15V A12 1 2 3 4 R2115 2.2k L2016 G1C220MA0291 C2323 0.1u 50V BT30V AH_IECOUT0 C2301 16V 0.1u R2098 10k C2345 50V 0.022u R2125 3.3 1% R2300 4.7k L2012 G1C220MA0291 C2365 10u 25V D2017 MA2J11100L C2404 50V 1000p D2024 B0BC03900015 HDMI_SPDIF D2006 MA2J11100L C2307 25V 1u C2302 16V 0.1u TP2009 D2005 MA2J11100L C2387 50V 1000p L2018 J0JHC0000042 MAIN9V TP2017 C2408 16V 0.1u R2133 10 C2383 50V 1000p C2377 50V 0.022u C2385 50V 1000p R2123 3.3 Q2022 2SB0709A0L C2337 50V 0.022u C2394 0.47u 50V R2200 15k C2401 180p 50V MAIN9V C2403 35V 22u AUDIO_MUTE TO SPEAKER L- TO 4/19 TO 8/19 TO 6/19 SPDIF_IN AFC2(NC) RESET DTV2_SDIN DTV_LRCK AUDIO_XRST TO 6/19 TO 6/19 DTV_SDIN OPERATE MUTE OPERATE SP_MUTE MUTE MUTE AFC1 R+ TO 11/19 TO 6,8/19 R- MUTE GENX_RST SOUND_SOS SOS DTV_BCLK HDMI_BCLK L+ AUDIO AMP STB3.3V/MUTE/RESET HDMI_SDIN OPERATE HDMI_LRCK TO 8/19 MUTE 163 168 171 169 166 170 165 164 167 71 73 72 75 74 ! A-BOARD (19/19) TNPH0713DC TH-50PV80C A-Board (19/19) Schematic Diagram TH-50PV80C A-Board (19/19) Schematic Diagram 56 TH-50PV80C 10.22.C1 电路板 （1/2）线路图 TERM SIDE TERM SIDE TERM SIDE TERM SIDE CLR_C1 AA_DDC20 AA_DDA20 AA_DDC20 CLKD_11N AA_DDB20 AA_DDA20 AA_DDB20 LE_C1 AA_DDA21 AA_DDB21 AA_DDC21 ODE_C1 AA_DDC21 AA_DDB21 AA_DDA21 CLKD_01P AA_DDC19 AA_DDA18 AA_DDB18 AA_DDC18 CLKD_02P AA_DDA18 AA_DDA19 AA_DDA19 ODE_C1 LE_C1 AA_DDB19 AA_DDC18 CLKD_12N AA_DDC19 AA_DDB19 AA_DDB18 CLR_C1 CLKD_23P AA_DDB16 AA_DDA17 AA_DDC16 LE_C1 CLKD_33N AA_DDB17 AA_DDC17 AA_DDA16 ODE_C1 CLR_C1 ODE_C1 CLKD_24P AA_DDA14 AA_DDB14 LE_C1 AA_DDC15 AA_DDC14 AA_DDB14 AA_DDA15 AA_DDB15 CLKD_34N AA_DDA14 AA_DDA15 AA_DDB15 CLR_C1 AA_DDC15 AA_DDC14 AA_DDC17 AA_DDB17 AA_DDA17 AA_DDB16 AA_DDA16 AA_DDC16 PC2_C1 PC2_C1 PC1_C1 PC1_C1 C17112 10V 1u C17141 10V 1u C17142 10V 1u C17143 250V 0.15u C17134 250V 0.15u C17131 10V 1u C17144 250V 0.15u C17132 10V 1u C17124 250V 0.15u C17121 10V 1u C17133 250V 0.15u C17111 10V 1u C17114 250V 0.15u C17123 250V 0.15u C17122 10V 1u C17113 250V 0.15u 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 VDA_75V VDA_75V C1_5V VDA_75V C1_5V C1_5V C1_5V VDA_75V R17121 EXB38V471JV R17122 EXB38V471JV R17142 EXB38V471JV R17141 EXB38V471JV R17112 EXB38V471JV R17111 EXB38V471JV R17132 EXB38V561JV R17131 EXB38V471JV R17147 6.8 R17136 6.8 R17116 6.8 R17191 4.7k R17146 6.8 R17117 6.8 R17137 6.8 R17127 6.8 R17126 6.8 NC NC A4-1 VDD1 A6-1 NC GND GND VDD1 NC A5-2 GND DM GND GND GND A3-2 NC NC GND VDD2 VDD2 FX1 VDD1 GND NC NC A3-1 A2-2 VDD2 GND VDD2 VDD2 NC NC GND GND GND VDD2 GND DM BLK A2-1 VDD2 VDD2 VDD2 VDD2 GND CLR A1-2 GND VDD2 A6-2 A1-1 DSEL LEN VDD2 NC NC VDD1 A4-2 GND NC A5-1 NC ODE FX2 NC GND NC GND A1-2 DM A1-1 NC NC GND NC A6-1 NC BLK VDD2 FX2 GND GND A2-1 LEN GND VDD2 VDD1 NC CLR A5-2 VDD2 FX1 GND A4-1 A3-1 A2-2 GND NC VDD2 GND GND NC A4-2 GND GND DM A6-2 VDD2 ODE VDD1 NC GND VDD2 VDD2 NC VDD2 DSEL VDD2 VDD2 NC GND VDD1 A5-1 NC VDD1 GND NC GND VDD2 A3-2 VDD2 NC NC GND NC GND FX2 NC NC NC DM BLK VDD2 A5-2 GND VDD2 DM GND GND LEN VDD2 NC A1-2 NC GND NC VDD2 A3-1 GND A2-2 GND GND NC VDD1 NC A3-2 A2-1 NC NC A4-2 A4-1 VDD1 GND VDD2 VDD2 GND A6-1 A6-2 VDD2 NC GND VDD2 ODE VDD2 VDD2 FX1 NC GND GND CLR GND A5-1 A1-1 NC GND VDD2 VDD1 VDD2 DSEL NC VDD1 GND NC GND LEN A4-2 DM A4-1 ODE BLK A2-2 VDD2 GND VDD2 VDD1 NC NC NC NC GND VDD1 NC NC VDD2 VDD2 GND FX1 A6-1 A6-2 NC VDD1 NC NC VDD2 GND A3-1 A3-2 GND A2-1 GND VDD2 VDD2 GND DSEL VDD2 GND NC VDD1 A1-2 GND NC A5-1 A1-1 GND VDD2 DM GND GND VDD2 FX2 NC A5-2 NC CLR GND GND VDD2 VDD2 NC 1 7 3 D C 4 F A B E 9 6 8 2 5 PANEL DATA TO DRIVER CB2 CB4 PANEL DATA TO DRIVER CB3 DRIVER TO PANEL DATA CB1 PANEL DATA TO DRIVER C1-BOARD TXNC11RQTC (1/2) ! 1 2 3 4 5 6 TH-50PV80C C1-Board (1/2) Schematic Diagram TH-50PV80C C1-Board (1/2) Schematic Diagram 57 TH-50PV80C 10.23.C1 电路板 （2/2）线路图 SIDE TERM TERM SIDE TERM SIDE LE_C1A AA_DDA13 PC1_C1A CLKD_2P CLKD_3N AA_DDC20 AA_DDC19 ODE_C1A AA_DDB19 CLR_C1A AA_DDB18 AA_DDB13 AA_DDA20 CLKD_0P AA_DDB20 AA_DDB12 AA_DDC17 AA_DDA14 AA_DDA16 5V_DET AA_DDC16 AA_DDA18 AA_DDA21 AA_DDB15 AA_DDB21 AA_DDA17 CLKD_25P AA_DDB17 AA_DDC18 AA_DDC21 AA_DDC12 AA_DDC15 AA_DDC13 LE_C1 AA_DDB16 AA_DDA12 AA_DDA19 CLKD_1N ODE_C1 AA_DDB14 AA_DDA15 AA_DDC14 CLKD_24P CLR_C1 PC2_C1 PC2_C1A CLKD_2P CLKD_3N CLR_C1A ODE_C1A PC1_C1 CLKD_02P CLKD_12N CLKD_01P CLKD_23P CLKD_34N CLKD_35N CLKD_33N CLKD_11N PC1_C1A LE_C1A CLKD_0P CLKD_1N ODE_C1 AA_DDB12 AA_DDC13 AA_DDC12 AA_DDA13 AA_DDB13 CLKD_35N AA_DDA12 CLR_C1 CLKD_25P AA_DDC13 AA_DDB13 AA_DDA13 AA_DDB12 AA_DDA12 AA_DDC12 LE_C1 PC2_C1 PC2_C1A C17153 250V 0.15u C17152 10V 1u C17151 10V 1u C17165 16V 0.1u C17154 250V 0.15u C17161 10V 1u C17163 16V 0.1u C0JBAZ002692 IC17101 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17102 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C1_5V C1_5V C1_5V VDA_75V C1_5V VDA_75V ZA17105 K4AD01Z00001 ZA17103 K4AD01Z00001 ZA17106 K4AD01Z00001 ZA17101 K4AD01Z00001 ZA17102 K4AD01Z00001 ZA17104 K4AD01Z00001 R17151 EXB38V471JV R17152 EXB38V471JV R17162 EXB38V220JV R17164 EXB38V102JV R17163 EXB38V220JV R17167 EXB38V102JV R17165 EXB38V220JV R17166 EXB38V470JV R17156 6.8 R17161 0 R17157 6.8 R17170 1k R17172 47 R17171 47 GND PC1_C1 GND GND DOUTDA[15] GND DOUTDC[15] CLR_C1 GND GND DOUTDB[17] DOUTDB[21] P5V DOUTDB[18] DOUTDB[15] P5V NC DOUTDC[13] CLK1N_C1 GND DOUTDA[12] DOUTDB[12] NC DOUTDB[20] NC DOUTDC[14] NC Vda 75V DOUTDB[19] NC GND Vda 75V 5V_DET DOUTDC[17] Vda 75V GND DOUTDC[19] DOUTDA[17] NC GND NC DOUTDA[21] Vda 75V P5V GND GND GND CLK0P_C1 Vda 75V DOUTDA[20] DOUTDC[20] DOUTDA[16] DOUTDB[14] Vda 75V GND GND DOUTDA[14] CLK3N_C1 DOUTDC[18] DOUTDA[19] GND DOUTDB[13] DOUTDA[13] DOUTDB[16] ODE_C1 5V_DET DOUTDC[12] DOUTDC[16] LE_C1 CLK2P_C1 DOUTDA[18] DOUTDC[21] Vda 75V GND PC2_C1 C10 1 20 1 55 1 68 68 1 68 1 68 1 68 1 C11 GND NC GND LEN A4-2 DM A4-1 ODE BLK A2-2 VDD2 GND VDD2 VDD1 NC NC NC NC GND VDD1 NC NC VDD2 VDD2 GND FX1 A6-1 A6-2 NC VDD1 NC NC VDD2 GND A3-1 A3-2 GND A2-1 GND VDD2 VDD2 GND DSEL VDD2 GND NC VDD1 A1-2 GND NC A5-1 A1-1 GND VDD2 DM GND GND VDD2 FX2 NC A5-2 NC CLR GND GND VDD2 VDD2 NC 12 18 10 16 17 13 15 11 14 DRIVER TO PANEL DATA CB5 BUFFER BUFFER ! TO A-BOARD (A31) TO C2-BOARD (C20) 1 2 3 4 5 6 TH-50PV80C C1-Board (2/2) Schematic Diagram TH-50PV80C C1-Board (2/2) Schematic Diagram C1-BOARD TXNC11RQTC (2/2) 58 TH-50PV80C 10.24.C2 电路板 （1/2）线路图 SIDE TERM TERM SIDE TERM SIDE TERM SIDE AA_DDA2 ODE_C3 AA_DDB9 AA_DDC11 AA_DDB7 UML_C2 AA_DDC4 AA_DDA6 CLKU_07P CLKU_3N UEL AA_DDB3 USL_C2 CLKU_08P AA_DDC1 CLR_C2 LE_C3 LE_C2 UML AA_DDB5 LE_C2A UEH AA_DDB4 CLKU_0P AA_DDA1 USH_C2 AA_DDC8 AA_DDC9 AA_DDB1 PC3_C2A SOS8_C2 AA_DDC6 AA_DDB11 AA_DDC2 AA_DDB6 AA_DDC7 AA_DDA7 USH PC4_C3 ODE_C2 CLKU_06P AA_DDC0 CLKU_16N AA_DDA8 AA_DDA5 PC3_C2 AA_DDA0 USL CLKU_2P AA_DDB10 CLR_C3 AA_DDA9 UMH AA_DDC3 AA_DDC5 AA_DDA11 CLKU_1N AA_DDC10 CLKU_0P AA_DDA3 CLKU_18N AA_DDB0 AA_DDA10 AA_DDA4 UMH_C2 CLKU_17N AA_DDB2 AA_DDB8 CLR_C2A ODE_C2A PC4_C3A CLKU_1N PC3_C2A ODE_C2A CLR_C2A LE_C2A UEL UEH USL USH UML UMH UEL_C2 UEH_C2 AA_DDA10 AA_DDC10 CLKU_16N AA_DDA11 AA_DDA11 AA_DDB10 AA_DDB11 AA_DDA10 CLKU_06P AA_DDB10 CLR_C2 AA_DDC10 AA_DDC11 AA_DDB11 LE_C2 AA_DDC11 ODE_C2 AA_DDC9 AA_DDB8 CLKU_07P AA_DDC8 AA_DDA8 AA_DDA9 ODE_C2 AA_DDA8 AA_DDB9 AA_DDB8 CLKU_17N AA_DDC8 LE_C2 AA_DDC9 AA_DDA9 CLR_C2 AA_DDB9 PC3_C2 PC3_C2 PC4_C3A C17211 10V 1u C17224 250V 0.15u C17264 16V 0.1u C17214 250V 0.15u C17261 10V 1u C17221 10V 1u C17212 10V 1u C17262 16V 0.1u C17222 10V 1u C17266 16V 0.1u C17213 250V 0.15u C17223 250V 0.15u C0JBAZ002692 IC17201 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17203 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17202 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 VDA_75V VDA_75V C2_5V C2_5V VDA_75V C2_5V C2_5V C2_5V C2_5V R17221 EXB38V471JV R17222 EXB38V471JV R17266 EXB38V470JV R17262 EXB38V470JV R17273 EXB38V222JV R17263 EXB38V470JV R17267 EXB38V222JV R17274 EXB38V222JV R17271 EXB38V470JV R17264 EXB38V102JV R17265 EXB38V470JV R17272 EXB38V470JV R17212 EXB38V471JV R17211 EXB38V471JV R17216 6.8 R17217 6.8 R17227 6.8 R17261 0 R17268 2.2k R17226 6.8 DOUTDA[3] DOUTDC[4] DOUTDC[11] DOUTDB[1] GND GND GND UMH DOUTDC[6] DOUTDA[8] GND DOUTDC[0] DOUTDA[7] DOUTDC[1] ODE DOUTDB[11] CLR DOUTDB[7] DOUTDC[8] DOUTDA[2] DOUTDB[8] DOUTDA[4] PC3_C2 DOUTDA[0] P5V Vda 75V CLK2P_C2 GND UEH NC GND DOUTDB[0] Vda 75V NC 5V_DET DOUTDC[9] DOUTDA[5] GND DOUTDC[2] GND DOUTDA[11] LE USH NC Vda 75V GND Vda 75V NC NC DOUTDB[4] DOUTDB[2] GND GND DOUTDC[7] GND NC SOS8_SS P5V CLK1N_C2 DOUTDC[10] DOUTDA[1] DOUTDB[6] DOUTDA[10] DOUTDB[5] DOUTDA[9] Vda 75V USL DOUTDB[9] GND UEL DOUTDA[6] GND DOUTDC[3] NC DOUTDC[5] DOUTDB[10] Vda 75V CLK0P_C2 UML GND CLK3N_C2 P5V DOUTDB[3] NC GND GND Vda 75V PC4_C3 VDD1 NC A4-2 GND A5-1 VDD1 VDD2 GND VDD2 GND A5-2 A6-2 GND GND A3-2 GND GND NC NC A1-2 VDD2 NC GND GND VDD2 VDD2 NC NC NC GND GND DM DM CLR NC VDD1 VDD2 A2-1 GND NC A4-1 NC FX1 FX2 DSEL GND VDD2 VDD2 VDD2 VDD1 VDD2 NC NC NC BLK NC VDD2 A2-2 VDD2 A3-1 GND NC ODE A6-1 A1-1 GND GND LEN A6-2 GND FX1 FX2 GND VDD1 DSEL A3-2 VDD2 NC VDD2 A4-1 VDD1 NC VDD2 VDD1 NC DM DM GND GND GND GND VDD2 NC ODE A1-1 A6-1 GND A4-2 GND GND GND VDD2 VDD2 CLR VDD2 NC NC NC A3-1 NC GND NC GND LEN GND VDD2 A5-1 GND A1-2 A5-2 VDD2 NC BLK NC VDD2 A2-2 VDD2 NC VDD1 NC VDD2 GND A2-1 GND NC NC 9 4 B A E 7 D 5 3 8 2 C 1 F 6 TO PANEL DATA DRIVER CB6 TO PANEL DATA DRIVER CB7 BUFFER BUFFER BUFFER C2-BOARD TXNC21RQTC (1/2) ! TO C1-BOARD (C10) TO A-BOARD (A32) 1 2 3 5 4 6 7 8 TH-50PV80C C2-Board (1/2) Schematic Diagram TH-50PV80C C2-Board (1/2) Schematic Diagram 59 TH-50PV80C 10.25.C2 电路板 （2/2）线路图 TERM SIDE TERM SIDE LE_C3 AA_DDA4 AA_DDC3 AA_DDC4 AA_DDC1 PC4_C3 AA_DDB3 AA_DDB0 AA_DDA3 USL_C2 AA_DDA1 AA_DDA2 AA_DDB1 ODE_C3 UMH_C2 AA_DDB2 AA_DDC0 UML_C2 AA_DDC5 UEL_C2 AA_DDA5 UEH_C2 CLKU_3N USH_C2 AA_DDA0 SOS8_C2 CLR_C3 AA_DDB5 AA_DDC2 CLKU_2P AA_DDB4 CLR_C2 AA_DDA6 AA_DDA7 AA_DDA6 ODE_C2 AA_DDC6 AA_DDC7 CLKU_18N AA_DDC7 AA_DDB6 AA_DDC6 LE_C2 CLKU_08P AA_DDB7 AA_DDB6 AA_DDB7 AA_DDA7 5V_DET PC3_C2 C17234 250V 0.15u C17231 10V 1u C17268 10V 1u C17232 10V 1u C17233 250V 0.15u C22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 VDA_75V C2_5V VDA_75V C2_5V R17231 EXB38V471JV R17232 EXB38V471JV R17275 0 R17237 6.8 R17236 6.8 CLR_C3 AA_DDB1 AA_DDC0 AA_DDA1 Vda 75V GND GND Vda 75V GND NC Vda 75V AA_DDA3 Vda 75V AA_DDB2 NC AA_DDC1 SOS8_SS AA_DDC4 AA_DDB3 P5V Vda 75V GND AA_DDC5 UMH AA_DDC3 AA_DDA4 LE_C3 PC4_C3 AA_DDB0 CLKU_3N UEL NC P5V UEH 5V_DET UML GND GND GND USL USH AA_DDA5 NC AA_DDC2 Vda 75V AA_DDB5 GND AA_DDA2 AA_DDB4 AA_DDA0 CLKU_2P ODE_C3 GND GND GND FX1 A4-2 GND A5-1 GND A1-2 A5-2 VDD2 CLR VDD2 NC NC GND DM DM GND GND NC A3-1 GND NC GND GND VDD2 NC VDD2 GND A2-1 GND NC NC VDD1 GND DSEL GND A3-2 VDD2 VDD2 NC GND NC LEN BLK GND NC NC VDD2 VDD2 VDD2 A6-2 A2-2 A4-1 FX2 VDD1 GND VDD2 NC VDD1 NC VDD2 NC VDD2 VDD1 NC ODE A1-1 A6-1 GND 16 10 17 14 18 11 13 12 15 PANEL DATA DRIVER CB8 TO ! TO C3-BOARD (C32) 8 3 4 5 6 1 2 7 TH-50PV80C C2-Board (2/2) Schematic Diagram TH-50PV80C C2-Board (2/2) Schematic Diagram C2-BOARD TXNC21RQTC (2/2) 60 TH-50PV80C 10.26.C3 电路板 （1/2）线路图 TERM SIDE TERM SIDE TERM SIDE AA_DDC2 CLR_C3A AA_DDA4 AA_DDC3 AA_DDC1 AA_DDB0 USL_C3 AA_DDA2 CLKU_2P AA_DDC4 AA_DDB2 ODE_C3A AA_DDA3 AA_DDC0 AA_DDA1 AA_DDC5 AA_DDB1 AA_DDB4 UMH_C3 UML_C3 AA_DDA5 CLKU_3N UEH_C3 USH_C3 AA_DDA0 SOS8_C3 AA_DDB5 AA_DDB3 CLKU_39N CLKU_30N CLKU_21P UEL_C3 AB_DDB5 AB_DDA5 AB_DDC5 AB_DDA4 AB_DDC4 AB_DDB4 PC4_C3 LE_C3 CLKU_29P CLKU_20P CLKU_3N CLKU_2P CLR_C3A ODE_C3A PC4_C3A CLR_C3 ODE_C3 LE_C3A AB_DDA3 AB_DDB3 AB_DDC3 AB_DDA2 AB_DDB2 AB_DDC2 CLKU_31N LE_C3 AB_DDC5 AB_DDC4 AB_DDC5 AB_DDB4 AB_DDC4 CLR_C3 ODE_C3 CLKU_39N AB_DDB4 AB_DDB5 CLKU_29P AB_DDA4 AB_DDA5 AB_DDA4 AB_DDB5 AB_DDC2 AB_DDA3 AB_DDB2 AB_DDC3 ODE_C3 CLKU_30N LE_C3 AB_DDA2 CLKU_20P CLR_C3 AB_DDC2 AB_DDC3 AB_DDA3 AB_DDB3 AB_DDB2 AB_DDB3 AB_DDA2 AA_DDA5 AA_DDB5 AA_DDC5 AA_DDA4 AA_DDB4 AA_DDC4 PC4_C3A LE_C3A AA_DDA3 AA_DDB3 AA_DDC3 AA_DDA2 AA_DDB2 AA_DDC2 PC4_C3 PC4_C3 AB_DDA5 C17361 10V 1u C17322 10V 1u C17321 10V 1u C17311 10V 1u C17366 16V 0.1u C17312 10V 1u C17313 250V 0.15u C17323 250V 0.15u C17324 250V 0.15u C17314 250V 0.15u C17364 16V 0.1u C17362 16V 0.1u C0JBAZ002692 IC17302 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17303 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17301 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 VDA_75V VDA_75V C3_5V C3_5V C3_5V VDA_75V C3_5V C3_5V C3_5V R17375 EXB38V471JV R17369 EXB38V470JV R17363 EXB38V220JV R17373 EXB38V470JV R17374 EXB38V470JV R17371 EXB38V471JV R17376 EXB38V471JV R17367 EXB38V102JV R17372 EXB38V471JV R17364 EXB38V220JV R17368 EXB38V470JV R17361 0 R17316 6.8 R17327 6.8 R17325 680 R17326 6.8 R17315 680 R17317 6.8 R17366 47 R17365 47 R17362 1k USH AA_DDC5 NC UMH AA_DDC1 SOS8_SS AA_DDC3 AA_DDA4 AA_DDA5 LE_C3 PC4_C3 AA_DDB0 AA_DDC2 CLKU_3N Vda 75V Vda 75V GND AA_DDB5 GND GND AA_DDA2 AA_DDB4 AA_DDA0 CLKU_2P ODE_C3 NC Vda 75V UEL GND NC AA_DDC4 P5V CLR_C3 GND AA_DDB3 GND Vda 75V AA_DDB1 UEH P5V AA_DDA3 Vda 75V 5V_DET AA_DDC0 UML GND Vda 75V AA_DDA1 AA_DDB2 GND GND GND USL NC GND NC VDD2 FX1 NC A4-2 GND A5-1 VDD2 VDD1 NC BLK ODE GND NC NC A2-2 A4-1 FX2 VDD1 A1-1 A6-1 A3-2 VDD2 VDD2 NC A2-1 GND NC VDD1 NC GND DSEL GND CLR VDD2 NC GND NC VDD2 GND NC DM GND VDD1 DM NC LEN VDD2 NC VDD2 GND GND GND NC GND GND NC GND A3-1 VDD2 VDD2 VDD2 A6-2 GND A1-2 A5-2 VDD2 VDD2 A3-2 A4-2 VDD1 VDD2 A3-1 NC NC VDD2 VDD2 NC GND BLK ODE GND GND FX1 NC DSEL A6-1 VDD2 NC NC NC A2-1 NC GND A1-1 VDD1 NC GND CLR VDD1 VDD2 GND GND GND A5-1 GND GND VDD2 NC FX2 A4-1 NC GND NC VDD1 GND A2-2 GND VDD2 A5-2 DM VDD2 A6-2 DM NC GND NC VDD2 A1-2 GND LEN GND VDD2 VDD2 GND NC 1 2 5 3 6 8 9 4 7 B A E D C F TO PANEL DATA DRIVER CB9 TO C2-BOARD (C22) TO PANEL DATA DRIVER CB10 BUFFER BUFFER BUFFER C3-BOARD TXNC31RQTC (1/2) ! 1 2 3 4 5 6 TH-50PV80C C3-Board (1/2) Schematic Diagram TH-50PV80C C3-Board (1/2) Schematic Diagram 61 TH-50PV80C 10.27.C3 电路板 （2/2）线路图 TERM SIDE AB_DDC0 AB_DDB0 AB_DDA0 AB_DDC1 AB_DDB1 AB_DDA1 UEH_C3 USL_C3 USH_C3 UML_C3 UMH_C3 SOS8_C3 CLKU_21P AB_DDC0 ODE_C3 CLKU_31N AB_DDA0 AB_DDB1 AB_DDB0 AB_DDB0 AB_DDA1 AB_DDA1 AB_DDC0 AB_DDC1 AB_DDC1 LE_C3 CLR_C3 AB_DDA0 AB_DDB1 UEL_C3 AA_DDA1 AA_DDB1 AA_DDC1 AA_DDA0 AA_DDB0 AA_DDC0 PC4_C3 C17333 250V 0.15u C17368 16V 0.1u C17332 10V 1u C17390 100V 1u C17331 10V 1u C17334 250V 0.15u C0JBAZ002692 IC17304 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C33 1 2 3 4 5 6 7 8 9 10 11 12 VDA_75V C3_5V C3_5V C3_5V VDA_75V ZA17302 K4AD01Z00001 ZA17303 K4AD01Z00001 ZA17304 K4AD01Z00001 ZA17301 K4AD01Z00001 R17380 EXB38V471JV R17379 EXB38V471JV R17378 EXB38V470JV R17377 EXB38V470JV R17391 4.7k R17390 220k R17337 6.8 R17335 680 R17336 6.8 NC P5V UEL UEH USL USH UML UMH SOS8_SS GND 68 55 1 68 1 1 68 C32 1 VDD1 GND A5-2 VDD2 VDD2 A4-1 LEN NC GND ODE GND A2-2 GND GND GND VDD2 NC GND A2-1 DM A4-2 VDD1 NC GND A6-1 NC GND NC NC BLK VDD2 NC FX1 NC NC VDD2 VDD2 VDD1 NC VDD1 CLR NC A3-2 VDD2 A1-1 DM VDD2 GND GND NC NC NC DSEL FX2 A1-2 A6-2 A5-1 NC VDD2 VDD2 GND GND VDD2 A3-1 GND GND GND VDD2 Vda 75V Vda 75V 12 15 11 13 14 18 16 10 17 TO PANEL DATA DRIVER CB11 BUFFER TO SS-BOARD (SS23) ! 2 3 6 1 5 4 TH-50PV80C C3-Board (2/2) Schematic Diagram TH-50PV80C C3-Board (2/2) Schematic Diagram C3-BOARD TXNC31RQTC (2/2) 62 TH-50PV80C 10.28.SC 电路板 （1/3）线路图 + + TERM SIDE + AA_CLK AA_CEL AA_SIU CEL OC2 CPH2 CPH1 CML CML CMH CMH CSL CSL CSH AA_SCSU AA_OC2 AA_CML AA_CMH AA_CSH AA_CPH1 AA_CPH2 AA_OC1 AA_CSH AA_CML AA_CMH CERS AA_CERS AA_CSL AA_CSL AA_DRV_RST C16480 50V 0.1u C16471 630V 1000p C16581 25V 1u C16505 25V 4.7u C16521 25V 1u C16524 25V 4.7u C16525 25V 4.7u C16502 25V 4.7u C16491 630V 1000p C16504 25V 4.7u C16566 50V 0.01u C16565 50V 0.01u C16522 25V 4.7u C16582 16V 1u C16421 630V 5600p C16402 5600p 630V C16564 16V 1u C16562 16V 1u *C16441 50V 3900p C16593 50V 1000p C16563 10V 100u D16451 B0ECKP000047 D16523 B0ECKP000047 D16466 MA2J11100L D16501 B0ECKP000047 D16585 MA2J11100L D16441 B0ECKP000047 D16522 B0ECKP000047 D16480 MA2J11100L D16503 B0ECKP000047 D16521 B0ECKP000047 D16583 LNJ301MPUJA C0JBAA000377 IC16472 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y IC16581 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC C0ZBZ0000895 IC16501 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0ZBZ0001324 IC16521 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC SC2 1 3 SOS7_SC2 15V 5V 5V 15V SOS7_SC2 MAIN_STOP VSUS 15V VF_GND 15V VSUS VSUS 5V MAIN_STOP 15V ZA16401 K4CD01000011 ZA16402 K4CD01000011 TP17 TP2 TP12 TP11 TP32 TP21 TP24 TP22 TP23 TP27 TP37 TP74 TP18 TP3 TP5 TP35 TP14 TP19 TP16 TP25 TP38 TP70 TP39 TP13 TP30 TP52 TP10 TP73 TP7 TP4 TP1 TP71 TP72 TP29 TP28 TP26 TP15 TP34 TP36 TP20 TP33 TP9 TP6 TP8 TP31 Q16531 B1ABRD000003 Q16551 B1ABRD000003 Q16552 B1ADRD000001 Q16532 B1ADRD000001 R16564 EXB38V470JV R16567 EXB38V472JV R16563 EXB38V470JV R16566 EXB38V472JV R16591 EXB38V472JV R16561 EXB38V470JV R16565 EXB38V472JV R16568 EXB38V472JV R16562 EXB38V470JV R16533 47k R16583 39k R16468 82k 75 R16504 R16593 1.2k R16522 100 R16582 39k R16465 27k R16509 1 R16592 4.7k R16466 56k R16476 4.7k R16501 100 R16531 10 R16510 1 R16421 7.5 R16511 47k R16508 1 *R16402 7.5 R16451 5.6 R16580 2.2k 75 R16523 R16521 100 R16587 2.2k R16586 1.8k R16584 8.2k R16506 10 R16507 1 R16516 47k R16401 7.5 R16503 10 *R16403 7.5 R16552 47k R16585 1k R16467 82k R16590 220 R16475 4.7k R16517 47k R16512 47k R16422 7.5 R16588 10k R16532 47k R16553 47k R16551 10 R16502 100 *R16441 5.6 L16591 G0ZZ00002183 ZA16403 K4CD01000011 ZA16421 TUXJ490 ZA16422 TUXJ490 ZA16412 TUXJ490 ZA16411 TUXJ490 TP82 C16414 250V 2.2u TP90 TP91 TP92 TP93 *C16411 220V 250u *C16633 250V 4u *C16635 250V 4u *C16634 250V 4u C0JBAZ002811 IC16561 1G 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G 20 VCC C0JBAZ002811 IC16562 1G 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G 20 VCC *Q16451 B1JAEP000003 *Q16441 B1JAEN000003 Q16501 B1HFPFA00001 Q16521 B1HFPFA00001 SC20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 *D16461 MA3DF46000LW *D16462 MA3DF46000LW TP46 *C16412 220V 250u *D16401 B0FBCN000005 *D16402 B0FBCN000005 *D16421 MA3DF40000LW *D16482 B0FBCN000005 *D16481 B0FBCN000005 *Q16401 B1JAEN000002 G D S *Q16402 B1JAEN000002 *Q16403 B1JAEN000002 *Q16421 B1JAEP000002 *Q16422 B1JAEP000002 Q16581 B1ABCF000231 *L16404 G0C1R4KA0118 *L16402 G0C1R4KA0118 *L16401 G0C1R4KA0118 *L16412 G0C1R4KA0118 *L16411 G0C1R4KA0118 *L16414 G0C1R4KA0118 GND Vsus SC42 TPVSUS GND P5V +15V +15V +15V NC GND GND GND (OC2B) GND GND CMH CML CSH CSL SC_DRV_RST CERS CEL SOS7_SC2 SOS6_SC1 LAT(CQR) CPH1 OC2 SCSU SID SIU CLK CPH2 OC1 (GREEN LED) SC41 SC46 TPSOS7 TPSOS6 VSUS:185V 2 3 A 6 E D 4 8 B 1 F 5 9 C 7 TO A-BOARD (A20) TO P-BOARD (P2) BUFFER BUFFER COMPARATOR AND 50V OR LESS OPERATES AT 124V OR MORE FET DRIVER ENERGY RECOVERY Vsus Gen. FET DRIVER AND GATE 1 2 3 4 5 ! SC-BOARD TXNSC1RQTC (1/3) TH-50PV80C SC-Board (1/3) Schematic Diagram TH-50PV80C SC-Board (1/3) Schematic Diagram 63 TH-50PV80C 10.29.SC 电路板 （2/3）线路图 + + + + AA_CPH2 AA_CEL AA_CERS AA_SCSU AA_CPH1 AA_CSL AA_DRV_RST C16724 25V 4.7u C16756 25V 4.7u C16708 50V 0.1u C16753 25V 4.7u C16723 25V 4.7u C16752 25V 1u C16606 630V 4700p C16755 25V 4.7u C16605 630V 4700p C16812 25V 4.7u C16641 1u 250V C16775 25V 4.7u C16725 25V 4.7u C16771 16V 1u C16773 25V 4.7u C16472 25V 1u C16608 50V 220p C16721 50V 100u C16806 160V 100u D16765 B0ECKP000047 D16660 B0HCMR000002 D16478 B0HCKS000002 D16607 MA2J11100L D16606 B0HCMM000014 D16766 B0ECKP000047 D16764 B0HCKS000002 D16642 B0HCKS000002 D16667 MA2J11100L D16497 B0ECKP000047 D16644 B0HCKS000002 D16619 B0ECKP000047 *D16618 B0ECKP000047 D16604 MA2J11100L D16609 MA2J11100L D16763 B0ECKP000047 D16641 B0HCKS000002 D16721 B0HCKS000002 D16669 MA2J11100L D16661 MA2J11100L D16473 MA3X152D0L D16668 MA3X152D0L *D16621 B0HDSM000006 D16622 B0HDSM000006 *D16601 MA3X152E0L *D16623 B0HDSM000006 D16665 MAZ80510LL D16602 MAZ81500ML *D16608 MAZ81200ML D16632 MAZ82400ML D16771 MAZ80510LL D16631 MAZ82400ML D16663 MAZ83300ML D16662 MAZ83300ML D16817 MAZ80680HL D16605 MAZ80510LL D16475 MAZ80510LL C0DBEKA00003 IC16471 1 NC 2 A 3 K 5 A 4 REF IC16772 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB C0ZBZ0001324 IC16752 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC IC16725 C0CBADC00072 VIN 3 2 COM VOUT 1 IC16724 C0CBADC00072 VIN 3 2 COM VOUT 1 5V_F_B VAD 5V VSET2 VAD 16V_F 15V SCNR_PRO CHA 15V_F 15V_F 16V_F VSCN_F_DET 5V_F_A 5V_F_A 15V 16V_F 16V_F VSUS VSET VSET2_O 15V_F PC16480 B3PBA0000223 1 2 3 4 PC16710 B3PBA0000223 1 2 3 4 *PC16603 B3PBA0000223 1 2 3 4 *PC16601 B3PBA0000223 1 2 3 4 PC16705 B3PBA0000456 1 2 3 4 5 TP53 *Q16607 B1CBGD000001 Q16623 2SK399500L *Q16621 2SK399500L Q16622 2SK399500L Q16606 2SD0601AQL Q16602 2SD0601AQL Q16662 2SD0601AQL *Q16661 B1JAER000003 Q16663 2SB0709ASL *Q16605 2SB0709ASL Q16603 2SB0709ASL Q16762 B1ADNF000006 R16706 100 *R16621 220 R16609 1k *R16606 10k *R16604 330 *R16603 330 *R16602 1k R16479 10k *R16601 4.7k *R16600 10k R16639 1 R16661 1.8k R16761 10 R16480 4.7k R16657 6.8k R16669 4.7k R16670 47 R16671 47k R16659 220k R16605 1.8k 75 R16766 R16776 100 R16769 75 R16610 100k R16667 470 R16682 10 R16762 47k R16612 47 R16665 33 R16672 1k R16668 47k R16473 560 R16478 5.6k *R16644 33 R16638 1 *R16680 10 R16617 2.2k 1 R16768 R16658 100 R16781 47 R16681 10 R16474 1k R16771 1.8k R16778 1.8k 1 R16765 R16782 47k *R16633 22k R16634 470 R16472 2.2k R16660 220k R16707 470 R16622 220 R16471 3.9k R16608 1k R16663 10k R16705 100 *R16642 33 R16777 150 *R16641 33 *R16643 33 *R16645 33 R16623 220 R16717 2.2k D16664 MAZ83300ML R16664 1k R16675 1k R16666 100k D16670 B0HCMR000002 D16407 MA22D3900L C16666 50V 68p C16664 50V 68p C16665 50V 68p *R16635 10k *R16636 4.7k R16616 0 D16671 MA2J11100L D16610 MA2J11100L *R16858 1k C16795 25V 470u C16791 25V 220u *Q16601 B1DEET000002 G D S C16603 630V 1000p C16604 630V 1000p C16661 630V 1000p C16662 630V 1000p N0BF1FB00002 IC16791 1 GND 2 GND 3 VIN 4 VIN 7 COM 8 COM 9 VOUT *Q16604 B1CHPM000001 G D S Q16781 B1HFPFA00001 Q16664 B1HFPFA00001 *R16613 100k *R16611 47k *D16816 MAZ80510LL *R16632 10k TP97 *PC16602 B3PBA0000443 1 2 3 4 R16607 6.65k *R16615 1.13k D16659 B0HCMM000014 *Q16641 2SK4175000LZ *Q16645 2SK4175000LZ *Q16644 2SK4175000LZ *Q16642 2SK4175000LZ *Q16643 2SK4175000LZ VR16602 3k 1 2 3 R16662 3.6k Q16471 B1ABCF000231 *Q16608 B1ABCF000231 Q16665 B1ABCF000231 R16477 0 D16761 MA2J11100L D16725 MA2J11100L D16643 MA2J11100L VF_GND * * INIT-F 18 16 15 10 11 12 13 14 17 +5V(SC1) +5V(SC2) FET DRIVER VSET SEPARATE DC/DC CONV. FET DRIVER VAD SEPARATE 5 2 4 1 3 11 12 ! SC-BOARD TXNSC1RQTC (2/3) AND GATE FLOATING GND COLD COLD FLOATING GND COLD FLOATING GND TH-50PV80C SC-Board (2/3) Schematic Diagram TH-50PV80C SC-Board (2/3) Schematic Diagram 64 TH-50PV80C 10.30.SC 电路板 （3/3）线路图 + + + + + + AA_OC1 AA_CLK AA_OC2 AA_SIU C16861 4700p 50V C16869 50V 0.1u C16868 0.1u 16V C16857 4700p 50V C16867 4700p 50V C16862 0.1u 16V C16823 5600p 630V C16832 50V 3900p C16858 0.1u 16V C16863 50V 0.01u C16864 0.1u 50V C16855 16V 1u C16821 0.1u 50V C16842 160V 100u C16691 160V 100u D16839 B0ECKP000047 D16837 MA2J11100L D16718 MA2J11100L D16860 B0HCKS000002 D16875 MA2J11100L D16720 B0ECKP000047 D16719 B0ECKP000047 D16822 MA2J11100L D16722 MA2J11100L D16713 B0HCMR000002 D16711 B0HCMR000002 D16715 B0HCMR000002 D16820 MA3X152E0L D16710 MAZ81500ML D16838 B0BC027A0234 D16714 MAZ81500ML D16830 MAZ80560HL D16874 MAZ80510LL D16862 MAZ83300ML D16821 MAZ82000ML D16712 MAZ81500ML D16861 MAZ83300ML D16717 MAZ83300ML D16836 MAZ81500ML SC30 1 2 3 4 5 6 7 8 VSUS VSCN_F VSUS VSCN_F 5V VSET SCNR_PRO VSET2_O 5V_F_A VAD SOS7_SC2 CHA 15V_F 5V_F_A VSCN VSCN_F VF_GND SOS7_SC2 5V VF_GND 5V SOS7_SC2 VSCN 5V_F_B PC16896 B3PBA0000223 1 2 3 4 TP44 TP43 TP57 TP56 TP59 TP64 TP55 TP51 TP63 TP41 TP42 TP54 TP58 TP62 TP60 TP61 Q16874 B1CBGD000001 Q16805 2SC3063000RL Q16806 2SC1473AEA R16887 220k R16873 2.49k R16749 10k R16734 4.99k R16850 4.7k R16844 1.24k R16871 3.9k R16704 10k R16701 10k R16886 220k R16872 3.3k R16852 10k R16794 200k R16888 220k R16757 0 R16775 4.7k R16702 3.3k R16735 221k R16733 470k R16736 221k R16703 10k R16856 56 R16700 4.7k R16732 3.9k R16731 82k R16860 8.2 R16855 10k R16857 120k R16740 100k R16696 2.2 R16744 200k R16738 82k R16730 47k R16851 100k R16795 200k R16729 47k R16796 56k R16752 4.7k R16875 71.5k R16874 71.5k *R16774 68k R16870 33k R16753 47k VR16600 50k 1 2 3 *C16822 400V 47u L16472 G0ZZ00002183 L16801 G0ZZ00002183 D16824 MAZ83300ML Q16814 B1ABCN000007 R16785 82k R16786 82k R16787 33k R16824 33k R16822 82k PC16897 B3PBA0000223 1 2 3 4 Q16815 B1ABCN000007 R16823 82k D16825 MAZ83300ML VSCN TP65 TP66 R16827 0 TP79 TP78 TP81 TP80 R16722 22 R16723 22 R16721 22 R16720 22 *SC46 1 2 3 4 5 6 7 8 9 TP96 TP94 TP95 C16843 50V 0.1u C16844 50V 0.1u 250u 220V *C16419 C16813 160V 100u MIP9L02MBS IC16784 1 SOURCE 2 BY 3 FB 5 VCC 6 GND 7 V01 8 VOUT 10 DRAIN MIP9L02MBS IC16786 1 SOURCE 2 BY 3 FB 5 VCC 6 GND 7 V01 8 VOUT 10 DRAIN MIP9L02MBS IC16788 1 SOURCE 2 BY 3 FB 5 VCC 6 GND 7 V01 8 VOUT 10 DRAIN R16789 10k Q16816 2SD0601AQL R16826 10k Q16817 2SD0601AQL SC41 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 250u 220V *C16418 SC42 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 C16856 1u 10V C16860 1u 10V C16866 1u 10V R16756 22k R16750 22k R16751 220k D16859 B0HCKS000002 C0DBEYY00078 IC16787 1 NC 2 ANODE 3 NC 5 REFERENCE 4 CATHODE C0DBEYY00078 IC16789 1 NC 2 ANODE 3 NC 5 REFERENCE 4 CATHODE G0C102KA0187 L16697 L16698 680u L16699 330u R16825 150k R16788 150k *R16846 60.4k *D16871 MAZ82400ML *R16737 200k *R16845 62k Q16873 B1ABCF000231 Q16875 B1ABCF000231 Q16876 B1ABCF000231 Q16879 B1ABCF000231 Q16872 2SB0709A0L Q16871 2SB0709A0L *D16873 MAZ82000ML R16838 56k R16841 56k * * * * * TPSC1 TPVSET TPVAD TPVSCN VSET:330V 27 26 22 19 23 25 24 21 20 VAD:-149V Vscn Vfo VF5V Vf Vf Vf Vf Vscn Vfo OPERATES AT 395V OR MORE VSET DET ERROR DET VSET OUT ERROR DET VSET OUT VAD GEN. VSCN GEN. VSCN GEN. TO (SU41) SU-BOARD SD-BOARD (SD42) TO (SD46) TO SD-BOARD 12 11 ! SC-BOARD TXNSC1RQTC (3/3) USE FOR FACTROY VSCN:Vad+145V TH-50PV80C SC-Board (3/3) Schematic Diagram TH-50PV80C SC-Board (3/3) Schematic Diagram 65 TH-50PV80C 10.31.SU 电路板 （1/2）线路图 SIDE TERM TERM SIDE TERM SIDE AB_766 AB_765 AB_764 AB_763 AB_762 AB_761 AB_760 AB_759 AB_758 AB_757 AB_756 AB_755 AB_754 AB_753 AB_752 AB_751 AB_750 AB_749 AB_748 AB_747 AB_746 AB_745 AB_744 AB_742 AB_743 AB_741 AB_739 AB_740 AC_702 AC_701 AC_700 AC_699 AC_698 AC_697 AC_696 AC_695 AC_694 AC_693 AC_692 AC_691 AC_690 AC_689 AC_688 AC_687 AC_686 AC_685 AC_684 AC_683 AC_682 AC_681 AC_680 AC_678 AC_679 AC_677 AC_675 AC_676 AD_638 AD_637 AD_636 AD_635 AD_634 AD_633 AD_632 AD_631 AD_630 AD_629 AD_628 AD_627 AD_626 AD_625 AD_624 AD_623 AD_622 AD_621 AD_620 AD_619 AD_618 AD_617 AD_616 AD_614 AD_615 AD_613 AD_611 AD_612 AB_705 AB_707 AB_709 AB_711 AB_713 AB_715 AB_717 AB_719 AB_721 AB_723 AB_725 AB_727 AB_729 AB_731 AB_733 AB_735 AB_737 AB_739 AB_741 AB_743 AB_745 AB_747 AB_749 AB_751 AB_753 AB_755 AB_757 AB_759 AB_761 AB_763 AB_767 AB_765 AB_706 AB_708 AB_710 AB_712 AB_714 AB_716 AB_718 AB_720 AB_722 AB_724 AB_726 AB_728 AB_730 AB_732 AB_734 AB_736 AB_738 AB_740 AB_742 AB_744 AB_746 AB_748 AB_750 AB_752 AB_754 AB_756 AB_758 AB_760 AB_762 AB_764 AB_768 AB_766 AC_641 AC_643 AC_645 AC_647 AC_649 AC_651 AC_653 AC_655 AC_657 AC_659 AC_661 AC_663 AC_665 AC_667 AC_671 AC_669 AC_673 AC_675 AC_677 AC_679 AC_681 AC_683 AC_685 AC_687 AC_689 AC_691 AC_693 AC_695 AC_697 AC_699 AC_703 AC_701 AC_642 AC_644 AC_646 AC_648 AC_650 AC_652 AC_654 AC_656 AC_658 AC_660 AC_662 AC_664 AC_666 AC_668 AC_670 AC_674 AC_676 AC_678 AC_680 AC_682 AC_684 AC_686 AC_688 AC_690 AC_692 AC_694 AC_696 AC_698 AC_700 AC_704 AC_702 AD_577 AD_579 AD_581 AD_583 AD_585 AD_587 AD_589 AD_591 AD_593 AD_595 AD_597 AD_599 AD_601 AD_603 AD_605 AD_607 AD_609 AD_611 AD_613 AD_615 AD_617 AD_619 AD_621 AD_623 AD_625 AD_627 AD_629 AD_633 AD_631 AD_635 AD_637 AD_639 AD_578 AD_580 AD_584 AD_586 AD_588 AD_590 AD_592 AD_594 AD_596 AD_598 AD_600 AD_602 AD_604 AD_606 AD_608 AD_610 AD_612 AD_614 AD_616 AD_618 AD_620 AD_622 AD_624 AD_626 AD_628 AD_630 AD_632 AD_634 AD_636 AD_640 AD_638 AB_768 AB_767 AC_703 AC_704 AD_639 AD_582 AC_672 AB_705 AB_706 AB_707 AB_708 AB_709 AB_710 AB_711 AB_712 AB_713 AB_714 AB_715 AB_716 AB_717 AB_718 AB_719 AB_720 AB_721 AB_722 AB_723 AB_724 AB_725 AB_726 AB_727 AB_728 AB_729 AB_730 AB_731 AB_732 AB_733 AB_734 AB_735 AB_736 AB_738 AB_737 AC_641 AC_642 AC_643 AC_644 AC_645 AC_646 AC_647 AC_648 AC_649 AC_650 AC_651 AC_652 AC_653 AC_654 AC_655 AC_656 AC_657 AC_658 AC_659 AC_660 AC_661 AC_662 AC_663 AC_664 AC_665 AC_666 AC_667 AC_668 AC_669 AC_670 AC_671 AC_672 AC_674 AC_673 AD_577 AD_578 AD_579 AD_580 AD_581 AD_582 AD_583 AD_584 AD_585 AD_586 AD_587 AD_588 AD_589 AD_590 AD_591 AD_592 AD_593 AD_594 AD_595 AD_596 AD_597 AD_598 AD_599 AD_600 AD_602 AD_601 AD_603 AD_604 AD_605 AD_606 AD_607 AD_608 AD_610 AD_609 AA_SIU AA_SO1 AA_SO1 AA_SO2 AA_SO3 AA_SO2 AA_CLKU1 AA_OC2U1 AA_CLKU1 AA_OC2U1 AA_CLKU1 AA_OC2U2 AA_CLKU2 AA_OC1U2 AA_OC2U1 AD_640 AA_OC1U1 AA_OC1U1 AA_OC1U1 AA_OC2U1 AA_CLKU2 AA_OC1U1 AA_LATU1 AA_LATU1 AA_LATU1 AA_LATU2 AA_OC1U1 AA_LATU1 AA_CLKU1 AA_OC2U1 AA_LATU1 AA_CLKU1 AA_OC2U1 AA_OC1U1 AA_LATU2 AA_OC2U2 AA_CLKU2 AA_OC1U2 AA_OC2U1 AA_OC2U2 AA_LATU1 AA_OC1U2 AA_CLKU1 AA_OC2U2 AA_LATU1 AA_LATU2 AA_SO6 AA_CHA AA_SIU OCM C14941 50V 220p C14902 16V 1u C14940 50V 1000p C14942 50V 220p C14904 16V 1u C14906 16V 1u C14939 50V 220p C14936 50V 220p C14938 50V 220p C14937 50V 220p C14901 50V 1000p C14931 50V 1000p C14933 250V 0.1u C14932 250V 0.1u C14907 630V 1000p D14910 MA2J11100L D14909 MA3X152E0L D14901 MAZ80560HL D14902 MAZ80560HL AN16081A-VT IC14903 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16081A-VT IC14901 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16081A-VT IC14902 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SU11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 SU2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 SU1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 R14914 10k R14923 10k R14924 10k R14916 10k R14909 22 R14913 10k R14910 22 R14901 100 R14925 10k R14902 220 R14911 10k R14903 220 R14917 22 R14927 22 R14920 22 R14915 22 R14919 22 R14908 22 R14926 10k R14907 22 R14921 220k R14912 10k Vf 1 2 5 A 7 B 4 F 3 E 9 C 6 8 D Vscn Vf5 Vf Vfo Vf Vf5 PDP SCAN DRIVER S/P 64bit 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P TO SD-BOARD (SD11) UP To 2nd 96pins of SCAN ELECTRODES SCAN ELECTRODES To 1st 96pins of SU-BOARD TXNSU1RQTC (1/2) ! 1 2 3 4 5 6 7 TH-50PV80C SU-Board (1/2) Schematic Diagram TH-50PV80C SU-Board (1/2) Schematic Diagram 66 TH-50PV80C 10.32.SU 电路板 （2/2）线路图 TERM SIDE TERM SIDE AE_574 AE_573 AE_572 AE_571 AE_570 AE_569 AE_568 AE_567 AE_566 AE_565 AE_564 AE_563 AE_562 AE_561 AE_560 AE_559 AE_558 AE_557 AE_556 AE_555 AE_554 AE_553 AE_552 AE_550 AE_551 AE_549 AE_547 AE_548 AF_510 AF_509 AF_508 AF_507 AF_506 AF_505 AF_504 AF_503 AF_502 AF_501 AF_500 AF_499 AF_498 AF_497 AF_496 AF_495 AF_494 AF_493 AF_492 AF_491 AF_490 AF_489 AF_488 AF_486 AF_487 AF_485 AF_483 AF_484 AG_446 AG_445 AG_444 AG_443 AG_442 AG_441 AG_440 AG_439 AG_438 AG_437 AG_436 AG_435 AG_434 AG_433 AG_432 AG_431 AG_430 AG_429 AG_428 AG_427 AG_426 AG_425 AG_424 AG_422 AG_423 AG_421 AG_419 AG_420 AE_513 AE_515 AE_517 AE_519 AE_521 AE_523 AE_525 AE_527 AE_529 AE_531 AE_533 AE_535 AE_537 AE_539 AE_541 AE_543 AE_545 AE_547 AE_549 AE_551 AE_553 AE_555 AE_557 AE_559 AE_561 AE_563 AE_565 AE_567 AE_569 AE_571 AE_575 AE_573 AE_514 AE_516 AE_518 AE_520 AE_522 AE_524 AE_526 AE_528 AE_530 AE_532 AE_534 AE_536 AE_538 AE_540 AE_542 AE_544 AE_546 AE_548 AE_550 AE_552 AE_554 AE_556 AE_558 AE_560 AE_562 AE_564 AE_566 AE_568 AE_570 AE_572 AE_576 AE_574 AF_449 AF_451 AF_453 AF_455 AF_457 AF_459 AF_461 AF_463 AF_465 AF_467 AF_469 AF_471 AF_473 AF_475 AF_479 AF_477 AF_481 AF_483 AF_485 AF_487 AF_489 AF_491 AF_493 AF_495 AF_497 AF_499 AF_501 AF_503 AF_505 AF_507 AF_511 AF_509 AF_450 AF_452 AF_454 AF_456 AF_458 AF_460 AF_462 AF_464 AF_466 AF_468 AF_470 AF_472 AF_474 AF_476 AF_478 AF_482 AF_484 AF_486 AF_488 AF_490 AF_492 AF_494 AF_496 AF_498 AF_500 AF_502 AF_504 AF_506 AF_508 AF_512 AF_510 AG_385 AG_387 AG_389 AG_391 AG_393 AG_395 AG_397 AG_399 AG_401 AG_403 AG_405 AG_407 AG_409 AG_411 AG_413 AG_415 AG_417 AG_419 AG_421 AG_423 AG_425 AG_427 AG_429 AG_431 AG_433 AG_435 AG_437 AG_439 AG_441 AG_443 AG_445 AG_447 AG_386 AG_388 AG_390 AG_392 AG_394 AG_396 AG_398 AG_400 AG_402 AG_404 AG_406 AG_408 AG_410 AG_412 AG_414 AG_416 AG_418 AG_420 AG_422 AG_424 AG_426 AG_428 AG_430 AG_432 AG_434 AG_436 AG_438 AG_440 AG_442 AG_444 AG_448 AG_446 AE_576 AE_575 AF_511 AF_512 AG_448 AG_447 AF_480 AE_514 AE_515 AE_516 AE_517 AE_518 AE_519 AE_520 AE_521 AE_522 AE_523 AE_524 AE_525 AE_526 AE_527 AE_528 AE_529 AE_530 AE_531 AE_532 AE_533 AE_534 AE_535 AE_536 AE_537 AE_538 AE_539 AE_540 AE_541 AE_542 AE_543 AE_544 AE_546 AE_545 AF_449 AF_450 AF_451 AF_452 AF_453 AF_454 AF_455 AF_456 AF_457 AF_458 AF_459 AF_460 AF_461 AF_462 AF_463 AF_464 AF_465 AF_466 AF_467 AF_468 AF_469 AF_470 AF_471 AF_472 AF_473 AF_474 AF_475 AF_476 AF_477 AF_478 AF_479 AF_480 AF_482 AF_481 AG_385 AG_386 AG_387 AG_388 AG_389 AG_390 AG_391 AG_392 AG_393 AG_394 AG_395 AG_396 AG_397 AG_398 AG_399 AG_400 AG_401 AG_402 AG_403 AG_404 AG_405 AG_406 AG_407 AG_408 AG_409 AG_410 AG_411 AG_412 AG_413 AG_414 AG_415 AG_416 AG_418 AG_417 AA_SO3 AA_SO4 AA_SO4 AA_SO5 AA_SO5 AA_CLKU2 AA_CLKU2 AA_OC2U2 AA_CLKU2 AA_OC2U2 AA_OC2U2 AE_513 AA_OC1U2 AA_OC1U2 AA_OC1U2 AA_LATU2 AA_LATU2 AA_LATU2 AA_SO6 AA_CHA C14912 16V 1u C14908 16V 1u C14910 16V 1u C14923 250V 0.1u C14924 250V 0.1u C14935 250V 0.1u C14934 250V 0.1u D14906 B0HCMM000013 D14905 B0HCMM000013 D14907 B0HCMM000013 AN16081A-VT IC14906 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16081A-VT IC14905 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16081A-VT IC14904 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SU4 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 SU3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 SU41 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 ZA14901 K4AD01Z00002 ZA14902 K4AD01Z00002 R14904 220 R14905 220 R14906 220 17 11 15 13 12 16 14 10 18 Vf5 Vf Vfo Vf Vscn Vf5 64bit PDP SCAN DRIVER S/P PDP SCAN DRIVER 64bit S/P S/P PDP SCAN DRIVER 64bit TO SC-BOARD (SC41) ! SCAN ELECTRODES To 4th 96pins of To 3rd 96pins of SU-BOARD TXNSU1RQTC (2/2) SCAN ELECTRODES UP 1 7 4 6 2 3 5 TH-50PV80C SU-Board (2/2) Schematic Diagram TH-50PV80C SU-Board (2/2) Schematic Diagram 67 TH-50PV80C 10.33.SD 电路板 （1/2）线路图 TERM SIDE TERM SIDE AB_382 AB_381 AB_380 AB_379 AB_378 AB_377 AB_376 AB_375 AB_374 AB_373 AB_372 AB_371 AB_370 AB_369 AB_368 AB_367 AB_366 AB_365 AB_364 AB_363 AB_362 AB_361 AB_360 AB_358 AB_359 AB_357 AB_355 AB_356 AC_318 AC_317 AC_316 AC_315 AC_314 AC_313 AC_312 AC_311 AC_310 AC_309 AC_308 AC_307 AC_306 AC_305 AC_304 AC_303 AC_302 AC_301 AC_300 AC_299 AC_298 AC_297 AC_296 AC_294 AC_295 AC_293 AC_291 AC_292 AD_254 AD_253 AD_252 AD_251 AD_250 AD_249 AD_248 AD_247 AD_246 AD_245 AD_244 AD_243 AD_242 AD_241 AD_240 AD_239 AD_238 AD_237 AD_236 AD_235 AD_234 AD_233 AD_232 AD_230 AD_231 AD_229 AD_227 AB_365 AB_367 AB_369 AB_371 AB_373 AB_375 AB_377 AB_379 AB_381 AB_383 AB_366 AB_368 AB_370 AB_372 AB_374 AB_376 AB_380 AB_382 AB_341 AB_343 AB_345 AB_347 AB_349 AB_351 AB_353 AB_355 AB_357 AB_359 AB_361 AB_363 AB_342 AB_344 AB_346 AB_348 AB_350 AB_352 AB_354 AB_356 AB_358 AB_360 AB_362 AB_364 AB_321 AB_323 AB_325 AB_327 AB_329 AB_331 AB_333 AB_335 AB_337 AB_339 AB_322 AB_324 AB_326 AB_328 AB_330 AB_332 AB_334 AB_336 AB_338 AB_340 AC_319 AC_317 AC_316 AC_320 AC_318 AB_384 AB_383 AC_293 AC_295 AC_297 AC_299 AC_301 AC_303 AC_305 AC_307 AC_309 AC_311 AC_313 AC_315 AC_294 AC_296 AC_298 AC_300 AC_302 AC_304 AC_306 AC_308 AC_310 AC_312 AC_314 AC_281 AC_283 AC_287 AC_285 AC_282 AC_284 AC_288 AC_286 AC_289 AC_291 AC_257 AC_259 AC_261 AC_263 AC_265 AC_267 AC_269 AC_271 AC_273 AC_275 AC_277 AC_279 AC_258 AC_260 AC_262 AC_264 AC_266 AC_268 AC_270 AC_272 AC_274 AC_276 AC_278 AC_280 AD_256 AC_320 AC_319 AD_254 AD_252 AD_250 AD_248 AD_246 AD_244 AD_242 AD_240 AD_238 AD_236 AD_234 AD_232 AD_253 AD_255 AD_251 AD_249 AD_247 AD_245 AD_243 AD_241 AD_239 AD_237 AD_235 AD_233 AD_230 AD_228 AD_226 AD_224 AD_222 AD_220 AD_218 AD_216 AD_214 AD_212 AD_210 AD_208 AD_231 AD_229 AD_227 AD_225 AD_223 AD_221 AD_219 AD_217 AD_215 AD_213 AD_211 AD_209 AD_206 AD_204 AD_202 AD_200 AD_198 AD_196 AD_194 AD_207 AD_205 AD_203 AD_201 AD_199 AD_197 AD_195 AD_193 AD_256 AD_255 AB_378 AB_384 AC_292 AC_290 AB_321 AB_323 AB_324 AB_325 AB_326 AB_327 AB_328 AB_329 AB_330 AB_331 AB_332 AB_333 AB_334 AB_335 AB_336 AB_337 AB_338 AB_339 AB_340 AB_341 AB_342 AB_343 AB_344 AB_345 AB_346 AB_322 AB_347 AB_348 AB_349 AB_350 AB_351 AB_352 AB_353 AB_354 AC_258 AC_259 AC_260 AC_261 AC_262 AC_263 AC_264 AC_265 AC_266 AC_267 AC_268 AC_269 AC_270 AC_271 AC_272 AC_273 AC_274 AC_275 AC_276 AC_277 AC_278 AC_279 AC_280 AC_281 AC_282 AC_283 AC_284 AC_285 AC_286 AC_287 AC_288 AC_289 AC_290 AD_193 AD_194 AD_195 AD_196 AD_197 AD_198 AD_199 AD_200 AD_201 AD_202 AD_203 AD_204 AD_205 AD_206 AD_207 AD_208 AD_209 AD_210 AD_211 AD_212 AD_213 AD_214 AD_215 AD_216 AD_217 AD_218 AD_219 AD_220 AD_221 AD_222 AD_223 AD_224 AD_226 AD_225 AD_228 AA_SO7 AA_CLKD1 AA_OC2D1 AA_CLKD1 AA_OC2D1 AA_CLKD1 AA_OC2D1 AA_SO9 AA_SO7 AA_SO8 AA_SO8 AA_SO6 AC_257 AA_OC1D1 AA_OC1D1 AA_OC1D1 AA_LATD1 AA_LATD1 AA_LATD1 C14975 250V 0.1u C14957 16V 1u C14955 16V 1u C14952 16V 1u C14974 250V 0.1u C14977 250V 0.1u C14984 250V 0.1u C14978 250V 0.1u C14985 250V 0.1u C14350 630V 1000p D14953 B0HCMM000013 D14957 B0HCMM000013 D14956 B0HCMM000013 AN16081A-VT IC14951 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16081A-VT IC14953 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16081A-VT IC14952 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SD2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 SD1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 R14986 220k R14953 220 R14952 220 R14980 220 Vfo 3 D 2 C 1 5 7 8 4 B F E 9 6 A S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER Vf5 Vf Vf Vscn DOWN To 2nd 96pins of SCAN ELECTRODES SCAN ELECTRODES To 1st 96pins of SD-BOARD TXNSD1RQTC (1/2) ! 1 2 3 4 5 6 TH-50PV80C SD-Board (1/2) Schematic Diagram TH-50PV80C SD-Board (1/2) Schematic Diagram 68 TH-50PV80C 10.34.SD 电路板 （2/2）线路图 SIDE TERM TERM SIDE TERM SIDE AE_190 AE_189 AE_188 AE_187 AE_186 AE_185 AE_184 AE_183 AE_182 AE_181 AE_180 AE_179 AE_178 AE_177 AE_176 AE_175 AE_174 AE_173 AE_172 AE_171 AE_170 AE_169 AE_168 AE_166 AE_167 AE_165 AE_163 AE_164 AF_126 AF_125 AF_124 AF_123 AF_122 AF_121 AF_120 AF_119 AF_118 AF_117 AF_116 AF_115 AF_114 AF_113 AF_112 AF_111 AF_110 AF_109 AF_108 AF_107 AF_106 AF_105 AF_104 AF_102 AF_103 AF_101 AF_99 AF_100 AG_62 AG_61 AG_60 AG_59 AG_58 AG_57 AG_56 AG_55 AG_54 AG_53 AG_52 AG_51 AG_50 AG_49 AG_48 AG_47 AG_46 AG_45 AG_44 AG_43 AG_42 AG_41 AG_40 AG_38 AG_39 AG_37 AG_35 AG_36 AE_187 AE_185 AE_183 AE_188 AE_186 AE_184 AE_182 AE_191 AE_192 AE_189 AE_190 AE_175 AE_173 AE_181 AE_179 AE_177 AE_176 AE_174 AE_172 AE_180 AE_178 AE_161 AE_159 AE_163 AE_164 AE_162 AE_160 AE_158 AE_165 AE_171 AE_169 AE_167 AE_170 AE_168 AE_166 AE_151 AE_157 AE_155 AE_153 AE_149 AE_152 AE_156 AE_154 AE_148 AE_150 AE_192 AE_191 AE_137 AE_135 AE_140 AE_138 AE_136 AE_134 AE_141 AE_143 AE_145 AE_147 AE_144 AE_146 AE_139 AE_142 AE_133 AE_131 AE_129 AF_127 AF_125 AF_123 AE_132 AE_130 AF_128 AF_126 AF_124 AF_113 AF_111 AF_114 AF_112 AF_110 AF_117 AF_121 AF_119 AF_122 AF_120 AF_115 AF_116 AF_118 AF_109 AF_107 AF_105 AF_103 AF_101 AF_99 AF_108 AF_106 AF_104 AF_102 AF_100 AF_97 AF_98 AF_94 AF_96 AF_92 AF_90 AF_93 AF_95 AF_91 AF_128 AF_127 AF_88 AF_86 AF_84 AF_82 AF_80 AF_78 AF_76 AF_74 AF_72 AF_70 AF_68 AF_66 AF_89 AF_87 AF_85 AF_83 AF_81 AF_79 AF_77 AF_75 AF_73 AF_71 AF_69 AF_67 AG_61 AG_63 AG_59 AG_57 AG_55 AG_53 AG_51 AG_49 AG_47 AG_45 AG_43 AG_41 AG_64 AG_62 AG_60 AG_58 AG_56 AG_54 AG_52 AG_50 AG_48 AG_46 AG_44 AG_42 AF_65 AG_39 AG_37 AG_35 AG_33 AG_31 AG_29 AG_27 AG_25 AG_23 AG_21 AG_19 AG_17 AG_40 AG_38 AG_36 AG_34 AG_32 AG_30 AG_28 AG_26 AG_24 AG_22 AG_20 AG_18 AG_64 AG_63 AG_15 AG_13 AG_11 AG_9 AG_7 AG_5 AG_3 AG_1 AG_16 AG_14 AG_12 AG_10 AG_8 AG_6 AG_4 AG_2 AE_130 AE_129 AE_132 AE_133 AE_134 AE_135 AE_136 AE_137 AE_138 AE_139 AE_140 AE_141 AE_142 AE_143 AE_144 AE_145 AE_146 AE_147 AE_148 AE_149 AE_150 AE_151 AE_152 AE_153 AE_154 AE_131 AE_155 AE_156 AE_157 AE_158 AE_159 AE_160 AE_162 AE_161 AF_65 AF_66 AF_67 AF_68 AF_69 AF_70 AF_71 AF_72 AF_73 AF_74 AF_75 AF_76 AF_77 AF_78 AF_79 AF_80 AF_81 AF_82 AF_83 AF_84 AF_85 AF_86 AF_87 AF_88 AF_89 AF_90 AF_91 AF_92 AF_93 AF_94 AF_95 AF_96 AF_97 AF_98 AG_2 AG_3 AG_4 AG_5 AG_6 AG_7 AG_8 AG_9 AG_10 AG_11 AG_12 AG_13 AG_14 AG_15 AG_16 AG_17 AG_18 AG_19 AG_20 AG_21 AG_22 AG_23 AG_24 AG_25 AG_26 AG_27 AG_28 AG_29 AG_30 AG_31 AG_32 AG_34 AG_33 AA_SO10 AA_CLKD2 AA_OC2D2 AA_CLKD2 AA_CLKD2 AA_OC2D2 AA_SO11 AA_SO10 AA_OC2D1 AA_OC2D2 AA_CLKD1 AA_OC1D1 AG_1 AA_SO11 AA_SO9 AA_OC1D2 AA_OC1D2 AA_OC1D2 AB_CLK AB_OC1 AB_OC2 AB_SIU AB_OC2 AA_CLKU2 AA_OC2U1 AA_OC1U1 AA_OC1U1 AA_OC1D1 AA_CLKU1 AA_CLKD1 AA_SIU AA_OC2U1 AA_OC2D1 AA_LATU1 AA_LATD1 AA_LATD2 AA_LATD2 AA_LATD2 AA_LATD1 AA_LATU2 AA_SIU AA_SO6 AA_CHA AA_LATU2 AA_OC2U2 AA_CLKU2 AA_OC1U2 AA_LATD2 AA_OC2D2 AA_CLKD2 AA_OC1D2 AA_LATD2 AA_OC2D2 AA_CLKD2 AA_OC1D2 AA_OC1D1 AA_OC2D1 AA_CLKD2 AA_LATD2 AA_OC2D2 AA_OC1D2 AB_CLK AB_OC1 AA_OC2D1 AA_OC2D2 AA_LATD1 AA_CHA AA_OC1U2 AA_CLKU1 AA_OC2U2 AA_LATU1 OCM AB_SIU AA_LATD1 AA_CLKD1 SCNR_PRO C14981 50V 220p C14971 50V 220p C14969 50V 0.1u C14989 50V 220p C14992 16V 1u C14976 50V 1000p C14970 50V 220p C14987 50V 0.1u C14950 50V 220p C14993 16V 1u C14972 50V 220p C14961 16V 1u C14973 50V 1000p C14988 50V 0.1u C14986 50V 100p C14991 50V 10p C14958 16V 1u C14963 16V 1u C14943 25V 4.7u C14926 50V 0.1u D14962 MA2J11100L D14976 MA2J11100L D14975 MA2J11100L D14959 MA2J11100L D14960 MA2J11100L D14971 MA2J11100L D14974 MA3X152E0L D14961 MAZ80560HL D14952 MAZ80560HL IC14963 TC7SH08F 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y IC14961 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC IC14962 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC AN16081A-VT IC14954 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16081A-VT IC14956 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16081A-VT IC14955 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SD11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 SD4 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 SD3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 SD46 1 2 3 4 5 6 7 8 9 SD42 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 5V VSET2_O 5V_F_B 5V_F_A 5V_F_A 5V_F_B 5V VSET2_O ZA14951 K4AD01Z00002 ZA14952 K4AD01Z00002 PC14952 B3PBA0000457 1 2 3 4 5 6 7 8 PC14951 B3PBA0000457 1 2 3 4 5 6 7 8 Q14962 2SD0601A0L Q14961 2SD0601A0L R14956 22 R14962 330 R14981 10k R14978 2.2k R14957 22 R14964 22 R14996 10k R14977 2.2k R14965 330 R14990 10k R14945 0 R14969 3.3k R14947 0 R14948 0 R14974 47 R14944 10 R14943 47 R14971 10k R14963 330 R14970 4.7k R14959 22 R14955 220 R14979 2.2k R14966 22 R14973 47 R14958 22 R14967 22 R14960 22 R14949 20k R14998 10k R14988 2.2k R14991 22 R14975 47 R14349 10k R14982 10k R14992 47 R14968 10k R14994 47 R14951 220 R14997 10k R14995 10k R14972 10k R14954 220 R14984 10k R14989 15k R14976 47 R14950 10k R14961 330 R14987 47 R14993 47 R14946 0 17 10 16 13 14 11 12 18 15 S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER BUFFER BUFFER Vf Vfo Vscn Vf5 Vf TO SU-BOARD (SU11) TO SU-BOARD (SU46) TO SC-BOARD (SC42) SCAN ELECTRODES To 4th 96pins of To 3rd 96pins of SD-BOARD TXNSD1RQTC (2/2) ! SCAN ELECTRODES DOWN 4 5 1 3 2 6 TH-50PV80C SD-Board (2/2) Schematic Diagram TH-50PV80C SD-Board (2/2) Schematic Diagram 69 TH-50PV80C 10.35.SS （1/2）和 S 电路板线路图 + + + + + + + AA_UMH AA_USL AA_USH AA_NUEL AA_USL AA_UEH AA_UMH AA_UML AA_USH AA_UML AA_SOS8 AA_SOS8 C16001 630V 5600p C16131 25V 4.7u C16153 25V 4.7u C16157 25V 4.7u C16152 25V 4.7u C16242 16V 1u C16071 630V 1000p C16092 630V 1000p C16023 630V 5600p C16135 25V 4.7u C16251 16V 1u C16154 25V 4.7u C16041 50V 3900p C16133 25V 4.7u C16252 25V 1u C16151 25V 1u C16015 2.2u 250V C16243 50V 0.01u *C16203 250V 4u *C16201 250V 4u *C16202 250V 4u C16272 25V 470u C16241 10V 100u *C16261 100V 470u *C16012 220V 250u *C16011 220V 250u *C16013 220V 250u *C16262 100V 470u D16040 RF101L4STE25 D16152 B0ECKP000047 D16131 B0ECKP000047 D16255 MA2J11100L D16032 MA2J11100L D16151 B0ECKP000047 D16132 B0ECKP000047 D16153 B0ECKP000047 D16050 B0ECKP000047 *D16052 B0FBCN000005 *D16051 B0FBCN000005 D16001 B0FBCN000005 *D16042 MA3DF46000LW *D16041 MA3DF46000LW *D16021 MA3DF30000LW D16253 LNJ301MPUJA IC16251 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC C0ZBZ0001324 IC16151 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0ZBZ0000895 IC16131 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0JBAZ002811 IC16241 1G 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G 20 VCC SS34 1 2 3 SS12 1 2 3 4 5 6 7 8 9 10 SS23 1 2 3 4 5 6 7 8 9 10 11 12 SS11 1 3 L16271 G0ZZ00002183 L16398 J0JJC0000015 L16262 G0ZZ00002183 L16399 J0JJC0000015 *L16014 G0C1R6KA0119 *L16011 G0C1R6KA0119 *L16012 G0C1R6KA0119 *L16002 G0C1R6KA0119 *L16004 G0C1R6KA0119 *L16001 G0C1R6KA0119 *L16003 G0C1R6KA0119 *L16013 G0C1R6KA0119 5V VE2EXT165V VEEXT160V 5V TP37 TP33 TP6 TP1 TP10 TP18 TP4 TP22 TP41 TP7 TP39 TP38 TP14 TP34 TP5 TP15 TP9 TP12 TP19 TP17 TP13 TP8 TP3 TP16 TP11 TP40 TP2 TP20 Q16181 B1ABRD000003 Q16251 2SD0601A0L Q16171 B1ABRD000003 *Q16021 B1JAEN000002 *Q16001 B1JAEN000002 *Q16002 B1JAEN000002 *Q16022 B1JAEN000002 *Q16041 B1JAEN000003 *Q16051 B1JAEN000003 Q16172 B1ADRD000001 Q16182 B1ADRD000001 Q16161 B1HFPFA00001 Q16141 B1HFPFA00001 R16242 EXB38V472JV R16241 EXB38V470JV R16159 1 R16253 39k R16173 47k R16162 47k R16138 1 R16257 10k R16051 5.6 R16021 7.5 R16137 1 R16163 47k R16172 47k R16254 8.2k R16161 10 R16032 82k R16256 1.8k R16155 1 R16001 7.5 75 R16154 R16255 1k R16031 82k R16221 4.7k R16132 100 R16251 1.2k R16143 47k R16022 7.5 R16171 10 R16230 47 75 R16134 R16231 4.7k R16041 5.6 R16152 100 R16220 47 R16252 39k R16034 27k R16181 10 R16260 2.2k R16131 100 R16151 100 R16002 7.5 R16182 47k R16033 56k R16183 47k R16141 10 R16261 100k R16142 47k R16258 2.2k TPVDA TPVSUS VSUS GND TPSOS8 VSUS:185V 75V 15.7V P5V NUEL UEH USL USH UML UMH SOS8_SS GND NC VDA VDA C B 5 6 9 2 3 4 8 F A 7 E 1 D FET DRIVER BUFFER FET DRIVER (P11) TO P-BOARD (P12) TO P-BOARD (C33) C3-BOARD TO RECOVERY ENERGY DRIVER VSUS Gen. ERROR DET ! SS-BOARD TXNSS1RQTC (1/2) 1 2 3 4 5 VDA:75V TH-50PV80C SS-Board (1/2) and S-Board Schematic Diagram TH-50PV80C SS-Board (1/2) and S-Board Schematic Diagram GND 12V STB_PS PUSH R2506 0 SW2500 K0F162B00002 S1 1 2 3 R2507 0 ! S-BOARD TXN/S1RRTC POWER SW 70 TH-50PV80C 10.36.SS2，SS3 和 SS （2/2）电路板线路图 11 导线图 + + + + + TERM SIDE TERM SIDE TERM SIDE TERM SIDE AA_UML AA_UEH AA_SOS8 AA_UEH AA_NUEL *C16283 0.1u 50V C16192 25V 4.7u C16285 0.1u 50V C16280 25V 4.7u C16194 25V 4.7u C16197 25V 4.7u C16312 50V 4700p C16313 16V 1u C16326 25V 4.7u C16284 0.1u 50V *C16282 0.1u 50V C16311 10V 1u C16195 25V 4.7u C16336 50V 1000p C16337 50V 0.1u C16322 0.22u 250V C16321 0.22u 250V C16302 470p 50V *C16301 25V 47u C16323 25V 47u C16324 470u 25V *C16310 220V 250u *C16328 220u 200V D16192 B0ECKP000047 D16300 B0ECKP000047 D16321 B0ECKP000047 *D16302 MA2J11100L *D16335 B0ECLM000006 D16331 B0ECHP000003 D16191 RF101L4STE25 D16102 MA22D3900L D16313 B0ECKP000047 *D16104 MA22D3900L D16280 MA2J11100L D16324 MA3X152D0L *D16283 MA3X152D0L D16284 MA3X152D0L *D16301 MA3X152E0L D16281 MAZ80510LL D16311 MAZ81500ML D16282 MAZ80680ML C0JBAC000363 IC16303 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT C0ZBZ0000895 IC16191 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC MIP9L02MBS IC16301 1 SOURCE 2 BY 3 FB 5 VCC 6 GND 7 V01 8 VOUT 10 DRAIN C0CBALC00012 *IC16302 Vin 3 2 Com Vout 1 *SS54 1 2 3 4 5 6 7 8 9 10 11 12 13 *SS55 1 2 3 4 5 6 7 8 9 10 11 12 13 *SS22 1 2 3 4 5 6 7 *SS21 1 2 3 4 5 6 7 L16103 G0ZZ00002183 J0JJC0000015 L16102 L16221 G0ZZ00002183 J0JJC0000015 *L16104 J0JHC0000031 L16301 T16301A ETS19AB249AC 1 NC 2 P1 4 PT 5 NC 6 P2 7 S1 10 S2 ZA16003 K4CD01000011 ZA16002 K4CD01000011 ZA16001 K4CD01000011 TP24 TP35 TP26 TP27 TP30 TP29 TP36 TP25 TP31 TP28 TP43 TP56 TP55 TP52 TP51 TP54 TP53 *Q16331 B1CERL000012 G D S Q16301 B1CBGD000001 Q16302 B1CFNG000001 *Q16335 B1CERL000012 G D S *Q16102 2SK399800L G D S *Q16104 2SK399800L G D S Q16339 2SK417300L G D S Q16280 2SD0601A0L *Q16304 2SB0709ASL Q16191 B1HFPFA00001 R16281 10k R16283 47k R16301 4.7k R16289 62k R16303 100 R16109 10 R16311 120k R16194 1 R16321 47k R16292 330k *R16287 62k *R16288 330k R16192 100 R16331 100 R16280 2.2k R16306 100 R16300 1k R16304 680 *R16305 270 75 R16193 R16312 120k R16322 560 R16324 10k R16323 22k R16315 1.24k R16317 0 R16314 56k R16191 100 R16338 100 R16340 1.5k *R16313 52.3k R16291 62k R16302 1M R16334 100 R16307 100 *R16285 62k *R16286 330k R16116 47k R16195 1 R16308 100 R16284 220k R16290 330k R16339 330k R16333 330k R16282 220 R16325 0 *R16104 220 R16102 220 R16309 4.7k R16110 47k R16336 1 *R16310 5.6k VR16000 50k 1 2 3 SS03 1 2 3 4 5 6 7 SS57 1 2 3 4 5 6 7 8 9 10 11 12 13 SS02 1 2 3 4 5 6 7 SS52 1 2 3 4 5 6 7 8 9 10 11 12 13 TPSS1 SS54 SS55 SS21 SS22 SS34 SS23 SS12 SS11 TPVe 15 13 18 12 10 14 17 16 11 TXNSS31RQTC SS3-BOARD ! SUSTAIN PANEL ELECTRODE DOWN TXNSS21RQTC SS2-BOARD ! UP SUSTAIN PANEL ELECTRODE FET DRIVER SUSTAIN ELECTRODE PANEL PANEL ELECTRODE SUSTAIN NAND GATE VE Gen. DRIVER IPD +15V SS-BOARD TXNSS1RQTC (2/2) ! 3 4 2 1 5 Ve:130V TH-50PV80C SS-Board (2/2), SS2-Board and SS3-Board Schematic Diagram TH-50PV80C SS-Board (2/2), SS2-Board and SS3-Board Schematic Diagram 71 TH-50PV80C 11.1. G, GS, K 和 S 电路板 A B C D E F G H I 1 2 3 4 5 6 JK7701 C7708 C7709 C7724 C7728 C7729 R7701 R7703 R7704 R7705 R7706 R7707 R7709 R7712 R7713 R7714 R7738 R7739 R7740 R7741 R7742 R7743 R7792 R7793 R7795 R7796 JS7701 L7701 L7702 TNPA4139 1 GS PbF 1 8 9 1 0 O R D E R N O . C7701 C7702 C7703 C7705 C7706 C7710 C7723 D7701 C7726 C7727 R7702 R7708 R7710 R7715 R7716 R7731 R7794 R7797 R7798 R7799 L7721 GS52 TNPA4139 1 GS P b F S E E R E V E R S EF O R O R D E R N O . 1 1 2 Q2510 Q2511 Q2518 RM2501 TNPA4521 K 1 Q2522 Q2519 PbF SEE REVERSE FOR ORDER NO. C2510 C2512 Q2510 C2515 Q2511 C2516 C2517 Q2518 C2521 C2526 D2512 R2516 R2517 R2519 D2524 R2520 D2526 D2528 R2524 R2525 D2530 R2531 RM2501 R2542 R2554 R2571 R2572 R2573 D2582 R2570 Q2522 R2565 Q2519 D2520 D2525 RM2501 PC2511 K1 Q2513 PbF 1 K TNPA4521 POWER LED MODEM LED NO. ORDER 1 11 Q2513 C2520 C2522 C2523 C2524 C2525 C2527 D2520 D2525 R2530 RM2501 PC2511 R2556 R2557 K1 R2576 R2577 R2579 D2525B R2562 R2561 R2540 R2539 R2569 C2511 R2538 L3700 L3701 L3707 L3708 G51 JK3701 C3701 C3702 C3703 C3704 C3705 C3706 C3707 C3708 C3711 C3712 C3714 D3701 D3702 D3703 D3704 D3705 D3706 D3707 D3708 R3705 D3709 R3706 R3709 D3710 D3711 JA3701 JA3702 JA3703 R3710 JA3704 R3711 JA3705 R3712 JA3706 R3713 JA3707 R3716 R3717 R3718 R3719 R3720 R3721 R3722 R3723 R3724 R3725 C3750 R3732 R3736 R3737 R3738 R3739 R3740 R3741 R3746 SW3753 R3748 SW3754 SW3755 SW3756 SW3757 D3750 R3751 R3753 R3755 R3758 JA3751 JA3752 JA3753 JA3754 JA3755 JA3756 JA3757 JA3758 JA3759 R3767 JA3760 JA3761 FL3710 FL3711 FL3712 FL3713 FL3714 JS3704 JS3705 JS3707 JS3708 JS3711 JS3712 JS3713 JS3714 ZA3701 ZA3702 G 1 TNPA4513 TV/AV +/ -/ F STR PbF R L V 2 16 15 1 R L V SEE REVERSE FOR ORDER NO. G51 JK3701 SW3753 SW3754 SW3755 SW3756 SW3757 FL3710 FL3711 FL3712 FL3713 FL3714 ZA3701 ZA3702 TNPA4513 1 G TV/AV +/ -/ F STR PbF V L R 1 2 15 16 R V L ORDER NO. TNPA4524 S 1 SW2500 S1 PbF ORDER NO. 1 3 TNPA4524 S 1 C2502 C2503 SW2500 R2506 R2507 S1 PbF FOR ORDER NO. SEE REVERSE 13 K-BOARD (FOIL SIDE) TXN/K1RRTC G-BOARD (FOIL SIDE) TXN/G1RRTC G-BOARD (COMPONENT SIDE) TXN/G1RRTC K-BOARD (COMPONENT SIDE) TXN/K1RRTC GS-BOARD (FOIL SIDE) TXNGS1RRTC GS-BOARD (COMPONENT SIDE) TXNGS1RRTC S-BOARD (COMPONENT SIDE) TXN/S1RRTC S-BOARD (FOIL SIDE) TXN/S1RRTC TH-50PV80C G-BOARD TXN/G1RRTC K-BOARD TXN/K1RRTC S-BOARD TXN/S1RRTC GS-BOARD TXNGS1RRTC TH-50PV80C G-BOARD TXN/G1RRTC K-BOARD TXN/K1RRTC S-BOARD TXN/S1RRTC GS-BOARD TXNGS1RRTC G GS S K 72 TH-50PV80C 11.2. A 电路板 A B C D E F G H I 1 2 3 4 5 6 Q850 Q9010 Q8852 IC1102 Q8853 IC9001 IC9002 Q9805 Q9806 IC9011 IC9013 Q9057 JK3100 Q9058 IC9805 IC9806 IC4811 IC2106 IC2109 IC2110 IC5400 IC5401 IC5600 IC5601 TU8301 IC8301 IC8302 Q9301 Q9302 IC850 Q4500 Q4501 Q4502 Q4503 Q4504 Q4505 Q4518 Q4519 Q2001 Q2002 JK3001 JK3002 JK3003 Q4524 JK8401 Q4525 Q4526 Q4527 IC4500 IC4501 IC4511 Q2022 IC4512 IC4513 IC4516 IC4517 Q2028 Q2029 Q2030 Q2033 IC2008 IC2401 IC2403 IC8004 JK3100A IC3001 IC8401 IC8404 D3015 IC8405 IC8408 IC8409 A12 Q1100 TNPH0713 A EU_AUDIOIN EU_AUDIOOUT EU_COMPONENT A_AV1_COMPONENT A_AV2 A_AV1 A_MONITOR OUT A_AV2_COMPONENT A_AV3 EU_AV1 EU_AV2 1 PbF 1 3 4 6 1 3 4 6 1 4 5 8 1 15 16 30 12 13 24 1 1 7 8 14 1 20 21 40 41 60 61 80 R E V E R S E F O R S U F F I X . S E E 1 4 5 7 1 4 5 7 1 4 5 8 1 4 5 8 12 13 24 1 1 15 16 30 +BACTIVEANT AGCMONITOR BTL BTMONITOR BB SCL SDA AUDIOOUT SIFOUT IFAGC +B VB IFDOUT1 IFDOUT2 AFTOUT VIDEOOUT 1 16 17 32 33 48 49 64 1 3 4 5 1 5 SW1 SW2 +B SCL SDA BTL RFAGCMONITOR BTMONITOR IFMONITOR 1 5 6 10 11 15 21 1 20 2 21 1 20 2 34 33 68 67 1 2 35 36 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 7 1 3 4 5 1 3 4 5 1 7 8 14 1 4 5 7 1 4 5 8 1 15 16 30 1 8 9 16 + 1 25 26 50 51 75 76 100 1 16 17 32 33 48 49 64 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 4 R8030 CL9236 TP4832 CL9220 C2271 C2262 R2017 Q2029 C2404 CL9181 R8908 CL9147 L8003 R8301 C8309 R1164 C4634 R3043 CL9836 CL9609 R9586 R4758 R2018 C9946 R3125 R3118 C8329 R2143 R5402 R4621 R9223 CL9879 C3095 TP5602 C8058 L5407 C8024 C9967 R2006 C9936 C9929 D5608 CL8724 R2110 L9901 R9616 C8059 IC8408 TP4835 C2265 R9950 C5701 D4528 CL9184 R3129 CL9328 TP4508 C4641 CL9235 CL9227 C3021 CL9216 CL9000 C9964 TP0190 D2005 C9933 C9918 TP8806 C8365 L2029 CL8743 C9877 C9863 CL8326 CL8309 C9051 R8078 CL9262 D3014 R8016 R2058 C8415 CL9010 R9946 C2432 D2004 TP8805 R5662 R1000 R3112 R8503 CL8751 C9882 C2345 L4519 C4645 CL8308 R8087 C1138 R8053 CL9057 R8019 C2270 C8021 CL9003 TP0192 TP1104 C9909 TP3018 TP3001 R3122 TP2031 TPS15V C5634 TP2009 C8308 TP4505 R867 C4632 CL9069 CL9056 C8811 R4764 R2032 C9955 R2003 R8354 R3138 R5631 L8001 C3117 R5603 C8310 CL9108 C9879 R9840 R866 CL8311 CL9838 CL9257 C2098 C5730 R4761 D4542 C9952 R2000 C9924 C3148 R9896 R5614 C5418 C5405 CL8707 R4608 D9021 C4603 R8023 R9393 C8414 R9956 R9159 C4542 C9922 C3147 R8318 C8326 CL9104 R4631 CL8705 D9813 Q9058 R5583 C9035 R8061 CL9053 CL9048 R8002 C4580 CL9174 R8917 C3145 CL9907 R4292 C5415 R2114 R4628 C4609 C3057 CL9052 CL8465 C8018 D5693 R8927 R2191 CL9321 L2030 C5403 CL8717 C4639 R8090 R8079 D9018 R5763 D3004 C8027 C9547 CL9589 R3167 TP8803 R9891 R9889 R5606 C5401 R4604 R8852 R4591 R8015 CL8464 C2023 R8956 TP8804 TP3009 R3130 R9893 C2381 R9879 R4667 C5623 TP4502 C3097 CL9078 C2092 C8422 C9979 C5702 R2019 C9949 R3155 C3153 R3119 C5640 R8106 D5604 R8095 C1108 C8424 R4538 R1230 C4506 CL9170 R8912 R5619 C5638 R9869 CL8716 C3093 C4601 C8062 C8020 CL9002 D4535 L1100 R8329 R9899 R9886 R2147 IC5400 R4654 R9850 R4831 CL8728 R4609 CL9068 C8409 R2033 R2027 D4536 Q2028 R8942 R3139 C2392 C8332 R5604 R5400 C5411 R874 R8894 R8873 CL9839 CL9032 R9970 R9969 R9958 R2012 C2410 C9916 C9904 CL9164 R5601 D5401 CL3135 C9862 C4617 CL9092 R3050 CL9263 R8439 R4596 R2059 R2030 C2434 R2208 C2411 D4513 CL9592 C9906 R9898 C9883 CL8737 CL3136 C2301 R8859 TP5604 R2271 C9977 C9968 C9948 R4506 C9911 Q4500 TP5701 CL8755 C858 R4623 C2125 C9033 C8066 R004 R3207 CL9808 R4552 C2416 R9131 CL9193 C4503 R3126 C8333 R4664 CL8747 C2138 CL8712 R4598 CL9813 CL8867 TP4822 R2047 R4716 R4705 CL9192 R3152 R8345 L8004 D5603 CL3156 R9085 L4505 R8828 CL9837 CL9832 C8065 CL9240 C8421 C8031 L2300 R4533 C9935 R8750 R8344 R2177 R5627 R5401 R9847 L4504 R4801 C2102 R008 TP4807 CL3047 C4550 R9906 R1216 R8348 R8336 R8323 C5641 R5610 C5423 R861 JS2061 CL9243 C8046 CL9222 TP4805 C2429 C2419 R8952 Q4501 TP3006 C3154 R4695 R4290 TPC0F CL9114 CL9102 IC4811 C4625 C3091 C3084 TP5606 CL9051 TP9000 R8564 CL9188 CL9171 R9892 CL9135 R5611 C3113 R9072 L4512 IC9805 R8083 CL9460 C8069 CL9245 R8029 D3010 R3000 CL8463 R9907 C9913 C4507 TP3008 R8337 CL9905 CL9124 TP2012 R5405 CL3139 R869 R8877 FL5730 Q8852 R3047 TP5607 R5732 CL3058 R3143 C3144 C2379 JS9000 R8897 C8054 C9920 D860 R3133 R5623 C2186 JS3014 R2300 CL8703 R8091 CL9054 R4760 X8301 R4548 IC4512 R8327 CL9126 R3098 R8093 R9201 C3074 R8441 R8809 CL9234 R9394 C9962 R2206 D4520 Q4525 R8710 R3101 CL9128 CL3151 CL8735 CL8722 C2123 CL8310 CL9090 C3083 R3242 CL9076 CL9267 R8012 C8016 C2246 C9959 R4719 R1215 C2395 CL8768 CL8750 CL8715 C2128 C4600 C8048 R4547 R4528 R8389 CL9186 TP8404 R8911 R4697 R4291 R8107 CL9103 CL8325 CL8307 CL9251 C3048 CL8656 C9902 TP5706 R8314 C880 R9878 CL9301 C5601 IC2109 C4636 FL3008 CL9847 C3056 R3201 R3001 C2268 R3190 R4700 R3141 R8915 L8007 R2165 CL9125 R8100 C5603 C4638 C2305 C4616 R8084 D3027 CL8466 TP4808 R9936 Q2033 R8306 CL8732 L4514 R8655 D9019 C8052 R8001 R2200 R8957 CL9173 R8324 R5622 CL8731 R4611 C8076 R8039 R8024 C8804 R2050 CL9203 R9945 C2421 C9940 R3120 CL9325 C9881 CL3144 C2122 R3068 R3241 R3042 C8060 IC2401 C4555 L3003 L8009 CL8740 C2307 R8864 C4602 R3059 R3239 R8056 R2094 CL9229 C8030 CL9015 C9973 C8003 R4532 C9944 TPS0S R1210 R5632 R2169 R9887 C8320 C9885 R9846 R9071 R8048 CL9228 R9972 CL9023 C9983 C8002 R4725 IC4517 C4700 TP3014 C3149 C2391 CL9902 C862 R5408 C9884 CL8738 C2136 C8074 C1102 CL9041 R8005 CL9011 CL8824 R2013 R3186 CL9584 R8361 R1001 R4684 D5402 CL8726 C4646 R8099 C4607 R3243 CL9840 C8079 C8055 IC8004 C4595 C3008 R4723 R4701 R1219 D862 R2136 R859 R4600 C4606 L852 C1127 TP5400 CL8868 R3153 TP2010 R5403 C5608 C9864 R1170 CL8708 CL9279 D3030 C3030 TP4803 C8004 R4330 C9938 C9542 CL9195 R2149 R5404 CL3140 IC2110 JS3007 TP8501 C1110 C8057 TP4821 CL9016 CL9004 R4704 TP3019 TP3003 R8506 R8105 C5626 D5405 R9083 L2006 CL8710 R4800 C2101 C9053 R8080 C8071 CL9255 C3044 R9975 C8802 C8012 C9958 C5697 TP3005 CL9925 R2178 R4676 CL9122 CL9307 C5413 CL8316 C9058 C9825 R8082 R3238 CL9067 CL9256 CL9233 C8803 CL3048 Q2022 R2170 R5613 R1194 C5417 R2115 C4831 CL8304 C3086 R3045 CL9266 C8070 R5735 IC8404 CL8470 R9968 C3007 C2055 R4722 CL8958 C4624 C3087 C9037 S3022 D1106 CL9259 CL9246 CL9046 C2257 Q2030 CL4546 D1001 C2397 CL9906 D3101 C3114 R9849 L4513 CL8701 R9400 R8074 R8067 L8303 C3040 R9158 R2193 R8325 CL3183 C3115 R8891 JS2057 CL8302 R8075 C8078 C1116 L8301 C3029 R4323 C4534 CL9199 L3025 R3105 C5639 R4280 R8896 R4610 R4605 C4613 C3073 CL9848 TP5605 CL9050 C8051 C8026 R4321 CL9197 R5629 R4659 R1152 CL9292 C3072 R8443 R8034 R8020 C3027 C8007 Q4502 R8924 L3011 R5637 C878 R2153 L2028 R8467 C8047 C3026 R4546 IC4500 R8923 R8910 R2179 R5618 C5637 C4644 X4500 CL3098 CL9237 R8011 CL3072 C8011 CL8601 R1222 L3021 C2394 R5628 R5616 C5636 C9887 CL9101 TP4507 R8876 C2103 C8080 C8073 C8042 C3024 C4599 C8022 TP4800 C9945 R3188 C4501 C2393 TP2032 R5615 C5635 C2118 C9055 C4610 D1107 R8432 R9385 C2407 R9132 R3154 R5605 C3104 R4821 L4507 R3086 IC9002 R2048 C9976 R9170 C9947 CL9183 CL9158 R3103 C9888 CL8730 R2118 JS3010 R4622 C9032 CL9849 CL9226 C3020 CL9204 C2056 CL8823 D2017 C9941 C4535 Q4505 R3146 R2194 C2190 CL3152 R2129 C2129 R8098 R3245 D3043 C3042 CL9811 D3007 R4762 C8405 C4574 R4540 R4711 C2402 TP1102 Q4518 R8556 R5664 L3019 L4502 CL9093 CL9850 R8052 C8061 R3004 CL9001 R2209 R4713 R9110 R8353 C8331 C2362 C5410 IC2106 CL4814 CL9209 R4543 R4726 R3198 R8961 JS2313 R3150 R8342 R8907 R8512 R5626 CL9903 R2148 R2141 CL9109 CL8729 C4633 C8075 CL9247 C8053 R1204 R8900 CL9136 C879 IC5601 X8001 C9860 CL9289 R3060 R8068 C1123 CL9248 CL9049 CL9212 CL8455 C4554 R8918 R8901 CL9137 CL3142 CL8719 R4613 R3061 IC9001 R8038 R9392 CL8467 C5703 D2014 R1251 C9921 L3002 CL9900 R8109 R9088 C5404 CL9097 C3085 C9034 C1134 D3045 CL9258 CL4811 R9588 C3018 R9957 C8009 C9961 R2011 TP9010 CL9590 R2180 C3139 R9089 R4616 R8094 R9207 R8442 R8033 R9983 R9943 R9153 R8953 R8335 C3092 Q9805 C2091 C3025 C8005 R8346 C3152 C5421 JS3008 R9611 R8659 C3049 D3011 C3014 C2400 R3172 R3169 TP3020 CL9161 R9894 R4671 IC5600 CL9303 C5402 R8086 CL9870 Q8853 CL9252 CL9239 C8049 C8028 R4322 C9930 Q2001 C9914 C9903 D1000 R8509 CL3181 R8108 R5607 R5406 JS3012 CL8700 R8856 CL9077 C8068 CL9242 R4590 C2266 R2029 C2418 TP5702 R2164 R4835 R1171 CL8714 C2126 R4603 R9200 R8446 C8067 R8031 R8028 C8044 R4759 CL9007 R2007 CL9194 R3128 CL9904 C3110 CL8748 PA5600 R2304 R1166 C4640 C3071 C8039 CL9219 R4757 C9975 R1249 CL9154 CL9148 R4675 C8321 R2142 C9886 C5607 L9900 R8875 FL3012 CL9878 C9049 C8072 C1119 R3028 R4597 R5521 R4756 R2034 TP0193 C2414 C4510 R1211 R3123 R5633 C8311 R2139 R1182 R8874 R3076 CL9055 C9982 R4541 C2412 TP8808 CL9167 R2174 C2191 IC8301 R4662 L2010 TP4504 CL3137 Q9010 CL8886 C8041 TP4827 CL9024 R4542 D2007 R8960 C4701 R8356 R8906 R3115 R3109 CL9313 CL8753 C5625 CL8739 L2005 CL3138 TP4825 FL4505 C4567 D4533 C2401 R4501 TP3021 CL9177 R9897 CL9138 R2145 C2151 R4632 R8886 C9050 R3062 C3043 TP4826 R9949 C9954 R4712 C2403 C9927 Q4519 CL9179 CL9144 R5625 R2146 CL8350 C5407 R8089 CL9841 R8035 IC8409 R1217 R8925 R2190 R8315 CL8756 CL9302 L2001 R1172 CL8317 C1109 C2095 C9915 R8926 CL9140 C8335 R9870 L2023 TP4503 JS3013 FL5731 CL9294 R8060 C3070 C8809 C9978 R4545 CL8809 R8963 C9919 TP8801 D859 R8332 R5617 C8313 R8883 CL8305 CL9244 C2093 CL9223 C8017 R4527 IC4501 TP8802 TP3007 TP5705 R8322 CL9317 C5617 JS3009 R8096 R8071 CL9249 C8034 R8004 R9369 C2431 R2205 D2003 Q4524 CL9150 CL9901 C8327 R2134 CL8734 CL8706 D9814 C3090 C9036 CL9846 D3046 R8049 CL9232 C8032 CL9213 C2430 C9950 IC4511 C8340 CL9130 R5612 C9880 C9861 IC9806 CL8303 R3240 R8059 R3041 CL9834 R8808 R9937 CL8810 C9539 CL9175 R2167 C5643 CL9311 R4630 R8069 C1124 CL9254 R5733 C2258 R4539 R3174 C8336 R9871 CL3141 R9225 CL9260 C3039 R8006 CL9012 C8001 R4530 R4703 CL9593 TP8807 R3136 C8344 TP2030 D5606 C2347 R2117 R3075 C5596 C3078 CL9071 D3042 R8025 C8035 CL9215 C9980 C2057 C9963 C9953 C9932 C9917 R3159 R1207 Q9301 C8343 R8310 C8315 C8306 CL3145 C5409 R3084 CL9874 CL9851 C1125 C8037 R8008 CL9014 D4552 R2015 C4547 C9928 C9908 TP3015 TP3000 TP2017 D5607 R2138 C5605 C5600 R3038 R2093 C3022 R8007 CL9207 R2031 TP0191 C9943 R4503 TP3013 R3121 CL3185 L2032 CL8752 C8307 CL3148 C4631 C1103 TP4828 TP4811 R9370 R2016 D2008 R1248 R1220 R3151 R8343 R2183 R2176 C8328 L2034 L2025 TP4506 FL3011 CL9290 R8044 TP5601 C5735 C8023 R9371 C9957 D4515 CL9191 TP3004 R5634 R8507 CL9315 C8312 CL8746 R9084 R8889 C9056 C2100 R9215 R3225 TP5603 CL9241 C2264 TP4802 C9937 R1223 CL9118 R9090 L4506 R8032 IC3001 C8014 R2008 C9939 R4507 C9912 IC850 C8334 CL9119 C3105 C4642 R8454 IC1102 IC8405 R2051 IC2403 R2001 R4702 C9925 CL9189 R2168 C5419 R871 C5406 R8088 R8077 CL9264 D3041 C4596 D4534 R2002 C4537 Q4527 TPS0N CL9166 C8338 R5602 CL3147 CL8727 R3085 R3052 CL9080 CL9265 C1126 C8040 CL9206 C9965 IC4516 TP1103 C9907 R8510 R8311 C3116 CL3153 C9878 L4520 TP1043 R3037 R2092 R8401 CL9218 R4755 C9966 JS2303 CL9169 R8712 R2175 C8339 CL9132 R8104 D5404 CL3149 TP4500 R2303 CL8312 CL9063 R3029 Q1100 R5522 TP4829 CL9017 TP0194 C4511 CL9182 TP8401 L8010 R8313 C2375 L2026 R9854 CL8711 R1151 R1138 CL9291 CL9844 R2096 R8045 CL3097 R9391 C2261 C9974 C9956 CL9190 R9105 TP3002 R3116 R4284 R5409 CL3155 L2012 R4832 C9468 R1139 R8468 CL9843 R2095 R9171 R4524 D4518 C8319 C5621 L2008 CL8725 L4511 L9903 L5691 R3057 CL9250 R4599 CL9238 C2050 R4718 D4517 C4504 TP5700 R5620 R9078 CL3134 CL8713 CL8709 R4602 CL9086 R3049 R8036 CL8876 FL4500 R1250 Q2002 R3158 C3138 C881 TP2014 R5407 C2111 CL9873 R8854 R009 CL9815 CL9224 C2267 Q4503 CL9160 L8005 C5622 TP4501 C4637 TP5660 CL9293 R8447 C3047 TP4837 C8423 TP4806 CL3046 R4536 TP8403 L3010 R8321 R5600 C5422 R4625 JS3000 CL8306 C3046 TP4836 C8006 R4535 R4525 R9122 C4505 R8333 C3141 C877 R9868 R9086 D3028 D3012 C8008 C2048 R2204 R3191 R8902 CL3150 CL8733 R4614 FL5732 D9807 R3067 R3058 C8851 D1105 CL9064 L8304 CL9810 C8033 FL4504 C5704 D4541 CL8811 R3193 C9923 R8904 R3111 R8308 CL9127 C9874 L4515 TP8745 R4607 CL9269 R3223 R8807 CL9817 C8029 R9165 R8916 C2398 R4281 R1173 L8551 IC9011 C4604 C5597 C8077 CL4810 C3041 R9197 TP4809 CL9176 R3107 R8307 R8898 C2135 CL8704 Q9057 C3089 CL9855 CL9261 TP5608 CL3099 C8050 C8025 C8013 R4544 C2417 TP1105 C9910 C5698 C3150 R9888 CL8754 C5620 R9848 L4518 L9902 L5690 C2302 R8040 R8802 R3208 C8045 TP4804 CL3045 C2408 CL8002 C9900 C3151 C3111 CL8749 C5414 JS3011 CL9087 TP5600 R3005 C8038 R4765 C8010 C2426 C9934 R8943 CL9180 L8002 CL9120 IC5401 C3101 TP4512 C5606 JS3003 CL8313 R8827 C1104 C8043 R4766 C2263 TP4801 C2415 R3189 R1212 R8909 C3140 R9890 CL9129 C5627 R4656 C4635 C9057 R3078 R8081 CL9268 TP4831 C4598 TP4810 R2026 C2413 JS2311 TP3017 CL9152 CL9145 IC8302 L2033 CL9305 C2116 Q850 R3033 R3219 TP4830 C8036 R4763 C4575 R2014 D2006 TP8037 R3137 R8905 CL9139 TP2008 R2137 R9080 C2337 R865 D9815 R2097 C8056 C2099 R5702 C4585 C9970 R4724 C9942 R3187 R8362 CL9178 Q9302 R5630 C3130 C861 R872 JS2063 R4601 CL9288 R3244 R002 L5605 C3019 C2433 R2207 D4512 Q4526 C9905 R3135 CL9143 CL9309 R1196 CL8736 TP1042 CL8723 R3074 R3051 C3077 CL9070 TP8301 R001 C8413 C8019 IC2008 D861 R3134 R8326 CL9323 R4282 C5416 R4629 R8092 C4605 R8037 FL4501 R3144 R3132 TP5500 R8305 R8101 CL8720 CL8718 CL8702 C3088 TPEC0 C2097 C2049 TP8851 IC4513 R8903 R9895 C8330 R4673 D9808 CL5600 D9017 CL9089 C3075 D1109 CL9842 R3218 C2096 R9967 C2259 C9960 C2420 R4325 L8008 L2018 CL8721 C2120 R4606 IC9013 Q9806 CL9088 CL9845 R3034 R3212 C8015 R9172 TP1107 CL9185 TP8402 CL9149 C2377 R2144 C5616 R4624 C2127 CL9869 R3213 C2256 C9901 R8347 TP5510 C3124 CL9123 C8314 R2132 R1169 CL8324 R5586 R8041 IC8401 C3028 C3013 R9142 CL9187 R3140 R5621 C3112 C859 C2339 X2010 CL9295 C4612 CL9253 R8806 C9931 Q4504 CL9172 R3131 R3110 C5624 C5604 R3073 R8660 R3048 JK8401 JK3100 A12 JK3100 JK3002 D3015 TU8301 JK3001 JK3003 A-BOARD (FOIL SIDE) TNPH0713DC TH-50PV80C A-BOARD TNPH0713DC TH-50PV80C A-BOARDTNPH0713DC 73 TH-50PV80C TH-50PV80C A-BOARD PARTS LOCATION TH-50PV80C A-BOARD PARTS LOCATION Parts Location A-BOARD (FOIL SIDE) IC850 I-4 IC1102 C-5 IC2008 C-4 IC2106 B-3 IC2109 A-5 IC2110 A-5 IC2401 I-2 IC2403 E-6 IC3001 C-2 IC4500 D-4 IC4501 D-5 IC4511 E-4 IC4512 E-5 IC4513 E-4 IC4516 E-4 IC4517 D-4 IC4811 H-2 IC5400 D-5 IC5401 E-5 IC5600 H-4 IC5601 H-4 IC8004 F-4 IC8301 B-5 IC8302 A-5 IC8401 H-5 IC8404 I-5 IC8405 H-5 IC8408 H-5 IC8409 H-5 IC9001 G-3 IC9002 F-6 IC9011 H-3 IC9013 E-3 IC9805 G-2 IC9806 G-2 IC IC Q850 I-5 Q1100 C-4 Q2001 C-5 Q2002 B-5 Q2022 B-4 Q2028 I-2 Q2029 I-2 Q2030 A-5 Q2033 F-5 Q4500 D-4 Q4501 D-4 Q4502 D-4 Q4503 E-3 Q4504 D-4 Q4505 D-4 Q4518 D-4 Q4519 E-3 Q4524 E-3 Q4525 D-3 Q4526 D-3 Q4527 D-3 Q8852 E-5 Q8853 E-5 Q9010 H-3 Q9057 H-3 Q9058 H-3 Q9301 G-1 Q9302 G-1 Q9805 G-2 Q9806 G-2 TRANSISTOR TP0190 F-5 TP0191 G-2 TP0192 F-5 TP0193 F-5 TP0194 F-5 TP1042 G-4 TP1043 G-4 TP1102 D-4 TP1103 D-4 TP1104 D-5 TP1105 D-5 TP1107 D-5 TP2008 B-4 TP2009 B-4 TP2010 A-4 TP2012 A-4 TP2014 A-4 TP2017 A-4 TP2030 B-5 TP2031 B-5 TP2032 C-5 TP3000 D-1 TP3001 C-1 TP3002 D-1 TP3003 C-1 TP3004 D-3 TP3005 D-3 TP3006 D-3 TP3007 D-3 TP3008 E-4 TP3009 E-4 TP3013 D-2 TP3014 A-3 TP3015 C-3 TP3017 D-1 TP3018 D-1 TP3019 D-1 TP3020 C-1 TP3021 D-3 TP4500 D-3 TP4501 E-3 TP4502 D-3 TP4503 E-3 TEST POINT Parts Location A-BOARD (COMPONENT SIDE) IC1100 F-4 IC1101 F-4 IC1103 G-4 IC2010 G-4 IC2012 G-4 IC2013 F-3 IC2107 H-4 IC2108 G-5 IC2301 H-4 IC4510 E-4 IC4514 F-3 IC4515 F-3 IC4800 C-1 IC5660 D-4 IC8001 D-5 IC8002 D-3 IC8003 C-4 IC8403 B-5 IC8554 D-5 IC8601 F-4 IC9003 C-3 IC9303 E-2 IC9500 A-2 IC9802 A-3 IC9803 A-3 IC9900 D-2 IC9901 C-2 IC Q2027 E-5 Q2032 G-5 Q3000 F-2 Q3001 E-2 Q3002 G-3 Q3003 G-3 Q3004 G-3 Q3005 G-3 Q3009 G-3 Q3010 G-3 Q4514 D-3 Q4515 D-3 Q4516 D-4 Q4517 E-3 Q4811 B-2 Q5522 E-5 Q5600 B-4 Q5601 B-4 Q5602 B-4 Q5606 B-3 Q5607 B-3 Q8401 A-5 Q8402 B-5 Q8801 C-1 Q8802 C-1 Q8850 D-5 Q8851 E-5 Q9044 B-3 Q9046 B-3 Q9807 B-2 Q9808 B-2 Q9809 B-2 TRANSISTOR TP4840 B-1 TP9011 A-1 TP9311 B-2 TP9312 B-2 TP TP4504 D-4 TP4505 D-4 TP4506 D-4 TP4507 E-3 TP4508 D-4 TP4512 E-4 TP4800 F-3 TP4801 F-3 TP4802 F-3 TP4803 F-3 TP4804 F-3 TP4805 F-3 TP4806 F-3 TP4807 F-3 TP4808 F-3 TP4809 F-3 TP4810 F-3 TP4811 F-3 TP4821 H-2 TP4822 I-2 TP4825 H-2 TP4826 H-2 TP4827 H-2 TP4828 I-2 TP4829 I-2 TP4830 H-2 TP4831 H-1 TP4832 I-1 TP4835 I-2 TP4836 H-2 TP4837 H-2 TP5400 D-6 TP5500 E-6 TP5510 E-6 TP5600 H-4 TP5601 H-4 TP5602 H-4 TP5603 B-1 TP5604 B-1 TP5605 B-1 TP5606 B-1 TP5607 B-1 TP5608 B-1 TP5660 F-4 TP5700 E-5 TP5701 I-2 TP5702 H-2 TP5705 A-4 TP5706 D-5 TP8037 F-4 TP8301 B-5 TP8401 H-5 TP8402 H-6 TP8403 H-6 TP8404 H-5 TP8501 F-4 TP8745 F-6 TP8801 H-1 TP8802 H-1 TP8803 H-1 TP8804 H-1 TP8805 H-1 TP8806 H-1 TP8807 H-1 TP8808 H-1 TP8851 F-4 TP9000 G-3 TP9010 G-1 TPC0F D-6 TPEC0 B-6 TPS0N B-6 TPS0S D-5 TPS15V B-6 A 74 TH-50PV80C A B C D E F G H I 1 2 3 4 5 6 A30 A31 A32 A33 A34 A35 Q8850 IC1100 Q8851 IC1101 IC1103 A50 A51 A52 IC9003 Q9807 Q9808 Q9809 Q9044 Q9046 A70 Q4811 JK3100 A81 A82 IC9802 IC9803 A1 A88 A7 JK8701 IC4800 L4503 IC2107 IC2108 IC2301 Q5600 Q5601 Q5602 Q5606 Q5607 TU8301 JK4500 JK4501 IC5660 IC8554 IC9303 Q4514 Q4515 Q4516 Q4517 IC9500 JK3001 JK3002 JK3003 JK8401 IC9900 IC9901 IC4510 IC4514 IC4515 Q2027 Q2032 IC2010 IC2012 IC2013 Q3000 Q3001 Q3002 Q3003 Q3004 Q3005 Q8401 Q5522 Q8402 Q3009 Q3010 IC8001 IC8002 IC8003 Q8801 Q8802 JK3100A IC8403 D3015 A11 A12 IC8601 A20 A25 G H E F G M N L K J H D C B A B C J K M L F E D R S T Y X W V U Q P N TNPH0713 1 A EU_AV2 A_AV3S A_AV3 A_AV2 EU_AV1 A_AV2_COMPONENT EU_COMPONENT A_AV1 A_MONITOR OUT EU_AUDIOOUT EU_AUDIOIN A_AV1_COMPONENT PbF 1 2 19 20 1 55 1 68 1 11 1 2 19 20 1 4 1 25 26 50 51 75 76 100 1 4 5 8 1 4 5 7 1 4 1 16 1 1 4 1 25 26 50 51 75 76 100 1 4 1 3 3 6 10 7 1 2 1 3 1 10 11 20 3 6 10 7 1 2 1 10 11 20 1 11 1 30 1 2 22 21 1 37 38 74 1 4 5 8 S U F F I X . 1 4 5 7 1 4 5 3 1 36 19 18 10 9 28 27 + + + + + + AUDIOOUT SIFOUT VB AFTOUT VIDEOOUT +BACTIVEANT AGCMONITOR BTL BTMONITOR BB SCL SDA +B IFDOUT2 IFDOUT1 19 1 19 1 1 3 4 5 SW1 SW2 +B SCL SDA BTL RFAGCMONITOR IFMONITOR 1 28 29 56 1 24 25 48 1 25 26 50 51 75 76 100 1 5 6 10 11 15 2 20 1 21 2 20 1 21 67 68 33 34 2 35 1 36 1 A 2 B 1 36 37 72 73 108 109 144 1 4 5 8 1 4 5 8 1 3 4 5 1 4 5 8 1 3 4 5 A 1 A 1 A 1 1 3 4 5 1 2 29 30 1 4 1 4 5 8 1 30 1 11 / AGC IF BT MONITOR CL4815 PA5510 R8944 C5412 R8476 CL9831 FL3004 CL9877 L2014 D5602 JS1111 R8920 A25 R5538 R8027 R8403 R2035 R4511 R9116 R1183 C2119 R8046 A33 R8440 C5615 D5612 CL9330 R5659 R8936 R8603 R2036 R8947 C2317 Q8850 S3031 C9870 C3103 CL9133 CL9156 R1213 R3220 R4514 R8386 R8949 C2323 C9063 S3025 S3033 R9091 R4665 R5536 R9189 R4502 R4636 R3234 R8834 CL9852 R3108 R3148 R5535 C2422 D4511 JK8401 R8566 R8051 D3052 R8076 CL9607 L9800 R4638 L8313 R4649 C8346 R9397 CL9208 ZA0002 C9540 R8940 Q5601 CL9921 R8421 Q3003 CL3049 R9610 CL9835 R1102 C8852 R8062 R9203 R4651 CL9131 R3024 C2054 CL8821 D3038 R1101 R1105 R9206 R2127 R3100 R9359 C4553 D4500 JS2056 C2105 R8050 CL9084 CL9860 R4669 R4592 D2021 D2011 R8437 R3106 C5660 D3031 R3214 R8411 R3200 R4515 R4639 R3092 R1107 S3026 C4614 L2021 JS1114 R8913 L3024 R3222 R3021 R8021 D4510 CL001 R2112 R8878 C9065 S3027 R3072 R8803 R9134 CL9586 R4819 R8884 CL9280 FL3001 R9856 L3022 R8408 C3003 C2053 D2010 C9546 L4501 R3083 C3143 L5404 C8807 R2054 CL8826 D4523 CL9594 R9062 R8047 C5633 C3131 R8340 IC5660 R5543 JK3100A C5733 R5510 R4504 R8818 CL8352 C3109 L3006 C4500 R4595 R3010 FL9301 D2026 IC9901 CL9591 JS3001 C4627 C1136 R4645 R2172 R1206 R2071 R3003 C8416 C3009 R8950 L4517 R8887 R8822 R1100 R8064 CL9082 R8460 JS1128 R2195 R1208 CL9814 CL9615 CL3065 C9550 R2111 IC9803 IC1101 R4640 JS1124 C3010 ZA0003 C2406 R853 C9062 C8854 A51 R4834 C1111 CL8475 C2251 R9354 R2123 JK8701 FL3013 R8851 R9608 L2035 CL8959 X1100 CL9155 R3012 CL9612 CL3062 R4521 R3031 CL9066 R1103 C3094 R8474 CL9100 JS1102 JK4501 R3124 R8935 L5600 R9977 R9164 CL9588 R8867 C9039 FL3003 C860 C2052 C4530 L4500 R3209 R8409 CL9225 C8410 R4517 R8379 C9840 IC1103 CL9296 L2022 L3014 C2409 R9125 C3096 R8855 C2389 A12 CL9211 D2020 C4551 R3173 D2302 JS2055 FL3014 C1122 D5573 CL9284 CL9864 C9871 R8502 C8361 R3217 R9966 Q3000 R9166 D2013 R8438 CL9278 Q9809 R9401 R4641 L2031 CL2005 IC8403 R9587 D2024 C9951 R1236 C2112 R3228 R3235 CL9282 R9403 C2343 R4650 JS1120 CL8469 R9188 C5511 R8865 R3229 C9045 CL9142 R007 R8407 R4508 R8376 R3081 C9046 R8334 R8922 R8804 D3003 R9953 IC2013 R8954 D2301 R8459 C9047 D3019 CL9230 R8014 D4519 C4532 R3170 CL8003 R9618 C1132 Q9046 R1200 R3215 CL9045 R9126 Q4515 R9066 IC1100 C1133 C3107 S3134 R4594 R8959 C9859 R3097 R8861 R8820 S3030 C2175 JS1127 R4699 L3017 R8929 C1117 R3216 C5520 R2210 R9067 C2132 R8478 CL9277 Q9808 C4608 R4668 CL3179 L3015 D2025 D4504 C4630 JK3100 R8431 R1106 R8457 R8073 D3013 IC8003 CL9020 CL9202 FL9300 R4327 R1237 R1175 C2121 D3051 C9044 JS1117 CL8960 CL9058 C3023 R8384 D9817 R8435 R9852 JS1101 R2199 R8422 C5515 R9130 C9868 C2309 R8817 R8505 CL9168 R8017 C8805 C2058 R1255 C2202 D5571 R1134 CL3146 R4661 JS1133 R8350 R9988 R3002 C5512 R2023 TP9011 C4529 R8567 JS3019 JS3016 C3065 CL9081 R8858 D5605 CL3184 C5657 C8364 C1112 R2073 CL3064 C2252 R9940 R4717 D4516 C9541 IC9303 FL8802 CL9079 CL9157 R3211 TP4840 C8601 R8895 C2319 A82 IC9003 R4680 CL9159 R1214 CL9812 R8402 R9398 R9353 L9801 IC8554 R3237 R3117 CL9923 CL9059 R3013 R3007 CL9018 R4522 R8946 C9469 R2131 R4657 R8508 R5540 CL8468 R9186 R9939 R4721 D4503 FL5733 R8449 S3035 R8657 C5663 CL8822 IC4514 R4500 JS3015 R852 C2114 R8832 CL9099 R4644 C3129 L3004 C8411 R9358 R9127 R4626 R8860 R8436 C8412 R9185 R2212 R9129 R1174 A50 R5581 C9872 R5661 R2075 R4589 CL9210 C9536 R9073 CL9872 C2197 R8914 D9110 R4588 CL9030 R3182 R8378 C9869 R1148 C3098 C2365 CL3170 CL9329 D3338 R9357 R9348 R4509 R9124 R8097 R9205 R2133 C1107 R9952 R9162 R9152 R9123 C2325 R8866 R8466 L2016 C5628 S3131 R5545 CL9613 R9578 IC2010 L9802 C2321 R8475 R8816 FL3005 L3009 R9107 R5544 R8418 R8026 CL8817 R8815 R3077 R5658 R8810 L5611 R8410 R9598 C2253 C2244 R9150 R9119 C5408 R4619 R1109 R1184 CL9134 R8331 R5546 R005 D3018 R8404 R4512 R4505 R8880 C9832 JS1108 R3019 R3204 CL9021 D4505 R8372 R1179 R8821 D1112 CL9286 R9604 C5629 JS1132 CL9029 R9350 C9866 FL8801 C1128 R8066 A70 R4646 C852 JS1105 R3113 C5732 CL9217 CL9013 R8383 R9070 C2115 CL9833 R8434 R4648 C853 JS1100 R8103 D3301 C8345 L3005 D853 R2065 CL8474 R2055 C5517 Q5602 R4820 R8430 C5612 JS1110 CL3069 C3004 R2211 C4552 R8958 R8890 R3096 Q4811 C8362 R2213 D4501 C2106 R8814 R3230 R8462 C869 C2187 R1205 R9986 C5521 R2020 IC4800 D9812 R8863 R1104 C9873 JS1130 CL8870 IC2301 FL5734 CL9065 R3236 S3029 S3036 R8658 C3002 IC2012 C9545 C2131 JS2060 R3082 JS1104 R4287 C2184 C3142 L3023 C1106 R9951 R9161 R9151 R8387 R8951 C4643 R8458 JS1103 JS1112 C3123 C5699 D3032 R8605 D3005 IC4510 JS2054 R3089 C1130 R8501 R1201 D3025 C8425 C5602 R3088 C8857 R8853 L5735 CL3085 C2254 R9141 R9903 S3142 C2359 JS1109 R8938 C5700 R4513 R8385 JS3018 R1146 A52 R8937 R8425 R3210 R8602 R2066 C2427 R3199 R8751 D3047 C5420 C2387 D3334 C5696 L5606 R8010 C8801 D4514 R9828 R3079 CL9060 R8057 Q9044 R9853 CL9121 JS1118 C2192 R5657 R8018 C8806 C8417 D4551 R9351 C2203 R8892 R8871 CL9062 D5403 C3108 CL9312 CL9151 R8352 C8408 C9972 C2425 C2137 R8872 R3227 R2098 R1198 JS1122 L8801 IC8601 R9989 D3006 Q3004 R9947 R9149 Q4517 C2335 C4628 R3231 R3233 R8063 CL9275 R8919 R3205 C8810 R2052 Q8402 CL8825 S3137 C9867 A81 R8823 D1114 CL9083 R1124 R4653 R2196 R8812 L5601 L5400 CL3067 R4516 C9548 R8955 Q4514 C2110 R8637 C4807 C3099 JS1125 R8813 A11 D5521 Q3010 R4518 IC9900 D5692 R3094 R8857 CL9319 R8339 R1218 R006 R3009 C2428 C2130 S3037 R8465 R5635 ZA0007 R9163 R8377 R8885 R9406 CL9308 R4678 L5604 R9187 R9839 C2108 JS2201 Q9807 JS1131 CL8884 C3005 R9944 JK3002 JS2058 S3034 FL5511 R8463 Q5607 C5662 R9991 FL4502 R9955 TP9311 C2313 R8862 CL9285 R9402 Q5606 C2399 C8363 R9990 R9965 Q2032 R9068 C9858 R4612 CL9854 X9900 R1125 C5642 C5661 CL9163 R5660 R8417 C8428 Q8802 C9971 D4522 CL9585 R1163 C4629 C9040 C2353 R8351 L5402 IC4515 C2201 L4516 R8054 R8833 CL9287 R5542 CL9611 R9362 IC2107 D9816 R9851 D5601 R3102 C2385 R8511 R8711 R5541 R2064 CL1101 PA9900 R4637 TP9312 L8312 A34 R2197 R8424 D3016 L5405 R8009 R8888 A7 A31 CL9073 R8472 R1199 C3132 L5610 R3206 R3006 IC8001 C4549 R3091 A32 R8058 JS1119 L3008 C4502 CL8874 CL9614 ZA0004 R4523 D4509 R4634 R9064 C2124 IC9802 R8445 R8452 JS1123 R8330 R8811 R8604 C3012 C2245 R4635 R9065 C9064 CL8349 R5646 R8416 D5522 CL8471 CL9205 C5513 C2423 R8373 R1162 R8868 R8065 R4652 C2361 R8703 CL9165 R3147 R003 D3015 L5403 CL8472 Q3005 C5514 ZA0001 R9121 R4633 L4503 CL9094 C4619 R1197 C5658 R1014 R3025 R9396 R2053 C2059 C2424 R2301 A88 D5600 JS1106 C2189 R8328 D852 R3149 R8423 CL8473 CL8816 Q2027 C2204 R8941 R2121 A35 R4663 R2072 R5511 D2009 C2405 R4833 R8477 C3102 C2179 CL9924 C8064 R8601 D3009 C8808 R4520 R4510 C2117 R3030 C9052 C2180 D3302 L3007 C1114 C1105 R2074 R8405 C3011 R2038 C9543 R1225 R3087 C8855 R2189 S3130 R2068 CL9019 R2037 R8962 R1224 C5400 R4658 C2364 R8043 R8022 L5401 C9549 R8371 Q5600 C9841 R1108 R8448 JS1115 C8555 R1202 R8042 C2216 C4533 R3171 R3168 C8853 CL9871 R4666 R4288 R8349 R4526 R8388 CL9587 FL5510 FL3002 JS1113 D3100 R8939 D3001 C2255 C9544 D2300 C2109 R8070 R9405 CL9316 D3336 R5512 FL4503 Q3001 D4502 D3050 R8072 CL9324 C2198 Q3002 R1140 R8819 R8826 C1135 R8456 CL9283 R9404 D5400 R9954 R2201 C9538 R4627 C9842 C2341 R4679 CL3182 R1203 R9938 R4720 R3175 R5582 R8102 C3146 L3018 R5547 R3008 C2213 IC2108 C1131 S3032 L9076 C2224 R9133 C9865 R8882 C2303 Q8851 R3104 R5537 R3011 Q3009 C4548 R9609 R3224 D3039 C9048 CL9876 JK4500 CL9146 CL9153 L8802 R2089 D3017 CL9221 CL8430 R1221 R9077 CL9061 R8433 R9855 TU8301 R8921 C8063 C5516 R9352 D4508 R1181 L2000 R9063 C5611 JS1107 JS1129 R8341 Q5522 R9361 D4507 JS3020 R3226 C2176 JS1121 JS1134 R1209 R2063 C5731 C2435 D4506 R8374 C2333 R3232 R8055 CL9276 R8471 R4647 C8427 Q8801 Q8401 R9948 D4521 IC9500 JS2062 C9061 R8504 R1013 A20 CL8820 JK3001 R1157 R2090 C3064 R8451 R8656 C2383 R4593 CL9200 CL8435 D2012 R9128 R8479 R8450 R8461 R2125 JS1126 R2057 CL9214 C5522 C5510 JK3003 C2331 JS2059 C2113 A30 R4643 IC8002 ZA0008 R3176 C2107 C1129 S3028 CL3143 JS1116 C2188 R8406 R9399 R9355 D2201 R8375 R1141 C9038 R4286 R5647 R4587 R8013 ZA0006 R9356 R9347 R9905 R9317 C4626 CL9281 R5636 R8805 CL8875 R1243 C9535 CL9198 R1153 S3023 C8856 R4670 C2195 R8338 CL9816 L5602 C8426 CL3068 R4519 C9537 Q4516 R8879 A1 C8858 C2174 A-BOARD (COMPONENT SIDE) TNPH0713DC TH-50PV80C A-BOARD TNPH0713DC TH-50PV80C A-BOARD TNPH0713DC 75 TH-50PV80C 11.3. C1 电路板 A B C D E F G H I 1 2 3 4 5 6 IC101 IC102 C111 C112 C113 C114 C115 C117 C121 C122 C123 C124 C125 C127 FL101 C131 C132 C133 C134 C135 C137 ZA101 ZA102 ZA103 ZA104 ZA105 ZA106 C141 C142 C143 C144 C145 C147 C151 C152 C153 C154 C155 C157 D111 C161 C163 C165 D121 D131 D141 R111 D151 R112 R113 R114 R115 R116 R117 R121 R122 R123 R124 R125 R126 R127 R131 R132 R133 R134 R135 R136 R137 R141 R142 R143 R144 R145 R146 R147 R151 R152 R153 R154 R155 R156 R157 R161 R162 R163 R164 R165 R166 R167 R170 R171 R172 CB1 CB2 CB3 CB4 CB5 R191 R192 C10 C11 CR NO.17 1 C1 TNPA4432 PbF 1 10 11 20 1 10 11 20 O R D E R N O . 1 20 1 68 1 68 1 68 1 68 1 68 1 55 1 20 1 55 TNPA4432 1 1 2 3 C1 PbF S E E R E V E R S EF O R O R D E R N O . C1-BOARD (FOIL SIDE) TXNC11RQTC C1-BOARD (COMPONENT SIDE) TXNC11RQTC TH-50PV80C C1-BOARD TXNC11RQTC TH-50PV80C C1-BOARD TXNC11RQTC Parts Location C1-BOARD IC17101 I-2 IC17102 I-2 IC IC C1 76 TH-50PV80C 11.4. C2 电路板 A B C D E F G H I 1 2 3 4 5 6 C20 C21 C22 R271 R272 R273 R274 R275 R291 IC201 CB6 IC202 CB7 IC203 CB8 C211 C212 C213 C214 C215 C217 C221 C222 C223 C224 C225 C227 FL201 FL202 C231 C232 C233 C234 C235 C237 ZA201 ZA202 ZA203 ZA204 D211 C261 C262 C264 C266 C268 D221 D231 R211 R212 R213 R214 R215 R216 R217 R221 R222 R223 R224 R225 R226 R227 R231 R232 R233 R234 R235 R236 R237 R261 R262 R263 R264 R265 R266 R267 R268 CR NO.17 C2 1 TNPA4433 PbF 1 20 1 68 1 55 1 68 1 68 O R D E R N O . 1 10 11 20 11 20 1 10 1 68 1 10 11 20 1 20 55 1 55 1 68 1 68 TNPA4433 C2 1 2 3 1 PbF S E E R E V E R S EF O R O R D E R N O . C2-BOARD (FOIL SIDE) TXNC21RQTC C2-BOARD (COMPONENT SIDE) TXNC21RQTC TH-50PV80C C2-BOARD TXNC21RQTC TH-50PV80C C2-BOARD TXNC21RQTC Parts Location C2-BOARD IC17201 C-2 IC17202 B-2 IC17203 D-2 IC IC C2 77 TH-50PV80C 11.5. C3 电路板 A B C D E F G H I 1 2 3 4 5 6 IC301 IC302 C32 IC303 C33 IC304 C311 C312 C313 C314 C315 C317 C321 C322 C323 C324 C325 C327 FL301 C331 C332 C333 C334 C335 C337 ZA301 ZA302 ZA303 ZA304 D311 C361 C362 C364 C366 C368 D321 D331 C390 C391 CB10 CB11 R311 R312 R313 R314 R316 R317 R321 R322 R323 R324 R326 R327 R331 R332 R333 R334 R336 R337 R361 R362 R363 R364 R365 R366 R367 R368 R369 R371 R372 R373 R374 R375 CB9 R376 R377 R378 R379 R380 R390 R391 TNPA4434 CR NO.17 1 C3 PbF 1 20 11 10 1 10 20 11 1 55 1 10 11 20 1 12 1 10 11 20 O R D E R N O . 1 68 1 68 1 68 1 55 TNPA4434 1 C3 1 2 3 PbF S E E R E V E R S EF O R O R D E R N O . C3-BOARD (FOIL SIDE) TXNC31RQTC C3-BOARD (COMPONENT SIDE) TXNC31RQTC TH-50PV80C C3-BOARD TXNC31RQTC TH-50PV80C C3-BOARD TXNC31RQTC Parts Location C3-BOARD IC17301 B-2 IC17302 B-2 IC17303 E-2 IC17304 F-2 IC IC C3 78 TH-50PV80C 11.6. SC 电路板 A B C D E F G H I 1 2 3 4 5 6 SC41 SC42 TP90 TP91 SC46 TP92 TP93 TP94 TP95 TP96 L697 L698 L699 C563 C592 IC784 IC786 IC788 C791 C795 C796 R731 ZA421 ZA422 D583 R738 ZA411 ZA412 VR600 VR601 VR602 C411 C412 C413 C414 C418 R774 C419 C806 C813 C822 C632 C633 C634 C440 Q401 C635 Q402 Q403 Q 404 Q601 D401 C641 D402 C450 L591 C842 Q805 Q806 C460 Q421 Q422 D421 Q441 Q442 Q641 Q642 Q643 Q644 Q645 Q451 C691 TP1 TP2 TP4 TP5 R611 TP6 TP7 R613 TP8 TP9 Q661 D461 D462 L401 L402 L403 L404 D471 L411 SC2 L412 L413 L414 D481 D482 TP10 TP11 L801 TP12 TP13 TP14 TP15 TP16 TP17 TP18 TP19 D491 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 TP30 R658 TP31 TP32 TP33 TP34 TP35 TP36 TP37 TP38 TP39 R855 R856 TP41 TP42 TP43 TP44 R860 TP51 TP52 TP53 TP54 R870 TP55 TP56 TP57 TP58 TP59 TP60 TP61 TP62 TP63 TP64 TP65 IC791 TP66 L472 C721 R696 TP70 TP73 TP74 TP78 TP79 SC30 TP80 TP81 2 3 TNPA4393 SC 1 1 PbF CRNo.16 1 2 22 23 1 2 22 23 1 2 8 9 G D S 5 6 10 1 5 6 10 1 5 6 1 0 1 S E E R E V E R S EF O R O R D E R N O . G C E G C E G C E G C E G S D A A K A A K E C B E B C G C E G C E A A K G C E G C E G S D G S D G S D G S D G S D G C E G C E A A K A A K A A K 1 3 A A K A A K A A K 1 9 8 1 SC-BOARD (FOIL SIDE) TXNSC1RQTC TH-50PV80C SC-BOARD TXNSC1RQTC TH-50PV80C SC-BOARD TXNSC1RQTC 79 TH-50PV80C TH-50PV80C SC-BOARD PARTS LOCATION TH-50PV80C SC-BOARD PARTS LOCATION Parts Location SC-BOARD (FOIL SIDE) IC16784 G-3 IC16786 H-2 IC16788 A-5 IC16791 H-2 Q16401 D-4 Q16402 C-4 Q16403 B-4 Q16404 B-4 Q16421 F-4 Q16422 G-4 Q16441 D-1 Q16442 C-2 Q16451 F-2 Q16601 D-5 Q16641 F-5 Q16642 F-5 Q16643 F-5 Q16644 E-5 Q16645 E-5 Q16661 G-5 Q16805 I-4 Q16806 I-5 IC TRANSISTOR TP1 A-3 TP2 A-3 TP4 A-3 TP5 A-3 TP6 I-2 TP7 I-2 TP8 B-1 TP9 B-1 TP10 I-1 TP11 I-1 TP12 H-2 TP13 H-1 TP14 H-1 TP15 H-1 TP16 H-2 TP17 H-2 TP18 H-1 TP19 H-1 TP20 H-2 TP21 H-1 TP22 H-1 TP23 H-2 TP24 I-2 TP25 I-2 TP26 I-1 TP27 I-1 TP28 G-2 TP29 H-6 TP30 I-6 TP31 D-2 TP32 E-5 TP33 C-1 TP34 A-4 TP35 A-6 TP36 H-1 TP37 H-1 TP38 H-1 TP39 H-1 TEST POINT VOLUME Parts Location SC-BOARD (COMPONENT SIDE) IC16471 B-5 IC16472 A-4 IC16501 E-3 IC16521 E-1 IC16561 C-2 IC16562 C-1 IC16581 H-1 IC16724 B-5 IC16725 B-5 IC16752 G-4 IC16771 B-4 IC16772 B-4 IC16784 C-3 IC16786 B-3 IC16787 A-3 IC16788 I-4 IC16789 I-4 IC16791 B-2 IC PC16480 A-4 PC16601 H-5 PC16602 H-5 PC16603 H-5 PC16705 B-4 PC16710 B-4 PC16896 B-4 PC16897 B-3 Q16401 F-4 Q16402 G-4 Q16403 H-4 Q16404 H-4 Q16421 D-4 Q16422 C-4 Q16441 F-1 Q16442 G-1 Q16451 D-2 Q16471 A-5 Q16501 E-4 Q16521 E-4 Q16531 F-1 Q16532 F-1 Q16551 E-1 Q16552 E-1 Q16581 H-1 Q16601 F-5 Q16602 G-5 Q16603 G-5 Q16604 H-5 Q16605 H-5 Q16606 G-5 Q16607 G-6 Q16608 H-6 PHOTO COUPLER TRANSISTOR TP3 C-2 TP46 B-2 TP82 A-2 TP97 H-5 TPSC1 A-5 TPSOS6 B-2 TPSOS7 A-2 TPVAD A-3 TPVSCN A-3 TPVSET I-5 TPVSUS I-2 TEST POINT VR16600 B-3 VR16601 G-5 VR16602 B-4 VOLUME TP41 F-6 TP42 F-6 TP43 F-6 TP44 F-6 TP51 I-5 TP52 H-1 TP53 H-4 TP54 B-6 TP55 B-6 TP56 B-6 TP57 B-6 TP58 B-6 TP59 H-6 TP60 H-6 TP61 H-6 TP62 H-6 TP63 H-6 TP64 B-5 TP65 A-4 TP66 A-4 TP70 H-1 TP73 H-2 TP74 H-2 TP78 I-5 TP79 I-5 TP80 H-5 TP81 H-5 TP90 B-2 TP91 B-2 TP92 F-1 TP93 F-1 TP94 I-3 TP95 I-3 TP96 H-5 VR16600 H-3 VR16601 C-5 VR16602 H-4 Q16621 F-4 Q16622 F-4 Q16623 F-4 Q16641 D-5 Q16642 D-5 Q16643 D-5 Q16644 E-5 Q16645 E-5 Q16661 C-5 Q16662 B-4 Q16663 C-4 Q16664 B-4 Q16665 B-4 Q16762 F-4 Q16781 B-5 Q16791 A-4 Q16794 A-4 Q16805 A-4 Q16806 A-5 Q16814 B-3 Q16815 B-3 Q16816 B-3 Q16817 B-3 Q16871 A-3 Q16872 I-4 Q16873 H-4 Q16874 H-4 Q16875 I-5 Q16876 B-2 Q16879 H-5 Q16881 I-4 Q16882 I-4 SC 80 TH-50PV80C A B C D E F G H I 1 2 3 4 5 6 SC41 D501 SC42 D503 SC46 TP97 L697 L698 L699 D706 C752 C753 D708 C754 Q521 C755 C756 C562 C563 C564 C565 IC752 C566 D710 D711 IC561 D712 IC562 D713 D714 D715 D521 D522 D717 D523 D718 D719 Q531 Q532 D720 D721 D722 D725 C771 D726 C772 C773 C774 C775 C581 C582 IC771 IC772 IC581 R501 R502 R503 R504 Q551 R506 Q552 C592 R507 C593 R508 R509 R700 IC784 R701 R702 IC786 R703 IC787 R704 R510 IC788 R705 R511 IC789 C791 R706 R512 R707 C795 R516 C796 R517 R521 R522 Q762 R717 R523 R720 R721 D761 R722 R723 D763 D764 R725 R531 D765 R726 R532 D766 R727 R533 R728 R729 Q581 R730 R731 D771 R732 R733 R734 ZA421 R735 Q781 ZA422 R736 R737 D583 R738 R739 D585 R740 R744 ZA411 R551 Q791 ZA412 R552 R553 R748 Q794 R749 R750 R751 D791 R752 R753 R754 R561 R756 R562 R757 R563 VR600 R564 VR601 R565 VR602 R566 R567 R568 C401 C402 C403 C404 R761 R762 R765 R766 R768 C601 R769 C602 C603 C604 C605 C411 C606 C412 C607 C413 C608 C414 C609 R771 C418 R774 R580 C419 R775 R776 R582 R777 R583 R778 R584 R779 R585 C806 R586 R587 R588 C421 R589 C422 R781 R782 R590 R785 R591 C812 R786 R592 C813 R787 R593 R788 R789 R791 R792 R794 ZA401 C821 R795 ZA402 C822 R796 ZA403 C823 C824 PC601 C825 PC602 C826 C632 PC603 C827 C633 C634 C440 Q401 C635 C441 Q402 C442 Q403 Q404 C832 Q601 D401 C641 D402 Q602 Q603 Q604 C450 Q605 C451 Q606 Q607 D407 Q608 L591 D601 D602 C842 C843 D604 C844 Q805 D605 Q806 D606 D607 D608 C460 D609 Q421 Q422 D610 Q814 Q815 D421 Q621 C855 C661 Q816 Q622 C856 C662 Q817 Q623 C857 D618 C858 C664 D619 C859 C665 C471 C666 C472 C860 D621 C861 IC471 D816 D622 C862 IC472 D817 D623 C863 C864 C866 PC896 C867 PC897 C868 C480 Q441 C869 Q442 D820 D821 D822 D823 D824 D825 D631 C871 D632 R401 Q641 D441 R402 Q642 R403 Q643 R404 Q644 Q645 Q451 C491 D830 R600 R601 D641 R602 D836 D642 R603 D837 D643 R604 D838 D644 R605 D839 D451 C691 R606 R607 R608 R609 TP3 R610 D650 R611 IC521 R612 R613 R615 R421 Q661 D461 R616 R422 D462 Q662 R617 Q663 R618 Q664 PC480 D659 R619 Q665 D465 Q471 D466 R620 IC724 D660 L401 R621 IC725 D661 L402 R622 D662 R816 L403 R623 D663 L404 D664 D859 D665 D471 D666 D472 D667 D473 D668 D669 D475 D476 D860 D478 D861 R822 D862 R823 R824 D670 L411 R825 D671 Q871 SC2 L412 R826 R632 Q872 D672 L413 R827 R633 Q873 L414 R634 Q874 D480 R635 R441 Q875 D481 R636 R442 Q876 D482 R638 L801 R639 Q879 R831 D871 R832 D872 R833 D873 D874 R641 D875 Q881 R642 Q882 R837 R643 R838 R644 R645 R451 D491 D497 R841 R844 R845 R846 PC710 R657 R658 R659 R465 R466 R467 R850 R468 R851 R852 R853 R660 R855 R661 R856 R662 R857 R663 R858 R664 R665 R471 R666 R472 R667 R473 R668 R474 R669 R475 C502 R476 R477 C504 R860 R478 C505 R861 R479 R862 TP46 R863 R864 R670 IC501 R865 R671 R866 R672 R867 R868 R674 R480 R675 C708 R870 R871 R872 R873 R874 R680 R875 R681 R682 R878 R879 C521 C522 C524 C525 IC791 C527 L472 R886 R887 SC20 R888 C721 R696 C723 C724 C725 SC30 Q501 PC705 TP82 TPVSET TPVSCN TPVAD TPSOS6 TPVSUS TPSC1 50 �� Discharge 42 �� 37 �� H.V.DANGER H.V.DANGER H.V.DANGER H.V.DANGER 42W�� DIP TPSOS7 SCMM3 SCMM2 SCMM1 1 SC TNPA4393 PbF CRNo.16 1 2 22 23 1 2 22 23 1 2 8 9 1 9 16 1 10 11 20 1 10 11 20 D G S 1 30 1 4 5 8 1 4 5 8 1 5 6 10 1 5 6 10 1 3 4 5 1 5 6 10 1 3 4 5 O R D E R N O . 1 2 3 4 1 2 3 4 C G E C G E C G E C G E G S D A A K A A K G D S B C E B C E C G E C G E A A K D G S D G S D G S 3 4 5 1 3 4 5 1 2 3 4 1 1 2 3 4 C G E C G E G S D G S D G S D G S D G S D C G E 1 2 3 4 1 8 9 16 C G E A A K A A K 1 2 3 4 A A K 1 3 A A K A A K A A K 1 2 3 4 1 8 9 16 1 8 9 16 9 1 1 30 8 1 SC-BOARD (COMPONENT SIDE) TXNSC1RQTC TH-50PV80C SC-BOARD TXNSC1RQTC TH-50PV80C SC-BOARD TXNSC1RQTC 81 TH-50PV80C 11.7. SU 电路板 A B C D E F G H I 1 2 3 4 5 6 SU11 SU41 SU1 SU2 SU3 SU4 C901 C902 C903 C904 C905 C906 C907 C908 C909 IC901 IC902 IC903 IC904 IC905 IC906 C910 C911 C912 C913 C914 C915 C916 C917 C918 C923 C924 C927 C928 C929 C930 C931 C932 C933 C934 C935 C936 C937 C938 C939 ZA901 ZA902 C940 C941 C942 C944 C945 C946 C947 C948 C949 D901 D902 D903 D904 D905 D906 D907 D908 D909 D910 TPSU1 TPSU2 TPSU3 TPSU4 TPSU5 TPSU6 R901 R902 R903 R904 R905 R906 R907 R908 R909 R910 R911 R912 R913 R914 R915 R916 R917 R919 R920 R921 R922 R923 R924 R925 R926 R927 1 SU H.V. DANG ER H. V.DA NGE R TNPA4397 CRNo. 14 P b F 1 2 0 A 1 A 4 8 B 4 8 B 1 A 1 B 1 A 4 8 B 4 8 2 2 2 1 A 1 B 1 A 4 8 B 4 8 A 1 B 1 A 4 8 B 4 8 O R D E R N O . B 1 B 4 8 A 1 A 4 8 B 1 B 4 8 A 1 A 4 8 B 1 B 4 8 A 1 A 4 8 B 1 B 4 8 A 4 8 A 1 1 2 5 2 6 5 0 5 1 7 5 7 6 1 0 0 1 2 5 2 6 5 0 5 1 7 5 7 6 1 0 0 1 2 5 2 6 5 0 5 1 7 5 7 6 1 0 0 1 2 5 2 6 5 0 5 1 7 5 7 6 100 1 2 5 2 6 5 0 5 1 7 5 7 6 100 1 2 5 2 6 5 1 7 5 7 6 5 0 1 0 0 1 2 0 B 4 8 A 4 8 B 1 A 1 B 4 8 A 4 8 B 1 A 1 B 4 8 A 4 8 B 1 A 1 B 4 8 A 4 8 B 1 A 1 TNPA4397 SU 1 3 2 1 SUMM1 P b F S E E R E V E R S E F O R O R D E R N O . SU-BOARD (FOIL SIDE) TXNSU1RQTC SU-BOARD (COMPONENT SIDE) TXNSU1RQTC TH-50PV80C SU-BOARD TXNSU1RQTC TH-50PV80C SU-BOARD TXNSU1RQTC Parts Location SU-BOARD IC14901 H-2 IC14902 G-2 IC14903 E-2 IC14904 D-2 IC14905 C-2 IC14906 B-2 TPSU1 A-2 TPSU2 G-2 TPSU3 A-2 TPSU4 G-2 TPSU5 G-2 TPSU6 D-2 IC IC TEST POINT SU 82 TH-50PV80C 11.8. SD 电路板 A B C D E F G H I 1 2 3 4 5 6 R968 R969 R970 R971 R972 R973 R974 R975 R976 R977 R978 R979 R980 R981 R982 R983 R984 R985 R986 R987 R988 R989 R990 R991 R992 R993 R994 R995 R996 R997 R998 TPSD1 TPSD2 TPSD3 TPSD4 TPSD5 TPSD6 SD11 SD42 SD46 C926 C350 C943 C950 C951 C952 C953 C954 C955 C956 C957 C958 C959 IC951 IC952 IC953 IC954 IC955 IC956 C960 C961 C962 C963 C964 C965 C966 C967 C968 C969 IC961 IC962 IC963 C970 C971 C972 C973 C974 C975 C976 C977 C978 C979 C980 C981 SD1 C982 SD2 C983 SD3 C984 SD4 C985 C986 C987 C988 C989 C990 C991 C992 C993 C994 C995 C996 C997 C998 C999 D951 D952 D953 D954 Q961 D955 PC951 Q962 D956 PC952 D957 D958 D959 ZA951 ZA952 D960 D961 D962 D963 D964 R349 D965 D966 D967 D968 D969 D971 D972 D973 D974 D975 D976 R943 R944 R945 R946 R947 R948 R949 R950 R951 R952 R953 R954 R955 R956 R957 R958 R959 R960 R961 R962 R963 R964 R965 R966 R967 H.V.DANGER SD 1 H.V.DANGER TNPA4398 CRNo. 14 P b F A 1 A 4 8 B 4 8 B 1 B 1 B 4 8 A 4 8 A 1 A 1 A48 B 4 8 B 1 2 2 2 1 2 3 1 9 8 2 A 1 B 1 B 4 8 A 4 8 1 2 5 2 6 5 0 5 1 7 5 7 6 100 1 5 0 5 1 7 5 7 6 1 0 0 2 5 2 6 1 2 5 2 6 5 0 5 1 7 5 7 6 1 0 0 1 2 5 2 6 5 0 5 1 7 5 7 6 1 0 0 1 2 5 5 0 5 1 1 0 0 7 5 7 6 2 6 1 7 5 1 0 0 7 6 2 5 2 6 5 0 5 1 1 7 8 14 7 8 14 1 1 3 5 4 B 1 B 4 8 A 1 A 4 8 B 1 B 4 8 A 1 A 4 8 B 4 8 A 1 A48 B 1 B 1 B 4 8 A 1 A 4 8 N O . O R D E R B 4 8 A 4 8 B 1 A 1 B 4 8 A 4 8 B 1 A 1 B 4 8 A48 B 1 A 1 B 4 8 A 4 8 B 1 A 1 1 20 1 20 1 1 2 3 SD TNPA4398 SDMM1 P b F S E E R E V E R S E F O R O R D E R N O . SD-BOARD (FOIL SIDE) TXNSD1RQTC SD-BOARD (COMPONENT SIDE) TXNSD1RQTC TH-50PV80C SD-BOARD TXNSD1RQTC TH-50PV80C SD-BOARD TXNSD1RQTC Parts Location SD-BOARD IC14951 G-2 IC14952 F-2 IC14953 E-2 IC14954 D-2 IC14955 C-2 IC14956 B-2 IC14961 H-2 IC14962 H-2 IC14963 G-1 Q14961 G-1 Q14962 G-2 TPSD1 B-2 TPSD2 H-2 TPSD3 B-2 TPSD4 H-2 TPSD5 B-2 TPSD6 E-2 IC IC TEST POINT TRANSISTER SD 83 TH-50PV80C 11.9. SS 电路板 A B C D E F G H I 1 2 3 4 5 6 Q331 Q335 SS11 SS12 SS21 SS22 SS23 SS34 L103 R327 SS53 SS54 SS55 SS56 VR000 C201 C202 C203 C204 C011 C012 C013 C014 C015 T301 Q001 Q002 Q003 D001 C241 Q021 Q022 Q023 D021 C261 D022 C262 C272 Q041 Q042 D041 D042 Q051 Q052 D051 D052 D253 L001 L002 L003 L004 TPVSUS D071 TP2 TP3 TP4 TP5 TP6 TP7 TP8 TP9 L011 L012 L013 L014 D091 D092 L221 TP10 TP11 TPVDA TP13 TP14 TP15 TP16 TP17 TP18 TP19 TP20 TPSOS8 TP24 TP25 TP26 TP27 TP28 TP29 SS53A TP30 TP31 TP33 TP34 TPVe2 C301 TP36 TP38 TP39 SS54A IC301 TP40 TP41 TPVe TPSS1 C310 SS55A L262 TP51 TP52 TP53 TP54 TP55 TP56 C323 C324 C328 SS56A C329 L271 C R N o . 1 6 TNPA4394 SS 1 1 2 3 SSMM7 PbF 1 1 3 D S G D S G 1 3 1 1 0 1 7 6 2 1 7 6 2 1 2 1 1 3 1 1 3 1 1 3 1 1 3 1 1 3 S E E R E V E R S E F O R O R D E R N O . S 1 S 2 P 2 P 1 P T B P T A G C E G C E G C E A A K 1 1 3 1 1 3 1 1 3 G C E G C E G C E A A K A A K G C E G C E A A K A A K G C E G C E A A K A A K 1 1 3 A A K A A K A A K 1 1 3 1 1 3 5 6 1 0 1 1 1 3 1 1 3 1 1 3 1 1 3 1 1 3 P 2 P 1 P T S 1 S 2 SS-BOARD (FOIL SIDE) TXNSS1RQTC TH-50PV80C SS-BOARD TXNSS1RQTC TH-50PV80C SS-BOARD TXNSS1RQTC Parts Location SS-BOARD (FOIL SIDE) IC Q16001 E-2 Q16002 E-2 Q16003 F-2 Q16021 C-2 Q16022 B-2 Q16023 C-2 Q16041 D-4 Q16042 E-4 Q16051 C-3 Q16052 C-3 Q16331 F-2 Q16335 F-2 IC16301 G-3 TP25 I-2 TP26 I-2 TP27 G-1 TP28 I-2 TP29 C-1 TP30 A-1 TP31 A-1 TP33 I-3 TP34 I-3 TP36 I-2 TP38 F-3 TP39 E-3 TP40 B-2 TP41 B-2 TP51 A-2 TP52 I-2 TP53 B-1 TP54 D-1 TP55 G-1 TP56 I-1 TPSOS8 I-2 TPSS1 G-1 TPVDA I-3 TPVe H-2 TPVe2 H-2 TPVSUS F-3 TP2 G-4 TP3 G-4 TP4 G-4 TP5 H-4 TP6 I-3 TP7 H-4 TP8 H-4 TP9 H-4 TP10 H-4 TP11 H-4 TP13 I-3 TP14 H-3 TP15 I-3 TP16 I-3 TP17 I-3 TP18 I-3 TP19 I-3 TP20 I-3 TP24 I-2 TRANSISTOR TEST POINT TRANSISTOR VR16000 H-3 VOLUME SS 84 TH-50PV80C A B C D E F G H I 1 2 3 4 5 6 D310 D311 D312 D313 D314 Q321 D320 D321 D322 D324 D325 Q331 D131 D326 D132 Q335 Q141 Q339 D331 D335 R102 D336 R104 C192 C194 SS11 R109 C195 SS12 C197 R300 R301 R302 R303 R304 R110 R305 D151 R306 D152 R307 D153 R308 R309 Q161 R116 SS21 SS22 SS23 R310 R311 R312 R313 R314 R315 R316 R317 Q171 Q172 SS34 R320 R321 L102 R322 TPSS1 R323 L104 R324 R325 R131 R326 R132 R327 R134 R135 Q181 R136 Q182 R137 R138 L301 R331 IC241 R333 R334 R141 R142 R336 R143 R338 R339 Q191 SS53 SS54 R340 SS55 SS56 R150 R151 D191 R152 D192 R153 R154 R155 VR000 R159 R161 R162 R163 C001 C002 C003 R171 R172 R173 C201 C202 C203 C204 C011 C012 C013 C014 C015 R181 R182 R183 C021 C022 C023 R191 R192 R193 R194 R195 ZA001 ZA002 ZA003 T301 R399 Q001 C041 Q002 Q003 D001 C241 C242 C243 C051 C251 C252 Q021 Q022 Q023 IC251 L398 L399 D021 C261 D022 C262 C071 C072 D032 C272 Q041 Q042 D040 C280 R001 D041 C281 R002 D042 C282 R003 C283 C284 Q051 C285 C091 Q052 C092 D050 D051 Q251 D052 D253 R021 D255 R022 R023 R220 L001 R221 IC131 L002 L003 L004 R031 D071 R032 D072 R033 R034 R230 L011 R231 D271 L012 L013 L014 Q280 R041 R042 D280 R241 D281 R242 D282 D283 D284 R051 D091 R052 D092 TPVe R251 R252 R253 R254 R255 R256 R257 R258 R259 R260 R261 C301 C302 TPSOS8 IC301 IC302 IC303 R280 R281 IC191 R282 R283 C310 R284 C311 R285 C312 R286 C313 R287 R288 R289 TPVDA R290 R291 R292 C320 C321 C322 C323 C324 C325 C131 C326 C133 C328 C329 C135 TPVSUS C330 C331 C332 C335 Q102 C336 C337 Q104 Q301 Q302 D102 Q304 D104 C151 C152 C153 C154 C157 D300 D301 IC151 D302 Discharge TNPA4394 1 SS Discharge 50�� 42�� 37�� C R N o . 1 6 DIP 42W�� 50�� 42W�� SSMM5 SSMM4 SSMM3 SSMM2 SSMM6 37�� 42�� SSMM1 SSMM7 PbF 1 3 1 G S D G S D D G S 1 3 1 0 1 1 7 6 2 1 7 6 2 1 1 2 1 3 1 11 20 10 1 3 1 1 3 1 1 3 1 3 1 O R D E R N O . S2 S1 PTA P2 PTB P1 C G E C G E C G E A A K 1 1 3 1 1 3 1 1 3 C G E C G E C G E 1 4 5 8 A A K A A K C G E C G E A A K A A K C G E C G E A A K A A K 1 1 3 A A K 1 8 9 1 6 A A K A A K 1 3 1 16 1 3 1 1 5 6 1 0 1 1 3 1 8 9 1 3 1 1 3 1 D G S D G S 1 1 3 1 8 9 16 1 3 1 S 1 S 2 P T P2 P 1 SS-BOARD (COMPONENT SIDE) TXNSS1RQTC TH-50PV80C SS-BOARD TXNSS1RQTC TH-50PV80C SS-BOARD TXNSS1RQTC Parts Location SS-BOARD (COMPONENT SIDE) IC IC16131 F-2 IC16151 F-3 IC16191 B-3 IC16241 B-3 IC16251 F-2 IC16301 C-3 IC16302 C-2 IC16303 B-3 Q16001 E-2 Q16002 E-2 Q16003 D-2 Q16021 G-2 Q16022 H-2 Q16023 G-2 Q16041 F-4 Q16042 E-4 Q16051 G-3 Q16052 H-3 Q16102 B-2 Q16104 B-2 Q16141 F-1 Q16161 F-2 Q16171 E-3 Q16172 F-3 Q16181 F-3 Q16182 G-3 Q16191 B-2 Q16251 G-2 Q16280 A-2 Q16301 C-2 Q16302 C-2 Q16304 C-2 Q16321 B-2 Q16331 C-2 Q16335 D-2 Q16339 B-2 TRANSISTOR TPSOS8 A-3 TPSS1 C-1 TPVDA A-3 TPVe B-2 TPVSUS D-3 TRANSISTOR TEST POINT VR16000 C-3 VOLUME SS 85 TH-50PV80C 11.10.SS2 和 SS3 电路板 A B C D E F G H I 1 2 3 4 5 6 SS02 SS52 TNPA4395 1 SS2 SS03 TNPA4396 1 SS3 SS57 P b F P b F 7 1 2 6 1 1 3 S E E R E V E R S E F O R O R D E R N O . 1 1 3 7 1 2 6 S E E R E V E R S E F O R O R D E R N O . 1 1 3 1 1 3 SS02 SS52 TNPA4395 1 SS2 SS03 1 SS3 TNPA4396 SS57 P b F P b F 7 1 2 6 1 3 1 O R D E R N O . 1 1 3 7 1 2 6 O R D E R N O . 1 3 1 1 3 SS2-BOARD (FOIL SIDE) TXNSS21RQTC SS2-BOARD (COMPONENT SIDE) TXNSS21RQTC SS3-BOARD (FOIL SIDE) TXNSS31RQTC SS3-BOARD (COMPONENT SIDE) TXNSS31RQTC TH-50PV80C SS2-BOARD TXNSS21RQTC SS3-BOARD TXNSS31RQTC TH-50PV80C SS2-BOARD TXNSS21RQTC SS3-BOARD TXNSS31RQTC SS3 SS2 86 TH-50PV80C 11.11.GH 电路板 A B C D E F G H I 1 2 3 4 5 6 TNPA4506 GH 1 CR NO.3 L801 R848 R826 R804 C802 R817 D804 Q801 R820 D810 D803 R831 R830 Q802 R821 D811 D806 C827 C801 R832 R816 IC801 C828 D801 L804 R849 R827 D809 C803 R854 R835 R818 R809 D805 R825 R810 R828 R805 R845 R823 C806 R844 R822 D812 R802 D802 GH10 R829 R824 R803 C804 R819 IC802 R801 SEE REVERSE FOR ORDER NO. P b F 1 12 13 24 25 36 37 48 1 4 5 8 19 1 TNPA4506 GH CR NO.3 1 TP801 TP802 TP803 TP804 TP805 ZA802 ZA801 C824 C809 D815 C815 R853 R833 C818 R841 C829 C813 GH11 R815 R808 C826 C812 R851 R814 R807 C819 R843 C814 R852 Q806 R811 C816 C823 C808 R847 D808 C825 C810 L805 R850 R812 C821 C807 D813 D807 C820 C811 R813 R806 C822 Q804 R846 D814 C817 FL801 R840 P b F 1 2 29 30 O R D E R N O . GH-BOARD (FOIL SIDE) TXNGH1RRTC GH-BOARD (COMPONENT SIDE) TXNGH1RRTC TH-50PV80C GH-BOARD TXNGH1RRTC TH-50PV80C GH-BOARD TXNGH1RRTC GH 87 TH-50PV80C 12 分解图和更换部件清单 12.1. 分解图和机械更换部件清单 12.1.1. 分解图 88 TH-50PV80C 12.1.2. 包装简图 89 TH-50PV80C 12.1.3. 维修部品表 参考号 部件号 部件名称及说明 数量 备注 1 EAS16S06A 喇叭 2 2 K2CK3DH00028 AC 电源线 1 3 MD-50GH11E1 50HD11 PDP 屏 1 N0AE6JL00002 P 线路板 1 4 N2QAYB000224 遥控器 1 5 R6PND/2SP PANASONIC 干电池 （中文） 2 6 TBLX0070 台座本体 1 7 TBXA53602 电源按钮 1 8 TBXA53702 操作按钮 1 9 TESD086 电源按钮弹簧 1 TESD078 10 TKGA5427 前面玻璃 1 11 TKKC5314 LED 透光屏 1 12 TKKL5344-1 M8 垫片盖 4 13 TKKL5384 调整盖 (TUNER 顶部 ) 1 14 TKPB22402 门 1 15 TKPB22602 喇叭板 L 1 16 TKPB22702 喇叭板 R 1 17 TKPB23201 AC 接入口盖 1 TKPB32901 前透光板 1 18 TKRA48002 后盖把手 2 19 TKUX15301 后盖 1 20 TKYA33901 面框 1 21 TMKG686-1 海绵 （前面玻璃 H） 2 22 TMKG687 海绵 （前面玻璃 V） 2 23 TMME289 线夹 2 24 TMMX200 门弹簧 1 TMMX186 25 TMMX224 M8 垫片 4 TMXX049 AC 电源线夹 2 26 TMZX5127 台座安装块 L 1 27 TMZX5128 台座安装块 R 1 28 TPCC39501A 包装箱本体 1 29 TPCC39601 包装箱底箱 1 30 TPDA1783 顶部衬垫 1 31 TPDA1788 底部衬垫 1 32 TPDA1872 台座衬垫 1 33 TPDF2177 附件垫板 1 34 TPDX0035 箱扣 （ROHS） 4 TPEH343 顶面保护片 （ROHS） 3 35 TPEH344A 整机保护袋 1 36 TPEP023 附件袋 1 TQDC19028 电源线夹说明 1 37 TQZK197-1 使用说明书 1 TSXL518 FFC 1 TSXL519 FFC 2 TSXL664 FFC(C11-A31) 1 TSXL665 FFC(C21-A32) 1 TSXL675 FFC(A20-SC20) 1 38 TUXL198 TUNER 顶盖 1 39 TXALK01RQTC AC 接入口 1 TXANZ01RQTC TUNER 组件 1 TXFBL01RRTC 台座附件 1 TXFPE01RLTU 清洁布 1 TXJ/A7RVTB 线束 (P7/P6-A7) 1 TXJ/K1RRTB 线束 (A1-K1) 1 TXJ/P2RQTU 线束 (SC2-P2) 1 TXJ/S1RVTB 线束 (S1-SS34) 1 TXJG51RRTB 线束 (A51-G51) 1 TXJGH1RRTA 线束 (A11-GH11) 1 TXJGS5RRTB 线束 (A52-GS52) 1 TXJP11RQTU 线束 (P11-SS11) 1 TXJP12RQTU 线束 (P12-SS12) 1 TXJP25RVTB 线束 (A25-P25) 1 TXJS23RQTU 线束 (SS23-C33) 1 TXJSWRRVTB 线束 (SP-SPR/L) 2 TXN/G1RRTC G 线路板 1 TXN/K1RRTC K 线路板 1 TXN/S1RRTC S 线路板 1 TXNC11RQTC C1 线路板 1 TXNC21RQTC C2 线路板 1 TXNC31RQTC C3 线路板 1 TXNGH1RRTC GH 线路板 1 TXNGS1RRTC GS 线路板 1 TXNSC1RQTC SC 线路板 1 TXNSD1RQTC SD 线路板 1 TXNSS1RQTC SS 线路板 1 TXNSS21RQTC SS2 线路板 1 TXNSS31RQTC SS3 线路板 1 TXNSU1RQTC SU 线路板 1 90 TH-50PV80C 12.2. 更换部件清单 12.2.1. 更换部件清单注意事项 91 TH-50PV80C 12.2.2. 电器部件更换清单 参考号 部件号 部件名称及说明 件数 备注 A1 K1KA11A00178 11P 连接接头 1 A7 K1KY22A00003 22P 连接接头 1 A11 K1KA30AA0009 30P 连接接头 1 A12 K1KA04AA0190 4P 连接接头 1 A20 K1KY30BA0090 30P 连接接头 1 A25 K1KA11A00178 11P 连接接头 1 A31 K1MN55BA0266 55P 连接接头 1 A32 K1MN68BA0266 68P 连接接头 1 A33 K1KA11AA0715 11P 连接接头 1 A34 K1KA20AA0009 20P 连接接头 1 A35 K1KA04AA0104 4P 连接接头 1 A51 K1KA16AA0729 16P 连接接头 1 A52 K1KA14A00248 14P 连接接头 1 C10 K1MN20BA0231 20P 连接接头 1 C11 K1MN55BA0266 55P 连接接头 1 C20 K1MN20BA0266 20P 连接接头 1 C21 K1MN68BA0266 68P 连接接头 1 C22 K1MN55BA0266 55P 连接接头 1 C32 K1MN55BA0266 55P 连接接头 1 C33 K1KA12BA0107 12P 连接接头 1 C1102 F1J1A106A043 C 0.010UF, K, 10V 1 C1103 F1G1C104A116 C 0.10UF, K, 16V 1 C1104 F1G1C104A116 C 0.10UF, K, 16V 1 C1106 F1H1H270A971 C 27UF, 50V 1 C1107 F1G1H220A731 C 22UF, 50V 1 C1108 F1G1C104A116 C 0.10UF, K, 16V 1 C1109 F1H1A1050032 C 10UF, 50V 1 C1111 F1H1A1050032 C 10UF, 50V 1 C1112 F1G1C104A116 C 0.10UF, K, 16V 1 C1114 F1G1C104A116 C 0.10UF, K, 16V 1 C1117 F1G1C104A116 C 0.10UF, K, 16V 1 C1122 F1G1E103A123 C 0.010UF, K, 16V 1 C1123 F1H1A1050032 C 10UF, 50V 1 C1127 F1G1C104A116 C 0.10UF, K, 16V 1 C1129 F1G1H101A565 C 100PF, K, 50V 1 C1131 F1G1H101A565 C 100PF, K, 50V 1 C1133 F1G1H1020008 C 1000UF, 50V 1 C1136 F1G1H1020008 C 1000UF, 50V 1 C1138 F1G1H560A731 C 56UF, 50V 1 C2023 F1G1C104A116 C 0.10UF, K, 16V 1 C2048 F1G1C104A116 C 0.10UF, K, 16V 1 C2049 F1G1C104A116 C 0.10UF, K, 16V 1 C2050 F1G1C104A116 C 0.10UF, K, 16V 1 C2052 F1G1C104A116 C 0.10UF, K, 16V 1 C2053 F1G1C104A116 C 0.10UF, K, 16V 1 C2054 F1J1A106A043 C 0.010UF, K, 10V 1 C2055 F1G1H150A731 C 15UF, 50V 1 C2056 F1G1H180A731 C 18UF, 50V 1 C2057 F1G1C104A116 C 0.10UF, K, 16V 1 C2058 F1G1C104A116 C 0.10UF, K, 16V 1 C2059 F1J1A106A043 C 0.010UF, K, 10V 1 C2091 F1G1H150A731 C 15UF, 50V 1 C2092 F1G1H220A731 C 22UF, 50V 1 C2096 F1G1C104A116 C 0.10UF, K, 16V 1 C2098 F2G0J2210013 E 220UF 6.3V 1 C2099 F2G0J2210013 E 220UF 6.3V 1 C2100 F1G1C104A116 C 0.10UF, K, 16V 1 C2101 F1J1A106A043 C 0.010UF, K, 10V 1 C2102 F1G1C104A116 C 0.10UF, K, 16V 1 C2105 F1G1C104A116 C 0.10UF, K, 16V 1 C2106 F1G1C104A116 C 0.10UF, K, 16V 1 C2107 F2G0J470A019 E 47UF 6.3V 1 C2108 F2G0J470A019 E 47UF 6.3V 1 C2109 F1G1C104A116 C 0.10UF, K, 16V 1 C2110 F1G1C104A116 C 0.10UF, K, 16V 1 C2111 F1H0J2250008 C 2.2UF, K, 16V 1 C2112 F1J1A106A043 C 0.010UF, K, 10V 1 C2113 F1J1A106A043 C 0.010UF, K, 10V 1 C2114 F1G1C104A116 C 0.10UF, K, 16V 1 C2115 F1G1C104A116 C 0.10UF, K, 16V 1 C2116 F1G1H471A731 C 470UF, 50V 1 C2117 F1G1C104A116 C 0.10UF, K, 16V 1 C2118 F1H1A1050032 C 10UF, 50V 1 C2119 EEEHB1A221P C 220PF, J, 10V 1 C2120 F1G1H560A731 C 56UF, 50V 1 C2121 F1G1H560A731 C 56UF, 50V 1 C2124 F1G1C104A116 C 0.10UF, K, 16V 1 C2125 F1G1E103A123 C 0.010UF, K, 16V 1 C2126 F1J1A106A043 C 0.010UF, K, 10V 1 C2127 F1G1E103A123 C 0.010UF, K, 16V 1 C2128 F1G1E103A123 C 0.010UF, K, 16V 1 C2129 F1G1E103A123 C 0.010UF, K, 16V 1 C2135 F1G1E103A123 C 0.010UF, K, 16V 1 C2136 F1G1E103A123 C 0.010UF, K, 16V 1 C2137 F1J1A106A043 C 0.010UF, K, 10V 1 C2138 F1G1C104A116 C 0.10UF, K, 16V 1 C2151 F1J1A106A043 C 0.010UF, K, 10V 1 C2174 F1H1A1050032 C 10UF, 50V 1 C2175 F2G0J470A019 E 47UF 6.3V 1 C2176 F1G1E103A123 C 0.010UF, K, 16V 1 C2179 F2G0J470A019 E 47UF 6.3V 1 C2180 F1H1A1050032 C 10UF, 50V 1 C2184 F1G1H102A730 C 1000UF, 50V 1 C2187 F1H0J2250008 C 2.2UF, K, 16V 1 C2188 F1G1H471A730 C 470UF, 50V 1 C2189 F1H1A1050032 C 10UF, 50V 1 C2191 F1J1A106A043 C 0.010UF, K, 10V 1 C2192 F2G0J470A019 E 47UF 6.3V 1 C2195 F1G1H102A730 C 1000UF, 50V 1 C2197 F1H1E333A129 C 0.033UF, 25V 1 C2198 F1H1E333A129 C 0.033UF, 25V 1 C2201 F1G1A473A053 C 0.47UF, 10V 1 C2202 F1H0J2250008 C 2.2UF, K, 16V 1 C2203 F1H1A1050032 C 10UF, 50V 1 C2204 F1H1A1050032 C 10UF, 50V 1 C2213 F1G1H102A730 C 1000UF, 50V 1 C2216 F1G1C104A116 C 0.10UF, K, 16V 1 C2244 F1G1C104A116 C 0.10UF, K, 16V 1 C2245 F1G1H102A730 C 1000UF, 50V 1 C2246 F1J1A106A043 C 0.010UF, K, 10V 1 C2251 F1J1A106A043 C 0.010UF, K, 10V 1 C2261 D0GDR00Z0002 M 0 OHM, 1/10W 1 C2262 D0GDR00Z0002 M 0 OHM, 1/10W 1 C2263 F1J1A106A043 C 0.010UF, K, 10V 1 C2264 F1J1A106A043 C 0.010UF, K, 10V 1 C2265 F1G1H101A731 C 100PF, K, 50V 1 C2266 F1G1H101A731 C 100PF, K, 50V 1 C2301 F1G1C104A116 C 0.10UF, K, 16V 1 C2302 F1G1C104A116 C 0.10UF, K, 16V 1 C2303 F1J1E105A171 C 1 UF 25V 1 C2305 F1J1E105A171 C 1 UF 25V 1 C2307 F1J1E105A171 C 1 UF 25V 1 C2313 F1H1A1050032 C 10UF, 50V 1 C2317 ECJ1VB1H104K C 0.1UF, K, 50V 1 C2319 ECJ1VB1H104K C 0.1UF, K, 50V 1 C2321 ECJ1VB1H104K C 0.1UF, K, 50V 1 C2323 ECJ1VB1H104K C 0.1UF, K, 50V 1 C2333 F1J1E3340003 C 0.33UF, Z, 25V 1 C2335 F1J1E3340003 C 0.33UF, Z, 25V 1 C2337 F1H1H223A970 C 0.22UF, K, 50V 1 C2339 F1H1H223A970 C 0.22UF, K, 50V 1 C2341 F1J1E3340003 C 0.33UF, Z, 25V 1 C2343 F1J1E3340003 C 0.33UF, Z, 25V 1 C2345 F1H1H223A970 C 0.22UF, K, 50V 1 C2347 F1H1H223A970 C 0.22UF, K, 50V 1 C2353 F1G1H102A730 C 1000UF, 50V 1 C2361 F2G1E4710007 E 470UF, 25V 1 C2362 ECJ3YB1E106M C 10 UF, K, 25V 1 C2375 F1H1H223A970 C 0.22UF, K, 50V 1 C2377 F1H1H223A970 C 0.22UF, K, 50V 1 C2379 F1H1H223A970 C 0.22UF, K, 50V 1 C2381 F1H1H223A970 C 0.22UF, K, 50V 1 C2383 F1G1H102A730 C 1000UF, 50V 1 C2385 F1G1H102A730 C 1000UF, 50V 1 C2387 F1G1H102A730 C 1000UF, 50V 1 C2389 F1G1H102A730 C 1000UF, 50V 1 C2393 F1K1C1060004 C 0.010UF, 16V 1 C2394 F1J1H474A757 C 0.47UF, 50V 1 C2395 F1J1H474A757 C 0.47UF, 50V 1 C2399 F2G0J470A019 E 47UF 6.3V 1 参考号 部件号 部件名称及说明 件数 备注 92 TH-50PV80C C2400 F1G1C104A116 C 0.10UF, K, 16V 1 C2401 F1G1H181A731 C 180UF, 50V 1 C2402 F1G1C104A116 C 0.10UF, K, 16V 1 C2403 F2G1V220A020 E 22UF, 35V 1 C2404 F1G1H102A730 C 1000UF, 50V 1 C2407 F2H0J1010009 C 100UF, 6.3V 1 C2408 F1G1C104A116 C 0.10UF, K, 16V 1 C2409 F2G0J1020022 E 1100PF, J, 6.3V 1 C2410 F1H0J2250008 C 2.2UF, K, 16V 1 C2411 ECJ1VB1H104K C 0.1UF, K, 50V 1 C2412 F2G1H100A031 E 10UF, 50V 1 C2413 F1H1A1050032 C 10UF, 50V 1 C2414 F1G1C104A116 C 0.10UF, K, 16V 1 C2415 F1G1C104A116 C 0.10UF, K, 16V 1 C2416 F1H1H330A971 C 33UF, 50V 1 C2417 F1H1H330A971 C 33UF, 50V 1 C2418 F1G1E103A123 C 0.010UF, K, 16V 1 C2419 F1G1H101A731 C 100PF, K, 50V 1 C2420 F1G1C104A116 C 0.10UF, K, 16V 1 C2427 F1H1A1050032 C 10UF, 50V 1 C2511 F1H1C104A143 C 0.1UF, K, 16V 1 C2512 F1J1A106A043 C 0.010UF, K, 10V 1 C2515 F1H1H103A970 C 0.001UF, K, 50V 1 C2521 F1H1H103A970 C 0.001UF, K, 50V 1 C2522 ECJ1VB1H102K C 1000PF, K, 50V 1 C2523 ECJ1VB1H102K C 1000PF, K, 50V 1 C2524 ECJ1VB1H102K C 1000PF, K, 50V 1 C2525 ECJ1VB1H102K C 1000PF, K, 50V 1 C2526 ECJ1VB1H102K C 1000PF, K, 50V 1 C2527 ECJ1VB1H102K C 1000PF, K, 50V 1 C3002 F1H1H561A971 C 560UF, 50V 1 C3003 F1H1H561A971 C 560UF, 50V 1 C3007 F1H1H561A971 C 560UF, 50V 1 C3008 F1H1H561A971 C 560UF, 50V 1 C3010 F1H1H561A971 C 560UF, 50V 1 C3011 F1H1H561A971 C 560UF, 50V 1 C3013 F1H1H561A971 C 560UF, 50V 1 C3014 F1H1H561A971 C 560UF, 50V 1 C3022 F1H1A1050032 C 10UF, 50V 1 C3024 F1H1A1050032 C 10UF, 50V 1 C3025 F1H1A1050032 C 10UF, 50V 1 C3026 F1H1A1050032 C 10UF, 50V 1 C3039 F1H1A1050032 C 10UF, 50V 1 C3041 F1H1A1050032 C 10UF, 50V 1 C3043 F1H1A1050032 C 10UF, 50V 1 C3044 F1H1A1050032 C 10UF, 50V 1 C3046 F1H1A1050032 C 10UF, 50V 1 C3047 F1H1A1050032 C 10UF, 50V 1 C3048 F1H1A1050032 C 10UF, 50V 1 C3049 F1H1A1050032 C 10UF, 50V 1 C3070 F1J1A106A043 C 0.010UF, K, 10V 1 C3071 F1J1A106A043 C 0.010UF, K, 10V 1 C3072 F1G1C104A116 C 0.10UF, K, 16V 1 C3073 F1J1A106A043 C 0.010UF, K, 10V 1 C3074 F1J1A106A043 C 0.010UF, K, 10V 1 C3075 F1H1A1050032 C 10UF, 50V 1 C3077 F1G1C104A116 C 0.10UF, K, 16V 1 C3078 F1J1A106A043 C 0.010UF, K, 10V 1 C3083 F1J1A106A043 C 0.010UF, K, 10V 1 C3084 F1J1A106A043 C 0.010UF, K, 10V 1 C3085 F1J1A106A043 C 0.010UF, K, 10V 1 C3086 F1J1A106A043 C 0.010UF, K, 10V 1 C3088 F1J1A106A043 C 0.010UF, K, 10V 1 C3090 F1J1A106A043 C 0.010UF, K, 10V 1 C3091 F1J1A106A043 C 0.010UF, K, 10V 1 C3092 F1J1A106A043 C 0.010UF, K, 10V 1 C3093 F1J1A106A043 C 0.010UF, K, 10V 1 C3095 F2G1C1010034 E 100PF, J, 16V 1 C3098 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3103 F2G1C470A022 E 47UF, 16V 1 C3107 F1J1A106A043 C 0.010UF, K, 10V 1 C3108 F1J1A106A043 C 0.010UF, K, 10V 1 C3109 F1J1A106A043 C 0.010UF, K, 10V 1 C3114 F1J1A106A043 C 0.010UF, K, 10V 1 C3115 F1J1A106A043 C 0.010UF, K, 10V 1 C3116 F1J1A106A043 C 0.010UF, K, 10V 1 C3117 F1J1A106A043 C 0.010UF, K, 10V 1 参考号 部件号 部件名称及说明 件数 备注 C3139 F1G1C104A116 C 0.10UF, K, 16V 1 C3140 F1G1C104A116 C 0.10UF, K, 16V 1 C3141 F1G1C104A116 C 0.10UF, K, 16V 1 C3143 F1G1C104A116 C 0.10UF, K, 16V 1 C3144 F1J1A106A043 C 0.010UF, K, 10V 1 C3145 F1G1C104A116 C 0.10UF, K, 16V 1 C3146 F1J1A106A043 C 0.010UF, K, 10V 1 C3147 F1J1A106A043 C 0.010UF, K, 10V 1 C3701 ECJ2XC1H561K C 560PF, K, 50V 1 C3703 ECJ2XC1H561K C 560PF, K, 50V 1 C3711 ECJ2VF1H333Z C 0.033UF, Z, 50V 1 C3712 ECJ2VF1H333Z C 0.033UF, Z, 50V 1 C3750 F1J1H102A721 C 1000UF, 50V 1 C3801 F1G1C104A116 C 0.10UF, K, 16V 1 C3802 F1G1C104A116 C 0.10UF, K, 16V 1 C3803 F1H1A1050032 C 10UF, 50V 1 C3804 F1G1C104A116 C 0.10UF, K, 16V 1 C3806 F1G1C104A116 C 0.10UF, K, 16V 1 C3807 F1G1C104A116 C 0.10UF, K, 16V 1 C3808 F1G1C104A116 C 0.10UF, K, 16V 1 C3809 F1G1C104A116 C 0.10UF, K, 16V 1 C3810 F1G1C104A116 C 0.10UF, K, 16V 1 C3811 F1G1C104A116 C 0.10UF, K, 16V 1 C3812 F1G1C104A116 C 0.10UF, K, 16V 1 C3813 F1J0J106A004 C 0.010UF, K, 16V 1 C3814 F1G1C104A116 C 0.10UF, K, 16V 1 C3815 ECJ0EB1C103K C 0.010UF, K, 16V 1 C3816 ECJ0EB1C103K C 0.010UF, K, 16V 1 C3817 ECJ0EB1C103K C 0.010UF, K, 16V 1 C3818 ECJ0EB1C103K C 0.010UF, K, 16V 1 C3819 ECJ0EB1C103K C 0.010UF, K, 16V 1 C3820 ECJ0EB1C103K C 0.010UF, K, 16V 1 C3823 F1G1C104A116 C 0.10UF, K, 16V 1 C3827 F1J1A475A039 C 4.7UF, K, 10V 1 C3829 F1H1A1050032 C 10UF, 50V 1 C4500 F1G1C104A116 C 0.10UF, K, 16V 1 C4501 F1G1C104A116 C 0.10UF, K, 16V 1 C4502 F1G1C104A116 C 0.10UF, K, 16V 1 C4503 F1G1C104A116 C 0.10UF, K, 16V 1 C4510 F1G1C104A116 C 0.10UF, K, 16V 1 C4511 F1G1C104A116 C 0.10UF, K, 16V 1 C4533 F1G1H680A731 C 68UF, 50V 1 C4534 F1G1C104A116 C 0.10UF, K, 16V 1 C4535 F1G1C104A116 C 0.10UF, K, 16V 1 C4547 F1G1C104A116 C 0.10UF, K, 16V 1 C4548 F1G1C104A116 C 0.10UF, K, 16V 1 C4549 F1G1C104A116 C 0.10UF, K, 16V 1 C4550 F1G1C104A116 C 0.10UF, K, 16V 1 C4551 F1G1C104A116 C 0.10UF, K, 16V 1 C4552 F1G1C104A116 C 0.10UF, K, 16V 1 C4553 F1G1H102A730 C 1000UF, 50V 1 C4554 F2G1C470A022 E 47UF, 16V 1 C4555 F1J1A106A043 C 0.010UF, K, 10V 1 C4574 F1G1E103A123 C 0.010UF, K, 16V 1 C4575 F1H1A1050032 C 10UF, 50V 1 C4580 F1G1E103A123 C 0.010UF, K, 16V 1 C4585 F1H1A1050032 C 10UF, 50V 1 C4595 F1G1E103A123 C 0.010UF, K, 16V 1 C4596 F1G1C104A116 C 0.10UF, K, 16V 1 C4598 F1H1A1050032 C 10UF, 50V 1 C4599 F2G0J470A019 E 47UF 6.3V 1 C4600 F1G1C104A116 C 0.10UF, K, 16V 1 C4601 F2G0J470A019 E 47UF 6.3V 1 C4602 F1G1C104A116 C 0.10UF, K, 16V 1 C4603 F1H0J2250008 C 2.2UF, K, 16V 1 C4604 F1G1H471A730 C 470UF, 50V 1 C4605 F1H1A1050032 C 10UF, 50V 1 C4606 F1J1A475A039 C 4.7UF, K, 10V 1 C4607 F1J1A475A039 C 4.7UF, K, 10V 1 C4608 F1G1C104A116 C 0.10UF, K, 16V 1 C4612 F1G1E103A123 C 0.010UF, K, 16V 1 C4613 F1H1A1050032 C 10UF, 50V 1 C4614 F1G1C104A116 C 0.10UF, K, 16V 1 C4616 F1J1A475A039 C 4.7UF, K, 10V 1 C4617 F1J0G2260001 C 0.001UF, 6.3V 1 C4619 F1G1C104A116 C 0.10UF, K, 16V 1 C4624 F1G1C104A116 C 0.10UF, K, 16V 1 参考号 部件号 部件名称及说明 件数 备注 93 TH-50PV80C C4625 F1G1C104A116 C 0.10UF, K, 16V 1 C4626 F1G1C104A116 C 0.10UF, K, 16V 1 C4627 F1G1C104A116 C 0.10UF, K, 16V 1 C4628 F1G1C104A116 C 0.10UF, K, 16V 1 C4630 F1G1C104A116 C 0.10UF, K, 16V 1 C4632 F1H1A1050032 C 10UF, 50V 1 C4634 F1H1A1050032 C 10UF, 50V 1 C4636 F1H1A1050032 C 10UF, 50V 1 C4638 F1H1A1050032 C 10UF, 50V 1 C4640 F1H1A1050032 C 10UF, 50V 1 C4642 F1H1A1050032 C 10UF, 50V 1 C4643 F1G1C104A116 C 0.10UF, K, 16V 1 C4644 F1G1C104A116 C 0.10UF, K, 16V 1 C4645 F1G1C104A116 C 0.10UF, K, 16V 1 C4646 F1G1C104A116 C 0.10UF, K, 16V 1 C4807 F1G1C104A116 C 0.10UF, K, 16V 1 C4831 F1G1C104A116 C 0.10UF, K, 16V 1 C5400 F1J1A106A043 C 0.010UF, K, 10V 1 C5401 F1H1E104A129 C 0.1UF, 25V 1 C5402 F1G1E103A123 C 0.010UF, K, 16V 1 C5404 F1H1H392A970 C 3900PF, K, 50V 1 C5405 F1H1E104A129 C 0.1UF, 25V 1 C5406 ECJ3YB1E106M C 10 UF, K, 25V 1 C5408 F1J1A106A043 C 0.010UF, K, 10V 1 C5412 F1K1C1060004 C 0.010UF, 16V 1 C5413 F1H1E104A129 C 0.1UF, 25V 1 C5414 F1G1E103A123 C 0.010UF, K, 16V 1 C5416 F1H1H472A970 C 4700PF, K, 50V 1 C5417 F1H1E104A129 C 0.1UF, 25V 1 C5418 ECJ3YB1E106M C 10 UF, K, 25V 1 C5420 F1K1C1060004 C 0.010UF, 16V 1 C5511 ECJ3YB1E106M C 10 UF, K, 25V 1 C5512 F1G1E103A123 C 0.010UF, K, 16V 1 C5516 F1J1A106A043 C 0.010UF, K, 10V 1 C5517 F1G1C104A116 C 0.10UF, K, 16V 1 C5520 F2G0J2210013 E 220UF 6.3V 1 C5521 F1G1C104A116 C 0.10UF, K, 16V 1 C5522 F1G1C104A116 C 0.10UF, K, 16V 1 C5596 F1G1H1020008 C 1000UF, 50V 1 C5597 F1G1H1020008 C 1000UF, 50V 1 C5600 F1H1A1050032 C 10UF, 50V 1 C5601 F1G1C104A116 C 0.10UF, K, 16V 1 C5602 ECGRL0G680ER C 68PF, J, 4V 1 C5603 F1G1E103A123 C 0.010UF, K, 16V 1 C5604 F1G1E103A123 C 0.010UF, K, 16V 1 C5605 F1J1A475A039 C 4.7UF, K, 10V 1 C5606 F1G1H471A730 C 470UF, 50V 1 C5607 F1G1H221A731 C 220UF, 50V 1 C5608 F1G1C104A116 C 0.10UF, K, 16V 1 C5611 ECJ3YB1E106M C 10 UF, K, 25V 1 C5612 ECJ3YB1E106M C 10 UF, K, 25V 1 C5615 ECJ3YB1E106M C 10 UF, K, 25V 1 C5616 F1G1A473A053 C 0.47UF, 10V 1 C5617 F1H1A1050032 C 10UF, 50V 1 C5620 F1H1E104A129 C 0.1UF, 25V 1 C5621 F1G1E103A123 C 0.010UF, K, 16V 1 C5622 F1J1A475A039 C 4.7UF, K, 10V 1 C5623 F1G1H471A730 C 470UF, 50V 1 C5624 F1G1H221A731 C 220UF, 50V 1 C5625 F1G1E103A123 C 0.010UF, K, 16V 1 C5626 F1G1C104A116 C 0.10UF, K, 16V 1 C5627 F1G1C104A116 C 0.10UF, K, 16V 1 C5628 ECGRL0G680ER C 68PF, J, 4V 1 C5629 ECGRL0G680ER C 68PF, J, 4V 1 C5640 F1G1C104A116 C 0.10UF, K, 16V 1 C5641 F1G1C104A116 C 0.10UF, K, 16V 1 C5642 ECJ3YB1E106M C 10 UF, K, 25V 1 C5643 F1H1E104A129 C 0.1UF, 25V 1 C5657 F1H1A225A051 C 22UF, 50V 1 C5658 F1G1E103A123 C 0.010UF, K, 16V 1 C5661 F1G1E103A123 C 0.010UF, K, 16V 1 C5662 F1G1A473A053 C 0.47UF, 10V 1 C5663 F1G1E103A123 C 0.010UF, K, 16V 1 C5696 EEEHB1E470P C 47PF, J, 25V 1 C5697 F1J1E105A171 C 1 UF 25V 1 C5699 ECJ3YB1E106M C 10 UF, K, 25V 1 C5700 ECJ3YB1E106M C 10 UF, K, 25V 1 参考号 部件号 部件名称及说明 件数 备注 C5703 F1G1H101A565 C 100PF, K, 50V 1 C5704 F1G1H101A565 C 100PF, K, 50V 1 C5730 F1G1E103A123 C 0.010UF, K, 16V 1 C5731 F2G0J470A019 E 47UF 6.3V 1 C7701 F1G1H330A731 C 33UF, 50V 1 C7702 F2G0G470A007 E 47UF 6.3V 1 C7703 F1G1H330A731 C 33UF, 50V 1 C7705 F1G1C104A119 C 0.10UF, K, 16V 1 C7708 F1G1C104A119 C 0.10UF, K, 16V 1 C7709 F1G1C104A119 C 0.10UF, K, 16V 1 C7726 F1G1H330A731 C 33UF, 50V 1 C7727 F1G1H330A731 C 33UF, 50V 1 C7729 F1J0J106A020 C 0.010UF, K, 16V 1 C8001 F1G1C104A116 C 0.10UF, K, 16V 1 C8002 F1H0J1050012 C 1UF, K, 16V 1 C8003 F1H0J1050012 C 1UF, K, 16V 1 C8004 F1H0J1050012 C 1UF, K, 16V 1 C8005 F1H0J1050012 C 1UF, K, 16V 1 C8006 F1G1C104A116 C 0.10UF, K, 16V 1 C8007 F1G1C104A116 C 0.10UF, K, 16V 1 C8008 F1G1C104A116 C 0.10UF, K, 16V 1 C8009 F1J1A106A043 C 0.010UF, K, 10V 1 C8010 F1J1A106A043 C 0.010UF, K, 10V 1 C8011 F1G1C104A116 C 0.10UF, K, 16V 1 C8012 F1G1C104A116 C 0.10UF, K, 16V 1 C8013 F1G1C104A116 C 0.10UF, K, 16V 1 C8014 F1G1C104A116 C 0.10UF, K, 16V 1 C8015 F1H0J1050012 C 1UF, K, 16V 1 C8016 F1H0J1050012 C 1UF, K, 16V 1 C8017 F1J1A106A043 C 0.010UF, K, 10V 1 C8018 F1G1C104A116 C 0.10UF, K, 16V 1 C8019 F1G1C104A116 C 0.10UF, K, 16V 1 C8020 F1G1C104A116 C 0.10UF, K, 16V 1 C8021 F1G1C104A116 C 0.10UF, K, 16V 1 C8022 F1H0J1050012 C 1UF, K, 16V 1 C8023 F1J1A106A043 C 0.010UF, K, 10V 1 C8024 F1J1A106A043 C 0.010UF, K, 10V 1 C8025 F1G1C104A116 C 0.10UF, K, 16V 1 C8026 F1G1C104A116 C 0.10UF, K, 16V 1 C8027 F1G1C104A116 C 0.10UF, K, 16V 1 C8028 F1G1C104A116 C 0.10UF, K, 16V 1 C8029 F1G1C104A116 C 0.10UF, K, 16V 1 C8030 F1H0J1050012 C 1UF, K, 16V 1 C8031 F1H0J1050012 C 1UF, K, 16V 1 C8032 F1J1A106A043 C 0.010UF, K, 10V 1 C8033 F1G1C104A116 C 0.10UF, K, 16V 1 C8034 F1G1C104A116 C 0.10UF, K, 16V 1 C8035 F1J1A106A043 C 0.010UF, K, 10V 1 C8036 F1J1A106A043 C 0.010UF, K, 10V 1 C8037 F1G1C104A116 C 0.10UF, K, 16V 1 C8038 F1G1C104A116 C 0.10UF, K, 16V 1 C8039 F1G1C104A116 C 0.10UF, K, 16V 1 C8040 F1G1C104A116 C 0.10UF, K, 16V 1 C8041 F1G1C104A116 C 0.10UF, K, 16V 1 C8042 ECGRL0G680ER C 68PF, J, 4V 1 C8043 F1G1C104A116 C 0.10UF, K, 16V 1 C8044 F1G1C104A116 C 0.10UF, K, 16V 1 C8045 F1G1C104A116 C 0.10UF, K, 16V 1 C8046 F1G1C104A116 C 0.10UF, K, 16V 1 C8047 F1G1C104A116 C 0.10UF, K, 16V 1 C8048 F1G1C104A116 C 0.10UF, K, 16V 1 C8049 F1G1C104A116 C 0.10UF, K, 16V 1 C8050 F1G1C104A116 C 0.10UF, K, 16V 1 C8051 F1G1C104A116 C 0.10UF, K, 16V 1 C8052 F1H0J1050012 C 1UF, K, 16V 1 C8053 F1G1E103A123 C 0.010UF, K, 16V 1 C8054 F1G1H180A731 C 18UF, 50V 1 C8055 F1G1H7R0A732 C 7.0UF, 50V 1 C8056 F1G1C104A116 C 0.10UF, K, 16V 1 C8057 F1G1C104A116 C 0.10UF, K, 16V 1 C8058 F1J1A106A043 C 0.010UF, K, 10V 1 C8067 F1G1E103A123 C 0.010UF, K, 16V 1 C8068 F1G1C104A116 C 0.10UF, K, 16V 1 C8069 F1G1H820A731 C 82UF, 50V 1 C8070 F1G1C104A116 C 0.10UF, K, 16V 1 C8071 F1G1C104A116 C 0.10UF, K, 16V 1 C8072 F1G1C104A116 C 0.10UF, K, 16V 1 参考号 部件号 部件名称及说明 件数 备注 94 TH-50PV80C C8073 F1G1C104A116 C 0.10UF, K, 16V 1 C8074 F1G1C104A116 C 0.10UF, K, 16V 1 C8075 F1J0G2260001 C 0.001UF, 6.3V 1 C8076 F1G1C104A116 C 0.10UF, K, 16V 1 C8077 F1G1C104A116 C 0.10UF, K, 16V 1 C8078 F1G1C104A116 C 0.10UF, K, 16V 1 C8079 F1G1C104A116 C 0.10UF, K, 16V 1 C8080 F1G1C104A116 C 0.10UF, K, 16V 1 C8555 F1G1C104A116 C 0.10UF, K, 16V 1 C8601 F1G1C104A116 C 0.10UF, K, 16V 1 C9033 F1G1C104A116 C 0.10UF, K, 16V 1 C9034 F1G1C104A116 C 0.10UF, K, 16V 1 C9035 F1J1A106A043 C 0.010UF, K, 10V 1 C9036 F1J1A106A043 C 0.010UF, K, 10V 1 C9037 F1G1E103A123 C 0.010UF, K, 16V 1 C9040 F1G1C104A116 C 0.10UF, K, 16V 1 C9044 F1J1A475A039 C 4.7UF, K, 10V 1 C9045 F1G1C104A116 C 0.10UF, K, 16V 1 C9046 F1G1C104A116 C 0.10UF, K, 16V 1 C9047 F1G1C104A116 C 0.10UF, K, 16V 1 C9048 F1G1C104A116 C 0.10UF, K, 16V 1 C9049 F1G1C104A116 C 0.10UF, K, 16V 1 C9050 F1G1C104A116 C 0.10UF, K, 16V 1 C9051 F1G1C104A116 C 0.10UF, K, 16V 1 C9052 F1G1C104A116 C 0.10UF, K, 16V 1 C9053 F1G1C104A116 C 0.10UF, K, 16V 1 C9055 F1G1C104A116 C 0.10UF, K, 16V 1 C9056 F1G1C104A116 C 0.10UF, K, 16V 1 C9057 F1G1C104A116 C 0.10UF, K, 16V 1 C9061 F1G1C104A116 C 0.10UF, K, 16V 1 C9062 F1J1A475A039 C 4.7UF, K, 10V 1 C9063 F1G1C104A116 C 0.10UF, K, 16V 1 C9064 F1G1C104A116 C 0.10UF, K, 16V 1 C9065 F1G1C104A116 C 0.10UF, K, 16V 1 C9468 F1G1E103A123 C 0.010UF, K, 16V 1 C9469 F1G1C104A116 C 0.10UF, K, 16V 1 C9535 F1G1C104A116 C 0.10UF, K, 16V 1 C9536 F1G1C104A116 C 0.10UF, K, 16V 1 C9537 F1G1C104A116 C 0.10UF, K, 16V 1 C9538 F1G1C104A116 C 0.10UF, K, 16V 1 C9539 F1G1C104A116 C 0.10UF, K, 16V 1 C9540 F1G1C104A116 C 0.10UF, K, 16V 1 C9541 F1G1C104A116 C 0.10UF, K, 16V 1 C9542 F1G1C104A116 C 0.10UF, K, 16V 1 C9543 F1G1C104A116 C 0.10UF, K, 16V 1 C9544 F1G1C104A116 C 0.10UF, K, 16V 1 C9545 F1G1C104A116 C 0.10UF, K, 16V 1 C9546 F1G1C104A116 C 0.10UF, K, 16V 1 C9547 F1G1C104A116 C 0.10UF, K, 16V 1 C9548 F1G1C104A116 C 0.10UF, K, 16V 1 C9549 F1G1C104A116 C 0.10UF, K, 16V 1 C9550 F1G1C104A116 C 0.10UF, K, 16V 1 C9825 F1G1H101A731 C 100PF, K, 50V 1 C9832 F1J1A106A043 C 0.010UF, K, 10V 1 C9840 F1G1E103A123 C 0.010UF, K, 16V 1 C9841 F1G1C104A116 C 0.10UF, K, 16V 1 C9842 F1G1C104A116 C 0.10UF, K, 16V 1 C9858 ECJ3YB1E106M C 10 UF, K, 25V 1 C9859 F1G1E103A123 C 0.010UF, K, 16V 1 C9860 F1J1A475A039 C 4.7UF, K, 10V 1 C9861 F1H1E104A129 C 0.1UF, 25V 1 C9862 F1H1E104A129 C 0.1UF, 25V 1 C9863 F1J1A475A039 C 4.7UF, K, 10V 1 C9864 F1H1E104A129 C 0.1UF, 25V 1 C9865 ECGRL0G680ER C 68PF, J, 4V 1 C9866 ECGRL0G680ER C 68PF, J, 4V 1 C9867 ECJ3YB1E106M C 10 UF, K, 25V 1 C9868 ECJ3YB1E106M C 10 UF, K, 25V 1 C9869 ECJ3YB1E106M C 10 UF, K, 25V 1 C9870 ECJ3YB1E106M C 10 UF, K, 25V 1 C9871 ECJ3YB1E106M C 10 UF, K, 25V 1 C9872 ECJ3YB1E106M C 10 UF, K, 25V 1 C9873 ECGRL0G680ER C 68PF, J, 4V 1 C9874 F1G1H680A731 C 68UF, 50V 1 C9877 F1G1H680A731 C 68UF, 50V 1 C9878 F1G1E103A123 C 0.010UF, K, 16V 1 C9879 F1G1C153A116 C 0.015UF, K, 16V 1 参考号 部件号 部件名称及说明 件数 备注 C9880 F1G1A563A032 C 0.56UF, 10V 1 C9881 F1G1E103A123 C 0.010UF, K, 16V 1 C9882 F1G1E822A086 C 8200UF, Z, 25V 1 C9883 F1G1H101A731 C 100PF, K, 50V 1 C9884 F1G1H102A730 C 1000UF, 50V 1 C9885 F1G1H102A730 C 1000UF, 50V 1 C9886 F1H1E104A129 C 0.1UF, 25V 1 C9887 F1H1E104A129 C 0.1UF, 25V 1 C9888 F1G1H361A565 C 360UF, 50V 1 C9900 F1G1C104A116 C 0.10UF, K, 16V 1 C9901 F1G1C104A116 C 0.10UF, K, 16V 1 C9902 F1G1C104A116 C 0.10UF, K, 16V 1 C9903 F1G1C104A116 C 0.10UF, K, 16V 1 C9904 F1G1C104A116 C 0.10UF, K, 16V 1 C9905 F1G1C104A116 C 0.10UF, K, 16V 1 C9906 F1G1C104A116 C 0.10UF, K, 16V 1 C9907 F1G1C104A116 C 0.10UF, K, 16V 1 C9908 F1G1C104A116 C 0.10UF, K, 16V 1 C9909 F1G1C104A116 C 0.10UF, K, 16V 1 C9910 F1G1C104A116 C 0.10UF, K, 16V 1 C9911 F1G1C104A116 C 0.10UF, K, 16V 1 C9912 F1G1C104A116 C 0.10UF, K, 16V 1 C9913 F1G1C104A116 C 0.10UF, K, 16V 1 C9914 F1G1C104A116 C 0.10UF, K, 16V 1 C9915 F1G1C104A116 C 0.10UF, K, 16V 1 C9916 F1G1C104A116 C 0.10UF, K, 16V 1 C9917 F1G1C104A116 C 0.10UF, K, 16V 1 C9918 F1G1C104A116 C 0.10UF, K, 16V 1 C9919 F1G1C104A116 C 0.10UF, K, 16V 1 C9920 F1G1C104A116 C 0.10UF, K, 16V 1 C9921 F1G1C104A116 C 0.10UF, K, 16V 1 C9922 F1G1C104A116 C 0.10UF, K, 16V 1 C9923 F1G1C104A116 C 0.10UF, K, 16V 1 C9924 F1G1C104A116 C 0.10UF, K, 16V 1 C9925 F1G1C104A116 C 0.10UF, K, 16V 1 C9927 F1G1C104A116 C 0.10UF, K, 16V 1 C9928 F1G1C104A116 C 0.10UF, K, 16V 1 C9929 F1G1C104A116 C 0.10UF, K, 16V 1 C9930 F1G1C104A116 C 0.10UF, K, 16V 1 C9931 F1G1C104A116 C 0.10UF, K, 16V 1 C9932 F1G1C104A116 C 0.10UF, K, 16V 1 C9933 F1G1C104A116 C 0.10UF, K, 16V 1 C9934 F1G1C104A116 C 0.10UF, K, 16V 1 C9935 F1G1C104A116 C 0.10UF, K, 16V 1 C9936 F1G1C104A116 C 0.10UF, K, 16V 1 C9937 F1G1C104A116 C 0.10UF, K, 16V 1 C9938 F1G1C104A116 C 0.10UF, K, 16V 1 C9939 F1G1C104A116 C 0.10UF, K, 16V 1 C9940 F1G1C104A116 C 0.10UF, K, 16V 1 C9941 F1G1C104A116 C 0.10UF, K, 16V 1 C9942 F1G1C104A116 C 0.10UF, K, 16V 1 C9943 F1G1C104A116 C 0.10UF, K, 16V 1 C9944 F1G1C104A116 C 0.10UF, K, 16V 1 C9945 F1G1C104A116 C 0.10UF, K, 16V 1 C9946 F1G1C104A116 C 0.10UF, K, 16V 1 C9947 F1G1C104A116 C 0.10UF, K, 16V 1 C9948 F1G1C104A116 C 0.10UF, K, 16V 1 C9949 F1G1C104A116 C 0.10UF, K, 16V 1 C9950 F1G1C104A116 C 0.10UF, K, 16V 1 C9951 F1G1C104A116 C 0.10UF, K, 16V 1 C9952 F1G1C104A116 C 0.10UF, K, 16V 1 C9953 F1G1C104A116 C 0.10UF, K, 16V 1 C9954 F1G1C104A116 C 0.10UF, K, 16V 1 C9955 F1G1C104A116 C 0.10UF, K, 16V 1 C9956 F1G1C104A116 C 0.10UF, K, 16V 1 C9957 F1G1C104A116 C 0.10UF, K, 16V 1 C9958 F1G1C104A116 C 0.10UF, K, 16V 1 C9959 F1G1C104A116 C 0.10UF, K, 16V 1 C9961 F1J1A106A043 C 0.010UF, K, 10V 1 C9962 F1J1A106A043 C 0.010UF, K, 10V 1 C9965 F1G1C104A116 C 0.10UF, K, 16V 1 C9966 F1J1A106A043 C 0.010UF, K, 10V 1 C9967 F1G1C104A116 C 0.10UF, K, 16V 1 C9968 F1G1C104A116 C 0.10UF, K, 16V 1 C9970 F1G1C104A116 C 0.10UF, K, 16V 1 C9971 F1G1H180A731 C 18UF, 50V 1 C9972 F1G1H150A731 C 15UF, 50V 1 参考号 部件号 部件名称及说明 件数 备注 95 TH-50PV80C C9973 F1G1C104A116 C 0.10UF, K, 16V 1 C9974 F1G1C104A116 C 0.10UF, K, 16V 1 C9975 F1G1C104A116 C 0.10UF, K, 16V 1 C9976 F1G1C104A116 C 0.10UF, K, 16V 1 C9977 F1G1C104A116 C 0.10UF, K, 16V 1 C9978 F1G1C104A116 C 0.10UF, K, 16V 1 C9979 F1G1C104A116 C 0.10UF, K, 16V 1 C9980 F1G1C104A116 C 0.10UF, K, 16V 1 C14350 F1L2J1020001 C 1000UF, K,6.3V 1 C14901 F1J1H102A834 C 1000UF, 50V 1 C14902 F1J1C1050030 C 1UF, Z, 16V 1 C14904 F1J1C1050030 C 1UF, Z, 16V 1 C14906 F1J1C1050030 C 1UF, Z, 16V 1 C14907 F1L2J1020001 C 1000UF, K,6.3V 1 C14908 F1J1C1050030 C 1UF, Z, 16V 1 C14910 F1J1C1050030 C 1UF, Z, 16V 1 C14912 F1J1C1050030 C 1UF, Z, 16V 1 C14923 F1L2E104A028 E 1000UF, 25V 1 C14924 F1L2E104A028 E 1000UF, 25V 1 C14926 F1J1H104A835 C 0.10UF, 50V 1 C14931 F1J1H102A834 C 1000UF, 50V 1 C14932 F1L2E104A028 E 1000UF, 25V 1 C14933 F1L2E104A028 E 1000UF, 25V 1 C14934 F1L2E104A028 E 1000UF, 25V 1 C14935 F1L2E104A028 E 1000UF, 25V 1 C14936 F1J1H221A709 C 220UF, 50V 1 C14937 F1J1H221A709 C 220UF, 50V 1 C14938 F1J1H221A709 C 220UF, 50V 1 C14939 F1J1H221A709 C 220UF, 50V 1 C14940 F1J1H102A834 C 1000UF, 50V 1 C14941 F1J1H221A709 C 220UF, 50V 1 C14942 F1J1H221A709 C 220UF, 50V 1 C14943 F1L1E4750012 C 4.7UF, 25V 1 C14950 F1J1H221A709 C 220UF, 50V 1 C14952 F1J1C1050030 C 1UF, Z, 16V 1 C14955 F1J1C1050030 C 1UF, Z, 16V 1 C14957 F1J1C1050030 C 1UF, Z, 16V 1 C14958 F1J1C1050030 C 1UF, Z, 16V 1 C14961 F1J1C1050030 C 1UF, Z, 16V 1 C14963 F1J1C1050030 C 1UF, Z, 16V 1 C14969 F1J1H104A835 C 0.10UF, 50V 1 C14970 F1J1H221A709 C 220UF, 50V 1 C14971 F1J1H221A709 C 220UF, 50V 1 C14972 F1J1H221A709 C 220UF, 50V 1 C14973 F1J1H102A834 C 1000UF, 50V 1 C14974 F1L2E104A028 E 1000UF, 25V 1 C14975 F1L2E104A028 E 1000UF, 25V 1 C14976 F1J1H102A834 C 1000UF, 50V 1 C14977 F1L2E104A028 E 1000UF, 25V 1 C14978 F1L2E104A028 E 1000UF, 25V 1 C14981 F1J1H221A709 C 220UF, 50V 1 C14984 F1L2E104A028 E 1000UF, 25V 1 C14985 F1L2E104A028 E 1000UF, 25V 1 C14986 F1J1H101A836 C 100PF, K, 50V 1 C14987 F1J1H104A835 C 0.10UF, 50V 1 C14988 F1J1H104A835 C 0.10UF, 50V 1 C14989 F1J1H221A709 C 220UF, 50V 1 C14991 F1H1H100A971 C 10PF, K, 50V 1 C14992 F1H1C105A008 C 1UF, K, 16V 1 C14993 F1H1C105A008 C 1UF, K, 16V 1 C16001 F1L2J562A022 C 5600UF, K,6.3V 1 C16011 F2A2T251A004 E 250UF, 220V 1 C16012 F2A2T251A004 E 250UF, 220V 1 C16013 F2A2T251A004 E 250UF, 220V 1 C16015 F0C2E225A230 E 0.022UF, 250V 1 C16023 F1L2J562A022 C 5600UF, K,6.3V 1 C16041 F1H1H392A970 C 3900PF, K, 50V 1 C16071 F1L2J1020001 C 1000UF, K,6.3V 1 C16092 F1L2J1020001 C 1000UF, K,6.3V 1 C16131 F1L1E4750012 C 4.7UF, 25V 1 C16133 F1L1E4750012 C 4.7UF, 25V 1 C16135 F1K1E105A029 C 1UF, Z, 25V 1 C16151 F1K1E105A029 C 1UF, Z, 25V 1 C16152 F1L1E4750012 C 4.7UF, 25V 1 C16153 F1L1E4750012 C 4.7UF, 25V 1 C16154 F1L1E4750012 C 4.7UF, 25V 1 C16192 F1L1E4750012 C 4.7UF, 25V 1 参考号 部件号 部件名称及说明 件数 备注 C16194 F1L1E4750012 C 4.7UF, 25V 1 C16195 F1L1E4750012 C 4.7UF, 25V 1 C16197 F1L1E4750012 C 4.7UF, 25V 1 C16201 F0C2E405A232 E 0.040UF, 250V 1 C16202 F0C2E405A232 E 0.040UF, 250V 1 C16203 F0C2E405A232 E 0.040UF, 250V 1 C16241 F2A1A101A106 E 100UF, 10V 1 C16242 F1H1C105A008 C 1UF, K, 16V 1 C16243 F1J1H103A834 C 0.01UF, K, 50V 1 C16251 F1H1C105A008 C 1UF, K, 16V 1 C16252 F1K1E105A029 C 1UF, Z, 25V 1 C16261 F2A2A471A072 E 470UF, 100V 1 C16262 F2A2A471A072 E 470UF, 100V 1 C16272 F2A1E471A487 E 470UF, 25V 1 C16280 F1K1E105A029 C 1UF, Z, 25V 1 C16282 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16283 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16284 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16285 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16301 F2A1E470A454 E 47UF, 25V 1 C16302 F1H1H471A219 C 470UF, 50V 1 C16310 F2A2T251A004 E 250UF, 220V 1 C16311 F1H1A1050032 C 10UF, 50V 1 C16312 F1H1H472A970 C 4700PF, K, 50V 1 C16313 F1H1C105A008 C 1UF, K, 16V 1 C16321 F1L2E224A028 E 2200UF, 25V 1 C16322 F1L2E224A028 E 2200UF, 25V 1 C16323 F2A1E470A454 E 47UF, 25V 1 C16324 F2A1E471A487 E 470UF, 25V 1 C16326 F1L1E4750012 C 4.7UF, 25V 1 C16328 F2A2D221A092 E 220UF, 200V 1 C16336 F1H1H102A970 C 1000PF, K, 50V 1 C16337 ECJ1VB1H104K C 0.1UF, K, 50V 1 C16402 F1L2J562A022 C 5600UF, K,6.3V 1 C16411 F2A2T251A004 E 250UF, 220V 1 C16412 F2A2T251A004 E 250UF, 220V 1 C16414 F0C2E225A230 E 0.022UF, 250V 1 C16418 F2A2T251A004 E 250UF, 220V 1 C16419 F2A2T251A004 E 250UF, 220V 1 C16421 F1L2J562A022 C 5600UF, K,6.3V 1 C16441 F1H1H392A970 C 3900PF, K, 50V 1 C16471 F1L2J1020001 C 1000UF, K,6.3V 1 C16472 F1K1E105A029 C 1UF, Z, 25V 1 C16480 F1J1H104A835 C 0.10UF, 50V 1 C16491 F1L2J1020001 C 1000UF, K,6.3V 1 C16502 F1L1E4750012 C 4.7UF, 25V 1 C16504 F1L1E4750012 C 4.7UF, 25V 1 C16505 F1K1E105A029 C 1UF, Z, 25V 1 C16521 F1K1E105A029 C 1UF, Z, 25V 1 C16522 F1L1E4750012 C 4.7UF, 25V 1 C16524 F1L1E4750012 C 4.7UF, 25V 1 C16525 F1L1E4750012 C 4.7UF, 25V 1 C16562 F1H1C105A008 C 1UF, K, 16V 1 C16563 F2A1A101A106 E 100UF, 10V 1 C16564 F1H1C105A008 C 1UF, K, 16V 1 C16565 F1J1H103A834 C 0.01UF, K, 50V 1 C16566 F1J1H103A834 C 0.01UF, K, 50V 1 C16581 F1K1E105A029 C 1UF, Z, 25V 1 C16582 F1H1C105A008 C 1UF, K, 16V 1 C16593 F1J1H102A836 C 1000UF, 50V 1 C16603 F1K2J102A014 C 1000UF, K,6.3V 1 C16604 F1K2J102A014 C 1000UF, K,6.3V 1 C16605 F1L2J472A022 C 4700UF, K,6.3V 1 C16606 F1L2J472A022 C 4700UF, K,6.3V 1 C16608 F1H1H221A971 C 220UF, K, 50V 1 C16633 F0C2E405A232 E 0.040UF, 250V 1 C16634 F0C2E405A232 E 0.040UF, 250V 1 C16635 F0C2E405A232 E 0.040UF, 250V 1 C16641 ECQE2105RKB P 1UF, 250V 1 C16661 F1K2J102A014 C 1000UF, K,6.3V 1 C16662 F1K2J102A014 C 1000UF, K,6.3V 1 C16664 F1J1H680A836 C 68PF, K, 50V 1 C16665 F1J1H680A836 C 68PF, K, 50V 1 C16666 F1J1H680A836 C 68PF, K, 50V 1 C16691 ECA2CM101 E 100UF, 160V 1 C16708 F1J1H104A835 C 0.10UF, 50V 1 C16721 F2A1H101A493 E 100UF, 50V 1 参考号 部件号 部件名称及说明 件数 备注 96 TH-50PV80C C16723 F1L1E4750012 C 4.7UF, 25V 1 C16724 F1L1E4750012 C 4.7UF, 25V 1 C16725 F1L1E4750012 C 4.7UF, 25V 1 C16752 F1K1E105A029 C 1UF, Z, 25V 1 C16753 F1L1E4750012 C 4.7UF, 25V 1 C16755 F1L1E4750012 C 4.7UF, 25V 1 C16756 F1L1E4750012 C 4.7UF, 25V 1 C16773 F1L1E4750012 C 4.7UF, 25V 1 C16775 F1L1E4750012 C 4.7UF, 25V 1 C16791 F2A1E221A487 E 220UF, 25V 1 C16795 F2A1E471A487 E 470UF, 25V 1 C16806 ECA2CM101 E 100UF, 160V 1 C16812 F1L1E4750012 C 4.7UF, 25V 1 C16813 ECA2CM101 E 100UF, 160V 1 C16821 F1J1H104A835 C 0.10UF, 50V 1 C16822 F2A2G470A018 E 470UF, 400V 1 C16823 F1L2J562A022 C 5600UF, K,6.3V 1 C16832 F1J1H392A834 C 3900UF, 50V 1 C16842 ECA2CM101 E 100UF, 160V 1 C16843 F1J1H104A835 C 0.10UF, 50V 1 C16844 F1J1H104A835 C 0.10UF, 50V 1 C16855 F1H1C105A008 C 1UF, K, 16V 1 C16856 F1H1A1050032 C 10UF, 50V 1 C16857 F1H1H472A970 C 4700PF, K, 50V 1 C16858 F1H1C104A143 C 0.1UF, K, 16V 1 C16860 F1H1A1050032 C 10UF, 50V 1 C16861 F1H1H472A970 C 4700PF, K, 50V 1 C16862 F1H1C104A143 C 0.1UF, K, 16V 1 C16863 F1J1H103A834 C 0.01UF, K, 50V 1 C16864 F1J1H104A835 C 0.10UF, 50V 1 C16866 F1H1A1050032 C 10UF, 50V 1 C16867 F1H1H472A970 C 4700PF, K, 50V 1 C16868 F1H1C104A143 C 0.1UF, K, 16V 1 C16869 F1J1H104A835 C 0.10UF, 50V 1 C17111 F1H1A1050032 C 10UF, 50V 1 C17112 F1H1A1050032 C 10UF, 50V 1 C17113 F1L2E154A009 E 1500UF, 25V 1 C17114 F1L2E154A009 E 1500UF, 25V 1 C17121 F1H1A1050032 C 10UF, 50V 1 C17122 F1H1A1050032 C 10UF, 50V 1 C17123 F1L2E154A009 E 1500UF, 25V 1 C17124 F1L2E154A009 E 1500UF, 25V 1 C17131 F1H1A1050032 C 10UF, 50V 1 C17132 F1H1A1050032 C 10UF, 50V 1 C17133 F1L2E154A009 E 1500UF, 25V 1 C17134 F1L2E154A009 E 1500UF, 25V 1 C17141 F1H1A1050032 C 10UF, 50V 1 C17142 F1H1A1050032 C 10UF, 50V 1 C17143 F1L2E154A009 E 1500UF, 25V 1 C17144 F1L2E154A009 E 1500UF, 25V 1 C17151 F1H1A1050032 C 10UF, 50V 1 C17152 F1H1A1050032 C 10UF, 50V 1 C17153 F1L2E154A009 E 1500UF, 25V 1 C17154 F1L2E154A009 E 1500UF, 25V 1 C17161 F1H1A1050032 C 10UF, 50V 1 C17163 F1H1C104A143 C 0.1UF, K, 16V 1 C17165 F1H1C104A143 C 0.1UF, K, 16V 1 C17211 F1H1A1050032 C 10UF, 50V 1 C17212 F1H1A1050032 C 10UF, 50V 1 C17213 F1L2E154A009 E 1500UF, 25V 1 C17214 F1L2E154A009 E 1500UF, 25V 1 C17221 F1H1A1050032 C 10UF, 50V 1 C17222 F1H1A1050032 C 10UF, 50V 1 C17223 F1L2E154A009 E 1500UF, 25V 1 C17224 F1L2E154A009 E 1500UF, 25V 1 C17231 F1H1A1050032 C 10UF, 50V 1 C17232 F1H1A1050032 C 10UF, 50V 1 C17233 F1L2E154A009 E 1500UF, 25V 1 C17234 F1L2E154A009 E 1500UF, 25V 1 C17261 F1H1A1050032 C 10UF, 50V 1 C17262 F1H1C104A143 C 0.1UF, K, 16V 1 C17264 F1H1C104A143 C 0.1UF, K, 16V 1 C17266 F1H1C104A143 C 0.1UF, K, 16V 1 C17268 F1H1A1050032 C 10UF, 50V 1 C17311 F1H1A1050032 C 10UF, 50V 1 C17312 F1H1A1050032 C 10UF, 50V 1 C17313 F1L2E154A009 E 1500UF, 25V 1 参考号 部件号 部件名称及说明 件数 备注 C17314 F1L2E154A009 E 1500UF, 25V 1 C17321 F1H1A1050032 C 10UF, 50V 1 C17322 F1H1A1050032 C 10UF, 50V 1 C17323 F1L2E154A009 E 1500UF, 25V 1 C17324 F1L2E154A009 E 1500UF, 25V 1 C17331 F1H1A1050032 C 10UF, 50V 1 C17332 F1H1A1050032 C 10UF, 50V 1 C17333 F1L2E154A009 E 1500UF, 25V 1 C17334 F1L2E154A009 E 1500UF, 25V 1 C17361 F1H1A1050032 C 10UF, 50V 1 C17362 F1H1C104A143 C 0.1UF, K, 16V 1 C17364 F1H1C104A143 C 0.1UF, K, 16V 1 C17366 F1H1C104A143 C 0.1UF, K, 16V 1 C17368 F1H1C104A143 C 0.1UF, K, 16V 1 C17390 F1K2A105A006 C 1UF, 100V 1 CB1 K1MN68BA0052 68P 连接接头 1 CB2 K1MN68BA0052 68P 连接接头 1 CB3 K1MN68BA0052 68P 连接接头 1 CB4 K1MN68BA0052 68P 连接接头 1 CB5 K1MN68BA0052 68P 连接接头 1 CB6 K1MN68BA0052 68P 连接接头 1 CB7 K1MN68BA0052 68P 连接接头 1 CB8 K1MN68BA0052 68P 连接接头 1 CB9 K1MN68BA0052 68P 连接接头 1 CB10 K1MN68BA0052 68P 连接接头 1 CB11 K1MN68BA0052 68P 连接接头 1 D1107 MA704A 二极管 1 D1112 MA2J72800L 稳压二极管 1 D2004 MA2J11100L 二极管 1 D2005 MA2J11100L 二极管 1 D2006 MA2J11100L 二极管 1 D2007 MA2J11100L 二极管 1 D2009 MA2J11100L 二极管 1 D2010 MA2J11100L 二极管 1 D2013 MA2J11100L 二极管 1 D2014 MA2J11100L 二极管 1 D2017 MA2J11100L 二极管 1 D2020 MA3X78900L 稳压二极管 1 D2021 MAZ83600ML 稳压二极管 1 D2024 B0BC03900015 稳压二极管 1 D2201 MA704A 二极管 1 D2301 B0HCMM000014 二极管 1 D2302 B0HCMM000014 二极管 1 D2512 MAZ80560ML 稳压二极管 1 D2520 LNJ107W5PRW LED 1 D2524 MAZ80560ML 稳压二极管 1 D2530 MAZ80560ML 稳压二极管 1 D3006 MA8120M 稳压二极管 1 D3016 MAZ80560LL 稳压二极管 1 D3017 MAZ80560LL 稳压二极管 1 D3018 MAZ80560LL 稳压二极管 1 D3019 MAZ80560LL 稳压二极管 1 D3047 MA8120M 稳压二极管 1 D3050 MAZ80560LL 稳压二极管 1 D3051 MA8120M 稳压二极管 1 D3701 MAZ81400ML 稳压二极管 1 D3702 MAZ81400ML 稳压二极管 1 D3709 MAZ81400ML 稳压二极管 1 D3710 MAZ81400ML 稳压二极管 1 D3711 MAZ81400ML 稳压二极管 1 D3801 EZAEG2A50AX 二极管 1 D3802 EZAEG2A50AX 二极管 1 D3803 EZAEG2A50AX 二极管 1 D3804 EZAEG2A50AX 二极管 1 D3805 EZAEG2A50AX 二极管 1 D3806 EZAEG2A50AX 二极管 1 D3807 EZJZ0V80008B 变阻器 1 D3808 EZJZ0V80008B 变阻器 1 D3809 EZAEG2A50AX 二极管 1 D3810 EZAEG2A50AX 二极管 1 D3811 EZJZ0V80008B 变阻器 1 D3813 B0HCMM000014 二极管 1 D3814 B0HCMM000014 二极管 1 D3815 EZJZ0V120JA 变阻器 1 D4502 EZAEG2A50AX 二极管 1 参考号 部件号 部件名称及说明 件数 备注 97 TH-50PV80C D4503 EZAEG2A50AX 二极管 1 D4504 EZAEG2A50AX 二极管 1 D4505 EZAEG2A50AX 二极管 1 D4506 EZAEG2A50AX 二极管 1 D4507 EZAEG2A50AX 二极管 1 D4508 EZAEG2A50AX 二极管 1 D4509 EZAEG2A50AX 二极管 1 D4510 EZAEG2A50AX 二极管 1 D4511 EZAEG2A50AX 二极管 1 D4512 EZAEG2A50AX 二极管 1 D4513 B0BC5R6A0275 二极管 1 D4514 EZAEG2A50AX 二极管 1 D4515 B0BC5R6A0275 二极管 1 D4516 EZAEG2A50AX 二极管 1 D4517 EZAEG2A50AX 二极管 1 D4518 EZAEG2A50AX 二极管 1 D4519 EZAEG2A50AX 二极管 1 D4520 EZAEG2A50AX 二极管 1 D4521 EZAEG2A50AX 二极管 1 D4522 EZAEG2A50AX 二极管 1 D4523 EZAEG2A50AX 二极管 1 D4541 MA2J11100L 二极管 1 D4542 MA2J11100L 二极管 1 D4551 MA2J11100L 二极管 1 D4552 MA2J11100L 二极管 1 D5400 B0JCME000037 二极管 1 D5401 B0BC4R700007 稳压二极管 1 D5402 B0BC4R700007 稳压二极管 1 D5403 B0JCME000037 二极管 1 D5404 B0BC4R700007 稳压二极管 1 D5405 B0BC4R700007 稳压二极管 1 D5521 MA3X152D0L 二极管 1 D5522 MA3X152D0L 二极管 1 D5571 B0BC6R600005 稳压二极管 1 D5573 B0BC01100001 稳压二极管 1 D5600 B0BC4R000002 稳压二极管 1 D5601 MA22D3900L 二极管 1 D5602 MA22D3900L 二极管 1 D5603 B0JCDD000002 二极管 1 D5604 B0JCDD000002 二极管 1 D5605 MA22D3900L 二极管 1 D5606 B0JCDD000002 二极管 1 D5607 B0BC4R000002 稳压二极管 1 D5608 B0BC4R000002 稳压二极管 1 D5612 MAZ80560LL 稳压二极管 1 D9017 B0BC3R3A0273 稳压二极管 1 D9018 B0BC3R3A0273 稳压二极管 1 D9019 B0BC3R3A0273 稳压二极管 1 D9021 B0JCCE000008 二极管 1 D9807 B0JCCE000008 二极管 1 D9808 B0JCCE000008 二极管 1 D9812 MA22D3900L 二极管 1 D9813 B0JCGD000002 二极管 1 D9814 B0JCGD000002 二极管 1 D9815 B0JCGD000002 二极管 1 D9816 MA22D3900L 二极管 1 D9817 MA22D3900L 二极管 1 D14905 B0HCMM000013 二极管 1 D14906 B0HCMM000013 二极管 1 D14907 B0HCMM000013 二极管 1 D14909 MA3X152E0L 稳压二极管 1 D14910 MA2J11100L 二极管 1 D14953 B0HCMM000013 二极管 1 D14956 B0HCMM000013 二极管 1 D14957 B0HCMM000013 二极管 1 D14959 MA2J11100L 二极管 1 D14960 MA2J11100L 二极管 1 D14961 MA8056H 稳压二极管 1 D14962 MA2J11100L 二极管 1 D14971 MA2J11100L 二极管 1 D14974 MA3X152E0L 稳压二极管 1 D14975 MA2J11100L 二极管 1 D14976 MA2J11100L 二极管 1 D16001 B0FBCN000005 二极管 1 D16021 MA3DF30000LW 稳压二极管 1 D16032 MA2J11100L 二极管 1 D16040 B0ECKP000047 二极管 1 参考号 部件号 部件名称及说明 件数 备注 D16041 MA3DF46000LW 稳压二极管 1 D16042 MA3DF46000LW 稳压二极管 1 D16050 B0ECKP000047 二极管 1 D16051 B0FBCN000005 二极管 1 D16052 B0FBCN000005 二极管 1 D16102 MA22D3900L 二极管 1 D16104 MA22D3900L 二极管 1 D16131 B0ECKP000047 二极管 1 D16132 B0ECKP000047 二极管 1 D16151 B0ECKP000047 二极管 1 D16152 B0ECKP000047 二极管 1 D16153 B0ECKP000047 二极管 1 D16191 B0ECKP000047 二极管 1 D16192 B0ECKP000047 二极管 1 D16253 LNJ301MPUJA LED 1 D16255 MA2J11100L 二极管 1 D16280 MA2J11100L 二极管 1 D16281 MAZ80510LL 稳压二极管 1 D16282 MAZ80680ML 稳压二极管 1 D16283 MA3X152D0L 二极管 1 D16284 MA3X152D0L 二极管 1 D16300 B0ECKP000047 二极管 1 D16301 MA3X152E0L 稳压二极管 1 D16302 MA2J11100L 二极管 1 D16311 MAZ81500ML 稳压二极管 1 D16313 B0ECKP000047 二极管 1 D16321 B0ECKP000047 二极管 1 D16324 MA3X152D0L 二极管 1 D16331 B0ECHP000003 二极管 1 D16335 B0ECLM000006 二极管 1 D16401 B0FBCN000005 二极管 1 D16402 B0FBCN000005 二极管 1 D16407 MA22D3900L 二极管 1 D16421 MA3DF40000LW 稳压二极管 1 D16441 B0ECKP000047 二极管 1 D16451 B0ECKP000047 二极管 1 D16461 MA3DF46000LW 稳压二极管 1 D16462 MA3DF46000LW 稳压二极管 1 D16466 MA2J11100L 二极管 1 D16473 MA3X152D0L 二极管 1 D16475 MAZ80510LL 稳压二极管 1 D16478 B0HCKS000002 二极管 1 D16480 MA2J11100L 二极管 1 D16481 B0FBCN000005 二极管 1 D16482 B0FBCN000005 二极管 1 D16497 B0ECKP000047 二极管 1 D16501 B0ECKP000047 二极管 1 D16503 B0ECKP000047 二极管 1 D16521 B0ECKP000047 二极管 1 D16522 B0ECKP000047 二极管 1 D16523 B0ECKP000047 二极管 1 D16583 LNJ301MPUJA LED 1 D16585 MA2J11100L 二极管 1 D16601 MA3X152E0L 稳压二极管 1 D16602 MAZ81500ML 稳压二极管 1 D16604 MA2J11100L 二极管 1 D16605 MAZ80510LL 稳压二极管 1 D16606 B0ECKM000038 二极管 1 D16607 MA2J11100L 二极管 1 D16608 MA8120M 稳压二极管 1 D16609 MA2J11100L 二极管 1 D16610 MA2J11100L 二极管 1 D16618 B0ECKP000047 二极管 1 D16619 B0ECKP000047 二极管 1 D16621 B0HDSM000006 二极管 1 D16622 B0HDSM000006 二极管 1 D16631 MAZ82400ML 二极管 1 D16632 MAZ82400ML 二极管 1 D16641 B0HCKS000002 二极管 1 D16642 B0HCKS000002 二极管 1 D16643 MA2J11100L 二极管 1 D16644 B0HCKS000002 二极管 1 D16659 B0HCMM000014 二极管 1 D16660 B0HCMR000002 二极管 1 D16661 MA2J11100L 二极管 1 D16662 MA8330M 稳压二极管 1 D16663 MA8330M 稳压二极管 1 参考号 部件号 部件名称及说明 件数 备注 98 TH-50PV80C D16664 MA8330M 稳压二极管 1 D16665 MAZ80510LL 稳压二极管 1 D16667 MA2J11100L 二极管 1 D16668 MA3X152D0L 二极管 1 D16669 MA2J11100L 二极管 1 D16670 B0HCMR000002 二极管 1 D16671 MA2J11100L 二极管 1 D16710 MAZ81500ML 稳压二极管 1 D16711 B0HCMR000002 二极管 1 D16712 MAZ81500ML 稳压二极管 1 D16713 B0HCMR000002 二极管 1 D16714 MAZ81500ML 稳压二极管 1 D16715 B0HCMR000002 二极管 1 D16717 MA8330M 稳压二极管 1 D16718 MA2J11100L 二极管 1 D16719 B0ECKP000047 二极管 1 D16720 B0ECKP000047 二极管 1 D16721 B0HCKS000002 二极管 1 D16722 MA2J11100L 二极管 1 D16725 MA2J11100L 二极管 1 D16761 MA2J11100L 二极管 1 D16763 B0ECKP000047 二极管 1 D16764 B0HCKS000002 二极管 1 D16765 B0ECKP000047 二极管 1 D16766 B0ECKP000047 二极管 1 D16771 MAZ80510LL 稳压二极管 1 D16816 MAZ80510LL 稳压二极管 1 D16817 MAZ80680HL 稳压二极管 1 D16820 MA3X152E0L 稳压二极管 1 D16821 MAZ82000ML 稳压二极管 1 D16822 MA2J11100L 二极管 1 D16824 MA8330M 稳压二极管 1 D16825 MA8330M 稳压二极管 1 D16830 MA8056H 稳压二极管 1 D16836 MAZ81500ML 稳压二极管 1 D16837 MA2J11100L 二极管 1 D16838 B0BC027A0234 稳压二极管 1 D16839 B0ECKP000047 二极管 1 D16859 B0HCKS000002 二极管 1 D16860 B0HCKS000002 二极管 1 D16861 MA8330M 稳压二极管 1 D16862 MA8330M 稳压二极管 1 D16871 MAZ82400ML 二极管 1 D16873 MAZ82000ML 稳压二极管 1 D16874 MAZ80510LL 稳压二极管 1 D16875 MA2J11100L 二极管 1 FL3001 J0HABB000003 LC 滤波器 1 FL3002 J0HABB000003 LC 滤波器 1 FL3003 J0HABB000004 LC 滤波器 1 FL3004 J0HABB000004 LC 滤波器 1 FL3005 J0HABB000004 LC 滤波器 1 FL3008 J0HABB000003 LC 滤波器 1 FL3011 J0HABB000003 LC 滤波器 1 FL3012 J0HABB000003 LC 滤波器 1 FL3013 J0HABB000003 LC 滤波器 1 FL3014 J0HABB000003 LC 滤波器 1 FL3710 J0ZZA0000091 滤波器 1 FL3711 J0ZZA0000091 滤波器 1 FL3712 J0ZZA0000091 滤波器 1 FL3713 J0ZZA0000091 滤波器 1 FL3714 J0ZZA0000091 滤波器 1 FL5510 F1J1E104A148 C 0.10UF, Z, 25V 1 FL5511 F1J1E104A148 C 0.10UF, Z, 25V 1 FL8801 J0HAAA000013 LC 滤波器 1 FL8802 J0HAAA000013 LC 滤波器 1 FL9300 F1J1E104A148 C 0.10UF, Z, 25V 1 FL9301 F1J1E104A148 C 0.10UF, Z, 25V 1 G51 K1KY16BA0192 16P 连接接头 1 GH10 K1FY121E0001 连接接头 1 GH11 K1KA30AA0009 30P 连接接头 1 GS52 K1KA12A00317 12P 连接接头 1 IC1100 MN103SG3FPA1 IC 1 参考号 部件号 部件名称及说明 件数 备注 IC1101 TVRP930-2 IC 1 PPDS IC1102 C0JBAZ002261 IC 1 IC2008 C0CBCBE00001 IC 1 IC2012 C1BB00000947 IC 1 IC2013 C0DBGYY00281 IC 1 IC2106 C1AB00002909 IC 1 IC2107 C0DBFFD00003 IC 1 IC2301 C1AB00002875 IC 1 IC2403 C1AB00002877 IC 1 IC3001 C1AB00002855 IC 1 IC3801 C1AB00002835 IC 1 IC3802 TVRP962 IC 1 IC4510 C1AB00002966 IC 1 IC4511 C0CBCBE00001 IC 1 IC4512 C0DBGYY00477 IC 1 IC4513 C0DBGYY00477 IC 1 IC4514 C0JBAZ002301 IC 1 IC4515 C0JBAZ002301 IC 1 IC4800 C1ZBZ0003775 IC 1 IC4811 C0JBAZ002060 IC 1 IC5400 C0DBAYY00183 IC 1 IC5401 C0DBAYY00183 IC 1 IC5600 C0DBAYY00273 IC 1 IC5601 C0DBAYY00274 IC 1 IC5660 C0EBM0000026 IC 1 IC8001 MN2WS0047 IC 1 IC8002 C3ABRY000038 IC 1 IC8003 C3ABRY000038 IC 1 IC8004 C0ZBZ0001567 IC 1 IC8554 TVRP798-5 IC 1 PPDS IC8601 TVRP957 IC 1 PPDS IC9001 TVRP935-2 IC 1 PPDS IC9002 C1ZBZ0003577 IC 1 IC9003 MN103SG4GPH3 IC 1 IC9011 C0EBF0000431 IC 1 IC9013 C0JBAZ002301 IC 1 IC9303 TVRP939-1 IC 1 IC9500 C1ZBZ0003759 IC 1 IC9802 C0JBAZ001120 IC 1 IC9803 C0JBAZ001120 IC 1 IC9805 C0DBAYY00274 IC 1 IC9806 C0DBAYY00273 IC 1 IC9900 MN84526 IC 1 IC9901 C3ABQY000032 IC 1 IC14901 AN16081A-VT IC 1 IC14902 AN16081A-VT IC 1 IC14903 AN16081A-VT IC 1 IC14904 AN16081A-VT IC 1 IC14905 AN16081A-VT IC 1 IC14906 AN16081A-VT IC 1 IC14951 AN16081A-VT IC 1 IC14952 AN16081A-VT IC 1 IC14953 AN16081A-VT IC 1 IC14954 AN16081A-VT IC 1 IC14955 AN16081A-VT IC 1 IC14956 AN16081A-VT IC 1 IC14961 C0JBAZ000994 IC 1 IC14962 C0JBAZ000994 IC 1 IC14963 C0JBAA000377 IC 1 IC16131 C0ZBZ0000895 IC 1 IC16151 C0ZBZ0001324 IC 1 IC16191 C0ZBZ0000895 IC 1 IC16241 C0JBAZ002811 IC 1 IC16251 C0BBBA000024 IC 1 IC16301 MIP9L02MBS IC 1 IC16302 C0CBALC00012 IC 1 IC16303 C0JBAC000363 IC 1 IC16471 C0DBEKA00003 IC 1 IC16472 C0JBAA000377 IC 1 IC16501 C0ZBZ0000895 IC 1 IC16521 C0ZBZ0001324 IC 1 IC16561 C0JBAZ002811 IC 1 IC16562 C0JBAZ002811 IC 1 IC16581 C0BBBA000024 IC 1 IC16724 C0CBADC00072 IC 1 IC16725 C0CBADC00072 IC 1 IC16752 C0ZBZ0001324 IC 1 参考号 部件号 部件名称及说明 件数 备注 99 TH-50PV80C IC16772 C0ZBZ0001325 IC 1 IC16784 MIP9L02MBS IC 1 IC16786 MIP9L02MBS IC 1 IC16787 C0DBEYY00078 IC 1 IC16788 MIP9L02MBS IC 1 IC16789 C0DBEYY00078 IC 1 IC16791 N0BF1FB00002 IC 1 IC17101 C0JBAZ001120 IC 1 IC17102 C0JBAZ001120 IC 1 IC17201 C0JBAZ001120 IC 1 IC17202 C0JBAZ001120 IC 1 IC17203 C0JBAZ001120 IC 1 IC17301 C0JBAZ001120 IC 1 IC17302 C0JBAZ001120 IC 1 IC17303 C0JBAZ001120 IC 1 IC17304 C0JBAZ001120 IC 1 JA3701 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA3702 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA3703 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA3704 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA3705 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA3706 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA3707 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA3751 ERJ8GEY0R00 M 0 OHM, 1/8W 1 JA3753 ERJ8GEY0R00 M 0 OHM, 1/8W 1 JA3754 ERJ8GEY0R00 M 0 OHM, 1/8W 1 JA3755 ERJ8GEY0R00 M 0 OHM, 1/8W 1 JA3756 ERJ8GEY0R00 M 0 OHM, 1/8W 1 JA3757 ERJ8GEY0R00 M 0 OHM, 1/8W 1 JA3758 ERJ8GEY0R00 M 0 OHM, 1/8W 1 JA3759 ERJ8GEY0R00 M 0 OHM, 1/8W 1 JA3760 ERJ8GEY0R00 M 0 OHM, 1/8W 1 JA3761 ERJ8GEY0R00 M 0 OHM, 1/8W 1 JK3001 K1FB315A0006 连接接头 1 JK3100 K1U932A00002 连接接头 1 JK3701 K4AK18B00007 端子 1 JK4500 K1FY119D0003 连接接头 1 JK4501 K1FY119D0003 连接接头 1 JK7701 K1NA09E00080 9P 连接接头 1 JS2059 D0YAR0000007 M 0 OHM 1/4W 1 JS2060 D0YAR0000007 M 0 OHM 1/4W 1 JS2061 D0YAR0000007 M 0 OHM 1/4W 1 JS2062 D0YAR0000007 M 0 OHM 1/4W 1 JS3003 D0YAR0000007 M 0 OHM 1/4W 1 JS3704 D0GDR00Z0002 M 0 OHM, 1/10W 1 JS3705 D0GDR00Z0002 M 0 OHM, 1/10W 1 JS3707 D0GDR00Z0002 M 0 OHM, 1/10W 1 JS3708 D0GDR00Z0002 M 0 OHM, 1/10W 1 JS3712 D0GDR00Z0002 M 0 OHM, 1/10W 1 JS3713 D0GDR00Z0002 M 0 OHM, 1/10W 1 JS7701 D0GBR00Z0002 M 0 OHM J 1/16W 1 K1 K1KA11B00092 11P 连接接头 1 L1100 J0JYC0000068 片状电感 1 L2001 G1C150KA0038 感应线圈 1 L2005 J0JCC0000284 片状电感 1 L2006 J0JCC0000284 片状电感 1 L2010 G1C220MA0291 感应线圈 1 L2012 G1C220MA0291 感应线圈 1 L2014 G1C220MA0291 感应线圈 1 L2016 G1C220MA0291 感应线圈 1 L2018 J0JHC0000042 片状电感 1 L2021 G1C470MA0291 感应线圈 1 L2022 G1C100MA0072 感应线圈 1 L2023 G1C3R0ZA0156 感应线圈 1 L2025 J0JCC0000269 片状电感 1 L2026 J0JCC0000269 片状电感 1 L2028 J0JYC0000068 片状电感 1 L2030 J0JYC0000068 片状电感 1 L2031 J0JYC0000068 片状电感 1 L2032 J0JYC0000068 片状电感 1 L2033 J0JCC0000269 片状电感 1 L2034 J0JCC0000269 片状电感 1 参考号 部件号 部件名称及说明 件数 备注 L2300 J0JYC0000068 片状电感 1 L3002 J0JCC0000100 片状电感 1 L3003 J0JCC0000100 片状电感 1 L3006 J0JCC0000100 片状电感 1 L3007 J0JCC0000100 片状电感 1 L3010 J0JCC0000100 片状电感 1 L3011 J0JCC0000100 片状电感 1 L3014 J0JCC0000100 片状电感 1 L3015 J0JCC0000100 片状电感 1 L3017 J0JCC0000100 片状电感 1 L3018 J0JCC0000100 片状电感 1 L3019 J0JCC0000100 片状电感 1 L3023 J0JCC0000100 片状电感 1 L3024 J0JCC0000100 片状电感 1 L3700 J0JCC0000364 片状电感 1 L3701 J0JCC0000364 片状电感 1 L3707 J0JCC0000100 片状电感 1 L3708 J0JCC0000100 片状电感 1 L3801 J0JHC0000078 片状电感 1 L3804 J0JHC0000078 片状电感 1 L3805 J0JHC0000078 片状电感 1 L4502 J0JYC0000068 片状电感 1 L4503 J0JYC0000068 片状电感 1 L4504 J0JYC0000068 片状电感 1 L4505 J0JYC0000068 片状电感 1 L4506 J0JYC0000068 片状电感 1 L4507 J0JYC0000068 片状电感 1 L4511 J0JYC0000068 片状电感 1 L4512 J0JCC0000241 片状电感 1 L4513 J0JCC0000241 片状电感 1 L4514 J0JYC0000068 片状电感 1 L4515 J0JYC0000068 片状电感 1 L4516 J0JYC0000068 片状电感 1 L4517 J0JYC0000068 片状电感 1 L4518 J0JYC0000068 片状电感 1 L4519 J0JYC0000068 片状电感 1 L5401 G1C330M00027 感应线圈 1 L5405 G1C330M00027 感应线圈 1 L5407 J0JYC0000068 片状电感 1 L5600 G1C2R2Z00007 感应线圈 1 L5601 G1C2R2Z00007 感应线圈 1 L5602 G1C4R7Z00014 感应线圈 1 L5604 G1C100MA0203 感应线圈 1 L5605 J0JHC0000075 片状电感 1 L5606 G1C100MA0077 感应线圈 1 L5690 J0JYC0000068 片状电感 1 L5691 J0JYC0000068 片状电感 1 L7721 J0JCC0000143 片状电感 1 L8001 J0JHC0000045 片状电感 1 L8002 J0JHC0000045 片状电感 1 L8003 J0JHC0000045 片状电感 1 L8004 J0JHC0000045 片状电感 1 L8005 J0JHC0000045 片状电感 1 L8007 J0JHC0000045 片状电感 1 L8008 J0JHC0000045 片状电感 1 L8009 J0JHC0000045 片状电感 1 L8010 J0JHC0000045 片状电感 1 L8551 J0JHC0000075 片状电感 1 L8801 J0JHC0000045 片状电感 1 L9076 J0JYC0000068 片状电感 1 L9800 G1C2R2Z00007 感应线圈 1 L9801 G1C1R5Z00006 感应线圈 1 L9802 G1C2R2Z00007 感应线圈 1 L9900 J0JHC0000078 片状电感 1 L9901 J0JHC0000078 片状电感 1 L9902 D0GBR00Z0002 M 0 OHM J 1/16W 1 L9903 J0JHC0000078 片状电感 1 L16001 G0C1R6KA0119 校正线圈 1 L16002 G0C1R6KA0119 校正线圈 1 L16003 G0C1R6KA0119 校正线圈 1 L16004 G0C1R6KA0119 校正线圈 1 L16011 G0C1R6KA0119 校正线圈 1 L16012 G0C1R6KA0119 校正线圈 1 L16013 G0C1R6KA0119 校正线圈 1 L16014 G0C1R6KA0119 校正线圈 1 L16102 J0JJC0000015 片状电感 1 L16103 G0ZZ00002183 校正线圈 1 参考号 部件号 部件名称及说明 件数 备注 100 TH-50PV80C L16104 J0JJC0000015 片状电感 1 L16221 G0ZZ00002183 校正线圈 1 L16262 G0ZZ00002183 校正线圈 1 L16271 G0ZZ00002183 校正线圈 1 L16301 J0JHC0000031 片状电感 1 L16398 J0JJC0000015 片状电感 1 L16399 J0JJC0000015 片状电感 1 L16401 G0C1R4KA0118 校正线圈 1 L16402 G0C1R4KA0118 校正线圈 1 L16404 G0C1R4KA0118 校正线圈 1 L16411 G0C1R4KA0118 校正线圈 1 L16412 G0C1R4KA0118 校正线圈 1 L16414 G0C1R4KA0118 校正线圈 1 L16472 G0ZZ00002183 校正线圈 1 L16591 G0ZZ00002183 校正线圈 1 L16697 G0C102KA0187 校正线圈 1 L16698 G0C681KA0187 校正线圈 1 L16699 G0C331KA0187 校正线圈 1 L16801 G0ZZ00002183 校正线圈 1 PA5510 K5H4022A0023 保险丝 1 PA5600 K5H5022A0023 保险丝 1 PA9900 K5H5022A0023 保险丝 1 PC2511 B3JB00000046 IC 1 PC14951 B3PBA0000457 IC 1 PC14952 B3PBA0000457 IC 1 PC16480 B3PBA0000223 IC 1 PC16601 B3PBA0000223 IC 1 PC16602 B3PBA0000443 IC 1 PC16603 B3PBA0000223 IC 1 PC16705 B3PBA0000456 IC 1 PC16710 B3PBA0000223 IC 1 PC16896 B3PBA0000223 IC 1 PC16897 B3PBA0000223 IC 1 PCB TNPH0713DC 电路板 A 1 PPDS PCB N0AE6JL00002 电路板 P 1 PCB TXNC11RQTC 电路板 C1 1 PCB TXNC21RQTC 电路板 C2 1 PCB TXNC31RQTC 电路板 C3 1 PCB TXNSC1RQTC 电路板 SC 1 PCB TXNSD1RQTC 电路板 SD 1 PCB TXNSS1RQTC 电路板 SS 1 PCB TXNSS21RQTC 电路板 SS2 1 PCB TXNSS31RQTC 电路板 SS3 1 PCB TXN/G1RRTC 电路板　G 1 PCB TXNGH1RRTC 电路板 GH 1 PCB TXNGS1RRTC 电路板 GS 1 PCB TXN/K1RRTC 电路板 K 1 PCB TXN/S1RRTC 电路板 S 1 Q2001 2SD0601ARL 三极管 1 Q2022 2SB0709ARL 三极管 1 Q2027 B1CFNG000001 FET 1 Q2028 B1CBHD000002 FET 1 Q2029 B1CBHD000002 FET 1 Q2030 2SB0709ARL 三极管 1 Q2033 2SB0709ARL 三极管 1 Q2510 2SD0601ARL 三极管 1 Q2511 2SD0601ARL 三极管 1 Q2513 2SD0601ARL 三极管 1 Q3000 2SD0601ARL 三极管 1 Q3001 2SD0601ARL 三极管 1 Q3801 2SD0601ARL 三极管 1 Q3802 2SD0601ARL 三极管 1 Q3804 2SD0601ARL 三极管 1 Q4500 2SD0601ARL 三极管 1 Q4501 2SD0601ARL 三极管 1 Q4502 2SD0601ARL 三极管 1 Q4503 2SD0601ARL 三极管 1 参考号 部件号 部件名称及说明 件数 备注 Q4514 2SB0709ARL 三极管 1 Q4515 2SB0709ARL 三极管 1 Q4516 2SB0709ARL 三极管 1 Q4517 2SB0709ARL 三极管 1 Q4811 2SD0601ASL 三极管 1 Q5522 2SB0709ARL 三极管 1 Q5600 B1MBEDA00015 FET 1 Q5601 B1MBDDA00003 FET 1 Q5602 B1MBDDA00003 FET 1 Q5606 2SD0601ARL 三极管 1 Q5607 2SD0601ARL 三极管 1 Q9010 2SD0601ARL 三极管 1 Q9044 2SD0601ARL 三极管 1 Q9046 2SD0601ARL 三极管 1 Q9057 2SD0601ARL 三极管 1 Q9058 2SD0601ARL 三极管 1 Q9301 2SD0601ARL 三极管 1 Q9302 2SD0601ARL 三极管 1 Q9805 2SD0601ARL 三极管 1 Q9806 2SD0601ARL 三极管 1 Q9807 B1MBDDA00003 FET 1 Q9808 B1MBDDA00015 FET 1 Q9809 B1MBDDA00003 FET 1 Q14961 2SD0601ARL 三极管 1 Q14962 2SD0601ARL 三极管 1 Q16001 B1JAEN000002 三极管 1 Q16002 B1JAEN000002 三极管 1 Q16021 B1JAEN000002 三极管 1 Q16022 B1JAEN000002 三极管 1 Q16041 B1JAEN000003 三极管 1 Q16051 B1JAEN000003 三极管 1 Q16102 2SK399800L FET 1 Q16104 2SK399800L FET 1 Q16141 B1HFPFA00001 三极管 1 Q16161 B1HFPFA00001 三极管 1 Q16171 B1ABRD000003 三极管 1 Q16172 B1ADRD000001 三极管 1 Q16181 B1ABRD000003 三极管 1 Q16182 B1ADRD000001 三极管 1 Q16191 B1HFPFA00001 三极管 1 Q16251 2SD0601ARL 三极管 1 Q16280 2SD0601ARL 三极管 1 Q16301 B1CBGD000001 FET 1 Q16302 B1CFNG000001 FET 1 Q16304 2SB0709ARL 三极管 1 Q16331 B1CERL000012 FET 1 Q16335 B1CERL000012 FET 1 Q16339 2SK417300L FET 1 Q16401 B1JAEN000002 三极管 1 Q16402 B1JAEN000002 三极管 1 Q16403 B1JAEN000002 三极管 1 Q16421 B1JAEP000002 三极管 1 Q16422 B1JAEP000002 三极管 1 Q16441 B1JAEN000003 三极管 1 Q16451 B1JAEP000003 三极管 1 Q16471 B1ABCF000231 三极管 1 Q16501 B1HFPFA00001 三极管 1 Q16521 B1HFPFA00001 三极管 1 Q16531 B1ABRD000003 三极管 1 Q16532 B1ADRD000001 三极管 1 Q16551 B1ABRD000003 三极管 1 Q16552 B1ADRD000001 三极管 1 Q16581 B1ABCF000231 三极管 1 Q16601 B1DEET000002 FET 1 Q16602 2SD0601AQL 三极管 1 Q16603 2SB0709ARL 三极管 1 Q16604 B1CHPM000001 FET 1 Q16605 2SB0709ARL 三极管 1 Q16606 2SD0601AQL 三极管 1 Q16607 B1CBGD000001 FET 1 Q16608 B1ABCF000231 三极管 1 Q16621 2SK399500L FET 1 Q16622 2SK399500L FET 1 Q16623 2SK399500L FET 1 Q16641 2SK4175000LZ FET 1 Q16642 2SK4175000LZ FET 1 Q16643 2SK4175000LZ FET 1 参考号 部件号 部件名称及说明 件数 备注 101 TH-50PV80C Q16644 2SK4175000LZ FET 1 Q16645 2SK4175000LZ FET 1 Q16661 B1JAER000003 三极管 1 Q16662 2SD0601AQL 三极管 1 Q16663 2SB0709ARL 三极管 1 Q16664 B1HFPFA00001 三极管 1 Q16665 B1ABCF000231 三极管 1 Q16762 B1ADNF000006 三极管 1 Q16781 B1HFPFA00001 三极管 1 Q16805 2SC3063000RL 三极管 1 Q16806 2SC1473AEA 三极管 1 Q16814 B1ABCN000007 三极管 1 Q16815 B1ABCN000007 三极管 1 Q16816 2SD0601AQL 三极管 1 Q16817 2SD0601AQL 三极管 1 Q16871 2SB0709ARL 三极管 1 Q16872 2SB0709ARL 三极管 1 Q16873 B1ABCF000231 三极管 1 Q16874 B1CBGD000001 FET 1 Q16875 B1ABCF000231 三极管 1 Q16876 B1ABCF000231 三极管 1 Q16879 B1ABCF000231 三极管 1 R003 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R006 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R007 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R008 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R009 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1013 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1014 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1100 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1101 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1102 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1103 ERJ2RKD330 M 33 OHM, J, 2W 1 R1104 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1105 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1106 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1107 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1108 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1109 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1153 ERJ2GEJ821 M 820 OHM, J,0.063W 1 R1164 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1166 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1169 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1170 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1171 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1172 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1173 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R1182 ERJ2GED273X M 27KOHM ,J,0.063W 1 R1194 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1196 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1197 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1200 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1201 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1203 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1204 ERJ2RKD330 M 33 OHM, J, 2W 1 R1207 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1208 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1209 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1210 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1211 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1212 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1216 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1217 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1218 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1219 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1220 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1221 D1BB7151A055 M7.15KOHM, 1/10W 1 R1224 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1225 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1230 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1236 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1237 ERJ2GEJ102X M 1K OHM J 1/4W 1 R1243 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1251 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1255 ERJ2GEJ102X M 1K OHM J 1/4W 1 R2000 ERJ2GEJ220 M 22 OHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 R2001 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R2002 ERJ2GEJ681 M 680 OHM, J,0.063W 1 R2003 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R2006 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R2007 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R2008 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R2015 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2016 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2017 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2018 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2019 D1BB2002A055 M 20KOHM, 1/10W 1 R2020 D1BB2001A055 M 2KOHM, 1/10W 1 R2023 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2026 D1BB1203A055 M 120KOHM, 1/10W 1 R2027 D1BB7502A055 M 75KOHM, 1/10W 1 R2047 D1BB2002A055 M 20KOHM, 1/10W 1 R2048 D1BB2002A055 M 20KOHM, 1/10W 1 R2050 D1BB2002A055 M 20KOHM, 1/10W 1 R2051 D1BB2002A055 M 20KOHM, 1/10W 1 R2052 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R2053 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R2054 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2057 ERJ2GEJ102X M 1K OHM J 1/4W 1 R2058 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2063 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R2064 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R2065 ERJ2GEJ823 M 82KOHM, J,0.063W 1 R2071 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R2072 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R2073 ERJ6GEYG681 M 680 OHM,J,1/10W 1 R2074 D1BB6802A055 M 68KOHM, 1/10W 1 R2075 D1BB1583A055 M 158KOHM, 1/10W 1 R2089 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R2090 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R2092 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2093 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2095 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2096 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2097 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R2098 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2111 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2114 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R2115 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R2118 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R2121 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 1 R2123 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 1 R2125 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 1 R2127 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 1 R2129 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R2132 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R2133 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R2137 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R2141 ERJ2GEJ102X M 1K OHM J 1/4W 1 R2142 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R2146 D0YAR0000007 M 0 OHM 1/4W 1 R2147 D0YAR0000007 M 0 OHM 1/4W 1 R2148 ERJ2GEJ752X M 7.5KOHM, J,0.063W 1 R2149 ERJ2GEJ752X M 7.5KOHM, J,0.063W 1 R2164 D1BB1003A055 M 100KOHM, 1/10W 1 R2165 D1BB3401A055 M 3.4KOHM, 1/10W 1 R2172 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R2174 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R2175 ERJ2GEJ561 M 60 OHM, J,0.063W 1 R2176 ERJ6GEYJ271V M 270 OHM J 1/10W 1 R2177 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2178 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2179 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R2180 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2193 D0YAR0000007 M 0 OHM 1/4W 1 R2200 ERJ6GEYJ153V M 15KOHM,J,1/10W 1 R2211 ERJ2GEJ102X M 1K OHM J 1/4W 1 R2271 EXB28V220J 电阻阵列 1 R2300 D1BB4701A055 M 4.7KOHM, 1/10W 1 R2506 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R2507 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R2516 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2517 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 102 TH-50PV80C R2520 ERJ3GEYJ224 M 220KOHM,J,1/16W 1 R2524 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2525 D1BB5760A055 M 576 OHM, 1/10W 1 R2530 D0GB473JA057 M 47KOHM,J,1/16W 1 R2531 D1BB2700A055 M 270 OHM, 1/10W 1 R2542 D0GB473JA057 M 47KOHM,J,1/16W 1 R2556 D0GB103JA041 M 10K OHM J 1/16W 1 R2557 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2576 J0JCC0000269 片状电感 1 R2577 J0JCC0000269 片状电感 1 R2579 D0GBR00Z0002 M 0 OHM J 1/16W 1 R3000 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R3001 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R3002 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R3003 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R3004 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R3005 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R3019 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R3021 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R3024 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R3025 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R3033 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3034 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3037 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3038 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3043 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3045 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3047 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3048 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3049 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3050 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3051 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3052 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3074 ERJ6RED750 M 75 OHM, 1/10W 1 R3075 ERJ6RED750 M 75 OHM, 1/10W 1 R3076 ERJ6RED750 M 75 OHM, 1/10W 1 R3077 ERJ6RED750 M 75 OHM, 1/10W 1 R3078 ERJ6RED750 M 75 OHM, 1/10W 1 R3084 ERJ6RED750 M 75 OHM, 1/10W 1 R3085 ERJ6RED750 M 75 OHM, 1/10W 1 R3086 ERJ6RED750 M 75 OHM, 1/10W 1 R3097 ERJ6RED750 M 75 OHM, 1/10W 1 R3101 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3103 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3112 D0YAR0000007 M 0 OHM 1/4W 1 R3113 D0YAR0000007 M 0 OHM 1/4W 1 R3116 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3117 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3118 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3119 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3120 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R3121 ERJ6RED750 M 75 OHM, 1/10W 1 R3123 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3124 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3125 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3128 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3129 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3130 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R3131 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R3132 ERJ2GEJ820 M 82 OHM, J,0.063W 1 R3133 ERJ2GEJ820 M 82 OHM, J,0.063W 1 R3134 ERJ2GEJ820 M 82 OHM, J,0.063W 1 R3136 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3138 ERJ2GEJ820 M 82 OHM, J,0.063W 1 R3139 ERJ2GEJ820 M 82 OHM, J,0.063W 1 R3140 ERJ2GEJ820 M 82 OHM, J,0.063W 1 R3146 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R3147 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3148 ERJ6RED750 M 75 OHM, 1/10W 1 R3149 ERJ6RED750 M 75 OHM, 1/10W 1 R3151 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R3152 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R3158 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R3159 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R3167 ERJ6RED750 M 75 OHM, 1/10W 1 R3169 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R3186 ERJ6RED750 M 75 OHM, 1/10W 1 参考号 部件号 部件名称及说明 件数 备注 R3187 ERJ6RED750 M 75 OHM, 1/10W 1 R3189 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R3190 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R3191 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R3201 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3218 D0YAR0000007 M 0 OHM 1/4W 1 R3223 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R3225 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R3226 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R3227 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R3230 ERJ6RED750 M 75 OHM, 1/10W 1 R3232 ERJ6RED750 M 75 OHM, 1/10W 1 R3234 ERJ6RED750 M 75 OHM, 1/10W 1 R3236 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R3237 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R3240 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R3716 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 R3717 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 R3721 D0GD103JA036 M 10KOHM,J,0.25W 1 R3751 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R3753 ERJ6ENF1741 M1.74KOHM, 1/10W 1 R3758 ERJ6ENF6651 M6.65KOHM, 1/10W 1 R3767 ERJ6ENF7151 M7.15KOHM, 1/10W 1 R3801 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3802 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3803 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R3804 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3805 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3806 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3807 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R3808 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R3809 ERJ2GEJ102X M 1K OHM J 1/4W 1 R3810 ERJ2GEJ102X M 1K OHM J 1/4W 1 R3811 D1BB4701A055 M 4.7KOHM, 1/10W 1 R3812 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3815 D0YAR0000007 M 0 OHM 1/4W 1 R3818 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3821 ERJ2RKD330 M 33 OHM, J, 2W 1 R3822 ERJ2GEJ102X M 1K OHM J 1/4W 1 R3823 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3824 D0GA2R7JA014 M 2.7OHM, J,0.063W 1 R3825 D0GA2R7JA014 M 2.7OHM, J,0.063W 1 R3826 D0GA2R7JA014 M 2.7OHM, J,0.063W 1 R3827 D0GA2R7JA014 M 2.7OHM, J,0.063W 1 R3828 D0GA2R7JA014 M 2.7OHM, J,0.063W 1 R3829 D0GA2R7JA014 M 2.7OHM, J,0.063W 1 R3830 D0GA2R7JA014 M 2.7OHM, J,0.063W 1 R3831 D0GA2R7JA014 M 2.7OHM, J,0.063W 1 R3832 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3834 D1BB49R90002 M 49 OHM, 1/10W 1 R3840 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R3841 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R3843 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3845 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3847 D0YAR0000007 M 0 OHM 1/4W 1 R4280 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4281 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4282 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4284 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4290 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4291 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4292 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4321 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4322 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4323 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4325 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4327 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4330 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4500 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4501 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4502 ERJ2RKD330 M 33 OHM, J, 2W 1 R4503 ERJ2RKD330 M 33 OHM, J, 2W 1 R4524 D0YAR0000007 M 0 OHM 1/4W 1 R4525 D0YAR0000007 M 0 OHM 1/4W 1 R4526 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4527 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4528 ERJ2GEJ103 M 10KOHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 103 TH-50PV80C R4530 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4538 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4540 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4552 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4587 D1BB60400001 M 604 OHM, 1/10W 1 R4588 D1BB8060A055 M 806 OHM, 1/10W 1 R4589 D1BB8060A055 M 806 OHM, 1/10W 1 R4590 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4591 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4592 D1BB8060A055 M 806 OHM, 1/10W 1 R4593 D1BB2201A055 M 2.2KOHM, 1/10W 1 R4596 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R4597 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R4598 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R4601 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R4606 D1BB9101A055 M 9.1KOHM, 1/10W 1 R4609 D0YAR0000007 M 0 OHM 1/4W 1 R4611 D1BB5601A055 M 5.6KOHM, 1/10W 1 R4624 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4625 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4626 D1BB2200A055 M 220 OHM, 1/10W 1 R4627 D1BB2200A055 M 220 OHM, 1/10W 1 R4631 D1BB4990A055 M 499 OHM, 1/10W 1 R4634 D1BB2200A055 M 220 OHM, 1/10W 1 R4635 EXB28V680JX 电阻阵列 1 R4636 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4637 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4638 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4639 EXB28V680JX 电阻阵列 1 R4640 EXB28V680JX 电阻阵列 1 R4641 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4643 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4645 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4646 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4647 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4648 EXB28V330J 电阻阵列 1 R4649 EXB28V680JX 电阻阵列 1 R4650 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4651 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4652 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4656 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R4659 D0YAR0000007 M 0 OHM 1/4W 1 R4665 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4666 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4670 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4678 EXB28V680JX 电阻阵列 1 R4679 EXB28V680JX 电阻阵列 1 R4680 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4699 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4701 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4702 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4703 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4704 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4705 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4821 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4833 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4835 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5400 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5401 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5402 D1BB4532A055 M4.53KOHM, 1/10W 1 R5403 D1BB1002A055 M 10KOHM, 1/10W 1 R5405 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5406 ERJ2GEJ203X M 20KOHM,J,0.063W 1 R5407 D1BB8872A055 M8.87KOHM, 1/10W 1 R5408 D1BB1002A055 M 10KOHM, 1/10W 1 R5510 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5511 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5512 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5535 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5536 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5537 ERJ2GEJ152 M 1.5KOHM, J,0.063W 1 R5538 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5542 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R5544 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R5546 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R5581 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5582 ERJ2GEJ473 M 47KOHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 R5583 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5586 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5600 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5604 D1BB4702A055 M 47KOHM, 1/10W 1 R5605 D1BB1272A055 M12.7KOHM, 1/10W 1 R5606 D0YAR0000007 M 0 OHM 1/4W 1 R5607 D0YAR0000007 M 0 OHM 1/4W 1 R5610 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5611 D1BB4702A055 M 47KOHM, 1/10W 1 R5612 D1BB3602A055 M 36KOHM, 1/10W 1 R5620 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5621 D1BB4702A055 M 47KOHM, 1/10W 1 R5622 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5623 D1BB4702A055 M 47KOHM, 1/10W 1 R5625 D0YAR0000007 M 0 OHM 1/4W 1 R5626 D0YAR0000007 M 0 OHM 1/4W 1 R5627 D0YAR0000007 M 0 OHM 1/4W 1 R5628 D0YAR0000007 M 0 OHM 1/4W 1 R5629 D1BB2802A055 M 28KOHM, 1/10W 1 R5630 D1BB4752A055 M47.5KOHM, 1/10W 1 R5631 D1BB3602A055 M 36KOHM, 1/10W 1 R5632 D1BB3002A055 M 30KOHM, 1/10W 1 R5633 D1BB2802A055 M 28KOHM, 1/10W 1 R5634 D1BB2802A055 M 28KOHM, 1/10W 1 R5635 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R5636 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R5637 D0YAR0000007 M 0 OHM 1/4W 1 R5646 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5647 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5657 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5658 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5659 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5660 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5661 ERJ2GEJ123 M 12KOHM ,J,0.063W 1 R5662 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5664 D0YAR0000007 M 0 OHM 1/4W 1 R5702 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5732 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R5733 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5763 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R7701 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R7702 D0YAR0000007 M 0 OHM 1/4W 1 R7703 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R7704 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R7705 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R7706 D0GBR00Z0002 M 0 OHM J 1/16W 1 R7708 D0GBR00Z0002 M 0 OHM J 1/16W 1 R7709 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R7710 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R7713 D0YAR0000007 M 0 OHM 1/4W 1 R7716 D0GBR00Z0002 M 0 OHM J 1/16W 1 R7731 D0YAR0000007 M 0 OHM 1/4W 1 R7792 D0GBR00Z0002 M 0 OHM J 1/16W 1 R7793 D0GBR00Z0002 M 0 OHM J 1/16W 1 R7794 D0GBR00Z0002 M 0 OHM J 1/16W 1 R7795 D0GBR00Z0002 M 0 OHM J 1/16W 1 R7796 D0GBR00Z0002 M 0 OHM J 1/16W 1 R7797 D0GBR00Z0002 M 0 OHM J 1/16W 1 R7798 D0GBR00Z0002 M 0 OHM J 1/16W 1 R7799 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8001 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8002 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R8004 D1BB2402A055 M 24KOHM, 1/10W 1 R8005 D1BB1002A055 M 10KOHM, 1/10W 1 R8006 D1BB6801A055 M 6.8KOHM, 1/10W 1 R8023 D0YAR0000007 M 0 OHM 1/4W 1 R8024 D0YAR0000007 M 0 OHM 1/4W 1 R8025 D0YAR0000007 M 0 OHM 1/4W 1 R8026 D0YAR0000007 M 0 OHM 1/4W 1 R8027 D0YAR0000007 M 0 OHM 1/4W 1 R8028 D0YAR0000007 M 0 OHM 1/4W 1 R8029 D0YAR0000007 M 0 OHM 1/4W 1 R8030 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8031 D1BB2700A055 M 270 OHM, 1/10W 1 R8032 D1BB2700A055 M 270 OHM, 1/10W 1 R8035 D0YAR0000007 M 0 OHM 1/4W 1 R8036 D0GBR00Z0002 M 0 OHM J 1/16W 1 参考号 部件号 部件名称及说明 件数 备注 104 TH-50PV80C R8039 D0YAR0000007 M 0 OHM 1/4W 1 R8056 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8057 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8058 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8059 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8060 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8061 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8062 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8063 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8064 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8065 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8066 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8067 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8068 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8069 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8070 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8071 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8072 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8073 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8074 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8075 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8076 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8077 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8078 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8079 D0YAR0000007 M 0 OHM 1/4W 1 R8080 D0YAR0000007 M 0 OHM 1/4W 1 R8081 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8082 D1BA75R0A014 M0.75KOHM, 1/10W 1 R8083 ERJ2GEJ301 M 300 OHM, J,0.063W 1 R8084 D0YAR0000007 M 0 OHM 1/4W 1 R8086 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R8087 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8090 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8091 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8093 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8095 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8097 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8098 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8099 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8100 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8101 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8106 ERJ2GEJ202 M 2KOHM, J,0.063W 1 R8107 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8108 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R8328 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8386 D0YAR0000007 M 0 OHM 1/4W 1 R8471 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8472 EXB2HV103JV 电阻阵列 1 R8474 EXB28V103JX 电阻阵列 1 R8475 EXB28V103JX 电阻阵列 1 R8501 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8502 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R8503 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R8504 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R8506 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R8508 D1BB91R0A055 M 91 OHM, 1/10W 1 R8509 D1BB91R0A055 M 91 OHM, 1/10W 1 R8510 D1BB91R0A055 M 91 OHM, 1/10W 1 R8556 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8564 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8566 D0YAR0000007 M 0 OHM 1/4W 1 R8603 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R8605 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8657 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8658 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R8710 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8711 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8712 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8751 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8802 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8803 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8804 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8805 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8806 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8807 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8808 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8809 ERJ2GEJ103 M 10KOHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 R8810 EXB28VR000X 电阻阵列 1 R8811 D0YAR0000007 M 0 OHM 1/4W 1 R8812 D0YAR0000007 M 0 OHM 1/4W 1 R8813 EXB28V680JX 电阻阵列 1 R8814 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8815 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8816 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8817 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8833 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8851 D0YAR0000007 M 0 OHM 1/4W 1 R8852 D0YAR0000007 M 0 OHM 1/4W 1 R8853 D0YAR0000007 M 0 OHM 1/4W 1 R8861 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8865 EXB2HV680J 电阻阵列 1 R8866 EXB2HV680J 电阻阵列 1 R8867 EXB2HV680J 电阻阵列 1 R8868 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8871 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8873 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8875 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8876 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8877 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8878 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8879 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8880 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8882 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8883 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8884 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8885 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8886 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8887 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8888 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8889 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8891 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8892 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8894 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8896 D0YAR0000007 M 0 OHM 1/4W 1 R8897 D0YAR0000007 M 0 OHM 1/4W 1 R8898 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8900 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8901 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8904 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8905 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8906 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8907 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8908 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8909 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8910 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8911 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8912 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8913 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8914 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8915 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8916 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8917 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8918 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8919 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8920 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8921 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8922 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8923 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R8924 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R8925 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8926 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8927 D0YAR0000007 M 0 OHM 1/4W 1 R8929 EXB2HVR000 电阻阵列 1 R8935 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8952 EXB2HV680J 电阻阵列 1 R8953 EXB2HV680J 电阻阵列 1 R8957 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8958 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8959 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8960 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8963 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9062 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9063 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9064 ERJ2GEJ101 M 100 OHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 105 TH-50PV80C R9065 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9066 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9067 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9068 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9070 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9071 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R9072 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9080 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9085 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9086 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9088 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9089 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9090 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9091 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9105 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9107 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R9110 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9116 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9119 EXB38V470J 电阻阵列 1 R9121 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9122 EXB38V103JV 电阻阵列 1 R9123 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9124 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9125 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9126 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9127 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R9128 D0GDR00Z0002 M 0 OHM, 1/10W 1 R9129 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R9130 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9131 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9132 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9133 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9134 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R9141 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9142 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9149 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9158 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9159 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9161 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9162 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9163 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9164 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9166 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9170 ERJ2GEJ393 M 39KOHM,J,0.063W 1 R9171 ERJ2GEJ393 M 39KOHM,J,0.063W 1 R9172 ERJ2GEJ393 M 39KOHM,J,0.063W 1 R9187 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9188 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9189 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9203 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R9205 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R9206 ERJ2GED563X M 56KOHM ,J,0.063W 1 R9207 ERJ2GEJ243 M 24KOHM, J,0.063W 1 R9215 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9223 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R9225 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R9317 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9347 EXB2HV220JV 电阻阵列 1 R9348 EXB2HV220JV 电阻阵列 1 R9350 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9351 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9352 EXB2HV470JV 电阻阵列 1 R9353 EXB2HV220JV 电阻阵列 1 R9354 EXB2HV220JV 电阻阵列 1 R9355 EXB2HV470JV 电阻阵列 1 R9356 EXB2HV220JV 电阻阵列 1 R9357 EXB2HV330JV 电阻阵列 1 R9358 EXB2HV470JV 电阻阵列 1 R9359 EXB2HV470JV 电阻阵列 1 R9361 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9362 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9369 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9370 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9371 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9385 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9391 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9396 ERJ2GEJ470 M 47 OHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 R9397 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9398 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9399 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9401 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9402 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9403 EXB2HV103JV 电阻阵列 1 R9404 EXB2HV103JV 电阻阵列 1 R9405 EXB2HV103JV 电阻阵列 1 R9406 EXB2HV103JV 电阻阵列 1 R9578 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9586 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9587 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9588 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9598 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9604 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9608 EXB2HV470JV 电阻阵列 1 R9609 EXB2HV470JV 电阻阵列 1 R9610 EXB2HV470JV 电阻阵列 1 R9611 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R9616 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9618 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R9828 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R9839 EXB38V101JV 电阻阵列 1 R9846 EXB2HV103JV 电阻阵列 1 R9847 EXB2HV103JV 电阻阵列 1 R9848 EXB2HV470JV 电阻阵列 1 R9849 EXB2HV470JV 电阻阵列 1 R9854 D0YAR0000007 M 0 OHM 1/4W 1 R9868 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9869 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9870 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9871 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9878 D1BB1502A055 M 15KOHM, 1/10W 1 R9879 D1BB1302A055 M 13KOHM, 1/10W 1 R9886 D1BB4702A055 M 47KOHM, 1/10W 1 R9887 D1BB5102A055 M 51KOHM, 1/10W 1 R9888 D1BB1502A055 M 15KOHM, 1/10W 1 R9889 D1BB1822A055 M18.2KOHM, 1/10W 1 R9890 D1BB4752A055 M47.5KOHM, 1/10W 1 R9891 D1BB1272A055 M12.7KOHM, 1/10W 1 R9892 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9893 D1BB4302A055 M 43KOHM, 1/10W 1 R9894 D1BB2002A055 M 20KOHM, 1/10W 1 R9895 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9896 D1BB1822A055 M18.2KOHM, 1/10W 1 R9897 D1BB4752A055 M47.5KOHM, 1/10W 1 R9903 EXB2HV470JV 电阻阵列 1 R9905 ERJ2RKD330 M 33 OHM, J, 2W 1 R9906 EXB38V470J 电阻阵列 1 R9907 ERJ2GEJ151 M 150 OHM, J,0.063W 1 R9936 D1BB1001A055 M 1KOHM, 1/16W 1 R9937 D1BB1001A055 M 1KOHM, 1/16W 1 R9938 D1BB1001A055 M 1KOHM, 1/16W 1 R9939 D1BB1001A055 M 1KOHM, 1/16W 1 R9940 ERJ2RKD330 M 33 OHM, J, 2W 1 R9943 EXB2HV470JV 电阻阵列 1 R9944 EXB38V470J 电阻阵列 1 R9945 EXB38V470J 电阻阵列 1 R9946 EXB38V470J 电阻阵列 1 R9947 EXB38V470J 电阻阵列 1 R9948 EXB38V470J 电阻阵列 1 R9949 EXB38V470J 电阻阵列 1 R9950 EXB38V470J 电阻阵列 1 R9951 EXB38V470J 电阻阵列 1 R9952 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9953 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9954 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9955 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9956 D0GDR00Z0002 M 0 OHM, 1/10W 1 R9957 D0GDR00Z0002 M 0 OHM, 1/10W 1 R9958 D0GDR00Z0002 M 0 OHM, 1/10W 1 R9966 ERJ2GEJ681 M 680 OHM, J,0.063W 1 R9967 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9968 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9969 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9970 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9972 ERJ2GEJ103 M 10KOHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 106 TH-50PV80C R9975 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9977 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9983 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9986 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9988 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9989 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R9990 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R14349 D0GD103JA036 M 10KOHM,J,0.25W 1 R14901 D0GD101JA036 M 100 OHM,J,0.25W 1 R14902 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14903 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14904 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14905 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14906 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14907 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14908 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14909 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14910 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14911 D0GD103JA036 M 10KOHM,J,0.25W 1 R14912 D0GD103JA036 M 10KOHM,J,0.25W 1 R14913 D0GD103JA036 M 10KOHM,J,0.25W 1 R14914 D0GD103JA036 M 10KOHM,J,0.25W 1 R14915 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14916 D0GD103JA036 M 10KOHM,J,0.25W 1 R14917 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14919 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14920 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14921 ERJ8GEYJ224V M 220KOHM, J,1/8W 1 R14923 D0GD103JA036 M 10KOHM,J,0.25W 1 R14924 D0GD103JA036 M 10KOHM,J,0.25W 1 R14925 D0GD103JA036 M 10KOHM,J,0.25W 1 R14926 D0GD103JA036 M 10KOHM,J,0.25W 1 R14927 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14943 ERJ6GEYJ470V M 47 OHM,J,1/10W 1 R14944 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R14945 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14946 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14947 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14948 D0GDR00Z0002 M 0 OHM, 1/10W 1 R14949 ERJ6GEYJ203 M 20KOHM,J,1/10W 1 R14950 D0GD103JA036 M 10KOHM,J,0.25W 1 R14951 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14952 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14953 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14954 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14955 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14956 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14957 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14958 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14959 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14960 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14961 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R14962 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R14963 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R14964 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14965 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R14966 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14967 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14968 D0GD103JA036 M 10KOHM,J,0.25W 1 R14969 ERJ6GEYJ332V M 3.3K OHM J 1/10W 1 R14970 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R14971 ERJT06J103V M 10KOHM,F,0.25W 1 R14972 ERJT06J103V M 10KOHM,F,0.25W 1 R14973 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R14974 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R14975 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R14976 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R14977 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R14978 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R14979 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R14980 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R14981 D0GD103JA036 M 10KOHM,J,0.25W 1 R14982 D0GD103JA036 M 10KOHM,J,0.25W 1 R14984 D0GD103JA036 M 10KOHM,J,0.25W 1 R14986 ERJ8GEYJ224V M 220KOHM, J,1/8W 1 R14987 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R14988 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 参考号 部件号 部件名称及说明 件数 备注 R14989 ERJ6ENF1502 M 15KOHM, 1/10W 1 R14990 D0GD103JA036 M 10KOHM,J,0.25W 1 R14991 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R14992 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R14993 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R14994 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R14995 D0GD103JA036 M 10KOHM,J,0.25W 1 R14996 D0GD103JA036 M 10KOHM,J,0.25W 1 R14997 D0GD103JA036 M 10KOHM,J,0.25W 1 R14998 D0GD103JA036 M 10KOHM,J,0.25W 1 R16001 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16002 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16021 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16022 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16031 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16032 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16033 ERJ6ENF5602 M 56KOHM, 1/10W 1 R16034 ERJ6ENF2702 M 27KOHM, 1/10W 1 R16041 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16051 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16102 ERJT06J221V M 220 OHM,F,0.25W 1 R16104 ERJT06J221V M 220 OHM,F,0.25W 1 R16109 ERJT06J100V M 10 OHM,F,0.25W 1 R16110 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16116 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16131 D0GD101JA036 M 100 OHM,J,0.25W 1 R16132 D0GD101JA036 M 100 OHM,J,0.25W 1 R16134 ERJT06J750V M 75 OHM,F,0.25W 1 R16137 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16138 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16141 ERJT06J100V M 10 OHM,F,0.25W 1 R16142 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16143 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16151 D0GD101JA036 M 100 OHM,J,0.25W 1 R16152 D0GD101JA036 M 100 OHM,J,0.25W 1 R16154 ERJT06J750V M 75 OHM,F,0.25W 1 R16155 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16159 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16161 ERJT06J100V M 10 OHM,F,0.25W 1 R16162 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16163 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16171 ERJT06J100V M 10 OHM,F,0.25W 1 R16172 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16173 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16181 ERJT06J100V M 10 OHM,F,0.25W 1 R16182 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16183 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16191 D0GD101JA036 M 100 OHM,J,0.25W 1 R16192 D0GD101JA036 M 100 OHM,J,0.25W 1 R16193 ERJT06J750V M 75 OHM,F,0.25W 1 R16194 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16195 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16220 ERJ6GEYJ470V M 47 OHM,J,1/10W 1 R16221 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16230 ERJ6GEYJ470V M 47 OHM,J,1/10W 1 R16231 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16241 EXB38V470J 电阻阵列 1 R16242 EXB38V472JV 电阻阵列 1 R16251 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R16252 ERJ6ENF3902 M 39KOHM, 1/10W 1 R16253 ERJ6ENF3902 M 39KOHM, 1/10W 1 R16254 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R16255 ERJ6ENF1001 M 1KOHM, 1/10W 1 R16256 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R16257 D0GD103JA036 M 10KOHM,J,0.25W 1 R16258 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16260 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16261 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R16280 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16281 D0GD103JA036 M 10KOHM,J,0.25W 1 R16282 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R16283 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16284 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R16285 ERJ6GEYJ623V M 62KOHM,J,1/10W 1 R16286 ERJT08J334V M 330KOHM,F,0.33W 1 R16287 ERJ6GEYJ623V M 62KOHM,J,1/10W 1 R16288 ERJT08J334V M 330KOHM,F,0.33W 1 参考号 部件号 部件名称及说明 件数 备注 107 TH-50PV80C R16289 ERJ6GEYJ623V M 62KOHM,J,1/10W 1 R16290 ERJT08J334V M 330KOHM,F,0.33W 1 R16291 ERJ6GEYJ623V M 62KOHM,J,1/10W 1 R16292 ERJT08J334V M 330KOHM,F,0.33W 1 R16300 ERJT08J102V M 1KOHM,J, 0.33W 1 R16301 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16302 ERJ8GEYJ105V M 1MOHM, J,1/8W 1 R16303 D0GD101JA036 M 100 OHM,J,0.25W 1 R16304 ERJT08J681V M 680 OHM,F,0.33W 1 R16305 ERJ6GEYJ271V M 270 OHM J 1/10W 1 R16306 D0GD101JA036 M 100 OHM,J,0.25W 1 R16307 D0GD101JA036 M 100 OHM,J,0.25W 1 R16308 D0GD101JA036 M 100 OHM,J,0.25W 1 R16309 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16310 ERJ6GEYJ562V M 5.6KOHM,J,1/10W 1 R16311 ERJ6GEYJ124V M 120KOHM,J,1/10W 1 R16312 ERJ6GEYJ124V M 120KOHM,J,1/10W 1 R16313 ERJ6ENF4752 M47.5KOHM, 1/10W 1 R16314 ERJ6ENF5602 M 56KOHM, 1/10W 1 R16315 ERJ6ENF1241 M1.24KOHM, 1/10W 1 R16317 D0GDR00Z0002 M 0 OHM, 1/10W 1 R16321 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16322 ERJ6GEYF561 M 560 OHM,F,1/10W 1 R16323 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R16324 D0GD103JA036 M 10KOHM,J,0.25W 1 R16325 D0GDR00Z0002 M 0 OHM, 1/10W 1 R16331 ERJT06J101V M 100 OHM,F,0.25W 1 R16333 ERJ6ENF3303 M 330KOHM, 1/10W 1 R16334 ERJT06J101V M 100 OHM,F,0.25W 1 R16336 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16338 ERJT06J101V M 100 OHM,F,0.25W 1 R16339 ERJ6ENF3303 M 330KOHM, 1/10W 1 R16340 ERJT06J152V M 1.5KOHM,F,0.25W 1 R16401 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16402 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16403 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16421 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16422 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16441 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16451 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16465 ERJ6ENF2702 M 27KOHM, 1/10W 1 R16466 ERJ6ENF5602 M 56KOHM, 1/10W 1 R16467 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16468 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16471 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R16472 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16473 ERJ6GEYF561 M 560 OHM,F,1/10W 1 R16474 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16475 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16476 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16477 D0GBR00Z0002 M 0 OHM J 1/16W 1 R16478 ERJ6GEYJ562V M 5.6KOHM,J,1/10W 1 R16479 D0GD103JA036 M 10KOHM,J,0.25W 1 R16480 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16501 D0GD101JA036 M 100 OHM,J,0.25W 1 R16502 D0GD101JA036 M 100 OHM,J,0.25W 1 R16503 ERJT06J100V M 10 OHM,F,0.25W 1 R16504 ERJT06J750V M 75 OHM,F,0.25W 1 R16506 ERJT06J100V M 10 OHM,F,0.25W 1 R16507 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16508 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16509 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16510 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16511 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16512 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16516 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16517 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16521 D0GD101JA036 M 100 OHM,J,0.25W 1 R16522 D0GD101JA036 M 100 OHM,J,0.25W 1 R16523 ERJT06J750V M 75 OHM,F,0.25W 1 R16531 ERJT06J100V M 10 OHM,F,0.25W 1 R16532 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16533 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16551 ERJT06J100V M 10 OHM,F,0.25W 1 R16552 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16553 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16561 EXB38V470J 电阻阵列 1 参考号 部件号 部件名称及说明 件数 备注 R16562 EXB38V470J 电阻阵列 1 R16563 EXB38V470J 电阻阵列 1 R16564 EXB38V470J 电阻阵列 1 R16565 EXB38V472JV 电阻阵列 1 R16566 EXB38V472JV 电阻阵列 1 R16567 EXB38V472JV 电阻阵列 1 R16568 EXB38V472JV 电阻阵列 1 R16580 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16582 ERJ6ENF3902 M 39KOHM, 1/10W 1 R16583 ERJ6ENF3902 M 39KOHM, 1/10W 1 R16584 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R16585 ERJ6ENF1001 M 1KOHM, 1/10W 1 R16586 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R16587 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16588 D0GD103JA036 M 10KOHM,J,0.25W 1 R16590 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R16591 EXB38V472JV 电阻阵列 1 R16592 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16593 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R16600 D0GD103JA036 M 10KOHM,J,0.25W 1 R16601 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16602 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16603 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R16604 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R16605 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R16606 D0GD103JA036 M 10KOHM,J,0.25W 1 R16607 ERJ6ENF6651 M6.65KOHM, 1/10W 1 R16608 ERJT08J102V M 1KOHM,J, 0.33W 1 R16609 ERJT08J102V M 1KOHM,J, 0.33W 1 R16610 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R16611 ERG2FJS473D M 47KOHM, J, 2W 1 R16612 ERJT06J470V M 47 OHM,F,0.25W 1 R16613 ERG1FJS104D M 100KOHM, J, 1W 1 R16615 ERJ6ENF1131 M1.13KOHM, 1/10W 1 R16616 D0GDR00Z0002 M 0 OHM, 1/10W 1 R16617 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16621 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R16622 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R16623 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R16632 D0GD103JA036 M 10KOHM,J,0.25W 1 R16633 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R16634 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R16635 D0GD103JA036 M 10KOHM,J,0.25W 1 R16636 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16638 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16639 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16641 ERJT06J330V M 33 OHM,F,0.25W 1 R16642 ERJT06J330V M 33 OHM,F,0.25W 1 R16643 ERJT06J330V M 33 OHM,F,0.25W 1 R16644 ERJT06J330V M 33 OHM,F,0.25W 1 R16645 ERJT06J330V M 33 OHM,F,0.25W 1 R16657 ERJ6GEYG682 M 6.8KOHM,J,1/10W 1 R16658 D0D1101JA009 M 100 OHM,J,1W 1 R16659 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R16660 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R16661 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R16662 ERJ6ENF3001 M 3KOHM, 1/10W 1 R16663 D0GD103JA036 M 10KOHM,J,0.25W 1 R16664 ERJT08J102V M 1KOHM,J, 0.33W 1 R16665 ERJT06J330V M 33 OHM,F,0.25W 1 R16666 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R16667 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R16668 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16669 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16670 ERJT06J470V M 47 OHM,F,0.25W 1 R16671 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16672 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16675 ERJT08J102V M 1KOHM,J, 0.33W 1 R16680 ERJT06J100V M 10 OHM,F,0.25W 1 R16681 ERJT06J100V M 10 OHM,F,0.25W 1 R16682 ERJT06J100V M 10 OHM,F,0.25W 1 R16696 ERF5TK2R2 W 2.2 OHM, K, 5W 1 R16700 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16701 D0GD103JA036 M 10KOHM,J,0.25W 1 R16702 ERJ6GEYJ332V M 3.3K OHM J 1/10W 1 R16703 D0GD103JA036 M 10KOHM,J,0.25W 1 R16704 D0GD103JA036 M 10KOHM,J,0.25W 1 参考号 部件号 部件名称及说明 件数 备注 108 TH-50PV80C R16705 D0GD101JA036 M 100 OHM,J,0.25W 1 R16706 D0GD101JA036 M 100 OHM,J,0.25W 1 R16707 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R16717 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16720 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R16721 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R16722 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R16723 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R16729 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16730 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16731 ERG1FJS823D M 82KOHM, J, 1W 1 R16732 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R16733 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R16734 ERJ6ENF4991 M4.99KOHM, 1/10W 1 R16735 ERJ6ENF2213 M 221KOHM, 1/10W 1 R16736 ERJ6ENF2213 M 221KOHM, 1/10W 1 R16737 ERJ6ENF2003 M 200KOHM, 1/10W 1 R16738 ERG1FJS823D M 82KOHM, J, 1W 1 R16740 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R16744 ERJ6ENF2003 M 200KOHM, 1/10W 1 R16749 D0GD103JA036 M 10KOHM,J,0.25W 1 R16750 ERJT06J223V M 22 KOHM,F,0.25W 1 R16751 ERJT06J224V M 220KOHM,F,0.25W 1 R16752 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16753 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16756 ERJT06J223V M 22 KOHM,F,0.25W 1 R16757 D0GDR00Z0002 M 0 OHM, 1/10W 1 R16761 ERJT06J100V M 10 OHM,F,0.25W 1 R16762 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16765 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16766 ERJT06J750V M 75 OHM,F,0.25W 1 R16768 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16769 ERJT06J750V M 75 OHM,F,0.25W 1 R16771 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R16774 ERG1SJ683 M 68KOHM, J, 1W 1 R16775 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16776 D0GD101JA036 M 100 OHM,J,0.25W 1 R16777 ERJT06J151V M 150 OHM,F,0.25W 1 R16778 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R16781 ERJT06J470V M 47 OHM,F,0.25W 1 R16782 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16785 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16786 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16787 ERJ6ENF3302 M 33KOHM, 1/10W 1 R16788 ERJT06J154V M 150KOHM,F,0.25W 1 R16789 D0GD103JA036 M 10KOHM,J,0.25W 1 R16794 ERJ6ENF2003 M 200KOHM, 1/10W 1 R16795 ERJ6ENF2003 M 200KOHM, 1/10W 1 R16796 ERJ6ENF5602 M 56KOHM, 1/10W 1 R16822 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16823 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16824 ERJ6ENF3302 M 33KOHM, 1/10W 1 R16825 ERJT06J154V M 150KOHM,F,0.25W 1 R16826 D0GD103JA036 M 10KOHM,J,0.25W 1 R16827 D0GDR00Z0002 M 0 OHM, 1/10W 1 R16838 ERJ14YJ563U M 56KOHM, 1/2W 1 R16841 ERJ14YJ563U M 56KOHM, 1/2W 1 R16844 ERJ6ENF1241 M1.24KOHM, 1/10W 1 R16845 ERJ6ENF6202 M 62KOHM, 1/10W 1 R16846 ERJ6ENF6042 M60.4KOHM, 1/10W 1 R16850 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16851 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R16852 D0GD103JA036 M 10KOHM,J,0.25W 1 R16855 ERG1FJS103D M 10KOHM, J, 1W 1 R16856 ERQ12AJW560E F 56 OHM, J,1/2W 1 R16857 ERJ12YJ124U M 120KOHM, 1/2W 1 R16858 ERJ6ENF1001 M 1KOHM, 1/10W 1 R16860 D0D28R2JA021 M 8.2 OHM,J,2W 1 R16870 ERG2FJS333D M 33KOHM, J, 2W 1 R16871 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R16872 ERJ6GEYJ332V M 3.3K OHM J 1/10W 1 R16873 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R16874 ERJ6ENF7322 M73.2KOHM, 1/10W 1 R16875 ERJ6ENF7152 M71.5KOHM, 1/10W 1 R16886 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R16887 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R16888 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 参考号 部件号 部件名称及说明 件数 备注 R17111 EXB38V471J 电阻阵列 1 R17112 EXB38V471J 电阻阵列 1 R17116 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17117 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17121 EXB38V471J 电阻阵列 1 R17122 EXB38V471J 电阻阵列 1 R17126 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17127 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17131 EXB38V471J 电阻阵列 1 R17136 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17137 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17141 EXB38V471J 电阻阵列 1 R17142 EXB38V471J 电阻阵列 1 R17146 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17147 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17151 EXB38V471J 电阻阵列 1 R17152 EXB38V471J 电阻阵列 1 R17156 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17157 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17161 D0GDR00Z0002 M 0 OHM, 1/10W 1 R17162 EXB38V220JV 电阻阵列 1 R17163 EXB38V220JV 电阻阵列 1 R17164 EXB38V102J 电阻阵列 1 R17165 EXB38V220JV 电阻阵列 1 R17166 EXB38V470J 电阻阵列 1 R17167 EXB38V102J 电阻阵列 1 R17170 D0GB102JA041 M 1KOHM,J,1/16W 1 R17171 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R17172 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R17191 D0GF472JA047 M 4.7KOHM,J, 0.33W 1 R17211 EXB38V471J 电阻阵列 1 R17212 EXB38V471J 电阻阵列 1 R17216 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17217 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17221 EXB38V471J 电阻阵列 1 R17222 EXB38V471J 电阻阵列 1 R17226 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17227 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17231 EXB38V471J 电阻阵列 1 R17232 EXB38V471J 电阻阵列 1 R17236 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17237 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17261 D0GDR00Z0002 M 0 OHM, 1/10W 1 R17262 EXB38V470J 电阻阵列 1 R17263 EXB38V470J 电阻阵列 1 R17264 EXB38V102J 电阻阵列 1 R17265 EXB38V470J 电阻阵列 1 R17266 EXB38V470J 电阻阵列 1 R17267 EXB38V222J 电阻阵列 1 R17268 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R17271 EXB38V470J 电阻阵列 1 R17272 EXB38V470J 电阻阵列 1 R17273 EXB38V222J 电阻阵列 1 R17274 EXB38V222J 电阻阵列 1 R17275 D0GDR00Z0002 M 0 OHM, 1/10W 1 R17316 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17317 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17326 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17327 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17336 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17337 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 1 R17361 D0GDR00Z0002 M 0 OHM, 1/10W 1 R17362 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R17363 EXB38V220JV 电阻阵列 1 R17364 EXB38V220JV 电阻阵列 1 R17365 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R17366 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R17367 EXB38V102J 电阻阵列 1 R17368 EXB38V470J 电阻阵列 1 R17369 EXB38V470J 电阻阵列 1 R17371 EXB38V471J 电阻阵列 1 R17372 EXB38V471J 电阻阵列 1 R17373 EXB38V470J 电阻阵列 1 R17374 EXB38V470J 电阻阵列 1 R17375 EXB38V471J 电阻阵列 1 R17376 EXB38V471J 电阻阵列 1 R17377 EXB38V470J 电阻阵列 1 参考号 部件号 部件名称及说明 件数 备注 109 TH-50PV80C 05/2008 iPress1933 中国制作 R17378 EXB38V470J 电阻阵列 1 R17379 EXB38V471J 电阻阵列 1 R17380 EXB38V471J 电阻阵列 1 R17390 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R17391 D0GF472JA047 M 4.7KOHM,J, 0.33W 1 RM2501 PNA4701M07TV 遥控接收器 1 S1 K1KA03BA0061 3P 连接接头 1 SC2 K1KA02A00676 2P 连接接头 1 SC20 K1MN30BA0255 30P 连接接头 1 SC30 K1KA08AA0190 8P 连接接头 1 SC41 K1KA23AA0733 23P 连接接头 1 SC42 K1KA23AA0733 23P 连接接头 1 SC46 K1KA09A00239 9P 连接接头 1 SCMM1 TMME047 线夹 1 SD1 K1MN96BA0260 96P 连接接头 1 SD2 K1MN96BA0260 96P 连接接头 1 SD3 K1MN96BA0260 96P 连接接头 1 SD4 K1MN96BA0260 96P 连接接头 1 SD11 K1MN20BA0231 20P 连接接头 1 SD42 K1KB23AA0234 23P 连接接头 1 SD46 K1KY09AA0607 9P 连接接头 1 SS02 K1KB07AA0087 7P 连接接头 1 SS03 K1KB07AA0087 7P 连接接头 1 SS11 K1KA02A00676 2P 连接接头 1 SS12 K1KA10AA0194 10P 连接接头 1 SS21 K1KA07A00170 7P 连接接头 1 SS22 K1KA07A00170 7P 连接接头 1 SS23 K1KA12AA0194 12P 连接接头 1 SS34 K1KA03AA0193 3P 连接接头 1 SS52 K1MN13B00091 13P 连接接头 1 SS54 K1MN13B00091 13P 连接接头 1 SS55 K1MN13B00091 13P 连接接头 1 SS57 K1MN13B00091 13P 连接接头 1 SSMM2 TMM17434-2 线夹 1 SSMM3 TMM7464-2 线夹 1 SSMM4 TMM7464-2 线夹 1 SU1 K1MN96BA0260 96P 连接接头 1 SU2 K1MN96BA0260 96P 连接接头 1 SU3 K1MN96BA0260 96P 连接接头 1 SU4 K1MN96BA0260 96P 连接接头 1 SU11 K1MN20BA0266 20P 连接接头 1 SU41 K1KB23AA0234 23P 连接接头 1 SW2500 K0F162B00002 开关 1 SW3753 EVQPC105K 开关 1 SW3754 EVQPC105K 开关 1 SW3755 EVQPC105K 开关 1 SW3756 EVQPC105K 开关 1 SW3757 EVQPC105K 开关 1 T16301A ETS19AB249AC 转接变压器 1 TU8301A ENG39E04GF 调谐器 1 VR16000 EVMEASA00B54 控制 50KOHMB 0.3W 1 VR16600 EVMEASA00B54 控制 50KOHMB 0.3W 1 VR16602 EVMEASA00B33 控制 3KOHMB 0.3W 1 X1100 H0J100500035 晶体 1 X2010 H0J245500089 晶体 1 X8001 H0J270500061 晶体 1 X9900 H0J200500076 晶体 1 ZA0001 K4AZ01D00004 端子 1 ZA0002 K4AZ01D00004 端子 1 ZA0003 K4AZ01D00004 端子 1 ZA0004 K4AZ01D00004 端子 1 ZA0007 K4AZ01D00004 端子 1 参考号 部件号 部件名称及说明 件数 备注 ZA0008 K4AZ01D00004 端子 1 ZA3701 K4CZ01000027 AV 端子 1 ZA3801 K4AD01D00005 端子 1 ZA3802 K4AD01D00005 端子 1 ZA14901 K4AD01Z00003 端子 1 ZA14902 K4AD01Z00003 端子 1 ZA14951 K4AD01Z00003 端子 1 ZA14952 K4AD01Z00003 端子 1 ZA16001 K4CD01000011 AV 端子 1 ZA16002 K4CD01000011 AV 端子 1 ZA16003 K4CD01000011 AV 端子 1 ZA16401 K4CD01000011 AV 端子 1 ZA16402 K4CD01000011 AV 端子 1 ZA16403 K4CD01000011 AV 端子 1 ZA17101 K4AD01Z00001 端子 1 ZA17102 K4AD01Z00001 端子 1 ZA17103 K4AD01Z00001 端子 1 ZA17104 K4AD01Z00001 端子 1 ZA17105 K4AD01Z00001 端子 1 ZA17106 K4AD01Z00001 端子 1 ZA17201 K4AD01Z00001 端子 1 ZA17202 K4AD01Z00001 端子 1 ZA17203 K4AD01Z00001 端子 1 ZA17204 K4AD01Z00001 端子 1 ZA17301 K4AD01Z00001 端子 1 ZA17302 K4AD01Z00001 端子 1 ZA17303 K4AD01Z00001 端子 1 ZA17304 K4AD01Z00001 端子 1 参考号 部件号 部件名称及说明 件数 备注
