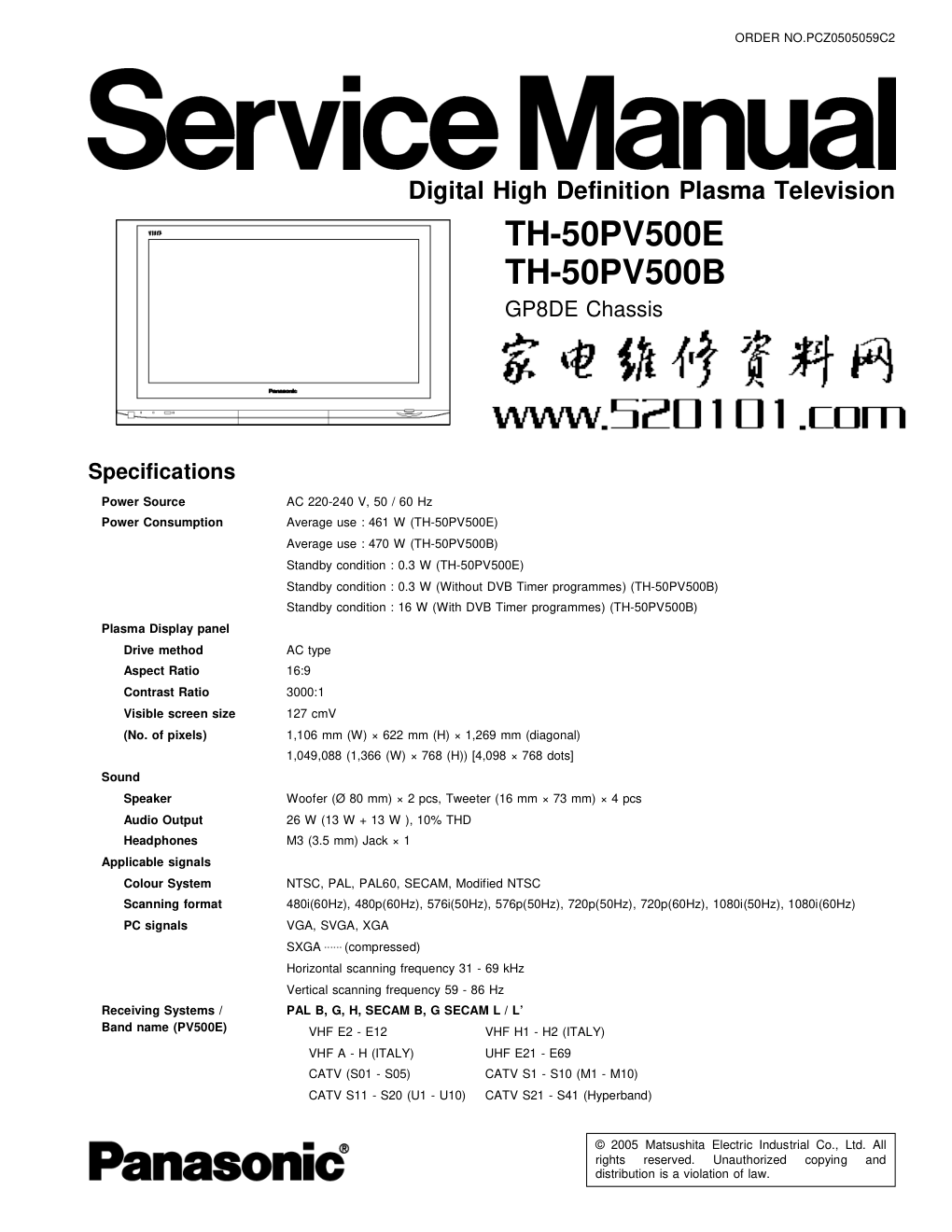

© 2005 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law. TH-50PV500E TH-50PV500B GP8DE Chassis Digital High Definition Plasma Television Specifications Power Source AC 220-240 V, 50 / 60 Hz Power Consumption Average use : 461 W (TH-50PV500E) Average use : 470 W (TH-50PV500B) Standby condition : 0.3 W (TH-50PV500E) Standby condition : 0.3 W (Without DVB Timer programmes) (TH-50PV500B) Standby condition : 16 W (With DVB Timer programmes) (TH-50PV500B) Plasma Display panel Drive method AC type Aspect Ratio 16:9 Contrast Ratio 3000:1 Visible screen size 127 cmV (No. of pixels) 1,106 mm (W) × 622 mm (H) × 1,269 mm (diagonal) 1,049,088 (1,366 (W) × 768 (H)) [4,098 × 768 dots] Sound Speaker Woofer (Ø 80 mm) × 2 pcs, Tweeter (16 mm × 73 mm) × 4 pcs Audio Output 26 W (13 W + 13 W ), 10% THD Headphones M3 (3.5 mm) Jack × 1 Applicable signals Colour System NTSC, PAL, PAL60, SECAM, Modified NTSC Scanning format 480i(60Hz), 480p(60Hz), 576i(50Hz), 576p(50Hz), 720p(50Hz), 720p(60Hz), 1080i(50Hz), 1080i(60Hz) PC signals VGA, SVGA, XGA SXGA (compressed) Horizontal scanning frequency 31 - 69 kHz Vertical scanning frequency 59 - 86 Hz Receiving Systems / Band name (PV500E) PAL B, G, H, SECAM B, G SECAM L / L’ VHF E2 - E12 VHF H1 - H2 (ITALY) VHF A - H (ITALY) UHF E21 - E69 CATV (S01 - S05) CATV S1 - S10 (M1 - M10) CATV S11 - S20 (U1 - U10) CATV S21 - S41 (Hyperband) ORDER NO.PCZ0505059C2 PAL D, K, SECAM D, K VHF R1 - R2 VHF R3 - R5 VHF R6 - R12 UHF E21 - E69 PAL 525/60 Playback of NTSC tape from some PAL Video recorders (VCR) M.NTSC Playback from M. NTSC Video recorders (VCR) NTSC (AV input only) Playback from NTSC Video recorders (VCR) Receiving Systems / Band name (PV500B) PAL I UHF E21 - 68. PAL 525/60 Playback of NTSC tape from some PAL Video recorders (VCR) or NTSC disc playback from DVD player and recorder. DVB Digital terrestrial services via UHF aerial input. M.NTSC Playback from M.NTSC Video recorders (VCR). NTSC (AV input only) Playback from NTSC Video recorders (VCR). Aerial - Rear UHF / VHF (PV500E) UHF (PV500B) Operating Conditions Temperature : 0 °C - 40 °C Humidity : 20 % - 80 % RH (non-condensing) Connection Terminals AV1 (Scart connecter) 21 Pin terminal (Audio / Video in, Audio / Video out, RGB in) AV2 (Scart connecter) 21 Pin terminal (Audio / Video in, Audio / Video out, S-Video in, Q-Link) AV3 VIDEO RCA PIN Type × 1 1.0 Vp-p (75 �) S-VIDEO Mini DIN 4-pin Y:1.0 Vp-p (75 �) C:0.286 Vp-p (75 �) AUDIO L - R RCA PIN Type × 2 0.5 Vrms AV4 (Scart connecter) 21 Pin terminal (Audio / Video in, Audio / Video out, RGB in, S-Video in, Q-Link) Others COMPONENT Y PB, PR 1.0 Vp-p (including synchronization) ±0.35 Vp-p HDMI TYPE A Connector PC HIGH-DENSITY D-SUB 15PIN R,G,B / 0.7 Vp-p (75 �) HD, VD / TTL Level 2.0 - 5.0 Vp-p (high impedance) AUDIO L - R RCA PIN Type × 2 0.5 Vrms Card slot SD CARD slot × 1, PC CARD slot × 1 Output AUDIO L - R RCA PIN Type × 2 0.5 Vrms (high impedance) Dimensions ( W × H × D ) 1,327 mm × 843 mm × 138 mm Weight 52.0 kg Net Notes: ���� ��������Design and Specifi cations are subject to change without notice. Weight and Dimensions shown are approximate. ���� ��������This equipment complies with the EMC standards listed below. EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN 55024. 2 TH-50PV500E / TH-50PV500B 1 Applicable signals 5 2 Safety Precautions 6 2.1. General Guidelines 6 2.2. Touch-Current Check 6 3 Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices 7 4 About lead free solder (PbF) 8 5 Service Hint 9 6 Plasma panel replacement method 10 6.1. Remove the Back cover. 10 6.2. Remove the P-Board. 10 6.3. Remove the PB-Board 10 6.4. Remove the D-Board 10 6.5. Remove the rear terminal cover 11 6.6. Remove the metal frame 11 6.7. Remove the XV-Board (PV500B only) 11 6.8. Remove the DG-Board 11 6.9. Remove the H-Board and TA-Board 12 6.10. Remove the PA-Board 12 6.11. Remove the Z-Board 12 6.12. Remove the SU-Board 12 6.13. Remove the SD-Board 13 6.14. Remove the SC-Board 13 6.15. Remove the SS2-Board 14 6.16. Remove the SS3-Board 14 6.17. Remove the SS-Board 14 6.18. Remove the Fan 14 6.19. Remove the C1-Board 15 6.20. Remove the C2-Board 15 6.21. Remove the C3-Board 15 6.22. Remove the Speaker L, R 15 6.23. Remove the stand brackets. 16 6.24. Remove the C4-Board 16 6.25. Remove the C5-Board 17 6.26. Remove the C6-Board 17 6.27. Remove the front bracket 17 6.28. Remove the G-Board 17 6.29. Remove the GK-Board 18 6.30. Remove the GS-Board and SD-Module 18 6.31. Remove the K-Board 18 6.32. Remove the S-Board 19 6.33. Remove the Plasma panel section from the Front frame (glass) 19 6.34. Replace the plasma panel (finished). 19 7 Location of Lead Wiring 20 7.1. Lead of Wiring (1) 20 7.2. Lead of Wiring (2) 21 7.3. Lead of Wiring (3) 22 7.4. Lead of Wiring (4) 23 7.5. Lead of Wiring (5) 24 7.6. Lead of Wiring (6) 25 7.7. Lead of Wiring (7) 26 8 Self Check 27 8.1. Power LED Blinking timing chart 28 8.2. No Power 28 8.3. No Picture 29 8.4. Local screen failure 30 9 Service Mode Function 31 9.1. How to enter SERVICE 1 31 9.2. How to enter SERVICE 2 31 9.3. Option Description 33 10 Adjustment Procedure 35 10.1. Driver Set-up 35 10.2. Initialization Pulse Adjust 36 10.3. P.C.B. (Printed Circuit Board) exchange 37 10.4. Adjustment Volume Location 37 10.5. Test Point Location 37 11 Adjustment 38 11.1. PAL panel white balance adjustment 38 11.2. 1080i white balance adjustment 39 11.3. Sub bright adjustment 39 11.4. ABL adjustment 40 11.5. TEXT Vref Auto Adjustment 41 12 Hotel mode 42 13 Conductor View 43 13.1. P-Board 43 13.2. PA-Board 46 13.3. PB-Board 47 13.4. H-Board 48 13.5. DG-Board 50 13.6. TA-Board 52 13.7. DV-Board 53 13.8. XV-Board (PV500B) 54 13.9. Z-Board 56 13.10. D-Board 57 13.11. C1-Board 60 13.12. C2-Board 61 13.13. C3-Board 62 13.14. C4-Board 63 13.15. C5-Board 64 13.16. C6-Board 65 13.17. SC-Board 66 13.18. SU-Board 69 13.19. SD-Board 70 13.20. SS-Board 71 13.21. G-Board 73 13.22. GK, GS, K and S-Board 74 14 Block and Schematic Diagram 75 14.1. Schematic Diagram Notes 75 14.2. Main Block Diagram 76 14.3. P-Board Block Diagram 77 14.4. P-Board (1 of 2) Schematic Diagram 78 CONTENTS Page Page 3 TH-50PV500E / TH-50PV500B 14.5. P-Board (2 of 2) Schematic Diagram 79 14.6. PA and PB-Board Block Diagram 80 14.7. PA-Board Schematic Diagram 81 14.8. PB-Board Schematic Diagram 82 14.9. H and TA-Board Block Diagram 83 14.10. G, GK, GS, K and S-Board Block Diagram 84 14.11. H-Board (1 of 2) Schematic Diagram 85 14.12. H-Board (2 of 2) Schematic Diagram 86 14.13. G-Board Schematic Diagram 87 14.14. GK, K, S, and TA-Board Schematic Diagram 88 14.15. GS-Board Schematic Diagram 89 14.16. DG-Board (1 of 2) Block Diagram 90 14.17. DG-Board (2 of 2) Block Diagram 91 14.18. DG-Board (1 of 13) Schematic Diagram 92 14.19. DG-Board (2 of 13) Schematic Diagram 93 14.20. DG-Board (3 of 13) Schematic Diagram 94 14.21. DG-Board (4 of 13) Schematic Diagram 95 14.22. DG-Board (5 of 13) Schematic Diagram 96 14.23. DG-Board (6 of 13) Schematic Diagram 97 14.24. DG-Board (7 of 13) Schematic Diagram 98 14.25. DG-Board (8 of 13) Schematic Diagram 99 14.26. DG-Board (9 of 13) Schematic Diagram 100 14.27. DG-Board (10 of 13) Schematic Diagram 101 14.28. DG-Board (11 of 13) Schematic Diagram 102 14.29. DG-Board (12 of 13) Schematic Diagram 103 14.30. DG-Board (13 of 13) Schematic Diagram 104 14.31. DV-Board Block Diagram 105 14.32. DV-Board Schematic Diagram 106 14.33. XV-Board Block Diagram (PV500B) 107 14.34. XV-Board (1 of 5) Schematic Diagram (PV500B) 108 14.35. XV-Board (2 of 5) Schematic Diagram (PV500B) 109 14.36. XV-Board (3 of 5) Schematic Diagram (PV500B) 110 14.37. XV-Board (4 of 5) Schematic Diagram (PV500B) 111 14.38. XV-Board (5 of 5) Schematic Diagram (PV500B) 112 14.39. Z-Board Block Diagram 113 14.40. Z-Board (1 of 2) Schematic Diagram 114 14.41. Z-Board (2 of 2) Schematic Diagram 115 14.42. D-Board Block Diagram 116 14.43. D-Board (1 of 6) Schematic Diagram 117 14.44. D-Board (2 of 6) Schematic Diagram 118 14.45. D-Board (3 of 6) Schematic Diagram 119 14.46. D-Board (4 of 6) Schematic Diagram 120 14.47. D-Board (5 of 6) Schematic Diagram 121 14.48. D-Board (6 of 6) Schematic Diagram 122 14.49. C1, C2, C5 and C6-Board Block Diagram 123 14.50. C3 and C4-Board Block Diagram 124 14.51. C1-Board (1 of 2) Schematic Diagram 125 14.52. C1-Board (2 of 2) Schematic Diagram 126 14.53. C2-Board (1 of 2) Schematic Diagram 127 14.54. C2-Board (2 of 2) Schematic Diagram 128 14.55. C3-Board (1 of 2) Schematic Diagram 129 14.56. C3-Board (2 of 2) Schematic Diagram 130 14.57. C4-Board (1 of 2) Schematic Diagram 131 14.58. C4-Board (2 of 2) Schematic Diagram 132 14.59. C5-Board (1 of 2) Schematic Diagram 133 14.60. C5-Board (2 of 2) Schematic Diagram 134 14.61. C6-Board (1 of 2) Schematic Diagram 135 14.62. C6-Board (2 of 2) Schematic Diagram 136 14.63. SC-Board Block Diagram 137 14.64. SC-Board (1 of 2) Schematic Diagram 138 14.65. SC-Board (2 of 2) Schematic Diagram 139 14.66. SU-Board Block Diagram 140 14.67. SU-Board (1 of 2) Schematic Diagram 141 14.68. SU-Board (2 of 2) Schematic Diagram 142 14.69. SD-Board Block Diagram 143 14.70. SD-Board (1 of 2) Schematic Diagram 144 14.71. SD-Board (2 of 2) Schematic Diagram 145 14.72. SS, SS2 and SS3-Board Block Diagram 146 14.73. SS-Board (1 of 2), SS2 and SS3-Board Schematic Diagram 147 14.74. SS-Board (2 of 2) Schematic Diagram 148 15 Parts Location & Mechanical Replacement Parts List 149 15.1. Parts Location 149 15.2. Packing Exploded Views (1) 150 15.3. Packing Exploded Views (2) 151 15.4. Packing Exploded Views (3) 152 15.5. Mechanical Replacement Parts List 153 16 Electrical Replacement Parts List 155 16.1. Replacement Parts List Notes 155 16.2. Electrical Replacement Parts List 156 4 TH-50PV500E / TH-50PV500B 1 Applicable signals 5 TH-50PV500E / TH-50PV500B 2.2. Touch-Current Check 2 Safety Precautions 2.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed. 3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards. 1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check. 2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1. 3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network. 4. Check each exposed metallic part, and measure the voltage at each point. 5. Reserve the AC plug in the AC outlet and repeat each of the above measure. 6. The potential at any point (TOUGH CURRENT) expressed as voltage U1 and U2, does not exceed the following values: For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak); For d. c.: U1 = 1.0 V, Note: The limit value of U2 = 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and 2.0 mA d. c. The limit value U1 = 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz. 7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer. Figure 1 6 TH-50PV500E / TH-50PV500B 3 Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by electro static discharge (ESD). 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test. 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alminum foil, to prevent electrostatic charge buildup or exposure of the assembly. 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices. 4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can generate electrical charge sufficient to damage ES devices. 5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices. 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, alminum foil or comparable conductive material). 7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. Caution Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise hamless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device). 7 TH-50PV500E / TH-50PV500B 4 About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available. This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d suggest the use of Pb free solder as well, although Pb solder may be used. PCBs manufactured using lead free solder will have the PbF within a leaf Symbol stamped on the back of PCB. Caution ���� ��������Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C). ���� ��������Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C). If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder. ���� ��������After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the opposite side. (see figure below) Suggested Pb free solder There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used. 8 TH-50PV500E / TH-50PV500B 5 Service Hint Board Name Function Board Name Function P Power Supply C1 Data Driver (Up Left) PA DC-DC Converter, Power SOS C2 Data Driver (Up Center) PB Audio Power, Fan control C3 Data Driver (Up Right) H AV Terminal, AV Switch C4 Data Driver (Down Right) TA Tuner C5 Data Driver (Down Center) XV ATSC Interface C6 Data Driver (Down Left) DV HDMI Interface None serviceable. DV-Board should be exchanged for service. SC Scan Drive SU Scan out (Up) SD Scan out (Down) DG Digital Signal Processor SS Sustain Drive Z Speaker out, Audio AMP SS2 Sustain Connector (Up) D Format Converter, Plasma Ai Processor SS3 Sustain Connector (Down) K Remote receiver, OPT G PC Card Slot, Front Terminal S Power Switch GS SD Card Slot SD-M SD Module (MPEG4/PHOTO view, SD recording) None serviceable. SD Module should be exchanged for service. GK Key Switch 9 TH-50PV500E / TH-50PV500B 6.1. Remove the Back cover. 1. See Service Hint (Section 5). 6.2. Remove the P-Board. Caution: To remove P.C.B., wait 1 minute after power was off for discharge from electrolisis capacitors. 1. Disconnect the couplers (P2, P5, P9, P10, P11, P12, P23, P25 and P30). 2. Remove the screws (×5 ) and remove the P-Board. 6.3. Remove the PB-Board 1. Unlock the cable clampers to free the cable. 2. Disconnect the couplers (PB5, PB7, PB30, PB33 and PB34). 3. Remove the screws (×3 ) and remove the PB-Board metal frame. 4. Remove the screws (× 4 ) and remove the PB-Board. 6.4. Remove the D-Board 1. Remove the PB-Board. 2. Disconnect the couplers (D3, D5, D20 and D25) and 3. Disconnect the flexible cables (D33 and D34). 4. Remove the screws (×4 ) and remove the D-Board. 6 Plasma panel replacement method 10 TH-50PV500E / TH-50PV500B 6.5. Remove the rear terminal cover 1. Remove the screws (×4 ), and rhe screw (×7 ). 2. Remove the rear terminal cover. 6.6. Remove the metal frame 1. Unlock the cable clampers to free the cable. 2. Disconnect the couplers (D3, D5, H7, P10 and PB7) and relay connector (SP-R, SP-L). 3. Remove the screws (×4 ) remove the metal frame. 6.7. Remove the XV-Board (PV500B only) 1. Disconnect the antenna cable. 2. Remove the screws (×5 ). 3. Remove the XV-Board unit. (Be careful the couplers (XV22 and DG22) when remove the XV-Board unit.) 4. Remove the screws (×5 ). 5. Remove the XV-Board. 6.8. Remove the DG-Board 1. Unlock the cable clampers to free the cable. 2. Disconnect the couplers (DG3 and DG5). 3. Disconnect the flexible cables (DG1, DG2 and DG20). 4. Remove the screws (×2 ) and remove the DG-Board. 11 TH-50PV500E / TH-50PV500B 6.9. Remove the H-Board and TA- Board 1. Unlock the cable clampers to free the cable. 2. Remove the screws (×2 ) and remove the TA-Board. 3. Disconnect the couplers (H52 and H53). 4. Disconnect the flexible ables (H1, H2, H30 and H50). 5. Remove the screws (×3 ) and remove the H-Board. 6.10. Remove the PA-Board 1. Unlock the cable clampers to free the cable. 2. Disconnect the couplers (PA7 and PA10). 3. Disconnect the flexible cables (PA20 and PA30). 4. Remove the screws (×4 ) and remove the PA-Board. 6.11. Remove the Z-Board 1. Unlock the cable clampers to free the cable. 2. Disconnect the coupler (Z2). 3. Disconnect the flexible cable (Z50). 4. Remove the screws (×2 ) and remove the Z-Board. 6.12. Remove the SU-Board 1. Remove the screws (×3 ). 2. Slide the SU-Board to the left to disconnect from a coupler (SC41 - SU41) on the SC-Board and remove a coupler (SU45 or SC45). 12 TH-50PV500E / TH-50PV500B 3. Remove the flexible cables (SU1, SU2, SU3, SU4) connected to the SU-Board, and remove the SU-Board. 6.13. Remove the SD-Board 1. Remove the screws (×3 ). 2. Slide the SD-Board to the left to disconnect from a coupler (SC42 - SD42) on the SC-Board and remove a coupler (SD46 or SC46). 3. Remove the flexible cables (SD1, SD2, SD3, SD4) connected to the SD-Board, and remove the SD-Board. 6.14. Remove the SC-Board 1. Disconnect the couplers (SC2, SC20, SC23) 2. Remove the screws (×9 ) and remove the SC-Board. 13 TH-50PV500E / TH-50PV500B 6.15. Remove the SS2-Board 1. Disconnect the coupler (SS23) and disconnect the flexible cable (SS55). 2. Remove the screws (×2 ) and remove the SS2-Board. 6.16. Remove the SS3-Board 1. Disconnect the coupler (SS22) and disconnect the flexible cable (SS56). 2. Remove the screws (×2 ) and remove the SS3-Board. 6.17. Remove the SS-Board 1. Remove the SS2-Board and SS3-Board. 2. Disconnect the couplers (SS11, SS12, SS34, SS35, SS42 and SS44). 3. Disconnect the flexible cables (SS51, SS52, SS53 and SS54). 4. Remove the screws (×7 ) and remove the SS-Board. 6.18. Remove the Fan 1. Remove the screws (×3 each) remove the fan and disconnect the relay coupler. 14 TH-50PV500E / TH-50PV500B 6.19. Remove the C1-Board 1. Remove the fan. 2. Remove the flexible cables holder fastening screws (×6 ) and disconnect the flexible cables (CA1~CA3). 3. Disconnect the flexible cable (C10) and disconnect the coupler (C11). 4. Remove the screw (×5 ) and remove the C1-Board. 6.20. Remove the C2-Board 1. Remove the fan. 2. Remove the flexible cables holder fastening screws (×8 ) and disconnect the flexible cables (CA4~CA7). 3. Disconnect the Flexible cables (C20, C21, C24, C25) and disconnect the couplers (C22, C23). 4. Remove the screws (×5 ) and remove the C2-Board. 6.21. Remove the C3-Board 1. Remove the fan. 2. Remove the flexible cables holder fastening screws (×8 ) and disconnect the flexible cables (CA8~CA11). 3. Disconnect the flexible cable (C31) and disconnect the couplers (C33, C35). 4. Remove the screws (×5 ) and remove the C3-Board. 6.22. Remove the Speaker L, R 1. Remove the screws (×4 ) and remove the Speaker cover L, R. 15 TH-50PV500E / TH-50PV500B 2. Remove the screws (×3 ) and disconnect the relay connector L, R. 3. Remove the Speaker L, R. 6.23. Remove the stand brackets. 1. Remove the plasma panel section from the servicing stand and lay on a flat surface such as a table (covered), with the plasma panel surface facing downward. Spread a soft cloth or similar on the table for protection, so the panel surface is not scratched. 2. Remove the stand bracket (left, right) fastening screws (×4 each) and remove the stand brackets (left, right). 6.24. Remove the C4-Board 1. Remove the flexible cables holder fastening screws (×8 ) and disconnct the flexible cables (CB8~CB11). 2. Release the speaker cables from clampers. 3. Disconnect the flexible cables (C41) and disconnect the couplers (C42, C43, C44). 4. Remove the screws (×5 ) and remove the C4-Board. 16 TH-50PV500E / TH-50PV500B 6.25. Remove the C5-Board 1. Remove the flexible cables holder fastening screws (×8 ) and disconnect hte flexible cables (CB4~CB7). 2. Release the speaker cables from clampers. 3. Disconnect the flexible cables (C50, C51, C54, C55) and disconnect the couplers (C52, C53). 4. Remove the screws (×5 ) and remove the C5-Board. 6.26. Remove the C6-Board 1. Remove the flexible cables holder fastening screws (×6 ) and disconnect the flexible cables (CB1~CB3). 2. Release the speaker cables from clampers. 3. Disconnect the flexible cables (C60) and disconnect the coupler (C61). 4. Remove the screws (×5 ) and remove the C6-Board. 6.27. Remove the front bracket 1. Unlock the cable clampers to free the cable. 2. Disconnect the coupler (G2) and the flexible cables (G11 and G51). 3. Remove the screws (×7 ) and remove the front bracket. 6.28. Remove the G-Board 1. Remove the front bracket. 2. Disconnect the coupler (G3). 3. Remove the screws (×3 ) and remove the G-Board cover. 4. Remove the screws (×5 ) and remove the G-Board unit. 5. Remove the screws (×3 ) and remove the G-Board. 17 TH-50PV500E / TH-50PV500B 6.29. Remove the GK-Board 1. Remove the G-Board. 2. Remove the GK-Board. 6.30. Remove the GS-Board and SD- Module 1. Unlock the cable clampers to free the cable. 2. Disconnect the coupler (H52) and the flexible cable (G11). 3. Remove the screws (×2 ) and remove the grommets (×2). 4. Remove the SD-Unit. 5. Remove the screw (×1 ). 6. Remove the SD-Metal. 7. Remove the screw (×1 ). 8. Remove the SD-Module cover. 9. Disconnect the coupler (GS52) and the flexible cable (GS12). 10. Remove the screws (×2 ). 11. Remove the GS-Board and SD-Module. 6.31. Remove the K-Board 1. Disconnect the couplers (K1). 2. Remove the screws (×2 ) and remove the grommet (×1). 3. Remove the K-Board. 18 TH-50PV500E / TH-50PV500B 6.32. Remove the S-Board 1. Remove the screw (×2 ). 2. Disconnect the couplers (S1). 3. Remove the screws (×2 ) and remove the S-Board. 6.33. Remove the Plasma panel section from the Front frame (glass) 1. Remove the front frame and the plasma panel fastening screw (×8 ). 2. Remove the front frame and the stand brackets fastening screw (×6 ). 3. For leaving the plasma panel from the front frame, pull the bottom of the front frame forward, lift, and remove. 6.34. Replace the plasma panel (finished). 1. Place the new plasma panel (finished) on the flat surface of the table (covered by a soft cloth), with the plasma panel surface facing downward. 2. Attach the C1-Board and the C2-Board, connect the flexible cables (×7) from the Plasma panel to the C1-Board and C2- Board, and fix the flexible cable holders. 3. Attach the Hooks (left, right) and fit the stand brackets (left, right) to the new plasma panel. 4. Place the plasma panel section on the servicing stand. 5. Attach the front frame and the each P.C.Board and so on, to the new plasma panel. * When fitting the front frame, be careful not to allow any debris, dust or handling residues to remain between the front glass and plasma panel. 19 TH-50PV500E / TH-50PV500B 7 Location of Lead Wiring 7.1. Lead of Wiring (1) MAKE WIRE DRESSING AS IF ILLUSTRATED BELOW. NOTES: 1. CONNECT CONNECTORS SURELY. 2. KEEP MODERATE SLACK IN WIRES NOT TO GIVE ANY STRESS TO CONNECTORS. 3. MANAGE THE WIRES THAT ARE AROUND ELECTRIC FAN FAN ASSEMBLIES NOT TO TOUCH A BLADE OF ELECTRIC FAN NOR EDGE OF FAN MOUNT METAL. 4. MANAGE P2 WIRE AND P23 WIRE SO THAT THEY PASS THE TOP SIDE OF P-PCB. 20 TH-50PV500E / TH-50PV500B 7.2. Lead of Wiring (2) MAKE WIRE DORESSING AS IF ILLUSTRATD BELOW. NOTES: 1. CONNECT CONNECTORS SURELY. 2. KEEP MODERATE SLACK IN WIRES NOT TO GIVE ANY STRESS TO CONNECTORS. 3. CLAMP WIRES SURELY. 21 TH-50PV500E / TH-50PV500B 7.3. Lead of Wiring (3) MAKE WIRE DRESSING AS IF ILLUSTRATED BELOW. NOTES: 1. CONNECT CONNECTORS SURELY. 2. KEEP MODERATE SLACK IN WIRES NOT TO GIVE ANY STRESS TO CONNECTORS. 3. MANAGE THE WIRES THAT ARE AROUND ELECTRIC FAN ASSEMBLIES NOT TO TOUCH A BLADE OF ELECTRIC FAN NOR EDGE OF FAN MOUNT METAL. 4. PLACE A SAG OF P10 WIRE IN THE TOP SIDE OF P-PCB. 22 TH-50PV500E / TH-50PV500B 7.4. Lead of Wiring (4) MAKE WIRE DORESSING AS IF ILLUSTRATED BELOW. NOTES: 1. CONNECT CONNECTORS SURELY. 2. KEEP MODERATE SLACK IN WIRES NOT TO GIVE ANY STRESS TO CONNECTORS. 3. MANAGE THE WIRES THAT ARE AROUND THE ELECTRIC FAN ASSEMBLIES NOT TO TOUCH A BLADE OF ELECTRIC FAN NOR EDGE OF A FAN MOUNT METAL. 4. MANAGE WIRES NOT TO PRESS THE MC701 OF P-PCB WITH THEM. 5. PASS THE SS11 WIRE AND THE SS12 WIRE BETWEEN A M8 BOSS AND P-PCB, MANAGE THEM TO KEEP AWAY FROM A M8 BOSS. 6. PAY ATTENTION NOT TO GIVE ANY LOAD TO THE MC701 OF P-PCB. 23 TH-50PV500E / TH-50PV500B 7.5. Lead of Wiring (5) MAKE WIRE DRESSING AS IF ILLUSTRATED BELOW. NOTES: 1. CONNECT CONNECTORS SURELY. 2. KEEP MODERATE SLACK IN WIRES NOT TO GIVE ANY STRESS TO CONNECTORS. 3. CONNECT FFC SURELY. PAY ATTENTION NOT TO MAKE WRONG DIRECTION CONNECTION NOR INCOMPLETE CONNECTION. 4. BEFORE CONNECTING FLEXIBLE CABLES, CLEAN CONNECTION PARTS BY BLOWING AIR. 24 TH-50PV500E / TH-50PV500B 7.6. Lead of Wiring (6) CONNECT SPAKER WIRES, THEN HAUL THEIR SAG TO THE DIRECTION OF TUNER UNIT. 25 TH-50PV500E / TH-50PV500B 7.7. Lead of Wiring (7) 1. Make wire dressing as if illustrated below. Keep moderate slack in wires not give any stress to the connectors. 2. Fix a barrier to a glass holder bottom ass’y by a screw. Handle a barrier not to protrude from the back end of a bottom shield. Torque of the screw THEL035N should be 80 to 120 N cm. Screws of THEL035N are not reuseble. 26 TH-50PV500E / TH-50PV500B 8 Self Check 1. Self-Check is used to automatically check the bus lines and hexadecimal code of the TV set. 2. To get into the Self -Check mode press the Down ( ) button on the customer controls at the front of the set, at the same time pressing the Information button on the remote control, and the screen will show : If the CCU ports have been checked and found to be incorrect or not located then “--” will appear in place of “O.K.”. Display Ref.No. Description Board MEM IC1107 EEPROM DG-Board GC4P IC4054 Global Core Processor DG-Board GC3FS IC4013 Global Core for Sub DG-Board HAD IC4012 OSD RGB A/D DG-Board AVSW1 IC2105 Video SW H-Board AVSW2 IC3005 Audio SW H-Board Tun1 TU001 Tuner TA-Board VIF - - - DAC1 IC1106 Ext. DAC DG-Board DAC2 IC1116 Ext. DAC DG-Board DAC3 IC3006 Ext. DAC H-Board DAC4 - - - MSP IC2106 Multi Sound Processor H-Board SOUND IC2300 Sound Control Z-Board PANEL IC9003 Convert Micom D-Board IPC IC8013 PEAKS Life XV-Board SDM SD-Module MPEG4/PHOTO view, SD recording SD-Module HDMI IC5003 HDMI I/F Reciever DV-Board ADV IC4005 10bit A/D DG-Board 27 TH-50PV500E / TH-50PV500B 8.1. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinkes of the Power LED on the front panel of the unit. 8.2. No Power First check point There are following 3 states of No Power indication by power LED. 1. No lit 2. Green is lit then turns red blinking a few seconds later. 3. Only red is lit. 1. No lit 28 TH-50PV500E / TH-50PV500B 8.3. No Picture 29 TH-50PV500E / TH-50PV500B 8.4. Local screen failure Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area. Fig-1 30 TH-50PV500E / TH-50PV500B 9 Service Mode Function MPU controls the functions switching for each IICs through IIC bus in this chassis. The following setting and adjustment can be adjusted by remote control in Service Mode. 9.1. How to enter SERVICE 1 1. In sound menu, set BASS to MAXIMUM, and set TREBLE to MINIMUM. 2. Simultaneously press INDEX button on remote control and DOWN button [ ] on the TV set. 9.2. How to enter SERVICE 2 1. Set the channel to CH99. 2. Select the Txt 05V Blue. 3. Press HOLD button on remote control. Note: To exit to Service mode, press EXIT or Power button on remote control. 31 TH-50PV500E / TH-50PV500B 32 TH-50PV500E / TH-50PV500B 9.3. Option Description 33 TH-50PV500E / TH-50PV500B 34 TH-50PV500E / TH-50PV500B 10 Adjustment Procedure 10.1. Driver Set-up 10.1.1. Item / Preparation 1. Input an APL 100 % white signal. 2. Set the picture controls: - Picture mode: Normal White balance: Cool Aspect: 16:9 10.1.2. Adjustments Adjust driver section voltages referring the panel data on the panel data label. 35 TH-50PV500E / TH-50PV500B 10.2. Initialization Pulse Adjust 1. Input a Cross hatch signal. 2. Set the picture controls: - Picture mode: Normal White balance: Cool Adjust the indicated test point for the specified wave form. Test point Volume Level Remark T1 TPSC1 (SC) --- 20 ± 15µ Sec T2 TPSC1 (SC) VR6602 (SC) 155 ± 10µ Sec 36 TH-50PV500E / TH-50PV500B 10.3. P.C.B. (Printed Circuit Board) exchange 10.3.1. Caution 1. To remove P.C.B. , wait 1 minute after power was off for discharge from electrolysis capacitors. 10.3.2. Quick adjustment after P.C.B. exchange P.C.B. Name Test Point Voltage Volume Remarks P Board Vsus TPVSUS (SS) Vsus ± 2V VR351 (P) * SC Board Vad TPVAD (SC) -90V ± 1V VR6801(SC) SS Board Ve TPVE (SS) Ve ± 1V VR6250 (SS) * *See the Panel label. 10.4. Adjustment Volume Location 10.5. Test Point Location 37 TH-50PV500E / TH-50PV500B 11 Adjustment 11.1. PAL panel white balance adjustment Instrument Name Connection Remarks ���� ��������W/B pattern ���� ��������Color analyzer (Minolta CA-100 or equivalent) RF input Panel surface User setting: Normal Procedure Remarks ���� ��������Ensure aging is adequate (Longer than 15min.) ���� ��������Make sure the front panel to be used on the final set is fitted. ���� ��������Make sure a color signal is not being shown before adjustment. ���� ��������Put the color analyzer where there is little color variation. 1. Display the white balance pattern. 2. Check that the color balance is "cool". 3. Enter the "Service-Menu1" mode. 4. Select "G-CUTOFF" item, using the color-key "Red" or "Green", and set to "128", using the color-key "Yellow" or "Blue". Also, "B-CUTOFF" and "R-CUTOFF" set to "128" 5. Set "G-DRIVE" at "208". 6. Touch the signal receiver of color analyzer to the highlight window´s center, and adjust B drive and R drive so x, y become the "Color balance Cool" in the below table. 7. Set "ALL-DRIVE" to "252". 8. Set colorbalance to "Normal". 9. Fix G cutoff , B cutoff and R cutoff at "128". 10. Fix G drive at "208". 11. Adjust B drive and R drive so the highlight window´s x, y become the "Color balance "Normal" in the below table. 12. Set "ALL-DRIVE" to "252". 13. Set color balance to "Warm". 14. Set G cutoff, B cutoff and R cutoff to "128". 15. Set G drive to "208". 16. Adjust B drive and R drive so the highlight window´s x, y become the "Color balance Warm" shown in the below table. 17. Set "ALL-DRIVE" to "252". Picture menu : Dynamic ASPECT : 16:9 ���� ��������Highlight section Signal amplitude 75% 38 TH-50PV500E / TH-50PV500B 11.2. 1080i white balance adjustment Instrument Name Connection Remarks ���� ��������1080i W/B pattern ���� ��������Color analyzer (Minolta CA-100 or equivalent) Comonent terminal Panel surface User setting: Normal Procedure Remarks ���� ��������Ensure aging is adequate (Longer than 15min.) ���� ��������Make sure the front panel to be used on the final set is fitted. ���� ��������Make sure a color signal is not being shown before adjustment. ���� ��������Put the color analyzer where there is little color variation. 1. Display the white balance pattern. 2. Check that the color balance is "cool". 3. Enter the "Service-Menu1" mode. 4. Select "G-CUTOFF" item, using the color-key "Red" or "Green", and set to "128", using the color-key "Yellow" or "Blue". Also, "B-CUTOFF" and "R-CUTOFF" set to "128" 5. Set "G-DRIVE" at "208". 6. Touch the signal receiver of color analyzer to the highlight window´s center, and adjust B drive and R drive so x, y become the "Color balance Cool" in the below table. 7. Set "ALL-DRIVE" to "252". 8. Set colorbalance to "Normal". 9. Fix G cutoff , B cutoff and R cutoff at "128". 10. Fix G drive at "208". 11. Adjust B drive and R drive so the highlight window´s x, y become the "Color balance "Normal" in the below table. 12. Set "ALL-DRIVE" to "252". 13. Set color balance to "Warm". 14. Set G cutoff, B cutoff and R cutoff to "128". 15. Set G drive to "208". 16. Adjust B drive and R drive so the highlight window´s x, y become the "Color balance Warm" shown in the below table. 17. Set "ALL-DRIVE" to "252". Picture menu: Dynamic ASPECT:16:9 ���� ��������Highlight section Signal amplitude 75% * The Color balance COOL differs from Japanese model values. 11.3. Sub bright adjustment Instrument Name Connection Remarks 1. PAL signal generator (or RF) Connect to the input terminal User setting: Normal Procedure Remarks ���� ��������Color balance adjustment is finished for each signal. ���� ��������Do adjustments in a dark room. 1. Display the pattern for adjusting subbright from video input. 2. Use "Sub-Bright" in the “Service-Menu1” mode to adjuct so the top part of the step section in the below diagram faintly shows up and the middle fades away. Picture menu: Dynamic Color balance: Normal ASPECT: 16:9 * If using RF ch.E04, (Sub-Bright test pattern), adjust so the 6th section shows up and the 7th fades away. 39 TH-50PV500E / TH-50PV500B 11.4. ABL adjustment Instrument Name Connection Remarks 1. HD signal emitter (Color bar signal) 2. Wattmeter COMPONENT input terminal Connect the AC power of the adjustment set to the wattmeter. Procedure Remarks ���� ��������Make sure the set is aged for 30 minutes or more before adjustment. (Do not switch off during or after aging.) ���� ��������Voltage 230V 50Hz (variation within 1%) ���� ��������Volume at minimum and screen size at "16:9" Setting Component input, dynamic, standard 1. Connect the set´s AC power to the wattmeter. 2. Input the color bar. 3. Select the "APL MULT" item in the Serivice1. 4. Adjust APL MULT so the set´s power consumption is TH-50PV500E 441 ± 20W TH-50PV500B 450 ± 20W Remarks 1. The initial data are 0x1D for 50HD (A0-0A26) 2. The power and data are in reverse relationship (Lower the data to raise the power.) ���� ��������Raising direction (�):20 � 1F ���� ��������Lowering direction (�):20 � 1A According to the line condition,100V can be used 40 TH-50PV500E / TH-50PV500B 11.5. TEXT Vref Auto Adjustment Procedure Remarks Receive a steady signal. Adjust it after aging enough. 1. Enter in service mode 1 then select "TXT adj. Access" item. 2. Start Auto adjustment by push "Blue" key [Test pattern] Note: Under operating, The character "TXT Adj. Access" becomes red. Detection window will appear near bottom. Detection window move R - G - B at the bright test pattern, Then, Detection window move R - G - B at the dark test pattern. And finish auto adjustment. 41 TH-50PV500E / TH-50PV500B 1. Purpose Restrict a function for hotels. 2. Access command ���� ��������Enter to the Service 2 Mode. ���� ��������Press Status button on remote control and entry to the EAROM EDITOR Mode. ���� ��������Press the RED/GREEN button to step up/down through the address. ���� ��������Press the YELLOW/BLUE button to step left/right through the address. ���� ��������Press the PROGRAMME UP/DOWN button to step up/down through the page. ���� ��������Press the VOLUME UP/DOWN button to change the function values. ���� ��������Set the data of EEPROM(ADDRESS 140) to 80. ���� ��������Press the OK button to memorize the data. Push the Power switch(button) off/on the set(the remote control) to turn the set off/on. It can be made Hotel mode. 3. Exit command ���� ��������First, set the data of EEPROM(ADDRESS 140) to 00. Next, Push the Power switch(button) off/on the set(the remote control) to turn the set off/on. Then, it is no longer hotel mode. 4. Access command to the Hotel mode setup menu ���� ��������Prerequisite : It is conditions that the data of EEPROM(ADDRESS 140) is 80. In order to display the Hotel mode setup menu, please enter the following command (within 2 second). [TV]:down + [REMOTE]:TV/AV(3 times) Then, the Hotel mode setup menu is displayed. 5. Explain the Hotel mode setup menu item Function Initial INPUT Select input signal modes. Set this signal, each time power is switched on. Selection : Off/TV/AV1/AV2/AV2S/AV3/Av3S/AV4/Av4S/AV4 C/PC ���� ��������Off: give priority to a last memory. However, Euro model is compulsorily set to TV. ���� ��������AVnS/AVnC: only Euro model selectable ���� ��������PC: selectable with VGA option Initial VOL level Adjust output Volume. Set this volume, each time power is switched on. If the value of InitVol is changed, volume will change. However, priority is given to a last memory when InitVol is Off. When "InitVol" is larger than "MaxVol", make "InitVol" and "MaxVol" the same. Selection/Range : Off/0 to 100 ���� ��������Off: give priority to a last memory Maximum VOL level Adjust maximum volume. Set this max. volume, each time power is switched on. When "MaxVol" is smaller than "InitVol", make "MaxVol" and "InitVol" the same, if "InitVol" is not Off. Range : 0 to 100 Initial POS Select programme number. Set this programme number, each time power is switched on. Selection : Off/0 to 99 (Euro model) ���� ��������Off: give priority to a last memory Button lock Select local key conditions. Set this condition, each time power is switched on. Selection : Off/SETUPMENU/All ���� ��������Off: altogether valid ���� ��������SETUP: restrict F-key selection (Tuning guide(menu) can not be selected.) ���� ��������MENU: restrict F-key selection (only Volume/Mute can be selected.) ���� ��������All: altogether invalid. Remote lock Select remote control key conditions. Set this condition, each time power is switched on. Selection : Off/SETUP/MENU ���� ��������Off: altogether valid ���� ��������SETUP: only Setup menu is invalid ���� ��������MENU: Picture/Sound/Setup menu are invalid 12 Hotel mode 42 TH-50PV500E / TH-50PV500B 13 Conductor View 13.1. P-Board A 1 3 5 2 4 6 C E G I B D F H P-BOARD (FOIL SIDE) ETXMM564MEK TH-50PV500E/B P-BOARD ETXMM564MEK TH-50PV500E/B P-BOARD ETXMM564MEK TH-50PV500E / TH-50PV500B 43 TH-50PV500E/B P-BOARD PARTS LOCATION TH-50PV500E/B P-BOARD PARTS LOCATION Parts Location P-BOARD (COMPONENT SIDE) IC301 D-3 IC401 C-3 IC501 H-3 MC301 E-4 MC302 G-4 MC303 D-4 MC401 C-4 MC501 G-2 MC601 C-2 MC602 C-2 MC603 G-4 MC604 D-1 MC701 B-5 IC Q601 H-3 TRANSISTOR P Parts Location P-BOARD (FOIL SIDE) IC301 F-3 IC401 G-3 IC501 B-3 MC301 E-4 MC302 C-4 MC303 F-4 MC401 G-4 MC501 B-2 MC601 G-2 MC602 G-2 MC603 B-4 MC604 F-1 MC701 H-5 IC Q332 E-3 Q333 E-3 Q402 H-4 Q451 F-5 Q452 G-5 Q453 F-5 Q551 G-5 Q553 G-6 Q554 G-6 Q555 G-6 Q601 B-3 Q602 H-3 Q603 H-2 Q605 G-1 Q606 G-1 TRANSISTOR TH-50PV500E / TH-50PV500B 44 A 1 3 5 2 4 6 C E G I B D F H P-BOARD (COMPONENT SIDE) ETXMM564MEK TH-50PV500E/B P-BOARD ETXMM564MEK TH-50PV500E/B P-BOARD ETXMM564MEK TH-50PV500E / TH-50PV500B 45 13.2. PA-Board A B C D E F G H I 1 2 3 4 5 6 TP5615 TP5616 TP5617 C5601 C5602 C5603 C5604 Q5601 C5605 C5606 C5607 Q5603 Q5604 C5608 Q5605 C5609 PA5601 PA5602 Q5606 PA10 Q5609 C5610 C5611 C5612 Q5610 Q5611 C5615 Q5612 Q5613 C5617 Q5614 C5619 PA20 C5622 C5626 PA30 C5630 C5631 IC5601 C5632 IC5602 IC5603 C5633 D5610 C5636 R5613 R5615 R5616 R5617 R5619 C5643 C5644 Q5641 Q5642 Q5643 Q5644 R5620 R5622 R5623 R5625 R5628 R5629 R5630 R5633 D5637 R5634 D5638 D5639 R5635 R5639 D5640 D5641 D5642 D5643 D5644 R5640 R5641 D5645 D5646 R5642 D5647 R5643 R5644 D5648 D5649 R5645 R5646 R5647 R5648 R5649 C5672 C5673 R5650 R5651 R5652 R5653 D5658 R5654 R5655 D5659 R5656 R5659 C5685 R5660 R5661 R5662 R5664 R5673 R5674 R5675 R5677 R5679 R5683 R5684 R5685 R5686 R5687 R5688 R5692 R5693 R5694 R5695 R5697 R5698 JS5601 JS5602 ZA5601 ZA5602 ZA5603 ZA5604 L5604 L5605 L5606 L5607 L5608 L5609 L5610 L5611 L5612 L5613 L5614 L5615 L5616 PA7 PbF A B B C C D NIL AB E E A D F F TNPA3620 ORDER NO. 1 PA 1 6 1 30 1 30 1 16 1 16 1 3 4 5 1 8 TP5608 TP5609 TP5613 TP5621 TPB5V TPW12V TP30V TPM33V C5601 C5602 C5603 C5604 C5605 Q5602 C5606 C5607 C5609 Q5607 PA10 C5610 C5611 C5612 C5613 C5614 C5615 C5616 TPS12V C5617 C5618 C5622 C5623 R5601 R5603 R5605 R5606 R5607 C5630 R5609 C5631 IC5601 TPS33V C5632 IC5602 C5633 C5637 R5610 D5614 R5611 D5615 D5616 R5612 TP16V D5617 D5618 R5614 R5618 C5641 C5642 R5621 R5624 R5626 R5627 R5631 R5632 R5636 R5637 R5638 C5670 C5672 R5657 R5658 C5685 C5686 C5688 R5663 C5690 R5670 R5671 R5672 R5676 R5678 R5680 R5696 JS5609 TPM5V JS5610 JS5611 JS5612 JS5613 TPS5V TPM25V ZA5601 ZA5602 ZA5603 ZA5604 TPM9V TPS9V L5604 L5606 L5607 L5609 L5612 L5615 TP5601 TP5603 TP5604 TP5605 PA7 PbF TNPA3620 1 PA SEE REVERSE FOR ORDER NO. 1 6 1 16 1 16 1 8 TH-50PV500E/B PA-BOARD TNPA3620AB TH-50PV500E/B PA-BOARD TNPA3620AB PA-BOARD(FOIL SIDE) TNPA3620AB PA-BOARD(COMPONENT SIDE) TNPA3620AB Parts Location PA-BOARD IC IC5601 B-2 IC5602 D-2 IC5603 E-2 Q5601 C-2 Q5602 D-5 Q5603 A-2 Q5604 E-1 Q5605 A-2 Q5606 A-2 Q5607 C-5 Q5609 E-1 Q5610 E-1 Q5612 A-2 Q5613 D-1 Q5614 E-3 Q5641 E-1 Q5642 B-1 Q5643 E-1 Q5644 D-1 TP5601 C-4 TP5603 C-5 TP5604 C-4 TP5605 C-5 TP5608 C-5 TP5609 C-5 TP5621 C-5 TP16V E-5 TP30V E-5 TPB5V E-4 TPM25V E-5 TPM33V E-5 TPM5V E-5 TPM9V E-5 TPS12V E-5 TPS33V E-5 TPS5V E-4 TPS9V E-5 TPW12V E-4 TP TRANSISTOR PA TH-50PV500E / TH-50PV500B 46 13.3. PB-Board A B C D E F G H I 1 2 3 4 5 6 PB5 PB7 C5801 C5802 C5803 C5806 C5807 C5808 C5810 C5812 C5818 C5819 C5820 C5823 IC5803 R5820 R5821 ZA5801 ZA5802 ZA5803 ZA5804 PB31 PB32 PB33 PB34 L5801 L5802 L5803 L5804 L5805 L5806 L5808 L5809 L5810 TNPA3643 1 PB PbF 1 11 1 8 SEE REVERSE FOR ORDER NO. 1 2 3 4 1 3 1 3 1 3 1 3 TP5801 TP5802 TP5803 TP5804 TP5808 PB5 PB7 C5801 C5802 C5803 C5804 C5805 C5806 C5807 C5808 C5809 C5810 C5811 C5812 C5813 C5815 C5817 C5818 C5819 C5820 C5821 C5822 C5823 D5801 D5803 D5804 R5801 D5805 R5802 D5806 R5803 D5807 D5808 R5804 D5809 R5805 R5806 R5807 R5808 IC5801 R5809 IC5802 IC5803 D5810 R5810 R5812 R5814 R5815 R5819 R5820 R5821 R5822 R5823 R5824 R5826 R5827 JS5801 JS5802 JS5803 JS5804 JS5805 JS5806 JS5807 JS5808 JS5809 JS5810 JS5811 JS5812 JS5813 JS5814 JS5815 JS5816 JS5817 JS5818 JS5819 JS5820 ZA5801 ZA5802 ZA5803 ZA5804 PB30 PB31 PB32 PB33 PB34 L5801 L5802 L5803 L5804 L5805 L5806 L5808 L5809 L5810 1 PB TNPA3643 AB AC AD 1 11 1 8 ORDER NO. 1 5 1 2 3 4 1 5 1 3 1 3 1 3 1 3 TH-50PV500E/B PB-BOARD TNPA3643AE TH-50PV500E/B PB-BOARD TNPA3643AE PB-BOARD(FOIL SIDE) TNPA3643AE PB-BOARD(COMPONENT SIDE) TNPA3643AE Parts Location PB-BOARD IC IC5801 F-1 IC5802 G-4 IC5803 H-1 TP5801 H-4 TP5802 H-3 TP5803 F-3 TP5804 H-4 TP5808 H-3 TP PB TH-50PV500E / TH-50PV500B 47 13.4. H-Board A B C D E F G H I 1 2 3 4 5 6 C3058 R3030 C3059 R3031 R3032 R3033 R3034 L3301 R3035 L3302 R3036 L3303 R3037 R3038 C3060 R3039 C3063 R3040 R3041 R3042 R3043 R3044 R3045 JS2011 R3052 JS2012 R3056 R3066 JS2031 JS2032 JS2033 R3078 C2105 C2106 R3080 R3083 R3086 C2111 C2112 C2114 C2115 C2117 C2118 C2119 D2102 C2127 D2103 D2104 C2129 JS3005 JS3007 C2130 JS3008 C2131 JS3009 C2132 IC2102 C2133 C2134 IC2104 JS3202 JS3010 R2110 JS3011 JS3205 R2111 JS3012 R2112 R2113 JS3013 JS3208 JS3014 R2114 JS3015 JS3016 R2116 JS3017 R2117 JS3018 R2118 JS3019 R2119 C2143 D2121 L2001 C2146 D2122 L2002 L2003 C2147 JS3020 L2004 L2005 JS3215 L2006 L2007 L2008 R2124 L2009 R2125 L2201 L2202 L2010 C2154 L2204 L2011 L2012 L2013 L2014 L2015 R2132 L2016 R2133 JS3033 R2134 R2138 C2161 C3301 JS3239 C3302 C3303 R2148 C2170 C3304 R2149 C2171 C3306 JS3242 JS3243 C2178 C2179 C2180 C2181 C2182 C2183 D3100 H5 H6 ZA3403 R2166 R2168 R2169 C2191 D3301 C2192 D3302 D3303 C2198 R3304 R3306 R3307 C3330 R3308 R3115 JK2001 R3309 R3116 R3117 R3118 C3334 R3119 C3335 C3336 C3337 C3338 R3310 L3001 C3339 R3311 L3002 L3003 R3313 R3120 L3004 L3005 R3121 R3122 R3316 R3123 R3124 L3008 R3318 R3125 L3009 R3319 R3126 R3127 R3128 L3201 R3129 R3130 R3131 R3132 R3133 R2194 R3134 R2195 R3135 R2196 R3136 R3137 R3138 R3139 L3211 H12 R3332 R3333 R3140 R3141 JS2101 R3142 JS2102 JS2103 R3143 JS2104 R3144 R3145 JS2105 R3146 JS2106 R3147 R3148 JS2109 R3150 JS2111 R3151 R3152 R3153 R3348 R3154 R3349 R3155 R3156 R3157 R3159 R3350 R3351 R3352 R3160 R3161 R3162 R3163 R3168 C2001 C2002 C2003 R3170 C2004 C2005 Q2001 R3172 Q2002 C2006 R3173 C2007 C2008 C2009 R3175 JK3002 JK3003 H50 JK3004 X2101 C2201 X2102 C2202 X2103 C2010 C2011 C2206 C2012 C2207 C2013 C2014 C2015 C2209 C2016 C2017 C2018 C2211 C2213 C2021 C2216 C2022 C2217 D2001 D2002 R2001 R2002 R2003 R2004 R2005 R2006 R2007 R2008 R2009 R2010 R2204 D2014 R2011 R2012 R2013 R2014 R2015 R2209 R2016 JS3303 JS3304 JS3305 JS3306 R2213 JS3307 R2214 JS3308 R2215 JS3309 R2217 JS3310 L2101 JS3311 L2102 JS3312 R2220 R2221 L2105 L2106 R2222 R2223 L2107 L2111 C3001 C3002 L2113 C3003 L2114 C3004 Q3001 C3005 Q3002 C3006 C3007 Q3003 L2117 Q3004 C3008 L2118 Q3005 JS3135 C3009 L2119 JS3136 Q3006 R2047 L2120 R2048 C3011 L2121 L2123 C3013 C3207 C3014 C3208 Q3011 Q3012 Q3013 Q3014 C3018 C3019 Q3015 R2051 Q3016 R2052 Q3017 R2053 Q3018 R2054 Q3019 C3020 Q3020 Q3021 Q3022 D3002 D3003 D3004 D3005 R3001 R3002 D3006 D3007 R3003 D3008 R3004 R3005 D3009 R3006 R3007 R3008 R3009 IC3001 IC3002 D3010 IC3004 D3011 D3012 IC3006 D3013 C3038 D3014 R3010 R3011 D3015 R3012 D3016 R3013 D3017 D3018 R3014 D3019 R3015 R3016 R3017 R3018 R3019 R3401 C3236 R3402 R3403 C3237 R3404 C3238 R3405 C3239 R3406 R3407 R3020 D3025 R3021 R3022 R3023 D3027 R3024 C3240 D3028 R3025 R3026 C3243 R3027 R3028 R3029 C3247 D3030 D3031 D3032 D3033 IC2103 H53 H53 JK3001 D2013 C2019 C2020 JS3413 JS3414 JS3415 JS3416 JS3417 JS3418 JK2002 JK2003 JK3005 PbF TNPA3520 H 1 1 2 3 4 1 2 3 4 1 2 3 4 1 4 5 8 1 4 5 8 SEE REVERSE FOR ORDER NO. 1 15 1 9 1 2 3 4 1 9 1 2 20 21 1 2 20 21 35 34 1 2 2 20 21 1 1 3 4 6 1 3 4 6 1 3 4 6 1 8 9 16 5 15 1 11 1 2 11 12 TH-50PV500E H-BOARD TNPA3520 TH-50PV500B H-BOARD TNPA3520AB TH-50PV500E H-BOARD TNPA3520 TH-50PV500B H-BOARD TNPA3520AB H-BOARD (FOIL SIDE) TNPA3520 (PV500E) TNPA3520AB (PV500B) Parts Location H-BOARD (FOIL SIDE) IC IC2102 G-1 IC2103 G-3 IC2104 G-3 IC3001 D-3 IC3002 D-3 IC3004 C-4 IC3006 F-2 Q2001 D-2 Q2002 E-2 Q3001 C-3 Q3002 D-3 Q3003 C-3 Q3004 C-3 Q3005 C-3 Q3006 D-3 Q3011 C-4 Q3012 B-4 Q3013 B-4 Q3014 C-4 Q3015 D-3 Q3016 B-4 Q3017 C-4 Q3018 B-4 Q3019 C-3 Q3020 C-3 Q3021 D-3 Q3022 D-3 TRANSISTOR H TH-50PV500E / TH-50PV500B 48 A B C D E F G H I 1 2 3 4 5 6 C3058 R3224 R3225 R3226 R3227 R3228 L3301 R3229 L3302 L3303 C3061 C3062 C3064 D3235 D3236 R3232 R3233 L2178 JS2000 R3234 L2179 JS2001 JS2002 R3236 JS2003 JS2004 R3046 R3047 R3048 R3049 L2182 L2183 L2184 L2185 L2186 L2187 R3050 R3051 R3053 R3054 R3055 R3057 R3058 R3059 R3060 R3061 JS2021 R3062 JS2022 R3063 R3064 L3330 R3065 JS2026 R3067 R3068 R3069 R3070 R3071 R3072 R3073 R3074 R3075 R3076 R3077 C2101 R3079 C2102 C2103 C2104 C2105 Q2102 C2107 Q2103 Q2104 C2108 Q2105 R3081 C2109 R3082 Q2106 Q2107 R3084 Q2108 R3085 Q2109 R3087 C2110 R3088 R3089 C2113 Q2110 Q2111 C2116 R3090 C2118 R3091 C2119 R3092 R3093 R3094 R3095 R3096 R3097 C2120 R3098 C2121 R3099 C2122 C2123 C2124 C2125 C2126 C2127 C2128 R2100 JS3001 R2101 D2105 JS3002 R2102 D2106 R2103 D2107 D2108 R2104 D2109 R2105 R2106 R2107 R2108 R2109 C2132 D2110 JS3201 C2135 D2111 IC2105 C2136 D2112 IC2106 IC2107 D2113 C2137 IC2108 C2138 D2114 C2139 D2115 JS3206 D2116 D2117 D2118 R2115 D2119 C2140 IC2111 C2141 JS3401 JS3402 IC2112 C2142 JS3403 D2120 JS3404 C2144 JS3405 C2145 JS3406 JS3407 C2147 D2123 JS3408 R2120 C2148 D2124 R2121 C2149 R2122 JS3022 R2123 JS3023 R2126 R2127 R2128 C2150 L2200 C2151 R2129 C2152 C2153 L2203 C2155 C2156 C2157 R2130 C2158 R2131 C2159 R2135 R2136 R2137 C2160 R2139 C2161 C2162 C2163 JS3230 C2164 C2165 Q3101 C2166 C2167 R2140 C2168 C2169 R2141 R2142 JS3237 R2143 R2144 JS3238 R2145 R2146 R2147 C2170 C2171 C3305 C2172 C2173 C2174 JS3240 C2175 JS3241 C2176 C2177 R2150 C2178 R2151 C2179 R2152 R2153 R2154 R2155 R2156 R2157 R2158 H1 R2159 H2 C2183 C2184 C2185 H5 H6 ZA3403 C2187 R3100 R2160 C2188 R3101 C2189 R2161 R3102 R2162 R3103 R2163 R3104 R2164 R2165 R3105 R3106 R3107 R2167 R3108 C2190 R3109 C2192 C2193 C2194 C2195 R3301 C2196 R3302 C2197 R3303 R3110 C2198 R2170 R3111 R2171 C2199 R3305 R3112 R2172 R3113 R2173 R3114 R2174 C3330 R2175 JK2001 IC3301 C3331 R2176 C3332 IC3302 R2177 C3333 R2178 C3334 R2179 Q3331 C3336 Q3332 Q3333 C3338 R3312 R2180 R3314 R2181 R3315 R2182 R2183 R3317 C3340 R2184 C3341 R2185 C3342 R2186 R2187 R2188 L3201 R2189 R3320 R3321 R3322 R3323 R3324 R2190 R2191 R2192 R2193 R2197 R2198 D3330 R2199 D3331 L3212 H12 D3332 D3333 R3330 D3334 H15 R3331 D3335 D3336 D3337 R3334 D3338 R3335 D3339 R3336 R3337 R3338 R3339 JS2108 R3340 R3341 R3342 R3343 JS2110 R3344 R3345 JS2112 R3346 JS2113 R3347 JS2114 H30 R3158 JS2121 JS2122 R3164 R3169 R3171 Q2003 Q2004 Q2005 FL3301 JK3002 Q2006 FL3302 Q2007 JK3003 FL3303 H50 Q2008 JK3004 C2200 FL3304 X2101 H51 Q2009 FL3305 X2102 H52 X2103 C2203 C2204 C2205 C2206 Q2010 C2208 Q2011 Q2012 Q2013 C2210 C2212 C2214 C2215 C2218 C2219 C2220 C2221 C2222 C2223 C2224 C2225 C2226 R2200 D2011 R2201 D2012 R2202 FL3330 R2205 FL3331 R2206 R2207 R2208 R2017 R2018 R2019 JS3302 R2210 R2211 R2212 R2020 R2021 R2022 R2216 R2023 R2024 R2218 R2025 R2026 R2027 R2028 L2101 R2029 L2102 JS3313 JS3314 L2105 JS3315 L2106 R2224 R2030 L2108 R2225 L2109 R2031 R2032 R2033 R2034 R2035 R2036 R2037 L2110 R2038 R2039 L2112 L2115 L2116 L2117 R2040 L2118 R2041 L2119 R2042 R2043 R2044 JS3138 Q3008 R2045 JS3139 Q3009 R2046 L2121 R2049 L2122 Q3203 C3207 JS3140 Q3010 C3015 R2050 C3212 C3214 C3021 C3216 C3022 C3217 C3023 C3218 C3024 C3219 C3025 C3026 Q3023 C3027 C3028 C3029 C3220 C3221 C3222 C3223 C3224 C3030 C3225 C3031 C3226 C3032 C3227 C3033 C3228 C3034 C3229 C3035 IC3005 C3036 C3037 R3204 R3205 C3039 R3206 C3230 C3231 C3232 C3233 C3040 C3234 C3235 C3041 C3042 C3236 C3043 C3044 D3020 C3045 D3021 C3046 R3213 C3047 D3023 R3214 C3048 D3024 R3215 C3049 R3216 D3026 R3217 R3218 R3219 C3241 C3242 C3050 C3244 C3051 C3245 C3052 C3246 C3053 R3220 C3054 R3221 C3055 R3222 C3056 C3057 R3223 TNPA3520 1 AB AC AD AE AF H H53 JK3001 C2019 C2020 JS3410 JS3411 JS3412 JS3409 JK2002 JK2003 JK3005 IN OUT AV1 AV2 AV4 HMM1 HMM2 HMM3 HMM4 1 2 3 4 1 2 3 4 1 2 3 4 NP NP ORDER NO. 1 11 12 23 33 34 44 22 1 24 25 40 41 64 65 80 1 5 1 4 5 8 1 4 5 8 NP NP 1 40 1 40 1 15 1 9 1 4 5 8 1 4 5 8 NP NP NP 1 2 3 4 1 9 1 4 1 30 1 2 20 21 1 2 20 21 1 2 35 34 1 2 20 21 1 35 1 2 29 30 1 24 25 40 41 64 65 80 11 1 5 15 1 2 11 12 TH-50PV500E H-BOARD TNPA3520 TH-50PV500B H-BOARD TNPA3520AB TH-50PV500E H-BOARD TNPA3520 TH-50PV500B H-BOARD TNPA3520AB H-BOARD (COMPONENT SIDE) TNPA3520 (PV500E) TNPA3520AB (PV500B) Parts Location H-BOARD (COMPONENT SIDE) IC IC2105 C-2 IC2106 C-3 IC2107 D-3 IC2108 D-3 IC2111 D-1 IC2112 D-1 IC3005 G-3 IC3301 A-2 IC3302 A-2 Q2012 F-1 Q2013 F-1 Q2102 C-2 Q2103 C-3 Q2104 C-3 Q2105 C-3 Q2106 C-3 Q2107 E-3 Q2108 E-3 Q2109 F-3 Q2110 D-1 Q2111 D-1 Q3008 B-2 Q3009 A-2 Q3010 G-3 Q3023 G-4 Q3101 D-2 Q3203 G-3 Q3331 B-3 Q3332 B-2 Q3333 B-2 Q2003 F-1 Q2004 F-1 Q2005 F-1 Q2006 E-1 Q2007 E-2 Q2008 E-1 Q2009 E-2 Q2010 E-2 Q2011 F-1 TRANSISTOR H TH-50PV500E / TH-50PV500B 49 13.5. DG-Board A B C D E F G H I 1 2 3 4 5 6 C1118 C1119 TP092 TP093 C1120 TP094 TP095 C1121 C001 C1122 C002 C1123 C003 C1124 JS900 C004 C1125 C005 JS902 C1126 C006 C1127 C007 C1128 C008 C1130 C010 C011 C1131 C012 C1132 C013 C1133 Q010 C014 IC1105 C1135 C015 C1136 IC1107 C017 Q014 C1138 R1304 C1139 C019 Q015 R1306 R1308 R1309 R1116 C1140 C020 R1119 C1141 IC1115 C025 C601 R1312 C026 C602 C027 C603 IC1117 R1120 R1314 C028 R1121 R001 C411 C029 C605 R002 R1316 C412 C606 R003 R1123 R1317 C607 R1124 R004 C414 Q410 C608 R1125 R005 C609 R006 R1127 R007 C417 R1128 R008 C1150 C030 R1129 R009 C031 C032 C033 C610 C1155 C035 C611 C1156 R202 R1322 C036 C612 R203 R1323 C037 C613 R1130 Q1154 R204 R1324 C614 R011 R205 R1325 R013 R1327 R207 R1328 R208 C230 R015 R1135 R209 C231 R016 R1136 C232 R017 R1137 C233 R1138 IC010 C234 R1139 R019 R401 C235 R402 C043 R1330 C044 R1331 R405 C045 R1332 R1333 C047 R1140 R1141 C049 R1142 R1336 C432 R023 R1143 R1337 C433 R1144 R024 C434 R025 C435 R026 R1146 R027 C1170 R410 C1171 R411 R1149 C1172 R412 C052 C1173 R413 R607 Q1170 C1174 IC024 R414 R608 Q1171 R1341 C1175 R415 R609 D1152 Q1172 C1176 R416 D1153 Q1173 R417 R1150 Q1174 TP1018 R418 C440 R031 R1151 TP1019 C1179 Q1175 R419 C441 C059 R1152 R033 R1347 R1348 R610 L301 R035 R1349 R611 R036 R612 R037 R613 R038 C060 TP1021 R421 C061 D231 R039 R422 C062 IC032 C1183 Q1180 TP1024 R1350 R230 R1351 C1185 Q1181 TP1025 R231 R425 C065 TP1026 R426 Q1183 R1353 R235 R1355 L501 R1162 L502 L503 TP100 R1164 Q068 L504 R044 R620 R1165 R621 R1166 R046 R622 R1167 R047 R623 FL1100 R1168 TP1030 C070 R048 R624 TP1031 IC041 L509 R1169 R625 TP106 TP1032 C1192 R432 TP1033 C073 C1193 R433 C074 TP1034 R434 TP1035 L701 R435 IC045 TP1036 R436 TP1037 R243 R437 R050 R1170 R438 R244 L510 R1365 R1171 IC049 R439 R051 L511 R1366 R1172 R053 R1173 R1174 R054 R1175 R1176 R056 R1177 R057 L900 R1178 R440 R059 L901 R1179 R441 C855 C856 TP502 R446 R1373 R447 TP503 R060 C858 R1180 R1375 IC059 R1181 R255 R1182 R256 R1183 TP120 R1184 R1379 R1185 R1186 R1187 TP1050 R1188 R1189 TP701 TP127 C863 IC063 R260 R1380 C864 R261 TP129 R1381 R262 R1382 C866 C867 R1383 FL007 C868 R1190 R458 R841 R459 R1192 R842 R1387 R844 R1388 R1195 R845 TP132 R846 R1196 R1197 R847 L343 R1198 R848 TP134 R460 R849 R1199 R461 TP135 L346 R463 R464 R465 R466 R467 R850 C879 FL408 C880 R664 R091 R672 R673 L751 C898 C899 JS002 JS009 JS012 JS013 JS014 C1204 Q1200 JS020 R891 JS021 R892 R893 JS023 JS024 JS025 JS026 JS027 JS028 JS029 C1216 C1217 C1218 C1220 C100 C1221 C101 C102 C1223 C1224 D1201 C1225 Q101 Q104 R1201 R1202 Q107 R1203 R1204 C301 R1205 C302 R1206 R1207 R1208 R1209 C306 C307 C308 Q305 C309 C115 Q306 C116 Q307 C117 Q308 R1210 R1211 C501 R1212 C502 R1213 C503 R1214 C310 C504 C311 C505 C312 C506 C313 JS1177 C507 C314 C508 C509 D1220 D1221 C126 C702 C510 C704 C511 C705 R1222 C512 C513 C514 C709 C515 C516 JS066 R1227 C517 JS067 R1228 C518 JS068 C900 C519 JS069 C901 C902 C903 C904 C134 L1110 C710 C905 L1111 C711 L1112 C712 L1113 C713 C520 C714 R111 R1231 C521 JS071 C715 C522 JS072 C716 R113 R1233 C523 C717 JS073 R1234 C524 C718 R1235 R115 C719 R1236 R117 R1237 R1239 C529 R502 C913 R503 L1120 C914 C720 R505 C721 L001 C916 R506 C722 L002 C723 L003 L004 R314 R120 C724 C530 R315 R121 C725 C531 R1242 C532 C726 L006 R317 R1243 R123 C727 L007 R318 R124 C728 R319 R125 C729 R126 C343 R127 R1247 R128 C150 R704 R129 C151 R1249 C539 R705 C152 R706 C922 C153 R707 C923 R320 Q150 C154 C730 R708 C924 R321 C155 C731 R515 R709 C156 R516 C732 C926 C157 C733 C927 R1250 R130 C540 C734 JS090 JS091 R325 R131 C541 C735 C929 R326 R902 R132 C542 C736 R903 R327 R133 R1253 C543 C737 R904 R328 R1254 R134 R710 C544 JS094 R905 R329 R135 R1255 C545 R906 R136 C546 JS096 C547 R1258 C548 C930 C549 C931 C162 R522 C932 C357 R330 C934 C358 R331 C165 R525 C359 R526 C936 C167 R527 C168 C550 C938 R528 R529 C551 C939 R1262 C552 C553 R914 R1264 R338 C554 R915 R1265 R339 C555 R916 C556 R147 C557 R148 C940 C558 R149 R531 C559 C365 C366 R532 C943 C367 R533 C174 R340 C368 C369 R341 C176 L802 R342 C177 L803 R343 R150 C178 C560 C948 TP018 R344 R1271 C179 R151 R345 TP019 C561 R152 R346 C562 R153 R347 R154 R348 R155 C565 R156 C566 C567 R928 R1278 C568 L230 TP020 R929 R159 R1279 C375 L231 C569 C952 TP022 TP023 C377 R350 R351 R352 TP027 R353 R930 R1280 R160 C570 R931 R1281 R161 C571 R932 R162 C572 R933 R1283 R163 C573 R934 R1284 C574 C575 L431 R936 R1286 C576 R937 C577 C383 R938 C578 R939 TP801 C579 L1170 R360 C388 L1171 L1172 L1173 R363 R940 R1290 C580 R941 R1291 C581 R942 L1176 C582 C583 JS1000 R944 C584 C390 R945 C585 R1296 R946 C586 C392 R947 C587 C393 C588 C589 R758 R950 C590 R951 C591 R182 C592 C593 R760 R954 C594 R955 C595 R763 R188 R765 R767 R190 R192 R193 R198 R199 TP074 L862 C1109 TP080 C1110 TP084 C1111 C1112 TP087 C1114 TP088 C1115 JS106 JS107 1 DG CR NO.4 1 1 TNPA3519 R238 R236 R237 R543 R542 R538 R544 R540 R545 R541 R546 R539 DG34 DG33 Thermal pad C132 R258 R252 R248 R379 R380 R140 R381 R382 R383 PbF + 1 7 8 14 1 4 5 8 1 24 25 48 1 3 4 5 NP 1 5 1 14 15 28 1 3 4 5 1 3 4 5 1 4 5 8 1 3 4 5 SEE FOR ORDER NO. REVERSE + + 1 8 1 8 TH-50PV500E DG-BOARD TNPA3519 TH-50PV500B DG-BOARD TNPA3519AC TH-50PV500E DG-BOARD TNPA3519 TH-50PV500B DG-BOARD TNPA3519AC DG-BOARD (FOIL SIDE) TNPA3519 (PV500E) TNPA3519AC (PV500B) DG Parts Location DG-BOARD (FOIL SIDE) TRANSISTOR Q1154 F-4 Q1170 E-3 Q1171 D-5 Q1172 D-5 Q1173 D-4 Q1174 F-3 Q1175 F-3 Q1180 E-5 Q1181 E-5 Q1183 C-1 Q1200 E-3 Q4010 E-2 Q4014 F-2 Q4015 E-2 Q4068 D-3 Q4101 F-4 Q4104 F-5 Q4107 F-5 Q4150 F-4 Q4305 C-1 Q4306 B-2 Q4307 B-2 Q4308 B-2 Q4410 A-2 TP1021 E-3 TP1024 E-3 TP1025 E-3 TP1026 E-3 TP1030 F-2 TP1031 F-2 TP1032 E-1 TP1033 E-1 TP1034 F-2 TP1035 F-2 TP1036 E-2 TP1037 E-2 TP1050 E-1 TP4018 C-3 TP4019 D-3 TP4020 D-3 TP4022 D-3 TP4023 D-3 TP4074 B-3 TP4080 B-3 TP4081 F-5 TP4084 B-3 TP4087 B-3 TP4088 B-3 TP4092 B-3 TP4093 D-2 TP4094 D-2 TP4095 E-2 TP4100 D-1 TP4106 C-1 TP4120 D-1 TP4127 C-1 TP4129 D-1 TP4132 C-1 TP4134 B-3 TP4135 B-3 TP4502 D-4 TP4503 D-3 TP4701 B-4 IC1105 F-4 IC1107 E-3 IC1115 F-2 IC1117 D-3 IC4010 C-2 IC4024 C-5 IC4032 C-4 IC4041 E-2 IC4045 C-3 IC4049 C-2 IC4059 F-4 IC4063 C-3 IC TP TH-50PV500E / TH-50PV500B 50 A B C D E F G H I 1 2 3 4 5 6 JS901 Q002 Q003 Q004 Q005 C1129 Q006 Q007 Q008 Q009 IC1103 C1134 R1300 IC1104 Q011 R1301 Q012 IC1106 C016 R1302 C1137 R1303 Q013 C018 R1110 IC1108 R1111 R1305 IC1109 R1112 Q016 R1113 R1307 R1115 IC1110 DG15 C021 C1142 C022 C1143 C023 C024 IC1114 C600 R1311 IC1116 R1313 IC1118 C410 C604 R1315 R1122 R1318 DG20 L1009 R1319 DG22 C416 C418 IC001 C1152 IC002 C1153 R200 Q1150 R1320 C1154 Q1151 R201 R1321 IC005 Q1152 Q1153 IC008 C038 R010 R1131 IC009 C039 R1132 R1326 R206 R012 R1133 R1134 R014 R1329 DG32 C040 IC011 DG35 C041 IC012 C042 IC013 R210 IC014 R211 R406 C046 R407 R020 R1334 R408 C430 C048 R021 R1335 R409 C431 R1338 R600 Q430 R1145 R1339 R601 Q431 R602 Q432 C436 R1147 R603 C437 Q433 R1148 R604 Q434 C438 R028 C050 R029 R605 IC021 Q435 C439 C051 R606 Q436 C053 R1340 L104 D1150 C054 D1151 DG1 L105 IC025 C055 DG2 R1342 L106 C056 DG3 C057 R030 C1178 D1154 C058 DG5 D1155 R801 Q1176 D1156 R802 R032 D1157 R1153 Q1177 R227 R803 D1158 Q1178 R228 R1154 R804 R034 Q1179 D1159 R1155 R805 R1156 R806 R1157 R807 L1230 R1158 C1180 R614 R808 C1181 L1231 R1159 R809 R615 C1182 R616 TP1023 R617 R423 C063 D1160 C1184 R618 R424 C064 D1161 R619 D1162 Q1182 C1186 R232 C066 C1187 R233 Q1184 R1160 R234 C1188 R810 R040 R1161 C1189 TP1029 R811 R041 R042 R1163 R043 R045 R1359 L505 L506 L507 C1190 L508 R430 C1191 C071 R431 R049 R626 C072 IC042 R1360 R240 C1194 IC044 R1361 R241 C1195 R1362 R242 C1196 R1363 C1197 R1364 C1198 IC048 R821 R246 R822 R052 R823 R055 IC050 C850 R058 IC051 C851 C852 R443 C854 IC054 R444 R445 IC055 TP501 R1372 R1374 R448 C859 R449 R061 R062 R833 R1378 R834 R064 R450 R068 C861 IC061 R451 R069 R452 IC062 R453 R454 C865 R455 FL006 R456 R457 FL008 R1384 R070 R1385 R1191 R071 R1386 R072 R1193 R073 R1194 R074 L341 R1389 R075 L342 R076 R077 L344 L150 R078 L151 L345 R079 C873 L347 R1390 C874 L348 R659 C875 FL016 C876 FL017 C877 FL018 C878 R080 R851 FL401 R081 R852 FL402 R082 FL403 R083 L350 FL404 R084 R855 R085 R661 R662 FL407 R663 FL020 FL021 C881 FL022 C882 FL023 C883 R860 R092 R671 C890 C892 C893 JS004 JS005 JS006 JS007 JS008 JS010 JS011 R883 R884 R885 R886 R887 C1200 R888 X1101 C1201 R889 JS401 C1202 JS402 C1203 JS403 JS404 C1205 C1206 C1207 C1208 R890 C1209 JS022 R894 R895 R896 R897 R898 R899 C1211 C1212 C1213 C1214 C1215 JS030 C1219 X001 C1222 X002 C103 C104 C105 Q102 C106 C107 Q103 R1200 C108 Q105 Q106 Q108 Q109 C303 C1230 Q301 C1231 Q302 C1232 Q303 C1233 Q110 Q111 Q112 C118 Q309 C119 R1215 R1216 Q310 C120 C315 Q311 R1219 C121 C316 C122 C317 C318 C124 C701 C127 C703 C128 R100 C129 R101 R1221 R102 R103 R1223 R104 R1224 R1225 JS065 R106 R1226 R107 C130 R108 C131 R109 R1229 C133 Q900 R301 C135 R302 C136 R303 L1114 R304 R110 R1230 R305 R306 R1232 R112 R307 R308 R114 R309 C525 C526 C527 R118 R1238 C528 R501 R504 IC1235 C915 C917 R507 C918 R1240 R508 R1241 C919 R509 JS081 C533 R1244 JS084 L008 C534 C341 JS085 R701 C535 C342 R1246 JS086 R702 C536 JS087 R703 C920 R1248 JS088 C538 R510 C345 C921 JS089 R511 C346 R512 R513 C347 C348 R514 D900 C925 C349 R517 R900 C158 R518 C928 R901 C159 R1251 R519 JS092 C350 JS095 C352 C353 R907 R1257 R137 R908 R138 C160 C354 R520 R909 R139 R1259 C161 C355 R521 C356 C163 R523 C164 R524 C935 R332 C166 R333 C937 R334 R910 R1260 R911 R335 R1261 C169 R142 R912 R336 R913 R337 R1263 R143 R144 C360 R145 C361 R1266 R146 C362 R1267 C363 R918 R1268 C170 R530 C364 R919 C171 R1269 C941 C942 C172 C173 R534 R535 C945 L801 R536 C946 TP016 R537 C947 R920 R1270 R921 C949 R922 R1272 R923 R1273 R924 R1274 C370 R925 R1275 R349 C371 R926 C372 R927 R157 R1277 C373 R158 C180 C950 C374 C181 TP021 C951 C182 C376 TP024 C378 TP025 C379 TP026 R354 R355 R356 R357 R164 C380 L430 R358 R935 R165 R1285 C381 R359 C382 R167 R1287 R1288 TP030 C384 R1289 R169 C385 C386 C387 R361 R362 L1174 R364 L1175 R365 R1292 R366 R1293 R173 R943 R367 R1294 R174 R368 R1295 R175 R751 R369 C391 R752 R176 R177 R753 R1297 R1298 R754 R948 R755 R1299 R949 R756 R757 R370 R759 R371 R372 R373 R374 R952 R183 R953 R184 R761 R956 R762 R186 C596 C597 R764 C598 C599 R766 R768 R769 R577 R578 R194 R195 R196 R197 R583 R584 R585 R586 R587 R588 R589 R590 R591 R592 R593 C1100 R594 C1101 R595 L861 C1102 R596 R597 C1104 R598 L864 C1105 L865 R599 C1106 C1107 C1108 C1113 C1116 C1117 B C D F F H H J J K K L AA M TNPA3519 1 P R N G CR NO.4 A A D G L P R T T W W M AD N AD C AA B DG R063 R086 R087 R088 R093 R094 R1344 R1343 R1346 R1377 R1345 DG34 DG33 R576 R575 R247 R249 R253 R259 R095 R257 R251 R250 C537 IC016 C351 C175 1 4 5 8 1 32 64 65 128 33 96 97 8 9 16 1 1 12 13 24 1 4 5 3 1 30 31 60 1 27 28 54 1 8 9 16 1 3 4 5 + 1 30 56 55 1 110 1 4 5 8 1 8 9 16 1 25 26 50 51 76 100 75 1 3 4 5 1 3 4 5 1 8 1 3 5 4 1 4 1 30 31 60 61 90 91 120 1 25 26 50 51 75 76 100 1 3 4 5 NP 1 16 32 33 48 49 64 17 NP 1 40 1 3 4 5 1 40 1 19 20 2 1 21 1 5 1 3 4 5 1 5 1 4 5 8 1 8 9 16 C A B 2 3 4 5 6 7 8 9 10 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 D E F G H J KL M N PRT U V WYAA AB AC AD AE AF 1 11 1 3 4 5 NO. ORDER + 1 4 5 8 1 8 1 8 1 4 5 8 TH-50PV500E DG-BOARD TNPA3519 TH-50PV500B DG-BOARD TNPA3519AC TH-50PV500E DG-BOARD TNPA3519 TH-50PV500B DG-BOARD TNPA3519AC DG-BOARD (COMPONENT SIDE) TNPA3519 (PV500E) TNPA3519AC (PV500B) DG Parts Location DG-BOARD (COMPONENT SIDE) TRANSISTOR Q1150 A-4 Q1151 A-4 Q1152 C-5 Q1153 C-5 Q1176 C-3 Q1177 C-3 Q1178 C-4 Q1179 E-6 Q1182 D-6 Q1184 D-5 Q4002 E-3 Q4003 E-3 Q4004 C-2 Q4005 D-2 Q4006 D-2 Q4007 E-3 Q4008 E-3 Q4009 E-3 Q4011 E-3 Q4012 E-3 Q4013 E-3 Q4016 E-3 Q4102 D-5 Q4103 E-5 Q4105 D-5 Q4106 E-5 Q4108 D-5 Q4109 E-5 Q4110 E-5 Q4111 E-5 Q4112 E-5 TP1029 B-3 TP4021 C-4 TP4023 C-4 TP4024 C-4 TP4025 C-4 TP4028 C-4 TP4030 E-3 TP4501 D-3 Q4301 E-1 Q4302 E-1 Q4303 D-1 Q4309 E-4 Q4310 E-4 Q4311 E-4 Q4430 E-3 Q4431 E-3 Q4432 E-3 Q4433 E-3 Q4434 E-3 Q4435 E-3 Q4436 E-3 Q4900 F-2 IC1103 A-2 IC1104 B-2 IC1106 B-1 IC1108 A-3 IC1109 B-2 IC1110 A-2 IC1114 B-2 IC1116 B-2 IC1118 B-4 IC1235 C-2 IC4001 E-2 IC4002 F-2 IC4005 C-3 IC4008 C-5 IC4009 E-2 IC4011 E-2 IC4012 C-4 IC4013 D-2 IC4014 B-4 IC4016 B-5 IC4021 D-5 IC4025 E-4 IC4042 F-3 IC4044 D-3 IC4048 E-4 IC4050 A-5 IC4051 C-4 IC4054 D-4 IC4055 E-4 IC4061 D-5 IC4062 F-4 IC TP TH-50PV500E / TH-50PV500B 51 13.6. TA-Board A B C D E F G H I 1 2 3 4 5 6 C001 C002 C003 TA5 TA6 TU001 TNPA3521 TA 1 15 1 9 ORDER NO. 1 15 VIDEOOUT SCL BT SIFOUT SDA BTL RFAGC AFT AUDIOOUT C001 C002 C003 C006 C007 C009 C013 C016 C017 C018 C019 C020 C021 C022 C023 C024 C030 C031 TA5 TA6 D003 JS002 JS011 JS012 TU001 Q002 Q003 L002 L003 L004 L005 L006 L007 L008 L012 L015 L016 L017 L018 L019 R002 R003 R004 R005 R006 R007 R008 R009 PbF TNPA3521 TA 1 15 9 1 SEE REVERSE FOR ORDER NO. 1 15 SDA SIFOUT BT SCL BTL VIDEOOUT RFAGC AFT AUDIOOUT TH-50PV500E TA-BOARD TNPA3521 TH-50PV500B TA-BOARD TNPA3521AB TH-50PV500E TA-BOARD TNPA3521 TH-50PV500B TA-BOARD TNPA3521AB TA-BOARD (FOIL SIDE) TNPA3521 (PV500E) TNPA3521AB (PV500B) TA-BOARD (COMPONENT SIDE) TNPA3521 (PV500E) TNPA3521AB (PV500B) TA Parts Location TA-BOARD TRANSISTOR Q002 C-2 Q003 D-2 TH-50PV500E / TH-50PV500B 52 13.7. DV-Board A B C D E F G H I 1 2 3 4 5 6 R359 R366 R367 JK001 R369 R370 R371 R372 R375 R376 R391 R394 R395 R396 R397 R398 R399 C001 Q004 C014 C015 C020 Q020 R002 R003 C030 IC003 C034 C036 D013 D014 C039 D015 D016 D017 D018 D019 C040 C044 D020 C046 IC016 IC017 C047 D025 C049 D026 R024 R025 R035 R043 R077 R078 JS006 DV1 ZA001 ZA002 ZA003 ZA005 C144 L002 R324 L015 L016 L017 L018 R334 R335 R336 R354 R356 1 TNPA3626 CRNO.5 DV R079 L022 PbF 1 19 SEE REVERSE FOR ORDER NO. 1 33 64 65 96 97 128 32 1 3 4 5 1 4 5 8 4 1 R176 R374 R196 R392 R393 C004 Q001 C005 Q002 Q003 C012 C013 C016 C017 C018 C019 R006 R007 R011 R013 R014 R015 R017 R018 R019 D021 IC015 D022 D023 D024 R020 R021 R022 R023 C054 C056 C057 R030 R033 R034 R036 R037 R038 R039 R040 R041 R042 R044 R045 R065 JS001 JS002 JS003 JS004 JS005 31 DV15 C133 C134 C135 C136 C137 C140 C141 C143 L001 L003 L004 L007 L012 R325 L021 R337 R338 R347 R348 R349 R350 R353 TNPA3626 DV 1 CRNO.5 AB AC AD AE AF PbF ORDER NO. 1 3 4 5 1 30 60 TH-50PV500E/B DV-BOARD TNPA3626AC TH-50PV500E/B DV-BOARD TNPA3626AC DV-BOARD(FOIL SIDE) TNPA3626AC DV-BOARD(COMPONENT SIDE) TNPA3626AC DV Parts Location DV-BOARD IC IC5003 F-2 IC5015 B-3 IC5016 H-2 IC5017 G-1 Q5001 B-3 Q5002 C-2 Q5003 C-2 Q5004 G-1 Q5020 F-1 TRANSISTOR THIS IS FOR REFERENCE USE ONLY. THIS MUST BE REPLACED WITH AN EXCHANGE BOARD ONLY. TH-50PV500E / TH-50PV500B 53 13.8. XV-Board (PV500B) A B C D E F G H I 1 2 3 4 5 6 R044 R238 R046 R047 C264 R048 C265 R049 C266 R435 R241 R436 R437 R050 R439 R245 R051 R052 R246 R053 R249 R056 C273 R827 R057 R440 R828 C274 R058 R059 R441 C275 R442 R253 R254 R831 R255 R258 R834 C280 R259 C281 R835 C284 C285 L141 L143 L145 R263 R265 C099 R072 R073 R267 R268 R074 R075 FL201 R076 C870 C871 C296 C872 C297 C873 R270 R080 R277 R088 R281 R282 R283 R285 R479 R286 R287 R288 R289 R483 R484 IC864 R485 R486 R489 R490 R492 R494 JK901 JK902 R888 R893 R894 R895 X003 X006 C303 C110 C111 C305 C306 C113 C307 C114 C115 C309 C116 C117 C118 C119 C315 C121 C509 C316 C317 C123 C318 C124 C319 C125 C127 C128 C129 R104 C320 C321 C323 R107 C130 D301 R300 R302 C136 R303 C138 C139 R306 R112 R113 C330 R309 C331 C334 C140 C335 C141 C142 C337 C143 R310 C338 C144 R311 L001 C145 R505 R312 C146 C147 C148 L004 R315 C149 R317 R318 C340 R319 C341 C151 C152 C346 C347 C348 C155 D901 D902 C156 D903 C157 R323 C158 D904 R324 D905 C159 D906 R132 D907 R133 D908 C351 D909 R711 R135 R712 R136 C160 R714 R138 R715 C161 TP8001 R716 C162 TP8002 C163 C357 TP8003 C164 D910 TP8004 C165 D911 TP005 C166 D912 TP006 C167 D913 TP007 C168 R140 R910 D914 TP008 R141 C169 R911 D915 TP009 R142 D916 R144 R338 R145 R339 L029 R148 C170 TP010 C171 R919 TP011 C172 TP012 C173 TP013 R340 L030 C174 TP014 L031 R341 C175 TP015 R342 C176 TP016 L033 TP017 R538 R150 R344 R920 TP018 R539 R345 TP019 R152 R153 R347 R730 L038 R731 R155 R732 C372 R733 C373 R157 R734 R158 C180 TP020 R735 C375 R159 TP021 R736 TP022 TP023 TP024 C379 XV01 TP025 R546 C186 R352 TP026 R353 R547 TP027 R548 XV04 TP028 R931 R355 TP029 R932 R356 R163 R357 R358 R165 R166 R167 R168 R169 TP033 C193 C194 L051 R170 R171 R172 R174 FL301 L059 R175 FL302 R176 C397 C398 TP004 C399 R950 R375 R951 R952 R184 R956 R187 R957 R958 R189 JK401 R190 R191 R386 R193 R194 R196 R197 R969 R970 R971 R973 L094 L096 R984 CN202 C004 C006 C007 C008 C009 C203 C207 C015 Q013 C018 Q014 C019 C401 C402 Q016 C210 C405 C212 C020 C021 TU001 C024 D001 C026 D002 C027 C028 C410 D005 R001 R002 R003 R004 C415 R005 R007 R008 C030 IC003 C037 C420 R010 R204 R011 C421 C039 R206 C422 R012 C423 R208 R014 D018 R015 C425 R209 R017 R018 IC010 C040 C234 C041 C235 C042 C043 D020 R210 C239 C046 R212 C047 R214 R021 R215 R022 C432 R024 C241 R025 R601 R026 C243 R027 C244 IC020 C245 C051 C052 C247 C053 C249 IC027 R224 C059 R227 R033 C250 R034 R610 C251 R035 R611 R036 C252 C253 C060 R615 C061 R039 IC226 R424 R231 IC038 R040 L501 R042 NO.8 CR XV A A B B C C D D E E F F G G 9 TNP0EXV01 L107 L108 L109 ZA011 ZA010 ZA009 ZA007 ZA008 C177 C182 PbF 1 4 5 7 5 1 9 6 5 1 9 6 SEE REVERSE FOR ORDER NO. + + 1 5 5 56 110 1 4 3 6 10 7 1 2 3 6 10 7 1 2 1 2 35 36 68 67 34 33 1 2 16 15 ANT VSUPPLY RF-AGC SCL SDA VSUPPLY IFA1 IFD2 IF-AGC IFD1 1 16 17 32 33 48 49 64 1 33 34 66 1 24 25 48 1 4 5 8 1 54 55 108 109 162 163 216 1 24 25 48 TH-50PV500B XV-BOARD TNP0EXV01AC TH-50PV500B XV-BOARD TNP0EXV01AC XV-BOARD (FOIL SIDE) TNP0EXV01AC (PV500B) XV Parts Location XV-BOARD (FOIL SIDE) IC IC8003 B-5 IC8010 F-4 IC8020 F-3 IC8027 F-5 IC8038 C-1 IC8226 D-6 IC8864 C-4 TP8001 F-1 TP8002 F-3 TP8003 F-2 TP8004 F-3 TP8005 F-3 TP8006 F-3 TP8007 E-2 TP8008 E-3 TP8009 F-2 TP8010 F-2 TP8011 F-2 TP8012 F-2 TP8013 F-2 TP8014 F-2 TP8015 F-1 TP8016 F-1 TP8017 F-2 TP8018 F-2 TP8019 E-1 TP8020 E-1 TP8021 F-1 TP8022 F-1 TP8023 F-1 TP8024 F-1 TP8025 B-2 TP8026 F-5 TP8027 D-2 TP8028 F-5 TP8033 B-4 TP Q8013 E-2 Q8014 E-2 Q8016 D-2 TRANSISTOR TH-50PV500E / TH-50PV500B 54 A B C D E F G H I 1 2 3 4 5 6 R045 R239 R430 C071 R431 IC042 R432 IC043 C073 R433 C268 R240 R434 C269 R242 R243 R821 R054 R055 C272 C467 C276 C277 R443 R250 R444 R251 R445 R252 R446 R447 R830 R448 R449 R256 R257 C282 C283 R450 R451 L142 R452 FL003 R453 R454 R260 FL004 R261 R262 R456 R457 R264 C098 R458 R459 R266 C290 R269 C292 C293 C294 R460 R078 C295 R461 R079 R462 R463 R464 C299 R271 R465 R272 R466 R273 R467 R274 R468 R081 R275 R469 R276 R082 R083 R084 R279 R085 R086 R087 R280 R474 R475 R476 R477 R284 R478 R862 R863 R864 R094 R480 R481 R482 R290 R291 R292 R487 R488 R296 R491 R493 R495 R496 R497 R498 R499 JK901 JK902 R899 C100 C101 C102 C103 C104 X005 C105 Q101 C106 Q102 C107 Q103 C108 Q104 C109 C304 C112 C308 C501 C502 C503 C310 C504 C505 C506 C507 C314 C120 C508 C122 C126 R100 R101 R102 R103 R105 C322 R106 R108 C131 R109 C901 C132 C902 C327 C133 C903 C134 C904 R301 C329 C135 C905 C137 R304 R110 R305 R308 R114 R115 IC301 D501 C332 R116 R117 C910 R500 R118 R501 R119 R502 C336 R503 R504 R313 R314 R120 R121 IC501 R122 L008 R124 R125 C342 R126 C343 R127 C150 C344 R128 L201 C345 R129 R706 C153 R707 C154 R320 R708 R321 C349 R709 R900 R130 R901 R131 R902 R903 C350 R904 R134 R905 R906 R713 R907 R137 R908 C355 R139 IC901 R909 C356 L026 R912 R913 R143 R914 C361 R915 R146 R916 R147 R917 R918 R149 L032 R343 C178 R151 C179 R923 R154 R348 R349 L039 R926 R156 R927 R928 R929 C181 C376 R350 R351 L042 XV02 XV03 C187 R354 R160 R930 C188 XV05 R161 C189 L046 R162 XV06 XV07 L047 R933 L048 R164 R934 L049 R935 R936 C190 C191 C192 C195 C198 L055 R366 L056 R367 R173 R368 R177 FL110 R178 R179 FL111 TP001 FL112 TP002 FL113 TP003 R372 R373 R374 R180 R181 JK201 R376 R182 R183 R953 R954 R185 R955 R186 R959 L071 JK401 R960 R961 R962 R387 R963 R964 R195 R965 R966 R967 R968 R972 R980 R981 R982 R983 R985 R986 R987 R988 R989 R990 C001 CN202 C002 C003 C005 Q007 Q008 C202 C010 C204 C011 C205 C012 C206 C208 C400 C403 C404 SW001 C406 C407 C408 TU001 C409 C022 C023 C025 D004 C411 D005 C412 D006 D007 C413 C414 C416 R006 C419 D203 C034 D204 C035 R201 R202 R203 IC009 R205 R207 C230 C231 R016 C232 C427 C233 C428 R019 C429 R401 C236 R402 C237 IC013 C238 R211 R213 R020 C430 C048 C431 IC019 IC401 C049 R216 IC402 R023 R217 C433 C240 R218 IC404 C434 R219 C242 R602 R603 IC213 R028 IC408 R604 IC409 R029 R605 IC022 C246 R606 IC023 C248 R220 IC024 R414 R608 R221 C055 R415 R609 IC026 R416 C056 R222 R223 R417 IC028 C058 IC410 R418 R030 R031 R225 R801 IC029 IC411 R419 R032 R226 IC412 R802 R228 R229 R612 R613 C254 R420 R614 IC031 R421 C062 R422 R423 IC034 R230 R425 R232 R426 R233 R427 R810 R234 L118 R428 C451 R235 R429 R041 R236 R043 R237 CR NO.8 TNP0EXV01 9 AB AC AD AE AF AG AH AJ AK AL AM AN AP A A B B C C D D E E F F G G H H J J I I XV C184 C185 C183 94-V0 FR4 ZA004 ZA003 ZA005 ZA006 ZA001 ZA002 L106 1 3 4 5 6 10 2 3 7 1 + 1 14 15 28 5 1 9 6 5 1 9 6 ORDER NO. 1 28 29 56 1 7 8 14 + + 1 14 15 28 1 2 22 21 8 1 1 50 1 12 10 1 1 55 56 110 36 35 2 1 68 67 34 33 1 16 15 2 ANT VSUPPLY RF-AGC SCL SDA VSUPPLY IFA1 IFD2 IF-AGC IFD1 1 33 34 66 A B C E G J L N R U W AA D F H K M P T V Y AB 1 2 3 5 7 9 11 4 6 8 10 13 15 17 19 21 12 14 16 18 20 22 1 24 25 48 1 4 5 8 1 12 13 24 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 8 9 16 1 4 5 8 1 4 5 8 1 3 4 5 1 8 9 16 1 10 11 20 1 8 9 16 1 10 11 20 1 10 11 20 1 4 5 8 1 5 XV-BOARD (COMPONENT SIDE) TNP0EXV01AC (PV500B) TH-50PV500B XV-BOARD TNP0EXV01AC TH-50PV500B XV-BOARD TNP0EXV01AC XV Parts Location XV-BOARD (COMPONENT SIDE) IC IC8009 B-4 IC8013 C-4 IC8019 D-5 IC8022 B-4 IC8023 C-2 IC8024 D-2 IC8026 B-3 IC8028 B-4 IC8029 C-3 IC8031 B-1 IC8034 B-5 IC8042 E-1 IC8043 E-1 IC8213 F-2 IC8301 D-5 IC8401 F-2 IC8402 E-2 IC8404 F-2 IC8408 E-2 IC8409 E-3 IC8410 E-2 IC8411 E-3 IC8412 D-2 IC8501 F-6 IC8901 F-3 TP8001 C-5 TP8002 C-5 TP8003 C-5 TP Q8007 D-5 Q8008 B-3 Q8101 D-4 Q8102 D-4 Q8103 D-4 Q8104 D-4 TRANSISTOR TH-50PV500E / TH-50PV500B 55 13.9. Z-Board A B C D E F G H I 1 2 3 4 5 6 R492 R495 R496 R498 R499 C300 C301 C303 C304 Q300 C305 Q301 Q302 C306 C307 C310 C311 C313 C315 Q312 C316 Q313 Q314 C318 Q315 C319 Q316 Q317 C320 C322 C323 C324 C325 Q322 Q323 D303 C327 C328 R300 Q324 D305 R301 C329 D306 R302 R303 R304 R305 R307 IC300 C330 IC301 C331 C332 IC302 IC303 IC304 C335 IC305 IC306 C337 IC307 C338 R310 IC308 IC309 R311 C339 D315 D316 D317 R314 D318 R315 D319 C340 R318 C341 R319 C342 C343 D320 D321 C346 D322 C347 D323 R320 C348 D324 C349 D325 R322 D326 D327 R324 D328 R325 D329 R326 R327 R328 C350 R329 C352 C353 C354 D330 C355 D331 D332 C356 D333 C357 R330 C358 R331 C359 R332 R335 R336 R337 R338 R339 C361 C362 C363 C364 C365 C366 C367 R340 C368 R341 C369 R342 R343 R344 R345 R346 R347 R348 R349 C371 C372 C374 C375 R350 R351 R352 R353 C386 C387 C388 C389 R367 R368 R369 C392 C393 C394 C395 C396 R370 R372 R373 R374 R376 R377 R378 R379 R381 R382 R383 R384 R385 R387 R396 R397 R398 JS304 JS305 JS306 JS307 JS312 JS313 JS314 JS315 JS316 JS317 JS318 JS321 JS322 JS329 JS330 JS331 JS332 C400 C401 C402 C404 C425 C426 C427 C429 C430 R414 C441 C442 C443 C444 L305 C449 L306 L307 L308 C450 C451 C452 C453 C454 C455 C456 L312 L313 L314 L315 R433 Z50 R440 R441 R442 R443 R449 C473 C474 C475 C476 C477 C478 R450 C479 R452 R453 R455 R456 R458 C480 R459 R460 R461 R462 R463 C497 C498 C499 AB AC AD AE AF TNPA3621 1 ZMM1 Z Z1 Z2 PbF CRNO.2 ORDER NO. 1 16 17 32 1 10 11 20 1 4 5 8 1 4 5 8 1 4 5 8 1 12 13 24 1 12 13 24 1 12 13 24 1 12 13 24 1 2 35 34 1 4 1 5 R478 R479 R480 R481 R482 R483 R484 R485 R486 R487 R488 R489 R490 R491 R493 R494 R497 C302 C305 C307 C308 C309 C312 C314 C315 D300 D301 D304 R306 R308 R309 R312 R313 R316 R317 C344 C347 R321 R323 C351 C357 C358 R333 R334 C360 C370 C371 C372 C373 C374 C376 C377 C378 C379 R357 R358 C380 R359 C381 C382 C383 C384 C385 R360 R363 R364 R365 R366 C390 C391 C392 C394 C395 C396 C397 C398 C399 R371 R375 R380 R388 R389 R390 R391 R392 R393 R394 R395 JS308 JS309 JS310 JS311 JS319 JS320 JS323 JS324 C401 C402 C403 C426 C427 C428 C433 C2434 C435 C436 C437 C438 C439 R412 C440 C445 C446 C447 C448 L305 C449 L306 L307 L308 C450 C451 C452 L312 C457 L313 L314 C458 L315 C459 L316 L317 R434 L318 R435 L319 R436 Z50 C460 C461 C462 C463 C464 L320 C465 L321 L322 C466 C467 L323 C468 C469 R444 R445 R446 R447 R448 C470 C471 C472 R451 R454 R457 C481 C482 C483 C484 C485 C486 C487 C488 C489 R464 R465 R466 R467 R468 C490 C491 R469 C492 C493 C494 C495 C496 R470 R471 R472 R473 R474 R475 R476 R477 TNPA3621 1 Z CRNO.2 ZMM1 Z1 Z2 PbF SEE NO. ORDER FOR REVERSE 35 34 1 2 1 4 1 5 TH-50PV500E/B Z-BOARD TNPA3621AC TH-50PV500E/B Z-BOARD TNPA3621AC Z-BOARD (FOIL SIDE) TNPA3621AC Z-BOARD (COMPONENT SIDE) TNPA3621AC Z Parts Location Z-BOARD IC2300 C-2 IC2301 C-2 IC2302 E-2 IC2303 F-2 IC2304 A-2 IC2305 D-2 IC2306 E-2 IC2307 E-2 IC2308 F-2 IC2309 A-3 IC Q2300 B-2 Q2301 B-2 Q2302 B-2 Q2312 A-2 Q2313 B-2 Q2314 D-3 Q2315 D-3 Q2316 D-3 Q2317 C-3 Q2322 A-2 Q2323 B-3 Q2324 B-3 TRANSISTOR TH-50PV500E / TH-50PV500B 56 13.10. D-Board A 1 3 5 2 4 6 C E G I B D F H Q010 D000 C024 D001 D002 D003 C028 D004 C029 D005 D006 D007 D008 D009 C800 R008 C801 C032 Q800 IC004 D010 Q801 D011 D012 R013 R014 R015 R016 R017 R018 R019 R213 R020 R021 R022 R023 D800 D801 R031 R032 R037 R038 R810 L500 R811 L501 R812 R813 R043 R814 R815 R053 R824 R077 R093 R099 C303 C304 C305 C306 C307 C308 C309 C503 C310 C504 C311 C505 C312 C506 C313 C507 C314 C508 C315 C509 C316 C317 C318 C319 Q700 C511 C512 R103 C320 R104 C514 C321 R105 C322 R106 C516 C323 C517 C900 C324 R108 C325 C901 C519 C326 C327 Q900 R300 C328 R301 C329 R302 R303 R304 R111 R306 C716 R112 R307 R113 C718 C330 R114 C719 IC301 R309 C331 R115 C332 R116 C333 R117 C334 R118 C335 R119 C336 C337 C720 C338 R310 R505 R508 R120 R315 C725 R509 R121 R316 R122 C727 R317 R123 C340 R124 R319 R126 R510 R512 C347 D900 R320 C349 IC702 R322 R516 R323 R517 R900 R130 R901 R325 R131 R902 C737 R903 R133 R904 C738 R328 R134 R905 C351 C739 R135 C352 R136 C353 R137 C355 R718 C740 R330 R524 R719 R332 R335 R336 R720 C361 R721 R722 R723 R724 R530 R725 R531 R726 R532 R727 R533 R728 R729 R535 R536 R537 R923 R731 R733 R543 R544 R547 Q000 Q001 Q002 Q003 Q004 C008 C009 Q005 TNPA3539 1 D CR NO.9 D014 D013 R160 R161 C034 R162 C362 R163 C035 R139 PbF 1 3 4 5 SEE REVERSE FOR ORDER NO. 1 3 4 5 1 14 15 28 D-BOARD (FOIL SIDE) TXN/D2XQSE TH-50PV500E/B D-BOARD TXN/D2XQSE TH-50PV500E/B D-BOARD TXN/D2XQSE TH-50PV500E / TH-50PV500B 57 TH-50PV500E/B D-BOARD PARTS LOCATION TH-50PV500E/B D-BOARD PARTS LOCATION Parts Location D-BOARD (FOIL SIDE) IC9004 F-2 IC9301 B-3 IC9702 D-4 IC Q9000 H-5 Q9001 H-5 Q9002 H-5 Q9003 H-5 Q9004 G-5 Q9005 G-2 Q9010 G-1 Q9700 C-5 Q9800 C-5 Q9801 D-5 Q9900 D-1 TRANSISTOR D Parts Location D-BOARD (COMPONENT SIDE) IC9001 B-2 IC9003 C-3 IC9005 B-3 IC9006 B-2 IC9007 B-2 IC9008 B-5 IC9200 G-3 IC9300 F-3 IC9302 D-3 IC9303 G-3 IC9500 B-4 IC9502 C-2 IC9503 C-2 IC9504 B-5 IC9700 D-4 IC Q9008 C-3 Q9009 C-3 Q9011 B-2 Q9012 B-3 Q9013 B-3 Q9020 B-2 Q9021 B-2 Q9022 B-3 Q9023 B-3 Q9500 C-3 Q9701 E-4 Q9702 F-5 Q9703 E-4 Q9704 E-5 Q9901 F-1 TRANSISTOR TP9013 B-2 TP9300 F-4 TP9301 F-4 TP9700 F-5 TP TH-50PV500E / TH-50PV500B 58 A 1 3 5 2 4 6 C E G I B D F H TP300 TP301 TP700 ZA001 ZA002 ZA003 ZA004 ZA005 ZA006 TP013 TNPA3539 1 D CR NO.9 R921 R142 R906 R321 R312 C302 R063 IC006 R338 R520 R318 R078 R066 C354 C728 C714 FL800 R079 R067 R005 R109 R084 R046 R009 C206 R511 C705 R089 R821 R800 Q023 Q011 R740 R339 C357 C343 R049 R027 R011 C025 R140 C348 IC502 R110 Q704 R072 R809 R707 R091 D4 C018 R716 R132 R127 C703 D32 R085 FL003 R817 IC001 R739 R324 C729 FL801 C011 R912 IC504 R076 R064 R202 C000 R538 R329 R709 IC503 R506 C515 C501 R095 FL200 R830 R526 C346 D700 R503 FL004 R804 R534 C743 R092 R071 R827 R742 R128 R500 C704 D25 R087 L701 Q022 FL703 FL300 C359 R705 Q702 R033 C016 C010 R527 R327 C712 C707 X200 D3 R826 R806 R910 C350 R708 C520 D6 R059 R200 C006 R164 R523 C510 R818 R026 R204 C207 C200 R129 R102 D34 R052 R522 C735 X500 R908 C734 R041 C022 C360 R907 R024 R203 C001 R507 R096 R331 R823 R802 R146 L200 IC300 R101 R050 R029 C201 R333 C730 D701 C300 R070 R057 R807 R003 C742 C724 C513 D20 R035 C033 Q013 R150 R141 R515 R060 R922 R913 C732 Q500 C020 C004 R521 R518 R701 D31 R007 C023 C736 R703 R048 Q021 C013 R916 R206 C026 C345 R502 IC200 C203 FL301 R919 C741 C706 R803 R209 R001 R340 R528 R058 R039 C002 R337 R313 R097 R065 R529 C721 R074 R212 IC005 R702 C702 FL002 R816 R546 C341 IC302 R305 R081 R044 Q020 FL900 R341 C744 C339 R094 R073 R040 R210 R504 Q703 R090 R056 R036 IC003 C017 FL701 R147 C358 R704 R088 R051 R207 R741 D33 L700 R028 R012 C014 R125 FL000 R006 C005 R519 C701 R083 R069 R045 R920 R911 D901 D703 C722 R075 R061 C003 R540 R145 R714 R700 R010 C021 C715 X000 R080 C030 C205 C356 C342 IC303 R047 C031 FL901 R342 C731 D702 C500 R211 C723 IC007 IC700 C713 D5 R808 R004 C019 FL704 FL302 R326 R706 R314 R034 Q012 FL702 R918 R525 R822 R801 R208 R000 C015 C344 R501 R308 R820 R914 R138 C733 IC500 R107 R098 R025 IC008 R151 C502 R062 R214 R201 R909 R082 FL001 R738 C521 C518 C700 R068 R042 C204 C007 R165 R915 R717 R100 R086 R819 R205 R917 Q701 R030 C027 C202 R513 Q901 R825 R805 R002 R311 C301 D8 Q008 Q009 R055 R054 C012 C036 D016 D015 PbF 1 3 2 5 7 9 4 6 8 10 12 14 16 11 13 15 A C E G J L N R B D F H K M P T 1 4 5 8 1 25 26 50 51 75 76 100 1 10 11 20 1 20 1 4 5 8 1 5 1 10 11 20 ORDERNO. 1 2 29 30 1 14 1 31 1 2 19 20 1 8 + 1 2 19 20 1 2 19 20 1 55 1 55 1 68 1 68 + + + A B C D E F G H J K L M N P R T U V W Y AA AB AC 2 1 4 3 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 1 30 31 50 51 80 100 81 1 24 25 48 1 10 11 20 1 10 11 20 1 10 11 20 1 5 D-BOARD (COMPONENT SIDE) TXN/D2XQSE TH-50PV500E/B D-BOARD TXN/D2XQSE TH-50PV500E/B D-BOARD TXN/D2XQSE TH-50PV500E / TH-50PV500B 59 13.11. C1-Board A B C D E F G H I 1 2 3 4 5 6 C101 C102 C103 C104 C107 C111 C112 C113 C114 C115 C116 C117 C118 C119 C120 C121 C122 C123 C124 D101 C125 D102 D103 D104 R101 C129 R102 D107 D108 R104 R107 R108 C130 R109 C132 IC102 C133 IC104 C134 IC105 IC106 C136 C137 R110 C138 R111 C139 R112 R113 R114 R115 R116 R117 R123 R125 R127 C150 R129 C151 C152 C153 R131 R133 R134 R135 R136 R137 R138 R139 R140 R141 R142 R143 R144 R145 R146 R147 R148 R149 R150 R151 R152 R153 R154 R155 R156 R157 R158 C180 R159 C181 C182 C183 C184 C185 R160 C188 R161 C189 R162 R163 R164 C190 FL101 C191 C192 C193 C194 C195 C196 C197 C198 C199 R171 R172 R175 R176 R179 R184 R185 R186 R187 R192 R195 CA1 CA2 CA3 ZA101 ZA102 ZA103 ZA104 ZA105 L101 L102 L103 L104 L105 L106 C10 C11 TNPA3561 CRNO.7 1 C1 C1MM1 PbF 1 10 11 20 11 20 1 10 1 10 11 20 1 10 11 20 ORDER NO. 1 68 1 68 1 68 1 50 1 6 C1 TNPA3561 1 2 3 CRNO.7 1 SEE REVERSE FOR ORDER NO. TH-50PV500E/B C1-BOARD TNPA3561 TH-50PV500E/B C1-BOARD TNPA3561 C1-BOARD (COMPONENT SIDE) TNPA3561 C1-BOARD (FOIL SIDE) TNPA3561 C1 Parts Location C1-BOARD IC7102 F-2 IC7104 F-2 IC7105 E-2 IC7106 D-1 IC TH-50PV500E / TH-50PV500B 60 13.12. C2-Board A B C D E F G H I 1 2 3 4 5 6 R298 C20 R299 C21 C22 C23 C24 C25 ZA201 ZA202 ZA203 ZA204 ZA205 L201 L202 L203 L204 L205 L206 L207 L208 CA4 CA5 CA6 CA7 C201 C202 C203 C204 C206 C208 C212 C215 C216 C217 C218 C219 C220 C221 C223 C224 C225 D201 D202 D203 C227 R200 D204 D205 D206 D207 R203 D208 R204 D209 R205 R206 R207 C230 R208 R209 IC201 C231 IC202 C232 C233 IC203 C234 IC204 C235 IC205 C236 C237 R210 C238 R211 C239 R212 R213 R215 R216 C240 C241 R219 C242 C243 C244 C245 C246 C247 C248 R220 C249 R223 R224 R225 R226 R227 C250 C251 R229 C252 C253 C254 C255 C256 C257 C258 R230 C259 R231 R234 R235 R236 R237 R238 C261 R239 C262 C263 R240 C269 R241 R242 R243 R244 R245 R246 R247 R248 C270 C271 R249 C272 C273 C274 C275 C276 C277 C278 R250 R251 R252 R253 R254 R255 R256 R257 R258 C280 R259 C281 C282 C283 C284 C285 R260 R261 R262 R263 R264 R265 R266 R267 R268 FL201 R269 FL202 R270 R271 R272 R273 R274 R275 R276 R277 R280 R281 R282 R283 R288 R289 R290 R291 R294 R295 R296 R297 PbF C2 TNPA3562 1 CRNO.7 1 50 1 50 1 6 1 6 1 55 1 55 ORDER NO. 1 68 1 68 1 68 1 68 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 TNPA3562 1 C2 2 3 1 SEE REVERSE FOR ORDER NO. TH-50PV500E/B C2-BOARD TNPA3562 TH-50PV500E/B C2-BOARD TNPA3562 C2-BOARD (COMPONENT SIDE) TNPA3562 C2-BOARD (FOIL SIDE) TNPA3562 C2 Parts Location C2-BOARD IC7201 C-2 IC7202 C-2 IC7203 D-2 IC7204 E-2 IC7205 E-2 IC TH-50PV500E / TH-50PV500B 61 13.13. C3-Board A B C D E F G H I 1 2 3 4 5 6 C31 C33 C35 CA8 CA9 CA10 CA11 C3 1 CRNO.7 TNPA3563 C301 C303 C304 C305 C306 C307 C308 C309 C310 C311 C312 C315 C316 C323 D301 C326 D302 D303 D304 C329 D305 R301 D306 R302 D307 R303 D308 R304 R305 R306 R307 R308 IC301 R309 IC302 IC303 IC304 IC305 R310 R311 C339 R312 R313 R314 R315 R316 R317 C340 R318 R319 R320 R321 R324 R325 C350 R328 R329 C351 C352 C353 C354 C355 C356 C357 C358 C359 R332 R333 R336 R337 C360 R338 C361 R339 C362 C363 C364 C365 C366 C367 C368 R340 C369 R341 R342 R343 R345 R346 R347 C370 C371 C372 C373 C374 C375 C376 C377 C378 R354 R355 C380 R358 C381 R359 C382 C383 C384 C385 C386 C387 R360 C388 R361 C389 R362 R363 R364 R365 R366 R367 C390 FL301 C391 C392 C393 C394 C395 C396 C397 C398 C399 R373 R374 R375 R376 R377 R378 R379 R380 R381 R382 R383 R384 R385 R386 R387 R392 R393 R394 R395 R396 R397 R398 R399 ZA301 ZA302 ZA303 ZA304 ZA305 L301 L302 L303 L304 L305 L306 L307 L308 PbF 1 50 1 6 1 10 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 ORDER NO. 1 68 1 68 1 68 1 68 C3 TNPA3563 1 2 3 1 CRNO.7 SEE REVERSE FOR ORDER NO. TH-50PV500E/B C3-BOARD TNPA3563 TH-50PV500E/B C3-BOARD TNPA3563 C3-BOARD (COMPONENT SIDE) TNPA3563 C3-BOARD (FOIL SIDE) TNPA3563 C3 Parts Location C3-BOARD IC7301 F-2 IC7302 C-2 IC7303 C-2 IC7304 D-2 IC7305 B-2 IC TH-50PV500E / TH-50PV500B 62 13.14. C4-Board A B C D E F G H I 1 2 3 4 5 6 C41 CB8 CB9 C4MM2 C42 C44 CB10 CB11 C4 TNPA3564 1 CRNO.7 C4MM1 C4MM3 C43 C4MM4 C4MM5 R490 R491 R492 R493 R494 R495 R496 R497 R498 R499 ZA401 ZA402 ZA403 ZA404 ZA405 L401 L402 L403 L404 L405 L406 L407 L408 C401 C404 C406 C408 C409 C410 C411 C412 C413 C414 C415 C418 C419 C420 C421 C422 C423 C424 C425 C426 C427 C428 R401 D405 C429 D406 R402 D407 R403 R404 D408 D409 R405 R406 R407 C430 R408 IC401 C431 R409 C432 IC402 C433 IC403 C434 D410 IC404 C435 D411 IC405 C436 D412 C437 C438 R410 C439 R411 R412 R413 R414 R415 R416 R417 C440 R418 C441 R419 C442 C443 C444 C445 C447 C448 R420 R421 R422 R423 R424 R425 R426 R427 R428 C451 R429 C452 C453 C454 C456 C457 R432 R433 R436 R437 R440 R441 R444 R445 R446 C480 C481 C482 C483 C484 C485 C486 C487 C488 R460 C489 R461 R462 R463 R464 R465 R466 R467 R468 C490 FL401 R469 C491 C492 C493 C494 C495 C496 C497 C498 R470 C499 R471 R472 R477 R478 R479 R480 R481 R482 R483 R484 R485 R486 R487 R488 PbF 1 55 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 1 2 19 20 ORDER NO. 1 68 1 68 1 68 1 68 1 6 C4 TNPA3564 1 2 3 1 CRNO.7 SEE REVERSE FOR ORDER NO. TH-50PV500E/B C4-BOARD TNPA3564 TH-50PV500E/B C4-BOARD TNPA3564 C4-BOARD (COMPONENT SIDE) TNPA3564 C4-BOARD (FOIL SIDE) TNPA3564 C4 Parts Location C4-BOARD IC7401 D-2 IC7402 C-2 IC7403 C-2 IC7404 C-2 IC7405 B-2 IC TH-50PV500E / TH-50PV500B 63 13.15. C5-Board A B C D E F G H I 1 2 3 4 5 6 C50 C51 C54 C55 CB4 CB5 CB6 CB7 C52 C53 C501 C502 C503 C511 C512 C513 C518 C519 C520 C521 C522 C525 D501 D502 C527 D503 D504 R501 C529 D505 R502 D506 D507 R503 D508 R504 R505 R506 R507 C530 R508 IC501 R509 IC502 IC503 IC504 IC505 C538 R510 C539 R511 R512 R513 R514 R515 R516 R517 R518 C540 R519 C541 C542 C543 C546 C547 C548 R520 C549 R521 R522 R523 R524 R525 R526 R527 C550 R528 C551 R529 C552 C553 C554 C555 C556 C557 C558 R530 C559 R531 R532 R533 R534 R535 R536 R537 C560 R538 C561 R539 C562 C563 C564 C565 C566 C567 C568 R540 C569 R541 R542 R543 R544 R545 R546 R547 C570 R548 C571 R549 C572 C573 C574 C575 C576 C577 C578 R550 C579 R551 R552 R553 R554 R555 R556 R557 R558 C580 R559 C581 C582 C583 C584 C585 C586 C587 R560 C588 R561 C589 R562 R563 R564 R565 R566 R567 R568 C590 FL501 R569 FL502 R570 R573 R574 R577 R578 R581 R582 R585 R586 R587 R588 R589 R590 R591 R592 R593 ZA501 ZA502 ZA503 ZA504 ZA505 L501 L502 L503 L504 L505 L506 L507 L508 D509 PbF C5 TNPA3565 1 CRNO.7 C5MM1 C5MM3 C5MM4 C5MM2 1 50 1 55 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 ORDERNO. 1 68 1 68 1 68 1 68 1 6 1 6 1 68 1 68 TNPA3565 1 C5 2 3 1 SEE REVERSE FOR ORDER NO. TH-50PV500E/B C5-BOARD TNPA3565 TH-50PV500E/B C5-BOARD TNPA3565 C5-BOARD (COMPONENT SIDE) TNPA3565 C5-BOARD (FOIL SIDE) TNPA3565 C5 Parts Location C5-BOARD IC7501 C-2 IC7502 D-2 IC7503 D-2 IC7504 E-2 IC7505 F-2 IC TH-50PV500E / TH-50PV500B 64 13.16. C6-Board A B C D E F G H I 1 2 3 4 5 6 C60 CB1 CB2 CB3 C6 TNPA3566 1 CRNO.7 C6MM2 C6MM1 C61 C6MM3 R680 R681 R682 R683 R684 R685 R686 R687 R688 R689 R690 R691 R692 R693 R696 R697 ZA601 ZA602 ZA603 ZA604 ZA605 R700 L601 L602 L603 L604 L605 L606 C601 C602 C611 C612 C613 C614 C624 D601 D602 D603 D604 C629 D605 R601 D606 R602 R603 R604 R605 R606 R607 C630 R608 C631 R609 IC602 C632 C633 IC603 IC604 C635 C636 IC606 C637 R610 R611 R612 R613 R614 R615 R616 R617 C640 R618 C649 R621 R624 R626 R628 C651 C652 C653 C654 C655 C656 C657 R630 C658 C659 R632 R634 R637 R638 C660 R639 C661 C662 C663 C664 C665 C666 C667 R640 R641 C669 R642 R643 R644 R645 R646 R647 R648 C670 R649 C671 C672 C673 C674 C675 C676 C677 C678 R650 C679 R651 R652 R653 R654 R655 C680 C681 C682 C683 C684 C685 FL601 R677 PbF 1 50 ORDER NO. 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 68 1 68 1 68 1 6 C6 TNPA3566 1 2 3 1 CRNO.7 SEE REVERSE FOR ORDER NO. TH-50PV500E/B C6-BOARD TNPA3566 TH-50PV500E/B C6-BOARD TNPA3566 C6-BOARD (COMPONENT SIDE) TNPA3566 C6-BOARD (FOIL SIDE) TNPA3566 C6 Parts Location C6-BOARD IC7602 C-2 IC7603 D-2 IC7604 E-2 IC7606 F-2 IC TH-50PV500E / TH-50PV500B 65 13.17. SC-Board A 1 3 5 2 4 6 C E G I B D F H SC41 SC42 Q513 Q514 Q515 Q516 D501 D502 D503 D504 Q531 D511 Q532 D512 Q537 Q538 D521 D522 D525 D526 D527 L411 L412 L413 SC90 L812 L813 D563 R762 R381 R382 R383 R384 R388 C401 C402 C403 C404 C405 C406 C407 Q602 C413 C414 C801 C806 C807 C808 C614 C809 C615 C422 C423 C425 C426 C816 C623 Q814 Q815 Q819 R601 R602 R411 D415 C821 R412 Q820 C824 C825 C828 C829 C636 C637 IC801 C831 C641 C836 L501 L502 C453 L503 L504 L505 L506 L507 L508 VR601 L509 TP005 VR602 TP006 TP007 TP008 TP009 L510 R823 C658 TP010 VR801 TP011 TP012 R827 TP013 TP014 TP015 TP016 TP017 TP018 TP019 L521 L522 L523 L524 TP020 L525 TP021 L526 TP022 L527 TP023 L528 TP024 R839 TP025 TP026 TP027 TP028 TP029 TP030 R845 TP031 TP032 R846 TP033 R847 TP034 R848 TP035 T801 TP036 T802 TP037 TP038 TP039 R852 SC2 TP040 TP041 L545 TP042 L546 TP043 L547 TP044 L548 TP045 L549 TP046 TP047 TP048 TP049 R860 L550 L551 L552 TP050 TP051 TP052 TP053 TP054 TP060 TP061 TP062 TP063 JS801 SC23 C501 C502 C503 C504 Q501 C505 Q502 C506 Q503 C507 C508 PbF SC 1 3 2 1 TNPA3567 CR No.6 A1 A2 B2 B1 B40 B39 A40 A39 A1 A2 B2 B1 B40 B39 A40 A39 G C E G C E G C E G C E A A K A A K A A K A A K S D G A A K S D G A A K S D G S D G A A K A A K A A K A A K A A K 1 6 SEE REVERSE FOR ORDER NO. A A K G D S E C B E B C E C B E B C 1 2 3 4 5 P1 PT P2 V1 V2 S1 S2 S3 ST 1 5 6 1 0 1 6 1 3 G C E G C E G C E SC-BOARD (FOIL SIDE) TNPA3567 TH-50PV500E/B SC-BOARD TNPA3567 TH-50PV500E/B SC-BOARD TNPA3567 TH-50PV500E / TH-50PV500B 66 TH-50PV500E/B SC-BOARD PARTS LOCATION TH-50PV500E/B SC-BOARD PARTS LOCATION Parts Location SC-BOARD (FOIL SIDE) IC6801 H-3 Q6501 D-4 Q6502 D-4 Q6503 E-4 Q6513 D-4 Q6514 C-4 Q6515 C-4 Q6516 B-4 Q6531 D-2 Q6532 E-2 Q6537 D-2 Q6538 C-2 Q6602 F-4 Q6814 A-5 Q6815 B-4 Q6819 F-3 Q6820 F-3 IC TRANSISTOR TP4038 G-5 TP4039 G-5 TP4043 G-5 TP6005 B-1 TP6006 B-1 TP6007 B-1 TP6008 B-1 TP6009 B-1 TP6010 B-1 TP6011 B-1 TP6012 B-1 TP6013 E-1 TP6014 E-1 TP6015 E-1 TP6016 E-1 TP6017 E-1 TP6018 E-1 TP6019 E-1 TP6020 E-1 TP6021 E-1 TP6022 E-1 TP6023 E-1 TP6024 E-1 TP6025 E-1 TP6026 E-1 TP6027 E-1 TP6028 E-1 TP SC Parts Location SC-BOARD (COMPONENT SIDE) IC6411 D-2 IC6412 C-2 IC6413 C-2 IC6421 F-1 IC6501 E-3 IC6502 D-2 IC6603 F-2 IC6610 G-4 IC6611 G-4 IC6620 D-5 IC6640 C-5 IC6650 A-5 IC6651 A-5 IC6652 B-5 IC6653 B-5 IC6654 B-5 IC6801 A-3 IC6812 H-4 IC6814 B-4 IC6815 C-3 IC6817 B-2 IC6818 B-4 IC Q6411 F-1 Q6412 C-2 Q6413 C-2 Q6501 E-4 Q6502 E-4 Q6503 D-4 Q6513 E-4 Q6514 F-4 Q6515 F-4 Q6516 F-4 Q6531 E-2 Q6532 D-2 Q6537 E-2 Q6538 F-2 Q6551 E-3 Q6552 E-3 Q6559 F-3 Q6567 D-2 Q6568 D-2 Q6571 E-2 Q6572 E-2 Q6577 H-4 Q6601 G-5 Q6602 C-4 Q6604 D-5 Q6611 D-4 Q6612 D-4 Q6613 E-4 TRANSISTOR TP15V G-1 TPSC1 E-5 TPSOS1 D-2 TPVAD B-4 TPVSCN A-4 TPVSET G-5 TPVSET2 B-4 TPVSUS G-2 TP TP6029 E-1 TP6030 E-2 TP6031 E-2 TP6032 B-5 TP6033 B-5 TP6034 B-5 TP6035 B-5 TP6036 B-5 TP6037 B-5 TP6040 G-5 TP6041 G-5 TP6042 G-5 TP6044 B-5 TP6045 B-5 TP6046 B-5 TP6047 B-5 TP6048 B-5 TP6049 G-5 TP6050 G-5 TP6051 G-5 TP6052 G-5 TP6053 G-5 TP6054 G-4 TP6060 F-3 TP6061 A-5 TP6062 F-5 TP6063 C-5 Q6614 E-4 Q6615 E-4 Q6616 E-4 Q6617 F-4 Q6618 F-4 Q6619 F-4 Q6630 D-5 Q6631 D-5 Q6632 E-5 Q6633 E-5 Q6634 E-5 Q6635 E-5 Q6636 F-5 Q6650 C-5 Q6651 C-5 Q6652 C-5 Q6654 C-5 Q6655 G-4 Q6656 G-4 Q6658 H-4 Q6659 H-4 Q6660 D-5 Q6660 F-3 Q6661 D-5 Q6664 C-5 Q6665 D-4 Q6666 B-5 Q6667 B-5 Q6668 B-5 Q6670 B-5 Q6689 B-5 Q6814 H-5 Q6815 G-4 Q6816 A-4 Q6817 A-4 Q6818 A-4 Q6819 C-3 Q6820 C-3 Q6821 B-2 Q6822 B-5 Q6823 B-5 Q6824 A-4 TH-50PV500E / TH-50PV500B 67 A 1 3 5 2 4 6 C E G I B D F H C515 SC41 C516 SC42 Q513 C517 Q514 Q515 SC45 Q516 SC46 D501 D502 D503 D504 D505 R501 D506 R502 D507 R503 D508 R504 R505 R506 C531 IC501 IC502 C533 IC503 C534 Q531 D511 Q532 C536 D512 C537 C538 D517 Q537 D518 Q538 D519 D521 R711 R712 D522 R713 D525 R716 D526 R717 D527 R718 R719 R525 R526 R527 R528 R529 R720 R721 D531 L411 Q551 D532 L412 Q552 R722 L413 D533 R530 C559 R531 R532 Q559 C560 C561 C562 C563 C564 Q560 SC90 C565 D543 D544 D545 R735 D546 R736 Q567 R737 R738 Q568 R739 L812 L813 C570 L814 C571 L815 L816 C572 C573 R740 R741 Q571 R742 Q572 R743 R744 C578 R745 C579 R746 Q577 R747 R748 R361 R362 R363 R364 C582 R367 C583 R368 C584 R751 C585 D561 R752 C586 D562 R753 D563 C587 D564 C589 D565 R755 R561 R756 R562 R757 R758 R759 C590 R375 C591 R569 R376 R377 R378 R760 R379 R761 R762 R763 R764 R573 R574 R381 R382 R383 R384 R385 R386 R387 R388 R389 R581 R390 R585 R586 L677 L678 L679 L692 L693 L698 L699 C401 C402 C403 C404 C405 C406 C407 Q601 Q602 C413 Q604 C414 Q411 Q412 Q413 C801 C611 C806 C612 C807 C613 C808 C614 C809 Q611 C615 C421 Q612 C422 C616 Q613 C423 C617 Q614 C618 C425 Q615 C619 C426 Q616 Q617 Q618 Q619 C812 C813 C814 C620 C815 C621 C816 C817 C623 Q814 C624 C818 Q815 C431 C625 C819 C432 Q816 C626 C433 Q817 C627 C434 Q818 C628 D411 Q819 C435 R601 C436 D412 R602 D413 C437 R603 D414 C438 C820 R604 R411 D415 C439 C821 R605 R412 D416 C822 C823 D417 D418 Q820 C630 C824 R415 Q821 D419 C631 C825 C826 R416 Q822 C632 R417 Q823 C633 R418 C440 C634 Q630 C828 Q824 R419 D611 C829 Q631 C635 IC411 C442 Q632 D612 C636 IC412 C637 Q633 D613 IC413 R804 C444 D420 D614 Q634 C638 R805 D421 R611 Q635 D615 C639 R806 D422 D616 R612 Q636 R807 D423 D617 R613 R808 C448 R420 C830 D618 R614 R809 IC801 R421 C831 R615 D619 R422 C832 R616 R617 C833 C834 R618 IC610 C641 C835 R619 R425 IC611 C836 R426 D813 R427 R810 D814 D620 IC421 R429 D815 L501 D816 D622 L502 C453 D817 L503 D623 R620 D818 L504 D624 D819 D625 R621 L505 R622 D626 L506 D627 L507 R430 L508 R431 R625 D629 VR601 L509 IC812 R432 R626 VR602 R433 R627 R434 R628 D820 IC620 IC814 R435 R629 IC815 D821 IC621 C651 PC601 D822 R436 IC816 PC602 R437 IC817 C653 D823 R438 IC818 Q650 D630 L510 D824 PC604 R439 C655 Q651 D631 D825 PC605 C656 D826 Q652 D632 R823 D827 D633 C657 PC607 R824 R630 C658 D828 D634 Q654 R825 D829 VR801 R631 C659 D635 Q655 R826 R632 D636 Q656 R827 D637 R633 R828 R440 D638 Q658 R829 R441 Q659 D639 D830 R444 C660 IC630 D831 R445 C661 D832 R446 C662 D833 R447 C663 D834 R830 R448 Q660 D640 C664 D835 R831 R449 L521 Q661 D641 C665 D836 R832 L522 D642 PC422 C666 R833 D643 L523 PC423 D837 C667 R834 D644 Q664 L524 PC424 D838 C668 D645 R835 L525 Q665 PC425 D839 C669 D646 Q666 R836 L526 D647 Q667 R837 L527 D648 R450 Q668 L528 R838 D649 R451 Q669 R839 R452 R453 PC813 D840 R454 IC640 C670 R455 C671 C672 D650 R458 R840 Q670 D651 R841 R459 PC819 R842 D652 D653 R843 D654 R844 D655 R845 D656 R846 D657 R847 D658 R848 R460 R461 T801 T802 R462 R463 IC650 R464 IC651 R465 R466 IC652 IC653 R467 IC654 R468 R851 R469 R852 SC2 R853 R854 R855 L545 R856 R662 L546 R857 L547 R470 R858 L548 R664 R859 R471 L549 R472 R667 R473 R668 R474 R669 R475 R476 R477 R860 L550 R478 R861 L551 R479 R862 L552 R863 R864 R865 R671 R866 R867 R868 R674 R480 R675 R869 R481 R482 R483 R484 R870 R488 R871 R872 R873 R874 R875 R876 R684 R685 R686 R687 R886 R887 R888 JS401 R889 JS402 R696 R697 R698 R699 R890 JS801 SC20 SC23 C501 C502 C503 C504 Q501 C505 Q502 C506 Q503 C507 C508 ZA401 ZA402 ZA403 C513 TPVSET2 TPVAD TPVSCN TPSC1 TPVSET TPVSUS TP15V TPSOS1 SCMM1 PbF TNPA3567 SC CR No.6 1 DIP Discharge A1 A2 B1 B2 A40 A39 B40 B39 A1 A2 B1 B2 A40 A39 B40 B39 C G E C G E 1 8 9 16 C G E 2 10 1 9 C G E 2 10 1 9 A A K A A K A A K A A K 16 9 S D G A A K S D G A A K S D G S D G A A K A A K A A K A A K A A K 1 6 A A K ORDER NO. G S D G S D G D S G S D G S D G S D G S D 1 8 G S D G S D G S D G S D G S D B C E B C E B C E B C E B C E G S D G S D 1 10 11 20 G S D 1 10 11 20 G S D 1 7 8 14 G S D G S D S D G 1 2 3 4 5 1 1 6 9 8 1 4 5 8 1 4 5 8 1 4 5 8 G S D G S D G S D G D S 1 4 5 8 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 4 5 8 1 3 4 2 P1 PT V1 V2 S1 S2 S3 P2 ST 1 5 6 10 1 7 8 14 1 7 8 14 1 6 1 2 19 20 3 1 C G E C G E C G E SC-BOARD (COMPONENT SIDE) TNPA3567 TH-50PV500E/B SC-BOARD TNPA3567 TH-50PV500E/B SC-BOARD TNPA3567 TH-50PV500E / TH-50PV500B 68 13.18. SU-Board A B C D E F G H I 1 2 3 4 5 6 C6900 C6901 C6902 C6903 C6904 C6905 C6906 C6907 C6908 C6909 C6910 C6911 C6912 C6913 C6914 C6915 C6916 C6917 C6918 D6901 D6902 D6903 D6904 D6905 R6901 D6906 R6902 D6907 R6903 D6908 R6904 D6909 R6905 R6906 R6907 R6908 R6909 IC6901 IC6902 IC6903 IC6904 IC6905 IC6906 R6910 R6911 R6912 SU45 SU1 SU2 SU3 SU4 TPSU1 TPSU2 TNPA3219 SU 1 SU41 PbF 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 10 ORDER NO. A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 TNPA3219 SU 3 2 1 1 SU41 PbF SEE REVERSE FOR ORDER NO. TH-50PV500E/B SU-BOARD TNPA3219AB TH-50PV500E/B SU-BOARD TNPA3219AB SU-BOARD(COMPONENT SIDE) TNPA3219AB SU-BOARD(FOIL SIDE) TNPA3219AB Parts Location SU-BOARD IC6901 B-2 IC6902 C-2 IC6903 D-2 IC6904 F-2 IC6905 G-2 IC6906 H-2 TPSU1 C-2 TPSU2 G-2 IC TP SU TH-50PV500E / TH-50PV500B 69 13.19. SD-Board A B C D E F G H I 1 2 3 4 5 6 C6920 C6921 C6922 C6923 C6924 C6925 C6926 C6927 C6928 C6929 C6930 C6931 C6932 C6933 C6934 C6935 D6911 C6936 D6912 C6937 D6913 C6938 D6914 D6915 D6916 D6917 D6918 D6919 IC6911 IC6912 IC6913 IC6914 IC6915 IC6916 R6921 R6922 R6923 R6924 R6925 R6926 R6927 R6928 R6929 TPSD1 TPSD2 R6930 R6931 R6932 SD46 SD1 SD2 SD3 SD4 SD TNPA3220 1 SD42 PbF 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 2 5 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 2 5 26 50 51 75 76 100 ORDER NO. 1 10 A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 TNPA3220 SD 3 2 1 1 SD42 PbF SEE REVERSE FOR ORDER NO. TH-50PV500E/B SD-BOARD TNPA3220AB TH-50PV500E/B SD-BOARD TNPA3220AB SD-BOARD(COMPONENT SIDE) TNPA3220AB SD-BOARD(FOIL SIDE) TNPA3220AB SD Parts Location SD-BOARD IC6911 A-2 IC6912 C-2 IC6913 D-2 IC6914 E-2 IC6915 F-2 IC6916 H-2 TPSD1 C-2 TPSD2 F-2 IC TP TH-50PV500E / TH-50PV500B 70 13.20. SS-Board A 1 3 5 2 4 6 C E G I B D F H SS23 SS55 TNPA3559 1 SS2 TNPA3560 1 SS3 SS22 SS56 PbF PbF 7 6 1 2 1 13 SEE REVERSE FOR ORDER NO. 7 6 1 2 SEE REVERSE FOR ORDER NO. 1 13 Q140 Q141 Q142 Q143 L200 L201 L202 L203 L010 L204 L011 L205 L012 L206 L013 L014 L015 SS11 SS12 D145 D146 D147 SS20 SS21 C170 C171 C172 C173 L030 C174 L031 C175 L032 C176 L033 SS34 SS35 L040 L041 C185 L042 L043 L044 L045 L239 L046 L047 SS42 L240 L241 SS51 SS52 SS53 L250 SS54 L070 L071 L072 L073 L074 R190 R191 L075 L076 L077 Q000 Q001 C200 C201 C202 C206 C207 C208 C209 C210 C211 C212 C213 C215 D000 Q020 D001 C219 Q021 C224 D010 D011 D016 C234 D020 D021 C240 Q240 D030 D031 C061 C255 C062 C063 Q256 Q257 C266 C267 C268 C269 R247 R248 C080 C081 C082 C083 C084 TP1 C085 TP2 C086 R252 TP3 C087 D063 TP4 TP5 TP6 TP7 TP8 TP9 D269 TP904 TP905 R271 R272 R274 VR250 R275 TP910 TP911 TP913 TP914 TP10 TP915 TP11 TP12 TP916 TP13 TP917 TP918 TP14 TP919 TP15 TP16 TP17 TP18 TP19 TP920 TP921 TP922 TP923 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 TP30 L180 TP31 L181 TP32 L182 TP33 JS200 Q100 Q101 Q102 1 SS TNPA3568 CR No.6 1 3 2 PbF E C G E C G E C G E C G 1 7 1 10 A A K A A K A A K 7 6 2 1 7 6 2 1 1 3 1 10 1 10 1 3 1 1 3 1 1 3 1 1 3 1 SEE REVERSE FOR ORDER NO. G D S G D S A A K G D S A A K G D S A A K K A A K A A A A K A A K E C B K A A A A K B C E C B E E C G E C G E C G Parts Location SS-BOARD (FOIL SIDE) Q6001 C-3 Q6000 D-3 Q6020 E-3 Q6021 E-3 Q6102 C-2 Q6101 C-2 Q6100 D-2 Q6140 D-2 Q6141 E-2 Q6142 E-2 Q6143 E-2 Q6240 G-4 Q6256 G-2 Q6257 G-1 TP1 B-4 TP2 B-5 TP3 B-5 TP4 B-5 TP5 B-5 TP6 B-5 TP7 B-5 TP8 B-4 TP9 A-4 TP10 A-4 TP11 A-3 TP12 B-4 TP13 H-3 TP14 H-3 TP15 H-3 TP16 H-3 TP17 H-3 TP18 H-3 TP19 H-3 TP20 H-3 TP21 H-3 TP22 H-3 TP23 H-3 TP24 E-4 TP25 A-2 TP26 B-1 TP27 F-1 TP28 H-1 TP29 E-1 TP30 F-4 TP31 H-2 TP32 H-5 TP33 B-4 TP6904 A-3 TP6905 A-3 TP6910 H-4 TP6911 H-4 TP6913 H-3 TP6914 H-3 TP6915 H-3 TP6916 A-3 TP6917 A-3 TP6918 H-3 TP6919 H-3 TP6920 H-3 TP6921 H-3 TP6922 H-3 TP6923 H-3 TRANSISTOR TP SS2 SS SS3 SS2-BOARD (FOIL SIDE) TNPA3559 SS3-BOARD (FOIL SIDE) TNPA3560 TH-50PV500E/B SS-BOARD TNPA3568 SS2-BOARD TNPA3559 SS3-BOARD TNPA3560 TH-50PV500E/B SS-BOARD TNPA3568 SS2-BOARD TNPA3559 SS3-BOARD TNPA3560 SS-BOARD (FOIL SIDE) TNPA3568 TH-50PV500E / TH-50PV500B 71 A 1 3 5 2 4 6 C E G I B D F H SS23 SS55 TNPA3559 SS2 1 TNPA3560 1 SS3 SS22 SS56 PbF PbF 7 6 1 2 1 1 3 ORDER NO. 7 6 1 2 ORDER NO. 1 13 R104 R105 IC100 C130 C131 C132 C134 C135 C140 C141 C142 C143 Q140 C144 L000 Q141 C145 L001 Q142 Q143 Q144 R124 R125 R126 R127 L200 L201 L202 L203 L010 L204 L011 L205 L012 L206 L013 L014 L015 SS11 SS12 R137 R138 L210 R139 L211 L212 L213 D140 Q160 L214 L020 D141 Q161 L215 L021 L216 D142 L217 D143 L218 R140 R141 L219 D145 R142 D146 R143 D147 R144 SS20 R145 SS21 R146 R147 C170 L220 C171 L221 C172 L223 C173 L030 L224 C174 L031 C175 L225 L032 C176 L226 L033 SS34 L230 L231 SS35 L232 L233 L234 L040 L235 L041 C185 L236 L042 L043 L044 L045 L239 L046 L047 SS42 SS44 L240 L241 SS51 R176 SS52 R177 SS53 L250 R178 SS54 L251 R179 L252 L068 L070 D190 L071 L072 L073 L074 R190 R191 L075 L076 L077 R195 R196 R197 R198 R199 L098 C000 C001 Q000 Q001 C200 C201 C202 Q200 C010 Q201 C011 C012 C206 Q202 Q203 C207 Q010 Q204 C208 Q011 C209 C015 C016 C017 C019 ZA101 ZA102 ZA103 C210 C211 C212 C213 C214 Q210 C020 C215 Q211 C021 C216 Q212 C217 Q213 D000 Q020 C218 D001 C219 Q021 D002 R000 R001 R002 R003 C220 C221 C222 C223 IC000 D200 C224 Q220 C030 Q221 D201 C225 C031 D202 C226 Q223 D203 Q224 D204 D010 Q030 R200 D011 D205 Q225 Q031 C035 R201 D012 D206 R202 C036 D013 C037 D207 R203 D014 D208 R204 D209 D015 C039 R205 D016 R012 R206 R013 R207 D017 IC200 R014 R208 D018 IC201 R015 R209 C232 R016 C233 R017 D210 Q230 C234 R018 D211 Q231 C235 R019 C042 Q232 D212 C043 Q233 D213 C044 D020 R210 D214 D215 C045 D021 R211 C046 R212 C047 R213 C048 R214 R020 C049 R215 R021 R216 R022 R217 R023 R218 C240 R219 C050 IC020 Q240 D220 D221 D223 D030 D224 R220 R221 D225 D031 D226 R223 D227 R224 D228 D035 R225 R032 D036 R226 R033 R227 R034 IC220 C250 R228 R229 R035 C251 IC221 C060 Q250 C061 Q251 C255 C062 C257 C063 R230 Q060 C258 C064 R231 C065 C066 Q256 R232 C067 R233 Q257 R040 C068 R234 R041 Q259 C069 R235 R042 R236 R043 R237 R238 C260 C261 R239 C262 R047 C263 R048 C070 D240 Q260 C264 C071 D241 Q261 C265 D242 C266 C267 C268 R240 C269 R241 R242 R243 R244 R245 R052 R246 R053 R247 R054 IC240 R248 R055 R249 R056 C273 R057 C274 R058 C080 D250 C275 C081 D251 C276 C082 C277 C083 C084 R250 D254 D060 C085 R251 D061 C086 D256 D062 R252 R253 C087 D257 D063 D258 D064 R060 R254 D065 D259 R061 R255 R256 D066 R062 R257 R063 C280 IC250 R258 R064 IC251 R259 R065 IC252 R066 R067 IC060 R068 IC061 R069 IC062 D262 D263 R260 D264 R261 D265 R262 R263 R264 R070 D269 R265 R071 R266 R072 R267 R073 R268 R074 R075 R269 R076 R077 R078 R079 D271 R270 R271 R272 R080 R274 VR250 R081 R275 R082 R276 R277 R278 R280 R281 R282 R283 R284 R286 R291 R292 R293 R295 R296 R297 R298 R299 L180 L181 L182 L183 L184 JS200 L190 C100 C101 C102 C103 Q100 Q101 Q102 D100 Q120 Q121 D101 D102 R100 R101 R102 R103 SS 1 CR No.6 TNPA3568 TPSS1 TP15V TPSOS3 TPSOS2 TPVe TPVSUS TPVDA TPDL TPDR Discharge PbF 16 9 8 1 E G C E G C E G C E G C ORDER NO. 1 7 10 1 K A A K A A K A A 7 6 2 1 7 6 2 1 3 1 10 1 10 1 20 19 2 1 13 1 13 1 13 1 13 1 G D S G D S D S G D S G D S G D S G D S G K A A G D S K A A G D S 16 9 8 1 S G D S G D S G D S G D K A A K A A S G D K A A 1 8 9 16 16 9 8 1 K A A K A A 16 9 8 1 E C B K A A K A A 1 8 9 16 9 8 1 16 G S D G S D E C B E C B G S D G S D 20 11 10 1 16 9 8 1 1 4 5 8 20 11 10 1 8 5 4 1 8 5 4 1 E G C E G C E G C Parts Location SS-BOARD (COMPONENT SIDE) IC6000 F-4 IC6020 E-4 IC6060 B-3 IC6061 E-3 IC6062 C-4 IC6100 F-2 IC6200 E-5 IC6201 D-5 IC6220 F-4 IC6221 F-4 IC6240 B-3 IC6250 A-2 IC6251 B-3 IC6252 B-1 Q6000 F-3 Q6001 F-3 Q6010 F-3 Q6011 F-3 Q6020 E-3 Q6021 D-3 Q6030 F-3 Q6031 E-3 Q6050 E-3 Q6100 F-2 Q6101 F-2 Q6102 G-2 Q6120 F-3 Q6121 F-2 Q6140 E-2 Q6141 E-2 Q6142 E-2 Q6143 D-2 Q6144 B-2 Q6160 E-2 Q6161 E-2 Q6200 E-4 Q6201 E-4 Q6202 C-4 Q6203 C-4 Q6204 C-5 Q6210 E-4 Q6211 E-5 Q6212 D-4 Q6213 D-4 Q6220 G-5 Q6221 G-4 Q6223 F-4 Q6224 G-4 Q6225 G-4 Q6230 G-5 Q6231 G-5 Q6232 G-4 Q6233 G-4 Q6240 B-4 Q6250 B-2 Q6251 B-2 Q6256 B-1 Q6257 B-1 Q6259 B-3 Q6260 B-3 Q6261 B-3 TP15V H-5 TPDL A-4 TPDR A-3 TPSOS2 A-3 TPSOS3 B-3 TPSS1 C-2 TPVDA H-4 TPVe B-2 TPVSUS H-4 IC TRANSISTOR TP SS2 SS SS3 SS-BOARD (COMPONENT SIDE) TNPA3568 SS2-BOARD (COMPONENT SIDE) TNPA3559 SS3-BOARD (COMPONENT SIDE) TNPA3560 TH-50PV500E/B SS-BOARD TNPA3568 SS2-BOARD TNPA3559 SS3-BOARD TNPA3560 TH-50PV500E/B SS-BOARD TNPA3568 SS2-BOARD TNPA3559 SS3-BOARD TNPA3560 TH-50PV500E / TH-50PV500B 72 13.21. G-Board A 1 3 5 2 4 6 C E G I B D F H G-BOARD (FOIL SIDE) TXN/G1XRSE G-BOARD (COMPONENT SIDE) TXN/G1XRSE TH-50PV500E/B G-BOARD TXN/G1XRSE TH-50PV500E/B G-BOARD TXN/G1XRSE G11 JK7900 G51 CN7901 C7902 Q7901 Q7902 JK3701 C7911 C7912 C7915 C7916 C7922 C7926 R7915 R7916 R7917 C7754 C7757 C7951 C7953 C7954 G2 C7957 G3 C7958 C7961 C7964 C7965 C7968 C7969 C7972 C7975 C7976 C7979 C7980 C7982 C7983 C7986 C7987 R7961 R7962 R7963 R7968 C7990 C7991 R7985 R3721 R3722 R3723 R3724 R3725 R3726 JS7905 JS7906 JS7907 JS7908 JS7910 JS7911 JS7921 FL3710 FL3711 FL3712 JS3701 JS3702 JS3703 JS3708 JS3711 JS3712 L7901 L7902 L7905 ZA3701 PbF TNPA3496 1 G AB AC AD AE AF AG 1 50 1 35 34 68 R L V 1 35 R L V ORDER NO. 1 12 1 3 1 2 3 4 1 2 3 4 1 2 3 4 L3701 L3702 L3703 L3704 L3705 L3706 L3707 L3708 L3709 C7900 C7901 C7903 C7904 C7905 C7906 C7907 C7908 C7909 C7910 JK3701 C7914 C7923 C7928 C7929 R7901 R7902 R7903 R7904 R7905 R7906 R7907 R7908 R7909 IC7904 IC7905 IC7906 IC7907 IC7908 R7910 C7938 IC7909 R7911 C7939 R7912 R7913 R7914 C7941 C7942 C7943 C7944 C7945 C7946 R7921 R7922 R7925 R7926 R7928 C7950 R7929 C7952 C7955 C7956 R7930 R7931 C7959 R7932 R7933 R7934 R7935 R7936 R7937 R7938 C7960 R7939 C7962 C7963 C7966 C7967 R7940 R7941 C3701 C3702 R7942 C3703 C3704 C3705 C3706 R7947 C3707 R7948 C7970 C3708 R7949 C7971 C3709 C7973 C7974 C7977 R7950 C7978 C3710 R7951 C3711 R7952 C3712 R7953 R7954 R7955 R7956 R7957 R7958 R7959 C7981 C7984 C7985 R7960 C7988 C7989 D3701 D3702 R7967 D3703 D3704 D3705 R3701 D3706 R3702 R3703 D3707 R3704 D3708 R3705 D3709 R3706 R3707 R7970 R3708 R7971 R3709 R7972 R7973 D3710 R7975 D3711 R7977 R7978 R3710 R7979 R3711 R3712 R3713 R3714 R3715 R3716 R3717 R7980 R3718 R7981 R3719 R7982 R7983 R7984 R7986 R7987 R3720 JS7901 JS7902 JS7903 JS7904 JS3704 JS3705 JS3706 JS3707 JS3713 C7850 C7851 C7852 C7853 C7854 L7904 C7855 C7856 C7857 C7858 C7859 C7860 L7910 C7861 C7862 C7863 C7864 C7865 C7866 C7867 C7868 TP7900 ZA3701 PbF G 1 TNPA3496 R L V R L V SEE REVERSE FOR ORDER NO. 1 7 8 14 1 10 11 20 1 7 8 14 1 10 11 20 1 10 11 20 1 10 11 20 G Parts Location G-BOARD IC7908 B-5 IC7908 B-5 IC7905 B-5 IC7909 B-5 IC7906 C-5 IC7904 C-5 IC Q7901 D-3 Q7902 D-3 TP7900 C-6 TRANSISTOR TP TH-50PV500E / TH-50PV500B 73 13.22. GK, GS, K and S-Board A 1 3 5 2 4 6 C E G I B D F H GS-BOARD (FOIL SIDE) TNPA3497AB GS-BOARD (COMPONENT SIDE) TNPA3497AB GK-BOARD (FOIL SIDE) TNPA3503AC GK-BOARD (COMPONENT SIDE) TNPA3503AC TH-50PV500E/B GS-BOARD TNPA3497AB S-BOARD TNPA3499AC GK-BOARD TNPA3503AC TH-50PV500E K-BOARD TNPA3498AC TH-50PV500B K-BOARD TNPA3498AD TH-50PV500E/B GS-BOARD TNPA3497AB S-BOARD TNPA3499AC GK-BOARD TNPA3503AC TH-50PV500E K-BOARD TNPA3498AC TH-50PV500B K-BOARD TNPA3498AD S-BOARD (COMPONET SIDE) TNPA3499AC S-BOARD (FOIL SIDE) TNPA3499AC K-BOARD (COMPONET SIDE) TNPA3498AC (PV500E) TNPA3498AD (PV500B) K-BOARD (FOIL SIDE) TNPA3498AC (PV500E) TNPA3498AD (PV500B) JK701 Q702 PA701 C724 R701 R702 R704 R707 C730 R711 R722 C759 R733 R734 R735 C760 C764 C765 R745 R746 C775 R757 R758 C781 R759 R760 R761 R766 R767 R768 R769 R770 FL710 FL711 R792 JS701 JS702 JS714 GS12 JS3709 JS3710 L721 GS52 GS TNPA3497 CRNo.7 1 1 8 9 2 3 4 5 6 7 ORDER NO. 1 2 3 4 1 2 3 4 1 40 1 2 29 30 Q701 C710 C711 C713 Q710 Q711 D701 C725 D702 C726 C727 R700 D704 C728 R703 R705 R706 R708 R709 C731 C732 C733 C734 C735 C736 C737 R713 R714 R717 IC712 IC713 IC714 C747 R720 C748 R721 R723 R724 R919 R725 R726 R727 C750 C753 R920 C755 C758 R732 C769 C770 C771 C772 C774 C777 R750 R751 C779 R755 R756 R763 R764 R765 R780 R781 R782 R783 R788 R789 R790 R791 R794 R795 R796 R797 R798 R799 JS712 JS716 JS717 L704 L712 L713 PbF CRNo.7 1 TNPA3497 GS SEE REVERSE FOR ORDER NO. 1 8 9 16 1 8 9 16 1 7 8 14 C2514 C2518 C2519 D2519 D2520 D2521 D2525 RM2510 K1 K2 K3 PbF TNPA3498 ORDER NO. 1 K 1 2 11 12 1 2 1 8 C2510 C2511 C2512 C2513 Q2510 Q2511 C2515 Q2512 C2516 Q2513 C2517 Q2518 Q2519 Q2520 Q2521 Q2522 D2510 D2511 D2512 D2513 D2514 D2515 R2512 D2516 R2513 D2517 D2518 R2515 R2516 R2517 R2518 R2519 IC2511 D2522 D2523 R2520 D2524 R2521 R2522 D2526 R2523 R2524 D2528 R2525 R2526 R2527 R2528 R2529 R2530 R2531 R2537 R2538 R2539 R2540 R2542 RM2510 R2544 R2545 R2549 R2550 R2552 R2554 R2556 R2557 R2558 R2559 R2560 R2561 R2562 R2563 R2564 R2565 R2566 R2567 R2568 R2569 R2570 R2571 K1 R2572 K2 R2573 PbF TNPA3498 K 1 FOR ORDER REVERSE SEE A A NO. 1 2 11 12 1 2 SW3751 SW3753 SW3754 SW3755 SW3756 SW3757 SW3758 GK3 SW3752 TNPA3503 1 GK CH.UP CH.DN VOL.UP (USA) CH.UP VOL.DN VOL.DN(USA) TV/VTR(USA) TV/VTR VOL.UP(USA) CH.DN(USA) OK(USA) ASPECT MENU(USA) TV GUIDE (USA) ORDER NO. PbF 1 3 C3750 C3751 SW3751 SW3753 SW3754 SW3755 SW3756 SW3757 SW3758 R3750 R3751 R3752 R3753 R3754 R3755 R3756 R3757 R3758 R3761 R3762 R3763 R3764 GK3 R3759 R3760 D3750 SW3752 SEE FOR ORDER NO. 1 REVERSE GK TNPA3503 PbF 1 3 SW2500 S1 S2 PbF 1 2 TNPA3499 1 S ORDER NO. 1 3 C2500 SW2500 R2501 S1 S2 PbF 1 2 TNPA3499 1 SEE REVERSE FOR ORDER NO. S 1 3 K S GS GK TH-50PV500E / TH-50PV500B 74 14 Block and Schematic Diagram 14.1. Schematic Diagram Notes TH-50PV500E / TH-50PV500B 75 14.2. Main Block Diagram SOS1 SOS2 SUSTAIN PULSE S.R DV15 HDMI INTERFACE 64 64 S.R 64 DV S.R VOLTAGE GENERATOR CONTROL PULSE PULSE SCAN SC2 SC23 SC20 SC HDMI IN SD P2 SCAN DRIVE P23 SCAN OUT D31 S.R S.R 64 64 S.R 64 S.R S.R 64 64 64 64 S.R S.R 64 S.R 64 S.R SU SCAN OUT KEY SCAN GK KEY SCAN GK3 REMOTE SENSOR AI SENSOR STB/ON LED DVB LED REMOTE SENSOR K K1 G3 G2 AV3 AUDIO IN AV3 IN VIDEO VIDEO AV3 S- G51 PC CARD SLOT AV3/PC CARD G L/R V S_V TUNER SIF V TUNER TA5 TA AM PV500E ONLY D-TV INTERFACE DVB-L/R DVB_CVBS DIGITAL SIGNAL DG5 DG3 HDSL OSD PEAKS_LITE DAC DL_DR CVBS MVY/MVC DG20 DC POWER PA SOS XV XV01 DG22 RGB PROCESSOR (GC4PRO) MAIN MCU LVDS TRANS- MITTER DG Y/UV CI SLOT Vsus 15V P12 FAN CONTROL PA20 Vda PB7 PA10 PB5 PA P5 PB FAN CONT POWER 15V PB31 P10 SOS PA7 DC/DC FAN PS_SOS LINE PB34 FILTER AC CORD P9 AVR RELAY AUDIO POWER 15V Wo_10V PA30 PB30 RECTIFIER 5V CONTROL RECTIFIER POWER SUPPLY 12V STANDBY PROTECTION(SOS) VOLTAGE VOLTAGE STANDBY P2 STB14V STB5V RECTIFIER FACTOR POWER AVR CONTROL CONTROL DC-DC CONV. SUSTAIN POWER SOS VOLTAGE 15V VOLTAGE CONVERTER PROCESS TUNER 30V VSUS CONTROL +12Vs(W) RECTIFIER STB_PS SUSTAIN VOLTAGE PROCESS VOLTAGE RECTIFIER VSUS P11 STB5V_M P5V P12V P25 FAN SOS P P30 F_STBY-14V VDA 15V AUDIO H2 SELECT INPUT VIDEO SELECT INPUT IN AV TERMINAL, H AV SWITCH,MSP H30 DC POWER H5 PC AUDIO AV1 SCART AV2 SCART AV4 SCART COMP VIDEO H1 H50 H51 H52 OUT AUDIO MSP PC IN SIF/AM(PV500E) TV-V L/R PV500B SW ONLY L/R L/R L/R V,R,G,B L/R C,V L/R V,R,G,B Y,PB,PR MAIN OUT OUT SUB L/R L/R L/R R,G,B Z2 SOUND CONTROL AMP L/R SQUAWKER AMP L/R WOOFER Z50 Z Z1 SPEAKER L/R SQUAWKER SPEAKER SPEAKER AMP L/R WOOFER L/R V,S-V SD MODULE ADV7499 A/D 10BIT Y,PB/C,PR,CVBS A/D (GC3FS) Y,PB/C,PR DG2 DG1 R,G,B R G B DAC AUDIO DG15 YG,UB SUPPORT CARD SLOT DEMOD TUNER D34 D33 FORMAT CONVERTER, PLASMA AI PROCESSOR LVDS D5 RECEIVER PICTURE OUTPUT PROCESSOR RGB FORMAT CONVERTER D25 OSD CONTROL CONTROL FPGA DISCHARGE FLASH MEMORY D20 MICOM D D3 EEPROM DC/DC CONVERTER SP12V PROCESSOR STB5V_M SUB-FIELD PLASMA AI P5V SUSTAIN CONTROL SOS DATA DRIVE VIDEO DATA SCAN CONTROL IIC L/R D32 SWITCH S POWER SWITCH STB-PS S1 POWER SDRAM GS52 V L/R MONO SD-CARD GS SD CARD SLOT PV500B ONLY L/R HDMI I/F RECEIVER +12Vs(S) Wo_9V PROCESSOR S.R. C43 S.R. C41 S.R. DATA DRIVER(RIGHT) ADDRESS VOLTAGE C2 C23 S.R. S.R. C1 S.R. VDA S.R. S.R. VDA C24 VDA C25 VDA VDA SS44 SS35 C44 C42 S.R. DATA DRIVER(CENTER) S.R. S.R. C54 C31 C55 C33 PULSE C52 C3 C50 SUSTAIN S.R. ERASE SUSTAIN DRIVE PULSE +15V (VE) STB-12V C22 SS C20 DATA DRIVER(CENTER) SS11 VSUS C11 C10 DATA DRIVER(LEFT) S.R. C61 C60 C51 S.R. C5 C53 S.R. DATA DRIVER(RIGHT) C35 S.R. SS12 S.R. VDA C21 VDA S.R. SS42 SS20 SS23 SS2 SS34 SS3 C6 S.R. S.R. SS22 S.R. S.R. SS21 C4 DATA DRIVER(LEFT) TH-50PV500E/B Main Block Diagram TH-50PV500E/B Main Block Diagram TH-50PV500E / TH-50PV500B 76 14.3. P-Board Block Diagram 15 2 10 Q551 D454 16 3 FB- 8 19 D305 17 1 1 17 D306 4 S3 BIAS 2 S4 3 5 24 11 3 PFC 13 12VC 1 7 3 STB_OUT 12VC CNPFC ZD408 23 ON/OFF 23 15V_OUT BIAS D455 22 VIN 25 D453 +5 26 IC401 F_STB_14V OVP P2 STB_IN IIn 18 MC603 20 GATE 6 6 D308 GND(BIAS) 14 4 5 D307 MC602 5V_OUT P23 VR351 2 L601 8 ZD310 K601 5V_ON PANEL_ON 9 L606 F_STB_14V D P10 23 AC+ F_STB_ON 8 1 21 4 AC- MC701 7 VCC D451 20 3 10 S2A ZC S5B 19 ALL_OFF AC_N 1 TO PB5 STB_ON VSUS 1 2 24 12VS(W) Vsus 180V Q451 MC301 RUSH 12 15V(FAN) FB_STB P30 VD_OUT PC_PFC_DET PFC_ON 13 AC IN 3 ZD409 Q605 BIAS 1 S1 R352 Q606 FAN SOS 12V_ON/OFF VDA -GND Q602 TO PB30 Q555 8 Q603 FAN CONT 4 VSUS STB_OFF 2 5VC 19 L604 5 5 +5 VS_LVP1 SW_MAIN 16 4 7 8 1 5V_ON 15VD RFCO_ON 10 D452 L=OK 2 VDA 9 11 T501 VDA 6 3 H=SOS 6 TH351 Q453 2 7 HV_ON 18 1 P5 L401 VS_LVP2 P12 VS_LVP2 12VS(S) 12VS(W) SW_MAIN 1 15VD 16 SW_MAIN 15VD 1 V1 13 TO SC23 TO SS12 PG 15VD FB_MULTI 18 8 6 VS-OUT 3 1 17 P1 4 VS_OUT VS_LVP1 9 Q452 8 2 20 FAN_CONT 1 STB_OFF 15V_IN FB 3 2 3 D351 P25 4 VSUS 15V ON/OFF 6 MC501 FAN_SOS 9 V2 NEUTRAL +5VC 7 12V/15V_ON RLY- +5VC AC_L MC601 PFC S6 TO D5 7 AC- 5 TO SC2 4 7 DISCHG AC- VSUS 3 F14V_ON 14 4 4 18 DC(+) ON 12VC P2 Q601 DC(-) 12VC 1 ZD601 MC604 LIVE 25 5 STB5V 2 RECTIFIER STB POWER CONTROL 10 S5A D602 1 V4 P9 1 11 ZD404 14 VR451 2 2 MC401 STB_OUT 9 5 RLY- V3 D501 S2B BIAS 8 L602 5 6 P11 TO PA10 16 3 11 4 -PFC 5 PC503 1 F_STB_14V 2 4 3 Q554 24 17 ON/OFF IC501 ZD309 22 +15V Q553 PS_SOS PG 4 16 VSUS 15 2 18 1 T301 ISUS 120V AC_DET 7 PG OUT IC301 VSUS 6 HV_ON 21 PFC 19 T401 5V 4 K602 TO SS11 8 2 VS_STOP 50/60Hz 12 7 PC_PFC_ON HV_ON PC_HV_ON RF601 3A 14 9 9 MC303 18 8 15 17 1 10 4 16 2 3 6 5 11 14 13 9 MC302 12 7 18 3 4 1 2 (HOT) AC DET MC603 (COLD) Q332 Q333 STB_IN 3 MC303 (HOT) (COLD) COLD HOT COLD HOT COLD HOT VS_STOP PANEL_ON ALL_OFF F_STB_ON PS_SOS POWER MODULE Exchanged board only Exchanged board only POWER MODULE Exchanged board only POWER MODULE Exchanged board only POWER MODULE Exchanged board only POWER MODULE Exchanged board only POWER MODULE POWER MODULE Exchanged board only POWER MODULE Exchanged board only P POWER SUPPLY MAIN ON/OFF RUSH ON/OFF PFC PFC CONTROL 10 11 POWER OUTPUT CONTROL POWER CONTROL Vsus POWER SUPPLY Vsus POWER SUPPLY MAIN SW ON/OFF STB ON/OFF ERROR DET OSC F14V_ON/OFF ERROR DET DRIVE VOLTAGE OSCILLATOR OSCILLATOR DRIVE VOLTAGE IPD TH-50PV500E/B P-Board Block Diagram TH-50PV500E/B P-Board Block Diagram F601 F602 F603 TH-50PV500E / TH-50PV500B 77 14.4. P-Board (1 of 2) Schematic Diagram L.F L.F L.F + + + + + Z601 750V C601 1.0u Z603 470V R683 1.8k L601 P2570207Z 1 2 3 4 A601 3.6kV A602 3.6kV L606 ELF15N004A 1 2 3 4 R609 121k R610 121k R611 121k R612 121k R602 150 R603 15 R656 820 R657 820 R681 820 R682 820 R659 820 R658 820 R623 10K R620 68 R621 150 D608 RB550VA C604 220p L602 P2570207Z 1 2 3 4 C603 220p R607 330k ZD608 MA4220N C634 220u 25V R606 1K R604 470K R619 0 D614 ERA22-10 D613 ERA22-10 R605 470K R622 0 Q601 2SK3302 Q605 2SB709A R625 10K R629 47K Q606 2SD601A R624 18K C625 0.47u 25V C633 0.011u 50V R630 10K R646 150K Q603 2SB1386 R644 100K Q602 2SD2098 R678 68 R679 150 D606 RB550VA-30 R626 68 R627 150 D609 RB550VA R677 10k R628 10K R617 0.22 R615 0.22 R616 0.22 R631 0.22 R653 18k R655 18k R654 18k C627 0.047u 630V R634 255K R635 255K R636 255K R637 255K R638 249K R642 249K C622 0.047u 630V C624 220u 450V C626 220u 450V C610 1u 450V C611 1u 450V R649 549K R641 549K R640 549K R613 150K R614 150K C623 220u 450V R632 150K R633 150K D601 MA111 D603 MA111 C630 0.047u L607 EXCELDR35 L612 0 L611 EXCELDR35 L613 0 L608 EXCELDR35 L614 0 C628 330u R608 82 R618 82 D612 EP01C C620 0.001u 1KV C621 0.001u 1KV D607 S3V60 C606 0.22u L604 S3783106Z C629 47u 25V D605 MIF60 RF601 HUF5K100J14 F602 F601 1 4 NEWTRAL LIVE P9 AC CORD TO S1 G1 G2 S2 S3 G3 3 1 6 4 9 7 3 7 10 1 4 6 9 11 AC+ AC- F603 A11 K10 K601 K602 D602 2 AC 3 AC DC(+) DC(-) 1 4 1 3 X1 X3 CNPFC PFC PG PGBIAS_PFC X8 BIAS_GND X3 ON/OFF_PFC X7 X2 STB DISCHG X25 X21 AC_L AC_N X22 X4 PG_STB X10 X9 RLY_RUSH RLY_ON 3 B D 2 F 5 E C 8 7 1 A 4 9 6 Vin BIAS GND Iin +5 0vp GATE ON/OFF DG12D1-0 DJ12D2-0 MC604 MP00P5 MP00P4 MC601 S1WBA80 D1 D2 D3 2 5 8 MC602 P-BOARD ETXMM564MEK (1/2) TH-50PV500E/B P-Board (1 of 2) Schematic Diagram TH-50PV500E/B P-Board (1 of 2) Schematic Diagram D-BOARD TO (D25) IXMM564M-G-9 IXMM564M-D-9 COLD COLD HOT HOT TH-50PV500E / TH-50PV500B 78 14.5. P-Board (2 of 2) Schematic Diagram B E D C F A TH-50PV500E/B P-Board (2 of 2) Schematic Diagram TH-50PV500E/B P-Board (2 of 2) Schematic Diagram P-BOARD ETXMM564MEK (2/2) 18 15 17 16 12 13 10 11 14 MIP3E30MP F922L MR4020F2 2SB1386 2SD2098 D-BOARD TO (D25) PB-BOARD TO (PB30) PB-BOARD TO (PB5) SC-BOARD TO (SC23) PA-BOARD TO (PA10) SS-BOARD TO (SS12) SC-BOARD TO (SC2) SS-BOARD TO (SS11) 2SB766A 2SB709A HAT1130R HAT1130R HAT1130R HAT1130R HAT1130R MP4451 MP4451 IXMM564M-C-9 IXMM564M-F-9 IXMM564M-B-9 IXMM564M-E-9 COLD HOT COLD HOT COLD HOT COLD HOT TH-50PV500E / TH-50PV500B 79 14.6. PA and PB-Board Block Diagram BT30V NR14V NR14V NR14V NR14V SOS SUB3.3V MAIN_5V MAIN_9V MAIN_9V ON/OFF MAIN3.3V SUB5V_SD SUB9V_2 SUB5V SUB5V D5647 D5637 D5641 D5645 D5638 D5646 D5643 D5640 D5639 D5644 D5642 14 9 8 16 PA30 BT30V 18 MAIN3.3V SUB3.3V 13 PA20 9 11 6 8 19 15 10 17 13 +10Vs(W) MAIN9V 2 PA10 3 F_STBY_14V 1 21 SUB9V2 TO P10 29 28 24 19 22 30 26 29 25 27 23 SUB5V SUB9V2 SUB5V_2 STBY5V MAIN5V MAIN3.3V MAIN9V BT30V SUB5V SUB3.3V SUB9V1 SUB9V1 SUB5V_2 SUB5V_2 MAIN3.3V IRD_POW_ON IRD_POW_ON SOS F_STBY_14V F_STBY_14V +10Vs(W) +10Vs(W) DC-DC/POWER SOS 5 VDD 2 EXT VOUT 13 AVR 3.3V/5V ON/OFF 15 9 IC5602 VOUT1 VIN 1 ON/OFF VOUT2 3 AVR 5V/9V 13 VOUT1 ON/OFF IC5601 9 15 VIN 3 1 VOUT2 ON/OFF Q5606 Q5603 Q5607 Q5605 Q5614 Q5601 Q5602 Q5604 Q5643 Q5641 Q5644 Q5642 VOUT1_3.3V VOUT2_5V VOUT1_9V VOUT2_5V AVR BT30V IC5603 1 ON/OFF ON\OFF SUB9V-1 SUB9V TO DG20 TO H30 SUB3.3V MAIN3.3V MAIN5V SUB5V_2 Q5613 ON/OFF PA 1 TO P30 PB32 3 SOS TO 3 FAN 4 1 SOS PB33 PB7 8 TO P5 PB PB5 AUDIO POWER/ PB31 3 1 SOS OUT PB30 FAN_SOS 15V 2 FAN CONTROL REGULATOR 2 +12Vs(W) IC5801 4 VOUT VCC VIN IC5803 AUDIO 10V 1 FAN FAN FAN CONTROL 5 FAN_CONT 7 5V 3 SOS 1 1 FAN 2 PB34 FAN 1 1 +10Vs(W) +10Vs(W) +12Vs(W) INV 5V 3 +12Vs(S) 6 2 AUDIO 9V VOUT VIN IC5802 1 5 6 +9Vs(S) +9Vs(S) 5 6 2 PB7 1 +9Vs(S) 4 3 +9Vs(S) D5806 D5804 D5807 D5805 TH-50PV500E/B PA and PB-Board Block Diagram TH-50PV500E/B PA and PB-Board Block Diagram TH-50PV500E / TH-50PV500B 80 14.7. PA-Board Schematic Diagram + + + + + + + + + + + + STBY_5V SUB5V SUB5V NR14V NR14V NR14V SUB_3.3V SUB_3.3V +10Vw MAIN_5V MAIN_5V MAIN_5V BT30V BT30V SUB_9V_1 SUB_9V_1 SUB_9V_1 SUB_9V_1 MAIN_9V MAIN_9V MAIN_9V MAIN_3.3V PA30 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R5611 82k C5637 16V 0.47u L5616 G1A470ZA0007 R5601 45.3k TPM33V L5608 G1C100MA0072 TPS9V JS5609 ERJ6GEY0R00V R5648 3.9k R5662 0 R5693 33k R5617 220 D5618 B0BC03900015 C5670 25V 0.1u D5617 B0BC01100001 D5637 MA3X152E0L TP5617 R5660 0 C5617 16V 820u C5622 16V 820u R5694 10k C5642 50V 0.1u PA5602 K5H312200004 R5634 470 TP5609 R5632 470 R5627 4.7k C5616 25V 0.1u C5601 50V 22u C5604 50V 10u TPM9V R5644 2.2k R5635 220 Q5644 2SC584500L D5615 B0BC4R700007 C5631 16V 1000u PA5601 K5H312200004 R5649 100k C5685 50V 10u TPW12V C5606 16V 820u R5639 2.2k C5611 25V 1000u C5612 16V 820u R5658 4.7k R5624 0 D5614 B0BC6R600005 L5613 G1A470ZA0007 R5654 10k C5619 25V 0.1u TPM25V R5610 10k L5611 G1A470ZA0007 R5650 220 TP5616 R5630 0 Q5602 2SC584500L C5605 25V 1000u N0BF2DE00001 IC5602 1 0N/OFF2 2 VAR2 3 VOUT2 4 SW-Node2 6 GND 7 N.C. 8 GND 9 VIN 10 N.C. 11 GND 12 SW-Node1 13 VOUT1 14 VAR1 15 ON/OFF1 16 SOS TPM5V C5609 50V 22u R5656 10k Q5605 2SC584500L D5645 MA3X152D0L Q5641 2SA207700L R5621 10k R5641 2.2k R5633 1k JS5611 ERJ6GEY0R00V R5615 22k R5642 470 C5686 50V 0.01u PA20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R5626 4.7k C5623 25V 0.1u R5616 22k Q5643 2SA207700L D5610 MA3X78900L R5670 10k D5642 MAZ31000HL TP5613 TPS5V R5638 10k R5655 10k R5609 1.87k D5638 MA3X152E0L R5618 220 TP5615 D5646 MA3X152E0L C5641 50V 0.1u JS5612 ERJ6GEY0R00V D5647 MA3X152D0L R5612 16.5k R5606 10k D5643 MA3X152D0L C5613 25V 0.1u L5605 G1C1R0MA0072 C5626 16V 0.1u Q5607 2SC584500L D5640 MAZ30680HL R5653 10k R5625 4.7k C5643 50V 0.1u TP5604 C5644 50V 0.1u R5695 10k L5612 22u R5605 22k Q5642 2SA207700L R5692 1k L5609 12u R5680 0 Q5603 B1DHDC000028 L5604 G0A470GA0002 Q5601 B1DHDC000028 D5644 MAZ30680ML TPB5V D5616 B0BC6R600005 L5615 22u TP5601 C5673 50V 0.01u Q5614 B1CFNG000001 R5675 470 R5637 10k R5603 255 JS5610 ERJ6GEY0R00V D5641 MA3X152D0L L5610 G1C470MA0077 TP30V R5646 2.2k R5640 4.7k R5672 10k R5647 220 L5607 G0C101K00023 Q5613 2SC584500L R5657 4.7k D5639 MAZ30470HL TPS33V C5618 25V 0.1u C5672 50V 22u R5607 1.87k TPS12V R5643 680 PA10 1 2 3 4 5 6 N0BF2DE00001 IC5601 1 0N/OFF2 2 VAR2 3 VOUT2 4 SW-Node2 6 GND 7 N.C. 8 GND 9 VIN 10 N.C. 11 GND 12 SW-Node1 13 VOUT1 14 VAR1 15 ON/OFF1 16 SOS Q5604 2SC584500L L5614 G1A470ZA0007 R5645 2.2k Q5606 B1DHDC000028 C5608 50V 0.01u R5696 1.5k TP5603 L5606 12u PA7 1 2 3 4 5 6 7 8 C0DBAJB00004 IC5603 1 VOUT 2 VDD 3 NC 5 EXT 4 VSS R5636 470 R5652 0 JS5602 ODU +B GND GND STBY_5V F_STBY_14V RESET MAIN9V SUB5V BT30V TUNER_MAIN_ON SOS ODU_ON/OFF MAIN5V MAIN_9V NR14V SUB_3.3V SUB_9V-1 SUB_5V SUB_5V_SD BT_30V F_STBY_14V F_STBY_14V GND ODU +B MAIN2.5V BT30V(0.002A/0.004A) MAIN_3.3V(2.3mA/NC) SUB_3.3V(NC/0.04A) SUB9V2(0.82A/0.17A) MAIN9V(0.1A/0.373A) MAIN2.5V (113mA) SUB5V(0.7A/0.7A) SUB9V1 MAIN3.3V /SUB5V_2(0.7A) SUB3.3V GNDw Sq_9V Wo_10V GNDs GNDs MAIN2.5V BT30V MAIN_3.3V SUB_3.3V MAIN9V SUB9V2 SUB5V MAIN2.5V SUB9V2 MAIN3.3V SUB9V1 MAIN2.5V SUB5V Wo_10V Sq_9V GNDw (H30) TO H-BOARD E 5 2 A 4 D B 6 9 8 3 7 1 F C (P10) P-BOARD TO (PB7) PB-BOARD TO (DG20) DG-BOARD TO AVR 2.5V/3.3V AVR 2.5V/5V/9V AVR BT30V Wo_10V Sq_9V SUFFIX AB 14.0 0 14.0 0 0 14.0 10.0 0 0 0 0 0 0 10.0 3.3 3.3 0 0 0 0 0 0 0 5.0 0 5.0 0 2.5 0 0 0 2.5 5.0 0 9.0 3.3 30.0 0 3.3 2.6 9.0 0 0 9.0 30.0 3.3 0 0 0 3.3 9.0 0 0 9.0 9.0 0 0 2.5 2.5 0 0 0 10.0 10.0 10.0 0 0 0 0 0 5.0 0 0 0 PA-BOARD TNPA3620AB TH-50PV500E/B PA-Board Schematic Diagram TH-50PV500E/B PA-Board Schematic Diagram TH-50PV500E / TH-50PV500B 81 14.8. PB-Board Schematic Diagram + + + + + + + + + JS5811 ERJ6GEY0R00V R5819 2.94k JS5814 ERJ6GEY0R00V C5818 16V 470u JS5806 ERJ6GEY0R00V PB7 1 2 3 4 5 6 7 8 C0DAEZH00017 IC5803 4 ADJ 3 GND 2 VOUT 1 VIN JS5817 ERJ6GEY0R00V JS5807 ERJ6GEY0R00V R5815 390 L5808 LHL08TB100K JS5812 ERJ6GEY0R00V TP5802 TP5808 TP5804 JS5801 ERJ6GEY0R00V JS5815 ERJ6GEY0R00V JS5805 ERJ6GEY0R00V R5820 0.22 C5813 25V 0.1u JS5816 ERJ6GEY0R00V JS5802 ERJ6GEY0R00V JS5813 ERJ6GEY0R00V JS5808 ERJ6GEY0R00V L5810 LHL08TB100K JS5810 ERJ6GEY0R00V PB5 1 2 3 4 5 6 7 8 9 10 11 C5821 25V 0.1u C5820 16V 1000u D5806 MA3X152E0L PB33 1 2 3 D5807 MA2J11100L PB30 1 2 3 4 5 R5809 4.7k R5802 22k D5805 MA3X152E0L C0DBAZG00034 IC5801 1 VCC 2 OUT 3 GND 4 INV 5 STBY R5808 2.2k R5826 100 R5806 2.2k L5802 100u D5801 B0JCME000037 R5823 100 C5801 470u 25V L5803 22u PB31 1 2 3 C5805 1u 16V D5804 MAZ31200ML PB34 1 2 3 R5801 910 C5802 470u 25V L5801 G0C101K00023 PB32 1 2 3 C5809 1u 25V R5824 100 R5803 2.74k C5810 47u 25V R5807 2.2k R5822 100 R5804 0 R5812 22k C5803 47u 25V R5805 2.2k JS5818 C5807 16V 1000u C5806 16V 470u C0DBAMH00009 IC5802 1 VIN 2 VOUT 3 GND 4 Oadj 5 soft 6 GND C5815 25V 0.1u R5810 2.2k L5806 LHL08TB100K C5811 25V 0.1u L5805 LHFP15BB680KB C5812 16V 2200u R5814 14k D5808 B0JCPE000004 L5804 LHL08TB220K TP5801 GND GNDs(W) +12Vs(S) +12Vs(W) 15V GND +12V +12V GNDs(s) +12Vs(W) GNDs(W) P-BOARD TO (P5) 2 7 5 6 D 8 3 B 1 A 4 E C PB-BOARD TNPA3643AE AVR 10V (PA7) PA-BOARD TO 5.0 0 0 0 12.0 12.0 12.0 0 12.0 0 12.0 10.0 10.0 0 0 9.2 9.2 0 0 FAN_SOS 5V FAN_CONT 15V GND (P30) TO P-BOARD suffix FAN CONTROL REGULATOR TO FAN 5.3 0 15.0 6.6 0 15.0 11.9 0 2.4 6.8 0 0 11.9 0 0 11.9 0 11.9 0 0 0 11.9 +10Vs(W) +10Vs(W) +9Vs(S) +9Vs(S) AUDIO 9V TH-50PV500E/B PB-Board Schematic Diagram TH-50PV500E/B PB-Board Schematic Diagram JS5819 AC JS5820 AD AB TH-50PV500E / TH-50PV500B 82 14.9. H and TA-Board Block Diagram AV4C_Y AV2_QLINK AV4C_PR AV4C_PB AV1_SLOW MAIN_L AV1_V MAIN_R AV2_SLOW AV2_VOUT AV1_VOUT AV4_QLINK AV2_V AV2_C PC_LIN PC_RIN PC_LIN PC_RIN TV_L TV_R AV1_L AV1_R AV2_L AV2_R AV4_L AV1_GREEN AV1_RED/C AV1_BLUE AV4_RED/C AV4_BLUE AV4_GREEN AV4C_Y AV4C_PB AV4C_PR RMCN AV4_SLOW AV1_RED AV1_GREEN AV1_BLUE AV1_L AV1_R AV1_SLOW AV1_VOUT AV2_VOUT AV2_V AV2_C AV2_R AV2_SLOW AV2_L AV4_V AV4_RED/C AV4_L AV4_R AV4_VOUT DC_OUT O2 O4 AV4_ROUT O4 DVB_L DVB_R DVB_V DVB_R DVB_L DVB_V AV4_LOUT AV1_V AV4_SLOW AV4_BLUE AV4_GREEN PC_B PC_G PC_R PC_VD PC_HD AV2_QLINK AV4_QLINK O2 AV2_LOUT AV2_ROUT AV1_FB AV4_FB AV4_VOUT FB SIF SIF AV1_SW AFC1 AM AM AV4_RED/C AV4_V HDMI_L HDMI_R AV4_R SD_MONO_IN AV3_R AV3_L AV2_LO AV2_RO AV4_LO AV4_RO MAIN_L MAIN_R SD_V SD_A_RO SD_A_LO AV3_C AV3_Y AV3_V AV3_S DC_OUT AV1_SW HP_ROUT HP_LOUT AI_SENSOR LED_G AV3_R AV3_L AV3_Y AV3_V AV3_C AV3_S HP_LOUT HP_ROUT RMCN LED_R LED_G AI_SENSOR LED_R KEYSCAN KEYSCAN SD_V SD_MONO_IN SD_A_RO SD_A_LO SD_RX SD_TX SD_IRQ SD_RST SP_MUTE SOS2 SOS2 RESET SP_MUTE MAIN_DEF RESET AFC1 FB SD_REC_V SD_RX SD_TX SD_RST SD_IRQ PC_VD PC_HD PC_R PC_B PC_G HDMI_L HDMI_R SD_DTC SOUND_MUTE AV1_ROUT TV_R TV_L AV1_LOUT 1 2 3 6 7 8 10 11 12 15 16 19 20 1 2 3 6 7 8 10 11 15 19 20 1 2 3 6 8 10 15 19 20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 SDA3 17 SCL3 18 MAIN COUT1 IN IC3005 AV2 65 OUT 58 VIDEO SW 68 SA1 59 OUT PROUT1 AV1 IN SUB 60 VOUT1 55 VOUT2 56 COUT2 71 Y2 C2 V2 73 74 SA2 5 3 7 Y4 C4 V4 36 SC1OR 27 SCART AUDIO SOUND 24 SELECT DACM L 57 PROCESSING DACM R DSP LOUDSPEAKER OUT OUT OUT HEADPHONE SOURCE PROCESSING SC1IL 25 56 SC1OL HP PRESCALE DAC MSP INPUT 37 SC1IR DACA R SCART 28 SP OUTPUT DACA L SELECT IC2106 IN MAIN SELECT SOUND SURROUND ADC DAC DAC + 7 Q2104 1 Q2105 3 5 - - + IC2104 VAO SC2OR 33 34 OUT SC2OL TV AV4 L R Q2103 Q2102 Q2002 Q2001 Q3017 Q3011 46 VOUT4 TV OUT Q3010 PB PR Y Q3002 Q3004 Q3003 JK3004 JK3005 JK2002 AUDIO OUT H AV TERMINAL 67 ANA IN+ SCL 45 SDA 44 SDA1 SCL1 MAIN PB/C/R MAIN PR/B 9 11 SUB CY/Y/V SUB PB/C 3 1 RMCN AV2 QLINK AV4 QLINK AFC1 40 39 35 38 H5 10 8 TUNER AFT1 TA5 VIDEO_OUT 2 8 TUNER 17 TA TNR001 12 SIF 11 4 S-CLOCK 14 RF AGC AFT SIF1(MSP1) 10 S-DATA MAIN VIDEO 8 RFAGC1 2 10 4 43 41 39 PB4 PR4 CY4 AV4C 61 VOUT V7 17 R L 2 3 SDA1 SCL1 YPBPR SCART COMPONENT VIDEO 4 2 IC2108 RESET 3 2 1 IN SW OUT IC2107 AVR 5V AUDIO VIDEO SWICTHING MSP R IN BLUE IN TV VIDEO OUT TV VIDEO OUT TV R OUT RED IN BLUE IN FB IN L IN Q-LINK BLK IN GREEN IN TV R OUT TV L OUT AV4 SLOW RED IN R IN Q-LINK L IN VIDEO IN CHROMA IN TV R OUT VIDEO IN VIDEO OUT TV L OUT L IN SDA2 AV1 SLOW GREEN IN SCL2 R IN AV2 SLOW VIDEO IN TV L OUT SWITCHING IC3001 1 2 4 6 PC_L PC_R 2 4 1 6 IC3004 SWITCHING 4 2 1 6 IC3002 SWITCHING H6 1 2 9 14 14 TA6 9 2 1 SCL SDA SUB 30V 15 BTL SUB 5V Q2106,Q2108 60 59 18 19 16 17 1 2 3 4 9 10 34 29 30 35 L8 R8 L7 R7 L1 R1 L2 R2 L4 R4 PC IN TV IN AV1 IN AV2 IN AV4 IN MAIN ROUT2 ROUT1 OUT LOUT1 AV4 LOUT2 OUT OUT AV2 SDA SCL 32 33 IC2105 AUDIO SW 30V_BT SDA1 SCL1 SUB 5V Q003 SDA1 SCL1 75 4 SA4 29 CY2 PR2 PB2 31 27 PR3 35 33 PB3 CY3 37 AV4 IN AV1 RGB IN RGB IN AV4 VOUT5 51 PROUT2 54 7 Q3014 MAIN Y/V/G SCL3 SDA3 21 SCL2 20 SDA2 SDA2 SCL2 SDA1 SDA1 SCL1 SCL1 24 23 SOS2 31 SOUND_MUTE 30 SP_MUTE 29 RESET 28 H2 TO DG2 Q3016 Q3019 Q3020 Q3021 Q3022 O1 64 O2 66 O3 72 Q3006 Q3005 SDA2 SCL2 Q3001 Q2006 Q2007 MUTE MUTE SC5IL SC5IR 6 SUB 9V2 AVR 8V 1 3 IC2103 IN OUT 8V 21 RESETQ SUB 9V2 2 MAIN 3.3V 4 8 SUB 5V_SD SUB 9V2 10 22 SUB 3.3V 12 SUB 5V BT 30V 14 23 18 27 21 +10VS 6 16 SUB 5V_SD H30 TO PA30 28 MAIN 9V +10VS +10VS +9VS +9VS SUB 5V SUB 5V_SD SUB 9V2 MAIN 9V SUB 3.3V MAIN 3.3V 30V_BT +10VS(WO) +9VS(SQ) Q3015 MAIN CVBS(RGB) 13 SUB PR 5 LED_R 26 KEYSCAN 33 SRQ 32 TO G51 H51 21 STBY_LED KEYSCAN STB 5V REMOTE 34 25 33 2 SRQ 4 1 STB 5V SCL3 5 SDA3 7 SDA2 8 6 SCL2 SCL1 9 SDA1 LOADER EEPROM DEVICE STB 5V 15 FB_OUT STB 5V SDA3 SCL3 SDA2 SCL2 SDA1 SCL1 SDA SCL XIN 72 XOUT 71 X2101 Q002 SUB 5V_MSP JK3003 SCART AV2 JK3002 SCART AV1 JK2003 PC AUDIO IN 16 H15 1 AGC1 TV IN 27 STB 5V STB 5V IN TV 7 IC2111 1 AV1L OUT SW 3 4 2 VIN1 VIN2 VOUT SW1 SW2 VIN1 VIN2 VOUT 7 1 IC2112 AV1R OUT SW 2 4 SW1 3 SW2 15 14 L6 R6 DVB IN Q2009 Q2010 78 DC OUT O4 62 Q2004 Q2003 MUTE MUTE OPT 22 DVB_CVBS DVB_L 8 DVB_R 6 10 TO DG1 H1 19 DVB IN V1 V8 FOR FACTORY USE MUTE MUTE PV500B ONLY PV500E ONLY PV500B ONLY 6 AUDIO_OUT AM 13 6 PV500E ONLY PV500E ONLY PV500B ONLY PV500B ONLY JK3001 PC IN Q3333 Q3332 Q3331 PC_R PC_G PC_B SW 5 IC3301 3 6 2 SIF TRAP 13 12 L5 R5 HDMI IN 7 8 L3 R3 AV3 IN 37 IN R9 L9 SD 38 23 24 ROUT4 LOUT4 OUT SD ROUT3 26 25 LOUT3 15 V6 C3 79 77 Y3 V3 1 IN AV3 2 S-3 SD-V IN MAIN DEF Q2012 Q2011 Q2013 STB5V Q3009 Q3008 V DET 2 SWO 9 SW2 DAC2 5 MSP_RST SDA 14 SCL 15 SCL1 SDA1 Q3101 IC3006 EX.I/O SRQ H12 Q3013 Q3018 Q3012 SD OUT VOUT3 49 Q3023 SUB5V 27 28 29 18 HP_ROUT HP_LOUT 16 AV3_C AV3_S AV3_Y 8 AV3_V 12 6 AV3_L 10 3 1 AV3_R AI_SENSOR 36 LED_G 25 23 ON_LED SUB5V SUB5V SUB 5V 16 SD_DTC SD_IRQ SD V_IN SD_RX 5 20 SD_TX 28 1 2 9 30 TO GS52 H52 6 SUB5V 24 29 SD V_OUT SUB3.3V AUDIO R IN AUDIO OUT 12 AUDIO L IN 11 SD_RST SUB5V STB3.3V 27 SDA1 MAIN_DEF 2 STB 5V SCL1 +9VS(S) 15 23 R_OUT 31 H50 MAIN 9V 33 13 SDA1 35 RESET +10VS(W) HP_LIN 5 SP_SHORT L_OUT 18 SCL1 +9VS(S) 17 TO Z50 HP_ROUT 6 21 +10VS(W) MAIN 9V 11 +10VS(W) HP_LOUT 29 HP_RIN 7 SP_MUTE 20 1 25 +10VS STB 5V +9VS HDMI_R 30 HDMI_L 28 SD_RXDO 26 25 SD_TXDO 23 SD_RST SD_IDO 22 PC_HD 18 16 PC_G 14 PC_B 20 PC_VD PC_R 12 Q2111 Q2110 SUB5V IRD_LED 24 MODEM_LED 24 PV500B ONLY PV500B ONLY TH-50PV500E/B H and TA-Board Block Diagram TH-50PV500E/B H and TA-Board Block Diagram AMP TH-50PV500E / TH-50PV500B 83 14.10. G, GK, GS, K and S-Board Block Diagram 3.3V 3.3V 5V 5V R T C Y R L V R R-G L L-G V V-G C Y G CY-G G SW3 SW2 NC2 T NC3 SW1 NC1 R SW3753 VOL.DN SW3756 SW3754 ASPECT SW3751 TV/VTR PRESET VOL.UP SW3755 REMOTE KEYSCAN SUB5V MODEM LED OPT STBY_LED(LED_R) STBY 5V AV3_S MAIN R(HP ROUT) SUB5V SUB5V MAIN L(HP LOUT) AV3_C AV3_Y AV3_V AV3_L AV3_R 12 2 11 15 3 7 14 26 18 9 20 24 8 28 30 33 35 SUB 5V STBY5V_M OPT STB_LED (LED_R) Q2518 4 MODEM LED 11 SUB5V K1 12 RM2510 Q2511 2 3 2 1 OPT(AI SENSOR) 8 5 IC2511 ON/OFF REMOTE RECEIVER,LED 9 VCC Q2510 REMOTE RECEIVER K VOUT REMOCON DVB LED D2520B POWER LED 2 G2 11 9 8 5 12 G51 G3 2 KEY GK3 30 1 GS52 28 SUB5V SUB5V SUB3.3V 24 SDTX 20 SDIRQ 16 SDRST 12 SDRX AUDIO_L IN SD V.IN AUDIO_OUT(MONO) 11 9 5 6 2 SD V.OUT AUDIO_R IN GS12 D5V 38 39 40 D5V D5V 36 SD_CLK 34 SD_CMD 33 SD_CD 32 SD_WP 31 RXD(SDTX) 23 25 RESET 22 IO0 TXD(SDRX) 24 ARIN 12 18 14 20 6 ALIN V OUT AROUT JK7701 4 2 5 7 8 1 9 LED_SD 26 V IN 28 SD_DATA0 SD_DATA3 SD CARD SLOT GS PC CARD SLOT/AV3 IN G 47 2 35 36 44 46 16 39 17 33 16 6 4 3 G11 A2-A10 A0,A1 59 66 D8-D10 32 42 D3-D7 11 JK7900 15 33 16 A8,A9,A10 64 OE,WE,RESET 6 22 READY DO-D2 CE1,CE2,REG 9 12 29 WP,WAIT 2 7 A0-A7 30 41 8 37 61 58 43 57 36 67 JK3701 AV3 IN KEY SWITCH GK HEADPHONES S-VIDEO AV IN IN Q7701 ON/OFF D7702 SD LED 2 6 9 Q7710 Q7711 3 1 4 5 10 8 Q7702 IC7714 TO H52 SD CARD SLOT 3.3V CMD DATA0-3 CLK D_SW WP Q7901 Q7902 ON/OFF 5V DATA BUS ADDRESS BUS TO H51 SUB 5V D2525 2 XCD1,XCD2 VS1,VS2 READY,WP,XWAIT D11-D15 SD MODULE SD MODULE XCE1,XCE2,XOE 43 42 38 40 41 5 XWE,NPCRST,XREG PC5V_ON XCD1,XCD2 D0-D15 MPRSTOE,PCDATOE PV500B ONLY PV500B ONLY S TO SS34 S1 POWER SWITCH 12V 3 STB_PS SW2500 1 PUSH POWER SWITCH SDDTC 29 SWITCHING 5V TH-50PV500E/B G, GK, GS, K and S-Board Block Diagram TH-50PV500E/B G, GK, GS, K and S-Board Block Diagram TH-50PV500E / TH-50PV500B 84 14.11. H-Board (1 of 2) Schematic Diagram + + Y PR PB + RED WHITE NP RED WHITE + + NP + + AV4C_PR AV2_SLOW AUDIOOUT_L AV4_SLOW AUDIOOUT_R L_OUT AV2_C AV2_V AV4C_PB AV2_LOUT AV2_QLINK SDA2 AV4_LOUT AV2_ROUT AV4_V R_OUT AV1_VOUT AV1_LOUT AV4_ROUT AV4_RED/C PC_LIN AV2_R AV2_L TV_L TV_R AV1_R AV1_L AV4_R AV4_L PC_RIN AV1_V AV1_R AV2_L AV4_L AV2_ROUT AV4_ROUT AV1_ROUT AV2_VO AV4_VO AV4_FB AV4_LO AV4_RO AV2_LO AV2_RO AV1_LO AV1_RO SCL1 SDA1 AV1_L VOUT AV4_VOUT HP_LIN MAIN_R AV1_SLOW AV4_LOUT AV2_LOUT HP_RIN SOS2 SRQ SCL1 SDA1 SCL2 SDA2 SCL3 SDA3 SP_MUTE MAIN_DEF RESET SDA1 SCL1 L_OUT R_OUT HP_LIN HP_RIN HP_LOUT HP_ROUT AV2_RO AV2_LO SD_AUDIO_GND AV1_RED AV1_GREEN AV1_BLUE AV4_GREEN AV4_BLUE AV4C_Y AV1_FB AV4_QLINK AUDIOOUT_R AUDIOOUT_L PC_LIN PC_RIN SCL2 O2 AV2_VOUT 9_OR_8V AV2_R AV4_R MAIN_L 8V O4 TV_R DVB_R TV_L DVB_L DC_OUT O4 TV_L TV_R AV4_RO AV4_LO DVB_R DVB_L DC_OUT SUB5V SUB5V SUB5V_MSP PC_R PC_B PC_GND_G PC_G HD VD PC_GND_B PC_GND_R AV1_LOUT AV1_ROUT MAIN_DEF SUB9V SUB9V SUB9V SUB9V AV1_LO AV1_RO AV3_R AV3_L SD_AUDIO_L_OUT SD_AUDIO_R_OUT SD_MONO_IN SD_AUDIO_GND HDMI_L HDMI_R 5V_MAIN R2027 100k R3017 100 R3404 0 JS3005 0 C2012 50V 560p H12 1 2 3 4 5 6 7 8 9 Q2102 2SB0709A0L R2158 220 R2164 220 R2171 220 C2219 10u 10V R2050 10k C2152 16V 1u D2012 MA2J11100L C2019 16V 220u R3407 0 R3010 75 R2014 100 L2006 EXC3BB221H R3031 75 R2037 0 R2049 10k R3011 75 JS3018 0 JS3011 0 Q2001 B1ABCF000138 R2005 100k JS2102 0 R3032 0 R2028 100k D2114 MAZ81400ML R3016 100 L2010 EXC3BB221H JS3017 0 R2152 47 D3019 MAZ81400ML STB5V C2162 16V 1u C2018 50V 560p R3406 0 JS3401 C2005 50V 560p R3049 10k C2128 50V 0.1u R3158 100 R2169 4.7k R3007 75 D3015 MAZ81400ML R2155 220 C2160 16V 1u R2151 0 R3034 1k R3026 47k R3013 75 R2016 330 D2118 MAZ81400ML R2023 100 R2024 100 R2033 100 R3028 75 R3030 0 D3026 MA2J11100L D2116 MAZ81400ML R2054 10k JS3404 C2143 50V 0.01u R2168 4.7k C2010 50V 560p C2013 50V 560p R2021 0 L3001 EXC3BB221H JS3016 ERJ6GEY0R00V R2127 4.7k Q2004 B1ABCF000138 D3021 MA3X152D0L R2025 2.2k Q2007 B1ABCF000138 R3027 75 R2031 100 R3024 12k C3002 50V 1000p C2220 10u 10V JK3003 K1FB121A0006 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 D2105 MAZ81400ML Q2105 2SB0709A0L R3043 5.6k D3017 MAZ81400ML Q3005 B1ABCF000138 R2009 22k C2132 50V 10u C0ABBB000102 IC2104 1 2 3 4 5 6 7 8 JK3005 K2HA307A0007 Y-SW Y Y-G PB PB-G PR PR-G R2042 1M C2164 16V 1u C2127 16V 100u D3023 MA2J11100L R2052 180k R2224 0 L2001 J0JCC0000364 R2040 100 R2012 100k D3009 MAZ81400ML R2130 10k Q3008 2SB0709A0L C2218 10u 10V D2111 MAZ81400ML H50 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 R2038 100 R2045 10k R2030 0 D3011 MAZ81400ML C2150 16V 1u C2126 50V 1000p R2161 330 R3036 1k C3001 50V 1000p STB5V JS2033 C2144 10u 10V R3006 75 R2166 100 L2012 EXC3BB221H D3002 MAZ81400ML C2021 560p 50V L2011 EXC3BB221H C2116 50V 0.1u JS3014 0 R2135 330 C2130 10V 1u R3025 10k R2113 0 R3009 75 C2148 16V 1u D3018 MAZ81400ML R2007 22k JS3013 0 L2005 EXC3BB221H R2163 330 R2156 220 R2137 33k Q2003 B1ABCF000138 R3018 68 JS3406 JS2101 0 Q3009 B1ABCF000138 C2014 50V 560p R2013 100 Q3006 B1ABCF000138 R3005 75 R2129 100 D3006 MAZ81400ML D2109 MAZ81400ML R3033 0 D3016 MAZ81400ML R2154 47 R3039 220 R3019 68 JK2003 K4BK03A00001 R3023 12k D3012 MAZ81400ML R2044 1k Q2011 2SB0709A0L L2107 J0JCC0000241 D2013 MA2J11100L AN15861A-VT IC2105 1 L1 2 R1 3 L2 4 R2 5 VCC1 6 VCC2 7 L3 8 R3 9 L4 10 R4 11 NC 12 L5 13 R5 14 L6 15 R6 16 L7 17 R7 18 L8 19 R8 20 MUTE 21 NC 22 VD 23 LOUT4 24 ROUT4 25 LOUT3 26 ROUT3 27 GND1 28 GND2 29 LOUT2 30 ROUT2 31 ADR 32 SCL 33 SDA 34 LOUT1 35 ROUT1 36 BIAS 37 L9 38 R9 39 L10 40 R10 41 L11 42 R11 43 L12 44 R12 D3008 MAZ81400ML C2007 50V 560p R2041 2.2k C2158 10u 10V D2119 B0BC01100001 D3025 MAZ81400ML JS2021 C2017 50V 560p R3014 75 C2119 16V 47u STB5V C2125 50V 1000p JK2002 K4BK03A00001 R2043 47k Q2103 2SB0709A0L R3037 1k JS3012 0 Q2002 B1ABCF000138 D2108 MAZ81400ML L2002 J0JCC0000364 C3005 50V 0.1u JS2035 R2148 27k R2172 220 Q2012 B1ABCF000138 D3100 MAZ81400ML JS3020 0 R3051 10k JS2034 JS3019 0 R2051 180k Q2006 B1ABCF000138 R2018 100k D3003 MAZ81400ML R3038 220 L2016 EXC3BB221H R2010 22k C3007 50V 0.1u R2036 100k C2015 50V 560p R2124 100 R3050 10k R3041 3.3k C2145 10u 10V R2011 22k C2124 10u 16V R2035 100k JS3010 0 R2015 330 Q3002 B1ABCF000138 Q3001 B1ABCF000138 JS2031 L2013 EXC3BB221H R2039 0 JK3002 K1FB121A0006 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 L2204 J0JCC0000241 C2163 16V 1u C2131 50V 0.1u JS3008 ERJ6GEY0R00V R2047 2.2k C2221 10u 10V C2011 50V 560p R2165 100 JS2032 D3004 MAZ81400ML R2180 0 Q3004 B1ABCF000138 JS3015 ERJ6GEY0R00V L2015 EXC3BB221H R3021 22k R3403 0 R2173 220 C2022 560p 50V Q2013 2SB0709A0L JS3007 ERJ6GEY0R00V R3402 0 STB5V Q2009 B1ABCF000138 IC2103 AN77L08M-E1 IN 3 2 COM OUT 1 R2225 0 R3401 0 C2159 16V 1u R3022 22k R2153 220 R2126 4.7k C3003 50V 1000p R2008 22k D2011 MA2J11100L R3012 75 C2006 50V 560p D2014 MA2J11100L JS3403 L2008 EXC3BB221H R3163 12k C3006 50V 0.1u R3048 1.5k L2009 EXC3BB221H C2161 16V 100u C2156 10u 10V D2117 MAZ81400ML R3004 75 JS3405 R3003 75 R2128 100 R3020 22k R2136 330 L3003 EXC3BB221H R3015 75 R2053 470 JS3402 R2032 0 R2132 33k C2009 50V 560p L2014 EXC3BB221H R3040 220 C2149 16V 1u JS3009 ERJ6GEY0R00V C2008 50V 560p L2004 EXC3BB221H L2003 EXC3BB221H Q2104 2SB0709A0L R3002 75 R3405 0 R2149 27k R2022 0 R2147 47k R2019 100k D3007 MAZ81400ML C2147 50V 22u Q3003 B1ABCF000138 R2034 2.2k R3008 75 D2106 MAZ81400ML C2129 10V 1u Q2010 B1ABCF000138 R3042 3.3k R3001 75 L2007 EXC3BB221H C2118 16V 47u R2138 47k L3002 EXC3BB221H R2048 470 R2131 10k D2107 MAZ81400ML C2154 50V 0.1u C2165 16V 1u JS2022 C2133 50V 47p C2134 50V 47p JS3408 C2016 50V 560p D3010 MAZ81400ML R2170 220 C2111 50V 0.1u R2125 100 R2167 220 D3005 MAZ81400ML R2046 10k R2006 22k C2020 50V 22u C2146 50V 0.1u JK3004 K1FB121A0006 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 D2104 B0ACCE000005 JS2112 C2110 16V 1u R2107 220 L2101 EXCELDR35V R2103 220 C2101 50V 0.1u Q2111 2SB0709A0L R2105 220 C2109 16V 1u Q2110 2SB0709A0L C2151 50V 0.1u JS2113 C2107 16V 1u R2121 0 C2103 10u 10V R2104 220 C2120 10V 1u C2123 10u 10V IC2111 C1BB00000712 1 Vin1 2 SW1 3 Vin2 4 SW2 5 Vin3 6 VCC 7 Vout 8 GND R2101 330 R2109 4.7k R2122 0 R2123 0 C2104 10u 10V C2102 50V 0.1u R2106 220 C2121 10V 1u C2108 16V 1u R2108 4.7k C2122 10u 10V L2102 EXCELDR35V IC2112 C1BB00000712 1 Vin1 2 SW1 3 Vin2 4 SW2 5 Vin3 6 VCC 7 Vout 8 GND R2102 330 R2120 0 R2100 220 R2175 220 C2166 16V 1u C2167 16V 1u R2174 220 JS2000 JS3310 0 JS3312 0 R3352 51 R3309 0 R3310 75 R3320 0 R3345 18k C0JBAZ002205 IC3301 1 /1OE 2 1A 3 2Y 4 GND 5 2A 6 1Y 7 2OE 8 Vcc C3334 47u 16V R3348 68 R3318 75 FL3301 J0HABB000003 1 2 3 4 D3335 MA2J11100L R3349 68 R3317 10k D3339 MA2J11100L R3312 10k FL3302 J0HABB000003 1 2 3 4 C3341 50V 0.1u R3323 0 R3340 100 FL3304 J0HABB000004 1 2 3 4 Q3331 2SC24800VL C3305 16V 0.1u JS3309 0 R3336 18k R3339 470 JK3001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 R3347 470 FL3305 J0HABB000004 1 2 3 4 R3338 100 C3342 50V 0.1u D3334 MA2J11100L Q3332 2SC24800VL R3342 18k D3338 MA2J11100L C3336 47u 16V R3306 4.7k R3337 18k JS3307 0 R3350 51 C3339 16V 0.1u JS3311 0 R3307 4.7k C3337 16V 0.1u D3337 MA2J11100L R3324 0 C3338 47u 16V R3343 470 R3313 75 R3344 100 D3336 MA2J11100L Q3333 2SC24800VL C3335 16V 0.1u C3340 50V 0.1u R3341 18k R3305 100 FL3303 J0HABB000004 1 2 3 4 R3346 18k R3308 0 R3302 100 R3351 51 JS3308 0 D2113 MAZ81400ML D2115 MAZ81400ML C2155 16V 1u R2162 220 R2160 220 C2157 16V 1u R2159 220 D2110 MAZ81400ML D2112 MAZ81400ML R2157 220 R2139 220 R2140 220 C2136 16V 1u C2135 16V 1u R2144 220 R2143 220 C2140 16V 1u C2139 16V 1u R2177 220 C2168 16V 1u C2169 16V 1u R2176 220 C3332 50V 0.1u C3331 50V 0.01u L3330 ELJPA100KF C3330 16V 47u MAIN5V L2200 ELJPA470KF MAIN3.3V VIDEO/3 VIDEO/4 VIDEO/5 L GREEN IN GND(VIDEO) AV4 VIDEO IN RED IN SCL2 GND TV L OUT TV VIDEO OUT BLK IN AV1 SLOW L IN GND(PLUG) R IN AV2 SLOW GND(AUDIO) GND(BLUE) TV L OUT GND(BLUE) R IN R IN R GND TV VIDEO OUT GND(GREEN) GND(AUDIO) VCC TV R OUT VIDEO OUT TV L OUT SDA2 GND(VIDEO) VIDEO IN GND(VIDEO) GND GND(BLK) Q-LINK GND GND(RED) VIDEO IN Chroma in GND L IN AV2 GREEN IN GND AUDIO OUT 8V GND(PLUG) GND(RED) RED IN BLUE IN FB IN L IN GND(PLUG) Q-LINK BLUE IN Y,PB,PR GND(GREEN) GND(BLK) AV1 TV R OUT GND(AUDIO) TV R OUT AV1 SLOW GND(BLK) GND SRQ STB5V SCL1 SCL2 SDA3 GND SDA1 SCL3 SDA2 GND L_IN GND HP_R_OUT MAIN_DEF GND SP_SHORT SUBMUTE GND GND SP_MUTE (MONO_SOUND _DEF) MAIN9V RESET SDA1 SCL1 R_IN +12VS(wo) HP_R_IN GND HP_L_OUT GND STB5V +12VS(sq) GND GND GND HP_L_IN +12VS(wo) +12VS(sq) SUFFIX EEPROM LOADER DEVICE GND GND +12VS(wo) GND GND 3 9 7 A 8 6 E C D B 1 F 4 5 2 AUDIO SW SPEAKER L SPEAKER R HEADPHONE R HEADPHONE L VAO AVR 8V PC AUDIO IN H-BOARD (1/2) (Z50) TO Z-BOARD USE FOR FACTORY AV1L OUT SW AV1R OUT SW PV500B ONLY nil PV500E ONLY PV500B ONLY PV500B ONLY TNPA3520 (PV500E) TNPA3520AB (PV500B) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 0 0 0 10.0 0 5.0 0 0 0 0 0 0 0 0 0 0 4.0 3.3 0 0 0 0 4.0 0 0 0 4.9 10.0 0 4.9 0 9.0 10.0 0 0 4.6 0 4.9 4.9 5.0 4.9 4.9 4.9 4.9 G R PC IN B K1FB315A0001 PV500E PV500B AB 21 TH-50PV500E/B H-Board (1 of 2) Schematic Diagram TH-50PV500E/B H-Board (1 of 2) Schematic Diagram AMP TH-50PV500E / TH-50PV500B 85 14.12. H-Board (2 of 2) Schematic Diagram + + + + + + + + + SDA1 MSP SCL1 SCL1 AV4C_Y AV4C_PR AV4C_PB VOUT4 AV1_BLUE SUB_PB/C SUB_CY/Y/V MAIN_PR/B MAIN_CY/Y/V/G AV1_RED AV1_GREEN MAIN_PB/C/R AV4_GREEN AV4_BLUE MAIN_RF_CVBS AV4_RED/C O2 O1 AV1_V AV2_V AV2_C AV2_SLOW AV1_SLOW MAIN_CY/Y/V/G AV1_FB O4 TV_R TV_L SUB_PR MSP_RESET MAIN_PB/C/R_OUT VOUT O1 O1 AV2_VO AV4_VO MAIN_CVBS_OUT MAIN_RF_GND MAIN_CY/Y/V/G_OUT AV3_CGND AV3_VGND AV3_YGND AGC1 DC_OUT AGC1 AV2_QLINK AV4_QLINK RMCN SDA1 SCL1 SDA2 SDA1 SCL1 SCL3 SDA1 VOUT5 VOUT3 AI_SENSOR AFC1 AFC2 KEYSCAN SRQ SOS2 MAIN_DEF SP_MUTE RESET LED_R LED_G FB MAIN_CVBS_OUT MAIN_PR/B_OUT MAIN_PB/C/R_OUT MAIN_CY/Y/V/G_OUT SUB_PR_OUT SUB_PB/C_OUT SUB_CY/Y/V_OUT VOUT5 MAIN_PR/B_OUT FB MAIN_PR/B MAIN_PB/C/R SCL2 SDA3 MSP AM AFC1 AV4_FB AV4_SLOW 9V AV4_V AV4_RED/C O3 AV1_SW SUB5V_MSP SUB5V_MSP SUB5V_MSP MAIN_L MAIN_R AM MAIN_RF_GND VOUT4 VOUT VOUT4 VOUT SUB5V SUB5V SUB5V SUB5V MAIN_RF_CVBS SCL1 SDA1 MAIN_RF DVB_V HDMI_R DVB_L DVB_R HDMI_L PC_GND_R PC_GND_B PC_GND_G SD_RX SD_TX SD_RST DVB_V SUB9V SUB9V 30V_BT AI_SENSOR AV3_CGND AV3_C RMCN AV3_YGND AV3_VGND HP_ROUT AV3_Y AV3_V KEYSCAN LED_R HP_LOUT IRD_LED AV3_S AV3_L SUB5V_SD LED_G AV3_R MAIN3.3V SD_V SD_AUDIO_L_OUT SD_AUDIO_GND SD_REC_V SD_MONO_IN SUB9V2 SUB9V2 O3 AV1_SW AV3_V AV3_Y AV3_S AV3_C SD_V FB VOUT3 SD_REC_V SUB_PR_OUT SUB_CY/Y/V SUB_PB/C SUB_PB/C_OUT SUB_CY/Y/V_OUT SUB_PR SD_DTC SUB9V SUB9V MAIN_RF IRD_LED SD_IRQ SD_RST SD_IRQ SD_TX SD_RX SD_DTC SD_AUDIO_R_OUT VD HD PC_B PC_G PC_R R2211 560 L2120 J0JCC0000241 C2173 50V 0.01u C2184 50V 0.1u C2190 16V 1u IC3004 C1AB00001487 1 SW 2 OUT 3 VCC 4 IN2 5 GND 6 IN1 R3055 560 R3053 220 R3099 220 L2179 J0JCC0000241 C2225 16V 1u R2133 0 C3004 16V 0.1u C3228 10V 10u Q3017 2SB0709A0L R2199 220 C2175 50V 0.01u R3098 220 R3216 0 L2186 J0JCC0000241 H5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 C0EBF0000354 IC2108 4 OUT 3 CD 1 VSS 2 VDD R3066 0 C2191 50V 0.1u C3020 10V 1u R2213 10k C2207 50V 0.1u C3214 10V 10u C3212 50V 0.1u R3126 100 R2182 100 C3055 10V 1u H2 K1MN40B00045 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 Q3011 2SB0709A0L C3230 50V 0.1u R3100 220 JS3201 IC3006 C1AB00000441 1 SW1 2 SW0 3 DAC4 4 DAC3 5 DAC2 6 DAC1 7 DAC0 8 GND 9 SW2 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 Vcc C3053 10V 1u R3136 33k R3086 0 C3025 10V 1u R2195 0 R2216 1k R3145 10k R3132 10k R2183 100 C3043 10V 1u R3060 220 L3004 J0JCC0000241 R3067 10k L2115 J0JCC0000241 JS3023 C2208 16V 0.1u C3060 50V 0.1u R3123 82 R3127 1k R3140 100 C3013 10V 1u R3134 33k C3035 10V 1u R3059 220 C2181 50V 0.1u C2213 0.1u C3207 10V 1000u R3121 100 C2177 50V 0.01u H30 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R3152 47 C2183 50V 3.3u C2196 50V 0.1u C2215 50V 0.1u C3036 10V 1u C2195 50V 47p C3047 10V 1u C3015 0.1u 50V C2153 16V 4.7u C3040 16V 0.1u Q3021 B1ABCF000138 X2102 EFCT6504BN L2109 J0JCC0000100 JS3206 0 R2205 1k R3092 220 JS2109 0 R3130 100 R3219 0 C2176 50V 0.01u R2185 220 C3064 50V 0.1u R3054 470 C3011 16V 0.1u R3069 10k R2184 220 C3216 10V 10u IC3001 C1AB00001486 1 SW 2 OUT 3 VCC 4 IN2 5 GND 6 IN1 R3087 220 R3097 220 R3144 3.3k R3218 0 H15 1 2 3 4 R3125 1k L2111 J0JCC0000241 L3008 J0JCC0000241 IC2106 C1AB00002135 1 NC 2 I2C_CL 3 I2C_DA 4 I2S_CL 5 I2S_WS 6 I2S_DA_OUT 7 I2S_DA_IN1 8 I2S_DEL_IN 9 I2S_DEL_OUT 10 I2S_DEL_CL 11 I2S_DEL_WS 12 DVSUP 13 DVSUP 14 DVSS 15 DVSS 16 DVSS 17 IS2_DA_IN2 18 NC 19 I2S_CL3 20 I2S_WS3 21 RESETQ 22 I2S_DA_IN3 23 I2S_DA_IN4 24 DACA_R 25 DACA_L 26 VREF2 27 DACM_R 28 DACM_L 29 DACM_C 30 DACM_SUB 31 DACM_SR 32 DACM_SL 33 SC2_OUT_R 34 SC2_OUT_L 35 VREF1 36 SC1_OUT_R 37 SC1_OUT_L 38 CAPL_A 39 AHVSUP 40 CAPL_M 41 SC3_OUT_R 42 SC3_OUT_L 43 AHVSS 44 AHVSS 45 AGNDC 46 NC 47 SC4_IN_L 48 SC4_IN_R 49 ASG 50 SC3_IN_L 51 SC3_IN_R 52 ASG 53 SC2_IN_L 54 SC2_IN_R 55 ASG 56 SC1_IN_L 57 SC1_IN_R 58 VREFTOP 59 SC5_IN_L 60 SC5_IN_R 61 AVSS 62 AVSS 63 NC 64 NC 65 AVSUP 66 AVSUP 67 ANA_IN1+ 68 ANA_IN- 69 ANA_IN2+ 70 TESTEN 71 XTAL_IN 72 XTAL_OUT 73 TP 74 AUD_CL_OUT 75 NC 76 SPDIF_OUT 77 D_CTR_I/O_1 78 D_CTR_I/O_0 79 ADR_SEL 80 STANDBYQ R2187 220 C2222 50V 0.1u R3153 47 C2194 16V 1u L2178 J0JCC0000241 Q3020 B1ABCF000138 L2110 J0JCC0000100 L2121 EXCELDR35V L2183 J0JCC0000241 STB5V Q3014 2SB0709A0L R3220 0 C3026 10V 1u X2103 EFCT7004BN R3133 10k C3054 10V 1u C3038 16V 0.1u Q2109 B1ABCF000138 R3094 220 R3215 0 C3227 10V 10u C3044 16V 0.1u C2174 50V 1000p C3231 16V 0.1u C2214 50V 1000p L2114 J0JCC0000100 R3221 0 C2211 16V 0.1u JS2106 C3021 10V 1u C2189 16V 1u C2203 50V 10p X2101 H0D184500008 L3009 J0JCC0000241 R2202 100 R3074 220 R2186 220 R3065 6.8k IC3005 AN15866A-VT 1 C3 2 S-3 3 V4 4 SA4 5 Y4 6 S-4 7 C4 8 VCC1 9 V5 10 SA5 11 Y5 12 S-5 13 C5 14 ADR 15 V6 16 GND1 17 V7 18 GND3 19 V8 20 SPD1 21 CY1 22 IPD1 23 PB1 24 APD1 25 PR1 26 SPD2 27 CY2 28 IPD2 29 PB2 30 APD2 31 PR2 32 SPD3 33 CY3 34 IPD3 35 PB3 36 APD3 37 PR3 38 PDD1 39 CY4 40 PDD2 41 PB4 42 PDD3 43 PR4 44 SDA 45 SCL 46 Vout4 47 VCC2 48 Cout3 49 Vout3 50 FBV3 51 Yout3/Vout5 52 FBY3 53 GND2 54 PRout2 55 PBout2/Cout2 56 CYout2/Yout2/Vout2 57 VCC3 58 PRout1 59 PBout1/Cout1 60 CYout1/Yout1/Vout1 61 Vout 62 Dcout 63 Vin 64 O1 65 V1 66 O2 67 Y1 68 SA1 69 C1 70 S-1 71 V2 72 O3 73 Y2 74 SA2 75 C2 76 S-2 77 V3 78 O4 79 Y3 80 SA3 IC3002 C1AB00001486 1 SW 2 OUT 3 VCC 4 IN2 5 GND 6 IN1 R3101 220 Q3019 B1ABCF000138 R2214 3.3k R3071 10k L2187 J0JCC0000241 C3226 10V 10u L2182 J0JCC0000241 R2210 680 C3032 10V 1u L2123 J0JCC0000241 L2108 J0JCC0000241 C2172 50V 1000p C2204 50V 22p C2198 16V 100u R3217 0 C2201 50V 5p Q3016 B1ABCF000138 C3236 10u 50V C2199 50V 56p Q3022 B1ABCF000138 R2198 1.78k JS2114 R3214 0 JS3001 R3045 0 C3062 50V 0.1u C2200 50V 47p L3211 ELJNC15NKF R2208 470 L2185 J0JCC0000241 C2192 50V 10u C2212 16V 0.1u R3122 100 C2202 50V 5p C3052 10V 1u Q2106 B1ABCF000138 Q2108 B1ABCF000138 C2193 16V 1u C2179 50V 10u R2197 470 R3164 1M C3033 10V 1u R3138 82 R3222 0 L2113 J0JCC0000100 C3235 50V 0.1u R2217 4.7k C3229 10V 10u R3075 220 R3090 47 C3014 10V 1u C3019 10V 1u R2201 1.6k R3095 220 C2206 16V 100u R3089 47 C3024 10V 1u R3143 2.2k D2120 B0ACCE000005 R3077 220 D3024 B0BC01100001 R3064 220 C3058 16V 100u R2215 330 R3096 220 C3008 10V 1u C2185 50V 0.1u R2196 0 R3139 1k R2204 560 C3009 10V 1u R3047 0 JS2105 R3115 100 C3059 16V 1u R3118 100 L3005 J0JCC0000241 L2184 J0JCC0000241 L2112 J0JCC0000241 R2190 220 R3206 100 R2192 220 Q2107 B1ABCF000138 R3061 220 L2117 ELESN6R8KA H6 1 2 3 4 5 6 7 8 9 C2223 50V 39p C3051 10V 1u C3208 16V 0.47u C3056 10V 1u L3212 EXC3BB221H Q3015 2SB0709A0L JS2108 C0DBEZE00002 IC2107 1 IN 2 SW 3 OUT 4 ADJ 5 GND 6 JS3022 0 R3159 22k C3049 10V 1u Q3010 2SB0709A0L R2193 220 R3213 0 R2209 3.3k C3050 10V 1u L2122 J0JCC0000100 R3131 100 R3146 330 R3044 0 JS2026 R3141 1k L2118 EXCELDR35V C3063 50V 0.1u C2178 50V 10u C3018 16V 0.1u R3056 10k R3161 0 C2226 50V 1000p H1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 JS3303 JS3302 JS3304 R2200 220 C3045 10V 1u R3088 220 R3228 0 JS3230 ERJ3GEY0R00V STB5V C3233 50V 0.1u C3241 50V 0.1u R3229 0 JS3237 ERJ3GEY0R00V H51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 R3227 0 R3226 0 R3224 0 R3225 0 JS3238 ERJ3GEY0R00V R3236 75 JS3239 ERJ3GEY0R00V H52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 SUB3.3V R3063 220 R3062 220 C3027 10V 1u R3234 75 R3233 75 C3028 10V 1u R3072 220 C3031 10V 1u R3068 75 R3073 220 C3029 16V 1u R3085 220 C3042 10V 1u R3052 0 R3173 1k C3061 50V 0.1u Q3023 B1ABCF000138 R3168 75 R3171 470 R3170 0 MAIN5V R3128 1.5k R3124 1.5k R3116 100 Q3012 2SB0709A0L Q3018 2SB0709A0L R3142 1.5k R3120 0 Q3013 2SB0709A0L R3119 0 R3135 0 R3129 100 R3117 100 R3156 33k R3157 33k Q3101 B1ABCF000138 R3154 10k JS3205 0 JS3202 0 IECOUT SDA1 HEADPHONE R HEADPHONE L MAIN HP out AGNDC AFC1 DVSUP MAIN in (MSP4410K-QA-B3) SPEAKER L AFC2 SPEAKER R AHVSS NC SCL1 SUB in VREFTOP GND GND L H L H RESET GND GND GND AV2_QLINK AV4_QLINK RMCN AI_SENSOR KEYSCAN SRQ SOS2 SOUND_MUTE LED_R SCL2 SDA2 SCL3 SDA3 FB_OUT MAIN_CVBS(RGB) MAIN_PR/B MAIN_PB/C/R MAIN_Y/V/G GND GND GND GND SUB_PR SUB_PB/C SUB_CY/Y/V L H GND GND GND GND GND GND GND GND(VIDEO2_GND) GND GND SUB5V NC(MAIN_SW1) NC(MAIN_SW2) RFAGC1 AFT1 AM VIDEO1 VIDEO1_GND MSP1 SUB30V NC(VIDEO2) NC(AFT2) SDA SCL GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND BT30V MAIN3.3V SUB3.3V MAIN9V SUB9V2 SUB9V2 SUB5V SUB5V_SD GND +12VS +12VS +12VS +12VS +12VS SP_MUTE LED_G STB5V GND GND SUB5V_SD 11 16 14 18 15 17 12 10 13 SWITCHING SWITCHING SWITCHING VIDEO SW MSP EX.I/O RESET AVR 5V DG-BOARD (DG2) TO PA-BOARD (PA30) TO TO TA-BOARD (TA6) TA-BOARD (TA5) TO PC_B PC_R DVB_GREEN_OUT PC_HD DVB_BLUE_OUT PC_VD DVB_RED_OUT DVB_R PC_G GND DVB_L GND DVB_CVBS GND NC SD_RXD0 SD_TXD0 SD_IDO SD_RST GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND HDMI_R HDMI_L R_OPTICAL_OUT L_OPTICAL_OUT IRD_LED PV500E ONLY PV500E ONLY PV500B ONLY PV500B ONLY 500E:16V 500B:0 500B:0 500E: 500E: 500B:1.2k 500E: 500B:0 DG-BOARD (DG1) TO TNPA3520 (PV500E) TNPA3520AB (PV500B) H-BOARD (2/2) 8 6 2 4 1 3 7 9 5 10 14 18 12 16 11 13 15 17 19 20 30.0 3.3 0 0 0 3.3 9.0 0 0 9.0 9.0 0 0 2.5 2.5 0 0 0 10.0 10.0 10.0 0 0 0 0 0 5.0 0 0 0 0 0 0 0 0 0 30.0 4.9 4.9 2.0 2.0 0 0 5.4 0 4.0 0 0 0 0 0 0 0 5.0 HPOUT_R HP_detect STBY5V AV3_L STBY_LED Key2 REMOTE GND HP_GND AV3_Y GND V_detect OPT AV3_S V_GND Modem_LED SUB5V GND A_GND HP_GND GND Key V_GND AV3_C HP_GND Sub mono ON_LED GND AV3_R SUB5V V_GND SUB5V A_GND AV3_V HPOUT_L GND(AUDIO) AUDIO R IN SUB3.3V GND GND GND SUB5V AUDIO L IN SD SW SD RX SDWP SD V-OUT GND SUB5V GND(V-IN) SD RST GND(V-OUT) SD DAT3 SD V-IN AUDIO OUT SD DAT2 SD DAT1 GND GND SD TX SD DAT0 SD IRQ SD CLK SD CMD SD DTC MAIN 5V GS-BOARD TO (GS52) G-BOARD TO (G51) 21 TH-50PV500E/B H-Board (2 of 2) Schematic Diagram TH-50PV500E/B H-Board (2 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 86 14.13. G-Board Schematic Diagram + TOP + R V L Y C PC-CARD SLOT FOR 68 PC CARD PC-CARD + AP_A2 AP_XOE AP_A5 AP_A7 AP_A10 AP_A3 AP_XCE1 AP_A1 AP_A8 AP_A6 AP_XWE AP_A4 AP_A9 AP_A0 AP_XCE2 AP_RESET AP_A0 AP_A2 AP_A1 AP_A3 AC_A1 AC_A2 AC_A3 AC_A0 AP_A5 AC_A7 AC_A4 AC_A6 AP_A6 AP_A4 AC_A5 AP_A7 AP_A9 AC_A8 AC_A10 AP_A10 AP_A8 AC_A9 AC_XREG AC_XCD2 AC_XWAIT AP_RESET AC_NPCRST AC_WP AC_READY AP_WP AP_READY AP_XCD1 AC_XCD1 AP_XCE1 AC_XCE1 AC_XCE2 AP_XCE2 AP_XOE AC_XOE AP_XWE AC_XWE AP_XCD2 AP_XREG AP_XWAIT AC_D0 AC_D1 AP_D0 AP_D1 AP_D6 AP_D7 AP_D8 AP_D9 AP_D10 AP_D11 AP_D12 AP_D13 AP_D14 AP_D15 AC_D15 AC_D14 AC_D13 AC_D12 AC_D11 AC_D10 AC_D9 AC_D8 AC_D7 AC_D6 AC_D5 AC_D4 AC_D3 AC_D2 AP_D5 AP_D4 AP_D3 AP_D2 AP_VS1 AC_PCDATOE AC_NPRSTOE AP_VS2 AP_VS1 PC5V_ON 5V AP_D4 AP_D5 AP_D6 AP_D7 AP_D12 AP_D13 AP_D14 AP_D15 AP_D0 AP_D1 AP_D2 AP_D8 AP_D9 AP_D10 AP_WP AP_D3 AP_XWAIT AP_D11 AC_WP AC_XCD1 AC_READY AC_XCE1 AC_XCE2 AC_XOE AC_XWE PC5V_ON AC_NPCRST AC_NPRSTOE AC_PCDATOE AC_D0 AC_D1 AC_D2 AC_D3 AC_D4 AC_D5 AC_D6 AC_D7 AC_D8 AC_D9 AC_D10 AC_D11 AC_D12 AC_D13 AC_D14 AC_D15 AC_XWAIT AC_A10 AC_A9 AC_A8 AC_A7 AC_A6 AC_XCD2 AC_A0 AC_A1 AC_XREG AC_A2 AC_A3 AC_A4 AC_A5 AP_READY AC_PONOE AP_VS2 AP_XREG AP_XCD1 AP_XCD2 5.0V PC5V R7929 EXB38V560JV L7901 J0JHC0000045 R7905 EXB38VR000V C7926 22u 16V ZA3701 K4CD01000013 R7956 22k R7962 22k R7952 22k R7931 56 R3723 0 D3711 MAZ81400ML C3703 560p 50V C3701 560p 50V L3701 EXC3BB221H R7942 0 R7911 0 R7930 EXB38V560JV R7958 22k Q7902 B1DHDC000028 R7907 EXB38VR000V JS3713 0 JS3707 0 R7937 EXB38V560JV G11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 JS3703 0 JS7905 C7902 22u 16V L3703 EXC3BB221H C7923 16V 0.1u R7941 56 R7938 EXB38V560JV JS3705 0 R7955 22k R3725 0 JS3706 0 R7908 EXB38VR000V R7928 EXB38V560JV G2 1 2 3 4 5 6 7 8 9 10 11 12 C3712 50V 0.033u R7922 0 D3701 MAZ81400ML D3710 MAZ80510LL R7963 10k JS3701 0 C7938 0.1u 16V R7947 22k R7939 EXB38V560JV R7953 22k D3709 MAZ80510LL R7936 EXB38V560JV G3 1 2 3 R7949 22k R3711 10k JK3701A K4BK26B00003 C Y G CY-G G R T R T NC1 SW1 NC2 SW2 R-SW R R-G L L-G V-SW V V-G NC3 SW3 JS3704 0 L3708 J0JCC0000364 R7913 0 R3726 0 R3721 0 L3702 EXC3BB221H R7985 3.3k R7933 56 C7915 16V 0.1u C7929 16V 0.1u R7909 10k R3724 0 G51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 R7959 22k R3710 0 R3704 180k C7928 6.3V 2.2u R3708 0 JK7900 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 R3722 0 R7906 EXB38VR000V R7961 220 JS3711 0 R7935 EXB38V560JV JS3708 0 CN7901 R7975 0 JS3702 0 L3709 J0JCC0000364 JS7921 0 Q7901 B1ABCF000138 D3702 MAZ81400ML R7914 0 C3705 560p 50V R7968 47k R3702 180k C7911 33u 10V R7934 EXB38V560JV JS3712 0 R7940 56 C3711 50V 0.033u R7932 56 R7973 0 AB : EURO (500Series) High : ON LOW or OPEN : OFF key2 STBY 5V GND GND SUB 5V GND GND STB_LED OPT ON_LED Modem_LED REMOCON GND key key2 PC CARD SLOT R A-GND L A-GND V-detect V V-GND Y V-GND C V-GND S-detect HP-GND Sub mono HP-GND Main L HP-GND Main R GND HP-detect REMOCON OPT ON_LED Modem_LED STB_LED GND SUB 5V SUB 5V SUB 5V GND GND GND STBY 5V key key2 SUFFIX AB 8 B 2 4 3 A 1 5 6 D 7 C E G-BOARD TXN/G1XRSE (GK3) TO GK-BOARD K-BOARD TO (K1) H-BOARD TO (H51) MODULE TO SD PV500B AV3 HEADPHONE DGND DGND DGND XCD1 READY DGND WP XCE1 XCE2 XOE XWE PC5V_ON NPCRST PONOE NPRSTOE PCDATOE DGND D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DGND D10 D11 D12 D13 D14 D15 XWAIT A10 A9 A8 DGND A7 A6 A5 A4 A3 A2 XREG A1 A0 XCD2 DGND ONLY TH-50PV500E/B G-Board Schematic Diagram TH-50PV500E/B G-Board Schematic Diagram 68 Pin SLOT TH-50PV500E / TH-50PV500B 87 14.14. GK, K, S, and TA-Board Schematic Diagram PUSH + + + STB5V 5V SIF SDA1 SCL1 V1 SCL1 AM SIF V1 V1_GND AM BT30V SDA1 AFT1 30V V1_GND AFT1 R2572 0 R2542 0 C2512 6.3V 10u Q2510 B1ABCF000138 IC2511 B3L000000020 D2512 MA8056MTX R2524 22k R2520 220k C2511 16V 1u R2560 1.2k D2510 MA8056MTX K1 1 2 3 4 5 6 7 8 9 10 11 12 RM2510 PNA4601M05TV VOUT GND VCC R2517 47 C2510 16V 1u R2552 0 D2520B LN1271RALTR Y R2567 0 Q2518 B1ABCF000138 R2545 0 R2516 22k Q2511 B1ABCF000138 R2554 180 R2559 0 D2524 MA8056MTX C2517 50V 0.01u D2525B LN1471YTR R2521 47 C2515 50V 0.01u D2526 MA8056MTX R2557 5.6k R2550 0 D2511 MA8056MTX R2540 22k R2512 47 R2539 47k R3763 0 R3759 0 R3760 0 R3755 3.16k SW3755 EVQ11G05R C3750 1000p 50V R3751 6.65k SW3751 EVQ11G05R R3753 1.62k R3758 0 R3761 0 SW3756 EVQ11G05R GK3 1 2 3 SW3753 EVQ11G05R SW3754 EVQ11G05R R3764 0 R3762 0 R3752 1.74k R3754 2.32k R3750 14.3k SW2500 K0F162B00002 S1 1 2 3 L006 J0JCC0000241 D003 MA3X152K0L Q002 2SB0709A0L R003 0 C020 16V 0.1u R005 560 TA6 1 2 3 4 5 6 7 8 9 C001 6.3V 1000u L004 J0JCC0000364 C017 16V 0.47u C013 16V 0.1u C022 6.3V 3.3u R008 0 L018 J0JGC0000021 L019 J0JCC0000241 C024 50V 220p L012 J0JCC0000241 L007 J0JCC0000241 C006 50V 22p L008 EXC3BB221H C018 50V 33p R002 220 C021 50V 100p R006 4.7k C003 10u 50V R007 0 L003 J0JCC0000364 L017 J0JGC0000021 TU001 NC 1 NC 2 BM 3 NC 4 NC 5 NC 6 BT 7 RF_AGC 8 NC 9 SCL 10 SDA 11 AFT 12 AUDIO OUT 13 SIF_OUT 14 BTL 15 IF_OUT 16 VIDEO_OUT 17 TA5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 C009 50V 0.1u Q003 2SB0709A0L R009 0 C019 50V 33p C007 16V 0.1u L005 J0JCC0000364 C023 50V 1000p C016 16V 0.1u C002 10u 50V JS012 0 OPT AI REMOCON RECIEVER POWER LED SUB5V GND GND (LED_R) (LED_G) MODEM LED STBY5V_M STB_LED OPT GND ON_LED REMOCON MODEM_LED R_DRIVE2 8 B 2 4 3 A 1 5 6 D 7 C E GND KEYSCAN TV/AV -/ F +/ STR (G2) TO G-BOARD (G3) TO G-BOARD TNPA3498AD(PV500B) GK-BOARD TNPA3503AC S-BOARD TNPA3499AC STB_PS TO (SS34) SS-BOARD 12V GND POWER SWITCH (H5) 0 ENG37A12GF TA-BOARD TNPA3521 (PV500E) 0 TNPA3521AB(PV500B) 5.0 H-BOARD TO PV500E ONLY PV500B ONLY PA500E: PE500B: ENGF7301GF GND 0 SDA GND AM SCL AFT1 0 0 2.0 0 MAIN_V_GND SIF1 SUB5V SUB30V GND RFAGC1 GND GND GND GND 4.0 GND GND NC(MAIN SIF_SW1) NC(MAIN SIF_SW2) NC(SUB_VIDEO) MAIN_VIDEO 30.0 GND(SUB_V_GND) 0 0 0 NC(AFT2) TUNER TO 0 0 0 0 H-BOARD 4.9 4.9 2.0 5.4 (H6) 0 0 0 TNPA3498AC(PV500E) K-BOARD PV500B ONLY TH-50PV500E/B GK, K, S and TA-Board Schematic Diagram TH-50PV500E/B GK, K, S and TA-Board Schematic Diagram TH-50PV500E / TH-50PV500B 88 14.15. GS-Board Schematic Diagram D.SW W.P. TOP + + SDCMD V-OUT SDDAT2 SD_TX SDCLK M-SDCLK M-SDDAT0 M-SDDAT1 M-SDCLK SDDAT1 M-SDWP PRODTC SDDAT1 SDDAT0 SDCLK SD_IRQ SDCMD SDDAT3 SD_RX SDDAT2 M-SDCMD M-SDDAT3 SDDAT3 M-SDDAT2 SDDAT0 R-IN V-IN V-OUT SD_RST V-IN SD_RST A-OUT SD_IRQ SD_TX R-IN M-SDCMD M-SDWP A-OUT L-IN L-IN M-SDDAT3 M-SDDAT1 M-SDDAT2 M-SDDAT0 SD_RX P-SDWP PRODTC 3.3V JK7701 1 2 3 4 5 6 7 8 9 C7775 16V 0.1u IC7714 C0JBAZ000851 1 1OE 2 1A 3 1Y 4 2OE 5 2A 6 2Y 7 GND 8 3Y 9 3A 10 3OE 11 4Y 12 4A 13 4OE 14 VCC C7724 0.1u 16V R7782 0 R7791 5.6k C7731 16V 0.1u R7732 0 R7711 0 R7757 47 C7728 50V 33p Q7711 UNR521100L R7788 100 R7722 0 C7733 16V 0.1u C7737 50V 20p GS12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 R7706 0 R7759 47 R7707 0 R7726 0 R7790 22k R7700 100 C7760 220u 4V R7705 47 C7713 50V 0.01u C7750 50V 20p R7724 0 R7745 0 C7764 10V 1u R7702 0 C7753 16V 0.1u C7726 50V 33p JS3709 0 R7709 47 R7725 0 R7701 0 R7765 22 R7756 10k R7792 10k R7714 0 R7758 47 PA7701 K5H1622A0023 R7783 0 R7723 0 D7702 SD LED B3AEB0000065 C7732 16V 0.1u Q7701 2SC584500L R7708 47 JS7701 0 Q7710 UNR521100L R7713 47 C7777 16V 0.1u R7746 0 R7727 0 GS52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Q7702 UNR521100L R7704 0 R7760 47 C7730 47u 16V C7748 50V 20p R7799 47k R7764 10k R7755 5.6k C7747 50V 20p C7725 50V 33p C7727 50V 33p C7765 16V 0.1u R7703 47 C7781 10V 1u AUDIO-OUT(MONO) SUB 3.3V SD V-IN SD V-OUT GND(SD V-OUT) GND(SD V-IN) GND(AUDIO) SUB 5V GND SDDTC SDWP SDCLK GND SDDAT0 SDDAT3 SDDAT2 SDDAT1 GND SDCMD SDTX SDIRQ SDRX SDRST SDSW GND D5V D5V D5V DGND SD_CLK DGND SD_CMD SD_CD SD_WP SD_DATA0 SD_DATA1 SD_DATA2 SD_DATA3 DGND LED_SD TXD(SDRX) RXD(SDTX) RESET IO0 DGND ALIN AGND ARIN AGND ALOUT AGND AROUT AGND VIN VGND GND VGND GND VGND VOUT VGND GND VGND GND VGND 350mA SD V-IN GND GND SD V-OUT AUDIO-R in DC 2A HIGH:LED ON LOW:RESET LOW:RESET SUB 5V AUDIO-L in 3 6 B 2 4 7 5 D E 1 A 8 C MODULE TO SD (H52) TO H-BOARD GS-BOARD TNPA3497AB SD CARD SLOT SWITCHING TH-50PV500E/B GS-Board Schematic Diagram TH-50PV500E/B GS-Board Schematic Diagram TH-50PV500E / TH-50PV500B 89 14.16. DG-Board (1 of 2) Block Diagram AFC1 LED_R B_DDR_CLK B_DDR_NCLK RM_IN KEYSCAN M2_RST RGB_FB TUNER_MAIN_ON SOS MAIN_Y/CVBS MAIN_PB/C MAIN_PR QLINK_AV4 MAIN_PR RGB_CVBS MAIN_PB/C MAIN_Y/CVBS PC_B PC_G PC_R PC_VS PC_HS SD_RXDO SD_TXDO SD_IDO SD_RESET A_DAC_PD HDMI_DAC_MUTE HDMI_ROBUSTNESS HDMI_RST HDMI_INT JTAG_TRST TDO_4PRO_HDMI JTAG_TCK JTAG_TMS HPD CLKINB2 VSIB HSIB HDMI_5V_DET TD0_FS_4PRO JTAG_TMS JTAG_TRST JTAG_TCK CLKINA HSIB VSIB SUB_PR SUB_Y/CVBS SUB_PB/C QLINK_AV2 BS_L BS_R DVB_CVBS SD_LED M2_RST SOS2 SP_MUTE AUDIO_MUTE HDMI_INT HDMI_DAC_MUTE HPD A_DAC_PD HDMI_RST HDMI_ROBUSTNESS HDMI_5V_DET SUB_PR SUB_C/PB SUB_Y/CVBS AI_SENSOR AL_SRQ LED_G CVBS1 CVBS1 PC_VS PC_HS PC_R PC_B PC_G XBUF TDO_HDMI_BA NRST X4001 TO H2 DG2 SELF,ID,ED2 1080i A/D 10bit VPK COLOUR 30MHz 30MHz A/D 10bit Macrovision 625i/p A/D 10bit MATRIX NOISE LEVEL RGB-> YUV CHROMA 720p Sync SEPA 30MHz Detection 3D/2D com 525i/p SYNC CLK SW IC4005 10bit A/D(ADV7499) 22 UV0~UV9 29 76 SOS2 10 STB_RESET 13 SCL2 21 SDA3 23 SP_MUTE 12 SOUND_MUTE 11 AV2_QLINK FB_OUT 26 1 2 RMCN AV4_QLINK AFC1 3 6 LED_R 15 2 3 DG20 1 TO PA20 25 23 MAIN 3.3V SOS BT30V AC_ON/OFF DG MICOM,DIGITAL SIGNAL PROCESSOR 22 20 18 17 15 13 12 9 7 5 MAIN 3.3V SUB 3.3V SUB 9V SUB 9V MAIN 2.5V MAIN 2.5V SUB 5V MAIN 5V STB 5V SUB 5V MAIN 5V STB 5V 4 RESET IC4063 SDA2L SDA NRST IC4055 128M DDR SDRAM 5 6 TVON MAIN 9V MAIN 3.3V SUB 9V MAIN 9V 74 72 Q4006,Q4013 Q4011 Q4012 38 XTAL 20 24 KEYSCAN 8 A_DDR_CLK A_DDR_NCLK IC4054 GC4PRO SDA2 SCL3 SCL3 SDA2 SCL2 SDA3 CLK0A CLKIA HSIA VSIA TPOUT0 7 Y0~Y9 14 R0~R3 33 30 41 42 91 94 R0~R3,Y0~Y9,UV0~UV9 SDA_2L SDA SCL_2L 81 SCLK 82 D_CLKIN RESET VS HS LLC1 (ADV7403) PORT-A 1 SDA1 18 17 SCL1 DEM. DETECT Q4068 9 SRQ 35 36 4 99 78 AVR 3.3V 8 VOUT 1 IC4049 CONT AD 3.3V 5 VIN SUB 5V VOUT PLL 1.2V AVR 1.2V MAIN 2.5V 1 IC4044 VIN 5 VOUT AVR 1.2V 1 IC4061 VIN 5 DLL 1.2V Q4010,Q4015 57 51 6 3 2 SDAIN 7 SCLOUT IC1235 SDAOUT SCLIN IIC BUFFER SCL1 SDA1 AIN9 FB Q4900 2 RGB_CVBS SD_LED 17 33 DVB_R DVB_CVBS 31 DVB_L TO H1 35 DG1 MAIN_CVBS2(RGB) MAIN_PR/B 28 30 32 MAIN_Y/V/G 34 MAIN_PB/C/R STB5V 14 STB5V VDD AVR 2.5V VCC VOUT VOUT 4 IC4024 3 5 IC4042 AVR 1.8V 4 1 OUT STB 5V 2 1 IC1103 1 AVR 1.8V 3 MAIN 3.3V VDD 2 AVR STB 2.5V STB 2.5V AVR 3.3V AD 3.3V STB 5V 4 MAIN 2.5V MAIN 1.8V DDR 2.6V MAIN 5V VIN IC4008 4 VIN 5 VDET VOUT AVR 3.3V VIN VOUT MAIN 1.2V IC4048 AD 1.8V AVR 1.2V MAIN 3.3V IC4041 2 AVR 2.6V 5 VIN VO VCC VOUT STB 3.3V 5 OUT IC1110 MAIN 2.5V MAIN 2.5V 1 MAIN 3.3V IC4025 SCL SCL2L (FS&HDMI) PORT-B 19 16 18 15 11 13 21 27 23 25 29 SD_IDO PC_G PC_B PC_R PC_HD HDMI_R HDMI_L SD_RXDO SD_TXDO SD_RST PC_VD IC4001 3 6 2 7 5 1 Q4435 Q4434 Q4432 Q4431 Q4430 Q4436 Q4433 BICK LRCK MCLK SDTI IC4002 1 2 AUDIO DAC AUDIO AMP 3 4 11 10 AOUTL PDN 5 SMUTE 6 AOUTR RX_MCLK 26 MAIN3.3V MAIN5V TO DV15 22 24 MAIN3.3V 20 30 29 60 RX_WS DG15 RX_SDO RX_SCK SCL0 HDMI_INT 17 16 SDA0 NIRQ2 HDMI ROBUSTNESS 2 4 HDMI_5V_DET 7 18 HDMI_RST 5 VSIB 59 9 11 JTAG_TMS 55 58 JTAG_TCK TD0_4PRO_HDMI CLKINB2 JTAG_TRST 10 13 HSIB 15 YGIN2 36 HPD UBIN9 45 33 44 UBIN1 YGIN9 UBIN0 53 34 32 YGIN1 31 YGIN0 UBIN2 SUB9V2 MUTE Q4410 MAIN5V MAIN3.3V SDA1L SCL1L 24 TD0 23 TMS TRST 22 21 TCK CLK0 94 HPO 72 UBOUT0 93 84 YGOUT0 73 85 83 YGOUT2 80 74 NRST 61 VPO UBOUT7 YGOUT1 YGOUT7 16 XTALIN XTALOUT 14 SCL 65 SDA 64 SCL1L SDA1L VIN1 30 VIN2 35 40 VIN3 IC4013 GC3FS Q4307,Q4311 Q4303 Q4302 Q4306,Q4310 Q4308,Q4309 Q4301 SW1 1 SW2(HOTPLG_DET) 9 SW3 10 4 DAC0 7 5 3 DAC2 DAC3 DAC4 EX.DAC 15 14 SCL1 SDA1 IC1116 36 SUB_PB/C SUB_Y SUB_PR 40 38 AIN1 AIN2 AIN3 HS_IN 54 56 86 58 VS_IN 85 5 MAIN 3.3V IC4011 1 1 VDD AD 2.5V VDD PLL 2.5V AVR 2.5V VOUT AVR 2.5V VOUT IC4009 5 AI_SENSOR 5 LED_G 16 PV500B ONLY YGIN0-9,UBIN0-9 YGIN2-9,UBIN2-9 HSIB,VSIB CLKIB1,CLKIB2 JTAG_TRST JTAG_TCK JTAG_TMS TD0_FS_4PRO TD0_4PRO_HDMI AIN6 AIN5 AIN4 12 TDO_HDMI_BA I/P CONV. NR MIX RESIZE INPUT I/F DIGITAL 3D Y/C 3 4 TH-50PV500E/B DG-Board (1 of 2) Block Diagram TH-50PV500E/B DG-Board (1 of 2) Block Diagram TH-50PV500E / TH-50PV500B 90 14.17. DG-Board (2 of 2) Block Diagram RM_IN AFC1 LED_R KEYSCAN 24V_ON READY PANEL_SOS PANEL_5V_ON IRD_POW_ON XBUF FAN_CTRL FAN_SOS PANEL_5V_ON M2_RST 24V_ON READY PANEL_SOS IRD_POW_ON AUDIO_MUTE SP_MUTE CVBS1 SRQ SOS OSD_B OSD_G OSD_R TDO_HDMI_BA JTAG_TMS JTAG_TCK BS_R DVB_CVBS BS_L TUNER_MAIN_ON SD_LED SD_RXD0 SD_TXD0 Q_LINK_OUT Q_LINK_IN QLINK_AV4 QLINK_AV2 Q_LINK_SEL AI_SENSOR LED_G SD_RESET SD_ID0 SOS2 JTAG_TRST NRST D/A OSD 2 CONT 110MHz 3 D/A 10bit D/A 8bit OSD MIX HSOE VSOE CLKOE AFC1 IC1104 PANEL_5V_ON KEY 125 5 80 RMCN MAIN MICOM LED_R Q1174 Q1175 TO DG3 79 EXCLKIN FRCLKIN IBTV 5 7 6 IC1107 SDA EEPROM WP SCL 76 EEPROM_WP IC1115 5 6 IC4054 GC4PRO PORT_E (RGB OUT) 121 CVBS1A 99 98 74 75 100 101 Q1178 19 20 21 22 18 4 2 6 17 IC1109 LEVEL SHIFT 90 AUDIO MUTE 8 Q_LINK OUT 6 Q_LINK IN Q_LINK SEL 1 7 6 8 4 9 5 CLKD 74.25MHz CLKC 95.5MHz CLKE 108MHz XBUF 27MHz XTALOUT CLKB 81.0MHz XTALIN IC4051 CLOCK GEN. TD+ TA+ 21 TC+ 31 24 19 TCLK- TB- 23 TCLK+ 22 TD- 29 20 28 30 25 TC- TB+ TE+ 18 TE- TA- TC5 57 TC4 CLKIN 12 LVDS TRANSMITTER(10bit) IC4021 11 12 14 TX_TA- 5 6 8 9 15 17 18 2 3 TX_TA+ DG5 GOE0~GOE9 ROE0~ROE9 BOE0~BOE9 HSIC CLKIN VSIC UVIN0~UVIN7 YIN0~YIN7 CLKID2 PORT_D (OSD INPUT) (PEAKS) PORT_C OSDYS OSDYM R00-R04 G00~G05 B00~B04 (PLL) VCO IN X4002 27MHz 16M FLASH ROM TX_TB- TX_TB+ TX_TC- TX_TC+ TX_TCLK- TX_TCLK+ TX_TD- TX_TD+ TX_TE- TX_TE+ 14 TUNER_SUB_ON (F_STBY_ON) 1 FAN_CTRL(MAX) ECO_ON 11 4 FAN_SOS PANEL_STB_ON 3 20 IIC_DATA1(SDA1) 19 IIC_CLK1(SCL1) 7 READY(STATUS) 6 DISPEN(DRVMUTE) 8 ALARM(PANEL_SOS) 12 STB 5V STB 5V SDA1L SCL1L TO D5 D3 1 2 OSD-OUT PORT-F RESET 10Bit LVDS TTL PARALLEL DATA LVDS (SERIAL) DG32 FOR FACTORY SRQ STB 5V SDA3 SDA2 SCL3 SCL2 6 4 7 8 2 1 5 EEP_WP 5V 3.3V 3 7 5 SDA1 SCL1 SDA2 SCL2 SDA3 SCL3 USE SCL1 SDA1 SCL3 SCL1 SDA2 SCL2 SDA3 SDA1 Q1170 Q1172 SCL1L SDA1L SDA2L SCL2L 94 SRQ 7 Q4101,Q4103,Q4110 Q4104,Q4106,Q4111 Q4107,Q4109,Q4112 7 YOUT3 3 YOUT7 13 PBOUT7 18 PBOUT2 23 PRPUT7 27 PROUT3 67 110 41 44 54 55 YIN BIN PRIN SDA_1L CKXI IC4012 OSD RGB_AD 55 DAC3 SW3 DAC1 SW0 SCL IC1106 6 4 EX.DAC 2 10 14 15 SDA Q1179 Q1180 SUB_ON 82 RST IN 73 IC1108 4 RESET 2 VDD AD 3.3V OUT IC1114 SDRAM 64M 97 PANEL_SOS 92 AC_ON 78 24V_ON Q1200 SOS2 SUB 5V LED_G D1162 SDA3 SCL3 SCL2 SDA2 12 SP_MUTE Q1177 Q1176 SDA1 SCL1 STB 5V SDA2L SCL2L 93 94 OSDYS OSDYM 113 OSDG OSDB 114 112 OSDR 57 54 107 VSIC 52 53 106 51 109 88 IRD_RST(XRST) 105 DG22 22 SBO1 UVIN7 97 19 SBI1 XV01 YIN0 JTAG_TCK 18 96 26 YIN7 SUB 9V2 SUB 9V JTAG_TMS 27 JTAG_TDO(TDI) SUB5V 28 UVIN0 TO JTAG_TDI(TDO) 29 HSIC 13 14 SUB 9V SUB 9V2 SUB 9V2 SUB 9V2 SUB 5V SUB 5V SUB 5V 41 43 72 BS_L BS_R DVB_CVBS CLK 81 IDTV_TXDO IRD_RST 89 93 IDTV_RXDO 88 SOS 91 MAIN_ON PV500B ONLY PV500B ONLY 16 SD_LED FORMAT CONV. 8bit A/D 9 JPEG_RXD JPEG_TXD 83 Q1151,Q1150 Q1152 Q LINK SW 13 1 IC1105 2 3 5 4 Q1153 Q1154 INV AI_SENSOR 127 124 SW2 9 DAC4 3 JTAG_TRST 30 SDA_1L 58 RST AI GAMMA PIXEL CONV. CONVERTER 3 4 TH-50PV500E/B DG-Board (2 of 2) Block Diagram TH-50PV500E/B DG-Board (2 of 2) Block Diagram TH-50PV500E / TH-50PV500B 91 14.18. DG-Board (1 of 13) Schematic Diagram G G + SCL_1L SDA_1L DVB_CVBS READY 24V_ON FAN_CTRL IRD_POW_ON FANSOS TUNER_MAIN_ON PANEL_SOS/INV_ON PANEL5V_ON PC_G PC_B PC_R PC_HS PC_VS HDMI_LOUT HDMI_ROUT SD_IDO SD_RESET SD_TXDO SD_RXDO SD_LED BS_R BS_L R1200 100 R1206 0 R4915 0 R1208 0 R1197 0 R1212 0 R1191 0 Q1180 UNR521100L R1194 0 L4901 J0JHC0000078 J0HABH000012 FL1100 1 2 3 C4903 16V 0.1u DG3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R4914 0 DG1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 R1215 4.7k STB5V R1214 1k R1216 10k R1195 0 Q1182 B1ABCF000138 C4904 16V 47u Q1184 B1ABCF000138 MAIN5V R1209 0 R1196 0 R1190 0 R1192 0 R1193 0 R1199 0 C4905 16V 0.1u R1201 0 R4916 0 R4911 0 R4895 0 R4894 0 R4892 0 R4893 0 R4891 0 R4907 0 R4908 0 R4910 0 R4913 0 R4912 0 R4909 0 TNR_SUB_ON FAN_SOS ALL_OFF IIC_DATA1 Panasonic_Mode DISPEN GND GND GND INEXCH IIC_CLK1 READY GND GND ALARM ECO_ON STB5V HDMI_R HDMI_L R_OPTICAL_OUT L_OPTICAL_OUT DVB_BLUE_OUT DVB_GREEN_OUT DVB_RED_OUT SD_RXDO SD_TXDO SD_LED SD_RST SD_IDO PC_G PC_B PC_R PC_HD PC_VD DVB_R DVB_L DVB_CVBS (DISPEN) FAN-CTRL(MAX) MAIN5V Panel_STB_ON (H1) TO H-BOARD 5 1 6 D E 7 B 3 A C 2 4 8 (D3) TO D-BOARD C_SEL DG-BOARD TO (8/13) DG-BOARD (1/13) 2 3 1 E A B C D TNPA3519 (PV500E) TNPA3519AC (PV500B) 2.6 0 3.0 0 3.0 0 0 0 0 0 0 3.2 0 0 0 2.8 3.2 0 0.7 5.0 PV500B ONLY 4 TH-50PV500E/B DG-Board (1 of 13) Schematic Diagram TH-50PV500E/B DG-Board (1 of 13) Schematic Diagram TH-50PV500E / TH-50PV500B 92 14.19. DG-Board (2 of 13) Schematic Diagram + + NP QLINK_AV2 QLINK_AV4 AS_M2_WP ENBID CLKOD1 R1189 10k C1153 50V 220p R1185 100 STB3.3V C1152 16V 0.1u R1331 100 Q1154 B1ABCF000138 R1173 0 C0EBE0000436 IC1108 4 OUT 3 CD 1 VSS 2 VDD Q1150 B1ABCF000138 R1166 2.2k MAIN3.3V C1175 50V 150p R1246 1k R1165 820 Q1152 B1ABCF000138 Q1178 UNR521100L R1150 100 R1157 22k MAIN9V R1162 0 R1341 0 R1322 0 C1198 16V 0.1u C1155 16V 0.1u R1152 4.7k IC1105 C0JBAS000160 1 IN/OUT1 2 OUT/IN1 3 OUT/IN2 4 IN/OUT2 5 CONT2 6 CONT3 7 8 IN/OUT3 9 OUT/IN3 10 OUT/IN4 11 IN/OUT4 12 CONT4 13 CONT1 14 VDD C1174 16V 0.1u TP1029 Q1170 2SA207700L R1327 0 R1159 100k R1171 2.2k STB5V C1154 50V 220p C1197 16V 0.1u TP1024 L1172 ELJFA8R2KF R1175 3.9k R1155 100 R1178 22k R1187 0 C1141 50V 0.01u R1161 220 R1180 0 R1160 220k R1330 100 R1188 470 R1170 100 R1158 100k C1172 16V 0.1u R1164 27k R1168 0 C1150 25V 33u C1171 16V 47u L1170 J0JHC0000078 Q1153 B1ABCF000138 R1151 2.2M R1186 330 TP1021 R1153 47k R1342 5.6k TP1023 R1334 47k R1172 0 Q1172 B1ABCF000138 R1177 47k TP1025 IC1107 C3EBHC000024 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 Vcc C1170 16V 10u R1149 22 C1193 16V 0.1u Q1151 B1ABCF000138 R1340 0 C0JBAZ001769 IC1117 1 2 3 5 4 TP1026 GND Vcc RST Q LINK SW EEPROM RESET 14 9 15 8 13 12 10 11 TO (9/13) DG-BOARD 1 2 3 11 12 17 18 16 19 14 15 13 20 25 23 22 21 26 AA AB AC AE AF AD AG AK AX AN AW AS AO AT AL AR AH AP AV AM AU AI AJ AQ INVERTER 4 24 DG-BOARD (2/13) TNPA3519 (PV500E) TNPA3519AC (PV500B) TH-50PV500E/B DG-Board (2 of 13) Schematic Diagram TH-50PV500E/B DG-Board (2 of 13) Schematic Diagram TH-50PV500E / TH-50PV500B 93 14.20. DG-Board (3 of 13) Schematic Diagram + + + + + + + + Thermal Pad + + + UVIN4 UVIN5 UVIN6 UVIN7 UVIN1 UVIN8 UVIN9 YIN2 YIN3 YIN4 YIN5 YIN9 YIN8 YIN7 YIN6 RIN0 RIN1 RIN2 RIN3 UVIN0 VSIA HSIA YIN1 YIN0 CLKIA CLKOA UVIN3 UVIN2 SDA_2L SCL_2L AO_A10 AQ_D3 AR_CS AO_A3 AQ_D4 AR_CLK AO_A4 AO_A18 AQ_D9 AQ_D6 AQ_D11 AQ_D15 AO_A19 AQ_D10 AQ_D4 AO_A16 AO_A12 AO_A13 AO_A14 AO_A0 AP_CSD AQ_D12 AR_LDQM AQ_D0 AO_A9 AQ_D13 AO_A2 AP_RD AO_A8 AO_A5 AR_UDQM AO_A6 AQ_D2 AO_A11 AQ_D1 AQ_D8 AQ_D5 AR_WR AO_A0 AO_A7 AQ_D7 AQ_D14 AO_A1 AO_A15 AP_WR AR_CKE MAIN_Y/CVBS RGB_CVBS MAIN_PR TUNER_MAIN_ON AQ_D5 AQ_D6 AQ_D3 AQ_D2 AQ_D1 AQ_D0 AQ_D8 AQ_D9 AQ_D10 AQ_D11 AQ_D12 AQ_D13 AQ_D14 AO_A15 AO_A14 AO_A13 AO_A12 AO_A11 AO_A10 AO_A9 AO_A8 AO_A17 AO_A7 AO_A6 AO_A5 AO_A4 AO_A3 AO_A2 AO_A1 MAIN_PB/C RGB_FB AQ_D15 AQ_D7 STB3.3V PC_B PC_R PC_G PC_VS PC_HS C4031 16V 0.1u C4019 16V 0.68u C4070 16V 0.1u R1366 EXB2HV680JV R4080 EXB38V220JV JS4002 ERJ3GEY0R00V R4082 22 R4076 EXB38V220JV C4027 25V 33u AD3.3V C4045 16V 0.1u L4007 J0JHC0000078 C0CBCAC00275 IC4041 1 VDD 2 GND 3 CE 5 VOUT 4 NC C4036 47u 6.3V STB3.3V R4043 1k L1175 J0JHC0000078 R4083 22 C4037 50V 0.01u Q4012 B1ABCF000138 C4061 47u 6.3V C4032 16V 0.1u R4050 1k C4029 6.3V 10u R4081 EXB38V220JV R4014 150 JS4092 0 JS4090 0 C1213 50V 270p R4058 0 R4944 47k C1201 16V 0.1u MAIN1.8V Q4011 B1ABCF000138 MAIN2.5V C4001 220u 4V R4047 560 C4020 16V 0.039u C4065 16V 0.1u C4059 47u 6.3V R4052 0 C4002 16V 0.1u C3ABPG000133 IC1114 1 VDD 2 DQ0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 VDD 15 LDQM 16 WE 17 CAS 18 RAS 19 CS 20 BA0 21 BA1 22 A10/AP 23 A0 24 A1 25 A2 26 A3 27 VDD 28 VSS 29 A4 30 A5 31 A6 32 A7 33 A8 34 A9 35 A11 36 NC 37 CKE 38 CLK 39 UDQM 40 NC/RFU 41 VSS 42 DQ8 43 VDDQ 44 DQ9 45 DQ10 46 VSSQ 47 DQ11 48 DQ12 49 VDDQ 50 DQ13 51 DQ14 52 VSSQ 53 DQ15 54 VSS C4893 16V 0.1u Q4006 B1ABCF000138 C4048 16V 0.1u R4093 0 MAIN9V C1211 16V 0.1u C4003 56u 4V C1204 6.3V 1u C4051 50V 1000p C4033 16V 0.1u C4056 16V 0.01u JS4096 ERJ3GEY0R00V R4078 22 C4014 16V 0.1u C1AB00002298 IC4005 1 P32 2 P31 3 INT 4 CS/HS 5 DGND 6 DVDDIO 7 P15 8 P14 9 P13 10 P12 11 DGND 12 DVDD 13 P29 14 P28 15 SFL/SYNC_OUT 16 SCLK2 17 DGND 18 DVDDIO 19 SDA2 20 P11 21 P10 22 P9 23 P8 24 P27 25 P7 26 P6 27 P5 28 P4 29 P26 30 R_ACTIVE/P25 31 SRLIN/P24 32 SRLUP/P23 33 TRGIN/P22 34 P21 35 MEI_CK/DCLK_IN 36 BLC/LLC1 37 XTAL1 38 XTAL 39 DVDD 40 DGND 41 P3 42 P2 43 P1 44 P0 45 P20 46 ELPF 47 PVDD 48 PVDD 49 AGND 50 AGND 51 FB 52 SOG 53 AIN7 54 AIN1 55 AIN8 56 AIN2 57 AIN9 58 AIN3 59 ELPF2 60 AGND 61 CAPY1 62 CAPY2 63 AVDD 64 REFOUT 65 CML 66 AGND 67 BIAS 68 CAPC1 69 CAPC2 70 AGND 71 AIN10 72 AIN4 73 AIN11 74 AIN5 75 AIN12 76 AIN6 77 SOY 78 RESET 79 DE_IN 80 ALSB 81 SDA 82 SCLK 83 P40 84 P39 85 VS_IN 86 HS_IN 87 P38 88 P37 89 DGND 90 DVDD 91 P19 92 P18 93 P17 94 P16 95 P36 96 P35 97 P34 98 FIELD/DE 99 VS 100 P33 R4051 0 MAIN3.3V C4882 50V 0.01u C4050 16V 0.1u L4008 J0JHC0000078 R4064 1.37k C3FBMD000182 IC1115 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE 12 RESET 13 NC 14 NC 15 RY/BY 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE 27 Vss 28 OE 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 Vcc 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 Vss 47 BYTE 48 A16 L4001 J0JHC0000078 C4064 16V 0.1u R4062 0 R4033 2.2K C4892 47u 6.3V R4036 3k R4027 150 C1203 16V 0.1u C4035 50V 0.01u C4025 47u 6.3V C1207 16V 0.1u Q4013 2SA207700L Q4016 2SA207700L C4044 16V 0.1u C4062 16V 0.1u C4063 16V 0.1u C4054 16V 0.1u R4053 1k R4039 422 R4060 43k R4054 160 C4005 16V 0.1u C4052 6.3V 1u R4045 2.2K R4017 576 R4077 EXB38V220JV C4053 16V 0.1u C4047 50V 1000p C4024 16V 0.1u R4044 1k C4058 16V 0.1u IC4049 C0CBCBF00009 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 NC 7 NC 8 VIN R4009 0 R4037 560 C4030 10u 16V R1365 EXB2HV680JV R4075 22 C4028 6.3V 10u L1176 J0JHC0000078 R4085 10k R4016 576 C1200 16V 0.1u R4030 1.58k R4068 1.69k TP4094 C4055 16V 0.082u C1209 4V 100u C4072 6.3V 2.2u R4057 1k Q4010 B1ABCF000138 C0CBCAC00275 IC4025 1 VDD 2 GND 3 CE 5 VOUT 4 NC L4003 J0JHC0000078 R4094 0 C4049 50V 0.01u C4057 16V 0.1u R4079 EXB38V220JV C4066 6.3V 1u R4947 22k R4070 22 R4035 3k C4018 16V 0.1u R4029 1.58k C4060 16V 0.1u C4023 16V 0.1u R4001 0 C4043 16V 0.1u C4015 16V 0.1u C4039 16V 0.1u R4084 22 TP4095 TP4093 L4861 J0JHC0000078 JS4095 ERJ3GEY0R00V C1214 16V 0.1u MAIN3.3V R4946 100 C1215 16V 0.1u R4945 47k JS4091 0 L4006 J0JHC0000078 C4883 6.3V 1u R4055 0 R4056 1k R4046 1k L4004 J0JHC0000078 R4092 0 R4031 422 C4026 16V 0.1u R1355 5.6k C1205 50V 270p C4006 50V 470p C4004 6.3V 2.2u C4038 16V 0.1u C1216 16V 0.1u R4091 0 R4072 22 R4041 1k C1206 50V 270p Q4068 B1ABCF000138 C4952 50V 100p C1208 50V 270p R4049 0 Q4015 2SB1218ARL R4059 27k R4071 22 C1212 50V 270p C1202 4V 100u R4069 22 SUB5V C4016 50V 68p C4040 16V 0.1u C4042 16V 0.1u C4041 16V 0.1u R4008 0 R4019 0 R4007 0 R4048 2.2k Q4014 2SB1218ARL R4023 220 R4074 100 R4073 100 PR RGB_CVBS PC-G 1.8V (EC_G) PB/C YIN Y FB AVR 3.3V AVR 1.8V AVR 1.8V 10bit A/D 64M SDRAM 16M FLASH ROM 21 20 18 17 22 19 23 16 17 11 16 15 19 14 12 18 13 20 23 22 25 26 21 39 40 38 37 31 36 32 35 33 34 24 BA BB DG-BOARD (3/13) TNPA3519 (PV500E) TNPA3519AC (PV500B) TO (10/13) DG-BOARD TH-50PV500E/B DG-Board (3 of 13) Schematic Diagram TH-50PV500E/B DG-Board (3 of 13) Schematic Diagram TH-50PV500E / TH-50PV500B 94 14.21. DG-Board (4 of 13) Schematic Diagram + + OSDYS OSDYM ALPHAI1 ALPHAI0 AS_BLK SCL_1L SDA_1L AS_OSDB AS_OSDG AS_OSDR VSOD HSOD CLKOD2 OSDIN15 OSDIN9 OSDIN10 OSDIN1 OSDIN2 OSDIN3 OSDIN6 OSDIN0 OSDIN4 OSDIN5 OSDIN7 OSDIN8 SCL_1L SDA_1L OSDIN14 OSDIN13 OSDIN12 OSDIN11 GC_RST MAIN3.3V R4207 150 R4140 10k R4134 68 C4136 16V 0.1u R4113 5.6k R4155 10k R4138 33 C4120 50V 39p R4118 0 C4180 50V 0.01u Q4109 B1ABCF000138 C4165 50V 1000p L4231 J0JCC0000241 C4233 50V 100p JS4005 0 R4144 470 C4119 50V 39p C4135 6.3V 1u R4148 15k R4149 15k R4186 0 R4110 750 R4161 68 C4107 50V 0.01u L4106 J0JCC0000241 Q4111 B1ABCF000138 R4184 68 R4106 8.2k R4237 0 R4259 EXB38V680JV C4103 50V 0.01u R4211 0 C4167 16V 0.1u C4182 16V 0.1u C4105 50V 0.01u R4120 560 R4165 68 C4131 50V 0.01u R4208 51 C4132 100u 4V R4114 750 C4117 6.3V 10u R4210 100 C4101 6.3V 10u C4108 16V 1u JS4004 0 C4104 16V 1u R4196 68 R4157 22 C4106 16V 1u 33 R4137 C4159 50V 1000p C4154 16V 1u D4231 MA2J11100L Q4107 B1ABCF000138 MAIN3.3V C0JBAZ001769 IC4014 1 2 3 5 4 C4156 16V 1u 0 R4128 R4108 33 R4169 0 R4117 560 JS4014 0 C4170 50V 0.01u C4181 6.3V 3.3u R4139 33 C4122 16V 0.1u Q4103 B1ABCF000138 C4100 6.3V 10u R4100 18k R4197 68 R4177 68 R4145 470 R4154 22 C4176 16V 0.1u C4171 50V 0.01u Q4104 B1ABCF000138 R4125 470 C4163 50V 1000p C4235 16V 0.1u R4199 68 MAIN1.8V C4102 6.3V 10u R4147 15k R4253 EXB38V680JV C4162 50V 1000p C4172 50V 0.01u Q4106 B1ABCF000138 R4135 68 R4103 8.2k R4158 22 R4151 102 R4167 0 R4195 68 L4151 J0JCC0000241 R4112 750 C4178 16V 1u R4160 68 0 R4132 R4173 270 R4104 18k R4176 68 R4159 68 C4130 50V 0.01u R4107 33 R4127 470 R4194 68 C4128 50V 0.01u IC4008 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout R4109 33 R4188 0 R4244 1k C4158 50V 1000p C4160 50V 1000p Q4101 B1ABCF000138 C4155 16V 1u MAIN9V C4152 50V 0.01u R4102 18k R4101 8.2k C4118 50V 39p C4161 50V 1000p C4129 50V 0.01u L4105 J0JHC0000078 R4136 68 C4126 47u 6.3V R4249 EXB38V680JV R4153 68 C0EBC0000150 IC4063 4 OUT 3 Cd 1 GND 2 Vdd C4179 16V 0.1u C4153 16V 1u R4123 560 C4133 16V 0.1u Q4112 B1ABCF000138 C4168 50V 1000p R4150 0 C4151 6.3V 3.3u R4236 0 C4234 16V 0.1u R4146 470 JS4006 0 L4104 J0JCC0000241 C4164 50V 1000p IC4012 C1AB00001834 1 VSS 2 VDD 3 YOUT7 4 YOUT6 5 YOUT5 6 YOUT4 7 YOUT3 8 YOUT2 9 YOUT1 10 YOUT0 11 VDD 12 VSS 13 PBOUT7 14 PBOUT6 15 PBOUT5 16 PBOUT4 17 PBOUT3 18 PBOUT2 19 PBOUT1 20 PBOUT0 21 VDD 22 VSS 23 PROUT7 24 PROUT6 25 PROUT5 26 PROUT4 27 PROUT3 28 PROUT2 29 PROUT1 30 PROUT0 31 VSS 32 N.C 33 N.C 34 N.C 35 AVDAD1 36 N.C 37 VRH1 38 AVSAD1 39 N.C 40 VRL1 41 PBIN 42 CRMP1 43 CRMP2 44 PRIN 45 VRL2 46 AVSAD2 47 VRH2 48 N.C 49 AVDAD2 50 N.C 51 N.C 52 SDO 53 VDD 54 SDA 55 SCL 56 ADRS0 57 ADRS1 58 RSTN 59 VDD 60 VSS 61 OE 62 TST1 63 TST2 64 TST3 65 VIN 66 HIN2 67 CKXI 68 VDD 69 VSS 70 CKIN 71 HIN1 72 VDD 73 VSS 74 PLLH 75 HOUT 76 PORT0 77 PORT1 78 PORT2 79 PORT3 80 PORT4 81 CKO 82 VDD 83 VSS 84 PHIN2 85 VDD(PLL) 86 VSS(PLL) 87 PHCO 88 VCOI 89 XSM 90 XTST 91 VSS 92 VDD 93 YSOUT7 94 YSOUT6 95 YSOUT5 96 YSOUT4 97 YSOUT3 98 YSOUT2 99 YSOUT1 100 YSOUT0 101 N.C 102 AVSAD3 103 N.C 104 VRH3 105 AVDAD3 106 N.C 107 VRL3 108 YSIN 109 CRMP4 110 YIN 111 VRL4 112 N.C 113 AVSAD4 114 VRH4 115 N.C 116 AVDAD4 117 N.C 118 N.C 119 N.C 120 VPD R4228 0 R4111 5.6k R4126 470 R4238 0 C4177 16V 1u C4116 6.3V 10u R4203 68 C4166 50V 1000p R4115 5.6k R4182 0 R4152 102 Q4110 B1ABCF000138 C4115 6.3V 10u R4255 0 C4121 16V 0.1u 0 R4130 R4174 0 R4209 102 R4143 0 R4204 51 IC4016 C0FBBD000065 1 2 3 4 5 6 7 8 22 R4379 22 R4380 68 R4382 68 R4381 68 R4383 C4351 16V 0.1u MAIN5V MAIN3.3V MAIN3.3V R4163 0 (IIC Decorder CLK) Green Blue Red BLUE GREEN RED A01 A02 A03 A04 Vcc SCL SDA GND OSD YS/YM[2:0] AVR 3.3V RESET OSD RGB A/D 8bit A/D FORMAT CONV. 23 26 24 29 27 25 30 28 39 38 34 31 36 33 40 37 35 32 52 61 59 60 56 57 55 58 53 54 EEPROM INVERTER 51 CA CB TO (11/13) DG-BOARD DG-BOARD (4/13) TNPA3519 (PV500E) TNPA3519AC (PV500B) TH-50PV500E/B DG-Board (4 of 13) Schematic Diagram TH-50PV500E/B DG-Board (4 of 13) Schematic Diagram TH-50PV500E / TH-50PV500B 95 14.22. DG-Board (5 of 13) Schematic Diagram BS_YIN7 BS_YIN6 BS_YIN5 BS_YIN4 BS_YIN3 BS_YIN2 BS_YIN1 BS_YIN0 BS_UVIN7 BS_UVIN6 BS_UVIN5 BS_UVIN4 BS_UVIN2 BS_UVIN1 BS_UVIN3 BS_UVIN0 HSIC VSIC CLK_IC OSDYM OSDYS A_ROE9 A_ROE8 A_ROE7 A_ROE6 A_ROE5 A_ROE1 A_ROE3 A_ROE4 A_ROE2 A_ROE0 A_GOE6 A_GOE8 A_GOE9 A_GOE7 A_GOE5 A_GOE1 A_GOE3 A_GOE4 A_GOE2 A_GOE0 A_BOE4 A_BOE2 A_BOE1 A_BOE0 A_BOE3 A_BOE9 A_BOE7 A_BOE6 A_BOE5 A_BOE8 A_VSOE A_CLKOE A_HSOE A_OSDO15 A_OSDO14 A_OSDO13 A_OSDO12 A_OSDO11 A_OSDO10 A_OSDO9 A_OSDO8 A_OSDO7 A_OSDO6 A_OSDO5 A_OSDO4 A_OSDO3 A_OSDO2 A_OSDO1 A_OSDO0 A_OSDYMO A_OSDYSO A_OSDHSO A_CLKOF A_ALPHAO0 A_ALPHAO1 YIN9 YIN8 YIN7 YIN6 YIN2 YIN4 YIN3 YIN5 UVIN6 UVIN8 UVIN7 UVIN9 UVIN2 UVIN4 UVIN3 UVIN5 YIN1 YIN0 UVIN1 UVIN0 RIN3 RIN2 RIN1 RIN0 HSIA VSIA CLKIA CLKOA SCL_2L SDA_2L VSOD ALPHAI0 ALPHAI1 ENBID OSDIN8 OSDIN9 OSDIN10 OSDIN11 OSDIN12 OSDIN13 OSDIN14 OSDIN15 OSDIN7 OSDIN6 OSDIN5 OSDIN4 OSDIN3 OSDIN2 OSDIN1 OSDIN0 JTAG_TRST JTAG_TCK JTAG_TMS A_CLKID2 A_OSDHSI2 A_OSDVSI2 CLKOD1 CLKOD2 TDO_4PRO_HDMI TDO_FS_4PRO HSOD IC4054 AE2 GND IC4054 B4 OSDI12 IC4054 M24 ROE5 IC4054 L11 GND IC4054 D24 GND IC4054 H26 BOE0 IC4054 R12 GND IC4054 F24 BOE5 TP4019 C4523 16V 0.1u IC4054 AC23 GND IC4054 C6 OSDI7 C4532 16V 0.1u IC4054 D9 TPOUT6 IC4054 C10 ALPHAI1 IC4054 N13 GND IC4054 H4 TPOUT3 IC4054 N14 GND IC4054 V24 OSDO10 IC4054 C23 GND IC4054 N16 GND IC4054 D7 TPOUT4 IC4054 Y25 OSDO4 IC4054 B5 OSDI9 IC4054 T25 OSDO15 IC4054 D25 HSOE IC4054 R26 ROE0 IC4054 G25 BOE3 IC4054 G4 GND IC4054 J3 RVIA2 IC4054 D26 VSOE IC4054 R15 GND IC4054 AB4 GND IC4054 AF1 GND IC4054 C3 GND IC4054 L3 RVIA5 IC4054 H3 CLKOA IC4054 L14 GND IC4054 C5 OSDI10 IC4054 H23 GOE7 IC4054 G2 BUIA1 IC4054 T13 GND IC4054 B11 PADAGND IC4054 B25 GND IC4054 D1 TPOUT0 IC4054 R25 OSDYSO IC4054 K24 GOE2 IC4054 N26 ROE4 R4510 0 IC4054 F3 NC IC4054 B12 PADDVDD IC4054 B14 MOSDHSO IC4054 P14 GND IC4054 T11 GND IC4054 E2 NC IC4054 P3 GYIA5 IC4054 AA24 CLKID2 IC4054 AF26 GND IC4054 C17 UVIC1 IC4054 T15 GND IC4054 P16 GND IC4054 B17 UVIC0 IC4054 R13 GND IC4054 U25 OSDO13 IC4054 B10 ALPHAI0 IC4054 B8 OSDI0 IC4054 M15 GND IC4054 C21 TMS IC4054 P25 ROE1 IC4054 D19 TDO IC4054 D12 FSADJ IC4054 V25 OSDO11 C4524 16V 0.1u R4530 10k IC4054 D5 GND TP4021 IC4054 E4 GND R4535 22 IC4054 AB26 OSDHSI2 IC4054 T24 CLKOF IC4054 G23 BOE1 IC4054 A7 OSDI2 IC4054 B24 GND IC4054 M14 GND IC4054 F26 BOE7 IC4054 M16 GND IC4054 A3 OSDI14 IC4054 L4 GND R4509 22 IC4054 G24 BOE2 IC4054 P4 GYIA4 IC4054 AC5 GND IC4054 K2 BUIA4 IC4054 A8 OSDHSI IC4054 U26 OSDO14 IC4054 L24 ROE9 IC4054 A4 OSDI11 IC4054 A17 YIC7 IC4054 T16 GND IC4054 E23 GND IC4054 D8 TPOUT5 IC4054 AC22 GND IC4054 N25 ROE3 IC4054 A5 OSDI8 IC4054 D10 OSDVSI IC4054 L25 GOE0 R4504 180 IC4054 A13 MOSDVSO IC4054 K4 BUIA2 IC4054 C15 YIC3 IC4054 M13 GND IC4054 W24 OSDO7 IC4054 J25 GOE5 IC4054 M26 ROE7 R4512 0 R4519 0 IC4054 P13 GND IC4054 Y26 OSDO5 R4518 0 IC4054 A6 OSDI5 IC4054 J26 GOE6 IC4054 T23 OSDHSO IC4054 AA26 OSDO1 IC4054 B1 GND IC4054 B16 YIC5 IC4054 M4 RVIA6 IC4054 B2 GND IC4054 C24 GND IC4054 R24 OSDYMO IC4054 A1 GND MAIN3.3V IC4054 C18 UVIC4 IC4054 B6 OSDI6 IC4054 A19 UVIC5 IC4054 A21 TRST TP4027 IC4054 L12 GND R4503 12k IC4054 A26 GND IC4054 R14 GND IC4054 L1 BUIA7 IC4054 J2 RVIA3 IC4054 C14 YIC0 IC4054 L23 ROE8 IC4054 L13 GND IC4054 B19 UVIC6 IC4054 C16 YIC6 R4502 10k IC4054 R16 GND IC4054 A15 YIC1 IC4054 D4 GND IC4054 F25 BOE6 IC4054 A14 CLKOD IC4054 P11 GND IC4054 L26 GOE1 IC4054 N12 GND IC4054 R23 ALPHAO1 R4511 0 IC4054 A25 GND IC4054 H24 GOE8 TP4020 IC4054 C4 OSDI13 IC4054 A18 UVIC2 IC4054 M12 GND IC4054 A20 VSIC IC4054 B7 OSDI3 IC4054 V26 OSDO12 IC4054 AC4 GND IC4054 D11 ENBID IC4054 C8 OSDI1 IC4054 A23 SCL IC4054 R11 GND IC4054 P1 GYIA7 TP4026 TP4024 IC4054 A11 IOUT C4522 16V 0.1u IC4054 A16 YIC4 IC4054 K25 GOE3 IC4054 K3 BUIA3 IC4054 AD24 GND IC4054 B21 TDI IC4054 G3 BUIA0 IC4054 N15 GND IC4054 B13 PADAGND R4508 22 IC4054 C9 CLKID IC4054 L16 GND L4503 J0JHC0000078 IC4054 N11 GND IC4054 T26 ALPHAO0 IC4054 C13 VG IC4054 C11 PADAVDD IC4054 T12 GND IC4054 L2 BUIA6 IC4054 B22 SDA IC4054 C12 VREF IC4054 D22 GND IC4054 M2 GYIA0 IC4054 G26 BOE4 R4506 43k IC4054 M25 ROE6 IC4054 AA25 OSDO0 IC4054 K26 GOE4 TP4023 IC4054 Y24 OSDO3 IC4054 C20 CLKIC IC4054 A2 GND IC4054 C19 UVIC7 IC4054 E3 GND IC4054 P2 GYIA6 IC4054 T14 GND IC4054 A22 TCK IC4054 AB24 GND IC4054 AE25 GND IC4054 P15 GND IC4054 AB25 OSDVSI2 MAIN3.3V IC4054 D23 GND IC4054 B18 UVIC3 IC4054 N3 GYIA3 R4501 47 IC4054 M3 RVIA7 IC4054 P26 ROE2 IC4054 L15 GND IC4054 W26 OSDO9 R4513 0 IC4054 W25 OSDO8 TP4022 IC4054 H2 RVIA0 IC4054 P12 GND IC4054 B15 YIC2 IC4054 N1 VSIA IC4054 AD3 GND IC4054 G1 CLKIA IC4054 M11 GND R4514 0 IC4054 K1 BUIA5 IC4054 N4 GYIA2 IC4054 E26 CLKOE IC4054 E25 BOE9 IC4054 C22 GND IC4054 H1 RVIA1 IC4054 J1 RVIA4 IC4054 AC24 GND IC4054 E24 BOE8 R4534 22 IC4054 H25 GOE9 IC4054 B3 OSDI15 IC4054 W23 OSDO6 R4529 10k IC4054 N2 HSIA IC4054 B9 OSDYSI L4504 J0JHC0000078 IC4054 Y23 OSDO2 IC4054 C7 OSDI4 R4505 2k IC4054 AB23 GND IC4054 A9 OSDYMI IC4054 M1 GYIA1 IC4054 B20 HSIC PORT-A(ADV7403) PORT-C(PEAKS) PORT-D(OSD INPUT) PORT-E(RGBOUT) DAC RGBAD,PEAKS_OSD PORT-F(OSD-OUT) 2ND_OSD(G) 2ND_OSD(B) 2ND_OSD(YS) 2ND_OSD(R) GC4PRO C1AB00002234 IC4054 31 34 37 33 32 38 36 35 TO (12/13) DG-BOARD 74 80 79 77 78 76 73 72 71 75 81 DA DB DC DE DD 51 53 54 51 52 61 59 60 56 57 55 58 DG-BOARD (5/13) TNPA3519 (PV500E) TNPA3519AC (PV500B) TH-50PV500E/B DG-Board (5 of 13) Schematic Diagram TH-50PV500E/B DG-Board (5 of 13) Schematic Diagram TH-50PV500E / TH-50PV500B 96 14.23. DG-Board (6 of 13) Schematic Diagram G G + G G G G B7_MAIN_L SBO1 IRD_RST SBI1 BS_L BS_R IRD_POW_ON VOUTENB A_ROE9 A_ROE8 A_ROE7 A_ROE6 A_ROE5 A_ROE4 A_ROE3 A_ROE2 A_ROE1 A_ROE0 A_GOE9 A_GOE8 A_GOE4 A_GOE0 A_GOE5 A_GOE6 A_GOE2 A_GOE7 A_GOE3 A_GOE1 A_BOE9 A_BOE8 A_BOE4 A_BOE0 A_BOE5 A_BOE6 A_BOE2 A_BOE7 A_BOE3 A_BOE1 B_ROE9 B_ROE8 B_ROE7 B_ROE6 B_ROE5 B_ROE4 B_ROE3 B_ROE2 B_ROE1 B_ROE0 B_GOE6 B_GOE7 B_GOE0 B_GOE8 B_GOE4 B_GOE2 B_GOE1 B_GOE3 B_GOE9 B_GOE5 B_BOE4 B_BOE6 B_BOE0 B_BOE5 B_BOE8 B_BOE9 B_BOE3 B_BOE1 B_BOE2 B_BOE7 B_ROE9 B_ROE8 B_ROE7 B_ROE6 B_ROE5 B_ROE4 B_ROE3 B_ROE2 B_ROE1 B_ROE0 B_GOE9 B_GOE8 B_GOE7 B_GOE6 B_GOE5 B_GOE4 B_GOE3 B_GOE2 B_GOE0 B_GOE1 B_BOE9 B_BOE8 B_BOE7 B_BOE4 B_BOE3 B_BOE2 B_BOE1 B_BOE0 A_HSOE B_HSOE A_VSOE B_VSOE B_VSOE B_HSOE B_CLKOE A_CLKOE B_CLKOE A_OSDO11 A_OSDO10 A_OSDO9 A_OSDO8 A_OSDO7 A_OSDO6 A_OSDO5 A_OSDO4 A_OSDO3 A_OSDO2 A_OSDO1 A_OSDO0 A_OSDYMO A_ALPHAO1 A_ALPHAO0 A_OSDO15 A_OSDHSO A_OSDO14 A_CLKOF A_OSDO12 A_OSDO13 A_OSDHSI2 BS_YIN2 BS_UVIN2 HSIC VSIC DVB_CVBS A_CLKID2 B_BOE6 SUB5V BS_UVIN0 BS_UVIN1 BS_UVIN3 BS_UVIN4 BS_UVIN5 BS_UVIN6 BS_UVIN7 BS_YIN7 BS_YIN6 BS_YIN5 BS_YIN4 BS_YIN3 BS_YIN1 BS_YIN0 TDO_HDMI_BA TDO_BA_JTAG JTAG_TCK JTAG_TMS TX_TA- TX_TA+ TX_TB- TX_TB+ TX_TC- TX_TC+ TX_TCLK- TX_TCLK+ TX_TD- TX_TD+ TX-TE- TX_TE+ CLK_IC IRD_POW_ON B7_MAIN_R SDBOOT JTAG_TRST A_OSDVSI2 B_BOE5 A_OSDYSO LVDS_PD J0HABH000012 FL4007 1 2 3 R4587 68 C4876 16V 0.1u IC4021 C0JBAP000020 1 TD5 2 GND 3 TD6 4 TE0 5 TE1 6 TE2 7 VCC 8 TE3 9 TE4 10 GND 11 TE5 12 CLKIN 13 /PDWN 14 PLL_GND 15 PLL_VCC 16 TE6 17 LVDS_GND 18 TE+ 19 TE- 20 TD+ 21 TD- 22 TCLK+ 23 TCLK- 24 TC+ 25 TC- 26 LVDS_GND 27 LVDS_VCC 28 TB+ 29 TB- 30 TA+ 31 TA- 32 LVDS_GND 33 TA0 34 TA1 35 TA2 36 TA3 37 TA4 38 TA5 39 GND 40 TA6 41 TB0 42 TB1 43 RS 44 TB2 45 TB3 46 TB4 47 GND 48 TB5 49 TB6 50 TC0 51 VCC 52 TC1 53 TC2 54 TC3 55 TC4 56 GND 57 TC5 58 TC6 59 TD0 60 R/F 61 TD1 62 TD2 63 TD3 64 TD4 SUB9V2 R4603 68 JS4088 0 R4592 68 C4874 16V 0.1u C4946 50V 1000p R4602 68 R4845 0 R4802 10k C4873 47u 6.3V R4604 EXB38V680JV R4590 68 R4577 68 R4810 10k JS4089 0 TP4801 R4578 68 C4880 1u 10V L4801 J0JHC0000078 R4595 68 R4605 EXB38V680JV R4589 68 R4591 68 R4846 0 R4822 EXB38VR000V R4606 EXB38V680JV C4879 16V 0.1u R4805 10k R4851 820 R4585 68 R4842 EXB2HV220JV L4802 J0JHC0000078 C4875 16V 0.1u DG5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 R4598 68 J0HABH000012 FL4006 1 2 3 C4878 16V 0.1u SUB5V L4803 J0JHC0000078 R4807 22k R4583 68 R4599 68 R4596 68 JS4085 0 R4588 68 C4881 100p 50V R4841 EXB2HV220JV C4945 50V 1000p R4601 68 R4593 68 DG22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 JS4084 0 R4844 22 R4594 68 JS4026 ERJ3GEY0R00V C4948 50V 1000p C4947 50V 1000p R4584 68 R4600 68 R4586 68 R4821 EXB38VR000V R4847 0 R4808 22k JS4025 ERJ3GEY0R00V C4877 1u 10V MAIN3.3V J0HABH000012 FL4008 1 2 3 JS4086 0 R4823 EXB38VR000V JS4027 R4597 68 SUB9V R4834 10k LVDS TRANSMITTER (10bit) 45 46 39 43 41 44 42 40 TO (13/13) DG-BOARD (XV01) TO XV-BOARD (D5) TO D-BOARD SUB 9V SUB 5V JTAG_TCK JTAG_TMS JTAG_TDI(TDO) JTAG_TDO(TDI) JTAG_TRST IRD_RST(XRST) SBO1 SBI1 UVIN7 UVIN6 UVIN5 UVIN4 UVIN3 UVIN2 UVIN1 UVIN0 YIN7 YIN6 YIN5 YIN4 YIN3 YIN2 YIN1 YIN0 HSIC VSIC CLK BS_L BS_R JTAG_TCK 80 77 71 75 74 73 81 79 78 72 76 97 95 96 91 92 99 98 94 93 EA SUB 9V2 SUB 9V2 SUB 9V2 PV500B ONLY 1.2 1.2 1.2 0 0 0 1.2 1.2 0 0 1.2 1.2 0 1.2 1.2 0 1.2 1.2 1.2 0 0 DG-BOARD (6/13) TNPA3519 (PV500E) TNPA3519AC (PV500B) TH-50PV500E/B DG-Board (6 of 13) Schematic Diagram TH-50PV500E/B DG-Board (6 of 13) Schematic Diagram TH-50PV500E / TH-50PV500B 97 14.24. DG-Board (7 of 13) Schematic Diagram + G G + G G + + G G + G G G G + G G JTAG_TRST TDO_BA_JTAG JTAG_TMS JTAG_TCK 3.3V JTAG_TDI SOS TUNER_MAIN_ON TP4084 C4864 16V 4.7u MAIN3.3V C4925 47u 16V J0HABH000012 FL4020 1 2 3 TP4088 C4901 16V 10u TP4080 C4899 6.3V 1u R4758 33 R4756 33 C4863 16V 0.1u C4867 50V 100p SUB9V R4769 150 MAIN2.5V R4762 33 L4862 J0JHC0000078 J0HABH000012 FL4023 1 2 3 MAIN2.5V R4943 1k DG35 1 2 3 4 R4757 33 C4898 50V 0.01u C4858 220u 4V R4768 0 R4760 10k JS4901 ERJ3GEY0R00V STB5V DG20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 C0DBZFG00055 IC4024 1 VIN 2 VB 3 VOUT 4 NC 5 GND C4939 220u 4V J0HABH000012 FL4017 1 2 3 R4763 10k MAIN3.3V Q4900 B1ABCF000138 C4922 6.3V 47u C4861 50V 15p MAIN5V SUB5V MAIN9V SUB9V R4888 0 J0HABH000012 FL4022 1 2 3 C4902 50V 0.01u TP4074 C4855 16V 0.1u MAIN1.2V J0HABH000012 FL4021 1 2 3 C4924 16V 0.1u C4929 16V 10u X4002 H0J270500087 R4949 30k C4868 50V 100p R4952 33 C1ZBZ0002790 IC4051 1 CLKC 2 VDD 3 AGND 4 XTALIN 5 XTALOUT 6 XBUF 7 CLKD 8 CLKE 9 CLKB 10 CLKA 11 GND 12 S0 13 S1 14 AVDD 15 S2 16 PD/OE C4926 16V 0.1u TP4087 SUB9V2 R4884 0 R4766 0 C0DBEJG00001 IC4042 1 CTL 2 Vcc 3 GND 4 OUT 5 C L4751 J0JCC0000241 R4887 0 R4759 51 C4856 16V 0.1u R4948 30k J0HABH000012 FL4016 1 2 3 C4859 50V 15p TDI TMS TCK TDO 27MHz 74.25MHz 108MHz 95.5MHz 81MHz STB_5V ODU +B MAIN2.5V (0.98A/NC) SOS ODU_ON/OFF MAIN9V(0.1A/NC) SUB5V(0.63A) BT30V SUB9V1(1A/0.766A) MAIN5V(0.37A/0.46A) TVON AC_ON/OFF MAIN3.3V(1.55A/1.847A) ODU +B SUB9V1(1A/0.766A) MAIN3.3V(1.55A/1.847A) 81MHz (SUB3.3V) MAIN2.5V (0.98A/NC) AVR 1.2V AVR 2.5V CLOCK GENE. 47 50 48 52 53 51 49 54 (PA20) TO PA-BOARD JTAG 93 95 92 97 91 99 96 98 94 USE FOR FACTORY 0 0 0 0 3.3 0 0 0 0 2.6 9.0 0 9.0 5.0 3.3 3.3 0 3.3 0 5.0 0 0 5.0 0 9.0 2.5 0 2.5 0 DG-BOARD (7/13) TNPA3519 (PV500E) TNPA3519AC (PV500B) TH-50PV500E/B DG-Board (7 of 13) Schematic Diagram TH-50PV500E/B DG-Board (7 of 13) Schematic Diagram TH-50PV500E / TH-50PV500B 98 14.25. DG-Board (8 of 13) Schematic Diagram + KEYSCAN SP_MUTE RGB_FB SCL1B KEYSCAN M2_RST SCL2 SDA1 RGB_CVBS SDA1B LED-R QLINK_AV2 SDA3 SOS2 LED_G/KUROSONYU_ON/OFF QLINK_AV4 SCL3 AUDIO_MUTE SDA2 RM_IN AFC1 AL_SRQ SCL1 SUB5V M2_TRG_OUT RM_IN AFC1 M2_TRG_IN MAIN_PR MAIN_PB/C MAIN_Y/CVBS SD_LED SP_MUTE AI_SENSOR AI_SENSOR SUB_PR SUB_C/PB SUB_Y/CVBS R1359 5.6k R4933 0 R4929 0 R4924 0 R4934 0 R4930 0 C4943 16V 47u C1220 50V 100p C4942 16V 0.1u C1221 50V 100p R4919 0 C1217 50V 270p R4936 0 R4935 0 R4921 0 R4920 0 SUB5V R4931 0 R4926 0 L4900 J0JHC0000078 C1219 50V 0.01u R1360 5.6k R4925 0 R4923 0 C1218 50V 270p STB5V R4932 0 TP4129 C1222 16V 1u R4938 0 R4897 0 TP4120 R1361 10k R4928 0 IC1235 C0ZBZ0000800 1 Vcc2 2 SCLOUT 3 SCLIN 4 GND 5 ACC 6 SDAIN 7 SDAOUT 8 Vcc R4937 0 R4939 0 DG2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 R4927 0 TP4100 R4918 0 L1114 J0JHC0000078 R4922 0 R1373 10k STB3.3V R1372 10k R1374 10k R4896 0 TP4106 R4942 0 R4940 0 TP4127 TP4132 R4941 0 FB_OUT LED_G SUB_Y SDA1 SCL3 SOUND_MUTE MAIN_Y/V/G SUB_PR AV2_QLINK MAIN_CVBS2 AI_SENSOR SP_MUTE KEYSCAN MAIN_PR/B MAIN_PB/C/R SCL2 AFC1 RMCN SDA3 AV4_QLINK STB5V SOS2 SDA2 LED_R SCL1 AFC2 STB_RESET SUB_PB/C SRQ IIC BUFFER A 7 B 3 6 4 2 5 1 E D C 8 (H2) TO H-BOARD DG-BOARD TO (1/13) D B A C E 101 TNPA3519 (PV500E) TNPA3519AC (PV500B) DG-BOARD (8/13) 102 103 104 105 106 107 108 109 110 111 112 113 114 TH-50PV500E/B DG-Board (8 of 13) Schematic Diagram TH-50PV500E/B DG-Board (8 of 13) Schematic Diagram TH-50PV500E / TH-50PV500B 99 14.26. DG-Board (9 of 13) Schematic Diagram + + + + + + + + SDA2 SCL2 AR_CS AQ_D1 AO_A14 AR_UDQM AQ_D8 AP_RD AQ_D0 AO_A0 AR_CLK HSOD SCL_1L AQ_D15 AO_A4 SOS2 SDA_1L AR_LDQM AO_A15 AP_CSD AR_WR AR_CKE AO_A3 AQ_D14 AQ_D6 AO_A13 AQ_D13 AO_A2 SDA3 VSOD SCL3 AO_A1 AQ_D7 FAN_CTRL AS_OSDB AS_OSDG AS_OSDR SCL1 SDA1 FANSOS SCL3 SDA3 SCL1 SDA1 SCL2 SDA2 AP_WR AS_BLK STB3.3V AL_SRQ AL_SRQ AO_A12 AO_A18 AO_A17 AQ_D5 READY AQ_D3 SOS AO_A8 SBI1 AQ_D12 AO_A7 SBO1 AS_M2_WP 24V_ON AQ_D9 M2_TRG_IN SOS2 AO_A10 M2_TRG_OUT AO_A6 AQ_D10 AQ_D2 PANEL5V_ON AO_A9 AO_A11 AO_A19 AO_A5 AQ_D4 AQ_D11 AO_A16 LED-R SCL_2L SDA_2L PANEL_SOS/INV_ON 2.5V_STB M2_RST LED_G/KUROSONYU_ON/OFF IRD_POW_ON IRD_RST TUNER_MAIN_ON AL_SRQ SD_RESET SD_IDO STB3.3VB SD_TXDO SD_RXDO R1127 56 R1115 12k R1288 68 R1283 68 C1196 16V 0.1u C1195 6.3V 1u R1346 10k R1202 22 TP1035 C0JBBZ000281 IC1109 1 NC 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 A9 11 A10 12 GND 13 B10 14 B9 15 B8 16 B7 17 B6 18 B5 19 B4 20 B3 21 B2 22 B1 23 OE 24 Vcc D1154 MAZ80620ML C1187 50V 18p R1285 68 JS1000 0 R1348 5.6k R1324 3.3k R1280 0 JS1177 0 R1134 56 R1336 0 L1112 J0JHC0000078 STB5V X1101 H0J600400006 C1107 50V 0.01u C1AB00000454 IC1106 1 SW1 2 SW0 3 DAC4 4 DAC3 5 DAC2 6 DAC1 7 DAC0 8 GND 9 SW2 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 VCC C1104 16V 0.1u C1101 16V 0.1u R1316 10k D1161 MAZ80620ML R1213 47k TP1031 TP1018 C1139 16V 0.1u L1113 J0JHC0000078 L1120 J0JHC0000078 C1108 16V 0.1u D1162 LN1271RALTR D1155 MAZ80620ML DG32 1 2 3 4 5 6 7 8 R1267 27k C1194 50V 0.01u R1345 10k R1344 3.3k TP1033 C1188 50V 22p R1274 0 MAIN5V C1105 6.3V 1u C1225 50V 68p C1181 4V 100u R1146 0 R1332 0 D1156 MAZ80620ML TP1034 C1182 4V 100u Q1179 UNR521100L 10u C1132 16V C1100 6.3V 1u C1223 50V 68p R1323 3.3k R1229 0 D1160 MAZ80620ML R1271 0 L1174 J0JCC0000241 SUB5V D1159 MAZ80620ML R1204 22 TP1032 R1326 0 R1390 1k R1203 22 R1343 3.3k C1140 25V 33u R1125 56 R1270 82 R1111 0 R1381 22 MAIN3.3V R1347 5.6k R1281 0 C1118 16V 0.1u C1102 16V 0.1u R1277 100 R1302 5.6k STB2.5V STB5V R1110 0 R1266 EXB2HV680JV C1133 16V 0.1u STB3.3V R1272 EXB2HV560JV R1338 1k R1317 10k D1157 MAZ80620ML C1224 50V 68p STB3.3V R1380 22 R1329 0 R1286 68 C1120 4V 100u R1297 5.6k R1337 0 R1339 0 R1241 1.8k C1138 16V 0.1u R1333 0 R1268 100 D1151 MAZ81200ML C1106 6.3V 1u C1178 6.3V 1u R1123 56 C1137 16V 0.1u D1158 MAZ80620ML TP1030 SUB5V L1009 J0JHC0000078 SUB5V R1269 EXB2HV680JV IC1103 C0DBEZG00013 1 2 3 4 5 6 7 8 C0CBCBD00043 IC1110 1 Nr 2 GND 3 ON/OFF 5 Vo 4 Vin R1227 10k STB5V R1248 100k SUB5V C1109 16V 0.1u R1300 56 R1307 1k C1134 16V 0.1u C1117 16V 0.1u C1116 50V 1000p C1129 16V 0.1u R1222 10k R1228 5.6k R1309 68 C1128 16V 0.1u C1125 6.3V 10u C1113 16V 0.1u Q1175 B1ABCF000138 R1289 10k R1313 100 L1110 J0JHC0000078 R1250 4.7k Q1200 B1ABCF000138 R1261 0 Q1177 UNR511100L R1292 100 R1301 100 R1320 10k R1219 0 10u C1112 16V C1126 16V 0.1u R1287 100 C1136 16V 0.1u R1243 10k MAIN3.3V C1135 50V 1000p R1233 33k TP1019 R1259 0 R1260 100 R1242 10k R1251 10k C1111 16V 0.1u R1255 22k R1224 68k C1115 4V 100u R1305 10k R1275 100 R1237 1k C1123 16V 0.1u R1221 0 C1186 50V 0.01u R1263 10k R1321 100 C1114 16V 0.1u C1110 16V 0.1u R1258 4.7k R1235 56k R1311 200 R1238 0 R1284 100 IC1104 C2CBYF000032 1 TCK 2 TMS 3 TDI 4 TDD 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 VSS33-1 14 VDD33-1 15 - 16 - 17 - 18 - 19 - 20 VSS25-1 21 VDD25-1 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 31 VSS33-2 32 VDD33-2 33 - 34 - 35 - 36 - 37 - 38 - 39 - 40 - 41 VSS33-3 42 VDD33-3 43 MEMCLK 44 CSSDRAM 45 CLKEN 46 CSROM 47 RD 48 UDQM 49 LDQM 50 WR 51 D15 52 VSS33-4 53 VDD33-4 54 D7 55 D0 56 D14 57 D8 58 D6 59 D1 60 VSS33-5 61 VDD33-5 62 D13 63 D9 64 D5 65 D2 66 D12 67 D10 68 VSS33-6 69 VDD33-6 70 D4 71 D3 72 D11 73 RSTIN 74 75 76 77 - 78 79 80 81 82 83 84 VSS33-7 85 VDD33-7 86 VSS25-2 87 VDD25-2 88 89 90 91 92 93 94 95 96 97 98 99 100 - 101 - 102 - 103 HSYNC 104 - 105 - 106 VDD33-8 107 VSS33-8 108 XTAL1 109 XTAL2 110 VSSA-1 111 VDDA-1 112 113 114 115 VSSA-2 116 VDDA-2 117 CVBS2 118 VSSA-3 119 VDDA-3 120 CVBS1B 121 CVBS1A 122 VSSA-4 123 VDDA-4 124 - 125 - 126 - 127 - 128 TMODE R1253 0 R1351 1k R1234 1k R1293 100 R1240 EXB2HV680JV R1291 100 C1130 50V 1000p R1290 10k R1299 100 Q1174 B1ABCF000138 R1244 EXB38V680JV R1249 22k R1303 100 R1273 EXB2HV560JV C1131 16V 0.1u C1124 16V 0.1u MAIN9V R1308 68 C1122 50V 1000p R1298 100 C1127 50V 1000p R1384 0 C1119 16V 0.1u L1111 J0JHC0000078 R1232 68k R1231 100k R1295 10k R1294 100 Q1176 UNR521100L R1306 4.7k R1239 1k R1218 10k R1217 10k C1185 50V 0.01u C1233 6.3V 47u R1223 6.8k R1389 15k R1122 56 R1131 56 R1132 22k R1315 0 R1312 100 R1388 10k R1129 10k GND GND GND GND sense Vo Vin Vc FAN_SOS SD_IDO INV_SOS VOUT_ENB LED_G/KUROSONYU _ON/OFF IRD_LED FAN_ON/OFF SD_RESET GC_RST A1 OSD B Q-LINK IN A10 COR SUB_ON AFC2 A17 AMUTE CLKOD SCL2->SCL3 AFC1 AC_ON A8 A2 A7 PANEL_SOS/INV_ON A5 RMCN KEY MAIN_SENSE IDTV_RXDO A3 A15 A6 SDA1 A12 VSYNC A4 OSD R SRQ A18 LED_R A13 MAIN_ON Q-LINK OUT QLINK_SEL SP_MUTE/ZERO_X_DET CVBS_FLTR_ON/OFF EEPROM_WP A14 A19 JPEG_TXD0 SUB_SENSE SDA3->SDA_PDP/PANEL5V_ON IDTV_TXDO OSD G BLK A0 SDA0->SDA2 SCL1 A11 SDA2->SDA3 SOS SCL0->SCL2 TRGO TRGI IRD_RST JPEG_RxD A16 A9 SCL3->SCL_PDP/24V(120V)_ON AI_SENSOR AVR STB 2.5V AVR 3.3V LEVEL SHIFT 3.3V 5V MAIN MICOM EX.DAC STB5V SRQ SCL2 SDA2 SCL3 SDA3 EEP_WP 10 11 13 9 15 12 8 14 DG-BOARD TO (2/13) USE FOR FACTORY AN AQ AB AT AG AM AR AL AD AA AP AK AO AC AI AJ AE AH AF AS AU AX AV AW LED_G PV500B ONLY PV500B ONLY 5.0 4.6 0 4.9 4.9 4.9 4.9 0.9 PV500E ONLY 103 104 105 101 106 107 108 109 110 111 112 102 113 114 121 122 123 DG-BOARD (9/13) TNPA3519 (PV500E) TNPA3519AC (PV500B) TH-50PV500E/B DG-Board (9 of 13) Schematic Diagram TH-50PV500E/B DG-Board (9 of 13) Schematic Diagram TH-50PV500E / TH-50PV500B 100 14.27. DG-Board (10 of 13) Schematic Diagram + + + + UBIN9 UBIN8 YGIN7 UBIN7 UBIN3 SDA_1L JTAG_TMS SCL_1L TDO_FS_4PRO YGIN2 UBIN6 JTAG_TDI UBIN5 HSIB YGIN5 YGIN3 JTAG_TRST YGIN8 VSIB UBIN4 JTAG_TCK CLKINB SUB_PR YGIN9 YGIN6 SUB_C/PB UBIN2 YGIN4 SUB_Y/CVBS MAIN9V MAIN9V MAIN9V HDMI_RST SDA1 SCL1 A_DAC_PD HDMI_ROBUSTNESS HDMI_DAC_MUTE HPD HDMIINT HDMI_5V_DET C4343 47u 6.3V R4347 33 R4336 0 C4359 16V 0.1u R4365 22 R4341 0 C4390 16V 0.1u R4338 0 L4347 J0JCC0000241 C4314 6.3V 10u R4356 0 R4315 845 L4301 J0JHC0000078 L4348 J0JCC0000241 Q4308 2SA207700L R4359 0 R4361 0 R4352 150 C4385 16V 0.1u C1AB00002202 IC4013 1 VROUT4 2 VROUT3 3 VROUT2 4 VROUT1 5 VROUT0 6 VDDE 7 VSS 8 VDDI 9 SASW 10 TEST 11 VPD 12 VDDE 13 VSS 14 XTALOUT 15 VDDI 16 XTALIN 17 VDDE 18 VSS 19 EXHPIN 20 EXVPIN 21 TCK 22 TRST 23 TMS 24 TDO 25 TDI 26 AVSAD1 27 VRH1 28 AVDAD1 29 VRL1 30 VIN1 31 AVSAD2 32 VRH2 33 AVDAD2 34 VRL2 35 VIN2 36 AVSAD3 37 VRH3 38 AVDAD3 39 VRL3 40 VIN3 41 AVDCLP 42 AVSCLP 43 UCLP 44 VCLP 45 YCLP 46 VRO1 47 VREF1 48 AVSDA1 49 AVDDA1 50 AOUT1 51 VDDE 52 BXS 53 VDDI 54 CW358 55 VSS 56 AVSPL1 57 AVDPL1 58 CPO1 59 VGS1 60 VSS 61 NRST 62 VDDE 63 CTRL1 64 SDA 65 SCL 66 VDDI 67 VSS 68 FRCLKO1 69 VDDE 70 FRCLKO2 71 CTRL0 72 VPO 73 HPO 74 YGOUT7 75 YGOUT6 76 YGOUT5 77 VSS 78 YGOUT4 79 YGOUT3 80 YGOUT2 81 VDDE 82 VDDI 83 YGOUT1 84 YGOUT0 85 UBOUT7 86 UBOUT6 87 VSS 88 UBOUT5 89 UBOUT4 90 UBOUT3 91 UBOUT2 92 UBOUT1 93 UBOUT0 94 CLKO 95 VDDI 96 VSS 97 VDDE 98 VROUT7 99 VROUT6 100 VROUT5 Q4307 2SA207700L R4368 56 R4334 470 C4302 16V 0.1u C4308 50V 22p C4387 16V 0.1u MAIN3.3V C4316 10V 1u C4309 50V 22p L4346 G1C100KA0009 R4358 0 R4329 33 R4355 0 C4384 16V 0.1u C4364 16V 0.1u L4344 J0JCC0000241 R4332 330 R4308 560 R4333 0 C4374 16V 0.1u C4392 6.3V 2.2u R4348 33 R4303 180 C4354 220u 4V R4321 3.6k C4355 16V 0.1u MAIN3.3V C4386 16V 0.1u Q4311 B1ABCF000138 R4354 1k R4325 1.33k C4317 10V 1u R4344 33 R4351 150 IC4009 C0CBCAC00282 1 VDD 2 GND 3 CE 5 VOUT 4 NC JS4009 0 R4369 56 C4383 50V 5600p C4368 16V 0.1u C4361 16V 0.1u C4352 16V 0.1u C4315 10V 1u C4303 25V 33u R4327 820 JS4012 ERJ3GEY0R00V MAIN3.3V C4346 6.3V 1u C4393 6.3V 2.2u C4350 6.3V 1u C4363 16V 0.1u R4337 0 C4356 16V 0.1u L4341 J0JHC0000078 L4343 J0JHC0000078 C4312 6.3V 1u C4381 50V 18p C4313 6.3V 1u MAIN9V C4348 50V 0.01u Q4310 B1ABCF000138 JS4007 0 R4326 820 R4345 1.4k L4350 J0JHC0000078 R4320 3.6k JS4008 0 R4319 470 C4366 16V 0.1u R4307 360 R4364 22 R4363 100 R4309 560 C4372 16V 0.1u R4370 47 C4365 16V 0.1u X4001 H0J202500016 C4391 16V 0.1u C4371 6.3V 1u C4358 50V 68p C4388 16V 0.1u Q4309 2SD10300TL JS4013 ERJ3GEY0R00V R4305 180 R4346 33 IC4011 C0CBCAC00282 1 VDD 2 GND 3 CE 5 VOUT 4 NC Q4302 B1ABCF000138 C4310 6.3V 1u R4342 33 C4306 50V 5p C4318 25V 33u R4339 0 R4330 33 C4301 16V 0.1u Q4306 2SA207700L Q4303 B1ABCF000138 L4342 J0JHC0000078 C4375 1u 6.3V R4318 470 R4349 2.7k C4353 6.3V 1u R4360 910 C4311 6.3V 1u R4350 470 C4369 16V 0.1u R4367 0 MAIN2.5V R4357 0 R4343 33 C4370 16V 0.1u R4328 680 Q4301 B1ABCF000138 C4360 16V 0.1u R4372 D1HG5608A002 R4301 360 R4331 33 R4362 0 C4342 16V 0.1u C4367 16V 0.1u R4335 470 C4373 16V 0.1u R4353 150 C4378 6.3V 2.2u L4345 J0JHC0000078 R4340 0 R4373 EXB38V560JV R4374 EXB38V560JV C4341 50V 0.01u C4345 16V 0.1u C4379 50V 18p C4362 16V 0.1u C4380 16V 0.1u C4382 6.3V 2.2u TP4030 R1382 22 R1140 56 C1AB00000454 IC1116 1 SW1 2 SW0 3 DAC4 4 DAC3 5 DAC2 6 DAC1 7 DAC0 8 GND 9 SW2 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 VCC R1139 56 R1144 56 R1136 56 R1148 2.2k R1145 56 R1116 0 R1135 56 R1142 56 R1137 10k R1383 22 R1375 10k R1147 10k GC3FSYIN 22 21 16 23 20 18 19 17 AD 2.5V GC3FS PLL2.5V HDMI_NRST HDMI_INT HOTPLG_DET HDMI_DAC_MUTE HDMI_WP HPD ADAC_PD SDBOOT HDMI_ROBUSTNESS BB BA 122 123 121 131 132 133 134 135 DG-BOARD (10/13) TNPA3519 (PV500E) TNPA3519AC (PV500B) TO DG-BOARD (3/13) EX.DAC TH-50PV500E/B DG-Board (10 of 13) Schematic Diagram TH-50PV500E/B DG-Board (10 of 13) Schematic Diagram TH-50PV500E / TH-50PV500B 101 14.28. DG-Board (11 of 13) Schematic Diagram G G + + + + YGIN0 HDMI_5V_DET RX_MCLK HDMI_ROBUSTNESS NIRQ2 YGIN9 YGIN8 YGIN7 HDMI_DAC_MUTE HDMIINT YGIN6 YGIN2 YGIN3 YGIN4 TDO_4PRO_HDMI NIRQ2 YGIN5 UBIN9 HDMI_RST UBIN8 JTAG_TRST RX_SCK TDO_HDMI_BA UBIN7 JTAG_TCK HDMI_ROUT UBIN6 JTAG_TMS RX_SD0# UBIN2 RX_SCK SCL_1L HDMI_LOUT UBIN3 RX_WS SDA_1L HPD UBIN4 RX_MCLK UBIN5 RX_SD0# VSIB UBIN1 A_DAC_PD HSIB UBIN0 RX_WS AP_DE YGIN1 CLKINB2 R4434 22k R4409 10k L4864 J0JHC0000045 R4458 47k R4412 33 R4456 330 J0HABH000012 FL4407 1 2 3 R4410 10k C4435 50V 33p C4416 16V 0.1u MAIN3.3V R4422 56 Q4434 B1ABCF000138 C4436 50V 0.01u C4437 16V 47u JS4902 0 FL4401 J0HABB000004 1 2 3 4 FL4404 J0HABB000004 1 2 3 4 C4410 16V 0.1u IC4002 C0FBBK000047 1 MCLK 2 BICK 3 SDTI 4 LRCK 5 PDN 6 SMUTE/CSN 7 ACKS/CCLK 8 DIF0/CDTI 9 P/S 10 AOUTR 11 AOUTL 12 VCOM 13 VSS 14 VDD 15 DZFR 16 DZFL R4446 47k Q4432 2SA207700L DG15 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 Q4410 B1ABCF000138 R4430 10k Q4433 B1ABCF000138 R4437 22k R4465 0 R4467 0 R4455 330 R4463 0 TP4016 C4441 50V 2700p R4402 100k R4414 0 C4412 6.3V 10u R4436 22k R4426 22 Q4435 B1ABCF000138 R4441 100 R4425 22 MAIN5V C4431 50V 0.01u L4431 J0JHC0000045 R4457 22k R4431 10k C4438 16V 10u MAIN5V IC4001 C0ABBB000289 1 1OUT 2 1IN- 3 1IN+ 4 Vcc- 5 2IN+ 6 2IN- 7 2OUT 8 Vcc+ R4432 33k R4424 56 TP4018 FL4402 J0HABB000004 1 2 3 4 R4466 0 R4435 22k R4421 22 C4432 50V 180p R4405 1k R4464 0 R4452 1M R4459 47k R4461 470 R4451 10k C4430 16V 47u R4447 0 R4448 10k C4414 6.3V 10u R4460 470 R4415 0 Q4436 B1ABCF000138 FL4403 J0HABB000004 1 2 3 4 Q4431 B1ABCF000138 L4430 J0JHC0000045 R4449 10k Q4430 B1ABCF000138 R4433 33k R4411 47k R4443 1k C4417 16V 0.1u C4439 16V 10u R4440 39k R4454 1k C4418 16V 47u R4413 0 R4453 1k R4438 39k R4406 EXB38V560JV R4423 56 R4408 D1HG5608A002 SUB9V2 C4434 50V 33p R4439 100 C4433 50V 180p R4450 10k C4440 50V 2700p R4407 D1HG5608A002 C4411 16V 10u - AUDIO DAC L + L Hi=>MUTE - HDMI L R Low=>MUTE 10k:10k HDMI AUDIO MUTE R R + L HPD for MUTE High => MUTE Hi=> MUTE R 25 30 29 26 24 27 23 28 AUDIO AMP CB CA 131 132 133 135 134 DG-BOARD TO (4/13) DG-BOARD (11/13) TNPA3519 (PV500E) TNPA3519AC (PV500B) 141 (DV15) TO DV-BOARD TH-50PV500E/B DG-Board (11 of 13) Schematic Diagram TH-50PV500E/B DG-Board (11 of 13) Schematic Diagram TH-50PV500E / TH-50PV500B 102 14.29. DG-Board (12 of 13) Schematic Diagram + + + + YGIN9 YGIN8 YGIN7 YGIN6 YGIN5 YGIN4 YGIN3 YGIN2 YGIN1 YGIN0 UBIN9 UBIN8 UBIN7 UBIN6 UBIN5 UBIN4 UBIN3 UBIN2 UBIN1 UBIN0 HSIB A_DDR_A10 A_DDR_A9 A_DDR_A8 A_DDR_A7 A_DDR_A6 A_DDR_A5 A_DDR_A4 A_DDR_A3 A_DDR_A2 A_DDR_A1 A_DDR_A0 A_DDR_DQ31 A_DDR_DQ30 A_DDR_DQ29 A_DDR_DQ28 A_DDR_DQ27 A_DDR_DQ26 A_DDR_DQ25 A_DDR_DQ24 A_DDR_DQ23 A_DDR_DQ22 A_DDR_DQ21 A_DDR_DQ20 A_DDR_DQ19 A_DDR_DQ18 A_DDR_DQ17 A_DDR_DQ16 A_DDR_DQ15 A_DDR_DQ14 A_DDR_DQ13 A_DDR_DQ12 A_DDR_DQ11 A_DDR_DQ10 A_DDR_DQ9 A_DDR_DQ8 A_DDR_DQ7 A_DDR_DQ6 A_DDR_DQ5 A_DDR_DQ4 A_DDR_DQ3 A_DDR_DQ2 A_DDR_DQ1 A_DDR_DQ0 A_DDR_DQS0 A_DDR_DQS1 A_DDR_DQS2 A_DDR_DQS3 A_DDR_A11 A_DDR_BA0 A_DDR_BA1 A_DDR_WE A_DDR_CAS A_DDR_RAS A_DDR_SDCKE A_DDR_CLK A_DDR_NCLK AP_DE VSIB CLKINB2 CLKINB IC4054 Y1 YIB9 C4539 16V 0.1u IC4054 AF5 BA1 IC4054 AC9 VDD25 IC4054 AA4 VDD IC4054 B23 VSIB_IBTDV MAIN3.3V C4536 1u 6.3V IC4054 W2 YIB4 C4547 16V 0.1u IC4054 J23 VDDW IC4054 AD20 VDD IC4054 AC7 VDD IC4054 AE7 VRFEFSSTL2V_0 IC4054 R3 CLKIB2 IC4054 AE10 DQ17 IC4054 AD22 A5 R4524 0 C4549 16V 0.1u IC4054 AD4 VDD25 C4568 50V 1000p IC4054 AE6 RAS IC4054 AF25 VDD25 IC4054 AB3 VSS_DLL1 C4512 16V 0.1u IC4054 AF6 WE C4551 16V 0.1u IC4054 Y2 YIB8 C4566 50V 1000p C4583 50V 1000p C4529 16V 0.1u IC4054 AD18 DQ13 C4584 50V 1000p C4515 16V 0.1u IC4054 AA2 HSIB IC4054 AF13 DQ0 IC4054 W4 YIB2 IC4054 AE3 SOVDD25 IC4054 T3 CLKIB1 C4572 50V 1000p IC4054 J24 VDDW C4503 16V 0.1u IC4054 AD12 DQ4 IC4054 AE21 VREFSSTL2V_2 C4575 6.3V 1u C4587 50V 1000p IC4054 AC3 A11 C4525 1u 6.3V IC4054 AC21 VDD IC4054 V23 VDDW IC4054 AE20 DQ10 C4544 16V 0.1u C4570 50V 1000p IC4054 AE14 SDCLKO IC4054 AF17 DQ26 IC4054 AC17 DQ27 C4592 50V 1000p IC4054 AE15 DQ30 IC4054 AC20 VDD IC4054 AC12 DQ2 IC4054 AC18 VDD R4525 10k R4520 10k IC4054 AD15 NSDCLKO IC4054 AD2 A10 IC4054 AD14 VDD25 IC4054 AF8 DQ21 IC4054 AE19 DQS1 IC4054 AF15 DQ31 C4585 50V 1000p C4599 6.3V 1u JS4029 ERJ3GEY0R00V C4596 50V 0.01u C4514 47u 6.3V L4501 J0JHC0000078 IC4054 V4 UVIB8 IC4054 C25 VDDW IC4054 D16 VDDW R4516 1.74k MAIN1.2V IC4054 D20 VDDW IC4054 AE8 DQ22 IC4054 F1 FBO_PLL C4589 50V 1000p C4567 50V 1000p IC4054 AE17 DQ25 IC4054 AC1 A9 C4578 50V 1000p C4546 16V 0.1u IC4054 AD21 DQ8 C4556 16V 0.1u IC4054 AD11 DQ7 IC4054 AC6 VDD C4531 16V 0.1u C4588 50V 1000p C4595 50V 1000p IC4054 AF24 VDD25 L4507 J0JCC0000241 C4507 16V 0.1u C0CBCAC00136 IC4044 1 VIN 2 VSS 3 CE 5 VOUT 4 NC IC4054 U1 UVIB7 IC4054 R4 ENBIB IC4054 A24 EXCLKIN IC4054 V3 UVIB9 IC4054 AD25 VDDW R4531 100 IC4054 AC19 VDD25 IC4054 F4 VDD C4511 16V 0.1u IC4054 AB2 VDD_DLL1 IC4054 AD23 VDD25 C4502 16V 0.1u IC4054 AF18 DQ15 IC4054 AF2 VDD25 IC4054 U3 UVIB5 TP4502 C4509 16V 0.1u R4523 0 C4602 16V 0.1u C4577 50V 1000p IC4054 AD8 DQ23 C4594 50V 1000p IC4054 AE22 A7 C4504 16V 0.1u C4535 50V 0.01u IC4054 U23 VDDW IC4054 AD6 BA0 R4526 47 C4521 6.3V 1u IC4054 AF7 CAS IC4054 AA1 FRCLKIN_IBTV IC4054 N24 VDDW C4582 50V 1000p IC4054 C26 VDDW C4593 50V 1000p IC4054 Y3 YIB7 IC4054 U4 UVIB4 C4501 47u 6.3V IC4054 J4 VDDW IC4054 AC25 VDD_DLL0 IC4054 D14 VDD IC4054 AE4 SOVDD25 IC4054 AE5 A0 IC4054 AE24 VDD25 C4565 50V 1000p IC4054 AE11 DQ6 IC4054 AD5 A2 IC4054 AE1 VDDW JS4022 ERJ3GEY0R00V IC4054 AD13 DQ1 C4573 50V 1000p C4576 50V 1000p IC4054 D6 NRST C4538 16V 0.1u C4537 47u 6.3V C4533 16V 0.1u R4515 1.74k C4591 50V 1000p C4597 6.3V 1u C4508 16V 0.1u C4554 16V 0.1u IC4054 F2 REFO_PLL IC4054 W3 YIB3 C4590 50V 1000p IC4054 AC26 VSS_DLL0 IC4054 AC14 VDD25 IC4054 AE18 DQ14 IC4054 AA3 VDDP IC4054 U24 VDDW IC4054 AF3 VDD25 IC4054 A10 VDDW L4505 J0JCC0000241 IC4054 T2 UVIB2 C4555 16V 0.1u IC4054 AF12 DQ3 IC4054 AC10 VDD L4506 J0JHC0000078 IC4054 M23 VDDW C4542 16V 0.1u C4552 16V 0.1u IC4054 AD17 DQ24 C4550 16V 0.1u C4530 16V 0.1u IC4054 N23 VDDW C4540 16V 0.1u IC4054 F23 VDD JS4023 ERJ3GEY0R00V C4534 16V 0.1u MAIN2.5V IC4054 AD16 DQ29 C4601 33u 6.3V C4580 50V 1000p IC4054 AD7 VDD IC4054 AF14 SDCKE IC4054 K23 VDDW C4527 1u 6.3V IC4054 T1 UVIB3 C4543 16V 0.1u IC4054 AE26 VDDW IC4054 D18 TEST IC4054 Y4 YIB6 TP4501 IC4054 R1 UVIB1 C4571 50V 1000p C4581 50V 1000p C4586 50V 1000p R4532 100 IC4054 AF9 DQ19 IC4054 AA23 VDD C4598 50V 0.01u IC4054 AC2 A4 IC4054 D17 VDDW C4510 16V 0.1u C4516 16V 0.1u C4541 16V 0.1u IC4054 P24 VDD IC4054 V2 YIB0 C4518 16V 0.1u IC4054 AF20 DQ11 IC4054 AC11 VDD IC4054 V1 YIB1 IC4054 AE16 DQS3 IC4054 AD26 VDDW C4553 16V 0.1u DDR2.6V_PRO IC4054 AD19 VDD25 IC4054 AF10 DQ16 C4513 16V 0.1u IC4054 AE13 VREFSSTL2V_1 L4509 J0JHC0000078 C4600 1u 6.3V IC4054 E1 VCOIN C4548 16V 0.1u IC4054 T4 VDDW C0CBCAC00136 IC4061 1 VIN 2 VSS 3 CE 5 VOUT 4 NC C4545 16V 0.1u C4528 1u 6.3V IC4054 AE23 VDD25 C4506 16V 0.1u C4579 50V 1000p IC4054 AF4 A1 IC4054 W1 YIB5 IC4054 A12 VDDW IC4054 AF21 DQ9 IC4054 AF11 DQ5 C4517 16V 0.1u IC4054 AC16 VDD IC4054 AD10 DQ18 IC4054 D21 VDD JS4028 ERJ3GEY0R00V IC4054 AF16 DQ28 IC4054 D13 VDD IC4054 AD9 DQ20 IC4054 AF22 A8 IC4054 B26 VDDW C4574 50V 1000p IC4054 AF19 DQ12 IC4054 AC13 VDD IC4054 D15 VDDW IC4054 AC15 NC IC4054 AD1 A3 R4521 10k C4519 16V 0.1u L4508 J0JHC0000078 IC4054 R2 UVIB0 IC4054 AB1 LPF_PLL_main_matsu30 IC4054 AC8 VDD25 IC4054 P23 VDD C4505 16V 0.1u IC4054 AE12 DQS0 IC4054 AF23 A6 IC4054 AE9 DQS2 C4526 50V 0.01u IC4054 U2 UVIB6 TP4503 L4510 J0JCC0000241 R4522 75 C4562 6.3V 1u IC4054 C2 GNDP R4533 910 IC4054 C1 VCOINV1 IC4054 D3 VDDP R4528 1k JS4030 ERJ3GEY0R00V R4527 39k C4560 50V 0.01u C4561 50V 0.01u JS4081 ERJ3GEY0R00V MAIN2.5V IC4054 D2 CPOUT1 PORT-B(FS&HDMI) DDR 1.2V VDD FOR CORE 2.5V VDD FOR STTL_2 CLK_GEN 1.2V 95.5M 108M 85M 1.2V 3.3V VDD FOR IO AVR 1.2V AVR 1.2V IC4054 GC4PRO C1AB00002234 36 35 34 31 38 33 37 32 DG-BOARD TO (5/13) 151 152 DB DD DA DC DE DG-BOARD (12/13) TNPA3519 (PV500E) TNPA3519AC (PV500B) 141 TH-50PV500E/B DG-Board (12 of 13) Schematic Diagram TH-50PV500E/B DG-Board (12 of 13) Schematic Diagram TH-50PV500E / TH-50PV500B 103 14.30. DG-Board (13 of 13) Schematic Diagram + + + A_DDR_A0 A_DDR_A2 A_DDR_A10 A_DDR_A3 A_DDR_A11 A_DDR_A4 A_DDR_A9 A_DDR_A6 A_DDR_A5 A_DDR_A7 A_DDR_A8 A_DDR_A1 A_DDR_DQ23 A_DDR_DQ22 A_DDR_DQ21 A_DDR_DQ20 A_DDR_DQ19 A_DDR_DQ18 A_DDR_DQ17 A_DDR_DQ16 A_DDR_DQ3 A_DDR_DQ2 A_DDR_DQ1 A_DDR_DQ0 A_DDR_DQ31 A_DDR_DQ30 A_DDR_DQ29 A_DDR_DQ28 A_DDR_DQ27 A_DDR_DQ26 A_DDR_DQ25 A_DDR_DQ24 A_DDR_DQ15 A_DDR_DQ14 A_DDR_DQ13 A_DDR_DQ12 A_DDR_DQ11 A_DDR_DQ10 A_DDR_DQ9 A_DDR_DQ8 A_DDR_DQ7 A_DDR_DQ6 A_DDR_DQ5 A_DDR_DQ4 B_DDR_A6 B_DDR_A5 B_DDR_A7 B_DDR_A8 B_DDR_A3 B_DDR_A11 B_DDR_A4 B_DDR_A9 B_DDR_A0 B_DDR_A2 B_DDR_A1 B_DDR_A10 B_DDR_DQ11 B_DDR_DQ10 B_DDR_DQ9 B_DDR_DQ8 B_DDR_DQ15 B_DDR_DQ14 B_DDR_DQ13 B_DDR_DQ12 B_DDR_DQ27 B_DDR_DQ26 B_DDR_DQ25 B_DDR_DQ24 B_DDR_DQ31 B_DDR_DQ30 B_DDR_DQ29 B_DDR_DQ28 B_DDR_DQ3 B_DDR_DQ2 B_DDR_DQ1 B_DDR_DQ0 B_DDR_DQ7 B_DDR_DQ6 B_DDR_DQ5 B_DDR_DQ4 B_DDR_DQ19 B_DDR_DQ18 B_DDR_DQ17 B_DDR_DQ16 B_DDR_DQ23 B_DDR_DQ22 B_DDR_DQ21 B_DDR_DQ20 A_DDR_DQS2 B_DDR_DQS2 A_DDR_DQS0 B_DDR_DQS0 A_DDR_DQS3 B_DDR_DQS3 A_DDR_DQS1 B_DDR_DQS1 A_DDR_BA0 A_DDR_BA1 B_DDR_BA1 B_DDR_BA1 B_DDR_BA0 B_DDR_A11 B_DDR_A10 B_DDR_A9 B_DDR_A8 B_DDR_A7 B_DDR_A6 B_DDR_A4 B_DDR_A5 B_DDR_A3 B_DDR_A2 B_DDR_A0 B_DDR_A1 B_DDR_DQ31 B_DDR_DQ30 B_DDR_DQ29 B_DDR_DQ28 B_DDR_DQ25 B_DDR_DQ27 B_DDR_DQ24 B_DDR_DQ26 B_DDR_DQ16 B_DDR_DQ21 B_DDR_DQ23 B_DDR_DQ20 B_DDR_DQ17 B_DDR_DQ18 B_DDR_DQ22 B_DDR_DQ19 B_DDR_DQ0 B_DDR_DQ5 B_DDR_DQ7 B_DDR_DQ4 B_DDR_DQ1 B_DDR_DQ2 B_DDR_DQ6 B_DDR_DQ3 B_DDR_DQ8 B_DDR_DQ13 B_DDR_DQ15 B_DDR_DQ12 B_DDR_DQ9 B_DDR_DQ10 B_DDR_DQ14 B_DDR_DQ11 A_DDR_WE A_DDR_CAS A_DDR_RAS A_DDR_SDCKE B_DDR_WE B_DDR_CAS B_DDR_RAS B_DDR_SDCKE B_DDR_RAS B_DDR_CAS B_DDR_WE B_DDR_DQS3 B_DDR_DQS2 B_DDR_DQS1 B_DDR_DQS0 B_DDR_SDCKE A_DDR_CLK A_DDR_NCLK B_DDR_NCLK B_DDR_CLK B_DDR_BA0 B_DDR_NCLK B_DDR_CLK IC4055 H12 DM1 C4737 16V 0.01u R4664 100 R4659 68 R4671 EXB38V680JV IC4055 M4 NC IC4055 J11 VDDQ IC4055 D12 DQ26 IC4055 K4 VDDQ IC4055 M6 A2 IC4055 M11 CK IC4055 F6 VSS_Thermal IC4055 D4 VSSQ IC4055 K10 VSSQ IC4055 M12 CK IC4055 N4 BA0 R4611 68 C4733 16V 0.01u C4714 16V 0.01u IC4055 L2 CAS C4720 16V 0.1u IC4055 E4 VDD IC4055 J4 VDDQ IC4055 C2 DQ4 IC4055 N11 A8/AP C4730 16V 0.1u IC4055 L6 A10 IC4055 F12 DQ15 IC4055 B8 DQ31 IC4055 K13 DQ8 IC4055 L4 VDD IC4055 N8 A4 C4732 16V 0.1u C4717 16V 0.1u IC4055 N10 A7 IC4055 E6 VSSQ IC4055 D7 VDD IC4055 B5 DQ3 IC4055 N13 VREF IC4055 N9 A6 IC4055 C8 VDDQ IC4055 G9 VSS_Thermal R4617 EXB2HV680JV R4612 68 IC4055 F4 VDDQ IC4055 M3 NC R4707 0 IC4055 E8 VSS IC4055 F9 VSS_Thermal IC4055 D2 DQ6 IC4055 C7 VDDQ C4722 16V 0.1u C4704 16V 0.1u IC4055 H11 NC C4735 16V 0.01u IC4055 C6 DQ1 DDR2.6V_PRO IC4055 J2 DQ21 L4701 J0JHC0000078 IC4055 B3 DM0 C4719 16V 0.1u IC4055 K6 VSS R4710 0 C4703 6.3V 22u IC4055 G2 DQ19 IC4055 G6 VSS_Thermal IC4055 H7 VSS_Thermal IC4055 C5 VDDQ R4701 30k C0DBEJG00001 IC4048 1 CTL 2 Vcc 3 GND 4 OUT 5 C IC4055 M2 RAS TP4701 IC4055 L5 VSS R4704 1.74k IC4055 D5 VSSQ MAIN3.3V C4731 16V 0.01u C4723 16V 0.01u IC4055 C4 NC IC4055 G10 VSSQ IC4055 M8 A9 IC4055 E13 DQ24 R4618 EXB38V680JV IC4055 N5 A0 IC4055 C3ABQJ000040 B2 DQS0 IC4055 J6 VSS_Thermal IC4055 M13 MCL IC4055 L10 VSS IC4055 K5 VSSQ C4718 16V 0.01u IC4055 J13 DQ10 C4716 16V 0.01u IC4055 H5 VSSQ IC4055 C10 VDDQ IC4055 K7 VSS R4663 680 R4619 EXB2HV680JV C4729 16V 0.01u IC4055 H6 VSS_Thermal IC4055 B6 DQ2 C4702 56u 4V IC4055 J9 VSS_Thermal IC4055 J8 VSS_Thermal IC4055 G12 DQ13 IC4055 J7 VSS_Thermal C4728 16V 0.1u IC4055 N6 A1 IC4055 G11 VDDQ IC4055 F7 VSS_Thermal IC4055 N2 CS IC4055 B12 DM3 C4724 16V 0.1u C4715 16V 0.1u C4725 16V 0.01u IC4055 G4 VDDQ IC4055 B7 DQ0 IC4055 H9 VSS_Thermal C4726 16V 0.1u IC4055 K3 DQ23 IC4055 E5 VSS IC4055 E11 VDD IC4055 L12 NC R4708 0 IC4055 M10 RFU2 C4736 16V 0.1u IC4055 F11 VDDQ IC4055 F2 DQ17 C4734 16V 0.1u IC4055 D11 VSSQ IC4055 N3 NC R4616 EXB2HV680JV IC4055 J10 VSSQ IC4055 L13 NC IC4055 E9 VSSQ IC4055 H2 DQS2 IC4055 G5 VSSQ C4713 16V 0.1u C4710 16V 0.1u IC4055 D9 VSSQ R4613 68 IC4055 J3 DQ20 IC4055 K2 DQ22 IC4055 C12 VDDQ IC4055 E12 VDDQ IC4055 M9 A5 R4614 EXB2HV680JV IC4055 D6 VSSQ IC4055 E2 DQ7 IC4055 D8 VDD R4610 68 IC4055 E10 VSS IC4055 K12 DQ9 R4702 30k IC4055 K9 VSS IC4055 D13 DQ25 IC4055 B4 VSSQ C4727 16V 0.01u IC4055 N12 CKE IC4055 B9 DQ29 IC4055 J12 DQ11 R4662 680 IC4055 E7 VSS IC4055 K11 VDDQ IC4055 J5 VSSQ R4661 68 IC4055 E3 VDDQ C4711 16V 0.1u IC4055 B13 DQS3 IC4055 H8 VSS_Thermal R4615 EXB2HV680JV IC4055 B11 VSSQ IC4055 H3 DM2 IC4055 H13 DQS1 IC4055 F5 VSSQ R4709 0 C4712 16V 0.01u R4706 0 IC4055 M7 A11 IC4055 L11 VDD IC4055 N7 A3 DDR2.6V_PRO IC4055 F10 VSSQ IC4055 L9 RFU1 C4709 47u 6.3V R4705 1.74k IC4055 H10 VSSQ C4721 16V 0.1u IC4055 C3 VDDQ IC4055 G3 DQ18 IC4055 L3 WE IC4055 F13 DQ14 IC4055 F8 VSS_Thermal IC4055 M5 BA1 IC4055 G13 DQ12 IC4055 H4 NC IC4055 C9 DQ30 C4701 16V 0.1u IC4055 L8 VDD IC4055 C13 DQ27 IC4055 G7 VSS_Thermal IC4055 C11 NC IC4055 D3 DQ5 IC4055 G8 VSS_Thermal IC4055 L7 VDD IC4055 D10 VSSQ IC4055 B10 DQ28 IC4055 K8 VSS IC4055 F3 DQ16 R4609 0 R4620 0 DDR Must Connect Low 0.49 0.51VDDQ FOR GC4PRO AVR 2.6V 128M DDR SDRAM C3ABQJ000040 IC4055 39 43 41 44 46 45 42 40 DG-BOARD TO (6/13) 151 152 EA DG-BOARD (13/13) TNPA3519 (PV500E) TNPA3519AC (PV500B) TH-50PV500E/B DG-Board (13 of 13) Schematic Diagram TH-50PV500E/B DG-Board (13 of 13) Schematic Diagram TH-50PV500E / TH-50PV500B 104 14.31. DV-Board Block Diagram SCL0B SDA0B RX_WS RX_SD0 RX_MCLK RX_SCK HDMI_INT NIRQ2 RW_WS RX_SD0 RX_SCK RX_MCLK HDMI_5V_DET JTAG_TRST JTAG_TDO JTAG_I_TD0 HSIB VSIB CLKINB2 JTAG_TMS JTAG_TCK HSIB CLKINB2 JTAG_TRST JTAG_TD0 JTAG_I_TD0 JTAG_TCK JTAG_TMS HDMI_5V_DET DDC_SCL 3.3V_SCL DDC_SDA 3.3V_SDA HDMI_RST VSIB HOTPLUG HDMI_ROBA HDMI_RST HDMI_INT HDMI_ROBA NIRQ2 123 125 117 JK5001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 81 82 83 116 114 80 119 122 120 28 68 64 6 7 30 29 26 27 67 92 78 20 5 93 23 N.C. CLK+ 20 AND MAIN3.3V RECEIVE DV15 TMDS DATA MAIN3.3V VIDEO D0+ D1G JTAG_TRST INTERFACE IC5003 TD0_4L_BA SCL0 HPDT DDCG SCL CLKG JD0_4PRO_HDMI D1- SDA0 D0G D2G D0- D1+ +5V HDMI I/F RECEIVER DDC DATA CLK- HDMI_INT CEC RX_MCLK D2- D2+ VSYNC HSDA TDI HSYNC TCK HSCL TRST TMS TD0 RCLK JTAG_TCK VSIB CLKIN TO NIRQ2 POSCL NRESET NIRQ DG15 JTAG_TMS POSDA 22 RX_SCK RW_WS RX_SD0 24 HDMI_RST HDMI_5V_DET NIRQ2 MAIN5V HSIB UB9 UB2 UB1 UB0 HPD YG0 YG2 YG9 YG1 41 52 42 44 54 62 36 37 Q5003 MAIN5V Q5001 S1 D1 S2 D2 Q5002 IC5017 6 5 DDC EEPROM SCL0B SDA0B AUDIO MUTE AND 5V DET Hi;MUTE Low;DETECT HPD5V CABLE OUT;LOW/MUTE CABLE IN;Hi/NORM UB0-UB9 YG0-YG9 MAIN3.3V 4 AVR 1.5V VIN 5 1 IC5015 VOUT VCONT MAIN1.5V MAIN3.3V YG0-YG9 UB0-UB9 HDMI INTERFACE DV JTAG:Joint Test Action Group 5V 26 18 17 7 2 5 4 29 30 60 13 12 11 10 9 55 59 58 44 36 34 33 53 45 32 31 15 HDMI IN HDMI_ROBA 16 SOM2 3.3V 8 MAIN 3.3V MAIN 1.5V MAIN 3.3V INTERFACE AUDIO HDCP CIPHER DECRYPTOR TMDS DECODER TH-50PV500E/B DV-Board Block Diagram TH-50PV500E/B DV-Board Block Diagram THIS IS FOR REFERENCE USE ONLY. THIS MUST BE REPLACED WITH AN EXCHANGE BOARD ONLY. TH-50PV500E / TH-50PV500B 105 14.32. DV-Board Schematic Diagram G G RX_SD0# HDMI_5V_DET JTAG_TRST HDMIINT HPD JTAG_TMS SCL0B SDA0B RX_WS CLKINB2 AP_DE YGIN1 YGIN0 VSIB HDMIINT RX_SCK RX_MCLK YGIN0 YGIN1 AP_DE HSIB VSIB UBIN0 CLKINB2 UBIN2 UBIN1 YGIN9 UBIN3 YGIN8 UBIN4 YGIN7 UBIN5 YGIN6 UBIN6 YGIN5 UBIN7 YGIN4 UBIN8 YGIN3 UBIN9 YGIN2 JTAG_TCK JTAG_I_TDO JTAG_TDO SCL0B HDMI_RST JTAG_TRST JTAG_TDO JTAG_I_TDO JTAG_TCK JTAG_TMS HPD HDMI_5V_DET RX_SD0# RX_WS YGIN9 YGIN8 YGIN7 YGIN6 YGIN5 YGIN4 YGIN3 YGIN2 UBIN9 UBIN8 UBIN7 UBIN6 UBIN5 UBIN4 UBIN3 UBIN2 UBIN1 UBIN0 HSIB RX_SCK RX_MCLK SDA0B DDC_SCL DDC_SDA NIRQ2 HDMI_RST 3.3V_MAIN 1.5V_MAIN NIRQ2 3.3V_MAIN 3.3V_MAIN 5V_MAIN R5007 0 TP5017 C5019 50V 1000p R5020 100k R5367 D1HG5608A002 R5392 4.7k C5134 16V 0.1u MAIN3.3V R5338 4.7k R5022 1k C5039 16V 0.1u R5037 10k TP5002 R5391 47k C5020 16V 0.1u C5047 16V 0.1u D5021 D4ED13900001 TP5006 R5034 0 R5015 4.7k C0CBCAD00016 IC5015 1 Vcont 2 GND 3 Np 5 Vin 4 Vout C5005 16V 0.1u C5140 10V 1u R5045 0 R5040 EXB38V330JV R5335 33 L5012 J0JHC0000045 R5393 4.7k C5057 50V 100p R5337 4.7k R5372 56 R5196 10k TP5015 R5078 22 L5016 J0MAB0000176 1 2 3 4 Q5004 2SC584500L C5141 10V 1u R5043 10k R5334 D1HG5608A002 TP5018 C5014 16V 0.1u R5006 1k C5136 1u 10V D5013 D4ED13900001 R5077 22 L5021 J0JHC0000045 D5020 D4ED13900001 R5354 33 C5004 10V 1u TP5011 R5018 10k DV15 K1KA60A00162 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 TP5022 R5347 0 R5370 56 Q5001 B1MBACA00004 G1 D1 S1 G2 D2 S2 1.8k R5399 C5137 50V 1000p D5016 D4ED13900001 MAIN5V D5018 D4ED13900001 C5018 16V 0.1u D5017 D4ED13900001 C5143 50V 1000p C5144 16V 0.1u R5041 33 L5015 J0MAB0000176 1 2 3 4 L5017 J0MAB0000176 1 2 3 4 C5034 16V 0.1u R5039 10k R5366 4.7k JK5001 K1FA119D0001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 R5369 56 R5395 22 Q5003 2SC584500L ZA5001 K4CD01000011 C5001 4.7u 16V ZA5003 TESA169 R5371 56 IC5017 C3EBFC000037 1 A0 2 A1 3 A2 4 VSS 5 SDA 6 SCL 7 WP 8 VCC C5135 10V 1u C5030 16V 0.1u D5019 D4ED13900001 C5046 50V 470p R5353 0 D5022 D4ED13900001 R5349 0 TP5001 D5023 D4ED13900001 R5035 0 R5014 4.7k MN864721 IC5003 1 LPSA5 2 LPSA6 3 LPSA7 4 PDWN 5 NIRQ 6 HSCL 7 HSDA 8 VSS 9 VDD33 10 PSEL 11 NPRIME 12 NTEST 13 SCANTEST 14 VSS 15 VDD15 16 TESTM0 17 TESTM1 18 TESTM2 19 MINTEST 20 NRESET 21 SOM0 22 SOM1 23 SOM2 24 ESDA 25 ESCL 26 TMS 27 TCK 28 TDI 29 TDO 30 TRST 31 VDD15 32 VSS 33 VDD33 34 Q0 35 Q1 36 Q2 37 Q3 38 VSS 39 Q4 40 Q5 41 Q6 42 Q7 43 VDD33 44 Q8 45 Q9 46 Q10 47 Q11 48 VSS 49 Q12 50 Q13 51 Q14 52 Q15 53 VDD33 54 Q16 55 Q17 56 Q18 57 Q19 58 VSS 59 Q20 60 Q21 61 Q22 62 Q23 63 VSS 64 RCLK 65 DE 66 VDD15 67 HSYNC 68 VSYNC 69 VDD33 70 VSS 71 CTL0 72 CTL1 73 CTL2 74 CTL3 75 TD4 76 TD5 77 TD6 78 NIRQ2 79 VDD33 80 AMDAM 81 AMDACL 82 AMDAWS 83 AMSDO1 84 AMSDO2 85 AMSDO3 86 AMTX 87 VSS 88 P1SCL 89 P1SDA 90 EXTCKEN 91 VDD15 92 P0SCL 93 P0SDA 94 EXTCKIN 95 VSS 96 FLT 97 AVSS 98 AVDD 99 AVDD 100 P1RXCM 101 AVSS 102 P1RXCP 103 P1RX0M 104 AVSS 105 P1RX0P 106 P1RX1M 107 AVSS 108 P1RX1P 109 P1RX2M 110 AVSS 111 P1RX2P 112 AVDD 113 AVDD 114 P0RXCM 115 AVSS 116 P0RXCP 117 P0RX0M 118 AVSS 119 P0RX0P 120 P0RX1M 121 AVSS 122 P0RX1P 123 P0RX2M 124 AVSS 125 P0RX2P 126 AVDD 127 AVDD 128 AVSS C5054 4.7u 16V R5356 33 L5018 J0MAB0000176 1 2 3 4 TP5014 R5042 33 R5350 0 C5017 1u 10V L5003 J0JHC0000045 R5044 0 R5013 47k C5013 16V 4.7u L5001 J0JHC0000045 C5040 16V 0.1u Q5002 2SC584500L R5017 10k R5038 10k D5015 D4ED13900001 R5375 33 R5019 47 R5348 0 C5049 16V 0.1u L5002 J0JHC0000045 R5376 100 D5014 D4ED13900001 R5336 33 R5030 10k C5016 16V 0.1u R5033 0 TP5010 R5011 0 R5023 68 R5359 33 R5396 100 TP5020 R5025 22 TP5013 C5056 16V 0.1u L5007 J0JHC0000045 R5176 0 R5374 0 TP5007 C5133 16V 4.7u R5024 22 R5036 1k C5036 16V 0.1u C5044 16V 0.1u TP5008 TP5012 D5025 MAZ30560ML TP5009 R5394 22 TP5023 TP5024 TP5025 ZA5005 K4CD01000011 HOTPLUG 3.3V_SDA CABLE IN -> Hi : Norm CABLE OUT -> Low : Mute for Audio MUTE and 5Vdet Hi : MUTE FOR DDC RESET RXC- RXC+ RX0- RX0+ RX1- RX1+ RX2- RX2+ CLKG +5V DET D0G SCL D2G HPDT DDC DATA CLK+ CEC DDCG D2+ N.C. D2- D1- D1+ CLK- D1G D0- D0+ 3.3V_SDA 3.3V_SCL 3.3V_SCL Low : Detect HPD5V 6 5 1 4 2 3 7 B 4 2 8 3 5 6 D E C A 1 RXC- RXC+ RX0- RX0+ RX1- RX1+ RX2- RX2+ DV-BOARD TNPA3626AC HDMI I/F RECEIVER DDC EEPROM HDMI IN AVR 1.5V DG-BOARD TO (DG15) TH-50PV500E/B DV-Board Schematic Diagram TH-50PV500E/B DV-Board Schematic Diagram JS5003 suffix AC THIS IS FOR REFERENCE USE ONLY. THIS MUST BE REPLACED WITH AN EXCHANGE BOARD ONLY. TH-50PV500E / TH-50PV500B 106 14.33. XV-Board Block Diagram (PV500B) SBO1 SBI1 TCK TMS TDI TDO TRST TMS TCK TDO SPEN SPCLK SPPKTST SPDATA7 XFERSTO SBI1 SBO1 SPEN SPCLK SPPKTST XFERSTO TRST EVTRG TRST TDO TDI TMS TCK EVTRG CHCLK CHVAL CHSYNC POWER SBO0/SBI0 XRST DR DL TDI SBI0 SBO0 RESET POWER XCD1 XCD2 XWAIT XIREQ SPDATA7 XCD1 TRST X8003 X8006 41 43 DL(BS_L) TDI TCK TDO TRST TMS DR(BS_R) 30 XV01 28 29 26 27 96 88 105 MVCLK0 MHSYNC0 MVSYNC0 XRST 22 SBO1(SBI1) 18 SBI1(SBO1) 19 SUB 9V 13 SUB 9V 51 52 SUB 9V 53 SUB 9V 54 SUB 5V 57 SUB 5V IC8023 PVIN DC-DC CONV.3.3V FB 2 3 INV 4 SUB 9V VIN SW 8 1 SUB 5V FDC_A5V A5V SUB 9V MVY0 MVY7 MVC0 MVC7 107 106 109 2 4 RESET VDD IC8043 OUT 2 1 RESET VDD IC8042 VOUT VCC 1 VOUT AVR +2.5V IC8034 CTL 4 2 +2.5V SUB 9V 3.3V XRST SUB 9V TO DG22 MVY7 MVY0 MVC7 MVC0 MHSYNC0 MVSYNC0 MVCLK0 IEC_OUT MVY0 MVC0 MVY7 MVC7 DY DC SDA1 SCL0 SDA0 SCL1 SCL0 SDA1 SDA0 SCL1 TDO TCK TDI TMS XRST SBO1 SBI1 SBO0 SBI0 +5V SBI0 XV04 3 1 2 SBO0 SUB 5V VDDQ 2.5V (DDR SDRAM) AVDD MVAVDD SVAVDD MAVDD DAVDD AAVDD VDD33 VDD12 2.5V XWAIT XIREQ MMA13 MMA0 XCD2 1.2V 3.3V PEAKS_Lite(2/3) HDSL PEAKS_Lite IC8013 OP AMP IC8031 3 2 7 1 5 6 SUB 9V 256M DDR_SDRAM IC8009 64M CPU FLASH ROM IC8019 MMDQ0 MMDQ31 XECSO-XECS5 10 TU8001 IF_AGC ANT_V_SUPPLY 7 V_SUPPLY 11 5 SDA 1 IFD1 TV TUNER 4 SCL 9 PEAKS_Lite(3/3) PEAKS_Lite(1/3) JTAG I/F DATA BUS ADDRESS BUS CONTROL BUS DATA BUS ADDRESS BUS CONTROL BUS XRST ENABLE0 CHPSYNC0 SCHDATA0 SCHCLK0 Test Group Joint Action 45 INTERFACE) 19 58 51 46 37 CI SLOT 63 20 62 8 36 67 44 59 57 JK8401 18 42 17 15 7 16 (COMMON 66 41 52 9 CONTROL BUFFER IC8404 DATA BUFFER IC8402 IC8213 BUFFER IC8412 BUFFER BUFFER IC8410,IC8411 64 Vpp1,Vpp2 VCC RESET A0~A14 CE1#,CE2# OE#,WE# IORD#,IOWR# IREQ# CD1#,CD2# MCLK0,WAIT# MOVAL,MOSTRT MDO3~MDO7 MDO0~MDO2 MISTRT MDI0~MDI7 MIBAL,MCLKI IFD2 CARD SLOT JK8201 SUPPORT 10 23 101 EA0~EA24 89 CONTROL BUS XV D-TV INTERFACE DG0-DQ15 A0-A21 WP,WE,CE,OE RESET (232C) FOR DEBUG 2 3.3V 15 3.3V 16 3.3V 3 4 EVTRG 5 TRST 7 TMS 9 TDO 11 TDI 14 TCK XRST CN8202 (JTAG I/F) OUT 6 8 OUT 2 FLG 7 IN EN 1 CARD 5V IC8401 SUB 5V XIRQ2 SCLT 18 SDAT 19 XTALI 62 XTALO 63 IMM 9 IMP 10 RESET 12 42 LOCK/OP2 SCL 20 SDA 21 D0 34 D3 31 STROUT 23 D4 29 CLKOUT 36 D/#P 38 25 D7 IC8003 COFDM DEMODULATOR AGC1 16 IC8408 TS BUFFER IC8409 TS BUFFER SCL1 SDA1 3.3V(1.1A) IC8024 SW 1.2V(0.8A) VIN SUB 9V 4 INV 3 2 FB DC-DC CONV.1.2V 1 8 PVIN DATA VOUT AVR +1.8V 3.3V IC8864 1 7 +1.8V VIN 3.3V SUB 5V 3.3V BOOTSWAP,XEDK ELLK,XEWE2,XEWE3 XIORD,XIOWR XWE,XOE,REG XECS3 ED31 ED16 EA24 EA0 XCD1 XECSO,XERE XEWE2,PWP HSCLKIN HSSYNCIN HSVALIN HSDIN7 HSDIN0 DRSTMSK EVTRG 3.3V DATA ADDRESS CONTROL CONTROL DATA 24.167MHz RESET CI I/F SUPPORT CARD& NOR FLASH ROM I/F XCD1,XCD2,XWAIT,XIREQ CHCLK,CHVAL,CHSYNC XRST 51 TDI,TDO 59 TCK,TMS 52 36 57 60 SCL1.SCL0 53 SDA1,SDA0 35 58 55 TRST 88 XNMIRQ,XIRQ3 SUB 5V 66 82 29 81 SBO0,SBI0 3.3V 84 3.3V 27 65 54 SUB 5V 45 30 83 XCD1 46 28 EA1-EA15 72 CVBS AF_VDACOUT5 103 110 1 8 ED16~ED31 D0~D7 6 2 30 32 14 29 10 21 50 56 47 53 Q8101 CVBS XDACRST AOUTR 10 IC8029 AUDIO DAC 11 AOUTL SUB 5V 14 SPDATA0~7 SPEN,SPCLK STROUT DDR- SDRAM DACCK DMIX 1 5 PDN LRCK MCLK 4 LRCK SDTI SRCK BICK 3 2 3.3V TCK,TMS TDI,TDO SUB 5V XMNIRQ XIRQ0 XIRQ1 XIRQ2 VC27 CK27 INTERRUPTION 1 2 3 4 5 6 VCXO27M IC8501 FOR CIRESET CIPOWER ED16-ED23 XIRQ1 CONTROL BUS ADDRESS BUS DATA BUS XRST SDA1,SDA0 SCL1,SCL0 XIRQ1 XERE,ERXW XFERSTO 97 FACTORY USE REG# 61 FACTORY USE FOR 32 44 67 79 XCD1 TH-50PV500B XV-Board Block Diagram TH-50PV500B XV-Board Block Diagram TH-50PV500E / TH-50PV500B 107 14.34. XV-Board (1 of 5) Schematic Diagram (PV500B) + + + AU_DA1 AA_EA8 AO_SPEN AU_DA6 AR_DATAINA6 AU_DA3 AA_ED16 AY_EAA13 AO_SPDATA1 AY_EAA12 AA_EA7 AS_IOWR- AA_EA4 AA_ED18 AS_CE1- AO_SPPKTST AR_DATAINA1 AR_CLKINA AY_EAA10 AA_EA6 AU_DA5 AO_SPDATA6 AR_DATAINA2 AA_ED21 AR_ENINA AY_EAA3 AU_DA5 AA_EA14 AU_DA7 AY_EAA11 AA_ED19 AU_DA7 AY_EAA14 AA_ED17 AO_SPDATA4 AU_DA3 AA_ED22 AO_SPDATA3 AA_ERXW AR_DATAINA4 AY_EAA15 AA_ED20 AY_EAA6 AR_DATAINA5 AA_ED23 AA_EA10 AA_EA11 AU_DA2 AR_DATAINA0 AY_EAA8 AU_DA6 AY_EAA7 AA_EA2 AA_EA13 AA_EA9 AO_SPCLK AA_EA1 AO_SPDATA7 AU_DA0 AA_EA5 AS_OE- AA_EA3 AY_EAA5 AS_REG- AA_EA12 AO_SPDATA2 AS_IORD- AA_EA15 AR_DATAINA7 AY_EAA2 AR_DATAINA3 AO_SPDATA0 AU_DA4 AS_WE- AU_DA4 AY_EAA9 AY_EAA1 AY_EAA4 AR_PKTSTINA AU_DA0 AO_SPDATA5 ACI_POWER AA_XECS3 ACI_RESET ACI_IORD ACI_XWE ACI_IOWR ACI_XOE AO_SPDATA2 AO_SPDATA1 AO_SPDATA0 AO_SPCLK AO_SPCLK AO_SPEN AO_SPEN AO_SPPKTST AO_SPPKTST AO_SPDATA5 AO_SPDATA7 AO_SPDATA7 AO_SPDATA4 AO_SPDATA6 AD_SCL1 AO_SPDATA3 AD_SDA1 3.3VA AO_XFERST0 AA_XIRQ1 5V ACI_REG AA_XIRQ2 AU_DA2 AU_DA1 ACI_XEAB ACI_XEDBA Card_5V 5V R8051 EXB38V330JV R8434 EXB38V560JV TP8033 R8426 EXB38V101JV C8414 16V 0.1u R8446 56 L8008 J0JHC0000045 X8003 H0J241500001 C8039 16V 0.01u R8073 1M R8433 EXB38V560JV C8010 50V 1p R8040 4.7k R8443 EXB38V560JV C8020 16V 0.01u R8046 33 C8007 50V 1000p C8004 10V 0.1u SUB5V R8424 0.1 R8041 150k C8073 50V 27p C8059 16V 0.01u R8058 EXB38V330JV R8469 EXB38V560JV R8401 0 IC8401 C0ZBZ0001086 1 EN 2 FLG 3 GND 4 ILIM 5 NC 6 OUT 7 IN 8 OUT C8060 16V 0.01u R8003 180 C8005 10u 16V R8468 56 C8056 16V 0.01u R8056 33 SUB5V R8445 56 R8057 68 R8421 10k R8505 100 R8076 10k R8048 100 C0JBCZ000255 IC8404 1 DIR 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 B8 12 B7 13 B6 14 B5 15 B4 16 B3 17 B2 18 B1 19 ^OE 20 Vcc R8008 1k C8043 50V 7p C8046 16V 0.01u R8035 0 C8055 47u 6.3V C0DBFFD00003 IC8864 1 2 3 4 5 6 7 R8474 0 C8404 16V 0.1u C8870 50V 470p C0JBCZ000255 IC8408 1 DIR 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 B8 12 B7 13 B6 14 B5 15 B4 16 B3 17 B2 18 B1 19 ^OE 20 Vcc C8872 6.3V 2.2u R8402 0 C8021 50V 1000p C8416 16V 0.1u R8466 EXB38V560JV C8052 16V 0.01u C8413 16V 0.1u R8050 100 R8049 100 C8037 16V 0.01u C8409 16V 0.1u R8964 100 R8419 EXB38V101JV R8467 56 IC8003 STV0360CT 1 DGNDA 2 DVCCA1.8 3 VCCA1.8 4 GNDA 5 REFM 6 REFP 7 VR 8 PGAVCC3.3 9 INM 10 INP 11 PGAGND 12 XRESET 13 VDD 14 AGC2 15 GND 16 AGC1 17 TEST 18 SCLT 19 SDAT 20 SCL 21 SDA 22 VDD3.3 23 STR_OUT 24 GND 25 D7 26 D6 27 D5 28 VDD 29 D4 30 GND 31 D3 32 D2 33 D1 34 D0 35 VDD3.3 36 CLK_OUT 37 GND 38 D/XP 39 VDD 40 ERROR 41 GND 42 LOCK/OP2 43 LOCK/OP1 44 VDD3.3 45 OP0 46 GND 47 AUX_CLK 48 CIQ/HFEC3 49 CDATA/HFEC2 50 CCLK/HFEC1 51 HFEC0 52 VDD3.3 53 CS1 54 GND 55 CS0 56 GND 57 VDD 58 IP0 59 GND 60 TEST 61 VCCXTAL1.8 62 XTALI 63 XTALO 64 GNDXTAL C0JBCZ000255 IC8409 1 DIR 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 B8 12 B7 13 B6 14 B5 15 B4 16 B3 17 B2 18 B1 19 ^OE 20 Vcc C8407 16V 0.1u C8030 16V 0.01u R8425 EXB38V101JV R8417 EXB38V473JV R8074 180 C8041 100u 4V 3.3V R8444 100 C8071 50V 27p R8962 100 C8058 16V 0.01u TP8025 C8061 16V 0.01u C8002 10V 0.1u C8001 16V 0.01u R8418 EXB38V473JV 74LVC4245AD IC8402 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 C8051 16V 0.01u R8420 EXB38V101JV R8036 16k R8047 100 C8040 16V 0.01u C8415 16V 0.1u C8403 16V 0.1u R8039 4.7k R8963 100 C8042 50V 7p R8075 180 C8406 16V 0.1u R8422 330 3.3V C0JBCZ000255 IC8410 1 DIR 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 B8 12 B7 13 B6 14 B5 15 B4 16 B3 17 B2 18 B1 19 ^OE 20 Vcc C8003 16V 0.01u C8015 50V 8p TU8001 ENV87H06D8F 1 2 NC 3 4 5 6 7 8 9 10 11 C0JBCZ000255 IC8411 1 DIR 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 B8 12 B7 13 B6 14 B5 15 B4 16 B3 17 B2 18 B1 19 ^OE 20 Vcc C8047 16V 0.01u C8419 16V 0.1u C8019 16V 0.01u R8034 0 L8004 J0JHC0000045 R8496 EXB38V560JV R8004 180 R8495 EXB38V560JV C8062 10V 0.15u A4 EN DIR OE# TOP TOP A5 GND B1 VCCB TOP B6 A7 GND ERXW REG# VCCB B2 XCIEAB B8 A6 IORD# VCCA A8 GND A2 DATA BUFFER AS3.3V XCIETS H:RESET XCIEAB B4 B5 WE# TOP IOWR# L:NORMAL CIRESET TOP TOP XCIEDB A1 B3 B7 XCES3 A3 Cn IFA IFD1 1.8V SCL SDA SUB 4M_OUT CONT RF_AGC RESET 5V NC NC IF_AGC VOUT 5V VIN 3.3V 3.3V 24.167MHz 1.8V/260mA IFD2 GND B 1 8 3 A 2 7 4 5 6 D E C TV TUNER COFDM DEMODULATOR AVR +1.8V CARD 5V CONTROL BUFFER BUFFER BUFFER TS BUFFER TS BUFFER CPU_BUS IIC_BUS/JTAG IIC_BUS/JTAG CPU_BUS XV-BOARD TNP0EXV01AC (1/5) 1 2 3 4 5 6 7 1 8 9 10 11 12 TH-50PV500B XV-Board (1 of 5) Schematic Diagram TH-50PV500B XV-Board (1 of 5) Schematic Diagram TH-50PV500E / TH-50PV500B 108 14.35. XV-Board (2 of 5) Schematic Diagram (PV500B) + AD_TO_JK8201 AA_XNMIRQ AA_BOOTSWAP AA_XEWE3 AA_XECS2 AD_SCL0 AD_SDA0 AA_ED25 AA_ED27 AA_ED29 AA_ED17 AA_ED19 AA_ED21 AA_ED23 AA_ED31 AA_ED26 AA_ED28 AA_ED30 AA_ED16 AA_ED18 AA_ED20 AA_ED22 AA_ED24 AD_TMS AA_EA17 AA_EA19 AA_EA21 AA_EA23 AA_EA11 AA_EA13 AA_EA9 AA_EA7 AA_EA5 AA_EA3 AA_EA1 AA_EA15 AA_EA16 AA_EA18 AA_EA20 AA_EA22 AA_EA24 AA_EA0 AA_EA8 AA_EA6 AA_EA4 AA_EA2 AA_EA10 AA_EA12 AA_EA14 AA_XIRQ0 AA_ED17 AA_EA11 AA_ED25 AA_EA10 AA_EA9 AA_ED26 AA_ED19 AA_EA1 AA_XEWE2 AA_ED27 AA_ED31 AA_EA8 AA_ED20 AA_EA17 AA_EA18 AA_ED28 AA_EA19 AA_ED21 AA_ED29 AA_ED22 AA_ED30 AA_ED23 AA_EA2 AA_EA3 AA_EA4 AA_EA5 AA_EA6 AA_EA7 AA_EA16 AA_EA15 AA_EA14 AA_ED16 AA_EA13 AA_EA12 AA_EA22 AA_ED24 AA_ED18 AA_XECS3 AA_ESZ0 AA_XERE AA_XERE AA_XEDK AA_ERXW AA_XECS0 AA_XECS4 AA_ESZ1 AA_SBO0 AA_XECS5 AA_XECS1 AA_XECS0 AA_XRST AA_XEWE2 AQ_DATAOUTA7 AY_EAA5 AQ_DATAOUTA2 AQ_DATAOUTA6 AQ_ENOUTA AR_DATAINA2 AY_EAA15 AY_EAA14 AU_DA0 AQ_DATAOUTA0 AY_EAA11 AY_EAA1 AQ_DATAOUTA6 AY_EAA3 AU_DA3 AY_EAA10 AQ_DATAOUTA5 AQ_DATAOUTA5 AQ_DATAOUTA4 AQ_DATAOUTA3 AR_ENINA AU_DA5 AU_DA7 AQ_ENOUTA AR_DATAINA6 AS_REG- AQ_DATAOUTA5 AQ_DATAOUTA2 AQ_PKTSTOUTA AQ_PKTSTOUTA AQ_CLKOUTA AR_PKTSTINA AQ_ENOUTA AQ_DATAOUTA2 AS_CD2- AY_EAA6 AU_DA6 AU_DA4 AR_DATAINA3 AQ_DATAOUTA7 AY_EAA7 AS_CD1- AQ_DATAOUTA0 AR_DATAINA7 AQ_DATAOUTA4 AY_EAA12 AQ_DATAOUTA6 AR_DATAINA4 AU_DA2 AQ_DATAOUTA0 AU_DA1 AQ_DATAOUTA4 AQ_DATAOUTA7 AS_OE- AQ_CLKOUTA ACI_XETS AR_DATAINA5 AY_EAA4 AS_WE- AY_EAA2 AY_EAA8 AQ_DATAOUTA1 AS_WAIT- AQ_CLKOUTA AS_IREQ- AY_EAA13 AQ_DATAOUTA1 AY_EAA9 AQ_DATAOUTA1 AQ_PKTSTOUTA AQ_DATAOUTA3 AR_DATAINA1 AR_DATAINA0 AQ_DATAOUTA3 AR_CLKINA ACI_XCD1 AA_EA21 AA_EA20 AA_FWP ACI_XWAIT ACI_XCD2 ACI_CHSYNC ACI_CHVAL ACI_CHCLK ACI_CHDI7 ACI_CHDI6 ACI_CHDI5 ACI_CHDI4 ACI_CHDI3 ACI_CHDI2 ACI_CHDI1 ACI_CHDI0 ACI_XCD1 ACI_XIREQ AA_ECLK AA_CLKSEL AA_NAND_RY/BY AS_IREQ- AS_CE1- AS_CD1- AS_IOWR- AS_IORD- AS_WAIT- AS_CD2- AD_SDA1 AD_SCL1 AD_TCK AD_TRST AD_TO_XV01 AA_SBI0 AA_XRST SUB5V Card_5V R8926 0 C8431 16V 0.1u R8461 56 R8431 56 R8930 0 R8450 10k R8415 22k R8478 56 C0JBAZ001539 IC8412 DIR 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 B8 12 B7 13 B6 14 B5 15 B4 16 B3 17 B2 18 B1 19 XOE 20 Vcc TVRN488_3 IC8019 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A21 10 A20 11 WE# 12 RESET# 13 ACC 14 WP# 15 A19 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 VIO 48 A16 R8459 EXB38V560JV R8465 10k R8481 56 R8451 EXB38V104JV R8462 0 R8802 0 R8923 0 R8429 56 R8480 56 R8453 EXB38V104JV R8960 0 XV04 1 2 3 4 C8034 16V 0.1u R8414 0 R8463 0 C8035 16V 0.1u C8432 16V 0.1u R8428 56 R8458 EXB38V560JV R8427 56 R8447 22k C8434 16V 0.01u R8935 10k SUB5V R8454 100k R8464 56 R8933 0 C8430 16V 0.1u R8488 0 R8457 EXB38V560JV R8452 100k R8482 56 R8033 4.7k R8830 100 R8449 10k L8051 J0JHC0000075 R8487 56 JK8201 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 R8477 56 R8416 22k R8460 100k JK8401 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 31 32 65 66 67 68 33 34 R8430 56 R8504 10k R8456 EXB38V560JV C0JBAZ001539 IC8213 DIR 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 B8 12 B7 13 B6 14 B5 15 B4 16 B3 17 B2 18 B1 19 XOE 20 Vcc R8928 100 R8448 47k R8503 10k C8433 16V 0.01u C8428 16V 0.1u C8427 6.3V 100u +5V SBO0 SBI0 TMS TRST TDO TDI TCK BANKSIZE0 SUPPORT CARD SLOT CPU_BUS IIC_BUS/JTAG SBO0 SBI0 33.75MHz A9 A14 MDO1 MDO4 A11 MCLKI MDO0 D7 D1 IREQ# IORD# MIVAL A1 MDI7 (HSPSYNC) A12 CI SLOT MOSTRT MDO7 A7 CE1# MDI1 A10 GND A2 MCLKO A6 MDI0 A3 MDI5 MDI6 VCC WAIT# VPP2 MDI4 A8 A4 MDI3 GND A13 RESET MDI2 D3 VCC D4 MDO5 CD2# OE# GND CE2# CD1# IOIS16# (XCD1) D6 MISTRT D2 A5 GND MOVAL MDO2 VPP1 MDO6 5VCARD VS1# D5 A0 REG# IOWR# MDO3 D0 WE# INPACK# (HSDIN0) 13 15 11 10 14 8 9 12 COMMON INTERFACE BUFFER BUFFER 64M CPU FLASH ROM FOR FACTORY USE CPU_BUS IIC_BUS/JTAG CPU_BUS IIC_BUS/JTAG XV-BOARD TNP0EXV01AC (2/5) 5 1 11 10 8 6 2 9 3 7 12 4 1 21 22 23 24 25 +3.3V 5V AS3.3V TH-50PV500B XV-Board (2 of 5) Schematic Diagram TH-50PV500B XV-Board (2 of 5) Schematic Diagram TH-50PV500E / TH-50PV500B 109 14.36. XV-Board (3 of 5) Schematic Diagram (PV500B) + AD_SCL1 AD_SDA1 AA_ED22 AA_ED21 AA_ED20 AA_ED19 AA_ED18 AA_ED17 AA_ED16 AA_ED28 AA_ED27 AA_ED26 AA_ED25 AA_ED24 AA_ED23 AA_ED31 AA_ED30 AA_ED29 AA_EA11 AA_EA4 AA_EA10 AA_EA3 AA_EA9 AA_EA2 AA_EA21 AA_EA20 AA_EA19 AA_EA24 AA_EA23 AA_EA22 AA_EA18 AA_EA1 AA_EA0 AA_EA17 AA_EA16 AA_EA15 AA_EA8 AA_EA14 AA_EA7 AA_EA13 AA_EA6 AA_EA12 AA_EA5 ACI_IOWR ACI_XWAIT ACI_XOE AA_XECS3 AE_SDWP AE_SDCD AE_SDDAT0 AE_SDDAT1 AE_SDDAT2 AE_SDDAT3 AE_SDCMD AE_SDCLK AA_XEWE2 AA_XEWE3 AA_NAND_RY/BY AA_SBI0 AA_SBO0 AA_ERXW AA_XEDK AF_XNAWE1 AF_XNARE1 AA_XNMIRQ AA_XECS0 AA_XERE AA_XECS1 AA_ESZ1 AA_DACRST AA_FLASHRST AO_SPPKTST AO_SPEN AO_SPCLK AO_SPDATA7 AO_XFERST0 ACI_POWER ACI_REG ACI_RESET ACI_XWE ACI_IORD AI_XDSR2 AI_XDCD2_P ACI_XCD2 ACI_XCD1 ACI_XCD1 AA_XIRQ3 AA_XIRQ1 AD_SDA0 AD_SCL0 AF_XNAWP1 AI_SBI2_P AI_XRI2_P AI_XDTR2_P AI_XCTS2_P AA_XIRQ4 AD_SDBOOT AA_ED16 AA_ED17 AA_ED18 AA_ED19 AA_ED20 AA_ED21 AA_ED22 AA_ED23 AA_ED24 AA_ED25 AA_ED26 AA_ED27 AA_ED28 AA_ED29 AA_ED30 AA_ED31 AD_SID6XRST AI_XRTS2_P AD_TO_JK8201 AD_TO_LITE AD_TMS AD_TCK AD_EVTRG AD_TRST ACI_XEAB ACI_XETS ACI_XEDBA AT_PDWN AT_ADCCK AT_DSRCK AE_SDCLK AE_SDCMD AE_SDCD AE_SDDAT0 AE_SDDAT1 AE_SDDAT2 AE_SDDAT3 AA_XRST AA_FWP ACI_XIREQ AE_SDWP AA_XIRQ2 AA_XIRQ0 AD_SBO1 AD_SBI1 AA_ECLK AA_POWER_DET AA_XERE AA_ESZ0 AA_ERXW AA_CLKSEL AA_BOOTSWAP R8932 3.9k IC8013 L3 XRSTOUT R8022 10k IC8013 H19 CHDATA0 R8711 56 R8269 56 R8716 56 IC8013 J22 CHDATA7 IC8013 B20 ED9 IC8013 F20 SCL0 IC8013 C8 EA18 IC8013 B13 EA3 IC8013 A21 ED8 R8215 10k IC8013 J2 TDI IC8013 D15 ED29 R8225 10k IC8013 N18 MCLK R8243 33 R8181 56 IC8013 C11 EA7 IC8013 F21 IS0DATA0 R8268 10k IC8013 A5 EA29 IC8013 C3 XECS4 3.3V R8260 56 IC8013 C5 EA31 3.3V R8184 22k IC8013 E2 XEXDMK0 R8987 0 3.3V IC8013 B16 ED24 R8171 10k IC8013 D16 ED25 R8252 33 IC8013 B4 XEAS R8266 10k IC8013 A14 ED31 IC8013 C12 EA4 IC8013 D6 EA28 IC8013 A3 XECS0 IC8013 D7 EA21 R8279 0 R8132 56 IC8013 D18 ED13 IC8013 J21 CHDATA6 IC8013 K2 TMS IC8013 F1 SBO0 R8020 10k R8261 56 IC8013 H3 XIRQ4 R8271 56 IC8013 B10 EA12 R8021 10k IC8013 MPEG C22 ED0 IC8013 G2 XNMIRQ IC8013 B5 EA30 IC8013 G3 XIRQ1 R8263 56 IC8013 C2 XEWE3 IC8013 D2 XEWE0 IC8013 C19 ED10 IC8013 A9 EA15 IC8013 G4 SBT0 R8053 10k R8245 33 R8827 3.9k IC8013 H21 CHDATA1 R8713 EXB38V103JV R8104 56 IC8013 B21 ED6 R8221 EXB2HV560JV IC8013 P3 SMTSEL0 IC8013 D17 ED18 R8196 10k IC8013 C20 ED7 IC8013 B7 EA24 IC8013 E5 ERXW IC8013 B1 XEWE2 R8254 33 IC8013 A18 ED17 IC8013 C13 EA1 R8990 1k R8282 56 IC8013 A19 ED14 IC8013 E22 SDA0 R8984 0 R8275 56 IC8013 A20 ED11 IC8013 B11 EA9 IC8013 G19 IS0SYNC R8220 EXB2HV560JV R8186 100 R8170 10k IC8013 G5 XEBGT IC8013 C7 EA22 R8195 10k IC8013 N3 SMTRST0 R8989 1k IC8013 A12 EA5 R8015 10k R8052 10k R8259 10k R8223 56 IC8013 M3 VC27 IC8013 C9 EA14 IC8013 B22 ED3 IC8013 F2 SBT1 IC8013 C4 XECS1 R8284 0 R8233 33 IC8013 P4 SMTCMD0 3.3V IC8013 F4 SBI1 IC8013 G21 IS0CLK IC8013 A10 EA11 R8232 33 IC8013 D21 ED1 IC8013 B6 EA27 R8219 EXB2HV330JV R8246 33 R8168 10k 3.3V R8715 56 IC8013 E20 XNFRE R8182 56 R8256 10k C8910 50V 0.01u IC8013 B19 ED12 R8292 56 R8291 56 IC8013 M1 CK27 IC8013 R19 MTCPOUT IC8013 A6 EA26 R8981 0 IC8013 F22 IS0VAL R8709 10k IC8013 D5 ESZ0 IC8013 B14 EA0 R8262 56 IC8013 A8 EA19 IC8013 A7 EA23 R8239 33 IC8013 J1 TDO IC8013 K1 EVTRG R8267 10k R8235 33 CN8202 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 TP8029 IC8013 C1 ECLK IC8013 D22 XRI2 R8253 33 IC8013 F3 SBI0 IC8013 H2 XIRQ2 IC8013 K3 DRSTMSK R8241 33 IC8013 B3 XECS2 R8133 56 IC8013 G1 XIRQ0 R8985 0 R8011 10k IC8013 A2 XECS3 IC8013 H20 CHDATA3 R8010 10k R8203 10k IC8013 J18 CHDATA4 IC8013 D20 ED2 IC8013 D4 XERE IC8013 D1 XEXDMR0 R8183 0 IC8013 L2 TSTSEL IC8013 A11 EA8 R8167 10k IC8013 B17 ED21 R8187 10k R8242 33 R8175 10k R8193 10k R8217 56 R8707 10k R8172 47k R8706 10k 3.3V R8255 10k R8265 10k R8204 10k IC8013 J19 CHDATA5 IC8013 D19 ED5 R8355 EXB2HV104JV IC8013 C16 ED22 IC8013 A4 ESZ1 R8290 56 R8277 56 IC8013 N1 SMTCLK0 IC8013 D9 EA13 R8272 EXB38V560JV IC8013 F19 SCL1 R8012 10k IC8013 B12 EA6 R8214 0 IC8013 H22 CHDATA2 R8250 10k R8136 10k IC8013 H1 XIRQ3 IC8013 L1 XRST IC8013 E19 XNFWE R8264 10k R8222 EXB2HV560JV IC8013 M18 DCLK R8931 3.9k R8287 56 IC8013 C17 ED19 IC8013 D8 EA17 IC8013 B18 ED16 R8216 56 IC8013 A13 EA2 IC8013 E4 XEDK IC8013 C18 ED15 R8240 33 IC8013 E3 BOOTSWAP IC8013 K19 CHCLK0 R8712 EXB38V560JV IC8013 J3 TCK R8201 10k R8231 33 R8257 10k IC8013 M2 CLK74 IC8013 J20 CHVAL0 IC8013 C15 ED26 R8435 100 R8202 10k IC8013 K18 CHPSYNC0 R8176 10k IC8013 B8 EA20 R8986 0 R8185 100 R8180 56 IC8013 A15 ED27 IC8013 A17 ED20 IC8013 P20 DTCPOUT IC8013 D3 XEWE1 R8218 EXB2HV330JV IC8013 C10 EA10 IC8013 F5 XEBRQ IC8013 A16 ED23 IC8013 E21 SDA1 R8356 EXB2HV104JV IC8013 B9 EA16 IC8013 B2 XECS5 IC8013 C14 ED30 R8980 1k IC8013 E1 SBO1 IC8013 C21 ED4 R8982 0 R8286 56 R8708 10k R8169 10k IC8013 C6 EA25 3.3V IC8013 B15 ED28 R8273 56 R8983 0 R8238 33 R8014 10k R8714 56 R8828 3.9k IC8013 H18 CHCLK1 IC8013 N2 SMTD0 L8501 ELJNA2R7JF FL8201 J0HAAC000009 1 2 3 R8615 0 R8605 100k D8501 B0CCAB000039 R8604 100 C8501 50V 18p C8507 50V 1000p C8506 16V 1u TP004 R8954 10k R8603 100 R8349 100k C8509 100u 6.3V 74VHCU04MXNL IC8501 1 A0 2 O0 3 A1 4 O1 5 A2 6 O2 7 GND 8 O5 9 A5 10 O4 11 A4 12 O3 13 A3 14 VCC R8602 100 TP001 TP003 R8610 3.3k C8504 10V 1u 3.3V R8614 220 R8611 0 R8608 1M R8606 100k C8508 16V 0.33u C8502 50V 18p X8006 H0J270500090 C8240 6.3V 1u JTAG I/F CPU_BUS IIC_BUS/JTAG NAND_I/F CPU_BUS IIC_BUS/JTAG CPU_BUS IIC_BUS/JTAG +3.3V CPU_BUS XEWE1 H L CLKDDR 198 166.5 (EA25) TCK TDI TDO TMS TRST EVTRG XDSR2 LCSID SDDAT0 SBO2 IS1SYNC CHVAL1 IS1DATA0 PEAKS_Lite 1/3 LCSCLK MN2WS0025AEA PSYNC0 XRTS2 SDDAT2 SD_CARD SMTD1 CHDATA1 XCTS2 SDWP SDCMD NAND ALE CHPSYNC1 SDDAT1 XDTR2 XDCD2 IS1CLK SDCLK SCHCLK0 SBI2 SMTCLK1/LNBON SCHDATA0 SDCD XFERST0 ENABLE0 XRI2 SDDAT3 IS1VAL 23 18 19 17 22 21 16 20 27M CLOCK LINE, GUARDING VCXO27M IC8013 FOR FACTORY USE XRST NAND_I/F NAND_I/F XV-BOARD TNP0EXV01AC (3/5) 24 22 21 25 23 31 32 33 34 +3.3V +3.3V +3.3V +3.3V +3.3V TH-50PV500B XV-Board (3 of 5) Schematic Diagram TH-50PV500B XV-Board (3 of 5) Schematic Diagram TH-50PV500E / TH-50PV500B 110 14.37. XV-Board (4 of 5) Schematic Diagram (PV500B) + + + 3.3V AA_XRST AM_MVY0 AM_MVY1 AM_MVY2 AM_MVY3 AM_MVY4 AM_MVY5 AM_MVY6 AM_MVY7 AM_MVC0 AM_MVC1 AM_MVC2 AM_MVC3 AM_MVC4 AM_MVC5 AM_MVC6 AM_MVC7 AH_SRCK AH_DACCK AH_LRCK AM_MVCLKO ACI_CHDI0 ACI_CHDI1 ACI_CHDI2 ACI_CHDI3 ACI_CHDI4 ACI_CHDI5 ACI_CHDI6 ACI_CHDI7 ACI_CHCLK ACI_CHVAL ACI_CHSYNC AF_VDACOUT5 AF_VDACOUT0 AF_VDACOUT1 AF_VDACOUT2 AF_VDACOUT5 AF_CVBS AL_MHSYNCO AL_MVSYNCO AL_MVC7 AL_MVC6 AL_MVC5 AL_MVC4 AL_MVC3 AL_MVC2 AL_MVC1 AL_MVC0 AL_MVY7 AL_MVY6 AL_MVY5 AL_MVY4 AL_MVY3 AL_MVY2 AL_MVY1 AL_MVY0 AM_MVC7 AM_MVC6 AM_MVC5 AM_MVC4 AM_MVC3 AM_MVC2 AM_MVC1 AM_MVC0 AM_MVY7 AM_MVY6 AM_MVY5 AM_MVY4 AM_MVY3 AM_MVY2 AM_MVY1 AM_MVY0 AM_MVCLKO AM_MHSYNCO AK_AUDCLK AT_SLRCK AT_ADIN AM_MHSYNCO AM_MVSYNCO AM_MVSYNCO PE_MMDQ8 PE_MMDQ13 PE_MMDQ6 PE_MMDQ10 PE_MMDQ24 PE_MMDQ26 PE_MMDQ4 PE_MMA5 PE_MMA1 PE_MMDQ18 PE_MMDQ19 PE_MMDQ1 PE_MMDQ27 PE_MMDQ15 PE_MMDQ9 PE_MMDQ20 PE_MMDQ25 PE_MMDQ12 PE_MMDQ28 PE_MMDQ31 PE_MMDQ11 PE_MMDQ17 PE_MMA7 PE_MMDQ0 PE_MMDQ29 PE_MMDQ16 PE_MMA6 PE_MMDQ5 PE_MMDQ3 PE_MMA10 PE_MMDQ22 PE_MMA4 PE_MMDQ21 PE_MMA0 PE_MMA11 PE_MMA3 PE_MMA13 PE_MMA12 PE_MMA2 PE_MMA8 PE_MMA9 PE_MMDQ30 PE_MMDQ23 PE_MMDQ7 PE_MMDQ2 PE_MMDQ14 AH_DACCK AH_SRCK AH_DMIX AH_LRCK PE_MMA1 AG_MMA4 AG_MMA3 AG_MMA1 PE_MMA3 AG_MMA0 AC_MMDQ9 AG_MMA10 PE_MMA4 AG_MMA7 AG_MMA0 AC_MMDQ8 AG_MMA6 PE_MMA5 AC_MMDQ6 AG_MMA6 PE_MMDQ8 AC_MMDQ13 PE_MMA6 AC_MMDQ13 PE_MMDQ7 AG_MMA4 PE_MMA7 PE_MMDQ13 PE_MMDQ6 AG_MMA9 AC_MMDQ10 PE_MMA8 AC_MMDQ5 PE_MMDQ5 PE_MMDQ12 PE_MMDQ4 AG_MMA5 PE_MMA10 PE_MMA2 PE_MMA9 AC_MMDQ14 PE_MMDQ11 AG_MMA1 PE_MMA11 AG_MMA8 PE_MMDQ10 AC_MMDQ12 AC_MMDQ2 AC_MMDQ0 PE_MMDQ9 AG_MMA9 PE_MMDQ15 AC_MMDQ0 AG_MMA13 AC_MMDQ10 AC_MMDQ3 AC_MMDQ4 AC_MMDQ1 PE_MMA0 AC_MMDQ5 AG_MMA7 PE_MMDQ0 AG_MMA11 PE_MMA13 AC_MMDQ3 AG_MMA2 AC_MMDQ9 AC_MMDQ7 PE_MMDQ3 AC_MMDQ15 AG_MMA12 AG_MMA2 AG_MMA3 AG_MMA8 AC_MMDQ2 AC_MMDQ11 AG_MMA5 AC_MMDQ1 AC_MMDQ11 AG_MMA12 AG_MMA10 AC_MMDQ8 PE_MMDQ14 AC_MMDQ6 PE_MMA12 AC_MMDQ7 AC_MMDQ15 AC_MMDQ4 AC_MMDQ14 AG_MMA11 PE_MMDQ1 AC_MMDQ12 PE_MMDQ2 AL_MVCLKO AH_DMIX AA_DACRST SUB5V IC8013 AA4 XMMCAS C8189 16V 0.1u IC8013 V22 MVDACO1 C8134 50V 0.01u 3.3V C8319 16V 0.1u R8131 0 R8912 0 R8311 75 IC8013 T21 SVVREF R8027 EXB2HV560JV IC8013 AB7 MMA9 IC8013 N21 LRCK IC8013 Y1 MMDQ9 R8367 56 IC8013 Y11 MMDQ28 IC8013 Y15 MVY5 C8268 6.3V 1u IC8013 K20 HSBCLKIN IC8013 T22 SVDACO0 IC8013 U21 SVCOMP IC8013 V3 MMDQ14 3.3V IC8013 U22 MVDACO2 IC8013 Y13 MMDQ19 IC8013 Y5 XMMRAS IC8013 AB5 XMMCS IC8013 AB10 MMDQ26 IC8013 Y18 MVC0 SW8001 EVQPLHA15 IC8013 AB8 MMA6 SUB5V IC8013 Y9 MMA5 IC8013 L19 HSDIN4 R8351 10k C8131 50V 0.01u IC8013 R4 MMDQ1 IC8013 W17 MVC3 IC8013 N20 IECOUT R8124 470 IC8013 Y19 MVSYNCO R8055 10k IC8013 AA9 MMA4 IC8013 U3 MMDQ15 IC8013 Y6 MMA12 IC8013 W7 MMBS1 IC8013 R22 SVDACO1 R8059 10k R8117 470 R8321 8.2k IC8013 AB4 XMMWE C0EBE0000336 IC8043 4 OUT 3 Cd 1 GND 2 Vdd IC8013 AB15 MVY6 IC8013 L18 HSDIN3 IC8013 AA20 ATCPOUT IC8013 Y21 MVCOMP IC8013 AB16 MVY2 R8368 56 IC8013 AB17 MVC7 C8323 6.3V 1u IC8013 W14 MMDQ17 R8372 56 IC8013 T2 MMLDQS0 IC8013 G20 ADIN IC8013 V12 MMDQ31 IC8013 W18 AUDCLK IC8013 AB11 MMUDQS1 R8968 EXB2HV473JV IC8013 K21 HSVALIN R8115 2.7k IC8013 AB3 XMMCK IC8013 AA16 MVY3 R8079 10k IC8013 Y22 AVCOIN C8186 50V 68p R8970 47k IC8013 AA11 MMDQMU1 IC8013 T3 MMDQ6 R8373 56 R8314 75 R8969 47k C8132 16V 0.01u IC8013 AA18 MVC2 IC8013 W1 MMDQ12 R8030 56 R8313 75 IC8013 AA10 MMDQ25 IC8013 W21 MVVREF R8029 56 R8354 2.7k IC8013 V21 MVIREF R8319 27k IC8013 L21 HSDIN0 IC8013 V10 MMA1 IC8013 W5 MMA13 IC8013 V4 MMDQ13 IC8013 AA12 MMDQML1 IC8013 W2 MMDQ11 IC8013 AA8 MMA7 R8084 EXB2HV121JV R8353 3.3k IC8013 R21 SVIREF IC8013 L22 HSDIN1 R8088 56 C8269 16V 0.1u IC8013 AA5 MMCKE IC8013 AB9 MMA3 IC8013 W6 MMBS0 IC8013 Y17 MVC5 C8314 16V 0.1u IC8013 AB20 MVCLKO IC8013 N19 SRCK R8078 2.2k D8006 MAZ30820HL IC8013 W12 MMDQ23 IC8013 Y8 MMA8 R8376 56 IC8013 W11 MMDQ29 IC8013 W10 MMDQ27 C0FBBK000047 IC8029 1 MCLK 2 BICK 3 SDTI 4 LRCK 5 PDN 6 SMUTE/CSN 7 ACKS/CCLK 8 DIF0/CDTI 9 P/S 10 AOUTR 11 AOUTL 12 VCOM 13 VSS 14 VDD 15 DZFR 16 DZFL IC8013 R3 MMDQ2 IC8013 AB13 MMDQ21 R8386 J0JCC0000078 IC8013 R5 MMDQ0 C8194 0 R8350 8.2k IC8013 L20 HSDIN2 IC8013 AB18 MVC4 IC8013 M22 HSDIN7 R8085 EXB2HV121JV D8002 MA2J72800L R8087 56 IC8013 W9 MMA2 IC8013 Y10 MMDQ24 C8048 50V 0.01u R8374 56 IC8013 AA13 MMDQ20 IC8013 U4 MMDQ7 IC8042 C0EBM0000027 1 Vout 2 VDD 3 VSS 5 NC 4 NC R8127 0 IC8013 Y14 MMDQ16 R8366 10k IC8013 AA7 MMA11 IC8013 Y2 MMDQ8 IC8013 K22 HSSYNCIN R8971 47k C8137 6.3V 0.33u SUB9V C8182 50V 120p R8967 EXB2HV473JV L8106 ELJFA2R7JF IC8013 U2 MMUDQS0 R8106 10k IC8013 AA3 MMCK IC8013 T4 MMDQ5 R8312 75 IC8013 M19 HSDIN5 R8054 10k R8310 75 IC8013 Y16 MVY1 IC8013 Y7 MMA10 IC8013 V11 MMDQ30 R8352 27k 3.3V IC8013 Y12 MMDQ22 C8320 6.3V 1u IC8013 W13 MMDQ18 IC8013 M21 HSDIN6 IC8013 R1 MMDQ4 C8315 10V 4.7u IC8013 AA17 MVC6 R8315 75 C8322 6.3V 1u IC8013 AA15 MVY7 IC8013 AA19 MHSYNCO IC8013 W3 MMDQ10 IC8013 Y4 MMVREF IC8013 AB12 MMLDQS1 IC8013 N22 DACCK IC8013 W8 MMA0 R8101 180 IC8013 U1 MMDQMU0 Q8101 2SA207700L L8145 J0JHC0000045 IC8013 T1 MMDQML0 IC8013 R2 MMDQ3 C8321 6.3V 1u R8320 10k IC8013 W15 MVY4 R8028 56 R8086 56 IC8013 W16 MVY0 L8042 J0JHC0000045 C8193 100u 6.3V IC8013 AB19 MVC1 IC8013 M20 DMIX IC8013 G22 SLRCK IC8013 W20 ATVROUT IC8013 P22 SVDACO2 R8375 56 IC8013 W22 MVDACO0 R8141 1k R8151 39 R8152 39 1u 6.3V C8101 C8099 10V 0.1u R8153 39 R8163 56 C8129 16V 0.01u 0.1u 10V C8108 1u 6.3V C8107 C8109 4V 100u IC8009 C3ABQG000095 1 VDD 2 DQ0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 NC 15 VDDQ 16 LDQS 17 NC 18 VDD 19 NC 20 LDM 21 WE 22 CAS 23 RAS 24 CS 25 NC 26 BA0 27 BA1 28 A10/AP 29 A0 30 A1 31 A2 32 A3 33 VDD 34 VSS 35 A4 36 A5 37 A6 38 A7 39 A8 40 A9 41 A11 42 NC 43 NC 44 CKE 45 CK 46 CK 47 UDM 48 VSS 49 VREF 50 NC 51 UDQS 52 VSSQ 53 NC 54 DQ8 55 VDDQ 56 DQ9 57 DQ10 58 VSSQ 59 DQ11 60 DQ12 61 VDDQ 62 DQ13 63 DQ14 64 VSSQ 65 DQ15 66 VSS R8165 56 L8142 ERJ3GEY0R00V R8162 39 R8157 39 R8144 EXB2HV560JV R8158 39 C8128 16V 0.01u 1u 6.3V C8102 R8155 39 R8137 120 R8145 EXB2HV560JV C8121 10V 0.1u R8149 EXB2HV390JV 1u 6.3V C8106 R8154 39 R8150 39 L8141 ERJ3GEY0R00V 0.1u 10V C8104 0.1u 10V C8100 C8105 4V 100u R8140 1k R8161 39 R8159 39 0.1u 10V C8103 R8156 39 2.5V_1 R8148 EXB2HV390JV MPEG CPU_BUS IIC_BUS/JTAG RESET RED(3.3V) OFF(0V) LED1 Orange(1.6) H L L Hi-Z INIT.(L) OFF(0V) INIT.(X) Comp. VIDEO LINES, GUARDING TXREADY XAMUTE STBACK XVMUTE For DIT 30 29 26 24 23 27 25 28 +3.3V IC8013 MN2WS0025AEA PEAKS_Lite 3/3 RESET 256M DDR_SDRAM AUDIO DAC CPU_BUS IIC_BUS/JTAG CPU_BUS IIC_BUS/JTAG XV-BOARD TNP0EXV01AC (4/5) 31 32 34 33 31 32 33 34 35 36 37 38 +3.3V +3.3V C8110 10V 0.1u L X LED2 TH-50PV500B XV-Board (4 of 5) Schematic Diagram TH-50PV500B XV-Board (4 of 5) Schematic Diagram TH-50PV500E / TH-50PV500B 111 14.38. XV-Board (5 of 5) Schematic Diagram (PV500B) + + + + + + + + + + + + AD_SBI1 AD_SBO1 AL_MVC7 AL_MVC6 AL_MVC5 AL_MVC3 AL_MVC2 AL_MVC1 AL_MVC0 AL_MVCLKO AL_MVY5 AL_MVY4 AL_MHSYNCO AL_MVSYNCO AL_MVY2 AL_MVY1 AL_MVY0 AL_MVY7 AL_MVY6 AL_MVC4 AD_TMS AD_TCK A9V AF_CVBS AF_R AF_G AF_B AD_TO_XV01 SUB9V AL_VOUTENB 3.3V 1.2V AL_MVY3 AD_TO_LITE AD_TRST AA_XRST AD_SDBOOT TP8011 C8163 50V 0.01u C8170 16V 0.1u IC8013 E14 VDD33 IC8013 H4 VDD12 L8030 0 TP8003 C8156 16V 0.1u IC8013 AB21 AAVSS IC8013 N11 GND 2.5V_2 TP8005 C8203 16V 47u IC8013 P9 GND R8863 0 IC8013 N9 GND IC8013 G18 GND IC8013 D13 VDD33 IC8013 F18 GND C8151 16V 0.1u C8345 10V 0.027u IC8013 AB22 GND C8138 50V 0.01u IC8013 T5 AVSS D8203 B0JCPE000004 R8539 100 C8207 16V 47u C8467 50V 0.01u IC8013 AA6 GND IC8013 E17 GND IC8013 AA21 GND C8136 68u 4V C8150 50V 0.01u L8048 G1C220MA0167 R8479 20k TP8002 IC8013 K11 GND R8006 0 R8821 0 IC8013 V16 VDD12 C8306 50V 0.01u C8329 50V 0.01u IC8013 L14 GND L8055 G1C100MA0077 C8141 50V 0.01u R8485 33k IC8013 P1 AVDD L8038 J0JHC0000045 IC8013 R20 MAVDD IC8013 U19 MVAVSS IC8013 E18 GND C8305 50V 0.01u C8173 50V 0.01u C8372 16V 0.1u C8204 16V 10u C8202 16V 47u XV01 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 C8160 16V 0.1u 30V IC8013 P13 GND IC8013 V14 VDD12 C8148 16V 0.1u IC8013 L9 GND IC8013 AA22 AAVDD IC8013 E15 GND C8143 50V 0.01u TP8010 TP8004 IC8013 U20 SVAVDD IC8013 E6 GND C8171 0.1u 16V L8059 J0JHC0000045 SUB9V IC8013 E7 GND IC8013 K14 GND IC8013 AA2 GND IC8013 L13 GND IC8013 V20 MVAVDD IC8013 M14 GND R8484 22k SUB5V 3.3V C8172 47u 4V IC8013 V19 MVAVDD IC8013 E10 VDD33 IC8013 M5 VDD12 IC8013 D11 VDD33 1.2V TP8007 C8343 68u 4V IC8013 P21 DAVDD R8108 22.1k L8046 ELJPA1R0MF2 C8334 50V 33p C8155 16V 0.1u C8342 68u 4V C8168 50V 0.01u C8330 50V 180p C8332 50V 0.01u IC8013 D12 VDD33 R8489 1k IC8013 K5 VDD12 IC8013 AB2 VDDQ L8049 J0JHC0000045 R8899 0 R8173 0 C8349 16V 0.1u R8502 100k TP8019 IC8013 P10 GND TP8009 R8498 680 IC8013 J12 GND IC8013 D14 VDD33 IC8013 P14 GND R8491 91k C8176 16V 0.1u L8047 G1C220MA0167 SUB9V IC8013 E11 VDD33 IC8013 N13 GND R8493 91k C8317 10V 4.7u IC8013 U5 AVDD IC8013 J9 GND C8351 16V 0.1u TP8027 R8308 0 C8157 50V 0.01u C8098 68u 4V IC8013 T20 SVAVDD TP8022 IC8013 AA14 AVSS 12k R8494 IC8013 T19 SVAVSS C8331 50V 180p IC8013 V1 VDDQ IC8013 AB6 VDDQ IC8013 J4 VDD12 C8350 16V 0.1u TP8001 C8212 16V 0.022u IC8013 M10 GND R8864 0 IC8013 Y3 GND 2.5V_1 R8026 100k IC8013 V6 VDDQ IC8013 V13 VDD12 TP8026 C8318 10V 4.7u R8112 0 C8335 50V 33p C8361 47u 16V IC8013 U18 MVAVSS R8109 24k C8154 16V 0.1u IC8013 K10 GND R8862 0 R8538 100 IC8013 V9 VDDQ C8206 16V 0.1u TP8012 IC8013 V17 VDD12 IC8013 J5 VDD12 R8357 47k C8208 16V 10u IC8013 K9 GND IC8013 V8 VDDQ IC8013 W19 GND IC8013 P19 DAVSS TP8014 TP8016 R8492 9.1k C8161 50V 0.01u IC8013 L12 GND L8033 J0JHC0000045 IC8013 AA1 GND IC8013 V15 VDD12 IC8013 L11 GND L8032 J0JHC0000045 ODU15V IC8013 AB1 GND R8900 0 IC8013 K12 GND C8344 16V 0.022u TP8015 R8486 22k IC8013 E9 GND R8358 47k R8024 100k IC8013 J13 GND IC8031 BA15218FDXE2 1 2 3 4 5 6 7 8 IC8013 N5 VDD12 IC8013 M4 VDD12 IC8013 L4 VDD12 R8547 1k C8139 68u 4V IC8013 L10 GND D8204 B0JCPE000004 3.3V C8165 16V 0.1u C8205 16V 0.1u IC8013 M13 GND TP8013 C8149 6.3V 1u C8140 16V 0.1u R8023 0 C8147 50V 0.01u IC8013 J14 GND IC8013 P12 GND C8303 50V 0.01u R8501 23.2k IC8013 E16 GND TP8021 IC8024 C0DBAMH00018 1 VIN 2 SW 3 FB 4 INV 5 SS 6 RT 7 GND 8 PVIN L8029 0 IC8013 A1 GND IC8013 H5 VDD12 R8500 10.5k IC8013 N12 GND C8401 50V 0.01u IC8013 V7 VDDQ IC8013 D10 VDD33 IC8013 A22 GND IC8013 M11 GND IC8013 L5 VDD12 IC8013 J10 GND IC8013 N10 GND IC8013 R18 MAVSS TP8023 C8142 16V 0.1u IC8013 W4 GND R8475 10k C8376 16V 0.1u C8425 16V 0.1u IC8013 P18 GND R8110 0 IC8013 E8 GND C8327 47u 6.3V L8026 J0JHC0000035 R8546 33k R8113 0 IC8013 V2 GND IC8013 P5 VDD12 IC8013 P11 GND IC8013 V5 VDDQ R8107 10k IC8013 P2 AVSS IC8013 J11 GND TP8028 TP8020 IC8013 V18 GND IC8013 Y20 GND IC8013 E12 VDD33 R8499 24k L8031 J0JHC0000045 C8169 4V 47u R8497 750 C0DBEJG00001 IC8034 1 CTL 2 Vcc 3 GND 4 OUT 5 C TP8006 C8174 50V 0.01u IC8013 F6 GND C8210 10V 0.033u IC8013 E13 VDD33 C8341 16V 8200p C8146 16V 0.1u IC8013 N14 GND IC8013 T18 SVAVSS IC8013 K13 GND R8476 10k IC8013 K4 VDD12 C8175 50V 0.01u IC8023 C0DBAMH00018 1 VIN 2 SW 3 FB 4 INV 5 SS 6 RT 7 GND 8 PVIN C8410 16V 0.1u IC8013 M12 GND C8397 16V 0.1u IC8013 AB14 AVDD C8166 50V 0.01u C8340 16V 6800p R8483 20k SUB5V IC8013 N4 VDD12 R8025 100k TP8008 C8167 16V 0.1u IC8013 M9 GND R8016 0 R8309 0 2.5V_2 C8421 50V 0.01u C8423 16V 0.1u RM DC DY DR DL TRST TDO TDI TMS TCK IRSYS KEYRM SDA SCL MODEM_LED SRQ RESET BT30 - + + - L R +3.3V +2.5V ANALOGUE OUT 38 32 31 34 35 37 33 36 IC8013 MN2WS0025AEA PEAKS_Lite 2/3 OP AMP DC-DC CONV.1.2V DC-DC CONV.3.3V AVR +2.5V TO DG-BOARD (DG22) IIC_BUS/JTAG CPU_BUS XV-BOARD TNP0EXV01AC (5/5) 38 33 36 34 37 32 31 35 +3.3V +3.3V TH-50PV500B XV-Board (5 of 5) Schematic Diagram TH-50PV500B XV-Board (5 of 5) Schematic Diagram TH-50PV500E / TH-50PV500B 112 14.39. Z-Board Block Diagram 35 9VS(s) 34 Z50 29 31 23 25 30 MAIN 9V 10VS(w) STB 5V 11 7 21 HP_L_OUT 3 SCL1 SDA1 HP_R_OUT 1 HP_L_IN L_IN HP_R_IN 5 19 9VS(s) R_IN 9 MAIN_DEF 16 SP_MUTE 15 RESET 18 SOUND_SOS 13 MON SOUND_DEF 17 (SP_SHORT) MUTE 3 IN1 HP AMP 2 IC2304 OUT2 1 7 OUT1 IN2 5 31 30 2 1 24 25 SCL SDA L IN R IN L OUT R OUT SOUND CONTROL IC2300 Q2302 Q2300 Q2301 Q2314 Q2315 Q2316 Q2317 Q2324 Q2323 Q2322 IC2302 3 5 2 7 6 200Hz LPF 1 11 15 14 10 24 5 1 OUTP OUTP OUTN OUTN VCC INN SHUTDOWN IC2305 WOOFER AMP L SHUTDOWN 24 OUTP WOOFER AMP R 1 INN OUTN OUTN 11 5 IC2306 14 15 OUTP VCC 10 10VS(W) 10VS(w) 10VS(w) 4 1 5 2 Z2 L+ R- L- R+ STB 5V MAIN 9V 9VS(s) 10VS(w) MAIN 9V 10VS(W) STB 5V SOS MUTE SW MUTE CCT SOUND CONTROL/SP AMP WOOFER L WOOFER R Z OUTP Z1 L+ R- L- R+ INN SQUAWKER AMP R 1 7 6 600Hz HPF 1 4 2 5 1 1 OUTP OUTP 11 OUTN 15 OUTN 14 VCC 10 INN 24 SHUTDOWN IC2307 IC2303 SPEAKER L SPEAKER R SHUTDOWN 3 5 2 24 OUTP VCC 10 9VS(s) 3 OUTN OUTN 11 5 IC2308 14 15 AVR 5V 3 OUT +5V IC2309 1 IN MAIN9V SQUAWKER AMP L 9VS(S) TO H50 TH-50PV500E/B Z-Board Block Diagram TH-50PV500E/B Z-Board Block Diagram TH-50PV500E / TH-50PV500B 113 14.40. Z-Board (1 of 2) Schematic Diagram + + + + + + + + + + + + + HP_R_OUT HP_L_OUT HP_R_OUT HP_L_OUT 10Vs(W) 10Vs(W) 10Vs(W) +5V 9Vs(S) 9Vs(S) R2321 39k C2370 3300p 50V C2325 0.039u 16V C2331 25V 0.018u Q2302 2SC584500L C2305 16V 100u C2357 16V 100u C2401 16V 47u C2430 10V 1u R2311 820 R2397 47k R2325 100k C2302 0 R2305 470 C2397 1u 6.3V R2412 0 R2393 10k C2314 5600p 50V C2398 50V 1000p C2399 50V 1000p C1BB00000800 IC2300 1 Lin 2 Rin 3 ADDout 4 Bout 5 Sout 6 ADDin 7 DIFin 8 SWin 9 HPout 10 HPin 11 PeqL11 12 PeqL12 13 PeqR11 14 PeqR12 15 PeqL21 16 PeqL22 17 PeqR21 18 PeqR22 19 PeqL31 20 PeqL32 21 PeqR31 22 PeqR32 23 SWout 24 Rout 25 Lout 26 Vcc 27 Vref 28 ADJ 29 PORT 30 SCL 31 SDA 32 GND C2358 16V 100u C2306 50V 0.01u C2400 1u 6.3V R2499 4.7k Q2314 2SC584500L IC2303 C0ABBA000168 NJM2904M(TE1) 1 2 3 4 5 6 7 8 R2313 10k R2310 180k Q2317 2SC584500L R2312 10k R2382 22k R2332 100k C2395 16V 100u C2310 4.7u 10V R2375 47k Q2315 2SC584500L R2307 100k C2300 50V 0.1u R2394 20k Z50 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 C2309 50V 6800p R2326 100 C2308 50V 6800p Q2324 2SC584500L R2371 1k R2390 20k R2380 47k C2301 50V 0.1u C2330 25V 0.018u R2339 30k R2341 15k C2312 0 C2360 50V 0.01u D2301 MA2J11100L Q2323 2SA207700L D2304 MA2J11100L AN7705SP-E1 IC2309 OUT 3 2 COMMON IN 1 R2323 4.7k R2335 0 C2369 8200p 50V R2304 100k R2309 3.9k R2372 1k R2320 2.2k C2372 50V 10u R2328 0 R2392 22k R2377 22k R2344 30k IC2304 C1BB00000947 1 OUT1 2 MUTE 3 IN1 4 GND 5 IN2 6 BIAS 7 OUT2 8 VCC C2329 25V 0.018u D2303 MA2J11100L R2334 100 C2429 0.1u 25V C2320 0.039u 16V Q2301 2SD0601ASL R2442 1k R2496 15k C2318 16V 0.1u R2345 56k C2374 50V 10u C2365 8200p 50V C2367 3300p 50V R2389 1k IC2302 C0ABBA000168 NJM2904M(TE1) 1 2 3 4 5 6 7 8 C2373 1u 6.3V R2337 39k R2333 100 C2323 0.039u 16V R2414 0 R2306 820 C2316 16V 0.1u C2396 47u 16V C2428 0.1u 25V R2495 15k R2302 22k D2300 MA2J11100L R2324 10k R2330 39k Q2322 2SC584500L R2331 470 C2307 16V 100u R2398 47k R2492 10k C2392 16V 100u Q2300 2SC584500L R2308 3.9k C2402 16V 47u C2315 47u 16V R2388 1k C2332 25V 0.018u D2331 MA2J11100L R2395 10k R2391 10k C2311 4.7u 10V R2378 22k R2303 5.6k R2346 56k R2338 0 C2393 50V 0.01u R2493 100k C2359 50V 0.01u R2322 10k Q2316 2SC584500L C2328 0.039u 16V C2394 16V 100u R2327 470 R2315 22 R2314 22 D2332 MA2J11100L R2396 10k R2443 15k TH-50PV500E/B Z-Board (1 of 2) Schematic Diagram R2381 22k R2494 100k C2368 0 C2366 0 HP_R_IN SDA1 AMUTE R-IN L-IN - + - + VCC GND - + - + GND VCC L R L R MUTE SW 600Hz HPF SP_MUTE L_IN RESET MAIN_DEF SDA1 HP_L_IN SCL1 R_IN MAIN9V STB5V MON_SOUND_DEF SOUND_SOS SLV 82h MAIN9V MAIN9V Lin Rin STB5V MAIN9V SUBMUTE MAIN9V STB5V MAIN9V B E 9 6 8 7 3 D 4 C 1 2 F 5 A HP_L_OUT HP_R_OUT SOUND CTRL HP AMP AVR 5V 200Hz LPF SCL1 (H50) TO H-BOARD 8 7 2 4 6 5 3 10 9 1 Z-BOARD TNPA3621AC (1/2) TH-50PV500E/B Z-Board (1 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 114 14.41. Z-Board (2 of 2) Schematic Diagram + Thermal Pad + + Thermal Pad + 9Vs(S) 10Vs(W) 9Vs(S) 10Vs(W) R2453 100 C2433 0.47u 16V L2307 10u JS2318 ERJ6GEY0R00V C2455 25V 1u D2321 B0JCDD000002 C2445 1u 25V C2464 50V 3300p JS2308 ERJ6GEY0R00V Z1 1 2 3 4 D2318 B0JCDD000002 C2450 25V 330u C2439 0.47u 16V C2465 25V 1u L2306 10u C2478 25V 1u R2464 12 D2322 B0JCDD000002 C2438 0.47u 16V L2316 J0JJC0000011 R2432 10k JS2320 ERJ6GEY0R00V C2491 50V 3300p R2451 51 JS2311 ERJ6GEY0R00V C2440 0.47u 16V C2487 25V 0.22u JS2309 ERJ6GEY0R00V C2379 50V 1000p R2347 0 R2445 1k R2488 12 C2388 1000p 50V R2468 1.2k D2315 B0JCDD000002 C2383 50V 1000p C2470 25V 1u R2491 12 D2316 B0JCDD000002 L2321 J0JJC0000011 C2435 0.47u 16V C2489 50V 3300p C2473 25V 1u C2492 50V 3300p L2323 J0JJC0000011 JS2317 ERJ6GEY0R00V C2381 50V 1000p R2459 100 C2443 50V 220p C2466 25V 1u JS2324 ERJ6GEY0R00V C2458 25V 1u C2437 0.47u 16V R2467 12 R2439 10k R2456 100 C2463 50V 3300p L2312 10u C2497 25V 1u R2348 0 C2384 1000p 50V R2449 51 L2315 10u C2475 25V 1u R2458 51 C2387 1000p 50V C2376 50V 1000p C1BB00000818 IC2305 1 INN 2 INP 3 GAIN0 4 GAIN1 5 SHUTDOWN 6 PGND 7 VCLAMP 8 BSN 9 PVcc 10 OUTN 11 OUTN 12 PGND 13 PGND 14 OUTP 15 OUTP 16 PVcc 17 BSP 18 AGND 19 AGND 20 ROSC 21 COSC 22 BYPASS 23 VREF 24 Vcc C2484 25V 0.22u C2461 50V 3300p C2486 25V 0.22u R2489 12 R2444 1k JS2304 ERJ6GEY0R00V L2305 10u C2380 50V 1000p R2446 1k C2457 25V 1u R2342 0 C1BB00000888 IC2308 1 INN 2 INP 3 GAIN0 4 GAIN1 5 SHUTDOWN 6 PGND 7 VCLAMP 8 BSN 9 PVcc 10 OUTN 11 OUTN 12 PGND 13 PGND 14 OUTP 15 OUTP 16 PVcc 17 BSP 18 AGND 19 AGND 20 ROSC 21 COSC 22 BYPASS 23 VREF 24 Vcc C2476 25V 1u C2488 25V 0.22u JS2323 ERJ6GEY0R00V JS2332 ERJ6GEY0R00V C2447 1u 25V R2466 12 C2378 50V 1000p R2452 51 C2485 25V 0.22u C2468 25V 1u L2319 J0JJC0000011 C2382 50V 1000p R2490 12 C2483 25V 0.22u C2456 25V 1u R2343 0 C2453 25V 1u R2463 90.9k R2454 51 C2441 50V 220p R2457 51 Z2 1 2 3 4 5 C2448 1u 25V C2477 25V 1u R2469 1.2k R2462 110k C2449 25V 330u C2490 50V 3300p L2317 J0JJC0000011 JS2313 ERJ3GEY0R00V C2472 25V 1u C2499 25V 1u L2318 J0JJC0000011 L2314 10u JS2307 ERJ6GEY0R00V JS2329 ERJ6GEY0R00V C2469 25V 1u D2320 B0JCDD000002 R2461 137k JS2321 ERJ6GEY0R00V R2450 100 C2451 25V 330u C2474 25V 1u D2317 B0JCDD000002 C2442 50V 220p C2375 25V 1u C2385 1000p 50V C1BB00000818 IC2306 1 INN 2 INP 3 GAIN0 4 GAIN1 5 SHUTDOWN 6 PGND 7 VCLAMP 8 BSN 9 PVcc 10 OUTN 11 OUTN 12 PGND 13 PGND 14 OUTP 15 OUTP 16 PVcc 17 BSP 18 AGND 19 AGND 20 ROSC 21 COSC 22 BYPASS 23 VREF 24 Vcc C2452 25V 330u C2480 25V 1u C2446 1u 25V C2460 25V 1u C2386 1000p 50V C2434 0.47u 16V C2479 25V 1u JS2310 ERJ6GEY0R00V C2377 50V 1000p C2444 50V 220p C2471 25V 1u C2482 25V 0.22u C2498 25V 1u C2454 25V 1u L2313 10u R2465 12 C2467 25V 1u JS2322 ERJ6GEY0R00V JS2331 ERJ6GEY0R00V R2460 110k C2481 25V 0.22u JS2330 ERJ6GEY0R00V L2320 J0JJC0000011 JS2305 ERJ6GEY0R00V C2462 50V 3300p C2390 1000p 50V JS2306 ERJ6GEY0R00V R2448 51 C2436 0.47u 16V R2455 51 D2319 B0JCDD000002 R2471 1.2k JS2319 ERJ6GEY0R00V C2459 25V 1u R2470 1.2k C1BB00000888 IC2307 1 INN 2 INP 3 GAIN0 4 GAIN1 5 SHUTDOWN 6 PGND 7 VCLAMP 8 BSN 9 PVcc 10 OUTN 11 OUTN 12 PGND 13 PGND 14 OUTP 15 OUTP 16 PVcc 17 BSP 18 AGND 19 AGND 20 ROSC 21 COSC 22 BYPASS 23 VREF 24 Vcc L2322 J0JJC0000011 C2389 1000p 50V R2447 1k L2308 10u C2391 1000p 50V W_L- W_L+ W_R- W_R+ SQ_R- SQ_R+ SQ_L- SQ_L+ TO WOOFER/SPEAKER TO SQUAWKER (W-R & W-L) (SQ-R & SQ-L) NC W_L W_R SQ_L SQ_R 14 18 12 10 16 11 15 13 17 WOOFER AMP R WOOFER AMP L SQUAWKER AMP L SQUAWKER AMP R 9 7 1 4 10 3 8 6 2 5 Z-BOARD TNPA3621AC (2/2) TH-50PV500E/B Z-Board (2 of 2) Schematic Diagram TH-50PV500E/B Z-Board (2 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 115 14.42. D-Board Block Diagram CLKD0 CLKD1 TXD_PC RXD_PC SDA2 SCL2 SDA1 IIC_CONT SCL1 LED_G LED_R REMOCON LED_G LED_R REM SOS7 PANEL_MAIN_ON PS_SOS PS_SOS PANEL_MAIN_ON ALARM READY READY ALARM FAN_CONT FAN_SOS ECO_ON F_STBY_ON FAN_CONT FAN_SOS ECO_ON F_STBY_ON CLKM_IN FREE_RUN IIC_INT DRVMUTE NCE DCLK NCS DATA0 CONF_DONE DCLK NCE ASDI0 NCONFIG CONF_DONE NCONFIG DATA0 NCS ASDI0 TXD_PC RXD_PC IIC_CONT IIC_INT SDA2 SCL2 SDA1 SCL1 SOS2 SOS9 SOS2 SOS9 CLKU0 CLKU2 CLKU3 CLKD3 CLKD2 CLKU1 X9200 R9028 R 10bit Scan Control DATA 13bit IIC/INT G 10bit B 10bit IIC_CONT SCL2 B 10bit SDA1 R 10bit SDA2 SCL1 Sustain Control DATA 6bit G 10bit 46 IC9502 8 27 PROCESSOR DATA DRIVER 7 TO C54 TO C55 11 6 85 12 84 D4 67 10 TXD1 66 RXD1 IIC_CONT 30 IIC_INT LVDS DISCHARGE CONTROL STB_SDA1 21 LEVEL CONVERTER STB_SCL2 22 28 65 Voltage 26 STB_SDA2 78 49 IC9500 50 FPGA/SYNC/OSD/DISCHARGE CONTROL 5 55 NRST XRST NEW PLASMA AI SUB-FIELD PLASMA AI/SUB FIELD PROCESSOR IC9003 IC9303 MICOM XIN XOUT X9000 53 9.216MHz IC9005,06 52 RESET IC9004 RESET 28 RESET STB3.3V 29 5 STB_SCL1 Video DATA 66bit(UA,UB,UCO-15) 3.3V 5V Low 3.3V 5V Video DATA 66bit(DA,DB,DC0-15) D33 D34 10 DATA R L-DOWN DATA L R-DOWN DATA R TIMING DATA L TIMING 5V_DET 56 57 TO DG3 D3 DRV_SOS2 DRV_SOS9 99 97 92 DRV_SOS7 72 READY ALARM 71 1 AVR AVR STB3.3V 2 DRVMUTE STB5V_M STB3.3V 4 IC9008 IIC_DATA1 IIC_CLK1 19 TUNER_SUB_ON 6 ALARM FAN_SOS 8 FAN_CONT(FAN_MAX) 7 3 DISPEN 4 READY PANEL_STB_ON 1 14 11 20 ECO_ON 4 2 RXD TXD 6 D5 0+LVDSCLK E+LVDSCLK E-LVDS2 14 TO DG5 18 E-LVDS3 E+LVDS0 16 7 15 11 12 E-LVDS1 10 4 E-LVDS4 1 0-LVDSCLK 9 E-LVDS0 2 E-LVDSCLK E+LVDS2 E+LVDS1 17 E+LVDS4 5 E+LVDS3 LVDS_DET STBY5V +5V D25 PS_SOS 9 PANEL_MAIN_ON ECO_ON 1 +5V 7 FAN_SOS 2 13 +12V 15 +12V FAN_CONT 14 17 16 3 10 TO P25 F_STBY_ON nCS 15 17 8 nCE 6 DATA0 7 CONF_DONE PDB0 1 nCONFIG PSTB 5 ASDIO 3 11 PSLCT PBUSY 9 D6 DCLK 13 19 XRST PDB1 18 16 DCDC_ON st-r IC9300 CONVERTER XRST CTI/TINT WB-ADJ I/P COLOR FORMAT CONVERTER/RGB PROCESSOR CONVERTER CONTRAST FORMAT Differential Signaling RECEIVER FPGA CONTROL OSD R,G,B,HD,VD,CK 14 19 PS_SOS 98 PANEL_MAIN_ON 48 P_ON/OFF 41 Q9003 Q9012 Q9013 Q9008 Q9009 P3V_SCL2 P3V_SDA2 69 LED_R REM_IN 70 10 LED_G TO SC20 D20 2 9 13 20 SCAN DATA 11 1 DRV_SOS7 P5V 3 6 D8 2 LED_R REMOCON LED_G Q9010 35 55 34 31 DATA DRIVE 5V_DET 65 68 58 64 POWER FEED BACK DATA 56 DRVRST 57 DRVRST_DATA SUSTAIN DATA 57 64 1 4 DRV_SOS9 DRV_SOS2 Q9011 R0 B0 VD HD DCK G9 R9 B9 PICTURE OUTPUT DCK G0 P3V_SCL1 P3V_SDA1 P3V_SDA2 P3V_SCL2 Q9000 P12V P5V STB5V_M IC9001 6 5 EEPROM SDA SCL Q9704 Q9703 15 1 RUN/SS1 26 SW1 23 BG2 27 TG2 24 VIN 17 BG2 19 SW2 16 TG2 RUN/SS2 G2 S2 G1 S1 D2 D1 3.3V Q9702 Q9701 P12V 1.5V DC_DC CONV. IC9702 D2 G1 S2 S1 G2 D1 2 1 4 IC9700 AVR 2.5V 3.3V 2.5V NRST DRV_RST DATA POWER FEEDBACK DATA DRIVER 32M FLASH MEMORY RESET 4 5 VOUT VCC IC9301 RESET 3.3V SS PULSE SCAN OUT SC PULSE 3.3V 5V IC9504 3.3V 5V IC9503 48 51 UMH,UML,USH,USL,UEH,NUEL,ODED,ODEU CL,CLK,SIU,SID,SCSU,CEL2,CPH,CEL,CBK,CSL,CSH,CML,CMH IC9302 DDR SDRAM(64M) DSHL,DSLL,DMHL,DMLL,DMHR CLRU,LEU,PCU1,PCU2 Q9700 Q9901 6 DRVRST Q9900 VD HD CLK4 10 CLK8 CLK1 11 7 14 CLK5 X1 1 20 X2 IC9200 PCK OCK DPCLK5 DPCLK2 D ON/OFF SW Q9004 Q9001 OSD P3V_SCL1 P3V_SDA1 P5V FPDATA0 FPDATA1 FPCLK SCL SDA P3V_SCL2 P3V_SDA2 CONTROL 3.3V 3.3V 14 4 3.3V 1 DATA 6 2 IC9007 5 NCS DCLK ADSI CONF_DONE DATA0 NCS NCE ASDI0 NCONFIG DCLK TO K3 1 STB5V STB5V_M (PCD1) (PCD2) P5V SDA SCL Control DATA 94 3.3V_DET P12V_DET 93 95 P5V_DET Q9023 Q9022 Q9021 Q9020 P5V P12V 3.3V DATA DRIVE VCC CTL OUT NOT USED STB 5V STB 5V 12 PROM (FPGA) LEVEL CONVERTER LEVEL CONVERTER LEVEL CONVERTER CLOCK GENE. DIGITAL SIGNAL PROCESSOR PlASMA AI FORMAT CONVERTER, SUB-FIELD PROCESSOR FOR FACTORY USE FOR FACTORY USE D32 51 12 6 5 7 10 41 55 52 40 1 4 6 D31 8 27 36 52 29 30 31 34 5 R-UP DATA R (DATA R TIMING) CLK1 CLK0 DATA DRIVE 5V DET P5V DRV-RST DATA L L-UP CLK2 CLK3 DATA DRIVE 5V DET P5V DRV-RST (DATA L TIMING) TO C25 TO C24 Q9801 Q9800 (PCU1) (PCU2) P5V P5V P5V P5V DRVCLKD0-D3 DRVCLKU0-U3 36bit (DA,DB,DC10-21) (UA,UB, 33bit 33bit (UA,UB,UC0-7,16-18) UC8-15, (DA,DB,DC0-9) 30bit 5V(P) P5V CLRD,LED,PCD1,PCD2 ODED,ODEU 19-21) TH-50PV500E/B D-Board Block Diagram TH-50PV500E/B D-Board Block Diagram TH-50PV500E / TH-50PV500B 116 14.43. D-Board (1 of 6) Schematic Diagram + G G + G G + G G + + G G G G G G 30 28 26 24 22 18 16 14 12 10 8 6 4 2 20 31 29 27 25 23 21 19 17 15 13 11 9 7 5 3 1 + G G + FP_CSL SC_CL SC_CSL SC_CBK SC_SID DRV_SOS2 SC_SCSU SC_CLK FP_SCSU FP_CMH SC_CEL FP_CEL DRV_SOS7 SC_CPH SC_CEL2 SC_SIU FP_CSH FP_CLK FP_CEL2 SC_CML SC_CSH SC_CL SC_CMH SC_CSH FP_CML SC_CMH SC_CLK FP_CBK SC_SIU SC_CEL2 FP_SID SC_CML SC_SID SC_CEL FP_CPH FP_CL SC_CSL SC_CBK SC_CPH FP_SIU SC_SCSU PS_SOS PANEL_MAIN_ON ALL_OFF FAN_CONT FAN_SOS FAN_CONT PANASONIC_MODE FAN_SOS ECO_ON TUNER_SUB_ON C_SEL ALL_OFF P3V_SCL1 P3V_SDA1 ECO_ON RE_E- RD_E- RD_E+ RC_E- RC_E+ RB_E- RB_E+ RA_E+ RA_E- RCLK_E- RCLK_E+ RA_0- RB_0+ RB_0- RC_0+ RC_0- RD_0+ RD_0- RE_0+ RCLK_0+ DRVMUTE ALARM READY TUNER_SUB_ON P_ON/OFF DCDC_ON LVDS_DET PANEL_STBY_ON INEXCH RE_E+ RE_0- RCLK_0- RA_0+ R9709 100 C9722 16V 0.1u 3.3V Q9701 WW-B1M-A0002 S1 G1 S2 G2 D2 D2 D1 D1 R9719 17.4k D20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C0JBAZ000856 IC9005 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc P5V R9739 0 R9714 0 L9700 G1C4R3M00002 C9729 16V 4.7u R9067 100 C9713 6.3V 10u C9724 50V 0.1u R9716 0.03 C9731 16V 47u R9740 0 R9702 10k P12V C0JBAZ000856 IC9006 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc FL9702 J0HABH000012 1 2 3 R9722 10 R9012 EXB2HV103JV 3.3V C9734 16V 47u 1.5V P5V C9022 16V 0.1u C9744 16V 4.7u R9064 100 R9061 100 FL9002 J0HABH000013 1 2 3 R9073 EXB2HV470JV R9720 63.4k D9700 MA2J72800L C9739 50V 0.1u R9729 20k D9701 MA2J72800L Q9703 B1ABCF000138 R9728 20k D25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R9718 20k C9730 16V 47u C9716 50V 22p R9135 100 D3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 STB5V_M R9717 0.03 Q9704 B1ABCF000138 C9721 16V 0.1u J0HABH000013 FL9703 C9733 16V 0.1u C9741 16V 4.7u STB3.3V R9060 100 C9728 16V 4.7u R9063 100 R9121 100 C9714 4V 68u R9723 10 C0DBAZH00020 IC9702 1 RUN/SS1 2 SENSE1+ 3 SENSE1- 4 VOSENSE1 5 PLLFLTR 6 PLLIN 7 FCB 8 ITH1 9 SGND 10 3.3VOUT 11 ITH2 12 VOSENSE2 13 SENSE2- 14 SENSE2+ 15 RUN/SS2 16 TG2 17 SW2 18 BOOST2 19 BG2 20 PGND 21 INTVCC 22 EXTVCC 23 BG1 24 VIN 25 BOOST1 26 SW1 27 TG1 28 PGOOD C9732 50V 0.01u C9027 16V 1u P12V R9721 20k C9725 50V 1000p C9023 16V 47u R9136 100 P12V P5V J0HABH000013 FL9704 P5V R9738 0 FL9701 J0HABH000012 1 2 3 R9010 EXB2HV103JV L9701 G1C6R8M00009 R9130 10k R9703 10k J0HABH000013 FL9004 C9736 16V 0.1u P12V STB5V_M INT_5V R9102 100 R9076 100 D5 P5V C9723 50V 0.1u C9743 16V 4.7u C9742 16V 0.1u R9093 47k C9026 16V 1u C9715 4V 68u FL9003 J0HABH000013 1 2 3 C9719 50V 1000p C9720 50V 1000p R9120 100 R9727 10 R9062 100 Q9702 WW-B1M-A0002 S1 G1 S2 G2 D2 D2 D1 D1 C9718 50V 22p R9065 100 R9704 10k C9740 50V 0.1u R9074 100 C9727 50V 1000p R9134 100 C9712 6.3V 10u R9075 EXB2HV470JV R9105 10k R9066 100 C9735 16V 47u R9741 0 R9726 10 E- LVDS4 GND STBY5V E+ LVDS4 PS_SOS E- LVDS3 E+ LVDS3 E- LVDS2 GND E+ LVDS2 E- LVDS1 CSL O+ LVDS4 GND CEL CBK GND GND CEL2 FAN_SOS SID GND CL SIU SCSU CPH CLK GND GND P5V E+ LVDS0 E+ LVDS1 GND DRV_SOS2 DRV_SOS7 CMH FAN_CONT CML O+ LVDS3 CSH RUSH_ON/OFF O- LVDS4 ALL_OFF E- LVDS0 KILL_SOS O- LVDS2 GND O+ LVDS2 GND O- LVDS1 O+ LVDS1 +12V +12V GND O- LVDS3 GND GND GND +5V O+ LVDS0 +5V O- LVDS0 O- LVDSCLK O+ LVDSCLK E- LVDSCLK E+ LVDSCLK F_STBY_ON GND ECO_ON PANEL_MAIN_ON STBY3.3V IIC_DATA1 DISPEN ECO_ON READY TUNER_SUB_ON ALARM GND INEXCH PANASONIC_MODE GND 3.3V C_SEL PANEL_STBY_ON ALL_OFF GND IIC_CLK1 GND GND FAN_CONT FAN_SOS STBY5V GND GND GND P12V P12V GND GND P5V LVDS_DET 4 1 D A 3 6 F E 5 8 7 C 9 2 B D-BOARD TXN/D2XQSE (1/6) LEVEL CONVERTER LEVEL CONVERTER DC-DC CONVERTER (DG3) DG-BOARD TO TO P-BOARD (P25) TO DG-BOARD (DG5) TO SC-BOARD (SC20) (4/6) TO D-BOARD 1 2 C A B 5.0 12.0 0 0 0 0 6.7 0 0 0 0 12.0 0 0 0 5.0 5.0 5.3 0 0 0.8 2.2 5.0 2.8 0.1 0 2.9 4.3 0.5 0 0.7 3.9 0.9 0 0 0 0 0 0 0 0 5.0 0 0 0 3.3 3.3 0 0 12.0 12.0 0 0 5.0 0 3.0 3.0 0 2.8 3.2 3.2 0 0.7 2.6 3.2 0 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 0 0 0 0 0 0 0 0 2.6 3.2 0 0 0 0 0 0 0 0 0 0 0 0 0 TH-50PV500E/B D-Board (1 of 6) Schematic Diagram TH-50PV500E/B D-Board (1 of 6) Schematic Diagram TH-50PV500E / TH-50PV500B 117 14.44. D-Board (2 of 6) Schematic Diagram + + + DD_LED FP_DSHL FP_DSLL NOSYNC L8DO_UA11 FP_UMH DMHL DD_CLRU D-CLRD L8DO_UA13 D-ODEU FVSEL FP_UEH DSHL USH FP_CSL FP_CSH L8DO_UA19 RD_0- RE_0- L8DO_UC17 L8DO_UC20 UML L8DO_UC16 RCLK_0- L8DO_UA9 FP_SID RE_E+ FP_DSHR L8DO_UB18 D-LED DD_PCU2 DD_ODED RB_0+ D-PCD1 DD_LEU RCLK_E- L8DO_UA15 L8DO_UC18 FP_UMH FP_DMHR L8DO_UB12 UMH FP_CPH FP_DMLR USL L8DO_UC10 DD_CLRD DD_CLRD L8DO_UB19 FP_DSHL L8DO_UC14 DMHR FP_CBK RD_E+ FP_DMLL RC_E- L8DO_UA20 RE_0+ FP_UML D-PCU1 DD_PCD2 L8DO_UC12 DD_ODEU DD_PCU1 FP_DMLL FP_CEL FP_NUEL RA_E- DD_CLRU L8DO_UB14 RE_E- NUEL FP_UEH RC_0- D-PCD2 L8DO_UB13 D-LEU AA_XOE RC_0+ L8DO_UA14 RC_E+ FP_USL FP_DMLR L8DO_UB11 DD_ODED RD_E- RB_E- FP_DSLR L8DO_UA12 AA_BYTE L8DO_UB17 RD_0+ FP_NUEL RCLK_0+ FP_USH L8DO_UA16 L8DO_UC13 L8DO_UB20 FP_SIU RA_E+ L8DO_UA10 FP_DSLR LVDSBIT D-CLRU FP_CL DD_PCD2 FP_DMHL L8DO_UB16 L8DO_UC11 L8DO_UB21 FP_CEL2 AA_XWE DD_PCD1 DD_ODEU L8DO_UC15 D-ODED L8DO_UB15 RA_0- D-PCU2 DSLL L8DO_UC21 AA_XCE DD_PCU2 DMLL RB_0- L8DO_UC19 FP_DMHR FP_USH L8DO_UA18 L8DO_UB10 RB_E+ DD_PCU1 RA_0+ FP_CML FP_SCSU L8DO_UA17 FP_CMH LVDS_MODE FP_UML FP_DSHR FP_DMHL FP_DSLL DD_PCD1 DD_LEU DD_LED RCLK_E+ L8DO_UA21 FP_CLK INEXCH UEH L8_OCK L8_PCK LVDS_DET FP_USL 3.3V IC9500 R8 LVDS63p IC9500 A1 GND IC9500 H9 VCCINT IC9500 E1 LVDS8n R9212 0 C9703 6.3V 10u IC9500 T13 LVDS54p IC9500 R13 LVDS54n R9204 47 IC9500 R11 LVDS57p IC9500 G6 VCCIO1 IC9500 N11 LVDS56p C9701 16V 0.1u R9200 47 C9203 50V 18p IC9500 R16 LVDS50p IC9500 J6 GNDA_PLL1 IC9500 T12 GND IC9500 J7 GND IC9500 A3 VCCIO2 IC9500 N14 LVDS48n IC9500 E2 LVDS10p IC9500 G11 GND C9518 16V 47u IC9500 F2 LVDS8p IC9500 L8 GND IC9500 N9 LVDS60n C9507 16V 0.1u 3.3V C9514 16V 0.1u IC9500 T9 LVDS61n IC9500 P11 LVDS57n IC9500 G8 VCCINT IC9500 C2 LVDS13p(CLKUSR) 3.3V C0DBEJG00001 IC9700 1 CTL 2 Vcc 3 GND 4 OUT 5 C IC9500 H10 GND C9205 6.3V 10u IC9500 M7 IO R9742 0 IC9500 A5 GND IC9500 L7 VCCIO4 IC9500 N8 LVDS62p R9511 EXB2HV103JV R9035 0 IC9500 J13 nSTATUS IC9500 T11 LVDS59n IC9500 F8 GND R9517 10k R9707 1k IC9500 M9 IO IC9500 L1 LVDS6n IC9500 B4 LVDS17p IC9500 P2 LVDS1n IC9500 T5 GND IC9500 P1 VCCIO1 IC9500 T1 GND IC9500 F1 LVDS7n C9516 16V 0.1u IC9500 P9 LVDS60p IC9500 L10 VCCIO4 R9335 4.7k IC9500 P12 LVDS55p C9512 16V 0.1u 3.3V C0JBAZ000856 IC9503 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc 3.3V IC9500 H11 VCCA_PLL2 C9504 16V 0.1u IC9500 L9 GND 1.5V IC9500 M4 LVDS2p IC9500 P8 LVDS62n IC9500 H5 VREF1B1 R9201 47 IC9500 N1 LVDS4p C9202 16V 0.1u 3.3V C9515 16V 0.1u R9700 0 C9506 16V 0.1u IC9500 M12 DPCLK6 IC9500 H8 GND IC9500 F11 VCCIO2 C9706 6.3V 10u IC9500 T8 LVDS63n IC9500 M1 LVDS5n IC9500 N10 LVDS58p C9502 16V 1u IC9500 K9 VCCINT IC9500 P16 VCCIO3 3.3V IC9500 K6 GND C9702 16V 0.1u R9500 10k IC9500 P13 LVDS53n IC9500 F5 DPCLK1 IC9500 N12 LVDS56n IC9500 L2 LVDS5p IC9500 J9 GND IC9500 A14 VCCIO2 IC9500 A10 VCCINT IC9500 G10 VCCINT IC9500 F7 VCCIO2 IC9500 M10 VREF1B4 IC9500 K10 GND IC9500 F10 VCCIO2 Q9500 B1CBHD000001 IC9500 A16 GND C9513 16V 47u IC9500 H16 LVDSCLK2n R9210 10k IC9500 N7 LVDS64n IC9500 J8 VCCINT C9707 16V 47u IC9500 P15 LVDS50n IC9500 T3 VCCIO4 IC9500 L12 DPCLK5 C9204 50V 18p IC9500 K1 LVDS6p IC9301 C0EBE0000066 1 NC 2 SUB 3 GND 5 Vcc 4 Vout IC9500 H6 VCCA_PLL1 IC9500 R10 LVDS59p IC9500 P10 LVDS58n C9509 16V 0.1u IC9500 G9 GND IC9500 N4 LVDS0n C9511 16V 0.1u IC9500 M2 LVDS4n IC9500 P7 LVDS64p C9508 16V 0.1u IC9500 E3 LVDS11p R9540 10k IC9500 N13 LVDS51n IC9500 D4 LVDS14p(INIT_DONE) IC9500 A4 LVDS17n IC9500 P3 LVDS0p IC9500 A12 GND IC9500 J11 GNDA_PLL2 IC9500 R9 LVDS61p L9500 J0JHC0000078 P5V IC9500 N15 LVDS49n IC9500 G2 LVDS7p L9501 J0JHC0000078 C9360 16V 0.1u R9516 10k IC9500 J5 GNDA_PLL1 IC9500 K11 VCCIO3 IC9500 F6 GND R9515 EXB2HV103JV C0JBAZ000856 IC9504 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R9202 47 IC9500 G7 GND IC9500 M11 VREF0B4 IC9500 F9 GND IC9500 J12 GNDG_PLL2 IC9500 R7 LVDS65n R9547 0 IC9500 T10 VCCINT IC9500 T16 GND IC9500 H1 LVDSCLK1n C9500 16V 1u R9708 0 IC9500 R1 LVDS1p C9517 16V 0.1u R9336 4.7k IC9500 H7 VCCINT X9200 H0J200500038 IC9500 C1 VCCIO1 IC9500 T7 VCCINT C9201 16V 0.1u IC9500 L11 GND C9207 16V 0.1u R9036 0 IC9500 A7 VCCINT IC9500 D1 LVDS10n C9705 6.3V 10u IC9500 M8 IO IC9500 C16 VCCIO3 P5V IC9500 B1 LVDS13n C9505 16V 0.1u C9503 16V 0.1u R9206 10k C9501 16V 1u R9513 EXB2HV103JV IC9500 M6 VREF2B4 IC9500 C3 LVDS14n IC9500 G1 LVDSCLK1p R9706 1k C9206 16V 0.1u C3FBND000172 IC9303 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 A20 11 WE 12 RESET 13 NC 14 WP/ACC 15 RY/BY 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE 27 VSS 28 OE 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE 48 A16 IC9500 J10 VCCINT 2.5V C9303 16V 0.1u IC9500 D3 LVDS12p C9510 16V 0.1u IC9500 N3 LVDS2n IC9500 T14 VCCIO4 IC9500 C4 LVDS16n IC9500 L6 GND IC9500 K7 VCCINT IC9500 R12 LVDS55n IC9500 K8 GND 3.3V P5V L9200 G1C150KA0038 IC9500 N16 LVDS49p C1ZBZ0002766 IC9200 X1/ICLK 1 2 S0 3 S1 4 CLK9 5 VDD 6 GND 7 CLK1 8 CLK2 9 CLK3 10 CLK4 11 CLK8 12 CLK7 13 CLK6 14 CLK5 15 GND 16 VDD 17 S2 18 PDTS 19 VDD 20 X2 C0JBAZ000856 IC9502 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R9205 10k DSHR DMHL DSLR 3.3V->5V CLK PCD2 DSLL CEL ODED CBK CLRD SCSU DSHL PCU2 CPH CEL2 CBK2 DMLR SID2 CLK_INPUT CL DMHR CPG OTHER CSH NUEL USL SIU ODEU CLRU SIU2 CLKM_IN DATA POWER FEEDBACK LVDSmode LVDS_INPUT DATA_DRIVER CML SS_PULSE UML CMH DMLL UMH SC_PULSE Nosync GND LVDSbit LEU FVSEL PCU VCCINT VCCI USH SID UEL LED CSL PCD 3.3V->5V FPGA INEXCH CLKM_OUT TEST PIN 63/50/60/64 20SS 20/72/70 OFF/60/50 84/36/90/50 31.6/OFF 39.5/20.75 OFF/39.5/20.75 50/60/64/39.5/20.75 LVDS_DET 11 15 16 10 17 12 18 14 13 AVR 2.5V 3.3V->5V LEVEL CONVERTER LEVEL CONVERTER LEVEL CONVERTER CLOCK GENE. D-BOARD (5/6) TO 1 2 21 AA AB AC AD IC9500 FPGA/SYNC/OSD DISCHARGE CONTROL C1ZBZ0002599 FLASH MEMORY 32M RESET D-BOARD TXN/D2XQSE (2/6) TH-50PV500E/B D-Board (2 of 6) Schematic Diagram TH-50PV500E/B D-Board (2 of 6) Schematic Diagram TH-50PV500E / TH-50PV500B 118 14.45. D-Board (3 of 6) Schematic Diagram G G G G + G G TERM SIDE G G TERM SIDE G G L8_DQ12 L8_NRAS L8DR_AD1 L8_DQ18 L8DR_DQ2 L8DO_UC18 L8DR_DQ20 L8DR_DQ18 L8DO_UC7 L8_DQ28 L8DR_DQ15 L8_DQ10 L8_AD4 L8DO_UC6 L8_DQ13 L8_DQ22 L8DR_DQ27 L8DR_DQ8 L8_DQ0 L8_DQ16 L8_DQ4 L8_CKE L8_DQ31 L8_DQ2 L8DR_DQ1 L8DO_UC13 L8_CK L8_DQ14 L8DO_UB14 L8DO_UA20 L8_AD9 L8DR_BA1 L8_DQ12 L8_AD10 L8DO_UB16 L8_AD5 L8DR_DQ26 L8_NWE L8DR_CKE L8DO_UC2 L8DO_UA10 L8_AD0 L8DO_UB18 L8DO_UC9 L8DR_AD7 L8_AD9 DRVCLKU1 L8DO_UA12 L8DR_DQ9 L8DR_DQ23 L8DR_BA0 L8DO_UC20 L8_AD8 L8DO_UC19 L8DO_UA2 L8DR_AD5 L8DR_DQ19 L8_DQ6 L8DR_DQ30 L8_DQ23 L8DO_UB4 L8_DQ8 L8_DQ7 DRVCLKU2 L8_DQ3 L8_DQ1 L8_AD6 L8DR_DQ14 L8_DQ4 L8_NCK L8_NCAS L8_NWE L8_DQ11 L8DO_UB20 L8DR_NWE L8DR_DQ12 L8DR_DQ28 L8_DQ27 L8_DQ24 DRVRST L8_DQ13 L8DO_UA18 L8DR_AD6 L8_DQ20 L8_DQ5 L8_DQ16 L8_CKE L8DR_NCAS L8DO_UB0 L8DO_UB19 L8_DQ10 L8DR_DQ10 L8_DQ26 L8DO_UA3 L8_DQ29 L8_BA1 L8_AD2 L8DO_UC1 L8_AD1 L8DO_UB2 L8_BA0 L8_DQ26 L8DR_DQ4 L8DO_UC3 L8_DQ25 L8_DQ30 L8_AD3 L8DO_UA14 L8DR_DQ3 L8DR_DQ22 L8DR_DQ7 L8DR_DQ6 L8_DQ15 DRVCLKU3 L8DR_DQS0 L8DR_DQ11 L8DR_AD0 L8_DQ17 L8DR_CK L8_AD11 L8_DQ9 L8DO_UA17 L8DO_UC8 L8DO_UC14 L8DO_UC10 L8_DQ14 L8DO_UB13 L8DO_UA6 L8DR_DQ17 AA_XCE L8DR_DQ21 L8_NRAS L8_DQ20 L8_DQ9 L8_DQ6 L8DO_UB3 L8_DQ1 L8DO_UB12 L8DR_NCS L8_AD4 L8DR_AD8 L8DO_UA0 L8_DQ29 L8DR_AD2 L8DR_AD11 L8_NCS L8DO_UB8 L8_DQ2 L8_DQ19 L8DO_UC5 L8_AD7 L8DO_UA9 L8DR_DQ24 L8_CK L8DO_UA21 L8DO_UC11 L8DR_NCK L8_DQ23 L8DO_UA4 L8DO_UB21 5V_SENSE L8_DQ8 L8DO_UB11 L8_DQ24 L8DR_DQ16 L8_AD6 L8_DQS0 L8DO_UA5 L8DR_DQ31 L8_AD3 L8DR_DQ0 L8_AD2 L8_AD8 L8DO_UA1 L8DO_UB15 L8_BA1 DRDLY0 L8DO_UC17 L8_DQ19 L8_DQ25 L8DO_UB6 L8DR_NRAS L8DO_UC12 L8_DQ3 L8_AD0 L8_DQ27 L8DO_UB17 L8DR_DQ29 L8_NCK L8_DQ22 L8DO_UB10 L8DO_UA13 L8DO_UA7 L8_AD10 L8DO_UC15 L8_DQ31 L8_DQ15 DRVCLKU0 L8_DQ30 L8_DQ21 L8DR_DQ5 L8_DQ18 L8DO_UA8 L8DO_UA11 L8_DQ0 L8_DQ28 L8DO_UA16 L8_DQ11 L8DO_UA15 L8DO_UC0 L8DR_AD3 L8DR_DQ25 L8_DQ7 L8DO_UC21 L8DO_UB7 L8_BA0 L8_DQS0 L8DR_AD4 L8DR_AD9 L8DO_UC4 L8DO_UB9 L8DR_AD10 L8DO_UB1 L8_DQ21 L8_AD1 L8_NCS L8DO_UC16 L8_DQ5 L8_NCAS L8_AD5 L8DO_UB5 L8_AD7 L8_DQ17 L8DO_UA19 L8DR_DQ13 L8_AD11 DRDLY0 L8DO_UC7 DOUTUB2 CLKU0 L8DO_UA11 DOUTUA6 DOUTUA5 DOUTUC9 DOUTUB12 DOUTUC8 DOUTUA7 L8DO_UA9 DOUTUA4 L8DO_UC6 DRVRST_5V2 DOUTUC11 DOUTUA9 DOUTUA1 DOUTUB11 DOUTUB0 DOUTUB5 L_PCU1 D-PCU2 DOUTUA15 DOUTUA13 DOUTUA19 DOUTUB20 DOUTUB1 L8DO_UA2 CLKU2 DOUTUC20 DRVRST_5V L8DO_UA5 DOUTUB15 DOUTUB3 L8DO_UB2 DOUTUA11 DOUTUC12 DOUTUA20 CLKU3 DOUTUB11 L8DO_UC5 5V_DET1 DOUTUC14 L8DO_UC8 L8DO_UB6 DOUTUC4 DOUTUC15 L8DO_UB7 DOUTUB21 L8DO_UC10 D-CLRU L8DO_UB15 L8DO_UB10 D-CLRU DOUTUA7 L8DO_UA8 L8DO_UC3 DOUTUB14 DOUTUA0 DOUTUB2 DOUTUB9 DOUTUB16 L8DO_UB12 DOUTUB17 L8DO_UC0 R_PCU2 DOUTUB18 L8DO_UC9 DOUTUC12 R_CLRU DOUTUA3 DRVCLKU3 DOUTUA10 DOUTUC8 D-PCU1 DOUTUA11 DOUTUC15 DOUTUA2 L_PCU1 CLKU1 R_PCU2 5V_SENSE DOUTUB13 L8DO_UB8 L_ODEU L8DO_UA1 L8DO_UA12 L8DO_UC13 DOUTUB12 DOUTUB4 DOUTUA0 D-ODEU R_CLRU L8DO_UC11 DOUTUB5 DOUTUB3 L8DO_UA10 L8DO_UB9 DOUTUA12 L8DO_UB14 L8DO_UA4 DOUTUC0 L8DO_UA13 DOUTUB14 DOUTUA21 L8DO_UB0 DRVRST_5V1 DOUTUB7 DOUTUC21 DOUTUC13 5V_DET2 L8DO_UC15 DOUTUA9 DOUTUC10 DRVRST_5V2 DRVRST_5V L8DO_UC12 DOUTUB6 DOUTUC6 DOUTUC19 DOUTUC0 DRVRST_5V1 L8DO_UC14 L_LEU DOUTUB0 R_ODEU DOUTUB9 DOUTUC3 D-LEU DOUTUB13 D-LEU CLKU2 DOUTUC1 L8DO_UA3 L_CLRU DOUTUA14 L8DO_UB1 L8DO_UA15 DOUTUB19 DOUTUC17 DOUTUC7 L_CLRU DOUTUA14 DOUTUA8 DOUTUC9 DOUTUC18 L8DO_UB5 DOUTUC3 R_ODEU DOUTUA13 L8DO_UC2 L8DO_UB4 DOUTUB8 DOUTUB10 L8DO_UB13 5V_DET1 DOUTUC16 L_ODEU L8DO_UA0 DOUTUA1 L8DO_UA7 DOUTUA2 DOUTUC2 DOUTUA18 DOUTUC2 DOUTUC11 DOUTUC5 DOUTUB15 L_LEU DOUTUC13 DOUTUB10 DOUTUB7 L8DO_UA6 DOUTUA16 DOUTUC5 5V_DET2 DOUTUA17 DOUTUA5 CLKU3 DOUTUA10 DOUTUA8 DRVCLKU1 DOUTUC10 D-ODEU DOUTUB8 DOUTUB6 DOUTUA15 L8DO_UB3 DOUTUA3 DOUTUC4 DOUTUB1 DOUTUB4 L8DO_UB11 L8DO_UC4 DRVCLKU0 DOUTUA12 R_LEU DRVCLKU2 R_LEU DOUTUA6 DOUTUC7 L8DO_UC1 DOUTUC6 DOUTUC1 CLKU0 DOUTUC14 CLKU1 L8DO_UA14 DOUTUA4 5V_SENSE DOUTUB17 DOUTUC16 DOUTUB16 DOUTUA16 DOUTUA18 DOUTUA17 DOUTUC17 DOUTUC18 DOUTUB18 L8DO_UC18 L8DO_UB16 L8DO_UB17 L8DO_UA17 L8DO_UB18 L8DO_UA16 L8DO_UA18 L8DO_UC16 L8DO_UC17 L8DO_UB21 DOUTUB19 DOUTUC20 DOUTUA21 L8DO_UA21 L8DO_UC19 DOUTUB20 L8DO_UC20 L8DO_UB20 L8DO_UC21 DOUTUA20 L8DO_UB19 DOUTUB21 DOUTUC19 L8DO_UA20 DOUTUC21 IC9300 A7 DOUTUC18 IC9300 B14 DOUTUA07 IC9300 C10 DOUTUB13 C9340 16V 0.1u IC9300 T11 VSS IC9300 J12 VSS IC9300 E6 DOUTUB18 IC9300 AC6 DQS0 IC9300 B16 DOUTUC05 IC9300 Y18 AD8 FL9301 J0HABH000013 1 2 3 IC9300 D7 DOUTUC17 IC9300 A16 DOUTUA05 IC9300 W10 VDD25 IC9300 B9 DOUTUC15 IC9300 AB3 DQ6 IC9300 W17 VDD25 IC9300 Y20 VSS IC9300 B21 DRVCLKU1 IC9300 P12 VSS IC9300 R8 VSS IC9300 Y6 DQ20 IC9300 P10 VSS IC9300 B15 DOUTUB06 IC9300 C13 DOUTUC09 IC9300 K14 VSS C9307 16V 0.1u IC9300 A1 VSS IC9300 B17 DOUTUA03 IC9300 AC9 VDD25 IC9300 E10 VDD15 IC9300 W7 VDD15 IC9300 AC23 VSS IC9300 C7 DOUTUB17 ZA9002 K4ZZ01000179 IC9300 N5 VDD15 IC9300 B5 DOUTUB20 IC9300 M8 VSS IC9300 K5 VDD15 IC9300 W16 AD10 C9304 16V 0.1u C9338 16V 0.1u C9336 16V 0.1u IC9300 W12 VDD25 C9310 16V 0.1u IC9300 T14 VSS 3.3V_L8 IC9300 A22 DRVCLKU0 IC9300 AA12 DQ25 IC9300 N13 VSS IC9300 A10 DOUTUC14 IC9300 AB11 DQ10 IC9300 Y9 DQ31 IC9300 T19 VDD15 IC9300 AC16 VREF IC9300 N11 VSS IC9300 D5 DOUTUC21 IC9300 W15 VSS IC9300 P11 VSS C9324 16V 0.1u IC9300 P13 VSS IC9300 AA2 SDCLSEL IC9300 H13 VSS IC9300 D9 DOUTUB14 IC9300 H16 VSS R9338 1.4k IC9300 A21 DRVCLKU3 IC9300 T15 VSS IC9300 Y4 VSS IC9300 AA21 VSS 2.5V_L8 IC9300 B7 DOUTUA17 IC9300 M13 VSS 1.5V IC9300 L15 VSS IC9300 D13 DOUTUA08 IC9300 E18 VDD33 IC9300 C17 DOUTUB03 IC9300 B19 DOUTUC01 IC9300 K11 VSS IC9300 C21 VSS IC9300 AB15 NRAS IC9300 B18 DOUTUC02 IC9300 B20 DRVCLKU5 IC9300 L14 VSS IC9300 L11 VSS C9333 16V 0.1u ZA9001 K4CD01000013 IC9300 C6 DOUTUC19 IC9300 A20 DOUTUC00 IC9300 AA20 AD1 IC9300 E11 VDD15 IC9300 R10 VSS ZA9006 K4ZZ01000179 IC9300 R13 VSS IC9300 N15 VSS 2.5V_L8 R9302 EXB2HV330JV IC9300 C19 DOUTUB00 IC9300 AA10 DQ29 C9323 16V 0.1u IC9300 H11 VSS IC9300 AA1 DDRIOCTRL0 IC9300 D11 DOUTUA11 IC9300 A8 DOUTUA16 IC9300 L13 VSS IC9300 E9 VDD15 IC9300 AA7 DQ23 IC9300 AB13 DQS1 R9303 EXB2HV330JV 1.5V_L8 IC9300 J8 VSS C9334 16V 0.1u 1.5V_L8 IC9300 T16 VSS IC9300 W11 VDD25 IC9300 AB10 DQ12 IC9300 Y17 AD11 C9339 16V 0.1u IC9300 E17 DOUTUB02 R9337 1.1k IC9300 AA11 DQ27 C9337 16V 0.1u IC9300 B10 DOUTUA13 IC9300 D17 DOUTUA02 IC9300 Y11 DQ26 C9317 16V 0.1u IC9300 AB4 DQ4 IC9300 R15 VSS IC9300 D16 DOUTUC04 C9306 16V 0.1u R9307 EXB2HV330JV IC9300 AC22 BA0 IC9300 T12 VSS C9318 16V 0.1u ZA9003 K4ZZ01000179 C9331 16V 0.1u IC9300 A12 DOUTUB11 IC9300 P16 VSS C9359 16V 0.1u IC9300 P9 VSS C9315 16V 0.1u IC9300 AC20 AD3 IC9300 R14 VSS IC9300 AA19 AD4 IC9300 A13 DOUTUA09 IC9300 G19 VDD33 IC9300 E8 VDD33 IC9300 AB16 NCS IC9300 J5 VDD33 IC9300 M15 VSS IC9300 P14 VSS IC9300 AB2 VSS IC9300 K12 VSS IC9300 AA6 DQ19 IC9300 AA15 VSS IC9300 H14 VSS FL9302 J0HABH000013 1 2 3 2.5V IC9300 B1 ROMCE C9329 16V 0.1u IC9300 A19 DOUTUB01 IC9300 Y12 DQ24 IC9300 Y15 VSS IC9300 AC14 VSS IC9300 C8 DOUTUC16 IC9300 AA9 DQ14 IC9300 P8 VSS IC9300 AB7 DQ22 IC9300 AC2 DQ7 IC9300 W8 VSS IC9300 E19 VSS IC9300 N14 VSS IC9300 AA3 VSS R9725 100k IC9300 D14 DOUTUA06 C9314 16V 0.1u IC9300 C18 DOUTUA01 IC9300 E13 DOUTUB08 IC9300 AC13 VDD25 R9321 0 IC9300 M16 VSS IC9300 AB20 AD2 IC9300 U19 VDD33 IC9300 V1 AVDD33 IC9300 H12 VSS IC9300 C14 DOUTUB07 IC9300 C5 DOUTUC20 IC9300 AA13 DQS3 C9330 16V 0.1u IC9300 D20 VSS IC9300 H19 VDD33 IC9300 V19 VDD33 IC9300 Y13 AVSS R9824 10k C9313 16V 0.1u IC9300 C15 DOUTUC06 IC9300 D15 DOUTUB05 IC9300 D19 DRVCLKU4 IC9300 Y3 DDRIOCTRL1 IC9300 R12 VSS IC9300 E7 VDD33 IC9300 AB6 DQ0 IC9300 T10 VSS IC9300 L9 VSS IC9300 Y8 VSS IC9300 D6 DOUTUA18 IC9300 R11 VSS IC9300 H15 VSS IC9300 AC18 CKE IC9300 C11 DOUTUC12 IC9300 D10 DOUTUC13 IC9300 E12 DOUTUC10 IC9300 D18 DOUTUA00 R9306 EXB2HV330JV IC9300 AA18 AD9 IC9300 AA4 DQ16 C9326 16V 0.1u IC9300 Y5 DQ18 IC9300 Y14 AVDD25 IC9300 B13 DOUTUB09 IC9300 J13 VSS IC9300 W9 DQ30 IC9300 AC3 DQ5 R9724 100 IC9300 AC12 DQ9 IC9300 D12 DOUTUB10 IC9300 K10 VSS C9320 16V 0.1u 2.5V_L8 IC9300 W14 VDD15 IC9300 C20 DRVCLKU2 IC9300 J15 VSS IC9300 AC15 NWE IC9300 M14 VSS C9327 16V 0.1u R9339 1k IC9300 B4 DOUTUA21 IC9300 AA14 AVSS IC9300 W19 VSS IC9300 A23 VSS C9358 220u 4V IC9300 Y1 AVSSP IC9300 AA8 VSS IC9300 A17 DOUTUB04 TP9700 IC9300 R16 VSS IC9300 A18 DOUTUC03 IC9300 R5 VDD33 IC9300 AB22 VSS IC9300 J11 VSS IC9300 AC11 DQ11 IC9300 M12 VSS R9340 1k C9316 16V 0.1u IC9300 K19 VDD15 IC9300 C9 DOUTUA14 IC9300 H10 VSS IC9300 T9 VSS IC9300 N16 VSS IC9300 AA17 VSS IC9300 A5 DOUTUA20 IC9300 AC4 DQ3 IC9300 L8 VSS IC9300 Y19 AD6 IC9300 M11 VSS IC9300 H8 VSS IC9300 A11 DOUTUA12 IC9300 AB14 BIAS IC9300 W13 AVDD25 C9322 16V 0.1u IC9300 AC17 NCK IC9300 F19 VDD33 IC9300 J9 VSS IC9300 J16 VSS IC9300 N8 VSS IC9300 A14 DOUTUC08 IC9300 K9 VSS IC9300 K16 VSS IC9300 R9 VSS IC9300 A2 VSS IC9300 B11 DOUTUB12 IC9300 J19 VDD15 IC9300 P5 VDD15 C9328 16V 0.1u IC9300 P19 VDD15 IC9300 E16 VDD15 IC9300 AA16 NCAS IC9300 AC5 DQ1 FL9300 J0HABH000013 1 2 3 R9301 EXB2HV330JV IC9300 J14 VSS IC9300 L12 VSS IC9300 AC10 DQ13 R9300 EXB2HV330JV C9332 16V 0.1u IC9300 L10 VSS C9321 16V 0.1u 3.3V_L8 IC9300 W6 VDD25 C9309 16V 0.1u IC9300 D8 DOUTUA15 C9342 16V 0.1u IC9300 AB9 DQ15 IC9300 AC8 VSS IC9300 T8 VSS Q9700 B1ABCF000138 C9312 16V 0.1u IC9300 L16 VSS IC9300 B8 DOUTUB16 C9325 16V 0.1u IC9300 A9 DOUTUB15 IC9300 AC1 VSS IC9300 C22 DRDLY0 IC9300 E15 VDD33 IC9300 M10 VSS IC9300 K8 VSS C9335 16V 0.1u IC9300 H5 VDD33 IC9300 N19 VDD33 ZA9005 K4ZZ01000179 IC9300 AB17 CK IC9300 B22 VSS C9311 16V 0.1u IC9300 T13 VSS IC9300 C16 DOUTUA04 IC9300 AB8 VSS IC9300 Y16 VSS IC9300 K15 VSS 3.3V_L8 2.5V_L8 R9304 EXB2HV330JV IC9300 AB18 VSS IC9300 M9 VSS IC9300 A6 DOUTUA19 3.3V IC9300 N9 VSS IC9300 A15 DOUTUC07 C9305 16V 0.1u ZA9004 K4ZZ01000179 IC9300 J10 VSS IC9300 N10 VSS IC9300 AB5 DQ2 IC9300 AC7 DQS2 C9319 16V 0.1u C9308 16V 0.1u IC9300 AC21 AD0 IC9300 AA5 DQ17 IC9300 P15 VSS IC9300 AB19 AD5 3.3V IC9300 AB12 DQ8 IC9300 Y7 DQ21 IC9300 B6 DOUTUB19 IC9300 E14 VDD33 IC9300 AC19 VSS IC9300 C12 DOUTUA10 IC9300 K13 VSS IC9300 N12 VSS IC9300 A4 DOUTUB21 IC9300 H9 VSS R9322 0 IC9300 W5 VSS IC9300 B12 DOUTUC11 IC9300 W18 AD7 IC9300 M19 VDD33 IC9300 AB21 BA1 2.5V_L8 IC9300 Y10 DQ28 TP9845 3.3V TP9848 R9817 22 TP9851 R9822 EXB2HV470JV TP9833 R9820 22 TP9857 TP9822 R9813 4.7k TP9837 TP9881 TP9834 TP9846 TP9825 R9808 22 TP9800 TP9826 TP9882 TP9821 TP9820 TP9876 TP9813 R9816 22 TP9804 TP9808 TP9869 TP9884 D9800 MA3X152K0L R9804 EXB2HV470JV TP9865 TP9852 R9823 EXB2HV470JV TP9863 TP9803 TP9866 TP9854 TP9830 TP9870 TP9858 TP9841 R9800 EXB38V470JV D32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 TP9814 Q9801 B1ABCF000138 TP9815 R9812 100k TP9802 C9800 50V 0.01u R9819 EXB2HV470JV TP9805 TP9844 TP9832 TP9824 FL9801 J0HABH000013 1 2 3 R9814 10k R9811 10k TP9867 C9801 50V 0.01u TP9875 TP9829 TP9878 TP9872 TP9823 TP9855 TP9807 R9807 EXB38V470JV R9821 22 TP9880 TP9874 R9803 EXB2HV470JV TP9856 TP9843 P5V R9806 EXB38V470JV TP9811 D31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 TP9853 TP9862 TP9873 TP9831 TP9877 TP9819 TP9836 TP9860 D9801 MA3X152K0L Q9800 B1ABCF000138 TP9840 TP9871 TP9817 TP9864 R9815 100k TP9879 TP9868 TP9835 TP9806 TP9839 TP9816 R9809 22 TP9812 TP9828 TP9801 TP9818 TP9883 TP9859 TP9842 TP9847 R9802 EXB2HV470JV 3.3V TP9827 TP9850 TP9838 TP9849 TP9861 R9810 4.7k P5V FL9800 J0HABH000013 1 2 3 R9801 EXB2HV470JV R9805 EXB38V470JV R9818 EXB2HV470JV MN84512-A(LSI58) DDR-Terminate POWER F_ADRS0 F_ADRS1 F_ADRS2 F_ADRS4 F_ADRS5 F_ADRS3 F_ADRS7 F_ADRS8 F_ADRS6 F_ADRS10 F_ADRS11 F_ADRS9 F_ADRS13 F_ADRS12 F_ADRS14 F_ADRS16 F_ADRS15 F_ADRS17 F_ADRS19 F_ADRS18 F_ADRS20 F_DATA0 F_DATA1 F_DATA15 F_DATA14 F_DATA13 F_DATA11 F_DATA12 F_DATA10 F_DATA9 F_DATA7 F_DATA8 F_DATA6 F_DATA4 F_DATA5 F_DATA2 F_DATA3 24 26 23 25 19 20 22 21 27 D-BOARD (6/6) TO 21 BA BB BC IC9300 SUB FIELD PROCESSOR PLASMA AI RGB PROCESSOR FORMAT CONVERTER GND ODEU GND GND GND P5V GND DOUTUC[18] DOUTUB[18] DOUTUA[18] DOUTUA[15] DOUTUC[15] GND DOUTUB[0] DOUTUB[15] DOUTUA[0] DOUTUC[3] DOUTUC[9] CLK[1](-) GND DOUTUC[10] 5V_DET CLK[0](+) DOUTUC[8] DOUTUA[1] PCU1 DOUTUA[12] CLK[3](-) LEU DOUTUB[7] DOUTUA[10] GND GND DOUTUA[7] DOUTUC[5] DOUTUC[6] DOUTUC[14] P5V DOUTUB[5] DOUTUB[6] DOUTUA[4] DOUTUB[10] DOUTUA[3] DOUTUA[9] DOUTUA[20] DOUTUB[8] DRV_RST DOUTUA[14] DOUTUA[19] LEU 5V_DET GND CLRU GND CLRU DOUTUC[13] DOUTUB[13] DOUTUC[20] DOUTUA[6] DOUTUC[19] DOUTUC[11] GND PCU2 DOUTUA[11] P5V GND DOUTUA[5] DOUTUB[19] GND DOUTUB[21] P5V DOUTUB[20] DOUTUA[13] P5V P5V DOUTUC[1] DOUTUC[4] DOUTUA[8] DOUTUB[4] DOUTUB[1] CLK[2](+) DOUTUC[2] DOUTUC[12] GND DOUTUC[17] GND GND OUTUUB[17] GND DOUTUB[2] DOUTUA[17] P5V DOUTUB[12] DOUTUB[11] ODEU DOUTUB[9] DOUTUC[0] GND DOUTUA[2] DOUTUA[21] DOUTUC[21] GND DOUTUB[14] DOUTUC[16] DRV_RST P5V DOUTUB[16] DOUTUA[16] DOUTUB[3] DOUTUC[7] C2-BOARD TO (C24) TO (C25) C2-BOARD D-BOARD (3/6) TXN/D2XQSE TH-50PV500E/B D-Board (3 of 6) Schematic Diagram TH-50PV500E/B D-Board (3 of 6) Schematic Diagram TH-50PV500E / TH-50PV500B 119 14.46. D-Board (4 of 6) Schematic Diagram + G G G G + STB_SCL1 TXD_PC STB_SCL2 STB_SCL1 STB_SCL2 STB_SDA1 P3V_SCL2 AR_IIC_CONT LVDSBIT STB_SDA2 STB_SCL2 STB_SDA2 P3V_SDA2 DRVRST RXD_PC DRV_SOS7 AR_IIC_CONT TXD_PC AR_IIC_INT RXD_PC FVSEL P3V_SCL2 REM_IN DRV_SOS2 NOSYNC STB_SDA1 PS_SOS STB_SCL2 PANEL_MAIN_ON STB_SDA2 P3V_SDA2 STB_SDA2 AR_IIC_INT LED_G LED_R PSTB PBUSY PDB0 PSLCT PDB1 XRST XRST XRST ASDIO DATA0 DATA0 NCS DCLK NCONFIG ASDIO NCE CONF_DONE DCLK PANEL_STBY_ON C_SEL PANASONIC_MODE DRVMUTE NCONFIG DRVRST_DATA DCDC_ON P3V_SCL1 STB_SDA1 STB_SCL1 P3V_SDA1 P_ON/OFF AA_UCOM14 AA_UCOM15 AA_UCOM16 AA_UCOM17 AA_UCOM18 AA_UCOM19 NCS DRV_SOS9 NRST INEXCH ALARM READY LVDS_MODE R9039 100 R9078 0 R9019 0 R9028 3.3k R9015 10k C9004 16V 0.1u C9028 16V 0.1u R9072 10k R9140 10k R9052 10k C9000 16V 47u R9023 1.6k R9033 10k R9055 2.7k C9031 16V 0.1u C9021 16V 0.1u R9016 10k R9082 100 R9047 100 R9026 10 C9009 6.3V 10u C9015 16V 0.1u R9071 10k 3.3V C9024 270p 50V R9043 100 R9048 100 R9040 10 Q9020 B1ABCF000138 R9089 100 R9119 0 R9146 10k R9112 0 R9083 100 STB3.3V R9021 1k Q9012 B1CBHD000001 R9145 10k R9116 0 R9122 10k R9041 4.7k R9095 10k R9094 0 R9018 10k R9123 10k R9057 22 R9030 22 R9045 1k FL9001 J0HABH000013 1 2 3 D9001 MAZ303300L R9008 1M R9006 10k R9069 10k R9100 100 R9049 100 R9042 1k R9046 12k STB5V 3.3V R9090 5.6k R9127 10k C0DBEJG00001 IC9008 1 CTL 2 Vcc 3 GND 4 OUT 5 C C9005 16V 0.1u STB3.3V R9114 0 3.3V C9018 16V 0.1u STB3.3V R9108 39k FL9000 J0HABH000013 1 2 3 R9124 10k Q9000 B1ABCF000138 R9117 EXB38VR000V C9014 50V 100p C9029 16V 0.1u R9086 100 R9111 0 R9098 10k R9050 100 R9097 10k R9096 10k R9031 5.6k R9125 1k STB3.3V R9044 100 D4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 C0EBE0000120 IC9004 1 RST 2 VDD 3 GND 5 Cd 4 NC R9024 0 R9009 10k Q9004 B1ADCE000011 3.3V C9016 16V 0.1u STB5V_M Q9001 B1ABCF000138 C9010 16V 0.1u Q9003 RTR020P02TL C9007 16V 47u R9029 22 R9084 100 R9053 10k D9012 MA2J72800L R9103 100 STB3.3V D9000 MAZ303300L TVRN568 IC9003 1 VREFL 2 AVSS 3 AVCC 4 P70/TA0IN 5 P71/TA1OUT 6 P72/TA3OUT 7 P73/TA4IN 8 P74/TA5OUT 9 P75/TA7OUT 10 P80/TB0IN0/INT5 11 P81/TB0IN1/INT6 12 P82/TB0OUT0 13 P83/TB0OUT1 14 P84/TB1IN0/INT7 15 P85/TB1IN1/INT8 16 P86/TB1OUT0 17 P87/TB1OUT1 18 P90/TXD0 19 P91/RXD0 20 P92/SCLK0/CTS0 21 P93/TXD1 22 P94/RXD1 23 P95/SCLK1/CTS1 24 AM0 25 DVCC 26 X2 27 DVSS 28 X1 29 AM1 30 RESET 31 P96/XT1 32 P97/XT2 33 EMU0 34 EMU1 35 PA0/INT1 36 PA1/INT2 37 PA2/INT3 38 PA3/INT4 39 PA4 40 PA5 41 PA6 42 PA7 43 ALE 44 P00/AD0 45 P01/AD1 46 P02/AD2 47 P03/AD3 48 P04/AD4 49 P05/AD5 50 P06/AD6 51 P07/AD7 52 P10/AD8/A8 53 P11/AD9/A9 54 P12/AD10/A10 55 P13/AD11/A11 56 P14/AD12/A12 57 P15/AD13/A13 58 P16/AD14/A14 59 P17/AD15/A15 60 P20/A0/A16 61 P21/A1/A17 62 DVSS 63 NMI 64 DVCC 65 P22/A2/A18 66 P23/A3/A19 67 P24/A4/A20 68 P25/A5/A21 69 P26/A6/A22 70 P27/A7/A23 71 P30/RD 72 P31/WR 73 P32/HWR 74 P33/WAIT 75 P34/BUSRQ 76 P35/BUSAK 77 P36/R/W 78 P37/BOOT 79 P40/CS0 80 P41/CS1 81 P42/CS2 82 P43/CS3 83 P60/SCK 84 P61/SO/SDA 85 P62/SI/SCL 86 P63/INT0 87 P64/SCOUT 88 P65 89 DVCC 90 P66 91 DVSS 92 P50/AN0 93 P51/AN1 94 P52/AN2 95 P53/AN3/ADTRG 96 P54/AN4 97 P55/AN5 98 P56/AN6 99 P57/AN7 100 VREFH R9032 5.6k Q9009 B1CBHD000001 R9020 1k R9118 EXB38VR000V R9056 22 R9088 100 R9110 10k R9034 10k D6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Q9021 B1ABCF000138 R9022 1k C9006 6.3V 10u R9079 0 C9017 16V 0.1u R9141 10k Q9013 B1CBHD000001 STB3.3V R9087 100 IC9007 TVRN466 1 NCS 2 DATA 3 VCC 4 GND 5 ASDI 6 DCLK 7 VCC 8 VCC R9126 1k R9017 10k C9030 16V 0.1u P5V R9147 10k R9104 100 C9033 16V 0.1u R9091 10k Q9022 B1ABCF000138 R9085 100 C9020 16V 0.1u X9000 H2D2705A0003 Q9023 B1ABCF000138 STB3.3V P12V C9011 16V 0.1u Q9008 B1CBHD000001 STB5V R9092 10k R9068 10k R9115 0 C9001 16V 0.1u R9007 1k C9019 16V 0.1u C9025 16V 0.1u R9128 10k R9070 10k R9107 39k STB3.3V C9012 16V 0.1u R9142 10k R9054 2.7k R9004 10k R9109 39k D9002 MAZ303300L C9008 16V 0.1u 3.3V D9011 MA2J72800L IC9001 1 E0 2 E1 3 E3 4 Vss 5 SDA 6 SCL 7 WC 8 Vcc *R9000 10k *R9003 10k R9001 10k GND GND SCL1 STB5V SDA1 TXD SDA3 IIC_CONT SDA2 IIC/INT SCL3 STB3.3V RXD SCL2 STB3.3V ON/OFF DCLK nCONFIG DATA0 ASDIO nCS nCE GND 3.3V GND GND GND 3.3V DCDC_ON CONF_DONE PSTB PBUSY PDB0 PSLCT XRST PDB1 4 D F 5 1 A 8 B 3 7 9 2 C 6 E AVR STB3.3V MICOM RESET EEPROM (1/6) TO D-BOARD FOR FACTORY USE 35 33 36 32 34 37 31 A B C PROM(FPGA) 0 0 3.1 2.7 0 0 3.3 2.7 2.7 2.7 5.7 0 0 5.0 FOR FACTORY USE TVRN571 D-BOARD TXN/D2XQSE (4/6) TH-50PV500E/B D-Board (4 of 6) Schematic Diagram TH-50PV500E/B D-Board (4 of 6) Schematic Diagram TH-50PV500E / TH-50PV500B 120 14.47. D-Board (5 of 6) Schematic Diagram DRVRST_DATA AA_BYTE L8_R2 L8DO_UA19 L8_B3 L8DO_UB16 L8DO_UC21 L8DO_UA18 L8DO_UA11 L8_G8 L8_G0 L8_G3 L8DO_UA9 SFVRST L8_B7 L8_G6 L8DO_UC12 L8DO_UA10 L8_B5 L8_G1 L8_R0 L8_R4 L8_R9 L8DO_UA16 L8_R6 L8_G4 L8_B2 L8DO_UA20 L8_HIN L8_G2 L8DO_UC11 L8DO_UA17 L8_G5 L8DO_UC20 L8DO_UB11 NRST L8DO_UC18 L8DO_UA21 L8_R1 L8DO_UC15 L8_B0 L8_B8 L8DO_UB21 L8_B9 L8DO_UC10 L8_B6 L8_VIN FPDAT0 FPCLK L8DO_UB17 L8_R7 DRVRST L8_B1 L8DO_UA14 L8DO_UB18 SFRST L8DO_UC17 L8DO_UB19 FPDAT1 LATCH L8_R8 L8DO_UB20 L8DO_UA15 DRVMUTE L8DO_UB15 L8_R3 L8_B4 AA_XOE L8DO_UB10 L8_G9 L8DO_UC16 L8DO_UC19 L8_G7 PSTB PDB1 PDB0 PSLCT PBUSY NCS DATA0 ENHMASK ASDIO NCE DCLK AD_REMCON REM_IN NCONFIG CONF_DONE LED_R LED_G DRVRST_5V AA_UCOM14 AA_UCOM15 AA_UCOM19 AA_UCOM18 AA_UCOM17 AA_UCOM16 L8_R5 AA_XCE AA_XWE AD_REMCON IC9500 M5 DPCLK7 IC9500 B2 LVDS15p R9133 4.7k R9501 10k IC9500 F12 DPCLK4 R9502 10k IC9500 E9 IO IC9500 F14 LVDS41n IC9500 H4 nCEO R9509 100 IC9500 B10 LVDS28p IC9500 D13 LVDS35p IC9500 E6 VREF2B2 IC9500 J3 MSEL0 R9525 47 IC9500 P5 LVDS68n IC9500 B13 LVDS32n R9508 100 IC9500 C13 LVDS33p IC9500 N6 LVDS67n IC9500 G16 LVDSCLK2p IC9500 K16 LVDS44p IC9500 J15 TMS IC9500 G14 LVDS43n IC9500 L3 IO R9507 100 IC9500 C14 LVDS35p IC9500 D2 LVDS11n IC9500 G4 nCSO IC9500 M3 LVDS3n IC9500 D7 LVDS22n R9523 EXB2HV470JV IC9500 L5 DPCLK0 IC9500 C7 LVDS22p IC9500 A6 LVDS21p IC9500 R2 LVDS71p IC9500 E10 VREF1B2 R9521 EXB38V470JV IC9500 A2 LVDS15n IC9500 D14 LVDS37p IC9500 F3 LVDS9p R9519 EXB38V470JV IC9500 C11 LVDS29n IC9500 F13 LVDS41p IC9500 C15 LVDS36p IC9500 M13 LVDS48p IC9500 B11 LVDS29p IC9500 B15 LVDS34n R9131 4.7k IC9500 T2 LVDS71n IC9500 K5 VREF2B1 R9520 EXB38V470JV IC9500 E7 IO IC9500 H2 DATA0 IC9500 M16 LVDS46p IC9500 T6 LVDS65p IC9500 M14 LVDS47n Q9011 B1ABCF000138 IC9500 A11 LVDS28n 3.3V IC9500 B12 LVDS31n R9537 10k IC9500 D16 LVDS39p IC9500 K2 PLL1_OUTn IC9500 L14 LVDS45n IC9500 G12 VREF0B3 R9524 47 IC9500 E16 LVDS40p IC9500 E13 LVDS37n IC9500 E15 LVDS39n IC9500 K14 IO R9534 10k IC9500 H12 VREF1B3 IC9500 K15 PLL2_OUTn IC9500 K4 DCLK IC9500 E11 VREF0B2 IC9500 R6 LVDS66n R9529 47 IC9500 G3 LVDS9n R9505 100 IC9500 D15 LVDS38n IC9500 D6 LVDS19n IC9500 M15 LVDS46n IC9500 N2 LVDS3p R9536 68 IC9500 B8 LVDS23p IC9500 A9 LVDS26n R9528 47 IC9500 G13 LVDS43p IC9500 G15 LVDS42n IC9500 B9 LVDS26p IC9500 H15 TDO D8 1 2 3 4 5 6 7 8 IC9500 J4 nCE IC9500 J14 TCK IC9500 A15 LVDS34p IC9500 P6 LVDS66p STB3.3V IC9500 H14 TDI IC9500 E5 DPCLK2 R9081 10k IC9500 C6 LVDS20p R9526 47 IC9500 L13 LVDS47p IC9500 R4 LVDS69p IC9500 E8 LVDS24n IC9500 R15 LVDS52n IC9500 B5 LVDS18p IC9500 F16 LVDS42p IC9500 D5 LVDS19p IC9500 R3 LVDS70p IC9500 C12 LVDS31p IC9500 L16 LVDS44n R9132 4.7k IC9500 B3 LVDS16p IC9500 A8 LVDS23p IC9500 P14 LVDS51p IC9500 B6 LVDS20n R9538 10k 3.3V R9527 EXB38V470JV R9522 EXB2HV470JV IC9500 H3 nCONFIG R9506 100 IC9500 D8 LVDS24p IC9500 K3 ASDO IC9500 N5 LVDS67p IC9500 F15 LVDS40n IC9500 J1 PLL1_OUTp IC9500 D9 LVDS25n IC9500 L15 LVDS45p IC9500 K13 CONF_DONE IC9500 C10 LVDS27n Q9010 B1ABCF000138 IC9500 A13 LVDS32p IC9500 H13 IO IC9500 D10 LVDS27p IC9500 B16 LVDS36n IC9500 T15 LVDS52p IC9500 E14 LVDS38p IC9500 D11 LVDS30p IC9500 C5 LVDS18n R9510 100 R9503 10k IC9500 R5 LVDS68p IC9500 D12 LVDS30n IC9500 C8 LVDS24n IC9500 T4 LVDS69n P5V 3.3V IC9500 E12 DPCLK3 C9519 50V 100p R9518 EXB2HV470JV IC9500 J16 PLL2_OUTp R9080 22k STB5V_M IC9500 C9 LVDS25p IC9500 R14 LVDS53p IC9500 B7 LVDS21n IC9500 L4 IO IC9500 K12 VREF2B3 IC9500 B14 LVDS33n IC9500 J2 MSEL1 IC9500 P4 LVDS70n C9013 50V 0.01u *R9543 10k IC9500 G5 VREF0B1 IC9500 F4 IO IC9500 E4 LVDS12n 3.3V *R9530 10k R9532 10k F_ADRS19 M_GOUT9 M_GOUT5 M_BOUT0 NRST M_ROUT9 F_ADRS15 FPCLK DRVRST M_ROUT7 F_ADRS3 FPDATA0 M_BOUT1 F_ADRS2 M_GOUT4 F_ADRS11 DRVMUTE F_ADRS7 F_ADRS4 FPDATA1 OSDCK F_ADRS18 F_BYTE M_GOUT3 F_ADRS10 SFRST OSDG F_ADRS8 LATCH MODEL[1] F_DATA6 M_ROUT3 F_ADRS20 MODEL[0] M_ROUT6 F_ADRS17 SDA M_GOUT1 OSD SCL F_DATA7 RESET Flash_Control M_ROUT2 LSI58 M_ROUT1 M_ROUT5 SFVRST F_DATA1 F_ADRS16 F_DATA5 F_ADRS13 F_DATA0 F_ADRS5 M_GOUT6 F_DATA4 F_OE ROM58AD[2] PICTURE_OUTPUT F_DATA3 F_CE NC IIC F_DATA2 F_ADRS0 CONTROL ROM58AD[1] M_ROUT4 ROM58AD[0] M_ROUT8 M_ROUT0 M_GOUT2 M_BOUT3 M_BOUT4 M_GOUT8 MODEL[2] OSDHD F_ADRS-1 M_BOUT5 JTAG OSDVD F_ADRS9 M_BOUT6 OSDB M_GOUT0 M_DCKO F_ADRS14 M_HDO M_BOUT7 OSDR F_WE F_ADRS1 M_VDO M_BOUT8 M_GOUT7 M_BOUT9 MODEL SELECTION F_ADRS6 M_BOUT2 F_ADRS12 STB5V LED_G LED_R KEY_SW CPU_GND REMOCON OPT GND MASK p_db1 p_db0 p_stb p_slct p_busy PRCKI FREE-RUN CLK PRCK_OUT 11 16 15 14 12 10 17 13 18 (2/6) TO D-BOARD 37 31 36 34 35 32 33 45 46 43 41 44 42 AB AD AA AC FPGA/SYNC/OSD C1ZBZ0002599 DISCHARGE CONTROL IC9500 NO USE D-BOARD TXN/D2XQSE (5/6) TH-50PV500E/B D-Board (5 of 6) Schematic Diagram TH-50PV500E/B D-Board (5 of 6) Schematic Diagram TH-50PV500E / TH-50PV500B 121 14.48. D-Board (6 of 6) Schematic Diagram TERM SIDE TERM SIDE G G G G L8_R7 L8DO_DA13 L8_G8 5V_SENSE L8DR_AD1 L8DR_AD3 L8_B3 L8_HIN L8DR_AD6 L8_VIN L8DO_DC7 L8DR_DQS0 L8DR_BA0 L8DO_DC8 L8DR_AD0 L8DR_DQ18 L8DR_DM3 L8DR_DQ12 L8DO_DC12 L8DR_DQ8 L8DR_DQ29 L8_R1 L8DR_DM0 L8_B8 L8_B7 L8DR_DQ13 L8DO_DA6 L8DO_DA14 L8DO_DB5 L8_OCK L8DO_DC11 L8DO_DA4 5V_DET3 L8DR_DQ10 L8_G1 L8DR_AD9 L8DR_DQ25 L8_G7 L8DO_DC15 P3V_SDA2 L8DR_DQ21 L8DR_AD10 L8_B9 L8DO_DC1 L8DO_DA0 L8DR_AD4 L8DR_AD11 L8DO_DB12 L8DO_DC5 L8DR_NCK L8DR_DQ4 L8_R4 L8DR_AD5 L8DR_DM1 L8DR_DQ30 DRDLY1 L8DR_DQ1 L8DR_NCAS L8DR_DQ26 L8_G0 L8DO_DB10 L8DO_DA1 L8DO_DB8 L8DR_DQ17 L8DR_DQ5 L8_R8 L8DR_NCS P3V_SCL2 5V_SENSE L8DO_DC0 L8DR_DQ27 L8_B5 L8DO_DC4 L8DR_DQ28 L8DO_DA15 DRVCLKD3 L8DO_DB2 L8DR_CKE L8DR_NRAS L8DO_DA9 L8DR_DQ2 L8_G4 DRVCLKD0 L8DO_DB14 L8DO_DB13 L8DO_DA2 L8DR_DQ0 L8DR_DQ23 L8DO_DC14 L8DR_DQ3 L8DO_DB4 DRVCLKD2 L8_G2 L8DR_AD2 L8DR_AD8 L8DO_DB0 L8DO_DC9 L8_B0 L8DO_DA10 L8_PCK L8_R5 L8DO_DA5 L8_G5 L8DO_DB6 L8DR_DQ22 L8_R0 L8_R9 L8DO_DB9 L8DO_DB7 L8DO_DA8 L8DR_DQ14 L8_B1 L8DR_DQ15 5V_DET4 L8DR_DM2 L8DR_DQ16 L8_B2 L8DR_DQ9 L8DO_DC10 L8DO_DB15 L8_B6 L8DO_DA11 L8DR_DQ24 L8DR_CK L8DR_BA1 L8_G9 L8DO_DA12 L8DR_DQ20 L8DR_DQ7 L8_R6 L8DO_DC2 L8DR_DQ19 L8DR_DQ11 L8DO_DA7 L8DO_DC6 L8DR_DQ6 L8DO_DC13 L8DR_NWE L8_R3 L8_R2 L8DR_DQ31 L8DR_AD7 L8DO_DB1 L8_G6 DRVCLKD1 L8_B4 L8_G3 L8DO_DA3 L8DO_DB3 L8DO_DC3 L8DO_DB11 ENHMASK PCD2 D-ODED DOUTDC9 L8DO_DC11 L8DO_DB12 L8DO_DA13 L8DO_DC9 D-LED DRVRST_5V DOUTDA9 DRVCLKD3 LED L8DO_DA9 D-PCD2 DRVRST_5V4 DOUTDB13 L8DO_DA10 DOUTDB8 DOUTDB11 DOUTDA11 L8DO_DB13 CLRD L8DO_DB8 L8DO_DC10 L8DO_DB9 L8DO_DC13 DOUTDA10 DRDLY1 CLKD3 L8DO_DA11 DOUTDC10 L8DO_DA8 L8DO_DA12 CLKD2 DOUTDA13 DOUTDC8 L8DO_DB10 L8DO_DB11 DOUTDC11 L8DO_DC8 L8DO_DC12 DOUTDC13 DOUTDB9 DOUTDC12 DOUTDA12 DRVCLKD2 ODED DOUTDB10 DOUTDA8 DOUTDB12 D-CLRD DOUTDB14 DOUTDC14 DOUTDC15 DOUTDA15 DOUTDA14 DOUTDB15 L8DO_DC14 L8DO_DB14 L8DO_DC15 L8DO_DA14 L8DO_DB15 L8DO_DA15 C_DSHL C_DSLL C_DMHL C_DMLL C_DMHR DSHL DSLL DMHL DMLL DMHR DOUTDC2 L8DO_DA4 DOUTDC1 L8DO_DA5 L8DO_DB4 L8DO_DC3 L8DO_DC0 DOUTDC7 DRVRST_5V3 DOUTDA7 L8DO_DA7 L8DO_DC7 L8DO_DC4 L8DO_DA6 L8DO_DB3 L8DO_DC5 DOUTDB1 DOUTDC4 DOUTDB7 DOUTDB0 ODED DOUTDB5 DOUTDA0 D-LED L8DO_DA3 L8DO_DB0 L8DO_DB2 DOUTDA3 L8DO_DC6 DOUTDA4 D-CLRD DOUTDB6 L8DO_DA2 CLRD DOUTDC3 L8DO_DB1 L8DO_DB7 DOUTDA6 DOUTDA2 D-ODED DOUTDA1 DOUTDB3 DOUTDB2 L8DO_DB5 DRVRST_5V L8DO_DC2 L8DO_DA0 D-PCD1 DOUTDB4 LED DOUTDA5 PCD1 DOUTDC6 L8DO_DB6 DOUTDC5 L8DO_DA1 DOUTDC0 L8DO_DC1 DRVCLKD1 CLKD1 DRVCLKD0 C_NUEL C_UMH C_UML C_USH C_USL C_UEH NUEL UMH UML USH USL UEH C_DRV_SOS2 C_DRV_SOS9 XRST LATCH SFRST SFVRST FPDAT0 FPDAT1 FPCLK CLKD0 R_CLRD DOUTDC2 DOUTDB21 DOUTDB3 5V_DET4 DOUTDB4 DOUTDC15 DOUTDC6 DOUTDB19 C_UEH DOUTDA13 DOUTDC7 C_DMLL DOUTDA21 CLKD0 DOUTDA19 DOUTDB2 DOUTDC9 DOUTDC1 DOUTDB18 DOUTDA10 C_NUEL DOUTDA20 DOUTDC4 C_DSHL L_PCD1 CLKD2 DOUTDA15 DOUTDB7 DOUTDC12 DRVRST_5V4 DOUTDB1 R_PCD2 DOUTDA14 C_UMH DOUTDB16 DOUTDC17 L_LED C_DMHR DOUTDC19 DOUTDA1 DOUTDB10 C_DSLL 5V_DET3 DOUTDB20 DOUTDC16 DOUTDB0 DOUTDC10 DOUTDA11 DOUTDA0 R_LED DOUTDB9 C_UML DOUTDC20 DOUTDA17 DOUTDA2 DOUTDC11 DOUTDB12 DOUTDA7 DOUTDC0 DOUTDA9 DOUTDA6 R_ODED DOUTDB15 CLKD1 DOUTDA5 C_DMHL DRVRST_5V3 DOUTDB13 DOUTDB8 DOUTDA3 DOUTDC5 DOUTDC18 C_DRV_SOS2 DOUTDA16 DOUTDC21 C_USH DOUTDB6 CLKD3 L_CLRD DOUTDC13 DOUTDC14 DOUTDC3 DOUTDA18 DOUTDA4 DOUTDB17 L_ODED DOUTDB11 DOUTDA12 C_USL DOUTDC8 DOUTDB5 DOUTDA8 C_DRV_SOS9 DOUTDB14 DRV_SOS2 DRV_SOS9 DOUTDC17 DOUTDC19 L8DO_DC17 DOUTDA20 DOUTDA18 DOUTDB20 DOUTDC20 DOUTDC21 DOUTDB19 DOUTDA19 DOUTDC16 DOUTDB16 DOUTDA16 DOUTDB21 DOUTDA21 DOUTDC18 DOUTDB18 L8DO_DC20 L8DO_DB20 L8DO_DA20 L8DO_DC21 L8DO_DB21 L8DO_DA21 L8DO_DC18 L8DO_DB18 L8DO_DA18 L8DO_DC19 L8DO_DB19 L8DO_DA16 L8DO_DB16 L8DO_DC16 L8DO_DA19 L8DO_DA16 DOUTDA16 L8DO_DB17 L8DO_DA17 DOUTDB17 DOUTDA17 L8DO_DA16 L8DO_DA17 L8DO_DA18 L8DO_DA19 L8DO_DA20 L8DO_DA21 L8DO_DB16 L8DO_DB17 L8DO_DB18 L8DO_DB19 L8DO_DB20 L8DO_DB21 L8DO_DC16 L8DO_DC17 L8DO_DC18 L8DO_DC19 L8DO_DC20 L8DO_DC21 IC9300 K22 DOUTDB06 R9826 EXB38V470JV IC9300 J3 RI8 IC9300 R3 DCK IC9300 F3 TEST4 IC9300 R20 DOUTDC14 IC9300 K1 GI4 IC9300 L5 GI5 C3ABQJ000031 IC9302 1 DQ3 2 VDDQ 3 DQ4 4 DQ5 5 VSSQ 6 DQ6 7 DQ7 8 VDDQ 9 DQ16 10 DQ17 11 VSSQ 12 DQ18 13 DQ19 14 VDDQ 15 VDD 16 VSS 17 DQ20 18 DQ21 19 VSSQ 20 DQ22 21 DQ23 22 VDDQ 23 DM0 24 DM2 25 WE 26 CAS 27 RAS 28 CS 29 BA0 30 BA1 31 A0 32 A1 33 A2 34 A3 35 VDD 36 A10 37 A11 38 N.C 39 N.C 40 N.C 41 N.C 42 N.C 43 N.C 44 N.C 45 A9 46 VSS 47 A4 48 A5 49 A6 50 A7 51 A8/AP 52 MCL 53 CKE 54 CK 55 CK 56 DM1 57 DM3 58 VREF 59 VDDQ 60 DQ8 61 DQ9 62 VSSQ 63 DQ10 64 DQ11 65 VDD 66 VSS 67 VDDQ 68 DQ12 69 DQ13 70 VSSQ 71 DQ14 72 DQ15 73 VDDQ 74 DQ24 75 DQ25 76 VSSQ 77 DQ26 78 DQ27 79 VDDQ 80 DQ28 81 DQ29 82 VSSQ 83 DQ30 84 DQ31 85 VSS 86 VDDQ 87 N.C 88 N.C 89 N.C 90 N.C 91 N.C 92 VSSQ 93 RFU 94 DQS 95 VDDQ 96 VDD 97 DQ0 98 DQ1 99 VSSQ 100 DQ2 IC9300 G3 RI0 IC9300 C2 TIOCTL0 D9901 MA3X152K0L R9912 EXB2HV101JV R9919 EXB2HV101JV IC9300 K21 DOUTDA06 IC9300 K3 GI2 IC9300 B23 DRDLY1 IC9300 U20 DOUTDA17 IC9300 L21 DOUTDC08 IC9300 E23 DOUTDB00 R9913 22 R9916 22 R9341 1k IC9300 U23 DOUTDA15 IC9300 F1 TEST6 IC9300 G23 DOUTDC03 IC9300 W22 DOUTDA18 IC9300 Y2 PLLON R9918 EXB2HV101JV IC9300 T21 DOUTDB15 TP9300 IC9300 J21 DOUTDC05 3.3V_L8 R9325 0 IC9300 L20 DOUTDB08 R9318 0 3.3V R9314 0 IC9300 C4 SCANMODE R9316 0 C9345 16V 0.1u R9305 10k C9343 16V 0.1u IC9300 M21 DOUTDA09 IC9300 D21 DRVCLKD5 IC9300 AA22 DOUTDB21 C9353 16V 0.1u C9900 50V 0.01u 3.3V_L8 IC9300 U5 TILD IC9300 N20 DOUTDB11 R9827 47 IC9300 V20 DOUTDC19 R9909 EXB38V470JV IC9300 W3 TCPOUT C9352 16V 0.1u R9911 22 R9308 1k IC9300 E3 SCANEN R9903 4.7k TP9301 IC9300 L4 GI6 C9344 16V 0.1u IC9300 T5 SDA IC9300 F5 TCKSEL2 3.3V_L8 IC9300 W4 WDLLON IC9300 E22 DOUTDC00 C9341 16V 0.1u IC9300 N1 BI8 R9907 22 IC9300 P22 DOUTDC12 IC9300 R4 MONOUT R9914 EXB38V470JV IC9300 M4 BI1 IC9300 F22 DOUTDB01 IC9300 V5 TDI IC9300 T1 TIIC IC9300 D23 DRVCLKD1 IC9300 N21 DOUTDC11 IC9300 D3 TIOCTL1 IC9300 L3 GI7 R9906 EXB2HV101JV IC9300 H20 DOUTDC04 Q9900 B1ABCF000138 2.5V_L8 IC9300 J22 DOUTDA04 IC9300 H23 DOUTDB04 R9326 0 C9356 16V 0.1u IC9300 T22 DOUTDC15 IC9300 W1 PCK IC9300 G5 TEST2 C9346 16V 0.1u IC9300 R23 DOUTDC13 IC9300 N2 BI7 IC9300 W23 DOUTDC18 C9355 16V 0.1u IC9300 H2 RI5 IC9300 N4 BI5 IC9300 AB23 DOUTDA21 IC9300 T20 DOUTDB16 IC9300 N22 DOUTDA10 R9902 100k IC9300 K2 GI3 R9329 10k 3.3V IC9300 J4 RI7 IC9300 Y23 DOUTDA19 IC9300 V21 DOUTDB18 R9309 4.7k R9327 0 IC9300 P21 DOUTDB12 IC9300 J20 DOUTDB05 IC9300 E4 TCKSEL1 IC9300 U2 TRST IC9300 G2 RI1 IC9300 F2 TEST5 D9900 MA3X152K0L IC9300 M1 BI4 3.3V R9331 0 IC9300 T4 SCL IC9300 F4 TEST0 IC9300 M5 BI0 C9354 16V 0.1u IC9300 C1 TCKSEL0 IC9300 U22 DOUTDC16 IC9300 R1 HDI IC9300 M3 BI2 C9351 16V 0.1u R9342 1k IC9300 U1 TCK R9830 EXB2HV470JV IC9300 M2 BI3 C9347 16V 0.1u IC9300 J23 DOUTDA05 IC9300 D1 MINTEST IC9300 Y22 DOUTDC20 IC9300 J2 RI9 R9315 0 IC9300 P1 C78ENAI IC9300 W2 ANARST C9349 16V 0.1u R9332 0 IC9300 N23 DOUTDB10 IC9300 E2 TEST1 IC9300 V2 XRST IC9300 P20 DOUTDA12 IC9300 U21 DOUTDA16 IC9300 K4 GI1 IC9300 P3 MUTE C9357 16V 0.1u IC9300 N3 BI6 IC9300 W20 DOUTDB20 IC9300 W21 DOUTDB19 IC9300 U3 FULL0 IC9300 F23 DOUTDA01 R9922 EXB2HV101JV IC9300 R21 DOUTDA13 IC9300 F21 DOUTDA00 IC9300 H1 RI6 IC9300 L23 DOUTDB07 IC9300 M23 DOUTDC09 IC9300 E21 DRVCLKD0 IC9300 V4 TDO R9323 1k R9900 4.7k IC9300 G1 RI2 R9905 100k R9915 22 IC9300 G21 DOUTDB02 R9324 0 IC9300 J1 GI0 Q9901 B1ABCF000138 IC9300 G22 DOUTDC02 IC9300 E20 DRVCLKD2 IC9300 G20 DOUTDA02 R9901 10k IC9300 L19 DOUTDA08 IC9300 AA23 DOUTDA20 IC9300 V22 DOUTDB17 R9330 0 IC9300 P4 BI9 IC9300 T3 ID0 IC9300 K20 DOUTDC07 IC9300 R22 DOUTDB13 IC9300 C23 DRVCLKD4 IC9300 Y21 DOUTDC21 R9313 0 IC9300 T2 ID1 IC9300 M22 DOUTDB09 R9904 10k C9348 16V 0.1u IC9300 L22 DOUTDA07 R9908 EXB38V101JV IC9300 P2 ENHMASK IC9300 H4 RI3 C9350 16V 0.1u R9319 0 IC9300 U4 IICLPFON R9333 0 IC9300 F20 DOUTDC01 IC9300 H22 DOUTDB03 3.3V IC9300 T23 DOUTDB14 IC9300 K23 DOUTDC06 IC9300 P23 DOUTDA11 C9901 50V 0.01u IC9300 L2 GI8 IC9300 D22 DRVCLKD3 IC9300 R19 DOUTDA14 IC9300 V3 TMS IC9300 M20 DOUTDC10 IC9300 R2 VDI IC9300 E1 TEST3 IC9300 V23 DOUTDC17 IC9300 H21 DOUTDA03 R9917 EXB2HV101JV IC9300 D2 OCK R9910 22 R9328 0 IC9300 H3 RI4 IC9300 L1 GI9 IC9300 AB1 EXTDLLON IC9300 G4 TIDDQ R9923 10k IC9300 E5 FPCLK IC9300 A3 LATCH IC9300 D4 FPDAT1 IC9300 C3 FPDAT0 IC9300 B3 SFRST IC9300 B2 SFVRST TP9944 TP9962 TP9969 TP9973 TP9949 TP9940 TP9922 TP9923 TP9918 TP9974 TP9951 TP9985 TP9964 TP9932 TP9965 TP9907 TP9943 TP9920 TP9972 TP9009 TP9011 TP9978 TP9959 TP9956 TP9935 TP9905 TP9001 TP9987 TP9908 TP9007 TP9912 TP9916 TP9953 TP9954 TP9942 TP9930 TP9950 TP9939 TP9948 TP9975 TP9903 TP9929 TP9960 TP9937 TP9002 TP9963 TP9906 TP9005 TP9914 TP9006 TP9911 TP9010 TP9980 D34 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 TP9947 TP9917 TP9928 TP9967 TP9976 TP9008 TP9933 TP9000 TP9961 TP9931 TP9945 TP9955 TP9909 TP9979 TP9919 TP9957 TP9968 TP9958 TP9926 TP9921 TP9925 TP9910 TP9003 TP9977 TP9012 TP9938 TP9983 TP9981 TP9941 TP9936 TP9900 TP9004 TP9927 TP9952 TP9913 TP9946 TP9901 TP9971 TP9904 TP9902 TP9970 TP9934 TP9915 D33 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 TP9924 TP9966 TP9984 P5V FL9901 J0HABH000013 1 2 3 TP9982 FL9900 J0HABH000013 1 2 3 P5V R9825 47 R9920 EXB2HV470JV R9921 EXB2HV470JV LPF ON DDR-SDRAM(128M) RESET IIC 22 21 27 19 23 26 24 25 20 DDR SDRAM(128M) (3/6) TO D-BOARD 46 42 44 43 45 41 BB BA BC SUB FIELD PROCESSOR PLASMA AI RGB PROCESSOR IC9300 MN84512-A(LSI58) FORMAT CONVERTER (C55) C5-BOARD TO (C54) TO C5-BOARD GND GND DOUTDB[1] DSHL DSLL DOUTDA[0] P5V DMHL DOUTDC[10] DMLL P5V DMHR DOUTDC[13] DRV_SOS2 DOUTDB[6] DRV_SOS9 DOUTDA[1] NUEL P5V DOUTDA[15] DRV_RST DOUTDA[6] GND GND GND GND DOUTDC[9] GND GND DOUTDC[4] GND GND P5V P5V DOUTDC[6] GND GND CLRD LED PCD1 N.C DOUTDA[17] GND DOUTDA[20] ODED DOUTDB[8] DOUTDB[17] DOUTDA[21] P5V CLK[3](-) DOUTDC[17] DOUTDC[1] DOUTDA[5] CLK[2](+) UMH DOUTDB[13] GND DOUTDB[15] GND UML LED PCD2 DOUTDB[5] USH DOUTDA[19] CLRD USL DOUTDA[11] DOUTDC[11] DOUTDC[16] DOUTDB[7] UEH DOUTDB[16] GND GND DOUTDC[12] DOUTDA[10] DOUTDC[14] DOUTDB[19] DOUTDC[5] DOUTDC[8] DOUTDA[9] GND P5V CLK[1](-) 5V_DET DOUTDA[4] DOUTDA[7] DOUTDC[20] DOUTDC[15] GND DOUTDB[20] GND DOUTDB[2] DOUTDA[18] DOUTDC[7] GND DOUTDB[9] GND DOUTDA[14] DOUTDB[11] DOUTDA[3] DOUTDB[14] DOUTDC[18] CLK[0](+) DOUTDA[16] GND DOUTDA[8] DOUTDC[0] GND DOUTDB[12] DOUTDB[4] DOUTDA[13] DOUTDB[18] DOUTDB[3] DOUTDA[12] 5V_DET DOUTDC[3] GND DOUTDA[2] ODED GND DOUTDB[10] DOUTDB[0] GND GND DOUTDB[21] DOUTDC[19] GND DOUTDC[2] DRV_RST GND DOUTDC[21] P5V GND GND D-BOARD TXN/D2XQSE (6/6) TH-50PV500E/B D-Board (6 of 6) Schematic Diagram TH-50PV500E/B D-Board (6 of 6) Schematic Diagram TH-50PV500E / TH-50PV500B 122 14.49. C1, C2, C5 and C6-Board Block Diagram DRV_SOS2 5V_DET DRV_SOS9 SOS9 SOS2 5V_DET 5V VDA75V 78VR 5V 5V 78V_R 78V_L VDA75V 5V 5V VDA75V 78VR VDA75V VDA75V 78VR 78V_L 5V 5V 5V 78VR 78VR 78VR VDA75V 5V 78V_R VDA75V VDA75V C20 C22 DU20,DU21 50 V_DET DU19 ODEU,CLRU DRV_RST C24 C25 DU4,DU5 78V_R 78V_L C21 3 DU2,DU3 C23 DU0,DU1 Vda75V 5V_DET 5 6 TO C31 C54 C55 C52 10 3 P5V 78V_L 1 78V_R 5 Vda75V C51 6 C53 TO C41 C5 (Down-Center) Data drive Data drive C2 (Up-Center) TO D31 TO D34 TO D32 TO D33 TO C33 TO C43 Board(Rear View) Board Vda75V IC7603 50 CLRU CLK2 CA1 IC7104 IC7602 78V_R CLK3 P5V Board (Rear View) IC7106 BUFFER DD17 P5V P5V LEU 1 OE 3 5V_DET P5V BUFFER Data drive (Up-Left) C6 Vda75V C60 47 ODED 3 DD20,DD21 DD16,DD17 Data drive (Down-Left) 78V_R 5 CLRD 2 IC7102 CB2 5V DET DU21 DD21 48 P5V C11 DD18,DD19 CB1 C1 DU16,DU17 BUFFER DU20,DU21 C61 DD16 DD19 C10 DD18 IC7105 P5V 3 DD20 BUFFER CB3 BUFFER IC7606 CLK3 5 5 DU18,DU19 46 49 DU20 Board (Rear View) CLRD,ODED CLK11 P5V ODEU CLK21 BUFFER CLOCK CLRU,ODEU 3 1 2 4 DRV_RST BUFFER CLOCK OE DRV_RST CLK2 LED VDD2 VDD2 VDD2 4 4 P5V DU19 CLK21 CLRU CA2 DU18 CLK11 ODEU DU17 CLK22 CLRU CA3 DU16 CLK12 ODEU CLKR1 DU15 LE4 ODE-R CLR-R DU14 CA4 CA5 CLKR1 DU13 LE5 ODE-R CLR-R DU12 CA6 ODE-L CLR-L DU8 CA7 DU11 ODE-L DU9 CLR-L DU10 IC7202 BUFFER IC7201 BUFFER IC7203 BUFFER BUFFER IC7204 BUFFER IC7205 CLK3 CLK2 DU14,DU15 DD16,DD17 DD20,DD21 DD12,DD13 40 CLK3 DD14,DD15 CLRD,ODEU CLK2 41 DD18,DD19 51 26 27 DU12,DU13 DU10,DU11 DU8,DU9 LEU 25 52 55 P5V DU18 1 49 50 51 16 15 DU0,DU1 DU16,DU17 P5V LEU CLK0 CLK1 ODEU,CLRU DRV_RST SV_DET DU6,DU7 DU4,DU5 DU2,DU3 4 DD10,DD11 DRV_RST 13 11 DSHL DSLL 10 DMHL 9 DMLL 8 DMHR 5 DD8,DD9 63 LED 18 CLK1 17 DRV_RST 16 CLK0 DD0,DD1 DD4,DD5 DD2,DD3 DD6,DD7 CLRD,ODEU NUEL 12 UML 11 UML 10 9 USH 8 5 UEH USL DRV_SOS2 57 14 5V DET 13 P5V 68 65 DRV_SOS9 49 47 50 48 C50 CLKR1 DD15 VDD2 DD14 CB4 CLR-L ODE_L CLR-L LE4 CB5 DD12 DD13 ODE_L DD11 ODE_L VDD2 CB6 DD10 CLR-L CLR-L DD8 ODE_L VDD2 DD9 CB7 2 P5V P5V 3 DRV_SOS9 46 45 DRV_SOS2 38 5V DET 40 44 47 52 UEH USL,USH NUEL,DMHR UML,UMH DMLL,DMHL DSLL,DSHL CLRD,ODED DD6,DD7 DD4,DD5 DD2,DD3 DD0,DD1 IC7502 BUFFER IC7503 BUFFER BUFFER IC7501 BUFFER IC7504 BUFFER IC7505 CLK0,CLK1,LED DRV_RST 39 CLK0,CLK1 LEU DRV_RST DU6,DU7 CLRU,ODEU 34 50 49 48 47 P5V P5V P5V P5V OE 33 46 3 5 35 LED OE 4 1 P5V 12 5V_DET CLOCK CLOCK (Rear View) ODED CLRD ODED CLRD VDD2 VDD2 VDD2 CLKR2 LE3 LE2 LE1 CLKR2 CLKL1 LE6 CLKL2 CLKL1 LE7 CLKL2 VDD2 VDD2 VDD2 VDD2 LE7 CLKL2 CLKL1 CLKR2 VDD2 CLKR1 LE5 CLKR2 CLKL1 LE6 CLKL2 CLK11 LE1 CLK21 CLK11 CLK21 LE2 LE3 CLK12 CLK22 5 6 45 6 45 IC7604 BUFFER TH-50PV500E/B C1, C2, C5 and C6-Board Block Diagram TH-50PV500E/B C1, C2, C5 and C6-Board Block Diagram CLOCK TH-50PV500E / TH-50PV500B 123 14.50. C3 and C4-Board Block Diagram SOS9 SOS2 SOS2 SOS9 78V_R 5V 78V_R 5V 5V 5V DET CLR-L DD5 4 OE 53 CA11 DU6 55 ODE_L NUEL,DMHR DD2,DD3 DD2 10 ODE_L CLR-L CB11 DRV_SOS9 DU3 TO C51 BUFFER DD0 DD6,DD7 CB9 C31 18 USL,USH 5 CLR-L 5 11 C35 P5V LE8 8 1 CA10 IC7302 TO SS44 P5V Vda 75V IC7304 DD1 8 5 P5V LED,CLK0,CLK1 DRV_SOS9 78V_R(VDAR) BUFFER 5V DET TO SS35 DRV_SOS2 2 CB8 UEH IC7301 UEH IC7403 9 4 78V_R(VDAR) 3 IC7405 C43 DU4 78V_R(VDAR) BUFFER 16 CLR-L P5V DSLL,DSHL CLK0,CLK1 NUEL,DMHR Vda75V DD4,DD5 Vda75V Data drive (Down-Right) USL,USH 12 DU1 9 78V_L 4 IC7305 DSLL,DSHL ODE_L CLR-L BUFFER 54 CB10 17 Vda 75V UML,UMH BUFFER CLR-L DD3 14 7 DD0,DD1 CA9 DMLL,DMHL Board (Rear View) 78V_L(VDAL) 1 IC7402 5V DU7 78V_R(VDAR) 19 78V_L(VDAL) 9 78V_L(VDAL) 2 Data drive (Upper-Right) C4 6 TO C23 5 C33 DMLL,DMHL ODE_L 7 C3 LE11 DU5 IC7303 DD7 3 ODE_L TO C21 CLR-L 4 CLR-L TO SS42 CA8 ODE_L 78V_R Board (Rear View) 78V_L DU0 BUFFER DRV-RST DU2 TO C53 OE C41 ODE_L 6 17 3 CLRD,ODED 78V_R LEU DRV-RST DD4 ODE_L DRV_SOS2 18 DU6,DU7 UML,UMH CLRU,ODEU DD6 DU4,DU5 1 DU2,DU3 DU0,DU1 C42 C44 1 Vda 75V 2 Vda 75V 17 3 P5V 78V_L(VDAL) P5V P5V CLK21 BUFFER 12 CLK11 VDD2 VDD2 LE9 CLK11 CLK21 CLK12 CLK22 LE10 CLK22 LE11 CLK12 VDD2 VDD2 CLK21 CLK11 CLK21 CLK11 LE10 CLK22 CLK12 LE9 CLK22 LE8 CLK12 VDD2 VDD2 VDD2 VDD2 BUFFER IC7401 BUFFER BUFFER IC7404 TH-50PV500E/B C3 and C4-Board Block Diagram TH-50PV500E/B C3 and C4-Board Block Diagram CLOCK CLOCK TH-50PV500E / TH-50PV500B 124 14.51. C1-Board (1 of 2) Schematic Diagram TERM SIDE TERM SIDE CLK11 CLK21 CLK11 LE1 AB_DUA20 AB_DUB20 AB_DUC20 AB_DUB21 AB_DUC21 PCR_N LE1 AB_DUA20 AB_DUB20 AB_DUC20 AB_DUA21 AB_DUB21 AB_DUC21 PCR_N PCR_N AB_DUA21 CLK21 AB_ODEU AB_CLRU AB_CLRU AB_ODEU PCR_N LE2 AB_DUC19 AB_DUB19 AB_DUA19 AB_DUC18 AB_DUB18 AB_DUA18 LE2 AB_DUC19 AB_DUB19 AB_DUA19 AB_DUC18 AB_DUB18 AB_DUA18 AB_ODEU AB_CLRU AB_CLRU AB_ODEU VDA_75V 78V_R 78V_R C1_5V C1_5V VDA_75V R7115 2.2 L7101 J0JJC0000011 R7104 220 D7103 B0HCMM000014 R7117 220 C7107 100V 0.47u C7150 50V 100p R7101 1k C7103 100V 0.47u C7102 16V 1u L7102 J0JJC0000011 D7102 B0HCMM000014 R7116 220 CA1 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7101 16V 1u L7103 J0JJC0000011 L7104 J0JJC0000011 R7113 2.2 R7109 2.2 R7111 2.2 C7152 50V 100p R7107 220 D7101 B0HCMM000014 D7104 B0HCMM000014 CA2 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 5V VDD2 VDD2 VDD2 VDD2 GND GND GND GND A2 A6 NC A3 NC ODE GND DM NC GND GND VDD2 GND NC GND VDD1 GND FX GND GND A3 VDD2 A4 VDD2 VDD2 FS VDD1 VDD2 FDET1 FDET NC BLK NC A1 VDD1 VDD1 BLK FS ODE CLR NC CLR A2 NC FX A6 DM LEN VDD2 A5 VDD2 VDD2 A5 A4 A1 LEN GND GND GND GND VDD2 BLK GND FDET GND FX VDD2 FS VDD2 A4 VDD2 DM VDD1 A5 GND NC VDD2 VDD2 VDD2 CLR VDD2 GND A2 GND GND GND A2 A6 FS NC A1 LEN A3 NC ODE GND DM NC NC GND GND VDD1 VDD2 GND NC BLK GND A6 VDD1 VDD2 GND FX FDET1 A1 ODE VDD2 A4 GND GND VDD2 GND NC NC LEN A5 A3 CLR VDD1 B 3 4 A 7 1 2 6 D 5 C E 8 C1-BOARD TNPA3561 (1/2) TO PANEL DATA DRIVER TO PANEL DATA DRIVER 5 6 4 2 3 1 TH-50PV500E/B C1-Board (1 of 2) Schematic Diagram TH-50PV500E/B C1-Board (1 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 125 14.52. C1-Board (2 of 2) Schematic Diagram TERM SIDE SIDE TERM AA_DUB21 AA_DUC19 AA_DUC21 AA_DUC20 AA_DUA21 AA_DUB19 AA_DUA19 AA_DUC18 AA_DUB18 AA_DUA18 LER AB_DUA16 AB_DUB16 AB_DUC16 AB_DUA17 AB_DUB17 AB_DUC17 AB_DUA16 AB_DUB16 AB_DUC16 AB_DUA17 AB_DUB17 AB_DUC17 AB_DUA17 AB_DUB19 AB_DUC19 AB_DUA19 AB_DUC18 AB_DUA18 AB_DUB18 AB_DUB21 AB_DUC21 AB_DUA21 AB_DUC20 AB_DUB20 LE3 LE2 LE1 AB_ODEU AB_CLRU AB_ODEU AB_CLRU CLKR NCLKR PCR LER AA_DUA16 AA_DUB16 AA_DUC16 AA_DUA17 AA_DUB17 AA_DUC17 AA_DUA20 AA_DUB20 AA_DUC20 AA_DUA21 AA_DUB21 AA_DUC21 PCR_N AA_ODEU AB_CLRU AB_ODEU AA_DUB16 AA_DUA16 CLK21 CLK22 CLK12 CLK11 NCLKR AA_DUB17 AA_DUC17 AA_DUC16 AA_DUA17 AA_DUA20 AA_DUB20 CLKR AA_CLRU AA_ODEU AA_DUA18 AA_DUB18 AA_DUC18 AA_DUA19 AA_DUB19 AA_DUC19 AB_DUC17 AB_DUB17 AB_DUC16 AB_DUA16 AB_DUB16 AA_CLRU AB_DUA21 PCR PCR_N CLK22 LE3 CLK12 PCR_N LE3 C1_5_3V_B C1_5_3V_B 78V_R C1_5_3V C1_5V VDA_75V C1_5_3V C1_5V C1_5_3V C1_5_3V C1_5V 78V_R VDA_75V R7160 EXB38V470JV R7139 47 R7186 22k R7134 0 R7162 EXB38V470JV L7106 J0JJC0000011 R7127 2.2 R7141 EXB38V102JV R7184 0 R7123 100 ZA7103 K4CD01000013 R7135 0 R7163 EXB38V470JV R7144 EXB38V102JV R7164 EXB38V470JV R7185 0 CA3 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7145 EXB38V102JV C10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 C0JBAZ001120 IC7105 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7138 47 R7102 10k R7136 0 R7171 0 C7104 100V 0.47u C7111 50V 100p C0JBAZ001120 IC7106 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc L7105 J0JJC0000011 C11 1 2 3 4 5 6 ZA7105 K4CD01000013 C0JBAZ001120 IC7104 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7159 EXB38V470JV ZA7102 K4CD01000013 R7137 0 C0JBAZ001120 IC7102 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C7136 16V 0.1u ZA7104 K4CD01000013 R7146 EXB38V102JV R7133 100 C7138 16V 0.1u R7131 2.2 R7161 EXB38V470JV C7137 16V 0.1u R7143 EXB38V102JV D7108 B0HCMM000014 D7107 B0HCMM000014 ZA7101 K4CD01000013 C7125 16V 1u C7139 16V 1u R7142 EXB38V102JV R7140 47 R7187 100k C7130 16V 0.1u Vda 75V NC 78V_R 5V GND NC NC VDD2 BLK GND FDET GND FX VDD2 FS VDD2 A4 VDD2 DM VDD1 A5 GND NC VDD2 VDD2 VDD2 CLR VDD2 GND A2 GND GND GND A2 A6 FS NC A1 LEN A3 NC ODE GND DM NC NC GND GND VDD1 VDD2 GND NC BLK GND A6 VDD1 VDD2 GND FX FDET1 A1 ODE VDD2 A4 GND GND VDD2 GND NC NC LEN A5 A3 CLR VDD1 P5V ODEU P5V P5V GND GND GND DOUTDC[15] DRV_RST CLK[2](+) DOUTDB[15] DOUTDA[14] CLRU 5V_DET PCU2 GND DOUTDA[15] GND P5V CLK[3](-) GND DOUTDC[14] DOUTDB[14] LEU DOUTDC[16] DOUTDB[16] DOUTDA[17] GND DOUTDC[17] DOUTDB[17] DOUTDA[16] DOUTDB[20] DOUTDC[20] DOUTDC[18] DOUTDB[18] DOUTDA[19] GND DOUTDC[19] DOUTDA[21] GND DOUTDC[21] DOUTDB[21] DOUTDA[20] DOUTDB[19] DOUTDA[18] 10 13 12 8 15 11 14 9 C2-BOARD TO (C20) C2-BOARD TO (C22) BUFFER BUFFER BUFFER BUFFER C1-BOARD TNPA3561 (2/2) TO PANEL DATA DRIVER 1 4 3 6 2 5 0 0 75.0 78.0 0 0 TH-50PV500E/B C1-Board (2 of 2) Schematic Diagram TH-50PV500E/B C1-Board (2 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 126 14.53. C2-Board (1 of 2) Schematic Diagram TERM SIDE TERM SIDE SIDE TERM G G TERM SIDE AA_DUC13 AA_DUB13 AA_DUA13 AA_DUC12 AA_DUB12 AA_DUA12 LER LER NCLKR CLKR LE5 AB_DUA12 AB_DUB12 AB_DUC12 AB_DUA13 AB_DUB13 AB_DUC13 PCR_N LE5 AB_DUA12 AB_DUB12 AB_DUC12 AB_DUA13 AB_DUB13 AB_DUC13 PCR_N CLKR1 CLKR2 CLKL2 CLKR1 AB_DUA12 AB_DUB13 AB_DUC13 AB_DUA13 AB_DUC12 AB_DUB12 PCL_N PCR_N AB_DUB15 PCR_N AB_DUA15 AB_DUC15 AB_DUC14 AB_DUB15 AB_DUB14 AB_DUA15 AB_DUA14 LE4 AB_DUC14 AB_DUB14 AB_DUA14 CLKR1 CLKR2 AB_ODE_R AB_CLR_R AB_CLR_R AB_ODE_R AA_DUC17 AA_DUB18 AA_DUB21 AA_DUA20 AA_DUB16 AA_DUB20 AA_DUA19 AA_DUA17 AA_DUA21 AA_DUA16 AA_DUC18 AA_DUC19 AA_DUB17 AA_DUC21 AA_DUC16 AA_DUB19 AA_DUC20 AA_DUA18 PCR AA_DUC12 AA_DUC9 AA_DUB12 AA_DUC15 AA_DUA12 AA_DUB11 AA_DUA11 AA_DUB15 AA_DUB10 AA_DUC14 AA_DUA10 AA_DUA9 AA_DUB14 AA_DUC10 AA_DUA15 AA_DUB9 AA_DUB8 AA_DUA14 AA_DUA8 AA_DUB13 AA_DUA13 AA_DUC8 AA_DUA20 AA_DUB20 AA_DUC21 AA_DUC20 AA_DUA21 AA_DUC19 AA_DUB19 AA_DUA19 CLKCEN AA_DUB14 AA_DUC14 AA_DUA15 AA_DUB15 AB_DUC14 AA_DUC15 AB_DUA15 AB_DUC15 AB_DUB14 AB_DUA14 AB_DUB15 AA_DUB21 AA_DUA14 AA_DUC13 AA_DUC11 LE4 AB_CLR_R AB_CLR_R AB_ODE_R AB_ODE_R AB_DUC15 LE5 CLKR2 LE4 CLKL1 CLKCEN NCLKCEN CLKR NCLKCEN NCLKR LER AB_ODE_R PCR_N PCR AA_ODE_R AA_CLR_R AA_CLR_R AA_ODE_R AA_CLR_R AA_ODE_R AB_CLR_R PCL PCR 78V_R C2_5V C2_5_3V_B VDA_75V C2_5V 78V_R C2_5_3V VDA_75V C2_5V C2_5_3V C2_5V 78V_R VDA_75V R7255 EXB38V102JV R7206 2.2 R7280 0 L7203 J0JJC0000011 D7201 B0HCMM000014 R7253 EXB38V102JV C7232 100V 0.47u L7204 J0JJC0000011 C0JBAZ001120 IC7202 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C24 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 L7201 J0JJC0000011 C7238 50V 100p C7233 100V 0.47u CA5 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ001120 IC7201 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 R7291 EXB38V470JV R7288 0 R7252 EXB38V102JV D7202 B0HCMM000014 C7274 16V 0.1u C7201 16V 1u R7282 47 J0HABH000013 FL7201 1 2 3 R7289 0 C7204 16V 1u CA4 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7290 EXB38V470JV R7277 0 C7250 50V 100p R7211 100 D7207 B0HCMM000014 C7203 16V 1u R7236 0 R7294 EXB38V470JV R7235 100 R7237 0 R7205 2.2 R7208 100 R7273 0 D7208 B0HCMM000014 R7210 100 R7275 0 C7216 16V 0.1u R7281 0 R7271 10k R7270 10k R7274 0 R7254 EXB38V102JV R7272 0 C7208 16V 0.1u R7283 47 R7295 EXB38V470JV C0JBAZ001120 IC7203 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc L7202 J0JJC0000011 C22 1 2 3 4 5 6 R7227 2.2 R7230 2.2 R7276 0 DRST 5V A5 GND VDD2 NC VDD2 GND VDD2 GND LEN VDD1 GND VDD2 FX VDD2 LEN GND FS GND VDD2 GND A4 GND GND GND GND VDD1 VDD1 A6 A1 NC VDD2 FDET FDET1 ODE A2 NC NC VDD2 GND CLR NC VDD1 VDD2 VDD2 A5 A3 DM GND A2 VDD2 CLR NC A3 GND NC VDD2 BLK A1 A4 FX GND GND A6 DM NC FS BLK ODE VDD2 GND FX FDET1 GND A1 A2 GND ODE VDD2 A4 A1 LEN VDD2 GND A3 BLK NC NC LEN A5 A3 VDD1 A5 GND FDET GND NC VDD2 VDD2 NC ODE A6 GND FS NC GND DM FX NC VDD2 NC FS VDD2 DM GND GND VDD2 VDD2 GND A4 GND VDD1 VDD2 GND 5V NC CLR VDD1 VDD2 BLK GND CLR GND GND VDD2 A6 A2 VDD1 DOUTDC[15] DRV_RST CLK[2](+) DOUTDB[15] DOUTDA[14] CLRU 5V_DET PCU2 GND DOUTDC[21] DOUTDB[21] DOUTDA[20] GND DOUTDA[15] GND P5V DOUTDB[19] DOUTDA[18] P5V GND DOUTDC[17] DOUTDB[17] DOUTDA[16] DOUTDB[20] DOUTDC[20] ODEU DOUTDC[18] P5V DOUTDB[18] P5V DOUTDA[19] GND DOUTDC[19] DOUTDA[21] CLK[3](-) GND DOUTDC[14] DOUTDB[14] LEU DOUTDC[16] DOUTDB[16] DOUTDA[17] GND GND GND NC Vda 75V 78V_R GND NC NC DOUTUC[9] DOUTUC[20] DOUTUB[13] GND DOUTUC[12] DOUTUA[14] DOUTUC[19] DOUTUA[9] DOUTUB[21] DOUTUA[12] DOUTUC[11] 5V_DET DOUTUC[13] GND GND P5V DOUTUC[21] PCU2 DOUTUA[19] DOUTUA[8] DOUTUB[14] P5V GND P5V DOUTUB[11] DOUTUC[8] DOUTUB[9] P5V DOUTUA[11] GND CLK[2](+) DOUTUC[10] ODEU LEU DOUTUA[20] DRV_RST GND DOUTUB[20] CLRU GND DOUTUA[21] DOUTUB[15] DOUTUA[10] DOUTUA[15] DOUTUB[10] GND DOUTUA[13] CLK[3](-) GND GND DOUTUC[14] DOUTUB[12] DOUTUC[15] DOUTUB[19] DOUTUB[8] 1 2 B 3 D A 5 8 7 F 4 C 9 E 6 C2-BOARD TNPA3562 (1/2) D-BOARD TO (D31) C1-BOARD TO (C10) C1-BOARD TO (C11) BUFFER BUFFER TO PANEL DATA DRIVER TO DRIVER PANEL DATA 4 2 3 1 BUFFER 75.0 78.0 0 0 0 0 TH-50PV500E/B C2-Board (1 of 2) Schematic Diagram TH-50PV500E/B C2-Board (1 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 127 14.54. C2-Board (2 of 2) Schematic Diagram TERM SIDE SIDE TERM G G TERM SIDE TERM SIDE AA_DUC11 AA_DUB11 AA_DUA11 AA_DUC10 AA_DUB10 AA_DUA10 AA_DUC9 AA_DUB9 AA_DUA9 AA_DUC8 AA_DUB8 AA_DUA8 PCL LEL LE7 AB_DUA8 AB_DUB9 AB_DUC8 AB_DUA9 AB_DUB9 AB_DUC9 PCL_N AB_DUB9 AB_DUA9 AB_DUC9 AB_DUB8 AB_DUA8 LE7 AB_DUC9 PCL_N AB_DUB10 AB_DUC10 AB_DUB11 AB_DUC11 AB_DUA10 AB_DUA11 LE6 AB_DUA10 AB_DUB10 AB_DUC10 AB_DUC11 CLKL1 AB_DUB11 AB_DUC11 AB_DUA11 AB_DUC10 AB_DUA10 AB_DUB10 AB_DUA8 AB_DUB8 AB_DUC8 AB_DUA9 AB_DUB9 AB_DUC9 AA_DUA6 AA_ODE_L AA_DUB7 AA_DUC6 AA_DUC7 AA_DUB6 AA_DUA7 CLKL AA_DUB5 AA_DUC5 AA_DUA4 AA_DUA5 AA_DUC4 AA_DUB4 AA_DUB3 AA_DUC3 AA_DUA2 AA_DUA3 AA_DUC2 AA_DUB2 AA_DUB1 AA_DUC1 AA_DUA0 AA_DUA1 AA_DUC0 AA_DUB0 NCLKL AA_CLR_L LE6 AB_DUA11 AB_DUB11 CLKL2 CLKL2 CLKL1 AA_DUC7 AA_DUC1 AA_DUA7 AA_DUC2 CLKL AA_DUA2 AA_DUB2 AA_DUB7 NCLKL AA_DUA3 AA_DUB3 AA_DUA4 AA_DUB4 PCL AA_DUC4 AA_DUC0 AA_DUA5 AA_DUB5 AA_DUA0 AA_DUA6 AA_DUB0 AA_DUB1 AA_CLR_L AA_DUB6 AA_DUA1 AA_DUC6 AA_DUC18 AA_DUB18 AA_DUC17 AA_DUB17 AA_DUA18 AA_DUA17 AA_DUA16 AA_DUB16 AA_DUC16 AB_ODE_L AB_CLR_L AB_ODE_L AB_CLR_L AB_ODE_L AB_CLR_L AB_ODE_L AB_CLR_L LEL PCL_N LEL LE7 LE6 AA_ODE_L AA_CLR_L AB_CLR_L AB_ODE_L PCL_N AA_DUC3 AA_DUC5 AA_ODE_L 78V_R C2_5V VDA_75V 78V_L 78V_R C2_5_3V 78V_R VDA_75V VDA_75V C2_5V C2_5_3V C2_5_3V C2_5_3V_B C2_5V C2_5V C2_5V C25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 C7231 16V 0.1u C7235 100V 0.47u R7262 2.2 D7206 B0HCMM000014 C7224 16V 1u R7238 100 C21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 C23 1 2 3 4 5 6 C7240 50V 100p C7225 16V 0.1u R7296 EXB38V470JV R7215 0 J0HABH000013 FL7202 1 2 3 R7251 100 R7266 2.2 C7221 50V 100p R7267 100 ZA7203 K4CD01000013 R7260 EXB38V102JV D7204 B0HCMM000014 R7256 100 R7225 0 ZA7201 K4CD01000013 C0JBAZ001120 IC7204 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc ZA7205 K4CD01000013 C0JBAZ001120 IC7205 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc L7208 J0JJC0000011 L7205 J0JJC0000011 C7234 100V 0.47u R7297 EXB38V470JV D7209 B0HDSM000005 L7207 J0JJC0000011 ZA7202 K4CD01000013 R7258 EXB38V102JV L7206 J0JJC0000011 ZA7204 K4CD01000013 R7263 0 C7212 16V 1u R7299 EXB38V470JV D7205 B0HCMM000014 R7268 0 D7203 B0HCMM000014 CA7 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7298 EXB38V470JV R7257 EXB38V102JV R7259 EXB38V102JV R7250 2.2 R7244 2.2 5V 5V VDD2 FX GND CLR GND VDD1 A5 CLR DM NC A4 FS GND VDD2 BLK VDD2 A2 NC A3 VDD2 GND A1 A4 VDD2 VDD2 VDD2 GND GND GND NC FX VDD2 VDD2 GND NC DM GND GND GND VDD1 A1 A3 VDD2 A6 GND FX ODE GND FS VDD2 VDD2 BLK VDD2 NC NC LEN GND NC A5 GND A6 DM FS GND VDD1 GND GND GND VDD1 VDD1 A2 GND A2 GND FDET1 DM NC VDD2 GND FDET1 A1 A1 A3 FDET BLK ODE GND NC LEN GND NC VDD2 VDD1 VDD2 VDD2 FDET NC GND VDD2 NC BLK GND VDD2 A6 GND NC NC VDD2 A4 A5 VDD2 GND GND GND LEN NC FS LEN ODE GND CLR A2 VDD1 ODE A4 VDD1 A5 VDD2 FX VDD2 VDD2 GND A6 NC A3 NC Vda 75V 78V_R GND NC 78V_L DOUTDC[6] DRV_RST CLK[0](+) DOUTDB[6] DOUTDA[7] CLRU 5V_DET PCU1 GND GND DOUTDA[6] GND P5V P5V GND ODEU P5V P5V GND CLK[1](-) DOUTDC[7] DOUTDB[7] LEU GND GND GND DOUTDA[4] DOUTDB[4] DOUTDA[5] DOUTDC[4] DOUTDB[5] DOUTDC[5] DOUTDB[2] DOUTDC[3] DOUTDB[3] DOUTDC[2] DOUTDA[2] GND DOUTDA[3] DOUTDB[0] DOUTDC[1] DOUTDB[1] DOUTDC[0] DOUTDA[0] GND DOUTDA[1] GND GND DOUTUA[6] DOUTUA[18] DOUTUC[1] P5V DOUTUC[6] DOUTUC[0] DOUTUB[17] DOUTUC[16] DOUTUA[5] GND DOUTUB[6] DOUTUB[7] DOUTUC[18] DOUTUB[3] DOUTUA[0] DOUTUC[7] GND CLK[0](+) DOUTUB[5] ODEU GND DOUTUA[16] DOUTUB[4] DOUTUC[17] DOUTUB[18] DOUTUC[5] CLK[1](-) DOUTUC[4] LEU DOUTUB[16] DOUTUC[3] P5V DOUTUA[2] DOUTUA[3] DOUTUA[4] P5V DOUTUA[17] DOUTUB[0] GND CLRU P5V GND GND DOUTUB[2] DOUTUA[1] GND DOUTUA[7] PCU1 GND DOUTUC[2] 5V_DET DOUTUB[1] DRV_RST CLR 15 14 10 16 12 17 13 11 18 C2-BOARD TNPA3562 (2/2) D-BOARD TO (D32) C3-BOARD TO (C33) C3-BOARD (C31) TO BUFFER BUFFER TO PANEL DATA DRIVER DRIVER PANEL DATA TO 3 2 4 1 78.0 0 0 75.0 0 78.0 TH-50PV500E/B C2-Board (2 of 2) Schematic Diagram TH-50PV500E/B C2-Board (2 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 128 14.55. C3-Board (1 of 2) Schematic Diagram TERM SIDE SIDE TERM TERM SIDE AA_DUA2 AA_DUB3 AA_DUC2 AA_DUC5 AA_DUB5 AA_DUA5 AA_DUC4 AA_DUA4 AA_DUB4 AA_DUC3 AA_DUA3 AA_DUB2 AA_DUC1 AA_DUB1 AA_DUA1 AA_DUC0 AA_DUB0 LE8 AB_DUB6 AB_DUC6 CLK11 CLK21 CLK11 CLK21 AB_DUB7 AB_DUC7 AB_DUA7 AB_DUB5 AB_DUC5 AB_DUA5 AB_DUC4 AB_DUA4 AB_DUB4 AB_DUB2 AB_DUB3 AB_DUC3 AB_DUA3 AB_DUC2 AB_DUA2 AB_DUB1 AB_DUA0 AB_DUB0 AB_DUC1 AB_DUA1 AB_DUC0 PCL_N AA_DUB0 AA_DUC0 AA_DUA1 AA_DUA0 AA_DUB2 AA_DUC2 AA_DUA3 AA_DUA2 AA_DUC3 AA_DUB3 AA_DUB4 AA_DUA7 AA_DUC4 AA_DUB6 AA_DUA5 AA_DUC7 AA_DUA4 AA_DUC6 AA_DUB7 AA_DUB5 AA_DUA6 AA_DUC5 AA_DUA0 AA_DUC1 AA_DUB1 LEL AB_ODE_L AB_CLR_L AB_CLR_L AB_ODE_L AB_ODE_L AB_CLR_L AA_CLR_L AB_CLR_L AB_ODE_L AA_DUC6 AA_DUA7 AA_DUB7 AA_DUC7 AA_ODE_L AA_DUA6 AA_DUB6 CLKL NCLKL NCLKL AA_ODE_L AA_CLR_L PCL PCL_N PCL_N AB_DUC7 AB_DUA6 AB_DUA7 AB_DUB7 AB_DUC7 AB_DUB7 AB_DUA7 AB_DUC6 AB_DUB6 AB_DUA6 LE8 PCL_N PCL_N AB_DUA4 AB_DUB4 AB_DUC4 AB_DUA5 AB_DUB5 AB_DUC5 AB_DUC5 AB_DUB5 AB_DUA5 AB_DUC4 AB_DUB4 AB_DUA4 LE9 CLK11 CLK21 CLK12 LE11 LE10 LE9 LE8 CLK22 CLKL NCLKL AB_DUC6 AB_DUB6 AB_DUA6 LE9 AB_CLR_L AB_ODE_L C3_5_3V_B C3_5V C3_5_3V C3_5_3V C3_5_3V_B VDA_75V C3_5V 78V_L 78V_R C3_5_3V C3_5_3V 78V_L 78V_R C3_5V C3_5V C3_5_3V 78V_L 78V_L VDA_75V VDA_75V VDA_75V C7316 16V 1u L7301 J0JJC0000011 R7386 100k D7303 B0HCMM000014 C7301 16V 1u R7310 EXB38V470JV ZA7302 K4CD01000013 R7365 2.2 CA8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7398 EXB38V102JV C7360 100V 0.47u L7302 J0JJC0000011 R7393 EXB38V102JV R7338 0 R7397 EXB38V102JV R7392 EXB38V102JV R7347 0 R7360 2.2 R7303 EXB38V470JV R7346 47 C0JBAZ001120 IC7303 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7305 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7394 EXB38V102JV C7359 100V 0.47u C0JBAZ001120 IC7301 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C7315 16V 1u R7305 EXB38V470JV R7387 22k R7366 100 R7337 0 ZA7303 K4CD01000013 R7306 EXB38V470JV D7301 B0HCMM000014 R7399 EXB38V102JV R7304 EXB38V470JV D7304 B0HCMM000014 C7326 50V 100p R7343 10k C31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 R7345 47 R7308 EXB38V470JV R7361 2.2 R7396 EXB38V102JV C7311 16V 0.1u D7302 B0HCMM000014 L7304 J0JJC0000011 C7309 16V 0.1u R7340 0 R7364 2.2 C35 1 2 3 4 5 6 7 8 9 10 R7339 0 R7354 100 R7355 100 R7367 100 C7304 16V 0.1u R7301 0 C0JBAZ001120 IC7304 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7302 0 R7307 EXB38V470JV R7309 EXB38V470JV R7342 47 C7323 50V 100p R7341 47 C0JBAZ001120 IC7302 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc L7303 J0JJC0000011 ZA7305 K4CD01000013 C7312 16V 0.1u C7308 16V 0.1u C33 1 2 3 4 5 6 ZA7304 K4CD01000013 CA9 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 ZA7301 K4CD01000013 R7395 EXB38V102JV NC 78V_R Vda 75V 5V Vda 75V DRST 5V NC 78V_R A4 A6 CLR GND VDD2 A5 GND NC NC VDD2 VDD1 FS A3 GND VDD1 BLK GND NC A5 VDD2 GND VDD2 A1 GND FX FDET GND LEN VDD2 A6 A2 VDD1 VDD2 GND GND BLK FS CLR VDD1 DM GND A1 VDD2 NC ODE NC ODE FX GND VDD2 VDD2 A4 NC NC NC VDD2 FDET1 GND A3 VDD2 GND GND GND A2 GND VDD2 DM LEN A4 A6 CLR GND VDD2 A5 GND NC NC VDD2 VDD1 FS A3 GND VDD1 BLK GND NC A5 VDD2 GND VDD2 A1 GND FX FDET GND LEN VDD2 A6 A2 VDD1 VDD2 GND GND BLK FS CLR VDD1 DM GND A1 VDD2 NC ODE NC ODE FX GND VDD2 VDD2 A4 NC NC NC VDD2 FDET1 GND A3 VDD2 GND GND GND A2 GND VDD2 DM LEN GND GND GND GND DOUTDA[3] DOUTDA[4] DOUTDB[0] DOUTDB[4] DOUTDA[5] DOUTDB[2] DOUTDC[3] DOUTDB[3] DOUTDC[4] DOUTDB[5] DOUTDC[5] DOUTDC[6] DRV_RST CLK[0](+) DOUTDB[6] DOUTDA[7] P5V P5V GND DOUTDA[0] GND CLK[1](-) DOUTDA[1] DOUTDC[7] CLRU 5V_DET PCU1 GND GND DOUTDA[6] GND P5V P5V GND ODEU DOUTDC[1] DOUTDC[2] DOUTDB[1] DOUTDA[2] DOUTDC[0] DOUTDB[7] LEU GND 78V_L 78V_L NC NC Vda 75V 78V_L 78V_R GND NC B A 3 E C 4 2 8 7 1 D 5 6 SS-BOARD TO (SS35) C2-BOARD TO (C23) C2-BOARD TO (C21) TO PANEL DATA DRIVER 7 5 6 4 2 3 1 C3-BOARD TNPA3563 (1/2) BUFFER BUFFER BUFFER BUFFER BUFFER DRIVER TO PANEL DATA 78.0 75.0 0 78.0 0 0 78.0 78.0 0 0 75.0 75.0 78.0 78.0 0 0 TH-50PV500E/B C3-Board (1 of 2) Schematic Diagram TH-50PV500E/B C3-Board (1 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 129 14.56. C3-Board (2 of 2) Schematic Diagram TERM SIDE TERM SIDE AB_DUB2 AB_DUA3 AB_DUC3 LE11 AB_DUA0 AB_DUB0 AB_DUA1 AB_DUB1 AB_DUC1 AB_ODE_L AB_CLR_L AB_ODE_L AB_CLR_L AB_ODE_L AB_CLR_L AB_ODE_L AB_CLR_L CLK22 CLK12 CLK22 PCL_N AB_DUC3 AB_DUB3 AB_DUA3 AB_DUC2 AB_DUB2 AB_DUA2 LE10 LE10 PCL_N AB_DUC2 AB_DUB3 AB_DUA2 PCL_N AB_DUC1 LE11 AB_DUA0 AB_DUB0 AB_DUC0 AB_DUA1 AB_DUB1 AB_DUC0 PCL_N CLK12 VDA_75V 78V_L C3_5V 78V_L VDA_75V C3_5V L7306 J0JJC0000011 R7378 2.2 C7340 16V 1u D7306 B0HCMM000014 R7381 2.2 L7308 J0JJC0000011 R7374 220 D7308 B0HCMM000014 R7385 1k R7383 220 D7305 B0HCMM000014 CA10 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 L7307 J0JJC0000011 D7307 B0HCMM000014 C7329 50V 100p C7351 50V 100p CA11 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7361 100V 0.47u R7382 2.2 C7339 16V 1u R7373 220 C7362 100V 0.47u L7305 J0JJC0000011 R7377 2.2 R7384 220 5V A4 A6 CLR GND VDD2 A5 GND NC NC VDD2 VDD1 FS A3 GND VDD1 BLK GND NC A5 VDD2 GND VDD2 A1 GND FX FDET GND LEN VDD2 A6 A2 VDD1 VDD2 GND GND BLK FS CLR VDD1 DM GND A1 VDD2 NC ODE NC ODE FX GND VDD2 VDD2 A4 NC NC NC VDD2 FDET1 GND A3 VDD2 GND GND GND A2 GND VDD2 DM LEN A4 A6 CLR GND VDD2 A5 GND NC NC VDD2 VDD1 FS A3 GND VDD1 BLK GND NC A5 VDD2 GND VDD2 A1 GND FX FDET GND LEN VDD2 A6 A2 VDD1 VDD2 GND GND BLK FS CLR VDD1 DM GND A1 VDD2 NC ODE NC ODE FX GND VDD2 VDD2 A4 NC NC NC VDD2 FDET1 GND A3 VDD2 GND GND GND A2 GND VDD2 DM LEN 10 8 13 11 15 9 12 14 5V 7 1 4 3 6 2 5 C3-BOARD TNPA3563 (2/2) DRIVER TO PANEL DATA DRIVER TO PANEL DATA TH-50PV500E/B C3-Board (2 of 2) Schematic Diagram TH-50PV500E/B C3-Board (2 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 130 14.57. C4-Board (1 of 2) Schematic Diagram TERM SIDE TERM SIDE TERM SIDE AA_DDA1 AA_DDB1 AA_DDC1 AA_DDA0 AA_DDB0 AA_DDC0 AA_DDA5 AA_DDB5 AA_DDC5 AA_DDA4 AA_DDB4 AA_DDC4 AA_DDA7 AA_DDB7 AA_DDC7 AA_DDA6 AA_DDB6 AA_DDC6 LE9 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 LE9 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 AB_DDC6 AB_DDB6 AB_DDA6 AB_DDC7 AB_DDB7 AB_DDA7 LE8 LE8 AB_DDC6 AB_DDB6 AB_DDA6 AB_DDC7 AB_DDB7 AB_DDA7 PCL_N CLK11 LE10 AB_DDB1 PCL_N AB_DDB3 AB_DDB5 AB_DDB7 AB_DDC6 AB_DDB6 AB_DDA6 AB_DDC7 AB_DDA7 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDC2 AB_DDB2 AB_DDA2 AB_DDC3 AB_DDA3 AB_DDC0 AB_DDB0 AB_DDA0 AB_DDC1 AB_DDA1 LE11 LE9 LE8 CLK11 CLK21 DRV_SOS9 DSHL UEH DRV_SOS2 USL USH UML DMLL UMH DMHL NUEL DSLL DMHR LEL AA_CLR_L CLKL AA_ODE_L NCLKL AA_DDA7 AA_DDA4 AA_DDC4 AA_DDC5 AA_DDA5 AA_DDC6 AA_DDB0 AA_DDB4 AA_DDC0 AA_DDB5 AA_DDA3 AA_DDA0 AA_DDB3 AA_DDA1 AA_DDB1 AA_DDA2 AA_DDA6 AA_DDB2 AA_DDC3 AA_DDC2 AA_DDC1 AA_DDB7 AA_DDB6 AA_DDC7 PCL CLK12 AB_ODE_L AB_CLR_L AB_CLR_L AB_ODE_L AB_ODE_L AB_CLR_L AB_CLR_L CLK22 AB_CLR_L AB_ODE_L CLKL NCLKL CLK21 AA_DDA2 AA_DDC3 AA_DDB3 AA_DDA3 AA_DDC2 AA_DDB2 AB_ODE_L PCL_N PCL_N AB_DDA5 AA_ODE_L AA_CLR_L PCL CLK21 LEL C4_5_3V C4_5V VDA_75V C4_5V C4_5V 78V_L 78V_L C4_5_3V C4_5V 78V_L 78V_R C4_5_3V C4_5_3V VDA_75V C4_5_3V VDA_75V C4_5_3V_B C4_5V C4_5_3V_B C7406 16V 0.1u R7461 100 R7412 47 R7493 EXB38V102JV L7401 J0JJC0000011 C0JBAZ001120 IC7402 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7401 0 CB8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C41 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 D7408 B0HCMM000014 R7416 EXB38V470JV C0JBAZ001120 IC7405 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7419 EXB38V470JV D7407 B0HCMM000014 C7421 100V 0.47u R7417 EXB38V470JV C7414 16V 0.1u R7444 0 R7446 10k C0JBAZ001120 IC7404 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7407 0 D7406 B0HCMM000014 C7429 50V 100p CB9 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7496 EXB38V102JV R7420 EXB38V470JV C7413 16V 0.1u R7405 0 R7418 EXB38V470JV R7413 EXB38V470JV L7402 J0JJC0000011 R7410 47 R7499 EXB38V102JV R7495 EXB38V102JV C7428 50V 100p R7408 0 R7468 2.2 R7497 EXB38V102JV R7414 EXB38V470JV C7412 16V 0.1u C0JBAZ001120 IC7401 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7490 22k D7405 B0HCMM000014 R7464 2.2 L7403 J0JJC0000011 C7415 16V 0.1u R7460 100 R7404 0 R7409 47 C7401 16V 1u R7465 2.2 R7492 EXB38V102JV C43 1 2 3 4 5 6 R7498 EXB38V102JV C7419 16V 1u R7406 0 R7491 100k R7415 EXB38V470JV R7471 100 R7470 100 R7411 47 R7494 EXB38V102JV C7420 100V 0.47u L7404 J0JJC0000011 C0JBAZ001120 IC7403 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7469 2.2 C7418 16V 1u 5V 5V A5 VDD1 VDD1 VDD2 VDD2 GND A2 GND NC FX VDD2 A1 GND NC DM VDD2 GND FS NC NC GND NC A1 VDD2 CLR FX GND ODE A4 VDD1 VDD1 VDD2 VDD2 BLK GND LEN BLK NC A3 VDD2 GND VDD2 VDD2 A5 FDET1 GND FS GND CLR A6 GND GND A3 A6 LEN VDD2 GND GND GND DM A2 ODE VDD2 NC A4 NC GND FDET A5 VDD1 VDD1 VDD2 VDD2 GND A2 GND NC FX VDD2 A1 GND NC DM VDD2 GND FS NC NC GND NC A1 VDD2 CLR FX GND ODE A4 VDD1 VDD1 VDD2 VDD2 BLK GND LEN BLK NC A3 VDD2 GND VDD2 VDD2 A5 FDET1 GND FS GND CLR A6 GND GND A3 A6 LEN VDD2 GND GND GND DM A2 ODE VDD2 NC A4 NC GND FDET DOUTDB[4] DOUTDC[3] UMH USH GND GND DRV_RST DOUTDC[7] DOUTDB[3] GND CLK[0](+) DOUTDC[4] DOUTDA[0] GND PCD1 DOUTDB[5] GND DOUTDC[5] DOUTDC[6] DOUTDC[1] DOUTDB[1] DOUTDA[1] LED CLRD DOUTDB[7] DOUTDC[0] DOUTDA[5] P5V DOUTDC[2] GND DOUTDB[2] ODED UML DOUTDB[6] P5V DOUTDA[6] 5V_DET DOUTDA[3] DOUTDA[7] CLK[1](-) DOUTDA[2] DOUTDA[4] DOUTDB[0] P5V DRV_SOS9 DRV_SOS2 NUEL DMLL DMHL DMHR DSLL DSHL USL UEH GND NC GND Vda 75V NC 78V_L 78V_R 3 8 1 5 6 D E 4 B 2 7 C A C5-BOARD TO (C51) C5-BOARD TO (C53) TO PANEL DATA DRIVER TO PANEL DATA DRIVER BUFFER BUFFER BUFFER BUFFER BUFFER 7 5 6 4 2 3 1 8 C4-BOARD TNPA3564 (1/2) 78.0 75.0 0 78.0 0 0 TH-50PV500E/B C4-Board (1 of 2) Schematic Diagram TH-50PV500E/B C4-Board (1 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 131 14.58. C4-Board (2 of 2) Schematic Diagram TERM SIDE TERM SIDE LE11 AB_DDC0 PCL_N AB_DDA1 AB_DDB1 AB_DDC1 AB_DDA0 AB_DDB0 LE11 AB_DDB1 AB_DDC1 AB_DDC0 AB_DDA1 PCL_N LE10 AB_DDC2 AB_DDB2 AB_DDA2 AB_DDC3 AB_DDA3 PCL_N LE10 AB_DDC2 AB_DDB2 AB_DDA2 AB_DDC3 AB_DDB3 AB_DDA3 PCL_N CLK22 CLK12 UEH USL USH UML UMH DRV_SOS9 DRV_SOS2 DSHL DSLL DMHL DMLL DMHR NUEL AB_ODE_L AB_CLR_L AB_CLR_L AB_ODE_L AB_CLR_L AB_CLR_L AB_ODE_L CLK22 CLK12 AB_DDB3 AB_ODE_L AB_DDB0 AB_DDA0 78V_R 78V_L VDA_75V C4_5V VDA_75V VDA_75V 78V_L C4_5V C4_5V 78V_L C42 1 2 3 4 5 6 7 8 9 10 C7441 16V 1u C7422 100V 0.47u C7423 100V 0.47u D7412 B0HCMM000014 L7407 J0JJC0000011 C7440 16V 1u C7452 50V 100p R7478 220 R7477 220 C44 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C7453 50V 100p L7406 J0JJC0000011 D7409 B0HCMM000014 R7481 2.2 D7410 B0HCMM000014 R7486 2.2 L7408 J0JJC0000011 R7488 220 CB11 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 L7405 J0JJC0000011 R7472 1k D7411 B0HCMM000014 R7485 2.2 CB10 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7482 2.2 R7487 220 5V 5V A5 VDD1 VDD1 VDD2 VDD2 GND A2 GND NC FX VDD2 A1 GND NC DM VDD2 GND FS NC NC GND NC A1 VDD2 CLR FX GND ODE A4 VDD1 VDD1 VDD2 VDD2 BLK GND LEN BLK NC A3 VDD2 GND VDD2 VDD2 A5 FDET1 GND FS GND CLR A6 GND GND A3 A6 LEN VDD2 GND GND GND DM A2 ODE VDD2 NC A4 NC GND FDET A5 VDD1 VDD1 VDD2 VDD2 GND A2 GND NC FX VDD2 A1 GND NC DM VDD2 GND FS NC NC GND NC A1 VDD2 CLR FX GND ODE A4 VDD1 VDD1 VDD2 VDD2 BLK GND LEN BLK NC A3 VDD2 GND VDD2 VDD2 A5 FDET1 GND FS GND CLR A6 GND GND A3 A6 LEN VDD2 GND GND GND DM A2 ODE VDD2 NC A4 NC GND FDET NC NC GND NC 78V_R 78V_R Vda 75V Vda 75V 78V_L 78V_L DSHL USL UEH UMH USH GND UML DRV_SOS9 DRV_SOS2 NUEL DMLL DMHL DMHR DSLL GND GND GND NC(URH) NC(URL) 5V 10 11 15 12 14 9 8 13 SS-BOARD TO (SS42) SS-BOARD TO (SS44) TO PANEL DATA DRIVER TO PANEL DATA DRIVER 7 1 4 3 6 2 5 8 C4-BOARD TNPA3564 (2/2) 78.0 78.0 78.0 78.0 0 0 75.0 75.0 0 0 TH-50PV500E/B C4-Board (2 of 2) Schematic Diagram TH-50PV500E/B C4-Board (2 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 132 14.59. C5-Board (1 of 2) Schematic Diagram SIDE TERM TERM SIDE TERM SIDE G G TERM SIDE LER LE5 AB_DDC12 PCR_N AB_DDB12 AB_DDA12 AB_DDC13 AB_DDB13 AB_DDA13 LE5 AB_DDC12 AB_DDB12 AB_DDA12 AB_DDC13 AB_DDB13 AB_DDA13 PCR_N CLKR2 AB_DDB13 AB_DDA13 AB_DDC13 AB_DDA12 AB_DDB12 AB_DDC12 CLKL1 CLKR2 CLKR2 PCR_N LE4 CLKR1 LE4 AB_DDA15 AB_DDB15 AB_DDA15 AB_DDC15 PCR_N AB_DDA14 AB_DDB14 AB_DDC14 AB_DDB15 AB_DDC15 AB_DDA14 AB_DDB14 AB_DDC14 AB_DDB14 AB_DDC14 AB_DDA14 AB_DDC15 AB_DDA15 AB_DDB15 AA_DDA21 AA_DDB20 AA_DDC21 AA_DDC20 AA_DDA20 AA_DDB21 AA_CLR_R AA_ODE_R LER NCLKR AA_DDC18 AA_DDC19 AA_DDB18 AA_DDA18 AA_DDA16 AA_DDB16 AA_DDC17 AA_DDA17 AA_DDC16 PCR PCL_N AB_CLR_R AB_ODE_R AB_CLR_R AB_CLR_R AB_ODE_R AB_CLR_R AB_ODE_R AB_ODE_R CLKR CLKR1 LE5 LE4 AA_DDB15 AA_DDC14 AA_DDB14 AA_DDA14 AA_DDA15 AA_DDC15 AA_CLR_R LER AA_DDA12 AA_DDB12 AA_DDC12 AA_DDB13 AA_DDC13 DMHL DSLL DMLL DMHR PCR_N AA_CLR_R AA_ODE_R AB_ODE_R AB_CLR_R AA_DDC13 AA_DDA13 AA_DDB13 AA_DDA12 AA_DDC12 AA_DDB12 DSHL AA_DDA10 AA_DDB11 AA_DDC11 AA_DDC10 AA_DDB10 AA_DDA11 AA_DDA16 AA_DDB16 AA_DDA17 AA_DDB17 AA_DDC16 AA_DDC17 AA_DDB18 AA_DDA18 AA_DDB19 AA_DDC18 AA_DDC20 AA_DDA19 AA_DDC19 AA_DDB20 AA_DDB21 AA_DDA20 AA_DDA21 AA_DDC21 AA_DDA13 AA_ODE_R NCLKCEN CLKCEN CLKR NCLKR CLKL2 NCLKCEN AA_DDA14 AA_DDC15 AA_DDB15 AA_DDA15 AA_DDB14 AA_DDC14 PCR PCR PCL CLKCEN AA_DDB17 AA_DDB19 AA_DDA19 CLKR1 LE7 LE6 C5_5_3V C5_5V 78V_R C5_5V C5_5_3V_B C5_5V C5_5_3V 78V_R C5_5V VDA_75V VDA_75V R7502 0 R7522 0 C0JBAZ001120 IC7501 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C7561 100V 0.47u C50 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 C54 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 C7513 16V 0.1u C7541 50V 100p R7523 0 R7553 0 R7554 47 R7508 0 R7555 47 R7592 10k R7544 0 R7516 2.2 R7566 2.2 L7502 J0JJC0000011 R7542 0 D7508 B0HCMM000014 R7543 0 R7550 0 R7564 100 R7551 0 C7543 16V 0.1u CB5 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 D7507 B0HCMM000014 C0JBAZ001120 IC7503 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7568 2.2 R7552 0 J0HABH000013 FL7501 1 2 3 CB4 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7502 16V 1u R7558 EXB38V470JV C7519 16V 0.1u R7537 EXB38V102JV R7556 EXB38V470JV R7535 EXB38V102JV R7593 10k C0JBAZ001120 IC7502 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C7546 50V 100p R7545 0 R7534 EXB38V102JV R7557 EXB38V470JV R7536 EXB38V102JV R7569 100 R7503 100 R7514 2.2 R7559 EXB38V470JV L7501 J0JJC0000011 C7538 16V 1u C52 1 2 3 4 5 6 R7517 100 R7507 0 78V_R L7503 J0JJC0000011 VDA_75V C7562 100V 0.47u D7502 B0HCMM000014 L7504 J0JJC0000011 D7501 B0HCMM000014 5V 5V GND GND GND P5V GND DOUTDA[19] GND CLK[2](+) DRV_RST DOUTDB[19] CLRD 5V_DET PCD2 GND DOUTDA[15] DOUTDC[19] DOUTDA[17] DOUTDB[21] DOUTDC[17] DOUTDB[16] P5V GND DOUTDA[20] DOUTDB[18] DOUTDB[17] DOUTDC[18] DOUTDC[20] DOUTDC[16] LED DOUTDA[16] GND DOUTDC[14] DOUTDB[20] DOUTDA[14] DOUTDB[14] ODED DOUTDA[18] CLK[3](-) DOUTDB[15] P5V DOUTDA[21] GND DOUTDC[15] DOUTDC[21] P5V A3 A6 A6 FX VDD2 NC A5 NC VDD2 NC VDD2 VDD2 BLK VDD2 NC LEN VDD1 ODE A1 BLK CLR FS NC GND A2 GND GND GND GND DM GND A2 VDD2 DM VDD2 ODE GND FS FX A5 A4 VDD1 VDD1 NC GND GND VDD1 LEN VDD2 GND FDET1 NC GND A4 VDD2 VDD2 NC VDD2 GND GND A3 A1 CLR GND GND VDD2 FDET GND A3 A6 A6 FX VDD2 NC A5 NC VDD2 NC VDD2 VDD2 BLK VDD2 NC LEN VDD1 ODE A1 BLK CLR FS NC GND A2 GND GND GND GND DM GND A2 VDD2 DM VDD2 ODE GND FS FX A5 A4 VDD1 VDD1 NC GND GND VDD1 LEN VDD2 GND FDET1 NC GND A4 VDD2 VDD2 NC VDD2 GND GND A3 A1 CLR GND GND VDD2 FDET GND NC NC GND 78V_R Vda 75V NC GND GND DOUTDB[16] DOUTDB[18] GND GND GND DOUTDC[13] P5V DSHL DSLL GND DMHL DMLL DMHR DOUTDB[21] DOUTDC[11] DOUTDA[15] DOUTDA[12] DOUTDA[13] DOUTDA[20] DOUTDB[12] DOUTDA[11] ODED P5V DOUTDA[19] DOUTDC[19] DOUTDB[11] DOUTDB[13] CLK[2](+) DOUTDC[21] CLRD DOUTDC[12] P5V DOUTDB[15] DOUTDC[20] DOUTDC[16] DOUTDC[14] 5V_DET PCD2 DOUTDC[10] CLK[3](-) DOUTDB[17] DOUTDA[18] GND GND GND DOUTDA[17] GND LED GND GND N.C DRV_RST DOUTDA[14] DOUTDA[21] DOUTDA[16] DOUTDB[20] DOUTDA[10] DOUTDB[19] GND DOUTDC[18] DOUTDC[17] DOUTDC[15] P5V DOUTDB[10] DOUTDB[14] GND B E 9 6 8 7 3 D 4 C 1 2 F 5 A C5-BOARD TNPA3565 (1/2) C6-BOARD (C60) TO TO C6-BOARD (C61) D-BOARD (D34) TO DRIVER TO PANEL DATA DRIVER PANEL DATA TO BUFFER BUFFER BUFFER 2 3 1 8 9 7 5 6 4 78.0 75.0 0 0 0 0 TH-50PV500E/B C5-Board (1 of 2) Schematic Diagram TH-50PV500E/B C5-Board (1 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 133 14.60. C5-Board (2 of 2) Schematic Diagram TERM SIDE TERM SIDE TERM SIDE G G TERM SIDE AA_DDB9 AA_DDA8 AA_DDC8 AA_DDA10 AA_DDB11 AA_DDC10 AA_DDA11 AA_DDC11 AA_DDB10 AA_DDA9 AA_DDC9 AA_DDB8 AA_ODE_L AA_CLR_L LE6 AB_DDB10 AB_DDA10 AB_DDB11 AB_DDA11 PCL_N LE6 AB_DDC10 AB_DDA10 AB_DDC11 AB_DDB11 PCL_N AB_DDA9 AB_DDB9 AB_DDC9 AB_DDA8 AB_DDB8 AB_DDC8 LE7 LE7 AB_DDB8 AB_DDC9 AB_DDA8 PCL_N AB_DDA9 AB_DDB9 AB_DDA11 AB_DDB11 AB_DDA9 AB_DDC9 AB_DDA8 AB_DDB8 AB_DDC8 AB_DDA11 AB_DDC11 AB_DDA10 AB_DDB10 AB_DDC10 AA_DDC6 AA_DDA6 AA_DDB7 AA_DDB6 AA_DDC7 AA_DDA7 AA_DDA4 AA_DDC4 AA_DDC5 AA_DDA5 AA_DDB4 AA_DDB5 AA_DDA3 AA_DDB3 AA_DDA2 AA_DDB2 AA_DDC3 AA_DDC2 AA_DDC1 AA_DDB0 AA_DDC0 AA_DDA0 AA_DDA1 AA_DDB1 CLKL NCLKL LEL UEH USL USH UML UMH NUEL DRV_SOS9 DRV_SOS2 DMHR DMLL DMHL DSLL DSHL AA_CLR_L AA_ODE_L AB_DDC11 AB_DDB10 CLKL1 AB_DDC10 PCL AB_CLR_L AB_ODE_L AB_CLR_L AB_ODE_L AB_CLR_L AB_ODE_L AB_CLR_L AB_ODE_L CLKL2 AA_DDB4 AA_DDC0 AA_DDC6 AA_DDA4 AA_DDA0 AA_DDB3 AA_DDA3 AA_DDC3 AA_DDC2 AA_DDA1 AA_DDB1 AA_DDB2 AA_DDC1 AA_DDA2 AA_DDB0 AA_DDC5 AA_DDC7 AA_DDB5 AA_DDB7 AA_DDA5 AA_DDA7 AA_DDC4 AA_DDA6 AA_DDB6 UEH USL UML UMH NUEL DRV_SOS9 DRV_SOS2 AA_DDA9 AA_DDB8 AA_DDA8 AA_DDC8 AA_DDC9 AA_DDB9 AB_ODE_L AB_CLR_L USH LEL PCL AA_CLR_L NCLKL CLKL AA_ODE_L LEL AB_DDB9 AB_DDC8 CLKL2 PCL_N CLKL1 C5_5_3V 78V_R C5_5V VDA_75V C5_5V C5_5_3V C5_5_3V C5_5V C5_5_3V_B 78V_R C5_5V C5_5V VDA_75V 78V_R VDA_75V 78V_L R7540 EXB38V102JV R7525 2.2 R7509 0 D7509 B0HDSM000005 L7505 J0JJC0000011 R7561 EXB38V470JV R7527 2.2 C7530 16V 0.1u CB7 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7546 100 L7506 J0JJC0000011 R7563 EXB38V470JV C53 1 2 3 4 5 6 CB6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7511 16V 1u C0JBAZ001120 IC7504 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc D7506 B0HCMM000014 R7560 EXB38V470JV L7507 J0JJC0000011 C7527 16V 0.1u C7563 100V 0.47u C7522 50V 100p R7511 0 R7541 EXB38V102JV R7528 100 C7540 50V 100p R7539 EXB38V102JV R7547 100 D7503 B0HCMM000014 C7564 100V 0.47u R7562 EXB38V470JV R7504 0 C7520 50V 100p R7530 2.2 C7521 16V 1u C55 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 D7505 B0HCMM000014 J0HABH000013 FL7502 1 2 3 R7533 100 C0JBAZ001120 IC7505 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc L7508 J0JJC0000011 R7506 0 R7532 2.2 D7504 B0HCMM000014 R7538 EXB38V102JV C51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 5V 5V DOUTDB[4] DOUTDC[3] UMH USH GND GND DRV_RST DOUTDC[7] DOUTDB[3] GND CLK[0](+) DOUTDC[4] DOUTDA[0] GND PCD1 DOUTDB[5] GND DOUTDC[5] DOUTDC[6] DOUTDC[1] DOUTDB[1] DOUTDA[1] LED CLRD DOUTDB[7] DOUTDC[0] DOUTDA[5] P5V DOUTDC[2] GND DOUTDB[2] ODED UML DOUTDB[6] P5V DOUTDA[6] 5V_DET DOUTDA[3] DOUTDA[7] CLK[1](-) DOUTDA[2] DOUTDA[4] DOUTDB[0] P5V DRV_SOS9 DRV_SOS2 NUEL DMLL DMHL DMHR DSLL DSHL USL UEH GND A3 A6 A6 FX VDD2 NC A5 NC VDD2 NC VDD2 VDD2 BLK VDD2 NC LEN VDD1 ODE A1 BLK CLR FS NC GND A2 GND GND GND GND DM GND A2 VDD2 DM VDD2 ODE GND FS FX A5 A4 VDD1 VDD1 NC GND GND VDD1 LEN VDD2 GND FDET1 NC GND A4 VDD2 VDD2 NC VDD2 GND GND A3 A1 CLR GND GND VDD2 FDET GND A3 A6 A6 FX VDD2 NC A5 NC VDD2 NC VDD2 VDD2 BLK VDD2 NC LEN VDD1 ODE A1 BLK CLR FS NC GND A2 GND GND GND GND DM GND A2 VDD2 DM VDD2 ODE GND FS FX A5 A4 VDD1 VDD1 NC GND GND VDD1 LEN VDD2 GND FDET1 NC GND A4 VDD2 VDD2 NC VDD2 GND GND A3 A1 CLR GND GND VDD2 FDET GND NC GND Vda 75V NC 78V_L 78V_R GND DOUTDA[1] DOUTDA[8] DOUTDC[4] DOUTDB[8] 5V_DET DOUTDC[3] DOUTDA[0] GND DRV_SOS2 DOUTDB[5] DRV_SOS9 CLRD NUEL DOUTDA[5] PCD1 UMH ODED DOUTDA[6] UML GND LED USH USL DOUTDB[0] UEH DOUTDC[9] GND DOUTDC[0] DOUTDC[5] DOUTDC[6] DOUTDB[2] GND DRV_RST DOUTDC[1] DOUTDB[1] P5V GND DOUTDB[6] DOUTDC[2] DOUTDB[7] P5V GND GND GND GND DOUTDA[9] GND CLK[1](-) GND DOUTDA[7] GND GND GND P5V DOUTDC[7] DOUTDB[9] DOUTDB[3] DOUTDB[4] GND CLK[0](+) P5V DOUTDC[8] DOUTDA[4] DOUTDA[2] GND GND DOUTDA[3] 14 18 12 10 16 11 15 13 17 C5-BOARD TNPA3565 (2/2) TO PANEL DATA DRIVER DRIVER TO PANEL DATA TO (C43) C4-BOARD TO C4-BOARD (C41) D-BOARD (D33) TO BUFFER BUFFER 9 7 1 4 3 8 6 2 5 78.0 75.0 0 78.0 0 0 TH-50PV500E/B C5-Board (2 of 2) Schematic Diagram TH-50PV500E/B C5-Board (2 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 134 14.61. C6-Board (1 of 2) Schematic Diagram TERM SIDE TERM SIDE AB_DDA19 PCR_N LE2 AB_DDC18 AB_DDB18 AB_DDA18 AB_DDC19 AB_DDB19 AB_DDA19 LE2 AB_DDB19 AB_DDC19 AB_DDA18 AB_DDB18 AB_DDC18 LE1 AB_DDC20 AB_DDB20 AB_DDA20 AB_DDC21 AB_DDB21 AB_DDA21 LE1 AB_DDC20 AB_DDB20 AB_DDA20 AB_DDC21 AB_DDB21 AB_DDA21 PCR_N CLK21 CLK21 AB_ODED AB_CLRD AB_ODED AB_CLRD AB_ODED AB_CLRD AB_ODED AB_CLRD CLK11 PCR_N CLK11 PCR_N C6_5V 78V_R C6_5V 78V_R VDA_75V VDA_75V ZA7603 K4CD01000013 D7602 B0HCMM000014 L7601 J0JJC0000011 CB2 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7613 2.2 D7603 B0HCMM000014 L7604 J0JJC0000011 ZA7602 K4CD01000013 R7616 220 C7654 100V 0.47u ZA7601 K4CD01000013 C7602 16V 1u C7612 50V 100p D7601 B0HCMM000014 C7653 100V 0.47u ZA7605 K4CD01000013 C7601 16V 1u R7607 220 R7617 220 R7609 2.2 L7603 J0JJC0000011 ZA7604 K4CD01000013 R7605 1k R7604 220 D7604 B0HCMM000014 R7611 2.2 L7602 J0JJC0000011 C7611 50V 100p R7615 2.2 CB1 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 5V 5V GND GND A3 VDD1 VDD2 A4 GND VDD2 VDD2 FS A5 VDD1 VDD1 VDD2 FDET1 FDET A1 VDD2 NC VDD2 BLK VDD2 NC LEN VDD1 ODE BLK CLR FS NC A1 CLR GND GND GND A2 GND GND A2 A6 NC NC NC A3 FX NC ODE GND A6 DM GND GND DM GND FX A4 GND LEN GND VDD2 VDD2 GND A5 NC VDD2 GND VDD2 VDD2 GND GND A3 VDD1 VDD2 A4 GND VDD2 VDD2 FS A5 VDD1 VDD1 VDD2 FDET1 FDET A1 VDD2 NC VDD2 BLK VDD2 NC LEN VDD1 ODE BLK CLR FS NC A1 CLR GND GND GND A2 GND GND A2 A6 NC NC NC A3 FX NC ODE GND A6 DM GND GND DM GND FX A4 GND LEN GND VDD2 VDD2 GND A5 NC VDD2 GND VDD2 VDD2 C6-BOARD TNPA3566 (1/2) B 4 D 3 E C 6 7 5 1 2 A 8 1 4 3 2 5 TO PANEL DATA DRIVER TO PANEL DATA DRIVER TH-50PV500E/B C6-Board (1 of 2) Schematic Diagram TH-50PV500E/B C6-Board (1 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 135 14.62. C6-Board (2 of 2) Schematic Diagram SIDE TERM TERM SIDE AA_DDB20 AA_DDC20 AA_DDA20 AA_DDC21 AA_DDB21 AA_DDA21 AA_DDC18 AA_DDB18 AA_DDA18 AA_DDC19 AA_DDB19 AA_DDA19 LED LE3 AB_DDC16 AB_DDB16 AB_DDA16 AB_DDC17 AB_DDB17 AB_DDA17 PCR_N LE3 AB_DDC16 AB_DDB16 AB_DDA16 AB_DDC17 AB_DDB17 AB_DDA17 PCR_N CLK12 LE3 PCR_N AB_DDB20 AB_DDB18 AB_DDB16 AB_DDA17 AB_DDB17 AB_DDA16 AB_DDC17 AB_DDA19 AB_DDB19 AB_DDC18 AB_DDA18 AB_DDC19 AB_DDA21 AB_DDB21 AB_DDC20 AB_DDA20 AB_DDC21 LE2 LE1 AA_DDC18 AA_DDB18 AA_DDB19 AA_DDA18 AA_DDC19 AA_DDC17 AA_DDA19 AA_DDB17 AA_CLRD AA_DDA17 AA_DDC16 AA_DDB16 NCLKR AA_DDA16 CLKR AA_DDA20 AA_DDB20 AA_DDB21 AA_DDC20 AA_DDC21 AB_ODED AB_CLRD AB_ODED AB_CLRD AB_DDC16 AA_ODED AA_CLRD AB_CLRD AB_ODED LED CLK12 CLK11 CLK22 CLK21 CLKR NCLKR AA_DDC17 AA_DDA16 AA_DDB16 AA_DDC16 AA_DDA17 AA_DDB17 PCR AA_ODED CLK22 AA_DDA21 C6_5V C6_5V C6_5_3V_B C6_5_3V C6_5_3V C6_5_3V_B C6_5_3V C6_5V VDA_75V C6_5_3V C6_5V 78V_R VDA_75V R7650 EXB38V102JV R7649 47 R7680 0 R7640 EXB38V470JV R7632 2.2 L7606 J0JJC0000011 R7647 47 R7654 EXB38V102JV R7643 0 C7624 16V 1u R7687 100k C7637 16V 0.1u R7637 EXB38V470JV R7634 100 R7644 0 R7686 22k C60 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 R7677 0 R7652 EXB38V102JV R7651 EXB38V102JV R7655 EXB38V102JV C0JBAZ001120 IC7606 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7604 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7648 47 R7646 0 L7605 J0JJC0000011 R7645 0 R7628 2.2 C0JBAZ001120 IC7603 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7602 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7642 EXB38V470JV D7605 B0HCMM000014 C7630 16V 0.1u C7640 16V 1u C7635 16V 0.1u R7639 EXB38V470JV C61 1 2 3 4 5 6 R7641 EXB38V470JV CB3 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7624 100 C7613 50V 100p C7636 16V 0.1u C7655 100V 0.47u R7638 EXB38V470JV R7685 0 R7606 10k D7606 B0HCMM000014 R7653 EXB38V102JV 78V_R 5V P5V ODED P5V P5V GND GND GND DOUTDC[15] DRV_RST CLK[2](+) GND DOUTDA[21] DOUTDB[15] DOUTDA[18] DOUTDA[14] CLRD 5V_DET PCD2 GND DOUTDA[15] DOUTDC[21] GND P5V CLK[3](-) DOUTDC[19] DOUTDB[19] DOUTDC[14] DOUTDB[14] LED DOUTDC[16] DOUTDC[20] DOUTDC[18] DOUTDB[18] DOUTDA[19] GND GND DOUTDB[21] DOUTDB[16] DOUTDA[17] GND DOUTDA[20] DOUTDC[17] DOUTDB[17] DOUTDA[16] DOUTDB[20] GND GND A3 VDD1 VDD2 A4 GND VDD2 VDD2 FS A5 VDD1 VDD1 VDD2 FDET1 FDET A1 VDD2 NC VDD2 BLK VDD2 NC LEN VDD1 ODE BLK CLR FS NC A1 CLR GND GND GND A2 GND GND A2 A6 NC NC NC A3 FX NC ODE GND A6 DM GND GND DM GND FX A4 GND LEN GND VDD2 VDD2 GND A5 NC VDD2 GND VDD2 VDD2 NC NC GND NC Vda 75V 78V_R C6-BOARD TNPA3566 (2/2) 13 8 9 14 11 12 10 15 (C50) C5-BOARD TO (C52) C5-BOARD TO BUFFER BUFFER BUFFER BUFFER 1 4 3 2 5 78.0 75.0 0 0 0 0 TH-50PV500E/B C6-Board (2 of 2) Schematic Diagram TH-50PV500E/B C6-Board (2 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 136 14.63. SC-Board Block Diagram 5V +15V 5V +15V 5V +15V PHOTO COUPLER Q6551 3 5 4 6 9 8 11 10 1 2 13 12 FCLD FCLU FCLKD FCLKU PHOTO COUPLER 1 2 3 4 PC6607 PC6605 8 9 11 10 PHOTO COUPLER PC6604 FSIU FSID PROU PROD 12 8 14 1 12 8 12 8 Q6552 Q6559 Q6501,Q6502 Q6503,D6525 9 4 16 6 14 17 3 11 IC6502 FET DRIVER FET DRIVER IC6501 19 14 18 17 2 7 13 6 18 14 4 16 15 8 5 12 IC6651 INVERTER INVERTER IC6650 2 4 7 IC6640 Q6822, Q6823 Q6604 Q6654 7 2 4 IC6610 IC6620 2 7 4 VAD+15V Q6611~ Q6618 Q6630~ Q6635 PHOTO COUPLER PC6601 PHOTO COUPLER PC6602 IC6630 7 3 6 1 4 1 4 1 7 2 Q6668 VSCN Q6560 S2 CMH S3 CML CSL CSH 1/2 Vo A1 A3 A4 A5 B4 B5 B1 B3 A7 A6 B7 B6 A30 A8 B30 B8 B31 A31 B32 A32 B33 A33 B40 A40 B38 A34 B11 B37 A11 A38 A37 B34 A33 A36 B33 A39 B39 B36 B8 B1 A1 A8 B10 A10 B9 A9 Vf FCLD FCLKD PROD VF5V Vf VSCN Q6821,VR6801 IC6817,IC6818 Q6820 IC6815 VAD INSERT VAD VSET2 INSERT CEL VSET INSERT CPH VAD GEN,VSET2 VSCN GEN Q6814,Q6815,IC6812 VSET REG. SC20 9 11 L6501 2 4 8 11 IC6412 BUFFER IC6411 BUFFER 3 6 9 7 CSH CSL CML CBK SOS1 CEL2 CL CLK SIU SID CPH SCSU Q6411 IC6421 PC6424 PC6422 PC6425 PC6423 VSCAN SOS D6419 D6416 D6420 D6421 D6411 Vfo FSIU FCLU FCLKU PROU VF5V Vf Vfo Vf FCLD FCLKD PROD VF5V Vf Vfo Vf Vfo FCLKU FSIU VF5V PROU FCLU VSCN VSCN VSCN VSCN VSCN Scan Drive Board SC SC42 SC41 SD42 SU41 D6415 (GREEN LED) SC SC CPH 4 T6802 Q6816 PC6813 Q6817 Q6818 IC6814 Q6670 6 5 Q6658 Q6666 Q6667 15 5 20 CMH 8 12 13 CEL Q6413 Q6412 CLK SIU SID CL CEL2 CPH CEL SCSU IC6503 FET DRIVER 3 17 Q6568 Q6567 Q6572 Q6571 D6522 D6512 S1 FSID A2 B2 FSID Vf A40 B40 A35 B35 Vf Q6660 Q6661 Q6665 SC2 1 V SUS V SUS 2 VSUS TO P2 TO D20 D6511 D6521 SOS DET Q6659 6 Q6669 6 Q6819, T6801 PC6819 IC6801 VSUS FSID SD46 TO SC46 2 1 FCLD 4 3 FCLKD 5 6 PROD 8 7 9 10 1 4 9 5 2 SC45 3 8 SU45 TO 10 6 7 Vf Vf5 FSIU FCLU FCLKU PROU Vf5 TO TO Vf5 Vf Vf Vf Vf Vf Vf Vf Vf5 FET DRIVER FET DRIVER FET DRIVER FET DRIVER TPVSUS 1 5V SC23 1 +15V 2 TO P23 +15V TP15V IC6413 4 5 6 (2/3) CEL SCSU IC6413 12 (3/3) 11 13 IC6413 2 (1/3) 3 1 L6504 L6507 L6510 VSUS Q6513,Q6514 Q6515 VSUS 6 4 D6518 Q6577 VSCN/VAD SOS PROTECTOR Vscn-Vad<14V:ON VAD SOS (-90V) IC6611 OUT IN 3 1 AVR 5V PC6601 PC6604,PC6605,PC6607 Lo IC6654 OUT IN 1 AVR 5V IC6653 IN OUT 1 3 AVR 5V 3 Ho Lo Q6664,VR6602 TPVAD TPVSCN TPVSET2 Lo Ho Q6655,Q6601 Q6656 Vs VSET VSUS 2 2 7 3 6 CEL2 Ho Vs Lo Vf OUT 1 AVR 9V 3 IN IC6652 9V F15V TPVSET TPSC1 TPSOS1 Q6532 Q6531 Q6537 FET FET FET FET FET FET Q6602 Q6650~ Q6652 FET FET FET AVR 9V 3 IN IC6816 9V OUT 1 AVR 5V 3 IC6621 IN OUT 1 PC6602 Vf TH-50PV500E/B SC-Board Block Diagram TH-50PV500E/B SC-Board Block Diagram TH-50PV500E / TH-50PV500B 137 14.64. SC-Board (1 of 2) Schematic Diagram + + + + + + + + + + AC_CLK AC_CPH AC_SCSU AC_SID AC_SIU AC_CL AC_CEL2 15V 176V AC_CEL R6686 5.6 IC6413 C0JBAA000174 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 Vcc C0JBAZ000005 IC6411 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R6569 10k R6505 15 R6667 10k D6526 B0HBSN000008 R6434 1.5k D6503 B0HBSN000008 R6696 5.6 TP023 C6501 250V 2.2u R6562 10k AN16016A-VF IC6503 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 COM 16 NC C6422 25V 220u VSUS R6674 10k R6416 EXB38V472JV C6584 25V 4.7u C6504 250V 2.2u L6699 J0JJC0000021 R6502 15 L6548 G0ZZ00002183 C6404 200V 220u AN16016A-VF IC6502 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 COM 16 NC C6506 250V 2.2u D6412 MAZ80510LL TP025 TP028 R6530 15 IC6421 C0BBBA000043 1 2 3 4 5 6 7 8 TP006 R6440 4.7k D6415 LNJ301MPUJA AN16016A-VF IC6501 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 COM 16 NC D6414 MAZ83300ML R6454 4.7k C6453 25V 220u C6502 250V 2.2u L6550 G0ZZ00002183 5V C6402 200V 220u L6524 G0ZZ00002183 R6361 150 C6589 25V 4.7u L6552 G0ZZ00002183 TP011 L6693 J0JJC0000021 15V TP030 R6526 15 C6559 25V 4.7u C6435 16V 1u 5V TP016 L6698 J0JJC0000021 D6418 MAZ83300ML C6421 25V 1u Q6413 2SK062000L G D S R6364 150 JS6402 ERJ6GEY0R00V L6510 G0A1R4MA0003 L6679 J0JJC0000021 C6562 25V 4.7u R6363 150 15V D6563 B0HBSN000008 SC23 1 2 3 SC20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 D6525 B0HBSN000008 L6678 J0JJC0000021 D6421 MA2J11100L 5V TP029 C6503 250V 2.2u R6669 100 D6522 B0HBSN000008 R6436 10k R6581 10k TP008 Q6503 B1JADN000001 G D S R6687 5.6 R6437 39k D6416 MA2J11100L Q6514 B1JADN000001 G D S Q6515 B1JADN000001 G D S C6590 25V 4.7u 15V Q6412 2SK062000L G D S R6698 5.6 R6585 100 5V L6411 G0ZZ00002183 R6362 150 R6368 150 C6403 200V 220u TP007 R6528 15 D6561 B0ECHP000003 D6504 B0HBSN000008 15V R6527 15 L6546 G0ZZ00002183 TP031 TP020 D6512 B0HBSN000008 R6668 10 R6417 EXB38V470JV L6507 G0A1R4MA0003 5V R6671 10k R6573 10 C6405 200V 220u C6587 25V 4.7u C6434 16V 1u TP013 15V R6418 EXB38V472JV C6426 25V 47u 5V R6525 15 C6591 16V 1u TP005 R6422 EXB38V472JV R6439 7.5k C6560 25V 4.7u R6430 1k TP010 D6411 MA2J11100L R6432 10k TP027 L6412 G0ZZ00002183 TP019 R6420 EXB38V472JV L6522 G0ZZ00002183 R6421 EXB38V470JV C6585 25V 4.7u R6697 5.6 TP017 R6503 15 C6433 16V 1u Q6502 B1JADN000001 G D S C6437 16V 1u R6377 68k C6425 25V 47u TP009 L6509 G0A1R4MA0003 C6563 16V 1u TP015 R6438 39k R6376 68k D6565 B0ECHP000003 R6458 1k TP026 TP021 R6411 0.22 R6561 10 R6433 2.2k VSUS R6699 5.6 R6529 15 R6662 100 D6521 B0HBSN000008 L6528 G0ZZ00002183 D6562 B0ECHP000003 R6675 10 TP022 D6501 B0HBSN000008 C6582 25V 4.7u 5V VAD D6502 B0HBSN000008 R6664 10k D6527 B0HBSN000008 VSUS R6435 1.5k R6504 15 R6412 0.22 D6417 MAZ83300ML D6564 B0ECHP000003 L6508 G0A1R4MA0003 5V TP018 VSCN R6419 EXB38V470JV C0JBAZ000005 IC6412 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C6401 200V 220u SC2 1 2 3 4 5 6 Q6411 2SD0601A0L C6436 25V 1u R6501 15 Q6501 B1JADN000001 G D S VSUS R6429 1k 5V D6413 MAZ83300ML Q6513 B1JADN000001 G D S TP024 C6586 16V 1u TP014 R6586 100 R6415 EXB38V470JV L6677 J0JJC0000021 5V TP012 C6505 250V 2.2u L6526 G0ZZ00002183 R6431 10k C6406 200V 220u R6375 68k R6367 150 R6574 10k R6506 15 C6414 250V 2.2u C6413 250V 2.2u L6501 G0AR60MA0003 L6502 G0AR60MA0003 Q6552 B1ADNF000006 Q6560 B1ADNF000006 Q6568 B1ADNF000006 Q6572 B1ADNF000006 Q6571 B1ABNF000006 Q6567 B1ABNF000006 Q6559 B1ABNF000006 Q6551 B1ABNF000006 PC6423 B3PBA0000223 1 2 3 4 PC6422 B3PBA0000223 1 2 3 4 C6516 630V 2200p C6536 630V 2200p C6533 630V 2200p C6515 630V 2200p C6534 630V 2200p C6513 630V 2200p C6531 630V 2200p R6455 16k D6422 MAZ82000ML D6423 MAZ82000ML R6441 20k Q6537 2SK3997000VE G D S Q6531 2SK3997000VE G D S Q6532 2SK3997000VE G D S D6506 B0ECHP000003 L6503 G0AR60MA0003 D6511 B0HBSN000008 * * + TPVSUS +15V - CSH + - SCSU CMH +15V Vsus GND CEL TPSOS1 GND GND TP15V GND NC Vsus SOS(Vscn) SOS(Vad) B E 9 6 8 7 3 D 4 C 1 2 F 5 A GND CSL CSH CML CMH SIU SCSU P5V CL D-BOARD SID GND (D20) CLK CEL2 TO CPH GND SOS1 SOS2 CEL CBK GND 5.3 0 0 4.3 0 2.2 0.7 0.8 2.9 3.9 0 0.1 0.9 0 0 5.0 0 0 2.8 0.5 P-BOARD (P23) TO 0 15.0 15.0 0 0 176.1 0 176.1 0 P-BOARD (P2) TO FET DRIVER FET DRIVER SOS DET BUFFER BUFFER BUFFER FET DRIVER 1 2 3 4 5 SC-BOARD TNPA3567 (1/2) TH-50PV500E/B SC-Board (1 of 2) Schematic Diagram TH-50PV500E/B SC-Board (1 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 138 14.65. SC-Board (2 of 2) Schematic Diagram + + + + + + + + + + + + + + + + AC_CLK AA_FSID AA_FSIU AC_CEL2 AA_FCLKU AA_PROD AC_CL AC_SID AC_SIU AA_FCLKD AA_FSIU AA_FCLU AA_FCLKU AA_PROU AA_FSID AA_FCLD AA_FCLKD AA_PROD AA_FCLD AA_FCLU AC_CPH AC_SCSU AA_PROU AA_FCLU AA_FCLKU AA_PROU AA_FSID AA_FCLD AA_FCLKD AA_PROD AA_FSIU AC_CEL -90V R6851 10k R6477 100 TP048 C6630 630V 1000p D6634 MAZ80510LL IC6818 CATHODE 3 1 REF ANODE 2 R6620 1M R6631 47 C6825 630V 0.022u R6836 1 IC6812 C0DBEMB00002 CATHODE 3 1 REF ANODE 2 C6444 16V 1u R6483 2.2k R6481 2.2k R6463 22k D6627 MA111 R6859 2.2k D6619 MA2J11100L D6622 MAZ8240 IC6611 C0CBADC00075 INPUT 3 2 COMMON OUTPUT 1 D6822 B0HCKS000002 R6833 14.3k D6617 MAZ80510LL R6759 10 C6620 16V 1u VSCN TP063 R6476 1k R6718 10 R6721 10 R6614 1.8k R6832 220k R6745 4.7k C6639 16V 1u R6478 2.2k D6825 B0BC01000044 IC6801 STR-G6632 1 Drain 2 Source 3 GND 4 Vin 5 OCP/FB D6826 B0ECHP000003 R6743 100k Q6601 B1DEDS000001 G D S ZA6401 K4CD01000013 D6518 MA2J11100L TP060 R6717 10 R6601 2.2 Q6616 B1DFJM000003 G D S PC6601 B3PBA0000234 1 2 3 4 5 R6805 56k C6612 630V 1000p D6639 B0HCMM000014 C6635 25V 4.7u D6651 MAZ80560HL R6843 0 D6657 B0JCME000037 VR6801 10k 1 2 3 VSCN 5V_F PC6605 B3PBA0000233 1 2 3 4 5 6 7 8 R6618 100k Q6658 2SK0620 G D S D6645 MAZ80560HL D6618 B0HCMM000014 TP061 R6844 22k R6748 10k D6636 MAZ8330 R6804 56k Q6655 2SD0601A0L D6821 B0JCME000037 D6824 B0HCMM000014 R6464 1.8k C6651 16V 1u D6620 B0ECHP000003 SC42 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 2 Q6632 B1DFKM000001 G D S Q6654 B1DFFM000003 G D S TP035 IC6621 C0CBADC00075 INPUT 3 2 COMMON OUTPUT 1 D6644 MAZ80560HL C6662 25V 4.7u C6807 50V 220u Q6604 B1DFFM000003 G D S C6440 16V 1u D6613 MAZ82400ML D6615 MA2J11100L C6831 25V 47u R6617 47 C6828 35V 150u D6814 B0ECHP000003 R6838 3.3k Q6815 2SC1473AEA R6757 470 VSCN R6460 10k L6816 J0JJC0000021 R6852 100 C6611 25V 4.7u R6873 100k C6829 200V 33u D6643 B0HCMM000014 R6616 1k 5V_F R6808 100k C6656 16V 1u R6857 2.49k L6812 G0ZZ00002183 Q6635 B1DFKM000001 G D S D6820 MA2J11100L SC41 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R6741 2.2k JS6801 Q6818 2SB0709ARL D6819 B0ECHP000003 R6473 2.2k C6820 50V 4700p R6471 1k TP033 SC46 1 2 3 4 5 6 7 8 9 10 TP053 VR6602 10k 1 2 3 TP047 R6737 220k C6809 160V 100u Q6652 B1DEDS000001 G D S R6751 5.6 5V_F Q6615 B1DFJM000003 G D S TP054 SC45 1 2 3 4 5 6 7 8 9 10 R6762 100 R6719 10 R6807 100k R6488 EXB38V470JV Q6817 2SD0601A0L R6712 47 R6449 4.7k C6661 25V 4.7u R6615 1k R6826 10k D6638 MA2J11100L R6837 100k Q6618 B1DFJM000003 G D S IC6651 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC D6611 B0ECHP000003 D6817 MA111 R6848 4.7 C6824 250V 47u Q6651 B1DEDS000001 G D S R6824 4.7k B1DEDS000001 Q6650 G D S D6635 MAZ8330 R6874 56k R6468 100 R6444 470 D6630 B0HCKS000002 Q6611 B1DFJM000003 G D S R6482 2.2k R6761 10k 5V_F R6809 100k R6632 47 R6872 100k TP062 R6387 3.3k R6758 100k R6831 220k ZA6402 K4CD01000013 D6419 MA2J11100L IC6654 C0CBADC00075 INPUT 3 2 COMMON OUTPUT 1 R6445 470 Q6666 2SK062000L G D S C6615 35V 47u Q6634 B1DFKM000001 G D S Q6816 B1BBCJ000004 TP037 TP052 D6612 B0ECHP000003 C6618 16V 1u R6378 62k R6870 10k C6834 50V 1000p R6756 10 5V_F R6763 220k R6742 47 R6451 4.7k C6613 630V 1000p D6650 MAZ80560HL D6629 B0HCKS000002 D6832 MA111 C6621 25V 4.7u TP050 Q6667 2SK062000L G D S 2 P1 3 PT 4 P2 6 V1 5 NC 9 NC 10 NC 11 S1 12 ST 13 S2 14 S3 15 NC 16 NC 7 V2 R6627 47 D6633 MA2J11100L C6636 160V 100u C6628 16V 1u C6826 50V 0.1u R6448 470 L6813 G0ZZ00002183 R6472 1k R6604 100 R6716 10 Q6630 B1DFKM000001 G D S Q6664 2SD0601A0L R6390 0 C6658 50V 100u C6631 630V 1000p C6818 50V 0.01u VAD R6619 1M R6459 100 ZA6403 K4CD01000013 R6386 2.7k R6860 8.2 D6829 MA111 R6628 47 D6653 MAZ80560HL R6846 8.2 T6802 ETS13TB199AP N4 N2 1 2 3 NC 4 5 6 NC 7 9 10 NC Q6821 2SD814ATX R6869 22k R6479 2.2k TP040 C6634 25V 4.7u D6649 MAZ80560HL D6632 B0JCME000037 TP044 R6612 100k R6760 470 C6821 25V 220u R6453 470 PC6602 B3PBA0000233 1 2 3 4 5 6 7 8 C6627 16V 1u R6856 62k TP049 D6420 MA2J11100L D6655 B0JCME000037 R6602 2.2 D6834 B0HCMM000014 L6815 J0JJC0000021 R6747 10k R6861 100k VAD R6462 100 D6815 MA2J11100L TP051 R6452 470 R6625 47 R6388 56k Q6659 2SK0620 G D S C6653 16V 1u D6637 MAZ8330 TP045 15V D6830 B0HCKS000002 R6755 150 C6801 160V 100u TP041 C6823 630V 2200p R6855 56k R6605 100 R6764 220k R6461 1k C6623 1u 250V C6659 25V 4.7u 5V D6656 B0JCME000037 R6842 154k R6871 10k R6835 1 C6660 25V 4.7u D6827 MA111 R6383 1.2 TP046 R6830 10k R6825 10k D6813 D1FL40 R6806 10k VAD D6641 MA2J11100L D6640 MA2J11100L IC6652 C0CBALC00010 INPUT 3 2 COMMON OUTPUT 1 R6736 220k R6863 12k 15V R6603 100 R6621 68 D6828 B0HCKS000002 5V R6864 0 Q6612 B1DFJM000003 G D S C6637 160V 100u R6839 220 D6646 MAZ80560HL R6465 2.2k R6450 470 D6625 B0HCKS000002 D6616 MA2J11100L R6711 150 C6836 2kV 220p VAD TP036 D6648 MAZ80560HL D6833 B0HCMM000014 R6862 15k D6652 MA2J11100L D6642 MA2J11100L D6658 B0HCKS000002 R6858 2.49k Q6602 B1DEET000002 G D S L6814 J0JJC0000021 TP043 5V R6735 220k Q6614 B1DFJM000003 G D S Q6633 B1DFKM000001 G D S R6841 2.2k D6623 B0JCME000037 C6833 25V 4.7u R6484 EXB38V470JV Q6613 B1DFJM000003 G D S PC6604 B3PBA0000234 1 2 3 4 5 C6657 50V 1000p R6626 47 IC6816 C0CBALC00010 INPUT 3 2 COMMON OUTPUT 1 C6442 16V 1u R6845 8.2 R6475 10k Q6820 2SC1473AEA TP042 R6744 4.7k R6480 2.2k TP032 TP034 R6613 0 R6713 10k C6614 250V 47u C6638 25V 4.7u C6632 630V 1000p R6840 2.2k R6470 100 5V R6827 470 C6626 25V 4.7u C6617 25V 4.7u R6385 680 D6831 MA2J11100L R6886 0 R6867 1k R6379 56k TP038 TP039 D6823 B0HCKS000002 C6806 250V 47u D6631 MA2J11100L R6630 47 PC6607 B3PBA0000233 1 2 3 4 5 6 7 8 R6382 1.2 C6830 25V 4.7u 5V C6816 400V 10u C6822 50V 0.1u C6655 16V 1u R6629 47 D6818 B0JCKG000002 R6738 100k R6467 10k R6752 5.6 R6847 68k R6810 10k Q6577 2SD601A R6753 5.6 C6835 50V 470p Q6617 B1DFJM000003 G D S R6876 4.7k Q6819 2SD1263 D6517 MAZ83300ML Q6823 2SD0601A0L VSCN R6474 2.2k D6624 MA111 R6446 470 D6835 B0HCMM000014 VSUS IC6814 C0DBEMB00002 CATHODE 3 1 REF ANODE 2 IC6650 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC R6447 470 C6808 160V 100u R6469 10k IC6815 C0DBEMB00002 CATHODE 3 1 REF ANODE 2 R6622 10k C6819 16V 1u 5V R6823 8.2 IC6817 C0DBEMB00002 CATHODE 3 1 REF ANODE 2 IC6653 C0CBADC00075 INPUT 3 2 COMMON OUTPUT 1 Q6631 B1DFKM000001 G D S D6647 MAZ80560HL C6619 25V 1u Q6822 2SD0601A0L Q6814 2SD1263AP0LB R6720 10 C6624 25V 4.7u R6746 10 VSCN R6611 150 D6654 B0JCME000037 C6616 25V 4.7u R6466 1.8k VSUS Q6669 B1ADNF000006 Q6656 B1ADNF000006 Q6661 B1ADNF000006 Q6660 B1ABNF000006 Q6668 B1ABNF000006 Q6665 B1ABNF000006 R6834 5.1k IC6610 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb IC6630 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb IC6640 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb IC6620 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb D6519 MA2J11100L C6812 630V 3300p C6814 630V 3300p C6813 630V 3300p R6828 100k R6829 100k R6853 15k R6854 43k D6840 B0ECHP000003 PC6819 B3PBA0000223 1 2 3 4 PC6425 B3PBA0000223 1 2 3 4 PC6424 B3PBA0000223 1 2 3 4 PC6813 B3PBA0000223 1 2 3 4 SC90 1 2 3 4 5 6 R6739 2k R6740 20k R6866 3.3k D6505 B0HCMM000014 Q6670 2SK062000L G D S m # # TPSC1 TPVAD TPVSET INIT-R TPVSCN TPVSET2 SOS(Vset) 14 18 12 10 16 11 15 13 17 BUFFER BUFFER FET DRIVER FET DRIVER FET DRIVER FET DRIVER AVR 5V AVR 9V AVR 5V TO (SU41) SU-BOARD TO (SU45) SU-BOARD (SD42) SD-BOARD TO (SD46) SD-BOARD TO 2 4 1 5 3 SC-BOARD TNPA3567 (2/2) TH-50PV500E/B SC-Board (2 of 2) Schematic Diagram TH-50PV500E/B SC-Board (2 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 139 14.66. SU-Board Block Diagram SU2 A48 CL SELECTOR IC6901 PDP SCAN DRIVER IC6902 SHIFT RESISTOR LATCH SO1 SO2 SO2 SO3 Vf5 SU Scan Out (up) Board 64 PIN OUTPUT CLK 64 PIN OUTPUT OUTPUT 64 PIN PRO A47 CL SHIFT RESISTOR LATCH PRO To 1st 96pins of PDP SCAN DRIVER PDP SCAN DRIVER SCAN ELECTRODES IC6903 A32 To 2nd 96pins of B48 SCAN ELECTRODES B32 SELECTOR B33 B47 A33 A47 Vf5 A48 A17 A16 SHIFT RESISTOR A1 LATCH A2 B1 B2 CLK B48 B17 B16 B47 SU1 A1 A2 B1 SELECTOR B2 SELECTOR B48 B2 64 PIN OUTPUT SCAN ELECTRODES B32 SELECTOR OUTPUT B33 B47 64 PIN A33 A47 CLK LATCH PRO SHIFT RESISTOR A47 CL Vf5 SO4 B48 SELECTOR CLK A48 SO5 CL SHIFT RESISTOR B17 SO5 B16 A17 Vf5 A16 A48 CL LATCH B47 PRO SU3 A1 A2 IC6904 SO3 IC6905 PRO B1 SHIFT RESISTOR A1 To 3rd 96pins of PDP SCAN DRIVER LATCH PDP SCAN DRIVER SU4 A2 PDP SCAN DRIVER SCAN ELECTRODES 64 PIN B1 IC6906 Vf5 OUTPUT A32 CLK To 4th 96pins of B2 SO4 Vf A80 3 CL A43 TO A44 A3 A45 1 A46 SU41 A4 A47 A5 A48 A2 A70 A6 Vf Vf VSCN VF5V A7 10 A41 Vf PRO FCL A71 PRO A73 A8 A1 A42 VF5V A31 FSI VSCN 9 Vfo 8 6 4 Vfo SC41 Vf FCLK FCLK TO A32 FCL CLK FSI PRO SU45 A33 SI Vf5 7 SC45 A72 A40 2 A30 5 39 35 87 41 94 40 83 82 37 36 38 92 84 93 Vf 39 35 87 41 94 40 83 82 37 36 38 92 84 93 Vf 39 35 87 41 94 40 83 82 37 36 38 92 84 93 Vf SI S01 CLK PRO CL Vf5 85 86 91 89 VDD 90 88 85 86 91 89 VDD 90 88 85 86 91 89 VDD 90 88 85 86 91 89 VDD 90 88 85 86 91 89 VDD 90 88 85 86 91 89 VDD 90 88 Vfo 44 79 32 80 96 43 97 33 Vfo 44 79 32 80 96 43 97 33 Vfo 44 79 32 80 96 43 97 33 Vfo 44 79 32 80 96 43 97 33 Vfo 44 79 32 80 96 43 97 33 Vfo 44 79 32 80 96 43 97 33 76 77 100 99 OUT03 30 OUT01 1 OUT02 OUT62 OUT64 OUT63 46 75 76 77 100 99 OUT3 30 OUT1 1 OUT2 OUT62 OUT64 OUT63 46 75 76 77 100 99 OUT3 30 OUT1 1 OUT2 OUT62 OUT64 OUT63 46 75 76 77 100 99 OUT3 30 OUT1 1 OUT2 OUT62 OUT64 OUT63 46 75 76 77 100 99 OUT3 30 OUT1 1 OUT2 OUT62 OUT64 OUT63 46 75 76 77 100 99 OUT3 30 OUT1 1 OUT62 OUT64 OUT63 46 75 92 84 39 87 93 Vf 35 41 94 40 83 82 37 36 38 92 84 39 87 93 Vf 35 41 94 40 83 82 37 36 38 92 84 39 87 93 Vf 35 41 94 40 83 82 37 36 38 OUT2 TH-50PV500E/B SU-Board Block Diagram TH-50PV500E/B SU-Board Block Diagram TH-50PV500E / TH-50PV500B 140 14.67. SU-Board (1 of 2) Schematic Diagram Thermal Pad Thermal Pad TERM SIDE Thermal Pad TERM SIDE AG_FCLK AG_FCL AG_PRO AD_192 AD_190 AD_189 AD_188 AD_187 AD_186 AD_185 AD_184 AD_183 AD_182 AD_181 AD_180 AD_179 AD_178 AD_177 AD_176 AD_175 AD_174 AD_173 AD_172 AD_171 AD_170 AD_169 AD_168 AD_166 AD_167 AE_128 AE_126 AE_125 AE_124 AE_123 AE_122 AE_121 AE_120 AE_119 AE_118 AE_117 AE_116 AE_115 AE_114 AE_113 AE_112 AE_111 AE_110 AE_109 AE_108 AE_107 AE_106 AE_105 AE_104 AE_102 AE_103 AF_64 AF_62 AF_61 AF_60 AF_59 AF_58 AF_57 AF_56 AF_55 AF_54 AF_53 AF_52 AF_51 AF_50 AF_49 AF_48 AF_47 AF_46 AF_45 AF_44 AF_43 AF_42 AF_41 AF_40 AF_38 AF_39 AD_191 AD_189 AD_187 AD_185 AD_192 AD_190 AD_188 AD_186 AD_184 AD_182 AD_180 AD_178 AD_176 AD_174 AD_172 AD_170 AD_168 AD_166 AD_164 AD_162 AD_160 AD_158 AD_156 AD_154 AD_152 AD_150 AD_148 AD_146 AD_144 AD_142 AD_140 AD_138 AD_136 AD_134 AD_132 AD_130 AD_183 AD_181 AD_179 AD_177 AD_175 AD_173 AD_171 AD_169 AD_167 AD_165 AD_163 AD_161 AD_159 AD_157 AD_155 AD_153 AD_151 AD_149 AD_147 AD_145 AD_143 AD_141 AD_139 AD_137 AD_135 AD_133 AD_129 AD_131 AE_128 AE_126 AE_124 AE_122 AE_120 AE_118 AE_116 AE_114 AE_112 AE_110 AE_108 AE_106 AE_104 AE_102 AE_98 AE_100 AE_127 AE_125 AE_123 AE_121 AE_119 AE_117 AE_115 AE_113 AE_111 AE_109 AE_107 AE_105 AE_103 AE_101 AE_99 AE_97 AE_94 AE_92 AE_90 AE_88 AE_86 AE_84 AE_82 AE_80 AE_78 AE_76 AE_74 AE_72 AE_70 AE_68 AE_66 AE_95 AE_93 AE_91 AE_89 AE_87 AE_85 AE_83 AE_81 AE_79 AE_77 AE_75 AE_73 AE_71 AE_69 AE_67 AE_65 AF_64 AF_62 AF_60 AF_58 AF_56 AF_54 AF_52 AF_50 AF_48 AF_46 AF_44 AF_42 AF_40 AF_38 AF_36 AF_34 AF_32 AF_30 AF_28 AF_26 AF_24 AF_22 AF_20 AF_18 AF_16 AF_14 AF_12 AF_10 AF_8 AF_6 AF_2 AF_4 AF_63 AF_61 AF_59 AF_57 AF_55 AF_53 AF_51 AF_49 AF_47 AF_45 AF_43 AF_41 AF_39 AF_37 AF_35 AF_33 AF_31 AF_29 AF_27 AF_25 AF_23 AF_21 AF_19 AF_17 AF_15 AF_13 AF_11 AF_9 AF_7 AF_5 AF_3 AF_1 AD_165 AE_127 AG_FSO2 AE_99 AE_100 AE_101 AG_FCL AG_PRO AG_FCLK AF_37 AF_36 AF_35 AG_FSO1 AF_63 AG_FSO1 AD_164 AD_163 AG_FCLK AG_FCL AG_PRO AG_FSO3 AD_191 AE_96 AF_1 AF_3 AF_4 AF_5 AF_6 AF_7 AF_8 AF_9 AF_10 AF_11 AF_12 AF_13 AF_14 AF_15 AF_16 AF_17 AF_18 AF_19 AF_20 AF_21 AF_22 AF_23 AF_24 AF_25 AF_26 AF_2 AF_27 AF_28 AF_29 AF_30 AF_31 AF_32 AF_34 AF_33 AE_65 AE_66 AE_67 AE_68 AE_69 AE_70 AE_71 AE_72 AE_73 AE_74 AE_75 AE_76 AE_77 AE_78 AE_79 AE_80 AE_81 AE_82 AE_83 AE_84 AE_85 AE_86 AE_87 AE_88 AE_89 AE_90 AE_91 AE_92 AE_93 AE_94 AE_95 AE_96 AE_98 AE_97 AD_129 AD_130 AD_131 AD_132 AD_133 AD_134 AD_135 AD_136 AD_137 AD_138 AD_139 AD_140 AD_141 AD_142 AD_143 AD_144 AD_145 AD_146 AD_147 AD_148 AD_149 AD_150 AD_151 AD_152 AD_153 AD_154 AD_155 AD_156 AD_157 AD_158 AD_159 AD_160 AD_161 AD_162 AG_FSI AG_FCL AG_FCLK AG_PRO AG_FSI AG_FSO2 C6908 50V 2200p C0HBC0000007 IC6901 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 A30 A37 A60 A76 A19 A13 A33 A41 A10 A59 A16 A7 A49 C6903 16V 1u A79 A71 A12 A29 A48 R6902 220 R6901 220 A73 A57 A40 C6910 250V 0.1u A78 A64 C6918 250V 0.1u A45 A27 A62 C0HBC0000007 IC6903 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 A6 A58 A15 D6902 MAZ80560HL C6901 16V 1u A77 A55 A26 A34 A2 A20 A43 A53 A47 A80 R6912 10k A70 D6909 B0ECHP000003 SU45 1 2 3 4 5 6 7 8 9 10 A14 A74 A17 R6907 10k C6917 250V 0.1u A68 A4 C6909 250V 0.1u A18 A42 R6911 220k A66 A35 A65 A36 A44 SU2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 A8 A54 A11 R6903 220 C0HBC0000007 IC6902 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 A5 A9 R6908 10k A28 A52 A23 A63 A75 A1 D6908 B0ECHP000003 A50 A22 A56 A67 A38 A72 C6902 16V 1u A61 A39 A3 A31 R6910 10k A24 A51 A21 C6900 50V 2200p A25 R6909 220k A32 A46 A69 SU1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 D6901 MAZ80560HL VF5V Vscn Vf Vf PRO PROU CLKU FCLK FCL CLU SIU FSI VF5V VF5V Vf 5 A 6 E C 8 1 3 2 D 4 B 7 FOIL (UPPER) SIDE COMPONENT (LOWER) SIDE SCAN ELECTRODES To 1st 96pins of To 2nd 96pins of SCAN ELECTRODES Vfo Vf Vscn SC-BOARD TO (SC45) TO SC-BOARD SU41 (SC41) SU-BOARD TNPA3219AB (1/2) 1 2 3 4 PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER TH-50PV500E/B SU-Board (1 of 2) Schematic Diagram TH-50PV500E/B SU-Board (1 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 141 14.68. SU-Board (2 of 2) Schematic Diagram Thermal Pad TERM SIDE TERM SIDE Thermal Pad Thermal Pad AA_384 AA_382 AA_381 AA_380 AA_379 AA_378 AA_377 AA_376 AA_375 AA_374 AA_373 AA_372 AA_371 AA_370 AA_369 AA_368 AA_367 AA_366 AA_365 AA_364 AA_363 AA_362 AA_361 AA_360 AA_358 AA_359 AB_320 AB_318 AB_317 AB_316 AB_315 AB_314 AB_313 AB_312 AB_311 AB_310 AB_309 AB_308 AB_307 AB_306 AB_305 AB_304 AB_303 AB_302 AB_301 AB_300 AB_299 AB_298 AB_297 AB_296 AB_294 AB_295 AC_256 AC_254 AC_253 AC_252 AC_251 AC_250 AC_249 AC_248 AC_247 AC_246 AC_245 AC_244 AC_243 AC_242 AC_241 AC_240 AC_239 AC_238 AC_237 AC_236 AC_235 AC_234 AC_233 AC_232 AC_230 AC_231 AB_288 AA_384 AA_382 AA_380 AA_378 AA_376 AA_374 AA_372 AA_370 AA_368 AA_366 AA_362 AA_364 AA_383 AA_381 AA_379 AA_377 AA_375 AA_373 AA_371 AA_369 AA_367 AA_365 AA_363 AA_361 AA_359 AA_357 AA_355 AA_353 AA_351 AA_349 AA_347 AA_345 AA_360 AA_358 AA_356 AA_354 AA_352 AA_350 AA_348 AA_346 AA_344 AA_321 AA_323 AA_325 AA_327 AA_329 AA_331 AA_333 AA_335 AA_337 AA_339 AA_341 AA_343 AA_342 AA_340 AA_338 AA_336 AA_334 AA_332 AA_330 AA_328 AA_326 AA_322 AA_324 AB_319 AB_317 AB_315 AB_313 AB_311 AB_309 AB_307 AB_305 AB_303 AB_301 AB_299 AB_297 AB_295 AB_293 AB_291 AB_289 AB_320 AB_318 AB_316 AB_314 AB_312 AB_310 AB_308 AB_306 AB_304 AB_302 AB_300 AB_298 AB_296 AB_294 AB_290 AB_292 AB_286 AB_284 AB_282 AB_280 AB_278 AB_276 AB_274 AB_272 AB_270 AB_268 AB_266 AB_264 AB_262 AB_260 AB_258 AB_287 AB_285 AB_283 AB_281 AB_279 AB_277 AB_275 AB_273 AB_271 AB_269 AB_267 AB_265 AB_263 AB_261 AB_259 AB_257 AC_255 AC_253 AC_251 AC_249 AC_247 AC_245 AC_243 AC_239 AC_241 AC_237 AC_235 AC_233 AC_231 AC_229 AC_227 AC_225 AC_223 AC_221 AC_219 AC_217 AC_215 AC_213 AC_211 AC_209 AC_207 AC_205 AC_203 AC_201 AC_199 AC_197 AC_193 AC_195 AC_256 AC_254 AC_252 AC_250 AC_248 AC_246 AC_244 AC_242 AC_240 AC_238 AC_236 AC_234 AC_232 AC_230 AC_228 AC_226 AC_224 AC_222 AC_220 AC_218 AC_216 AC_214 AC_210 AC_212 AC_208 AC_206 AC_204 AC_202 AC_200 AC_198 AC_194 AC_196 AG_FCL AC_228 AG_PRO AG_FCL AG_FCLK AG_FSO4 AG_FCLK AC_255 AG_PRO AG_FCL AC_227 AC_229 AG_FSO5 AG_PRO AG_FSO4 AG_FCLK AA_357 AA_356 AA_355 AB_319 AB_293 AB_291 AB_292 AA_383 AC_193 AC_194 AC_195 AC_196 AC_197 AC_198 AC_199 AC_200 AC_201 AC_202 AC_203 AC_204 AC_205 AC_206 AC_207 AC_208 AC_209 AC_210 AC_211 AC_212 AC_213 AC_214 AC_215 AC_216 AC_217 AC_218 AC_219 AC_220 AC_221 AC_222 AC_223 AC_224 AC_225 AC_226 AB_257 AB_258 AB_259 AB_260 AB_261 AB_262 AB_263 AB_264 AB_265 AB_266 AB_267 AB_268 AB_269 AB_270 AB_271 AB_272 AB_273 AB_274 AB_275 AB_276 AB_277 AB_278 AB_279 AB_280 AB_281 AB_282 AB_283 AB_284 AB_285 AB_286 AB_287 AB_288 AB_290 AB_289 AA_321 AA_322 AA_323 AA_324 AA_325 AA_326 AA_327 AA_328 AA_329 AA_330 AA_331 AA_332 AA_333 AA_334 AA_335 AA_336 AA_337 AA_338 AA_339 AA_340 AA_341 AA_342 AA_343 AA_344 AA_345 AA_346 AA_347 AA_348 AA_349 AA_350 AA_351 AA_352 AA_354 AA_353 AG_FSO5 AG_FSO3 C0HBC0000007 IC6906 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 R6906 220 C6906 16V 1u C6904 16V 1u R6905 220 SU4 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 SU3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 C6905 16V 1u R6904 220 C0HBC0000007 IC6905 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 C0HBC0000007 IC6904 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 Vfo Vf 8 12 15 13 11 14 9 10 SCAN ELECTRODES To 3rd 96pins of SCAN ELECTRODES To 4th 96pins of SU-BOARD TNPA3219AB (2/2) 4 1 3 2 PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER TH-50PV500E/B SU-Board (2 of 2) Schematic Diagram TH-50PV500E/B SU-Board (2 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 142 14.69. SD-Board Block Diagram SO3 To 4th 96pins of C50 PRO B2 VF5V OUTPUT FSI SCAN ELECTRODES CL B32 B48 B48 SD2 Vf SELECTOR B17 SO1 PRO SC42 B16 39 CLK PRO Vf5 SCAN ELECTRODES OUTPUT B32 CL OUTPUT 80 S01 LATCH 87 SO3 B47 SO4 B33 SELECTOR B47 PRO 37 B33 SD1 PDP SCAN DRIVER 89 SHIFT RESISTOR B47 90 Scan Out (down) Board 33 A1 PRO SD3 A33 Vf5 86 A47 B1 B47 A2 85 CL 36 32 SELECTOR 96 B1 Vf5 97 A48 Vf SELECTOR 79 SI CLK 64 PIN B2 A1 A33 A17 C79 FCL A47 SHIFT RESISTOR SD42 89 A48 41 90 A16 83 VSCN 64 PIN A1 SHIFT RESISTOR To 1st 96pins of CLK 86 A1 PDP SCAN DRIVER LATCH To 3rd 96pins of PDP SCAN DRIVER 88 A2 A2 43 VSCN PDP SCAN DRIVER LATCH LATCH 91 86 CLK B1 SCAN ELECTRODES PDP SCAN DRIVER 35 PRO SO2 94 Vfo SHIFT RESISTOR Vfo B2 Vf FCLK A47 CLK CL SI Vf5 A32 SO4 SELECTOR To 2nd 96pins of Vf5 B48 44 38 CLK SD 90 OUTPUT SO2 A48 SD4 SO5 CL A2 SHIFT RESISTOR PDP SCAN DRIVER LATCH OUTPUT B17 91 SO5 CL B16 64 PIN C78 64 PIN A17 C77 PRO C76 A47 SCAN ELECTRODES C75 64 PIN C74 B1 C73 91 C51 CL 89 Vf5 SHIFT RESISTOR Vf 85 A16 84 C80 Vf 88 40 LATCH A48 SELECTOR C10 Vf5 88 92 B48 PRO B2 OUTPUT 64 PIN 93 A32 C41 CLK 85 Vfo C48 82 C49 C11 C38 C37 C36 C39 C35 C34 C33 C40 C9 C8 C1 100 99 OUT3 OUT1 1 OUT2 OUT62 OUT64 OUT63 100 99 1 100 99 1 Vf Vfo Vf Vfo Vf Vf Vf Vfo Vfo Vfo SD46 7 SC46 5 3 1 10 9 8 6 4 2 Vf VF5V PRO FCLK FCL FSI 35 41 38 82 37 83 93 36 87 84 40 92 94 39 92 36 41 93 35 39 37 94 40 82 38 84 87 83 VDD 77 75 30 46 76 77 75 30 46 76 77 75 30 46 76 OUT63 OUT62 OUT64 OUT63 OUT62 OUT64 96 97 44 32 43 79 33 80 96 97 44 32 43 79 33 80 VDD VDD VDD 35 41 38 82 37 83 93 36 87 84 40 92 94 39 35 41 38 82 37 83 93 36 87 84 40 92 94 39 35 41 38 82 37 83 93 36 87 84 40 92 94 39 96 32 33 44 79 97 43 80 96 32 33 44 79 97 43 80 96 32 33 44 79 97 43 80 1 30 75 OUT64 OUT1 OUT2 OUT62 46 77 OUT63 76 OUT3 100 99 1 30 75 OUT64 OUT1 OUT2 OUT62 46 77 OUT63 76 OUT3 100 99 1 30 75 OUT64 OUT1 OUT2 OUT62 46 77 OUT63 76 OUT3 100 99 TO TO 91 86 88 VDD 91 88 85 91 85 85 90 88 89 89 86 89 90 86 VDD 90 OUT2 OUT3 OUT1 OUT2 OUT3 OUT1 IC6911 IC6912 IC6913 IC6916 IC6915 IC6914 TH-50PV500E/B SD-Board Block Diagram TH-50PV500E/B SD-Board Block Diagram TH-50PV500E / TH-50PV500B 143 14.70. SD-Board (1 of 2) Schematic Diagram TERM SIDE Thermal Pad Thermal Pad Thermal Pad TERM SIDE AG_FSI AD_576 AD_574 AD_573 AD_572 AD_571 AD_570 AD_569 AD_568 AD_567 AD_566 AD_565 AD_564 AD_563 AD_562 AD_561 AD_560 AD_559 AD_558 AD_557 AD_556 AD_555 AD_554 AD_553 AD_552 AD_550 AD_551 AE_512 AE_510 AE_509 AE_508 AE_507 AE_506 AE_505 AE_504 AE_503 AE_502 AE_501 AE_500 AE_499 AE_498 AE_497 AE_496 AE_495 AE_494 AE_493 AE_492 AE_491 AE_490 AE_489 AE_488 AE_486 AE_487 AF_448 AF_446 AF_445 AF_444 AF_443 AF_442 AF_441 AF_440 AF_439 AF_438 AF_437 AF_436 AF_435 AF_434 AF_433 AF_432 AF_431 AF_430 AF_429 AF_428 AF_427 AF_426 AF_425 AF_424 AF_422 AF_423 AD_575 AD_573 AD_571 AD_567 AD_569 AD_576 AD_574 AD_572 AD_570 AD_566 AD_568 AD_564 AD_562 AD_560 AD_558 AD_556 AD_554 AD_552 AD_550 AD_548 AD_546 AD_544 AD_542 AD_540 AD_538 AD_536 AD_534 AD_532 AD_530 AD_528 AD_526 AD_524 AD_522 AD_520 AD_518 AD_516 AD_514 AD_565 AD_563 AD_561 AD_559 AD_557 AD_555 AD_553 AD_551 AD_549 AD_547 AD_545 AD_543 AD_541 AD_539 AD_537 AD_535 AD_533 AD_531 AD_529 AD_527 AD_525 AD_523 AD_521 AD_519 AD_517 AD_515 AD_513 AE_511 AE_509 AE_507 AE_505 AE_503 AE_501 AE_499 AE_497 AE_495 AE_493 AE_491 AE_489 AE_487 AE_485 AE_481 AE_483 AE_512 AE_510 AE_508 AE_506 AE_504 AE_502 AE_500 AE_498 AE_496 AE_494 AE_492 AE_490 AE_488 AE_486 AE_482 AE_484 AE_479 AE_477 AE_475 AE_473 AE_471 AE_469 AE_467 AE_465 AE_463 AE_461 AE_459 AE_457 AE_455 AE_453 AE_449 AE_451 AE_478 AE_476 AE_474 AE_472 AE_470 AE_468 AE_466 AE_464 AE_462 AE_460 AE_458 AE_456 AE_454 AE_452 AE_450 AF_447 AF_445 AF_443 AF_441 AF_439 AF_437 AF_435 AF_433 AF_431 AF_448 AF_446 AF_444 AF_442 AF_440 AF_438 AF_436 AF_432 AF_434 AF_430 AF_428 AF_426 AF_424 AF_422 AF_420 AF_418 AF_416 AF_414 AF_412 AF_410 AF_408 AF_406 AF_404 AF_402 AF_400 AF_398 AF_396 AF_394 AF_392 AF_390 AF_386 AF_388 AF_429 AF_427 AF_425 AF_423 AF_421 AF_419 AF_417 AF_415 AF_413 AF_411 AF_409 AF_407 AF_405 AF_403 AF_401 AF_399 AF_397 AF_395 AF_393 AF_391 AF_389 AF_385 AF_387 AD_549 AD_548 AD_547 AE_485 AE_484 AE_483 AF_421 AF_420 AF_419 AG_FCLK AE_511 AG_FSO2 AG_PRO AG_FCL AG_FCL AG_PRO AG_FCLK AG_FSO1 AF_447 AG_FSO1 AG_FCLK AG_FCL AG_PRO AG_FSO3 AG_FSO2 AD_575 AE_480 AF_386 AF_387 AF_388 AF_389 AF_390 AF_391 AF_392 AF_393 AF_394 AF_395 AF_396 AF_397 AF_398 AF_399 AF_400 AF_401 AF_402 AF_403 AF_404 AF_405 AF_406 AF_407 AF_408 AF_409 AF_410 AF_411 AF_412 AF_413 AF_414 AF_415 AF_416 AF_418 AF_417 AE_449 AE_450 AE_451 AE_452 AE_453 AE_454 AE_455 AE_456 AE_457 AE_458 AE_459 AE_460 AE_461 AE_462 AE_463 AE_464 AE_465 AE_466 AE_467 AE_468 AE_469 AE_470 AE_471 AE_472 AE_473 AE_474 AE_475 AE_477 AE_476 AE_478 AE_479 AE_480 AE_482 AE_481 AD_513 AD_514 AD_515 AD_516 AD_517 AD_518 AD_519 AD_520 AD_521 AD_522 AD_523 AD_524 AD_525 AD_526 AD_527 AD_528 AD_529 AD_530 AD_531 AD_532 AD_533 AD_534 AD_535 AD_536 AD_537 AD_538 AD_539 AD_540 AD_541 AD_542 AD_543 AD_544 AD_546 AD_545 AG_FSI AF_385 AG_PRO AG_FCLK AG_FCL D6911 MAZ80560HL C62 C78 C59 C49 C63 C29 C38 C12 C24 C9 C45 *SD2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 C13 C44 C43 C6928 250V 0.1u C61 C10 C5 C27 C18 C32 R6931 220k R6930 10k C66 C71 C74 C72 C6938 250V 0.1u C0HBC0000007 IC6913 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 C6921 16V 1u D6912 MAZ80560HL C6 C76 C53 C0HBC0000007 IC6912 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 C33 C35 C1 C69 C2 C14 C21 C42 C0HBC0000007 IC6911 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 R6921 220 C26 C16 C51 *D6919 B0ECHP000003 C56 C41 C39 C15 C30 C47 C70 C73 C77 C6927 250V 0.1u R6922 220 C80 C6922 16V 1u C75 C23 C6923 16V 1u C40 C34 C57 C28 C55 C65 *SD1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 R6923 220 C4 C22 C19 C6930 50V 2200p C58 C31 C6920 50V 2200p C48 SD46 1 2 3 4 5 6 7 8 9 10 C7 C20 R6932 220k C79 C37 C60 C46 C8 C67 C36 C17 C25 C68 C54 *D6918 B0ECHP000003 C6937 250V 0.1u C3 C11 C64 C50 C52 PROD SID CLD CLKD VF5V Vf Vscn FSI VF5V Vf FCLK FCL PRO VF5V Vf 1 3 A 6 E 5 B 7 2 D C 4 8 FOIL (UPPER) SIDE COMPONENT (LOWER) SIDE Vfo Vf Vscn SC-BOARD (SC46) TO SC-BOARD (SC42) TO SD42 SCAN ELECTRODES To 1st 96pins of To 2nd 96pins of SCAN ELECTRODES PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER SD-BOARD TNPA3220AB (1/2) 1 2 3 4 TH-50PV500E/B SD-Board (1 of 2) Schematic Diagram TH-50PV500E/B SD-Board (1 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 144 14.71. SD-Board (2 of 2) Schematic Diagram TERM SIDE TERM SIDE Thermal Pad Thermal Pad Thermal Pad AG_FCLK AG_PRO AA_768 AA_766 AA_765 AA_764 AA_763 AA_762 AA_761 AA_760 AA_759 AA_758 AA_757 AA_756 AA_755 AA_754 AA_753 AA_752 AA_751 AA_750 AA_749 AA_748 AA_747 AA_746 AA_745 AA_744 AA_742 AA_743 AB_704 AB_702 AB_701 AB_700 AB_699 AB_698 AB_697 AB_696 AB_695 AB_694 AB_693 AB_692 AB_691 AB_690 AB_689 AB_688 AB_687 AB_686 AB_685 AB_684 AB_683 AB_682 AB_681 AB_680 AB_678 AB_679 AC_640 AC_638 AC_637 AC_636 AC_635 AC_634 AC_633 AC_632 AC_631 AC_630 AC_629 AC_628 AC_627 AC_626 AC_625 AC_624 AC_623 AC_622 AC_621 AC_620 AC_619 AC_618 AC_617 AC_616 AC_614 AC_615 AA_768 AA_766 AA_764 AA_762 AA_760 AA_758 AA_756 AA_754 AA_752 AA_750 AA_748 AA_746 AA_744 AA_767 AA_765 AA_763 AA_761 AA_759 AA_757 AA_755 AA_753 AA_751 AA_749 AA_747 AA_745 AA_743 AA_741 AA_739 AA_737 AA_735 AA_731 AA_733 AA_742 AA_740 AA_738 AA_736 AA_734 AA_732 AA_730 AA_728 AA_726 AA_724 AA_722 AA_720 AA_718 AA_716 AA_714 AA_712 AA_710 AA_708 AA_706 AA_729 AA_727 AA_725 AA_723 AA_721 AA_719 AA_717 AA_715 AA_713 AA_711 AA_709 AA_707 AA_705 AB_704 AB_702 AB_700 AB_698 AB_696 AB_694 AB_692 AB_690 AB_688 AB_686 AB_684 AB_682 AB_680 AB_678 AB_674 AB_676 AB_703 AB_701 AB_699 AB_697 AB_695 AB_693 AB_691 AB_689 AB_687 AB_685 AB_683 AB_681 AB_679 AB_673 AB_675 AB_671 AB_669 AB_667 AB_665 AB_663 AB_661 AB_659 AB_657 AB_655 AB_653 AB_651 AB_649 AB_647 AB_645 AB_643 AB_641 AB_670 AB_668 AB_666 AB_664 AB_662 AB_660 AB_658 AB_656 AB_654 AB_652 AB_650 AB_648 AB_646 AB_644 AB_642 AC_640 AC_638 AC_636 AC_634 AC_632 AC_630 AC_628 AC_626 AC_624 AC_620 AC_622 AC_639 AC_637 AC_635 AC_633 AC_631 AC_629 AC_627 AC_625 AC_623 AC_619 AC_621 AC_618 AC_616 AC_614 AC_612 AC_610 AC_608 AC_606 AC_604 AC_602 AC_600 AC_598 AC_596 AC_594 AC_592 AC_590 AC_588 AC_586 AC_584 AC_582 AC_578 AC_580 AC_617 AC_615 AC_613 AC_611 AC_609 AC_607 AC_605 AC_603 AC_601 AC_599 AC_597 AC_595 AC_593 AC_591 AC_589 AC_587 AC_585 AC_583 AC_581 AC_577 AC_579 AB_677 AB_676 AB_675 AA_741 AA_740 AA_739 AC_613 AC_612 AC_611 AG_FSO5 AG_PRO AG_FCL AG_FCLK AG_FSO4 AG_FCLK AC_639 AG_PRO AG_FCL AG_FSO5 AG_FSO4 AB_703 AG_FSO3 AA_767 AB_672 AB_677 AC_578 AC_579 AC_580 AC_581 AC_582 AC_583 AC_584 AC_585 AC_586 AC_587 AC_588 AC_589 AC_590 AC_591 AC_592 AC_593 AC_594 AC_595 AC_596 AC_597 AC_598 AC_599 AC_600 AC_601 AC_602 AC_603 AC_604 AC_605 AC_606 AC_607 AC_608 AC_610 AC_609 AB_642 AB_643 AB_644 AB_645 AB_646 AB_647 AB_648 AB_649 AB_650 AB_651 AB_652 AB_653 AB_654 AB_655 AB_656 AB_657 AB_658 AB_659 AB_660 AB_661 AB_662 AB_663 AB_664 AB_665 AB_666 AB_667 AB_668 AB_669 AB_670 AB_671 AB_672 AB_674 AB_673 AA_705 AA_706 AA_707 AA_708 AA_709 AA_710 AA_711 AA_712 AA_713 AA_714 AA_715 AA_716 AA_717 AA_718 AA_719 AA_720 AA_721 AA_722 AA_723 AA_724 AA_725 AA_726 AA_727 AA_728 AA_729 AA_730 AA_731 AA_732 AA_733 AA_734 AA_735 AA_736 AA_738 AA_737 AC_577 AB_641 AG_FCL C6924 16V 1u C6926 16V 1u *SD3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 *SD4 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 C6925 16V 1u C0HBC0000007 IC6916 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 R6929 10k R6924 220 C0HBC0000007 IC6915 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 R6928 10k R6927 10k R6925 220 R6926 220 C0HBC0000007 IC6914 1 HV03 2 HV04 3 HV05 4 HV06 5 HV07 6 HV08 7 HV09 8 HV010 9 HV011 10 HV012 11 HV013 12 HV014 13 HV015 14 HV016 15 HV017 16 HV018 17 HV019 18 HV020 19 HV021 20 HV022 21 HV023 22 HV024 23 HV025 24 HV026 25 HV027 26 HV028 27 HV029 28 HV030 29 HV031 30 HV032 31 NC 32 VH1 33 VH1 34 NC 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 NC 43 VH2 44 VH2 45 NC 46 HV033 47 HV034 48 HV035 49 HV036 50 HV037 51 HV038 52 HV039 53 HV040 54 HV041 55 HV042 56 HV043 57 HV044 58 HV045 59 HV046 60 HV047 61 HV048 62 HV049 63 HV050 64 HV051 65 HV052 66 HV053 67 HV054 68 HV055 69 HV056 70 HV057 71 HV058 72 HV059 73 HV060 74 HV061 75 HV062 76 HV063 77 HV064 78 NC 79 VH2 80 VH2 81 NC 82 GND 83 GND 84 A/B~ 85 DB 86 CLK 87 LE 88 VDD 89 OC1 90 OC2 91 DA 92 CLR 93 GND 94 GND 95 NC 96 VH1 97 VH1 98 NC 99 HV01 100 HV02 Vf 13 12 14 9 10 11 15 8 SCAN ELECTRODES To 3rd 96pins of SCAN ELECTRODES To 4th 96pins of PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER SD-BOARD TNPA3220AB (2/2) 2 4 1 3 TH-50PV500E/B SD-Board (2 of 2) Schematic Diagram TH-50PV500E/B SD-Board (2 of 2) Schematic Diagram TH-50PV500E / TH-50PV500B 145 14.72. SS, SS2 and SS3-Board Block Diagram + L6181 D6066 (GREEN LED) VE Q6259 BUFFER INSERT IC6240 Q6260 19 2 UEL 18 UEL Q6160 4 TPSS1 1 16 SS-BOARD SS23 FET DRIVER 12 SOS2 SOS DET 12 8 IC6200 Q6121 1 SS54 8 VR6250 17 SS53 FET DRIVER Q6120 SS21 IC6201 Ve SS51 8 Q6161 SS52 12 SOS9 SS20 FET DRIVER 6 16 C42 IC6220 VSUS 4 8 Q6100 SS3 12 VSUS 3 1 Q6102 14 UEL 9 6 Q6140 USL 14 +15V 5 8 Q6142 SS11 12 8 Q6213 3 FET DRIVER Q6212 UEH 2 L6180 SS12 8 Q6231 SS44 L6239 Q6230 12 2 12 UMH IC6000 4 15V 7 8 SS34 UMH 4 10 UML Q6240 USH STB PS S2 Q6267 9 UML S3 IC6252 12 6 D6000,01 TPVSUS 14 IC6062 11 5 SOS DET D6020,21 DMLL TP15V 8 7 Vda 75V S1 2 TPVDA IC6061 TO 15 USH 1 TPVe Q6060 SS35 13 TO Vda 75V USL Vda 75V VE DISCHARGE Vda 75V FET DRIVER L6010,12 DSLL 5 SS42 GENERATOR 1/2 Vo 4 14 VDAL(78V-L) IC6100 1 FET DRIVER VDAL(78V-L) Q6256 IC6250 C35 FET DRIVER Sustain Drive Board DMHL 2 IC6020 12 Q6011 SS Q6010 8 Q6031 Q6030 TO P12 15 14 Q6020 TO P11 Q6001 14 16 Q6000 TO C44 SS22 6 TPSOS9 4 1 SS2 Vda75V DSHL 2 Sustain Connection 7 (Up) Board BUFFER (Down) Board IC6251 Sustain Connection IC6060 1 FET DRIVER Q6261 SS55 SS56 D6063 Q6250 Q6251 Vda75V 8 STB 12V 3 L6030,33 Q6211 Q6210 Q6202 Q6200 FET FET FET FET FET FET Q6221 Q6223 TPVDL FET FET TPVDR FET DRIVER IC6221 8 12 11 9 12 DMHR Q6233 Q6232 Q6225 FET 5 4 VDAL(78V-L) VDAL(78V-L) 7 VDAL(78V-R) VDAL(78V-R) 8 7 VDAL(78V-R) VDAL(78V-R) 8 TPSOS2 5V 1 5V Sustain Panel Electrode Sustain Panel Electrode Sustain Panel Electrode Sustain Panel Electrode STB 12V STB PS L6182 FET 81V 75V TH-50PV500E/B SS, SS2 and SS3-Board Block Diagram TH-50PV500E/B SS, SS2 and SS3-Board Block Diagram TO S1 TH-50PV500E / TH-50PV500B 146 14.73. SS-Board (1 of 2), SS2 and SS3-Board Schematic Diagram + TERM SIDE + + TERM SIDE + + TERM SIDE + + + + TERM SIDE + + + + + TERM SIDE TERM SIDE DRV_SOS2 AA_UEL AA_USL DMLL DMHL AA_USH AA_UMH AA_UMH AA_UML AA_UEH DSLL AA_UEL AA_USH AA_USL AA_UML AA_UEH AA_UML DSHL DMHR L6031 G0A1R4MA0003 C6037 25V 4.7u D6257 B0ECHP000003 R6275 12k Q6020 2SK3997000VE G D S C0JBAZ000005 IC6060 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R6278 22k TP10 R6072 7.5k TP2 C6266 25V 1000u D6263 MA2J11100L R6176 100 TP13 C6016 25V 4.7u R6040 150 R6179 10k R6259 100 D6021 B0HBSN000008 R6015 10k L6072 G0ZZ00002183 Q6120 B1ABNF000006 TP8 TP12 TP11 D6145 B0HBSN000008 Q6140 RJP3053 G D S L6001 J0JJC0000021 R6124 100 C6265 25V 4.7u D6251 B0JCME000037 R6277 22k R6126 10k L6182 G0ZZ00002183 L6046 G0ZZ00002183 R6020 5.6 D6031 B0HBSN000008 C6080 250V 2.2u SS53 1 2 3 4 5 6 7 8 9 10 11 12 13 TP26 C6173 200V 220u R6198 100 D6015 B0ECHP000003 Q6060 2SD0601A0L L6030 G0A1R4MA0003 D6061 MAZ83300ML R6281 1.2k D6020 B0HBSN000008 C6201 160V 100u TP17 L6040 G0ZZ00002183 TP30 R6190 0.22 R6264 100 TP6923 SS54 1 2 3 4 5 6 7 8 9 10 11 12 13 C6175 200V 220u R6266 47 TP6913 R6064 10k C6085 250V 2.2u L6184 J0JJC0000021 R6141 15 R6199 100k R6033 10 D6030 B0HBSN000008 C6131 25V 4.7u TP31 Q6141 RJP3053 G D S D6060 MA2J11100L AN16016A-VF IC6020 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 COM 16 NC R6268 10k D6190 B0ECHP000003 C6081 250V 2.2u R6060 EXB38V470JV L6044 G0ZZ00002183 D6259 B0ECHP000003 Q6011 B1ADNF000006 C6174 200V 220u R6271 100 Q6030 B1ABNF000006 R6001 5.6 D6250 B0JCME000037 R6177 10 TP6918 R6035 10k D6271 MA2J11100L R6100 15 IC6251 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb TP6919 Q6010 B1ABNF000006 L6000 J0JJC0000021 SS51 1 2 3 4 5 6 7 8 9 10 11 12 13 R6178 10k R6105 15 R6101 15 R6127 10k Q6251 B1DFKM000002 G D S R6068 1.5k TP6921 R6066 2.2k R6267 10k R6142 15 R6284 27k C6257 25V 4.7u C6130 16V 1u R6082 100k R6070 39k C6061 25V 220u TP5 R6104 15 IC6061 C0BBBA000043 1 2 3 4 5 6 7 8 C6172 200V 220u Q6121 B1ADNF000006 R6003 5.6 D6147 B0HBSN000008 R6103 15 L6012 G0AR60MA0003 TP20 L6098 J0JJC0000021 R6251 100 D6036 B0ECHP000003 L6239 G0ZZ00002183 D6016 B0HBSN000008 SS21 1 2 3 4 5 6 7 C6200 160V 100u C6255 47u 250V R6067 1.5k R6283 27k Q6161 B1ADNF000006 TP16 SS52 1 2 3 4 5 6 7 8 9 10 11 12 13 R6137 68k R6073 220k SS20 1 2 3 4 5 6 7 C6269 200V 220u Q6001 2SK3997000VE G D S R6074 220k C6140 630V 5600p C6262 25V 4.7u R6081 100k R6061 EXB38V472JV R6272 100 TP27 R6032 100 R6065 10k TP6920 TP6922 R6021 5.6 TP3 R6196 150 C6087 250V 2.2u R6254 10 R6197 100 L6252 J0JJC0000021 D6012 B0ECHP000003 TP6 D6010 B0HBSN000008 R6013 10 Q6261 2SK062000L G D S R6191 0.22 R6145 15 TP24 C6082 250V 2.2u L6032 G0A1R4MA0003 TP25 L6190 J0JJC0000021 R6062 EXB38V470JV Q6142 RJP3053 G D S AN16016A-VF IC6100 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 COM 16 NC D6258 B0ECHP000003 D6062 MAZ83300ML C6086 250V 2.2u L6042 G0ZZ00002183 L6011 G0AR60MA0003 TP1 L6250 G0ZZ00002183 C6063 25V 100u C0DBEMB00002 IC6252 CATHODE 3 1 REF ANODE 2 TP32 C6064 16V 1u D6035 B0ECHP000003 D6262 B0JCME000037 TP18 TP7 R6144 15 TP22 R6102 15 C6015 16V 1u TP19 L6076 G0ZZ00002183 R6276 22k C6035 16V 1u R6250 100 IC6000 AN16016A-VF 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 COM 16 NC R6071 39k Q6250 B1DFKM000002 G D S TP14 Q6100 B1JADN000001 G D S L6180 G0ZZ00002183 C6264 25V 1u SS34 1 NC 2 3 C6036 25V 4.7u TP21 Q6000 2SK3997000VE G D S C6185 250V 2.2u D6264 MA2J11100L SS44 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 L6070 G0ZZ00002183 R6000 5.6 R6195 150 L6020 J0JJC0000021 L6074 G0ZZ00002183 R6282 27k R6014 10k L6068 J0JJC0000021 R6269 47 R6138 68k TP28 R6255 10k R6139 68k R6261 1k C6170 200V 220u R6125 10 C6019 25V 4.7u R6258 0 C6017 25V 4.7u Q6259 2SK326800L G D S R6280 0 D6064 MAZ80510LL Q6256 2SD1263AP0LB SS11 1 2 3 4 5 6 7 TP29 L6033 G0A1R4MA0003 R6043 150 C6134 25V 4.7u C6132 25V 4.7u C6060 25V 1u Q6257 2SC1473AEA D6001 B0HBSN000008 TP15 R6069 10k SS12 1 2 3 4 5 6 7 8 9 10 R6042 150 R6012 100 L6010 G0AR60MA0003 R6263 150 R6257 0 R6002 5.6 C6171 200V 220u Q6031 B1ADNF000006 R6265 10k C6260 25V 1u D6011 B0HBSN000008 R6041 150 D6000 B0HBSN000008 VR6250 10k 1 2 3 TP9 L6014 G0ZZ00002183 R6034 10k C6065 16V 1u Q6102 B1JADN000001 G D S R6063 EXB38V472JV D6146 B0HBSN000008 R6140 15 Q6101 B1JADN000001 G D S Q6160 B1ABNF000006 Q6260 B1DFKM000002 G D S L6251 J0JJC0000021 L6183 J0JJC0000021 R6293 5.6k C6258 16V 1u D6063 LNJ301MPUJA R6260 100 C6100 630V 5600p R6143 15 TP33 C6039 25V 4.7u L6181 G0ZZ00002183 TP23 C6062 25V 220u R6270 100k AN16016A-VF IC6250 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 COM 16 NC SS55 1 2 3 4 5 6 7 8 9 10 11 12 13 SS23 1 2 3 4 5 6 7 SS56 1 2 3 4 5 6 7 8 9 10 11 12 13 SS22 1 2 3 4 5 6 7 R6274 10k DMHR DSHL TP15V + USH NC GND NC(URL) TPSS1 TPSOS2 GND GNDa GND TPVe STB_PS VSUS GND DSLL GND USL GND NC - - NC UEL NC(URH) DRV_SOS9 STB12V +15V + DMHL GNDa DRV_SOS2 Vda75V UEH NC Vda75V 5V VSUS UML DMLL UMH TPSOS3 (GREEN LED) GNDa TPVSUS TPVDA GND B E 9 6 8 7 3 D 4 C 1 2 F 5 A 4 1 2 3 SS-BOARD TNPA3568 (1/2) SS2-BOARD TNPA3559 SS3-BOARD TNPA3560 STB_PS STB12V DOWN UP TO P-BOARD (P12) (P11) TO P-BOARD 176.1 176.1 0 0 0 0 0 FET DRIVER FET DRIVER BUFFER SOS DET FET DRIVER FET DRIVER S-BOARD TO (S1) 12.0 12.0 0 SUSTAIN TO PANEL ELECTRODE TO PANEL SUSTAIN ELECTRODE ELECTRODE SUSTAIN TO PANEL ELECTRODE SUSTAIN TO PANEL SUSTAIN TO PANEL ELECTRODE SUSTAIN TO PANEL ELECTRODE 2.4 0 0.5 0 1.0 5.2 3.8 0.9 0.4 0 0 0 12.0 0 15.0 12.0 0 0 0 75.0 75.0 1.9 1.5 0.6 1.0 1.6 0 0 0 0 C4-BOARD TO (C44) * * * * * * TH-50PV500E/B SS-Board (1 of 2), SS2 and SS3-Board Schematic Diagram TH-50PV500E/B SS-Board (1 of 2), SS2 and SS3-Board Schematic Diagram FET DRIVER TH-50PV500E / TH-50PV500B 147 14.74. SS-Board (2 of 2) Schematic Diagram + + + + + + + DSHL DMHL DSLL DMLL DMHR DRV_SOS2 81V 82V 75V 5V 15V R6236 10k R6211 10k D6013 B0HCMM000014 D6210 B0HDSM000005 Q6223 B1DFKL000001 G D S L6216 J0JJC0000021 C0ZBZ0000895 IC6201 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC D6066 MA3X152E0L R6202 5.6 TP6911 Q6200 2SK326900L G D S C6209 160V 100u C0JBAZ000005 IC6240 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC L6203 LHF11NB0R6L R6219 100k R6241 11.8k C6210 250V 2.2u D6209 B0ECHP000003 Q6202 2SK326900L G D S L6217 J0JJC0000021 R6217 100 R6075 2.2k C6214 25V 4.7u D6208 B0ECHP000003 L6223 J0JJC0000021 R6247 180 TP6910 ZA6103 K4CD01000013 R6213 10 L6226 J0JJC0000021 TP6916 C6233 25V 4.7u TP6914 R6244 10k D6241 B0ECHP000003 R6242 4.7k Q6230 B1ABNF000006 C6223 25V 4.7u L6200 G0AR60MA0003 R6080 470k D6206 D1FL40 L6202 G0AR60MA0003 L6214 J0JJC0000021 R6212 10k D6065 MA3X152E0L C6211 250V 2.2u R6249 11.8k L6201 G0AR60MA0003 Q6231 B1ADNF000006 D6226 B0ECHP000003 C6221 25V 4.7u Q6211 B1ADNF000006 IC6062 C0BBBA000043 1 2 3 4 5 6 7 8 R6233 10k R6299 EXB38V472JV TP6917 R6047 150 C0ZBZ0000895 IC6200 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC D6240 B0HDSM000005 D6002 B0HDSM000005 Q6240 2SB1193000LB R6054 150 R6245 6.98k SS35 1 2 3 4 5 6 7 8 9 10 R6053 150 R6231 22 Q6233 B1ADNF000006 R6227 22 L6215 J0JJC0000021 C6234 25V 220u R6214 10k R6076 2.2k C6206 160V 100u R6238 100 L6236 J0JJC0000021 R6223 22 R6291 47 R6252 180 C6224 25V 220u L6219 J0JJC0000021 C6273 25V 4.7u R6221 22 C0ZBZ0000895 IC6221 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC C6235 25V 4.7u C6068 50V 0.01u Q6221 B1DFKL000001 G D S R6229 100 L6210 J0JJC0000021 R6232 10 R6228 10k L6204 LHF11NB0R6L R6200 5.6 R6234 10k C6240 100V 100u D6211 B0HDSM000005 R6058 150 TP6905 C6212 250V 2.2u L6231 J0JJC0000021 Q6210 B1ABNF000006 Q6213 B1ADNF000006 C6202 25V 220u R6048 150 R6240 69.8k D6014 B0HCMM000014 L6240 G0ZZ00002183 R6052 11.8k ZA6101 K4CD01000013 R6057 150 R6216 100 C6226 16V 1u R6246 220 R6298 EXB38V470JV Q6225 B1DFKL000001 G D S Q6232 B1ABNF000006 L6212 J0JJC0000021 C6218 25V 4.7u D6221 B0JCME000037 D6227 B0ECHP000003 L6233 J0JJC0000021 C6225 25V 4.7u L6232 J0JJC0000021 R6056 150 R6292 4.7k JS6200 0 R6235 10 R6215 10k R6237 10k TP6904 L6235 J0JJC0000021 TP6915 L6211 J0JJC0000021 D6225 B0JCME000037 D6212 DF20LC20U D6215 B0HDSM000005 R6055 150 R6210 10 ZA6102 K4CD01000013 R6239 100 C6275 25V 4.7u D6200 B0HDSM000005 L6241 G0ZZ00002183 C6067 50V 0.01u D6203 DF20LC20U C6215 25V 220u D6242 B0ECHP000003 C6069 50V 0.01u R6248 180 D6207 B0ECHP000003 R6243 38.3k R6253 100 Q6212 B1ABNF000006 L6218 J0JJC0000021 L6225 J0JJC0000021 C0ZBZ0000895 IC6220 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC R6225 22 SS42 1 2 3 4 5 6 7 8 9 10 C6066 50V 0.01u R6079 100 C6217 25V 4.7u L6213 J0JJC0000021 D6228 DF20LC20U L6224 J0JJC0000021 + NC NC Vda 75V Vda 75V GND NC GND TPVDL NC 15V + - VDAL VDAL Vda 75V Vda_75V - Vda 75V TPVDR VDAR VDAR VDAR VDAR VDAL VDAL NC NC 14 18 12 10 16 11 15 13 17 1 4 3 2 SS-BOARD TNPA3568 (2/2) SOS DET FET DRIVER FET DRIVER FET DRIVER FET DRIVER (C35) TO C3-BOARD (C42) TO C4-BOARD 78.0 78.0 78.0 78.0 0 75.0 75.0 0 0 0 0 0 78.0 0 78.0 75.0 75.0 78.0 0 78.0 TH-50PV500E/B SS-Board (2 of 2) Schematic Diagram TH-50PV500E/B SS-Board (2 of 2) Schematic Diagram BUFFER TH-50PV500E / TH-50PV500B 148 15 Parts Location & Mechanical Replacement Parts List 15.1. Parts Location 149 TH-50PV500E / TH-50PV500B 15.2. Packing Exploded Views (1) 150 TH-50PV500E / TH-50PV500B 15.3. Packing Exploded Views (2) 151 TH-50PV500E / TH-50PV500B 15.4. Packing Exploded Views (3) 152 TH-50PV500E / TH-50PV500B Note: All parts except parts mentioned [PAVCCZ] in the Remarks column are supplied by AVC-SPC. Parts mentioned [PAVCCZ] are supplied by PAVCCZ. Ref. No. Part No. Part Name & Description Pcs Remarks 1 EAK7E14A2 SQUAWKER SP (L&R) 2 J0KD00000095 FLAT CORE 2 J0KD00000096 FLAT CORE 2 2 J0KF00000018 FILTER 5 3 J0KG00000014 FILTER 2 J0KG00000042 FILTER 1 J2ZZ00000054 RF-CABLE 1 TH-50PV500B PAVCCZ K1YD68000002 CONNECTOR 2 4 K2AH3H000033 AC-INLET 1 PAVCCZ 5 K2CT3DH00018 AC CORD (B/H) 1 TH-50PV500B 5 K2CN3DH00006 AC CORD 1 TH-50PV500E 6 L6FALEFH0028 FAN 4 7 MD50H08A1J PLASMA DISPLAY PANEL 1 8 N2QAKB000056 REMOTE CONTROL 1 TH-50PV500B PAVCCZ 8 N2QAKB000057 REMOTE CONTROL 1 TH-50PV500E PAVCCZ 9 TBXA45401 POWER BUTTON 1 10 TBXA45504 CONTROL BOTTON 1 PAVCCZ 11 TEKC029 DANPER 1 12 TEKX020 SD DOOR 1 13 TES4G204 SPRING 1 14 TESD070 DAMPER SPRING 1 THEL0239 SCREW (SLOT5, METAL4,COVER3) 1 THEL027N SCREW 4 THEL035N SCREW 141 THEL0429 SCREW 24 THTA0379 SCREW 2 THTD010N SCREW 13 THTD011J SCREW 4 15 TKGA5205-1 FRONT GLASS 1 PAVCCZ 16 TKKC5200 LED PANEL 1 17 TKKC5207 SD PANEL 1 18 TKKL5231 COVER 4 19 TKKL5277-3 HOLE CAP 2 20 TKKL5306 ADJUSTMENT COVER(SMALL) 1 21 TKKL5330 ADJUSTMENT COVER(LARGE) 1 22 TKPA93002 DOOR(PAINT) 1 PAVCCZ 23 TKPA94301 INLET COVER 1 24 TKRA44301 CORNER BRACKET(L) 1 25 TKRA44401 CORNER BRACKET(R) 1 TKRA45001 SIDE PANEL(L) 1 TKRA45101 SIDE PANEL(R) 1 26 TKRA46201 B/COVER HANDLE 2 TMKG468-1 SPONGE 4 TMKG558 SPONGE T/B 2 TMKG559 SPONGE L/R 2 TMKG562 SPONGE 4 TMM14490 CABLE CLAMPER 2 TMM17499 CLAMPER 1 TMM23416 SPACER 11 TMM25401 CLAMPER 5 TMM7464-2 CLAMPER 1 TMM7468-1 CLAMPER 3 TMM7473-1 CLAMPER 4 TMME047 CLAMPER 4 TMME061 CLAMPER 7 TMME084 CLAMPER 5 TMME144 CLAMPER 2 Ref. No. Part No. Part Name & Description Pcs Remarks TMME190 CLAMPER 3 TH-50PV500B TMME190 CLAMPER 2 TH-50PV500E TMME199 CLAMPER 2 TMME206 CLAMPER 2 TMME226 CLAMPER 1 TH-50PV500B TMME253 CLAMPER 1 TMMJ068 RUBBER 12 TMMJ082 CUSHION (RUBBER) 16 27 TPC0E63201 CARTON TOP(LOCAL) 1 PAVCCZ 28 TPC0E63301 CARTON BOTTOM (LOCAL) 1 PAVCCZ 29 TPD0E0090 CUSHION BOTTOM (LOCAL) 1 PAVCCZ 30 TPD0E0091 CUSHION TOP (LOCAL) 1 PAVCCZ 31 TPD0E9015 PAD TOP (LOCAL) 1 PAVCCZ 32 TPD169487 JOINT 4 33 TPDF1197 ACCESSORIES BOX 1 34 TPE0E4013 TOP PROTECT SHEET 1 PAVCCZ 35 TPEH170 PROTECT COVER 1 TQACXRSE ITALIAN SCHEMATIC DIAGRAM 1 TH-50PV500E PAVCCZ 36 TQBCXRSE1 INSTRUCTION BOOK(ENGLISH) 1 TH-50PV500E PAVCCZ 36 TQBCXRSE10 INSTRUCTION BOOK(NETHELAN) 1 TH-50PV500E PAVCCZ 36 TQBCXRSE11 INSTRUCTION BOOK(DANISH) 1 TH-50PV500E PAVCCZ 36 TQBCXRSE12 INSTRUCTION BOOK(SWEDISH) 1 TH-50PV500E PAVCCZ 36 TQBCXRSE13 INSTRUCTION BOOK(CZECHO) 1 TH-50PV500E PAVCCZ 36 TQBCXRSE2 INSTRUCTION BOOK(HUNGALY) 1 TH-50PV500E PAVCCZ 36 TQBCXRSE3 INSTRUCTION BOOK(POLAND) 1 TH-50PV500E PAVCCZ 36 TQBCXRSE4 INSTRUCTION BOOK(BULGALIA) 1 TH-50PV500E PAVCCZ 36 TQBCXRSE5 INSTRUCTION BOOK(RUMANIA) 1 TH-50PV500E PAVCCZ 36 TQBCXRSE6 INSTRUCTION BOOK(GERMAN) 1 TH-50PV500E PAVCCZ 36 TQBCXRSE7 INSTRUCTION BOOK(FRENCH) 1 TH-50PV500E PAVCCZ 36 TQBCXRSE8 INSTRUCTION BOOK(ITALIAN) 1 TH-50PV500E PAVCCZ 36 TQBCXRSE9 INSTRUCTION BOOK(SPANISH) 1 TH-50PV500E PAVCCZ 36 TQBCXRSB1 INSTRUCTION BOOK(ENGLISH) 1 TH-50PV500B PAVCCZ 37 TQEF035 POLY BAG 1 TSXL139 CABLE SUS~FPC 6 TSXL287 CABLE SCN~FPC 8 TSXL436 CABLE DG1-H1/DG2- H2 2 TSXL438 CABLE PA30-H30 2 TSXL441 CABLE 3 TSXL441 CABLE H51~G51 1 TSXL442 CABLE G11~SDM 1 PAVCCZ TSXL443 CABLE GS12~SDM 1 TSXL448 CABLE D31~C24/D32~C25 2 TSXL449 CABLE D33~C54/D34~C55 2 TSXL450 CABLE C10~C20/C21~C31/C5 0~C60 3 TSXL460 CABLE Z50-H50 1 TSXL480 CABLE C41~C51 1 38 TTUA1137 REAR COVER 1 TH-50PV500E PAVCCZ 38 TTUA1138 REAR COVER 1 TH-50PV500B PAVCCZ 39 TXFAB010XRS SP BOX ASS’Y (LEFT) 1 15.5. Mechanical Replacement Parts List 153 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks 40 TXFAB020XRS SP BOX ASS’Y (RIGHT) 1 41 TXFKE01XQSB ESCUTCHEON ASS’Y 1 TH-50PV500B PAVCCZ 41 TXFKE01XQSE ESCUTCHEON ASS’Y 1 TH-50PV500E PAVCCZ 42 TXFKK010XRS TERMINAL COVER 1 43 TXFMZ010XQSB STAND POLE BRACKET 1 PAVCCZ 44 TXFMZ020XQSB STAND POLE BRACKET 1 PAVCCZ TXJ/SLXQSE SPEAKER LEAD (L) 1 PAVCCZ TXJ/SRXQSE SPEAKER LEAD (R) 1 PAVCCZ XSN2+6FJ SCREW 2 XTB4+12GFJ SCREW 3 XTB4+12GFJK SCREW 62 XTV3+10JFJK SCREW (HDMI) 6 XTW3+10TFJ SCREW 2 XTW4+25DFJ SCREW 14 PAVCCZ XYC3+JF12FJ SCREW 3 XYN2+F5FJ SCREW (TOP BOT) 1 XYN3+F10FJ SCREW 2 XYN3+F10FJK SCREW 2 XYN3+F6FJ SCREW 1 XYN3+F8FJ SCREW 41 TH-50PV500E XYN3+F8FJ SCREW 37 TH-50PV500B XYN3+J12FJ SCREW 36 XYN3+J8FJ SCREW ROHS 2 XYN4+E8FJ SCREW (EARTH) 1 XYN4+F10FJK SCREW (SD MODULE:11) 11 XYN5+C15FJ SCREW 8 XZBT6530 POLY BAG 1 154 TH-50PV500E / TH-50PV500B 16 Electrical Replacement Parts List 16.1. Replacement Parts List Notes 155 TH-50PV500E / TH-50PV500B Note: All parts except parts mentioned [PAVCCZ] in the Remarks column are supplied by AVC-SPC. Parts mentioned [PAVCCZ] are supplied by PAVCCZ. Ref. No. Part No. Part Name & Description Pcs Remarks F603 K5D102BNA007 TIME LAG FUSE HIGH(F603) 1 F601.60 2 K5D103BMA001 TIME LAG FUSE HIGH(F601) 2 C001 ECA0JM102 E 1000UF, 6.3V 1 C002,03 ECA1HM100 E 10UF, 50V 2 C006 ECJ1XC1H220J C 22PF, J, 50V 1 C007 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C009 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C10 K1MN50BA0076 50P CONNECTOR 1 C11 K1KA06BA0107 6P CONNECTOR 1 C013 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C016 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C017 ECJ3VB1C474K C 0.47UF, K, 16V 1 C018,19 ECJ1XC1H330J C 33PF, J, 50V 2 C020 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C20 K1MN50BA0076 50P CONNECTOR 1 C021 ECJ1XC1H101J C 100PF, J, 50V 1 C21 K1MN50BA0076 50P CONNECTOR 1 C022 ECJ3YB0J335K C 33UF, J, 25V 1 C22 K1KA06BA0107 6P CONNECTOR 1 C023 ECJ1XF1H102Z C 1000PF, Z, 50V 1 C23 K1KA06BA0107 6P CONNECTOR 1 C024 ECJ1XC1H221J C 220PF, J, 50V 1 C24,25 K1MN55BA0076 55P CONNECTOR 2 C31 K1MN50BA0076 50P CONNECTOR 1 C33 K1KA06BA0107 6P CONNECTOR 1 C35 K1KA10AA0153 10P CONNECTOR 1 C41 K1MN55BA0076 55P CONNECTOR 1 C42 K1KA10AA0153 10P CONNECTOR 1 C43 K1KA06BA0107 6P CONNECTOR 1 C44 K1KA20AA0009 20P CONNECTOR 1 C50 K1MN50BA0076 50P CONNECTOR 1 C51 K1MN55BA0076 55P CONNECTOR 1 C52,53 K1KA06BA0107 6P CONNECTOR 2 C54,55 K1MN68BA0076 68P CONNECTOR 2 C60 K1MN50BA0076 50P CONNECTOR 1 C61 K1KA06BA0107 6P CONNECTOR 1 C1100 ECJ1XB0J105K C 1UF, K, 16V 1 C1101,0 2 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C1104 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C1105,0 6 ECJ1XB0J105K C 1UF, K, 16V 2 C1107 ECJ1VB1H103K C 0.001UF, K, 50V 1 C1108- 11 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C1112 EEEHB1C100R C 10PF, J, 16V 1 C1113,1 4 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C1115 EEEHB0G101R C 100PF, J, 4V 1 C1116 ECJ1XC1H102J C 1000PF, J, 50V 1 C1117- 19 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C1120 EEEHB0G101R C 100PF, J, 4V 1 C1122 ECJ1XC1H102J C 1000PF, J, 50V 1 C1123,2 4 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C1125 ECJ3XB0J106M C 10UF, M,6.3V 1 C1126 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C1127 ECJ1XC1H102J C 1000PF, J, 50V 1 C1128,2 9 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C1130 ECJ1XC1H102J C 1000PF, J, 50V 1 C1131 ECJ1XB1C104K C 0.1UF, Z, 16V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C1132 EEEHB1C100R C 10PF, J, 16V 1 C1133,3 4 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C1135 ECJ1XC1H102J C 1000PF, J, 50V 1 C1136- 39 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C1140 EEEHB1E330P C 33PF, J, 25V 1 C1141 ECJ1VB1H103K C 0.001UF, K, 50V 1 C1150 EEEHB1E330P C 33PF, J, 25V 1 C1152 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C1153,5 4 ECJ1VB1H221K C 220UF, K, 50V 2 C1155 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C1170 EEVHP1C100R E 10UF, 16V 1 C1171 EEEHB1C470P C 47PF, J, 16V 1 C1172 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C1174 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C1175 ECJ1XC1H151J C 150PF, J, 50V 1 C1178 ECJ1XB0J105K C 1UF, K, 16V 1 C1181,8 2 EEEHB0G101R C 100PF, J, 4V 2 C1185,8 6 ECJ1VB1H103K C 0.001UF, K, 50V 2 C1187 ECJ1XC1H180J C 18PF, J, 50V 1 C1188 ECJ1XC1H220J C 22PF, J, 50V 1 C1193 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C1194 ECJ1VB1H103K C 0.001UF, K, 50V 1 C1195 ECJ1XB0J105K C 1UF, K, 16V 1 C1196- 98 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C1200,0 1 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C1202 EEEHB0G101R C 100PF, J, 4V 1 C1203 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C1204 ECJ1XB0J105K C 1UF, K, 16V 1 C1205,0 6 ECJ1XC1H271J C 270PF, J, 50V 2 C1207 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C1208 ECJ1XC1H271J C 270PF, J, 50V 1 C1209 EEEHB0G101R C 100PF, J, 4V 1 C1211 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C1212,1 3 ECJ1XC1H271J C 270PF, J, 50V 2 C1214- 16 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C1217,1 8 ECJ1XC1H271J C 270PF, J, 50V 2 C1219 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C1220,2 1 ECJ1XC1H101J C 100PF, J, 50V 2 C1222 ECJ1VB1C105K C 0.01UF, K, 16V 1 C1223- 25 ECJ1XC1H680J C 68PF, J, 50V 3 C1233 EEVHB0J470R E 47UF, 6.3V 1 C2005- 18 ECJ1XC1H561J C 560PF, J, 50V 14 C2019 ECA1CM221 E 220UF, 16V 1 C2020 ECA1HM220 E 22UF, 50V 1 C2021,2 2 ECJ1XC1H561J C 560PF, J, 50V 2 C2101,0 2 ECJ2VF1C104Z C 0.1UF, Z, 16V 2 C2103,0 4 ECJ3YB1A106M C 10UF, M,6.3V 2 C2107- 10 ECJ2FB1C105K C 1UF, Z, 16V 4 TH-50PV500B C2111 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2116 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2118,1 9 ECEA1CN470U E 47UF, 16V 2 C2120,2 1 ECJ2XB1A105K C 1UF, K, 10V 2 C2122,2 3 ECJ3YB1A106M C 10UF, M,6.3V 2 C2124 ECJ3XB1C106M C 1.0UF, K, 16V 1 16.2. Electrical Replacement Parts List 156 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks C2125,2 6 ECJ1VB1H102K C 1000PF, K, 50V 2 C2127 ECA1CMH101 E 100UF, 16V 1 C2128 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2129,3 0 F1J1A1050002 C 1UF, Z, 50V 2 C2131 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2132 ECA1HM100 E 10UF, 50V 1 C2133,3 4 ECJ1XC1H470J C 47PF, J, 50V 2 C2135,3 6 ECJ2FB1C105K C 1UF, Z, 16V 2 C2139,4 0 ECJ2FB1C105K C 1UF, Z, 16V 2 C2143 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2144,4 5 ECJ3YB1A106M C 10UF, M,6.3V 2 C2146 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2147 ECA1HM220 E 22UF, 50V 1 C2148- 50 ECJ2FB1C105K C 1UF, Z, 16V 3 C2152 ECJ2FB1C105K C 1UF, Z, 16V 1 C2153 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C2154 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2155 ECJ2FB1C105K C 1UF, Z, 16V 1 C2156 ECJ3YB1A106M C 10UF, M,6.3V 1 C2157 ECJ2FB1C105K C 1UF, Z, 16V 1 C2158 ECJ3YB1A106M C 10UF, M,6.3V 1 C2159,6 0 ECJ2FB1C105K C 1UF, Z, 16V 2 C2161 ECA1CMH101 E 100UF, 16V 1 C2162- 65 ECJ2FB1C105K C 1UF, Z, 16V 4 C2166,6 7 ECJ2FB1C105K C 1UF, Z, 16V 2 TH-50PV500B C2168,6 9 ECJ2FB1C105K C 1UF, Z, 16V 2 C2172 ECJ1VB1H102K C 1000PF, K, 50V 1 C2173 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2174 ECJ1VB1H102K C 1000PF, K, 50V 1 C2175- 77 ECJ1VB1H103K C 0.001UF, K, 50V 3 C2178,7 9 ECA1HM100 E 10UF, 50V 2 C2181 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2183 ECA1HM3R3 E 3.3UF, 50V 1 C2184,8 5 ECJ2VF1C104Z C 0.1UF, Z, 16V 2 C2189,9 0 ECJ2FB1C105K C 1UF, Z, 16V 2 C2191 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2192 ECA1HM100 E 10UF, 50V 1 C2193,9 4 ECJ2FB1C105K C 1UF, Z, 16V 2 TH-50PV500E C2195 ECJ1XC1H470J C 47PF, J, 50V 1 C2196 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2197 ECJ2YB0J225K C 2.2UF, K, 6.3V 1 C2198 ECA1CMH101 E 100UF, 16V 1 C2199 ECJ1VC1H560J C 56PF, J, 50V 1 C2200 ECJ1XC1H470J C 47PF, J, 50V 1 C2201,0 2 ECJ1XC1H050C C 5PF, C, 50V 2 C2203 ECJ1VC1H100C C 10PF, C, 50V 1 C2204 ECJ1XC1H220J C 22PF, J, 50V 1 C2206 ECA1CMH101 E 100UF, 16V 1 C2207 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2208 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 TH-50PV500E C2211 ECJ1VB1C104K C 0.1UF, K, 16V 1 C2212 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 TH-50PV500E C2213 ERJ3GEY0R00 M 0 OHM, 1/16W 1 TH-50PV500B C2213 ECJ1VB1C104K C 0.1UF, K, 16V 1 TH-50PV500E C2214 ECJ1VB1H102K C 1000PF, K, 50V 1 C2215 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2218- 21 ECJ3YB1A106M C 10UF, M,6.3V 4 C2222 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C2223 ECJ1XC1H390J C 39PF, J, 50V 1 C2225 ECJ2FB1C105K C 1UF, Z, 16V 1 C2226 ECJ1VB1H102K C 1000PF, K, 50V 1 C2300,0 1 ECJ1VF1H104Z C 0.1UF, Z, 50V 2 C2302 ERJ6GEY0R00 M 0 OHM, 1/10W 1 C2305 ECA1CMH101 E 100UF, 16V 1 C2306 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2307 ECA1CMH101 E 100UF, 16V 1 C2308,0 9 F1H1H152A219 C 1500PF, K, 50V 2 C2310,1 1 ECJ3YB1A475K C 0.047UF, K, 10V 2 C2312 ERJ6GEY0R00 M 0 OHM, 1/10W 1 C2314 ECJ1VB1H562K C 5600PF, K, 50V 1 C2315 ECA1CHG470 E 47UF, 16V 1 C2316 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C2318 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C2319 ECJ1XC1H271J C 270PF, J, 50V 1 C2320 ECJ1VB1E333K C 0.033UF, K, 25V 1 C2322 ECJ1XC1H271J C 270PF, J, 50V 1 C2323 ECJ1VB1E333K C 0.033UF, K, 25V 1 C2324 ECJ1XC1H271J C 270PF, J, 50V 1 C2325 ECJ1VB1E333K C 0.033UF, K, 25V 1 C2327 ECJ1XC1H271J C 270PF, J, 50V 1 C2328 ECJ1VB1E333K C 0.033UF, K, 25V 1 C2329- 32 ECJ1VB1H562K C 5600PF, K, 50V 4 C2335 ECJ3YB1A106M C 10UF, M,6.3V 1 C2337 ECJ1XC1H681J C 680PF, J, 50V 1 C2338 ECJ1VB1H562K C 5600PF, K, 50V 1 C2340 ECJ2FB1C474K C 0.47UF, Z, 16V 1 C2341 ECJ1VB1H182K C 1800PF, K, 50V 1 C2342 ECJ1VB1H153K C 0.015UF, K, 50V 1 C2343 ECJ2XB1C154K C 0.15PF, K, 16V 1 C2344 ECJ1XC1H102J C 1000PF, J, 50V 1 C2346 ECJ1VF1A105Z C 1UF, Z, 10V 1 C2347 ECA1VHG470 E 47UF, 35V 1 C2348 ECJ1VB1H182K C 1800PF, K, 50V 1 C2349 ECJ1VB1H153K C 0.015UF, K, 50V 1 C2350 ECJ2XB1C154K C 0.15PF, K, 16V 1 C2351 ECJ1XC1H102J C 1000PF, J, 50V 1 C2352 ECJ1XC1H681J C 680PF, J, 50V 1 C2353 ECJ1VB1H562K C 5600PF, K, 50V 1 C2355 ECJ2FB1C474K C 0.47UF, Z, 16V 1 C2356 ECJ3YB1A106M C 10UF, M,6.3V 1 C2357,5 8 ECA1CMH101 E 100UF, 16V 2 C2359,6 0 ECJ1VB1H103K C 0.001UF, K, 50V 2 C2362 ECJ1VB1H123K C 0.012UF, K, 50V 1 C2364,6 5 ECJ1VB1H123K C 0.012UF, K, 50V 2 C2367 ECJ1XC1H271J C 270PF, J, 50V 1 C2369 ECJ1VB1H123K C 0.012UF, K, 50V 1 C2370 ECJ1XC1H271J C 270PF, J, 50V 1 C2372 ECA1HHG100 E 10UF, 50V 1 C2373 F1H0J1050012 C 1UF, K, 16V 1 C2374 ECA1HHG100 E 10UF, 50V 1 C2375 ECJ2FB1E105K C 1UF, K, 25V 1 C2376- 91 ECJ2XB1H102K C 1000PF, K, 50V 16 C2392 ECA1CMH101 E 100UF, 16V 1 C2393 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2394,9 5 ECA1CMH101 E 100UF, 16V 2 C2396 ECA1CHG470 E 47UF, 16V 1 C2397 F1H0J1050012 C 1UF, K, 16V 1 C2398,9 9 ECJ1VB1H102K C 1000PF, K, 50V 2 C2400 F1H0J1050012 C 1UF, K, 16V 1 C2401,0 2 ECA1CHG470 E 47UF, 16V 2 C2428,2 9 ECJ2XB1E104K C 0.1UF, K, 25V 2 157 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks C2430 ECJ1VF1A105Z C 1UF, Z, 10V 1 C2433- 40 ECJ2FB1C474K C 0.47UF, Z, 16V 8 C2441- 44 ECJ1XC1H221J C 220PF, J, 50V 4 C2445- 48 ECJ2FB1E105K C 1UF, K, 25V 4 C2449- 52 ECA1EHG331 E 330UF, 25V 4 C2453- 60 ECJ2FB1E105K C 1UF, K, 25V 8 C2461- 64 ECJ2XB1H332K C 3300PF, K, 50V 4 C2465- 80 ECJ2FB1E105K C 1UF, K, 25V 16 C2481- 88 ECJ2FB1E224K C 22UF, K, 25V 8 C2489- 92 ECJ2XB1H332K C 3300PF, K, 50V 4 C2497- 99 ECJ2FB1E105K C 1UF, K, 25V 3 C2510,1 1 ECJ2VF1C105Z C 1UF, Z, 16V 2 C2512 ECJ3XB0J106M C 10UF, M,6.3V 1 C2515 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2517 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B C3001- 03 ECJ1VB1H102K C 1000PF, K, 50V 3 C3004 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3005- 07 ECJ2VF1C104Z C 0.1UF, Z, 16V 3 C3008,0 9 F1J1A1050002 C 1UF, Z, 50V 2 C3011 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3013,1 4 F1J1A1050002 C 1UF, Z, 50V 2 C3015 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3018 ECJ3YB1A106M C 10UF, M,6.3V 1 C3019- 21 F1J1A1050002 C 1UF, Z, 50V 3 C3024- 28 F1J1A1050002 C 1UF, Z, 50V 5 C3029 ECJ2VF1C105Z C 1UF, Z, 16V 1 C3031 F1J1A1050002 C 1UF, Z, 50V 1 C3032 ECJ2XB1A105K C 1UF, K, 10V 1 C3033 F1J1A1050002 C 1UF, Z, 50V 1 C3035,3 6 F1J1A1050002 C 1UF, Z, 50V 2 C3038 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3040 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3042,4 3 F1J1A1050002 C 1UF, Z, 50V 2 C3044 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3045 F1J1A1050002 C 1UF, Z, 50V 1 TH-50PV500B C3047 F1J1A1050002 C 1UF, Z, 50V 1 C3049- 56 F1J1A1050002 C 1UF, Z, 50V 8 C3058 ECA1CMH101 E 100UF, 16V 1 C3059 ECJ2VF1C105Z C 1UF, Z, 16V 1 C3060- 64 ECJ2VF1C104Z C 0.1UF, Z, 16V 5 C3207 ECA1AM102 E 1000UF, 10V 1 C3208 ECJ2XB1C474K C 0.47UF, Z, 16V 1 C3212 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3214 ECJ2FF1A106Z C 0.001UF, Z, 10V 1 C3216 ECJ2FF1A106Z C 0.001UF, Z, 10V 1 C3226- 29 ECJ2FF1A106Z C 0.001UF, Z, 10V 4 C3230 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3231 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3233 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3235 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C3236 ECA1HM100 E 10UF, 50V 1 C3241 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3305 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3330 ECA1CM470 E 47UF, 16V 1 C3331 ECJ2XB1H103K C 0.01UF, K, 50V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C3332 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3334 ECEA1CN470U E 47UF, 16V 1 C3335 ECJ2VB1C104K C 0.1UF, K, 16V 1 C3336 ECEA1CN470U E 47UF, 16V 1 C3337 ECJ2VB1C104K C 0.1UF, K, 16V 1 C3338 ECEA1CN470U E 47UF, 16V 1 C3339 ECJ2VB1C104K C 0.1UF, K, 16V 1 C3340- 42 ECJ2VF1C104Z C 0.1UF, Z, 16V 3 C3701 ECJ1VC1H271K C 270PF, J, 50V 1 C3703 ECJ1VC1H271K C 270PF, J, 50V 1 C3705 ECJ1VC1H271K C 270PF, J, 50V 1 C3711,1 2 ECJ1VF1H333Z C 0.033UF, Z, 50V 2 C3750 ECJ2XC1H102K C 1000PF, K, 50V 1 C4001 EEVHB0G221P E 220UF, 4V 1 C4002 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4003 EEFCD0G560R 56UF, 1 C4004 ECJ2YB0J225K C 2.2UF, K, 6.3V 1 C4005 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4006 ECJ1XC1H471J C 470PF, J, 50V 1 C4014,1 5 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4016 ECJ1XC1H680J C 68PF, J, 50V 1 C4018 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4019 ECJ2FB1C684K C 68UF, Z, 16V 1 C4020 ECJ1XB1C393K C 0.039UF, K, 16V 1 C4023,2 4 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4025 EEVHB0J470R E 47UF, 6.3V 1 C4026 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4027 EEEHB1E330P C 33PF, J, 25V 1 C4028,2 9 ECJ3XB0J106M C 10UF, M,6.3V 2 C4030 EEEHB1C100R C 10PF, J, 16V 1 C4031- 33 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C4035 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4036 EEVHB0J470R E 47UF, 6.3V 1 C4037 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4038- 45 ECJ1XB1C104K C 0.1UF, Z, 16V 8 C4047 ECJ1XC1H102J C 1000PF, J, 50V 1 C4048 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4049 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4050 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4051 ECJ1XC1H102J C 1000PF, J, 50V 1 C4052 ECJ1XB0J105K C 1UF, K, 16V 1 C4053,5 4 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4055 ECJ1VB1C823K C 0.082UF, K, 16V 1 C4056 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4057,5 8 ECJ2VB1C104K C 0.1UF, K, 16V 2 C4059 EEVHB0J470R E 47UF, 6.3V 1 C4060 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4061 EEVHB0J470R E 47UF, 6.3V 1 C4062 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4063- 65 ECJ2VB1C104K C 0.1UF, K, 16V 3 C4066 ECJ1XB0J105K C 1UF, K, 16V 1 C4070 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4072 ECJ2YB0J225K C 2.2UF, K, 6.3V 1 C4100- 02 ECJ3XB0J106M C 10UF, M,6.3V 3 C4103 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4104 ECJ1VB1C105K C 0.01UF, K, 16V 1 C4105 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4106 ECJ1VB1C105K C 0.01UF, K, 16V 1 C4107 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4108 ECJ1VB1C105K C 0.01UF, K, 16V 1 C4115- 17 ECJ3XB0J106M C 10UF, M,6.3V 3 C4118- 20 ECJ1XC1H390J C 39PF, J, 50V 3 158 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks C4121,2 2 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4124 EEEHB1A101P C 100PF, J, 10V 1 C4126 EEVHB0J470R E 47UF, 6.3V 1 C4127 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4128- 31 ECJ1VB1H103K C 0.001UF, K, 50V 4 C4132 EEEHB0G101R C 100PF, J, 4V 1 C4133 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4135 ECJ1XB0J105K C 1UF, K, 16V 1 C4136 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4151 ECJ3YB0J335K C 33UF, J, 25V 1 C4152 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4153- 56 ECJ1VB1C105K C 0.01UF, K, 16V 4 C4158- 66 ECJ1XC1H102J C 1000PF, J, 50V 9 C4167 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4168 ECJ1XC1H102J C 1000PF, J, 50V 1 C4170- 72 ECJ1VB1H103K C 0.001UF, K, 50V 3 C4176 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4177,7 8 ECJ1VB1C105K C 0.01UF, K, 16V 2 C4179 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4180 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4181 ECJ3XB0J106M C 10UF, M,6.3V 1 C4182 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4233 ECJ1XC1H101J C 100PF, J, 50V 1 C4234 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4235 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4301,0 2 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4303 EEEHB1E330P C 33PF, J, 25V 1 C4306 ECJ1XC1H050C C 5PF, C, 50V 1 C4308,0 9 ECJ1XC1H220J C 22PF, J, 50V 2 C4310- 13 ECJ1XB0J105K C 1UF, K, 16V 4 C4314 ECJ3XB0J106M C 10UF, M,6.3V 1 C4315- 17 ECJ1VF1A105Z C 1UF, Z, 10V 3 C4318 EEEHB1E330P C 33PF, J, 25V 1 C4341 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4342 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4343 EEVHB0J470R E 47UF, 6.3V 1 C4345 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4346 ECJ1XB0J105K C 1UF, K, 16V 1 C4348 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4350 ECJ1XB0J105K C 1UF, K, 16V 1 C4351,5 2 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4353 ECJ1XB0J105K C 1UF, K, 16V 1 C4354 EEVHB0G221P E 220UF, 4V 1 C4355,5 6 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4358 ECJ1XC1H680J C 68PF, J, 50V 1 C4359- 70 ECJ1XB1C104K C 0.1UF, Z, 16V 12 C4371 ECJ1XB0J105K C 1UF, K, 16V 1 C4372- 74 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C4375 ECJ1XB0J105K C 1UF, K, 16V 1 C4378 ECJ1VB0J225K C 2.2UF, K, 6.3V 1 C4379 ECJ1XC1H180J C 18PF, J, 50V 1 C4380 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4381 ECJ1XC1H180J C 18PF, J, 50V 1 C4382 ECJ1VB0J225K C 2.2UF, K, 6.3V 1 C4383 ECJ1VB1H562K C 5600PF, K, 50V 1 C4384- 88 ECJ1XB1C104K C 0.1UF, Z, 16V 5 C4390,9 1 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4392,9 3 ECJ1VB0J225K C 2.2UF, K, 6.3V 2 C4410 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C4411 EEEHB1C100R C 10PF, J, 16V 1 C4412 F1J0J1060004 C 0.010UF, K, 16V 1 C4414 F1J0J1060004 C 0.010UF, K, 16V 1 C4416,1 7 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C4418 EEEHB1C470P C 47PF, J, 16V 1 C4430 EEEHB1C470P C 47PF, J, 16V 1 C4431 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4432,3 3 ECJ1XC1H181J C 180PF, J, 50V 2 C4434,3 5 ECJ1XC1H330J C 33PF, J, 50V 2 C4436 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4437 EEEHB1C470P C 47PF, J, 16V 1 C4438,3 9 EEEHP1C100R C 10PF, J, 16V 2 C4440,4 1 ECJ1VB1H272K C 2700PF, K, 50V 2 C4501 EEVHB0J470R E 47UF, 6.3V 1 C4502- 13 ECJ1XB1C104K C 0.1UF, Z, 16V 12 C4514 EEVHB0J470R E 47UF, 6.3V 1 C4515- 19 ECJ1XB1C104K C 0.1UF, Z, 16V 5 C4521 ECJ1XB0J105K C 1UF, K, 16V 1 C4522- 24 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C4525 ECJ1XB0J105K C 1UF, K, 16V 1 C4526 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4527,2 8 ECJ1XB0J105K C 1UF, K, 16V 2 C4529- 34 ECJ1XB1C104K C 0.1UF, Z, 16V 6 C4535 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4536 ECJ1XB0J105K C 1UF, K, 16V 1 C4537 EEVHB0J470R E 47UF, 6.3V 1 C4538- 56 ECJ1XB1C104K C 0.1UF, Z, 16V 19 C4560,6 1 ECJ1VB1H103K C 0.001UF, K, 50V 2 C4562 ECJ1XB0J105K C 1UF, K, 16V 1 C4565- 68 ECJ1XC1H102J C 1000PF, J, 50V 4 C4570- 74 ECJ1XC1H102J C 1000PF, J, 50V 5 C4575 ECJ1XB0J105K C 1UF, K, 16V 1 C4576- 95 ECJ1XC1H102J C 1000PF, J, 50V 20 C4596 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4597 ECJ1XB0J105K C 1UF, K, 16V 1 C4598 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4599,0 0 ECJ1XB0J105K C 1UF, K, 16V 2 C4601 EEEHB0J330R C 33PF, J, 6.3V 1 C4602 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4605 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4607- 10 ECJ1VB1H103K C 0.001UF, K, 50V 4 C4611 ECJ3XB0J106M C 10UF, M,6.3V 1 C4612 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4613 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4701 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4702 EEFCD0G560R 56UF, 1 C4703 EEEHB0J220R C 22PF, J, 6.3V 1 C4704 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4709 EEVHB0J470R E 47UF, 6.3V 1 C4710,1 1 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4712 ECJ1VB1C103K C 0.010UF, K, 16V 1 C4713 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4714 ECJ1VB1C103K C 0.010UF, K, 16V 1 C4715 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4716 ECJ1VB1C103K C 0.010UF, K, 16V 1 C4717 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4718 ECJ1VB1C103K C 0.010UF, K, 16V 1 C4719- 22 ECJ1XB1C104K C 0.1UF, Z, 16V 4 159 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks C4723 ECJ1VB1C103K C 0.010UF, K, 16V 1 C4724 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4725 ECJ1VB1C103K C 0.010UF, K, 16V 1 C4726 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4727 ECJ1VB1C103K C 0.010UF, K, 16V 1 C4728 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4729 ECJ1VB1C103K C 0.010UF, K, 16V 1 C4730 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4731 ECJ1VB1C103K C 0.010UF, K, 16V 1 C4732 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4733 ECJ1VB1C103K C 0.010UF, K, 16V 1 C4734 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4735 ECJ1VB1C103K C 0.010UF, K, 16V 1 C4736 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4737 ECJ1VB1C103K C 0.010UF, K, 16V 1 C4850 ECJ3YF1C475Z C 4.7UF, Z, 16V 1 C4851 ECJ1VB1C104K C 0.1UF, K, 16V 1 C4854 ECJ1XC1H330J C 33PF, J, 50V 1 C4855,5 6 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4858 EEVHB0G221P E 220UF, 4V 1 C4859 ECJ1XC1H150J C 15PF, J, 50V 1 C4861 ECJ1XC1H150J C 15PF, J, 50V 1 C4863 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4864 ECJ3XB0J106M C 10UF, M,6.3V 1 C4865 ECJ1VC1H102J C 1000PF, J, 50V 1 C4867,6 8 ECJ1XC1H101J C 100PF, J, 50V 2 C4873 EEVHB0J470R E 47UF, 6.3V 1 C4874 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4875,7 6 ECJ2VB1C104K C 0.1UF, K, 16V 2 C4877 ECJ2XB1A105K C 1UF, K, 10V 1 C4878,7 9 ECJ2VB1C104K C 0.1UF, K, 16V 2 C4880 ECJ2XB1A105K C 1UF, K, 10V 1 C4881 ECJ1XC1H101J C 100PF, J, 50V 1 TH-50PV500B C4882 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4883 ECJ1XB0J105K C 1UF, K, 16V 1 C4892 EEVHB0J470R E 47UF, 6.3V 1 C4893 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4898 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4899 ECJ1XB0J105K C 1UF, K, 16V 1 C4901 EEEHB1C100R C 10PF, J, 16V 1 C4902 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4903 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4904 EEEHB1C470P C 47PF, J, 16V 1 C4905 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4922 EEVHB0J470R E 47UF, 6.3V 1 C4924 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4925 EEEHB1C470P C 47PF, J, 16V 1 C4926 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C4929 EEEHB1C100R C 10PF, J, 16V 1 C4939 EEVHB0G221P E 220UF, 4V 1 C4942 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4943 EEEHB1C470P C 47PF, J, 16V 1 C4945- 48 ECJ1XC1H102J C 1000PF, J, 50V 4 C4952 ECJ1XC1H101J C 100PF, J, 50V 1 C5001 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C5004 ECJ1VF1A105Z C 1UF, Z, 10V 1 C5005 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5013 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C5014 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5016 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5017 ECJ1VF1A105Z C 1UF, Z, 10V 1 C5018 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5019 ECJ1VB1H102K C 1000PF, K, 50V 1 C5020 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5030 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5034 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5036 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5039,4 0 ECJ1XB1C104K C 0.1UF, Z, 16V 2 Ref. No. Part No. Part Name & Description Pcs Remarks C5044 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5046 ECJ1XC1H471J C 470PF, J, 50V 1 C5047 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5049 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5054 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C5056 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5057 ECJ1XC1H101J C 100PF, J, 50V 1 C5133 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C5134 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5135,3 6 ECJ1VF1A105Z C 1UF, Z, 10V 2 C5137 ECJ1VB1H102K C 1000PF, K, 50V 1 C5140,4 1 ECJ1VF1A105Z C 1UF, Z, 10V 2 C5143 ECJ1VB1H102K C 1000PF, K, 50V 1 C5144 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5601 ECA1HM220 E 22UF, 50V 1 C5603 EEUFC1C821 E 820UF, 16V 1 C5604 ECA1HHG100 E 10UF, 50V 1 C5605 EEUFC1E102 E 1000UF, 25V 1 C5606 EEUFC1C821 E 820UF, 16V 1 C5608 ECJ2XB1H103K C 0.01UF, K, 50V 1 C5609 ECA1HM220 E 22UF, 50V 1 C5611 EEUFC1E102 E 1000UF, 25V 1 C5612 EEUFC1C821 E 820UF, 16V 1 C5613 ECJ2XB1E104K C 0.1UF, K, 25V 1 C5616 ECJ2XB1E104K C 0.1UF, K, 25V 1 C5617 EEUFC1C821 E 820UF, 16V 1 C5618,1 9 ECJ2XB1E104K C 0.1UF, K, 25V 2 C5622 EEUFC1C821 E 820UF, 16V 1 C5623 ECJ2XB1E104K C 0.1UF, K, 25V 1 C5626 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C5631 EEUFC1C102 E 1000UF, 16V 1 C5637 ECJ2VF1C474Z C 0.47UF, Z, 16V 1 C5641- 44 ECJ2VF1C104Z C 0.1UF, Z, 16V 4 C5670 ECJ2XB1E104K C 0.1UF, K, 25V 1 C5672 ECA1HM220 E 22UF, 50V 1 C5673 ECJ2XB1H103K C 0.01UF, K, 50V 1 C5685 ECA1HHG100 E 10UF, 50V 1 C5686 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6015 TCUY1C105ZFN C 1UF, 16V 1 C6016,1 7 F1L1E4750004 C 4.7UF, 25V 2 C6019 F1L1E4750004 C 4.7UF, 25V 1 C6035 TCUY1C105ZFN C 1UF, 16V 1 C6036,3 7 F1L1E4750004 C 4.7UF, 25V 2 C6039 F1L1E4750004 C 4.7UF, 25V 1 C6060 ECJ3YB1E105K C 1UF, K, 25V 1 C6061,6 2 EEUFC1E221 E 220UF, 25V 2 C6063 ECA1EM101 E 100UF, 25V 1 C6064,6 5 TCUY1C105ZFN C 1UF, 16V 2 C6066- 69 ECJ2XB1H103K C 0.01UF, K, 50V 4 C6080- 82 ECQE2255JF P 2.5UF, K,250V 3 C6085- 87 ECQE2255JF P 2.5UF, K,250V 3 C6100 F1L2J562A022 C 5600UF, K,6.3V 1 C6130 TCUY1C105ZFN C 1UF, 16V 1 C6131,3 2 F1L1E4750004 C 4.7UF, 25V 2 C6134 F1L1E4750004 C 4.7UF, 25V 1 C6140 F1L2J562A022 C 5600UF, K,6.3V 1 C6170- 75 F2A2D221A022 E 220UF, 200V 6 C6185 ECQE2255JF P 2.5UF, K,250V 1 C6200,0 1 ECA2CM101 E 100UF, 160V 2 C6202 EEUFC1E221 E 220UF, 25V 1 C6206 ECA2CM101 E 100UF, 160V 1 C6209 ECA2CM101 E 100UF, 160V 1 160 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks C6210- 12 ECQE2255JF P 2.5UF, K,250V 3 C6214 F1L1E4750004 C 4.7UF, 25V 1 C6215 EEUFC1E221 E 220UF, 25V 1 C6217,1 8 F1L1E4750004 C 4.7UF, 25V 2 C6221 F1L1E4750004 C 4.7UF, 25V 1 C6223 F1L1E4750004 C 4.7UF, 25V 1 C6224 EEUFC1E221 E 220UF, 25V 1 C6225 F1L1E4750004 C 4.7UF, 25V 1 C6226 TCUY1C105ZFN C 1UF, 16V 1 C6233 F1L1E4750004 C 4.7UF, 25V 1 C6234 EEUFC1E221 E 220UF, 25V 1 C6235 F1L1E4750004 C 4.7UF, 25V 1 C6240 ECA2AHG101 E 100UF, 100V 1 C6255 ECA2EHG470 E 47UF, 250V 1 C6257 F1L1E4750004 C 4.7UF, 25V 1 C6258 TCUY1C105ZFN C 1UF, 16V 1 C6260 ECJ3YB1E105K C 1UF, K, 25V 1 C6262 F1L1E4750004 C 4.7UF, 25V 1 C6264 ECJ3YB1E105K C 1UF, K, 25V 1 C6265 F1L1E4750004 C 4.7UF, 25V 1 C6266 EEUFC1E102 E 1000UF, 25V 1 C6269 F2A2D221A022 E 220UF, 200V 1 C6273 F1L1E4750004 C 4.7UF, 25V 1 C6275 F1L1E4750004 C 4.7UF, 25V 1 C6401- 06 F2A2D221A022 E 220UF, 200V 6 C6413,1 4 ECQE2255JF P 2.5UF, K,250V 2 C6421 ECJ3YB1E105K C 1UF, K, 25V 1 C6422 EEUFC1E221 E 220UF, 25V 1 C6425,2 6 EEUFC1E470 E 47UF, 25V 2 C6433- 35 TCUY1C105ZFN C 1UF, 16V 3 C6436 ECJ3YB1E105K C 1UF, K, 25V 1 C6437 TCUY1C105ZFN C 1UF, 16V 1 C6440 TCUY1C105ZFN C 1UF, 16V 1 C6442 TCUY1C105ZFN C 1UF, 16V 1 C6444 TCUY1C105ZFN C 1UF, 16V 1 C6453 EEUFC1E221 E 220UF, 25V 1 C6501- 06 ECQE2255JF P 2.5UF, K,250V 6 C6513 F1L2J222A022 C 2200UF, K,6.3V 1 C6515,1 6 F1L2J222A022 C 2200UF, K,6.3V 2 C6531 F1L2J222A022 C 2200UF, K,6.3V 1 C6533,3 4 F1L2J222A022 C 2200UF, K,6.3V 2 C6536 F1L2J222A022 C 2200UF, K,6.3V 1 C6559,6 0 F1L1E4750004 C 4.7UF, 25V 2 C6562 F1L1E4750004 C 4.7UF, 25V 1 C6563 TCUY1C105ZFN C 1UF, 16V 1 C6582 F1L1E4750004 C 4.7UF, 25V 1 C6584,8 5 F1L1E4750004 C 4.7UF, 25V 2 C6586 TCUY1C105ZFN C 1UF, 16V 1 C6587 F1L1E4750004 C 4.7UF, 25V 1 C6589,9 0 F1L1E4750004 C 4.7UF, 25V 2 C6591 TCUY1C105ZFN C 1UF, 16V 1 C6611 F1L1E4750004 C 4.7UF, 25V 1 C6612,1 3 F1K2J102A014 C 1000PF, 2 C6614 ECA2EHG470 E 47UF, 250V 1 C6615 ECA1VM470 E 47UF, 35V 1 C6616,1 7 F1L1E4750004 C 4.7UF, 25V 2 C6618 TCUY1C105ZFN C 1UF, 16V 1 C6619 ECJ3YB1E105K C 1UF, K, 25V 1 C6620 TCUY1C105ZFN C 1UF, 16V 1 C6621 F1L1E4750004 C 4.7UF, 25V 1 C6623 ECQE2105RKB P 1UF, 250V 1 C6624 F1L1E4750004 C 4.7UF, 25V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C6626 F1L1E4750004 C 4.7UF, 25V 1 C6627,2 8 TCUY1C105ZFN C 1UF, 16V 2 C6630- 32 F1K2J102A014 C 1000PF, 3 C6634,3 5 F1L1E4750004 C 4.7UF, 25V 2 C6636,3 7 ECA2CM101 E 100UF, 160V 2 C6638 F1L1E4750004 C 4.7UF, 25V 1 C6639 TCUY1C105ZFN C 1UF, 16V 1 C6651 TCUY1C105ZFN C 1UF, 16V 1 C6653 TCUY1C105ZFN C 1UF, 16V 1 C6655,5 6 TCUY1C105ZFN C 1UF, 16V 2 C6657 ECJ2XC1H102J C 1000PF, J, 50V 1 C6658 ECA1HM101 E 100UF, 50V 1 C6659- 62 F1L1E4750004 C 4.7UF, 25V 4 C6801 ECA2CM101 E 100UF, 160V 1 C6806 ECA2EHG470 E 47UF, 250V 1 C6807 ECA1HM221 E 220UF, 50V 1 C6808,0 9 ECA2CM101 E 100UF, 160V 2 C6812- 14 F1K2J332A014 C 3300UF, K,6.3V 3 C6816 F2A2G100A017 E 100UF, 400V 1 C6818 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6819 TCUY1C105ZFN C 1UF, 16V 1 C6820 ECJ2XB1H472K C 4700PF, K, 50V 1 C6821 EEUFC1E221 E 220UF, 25V 1 C6822 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6823 F1K2J222A014 C 2200UF, K,6.3V 1 C6824 ECA2EHG470 E 47UF, 250V 1 C6825 ECQE6223KF P 0.022UF, K,400V 1 C6826 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6828 EEUFC1V151 E 150UF, 35V 1 C6829 ECA2DHG330 E 33UF, 200V 1 C6830 F1L1E4750004 C 4.7UF, 25V 1 C6831 EEUFC1E470 E 47UF, 25V 1 C6833 F1L1E4750004 C 4.7UF, 25V 1 C6834 ECJ2XC1H102J C 1000PF, J, 50V 1 C6835 ECJ2XC1H471J C 470PF, J, 50V 1 C6836 ECKD3D221KBP C 220PF, K, 2KV 1 C6900 ECJ2XB1H222K C 2200PF, K, 50V 1 C6901- 06 TCUY1C105ZFN C 1UF, 16V 6 C6908 ECJ2XB1H222K C 2200PF, K, 50V 1 C6909,1 0 F1L2E1040002 E 1000UF, 25V 2 C6917,1 8 F1L2E1040002 E 1000UF, 25V 2 C6920 ECJ2XB1H222K C 2200PF, K, 50V 1 C6921- 26 TCUY1C105ZFN C 1UF, 16V 6 C6927,2 8 F1L2E1040002 E 1000UF, 25V 2 C6930 ECJ2XB1H222K C 2200PF, K, 50V 1 C6937,3 8 F1L2E1040002 E 1000UF, 25V 2 C7101,0 2 TCUY1C105ZFN C 1UF, 16V 2 C7103,0 4 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7107 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7111 ECJ1XC1H101J C 100PF, J, 50V 1 C7125 TCUY1C105ZFN C 1UF, 16V 1 C7130 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7136- 38 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C7139 TCUY1C105ZFN C 1UF, 16V 1 C7150 ECJ1XC1H101J C 100PF, J, 50V 1 C7152 ECJ1XC1H101J C 100PF, J, 50V 1 C7201 TCUY1C105ZFN C 1UF, 16V 1 C7203,0 4 TCUY1C105ZFN C 1UF, 16V 2 161 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks C7208 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7212 TCUY1C105ZFN C 1UF, 16V 1 C7216 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7221 ECJ1XC1H101J C 100PF, J, 50V 1 C7224 TCUY1C105ZFN C 1UF, 16V 1 C7225 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7231 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7232- 35 ECJ3XB2A474K C 0.47UF, 6.3V 4 C7238 ECJ1XC1H101J C 100PF, J, 50V 1 C7240 ECJ1XC1H101J C 100PF, J, 50V 1 C7250 ECJ1XC1H101J C 100PF, J, 50V 1 C7274 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7301 TCUY1C105ZFN C 1UF, 16V 1 C7304 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7308,0 9 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7311,1 2 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7315,1 6 TCUY1C105ZFN C 1UF, 16V 2 C7323 ECJ1XC1H101J C 100PF, J, 50V 1 C7326 ECJ1XC1H101J C 100PF, J, 50V 1 C7329 ECJ1XC1H101J C 100PF, J, 50V 1 C7339,4 0 TCUY1C105ZFN C 1UF, 16V 2 C7351 ECJ1XC1H101J C 100PF, J, 50V 1 C7359- 62 ECJ3XB2A474K C 0.47UF, 6.3V 4 C7401 TCUY1C105ZFN C 1UF, 16V 1 C7406 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7412- 15 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C7418,1 9 TCUY1C105ZFN C 1UF, 16V 2 C7420- 23 ECJ3XB2A474K C 0.47UF, 6.3V 4 C7428,2 9 ECJ1XC1H101J C 100PF, J, 50V 2 C7440,4 1 TCUY1C105ZFN C 1UF, 16V 2 C7452,5 3 ECJ1XC1H101J C 100PF, J, 50V 2 C7502 TCUY1C105ZFN C 1UF, 16V 1 C7511 TCUY1C105ZFN C 1UF, 16V 1 C7513 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7519 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7520 ECJ1XC1H101J C 100PF, J, 50V 1 C7521 TCUY1C105ZFN C 1UF, 16V 1 C7522 ECJ1XC1H101J C 100PF, J, 50V 1 C7527 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7530 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7538 TCUY1C105ZFN C 1UF, 16V 1 C7540,4 1 ECJ1XC1H101J C 100PF, J, 50V 2 C7543 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7546 ECJ1XC1H101J C 100PF, J, 50V 1 C7561- 64 ECJ3XB2A474K C 0.47UF, 6.3V 4 C7601,0 2 TCUY1C105ZFN C 1UF, 16V 2 C7611- 13 ECJ1XC1H101J C 100PF, J, 50V 3 C7624 TCUY1C105ZFN C 1UF, 16V 1 C7630 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7635- 37 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C7640 TCUY1C105ZFN C 1UF, 16V 1 C7653- 55 ECJ3XB2A474K C 0.47UF, 6.3V 3 C7713 ECJ1VB1H103K C 0.001UF, K, 50V 1 C7724 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C7725- 28 ECJ1XC1H330J C 33PF, J, 50V 4 C7730 EEEHB1C470P C 47PF, J, 16V 1 C7731- 33 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 Ref. No. Part No. Part Name & Description Pcs Remarks C7737 ECJ1VC1H200J C 20PF, C, 50V 1 C7747,4 8 ECJ1VC1H200J C 20PF, C, 50V 2 C7750 ECJ1VC1H200J C 20PF, C, 50V 1 C7753 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C7760 EEVHB0G221P E 220UF, 4V 1 C7764 ECJ2FB1A105K C 1UF, K, 10V 1 C7765 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C7775 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C7777 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C7781 ECJ2FB1A105K C 1UF, K, 10V 1 C7902 EEEHB1C220R C 22PF, J, 16V 1 C7911 EEEHB1C220R C 22PF, J, 16V 1 C7915 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C7923 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7926 EEEHB1C220R C 22PF, J, 16V 1 C7928 ECJ1VB0J225K C 2.2UF, K, 6.3V 1 C7929 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7938 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8001 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-50PV500B C8002 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-50PV500B C8003 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-50PV500B C8004 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-50PV500B C8005 EEEHB1C100R C 10PF, J, 16V 1 TH-50PV500B C8007 ECJ0EB1H102K C 1000PF, K, 50V 1 TH-50PV500B C8010 ECJ0EC1H010C C 1PF, D, 50V 1 TH-50PV500B PAVCCZ C8015 ECJ1VC1H080C C 8PF, C, 50V 1 TH-50PV500B C8019,2 0 ECJ0EB1C103K C0.010UF, K, 16V 2 TH-50PV500B C8021 ECJ0EB1H102K C 1000PF, K, 50V 1 TH-50PV500B C8030 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-50PV500B C8034,3 5 ECJ1VB1C104K C 0.1UF, K, 16V 2 TH-50PV500B C8037 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-50PV500B C8039,4 0 ECJ0EB1C103K C0.010UF, K, 16V 2 TH-50PV500B C8041 EEEHB0G101R C 100PF, J, 4V 1 TH-50PV500B C8042,4 3 ECJ1VC1H100C C 10PF, C, 50V 2 TH-50PV500B C8046,4 7 ECJ0EB1C103K C0.010UF, K, 16V 2 TH-50PV500B C8048 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B C8051,5 2 ECJ0EB1C103K C0.010UF, K, 16V 2 TH-50PV500B C8055 EEEHB0J470R C 47PF, J, 6.3V 1 TH-50PV500B C8056 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-50PV500B C8058- 61 ECJ0EB1C103K C0.010UF, K, 16V 4 TH-50PV500B C8071 ECJ0EC1H270J C 270PF, K, 50V 1 TH-50PV500B C8073 ECJ0EC1H270J C 270PF, K, 50V 1 TH-50PV500B C8098 ECGRL0G680R C 68PF, J, 4V 1 TH-50PV500B C8099,0 0 ECJ0EB1A104K C 0.1UF, K, 10V 2 TH-50PV500B C8101,0 2 ECJ1VB0J105K C 1UF, K, 6.3V 2 TH-50PV500B C8103,0 4 ECJ0EB1A104K C 0.1UF, K, 10V 2 TH-50PV500B C8105 EEEHB0G101R C 100PF, J, 4V 1 TH-50PV500B C8106,0 7 ECJ1VB0J105K C 1UF, K, 6.3V 2 TH-50PV500B C8108 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-50PV500B C8109 EEEHB0G101R C 100PF, J, 4V 1 TH-50PV500B C8110 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-50PV500B C8121 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-50PV500B C8128,2 9 ECJ0EB1C103K C0.010UF, K, 16V 2 TH-50PV500B C8131 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B C8132 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-50PV500B C8134 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B C8136 ECGRL0G680R C 68PF, J, 4V 1 TH-50PV500B C8137 ECJ1VB0J334K C 0.33UF, K,6.3V 1 TH-50PV500B C8138 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B C8139 ECGRL0G680R C 68PF, J, 4V 1 TH-50PV500B C8140 ECJ1VB1C104K C 0.1UF, K, 16V 1 TH-50PV500B C8141 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B 162 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks C8142 ECJ1VB1C104K C 0.1UF, K, 16V 1 TH-50PV500B C8143 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B C8144 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-50PV500B C8145 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-50PV500B C8146 ECJ1VB1C104K C 0.1UF, K, 16V 1 TH-50PV500B C8147 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B C8148 ECJ1VB1C104K C 0.1UF, K, 16V 1 TH-50PV500B C8149 ECJ1VB0J105K C 1UF, K, 6.3V 1 TH-50PV500B C8150 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B C8151 ECJ1VB1C104K C 0.1UF, K, 16V 1 TH-50PV500B C8154- 56 ECJ1VB1C104K C 0.1UF, K, 16V 3 TH-50PV500B C8157 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B C8160 ECJ1VB1C104K C 0.1UF, K, 16V 1 TH-50PV500B C8161 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B C8162 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-50PV500B C8163 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B C8164 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-50PV500B C8165 ECJ1VB1C104K C 0.1UF, K, 16V 1 TH-50PV500B C8166 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B C8167 ECJ1VB1C104K C 0.1UF, K, 16V 1 TH-50PV500B C8168 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B C8169 EEEHB0G470R C 47PF, J, 4V 1 TH-50PV500B C8170,7 1 ECJ1VB1C104K C 0.1UF, K, 16V 2 TH-50PV500B C8172 EEEHB0G470R C 47PF, J, 4V 1 TH-50PV500B C8173- 75 ECJ1VB1H103K C 0.001UF, K, 50V 3 TH-50PV500B C8176 ECJ1VB1C104K C 0.1UF, K, 16V 1 TH-50PV500B C8182 ECJ0EC1H121J C 120PF, K, 50V 1 TH-50PV500B C8186 ECJ0EC1H470J C 470PF, K, 50V 1 TH-50PV500B C8189 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-50PV500B C8193 EEEHB0J101P C 100PF, J, 6.3V 1 TH-50PV500B C8194 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B C8202,0 3 EEEHB1C470P C 47PF, J, 16V 2 TH-50PV500B C8204 ECJ3XB1C106M C 1.0UF, K, 16V 1 TH-50PV500B C8205,0 6 ECJ1VB1C104K C 0.1UF, K, 16V 2 TH-50PV500B C8207 EEEHB1C470P C 47PF, J, 16V 1 TH-50PV500B C8208 ECJ3XB1C106M C 1.0UF, K, 16V 1 TH-50PV500B C8210 ECJ0EB1A333K C 0.033UF, K, 10V 1 TH-50PV500B C8212 ECJ0EB1C223K C 0.022UF, K, 16V 1 TH-50PV500B C8240 ECJ1VB0J105K C 1UF, K, 6.3V 1 TH-50PV500B C8268 ECJ1VB0J105K C 1UF, K, 6.3V 1 TH-50PV500B C8269 ECJ1VB1C104K C 0.1UF, K, 16V 1 TH-50PV500B C8303 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B C8305,0 6 ECJ1VB1H103K C 0.001UF, K, 50V 2 TH-50PV500B C8314 ECJ1VB1C104K C 0.1UF, K, 16V 1 TH-50PV500B C8315 ECJ2FF1A475Z C 4.7UF, Z, 10V 1 TH-50PV500B C8317,1 8 ECJ2FF1A475Z C 4.7UF, Z, 10V 2 TH-50PV500B C8319 ECJ1VB1C104K C 0.1UF, K, 16V 1 TH-50PV500B C8320- 23 ECJ1VB0J105K C 1UF, K, 6.3V 4 TH-50PV500B C8327 EEEHB0J470R C 47PF, J, 6.3V 1 TH-50PV500B C8329 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B C8330,3 1 ECJ0EC1H181J C 180PF, K, 50V 2 TH-50PV500B C8332 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B C8334,3 5 ECJ0EC1H330J C 330PF, K, 50V 2 TH-50PV500B C8340 ECJ0EB1C682K C 6800UF, K, 16V 1 TH-50PV500B C8341 ECJ0EB1C822K C 8200UF, K, 16V 1 TH-50PV500B C8342,4 3 ECGRL0G680R C 68PF, J, 4V 2 TH-50PV500B C8344 ECJ0EB1C223K C 0.022UF, K, 16V 1 TH-50PV500B C8345 ECJ0EB1A273K C 0.027UF, K, 10V 1 TH-50PV500B PAVCCZ C8349- 51 ECJ1VB1C104K C 0.1UF, K, 16V 3 TH-50PV500B C8361 EEEHB1C470P C 47PF, J, 16V 1 TH-50PV500B C8372 ECJ1VB1C104K C 0.1UF, K, 16V 1 TH-50PV500B C8376 ECJ1VB1C104K C 0.1UF, K, 16V 1 TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks C8397 ECJ1VB1C104K C 0.1UF, K, 16V 1 TH-50PV500B C8401 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B C8403,0 4 ECJ0EF1C104Z C 0.10UF, Z, 16V 2 TH-50PV500B C8406,0 7 ECJ0EF1C104Z C 0.10UF, Z, 16V 2 TH-50PV500B C8409 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-50PV500B C8410 ECJ1VB1C104K C 0.1UF, K, 16V 1 TH-50PV500B C8413- 16 ECJ0EF1C104Z C 0.10UF, Z, 16V 4 TH-50PV500B C8419 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-50PV500B C8421 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B C8423 ECJ1VB1C104K C 0.1UF, K, 16V 1 TH-50PV500B C8425 ECJ1VB1C104K C 0.1UF, K, 16V 1 TH-50PV500B C8427 EEEHB0J101P C 100PF, J, 6.3V 1 TH-50PV500B C8428 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-50PV500B C8430- 32 ECJ0EF1C104Z C 0.10UF, Z, 16V 3 TH-50PV500B C8433,3 4 ECJ0EB1C103K C0.010UF, K, 16V 2 TH-50PV500B C8467 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-50PV500B C8501,0 2 ECJ0EC1H180J C 180PF, K, 50V 2 TH-50PV500B C8504 ECJ1VF1A105Z C 1UF, Z, 10V 1 TH-50PV500B C8506 ECJ2VF1C105Z C 1UF, Z, 16V 1 TH-50PV500B C8507 ECJ1XC1H102J C 1000PF, J, 50V 1 TH-50PV500B C8508 ECJ1XF1C334Z C 0.33UF, Z, 16V 1 TH-50PV500B C8509 EEEHB0J101P C 100PF, J, 6.3V 1 TH-50PV500B C8870 ECJ1XC1H471J C 470PF, J, 50V 1 TH-50PV500B C8872 ECJ2FB0J225K C 2.2UF, Z, 16V 1 TH-50PV500B C8910 ECJ0EF1H103Z C 0.01UF, Z, 50V 1 TH-50PV500B C9000 EEEHB1C470P C 47PF, J, 16V 1 C9001 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9004,0 5 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9006 F1J0J1060004 C 0.010UF, K, 16V 1 C9007 EEEHB1C470P C 47PF, J, 16V 1 C9008 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9009 F1J0J1060004 C 0.010UF, K, 16V 1 C9010- 12 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9013 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C9014 ECJ1XC1H101K C 100PF, K, 50V 1 C9015- 22 ECJ1XF1C104Z C 0.1UF, Z, 16V 8 C9023 EEEHB1C470P C 47PF, J, 16V 1 C9024 ECJ1XC1H271J C 270PF, J, 50V 1 C9025 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9026,2 7 ECJ2VF1C105Z C 1UF, Z, 16V 2 C9028- 31 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C9033 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9035,3 6 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9201,0 2 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9203 ECJ1XC1H150J C 15PF, J, 50V 1 C9204 ECJ1VC1H080C C 8PF, C, 50V 1 C9205 F1J0J1060004 C 0.010UF, K, 16V 1 C9206,0 7 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9303 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9304- 57 ECJ1XB1C104K C 0.1UF, Z, 16V 54 C9358 EEEHB0G221P C 220PF, J, 4V 1 C9359 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9360 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9500- 02 ECJ2VF1C105Z C 1UF, Z, 16V 3 C9503- 12 ECJ1XB1C104K C 0.1UF, Z, 16V 10 C9513 EEEHB1C470P C 47PF, J, 16V 1 C9514- 17 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C9518 EEEHB1C470P C 47PF, J, 16V 1 163 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks C9519 ECJ1XC1H101K C 100PF, K, 50V 1 C9701,0 2 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9703 F1J0J1060004 C 0.010UF, K, 16V 1 C9705,0 6 F1J0J1060004 C 0.010UF, K, 16V 2 C9707 EEEHB1C470P C 47PF, J, 16V 1 C9712,1 3 F1J0J1060004 C 0.010UF, K, 16V 2 C9714,1 5 ECGRL0G680R C 68PF, J, 4V 2 C9716 ECJ1XC1H220J C 22PF, J, 50V 1 C9718 ECJ1XC1H220J C 22PF, J, 50V 1 C9719,2 0 ECJ1XC1H102J C 1000PF, J, 50V 2 C9721,2 2 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9723,2 4 ECJ2XB1H104K C 0.1UF, K, 50V 2 C9725 ECJ1XC1H102J C 1000PF, J, 50V 1 C9727 ECJ1XC1H102J C 1000PF, J, 50V 1 C9728,2 9 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 C9730,3 1 EEEHB1C470P C 47PF, J, 16V 2 C9732 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C9733 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9734,3 5 EEEHB1C470P C 47PF, J, 16V 2 C9736 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9739,4 0 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9741 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9742 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9743,4 4 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 C9800,0 1 ECJ1VF1H103Z C 0.010UF, Z, 50V 2 C9900,0 1 ECJ1VF1H103Z C 0.010UF, Z, 50V 2 CA1-11 K1MN68BA0002 68P CONNECTOR 11 CB1-11 K1MN68BA0002 68P CONNECTOR 11 CN7901 K1YY68000012 CONNECTOR 1 PAVCCZ CN8202 K1KA16A00204 16P CONNECTOR 1 PAVCCZ D3 K1KA30AA0009 30P CONNECTOR 1 D003 MA152K DIODE 1 D4 K1KA14A00248 14P CONNECTOR 1 D5 K1KA31A00007 31P CONNECTOR 1 D6 K1KA20A00310 20P CONNECTOR 1 D8 K1KA08AA0104 8P CONNECTOR 1 D20 K1KA20AA0008 20P CONNECTOR 1 D25 K1KA20AA0009 20P CONNECTOR 1 D31,32 K1MN55BA0076 55P CONNECTOR 2 D33,34 K1MN68BA0076 68P CONNECTOR 2 D1151 MA8120M ZENER DIODE 1 D1154- 61 MA8062MTX ZENER DIODE 8 D1162 LN1271RALTR LED 1 D2011- 14 MA111 DIODE 4 D2104 MA152K DIODE 1 D2105- 18 MA8140M ZENER DIODE 14 D2119 B0BC01100001 ZENER DIODE 1 D2120 MA152K DIODE 1 D2300,0 1 MA111 DIODE 2 D2303,0 4 MA111 DIODE 2 D2315- 22 B0JCDD000002 DIODE 8 D2331,3 2 MA111 DIODE 2 Ref. No. Part No. Part Name & Description Pcs Remarks D2510- 12 MA8056M ZENER DIODE 3 D2513,1 4 MA152K DIODE 2 D2520B LN1271RALTR LED 1 D2523 MA152K DIODE 1 D2524 MA8056M ZENER DIODE 1 D2525B LN1471YTR LED 1 TH-50PV500B D2526 MA8056M ZENER DIODE 1 TH-50PV500B D3002- 12 MA8140M ZENER DIODE 11 D3015- 19 MA8140M ZENER DIODE 5 D3021 MA152 DIODE 1 D3023 MA111 DIODE 1 D3024 B0BC01100001 ZENER DIODE 1 D3025 MA8140M ZENER DIODE 1 D3026 MA111 DIODE 1 D3100 MA8140M ZENER DIODE 1 D3334- 39 MA111 DIODE 6 D3701,0 2 MA8140M ZENER DIODE 2 D3709,1 0 MA8051L ZENER DIODE 2 D3711 MA8140M ZENER DIODE 1 D4231 MA111 DIODE 1 D5013- 23 D4ED13900001 DIODE 11 D5025 MA3056M ZENER DIODE 1 D5610 MA3X78900L ZENER DIODE 1 D5614 B0BC6R600005 ZENER DIODE 1 D5615 B0BC4R700007 ZENER DIODE 1 D5616 B0BC6R600005 ZENER DIODE 1 D5617 B0BC01100001 ZENER DIODE 1 D5618 B0BC03900015 ZENER DIODE 1 D5637,3 8 MA152 DIODE 2 D5639 MA3047H ZENER DIODE 1 D5640 MA3068H ZENER DIODE 1 D5641 MA152 DIODE 1 D5642 MA3100H ZENER DIODE 1 D5643 MA152 DIODE 1 D5644 MA3068M ZENER DIODE 1 D5645- 47 MA152 DIODE 3 D6000,0 1 B0HBSN000008 DIODE 2 D6002 B0HDSM000005 DIODE 1 D6010,1 1 B0HBSN000008 DIODE 2 D6012 B0ECHP000003 DIODE 1 D6013,1 4 B0HCMM000014 DIODE 2 D6015 B0ECHP000003 DIODE 1 D6016 B0HBSN000008 DIODE 1 D6020,2 1 B0HBSN000008 DIODE 2 D6030,3 1 B0HBSN000008 DIODE 2 D6035,3 6 B0ECHP000003 DIODE 2 D6060 MA111 DIODE 1 D6061,6 2 MA8330M ZENER DIODE 2 D6063 LNJ301MPUJA LED 1 D6064 MA8051L ZENER DIODE 1 D6065,6 6 MA152 DIODE 2 D6145- 47 B0HBSN000008 DIODE 3 D6190 B0ECHP000003 DIODE 1 D6200 B0HDSM000005 DIODE 1 D6203 B0HDSM000005 DIODE 1 D6206- 09 B0ECHP000003 DIODE 4 164 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks D6210- 12 B0HDSM000005 DIODE 3 D6215 B0HDSM000005 DIODE 1 D6221 M1FS4 DIODE 1 D6225 M1FS4 DIODE 1 D6226,2 7 B0ECHP000003 DIODE 2 D6228 B0HDSM000005 DIODE 1 D6240 B0HDSM000005 DIODE 1 D6241,4 2 B0ECHP000003 DIODE 2 D6250,5 1 M1FS4 DIODE 2 D6257- 59 B0ECHP000003 DIODE 3 D6262 M1FS4 DIODE 1 D6263,6 4 MA111 DIODE 2 D6271 MA111 DIODE 1 D6411 MA111 DIODE 1 D6412 MA8051L ZENER DIODE 1 D6413,1 4 MA8330M ZENER DIODE 2 D6415 LNJ301MPUJA LED 1 D6416 MA111 DIODE 1 D6417,1 8 MA8330M ZENER DIODE 2 D6419- 21 MA111 DIODE 3 D6422,2 3 MA8200M ZENER DIODE 2 D6501- 04 B0HBSN000008 DIODE 4 D6505 B0HCMM000014 DIODE 1 D6506 B0ECHP000003 DIODE 1 D6511,1 2 B0HBSN000008 DIODE 2 D6517 MA8330M ZENER DIODE 1 D6518,1 9 MA111 DIODE 2 D6521,2 2 B0HBSN000008 DIODE 2 D6525- 27 B0HBSN000008 DIODE 3 D6561,6 2 B0ECHP000003 DIODE 2 D6563 B0HBSN000008 DIODE 1 D6564,6 5 B0ECHP000003 DIODE 2 D6611,1 2 B0ECHP000003 DIODE 2 D6613 MA8240M ZENER DIODE 1 D6615,1 6 MA111 DIODE 2 D6617 MA8051L ZENER DIODE 1 D6618 B0HCMM000014 DIODE 1 D6619 MA111 DIODE 1 D6620 B0ECHP000003 DIODE 1 D6622 MA8240M ZENER DIODE 1 D6623 B0JCME000037 DIODE 1 D6624 MA111 DIODE 1 D6625 B0HCKS000002 DIODE 1 D6627 MA111 DIODE 1 D6629,3 0 B0HCKS000002 DIODE 2 D6631 MA111 DIODE 1 D6632 B0JCME000037 DIODE 1 D6633 MA111 DIODE 1 D6634 MA8051L ZENER DIODE 1 D6635- 37 MA8330M ZENER DIODE 3 D6638 MA111 DIODE 1 D6639 B0HCMM000014 DIODE 1 D6640- 42 MA111 DIODE 3 D6643 B0HCMM000014 DIODE 1 Ref. No. Part No. Part Name & Description Pcs Remarks D6644- 51 MA8056H ZENER DIODE 8 D6652 MA111 DIODE 1 D6653 MA8056H ZENER DIODE 1 D6654- 57 B0JCME000037 DIODE 4 D6658 B0HCKS000002 DIODE 1 D6813,1 4 B0ECHP000003 DIODE 2 D6815 MA111 DIODE 1 D6817 MA111 DIODE 1 D6818 B0JCKG000002 DIODE 1 D6819 B0ECHP000003 DIODE 1 D6820 MA111 DIODE 1 D6821 B0JCME000037 DIODE 1 D6822,2 3 B0HCKS000002 DIODE 2 D6824 B0HCMM000014 DIODE 1 D6825 B0BC010A0012 ZENER DIODE 1 D6826 B0ECHP000003 DIODE 1 D6827 MA111 DIODE 1 D6828 B0HCKS000002 DIODE 1 D6829 MA111 DIODE 1 D6830 B0HCKS000002 DIODE 1 D6831,3 2 MA111 DIODE 2 D6833- 35 B0HCMM000014 DIODE 3 D6840 B0ECHP000003 DIODE 1 D6901,0 2 MA8056H ZENER DIODE 2 D6908,0 9 B0ECHP000003 DIODE 2 D6911,1 2 MA8056H ZENER DIODE 2 D6918,1 9 B0ECHP000003 DIODE 2 D7101- 04 B0HCMM000014 DIODE 4 D7107,0 8 B0HCMM000014 DIODE 2 D7201- 08 B0HCMM000014 DIODE 8 D7209 B0HDSM000005 DIODE 1 D7301- 08 B0HCMM000014 DIODE 8 D7405- 12 B0HCMM000014 DIODE 8 D7501- 08 B0HCMM000014 DIODE 8 D7509 B0HDSM000005 DIODE 1 D7601- 06 B0HCMM000014 DIODE 6 D7702 B3AEB0000065 DIODE 1 PAVCCZ D8002 MA728 DIODE 1 TH-50PV500B D8006 MA3082HTX ZENER DIODE 1 TH-50PV500B PAVCCZ D8203,0 4 B0JCPE000004 DIODE 2 TH-50PV500B PAVCCZ D8501 HVU359TRF DIODE 1 TH-50PV500B D9000- 02 MA3033 ZENER DIODE 3 D9011,1 2 MA728 DIODE 2 D9015,1 6 MA152K DIODE 2 D9700,0 1 MA728 DIODE 2 D9800,0 1 MA152K DIODE 2 D9900,0 1 MA152K DIODE 2 DG1,G2 K1MN40A00024 40P CONNECTOR 2 DG3 K1KA20B00155 20P CONNECTOR 1 DG5 K1KA21B00008 21P CONNECTOR 1 DG15 K1KA60A00156 60P CONNECTOR 1 DG20 K1MN30A00068 30P CONNECTOR 1 165 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks DG22 K1KBB0A00005 CONNECTOR 1 TH-50PV500B DG32 K1KA08AA0150 8P CONNECTOR 1 DV15 K1KA60A00162 60P CONNECTOR 1 FL1100 J0HABH000012 LC FILTER 1 FL3301, 02 J0HABB000003 LC FILTER 2 FL3303- 05 J0HABB000004 LC FILTER 3 FL4006- 08 J0HABH000012 LC FILTER 3 TH-50PV500B FL4016, 17 J0HABH000012 LC FILTER 2 FL4020- 23 J0HABH000012 LC FILTER 4 FL4401- 04 J0HABB000004 LC FILTER 4 FL4407 J0HABH000012 LC FILTER 1 FL7201, 02 J0HABH000013 LC FILTER 2 FL7501, 02 J0HABH000013 LC FILTER 2 FL8201 TAX10075 EMI FILTER 1 TH-50PV500B FL9000- 04 J0HABH000013 LC FILTER 5 FL9300- 02 J0HABH000013 LC FILTER 3 FL9701, 02 J0HABH000012 LC FILTER 2 FL9703, 04 J0HABH000013 LC FILTER 2 FL9800, 01 J0HABH000013 LC FILTER 2 FL9900, 01 J0HABH000013 LC FILTER 2 G2 K1KA12A00317 12P CONNECTOR 1 PAVCCZ G3 K1KA03AA0150 3P CONNECTOR 1 G11 K1MN50A00005 50P CONNECTOR 1 G51 K1MN35A00014 35P CONNECTOR 1 PAVCCZ GK3 K1KA03BA0061 3P CONNECTOR 1 GS12 K1MN40A00022 40P CONNECTOR 1 GS52 K1KA30AA0009 30P CONNECTOR 1 H1,H2 K1MN40B00045 40P CONNECTOR 2 H5 K1KA15A00064 15P CONNECTOR 1 H6 K1KA09A00064 9P CONNECTOR 1 H12 K1KA09AA0190 9P CONNECTOR 1 H15 K1KA04AA0150 4P CONNECTOR 1 H30 K1MN30A00068 30P CONNECTOR 1 H50 K1MN35A00013 35P CONNECTOR 1 H51 K1MN35A00014 35P CONNECTOR 1 PAVCCZ H52 K1KA30AA0009 30P CONNECTOR 1 HMM1-M4 TMM25401 CLAMPER 4 IC1103 C0DBEZG00013 IC 1 IC1104 C2CBYF000032 IC 1 PAVCCZ IC1105 TC4066BF MOS IC 1 IC1106 CXA1875AM LINEAR IC 1 IC1107 TVRN566-1 IC 1 PAVCCZ IC1108 C0EBE0000336 IC 1 IC1109 C0JBBZ000281 IC 1 IC1110 C0CBCBD00043 IC 1 IC1114 C3ABPG000133 IC 1 IC1115 TVRN576-1 IC 1 PAVCCZ IC1116 CXA1875AM LINEAR IC 1 IC1117 C0JBAZ002186 IC 1 IC1235 C0ZBZ0001038 IC 1 IC2103 AN77L08M IC 1 IC2104 NJM2115M IC 1 IC2105 AN15861A-VT IC 1 IC2106 C1AB00002135 IC 1 Ref. No. Part No. Part Name & Description Pcs Remarks IC2107 C0DBEZE00006 IC 1 IC2108 C0EBF0000354 IC 1 IC2111, 12 NJM2521M IC 2 IC2300 C1BB00000800 IC 1 IC2301 C1BB00000969 IC 1 IC2302, 03 NJM2904M LINEAR IC 2 IC2304 C1BB00000947 IC 1 IC2305, 06 C1BB00000818 IC 2 IC2307, 08 C1BB00000888 IC 2 IC2309 AN7705SP IC 1 IC2511 B3L000000020 IC 1 IC3001, 02 C1AB00001486 IC 2 IC3004 C1AB00001487 IC 1 IC3005 AN15866A-VT IC 1 PAVCCZ IC3006 CXA1315M LINEAR IC 1 IC3301 C0JBAZ002205 IC 1 IC4001 C0ABBB000289 IC 1 IC4002 C0FBBK000038 IC 1 IC4005 C1AB00002298 IC 1 IC4008 C0CBCBD00008 IC 1 IC4009 C0CBCAC00282 IC 1 IC4011 C0CBCAC00282 IC 1 IC4012 C1AB00001834 IC 1 IC4013 C1AB00002202 IC 1 IC4014 C0JBAZ002186 IC 1 IC4016 C0FBBD000065 IC 1 IC4021 C0JBAP000020 IC 1 IC4024 C0DBZFG00055 IC 1 IC4025 C0CBCAC00275 IC 1 IC4041 C0CBCAC00275 IC 1 IC4042 C0DBEJG00001 IC 1 IC4044 C0CBCAC00136 IC 1 IC4048 C0DBEJG00001 IC 1 IC4049 C0CBCBF00009 IC 1 IC4050 C1ZBZ0002788 IC 1 PAVCCZ IC4051 C1ZBZ0002790 IC 1 IC4054 C1AB00002234 IC 1 IC4055 C3ABQJ000040 IC 1 IC4063 C0EBC0000150 IC 1 IC5003 MN864721A IC 1 IC5015 C0CBCAD00016 IC 1 IC5017 C3EBFC000037 IC 1 IC5601, 02 N0BF2DE00001 DC-DC CONVERTER 2 IC5603 C0DBAJB00004 IC 1 IC6000 AN16016A-VF IC 1 IC6020 AN16016A-VF IC 1 IC6060 C0JBAZ000005 IC 1 IC6061, 62 NJM2903M INTEGRATED CIRCUIT 2 IC6100 AN16016A-VF IC 1 IC6200, 01 C0ZBZ0000895 IC 2 IC6220, 21 C0ZBZ0000895 IC 2 IC6240 C0JBAZ000005 IC 1 IC6250 AN16016A-VF IC 1 IC6251 C0ZBZ0000735 IC 1 IC6252 AN1431M LINEAR IC 1 IC6411, 12 C0JBAZ000005 IC 2 IC6413 C0JBAA000174 IC 1 IC6421 NJM2903M INTEGRATED CIRCUIT 1 IC6501- 03 AN16016A-VF IC 3 IC6610 C0ZBZ0000735 IC 1 IC6611 C0CBADC00075 IC 1 IC6620 C0ZBZ0000735 IC 1 IC6621 C0CBADC00075 IC 1 IC6630 C0ZBZ0000735 IC 1 166 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks IC6640 C0ZBZ0000735 IC 1 IC6650, 51 C0JBAZ000994 IC 2 IC6652 C0CBALC00010 IC 1 IC6653, 54 C0CBADC00075 IC 2 IC6801 C0DAAMH00005 IC 1 IC6812 AN1431M LINEAR IC 1 IC6814, 15 AN1431M LINEAR IC 2 IC6816 C0CBALC00010 IC 1 IC6817, 18 AN1431M LINEAR IC 2 IC6901- 06 C0HBC0000007 IC 6 IC6911- 16 C0HBC0000007 IC 6 IC7102 C0JBAZ001120 IC 1 IC7104- 06 C0JBAZ001120 IC 3 IC7201- 05 C0JBAZ001120 IC 5 IC7301- 05 C0JBAZ001120 IC 5 IC7401- 05 C0JBAZ001120 IC 5 IC7501- 05 C0JBAZ001120 IC 5 IC7602- 04 C0JBAZ001120 IC 3 IC7606 C0JBAZ001120 IC 1 IC7714 C0JBAZ000851 IC 1 IC8003 STV0360 IC 1 TH-50PV500B PAVCCZ IC8009 C3ABQG000095 IC 1 TH-50PV500B PAVCCZ IC8013 MN2WS0025AEA IC 1 TH-50PV500B PAVCCZ IC8019 TVRN488-3 IC 1 TH-50PV500B PAVCCZ IC8023, 24 C0DBAMH00018 IC 2 TH-50PV500B PAVCCZ IC8029 C0FBBK000038 IC 1 TH-50PV500B IC8031 BA15218FDX IC 1 TH-50PV500B IC8034 C0DBEJG00001 IC 1 TH-50PV500B IC8042 C0EBM0000027 IC 1 TH-50PV500B IC8043 C0EBE0000336 IC 1 TH-50PV500B IC8213 74LVC245APWR IC 1 TH-50PV500B PAVCCZ IC8401 MIC2548-1BM IC 1 TH-50PV500B PAVCCZ IC8402 74LVC4245AD IC 1 TH-50PV500B PAVCCZ IC8404 C0JBCZ000255 IC 1 TH-50PV500B IC8408- 11 C0JBCZ000255 IC 4 TH-50PV500B IC8412 74LVC245APWR IC 1 TH-50PV500B PAVCCZ IC8501 74VHCU04MX IC 1 TH-50PV500B PAVCCZ IC8864 C0DBFFD00003 IC 1 TH-50PV500B IC9001 TVRN571 IC 1 IC9003 TVRN568 IC 1 IC9004 C0EBE0000120 IC 1 IC9005, 06 C0JBAZ000856 IC 2 IC9007 TVRN466 IC 1 IC9008 C0DBEJG00001 IC 1 IC9200 C1ZBZ0002769 IC 1 IC9300 MN84512-A IC 1 IC9301 PST9128NR IC (LOGIC) 1 IC9302 C3ABQJ000031 IC 1 IC9303 C3FBMD000223 IC 1 PAVCCZ IC9500 C1ZBZ0002599 IC 1 IC9502- 04 C0JBAZ000856 IC 3 IC9700 C0DBEJG00001 IC 1 IC9702 C0DBAZH00020 IC 1 Ref. No. Part No. Part Name & Description Pcs Remarks JK2002, 03 K4BK03A00002 JACK 2 PAVCCZ JK3001 K1FB315A0001 CONNECTOR 1 JK3002- 04 K1FB121A0006 JACK 3 JK3005 K2HA307A0007 JACK 1 PAVCCZ JK3701A K4BK26B00003 AV TERMENAL 1 PAVCCZ JK5001 K1FA119D0001 CONNECTOR 1 JK7701 K1NA09E00062 9P CONNECTOR 1 PAVCCZ JK7900 K1NA68E00086 68P CONNECTOR 1 PAVCCZ JK8201 K1KAB0A00010 110P CONNECTOR 1 JK8401 K1NA68B00038 68P CONNECTOR 1 TH-50PV500B PAVCCZ JS012 ERJ3GEY0R00 M 0 OHM, 1/16W 1 TH-50PV500B JS1000 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS1177 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS2000 ERJ3GEY0R00 M 0 OHM, 1/16W 1 TH-50PV500B JS2021, 22 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS2026 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS2031- 33 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS2101, 02 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS2105, 06 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS2108 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS2109 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS2114 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS2304- 11 ERJ6GEY0R00 M 0 OHM, 1/10W 8 JS2313 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS2317- 24 ERJ6GEY0R00 M 0 OHM, 1/10W 8 JS2329- 32 ERJ6GEY0R00 M 0 OHM, 1/10W 4 JS3001 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3005 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3007- 20 ERJ6GEY0R00 M 0 OHM, 1/10W 14 JS3022 J0JCC0000078 CHIP INDUCTOR 1 JS3023 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3138 ERJ6GEY0R00 M 0 OHM, 1/10W 1 TH-50PV500E JS3201 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3202 J0JCC0000241 CHIP INDUCTOR 1 TH-50PV500E JS3205 J0JCC0000241 CHIP INDUCTOR 1 TH-50PV500E JS3206 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3230 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3237- 39 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS3302- 04 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS3307- 12 ERJ3GEY0R00 M 0 OHM, 1/16W 6 JS3401- 08 ERJ3GEY0R00 M 0 OHM, 1/16W 8 JS3409- 12 ERJ3GEY0R00 M 0 OHM, 1/16W 4 TH-50PV500E JS3701- 09 ERJ6GEY0R00 M 0 OHM, 1/10W 9 JS3711- 13 ERJ6GEY0R00 M 0 OHM, 1/10W 3 JS4002 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS4004- 09 ERJ3GEY0R00 M 0 OHM, 1/16W 6 JS4012- 14 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS4022, 23 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS4025, 26 ERJ3GEY0R00 M 0 OHM, 1/16W 2 TH-50PV500B JS4027- 30 ERJ3GEY0R00 M 0 OHM, 1/16W 4 JS4081 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS4084 ERJ3GEY0R00 M 0 OHM, 1/16W 1 167 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks JS4085, 86 ERJ3GEY0R00 M 0 OHM, 1/16W 2 TH-50PV500B JS4087 ERJ3GEY0R00 M 0 OHM, 1/16W 1 TH-50PV500E JS4088- 92 ERJ3GEY0R00 M 0 OHM, 1/16W 5 JS4095, 96 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS4901, 02 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS5002 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS5602 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS5609- 12 ERJ6GEY0R00 M 0 OHM, 1/10W 4 JS6200 ERD25V0T M OHM, 1/10W 1 JS6402 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS6801 ERD25V0T M OHM, 1/10W 1 JS7701 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS7905 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS7921 ERJ6GEY0R00 M 0 OHM, 1/10W 1 K1 K1KA12BA0053 12P CONNECTOR 1 L003-05 J0JCC0000364 CHIP INDUCTOR 3 L006,07 J0JCC0000241 CHIP INDUCTOR 2 L008 EXC3BB221H BEAD CHOKE 1 L012 J0JCC0000241 CHIP INDUCTOR 1 L017,18 J0JGC0000021 CHIP INDUCTOR COIL 2 L019 J0JCC0000241 CHIP INDUCTOR 1 TH-50PV500E L1009 J0JHC0000078 CHIP INDUCTOR 1 L1110- 14 J0JHC0000078 CHIP INDUCTOR 5 L1120 J0JHC0000078 CHIP INDUCTOR 1 L1170 J0JHC0000078 CHIP INDUCTOR 1 L1172 ELJFA8R2KB CHIP INDUCTOR 1 L1174 J0JCC0000241 CHIP INDUCTOR 1 L1175,7 6 J0JHC0000078 CHIP INDUCTOR 2 L2001,0 2 J0JCC0000364 CHIP INDUCTOR 2 L2003- 16 EXC3BB221H BEAD CHOKE 14 L2101,0 2 EXCELDR35C BEAD CHOKE 2 L2107,0 8 J0JCC0000241 CHIP INDUCTOR 2 L2109,1 0 TSK1032 BEAD CHOKE 2 L2111,1 2 J0JCC0000241 CHIP INDUCTOR 2 L2113,1 4 TSK1032 BEAD CHOKE 2 L2115 J0JCC0000241 CHIP INDUCTOR 1 L2116 ERJ3GEY0R00 M 0 OHM, 1/16W 1 TH-50PV500E L2117 ELESE6R8KA PEAKING COIL 1 L2118 EXCELDR35C BEAD CHOKE 1 L2120 J0JCC0000241 CHIP INDUCTOR 1 L2121 EXCELDR35C BEAD CHOKE 1 L2122 TSK1032 BEAD CHOKE 1 L2123 J0JCC0000241 CHIP INDUCTOR 1 TH-50PV500B L2123 ERJ3GEY0R00 M 0 OHM, 1/16W 1 TH-50PV500E L2178,7 9 J0JCC0000241 CHIP INDUCTOR 2 L2182- 87 J0JCC0000241 CHIP INDUCTOR 6 L2200 ELJPA470KB CHIP INDUCTOR 1 L2204 J0JCC0000241 CHIP INDUCTOR 1 L2305- 08 G0A100ZA0033 CHOKE COIL 4 L2312- 15 G0A100ZA0033 CHOKE COIL 4 L2316- 23 J0JJC0000011 CHIP INDUCTOR 8 L3001- 03 EXC3BB221H BEAD CHOKE 3 L3004,0 5 J0JCC0000241 CHIP INDUCTOR 2 Ref. No. Part No. Part Name & Description Pcs Remarks L3008,0 9 J0JCC0000241 CHIP INDUCTOR 2 L3201 TSK1040 FERRITE CORE 1 L3211 ELJNC15NKB CHIP COIL 1 L3212 EXC3BB221H BEAD CHOKE 1 L3330 ELJPA100KB CHIP INDUCTOR 1 L3701- 03 EXC3BB221H BEAD CHOKE 3 L3708,0 9 J0JCC0000364 CHIP INDUCTOR 2 L4001 J0JHC0000078 CHIP INDUCTOR 1 L4003,0 4 J0JHC0000078 CHIP INDUCTOR 2 L4006- 08 J0JHC0000078 CHIP INDUCTOR 3 L4104 J0JCC0000241 CHIP INDUCTOR 1 L4105 J0JHC0000078 CHIP INDUCTOR 1 L4106 J0JCC0000241 CHIP INDUCTOR 1 L4151 J0JCC0000241 CHIP INDUCTOR 1 L4231 J0JCC0000241 CHIP INDUCTOR 1 L4301 J0JHC0000078 CHIP INDUCTOR 1 L4341- 43 J0JHC0000078 CHIP INDUCTOR 3 L4344 J0JCC0000241 CHIP INDUCTOR 1 L4345 J0JHC0000078 CHIP INDUCTOR 1 L4346 TALC168T100K CHIP INDUCTOR COIL 1 L4347,4 8 J0JCC0000241 CHIP INDUCTOR 2 L4350 J0JHC0000078 CHIP INDUCTOR 1 L4430,3 1 J0JHC0000045 CHIP INDUCTOR 2 L4501 J0JHC0000078 CHIP INDUCTOR 1 L4503,0 4 J0JHC0000078 CHIP INDUCTOR 2 L4505 J0JCC0000241 CHIP INDUCTOR 1 L4506 J0JHC0000078 CHIP INDUCTOR 1 L4508,0 9 J0JHC0000078 CHIP INDUCTOR 2 L4510 J0JCC0000241 CHIP INDUCTOR 1 L4511 J0JHC0000078 CHIP INDUCTOR 1 L4701 J0JHC0000078 CHIP INDUCTOR 1 L4751 J0JCC0000241 CHIP INDUCTOR 1 L4801- 03 J0JHC0000078 CHIP INDUCTOR 3 L4861,6 2 J0JHC0000078 CHIP INDUCTOR 2 L4864 J0JHC0000045 CHIP INDUCTOR 1 L4900,0 1 J0JHC0000078 CHIP INDUCTOR 2 L5001- 03 J0JHC0000045 CHIP INDUCTOR 3 L5007 J0JHC0000045 CHIP INDUCTOR 1 L5012 J0JHC0000045 CHIP INDUCTOR 1 L5015- 18 J0MAB0000176 LC FILTER 4 L5021 J0JHC0000045 CHIP INDUCTOR 1 L5604 G0A470GA0002 CHOKE COIL 1 L5605 G1C1R0MA0072 CHOKE COIL 1 L5606 TALL08N120KA INDUCTION COIL 1 L5607 G0C101K00023 PEAKING COIL 1 L5608 G1C100MA0072 CHOKE COIL 1 L5609 TALL08N120KA INDUCTION COIL 1 L5610 G1C470MA0077 INDUCTION COIL 1 L5611 G1A470ZA0007 CHOKE COIL 1 L5612 G0A220GA0002 CHOKE COIL 1 L5613,1 4 G1A470ZA0007 CHOKE COIL 2 L5615 G0A220GA0002 CHOKE COIL 1 L5616 G1A470ZA0007 CHOKE COIL 1 L6000,0 1 J0JJC0000021 CHIP INDUCTOR 2 L6010- 12 G0AR60MA0003 CHOKE COIL 3 L6014 G0ZZ00002183 PEAKING COIL 1 L6020 J0JJC0000021 CHIP INDUCTOR 1 L6030- 33 G0A1R4MA0003 CHOKE COIL 4 168 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks L6040 G0ZZ00002183 PEAKING COIL 1 L6042 G0ZZ00002183 PEAKING COIL 1 L6044 G0ZZ00002183 PEAKING COIL 1 L6046 G0ZZ00002183 PEAKING COIL 1 L6068 J0JJC0000021 CHIP INDUCTOR 1 L6070 G0ZZ00002183 PEAKING COIL 1 L6072 G0ZZ00002183 PEAKING COIL 1 L6074 G0ZZ00002183 PEAKING COIL 1 L6076 G0ZZ00002183 PEAKING COIL 1 L6098 J0JJC0000021 CHIP INDUCTOR 1 L6180- 82 G0ZZ00002183 PEAKING COIL 3 L6183,8 4 J0JJC0000021 CHIP INDUCTOR 2 L6190 J0JJC0000021 CHIP INDUCTOR 1 L6200- 04 G0AR60MA0003 CHOKE COIL 5 L6210- 19 J0JJC0000021 CHIP INDUCTOR 10 L6223- 26 J0JJC0000021 CHIP INDUCTOR 4 L6231- 33 J0JJC0000021 CHIP INDUCTOR 3 L6235,3 6 J0JJC0000021 CHIP INDUCTOR 2 L6239- 41 G0ZZ00002183 PEAKING COIL 3 L6250 G0ZZ00002183 PEAKING COIL 1 L6251,5 2 J0JJC0000021 CHIP INDUCTOR 2 L6411,1 2 G0ZZ00002183 PEAKING COIL 2 L6501- 03 G0AR60MA0003 CHOKE COIL 3 L6507- 10 G0A1R4MA0003 CHOKE COIL 4 L6522 G0ZZ00002183 PEAKING COIL 1 L6524 G0ZZ00002183 PEAKING COIL 1 L6526 G0ZZ00002183 PEAKING COIL 1 L6528 G0ZZ00002183 PEAKING COIL 1 L6546 G0ZZ00002183 PEAKING COIL 1 L6548 G0ZZ00002183 PEAKING COIL 1 L6550 G0ZZ00002183 PEAKING COIL 1 L6552 G0ZZ00002183 PEAKING COIL 1 L6677- 79 J0JJC0000021 CHIP INDUCTOR 3 L6693 J0JJC0000021 CHIP INDUCTOR 1 L6698,9 9 J0JJC0000021 CHIP INDUCTOR 2 L6812,1 3 G0ZZ00002183 PEAKING COIL 2 L6814- 16 J0JJC0000021 CHIP INDUCTOR 3 L7101- 06 J0JJC0000011 CHIP INDUCTOR 6 L7201- 08 J0JJC0000011 CHIP INDUCTOR 8 L7301- 08 J0JJC0000011 CHIP INDUCTOR 8 L7401- 08 J0JJC0000011 CHIP INDUCTOR 8 L7501- 08 J0JJC0000011 CHIP INDUCTOR 8 L7601- 06 J0JJC0000011 CHIP INDUCTOR 6 L7720 K5H1622A0023 FUSE 1 PAVCCZ L7901 J0JHC0000045 CHIP INDUCTOR 1 L8004 J0JHC0000045 CHIP INDUCTOR 1 TH-50PV500B L8008 J0JHC0000045 CHIP INDUCTOR 1 TH-50PV500B L8026 J0JHC0000035 CHIP INDUCTOR 1 TH-50PV500B L8029,3 0 ERJ3GEY0R00 M 0 OHM, 1/16W 2 TH-50PV500B L8031- 33 J0JHC0000045 CHIP INDUCTOR 3 TH-50PV500B L8038 J0JHC0000045 CHIP INDUCTOR 1 TH-50PV500B L8042 J0JHC0000045 CHIP INDUCTOR 1 TH-50PV500B L8046 ELJPA1R0MB INDUCTION COIL 1 TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks L8047,4 8 G1C220MA0167 IC 2 TH-50PV500B PAVCCZ L8049 J0JHC0000045 CHIP INDUCTOR 1 TH-50PV500B L8051 J0JCC0000241 CHIP INDUCTOR 1 TH-50PV500B L8055 G1C100MA0077 INDUCTION COIL 1 TH-50PV500B L8059 J0JHC0000045 CHIP INDUCTOR 1 TH-50PV500B L8106 ELJFA2R7JB INDUCTION COIL 1 TH-50PV500B PAVCCZ L8141,4 2 ERJ3GEY0R00 M 0 OHM, 1/16W 2 TH-50PV500B L8145 J0JHC0000045 CHIP INDUCTOR 1 TH-50PV500B L8501 ELJNA2R7JB INDUCTION COIL 1 TH-50PV500B L9200 G1C150KA0038 INDUCTION COIL 1 L9500,0 1 J0JHC0000078 CHIP INDUCTOR 2 L9700 G1C4R3M00003 CHIP INDUCTOR 1 L9701 G1C6R8M00009 CHIP INDUCTOR 1 PA7 K1KA08AA0192 8P CONNECTOR 1 PA10 K1KA06A00452 6P CONNECTOR 1 PA20 K1MN30A00068 30P CONNECTOR 1 PA30 K1MN30A00068 30P CONNECTOR 1 PA5601, 02 K5H4022A0023 FUSE 2 PA7701 K5H1622A0023 FUSE 1 PAVCCZ PC6422- 25 B3PBA0000223 IC 4 PC6601 B3PBA0000234 IC 1 PC6602 B3PBA0000233 IC 1 PC6604 B3PBA0000234 IC 1 PC6605 B3PBA0000233 IC 1 PC6607 B3PBA0000233 IC 1 PC6813 B3PBA0000223 IC 1 PC6819 B3PBA0000223 IC 1 Q002,03 2SB709A TRANSISTOR 2 Q1150- 54 2SD601A TRANSISTOR 5 Q1170 2SA207700L TRANSISTOR 1 Q1172 2SD601A TRANSISTOR 1 Q1174,7 5 2SD601A TRANSISTOR 2 Q1176 UN5211 TRANSISTOR 1 Q1177 UN5111 TRANSISTOR 1 Q1178- 80 UN5211 TRANSISTOR 3 Q1182 2SD601A TRANSISTOR 1 Q1184 2SD601A TRANSISTOR 1 Q1200 2SD601A TRANSISTOR 1 Q2001- 04 2SD601A TRANSISTOR 4 Q2006,0 7 2SD601A TRANSISTOR 2 Q2009,1 0 2SD601A TRANSISTOR 2 Q2011 2SB709A TRANSISTOR 1 Q2012 2SD601A TRANSISTOR 1 Q2013 2SB709A TRANSISTOR 1 Q2102- 05 2SB709A TRANSISTOR 4 Q2106 2SD601A TRANSISTOR 1 Q2107 2SD601A TRANSISTOR 1 TH-50PV500E Q2108 2SD601A TRANSISTOR 1 Q2109 2SD601A TRANSISTOR 1 TH-50PV500E Q2300 2SC584500L TRANSISTOR 1 Q2301 2SD601A TRANSISTOR 1 Q2302 2SC584500L TRANSISTOR 1 Q2314- 17 2SC584500L TRANSISTOR 4 Q2322 2SC584500L TRANSISTOR 1 Q2323 2SA207700L TRANSISTOR 1 Q2324 2SC584500L TRANSISTOR 1 Q2510,1 1 2SD601A TRANSISTOR 2 Q2518 2SD601A TRANSISTOR 1 TH-50PV500B 169 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks Q3001- 06 2SD601A TRANSISTOR 6 Q3008 2SB709A TRANSISTOR 1 Q3009 2SD601A TRANSISTOR 1 Q3010- 15 2SB709A TRANSISTOR 6 Q3016 2SD601A TRANSISTOR 1 Q3017,1 8 2SB709A TRANSISTOR 2 Q3019- 23 2SD601A TRANSISTOR 5 Q3101 2SD601A TRANSISTOR 1 Q3331- 33 2SC2480 TRANSISTOR 3 Q4006 2SD601A TRANSISTOR 1 Q4010- 12 2SD601A TRANSISTOR 3 Q4013 2SA207700L TRANSISTOR 1 Q4014,1 5 2SB1218ARL TRANSISTOR 2 Q4016 2SA207700L TRANSISTOR 1 Q4068 2SD601A TRANSISTOR 1 Q4101 2SD601A TRANSISTOR 1 Q4103,0 4 2SD601A TRANSISTOR 2 Q4106,0 7 2SD601A TRANSISTOR 2 Q4109- 12 2SD601A TRANSISTOR 4 Q4301- 03 2SD601A TRANSISTOR 3 Q4306- 08 2SA207700L TRANSISTOR 3 Q4309 2SD1030 TRANSISTOR 1 Q4310,1 1 2SD601A TRANSISTOR 2 Q4410 2SD601A TRANSISTOR 1 Q4430,3 1 2SD601A TRANSISTOR 2 Q4432 2SA207700L TRANSISTOR 1 Q4433- 36 2SD601A TRANSISTOR 4 Q4900 2SD601A TRANSISTOR 1 Q5001 B1MBACA00004 TRANSISTOR 1 Q5002- 04 2SC584500L TRANSISTOR 3 Q5601 B1DHDC000028 TRANSISTOR 1 Q5602 2SC584500L TRANSISTOR 1 Q5603 B1DHDC000028 TRANSISTOR 1 Q5604,0 5 2SC584500L TRANSISTOR 2 Q5606 B1DHDC000028 TRANSISTOR 1 Q5607 2SC584500L TRANSISTOR 1 Q5613 2SC584500L TRANSISTOR 1 Q5614 2SK3065T100 FET 1 Q5641- 43 2SA207700L TRANSISTOR 3 Q5644 2SC584500L TRANSISTOR 1 Q6000,0 1 2SK3997000VE TRANSISTOR 2 Q6010 B1ABNF000006 TRANSISTOR 1 Q6011 B1ADNF000006 TRANSISTOR 1 Q6020 2SK3997000VE TRANSISTOR 1 Q6030 B1ABNF000006 TRANSISTOR 1 Q6031 B1ADNF000006 TRANSISTOR 1 Q6060 2SD601A TRANSISTOR 1 Q6100- 02 B1JADN000001 TRANSISTOR 3 Q6120 B1ABNF000006 TRANSISTOR 1 Q6121 B1ADNF000006 TRANSISTOR 1 Q6140- 42 B1JADN000001 TRANSISTOR 3 Q6160 B1ABNF000006 TRANSISTOR 1 Q6161 B1ADNF000006 TRANSISTOR 1 Q6200 2SK326900L FET 1 Q6202 2SK326900L FET 1 Q6210 B1ABNF000006 TRANSISTOR 1 Ref. No. Part No. Part Name & Description Pcs Remarks Q6211 B1ADNF000006 TRANSISTOR 1 Q6212 B1ABNF000006 TRANSISTOR 1 Q6213 B1ADNF000006 TRANSISTOR 1 Q6221 B1DFKL000001 TRANSISTOR 1 Q6223 B1DFKL000001 TRANSISTOR 1 Q6225 B1DFKL000001 TRANSISTOR 1 Q6230 B1ABNF000006 TRANSISTOR 1 Q6231 B1ADNF000006 TRANSISTOR 1 Q6232 B1ABNF000006 TRANSISTOR 1 Q6233 B1ADNF000006 TRANSISTOR 1 Q6240 2SB1193000LB TRANSISTOR 1 Q6250,5 1 B1DFKM000002 TRANSISTOR 2 Q6256 2SD1263A TRANSISTOR 1 Q6257 2SC1473A TRANSISTOR 1 Q6259 2SK326800L FET 1 Q6260 B1DFKM000002 TRANSISTOR 1 Q6261 2SK620 FET 1 Q6411 2SD601A TRANSISTOR 1 Q6412,1 3 2SK620 FET 2 Q6501- 03 B1JADN000001 TRANSISTOR 3 Q6513- 15 B1JADN000001 TRANSISTOR 3 Q6531,3 2 2SK3997000VE TRANSISTOR 2 Q6537 2SK3997000VE TRANSISTOR 1 Q6551 B1ABNF000006 TRANSISTOR 1 Q6552 B1ADNF000006 TRANSISTOR 1 Q6559 B1ABNF000006 TRANSISTOR 1 Q6560 B1ADNF000006 TRANSISTOR 1 Q6567 B1ABNF000006 TRANSISTOR 1 Q6568 B1ADNF000006 TRANSISTOR 1 Q6571 B1ABNF000006 TRANSISTOR 1 Q6572 B1ADNF000006 TRANSISTOR 1 Q6577 2SD601A TRANSISTOR 1 Q6601 B1DEDS000001 TRANSISTOR 1 Q6602 B1DEET000002 TRANSISTOR 1 Q6604 B1DFFM000003 TRANSISTOR 1 Q6611- 18 B1DFJM000003 TRANSISTOR 8 Q6630- 35 B1DFKM000001 TRANSISTOR 6 Q6650- 52 B1DEDS000001 TRANSISTOR 3 Q6654 B1DFFM000003 TRANSISTOR 1 Q6655 2SD601A TRANSISTOR 1 Q6656 B1ADNF000006 TRANSISTOR 1 Q6658,5 9 2SK620 FET 2 Q6660 B1ABNF000006 TRANSISTOR 1 Q6661 B1ADNF000006 TRANSISTOR 1 Q6664 2SD601A TRANSISTOR 1 Q6665 B1ABNF000006 TRANSISTOR 1 Q6666,6 7 2SK620 FET 2 Q6668 B1ABNF000006 TRANSISTOR 1 Q6669 B1ADNF000006 TRANSISTOR 1 Q6670 2SK620 FET 1 Q6814 2SD1263A TRANSISTOR 1 Q6815 2SC1473A TRANSISTOR 1 Q6816 B1BBCJ000004 TRANSISTOR 1 Q6817 2SD601A TRANSISTOR 1 Q6818 2SB0709A TRANSISTOR 1 Q6819 2SD1263A TRANSISTOR 1 Q6820 2SC1473A TRANSISTOR 1 Q6821 2SD814A TRANSISTOR 1 Q6822,2 3 2SD601A TRANSISTOR 2 Q7701 2SC584500L TRANSISTOR 1 Q7702 UN5211 TRANSISTOR 1 Q7710,1 1 UN5211 TRANSISTOR 2 Q7901 2SD601A TRANSISTOR 1 170 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks Q7902 B1DHDC000028 TRANSISTOR 1 Q8101 2SA207700L TRANSISTOR 1 TH-50PV500B Q9000,0 1 2SD601A TRANSISTOR 2 Q9003 B1DHCC000034 TRANSISTOR 1 Q9004 2SB709A TRANSISTOR 1 Q9008,0 9 2SK2731T146 TRANSISTOR 2 Q9010,1 1 2SD601A TRANSISTOR 2 Q9012,1 3 2SK2731T146 TRANSISTOR 2 Q9020- 23 2SD601A TRANSISTOR 4 Q9500 2SK2731T146 TRANSISTOR 1 Q9700 2SD601A TRANSISTOR 1 Q9701,0 2 B1MBCDA00002 TRANSISTOR 2 Q9703,0 4 2SD601A TRANSISTOR 2 Q9800,0 1 2SD601A TRANSISTOR 2 Q9900,0 1 2SD601A TRANSISTOR 2 R002 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R003 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R005 ERJ6GEYJ561 M 560 OHM,J,1/10W 1 R006 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R007 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R008,09 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R1110,1 1 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R1115 ERJ3EKF1202 M 12KOHM, 1/16W 1 R1116 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1122,2 3 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R1125 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R1127 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R1129 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R1131 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R1132 ERJ3EKF2202 M 22KOHM, 1/16W 1 R1134- 36 ERJ3GEYJ560 M 56 OHM,J,1/16W 3 R1137 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R1139,4 0 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R1142 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R1144,4 5 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R1146 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1147 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R1148 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R1149 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R1150 TAJAAH0101JV M 100 OHM,J,1/16W 1 R1151 ERJ3GEYJ225 M 2.2MOHM,J,1/16W 1 R1152 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R1153 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R1155 TAJAAH0101JV M 100 OHM,J,1/16W 1 R1157 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R1158,5 9 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R1160 ERJ3GEYJ224 M 220KOHM,J,1/16W 1 R1161 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R1162 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1164 ERJ3GEYJ273 M 27KOHM,J,1/16W 1 R1165 ERJ3GEYJ821 M 820 OHM,J,1/16W 1 R1166 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R1168 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1170 TAJAAH0101JV M 100 OHM,J,1/16W 1 R1171 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R1172 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R1173 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1175 ERJ3GEYJ392 M 3.9KOHM,J,1/16W 1 R1177 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R1178 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R1180 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1185 TAJAAH0101JV M 100 OHM,J,1/16W 1 R1186 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R1187 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1188 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R1189 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R1190- 97 ERJ3GEY0R00 M 0 OHM, 1/16W 8 R1199 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1200 TAJAAH0101JV M 100 OHM,J,1/16W 1 R1201 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1202- 04 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R1206 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1208,0 9 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R1212 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1213 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R1214 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R1215 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R1216 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R1219 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1221 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1222 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R1223 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R1224 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R1227 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R1228 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R1229 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1231 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R1232 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R1233 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R1234 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R1235 ERJ3GEYJ563 M 56KOHM,J,1/16W 1 R1237 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R1238 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1239 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 TH-50PV500B R1240 EXB2HV680J RESISTOR ARRAY 1 R1241 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1 R1242,4 3 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R1244 EXB38V680J RESISTOR ARRAY 1 R1246 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R1248 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R1249 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R1250 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R1251 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R1253 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1255 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R1258 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R1259 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1260 TAJAAH0101JV M 100 OHM,J,1/16W 1 R1261 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1263 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R1266 EXB2HV680J RESISTOR ARRAY 1 R1267 ERJ3EKF2702V M27.0KOHM, 1/16W 1 R1268 TAJAAH0101JV M 100 OHM,J,1/16W 1 R1269 EXB2HV680J RESISTOR ARRAY 1 R1270 ERJ3GEYJ820 M 82 OHM,J,1/16W 1 R1271 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1272,7 3 D1HG5608A002 NETWORK RESISTER 2 R1274 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1275 TAJAAH0101JV M 100 OHM,J,1/16W 1 R1277 TAJAAH0101JV M 100 OHM,J,1/16W 1 R1280,8 1 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R1283 TAJAAH0680JV M 68 OHM,J,1/16W 1 R1284 TAJAAH0101JV M 100 OHM,J,1/16W 1 R1285,8 6 TAJAAH0680JV M 68 OHM,J,1/16W 2 R1287 TAJAAH0101JV M 100 OHM,J,1/16W 1 R1288 TAJAAH0680JV M 68 OHM,J,1/16W 1 R1289 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 171 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks R1290 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 TH-50PV500E R1291- 94 TAJAAH0101JV M 100 OHM,J,1/16W 4 R1295 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R1297 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R1298,9 9 TAJAAH0101JV M 100 OHM,J,1/16W 2 TH-50PV500B R1300 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 TH-50PV500B R1301 TAJAAH0101JV M 100 OHM,J,1/16W 1 R1302 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R1303 TAJAAH0101JV M 100 OHM,J,1/16W 1 R1305 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R1306 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R1307 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R1308,0 9 TAJAAH0680JV M 68 OHM,J,1/16W 2 R1311 ERJ3GEYJ201 M 200 OHM,J,1/16W 1 R1312,1 3 TAJAAH0101JV M 100 OHM,J,1/16W 2 R1315 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1316,1 7 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R1320 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R1321 TAJAAH0101JV M 100 OHM,J,1/16W 1 R1322 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1323,2 4 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 2 R1326,2 7 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R1329 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1330,3 1 TAJAAH0101JV M 100 OHM,J,1/16W 2 R1332,3 3 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R1334 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R1336,3 7 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R1338 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R1339- 41 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R1342 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R1343,4 4 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 2 R1345,4 6 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R1347,4 8 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R1351 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R1355 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R1359,6 0 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R1361 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R1365,6 6 EXB2HV680J RESISTOR ARRAY 2 R1372- 75 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R1380- 83 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R1384 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1388 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R1389 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R1390 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2005 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2006- 11 ERJ6GEYJ223 M 22KOHM,J,1/10W 6 R2012 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2013,1 4 TAJAAH0101JV M 100 OHM,J,1/16W 2 R2015,1 6 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2018,1 9 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2021,2 2 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2023,2 4 TAJAAH0101JV M 100 OHM,J,1/16W 2 R2025 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R2027,2 8 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2030 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2031 TAJAAH0101JV M 100 OHM,J,1/16W 1 R2032 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2033 TAJAAH0101JV M 100 OHM,J,1/16W 1 R2034 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2035,3 6 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2037 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2038 TAJAAH0101JV M 100 OHM,J,1/16W 1 R2039 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2040 TAJAAH0101JV M 100 OHM,J,1/16W 1 R2041 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2042 ERJ3GEYJ105 M 1MOHM,J,1/16W 1 R2043 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2044 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2045,4 6 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R2047 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2048 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2049,5 0 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R2051,5 2 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R2053 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2054 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2101,0 2 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2103,0 4 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 TH-50PV500B R2105,0 6 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2113 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2120- 23 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R2124,2 5 TAJAAH0101JV M 100 OHM,J,1/16W 2 R2126,2 7 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R2128,2 9 TAJAAH0101JV M 100 OHM,J,1/16W 2 R2130,3 1 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R2132 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R2133 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2135,3 6 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2137 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R2138 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2139,4 0 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2143,4 4 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2147 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2148,4 9 ERJ3GEYJ273 M 27KOHM,J,1/16W 2 R2151 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2152 TAJAAH0470JV M 47 OHM,J,1/16W 1 R2153 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2154 TAJAAH0470JV M 47 OHM,J,1/16W 1 R2155- 60 ERJ3GEYJ221 M 220 OHM,J,1/16W 6 R2161 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R2162 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2163 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R2164 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2165,6 6 TAJAAH0101JV M 100 OHM,J,1/16W 2 R2167 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2168,6 9 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R2170- 73 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R2174,7 5 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 TH-50PV500B 172 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks R2176,7 7 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2180 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R2182,8 3 TAJAAH0101JV M 100 OHM,J,1/16W 2 R2184- 87 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R2190 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 TH-50PV500E R2192,9 3 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2195,9 6 J0JCC0000241 CHIP INDUCTOR 2 R2197 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2198 ERJ6ENF1781 M1.78KOHM, 1/10W 1 R2199,0 0 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 TH-50PV500E R2201 ERJ6ENF1601 M 1.6KOHM, 1/10W 1 R2202 TAJAAH0101JV M 100 OHM,J,1/16W 1 R2204 ERJ6GEYJ561 M 560 OHM,J,1/10W 1 R2205 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 TH-50PV500E R2208 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2209 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2210 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 TH-50PV500B R2210 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 TH-50PV500E R2211 ERJ3GEY0R00 M 0 OHM, 1/16W 1 TH-50PV500B R2211 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 TH-50PV500E R2213 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2214 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2215 ERJ3GEY0R00 M 0 OHM, 1/16W 1 TH-50PV500B R2215 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 TH-50PV500E R2216 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 TH-50PV500E R2217 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 TH-50PV500E R2224,2 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2302 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2303 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R2304 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2305 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2306 ERJ6GEYJ821 M 820 OHM,J,1/10W 1 R2307 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2308,0 9 ERJ3GEYJ392 M 3.9KOHM,J,1/16W 2 R2310 ERJ3GEYJ184 M 180KOHM,J,1/16W 1 R2311 ERJ12YJ821 M 820 OHM,J, 1/2W 1 R2312,1 3 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R2314,1 5 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R2320 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2321 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R2322 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2323 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2324 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2325 ERJ3GEYJ184 M 180KOHM,J,1/16W 1 R2326 TAJAAH0101JV M 100 OHM,J,1/16W 1 R2327 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2328 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2329 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2330 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R2331 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2332 ERJ3GEYJ184 M 180KOHM,J,1/16W 1 R2333,3 4 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R2335 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2336 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2337 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R2338 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2339 ERJ3GEYJ563 M 56KOHM,J,1/16W 1 R2341 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R2342,4 3 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R2344 ERJ3GEYJ563 M 56KOHM,J,1/16W 1 R2345,4 6 ERJ3GEYJ363 M 36KOHM,J,1/16W 2 R2347,4 8 ERJ6GEY0R00 M 0 OHM, 1/10W 2 Ref. No. Part No. Part Name & Description Pcs Remarks R2350 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2351- 53 ERJ3GEYJ473 M 47KOHM,J,1/16W 3 R2357- 59 ERJ3GEYJ473 M 47KOHM,J,1/16W 3 R2360 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2363 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2364- 66 ERJ3GEYJ473 M 47KOHM,J,1/16W 3 R2367 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2368- 70 ERJ3GEYJ473 M 47KOHM,J,1/16W 3 R2371,7 2 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R2374 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2375 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2377- 79 ERJ3GEYJ223 M 22KOHM,J,1/16W 3 R2380 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2381,8 2 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R2388,8 9 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R2390 ERJ3GEYJ203 M 20KOHM,J,1/16W 1 R2391 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2392 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2393 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2394 ERJ3GEYJ203 M 20KOHM,J,1/16W 1 R2395,9 6 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R2397,9 8 ERJ3GEYJ473 M 47KOHM,J,1/16W 2 R2412 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2414 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2436 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2442 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R2443 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R2444- 47 ERJ6GEYJ102 M 1KOHM,J,1/10W 4 R2448,4 9 ERJ6GEYJ510 M 51 OHM,J,1/10W 2 R2450 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R2451,5 2 ERJ6GEYJ510 M 51 OHM,J,1/10W 2 R2453 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R2454,5 5 ERJ6GEYJ510 M 51 OHM,J,1/10W 2 R2456 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R2457,5 8 ERJ6GEYJ510 M 51 OHM,J,1/10W 2 R2459 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R2460 ERJ6ENF1743 M 174KOHM, 1/10W 1 PAVCCZ R2461 ERJ6ENF1373 M 137KOHM, 1/10W 1 R2462 ERJ6ENF1103 M 110KOHM, 1/10W 1 R2463 ERJ6ENF9092 M90.9KOHM, 1/16W 1 PAVCCZ R2464- 67 ERJ6GEYJ120 M 12 OHM,J,1/10W 4 R2468,6 9 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 2 R2470,7 1 ERJ6GEYJ132 M 1.3KOHM,J,1/10W 2 R2488- 91 ERJ6GEYJ120 M 12 OHM,J,1/10W 4 R2492 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2493,9 4 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2495,9 6 ERJ3GEYJ153 M 15KOHM,J,1/16W 2 R2499 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2512 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R2516 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R2517 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R2520 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R2521 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R2524 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R2539 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 TH-50PV500B R2540 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 TH-50PV500B 173 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks R2542 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2545 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2550 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2552 ERJ6GEY0R00 M 0 OHM, 1/10W 1 TH-50PV500B R2554 ERJ6ENF1000 M 100 OHM, 1/10W 1 TH-50PV500B R2557 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R2559 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2560 ERJ6ENF1001 M 1KOHM, 1/10W 1 R3001- 15 ERJ6ENF75R0 M 75 OHM, 1/10W 15 R3016,1 7 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3018,1 9 ERJ6GEYJ680 M 68 OHM,J,1/10W 2 R3020- 22 ERJ6ENF2202 M 2.2KOHM, 1/10W 3 R3023,2 4 ERJ6ENF1202 M 12KOHM, 1/10W 2 R3025 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3026 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3027,2 8 ERJ6ENF75R0 M 75 OHM, 1/10W 2 R3030 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R3031 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3032,3 3 ERJ8GEY0R00 M 0 OHM, 1/8W 2 R3034 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3036,3 7 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R3038- 40 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R3041,4 2 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 2 R3043 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3044,4 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3047 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3048 ERJ3GEYJ152 M 1.5KOHM,J,1/16W 1 R3049- 51 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R3052 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3053 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3054 ERJ3EKF4700 M 470 OHM, 1/16W 1 R3055 ERJ3EKF5600 M 560 OHM, 1/16W 1 R3056 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3059- 64 ERJ3GEYJ221 M 220 OHM,J,1/16W 6 R3065 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R3066 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3067 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3068 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3069 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3071 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3072- 75 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R3077 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3085 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3086 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3087 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3088 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 TH-50PV500B R3089,9 0 TAJAAH0470JV M 47 OHM,J,1/16W 2 R3092 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3094- 01 ERJ3GEYJ221 M 220 OHM,J,1/16W 8 R3115- 18 TAJAAH0101JV M 100 OHM,J,1/16W 4 R3119,2 0 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3121 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3122 TAJAAH0101JV M 100 OHM,J,1/16W 1 R3123 ERJ3EKF82R0 M 82 OHM, 1/16W 1 R3124 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 1 R3125 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3126 TAJAAH0101JV M 100 OHM,J,1/16W 1 R3127 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R3128 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 1 R3129- 31 TAJAAH0101JV M 100 OHM,J,1/16W 3 R3132,3 3 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3134 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3135 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3136 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3138 ERJ3EKF82R0 M 82 OHM, 1/16W 1 R3139 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3140 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3141 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3142 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 1 R3143 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R3144 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R3145 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3146 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3152,5 3 TAJAAH0470JV M 47 OHM,J,1/16W 2 R3154 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3156,5 7 ERJ3GEYJ333 M 33KOHM,J,1/16W 2 R3158 TAJAAH0101JV M 100 OHM,J,1/16W 1 R3159 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R3161 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3163 ERJ6ENF1202 M 12KOHM, 1/10W 1 R3164 ERJ3GEYJ105 M 1MOHM,J,1/16W 1 R3168 ERJ3GEYJ750 M 75 OHM,J,1/16W 1 R3170 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3171 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3173 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R3206 TAJAAH0101JV M 100 OHM,J,1/16W 1 R3213- 22 ERJ3GEY0R00 M 0 OHM, 1/16W 10 R3224- 29 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R3233,3 4 ERJ6ENF75R0 M 75 OHM, 1/10W 2 R3236 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3302 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3305 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3306,0 7 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R3308,0 9 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R3310 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3312 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3313 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3317 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3318 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3320 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3323,2 4 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R3336,3 7 ERJ3GEYJ183 M 18KOHM,J,1/16W 2 R3338 TAJAAH0101JV M 100 OHM,J,1/16W 1 R3339 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3340 TAJAAH0101JV M 100 OHM,J,1/16W 1 R3341,4 2 ERJ3GEYJ183 M 18KOHM,J,1/16W 2 R3343 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3344 TAJAAH0101JV M 100 OHM,J,1/16W 1 R3345,4 6 ERJ3GEYJ183 M 18KOHM,J,1/16W 2 R3347 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3348,4 9 TAJAAH0680JV M 68 OHM,J,1/16W 2 R3350- 52 ERJ3GEYJ510 M 51 OHM,J,1/16W 3 R3401- 07 ERJ6GEY0R00 M 0 OHM, 1/10W 7 R3702 ERJ3GEYJ184 M 180KOHM,J,1/16W 1 R3704 ERJ3GEYJ184 M 180KOHM,J,1/16W 1 R3708 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3710 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3711 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 174 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks R3721- 26 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R3750 ERJ6GEYJ683 M 68KOHM,J,1/10W 1 R3751 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R3752 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1 R3753,5 4 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R3755 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R3758- 64 ERJ6GEY0R00 M 0 OHM, 1/10W 7 R4001 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4007- 09 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R4014 ERJ3EKF1500 M 150 OHM, 1/16W 1 R4016,1 7 ERJ3EKF5760 M 576 OHM, 1/16W 2 R4019 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4023 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R4027 ERJ3EKF1500 M 150 OHM, 1/16W 1 R4029,3 0 ERJ3EKF1581 M1.58KOHM, 1/10W 2 R4031 ERJ3EKF4220 M 422 OHM, 1/10W 1 R4033 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R4035,3 6 ERJ3EKF3001 M 3KOHM, 1/16W 2 R4037 ERJ3EKF5600 M 560 OHM, 1/16W 1 R4039 ERJ3EKF4220 M 422 OHM, 1/10W 1 R4041 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4043,4 4 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R4045 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R4046 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4047 ERJ3EKF5600 M 560 OHM, 1/16W 1 R4048 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R4049 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4050 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4051,5 2 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4053 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4054 ERJ3EKF1600 M 160 OHM, 1/16W 1 R4055 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4056,5 7 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R4058 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4059 ERJ3EKF2702V M27.0KOHM, 1/16W 1 R4060 ERJ3EKF4302 M 43KOHM, 1/16W 1 R4062 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4064 ERJ3EKF1371 M 13.7 OHM, 1/16W 1 R4068 ERJ3EKF1691 M1.69KOHM, 1/16W 1 R4069- 72 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R4073,7 4 TAJAAH0101JV M 100 OHM,J,1/16W 2 R4075 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4076,7 7 EXB38V220J RESISTOR ARRAY 2 R4078 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4079- 81 EXB38V220J RESISTOR ARRAY 3 R4082- 84 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R4085 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4091- 94 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R4100 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R4101 ERJ3GEYJ822 M 8.2KOHM,J,1/16W 1 R4102 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R4103 ERJ3GEYJ822 M 8.2KOHM,J,1/16W 1 R4104 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R4106 ERJ3GEYJ822 M 8.2KOHM,J,1/16W 1 R4107- 09 ERJ3GEYJ330 M 33 OHM,J,1/16W 3 R4110 ERJ3GEYJ751 M 750 OHM,J,1/16W 1 R4111 ERJ3EKF5601 M 5.6KOHM, 1/16W 1 R4112 ERJ3GEYJ751 M 750 OHM,J,1/16W 1 R4113 ERJ3EKF5601 M 5.6KOHM, 1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R4114 ERJ3GEYJ751 M 750 OHM,J,1/16W 1 R4115 ERJ3EKF5601 M 5.6KOHM, 1/16W 1 R4117 ERJ6ENF5600 M 560 OHM, 1/10W 1 R4118 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4120 ERJ6ENF5600 M 560 OHM, 1/10W 1 R4123 ERJ6ENF5600 M 560 OHM, 1/10W 1 R4125- 27 ERJ6GEYJ471 M 470 OHM,J,1/10W 3 R4128 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4130 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4132 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4134- 36 TAJAAH0680JV M 68 OHM,J,1/16W 3 R4137- 39 ERJ3GEYJ330 M 33 OHM,J,1/16W 3 R4140 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4143 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4144- 46 ERJ3GEYJ471 M 470 OHM,J,1/16W 3 R4147- 49 ERJ3GEYJ153 M 15KOHM,J,1/16W 3 R4150 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4151,5 2 ERJ3EKF2200 M 220 OHM, 1/16W 2 R4153 ERJ3EKF1020 M 102 OHM, 1/16W 1 R4154 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4155 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4157,5 8 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R4159 ERJ3EKF1200 M 120 OHM, 1/16W 1 R4160 ERJ3EKF1020 M 102 OHM, 1/16W 1 R4161 ERJ3EKF1200 M 120 OHM, 1/16W 1 R4163 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4165 TAJAAH0680JV M 68 OHM,J,1/16W 1 R4167 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4169 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4173 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R4174,7 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4177 TAJAAH0680JV M 68 OHM,J,1/16W 1 R4182 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4184 TAJAAH0680JV M 68 OHM,J,1/16W 1 R4186 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4188 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4194- 97 TAJAAH0680JV M 68 OHM,J,1/16W 4 R4199 ERJ3EKF1200 M 120 OHM, 1/16W 1 R4203 ERJ3EKF1020 M 102 OHM, 1/16W 1 R4204 ERJ3GEYJ510 M 51 OHM,J,1/16W 1 R4207 ERJ3EKF1500 M 150 OHM, 1/16W 1 R4208 ERJ3GEYJ510 M 51 OHM,J,1/16W 1 R4209 ERJ3EKF2200 M 220 OHM, 1/16W 1 R4210 TAJAAH0101JV M 100 OHM,J,1/16W 1 R4211 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4228 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4236- 38 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R4244 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R4249 EXB38V680J RESISTOR ARRAY 1 R4253 EXB38V680J RESISTOR ARRAY 1 R4255 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4259 EXB38V680J RESISTOR ARRAY 1 R4301 ERJ3GEYJ361 M 360 OHM,J,1/16W 1 R4303 ERJ3GEYJ181 M 180 OHM,J,1/16W 1 R4305 ERJ3GEYJ181 M 180 OHM,J,1/16W 1 R4307 ERJ6GEYJ361 M 360 OHM,J,1/10W 1 R4308,0 9 ERJ6GEYJ561 M 560 OHM,J,1/10W 2 R4315 ERJ3EKF8450 M 845 OHM, 1/16W 1 R4318,1 9 ERJ3EKF4700 M 470 OHM, 1/16W 2 R4320,2 1 ERJ3EKF3601 M 3.6KOHM, 1/16W 2 R4325 ERJ3EKF1331 M13.3KOHM, 1/16W 1 R4326,2 7 ERJ6GEYJ821 M 820 OHM,J,1/10W 2 175 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks R4328 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R4329- 31 ERJ3GEYJ330 M 33 OHM,J,1/16W 3 R4332 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R4333 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4334,3 5 ERJ6GEYJ471 M 470 OHM,J,1/10W 2 R4336- 41 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R4342- 44 ERJ3EKF33R0 M 33 OHM, 1/16W 3 R4345 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R4346- 48 ERJ3EKF33R0 M 33 OHM, 1/16W 3 R4349 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 R4350 ERJ3EKF4700 M 470 OHM, 1/16W 1 R4351- 53 ERJ3EKF1500 M 150 OHM, 1/16W 3 R4354 ERJ3EKF1001 M 1KOHM, 1/16W 1 R4355- 59 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R4360 ERJ3GEYJ911 M 910 OHM,J,1/16W 1 R4361,6 2 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4363 TAJAAH0101JV M 100 OHM,J,1/16W 1 R4364,6 5 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R4367 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4368,6 9 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R4370 TAJAAH0470JV M 47 OHM,J,1/16W 1 R4372 D1HG5608A002 NETWORK RESISTER 1 R4373,7 4 EXB38V560J RESISTOR ARRAY 2 R4379,8 0 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R4381- 83 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R4402 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R4405 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R4406 EXB38V560J RESISTOR ARRAY 1 R4407,0 8 D1HG5608A002 NETWORK RESISTER 2 R4409,1 0 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R4411 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R4412 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R4413- 15 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R4421 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4422- 24 ERJ3GEYJ560 M 56 OHM,J,1/16W 3 R4425,2 6 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R4430,3 1 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R4432,3 3 ERJ3EKF3302 M 33KOHM, 1/16W 2 R4434,3 5 ERJ3EKF2202 M 22KOHM, 1/16W 2 R4436,3 7 ERJ3EKF1502 M 15KOHM, 1/16W 2 R4438 ERJ3EKF3902 M 39KOHM, 1/16W 1 R4439 TAJAAH0101JV M 100 OHM,J,1/16W 1 R4440 ERJ3EKF3902 M 39KOHM, 1/16W 1 R4441 TAJAAH0101JV M 100 OHM,J,1/16W 1 R4443 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R4446 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R4447 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4448- 51 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R4452 ERJ3GEYJ105 M 1MOHM,J,1/16W 1 R4453,5 4 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R4455,5 6 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R4457 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R4458,5 9 ERJ3GEYJ473 M 47KOHM,J,1/16W 2 R4460,6 1 ERJ6GEYJ471 M 470 OHM,J,1/10W 2 R4463- 67 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R4501 TAJAAH0470JV M 47 OHM,J,1/16W 1 R4502 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4503 ERJ3EKF1202 M 12KOHM, 1/16W 1 R4504 ERJ3EKF1800 M 180 OHM, 1/16W 1 R4505 ERJ3EKF2001 M 2KOHM, 1/16W 1 R4506 ERJ3EKF4302 M 43KOHM, 1/16W 1 R4508,0 9 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R4510- 14 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R4515,1 6 ERJ3EKF1741 M 17.4 OHM, 1/16W 2 R4518,1 9 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4520,2 1 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R4522 ERJ3GEYJ750 M 75 OHM,J,1/16W 1 R4523,2 4 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4525 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4526 TAJAAH0470JV M 47 OHM,J,1/16W 1 R4527 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R4528 ERJ3EKF1001 M 1KOHM, 1/16W 1 R4529,3 0 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R4531,3 2 TAJAAH0101JV M 100 OHM,J,1/16W 2 R4533 ERJ3EKF9100 M 910 OHM, 1/16W 1 R4534,3 5 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R4575,7 6 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4577,7 8 TAJAAH0680JV M 68 OHM,J,1/16W 2 R4583- 03 TAJAAH0680JV M 68 OHM,J,1/16W 21 R4604- 06 EXB38V680J RESISTOR ARRAY 3 R4609 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4610- 13 TAJAAH0680JV M 68 OHM,J,1/16W 4 R4614- 17 EXB2HV680J RESISTOR ARRAY 4 R4618 EXB38V680J RESISTOR ARRAY 1 R4619 EXB2HV680J RESISTOR ARRAY 1 R4620 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4659 TAJAAH0680JV M 68 OHM,J,1/16W 1 R4661 TAJAAH0680JV M 68 OHM,J,1/16W 1 R4662,6 3 ERJ3GEYJ680 M 68 OHM,J,1/16W 2 R4664 TAJAAH0101JV M 100 OHM,J,1/16W 1 R4671 EXB38V680J RESISTOR ARRAY 1 R4701,0 2 ERJ3EKF3002 M 30KOHM, 1/16W 2 R4704,0 5 ERJ3EKF1741 M 17.4 OHM, 1/16W 2 R4706- 10 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R4751 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4753,5 4 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 R4755 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4756- 58 ERJ3GEYJ330 M 33 OHM,J,1/16W 3 R4759 ERJ3GEYJ510 M 51 OHM,J,1/16W 1 R4760 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4763 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4766 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4768 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4769 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R4802 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4805 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 176 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks R4807,0 8 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R4810 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4821- 23 EXB38VR000 RESISTOR ARRAY 3 R4834 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R4841,4 2 EXB2HV220JV RESISTOR ARRAY 2 TH-50PV500B R4844 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 TH-50PV500B R4845- 47 ERJ3GEY0R00 M 0 OHM, 1/16W 3 TH-50PV500B R4851 ERJ3GEYJ821 M 820 OHM,J,1/16W 1 R4884 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4887,8 8 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4891- 97 ERJ3GEY0R00 M 0 OHM, 1/16W 7 R4907- 10 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R4911 J0JCC0000241 CHIP INDUCTOR 1 TH-50PV500B R4912,1 3 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4914- 16 ERJ3GEY0R00 M 0 OHM, 1/16W 3 TH-50PV500B R4918,1 9 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4920,2 1 J0JCC0000241 CHIP INDUCTOR 2 R4922- 26 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R4927 J0JCC0000241 CHIP INDUCTOR 1 R4928- 42 ERJ3GEY0R00 M 0 OHM, 1/16W 15 R4943 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4944,4 5 ERJ3GEYJ473 M 47KOHM,J,1/16W 2 R4946 TAJAAH0101JV M 100 OHM,J,1/16W 1 R4947 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R4948,4 9 ERJ3EKF3002 M 30KOHM, 1/16W 2 R4950 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 TH-50PV500E R4952 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R5006 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5007 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5011 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5013 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R5014,1 5 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R5017 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5018 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R5019 TAJAAH0470JV M 47 OHM,J,1/16W 1 R5020 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R5022 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5023 TAJAAH0680JV M 68 OHM,J,1/16W 1 R5024,2 5 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R5030 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R5033- 35 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R5036 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5037- 39 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R5040 EXB38V330J RESISTOR ARRAY 1 R5041,4 2 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 R5043 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5044,4 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R5077,7 8 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R5079 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5176 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5196 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5334 D1HG5608A002 NETWORK RESISTER 1 R5335,3 6 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 R5337,3 8 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 Ref. No. Part No. Part Name & Description Pcs Remarks R5347- 50 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R5353 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5354 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R5356 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R5359 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R5366 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5367 D1HG5608A002 NETWORK RESISTER 1 R5369- 72 ERJ3GEYJ560 M 56 OHM,J,1/16W 4 R5374 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5375 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R5376 TAJAAH0101JV M 100 OHM,J,1/16W 1 R5391 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R5392,9 3 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R5394,9 5 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R5396 TAJAAH0101JV M 100 OHM,J,1/16W 1 R5399 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1 R5601 ERJ6ENF4532 M4.53KOHM, 1/10W 1 R5603 ERJ6ENF2550 M 255 OHM, 1/10W 1 R5605 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R5606 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R5607 ERJ6ENF1871 M1.87KOHM, 1/10W 1 R5609 ERJ6ENF1871 M1.87KOHM, 1/10W 1 R5610 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R5611 ERJ6ENF8202 M 82KOHM, 1/10W 1 R5612 ERJ6ENF1652 M16.5KOHM, 1/10W 1 R5615,1 6 ERJ6GEYJ223 M 22KOHM,J,1/10W 2 R5617,1 8 ERJ6GEYJ221 M 220 OHM,J,1/10W 2 R5621 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R5623,2 4 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R5625- 27 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 3 R5630 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R5632 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R5633 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R5634 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R5635 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R5636 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R5637,3 8 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R5639 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R5640 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R5641 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R5642 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R5643 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R5644 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R5645,4 6 ERJ6ENF2201 M 2.2KOHM, 1/10W 2 R5647 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R5648 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R5649 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R5650 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R5652 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R5653- 56 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R5657,5 8 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R5660 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R5662 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R5670 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R5672 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R5675 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R5680 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R5692 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R5693 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R5694,9 5 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R5696 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 1 R6000- 03 ERJ14YJ5R6U M 6.2OHM, 1/4W 4 177 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks R6012 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6013 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6014,1 5 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6020,2 1 ERJ14YJ5R6U M 6.2OHM, 1/4W 2 R6032 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6033 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6034,3 5 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6040- 43 ERJ6GEYJ151 M 150 OHM,J,1/10W 4 R6047,4 8 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6052 ERJ6ENF1182 M11.8KOHM, 1/10W 1 R6053- 58 ERJ6GEYJ151 M 150 OHM,J,1/10W 6 R6060 EXB38V470J RESISTOR ARRAY 1 R6061 EXB38V472J RESISTOR ARRAY 1 R6062 EXB38V470J RESISTOR ARRAY 1 R6063 EXB38V472J RESISTOR ARRAY 1 R6064,6 5 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6066 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6067,6 8 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 2 R6069 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6070,7 1 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6072 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R6073,7 4 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6075,7 6 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 2 R6079 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6080 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R6081,8 2 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6100- 05 ERJ14YJ150U M 15 OHM, J,1/4W 6 R6124 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6125 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6126,2 7 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6137- 39 ERJ6ENF6802 M 68KOHM, 1/10W 3 R6140- 45 ERJ14YJ150U M 15 OHM, J,1/4W 6 R6176 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6177 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6178,7 9 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6190,9 1 ERX2FJSR22D M0.22 OHM, J, 2W 2 R6195,9 6 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6197,9 8 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6199 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6200 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 1 R6202 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 1 R6210 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6211,1 2 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6213 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6214,1 5 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6216,1 7 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6219 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6221 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R6223 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R6225 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R6227 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R6228 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6229 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6231 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R6232 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6233,3 4 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6235 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6236,3 7 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6238,3 9 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6240 ERJ6ENF6982 M69.8KOHM, 1/10W 1 R6241 ERJ6ENF1182 M11.8KOHM, 1/10W 1 R6242 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R6243 ERJ6ENF3832 M38.3KOHM, 1/10W 1 R6244 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6245 ERJ6ENF6981 M6.98KOHM, 1/10W 1 R6246 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6247,4 8 ERF15ZJ181 W 180 OHM, 15W 2 R6249 ERJ6ENF1182 M11.8KOHM, 1/10W 1 R6250,5 1 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6252 ERF15ZJ181 W 180 OHM, 15W 1 R6253 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6254 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6255 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6257,5 8 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R6259,6 0 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6261 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6263 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6264 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6265 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6266 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6267,6 8 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6269 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6270 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6271,7 2 ERG2FJS101D M 100 OHM, J, 2W 2 R6274 ERG1FJS103D M 10KOHM, J, 1W 1 R6275 ERG2FJS123D M 12KOHM, J, 2W 1 R6276- 78 ERJ6GEYJ223 M 22KOHM,J,1/10W 3 R6280 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6281 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6282- 84 ERJ6GEYJ273 M 27KOHM,J,1/10W 3 R6291 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6292 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6293 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R6298 EXB38V470J RESISTOR ARRAY 1 R6299 EXB38V472J RESISTOR ARRAY 1 R6361- 64 ERJ6GEYJ151 M 150 OHM,J,1/10W 4 R6367,6 8 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6375- 77 ERJ6ENF6802 M 68KOHM, 1/10W 3 R6378 ERJ6ENF6202 M 62KOHM, 1/10W 1 R6379 ERJ6GEYJ563 M 56KOHM,J,1/10W 1 R6382,8 3 ERX12SJ1R2 M 1.2 OHM, J,1/2W 2 R6385 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R6386 ERJ6GEYJ272 M 2.7KOHM,J,1/10W 1 R6387 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6388 ERG2FJS563D M 56KOHM, J, 2W 1 R6390 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6411,1 2 ERX2FJSR22D M0.22 OHM, J, 2W 2 R6415 EXB38V470J RESISTOR ARRAY 1 R6416 EXB38V472J RESISTOR ARRAY 1 R6417 EXB38V470J RESISTOR ARRAY 1 R6418 EXB38V472J RESISTOR ARRAY 1 R6419 EXB38V470J RESISTOR ARRAY 1 R6420 EXB38V472J RESISTOR ARRAY 1 R6421 EXB38V470J RESISTOR ARRAY 1 178 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks R6422 EXB38V472J RESISTOR ARRAY 1 R6429,3 0 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R6431,3 2 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6433 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6434,3 5 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 2 R6436 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6437,3 8 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6439 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R6440 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6441 ERJ14YJ203U M 20KOHM, 1/2W 1 R6444- 48 ERJ6GEYJ471 M 470 OHM,J,1/10W 5 R6449 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6450 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6451 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6452,5 3 ERJ6GEYJ471 M 470 OHM,J,1/10W 2 R6454 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6455 ERJ14YJ163U M 16KOHM, J,1/4W 1 R6458 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6459 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6460 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6461 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6462 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6463 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6464 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R6465 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6466 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R6467 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6468 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6469 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6470 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6471,7 2 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R6473,7 4 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 2 R6475 ERJ6GEYF103 M 10KOHM,F,1/10W 1 R6476 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6477 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6478- 83 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 6 R6484 EXB38V470J RESISTOR ARRAY 1 R6488 EXB38V470J RESISTOR ARRAY 1 R6501- 06 ERJ14YJ150U M 15 OHM, J,1/4W 6 R6525- 30 ERJ14YJ150U M 15 OHM, J,1/4W 6 R6561 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6562 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6569 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6573 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6574 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6581 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6585,8 6 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6601,0 2 ERX3FJS2R2D M 2.2 OHM, J, 3W 2 R6603- 05 ERJ6GEYJ101 M 100 OHM,J,1/10W 3 R6611 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6612 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6613 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6614 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R6615,1 6 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R6617 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6618 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6619,2 0 ERJ6GEYJ105 M 1MOHM,J,1/10W 2 R6621 ERJ6GEYJ680 M 68 OHM,J,1/10W 1 R6622 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R6625- 32 ERJ6GEYJ470 M 47 OHM,J,1/10W 8 R6662 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6664 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6667 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6668 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6669 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6671 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6674 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6675 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6686,8 7 ERJ14YJ5R6U M 6.2OHM, 1/4W 2 R6696- 99 ERJ14YJ5R6U M 6.2OHM, 1/4W 4 R6711 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6712 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6713 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6716- 21 ERJ6GEYJ100 M 10 OHM,J,1/10W 6 R6735- 37 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6738 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6739 ERJ6GEYJ202 M 2KOHM,J,1/10W 1 R6740 ERJ6GEYJ203 M 20KOHM,J,1/10W 1 R6741 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6742 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6743 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6744,4 5 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R6746 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6747,4 8 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6751- 53 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 3 R6755 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6756 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6757 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6758 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6759 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6760 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6761 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6762 ERG1FJS101D M 100 OHM, J, 1W 1 R6763,6 4 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6804,0 5 ERJ6GEYJ563 M 56KOHM,J,1/10W 2 R6806 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6807- 09 ERJ6GEYJ104 M 100KOHM,J,1/10W 3 R6810 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6823 ERX1FJS8R2D M 8.2 OHM, J, 1W 1 R6824 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6825,2 6 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6827 ERG1FJS471D M 470 OHM, J, 1W 1 R6828,2 9 ERJ12YJ104U M 100KOHM, 1/2W 2 R6830 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6831,3 2 ERJ6ENF2203 M 220KOHM, 1/10W 2 R6833 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R6834 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R6835,3 6 ERJ12YJ1R0 M 1 OHM, J,1/2W 2 R6837 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6838 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6839 ERDS1FJ221 C 220 OHM, J,1/2W 1 R6840,4 1 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 2 R6842 ERJ6ENF1543 M 154KOHM, 1/10W 1 R6843 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6844 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R6845 ERX1FJS8R2D M 8.2 OHM, J, 1W 1 R6846 ERX3FJS8R2D M 8.2 OHM, J, 3W 1 R6847 ERG2FJS683D M 68KOHM, J, 2W 1 R6848 ERDS1FJ4R7 C 4.7 OHM, J,1/2W 1 179 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks R6851 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6852 ERG2FJS101D M 100 OHM, J, 2W 1 R6853 ERJ12YJ153U M 15KOHM, 1/2W 1 R6854 ERJ14YJ433U M 43KOHM, 1/2W 1 R6855 ERJ6GEYJ563 M 56KOHM,J,1/10W 1 R6856 ERJ6ENF6202 M 62KOHM, 1/10W 1 R6857,5 8 ERJ6ENF2491 M2.49KOHM, 1/10W 2 R6859 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6860 ERX3FJS8R2D M 8.2 OHM, J, 3W 1 R6861 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6862 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R6863 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R6864 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6866 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6867 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6869 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R6870 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6871 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6872,7 3 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6874 ERJ6GEYJ563 M 56KOHM,J,1/10W 1 R6876 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6886 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6901- 06 ERJ6GEYJ221 M 220 OHM,J,1/10W 6 R6907,0 8 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6909 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6910 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6911 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6912 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6921- 26 ERJ6GEYJ221 M 220 OHM,J,1/10W 6 R6927- 30 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6931,3 2 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R7101 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7102 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7104 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R7107 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R7109 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7111 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7113 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7115 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7116,1 7 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R7123 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7127 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7131 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7133 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7134- 37 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R7138- 40 TAJAAH0470JV M 47 OHM,J,1/16W 3 R7141- 46 EXB38V102J RESISTOR ARRAY 6 R7159- 64 EXB38V470J RESISTOR ARRAY 6 R7171 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7184,8 5 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R7186 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7187 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7205,0 6 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7208 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7210,1 1 TAJAAH0101JV M 100 OHM,J,1/16W 2 R7215 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7225 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7227 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7230 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7235 TAJAAH0101JV M 100 OHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R7236,3 7 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R7238 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7244 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7250 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7251 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7252- 55 EXB38V102J RESISTOR ARRAY 4 R7256 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7257- 60 EXB38V102J RESISTOR ARRAY 4 R7262 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7263 ERJ12Y0R00 M 0 OHM,J, 1/2W 1 R7266 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7267 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7268 ERJ12Y0R00 M 0 OHM,J, 1/2W 1 R7270,7 1 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R7272,7 3 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R7274,7 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7276,7 7 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R7280,8 1 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7282,8 3 TAJAAH0470JV M 47 OHM,J,1/16W 2 R7288,8 9 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7290,9 1 EXB38V470J RESISTOR ARRAY 2 R7294- 99 EXB38V470J RESISTOR ARRAY 6 R7301,0 2 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R7303- 10 EXB38V470J RESISTOR ARRAY 8 R7337- 40 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R7341,4 2 TAJAAH0470JV M 47 OHM,J,1/16W 2 R7343 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7345,4 6 TAJAAH0470JV M 47 OHM,J,1/16W 2 R7347 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7354,5 5 TAJAAH0101JV M 100 OHM,J,1/16W 2 R7360,6 1 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7364,6 5 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7366,6 7 TAJAAH0101JV M 100 OHM,J,1/16W 2 R7373,7 4 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R7377,7 8 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7381,8 2 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7383,8 4 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R7385 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7386 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7387 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7392- 99 EXB38V102J RESISTOR ARRAY 8 R7401 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7404 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7405- 08 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R7409- 12 TAJAAH0470JV M 47 OHM,J,1/16W 4 R7413- 20 EXB38V470J RESISTOR ARRAY 8 R7444 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7446 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7460,6 1 TAJAAH0101JV M 100 OHM,J,1/16W 2 180 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks R7464,6 5 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7468,6 9 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7470,7 1 TAJAAH0101JV M 100 OHM,J,1/16W 2 R7472 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7477,7 8 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R7481,8 2 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7485,8 6 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 2 R7487,8 8 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R7490 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7491 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7492- 99 EXB38V102J RESISTOR ARRAY 8 R7502 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7503 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7504 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7506 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7507,0 8 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7509 ERJ12Y0R00 M 0 OHM,J, 1/2W 1 R7511 ERJ12Y0R00 M 0 OHM,J, 1/2W 1 R7514 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7516 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7517 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7522,2 3 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R7525 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7527 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7528 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7530 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7532 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7533 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7534- 41 EXB38V102J RESISTOR ARRAY 8 R7542- 45 ERJ6GEY0R00 M 0 OHM, 1/10W 4 R7546,4 7 TAJAAH0101JV M 100 OHM,J,1/16W 2 R7550- 53 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R7554,5 5 TAJAAH0470JV M 47 OHM,J,1/16W 2 R7556- 63 EXB38V470J RESISTOR ARRAY 8 R7564 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7566 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7568 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7569 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7592,9 3 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R7604 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R7605 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R7606 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7607 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R7609 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7611 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7613 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7615 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7616,1 7 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R7624 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7628 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7632 ERJ12YJ2R2 M 2.2 OHM, J,1/2W 1 R7634 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7637- 42 EXB38V470J RESISTOR ARRAY 6 R7643- 46 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R7647- 49 TAJAAH0470JV M 47 OHM,J,1/16W 3 Ref. No. Part No. Part Name & Description Pcs Remarks R7650- 55 EXB38V102J RESISTOR ARRAY 6 R7677 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7680 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7685 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7686 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7687 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7700 TAJAAH0101JV M 100 OHM,J,1/16W 1 R7701 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7702 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7703 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7704 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7705 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7706,0 7 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R7708,0 9 TAJAAH0470JV M 47 OHM,J,1/16W 2 R7711 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7713 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7714 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7722- 27 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R7732 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7745,4 6 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7755 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R7756 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7757- 60 TAJAAH0470JV M 47 OHM,J,1/16W 4 R7763 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R7764 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7765 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R7782,8 3 EXB38VR000 RESISTOR ARRAY 2 R7788 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R7790 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R7791 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R7792 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7799 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R7905- 08 EXB38VR000 RESISTOR ARRAY 4 R7909 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7911 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7913,1 4 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7922 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7928- 30 EXB38V560J RESISTOR ARRAY 3 R7931- 33 ERJ3GEYJ560 M 56 OHM,J,1/16W 3 R7934- 39 EXB38V560J RESISTOR ARRAY 6 R7940,4 1 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R7942 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7947 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R7949 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R7952,5 3 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R7955,5 6 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R7958,5 9 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R7961 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R7962 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R7963 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7968 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R7973 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7975 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7985 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R8003,0 4 ERJ2GEJ181 M 180 OHM, J,0.063W 2 TH-50PV500B R8006 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B R8008 ERJ2GEJ102 M 1KOHM, J,0.063W 1 TH-50PV500B R8010- 12 ERJ2GEJ103 M 10KOHM, J,0.063W 3 TH-50PV500B 181 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks R8014,1 5 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-50PV500B R8016 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B R8020- 22 ERJ2GEJ103 M 10KOHM, J,0.063W 3 TH-50PV500B R8023 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B R8024- 26 ERJ2GEJ104 M 100KOHM, J,0.063W 3 TH-50PV500B R8027 D1HG5608A002 NETWORK RESISTER 1 TH-50PV500B R8028- 30 ERJ2GEJ560 M 56 OHM, J,0.063W 3 TH-50PV500B R8033 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 TH-50PV500B R8034,3 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 TH-50PV500B R8036 ERJ3GEYJ163 M 16KOHM,J,1/16W 1 TH-50PV500B R8039,4 0 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 TH-50PV500B R8041 ERJ2GEJ154 M 150KOHM, J,0.063W 1 TH-50PV500B R8046 ERJ2GEJ330 M 33 OHM, J,0.063W 1 TH-50PV500B R8047- 50 ERJ2GEJ101 M 100 OHM, J,0.063W 4 TH-50PV500B R8051 EXB38V330J RESISTOR ARRAY 1 TH-50PV500B R8052- 55 ERJ2GEJ103 M 10KOHM, J,0.063W 4 TH-50PV500B R8056 ERJ2GEJ330 M 33 OHM, J,0.063W 1 TH-50PV500B R8057 ERJ2GEJ680 M 68 OHM, J,0.063W 1 TH-50PV500B R8058 EXB38V330J RESISTOR ARRAY 1 TH-50PV500B R8059 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-50PV500B R8073 ERJ2GEJ105 M 1MOHM, J,0.063W 1 TH-50PV500B R8074,7 5 ERJ2GEJ181 M 180 OHM, J,0.063W 2 TH-50PV500B R8076 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-50PV500B R8078 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 TH-50PV500B R8079 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-50PV500B R8084,8 5 D1HG1218A002 NETWORK RESISTER 2 TH-50PV500B R8086- 88 ERJ2GEJ560 M 56 OHM, J,0.063W 3 TH-50PV500B R8101 ERJ3GEYF181 M 180 OHM,J,1/16W 1 TH-50PV500B PAVCCZ R8104 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-50PV500B R8106,0 7 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-50PV500B R8108 ERJ3EKF2212 M 22KOHM, 1/16W 1 TH-50PV500B R8109 ERJ3EKF2402 M 24KOHM, 1/16W 1 TH-50PV500B R8110 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B R8112,1 3 ERJ3GEY0R00 M 0 OHM, 1/16W 2 TH-50PV500B R8115 ERJ3GEYF272 M 2.7KOHM, 1/16W 1 TH-50PV500B R8117 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 TH-50PV500B R8124 ERJ2GEJ471 M 470 OHM, J,0.063W 1 TH-50PV500B R8127 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B R8131 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B R8132 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-50PV500B R8133 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 TH-50PV500B R8136 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-50PV500B R8137 ERJ2GEJ121 M 120 OHM, J,0.063W 1 TH-50PV500B R8140,4 1 ERJ3EKF1001 M 1KOHM, 1/16W 2 TH-50PV500B R8144,4 5 D1HG5608A002 NETWORK RESISTER 2 TH-50PV500B R8148,4 9 D1HG3908A002 NETWORK RESISTER 2 TH-50PV500B R8150- 59 ERJ2GEJ390 M 39 OHM, J,0.063W 10 TH-50PV500B R8161,6 2 ERJ2GEJ390 M 39 OHM, J,0.063W 2 TH-50PV500B R8163 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-50PV500B R8165 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks R8167- 71 ERJ2GEJ103 M 10KOHM, J,0.063W 5 TH-50PV500B R8172 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-50PV500B R8173 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B R8175 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 TH-50PV500B R8176 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-50PV500B R8180- 82 ERJ2GEJ560 M 56 OHM, J,0.063W 3 TH-50PV500B R8183 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B R8184 ERJ2GEJ223 M 22KOHM, J,0.063W 1 TH-50PV500B R8185,8 6 ERJ2GEJ101 M 100 OHM, J,0.063W 2 TH-50PV500B R8187 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-50PV500B R8193 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-50PV500B R8195 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-50PV500B R8196 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 TH-50PV500B R8201- 04 ERJ2GEJ103 M 10KOHM, J,0.063W 4 TH-50PV500B R8214 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B R8215 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-50PV500B R8216,1 7 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-50PV500B R8218,1 9 D1HG33080001 NETWORK RESISTER 2 TH-50PV500B R8220- 22 D1HG5608A002 NETWORK RESISTER 3 TH-50PV500B R8223 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-50PV500B R8225 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-50PV500B R8231 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 TH-50PV500B R8232,3 3 ERJ2GEJ330 M 33 OHM, J,0.063W 2 TH-50PV500B R8235 ERJ2GEJ330 M 33 OHM, J,0.063W 1 TH-50PV500B R8238- 43 ERJ2GEJ330 M 33 OHM, J,0.063W 6 TH-50PV500B R8245,4 6 ERJ2GEJ330 M 33 OHM, J,0.063W 2 TH-50PV500B R8250 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-50PV500B R8252- 54 ERJ2GEJ330 M 33 OHM, J,0.063W 3 TH-50PV500B R8255- 57 ERJ2GEJ103 M 10KOHM, J,0.063W 3 TH-50PV500B R8259 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 TH-50PV500B R8260- 63 ERJ2GEJ560 M 56 OHM, J,0.063W 4 TH-50PV500B R8264- 68 ERJ2GEJ103 M 10KOHM, J,0.063W 5 TH-50PV500B R8269 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-50PV500B R8271 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-50PV500B R8272 EXB38V560J RESISTOR ARRAY 1 TH-50PV500B R8273 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-50PV500B R8275 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-50PV500B R8277 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-50PV500B R8279 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B R8282 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-50PV500B R8284 ERJ8GEY0R00 M 0 OHM, 1/8W 1 TH-50PV500B R8286,8 7 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-50PV500B R8290 EXB38V560J RESISTOR ARRAY 1 TH-50PV500B R8291,9 2 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-50PV500B R8308,0 9 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 TH-50PV500B R8310- 15 ERJ3EKF75R0 M 0.75HM, 1/16W 6 TH-50PV500B R8319 ERJ3EKF2702V M27.0KOHM, 1/16W 1 TH-50PV500B R8320 ERJ3EKF1002 M 10KOHM, 1/16W 1 TH-50PV500B R8321 ERJ3EKF8201 M 8.2KOHM, 1/16W 1 TH-50PV500B R8349 ERJ2GEJ104 M 100KOHM, J,0.063W 1 TH-50PV500B R8350 ERJ3EKF8201 M 8.2KOHM, 1/16W 1 TH-50PV500B R8351 ERJ3EKF1002 M 10KOHM, 1/16W 1 TH-50PV500B R8352 ERJ3EKF2702V M27.0KOHM, 1/16W 1 TH-50PV500B R8353 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 TH-50PV500B 182 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks R8354 ERJ2GEJ272 M 2.7KOHM, J,0.063W 1 TH-50PV500B R8355,5 6 EXB2HV104JV RESISTOR ARRAY 2 TH-50PV500B R8366 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-50PV500B R8367,6 8 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-50PV500B R8372- 76 ERJ2GEJ560 M 56 OHM, J,0.063W 5 TH-50PV500B R8386 J0JCC0000078 CHIP INDUCTOR 1 TH-50PV500B R8401 ERJ8GEY0R00 M 0 OHM, 1/8W 1 TH-50PV500B R8402 ERJ6GEY0R00 M 0 OHM, 1/10W 1 TH-50PV500B R8414 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B R8415,1 6 ERJ2GEJ223 M 22KOHM, J,0.063W 2 TH-50PV500B R8417,1 8 EXB38V473J RESISTOR ARRAY 2 TH-50PV500B R8419,2 0 EXB38V101J RESISTOR ARRAY 2 TH-50PV500B R8421 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-50PV500B R8422 ERJ3GEYF331 M 330 OHM,J,1/16W 1 TH-50PV500B PAVCCZ R8424 ERJ8RSJR10 M 1 OHM, 1/8W 1 TH-50PV500B R8425,2 6 EXB38V101J RESISTOR ARRAY 2 TH-50PV500B R8427- 31 ERJ2GEJ560 M 56 OHM, J,0.063W 5 TH-50PV500B R8433,3 4 EXB38V560J RESISTOR ARRAY 2 TH-50PV500B R8435 ERJ2GEJ101 M 100 OHM, J,0.063W 1 TH-50PV500B R8443 EXB38V560J RESISTOR ARRAY 1 TH-50PV500B R8444 ERJ2GEJ101 M 100 OHM, J,0.063W 1 TH-50PV500B R8445,4 6 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-50PV500B R8447 ERJ2GEJ223 M 22KOHM, J,0.063W 1 TH-50PV500B R8448 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-50PV500B R8449,5 0 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-50PV500B R8451 EXB38V104J RESISTOR ARRAY 1 TH-50PV500B R8452 ERJ2GEJ104 M 100KOHM, J,0.063W 1 TH-50PV500B R8453 EXB38V104J RESISTOR ARRAY 1 TH-50PV500B R8454 ERJ2GEJ104 M 100KOHM, J,0.063W 1 TH-50PV500B R8456- 59 EXB38V560J RESISTOR ARRAY 4 TH-50PV500B R8460 ERJ2GEJ104 M 100KOHM, J,0.063W 1 TH-50PV500B R8461 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-50PV500B R8462,6 3 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 TH-50PV500B R8464 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-50PV500B R8465 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-50PV500B R8466 EXB38V560J RESISTOR ARRAY 1 TH-50PV500B R8467,6 8 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-50PV500B R8469 EXB38V560J RESISTOR ARRAY 1 TH-50PV500B R8474 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B R8475,7 6 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-50PV500B R8477,7 8 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-50PV500B R8479 ERJ2GEJ203 M 20KOHM,J,0.063W 1 TH-50PV500B R8480- 82 ERJ2GEJ560 M 56 OHM, J,0.063W 3 TH-50PV500B R8483 ERJ2GEJ203 M 20KOHM,J,0.063W 1 TH-50PV500B R8484 ERJ2GEJ223 M 22KOHM, J,0.063W 1 TH-50PV500B R8485 ERJ2GEJ333 M 33KOHM, J,0.063W 1 TH-50PV500B R8486 ERJ2GEJ223 M 22KOHM, J,0.063W 1 TH-50PV500B R8487 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-50PV500B R8488 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B R8489 ERJ2GEJ102 M 1KOHM, J,0.063W 1 TH-50PV500B R8491 ERJ3EKF9102 M91.0KOHM, 1/16W 1 TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks R8492 ERJ3EKF9101 M 9.1KOHM, 1/16W 1 TH-50PV500B R8493 ERJ3EKF9102 M91.0KOHM, 1/16W 1 TH-50PV500B R8494 ERJ3EKF1202 M 12KOHM, 1/16W 1 TH-50PV500B R8495,9 6 EXB38V560J RESISTOR ARRAY 2 TH-50PV500B R8497 ERJ3EKF7500 M 750 OHM, 1/16W 1 TH-50PV500B R8498 ERJ3EKF6800 M 680 OHM, 1/16W 1 TH-50PV500B R8499 ERA3YED243 M 24KOHM 1/16W 1 TH-50PV500B R8500 ERJ3EKF1052 M10.5KOHM, 1/16W 1 TH-50PV500B R8501 ERJ3EKF2322 M23.2KOHM, 1/16W 1 TH-50PV500B R8502 ERJ3EKF1003 M 100KOHM, 1/16W 1 TH-50PV500B R8503,0 4 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-50PV500B R8505 ERJ2GEJ101 M 100 OHM, J,0.063W 1 TH-50PV500B R8538,3 9 ERJ2GEJ101 M 100 OHM, J,0.063W 2 TH-50PV500B R8546 ERJ2GEJ333 M 33KOHM, J,0.063W 1 TH-50PV500B R8547 ERJ2GEJ102 M 1KOHM, J,0.063W 1 TH-50PV500B R8602- 04 ERJ2GEJ101 M 100 OHM, J,0.063W 3 TH-50PV500B R8605,0 6 ERJ2GEJ104 M 100KOHM, J,0.063W 2 TH-50PV500B R8608 ERJ2GEJ105 M 1MOHM, J,0.063W 1 TH-50PV500B R8610 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 TH-50PV500B R8611 ERJ6GEY0R00 M 0 OHM, 1/10W 1 TH-50PV500B R8614 ERJ2GEJ221 M 220 OHM, J,0.063W 1 TH-50PV500B R8615 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B R8706- 09 ERJ2GEJ103 M 10KOHM, J,0.063W 4 TH-50PV500B R8711 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-50PV500B R8712 EXB38V560J RESISTOR ARRAY 1 TH-50PV500B R8713 EXB38V103J RESISTOR ARRAY 1 TH-50PV500B R8714- 16 ERJ2GEJ560 M 56 OHM, J,0.063W 3 TH-50PV500B R8802 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B R8821 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B R8827,2 8 ERJ2GEJ392 M 3.9KOHM, J,0.063W 2 TH-50PV500B R8830 ERJ2GEJ101 M 100 OHM, J,0.063W 1 TH-50PV500B R8862- 64 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 TH-50PV500B R8899,0 0 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 TH-50PV500B R8912 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B R8927,2 8 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 TH-50PV500B R8930 ERJ3GEY0R00 M 0 OHM, 1/16W 1 TH-50PV500B R8931,3 2 ERJ2GEJ392 M 3.9KOHM, J,0.063W 2 TH-50PV500B R8933 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B R8954 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-50PV500B R8960 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-50PV500B R8962- 64 ERJ2GEJ101 M 100 OHM, J,0.063W 3 TH-50PV500B R8967,6 8 EXB2HV473JV RESISTOR ARRAY 2 TH-50PV500B PAVCCZ R8969- 71 ERJ2GEJ473 M 47KOHM,J,0.063W 3 TH-50PV500B R8980 ERJ2GEJ102 M 1KOHM, J,0.063W 1 TH-50PV500B R8981- 87 ERJ2GE0R00 M 0.0 OHM, J,0.063W 7 TH-50PV500B R8989,9 0 ERJ2GEJ102 M 1KOHM, J,0.063W 2 TH-50PV500B R9000,0 1 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9003 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9006 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9007 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 183 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks R9009 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9010 EXB2HV272JV RESISTOR ARRAY 1 R9012 EXB2HV272JV RESISTOR ARRAY 1 R9013 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9015- 18 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R9019 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9020,2 1 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R9022 ERJ6ENF1001 M 1KOHM, 1/10W 1 R9023 ERJ6ENF1601 M 1.6KOHM, 1/10W 1 R9024 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9026 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9028 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9029,3 0 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9031,3 2 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9033,3 4 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9035,3 6 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R9039 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9040 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9041 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9042 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9043,4 4 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9045 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9046 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 R9047- 50 TAJAAH0101JV M 100 OHM,J,1/16W 4 R9052 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9053 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9054,5 5 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R9056,5 7 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9058,5 9 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9060- 67 TAJAAH0101JV M 100 OHM,J,1/16W 8 R9068- 72 ERJ3GEYJ103 M 10KOHM,J,1/16W 5 R9073 EXB2HV470JV RESISTOR ARRAY 1 R9074 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9075 EXB2HV470JV RESISTOR ARRAY 1 R9076 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9077- 79 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9080 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9081 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9082- 89 TAJAAH0101JV M 100 OHM,J,1/16W 8 R9090 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9091,9 2 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9093 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9094 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9095- 98 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R9102- 04 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9105 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9107- 09 ERJ3GEYJ393 M 39KOHM,J,1/16W 3 R9110 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9111,1 2 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9113 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9114- 16 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9117,1 8 EXB38VR000 RESISTOR ARRAY 2 R9119 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9120,2 1 TAJAAH0101JV M 100 OHM,J,1/16W 2 Ref. No. Part No. Part Name & Description Pcs Remarks R9122- 24 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9125,2 6 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R9127,2 8 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9130 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9131- 33 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R9134- 36 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9137 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9140- 42 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9145- 47 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9160,6 1 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9162,6 3 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9164,6 5 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9200- 02 TAJAAH0470JV M 47 OHM,J,1/16W 3 R9204 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9205,0 6 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9210 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9212 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9300- 04 D1HG33080001 NETWORK RESISTER 5 R9305 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9306,0 7 D1HG33080001 NETWORK RESISTER 2 R9308 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9309 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9313- 16 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9318,1 9 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9321 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9322 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9323 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9324- 28 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R9329 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9330- 33 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9335,3 6 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9337 ERJ6ENF1101 M 1.1KOHM, 1/10W 1 R9338 ERJ6ENF1401 M 1.4KOHM, 1/10W 1 R9339- 42 ERJ6ENF1001 M 1KOHM, 1/10W 4 R9500- 03 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R9505- 10 TAJAAH0101JV M 100 OHM,J,1/16W 6 R9511 EXB2HV272JV RESISTOR ARRAY 1 R9512 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9513 EXB2HV272JV RESISTOR ARRAY 1 R9515 EXB2HV272JV RESISTOR ARRAY 1 R9516,1 7 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9518 EXB2HV470JV RESISTOR ARRAY 1 R9519- 21 EXB38V470J RESISTOR ARRAY 3 R9522,2 3 EXB2HV470JV RESISTOR ARRAY 2 R9524- 26 TAJAAH0470JV M 47 OHM,J,1/16W 3 R9527 EXB38V470J RESISTOR ARRAY 1 R9528,2 9 TAJAAH0470JV M 47 OHM,J,1/16W 2 R9530 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9532 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9534 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9536 TAJAAH0680JV M 68 OHM,J,1/16W 1 184 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks R9537,3 8 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9540 ERJ3GEYJ304V M 300KOHM,J,1/16W 1 R9543 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9547 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9700 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9702- 04 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9706,0 7 ERJ6ENF1001 M 1KOHM, 1/10W 2 R9708 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9709 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9714 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9716,1 7 ERJL14KJ33M M 33 OHM, J,1/4W 2 R9718 ERJ6ENF2002 M 20KOHM, 1/10W 1 R9719 ERJ6ENF1742 M17.4KOHM, 1/10W 1 R9720 ERJ6ENF6342 M6.34KOHM, 1/10W 1 R9721 ERJ6ENF2002 M 20KOHM, 1/10W 1 R9722,2 3 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R9724 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9725 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9726,2 7 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R9728,2 9 ERJ6ENF2002 M 20KOHM, 1/10W 2 R9738,3 9 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9740- 42 ERJ6GEY0R00 M 0 OHM, 1/10W 3 R9800 EXB38V470J RESISTOR ARRAY 1 R9801- 04 EXB2HV470JV RESISTOR ARRAY 4 R9805- 07 EXB38V470J RESISTOR ARRAY 3 R9808,0 9 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9810 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9811 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9812 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9813 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9814 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9815 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9816,1 7 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9818,1 9 EXB2HV470JV RESISTOR ARRAY 2 R9820,2 1 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9822,2 3 EXB2HV470JV RESISTOR ARRAY 2 R9824 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9825 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9826 EXB38V470J RESISTOR ARRAY 1 R9827 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9830 EXB2HV470JV RESISTOR ARRAY 1 R9900 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9901 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9902 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9903 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9904 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9905 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9906 EXB2HV470JV RESISTOR ARRAY 1 R9907 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9908,0 9 EXB38V470J RESISTOR ARRAY 2 R9910,1 1 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9912 EXB2HV470JV RESISTOR ARRAY 1 R9913 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9914 EXB38V470J RESISTOR ARRAY 1 R9915,1 6 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9917- 22 EXB2HV470JV RESISTOR ARRAY 6 R9923 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks RM2510 PNA4601M05TV REMOCO RECEIVER 1 RTL TNPA3620AB CIRCUIT BOARD PA 1 PAVCCZ RTL TNPA3519 CIRCUIT BOARD DG 1 TH-50PV500E PAVCCZ RTL TNPA3519AC CIRCUIT BOARD DG 1 TH-50PV500B PAVCCZ RTL TNPA3520 CIRCUIT BOARD H 1 TH-50PV500E PAVCCZ RTL TNPA3520AB CIRCUIT BOARD H 1 TH-50PV500B PAVCCZ RTL TNPA3621AC CIRCUIT BOARD Z 1 PAVCCZ RTL TNPA3626AC CIRCUIT BOARD DV 1 PAVCCZ RTL TNPA3521 CIRCUIT BOARD TA 1 TH-50PV500E PAVCCZ RTL TNPA3521AB CIRCUIT BOARD TA 1 TH-50PV500B PAVCCZ RTL TNP0EXV01AC CIRCUIT BOARD XV 1 TH-50PV500B PAVCCZ RTL TNPA3643AE CIRCUIT BOARD PB 1 PAVCCZ RTL TNPA3561 CIRCUIT BOARD C1 1 RTL TNPA3562 CIRCUIT BOARD C2 1 RTL TNPA3563 CIRCUIT BOARD C3 1 RTL TNPA3564 CIRCUIT BOARD C4 1 RTL TNPA3565 CIRCUIT BOARD C5 1 RTL TNPA3566 CIRCUIT BOARD C6 1 PAVCCZ RTL TXN/D2XQSE CIRCUIT BOARD D 1 RTL ETXMM564MEK CIRCUIT BOARD P 1 RTL TNPA3567 CIRCUIT BOARD SC 1 RTL TNPA3220AB CIRCUIT BOARD SD 1 RTL TNPA3559 CIRCUIT BOARD SS2 1 RTL TNPA3568 CIRCUIT BOARD SS 1 RTL TNPA3560 CIRCUIT BOARD SS3 1 RTL TNPA3219AB CIRCUIT BOARD SU 1 RTL TNPA3498AC CIRCUIT BOARD K 1 TH-50PV500E PAVCCZ RTL TNPA3498AD CIRCUIT BOARD K 1 TH-50PV500B PAVCCZ RTL RD-SD008 SD MODULE 1 RTL TNPA3497AB CIRCUIT BOARD GS 1 PAVCCZ RTL TXN/G1XRSE CIRCUIT BOARD G 1 PAVCCZ RTL TNPA3503AC CIRCUIT BOARD GK 1 PAVCCZ RTL TNPA3499AC CIRCUIT BOARD S 1 PAVCCZ S1 K1KA03BA0061 3P CONNECTOR 1 SC2 K1KA06AA0192 6P CONNECTOR 1 SC20 K1KA20AA0008 20P CONNECTOR 1 SC23 K1KA03AA0193 3P CONNECTOR 1 SC41,42 K1ML80BA0001 80P CONNECTOR 2 SC45,46 K1KA10A00431 10P CONNECTOR 2 SC90 K1KA06AA0192 6P CONNECTOR 1 SD1-D4 K1MN96B00004 96P CONNECTOR 4 SD46 K1KA10B00209 10P CONNECTOR 1 SS11 K1KA07AA0192 7P CONNECTOR 1 SS12 K1KA10AA0194 10P CONNECTOR 1 SS20,21 K1KA07A00170 7P CONNECTOR 2 SS22,23 K1KB07A00037 7P CONNECTOR 2 SS34 K1KA03AA0193 3P CONNECTOR 1 SS35 K1KA10AA0194 10P CONNECTOR 1 SS42 K1KA10AA0194 10P CONNECTOR 1 SS44 K1KA20AA0009 20P CONNECTOR 1 SS51-56 K1MN13B00020 13P CONNECTOR 6 SU1-U4 K1MN96B00004 96P CONNECTOR 4 SU45 K1KA10B00209 10P CONNECTOR 1 SW2500 K0F162B00002 SWITCH 1 SW3751 EVQ11G05R SWITCH 1 SW3753- 56 EVQ11G05R SWITCH 4 SW8001 EVQPLHA15 SWITCH 1 185 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks T6801 ETS28AU2S9AC SWITCHING TRANSFORMER 1 T6802 ETS13TB199AP SWITCHING TRANSFORMER 1 TA5 K1KB15B00013 15P CONNECTOR 1 TA6 K1KB09B00019 9P CONNECTOR 1 TU001 ENGF7301GF TUNER 1 TH-50PV500B PAVCCZ TU001 ENG37A12GF TUNER 1 TH-50PV500E PAVCCZ TU8001 ENV87H06D8F TUNER 1 TH-50PV500B PAVCCZ VR6250 EVMEASA00B14 CONTROL 10KOHMB 0.3W 1 VR6602 EVMEASA00B14 CONTROL 10KOHMB 0.3W 1 VR6801 EVMEASA00B14 CONTROL 10KOHMB 0.3W 1 X1101 H0J600400006 CRYSTAL 1 X2101 TSSA128 CRYSTAL 1 X2102 EFCS6504BF CERAMIC FILTER 1 TH-50PV500E X2103 EFCS7004BF CERAMIC FILTER 1 TH-50PV500E X4001 H0J202500016 CRYSTAL 1 X4002 H0J270500087 CRYSTAL 1 X8003 H0J241500001 CRYSTAL 1 TH-50PV500B PAVCCZ X8006 H0J2705A0004 CRYSTAL 1 TH-50PV500B PAVCCZ X9000 H2D2705A0004 CRYSTAL 1 X9200 H0J200500038 CRYSTAL 1 XV01 K1KAB0A00010 110P CONNECTOR 1 TH-50PV500B XV04 K1KA04BA0050 4P CONNECTOR 1 Z1 K1KA04AA0192 4P CONNECTOR 1 Z2 K1KA05AA0192 5P CONNECTOR 1 Z50 K1MN35A00013 35P CONNECTOR 1 ZA3701 K4CD01000013 TERMINAL 1 ZA5001 K4CD01000011 TERMINAL 1 ZA5003 TESA169 SHIELD CLIP 1 ZA5601- 04 K9ZZ00000424 CONNECTOR 4 ZA6101- 03 K4CD01000013 TERMINAL 3 ZA6401- 03 K4CD01000013 TERMINAL 3 ZA7101- 05 K4CD01000013 TERMINAL 5 ZA7201- 05 K4CD01000013 TERMINAL 5 ZA7301- 05 K4CD01000013 TERMINAL 5 ZA7401- 05 K4CD01000013 TERMINAL 5 ZA7501- 05 K4CD01000013 TERMINAL 5 ZA7601- 05 K4CD01000013 TERMINAL 5 ZA9001 K4CD01000013 TERMINAL 1 ZA9002- 06 K4ZZ01000179 TERMINAL 5 ZMM1 TMM25401 CLAMPER 1 D305,06 ST3D170 CLAMPER 2 D501 ST3D200 CLAMPER 1 A601,02 RA362MSV7T ARRESTOR 2 C301 RR3AD681KP CERAMIC CAPACITOR 1 C302 ECJ1VB1H472K C 4700PF, K, 50V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C303 KZE1E470P ELECTROLYTIC CAPACITOR 1 C305 ECJ2XC1H101J C 100PF, J, 50V 1 C307 TBB224K5 CERAMIC CHIP CAPACITOR 1 C332 KZE1E470 ELECTROLYTIC CAPACITOR 1 C335 TEB104K5 CERAMIC CHIP CAPACITOR 1 C341 RR3AD332K CERAMIC CAPACITOR 1 C352 TCR474K2A CERAMIC CHIP CAPACITOR 1 C353 KMQ220901Z ELECTROLYTIC CAPACITOR 1 C354 TEB104K5 CERAMIC CHIP CAPACITOR 1 C355 TCR474K2A CERAMIC CHIP CAPACITOR 1 C356 TAB104K2E CERAMIC CHIP CAPACITOR 1 C359 KZE1E470 ELECTROLYTIC CAPACITOR 1 C360,61 KMQ220901Z ELECTROLYTIC CAPACITOR 2 C363,64 RR3DD221K CERAMIC CAPACITOR 2 C366 KZE2A331L ELECTROLYTIC CAPACITOR 1 C369 TAB104K2E CERAMIC CHIP CAPACITOR 1 C374,75 RR3DD221K CERAMIC CAPACITOR 2 C401 KZE1E470 ELECTROLYTIC CAPACITOR 1 C410 ECWH8183HVB PLASTIC FILM CAPACITOR 1 C411 ECJ3YB1E475K C 4.7UF, K, 25V 1 C412 TBB105K1 CERAMIC CHIP CAPACITOR 1 C451 KZE1E272 ELECTROLYTIC CAPACITOR 1 C452 KZE1E821L ELECTROLYTIC CAPACITOR 1 C454,55 ECJ3YB1E475K C 4.7UF, K, 25V 2 C457 KZE1E821L ELECTROLYTIC CAPACITOR 1 C458 ECJ3YB1E475K C 4.7UF, K, 25V 1 C459 KZE1E821L ELECTROLYTIC CAPACITOR 1 C460 ECJ2FB1H104K C 0.1UF, K, 50V 1 C461 KZE1E471L ELECTROLYTIC CAPACITOR 1 C462 ECJ2FB1H104K C 0.1UF, K, 50V 1 C463 KZE1E101 ELECTROLYTIC CAPACITOR 1 C464 ECJ2FB1H104K C 0.1UF, K, 50V 1 C465 KZE1E101 ELECTROLYTIC CAPACITOR 1 C466-69 ECJ2FB1H104K C 0.1UF, K, 50V 4 C471 ECJ2FB1H104K C 0.1UF, K, 50V 1 C472 KZE1E470 ELECTROLYTIC CAPACITOR 1 C501 KMQ2W161K ELECTROLYTIC CAPACITOR 1 C502 ECJ2FB1H104K C 0.1UF, K, 50V 1 C503 TBB106K1A CERAMIC CHIP CAPACITOR 1 C507 KZE1E101 ELECTROLYTIC CAPACITOR 1 C512 KZE1E101 ELECTROLYTIC CAPACITOR 1 C551 KZE1E471L ELECTROLYTIC CAPACITOR 1 C553 TBB475K1 CERAMIC CHIP CAPACITOR 1 C555 KZE1E101 ELECTROLYTIC CAPACITOR 1 C556 KZE1A471 ELECTROLYTIC CAPACITOR 1 C557,58 ECJ2FB1H104K C 0.1UF, K, 50V 2 C559 CD221K CERAMIC CAPACITOR 1 186 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks C560 ECJ2FB1H104K C 0.1UF, K, 50V 1 C562 ECJ2FB1H104K C 0.1UF, K, 50V 1 C563 ECJ2XB1H103K C 0.01UF, K, 50V 1 C601 ECQU2A105ML PLASTIC FILM CAPACITOR 1 C603,04 CD221K CERAMIC CAPACITOR 2 C606 ECQU2A224ML PLASTIC FILM CAPACITOR 1 C610,11 MMXC2W105K PLASTIC FILM CAPACITOR 2 C620,21 ECKD3A102KBP C 1000PF, K, 1KV 2 C622 ECQE6104KF P 0.1UF, K,630V 1 C623,24 KMQ2W221L ELECTROLYTIC CAPACITOR 2 C625 TBB474K2 CERAMIC CHIP CAPACITOR 1 C626 KMQ2W221L ELECTROLYTIC CAPACITOR 1 C627 ECQE6472B45 PLASTIC FILM CAPACITOR 1 C628 CD331K CERAMIC CAPACITOR 1 C629 KZE1E470 ELECTROLYTIC CAPACITOR 1 C630 ECQU2A473MN P 0.047UF, M,250V 1 C633 ECJ2XB1H102K C 1000PF, K, 50V 1 C634 ECJ2FB1E224K C 22UF, K, 25V 1 C701 TBB475K1 CERAMIC CHIP CAPACITOR 1 C703 TEB104K5 CERAMIC CHIP CAPACITOR 1 C711 TEB104K2 CERAMIC CHIP CAPACITOR 1 CNPFC B2P3-VH-B CONNECTOR 1 ZD301,0 2 MA8360 ZENER DIOED 2 D302 RU1P DIODE 1 ZD303 MA8360 ZENER DIOED 1 D303 RB550VA-30 DIODE 1 ZD304- 06 MA8360 ZENER DIOED 3 ZD307 MA8330 ZENER DIODE 1 D307 RB550VA-30 DIODE 1 D308 ERA91-02 DIODE 1 ZD308 MA8330 ZENER DIODE 1 ZD309 MA4051N ZENER DIODE 1 ZD310 MA4020 ZENER DIODE 1 ZD311,1 2 MA4270N ZENER DIODE 2 D332 RB550VA-30 DIODE 1 D334 RB550VA-30 DIODE 1 D335 RU1P DIODE 1 D337 RU1P DIODE 1 D351 FCF06A40 DIODE 1 D374 MA165 DIODE 1 D401 RB550VA-30 DIODE 1 D402 M1FS6 DIODE 1 ZD402 PTZ24B ZENER DIODE 1 D403 M1FS6 DIODE 1 ZD403 MA8056 ZENER DIODE 1 ZD404 MA8360 ZENER DIOED 1 D405 M1FS6 DIODE 1 Ref. No. Part No. Part Name & Description Pcs Remarks ZD405- 09 MA8360 ZENER DIOED 5 ZD410 MA4220N ZENER DIODE 1 ZD413 MA4270N ZENER DIODE 1 ZD451 1ZB18 ZENER DIODE 1 D451-54 RB085T60 DIODE 4 D455 M1FS6 DIODE 1 D456,57 MA111 DIODE 2 Z501 ERZVGAD471 VARISTOR 1 D504 ERA91-02 DIODE 1 ZD510 MA8270 ZENER DIODE 1 D511 ERA91-02 DIODE 1 D511 MA2S111 DIODE 1 D515 ERA91-02 DIODE 1 D516 MA2S111 DIODE 1 D551 RK49 DIODE 1 Z601 ERZVGAD751 VARISTOR 1 D601 MA111 DIODE 1 ZD601 MA4220N ZENER DIODE 1 D602 S1WBA80 DIODE 1 Z603 ERZVGAD471 VARISTOR 1 D603 MA111 DIODE 1 D605 M1F60 DIODE 1 D606 RB550VA-30 DIODE 1 D607 S3V60 DIODE 1 D608,09 RB550VA-30 DIODE 2 D612 EP01C DIODE 1 D613,14 ERA22-10 DIODE 2 ZD669 MA8220 ZENER DIODE 1 D796 MA2S111 DIODE 1 IC301 MR4020F2 INTEGRATED CIRCUIT 1 IC401 F9222L INTEGRATED CIRCUIT 1 IC501 MIP3E30MP INTEGRATED CIRCUIT 1 L301-04 EXCELSR35 FERRITE BEAD INDUCTOR 4 L401,02 EXCELSA35 BEAD CHOKE 2 L452 EXCELDR35 FERRITE BEAD INDUCTOR 1 L454,55 EXCELDR35 FERRITE BEAD INDUCTOR 2 L501 EXCELSA35 BEAD CHOKE 1 L503 EXCELDR35 FERRITE BEAD INDUCTOR 1 L601,02 P3180207Z FILTER CHOKE 2 L604 S3783106Z CHOKE 1 L606 ELF15N004A FILTER CHOKE 1 L607,08 EXCELDR35 FERRITE BEAD INDUCTOR 2 L611 EXCELDR35 FERRITE BEAD INDUCTOR 1 P2 B6B-EH-A CONNECTOR 1 P5 B11B-PH-KS CONNECTOR 1 P9 B3P4VH-B-L CONNECTOR 1 P10 B6B-PH-KS CONNECTOR 1 P11 B7B-EH-A CONNECTOR 1 P12 B10B-PH-KS CONNECTOR 1 P23 B3B-PH-KS CONNECTOR 1 P25 B20B-PHDSS CONNECTOR 1 187 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks P30 B5B-PH-KS CONNECTOR 1 Q332 2SD2098 TRANSISTOR 1 Q333 2SB1386RT100 TRANSISTOR 1 Q402 2SB766A TRANSISTOR 1 Q451-53 HAT1130R FIELD EFFECT TRANSISTOR 3 Q551 HAT1130R FIELD EFFECT TRANSISTOR 1 Q553,54 HAT1130R FIELD EFFECT TRANSISTOR 2 Q555 2SB709A TRANSISTOR 1 Q601 2SK3302 FIELD EFFECT TRANSISTOR 1 Q602 2SD2098 TRANSISTOR 1 Q603 2SB1386RT100 TRANSISTOR 1 Q605 2SB709A TRANSISTOR 1 Q606 2SD601A TRANSISTOR 1 R301 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R308 MPC5WR27KS METAL PLATE RESISTOR 1 R311 ERJ6GEYJ2R2 M 2.2 OHM,J,1/10W 1 R312 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R313 ERJ14YJ100 M 10 OHM, J,1/4W 1 R314 ERJ6GEYJ2R2 M 2.2 OHM,J,1/10W 1 R320 ERJ14YJ753 M 75KOHM,J, 1/2W 1 R321-23 MPC5WR68KS METAL PLATE RESISTOR 3 R325 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R326-29 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R330 ERJ12YJ220 M 22 OHM,J, 1/2W 1 R339 ERJ12YJ330 M 33 OHM,J, 1/2W 1 R340,41 ERJ12YJ333 M 33KOHM,J, 1/2W 2 R342 ERJ6ENF5620 M 562 OHM, 1/10W 1 R343 ERJ12YJ333 M 33KOHM,J, 1/2W 1 R344 ERJ12YJ330 M 33 OHM,J, 1/2W 1 R345 ERJ12YJ333 M 33KOHM,J, 1/2W 1 R346,47 ERJ12YJ220 M 22 OHM,J, 1/2W 2 R349 ERJ12YJ220 M 22 OHM,J, 1/2W 1 R350-53 ERJ6ENF6192 M61.9KOHM, 1/10W 4 R354,55 ERJ6ENF1303 M 130KOHM, 1/10W 2 R356,57 ERJ14YJ753 M 75KOHM,J, 1/2W 2 R358 ERG2SJ150 M 15 OHM, J, 2W 1 R359 ERJ14YJ753 M 75KOHM,J, 1/2W 1 R360 ERG2SJ150 M 15 OHM, J, 2W 1 R361 ERJ14YJ753 M 75KOHM,J, 1/2W 1 R364 ERG2SJ683 M 68KOHM, J, 2W 1 R365 ERJ3GSYJ332 M 3.3KOHM,J,1/16W 1 R366,67 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 2 R368 ERJ6ENF4702 M 47KOHM, 1/10W 1 R369-71 ERJ6GEYJ823 M 82KOHM,J,1/10W 3 R373-76 ERJ14YJ753 M 75KOHM,J, 1/2W 4 R379 ERJ12YJ473 M 47KOHM,J, 1/2W 1 R381 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R382,83 ERJ6GEYJ333 M 33KOHM,J,1/10W 2 R384 ERJ6GEYJ393 M 39KOHM,J,1/10W 1 R386-89 ERJ6ENF1052 M10.5KOHM, 1/10W 4 R394 ERJ6ENF1052 M10.5KOHM, 1/10W 1 R395,96 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R397-99 ERJ14YJ753 M 75KOHM,J, 1/2W 3 R401 ERJ3GSYJ103 M 10KOHM,J,1/16W 1 R405 MPC5WR39KS METAL PLATE RESISTOR 1 R406 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R407 ERJ14YJ334 M 330KOHM, 1/2W 1 R408 SG734K271 CHIP RESISTOR 1 R410 ERJ14YJ332 M 33KOHM, J,1/4W 1 R411 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R412 ERJ14YJ472 M 4.7KOHM,J, 1/2W 1 R413,14 ERJ14YJ334 M 330KOHM, 1/2W 2 R415,16 ERJ6GEYJ563 M 56KOHM,J,1/10W 2 R426 ERJ14YJ470 M 47 OHM,J, 1/2W 1 R429-31 ERJ6GEYJ563 M 56KOHM,J,1/10W 3 Ref. No. Part No. Part Name & Description Pcs Remarks R432 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R456 ERJ6ENF4302 M 43KOHM, 1/10W 1 R457,58 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R459 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R460 ERG2SJ331 METAL OXIDE RESISTOR 1 R473 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R475,76 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R480 ERG2SJ561 M 560 OHM, J, 2W 1 R481 ERJ6ENF4302 M 43KOHM, 1/10W 1 R482 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R508,09 ERJ12YJ100 M 10 OHM,J, 1/2W 2 R510 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R558 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R559 ERJ12YJ151 M 150 OHM,J, 1/2W 1 R561 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R562 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R563 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R564,65 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 RF601 HUF5K100J14 THERMAL RESISTOR 1 R602,03 5K150JA WIREWOUND RESISTOR 2 R604,05 ERDS1TJ474 C 4.7KOHM, J,1/2W 2 R606 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R607 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R608 ERG3FJS820D M 82 OHM, J, 3W 1 R609-12 ERJ6ENF1213 M 121KOHM, 1/10W 4 R613,14 ERJ6GEYJ154 M 150KOHM,J,1/10W 2 R615-17 MPC5WR22KS METAL PLATE RESISTOR 3 R618 ERG3FJS820D M 82 OHM, J, 3W 1 R620 ERJ12YJ680 M 68 OHM,J, 1/2W 1 R621 ERJ12YJ151 M 150 OHM,J, 1/2W 1 R623 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R624 ERJ6GEYJ183 M 18KOHM,J,1/10W 1 R625 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R626 ERJ12YJ680 M 68 OHM,J, 1/2W 1 R627 ERJ12YJ151 M 150 OHM,J, 1/2W 1 R628 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R629 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R630 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R631 MPC5WR22KS METAL PLATE RESISTOR 1 R632,33 ERJ6GEYJ154 M 150KOHM,J,1/10W 2 R634-37 ERJ6ENF2553 M 255KOHM, 1/10W 4 R638 ERJ6ENF2493 M 249KOHM, 1/10W 1 R640,41 ERJ6ENF5493 M 549KOHM, 1/10W 2 R642 ERJ6ENF2493 M 249KOHM, 1/10W 1 R644 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R646 ERJ6GEYJ154 M 150KOHM,J,1/10W 1 R649 ERJ6ENF5493 M 549KOHM, 1/10W 1 R653-55 ERJ6GEYJ183 M 18KOHM,J,1/10W 3 R656-59 ERJ6GEYJ824 M 820KOHM,J,1/10W 4 R677 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R678 ERJ12YJ680 M 68 OHM,J, 1/2W 1 R679 ERJ12YJ151 M 150 OHM,J, 1/2W 1 R681,82 ERJ6GEYJ824 M 820KOHM,J,1/10W 2 R683 ERC12ZGK185D S 1.8MOHM, K,1/2W 1 R1301,0 2 ERJ12YJ333 M 33KOHM,J, 1/2W 2 RTL,TL MP44S1 MODULE 2 RTL IXMM564M-B-9 MODULE 1 RTL IXMM564M-F-9 MODULE 1 RTL IXMM564M-C-9 MODULE 1 RTL MP00P4 MODULE 1 RTL IXMM564M-G-9 MODULE 1 RTL IXMM564M-E-9 MODULE 1 RTL MP00P5 MODULE 1 RTL IXMM564M-D-9 MODULE 1 K601 DG12D1-0 RELAY 1 188 TH-50PV500E / TH-50PV500B Ref. No. Part No. Part Name & Description Pcs Remarks K602 DJ12D2-0 RELAY 1 T301 ETB28BF1Z1AH TRANSFORMER 1 T401 ETB57LZ135AD TRANSFORMER 1 T501 ETB25KA1A8AD TRANSFORMER 1 TH351 PRFCBB471 POSISTOR 1 VR351,5 2 EVMEASA00B54 VARIABLE RESISTOR 2 VR451 EVMEASA00B53 VARIABLE RESISTOR 1 189 TH-50PV500E / TH-50PV500B
