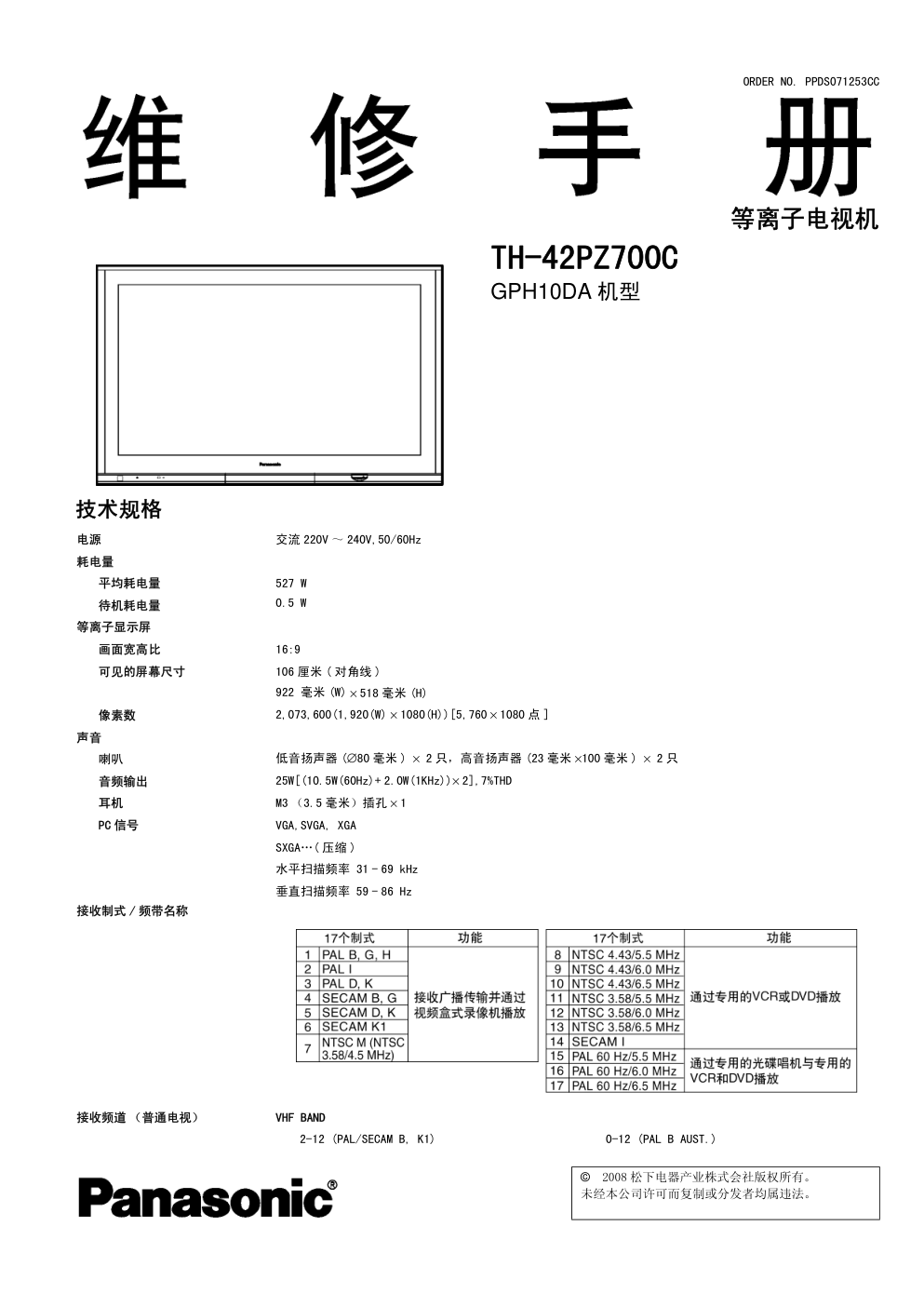

© 2008 松下电器产业株式会社版权所有。 未经本公司许可而复制或分发者均属违法。 ORDER NO. PPDS071253CC 等离子电视机 TH-42PZ700C GPH10DA 机型 技术规格 电源 交流 220V ～ 240V,50/60Hz 耗电量 平均耗电量 527 W 待机耗电量 0.5 W 等离子显示屏 画面宽高比 16:9 可见的屏幕尺寸 106 厘米 ( 对角线 ) 922 毫米 (W) × 518 毫米 (H) 像素数 2,073,600(1,920(W) × 1080(H))[5,760 × 1080 点 ] 声音 喇叭 低音扬声器 (∅80 毫米 ) × 2 只，高音扬声器 (23 毫米 ×100 毫米 ) × 2 只 音频输出 25W[(10.5W(60Hz)+ 2.0W(1KHz))× 2],7%THD 耳机 M3 （3.5 毫米）插孔 × 1 PC 信号 VGA,SVGA, XGA SXGA…( 压缩 ) 水平扫描频率 31 - 69 kHz 垂直扫描频率 59 - 86 Hz 接收制式 / 频带名称 接收频道 （普通电视） VHF BAND 2-12 (PAL/SECAM B, K1) 0-12 (PAL B AUST.) 2 1-9 (PAL B N.Z.) 1-12 (PAL/SECAM D) 1-12 (NTSC M 日本 ) 2-13 (NTSC M 美国 ) UHF BAND 21-69 (PAL G,H,I/SECAM G,SECAM G,K,K1) 28-69 (PAL B AUST.) 13-57 (PAL D,K) 13-62 (NTSC M 日本 ) 14-69 (NTSC M 美国 ) CATV S1-S20 (OSCAR) 1-125 ( 美国 CATV) C13-C49( 日本 ) S21-S41(HYPER) Z1-Z37( 中国 ) 5A,9A (AUST.) 天线 - 背部 VHF/UHF 使用环境 0°C - 40°C 湿度：20% - 80% 相对湿度 ( 无结露 ) 连接端子 AV1 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) S 视频 MINI DIN 4 针 Y:1.0 V[p-p](75Ω) C:0.286 V[p-p](75Ω) AV2 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) 色差 Y 1.0 V[p-p]( 包括同步在内 ) PB / C B , P R / C R ± 0.35 V[p-p] AV3 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) COMPONENT Y 1.0 V[p-p]( 包括同步在内 ) P B / C B ,P R / C R ± 0.35 V[p-p] AV4 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) S 视频 MINI DIN 4 针 Y:1.0 V[p-p](75Ω) C:0.286 V[p-p](75Ω) Monitor 输出 音频 L- R RCA 针式 × 2 0.5 V[rms] ( 高阻抗 ) 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) 其他 HDMI1/2/3 输入 A 型接头 ·本机支持 “HDAVI Control 2”功能 PC 输入 高密度 D-SUB 15 针 R,G,B /0.7V[p-p](75Ω) HD,VD/TTL Level 2.0-5.0V[p-p] ( 高阻抗 ) 音频输入 RCA 针式 × 2 0.5 V[rms] 数字音频输出 PCM，光纤 卡插槽 SD 卡插槽 × 1 尺寸 (W × H × D) 1,077 mm × 689 mm × 138 mm 重量 净重 39.0 千克 说明： • 设计和技术规格如有变更，恕不另行通知。所示尺寸和质量均为近似值。 3 目录 页数 页数 1 适用信号----------------------------------------- 5 2 安全警告----------------------------------------- 6 2.1. 一般准则 ----------------------------------- 6 2.2. 漏电检查 ----------------------------------- 6 3 静电敏感设备 (ES) 的静电放电保护 (ESD) ------------ 7 4 关于无铅焊接 (PbF) ------------------------------- 8 5 维修提示----------------------------------------- 9 6 等离子显示屏更换方式---------------------------- 10 6.1. 取下后盖 ---------------------------------- 10 6.2. 取下风扇 A/B ------------------------------ 10 6.3. 取下风扇组件 C ---------------------------- 10 6.4. 取下后端子盖 ------------------------------ 10 6.5. 取下调谐器组件 ---------------------------- 10 6.6. 取下 P 电路板 ------------------------------ 11 6.7. 取下 DH 电路板 ----------------------------- 12 6.8. 取下 DG 电路板 ----------------------------- 12 6.9. 取下 H 电路板 ------------------------------ 12 6.10. 取下左、右扬声器 -------------------------- 13 6.11. 取下 PA 板 --------------------------------- 13 6.12. 取下 D 电路板 ------------------------------ 13 6.13. 取下 SU 电路板 ----------------------------- 14 6.14. 取下 SD 电路板 ----------------------------- 14 6.15. 取下 SC 电路板 ----------------------------- 14 6.16. 取下 SS 电路板 ----------------------------- 14 6.17. 取下 C1 电路板 ----------------------------- 15 6.18. 取下 C2 电路板 ----------------------------- 15 6.19. 取下支架 ---------------------------------- 16 6.20. 取下 C3 板 --------------------------------- 16 6.21. 取下 C4 板 --------------------------------- 16 6.22. 取下前支架 -------------------------------- 17 6.23. 取下 G 板和 GH 板 ------------------------- 17 6.24. 取下 GS 板 -------------------------------- 17 6.25. 取下 S 电路板 ------------------------------ 18 6.26. 取下 K 电路板 ------------------------------ 18 6.27. 从机壳组件 （玻璃）上卸下等离子显示屏部分 - 18 6.28. 卸下内置扬声器 ---------------------------- 19 6.29. 安装等离子显示屏 （完成）------------------ 19 7 注意事项---------------------------------------- 20 7.1. 注意事项 ---------------------------------- 20 8 导线布置---------------------------------------- 21 8.1. 导线 (1) ---------------------------------- 21 8.2. 导线 (2) ---------------------------------- 22 8.3. 导线 (3) ---------------------------------- 23 8.4. 导线 (4) ---------------------------------- 24 8.5. 导线 (5) ---------------------------------- 25 9 自检功能---------------------------------------- 26 9.1. IIC 总线检测 ------------------------------ 26 9.2. 电源 LED 闪烁次数图 ------------------------ 27 9.3. 无电源 ------------------------------------ 28 9.4. 无图像 ------------------------------------ 29 9.5. 显示器局部故障 ---------------------------- 30 10 维修模式---------------------------------------- 31 10.1. 如何进入维修模式 -------------------------- 31 10.2. 维修工具模式 ------------------------------ 33 11 调整步骤---------------------------------------- 34 11.1. 驱动器设置 -------------------------------- 34 11.2. 初始化脉冲调整 ---------------------------- 35 11.3. P.C.B. （印刷电路版）更换 ----------------- 35 11.4. 调整点位置 -------------------------------- 36 11.5. 测试点位置 -------------------------------- 36 12 调整-------------------------------------------- 37 12.1. 副对比度调整-------------------------------37 12.2. PAL 显示屏白平衡调整 -----------------------38 12.3. HD 白平衡调整 ------------------------------39 13 旅馆模式 ----------------------------------------40 14 导线图 ------------------------------------------41 14.1. P 电路板 -----------------------------------41 14.2. PA 电路板 ----------------------------------44 14.3. G 电路板 -----------------------------------45 14.4. H 电路板 -----------------------------------46 14.5. CH 和 GS 电路板 -----------------------------48 14.6. DG 电路板 ----------------------------------49 14.7. DH 电路板 ----------------------------------52 14.8. K 和 S 电路板 -------------------------------53 14.9. D 电路板 -----------------------------------54 14.10. C1 电路板 ----------------------------------57 14.11. C2 电路板 ----------------------------------58 14.12. C3 电路板 ----------------------------------59 14.13. C4 电路板 ----------------------------------60 14.14. SC 电路板 ----------------------------------61 14.15. SU 电路板 ----------------------------------64 14.16. SD 电路板 ----------------------------------65 14.17. SS 电路板 ----------------------------------66 15 方框图和线路图 ----------------------------------69 15.1. 线路图注意事项-----------------------------69 15.2. 主要集成电路方框图-------------------------70 15.3. P 电路板方框图 -----------------------------71 15.4. P 电路板 (1/2) 线路图 -----------------------72 15.5. P 电路板 (2/2) 线路图 -----------------------73 15.6. PA 电路板方框图 ----------------------------74 15.7. PA 电路板 (1/2) 线路图 ----------------------75 15.8. PA 电路板 (2/2) 线路图 ----------------------76 15.9. G,GS 和 S 电路板方框图和线路图 --------------77 15.10. H 电路板 (1/2) 方框图 -----------------------78 15.11. H 电路板 (2/2) 方框图 -----------------------79 15.12. H 电路板 (1/5) 线路图 -----------------------80 15.13. H 电路板 (2/5) 线路图 -----------------------81 15.14. H 电路板 (3/5) 线路图 -----------------------82 15.15. H 电路板 (4/5) 线路图 -----------------------83 15.16. H 电路板 (5/5) 线路图 -----------------------84 15.17. GH 和 K 电路板方框图和线路图 ----------------85 15.18. DG 电路板 (1/3) 方框图 ----------------------86 15.19. DG 电路板 (2/3) 方框图 ----------------------87 15.20. DG 电路板 (3/3) 方框图 ----------------------88 15.21. DG 电路板 (1/12) 线路图 ---------------------89 15.22. DG 电路板 (2/12) 线路图 ---------------------90 15.23. DG 电路板 (3/12) 线路图 ---------------------91 15.24. DG 电路板 (4/12) 线路图 ---------------------92 15.25. DG 电路板 (5/12) 线路图 ---------------------93 15.26. DG 电路板 (6/12) 线路图 ---------------------94 15.27. DG 电路板 (7/12) 线路图 ---------------------95 15.28. DG 电路板 (8/12) 线路图 ---------------------96 15.29. DG 电路板 (9/12) 线路图 ---------------------97 15.30. DG 电路板 (10/12) 线路图 --------------------98 15.31. DG 电路板 (11/12) 线路图 --------------------99 15.32. DG 电路板 (12/12) 线路图 -------------------100 15.33. DH 电路板方框图 ---------------------------101 15.34. DH 电路板 (1/4) 线路图 ---------------------102 15.35. DH 电路板 (2/4) 线路图 ---------------------103 15.36. DH 电路板 (3/4) 线路图 ---------------------104 15.37. DH 电路板 (4/4) 线路图 ---------------------105 15.38. D 电路板 (1/2) 方框图 ----------------------106 4 15.39. D 电路板 (2/2) 方框图---------------------- 107 15.40. D 电路板 (1/8) 线路图---------------------- 108 15.41. D 电路板 (2/8) 线路图---------------------- 109 15.42. D 电路板 (3/8) 线路图---------------------- 110 15.43. D 电路板 (4/8) 线路图---------------------- 111 15.44. D 电路板 (5/8) 线路图---------------------- 112 15.45. D 电路板 (6/8) 线路图---------------------- 113 15.46. D 电路板 (7/8) 线路图---------------------- 114 15.47. D 电路板 (8/8) 线路图---------------------- 115 15.48. C1 和 C4 电路板方框图---------------------- 116 15.49. C2 和 C3 电路板方框图---------------------- 117 15.50. C1 电路板 (1/3) 线路图--------------------- 118 15.51. C1 电路板 (2/3) 线路图--------------------- 119 15.52. C1 电路板 (3/3) 线路图--------------------- 120 15.53. C2 电路板 (1/3) 线路图--------------------- 121 15.54. C2 电路板 (2/3) 线路图--------------------- 122 15.55. C2 电路板 (3/3) 线路图--------------------- 123 15.56. C3 电路板 (1/3) 线路图--------------------- 124 15.57. C3 电路板 (2/3) 线路图--------------------- 125 15.58. C3 电路板 (3/3) 线路图--------------------- 126 15.59. C4 电路板 (1/3) 线路图--------------------- 127 15.60. C4 电路板 (2/3) 线路图--------------------- 128 15.61. C4 电路板 (3/3) 线路图--------------------- 129 15.62. SC 电路板 (1/2) 方框图--------------------- 130 15.63. SC 电路板 (2/2) 方框图 ---------------------131 15.64. SC 电路板 (1/5) 线路图 ---------------------132 15.65. SC 电路板 (2/5) 线路图 ---------------------133 15.66. SC 电路板 (3/5) 线路图 ---------------------134 15.67. SC 电路板 (4/5) 线路图 ---------------------135 15.68. SC 电路板 (5/5) 线路图 ---------------------136 15.69. SU 和 SD 电路板方框图 ----------------------137 15.70. SU 电路板 (1/2) 线路图 ---------------------138 15.71. SU 电路板 (2/2) 线路图 ---------------------139 15.72. SD 电路板 (1/2) 线路图 ---------------------140 15.73. SD 电路板 (2/2) 线路图 ---------------------141 15.74. SS 和 S 电路板方框图 -----------------------142 15.75. SS 电路板 (1/2) 线路图 ---------------------143 15.76. SS 电路板 (2/2) 线路图 ---------------------144 16 部件布置及机械部件更换清单 ---------------------145 16.1. 部件布置 ----------------------------------145 16.2. 风扇分解图 --------------------------------146 16.3. 包装分解图 (1) ----------------------------147 16.4. 包装分解图 (2) ----------------------------148 16.5. 包装分解图 (3) ----------------------------149 16.6. 更换部件清单注意事项 ----------------------150 16.7. 机械部件更换清单 --------------------------151 17 电器部件更换清单--------------------------------152 17.1. 电器部件更换清单 --------------------------152 5 1 适用信号 6 2 安全警告 2.1. 一般准则 1. 进行维修和维护时，请勿试图更改设备及其部件或其材料。 2. 维修连接线 （如电缆、柔性电缆或导线）时，当仅有一条导线或几条导线损坏或断开时，请勿试图维修或重新为其连接。请更 换整条连接线。 3. 进行维修和维护时，应直接拉出或插入固定连接器，而不应将其扭曲。 4. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 5. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸屏蔽等安装正确。 6. 维修后，进行以下漏电检查，以免用户遭受触电危险。 2.2. 漏电检查 1. 将 AC 电源线直接插入 AC 电源插座。进行检查时，请勿使用隔离变压器。 2. 在设备上各外露金属部分和良好接地 （如水管）之间连接一个电流测量装置，如图 1 所示。 3. 用漏电测试仪 （Simpson 228 或类似型号）测量通过该装置的电势。 4. 检查各外露金属部件，并测量各点电压。 5. 变换 AC 插座中的 AC 插头，并重复上述各项测量。 6. 各点 （漏电）的电势表示为电压 U1 和 U2，并且不能超过以下各值： 交流：U1=35V （峰值） U2=0.35V （峰值）； 直流：U1=1.0V， 注： 与交流的 U2 限定峰值 0.35V 和直流的 U1 限定峰值 1.0V 相对应的电流峰值分别为 0.7mA 和 2.0mA。 与交流的 U1 限定峰值 35V 相对应的 100kHz 以上的电流峰值为 70mA。 7. 当测量值超出规定的限制时，可能会引起触电。所以必须在机器返回用户手中之前对其进行修理和再检测。 漏电测量电路 电阻值 （Ω） V：电压表或示波器 （r.m.s. 或峰值） 输入电阻：≥ 1MΩ 输入电容：≤ 200pF 频率范围：分别为直流 15Hz 到 1MHz 注：必须使用合适的测量设备，以便在非正弦波形时测量准确。 图 1 7 3 静电敏感设备 (ES) 的静电放电保护 (ESD) 一些半导体（固态）装置很容易被静电损坏。这些装置通称为静电敏感装置（ES）。典型的 ES 装置有集成电路和一些场效应晶体管以 及半导体 “芯片”组件。以下方法通常被用来减少由于静电释放 （ESD） 所造成的组件损坏。 1. 在处理任何半导体组件或是配备有半导体组件的设备之前，接触已知地线以排除身体上的静电。或者戴上市面上可购买到的抗静 电腕带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 在拆卸配有静电敏感装置的电气组件后，请将组件放置于导体表面上 （如铝箔），以防止聚集静电或组件外露。 3. 仅使用末端接地的烙铁焊接或拆焊静电敏感装置。 4. 仅使用防静电拆焊装置。不属于 “防静电 （静电释放保护）”的拆焊装置可能会产生足以损坏静电敏感装置的电荷。 5. 禁止使用氟里昂驱动化学物质。它们能产生足以损坏静电敏感装置的电荷。 6. 在准备立即安装之前，才能拆开静电敏感备换装置的保护性包装，取出备换静电敏感装置。（大多数备换静电敏感装置都使用导 电泡沫、铝箔或类似导电性材料包装，其导线被短接。） 7. 从备换静电敏感装置导线上取下防护性材料前，使防护性材料接触机芯或即将安装的电路组件。 注意： 确定机芯或电路无电源，并遵守其它所有安全注意事项。 8. 在处理未包装的备换静电敏感装置时，尽量减少身体活动。（否则，如衣物纤维的摩擦或从铺有地毯的地面抬起脚等动作都会产 生足以损坏静电敏感装置的静电 （静电释放））。 8 4 关于无铅焊接 (PbF) 注：在元素周期表中，铅用 Pb 表示。 在下文中，Pb 表示有铅焊接，PbF 表示无铅焊接。 在制造流程中使用和下文中介绍的无铅焊接 （Sn+Ag+Cu）。 即：锡 （Sn），银 （Ag）和铜 （Cu），其他类型也可使用。 出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维修和修理工作中最好使用无铅焊接，不过也允许使用有铅焊 接。 使用无铅焊接工艺制造的印刷电路板背面的树叶形符号 内有 PbF 字样。 注意： • 无铅焊接的熔点比标准焊接的熔点高。通常熔点超过 50-70°F （30-40°C）。 请使用高温烙铁，并将其温度设为 700±20°F （370±10°C）。 • 当温度过高 （约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。 如果必须使用有铅焊接，请在焊接前先全部去除焊脚或焊区上的无铅焊料。如果做到这点实际操作困难，则确保无铅焊料加热到熔 化后再进行有铅焊接。 • 在对双面电路板进行无铅焊接后，请检查部件侧部是否有过量焊料，否则会流到另一侧。（见下图） 推荐的无铅焊料 有几种无铅焊料可供选购。本产品使用 Sn+Ag+Cu( 锡 + 银 + 铜 ) 焊料。 也可使用 Sn+Cu （锡，铜），Sn+Zn+Bi( 锡，锌，铋 ) 焊料。 9 5 维修提示 取下后盖 电路板名称 功能 电路板名称 功能 P 主电源 D 格式转换器，等离子 AI，子场处理器 PA 风扇控制 ,DC-DC 转换器 C1 数据驱动 ( 上右 ) H 扬声器输出 , 声音处理器 AV 端子 ,AV 切换 C2 数据驱动 ( 上左 ) C3 数据驱动 ( 下左 ) DG DC-DC 转换器 数字信号处理器 ,Micom HDMI 接口 , 峰值 Lite 2 C4 数据驱动 ( 下右 ) SC 扫描驱动 SU 扫描输出 ( 上 ) DH 全高清 SD 扫描输出 ( 下 ) G 按键开关、前端子 SS 维持驱动 K 遥控接收器，电源指示灯 GS SD 卡插槽 S 电源开关 GH HDMI3 接口 10 6 等离子显示屏更换方式 6.1. 取下后盖 1. 参见维修提示 （请参见第 5 章节） 6.2. 取下风扇 A/B 1. 松开线夹，取下电缆。 2. 断开中继连接器。 3. 松开螺丝 （各 ×3 ）并取下风扇 A/B。 6.3. 取下风扇组件 C 1. 松开线夹，取下电缆。 2. 断开中继连接器。 3. 松开螺丝 （×4 ）并取下风扇组件 C。 6.4. 取下后端子盖 1. 松开螺丝 （×6 ， ×12 ， ×2 ）。 2. 取下后端子盖。 6.5. 取下调谐器组件 1. 松开螺丝 （×3 ）并取下金属隔板。 2. 松开开线夹，取下电缆。 3. 断开连接件 （DG1, DG11, DG35, DG52, DH5, H3,H11, H12 和 H51）。 4. 松开螺丝 （×4 ），并取下调谐器组件。 11 6.6. 取下 P 电路板 注意： 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.C.B.。 1. 松开线夹，取下电缆。 2. 断开连接件 （P2，P5，P9，P10，P11，P12 和 P25）。 3. 松开螺丝 （×6 ），并取下 P 电路板。 4. 松开背面的螺丝 （×16 ）。 5. 松开背面的螺丝 （×6 ）。 6. 取下模具 （×11 ）。 7. 取下 P 电路板。 注： • 安装P 电路板时，将绝缘纸（A 和B）的每个孔的位置放置在 P 电路板上每个孔的位置，然后进行安装。（ 标记指示 放置位置。） 12 6.7. 取下 DH 电路板 1. 取下调谐器组件。（请参见 6.5 章节） 2. 松开螺丝 （×4 ）并取下 DH 电路板盖和 DH 电路板。 （取下 DH 电路板时当心连接件 （DH25-DG25）） 3. 松开螺丝 （×1 ）并从 DH 电路板盖取下 DH 电路板。 4. 松开螺丝 （×2 ）并取下 DH 电路板框。 6.8. 取下 DG 电路板 1. 取下调谐器组件。（请参见 6.5 章节） 2. 取下 DH 电路板和 DH 电路板框。（请参见 6.7 章节） 3. 断开连接件 （DG2 和 DG6）。 4. 松开螺丝 （×5 ），并取下 DG 电路板。 6.9. 取下 H 电路板 1. 取下调谐器组件。（请参见 6.5 章节）。 2. 取下 DH 电路板和 DH 电路板框。（请参见 6.7 章节） 3. 松开螺丝 （×1 ， ×1 ）取下调谐器固定金属片。 4. 断开连接件。（H2 和 H6） 5. 松开螺丝 （×5 ），并取下 H 电路板。 13 6.10. 取下左、右扬声器 1. 松开线夹，取下电缆。 2. 断开中继连接件。 3. 松开螺丝 （各 ×2 ）并取下左、右扬声器。 6.11. 取下 PA 板 1. 松开线夹，并取下电缆。 2. 断开连接件（PA3，PA5，PA10，PA32，PA34，PA36 和 PA38）。 3. 松开螺丝 (×4 ），并取下 PA 板。 6.12. 取下 D 电路板 1. 断开连接件 （D3，D5，D20 和 D25）。 2. 断开柔性电缆 （D31，D32，D33，D34，D35 和 D36）。 3. 松开螺丝 (×4 ），并取下 D 电路板。 14 6.13. 取下 SU 电路板 1. 松开螺丝 （×2 ）。 2. 断开连接到 SU 板上的柔性电缆 （SUI1，SUI2，SUI3，SUI4 和 SU47），并取下连接器 （SC45-SU45）。 3. 将 SU 板移到左边，并与 SC 板的连接件（SC41-SU41 和 SC42- SU42）断开，取下 SU 电路板。 6.14. 取下 SD 电路板 1. 取下扬声器组件 （请参见 6.10 章节）。 2. 松开螺丝 （×3 ）。 3. 断开连接到 SD 板上的柔性电缆 （SDI1，SDI2，SDI3，SDI4 和 SD48），并取下连接器 （SC46-SD46）。 4. 将 SD 板移到左边，并与 SC 板的连接件（SC43-SD43 和 SC44- SD44）断开，取下 SD 电路板。 6.15. 取下 SC 电路板 1. 取下 SU 电路板和 SD 电路板。 （请参见第 6.13 章节和第 6.14 章节） 2. 松开线夹，取下电缆。 3. 断开连接件 （SC2，和 SC20）。 4. 松开螺丝 （×8 ），并取下 SC 电路板。 6.16. 取下 SS 电路板 1. 断开连接件 （SS11，SS12，SS23，SS33，SS34 和 SS35）。 2. 断开柔性电缆（SS52，SS53，SS54，SS55，SS56 和 SS57）。 3. 松开螺丝 （×6 ），并取下 SS 电路板。 15 6.17. 取下 C1 电路板 1. 取下风扇组件 C。（请参见 6.3 章节） 2. 松开螺丝 （×7 ），并取下支撑金属 B 和 C。 3. 取下柔性电缆固定器的固定螺丝 （×16 ）。 4. 断开柔性电缆 （CA1，CA2，CA3，CA4，CA5，CA6，CA7 和 CA8）。 5. 断开柔性电缆 （C10，C11 和 C12）。 6. 松开螺丝 （×5 ），并取下 C1 电路板。 6.18. 取下 C2 电路板 1. 取下风扇 A/B/C。（请参见 6.2 和 6.3 章节） 2. 取下支撑金属 B 和 C。（请参见 6.17 章节） 3. 松开螺丝 （×3 ），并取下支撑金属 A。 4. 取下柔性电缆固定器的固定螺丝 （×14 ）。 5. 断开柔性电缆 （CA9，CA10，CA11，CA12，CA13，CA14 和 CA15）。 6. 断开柔性电缆 （C20 和 C22）。 7. 断开连接件 （C23）。 8. 松开螺丝 （×5 ），并取下 C2 电路板。 16 6.19. 取下支架 1. 将等离子显示屏从维修支架上取下，将显示屏朝下放置在 类似桌子 （铺有软布）的表面上。 2. 松开支架 （左、右）固定螺丝 （各 ×3 , 各 ×1 ），并 取下支架 （左、右） 6.20. 取下 C3 板 1. 卸下左扬声器组件。（请参见 6.10 章节。） 2. 卸下左支架 （请参见 6.19 章节。）。 3. 松开螺丝 （×3 ），取下支撑金属 D。 4. 卸下下柔性电缆固定器的固定螺丝 （×14 ）。 5. 断开柔性电缆 （CB9，CB10，CB11，CB12，CB13，CB14 和 CB15）。 6. 断开柔性电缆 （C30 和 C32）。 7. 断开连接件 （C33 和 C35）。 8. 松开螺丝 （×5 ），取下 C3 板。 6.21. 取下 C4 板 1. 卸下右扬声器组件。（请参见 6.10 章节。） 2. 卸下右支架 （请参见 6.19 章节。）。 3. 松开螺丝 （×3 ），取下支撑金属 D。 4. 卸下下柔性电缆固定器的固定螺丝 （×16 ）。 5. 断开柔性电缆 （CB1，CB2，CB3，CB4，CB5，CB6，CB7 和 CB8）。 6. 断开柔性电缆 （C40，C41 和 C42）。 7. 松开螺丝 （×5 ），取下 C4 板。 17 6.22. 取下前支架 1. 松开线夹， 取下电缆。 2. 断开连接件 （G51）。 3. 松开螺丝 （×3 ），并取下前支架。 6.23. 取下 G 板和 GH 板 1. 取下前支架。（请参见 6.22 章节。） 2. 卸下螺丝 （×4 ），取下前屏蔽仓 （顶）。 3. 卸下螺丝 （×4 ），断开连接件 （G51 和 GH11）。 4. 取下 G 电路板和 GH 电路板。 6.24. 取下 GS 板 1. 取下右支架。（请参见 6.19 章节。） 2. 松开线夹，取下电缆。 3. 卸下螺丝 （×2 ）。 4. 取下 SD 卡组件。 5. 断开连接件 （ GS52）。 6. 卸下螺丝 （×1 ）。 7. 取下 GS 电路板。 18 6.25. 取下 S 电路板 1. 取下左扬声器组件。（请参见第 6.10 章节） 2. 松开螺丝 （×2 ），并取下 S 电路板组件。 3. 断开连接件 （S1）。 4. 松开螺丝 （×2 ），并取下 S 电路板。 6.26. 取下 K 电路板 1. 取下左扬声器。（请参见第 6.10 章节） 2. 取下左支架。（请参见第 6.19 章节） 3. 松开线夹，取下电缆。 4. 松开螺丝 （×2 ）。 5. 断开连接件 （K1）, 并取下 K 电路板。 6.27. 从机壳组件（玻璃）上卸下等离子 显示屏部分 1. 卸下左、右支架连接螺丝 ( 各 ×1 ）。 2. 取下机壳组件和等离子显示屏连接螺丝 （×11 ）。 3. 将等离子显示屏从前面框上分离时，拉住前面框底部，抬 起，并向前拉出。 19 6.28. 卸下内置扬声器 1. 卸下机壳组件。（请参见 6.27 章节。） 2. 断开中继连接件。 3. 卸下螺丝 （×12 ）。 4. 卸下左、右玻璃固定器。 5. 卸下螺丝 （×2 ）。 6. 取下内置扬声器。 6.29. 安装等离子显示屏 （完成） 1. 将新的等离子显示屏（完成）放置在类似桌子（铺有软布） 等的表面上，并且等离子显示屏表面朝下。 2. 安装 C1，C2，C3 和 C4 电路板，用柔性电缆 (× 30) 将等离 子显示屏与 C1，C2，C3 和 C4 电路板连接，并固定柔性电缆 固定器。 3. 安装卡钩 （左，右） ，并将支架 （左，右）安装到新的等 离子显示屏上。 4. 将等离子显示屏放置到维修架上。 5. 将前面框和 P.C. 板等安装到新的等离子显示屏上。 * 安装机壳组件时，注意前玻璃和等离子显示屏之间不要有 碎屑、灰尘或杂质存在。 20 7 注意事项 7.1. 注意事项 注意 : 请确认所有的柔性电缆都正确束起，并且锁定在连接器内。 轻拉一下柔性电缆进行确认。 21 8 导线布置 8.1. 导线 (1) 如下图所示布置导线。 22 8.2. 导线 (2) 如下图所示布置导线。 23 8.3. 导线 (3) 如下图所示布置导线。 24 8.4. 导线 (4) 如下图所示布置导线。 25 8.5. 导线 (5) 如下图所示布置导线。 26 9 自检功能 应用自检功能测试本机。 1. 检测 IIC 总线 2. 电源 LED 闪烁次数 9.1. IIC 总线检测 9.1.1. 如何进入 仅自检指示： 进入 TV 接收屏幕，然后按主机 按钮的同时按下遥控器上的 [ 确定 ] 按钮 3 秒钟以上。 自检指示和恢复出厂设置： 进入 TV 接收屏幕，然后按主机 按钮的同时按下遥控器上的 [ 菜单 ] 按钮 3 秒钟以上。 9.1.2. 屏幕显示 9.1.3. 检查点 如果显示 NG，请确认检查下列部件。 9.1.4. 退出 从墙面插座上拔下 AC 电源线。 显示 参考号 说明 电路板 ADV IC4510 AD/HDMI DG 电路板 VSW IC3001 视频开关 H 电路板 ADAV IC2106 声音处理器 H 电路板 ASW IC3101 音频开关 H 电路板 GENX IC1100 GenX （STB MCU） DG 电路板 MEM1 IC1101 EEPROM （GenX） DG 电路板 MEM2 IC8601 EEPROM （Peaks） DG 电路板 TUN1 TU3200 调谐器 ( 模拟 ) H 电路板 TUN2 TU3201 调谐器 ( 副 ) H 电路板 GC3FS IC4001 Global core ( 副 ) DG 电路板 PDP-PANEL IC9003 MICOM D 电路板 TEMP IC4800 Temp 传感器 DG 电路板 GC5P IC5100 Global core DH 电路板 FPGA IC5105 FPGA DH 电路板 27 9.2. 电源 LED 闪烁次数图 1. 主题 发光二极管闪烁时间图信息。 2. 内容 当设备出现异常时，保护电路将运行并将设备复位到待机状态。此时，通过本机前端的 LED 电源闪烁次数便可识别出故障部位。 28 9.3. 无电源 第一检测点 LED 无电源指示有二种情况： 1. 不亮 2. 红灯亮，几秒钟后转为红灯闪烁。（请参见第 9.2 章节） 29 9.4. 无图像 30 9.5. 显示器局部故障 等离子显示屏屏幕上可能会出现局部故障。图 1 是各局部可能会出现故障的 P.C.B. 印刷电路板。 31 10 维修模式 10.1. 如何进入维修模式 按主机 按钮的同时，在 3 秒钟内按遥控器上的 [RECALL] 按钮三次。 10.1.1. 主要指令 “1”按钮…正向选择主项目 “2”按钮…反向选择主项目 “3”按钮…正向选择副项目 “4”按钮…反向选择副项目 “RED”按钮…所有副项目选择反向 “GREEN”按钮…所有副项目选择正向 “VOL”按钮…正向 （+）或反向 （-）更改副项目的数据。 32 10.1.2. 调整模式内容 • 按十六进制显示数值。 • 预设值根据型号的不同而不同。 • 进入调整模式后，在开始调整前请记录各项目的值。 10.1.3. 如何退出 使用主机或遥控器上的 [POWER] 按钮关闭电源。 主项目 副项目 示例数据 备注 ADJUST CONTRAST 250 COLOR 2B TINT 00 Video-Gain2 199 SUB-BRT 800 H-POS 0 H-AMP 0 V-POS 0 V-AMP 0 WB-ADJ R-CUT 80 G-CUT 80 B-CUT 80 R-DRV E4 G-DRV E4 B-DRV FC ALL-CUT 80 ALL-DRV FC OPTION Panel-Type 42FHD Boot ROM STBY-SET 00 Emergency ON Y/C Delay -1 OPT 1 00111000 OPT 2 11100010 OPT 3 01101111 AGING RGBW All white (COUNTER) All white All red All green All blue ON/OFF Diagonal lamp W Diagonal lamp R Diagonal lamp G Diagonal lamp B 1%WINDOW COLOR BAR A B zone/checkerd4 trio SCROLL BAR 2dot width border SRV-TOOL 参见下页 销售地区 C 中国 选项 1 38 选项 2 E2 选项 3 6F 33 10.2. 维修工具模式 10.2.1. 如何进入 1. 选择维修模式下的 “SRV-TOOL”。 2. 按遥控器上的 [ 确定 ] 按钮。 10.2.2. 显示 SOS 历史记录 SOS 历史记录 （LED 闪烁次数）指示。 从左侧开始依次为：最后一次 SOS、倒数第二次、倒数第三次、出厂后第二次、出厂后第一次。通过 “自检指示和恢复出厂设置”即 可清除该指示。 10.2.3. 开启 TIME/COUNT TIME （计时）：累计开启时间，显示小时：十进制分钟 COUNT （计数）：十进制开启次数 注意：无法通过自检或任何指令清除该指示。 10.2.4. 退出 1. 从墙面插座上拔下 AC 电源线。 34 11 调整步骤 11.1. 驱动器设置 11.1.1. 项目 / 准备 1. 输入白色信号到等离子显示屏视频。 2. 如下设定图像控制： 图像菜单：最佳 PNR：关闭 宽高比：16:9 注意 1. 首先进行 Vsus 调整。 2. Vad 调整确认后，再确定 Vscn 电压。当 Vad = -140V 时， Vscn 的电压为 8V ± 1V。 11.1.2. 调整 参照显示屏数据标牌上的显示屏数据，调整驱动器各部分的电 压。 使用万用表检查或调整下列电压。 * 见显示屏标牌。 名称 测试点 电压 调整点 备注 Vsus TPVSUS(SS) Vsus±2V VR251(P) * Ve TPVE(SS) Ve±1V VR6000(SS) * Vset TPVSET(SC) 365V±7V 固定 Vad TPVAD(SC) -140V±1V VR6600(SC) Vscn TPVSCN(SC) Vad+148V±1V VR6841(SC) Vda TPVDA(SS) 75V+1V, -2V 固定 35 11.2. 初始化脉冲调整 1. 输入白色信号到等离子显示屏视频。 2. 如下设定图像控制： 图像菜单：最佳 PNR：关闭 宽高比：16:9 3. 连接示波器至测试点 TPSC1 （SC）。 检查并将每个短时脉冲 （T2）时长调整至规格范围之内。 11.3. P.C.B. （印刷电路版）更换 11.3.1. 注意 1. 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.C.B.。 11.3.2. P.C.B. 更换后进行快速调整 使用万用表调整以下电压。 * 见显示屏标牌。 注意： 请勿将 Vsus 设置到 Ve 以下，以防损坏 P.C.B 板。 测试点 调整点 等级 T2 TPSC1(SC) VR6602 (SC) 250 ± 10μ Sec P.C.B. 名称 测试点 电压 调整点 备注 P 电路板 Vsus TPVSUS (SS) Vsus ± 2V VR251(P) * SC 电路板 Vad TPVAD (SC) -140 ± 1V VR6600(SC) Vscn TPSCN (SC) Vad+148 ± 1V VR6841(SC) SS 电路板 Ve TPVE (SS) Ve± 1V VR6000(SS) * D,DG 电路板 NTSC, PAL, HD, PC 和 625i 信号的白平衡和副亮度。 36 11.4. 调整点位置 11.5. 测试点位置 37 12 调整 12.1. 副对比度调整 仪器名称 连接 备注 RF 发生器 基带发生器 准备 （AV） 备注 1. 接收 AV1 ( 如下所示 PAL 100% 全白或彩条，如下图 )。 2. 进入维修模式。 3. 按 “1”或 “2”键，进入 “副对比度”维修模式。 AV 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为黑色。 4. 结束。 准备 （RF） 备注 1. 接收 RF (PAL 100% 全白或彩条，如下图 )。 2. 进入维修模式。 3. 按 “1”或 “2”键，进入 “副对比度”维修模式。 RF 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为黑色。 4. 结束。 准备 （HD） 备注 1. 接收分量。 (1080i/ 60Hz 或 1080i/ 50Hz, 100% 全白或彩条，如下图。) 2. 进入维修模式。 3. 按 “1”或 “2”键，进入 “副对比度”维修模式。 HD 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为黑色。 4. 结束。 38 12.2. PAL 显示屏白平衡调整 仪器名称 连接 备注 • 黑白模式 • 彩色分析仪 （Minolta CA-100 或同等产品） RF 输入 显示屏表面 用户设定：正常 步骤 备注 • 确保充分老练 15 分钟以上。 • 确保前面板已经安装在整机上。 • 确认调整之前无彩色信号显示。 • 将彩色分析仪放置在有轻微色差的地方。 通电后 10 分钟内完成调整。 通过老练等不能完成调整时，重新打开电源。 1. 显示白平衡图像。 2. 进入维修模式。 3. 操作数字键 “1”或 “2”，显示 “WB-ADJ”。 查看确保色温为 “高”。 4. 使用数字键 “3”或 “4”选择 “G-CUTOFF”项目，使用音量 “+”或 “-”键将其设置为 “80”。并将 “B-CUTOFF”和 “R-CUTOFF”也设置为 “80”。 5. 将 “G-DRIVE”设置为 “E0”。 6. 将彩色分析仪的信号接收器放到高亮窗口的中间位置，然后调整 B-DRIVE 和 R-DRIVE，将 x, y 的值调整为下表中的 “色温 - 高”的值。 7. 所有的 RGB 驱动值增大，从而最大的 RGB 驱动值变为 "FC"。（将 “ALL-DRIVE”设置为 “FC”。） 8. 使用 “7”键将色温设置为 “中”。 9. 将 G-CUTOFF、B-CUTOFF 和 R-CUTOFF 固定为 “80”。 10. 将 G-DRIVE 固定为 “E0”。 11. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 中”的值。 12. 所有的 RGB 驱动值增大，从而最大的 RGB 驱动值变为 "FC"。（将 “ALL-DRIVE”设置为 “FC”。） 13. 使用 “7”键将色温设置为 “低”。 14. 将 G-CUTOFF、B-CUTOFF 和 R-CUTOFF 固定为 “80”。 15. 将 G-DRIVE 固定为 “E0”。 16. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 低”的值。 17. 所有的 RGB 驱动值增大，从而最大的 RGB 驱动值变为 "FC"。（将 “ALL-DRIVE”设置为 “FC”。） 图像菜单：最佳 宽高比：16:9 • 高亮显示部分 信号振幅 75% 39 12.3. HD 白平衡调整 仪器名称 连接 备注 • 1080i 黑白模式 • 彩色分析仪 （Minolta CA-100 或同等产品） RF 输入 显示屏表面 用户设定：标准 步骤 备注 • 确保充分老练 15 分钟以上。 • 确保前面板已经安装在整机上。 • 确认调整之前无彩色信号显示。 • 将彩色分析仪放置在有轻微色差的地方。 通电后 10 分钟内完成调整。 通过老练等不能完成调整时，重新打开电源。 1. 显示白平衡图像。 2. 进入维修模式。 3. 操作数字键 “1”或 “2”，显示 “WB-ADJ”。 查看确保色温为 “高”。 4. 使用数字键 “3”或 “4”选择 “G-CUTOFF”项目，使用音量 “+”或 “-”键将其设置为 “80”。并将 “B-CUTOFF”和 “R-CUTOFF”也设置为 “80”。 5. 将 “G-DRIVE”设置为 “E0”。 6. 将彩色分析仪的信号接收器放到高亮窗口的中间位置，然后调整 B-DRIVE 和 R-DRIVE，将 x, y 的值调整为下表中的 “色温 - 高”的值。 7. 所有的 RGB 驱动值增大，从而最大的 RGB 驱动值变为 "FC"。（将 “ALL-DRIVE”设置为 “FC”。） 8. 使用 “7”键将色温设置为 “中”。 9. 将 G-CUTOFF、B-CUTOFF 和 R-CUTOFF 固定为 “80”。 10. 将 G-DRIVE 固定为 “E0”。 11. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 中”的值。 12. 所有的 RGB 驱动值增大，从而最大的 RGB 驱动值变为 "FC"。（将 “ALL-DRIVE”设置为 “FC”。） 13. 使用 “7”键将色温设置为 “低”。 14. 将 G-CUTOFF、B-CUTOFF 和 R-CUTOFF 固定为 “80”。 15. 将 G-DRIVE 固定为 “E0”。 16. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 低”的值。 17. 所有的 RGB 驱动值增大，从而最大的 RGB 驱动值变为 "FC"。（将 “ALL-DRIVE”设置为 “FC”。） 图像菜单：最佳 宽高比：16:9 • 高亮部分 信号振幅 75% * 色彩平衡 COOL 与日本型号的值不同。 40 13 旅馆模式 1. 目的 设置旅馆功能。 2. 进入旅馆模式设置菜单指令 为了显示旅馆模式设置菜单，请输入以下指令 （在 2 秒钟 内）。 随后将显示旅馆模式设置菜单。 3. 若要退出旅馆模式设置菜单 从墙面插座上拔下 AC 电源线。 4. 旅馆模式设置菜单说明 项目 功能 旅馆模式 选择旅馆模式开启 / 关闭。 初始输入 选择输入信号模式。 每次接通电源后都设置此输入。 选项： Off/TV/AV1/AV2/AV3/AV4/PC/HDMI1/HDMI2/ HDMI3 • Off: 以最后一次存储为准。 • PC: VGA 可选 初始位置 选择频道号。 选项： Off/0 到 99 • Off: 以最后一次存储为准。 初始音量等级 每次接通电源后都设置音量 选项 / 范围： Off/0 到 100 • Off: 以最后一次储存为准。 最大音量等级 调节最大音量。 范围： 0 到 100 键锁定 选择按键键入条件。 选项： Off/SETUP/MENU/ALL • Off: 所有按键有效 • SETUP: 只有 F 键无效 （菜单中调谐状态无） • MENU: 只有 F 键无效 （只可选择音量 / 静音。） • ALL: 所有按键全部无效。 遥控锁定 选择遥控键入条件。 选项： Off/SETUP/MENU • Off: 所有按键有效 • SETUP: 只有设置菜单无效 • MENU: 图像 / 声音 / 设置菜单无效 41 14 导线图 14.1. P 电路板 I H G F E D C B A 1 2 3 4 5 6 TH-42PZ700C P-BOARD ETX2MM681MF TH-42PZ700C P-BOARD ETX2MM681MF P-BOARD (FOIL SIDE) ETX2MM681MF 42 TH-42PZ700C P-BOARD PARTS LOCATION TH-42PZ700C P-BOARD PARTS LOCATION Parts Location P-BOARD (FOIL SIDE) IC251 C-4 IC351 G-4 IC401 F-4 IC451 F-5 IC501 B-3 IC551 B-5 MC201 C-3 MC202 C-3 MC203 D-3 MC301 F-3 MC351 G-5 MC401 F-5 MC501 C-3 MC502 C-3 MC601 H-3 MC603 E-2 MC701 H-5 IC MODULE Q301 F-3 Q302 G-3 Q351 G-5 Q352 G-5 Q401 E-4 Q402 F-4 Q403 F-4 Q551 F-6 Q552 H-5 Q602 H-2 Q603 H-2 Q701 H-4 Q702 H-4 Q704 H-5 TRANSISTOR PC201 C-4 PC202 E-4 PC301 E-4 PC302 E-4 PC401 F-5 PC501 C-4 PC502 B-5 VR251 C-3 VR401 F-4 PHOTO COUPLER VOLUME Parts Location P-BOARD (COMPONENT SIDE) IC501 H-3 MC201 G-3 MC202 G-3 MC203 E-3 MC301 D-3 MC351 C-5 MC401 D-5 MC501 G-3 MC502 G-3 MC601 B-3 MC603 D-1 MC701 B-5 IC MODULE Q301 D-3 Q302 C-3 Q351 C-5 Q352 C-5 Q402 D-4 Q403 D-4 TRANSISTOR PC201 G-4 PC202 E-4 PC301 E-4 PC302 E-4 PC401 D-5 PC501 G-4 PC502 H-5 VR251 G-4 VR401 D-4 PHOTO COUPLER VOLUME P 43 I H G F E D C B A 1 2 3 4 5 6 TH-42PZ700C P-BOARD ETX2MM681MF TH-42PZ700C P-BOARD ETX2MM681MF P-BOARD (COMPONENT SIDE) ETX2MM681MF 44 14.2. PA 电路板 I H G F E D C B A 1 2 3 4 5 6 R5550 R5554 R5555 R5556 R5557 IC5550 IC5551 C5587 C5588 C5589 R5562 R5563 R5565 R5566 R5567 R5568 C5590 C5591 C5594 C5595 D5571 C5596 D5573 D5574 C5598 D5575 R5573 R5576 R5577 PA5 PA8 PA9 TPF9V C5401 C5402 C5403 C5404 C5405 TPH9V C5406 C5407 C5408 C5410 C5411 C5412 C5413 C5414 C5416 PA10 ZA5501 C5419 ZA5502 ZA5503 ZA5504 C5420 D5401 D5402 D5403 D5404 D5405 R5401 R5402 D5406 R5403 D5407 R5404 D5408 R5405 D5409 R5406 R5407 R5408 R5409 D5410 D5411 PA30 PA31 PA32 R5412 PA33 R5413 PA34 PA35 R5416 PA36 PA37 R5417 R5418 PA38 R5419 TPC0F R5420 R5423 TPS15V TPFA9 R5446 TPM0N L5550 L5551 TPS0F L5552 L5553 L5554 L5555 TPS0N TPS0S L5564 L5565 L5566 L5567 L5568 JS1 JS2 TPST5 C5501 C5502 TPS5V C5503 C5504 C5505 Q5501 C5506 C5507 C5508 C5509 C5510 C5519 TPM9V D5501 D5502 R5501 R5502 R5503 R5504 R5505 R5506 R5507 R5508 R5509 TPS9V L5400 L5401 R5525 TPFA15 R5526 C5551 C5552 C5553 TPF0S TP5400 D5541 D5542 R5548 R5549 TNPA4274 1 PA PbF 1 16 1 1 6 1 1 1 1 4 1 4 R E V E R S E F O R S U F F I X . S E E 1 6 1 5 1 3 1 3 1 3 1 3 1 3 1 3 1 3 1 3 R5552 R5553 R5558 IC5550 R5559 IC5551 C5587 R5560 C5589 R5561 R5564 C5590 R5569 C5595 C5596 C5597 R5570 R5571 R5572 R5574 R5575 PA3 PA5 PA8 PA9 Q5401 C5409 C5410 C5415 PA10 ZA5501 C5419 ZA5502 ZA5503 ZA5504 IC5400 D5412 PA30 PA31 PA32 PA33 PA34 PA35 PA36 PA37 PA38 R5421 R5422 R5443 L5550 L5551 L5552 L5553 L5554 L5555 R5480 R5481 R5482 R5483 R5484 R5485 R5486 R5487 L5564 L5565 L5566 L5567 L5568 C5501 C5503 C5505 Q5502 C5507 C5509 C5521 C5522 Q5521 Q5522 Q5523 Q5524 L5400 Q5541 D5521 L5401 Q5542 D5522 Q5543 D5526 D5528 D5529 R5527 C5551 C5554 D5530 Q5551 D5531 D5532 D5533 D5534 R5531 R5532 R5533 R5534 R5535 R5536 R5537 R5538 R5539 Q5561 Q5562 R5540 R5541 R5542 R5543 R5544 R5545 R5546 R5547 1 PA PAMM1 PAMM5 PAMM3 PAMM4 PAMM2 AB PAMM6 PAMM7 PAMM9 TNPA4274 AC AD AE AF AG AH AI PAMM8 PbF 1 1 6 1 1 6 1 2 3 9 4 0 1 1 1 1 4 1 4 S U F F I X . 1 6 1 5 1 5 1 3 1 3 1 3 1 3 1 3 1 3 1 3 1 3 1 5 TH-42PZ700C PA-BOARD TNPA4274AE TH-42PZ700C PA-BOARD TNPA4274AE PA-BOARD (FOIL SIDE) TNPA4274AE PA-BOARD (COMPONENT SIDE) TNPA4274AE PA Parts Location PA-BOARD IC5400 B-2 IC5550 B-4 IC5550 E-2 IC5551 C-2 IC5551 D-4 IC Q5401 B-2 Q5501 B-4 Q5502 D-2 Q5521 F-1 Q5522 F-1 Q5523 F-1 Q5524 E-1 Q5541 D-1 Q5542 D-1 Q5543 D-2 Q5551 F-2 Q5561 E-2 Q5562 E-2 TRANSISTOR TP5400 E-5 TPCOF A-4 TPF9V E-5 TPFA15 E-5 TPFA9 E-5 TPFOS F-5 TPH9V B-4 TPM9V A-4 TPMON A-5 TPS15V A-5 TPS5V A-5 TPS9V A-4 TPSOF A-4 TPSON A-5 TPSOS A-5 TPST5 A-5 TP 45 14.3. G 电路板 I H G F E D C B A 1 2 3 4 5 6 L3700 L3701 L3704 L3705 L3706 L3707 L3708 L3713 JK3701 C3701 C3702 C3703 C3704 C3705 C3706 C3707 C3708 C3711 C3712 C3713 C3714 C3715 D3701 D3702 D3703 D3704 D3705 D3706 D3707 D3708 R3705 D3709 R3706 R3709 D3710 D3711 R3710 R3711 R3712 R3713 R3714 R3716 R3717 R3718 R3719 R3720 R3721 R3732 R3736 R3737 R3738 R3739 R3740 R3741 SW3751 R3746 R3747 SW3753 R3748 SW3754 R3749 SW3755 SW3757 SW3758 FL3713 FL3714 FL3715 FL3716 FL3717 JS3700 JS3701 JS3702 JS3704 JS3705 JS3707 JS3708 JS3711 JS3712 JS3713 JS3714 JS3715 JS3716 JS3717 ZA3701 ZA3702 AB AC AD AE AF AG R3724 R3722 R3723 R3725 SW3756 PbF 1 TNPA4262 CH.UP CH.UP CH.DN CH.DN VOL.UP VOL.UP -/ VOL.DN VOL.DN TV/VTR TV/VTR F ASPECT STR OK MENU JAPAN USA EURO +/ TV/AV G L V R L V R SUFFIX. 1 2 3 4 1 2 3 4 2 3 4 1 1 2 3 4 1 2 3 4 R L V G51 JK3701 C3750 SW3751 SW3753 SW3754 SW3755 SW3757 D3750 SW3758 R3750 R3751 R3752 R3753 R3754 R3755 R3756 R3758 R3765 R3766 R3767 R3768 FL3710 FL3711 FL3712 ZA3701 TNPA4262 1 G G52 SW3756 PbF CH.UP CH.UP CH.DN TV/AV CH.DN VOL.UP +/ VOL.UP VOL.DN -/ VOL.DN TV/VTR F TV/VTR ASPECT STR OK MENU USA EURO JAPAN R L V R L V REVERSE FOR SUFFIX. SEE 1 19 20 2 1 2 R L V TH-42PZ700C G-BOARD TNPA4262AD TH-42PZ700C G-BOARD TNPA4262AD G-BOARD (FOIL SIDE) TNPA4262AD G-BOARD (COMPONENT SIDE) TNPA4262AD G 46 14.4. H 电路板 I H G F E D C B A 1 2 3 4 5 6 D3034 D3035 C3059 D3036 R3032 D3037 R288 D3038 D3039 R289 R867 C3060 R868 C3062 D3040 C3064 D3041 D3042 D3043 C3068 D3045 D3046 R296 D3047 R297 R3044 D3048 R3045 D3049 R3239 C3263 R3048 R3049 C3265 C3266 R3240 C3269 C3078 R3244 R3052 R3246 R3054 R3249 C3274 C3275 C3276 C3277 C3278 R3250 R3251 R3252 R3253 R3254 R3255 R3256 C3280 R3065 C3281 R3259 R3067 C3283 C3284 C3287 R3260 C3288 JS031 JS032 R3266 R3073 JS033 R3268 R3269 C3291 C101 R3270 C3299 Q103 R3274 JK3100 R3275 R3276 JS044 JS045 R3086 JS047 JS052 JS053 JS054 JS055 JS056 JS057 JS059 8 1 3 C 7 1 3 C C319 C128 JS061 JS062 JS063 C320 JS065 C321 R106 JS066 C322 JS067 C323 JS068 C324 JS069 C325 C326 R303 JS3010 R110 R304 JS3011 R111 JS3012 R112 JS3013 JS3207 JS3014 R308 JS3015 JS3209 R309 C331 R116 C332 R117 C333 C334 C335 C336 C337 D120 JS3210 C338 C144 L001 C339 R311 L002 JS3212 R312 L003 JS3213 R313 L004 C148 R314 R315 C149 R316 L007 JS3024 L008 C340 JS279 C341 R126 C342 C343 C150 C344 C345 C152 C346 C347 C348 L011 L012 L015 JS3032 L016 R132 R327 JS098 L022 C3106 C3107 C3108 JS3040 C3109 C3301 C3302 C3303 C3110 C3304 C3111 R149 C3305 TP012 C3112 C3306 C173 TP014 C174 C3308 C3115 TP015 TP016 L036 R152 R154 C180 C181 C375 H2 C182 C376 C183 C377 L040 C3124 D3100 C184 C378 C185 C379 H8 TP606 R3102 R3103 TP608 C380 R3104 R3105 R165 TP609 C381 R3106 C382 C383 R3108 C384 D3301 C385 D3302 C386 C387 TP610 C388 TP611 C195 C389 TP612 C197 C198 R3306 R3112 R3307 TP617 R3113 R3308 C390 R3309 JK003 L3001 L3002 L3003 R3124 R184 D189 R3125 R185 R186 R3127 R187 R3128 R188 R189 L3201 L3010 L3013 L3207 R190 L3208 R191 L3209 R192 R193 R3134 R195 R196 L3211 L3212 R3141 R3142 R3143 R3144 R3145 R3146 L3220 R3149 L3222 L3223 L3224 JS300 L3225 JS301 L3226 R3350 R3160 R3168 C003 C004 C005 Q002 C006 Q003 JK3001 R3177 H51 C202 C010 C011 C205 C206 C013 C014 R3180 C016 C017 R3186 R3188 C021 C022 C219 C802 C803 C805 C806 C807 D015 D016 D017 C237 D020 C814 C238 C817 R214 C049 D025 R215 R602 R603 C050 R029 C246 C052 C053 R223 R030 R031 D035 R032 D036 R033 R034 L308 C068 R235 R236 R237 R238 C3201 R239 R047 R624 R048 Q3200 R625 R049 Q3201 R242 R050 R051 R052 TP302 R053 TP303 R054 TP304 TP305 R056 C272 TP306 R057 TP307 TP308 TP309 C3022 C3216 C3023 D3003 C088 TP310 C3029 R3001 D3005 R062 R3002 D3006 Q3027 R063 R3003 R3004 C280 TU3200 R3005 TU3201 R3006 R3007 R3008 C3030 R3009 C3226 C3227 C3228 C288 C289 R3202 R263 R3010 R265 R3205 R3012 R3206 R074 C291 C3040 C3042 C298 R3213 R3214 R3020 R3021 R3215 R3022 R3216 R277 R278 R084 R279 R280 R281 R3222 R282 CR NO.2 TNPA4279 1 H H12 H11 P b F AV3 COMPONENT AV3 AV2 COMPONENT MONITOR OUT AV1 AV2 R E V E R S E F O R S U F F I X . S E E 1 2 22 23 1 10 L R 1 2 3 4 1 2 3 4 1 5 6 10 11 15 1 2 19 20 VIDEOOUT AFTOUT BTL VB RFAGC SDA SCL BB SIFOUT AUDIOOUT +B SW1 SW2 VIDEOOUT AFTOUT SCL SDA RFAGC VB BTL +B SW2 SW1 1 4 5 1 TH-42PZ700C H-BOARD TNPA4279AC H-BOARD (FOIL SIDE) TNPA4279AC H Parts Location H-BOARD (FOIL SIDE) Q2002 B-3 Q2003 B-3 Q2103 C-3 Q3027 D-4 Q3200 F-2 Q3201 E-1 TRANSISTOR TP2012 C-3 TP2014 C-3 TP2015 C-3 TP2016 C-3 TP2302 B-1 TP2302 B-2 TP2303 B-1 TP2304 C-1 TP2305 B-1 TP2306 C-1 TP2307 B-1 TP2308 C-1 TP2309 C-1 TP2310 B-1 TP2606 G-4 TP2608 G-2 TP2609 F-3 TP2610 F-3 TP2611 G-2 TP2612 G-4 TP2617 F-3 TP TH-42PZ700C H-BOARD TNPA4279AC 47 I H G F E D C B A 1 2 3 4 5 6 R090 R860 R284 R861 R091 R285 R862 R092 R286 R093 R863 R287 R3227 R864 R094 R3228 R095 R865 R3229 R096 R866 R097 R3037 R098 R3038 R099 R869 R3039 C3063 R290 R291 R292 C3066 R293 R3233 R294 R3234 D3044 R3040 R295 R871 R3041 R872 R3236 R873 R3237 R3238 R299 C3070 C3264 C3267 C3075 C3076 R3243 R3247 C3270 C3271 C3272 C3273 R3059 C3081 C3082 C3083 C3279 C3086 C3087 R890 R3062 R3063 R3064 C3282 R3068 FL3001 R3069 C3285 FL3002 C3286 FL3003 FL3004 FL3005 C3289 FL3006 FL3007 R3070 FL3008 R3072 R3074 JS034 C3290 JS035 C3292 C3293 C100 C102 C3296 C3298 C105 Q101 C106 Q102 C107 C108 JK3100 C109 R3277 R3278 C301 C302 JS046 R3087 C303 R3088 X010 C110 C304 JS048 C111 R3089 Q301 JS049 C305 C112 C306 C113 C307 C114 C308 C115 C309 C116 C117 R3090 C118 JS050 C119 JS051 C310 C311 R3096 C312 R3097 C313 R3098 JS058 C120 C314 R3099 C121 C315 C316 C124 C126 C127 R100 JS060 C129 R104 JS064 C130 R108 C131 D301 R109 C132 D302 C133 D303 C327 C134 D304 C328 R301 C329 IC105 C135 IC106 R302 C136 C137 IC107 C138 R305 JS3206 R306 R113 R307 R114 JS3208 C330 R115 IC301 D119 IC302 IC303 R118 R119 C143 C145 C146 C147 R122 R123 JS3023 R317 R124 R318 R125 R319 R127 R128 C151 R129 C153 R320 C154 C349 R321 C155 R322 R323 C157 R130 R324 R131 R325 C159 R326 R133 JS3034 R328 C350 R134 JS3035 C351 R135 JS3036 JS096 R136 C352 JS097 JS3037 R137 C353 C3100 JS3038 C354 C160 R138 JS3039 C3101 C161 C355 C3102 C356 C162 C3103 C163 C357 R330 C164 C358 L021 R331 C359 C165 C166 L023 C167 R140 C168 R141 C169 L026 R142 L027 R143 R144 L028 C3300 C360 R145 L029 ZA3001 C361 R146 C362 ZA3002 ZA3003 C363 C170 ZA3004 C364 C171 ZA3005 C365 ZA3006 C172 ZA3007 C3113 ZA3008 C175 C3116 C176 C3117 C3118 R150 L034 L035 R151 C179 C3119 L038 L039 R156 C3120 H2 H3 C3125 D3101 D3102 C3126 H6 C186 C187 R3100 C188 H8 R160 R3101 C189 R162 TP607 R164 R166 R167 R3107 C190 R168 R169 R3109 C191 C192 C193 C194 R3301 R3302 C196 R3303 R3110 R170 C199 R3111 R3305 R171 R172 R173 R174 R3115 R175 R3116 IC3302 JK003 R3117 R178 R3118 R3119 R179 R3310 L3000 R3311 R3313 L3004 R3120 R180 R181 R3121 R3122 R3316 R182 R183 R3123 R3318 R3319 R3126 L647 L648 R3129 L649 L3201 L3206 R3130 L650 R3131 R3133 R194 R3135 R3137 R197 R3138 R198 R3139 L3212 D3334 D3335 H15 D3336 D3337 D3338 R3140 L3219 JS101 JS102 JS103 R3147 R3148 L3227 R3348 R3349 R3351 R3352 R3353 R3161 R3162 R3164 R3165 R3166 R3167 R3174 R3175 JK3001 R3176 C200 C201 H51 C203 C204 Q015 ZA101 ZA102 Q016 Q017 ZA103 ZA104 ZA105 ZA106 C213 ZA107 ZA108 C216 C023 C218 R3191 Q021 C601C602 Q023 Q024 Q025 Q026 Q027 Q028 Q029 C224 C801 IC002 IC003 C804 Q030 Q031 IC006 R203 IC007 Q033 R204 Q034 IC008 Q035 R205 R206 R207 R208 Q039 R209 IC010 IC011 IC012 C812 C813 IC013 Q040 R210 C815 Q041 Q042 C816 C048 C818 D025 C819 D026 R216 R217 D028 R218 R219 D029 R601 C244 C245 C054 R220 D031 C055 R221 IC601 D032 C056 R222 C057 D033 R224 D034 C058 C059 R225 R226 R227 R228 L300 Q635 R229 C251 L301 Q636 C252 L302 Q637 C253 L303 Q638 C060 C254 L304 C061 C255 Q639 L305 C256 C062 L306 C257 C063 L307 R230 C064 C258 IC610 C065 R231 C259 L309 R232 C066 R233 C067 Q640 R234 Q641 C069 L310 C3202 C263 C264 C070 C265 C071 C266 C072 C267 C073 C268 R628 R240 Q3011 R629 R241 Q3012 R243 Q3013 R244 Q3014 C3401 Q3015 TP301 C3402 D632 Q3017 D633 C270 Q3018 D634 Q3401 D635 C271 Q3402 D636 C273 D637 C3214 C274 R058 D638 PA3401 R059 C3021 C276 C3024 C3025 C279 R252 C3026 C3027 R253 R254 C3028 C089 R257 R064 TU3200 C281 R065 TU3201 R066 R067 R068 C091 C3031 FL001 IC3001 R069 C092 FL002 C3033 C093 FL003 Q3030 C094 FL004 C095 C3035 FL005 Q3031 C096 FL006 Q3032 C097 C098 R070 C099 R071 R072 R266 R073 C290 C3230 D3401 R075 D3402 C292 D3403 C293 C294 D3405 R3401 C295 R3402 C296 R3403 C3043 C297 R3404 R270 R3405 R271 C3047 C3049 R275 R276 R853 R854 R855 R085 R086 R856 R857 C3050 R858 R088 R859 C3051 R089 C3052 C3053 C3054 C3055 C3056 R283 B DIP A AB AD AE AF A B D D E F C F C AG AH AJ AK AL AM AN AP AQ AR AS DA DB DC DD 1 HMM1 HMM2 HMM3 HMM5 HMM4 HMM8 HMM11 CR NO.2 HMM9 G G AC H HMM13 HMM14HMM6 HMM15 TNPA4279 HMM7 HMM10 HMM12 H H E H12 H11 PbF + 1 1 AV3 COMPONENT AV3 COMPONENT AV1 AV2 AV2 MONITOR OUT 1 11 12 22 23 33 34 44 1 20 21 40 41 60 61 80 1 4 5 7 1 22 23 44 S U F F I X . 1 22 23 44 1 2 22 23 1 2 39 40 2 79 80 1 1 10 1 4 5 8 L R 1 2 3 4 2 3 4 1 1 4 1 5 6 10 11 15 1 2 19 20 1 8 9 16 1 4 5 8 1 4 5 8 1 4 5 7 1 3 4 5 1 4 5 8 1 4 5 8 1 3 4 5 1 4 5 8 1 3 4 5 SCL SDA RFAGC VB BTL AUDIOOUT SIFOUT BB +B SW1 SW2 VIDEOOUT AFTOUT VB AFTOUT VIDEOOUT SW1 SW2 +B SCL SDA RFAGC BTL 1 25 26 50 51 75 76 100 1 4 1 5 TH-42PZ700C H-BOARD TNPA4279AC TH-42PZ700C H-BOARD TNPA4279AC H-BOARD (COMPONENT SIDE) TNPA4279AC H Parts Location H-BOARD (COMPONENT SIDE) IC2002 B-4 IC2003 E-5 IC2006 A-4 IC2007 B-5 IC2008 B-3 IC2010 B-4 IC2011 C-5 IC2012 C-3 IC2013 C-3 IC2105 F-2 IC2106 B-4 IC2107 B-3 IC2301 E-2 IC2302 E-2 IC2303 D-1 IC2601 B-5 IC2610 B-2 IC3001 D-4 IC3302 C-5 IC Q2015 C-5 Q2016 B-5 Q2017 B-5 Q2021 C-5 Q2023 C-3 Q2024 C-3 Q2025 C-3 Q2026 C-3 Q2027 E-5 Q2028 E-4 Q2029 E-5 Q2030 E-5 Q2031 E-5 Q2033 E-5 Q2034 F-5 Q2035 F-5 Q2039 F-5 Q2040 F-5 Q2041 F-5 Q2042 F-5 Q2101 B-4 Q2102 B-4 Q2301 D-2 Q2635 A-4 Q2636 A-5 Q2637 A-5 Q2638 A-4 Q2639 B-2 Q2640 B-5 Q2641 B-5 Q3011 D-4 Q3012 D-4 Q3013 D-4 Q3014 C-5 Q3015 A-5 Q3017 C-5 Q3018 D-4 Q3030 C-5 Q3031 B-5 Q3032 B-5 Q3401 A-5 Q3402 A-5 TRANSISTOR TP TP2301 D-2 TP2607 A-2 48 14.5. CH 和 GS 电路板 I H G F E D C B A 1 2 3 4 5 6 D807 D808 R806 R807 R808 IC803 D812 D813 D814 R815 R819 R820 R833 R834 R835 R840 R841 GH11 FL801 JS800 JS801 JS802 JS815 JS816 ZA801 ZA802 L805 TP801 TP802 TP803 TP804 TP805 C805 C807 C808 C809 C810 C811 C812 C813 C814 C815 C816 C817 C818 C819 C820 C823 C824 C825 C826 TNPA4135 1 GH CRNO.3 AB AC AD AE AF PbF 1 4 5 8 1 30 SUFFIX. D804 D805 R801 D806 R802 R803 R804 D809 R805 R809 IC801 IC802 D810 D811 R810 R811 R812 R813 R814 R816 R817 R818 R821 R822 R823 R824 R825 R826 R827 R828 R829 R830 R831 R832 GH10 L801 L804 C801 C802 C803 C804 Q801 C806 Q802 Q804 C821 C822 D801 D802 D803 GH CRNO.3 1 TNPA4135 PbF 1 12 13 24 25 36 37 48 1 4 5 8 1 19 REVERSE FOR SUFFIX. SEE C700 C703 Q700 Q701 C705 Q702 Q703 C712 C714 C716 C717 C718 C719 C720 C721 D700 C724 C725 C726 C727 R700 R701 C729 R702 R703 R704 R705 R706 R707 IC700 R708 R709 C731 C733 IC705 C736 C737 R710 R712 R713 C742 C743 C744 R725 R726 R727 R733 R734 R735 R736 R737 R738 R742 R743 R744 R751 R752 R760 R761 R762 R777 R778 R780 JS700 L701 L702 L705 L706 TP700 TP701 TP702 TP703 TP704 TP705 TP706 TP707 TP708 TNPA4143 1 GS CR NO.7 PbF REVERSE FOR SUFFIX. SEE 1 24 25 48 1 3 4 5 JK702 C701 C702 C704 C706 C707 C708 C709 C710 C711 C713 C715 C722 C723 D701 D702 C728 C730 IC701 IC702 C732 IC703 IC704 C734 C735 C738 R711 R714 R715 R716 R717 R718 C740 R719 C741 R720 R721 R723 R724 R728 R729 R730 R731 R739 R740 R741 R745 R746 R747 R749 R750 R753 R754 R755 R758 R759 AI AB AC AD AE AF AG AH R771 R772 R773 R779 R781 R782 X700 ZA701 GS09 L703 L704 GS52 CR NO.7 GS 1 TNPA4143 PbF 1 810 9 SUFFIX. 1 5 1 32 33 64 65 96 97 128 1 8 9 16 1 8 9 16 1 6 1 14 TH-42PZ700C GH-BOARD TNPA4135AF GS-BOARD TNPA4143AG TH-42PZ700C GH-BOARD TNPA4135AF GS-BOARD TNPA4143AG GS-BOARD (FOIL SIDE) TNPA4143AG GH-BOARD (FOIL SIDE) TNPA4135AF GS-BOARD (COMPONENT SIDE) TNPA4143AG GH-BOARD (COMPONENT SIDE) TNPA4135AF Parts Location GS-BOARD Q7700 D-2 Q7701 D-2 Q7702 A-2 Q7703 A-2 TRANSISTOR IC7700 B-2 IC7701 H-2 IC7702 H-1 IC7703 G-2 IC7704 G-2 IC7705 B-2 IC TP7700 A-2 TP7701 B-2 TP7702 D-2 TP7703 D-2 TP7705 D-3 TP7706 C-2 TP7707 C-1 TP7708 D-2 TP Parts Location GH-BOARD IC3801 B-4 IC3802 C-4 IC3803 E-4 IC Q3801 C-5 Q3802 B-4 Q3804 C-4 TRANSISTOR TP3801 D-5 TP3802 D-5 TP3803 D-4 TP3804 D-4 TP3805 D-4 TP GH GS 49 14.6. DG 电路板 A B C D E F G H I 1 2 3 4 5 6 Q4000 Q4001 Q4002 Q8850 Q4200 Q8851 Q4201 Q8852 Q8853 IC4000 IC4002 IC4003 Q4800 IC4004 Q4801 IC4005 Q4802 Q4803 Q4805 TP8744 TP5670 TP8745 TP4504 JK8731 TP4505 TP4506 TP4507 TP4508 TP4512 TP4513 TP4514 TP4515 TP4517 TP4518 Q8301 IC5600 IC5601 TU8301 TP2024 IC8301 Q8911 Q8912 Q8913 TP5707 TP8404 TP8601 TP8602 TP8603 TP8604 TP8605 Q4500 Q5694 Q4501 TP8037 IC5670 Q4509 Q4511 Q4512 Q4513 Q4514 Q4515 Q4516 Q4517 Q4518 Q4519 Q4520 Q4521 TP1100 JK8401 TP1101 TP1102 TP1103 TP1104 TP1105 IC4501 IC4504 IC4506 IC4507 IC4508 IC4509 IC4513 IC4514 IC4515 IC2000 TP4200 TP8851 TP4201 TP8852 TP8853 TP8854 TP4800 TP4801 TP4802 TP4803 TP4804 TP4805 TP4806 TP4807 TP4808 TP4809 Q8403 TP4810 Q8404 TP4811 TP4818 IC8004 Q8801 Q8802 TP4451 IC8408 IC8409 IC8601 Q1100 Q1101 Q1102 Q1103 Q1104 Q1105 Q1106 Q1107 Q1108 IC8801 Q1109 TP5600 TP5601 TP5602 Q1110 Q1111 TNPA4176 1 DG IC8551 IC8552 PbF 1 3 4 5 1 3 4 5 1 3 4 5 1 3 4 5 REVERSE FOR SUFFIX. SEE 1 2 16 15 12 13 24 1 1 15 16 30 ACTIVE ANTENNA DC/DC TU BM SCL IFD2 IFD1 SDA IFA1 BB IFAGC RFAGC MON 1 16 17 32 33 48 49 64 1 3 4 5 34 33 68 67 1 2 35 36 1 4 5 8 1 4 5 8 1 4 5 7 1 3 4 5 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 8 9 16 + 1 10 11 20 1 10 11 20 1 4 5 8 1 4 5 7 1 24 25 48 24 25 1 48 C1118 R8044 TP5608 R8045 R8818 R8048 C8070 R8819 C8071 R8049 C8072 R8433 C8073 C4000 C8074 R8435 C4001 C8075 R8436 C4002 C8076 R8437 C4003 C8077 R8438 R8820 D1100 C1124 Q4000 C8078 R8821 Q4001 D1101 C8079 R8822 D1102 Q4002 R8052 D1103 R8823 R8053 D1104 R1100 R8824 R1101 D1105 R8825 R1102 R8056 R1103 D1107 R8440 R1104 C8080 C8851 R8441 R1105 R8059 R8829 C8852 R1106 C8853 R8443 R1107 C4203 C8854 Q8850 R1108 Q4200 Q8851 C8855 R1109 TP8501 Q4201 Q8852 C8856 R8446 Q8853 R8447 C4013 R8448 C4014 R8060 R8449 R8831 R8061 R8832 R8834 C4018 R1110 R1111 R1112 R1113 R8067 R8450 TP8700 R1114 R8068 C4210 R8451 TP8701 R8069 TP8702 TP8703 R8454 TP8704 C4020 TP8705 TP8706 TP8707 C4023 X4500 C4024 C4600 TP8708 TP8709 C4601 R8071 C4026 C4602 C4603 C4028 C4604 R8074 R8651 R8075 C4607 R8077 TP8710 R1124 C4608 R8078 C4609 R1125 TP8711 R8079 R8655 TP8712 R1126 R8463 TP8713 C4800 TP8714 IC4000 C4801 TP8715 C4802 IC4002 TP8716 IC4003 C4803 TP8717 C4804 Q4800 C4610 IC4004 TP8718 R4200 R8080 C4805 Q4801 C4035 IC4005 R8469 TP8719 C4611 R8081 R8852 Q4802 C4806 C4036 C4612 R4202 R8082 Q4803 C4613 R8083 R8854 C4614 R8084 R1131 R4011 C4615 Q4805 R4012 R8086 R8856 R1133 R8087 R8470 TP8720 C4618 R4014 R8088 R4208 R8859 R1135 TP8721 R8089 R4209 R8472 R1136 TP8722 R1137 TP8723 R1138 TP8724 R8474 C4041 TP8725 R1139 R8475 R8476 C4042 TP8726 R8477 C4043 TP8727 R8478 C4044 C4620 L5670 TP8728 R8090 R8479 TP8729 L8551 R8091 C4621 C4046 R8092 C4622 R8863 C4623 C4047 R8093 R1140 C4048 R8094 R1141 C4049 R8095 R8096 C4626 R1143 C4627 R8480 R8868 R4600 TP8730 R8098 C4628 R8481 TP8731 R8099 C4629 R1146 TP8732 R4026 TP8733 R4603 R1147 R4604 C4050 TP8734 R8484 R4605 TP8735 R1149 R4029 R8485 R4606 C4052 TP8736 R8486 TP8737 C4053 R8487 D4800 TP8738 R8870 R8488 R8871 TP8739 R8872 R8875 R1151 R8876 R4802 R1152 R8877 R4803 R4804 TP8740 R8879 R4805 R4611 R4229 TP8741 R4806 R4612 TP8742 R4807 TP8743 R1157 R4808 TP8744 TP5670 TP8745 R4809 R4615 TP8746 TP8747 TP8748 L5690 R8881 TP8749 L5691 R8882 L5692 R8883 R8884 R4810 L5694 R4811 R8886 R4812 L4502 R8887 R4813 L4503 R4814 L4504 TP8750 R8889 L4505 TP8751 R4816 R4622 TP8752 TP8753 L4508 R4818 TP8754 TP8755 TP8756 R4626 R4627 TP8757 TP8758 R8890 R8891 TP8759 R4241 R4242 R8893 R8894 L4510 R4244 L4512 R8896 R4246 TP8760 R4631 TP8761 L4515 L4516 TP8762 TP8763 L4517 R4634 L4518 TP8764 L4519 TP8765 TP8766 TP8767 C5600 TP4500 TP8768 C5601 TP4501 TP4502 C5603 TP4503 C5604 L4520 TP4504 C5605 L4521 JK8731 TP4505 C5606 TP4506 R1182 C5607 TP4507 C5608 L4524 TP4508 C5609 TP4509 X8001 R4835 R4836 R4837 R4838 R4839 C5610 TP4510 R4648 TP4511 TP4512 TP4513 R4840 TP4514 C8301 TP4515 C5616 C8302 TP4516 C5617 C8303 TP4517 R4844 C8304 TP4518 Q8301 TP4519 R1195 R4846 C8307 R4847 R1197 R4653 R4848 R1198 TP2000 R4654 C8309 R1199 TP2001 TP2002 TP2003 C5620 TP2004 C5621 TP2005 C5622 TP2006 C5623 TP2007 C5624 R4850 R4274 TP2008 C5625 C8311 C8505 R4851 TP2009 C8506 C5626 C8312 C5627 D5603 C8313 D5604 R5600 C8314 C8315 R4661 R4279 D5606 C8316 R4663 D5607 C8317 R5604 C8318 R4664 D5608 R4858 TP2010 R5605 C8319 R4859 TP2011 R4665 R5606 TP2012 R5607 R4667 TP2013 IC5600 C5630 R4668 R8100 TP2014 IC5601 C5631 R4669 R8101 R4281 TP2015 C5632 TP2016 C5633 R4283 TP2017 C5634 C8320 R8104 R4284 TP2018 C5635 C8321 TU8301 R4285 R8105 TP2019 C8322 R8106 R4286 C5637 R8107 R5610 C5638 R8108 R4288 R5611 R8109 R4289 R5612 C8326 R5613 R4673 R4674 TP2020 R5615 R8301 C8329 TP2021 TP2022 R4676 R5617 TP2023 R4677 R8110 C5640 R5618 R4290 TP2024 R4678 R8111 R5619 C5641 R4291 R4679 R4292 C5643 JS4000 C8330 R4870 JS4001 IC8301 JS4002 C8332 R4872 JS4003 C8333 R4873 R5620 JS4004 C8334 R4874 R4680 R5621 C8335 R4875 R4681 R5622 JS4006 C8336 R4682 R5623 R8503 R4683 R5624 C8338 Q8911 R5625 C8339 R8505 L8001 R4685 Q8912 R5626 R8506 L8002 R4686 Q8913 R5627 R8313 L8003 R8507 R4687 R5628 R8508 L8004 R4688 R5629 R8509 R4689 L8006 L8007 C8340 L8008 R8319 C8341 R8701 L8009 R8703 R5630 R8704 R8510 R4690 R5631 R8705 R5632 R8706 R5633 R4693 R5634 R8320 R4694 L8010 R8709 R5636 R4696 R5637 R4697 R8900 R8325 R8901 R8326 R8902 R8327 R8903 R8904 R8328 R8710 R8905 R8711 R8906 R8907 R8908 R8909 R5643 TP5700 TP5701 TP5702 TP5703 R8910 C5670 TP5704 R8911 TP5705 C5671 TP5706 C5672 C8552 C5673 TP5707 R8914 R8915 R8916 R8917 R8918 R8919 L8802 R8920 R8921 TP8401 R8922 TP8402 R8923 TP8403 TP8404 R8924 R1200 R1201 R8925 R8926 R8927 R8928 R1204 R8735 R8736 R8737 R1207 R8738 TP8601 TP8602 TP8603 R8930 C5690 TP8604 R8931 TP8605 C5691 R8932 R8933 R8934 R8740 D5670 R1210 R8741 R8935 R1211 D5671 C4501 R8742 R8936 R1212 R8743 R8937 R1213 D5673 C4503 R8938 R5670 R1214 Q4500 C4504 Q5694 R8745 R8939 Q4501 R5671 C4505 R8551 R1215 TP8801 R8746 R8552 TP8802 R8747 R8553 R5673 TP8803 R8748 R8554 C4508 R1218 TP8804 C4509 R1219 R8555 TP8805 R8556 TP8806 R8557 TP8037 TP8807 R8940 IC5670 TP8808 R8941 Q4509 R8942 R8943 R8944 R1220 R8945 R1221 C4511 C4512 R8946 R1222 C4513 R1223 C4514 R8948 R1224 R8949 Q4511 R1225 C4515 Q4512 R1226 C4517 R8563 R1227 Q4513 C4518 R1228 R8564 Q4514 C4519 R1229 Q4515 Q4516 R8567 Q4517 R8950 Q4518 C2000 R8951 Q4519 R8952 R4302 R4303 C4520 R1230 D5690 R4304 C4521 D5691 R4305 R4306 R4307 D5693 Q4520 R4308 D4501 Q4521 C4526 R1236 R1237 C4527 C4528 TP1100 JK8401 C4529 TP1101 R4501 TP1102 TP1103 R4503 TP1104 L4000 R4505 TP1105 R4311 R4506 R8963 L4003 R4507 R8964 L4004 C4530 L4005 C4531 IC4501 R4315 R8965 L4006 C4532 R4316 R8966 L4007 R8967 R4317 C4533 R1243 R4700 L4008 R4318 IC4504 R4701 R4319 IC4506 R4702 D4512 R4703 IC4507 C4538 IC4508 R1249 C4539 IC4509 R4705 R4706 R4707 R4320 D4518 R4708 R4709 R4324 C4540 R1250 R4325 C4541 C4542 R4326 C4543 IC4513 C4544 IC4514 C4545 R4329 IC4515 C4546 R1256 C4547 R1257 D4524 TP4000 R1258 D4525 R1259 D4526 D4527 R4524 IC2000 R4330 R4525 R4527 C4550 R1260 R1261 R1262 R1264 TP4200 TP8851 R2011 C4555 TP4201 TP8852 C4556 R2012 C4557 TP8853 D4533 TP8854 D4534 D4535 C4559 R4531 R2016 D4536 R2017 L4800 R2018 L4801 C4560 R4538 C4561 R4539 C4562 C4563 C4564 C4565 R2021 C4566 R2022 R4540 R2024 C8001 R4541 C4569 C8002 R2026 R4542 R2027 R4543 C8003 R2028 C8004 C8006 C8007 C8008 C8009 C4573 C4576 C4577 TP4800 C8010 C4579 C8011 TP4801 R4552 TP4802 C8012 ZA0013 TP4803 C8013 ZA0014 TP4804 C8014 ZA0015 C8015 TP4805 C5712 ZA0016 TP4806 C8016 ZA0017 C5713 C8017 TP4807 C5714 C4580 ZA0018 C8018 TP4808 C5715 X8301 C4581 ZA0019 C8019 TP4809 C4583 C4584 C4585 Q8403 C4587 ZA0020 C8020 TP4810 Q8404 C4589 ZA0021 TP4811 C8021 ZA0022 C8022 ZA0023 C8023 R4564 C8024 ZA0024 TP4814 R4565 C8601 C8025 TP4815 C8026 TP4816 C8027 TP4817 FL4500 R4568 C4590 C8028 TP4818 C8411 FL4501 C4591 R4569 R8001 C8029 R8002 C8412 C4592 FL4502 C8413 C4593 FL4503 C8414 C4594 FL4504 C8415 FL4505 C4595 FL4506 R8006 C4597 R8007 C4598 C8030 R8008 C8031 C8802 C8032 C8803 C8033 R4574 C8804 C5730 C8034 IC8004 R4575 C8805 C5731 Q8801 C8035 R4576 C5732 C8806 Q8802 C8036 C8807 R4577 C8037 C8808 C5734 R4578 C8038 R4579 C8809 C8039 R8011 R8012 R8015 R8016 R4580 C8040 R8019 R8401 R4581 C8041 C8812 R4582 C8042 C8043 C8813 R4583 C8814 R4584 C8044 R4585 C8045 R4586 C8046 R4587 C8047 R8020 R8408 R4588 C8048 TP4451 R4589 C8049 R8023 R8024 L5605 R8601 R8025 L5606 R8602 R8603 IC8408 R8604 R8028 C8050 IC8409 R8029 C8051 R8412 R4592 C8052 R4593 C8053 R4594 C8054 R4595 IC8601 C8055 C8056 C8057 Q1100 L5610 C8058 R8030 Q1101 C1105 R8031 Q1102 R8032 Q1103 R8033 R8034 Q1104 L8301 C1109 Q1105 R8035 L8302 R5732 Q1106 Q1107 R5733 R8037 Q1108 R8038 IC8801 JS4501 Q1109 R5735 R8039 C8061 L8306 JS4502 C8062 R2087 R5737 TP5600 R5738 TP5601 R5739 C8065 C8066 TP5602 C8067 TP5603 R8810 Q1110 C8068 R8040 TP5604 Q1111 R8811 C8069 R8041 TP5605 R8812 TP5606 R8813 L8503 TP5607 TNPA4176 B IC8551 IC8552 TH-42PZ700C DG-BOARD TNPA4176AM TH-42PZ700C DG-BOARD TNPA4176AM DG-BOARD (FOIL SIDE) TNPA4176AM 50 TH-42PZ700C DG-BOARD PARTS LOCATION TH-42PZ700C DG-BOARD PARTS LOCATION Parts Location DG-BOARD (FOIL SIDE) IC2000 IC4000 IC4002 IC4003 IC4004 IC4005 IC4501 IC4504 IC4506 IC4507 IC4508 IC4509 IC4513 IC4514 IC4515 IC5600 IC5601 IC5670 IC8004 IC8301 IC8408 IC8409 IC8601 IC8801 IC8851 IC8852 E-5 E-4 E-4 D-5 E-4 E-4 G-5 H-4 F-4 G-4 F-5 E-4 F-5 G-5 G-4 C-3 B-3 H-4 B-4 C-2 C-3 C-2 F-3 H-3 H-2 H-2 IC Q1100 Q1101 Q1102 Q1103 Q1104 Q1105 Q1106 Q1107 Q1108 Q1109 Q1110 Q1111 Q4000 Q4001 Q4002 Q4200 Q4201 Q4500 Q4501 Q4509 Q4511 Q4512 Q4513 Q4514 Q4515 Q4516 Q4517 Q4518 Q4519 Q4520 Q4521 Q4800 Q4801 Q4802 Q4803 Q4805 Q5694 Q8301 Q8403 Q8404 Q8801 Q8802 Q8850 Q8851 Q8852 Q8853 Q8911 Q8912 Q8913 H-3 H-3 G-3 G-2 G-3 G-3 G-2 G-3 G-3 G-3 G-3 G-3 E-5 E-5 E-4 B-6 B-5 G-4 H-5 H-3 F-5 F-5 F-5 F-5 E-5 F-5 F-5 E-5 E-5 G-5 H-5 B-2 A-3 A-2 A-3 C-5 F-3 E-2 D-3 E-3 H-3 H-2 D-4 E-4 E-4 D-4 H-5 H-5 H-5 TRANSISTOR TP Parts Location DG-BOARD (COMPONENT SIDE) IC1100 B-3 IC1101 B-4 IC4001 E-4 IC4500 C-5 IC4503 C-5 IC4510 C-4 IC4800 A-3 IC5660 H-3 IC5671 B-4 IC5672 D-3 IC8001 F-4 IC8002 G-4 IC8003 G-4 IC8302 H-2 IC8401 E-3 IC8402 F-3 IC8403 E-2 IC8404 F-3 IC8405 F-2 IC8406 E-3 IC8407 E-3 IC8553 B-2 IC8621 C-2 IC8622 C-2 IC8654 C-2 IC Q2000 B-3 Q2001 B-3 Q4502 B-5 Q4503 B-4 Q4504 B-6 Q4505 B-5 Q5600 G-3 Q5601 H-3 Q5602 H-3 Q5603 H-3 Q5604 H-3 Q5690 C-3 Q5691 C-3 Q5692 C-3 Q5693 D-3 Q8401 E-2 Q8402 E-2 Q8501 F-5 TRANSISTOR TP1100 H-4 TP1101 H-4 TP1102 G-4 TP1103 H-1 TP1104 H-3 TP1105 G-3 TP2024 E-6 TP4200 C-6 TP4201 C-6 TP4451 A-5 TP4504 G-5 TP4505 G-5 TP4506 H-5 TP4507 G-5 TP4508 H-5 TP4512 F-5 TP4513 F-4 TP4514 F-5 TP4515 F-4 TP4517 H-3 TP4518 F-4 TP4800 B-4 TP4801 B-4 TP4802 B-4 TP4803 B-4 TP4804 B-5 TP4805 B-4 TP4806 B-4 TP4807 B-4 TP4808 B-5 TP4809 B-4 TP4810 B-4 TP4811 B-4 TP4818 A-2 TP5600 C-3 TP5601 B-3 TP5602 B-3 TP5670 H-4 TP5707 D-6 TP8037 B-4 TP8404 E-2 TP8601 F-3 TP8602 F-3 TP8603 F-3 TP8604 G-3 TP8605 F-3 TP8744 E-3 TP8745 B-2 TP8851 H-3 TP8852 G-3 TP8853 G-4 TP8854 E-3 DG 51 A B C D E F G H I 1 2 3 4 5 6 IC8621 IC8622 IC1100 IC1101 DG11 DG23 IC4001 DG25 DG26 DG31 DG32 DG33 DG34 DG35 DG1 DG2 JK8701 DG5 DG6 JK8702 DG7 DG52 IC4800 Q5600 Q5601 JK8731 Q5602 Q5603 Q5604 Q8501 TU8301 JK4500 JK4501 IC8302 IC5660 Q5690 Q5691 Q5692 Q5693 Q4502 Q4503 Q4504 Q4505 IC5671 IC5672 IC8553 IC8554 Q2000 Q2001 JK8401 IC4500 IC4503 IC4510 JK8801 Q8401 Q8402 IC8001 IC8002 IC8003 IC8401 IC8402 IC8403 IC8404 IC8405 IC8406 IC8407 B E C F D G H J K L N M W V Q R U ( A AA B BA C D E CA DA EA FA ( ) ) F ( ) ( ) ( ) ( ) P Y X T S 1 DG TNPA4176 DGMM1 DGMM2 DGMM3 PbF 1 10 11 20 1 10 11 20 1 32 33 64 65 96 97 128 1 4 5 8 1 30 + 1 9 1 20 21 40 41 60 61 80 110 56 55 1 1 6 1 2 19 20 7 1 1 11 1 2 29 30 1 2 29 30 3 7 1 6 2 10 1 12 1 23 22 2 1 55 56 110 1 31 2 79 80 1 1 4 1 4 14 1 1 3 4 6 SUFFIX. + 1 2 16 15 + + ACTIVE ANTENNA BB DC/DC TU BM IFA1 SDA SCL IFD2 IFD1 IFAGC RFAGC MON 19 1 1 19 1 1 1 1 4 8 5 1 5 3 4 1 3 4 5 1 24 25 48 28 56 29 1 67 68 33 34 2 35 1 36 1 4 5 8 1 12 13 24 25 36 37 48 1 36 37 72 73 108 109 144 1 9 12 10 8 + A 1 1 A 1 A 1 12 13 24 1 11 20 10 1 4 6 3 1 10 11 20 1 10 11 20 10 1 11 20 1 10 11 20 R8814 R8815 C1119 R8621 R8622 R8816 R8046 R8623 R8817 R8047 R8430 R8624 R8431 R8625 R8432 R8626 R8627 R8434 R8628 C1120 R8629 IC8621 C1122 IC8622 C1123 C4004 R8050 C4005 C1125 R8051 C4006 C1126 C4007 C4008 R8630 R8054 R8631 C4009 R8055 D1106 R8632 R8826 R8827 R8633 R8057 R8634 D1108 R8828 R8058 D1109 R8635 R8636 C4010 IC1100 C4204 R8445 C4011 IC1101 C4012 C4206 D1110 R8830 C4208 C4015 D1112 C4016 R8062 R8833 C4017 D1113 R8063 R8064 C4019 R8065 R8066 DG11 R1115 R8452 R1116 R8453 R1117 R1118 R8455 R1119 C4021 R8456 C4022 R8457 R8458 R8070 R8459 C4025 R8072 C4027 R8073 R1120 R4000 C4029 R4001 R1121 C4605 R4002 C4606 R1122 R8076 R4003 R1123 R8653 R4004 R8460 R8461 R4005 R4006 R8462 DG23 R1127 R4007 C4030 R1128 D8850 R8465 C4031 IC4001 R1129 DG25 C4032 R8466 DG26 C4033 R8467 R8468 C4034 R8851 R4201 C4037 R4203 R8853 C4807 C4808 C4038 R4010 R1130 R4204 C4039 R8855 R4205 C4616 R1132 R4206 R8857 C4617 R4013 R4207 R8858 R1134 R8471 DG31 C4619 DG32 R4016 DG33 R4017 C4040 DG34 DG35 R4019 R4210 R8860 C4045 R8862 R8864 C4624 R8865 C4625 R8866 R1142 R8867 R8097 R1144 R4025 R1145 FL8801 R4601 R8869 R8482 FL8802 R4602 R8483 R4027 R4028 FL5730 R1148 FL5731 C4051 FL5732 FL5733 R4607 R4608 FL5734 DG1 R4609 DG2 R8873 R8874 R1150 R4800 JK8701 R4801 DG5 DG6 JK8702 R1153 DG7 R8878 R1154 R4034 R4610 R1155 R1156 DG52 R4613 R1158 R4614 IC4800 R1159 R4616 R4617 R8880 R4230 R4618 R4619 C4450 R1160 L4500 R8885 L4501 R1161 R1162 R1163 R4620 R8888 R1164 R4621 R4815 R1165 R1166 L4506 R4623 R4817 R1167 L4507 R4624 R4625 L4509 R1169 R4819 R4628 R4629 R8892 R1170 R4820 R1171 L4511 R8895 R1172 L4513 R1173 R8897 R4247 R1174 R4630 R8898 R8899 R1175 R4249 R4632 R1176 R1177 R4633 R1178 R1179 R4635 R4636 R4637 R4638 R4639 C5602 Q5600 R1180 Q5601 JK8731 R1181 Q5602 R4832 R4833 R1183 Q5603 R4834 R4640 R1184 Q5604 R1185 R4641 R4642 R1186 R4643 R1188 R4644 R1189 R4645 R4646 R4647 C5611 R4649 C5612 R4841 C5615 R4842 R1192 R1193 C5618 R1194 R4650 C5619 R4845 R4651 C8306 R1196 R4652 C8308 R4655 R4656 R4657 R4658 R4659 C8501 C8502 C8503 D5600 C8310 JS1100 C8504 D5601 JS1101 Q8501 D5602 JS1102 R4852 JS1103 R4853 C5628 R4660 JS1104 R4854 D5605 C5629 JS1105 R4855 R4662 JS1106 R4856 JS1107 R4857 JS1108 JS1109 D5609 R4666 R5608 R5609 R8102 R8103 JS1110 R4860 TU8301 JS1111 R4861 C5636 JS1112 R4862 C8323 JS1113 R4287 R4863 C8324 R4670 JS1114 R4864 C5639 C8325 R4671 JS1115 R4865 R4672 JS1116 R4866 C8327 JS1117 R4867 C8328 JK4500 JS1118 R4868 FL4800 R4675 JK4501 JS1119 R4869 FL4801 FL4802 R8303 R8304 R8305 R8306 C5642 R8307 R8308 JS1120 C5644 R8309 C8331 JS1121 R4871 C5645 IC8302 JS1122 JS1123 JS1124 JS4005 JS1125 R8501 R4876 JS1126 R8502 JS4007 C8337 JS1127 R8310 FL4810 R4684 R8504 R8311 FL4811 FL4812 R8312 FL4813 R8314 R8315 L8005 R8317 R8318 R8702 R4691 R8511 R4692 R8512 R8707 R8513 R8708 X1100 R8514 IC8003-A R5635 R8321 C8731 R4695 R8515 R8322 R8516 R8323 R8517 C5660 R8324 R4698 R8518 R5638 C5661 R4699 R8519 C5662 C5663 R8329 R8712 R5640 R5641 R5642 R5644 R5646 R5647 C8551 R8912 R8913 C8553 C8554 C5674 C8555 C5675 C5676 SW5660 L8801 R8731 L5735 R8732 R1202 R8733 R1203 R8734 R5660 R1205 R8929 R5661 R5662 R1206 R1208 R8739 R1209 IC5660 L8621 C5692 C5693 Q5690 C5694 C4500 Q5691 C5695 C4502 D5672 Q5692 Q5693 R8744 C4506 R5672 R1216 Q4502 Q4503 C4507 R1217 Q4504 R5674 R8749 Q4505 L1100 R8558 IC5671 R8559 IC5672 IC8553 IC8554 C4510 R8947 R8560 R8561 R8562 R8565 R8566 Q2000 R8954 Q2001 R1231 R1232 D5692 R1233 D4500 R5690 R1234 R8958 C4525 R1235 R5691 R4309 R5692 D4502 R5693 D4503 D4504 R1238 R5694 R4500 JK8401 R5695 R1239 D4505 R5696 R4502 D4506 R5697 D4507 D4508 R4504 R4310 D4509 L4001 L4002 R4312 R1240 R4508 IC4500 R4509 R1241 IC4503 D4510 C4534 R1244 D4511 R1245 C4535 C4536 R1246 C4537 D4513 R1247 D4514 R4704 R4510 R1248 R4511 D4515 R4512 D4516 R4513 D4517 R4514 R4321 R4515 D4519 R4322 R4516 R4517 R4323 IC4510 R4518 R1251 R4519 JK8801 R1252 R1253 R4327 D4520 R1254 R4328 R2000 D4521 R1255 R2001 D4522 R2002 D4523 R2003 C4548 R4520 R2004 R4521 C4549 R4522 R2006 R2007 R4523 D4528 R4526 R4528 C4551 R4529 C4552 R1263 C4553 R2010 D4530 D4531 D4532 R2013 R4530 R2014 C4558 R2015 R4532 R4533 D4537 R4535 R2019 R4536 R2020 R2023 C4567 C4568 R2025 ZA0001 ZA0002 ZA0004 R4544 R4545 ZA0005 C8005 ZA0006 R4546 ZA0007 R4547 C4570 ZA0008 C4571 ZA0009 C4572 C4574 C4575 ZA0010 C4578 ZA0011 ZA0012 C5710 C5711 C8401 C8402 C4582 C5716 C8403 C8404 C8405 Q8401 Q8402 C8406 C4586 C8407 C4588 C8408 C8409 R4561 R4562 R4563 R4567 C8410 R8003 R8004 R8005 C8416 C4596 C8417 C4599 C8801 IC8001 R8009 IC8002 IC8003 C5733 R8010 R8013 R8014 R8017 C8810 R8018 C8811 R8402 R8403 R8404 R8405 C8815 C8621 R8406 C8622 R8407 L5600 R8409 L5601 IC8401 R8021 IC8402 L5602 R8022 L5603 IC8403 IC8404 L5604 IC8405 IC8406 R8026 IC8407 R8027 R8410 R8605 R8411 R8414 D8801 IC8002-A R8416 C1102 R4596 R8417 R4597 C1103 R8418 R4598 C1104 R4599 L5611 R8419 C8059 C1106 R8802 C1107 R8803 C1108 R8804 R5730 R8805 R5731 R8806 L8303 R8807 L8304 R5734 R8808 C8060 R8421 R8809 R8422 R5736 R8423 C8063 R8424 C1110 C8064 R8425 C1111 R8426 C1112 R8427 R8428 C1114 L8501 C1116 L8502 R8042 C1117 R8043 TNPA4176 A TH-42PZ700C DG-BOARD TNPA4176AM TH-42PZ700C DG-BOARD TNPA4176AM DG-BOARD (COMPONENT SIDE) TNPA4176AM 52 14.7. DH 电路板 E F G H I 1 2 3 4 5 6 Q5000 Q001 DH4 DH5 DH7 DH8 IC5000 IC003 IC007 IC008 IC009 IC014 IC015 TP910 TP911 TP912 TP913 TP914 IC851 TP916 IC100 IC102 IC103 Q900 IC104 IC105 Q901 Q902 TNPA4244 1 DH CR NO.5 Thermal pad Thermal pad Thermal pad PbF 7 1 1 31 7 1 1 21 ORDER NO. 1 4 5 8 1 32 33 64 65 96 97 128 1 4 5 8 1 4 5 8 1 4 5 8 + 1 4 5 8 1 4 5 8 1 28 29 56 A 1 2 B + A 1 2 B 1 A + + TP851 TP852 TP853 Q002 IC001 IC002 IC004 IC005 IC006 IC010 IC011 IC012 IC013 TP900 TP901 TP902 TP903 TP904 TP905 TP906 TP907 TP908 TP909 DH25 TP5000 IC900 IC901 TP001 TP002 TP003 TP004 TP027 TP028 CR NO.5 TNPA4244 1 DH Thermal pad PbF + 1 4 5 3 1 3 4 5 1 3 4 5 1 3 4 5 1 4 8 5 1 4 5 8 1 3 4 5 + + + 1 55 56 110 + + + + SEE REVERSE FOR ORDER NO. 12 13 24 1 1 15 16 30 + R5348 R5143 R5909 IC5103 CL5103 R5241 CL5875 CL5867 CL5041 R5145 C5933 R5300 R5146 R5123 R5111 R5220 DH7 CL5048 R5127 R5309 IC5100 R5249 R5206 C5912 C5306 R5091 R5157 R5301 ZA5002 CL5105 C5274 R5908 R5854 C5866 R5006 DH5 CL5112 R5005 R5176 R5225 R5013 C5363 R5106 R5247 C5039 CL5006 C5162 C5133 TP5914 R5071 R5061 CL5098 IC5000 IC5102 TP5912 R5240 R5333 C5351 CL5130 R5045 R5038 CL5870 C5016 Q5001 C5311 R5890 FL5019 CL5865 R5158 C5135 CL5107 FL5853 R5344 FL5018 R5039 CL5871 CL5081 CL5114 L5016 R5859 L5900 R5226 IC5015 R5009 R5134 R5215 IC5003 R5055 R5012 R5330 C5909 R5104 R5245 C5066 R5010 R5339 Q5900 FL5020 CL5877 CL5868 C5037 C5932 R5315 TP5913 R5008 R5883 FL5015 R5216 R5197 ZA5004 CL5108 CL5880 R5209 C5353 C5310 R5219 DH4 C5017 R5856 CL5874 D5902 R5295 R5072 CL5876 R5105 X5001 R5053 R5233 R5221 CL5005 ZA5001 R5057 R5208 CL5011 R5169 R5133 C5911 CL5109 L5901 R5228 CL5018 C5307 L5903 CL5882 R5196 C5308 R5238 Q5000 R5198 R5334 C5916 R5891 R5853 L5906 R5026 R5019 C5926 R5121 IC5104 R5858 IC5014 C5902 TP5911 C5867 R5007 CL5036 R5207 R5331 R5248 R5234 R5205 C5000 R5151 TP5910 CL5873 C5352 C5878 R5250 R5046 FL5014 R5129 IC5105 ZA5003 CL5106 R5058 R5014 C5362 R5130 CL5004 C5940 C5359 D5905 R5235 C5001 C5132 R5857 C5361 C5927 CL5878 IC5008 R5125 R5222 R5011 R5149 R5332 R5131 R5056 R5237 C5161 C5917 CL5866 R5155 C5360 R5088 IC5007 R5852 R5251 CL5872 L5000 R5884 CL5110 FL5016 L5904 C5350 R5320 C5913 FL5852 R5882 R5069 R5195 R5170 Q5902 R5068 R5214 R5156 C5357 C5134 IC5851 R5244 R5203 R5153 D5901 R5087 R5070 R5107 R5054 IC5009 R5147 C5358 R5318 X5000 R5246 CL5879 R5204 DH8 R5132 Q5901 TP5916 R5227 CL5869 D5001 R5159 R5328 C5874 L5902 CL5881 R5020 CL5111 FL5017 R5160 C5939 C5354 R5855 R5932 C5925 C5149 C5319 R5870 C5869 C5089 CL5859 C5030 CL5072 C5371 R5323 L5006 C5129 R5873 CL5104 C5290 C5281 R5050 C5248 CL5099 C5214 CL5045 C5164 R5900 JS5023 CL5120 C5291 R5051 R5231 CL5003 R5165 C5364 C5166 L5015 C5107 R5877 TP5904 R5236 R5224 CL5077 C5203 C5002 R5182 C5384 C5181 TP5014 D5908 C5347 C5907 R5881 C5298 C5285 C5082 R5229 C5049 CL5862 C5033 CL5067 R5193 C5197 C5365 R5326 C5151 C5334 R5879 C5296 C5283 R5033 C5045 CL5860 CL5855 C5219 CL5013 C5192 TP5027 C5179 R5911 C5146 C5120 JS5021 R5868 R5252 C5265 C5064 C5243 C5235 CL5031 C5395 C5185 R5150 L5024 R5137 C5339 C5119 JS5018 C5879 C5095 C5279 C5264 C5256 R5025 CL5095 C5008 CL5026 C5171 L5022 R5902 R5128 R5116 R5109 C5300 R5878 C5295 C5273 C5260 C5024 C5204 CL5058 CL5010 C5385 C5165 C5928 L5009 R5112 C5101 R5875 C5293 C5068 C5056 C5201 CL5053 C5382 R5163 R5154 R5338 L5012 L5005 C5126 R5871 R5242 C5052 IC5006 C5212 CL5042 C5189 R5347 R5142 R5139 R5321 C5918 C5123 CL5118 C5868 C5088 C5245 IC5013 CL5089 CL5853 CL5038 TP5023 TP5016 C5914 C5115 R5095 C5877 C5093 C5084 C5234 R5199 R5173 TP5025 R5920 R5140 C5160 R5312 R5867 C5289 C5855 R5048 C5257 C5242 CL5851 CL5028 R5178 C5366 R5327 C5345 C5140 C5303 CL5127 C5873 C5284 C5275 R5034 C5046 CL5091 IC5002 CL5079 C5011 CL5016 C5387 TP5022 C5369 R5329 C5924 C5338 C5138 CL5900 R5094 TP5909 C5862 C5277 R5037 R5023 CL5863 C5034 R5003 C5209 CL5020 R5171 C5380 C5378 C5168 R5907 L5001 C5118 JS5017 R5866 C5864 L5905 C5263 R5018 C5019 C5007 CL5025 C5392 C5187 R5921 C5169 C5930 R5313 C5314 R5892 CL5100 FL5006 C5086 C5266 R5230 R5027 C5236 CL5852 CL5070 CL5032 R5179 C5372 TP5011 C5344 R5117 C5329 C5301 JS5009 C5872 R5066 C5230 CL5078 C5010 CL5012 R5939 R5929 C5368 D5900 C5142 C5137 C5112 JS5012 R5862 TP5908 C5861 C5276 C5252 CL5092 C5029 C5013 R5194 C5198 TP5010 TP5005 R5325 C5342 R5115 C5900 C5106 JS5007 C5294 R5041 C5058 C5217 CL5056 R5181 R5168 R5916 C5158 L5008 R5894 JS5004 R5076 C5249 C5200 CL5049 C5397 R5935 R5925 TP5003 C5157 R5122 R5101 R5296 TP5900 R5064 C5078 C5225 CL5044 R5924 R5337 C5156 C5903 C5125 JS5001 C5099 C5859 C5076 C5246 C5238 R5201 TP5851 C5182 TP5015 R5905 L5010 C5143 R5304 C5113 R5863 C5286 C5083 C5253 C5233 C5228 R5002 CL5068 C5199 R5934 C5180 C5173 D5907 C5152 C5335 C5906 CL5128 FL5013 C5090 C5081 R5213 CL5086 C5026 CL5065 CL5017 C5194 C5379 C5178 C5938 C5145 JS5019 R5097 R5851 FL5005 C5085 C5070 C5062 C5041 CL5027 C5393 C5377 R5343 L5023 R5906 C5144 C5309 JS5015 R5865 C5863 C5278 R5239 C5060 R5218 C5040 R5004 CL5059 CL5022 C5390 R5161 R5152 R5912 TP5001 L5011 C5148 C5326 C5317 CL5117 FL5008 C5857 C5268 CL5097 C5229 CL5083 CL5071 CL5037 R5933 C5370 R5144 TP5002 C5919 C5328 C5127 C5880 R5062 C5077 R5210 C5036 CL5854 C5213 TP5852 R5917 TP5004 D5904 C5340 R5306 JS5005 R5077 C5021 CL5060 CL5052 R5936 R5919 TP5006 D5906 C5920 C5333 C5325 CL5125 TP5905 R5044 R5032 D5000 CL5064 C5004 R5928 TP5013 C5922 R5302 C5304 CL5129 C5297 C5860 C5047 C5231 CL5856 C5027 C5206 C5388 C5375 C5175 L5018 C5154 C5337 R5110 JS5013 R5093 C5299 C5092 R5022 CL5093 R5200 C5014 R5940 R5164 C5376 R5342 C5167 R5135 R5310 JS5014 R5864 C5876 C5287 C5853 CL5883 R5217 R5017 CL5069 R5172 TP5026 R5345 TP5000 C5313 R5098 C5096 R5049 C5258 CL5082 CL5030 C5394 R5349 R5914 C5356 R5100 JS5002 R5073 R5063 C5247 R5202 CL5084 CL5043 R5930 R5922 TP5009 C5931 C5155 R5314 C5122 CL5116 C5074 R5028 IC5012 CL5088 C5941 C5936 C5929 C5343 C5331 C5130 C5108 CL5124 C5871 C5272 R5043 R5031 C5023 CL5063 CL5057 R5183 R5938 R5148 R5901 R5319 R5308 C5323 C5103 JS5006 FL5010 C5057 C5216 CL5008 R5937 TP5028 R5335 R5138 C5147 C5121 JS5022 R5099 FL5007 C5856 C5072 C5259 CL5096 CL5033 CL5001 TP5024 TP5017 R5910 C5915 C5117 JS5016 R5096 C5094 C5061 C5241 IC5010 C5221 C5006 CL5024 C5391 TP5020 R5340 R5904 C5153 C5141 C5136 C5305 R5880 R5860 C5091 R5059 R5035 C5048 R5015 CL5087 C5028 C5012 R5191 C5389 C5373 TP5012 R5903 R5118 CL5126 TP5906 FL5000 C5250 R5212 C5032 C5025 C5205 CL5015 C5193 L5020 R5124 R5305 C5320 C5100 R5874 TP5902 R5052 R5232 C5055 C5038 C5215 CL5050 C5381 R5126 R5114 C5324 C5105 CL5123 C5870 C5271 R5030 C5022 CL5062 CL5009 C5190 R5931 R5923 R5336 C5355 C5349 R5120 C5318 CL5119 C5098 C5858 C5075 R5029 C5237 IC5005 C5224 CL5039 R5926 C5934 L5007 C5905 R5103 R5297 TP5901 C5282 C5079 R5211 C5031 C5020 CL5047 C5170 C5935 L5014 R5307 C5322 C5102 CL5122 TP5903 C5270 R5040 CL5061 CL5054 CL5007 R5167 C5150 C5332 C5901 C5109 JS5008 R5079 C5059 C5218 C5003 R5184 C5191 C5188 R5346 R5141 C5348 C5131 C5316 R5869 CL5101 C5087 C5073 C5050 CL5858 CL5035 C5163 L5013 R5316 C5904 C5128 R5872 R5074 C5280 R5243 C5053 C5044 CL5085 CL5073 TP5853 C5186 TP5018 TP5008 IC5900 L5002 C5312 JS5020 CL5113 C5865 C5071 C5063 IC5011 C5222 C5009 CL5029 CL5000 C5183 C5176 C5937 L5019 C5114 FL5003 C5261 C5254 C5240 CL5094 C5220 C5015 C5005 CL5021 TP5021 R5341 C5908 R5092 C5875 C5852 R5036 R5021 R5016 IC5004 R5001 C5208 C5374 C5367 L5017 C5346 R5119 C5110 JS5010 TP5907 C5851 C5251 CL5861 C5227 R5000 CL5066 CL5019 C5195 R5915 D5903 R5317 R5102 JS5003 R5075 R5065 C5054 C5239 IC5001 CL5074 CL5046 R5162 R5913 IC5901 L5004 C5327 C5124 JS5000 R5060 C5269 C5051 C5043 C5035 CL5040 R5918 L5021 C5159 C5341 C5330 C5104 R5876 R5078 C5069 R5223 CL5076 C5202 CL5055 R5180 C5383 R5324 C5139 C5321 CL5121 C5292 C5067 CL5075 CL5051 C5398 R5166 R5927 C5172 C5921 C5910 C5302 DH25 FL5012 R5067 C5080 CL5090 C5226 CL5014 C5386 C5174 C5923 C5336 R5303 C5111 JS5011 R5861 FL5001 C5232 CL5857 C5207 R5192 C5196 C5184 C5177 TP5007 R5136 R5311 C5116 CL5901 C5288 C5854 C5262 C5255 R5024 CL5864 CL5080 C5018 Q5002 CL5023 R5174 TP5019 L5003 C5315 R5893 CL5115 C5097 R5253 C5267 C5065 C5244 C5042 C5223 C5210 CL5034 CL5002 C5211 TH-42PZ700C DH-BOARD TNPA4244AE DH-BOARD (COMPONENT SIDE) TNPA4244AE DH-BOARD (FOIL SIDE) TNPA4244AE TH-42PZ700C DH-BOARD TNPA4244AE Parts Location DH-BOARD (COMPONENT SIDE) IC5000 G-1 IC5003 G-3 IC5007 G-1 IC5008 H-3 IC5009 I-3 IC5014 G-3 IC5015 H-3 IC5100 H-2 IC5102 I-1 IC5103 G-1 IC5104 G-3 IC5851 F-3 IC Q5000 H-3 Q5001 H-3 Q5900 E-1 Q5901 F-3 Q5902 E-3 TRANSISTOR TP TP5910 F-1 TP5911 E-3 TP5912 F-3 TP5913 E-2 TP5914 I-3 TP5916 I-3 Parts Location DH-BOARD (FOIL SIDE) IC5001 C-2 IC5002 B-2 IC5004 C-2 IC5005 D-2 IC5006 A-2 IC5010 C-3 IC5011 B-3 IC5012 B-2 IC5013 C-2 IC5900 D-1 IC5901 D-3 Q5002 C-2 IC TP5000 C-1 TP5001 C-1 TP5002 C-1 TP5003 B-1 TP5004 D-3 TP5005 B-3 TP5006 B-3 TP5007 B-3 TP5008 B-3 TP5009 B-3 TP5010 B-3 TP5011 B-3 TP5012 B-3 TP5013 C-3 TP5014 C-3 TP5015 C-3 TP5016 C-3 TP5017 C-3 TP5018 C-3 TP5019 C-3 TP5020 C-3 TRANSISTOR TP TP5021 C-3 TP5022 C-3 TP5023 C-3 TP5024 C-3 TP5025 C-3 TP5026 C-3 TP5027 A-3 TP5028 A-3 TP5851 D-3 TP5852 D-3 TP5853 D-3 TP5900 D-1 TP5901 E-3 TP5902 D-3 TP5903 D-1 TP5904 A-4 TP5905 A-4 TP5906 B-3 TP5907 B-3 TP5908 A-4 TP5909 C-2 DH A B C D 53 14.8. K 和 S 电路板 I H G F E D C B A 1 2 3 4 5 6 C2510 C2513 C2515 C2522 C2523 C2524 C2525 C2526 C2527 D2510 R2512 D2520 D2524 D2525 R2524 R2530 R2531 RM2501 R2538 PC2511 R2539 R2540 R2554 R2556 R2557 R2569 R2570 R2571 K1 R2572 K2 R2573 R2575 R2576 R2577 R2578 R2579 PbF K 1 TNPA4137 AB AC AD AE AF AG AH AJ SUFFIX. 1 2 11 12 1 2 C2511 C2512 Q2510 Q2511 C2516 Q2513 C2517 Q2518 Q2519 C2520 C2521 Q2520 Q2521 Q2522 D2511 D2512 R2516 R2517 R2519 R2520 R2521 D2526 D2528 R2525 D2530 RM2501 R2537 R2542 R2558 R2559 R2560 R2561 R2562 R2563 R2564 R2565 R2566 R2567 R2568 K1 K2 PbF K1 TNPA4137 REVERSEFORSUFFIX. SEE 1 2 11 12 1 2 SW2500 S1 TNPA4138 1 S PbF ORDER NO. 1 3 C2502 C2503 SW2500 R2506 R2507 S1 TNPA4138 1 S PbF SEE REVERSE FOR ORDER NO. 1 3 TH-42PZ700C S-BOARD TNPA4138AD K-BOARD TNPA4137AE TH-42PZ700C S-BOARD TNPA4138AD K-BOARD TNPA4137AE K-BOARD (FOIL SIDE) TNPA4137AE K-BOARD (COMPONENT SIDE) TNPA4137AE S-BOARD (FOIL SIDE) TNPA4138AD S-BOARD (COMPONENT SIDE) TNPA4138AD Parts Location K-BOARD Q2510 B-3 Q2511 D-3 Q2513 D-3 Q2518 C-3 Q2519 B-4 Q2520 B-3 Q2521 C-4 Q2522 D-3 TRANSISTOR K S 54 14.9. D 电路板 I H G F E D C B A 1 2 3 4 5 6 TH-42PZ700C D-BOARD TNPA4245AE TH-42PZ700C D-BOARD TNPA4245AE D-BOARD (FOIL SIDE) TNPA4245AE 55 TH-42PZ700C D-BOARD PARTS LOCATION TH-42PZ700C D-BOARD PARTS LOCATION Parts Location D-BOARD (FOIL SIDE) IC9002 I-5 IC9007 F-3 IC9504 I-5 IC9805 B-3 IC9806 B-2 IC Q9044 H-3 Q9046 H-2 Q9051 F-2 Q9052 F-2 Q9300 I-6 Q9301 F-6 Q9302 C-5 Q9303 A-1 Q9304 G-1 Q9305 D-2 Q9306 C-2 Q9805 B-5 Q9806 B-5 TRANSISTOR TP TP9000 G-2 TP9680 D-1 Parts Location D-BOARD (COMPONENT SIDE) IC9001 C-1 IC9003 C-2 IC9011 D-3 IC9013 C-4 IC9200 D-3 IC9300 G-3 IC9301 G-3 IC9304 H-5 IC9400 F-4 IC9401 D-2 IC9402 D-5 IC9500 B-5 IC9503 G-2 IC9505 D-2 IC9602 G-5 IC9603 F-5 IC9802 B-4 IC9803 B-3 IC9807 C-4 IC Q9010 E-2 Q9050 E-2 Q9053 E-2 Q9054 E-2 Q9807 I-4 Q9808 I-3 Q9809 H-2 TRANSISTOR TP TP9443 F-4 TP9444 G-4 TP9464 D-4 TP9465 D-4 D 56 I H G F E D C B A 1 2 3 4 5 6 TH-42PZ700C D-BOARD TNPA4245AE TH-42PZ700C D-BOARD TNPA4245AE D-BOARD (COMPONENT SIDE) TNPA4245AE 57 14.10.C1 电路板 I H G F E D C B A 1 2 3 4 5 6 C1 1 TNPA4370 1 2 3 P b F S E E R E V E R S E F O R O R D E R N O . CA1 CA2 CA3 CA4 CA5 CA6 CA7 CA8 ZA101 ZA102 ZA103 ZA104 ZA105 C10 C11 C12 TNPA4370 CR NO. 7 1 C1 C198 R161 R151 R148 IC111 R109 R198 R187 R171 R144 C147 C102 R192 R177 C196 R167 R159 C168 C162 C153 IC110 R110 R105 C111 R180 R155 R138 R102 R197 R190 C199 R163 R143 C159 C151 R114 IC105 R199 R193 R189 C190 C182 R146 R140 R118 C113 R191 C194 R164 R156 C160 R132 IC115 R115 IC106 R103 C101 R196 C192 R152 R149 R137 IC112 R112 IC101 C129 R173 R165 R157 C167 R139 R133 R120 R116 R104 C106 C197 C191 C169 R136 IC109 C130 R162 R153 R142 C132 R101 FL101 R160 R150 R147 C140 R111 R107 R194 R178 R168 C186 R135 IC108 R106 C120 R170 C193 R154 R113 R195 R141 R119 C139 R108 R188 R176 C195 R166 R158 R145 R134 C148 R117 IC107 C110 C107 C108 C103 C104 C105 D107 D102 D115 D114 D109 D101 D112 D103 D111 D113 D108 D110 D106 D116 D105 D104 P b F 1 68 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 10 11 20 1 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 O R D E R N O . 1 1 68 1 68 1 68 1 68 1 68 68 1 1 8 6 68 1 30 1 68 C1-BOARD (FOIL SIDE) TNPA4370 C1-BOARD (COMPONENT SIDE) TNPA4370 TH-42PZ700C C1-BOARD TNPA4370 TH-42PZ700C C1-BOARD TNPA4370 Parts Location C1-BOARD IC7101 H-2 IC7105 G-2 IC7106 G-2 IC7107 D-2 IC7108 E-2 IC7109 E-2 IC7110 H-2 IC7111 I-2 IC7112 I-2 IC7115 F-2 IC IC C1 58 14.11.C2 电路板 A B D c E F G H I 1 2 3 4 5 6 1 23 1 C2 TNPA4371 PbF SEE REVERSE FOR ORDER NO. C20 C22 C23 ZA201 ZA202 ZA203 ZA204 ZA205 CA9 CA10 CA11 CA12 CA13 CA14 CA15 TNPA4371 1 C2 CR NO.7 R296 R289 R267 R258 R234 R220 R213 IC206 R200 C204 R273 C285 C274 IC210 C220 R292 R276 R261 R252 C250 R219 IC201 R271 C283 R247 R216 R270 C282 R246 R222 R215 C237 R202 R277 R262 R253 C251 IC209 C212 R272 C284 C270 R238 R223 R217 IC208 R203 R298 R297 R268 C280 R235 C248 C218 C205 R290 C286 C278 R218 R210 R299 R295 R288 R266 R257 R233 C236 C228 FL201 R259 R244 R236 R221 R214 IC207 R201 R264 R255 C259 R212 R293 R278 R263 R254 C258 IC205 C226 C214 R269 C281 R245 R237 C206 R294 R265 R256 R232 C247 C202 R260 C279 R239 IC211 C238 C292 C287 C288 C289 C290 C291 D209 D212 D203 D210 D206 D211 D204 D208 D201 D207 D214 D202 D213 D205 PbF 1 1 30 1 4 O R D E R N O . 1 68 68 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 68 68 1 1 68 68 1 1 68 1 68 1 C2 TNPA4371 PbF S E E R E V E R S E F O R O R D E R N O . 1 2 3 C2-BOARD (FOIL SIDE) TNPA4371 C2-BOARD (COMPONENT SIDE) TNPA4371 TH-42PZ700C C2-BOARD TNPA4371 TH-42PZ700C C2-BOARD TNPA4371 Parts Location C2-BOARD IC7201 B-2 IC7205 E-2 IC7206 F-2 IC7207 D-2 IC7208 C-2 IC7209 A-2 IC7210 B-2 IC7211 D-2 IC IC C2 59 14.12.C3 电路板 A B C D C E F G H I 1 2 3 4 5 6 TNPA4372 1C 123 PbF SEE REVERSE FOR ORDER NO. ZA301 ZA302 ZA303 ZA304 ZA305 1 CR NO.7 TNPA4372 C3 C3MM1 R396 R382 C388 R357 CB11 C355 R322 C334 R389 FL301 C383 C363 R327 IC306 R390 R376 C385 R332 R329 R315 IC301 R387 R367 CB12 R325 R306 C311 R386 R365 R359 R343 C362 R324 C341 R312 C335 R305 C325 C306 R391 R377 CB14 R333 C337 R309 R388 R368 C382 C373 R330 R326 C347 R319 R313 R307 C312 R383 R358 C340 IC309 R374 C384 CB13 R328 R314 C336 R308 R395 R381 CB15 R317 R303 C35 R384 C367 R323 C346 R318 R304 C324 C301 R393 R379 C32 R392 R378 C386 R334 C352 R321 R301 C318 C30 CB9 R385 R364 C381 C368 R311 IC305 C305 R394 R380 C387 C365 CB10 R316 R310 R302 C319 C33 R375 R331 D308 D305 D312 D301 D302 D311 D303 D307 D309 D314 D306 D310 D313 D304 P b F 1 68 1 30 1 4 10 1 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 68 1 1 68 68 1 68 O R D E R N O . 1 68 68 1 68 1 TNPA4372 1 C3 1 2 3 P b F S E E R E V E R S E F O R O R D E R N O . C3-BOARD (FOIL SIDE) TNPA4372 C3-BOARD (COMPONENT SIDE) TNPA4372 TH-42PZ700C C3-BOARD TNPA4372 TH-42PZ700C C3-BOARD TNPA4372 Parts Location C3-BOARD IC7301 B-2 IC7305 C-2 IC7306 D-2 IC7309 G-2 IC IC C3 60 14.13.C4 电路板 I H G F E D C B A 1 2 3 4 5 6 TNPA4373 1 C4 3 2 1 P b F S E E R E V E R S E F O R O R D E R N O . C40 C41 C42 ZA401 ZA402 ZA403 ZA404 ZA405 CB1 CB2 CB3 CB4 CB5 CB6 CB7 CB8 C4 1 CR NO. 7 TNPA4373 R472 R440 R428 C439 R492 R483 C494 R458 R433 C448 IC405 C401 R484 C497 R436 R423 R476 C492 R431 R415 R489 R442 R430 R414 C433 R402 R495 R479 C498 C470 R437 R424 R405 C405 R482 R477 C493 R432 R416 R403 R496 R486 R473 R469 R429 R412 C428 R493 R478 C495 C481 R434 C449 R404 C419 C402 R485 R471 R468 C476 C463 C450 IC401 C407 R491 R487 R474 C491 R441 C451 R409 R401 R494 C471 R439 R426 R410 R407 R490 R470 R438 R425 C438 R406 R488 R481 R475 FL401 C455 R413 C432 R480 C499 C475 C462 R427 R411 R408 C427 C496 C482 R435 R422 IC406 C420 C403 D414 D408 D412 D415 D403 D413 D409 D401 D410 D406 D405 D411 D404 D407 D416 D402 P b F 1 68 1 68 1 3 0 68 68 1 68 1 O R D E R N O . 1 1 68 1 68 1 68 1 68 1 68 1 10 11 20 1 10 11 20 1 1 0 20 11 C4-BOARD (FOIL SIDE) TNPA4373 C4-BOARD (COMPONENT SIDE) TNPA4373 TH-42PZ700C C4-BOARD TNPA4373 TH-42PZ700C C4-BOARD TNPA4373 Parts Location C4-BOARD IC7401 F-2 IC7405 H-2 IC7406 H-2 IC IC C4 61 14.14.SC 电路板 I H G F E D C B A 1 2 3 4 5 6 SC-BOARD (FOIL SIDE) TNPA4250AB TH-42PZ700C SC-BOARD TNPA4250AB TH-42PZ700C SC-BOARD TNPA4250AB 62 TH-42PZ700C SC-BOARD PARTS LOCATION TH-42PZ700C SC-BOARD PARTS LOCATION Parts Location SC-BOARD (FOIL SIDE) Q6401 B-4 Q6402 B-4 Q6403 B-4 Q6404 C-4 Q6405 C-4 Q6421 F-4 Q6422 E-4 Q6423 E-4 Q6424 D-4 Q6425 D-4 Q6441 D-2 Q6442 C-2 Q6443 C-2 Q6444 C-2 Q6451 E-2 Q6452 E-2 Q6453 D-2 Q6454 D-2 Q6604 A-4 Q6661 F-4 Q6690 G-6 Q6698 D-6 Q6699 C-6 Q6792 B-6 Q6805 H-6 Q6806 H-5 Q6821 G-3 Q6822 G-4 Q6841 H-4 Q6842 I-3 TRANSISTOR TP1 A-1 TP2 A-1 TP4 A-1 TP5 A-1 TP6 G-1 TP7 I-3 TP8 G-1 TP9 I-3 TP10 H-2 TP11 G-2 TP12 H-2 TP13 G-2 TP14 G-2 TP15 H-2 TP16 H-2 TP17 H-2 TP18 H-2 TP19 H-2 TP20 H-2 TP21 H-2 TP22 H-2 TP23 G-1 TP25 H-2 TP26 G-2 TP27 H-2 TP28 F-3 TP29 F-3 TP30 E-3 TP31 E-3 TP32 D-3 TP33 C-3 TP34 B-1 TP35 B-3 TP36 H-2 TP37 G-2 TP38 H-2 TP39 H-2 TP40 C-6 TP42 C-6 TP43 C-6 TP IC6790 I-2 IC6791 I-2 IC6803 H-2 IC Parts Location SC-BOARD (COMPONENT SIDE) IC6471 B-5 IC6472 A-3 IC6501 F-3 IC6521 F-2 IC6561 B-2 IC6562 C-2 IC6563 C-2 IC6581 D-1 IC6601 I-5 IC6671 C-5 IC6672 F-5 IC6721 B-5 IC6722 B-5 IC6724 A-6 IC6725 B-5 IC6752 D-4 IC6771 C-5 IC6772 D-5 IC6773 C-5 IC6774 C-4 IC6790 B-2 IC6791 B-2 IC6792 A-4 IC6793 A-5 IC6794 A-5 IC6795 A-5 IC6796 A-5 IC6797 H-5 IC6801 B-3 IC6803 B-2 IC6821 C-3 IC6841 A-3 IC6871 A-3 IC6873 D-5 IC Q6401 H-4 Q6402 H-4 Q6403 H-4 Q6404 G-4 Q6405 G-4 Q6421 E-4 Q6422 E-4 Q6423 E-4 Q6424 F-4 Q6425 F-4 Q6441 F-2 Q6442 G-2 Q6443 G-2 Q6444 G-2 Q6451 E-2 Q6452 F-2 Q6453 F-2 Q6454 F-2 Q6501 G-3 Q6502 G-3 Q6503 F-3 Q6504 G-3 Q6521 F-3 Q6522 E-3 Q6523 F-3 Q6524 F-3 Q6531 G-2 Q6532 G-2 Q6551 F-2 Q6552 F-2 Q6581 E-2 Q6601 E-4 Q6602 D-4 Q6603 D-4 Q6604 I-4 Q6605 I-5 Q6606 I-4 Q6609 I-4 Q6621 E-4 Q6622 F-4 Q6623 F-4 TRANSISTOR TP15V C-1 TPSC1 H-6 TPSOS6 C-1 TPSOS7 C-1 TPVAD A-3 TPVERS C-3 TPVSCN B-4 TPVSET D-4 TPVSUS I-1 Q6805 B-6 Q6806 B-5 Q6821 C-3 Q6822 C-4 Q6824 B-4 Q6841 B-3 Q6842 A-4 TP VR6600 A-3 VR6602 C-4 VR6841 A-3 VOLUME TP044 B-6 TP44 C-6 TP045 B-6 TP45 C-6 TP046 B-6 TP047 B-6 TP47 C-6 TP048 B-6 TP48 C-6 TP49 C-6 TP049 F-6 TP050 F-6 TP051 F-6 TP51 G-2 TP052 F-6 TP053 F-6 TP53 H-4 TP54 I-3 TP62 B-6 TP63 C-6 TP64 G-4 TP65 G-6 TP67 G-6 TP68 G-6 TP69 G-6 TP70 G-6 TP72 G-6 TP73 G-6 TP74 G-6 TP75 G-1 TP76 G-2 TP77 G-2 TP78 H-2 TP79 G-2 TP80 G-2 VR6600 I-3 VR6602 G-4 VR6605 A-5 VR6641 I-3 Q6624 G-4 Q6625 G-4 Q6626 H-4 Q6641 E-5 Q6642 E-5 Q6643 E-5 Q6644 F-5 Q6645 F-5 Q6646 F-5 Q6648 G-5 Q6649 G-5 Q6651 G-5 Q6652 H-5 Q6653 H-5 Q6654 H-5 Q6661 D-4 Q6662 C-4 Q6663 C-5 Q6665 C-4 Q6671 D-5 Q6672 C-5 Q6673 C-5 Q6679 C-5 Q6680 C-5 Q6690 C-5 Q6691 F-5 Q6692 F-5 Q6693 E-5 Q6694 E-5 Q6695 F-5 Q6696 G-5 Q6698 G-6 Q6699 G-6 Q6700 B-6 Q6742 B-5 Q6743 B-5 Q6763 E-4 Q6781 E-5 Q6782 D-5 Q6791 A-3 Q6792 H-6 Q6793 H-6 VOLUME SC 63 I H G F E D C B A 1 2 3 4 5 6 SC-BOARD (COMPONENT SIDE) TNPA4250AB TH-42PZ700C SC-BOARD TNPA4250AB TH-42PZ700C SC-BOARD TNPA4250AB 64 14.15.SU 电路板 I H G F E D C B A 1 2 3 4 5 6 A41 A80 C6801 C6802 C6803 C6807 C6808 C6809 C6810 C6813 C6814 C6815 C6819 B41 C6820 C6821 C6831 C6832 C6833 C6834 C6851 C6852 C6853 C6854 B80 C6861 C6862 C6863 C6864 C6871 C6873 C6874 C6875 R6851 R6852 R6853 R6854 C6881 C6882 C6883 D6861 D6862 D6863 R6861 D6867 R6865 IC6861 IC6862 IC6863 IC6864 D6871 D6872 R6871 R6877 R6883 R6885 R6887 R6888 R6889 R6891 R6892 C6877 R6879 P b F TNPA4383 SU 1 S E E R E V E R S E F O R O R D E R N O . 1 25 26 51 75 76 100 50 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 A40 A1 B1 SU45 SU47 TPUI1 TPUI2 TPUI3 TPUI4 TPUI5 TPUI6 TPUI7 TPUI8 C6811 B40 C6836 C6837 C6838 C6839 C6856 C6857 C6858 C6859 C6866 C6867 C6868 C6869 C6872 R6856 R6857 R6858 R6859 D6864 D6866 R6862 R6864 R6872 R6873 R6878 IC6871 IC6872 4 7 8 6 C I 3 7 8 6 C I R6886 SUI1 SUI2 SUI3 SUI4 C6876 R6866 P b F TNPA4383 1 SU 2 1 4 1 1 5 1 20 O R D E R N O . 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 A1 B1 A68 B68 A1 B1 A68 B68 A1 B1 A68 B68 A1 B1 A68 B68 SU-BOARD (FOIL SIDE) TNPA4383 SU-BOARD (COMPONENT SIDE) TNPA4383 TH-42PZ700C SU-BOARD TNPA4383 TH-42PZ700C SU-BOARD TNPA4383 Parts Location SU-BOARD IC6861 F-4 IC6862 E-4 IC6863 D-4 IC6864 B-4 IC6871 C-2 IC6872 D-2 IC6873 E-2 IC6874 G-2 IC IC TPUI1 B-2 TPUI2 B-2 TPUI3 G-1 TPUI4 G-1 TPUI5 B-2 TPUI6 B-2 TPUI7 G-1 TPUI8 G-1 TP SU 65 14.16.SD 电路板 I H G F E D C B A 1 2 3 4 5 6 C6901 C6902 C6903 C6907 C6908 C6909 C6911 C6913 C6914 C6915 C6919 C41 C6920 C6921 C6937 C6938 C6939 C6940 C6941 C6942 C6943 C6951 C6952 C6953 C6954 C6957 C6958 C80 C6964 C6965 C6966 C6967 R6945 R6946 R6947 R6948 R6949 R6950 C6979 R6953 C6980 R6958 C6981 D6961 D6964 D6965 D6966 R6963 D6967 D6968 R6965 R6966 R6967 R6977 R6978 IC6971 R6979 IC6972 IC6973 IC6974 D41 D80 R6959 P b F TNPA4384 SD 1 S E E R E V E R S E F O R O R D E R N O . 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 C6910 C40 C6932 C6933 C6934 C6935 C6955 SDI1 SDI2 SDI3 SDI4 C6961 C6962 C6963 C6968 C6972 C6973 C6974 C6975 C1 C6976 R6951 R6952 R6955 R6957 D1 D6962 D6963 R6968 IC6961 IC6962 IC6963 IC6964 IC6967 R6971 R6972 R6973 R6974 R6975 SD46 SD48 D40 TPDI1 TPDI2 TPDI3 TPDI4 TPDI5 TPDI6 TPDI7 TPDI8 R6941 P b F TNPA4384 1 SD B1 A68 B68 A1 A1 B1 A68 B68 A1 B1 A68 B68 A1 B1 A68 B68 O R D E R N O . 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 3 4 5 2 1 4 1 1 5 1 20 SD-BOARD (FOIL SIDE) TNPA4384 SD-BOARD (COMPONENT SIDE) TNPA4384 TH-42PZ700C SD-BOARD TNPA4384 TH-42PZ700C SD-BOARD TNPA4384 Parts Location SD-BOARD IC6961 A-2 IC6962 C-2 IC6963 D-2 IC6964 F-2 IC6967 C-2 IC6971 F-4 IC6972 E-4 IC6973 D-4 IC6974 B-4 IC IC TPDI1 B-1 TPDI2 B-1 TPDI3 G-2 TPDI4 G-2 TPDI5 A-1 TPDI6 A-1 TPDI7 F-2 TPDI8 G-2 TP SD 66 14.17.SS 电路板 I H G F E D C B A 1 2 3 4 5 6 SS-BOARD (FOIL SIDE) TNPA4251AB TH-42PZ700C SS-BOARD TNPA4251AB TH-42PZ700C SS-BOARD TNPA4251AB 67 TH-42PZ700C SS-BOARD PARTS LOCATION TH-42PZ700C SS-BOARD PARTS LOCATION Parts Location SS-BOARD (FOIL SIDE) Q6001 B-2 Q6002 B-2 Q6003 B-2 Q6004 C-2 Q6005 C-2 Q6021 E-2 Q6022 E-2 Q6023 F-2 Q6024 F-2 Q6025 F-2 Q6041 C-3 Q6042 D-3 Q6043 D-3 Q6044 D-3 Q6051 F-3 Q6052 E-3 Q6053 E-3 Q6054 E-3 Q6222 H-4 Q6256 H-3 TRANSISTOR TP1 C-4 TP2 C-4 TP3 B-4 TP4 B-4 TP5 A-4 TP6 A-4 TP7 B-4 TP8 B-4 TP9 B-4 TP10 B-4 TP11 I-3 TP12 I-3 TP13 H-4 TP14 H-4 TP15 H-4 TP16 H-4 TP17 H-4 TP18 H-4 TP19 H-4 TP20 H-4 TP VOLUME Parts Location SS-BOARD (COMPONENT SIDE) IC6131 F-2 IC6151 E-3 IC6191 C-2 IC6211 A-2 IC6221 A-4 IC6241 B-4 IC6251 C-4 IC6281 A-4 IC Q6001 H-2 Q6002 H-2 Q6003 H-2 Q6004 G-2 Q6005 G-2 Q6021 E-2 Q6022 D-2 Q6023 D-2 Q6024 D-2 Q6025 D-2 Q6031 E-2 Q6041 G-3 Q6042 G-3 Q6043 F-3 Q6044 F-3 Q6051 D-3 Q6052 E-3 Q6053 E-3 Q6054 E-3 Q6101 C-2 Q6102 B-2 Q6103 C-2 Q6104 C-1 Q6105 B-1 Q6106 B-2 TRANSISTOR TPSOS8 B-4 TPSS1 B-1 TPVDA E-4 TPVe B-3 TPVSUS H-4 TP VR6000 A-3 VR6001 A-4 VOLUME TP21 H-4 TP22 H-4 TP23 H-4 TP24 I-1 TP25 I-2 TP26 F-1 TP27 F-1 TP28 D-2 TP29 D-2 TP30 A-1 TP31 A-1 TP33 H-4 TP34 H-4 TP36 G-2 TPVe2 I-3 VR6000 I-3 VR6001 I-4 Q6111 A-3 Q6112 A-1 Q6113 A-2 Q6114 A-1 Q6141 G-1 Q6142 G-1 Q6143 G-2 Q6144 G-2 Q6146 F-2 Q6147 F-2 Q6148 F-1 Q6149 F-1 Q6171 F-2 Q6172 F-2 Q6181 E-2 Q6222 B-4 Q6251 B-4 Q6256 B-3 Q6271 C-2 Q6281 A-3 Q6282 A-4 SS 68 I H G F E D C B A 1 2 3 4 5 6 SS-BOARD (COMPONENR SIDE) TNPA4251AB TH-42PZ700C SS-BOARD TNPA4251AB TH-42PZ700C SS-BOARD TNPA4251AB 69 15 方框图和线路图 15.1. 线路图注意事项 70 15.2. 主要集成电路方框图 DH OSD 25 FULL HD DH DH5 D5 25 FPGA DG GP5P_1st (CYCLONE) DDR FAN CONTROL LINE CONTROL S.R. SUSTAIN HDMI 3 D36 *Plasma AI POWER SW S.R. S.R. Vda Discharge Control(SC) ASDIO C2 S.R. SWITCH S.R. SOS7 PULSE P5V RECTIFIER C20 *H,V Snyc Control +15V SOS6 PA34 DG P5V MICON S.R. EEPROM POWER +15V STANDBY SC2 GS52 D20 POWER LED DG1 15V +12V(s) VOLTAGE S.R. G[9:0] S.R. R[9:0] HDMI3 IN C3 ADDRESS HDMI_SPDIF AD/HDMI Peaks-Lite 2 DG6 Data Driver Control VOLTAGE VDA_75V PLASMA AI PROCESSOR S.R. SCAN DRIVE SENSOR SD PULSE SU D35 D25 SS GH DG MAIN MICOM D34 FORMAT CONVERTER, C11 +15V HDMI EQ (VE) PA32 C1 SD CARD SLOT S.R. STB_PS VOLTAGE DATA DRIVER(LEFT) SUSTAIN S.R. S.R. FILTER *CLK Vda RESET SUSTAIN DRIVE VDA_75V S.R. PROTECTION(SOS) P RECTIFIER S.R. PD1-M plus VOLTAGE WRITE PROTECT 5V 15V SS23 DISPEN DC/DC 3.3V P5V +12V PCLK/NCLK S.R. PROCESS ERASE POWER SUPPLY SUS +15V D S1 SOS7 TEMP REMOTE/LED/KEY SW P12 SS11 *VD,HD P_ON/OFF *Sub Filed Processor X'tal C22 SIGNAL CONTROL HDMI IN 1 DATA DRIVER(RIGHT) F_STB+15V DATA0 B[9:0],HD,VD SS12 DC/DC 1.8V SOS8 IIC2 +15V (UP) 64k S.R. S.R. P5 REMOTE RECEIVER DG11 VSUS 32Mbit Flash-ROM PULSE STB5V S.R. SUSTAIN (4MByte) AI SENSOR C42 S.R. S.R. FLASH CONTROL VOLTAGE DC/DC 1.2V 128Mbit DDR P1.2V D32 C12 S.R. S.R. PROM C23 P25 C35 SS33 35 POWER RECTIFIER P11 DATA DRIVER(LEFT) Vda HDMI_SDIN S.R. PULSE S +15V P5V VOLTAGE DIGITAL VDA_75V D33 +5V RESET SOS8 S.R. *Discharge Control C4 STB12V C40 DDR2x2 VOLTAGE DRVRST *RGB:10bit(or8bit) PROCESSOR P9 AVR CARD S.R. RELAY STB3.3V ICEOUT Vda S.R. CONTROL P2 SC20 CONTROL C30 Genx4 (DOWN) CONTROL PCLK/NCLK P3.3V FILTER REG RESET D5 C32 PROCESS STBY5V_M 12V RECTIFIER Discharge Control(SS) VSUS CLOCK SUSTAIN FACTOR C41 SC *LVDS receiver C33 VCXO P5V S.R. SCAN VSUS RECTIFIER BOOT ROM SOS6 PULSE SS35 Data Driver Control GENERATOR PS_SOS GS LVDS format D31 K1 VDA_75V DRIVE P5V Vda AC CORD Vda DATA DRIVER(RIGHT) GH11 GENERATOR SD PA36 [27MHz] VDA_75V SCAN OUT DCLK FAN K VOLTAGE FAN SOS DG52 P2.5V D3 NOR FLASH HDMI EQ VDA DC/DC CONVERTER DCK S.R. SIGNAL LINE XRST S.R. S.R. MAIN SLOT P10 FPGA HDMI IN 2 C10 STANDBY SCAN OUT SS34 GC3FS SUB DG2 PA3 DC/DC CONVERTER PA5 PA10 PA DC-DC CONVERTER POWER SOS FAN SCAN DRIVER PA38 SCAN DRIVER TH-42PZ700C Main Block Diagram TH-42PZ700C Main Block Diagram W-R AMP W-L PROCESSOR AMP AUDIO IN AV SWITCH H11 SPEAKER AV4 IN H12 H G TV POWER_SOS L H6 AUDIO SW PC IN MONITOR OUT L/R R,G,B SPEAKER R AV TERMINAL L/R SOUND_SOS VIDEO V SQ-R S-VIDEO IN R SOUND VIDEO IN SOS H51 Y,C,V SPEAKER MAIN_L/R L SQ-L L/R KEY SCAN SW AV4 IN G51 MAIN TUNER AV3 AV1 AV2 L/R L/R L/R V,Y,C DC POWER H3 H2 FAN_SOS V SUB TUNER V,Y,Pb,Pr V,Y,Pb,Pr 71 15.3. P 电路板方框图 + + + + + + + + + + + + + + TP2 TP5 TP6 TP8 TP3 TP1 TP7 TP9 TP4 17 Vda_DET VSUS 20 10 P25 STBY+5V F_STBY_ON D25 SC2 13 VSUS PANEL MAIN ON P2 SOS4_PS 16 1 17 18 P11 15 ECO_ON 1 SS11 COLD HOT P POWER SUPPLY POWER CONTROL K601 F201 P1 18 7 ALL_OFF 14 STBY5V_SW 3 AC_N 4 5 3 2 Vsus ON/OFF Vda DET POWER MCU 30 27 POW_ON\OFF 32 VDD 15 +15V ON/OFF 11 SUS OUT(DET) 19 20 13 STB+5V ON/OFF 18 P+5V ON/OFF PANEL ON 19 +5V DET 0 1 4 2 12 MAIN SW1 BIAS1 ON/OFF 7 F_STB ON/OFF 3 Vda OUT(DET) SOS4_PS ALL_OFF Vsus STOP 5 1 +15V OUT 9 STB_OUT(DET) RLY_MAIN_ON 23 22 RLY_RUSH_ON AC_DET 21 PFC T201 GATE_H SOURCE_H AC_L D601 D602 K602 RF601 HOT MAIN RELAY RUSH RELAY K603 D603 D604 AC AC DC(+) DC(-) L603 K A D3 D2 D1 S3 G3 S2 G2 S1 G1 15 14 12 9 6 D606 C614 C613 C612 2 10 1 11 GATE VCC S+ GND OUT1 VCC FB(S+) C_GND CAI PFL_ON V_DET 7 6 4 3 OCL G_OCL 4 11 13 8 10 5 7 ZD601 Q602 Q603 FET DRIVE PFC AC_ON 4 1 GH_IN 10 9 7 8 GATE_L SOURCE_L GL_IN VDD_L PC(E) 12 Vsus POWER CONTROL ON/OFF 13 8 BIAS 14 10 SG 6 GL 1 GH 5 2 SH SL(PG) 9 I+ 7 Vsus POWER CONTROL P2 AC+ AC- S1 S2 D251 Vsus 210V S2 G2 D2 G1 D1 HOT Vsus POWER SUPPLY S1 C256 C257 C258 VR251 VSUS Vsus ON/OFF COLD HOT Vsus ON/OFF Vsus CONTROL PFC CONTROL 1 2 GND GND CONTROL 16 GND STB+5V COLD HOT AC DET 4 Control 5 Source Drain C503 ZD502 ZD501 P506 P507 P508 P509 P511 P510 IPD PANEL POWER PART SOS DET Vsus(+185V)OVER VOLTAGE Vad(+75V)OVER VOLTAGE LED BLINKING:4 TIMES 14 F_STB+15V ON/OFF D702 IP701 Q701 Q702 RLY_RUSH_ON RLY_MAIN_ON Q552 POWER ON/OFF +15V ON/OFF 28 MULTI_ON 8 +5VC ON/OFF 16 Vda_ON 29 8 15V IN FV(F.STB+15V)OUT 6 ECO_ON 31 5 1 4 8 6 ON/OFF CONTROL ON/OFF CONTROL VCC ON/OFF F STB+15V 5 1 2 ON/OFF +5Vc F STB+15V Vda ON/OFF 13 14 VIN REM POWER CONTROL OUTPUT CONTROL 9 Vda+75V ON/OFF FB 4 Vda CONTROL D402 L401 R405 Vda+75V CONTROL Q401 ZD401 (+3.3V) 1 P10 3 F_STBY 2 F_STBY F_STBY 1 7 9 +15VC 2 +15VC +5VC +5VC L451 ON/OFF P+15V P+15V D501 AC+ AC- F501 7 6 SUS ON MULTI ON 3 ON/OFF CONTROL BIAS OUT 9 8 1 1 BIAS IN BIAS/PFC ON/OFF CONTROL PFC_SUS PFC_MULTI Vda/STB POWER CONTROL GH SH GL 1 6 2 9 I+ 13 ON/OFF 12 BIAS 8 PC(E) 7 VDD COLD HOT MULTI ON/OFF ON/OFF P+15V 1 P5 PA5 4 8 1 2 SS12 10 P12 MAIN_SW_2 MAIN_SW_1 Vda/STB D553 BIAS B4 B2 B3 D506 B5 S2B B6 C551 STB+5V D505 D551 S2A P2 6 S1B T501 C507 P1 B1 S1A BIAS ON/OFF 1 2 3 STB+5V MC603 MC601 MC502 PC501 PC502 BIAS ON/OFF IC551 IC501 MC501 MC701 MC351 IC351 Q351 Q551 Q352 Q704 PC301 PC302 MC203 MC202 PC201 IC251 PC202 MC401 PC401 IC451 MC201 IC401 MC301 PA10 +5V +15V F STB TH-42PZ700C P-Board Block Diagram TH-42PZ700C P-Board Block Diagram 72 15.4. P 电路板 (1/2) 线路图 PFC PFC CONTROL C 3 2 B A E 6 7 5 D 4 1 F 8 9 TH-42PZ700C P-Board (1 of 2) Schematic Diagram TH-42PZ700C P-Board (1 of 2) Schematic Diagram TO AC CORD ! P-BOARD ETX2MM681MF (1/2) 73 15.5. P 电路板 (2/2) 线路图 IPD BIAS/PFC ON/OFF CONTROL Vda/STB POWER CONTROL Vsus POWER CONTROL FET DRIVE Vsus POWER SUPPLY POWER MCU Vda CONTROL ON/OFF CONTROL POWER CONTROL C 3 2 B A E 6 7 5 D 4 1 F 8 9 TH-42PZ700C P-Board (2 of 2) Schematic Diagram TH-42PZ700C P-Board (2 of 2) Schematic Diagram TO SC-BOARD (SC2) TO SS-BOARD (SS11) TO SS-BOARD (SS12) TO PA-BOARD (PA5) TO PA-BOARD (PA10) TO D-BOARD (D25) ! P-BOARD ETX2MM681MF (2/2) COLD HOT COLD HOT COLD HOT COLD HOT 74 15.6. PA 电路板方框图 R5533 D5530 R5534 Q5562 R5532 R5536 R5531 R5535 R5537 Q5521 R5538 Q5523 Q5522 C5521 C5522 Q5561 D5528 D5521 R5540 D5529 R5544 R5542 D5526 R5549 D5522 R5548 Q5524 R5546 R5547 Q5501 D5501 Q5502 D5502 R5553 R5552 D5532 D5531 D5534 D5533 R5577 R5576 D5402 D5404 D5406 D5411 D5410 D5408 OVER VOLTAGE DET SUB+5V SUB+9V (+6.8V) (+12V) SUB+5V/SUB+9V SHORT DET F STB+15V (+10V) (+10V) (+12V) (+12V) H264+9V FHD+9V FHD+9V/H264+9V S_15V S_15V S_15V FAN_15V FAN_15V 6 8 7 2 1 FHD+9V/H264+9V TV_ON OFF MAIN9V SUB9V SUB9V SUB5V 40 38 36 S_15V S_15V STB5V H3 31 S_15V PA3 7 1 4 5 2 SUB5V PA5 TUNER_SUB_ON FHD+9V H264+9V 9 3 13 15 1 IC5551 SOS DET ERROR DET MAIN+9V P5 PA DC-DC CONVERTER 1 3 2 S_STBY S_STBY S_STBY PA 10 P10 ERROR DET SUB+5V/SUB+9V SUB+9V SUB+5V 9 3 13 15 1 IC5550 39 37 H_9V H_9V 25 FHD_9V FHD_9V 27 19 20 SUB_ON MAIN_ON 24 SOS 14 FAN_SOS FAN_CONT 16 3 +B FOR FAN FAN_SOS PA 32 1 +B FOR FAN 3 FAN_SOS PA 34 1 +B FOR FAN 3 FAN_SOS PA 36 1 4 2 1 IC5400 FAN CONTROL TO FAN TO FAN TO FAN TO FAN +B FOR FAN 3 FAN_SOS PA 38 1 TH-42PZ700C PA-Board Block Diagram TH-42PZ700C PA-Board Block Diagram 75 15.7. PA 电路板 (1/2) 线路图 + + + + + + + + + + 9V 1% R5502 1.27k EHMDD9851 IC5550 < 1 ON/OFF2 2 VAR2 3 VOUT2 4 SW-Node2 6 GND 7 N.C. 8 GND 9 VIN 10 N.C. 11 GND 12 SW-Node1 13 VOUT1 14 VAR1 15 ON/OFF1 16 N.C. R5525 10k L5553 2.7u LHL08TB2R7M C5504 16V 0.1u *R5417 634 1% L5565 22u LHL08TB220K *D5404 MA2J11100L *R5406 4.7k C0DBAZG00034 IC5400 < 1 VCC 2 OUT 3 GND 4 INV 5 STBY EHMDD9851 IC5551 1 ON/OFF2 2 VAR2 3 VOUT2 4 SW-Node2 6 GND 7 N.C. 8 GND 9 VIN 10 N.C. 11 GND 12 SW-Node1 13 VOUT1 14 VAR1 15 ON/OFF1 16 N.C. C5409 25V 0.1u D5410 MAZ81100ML C5506 16V 0.1u R5507 10k D5574 B0BC01100001 R5443 0 TPF0S 1% R5503 1.27k C5509 330u 35V C5420 0.1u 25V R5506 10k C5508 16V 0.1u TP5400 C5595 50V 22u L5551 G0C150MA0056 LHLP10TB150MB C5587 470u 16V L5567 2.7u LHL08TB2R7M L5564 2.7u LHL08TB2R7M R5573 4.7k C5419 < 470u 25V C5501 470u 16V Q5562 2SD0601ASL D5573 B0BC01100001 C5410 < 470u 25V L5554 G0C150MA0056 LHLP10TB150MB L5555 G0C150MA0056 LHLP10TB150MB R5412 4.7k D5402 MA2J11100L R5527 47k 1% R5555 1.27k C5413 25V 0.1u D5411 MA2J11100L *PA38 1 2 3 L5550 2.7u LHL08TB2R7M C5503 470u 16V R5509 0 Q5502 2SD0601ASL R5420 0 R5413 470 C5507 470u 16V R5572 2.2k C5505 470u 16V C5412 25V 0.1u D5575 B0BC01100001 D5412 MAZ80330LL PA32 1 2 3 R5570 10k *PA34 1 2 3 C5502 16V 0.1u D5571 B0BC6R600005 TPFA15 R5508 47k TPFA9 *D5408 MA2J11100L *D5406 MA2J11100L C5510 25V 0.1u R5526 10k L5552 G0C150MA0056 LHLP10TB150MB R5423 1k L5401 G0C101KA0167 LHLP10TB101KB C5588 16V 0.1u D5409 B0JCME000037 D5501 B0BC01000035 *R5408 4.7k 1% R5554 2.61k R5402 4.7k R5571 47k D5502 B0BC01000035 Q5501 2SD0601ASL C5552 25V 0.1u L5568 2.7u LHL08TB2R7M *R5404 4.7k Q5561 B1DHDC000028 R5416 2.74k 1% L5566 2.7u LHL08TB2R7M C5551 330u 35V *PA36 1 2 3 R5418 22k 1% R5409 47k 1% TV_ON OFF 5V/9V FHD_9V/H264_9V +B FOR FAN GND FOR FAN FAN_SOS PA-BOARD TNPA4274AE (1/2) ! TO FAN FAN_SOS GND FOR FAN TO FAN +B FOR FAN GND FOR FAN +B FOR FAN FAN_SOS TO FAN FAN_SOS +B FOR FAN GND FOR FAN TO FAN FAN REG MAIN9V 8 A B E 9 7 6 4 C 3 1 D 2 F 5 6 7 1 5 3 8 2 10 9 4 TH-42PZ700C PA-Board (1 of 2) Schematic Diagram TH-42PZ700C PA-Board (1 of 2) Schematic Diagram B 76 15.8. PA 电路板 (2/2) 线路图 GND GND GND GND GND S_GND S_GND S_GND S_15V S_15V S_15V S_STBY S_STBY S_STBY FAN_15V FAN_15V PA5 1 2 3 4 5 6 7 8 9 10 11 TPF9V R5577 4.7k Q5523 2SD0601ASL PA3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 R5534 47k TPS0N ZA5502 K4CZ01000027 R5548 4.7k D5532 MA3X152D0L Q5522 2SA207700L TPM0N R5547 10k R5537 680 TPS0F TPST5 TPS0S D5528 MAZ81200ML D5533 MAZ81200ML TPS9V R5546 10k ZA5503 K4CZ01000027 D5530 MA2J11100L R5552 470 Q5521 2SA207700L R5532 4.7k TPS15V TPS5V D5522 MA3X152D0L R5576 4.7k TPH9V R5549 4.7k R5536 4.7k R5538 2.2k D5534 MAZ81200ML PA10 1 2 3 4 5 6 R5553 470 R5535 2.2k TPM9V R5544 220 D5529 MAZ80680LL TPC0F C5521 16V 0.1u R5542 470 D5521 MA2J11100L R5533 10k ZA5504 K4CZ01000027 D5531 MA3X152E0L R5531 2.2k R5540 470 D5526 MA3X152E0L C5522 16V 0.1u Q5524 2SD0601ASL JS2 JS1 ZA5501 K4CZ01000027 *R5483 0 IC5400 FAN 5V/9V IC5550 H_9V/F_9V IC5551 PAMM1 FAN CONNECTOR PA8 1 PA3 1 PAMM4 PAMM5 PA10 1 PA5 1 SUFFIX JW PAMM2 PAMM3 TO H-BOARD (H3) PAMM6 PAMM7 PAMM9 PAMM8 1 PA9 AE 1 1 TO P-BOARD (P10) TO P-BOARD (P5) Location of Earth Lug GND GND GND_CP GND NC GND GND GND FAN_SOS MAIN_9V SUB5V GND SUB5V SUB9V GND SUB9V GND GND FAN_CONT GND GND SOS STB_5V1 GND_CP GND GND_CP GND FHD_9V GND FHD_9V S_15V H_9V S_15V H_9V S_15V Tuner_sub_on GND GND GND TunerMain_on 18 17 6 1 4 1 5 1 2 1 1 1 3 1 0 1 PA-BOARD TNPA4274AE (2/2) ! 9 4 5 3 6 8 2 10 7 1 TH-42PZ700C PA-Board (2 of 2) Schematic Diagram TH-42PZ700C PA-Board (2 of 2) Schematic Diagram 77 15.9. G,GS 和 S 电路板方框图和线路图 D.SW W.P. + R V L Y C R V L Y C AE_SDCLK AE_SDDAT0 AE_SDDAT3 AE_SDDAT1 AE_SDCMD AE_SDDAT2 AE_SDDTC AE_SDCMD AH_SDCMD AE_SDDAT2 AE_SDDAT3 AH_SDDAT0 AH_SDDAT1 AH_SDDAT2 AH_SDDAT3 AH_SDWP AH_SDDAT1 AE_SDWP AH_SDCMD AH_SDCLK AE_SDWP AH_SDCLK AE_SDDAT1 AH_SDWP AE_SDDAT0 AH_SDDAT0 AH_SDDAT2 AH_SDDAT3 AE_SDCLK *R7744 100 *R7730 0 C7733 16V 0.1u *R7735 68 JK7702 1 2 3 4 5 6 7 8 9 10 11 12 *C7725 50V 33p *GS52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 C7738 4V 100u R7719 0 *R7725 0 *R7758 0 C7732 16V 0.1u *R7737 68 R7751 0 *C7724 50V 33p R7749 0 *R7752 0 *R7747 0 *R7723 0 *L7701 J0JCC0000143 *C7731 50V 33p *C7737 10u 6.3V *R7759 0 *R7738 68 *C7729 50V 33p *R7733 68 R7750 0 *R7755 0 *R7702 56 *R7731 0 *R7734 68 *L7702 ERJ6GEY0R00V *R7772 0 C7742 10u 6.3V D7700 B3AEB0000107 C7736 16V 0.1u ZA7701 K4AD01D00004 TP7702 TP7706 TP7707 TP7708 *L7706 ERJ3GEY0R00V D7700 R3751 R3767 R3754 R3766 6 5 7 3 W S 5 5 7 3 W S JK3701 C Y G CY-G G R2 R1 T NC SW R-SW R R-G L L-G V-SW V V-G R3758 SW3757 R3753 SW3753 SW3754 R3721 10k R3723 0 G51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 ZA3701 K4CZ01000027 1% R3767 3.16k R3724 0 R3711 0 FL3712 J0MAB0000199 1 2 3 4 C3701 560p 50V JS3704 0 C3715 16V 0.1u L3708 J0JCC0000100 SW3757 EVQPC105K FL3710 J0MAB0000199 1 2 3 4 JK3701C K4AK18B00001 C Y G CY-G G R2 R1 T NC SW R-SW R R-G L L-G V-SW V V-G JS3702 0 1% R3758 6.65k JS3708 0 R3755 0 C3750 1000p 50V R3710 0 C3712 50V 0.033u R3717 180k R3714 0 R3732 0 1% R3754 1.62k SW3753 EVQPC105K R3746 0 SW3755 EVQPC105K FL3711 J0MAB0000199 1 2 3 4 R3748 0 D3702 MAZ81400ML SW3756 EVQPC105K 1% R3751 14.3k R3709 0 R3722 0 L3707 J0JCC0000100 JS3705 0 C3711 50V 0.033u C3703 560p 50V R3768 0 SW3754 EVQPC105K 1% R3753 1.74k L3700 J0JCC0000364 R3716 180k 1% R3765 2.32k L3701 J0JCC0000364 R3725 0 JS3707 0 < < < < < < < < < SDDAT2 3.3V SDDAT1 GND GND SDCLK SDDAT0 SDDAT3 SDCMD SDDAT3 SDWP SDDAT0 SDDAT2 SDDAT1 3.3V GND SDCMD GND SDDTC SDCLK GND AG SDLED TO DG-BOARD (DG52) SD LED SUFFIX JW SD CARD SLOT 5 10 8 9 SDCMD 0 T A D D S 8 11 3 10 12 SD DATA3 1 SD DATA1 SDDAT2 7 SD CARD W.P +3.3V 2 1 +3.3V 12 SDDAT1 5 GS 52 SDDAT3 11 SDCLK SD CLOCK 4 9 SD DATA0 SD DATA2 JK7702 7 SD CARD SOCKET SD WP SD CMD SD DTC SD LED SD LED 13 GS SD CARD SLOT 5 2 4 1 C D 8 7 3 E 9 6 B A F GS-BOARD TNPA4143AG ! TO DG52 19 AV4/HP/KEY SW AV4 1 TO H51 HP_DET 15 KEY1 V_DET AV4_C TV/AV AV4_V 12 / + /- STR HPOUT_L HPOUT_R AV4_Y AV4_R AV4_L AV4_S F 3 8 10 2 9 7 G 17 HEAD PHONE G 51 4.GND AD -/ F KEY1 TNPA4262AD 14.GND +/ 17.AV4_Y 7.MAIN_L/HPOUT_L 8.AV4_R 10.AV4_L 12.AV4_S 2.V_DET 15.AV4_C 19.AV4_V 18.GND TV/AV SUFFIX JW 6.GND 5.HP_GND TO H-BOARD (H51) 9.MAIN_R/HPOUT_R 3.HP_DET 11.SUB_MONO 1.KEY1 13.HP_GND STR G-BOARD ! 20.GND 16.GND TH-42PZ700C G, GS and S-Board Block and Schematic Diagram TH-42PZ700C G, GS and S-Board Block and Schematic Diagram TO SS-BOARD (SS34) PUSH SW2500 K0F162B00002 C2502 1000p 50V S1 1 2 3 R2506 0 C2503 1000p 50V R2507 0 GND 12V STB_PS POWER SW ! S-BOARD TNPA4138AD ! 78 15.10.H 电路板 (1/2) 方框图 DRIVE IC VCC Vin GND COMPONENT COMPONENT AV1 AV1S AV2 AV3 AV2 AV3 PR PB Y PR V L C R R L Y R L V R V V L MONITOR OUT PB Y PC_B PC_H_IN PC_V SUB_Y_OUT PC_H RGB_CVBS SUB_PR_OUT AV1_Y PC_H_IN PC_V_IN PC_G AV1_L AV1_R AV2_L AV2_R AV3_L AV3_R PC_LIN PC_RIN AV4_R AV4_L TV_R TV_L AV_R AV_L SCL0B_5V SDA0B_5V AV1_S AV1_C AV4_V AV4_S AV4_Y PC_R PC_B PC_G PC_V_IN AV1_V AV2C_Y MAIN_Y_OUT MAIN_PB_OUT MAIN_PR_OUT SUB_PB_OUT MAIN_RF_CVBS VIDEO_STATUS SCL0B_5V SDA0B_5V TUNER_MAIN_ON AV1_V AV2C_Y A_AV2_R A_AV2_L A_AV1_RSW A_AV3_L A_AV1_L AV3_V A_AV1_R A_AV3_R AV2C_YSW AV3C_YSW AV1_S A_AV2_RSW AUDIOOUT_L AV1_Y AV3C_Y AV3C_PB AV3C_PR AV2_V AV2C_PB A_AV3_RSW AV1_C AV2C_PR MONI_MUTE AV2_V AV2C_YSW AV2C_PB AV2C_PR AV3C_Y AV3_V AV3C_YSW AV3C_PB AV3C_PR AV4_C SUB_RF_CVBS AUDIOOUT_R PC_R PC_RIN PC_LIN DTV9V Q2003 *D2025 Q2002 SUB3.3V JK2003 L L-G R R-G *JK3001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 DTV9V Q3031 Q3032 JK3100 Y-SW Y G PB PR V L R-SW R G Y-SW Y G PB PR V L R-SW R G C Y G Y-G C-G G V L R-SW R G V L R G AUDIO OUT B G PC IN HD R VD Video SW L8 17 13 L6 16 R6 R8 14 R7 L7 15 11 L5 R5 12 10 6 L3 7 R3 R12 41 L12 42 ROUT1 32 33 LOUT1 35 SDA SCL 36 IC3001 V7 91 Y4 3 S12 2 C4 5 V5 95 S13 96 Y5 97 C5 99 R4 75 B4 73 G4 71 HIN2 60 VIN2 58 V4 1 G5 77 V3 8 VOUT7 44 HOUT 42 VOUT 41 OUT1(CY) 40 OUT1(Pb) 39 OUT1(Pr) 38 36 OUT2(CY) 35 OUT2(Pb) 34 OUT2(Pr) VCC4 45 HVOE 43 VCC3 25 VCC2 6 69 VCC1 84 SDA SCL 83 FLAG 85 AV1 AV2 AV3 PC AV4 TV(MAIN) 5 VCC AUDIO SW IC2105 TV PC AV2 AV1 AV3 AV4 8 2 7 4 3 1 AV TERMINAL, H AV SWITCH,MSP 5 IIC0 IIC0 LP2 78 B5 79 R5 80 V2 14 67 LP3 19 B3 R3 65 G3 63 V8 87 TV(SUB) VOUT3 33 TH-42PZ700C H-Board (1 of 2) Block Diagram TH-42PZ700C H-Board (1 of 2) Block Diagram 79 15.11.H 电路板 (2/2) 方框图 DTV2_SDIN MAIN_PR_OUT MAIN_PB_OUT MAIN_Y_OUT SUB_PR_OUT SUB_Y_OUT SDA0B TUNER_MAIN_ON AUDIO_MUTE AUDIO_XRST SP_MUTE SOUND_SOS AFC1 TUNER_SUB_ON SCL0B AV_L DTV_BCLK DTV_SDIN DTV_LRCK DTV2_SDIN HDMI_SDIN HDMI_LRCK HDMI_BCLK SCL0B_5V RGB_CVBS SUB_PB_OUT TV_SUB_ON_DELAY FAN_CONT FAN_SOS KEY SPDIF_IN HDMI_INT2 VIDEO_STATUS SQ_L- SQ_L+ W_L+ W_L- SQ_R- SQ_R+ W_R+ W_R- WO_R+ WO_L+ SQ_R+ SQ_L+ SQ_L- WO_R- WO_L- AV_R SDA0B SCL0B DTV_LRCK DTV_BCLK DTV_SDIN HDMI_SDIN HDMI_LRCK HDMI_BCLK TV_R TV_L SQ_R- HP_LOUT HP_ROUT AUDIOOUT_R AUDIOOUT_L AMUTE SOUND_SOS SDA0B_5V AFC1 AUDIO_MUTE SOUND_SOS FB PC_H PC_V TV_SUB_ON_DELAY AV4_S AV4_C AV4_Y AV4_V KEY HP_LOUT HP_ROUT MAIN_RF_CVBS AUDIO_XRST AV4_L AV4_R SPDIF_IN FAN_SOS FAN_CONT SOS TUNER_SUB_ON TUNER_MAIN_ON GENX_RST SOS AMUTE MON_MUTE AUDIO_MUTE SP_MUTE HDMI_INT2 GENX_RST SDA0B SCL0B SCL0B_5V SDA0B_5V AFC2 SUB_RF_CVBS AFC2 SCL0B_5V SDA0B_5V MAIN9V Q2636 BT30V Q2635 D2632 Q2301 SUB5V D2635 SUB3.3V D2637 SOUND12V SOUND15V STB+5V Q2638 D2301 Q2637 D2633 IC2610 Q2639 DTV9V STB+5V SUB5V SOUND12V SOUND15V SOUND12V SOUND15V SUB3.3V DTV9V BT30V DTV9V D2636 Q2101 Q2102 MAIN9V D2303 D2304 MAIN9V SUB5V STB+5V SUB9V_H264 SOUND15V DTV9V SUB3.3V FHD9V SUB3.3V SUB5V Q3402 D3404 Q3401 STB+5V D3402 PA3401 D3401 SUB5V BT30V SUB5V MAIN_Y/CVBS/G PC_V RGB_FB SCL0B_3.3V SUB_PB/C SUB_PR SUB_Y/CVBS AUDIO_MUTE SOS VIDEO_STATUS AFC1 RGB_CVBS SP_MUTE SDA0B_3.3V PC_H SOUND PROCESSOR RESET MUTE(ES2-) DTV2_SDIN DTV_LRCK DTV_BCLK DTV_SDIN HDMI_SDIN HDMI_LRCK HDMI_BCLK SUB_3.3V SHORT DET To SOS SQ_L+ SQ_R+ SQ_R- SQ_L- W_R- W_L+ W_R+ W_L- MAIN_PB/C/B MAIN_PR/R AUDIO_XRST SOUND_SOS TUNER_MAIN_ON TUNER_SUB_ON FAN_CONT FAN_SOS KEY SPDIF_IN HDMI_INT2 OPERATE RESET AC_GOOD TV_SUB_ON_DELAY BT+30V DC-DC Q2631,Q2033-Q2035 MUTE SW MUTE DTV+9V Q2039-Q2042 MONITOR MUTE HDMI INT AUDIO MUTE SPEAKER STB+5V BT30V SHORT DET 3 5 7 10 12 14 16 19 21 23 28 30 32 33 34 35 38 39 41 48 49 51 52 54 56 58 60 62 64 66 68 70 72 74 79 AVR+3.3V IC2010 AUD3.3V IC2008 SOUND12V IC2303 3 AVR 1 AMP 36 31 +15V +12V AUDIO AMP 28 5 7 SOS RESET 39 AMP IC2301 8 6 18 16 17 RESET RESET 17 16 18 IC2302 AMP 36 31 +15V +12V AUDIO AMP 28 5 7 SOS RESET 39 AMP 6 8 AMP 5 2 6 7 L R 3 1 HPOUTR1 58 HPOUTL1 57 PWM4B 49 PWM4A 48 PWM3B 47 PWM3A 46 PWM2B 45 PWM2A 44 PWM1B 43 PWM1A 42 AINL1 78 AINR1 79 SIF_IN1 8 SDA 16 MUTE 15 SCL 17 LRCLK2 18 BCLK2 19 SDIN2 24 SDIN1 23 SDIN0 22 LRCLK0 26 BCLK0 27 AUXOUTL1 72 AUXOUTR1 73 AUXOUTR2 75 AUXOUTL2 74 IC2107 DVDD1.8VV 2 5 7 MUTE 1 3 HP AMP IC2012 Q2021 Q2015 SOS OPERATE AUDIO MUTE 8 5 9 13 14 16 15 18 20 21 11 BB +B SIF_OUT SCL SDA RF_AGC VB BTL AFT_OUT VIDEO_OUT Q3200 TUNER(MAIN) TU3200 1 2 4 5 4 3 2 1 H12 H11 Q2017 Q2016 1 3 5 AVR 1 AVR 7 5 AUD3.3V SIF3.3V DVDD1.8V 7 5 1 AVR IC2106 50 4 3 5 AVR5V IC2013 AVR 8 VCC SUB_3.3V OVER VOLTAGE SPDIF_IN 39 SPDIF_OUT 38 8 14 12 9 13 MAIN9V SUB3.3V SUB5V SUB3.3V SUB5V SUB5V 2 STB5V DTV9V 23 1 DTV9V 18 21 17 FHD9V FHD9V H2 10 8 15 17 19 1 H51 To G51 AV4_R AV4_C HP_L AV4_S AV4_V AV4_L KEY AV4_Y HP_R 9 7 12 IC2011 H6 TO DG6 AGC1 1 H15 TO DG2 7 8 1 4 3 2 AV TERMINAL, H AV SWITCH,MSP TO SPEAKER L TO SPEAKER R 5 DVDD3.3V SUB9V_H264 40 SUB9V MAIN9V 37 38 7 SUB9V SUB5V H3 39 STB5V 5 3 1 1 2 4 SUB9V_H264 +15V_S +15V_S SUB5V 36 +15V_S FAN_SOS 14 FAN_CONT 16 19 SOS TUNER_SUB_ON 20 TUNER_MAIN_ON 24 FHD9V 27 25 FHD9V GENX_RST 36 GENX_RST 7 SCLA SCLB 8 SDAB LEVEL CHANGE 5V<->3.3V VCCA 1 2 3 SDAA VCCB IC2601 8 TO PA3 AFT_OUT 11 BTL SCL Q3201 VIDEO_OUT TU3201 5 12 SDA VB +B 17 RF_AGC 10 14 TUNER(SUB) 9 16 IIC0 IIC0 IIC0 IIC0 IIC0 IIC0 AGC2 3 42 AFC2 TH-42PZ700C H-Board (2 of 2) Block Diagram TH-42PZ700C H-Board (2 of 2) Block Diagram 80 15.12.H 电路板 (1/5) 线路图 + + + + R L COMPONENT COMPONENT AV1 AV1S AV2 AV3 AV2 AV3 PR PB Y PR V L C R R L Y R L V R V V L MONITOR OUT PB Y AV_L AV3_R SDA0B_5V SCL0B_5V AV4_L AV2_R AV1_R AV3_L AV1_L AV2_L AV4_R AV_R PC_RIN PC_LIN TV_L TV_R PC_B DAC_PD PC_H_IN PC_V_IN PC_G PC_R PC_LIN PC_RIN A_AV1_R AV1_V AV1_S A_AV2_RSW AV3C_YSW A_AV3_RSW AV3C_PR A_AV1_R AV2_V AV1_C AV1_Y A_AV1_L A_AV2_R A_LOUT A_AV2_L A_AV2_L A_AV1_RSW AV2C_YSW AV3C_Y A_VOUT AV2C_PB A_AV3_L A_AV2_RSW A_AV1_RSW A_AV1_V A_AV1_L AV3C_PB A_AV2_R AV3_V A_AV3_R AV2C_PR A_ROUT A_AV3_R A_AV3_RSW A_LOUT AV2C_Y A_ROUT MONITOROUT_MUTE AV3_R VOUT AV2_L AV2_R AV1_L AV1_R AUDIOOUT_L AUDIOOUT_R VOUT_FEED_B TUNER_MAIN_ON HV/FB_CONT AV3_L A_AV3_L C2166 16V 1u C2013 50V 560p C2135 16V 1u C2164 16V 1u C2167 16V 1u C2014 50V 560p C2016 50V 560p C3120 50V 0.1u C2163 16V 1u *C3100 10V 1u C2136 16V 1u C2165 16V 1u *C2157 16V 1u C2154 50V 0.1u C3060 16V 1u C2021 560p 50V *C3102 10V 1u *C2155 16V 1u C2005 50V 560p C2160 16V 1u C2017 50V 560p C2162 16V 1u C2010 50V 560p C2006 50V 560p C2159 16V 1u C2022 560p 50V C2011 50V 560p *C3101 10V 1u C3070 6.3V 220u C3119 10u 16V C2161 16V 100u C2147 16V 22u *D3338 MA2J11100L *D3334 MA2J11100L *D3335 MA2J11100L *D3337 MA2J11100L *D3336 MA2J11100L *D3102 MA2J11100L D3046 MAZ81400ML D3037 MAZ81400ML D3049 MAZ81400ML D3003 MAZ81400ML D3035 MAZ81400ML D3038 MAZ81400ML D3006 MAZ81400ML D3048 MAZ81400ML D3036 MAZ81400ML D3040 MAZ81400ML D3047 MAZ81400ML D3005 MAZ81400ML D3100 MAZ81400ML D3045 MAZ81400ML D3039 MAZ81400ML D2119 B0BC01100001 *FL3005 J0HABB000004 1 2 3 4 *FL3004 J0HABB000004 1 2 3 4 *FL3003 J0HABB000004 1 2 3 4 *FL3002 J0HABB000003 1 2 3 4 *FL3001 J0HABB000003 1 2 3 4 FL2002 J0HABB000004 1 2 3 4 FL2001 J0HABB000004 1 2 3 4 AN15862A-VT IC2105 1 L1 2 R1 3 L2 4 R2 5 VCC 6 L3 7 R3 8 L4 9 R4 10 L5 11 R5 12 L6 13 R6 14 L7 15 R7 16 L8 17 R8 18 L9 19 R9 20 L10 21 R10 22 O1 23 LOUT5 24 ROUT5 25 LOUT4 26 ROUT4 27 LOUT3 28 ROUT3 29 GND 30 LOUT2 31 ROUT2 32 LOUT1 33 ROUT1 34 ADR 35 SCL 36 SDA 37 O2 38 BIAS 39 L11 40 R11 41 L12 42 R12 43 L13 44 R13 JK2003 K2HA204A0053 L L-G R R-G JK3100 K1U936A00002 Y-SW Y G PB PR V L R-SW R G Y-SW Y G PB PR V L R-SW R G C Y G Y-G C-G G V L R-SW R G V L R G *JK3001 K1FB315A0006 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 L2003 J0JCC0000100 L3013 J0JCC0000100 L3003 J0JCC0000100 L2012 J0JCC0000100 L2001 J0JCC0000364 L3010 J0JCC0000100 L2002 J0JCC0000364 L3002 J0JCC0000100 L2011 J0JCC0000100 L2015 J0JCC0000100 L3001 J0JCC0000100 L2016 J0JCC0000100 L2004 J0JCC0000100 L2008 J0JCC0000100 L2007 J0JCC0000100 SUB9V_PRCT SUB5V DTV9V DTV9V SUB9V_PRCT SUB9V_VIDEO Q2002 2SC584500L Q3032 2SC584500L Q2003 2SC584500L Q3031 2SC584500L JS2033 JS2032 JS2031 JS3013 0 JS3010 0 JS3012 0 JS3011 0 JS3014 0 JS3015 0 R2050 2.2k R2053 100k 1% R3005 75 1% R3008 75 R3020 4.7k 1% R3004 75 1% *R3318 75 R2034 180k *R3306 4.7k *R2160 220 1% R3003 75 R3188 0 10k R3177 R2031 180k R3130 220 R2173 220 R2137 220 10k R3113 R2052 180k 1% *R3310 75 R2054 100k R2132 47k R2030 180k R3021 4.7k R2167 220 R2172 220 R2195 100k 1% R3006 75 R2174 220 R3022 4.7k 1% *R3313 75 1% R3001 75 R2154 22 1% *R3143 69.8 R2175 220 R2196 100k *R2162 220 R3131 220 R2047 330 *R3309 0 1% R3002 75 R2152 22 R2138 220 R2170 220 R2029 180k R2048 2.2k 1% R3007 75 1% R3012 75 R2235 47k R3145 100k R2164 220 10k R3107 1% R3009 75 *R3308 0 R2033 180k 1% R3010 75 R2171 220 R2032 180k R2051 180k *R3307 4.7k R2049 330 B G PC IN R Audio SW AV3 E 8 9 1 2 5 4 D 3 F A 6 C 7 B 2 3 1 H-BOARD (1/5) ! TNPA4279AC AUDIO IN TH-42PZ700C H-Board (1 of 5) Schematic Diagram TH-42PZ700C H-Board (1 of 5) Schematic Diagram 81 15.13.H 电路板 (2/5) 线路图 + + + RGB_CVBS MAIN_RGB_CVBS_OUT AV2C_Y AV2C_PB AV2C_PR MAIN_RF_CVBS MAIN_RF_GND PC_H PC_V SUB_PB_OUT AV4_VGND AV4_YGND AV3C_PB PC_G PC_R PC_B AV4_V AV4_Y AV4_S AV4_CGND SUB_TNR_SW1 SUB_Y_OUT MAIN_RGB_CVBS_OUT MAIN_Y_OUT MAIN_PB_OUT MAIN_PR_OUT SUB_PR_OUT VIDEO_STATUS SDA0B_5V AV1_Y AV2_V AV3_V AV3C_Y AV3C_PR SUB_RF_GND AV1_V AV1_S AV1_C AV3C_YSW AV2C_YSW MAIN_TNR_SW1 MAIN_TNR_SW2 SUB_TNR_SW2 MAIN_Y/CBVS/G MAIN_Y_OUT MAIN_PB/C/B MAIN_PB_OUT MAIN_PR/R MAIN_PR_OUT SUB_Y SUB_PB_OUT SUB_PB SUB_PR SUB_PR_OUT SUB_RF_CVBS SCL0B_5V PC_H_IN PC_V_IN VOUT_FEED_B VOUT HV/FB_CONT AV4_C SUB_Y_OUT P_AVSW9V P_AVSW9V2 C3033 10V 1u *C3028 10V 1u C3040 50V 0.1u C3055 10V 1u *C3031 50V 0.1u C3078 6.3V 22u C3062 16V 1u *C3106 10V 1u C3024 10V 1u C3023 10V 1u *C3029 16V 1u C3054 10V 1u C3117 50V 0.1u C3115 50V 0.1u C3051 10V 1u C3056 10V 1u *C3027 10V 1u C3116 50V 0.1u C3043 10V 1u C3026 50V 0.1u C3053 10V 1u C3064 16V 1u C3063 16V 1u C3021 10V 1u C3052 10V 1u C3059 16V 1u C3075 16V 220u C3103 16V 10u C3118 16V 47u *D3041 MAZ81400ML *D3043 MAZ81400ML D3044 B0BC01100001 *D3042 MAZ81400ML AN15876A-VT IC3001 1 V4 2 S12 3 Y4 4 S22 5 C4 6 VCC2 7 LP5 8 V3 9 O3 10 Y3 11 GND2 12 C3 13 LP4 14 V2 15 S11 16 Y2 17 S21 18 C2 19 LP3 20 V1 21 O2 22 Y1 23 O1 24 C1 25 VCC3 26 VOUT6 27 DCOUT 28 VOUT5FB 29 VOUT5 30 VOUT4FB 31 VOUT4 32 VOUT3FB 33 VOUT3 34 OUT2(Pr) 35 OUT2(Pb) 36 OUT2(CY) 37 GND3 38 OUT1(Pr) 39 OUT1(Pb) 40 OUT1(CY) 41 VOUT 42 HOUT 43 HVOE 44 VOUT7 45 VCC4 46 FBLOUT 47 FBL3 48 FBL2 49 FBL1 50 FBLOE 51 G1 52 VIN1 53 B1 54 HIN1 55 R1 56 GND4 57 G2 58 VIN2 59 B2 60 HIN2 61 R2 62 NC 63 G3 64 TEST 65 B3 66 NC 67 R3 68 NC 69 VCC1 70 NC 71 G4 72 LP1 73 B4 74 L31 75 R4 76 NC 77 G5 78 LP2 79 B5 80 L32 81 R5 82 GND1 83 SDA 84 SCL 85 FLAG 86 BIAS 87 V9 88 NC 89 V8 90 NC 91 V7 92 O4 93 V6 94 LP7 95 V5 96 S13 97 Y5 98 S23 99 C5 100 LP6 R3109 J0JGC0000021 R3103 J0JGC0000021 SUB9V_VIDEO DTV9V SUB9V_VIDEO JS3024 JS3023 JS3032 R3168 220 *R3349 68 R3111 22 R3089 330 R3065 220 1% *R3234 75 R3096 68 R3222 0 R3140 47 R3123 47 R3074 220 R3097 68 R3191 22 *R3086 220 R3133 22 R3121 47 R3087 220 R3098 68 *R3174 68 R3045 0 *R3062 220 100 R3180 *R3073 220 1% *R3119 100 *R3105 22 1% R3137 100 *R3068 75 1% *R3120 22 R3099 68 R3064 220 1% *R3135 100 *R3175 68 *R3348 68 *R3072 220 *R3112 22 R3044 0 R3090 22 1% *R3233 75 R3059 220 *R3302 100 R3069 220 *R3305 100 R3110 0 *R3176 68 R3101 68 *R3063 220 R3100 68 Video SW 11 18 14 16 17 10 13 12 15 1 2 3 12 14 13 11 TH-42PZ700C H-Board (2 of 5) Schematic Diagram TH-42PZ700C H-Board (2 of 5) Schematic Diagram H-BOARD (2/5) ! TNPA4279AC 82 15.14.H 电路板 (3/5) 线路图 + + + + + + + + + + + + + + + + + + + + + DRIVE IC VCC Vin GND WO_R+ SUB3.3V DTV_LRCK SQ_L+ SQ_R+ WO_L- WO_L+ SQ_R- SQ_L- WO_R- DTV_BCLK TV_R AUDIOOUT_R AUDIOOUT_L AV_R HDMI_SDIN HDMI_BCLK HDMI_LRCK DTV2_SDIN SOUND_SOS AUDIO_MUTE SPDIF_OUT DAC_PD TV_L AV_L SPDIF_OUT DTV_SDIN HP_ROUT HP_LOUT AGC1 SIF1 AFC1 SDA0B_5V SCL0B_5V AGC2 AGC1 MAIN_RF_CVBS MAIN_RF_GND SCL0B_5V SDA0B_5V AGC2 SUB_RF_CVBS AFC2 SUB_TNR_SW2 SUB_TNR_SW1 MAIN_TNR_SW1 MAIN_TNR_SW2 SPDIF_IN SDA0B SCL0B PWM_SQ_L+ PWM_SQ_L- WO_R+ WO_R- PWM_W_L+ PWM_W_L- SQ_L+ SQ_L- PWM_SQ_R+ SQ_R+ PWM_W_R+ SQ_R- WO_L+ PWM_W_R- WO_L- PWM_SQ_R- SUB_RF_GND AUDIO_XRST AMUTE *C3292 50V 100p *C2270 470p 50V C2114 0.1u 50V *C2202 2.2u 6.3V C2117 0.1u 50V C2118 1u 10V C2213 1000p 50V C2058 0.1u 50V C3279 16V 0.1u C2146 50V 180p *C3296 50V 0.1u C2189 1u 10V C2110 0.1u 50V *C2184 50V 1000p C2266 100p 50V C2101 10u 10V C2124 0.1u 50V *C3299 16V 0.1u C2138 0.1u 50V *C2204 1u 16V C2111 2.2u 6.3V C2263 10u 10V *C2197 25V 0.033u C2281 560p 50V C2056 12p 50V C2057 0.1u 50V C3275 16V 0.1u C2143 50V 180p *C2271 470p 50V C2289 10u 10V C2089 560p 50V *C2203 1u 10V C2106 0.1u 50V C2191 10u 10V C2265 100p 50V C2052 0.1u 50V C2272 4.7u 16V C2053 0.1u 50V C2171 0.01u 50V *C2198 25V 0.033u C2280 4.7u 10V C2097 50V 0.1u *C2180 1u 10V C2188 470p 50V *C3202 0.47u 50V C2245 1000p 50V C3276 16V 0.1u *C2195 50V 1000p *C2176 50V 0.01u C2100 0.1u 50V C2131 50V 0.1u C2244 0.1u 50V C2096 50V 0.1u *C3291 16V 0.1u C2186 0.1u 50V C3281 16V 0.1u C2153 50V 33p *C2174 1u 10V C2055 12p 50V C2049 0.1u 50V C2173 4.7u 16V C2170 50V 33p C2187 2.2u 6.3V C2105 0.1u 50V C2116 470p 50V C2121 56p 50V C2288 10u 10V C2128 50V 0.1u C2109 0.1u 50V C2216 0.1u 50V C2050 0.1u 50V *C3286 16V 0.1u C2048 0.1u 50V C2134 50V 0.01u *C3274 16V 0.1u C2120 56p 50V C2264 10u 10V C2091 50V 10p *C3305 16V 0.1u C2251 10u 10V C2102 0.1u 50V C3280 50V 100p C2092 50V 22p C2185 10u 10V C2268 100p 50V C2190 10u 10V C2088 4.7u 10V C2054 10u 10V C2130 6.3V 10u C2183 10u 10V C2126 10u 10V C2115 0.1u 50V C2246 10u 10V C3272 50V 0.1u *C3308 16V 0.1u C2267 100p 50V C2023 0.1u 50V *C3300 6.3V 100u C2151 47u 6.3V C2059 47u 6.3V *C2099 6.3V 220u C3273 10u 50V C3271 10u 16V C2108 47u 6.3V *C3298 22u 35V C2192 47u 6.3V C3270 6.3V 1000u *C2098 6.3V 220u *C2175 16V 47u C2107 47u 6.3V C2113 47u 6.3V *C3081 6.3V 100u C2133 50V 4.7u *C3293 10u 16V *C3285 6.3V 1000u C2137 47u 6.3V C2112 47u 6.3V *C2179 16V 47u D2189 MA2J11100L D2025 K7AAAY000003 C0DBGYY00281 *IC2013 1 NC 2 VSS 3 CE 5 VOUT 4 VIN C0CBCBC00190 IC2010 1 VDD 2 GND 3 CE 5 VOUT 4 NC *IC2012 C1BB00000947 1 OUT1 2 MUTE 3 IN1 4 GND 5 IN2 6 BIAS 7 OUT2 8 VCC IC2011 C0ABBB000230 1 2 3 4 5 6 7 8 C0CBCBE00001 IC2008 1 VOUT 2 NC 3 GND 4 CNCONT 5 SUB 6 VIN 7 C0DBFFD00003 IC2107 1 2 3 4 5 6 7 C1AB00002746 IC2106 1 FILTA 2 VREF 3 AGND 4 AVDD 5 SIF_REEP 6 SIF_REFCM 7 SIF_REFN 8 SIF_IN1 9 SIF_PGA_REF 10 SIF_IN2 11 AGND 12 AVDD 13 DGND 14 DVDD 15 MUTE 16 SDA 17 SCL 18 LRCLK2 19 BCLK2 20 DGND 21 DVDD 22 SDIN0 23 SDIN1 24 SDIN2 25 SDIN3 26 LRCLK0 27 BCLK0 28 ODGND 29 ODVDD 30 VDRIVE 31 DVDD 32 DGND 33 MCLKI/XIN 34 XOUT 35 BCLK1 36 LRCLK1 37 SDO0 38 SPDIF_OUT 39 SPDIF_IN 40 DVDD 41 DGND 42 PWM1A 43 PWM1B 44 PWM2A 45 PWM2B 46 PWM3A 47 PWM3B 48 PWM4A 49 PWM4B 50 RESET 51 DVDD 52 DGND 53 AVDD 54 PLL_LF 55 AGND 56 AGND 57 HPOUTL1 58 HPOUTR1 59 AVDD 60 NC 61 NC 62 NC 63 NC 64 NC 65 NC 66 VOUT_SW 67 FILTD 68 AVDD 69 AGND 70 AGND 71 AVDD 72 AUXOUTL1 73 AUXOUTR1 74 AUXOUTL2 75 AUXOUTR2 76 AINL2 77 AINR2 78 AINL1 79 AINR1 80 ISET *H15 1 2 3 4 L3207 J0JCC0000241 L3226 J0JCC0000241 L2040 J0JHC0000045 *L2034 J0JCC0000364 *L3224 J0JCC0000241 *L3219 J0JCC0000241 *L3208 J0JCC0000241 *L3223 J0JCC0000241 L3225 J0JCC0000241 *L3220 J0JCC0000241 *L3222 J0JGC0000021 L2027 J0JHC0000045 *L3227 J0JGC0000021 L3209 J0JGC0000021 L3206 J0JCC0000241 L2021 J0JHC0000078 L2029 J0JCC0000077 L3211 J0JGC0000021 L2039 J0JHC0000045 *L2035 J0JCC0000364 L2026 G1C6R8MA0061 DVDD1.8V MAIN9V SUB5V SUB5V DTV9V BT30V DTV9V SUB3.3V DVDD1.8V SUB5V SUB5V SUB5V DVDD3.3V SUB3.3V SUB3.3V BT30V AUD3.3V DVDD3.3V Q2017 2SC584500L Q2016 2SC584500L Q2102 2SC584500L Q2101 2SC584500L Q2015 2SA207700L Q3200 2SA207700L *Q3201 2SA207700L Q2021 2SA207700L *R2271 22 EXB28V220JX *R2270 22 EXB28V220JX JS2096 JS3206 0 *JS3209 0 JS3208 0 *R2237 1k *R3254 0 R3247 220 1% R2113 120k 1% R2181 22k R2097 3.3k *R2186 82k *R2185 100 *R3255 220 *R3251 1.5k 20k 1% R2151 300 R2058 20k 1% R2145 R3266 1.5k R2092 470 0 R2257 1% R2183 36k 10k R2276 20k 1% R2100 *R2233 10k R2266 560 R2189 10k R2086 470 R2296 0 R3249 1.5k *R2098 10k 1% R2166 16k 22 R2057 *R3260 560 1% 2k 1% R2104 1% R2197 68k 1% R2182 36k R2265 4.7k *R2184 100 R2209 10k 1M R2059 R3244 0 R2094 2.2k 1M R2112 R2210 10k 1% R2168 16k R2165 10k R2084 4.7k *R3250 1.5k R3240 560 1% *R3259 220 R2223 0 R2089 560 *R3206 100 R2294 0 *R2180 1k 22 R2056 R3202 0 1% R2114 75k *R2178 1k R2297 0 *R3252 270 1% R2198 158k *R3256 100 *R2099 10k 2.2k R2125 20k 1% R2146 R3205 0 1% R2169 22k *R2192 100k R2088 100 100 R2111 R2096 10k R2085 560 *R3216 0 *R2236 1k *R3253 0 R2106 0 *R2179 10k 0 *R2116 R3246 0 R2291 0 0 *R2117 R2263 0 R2149 10k 20k 1% R2150 *R2187 0 R3239 220 *R3215 0 R3243 270 R2290 0 10k R2110 R2295 0 *R2193 100k R2093 3.3k *L2022 0 *TU3201 ENG39D01GF NC 1 NC 2 SW1 3 SW2 4 +B 5 NC 6 NC 7 NC 8 SCL 9 SDA 10 RF_AGC 11 VB 12 NC 13 BTL 14 NC 15 AFT_OUT 16 VIDEO_OUT 17 *TU3200 ENGF9701GF BB 5 NC 6 SW1 7 SW2 8 +B 9 AUDIO_OUT 10 SIF_OUT 11 NC 12 SCL 13 SDA 14 RF_AGC 15 VB 16 NC 17 BTL 18 NC 19 AFT_OUT 20 VIDEO_OUT 21 H0J245500082 X2010 - R L + - + MUTE(ES2-) HP AMP AMP 5V 3.3V AUD3.3V DVDD1.8V SOUND PROCESSOR 26 20 27 22 21 19 23 24 25 14 13 11 12 21 25 24 26 23 22 ! TH-42PZ700C H-Board (3 of 5) Schematic Diagram TH-42PZ700C H-Board (3 of 5) Schematic Diagram 47k R2238 H-BOARD (3/5) ! TNPA4279AC 83 15.15.H 电路板 (4/5) 线路图 + + + + 12V_SOUND 15V_SOUND PWM_SQ_R+ PWM_SQ_R- PWM_W_L- PWM_W_L+ AMUTE SOUND_SOS MONITOROUT_MUTE AUDIO_MUTE HDMI_INT2 SP_MUTE GENX_RST PWM_SQ_L+ PWM_SQ_L- PWM_W_R+ PWM_W_R- AMUTE *C2364 50V 0.1u *C2314 50V 0.1u C2375 50V 0.022u *C2382 50V 0.022u *C2354 50V 0.1u *C2330 50V 0.1u C2331 50V 0.47u *C2380 50V 0.022u C2301 16V 0.1u C2325 50V 0.47u C2307 25V 1u C2387 50V 1000p C2345 50V 0.022u C2359 50V 0.1u *C2334 50V 0.1u *C2342 50V 0.1u *C2360 50V 0.1u *C2340 50V 0.022u C2303 25V 1u *C2310 25V 1u C2347 50V 0.022u *C2384 50V 1000p *C2308 25V 1u C2381 50V 0.022u *C2378 50V 0.022u C2352 16V 1u C2313 50V 0.1u C2317 0.033u 25V *C2348 50V 0.022u *C2318 0.033u 25V *C2311 50V 0.1u C2383 50V 1000p *C2363 50V 0.1u C2341 50V 0.1u C2309 25V 1u C2389 50V 1000p *C2390 50V 1000p *C2338 50V 0.022u *C2312 50V 0.1u C2377 50V 0.022u C2349 50V 0.1u *C2316 50V 0.1u *C2376 50V 0.022u C2305 25V 1u C2319 0.033u 25V C2355 50V 0.1u C2379 50V 0.022u *C2356 50V 0.1u *C2326 50V 0.47u *C2324 0.033u 25V C2335 50V 0.1u *C2306 25V 1u C2343 50V 0.1u *C2322 0.033u 25V *C2328 50V 0.1u *C2358 50V 0.1u C2333 50V 0.1u *C2304 25V 1u C2321 0.033u 25V C2353 50V 0.1u *C2329 50V 0.1u *C2344 50V 0.1u *C2315 50V 0.1u C2337 50V 0.022u *C2388 50V 1000p *C2386 50V 1000p C2339 50V 0.022u *C2327 50V 0.1u *C2332 50V 0.47u C2357 50V 0.1u *C2336 50V 0.1u *C2346 50V 0.022u C2302 16V 0.1u *C2320 0.033u 25V C2385 50V 1000p C2323 0.033u 25V C2119 10V 220u C2361 25V 470u C2365 220u 16V *C2362 25V 470u D2032 MA2J11100L D2026 MA2J11100L D2301 MA2J11100L D2033 MA2J11100L D2028 MA2J11100L D2029 MA2J11100L D2034 MA2J11100L D2304 MA2J11100L D2302 MA2J11100L D2031 MA2J11100L D2303 MAZ30560HL C1AB00002730 *IC2302 1 GVDD_B 44 GVDD_A 2 OTW 3 NC 4 NC 5 SD 6 PWM_A 7 RESET_AB 8 PWM_B 9 OC_ACJ 10 GND 11 AGND 12 VREG 13 M3 14 M2 15 M1 16 PWM_C 17 RESET_CD 18 PWM_D 19 NC 20 NC 21 VDD 22 GVDD_C 23 GVDD_D 24 BST_D 25 NC 26 PVDD_D 27 PVDD_D 28 OUT_D 29 GND_D 30 GND_C 31 OUT_C 32 PVDD_C 33 BST_C 34 BST_B 35 PVDD_B 36 OUT_B 37 GND_B 38 GND_A 39 OUT_A 40 PVDD_A 41 PVDD_A 42 NC 43 BST_A C1AB00002730 *IC2301 1 GVDD_B 44 GVDD_A 2 OTW 3 NC 4 NC 5 SD 6 PWM_A 7 RESET_AB 8 PWM_B 9 OC_ACJ 10 GND 11 AGND 12 VREG 13 M3 14 M2 15 M1 16 PWM_C 17 RESET_CD 18 PWM_D 19 NC 20 NC 21 VDD 22 GVDD_C 23 GVDD_D 24 BST_D 25 NC 26 PVDD_D 27 PVDD_D 28 OUT_D 29 GND_D 30 GND_C 31 OUT_C 32 PVDD_C 33 BST_C 34 BST_B 35 PVDD_B 36 OUT_B 37 GND_B 38 GND_A 39 OUT_A 40 PVDD_A 41 PVDD_A 42 NC 43 BST_A C0DBGYY00202 IC2303 VIN 3 2 VSS VOUT 1 H12 1 2 3 4 *H11 1 2 3 4 5 *L2309 J0JJC0000011 L2308 J0JJC0000011 L2310 J0JJC0000011 L2304 G1C330MA0291 L2307 G1C330MA0291 L2301 G1C330MA0291 L2303 G1C330MA0291 L2305 G1C330MA0291 L2306 G1C330MA0291 L2302 G1C330MA0291 L2300 G1C330MA0291 MAIN9V DTV9V SOUND12V MAIN9V SOUND15V SOUND15V STB+5V STB+5V ZA3008 K4CD08000002 ZA3001 K4CD08000002 ZA3003 K4CD08000002 ZA3006 K4CD08000002 ZA3007 K4CD08000002 ZA3005 K4CD08000002 ZA3002 K4CD08000002 ZA3004 K4CD08000002 *TP2308 TP2303 TP2302 TP2301 TP2310 *TP2306 *TP2309 TP2307 TP2305 *TP2304 Q2040 2SC584500L Q2034 2SC584500L Q2035 2SC584500L Q2042 2SC584500L Q2039 2SC584500L Q2031 2SA207700L Q2301 2SA207700L Q2033 2SA207700L *JS2300 *JS2301 R2325 10 *R2320 10 R2218 1k R2319 10 R2302 2.2k R2217 47k R2128 47k R2313 3.3 R2118 1M *R2309 3.3 R2311 3.3 *R2314 3.3 R2119 10k *R2318 10 R2216 10k R2122 10k R2144 10k R2156 330 R2124 10k R2305 470 R2323 10 R2194 1k R2129 10k *R2324 10 R2123 47k R2220 12k R2143 10k R2321 10 R2208 10k *R2307 68k *R2316 3.3 R2205 20k R2308 3.3 R2306 68k R2131 10k R2317 10 R2315 3.3 R2301 2.2k R2206 10k *R2322 10 R2330 1k R2127 10k *R2326 10 *R2312 3.3 R2331 2.2k Q2041 2SC584500L SQ_L+ SQ_R+ SQ_R- SQ_L- W_R- W_L+ W_R+ NC W_L- OPERATE RESET SOS OPERATE OPERATE RESET SOS OPERATE MUTE MUTE SW OPERATE MUTE MUTE MUTE MUTE MUTE MUTE TO SPEAKER R TO SPEAKER L 15V AUDIO AMP AUDIO AMP 30 32 29 28 34 33 31 35 36 22 21 24 25 26 23 31 33 34 32 35 TH-42PZ700C H-Board (4 of 5) Schematic Diagram TH-42PZ700C H-Board (4 of 5) Schematic Diagram H-BOARD (4/5) ! TNPA4279AC 84 15.16.H 电路板 (5/5) 线路图 + + AV4_YGND AV4_CGND AV4_VGND HDMI_INT2 MAIN_PR/R MAIN_PB/C/B MAIN_Y/CBVS/G RGB_CVBS PC_H PC_V SUB_PR SUB_PB SUB_Y SDA0B TUNER_MAIN_ON AUDIO_MUTE AUDIO_XRST SP_MUTE SOUND_SOS AFC1 SOS TUNER_SUB_ON GENX_RST 24V_DET KEY SCL0B FAN_SOS AFC2 FAN_CONT SCL0B VIDEO_STATUS SDA0B SOS TV_SUB_ON_DELAY DTV_BCLK DTV_SDIN DTV_LRCK DTV2_SDIN HDMI_SDIN HDMI_LRCK SPDIF_IN KEY AV4_R HP_ROUT AV4_L AV4_S AV4_C AV4_V AV4_Y TV_SUB_ON_DELAY FAN_SOS FAN_CONT SOS TUNER_SUB_ON TUNER_MAIN_ON 24V_DET SDA0B_5V HP_LOUT HDMI_BCLK SCL0B_5V C3227 50V 0.1u C2814 4700p 50V C3228 50V 0.1u C2802 0.47u 50V *C2807 0.47u 50V C3265 50V 0.1u C3230 50V 0.1u C3216 50V 0.1u C2817 50V 1000p C2813 50V 0.1u *C2805 0.47u 50V C3267 50V 0.1u C2601 50V 0.1u C2602 50V 0.1u C3263 50V 0.1u C3266 50V 0.1u C3401 16V 0.1u C3226 50V 0.1u *C2804 10u 16V C3214 50V 0.1u C2801 10u 16V *C2806 0.47u 50V C2803 0.47u 50V C3201 50V 0.1u C2815 50V 0.1u C2819 25V 47u C2816 35V 22u D2633 MA2J11100L D3405 B0JCCE000008 D2632 MA2J11100L D3401 MA2J72900L D3402 MA2J72900L D2635 MA2J11100L D2637 MA2J11100L D2634 MA3X78900L D2638 B0BC03900015 D2636 MAZ30470HL *FL2006 J0HABB000003 1 2 3 4 *FL2005 J0HABB000003 1 2 3 4 *FL2004 J0HABB000003 1 2 3 4 *FL2003 J0HABB000003 1 2 3 4 *FL3008 J0HABB000003 1 2 3 4 *FL3006 J0JAD0000028 < 1 2 3 4 *FL3007 J0JAD0000028 < 1 2 3 4 C0DBAJB00004 IC2610 1 VOUT 2 VDD 3 NC 5 EXT 4 VSS IC2601 C0JBAU000034 1 VCCA 2 SCLA 3 SDAA 4 GND 5 EN 6 SDAB 7 SCLB 8 VCCB *H51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 H3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 H2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 H6 K1KB80AA0218 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 L2650 G1C3R3ZA0083 L2648 G1C470MA0077 L2649 G1C100MA0072 SUB3.3V SUB9V_H264 MAIN9V STB+5V P12V SOUND15V DTV9V SUB5V SUB5V DTV9V SUB3.3V SUB5V MAIN9V DTV9V STB+5V STB+5V LCD3.3V BT30V SUB5V SUB3.3V LCD3.3V PA3401 K5H8012A0023 TP2606 TP2609 TP2611 TP2015 TP2012 TP2014 TP2608 TP2612 TP2617 TP2016 TP2610 TP2607 Q2639 B1CFNG000001 Q3401 2SC584500L Q2638 2SC584500L Q2635 2SC584500L Q3402 2SC584500L Q2636 2SA207700L Q2637 2SA207700L JS2049 JS2059 *JS3001 JS2060 *JS2101 0 JS3213 0 JS2064 JS2061 JS2062 JS2048 JS2051 JS2046 1% R2867 82k R2230 0 R2229 0 R2856 0 R2861 1k R2865 10k R3405 15k R2854 2.2k R2232 0 R2228 0 R2225 0 R2857 4.7k R2869 4.7k R2231 0 *R3228 0 *R3229 0 *R3236 0 *L2647 0 R2629 7.5k R2890 100k R3350 0 R2855 47k R3402 47k R2227 0 R2624 22 *R3237 0 R2860 10k R2863 1k R2628 7.5k 1% R2868 16k R3403 10k R2602 0 R2858 2.2k R2224 0 R2603 0 *R3227 0 R2625 22 *R3238 0 R3401 100k R3404 47k R2859 4.7k R2601 0 R2853 10k R2864 1k R2866 2.2k MAIN_Y/CVBS/G GND PC_V GND NC(RGB_FB) SCL0B_3.3V SUB_PB/C GND GND ALL_OFF GND GND GND SUB_PR SUB_Y/CVBS AUDIO_MUTE AC SOS GND GND GND GND GND VIDEO_STATUS TV_SUB_ON_DELAY GND GND AFC1 RGB_CVBS GND GND NC(QLINK_AV2) NC(QLINK_AV3) SUFFIX JW GND GND SP_MUTE SDA0B_3.3V GND GND GND GND GND PC_H GND DTV2_SDIN DTV_LRCK DTV_BCLK DTV_SDIN HDMI_SDIN HDMI_LRCK HDMI_BCLK ECO_ON GND GND GND GND GND GND GND MAIN_PB/C/B MAIN_PR/R GND DVB_CVBS AUDIO_XRST GENX_RST SOUND_SOS AFC2 TUNER_MAIN_ON TUNER_SUB_ON SPDIF_IN GND GND GND HDMI_INT2 GND TO G-BOARD (G51) TO DG-BOARD (DG2) FAN_CONT FAN_SOS KEY PANEL_STBY_ON GND DTV9V STB5V SUB5V SUB5V SUB3.3V GND SUB5V GND GND GND GND NC GND DTV9V GND FHD9V SUB3.3V GND FHD9V GND NC MAIN9V GND HP_R AV4_R AV4_C AV4_L NC NC GND GND GND NC HP_L GND HP_GND AV4_S HP_GND AV4_V GND GND KEY AV4_Y PDP AC_GOOD AC_GOOD MAIN_9V SUB5V GND SUB5V SUB9V GND SUB9V GND GND GND GND FAN_SOS GND FAN_CONT GND GND SOS S_15V H_9V S_15V H_9V S_15V Tuner_sub_on GND GND GND TunerMain_on FHD_9V GND FHD_9V GND GND GND_CP STB_5V1 GND_CP GND GND_CP GND GND NC TO DG-BOARD (DG6) TO PA-BOARD (PA3) LEVEL SHIFT 5V<->3.3V BT30V 44 39 42 41 45 37 40 43 38 35 34 33 32 31 TH-42PZ700C H-Board (5 of 5) Schematic Diagram TH-42PZ700C H-Board (5 of 5) Schematic Diagram H-BOARD (5/5) ! TNPA4279AC 85 15.17.GH 和 K 电路板方框图和线路图 + D2 D1 TOP D2 D1 VCC GND OUT R G VCC GND OUT R G R3825 2.7 R3803 3.3k R3808 0 R3805 4.7k TP3802 C3823 0.1u 10V L3805 J0JHC0000045 D3812 MAZ30560ML C3817 16V 0.01u D3807 EZAEG2A50AX R3818 10k D3814 B0HCMM000014 C3819 16V 0.01u TP3803 C1AB00002641 IC3801 1 TEST 2 VCC 3 BDT0N 4 BDT0P 5 GND 6 BDT1N 7 BDT1P 8 GND 9 BDT2N 10 BDT2P 11 VCC 12 REXT 13 YDT2P 14 YDT2N 15 GND 16 YDT1P 17 YDT1N 18 VCC 19 VCC 20 YDT0P 21 YDT0N 22 GND 23 YCKP 24 YCKN 25 CE 26 VCC 27 ACKN 28 ACKP 29 GND 30 ADT0N 31 ADT0P 32 GND 33 ADT1N 34 ADT1P 35 VCC 36 SEL 37 VCC 38 VCC 39 ADT2N 40 ADT2P 41 GND 42 VCC 43 VCC 44 GND 45 BCKN 46 BCKP 47 VCC 48 VCC 0.1u 10V C3814 L3801 J0JHC0000045 *Q3802 2SD0601A0L D3813 B0HCMM000014 R3820 0 R3814 1k R3810 4.7k R3830 2.7 R3829 2.7 C3806 0.1u 10V C3801 0.1u 10V 1% R3811 4.7k 0.1u 10V C3809 R3807 0 D3804 EZAEG2A50AX R3834 49.9 1% TP3804 R3828 2.7 D3811 EZAEG2A50AX TP3805 0.1u 10V C3810 IC3803 C0JBAU000034 1 VCCA 2 SCLA 3 SDAA 5 D N G 4 EN 6 SDAB 7 SCLB 8 VCCB C3816 16V 0.01u R3827 2.7 R3806 47k R3821 39 0.1u 10V C3808 C3815 16V 0.01u R3801 10k D3809 EZAEG2A50AX C3813 6.3V 10u D3806 EZAEG2A50AX R3840 22 *Q3801 2SD0601A0L C3818 16V 0.01u R3802 10k R3826 2.7 D3810 EZAEG2A50AX D3802 EZAEG2A50AX D3805 EZAEG2A50AX C3802 0.1u 10V C3804 0.1u 10V R3812 10k R3823 10k D3803 EZAEG2A50AX 33u 6.3V C3805 R3809 4.7k R3841 22 *JS3816 0 D3808 EZAEG2A50AX *Q3804 2SD0601A0L GH10 K1FA121E0001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 C3824 0.1u 10V *IC3802 TVRP315 1 E0 2 E1 3 E2 5 S S V 4 SDA 6 SCL 7 WC 8 VCC 0.1u 10V C3811 D3801 EZAEG2A50AX R3822 1k R3815 0 L3804 J0JHC0000045 0.1u 10V C3812 GH11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 G1 G2 G3 C3820 16V 0.01u R3832 4.7k R3819 0 R3824 2.7 0.1u 10V C3807 R3835 0 R3804 4.7k TP3801 R3831 2.7 GH10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 D3814 D3813 RM2501 B3RAD0000127 1 2 3 PC2511 B3JB00000026 1 3 2 4 Q2511 2SD0601ASL C2511 16V 1u C2521 0.01u 50V C2512 6.3V 10u D2520 LNJ107W5PRW JS2513 0 D2524 MAZ80560ML RM2501 1 2 3 R2542 47k C2515 50V 0.01u R2556 5.6k D2520 K1 1 2 3 4 5 6 7 8 9 10 11 12 R2558 0 D2510 MAZ80560ML Q2510 C2522 50V 1000p 1% R2525 910 R2578 0 C2510 6.3V 10u R2524 22k R2512 47 R2521 47 R2579 0 PC2511 1 2 3 4 R2516 22k Q2513 Q2511 D2512 MAZ80430LL D2511 MAZ80560ML R2531 270 C2524 50V 1000p R2577 0 Q2510 2SD0601ASL R2520 220k C2527 50V 1000p C2523 50V 1000p C2525 50V 1000p R2576 0 Q2513 2SD0601ASL R2557 5.6k R2517 47 R2530 22k R2575 0 C2526 50V 1000p < SUFFIX JW AF DDCG Main2_3.3V Main2_3.3V SDA D0- D2+ D2+ CEC HDMI_CE1 CEC D1- D2G HDMI_5V_DET3 SCL N.C. HPDT WP CLK- D1+ D0+ Main5V HPD3 SCL DDC5V D2- CLK+ D1- CLK- D0- D0+ CLKG D1+ +5V D2- D0G CLK+ D1G SDA TO DG-BOARD (DG11) HDMI EQ 5V->3V EEPROM 5 2 4 1 C D 8 7 3 E 9 6 B A F GH-BOARD TNPA4135AF ! SDA CEC D0- D2+ D1- HPDT SCL CLK- D0+ D1+ +5V D2- CLK+ 45 46 3 4 6 7 9 10 29 3 2 6 7 SDAB SCLB SDAA SCLA SCL 5 SDA 6 EDID EEPROM IC3802 SCL 26 SDA 27 CEC LEVEL SHIFT IC3803 5V<->3.3V 7 25 WP WC 8 VCC VCCB 8 5 VCCA 15 MAIN_5V DDC5_V 17 HDMI EQUALIZER IC3801 EQUALIZER BCKN BCKP BDT0N BDT0P BDT1P BDT1N BDT2P BDT2N YCKN 24 23 YCKP YDT0P 21 20 YDT0N 16 17 YDT1P YDT1N 13 14 YDT2P YDT2N VCC 2 3 5 6 8 9 11 21 20 12 MAIN2_3.3V MAIN2_3.3V D2+ CLK- D1+ D0+ D2- CLK+ D1- D0- HDMI_5V DET3 HDMI_5V_DET3 24 Q3802 HOT PLUG DET Q3801 23 HPD3 GH 11 TO DG11 GH FRONT HDMI HDMI3 IN AI_SENSOR GND G_LED_ON 1 REMOCON 2 PSM_LEDR Active_STB_LED GND 3 SUB5V 4 R_LED_ON/STBY_LED GND 9 12 K1 REMOTE/LED/AI REMOCON SENSOR GND STBY3.3V TO DG-BOARD (DG1) R_LED_ON C.A.T.S. SENSOR REMOCON SENSOR POWER LAMP K STBY3.3V AE SUFFIX JW ! TNPA4137AE AI_SENSOR G_LED_ON K-BOARD REMOCON POWER LAMP C.A.T.S. SENSOR TO DG1 SUB5V TH-42PZ700C GH and K-Board Block and Schematic Diagram TH-42PZ700C GH and K-Board Block and Schematic Diagram 86 15.18.DG 电路板 (1/3) 方框图 DAUDIO HDMI_INT2 TV_SUB_ON HDMI_SDIN STB_RST TV_SUB_ON_DELAY SDA2 AUDIO_MUTE RF_AFT1 PC_VS A_MON_MUTE/SP_MUTE TV_MAIN_ON MAIN_PB/C MAIN_PR SCL2 HDMI_LRCK HDMI_BCLK PC_HS AUDIO_XRST KEY1(CON-PANE) SOS SRCK0 SOUND_SOS PANEL_STBY/VCC_ON DMIX0 LRCK0 MAIN_Y/CVBS RXA_2N RXA_0P RXA_CP RXA_2P RXA_1P RXA_CN RXA_1N RXA_0N RXB_CN RXB_2N RXB_CP RXB_2P RXB_1N RXB_1P RXB_0N RXB_0P VI1P8 VI1P5 VI1P4 VI1P6 VI1P3 VI1P2 VI1P9 VI1P7 VI1P17 VI1HSYNC VI1P19 VI1P15 VI1VSYNC VI1P18 VI1ENB VI1P14 VI1P29 VI1P16 VI1P13 VI1P28 VI1P12 VI1CLK VI1CKOUT VI1P23 VI1P25 VI1P24 VI1P22 VI1P26 VI1P27 MAIN_PR RGB_CVBS MAIN_Y/CVBS MAIN_PB/C RGB_FB RXB_CN RXB_0P RXB_1N RXB_2P RXB_CP RXB_1P RXB_0N RXB_2N RXA_CN RXA_1P RXA_0N RXA_2P RXA_CP RXA_0P RXA_1N RXA_2N PC_HS PC_VS HDMI_5V_DET1 EDID_WP HPD1 HDMI_5V_DET2 HPD2 XIRQ3 7493_XRST RGB_CVBS RGB_FB VIDEO_STATUS SCL1 SDA1 HDMI_SPDIF HDMI_SPDIF HDMI_SDIN HDMI_LRCK HDMI_BCLK HDMI_INT2 HDMI_OPT_ENB FS_Y Y7 Y6 Y0 UV4 TRST VI2VSYNC TMS UV2 HQ1_XRST VI2CLK TCK UV3 UV1 UV5 Y2 FS_V Y5 Y3 SCL1 UV0 SDA1 UV6 Y1 Y4 TO_GC3FS_NEXT TO_HQ1L VI2HSYNC UV7 FS_U RXB_CN RXB_CP RXB_0N RXB_0P RXB_1N RXB_1P RXB_2N RXB_2P HDMI_REP_EN EDID_WP HPD3 HDMI_5V_DET3 FS_Y FS_U FS_V RXA_2P RXA_2N RXA_1P RXA_1N RXA_0P RXA_0N RXA_CP RXA_CN RXB_0N RXB_1P RXB_1N RXB_2P RXB_CP RXB_2N RXB_CN RXB_0P HDMI_MUX_SEL HDMI_MUX_EN TV_MAIN_ON IECOUT0 HDMI_CEC FAN_SOS FAN_MAX AC_GOOD MAIN9V SUB5V SUB9V(FHD) P12V STB5V DTV9V SUB3.3V SUB3.3V SUB3.3V SUB5V X4500 Q4500 JK4500 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 D4524 Q4502 D4526 Q4501 JK4501 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 Q4503 D4527 MAIN5V MAIN5V D4525 MAIN3.3V SUB3.3V MAIN_FS_1.8V SUB5V SUB3.3V MAIN_3.3V MAIN5V MAIN3.3V MAIN5V MAIN3.3V MAIN3.3V MAIN_3.3V SUB5V MAIN5V SUB5V MAIN5V TV_SUB_ON PC_V AFC1 DTV_LRCK HDMI_BCLK HDMI_LRCK AUDIO_XRST AUDIO_MUTE TV_MAIN_ON DTV_BCKL VIDEO_STATUS SCL0B SDA0B DTV2_SDIN HDMI_INT2 MAIN_PB/C/B RGB_FB KEY1 SOUND_SOS GENX_RST PC_H MAIN_Y/CVBS/G DTV_SDIN RGB_CVBS SOS SP_MUTE TO H6 MAIN_PR/R HDMI_SDIN SPDIF_IN(OPT) SUB3.3V SUB5V P12V DTV9V SUB5V P12V STB5V SUB9V(FHD) DTV9V SUB9V(FHD) SUB3.3V SUB5V MAIN9V 1 2 5 6 8 9 12 13 14 17 18 21 23 DG2 +1.8V 5 8 1 DVDD+1.8V +1.8V 5 8 1 IC4508 +1.8V 7 1 +3.3V +3.3V 5 112 113 115 116 118 119 121 122 128 129 131 132 134 135 137 138 38 39 40 41 42 43 44 45 55 58 30 28 17 29 33 27 18 25 16 26 24 32 31 65 66 51 48 53 52 46 47 ROUT0 ROUT2 ROUT1 ROUT3 CLKOA CLKIA VSIA HSIA XTAL1 XTAL YOUT6 YOUT8 YOUT4 YOUT0 YOUT3 YOUT7 YOUT1 YOUT9 YOUT5 YOUT2 UVOUT1 UVOUT6 UVOUT3 UVOUT5 UVOUT0 UVOUT8 UVOUT7 UVOUT2 UVOUT9 UVOUT4 74 80 94 99 FB 78 97 Q4517 BUFFER Q4519 BUFFER Q4514 BUFFER Q4515 BUFFER Q4516 BUFFER SDA D1G D0+ HDMI2 +5V DET D2+ HPDT D2- CEC SCL D1+ +5V DDCG CLK+ HDMI2 RESET CLKG N.C. D0G D2G CLK- D0- D1- SDA HPDT CEC HDMI1 +5V DET D0- N.C. D2+ CLK- +5V D1+ SDA CLKG D2- HDMI1 RESET D0G CLK+ SCL D0+ D1G D1- DDCG D2G 62 63 6 SCL 5 7 WC 8 VCC EEPROM EDID1 SDA EEPROM EDID2 7 SCL 6 IC4500 8 VCC 5 WC INV. Q4505 INV. Q4504 105 106 DDC_SDA0 DDC_SCL0 DDC_SCL1 DDC_SDA1 1 144 108 107 7 SCL 6 8 VCC 5 WC EEPROM KEY SDA MDA MCL 19 21 AVDD TVDD CVDD DVDD 11 12 3 5 7 10 12 14 16 28 30 32 33 34 35 36 38 39 41 48 49 54 55 58 60 62 64 66 68 70 72 74 79 DG6 4 2 5 VCC IC2000 SWITCH 1 20 8 3 2 7 HDMI_BCLK HDMI_LRCLK HDMI_SDIN HDMI_SPDIF HDMI_INT2 IC4510 AD/HDMI I2C I2C DG DIGITAL SIGNAL PROCESSOR 5 3 1 2 TO H2 8 IC4005 3 15 NRST VDDE I2C 69 BUFFER IC4004 VDDI 73 27 41 14 TDI BUFFER 4 72 +3.3V 70 +1.8V TRST (MAIN) YIN 1 1 TDO BUFFER 46 IC4001 MAIN+1.8V GC3FS-next 44 5 62 Q4001 1 45 63 MAIN+3.3V 79 TMS 5 71 18 IC4002 VIN UIN 40 3 80 SDA Q4000 5 JTAG 4 6 (MAIN) FRCLKIN 33 Q4002 3 TCK 77 SCL 61 64 78 VCC 39 12 7 65 BUFFER 2 VPO HPO 29 25 11 24 12 DG 3 2 2 23 15 26 21 20 9 6 5 2 7 2 8 11 MAIN 5V 19 21 23 SUB_PB/C/B SUB_Y/CVBS/G SUB_PR/R SDAB 7 SCLB 6 8 VCCB 5 EN 2 VCCA SCLA SDAA 3 1 MAIN5V MAIN3.3V HDMI_CE1 CEC MAIN3.3V HDMI_5V_DET3 RXB_CN RXB_CP RXB_0N RXB_0P RXB_1N RXB_1P RXB_2N RXB_2P HPD3 WP SDA SCL IC4509 IC4506 5V<->3.3V IC4501 IC4514 SCLA 7 SDAB 2 IC4513 3 1 VCCA SDAA 5V<->3.3V VCCB 5 EN SCLB 6 8 45 46 3 6 7 9 10 DDCB_SCL DDCB_SDA DDCA_SCL DDCA_SDA 24 23 21 20 13 17 16 14 25 36 27 39 28 30 31 33 34 40 4 ACKN ACKP ADT0P ADT0N ADT1P ADT1N ADT2N ADT2P BCKP BDT1N BDT2P BDT0P BDT0N BCKN BDT1P BDT2N CE SEL YCKP YDT1N YDT2P YDT0P YDT0N YCKN YDT1P YDT2N RXB_2P RXB_0N RXB_1N RXB_2N RXB_0P RXB_CN RXB_CP RXB_1P RXA_0N RXA_1N RXA_2P RXA_2N RXA_0P RXA_CN RXA_CP RXA_1P IC4504 INV. Q4520 VS_IN HS_IN SOY AIN9 AIN4 AIN8 AIN6 IC4507 MAIN+3.3V 5 1 3 +1.8V PVDD DVDDIO IC4503 HDMI IN SW 4 CLKO UBOUT0 YGOUT0 UBOUT7 DE RESET HDMI_INT1 TO GH11 HDMI1 HDMI2 B 6 7 IC4515 DELAYED OUT VCC 5 8 OUTPUT -INPUT B +INPUT B MAIN 3.3V 51 52 FAN_SOS FAN_MAX 56 AC_GOOD PANEL_STBY_ON VCC_ON 27MHz UVIN9 UVIN8 UVIN7 UVIN6 UVIN5 UVIN4 UVIN3 UVIN2 UVIN1 UVIN0 YIN9 YIN8 YIN6 YIN7 YIN4 YIN5 YIN2 YIN3 YIN0 YIN1 RIN3 RIN2 RIN1 RIN0 YGOUT7 RF_AFT2 AFC2 42 TH-42PZ700C DG-Board (1 of 3) Block Diagram TH-42PZ700C DG-Board (1 of 3) Block Diagram 87 15.19.DG 电路板 (2/3) 方框图 SRCK0 DMIX0 IECOUT0 DAUDIO LRCK0 SCL3 SDA3 SDA1 SCL3 SDA3 SCL1 SDA2 SCL2 TO_GC3FS_NEXT TMS TO_BA01 TCK TRST TV_MAIN_ON FPGA_XRST CNFIG_DONE HQ1_XRST HSOE LOSCLKIN VSOE LOSDHIN CLKOE LOSDVIN PEAKS_YM PEAKS_YS PEAKS_OSHIN PEAKS_OSDCKO LOSDHIN VSOE CLKOE HSOE PEAKS_OSDCKO PEAKS_OSHIN PEAKS_YS PEAKS_YM LOSDVIN LOSDCLKIN CLK74SEL SBI2 SBO0 SBO2 LVDS_EN SBI0 SD_LED_ON VOUTENB SLRCK ADCCK VI2ENB AUDCLK SD_BOOT_STS PANEL_STATUS PANEL_SOS PANEL_MUTE XRST XIRQ3 SCL0 SDA0 MAIN_ON VI1CKOUT VI1CLK VI1ENB VI1VSYNC VI1HSYNC VI2CLK VI2HSYNC VI2VSYNC DTV9V SUB1.2V SUB3.3V SUB1.8V SUB3.3V LRCK0 IECOUT0 SRCK0 DAUDIO DMIX0 SUB3.3V SCL1 SDA0 SDA2 SCL0 SDA3 SDA1 SCL2 SCL3 TMS TDI TRST TCK TDO CK27D CLK74 VC27 CK27 XIRQ3 XRST SUB3.3V SBO2 SBI0 SBI2 SBO0 VOUTENB RMCO DSRCK VI2P21 VI2P10 VI2ENB ADCCK SLRCK AUDCLK ADIN Q8911 Q8913 Q8912 1 RESET 2 PEAKS LITE2 RESET CLOCK GEN 512M DDR IC8002,03 SUB1.8V 74M CLOCK GENE. 27M 4 9 7 S2 14 VIN SUB3.3V IC8004 PEAKS_Lite 2 IC8001 IC8621,22 D-LATCH NOR FLASH IC8554 ExBUS with AUDIO DESCRIPTION DATA MAIN AUDIO DATA DIGITAL AUDIO COMMON LR/SR CLK for PHOTO OUT AUDIO IF CPU BUS I/F IC8601 EEPROM 8 7 6 5 EEPROM_WP VCC WP SCL SDA IIC I/F JTAG JTAG HDMI_IRQ I2C I2C VDD DG DIGITAL SIGNAL PROCESSOR 16 15 14 17 11 13 3 1 2 5 Sub Video Input 4 Y0-9 R0-4 UV0-7,Y0-7 IC5660 ED0-ED15 EA8-EA23 ED0-ED15 EA1-EA23 SBO1 XRTS0 ED0-ED15/EA8-EA23 EA0-EA7,EA24 37 49 GOE9 TMS,TRST MAIN3.3V VSOE SCL0 107 LOSDHIN 57 36 LOSDVIN PEAKS_YM LOSD0 LOSD15 38 TDO(TO SC) CLKOE 84 77 ROE2 95 ROE2-ROE9 ROE9 HQ1_XRST 50 TCK GOE2-GOE9 51 BOE2-BOE9 104 TDI(TO HQ1) SUB 5V 105 MAIN 3.3V TV_MAIN_ON DG25 86 59 60 102 56 34 58 TRST 53 PEAKS_OSDCKO 32 12 TDI,TDO 10 40 GOE2 11 TO DH25 TO GS52 FPGA_RST 42 63 52 65 LOSDCLKIN 35 47 7 MAIN 3.3V CNFIG_DONE OSD_FLAG 62 PEAKS_YS TMS,TCK SDA0 43 14 HSOE 2 30 1 64 JTAG PEAKS_OSHIN 74 CFG_JTAG BOE2 93 SUB9V SUB 9V SUB5V SUB 9V 75 3 BOE9 SCL0 SDA0 I2C (VI2P9)LOSD_H_I (VI2P8)LOSD_CLK_I (VI2P7)LOSD_V_I (VI2P6)LOSDOUT_YM (VI2P5)LOSDOUT_YS (VI2P2)LOSDOUT_CLKO (VI2P3)LOSDOUT_H_O HQ1L VIDEO MVCLK MHSYNC GOE9 MVSYNC BOE2-BOE9 BOE2 ROE2-ROE9 GOE2-GOE9 BOE9 LOSDO0-LOSDO15 (VOP22) (VOP29) (VOP12) (VOP19) (VOP2) (VOP9) ROE9 GOE2 ROE2 LOSDOUT0 LOSDOUT15 3 8 10 13 SDCMD 11 SDDTC SDDAT3 7 9 SDDAT0 SD_LED_ON SDWP SDDAT2 SDDAT1 5 3.3V SDCLK DG52 1 1 2 ISODATA 14 SDWP SDAT3 SD CARD SDCMD SDAT1 SD CARD I/F SDCD SDAT2 SDCLK SDAT0 6 LVDS_EN OSD_FLAG ISODATA LOSD OUT (HQ1) SERIAL I/F VMUTE SDBOOT ETHER_IRQ ETHER_IRQ RSV2(SDRAMCHK2) RSV3(SDRAM_CHK1) RSV4 RSV1(SD_ERROR) PANEL_STATUS PANEL_SOS COMMON PORT .etc UV0-9 VI1P2-9 VI1P12-19 VI1P22-29 CLKIA(VI1CLK) CLKOA(VI1CKOUT) VSIA(VI1VSYNC) HSIA(VI1HSYNC) VI1ENB Y0-7 UV0-7 VI2HSYNC VI2VSYNC VI2CKOUT B Port Address VI2CKOUT VI2HSYNC VI2VSYNC VI2P4 VI2P22-29 VI2P12-19 EA08-15 EA24 EA16-23 ADV7493 TH-42PZ700C DG-Board (2 of 3) Block Diagram TH-42PZ700C DG-Board (2 of 3) Block Diagram Q8801 Q8802 88 15.20.DG 电路板 (3/3) 方框图 + + + + SCL SDA SLRCK SDA SCL EDID_WP HDCP_WP 7493_XRST HPD3 HDMI_5V_DET3 HPD1 HDMI_5V_DET1 RF_AFT1 VIDEO_STATUS AUDIO_XRST A_MON_MUTE/SP_MUTE AUDIO_MUTE SOUND_SOS SOS BUS_CONNECT2 AVSW_OFF TV_SUB_ON_DELAY HDMI_OPT_ENB CLK74SEL SD_BOOT_STS SD_LED_ON SCL SDA SCL3 SDA3 SCL1 SDA1 SCL2 SDA2 SBI2 HDMI_CEC VI2ENB ADCCK XRST DTV_VOUTENB SBO0 PANEL_RXD SCL0 SDA0 PANEL_TXD PANEL_SCL SBI0 IIC_CONT PANEL_SDA SBO2 FAN_SOS PWM_POW_ON SCL3 SDA3 HDMI_5V_DET2 HPD2 HDMI_REP_EN HDMI_MUX_EN HDMI_MUX_SEL PANEL_STBY/VCC_ON PANEL_STBY/VCC_ON TV_MAIN_ON SW_OFF_DET SRQ-GENX D_IIC_CONT ECO_ON D_IIC_INT D_PDB1 D_PSLCT D_PDB0 D_PBUSY D_PSTB TV_SUB_ON PANEL_SOS PANEL_STATUS PANEL_TXD PANEL_MUTE PANEL_RXD PANEL_SDA PANEL_SCL ALL_OFF PANEL_STBY/VCC_ON SRQ-GENX D_PSTB D_PBUSY D_PDB0 D_PSLCT D_PDB1 D_IIC_INT ECO_ON ALL_OFF FAN_MAX CONFIG_DONE FPGA_XRST LVDS_EN HQ1_XRST HQ1_XRST KEY1 TV_SUB_ON TV_SUB_ON STB_RST TV_MAIN_ON TV_MAIN_ON TV_MAIN_ON C5691 R5695 MAIN3.3V R5697 Q5690 R5691 Q5692 R5693 R5696 R5690 SUB5V C5690 Q5691 MAIN5V R5694 D5691 C5694 D5690 Q5693 C5695 R5692 SUB3.3V STB5V D5670 D5673 D5671 SUB5V STB3.3V STB5V STB3.3V SUB5V MAIN9V MAIN3.3V X1100 MAIN5V DTV9V Q1107 Q1108 SUB1.2V DTV9V SUB3.3V SUB1.8V STB5V STB3.3V SUB5V R8870 R1235 STB5V D_15V STB3.3V MAIN3.3V SUB5V STB3.3V Q2001 Q2000 MAIN3.3V D5609 DTV9V Q5604 Q5603 D1112 RSV3(LITE2) GenX4 MAIN3.3V MAIN5V MAIN+5V ON/OFF 5 +3.3V AVR 1 (STB) STB+3.3V MAIN+3.3V ON/OFF (Lite2 E2PROM) (Device Control) LITE2_SCL1 (Device Control) SRQ STB5V (GenX4 Loarder/E2PROM) (GenX4 Loarder/E2PROM) (Device Control) GenX4_SDA LITE2_SDA1 LITE2_SDA3 GenX4_SCL LITE2_SDA2 (Lite2 E2PROM) (Device Control) LITE2_SCL2 LITE2_SCL3 RSV1(LITE2) SUB5V_SENSE SBI0A 63 64 52 33 34 35 SBO0A MAIN3.3V_SENSE 66 67 83 84 10MHz MAIN9V_SENSE 110 121 RSV4(LITE2) 93 30 DTV9V_SENSE 27 MAIN5V_SENSE RSV2(LITE2) 24 8 7 6 5 28 GenX-EEP_WP EEPROM EDID_WP HDCP_WP 106 109 69 7493_XRST 38 HPD3 HDMI_5V_Det1 55 36 HDMI_5V_Det3 53 HPD1 HDMI_CEC 65 (HDMI_CEC_PU_ON) (HDMI_CEC_PU_ON) 21 1 TV_SUB_ON 14 PWM_POWER_ON 46 TV_MAIN_ON FAN_SOS 117 RF_AFT1 111 VIDEO_STATUS 58 AUDIO_XRST 68 ECO_ON 2 126 127 AUDIO_MUTE A_MON_MUTE/SP_MUTE SOUND_SOS 118 SOS 114 25 ALL_OFF 20 (BUS_CONNECT2) 48 AVSW_OFF(US) FE_XRST 71 MODEM_XRST 72 88 DTV_VOUTENB 16 125 SD_BOOT_STS 124 DTV_XRST SRQ_GenX 26 SD_LED_ON 17 56 SD_COIN_DET SW_OFF_DET 12 92 NBOOT IC1100 SDA WC SCL VCC TO K1 (SUB) SUB+1.8V/SUB+1.2V DC-DC CONV. IC5601 +3.3V 8 (SUB) +1.8V 3 12 23 16 17 (SUB) 23 DC-DC CONV. SUB+3.3V +1.2V IC5600 1 2 4 5 6 7 8 9 10 11 DG33 2 RESET STB RESET 1 IC5671 5 7 96 9 100 11 13 15 17 19 DG31 1 3 104 102 103 99 97 TRCD1 for DEBUGER TRCCLK SCLOCK 101 SDATA STB3.3V TRCST TRCD0 TRCD2 TRCD3 STB_RST EXTRG0 95 4 CLK74SEL I2C I2C 7 (Device Control) 8 Panel_TXD 9 10 12 Panel_RXD IIC_CONT Ex IIC Panel_SDA LITE2_SCL0 19 21 STB5V LITE2_SDA0 22 24 26 27 30 28 29 DG34 1 2 I2C 4 5 6 STB3.3V Panel_SCL (Panel Dpr.E2PROM) IIC_CONT/SRQ (Panel Dpr.E2PROM) (Device Control) 3 2 1 DG7 SUB5V SBO2 SBI2 4 6 7 9 12 G_LED_ON AI_SENSOR SUB5V RMIN ACTIVE_STBY _LED_ON STB3.3V R_LED_ON KEY1 DG1 1 2 3 40 39 CFG_JTAG FOR FACTORY USED FOR FACTORY USED FOR FACTORY USED DG DIGITAL SIGNAL PROCESSOR 15 14 17 13 14 11 SOS LED BLINKING : 10TIMES SOS LED BLINKING : 12TIMES SOS LED BLINKING : 10TIMES IC1101 IC5670 HDMI_5V_Det2 54 37 HPD2 TRCST TRCD0 TRCD2 TRCD3 EXTRG0 SDATA TRCD1 TRCCLK SCLOCK NRST HDMI_MUX_EN HDMI_MUX_SEL 8 7 HDMI_REP_EN 6 SDA3 SCL3 SDA1 SCL1 HQ1_XRET 70 105 PANEL_STBY_ON IVDD STB5V IIC_SCL1 D_PSTB D_PDB1 19 IIC_CLK2 26 PANEL_STBY/VCC_ON D_15V 15 14 4 ALARM 12 D_PBUSY 25 16 8 22 ECO_ON IIC_DATA2 SCL0 6 11 STB5V 21 D_IIC_INT 23 READY 7 D_PSLCT D_RXD DISPEN 1 SDA0 IIC_SDA1 TO D3 D_PDB0 3 18 TV_SUB_ON 29 D_IIC_CONT DG35 20 D_TXD 2 ALL_OFF 27 IC4800 SDA SCL 1 6 TEMPSENSOR A0 VCC 4 5 SDA1 SCL1 I2C 45 REMOTE 89 G_LED_ON R_LED_ON 49 115 KEY1 ACTIVE_STBY_LED_ON 87 AI_SENSOR 113 18 13 16 17 14 15 D_15V D_PBUSY D_PSLCT D_PDB0 D_PSTB D_PDB1 D_IIC_INT SBI0 SBO0 MANI3.3V CFG_TCK CFG_TMS CFG_TDO CFG_TDI CFG_TRST FAN_MAX 86 FPGA_XRST 59 122 CONFIG_DONE 15 LVDS_EN TH-42PZ700C DG-Board (3 of 3) Block Diagram TH-42PZ700C DG-Board (3 of 3) Block Diagram 89 15.21.DG 电路板 (1/12) 线路图 + CH0DQ30 CH0DQ31 CH0DQ26 CH0XRAS CH0DQS0 CH0XRAS CH0A5 CH0CKE CH0A8 CH0DQ18 CH0DQ8 CH0DQ21 CH0XWE CH0XCS0 CH0CK CH0DM2 CH0A7 CH0DQ11 CH0DQ5 CH0XCAS CH0DQ9 CH0ODT CH0ODT CH0BA2 CH0XRAS CH0BA0 CH0DQ27 CH0A2 CH0A2 CH0A12 CH0DQS3 CH0BA1 CH0DM1 CH0A12 CH0BA2 CH0DM0 CH0DQ4 CH0A3 CH0DQ15 CH0A9 CH0CKE CH0A8 CH0XCS1 CH0DQ10 CH0BA2 CH0DQ1 CH0DQ14 CH0CK CH0A7 CH0DQ29 CH0A1 CH0DM3 CH0XCK CH0XWE CH0A0 CH0DQ25 CH0DQ7 CH0A5 CH0A4 CH0ODT CH0DQS3 CH0A4 CH0A11 CH0DQ0 CH0A10 CH0DM3 CH0BA1 CH0DQ12 CH0A9 CH0BA0 CH0DM2 CH0DQ20 CH0A11 CH0XCS0 CH0A6 CH0A7 CH0A11 CH0DQ2 CH0DQ23 CH0DQS0 CH0DQ22 CH0BA0 CH0A9 CH0XCAS CH0XWE CH0A10 CH0A0 CH0XCK CH0A5 CH0DQ6 CH0A2 CH0XCAS CH0A10 CH0A12 CH0A1 CH0A3 CH0A6 CH0DQ16 CH0A6 CH0DQ28 CH0DQ13 CH0A0 CH0DQS2 CH0XCS1 CH0A4 CH0DM1 CH0BA1 CH0DQ19 CH0ODT CH0DQ17 CH0DQ24 CH0A8 CH0DQS1 CH0CKE CH0DM0 CH0DQ3 CH0A3 CH0A1 CH0DQS1 CH0XCK CH0CKE CH0DQS2 CH0DQ16 CH0DQ17 CH0DQ18 CH0DQ19 CH0DQ20 CH0DQ21 CH0DQ22 CH0DQ23 CH0DQ24 CH0DQ25 CH0DQ26 CH0DQ27 CH0DQ28 CH0DQ29 CH0DQ30 CH0DQ31 CH0DQ0 CH0DQ1 CH0DQ2 CH0DQ3 CH0DQ5 CH0DQ6 CH0DQ7 CH0DQ8 CH0DQ9 CH0DQ10 CH0DQ11 CH0DQ12 CH0DQ13 CH0DQ14 CH0DQ15 CH0DQ4 CH0CK IC8001 B5 VI1P9 CH1VAL *IC8003 = E3 VSS IC8001 T24 MMBA2 IC8001 F14 LRCK0 VI2P4 IC8001 AF15 VDDR IC8001 B10 VI1P2 IC8001 AB17 VSS *IC8002 = R1 VDD VI2P8 IC8001 R15 VSS TDO IC8001 H3 VI2P12 *IC8003 = A9 VDDQ IC8001 B3 VI1P15 VI1P10 IC8001 AD24 CK27D IC8001 Y21 MMVCAL IC8001 E4 VI2P7 C8039 16V 0.1u SUB1.2V IC8001 N3 SDA1 IC8001 T13 VDD12 IC8001 V21 MMA4 IC8001 L1 VI2P28 C8071 16V 0.1u IC8001 K13 VSS IC8001 AF22 MMDQ22 IC8001 AF4 IS0DATA IC8001 B7 VI1P4 IC8001 E11 VI1CVBS3 IC8001 AB5 XEXDMK0 IC8001 T6 EA2 XNFWP IC8001 AD26 VSS IC8001 E12 VVREF *IC8002 = E1 VDD IC8001 W4 ED9 IC8001 L12 VSS EA4 IC8001 D4 VSS VI1P28 IC8001 AA4 ESZ0 VOP15 VOP10 VI2P3 IC8001 Y3 ED13 VOP27 *IC8002 = D7 DQ10 C8037 16V 0.1u VI2P24 IC8001 D12 MVDACO3 C8015 6.3V 1u *IC8003 = M2 A10 IC8001 T5 TDI IC8001 AF14 VDD12 *IC8003 = B7 UDQS IC8001 T4 VDD33 *IC8002 = K3 WE *IC8002 = P3 A9 IC8001 K23 VDDIO IC8001 G21 LVVSS IC8001 A8 VI1CKOUT IC8001 G2 VI2CLK IC8001 T14 VSS XECS0 VOP0 IC8001 V6 ED7 IC8001 D9 VSS *IC8002 = K8 CK IC8001 R5 ATCPOUT IC8001 R14 VSS IC8001 AB18 MMVREF1 IC8001 AB14 VDD12 IC8001 U26 MMA7 IC8001 AA22 VSS SMTRST1 L8007 J0JHC0000045 VI2P1 IC8001 AD5 IS1CLK IC8001 L26 MMDQS0 IC8001 M10 VSS IC8001 AA2 ED15 C8025 16V 0.1u LCSCK *IC8002 = R7 NC *IC8002 = H1 DQ4 IC8001 U2 EA6 IC8001 C21 VOP6 *IC8003 = R3 NC VOP22 IC8001 D19 VSS IC8001 V23 MMA11 C8002 6.3V 1u *IC8003 = D7 DQ10 IC8001 AA19 MMDQ20 *IC8003 = F1 DQ6 IC8001 T11 VDD12 VI1VSYNC *IC8003 = F7 LDQS *IC8003 = K3 WE *IC8002 = R2 A12 IC8001 N16 VSS TRST DSRCK IC8001 F15 VDD33 IC8001 C15 VOP21 XERE IC8001 D5 VI2P5 IC8001 K15 VSS IC8001 D2 VI1VSYNC IC8001 AD20 MMDQ19 VOP24 C8067 25V 0.01u IC8001 C5 VI1P28 IC8001 E19 VOP18 IC8001 AD12 SDCMD *IC8002 = A8 UDQS *IC8002 = K7 RAS IC8001 AA16 MMDQ29 IC8001 U3 EA7 IC8001 F24 VSS L8004 J0JHC0000045 IC8001 N23 MMDQ9 IC8001 T17 VDDA IC8001 AE7 TXD0 VI1HSYNC IC8001 T23 MMBA0 RMCO IC8001 P21 MMDQ12 CH0DATA *IC8002 = H3 DQ3 IC8001 C7 VI1P5 XNFWE XECS2 ESZ0 IC8001 AE19 MMDM2 *IC8002 = F7 LDQS IC8001 U17 VSS C8032 10u 10V VOP20 ED12 VI1P24 IC8001 M17 VDDA SUB3.3V IC8001 F21 LVVDD SUB1.2V XIRQ2 R8078 47 C8079 16V 0.1u IC8001 AB4 XECS2 XEXDMR0 R8073 47 IC8001 G6 VI1P0 DMIX0 EA0 VOP26 IC8001 AF21 VSS *IC8002 = J7 VSSDL SMTCMD0 VOUTENB *IC8002 = L2 BA0 IC8001 B11 MVIREF VOP5 R8072 47 *IC8003 = E2 NC IC8001 AB25 VDDIO IC8001 E16 VOP20 R8075 47 IC8001 N12 VSS VI2ENB IC8001 J23 MMDQ5 MVDACO3 IC8001 G23 LPFIN R8080 0 VI2P9 VOP11 IC8001 C13 DACCK0 R8065 47 C8058 10u 10V IC8001 U24 VDDIO XCTS0 IC8001 W1 ED5 IC8001 E10 VI1CVBS2 IC8001 AD7 XCTS0 C8035 10u 10V IC8001 AC7 IS1PSYNC R8081 10k IC8001 R25 MMXWE IC8001 L14 VSS SBO2 CH1PSYNC SMTSEL0 IC8001 B2 VSS *IC8002 = G9 VDDQ C8070 16V 0.1u IC8001 J26 MMDQ6 VI1P27 IC8001 AE8 SMTD1 IC8001 C12 DACVDD1 IC8001 D14 VSS *IC8003 = P2 A7 IC8001 AC6 NANDRYBY R8026 0 IC8001 C17 VOP25 IC8001 AE15 VDDR IC8001 A13 DMIX0 IC8001 M23 VDDIO IC8001 A6 VI1P6 XIRQ1 IC8001 D7 VDD33 L8008 J0JHC0000045 IC8001 A24 SBI2 IC8001 AE16 VDDIO C8014 16V 0.1u *IC8002 = C9 VDDQ IC8001 B25 TA1N IC8001 AE26 MMRODT VI2P16 C8024 10u 10V IC8001 F9 VI1CK204F IC8001 M26 MMDM1 IC8001 AC3 XECS4 IC8001 AA20 MMDQ21 *IC8003 = N3 A5 ED4 VI2P2 R8083 300 IC8001 AA8 VDD33 IC8001 AD21 MMDQ23 VI1P23 *IC8002 = E9 VDDQ IC8001 AD10 CH1CLK IC8001 AC15 VDDR TXD0 IC8001 V26 MMA1 XDCD0 IC8001 AF24 VSS VI2P5 IC8001 AE2 XEXDMR0 SDDAT1 IC8001 E5 VSS IC8001 H5 VI2VSYNC R8002 82 *IC8003 = C3 VDDQ VI2P12 BOOTSWAP *IC8002 = A2 NC IC8001 AF23 BOOTSWAP IC8001 D22 VDD33 VI2HSYNC VI2P0 IC8001 R12 VDD12 XEXDMK0 SDCD *IC8003 = J3 VSS IC8001 U15 VDDA VI1P11 VOP6 IC8001 V5 ED3 *IC8003 = G9 VDDQ R8084 0 IC8001 AB15 VDDR R8095 10k IC8001 F23 LVVSS EA5 R8090 10k IC8001 AC4 XECS5 *IC8002 = H9 DQ5 IC8001 A22 VOP7 IC8001 V3 ED4 *IC8003 = C8 DQ8 IC8001 N21 MMDQ8 1% R8004 24k IC8001 AC18 VDDIO *IC8003 = A8 UDQS IC8001 AF13 SDCLK *IC8002 = L8 CS IC8001 N24 VDDIO R8067 47 *IC8002 = B7 UDQS VI1P3 MVDACO0 XRI0 IC8001 M12 VSS IC8001 V22 VDDIO VI2P27 R8100 47 DACCK0 IC8001 AC12 VSS IC8001 AF9 SMTCMD0 IC8001 V4 VSS IC8001 R10 VDD12 IC8001 A21 VOP3 VI2P29 IC8001 E2 VI1CLK2 IC8001 AC26 MMCK IC8001 C3 VSS IC8001 K16 VSS IC8001 E22 LVVDD SUB3.3V C8020 16V 0.1u IC8001 C18 VOP12 IC8001 R6 TCK IS0DATA IC8001 L11 VSS *IC8003 C3ABSY000014 = A1 VDD R8035 0 ED1 IC8001 P22 MMDQ13 ED13 IC8001 AA25 VSS SMTCLK0 IC8001 AE13 SDDAT1 SCL0 IC8001 E6 VI2P4 IC8001 F10 VI1CVBS1 L8005 J0JHC0000045 IC8001 P23 VSS ED5 *IC8002 = E3 VSS IC8001 AA10 SMTRST1 VOP2 *IC8003 = F9 DQ7 IC8001 T10 VDD12 *IC8002 = E7 VSSQ LCSID 1% R8005 10k IC8001 F5 VI2P6 VI2P25 C8005 1u 6.3V VI1P9 *IC8003 = B2 VSSQ IC8001 AF10 CH1DATA ED14 *IC8003 = N2 A3 IS0VAL IC8001 T3 EA3 L8003 J0JHC0000045 VOP7 IC8001 B15 LCSID R8059 47 C8030 6.3V 1u ED7 XECS1 IC8001 E17 VOP22 VI2P6 IC8001 V2 ED2 VI2P23 IC8001 AA17 MMDQ24 IC8001 AA9 VDD33 C8001 16V 0.1u IC8001 J5 VI2P11 *IC8002 = B9 DQ15 IC8001 AD3 XNFWE IC8001 C26 TB1P L8006 0 R8056 47 IC8001 U1 EA5 C8052 6.3V 1u IC8001 F6 VSS IC8001 G26 TE1P R8093 47 *IC8003 = F2 VSSQ VI1P16 *IC8002 = L7 CAS VOP21 *IC8003 = F3 LDM VI1P17 VI1CVBS1 VOP23 *IC8003 = J9 VDD XECS6 IC8001 AC2 XECS1 IC8001 L25 MMDM0 IC8001 B6 VI1P7 IC8001 AF20 VDDIO ERXW IC8001 A4 VI1P29 IC8001 C4 VI1P13 IC8001 L10 VSS IC8001 AB1 ECLK IC8001 P3 AGAVDD TCK *IC8002 C3ABSY000014 = A1 VDD IC8001 U21 MMXCAS IC8001 N17 VDDR IC8001 M6 VI2P27 *IC8003 = M9 VDD IC8001 P13 VSS IC8001 R16 DPAVSS IC8001 N2 XNMIRQ NANDRYBY IC8001 U5 ED0 VI1P0 *IC8002 = N1 VSS IC8001 AF12 CH0CLK IC8001 F11 VDD33 *IC8002 = F1 DQ6 IC8001 AB9 XDCD0 VI2P19 R8066 47 IC8001 Y1 ED10 IC8001 T1 EA0 *IC8003 = M8 A0 IC8001 L4 VSS SDDAT0 *IC8002 = D8 VSSQ VI1CLK VI2P20 XIRQ3 IC8001 H25 CLK74 *IC8002 = P9 VSS *IC8003 = N1 VSS IC8001 AC14 VDD12 ED3 IC8001 F8 VI2P0 IC8001 AA13 SDDAT3 VI2P22 *IC8003 = E1 VDD IC8001 Y2 ED11 XEWE0 R8024 0 IC8001 AB3 XEWE1 R8060 47 IC8001 AA23 MMMONB ECLK IC8001 M2 SCL0 IC8001 AC1 ESZ1 R8087 10k *IC8003 = C7 VDDQ L8009 J0JHC0000045 EA6 VI1P7 IC8001 P25 VDDIO IC8001 F19 VOP5 *IC8002 = P8 A8 *IC8002 = C7 VDDQ VI2P14 IC8001 H4 VDD33 SDCLK *IC8002 = L1 NC IC8001 B8 VI1P24 IC8001 W23 MMA0 VI1P22 IC8001 C6 VI1P27 1% R8006 6.8k IC8001 W3 ED8 IC8001 B12 MVDACO1 *IC8002 = M7 A2 C8078 16V 0.1u VOP8 *IC8003 = P7 A11 *IC8002 = E8 LDQS X8001 H0J270500061 C8012 16V 0.1u IC8001 N26 MMDQ11 IC8001 N25 MMDQ10 VI2P10 XDTR0 R8058 47 IS0PSYNC IC8001 P26 MMDQ15 L8002 J0JHC0000045 VI2P28 *IC8002 = G3 VDDQ *IC8003 = R8 NC IC8001 C20 VOP2 C8003 1u 6.3V IC8001 U4 EA4 IC8001 AD23 VSS IC8001 AC25 VSS IC8001 G24 VSS IECOUT0 IC8001 E20 MVSYNC IC8001 AB6 NFCLE IC8001 AC23 VDDIO VOP18 IC8001 J22 VC27 SMTCMD1 IC8001 F12 VDD33 IC8001 F22 LVVSS *IC8003 = C2 DQ9 C8018 16V 0.1u *IC8003 = R2 A12 IS0CLK *IC8002 = D1 DQ12 IC8001 R22 MMXCS0 VI2P18 *IC8002 = F9 DQ7 *IC8002 = J2 VREF IC8001 M5 RMCO *IC8003 = A3 VSS VI2P7 IC8001 AC10 VDD33 *IC8003 = K8 CK IC8001 A10 IECOUT0 IC8001 AD9 SMTCLK0 XECS7 C8056 16V 0.1u IC8001 K5 VI2P16 *IC8003 = G2 DQ1 IC8001 AE3 NFALE 1% R8082 75 IC8001 B9 VI1P23 IC8001 P12 VSS IC8001 M4 VSS IC8001 E25 TCLK1N IC8001 AE11 CH0VAL C8007 16V 0.1u SUB1.2V IC8001 AE18 VSS SBI0 IC8001 V24 MMBA1 IC8001 C14 DSRCK IC8001 AC22 VSS IC8001 AE12 SDWP *IC8003 = A2 NC *IC8002 = D2 VSSQ IC8001 A23 MVCLK C8038 16V 0.1u *IC8003 = C1 VDDQ *IC8002 = B3 UDM VI2P11 *IC8002 = C1 VDDQ SCL1 L8010 J0JHC0000045 IC8001 A12 DACVSS2 ED0 IC8001 F17 VOP27 IC8001 K21 CK27 *IC8003 = P3 A9 1% R8032 270 IC8001 AF7 RXD0 R8097 220 VI1P26 C8044 16V 0.1u SBT2 VI1P4 IC8001 G22 LPFOUT IC8001 E23 LVVDD IC8001 C9 VI1CLK IC8001 K26 VDDIO IC8001 M14 VSS IC8001 G25 TE1N C8028 16V 0.1u R8068 47 VI1P13 IC8001 AA26 MMA2 IC8001 C19 VOP16 *IC8002 = H2 VSSQ *IC8002 = N7 A6 IC8001 C11 DACVSS1 IC8001 L5 VI2P23 XDSR0 *IC8003 = K7 RAS IC8001 K24 MMDQ3 IC8001 Y5 XEDK IC8001 B22 VOP9 IC8001 E21 VDD33 VI1CVBS3 IC8001 M13 VSS *IC8002 = D3 DQ11 *IC8003 = L2 BA0 VI2CLK *IC8002 = J1 VDDL IC8001 AF8 SMTCMD1 IC8001 A14 ADIN IC8001 AF3 IS0CLK IC8001 B24 VDD33 1% R8031 270 VOP28 IC8001 R26 VSS *IC8003 = M7 A2 IC8001 G5 VI1P1 C8045 16V 0.1u IC8001 K25 MMDQ2 IC8001 F18 VOP15 IC8001 D11 MVCOMP IC8001 K11 VSS VI1CKOUT *IC8002 = H7 DQ2 IC8001 H26 VOUTENB IC8001 J2 VI2P19 SBI2 R8074 220 C8017 10u 10V IC8001 K22 MMDQ4 IC8001 AA18 VSS R8001 180 IC8001 AC8 XDTR0 IC8001 P17 VSS IC8001 K1 VI2P24 IC8001 AB2 ERXW *IC8003 = D2 VSSQ IC8001 AC11 VDD33 IC8001 AC21 TSTSEL IC8001 AC5 XNFCE IC8001 E8 VI1CK208F C8031 6.3V 1u IC8001 E24 VSS SUB3.3V IC8001 P1 XIRQ3 IC8001 D1 VI1HSYNC C8004 1u 6.3V IC8001 F26 TD1P IC8001 AB23 VSS IC8001 D13 VSS *IC8002 = J9 VDD IC8001 U25 MMA9 IC8001 C10 VI1P3 TDI VOP4 C8023 10u 10V MHSYNC *IC8003 = D8 VSSQ IC8001 AE5 IS1VAL IC8001 A26 VDD33 VI1CK204F IC8001 L23 MMDQ0 IC8001 M21 VDDIO *IC8003 = R1 VDD VOP9 IC8001 L24 VSS EA2 *IC8002 = K9 ODT IC8001 R21 VDDIO RXD0 *IC8002 = R8 NC VOP16 1.8V_DDRI/F *IC8003 = E9 VDDQ VI1P5 *IC8003 = H9 DQ5 IC8001 AF17 MMDQ27 IC8001 P14 VSS MVCLK 1.8V_DDRI/F SMTRST0 IC8001 V25 VSS *IC8002 = F3 LDM XRTS0 IC8001 D20 VOP8 IC8001 T2 EA1 VOP14 IC8001 AE17 MMDQ26 IC8001 D23 SBO0 IC8001 M1 SDA0 IC8001 E7 VI2P1 VOP19 IC8001 B17 VOP24 R8029 0 CH0PSYNC VI1P15 R8071 47 C8026 16V 0.1u IC8001 J21 MVAVSS IC8001 N4 XIRQ1 *IC8003 = M3 A1 C8069 50V 82p IC8001 P6 VDD33 TP8037 IC8001 AD19 VSS IC8001 N15 VSS IC8001 P5 AVCOIN SDWP IC8001 AB12 SDDAT0 VI1CVBS0 IC8001 R2 TRST IC8001 L6 VI2P21 SLRCK IC8001 C1 VI1P19 IC8001 A3 VI1P14 IC8001 Y6 VSS R8057 47 *IC8002 = J3 VSS IC8001 C22 MHSYNC IC8001 AD1 XECS3 IC8001 J4 VI2P13 IC8001 J1 VI2CLK2 C8046 16V 0.1u *IC8002 = A3 VSS IC8001 R4 VDD33 IC8001 K10 VSS CLKGEN_S2 SBT0 IC8001 H1 VI2P15 IC8001 J24 MMDQ7 IC8001 W21 VSS IC8001 AD15 VDDR *IC8003 = K2 CKE *IC8002 = G2 DQ1 C8080 16V 0.1u IC8001 M11 VSS R8062 47 IC8001 Y24 VDDIO *IC8002 = N8 A4 IC8001 U16 VDDR IC8001 H23 VSS IC8001 L16 VSS IC8001 B26 TA1P *IC8002 = E2 NC IC8001 L2 VI2P26 SMTD1 CH0VAL IC8001 K12 VSS IC8001 D10 VSS IC8001 N22 VSS C8075 4V 22u *IC8002 = C2 DQ9 XNMIRQ IC8001 AD18 MMDQS3 *IC8003 = J2 VREF IC8001 AB13 SDDAT2 C8076 16V 0.1u IC8001 D24 TSTAIO VI1P6 R8023 0 SDCMD C8057 16V 0.1u *IC8003 = H2 VSSQ ADIN VI1P25 SRCK0 IC8001 AB7 IS0VAL IC8001 AE1 XECS7 ED11 IC8001 AD13 SDCD *IC8003 = A7 VSSQ IC8001 B14 ADCCK *IC8003 = N7 A6 CH1CLK IC8001 AF16 MMDQ31 ED10 C0ZBZ0001030 IC8004 1 X1 2 S0 3 S1 4 VIN 5 VDD 6 GND 7 74M 8 COMM 9 27M 10 4.9152M 11 24.576/33M 12 GND 13 VDD 14 S2 15 VDD 16 X2 IC8001 N11 VSS *IC8003 = R7 NC MVSYNC *IC8002 = C3 VDDQ IC8001 K4 VI2P18 IC8001 P4 GTCPOUT NFCLE IC8001 AF5 IS1DATA IC8001 L21 MMDQ1 IC8001 F2 VI1P21 IC8001 E14 DACVDD2 ED8 SUB1.8V XEDK IC8001 MN2WS0039AA A1 VSS IC8001 M15 VSS IC8001 C16 VOP1 C8019 16V 0.1u VI1P20 IC8001 F7 VI2P2 IC8001 AB11 SMTSEL0 IC8001 E18 VOP29 C8048 16V 0.1u *IC8003 = P8 A8 IC8001 T22 VSS *IC8002 = B8 VSSQ IC8001 M16 VSS VI2VSYNC *IC8002 = B2 VSSQ IC8001 H6 VI1P20 IC8001 G4 VDD33 IC8001 AE21 VDDIO 1.8V_DDRI/F MVDACO2 *IC8003 = C9 VDDQ *IC8003 = D9 DQ13 IC8001 W5 ED12 SUB3.3V IC8001 AD14 VDD12 IC8001 J6 VDD33 IC8001 U10 VDD12 TMS IC8001 L17 VSS C8036 10u 10V C8074 16V 0.1u C8013 16V 0.1u IC8001 R23 MMCKE C8010 10u 10V *IC8002 = M9 VDD IC8001 M22 MMVREF0 VI2P13 IC8001 E13 MVDACO0 VOP12 IC8001 L13 VSS VI2CLK2 IC8001 AE20 MMDQ18 IC8001 E1 VI1P11 IC8001 J25 VSS IC8001 N14 VSS EA3 IC8001 T25 VDDIO IC8001 R3 TDO IC8001 AD16 MMDQ30 VI1P1 IC8001 AA7 VSS IC8001 F3 VI1P10 IC8001 G1 VI2P10 IC8001 AE4 IS0PSYNC IC8001 N6 VDD33 VOP25 *IC8002 = D9 DQ13 IS1VAL *IC8003 = B1 DQ14 ADCCK IC8001 AA1 ED14 IC8001 U22 MMA5 IC8001 A7 VI1P26 C8016 6.3V 1u *IC8003 = K9 ODT *IC8002 = M3 A1 VI1P19 *IC8002 = N3 A5 IC8001 K17 LVVDD12 IC8001 L3 VI2P25 IC8001 A25 VDD33 IC8001 C25 TB1N IC8001 AD22 VDDIO IC8001 U6 VDD33 IC8001 AF19 MMDQS2 ESZ1 C8050 16V 0.1u IC8001 G3 VI2ENB XECS3 R8070 47 IC8001 U12 VDD12 C8042 68u 4V IC8001 F16 VOP11 LRCK0 C8021 16V 0.1u IC8001 R13 VDD12 SDDAT3 IC8001 D8 VDD33 ED2 IC8001 A20 VOP17 EA7 IC8001 AF18 MMDM3 *IC8003 = N8 A4 VI1CK208F SUB3.3V IC8001 B1 VI1P17 IS1DATA *IC8002 = P7 A11 *IC8002 = G1 VDDQ IC8001 D15 DAUDIO *IC8003 = B3 UDM IC8001 AC17 MMDQ25 *IC8003 = E7 VSSQ *IC8003 = J7 VSSDL IC8001 AB20 MMDQ16 R8079 0 *IC8003 = G7 VDDQ *IC8002 = F2 VSSQ IC8001 A19 VOP13 IC8001 K3 VI2P20 IC8001 AE10 CH1PSYNC IC8001 D21 XRST VOP17 IC8001 AC24 MMPCLKEXT IC8001 T26 MMA10 IC8001 H24 AUDCLK ED9 IC8001 AE14 VDD12 IC8001 AF6 XDSR0 IC8001 R24 VSS EA1 IC8001 AB8 SBT0 SMTSEL1 VI1P12 VI2P21 IC8001 G7 VSS SDDAT2 IC8001 AA21 VDDIO *IC8003 = G3 VDDQ R8003 0 SMTD0 IC8001 AF2 XNFWP SUB3.3V *IC8003 = L3 BA1 IC8001 T16 VSS IC8001 W25 MMXRAS IC8001 H22 TCPOUT R8077 47 *IC8002 = R3 NC C8049 16V 0.1u *IC8002 = P2 A7 R8039 0 IC8001 E26 TCLK1P XRST IC8001 U14 DPAVDD12 *IC8002 = M8 A0 IC8001 AD8 SMTCLK1 R8069 47 IC8001 AF25 MMRDRV *IC8003 = G8 DQ0 IC8001 T15 VDDR VI1CVBS2 C8040 16V 0.1u *IC8003 = B9 DQ15 IC8001 U11 VDD12 *IC8002 = C8 DQ8 IC8001 AA3 XEWE0 IC8001 B21 VOP4 R8101 10k IC8001 D18 VSS IC8001 AB24 MMMONA VOP29 R8098 10k IC8001 K6 VDD33 IC8001 D3 VI2P8 C8077 16V 0.1u *IC8003 = B8 VSSQ VOP1 IC8001 J3 VI2P17 IC8001 Y4 XERE *IC8002 = G7 VDDQ IC8001 AA6 VSS IC8001 AE24 DTCPOUT VI1P8 R8076 47 *IC8002 = G8 DQ0 IC8001 AD11 CH0PSYNC C8047 16V 0.1u IC8001 AD25 VDDIO IC8001 M3 VI2P29 XNFRE SDA0 IC8001 AD6 SBT2 *IC8003 = H8 VSSQ IC8001 B16 VOP0 IC8001 AF1 VSS C8006 16V 0.1u IC8001 P24 MMDQ14 IC8001 AC9 XRI0 IC8001 A18 VOP26 IC8001 R1 TMS *IC8003 = G1 VDDQ IC8001 M25 VSS IC8001 AA24 MMODT IC8001 AD2 XECS6 *IC8002 = A9 VDDQ IC8001 U13 VDD12 IC8001 H2 VI2P14 R8064 47 SDA1 IC8001 AB16 MMDQ28 ED6 *IC8003 = H3 DQ3 IC8001 C23 VDD33 R8025 0 C8022 6.3V 1u VI2P26 IC8001 AB21 VSS *IC8003 = L1 NC IC8001 A5 VI1P8 R8086 100k C8027 16V 0.1u C8073 16V 0.1u *IC8003 = J8 CK *IC8002 = A7 VSSQ *IC8003 = F8 VSSQ IC8001 AB10 SMTSEL1 IC8001 T21 MMA3 IC8001 D17 VDD33 IC8001 R11 VDD12 IC8001 A9 VI1P22 IC8001 E3 VI1ENB R8027 0 *IC8003 = L8 CS SBO0 IC8001 AC19 MMDQ17 IC8001 C24 SBI0 IC8001 AD17 VDDIO IC8001 AC16 VSS IC8001 B19 VOP14 L8001 J0JHC0000045 IC8001 AF11 CH0DATA IC8001 W6 VSS *IC8002 = B1 DQ14 IC8001 B20 VOP19 R8106 2k IC8001 AE22 VSS VI1P2 IC8001 AA15 VSS C8051 16V 0.1u XEWE1 IC8001 P11 VSS C8041 16V 0.1u C8072 16V 0.1u IC8001 AF26 VDDIO IC8001 A16 VOP10 IC8001 AE25 VSS VOP3 IC8001 AD4 XNFRE *IC8003 = E8 LDQS IC8001 AA11 SMTD0 VI1P18 IC8001 N13 VSS IC8001 AB22 VDDIO IC8001 AE9 SMTRST0 R8091 100 C8029 16V 0.1u *IC8003 = H1 DQ4 VI1CLK2 IC8001 K2 VI2P22 IC8001 B4 VI1P12 IC8001 Y25 MMA8 NFALE IC8001 Y26 MMA6 IC8001 N10 VDD12 *IC8003 = P9 VSS IC8001 AC13 VSS IC8001 B18 VOP28 C8033 16V 0.1u VI2P15 *IC8003 = D1 DQ12 C8043 16V 0.1u IC8001 AB19 VDDIO IC8001 V1 ED1 XNFCE IC8001 E9 VI1CVBS0 IC8001 P2 AGAVSS SMTCLK1 VI1P29 IC8001 AE6 XRTS0 R8030 100 *IC8002 = H8 VSSQ IC8001 A2 VI1P16 IC8001 P10 VDD12 *IC8002 = F8 VSSQ *IC8002 = J8 CK IC8001 N1 XIRQ2 IC8001 AA14 VDD12 IC8001 A15 LCSCK IC8001 Y22 VDDIOCK IC8001 R17 VDDR IC8001 AC20 VSS VOP13 IC8001 F1 VI2HSYNC IC8001 H21 MVAVDD VREF IC8001 C2 VI1P18 IC8001 AA12 CH1VAL IC8001 U23 MMA12 C8009 10u 10V CH1DATA IC8001 W22 MMXCS1 VI1ENB *IC8002 = K2 CKE IC8001 P16 DPAVDD *IC8002 = L3 BA1 IC8001 T12 VDD12 IC8001 W24 VSS IS1PSYNC VI2P17 IS1CLK *IC8003 = L7 CAS IC8001 M24 MMDQS1 IC8001 A17 VOP23 IC8001 B23 SBO2 IC8001 L15 VSS IC8001 Y23 VSS IC8001 F4 VI2P9 IC8001 D26 TC1P R8063 47 DAUDIO *IC8002 = M2 A10 IC8001 A11 SVCOMP IC8001 K14 VSS IC8001 P15 VSS 1.8V_DDRI/F IC8001 B13 SRCK0 IC8001 D16 VDD33 IC8001 F20 VDD33 *IC8003 = D3 DQ11 R8028 0 IC8001 N5 SCL1 IC8001 AB26 MMXCK CH0CLK C8011 16V 0.1u R8107 100 XECS5 IC8001 W26 VDDIO ED15 IC8001 L22 VSS XECS4 *IC8003 = H7 DQ2 C8008 16V 0.1u *IC8003 = J1 VDDL IC8001 AA5 XECS0 IC8001 C8 VI1P25 IC8001 W2 ED6 IC8001 D6 VI2P3 R8099 10k C8053 25V 0.01u R8061 47 IC8001 F13 MVDACO2 C8034 16V 0.1u MVDACO1 IC8001 E15 SLRCK IC8001 F25 TD1N C8068 16V 0.1u IC8001 D25 TC1N VI1P21 VI1P14 IC8001 AE23 MCLK *IC8002 = N2 A3 SUB3.3V *R8110 10k EA19 IIC I/F AUDIO IF XDTR0 SD CARD I/F JTAG SERIAL I/F LVDS I/F SBI1 SCL2 SDA2 SCL3 SDA3 LOSDOUT11 LOSDOUT10 LOSDOUT13 LOSDOUT12 PORT14[1] PORT14[2] PORT14[3] LOSDOUT15 RSV2(SDRAMCHK2) PORT14[4] PORT16[1] VMUTE SCARD_NMIRQ XRI0 SCARD_IRQ XDCD0 RXD0 RMCO TXD0 XCTS0 XDSR0 RSV3(SDRAM_CHK1) B PORT (Sub Video Input or Address) SBO1 XRTS0 HSVALIN Analog Video I/F HSSYNIN POD,CI I/F HSBCLKIN CPU BUS I/F COMMON PORT .etc PORT5[6] CLOCK GEN SMT_OFF RSV1(SD_ERROR) PORT5[7] PORT16[0] HSDIN0 HSDIN1 PORT15[5] NAND I/F POWER_DET HSDIN2 HSDIN3 PORT15[7] HSDIN4 EA20 FOR HQ1L VIDEO HSDIN5 EA13 HSDIN6 EA22 EA15 EA16 HSDIN7 EA10 PORT10[6] EA21 PORT10[7] LOSDOUT14 LOSDOUT9 PORT5[4] PORT5[5] LOSDOUT8 LOSDOUT7 LOSDOUT6 PORT6[4] PORT6[5] PORT6[7] SDBOOT EA12 LOSD OUT (for HQ1) C Y Cmp V EA09 FOR ADV7493 U EA18 Y EA17 LOSDOUT5 Cmp RMCO LOSDOUT4 LOSDOUT3 RSV4 LOSDOUT2 CH,IS IF LOSDOUT1 EA24 PORT9[5] LOSDOUT0 EA11 LOSDOUT_CLK_O R LOSDOUT_H_O G LOSDOUT_YS B LOSDOUT_YM Cmp PANEL_STATUS EA23 LOSDOUT_V_I LOSDOUT_CLK_I DAUDIO LOSDOUT_H_I EEPROM_WP FE_IRQ P_MAIN_SW HDMI_IRQ ETHER_IRQ PANEL_SOS EA08 EA14 CRNo.8000-8299 Peaks-Lite2/DDR2 IC8002 DDR2_0 DDR2_1 IC8003 Peaks Lite 2 IC8001 8 7 A 3 4 B 2 D E 5 F C 1 9 6 to (9/12) to (9/12) to (11/12) to (5/12) to (3/12) to (4/12) to (3/12) to (3/12) to (3/12) to (8/12) to (4/12) to (4/12) to (3/12) to (3/12) to (3/12) to (3/12) to (4/12) to (3,8/12) to (12/12) to (3/12) to (12/12) to (3/12) to (3/12) to (3,8/12) to (3,8/12) to (3/12) to (3/12) TH-42PZ700C DG-Board (1 of 12) Schematic Diagram TH-42PZ700C DG-Board (1 of 12) Schematic Diagram DG-BOARD (1/12) ! TNPA4176AM 90 15.22.DG 电路板 (2/12) 线路图 AC_CHDI0 AC_CHDI1 AC_CHDI2 AC_CHDI3 AC_CHDI4 AC_CHDI5 AC_CHDI6 AC_CHDI7 AC_CHVAL AC_CHSYNC AC_CHCLK SMTCMD0 SMTSEL0 AC_XPDWT SMTCLK0 SUB3.3V *R8475 EXB28V103JX *R8474 EXB28V103JX *R8472 EXB2HV103JV XCI_IREQ XPDCD1 XPDCD2 11 18 10 17 15 14 16 13 12 1 TH-42PZ700C DG-Board (2 of 12) Schematic Diagram TH-42PZ700C DG-Board (2 of 12) Schematic Diagram DG-BOARD (2/12) ! TNPA4176AM 91 15.23.DG 电路板 (3/12) 线路图 + + + + SCL SDA SLRCK SDA SCL EDID_WP HDCP_WP 7493_XRST HPD3 HDMI_5V_DET3 HPD1 HDMI_5V_DET1 RF_AFT1 VIDEO_STATUS AUDIO_XRST A_MON_MUTE/SP_MUTE AUDIO_MUTE SOUND_SOS SOS BUS_CONNECT2 AVSW_OFF TV_SUB_ON_DELAY HDMI_OPT_ENB CLK74SEL SD_BOOT_STS SD_LED_ON SCL SDA SCL3 SDA3 SCL1 SDA1 SCL2 SDA2 SBI2 HDMI_CEC VI2ENB ADCCK XRST DTV_VOUTENB SBO0 PANEL_RXD SCL0 SDA0 PANEL_TXD PANEL_SCL SBI0 IIC_CONT PANEL_SDA SBO2 FAN_SOS PWM_POW_ON SCL3 SDA3 HDMI_5V_DET2 HPD2 HDMI_REP_EN HDMI_MUX_EN HDMI_MUX_SEL PANEL_STBY/VCC_ON PANEL_STBY/VCC_ON TV_MAIN_ON SW_OFF_DET SRQ-GENX D_IIC_CONT ECO_ON D_IIC_INT D_PDB1 D_PSLCT D_PDB0 D_PBUSY D_PSTB TV_SUB_ON PANEL_SOS PANEL_STATUS PANEL_TXD PANEL_MUTE PANEL_RXD PANEL_SDA PANEL_SCL ALL_OFF PANEL_STBY/VCC_ON SRQ-GENX D_PSTB D_PBUSY D_PDB0 D_PSLCT D_PDB1 D_IIC_INT ECO_ON ALL_OFF FAN_MAX CONFIG_DONE FPGA_XRST LVDS_EN HQ1_XRST HQ1_XRST KEY1 TV_SUB_ON TV_SUB_ON STB_RST TV_MAIN_ON TV_MAIN_ON TV_MAIN_ON C5691 R5695 MAIN3.3V R5697 Q5690 R5691 Q5692 R5693 R5696 R5690 SUB5V C5690 Q5691 MAIN5V R5694 D5691 C5694 D5690 Q5693 C5695 R5692 SUB3.3V STB5V D5670 D5673 D5671 SUB5V STB3.3V STB5V STB3.3V SUB5V MAIN9V MAIN3.3V X1100 MAIN5V DTV9V Q1107 Q1108 SUB1.2V DTV9V SUB3.3V SUB1.8V STB5V STB3.3V SUB5V R8870 R1235 STB5V D_15V STB3.3V MAIN3.3V SUB5V STB3.3V Q2001 Q2000 MAIN3.3V D5609 DTV9V Q5604 Q5603 D1112 RSV3(LITE2) GenX4 MAIN3.3V MAIN5V MAIN+5V ON/OFF 5 +3.3V AVR 1 (STB) STB+3.3V MAIN+3.3V ON/OFF (Lite2 E2PROM) (Device Control) LITE2_SCL1 (Device Control) SRQ STB5V (GenX4 Loarder/E2PROM) (GenX4 Loarder/E2PROM) (Device Control) GenX4_SDA LITE2_SDA1 LITE2_SDA3 GenX4_SCL LITE2_SDA2 (Lite2 E2PROM) (Device Control) LITE2_SCL2 LITE2_SCL3 RSV1(LITE2) SUB5V_SENSE SBI0A 63 64 52 33 34 35 SBO0A MAIN3.3V_SENSE 66 67 83 84 10MHz MAIN9V_SENSE 110 121 RSV4(LITE2) 93 30 DTV9V_SENSE 27 MAIN5V_SENSE RSV2(LITE2) 24 8 7 6 5 28 GenX-EEP_WP EEPROM EDID_WP HDCP_WP 106 109 69 7493_XRST 38 HPD3 HDMI_5V_Det1 55 36 HDMI_5V_Det3 53 HPD1 HDMI_CEC 65 (HDMI_CEC_PU_ON) (HDMI_CEC_PU_ON) 21 1 TV_SUB_ON 14 PWM_POWER_ON 46 TV_MAIN_ON FAN_SOS 117 RF_AFT1 111 VIDEO_STATUS 58 AUDIO_XRST 68 ECO_ON 2 126 127 AUDIO_MUTE A_MON_MUTE/SP_MUTE SOUND_SOS 118 SOS 114 25 ALL_OFF 20 (BUS_CONNECT2) 48 AVSW_OFF(US) FE_XRST 71 MODEM_XRST 72 88 DTV_VOUTENB 16 125 SD_BOOT_STS 124 DTV_XRST SRQ_GenX 26 SD_LED_ON 17 56 SD_COIN_DET SW_OFF_DET 12 92 NBOOT IC1100 SDA WC SCL VCC TO K1 (SUB) SUB+1.8V/SUB+1.2V DC-DC CONV. IC5601 +3.3V 8 (SUB) +1.8V 3 12 23 16 17 (SUB) 23 DC-DC CONV. SUB+3.3V +1.2V IC5600 1 2 4 5 6 7 8 9 10 11 DG33 2 RESET STB RESET 1 IC5671 5 7 96 9 100 11 13 15 17 19 DG31 1 3 104 102 103 99 97 TRCD1 for DEBUGER TRCCLK SCLOCK 101 SDATA STB3.3V TRCST TRCD0 TRCD2 TRCD3 STB_RST EXTRG0 95 4 CLK74SEL I2C I2C 7 (Device Control) 8 Panel_TXD 9 10 12 Panel_RXD IIC_CONT Ex IIC Panel_SDA LITE2_SCL0 19 21 STB5V LITE2_SDA0 22 24 26 27 30 28 29 DG34 1 2 I2C 4 5 6 STB3.3V Panel_SCL (Panel Dpr.E2PROM) IIC_CONT/SRQ (Panel Dpr.E2PROM) (Device Control) 3 2 1 DG7 SUB5V SBO2 SBI2 4 6 7 9 12 G_LED_ON AI_SENSOR SUB5V RMIN ACTIVE_STBY _LED_ON STB3.3V R_LED_ON KEY1 DG1 1 2 3 40 39 CFG_JTAG FOR FACTORY USED FOR FACTORY USED FOR FACTORY USED DG DIGITAL SIGNAL PROCESSOR 15 14 17 13 14 11 SOS LED BLINKING : 10TIMES SOS LED BLINKING : 12TIMES SOS LED BLINKING : 10TIMES IC1101 IC5670 HDMI_5V_Det2 54 37 HPD2 TRCST TRCD0 TRCD2 TRCD3 EXTRG0 SDATA TRCD1 TRCCLK SCLOCK NRST HDMI_MUX_EN HDMI_MUX_SEL 8 7 HDMI_REP_EN 6 SDA3 SCL3 SDA1 SCL1 HQ1_XRET 70 105 PANEL_STBY_ON IVDD STB5V IIC_SCL1 D_PSTB D_PDB1 19 IIC_CLK2 26 PANEL_STBY/VCC_ON D_15V 15 14 4 ALARM 12 D_PBUSY 25 16 8 22 ECO_ON IIC_DATA2 SCL0 6 11 STB5V 21 D_IIC_INT 23 READY 7 D_PSLCT D_RXD DISPEN 1 SDA0 IIC_SDA1 TO D3 D_PDB0 3 18 TV_SUB_ON 29 D_IIC_CONT DG35 20 D_TXD 2 ALL_OFF 27 IC4800 SDA SCL 1 6 TEMPSENSOR A0 VCC 4 5 SDA1 SCL1 I2C 45 REMOTE 89 G_LED_ON R_LED_ON 49 115 KEY1 ACTIVE_STBY_LED_ON 87 AI_SENSOR 113 18 13 16 17 14 15 D_15V D_PBUSY D_PSLCT D_PDB0 D_PSTB D_PDB1 D_IIC_INT SBI0 SBO0 MANI3.3V CFG_TCK CFG_TMS CFG_TDO CFG_TDI CFG_TRST FAN_MAX 86 FPGA_XRST 59 122 CONFIG_DONE 15 LVDS_EN TH-42PZ700C DG-Board (3 of 3) Block Diagram TH-42PZ700C DG-Board (3 of 3) Block Diagram 92 15.24.DG 电路板 (4/12) 线路图 G G G G AH_LRCK0 DVB_CVBS AE_SDCLK AA_XRST AD_SCL2 AG_SD_LED_ON AD_TO_SC AG_SW_OFF_DET AD_TRST AD_SDA2 AH_IECOUT0 AD_SDA1 MVDACO3 AH_DAUDIO AE_SDDAT0 AG_DTV_XRST AH_DAUDIO AG_SD_BOOT_STS AE_SDDAT1 AE_SDCMD AD_SCL1 AE_SDCLK AD_TO_GC3FS_NEXT AH_DMIX0 AD_SDA3 AD_SDA0 AD_TMS AH_SRCK0 AD_SCL0 AH_IECOUT0 AH_LRCK0 AE_SDDAT3 AE_SDDAT2 AD_TCK AD_SCL3 AD_SDA3 AD_SCL3 AH_SRCK0 MVDACO3 AH_DMIX0 AE_SDCD AE_SDWP AG_MODEM_LED2/CLK74SEL STB_RST AE_SDCD AE_SDWP AG_SD_LED_ON AE_SDDAT3 AE_SDDAT1 AE_SDCMD AE_SDDAT2 AE_SDDAT0 AG_SRQ-GENX AG_DTV_VOUTENB AG_TV_MAIN_ON C8802 16V 0.1u C8601 16V 0.1u C8803 16V 0.1u FL8802 J0HAAA000013 1 2 3 4 5 6 7 8 9 10 FL8801 J0HAAA000013 1 2 3 4 5 6 7 8 9 10 *IC8601 1 A0 2 A1 3 A2 4 VSS 5 SDA 6 SCL 7 WP 8 VCC DG52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 *L8802 J0JCC0000100 L8801 J0JHC0000045 SUB3.3V SUB3.3V SUB3.3V_SD SUB3.3V DTV9V SUB3.3V TP8805 TP8808 TP8807 TP8604 TP8605 TP8802 TP8601 TP8804 TP8803 TP8806 TP8801 TP8501 TP8602 TP8603 AG_DTV_VOUTENB AG_SW_OFF_DET AG_SD_LED_ON AD_TO_SC AG_DTV_XRST AG_TV_MAIN_ON AG_SD_BOOT_STS AG_MODEM_LED2/CLK74SEL AA_XRST AD_SCL3 AD_TMS AH_SRCK0 AD_SCL0 DVB_CVBS AH_LRCK0 AD_SCL1 AH_DMIX0 AD_TRST AD_TO_GC3FS_NEXT AH_DAUDIO AD_SCL2 AH_IECOUT0 VMUTE AD_TCK AG_SRQ-GENX MVDACO3 IS0CLK VI1P1 STB_RST VI2CLK2 AD_SDA3 SRCK0 VI1P0 VI1P11 DAUDIO IS0VAL IS1PSYNC MVDACO1 SDDAT3 SDDAT0 LRCK0 VI1P21 CH1VAL SDDAT1 MVDACO2 SDWP MVDACO0 SDDAT2 AD_SDA0 SDCD VI1P10 DACCK0 DMIX0 VI1P0 IS1VAL IS0DATA SDCMD IECOUT0 AD_SDA2 SDCLK AD_SDA1 *Q8801 2SD0601ASL *Q8802 2SB0709ASL R8813 EXB28V680JX *R8818 4.7k 1% R8510 91 R8817 68 R8812 0 R8518 0 R8605 68 1% R8509 91 1% R8507 91 1% R8508 91 *R8819 4.7k R8805 10k R8502 330 R8963 10k R8601 22 R8815 68 R8506 330 R8517 0 R8802 10k R8603 47k R8816 68 R8604 0 R8504 330 R8828 10k *R8958 68 1% R8512 180 R8503 330 *R8965 68 R8809 10k R8808 10k R8832 10k R8806 10k R8655 10k R8501 100 *R8820 10k *R8821 56 R8826 68 *R8822 200 R8519 0 R8814 68 *R8833 0 *R8804 10k *R8803 10k *R8823 4.7k R8513 0 R8952 68 R8602 22 R8653 10k R8807 10k JS1115 JS1100 MAIN AUDIO DATA Comp. Comp. Comp. Hi-Z 3.3V FROM HQ1L SMTSEL0 SD_CARD OUTPUT SMART CARD I/F is removed INT.PD GENX4 RESERVED GND TO GC3FS SDDAT0 GND SDCLK for PHOTO OUT COMMON for EACH DEVICES COMMON LR/SR CLK Y Y G PORT15[6] SDCMD YC YUV RGB PORT15[4] used for CI_OCP on DT2 SDDAT2 SDDTC SDDAT3 SMTCLK0 DIGITAL AUDIO CONNECTOR JTAG SDWP GND C U B PORT9[4] EEPROM_WP to other devices SDDAT1 SC --> LiteII --> GC3FS --> HQ1L --> SC with AUDIO DESCRIPTION DATA HQ1L/FHD - V R to H-PCB Sheet No.003 CRNo.8300-8999 DTV FE 8300-8399 CI 8400-8499 AV_OUT 8500-8549 NAND/NOR 8550-8599 EEPROM 8600-8619 D-LATCH 8620-8649 SMART_CARD 8650-8699 SUPPORT_CARD 8700-8799 SD_CARD 8800-8849 MPEG 8850-8949 MODEM 8950-8999 Output Port need no Ext.PD. RXD0 TXD0 Hi-Z AG_MODEM_XRST is removed. H.264 should be L OUTPUT setting FOR H.264 BOARD Hi-Z Hi-Z PORT8[0] Hi-Z Hi-Z SMTCMD0 PORT15[7] Hi-Z if H.264 is non use Int.PU PORT5[4] SD_COIN_DET PORT7[7] PRO_SDBOOT EEPROM TVRP484 TO GS-BOARD (GS52) to (7/12) to (5/12) to (9/12) to (5,9/12) to (12/12) to (8,12/12) to (6/12) to (5,9,11,12/12) to (7,12/12) to (9,12/12) to (8,12/12) to (8/12) to (6,7,8/12) to (8,12/12) to (5,6,7,8,9/12) SUFFIX UPPER M A(AA) SUFFIX LOWER SUFFIX 36 29 30 28 33 31 32 34 35 13 14 12 11 15 TH-42PZ700C DG-Board (4 of 12) Schematic Diagram TH-42PZ700C DG-Board (4 of 12) Schematic Diagram DG-BOARD (4/12) ! TNPA4176AM 93 15.25.DG 电路板 (5/12) 线路图 AG_UB1 AG_YG0 AG_UB2 AG_UB4 AG_UB5 AG_YG0 AG_YG3 AG_VI2CLK AD_TCK AG_UB0 AD_TO_HQ1L AG_UB6 AG_YG5 AG_UB4 AG_UB3 AH_FS_U AG_TV_MAIN_ON AG_YG7 AG_YG1 0V AG_YG4 AG_YG2 AG_UB7 AG_VPO AG_UB1 AG_YG6 AG_UB5 AG_UB7 AD_TO_GC3FS_NEXT AG_YG4 AG_YG2 AG_UB3 AG_HQ1_XRST AG_YG5 AD_SDA1 AG_YG3 AG_YG7 AD_SCL1 AH_FS_V AG_UB6 AG_HPO AG_YG6 AD_TRST AG_VI2CLK AG_HPO AG_UB0 AD_TMS AG_YG1 AG_UB2 AG_VPO AH_FS_Y AD_TCK AD_TMS AD_TRST AD_TO_HQ1L AD_TO_GC3FS_NEXT *C4045 16V 0.1u *C4033 16V 0.1u VI2P29 *C4018 16V 0.1u VI2P16 *R4005 68 *C4039 25V 0.01u *JS4003 *R4019 1k *C4036 10V 1u *C4050 10V 1u *IC4005 C0CBCBC00190 1 VDD 2 GND 3 CE 5 VOUT 4 NC *C4014 16V 0.1u VI2P12 AH_FS_Y VI2VSYNC *C4049 16V 0.1u VI2P19 *L4002 J0JHC0000045 *C4006 16V 0.1u *C4051 16V 0.1u *C4046 16V 0.1u *C4030 16V 0.1u AH_FS_V MAIN_FS_1.8V *R4002 EXB2HV680JV HQ1L_FRCLKIN *Q4000 2SA207700L VI2HSYNC *R4017 1k AD_TO_HQ1L *C4053 16V 0.1u C1AB00002687 *IC4001 1 VDDE 2 VSS 3 UBOUT3 4 UBOUT2 5 VDDI 6 UBOUT1 7 UBOUT0 8 CLKO 9 VDDE 10 VSS 11 VDDI 12 FRCLKIN 13 TEST 14 SDA 15 SCL 16 CTRL0 17 CTRL1 18 NRST 19 VSS 20 VDDE 21 VPD 22 RT1 23 RB1 24 AVD1 25 AVS1 26 MON1 27 YIN 28 RT2 29 RB2 30 AVD2 31 AVS2 32 MON2 33 UIN 34 RT3 35 RB3 36 AVD3 37 AVS3 38 MON3 39 VIN 40 TDI 41 TDO 42 VDDE 43 VSS 44 TRST 45 TMS 46 TCK 47 VDDI 48 VREF 49 AVD4 50 AVS4 51 AOUT 52 VSS 53 CW358 54 VDDE 55 BXS 56 VDDI 57 PLLVS 58 PLLVD 59 VSS 60 VDDE 61 VPO 62 HPO 63 YGOUT7 64 YGOUT6 65 YGOUT5 66 VDDE 67 VSS 68 VDDI 69 YGOUT4 70 YGOUT3 71 YGOUT2 72 YGOUT1 73 YGOUT0 74 VDDI 75 VSS 76 VDDE 77 UBOUT7 78 UBOUT6 79 UBOUT5 80 UBOUT4 *C4028 16V 0.1u *R4029 100 *C4052 16V 0.1u *C4040 50V 15p AD_TCK TP4000 VI2P23 *C4016 16V 4.7u *C4019 50V 0.47u VI2P28 *R4034 10k AG_TV_MAIN_ON AD_SDA1 AD_TRST FS_FRCLKIN AD_SCL1 *JS4005 VI2P24 VI2P15 AH_FS_U VI2P27 *R4013 680 *IC4004 C0JBAZ002261 1 G 2 IN A 3 GND 5 VCC 4 OUT Y JS4002 *Q4001 2SA207700L VI2P22 *C4010 16V 0.1u AG_HQ1_XRST *L4008 J0JHC0000078 *C4005 16V 0.1u *C4047 10V 1u *C4008 16V 0.1u *C4013 16V 0.1u MAIN_FS_1.8V *C4035 10V 1u *R4006 22 *L4006 J0JHC0000045 1% *R4007 750 VI2P25 *C4027 16V 0.1u *R4016 680 *R4011 22 *C4024 16V 0.1u AD_TO_GC3FS_NEXT *R4012 22 SUB5V 1% *R4010 1.82k *JS4007 *IC4002 C0CBCAC00275 1 VDD 2 GND 3 CE 5 VOUT 4 NC *L4004 J0JHC0000078 *R4003 EXB2HV680JV AD_TMS *R4014 1k *C4038 16V 0.1u VI2P13 *C4032 16V 0.1u VI2P18 MAIN9V VI2P26 *R4028 100 *C4025 16V 0.1u VI2CLK *C4023 16V 0.1u *Q4002 2SA207700L *R4004 68 *C4015 16V 0.1u MAIN_FS_1.8V JS4001 *C4011 16V 0.1u *C4022 50V 0.47u *C4034 16V 0.1u VI2P17 *R4025 2k VI2P14 SUB3.3V *C4020 16V 0.1u *C4021 16V 0.1u *C4054 16V 10u to (1/12) EA23, Y7 EA10, UV2 GC3FS-next intPU after reset HQ1L to(9/12) EA17, Y1 GenX4 EA18, Y2 EA15, UV7 CN_to_H MAIN1.8V EA22, Y6 HQ1L Peaks Lite II DTV GenX4 EA8, UV0 ADV7493 EA19, Y3 EA21, Y5 H:ACTIV EA12, UV4 EA13, UV5 EA11, UV3 EA20, Y4 EA9. UV1 ADV7493 HQ1L HQ1L DTV JTAG CRNo.4000-4199 DTV EA14, UV6 EA16, Y0 I2C GC3FS-next LVDS_OUT MAIN3.3V BUFFER to (11/12) 42 40 39 43 44 38 45 41 37 to (7/12) to (8,9/12) to (4,9,11,12/12) to (4,9/12) to (9/12) to (4/12) to (4,6,7,8,9/12) TH-42PZ700C DG-Board (5 of 12) Schematic Diagram TH-42PZ700C DG-Board (5 of 12) Schematic Diagram DG-BOARD (5/12) ! TNPA4176AM 94 15.26.DG 电路板 (6/12) 线路图 + + + + + G G + G G G G G G + + + + G G + + AG_RMIN AG_KEY1(CON-PANE) AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON Q5600 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 C5670 10V 1u C5715 50V 0.1u R5636 68k C5621 0.01u 25V IC5660 C0EBM0000026 1 OUT 2 Vdd 3 GND 5 Cd 4 NC R5693 47k C0EBF0000376 IC5671 1 RST 2 VDD 3 GND 5 Cd 4 NC C0DBAYY00273 IC5600 1 GND 2 REFIN 3 VREF 4 CS 5 COVP 6 CUVP 7 PGOOD 8 CTL 9 LSAT 10 ILIM 11 +INC 12 -INC 13 FSW 14 PGND 15 OUT-2 16 VB 17 VCC 18 VBIN 19 LX 20 OUT-1 21 CB 22 RT 23 VO 24 FB R5604 47k 1% C5731 6.3V 47u STB5V SUB1.2V D5691 B0BC6R600005 STB5V TP5703 C5602 68u 4V C5674 10V 1u C5604 0.01u 25V R5696 10k C5616 0.047u 10V R5691 10k R5646 10k STB_RST C5628 68u 4V C5600 1u 16V L5692 C5641 0.1u 16V C5711 50V 0.1u P12V R5674 47k R5695 1k C5623 470p 50V C5638 0.1u 16V C5622 4.7u 10V D5607 MAZ802400L C5609 47u 16V C0CBCBC00190 IC5670 1 VDD 2 GND 3 CE 5 VOUT 4 NC C5627 0.1u 16V L5735 J0JHC0000078 D5601 MA22D3900L R5622 100k C5607 50V 220p C5626 0.1u 16V R5607 0 C5620 0.1u 50V C5636 0.1u 16V DTV9V Q5604 2SD0601ASL R5731 47k R5605 12.7k 1% R5730 47k C5631 16V 47u DG2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 R5647 47k TP5702 AG_RMIN C5619 10u 10V L5670 J0JHC0000078 AA_XRST R5627 0 J0HABH000013 FL5732 R5630 47.5k 1% AG_KEY2 C5617 1u 16V C5630 16V 47u TP5705 R5608 0 C5710 50V 0.1u R5626 0 C5716 50V 0.1u R5634 16k 1% R5644 2.2k STB5V C5632 1u 16V TP5600 L5601 G1C2R2ZA0083 AG_KEY1(CON-PANE) R5690 10k TP5701 TP5605 R5635 22k D5606 B0JCDD000002 J0HABH000013 FL5734 R5611 36k 1% DTV9V C5615 10u 10V D5603 B0JCDD000002 TP5604 C5618 10u 10V STB3.3V C5676 16V 0.1u AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON R5670 0 R5662 10k R5660 5.6k D5609 MAZ80560LL J0HABH000013 FL5733 R5638 10k Q5693 B1DHDC000028 R5637 0 AG_KEY3 C5637 0.1u 16V Q5692 B1DHDC000028 TP5607 C5606 470p 50V L5600 G1C2R2ZA0083 R5610 100k R5694 1k L5606 G1C100MA0077 STB3.3V C5693 50V 0.1u R5623 47k 1% D5670 MA2J11100L SUB5V D5602 MA22D3900L R5671 18k R5629 30.1k 1% R5697 10k C5644 0.01u 25V L5604 G1C100MA0077 L5691 J0JHC0000078 TP5603 TP5700 C5712 50V 0.1u TP5706 SUB3.3V R5672 0 MAIN9V AG_AI_SENSOR C5625 0.01u 25V MAIN3.3V C5605 4.7u 10V AG_TV_MAIN_ON R5620 68 R5661 47k R5625 0 SUB5V J0HABH000013 FL5731 Q5603 2SD0601ASL Q5602 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 R5609 0 AG_G_LED_ON SUB5V C5640 0.1u 16V TP5704 TP5606 D5605 MA22D3900L SUB9V(FHD) C5691 47u 6.3V Q5690 B1ABCF000138 L5690 J0JHC0000078 TP5670 R5692 47k R5631 36k 1% DTV9V SUB5V R5733 56k C5730 25V 0.01u SUB3.3V R5732 22k L5611 J0JHC0000035 L5602 G1C3R3ZA0083 C5661 25V 0.01u C5714 50V 0.1u C5663 25V 0.01u C5694 47u 6.3V L5605 C5601 0.1u 16V TP5608 MAIN5V R5628 0 D5671 B0HCMM000014 C5643 0.1u 50V C5624 220p 50V R5612 23.2k 1% C5673 10V 1u D5673 B0HCMM000014 TP5602 D5608 MAZ802400L STB3.3V C5692 50V 0.1u TP5601 L5610 J0JHC0000035 DTV9V R5606 0 C5629 68u 4V D5604 B0JCDD000002 Q5691 B1ABCF000138 MSD601-RT1G R5632 30k 1% Q5601 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 C5690 47u 6.3V R5600 68 R5633 16k 1% J0HABH000013 FL5730 D5690 B0BC6R600005 C5608 0.1u 16V SUB3.3V R5621 47k 1% C5662 10V 0.047u C5639 0.1u 16V SUB3.3V SUB1.8V C5713 50V 0.1u C5603 0.01u 25V C5695 47u 6.3V AG_R_LED_ON C5645 2.2u 10V R5641 47k DG1 1 2 3 4 5 6 7 8 9 10 11 12 TP5707 C0DBAYY00274 IC5601 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP C5610 16V 47u GenX4 From GenX4 to (8/12) SUB5V GND GND CRNo.5600-5749 SUB3.3V SUB5V GND P12V GND GND Peaks-LITE2 RST 5660-5669 GenX4 POWER/RST 5670-5689 Peaks-LITE2 POWER 5600-5659 MAIN5V/MAIN3.3V 5690-5709 DG-H Connecter 5710-5729 DG-G Connecter 5730-5749 GND GND MAIN5V P12V DTV9V DTV9V SUB3.3V GenX4 SUB5V to (4/12) MAIN3.3V to (4,7,8/12) GND to (4,5,7,8,9/12) GND MAIN9V STB5V SUB9V(FHD)/LCD3.3V SUB9V(FHD)/LCD3.3V GND G_LED_ON GND AI_SENSOR SUB5V RMIN ACTIVE_STBY_LED_ON GND STB3.3V R_LED_ON GND KEY1 GND TO H-BOARD (H2) TO K-BOARD (K1) STB+3.3V GenX4 RESET RESET SUB+1.8V/+1.2V SUB+3.3V 53 51 54 52 47 48 50 49 46 TH-42PZ700C DG-Board (6 of 12) Schematic Diagram TH-42PZ700C DG-Board (6 of 12) Schematic Diagram DG-BOARD (6/12) ! TNPA4176AM 95 15.27.DG 电路板 (7/12) 线路图 AG_A_MON_MUTE/SP_MUTE AD_SDA2 AG_VIDEO_STATUS AH_FS_U AG_TV_MAIN_ON AG_SOS AD_SCL2 MAIN_Y/CVBS AH_DMIX0 MAIN_PR AH_FS_Y AH_FS_U AH_DMIX0 MAIN_PB/C PC_VS AH_LRCK0 AG_FAN_SOS PC_VS RGB_CVBS STB_RST AH_DAUDIO HDMI_SDIN RGB_CVBS AH_LRCK0 AH_FS_V DVB_CVBS AD_SCL2 AG_RF_AFT2 AH_FS_V AG_RF_AFT1 AG_KEY1(CON-PANE) AD_SDA2 HDMI_SDIN AG_AUDIO_MUTE HDMI_INT2 HDMI_INT2 AG_ECO_ON MAIN_PR RGB_FB MAIN_PB/C AH_SRCK0 PC_HS AG_FAN_MAX/INV_PSU_ON MAIN_Y/CVBS AG_KEY1(CON-PANE) AH_SRCK0 HDMI_LRCK RGB_FB HDMI_BCLK PC_HS HDMI_LRCK AG_ALL_OFF AH_DAUDIO HDMI_BCLK AH_FS_Y AG_SOUND_SOS AG_A_MON_MUTE/SP_MUTE AG_TV_SUB_ON STB_RST AG_AUDIO_MUTE AG_AUDIO_XRST AG_VIDEO_STATUS PANEL_STBY/VCC_ON AG_RF_AFT2 AG_FAN_SOS AG_ECO_ON AG_ALL_OFF AG_QLINK1 AG_QLINK2 DVB_CVBS AG_FAN_MAX/INV_PSU_ON AH_IECOUT0 AG_TV_SUB_ON_DELAY AH_IECOUT0 PANEL_STBY/VCC_ON AG_TV_SUB_ON AG_TV_MAIN_ON AG_QLINK2 AG_QLINK1 AG_RF_AFT1 AG_SOUND_SOS AG_SOS AG_TV_SUB_ON_DELAY AG_AUDIO_XRST TP2021 TP2023 AH_DAUDIO R2010 47k DG6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 TP2016 SUB3.3V MAIN_PB/C HDMI_LRCK MAIN_PR HDMI_SPDIF TP2000 *R2001 100k TP2001 AG_TV_SUB_ON AG_BUS_CONNECT2 TP2006 AG_AUDIO_XRST TP2009 33 *R2024 STB_RST R2012 47k AG_FAN_MAX AG_TV_MAIN_ON AH_FS_Y *C2000 16V 0.1u R2013 47k RGB_FB AG_TV_SUB_ON_DELAY TP2013 DVB_CVBS TP2005 AG_RF_AFT1 HDMI_BCLK AG_KEY1(CON-PANE) HDMI_INT2 TP2003 *Q2000 2SD0601ASL R2018 47k R2011 47k TP2014 AH_SRCK0 AG_QLINK_PU_ON TP2019 TP2011 AG_VIDEO_STATUS AG_FAN_SOS AG_ECO_ON R2025 47k RGB_CVBS AG_ODU_ON/GEMSTER_STBY_EN AH_FS_V TP2017 AH_DMIX0 TP2002 AG_RF_AFT2 AG_HDMI_OPT_ENB R2015 47k PC_HS AG_QLINK1 R2020 47k TP2018 AG_AUDIO_MUTE AD_SCL2 TP2007 R2014 47k *R2007 47k TP2004 TP2022 AH_IECOUT0 AU_SBO(HOTEL) TP2024 PC_VS STB5V TP2015 AG_A_MON_MUTE/SP_MUTE AG_ODU_DET TP2010 *Q2001 2SD0601ASL R2023 47k AG_QLINK2 MAIN_Y/CVBS AG_RF_AGC1 TP2008 AU_SBI(HOTEL) 47k *R2028 AH_LRCK0 *R2027 0 AG_ALL_OFF TP2012 AG_SOS AH_FS_U PANEL_STBY/VCC_ON AG_SOUND_SOS HDMI_SDIN *R2006 10k AD_SDA2 AG_PANEL_STBY_ON/PANEL_VCC_ON TP2020 AG_AVSW_OFF C0JBAZ002261 *IC2000 1 G 2 IN A 3 GND 5 VCC 4 OUT Y *R2021 47k *R2022 47k SPDIF_IN(OPT) AFC2 FAN_SOS SUB_PB/C DTV_LRCK CRNo.2699-2999:Without AVSW AC_GOOD/24V_DET ALL_OFF TV_MAIN_ON GenX4 DTV_BCKL QLINK_AV3 to (12/12) EURO QLINK CONTROL ADV7493 GENX_RST ECO_ON MAIN_Y/CVBS/G DTV_SDIN GC3FS next USA Only SOS DVB_CVBS JPN/USA Only MAIN_PR/R HDMI_SDIN MAIN_PB/C/B KEY1 SOUND_SOS JPN LCD Only JPN Only SUB_PR JPN LCD Only PC_V AFC1 HDMI_BCLK HDMI_LRCK AUDIO_XRST FAN_MAX/INV_PSU_ON CRNo.3000-3199:AVSW DTV2_SDIN CRNo.2000-2299:Without AVSW to (4,12/12) IRD PC_H SUB_Y/CVBS RGB_CVBS SP_MUTE IIC2 QLINK_AV2 to (8/12) VIDEO_STATUS SCL0B SDA0B GenX4 HDMI_INT2 Panel_STBY_ON/Pannel_VCC_ON RGB_FB to (11/12) TV_SUB_ON (RESERVE) CN to H AUDIO_MUTE (Common) (EURO/ASIA) (ASIA) (Common) (Common) (EURO) (Common) GenX 60 59 63 56 57 55 58 61 62 to (5/12) to (4/12) to (8/12) to (8/12) to (8,9/12) to (4,5,6,8,9/12) to (8,12/12) to (4,6,8/12) to (6,8/12) to (8,12/12) to (8,12/12) TO H-BOARD (H6) TH-42PZ700C DG-Board (7 of 12) Schematic Diagram TH-42PZ700C DG-Board (7 of 12) Schematic Diagram DG-BOARD (7/12) ! TNPA4176AM 96 15.28.DG 电路板 (8/12) 线路图 AD_SCL3 AG_HDMI_CEC AG_RMIN AG_G_LED_ON AG_KEY3 AG_R_LED_ON AG_ODU_ON/GEMSTER_STBY_EN AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON AG_HPD2 AG_HDMI_REP_EN AD_SDA3 AG_HDMI_5V_DET3 SCL AU_SBI(HOTEL) TRCST AG_TV_MAIN_ON AG_SD_LED_ON SDA AG_QLINK2 AU_SBO(HOTEL) AG_CONFIG_DONE AG_DTV_XRST AG_HPD1 AG_HDCP_WP AG_HQ1_VOUTENB AG_LVDS_EN AG_HDMI_5V_DET2 AG_ECO_ON AG_FPGA_XRST AG_HDMI_MUX_EN AG_HDMI_MUX_SEL AG_HPD3 AG_HQ1_XRST AG_INVERTER_ON AG_INVERTER_SOS AG_TV_SUB_ON AG_SD_BOOT_STS AG_KEY1(CON-PANE) AG_PWM_POW_ON AG_QLINK1 AG_HDMI_5V_DET1 AG_QLINK1 AG_AVSW_OFF AG_RF_AGC1 AG_QLINK2 AG_BUS_CONNECT2 AG_ALL_OFF AG_RF_AFT1 AG_RF_AFT2 AG_SOUND_SOS AG_SOS AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE AG_AUDIO_XRST AG_FAN_MAX AG_FAN_SOS AG_QLINK_PU_ON AG_7493_XRST AG_EDID_WP SCL SDA AG_VIDEO_STATUS AG_PANEL_STBY_ON/PANEL_VCC_ON SBI2 SBO2 AD_SCL3 AD_SDA3 AG_HPD3 AG_HPD2 AG_HPD1 SUB5V_SENSE DTV9V_SENSE ADCCK AG_BUS_CONNECT2 AG_ODU_DET AG_SW_OFF_DET AG_RF_AGC1 AUDCLK SLRCK SCL SDA AG_G_LED_ON AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON AG_FAN_MAX AG_ODU_ON/GEMSTER_STBY_EN AG_AVSW_OFF AG_CONFIG_DONE AG_KEY2 AG_MODEM_LED2/CLK74SEL AUDCLK SLRCK ADCCK VI2ENB VI2ENB AG_ODU_DET MAIN9V_SENSE AG_HDMI_CEC AG_HQ1_XRST AG_7493_XRST AG_AUDIO_XRST AG_HDMI_5V_DET2 AG_SRQ-GENX MAIN5V_SENSE AG_SRQ-GENX AG_KEY2 AG_AI_SENSOR AG_SW_OFF_DET AG_HDMI_5V_DET3 AG_HDMI_5V_DET1 AG_VIDEO_STATUS AG_KEY3 AG_ECO_ON AG_HQ1_VOUTENB AG_HDMI_MUX_SEL AG_HDMI_MUX_EN AG_INVERTER_ON AG_PWM_POW_ON AG_LVDS_EN AG_DTV_VOUTENB HDMI_CEC_PU_ON AG_QLINK_PU_ON AG_ALL_OFF AG_TV_MAIN_ON AG_R_LED_ON AU_SBO(HOTEL) AU_SBI(HOTEL) AG_PANEL_STBY_ON/PANEL_VCC_ON AG_EDID_WP AG_HDCP_WP AG_RF_AFT1 AG_FAN_SOS AG_SOUND_SOS AG_FPGA_XRST AG_DTV_XRST AG_SD_BOOT_STS AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE AG_HDMI_OPT_ENB AG_TV_SUB_ON_DELAY AG_HDMI_OPT_ENB AG_TV_SUB_ON_DELAY AG_AI_SENSOR AG_KEY1(CON-PANE) SBO2 SBI2 AG_TV_SUB_ON AG_MODEM_LED2/CLK74SEL AG_INVERTER_SOS AG_SOS AG_HDMI_REP_EN AG_RF_AFT2 AG_RMIN AG_SRQ-GENX AG_DTV_VOUTENB R1184 22 R1203 47k R1255 1k AG_HDMI_5V_DET3 R1205 22 AG_QLINK2 AG_A_MON_MUTE/SP_MUTE R1109 100 AG_DTV_XRST R1134 100 AG_KEY2 R1106 100 AU_SBI(HOTEL) C1114 16V 0.1u SUB5V R1179 100 R1225 47k AG_AI_SENSOR STB3.3V AG_PWM_POW_ON TP1100 Q1108 2SD0601ASL AG_7493_XRST R1237 47k ADCCK Q1107 2SD0601ASL R1165 1.8k R1164 10k R1153 820 AG_VIDEO_STATUS R1105 100 C1108 16V 0.1u R1100 100 AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON DG7 K1KA04AA0104 1 2 3 4 AG_SW_OFF_DET R1182 27k AG_HDMI_5V_DET1 AG_HDMI_CEC L1100 J0JHC0000078 R1162 100 R1235 100k R1125 22 AG_INVERTER_SOS AG_HPD2 R1231 47k AG_SRQ-GENX AG_RF_AFT1 AG_SOUND_SOS R1227 47k R1196 33k R1172 27k R1216 33k VI2ENB SDA MAIN9V R1147 47k R1206 22 AG_RF_AFT2 R1173 200 R1222 47k R1233 47k R1201 5.6k R1234 47k R1228 47k AG_SD_BOOT_STS C1122 25V 0.01u AG_ECO_ON C1106 50V 27p R1226 47k TP1104 AG_TV_SUB_ON_DELAY R1103 33 AG_HDMI_REP_EN AG_BUS_CONNECT2 *R1243 47k STB3.3V AG_SD_LED_ON D1107 MA3X704A0L AG_SOS AG_HDCP_WP R1174 22 R1108 100 C1117 16V 0.1u AG_HDMI_5V_DET2 R1194 56k TP1103 DTV9V AG_TV_SUB_ON AG_TV_MAIN_ON AD_SCL3 R1204 0 AG_MODEM_LED2/CLK74SEL SCL R1166 100k AG_RF_AGC1 AG_FAN_MAX AG_AVSW_OFF R1183 22 AG_ALL_OFF R1195 100k AG_INVERTER_ON AG_HDMI_OPT_ENB AG_PANEL_STBY_ON/PANEL_VCC_ON R1175 22 AG_AUDIO_MUTE C1102 10u 10V AG_KEY1(CON-PANE) R1146 1k SUB5V C1104 16V 0.1u D1112 MA2J72800L AG_HQ1_XRST AG_RMIN R1163 1M R1223 47k AG_HQ1_VOUTENB R1217 56k AG_HDMI_MUX_SEL AG_HPD3 R1221 7.15k 1% C1123 1u 10V R1170 27k R1200 5.6k AG_QLINK1 R1101 0 AG_EDID_WP AG_LVDS_EN AG_FPGA_XRST R1220 10k STB3.3V R1218 10k AG_HPD1 MAIN3.3V STB3.3V C1112 16V 0.1u SBO2 AD_SDA3 AG_KEY3 R1181 100 R1229 100 SBI2 R1199 47k AG_HDMI_MUX_EN C1109 1u 10V R1219 10k R1236 47k AG_CONFIG_DONE R1107 100 C1107 50V 22p R1104 47k AG_ODU_ON/GEMSTER_STBY_EN AU_SBO(HOTEL) MAIN5V R1102 100 C1111 1u 10V AG_DTV_VOUTENB AG_R_LED_ON R1144 47k SLRCK AG_AUDIO_XRST DG31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 AG_FAN_SOS C1103 16V 0.1u R1169 56k R1122 47k R1232 47k R1209 47k AG_G_LED_ON R1124 22 AG_ODU_DET TP1102 TP1105 X1100 H0J100500035 AG_QLINK_PU_ON R1171 56k STB_RST MNZSFD7GP42 IC1100 1 P41/TMIO1 2 P42/TMIO2 3 P43/TMIO3 4 P44/TMIO4 5 P00/TMIO5 6 P01 7 P02 8 P03/SBT0B 9 P04/SBO0B 10 P51/IRQ2 11 P52/IRQ3 12 PB2 13 PB3 14 PB4 15 PB5 16 PB6 17 PB7 18 P53/IRQ4 19 P54/IRQ5 20 PA7 21 PA6 22 PA5 23 VSS 24 PA4 25 PA3 26 PA2 27 PA1/IRQ1 28 PA0 29 P45 30 P46 31 IVDD 32 VDD 33 P60/SBO0A 34 P61/SBT0A 35 P62/SBI0A 36 P05/IRQ6 37 P06/IRQ7 38 P07/IRQ8 39 P70/SDA0 40 P71/SCL0 41 N.C. 42 N.C. 43 N.C. 44 N.C. 45 P50/RMIN/IRQ0 46 P20 47 P21 48 P22 49 P23 50 IVDD 51 VSS 52 P10 53 P11 54 P12 55 P13 56 P14 57 P15 58 P16 59 P17 60 N.C. 61 N.C. 62 N.C. 63 P72/SDA1 64 P73/SCL1 65 P76/CEC0 66 P65/SBO2 67 P66/SBI2 68 P30 69 P31 70 P32 71 P33 72 P34 73 P35 74 VPPEX 75 N.C. 76 N.C. 77 N.C. 78 IVDD 79 VDD 80 N.C. 81 RONA 82 VSS 83 OSCXO 84 OSCXI 85 IVDD 86 P24 87 P25 88 P26 89 P27 90 P64/SBI1 91 P63/SBO1 92 NBOOT 93 NRST 94 NTEST 95 SCLOCK 96 SDATA 97 EXTRG0 98 EXTRG1 99 TRCCLK 100 TRCST 101 TRCD0 102 TRCD1 103 TRCD2 104 TRCD3 105 P90 106 P91 107 VSS 108 IVDD 109 P92 110 P93 111 P80/ADIN0 112 P81/ADIN1 113 P82/ADIN2 114 P83/ADIN3 115 P84/ADIN4 116 P85/ADIN5 117 P86/ADIN6 118 P87/ADIN7 119 P74/SDA2/CECAVL1B 120 P75/SCL2/CECAVL1A 121 P36 122 P37 123 P47 124 PB0 125 PB1 126 PC0 127 PC1 128 P40/TMIO0/SYSCLK TP1101 *IC1101 C3EBFC000042 1 2 3 4 5 6 7 8 TRCD1 VIDEO_STATUS CONFIG_DONE TV_MAIN_ON ODU_ON/GEMSTER_STBY_EN AVSW_OFF(US) (SD_LED_ON) ODU_DET (For LCD) (BUS_CONNECT2) (For PDP) (USA only) SUB5V_SENSE (For LCD) GenX-EEP_WP (For PDP) MAIN5V_SENSE SRQ_GenX ALL_OFF RSV2(LITE2) (QLINK_PU_ON) (HDMI_CEC_PU_ON) (ASIA/EURO) (For LCD) (For LCD) UART (HOTEL) HQ1_VOUTENB SCLOCK HDMI_MUX_SEL (For LCD) HDMI_MUX_EN HPD3 LVDS Out HDMI_5V_Det1 IIC HDMI_5V_Det2 HDMI_5V_Det3 MAIN9V_SENSE MAIN3.3V_SENSE RF_AFT1 RF_AFT2 AI_SENSOR SOS KEY2(US) KEY1 STB3.3V FAN_SOS STB_RST SOUND_SOS SBI GND PANEL_STBY_ON R_LED_ON TRCCLK EDID_WP FAN_MAX SBO HDCP_WP 7493_XRST RSV3(LITE2) HQ1_XRET GND RSV3 FE_XRST G_LED_ON PORT5[2] MODEM_XRST AUDIO_XRST PORT0[0] ETHER/1394_XRST PORT5[1] TV_SUB_ON RSV3(LITE2) Power Supply RSV4(LITE2) RSV2(LITE2) to (1/12) GND GND SYSCLK_OUT Lite2 to (7/12) UART(LITE2-GenX4) TRCD0 CN to H (ASIA) HQ1L/CN to HFD A_MON_MUTE/SP_MUTE GND AUDIO_MUTE (For LCD) to Sheet 004/005/007/009/010 Lite2 ExBUS/Etc. RSV4 RSV2 GND for DEBUGER Hand Sheke Reserve TRCD3 DTV_XRST SD_BOOT_STS USA Only SW_OFF_DET (USA Only) INVERTER_ON PWM_POWER_ON DTV_VOUTENB LVDS_EN LITE2 GND GenX4 E2PROM LINE EXTRG0 Lite2 E2PROM LINE GND Power Supply HDMI_REP_EN SDATA JPN Only RSV4(LITE2) FPGA_RST to (11/12) HPD2 GND HPD1 CRNo.1100-1999 TRCD2 GenX4,EEPROM TRCST ADV7493 ECO_ON DTV_1.5V_ON RF_AGC1 EURO Only DTV9V_SENSE EURO Only STB5V_SENSE (RESERVE) INVERTER_SOS GenX4 RST EURO Only (HDMI_CEC_PU_ON) 10MHz KEY3(TV_POWER) PORT6[6] RSV1 RSV1(LITE2) (JPN/Euro) to (12/12) 69 71 64 70 72 65 66 68 67 GenX4 STB MCU EEPROM to (1,3/12) to (4,12/12) to (4/12) to (4,12/12) to (4,12/12) to (4/12) to (4/12) to (4/12) to (4/12) to (9/12) to (9/12) to (7,12/12) to (9/12) to (9/12) to (9/12) to (9/12) to (4,5,6,7,9/12) to (9/12) to (7/12) to (6/12) to (4,6,7,/12) TH-42PZ700C DG-Board (8 of 12) Schematic Diagram TH-42PZ700C DG-Board (8 of 12) Schematic Diagram DG-BOARD (8/12) ! TNPA4176AM 97 15.29.DG 电路板 (9/12) 线路图 AD_SDA0 AD_SCL0 AD_TCK AG_TV_MAIN_ON AD_TMS PEAKS_YS AD_TCK PEAKS_OSHIN PEAKS_OSDCKOUT AD_TRST AD_TRST PANEL_MUTE AD_TO_SC PEAKS_YM AD_TO_HQ1L AG_HQ1_XRST AG_LVDS_EN VOP23 VOP22 VOP24 VOP25 VOP26 VOP27 VOP28 VOP29 VOP15 VOP14 VOP13 VOP12 VOP16 VOP17 VOP18 VOP19 VOP5 VOP6 VOP7 VOP8 BOE2 BOE3 BOE4 VOP29 VI2P9 VI1CK204F VI1CK208F VI2P1 VI2P0 VI1CVBS0 VI1CVBS1 VI1CVBS2 VI1CVBS3 VOP21 VOP10 VOP20 VOP11 VOP0 VOP1 LCSID LCSCK VOP0 VOP10 VOP20 LCSID VI1CVBS3 VI1CVBS1 VI1CK204F VI2P0 VOP1 VOP11 VOP21 LCSCK VI1CVBS2 VI1CVBS0 VI1CK208F VI2P1 BOE4 VOP5 VOP6 VOP7 VOP8 VOP9 VOP28 VOP27 VOP26 VOP25 VOP24 VOP23 VOP22 VOP19 VOP18 VOP17 VOP16 VOP15 VOP14 VOP13 VOP12 VI2P7 AG_HQ1_VOUTENB VI2P7 VI2P8 VI2P9 VI2P8 BOE3 BOE2 CLKOF HSOE VSOE IS1CLK PEAKS_OSDCKOUT PEAKS_OSHIN PEAKS_YS PEAKS_YM AD_SCL0 AD_SDA0 AD_SCL1 AD_SDA1 AG_HQ1_VOUTENB AG_HQ1_XRST PANEL_MUTE AD_TO_HQ1L AD_TO_SC AD_TMS CLKOF VSOE HSOE AG_CONFIG_DONE AG_FPGA_XRST AG_LVDS_EN AG_PWM_POW_ON AG_PWM_POW_ON AG_PANEL_STBY_ON/PANEL_VCC_ON AG_PANEL_STBY_ON/PANEL_VCC_ON AG_FPGA_XRST AG_TV_MAIN_ON AG_INVERTER_ON AG_INVERTER_ON AG_INVERTER_SOS AG_INVERTER_SOS AG_CONFIG_DONE CFG_TMS CFG_TCK CFG_TDO CFG_TRST CFG_TDI CFG_TRST CFG_TDI CFG_TDO CFG_TMS CFG_TCK IS1CLK VOP9 R4287 47k HQ1L_FRCLKIN AD_SCL1 VOP15 AG_PANEL_STBY_ON/PANEL_VCC_ON LCSCK CFG_TDO AG_FPGA_XRST *R4321 47k *R4244 0 AG_INVERTER_SOS VI2P9 CFG_TCK *R4305 33 VI1CVBS1 CFG_TMS VI2P7 AD_TRST AD_SDA0 PANEL_MUTE R4201 33 VOP1 VOP5 *R4208 EXB2HV330JV *R4291 0 *R4303 33 R4288 47k LCSID AG_LVDS_EN AG_CONFIG_DONE *R4329 47k *R4205 EXB2HV330JV R4317 47k VI1CVBS0 VOP22 *R4326 47k R4200 33 VOP20 AD_TO_SC SUB9V(FHD) VI2P3 AD_TCK *R4229 100 AD_SCL0 MAIN3.3V VI2P6 *R4323 47k VI1CVBS2 VOP11 VOP29 VOP18 *R4241 0 AG_PWM_POW_ON IS1CLK R4320 47k VOP9 *R4311 0 VOP14 VOP7 *R4230 0 TP4201 VOP3 VI2P0 *R4302 33 MHSYNC AG_TV_MAIN_ON VOP12 *R4322 47k VOP16 *R4210 33 VI1CVBS3 MVCLK VOP8 R4202 33 *R4209 EXB2HV330JV CFG_TDI VI2P8 VOP21 VOP17 VOP23 VOP6 VOP27 *R4312 0 R4328 47k VOP10 *R4308 33 *R4246 0 VOP19 AG_HQ1_VOUTENB VOP13 *R4203 0 *DG25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 VOP26 *R4292 0 AG_HQ1_XRST VI2P1 SUB5V VOP4 VOP2 CFG_TRST *R4306 33 VOP24 TP4200 VI1CK204F VI1CK208F AG_INVERTER_ON VOP0 *R4307 33 VI2P5 R4284 10k *R4309 0 AD_SDA1 *R4304 33 VI2P2 AD_TMS P12V VOP28 MVSYNC *R4325 47k *R4207 EXB2HV680JV *R4204 0 R4330 47k *R4206 EXB2HV330JV AD_TO_HQ1L *R4247 0 VOP25 *R4249 0 LOSD3 PWMSS LOSD10 FREE CLK LOSDVIN LOSD6 LOSD4 27MHz LOSDCLKOUT LOSD12 LOSD13 LVDS OUT IIC0 LOSD11 LOSD2 to (1/12) LOSD7 LOSD14 27MHzCLK from GC5 Lite2 HQ1L/CN to FHD PWM5 PWM6 LOSD15 Hi-Z after reset LOSD9 LOSDCLKIN JTAG PWMA JTAG to (1/12) to (12/12) CRNo.4200-4499 (VMUTE/DISPNE) LOSDYM (VMUTE/DISPNE) PWMANA LOSDYS LOSDHOUT LOSD5 LOSD LOSD1 LOSD8 GenX4 to (8/12) Lite2 PWM4 LOSD0 intPU after reset LOSDHIN (Used LCD) (Used PDP) BOE3 BOE4 BOE5 BOE6 BOE7 BOE9 BOE8 GOE2 ROE2 ROE3 ROE5 ROE4 ROE6 ROE7 ROE9 ROE8 GOE3 GOE4 GOE5 GOE7 GOE6 GOE9 GOE8 BOE9 BOE8 GOE2 ROE8 ROE6 ROE7 ROE9 GOE6 GOE8 GOE4 GOE9 BOE3 BOE5 BOE4 BOE6 BOE7 ROE3 ROE5 GOE7 ROE4 GOE3 ROE2 GOE5 BOE2 ROE8 ROE6 ROE7 ROE9 ROE3 ROE5 ROE4 ROE2 GOE2 GOE4 GOE3 GOE8 GOE9 GOE5 GOE7 BOE3 BOE8 BOE5 BOE7 BOE9 BOE6 BOE2 BOE4 BOE9 BOE8 GOE2 ROE8 ROE6 ROE7 ROE9 GOE6 GOE8 GOE4 GOE9 BOE3 BOE5 BOE4 BOE6 BOE7 ROE3 ROE5 GOE7 ROE4 GOE3 ROE2 GOE5 BOE2 BOE9 BOE8 GOE2 ROE8 ROE6 ROE7 ROE9 GOE6 GOE8 GOE4 GOE9 BOE3 BOE5 BOE4 BOE6 BOE7 ROE3 ROE5 GOE7 ROE4 GOE3 ROE2 GOE5 BOE2 LOSD2 LOSD14 LOSD7 LOSD3 LOSD0 LOSD9 LOSD1 LOSD10 LOSD11 LOSD6 LOSD4 LOSD12 LOSD5 LOSD8 LOSD15 LOSD13 LOSD4 LOSD12 LOSD2 LOSD14 LOSD0 LOSD13 LOSD7 LOSD3 LOSD1 LOSD6 LOSD15 LOSD5 LOSD8 LOSD10 LOSD9 LOSD11 LOSD4 LOSD12 LOSD2 LOSD14 LOSD0 LOSD13 LOSD7 LOSD3 LOSD1 LOSD6 LOSD15 LOSD5 LOSD8 LOSD10 LOSD9 LOSD11 LOSD9 LOSD11 LOSD5 LOSD4 LOSD15 LOSD8 LOSD14 LOSD0 LOSD13 LOSD7 LOSD3 LOSD2 LOSD1 LOSD6 LOSD12 LOSD10 LOSD7 LOSD14 LOSD4 LOSD15 LOSD8 LOSD5 LOSD6 LOSD12 LOSD10 LOSD9 LOSD3 LOSD2 LOSD1 LOSD11 LOSD0 LOSD13 VI2P8 VI2P7 VI2P9 LOSDHIN LOSDCLKIN LOSDVIN LOSDVIN LOSDHIN LOSDCLKIN PEAKS-YS PEACK_YM BOE2 OEBLK LVDS_EN OSD_FLAG FPGA_RST CONFIG_DONE TV_MAIN_ON OSD_FLAG GOE6 to (12/12) PORT16[3] Hi-Z OSD_FLAG TO DH-BOARD (DH25) 73 80 77 78 81 75 76 79 74 to (4,5,6,7,8/12) to (5,8/12) to (7,8/12) to (8/12) to (5/12) to (5/12) to (4/12) to (4,5/12) to (4,5/12) to (4,5/12) to (4,5,11,12/12) to (4,12/12) to (8/12) to (8/12) TH-42PZ700C DG-Board (9 of 12) Schematic Diagram TH-42PZ700C DG-Board (9 of 12) Schematic Diagram DG-BOARD (9/12) ! TNPA4176AM 98 15.30.DG 电路板 (10/12) 线路图 + + AG_HDMI_5V_DET2 RXA_1N RXA_CP DDC_SDA0 AG_EDID_WP DDC_SDA1 AG_HDMI_5V_DET1 RXA_2P DDC_SCL1 AG_HDMI_CEC AG_HPD2 RXA_0P RXA_0N RXA_1P RXA_2N RXA_CN AG_HPD1 DDC_SCL0 AG_HDMI_MUX_EN AG_HDMI_MUX_SEL R4540 47k R4543 68 C4500 0.1u 16V R4663 4.7k 33u 6.3V C4508 D4527 B0HCMM000014 D4520 EZAEG2A50AX R4676 22 TP4510 D4526 B0HCMM000014 TP4501 R4511 2.2 TP4516 R4542 68 DG32 1 2 3 4 5 6 7 R4516 2.2 JK4501 K1FY119D0002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 C4510 0.1u 16V D4516 EZAEG2A50AX D4521 EZAEG2A50AX R4507 10k Q4505 2SD0601ASL D4504 EZAEG2A50AX R4503 33 R4690 22 TP4505 TP4502 L4507 J0JHC0000078 D4511 EZAEG2A50AX D4525 B0HCMM000014 R4506 10k C1AB00002641 IC4503 1 TEST 2 VCC 3 BDT0N 4 BDT0P 5 GND 6 BDT1N 7 BDT1P 8 GND 9 BDT2N 10 BDT2P 11 VCC 12 REXT 13 YDT2P 14 YDT2N 15 GND 16 YDT1P 17 YDT1N 18 VCC 19 VCC 20 YDT0P 21 YDT0N 22 GND 23 YCKP 24 YCKN 25 CE 26 VCC 27 ACKN 28 ACKP 29 GND 30 ADT0N 31 ADT0P 32 GND 33 ADT1N 34 ADT1P 35 VCC 36 SEL 37 VCC 38 VCC 39 ADT2N 40 ADT2P 41 GND 42 VCC 43 VCC 44 GND 45 BCKN 46 BCKP 47 VCC 48 VCC R4528 10k 0.1u 16V C4521 R4532 10k Q4500 2SD0601ASL R4634 47k 0.1u 16V C4517 D4514 EZAEG2A50AX R4703 0 C4503 0.1u 16V MAIN3.3V 1% R4567 4.7k R4544 10k TP4508 R4677 22 D4524 B0HCMM000014 R4689 22 TP4500 L4504 J0JHC0000078 MAIN3.3V D4500 EZAEG2A50AX R4520 2.2 R4565 22 *IC4500 C3EBDC000067 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC L4500 J0JHC0000078 R4526 1k D4512 EZAEG2A50AX R4561 47k TP4509 L4505 J0JHC0000078 TP4507 C4506 0.1u 16V C4520 10V 10u R4513 2.2 R4502 33 R4529 4.7k D4506 EZAEG2A50AX D4532 B0HCMM000014 R4535 4.7k R4517 2.2 R4500 10k R4519 2.2 R4536 4.7k TP4517 R4687 4.7k C4515 16V 0.1u L4506 J0JHC0000078 C4507 0.1u 16V D4510 EZAEG2A50AX C4626 16V 0.1u R4688 4.7k D4523 EZAEG2A50AX TP4503 D4519 EZAEG2A50AX R4530 10k R4563 4.7k Q4502 2SD0601ASL C4621 16V 0.1u R4508 2.2 IC4504 C3EBEY000009 1 NC 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC R4525 10k C4501 0.1u 16V D4517 EZAEG2A50AX R4538 47k R4522 2.2 D4509 EZAEG2A50AX L4502 J0JHC0000078 D4518 EZAEG2A50AX D4501 EZAEG2A50AX TP4504 R4512 2.2 C4502 0.1u 16V R4552 22 R4514 2.2 R4678 22 R4518 2.2 C4511 0.1u 16V JK4500 K1FY119D0002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 Q4501 2SD0601ASL R4531 4.7k R4680 22 R4681 22 D4507 EZAEG2A50AX TP4506 R4539 68 D4505 EZAEG2A50AX Q4504 2SD0601ASL R4515 2.2 0.1u 16V C4514 D4515 MAZ30560ML R4702 0 R4523 2.2 R4521 2.2 IC4514 C0JBAU000034 1 VCCA 2 SCLA 3 SDAA 4 GND 5 EN 6 SDAB 7 SCLB 8 VCCB R4510 2.2 MAIN5V 33u 6.3V C4509 R4501 10k R4524 10k R4686 47k R4562 4.7k D4513 MAZ30560ML TP4511 R4541 68 D4528 EZAEG2A50AX L4501 J0JHC0000078 Q4503 2SD0601ASL *IC4501 C3EBDC000067 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC R4509 2.2 D4508 EZAEG2A50AX C4622 16V 0.1u R4527 1k Q4520 2SD0601ASL D4522 EZAEG2A50AX 0.1u 16V C4513 IC4513 C0JBAU000034 1 VCCA 2 SCLA 3 SDAA 4 GND 5 EN 6 SDAB 7 SCLB 8 VCCB L4503 J0JHC0000078 L4508 J0JHC0000078 D4503 EZAEG2A50AX R4679 22 R4564 22 R4533 10k R4545 10k R4547 10k C4627 16V 0.1u MAIN3.3V D4502 EZAEG2A50AX R4546 10k DDCG D0G D1+ +5V CLKG D0- D0G N.C. SCL D1+ CLKG CLK+ D1G D2+ D2G CLK+ D2- +5V N.C. D1- SDA CEC D2+ HPDT CEC DDCG SDA SCL D0+ CLK- D0- D1- CLK- D1G HPDT D2- D2G D0+ DDCA_SDA DDCA_SCL 87 85 88 82 86 90 89 83 84 24 23 22 21 25 29 27 28 26 EEPROM EDID1 5V<->3.3V 5V<->3.3V EEPROM EDID2 EEPROM KEY HDMI SW TH-42PZ700C DG-Board (10 of 12) Schematic Diagram TH-42PZ700C DG-Board (10 of 12) Schematic Diagram DG-BOARD (10/12) ! TNPA4176AM 99 15.31.DG 电路板 (11/12) 线路图 + + + TOP + VI1P25 VI1P22 VI1P28 CLKOA VI1P27 VI1P8 VI1HSYNC MAIN_PB/C AG_HDMI_5V_DET3 PC_VS RXA_1P AG_HDMI_5V_DET3 RXA_0N XIRQ3 VI1P25 AG_HDMI_5V_DET1 VI1P7 VI1ENB AG_HPD1 VI1P7 AG_HDMI_MUX_SEL AG_HDMI_5V_DET2 VI1VSYNC AG_HPD3 VI1P22 HDMI_LRCK VI1P26 VI1P19 VI1P12 VI1P29 RXA_1N VI1P9 XIRQ3 RXA_2P RXA_2N VI1P12 VI1P3 AG_HDCP_WP VI1P15 HDMI_SDIN VI1P16 FS_FRCLKIN MAIN_PB/C VI1P9 MAIN_PR RGB_CVBS PC_VS VI1P6 VI1P2 VI1CLK VI1HSYNC PC_HS VI1P24 VI1P4 VI1P13 AG_HDMI_MUX_EN AG_HDMI_CEC VI1P3 AG_EDID_WP AG_7493_XRST RXA_0P VI1P15 PC_HS VI1P29 RGB_FB VI1P2 VI1P27 VI1P18 VI1VSYNC VI1P13 VI1P24 VI1P28 VI1P26 AG_HDMI_REP_EN VI1P17 MAIN_Y/CVBS VI1P14 VI1P5 VI1P18 VI1P4 VI1P8 AG_HPD2 VI1ENB AG_EDID_WP VI1P19 VI1P23 AG_7493_XRST VI1CLK RXA_CN VI1P16 VI1P5 AG_HDMI_REP_EN VI1P6 VI1P23 RXA_CP MAIN_PR CVDD_1.8V VI1P14 VI1P17 HDMI_BCLK AG_HPD3 HDMI_SPDIF RXB_CN RXB_CP RXB_0N RXB_0P RXB_1N RXB_1P RXB_2N RXB_2P MAIN_Y/CVBS CLKOA RGB_CVBS FS_FRCLKIN DVDD_1.8V DVDDIO_3.3V R4691 22 R4641 22 C4549 50V 0.1u VI1P5 C4587 16V 0.1u R4629 100 R4635 68 EXB28V680JX C4602 16V 0.1u C4612 25V 0.01u AG_HPD2 *C4522 16V 10u R4648 EXB28V330JX R4604 7.5k 1% 1% R4654 4.7k VI1ENB C4572 16V 0.1u C4617 16V 0.1u C4546 6.3V 2.2u C0CBCBC00190 IC4507 1 VDD 2 GND 3 CE 5 VOUT 4 NC C4620 10V 1u AG_HDMI_CEC L4520 J0JHC0000078 C4527 10V 1u VI1P7 C4618 25V 0.01u R4643 22 R4650 68 R4706 1k C4607 47u 6.3V C4557 16V 0.1u R4708 1k AD_SDA1 C1AB00002753 IC4510 1 DDCB_SDA 2 SPDIF 3 I2S0 4 I2S1 5 I2S2 6 I2S3 7 LRCLK 8 SCLK 9 MCLKOUT 10 MCLKIN 11 SDA 12 SCL 13 ALSB 14 DGND 15 DVDDIO 16 DE 17 HS 18 VS/FIELD 19 INT1 20 SFL/SYNC_OUT/INT2 21 RESET 22 DGND 23 DVDD 24 P19 25 P18 26 P17 27 P16 28 P15 29 P14 30 P13 31 P12 32 P29 33 P28 34 DGND 35 DVDDIO 36 P11 37 P10 38 P9 39 P8 40 P27 41 P7 42 P6 43 P5 44 P4 45 P26 46 R_ACTIVE/P25 47 SRLIN/P24 48 DCLKIN 49 DGND 50 DVDDIO 51 LLC 52 SRLUP/P23 53 TRGIN/P22 54 P21 55 P3 56 DGND 57 DVDD 58 P2 59 P1 60 P0 61 P20 62 VS_IN 63 HS_IN 64 DGND 65 XTAL1 66 XTAL 67 DVDDIO 68 PVDD 69 PGND 70 ELPF 71 PVDD 72 PGND 73 ELPF2 74 FB 75 SOG 76 AIN7 77 AIN1 78 AIN8 79 AIN2 80 AIN9 81 AIN3 82 AGND 83 AGND 84 AVDD 85 REFOUT 86 CML 87 AGND 88 AVDD 89 BIAS 90 CAPY1 91 CAPC1 92 CAPC2 93 AIN10 94 AIN4 95 AIN11 96 AIN5 97 SOY 98 AIN12 99 AIN6 100 PGND 101 PVDD 102 ELPF3 103 CGND 104 CVDD 105 DDCA_SCL 106 DDCA_SDA 107 MDA 108 MCL 109 CVDD 110 CGND 111 TVDD 112 RXA_CN 113 RXA_CP 114 TGND 115 RXA_0N 116 RXA_0P 117 TGND 118 RXA_1N 119 RXA_1P 120 TGND 121 RXA_2N 122 RXA_2P 123 TVDD 124 RTERM 125 CVDD 126 CGND 127 TVDD 128 RXB_CN 129 RXB_CP 130 TGND 131 RXB_0N 132 RXB_0P 133 TGND 134 RXB_1N 135 RXB_1P 136 TGND 137 RXB_2N 138 RXB_2P 139 TVDD 140 CGND 141 CVDD 142 DVDD 143 DGND 144 DDCB_SCL C4531 16V 0.1u C4573 16V 0.1u IC4508 C0CBCAD00082 1 Vout 2 NC 3 Cn 4 GND 5 Cont 6 NC 7 NC 8 Vin C4559 16V 0.1u C4570 47u 6.3V C4615 25V 0.01u R4645 68 C4583 16V 0.1u R4656 2.2k C4623 16V 0.1u C4604 6.3V 2.2u 4.7k 1% R4606 C4528 16V 0.1u C4534 50V 0.1u R4598 1k AG_HDMI_5V_DET3 L4517 J0JHC0000078 R4638 68 R4636 68 X4500 H0J270500113 C4577 16V 0.1u Q4516 2SB0709ASL C4613 1u 10V VI1P8 R4665 47k R4649 68 EXB28V680JX C4544 16V 0.1u C4588 16V 0.082u RGB_FB C4598 1u 10V VI1P13 VI1P9 TP4518 R4640 68 EXB28V680JX L4521 J0JHC0000078 R4683 10k AG_HPD1 MAIN5V C4616 16V 0.1u PC_VS MAIN_PB/C R4653 10k 1% R4611 1.37k SUB5V R4637 68 VI1P14 C4565 25V 0.01u R4658 22 TP4512 1% R4615 160 R4622 100 VI1P24 R4613 22 *R4694 33 C4625 50V 0.1u 1% R4682 10k C4551 50V 0.1u C4591 1u 10V R4692 22 HDMI_SDIN C4564 25V 0.01u C4552 50V 0.1u C4611 1u 10V MAIN_Y/CVBS AG_HDMI_MUX_EN C4600 25V 0.01u AG_HDCP_WP HDMI_INT2 C4596 16V 0.1u 1% R4612 1.5k C4595 25V 0.01u HDMI_SPDIF C4585 1u 10V TP4513 AG_HDMI_MUX_SEL C4593 25V 0.01u C4589 15p 50V *C4524 16V 10u 1M R4626 C4550 16V 0.1u 1% *R4593 1k R4585 100 Q4514 2SB0709ASL MAIN_PR C4556 10V 10u VI1P19 C4543 16V 0.1u Q4517 2SB0709ASL C4590 18p 50V R4667 150 VI1P28 VI1P18 VI1P15 C4555 10V 10u R4670 68 C4566 16V 0.039u C4538 47u 6.3V R4655 100 C4575 1u 10V 1% R4631 499 C4574 25V 0.01u IC4515 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC VI1P27 IC4509 C0CBCAD00082 1 Vout 2 NC 3 Cn 4 GND 5 Cont 6 NC 7 NC 8 Vin C4629 10V 10u VI1P6 SUB5V RGB_CVBS C4568 16V 0.1u C4614 16V 0.1u L4511 J0JHC0000078 VI1CLK VI1P26 TP4515 R4698 0 Q4515 2SB0709ASL R4657 22 R4579 150 C4628 16V 0.1u C4545 16V 0.1u AG_7493_XRST C4592 1u 10V AG_HDMI_5V_DET1 VI1P22 R4647 68 MAIN9V C4541 50V 470p SUB3.3V R4578 150 L4512 J0JCC0000077 VI1P16 TP4519 C4533 50V 68p R4666 47k R4601 1k VI1P12 R4639 68 EXB28V680JX AG_EDID_WP C4563 16V 0.082u C0DBGGF00001 IC4506 1 Vo 2 NC 3 GND 4 Cn 5 Cont 6 Sub 7 Vin R4651 68 HDMI_LRCK MAIN5V C4624 50V 0.1u C4578 16V 0.1u L4524 J0JHC0000078 R4707 10k R4642 68 EXB28V680JX C4581 10V 1u VI1VSYNC VI1P2 C4539 10u 10V AG_HDMI_5V_DET2 R4628 100 *C4523 50V 0.47u TP4514 R4699 0 L4516 J0JHC0000078 VI1CKOUT VI1P17 R4597 1k VI1P23 C4609 10V 1u C4582 16V 0.1u 1% R4624 1.69k VI1HSYNC AG_HPD3 JS4501 VI1P29 C4601 25V 0.01u FS_FRCLKIN C4560 16V 0.1u R4661 100 AD_SCL1 C4569 16V 0.68u C4562 50V 8200p L4518 J0JHC0000078 VI1P25 C4548 50V 0.1u C4605 16V 0.1u 0 R4627 R4644 22 VI1P4 SUB5V C4586 25V 0.01u R4646 68 R4614 22 MAIN5V AG_HDMI_REP_EN 1% R4587 820 DG11 < 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 G1 G2 G3 C4547 16V 0.1u C4535 50V 0.1u C4553 50V 1000p HDMI_BCLK XIRQ3 MAIN3.3V VI1P3 C4576 47u 6.3V R4596 1k C4584 1u 10V PC_HS C4619 16V 0.1u C4580 25V 0.01u R4652 47k *R4659 0 *R4672 0 YIN3 RX_SD0# GenX4 YIN1 YIN2 UVIN8 CRNo.4500-4799 IN YIN4 OUT CN_to_H RIN2 UVIN9 RIN3 Peaks Lite II RIN0 Peaks Lite II DTV RIN1 YIN0 CLKOA UVIN7 HSIA UVIN4 Y UVIN2 VSIA UVIN3 CLKIA PB/C UVIN5 HPD3 HDMI_CE1 UVIN0 UVIN6 HDMI_5V_DET3 YIN GC3FS-n YIN9 PR UVIN1 WP RX_WS YIN7 RX_SCK YIN5 CN_to_H ADV7493,HDMI-Mux CN_to_H YIN6 YIN8 GC3FS-n to (7/12) to (1/12) to (5/12) to (1/12) to (8/12) to (7/12) to (4,5,9,12/12) to (7/12) TO GH-BOARD (GH11) DVDD1.8V 3.3V 1.8V AD/HDMI COMPARATOR 3.3V 99 98 96 92 94 93 97 91 95 24 27 28 26 23 22 25 29 21 TH-42PZ700C DG-Board (11 of 12) Schematic Diagram TH-42PZ700C DG-Board (11 of 12) Schematic Diagram DG-BOARD (11/12) ! TNPA4176AM 100 15.32.DG 电路板 (12/12) 线路图 VI2P21 VMUTE VI2P10 AG_TV_SUB_ON AG_ALL_OFF AG_DTV_VOUTENB PANEL_MUTE PANEL_STBY/VCC_ON AG_ECO_ON SDA AG_TV_SUB_ON AD_SDA1 AD_SDA1 AD_SCL3 AD_SCL1 AD_SDA3 AR_PANEL_RXD AD_SDA3 AD_SDA2 AR_IIC_CONT AD_SDA0 AD_SDA2 VI2P10 AD_SCL1 AD_SCL2 AG_ECO_ON AD_SDA0 AR_PANEL_TXD PANEL_MUTE AD_SCL0 AR_PANEL_RXD AD_SCL2 AD_SDA0 AR_IIC_CONT AR_PANEL_SDA SCL AD_SCL0 D_PSTB AR_PANEL_SCL AD_SCL0 D_PBUSY D_PDB1 D_IIC_INT SCL D_PSLCT VI2P21 D_PDB0 PANEL_STBY/VCC_ON AG_ALL_OFF SDA AD_SCL3 AR_PANEL_TXD AR_PANEL_SCL AR_PANEL_SDA AA_SBI0 D_IIC_INT CFG_TCK CFG_TDO D_PDB1 D_PSLCT D_PDB0 AA_SBO0 D_PBUSY D_PSTB CFG_TDI CFG_TMS CFG_TRST AD_SCL1 AD_SDA1 *R4848 1k D_15V *R4841 100k R4819 22 R4820 22 D_15V AG_ECO_ON VI2P10 CFG_TMS *R4838 100 SCL *R4832 100 STB5V STB5V AG_TV_SUB_ON CFG_TRST DG34 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 AD_SDA0 AD_SDA3 *R4845 100 IC4800 C1ZBZ0003577 1 SCL 2 GND 3 A1 4 VDD 5 A0 6 SDA R4800 0 CFG_TDI CFG_TDO AG_ALL_OFF AG_SRQ-GENX VI2P21 AD_SDA1 DG33 1 2 3 4 5 6 7 8 9 10 11 PANEL_STBY/VCC_ON AD_SCL0 CFG_TCK AA_SBO0 C4807 16V 0.1u SDA AD_SCL1 VMUTE MAIN3.3V MAIN3.3V AA_SBI0 STB3.3V AG_DTV_VOUTENB AD_SDA2 *R4844 100 STB5V AD_SCL3 *R4842 1k *DG35 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 *R4833 100k AD_SCL2 *R4834 1k PANEL_MUTE *R4846 1k GenX4 LVDS Out CRNo.4800-4999 CN to ExIIC Lite2 PANEL_STATUS PANEL_SOS PANEL_STATUS PANEL_SOS LITE2 ExBUS/Etc. HQ1L/FHD (VMUTE/DISPEN) ALARM INEXCH ECO_ON LITE2_SDA3 IIC (GenX4 Loarder/E2PROM) LITE2_SCL1 LITE2_SDA1 LITE2_SCL2 LITE2_SDA2 (GenX4 Loarder/E2PROM) (Lite2 E2PROM) (Lite2 E2PROM) READY (Device Control) (Device Control) (Device Control) GenX4 IIC_CLK1 (Device Control) Panel_SDA LITE2_SCL0 P5V SRQ IIC_CLK2 IIC_DATA1 GND LITE2_SDA0 STB3.3V IIC_CONT/SRQ Panel_SCL(Panel Dpr.E2PROM) (Device Control) (Device Control) GND (Panel Dpr.E2PROM) STB5V Panel_TXD GenX4_SDA GenX4_SCL Panel_RXD LITE2_SCL3 IIC_CONT GND STB5V IIC_DATA1 Panasonic_Mode F_STB_ON DISPEN TEMP SENSOR FOR FACTORY USED FOR FACTORY USED TO D-BOARD (D3) to (8/12) to (4,9/12) to (4,5,9,10/12) to (4,7/12) to (4,8/12) to (4/12) to (9/12) to (1/12) to (7,8/12) to (7/12) to (4,8/12) to (4,8/12) to (7,8/12) to (7,8/12) 107 100 102 104 106 101 108 103 105 TH-42PZ700C DG-Board (12 of 12) Schematic Diagram TH-42PZ700C DG-Board (12 of 12) Schematic Diagram DG-BOARD (12/12) ! TNPA4176AM 101 15.33.DH 电路板方框图 PEAKS_OSCKO PEAKS_OSHO PEAKS_OSVO PEAKS_YM PEAKS_YS PEAKS_OSDH PEAKS_OSDCK OSD_FLAG FPGA_RST CONFIG_DONE HSIA VSIA CLKIA CLKIA VSIA HSOE PEAKS_OSCKO PEAKS_OSHO PEAKS_OSVO PEAKS_YM PEAKS_YS PEAKS_OSDH PEAKS_OSDCK OSD_FLAG FPGA_RST GC_RESET LVDS_PD TV_MAIN_ON CONFIG_DONE LVDS_PD 20 D1 OUT1-1 21 -INC1 FHD9V 23 VO1 FHD3.3V LX2 9V->1.2V,9V->3.3V OUT2-1 D2 S1 25 LX1 D1 G1 FB1 G1 OVP 27 VCC 26 Q5902 24 S1 OUT1-2 CB1 G2 CB2 IC5901 S2 4 12 8 G2 D1 3 7 S2 D2 FB2 VO2 OUT2-2 Q5901 17 VB D2 -INC2 19 FHD1.2V CTL 18 11 30 D1 D2 FHD9V 95 43 14 74 75 30 PEAKS_OSDH 59 56 3 2 62 BOE2 60 63 BOE9 34 65 64 SCL0 102 1 VSIA SUB 9V SUB 9V SUB 5V 40 DG25 HSIA CLKIA PEAKS_OSVO 42 LOSD0 52 TRST MAIN 3.3V PEAKS_OSDCK MAIN 3.3V HQ1_XRST 12 CONFIG_DONE 32 TV_MAIN_ON TDO,TDI LOSD15 PEAKS_YM 84 38 10 ROE2-ROE9 GOE2-GOE9 BOE2-BOE9 11 TDO(TO SC) 104 35 105 107 JTAG 77 PEAKS_YS CFG_JTAG ROE2 TCK,TMS FPGA_RST 47 SDA0 37 TO 57 49 FHD9V 50 SUB5V 7 MAIN3.3V OSD_FLAG 58 TRST,TMS 53 36 ROE9 TCK 93 51 TDI(TO HQ1) 86 DH25 GOE2 GOE9 VSIA HSIA CLKIA RVIA0-7 BUIA0-7 GYIA0-7 PEAKS_OSHO PEAKS_OSCKO TMS TDI TCK NRST TRST TDO FHD3.3V 1 5 VOUT DDR 2.5V IC5002 VDD DAC_VDD VDD_PLL2 VDD_PLL1 VDD12 VDD AVR 3.3V IC5001 VOUT 5 1 3 SUB5V 1 VDD 3 AVR 3.3V 5 VOUT IC5012 FHD3.3V PEACKS_OSD0-OSD15 FHQVIN FHQHIN FHQCKIN FHQYIN0-9 CLK0THQ1 THQVOUT THQHOUT THQYO0-9 THQCO0-9 XTALOUT X5000 XTALIN VDDA_PLL_DDR AVDD_DDR FHQCIN0-9 SCL SDA SCL_MC SDA_MC BOE0-9 GOE0-9 ROE0-9 HS0E CLK0E VS0E PTVEN A0-A11 FHD1.2V GC5P_1st PORT-A PORT-THQ IC5100 (ADV) PEAKS_OSHO PEAKS_OSDH PEAKS_YS PEAKS_OSDCK PEAKS_YM PEAKS_OSVO PEAKS_OSCKO OSD_FLAG SDCLK0,NSDCL0 CKE,WE BA0,BA1 RAS,CAS DQS0-DQS3 CK,CK RAS,CAS DQS0-DQS3 CKE,WE BA0,BA1 A0-A11 DQ0-DQ31 (OUTPUT PORT-E FOR PANEL) DQ0-DQ31 ADDRESS BUS DATA BUS CONTROL BUS JTAG SCL0 SDA0 CLK0E ROE0-9 HS0E BOE0-9 GOE0-9 PTVEN VS0E FRCK03 FRCLKIN 27MHz VDD AVR 2.5V IC5006 VOUT 1 DDR3.3V 8 NRST SDA SCL VDDQ VDD VDD25 NCFG Q5001 Q5000 PEAKS OSD0-15 RD_E+ RE_E+ RC_E- RB O+ RCLK O+ RE O+ RD O+ RD O- RE_E- RA_E- RC_E+ RCLK E- RB_E- RB O- RC O- RA O+ RE O- RCLK E+ RCLK O- RA O- RA_E+ RB_E+ RD_E- RC O+ 5 11 2 9 10 1 7 4 6 15 14 12 23 18 21 17 26 25 29 20 28 30 24 16 31 CE CE FHD3.3V 1 VOUT AVR 2.5V IC5009 VIN 8 VDD101 VDD102 VDD104 4 FHD3.3V IC5013 VDD RESET OUT 2 1 IC5008 VIN AVR 1.5V VOUT 8 VCCINT VDDA_PLL1 VDDA_PLL2 VDD103 4 DATAO nCSO 2 5 DCLK ASDO 1 SDA0 SCL0 FRCK_FPGA 5 2 4 DH4 SCL SDA WP SCL0 SDA0 SDA SCL FHD3.3V 64k EEPROM IC5000 6 5 7 8 VCC WC FACTORY FOR USE RE,WE OSD-FIFO IC5003 VCC SRCK,SWCK DO0-DO31 RSTR,RSTW FHD3.3V CONTROL BUS DATA BUS DATA BUS TDO TMS TDI TCK CFG-JTAG VCC FHD3.3V DATA NCS DCLK ASDI 3 DH5 E-LVDS3 0-LVDS3 0-LVDS2 0+LVDS4 0-LVDS0 E+LVDSCLK 0-LVDSCLK E+LVDS1 0-LVDS4 E+LVDS4 E+LVDS3 E-LVDS1 0+LVDS2 E+LVDS0 E-LVDS2 0+LVDS3 0+LVDSCLK 0+LVDS0 0+LVDS1 0-LVDS1 E-LVDS0 E-LVDS4 E+LVDS2 E-LVDSCLK IC5010 CONFIG ROM TO D5 LVDS_DET IC5105 FPGA (CYCLONE) OSD_RE,WE OSD_DO0-31 OSD_SRCK,SWCK OSD_DI0-DI31 OSD_RSTR,RSTW DC-DC CONVERTER DDR-SDRAM IC5102 FULL HD DH DDR3.3V 6 LVDS_EN (RVIA3,5-7) (GYIA0-7) (BUIA3,4,6,7) (BUIA0-2,5) (RVIA0-2,4) 16 AVDD_DDRCLK DI0-DI31 CONF_DONE LVDS_PD TH-42PZ700C DH-Board Block Diagram TH-42PZ700C DH-Board Block Diagram 102 15.34.DH 电路板 (1/4) 线路图 + + + + + LVDS_PD PEAKS_OSVO PEAKS_OSHO PEAKS_OSCKO PEAKS_OSD14 PEAKS_OSD13 PEAKS_OSD15 PEAKS_OSD12 PEAKS_OSD11 PEAKS_OSD10 PEAKS_OSD8 PEAKS_OSD9 PEAKS_OSD7 PEAKS_OSD3 PEAKS_OSD5 PEAKS_OSD1 PEAKS_OSD2 PEAKS_OSD0 PEAKS_OSD4 PEAKS_OSD6 CFG_TCK CFG_TMS CLKIA VSIA HSIA PEAKS_OSDCK PEAKS_OSDH PEAKS_YS PEAKS_YM SCL0 SDA0 JTAG_TMS JTAG_TRST CFG_TDO CFG_TDI JTAG_TDI JTAG_TCK GYIA5 GYIA2 GYIA6 GYIA7 GYIA0 GYIA4 GYIA1 GYIA3 RVIA6 RVIA5 RVIA7 BUIA6 BUIA4 BUIA7 BUIA3 RVIA3 BUIA5 RVIA4 RVIA0 BUIA2 RVIA2 BUIA0 BUIA1 RVIA1 FPGA_RST GC_RESET JTAG_TDO OSD_FLAG CFG_DONE D5901 MA22D3900L C5923 0.01u 25V R5928 0 TP5912 R5875 47 R5929 28k C5920 4.7u 6.3V C5927 68u 4V TP5914 TP5902 TP5027 TP5906 L5021 J0JHC0000075 R5931 30.1k R5938 0 L5901 G1C3R3ZA0083 R5933 16k R5926 0 R5865 0 TP5916 FHD1.2V C5915 1u 16V TP5904 R5937 0 TP5908 TP5911 TP5910 L5900 G1C2R2ZA0083 R5930 47.5k R5877 47 R5914 0 SUB5V C5914 0.047u 10V C5925 0.1u 16V R5922 100k TP5909 C5395 1u 16V R5866 0 TP5903 DH25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 C5910 16V 47u C5924 0.1u 16V R5878 47 C5916 10u 10V D5903 B0JCDD000002 R5871 33 R5932 12.7k C5919 0.01u 25V C5926 68u 4V L5904 G1C100MA0077 R5939 0 D5904 B0JCDD000002 C5922 220p 50V TP5905 R5868 33 C5939 0.1u 16V L5905 J0JHC0000075 C0DBAYY00274 IC5901 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP R5916 0 D5907 B0BC4R700007 R5860 EXB2HV470JV R5872 33 C5912 10V 10u D5902 MA22D3900L C5911 10V 10u R5909 0 R5934 16k FHD3.3V TP5913 C5930 1u 16V Q5901 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 R5923 47k Q5902 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 C5928 16V 47u R5870 33 R5927 0 R5861 EXB2HV470JV TP5907 D5908 B0BC4R700007 R5940 0 C5921 470p 50V R5867 0 R5908 0 C5918 0.1u 25V R5925 0 TP5028 TP5901 R5876 47 DDR3.3V C5929 16V 47u R5921 47k R5920 68 C5917 10u 10V MAIN3.3V SUB9V(FHD) R5345 1k PGND PWM_POWER_ON PANEL_VCC_ON INV_ON INV_SOS TV_MAIN_ON BOE5 BOE7 BOE9 BOE6 BOE2 BOE4 BOE3 BOE8 GOE7 GOE9 GOE5 GOE6 GOE2 GOE4 GOE3 GOE8 ROE7 ROE9 ROE5 ROE6 ROE2 ROE4 ROE8 ROE3 (SCL_IIC1) (SDA_IIC1) FHD9V CFG_TRST A B 9 E 6 8 7 3 D 5 4 C 1 2 F TO DG-BOARD (DG25) 9V->1.2V,9V->3.3V DC-DC CONVERTER 2 3 4 5 6 ! DH-BOARD TNPA4244AE (1/4) TH-42PZ700C DH-Board (1 of 4) Schematic Diagram TH-42PZ700C DH-Board (1 of 4) Schematic Diagram 103 15.35.DH 电路板 (2/4) 线路图 + + + A_DDR_A2 A_DDR_DQ14 RVIA6 ROE9 SDA0 BOE7 GYIA5 RVIA0 GOE5 BUIA1 FHQYIN5-1 BUIA3 A_DDR_DQ4 FHQCIN5-1 BUIA6 A_DDR_DQ31 A_DDR_DQ7 A_DDR_CLK A_DDR_DQ17 ROE6 A_DDR_DQ15 A_DDR_A9 A_DDR_DQ12 A_DDR_DQ8 A_DDR_DQ10 JTAG_GC51_GC52 ROE8 OSDMSK A_DDR_DQ25 BUIA4 A_DDR_DQ2 ROE5 GOE2 ROE4 A_DDR_DQ6 GYIA4 FHQYIN8-1 GYIA0 FHQCIN8-1 A_DDR_RAS A_DDR_A1 A_DDR_DQ18 A_DDR_DQS1 A_DDR_DQ20 A_DDR_DQ21 RVIA4 A_DDR_DQ1 A_DDR_DQ11 A_DDR_A7 A_DDR_DQ29 GYIA2 GYIA3 FHQCIN1-1 ROE3 A_DDR_BA1 A_DDR_DQ16 BOE6 FHQCIN9-1 GYIA1 FHQYIN6-1 SCL0 ROE7 VSOE A_DDR_DQ22 A_DDR_CAS BOE3 FHQCIN2-1 FHQYIN1-1 A_DDR_DQ3 A_DDR_DQ28 RVIA5 BOE8 A_DDR_DQ26 BOE1 RVIA1 A_DDR_DQ13 GOE8 FHQYIN0-1 A_DDR_DQ23 BUIA5 FHQYIN3-1 GOE9 A_DDR_DQ0 A_DDR_A5 BOE5 A_DDR_BA0 BOE2 A_DDR_DQ27 GOE6 A_DDR_DQ24 A_DDR_DQS2 BUIA7 RVIA3 A_DDR_A3 FHQVIN-1 BOE9 A_DDR_NCLK GYIA7 JTAG_TRST A_DDR_A0 A_DDR_DQ30 PLL3.3V ROE0 A_DDR_A11 FHQCIN3-1 RVIA2 FHQYIN7-1 A_DDR_DQS3 A_DDR_DQS0 BUIA2 FHQCIN6-1 HSOE FHQCIN0-1 FHQCIN4-1 GYIA6 A_DDR_SDCKE GOE3 A_DDR_A8 A_DDR_A4 FHQCIN7-1 GOE0 GOE1 RVIA7 FHQYIN4-1 GOE4 GOE7 ROE2 A_DDR_A6 FHQYIN9-1 FHQHIN-1 JTAG_TCK A_DDR_DQ19 BOE0 BUIA0 A_DDR_A10 ROE1 A_DDR_DQ5 JTAG_TMS BOE4 A_DDR_DQ9 FHQYIN2-1 HSIA VSIA A_DDR_WE H264_CLK GC_RESET OEMUTE THQYO2-1 THQYO6-1 THQYO4-1 THQYO5-1 THQYO7-1 THQYO9-1 THQYO8-1 THQHO-1 THQCKO-1 THQVO-1 THQCO0-1 THQCO2-1 THQCO1-1 THQCO3-1 THQCO4-1 THQCO5-1 THQCO6-1 THQCO7-1 THQCO8-1 THQCO9-1 THQYO3-1 THQYO0-1 THQYO1-1 CLKOE FHD1.2V JTAG_TDI FHQCKIN-1 CLKIA FHD3.3V 1000p 50V C5105 IC5100 AC3 DQ28 IC5100 AF1 DQS1 C0CBCBC00190 IC5012 1 VDD 2 GND 3 CE 5 VOUT 4 NC IC5100 A5 THQCO3 IC5100 D10 GND 0.1u 10V C5041 IC5100 AK26 VDDW JS5000 0 1000p 50V C5085 IC5100 AF14 AVSS_DDR IC5100 AF12 GND IC5100 E18 GND R5035 2k IC5100 AK20 COMP X5000 H0J270500087 IC5100 L2 BUIA0 IC5100 B16 FHQCIN0 IC5100 AK5 A6 IC5100 T3 RVIA5 0.1u 10V C5102 1u 10V C5108 IC5100 N19 VDDW IC5100 G3 UVIB8 IC5100 Y30 BOF9 L5020 J0JCC0000077 IC5100 C30 UVIC0 IC5100 B19 OSDI10 IC5100 V14 GND IC5100 AK2 GND IC5100 B25 ENBID 0.1u 10V C5869 IC5100 AH2 DQ9 IC5100 Y2 GYIA6 IC5100 L27 GND IC5100 E21 GND IC5100 D20 VDDW IC5100 AK17 GND IC5100 AA28 BOF4 IC5100 C19 OSDI9 IC5100 N15 GND IC5100 R2 BUIA4 IC5100 E23 VDDW IC5100 B14 FHQCIN6 IC5100 AB30 BOF3 IC5100 Y28 BOF7 IC5100 P1 BUIA2 IC5100 B6 THQCO0 IC5100 E14 GND 1000p 50V C5097 IC5100 H29 HSOE 1u 10V C5075 IC5100 M2 CLKIA IC5100 R28 ROE9 IC5100 AF26 VDD12 IC5100 AE26 VDD12 IC5100 W15 VDDPLLDDR IC5100 E17 GND IC5100 AG30 ROF8 IC5100 AF8 GND IC5100 B24 OSDYMI IC5100 C12 FHQYIN1 0.1u 10V C5046 1000p 50V C5020 IC5100 M18 VDDW IC5100 AD28 GOF5 C5004 1u 10V R5027 0 IC5100 U30 ROE5 IC5100 AB27 PTVEN IC5100 Y5 GND IC5100 AH19 VCOINV2 R5000 3.3k IC5100 AH22 CPOUT2 IC5100 E9 GND IC5100 C6 THQCO1 IC5100 E10 GND IC5100 E25 GND IC5100 H28 VSOE IC5100 G2 UVIB9 IC5100 AC27 PWMK IC5100 F28 VSIC C5006 0.01u 16V IC5100 AB2 VDD25 IC5100 V19 VDD12 IC5100 A25 ALPHAI0 IC5100 K27 VDDW IC5100 AG4 GND IC5100 AG9 GND R5041 0 C5012 10V 0.1u IC5100 R5 VDDW R5028 22k 1000p 50V C5048 0.1u 10V C5057 IC5100 E13 GND R5030 100 IC5100 AH24 GND IC5100 C11 FHQYIN4 IC5100 K30 BOE6 IC5100 AD3 DQ26 IC5100 Y27 GND IC5100 AG22 GND IC5100 D9 THQYO0 IC5100 C21 OSDI3 IC5100 U4 SDA_MC IC5100 N5 GND IC5100 A10 FHQYIN9 IC5100 J28 BOE7 IC5100 D14 GND IC5100 E15 VDDW IC5100 H30 CLKOE IC5100 C24 ALPHAI1 IC5100 M28 GOE8 IC5100 AH30 ROF5 IC5100 AA2 VDD25 IC5100 T28 ROE6 IC5100 AD2 DQ27 IC5100 G4 UVIB7 1000p 50V C5870 IC5100 D17 GND IC5100 D1 UVIB0 IC5100 B5 THQCO4 IC5100 AK11 DQS2 IC5100 AK22 DDREFIN IC5100 F30 CLKIC IC5100 V18 VDD12 IC5100 T17 VDD12 IC5100 W16 GNDPLLDDR IC5100 A28 YIC4 IC5100 A7 THQYO5 R5043 0 IC5100 F29 HSIC R5319 3.3k IC5100 AG29 ROF7 IC5100 P26 VDDW IC5100 AJ11 DQ21 IC5100 AJ5 A5 IC5100 P29 GOE3 R5034 75 IC5100 T13 GND IC5100 T15 GND IC5100 AJ21 IREF IC5100 C18 OSDI12 IC5100 U14 GND R5002 22 IC5100 N4 GND IC5100 D5 THQCO6 IC5100 C28 GND IC5100 AF27 VDD12 IC5100 P12 VDD12 IC5100 AH5 A7 1000p 50V C5069 IC5100 B4 THQCO8 IC5100 AG5 AVDD_DDR L5019 J0JCC0000077 IC5100 N28 GOE5 IC5100 AJ25 SLVSEL IC5100 AH6 A9 IC5100 V26 VDDW FHD3.3V IC5100 E1 UVIB2 IC5100 AF2 DQ13 1000p 50V C5079 IC5100 H4 YIB1 IC5100 V27 VDDW IC5100 A11 FHQYIN6 IC5100 AF23 GND IC5100 AK3 SDCLKO IC5100 AH1 DQ8 IC5100 B23 OSDHSI IC5100 AK6 A11 IC5100 J30 BOE9 R5045 47 IC5100 AG18 GND_PLL1 IC5100 B17 MOSDHSO2 IC5100 N18 VDDW IC5100 J27 VDDW IC5100 T29 ROE7 IC5100 C22 OSDI0 IC5100 AF30 GOF1 1000p 50V C5103 1000p 50V C5026 IC5100 U29 ROE4 IC5100 AA27 SSOUT IC5100 AJ13 DQ16 IC5100 M5 GND 0.1u 10V C5095 IC5100 M17 GND IC5100 L5 VDDW JS5007 0 L5004 J0JHC0000078 IC5100 AK4 A8 1000p 50V C5074 IC5100 V1 GYIA3 IC5100 E24 VDDW 0.1u 10V C5062 IC5100 AD29 GOF6 IC5100 D22 GND C5017 50V 18p IC5100 AH29 ROF4 IC5100 AF19 VDD_PLL2 IC5100 N1 RVIA2 IC5100 A20 OSDI8 IC5100 AG6 VDD25 IC5100 M12 VDD12 IC5100 AF20 GND IC5100 AJ14 DQ6 R5194 0 R5022 68 IC5100 D23 TRST 1000p 50V C5077 IC5100 E28 UVIC5 IC5100 AG15 GND IC5100 C16 FRCKO2 IC5100 AH10 CAS IC5100 P15 GND R5304 82 IC5100 H1 YIB4 IC5100 AF3 DQ12 IC5100 D19 VDDW IC5100 E7 VDDW IC5100 AG14 AVDD_DDR 0.1u 10V C5061 IC5100 AJ27 ROF1 IC5100 R17 GND IC5100 V16 GNDPLLDDR IC5100 B15 FHQCIN3 IC5100 V13 VDD25 IC5100 M15 GND JS5005 0 IC5100 AE3 DQ15 FHD3.3V IC5100 G28 GND IC5100 AE30 GOF4 0.1u 10V C5101 IC5100 Y1 GYIA7 IC5100 W17 GND C5038 10V 0.1u IC5100 AA30 BOF6 IC5100 D27 GND IC5100 K5 VDDW IC5100 E29 UVIC6 IC5100 T16 VDD12 C0CBCAC00282 IC5002 1 VDD 2 GND 3 CE 5 VOUT 4 NC IC5100 E11 VDDW IC5100 AK16 DQ1 IC5100 A23 CLKID IC5100 AF29 GOF0 IC5100 C2 VDD12 JS5001 0 IC5100 Y3 GYIA5 IC5100 R12 GND IC5100 AJ2 GND R5184 10k R5181 0 IC5100 AH12 DQ19 IC5100 AF11 VDD25 IC5100 R15 VDD12 IC5100 F2 UVIB5 IC5100 AB29 BOF2 L5003 J0JCC0000077 C5002 16V 0.01u IC5100 B11 FHQYIN5 0.1u 10V C5104 0.1u 10V C5091 IC5100 C17 OSDI15 R5018 68 IC5100 T2 BUIA6 IC5100 G29 SCL 1000p 50V C5090 IC5100 C3 GND IC5100 P14 VDD12 IC5100 AK13 GND IC5100 D3 VDD12 R5025 68 IC5100 B13 FHQCIN9 IC5100 M4 GND IC5100 V28 ROE0 IC5100 D8 THQYO4 IC5100 M19 VDDW IC5100 L1 BUIA1 IC5100 AG1 DQ14 IC5100 A6 THQYO9 JS5003 0 IC5100 W1 GYIA4 IC5100 K29 BOE5 IC5100 W3 HSIA C5007 0.1u 10V R5307 82 IC5100 AH26 GND JS5009 0 R5183 10k IC5100 T12 GND R5004 22 IC5100 AD30 GOF7 JS5002 0 C5024 1u 10V IC5100 AG19 GND_PLL2 IC5100 P4 VDDW IC5100 C15 FHQCIN2 IC5100 B18 OSDI13 IC5100 C7 THQYO7 IC5100 M13 VDD12 IC5100 C29 YIC0 IC5100 C23 OSDVSI IC5100 U2 RVIA7 R5001 3.3k R5305 82 IC5100 V5 VDDW L5002 J0JCC0000077 0.1u 10V C5056 JS5006 0 IC5100 D25 TCK C5015 10V 0.1u IC5100 R27 GND IC5100 M26 GND IC5100 H27 GND IC5100 AJ9 RAS IC5100 T26 GND IC5100 AH21 GND IC5100 AE4 GND C5011 10V 0.1u IC5100 AA26 VDDW IC5100 U27 VDDW IC5100 R16 GND 1000p 50V C5098 IC5100 N2 RVIA1 1000p 50V C5063 IC5100 E8 VDDW C5397 1u 10V 0.1u 10V C5053 IC5100 AJ3 NSDCLO IC5100 D18 GND IC5100 AB1 DQ31 IC5100 A19 OSDI11 0.1u 10V C5106 IC5100 R4 VDDW IC5100 AG26 GND IC5100 D6 THQCO2 R5046 0 R5308 82 IC5100 AH13 DQ17 IC5100 A14 FHQCIN7 IC5100 E4 VDD12 IC5100 C8 THQYO3 1000p 50V C5073 IC5100 A3 THQHOUT IC5100 AK15 DQ5 1000p 50V C5070 0.1u 10V C5033 IC5100 V30 ROE2 C5065 68u 4V 1000p 50V C5044 IC5100 AG27 VDD12 IC5100 L26 GND IC5100 W12 VDD25 IC5100 C27 YIC5 IC5100 E30 UVIC7 IC5100 V17 GND 1000p 50V C5076 IC5100 AH18 GND IC5100 M29 GOE9 IC5100 AH20 GND IC5100 K26 VDDW IC5100 B27 YIC6 0.1u 10V C5084 0.1u 10V C5110 0.1u 10V C5050 IC5100 A24 OSDYSI IC5100 V4 SCL_MC C5348 10V 0.1u IC5100 B3 THQVOUT IC5100 AH14 DQ7 IC5100 AG3 DQ11 IC5100 A9 FHQCKIN IC5100 P17 GND IC5100 AK12 GND IC5100 V29 ROE1 IC5100 G30 SDA IC5100 AG7 VDD25 IC5100 B20 OSDI7 IC5100 D12 NRST IC5100 M27 GND IC5100 B2 GND IC5100 AK25 VCOIN IC5100 N13 VDD12 IC5100 B1 VDD12 IC5100 AC30 BOF0 R5029 100 IC5100 AJ20 GND IC5100 AJ29 VDD12 SUB5V IC5100 J2 YIB7 0.1u 10V C5028 IC5100 K3 HSIB C5117 6.3V 10u IC5100 AJ7 A10 IC5100 AG2 DQ10 1000p 50V C5078 IC5100 N3 RVIA0 IC5100 B28 YIC3 IC5100 AG28 ROF6 R5021 68 IC5100 F3 UVIB4 C5018 1u 10V IC5100 C1 ENBIB R5044 0 IC5100 U15 GND R5026 EXB2HV680JV IC5100 V12 VDD25 IC5100 AA1 VDD25 IC5100 AG17 TESTIO_DDR IC5100 AE28 GOF2 IC5100 AF21 GND_DAC C5066 47u 6.3V R5302 82 1000p 50V C5068 IC5100 B8 THQYO2 IC5100 AK19 IOUT IC5100 E12 VDDW IC5100 C4 THQCO9 IC5100 R30 GOE1 IC5100 B9 FHQVIN IC5100 N26 VDDW R5036 0 IC5100 N17 GND 1u 10V C5042 R5024 68 IC5100 H26 GND IC5100 AB5 VDD25 IC5100 AJ26 GND IC5100 AH23 GND IC5100 AJ12 DQ18 IC5100 E3 UVIB1 IC5100 D7 THQYO8 IC5100 T4 GND 0.1u 10V C5080 IC5100 AE29 GOF3 C5037 47u 6.3V IC5100 T1 BUIA7 IC5100 C26 TMS IC5100 R18 GND IC5100 AK14 DQS0 IC5100 A21 OSDI5 IC5100 G1 YIB0 IC5100 D28 UVIC1 IC5100 AF17 GND_PLL1 IC5100 AH7 A3 IC5100 E2 CLKIB1 IC5100 AF6 AVDD_DDRCLK IC5100 W18 VDD12 IC5100 AG13 GND IC5100 D30 UVIC3 IC5100 V3 GYIA1 0.1u 10V C5072 IC5100 AJ15 DQ4 IC5100 F4 UVIB3 IC5100 AJ10 DQ23 IC5100 E16 VDDW IC5100 AJ4 CKE IC5100 AC28 GOF8 IC5100 R29 GOE0 R5214 10k IC5100 B22 OSDI1 IC5100 B30 YIC1 IC5100 AD4 GND IC5100 AB28 BOF1 IC5100 C25 MOSDVSO IC5100 D4 GND IC5100 AG12 GND IC5100 R3 BUIA3 1u 10V C5096 IC5100 J1 YIB8 IC5100 AD26 GND IC5100 AB3 VDD25 IC5100 A16 FHQCIN1 IC5100 J29 BOE8 IC5100 N27 VDDW C5025 10V 0.1u IC5100 AJ30 ROF3 IC5100 AK29 GND IC5100 AA4 GND IC5100 C9 FHQHIN 1000p 50V C5081 C5029 10V 1u IC5100 AF9 GND IC5100 AA29 BOF5 IC5100 R26 GND IC5100 AG8 GND IC5100 AF25 GND IC5100 U5 GND IC5100 AH27 GND IC5100 K1 FRCKO3 IC5100 D29 UVIC2 R5092 10k IC5100 AG20 GND_PLL2 1000p 50V C5064 IC5100 AB26 VDDW IC5100 F6 GND IC5100 AF16 GND IC5100 E22 GND C5010 16V 0.01u IC5100 W2 VSIA C5009 1u 10V IC5100 J5 GND 0.1u 10V C5113 JS5004 0 IC5100 A18 OSDI14 R5031 0 IC5100 C20 OSDI6 IC5100 AG11 VDD25 0.1u 10V C5043 IC5100 AK18 GND IC5100 U13 GND R5019 EXB2HV680JV IC5100 W13 VDD25 IC5100 B29 GND IC5100 C14 FHQCIN5 R5033 4.75k 1000p 50V C5052 IC5100 M1 CLKOA IC5100 AE2 DQ24 0.1u 10V C5047 IC5100 E20 VDDW IC5100 AJ24 GND IC5100 L3 CLKIA2 IC5100 W27 GND 1u 10V C5114 IC5100 AH3 GND IC5100 F5 VDD12 1u 10V C5087 C5067 10V 0.1u IC5100 U1 GYIA0 IC5100 AH9 BA0 IC5100 W4 OEBLK IC5100 P5 VDDW 1000p 50V C5051 R5206 10k IC5100 K2 VSIB IC5100 AE5 AVSS_DDRCLK IC5100 AK1 GND IC5100 W19 VDD12 IC5100 AA3 GND IC5100 H3 YIB2 IC5100 N14 VDD12 IC5100 AH15 DQ3 IC5100 C13 FHQCIN8 IC5100 AG25 GND FHD1.2V IC5100 L4 TEST IC5100 Y26 GND IC5100 V2 GYIA2 IC5100 P13 VDD12 IC5100 A27 YIC7 C5034 6.3V 10u IC5100 E5 GND IC5100 AJ28 GND R5303 82 1000p 50V C5054 IC5100 AC1 DQ29 1u 10V C5060 0.1u 10V C5058 IC5100 A29 YIC2 IC5100 D26 TDO 0.1u 10V C5088 IC5100 W29 HSOF IC5100 AD1 DQ25 R5017 68 IC5100 AK9 WE 0.1u 10V C5116 1_DDR2.5V R5301 EXB2HV820JV IC5100 N16 GND 1000p 50V C5082 C5036 10V 1u IC5100 J4 YIB5 R5014 68 R5191 0 IC5100 AG21 GND_DAC IC5100 G27 GND IC5100 T5 GND 1u 10V C5049 IC5100 R1 BUIA5 IC5100 P30 GOE4 IC5100 AF24 GND 1000p 50V C5040 1000p 50V C5094 IC5100 AF18 VDD_PLL1 C5016 50V 18p IC5100 W30 CLKOF IC5100 A4 THQCO7 IC5100 D13 LCDMODE 0.1u 10V C5055 IC5100 P16 GND IC5100 AH16 DQ0 IC5100 A2 CLKOTHQ1 IC5100 P3 RVIA3 IC5100 AF5 AVSS_DDR IC5100 P27 VDDW IC5100 P2 RVIA4 C5120 10V 0.1u IC5100 L28 BOE1 IC5100 AK28 ROF2 IC5100 W5 VDDW IC5100 M30 BOE0 IC5100 L29 BOE2 R5020 EXB2HV680JV IC5100 W14 GND IC5100 T27 GND 1000p 50V C5089 IC5100 D16 MOSDVSO2 C5022 10V 0.1u IC5100 D11 VDDW IC5100 L30 BOE3 C5118 6.3V 10u IC5100 AK10 DQ22 IC5100 AJ16 DQ2 IC5100 N30 GOE7 IC5100 F1 UVIB6 IC5100 AH25 FRCLKIN C5035 6.3V 10u IC5100 E19 VDDW IC5100 U12 GND 1000p 50V C5045 IC5100 AH8 A2 1000p 50V C5115 IC5100 B26 MOSDHSO IC5100 J26 VDDW 1000p 50V C5111 C5032 10V 0.1u R5003 22 C5008 82p 50V 1000p 50V C5086 IC5100 U18 VDD12 IC5100 AJ1 VDD25 IC5100 W28 VSOF IC5100 F27 VDDW IC5100 AC4 AVDD_DDR IC5100 E26 GND 1000p 50V C5107 IC5100 U16 GND IC5100 AF7 VDD25 R5318 820 IC5100 R14 GND 1u 10V C5109 IC5100 AK21 VREF IC5100 T30 ROE8 IC5100 AJ6 A4 IC5100 AD5 GND IC5100 AG24 GND IC5100 A30 GND IC5100 P18 GND IC5100 W26 GND C5021 6.3V 10u IC5100 J3 YIB6 L5001 G1C100KA0009 IC5100 A17 CLKOD2 R5048 0 C5031 6.3V 10u IC5100 AK27 ROF0 R5032 1k IC5100 M16 GND IC5100 D24 TDI IC5100 U26 VDDW IC5100 AF10 VDD25 IC5100 F26 VDDW IC5100 E27 UVIC4 C5013 50V 68p IC5100 AK24 GND IC5100 E6 GND IC5100 H2 YIB3 1000p 50V C5083 IC5100 P28 GOE2 IC5100 AD27 CLKID2 C5121 10V 1u IC5100 A12 FHQYIN3 IC5100 H5 GND IC5100 Y4 OEMUTE 1000p 50V C5100 IC5100 AG10 VDD25 IC5100 AC5 AVSS_DDR R5038 1M R5023 68 IC5100 AK30 VDD12 IC5100 AJ18 TESTIO_PLL1 IC5100 AF4 GND IC5100 AF15 GND IC5100 V15 GND IC5100 MN84525 A1 GND IC5100 D21 GND IC5100 B12 FHQYIN2 IC5100 AK8 BA1 IC5100 AE1 DQS3 IC5100 B21 OSDI4 IC5100 AH28 VDD12 IC5100 AG16 GND C5005 0.1u 10V IC5100 AJ19 TESTIO_PLL2 IC5100 T14 GND IC5100 M3 FRCKO1 IC5100 N12 VDD12 1000p 50V C5093 IC5100 AJ17 GND IC5100 R13 GND IC5100 B10 FHQYIN8 IC5100 A13 FHQYIN0 IC5100 A26 CLKOD IC5100 AC26 GND IC5100 T18 VDD12 0.1u 10V C5071 1000p 50V C5099 IC5100 AF28 ROF9 IC5100 U28 ROE3 IC5100 AH17 GND IC5100 K4 YIB9 R5306 82 FHD3.3V IC5100 A15 FHQCIN4 L5006 J0JHC0000078 1000p 50V C5059 L5005 J0JHC0000078 IC5100 AH4 VREFSSTL2V_0 IC5100 P19 GND IC5100 K28 BOE4 C0CBCBC00190 IC5001 1 VDD 2 GND 3 CE 5 VOUT 4 NC SUB5V 1000p 50V C5112 1000p 50V C5092 C5347 6.3V 10u IC5100 M14 VDD12 R5016 68 IC5100 C10 FHQYIN7 R5040 0 IC5100 AC2 DQ30 IC5100 C5 THQCO5 IC5100 R19 GND IC5100 Y29 BOF8 IC5100 T19 VDD12 IC5100 U17 VDD12 IC5100 D15 VDDW R5300 EXB2HV820JV IC5100 AJ22 DDREFOUT IC5100 AJ8 A0 R5179 10k C5027 1u 10V IC5100 AG23 GND IC5100 B7 THQYO6 IC5100 A22 OSDI2 IC5100 N29 GOE6 IC5100 AK7 A1 IC5100 AC29 GOF9 IC5100 AF13 GND IC5100 G5 GND IC5100 AA5 GND IC5100 G26 GND IC5100 AJ23 XTALOUT IC5100 U3 RVIA6 IC5100 AE27 VDD12 IC5100 AK23 XTALIN IC5100 AB4 VDD25 IC5100 D2 CLKIB2 C5019 10V 0.1u IC5100 U19 VDD12 IC5100 AF22 DAC_VDD JS5008 0 IC5100 A8 THQYO1 IC5100 AH11 DQ20 R5015 68 R5039 0 R5347 10k R5338 10k R5340 68 PORT-C(PEAKS) GC5P-1st (PWMC) (PWMB) (PWMD) PORT-THQ PORT-D(H.264) ExBus (output for Panel) EDIRINV PORT-A(ADV ) (LVDS-EN) (LCDSS) (PWMA) (output for Panel) PORT-F PORT-E 3G DDR 2.5V PORT-B(GC3FS_next) 12 10 16 17 11 15 14 13 18 AVR 3.3V PLL 3.3V GC5P-1st MN84525 IC5100 5 6 3 4 2 11 12 13 14 15 17 18 19 20 16 TH-42PZ700C DH-Board (2 of 4) Schematic Diagram TH-42PZ700C DH-Board (2 of 4) Schematic Diagram ! DH-BOARD TNPA4244AE (2/4) R5336 10k 104 15.36.DH 电路板 (3/4) 线路图 + Thermal Pad + + B_DDR_SDCKE A_DDR_DQ6 B_DDR_A7 B_DDR_DQ6 A_DDR_A0 B_DDR_DQ31 A_DDR_BA0 B_DDR_DQ21 B_DDR_DQ3 B_DDR_A1 A_DDR_DQ27 B_DDR_BA0 B_DDR_DQ26 B_DDR_CLK B_DDR_A2 B_DDR_A6 B_DDR_WE B_DDR_DQ20 A_DDR_CLK B_DDR_A2 A_DDR_DQ25 B_DDR_DQ4 B_DDR_NCLK B_DDR_DQ13 B_DDR_DQ10 A_DDR_RAS A_DDR_A2 A_DDR_DQ24 B_DDR_DQ10 A_DDR_A5 A_DDR_DQ29 B_DDR_DQ31 B_DDR_A9 A_DDR_DQ1 B_DDR_DQ23 B_DDR_CAS A_DDR_DQ23 B_DDR_BA0 B_DDR_A0 B_DDR_DQ30 B_DDR_DQ25 B_DDR_DQ4 A_DDR_A6 A_DDR_DQ9 B_DDR_DQS0 B_DDR_DQ9 B_DDR_DQS1 B_DDR_DQ14 B_DDR_A7 B_DDR_DQ16 B_DDR_DQ11 A_DDR_DQ31 B_DDR_DQ7 B_DDR_A10 B_DDR_DQ12 A_DDR_DQ11 B_DDR_DQ25 A_DDR_DQ17 A_DDR_DQ12 B_DDR_CAS B_DDR_DQ20 A_DDR_CAS B_DDR_BA1 A_DDR_DQ30 A_DDR_DQ26 B_DDR_DQ22 B_DDR_BA1 B_DDR_DQ6 B_DDR_A8 A_DDR_DQ5 B_DDR_DQ26 B_DDR_CLK B_DDR_DQ2 B_DDR_DQ0 B_DDR_DQS2 B_DDR_DQ29 B_DDR_DQ16 B_DDR_DQ9 B_DDR_DQ17 B_DDR_DQ1 B_DDR_DQ15 B_DDR_DQS0 A_DDR_NCLK A_DDR_A3 A_DDR_DQ4 B_DDR_DQ24 B_DDR_A0 B_DDR_DQ14 A_DDR_A10 B_DDR_DQ15 A_DDR_DQ13 A_DDR_DQ19 A_DDR_DQ10 B_DDR_A10 B_DDR_DQ21 B_DDR_WE A_DDR_DQS2 B_DDR_A1 B_DDR_DQ3 A_DDR_DQ0 B_DDR_DQ7 B_DDR_DQ22 B_DDR_RAS B_DDR_DQ23 A_DDR_DQ18 B_DDR_DQ30 A_DDR_A8 B_DDR_A9 B_DDR_NCLK A_DDR_DQ7 A_DDR_SDCKE B_DDR_DQ5 B_DDR_DQS3 B_DDR_DQ29 A_DDR_DQ15 B_DDR_DQ11 B_DDR_A3 B_DDR_DQ19 A_DDR_DQS0 B_DDR_A4 B_DDR_DQ2 A_DDR_DQ3 B_DDR_A5 B_DDR_DQ12 B_DDR_DQ13 A_DDR_DQ16 B_DDR_DQ18 A_DDR_A4 B_DDR_DQ0 A_DDR_DQ8 A_DDR_DQ22 A_DDR_BA1 A_DDR_A9 B_DDR_DQ27 B_DDR_A4 B_DDR_A6 A_DDR_DQ2 B_DDR_SDCKE A_DDR_DQ28 B_DDR_DQ27 A_DDR_A1 B_DDR_DQ28 B_DDR_A11 B_DDR_DQS1 B_DDR_DQ5 A_DDR_DQ14 B_DDR_DQ24 B_DDR_A8 B_DDR_A11 A_DDR_DQ20 B_DDR_DQ8 B_DDR_DQS2 A_DDR_WE B_DDR_A3 B_DDR_DQ18 A_DDR_DQS3 B_DDR_DQS3 A_DDR_A7 B_DDR_A5 A_DDR_DQ21 B_DDR_DQ1 B_DDR_RAS B_DDR_DQ28 B_DDR_DQ17 B_DDR_DQ8 A_DDR_A11 B_DDR_DQ19 A_DDR_DQS1 JTAG_GC51_GC52 JTAG_TDO CLKOE_A CLKOE IC5102 J13 DQ10 R5128 47 C5272 10V 1u IC5102 B3 DM0 C5294 10V 0.1u IC5102 E8 VSS R5010 4.7k C5287 10V 0.1u DDR3.3V IC5102 F2 DQ17 IC5102 K6 VSS IC5102 M7 A11 IC5102 F3 DQ16 IC5102 K2 DQ22 IC5102 D5 VSSQ C5283 10V 0.1u IC5102 G8 VSS_Thermal C5280 16V 0.01u IC5102 H11 NC IC5102 K4 VDDQ IC5102 C11 NC IC5102 H12 DM1 IC5102 C6 DQ1 R5140 0 IC5102 H9 VSS_Thermal IC5102 F11 VDDQ IC5102 B4 VSSQ IC5102 M4 NC IC5102 J8 VSS_Thermal R5138 0 IC5102 F10 VSSQ TP5003 IC5102 G3 DQ18 IC5102 G11 VDDQ R5127 EXB2HV470JV C5286 10V 0.1u IC5102 N6 A1 C5291 10V 0.1u IC5102 C3 VDDQ IC5102 L5 VSS C5302 10V 0.1u IC5102 B8 DQ31 IC5102 M10 RFU R5012 22 IC5102 B10 DQ28 R5118 32.4k C5296 10V 0.1u C5268 6.3V 10u IC5102 G5 VSSQ R5117 33k IC5102 F13 DQ14 IC5102 M2 RAS DH4 1 2 3 4 5 6 7 IC5102 L3 WE R5136 1k TVRP341 IC5000 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC IC5102 C5 VDDQ C5281 10V 0.1u IC5102 L11 VDD IC5102 L6 A10 IC5102 J11 VDDQ IC5102 D2 DQ6 IC5102 G7 VSS_Thermal IC5102 B6 DQ2 IC5102 F8 VSS_Thermal C5298 10V 0.1u IC5102 C12 VDDQ R5009 22 C5279 10V 0.1u R5131 47 IC5102 F5 VSSQ R5137 1k IC5102 D3 DQ5 C5269 6.3V 10u IC5102 N4 BA0 IC5102 B11 VSSQ IC5102 L12 NC C5295 16V 0.01u C5288 16V 0.01u IC5102 G6 VSS_Thermal IC5102 C10 VDDQ IC5102 M6 A2 C5299 16V 0.01u IC5102 L4 VDD IC5102 K8 VSS IC5102 B9 DQ29 IC5102 C9 DQ30 C5290 16V 0.01u IC5102 C3ABQJ000055 B2 DQS0 IC5102 N12 CKE FHD3.3V C5270 6.3V 10u IC5102 B12 DM3 R5133 22 IC5102 E13 DQ24 IC5102 E7 VSS IC5102 N2 CS IC5102 G9 VSS_Thermal C5301 16V 0.01u C5278 16V 0.01u R5005 4.7k IC5102 M3 NC IC5102 L8 VDD IC5102 M13 NC IC5102 L9 RFU C5297 16V 0.01u IC5102 K11 VDDQ IC5102 H2 DQS2 C5271 10V 0.1u C5300 10V 0.1u IC5102 B13 DQS3 IC5102 N11 A8/AP C5275 470p 50V IC5102 F9 VSS_Thermal R5007 22 IC5102 J12 DQ11 R5123 EXB2HV470JV IC5102 F4 VDDQ C5284 16V 0.01u IC5102 F6 VSS_Thermal IC5102 J7 VSS_Thermal C5274 4V 100u IC5102 N10 A7 R5122 47 C5285 10V 0.1u IC5102 E3 VDDQ IC5102 K12 DQ9 IC5102 N13 VREF IC5102 D13 DQ25 C5293 16V 0.01u IC5102 M11 CK IC5102 G4 VDDQ IC5102 C4 NC IC5102 K5 VSSQ L5000 J0JHC0000078 IC5102 F7 VSS_Thermal R5132 22 IC5102 B7 DQ0 IC5006 C0CBCAF00031 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 NC 7 NC 8 VIN C5276 56u 4V R5135 100 IC5102 J9 VSS_Thermal IC5102 N3 NC IC5102 C13 DQ27 IC5102 C7 VDDQ IC5102 G10 VSSQ IC5102 L10 VSS IC5102 H4 NC R5125 EXB2HV470JV DDR2.5V IC5102 K13 DQ8 IC5102 J5 VSSQ IC5102 D11 VSSQ IC5102 J4 VDDQ IC5102 L7 VDD C5292 10V 0.1u IC5102 E10 VSS IC5102 E11 VDD R5139 0 IC5102 H6 VSS_Thermal IC5102 H3 DM2 IC5102 D4 VSSQ IC5102 B5 DQ3 IC5102 H8 VSS_Thermal IC5102 L2 CAS IC5102 J3 DQ20 IC5102 E2 DQ7 C5289 10V 0.1u IC5102 N5 A0 C5282 16V 0.01u R5141 0 IC5102 E5 VSS L5015 J0JHC0000078 C5000 47u 6.3V IC5102 N8 A4 IC5102 J2 DQ21 IC5102 G13 DQ12 TP5000 IC5102 K9 VSS IC5102 C2 DQ4 IC5102 C8 VDDQ IC5102 H5 VSSQ R5008 4.7k IC5102 D6 VSSQ R5129 EXB2HV470JV TP5001 IC5102 N7 A3 R5120 0 R5013 100 R5124 47 IC5102 D10 VSSQ IC5102 D12 DQ26 C5001 10V 0.1u R5130 47 IC5102 H7 VSS_Thermal IC5102 F12 DQ15 R5142 0 IC5102 M8 A9 IC5102 G12 DQ13 IC5102 E4 VDD IC5102 N9 A6 IC5102 M5 BA1 TP5002 IC5102 K10 VSSQ IC5102 M12 CK R5134 EXB2HV470JV IC5102 G2 DQ19 IC5102 L13 NC IC5102 E12 VDDQ IC5102 J10 VSSQ R5121 EXB2HV470JV C5277 10V 0.1u R5011 22 IC5102 D9 VSSQ IC5102 E6 VSSQ IC5102 K3 DQ23 IC5102 H13 DQS1 IC5102 J6 VSS_Thermal IC5102 D7 VDD IC5102 E9 VSSQ R5119 0 C5273 10V 0.1u IC5102 K7 VSS IC5102 H10 VSSQ R5126 47 C5303 16V 0.01u IC5102 M9 A5 IC5102 D8 VDD R5346 1k R5339 0 R5329 0 Must Connect Low SCL SDA GND WP EEPROM 27 21 20 19 25 26 23 24 22 DDR 2.5V IC5102 DDR-SDRAM C3ABQJ000055 31 33 34 35 11 12 13 14 15 17 18 19 20 16 32 TH-42PZ700C DH-Board (3 of 4) Schematic Diagram TH-42PZ700C DH-Board (3 of 4) Schematic Diagram ! DH-BOARD TNPA4244AE (3/4) 105 15.37.DH 电路板 (4/4) 线路图 + Thermal Pad + + Thermal Pad + GOE3 OSD_DO15 OSD_DI25 OSD_DI22 RC_E- RE_E+ RC_0- GOE4 OSD_WE PEAKS_OSD9 OSD_DI4 OSD_DI7 RE_0- RD_E- OSD_DI28 PEAKS_OSHO OSD_DI21 OSD_DI31 SCL0 OSD_DI21 OSD_DO22 RA_0- OSD_DI2 OSD_DI27 OSD_DI8 OSD_DO19 OSD_DO18 OSD_DO30 ROE8 SDA0 OSD_DI6 BOE9 OSD_DI14 OSD_DI15 RB_E+ PEAKS_OSD5 BOE0 OSD_DI11 RE_E- OSD_DO29 OSD_DO4 OSD_DO9 HSOE OSD_DI19 OSD_DI0 PEAKS_OSD8 OSD_DI26 ROE1 PEAKS_OSD1 OSD_DO27 OSD_DO15 OSD_DI31 OSD_DO22 RD_0- OSD_DI13 OSD_RE OSD_DI10 ROE9 OSD_DI15 RB_E- OSDMSK OSD_DI28 OSD_DI4 OSD_DO19 RE_E- OSD_DO13 OSD_DO21 OSD_DO21 PEAKS_OSD13 OSD_DI9 PEAKS_OSCKO ROE4 PEAKS_YM OSD_DO10 OSD_DO1 OSD_SRCK OSD_DO26 VSOE OSD_DO0 OSD_RSTW ROE7 OSD_DO25 OSD_DI19 RA_E+ CFG_TDO OSD_DI11 OSD_DO27 OSD_DO10 OSD_RE PEAKS_OSD12 OSD_DI20 OSD_SWCK RD_E+ OSD_SWCK OSD_DO16 OSD_DI2 OSD_DO6 RA_E+ OSD_DO1 PEAKS_OSD0 RB_0+ GOE1 OSD_DO14 CFG_TDI BOE4 OSD_DI23 OSD_DI17 GOE2 OSD_DO13 PEAKS_OSD10 OSD_DI9 OSD_DO24 PEAKS_OSD6 PEAKS_OSD3 RA_0+ BOE8 RCLK_E- OSD_DI13 OSD_DO16 OSD_DO8 OSD_DO23 OSD_WE RD_E+ GOE0 PEAKS_OSVO BOE3 OSD_DI10 RC_0+ OSD_DI7 OSD_DO3 OSD_DI1 OSD_DO31 CFG_TCK OSD_DI18 OSD_DO29 RE_0- OSD_DI29 OSD_DI22 OSD_SRCK RCLK_E- RCLK_E+ BOE1 RE_0+ RD_0+ OSD_DI25 OSD_DO11 RD_E- OSD_DI24 PEAKS_OSD2 RD_0+ OSD_DO20 OSD_DI24 GOE8 GOE6 OSD_RSTR ROE2 ROE5 OSD_DO2 GOE9 OSD_DI29 RD_0- PEAKS_OSD7 OSD_DO30 RB_0+ RC_0- RA_E- RB_E+ PEAKS_OSD11 OSD_DO9 RB_E- OSD_DO3 PEAKS_OSDCK OSD_DI12 OSD_DI5 OSD_DI14 CFG_TMS RB_0- GOE7 BOE6 OSD_DO4 OSD_DI1 OSD_DI5 OSD_DO8 OSD_DO25 RC_E+ BOE7 PEAKS_OSDH OSD_DI3 OSD_DI30 OSD_DI0 RA_E- OSD_DI3 OSD_DO28 OSD_DO31 OSD_DO2 OSD_RSTW OSD_DO11 OSD_DO20 ROE3 RCLK_E+ OSD_DO7 OSD_FLAG OSD_DO14 OSD_DO17 RE_E+ OSD_DI16 OSD_RSTR OSD_DO24 GOE5 RC_E- PEAKS_OSD4 OSD_DO28 OSD_DO18 RB_0- OSD_DI17 RC_0+ OSD_DO7 PEAKS_OSD15 RE_0+ OSD_DO23 OSD_DI12 PEAKS_OSD14 OSD_DI18 OSD_DO26 OSD_DI6 OSD_DO5 OSD_DI20 OSD_DI27 ROE6 OSD_DI23 OSD_DI8 BOE2 OSD_DO12 RC_E+ OSD_DO5 OSD_DO17 OSD_DO6 ROE0 BOE5 OSD_DI16 OSD_DO0 OSD_DI26 OSD_DI30 PEAKS_YS OSD_DO12 FPGA_RST LVDS_PD NCFG RCLK_O+ RCLK_O- RA_0+ RA_0- OEBLK CFG_DONE NCFG CLKOE_A GOF9_A FHD3.3V IC5105 B8 IO L5018 J0JHC0000078 IC5105 U16 IO C5380 10V 0.1u IC5105 E5 IO IC5105 F4 IO R5237 169 IC5105 E11 IO IC5105 T14 IO R5227 120 IC5105 B4 IO IC5105 K7 MSEL1 IC5105 E13 IO C3ZBN0000026 IC5003 1 DO1 2 VccQ 3 DO2 4 DO3 5 VssQ 6 DO4 7 DO5 8 VccQ 9 DO6 10 DO7 11 VssQ 12 Vss 13 SWCK 14 RSTW 15 Vcc 16 Vss 17 Vcc 18 WE 19 IE 20 WAD 21 Vss 22 VssQ 23 DO8 24 DO9 25 VccQ 26 DO10 27 DO11 28 VssQ 29 DO12 30 DO13 31 VccQ 32 DO14 33 DO15 34 VssQ 35 VccQ 36 Vcc 37 Vss 38 DI8 39 DI9 40 DI10 41 DI11 42 Vcc 43 DI12 44 DI13 45 DI14 46 DI15 47 Vss 48 Vcc 49 Vss 50 Vss 51 DI16 52 DI17 53 DI18 54 DI19 55 Vcc 56 DI20 57 DI21 58 DI22 59 DI23 60 Vss 61 Vcc 62 VccQ 63 VssQ 64 DO16 65 DO17 66 VccQ 67 DO18 68 DO19 69 VssQ 70 DO20 71 DO21 72 VccQ 73 DO22 74 DO23 75 VssQ 76 Vss 77 RAD 78 OE 79 RE 80 Vcc 81 Vss 82 Vcc 83 RSTR 84 SRCK 85 Vss 86 VssQ 87 DO24 88 DO25 89 VccQ 90 DO26 91 DO27 92 VssQ 93 DO28 94 DO29 95 VccQ 96 DO30 97 DO31 98 VssQ 99 VccQ 100 Vcc 101 Vss 102 DI24 103 DI25 104 DI26 105 DI27 106 Vcc 107 DI28 108 DI29 109 DI30 110 DI31 111 Vss 112 Vcc 113 Vss 114 Vss 115 DI0 116 DI1 117 DI2 118 DI3 119 Vcc 120 DI4 121 DI5 122 DI6 123 DI7 124 Vss 125 Vcc 126 VccQ 127 VssQ 128 DO0 DH5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 IC5105 C1 GND IC5105 E15 IO IC5105 D14 IO IC5105 T10 IO C5376 10V 0.1u R5221 120 IC5105 E7 IO FL5017 J0JAD0000028 1 2 3 4 IC5105 F18 IO IC5105 P3 IO R5216 120 IC5105 N17 IO 0.1u 10V C5132 IC5105 A1 GND R5231 120 IC5105 T5 IO C5365 10V 0.1u IC5105 M13 IO C5386 10V 0.1u C5360 50V 470p IC5105 J1 IO TP5007 IC5105 G17 IO IC5105 H7 DATA0 C5382 10V 0.1u IC5105 V14 VCCIO4 FHD3.3V IC5105 B12 IO IC5105 J18 GNDG_PLL2 TP5010 0.1u 10V C5126 IC5105 F16 IO IC5105 M5 IO R5055 EXB2HV221JV IC5105 E1 VCCIO1 R5198 22 R5250 220 IC5105 K9 GND IC5105 J7 nCE TP5026 IC5105 N9 IO IC5105 T2 IO C5343 10V 0.1u IC5105 V12 IO IC5105 V18 GND R5342 68 IC5105 P10 IO C5374 10V 0.1u IC5105 L18 IO IC5105 M16 IO IC5105 N4 IO R5233 120 IC5105 B2 GND 1000p 50V C5235 IC5105 G10 IO IC5105 E8 IO IC5105 P4 IO IC5105 C11 IO IC5105 V15 IO IC5105 H17 IO IC5105 E16 IO C5354 10V 0.1u IC5105 V4 IO IC5105 C3 IO C5384 10V 0.1u IC5105 B6 IO IC5105 P6 IO ZA5004 K4AZ01D00004 IC5105 R9 IO IC5105 U12 IO IC5105 F6 IO TP5025 R5065 0 IC5105 E2 IO Q5000 B1CBHD000002 R5228 120 IC5105 T7 IO IC5105 N8 IO IC5105 F12 IO R5088 1k IC5105 C17 IO IC5105 F3 IO IC5105 U15 IO IC5105 H14 IO IC5105 U1 VCCINT 1000p 50V C5344 IC5105 B3 IO IC5105 H16 IO IC5105 V6 IO IC5105 L14 IO IC5105 P5 IO R5224 120 IC5105 M6 IO IC5105 U7 IO IC5105 R3 IO IC5105 L5 IO C5372 10V 0.1u TP5023 IC5105 K10 VCCINT R5087 5.6k TP5016 IC5105 J12 VCCA_PLL2 IC5105 V17 VCCINT R5243 169 R5170 32.4k IC5105 K18 TCK ZA5002 K4AZ01D00004 IC5105 L15 IO IC5105 U3 IO IC5105 K17 CONF_DONE IC5105 U6 IO R5220 120 IC5105 B17 GND R5232 120 R5091 33k IC5105 R13 IO IC5105 H8 GND R5215 120 IC5105 M15 IO R5067 0 IC5105 V11 IO R5070 47 IC5105 G2 IO IC5105 D1 IO R5173 120 IC5105 F14 IO C5352 50V 470p IC5105 M1 IO IC5105 D13 IO IC5105 G12 IO IC5105 P7 IO IC5105 B7 IO IC5105 D6 IO IC5105 M18 IO TP5008 IC5105 V2 VCCINT IC5105 T8 IO FL5015 J0JAD0000028 1 2 3 4 R5203 1k R5059 47 C5378 10V 0.1u IC5105 D9 IO IC5105 E6 IO IC5105 M10 IO C5351 47u 4V R5062 47 TP5017 IC5105 E17 IO IC5105 A15 IO IC5105 U10 IO IC5105 R1 IO IC5105 J8 GND IC5105 M8 IO R5223 120 IC5105 L2 IO IC5105 G18 IO IC5105 H6 IO IC5105 A17 VCCINT IC5105 D2 IO IC5105 N3 IO 0.1u 10V C5135 IC5105 C14 IO IC5105 N11 IO TP5014 IC5105 D15 IO IC5105 L16 IO IC5105 J17 TDI IC5105 R2 IO IC5105 C9 IO IC5105 G3 IO R5176 22 IC5105 R7 IO IC5105 L4 IO IC5105 V8 IO R5251 22 IC5105 G6 IO IC5105 A16 GND 0.1u 10V C5134 IC5105 J14 IO R5248 220 IC5105 V5 VCCIO4 0.1u 10V C5146 IC5105 A14 VCCIO2 IC5105 T18 GND IC5105 K2 nCEO 0.1u 10V C5355 FL5018 J0JAD0000028 1 2 3 4 IC5105 U5 IO R5229 120 IC5105 M12 VCCIO3 C0EBD0000221 IC5013 4 OUT 3 Cd 1 GND 2 Vdd IC5105 R14 IO IC5105 C18 GND C5383 10V 0.1u IC5105 U14 IO JS5022 0 IC5105 N18 IO IC5105 U2 GND IC5105 R17 IO IC5105 J2 nCONFIG R5063 47 IC5105 J3 CLK0 0.1u 10V C5122 IC5105 D5 IO 0.1u 10V C5141 R5222 120 IC5105 B10 IO IC5105 G16 IO R5205 10k IC5105 P9 IO IC5010 TVRP342-1 1 NCS 2 DATA 3 VCC 4 GND 5 ASDI 6 DCLK 7 VCC 8 VCC IC5105 P11 VCCIO4 IC5105 L13 IO IC5105 H2 IO IC5105 N14 IO IC5105 B5 IO IC5105 U11 IO IC5105 P15 IO IC5105 M7 VCCIO1 C5371 10V 0.1u IC5105 M11 IO IC5105 U13 IO IC5105 A9 IO IC5105 F2 IO IC5105 B13 IO C5389 10V 0.1u IC5105 M4 IO 0.1u 10V C5138 C5366 10V 0.1u IC5105 B1 VCCINT R5069 1.8k IC5105 D8 IO IC5105 P12 IO IC5105 E9 VCCIO2 Q5001 B1CBHD000002 IC5105 R4 IO IC5105 V16 GND IC5105 F5 IO IC5105 L9 VCCINT IC5105 J16 CLK3 0.1u 10V C5142 IC5105 N1 IO C5367 10V 0.1u R5337 1.8k IC5105 G4 IO C5385 10V 0.1u 0.1u 10V C5140 IC5105 M9 IO R5196 1.8k R5169 3.3k IC5105 N5 IO IC5105 E4 IO IC5105 F17 IO FL5019 J0JAD0000028 1 2 3 4 IC5105 K16 IO IC5105 F13 IO IC5105 G11 IO IC5105 B18 VCCINT IC5105 P16 IO IC5105 A18 GND IC5105 A7 IO IC5105 G8 IO IC5105 K13 TDO IC5105 P1 VCCIO1 IC5105 G13 IO IC5105 C13 IO ZA5003 K4AZ01D00004 0.1u 10V C5394 IC5105 T3 IO C5350 6.3V 1u IC5105 L17 IO IC5105 B11 IO TP5005 R5200 10k R5242 169 0.1u 10V C5128 IC5105 D16 IO TP5012 C5358 6.3V 1u IC5105 M3 IO 0.1u 10V C5127 IC5105 C16 IO IC5105 D18 IO IC5105 T13 IO IC5105 A3 GND R5244 169 IC5105 C12 IO IC5105 H13 IO R5234 120 IC5105 L11 GND IC5105 V9 IO C5353 6.3V 1u R5061 47 IC5105 P8 VCCIO4 IC5105 A11 IO IC5105 R16 IO IC5105 K12 GNDA_PLL2 IC5105 K1 GNDA_PLL1 IC5105 N6 IO IC5105 N13 IO C5145 6.3V 10u IC5105 T12 IO JS5023 0 IC5105 U4 IO C5362 10V 0.1u TP5021 C5369 10V 0.1u 0.1u 10V C5356 R5202 10k IC5105 H12 VCCIO3 R5068 1.8k IC5105 C10 IO IC5105 D10 IO IC5105 N15 IO IC5105 N12 IO IC5105 T1 GND IC5105 B9 IO C5375 10V 0.1u IC5105 T6 IO IC5105 D7 IO IC5105 E18 VCCIO3 IC5105 F8 IO IC5105 E12 VCCIO2 IC5105 F7 IO IC5105 H5 IO IC5105 K6 IO R5239 169 TP5013 IC5105 V13 IO R5064 47 IC5105 C2 IO R5054 EXB2HV820JV C5388 10V 0.1u R5240 169 R5051 EXB2HV820JV IC5105 F10 IO IC5105 K15 IO 0.1u 10V C5143 TP5006 IC5105 A10 IO R5217 120 IC5105 A4 IO 0.1u 10V C5125 R5172 169 R5197 22 IC5105 U17 GND C5393 10V 0.15u IC5105 C7 IO IC5105 E3 IO IC5105 R6 IO C5381 10V 0.1u R5241 169 IC5105 R15 IO R5218 120 IC5105 K14 TMS IC5105 F15 IO IC5105 B16 IO C5144 6.3V 10u TP5022 R5060 47 IC5105 H11 GND IC5105 V1 GND IC5105 K11 GND IC5008 C0CBCAF00023 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 NC 7 NC 8 VIN IC5105 N7 IO C5387 10V 0.1u R5249 4.7k IC5105 C8 IO TP5009 IC5105 T11 IO L5017 J0JHC0000078 C5357 47u 4V C5361 10V 1u R5230 120 C5364 10V 0.1u IC5105 M14 IO 0.1u 10V C5137 IC5105 D11 IO IC5105 C6 IO IC5105 J10 GND R5238 169 IC5105 J5 VCCA_PLL1 IC5105 T9 IO IC5105 R18 IO IC5105 J6 GNDG_PLL1 IC5105 V10 IO IC5105 K5 IO IC5105 H4 IO IC5105 B14 IO FHD3.3V 0.1u 10V C5139 IC5105 N10 IO R5056 EXB2HV221JV R5235 169 IC5105 A8 IO R5201 10k TP5020 R5057 EXB2HV221JV IC5105 H1 IO IC5105 P18 VCCIO3 IC5105 J13 IO IC5105 P14 IO R5226 120 IC5105 D4 IO R5072 47 C5379 10V 0.1u IC5105 U8 IO IC5105 F9 IO R5066 0 C5390 10V 0.1u R5174 120 IC5105 G14 IO C5373 10V 0.1u 0.1u 10V C5133 C5370 10V 0.1u IC5105 D17 IO C5359 47u 4V IC5105 A6 IO IC5105 L3 IO IC5105 A2 VCCINT IC5105 A12 IO IC5105 D12 IO 0.1u 10V C5136 0.1u 10V C5123 C5345 10V 0.1u TP5011 R5058 EXB2HV221JV IC5105 R12 IO IC5105 C4 IO IC5105 H9 GND R5199 10k IC5105 R5 IO IC5105 L1 DCLK R5052 EXB2HV820JV IC5105 V7 IO IC5105 G9 IO IC5105 E10 IO IC5105 E14 IO IC5105 G15 IO TP5015 IC5105 K3 MSEL0 IC5105 G7 VCCIO1 IC5105 G1 IO IC5105 F11 IO IC5105 M17 IO IC5105 U9 IO IC5105 L8 GND IC5105 M2 IO IC5105 T4 IO TP5019 R5225 120 IC5105 R10 IO IC5105 F1 IO JS5020 0 C5377 10V 0.1u IC5105 L6 IO C5368 10V 0.1u IC5105 U18 VCCINT IC5105 T16 IO R5343 68 IC5105 L7 IO IC5105 B15 IO FL5020 J0JAD0000028 1 2 3 4 ZA5001 K4AZ01D00004 JS5021 0 IC5105 R11 IO 0.1u 10V C5130 IC5105 H15 IO IC5105 V3 GND IC5105 T15 IO TP5018 R5219 120 IC5105 P17 IO IC5105 G5 IO IC5105 A13 IO IC5105 R8 IO R5204 10k IC5105 K8 GND IC5105 K4 IO 0.1u 10V C5131 R5246 4.7k IC5105 J4 CLK1 TP5024 IC5105 T17 IO IC5105 P2 IO IC5105 J9 VCCINT C5391 10V 0.1u R5071 47 IC5105 C15 IO IC5105 N16 IO IC5105 P13 IO IC5105 H10 VCCINT 0.1u 10V C5124 IC5105 L10 GND IC5105 J11 GND IC5105 L12 nSTATUS IC5105 J15 CLK2 IC5105 H18 IO IC5105 A5 VCCIO2 C5392 6.3V 10u IC5105 N2 IO IC5105 H3 IO IC5105 C5 IO R5053 EXB2HV820JV 0.1u 10V C5129 R5236 169 IC5105 D3 IO IC5009 C0CBCAF00031 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 NC 7 NC 8 VIN C5363 47u 4V FL5016 J0JAD0000028 1 2 3 4 R5344 68 FPGA ¤FIFO ' ' VSO(LCD-Panel) Peaks '¤ FPGA OSD PTVEN GC5P ¤FPGA ROE/GOE/BOE PNL_HIZ Bank1 Bank2 CLKILV FRCLKIN 27MHz SCL HSO(LCD-Panel) FPGA(Cyclone) CLKOLV 2.5V CLK_E2DIV_OUT PWMKO PWMAO PNL_MUTE(V-MUTE) NRST nCSO O+ LVDS1 O- LVDS4 E+ LVDS0 E- LVDS2 E- LVDS1 Cyclone ¤Dprint LVDS O- LVDS1 E+ LVDS1 SDA CLK_E2DIV_in PWMKI Non-use pin Bank3(2.5V) For LCD model O+ LVDS4 OSD FIFO BLOCK ' GND O+ LVDS3 E- LVDS0 O+ LVDS2 E- LVDS3 GND LVDS_DET E+ LVDSCLK GND E+ LVDS4 O- LVDS3 O+ LVDS0 E- LVDSCLK E+ LVDS3 O+ LVDSCLK O- LVDS0 GND E- LVDS4 GND 1.5V LCD-MODE O- LVDS2 E+ LVDS2 O- LVDSCLK GND FIFO ¤FPGA ASDO FPGA ¤FIFO CONFIG ROM ' ' ' Bank4 ¤ OSD-FIFO TO D-BOARD (D5) C1ZBZ0003668 FPGA(CYCLONE) IC5105 RESET AVR 2.5V AVR 1.5V 28 30 32 34 31 36 35 33 29 31 33 34 35 32 TH-42PZ700C DH-Board (4 of 4) Schematic Diagram TH-42PZ700C DH-Board (4 of 4) Schematic Diagram ! DH-BOARD TNPA4244AE (4/4) 106 15.38.D 电路板 (1/2) 方框图 STB+3.3V PANEL POWER PART SOS DET P+5V FAIL VOLTAGE LED BLINKING 5 TIMES P+15V OVER VOLTAGE LED BLINKING 2 TIMES P+3.3V FAIL VOLTAGE LED BLINKING 3 TIMES READY LED_R STB_SDA2 LED_R PSLCT MAIN_ON RXD TXD P_ON/OFF PSTB TXD RM SOS4 LED_G LED_G PDB1 MAIN_ON PDB0 PBUSY PBUSY P3V_SDA1 ALARM P3V_SCL1 STB_SDA2 PBUSY P3V_SCL2 PSLCT PSTB P3V_SDA2 PSTB CLKM PDB0 ALARM SOS4 RXD STB_SCL2 STB_SCL2 P_ON/OFF STB_SCL2 RM PDB1 RXD VDA P3V_SDA1 P3V_SCL1 PDB0 TXD READY STB_SDA2 DRVMUTE PDB1 VDA P3V_SCL2 STB_SDA2 P3V_SDA2 STB_SCL2 P_CTL WR_CTL WR_CTL XRST2 P3V_SDA1 P3V_SDA2 P3V_SCL2 P3V_SCL1 XRST STBSDA2 STBSCL2 STB_SDA1 STB_SCL1 STB_SCL1 STB_SDA1 NRST2 NRST2 DRVMUTE PSLCT SOS6_SC1 SOS7_SC2 SOS8_SS DRVRST PRCK Q9051 Q9054 P+1.2V R9141 R9203 P+5V Q9046 P+3.3V Q9805 Q9806 Q9052 Q9044 Q9053 STB+5V R9205 STB+5V R9215 X9000 D9020 P+2.5V Q9050 PA9800 P+15V D9819 D9818 D9110 D9804 D9802 D9811 E+LVDS0 10 RX RA_E+ S CLOCK2 VD OSD_HD LVDS 12 OSC PROCESSOR 11 53 50 20 84MHz STBY+5V 14 4 OSD_B 20 10bit 92 15 36 REMOTE 15 PANEL SOS DET OSD_R 10bit ON/OFF 49 IIC_CONT 1 OSD_GI 23 7 D6 90 10 STB+3.3V/RESET PDB0 OSD_CLKI P+15V STB+3.3V 21 16 P+3.3V/P+1.2V 2 ASDIO PROCESSOR EEPROM(FPGA) 13 HD 32 M_VDO 6 3 S DATA1 1 DISCHARGE CONTROL 24 9 TXD 27MHz P+15V DET SOS2 37 STB+3.3V RC_E- G STB+3.3V M_HD0 18 POWER SOS DET SOS4_PS (LVDS_DET) RXD RC O- P+15V RCLK E- ON/OFF 16 18 ECO_ON 17 LED R DCLK P25 PSLCT OSD_CLKO IIC_INT IIC_CONT PSTB 6 ON/OFF OSD_G 2 86 PSLCT P+3.3V TXD P+1.2V/P+2.5V/P+3.3V 21 6 RB O+ DISPEN Vda SOS DET 33 IIC_CONT 20MHz OSD_BI 18 PBUSY DATA CONTROL(U) CONT 21 B IIC_DATA2 +3.3V D PDB1 S DATA1_IIC1_SDA SUS CONTROL RESET 84 RD O+ 8 54 PSTB 34 IIC P+15V SOS DET 2 10 LVDS_DET 6 VD 5 DG35 +3.3V D5 RA O+ LED G OSD_RI IIC/INT DATA CONTROL(D) 18 16 PDB0 PARALLE 11 16 POWER STATUS READY 18 RXD 27 ALARM 9 RCLK O+ RA_E- IIC_DATA1 70 RE O- PDB1 SCAN CONTROL IIC_CLK2 17 RB_E+ RC O+ DG5 TUNER_SUB_ON PBUSY PLASMA AI PROCESSOR FOR 19 RD O- FORMAT CONVERTER, 8 FACTORY USE 67 INV. 87 85 (1MB) PSTB 72 HD 14 RC_E+ S CLOCK2_IIC2_SCL TXD 30 P+5V SOS DET 21 PANEL MAIN ON/OFF D3 RA O- B 26 6 RESET 7 RE O+ 10bit 69 NCS S DATA2_IIC2_SDA RD_E- RD_E+ RE_E+ LED RED 12 4 DATA0 66 S CLOCK1_IIC1_SCL P+3.3V DET SOS3 RXD 1 11 SUSTAIN ENERGY RECOVERY SOS8_SS 23 10bit 43 RB_E- 3 25 S DATA2 LED GREEN P+1.2V P+2.5V/P+3.3V ON/OFF 2 2 29 25 13 5 P+15V RE_E- 31 STBY+5V 26 7 22 REMOTE 1 4 F_STBY_ON Q9010 TTL ECO ON 14 P+5V P15V 15 PBUSY 1 READY PANEL_MAIN_ON STBY5V 5 RCLK O- 93 VDATA_DET 71 MICOM ALL_OFF 29 R ALL_OFF PSLCT SOS4_PS G IIC_INT 91 7 RB O- PANEL_STBY_ON RCLK E+ 19 17 PDB1 IIC_CLK1 P+5V DET SOS5 1 20 R PDB0 17 10bit D25 10bit 2 1 4 100 28 S CLOCK1 23 SYNC DATA 7 9 19 SCAN ENEGRY RECOVERY SOS6_SC1 15 RGB PICTURE OUTPUT (L) (R) PICTURE OUTPUT FLASH CONTROL (64k) THERMAL SENSOR 1 EEPROM 6 P+3.3V STB+3.3V 6 5 7 WP XOUT XIN NRST 2 ALARM SC FLOATING PART SOS7_SC2 PANEL_STBY_ON P_CTL VCC 4 8 35 EEP_WR_CTL LSI_RST 1 NRST 31 D5_DET0 3 DRIVER_RESET XCE_L P+3.3V P+2.5V P+1.2V P+5V +1.2V IC9805 Q9807,Q9808 Q9809 +2.5V IC9806 P+2.5V SCL SDA SDA SCL VCC 30 P+5V XRST2 4 8 11 6 3 13 1 4 10 9 12 14 2 5 IC9013 IIC SW DCDC_ON IC9007 VCC 7 VCC 3 8 VCC STB+3.3V 27 DCLK DATA0 ASDIO 28 26 29 NCS DCLK DATA0 ASDIO NCS P+1.2V TDO TRST D9 3 TDI TMS P+3.3V 2 7 1 6 5 TCK 5 NRST2 D5_DET0 42 LVDS_DET OSD_YSI 16 OSD_YS 20 OSD_VD HD VD SCL SDA NRST2 DRV_MUTE NRST DRIVER RESET (INTERNAL FREE RUN) E-LVDS0 E+LVDS1 E-LVDS1 E-LVDS2 E+LVDS3 E-LVDS3 E+LVDS2 E+LVDSCLK E+LVDS4 E-LVDS4 O+LVDSCLK E-LVDSCLK LVDS_DET O+LVDS0 O-LVDSCLK O-LVDS0 O+LVDS1 O-LVDS1 O+LVDS2 O-LVDS2 O+LVDS3 O-LVDS3 O+LVDS4 O-LVDS4 RE_E+ RE_E- RD_E+ RD_E- RC_E+ RC_E- RB_E+ RB_E- RA_E- RA_E+ RCLK_E+ RCLK_E- LVDS_DET RCLK_O+ RCLK_O- RE_O+ RE_O- RD_O+ RD_O- RC_O+ RC_O- RB_O+ RB_O- RA_O+ RA_O- SCAN CONTROL(42) P+15V JTAG HD,VD IC9011 IC9001 IC9002 IC9500 IIC_CONT IIC_CONT IIC IC9003 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 FPGA FACTORY USE FOR TH-42PZ700C D-Board (1 of 2) Block Diagram TH-42PZ700C D-Board (1 of 2) Block Diagram 107 15.39.D 电路板 (2/2) 方框图 CPH1 CSOU CPH2 CLK CERS(CBK) P3V_SCL2 P3V_SCL02 P3V_SDA02 CEL OCIA(CL) CQR_(CPL) SIUB/LAT SCSU CSL CML P3V_SDA2 OCK PCK CLKM PRCK SIDA DRVRST OC2(CEL2) SIUA DRV_RST0 OC1B(CL2) CMH SIDB(SID2) CSH SOS8_SS SOS6_SC1 SOS7_SC2 ODEU1 LEU1 PCU1 CLRU1 CLKU7(-) CLKU6(+) CLKU5(-) CLKU4(+) CLKU2(+) P+3.3V P+1.2V P+2.5V D9304 D9305 D9303 DET 2 60 33 D13C SIUB/LAT (D22A-D31C) 67 35 VCC 8 (U10A-U15C) 68 59 60 DATA 30Bit DDR-DRAM R 36 39 31 SCAN CONTROL LED5 Q9303 13 5 DET 128Mbit DATA PROCESS 2 C40 CLKU0(+) 14 3 75MHz 7 SUB FIELD P+5V DATA CONTROL 8bit 75MHz 36.6MHz CLKD7(-) 1 1 4 CLKU6(+) 1 60 C41 61 *CONTOUR CORRE. *S/P CONV. 3.3V->5V DATA 18Bit DATA PROCESS SUSTAIN CONTROL +5V Q9301 32 MPEG 41 CLKD6(+) DATA 18Bit 40 68 CLKU0(+) P+5V CLKU1(-) 9 11 42 37 PCD5 CLKU3(-) PCK USL 2 DDR-IO CLKU7(-) 24 PCK DET CLKD3(-) 58 UMH 11 OCK RESET 58 CLRD5 CLKD2(+) 6 +5V UML CLKD5(-) CLRD6 128Mbit DDR-DRAM L 28 ODED6 64 D36 64 CLKD4(+) 67 55 SC20 PCK (D0A-D9C) SIUA 3.3V->5V USH VDD33 CEL IIC LED6 ODED5 4 35 CLK 19 CPH2 SCAN CONTROL DATA 16bit 11 45 DATA 30Bit +5V 34 CLKU5(-) CONTROL PROCESSOR 3.3V->5V D10A MPEG 8 CML SOS8_SS CLKD7(-) NOISE REDUCTION PCD6 2 29 PLASMA AI PROCESSOR +5V *DATA DRIVER D VDD25 P+2.5V 52 5 FORMAT CONVERTER, P+5V CONT NUEL LEVEL SHIFT 38 15 D22A PROCESSOR CLKD5(-) 66 (D16A-D21C) LEVEL SHIFT CLOCK 11 64 DET PCD6 LED5 CLK OUT *CONTOUR CORRE. DATA 30Bit 63 56 LEVEL SHIFT 15 30 17 DATA 30Bit DATA 18Bit *S/P CONV. OC2(CEL2) 28 *SF TABLE CONV. FLASH CLRD6 VCC HD,VD 10 SUB FIELD 5 10 43 OCK XRST2 *DATA DRIVER 66 G 10bit OC1A(CL) 34 3 26 CLRD5 +5V DET CLKU2(+) 38 VCC 14 D20 DATA (U16A-U21C) P+5V I/F 54 CLKD4(+) IIC FLASH P+5V DATA VCC 56 CLKD6(+) 13 7 3 7 6 CLOCK 17 D34 +5V DET 59 SIDA BUS SWITCH 61 CERS(CBK) 36 (U0A-U9C) DATA 4bit 58 1 OCK ADR 8 6 1 9 7 P+5V LED6 27 CLKD3(-) ODED5 35 CSL OCK CSOU VCC DATA DET PCK XRST 39 DATA 18Bit (U22A-U31C) 59 C30 18 (D10A-D15C) DDR-IO UEH DATA 6bit 36.6MHz +5V I/F CLK OUT *SF TABLE CONV. D25C 5 Q9305 CLKU3(-) CQR(CPL) 9 CONT 12 CONT Q9302 34 ODED6 62 RESET CPH1 10 VDDQ/VDD RESET P+5V D35 VDD12 PCD5 33 31 10 SCSU +5V DET 13 ADR CLKU4(+) 84MHz 75MHz VDD 36.6MHz 20MHz X9200 CPG CLKD1(-) CLKD0(+) CLKD3(-) CLKD2(+) CLKD6(+) CLKD4(+) CLKD5(-) CLKD7(-) ADDRESS R 10bit B 10bit B 10bit R 10bit G 10bit HD,VD VDD12 VDD33 VDD25 BUS SWITCH VCC Q9300 DET Q9304 +5V Q9306 INV. P+3.3V P+1.2V P+2.5V 21bit G B 10bit 10bit 10bit R 9bit P+3.3V P+2.5V P+1.2V 16bit DATA 21bit ADDRESS 16bit DATA 16bit DATA NOISE REDUCTION X1 X2 JTAG DATA CONTROL 8bit 24 CMH CSH 25 DRV_RST0 SIDB(SID2) OC1B(CL2) 26 22 27 NUEL USL USH UMH UEH UML 32 CLKD0(+) 30 CLKD1(-) CLKD3(-) CLKD2(+) CLKD3(-) CLKD0(+) CLKD1(-) P+15V 6 21 30 31 SOS7_SC2 SOS6_SC1 P+15V P+15V D31C D22A D15C D15A D21C D16A D10A D15C JTAG 64 2 3 30 36 CLKU5(-) 35 5 38 31 13 P+5V P+5V U21C 67 68 U17A 1 6 5 6 6 CLKU2(+) P+5V 34 39 +5V DET 33 CLKU4(+) D32 U16A 28 26 43 U16C 41 67 U15C 24 2 U10A 45 C11 U16A U21C U10A U15C 41 17 28 63 U22A U27C 52 31 38 6 U28A U31C U22A U31C 32 30 39 37 CLKU7(-) CLKU6(+) 59 11 ODEU1 9 58 60 PCU1 LEU1 CLRU1 10 8 61 68 1 3 +5V DET P+5V 67 64 2 5 66 P+5V P+5V D9300 D9301 58 CLRU3 11 CLRU2 PCU3 10 PCU2 59 LEU3 8 ODEU3 9 LEU2 61 ODEU2 60 D31 C10 1 8 6 P+5V 2 3 P+5V 67 66 P+5V D33 C20 64 +5V DET D9302 5 3 3 6 3 35 37 39 34 32 30 CLKU1(-) CLKU2(+) CLKU3(-) CLKU0(+) CLKU2(+) CLKU1(-) U0A-U9C 52 31 38 U6A-U9C 17 63 28 6 41 U0A-U5C 67 66 P+5V P+5V 68 P+5V 2 1 3 21 48 D0A-D1C 27 42 38 40 D3A-D3C 31 29 43 D2A-D2C 26 41 28 D4A-D9C 2 45 24 67 D0A-D9C IC9304 IC9402 IC9504 IC9807 IC9802 IC9803 IC9401 IC9400 IC9300 IC9301 IC9603 IC9200 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 PD1M+(MN84524) Right PD1M+(MN84524) Left 16Mbit FlashROM (PDROM) D26A D31C D14C D14A D21C D16A TH-42PZ700C D-Board (2 of 2) Block Diagram TH-42PZ700C D-Board (2 of 2) Block Diagram 108 15.40.D 电路板 (1/8) 线路图 + + + G G G G G G G G G G ECO_ON PANEL_STBY_ON FP_SIUA INEXCH AR_RXD_PC FP_SIDA ALARM FP_OC2 SC_CSL AR_TXD_PC READY SC_CSH SC_CPH1 AR_STB_SDA02 SC_CMH SC_CEL AR_STB_SCL02 PDB1_2 SC_SIDA SC_CERS PSLCT_2 FP_CSH PDB0_2 SC_CML SC_OC2 FP_SCSU ALL_OFF PBUSY_2 SC_CLK PSTB_2 SC_SCSU PANEL_MAIN_ON SC_CMH SOS6_SC1 SC_SIUB FP_CPH2 SC_CSL FP_CMH SC_OC1A FP_CEL SC_SCSU SC_DRV_RST_O FP_DRV_RST_O ECO_ON SC_CPH1 SC_CPH2 SC_CSH SC_OC2 SC_DRV_RST_O SC_SIDA ALL_OFF SC_CEL DCDC_ON DRVMUTE TUNER_SUB_ON VDATA_DET TUNER_SUB_ON SC_CPH2 SC_CML SC_SIUB SC_CSOU SC_CQR SC_SIUA SC_CERS SC_SIDB SC_OC1B SC_CLK FP_CLK SC_OC1A SOS7_SC2 FP_SIDB FP_CQR FP_CSOU FP_OC1B FP_OC1A FP_CSL FP_CML FP_SIUB FP_CPH1 FP_CERS SC_CSOU SC_CQR SC_OC1B SC_SIDB SC_SIUA P_ON/OFF AR_IIC_CONT SOS4_PS CRH FP_CRH C9845 16V 0.1u C9864 0.1u 25V C9868 10u 25V C9882 8200p 25V C9881 0.01u 25V C9887 0.1u 25V C9861 0.1u 25V C9842 16V 0.1u C9846 16V 0.1u C9874 68p 50V C9832 10u 10V C9867 10u 25V C9863 4.7u 6.3V C9858 10u 25V C9841 16V 0.1u C9860 4.7u 6.3V C9859 25V 0.01u C9837 10u 10V C9029 10V 10u C9889 16V 0.1u C9878 0.01u 25V C9028 10V 10u C9844 25V 0.01u C9823 10u 25V C9879 8200p 25V C9884 1000p 50V C9840 16V 0.1u C9870 10u 25V C9885 1000p 50V C9883 100p 50V C9872 10u 25V C9862 0.1u 25V C9871 10u 25V C9830 10u 10V C9826 16V 0.1u C9886 0.1u 25V C9888 360p 50V C9880 8200p 25V C9877 68p 50V C9831 10u 10V C9869 10u 25V C9866 68u 4V C9865 68u 4V C9873 68u 4V D9814 B0JCGD000002 D9817 MA22D3900L D9818 B0JCCE000008 D9815 B0JCGD000002 D9819 B0JCCE000008 D9816 MA22D3900L D9812 MA22D3900L D9813 B0JCGD000002 F1J1E104A148 FL9805 F1J1E104A148 FL9806 FL9807 F1J1E104A148 F1J1E104A148 FL9803 F1J1E104A148 FL9800 C0JBAZ002692 IC9803 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC9807 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC9802 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0DBAYY00273 IC9806 1 GND 2 REFIN 3 VREF 4 CS 5 COVP 6 CUVP 7 PGOOD 8 CTL 9 LSAT 10 ILIM 11 +INC 12 -INC 13 FSW 14 PGND 15 OUT-2 16 VB 17 VCC 18 VBIN 19 LX 20 OUT-1 21 CB 22 RT 23 VO 24 FB C0DBAYY00274 IC9805 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP D25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 D3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 D20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 L9801 G1C1R5Z00006 L9800 G1C2R2Z00007 L9802 G1C2R2Z00007 P5V P5V P2.5V P5V P1.2V VB1_5V P15V VB1_5V P5V P15V STB5V P15V P15V_MOTO P15V P5V P15V_MOTO VB1_5V STB5V_M P5V P15V P3.3V P3.3V PA9800 K5H4022A0023 Q9808 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 Q9807 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 Q9809 B1MBEDA00015 1 S1 2 G1 3 S2 4 G2 5 D2 6 D2 7 D1 8 D1 Q9806 B1ABCF000138 Q9805 B1ABCF000138 R9850 EXB38V470JV R9846 EXB2HV222JV R9849 EXB2HV470JV R9847 EXB2HV222JV R9901 EXB2HV222JV R9848 EXB2HV470JV R9886 56k 1% R9869 10k R9826 100 R9825 100 R9897 47.5k R9878 11k 1% R9882 0 R9880 0 R9871 10k R9100 100 R9891 12.7k 1% R9894 11k 1% R9827 100 R9895 100k R9087 100 R9824 100 R9893 56k 1% R9872 0 R9085 100 R9831 10k R9889 18.2k 1% R9881 0 R9830 10k R9870 10k R9888 11k 1% R9896 18.2k R9879 13k 1% R9902 100 R9868 100k R9890 47.5k 1% R9887 56k 1% R9892 100k R9086 100 SOS7_SC2 CSH ECO_ON P5V GND CML FAN_CONT P5V F_STBY_ON GND GND SIDA GND FAN_SOS P15V OC2(CEL2) P15V SOS4_PS CRH STBY5V GND GND GND DRV_RSTO CEL CSL ALL_OFF P5V CLK CPH1 GND SCSU PANEL_MAIN_ON NC SOS6_SC1 AC_GOOD VDATA_DET ALARM TUNER_SUB_ON ECO_ON INEXCH RXD STBY5V_F DISPEN PSLCT PANASONIC_MODE/ C_SEL IIC_CLK1 READY NC IIC_INT GND PDB1 GND IIC_CONT PBUSY IIC_CLK2 TXD IIC_DATA1 IIC_DATA2 PDB0 PSTB GND ALL_OFF P5V GND GND PANEL_STBY_ON 2.5V 3.3V/1.2V CPH2 SIDB(SID2) GND P15V SIUB(SIU2)/LAT OC1B(CL2) P15V CSOU CQR(CPL) CERS(CBK) GND OC1A(CL) SIUA CMH TO P-BOARD (P25) TO DG-BOARD (DG35) TO SC-BOARD (SC20) D-BOARD TNPA4245AE(1/8) ! B E 9 2 6 7 F 5 3 D A 8 4 C 1 1 2 LEVEL SHIFT 3.3V->5V LEVEL SHIFT 3.3V->5V LEVEL SHIFT 3.3V->5V TH-42PZ700C D-Board (1 of 8) Schematic Diagram TH-42PZ700C D-Board (1 of 8) Schematic Diagram 109 15.41.D 电路板 (2/8) 线路图 18 16 14 12 10 8 6 4 2 20 21 19 17 15 13 11 9 7 5 3 1 RCLK_E- RCLK_E+ RA_0+ RA_E- RB_0- RA_E+ RB_0+ RB_E- RC_0- RB_E+ RC_0+ RC_E- RD_0- RC_E+ RD_0+ RD_E- RE_0- RD_E+ RE_0+ RCLK_0- RE_E- RCLK_0+ RE_E+ RA_0- AR_STB_SCL02 READY STB_SCL02 NCS PANEL_MAIN_ON TXD_PC P3V_SCL02 XRST XRST RXD_PC ASDIO AR_RXD_PC SOS9_CONF PANEL_STBY_ON RXD_PC DATA0 P3V_SDA02 P_ON/OFF DCLK AR_TXD_PC P3V_SCL02 P3V_SDA1 AR_STB_SCL02 FVSEL P3V_SCL1 TXD_PC AR_RXD_PC XRST AR_STB_SDA02 OSD_YS STB_SDA02 STB_SDA02 AR_IIC_CONT REM_IN IIC_CONT STB_SCL02 DRVRST OSD_B STB_SCL02 STB_SDA01 DCDC_ON STB_SDA01 AR_TXD_PC STBY3.3V_ON EEP_WR_CTL OSD_G IIC_CONT OSD_R STB_SCL01 VDATA_DET IIC_CONT STB_SCL01 LED_R P3V_SDA02 OSD_CLKO NRST PDB1 P3V_SCL1 PSLCT REM_IN PDB0 P3V_SDA1 PBUSY EEP_WR_CTL AR_STB_SDA02 PSTB STB_SDA02 ASDIO NCS DATA0 DCLK STBY3.3V_ON LED_G PDB1_2 PSLCT_2 PDB0_2 PBUSY_2 PSTB_2 XRST2 AR_IIC_CONT NCS_FPGA SOS7_SC2 SOS6_SC1 SOS8_SS SOS4_PS ALARM PANASONIC_MODE D5_DETO D5_DETO C_SEL NRST2 LVDS_DET D5_DETO LVDS_DET LVDS_DET LED_R LED_G LVDS_DET STB_SDA02 STB_SCL02 C9051 16V 0.1u C9056 16V 0.1u C9843 16V 0.1u C9048 16V 0.1u C9035 10V 10u C9057 16V 0.1u C9034 16V 0.1u C9037 0.01u 25V C9052 16V 0.1u C9890 50V 100p C9049 16V 0.1u C9114 16V 0.1u C9044 6.3V 4.7u C9058 10V 10u C9113 4.7u 6.3V C9039 10V 10u C9046 16V 0.1u C9053 16V 0.1u C9112 16V 0.1u C9838 16V 0.1u C9045 16V 0.1u C9033 16V 0.1u C9036 10V 10u C9055 16V 0.1u C9040 16V 0.1u C9050 16V 0.1u D9020 B0JCCE000008 D9110 B0JCGD000002 D9802 B0JCCE000008 D9804 B0JCCE000008 D9811 B0JCCE000008 D9017 MAZ303300L D9019 MAZ303300L D9018 MAZ303300L IC9002 C1ZBZ0003577 1 SCL 2 GND 3 A1 4 VDD 5 A0 6 SDA IC9011 C0EBF0000431 1 RESET 2 Cd 3 VOUT 4 VDD 5 GND 6 CE IC9001 TVRP681 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 Vcc IC9007 TVRP714 1 nCS 2 DATA 3 VCC 4 GND 5 ASDI 6 DCLK 7 VCC 8 VCC IC9013 C0JBAZ002060 1 1OE 2 1A 3 1B 4 2OE 5 2A 6 2B 7 GND 8 3B 9 3A 10 3OE 11 4B 12 4A 13 4OE 14 VCC MNZSFC9GPF2 IC9003 1 P41_TM1IO 2 P42_TM2IO 3 P43_TM3IO 4 P44_TM4IO_SYSCLK 5 P00 6 P01 7 P02 8 P03_SBT0B 9 P04_SBO0B 10 P51_IRQ2 11 P52_IRQ3 12 P53_IRQ4 13 P54_IRQ5 14 PA7_VCLKOUT 15 PA6_HOUT 16 PA5_YSOUT 17 PA4_B00 18 PA3_G00 19 PA2_R00 20 PA1_VSYNC_IRQ1 21 PA0_HSYNC 22 VSS 23 OSDXI 24 IVDD 25 VDD 26 P60_SBO0A 27 P61_SBT0A 28 P62_SBI0A 29 P05_IRQ6 30 P06_IRQ7 31 P07_IRQ8 32 P70_SDA0 33 P71_SCL0 34 P50_RMIN_IRQ0 35 P20 36 P21 37 P22 38 P23 39 IVDD 40 VSS 41 P10 42 P11 43 P12 44 P13 45 P14 46 P15 47 P16 48 P17 49 P72_SDA1 50 P73_SCL1 51 P65_SBT2 52 P66_SBI2 53 P30 54 P31 55 P32 56 P33 57 P34 58 P35 59 P36 60 P37 61 VPPEX_(N.C.) 62 IVDD 63 VDD 64 RONA 65 VSS 66 OSCXO 67 OSCXI 68 IVDD 69 P64_SBI1 70 P63_SBT1 71 NBOOT_(N.C.) 72 NRST 73 NTEST 74 SCLOCK_(UND) 75 SDATA_(UND) 76 ENTRG0_(UND) 77 ENTRG1_(UND) 78 TRCCLK_(UND) 79 TRCST_(UND) 80 TRCD0_(UND) 81 TRCD1_(UND) 82 TRCD2_(UND) 83 TRCD3_(UND) 84 P80_ADIN0 85 P81_ADIN1 86 P82_ADIN2 87 P83_ADIN3 88 IVDD 89 VSS 90 P84_ADIN4 91 P85_ADIN5 92 P86_ADIN6 93 P87_ADIN7 94 P90_ADIN8 95 P91_ADIN9 96 P92_ADIN10 97 P93_ADIN11 98 P74_SDA2 99 P75_SCL2 100 P40_TM0IO D6 D5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 STB3.3V STB3.3V P3.3V STB3.3V P15V STB3.3V STB5V_M STB3.3V STB5V STB3.3V STB3.3V P5V STB3.3V P3.3V STB3.3V STB3.3V P3.3V STB3.3V STB3.3V P3.3V STB5V_M P15V_MOTO TP9000 Q9052 B1ABCF000138 Q9010 B1ABCF000138 Q9044 B1ABCF000138 Q9050 B1ABCF000138 Q9054 B1ABCF000138 Q9046 B1ABCF000138 Q9053 B1ABCF000138 Q9051 B1ABCF000138 R9119 47 EXB38V470JV R9859 EXB38V101JV R9839 EXB38V101JV R9141 100 R9134 33k R9121 100k R9135 4.7k R9845 10k R9840 22 R9177 22k R9144 100 R9123 10k R9185 22 R9173 10k R9074 100 R9206 1k R9061 100 R9149 4.7k R9166 10k R9133 4.7k R9174 10k R9219 10k R9215 12k R9205 4.7k R9111 0 R9168 0 R9066 100 R9089 10k R9167 100 R9107 3.3k R9150 22 R9170 39k R9108 10k R9065 100 R9131 4.7k R9237 10k R9067 100 R9105 10k R9109 10k R9181 1k R9165 2.2k R9828 100k R9186 22 R9184 1k R9159 10k R9172 39k R9193 10k R9101 10k R9122 10k R9196 10k R9113 10 R9137 100 R9143 100 R9188 5.6k R9217 10k R9080 2.7k R9078 10k R9076 100 R9201 10 R9077 10k R9088 10k R9090 100 R9189 10k R9151 22 R9155 5.6k R9200 10 R9060 100 R9160 0 R9207 1k R9139 0 R9092 10k R9161 0 R9145 100 R9854 100 R9199 2.7k R9220 10k R9223 2.7k R9164 10k R9203 1k R9183 1k R9127 68k R9082 2.2k R9062 100 R9079 10 R9187 5.6k R9104 10k R9218 10k R9240 0 R9221 10k R9171 39k R9136 100 R9064 100 R9063 100 R9102 10k R9129 68k R9154 5.6k R9194 0 R9222 10k R9225 2.7k R9190 10k R9158 10k R9182 1k R9132 4.7k X9000 H2D100500004 C9047 16V 0.1u GND E+ LVDS2 O+ LVDS3 E+ LVDS1 GND O+ LVDS0 GND E- LVDS2 GND O- LVDS3 E+ LVDS3 E- LVDS3 O+ LVDS1 E+ LVDS4 O- LVDS1 GND E- LVDS4 LVDS_DET E+ LVDSCLK O+ LVDS2 O- LVDS2 E- LVDS0 GND O+ LVDS4 O- LVDS4 E+ LVDS0 O- LVDSCLK O+ LVDSCLK E- LVDSCLK O- LVDS0 E- LVDS1 STB3.3V GND REMOCON TXD IIC_INT PDB0 LED_R SDA1 SCL1 PDB1 PSLCT PSTB SCL2 SDA2 GND LED_G IIC_CONT RXD STBY3.3V STBY5V PBUSY P15V EEPROM IIC SW FOR FACTORY USED TO DG-BOARD (DG5) MICOM ! D-BOARD TNPA4245AE(2/8) 18 7 1 4 1 15 13 12 10 16 11 2 1 12 14 15 13 11 16 (1MB) EEPROM(FPGA) RESET THERMAL SENSOR TH-42PZ700C D-Board (2 of 8) Schematic Diagram TH-42PZ700C D-Board (2 of 8) Schematic Diagram 110 15.42.D 电路板 (3/8) 线路图 G G L8L_RI4 L8L_GI4 FP_OC1A L8R_RI6 AA_BYTE L8R_GI3 L8R_GI7 L8L_RI5 SOS9_CONF RD_E+ L8R_RI0 RCLK_0+ L8L_GI5 FP_CSH DD_PCD1 L8R_GI9 RC_E+ L8R_GI2 RB_0- L8R_BI0 L8R_BI3 NRST RD_0+ L8L_GI6 L8R_BI8 FP_CLK L8R_BI2 FP_CSL TMS DATA0 RC_0+ SFRST FP_DRV_RST_O RB_E+ L8R_GI1 INEXCH FP_OC2 L8R_GI4 L8L_RI6 L8R_GI6 L8R_GI0 RE_E+ RCLK_E+ L8L_GI7 L8L_BI4 FP_SIDA FP_UEH L8R_RI7 PDB0 LATCH TCK L8L_RI7 L8L_BI5 FVSEL L8L_GI8 L8L_RI8 PDB1 FP_UML L8R_RI9 L8R_RI5 L8R_GI5 RA_E+ L8R_BI9 L8L_GI9 RE_0+ L8L_BI6 FPDAT1 L8L_RI9 FP_CMH PSTB RB_E- TDI_TO_68_L FP_CPH1 L8R_RI2 FP_UMH L8L_RI0 RD_E- L8L_BI0 L8R_RI1 L8L_BI7 FP_SCSU L8L_GI0 PBUSY RCLK_E- DD_ODED L8R_RI3 PSLCT L8L_RI1 L8L_BI1 L8L_BI8 RC_0- AA_XWE L8L_GI1 SFVRST RA_0- FP_USH RA_E- RB_0+ RE_0- FP_NUEL DRVRST L8L_RI2 L8L_BI9 L8R_BI4 FP_CML L8L_BI2 RD_0- L8L_GI2 L8R_BI1 L8R_BI6 L8R_GI8 L8R_BI5 FP_CEL RC_E- L8L_RI3 FP_SIUA L8L_BI3 FPCLK L8R_RI8 L8R_RI4 L8L_GI3 L8R_BI7 FP_USL FPDAT0 RE_E- RA_0+ DD_PCD2 NCS_FPGA L8L_DCK L8R_DCK DD_ODEU DD_PCU1 DD_LEU DD_PCU2 DRVMUTE DMLL DSHL DSLL DMHL DD_CLRU DD_LED DD_CLRD AA_XCE_L AA_XOE RCLK_0- D5_DETO FP_OC1B FP_CSOU FP_SIDB FP_SIUB FP_CPH2 FP_CQR FP_CERS OSD_YS OSD_B OSD_G OSD_R OSD_CLKO DCLK DATA0 ASDIO TRST L8L_HDI L8L_VDI L8R_HDI L8R_VDI DMHR DSLR DMLR DSHR L8L_MASK L8R_MASK OSD_VO OSD_HO TDO_TO_FPGA NRST2 FP_CRH P3V_SDA02 P3V_SCL02 NCS ASDIO DCLK C9520 16V 0.1u C9527 16V 0.1u C9518 16V 0.1u C9543 10u 10V C9524 16V 0.1u C9519 16V 0.1u C9525 16V 0.1u C9522 16V 0.1u C9523 16V 0.1u C9544 16V 0.1u C9526 10V 10u C9516 16V 0.1u C9517 16V 0.1u C9561 16V 0.1u C9559 16V 0.1u C9528 16V 0.1u C9531 10V 10u C9560 16V 0.1u C9521 16V 0.1u FL9504 F1J1E104A148 1 2 3 IC9500 A1 GND IC9500 J6 IO IC9500 E13 IO IC9500 A15 VCCIO2 IC9500 K4 IO IC9500 F1 DATA0 IC9500 D6 IO IC9500 N12 IO IC9500 P10 VCCIO4 IC9500 C9 GND IC9500 J8 GND IC9500 D10 IO IC9500 N9 IO IC9500 E9 GND IC9500 A4 IO IC9500 L4 IO IC9500 K14 VCCIO3 IC9500 E10 VCCIO2 IC9500 H9 GND IC9500 G13 IO IC9500 G5 nCE IC9500 T10 IO IC9500 D5 IO IC9500 C6 IO IC9500 A8 IO IC9500 P1 IO IC9500 A13 IO IC9500 H3 GND IC9500 C15 IO IC9500 H12 IO IC9500 E3 IO IC9500 B11 IO IC9500 L6 VCCD_PLL1 IC9500 T1 GND IC9500 N10 IO IC9500 G9 VCCINT IC9500 A11 IO IC9500 N15 IO IC9500 M12 IO IC9500 R12 IO IC9500 C13 IO IC9500 R8 IO IC9500 C8 GND IC9500 C11 IO IC9500 C7 VCCIO2 IC9500 B3 IO IC9500 J5 nCONFIG IC9500 D16 IO IC9500 L1 IO IC9500 E8 GND IC9500 C12 IO IC9500 G4 IO IC9500 K5 IO IC9500 B5 IO IC9500 F9 IO IC9500 A12 IO IC9500 N4 IO IC9500 D7 IO IC9500 B16 VCCIO3 IC9500 T8 IO IC9500 D13 IO IC9500 G10 IO IC9500 B12 IO IC9500 T12 IO IC9500 G1 TMS IC9500 J16 CLK7 IC9500 K11 IO IC9500 P5 IO IC9500 M9 GND IC9500 M1 IO IC9500 N7 IO IC9500 D4 IO IC9500 R15 GND IC9500 B9 IO IC9500 N5 GND_PLL1 IC9500 P8 GND IC9500 N6 IO IC9500 H13 IO IC9500 B8 IO IC9500 M16 IO IC9500 G14 VCCIO3 IC9500 A16 GND IC9500 G8 GND IC9500 G3 VCCIO1 IC9500 A10 IO IC9500 H6 IO IC9500 H14 GND IC9500 D3 IO IC9500 D12 GND_PLL2 IC9500 F13 IO IC9500 T3 IO IC9500 H15 CLK5 IC9500 P15 IO IC9500 F16 IO IC9500 K8 VCCINT IC9500 G11 IO IC9500 J14 GND IC9500 M15 IO IC9500 L5 GND_PLL1 IC9500 M7 VCCIO4 IC9500 H7 VCCINT IC9500 M6 GNDA_PLL1 IC9500 E11 GNDA_PLL2 IC9500 J15 CLK6 IC9500 N11 IO IC9500 T7 IO IC9500 K1 IO IC9500 L16 IO IC9500 N1 IO IC9500 D1 IO IC9500 C3 IO IC9500 M11 IO IC9500 H11 IO IC9500 M3 IO IC9500 R2 GND IC9500 F12 GND_PLL2 IC9500 D8 IO IC9500 F14 IO IC9500 L13 CONF_DONE IC9500 D11 IO IC9500 B10 IO IC9500 R9 IO IC9500 K16 IO IC9500 R11 IO IC9500 M8 GND IC9500 M4 IO IC9500 P16 IO IC9500 T13 IO IC9500 G15 IO IC9500 K10 IO IC9500 T2 VCCIO4 IC9500 F6 IO IC9500 J7 VCCINT IC9500 H4 DCLK IC9500 F5 IO IC9500 L14 IO IC9500 T16 GND IC9500 R6 IO IC9500 G7 IO IC9500 M5 VCCA_PLL1 IC9500 L8 IO IC9500 L15 IO IC9500 F15 IO IC9500 P12 IO IC9500 F10 IO IC9500 H1 CLK1 IC9500 J1 CLK3 IC9500 T11 IO IC9500 N3 IO IC9500 C16 IO IC9500 N13 IO IC9500 F7 IO IC9500 L2 IO IC9500 J12 IO IC9500 M2 IO IC9500 P13 IO IC9500 K2 IO IC9500 R13 IO IC9500 L11 IO IC9500 T6 IO IC9500 C14 IO IC9500 L10 IO IC9500 R10 IO IC9500 E6 IO IC9500 G12 IO IC9500 G6 IO IC9500 J13 MSEL0 IC9500 C2 IO IC9500 F2 TCK IC9500 N16 IO IC9500 R14 IO IC9500 E14 IO IC9500 B1 VCCIO1 IC9500 R3 IO IC9500 P3 IO IC9500 E2 IO IC9500 C10 VCCIO2 IC9500 L9 IO IC9500 D15 IO IC9500 J4 IO IC9500 B2 GND IC9500 B14 IO IC9500 K7 IO IC9500 E16 IO IC9500 J2 CLK2 IC9500 H16 CLK4 IC9500 B15 GND IC9500 E15 IO IC9500 B7 IO IC9500 A14 IO IC9500 J3 GND IC9500 P6 IO IC9500 J11 IO IC9500 A6 IO IC9500 H8 GND IC9500 D14 IO IC9500 P11 IO IC9500 E1 IO IC9500 E5 IO IC9500 N14 IO IC9500 F8 IO IC9500 T4 IO IC9500 A7 IO IC9500 K12 MSEL1 IC9500 G16 IO IC9500 B4 IO IC9500 G2 TDO IC9500 L3 IO IC9500 C1 IO IC9500 H5 TDI IC9500 C4 IO IC9500 N8 IO IC9500 R4 IO IC9500 A5 IO IC9500 R16 VCCIO3 IC9500 T14 IO IC9500 P7 VCCIO4 IC9500 H2 CLK0 IC9500 F3 IO IC9500 T9 IO IC9500 P9 GND IC9500 B13 IO IC9500 A3 IO IC9500 P2 IO IC9500 J9 GND IC9500 H10 VCCINT IC9500 R7 IO IC9500 K15 IO IC9500 T5 IO IC9500 T15 VCCIO4 IC9500 D9 IO IC9500 K6 IO IC9500 E4 IO IC9500 P14 IO IC9500 N2 IO IC9500 R1 VCCIO1 IC9500 L7 IO IC9500 F4 IO IC9500 F11 VCCD_PLL2 IC9500 L12 IO IC9500 C5 IO IC9500 M13 nSTATUS IC9500 P4 IO IC9500 J10 VCCINT IC9500 A9 IO IC9500 K3 VCCIO1 IC9500 R5 IO IC9500 K9 GND IC9500 E12 VCCA_PLL2 IC9500 M10 VCCIO4 IC9500 K13 IO IC9500 B6 IO IC9500 M14 IO IC9500 E7 VCCIO2 IC9500 A2 VCCIO2 IC9500 D2 IO D9 1 2 3 4 5 6 7 L9501 J0JHC0000078 L9502 J0JHC0000078 L9505 J0JHC0000078 L9504 J0JHC0000078 P3.3V P3.3V P3.3V P3.3V L8L1.2V STB3.3V P3.3V TP9062 TP9066 TP9063 TP9060 TP9061 TP9059 TP9064 TP9065 TP9068 TP9067 R9534 EXB38V470JV R9632 EXB38VR000V R9612 EXB2HV470JV R9609 EXB2HV820JV R9610 EXB2HV820JV R9614 EXB2HV470JV R9611 EXB2HV820JV R9613 EXB2HV470JV R9629 EXB2HV220JV R9608 EXB2HV820JV R9615 EXB2HV470JV R9506 22 R9624 10k R9535 47 R9530 10k R9548 10k R9507 56 R9877 10k R9657 47 R9533 47 R9070 47 R9536 47 R9549 10k R9876 10k R9875 10k R9618 47 R9543 10k R9094 47 R9093 47 R9531 10k R9544 10k R9621 47 R9630 10k R9552 47 R9156 10k R9523 4.7k R9525 10k R9550 10k R9545 300k BR[1]/A-1 VCCINT BL[1] FPDATA0 UEH BL[4] K_DONE ODED SIDA BL[3] RL[4] USH GR[9]/A19 PCU1 SC_PULSE CEL BL[9] UMH RL[7] GL[7] USL DRVRST RESET BL[8] CMH UML MASK_L PCD2 M_VDO FPCLK SS_PULSE INEXCH NUEL CML p_db1 BR[5]/DQ3 CSH RR[8]/A8 CONTROL(FlashROM Load) p_db0 OTHER RL[9] BR[0]/A20 p_stb f_nWE CLK BR[8]/DQ6 GR[7]/A17 NRST IIC BL[0] SCL GL[5] BL[7] GL[9] M_HDO TP CLK_INPUT p_slct GL[1] p_busy RR[2]/A2 M_DCKO_L PRCKI GL[0] Internal free-run CLK SDA RR[9]/A9 RL[6] BL[6] RR[0]/A0 GR[2]/A12 D5_DETO (LVDS_DET) MSEL0 RR[4]/A4 JTAG fL_nCE SCSU BL[5] CPH1 BR[7]/DQ5 SFRST RL[3] RR[3]/A3 PICTURE_OUTPUT(L) GR[0]/A10 BR[2]/DQ0 GL[3] f_nBYTE f_nOE RR[7]/A7 PCU2 RR[5]/A5 CLRD BR[3]/DQ1 LATCH DATA_DRIVER Control signals GR[3]/A13 FPDATA1 GL[6] GR[6]/A16 LSI58 Communication BR[6]/DQ4 PCD1 RR[1]/A1 BL[2] LVDS_INPUT RL[2] CSL FPGA BR[4]/DQ2 LED GR[8]/A18 CLRU RR[6]/A6 BR[9]/DQ7 FVSEL ODEU SFVRST LEU SIUA GL[2] DRV_RSTO RL[0] RL[5] GR[5]/A15 RL[1] RL[8] CLKM_IN GR[1]/A11 VCCI DRVMUTE GR[4]/A14 GND GL[4] GL[8] MASK_R M_DCKO_R PICTURE_OUTPUT(R) /FLASH_CONTROL DATA POWER SAVE MSEL1 DMHL DSHL DSLL DMLL TCK TMS TDI TDO TRST GND CSOU/DMLR CPH2 OSD_GI OSD OSD_YSI OSD_RI OSD_BI OSD_CLKO MICOM Communication SOUT SIN SCLK OC2(CEL2) CQR(CPL)/DMHR CERS(CBK) OC1A(CL) SIDB(SID2)/DSLR SIUB(SIU2)/LAT OC1B(CL2)/DSHR 84MHz 20SSMHz P3.3V INT_DONE nCEO NCS_FPGA NRST2 CRH C1ZBZ0003575 IC9500 D-BOARD TNPA4245AE(3/8) ! 27 25 26 23 24 22 21 20 19 14 15 16 13 12 11 26 22 24 21 25 23 TH-42PZ700C D-Board (3 of 8) Schematic Diagram TH-42PZ700C D-Board (3 of 8) Schematic Diagram 111 15.43.D 电路板 (4/8) 线路图 D_ODEU2 D_ODEU1 L8_OCK D_CLRD5 D_PCD5 XRST XRST XRST XRST D_ODED6 D_LED6 D_LEU1 D_PCU1 D_LEU2 D_PCU2 D_CLRU1 D_CLRU2 L8R_RI5 L8R_RI4 L8R_RI1 L8R_RI6 L8R_RI0 L8R_RI2 L8R_RI7 L8R_RI3 L8R_GI1 L8R_RI8 L8R_GI3 L8R_GI0 L8R_GI4 L8R_GI2 L8R_RI9 L8R_GI8 L8R_BI1 L8R_GI6 L8R_BI0 L8R_GI7 L8R_GI5 L8R_GI9 L8R_BI2 L8R_BI5 L8R_BI3 L8R_BI8 L8R_BI4 L8R_BI6 L8R_BI7 L8R_BI9 L8L_DB15 L8L_UC09 L8L_UA07 L8L_UA09 L8L_UA10 L8L_UC08 L8L_DA14 L8L_UC11 L8L_UC10 L8L_UC07 L8L_UA11 L8L_UA12 L8L_UB06 L8L_UB11 L8L_UC12 L8L_UA08 L8L_UA06 L8L_UC13 L8L_UB10 L8L_UB07 L8L_UB08 L8L_UA15 L8L_UA05 L8L_UC05 L8L_UC06 L8L_DA15 L8L_UB09 L8L_UB12 L8L_DC15 L8L_UB05 DD_PCD2 DD_PCU1 DD_PCU2 DD_ODEU DD_CLRU DD_LEU L8_PCK R8_PCK FP_UEH FP_USL FP_USH FP_UML FP_UMH FP_NUEL UEH USL USH UML UMH NUEL DD_ODED D_PCD6 D_CLRD6 D_LED5 DD_PCD1 D_ODED5 DD_CLRD DD_LED R8_OCK C9505 16V 0.1u C9509 50V 12p C9510 50V 12p C9501 10V 10u C9511 10V 10u C9515 16V 0.1u C9500 16V 0.1u C9508 16V 0.1u C9542 16V 0.1u C0JBAZ002692 IC9504 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C1ZBZ0003566 IC9200 X1 1 2 S0 3 S1 4 CLK9 5 VDD 6 GND 7 CLK1 8 GND 9 CLK2 10 GND 11 GND 12 CLK7 13 CLK6 14 CLK5 15 GND 16 VDD 17 S2 18 STBY 19 VDD 20 X2 C0JBAZ002614 IC9402 1 NC 2 A0 3 A1 4 A2 5 A3 6 A4 7 A5 8 A6 9 A7 10 GND 11 NC 12 A8 13 A9 14 A10 15 A11 16 A12 17 A13 18 A14 19 A15 20 GND 21 NC 22 A16 23 A17 24 A18 25 A19 26 A20 27 A21 28 A22 29 A23 30 GND 31 NC 32 A24 33 A25 34 A26 35 A27 36 A28 37 A29 38 A30 39 A31 1 4 D N G 0 4 B31 42 B30 43 B29 44 B28 45 B27 46 B26 47 B25 48 B24 49 OE4 50 VCC 51 B23 52 B22 53 B21 54 B20 55 B19 56 B18 57 B17 58 B16 59 OE3 60 VCC 61 B15 62 B14 63 B13 64 B12 65 B11 66 B10 67 B9 68 B8 69 OE2 70 VCC 71 B7 72 B6 73 B5 74 B4 75 B3 76 B2 77 B1 78 B0 79 OE1 80 VCC L9500 G1C150KA0038 P3.3V P3.3V P5V R9428 EXB38V103JV R9605 EXB2HVR000V R9528 EXB2HV222JV R9628 EXB2HV470JV R9513 47 R9625 47 R9551 47 R9516 10k R9520 0 R9627 47 R9501 10k R9626 47 R9503 47 R9514 10k R9583 0 X9200 H0J200500038 3.3V->5V BUS SWITCH A13 DQ15/A-1 A20 A11 A16 DQ5 A17 DQ1 A18 A15 A19 A5 A6 DQ6 A1 DQ2 DQ3 DQ0 DQ7 A2 A3 A7 A14 A12 A8 A4 A9 DQ4 A10 A0 A17 DQ1 A18 A15 A19 A5 A6 DQ15/A-1 A20 A11 A16 DQ5 A13 DQ6 A1 DQ2 DQ3 DQ0 DQ7 A2 A3 A7 A14 A12 A8 A4 A9 DQ4 A10 A0 CPG 84MHz 20SSMHz 20MHz 39.5MHz 75SSMHz 36.6MHz D-BOARD TNPA4245AE(4/8) ! 36 28 33 5 3 4 3 2 3 1 3 0 3 9 2 25 24 22 26 23 21 34 31 32 33 LEVEL SHIFT TH-42PZ700C D-Board (4 of 8) Schematic Diagram TH-42PZ700C D-Board (4 of 8) Schematic Diagram 112 15.44.D 电路板 (5/8) 线路图 + G G G G G G TERM SIDE L8R_DB01 L8R_BI4 L8R_UC02 L8R_RI0 L8R_BI3 L8R_DQ6 L8R_DQ16 L8R_NSDCLKO L8R_DC04 L8R_DQ5 L8R_UC01 L8R_GI4 L8R_RI8 L8R_GI2 L8R_BA1 L8R_BI6 L8R_DC03 L8R_UC00 L8R_DQ11 L8R_DQS2 L8R_DB00 L8R_RI2 L8R_DB08 L8R_DC02 L8R_DA01 L8R_DQ23 L8R_DQ20 L8R_DQ29 L8R_UA01 L8R_DC01 L8R_DA02 L8R_DA11 L8R_WE L8R_UA02 L8R_DB10 L8R_DQ22 L8R_BI9 L8R_DC00 L8R_GI8 L8R_GI9 L8R_DRVCLKD3 L8R_DA10 L8R_BI1 L8R_DQ2 L8R_A9 L8R_A6 L8R_DQ8 L8R_SDCLKO L8R_DRVCLKD2 L8R_RI7 L8R_BA0 L8R_DQS3 L8R_A2 L8R_DA03 L8R_DRVCLKD1 L8R_RI4 L8R_DQ31 L8R_RI3 L8R_A10 L8R_UB00 L8R_A0 L8R_DRVCLKD0 L8R_DA00 L8R_RI5 L8R_DB06 L8R_DB03 L8R_DQ30 L8R_DRVCLKU3 L8R_A11 L8R_DA05 L8R_DRVCLKU2 L8R_RI1 L8R_BI7 L8R_DA04 L8R_DRVCLKU1 L8R_DQ12 L8R_A4 L8R_GI1 L8R_DRVCLKU0 L8R_DA08 L8R_DQ27 L8R_UB02 L8R_DQ1 L8R_DA06 L8R_BI2 L8R_BI5 L8R_DC11 L8R_BI0 L8R_DQS1 L8R_UB04 L8R_RAS L8R_DQ21 L8R_DC10 L8R_DQ17 L8R_UA03 L8R_CS L8R_DB07 L8R_DQ25 L8R_DB02 L8R_RI9 L8R_DC09 L8R_DQS0 L8R_DQ18 L8R_MASK L8R_DB05 L8R_DQ3 L8R_DC08 L8R_A8 L8R_DA09 L8R_UA00 L8R_DQ24 L8R_DQ13 L8R_DC07 TCK L8R_SDIV0 L8R_DQ10 L8R_DB09 L8R_UB03 L8R_DC06 L8R_DQ14 L8R_A3 L8R_DC05 L8R_A5 TMS L8R_A1 L8R_RI6 L8R_DQ15 L8R_GI3 L8R_DQ4 L8R_DB04 L8R_DQ28 L8R_DQ7 L8R_GI0 L8R_SDIV1 L8R_GI5 L8R_A7 L8R_GI6 L8R_BI8 L8R_DQ0 L8R_CAS L8R_GI7 L8R_DA07 L8R_DQ9 L8R_UC04 L8R_DQ26 L8R_SDCKE L8R_UB01 L8R_UC03 L8R_DQ19 L8R_DB11 L8R_HDI L8R_VDI TDO_TO_68_R L8R_MONOUT1 SFRST SFVRST LATCH L8R_UA04 L8R_UB05 L8R_UB06 L8R_UB07 L8R_UB08 L8R_UB09 L8R_UB10 L8R_UB11 L8R_UA05 L8R_UA06 L8R_UA07 L8R_UA08 L8R_UA09 L8R_UA10 L8R_UA11 L8R_UC05 L8R_UC06 L8R_UC07 L8R_UC08 L8R_UC09 L8R_UC10 L8R_UC11 R8_OCK TRST L8R_DC15 L8R_UA15 L8R_DA14 L8R_DB15 L8R_UC15 L8R_UB14 L8R_UC13 L8R_UC12 L8R_UC14 L8R_UA14 L8R_UB15 L8R_UA13 L8R_UB12 L8R_DA15 L8R_UA12 L8R_UB13 XRST2 L8R_SDIV0 L8R_SDIV1 DOUTDA29 CLKD6 DOUTDC27 DOUTDB30 DOUTDC23 DOUTDA31 DOUTDC26 CLRD_6 DOUTDB29 DOUTDA27 DOUTDA28 DOUTDB31 5V_DET6 DOUTDB28 DOUTDA25 DOUTDB23 DOUTDA24 DOUTDA22 LED_6 DOUTDC29 DOUTDB22 DOUTDC22 DOUTDC24 DOUTDB26 DOUTDC28 DOUTDB25 DOUTDC25 DOUTDC31 DOUTDB24 DOUTDA30 DOUTDB27 DOUTDC30 CLKD7 DOUTDA23 DOUTDA26 PCD_6 DMHR_C6 DSHR_C6 DMLR_C6 DMHL_C4 DSHL_C4 DMLL_C4 DSLR_C6 DSLL_C4 L8R_DA07 L8R_DB11 DOUTDC20 DOUTDA16 DOUTDA18 DOUTDA23 DOUTDB16 L8R_DA15 DOUTDB18 L8R_DB07 L8R_DC11 DOUTDC24 DOUTDA31 DOUTDC18 DOUTDC21 L8R_DB03 DOUTDB31 DOUTDA27 L8R_DC07 L8R_DA10 DOUTDA17 DOUTDB21 DOUTDC31 DOUTDB27 DOUTDB17 5V_DET6 DOUTDA21 DOUTDC17 DOUTDA30 L8R_DA06 DOUTDC27 L8R_DB10 DOUTDC16 L8R_DA01 DOUTDA19 DOUTDB30 5V_SENSE DOUTDA26 L8R_DB01 DOUTDB23 L8R_DC08 DOUTDC30 L8R_DB06 L8R_DC01 DOUTDB26 L8R_DC10 DOUTDC26 DOUTDC23 L8R_DA05 L8R_DB15 DOUTDA29 DOUTDA22 L8R_DA13 L8R_DC06 L8R_DB05 DOUTDB29 DOUTDB22 L8R_DC03 L8R_DC15 DOUTDC29 DOUTDC22 L8R_DB13 L8R_DA09 L8R_DC05 DOUTDA28 L8R_DA02 DOUTDA25 L8R_DA14 DOUTDB28 DOUTDB25 L8R_DA03 L8R_DC13 L8R_DB09 L8R_DA04 L8R_DB02 DOUTDC28 DOUTDC25 L8R_DB14 DOUTDA24 L8R_DA00 L8R_DA12 L8R_DC09 L8R_DB04 L8R_DC02 DOUTDB24 L8R_DB00 L8R_DB12 L8R_DA08 L8R_DC04 L8R_DA11 DOUTDA20 DOUTDB19 L8R_DC00 L8R_DC12 L8R_DB08 DOUTDC19 DOUTDB20 L8R_DA12 L8R_DA13 L8R_DB12 L8R_DB13 L8R_DB14 L8R_DC12 L8R_DC13 L8R_DC14 ODED_6 R8_PCK FULL0 L8R_DCK L8R_TCKSEL1 L8R_TCKSEL2 L8R_TEST0 L8R_TCKSEL0 L8R_TEST1 L8R_TCKSEL1 L8R_TCKSEL2 L8R_TEST1 L8R_TEST0 P3V_SCL02 P3V_SDA02 L8R_DC14 L8R_TCKSEL0 TDO_TO_FPGA C9536 10V 10u C9468 0.1u 16V C9452 0.1u 16V C9451 0.1u 16V C9456 0.1u 16V C9496 16V 0.1u C9442 0.1u 16V C9534 10V 10u C9467 0.1u 16V C9446 0.1u 16V C9538 10V 10u C9464 0.1u 16V C9513 0.1u 16V C9448 0.1u 16V C9445 0.1u 16V C9465 0.1u 16V C9463 0.1u 16V C9466 0.1u 16V C9535 10V 10u C9512 0.1u 16V C9462 0.1u 16V C9443 0.1u 16V C9454 0.1u 16V C9449 0.1u 16V C9450 0.1u 16V C9533 0.1u 16V C9373 25V 0.01u C9455 0.1u 16V C9537 10V 10u C9447 0.1u 16V C9469 0.1u 16V C9444 0.1u 16V C9459 0.1u 16V C9457 0.1u 16V C9460 0.1u 16V C9461 0.1u 16V C9453 0.1u 16V C9458 0.1u 16V C9539 56u 4V D9304 B0JCCE000008 F1J1E104A148 FL9501 F1J1E104A148 FL9502 FL9310 F1J1E104A148 1 2 3 IC9400 MN84524 A1 VSS IC9400 Y6 NRAS IC9400 F5 VDD12 IC9400 A3 GI0 IC9400 L22 DOUTDB11 IC9400 B11 DOUTUC15 IC9400 J14 VSS IC9400 B18 DOUTUB06 IC9400 AB12 DQS1 IC9400 A2 VSS IC9400 Y20 VSS IC9400 W7 NCS IC9400 L18 VDD12 IC9400 V21 DOUTDC03 IC9400 B4 RI8 IC9400 Y19 VSS IC9400 V8 VDD25 IC9400 AB20 DOUTDB01 IC9400 A21 VSS IC9400 H19 DRVCLKU0 IC9400 A13 DOUTUC13 IC9400 D16 DOUTUC07 IC9400 G3 BI4 IC9400 C9 ROMCE IC9400 R19 DOUTDA05 IC9400 Y8 A1 IC9400 E3 GI5 IC9400 W17 VSS IC9400 AB1 VSS IC9400 D10 FPDAT0 IC9400 AA5 CKE IC9400 D2 GI4 IC9400 D22 DOUTUC01 IC9400 Y22 VDD33 IC9400 A9 FPDAT1 IC9400 V1 DQS0 IC9400 N12 VSS IC9400 D8 OCK IC9400 C13 DOUTUB12 IC9400 R20 DOUTDB06 IC9400 E10 VDD33 IC9400 AA20 DOUTDA01 IC9400 D21 DOUTUB02 IC9400 AA19 DOUTDC01 IC9400 K11 VSS IC9400 W14 DQ13 IC9400 P13 VSS IC9400 AB4 BA0 IC9400 A7 K_TEST IC9400 M9 VSS IC9400 Y12 AVSS_4 IC9400 P12 VSS IC9400 M13 VSS IC9400 F3 GI9 IC9400 AA11 DQ30 IC9400 B16 DOUTUC09 IC9400 B15 DOUTUB10 IC9400 C7 RI0 IC9400 K13 VSS IC9400 AB7 A6 IC9400 A15 DOUTUA10 IC9400 T21 DOUTDB05 IC9400 G2 BI5 IC9400 U22 DOUTDC05 IC9400 T18 VDD33 IC9400 AA7 A9 IC9400 R3 DQ17 IC9400 R5 VDD25 IC9400 B5 RI5 IC9400 M5 VDD33 IC9400 W11 DQ25 IC9400 W5 AVDD25_3 IC9400 C5 RI9 IC9400 F22 DRVCLKD3 IC9400 H1 MUTE IC9400 M2 FULL0 IC9400 L4 TIIC IC9400 B12 DOUTUC14 IC9400 C22 DOUTUB01 IC9400 F6 VSS IC9400 R1 DQ22 IC9400 B6 RI1 IC9400 C1 VDD12 IC9400 V10 VDD25 IC9400 C12 DOUTUB13 IC9400 N22 DOUTDA09 IC9400 E21 DOUTUA00 IC9400 AA12 DQS3 IC9400 L12 VSS IC9400 L2 ID0 IC9400 K21 DOUTDC13 IC9400 W1 DQ2 IC9400 Y14 DQ12 IC9400 AB19 DOUTDA00 IC9400 AA2 VSS IC9400 AB16 AVDD33_2 IC9400 N19 DOUTDB09 IC9400 P10 VSS IC9400 V2 DQ3 IC9400 J20 DOUTDC15 IC9400 K9 VSS IC9400 Y13 DQ14 IC9400 J12 VSS IC9400 D17 DOUTUC06 IC9400 W8 A2 IC9400 L1 SCL IC9400 R2 DQ23 IC9400 K1 DCK IC9400 E22 DRVCLKU3 IC9400 F19 DOUTUA01 IC9400 Y11 DQ24 IC9400 AB10 DQ29 IC9400 L10 VSS IC9400 J10 VSS IC9400 B2 VSS IC9400 Y7 A0 IC9400 K12 VSS IC9400 B20 DOUTUA03 IC9400 J3 MONOUT0 IC9400 U20 DOUTDB03 IC9400 L13 VSS IC9400 B19 DOUTUA04 IC9400 P2 XRST IC9400 W16 SDIV1 IC9400 A20 DOUTUC04 IC9400 D15 DOUTUB08 IC9400 U4 DQ5 IC9400 A8 TCKSEL0 IC9400 V9 VSS IC9400 C14 DOUTUC11 IC9400 U18 VDD33 IC9400 AA10 DQ31 IC9400 B8 TCKSEL2 IC9400 W10 DQ27 IC9400 AB3 NCK IC9400 M12 VSS IC9400 E13 VDD33 IC9400 Y16 SDSEL IC9400 L21 DOUTDA11 IC9400 R4 DQ16 IC9400 M22 DOUTDC10 IC9400 W22 DOUTDC02 IC9400 P1 TDO IC9400 A17 DOUTUA08 IC9400 V18 VSS IC9400 B17 DOUTUA07 IC9400 T22 DOUTDC06 IC9400 AB21 VSS IC9400 T19 DOUTDC04 IC9400 U21 DOUTDB04 IC9400 AA13 DQ11 IC9400 N1 TRST IC9400 K20 DOUTDB13 IC9400 M11 VSS IC9400 M3 FULL1 IC9400 H22 DOUTDA14 IC9400 J18 VDD33 IC9400 B9 FPCLK IC9400 AB6 A4 IC9400 Y3 VSS IC9400 M14 VSS IC9400 K14 VSS IC9400 AB17 VSS IC9400 E11 VDD33 IC9400 AB13 DQ10 IC9400 N5 VDD33 IC9400 A6 OCKOUT IC9400 N3 TDI IC9400 J5 VDD12 IC9400 L9 VSS IC9400 D7 RI3 IC9400 K18 VDD33 IC9400 AA3 CK IC9400 H3 BI8 IC9400 N2 TCK IC9400 C21 DOUTUA02 IC9400 Y4 AVDD25_2 IC9400 Y5 NCAS IC9400 V12 VDD25 IC9400 L3 ID1 IC9400 F21 DRVCLKU2 IC9400 AA14 DQ9 IC9400 N18 VDD12 IC9400 F20 DOUTUB00 IC9400 W19 VSS IC9400 U3 DQ6 IC9400 D11 DOUTUA15 IC9400 D18 DOUTUC05 IC9400 Y2 VDD25 IC9400 M18 VDD12 IC9400 K3 SDA IC9400 T3 AVDD25_1 IC9400 W21 VDD33 IC9400 A11 DOUTUA14 IC9400 L20 DOUTDC12 IC9400 H20 DRVCLKD1 IC9400 V19 VDD33 IC9400 E14 VDD33 IC9400 T1 DQ21 IC9400 C6 RI4 IC9400 D20 DOUTUB03 IC9400 V15 VDD12 IC9400 B22 VSS IC9400 C2 VDD12 IC9400 W2 DQ1 IC9400 A14 DOUTUA11 IC9400 J11 VSS IC9400 H5 VDD12 IC9400 T5 AVSS_2 IC9400 P5 VDD33 IC9400 AA17 SDIV0 IC9400 A4 RI6 IC9400 A5 RI2 IC9400 G1 BI6 IC9400 W12 AVDD25_4 IC9400 C16 DOUTUC08 IC9400 D9 TCKSEL1 IC9400 L11 VSS IC9400 AB22 VSS IC9400 V14 VDD12 IC9400 E7 VDD12 IC9400 G4 BI2 IC9400 A16 DOUTUA09 IC9400 G5 VDD12 IC9400 F4 GI7 IC9400 N11 VSS IC9400 K22 DOUTDA12 IC9400 D19 VSS IC9400 V6 AVSS_3 IC9400 AA4 VREF IC9400 W4 VSS IC9400 D1 GI6 IC9400 V16 VDD33 IC9400 J4 ENHMASK IC9400 G20 DRVCLKU1 IC9400 B3 GI1 IC9400 J2 MONOUT1 IC9400 P19 DOUTDB07 IC9400 V4 VDD25 IC9400 B21 VSS IC9400 W13 DQ15 IC9400 AB11 DQ28 IC9400 N14 VSS IC9400 A22 VSS IC9400 AB2 VSS IC9400 C19 DOUTUB04 IC9400 E15 VDD12 IC9400 C17 DOUTUA06 IC9400 K19 DOUTDC14 IC9400 F18 VSS IC9400 W3 VDD25 IC9400 L19 DOUTDB12 IC9400 P4 DQ18 IC9400 AA22 VSS IC9400 Y15 VSS IC9400 C11 DOUTUB15 IC9400 P18 VDD33 IC9400 N10 VSS IC9400 A10 SFLATCH IC9400 B1 VSS IC9400 F2 BI1 IC9400 U1 DQS2 IC9400 V11 VDD25 IC9400 R22 DOUTDC07 IC9400 V5 VSS IC9400 M4 PCK IC9400 G21 DRVCLKD2 IC9400 Y1 DQ0 IC9400 K5 VDD33 IC9400 J1 MONOUT2 IC9400 W15 TCPOUT IC9400 H21 DOUTDB15 IC9400 M20 DOUTDA10 IC9400 AA15 AVSS1 IC9400 V22 DOUTDA03 IC9400 E16 VDD12 IC9400 B10 SFRST IC9400 P11 VSS IC9400 L14 VSS IC9400 E18 VSS IC9400 D4 VSS IC9400 V17 VDD33 IC9400 D5 GI2 IC9400 P20 DOUTDA07 IC9400 AB18 DOUTDC00 IC9400 R21 DOUTDA06 IC9400 C18 DOUTUB05 IC9400 W6 NWE IC9400 C15 DOUTUB09 IC9400 P14 VSS IC9400 H2 BI9 IC9400 T2 DQ20 IC9400 AA18 DOUTDB00 IC9400 Y18 VSS IC9400 C20 VSS IC9400 R18 VDD33 IC9400 V3 DQ4 IC9400 V7 VDD25 IC9400 P22 DOUTDB08 IC9400 P21 DOUTDC08 IC9400 E12 VDD33 IC9400 N9 VSS IC9400 AB8 A7 IC9400 E17 VSS IC9400 Y9 A3 IC9400 K4 HDI IC9400 T4 DQ7 IC9400 J21 DOUTDB14 IC9400 N20 DOUTDC09 IC9400 G18 VSS IC9400 AA21 VSS IC9400 B7 TEST1 IC9400 W20 VDD33 IC9400 P9 VSS IC9400 N21 DOUTDA08 IC9400 A18 DOUTUB07 IC9400 G22 DRVCLKD0 IC9400 T20 DOUTDA04 IC9400 J22 DOUTDA13 IC9400 M1 TILD IC9400 C8 TEST0 IC9400 E8 VDD12 IC9400 K2 VDI IC9400 C10 SFVRST IC9400 E19 DOUTUC03 IC9400 D6 RI7 IC9400 V20 DOUTDB02 IC9400 G19 DOUTUC00 IC9400 AA9 A8 IC9400 M19 DOUTDC11 IC9400 K10 VSS IC9400 E2 GI8 IC9400 AA8 A5 IC9400 D14 DOUTUC10 IC9400 U19 DOUTDA02 IC9400 AA6 A11 IC9400 C4 GI3 IC9400 AA16 AVSS2 IC9400 AB9 VDD25 IC9400 W9 A10 IC9400 D3 VDD12 IC9400 D13 DOUTUC12 IC9400 J19 DOUTDA15 IC9400 Y17 VSS IC9400 AB5 BA1 IC9400 N4 TMS IC9400 F1 BI3 IC9400 U2 AVSS_1 IC9400 E5 VSS IC9400 E9 VDD33 IC9400 M10 VSS IC9400 J13 VSS IC9400 L5 VDD33 IC9400 J9 VSS IC9400 P3 DQ19 IC9400 A12 DOUTUB14 IC9400 B13 DOUTUA12 IC9400 AB15 AVDD33_1 IC9400 E4 VDD12 IC9400 E6 VSS IC9400 N13 VSS IC9400 H18 VDD33 IC9400 H4 BI7 IC9400 W18 VSS IC9400 V13 VDD12 IC9400 E20 DOUTUC02 IC9400 E1 BI0 IC9400 B14 DOUTUB11 IC9400 C3 VSS IC9400 AA1 VDD25 IC9400 A19 DOUTUA05 IC9400 D12 DOUTUA13 IC9400 AB14 DQ8 IC9400 Y21 VDD33 IC9400 U5 VDD25 IC9400 M21 DOUTDB10 IC9400 Y10 DQ26 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 L8L2.5V P5V L8L3.3V L8L3.3V L8L1.2V P3.3V L8L3.3V L8L2.5V L8L3.3V L8L2.5V L8L3.3V TP9547 TP9679 TP9594 TP9558 TP9619 TP9559 TP9584 TP9580 TP9576 TP9572 TP9582 TP9579 TP9586 TP9588 TP9464 VIN TP9577 TP9442 TP9592 TP9616 TP9578 TP9585 TP9561 TP9550 TP9583 TP9575 TP9401 TP9553 TP9564 TP9574 TP9568 TP9541 TP9617 TP9581 TP9593 TP9590 TP9556 TP9615 TP9566 TP9543 TP9589 TP9555 TP9591 TP9057 TP9465 HIN TP9614 TP9587 TP9544 TP9570 TP9618 TP9549 Q9304 B1ABCF000138 R9470 EXB2HV220JV R9468 EXB2HV220JV R9466 EXB2HV220JV R9467 EXB2HV220JV R9471 EXB2HV220JV R9469 EXB2HV220JV R9540 10k R9496 100k R9539 0 R9633 10k R9474 4.7k R9485 1k 1% R9647 0 R9648 1k R9646 0 R9403 2.2k R9656 0 R9402 2.2k R9484 1k 1% R9497 10k R9651 0 R9480 0 to DDR to DISCHARGE CONTROL FPGA from FPGA IIC from DISCHARGE CONTROL FPGA PD1M+(MN84524) Right rromdata[00] rromdata[03] rromdata[01] rromdata[2] rromdata[12] rromdata[15] rromdata[09] ] 5 0 [ a t a d m o rr ] 6 0 [ a t a d m o rr rromdata[14] rromdata[08] rromdata[11] rromdata[04] rromdata[07] rromdata[10] rromdata[13] rromadrs[20] rromadrs[02] rromadrs[05] rromadrs[08] rromadrs[11] rromadrs[14] rromadrs[17] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[01] rromadrs[16] rromadrs[19] ] 3 0 [ s r d a m o rr ] 4 0 [ s r d a m o rr rromadrs[06] rromadrs[09] rromadrs[12] rromadrs[15] rromadrs[18] rromadrs[00] rromadrs[-1] DOUTDB[30] DOUTDA[26] DMHL DOUTDA[23] GND DOUTDA[22] ODED6 DOUTDC[26] DOUTDC[28] DOUTDB[26] DOUTDB[22] NC GND GND GND GND DOUTDC[27] DOUTDB[24] 5V_DET DOUTDB[27] LED6 DOUTDC[30] DOUTDA[25] DSHL GND DMLL DOUTDA[29] GND DOUTDC[24] CLKD6(+) DSHR GND DOUTDC[31] GND DOUTDA[24] GND DOUTDA[28] GND DOUTDB[23] DOUTDC[23] DMHR CLKD7(-) PCD6 DOUTDA[30] DOUTDA[27] DOUTDB[28] CLRD6 D36 DOUTDB[29] DOUTDA[31] DOUTDC[25] GND DOUTDB[31] P5V GND DOUTDC[29] GND GND DSLL DOUTDB[25] GND DMLR GND DSLR DOUTDC[22] GND P5V P5V NC MN84524 IC9400 ! D-BOARD TNPA4245AE(5/8) 4 4 2 4 38 39 40 41 45 43 37 33 34 32 31 42 45 43 46 41 44 TO C4-BOARD (C40) TH-42PZ700C D-Board (5 of 8) Schematic Diagram TH-42PZ700C D-Board (5 of 8) Schematic Diagram 113 15.45.D 电路板 (6/8) 线路图 + G G G G TERM SIDE TERM SIDE L8R_DQ4 L8R_DQ3 L8R_A4 L8R_DQ21 L8R_DQ17 L8R_DQS1 L8DR_DQ25 L8DR_DQ26 L8DR_A0 L8DR_DQ9 L8R_DQ25 L8R_DQ15 L8DR_DQ14 L8R_WE L8R_A3 L8R_DQ26 L8R_DQ18 L8DR_DQ6 L8R_DQ12 L8DR_DQ29 L8DR_DQ30 L8R_DQ9 L8DR_CKE L8R_DQ10 L8DR_DQ22 L8R_BA0 L8DR_DQS3 L8R_DQS3 L8R_DQ0 L8DR_DQ20 L8R_A2 L8DR_DQ21 L8R_CS L8R_DQ28 L8R_DQ27 L8R_DQ29 L8DR_A5 L8DR_DQ16 L8R_DQ6 L8DR_DQ15 L8R_DQ19 L8DR_DQ1 L8DR_DQ2 L8R_BA1 L8R_DQ22 L8R_CAS L8R_A6 L8DR_A4 L8DR_DQ10 L8R_DQ14 L8DR_A8 L8DR_NRAS L8DR_BA1 L8DR_BA0 L8DR_DQ18 L8R_DQ23 L8R_DQS0 L8DR_A11 L8DR_DQ11 L8DR_NCS L8DR_DQ24 L8DR_DQ31 L8DR_DQ8 L8DR_NCAS L8DR_A3 L8DR_DQ3 L8R_DQ11 L8R_A9 L8R_DQ5 L8R_DQS2 L8R_A11 L8R_A0 L8R_RAS L8DR_A9 L8R_DQ31 L8DR_DQ0 L8R_DQ30 L8DR_A6 L8DR_A10 L8DR_DQ27 L8R_DQ8 L8R_A8 L8DR_DQS1 L8R_SDCLKO L8R_DQ2 L8R_DQ16 L8R_DQ20 L8DR_NWE L8DR_DQ5 L8DR_DQ13 L8DR_A1 L8R_DQ24 L8DR_DQ19 L8R_SDCKE L8R_A7 L8R_DQ13 L8R_A5 L8DR_DQS2 L8DR_DQ7 L8R_DQ1 L8DR_A2 L8DR_DQ28 L8R_A10 L8DR_A7 L8DR_DQ17 L8DR_NCLK L8R_DQ7 L8DR_DQ4 L8DR_DQS0 L8R_A1 L8R_NSDCLKO L8DR_DQ23 L8DR_DQ12 L8L_UC09 L8L_UA09 L8L_UA11 L8L_UA08 L8L_UB11 L8L_UC08 L8L_UA10 L8L_UB09 L8L_UA05 L8L_UB10 L8L_UB05 L8L_UC07 L8L_UC11 AA_XWE L8L_UB07 L8L_UB08 L8L_UA06 L8L_UC06 L8L_UC10 L8L_UA07 L8L_UB06 5V_SENSE L8L_DC15 L8L_UA14 L8L_UC13 L8L_UC12 L8L_UB15 L8L_DA14 L8L_UC15 L8L_UC14 L8L_UA12 L8L_UB13 L8L_UB14 L8L_UB12 L8L_UA13 L8L_DB15 DRVRST DOUTDA18 LED_5 DOUTDC18 DOUTDC13 DOUTDC17 DOUTDA21 DOUTDA19 CLRD_5 DOUTDC12 DOUTDA13 DOUTDB21 DOUTDB13 DOUTDC21 DOUTDA15 DOUTDA16 DOUTDB19 CLKD5 CLKD3 DOUTDA12 DOUTDB16 DOUTDC14 DOUTDB15 DOUTDA14 CLKD2 DOUTDC16 DOUTDA17 DOUTDB12 DOUTDA11 DOUTDB14 DOUTDC19 DOUTDC15 DOUTDB17 DOUTDB11 DOUTDB10 PCD_5 DOUTDC11 DOUTDA20 CLKD4 5V_DET5 DOUTDB20 DOUTDC10 DOUTDC20 DOUTDB18 DOUTDA10 5V_SENSE 5V_DET4 CLKD3 L8L_DA13 L8R_DRVCLKD1 L8L_DB12 DOUTDC8 DOUTDB0 L8R_DRVCLKD3 L8L_DA03 DOUTDA6 CLKD6 L8L_DA04 L8L_DA00 L8L_DC14 DOUTDA10 L8L_DA09 DOUTDC10 L8L_DB13 L8L_DC11 DOUTDB12 DOUTDA1 L8R_DRVCLKD2 DOUTDB10 DOUTDB5 DOUTDB1 L8L_DB00 L8L_DC13 DOUTDB7 L8L_DB09 DOUTDA4 L8L_DB04 L8L_DC01 L8L_DC03 L8L_DC07 L8L_DA02 L8L_DA10 L8L_DA08 L8L_DB10 DOUTDC2 DOUTDC1 DOUTDC7 DOUTDC4 L8L_DC08 DOUTDC3 L8L_DA12 L8L_DB02 L8L_DC10 DOUTDB8 DOUTDB9 DOUTDA2 L8L_DA07 DOUTDA7 DOUTDB6 L8L_DB06 L8L_DB07 L8L_DC02 DOUTDA3 L8L_DA06 DOUTDA13 DOUTDA8 DOUTDC15 L8L_DB01 L8L_DC12 L8L_DB08 DOUTDC11 L8L_DB03 DOUTDB15 DOUTDA5 DOUTDC12 L8L_DA05 DOUTDA15 DOUTDA9 L8L_DC05 DOUTDB2 L8L_DC15 L8L_DA01 DOUTDA14 DOUTDB3 L8L_DB11 DOUTDA0 L8L_DRVCLKD0 L8L_DB15 CLKD5 DOUTDC5 DOUTDB13 DOUTDB14 L8L_DC04 L8L_DA15 L8L_DB05 DOUTDA11 L8L_DA11 DOUTDC14 L8L_DC00 L8L_DC06 L8L_DRVCLKD1 DOUTDC6 DOUTDA12 DOUTDC0 L8R_DRVCLKD0 CLKD1 DOUTDC13 CLKD4 DOUTDC9 5V_SENSE DOUTDB11 L8L_DC09 CLKD0 DOUTDB4 L8L_DB14 5V_DET5 D_PCD6 PCD_5 CLRD_6 D_ODED6 D_CLRD5 ODED_5 D_LED5 D_ODED5 D_LED6 LED_5 LED_6 ODED_6 D_CLRD6 PCD_6 D_PCD5 USL C_UMH UEH C_USH UML C_USL SOS8_SS_C USH C_UEH C_UML NUEL SOS8_SS C_NUEL UMH CLRD_5 CLKD7 AA_XCE_L AA_XOE L8R_UC14 L8R_UC13 L8R_UA15 L8R_UB13 L8R_DC15 L8R_UA13 L8R_UC12 L8L_DB15 L8R_DA15 L8L_UC13 L8R_UA14 L8L_UB14 L8L_DC15 L8L_DA14 L8L_UB15 L8L_UA14 L8L_UA13 L8L_UC15 L8L_UC12 L8R_UB12 L8R_UB15 L8L_UB12 L8R_UB14 L8R_DA14 L8R_UC15 L8L_UA15 L8L_DA15 L8L_UB13 L8L_UC14 L8R_UA12 L8L_UA12 L8DR_DQ0 L8DR_NCLK L8DR_CLK L8DR_DQS3 L8DR_DQ19 L8DR_DQ17 L8DR_DQ26 L8DR_DQS0 L8DR_DQ29 L8DR_DQ3 L8DR_DQ2 L8DR_DQ24 L8DR_BA1 L8DR_DQ8 L8DR_A10 L8DR_DQ18 L8DR_A6 L8DR_A2 L8DR_DQ4 L8DR_DQ12 L8DR_DQ7 L8DR_A9 L8DR_A8 L8DR_DQ21 L8DR_A7 L8DR_DQS2 L8DR_NWE L8DR_NCAS L8DR_DQ1 L8DR_NCS L8DR_CKE L8DR_A4 L8DR_A5 L8DR_A0 L8DR_NRAS L8DR_DQ23 L8DR_A11 L8DR_DQ6 L8DR_DQ31 L8DR_DQ14 L8DR_A1 L8DR_DQ10 L8DR_DQ27 L8DR_BA0 L8DR_DQ13 L8DR_DQS1 L8DR_DQ20 L8DR_DQ25 L8DR_DQ9 L8DR_DQ30 L8DR_DQ22 L8DR_A3 L8DR_DQ5 L8DR_DQ16 L8DR_DQ28 L8DR_DQ11 L8DR_DQ15 L8L_UC05 L8L_DA15 L8L_UA15 L8L_DA14 DOUTDC6 DOUTDC7 DOUTDB9 C_USL C_UMH DOUTDC5 DOUTDA5 DOUTDC9 DOUTDC0 DOUTDB3 DOUTDA9 DOUTDB1 C_UEH DOUTDC2 DOUTDB2 C_NUEL DOUTDB6 DOUTDC1 DOUTDC3 DOUTDA8 DOUTDA2 DOUTDC4 5V_DET4 C_UML DOUTDA6 DOUTDA7 DOUTDB7 DOUTDA1 CLKD0 DOUTDA4 CLKD1 DOUTDA0 DOUTDB5 DOUTDC8 DOUTDB8 DOUTDA3 DOUTDB0 DOUTDB4 C_USH ODED_5 SOS7_DRD SOS8_SS_C L8R_DB15 AA_XCE_L CLKD3_2 CLKD2_2 L8L_DRVCLKD2 L8L_DRVCLKD3 CLKD3_2 CLKD2_2 AA_BYTE F_RST L8DR_CLK C9085 16V 0.1u C9102 16V 0.1u C9610 16V 0.1u C9108 16V 0.1u C9097 16V 0.1u C9098 16V 0.1u C9109 16V 0.1u C9095 16V 0.1u C9110 16V 0.1u C9609 10V 10u C9090 16V 0.1u C9101 16V 0.1u C9105 16V 0.1u C9094 16V 0.1u C9096 16V 0.1u C9106 16V 0.1u C9088 16V 0.1u C9093 16V 0.1u C9099 16V 0.1u C9086 16V 0.1u C9104 16V 0.1u C9372 25V 0.01u C9107 16V 0.1u C9091 16V 0.1u C9608 16V 0.1u C9103 16V 0.1u C9374 25V 0.01u C9089 16V 0.1u C9092 16V 0.1u C9087 16V 0.1u C9111 56u 4V D9303 B0JCCE000008 D9305 B0JCCE000008 FL9000 F1J1E104A148 1 2 3 FL9311 F1J1E104A148 1 2 3 IC9401 B2 DQS0 IC9401 B12 DM3 IC9401 J11 VDDQ IC9401 K13 DQ8 IC9401 G12 DQ13 IC9401 L4 VDD IC9401 N6 A1 IC9401 N5 A0 IC9401 H13 DQS1 IC9401 D6 VSSQ IC9401 D4 VSSQ IC9401 F2 DQ17 IC9401 K8 VSS IC9401 D5 VSSQ IC9401 N2 CS IC9401 F4 VDDQ IC9401 C7 VDDQ IC9401 J9 VSS_Thermal IC9401 F12 DQ15 IC9401 D9 VSSQ IC9401 G6 VSS_Thermal IC9401 E6 VSSQ IC9401 H9 VSS_Thermal IC9401 J6 VSS_Thermal IC9401 J5 VSSQ IC9401 L9 NC IC9401 K7 VSS IC9401 L12 NC IC9401 L6 A10 IC9401 G5 VSSQ IC9401 C8 VDDQ IC9401 F7 VSS_Thermal IC9401 K3 DQ23 IC9401 K12 DQ9 IC9401 N4 BA0 IC9401 M13 NC IC9401 J4 VDDQ IC9401 B6 DQ2 IC9401 K6 VSS IC9401 J8 VSS_Thermal IC9401 C6 DQ1 IC9401 D7 VDD IC9401 F3 DQ16 IC9401 F11 VDDQ IC9401 M6 A2 IC9401 H2 DQS2 1 A B 5 M 1 0 4 9 C I 9 1 Q D 2 G 1 0 4 9 C I IC9401 K11 VDDQ IC9401 C10 VDDQ IC9401 K2 DQ22 IC9401 K9 VSS IC9401 L11 VDD IC9401 N13 VREF IC9401 F6 VSS_Thermal IC9401 G4 VDDQ IC9401 B5 DQ3 IC9401 B3 DM0 IC9401 D11 VSSQ IC9401 L7 VDD IC9401 N12 CKE IC9401 C9 DQ30 IC9401 E9 VSSQ IC9401 G13 DQ12 IC9401 N10 A7 IC9401 M4 NC IC9401 E10 VSS IC9401 B9 DQ29 IC9401 E8 VSS IC9401 D8 VDD IC9401 N3 NC IC9401 K4 VDDQ IC9401 M8 A9 IC9401 C11 NC IC9401 H3 DM2 IC9401 E2 DQ7 IC9401 G7 VSS_Thermal IC9401 F9 VSS_Thermal IC9401 M7 A11 IC9401 K5 VSSQ IC9401 B10 DQ28 IC9401 C13 DQ27 IC9401 H5 VSSQ IC9401 L3 WE IC9401 J13 DQ10 IC9401 H8 VSS_Thermal IC9401 H12 DM1 IC9401 H7 VSS_Thermal IC9401 C3 VDDQ IC9401 E7 VSS IC9401 G3 DQ18 IC9401 K10 VSSQ IC9401 C4 NC IC9401 B8 DQ31 IC9401 M11 CK IC9401 G10 VSSQ IC9401 C2 DQ4 IC9401 M12 CK IC9401 D13 DQ25 IC9401 C12 VDDQ IC9401 E11 VDD IC9401 D2 DQ6 IC9401 M10 NC IC9401 D12 DQ26 IC9401 M9 A5 IC9401 G9 VSS_Thermal IC9401 L5 VSS IC9401 G11 VDDQ IC9401 L13 NC IC9401 J12 DQ11 IC9401 N8 A4 IC9401 H10 VSSQ IC9401 E3 VDDQ IC9401 J3 DQ20 IC9401 J2 DQ21 IC9401 M3 NC IC9401 C5 VDDQ IC9401 F5 VSSQ IC9401 H4 NC IC9401 L10 VSS IC9401 F8 VSS_Thermal IC9401 B11 VSSQ IC9401 E4 VDD IC9401 H6 VSS_Thermal IC9401 J7 VSS_Thermal IC9401 H11 NC IC9401 E5 VSS IC9401 E13 DQ24 IC9401 G8 VSS_Thermal IC9401 B13 DQS3 IC9401 N9 A6 IC9401 L8 VDD IC9401 B4 VSSQ IC9401 D10 VSSQ IC9401 F10 VSSQ IC9401 M2 RAS IC9401 N11 A8/AP IC9401 E12 VDDQ IC9401 N7 A3 IC9401 D3 DQ5 IC9401 B7 DQ0 IC9401 J10 VSSQ IC9401 F13 DQ14 IC9401 L2 CAS C0JBAZ002636 IC9603 1 NC 2 A0 3 A1 4 A2 5 A3 6 A4 7 A5 8 A6 9 A7 10 GND 11 NC 12 A8 13 A9 14 A10 15 A11 16 A12 17 A13 18 A14 19 A15 20 GND 21 B15 22 B14 23 B13 24 B12 25 B11 26 B10 27 B9 28 B8 29 OE2 30 VCC 31 B7 32 B6 33 B5 34 B4 35 B3 36 B2 37 B1 38 B0 39 OE1 40 VCC TVRP515 IC9304 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 = 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 = 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 L8L2.5V P3.3V L8L2.5V P5V P3.3V P5V P3.3V L8L2.5V P3.3V TP9008 TP9018 TP9612 TP9597 TP9603 TP9038 TP9016 TP9042 TP9595 TP9024 TP9026 TP9605 TP9548 TP9021 TP9028 TP9631 TP9039 TP9609 TP9040 TP9031 TP9033 TP9012 TP9017 TP9043 TP9032 TP9600 TP9598 TP9014 TP9037 TP9030 TP9019 TP9034 TP9637 TP9620 TP9009 TP9051 TP9632 TP9596 TP9456 TP9035 TP9604 TP9029 TP9634 TP9607 TP9601 TP9551 TP9036 TP9680 TP9611 TP9624 TP9608 TP9633 TP9002 TP9613 TP9625 TP9602 TP9005 TP9546 TP9628 TP9007 TP9023 TP9027 TP9636 TP9599 TP9011 TP9552 TP9013 TP9457 TP9639 TP9049 TP9056 TP9004 TP9048 TP9001 TP9606 TP9003 TP9681 TP9022 TP9638 TP9015 TP9635 TP9554 TP9050 TP9025 TP9627 TP9055 TP9020 TP9041 TP9542 TP9006 TP9629 TP9626 TP9610 TP9545 TP9630 TP9010 TP9557 Q9303 B1ABCF000138 Q9305 B1ABCF000138 Q9306 B1ABCF000138 R9413 47 EXB38V470JV R9418 47 EXB38V470JV R9420 47 EXB38V470JV R9415 47 EXB38V470JV R9416 47 EXB38V470JV R9421 47 EXB38V470JV R9473 EXB38VR000V R9414 47 EXB38V470JV R9472 EXB38VR000V R9412 47 EXB38V470JV R9417 47 EXB38V470JV R9419 47 EXB38V470JV R9582 EXB2HV470JV R9576 EXB2HV220JV R9577 EXB2HV220JV R9404 EXB2HV470JV 47 R9575 EXB2HV220JV R9572 EXB2HV220JV R9571 EXB2HV220JV R9573 EXB2HV220JV R9616 22 R9463 4.7k R9492 47 R9153 0 R9489 47 R9162 1k 1% R9620 4.7k R9406 4.7k R9491 47 R9567 22 R9619 4.7k R9569 100k R9623 22 R9487 150 R9157 0 R9555 100 R9563 22 R9125 0 R9488 33 R9486 33 R9607 100k R9490 47 R9494 47 R9464 100k R9493 47 R9561 22 R9558 22 R9568 4.7k R9566 22 R9570 10k R9606 100 R9495 47 R9564 22 R9124 0 R9130 1k 1% R9562 22 R9465 10k 16Mbit FlashROM (PDROM) 5V_DET GND GND DOUTDB[14] DOUTDB[19] GND D34 P5V DOUTDA[15] NC DOUTDA[12] DOUTDC[16] DOUTDB[18] GND DOUTDA[10] DOUTDC[13] GND GND DOUTDC[12] DOUTDB[11] DOUTDC[15] DOUTDC[19] DOUTDA[21] GND GND DOUTDA[18] DOUTDB[10] DOUTDB[17] GND D35 DOUTDA[17] GND DOUTDB[16] GND LED5 DOUTDB[20] DOUTDC[14] DOUTDC[18] DOUTDC[21] DOUTDB[13] DOUTDC[17] CLKD4(+) DOUTDA[20] CLKD5(-) GND GND DOUTDC[20] DOUTDB[21] DOUTDC[10] P5V DOUTDA[16] GND GND GND DOUTDC[11] DOUTDB[12] CLRD5 DOUTDA[11] P5V CLKD3(-) DOUTDA[19] GND ODED5 PCD5 CLKD2(+)/NC DOUTDA[14] DOUTDA[13] GND DOUTDB[15] DDR-SDRAM R UMH DRV_SOS7 DOUTDC[3] P5V NC CLKD0(+) GND DOUTDB[6] DOUTDA[8] NC USH P5V DOUTDB[7] DOUTDB[0] NC DOUTDB[1] UEH DOUTDB[9] GND DOUTDB[4] DOUTDC[7] GND DOUTDA[2] GND NC/CLKD2(+) DOUTDC[0] NUEL DOUTDA[5] DOUTDA[6] DOUTDA[9] DOUTDC[8] NC/CLKD3(-) DOUTDB[2] GND DRVSOS8 P5V 5V_DET GND DOUTDB[3] GND DOUTDC[6] DOUTDA[1] DOUTDC[9] GND GND DOUTDC[4] DOUTDB[5] DOUTDC[5] DOUTDA[0] CLKD1(-) DOUTDB[8] DOUTDA[7] USL DOUTDC[1] DOUTDA[3] GND NC GND DOUTDA[4] DOUTDC[2] GND UML GND GND GND GND GND GND NC IC9401 C3ABQJ000051 BUS SWITCH D-BOARD TNPA4245AE(6/8) ! 52 53 0 5 7 4 49 54 1 5 8 4 46 44 46 42 43 45 41 52 54 53 51 TO C4-BOARD (C41) TO C3-BOARD (C30) TH-42PZ700C D-Board (6 of 8) Schematic Diagram TH-42PZ700C D-Board (6 of 8) Schematic Diagram 114 15.46.D 电路板 (7/8) 线路图 + G G G G G G G G G G G G G G TERM SIDE TERM SIDE L8L_DQ29 L8L_DQ2 L8L_DB03 L8L_BI9 L8L_A8 L8L_UB08 L8L_DC01 L8L_SDIV0 L8L_DA07 L8L_DQ28 L8L_DQ1 L8L_DB02 L8L_RI0 L8L_A7 L8L_UB09 L8L_DC02 L8L_DA06 L8L_DQ27 L8L_DQ0 L8L_DB01 L8L_RI1 L8L_A6 L8L_UB10 L8L_DC03 L8L_DA05 L8L_DQ26 L8L_DB00 L8L_RI4 L8L_A5 L8L_UB11 L8L_DC04 L8L_DA04 L8L_DQ25 L8L_RI2 L8L_UC11 L8L_A4 L8L_DC05 L8L_DA03 L8L_DQ24 L8L_RI3 L8L_UC10 L8L_A3 L8L_DC06 L8L_DA02 L8L_DQ23 TMS L8L_RI5 L8L_UC09 L8L_A2 L8L_DC07 L8L_DA01 L8L_DQ22 L8L_RI6 L8L_UC08 L8L_A1 L8L_DC08 L8L_DA00 L8L_DQ21 TCK L8L_GI0 L8L_RI7 L8L_UC07 L8L_A0 L8L_DC09 L8L_DQ20 L8L_GI1 L8L_RI8 L8L_UC06 L8L_DC10 L8L_DQ19 L8L_GI2 L8L_RI9 L8L_UC05 L8L_DC11 L8L_DQ18 L8L_GI3 L8L_UC04 L8L_DQ17 L8L_GI4 L8L_UC03 L8L_DQ16 L8L_RAS L8L_GI5 L8L_UC02 L8L_DQ15 L8L_GI6 L8L_UC01 L8L_DRVCLKD0 L8L_WE L8L_DQ14 L8L_GI7 L8L_UC00 L8L_UA00 L8L_DRVCLKD1 L8L_DQ13 L8L_GI8 L8L_DRVCLKU1 L8L_UA01 L8L_CS L8L_DQ12 L8L_GI9 L8L_DRVCLKU0 L8L_UA02 L8L_DQ11 L8L_BI0 L8L_CAS L8L_UA03 L8L_DQ10 L8L_DB11 L8L_BI1 L8L_SDCKE L8L_UB00 L8L_UA04 L8L_DQ9 SFRST L8L_DB10 L8L_BI2 L8L_NSDCLKO L8L_UB01 L8L_UA05 L8L_DQS3 L8L_DQ8 SFVRST L8L_DB09 L8L_BI3 L8L_SDCLKO L8L_UB02 L8L_UA06 L8L_DQS2 L8L_DQ7 LATCH L8L_DB08 L8L_BI4 L8L_BA1 L8L_UB03 L8L_UA07 L8L_DQS1 L8L_DQ6 FPCLK L8L_DB07 L8L_BI5 L8L_BA0 L8L_UB04 L8L_UA08 L8L_DA11 L8L_DQS0 L8L_DQ5 FPDAT0 L8L_DB06 L8L_BI6 L8L_A11 L8L_UB05 L8L_UA09 L8L_DA10 L8L_DQ31 L8L_DQ4 FPDAT1 L8L_DB05 L8L_BI7 L8L_A10 L8L_UB06 L8L_UA10 L8L_DA09 L8L_DQ30 L8L_DQ3 L8L_MONOUT1 L8L_DB04 L8L_BI8 L8L_SDIV1 L8L_A9 L8L_UB07 L8L_DC00 L8L_UA11 L8L_DA08 L8L_DRVCLKD3 L8L_DRVCLKD2 L8L_DRVCLKU2 L8L_DRVCLKU3 L8L_MASK XRST AA_XCE_L L8L_DCK L8_PCK L8_OCK TRST L8L_UB13 L8L_UC15 L8L_DB15 L8L_UB12 L8L_UA12 L8L_UA13 L8L_UC13 L8L_DC15 L8L_UB14 L8L_UA14 L8L_DA15 L8L_UC12 L8L_UB15 L8L_UA15 L8L_DA14 L8L_UC14 L8L_SDIV0 L8L_SDIV1 CLKU5 DOUTUA25 DOUTUC25 L8R_UA05 5V_SENSE L8R_UC13 L8R_UA14 DOUTUB18 L8R_DRVCLKU1 L8R_UA02 L8R_UC12 DOUTUB26 L8R_UC10 L8R_UC14 L8R_UB01 L8R_DRVCLKU2 L8R_UB09 L8R_UC09 D_ODEU1 L8R_UC03 DOUTUC18 L8R_UA15 CLKU6 D_CLRU1 DOUTUC17 L8R_UA00 5V_SENSE L8R_UB04 L8R_UB07 D_PCU1 L8R_UC11 L8R_UC15 DOUTUA27 L8R_UA04 L8R_DRVCLKU3 DOUTUA18 DOUTUA19 L8R_UC00 CLRU_1 DOUTUB25 DOUTUC28 DOUTUC29 DOUTUC19 CLKU7 L8R_UB06 D_LEU1 L8R_UB03 L8R_UB00 L8R_UC01 5V_DET2 L8R_UB15 PCU_1 L8R_UB08 CLKU1 L8R_UB10 DOUTUA17 DOUTUB23 L8R_UB14 DOUTUC21 L8R_UC02 L8R_UA07 DOUTUB29 L8R_UC05 LEU_1 DOUTUA26 DOUTUC27 L8L_DRVCLKU1 L8R_UC07 L8R_UB02 L8R_UB11 L8R_UA01 L8R_UA09 L8R_UA13 DOUTUA21 DOUTUB19 L8R_UB05 L8R_UA10 L8R_UB13 L8R_UA08 L8R_DRVCLKU0 DOUTUC23 DOUTUB21 L8R_UC04 L8R_UA06 L8R_UA03 CLKU4 L8R_UC06 DOUTUA23 ODEU_1 DOUTUB17 L8R_UC08 DOUTUC16 DOUTUB16 DOUTUA16 CLKU0 DOUTUB27 DOUTUA29 DOUTUB28 DOUTUC26 DOUTUB22 5V_DET1 DOUTUC23 DOUTUC25 DOUTUB26 DOUTUA23 DOUTUB31 DOUTUB27 CLKU7 DOUTUC22 DOUTUC30 DOUTUC26 DOUTUA22 DOUTUA28 PCU_1 DOUTUC31 CLKU6 DOUTUB24 DOUTUA26 DOUTUA31 DOUTUC29 DOUTUB29 LEU_1 DOUTUC27 CLRU_1 DOUTUC28 DOUTUA29 DOUTUB23 DOUTUB28 DOUTUB30 DOUTUA30 DOUTUB25 DOUTUA27 DOUTUA25 DOUTUC24 DOUTUA24 DOUTUC10 DOUTUA21 DOUTUB10 DOUTUA15 DOUTUC21 DOUTUA19 DOUTUC13 DOUTUB12 CLRU_2 CLKU3 PCU_2 DOUTUB15 DOUTUB21 DOUTUC15 DOUTUB11 CLKU2 DOUTUA13 DOUTUB14 DOUTUA17 DOUTUA18 DOUTUC19 DOUTUB20 DOUTUA10 CLKU4 DOUTUC20 CLKU5 DOUTUA14 DOUTUB13 DOUTUB18 DOUTUB19 DOUTUA20 DOUTUA16 5V_DET2 DOUTUC18 DOUTUC16 DOUTUC14 LEU_2 DOUTUA11 DOUTUC11 DOUTUB16 DOUTUC12 DOUTUA12 DOUTUB17 DOUTUC17 5V_DET1 DOUTUC20 DOUTUB20 DOUTUA20 DOUTUC22 DOUTUB22 DOUTUA22 DOUTUC24 DOUTUB24 DOUTUA24 DOUTUA28 DOUTUC31 DOUTUB31 DOUTUA31 DOUTUC30 DOUTUB30 DOUTUA30 L8R_UB12 L8R_UA12 CLKU2 DSLR_C1 DMLR_C1 DSHR_C1 DMHR_C1 L8L_DA12 L8L_DA13 L8L_DB12 L8L_DB13 L8L_DB14 L8L_DC12 L8L_DC13 L8L_DC14 ODEU_1 ODEU_2 SOS7_DRU TDI_TO_68_L PCU_3 CLRU_3 ODEU_3 LEU_3 D_ODEU2 D_LEU2 D_PCU2 D_CLRU2 CLKU3_2 L8L_DRVCLKU3 L8L_DRVCLKU0 L8L_TCKSEL1 L8L_TCKSEL2 L8L_TEST0 L8L_TCKSEL0 L8L_TEST1 L8L_TCKSEL0 L8L_TCKSEL1 L8L_TCKSEL2 L8L_TEST1 L8L_TEST0 L8L_HDI L8L_VDI P3V_SDA02 P3V_SCL02 L8R_UA11 TDO_TO_68_R CLKU2_2 L8L_DRVCLKU2 C9315 0.1u 16V C9313 0.1u 16V C9363 10V 10u C9368 16V 0.1u C9322 0.1u 16V C9316 0.1u 16V C9302 0.1u 16V C9361 10V 10u C9307 0.1u 16V C9357 0.1u 16V C9317 0.1u 16V C9311 0.1u 16V C9318 0.1u 16V C9359 0.1u 16V C9362 10V 10u C9319 0.1u 16V C9323 0.1u 16V C9369 25V 0.01u C9321 0.1u 16V C9355 0.1u 16V C9305 0.1u 16V C9301 0.1u 16V C9303 0.1u 16V C9364 10V 10u C9312 0.1u 16V C9356 0.1u 16V C9360 10V 10u C9325 0.1u 16V C9309 0.1u 16V C9370 25V 0.01u C9320 0.1u 16V C9306 0.1u 16V C9308 0.1u 16V C9304 0.1u 16V C9358 0.1u 16V C9324 0.1u 16V C9310 0.1u 16V C9314 0.1u 16V C9300 0.1u 16V C9365 56u 4V D9300 B0JCCE000008 D9301 B0JCCE000008 FL9308 F1J1E104A148 1 2 3 FL9303 F1J1E104A148 1 2 3 FL9307 F1J1E104A148 1 2 3 F1J1E104A148 FL9305 F1J1E104A148 FL9306 FL9302 F1J1E104A148 1 2 3 FL9304 F1J1E104A148 1 2 3 IC9300 MN84524 A1 VSS IC9300 F18 VSS IC9300 K12 VSS IC9300 AA1 VDD25 IC9300 AB1 VSS IC9300 V17 VDD33 IC9300 V11 VDD25 IC9300 Y2 VDD25 IC9300 U4 DQ5 IC9300 A2 VSS IC9300 W21 VDD33 IC9300 T3 AVDD25_1 IC9300 J18 VDD33 IC9300 V22 DOUTDA03 IC9300 T1 DQ21 IC9300 V12 VDD25 IC9300 C13 DOUTUB12 IC9300 C3 VSS IC9300 M22 DOUTDC10 IC9300 D3 VDD12 IC9300 C8 TEST0 IC9300 W3 VDD25 IC9300 Y18 VSS IC9300 T20 DOUTDA04 IC9300 M5 VDD33 IC9300 D4 VSS IC9300 AA5 CKE IC9300 AB6 A4 IC9300 D22 DOUTUC01 IC9300 AB20 DOUTDB01 IC9300 L10 VSS IC9300 M21 DOUTDB10 IC9300 AB16 AVDD33_2 IC9300 T4 DQ7 IC9300 D2 GI4 IC9300 AA17 SDIV0 IC9300 G1 BI6 IC9300 A11 DOUTUA14 IC9300 A5 RI2 IC9300 H3 BI8 IC9300 N22 DOUTDA09 IC9300 R20 DOUTDB06 IC9300 J2 MONOUT1 IC9300 J11 VSS IC9300 M18 VDD12 IC9300 G4 BI2 IC9300 A21 VSS IC9300 A4 RI6 IC9300 B21 VSS IC9300 W17 VSS IC9300 W20 VDD33 IC9300 M9 VSS IC9300 B14 DOUTUB11 IC9300 N2 TCK IC9300 AB14 DQ8 IC9300 L18 VDD12 IC9300 AB9 VDD25 IC9300 F4 GI7 IC9300 D1 GI6 IC9300 AB19 DOUTDA00 IC9300 M3 FULL1 IC9300 U5 VDD25 IC9300 E17 VSS IC9300 E9 VDD33 IC9300 T5 AVSS_2 IC9300 D8 OCK IC9300 L2 ID0 IC9300 V7 VDD25 IC9300 M2 FULL0 IC9300 W18 VSS IC9300 E13 VDD33 IC9300 E21 DOUTUA00 IC9300 K18 VDD33 IC9300 F20 DOUTUB00 IC9300 B9 FPCLK IC9300 C4 GI3 IC9300 J5 VDD12 IC9300 C6 RI4 IC9300 R5 VDD25 IC9300 K4 HDI IC9300 P22 DOUTDB08 IC9300 K22 DOUTDA12 IC9300 J19 DOUTDA15 IC9300 H5 VDD12 IC9300 P21 DOUTDC08 IC9300 J13 VSS IC9300 E22 DRVCLKU3 IC9300 L5 VDD33 IC9300 A6 OCKOUT IC9300 L21 DOUTDA11 IC9300 P5 VDD33 IC9300 P11 VSS IC9300 AA11 DQ30 IC9300 B6 RI1 IC9300 C9 ROMCE IC9300 J1 MONOUT2 IC9300 P9 VSS IC9300 K9 VSS IC9300 K14 VSS IC9300 AB22 VSS IC9300 C19 DOUTUB04 IC9300 C15 DOUTUB09 IC9300 T18 VDD33 IC9300 D18 DOUTUC05 IC9300 Y19 VSS IC9300 B11 DOUTUC15 IC9300 AA3 CK IC9300 B8 TCKSEL2 IC9300 J21 DOUTDB14 IC9300 U2 AVSS_1 IC9300 V13 VDD12 IC9300 B18 DOUTUB06 IC9300 W6 NWE IC9300 T2 DQ20 IC9300 M12 VSS IC9300 K5 VDD33 IC9300 Y5 NCAS IC9300 E3 GI5 IC9300 AB2 VSS IC9300 P20 DOUTDA07 IC9300 R22 DOUTDC07 IC9300 V21 DOUTDC03 IC9300 C1 VDD12 IC9300 N14 VSS IC9300 T22 DOUTDC06 IC9300 E4 VDD12 IC9300 M14 VSS IC9300 H18 VDD33 IC9300 AB7 A6 IC9300 D7 RI3 IC9300 G5 VDD12 IC9300 A17 DOUTUA08 IC9300 B20 DOUTUA03 IC9300 G18 VSS IC9300 E12 VDD33 IC9300 B17 DOUTUA07 IC9300 P4 DQ18 IC9300 E5 VSS IC9300 Y7 A0 IC9300 Y10 DQ26 IC9300 E8 VDD12 IC9300 E18 VSS IC9300 N1 TRST IC9300 E20 DOUTUC02 IC9300 J12 VSS IC9300 K10 VSS IC9300 L3 ID1 IC9300 F1 BI3 IC9300 U21 DOUTDB04 IC9300 F2 BI1 IC9300 C21 DOUTUA02 IC9300 AA2 VSS IC9300 AA13 DQ11 IC9300 AA18 DOUTDB00 IC9300 R3 DQ17 IC9300 U19 DOUTDA02 IC9300 AB15 AVDD33_1 IC9300 Y3 VSS IC9300 W12 AVDD25_4 IC9300 D15 DOUTUB08 IC9300 C16 DOUTUC08 IC9300 AB3 NCK IC9300 AA22 VSS IC9300 Y17 VSS IC9300 AB21 VSS IC9300 B22 VSS IC9300 L19 DOUTDB12 IC9300 C20 VSS IC9300 AB4 BA0 IC9300 A3 GI0 IC9300 W8 A2 IC9300 W14 DQ13 IC9300 E14 VDD33 IC9300 R18 VDD33 IC9300 A18 DOUTUB07 IC9300 R21 DOUTDA06 IC9300 R1 DQ22 IC9300 Y8 A1 IC9300 AA10 DQ31 IC9300 T21 DOUTDB05 IC9300 Y13 DQ14 IC9300 L22 DOUTDB11 IC9300 N12 VSS IC9300 Y16 SDSEL IC9300 F6 VSS IC9300 A22 VSS IC9300 L14 VSS IC9300 D19 VSS IC9300 V6 AVSS_3 IC9300 W10 DQ27 IC9300 C22 DOUTUB01 IC9300 N5 VDD33 IC9300 AA20 DOUTDA01 IC9300 Y20 VSS IC9300 J22 DOUTDA13 IC9300 V14 VDD12 IC9300 AB10 DQ29 IC9300 Y9 A3 IC9300 J10 VSS IC9300 D17 DOUTUC06 IC9300 L1 SCL IC9300 Y22 VDD33 IC9300 K21 DOUTDC13 IC9300 V16 VDD33 IC9300 C18 DOUTUB05 IC9300 D11 DOUTUA15 IC9300 AA21 VSS IC9300 A20 DOUTUC04 IC9300 AA4 VREF IC9300 AB11 DQ28 IC9300 V4 VDD25 IC9300 V10 VDD25 IC9300 W1 DQ2 IC9300 N11 VSS IC9300 L13 VSS IC9300 AB8 A7 IC9300 B16 DOUTUC09 IC9300 AB5 BA1 IC9300 E2 GI8 IC9300 AB13 DQ10 IC9300 A13 DOUTUC13 IC9300 AB17 VSS IC9300 P13 VSS IC9300 M10 VSS IC9300 M4 PCK IC9300 J14 VSS IC9300 E15 VDD12 IC9300 K2 VDI IC9300 N21 DOUTDA08 IC9300 M19 DOUTDC11 IC9300 K1 DCK IC9300 AB18 DOUTDC00 IC9300 F5 VDD12 IC9300 G3 BI4 IC9300 B12 DOUTUC14 IC9300 B7 TEST1 IC9300 Y6 NRAS IC9300 Y1 DQ0 IC9300 A7 K_TEST IC9300 M11 VSS IC9300 B13 DOUTUA12 IC9300 N9 VSS IC9300 Y4 AVDD25_2 IC9300 C10 SFVRST IC9300 C7 RI0 IC9300 K11 VSS IC9300 E1 BI0 IC9300 E7 VDD12 IC9300 P18 VDD33 IC9300 N19 DOUTDB09 IC9300 C17 DOUTUA06 IC9300 V18 VSS IC9300 A16 DOUTUA09 IC9300 N18 VDD12 IC9300 W13 DQ15 IC9300 A19 DOUTUA05 IC9300 M1 TILD IC9300 K3 SDA IC9300 D20 DOUTUB03 IC9300 B1 VSS IC9300 N13 VSS IC9300 M20 DOUTDA10 IC9300 Y15 VSS IC9300 P12 VSS IC9300 P2 XRST IC9300 D5 GI2 IC9300 D10 FPDAT0 IC9300 A15 DOUTUA10 IC9300 J20 DOUTDC15 IC9300 AA15 AVSS1 IC9300 U22 DOUTDC05 IC9300 V19 VDD33 IC9300 AA16 AVSS2 IC9300 J4 ENHMASK IC9300 B3 GI1 IC9300 H19 DRVCLKU0 IC9300 D21 DOUTUB02 IC9300 A10 SFLATCH IC9300 E11 VDD33 IC9300 AA9 A8 IC9300 C11 DOUTUB15 IC9300 C2 VDD12 IC9300 G21 DRVCLKD2 IC9300 C12 DOUTUB13 IC9300 B10 SFRST IC9300 R2 DQ23 IC9300 B4 RI8 IC9300 F3 GI9 IC9300 H21 DOUTDB15 IC9300 K20 DOUTDB13 IC9300 A8 TCKSEL0 IC9300 U1 DQS2 IC9300 W9 A10 IC9300 G22 DRVCLKD0 IC9300 L20 DOUTDC12 IC9300 L4 TIIC IC9300 E16 VDD12 IC9300 H2 BI9 IC9300 AB12 DQS1 IC9300 P14 VSS IC9300 A9 FPDAT1 IC9300 P19 DOUTDB07 IC9300 H20 DRVCLKD1 IC9300 V3 DQ4 IC9300 K19 DOUTDC14 IC9300 W15 TCPOUT IC9300 W5 AVDD25_3 IC9300 L9 VSS IC9300 F19 DOUTUA01 IC9300 A12 DOUTUB14 IC9300 L12 VSS IC9300 H22 DOUTDA14 IC9300 AA7 A9 IC9300 H1 MUTE IC9300 B15 DOUTUB10 IC9300 Y12 AVSS_4 IC9300 W4 VSS IC9300 W11 DQ25 IC9300 M13 VSS IC9300 B5 RI5 IC9300 K13 VSS IC9300 T19 DOUTDC04 IC9300 W19 VSS IC9300 N4 TMS IC9300 D12 DOUTUA13 IC9300 D14 DOUTUC10 IC9300 Y14 DQ12 IC9300 V8 VDD25 IC9300 AA19 DOUTDC01 IC9300 V15 VDD12 IC9300 N3 TDI IC9300 L11 VSS IC9300 U18 VDD33 IC9300 E6 VSS IC9300 E10 VDD33 IC9300 V9 VSS IC9300 Y11 DQ24 IC9300 W16 SDIV1 IC9300 U20 DOUTDB03 IC9300 U3 DQ6 IC9300 D9 TCKSEL1 IC9300 W2 DQ1 IC9300 F22 DRVCLKD3 IC9300 R19 DOUTDA05 IC9300 H4 BI7 IC9300 B19 DOUTUA04 IC9300 Y21 VDD33 IC9300 J9 VSS IC9300 AA8 A5 IC9300 W7 NCS IC9300 D16 DOUTUC07 IC9300 G2 BI5 IC9300 N20 DOUTDC09 IC9300 J3 MONOUT0 IC9300 AA6 A11 IC9300 D6 RI7 IC9300 P3 DQ19 IC9300 B2 VSS IC9300 V1 DQS0 IC9300 W22 DOUTDC02 IC9300 AA12 DQS3 IC9300 V2 DQ3 IC9300 G19 DOUTUC00 IC9300 C14 DOUTUC11 IC9300 C5 RI9 IC9300 V20 DOUTDB02 IC9300 P10 VSS IC9300 P1 TDO IC9300 G20 DRVCLKU1 IC9300 V5 VSS IC9300 R4 DQ16 IC9300 N10 VSS IC9300 AA14 DQ9 IC9300 F21 DRVCLKU2 IC9300 D13 DOUTUC12 IC9300 E19 DOUTUC03 IC9300 A14 DOUTUA11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 L8L3.3V P1.2V L8L3.3V P3.3V L8L3.3V L8L3.3V L8L3.3V P3.3V L8L2.5V L8L3.3V P5V P2.5V L8L3.3V L8L2.5V L8L2.5V L8L1.2V P5V P3.3V L8L2.5V L8L1.2V TP9433 TP9486 TP9526 TP9461 TP9405 TP9397 TP9413 TP9479 TP9434 TP9431 TP9451 TP9411 TP9412 TP9443 VIN TP9445 TP9450 TP9447 TP9455 TP9467 TP9395 TP9420 TP9448 TP9394 TP9407 TP9460 TP9478 TP9423 TP9409 TP9414 TP9052 TP9425 TP9424 TP9408 TP9437 TP9436 TP9476 TP9497 TP9398 TP9470 TP9459 TP9429 TP9480 TP9490 TP9441 TP9396 TP9440 TP9534 TP9527 TP9483 TP9432 TP9418 TP9403 TP9439 TP9428 TP9463 TP9419 TP9530 TP9435 TP9532 TP9494 TP9430 TP9438 TP9426 TP9449 TP9421 TP9454 TP9444 HIN TP9415 TP9529 TP9399 TP9531 TP9499 TP9053 TP9406 TP9469 TP9392 TP9400 TP9393 TP9417 TP9504 TP9506 TP9533 TP9446 TP9422 TP9458 TP9477 TP9404 TP9488 TP9528 TP9472 TP9502 TP9427 TP9402 TP9485 TP9410 TP9416 TP9492 TP9453 Q9301 B1ABCF000138 Q9300 B1ABCF000138 R9409 EXB38V470JV R9498 EXB38V470JV R9395 EXB2HV220JV R9393 EXB2HV220JV R9397 EXB2HV220JV R9394 EXB2HV220JV R9396 EXB2HV220JV R9462 EXB2HV220JV R9574 0 R9398 4.7k R9400 10k R9604 0 R9452 10k R9432 10k R9447 22 R9602 0 R9580 1k 1% R9444 22 R9377 2.2k R9426 0 R9639 0 R9483 0 R9499 22 R9521 22 R9476 1k R9425 0 R9367 180 R9581 1k 1% R9376 2.2k R9578 0 R9448 22 R9450 4.7k R9451 100k R9603 10k R9399 100k R9443 22 R9427 1k R9449 22 R9442 22 R9445 22 PD1M+(MN84524) Left from FPGA IIC from DISCHARGE CONTROL FPGA to DDR ] 1 0 [ a t a d m o rr ] 0 0 [ a t a d m o rr rromdata[02] rromdata[03] rromdata[04] rromdata[07] rromdata[10] rromdata[13] rromdata[05] rromdata[08] rromdata[11] rromdata[14] rromdata[06] rromdata[09] rromdata[12] rromdata[15] rromadrs[00] rromadrs[01] rromadrs[04] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[16] rromadrs[19] rromadrs[03] rromadrs[06] rromadrs[09] rromadrs[12] rromadrs[15] rromadrs[18] rromadrs[02] rromadrs[05] rromadrs[08] rromadrs[11] rromadrs[14] rromadrs[17] rromadrs[20] DOUTUB[10] NC DOUTUB[17] GND NC DOUTUB[16] GND DOUTUC[29] NC NC DOUTUB[27] DOUTUB[25] GND GND DSHR DOUTUB[24] DOUTUC[26] GND DOUTUC[15] DOUTUA[28] P5V P5V GND DOUTUA[16] DOUTUB[26] ODEU2 DOUTUA[25] GND LEU2 D32 DOUTUB[22] DOUTUC[19] 5V_DET DOUTUC[12] DOUTUA[10] GND GND P5V DMLR GND GND GND DOUTUA[26] DOUTUC[23] DOUTUA[17] DOUTUA[12] DOUTUC[31] GND GND CLKU4(+) DOUTUA[11] DOUTUC[10] GND DOUTUA[22] GND DOUTUB[11] GND DOUTUC[28] DOUTUB[12] DOUTUC[14] DOUTUA[24] GND DOUTUC[11] DOUTUA[31] DOUTUC[21] DOUTUC[16] DOUTUB[20] DOUTUC[13] DOUTUA[29] DOUTUB[19] GND CLKU5(-) CLKU6(+) DOUTUA[14] CLKU7(-) GND DOUTUA[23] DOUTUA[19] DOUTUC[20] GND DOUTUC[27] P5V NC DSLR DOUTUA[15] DOUTUB[15] GND GND DOUTUA[20] ODEU1 DOUTUC[18] DOUTUB[30] GND DOUTUB[28] DOUTUB[31] DOUTUA[18] DOUTUC[17] GND P5V DOUTUA[30] DOUTUA[13] DOUTUB[21] DOUTUB[29] PCU2 GND DOUTUB[18] DOUTUB[13] D31 DOUTUC[22] CLRU2 CLRU1 5V_DET DOUTUB[23] LEU1 CLKU2(+) GND PCU1 DOUTUC[30] GND GND GND DOUTUA[27] DOUTUA[21] GND P5V DOUTUC[24] DMHR DOUTUB[14] GND GND DOUTUC[25] GND GND NC GND CLKU3(-) NC DRV_SOS7 MN84524 IC9300 D-BOARD TNPA4245AE(7/8) ! 63 2 6 0 6 7 5 1 6 9 5 6 5 8 5 5 5 52 53 54 51 63 62 61 TO C1-BOARD (C11) TO C1-BOARD (C10) TH-42PZ700C D-Board (7 of 8) Schematic Diagram TH-42PZ700C D-Board (7 of 8) Schematic Diagram 115 15.47.D 电路板 (8/8) 线路图 + G G TERM SIDE L8DL_DQS3 L8L_SDCKE L8L_DQ28 L8DL_NCAS L8DL_DQ22 L8DL_DQ25 L8DL_NRAS L8DL_DQ31 L8DL_A1 L8L_DQ12 L8DL_DQ11 L8DL_DQ4 L8L_DQS1 L8L_DQ17 L8L_A10 L8L_DQ25 L8L_DQS0 L8DL_A3 L8L_DQ10 L8DL_DQ21 L8L_CS L8L_DQ16 L8DL_DQS0 L8L_DQ24 L8DL_A4 L8DL_DQ9 L8L_DQ22 L8L_A3 L8DL_DQ13 L8L_DQ20 L8L_DQ4 L8L_SDCLKO L8L_BA0 L8L_DQ27 L8L_DQ19 L8L_NSDCLKO L8DL_DQ1 L8L_DQ3 L8L_DQ0 L8DL_DQ19 L8L_A2 L8L_DQ18 L8DL_DQ6 L8L_DQ9 L8DL_NCS L8DL_A7 L8DL_DQS1 L8DL_A6 L8L_DQS3 L8DL_DQ0 L8L_DQ5 L8DL_DQ15 L8DL_A8 L8DL_DQ30 L8DL_DQ8 L8L_A8 L8DL_DQ5 L8L_DQ23 L8DL_DQ24 L8L_BA1 L8DL_DQ14 L8DL_DQ10 L8L_CAS L8DL_A9 L8DL_DQ29 L8DL_BA1 L8L_DQ6 L8DL_CKE L8L_A7 L8DL_A10 L8L_DQ30 L8L_A9 L8L_DQ2 L8DL_DQS2 L8L_DQ21 L8DL_DQ23 L8DL_DQ27 L8L_A4 L8L_DQ29 L8DL_DQ16 L8L_WE L8DL_DQ26 L8L_A6 L8L_DQ15 L8DL_A0 L8L_DQ8 L8DL_DQ3 L8L_A11 L8DL_DQ7 L8DL_A11 L8L_DQ7 L8L_DQ1 L8L_DQS2 L8DL_DQ28 L8DL_DQ12 L8DL_NCLK L8L_DQ13 L8L_A5 L8L_DQ26 L8DL_BA0 L8L_A0 L8DL_A2 L8L_DQ31 L8DL_DQ18 L8L_DQ11 L8L_DQ14 L8DL_DQ2 L8DL_NWE L8DL_A5 L8DL_DQ17 L8L_RAS L8L_A1 L8DL_DQ20 DOUTUA8 DOUTUA13 DOUTUC4 DOUTUA1 L8L_UC09 DOUTUA12 L8L_UA01 DOUTUA4 L8L_UC07 DOUTUC0 DOUTUB0 DOUTUB3 DOUTUB15 DOUTUC3 L8L_UB07 DOUTUC11 DOUTUA15 DOUTUC1 L8L_UC06 DOUTUA2 L8L_UB02 5V_DET3 L8L_UA09 DOUTUB8 DOUTUC14 DOUTUB13 L8L_UB11 L8L_UC11 L8L_UC03 L8L_UB10 DOUTUC9 DOUTUB4 L8L_UC00 L8L_UA02 DOUTUC12 L8L_UA07 DOUTUC10 L8L_UC01 L8L_UC05 DOUTUA11 L8L_UA13 DOUTUB10 L8L_UA10 L8L_UA11 DOUTUA0 DOUTUB6 L8L_UA04 DOUTUB1 L8L_UA00 DOUTUA5 DOUTUB12 DOUTUB14 DOUTUC8 5V_SENSE DOUTUA7 DOUTUC15 L8L_UB05 DOUTUC5 DOUTUA14 DOUTUB9 L8L_UB01 DOUTUA9 DOUTUB7 DOUTUB11 DOUTUC13 DOUTUC7 DOUTUB5 DOUTUA3 L8L_UC02 DOUTUC6 L8L_UB00 DOUTUA10 DOUTUC2 DOUTUA6 L8L_UC08 L8L_UA08 L8L_UB12 L8L_UA12 L8L_UC15 L8L_UB15 L8L_UA15 L8L_UC14 L8L_UB14 L8L_UA14 DOUTUB1 DOUTUA9 DOUTUA8 DOUTUB6 DOUTUB2 DOUTUA1 DOUTUA2 DOUTUC3 DOUTUC8 DOUTUA5 DOUTUB9 DOUTUA7 DOUTUB5 DOUTUB3 DOUTUC7 DOUTUA6 DOUTUA3 DOUTUC5 DOUTUC6 DOUTUC0 CLKU0 DOUTUB7 DOUTUC1 5V_DET3 CLKU1 DOUTUA0 DOUTUC4 DMHL_C3 DOUTUB4 DOUTUB8 DOUTUB0 DOUTUA4 DOUTUC2 DSHL_C3 DOUTUC9 DMLL_C3 DOUTUB2 L8DL_DQ26 L8DL_DQ11 L8DL_DQS2 L8DL_DQ0 L8DL_DQ7 L8DL_DQ12 L8DL_DQ24 L8DL_A1 L8DL_A10 L8DL_A11 L8DL_A9 L8DL_A5 L8DL_A6 L8DL_BA0 L8DL_CLK L8DL_DQ28 L8DL_DQ22 L8DL_DQ23 L8DL_DQ3 L8DL_DQ17 L8DL_DQ21 0V L8DL_CKE L8DL_DQ25 L8DL_DQ29 L8DL_NWE L8DL_DQ19 L8DL_DQ8 L8DL_DQ1 L8DL_DQ31 L8DL_DQ4 L8DL_DQ18 L8DL_A4 L8DL_DQ20 L8DL_A2 L8DL_DQ30 L8DL_DQ14 L8DL_A3 L8DL_DQS0 L8DL_DQ13 L8DL_DQ5 L8DL_NCLK L8DL_DQ2 L8DL_NCS L8DL_NRAS L8DL_DQ6 L8DL_A7 L8DL_A0 L8DL_BA1 L8DL_NCAS L8DL_DQS1 L8DL_DQ27 L8DL_DQS3 L8DL_DQ9 L8DL_DQ16 L8DL_DQ10 L8DL_A8 L8DL_DQ15 L8L_UC13 L8L_UB13 L8L_UC12 L8L_UC10 L8L_UB09 L8L_UB08 L8L_UB06 L8L_UA06 L8L_UB04 L8L_UC04 L8L_UA05 L8L_UB03 L8L_UA03 CLRU_3 PCU_3 ODEU_3 LEU_3 CLKU2_2 CLKU3_2 L8DL_CLK C9070 16V 0.1u C9059 16V 0.1u C9082 16V 0.1u C9073 16V 0.1u C9061 16V 0.1u C9062 16V 0.1u C9075 16V 0.1u C9064 16V 0.1u C9067 16V 0.1u C9077 16V 0.1u C9066 16V 0.1u C9071 16V 0.1u C9065 16V 0.1u C9081 16V 0.1u C9068 16V 0.1u C9079 16V 0.1u C9060 16V 0.1u C9076 16V 0.1u C9069 16V 0.1u C9371 25V 0.01u C9080 16V 0.1u C9074 16V 0.1u C9072 16V 0.1u C9063 16V 0.1u C9078 16V 0.1u C9083 16V 0.1u C9084 56u 4V D9302 B0JCCE000008 FL9309 F1J1E104A148 1 2 3 IC9301 B2 DQS0 IC9301 J3 DQ20 IC9301 H13 DQS1 IC9301 J8 VSS_Thermal IC9301 N3 NC IC9301 F4 VDDQ IC9301 F8 VSS_Thermal IC9301 L12 NC IC9301 G2 DQ19 IC9301 D7 VDD IC9301 D5 VSSQ IC9301 M5 BA1 IC9301 G6 VSS_Thermal IC9301 L2 CAS IC9301 F5 VSSQ IC9301 C10 VDDQ IC9301 L4 VDD IC9301 N12 CKE IC9301 B10 DQ28 IC9301 M2 RAS IC9301 J7 VSS_Thermal IC9301 N11 A8/AP IC9301 H5 VSSQ IC9301 N7 A3 IC9301 E10 VSS IC9301 M13 NC IC9301 K10 VSSQ IC9301 J2 DQ21 IC9301 L3 WE IC9301 E9 VSSQ IC9301 M9 A5 IC9301 J5 VSSQ IC9301 H10 VSSQ IC9301 H8 VSS_Thermal IC9301 E3 VDDQ IC9301 C2 DQ4 IC9301 K3 DQ23 IC9301 E8 VSS IC9301 G12 DQ13 IC9301 K6 VSS IC9301 K7 VSS IC9301 B7 DQ0 IC9301 E5 VSS IC9301 K9 VSS IC9301 L8 VDD IC9301 M10 NC IC9301 C6 DQ1 IC9301 H4 NC IC9301 J6 VSS_Thermal IC9301 D2 DQ6 IC9301 D6 VSSQ IC9301 F6 VSS_Thermal IC9301 K13 DQ8 IC9301 M11 CK IC9301 F12 DQ15 IC9301 L6 A10 IC9301 L5 VSS IC9301 H6 VSS_Thermal IC9301 H9 VSS_Thermal IC9301 B5 DQ3 IC9301 K12 DQ9 IC9301 M12 CK IC9301 E2 DQ7 IC9301 B6 DQ2 IC9301 J11 VDDQ IC9301 K5 VSSQ IC9301 E13 DQ24 IC9301 C13 DQ27 IC9301 G10 VSSQ IC9301 F10 VSSQ IC9301 H11 NC IC9301 C5 VDDQ IC9301 D10 VSSQ IC9301 C7 VDDQ IC9301 C9 DQ30 IC9301 M3 NC IC9301 F3 DQ16 IC9301 J9 VSS_Thermal IC9301 J10 VSSQ IC9301 N9 A6 IC9301 D4 VSSQ IC9301 F2 DQ17 IC9301 L13 NC IC9301 B8 DQ31 IC9301 D12 DQ26 IC9301 L7 VDD IC9301 C4 NC IC9301 J12 DQ11 IC9301 C3 VDDQ IC9301 G11 VDDQ IC9301 C12 VDDQ IC9301 E4 VDD IC9301 K4 VDDQ IC9301 B13 DQS3 IC9301 K8 VSS IC9301 N2 CS IC9301 G5 VSSQ IC9301 B12 DM3 IC9301 H2 DQS2 IC9301 E11 VDD IC9301 G4 VDDQ IC9301 G8 VSS_Thermal IC9301 F11 VDDQ IC9301 N8 A4 IC9301 D11 VSSQ IC9301 N13 VREF IC9301 C11 NC IC9301 M4 NC IC9301 K11 VDDQ IC9301 B3 DM0 IC9301 N6 A1 IC9301 G13 DQ12 IC9301 M6 A2 IC9301 H7 VSS_Thermal IC9301 N4 BA0 IC9301 N5 A0 IC9301 N10 A7 IC9301 F13 DQ14 IC9301 J4 VDDQ IC9301 B9 DQ29 IC9301 D8 VDD IC9301 B4 VSSQ IC9301 C8 VDDQ IC9301 J13 DQ10 IC9301 D13 DQ25 IC9301 L9 NC IC9301 F9 VSS_Thermal IC9301 B11 VSSQ IC9301 F7 VSS_Thermal IC9301 L10 VSS IC9301 H3 DM2 IC9301 E6 VSSQ IC9301 E7 VSS IC9301 G9 VSS_Thermal IC9301 D9 VSSQ IC9301 L11 VDD IC9301 G3 DQ18 IC9301 H12 DM1 IC9301 K2 DQ22 IC9301 G7 VSS_Thermal IC9301 D3 DQ5 IC9301 M7 A11 IC9301 M8 A9 IC9301 E12 VDDQ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 P3.3V P5V L8L2.5V L8L2.5V L8L2.5V ZA9000 K4CD01000011 TP9474 TP9471 TP9466 TP9510 TP9537 TP9473 TP9501 TP9491 TP9520 TP9521 TP9496 TP9524 TP9462 TP9539 TP9513 TP9508 TP9452 TP9516 TP9505 TP9503 TP9536 TP9481 TP9519 TP9509 TP9054 TP9525 TP9495 TP9507 TP9493 TP9514 TP9511 TP9515 TP9540 TP9489 TP9484 TP9517 TP9475 TP9482 TP9498 TP9468 TP9518 TP9487 TP9512 TP9500 TP9535 TP9538 TP9522 TP9523 Q9302 B1ABCF000138 R9593 47 EXB38V470JV R9374 47 EXB38V470JV R9592 47 EXB38V470JV R9587 47 EXB38V470JV R9589 47 EXB38V470JV R9590 47 EXB38V470JV R9594 47 EXB38V470JV R9591 47 EXB38V470JV R9588 47 EXB38V470JV R9595 47 EXB38V470JV R9456 EXB2HV220JV R9454 EXB2HV220JV R9453 EXB2HV220JV R9458 EXB2HV220JV R9371 EXB2HV470JV 47 R9455 EXB2HV220JV R9457 EXB2HV220JV R9372 47 R9597 47 R9117 0 R9459 4.7k R9599 47 R9584 33 R9148 0 R9375 150 R9152 1k 1% R9586 47 R9460 100k R9585 47 R9598 47 R9118 1k 1% R9115 0 R9373 33 R9461 10k R9147 0 R9596 47 D34 D35 D32 D31 DOUTUA[3] DOUTUC[3] CLKU1(-) GND DOUTUC[1] NC DOUTUB[6] DSLL/CLKU2(+) DOUTUA[7] GND DOUTUA[2] DOUTUA[6] NC GND P5V GND NC DOUTUA[9] DOUTUB[1] DOUTUC[9] GND GND DOUTUA[5] P5V GND GND GND GND GND GND GND GND DOUTUA[4] DOUTUB[7] NC DSHL NC/CLKU3(-) CLKU0(+) DOUTUC[7] 5V_DET DOUTUC[0] GND DOUTUB[3] P5V GND DOUTUB[5] DOUTUA[0] DOUTUB[8] DOUTUA[1] GND DOUTUB[0] DOUTUB[4] DOUTUC[8] DOUTUA[8] DOUTUC[4] D33 DOUTUB[9] DMLL GND DOUTUC[6] DOUTUC[5] DOUTUC[2] DMHL DOUTUB[2] D33 D36 NC NC/ODEU3 NC/LEU3 NC/PCU3 NC/CLRU3 C3ABQJ000051 IC9301 DDR-SDRAM L D-BOARD TNPA4245AE(8/8) ! 68 1 7 9 6 6 6 65 72 70 7 6 4 6 62 61 63 TO C2-BOARD (C20) TH-42PZ700C D-Board (8 of 8) Schematic Diagram TH-42PZ700C D-Board (8 of 8) Schematic Diagram 116 15.48.C1 和 C4 电路板方框图 ODED6 LED5 PCD5 CLRD5 R7485 R7486 R7178 R7177 6bit 2 P+5V ODED4 6bit 6bit 5V_DET 3 6bit 6bit 6bit D31C 35 U22A D22A CB4 DOUTUC10 DATA 45 Vda+75V 51 U19B C41 P+5V 45 38 Vda+75V CA4 6bit LED5 DATA CLKD5(-) CA1 U16C U22A Vda+75V Vda+75V P+5V 6 CA3 U14A U21C 26 10 ODED5 P+5V 23 +5V DET LED5 11 NCLK05R-07R 8bit P+5V D25C 2 P+5V Vda+75V Vda+75V P+5V P+5V Vad+75V P+5V D20A-D20C 30 8bit 2 6bit CB5 D36 27 U24A Vda+75V Vda+75V 6bit 61 P+5V 26 17 32 6bit +5V DET 6bit CA2 30 Vda+75V CA8 67 29 C42 28 60 LED6 U24A 30 61 Vda+75V 41 C11 P+5V P+5V 6bit DATA P+5V 6bit 68 D31 U17A 5 CB7 37 6bit PCD5 U25C U26C P+5V 14 PCD6 CA7 D35 Vda+75V U15C 6bit 1 12 U29A 58 U16B 5 P+5V Vda+75V DATA NCLK08L Vda+75V 5 U19A 57 8 59 59 D20A 3 6 6bit P+5V P+5V P+5V CLRD5 CLRD6 38 60 C12 19 D10A 28 DOUTUA13 CB2 9 CA6 34 43 6bit LED6 Vda+75V Vda+75V DATA 6bit 58 CB8 1 13 DOUTDC13 57 6bit 67 67 6bit U26B Vda+75V C40 6bit 10 U10A 6bit 39 P+5V 6bit 45 P+5V 6bit 6bit Vda+75V 6bit 5V DET 26 P+5V D23C U16C Vda+75V 6bit P+5V CLRD6 6bit Vda+75V 63 64 11 Vda+75V P+5V U21C C10 P+5V U16A 61 31 66 CLKD3(-) D21C 6bit D18A-D19C D13C 4bit D32 ODED5 Vda+75V CB1 6bit PCD4 P+5V Vda+75V ODED6 6bit 38 P+5V 59 3 52 Vda+75V DATA D24A 56 DATA 13 8bit Vda+75V 6bit PCD6 8 Vda+75V LED4 CLKD4(+) U31C 68 1 5 3 1 Vda+75V 55 CA5 6bit 1 6bit U28A 64 DATA CB3 CB6 41 CLRD5 Vda+75V 9 3 11 ODED6 DOUTDA10 28 CLRD4 DATA 63 P+5V 31 Vda+75V DATA P+5V Vda+75V Vda+75V 16 22 Vda+75V U27C P+5V U23C 6bit DATA 28 53 46 CLK05R-08R 6bit D30A 27 6bit 4 8bit PCD5 P+5V 6bit 66 C4 DATA DRIVER(RIGHT-DOWN) PANEL DATA DRIVER PANEL DATA DRIVER PANEL DATA DRIVER 11 37 3 LEU1 CLKU7(-) P+5V 10 8 5 8 6 PCU1 59 66 CLRU1 67 5 60 61 CLKU6(+) 39 P+5V 32 8 64 1 +5V DET 2 30 P+5V ODEU1 9 ODEU1 LEU1 PCU1 CLRU1 CLRU1 BUFFER PCU1 P+5V ODEU1 LEU1 P+5V U26A, 2bit U26B DATA P+5V U26C 4bit DATA U27C U29C DATA U31C P+5V U29B 2bit 6bit DATA U30A CLK6R NCLK7R BUFFER CLK01R-04R P+5V NCLK01R-04R Vda+75V CLK08L P+5V NCLK05R-08R BUFFER CLK05R-07R 35 33 5 64 +5V DET 67 30 36 P+5V 39 3 34 66 2 68 1 P+5V P+5V CLKU5(-) CLKU4(+) CLKU2(+) NCLK5R CLK4R CLK2R CLK4R NCLK5R CLK2R 24 53 67 2 U17C A 4 1 U C 6 1 U 6bit DATA U15C U10A DATA 12bit U13C U10A-U13A DATA 12bit NCLK5R CLK4R CLK2R DATA DRIVER(RIGHT-UP) C1 NCLK7R CLK6R D30A D31C 6bit DATA 55 49 41 47 D28A 6bit D29C DATA D27C DATA D26A 6bit 6bit D29C D28A 6bit D26A 6bit D27C 25 31 DATA D24A 6bit D25C 6bit 28 D31C D26A 17 23 DATA D22A 6bit D23C 52 D25C D22A CLK01R-04R NCLK01R-04R P+5V 41 43 29 31 D18A D19C 6bit DATA 27 12bit DATA D10A D13C D14A D17C PANEL DATA DRIVER NCLK5R CLK4R NCLK3L 1 CLRD5 PCD5 LED5 ODED5 56 42 40 38 D15C D15A 28 26 24 2 D21C D16A D14A D14C 6bit U29A DATA 4bit U28A U22A U23C 6bit DATA U20A U21C DATA 6bit IC7106 IC7105 BUFFER IC7107 IC7108 BUFFER IC7109 BUFFER IC7401 BUFFER IC7405 BUFFER BUFFER IC7406 IC7101 Vda+75V 12bit DATA 35 33 36 34 CLK6R NCLK7R CLKD7(-) CLKD6(+) DATA U29B 8bit U31C DATA 12bit D10A-D13C D16A-D17C 6bit DATA DATA D14A-D15C 6bit C32 C22 P+5V IC7115 BUFFER P+5V IC7112 BUFFER 42 BUFFER IC7111 P+5V BUFFER P+5V IC7110 DATA U16A U16B 2bit U18A DATA 4bit U19A U19B 2bit DATA U19C P+5V TH-42PZ700C C1 and C4-Board Block Diagram TH-42PZ700C C1 and C4-Board Block Diagram 117 15.49.C2 和 C3 电路板方框图 PCD5 ODED5 CLRD5 LED5 CLK2L NCLK3L CLK0L NCLK1L ODEU3 LEU3 PCU3 CLRU3 NCLK3L CLK2L ODED5 CLRD5 PCD5 LEDS R7301 R7302 R7213 R7214 Vda+75V 6bit CB 6bit 4bit DATA C33 1 6bit 2bit 11 Vda+75V 6bit 12 ODEU2 PCU2 2 DATA 6bit 6bit 6bit Vda+75V DATA 13 D0A-D1C P+5V P+5V SS23 CA 28 2 CB 5 29 CA Vda+75V 4 P+5V DATA UEL 7 Vad+75V P+5V Vad+75V 15 U2C-U3C 14 2bit SS35 Vda+75V 20 6bit NCLK09L-12L P+5V P+5V 15 6bit 14 C22 P+5V 13 Vda+75V 4 C23 CA 6bit P+5V 18 2 CB 6bit P+5V 6bit 4bit Vda+75V 3 6bit Vda+75V 6 UMH P+5V 19 CB Vda+75V UEH 6bit P+5V C32 15 SS33 1 LEU2 Vda+75V 1 Vda+75V 5 P+5V Vda+75V P+5V Vda+75V P+5V 2 DATA 30 U5B,U5C 26 P+5V DATA 12 6bit CB P+5V 6bit Vda+75V 12 27 3 11 6bit C35 6bit 28 CLRU2 Vda+75V 6bit 1 CA P+5V 6bit 6bit UML P+5V 1 Vda+75V U2A,U2B 6bit CA 17 USH 3 USL CLK09L-12L DATA DRIVER(LEFT-UP) DATA DRIVER(LEFT-DOWN) C2 BUFFER PANEL DATA DRIVER Vda+75V P+5V P+5V 6bit 6bit Vda+75V 6bit 6bit 12bit DATA D10A-D13C 6bit DATA D11C D10A DATA 6bit D12A D13C P+5V CLK13L-15L NCLK13L-15L BUFFER LED3 P+5V C3 PCD3 ODED3 CLRD3 P+5V 2 58 UML 64 C30 30 28 2 56 P+5V 27 55 +5V DET 68 32 54 31 41 62 10 UEH DRV_SOS8 42 48 59 9 D34 53 5 1 9 3 1 6 NUEL 1 11 43 26 CLKD0(+) 21 60 66 3 4 1 USL CLKD1(-) USH 13 59 P+5V 38 7 UMH 45 5 37 9 2 1 5 P+5V 67 67 35 36 34 CLKD2(+) 33 CLKD3(-) 10 CB SOS8_SS 8 UMH USH NUEL USL UML UEH NCLK1L CLK0L NCLK3L NCLK2L P+5V CLKO9L-12L NCLKO9L-12L 40 DATA 6bit D0A D1C D0A D1C DATA 6bit D2A-D3C D2A 6bit D3C DATA D3C D2A D9C D4A 24 D4A-D5C D4A DATA 6bit D5C DATA 6bit D7C D6A 6bit D9C D8A DATA 6bit DATA D6A-D7C P+5V Vda+75V P+5V CB9 ODEU3 52 9 5 3 1 36 11 38 34 42 8 D9C CLKU1(-) 6 CLKU3(-) 33 3 5 CLKU0(+) PCU3 37 17 CLKU2(+) D1C 60 CLRU3 66 22 P+5V 59 64 67 C20 30 P+5V 28 P+5V 21 2 58 D7B D33 39 D0A +5V DET 2 3 8 6 31 41 61 10 LEU3 NCLK1L NCLK1L NCLK0L NCLK0L NCLK3L CLK2L 43 53 63 54 U8C 4bit U9C DATA U8B DATA 8bit U6A DATA U5C 2bit U5B, 2bit U5B, U5C DATA DATA U5A 8bit U2C 8bit U2B DATA U0A 8bit U2C-U5A DATA 8bit U0A-U2B DATA U4A-U5A DATA U0A-U1C 6bit 10 CA Vda+75V 6bit 6bit Vda+75V P+5V P+5V 6bit CA9 6bit DATA 12bit U10A-U13C 8bit U13C DATA U11B 30 IC7305 IC7301 BUFFER BUFFER IC7306 IC7207 BUFFER IC7208 BUFFER IC7201 IC7205 BUFFER IC7206 BUFFER IC7309 BUFFER PANEL DATA DRIVER P+5V Vda+75V Vda+75V Vda+75V DOUTUA13 Vda+75V Vda+75V DOUTUC10 5V DET Vda+75V ODED5 DOUTDC13 Vda+75V CLRD5 Vda+75V 5V_DET Vda+75V LED5 DOUTDA10 Vda+75V PCD5 DATA D8A-D9C 6bit C42 C12 IC7210 BUFFER P+5V NCLK13L-15L CLK13L-15L 6bit U8A,U8B 2bit IC7211 BUFFER DATA P+5V DATA U6A-U7C U8C-U9C 4bit DATA BUFFER P+5V IC7209 U9C DATA U8C 4bit 4bit DATA U10A U11A U11A 4bit DATA U10A 2bit U11B DATA U11C U12A 8bit U13C DATA TH-42PZ700C C2 and C3-Board Block Diagram TH-42PZ700C C2 and C3-Board Block Diagram 118 15.50.C1 电路板 (1/3) 线路图 TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE AB_LEU1 AB_DUA30 AB_DUB30 AB_DUC30 AB_LEU1 AB_DUA31 AB_DUB31 AB_PCU1 AB_LEU1 AB_LEU1 AB_PCU1 AB_LEU1 AB_DUA28 AB_DUB28 AB_DUC28 AB_PCU1 AB_LEU1 AB_DUA29 AB_DUB29 AB_DUC29 AB_PCU1 AB_LEU1 AB_DUA24 AB_DUB24 AB_DUC24 AB_LEU1 AB_DUA25 AB_DUB25 AB_DUC25 AB_PCU1 AB_CLK01R AB_NCLK01R AB_CLK02R AB_NCLK02R AB_CLK03R AB_NCLK03R AB_CLK04R AB_NCLK04R AB_CLK05R AB_NCLK05R AC_PCU1 AB_DUA22 AB_DUC23 AC_LEU1 AB_DUB23 AB_DUA23 AB_DUC22 AB_DUB22 AC_LEU1 AB_CLRU1 AB_CLRU1 AB_ODEU1 AB_ODEU1 AB_CLRU1 AB_CLRU1 AB_ODEU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 AB_CLRU1 AC_ODEU1 AC_CLRU1 AC_ODEU1 AC_CLRU1 AB_ODEU1 AB_DUB20 AB_DUA20 AC_LEU1 AB_NCLK06R AC_ODEU1 AC_CLRU1 AB_DUC20 AC_ODEU1 AC_PCU1 AC_CLRU1 AB_DUC21 AB_DUB21 AC_PCU1 AB_DUA21 AB_CLK06R AB_DUC31 AB_DUA30 AB_DUB30 AB_DUC30 AB_DUB31 AB_DUC31 AB_DUA31 AB_DUA28 AB_DUB28 AB_DUC28 AB_DUA29 AB_DUB29 AB_DUC29 AB_DUA27 AB_DUB27 AB_DUC27 AB_DUC26 AB_DUB26 AB_DUA26 AB_DUA27 AB_DUB27 AB_DUC27 AB_DUA24 AB_DUB24 AB_DUC24 AC_LEU1 AB_DUA22 AB_DUB22 AB_DUC22 AB_DUA21 AB_DUB21 AB_DUC21 AB_DUA23 AB_DUB23 AB_DUC23 AB_DUA20 AB_DUB20 AB_DUC20 AB_DUA26 AB_DUB26 AB_DUC26 AB_DUA25 AB_DUB25 AB_DUC25 AC_PCU1 AB_PCU1 AB_PCU1 AB_PCU1 C7140 16V 1u C7101 16V 1u C7193 16V 1u C7106 100V 1u C7153 100V 1u C7102 16V 1u C7194 16V 1u C7191 16V 1u C7186 16V 1u C7195 16V 1u C7147 100V 1u C7148 100V 1u C7160 16V 1u C7139 16V 1u C7151 100V 1u C7192 16V 1u C7159 16V 1u C7182 100V 1u D7111 B0ECKM000038 D7108 B0ECKM000038 D7110 B0ECKM000038 D7112 B0ECKM000038 D7101 B0ECKM000038 D7115 B0ECKM000038 D7114 B0ECKM000038 D7113 B0ECKM000038 D7109 B0ECKM000038 D7102 B0ECKM000038 D7107 B0ECKM000038 D7116 B0ECKM000038 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C1_5V VDA_75V C1_5V C1_5V C1_5V VDA_75V C1_5V VDA_75V C1_5V VDA_75V VDA_75V VDA_75V R7144 6.8 R7146 6.8 R7153 6.8 R7103 6.8 R7154 6.8 R7102 6.8 R7145 6.8 R7104 6.8 R7139 6.8 R7142 6.8 R7157 6.8 R7156 6.8 R7151 6.8 R7141 6.8 R7147 6.8 R7150 6.8 R7152 6.8 R7155 6.8 R7148 6.8 R7138 4.7k R7143 6.8 R7101 6.8 R7158 6.8 R7149 6.8 R7140 6.8 5V 5V VDD2 VDD2 VDD2 VDD2 GND GND GND GND A2 A6 NC A3 NC ODE GND DM NC GND GND VDD2 GND NC GND VDD1 GND FX GND GND A3 VDD2 A4 VDD2 VDD2 FS VDD1 VDD2 FDET1 FDET NC BLK NC A1 VDD1 VDD1 BLK FS ODE CLR NC CLR A2 NC FX A6 DM LEN VDD2 A5 VDD2 VDD2 A5 A4 A1 LEN GND GND GND GND VDD2 BLK GND FDET GND FX VDD2 FS VDD2 A4 VDD2 DM VDD1 A5 GND NC VDD2 VDD2 VDD2 CLR VDD2 GND A2 GND GND GND A2 A6 FS NC A1 LEN A3 NC ODE GND DM NC NC GND GND VDD1 VDD2 GND NC BLK GND A6 VDD1 VDD2 GND FX FDET1 A1 ODE VDD2 A4 GND GND VDD2 GND NC NC LEN A5 A3 CLR VDD1 VDD2 BLK GND FDET GND FX VDD2 FS VDD2 A4 VDD2 DM VDD1 A5 GND NC VDD2 VDD2 VDD2 CLR VDD2 GND A2 GND GND GND A2 A6 FS NC A1 LEN A3 NC ODE GND DM NC NC GND GND VDD1 VDD2 GND NC BLK GND A6 VDD1 VDD2 GND FX FDET1 A1 ODE VDD2 A4 GND GND VDD2 GND NC NC LEN A5 A3 CLR VDD1 VDD2 BLK GND FDET GND FX VDD2 FS VDD2 A4 VDD2 DM VDD1 A5 GND NC VDD2 VDD2 VDD2 CLR VDD2 GND A2 GND GND GND A2 A6 FS NC A1 LEN A3 NC ODE GND DM NC NC GND GND VDD1 VDD2 GND NC BLK GND A6 VDD1 VDD2 GND FX FDET1 A1 ODE VDD2 A4 GND GND VDD2 GND NC NC LEN A5 A3 CLR VDD1 BLK GND FDET1 CLR VDD1 VDD2 LEN A3 A1 NC ODE GND VDD2 GND ODE VDD2 DM VDD2 GND A2 VDD2 GND A4 A2 NC GND NC GND VDD2 VDD1 NC A6 FX GND FS LEN NC VDD1 VDD2 GND A5 GND VDD2 FDET A6 NC A4 GND A3 FS NC VDD2 A1 CLR GND VDD1 DM FX GND VDD2 NC 5V GND GND VDD2 BLK VDD2 A5 GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC 5V FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 NC A3 GND FS NC VDD2 NC BLK VDD2 GND A4 GND A4 BLK VDD2 GND VDD1 A1 VDD2 DM VDD1 VDD2 FX FDET NC GND 2 C 7 3 9 8 6 E B A 5 4 D F 1 PANEL DATA CA1 TO DRIVER PANEL DATA TO DRIVER CA2 TO CA3 PANEL DATA DRIVER DRIVER PANEL DATA TO CA6 DRIVER PANEL DATA TO CA5 PANEL DATA CA4 TO DRIVER 5V 5V C1-BOARD TNPA4370 (1/3) ! 1 2 3 4 5 TH-42PZ700C C1-Board (1 of 3) Schematic Diagram TH-42PZ700C C1-Board (1 of 3) Schematic Diagram 119 15.51.C1 电路板 (2/3) 线路图 G G TERM SIDE TERM SIDE TERM SIDE AB_DUA27 AB_DUC26 AB_DUB26 AB_DUA26 AB_DUC29 AB_DUB29 AB_DUB25 AB_DUA25 AB_DUC24 AB_DUB24 AB_DUA24 AB_DUB28 AB_DUA28 AB_DUC31 AB_DUB31 AB_DUA31 AB_DUC30 AB_CLK02R AB_NCLK02R AB_DUC27 AB_DUB27 AB_DUA29 AB_DUC28 AB_DUB30 AB_DUA30 AC_CLRU1 AB_PCU1 AC_PCU1 AB_LEU1 AB_CLRU1 AC_LEU1 AC_ODEU1 AB_ODEU1 AA_DUA22 AA_DUB22 AA_DUC22 AA_DUA23 AA_DUB23 AA_DUC23 AA_DUA24 AA_DUB24 AA_DUC24 AA_DUA25 AA_DUB25 AA_DUC25 AA_DUA26 AA_DUB26 AA_DUC26 AA_DUA27 AA_DUB27 AA_DUC27 AA_CLK6R AA_NCLK7R AA_DUA28 AA_DUB28 AA_DUC28 AA_DUA29 AA_DUB29 AA_DUC29 AA_DUA30 AA_DUB30 AA_DUC30 AA_DUA31 AA_DUB31 AA_DUC31 AA_CLRU1 AA_PCU1 AA_LEU1 AA_ODEU1 AB_DUC25 AA_DUC27 AA_DUC24 AA_DUB27 AA_DUB24 AA_DUB25 AA_DUA24 AA_DUA25 AA_DUB29 AA_DUB26 AA_DUC28 AA_DUA29 AA_DUC29 AA_DUA27 AA_DUA30 AA_DUA31 AA_DUB31 AA_DUC30 AA_DUB30 AA_DUC31 AA_DUA28 AA_DUB28 AB_CLK03R AB_DUA19 AC_CLRU1 AC_ODEU1 AB_NCLK07R AC_CLRU1 AB_CLK07R AC_ODEU1 AB_DUC18 AC_PCU1 AB_DUB18 AC_LEU1 AC_PCU1 AB_DUA18 AC_LEU1 AB_DUC19 AB_DUB19 AA_CLK6R AA_CLRU1 AA_LEU1 AA_ODEU1 AB_CLK01R AB_NCLK08R AC_CLRU1 AC_CLRU1 AC_ODEU1 AC_ODEU1 AC_LEU1 AC_PCU1 AC_LEU1 AC_PCU1 AB_CLK08L AB_NCLK01R AB_NCLK03R AB_NCLK04R AB_CLK04R AB_DUB18 AB_DUC18 AB_DUA19 AB_DUB19 AB_DUC19 AB_DUC17 AB_DUB17 AB_DUA17 AB_DUC16 AB_DUB16 AB_DUA16 AB_DUA14 AB_DUB14 AB_DUC14 AB_DUA15 AB_DUB15 AB_DUC15 AA_PCU1 AA_NCLK7R AB_DUA18 AB_DUC23 AB_DUB23 AB_DUA23 AB_DUC22 AB_DUB22 AB_DUA22 AA_DUC26 AA_DUC23 AA_DUB23 AA_DUA23 AA_DUC22 AA_DUB22 AA_DUA22 AA_DUC25 AA_DUA26 C7111 16V 1u C7132 100V 1u C7130 16V 1u C7167 16V 0.1u C7113 100V 1u C7162 16V 0.1u C7190 16V 0.1u C7129 16V 1u C7199 16V 0.1u C7169 16V 0.1u C7110 16V 1u C7168 16V 0.1u D7106 B0ECKM000038 D7103 B0ECKM000038 D7105 B0ECKM000038 D7104 B0ECKM000038 J0HABH000013 FL7101 1 2 3 C0JBAZ002692 IC7108 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7107 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7115 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7105 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7106 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7109 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 VDA_75V C1_5V C1_5V VDA_75V C1_5V C1_5V C1_5V C1_5V C1_5V C1_5V P5V C1_5V R7160 EXB38V471JV R7116 EXB38V470JV R7180 EXB38V681JV R7166 EXB38V470JV R7173 EXB38V470JV R7159 EXB38V471JV R7170 EXB38V470JV R7167 EXB38V470JV R7168 EXB38V681JV R7171 EXB38V470JV R7196 EXB38V471JV R7165 EXB38V681JV R7161 EXB38V471JV R7162 EXB38V470JV R7163 EXB38V470JV R7187 EXB38V220JV R7197 EXB38V471JV R7188 EXB38V220JV R7164 EXB38V681JV R7115 EXB38V470JV R7176 EXB38V470JV R7133 0 R7137 6.8 R7108 6.8 R7178 100k R7117 680 R7135 6.8 R7132 0 R7177 22k R7105 6.8 R7134 6.8 R7118 680 R7107 6.8 R7136 6.8 R7106 6.8 P5V P5V DOUTUB[29] DOUTUA[29] DOUTUA[28] DOUTUC[28] GND DOUTUB[28] DOUTUA[27] DOUTUC[27] GND DOUTUB[27] DOUTUC[26] GND DOUTUB[26] DOUTUA[26] GND DOUTUC[25] GND NC DOUTUB[25] GND DOUTUA[25] NC DOUTUC[24] NC GND NC DOUTUB[24] DOUTUA[24] DOUTUC[23] GND DOUTUA[22] DOUTUC[31] GND DOUTUB[31] DOUTUA[31] GND GND GND NC(DSHR) DOUTUB[23] GND NC(DMLR) DOUTUA[30] DOUTUA[23] CLKU[6](+) NC(DMHR) DOUTUC[30] DOUTUC[22] ODEU1 GND GND DOUTUB[30] DOUTUB[22] GND 5V_DET GND CLRU1 DOUTUC[29] PCU1 GND LEU1 P5V CLKU[7](-) NC(DSLR) NC NC VDD1 VDD2 CLR DM VDD2 VDD1 FX VDD2 FX FDET NC GND A1 GND GND GND A2 A2 GND A3 NC FS GND VDD2 NC VDD2 LEN VDD1 VDD2 BLK LEN GND FS 5V GND BLK NC GND A1 VDD1 A5 ODE GND ODE GND A3 NC VDD2 CLR GND NC DM GND A6 A5 GND GND NC VDD2 GND A6 NC NC VDD2 VDD2 A4 A4 VDD2 VDD2 VDD2 FS BLK LEN VDD2 VDD2 FX A4 GND NC VDD2 VDD1 ODE VDD2 DM GND VDD1 VDD2 A3 A6 VDD2 GND A3 FX CLR VDD2 FDET A5 VDD1 A5 VDD2 GND A2 NC NC NC VDD1 A6 BLK VDD2 NC GND FS GND LEN VDD2 NC GND GND A4 5V NC A2 GND A1 VDD2 GND NC GND A1 ODE NC GND GND DM CLR GND GND GND 11 16 4 1 2 1 18 17 13 10 15 DRIVER PANEL DATA TO CA7 PANEL DATA CA8 TO DRIVER BUFFER BUFFER BUFFER R E F F U B R E F F U B BUFFER TO (D31) D-BOARD C1-BOARD TNPA4370 (2/3) ! 5 3 1 4 2 11 12 TH-42PZ700C C1-Board (2 of 3) Schematic Diagram TH-42PZ700C C1-Board (2 of 3) Schematic Diagram 120 15.52.C1 电路板 (3/3) 线路图 TERM SIDE TERM SIDE AA_DUC17 AA_DUA11 AA_DUB13 AA_DUB17 AA_DUC10 AB_NCLK06R AA_DUC21 AA_DUA17 AA_DUB10 AB_CLK06R AA_DUB21 AA_DUB15 AA_NCLK5R AA_DUA10 AA_DUA21 AA_DUA15 AA_CLK4R AA_DUC20 AA_DUC14 AA_DUB20 AA_DUB14 AB_CLK05R AA_DUA20 AA_DUC16 AA_DUC19 AA_DUA13 AA_DUB16 AA_DUB19 AA_DUC12 AA_DUA16 AA_DUC18 AA_DUB12 AA_DUC15 AA_DUA19 AA_DUA12 AB_NCLK05R AA_DUB18 AA_DUC11 AA_DUA18 AA_DUB11 AA_DUA13 AA_DUC12 AA_DUB12 AA_DUA12 AA_DUC11 AA_DUB11 AA_DUA11 AA_DUC10 AA_DUB10 AA_DUA10 5V_DET 5V_DET AA_DUC13 AA_DUA14 AB_CLK08L AB_CLK07R AB_NCLK07R AB_NCLK08R AA_CLK2R AA_NCLK5R AA_CLK4R AA_CLK2R AA_DUB13 AA_DUC13 AB_DUC16 AB_DUA17 AB_DUB17 AB_DUC17 AB_DUA18 AB_DUB18 AB_DUC18 AB_DUA19 AB_DUC21 AB_DUB21 AB_DUA21 AB_DUC20 AB_DUB20 AB_DUA20 AB_DUC19 AB_DUB19 AB_DUB16 AB_DUA16 AB_DUC15 AB_DUB15 AB_DUA15 AB_DUC14 AB_DUB14 AB_DUA14 AA_DUC21 AA_DUB21 AA_DUA21 AA_DUC20 AA_DUB20 AA_DUA20 AA_DUC19 AA_DUB19 AA_DUB16 AA_DUA16 AA_DUC15 AA_DUB15 AA_DUA15 AA_DUC14 AA_DUB14 AA_DUA14 AA_DUA19 AA_DUC18 AA_DUB18 AA_DUA18 AA_DUC17 AA_DUB17 AA_DUA17 AA_DUC16 C7196 16V 0.1u C7198 16V 0.1u C7120 16V 0.1u C7197 16V 0.1u C0JBAZ002692 IC7111 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7101 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7112 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7110 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 C11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 C1_5V C1_5V C1_5V C1_5V P5V VDA_75V ZA7103 K4CD01000011 ZA7102 K4AD01Z00001 ZA7105 K4AD01Z00001 ZA7104 K4CD01000011 ZA7101 K4AD01Z00001 R7199 EXB38V471JV R7193 EXB38V471JV R7109 EXB38V470JV R7114 EXB38V470JV R7189 EXB38V220JV R7194 EXB38V681JV R7111 EXB38V470JV R7190 EXB38V220JV R7112 EXB38V470JV R7113 EXB38V470JV R7195 EXB38V681JV R7198 EXB38V471JV R7110 EXB38V470JV R7120 EXB38V681JV R7192 EXB38V681JV R7191 220k R7119 22 68 1 C10 C12 30 1 1 68 GND DOUTUB[20] DOUTUC[10] DOUTUB[14] DOUTUA[21] GND DOUTUA[14] DOUTUB[21] DOUTUB[10] DOUTUC[12] GND GND DOUTUC[21] DOUTUA[12] DOUTUB[12] NC(CLKU[3](-)) GND GND DOUTUC[20] GND DOUTUA[10] NC(LEU2) DOUTUC[14] DOUTUB[19] GND DOUTUA[19] P5V DOUTUC[19] DOUTUA[18] DOUTUC[18] GND DOUTUB[18] P5V P5V DOUTUB[17] DOUTUA[17] DOUTUA[16] GND NC DOUTUC[16] NC(PCU2) GND DOUTUB[16] DOUTUA[15] DOUTUC[15] GND DOUTUC[17] DOUTUB[15] NC(CLRU2) DOUTUC[13] GND GND DOUTUB[13] DOUTUA[13] 5V_DET NC(ODEU2) GND NC(DRVSOS7U) DOUTUC[11] GND DOUTUB[11] DOUTUA[20] DOUTUA[11] CLKU[4](+) CLKU[2](+) GND GND CLKU[5](-) DOUTUC[12] DOUTUA[13] DOUTUA[12] DOUTUB[12] DOUTUC[13] DOUTUB[13] GND GND GND NC VDA GND GND VDA VDA NC GND NC GND GND GND VDA VDA DOUTUB[10] DOUTUC[11] DOUTUC[10] DOUTUB[11] DOUTUA[10] DOUTUA[11] 5V_DET 68 1 68 1 68 1 68 1 68 1 68 1 68 1 C11 1 68 2 3 1 7 C 3 1 1 7 C 6 0 1 7 C 2 8 1 7 C 1 5 1 7 C 3 5 1 7 C 8 4 1 7 C 7 4 1 7 C 24 20 25 19 23 27 26 22 21 BUFFER BUFFER R E F F U B R E F F U B (C22) C2-BOARD TO TO (D32) D-BOARD C1-BOARD TNPA4370 (3/3) ! 11 12 TH-42PZ700C C1-Board (3 of 3) Schematic Diagram TH-42PZ700C C1-Board (3 of 3) Schematic Diagram 121 15.53.C2 电路板 (1/3) 线路图 G G TERM SIDE TERM SIDE AC_PCU2 AC_LEU2 AB_PCU2 AC_CLRU2 AB_CLRU2 AB_LEU2 AB_ODEU2 AC_ODEU2 AB_CLK14L AB_NCLK14L AB_CLK13L AB_NCLK13L AB_CLK15L AA_DUB0 AA_DUC1 AA_DUA0 AA_DUC5 AA_DUB5 AA_DUA5 AA_DUC4 AA_DUB4 AA_DUA4 AA_DUC3 AA_DUB3 AA_DUA3 AA_DUB1 AA_DUC2 AA_DUA1 AA_DUB2 AA_DUC0 AA_DUA2 AB_DUC1 AB_DUC2 AB_DUA2 AB_DUA5 AB_DUB2 AB_DUA4 AB_DUA0 AB_DUC3 AB_DUC4 AB_DUB3 AB_DUB0 AB_DUC0 AB_DUA1 AB_DUB1 AB_DUA3 AA_CLK0L AA_NCLK1L AB_NCLK15L AB_NCLK12L AB_NCLK10L AB_NCLK11L AB_NCLK09L AB_CLK12L AB_CLK11L AB_CLK10L AB_CLK09L AA_DUC13 AA_DUB13 AA_DUA13 AA_DUC12 AA_DUB12 AA_DUA12 AA_DUC11 AA_DUB11 AA_DUA11 AA_DUC10 AA_DUB10 AA_DUA10 AA_CLK0L AA_NCLK1L AA_ODEU3 AA_LEU3 AA_PCU3 AA_CLRU3 AA_ODEU3 AA_LEU3 AA_CLRU3 AB_DUB5 AB_DUC5 AA_DUA5 AA_DUC4 AA_DUB4 AA_DUA4 AA_DUC3 AA_DUB3 AA_DUA3 AA_DUC2 AA_DUB2 AA_DUA2 AA_DUC1 AA_DUB1 AA_DUA1 AA_DUC0 AA_DUB0 AA_DUA0 5V_DET 5V_DET AA_DUC5 AA_DUB5 AA_DUC9 AA_DUB9 AA_DUA9 AA_DUC8 AA_DUB8 AA_DUA8 AA_DUC7 AA_DUB7 AA_DUA7 AA_DUC6 AA_DUB6 AA_DUA6 AA_PCU3 AA_CLK2L AB_DUB4 AA_DUC13 AA_DUB13 AA_DUA13 AA_DUC12 AA_DUB12 AA_DUA12 AA_DUC11 AA_DUB11 AB_DUC13 AB_DUB13 AB_DUA13 AB_DUC12 AB_DUB12 AB_DUA12 AB_DUC11 AB_DUB11 AA_DUB8 AA_DUA8 AA_DUC7 AA_DUB7 AA_DUA7 AA_DUC6 AA_DUB6 AA_DUA6 AB_DUB8 AB_DUA8 AB_DUC7 AB_DUB7 AB_DUA7 AB_DUC6 AB_DUB6 AB_DUA6 AA_DUA11 AA_DUC10 AA_DUB10 AA_DUA10 AA_DUC9 AA_DUB9 AA_DUA9 AA_DUC8 AB_DUA11 AB_DUC10 AB_DUB10 AB_DUA10 AB_DUC9 AB_DUB9 AB_DUA9 AB_DUC8 AA_NCLK3L AA_NCLK3L AA_CLK2L C7202 16V 0.1u C7204 100V 1u C7236 16V 0.1u C7278 16V 0.1u C7212 16V 0.1u C7214 16V 0.1u C7284 16V 0.1u C7286 16V 0.1u C7285 16V 0.1u J0HABH000013 FL7201 1 2 3 C0JBAZ002692 IC7208 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7209 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7201 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7210 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7207 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7206 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7211 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7205 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 C20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 C23 1 2 3 4 C2_5V C2_5V C2_5V C2_5V C2_5V VDA_75V C2_5V C2_5V C2_5V VDA_75V C2_5V ZA7203 K4AD01Z00001 ZA7204 K4AD01Z00001 ZA7201 K4CD01000011 ZA7205 K4CD01000011 ZA7202 K4AD01Z00001 R7277 EXB38V220JV R7292 EXB38V681JV R7293 EXB38V681JV R7234 EXB38V470JV R7244 EXB38V470JV R7235 EXB38V470JV R7297 EXB38V471JV R7203 EXB38V470JV R7296 EXB38V471JV R7212 EXB38V220JV R7247 EXB38V681JV R7200 EXB38V470JV R7239 EXB38V471JV R7246 EXB38V681JV R7278 EXB38V220JV R7237 EXB38V471JV R7295 EXB38V681JV R7276 EXB38V220JV R7294 EXB38V471JV R7201 EXB38V470JV R7232 EXB38V470JV R7298 EXB38V470JV R7233 EXB38V470JV R7236 EXB38V471JV R7202 EXB38V470JV R7299 EXB38V470JV R7238 EXB38V471JV R7245 EXB38V470JV R7288 680 R7210 0 R7214 100k R7215 220k R7290 22 R7289 680 R7273 0 R7213 22k C31 1 30 NC DOUTUA[4] NC GND GND NC CLRU3 NC GND GND DOUTUC[6] GND DOUTUA[1] DOUTUC[1] DOUTUC[3] GND GND DOUTUA[0] DOUTUB[9] DOUTUC[4] CLKU[3](-) DOUTUB[8] NC GND GND GND CLKU[2](+) LEU3 DOUTUB[3] NC DOUTUC[0] DOUTUB[4] GND GND DOUTUB[2] DOUTUB[0] GND DOUTUA[2] P5V GND DOUTUA[5] NC NC DOUTUA[3] DOUTUB[1] GND DOUTUB[6] DOUTUA[6] ODEU3 DOUTUC[5] DOUTUA[9] DOUTUC[9] DOUTUC[7] GND DOUTUA[8] DOUTUB[7] CLKU[0](+) DOUTUA[7] DOUTUB[5] DOUTUC[8] GND 5V_DET CLKU[1](-) P5V DOUTUC[2] P5V GND PCU3 DOUTUC[12] DOUTUA[13] DOUTUA[12] DOUTUB[12] DOUTUC[13] DOUTUB[13] GND GND GND NC VDA GND VDA VDA NC DOUTUB[11] DOUTUA[10] DOUTUA[11] 5V_DET VDA VDA DOUTUB[10] DOUTUC[11] DOUTUC[10] GND NC GND GND GND NC GND Vda 75V Vda 75V 68 1 1 C10 68 1 1 8 6 1 8 6 1 8 6 1 8 6 8 6 68 1 GND 0 7 2 7 C 1 5 2 7 C 0 5 2 7 C 7 4 2 7 C 8 4 2 7 C 8 2 2 7 C 0 2 2 7 C 5 4 1 2 7 3 9 8 6 C E B A D F BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER D-BOARD TO (D33) C1-BOARD (C12) TO SS-BOARD TO (SS23) C2-BOARD TNPA4371 (1/3) ! 1 2 3 TH-42PZ700C C2-Board (1 of 3) Schematic Diagram TH-42PZ700C C2-Board (1 of 3) Schematic Diagram 122 15.54.C2 电路板 (2/3) 线路图 TERM SIDE TERM SIDE TERM SIDE TERM SIDE AB_LEU2 AB_DUA8 AB_DUB8 AB_DUC8 AB_PCU2 AB_LEU2 AB_DUA9 AB_DUB9 AB_DUC9 AB_PCU2 AB_LEU2 AB_DUA6 AB_DUB6 AB_DUC6 AB_PCU2 AB_LEU2 AB_DUA7 AB_DUB7 AB_DUC7 AB_PCU2 AB_CLK11L AB_NCLK11L AB_CLK12L AB_NCLK12L AB_ODEU2 AB_CLRU2 AB_ODEU2 AB_CLRU2 AB_ODEU2 AB_CLRU2 AB_ODEU2 AB_CLRU2 AB_PCU2 AB_CLRU2 AB_DUC10 AB_DUA11 AB_CLRU2 AB_DUB11 AB_LEU2 AB_DUC11 AB_DUB10 AB_ODEU2 AB_PCU2 AB_ODEU2 AB_CLK10L AB_NCLK10L AB_LEU2 AB_DUA10 AB_NCLK09L AB_CLRU2 AB_CLRU2 AB_ODEU2 AB_ODEU2 AB_LEU2 AB_DUA13 AB_PCU2 AB_DUB13 AB_LEU2 AB_DUC13 AB_DUB12 AB_PCU2 AB_DUC12 AB_CLK09L AB_DUA12 AB_DUB12 AB_DUC12 AB_DUA12 AB_DUA13 AB_DUB13 AB_DUC13 AB_DUA10 AB_DUB10 AB_DUC10 AB_DUA11 AB_DUB11 AB_DUC11 AB_DUB8 AB_DUC8 AB_DUA9 AB_DUB9 AB_DUC9 AB_DUA6 AB_DUB6 AB_DUC6 AB_DUA7 AB_DUB7 AB_DUC7 AB_DUA8 C7228 100V 1u C7248 100V 1u C7247 100V 1u C7280 16V 1u C7279 16V 1u C7206 16V 1u C7238 16V 1u C7205 16V 1u C7220 100V 1u C7226 16V 1u C7237 16V 1u C7218 16V 1u D7203 B0ECKM000038 D7205 B0ECKM000038 D7208 B0ECKM000038 D7206 B0ECKM000038 D7202 B0ECKM000038 D7201 B0ECKM000038 D7204 B0ECKM000038 D7207 B0ECKM000038 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 VDA_75V C2_5V C2_5V VDA_75V C2_5V C2_5V VDA_75V VDA_75V R7218 6.8 R7219 6.8 R7223 6.8 R7260 6.8 R7257 6.8 R7220 6.8 R7216 6.8 R7261 6.8 R7264 6.8 R7263 6.8 R7217 6.8 R7258 6.8 R7262 6.8 R7221 6.8 R7222 6.8 R7259 6.8 5V NC A4 VDD2 DM VDD1 VDD1 A4 FS DM VDD2 GND FX ODE FDET1 VDD2 A3 VDD2 A2 VDD2 VDD2 GND CLR GND VDD2 GND A2 CLR BLK NC LEN VDD2 GND A5 GND VDD2 NC BLK GND GND FDET VDD1 GND NC GND A1 A3 A6 NC NC GND GND LEN A5 VDD2 FX VDD2 FS GND GND GND GND NC ODE NC A6 VDD1 A1 VDD2 FDET VDD2 VDD1 VDD1 DM A1 GND VDD1 VDD2 NC VDD1 GND A4 A1 FS A3 DM A6 VDD2 NC NC GND FX ODE FDET1 VDD2 A4 A3 VDD2 A2 VDD2 VDD2 GND CLR GND VDD2 GND A2 CLR BLK NC LEN VDD2 NC GND GND LEN A5 VDD2 FX VDD2 FS GND GND A5 GND GND GND VDD2 GND NC NC BLK ODE GND NC GND A6 VDD2 NC LEN GND VDD2 VDD1 NC A6 VDD2 VDD2 GND VDD2 A6 5V NC FS GND L LEN NC BLK GND A4 GND GND A4 A2 FX A3 GND VDD1 VDD2 GND VDD2 NC A2 NC VDD2 GND CLR GND GND VDD2 GND GND DM VDD1 DM A1 NC GND A1 FX ODE CLR VDD1 VDD2 GND VDD2 BLK ODE A5 A5 NC NC FS A3 GND VDD2 FDET VDD2 FS BLK LEN VDD2 VDD2 FX A4 GND NC VDD2 VDD1 ODE VDD2 DM GND VDD1 VDD2 A3 A6 VDD2 GND A3 FX CLR VDD2 FDET A5 VDD1 A5 VDD2 GND A2 NC NC NC VDD1 A6 BLK VDD2 NC GND FS GND LEN VDD2 GND NC L GND A4 5V NC A2 GND A1 VDD2 GND NC GND A1 ODE NC GND GND DM CLR GND GND GND 15 14 18 17 13 10 11 16 12 5V PANEL DATA DRIVER CA9 TO PANEL DATA DRIVER CA11 TO DRIVER PANEL DATA CA10 TO PANEL DATA DRIVER CA12 TO C2-BOARD TNPA4371 (2/3) ! 1 3 2 11 12 13 14 TH-42PZ700C C2-Board (2 of 3) Schematic Diagram TH-42PZ700C C2-Board (2 of 3) Schematic Diagram 123 15.55.C2 电路板 (3/3) 线路图 TERM SIDE TERM SIDE TERM SIDE AC_LEU2 AB_DUA4 AB_DUB4 AB_DUC4 AC_PCU2 AC_LEU2 AB_DUA5 AB_DUB5 AB_DUC5 AC_PCU2 AC_LEU2 AB_DUA2 AB_DUB2 AB_DUC2 AC_PCU2 AC_LEU2 AB_DUA3 AB_DUB3 AB_DUC3 AC_PCU2 AB_CLK13L AB_NCLK13L AB_CLK14L AB_NCLK14L AB_CLK15L AB_DUC0 AB_NCLK15L AB_DUB0 AB_DUA0 AC_LEU2 AC_PCU2 AB_DUC1 AB_DUB1 AB_DUA1 AC_PCU2 AC_LEU2 AC_ODEU2 AC_CLRU2 AC_ODEU2 AC_CLRU2 AC_ODEU2 AC_CLRU2 AC_ODEU2 AC_ODEU2 AC_CLRU2 AC_ODEU2 AC_CLRU2 AC_CLRU2 AB_DUA4 AB_DUB4 AB_DUC4 AB_DUA5 AB_DUB5 AB_DUC5 AB_DUA2 AB_DUB2 AB_DUC2 AB_DUA3 AB_DUB3 AB_DUC3 AB_DUA0 AB_DUB0 AB_DUC0 AB_DUA1 AB_DUB1 AB_DUC1 C7283 16V 1u C7282 16V 1u C7258 16V 1u C7281 16V 1u C7250 100V 1u C7259 16V 1u C7270 100V 1u C7274 16V 1u C7251 100V 1u D7214 B0ECKM000038 D7213 B0ECKM000038 D7210 B0ECKM000038 D7211 B0ECKM000038 D7212 B0ECKM000038 D7209 B0ECKM000038 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 VDA_75V VDA_75V C2_5V C2_5V VDA_75V C2_5V R7271 6.8 R7253 6.8 R7252 6.8 R7266 6.8 R7270 6.8 R7268 6.8 R7256 4.7k R7272 6.8 R7267 6.8 R7265 6.8 R7255 6.8 R7269 6.8 R7254 6.8 FDET VDD2 VDD1 VDD1 DM A1 GND VDD1 VDD2 NC VDD1 GND A4 A1 FS A3 DM A6 VDD2 NC NC GND FX ODE FDET1 VDD2 A4 A3 VDD2 A2 VDD2 VDD2 GND CLR GND VDD2 GND A2 CLR BLK NC LEN VDD2 NC GND GND LEN A5 VDD2 FX VDD2 FS GND GND A5 GND GND GND VDD2 GND NC NC BLK ODE GND NC GND A6 FDET VDD2 VDD1 VDD1 DM A1 GND VDD1 VDD2 NC VDD1 GND A4 A1 FS A3 DM A6 VDD2 NC NC GND FX ODE FDET1 VDD2 A4 A3 VDD2 A2 VDD2 VDD2 GND CLR GND VDD2 GND A2 CLR BLK NC LEN VDD2 NC GND GND LEN A5 VDD2 FX VDD2 FS GND GND A5 GND GND GND VDD2 GND NC NC BLK ODE GND NC GND A6 GND VDD2 FX NC FS VDD2 GND GND A6 A2 VDD1 LEN A5 GND A4 A1 FS NC A3 DM VDD2 DM NC GND NC GND BLK A6 VDD1 GND VDD1 GND VDD2 VDD2 A1 GND NC FDET VDD1 GND VDD2 NC GND GND FX A5 ODE FDET1 VDD2 VDD2 A4 LEN GND A3 VDD2 A2 GND NC VDD2 VDD2 BLK VDD2 GND ODE CLR NC GND CLR PANEL DATA CA13 DRIVER TO PANEL DATA DRIVER CA14 TO TO CA15 DRIVER PANEL DATA ! C2-BOARD TNPA4371 (3/3) 11 14 13 12 25 19 23 27 26 22 4 2 1 2 20 TH-42PZ700C C2-Board (3 of 3) Schematic Diagram TH-42PZ700C C2-Board (3 of 3) Schematic Diagram 124 15.56.C3 电路板 (1/3) 线路图 G G TERM SIDE TERM SIDE TERM SIDE TERM SIDE AB_CLRD3 AB_ODED3 AB_PCD3 AB_LED3 AB_PCD3 AB_CLK10L AB_NCLK10L AB_PCD3 AB_CLRD3 AA_DDA11 AB_NCLK09L AB_LED3 AB_ODED3 AB_ODED3 AA_DDB11 AA_DDC11 AB_CLK09L AB_CLRD3 AA_DDA13 AB_CLRD3 AA_DDC12 AB_ODED3 AA_DDB13 AA_DDB12 AA_DDC13 AA_DDA12 AA_DDC10 AB_LED3 AB_LED3 AC_CLRD3 AB_NCLK09L AB_NCLK10L AB_CLK09L AB_NCLK11L AB_CLRD3 AB_PCD3 AB_CLK10L AC_LED3 AB_CLK11L AC_ODED3 AB_ODED3 AB_LED3 AC_PCD3 AB_NCLK12L AB_CLK12L AA_DDA10 AA_DDB10 AA_DDA11 AA_DDC11 AA_DDB11 AA_DDA13 AA_DDB13 AA_DDA12 AA_DDB12 AA_DDC12 AA_ODED5 AA_LED5 AA_PCD5 AA_CLRD5 AA_DDC10 AA_DDC13 AA_DDB3 AA_DDA8 AA_DDC3 AA_DDB8 AA_DDA9 AA_DDA0 DRV_SOS8 AA_DDB0 AA_DDC6 AA_DDC0 AA_DDB6 AA_CLK0L AA_DDA6 AA_NCLK1L AA_DDC7 AA_DDB7 AA_UEH AA_DDA7 AA_USL AA_DDC4 AA_DDC5 AA_USH AA_DDA2 AA_DDB4 AA_UML AA_DDB2 AA_DDA4 AA_UMH AA_DDC2 AA_DDB5 AA_NUEL AA_DDA1 AA_DDA5 AA_DDB9 AA_DDB1 AA_DDA3 AA_DDC9 AA_DDC1 AA_NCLK3L AA_CLK2L AA_DDC8 AA_ODED5 AA_CLRD5 AA_LED5 5V_DET 5V_DET AA_DDA10 AA_DDB10 AA_DDB11 AA_DDB10 AA_DDC12 AA_DDB12 AA_DDA12 AA_DDA13 AA_DDB13 AA_DDC13 AB_PCD3 AA_DDA11 AA_DDC11 AA_DDA10 AA_DDC10 AA_PCD5 AA_NCLK3L AA_CLK2L C7312 100V 1u C7306 16V 1u C7367 16V 0.1u C7335 16V 1u C7305 16V 1u C7311 100V 1u C7334 16V 1u C7373 16V 0.1u D7302 B0ECKM000038 D7301 B0ECKM000038 D7304 B0ECKM000038 D7303 B0ECKM000038 J0HABH000013 FL7301 1 2 3 C0JBAZ002692 IC7301 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7305 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 C30 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 VDA_75V C3_5V VDA_75V C3_5V C3_5V C3_5V C3_5V VDA_75V R7382 EXB38V471JV R7375 EXB38V220JV R7343 EXB38V681JV R7374 EXB38V220JV R7379 EXB38V471JV R7381 EXB38V471JV R7333 EXB38V470JV R7380 EXB38V471JV R7334 EXB38V470JV R7307 6.8 R7364 0 R7309 6.8 R7378 22 R7365 0 R7301 22k R7393 680 R7311 6.8 R7306 6.8 R7394 680 R7304 6.8 R7302 100k R7308 6.8 R7310 6.8 R7305 6.8 GND GND VDD1 BLK VDD2 ODE CLR GND GND VDD1 VDD1 VDD2 DM A1 NC GND GND NC GND GND VDD2 NC NC A4 NC A5 A2 GND ODE NC NC GND NC LEN NC FS 5V VDD2 A6 5V NC VDD2 LEN LEN NC FS VDD1 NC A6 NC GND A2 A3 VDD2 A4 ODE VDD2 A3 A5 A4 GND VDD2 A5 CLR FS LEN FX GND FX NC NC GND VDD1 GND VDD2 VDD2 A4 CLR GND DM VDD1 GND VDD2 VDD2 VDD2 VDD2 GND GND GND A6 VDD2 A2 CLR DM VDD1 GND VDD2 ODE A3 GND A1 A3 GND VDD2 NC VDD2 FDET BLK GND GND GND BLK DM GND VDD2 GND A2 FX VDD1 NC VDD2 FX FS A1 VDD2 A5 FDET BLK A6 GND VDD2 NC GND GND GND VDD2 A1 VDD2 DDB12 GND CLR PC DDB10 GND DDA13 DDB11 5V_DET VDA ODE NC VDA GND DDB13 GND DDA11 LE NC DDC13 DDC12 GND DDA12 NC DDC10 VDA DDC11 DDA10 VDA VDA GND DOUTDB[1] DOUTDB[2] 5V_DET GND NC GND NC NC GND DRV_SOS8 DOUTDB[9] DOUTDA[9] GND DOUTDB[8] GND DOUTDA[8] DOUTDC[8] DOUTDB[4] DOUTDC[9] GND CLKD[3](-) DOUTDC[1] DOUTDB[0] DOUTDC[6] DOUTDA[4] USL DOUTDB[3] DOUTDA[5] NC(URL) DOUTDA[1] DOUTDC[5] DOUTDA[0] GND P5V DOUTDB[5] GND DOUTDA[3] DOUTDB[7] GND GND GND CLKD[1](-) GND DOUTDC[7] CLKD[0](+) DOUTDB[6] P5V CLKD[2](+) P5V UMH DOUTDC[4] USH NC(URH) DOUTDC[0] NUEL GND DOUTDA[7] UML DOUTDA[2] DOUTDC[3] GND GND DOUTDA[6] DOUTDC[2] GND UEH GND 1 2 7 3 9 8 6 4 5 C E B A D F BUFFER BUFFER DRIVER PANEL DATA TO CB10 PANEL DATA DRIVER CB9 TO C4-BOARD (C42) TO D-BOARD (D34) TO ! C3-BOARD TNPA4372 (1/3) 1 2 3 TH-42PZ700C C3-Board (1 of 3) Schematic Diagram TH-42PZ700C C3-Board (1 of 3) Schematic Diagram 125 15.57.C3 电路板 (2/3) 线路图 TERM SIDE TERM SIDE AB_PCD3 AB_CLRD3 AA_DDA8 AB_ODED3 AB_ODED3 AA_DDB8 AB_CLRD3 AA_DDC8 AB_CLRD3 AB_LED3 AB_ODED3 AB_ODED3 AB_CLRD3 AB_LED3 AB_PCD3 AB_PCD3 AA_DDA6 AA_DDA9 AA_DDB6 AA_DDB9 AA_DDC6 AB_NCLK12L AA_DDC9 AB_LED3 AB_CLK12L AA_DDA7 AA_DDB7 AB_CLK11L AA_DDC7 AB_NCLK11L AB_LED3 AB_NCLK14L AB_UMH AB_NUEL AA_USL AA_NUEL AB_NCLK15L AB_USL AA_UEH AB_USH AB_NCLK13L AB_UML AB_CLK15L AB_CLK14L AB_UEH AB_CLK13L AB_UMH AB_USL AB_UEH AB_UML AB_NUEL AB_USH DRV_SOS8 AA_DDA7 AA_DDB7 AA_DDC7 AA_DDA6 AA_DDB6 AA_DDC6 AA_DDA9 AA_DDB9 AA_DDC9 AA_DDA8 AA_DDB8 AA_DDC8 AB_PCD3 AA_NCLK1L AA_CLK0L AA_USH AA_UMH AA_UML C7301 100V 1u C7319 100V 1u C7337 16V 1u C7336 16V 1u C7368 16V 0.1u C7324 16V 1u C7381 16V 0.1u C7325 16V 1u C7318 100V 1u D7308 B0ECKM000038 D7307 B0ECKM000038 D7305 B0ECKM000038 D7306 B0ECKM000038 C0JBAZ002692 IC7306 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7309 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C33 1 2 3 4 C35 1 2 3 4 5 6 7 8 9 10 VDA_75V C3_5V C3_5V VDA_75V C3_5V C3_5V C3_5V VDA_75V R7385 EXB38V471JV R7377 EXB38V220JV R7384 EXB38V471JV R7386 EXB38V471JV R7359 EXB38V470JV R7358 EXB38V470JV R7368 EXB38V681JV R7383 EXB38V471JV R7376 EXB38V220JV R7367 EXB38V681JV R7396 680 R7313 6.8 R7303 220k R7315 6.8 R7318 6.8 R7314 6.8 R7319 6.8 R7312 6.8 R7395 680 R7316 6.8 R7317 6.8 GND GND GND VDD2 CLR FS LEN NC NC VDD1 A1 GND ODE VDD2 NC NC A5 VDD2 A5 NC GND GND A3 A1 NC 5V LEN GND FX VDD2 GND VDD2 GND 5V GND A4 A6 FX NC A4 VDD2 GND A2 CLR A2 NC A3 A6 VDD2 FS BLK NC VDD1 VDD2 BLK LEN VDD1 A5 FX A5 GND VDD2 NC ODE GND GND BLK GND GND A6 GND VDD2 A1 FS VDD2 LEN FX NC A6 GND VDD2 NC FDET A2 GND CLR GND NC GND GND BLK GND VDD2 A1 DM ODE ODE A4 GND VDD2 DM A3 VDD2 A2 FS NC GND NC VDD1 VDD2 VDD1 A4 GND FDET VDD2 DM VDD1 GND GND VDD2 VDD2 VDD1 GND VDD2 A3 VDD2 DM VDD2 NC NC VDD1 VDD2 GND NC VDD2 GND GND CLR GND Vda 75V Vda 75V NC UML UMH SOS8_SS URH GND P5V UEL UEH USL USH 14 18 12 13 10 17 11 16 15 BUFFER BUFFER TO CB11 PANEL DATA DRIVER DRIVER TO PANEL DATA CB12 TO (SS35) SS-BOARD TO SS-BOARD (SS33) ! C3-BOARD TNPA4372 (2/3) 3 2 1 11 12 TH-42PZ700C C3-Board (2 of 3) Schematic Diagram TH-42PZ700C C3-Board (2 of 3) Schematic Diagram 126 15.58.C3 电路板 (3/3) 线路图 TERM SIDE TERM SIDE TERM SIDE AC_ODED3 AB_CLK14L AC_ODED3 AB_NCLK14L AA_DDA3 AC_ODED3 AA_DDC3 AC_CLRD3 AC_LED3 AB_CLK15L AC_PCD3 AA_DDA4 AC_PCD3 AC_PCD3 AC_CLRD3 AB_NCLK13L AA_DDC0 AC_PCD3 AC_ODED3 AB_CLK13L AA_DDB0 AC_LED3 AC_ODED3 AB_NCLK15L AC_LED3 AA_DDC5 AC_CLRD3 AC_PCD3 AC_LED3 AA_DDA2 AA_DDA1 AA_DDC1 AC_CLRD3 AA_DDC4 AA_DDC2 AC_LED3 AC_LED3 AC_CLRD3 AC_ODED3 AA_DDA0 AA_DDB2 AA_DDB5 AA_DDB1 AC_PCD3 AA_DDB4 AA_DDB3 AC_CLRD3 AA_DDA5 AA_DDA3 AA_DDB3 AA_DDC3 AA_DDA2 AA_DDB2 AA_DDC2 AA_DDA5 AA_DDB5 AA_DDC5 AA_DDA4 AA_DDB4 AA_DDC4 AA_DDA1 AA_DDB1 AA_DDC1 AA_DDA0 AA_DDB0 AA_DDC0 C7365 16V 1u C7355 16V 1u C7347 100V 1u C7346 100V 1u C7341 16V 1u C7362 16V 1u C7352 100V 1u C7363 16V 1u C7340 16V 1u D7309 B0ECKM000038 D7314 B0ECKM000038 D7313 B0ECKM000038 D7310 B0ECKM000038 D7312 B0ECKM000038 D7311 B0ECKM000038 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C3_5V VDA_75V VDA_75V C3_5V VDA_75V C3_5V ZA7303 K4AD01Z00001 ZA7302 K4AD01Z00001 ZA7304 K4AD01Z00001 ZA7301 K4AD01Z00001 ZA7305 K4AD01Z00001 R7389 EXB38V471JV R7390 EXB38V471JV R7388 EXB38V471JV R7392 EXB38V471JV R7391 EXB38V471JV R7387 EXB38V471JV R7330 6.8 R7357 4.7k R7328 6.8 R7331 6.8 R7326 6.8 R7327 6.8 R7332 6.8 R7324 6.8 R7323 6.8 R7321 6.8 R7322 6.8 R7329 6.8 R7325 6.8 A3 GND GND VDD2 CLR NC VDD2 VDD1 GND LEN FS VDD2 GND GND LEN A3 GND NC VDD2 NC A6 A4 NC A1 NC FDET VDD2 NC A6 A3 A1 VDD2 NC GND GND VDD2 GND A4 GND A5 A4 FS VDD2 5V FS NC LEN VDD2 A2 NC VDD2 VDD2 VDD2 GND A3 VDD2 NC BLK LEN GND NC VDD2 GND GND FX CLR GND A6 NC NC BLK A2 GND NC DM LEN CLR GND VDD1 A4 GND BLK ODE ODE A2 VDD1 ODE GND A5 A1 DM FS VDD2 A5 NC GND A1 GND GND GND GND GND ODE NC NC A6 CLR DM DM A1 ODE A1 VDD1 NC NC VDD2 VDD2 VDD2 VDD1 VDD2 FX GND FX A5 VDD2 GND ODE VDD1 VDD2 NC FDET GND VDD2 GND BLK VDD2 CLR GND 5V FX VDD1 GND A2 VDD2 NC FX BLK A4 VDD1 CLR VDD2 FS VDD2 LEN A6 GND GND VDD2 5V NC VDD2 VDD2 FDET GND VDD2 VDD1 VDD1 A5 GND VDD2 FX NC NC VDD2 GND NC GND GND GND VDD2 DM A6 A2 A5 VDD2 NC GND GND GND VDD2 GND GND A2 BLK VDD1 GND VDD2 A3 NC GND GND DM A3 A4 VDD1 GND FS C33 10 68 C32 4 1 1 1 30 1 1 68 1 68 68 1 68 1 68 1 68 1 1 68 C30 C7312 C7311 C7319 C7318 C7347 2 5 3 7 C 6 4 3 7 C C35 DRIVER CB14 PANEL DATA TO PANEL DATA DRIVER CB13 TO CB15 DRIVER PANEL DATA TO ! C3-BOARD TNPA4372 (3/3) 12 11 25 19 23 27 26 22 4 2 1 2 20 TH-42PZ700C C3-Board (3 of 3) Schematic Diagram TH-42PZ700C C3-Board (3 of 3) Schematic Diagram 127 15.59.C4 电路板 (1/3) 线路图 TERM SIDE TERM SIDE TERM SIDE TERM SIDE AA_DDA31 AB_PCD4 AB_LED4 AA_DDC31 AA_DDB31 AB_LED4 AA_DDA30 AA_DDB30 AA_DDC30 AB_LED4 AA_DDC25 AA_DDB25 AA_DDA25 AB_LED4 AA_DDC24 AA_DDB24 AA_DDA24 AB_LED4 AA_DDC28 AA_DDB28 AA_DDA28 AB_LED4 AA_DDC29 AA_DDB29 AA_DDA29 AB_PCD4 AB_LED4 AA_DDC26 AA_DDB26 AA_DDA26 AB_LED4 AA_DDC27 AA_DDB27 AA_DDA27 AB_PCD4 AB_PCD4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_PCD4 AB_PCD4 AB_PCD4 AB_NCLK03R AB_CLK03R AB_CLK04R AB_NCLK04R AB_CLK01R AB_NCLK01R AB_NCLK02R AB_CLK02R AA_DDA29 AA_DDB29 AA_DDC29 AA_DDA26 AA_DDB26 AA_DDC26 AA_DDA24 AA_DDB24 AA_DDC24 AA_DDA25 AA_DDB25 AA_DDC25 AA_DDA27 AA_DDB27 AA_DDC27 AA_DDA28 AA_DDB28 AA_DDC28 AA_DDA31 AA_DDB31 AA_DDC31 AA_DDA30 AA_DDB30 AA_DDC30 AB_PCD4 C7494 16V 1u C7492 16V 1u C7463 16V 1u C7491 16V 1u C7462 16V 1u C7482 16V 1u C7475 100V 1u C7481 16V 1u C7493 16V 1u C7470 100V 1u C7471 100V 1u C7476 100V 1u D7413 B0ECKM000038 D7414 B0ECKM000038 D7411 B0ECKM000038 D7416 B0ECKM000038 D7409 B0ECKM000038 D7415 B0ECKM000038 D7412 B0ECKM000038 D7410 B0ECKM000038 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C4_5V C4_5V VDA_75V VDA_75V VDA_75V C4_5V VDA_75V C4_5V ZA7404 K4AD01Z00001 ZA7402 K4AD01Z00001 ZA7405 K4AD01Z00001 ZA7401 K4AD01Z00001 ZA7403 K4AD01Z00001 R7404 EXB38V681JV R7402 EXB38V471JV R7408 EXB38V471JV R7403 EXB38V681JV R7401 EXB38V471JV R7407 EXB38V471JV R7406 EXB38V471JV R7405 EXB38V471JV R7482 6.8 R7469 6.8 R7476 6.8 R7477 6.8 R7470 6.8 R7484 6.8 R7468 4.7k R7481 6.8 R7483 6.8 R7479 6.8 R7472 6.8 R7480 6.8 R7474 6.8 R7475 6.8 R7473 6.8 R7478 6.8 R7471 6.8 5V 5V 5V 5V NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 GND NC NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND NC A2 NC A6 NC LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 68 1 68 1 C42 C40 1 30 FS GND DM DM 68 1 68 1 68 1 68 1 68 1 68 1 68 1 1 68 C41 5 7 4 7 C 1 7 4 7 C 0 7 4 7 C 3 3 4 7 C 2 3 4 7 C 8 2 4 7 C 7 2 4 7 C 6 7 4 7 C 4 1 9 8 6 5 3 2 7 C E B A D F PANEL DATA TO DRIVER CB2 PANEL DATA DRIVER TO CB1 DRIVER CB3 TO PANEL DATA PANEL DATA DRIVER TO CB4 ! C4-BOARD TNPA4373 (1/3) 1 2 3 TH-42PZ700C C4-Board (1 of 3) Schematic Diagram TH-42PZ700C C4-Board (1 of 3) Schematic Diagram 128 15.60.C4 电路板 (2/3) 线路图 TERM SIDE TERM SIDE TERM SIDE AA_DDC28 AA_DDA31 AA_DDB31 AA_DDC31 AA_DDA30 AA_DDB30 AA_DDB28 AA_DDA28 AA_DDC29 AA_DDA29 AA_DDB29 AA_DDB23 AA_DDA23 AA_DDC23 AA_DDA22 AA_DDB22 AA_DDC22 AA_DDB24 AA_DDC24 AA_DDA24 AA_DDC25 AA_DDB25 AA_DDA25 AA_DDC26 AA_DDB26 AA_DDA26 AA_DDC27 AA_DDB27 AA_DDA27 AA_CLK6R AA_NCLK7R AA_LED6 AA_PCD6 AA_CLRD6 AA_ODED6 AB_CLK03R AB_CLK02R AB_NCLK02R AB_NCLK01R AB_CLK01R AB_NCLK03R AB_NCLK04R AB_CLK04R AA_ODED6 AA_CLRD6 AA_LED6 AC_ODED4 AB_ODED4 AC_CLRD4 AB_CLRD4 AC_LED4 AB_LED4 AC_PCD4 AB_PCD4 AA_DDB21 AA_DDC21 AA_DDB23 AA_DDC23 AB_CLK05R AC_CLRD4 AC_ODED4 AA_DDA23 AC_CLRD4 AC_LED4 AC_ODED4 AC_CLRD4 AC_ODED4 AC_CLRD4 AB_CLK06R AC_ODED4 AC_LED4 AC_PCD4 AB_NCLK05R AC_PCD4 AC_LED4 AC_PCD4 AA_DDC22 AA_DDA20 AA_DDB22 AA_DDB20 AA_DDA22 AB_NCLK06R AA_DDC20 AC_PCD4 AC_LED4 AA_DDA21 AA_DDC30 AA_NCLK7R AA_CLK6R AA_DDA21 AA_DDB21 AA_DDC21 AA_DDA20 AA_DDB20 AA_DDC20 AA_DDA22 AA_DDB22 AA_DDC22 AA_DDA23 AA_DDB23 AA_DDC23 AA_PCD6 C7419 16V 1u C7449 16V 1u C7407 16V 0.1u C7428 100V 1u C7405 16V 0.1u C7427 100V 1u C7420 16V 1u C7448 16V 1u D7404 B0ECKM000038 D7402 B0ECKM000038 D7401 B0ECKM000038 D7403 B0ECKM000038 C0JBAZ002692 IC7405 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7401 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C40 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 CB5 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C4_5V C4_5V VDA_75V P5V C4_5V C4_5V VDA_75V C4_5V R7410 EXB38V471JV R7425 EXB38V470JV R7422 EXB38V681JV 680 R7426 EXB38V470JV R7412 EXB38V471JV 470 R7488 EXB38V220JV R7411 EXB38V471JV R7409 EXB38V471JV R7487 EXB38V220JV R7486 100k R7430 6.8 R7431 6.8 R7485 22k R7432 6.8 R7433 6.8 R7427 6.8 R7492 680 R7434 6.8 R7424 0 R7428 6.8 R7493 680 R7423 0 R7429 6.8 DOUTDC[29] GND DOUTDC[25] DOUTDC[30] DOUTDC[31] DOUTDC[27] GND DOUTDB[22] DOUTDA[31] GND DOUTDB[26] NC P5V P5V GND DOUTDB[25] DOUTDB[29] 5V_DET DOUTDA[29] ODED6 GND CLKD[6](+) CLKD[7](-) GND GND GND NC NC NC NC DOUTDC[24] NC GND NC P5V NC(CLK) NC(CLK) GND DOUTDA[28] DOUTDC[26] GND DOUTDB[24] DOUTDB[31] DOUTDC[28] DOUTDA[25] DOUTDB[28] GND GND PCD6 GND GND DOUTDA[27] DOUTDA[22] DOUTDA[26] DOUTDC[22] GND GND LED6 DOUTDA[23] DOUTDB[30] DOUTDA[24] DOUTDB[27] GND DOUTDA[30] DOUTDB[23] DOUTDC[23] CLRD6 NC A2 DM VDD2 FX GND A6 VDD2 A1 VDD2 VDD2 GND A2 BLK A3 GND FS GND GND A4 A3 VDD2 LEN BLK NC GND A2 ODE FX A5 VDD2 GND VDD1 A5 VDD2 FS GND CLR NC VDD2 VDD1 VDD2 VDD2 BLK VDD2 BLK NC VDD2 GND GND LEN A4 GND GND A4 GND VDD2 VDD2 LEN GND NC NC CLR ODE VDD1 A5 FS A5 A1 GND GND NC VDD2 GND VDD1 CLR VDD1 GND FX VDD1 VDD2 GND NC FDET VDD2 NC GND NC DM A2 A4 GND A3 NC A6 A1 A6 A3 ODE NC VDD2 GND NC NC GND VDD1 NC NC FS 5V NC NC GND DM GND 5V VDD2 GND FX GND VDD2 A6 VDD2 VDD1 VDD2 GND DM CLR GND GND LEN ODE A1 GND VDD2 NC GND FDET VDD2 13 10 17 6 1 4 1 1 1 15 12 18 TO (D36) D-BOARD PANEL DATA TO DRIVER CB6 TO PANEL DATA CB5 DRIVER BUFFER BUFFER ! C4-BOARD TNPA4373 (2/3) 2 1 3 11 12 13 14 TH-42PZ700C C4-Board (2 of 3) Schematic Diagram TH-42PZ700C C-Board (2 of 3) Schematic Diagram 129 15.61.C4 电路板 (3/3) 线路图 G G TERM SIDE TERM SIDE TERM SIDE TERM SIDE AA_DDA13 AA_CLRD5 AA_DDC19 AA_PCD5 AA_DDA18 AA_DDB11 AA_DDA14 AA_DDB18 AA_DDC11 AA_NCLK5R AA_DDB14 AA_DDC18 AA_DDA10 AA_DDC14 AA_DDA17 AA_DDB10 AA_DDC15 AA_DDB17 AA_DDC10 AA_DDA21 AA_DDB15 AA_DDC17 AA_DDB21 AA_DDA15 AA_DDA16 AA_DDC21 AA_DDA11 AA_DDB16 AA_DDC12 AA_DDA20 AA_CLK4R AA_DDC16 AA_DDB12 AA_DDB20 AA_DDA12 AA_DDC13 AA_DDA19 AA_DDB13 AA_DDB19 AA_DDC20 AC_ODED4 AB_CLK08R AC_CLRD4 AC_PCD4 AC_ODED4 AC_PCD4 AB_NCLK07R AB_NCLK08L AC_LED4 AC_PCD4 AA_DDA19 AA_DDB19 AA_DDC19 AA_DDA18 AA_DDB18 AA_DDC18 AC_LED4 AC_CLRD4 AC_LED4 AC_ODED4 AB_CLK07R AC_LED4 AC_CLRD4 AC_PCD4 AC_ODED4 AC_CLRD4 AB_CLK07R AB_NCLK06R AB_CLK08R AB_CLK05R AB_CLK06R AB_NCLK07R AB_NCLK05R AB_NCLK08L AA_NCLK5R AA_CLK4R AA_ODED5 AA_LED5 AA_DDA11 AA_DDC10 AA_DDB10 AA_DDA10 AA_DDC11 AA_DDB11 AA_DDA13 AA_DDB13 AA_DDC13 AA_DDA12 AA_DDB12 AA_ODED5 AA_LED5 AA_PCD5 AA_CLRD5 AA_DDC12 AA_NCLK3L AA_DDA18 AA_DDB18 AA_DDC18 AA_DDA19 AA_DDB19 AA_DDC19 AA_DDA14 AA_DDB14 AA_DDC14 AA_NCLK3L AA_DDC15 AA_DDB15 AA_DDA15 AA_DDA17 AA_DDB17 AA_DDC17 AA_DDA16 AA_DDB16 AA_DDC16 C7438 16V 1u C7432 100V 1u C7450 16V 1u C7433 100V 1u C7455 16V 0.1u C7451 16V 1u C7439 16V 1u D7405 B0ECKM000038 D7407 B0ECKM000038 D7408 B0ECKM000038 D7406 B0ECKM000038 J0HABH000013 FL7401 1 2 3 C0JBAZ002692 IC7406 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C42 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 C41 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 VDA_75V VDA_75V C4_5V C4_5V C4_5V VDA_75V P5V C4_5V R7414 EXB38V681JV R7496 EXB38V681JV R7416 EXB38V471JV R7495 EXB38V471JV R7489 EXB38V220JV R7415 EXB38V471JV R7458 EXB38V681JV R7490 EXB38V220JV R7413 EXB38V471JV R7437 6.8 R7441 6.8 R7436 6.8 R7442 6.8 R7494 22 R7491 220k R7435 6.8 R7438 6.8 R7440 6.8 R7439 6.8 GND GND DOUTDB[20] DOUTDC[21] DOUTDB[21] GND GND DOUTDA[21] DOUTDC[17] DOUTDA[20] DOUTDB[14] DOUTDC[20] GND DOUTDA[14] DOUTDC[19] GND DOUTDA[18] DOUTDC[16] 5V_DET ODED5 DOUTDC[11] DOUTDA[15] DOUTDA[11] DOUTDC[15] P5V GND CLRD5 GND GND NC DOUTDA[16] NC(DRVSOS7) GND CLKD[3](-) DOUTDC[12] NC(CLKD[2](+)) GND GND CLKD[5](-) DOUTDC[13] DOUTDB[13] DOUTDA[13] DOUTDA[10] DOUTDC[10] DOUTDB[10] DOUTDB[15] DOUTDB[19] DOUTDB[17] GND DOUTDB[12] DOUTDC[18] DOUTDC[14] DOUTDB[18] DOUTDB[11] DOUTDA[19] PCD5 DOUTDA[17] GND GND DOUTDB[16] P5V CLKD[4](+) DOUTDA[12] P5V LED5 GND GND GND NC GND VDD1 NC VDD2 GND GND VDD2 NC VDD2 VDD2 A4 GND A4 CLR VDD1 VDD2 GND A3 VDD2 VDD2 CLR VDD1 VDD2 A1 ODE GND VDD2 VDD1 VDD2 VDD2 VDD2 DM VDD1 GND VDD2 DM VDD1 VDD2 FX FDET GND CLR LEN NC NC FX GND A6 A1 NC GND ODE A6 ODE GND VDD2 GND A5 NC A2 CLR A5 A2 GND LEN A3 FX A3 VDD2 FS VDD2 FS VDD2 LEN BLK NC GND GND BLK NC GND GND A1 GND GND A6 DM VDD2 GND A2 GND A6 NC FS LEN NC NC VDD2 VDD1 VDD2 DM FX GND 5V GND A4 A4 GND VDD2 FDET NC NC A2 GND NC A3 FS 5V VDD2 BLK NC GND GND ODE GND VDD2 NC A5 BLK GND VDD1 A5 GND GND A1 GND NC VDA VDA DDC11 ODE DDA11 DDB10 VDA LE DDB11 DDC10 VDA GND 5V_DET VDA GND DDA10 GND GND DDC13 DDA13 DDB12 DDB13 DDC12 DDA12 NC NC NC GND PC CLR D-BOARD TO (D35) CB8 PANEL DATA TO DRIVER TO DRIVER PANEL DATA CB7 (C32) TO C3-BOARD BUFFER ! C4-BOARD TNPA4373 (3/3) 13 11 14 12 25 19 23 27 26 22 4 2 1 2 20 TH-42PZ700C C4-Board (3 of 3) Schematic Diagram TH-42PZ700C C4-Board (3 of 3) Schematic Diagram 130 15.62.SC 电路板 (1/2) 方框图 + + + + OC1D1(CL) FOC1D1 FSID1 CLKA OC1U1(CL) FCLKU1 FGLKD1 FOC2D1 SIUA FOC1U1 FSIU1 FOC2U1 CEL2(OC2) FOC2U2 FOC1U2 FSID2 FOC2D2 FOC1D2 FCLKU2 FCLKD2 FSIU2 OC1U2(CL2) OC1D2(CL2) SIUB/LAT CLKB CEL SCSU C6791 D6825 D6585 C6795 C6796 D6478 R6581 R6833 Q6824 VSET0 TPVSUS D6583 TPVSET R6831 D6826 D6480 D6479 D6722 D6795 +15V-F2 D6804 T6602 D6805 D6806 D6883 TPVERS TPVAD D6807 D6882 VSET VCC VAD DRIVER 22 COMPARATOR FET +365V DRIVER LO TPSC1 WAVEFORM VSCN SUPERIMPOSED FET SC Vsus 24 CSH CMH P+15V SIUA 19 P+15V 14 9 P+5V Q6442-Q6444 LO HIN FET Q6531,Q6532 P+5V SCSU P+15V (+33V) Y Vsus Gen. VCC Q6451-Q6453 FET Q6521-Q6524 OC2(CEL2) 4 25 B 5 FET VSCN CPH2 CONVERTER HIN CERS(CBK) Q6551,Q6552 Q6605,Q6606 SC2 Q6581 BUFFER FET CEL2 7 P+15V Q6401-Q6405 Q6821,Q6822 LIN DRV_RST0 GND HO +5V VCC Q6742,Q6743 15 FET CSL LO IN 20 DRIVER CEL Vset SOS DET GND CQR(CPL) +5V VSUS 1 Q6501-Q6504 BUFFER DRIVER LO ENERGY RECOVERY LIN SIDA A VSET SEPA VSET Gen. GND HO DC/DC HIN VSET2 CERS(CBK) 17 GND Q6421-Q6425 FET Q6604 HO HO IN 18 SC SCAN DRIVE PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER TPSOS7 TPSOS6 P5V 1 +210V Vsus D6582 D6583 P+15V VSET:365V 100k 4 283V OR LESS VSET SOS 2 CLK CSOU SIUB/LAT CML 11 12 10 CPH1 13 OC1A(CL) 16 26 SIDB OC1B(CL2) 27 6 SOS6_SC1 21 SOS7_SC2 P15V 30 P15V 31 P+15V MAIN_STOP DRV_RSTO VCC VCC VCC IC6561 BUFFER BUFFER IC6562 BUFFER IC6563 OC1A(CL) SIDA CLK SIUA CEL2(OC2) SIUB/LAT SCSU CERS(CBK) CLK CEL2(OC2) SIDA SIUA CQR(CPL) CSOU SIUB/LAT OC1A(CL) CERS(CBK) CML CSL CEL CPH2 CPH1 CEL CSL CSOU SCSU CQR(CPL) OC1B(CL2) SIDB CLK SCSU SCSU OC1U1(CL) OC1D1(CL) SIUA CLKA CEL2(OC2) SIUB/LAT CERS(CBK) SCNSOS_OUT1 CPH CPH2 CEL CSL CSH CML CMH CMH CML DRV_RST0 2G CSL CSH CSOU SCSU OC1U2(CL2) VSET2_SEL CLKB DC1D2(CL2) SCNSOS_OUT2 VSET2 VSET3 PHOTO COUPLER LIN P+5V CML CPH1 CMH CSH CPH CPH2 HO BUFFER Q6763 FET OUT Q6622-Q6626 BUFFER Q6602,Q6603 Q6601 FET OUT INIT-F Verase P+15V GND CERS(CBK) VSET2-SEL CSOU P+15V AVR +5V(SC1) 2 3 +5V (SC2) 1 D6725 CSOU OUT OUT BUFFER VF_GND1 AVR +5V(SC2) +5V 1 2 (SC1) 3 +16V VAD D6721 +15V-F1 OC2B CSOU SIUA CLKA OC1U1(CL) OC1D1(CL) CEL2(OC2) +5V-F1 +5V-F1 5V_F1 BUFFER Q6691,Q6692 Q6694 BUFFER Q6648,Q6649 Q6651-Q6654 Q6695,Q6696 VF-GND1 VF-GND2 BUFFER OUT Q6609 BUFFER Vsus +5V-F2 3 2 +5V +5V 2 +5V OC1U2(CL2) OC1D2(CL2) OC2B BUFFER PHOTO COUPLER PHOTO COUPLER GND 1 VF-GND1 1 AVR +5V(SC1) AVR BUFFER (SC1) VF-GND2 (SC2) GND PHOTO COUPLER +5V +5V(SC2) 3 P+5V IC6821 IC6501 PC6701 IC6791 IC6721 P2 D20 CPH +5V(SC2)SOS D6699 IC6521 IC6472 PC6707 PC6708 PC6703 IC6872 PC6702 IC6601 IC6672 IC6722 IC6752 5 9 7 6 C I 6 9 7 6 C I IC6793 PC6709 IC6794 IC6581 IC6725 IC6724 5V_F2 15 +5V(SC3) VAD Gene ( 140V) 12 6 VR6600 SCSU VSET CEL 132.7 - 147.8 PHOTO COUPLER VSUS +5V B BUFFER PHOTO COUPLER VSE2 VSE3 -140V Adj A Y 2 7 4 +16V 2 IC6803 PC6705 PC6801 11 13 1 Vin (SC3) OSC GND VCC AVR PC6801 IC6774 D IC6773 IC6771 F/B 9 3 10 +5V_SOS VAD +16V SOS7_SC2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 +15V-F1 P+5V +16V +5V +5V-F2 +5V +5V SC FLOATING PART SOS DET LED BLINKING 7 TIMES SC FLOATING PART SOS DET LED BLINKING 6 TIMES LED(G) TH-42PZ700C SC-Board (1 of 2) Block Diagram TH-42PZ700C SC-Board (1 of 2) Block Diagram FLOATING GND COLD FLOATING GND COLD 131 15.63.SC 电路板 (2/2) 方框图 + D6871 D6705 D6836 D6879 D6475 D6665 D6476 D6860 D6834 +5V_F2 +15V_F2 D6697 D6872 D6706 D6838 P+15V D6839 CPH D6846 D6690 VR6602 1 2 3 D6833 TPSC1 D6844 D6873 +5V_F1 D6792 D6801 D6691 B4 Q6841,Q6842 B8 VSCN Gen. Vf VR6841 A6 Q6661 VSCN-F2 B6 Vscn-F1 Vscn-F2 DRIVER SOS7_SC2 VF_GND2 LO Vfo(F1) Vscn_F2 D6859 Vscn_F2 FSID1 +5V_F2 VCC GND +5V_F2 BUFFER A11 B1 Q6680 B11 A5 A8 Vf 4 14 7 A34 Q6679, 46 Vfo +5V(SC3) SOS DET +5V_F1 B30 Q6805,Q6806 B34 9 1 P+5V A32 10 SCAN_PHASE 1 B32 SD46 FET +5V(F1) SOS DET R6696 PHOTO COUPLER Vscn_F1 +5V_F2 P+5V +5V_F1 15 6 SCNSOS_CUT1 FOC1D1 SC SCNSOS_CUT2 8 OUT FOC2D2 BUFFER BUFFER 2 Q6665 Q6700 FCLKD2 BUFFER B31 4 Vfo 1 Vf FOC1D2 VCC B35 Q6781, Q6782 FSID1 5 A30 BUFFER FSID2 FET Vscn(F2) SOS DET IN A33 FCLKD1 DRIVER HO B33 FOC2D1 +15V +5V_F1 12 B37 GND A31 DRIVER Vscn_F1 LO IN FET IN FOC1D1 OUT FCLKD1 OUT Q6671,Q6672 FOC2D1 VF_GND1 FOC2D2 Q6698,Q6699 FCLKD2 SCAN_PHASE 2 FOC1D2 C6841 FSID2 FET VAD R6759 FET COMPARATOR VAD SOS DET Vfo(F2) 10 ERROR DET (+145V) SCSU Q6690 TPVSCN Q6792 Q6793 B1 BUFFER A37 R6892 Vf 21V OR MORE R6888 INIT-F Vf R6887 +16V LO VAD SUPERIMPOSED 30 Vf Vad: 120V OR MORE, 158V OR LESS VAD A10 GND A35 SC A40 Q6641-Q6646 B40 BUFFER A1 PHOTO COUPLER SC44 B5 PHOTO COUPLER B36 Vf PHOTO COUPLER A36 PHOTO COUPLER Vf A40 Vfo A1 B9 A4 ERROR DET A7 Q6662 HO B7 Vfo 3 A9 Q6791 B40 SC43 FET PHOTO COUPLER VAD CONT B10 COMPARATOR VSCN-F1 PC6480 PC6871 PC6862 PC6710 PC6706 PC6711 IC6797 IC6871 IC6792 IC6471 IC6772 IC6873 IC6671 D37 D1 D72 D32 D70 D71 D31 D33 D40 D30 D73 D34 D41 D77 D36 SD44 D80 D76 D35 D75 D74 C6 C45 C41 C4 C47 C46 C1 C9 SD43 C49 C48 C10 C80 C8 C50 C7 C11 C51 C44 C40 C5 B74 A8 B30 B8 B37 +5V_F1 B35 A9 B77 B76 B31 B72 FOC1U1 B33 B40 9 15 B70 SC B41 FCLKU1 B4 SU42 B34 B1 B73 B71 A33 A10 12 B1 B7 B40 SC41 A6 A30 A7 B1 A1 SC42 SU45 Vf B31 45 A4 A31 A1 5V_F2 Vfo A5 B30 SU41 A50 B9 A40 A10 Vfo 10 B10 A1 +5V_F1 Vf A49 B11 A4 A11 6 A47 Vf VF-GND2 A7 FSIU1 Vscn-F1 A48 A9 A41 Vf A46 A45 A6 A8 5V_F1 A11 FOC2U1 B34 A80 B6 FCLKU1 Vf A44 FOC1U1 A34 A51 FSIU1 A35 FOC2U2 B35 14 7 FOC1U2 Vscn-F2 5V_F1 2 FOC1U2 A36 4 FSIU2 B36 B5 1 FCLKU2 B37 FSIU2 FOC2U2 Vfo FCLKU2 A37 Vf A32 Vf B33 +5V_F2 A5 B40 A40 Vfo B32 B80 Vscn-F2 B75 +5V_F2 FOC2U1 B36 Vscn-F1 A40 B32 Vf 5V_F2 +5V_SOS SOS7_SC2 14 10 4 1 2 13 12 11 7 9 15 3 5 6 8 P+5V VF-GND2 VF-GND1 5V_F1 5V_F2 +15V-F1 +16V VAD SCAN DRIVE SC TH-42PZ700C SC-Board (2 of 2) Block Diagram TH-42PZ700C SC-Board (2 of 2) Block Diagram FLOATING GND COLD 132 15.64.SC 电路板 (1/5) 线路图 + + + + + + + + Y_OC1U1(CL) Y_SIUA Y_CMH Y_CPH2 Y_DRV_RSTO Y_CPH A_CERS(CBK) Y_CSH A_SCSU Y_CERS(CBK) Y_CEL2(OC2) Y_CSL A_SIUA A_CMH A_CPH2 A_CSH Y_CLKA Y_CEL A_CPH A_CEL2(OC2) A_DRV_RSTO Y_CSH A_CPH2 A_CEL2(OC2) A_CPH A_(SIDA) A_CERS(CBK) A_CML A_CSL SOS6_SC1 MAIN_STOP A_SIUB/LAT A_SIUB/LAT A_CQR(CPL) A_OC1B(CL2) A_(SIDB) A_CLK A_CLK A_SIUA A_(SIDA) A_CEL A_DRV_RSTO CLK SCSU CPH2 SOS6_SC1 CEL CSL CML SIUB/LAT CSOU CPH CQR(CPL) CERS(CBK) OC1A(CL) SIUA (SIDA) CEL2(OC2) SOS7_SC2 DRV_RSTO CSH CMH (SIDB) OC1B(CL2) CLK OC1A(CL) CPH2 SIUA SIUB/LAT SCSU CEL2(OC2) CPH (SIDB) CSOU OC1B(CL2) CQR(CPL) Y_SIUB/LAT Y_CML A_CSOU A_CLK A_(SIDB) Y_OC1D2(CL2) Y_CLKB A_CQR(CPL) Y_CSOU A_CSOU A_SCSU Y_SCSU A_OC1B(CL2) Y_OC1U2(CL2) A_SCSU A_SCSU Y_SCNSOS_CUT2 SOS7_SC2 SOS7_SC2 A_CMH A_CML A_CSH A_CSL CMH CML CSH CSL A_CEL DRV_RSTO CERS(CBK) CEL (SIDA) SOS6_SC1 SOS6_SC1 Y_OC1D1(CL) Y_SCNSOS_CUT1 A_SCSU Y_VSET2_SEL C6593 50V 1000p C6566 50V 0.01u C6524 25V 4.7u C6527 25V 4.7u C6525 25V 4.7u C6533 250V 2.2u C6564 16V 1u C6581 25V 1u C6521 25V 1u C6567 16V 1u C6531 250V 2.2u C6491 630V 1000p C6522 25V 4.7u C6534 250V 2.2u C6562 16V 1u C6537 250V 2.2u C6535 250V 2.2u C6471 630V 1000p C6565 50V 0.01u C6532 250V 2.2u C6536 250V 2.2u C6582 16V 1u C6416 250V 200u C6561 10V 100u C6592 25V 220u C6411 250V 200u C6415 250V 200u C6414 250V 200u C6413 250V 200u C6412 250V 200u D6585 MA2J11100L D6522 B0ECKP000047 D6452 B0HCKS000002 D6521 B0ECKP000047 D6442 B0ECKP000047 D6523 *D6491 B0HASR000013 D6466 MA2J11100L D6472 B0HBSN000008 *D6463 B0HBSN000008 *D6462 B0HBSN000008 *D6461 B0HBSN000008 *D6483 B0HBSN000008 *D6482 B0HBSN000008 *D6481 B0HBSN000008 *D6464 B0HBSN000008 *D6471 B0HBSN000008 D6583 LNJ301MPUJA IC6581 C0BBBA000022 1 2 3 5 4 6 7 8 C0ZBZ0001324 IC6521 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0JBAZ000005 IC6562 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C0JBAZ000005 IC6561 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C0JBAZ000005 IC6563 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC SC2 1 3 SC20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 L6485 J0JKB0000049 L6468 J0JKB0000049 L6481 J0JKB0000049 L6482 J0JKB0000049 L6484 J0JKB0000049 L6466 J0JKB0000049 L6465 J0JKB0000049 L6601 G0ZZ00002183 L6602 G0ZZ00002183 L6464 J0JKB0000049 L6592 G0ZZ00002183 L6591 G0ZZ00002183 L6461 J0JKB0000049 L6486 J0JKB0000049 L6463 J0JKB0000049 L6467 J0JKB0000049 L6462 J0JKB0000049 L6483 J0JKB0000049 L6401 1u L6403 1u L6413 1.4u L6412 1.4u L6411 1.4u L6404 1u L6405 1u L6415 1.4u L6414 1.4u L6406 1u 5V 15V VSUS 15V 5V 15V TP19 TP12 TP10 TP5 TP14 TP39 TP76 TP23 TP79 TP51 TP36 TP4 TP77 TP1 TP8 TP38 TP20 TP80 TP78 TP6 TP2 TP18 TP13 TP7 TP16 TP25 TP75 TP37 TP21 TP27 TP15 TP17 TP11 TP22 TP26 TP9 Q6531 B1ABRD000003 Q6551 B1ABRD000003 Q6581 2SD0601A0L *Q6443 2PG0010000RP *Q6452 B1JAER000003 *Q6451 B1JAER000003 *Q6444 2PG0010000RP *Q6442 2PG0010000RP *Q6453 B1JAER000003 Q6532 B1ADRD000001 Q6552 B1ADRD000001 R6670 EXB38V472JV R6563 EXB38V470JV R6562 EXB38V470JV R6565 EXB38V472JV R6564 EXB38V470JV R6567 EXB38V472JV R6591 EXB38V472JV R6566 EXB38V472JV R6568 EXB38V472JV R6669 EXB38V470JV R6561 EXB38V470JV 1% R6468 82k R6532 47k R6552 47k R6590 220 1% R6466 62k R6453 7.5 R6507 1 R6521 100 R6592 4.7k R6451 7.5 1% R6584 6.8k R6533 47k R6531 10 1% R6467 82k R6587 2.2k 1% R6585 1.2k R6553 47k R6442 7.5 75 R6523 R6443 7.5 1% R6586 1.8k R6551 10 1% R6465 27k R6509 1 R6522 100 1% R6583 39k R6452 7.5 R6444 7.5 1% R6593 1.8k 1% R6582 39k R6580 2.2k R6588 10k Vsus GND TPVSUS TP15V (GREEN LED) + - + - TPSOS7 TPSOS6 GND (SC_DRV_RST) GND GND GND GND NC P15V P15V P5V TO D-BOARD (D20) TO P-BOARD (P2) BUFFER BUFFER BUFFER SOS6 DET FET DRIVER A F 8 5 B E 9 6 7 3 D 4 C 1 2 SC-BOARD TNPA4250AB (1/5) ! 2 3 1 4 VSET Gen. COMPARATOR TH-42PZ700C SC-Board (1 of 5) Schematic Diagram TH-42PZ700C SC-Board (1 of 5) Schematic Diagram 133 15.65.SC 电路板 (2/5) 线路图 + + + + Y_CMH Y_CML F_FOC2U1 F_FSIU1 F_FSID1 F_FOC1U1 F_FCLKU1 F_FCLKD1 F_FOC2D1 Y_SIUA Y_CEL2(OC2) F_FOC1D1 Y_OC1U1(CL) Y_OC1D1(CL) SOS7_SC2 MAIN_STOP Y_DRV_RSTO F_FOC2D2 F_FOC1D2 F_FCLKD2 F_FCLKU2 F_FOC1U2 F_FSIU2 F_FSID2 F_FOC2U2 Y_OC1U2(CL2) Y_OC1D2(CL2) Y_SIUB/LAT F_OC2B F_CSOU Y_VSET2_SEL Y_CLKB Y_CLKA Y_CSOU F_OC2B C6825 25V 4.7u C6725 25V 4.7u C6704 50V 0.1u C6827 16V 1u C6723 25V 4.7u C6817 50V 0.1u C6724 25V 4.7u C6722 50V 100p C6480 50V 0.1u C6425 630V 5600p C6502 25V 4.7u C6799 50V 0.1u C6702 50V 0.1u C6405 630V 2200p C6810 50V 0.1u C6706 50V 0.1u C6727 16V 1u C6401 630V 2200p C6809 50V 0.1u C6820 25V 4.7u C6505 25V 4.7u C6472 50V 100p C6826 16V 1u C6705 50V 0.1u C6504 25V 4.7u C6726 16V 1u C6403 630V 2200p C6423 630V 5600p C6821 25V 4.7u C6594 25V 220u C6721 50V 100u C6563 10V 100u C6819 50V 100u D6477 MA2J11100L D6884 MA2J11100L D6479 D1FK70-7063 D6721 B0HCKS000002 D6476 MA2J11100L D6795 B0HCKS000002 D6480 MA2J11100L D6422 B0HASR000013 D6725 MA2J11100L D6502 B0ECKP000047 D6478 B0HCKS000002 D1FK70-7063 D6421 B0HASR000013 D6743 MA2J11100L D6501 RF101L4STE25 D6423 B0HASR000013 D6799 MA2J11100L D6742 MA2J11100L D6722 MA2J11100L D6475 MA2J11100L D6403 B0HBSN000008 D6402 B0HBSN000008 D6401 B0HBSN000008 D6732 MAZ80560HL D6815 MAZ80560HL D6730 MAZ80560HL D6813 MAZ80560HL D6800 MAZ80560HL D6729 MAZ80560HL D6817 MAZ80560HL D6811 MAZ80560HL D6731 MAZ80560HL D6814 MAZ80560HL D6794 MAZ80560HL D6816 MAZ80560HL D6812 MAZ80560HL D6728 MAZ80560HL D6733 MAZ80560HL D6701 MAZ80560HL D6726 MAZ80560HL D6727 MAZ80560HL C0DBEKA00003 IC6471 1 NC 2 A 3 K 5 A 4 REF C0JBAA000377 IC6472 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y C0DBEKA00003 IC6792 1 NC 2 A 3 K 5 A 4 REF IC6794 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC IC6793 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC IC6721 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC IC6722 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC C0ZBZ0000895 IC6501 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC IC6796 C0CBADC00072 VIN 3 2 COM VOUT 1 IC6725 C0CBADC00072 VIN 3 2 COM VOUT 1 IC6795 C0CBADC00072 VIN 3 2 COM VOUT 1 IC6724 C0CBADC00072 VIN 3 2 COM VOUT 1 16V_F1 15V 15V_F2 VF_GND2 15V 5V_F2 VF_GND1 5V VSET3 5V_F1 VSET2 5V 5V 15V_F1 16V_F2 VF_GND1 VSUS PC6872 B3PBA0000223 1 2 3 4 PC6480 B3PBA0000223 1 2 3 4 PC6706 B3PBA0000223 1 2 3 4 PC6709 B3PBA0000456 1 2 3 4 5 PC6703 B3PBA0000457 1 2 3 5 4 6 7 8 PC6707 B3PBA0000457 1 2 3 5 4 6 7 8 PC6702 B3PBA0000457 1 2 3 5 4 6 7 8 PC6701 B3PBA0000457 1 2 3 5 4 6 7 8 PC6708 B3PBA0000457 1 2 3 5 4 6 7 8 Q6742 2SD0601A0L *Q6503 B1ABPF000014 *Q6521 B1ABPF000014 Q6743 2SD0601A0L *Q6501 B1ABPF000014 *Q6523 B1ABPF000014 Q6401 2PG0010000RP Q6421 B1JAER000002 Q6405 2PG0010000RP Q6424 B1JAER000002 Q6423 B1JAER000002 Q6422 B1JAER000002 Q6403 2PG0010000RP Q6425 B1JAER000002 Q6402 2PG0010000RP Q6404 2PG0010000RP *Q6502 B1ADPF000004 *Q6522 B1ADPF000004 *Q6504 B1ADPF000004 *Q6524 B1ADPF000004 R6721 EXB38V220JV R6722 EXB38V220JV R6893 EXB38V220JV R6894 EXB38V220JV R6794 3.9k R6890 2.2k R6512 47k R6701 470 R6476 4.7k R6503 10 R6478 4.7k R6702 470 R6506 10 R6783 33k 1% R6745 4.7k R6423 7.5 R6700 470 R6515 47k R6711 2.2k R6505 1 R6703 470 R6757 470 R6471 3.9k R6885 2.2k R6713 2.2k R6401 7.5 R6889 2.2k R6402 7.5 R6716 2.2k R6746 10k R6404 7.5 R6513 10 1%R6723 680 R6520 47k R6818 560 R6514 47k R6502 100 R6474 1k R6799 470 R6517 47k R6472 2.2k R6473 560 R6425 7.5 R6742 10k R6519 47k R6477 100 R6714 2.2k R6797 1k 75 R6504 R6421 7.5 R6518 10 ERJT06J100V R6422 7.5 R6424 7.5 R6508 1 R6884 2.2k R6743 3.3k R6475 4.7k R6405 7.5 R6479 100k 1% R6731 750 R6729 470 R6516 47k R6403 7.5 R6880 470 R6795 2.2k R6798 470 R6710 2.2k R6511 47k R6796 560 R6747 10k R6704 470 R6859 470 R6501 100 R6712 2.2k R6883 2.2k AND Y_CLK FET DRIVER BUFFER BUFFER BUFFER BUFFER +5V(SC2) +5V(SC1) +5V(SC1) +5V(SC2) ERROR DET ERROR DET 18 17 14 12 10 16 11 15 13 ! SC-BOARD TNPA4250AB (2/5) 2 3 4 1 11 12 14 13 Vsus Gen. TH-42PZ700C SC-Board (2 of 5) Schematic Diagram TH-42PZ700C SC-Board (2 of 5) Schematic Diagram 134 15.66.SC 电路板 (3/5) 线路图 + + Y_SCSU Y_CEL Y_CPH2 Y_CPH F_CSOU Y_CERS(CBK) C6604 630V 1000p C6709 25V 4.7u C6885 630V 1000p C6601 25V 1u C6697 25V 4.7u C6884 630V 1000p C6698 25V 4.7u C6605 630V 5600p C6808 250V 0.1u C6755 25V 4.7u C6752 25V 1u C6773 25V 4.7u C6662 630V 1000p C6883 25V 4.7u C6710 630V 470p *C6619 630V 470p C6777 50V 0.1u C6696 25V 4.7u C6753 25V 4.7u C6661 630V 1000p C6775 25V 4.7u C6771 16V 1u C6606 630V 5600p C6708 50V 0.1u C6641 1u 250V C6772 25V 4.7u C6603 630V 1000p C6882 25V 47u C6806 160V 100u D6671 B0JCME000037 *D6619 B0HCKS000002 D6680 M1FS4-5063 D6610 MA2J11100L D6693 B0JCME000037 D6766 D1FK70-7063 D6761 B0JCME000037 D6878 RF101L4STE25 D6645 B0JCME000037 D6773 B0HCKS000002 D6609 B0HCMM000014 D6704 RF101L4STE25 D6666 MA2J11100L D6881 D1FK70-7063 D6611 RF101L4STE25 D6601 B0JCME000037 D6681 B0JCME000037 D6643 B0JCME000037 D6641 B0HCKS000002 D6607 MA2J11100L D6608 MA2J11100L D6661 MA2J11100L D6644 B0HCKS000002 D6497 B0HCKS000002 D6764 D1FK70-7063 D6695 MA2J11100L D6667 MA2J11100L D6604 MA2J11100L D6673 B0JCME000037 D6676 B0JCME000037 D6767 B0ECKP000047 D6765 D1FK70-7063 D6606 B0HCMM000014 D6675 B0JCME000037 D6810 MA2J11100L D6698 B0HCKS000002 D6708 RF101L4STE25 D6879 RF101L4STE25 D6674 D6880 RF101L4STE25 D6672 MA2J11100L D6694 B0JCME000037 D6642 B0ECKP000047 D6707 RF101L4STE25 D6625 B0HDSN000003 D6622 B0HDSN000003 D6624 B0HDSN000003 D6699 B0HDRP000003 D6627 B0HDSN000003 D6623 B0HDSN000003 D6626 B0HDSN000003 D6662 MAZ83300ML D6818 MAZ80510LL D6665 MAZ80510LL *D6633 MAZ82200ML D6605 MAZ80510LL *D6632 MAZ82200ML D6664 MAZ83300ML *D6631 MAZ82200ML D6663 MAZ83300ML C0JBAA000377 IC6773 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y C0JBAA000377 IC6774 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y IC6672 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB IC6772 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB IC6601 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB IC6671 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB IC6873 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB C0ZBZ0001324 IC6752 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC IC6771 C0CBADC00072 VIN 3 2 COM VOUT 1 *L6474 G0ZZ00002183 VSET 15V_F1 VSUS 15V 16V_F2 15V 16V_F2 15V_F2 VERS 15V_F1 PC6705 B3PBA0000397 1 2 3 5 4 6 7 8 TP64 Q6672 B1DFET000001 G D S Q6671 B1DFET000001 G D S Q6604 B1DEET000002 G D S Q6661 B1DEET000002 G D S Q6625 B1DFKM000002 Q6645 B1DFKM000002 Q6624 B1DFKM000002 Q6622 B1DFKM000002 Q6641 B1DFKM000002 Q6649 B1DFKM000002 Q6643 B1DFKM000002 Q6623 B1DFKM000002 Q6601 B1DFES000003 G D S Q6653 B1DFKM000002 Q6644 B1DFKM000002 Q6648 B1DFKM000002 Q6654 B1DFKM000002 Q6642 B1DFKM000002 Q6696 B1DFKM000002 G D S Q6695 B1DFKM000002 G D S Q6651 B1DFKM000002 Q6646 B1DFKM000002 Q6626 B1DFKM000002 Q6652 B1DFKM000002 *Q6665 B1ABPF000014 Q6609 2SD0601A0L Q6602 2SD0601A0L *Q6679 B1ABPF000014 Q6605 2SD0601AQL *Q6781 B1ABPF000014 *Q6691 B1ABPF000014 Q6662 2SD0601A0L Q6606 2SB0709ASL *Q6680 B1ADPF000004 *Q6763 B1ADPF000004 *Q6692 B1ADPF000004 *Q6694 B1ADPF000004 *Q6782 B1ADPF000004 Q6603 2SB0709ASL R6643 33 R6738 1.8k R6776 100 1% R6739 1k R6641 33 R6595 100k R6779 150 R6605 1.8k R6626 220 R6622 220 R6597 100k R6639 1 R6677 47 R6719 47 R6649 33 R6782 47k R6612 47 R6686 10 R6698 100 R6732 47 R6681 10 1% R6662 3k R6735 470 R6760 10k R6751 10 R6660 220k R6881 100 R6748 1k R6685 10 R6773 100 R6697 150 R6718 2.2k R6663 10k R6769 75 R6645 33 R6653 33 R6648 33 R6598 100k R6608 1k R6705 100 R6734 470 1W R6658 100 R6707 470 R6780 0 R6652 33 1 R6768 R6674 470 R6666 100k R6596 100k 1 R6765 R6684 10 R6665 47 R6800 150 *R6609 1k R6761 10 R6661 100k R6733 47k R6644 33 R6625 220 R6664 2.2k R6624 220 R6673 470 R6720 47k R6750 1k R6676 47 R6706 100 R6604 47 R6717 2.2k R6762 47k R6683 10 75 R6766 R6752 10 R6594 0 R6672 47k R6651 33 R6772 2.2 R6659 220k R6781 47 R6708 470 R6756 2.2k 1% R6606 7.68k R6623 220 R6777 150 R6654 33 R6667 4.7k R6758 100 R6646 33 R6668 4.7k R6749 1k R6642 33 R6671 47 R6775 100 R6638 1 VR6602 5k 1 2 3 VF_GND2 VF_GND1 TPVSET INIT-F INIT-F AND Vsus+Vad FET DRIVER FET DRIVER FET DRIVER FET DRIVER FET DRIVER FET DRIVER 19 25 20 26 23 24 22 21 27 ! SC-BOARD TNPA4250AB (3/5) 14 13 12 11 24 23 21 22 BUFFER VSET SEPA Verase VSCN SUPERIMPOSED +5V(SC3) VAD CONT TH-42PZ700C SC-Board (3 of 5) Schematic Diagram TH-42PZ700C SC-Board (3 of 5) Schematic Diagram 135 15.67.SC 电路板 (4/5) 线路图 + + + + + + + + + + + + + REF K A REF K A REF K A SOS7_SC2 SOS7_SC2 Y_CPH SOS7_SC2 SOS7_SC2 Y_SCNSOS_CUT2 Y_SCNSOS_CUT2 Y_SCNSOS_CUT1 C6818 25V 1u C6694 25V 1u C6811 50V 0.1u C6871 16V 1u C6812 50V 0.1u C6803 2kV 220p C6845 50V 0.01u C6831 50V 1000p C6832 50V 3900p C6807 16V 1u C6830 50V 0.1u C6700 50V 3900p C6805 50V 330p C6829 50V 0.01u C6823 50V 0.1u C6800 25V 1u C6873 50V 0.01u C6815 50V 2200p C6695 50V 1000p C6887 50V 0.1u C6872 25V 1u C6816 50V 0.1u C6822 450V 47u = C6814 25V 220u C6841 200V 100u C6796 25V 470u C6804 250V 10u C6842 160V 100u C6874 200V 100u C6795 25V 470u C6791 25V 220u C6813 160V 100u C6801 250V 47u C6835 160V 100u C6691 200V 100u D6821 MA2J11100L D6837 MA2J11100L D6839 B0ECKP000047 D6842 D6806 B0HCKS000002 D6845 MA2J11100L D6826 MA2J11100L D6829 MA2J11100L D6872 MA2J11100L D6843 D6841 B0HCKS000002 D6807 RF101L4STE25 D6823 MA2J11100L D6804 B0HCKS000002 D6690 B0JCME000037 D6844 RF101L4STE25 D6801 B0JCME000037 D6859 D1FK70-7063 D6822 MA2J11100L D6834 MA2J11100L D6809 B0HCMM000014 D6697 RF101L4STE25 D6827 MAZ83300ML D6836 MAZ81500ML D6831 MAZ83300ML D6882 MAZ80510LL D6833 MAZ80510LL D6838 B0BC027A0234 D6692 MAZ82000ML D6805 MAZ82400ML D6830 MAZ80560HL D6840 MAZ80620LL D6883 MAZ80510ML D6802 B0BC01000044 D6832 MAZ83300ML D6706 B0BC027A0234 D6705 MAZ81500ML D6792 MAZ82000ML D6825 MAZ83300ML D6871 MAZ80510LL D6824 MAZ83300ML D6702 MAZ80560HL D6846 MAZ82000ML D6828 MAZ83300ML D6691 MAZ82000ML D6847 MAZ82000ML IC6871 C0BBBA000022 1 2 3 5 4 6 7 8 IC6797 C0BBBA000022 1 2 3 5 4 6 7 8 C5HABZZ00165 IC6803 1 Z/C 2 F/B 3 GND 4 Vcc 5 Souce/OCL 7 Vin 9 Drain EHMDD9863 IC6791 1 GND 2 GND 3 N.C. 4 VIN 5 VIN 6 N.C. 9 COM 10 COM 11 VOUT 12 VOUT IC6801 C0DBEMC00043 IC6821 C0DBEMC00043 IC6841 C0DBEMC00043 SC30 1 2 3 4 5 6 7 8 9 10 L6802 J0JJC0000015 L6606 G0ZZ00002183 L6801 L6803 J0JJC0000015 L6841 J0JJC0000015 L6472 G0ZZ00002183 T6602 ETS28AU3H9AC 2 P2 3 PT 4 P1 6 V1 7 V2 9 S6 10 S5 12 S3 13 S2 14 NC 15 S1 16 NC 11 S4 5V 5V 15V_F1 VSET0 VSET VSET3 VSUS 16V_F2 15V 15V 5V 15V VSET0 VSCN 5V 5V VSCN_F2 16V_F1 VF_GND2 16V_F1 16V_F2 VERS 15V_F2 16V_F2 15V_F2 VSUS VSCN_F1 VF_GND1 VSET2 PC6710 B3PBA0000223 1 2 3 4 PC6862 B3PBA0000223 1 2 3 4 PC6801 B3PBA0000223 1 2 3 4 PC6711 B3PBA0000223 1 2 3 4 PC6871 B3PBA0000223 1 2 3 4 TP54 TP53 Q6791 2SD0601A0L Q6842 2SC1473AEA Q6700 2SD0601A0L Q6822 2SC3063000RL Q6698 2SC4212H00RL Q6806 2SC1473AEA Q6824 2SD0601A0L Q6805 2SC4212H00RL Q6793 2SD0601A0L Q6821 2SD1263AP0LB Q6841 2SD1263AP0LB Q6699 2SC1473AEA Q6690 2SA19610QAHW Q6792 2SA19610QAHW 1% R6874 5.1k R6808 2.7k R6786 1.5k 1/2W R6822 56k 1% R6892 56k R6726 470k 1% R6831 20k R6882 120k R6736 56 1/2W 2W R6860 8.2 R6840 1.8 1/2W * 2W R6801 8.2 = R6778 4.7k R6827 120k 1% R6854 51k R6819 120k 1% R6852 3.3k 5W R6821 220 = 1% R6849 82k R6845 62k 1/2W R6737 120k R6828 3.3k R6846 62k 1/2W R6841 10k R6825 120k R6709 100 R6843 62k 1% R6829 100k 1/2W R6789 3.9k 1% R6813 1.2k 1% R6895 6.8k R6810 1k R6715 10k 1/2W R6806 1.8 1/2W * R6774 4.7k R6811 10k 2W R6844 100 = R6847 62k 1% R6871 39k R6879 4.7k R6728 470k R6788 4.7k R6792 10k 1% R6888 51k 1WR6823 100k * R6816 1.8k 1% R6812 120k R6693 82k R6815 0 R6855 10k 1/2W 1W R6809 39k * R6755 1k 5W R6759 = 2.2 R6804 82k R6848 10k R6787 1k 1% R6872 39k 1% R6887 51k 1% R6896 3.3k R6727 100k R6820 220k R6694 15k R6793 100 1% R6850 100k R6805 15k R6856 56 1/2W R6817 1.2k R6790 0 R6754 1.5k 1% R6814 3.3k 1% R6870 100k R6875 3.3k R6802 10k 5W R6696 = 2.2 R6791 1k 1% R6833 30k R6695 120k R6876 560 R6891 18k R6877 3.9k 1/2W R6842 43k R6824 3.9k R6826 120k 1% R6830 100k 1/2W R6692 3.9k R6853 100 R6878 22k R6832 4.7 R6839 4.7k 1/2W R6857 120k R6807 1.8 1/2W * 1% R6897 620 R6898 3.9k 1% R6725 100k R6899 22k 1% R6873 39k VR6841 20k 1 2 3 VR6600 20k 1 2 3 TPVAD TPVSCN VSET:365V (Vsus-Vscn+Vset) - - + + TPSC1 132.7-147.8V 365.4 7V VSUS TPVERS + + - - VSET VERS VSCN:145V 138.6-153.7V FOR FACTORY USED SOS7 DET SOS7 DET ERROR DET OSC ERROR DET 34 35 29 30 31 32 36 28 33 SC-BOARD TNPA4250AB (4/5) ! 24 23 21 22 31 36 32 35 33 34 16V COMPARATOR COMPARATOR VAD Gene DC/DC CONVERTER TH-42PZ700C SC-Board (4 of 5) Schematic Diagram TH-42PZ700C SC-Board (4 of 5) Schematic Diagram 136 15.68.SC 电路板 (5/5) 线路图 F_FSIU1 F_FOC1U1 F_FCLKU1 F_FOC2U1 F_FOC2U2 F_FCLKU2 F_FOC1U2 F_FSIU2 F_FSID1 F_FOC1D1 F_FCLKD1 F_FOC2D1 F_FOC2D2 F_FCLKD2 F_FOC1D2 F_FSID2 D6873 D1FK70-7063 D6860 D1FK70-7063 SC43 1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 2 SC42 1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 2 SC44 1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 2 SC41 1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 2 SC46 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 SC45 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 5V_F2 VF_GND1 VF_GND1 VSCN_F1 5V_F2 VSCN_F2 VF_GND2 5V_F2 5V_F1 5V_F1 5V_F2 VF_GND2 5V_F1 5V_F1 ZA6401 K4CD01000011 ZA6402 K4CD01000011 ZA6403 K4CD01000011 TP35 TP073 TP42 TP048 TP047 TP29 TP046 TP053 TP062 TP40 TP47 TP051 TP49 TP48 TP063 TP45 TP072 TP31 TP044 TP34 TP070 TP30 TP28 TP052 TP050 TP32 TP045 TP065 TP068 TP069 TP049 TP44 TP074 TP067 TP33 TP43 R6490 180k R6497 180k R6494 180k R6493 180k R6496 180k R6495 180k R6491 180k R6492 180k Q6601 SC41 SC45 SC46 SC42 SC43 SC44 TO SU-BOARD (SU41) TO SU-BOARD (SU42) TO SU-BOARD (SU45) TO SD-BOARD (SD46) TO SD-BOARD (SD44) TO SD-BOARD (SD43) 39 40 41 45 37 42 43 44 38 SC-BOARD TNPA4250AB (5/5) ! 33 34 36 35 31 TH-42PZ700C SC-Board (5 of 5) Schematic Diagram TH-42PZ700C SC-Board (5 of 5) Schematic Diagram 137 15.69.SU 和 SD 电路板方框图 D6961 D6968 D6963 D6964 D6967 D6965 D6872 D6871 D6872 D6867 D6863 D6864 OC1 GND CLK 68bit SO OC1 VDDH CLK OC2 68bit 68bit OC1 OC1 GND 68bit SO S/P VDDH VDD SO VDDH SO OC2 SI S/P SI 68bit OC1 GND CLK ELECTRODES GND VDD SCAN VDD OC2 OC2 OC1 68bit VDDH 68bit CLK OC2 SI VDD GND VDD OC1 SO VDD S/P VDD GND VDDH CLK OC2 VDDH S/P 68bit 540 LINES VDDH SI SI OC1 CLK S/P VDDH S/P CLK SO SI SO GND SO GND CLK S/P SI VDD OC2 OC2 S/P (DOWN) SD SCAN OUT PANEL (LOWER) 15 7 D77 A31 C44 D35 A1 D33 B33 B1 D41 A4 B37 C46 A37 D76 C1 A9 FOC2D2 Vfo D75 6 2 A40 B30 A33 A36 C49 D34 Vscn_F1 C9 10 B1 C10 A6 Vf Vf +5V_F2 C51 Vfo Vf Vf D40 D1 D72 C41 C47 B7 D36 A32 A7 SD44 C7 A34 A5 B31 A8 Vfo FCLKD1 B8 C45 A1 4 12 +5V-F1 A11 B35 A30 B5 SC44 B6 C48 FOC1D2 B9 FOC2D1 +5V-F1 B40 A10 Vf D31 C8 C40 FOC1D1 D30 Vf B32 C5 FSID2 B11 B10 SD SC43 5V_F1 FSID1 B36 D73 Vf C4 9 D71 C80 A40 D32 C11 D80 SD43 +5V_F2 C50 5V_F2 A4 46 D70 B34 A35 Vf C6 D37 Vfo 14 D74 B40 FCLKD2 134 LINES 136 LINES LINES 136 134 LINES FG1 5V_F1 VF_GND1 Vscn_F1 Vscn Voltage Vfo(Vscn out) 1 EVEN LINE GND 1st Phase High Voltage Floating FCLKD1 FOC1D1 FOC2D1 5V_F1 5V_F2 FOC1D2 FCLKD2 FOC2D2 Vfo(Vscn out) Vscn Voltage VF_GND2 +5V_F2 FG2 ODD LINE High Voltage Floating SI FOC2U1 A11 LINES CLK Vfo ODD S/P 68 LINES GND 68bit FOC1U2 FOC2U2 5V_F2 +5V-F2 (UP) B40 5V_F1 SO A10 FOC1U1 S/P SU Vf FCLKU1 B31 FOC2U1 B36 A8 Vfo(Vscn out) GND B73 A40 Vscn Voltage SI Vf B75 15 FOC1U2 6 VF_GND1 A4 7 B30 2 9 VDD A40 B71 CLK VDD B30 A80 S/P A33 A40 A36 B32 A49 A11 Vf B32 S/P B34 GND A5 FSIU1 CLK B11 OC1 B10 SU PANEL SC41 (UPPER) 68bit SO 5V_F2 FSIU2 SI CLK VDD VDDH SO VDDH CLK Vf OC2 A6 SI 68bit B37 Vfo VDD 14 68bit SCAN B74 B77 B40 A31 CLK VDDH FCLKU1 A44 68bit B35 A1 B33 VDD +5V_F1 B33 FG1 B1 EVEN LINE B41 High Voltage Floating GND 1st Phase SI SO 68bit VDDH 67 LINES GND SI OC1 ODD GND GND S/P 67 LINES VDDH SI EVEN VF_GND2 CLK 67 LINES OC2 VDD Vscn-F2 ODD Vscn Voltage 68 LINES OC2 SO 68 LINES B7 Vfo(Vscn out) A51 OC1 EVEN B36 Vfo 1 OC2 A32 Vf ODD LINE Vscn-F1 ODD A7 GND 2nd Phase Vf SU42 B40 High Voltage Floating A7 FCLKU2 B1 A34 B72 CLK A5 Vscn-F2 OC1 A9 A41 B31 SO SI 10 VDD A47 SI GND S/P B1 OC2 A10 68 LINES A6 EVEN Vf S/P Vf VDD 67 LINES OC1 VDDH +5V_F1 EVEN GND FG2 ELECTRODES 5V_F2 B80 S/P SU41 +5V_F1 OC2 68bit OC1 B35 A50 A8 VDDH Vfo A30 5V_F1 VDDH B4 FCLKU2 B5 A4 B37 134 SO B8 SC42 540 LINES 45 LINES A46 68bit A45 136 B6 B70 A37 OC2 OC1 A1 A48 LINES B34 B76 4 FOC1U1 LINES A35 A1 12 136 B9 OC2 SO A9 +5V-F2 OC1 134 FOC2U2 SCAN OUT SU1 SU2 SU3 SU4 Vscn-F1 IC6861 IC6862 IC6863 IC6864 IC6871 IC6872 IC6873 IC6874 IC6961 IC6962 IC6963 IC6964 IC6971 IC6972 IC6973 IC6974 SC46 GND 2nd Phase SC45 1 SD48 SU 20 47 19 20 SU47 SD 1 48 2 Vf Vf Vf Vf FSID1 FSIU1 Vscn-F2 Vscn-F2 EVEN 68 LINES 68 LINES EVEN ODD ODD EVEN 67 LINES ODD 68 LINES 68 LINES EVEN 67 LINES 67 LINES ODD 67 LINES TH-42PZ700C SU and SD-Board Block Diagram TH-42PZ700C SU and SD-Board Block Diagram 138 15.70.SU 电路板 (1/2) 线路图 SIDE TERM TERM SIDE TERM SIDE FSIU2 UC_204 UC_202 UC_201 UC_200 UC_199 UC_198 UC_197 UC_196 UC_195 UC_194 UC_193 UC_192 UC_191 UC_190 UC_189 UC_188 UC_187 UC_186 UC_185 UC_184 UC_183 UC_182 UC_181 UC_180 UC_178 UC_179 UB_136 UB_134 UB_133 UB_132 UB_131 UB_130 UB_129 UB_128 UB_127 UB_126 UB_125 UB_124 UB_123 UB_122 UB_121 UB_120 UB_119 UB_118 UB_117 UB_116 UB_115 UB_114 UB_113 UB_112 UB_110 UB_111 UA_68 UA_66 UA_65 UA_64 UA_63 UA_62 UA_61 UA_60 UA_59 UA_58 UA_57 UA_56 UA_55 UA_54 UA_53 UA_52 UA_51 UA_50 UA_49 UA_48 UA_47 UA_46 UA_45 UA_44 UA_42 UA_43 UC_177 UB_135 UB_107 UB_108 UB_109 FOC2U2 UA_41 UA_40 UA_39 FSO1 UA_67 UC_176 UC_175 FCLKU2 FOC2U2 FSO3 FSO2 UC_203 UA_1 UA_3 UA_4 UA_5 UA_6 UA_7 UA_8 UA_9 UA_10 UA_11 UA_12 UA_13 UA_14 UA_15 UA_16 UA_17 UA_18 UA_19 UA_20 UA_21 UA_22 UA_23 UA_24 UA_25 UA_26 UA_2 UA_27 UA_28 UA_29 UA_30 UA_31 UA_38 UA_37 UB_69 UB_70 UB_71 UB_72 UB_73 UB_74 UB_75 UB_76 UB_77 UB_78 UB_79 UB_80 UB_81 UB_82 UB_83 UB_84 UB_85 UB_86 UB_87 UB_88 UB_89 UB_90 UB_91 UB_92 UB_93 UB_94 UB_95 UB_96 UB_97 UB_98 UB_99 UB_100 UB_106 UB_105 UC_137 UC_138 UC_139 UC_140 UC_141 UC_142 UC_143 UC_144 UC_145 UC_146 UC_147 UC_148 UC_149 UC_150 UC_151 UC_152 UC_153 UC_154 UC_155 UC_156 UC_157 UC_158 UC_159 UC_160 UC_161 UC_162 UC_163 UC_164 UC_165 UC_166 UC_167 UC_168 UC_173 UC_174 UD_213 UD_212 FCLKU2 UD_215 UD_208 UD_216 UD_214 UD_207 UD_210 UD_211 UD_209 UD_217 UD_205 FOC2U2 UD_206 UD_218 FSO3 UD_252 UD_253 UD_254 UD_255 UD_256 UD_257 UD_247 UD_246 UD_248 UD_249 UD_250 UD_258 UD_264 UD_259 UD_265 UD_260 UD_266 UD_261 UD_267 UD_262 UD_268 UD_263 UD_269 UD_251 UD_270 UD_231 UD_230 UD_229 UD_228 UD_227 UD_226 UD_225 UD_224 UD_223 UD_222 UD_221 UD_220 UD_219 UD_232 UD_233 UD_234 UD_235 UD_236 UD_241 UD_242 UD_243 UD_244 UD_245 FOC1U2 FOC1U2 FOC1U2 FOC1U2 FCLKU2 UA_1 UA_2 UA_3 UA_4 UA_5 UA_6 UA_7 UA_8 UA_9 UA_10 UA_11 UA_12 UA_13 UA_14 UA_15 UA_16 UA_17 UA_18 UA_19 UA_20 UA_21 UA_22 UA_23 UA_24 UA_25 UA_26 UA_27 UA_28 UA_29 UA_30 UA_31 UE_301 UE_300 UE_299 UE_298 UE_297 UE_296 UE_295 UE_294 UE_293 UE_292 UE_291 UE_290 UE_289 UE_288 UE_287 UE_285 UE_284 UE_283 UE_282 UE_281 UE_280 UE_279 UE_278 UE_277 UE_276 UE_275 UE_274 UE_273 UE_272 UE_271 UE_286 UA_32 UA_33 UA_34 UA_35 UA_36 UA_37 UA_38 UA_39 UA_40 UA_41 UA_42 UA_43 UA_44 UA_45 UA_46 UA_47 UA_48 UA_49 UA_50 UA_51 UA_52 UA_53 UA_54 UA_55 UA_56 UA_57 UA_58 UA_59 UA_60 UA_61 UA_62 UA_63 UA_64 UA_65 UA_66 UA_67 UE_337 UE_336 UE_335 UE_334 UE_333 UE_332 UE_331 UE_330 UE_329 UE_328 UE_327 UE_326 UE_325 UE_324 UE_323 UE_322 UE_321 UE_320 UE_319 UE_318 UE_317 UE_316 UE_315 UE_314 UE_313 UE_312 UE_311 UE_310 UE_309 UE_308 UE_307 UE_306 UE_305 UE_304 UE_303 UE_302 UE_338 UF_339 UF_340 UF_341 UF_342 UF_343 UF_344 UF_345 UF_346 UF_347 UF_348 UF_349 UF_350 UF_351 UF_352 UF_353 UF_354 UF_355 UF_356 UF_357 UF_358 UF_359 UF_360 UF_361 UF_362 UF_363 UF_364 UF_365 UF_366 UF_367 UF_368 UF_369 UF_370 UF_371 UF_372 UF_373 UF_374 UF_375 UF_376 UF_377 UF_378 UF_379 UF_380 UF_381 UF_382 UF_383 UF_384 UF_385 UF_386 UF_387 UF_388 UF_389 UF_390 UF_391 UF_392 UF_393 UF_394 UF_395 UF_396 UF_397 UF_398 UF_399 UF_400 UF_401 UF_402 UF_403 UF_404 UB_134 UB_133 UB_132 UB_131 UB_130 UB_129 UB_128 UB_127 UB_126 UB_125 UB_124 UB_123 UB_122 UB_121 UB_120 UB_119 UB_118 UB_117 UB_116 UB_115 UB_114 UB_113 UB_112 UB_111 UB_110 UB_109 UB_108 UB_107 UB_106 UB_105 UB_104 UB_103 UB_102 UB_101 UB_100 UB_99 UB_98 UB_97 UB_96 UB_95 UB_94 UB_93 UB_92 UB_91 UB_90 UB_89 UB_88 UB_87 UB_86 UB_85 UB_84 UB_83 UB_82 UB_81 UB_80 UB_79 UB_78 UB_77 UB_76 UB_75 UB_74 UB_72 UB_73 UB_71 UB_70 UB_69 UA_68 UB_135 UF_405 FSO2 FOC2U2 UA_33 UA_34 UA_35 UA_36 UA_32 UB_101 UB_102 UB_103 UB_104 UC_169 UC_170 UC_171 UC_172 UD_237 UD_238 UD_240 UD_239 FSO1 FSIU1 FOC1U1 FCLKU1 FOC1U2 FCLKU2 FOC2U2 FSIU2 FOC2U1 FCLKU2 C6875 50V 220p C6881 50V 820p C6853 16V 1u C6873 50V 820p C6807 250V 0.1u C6803 250V 0.1u C6801 250V 0.1u C6809 250V 0.1u C6871 50V 820p C6852 16V 1u C6808 250V 0.1u C6851 16V 1u C6802 250V 0.1u C6834 50V 560p C6882 50V 220p C6854 16V 1u C6810 50V 470p D6864 B0JCME000037 D6862 B0HCMM000013 D6871 B0HCMM000013 D6863 B0JCME000037 D6861 MAZ80560HL AN16177A-VT *IC6861 1 OUT3 2 OUT4 3 OUT5 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 77 78 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDDH 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 99 100 AN16177A-VT *IC6862 1 OUT3 2 OUT4 3 OUT5 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 77 78 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDDH 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 99 100 AN16177A-VT *IC6863 1 OUT3 2 OUT4 3 OUT5 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 77 78 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDDH 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 99 100 AN16177A-VT *IC6864 1 OUT3 2 OUT4 3 OUT5 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 77 78 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDDH 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 99 100 SU47 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 SUI1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49 A50 A51 A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62 A63 A64 A65 A66 A67 A68 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49 B50 B51 B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 B62 B63 B64 B65 B66 B67 B68 SUI2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49 A50 A51 A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62 A63 A64 A65 A66 A67 A68 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49 B50 B51 B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 B62 B63 B64 B65 B66 B67 B68 SU45 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 5V_F1 VF_GND2 5V_F2 B53 B12 B34 B6 B67 B73 B72 7 B 5 B 4 B B52 B74 B57 B44 B1 B19 B37 B30 B59 B20 B45 B29 B15 B16 B24 B70 B76 B58 B64 B54 B51 B47 1 2 B 8 1 B B55 B27 6 6 B 3 6 B B22 B79 B2 B11 B75 B32 B65 B48 B71 B61 B3 B17 B62 B31 B9 B42 B13 B38 B80 B56 B33 B78 B49 B10 B28 B36 B26 B60 B68 B25 B46 B8 B77 B69 B41 B23 B39 B43 B40 B50 B14 B35 R6879 EXB38V220JV R6864 EXB38V220JV R6878 EXB38V103JV R6865 EXB38V103JV R6866 EXB38V220JV R6877 EXB38V220JV R6871 220k R6883 10k R6854 220 R6861 10k R6852 220 R6891 220k R6885 10k R6851 220 R6853 220 R6872 10k SU41(Card Edge 80Pin) Vscn Voltage Vfo(Vscn out) FSIU1 FOC1U1 FCLKU1 FOC2U1 FOC2U2 FCLKU2 FOC1U2 FSIU2 FSIU1 5V_F2 FG-2(High Voltage Floting GND-2) (UPPER) FOIL SIDE COMPONET SIDE (LOWER) TO SC-BOARD O T ) 5 4 C S ( SD-BOARD (SD48) TO SC-BOARD (SC41) PDP SCAN DRIVER S/P 68bit PDP SCAN DRIVER S/P 68bit S/P PDP SCAN DRIVER 68bit S/P PDP SCAN DRIVER 68bit SU-BOARD TNPA4383 (1/2) ! 1 5 3 2 4 Vscn Voltage To 1st 134 pins of SCAN ELECTRODES To 2nd 136 pins of SCAN ELECTRODES 5 6 7 1 2 8 9 3 4 A D B F C E TH-42PZ700C SU-Board (1 of 2) Schematic Diagram TH-42PZ700C SU-Board (1 of 2) Schematic Diagram OUT6 OUT7 OUT8 OUT9 OUT10 OUT11 OUT12 OUT13 OUT14 OUT15 OUT16 OUT17 OUT18 OUT19 OUT20 OUT21 OUT22 OUT23 OUT24 OUT6 OUT7 OUT8 OUT9 OUT10 OUT11 OUT12 OUT13 OUT14 OUT15 OUT16 OUT17 OUT18 OUT19 OUT20 OUT21 OUT22 OUT23 OUT24 N.C. OUT1 OUT2 OUT67 OUT68 N.C. OUT1 OUT2 N.C. OUT67 OUT68 N.C. OUT67 OUT68 N.C. OUT1 OUT2 N.C. OUT6 OUT7 OUT8 OUT9 OUT10 OUT11 OUT12 OUT13 OUT14 OUT15 OUT16 OUT17 OUT18 OUT19 OUT20 OUT21 OUT22 OUT23 OUT24 OUT67 OUT68 N.C. OUT1 OUT2 N.C. OUT6 OUT7 OUT8 OUT9 OUT10 OUT11 OUT12 OUT13 OUT14 OUT15 OUT16 OUT17 OUT18 OUT19 OUT20 OUT21 OUT22 OUT23 OUT24 139 15.71.SU 电路板 (2/2) 线路图 TERM SIDE TERM SIDE UF_339 UF_341 UF_342 UF_343 UF_344 UF_345 UF_346 UF_347 UF_348 UF_349 UF_350 UF_351 UF_352 UF_353 UF_354 UF_355 UF_356 UF_357 UF_358 UF_359 UF_360 UF_361 UF_362 UF_363 UF_365 UF_364 UE_271 UE_273 UE_274 UE_275 UE_276 UE_277 UE_278 UE_279 UE_280 UE_281 UE_282 UE_283 UE_284 UE_285 UE_286 UE_287 UE_288 UE_289 UE_290 UE_291 UE_293 UE_294 UE_295 UE_297 UE_296 UG_414 UG_462 UG_461 UG_460 UG_459 UG_458 UG_457 UG_456 UG_455 UG_454 UG_453 UG_451 UG_452 UG_450 UG_449 UG_448 UG_447 UG_446 UG_445 UG_444 UG_443 UG_442 UG_441 UG_440 UG_439 UG_438 UG_437 UG_436 UG_435 UG_434 UG_433 UG_431 UG_432 UG_430 UG_429 UG_428 UG_427 UG_426 UG_425 UG_424 UG_423 UG_422 UG_421 UG_420 UG_419 UG_418 UG_417 UG_415 UG_416 UG_413 UG_412 UG_411 UG_410 UG_409 UG_408 UG_407 UF_406 FOC2U1 FCLKU1 UF_366 UF_367 UF_368 UE_272 UE_298 UE_300 UE_299 UF_340 UE_338 UE_337 UE_336 UE_335 UE_334 UE_333 UE_332 UE_331 UE_330 UE_329 UE_328 UE_327 UE_326 UE_325 UE_324 UE_323 UE_322 UE_321 UE_320 UE_319 UE_318 UE_317 UE_316 UE_315 UE_314 UE_313 UE_312 UE_311 UE_310 UE_309 UE_308 UE_307 UE_301 UE_302 UF_406 UF_405 UF_404 UF_403 UF_402 UF_401 UF_400 UF_399 UF_398 UF_397 UF_396 UF_395 UF_394 UF_393 UF_392 UF_391 UF_390 UF_389 UF_388 UF_387 UF_386 UF_385 UF_384 UF_383 UF_382 UF_381 UF_380 UF_379 UF_378 UF_377 UF_376 UF_375 UF_369 UF_370 UH_498 UH_518 UH_480 UD_243 UD_263 UH_500 UD_218 UH_517 UH_486 UD_256 UG_468 UD_258 UH_499 UH_491 UH_516 UD_206 UD_226 UG_474 UH_539 UH_497 UH_515 UH_479 UD_227 UD_259 UD_224 UH_514 UH_485 UD_228 UG_467 UH_528 UH_490 UH_513 UD_216 UD_229 UG_473 UD_268 UH_489 UD_265 UH_512 UD_215 UD_230 UD_260 UH_488 UD_257 UH_511 UD_214 UD_231 UH_536 UH_487 UH_535 UD_213 UD_232 UH_538 UD_252 UH_508 UD_212 UD_233 UH_532 UD_244 UH_507 UH_478 UD_234 UH_537 UD_250 UH_506 UH_477 UD_235 UG_466 UH_531 UD_255 UH_505 UH_476 UD_236 UG_465 UH_527 UD_251 UH_475 UD_237 UG_464 UD_266 UD_217 UD_238 UG_463 UH_529 UD_223 UH_534 UD_239 UD_205 UD_267 UH_496 UD_261 UD_240 UD_211 UD_249 UD_222 UH_533 UH_484 UD_241 UH_495 UD_264 UH_525 UD_210 UD_245 UG_472 UD_221 UH_524 UH_483 UD_248 UH_504 UH_494 UH_523 UD_209 UD_254 UG_471 UD_220 UH_522 UH_482 UH_510 UD_246 UH_503 UH_493 UH_521 UD_208 UD_253 UG_470 UD_262 UH_509 UD_219 UH_520 UH_481 UD_247 UD_269 UH_502 UH_492 UH_519 UD_207 UD_242 UG_469 UH_530 UH_501 UH_482 UH_505 UH_539 UG_416 UH_528 UH_535 UH_513 UG_457 FOC2U1 UH_504 UH_538 UH_530 UG_417 UH_475 UH_512 UH_501 FOC2U1 UG_459 UG_474 UH_506 UH_537 UH_481 UG_415 UG_456 UH_480 UH_496 UH_495 UG_408 UG_418 UG_448 UH_494 UH_534 UH_529 UG_455 UG_470 UG_473 UH_477 UH_500 UG_458 UG_444 UG_419 UH_491 UG_469 UG_454 UG_447 UG_422 UH_497 UH_488 UG_434 UG_420 UG_472 UG_451 UH_533 UH_521 UH_484 UG_443 UG_453 UG_446 UG_450 UH_478 UH_489 UG_412 UG_468 UG_421 UG_471 UH_492 UH_525 UH_520 UG_449 UG_426 UG_435 UG_452 UG_445 UH_498 UG_411 UH_485 UH_490 UG_462 UG_437 UG_466 UH_532 UG_425 UH_519 UH_527 UG_433 UG_467 UG_409 UH_524 UH_479 UG_463 UH_518 UH_483 UG_413 UG_436 UG_423 UH_486 FCLKU1 UH_493 UG_431 UH_476 UG_427 UG_407 UG_429 UH_523 UH_531 UH_517 UG_461 UG_438 UG_465 UH_487 UH_499 UH_526 UG_432 UG_428 UH_502 UG_410 UH_522 UH_511 UH_515 UH_516 UG_424 UG_414 UH_536 UH_540 UG_430 UG_460 FSO7 UH_503 UH_514 UG_464 UH_526 UD_225 UH_540 UD_270 UE_292 UC_204 FSO6 FCLKU1 FOC1U1 FOC1U1 FCLKU1 FOC1U1 FSIU1 FOC2U1 FSO5 UB_136 UC_155 UC_172 UC_194 UC_161 UC_150 UC_183 UC_140 UC_190 UC_169 UC_159 UC_154 UC_179 UC_175 UC_186 UC_163 UC_149 UC_144 UC_139 UC_146 UC_182 UC_158 UC_189 UC_153 UC_170 UC_193 UC_164 UC_148 UC_178 UC_198 UC_174 UC_185 UC_197 UC_143 UC_138 UC_157 UC_167 UC_145 UC_152 UC_192 UC_177 UC_181 UC_199 UC_162 UC_188 UC_165 UC_147 UC_195 UC_171 UC_142 UC_137 UC_156 UC_173 UC_184 UC_196 UC_151 UC_168 UC_166 UC_191 UC_180 UC_176 UC_187 UC_141 UC_160 UC_202 UC_201 UC_200 UC_203 UE_303 UE_304 UE_305 UE_306 UF_374 UF_373 UF_372 UF_371 UG_439 UG_440 UG_441 UG_442 UH_507 UH_508 UH_509 UH_510 FSO5 FSO6 FSO7 FOC1U1 C6857 16V 1u C6820 250V 0.1u C6821 250V 0.1u C6815 250V 0.1u C6811 50V 470p C6858 16V 1u C6839 50V 560p C6859 16V 1u C6813 250V 0.1u C6819 250V 0.1u C6814 250V 0.1u C6856 16V 1u C6872 50V 220p D6867 B0HCMM000013 D6872 B0HCMM000013 D6866 MAZ80560HL AN16177A-VT *IC6873 1 OUT3 2 OUT4 3 OUT5 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 77 78 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDDH 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 99 100 AN16177A-VT *IC6871 1 OUT3 2 OUT4 3 OUT5 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 OUT67 77 OUT68 78 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDDH 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 99 100 AN16177A-VT *IC6872 1 OUT3 2 OUT4 3 OUT5 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 77 78 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDDH 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 99 100 AN16177A-VT *IC6874 1 OUT3 2 OUT4 3 OUT5 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 77 78 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDDH 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 99 100 SUI4 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49 A50 A51 A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62 A63 A64 A65 A66 A67 A68 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49 B50 B51 B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 B62 B63 B64 B65 B66 B67 B68 SUI3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49 A50 A51 A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62 A63 A64 A65 A66 A67 A68 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49 B50 B51 B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 B62 B63 B64 B65 B66 B67 B68 A18 A40 A76 A41 A30 A15 A32 A44 A57 A49 A71 A75 A3 A73 A67 A48 A12 A25 A74 A9 A38 A28 A2 A80 A24 A4 A10 A19 A61 A47 A22 A7 A33 A68 A23 A53 A43 A42 A26 A62 A1 A36 A46 A54 A37 A5 A72 A14 A55 A50 A69 A58 A34 A56 A51 A11 A35 A78 A31 A77 A63 A29 A66 A21 A64 A59 A70 A13 A39 A79 A16 A17 A60 A27 A65 A6 A45 A20 A8 A52 R6857 220 R6859 220 R6892 220k R6858 220 R6856 220 R6888 220k R6862 10k R6886 10k Vscn Voltage Vfo(Vscn out) FG-1(High Voltage Floting GND-1) 5V_F1 COMPONET SIDE FOIL SIDE (UPPER) (LOWER) TO SC-BOARD (SC42) SU42(Card Edge 80Pin) S/P 68bit PDP SCAN DRIVER 68bit PDP SCAN DRIVER S/P PDP SCAN DRIVER 68bit S/P PDP SCAN DRIVER 68bit S/P ! SU-BOARD TNPA4383 (2/2) 5 4 3 2 1 Vscn Voltage To 4th 134 pins of SCAN ELECTRODES To 3rd 136 pins of SCAN ELECTRODES 11 8 1 5 1 14 12 17 10 16 13 TH-42PZ700C SU-Board (2 of 2) Schematic Diagram TH-42PZ700C SU-Board (2 of 2) Schematic Diagram N.C. OUT1 OUT2 N.C. OUT6 OUT7 OUT8 OUT9 OUT10 OUT11 OUT12 OUT13 OUT14 OUT15 OUT16 OUT17 OUT18 OUT19 OUT20 OUT21 OUT22 OUT23 OUT24 OUT67 OUT68 N.C. OUT1 OUT2 N.C. OUT6 OUT7 OUT8 OUT9 OUT10 OUT11 OUT12 OUT13 OUT14 OUT15 OUT16 OUT17 OUT18 OUT19 OUT20 OUT21 OUT22 OUT23 OUT24 OUT67 OUT68 N.C. OUT1 OUT2 N.C. OUT6 OUT7 OUT8 OUT9 OUT10 OUT11 OUT12 OUT13 OUT14 OUT15 OUT16 OUT17 OUT18 OUT19 OUT20 OUT21 OUT22 OUT23 OUT24 OUT67 OUT68 N.C. OUT1 OUT2 N.C. OUT6 OUT7 OUT8 OUT9 OUT10 OUT11 OUT12 OUT13 OUT14 OUT15 OUT16 OUT17 OUT18 OUT19 OUT20 OUT21 OUT22 OUT23 OUT24 140 15.72.SD 电路板 (1/2) 线路图 SIDE TERM TERM SIDE TERM SIDE DE_338 DE_336 DE_335 DE_334 DE_333 DE_332 DE_331 DE_330 DE_329 DE_328 DE_327 DE_326 DE_325 DE_324 DE_323 DE_322 DE_321 DE_320 DE_319 DE_318 DE_317 DE_316 DE_315 DE_314 DE_312 DE_313 DG_474 DG_472 DG_471 DG_470 DG_469 DG_468 DG_467 DG_466 DG_465 DG_464 DG_463 DG_462 DG_461 DG_460 DG_459 DG_458 DG_457 DG_456 DG_455 DG_454 DG_453 DG_452 DG_451 DG_450 DG_448 DG_449 DH_540 DH_539 DH_538 DH_537 DH_536 DH_535 DH_534 DH_533 DH_532 DH_531 DH_530 DH_529 DH_528 DH_527 DH_526 DH_525 DH_524 DH_523 DH_522 DH_521 DH_520 DH_519 DH_518 DH_516 DH_517 DF_404 DF_403 DF_402 DF_401 DF_400 DF_399 DF_398 DF_397 DF_396 DF_395 DF_394 DF_393 DF_392 DF_391 DF_390 DF_389 DF_388 DF_387 DF_386 DF_385 DF_384 DF_383 DF_382 DF_380 DF_381 DB_136 DC_137 DC_138 DC_139 DC_140 DC_141 DC_142 DF_406 DG_407 DG_408 DG_409 DG_410 DG_411 DG_412 DG_413 DG_414 DG_415 DG_416 DG_417 DG_418 DG_419 DG_420 DG_421 DG_423 DG_422 DC_143 DC_144 DC_145 DC_146 DC_147 DC_148 DC_149 DC_150 DC_151 DC_153 DC_152 DG_424 DG_425 DG_426 DG_427 DG_428 DG_429 DG_430 DG_431 DG_432 DG_433 DG_434 DG_435 DG_436 DG_437 DG_438 DG_439 DG_440 DG_441 DG_442 DG_444 DG_443 DC_154 DC_155 DC_156 DC_157 DC_158 DC_159 DC_160 DC_161 DC_162 DC_163 DC_164 DC_165 DC_166 DC_167 DC_168 DC_170 DC_171 DC_172 DC_174 DC_173 DC_175 DC_176 DC_177 DC_179 DC_178 DG_446 DG_447 DG_448 DG_450 DG_449 DG_451 DG_452 DG_453 DG_454 DG_455 DG_456 DG_457 DG_458 DG_459 DG_460 DG_461 DG_462 DG_463 DG_464 DG_465 DG_466 DG_467 DG_468 DG_469 DG_470 DG_471 DG_472 DG_473 DG_474 DH_475 DH_476 DC_180 DC_181 DC_182 DC_183 DC_184 DC_185 DC_186 DC_187 DC_188 DC_189 DC_190 DC_191 DC_192 DC_193 DC_194 DC_195 DC_196 DC_197 DC_198 DC_199 DC_200 DC_201 DC_202 DC_203 DC_204 DD_205 DD_206 DD_207 DD_208 DD_209 DD_210 DD_211 DD_212 DD_213 DD_214 DD_215 DD_216 DD_217 DD_218 DD_219 DD_220 DD_222 DD_221 DH_477 DH_478 DH_479 DH_480 DH_481 DH_482 DH_483 DH_484 DH_485 DH_486 DH_487 DH_488 DH_489 DH_490 DH_492 DH_491 DD_223 DD_224 DD_225 DD_227 DD_228 DD_229 DD_230 DD_233 DD_234 DD_235 DD_236 DD_238 DD_237 DH_494 DH_495 DH_498 DH_499 DH_500 DH_501 DH_502 DH_503 DH_504 DH_505 DH_506 DH_507 DH_508 DD_239 DD_241 DD_243 DD_244 DD_245 DD_246 DD_247 DH_509 DH_510 DH_512 DH_513 DH_514 DH_515 DH_517 DH_518 DH_519 DH_520 DH_521 DH_522 DH_523 DH_524 DH_525 DH_526 DH_528 DH_529 DH_530 DH_531 DH_533 DH_534 DH_535 DH_536 DH_537 DH_538 DH_539 DD_249 DD_254 DD_258 DD_260 DD_261 DD_262 DD_263 DD_264 DD_265 DD_266 DD_267 DD_268 DD_269 DE_311 DE_310 DE_309 DG_447 DG_446 DG_445 DH_515 DH_514 DH_513 DF_379 DF_377 FCLKD1 DE_337 FCLKD1 FOC2D1 FOC2D1 DG_473 DF_366 DF_367 DF_368 DF_369 DF_370 DF_376 DF_375 DH_481 DH_482 DH_483 DH_484 DH_485 DH_486 DH_487 DH_488 DH_489 DH_490 DH_491 DH_492 DH_493 DH_494 DH_495 DH_496 DH_497 DH_498 DH_499 DH_500 DH_501 DH_503 DH_502 DH_504 DH_505 DH_506 DH_512 DH_511 DG_407 DG_409 DG_410 DG_411 DG_412 DG_413 DG_414 DG_415 DG_416 DG_417 DG_418 DG_419 DG_420 DG_421 DG_422 DG_423 DG_424 DG_425 DG_426 DG_427 DG_428 DG_429 DG_430 DG_431 DG_432 DG_433 DG_434 DG_435 DG_436 DG_437 DG_438 DG_444 DG_443 DE_272 DE_273 DE_274 DE_275 DE_276 DE_277 DE_278 DE_279 DE_280 DE_281 DE_282 DE_283 DE_284 DE_285 DE_286 DE_287 DE_288 DE_289 DE_290 DE_291 DE_292 DE_293 DE_294 DE_295 DE_296 DE_297 DE_298 DE_299 DE_300 DE_301 DE_302 DE_308 DE_307 DH_532 DH_527 DH_516 DH_511 DD_259 DD_257 DD_256 DD_255 DD_253 DD_252 DD_251 DD_250 DD_248 DD_242 DD_240 DD_232 DD_231 DD_226 DH_497 DH_496 DH_493 DC_169 DF_357 DF_365 DF_356 DF_353 DF_355 DF_361 DF_364 DF_362 DF_360 DF_359 DF_358 DF_354 DF_363 DE_271 FSO3 DG_445 FOC2D1 FSO1 FSO1 FSO2 DF_351 DF_350 DF_349 DF_348 DF_347 DF_346 DF_345 DF_344 DF_343 DF_342 DF_341 DF_340 DF_339 DF_352 DF_378 DF_406 DF_405 DG_408 FCLKD1 FOC1D1 FOC1D1 FOC1D1 DH_507 DH_508 DH_509 DH_510 DG_439 DG_440 DG_441 DG_442 DF_371 DF_372 DF_373 DF_374 DE_303 DE_304 DE_305 DE_306 FSO3 FSO2 FSID1 FCLKD1 FOC2D1 DH_475 DH_476 DH_479 DH_478 DH_477 DH_480 DD_270 DH_540 FOC1D1 C6910 50V 470p C6909 250V 0.1u C6908 250V 0.1u C6903 250V 0.1u C6902 250V 0.1u C6901 250V 0.1u C6907 250V 0.1u C6973 16V 1u C6932 50V 560p C6974 16V 1u C6972 16V 1u C6968 50V 220p C6975 16V 1u D6961 B0HCMM000013 D6968 B0HCMM000013 D6962 MAZ80560HL AN16177A-VT *IC6962 1 OUT3 2 OUT4 3 OUT5 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 77 78 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDDH 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 99 100 AN16177A-VT *IC6961 1 OUT3 2 OUT4 3 OUT5 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 77 78 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDDH 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 99 100 AN16177A-VT *IC6963 1 OUT3 2 OUT4 3 OUT5 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 77 78 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDDH 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 99 100 AN16177A-VT *IC6964 1 OUT3 2 OUT4 3 OUT5 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 77 78 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDDH 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 99 100 SD48 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 SDI1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49 A50 A51 A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62 A63 A64 A65 A66 A67 A68 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49 B50 B51 B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 B62 B63 B64 B65 B66 B67 B68 SDI2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49 A50 A51 A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62 A63 A64 A65 A66 A67 A68 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49 B50 B51 B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 B62 B63 B64 B65 B66 B67 B68 3 7 D 0 7 D D53 D79 D51 D35 D29 D74 D57 D1 D67 D60 D23 D8 D6 D76 D7 D5 D17 D2 D71 D3 D59 D28 D11 D24 D54 D61 D34 D20 D30 D72 D4 D36 8 6 D 6 6 D D77 D10 D38 D65 D44 D45 D25 D47 D16 D41 D21 D37 D52 D63 D48 D9 D14 D78 D39 D58 D32 D62 D13 D75 D40 D31 D22 D43 D18 D42 D26 D27 D12 D56 D15 D33 D64 D50 D46 D80 D19 D69 D49 D55 R6945 220k R6974 10k R6967 220k R6968 10k R6975 220 R6972 220 R6952 0 R6971 220 R6973 220 (UPPER) (LOWER) COMPONET SIDE FG-1(High Voltage Floting GND-1) FOIL SIDE Vscn Voltage Vfo(Vscn out) FSID1 5V_F1 3 A D B 4 F 5 C 6 7 1 2 8 E 9 TO SU-BOARD (SU47) TO SC-BOARD (SC44) SD44(Card Edge 80Pin) S/P 68bit PDP SCAN DRIVER PDP SCAN DRIVER S/P 68bit S/P PDP SCAN DRIVER 68bit S/P PDP SCAN DRIVER 68bit 6 1 5 3 2 4 SD-BOARD TNPA4384 (1/2) ! To 1st 134 pins of SCAN ELECTRODES To 2nd 136 pins of SCAN ELECTRODES TH-42PZ700C SD-Board (1 of 2) Schematic Diagram TH-42PZ700C SD-Board (1 of 2) Schematic Diagram OUT67 OUT68 N.C. OUT1 OUT2 N.C. OUT6 OUT7 OUT8 OUT9 OUT10 OUT11 OUT12 OUT13 OUT14 OUT15 OUT16 OUT17 OUT18 OUT19 OUT20 OUT21 OUT22 OUT23 OUT24 OUT1 OUT2 N.C. OUT67 OUT68 N.C. OUT6 OUT7 OUT8 OUT9 OUT10 OUT11 OUT12 OUT13 OUT14 OUT15 OUT16 OUT17 OUT18 OUT19 OUT20 OUT21 OUT22 OUT23 OUT24 OUT1 OUT2 N.C. OUT67 OUT68 N.C. OUT6 OUT7 OUT8 OUT9 OUT10 OUT11 OUT12 OUT13 OUT14 OUT15 OUT16 OUT17 OUT18 OUT19 OUT20 OUT21 OUT22 OUT23 OUT24 OUT67 OUT68 N.C. OUT1 OUT2 N.C. OUT6 OUT7 OUT8 OUT9 OUT10 OUT11 OUT12 OUT13 OUT14 OUT15 OUT16 OUT17 OUT18 OUT19 OUT20 OUT21 OUT22 OUT23 OUT24 141 15.73.SD 电路板 (2/2) 线路图 TERM SIDE TERM SIDE VF_GND2 DF_349 DF_350 DF_351 DF_352 DF_353 DF_354 DF_355 DF_356 DF_357 DF_358 DF_359 DF_360 DF_361 DB_79 DB_80 DB_81 DB_82 DB_83 DB_84 DB_85 DB_86 DB_87 DB_88 DB_89 DB_90 DB_91 DB_92 DB_93 DB_94 DB_95 DB_97 DB_96 DF_362 DF_363 DF_364 DF_365 DF_366 DF_367 DF_368 DF_369 DF_370 DF_371 DF_372 DF_373 DF_374 DF_375 DF_376 DF_377 DF_378 DF_379 DF_380 DB_98 DB_99 DB_100 DB_101 DB_102 DB_103 DB_104 DB_105 DB_106 DB_107 DB_108 DB_109 DF_381 DF_382 DF_383 DF_384 DF_385 DF_386 DF_387 DF_388 DF_389 DF_390 DF_391 DF_392 DF_393 DF_394 DF_396 DF_395 DB_111 DB_112 DB_113 DB_114 DB_115 DB_117 DB_118 DB_119 DB_120 DB_121 DB_122 DB_123 DB_126 DB_125 DB_127 DB_128 DB_129 DB_130 DB_131 DB_132 DB_133 DB_134 DB_135 DF_398 DF_399 DF_400 DF_401 DF_402 DF_403 DF_404 DF_405 DF_397 DB_124 DA_55 DA_56 DA_57 DA_58 DA_59 DA_60 DA_61 DA_62 DA_63 DA_64 DA_65 DA_66 DA_67 DA_68 DC_190 DC_144 DC_162 DC_191 DC_157 DC_143 DC_163 DC_192 DC_156 DC_142 DC_161 DC_193 DC_155 DC_141 DC_194 DC_160 DC_154 DC_140 DC_195 DC_159 DC_153 DC_139 DC_196 DC_158 DC_168 DC_137 DC_166 DC_197 DC_167 DC_165 DC_198 DC_173 DC_164 DC_199 DC_174 DC_200 DC_175 DC_201 DC_176 DC_202 DC_177 DC_203 DC_178 DC_204 DC_179 DC_180 DC_181 DC_152 DC_182 DC_151 DC_183 DC_150 DC_184 DC_149 DC_185 DC_148 DC_186 DC_147 DC_187 DC_146 DC_188 DC_138 DC_145 DC_189 FCLKD2 FSO5 DE_312 DE_311 DE_310 DE_309 DE_302 DE_308 DE_301 DE_307 DE_306 DE_305 DE_304 DE_303 DE_324 DE_323 DE_322 DE_321 DA_47 DE_314 DE_320 DA_53 DE_313 DE_319 DA_52 DE_318 DA_51 DA_50 DE_316 DA_49 DE_315 DA_48 DA_54 DE_336 DE_335 DE_334 DE_333 DA_59 DA_58 DA_57 DA_56 DA_55 DE_326 DE_332 DA_65 DE_325 DE_331 DA_64 DE_330 DA_63 DE_329 DA_62 DE_328 DA_61 DE_327 DA_60 DA_66 DF_348 DF_347 DF_346 DF_345 DB_71 DB_70 DB_69 DA_68 DA_67 DE_338 DF_344 DB_77 DE_337 DF_343 DB_76 DF_342 DB_75 DF_341 DB_74 DF_340 DB_73 DF_339 DB_72 DB_78 DA_20 DA_16 DA_21 DA_27 DA_19 DA_15 DA_28 DA_29 DA_24 DA_18 DA_25 DA_17 DA_23 DA_26 DA_30 DA_22 DA_4 DE_282 DA_5 DE_284 DE_280 DE_274 DE_279 DE_273 DE_275 DA_11 DA_3 DE_283 DE_272 DA_13 DA_8 DE_281 DA_9 DA_7 DE_278 DA_10 DE_277 DE_276 DA_14 DA_6 FSO7 FOC2D2 FOC2D2 FOC2D2 DE_300 DE_299 DE_298 DE_297 DE_296 DE_295 DE_294 DE_293 DE_292 DE_291 DE_290 DE_289 DE_288 DE_287 DE_286 DE_285 DA_32 DA_33 DA_34 DA_35 DA_37 DA_38 DA_39 DA_41 DA_42 DA_43 DA_44 DA_45 DA_46 FSO6 DE_317 DB_114 DB_84 DB_122 DB_134 DB_108 DB_98 DB_110 DB_69 DB_133 DB_100 DB_135 DB_107 DB_113 DB_90 DB_112 DB_130 DB_109 DB_128 DB_97 DB_111 DB_99 DB_136 DB_87 DB_129 DB_94 DB_125 DB_132 DB_93 DB_106 DB_76 FOC2D2 DB_131 DB_105 DB_96 DB_71 DB_85 DB_86 DB_91 DB_77 DB_92 DB_127 FCLKD2 DB_70 DB_88 DB_126 DB_74 DB_72 DB_124 DB_80 DB_73 DB_120 DB_119 DB_95 DB_117 DB_79 DB_78 DB_121 DB_75 DB_81 DB_118 DB_89 DB_116 DB_115 DB_82 DB_83 DB_123 DD_267 DD_236 DD_249 DD_247 DD_228 DD_217 DD_263 DD_257 DD_265 DD_268 DD_214 DD_242 DD_205 DD_220 DD_222 DD_253 DD_230 DD_235 DD_227 DD_243 DD_256 DD_234 DD_229 DD_250 DD_208 DD_216 DD_259 DD_246 DD_231 DD_233 DD_221 DD_269 DD_261 DD_219 DD_215 DD_225 DD_260 DD_266 DD_207 DD_258 DD_244 DD_223 DD_251 DD_255 DD_211 DD_224 DD_264 DD_241 DD_212 DD_270 DD_209 DD_218 DD_206 DD_210 DD_232 DD_226 DD_248 DD_245 DD_262 DD_252 DD_213 DD_254 FSO5 DA_1 DA_3 DA_4 DA_5 DA_6 DA_7 DA_8 DA_9 DA_10 DA_11 DA_12 DA_13 DA_14 DA_15 DA_16 DA_17 DA_18 DA_19 DA_20 DA_21 DA_22 DA_23 DA_24 DA_25 DA_26 DA_27 DA_28 DA_29 DA_30 DA_31 DA_32 DA_37 DA_38 DA_39 DA_40 DA_41 DA_42 DA_43 DA_44 DA_45 DA_46 DA_47 DA_48 DA_49 DA_50 DA_51 DA_52 DA_53 DA_54 DB_116 DB_110 DA_2 DA_2 FSID2 DE_271 DA_1 DA_12 DA_31 DA_36 DA_40 FOC1D2 FOC1D2 FOC1D2 FOC1D2 FCLKD2 FOC1D2 FSO7 DD_240 DD_239 DD_238 DD_237 DC_172 DC_171 DC_170 DC_169 DB_104 DB_103 DB_102 DB_101 DA_36 DA_35 DA_34 DA_33 FSO6 FSID1 FOC1D1 FCLKD1 FOC2D1 FSID2 FCLKD2 FOC2D2 FCLKD2 C6979 16V 1u C6921 250V 0.1u C6920 250V 0.1u C6915 250V 0.1u C6942 50V 220p C6914 250V 0.1u C6953 50V 220p C6937 50V 560p C6913 250V 0.1u C6941 50V 820p C6911 50V 470p C6966 50V 820p C6951 50V 820p C6958 16V 1u C6980 16V 1u C6981 16V 1u D6964 B0JCME000037 D6967 B0HCMM000013 D6965 B0HCMM000013 D6963 B0JCME000037 D6966 MAZ80560HL AN16177A-VT *IC6972 1 OUT3 2 OUT4 3 OUT5 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 77 78 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDDH 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 99 100 AN16177A-VT *IC6971 1 OUT3 2 OUT4 3 OUT5 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 77 78 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDDH 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 99 100 AN16177A-VT *IC6973 1 OUT3 2 OUT4 3 OUT5 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 77 78 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDDH 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 99 100 AN16177A-VT *IC6974 1 OUT3 2 OUT4 3 OUT5 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 OUT33 32 OUT34 33 N.C. 34 VDDH 35 VDDH 36 N.C. 37 GND 38 GND 39 GND 40 N.C. 41 VDDH 42 VDDH 43 N.C. 44 OUT35 45 OUT36 46 OUT37 47 OUT38 48 OUT39 49 OUT40 50 OUT41 51 OUT42 52 OUT43 53 OUT44 54 OUT45 55 OUT46 56 OUT47 57 OUT48 58 OUT49 59 OUT50 60 OUT51 61 OUT52 62 OUT53 63 OUT54 64 OUT55 65 OUT56 66 OUT57 67 OUT58 68 OUT59 69 OUT60 70 OUT61 71 OUT62 72 OUT63 73 OUT64 74 OUT65 75 OUT66 76 77 78 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDDH 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 99 100 SDI3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49 A50 A51 A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62 A63 A64 A65 A66 A67 A68 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49 B50 B51 B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 B62 B63 B64 B65 B66 B67 B68 SDI4 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 A49 A50 A51 A52 A53 A54 A55 A56 A57 A58 A59 A60 A61 A62 A63 A64 A65 A66 A67 A68 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49 B50 B51 B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 B62 B63 B64 B65 B66 B67 B68 SD46 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 5V_F1 5V_F2 C18 C29 C61 C6 C11 C56 C10 C35 C52 C66 C55 C44 C49 C71 C21 C72 C39 C8 C33 C57 C16 C4 C1 C9 C13 C48 C26 C58 C46 C40 C34 C24 C30 C70 C7 C80 C17 C60 C76 C19 C42 C47 C20 C53 C65 C59 C41 7 6 C 3 6 C C25 C54 C28 C45 C78 C3 C74 C31 C22 C73 C38 C23 C50 C36 C5 C77 C62 C75 C12 C2 C64 C37 C14 C32 C27 C79 C69 C15 C51 C68 C43 R6957 EXB38V220JV R6941 EXB38V220JV R6958 EXB38V103JV R6955 EXB38V103JV R6953 EXB38V220JV R6959 EXB38V220JV R6950 10k R6951 10k R6963 10k R6949 10k R6978 220 R6965 220k R6966 220 R6947 220k R6979 220 R6977 220 Vscn Voltage Vfo(Vscn out) SD43(Card Edge 80Pin) FOC2D1 FOC1D1 FSID1 FSID2 FCLKD1 FCLKD2 FOC1D2 FOC2D2 5V_F2 14 12 17 10 16 13 11 8 1 5 1 TO SC-BOARD (SC46) TO SC-BOARD (SC43) PDP SCAN DRIVER S/P 68bit S/P 68bit PDP SCAN DRIVER S/P PDP SCAN DRIVER 68bit PDP SCAN DRIVER 68bit S/P 6 4 5 3 2 1 ! SD-BOARD TNPA4384 (2/2) FG-2(High Voltage Floting GND-2) (UPPER) (LOWER) COMPONET SIDE FOIL SIDE To 3rd 136 pins of SCAN ELECTRODES To 4th 134 pins of SCAN ELECTRODES TH-42PZ700C SD-Board (2 of 2) Schematic Diagram TH-42PZ700C SD-Board (2 of 2) Schematic Diagram OUT6 OUT7 OUT8 OUT9 OUT10 OUT11 OUT12 OUT13 OUT14 OUT15 OUT16 OUT17 OUT18 OUT19 OUT20 OUT21 OUT22 OUT23 OUT24 OUT6 OUT7 OUT8 OUT9 OUT10 OUT11 OUT12 OUT13 OUT14 OUT15 OUT16 OUT17 OUT18 OUT19 OUT20 OUT21 OUT22 OUT23 OUT24 OUT6 OUT7 OUT8 OUT9 OUT10 OUT11 OUT12 OUT13 OUT14 OUT15 OUT16 OUT17 OUT18 OUT19 OUT20 OUT21 OUT22 OUT23 OUT24 OUT67 OUT68 N.C. OUT1 OUT2 N.C. OUT67 OUT68 N.C. OUT1 OUT2 N.C. OUT67 OUT68 N.C. OUT1 OUT2 N.C. OUT1 OUT2 N.C. OUT67 OUT68 N.C. OUT6 OUT7 OUT8 OUT9 OUT10 OUT11 OUT12 OUT13 OUT14 OUT15 OUT16 OUT17 OUT18 OUT19 OUT20 OUT21 OUT22 OUT23 OUT24 142 15.74.SS 和 S 电路板方框图 REF K A PUSH R6019 R6031 R6033 D6273 D6275 TPSS1 D6221 R6020 D6255 R6034 R6032 SW2500 VR6000 1 2 3 D6283 D6276 D6277 D6278 D6253 UEH Ve Gen. HO D6081- D6083 TPVDA Ve2 Gen.(+5V) Vda+75V 4 USL USL Vda+75V COMPARATOR SS Ve OUT LIN UEL PANEL IN VCC VCC 2 SS52 SS_SOS8 P12 BUFFER ELECTRODE FET 1 Q6171, Q6172 10 OUTPUT VCC Vsus Gen. Q6146-Q6149 34 UMH SS 3 FET 5 FET SS55 Q6271 VE USH HIN SS53 C23 LO 3 UEH POWER SW L6011-L6015 Q6141-Q6144 Q6111 UML 8 HO Ve CONTROL LO Q6181, Q6031 UML HIN SUSTAIN Q6251 Q6001-Q6005 2 12 C35 Vsus SS56 CONTROL MAIN_SW_2 HO UML Q6051-Q6053 FET 35 1 Vda+75V 2 1 23 LO STB+5V C33 Q6103, Q6104 TPVSUS P+15V FET D6061-D6064 TPSOS8 STB PS S1 33 6 8 Vda+75V TPSS1 WAVEFORM LIN SS Ve2 1 VSUS 3 HO HIN DRV_SOS8 Q6042-Q6044 2 1 Ve:157V Vda+75V SS P+5V FET Q6102,Q6106 UEL FET Q6256,Q6222 P11 UMH 1 FET 4 11 L6001-L6006 Q6021-Q6025 Q6112,Q6114 VCC SS 7 SS54 1 Q6101,Q6105 ENERGY RECOVERY SS57 P+15V SS Vda+75V USH TPVe LIN SUSTAIN DRIVE SS S1 POWER SW OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT FET DRIVER FET DRIVER FET DRIVER FET DRIVER BUFFER BUFFER BUFFER BUFFER IC6251 MAIN_SW_1 TPVe2 Ve2:15V UEL UEH USL USH UMH UML VCC BUFFER P+15V IC6131 IC6151 IC6241 IC6211 IC6191 IC6221 210V LED(G) LED BLINKING:8 TIMES Ve(+160V) OVER VOLTAGE ENERGY RECOVERY SOS DET CONNECTION SOS DET TH-42PZ700C SS and S-Board Block Diagram TH-42PZ700C SS and S-Board Block Diagram 143 15.75.SS 电路板 (1/2) 线路图 + + + + + + + + + + + + + + + AA_UEH AA_USL AA_UEL AA_USH AA_UML AA_UMH AA_USH AA_USL AA_SOS8 AA_SOS8 5V C6242 16V 1u C6201 250V 2.2u C6251 16V 1u C6243 50V 0.01u C6203 250V 2.2u C6252 25V 1u C6152 25V 4.7u C6091 630V 1000p C6151 25V 1u C6206 250V 2.2u C6153 25V 4.7u C6202 250V 2.2u C6037 25V 4.7u C6205 250V 2.2u C6207 250V 2.2u C6154 25V 4.7u C6071 630V 1000p C6204 250V 2.2u C6013 250V 200u C6258 100V 470u C6272 25V 220u C6014 250V 200u C6260 100V 470u C6255 100V 470u C6012 250V 200u C6241 10V 100u C6017 250V 200u C6259 100V 470u C6256 100V 470u C6015 250V 200u C6016 250V 200u C6273 25V 220u C6261 100V 470u D6152 B0ECHP000003 D6151 B0ECHP000003 D6255 MA2J11100L D6025 B0ECHP000003 D6032 MA2J11100L D6024 B0ECHP000003 D6153 B0ECHP000003 *D6071 B0HBSN000008 D6082 D6081 B0HBSN000008 D6083 B0HBSN000008 *D6063 B0HBSN000008 D6072 B0HBSN000008 *D6061 B0HBSN000008 *D6064 B0HBSN000008 D6091 B0HBSN000008 *D6062 B0HBSN000008 D6092 MA3DF40000LZ D6253 LNJ301MPUJA IC6251 C0BBBA000022 1 2 3 5 4 6 7 8 C0ZBZ0001324 IC6151 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0JBAZ000005 IC6241 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC SS34 1 2 3 SS33 1 2 3 4 SS23 1 2 3 4 SS12 1 2 3 4 5 6 7 8 9 10 SS35 1 2 3 4 5 6 7 8 9 10 SS11 1 3 L6071 J0JKB0000049 L6084 J0JKB0000049 L6241 G0ZZ00002183 L6062 J0JKB0000049 L6262 G0ZZ00002183 L6068 J0JKB0000049 L6064 J0JKB0000049 L6010 J0JJC0000015 L6072 J0JKB0000049 L6067 J0JKB0000049 L6069 J0JKB0000049 L6066 J0JKB0000049 L6063 J0JKB0000049 L6065 J0JKB0000049 L6000 J0JJC0000015 L6081 J0JKB0000049 L6271 G0ZZ00002183 L6086 J0JKB0000049 L6061 J0JKB0000049 L6082 J0JKB0000049 L6085 J0JKB0000049 L6070 J0JKB0000049 L6083 J0JKB0000049 L6015 G0C1R4KA0118 L6012 G0C1R4KA0118 L6002 G0CR96KA0118 L6011 G0C1R4KA0118 L6006 G0CR96KA0118 L6005 G0CR96KA0118 L6001 G0CR96KA0118 L6013 G0C1R4KA0118 L6003 G0CR96KA0118 L6014 G0C1R4KA0118 L6004 G0CR96KA0118 VEEXT160V 5V 5V TP11 TP3 TP1 TP10 TP16 TP8 TP22 TP34 TP14 TP9 TP5 TP20 TP18 TP13 TP12 TP2 TP6 TP19 TP21 TP7 TP15 TP33 TP17 TP23 Q6251 2SD0601A0L Q6171 B1ABRD000003 Q6181 B1ABRD000003 *Q6044 2PG0010000RP Q6051 2PG0010000RP Q6053 2PG0010000RP *Q6042 2PG0010000RP *Q6043 2PG0010000RP Q6052 2PG0010000RP Q6031 B1ADRD000001 Q6172 B1ADRD000001 R6244 EXB38V472JV R6242 EXB38V472JV R6243 EXB38V470JV R6241 EXB38V470JV 1% R6031 137k R6173 47k 1% R6034 46.4k R6210 2.2k R6183 47k R6172 47k R6043 7.5 R6045 7.5 R6053 7.5 R6159 1 R6051 7.5 R6152 100 R6182 47k R6151 100 1% R6256 15k R6261 100k 1% R6253 51.1k R6181 10 R6160 1 R6055 7.5 R6258 2.2k R6047 7.5 1% R6032 137k 1% R6033 121k 1% R6254 8.66k R6171 10 75 R6154 R6257 10k 1% R6255 12k 1% R6252 51.1k R6209 100k 1% R6260 12k TPVDA TO P-BOARD (P11) - + - + (GREEN LED) TPVSUS VSUS GND VDA VDA NC P5V TPSOS8 UEL UEH USL USH UML UMH SOS8_SS VDA VDA NC URH Vsus 210 7V Vda 75V(Fixed) TO P-BOARD (P12) TO C2-BOARD (C23) TO S-BOARD (S1) TO C3-BOARD (C33) TO C3-BOARD (C35) BUFFER FET DRIVER SS-BOARD TNPA4251AB (1/2) ! 6 1 5 3 2 4 2 D F 9 E B 1 C 4 5 3 A 8 7 6 ENERGY RECOVERY TH-42PZ700C SS-Board (1 of 2) Schematic Diagram TH-42PZ700C SS-Board (1 of 2) Schematic Diagram 144 15.76.SS 电路板 (2/2) 线路图 + + + + REF K A TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE AA_UEL AA_UEH AA_UML AA_UML AA_UMH AA_SOS8 AB_SS561 AB_SS571 AB_SS551 AB_SS541 AB_SS531 AB_SS521 AB_SS531 AB_SS541 AB_SS551 AB_SS561 AB_SS521 AB_SS571 C6221 50V 0.1u C6135 25V 4.7u C6022 630V 5600p C6247 0.1u 50V C6276 25V 4.7u C6002 630V 5600p C6197 25V 4.7u C6216 25V 4.7u C6134 25V 4.7u C6024 630V 5600p C6212 25V 4.7u C6194 25V 4.7u C6132 25V 4.7u C6246 0.1u 50V C6114 250V 2.2u C6287 0.1u 50V C6248 0.1u 50V C6193 25V 4.7u C6217 25V 4.7u C6195 25V 4.7u C6211 25V 4.7u C6288 0.1u 50V C6286 0.1u 50V C6004 630V 5600p C6112 200V 220u C6223 47u 250V C6111 200V 220u C6213 25V 1000u = D6131 B0ECHP000003 D6132 B0ECHP000003 D6192 B0ECHP000003 D6102 B0JCME000037 D6191 B0ECHP000003 D6104 B0JCME000037 D6225 D1FL40-7063 D6103 B0JCME000037 D6273 MA2J11100L D6211 B0JCME000037 D6222 MA2J11100L D6283 M1FS4-5063 D6101 B0JCME000037 D6223 MA2J11100L D6277 MA3X152D0L D6276 MA3X152D0L D6278 MA3X152D0L D6022 D6023 D6002 D6001 B0HBSN000008 D6221 B0HDRP000003 D6021 B0HBSN000008 D6275 MAZ80680ML D6280 MAZ80510LL IC6211 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB C0ZBZ0000895 IC6191 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0ZBZ0000895 IC6131 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0DBEMC00043 IC6221 SS55 1 2 3 4 5 6 7 8 9 10 11 12 13 SS56 1 2 3 4 5 6 7 8 9 10 11 12 13 SS54 1 2 3 4 5 6 7 8 9 10 11 12 13 SS53 1 2 3 4 5 6 7 8 9 10 11 12 13 SS52 1 2 3 4 5 6 7 8 9 10 11 12 13 SS57 1 2 3 4 5 6 7 8 9 10 11 12 13 J0JJC0000015 L6211 J0JJC0000015 L6102 J0JJC0000015 L6101 L6103 G0ZZ00002183 J0JJC0000015 L6105 J0JJC0000015 L6106 J0JJC0000015 L6212 L6221 G0ZZ00002183 J0JJC0000015 L6214 ZA6002 K4CD01000011 ZA6001 K4CD01000011 ZA6003 K4CD01000011 TP25 TP27 1 3 P T 0 3 P T 6 2 P T 4 2 P T TP28 TP29 TP37 TP36 Q6105 B1DFKM000002 G D S Q6112 B1DFKM000001 G D S Q6101 B1DFKM000002 G D S Q6102 B1DFKM000002 G D S Q6111 B1DFKM000001 G D S Q6114 B1DFKM000001 G D S Q6106 B1DFKM000002 G D S *Q6141 B1ABPF000014 Q6256 2SD1263AQ0LB Q6271 2SD0601A0L *Q6103 B1ABPF000014 *Q6148 B1ABPF000014 *Q6143 B1ABPF000014 *Q6146 B1ABPF000014 Q6222 2SC1473AEA Q6003 B1JAEP000001 Q6024 B1JAEP000001 Q6022 B1JAEP000001 Q6023 B1JAEP000001 Q6025 B1JAEP000001 Q6001 B1JAEP000001 Q6005 B1JAEP000001 Q6021 B1JAEP000001 Q6004 B1JAEP000001 Q6002 B1JAEP000001 *Q6147 B1ADPF000004 *Q6104 B1ADPF000004 *Q6144 B1ADPF000004 *Q6149 B1ADPF000004 *Q6142 B1ADPF000004 R6158 1 R6114 47 R6149 47k R6157 1 R6003 7.5 R6138 10 R6283 27k R6214 150 R6233 130k R6001 7.5 R6274 220 R6020 160 5W R6279 150k 75 R6193 1% R6226 49.9k R6030 7.5 R6112 47 R6028 7.5 R6108 100 2W R6223 12k * R6113 220k R6194 1 R6143 47k R6110 47k R6109 10 R6007 7.5 R6273 10k R6213 100 R6263 27k R6148 47k R6024 7.5 R6280 150k R6026 7.5 1% R6227 49.9k R6106 100 R6192 100 R6272 2.2k R6009 7.5 R6278 27k R6104 100 75 R6134 R6191 100 1% R6225 49.9k R6135 10 ERJT06J100V R6147 47k 1W R6222 10k * R6246 27k R6146 47k R6249 150k R6019 160 5W R6276 82k R6142 47k R6145 1 R6132 100 1% R6232 2.49k R6021 7.5 R6141 47k R6247 150k R6292 47k R6248 27k R6102 100 R6277 150k R6285 27k R6136 10 R6144 47k R6111 47 R6005 7.5 R6275 150k R6131 100 R6116 47k R6234 16k R6137 10 VR6000 10k 1 2 3 TPSS1 TPVe TPVe2 15v SS54 SS56 SS33 SS11 SS12 SS53 SS55 SS34 SS23 SS52 SS57 SS23 Ve2 15V(Fixed) Ve 157 5V TO PANEL SUSTAIN ELECTRODE TO PANEL SUSTAIN ELECTRODE TO PANEL SUSTAIN ELECTRODE TO PANEL SUSTAIN ELECTRODE TO PANEL SUSTAIN ELECTRODE TO PANEL SUSTAIN ELECTRODE FET DRIVER FET DRIVER FET DRIVER Ve DET ! SS-BOARD TNPA4251AB (2/2) 2 1 3 6 4 5 7 1 5 1 14 13 18 11 2 1 0 1 16 Ve2 Gen.(+5V) Ve Gen. Vsus Gen. TH-42PZ700C SS-Board (2 of 2) Schematic Diagram TH-42PZ700C SS-Board (2 of 2) Schematic Diagram 145 16 部件布置及机械部件更换清单 16.1. 部件布置 146 16.2. 风扇分解图 147 16.3. 包装分解图 (1) 148 16.4. 包装分解图 (2) 149 16.5. 包装分解图 (3) 150 16.6. 更换部件清单注意事项 151 16.7. 机械部件更换清单 参考号 部品号 部品名称及说明 数量 备注 0 EAB844JL 低音音箱 ( 左 ) 1 1 EAB844JR 低音音箱 ( 右 ) 1 2 EAS10D85E 喇叭 ( 左右 ) 2 ETX2MM681MF P 线路板 1 GQZB-42 高清标贴 1 J0KD00000096 铁氧磁环 3 3 K2CK3DH00028 AC 电源线 1 K5D103BMA001 保险丝 (F601/F602) 2 4 L6FAYYYH0050 风扇 (80MM) 4 5 MD-42MF10E2N PDP 屏 (42FHD10) 1 6 N2QAYB000118 遥控器 1 7 R6PND/2SP PANASONIC 干电池 （中文） 2 TBMG613 机型铭牌 1 TBMU745 后端子标贴 8 TBXA51103 电源按钮 1 9 TBXA51401 操作开关 1 10 TESA309 SD 门弹簧 1 TESA297 11 TESD085 电源按钮弹簧 1 TESD078 THEL0429 螺丝 32 THEL047J 螺丝 2 THEL049 螺丝 2 THTD013N 螺丝 ( 风扇 ) 10 THTF011N 螺丝 148 12 TKGA5389-1 前面玻璃 1 13 TKKC5289 LED 屏 1 TKKC5269 14 TKKL5344-1 M8 垫片盖 4 15 TKKL5384 调整盖 ( 调谐器顶部 ) 1 16 TKPB06109 门 1 17 TKPB06403 SD 门 1 18 TKPB09702 SD 透光屏 1 19 TKPB14001 AC 接入口盖 1 20 TKRA52602 后盖把手 2 TKRA53102 孔盖 2 21 TKUX13701 后盖 1 TMKG651 海绵 (SP) 4 22 TMKG666 海绵 ( 风扇 ) 4 23 TMKG734 海绵 2 24 TMKG735 海绵 2 TMKG742 海绵 4 25 TMME226 AC 电源线夹 1 26 TMME258 线夹 2 TMME285 线夹 2 TMME300 线夹 2 TMMJ031 防震橡胶 (SP) 2 27 TMMJ068 橡胶 ( 风扇 ) 10 TMMJ070 橡胶 (SP) 4 28 TMMJ082 风扇角用防震橡胶 6 29 TMMX156 M8 垫片 4 30 TMMX200 门弹簧 1 TMMX186 TMXX033 磁环托架 1 31 TPCB96001 包装箱底箱 1 32 TPCB96103 包装箱本体 1 33 TPDA1568 底部衬垫 1 34 TPDA1620 底部衬垫 中 1 35 TPDA1628 顶部衬垫 1 36 TPDA1630 顶部衬垫 中 1 37 TPDF0764-3 附件盒 1 38 TPDF1655-1 顶盖 1 39 TPDX0035 箱扣 (ROHS) 4 40 TPEH343 顶面保护片 3 41 TPEH344 整机保护袋 (ROHS) 1 TQFD070601 中国节能认证标志 1 TQFD640 ROHS 环境标签 1 TQFD945 线夹说明标签 1 TQZF163 保修证 1 42 TQZK015 说明书 1 TSXL519 FFC (SD48-SU47) 1 TSXL597 FFC (C12-C22/C42-C32) 2 TSXL615 FFC (DG11-GH11) 1 TSXL640 FFC (D31-C10/D32-C11/D33- C20) 3 TSXL641 FFC (D34-C30/D35-C41/D36- C40) 3 43 TUXL174 调谐器顶盖 1 TXAUX01HJTC 调谐器组件 1 44 TXAUX02HJTC AC 接入口组件 1 45 TXFKY01HLTC 面框 1 46 TXFMZ01HJTC 台座安装块 ( 左 ) 1 47 TXFMZ02HJTC 台座安装块 ( 右 ) 1 TXJ/D3HJTB 线束 (D3-DG35) 1 TXJ/H3HJTB 线束 (H3-PA3) 1 TXJ/P2HJTB 线束 (SC2-P2) 1 TXJ/P5HJTB 线束 (P5-PA5) 1 TXJ/S1HJTA 线束 (S1-SS34) 1 TXJD20HJTB 线束 (D20-SC20) 1 TXJD25HJTB 线束 (D25-P25) 1 TXJDG1HJTA 线束 (K1-DG1) 1 TXJDH5HJTA 线束 (D5-DH5) 1 TXJFA1HJTB 线束 (PA- 风扇 ) 2 TXJFA4HJTB 线束 (PA- 风扇 ) 1 TXJFA6HJTB 线束 (PA- 风扇 ) 1 TXJG51HLTP 线束 (G51-H51) 1 TXJGNDHHTA 线束 (PA-DH) 1 TXJGS5HHTB 线束 (DG52-GS52) 1 TXJH11HJTB 线束 (H11-SP) 1 TXJH12HJTB 线束 (H12-SP) 1 TXJP10HJTB 线束 (P10-PA10) 1 TXJP11HJTB 线束 (P11-SS11) 1 TXJP12HJTB-1 线束 (P12-SS12) 1 TXJS23HNTU 线束 (SS23-C23) 1 TXJS33QMTB 线束 (C33-SS33) 1 TXJS35HATJ 线束 (C35-SS35) 1 TXN/D1HJTC D 线路板 1 TXN/G1HLTC G 线路板 1 TXN/K1HLTC K 线路板 1 TXN/S1HLTC S 线路板 1 TXNC11HJTC C1 线路板 1 TXNC21HJTC C2 线路板 1 TXNC31HJTC C3 线路板 1 TXNC41HJTC C4 线路板 1 TXNGH1HLTC GH 线路板 1 TXNGS1HLTC GS 线路板 1 TXNPA1HJTC PA 线路板 1 TXNSC1HJTC SC 线路板 1 TXNSD1HJTC SD 线路板 1 TXNSS1HJTC SS 线路板 1 TXNSU1HJTC SU 线路板 1 XTB4+12GFJ 螺丝 40 XTB4+12GFJK 螺丝 20 XTW3+10TFJ 螺丝 2 XYN3+F8FJ 螺丝 (S:2 GS:1) 22 XYN3+J8FJ 螺丝 (FAN) 4 XYN4+F10FJ 螺丝 12 XYN5+C15FJ 带垫螺丝 （标准垫片） 6 参考号 部品号 部品名称及说明 数量 备注 152 17 电器部件更换清单 17.1. 电器部件更换清单 所有在备注栏 [PPDS] 中提到的部件均由 PPDS 提供。 参考号 部品号 部品名称 & 说明 件数 备注 F601.602 K5D103BMA001 延时保险丝 高 2 C10,11 K1MN68BA0251 68P 连接接头 2 C12 K1MN30BA0255 30P 连接接头 1 C20 K1MN68BA0251 68P 连接接头 1 C22 K1MN30BA0255 30P 连接接头 1 C23 K1KA04BA0107 4P 连接接头 1 C30 K1MN68BA0251 68P 连接接头 1 C32 K1MN30BA0255 30P 连接接头 1 C33 K1KA04BA0107 4P 连接接头 1 C35 K1KA10B00218 10P 连接接头 1 C40,41 K1MN68BA0251 68P 连接接头 2 C42 K1MN30BA0255 30P 连接接头 1 C1102 F1J1A106A043 C 0.010UF, K, 10V 1 C1103,04 F1G1C104A081 C 0.10UF, K, 16V 2 C1106 F1H1H2700008 E 27UF, 50V 1 C1107 F1H1H2200008 E 22UF, 50V 1 C1108 F1G1C104A081 C 0.10UF, K, 16V 1 C1109 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1111 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1112 F1G1C104A081 C 0.10UF, K, 16V 1 C1114 F1G1C104A081 C 0.10UF, K, 16V 1 C1117 F1G1C104A081 C 0.10UF, K, 16V 1 C1122 F1G1E1030005 C 0.01UF, Z, 25V 1 C1123 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2000 F1G1C104A081 C 0.10UF, K, 16V 1 C2005,06 F1H1H5610007 E 560UF, 50V 2 C2010,11 F1H1H5610007 E 560UF, 50V 2 C2013,14 F1H1H5610007 E 560UF, 50V 2 C2016,17 F1H1H5610007 E 560UF, 50V 2 C2021,22 F1H1H5610007 E 560UF, 50V 2 C2023 ECJ1XB1H104K C 10PF, J, 50V 1 C2048-50 ECJ1XB1H104K C 10PF, J, 50V 3 C2052,53 ECJ1XB1H104K C 10PF, J, 50V 2 C2054 F1J1A106A043 C 0.010UF, K, 10V 1 C2055,56 ECJ1VC1H120J C 12PF, J, 50V 2 C2057,58 ECJ1XB1H104K C 10PF, J, 50V 2 C2059 F2G0J470A019 E 47UF 6.3V 1 C2088 ECJ2FB1A475K C 4.7UF, K, 10V 1 C2089 F1H1H5610007 E 560UF, 50V 1 C2091 ECJ1VC1H100C C 10PF, C, 50V 1 C2092 F1H1H2200008 E 22UF, 50V 1 C2096,97 ECJ1XB1H104K C 10PF, J, 50V 2 C2098,99 EEEHB0J221UP C 220PF, J, 6.3V 2 C2100 ECJ1XB1H104K C 10PF, J, 50V 1 C2101 F1J1A106A043 C 0.010UF, K, 10V 1 C2102 ECJ1XB1H104K C 10PF, J, 50V 1 C2105,06 ECJ1XB1H104K C 10PF, J, 50V 2 C2107,08 F2G0J470A019 E 47UF 6.3V 2 C2109,10 ECJ1XB1H104K C 10PF, J, 50V 2 C2111 F1H0J2250008 C 2.2UF, K, 16V 1 C2112,13 F2G0J470A019 E 47UF 6.3V 2 C2114,15 ECJ1XB1H104K C 10PF, J, 50V 2 C2116 F1H1H471A792 E 470UF, 50V 1 C2117 ECJ1XB1H104K C 10PF, J, 50V 1 C2118 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2119 EEEHB1A221P C 220PF, J, 10V 1 C2120,21 F1H1H5600007 E 56UF, 50V 2 C2124 ECJ1XB1H104K C 10PF, J, 50V 1 C2126 F1J1A106A043 C 0.010UF, K, 10V 1 C2128 ECJ1XB1H104K C 10PF, J, 50V 1 C2130 F1J0J106A021 C 0.010UF, K, 16V 1 C2131 ECJ1XB1H104K C 10PF, J, 50V 1 C2133 EEEHB1H4R7R C 4.7PF, J, 50V 1 C2134 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2135,36 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2137 F2G0J470A019 E 47UF 6.3V 1 C2138 ECJ1XB1H104K C 10PF, J, 50V 1 C2143 F1H1H181A792 E 180UF, 50V 1 C2146 F1H1H181A792 E 180UF, 50V 1 C2147 EEEHB1C220R C 22PF, J, 16V 1 C2151 F2G0J470A019 E 47UF 6.3V 1 C2153 ECJ1VC1H330J C 33PF, J, 50V 1 C2154 ECJ1XB1H104K C 10PF, J, 50V 1 C2155 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2157 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2159,60 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2161 EEEHB1C101UP C 100PF, J, 16V 1 C2162-67 ECJ1VB1C105K C 0.01UF, K, 16V 6 C2170 ECJ1VC1H330J C 33PF, J, 50V 1 C2171 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2173 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C2174 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2175 EEEHB1C470P C 47PF, J, 16V 1 C2176 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2179 EEEHB1C470P C 47PF, J, 16V 1 C2180 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2183 F1J1A106A043 C 0.010UF, K, 10V 1 C2184 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2185 F1J1A106A043 C 0.010UF, K, 10V 1 C2186 ECJ1XB1H104K C 10PF, J, 50V 1 C2187 F1H0J2250008 C 2.2UF, K, 16V 1 C2188 F1H1H471A792 E 470UF, 50V 1 C2189 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2190,91 F1J1A106A043 C 0.010UF, K, 10V 2 C2192 F2G0J470A019 E 47UF 6.3V 1 C2195 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2197,98 ECJ1VB1C333K C 0.033UF, K, 16V 2 C2202 F1H0J2250008 C 2.2UF, K, 16V 1 C2203 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2204 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2213 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2216 ECJ1XB1H104K C 10PF, J, 50V 1 C2244 ECJ1XB1H104K C 10PF, J, 50V 1 C2245 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2246 F1J1A106A043 C 0.010UF, K, 10V 1 C2251 F1J1A106A043 C 0.010UF, K, 10V 1 C2263,64 F1J1A106A043 C 0.010UF, K, 10V 2 C2265-68 ECJ1XC1H101J C 100PF, J, 50V 4 C2270,71 F1H1H471A792 E 470UF, 50V 2 C2272 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C2280 ECJ2FB1A475K C 4.7UF, K, 10V 1 C2281 F1H1H5610007 E 560UF, 50V 1 C2288,89 F1J1A106A043 C 0.010UF, K, 10V 2 C2301,02 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C2303-10 F1J1E105A171 E 1 UF 25V 8 C2311-16 ECJ1XB1H104K C 10PF, J, 50V 6 C2317-24 ECJ1VB1C333K C 0.033UF, K, 16V 8 C2325,26 F1J1H474A757 C 0.47UF, 50V 2 C2327-30 ECJ1XB1H104K C 10PF, J, 50V 4 C2331,32 F1J1H474A757 C 0.47UF, 50V 2 C2333-36 ECJ1XB1H104K C 10PF, J, 50V 4 C2337-40 F1H1H223A219 E 0.022UF, 50V 4 C2341-44 ECJ1XB1H104K C 10PF, J, 50V 4 C2345-48 F1H1H223A219 E 0.022UF, 50V 4 C2349 ECJ1XB1H104K C 10PF, J, 50V 1 C2352 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2353-60 ECJ1XB1H104K C 10PF, J, 50V 8 C2361,62 EEEFG1E471P E 470UF, 25V 2 C2363,64 ECJ1XB1H104K C 10PF, J, 50V 2 C2365 EEEHB1C221UP C 220PF, J, 16V 1 C2375-82 F1H1H223A219 E 0.022UF, 50V 8 C2383-90 ECJ1VB1H102K C 1000UF, Z, 50V 8 C2502,03 ECJ2XB1H102K C 1000PF, K, 50V 2 C2510 F1K0J1060020 C 10UF, K,6.3V 1 C2511 ECJ2XF1C105Z C 1UF, Z, 16V 1 C2512 F1K0J1060020 C 10UF, K,6.3V 1 C2515 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2521 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2522-27 ECJ1VB1H102K C 1000UF, Z, 50V 6 C2601,02 ECJ1XB1H104K C 10PF, J, 50V 2 参考号 部品号 部品名称 & 说明 件数 备注 153 C2801 ECJ3XB1C106M C 1.0UF, K, 16V 1 C2802,03 F1J1H474A757 C 0.47UF, 50V 2 C2804 ECJ3XB1C106M C 1.0UF, K, 16V 1 C2805-07 F1J1H474A757 C 0.47UF, 50V 3 C2813 ECJ1XB1H104K C 10PF, J, 50V 1 C2814 ECJ1VB1H472K C 4700PF, K, 50V 1 C2815 ECJ1XB1H104K C 10PF, J, 50V 1 C2816 EEEHB1V220P E 22UF, 35V 1 C2817 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2819 EEEHB1E470P C 47PF, J, 25V 1 C3021 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3023,24 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C3026 ECJ1XB1H104K C 10PF, J, 50V 1 C3027,28 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C3029 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3031 ECJ1XB1H104K C 10PF, J, 50V 1 C3033 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3040 ECJ1XB1H104K C 10PF, J, 50V 1 C3043 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3051-56 ECJ1VB1A105K C 0.01UF, Z, 50V 6 C3059,60 ECJ1VB1C105K C 0.01UF, K, 16V 2 C3062-64 ECJ1VB1C105K C 0.01UF, K, 16V 3 C3070 EEEHB0J221UP C 220PF, J, 6.3V 1 C3075 EEEHB1C221UP C 220PF, J, 16V 1 C3078 F1K0J226A008 C 22UF, K,6.3V 1 C3081 F2H0J1010009 C 100UF, 6.3V 1 C3100-02 ECJ1VB1A105K C 0.01UF, Z, 50V 3 C3103 EEEHB1C100R C 10PF, J, 16V 1 C3106 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3115-17 ECJ1XB1H104K C 10PF, J, 50V 3 C3118 EEEHB1C470P C 47PF, J, 16V 1 C3119 EEEHB1C100R C 10PF, J, 16V 1 C3120 ECJ1XB1H104K C 10PF, J, 50V 1 C3201 ECJ1XB1H104K C 10PF, J, 50V 1 C3202 F1J1H474A757 C 0.47UF, 50V 1 C3214 ECJ1XB1H104K C 10PF, J, 50V 1 C3216 ECJ1XB1H104K C 10PF, J, 50V 1 C3226-28 ECJ1XB1H104K C 10PF, J, 50V 3 C3230 ECJ1XB1H104K C 10PF, J, 50V 1 C3263 ECJ1XB1H104K C 10PF, J, 50V 1 C3265-67 ECJ1XB1H104K C 10PF, J, 50V 3 C3270 EEEHB0J102UP C 1100PF, J, 6.3V 1 C3271 EEEHB1C100R C 10PF, J, 16V 1 C3272 ECJ1XB1H104K C 10PF, J, 50V 1 C3273 F2G1H100A031 E 10UF, 50V 1 C3274-76 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C3279 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3280 ECJ1XC1H101J C 100PF, J, 50V 1 C3281 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3285 EEEHB0J102UP C 1100PF, J, 6.3V 1 C3286 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3291 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3292 ECJ1XC1H101J C 100PF, J, 50V 1 C3293 EEEHB1C100R C 10PF, J, 16V 1 C3296 ECJ1XB1H104K C 10PF, J, 50V 1 C3298 EEEHB1V220P E 22UF, 35V 1 C3299 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3300 F2H0J1010009 C 100UF, 6.3V 1 C3305 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3308 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3401 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3701 ECJ2XC1H561K C 560PF, K, 50V 1 C3703 ECJ2XC1H561K C 560PF, K, 50V 1 C3711,12 ECJ2VF1H333Z C 0.033UF, Z, 50V 2 C3715 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3750 F1J1H102A721 E 1000UF, 50V 1 C3801,02 F1G1A104A012 C 0.01UF, K, 10V 2 C3804 F1G1A104A012 C 0.01UF, K, 10V 1 C3805 EEEHB0J330R C 33PF, J, 6.3V 1 C3806-12 F1G1A104A012 C 0.01UF, K, 10V 7 C3813 F1J0J106A004 C 0.010UF, K, 16V 1 C3814 F1G1A104A012 C 0.01UF, K, 10V 1 C3815-20 ECJ0EB1C103K C 0.010UF, K, 16V 6 C3823,24 F1G1A104A012 C 0.01UF, K, 10V 2 C4005,06 F1G1C104A081 C 0.10UF, K, 16V 2 C4008 F1G1C104A081 C 0.10UF, K, 16V 1 C4010,11 F1G1C104A081 C 0.10UF, K, 16V 2 参考号 部品号 部品名称 & 说明 件数 备注 C4013-15 F1G1C104A081 C 0.10UF, K, 16V 3 C4016 F1J1C475A170 C 4.7UF, K, 16V 1 C4018 F1G1C104A081 C 0.10UF, K, 16V 1 C4019 F1J1H474A757 C 0.47UF, 50V 1 C4020,21 F1G1C104A081 C 0.10UF, K, 16V 2 C4022 F1J1H474A757 C 0.47UF, 50V 1 C4023-25 F1G1C104A081 C 0.10UF, K, 16V 3 C4027,28 F1G1C104A081 C 0.10UF, K, 16V 2 C4030 F1G1C104A081 C 0.10UF, K, 16V 1 C4032-34 F1G1C104A081 C 0.10UF, K, 16V 3 C4035,36 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4038 F1G1C104A081 C 0.10UF, K, 16V 1 C4039 F1G1E1030005 C 0.01UF, Z, 25V 1 C4040 F1G1H150A565 E 15UF, 50V 1 C4045,46 F1G1C104A081 C 0.10UF, K, 16V 2 C4047 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4049 F1G1C104A081 C 0.10UF, K, 16V 1 C4050 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4051-53 F1G1C104A081 C 0.10UF, K, 16V 3 C4054 ECJ3XB1C106M C 1.0UF, K, 16V 1 C4500-03 F1G1C104A081 C 0.10UF, K, 16V 4 C4506,07 F1G1C104A081 C 0.10UF, K, 16V 2 C4508,09 EEEHB0J330R C 33PF, J, 6.3V 2 C4510,11 F1G1C104A081 C 0.10UF, K, 16V 2 C4513-15 F1G1C104A081 C 0.10UF, K, 16V 3 C4517 F1G1C104A081 C 0.10UF, K, 16V 1 C4520 F1J1A106A043 C 0.010UF, K, 10V 1 C4521 F1G1C104A081 C 0.10UF, K, 16V 1 C4522 ECJ3XB1C106M C 1.0UF, K, 16V 1 C4523 F1J1H474A757 C 0.47UF, 50V 1 C4524 ECJ3XB1C106M C 1.0UF, K, 16V 1 C4527 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4528 F1G1C104A081 C 0.10UF, K, 16V 1 C4531 F1G1C104A081 C 0.10UF, K, 16V 1 C4533 F1G1H680A565 E 68UF, 50V 1 C4534,35 ECJ1XB1H104K C 10PF, J, 50V 2 C4538 F2G0J470A019 E 47UF 6.3V 1 C4539 F1J1A106A043 C 0.010UF, K, 10V 1 C4541 F1H1H471A219 E 470UF, 50V 1 C4543-45 F1G1C104A081 C 0.10UF, K, 16V 3 C4546 F1H0J2250008 C 2.2UF, K, 16V 1 C4547 F1G1C104A081 C 0.10UF, K, 16V 1 C4548,49 ECJ1XB1H104K C 10PF, J, 50V 2 C4550 F1G1C104A081 C 0.10UF, K, 16V 1 C4551,52 ECJ1XB1H104K C 10PF, J, 50V 2 C4553 F1G1H1020008 E 1000UF, 50V 1 C4555,56 F1J1A106A043 C 0.010UF, K, 10V 2 C4557 F1G1C104A081 C 0.10UF, K, 16V 1 C4559,60 F1G1C104A081 C 0.10UF, K, 16V 2 C4562 F1H1H822A219 E 8200UF, 50V 1 C4563 ECJ1VB1C823K C 0.082UF, K, 16V 1 C4564,65 F1G1E1030005 C 0.01UF, Z, 25V 2 C4566 ECJ1XB1C393K C 0.039UF, K, 16V 1 C4567 ECJ1XB1H104K C 10PF, J, 50V 1 C4568 F1G1C104A081 C 0.10UF, K, 16V 1 C4569 F1J1C684A097 C 0.68UF, Z, 16V 1 C4570 F2G0J470A019 E 47UF 6.3V 1 C4572,73 F1G1C104A081 C 0.10UF, K, 16V 2 C4574 F1G1E1030005 C 0.01UF, Z, 25V 1 C4575 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4576 F2G0J470A019 E 47UF 6.3V 1 C4577,78 F1G1C104A081 C 0.10UF, K, 16V 2 C4580 F1G1E1030005 C 0.01UF, Z, 25V 1 C4581 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4582,83 F1G1C104A081 C 0.10UF, K, 16V 2 C4584,85 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4586 F1G1E1030005 C 0.01UF, Z, 25V 1 C4587 F1G1C104A081 C 0.10UF, K, 16V 1 C4588 ECJ1VB1C823K C 0.082UF, K, 16V 1 C4589 F1G1H150A565 E 15UF, 50V 1 C4590 ECJ0EC1H180J C 180PF, K, 50V 1 C4591,92 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4593 F1G1E1030005 C 0.01UF, Z, 25V 1 C4595 F1G1E1030005 C 0.01UF, Z, 25V 1 C4596 F1G1C104A081 C 0.10UF, K, 16V 1 C4598 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4600,01 F1G1E1030005 C 0.01UF, Z, 25V 2 参考号 部品号 部品名称 & 说明 件数 备注 154 C4602 F1G1C104A081 C 0.10UF, K, 16V 1 C4604 F1H0J2250008 C 2.2UF, K, 16V 1 C4605 F1G1C104A081 C 0.10UF, K, 16V 1 C4607 F2G0J470A019 E 47UF 6.3V 1 C4609 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4611 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4612 F1G1E1030005 C 0.01UF, Z, 25V 1 C4613 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4614 F1G1C104A081 C 0.10UF, K, 16V 1 C4615 F1G1E1030005 C 0.01UF, Z, 25V 1 C4616,17 F1G1C104A081 C 0.10UF, K, 16V 2 C4618 F1G1E1030005 C 0.01UF, Z, 25V 1 C4619 F1G1C104A081 C 0.10UF, K, 16V 1 C4620 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4621-23 F1G1C104A081 C 0.10UF, K, 16V 3 C4624,25 ECJ1XB1H104K C 10PF, J, 50V 2 C4626-28 F1G1C104A081 C 0.10UF, K, 16V 3 C4629 F1J1A106A043 C 0.010UF, K, 10V 1 C4807 F1G1C104A081 C 0.10UF, K, 16V 1 C5000 F2G0J470A019 E 47UF 6.3V 1 C5001 F1G1A104A012 C 0.01UF, K, 10V 1 C5002 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5004 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5005 F1G1A104A012 C 0.01UF, K, 10V 1 C5006 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5007 F1G1A104A012 C 0.01UF, K, 10V 1 C5008 ECJ1XC1H820J C 82PF, J, 50V 1 C5009 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5010 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5011,12 F1G1A104A012 C 0.01UF, K, 10V 2 C5013 ECJ1VC1H680J C 68PF, J, 50V 1 C5015 F1G1A104A012 C 0.01UF, K, 10V 1 C5016,17 ECJ1VC1H180J C 18PF, J, 50V 2 C5018 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5019 F1G1A104A012 C 0.01UF, K, 10V 1 C5020 F1G1H1020008 C 1000PF, K, 50V 1 C5021 F1J0J1060004 C 0.010UF, K, 16V 1 C5022 F1G1A104A012 C 0.01UF, K, 10V 1 C5024 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5025 F1G1A104A012 C 0.01UF, K, 10V 1 C5026 F1G1H1020008 C 1000PF, K, 50V 1 C5027 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5028 F1G1A104A012 C 0.01UF, K, 10V 1 C5029 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5031 F1J0J1060004 C 0.010UF, K, 16V 1 C5032,33 F1G1A104A012 C 0.01UF, K, 10V 2 C5034,35 F1J0J1060004 C 0.010UF, K, 16V 2 C5036 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5037 F2G0J470A019 E 47UF 6.3V 1 C5038 F1G1A104A012 C 0.01UF, K, 10V 1 C5040 F1G1H1020008 C 1000PF, K, 50V 1 C5041 F1G1A104A012 C 0.01UF, K, 10V 1 C5042 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5043 F1G1A104A012 C 0.01UF, K, 10V 1 C5044,45 F1G1H1020008 C 1000PF, K, 50V 2 C5046,47 F1G1A104A012 C 0.01UF, K, 10V 2 C5048 F1G1H1020008 C 1000PF, K, 50V 1 C5049 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5050 F1G1A104A012 C 0.01UF, K, 10V 1 C5051,52 F1G1H1020008 C 1000PF, K, 50V 2 C5053 F1G1A104A012 C 0.01UF, K, 10V 1 C5054 F1G1H1020008 C 1000PF, K, 50V 1 C5055-58 F1G1A104A012 C 0.01UF, K, 10V 4 C5059 F1G1H1020008 C 1000PF, K, 50V 1 C5060 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5061,62 F1G1A104A012 C 0.01UF, K, 10V 2 C5063,64 F1G1H1020008 C 1000PF, K, 50V 2 C5065 ECGRL0G680ER C 68PF, J, 4V 1 C5066 F2G0J470A019 E 47UF 6.3V 1 C5067 F1G1A104A012 C 0.01UF, K, 10V 1 C5068-70 F1G1H1020008 C 1000PF, K, 50V 3 C5071,72 F1G1A104A012 C 0.01UF, K, 10V 2 C5073,74 F1G1H1020008 C 1000PF, K, 50V 2 C5075 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5076-79 F1G1H1020008 C 1000PF, K, 50V 4 C5080 F1G1A104A012 C 0.01UF, K, 10V 1 C5081-83 F1G1H1020008 C 1000PF, K, 50V 3 参考号 部品号 部品名称 & 说明 件数 备注 C5084 F1G1A104A012 C 0.01UF, K, 10V 1 C5085,86 F1G1H1020008 C 1000PF, K, 50V 2 C5087 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5088 F1G1A104A012 C 0.01UF, K, 10V 1 C5089,90 F1G1H1020008 C 1000PF, K, 50V 2 C5091 F1G1A104A012 C 0.01UF, K, 10V 1 C5092-94 F1G1H1020008 C 1000PF, K, 50V 3 C5095 F1G1A104A012 C 0.01UF, K, 10V 1 C5096 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5097-00 F1G1H1020008 C 1000PF, K, 50V 4 C5101,02 F1G1A104A012 C 0.01UF, K, 10V 2 C5103 F1G1H1020008 C 1000PF, K, 50V 1 C5104 F1G1A104A012 C 0.01UF, K, 10V 1 C5105 F1G1H1020008 C 1000PF, K, 50V 1 C5106 F1G1A104A012 C 0.01UF, K, 10V 1 C5107 F1G1H1020008 C 1000PF, K, 50V 1 C5108,09 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C5110 F1G1A104A012 C 0.01UF, K, 10V 1 C5111,12 F1G1H1020008 C 1000PF, K, 50V 2 C5113 F1G1A104A012 C 0.01UF, K, 10V 1 C5114 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5115 F1G1H1020008 C 1000PF, K, 50V 1 C5116 F1G1A104A012 C 0.01UF, K, 10V 1 C5117,18 F1J0J1060004 C 0.010UF, K, 16V 2 C5120 F1G1A104A012 C 0.01UF, K, 10V 1 C5121 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5122-43 F1G1A104A012 C 0.01UF, K, 10V 22 C5144,45 F1J0J1060004 C 0.010UF, K, 16V 2 C5146 F1G1A104A012 C 0.01UF, K, 10V 1 C5235 F1G1H1020008 C 1000PF, K, 50V 1 C5268-70 F1J0J1060004 C 0.010UF, K, 16V 3 C5271 F1G1A104A012 C 0.01UF, K, 10V 1 C5272 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5273 F1G1A104A012 C 0.01UF, K, 10V 1 C5274 EEEHB0G101R C 100PF, J, 4V 1 C5275 F1H1H471A792 E 470UF, 50V 1 C5276 EEFCD0G560ER C 56UF, K, 4V 1 C5277 F1G1A104A012 C 0.01UF, K, 10V 1 C5278 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5279 F1G1A104A012 C 0.01UF, K, 10V 1 C5280 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5281 F1G1A104A012 C 0.01UF, K, 10V 1 C5282 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5283 F1G1A104A012 C 0.01UF, K, 10V 1 C5284 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5285-87 F1G1A104A012 C 0.01UF, K, 10V 3 C5288 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5289 F1G1A104A012 C 0.01UF, K, 10V 1 C5290 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5291,92 F1G1A104A012 C 0.01UF, K, 10V 2 C5293 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5294 F1G1A104A012 C 0.01UF, K, 10V 1 C5295 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5296 F1G1A104A012 C 0.01UF, K, 10V 1 C5297 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5298 F1G1A104A012 C 0.01UF, K, 10V 1 C5299 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5300 F1G1A104A012 C 0.01UF, K, 10V 1 C5301 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5302 F1G1A104A012 C 0.01UF, K, 10V 1 C5303 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5343 F1G1A104A012 C 0.01UF, K, 10V 1 C5344 F1G1H1020008 C 1000PF, K, 50V 1 C5345 F1G1A104A012 C 0.01UF, K, 10V 1 C5347 F1J0J1060004 C 0.010UF, K, 16V 1 C5348 F1G1A104A012 C 0.01UF, K, 10V 1 C5350 F1H0J1050012 C 1UF, K, 16V 1 C5351 EEEHB0G470R C 47PF, J, 4V 1 C5352 F1H1H471A792 E 470UF, 50V 1 C5353 F1H0J1050012 C 1UF, K, 16V 1 C5354-56 F1G1A104A012 C 0.01UF, K, 10V 3 C5357 EEEHB0G470R C 47PF, J, 4V 1 C5358 F1H0J1050012 C 1UF, K, 16V 1 C5359 EEEHB0G470R C 47PF, J, 4V 1 C5360 F1H1H471A792 E 470UF, 50V 1 C5361 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5362 F1G1A104A012 C 0.01UF, K, 10V 1 参考号 部品号 部品名称 & 说明 件数 备注 155 C5363 EEEHB0G470R C 47PF, J, 4V 1 C5364-91 F1G1A104A012 C 0.01UF, K, 10V 28 C5392 F1J0J1060004 C 0.010UF, K, 16V 1 C5393 F1H1A154A012 C 0.15UF, K, 50V 1 C5394 F1G1A104A012 C 0.01UF, K, 10V 1 C5395 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5397 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5409 F1J1E104A137 C 0.10UF, Z, 25V 1 C5410 ECA1EM471 E 470UF, 25V 1 C5412,13 F1J1E104A137 C 0.10UF, Z, 25V 2 C5419 ECA1EM471 E 470UF, 25V 1 C5420 F1J1E104A137 C 0.10UF, Z, 25V 1 C5501 F2A1C471A537 E 470UF, 16V 1 C5502 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5503 F2A1C471A537 E 470UF, 16V 1 C5504 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5505 F2A1C471A537 E 470UF, 16V 1 C5506 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5507 F2A1C471A537 E 470UF, 16V 1 C5508 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5509 F2A1V331A096 E 330UF, 35V 1 C5510 F1J1E104A137 C 0.10UF, Z, 25V 1 C5521,22 ECJ2VB1C104K C 0.1UF, K, 16V 2 C5551 F2A1V331A096 E 330UF, 35V 1 C5552 F1J1E104A137 C 0.10UF, Z, 25V 1 C5587 F2A1C471A537 E 470UF, 16V 1 C5588 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5595 ECA1HM220 E 22UF, 50V 1 C5600 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5601 F1G1C104A081 C 0.10UF, K, 16V 1 C5602 ECGRL0G680ER C 68PF, J, 4V 1 C5603,04 F1G1E1030005 C 0.01UF, Z, 25V 2 C5605 F1J1A475A039 C 4.7UF, K, 10V 1 C5606 F1H1H471A219 E 470UF, 50V 1 C5607 F1G1H221A459 E 220UF, 50V 1 C5608 F1G1C104A081 C 0.10UF, K, 16V 1 C5609,10 EEEHB1C470P C 47PF, J, 16V 2 C5615 F1J1A106A043 C 0.010UF, K, 10V 1 C5616 ECJ0EB1A473K C 0.047UF, K, 10V 1 C5617 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5618,19 F1J1A106A043 C 0.010UF, K, 10V 2 C5620 ECJ1XB1H104K C 10PF, J, 50V 1 C5621 F1G1E1030005 C 0.01UF, Z, 25V 1 C5622 F1J1A475A039 C 4.7UF, K, 10V 1 C5623 ECJ0EB1H471K C 470PF, K, 50V 1 C5624 F1G1H221A459 E 220UF, 50V 1 C5625 F1G1E1030005 C 0.01UF, Z, 25V 1 C5626,27 F1G1C104A081 C 0.10UF, K, 16V 2 C5628,29 ECGRL0G680ER C 68PF, J, 4V 2 C5630,31 EEEHB1C470P C 47PF, J, 16V 2 C5632 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5636-41 F1G1C104A081 C 0.10UF, K, 16V 6 C5643 ECJ1XB1H104K C 10PF, J, 50V 1 C5644 F1G1E1030005 C 0.01UF, Z, 25V 1 C5645 F1H1A225A051 E 22UF, 50V 1 C5661 F1G1E1030005 C 0.01UF, Z, 25V 1 C5662 ECJ0EB1A473K C 0.047UF, K, 10V 1 C5663 F1G1E1030005 C 0.01UF, Z, 25V 1 C5670 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5673,74 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C5676 F1G1C104A081 C 0.10UF, K, 16V 1 C5690,91 F2G0J470A019 E 47UF 6.3V 2 C5692,93 ECJ1XB1H104K C 10PF, J, 50V 2 C5694,95 F2G0J470A019 E 47UF 6.3V 2 C5710-16 ECJ2VF1C104Z C 0.1UF, Z, 16V 7 C5730 F1G1E1030005 C 0.01UF, Z, 25V 1 C5731 F2G0J470A019 E 47UF 6.3V 1 C5869 F1G1A104A012 C 0.01UF, K, 10V 1 C5870 F1G1H1020008 C 1000PF, K, 50V 1 C5910 EEEHB1C470P C 47PF, J, 16V 1 C5911,12 F1J1A106A043 C 0.010UF, K, 10V 2 C5914 ECJ0EB1A473K C 0.047UF, K, 10V 1 C5915 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5916,17 F1J1A106A043 C 0.010UF, K, 10V 2 C5918 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5919 F1G1E1030005 C 0.01UF, Z, 25V 1 C5920 F1H0J4750004 C 4.7UF, K, 16V 1 参考号 部品号 部品名称 & 说明 件数 备注 C5921 ECJ0EB1H471K C 470PF, K, 50V 1 C5922 F1G1H221A459 E 220UF, 50V 1 C5923 F1G1E1030005 C 0.01UF, Z, 25V 1 C5924,25 F1G1C104A081 C 0.10UF, K, 16V 2 C5926,27 ECGRL0G680ER C 68PF, J, 4V 2 C5928,29 EEEHB1C470P C 47PF, J, 16V 2 C5930 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5939 F1G1C104A081 C 0.10UF, K, 16V 1 C6002 F1L2J562A022 C 5600UF, K,6.3V 1 C6004 F1L2J562A022 C 5600UF, K,6.3V 1 C6012-17 F2A2E201A183 E 210UF, 250V 6 C6022 F1L2J562A022 C 5600UF, K,6.3V 1 C6024 F1L2J562A022 C 5600UF, K,6.3V 1 C6037 F1L1E4750004 C 4.7UF, 25V 1 C6071 F1L2J1020001 C 1000UF, K,6.3V 1 C6091 F1L2J1020001 C 1000UF, K,6.3V 1 C6111,12 F2A2D221A022 E 220UF, 200V 2 C6114 F0C2E225A218 E 0.022UF, 250V 1 C6132 F1L1E4750004 C 4.7UF, 25V 1 C6134,35 F1L1E4750004 C 4.7UF, 25V 2 C6151 ECJ3YB1E105K C 1UF, K, 25V 1 C6152-54 F1L1E4750004 C 4.7UF, 25V 3 C6193-95 F1L1E4750004 C 4.7UF, 25V 3 C6197 F1L1E4750004 C 4.7UF, 25V 1 C6201-07 F0C2E225A218 E 0.022UF, 250V 7 C6211,12 F1L1E4750004 C 4.7UF, 25V 2 C6213 F2A1E102A220 E 1000UF, 25V 1 C6216,17 F1L1E4750004 C 4.7UF, 25V 2 C6221 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6223 F2A2E470A022 E 47UF, 250V 1 C6241 F2A1A101A439 E 100UF, 10V 1 C6242 F1H1C105A072 C 1UF, K, 16V 1 C6243 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6246-48 ECJ2XB1H104K C 0.1UF, K, 50V 3 C6251 F1H1C105A072 C 1UF, K, 16V 1 C6252 ECJ3YB1E105K C 1UF, K, 25V 1 C6255,56 F2A2A471A072 E 470UF, 100V 2 C6258-61 F2A2A471A072 E 470UF, 100V 4 C6272,73 F2A1E221A487 E 220UF, 25V 2 C6276 F1L1E4750004 C 4.7UF, 25V 1 C6286-88 ECJ2XB1H104K C 0.1UF, K, 50V 3 C6401 F1L2J222A022 C 2200UF, K,6.3V 1 C6403 F1L2J222A022 C 2200UF, K,6.3V 1 C6405 F1L2J222A022 C 2200UF, K,6.3V 1 C6411-16 F2A2E201A183 E 210UF, 250V 6 C6423 F1L2J562A022 C 5600UF, K,6.3V 1 C6425 F1L2J562A022 C 5600UF, K,6.3V 1 C6471 F1L2J1020001 C 1000UF, K,6.3V 1 C6472 ECJ2XC1H101J C 100PF, J, 50V 1 C6480 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6491 F1L2J1020001 C 1000UF, K,6.3V 1 C6502 F1L1E4750004 C 4.7UF, 25V 1 C6504,05 F1L1E4750004 C 4.7UF, 25V 2 C6521 ECJ3YB1E105K C 1UF, K, 25V 1 C6522 F1L1E4750004 C 4.7UF, 25V 1 C6524,25 F1L1E4750004 C 4.7UF, 25V 2 C6527 F1L1E4750004 C 4.7UF, 25V 1 C6531-37 F0C2E225A218 E 0.022UF, 250V 7 C6561 F2A1A101A439 E 100UF, 10V 1 C6562 TCUY1C105ZFN C 1UF, 16V 1 C6563 F2A1A101A439 E 100UF, 10V 1 C6564 TCUY1C105ZFN C 1UF, 16V 1 C6565,66 ECJ2VB1H103K C 0.01UF, K, 50V 2 C6567 TCUY1C105ZFN C 1UF, 16V 1 C6581 ECJ3YB1E105K C 1UF, K, 25V 1 C6582 F1H1C105A072 C 1UF, K, 16V 1 C6592 F2A1E221A487 E 220UF, 25V 1 C6593 ECJ2XC1H102J C 1000PF, J, 50V 1 C6594 F2A1E221A487 E 220UF, 25V 1 C6601 ECJ3YB1E105K C 1UF, K, 25V 1 C6603,04 F1K2J102A014 C 1000UF, K,6.3V 2 C6605,06 F1L2J562A022 C 5600UF, K,6.3V 2 C6619 F1K2J471A014 C 470UF, K,6.3V 1 C6641 ECQE2105RKB P 1UF, 250V 1 C6661,62 F1K2J102A014 C 1000UF, K,6.3V 2 C6691 ECA2DHG101 E 100UF, 200V 1 C6694 ECJ3YB1E105K C 1UF, K, 25V 1 参考号 部品号 部品名称 & 说明 件数 备注 156 C6695 ECJ2XC1H102J C 1000PF, J, 50V 1 C6696-98 F1L1E4750004 C 4.7UF, 25V 3 C6700 ECJ2XB1H392K C 3900PF, K, 50V 1 C6702 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6704-06 ECJ2XB1H104K C 0.1UF, K, 50V 3 C6708 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6709 F1L1E4750004 C 4.7UF, 25V 1 C6710 F1K2J471A014 C 470UF, K,6.3V 1 C6721 F2A1H101A493 E 100UF, 50V 1 C6722 ECJ2XC1H101J C 100PF, J, 50V 1 C6723-25 F1L1E4750004 C 4.7UF, 25V 3 C6726,27 F1H1C105A072 C 1UF, K, 16V 2 C6752 ECJ3YB1E105K C 1UF, K, 25V 1 C6753 F1L1E4750004 C 4.7UF, 25V 1 C6755 F1L1E4750004 C 4.7UF, 25V 1 C6771 F1H1C105A072 C 1UF, K, 16V 1 C6772,73 F1L1E4750004 C 4.7UF, 25V 2 C6775 F1L1E4750004 C 4.7UF, 25V 1 C6777 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6791 F2A1E221A487 E 220UF, 25V 1 C6795,96 EEUFC1E471 E 470UF, 25V 2 C6799 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6800 ECJ3YB1E105K C 1UF, K, 25V 1 C6801 F1L2E1040002 E 1000UF, 25V 1 SU C6801 F2A2E470A022 E 47UF, 250V 1 SC C6802 F1L2E1040002 E 1000UF, 25V 1 C6803 ECKD3D221KBP C 220PF, K, 2KV 1 SC C6803 F1L2E1040002 E 1000UF, 25V 1 SU C6804 F2A2E100A022 E 10UF, 250V 1 C6805 ECJ2XC1H331J C 330PF, J, 50V 1 C6806 ECA2CM101 E 100UF, 160V 1 C6807 F1H1C105A072 C 1UF, K, 16V 1 SC C6807,08 F1L2E1040002 E 1000UF, 25V 2 SU C6808 F1L2E1040002 E 1000UF, 25V 1 SC C6809 ECJ2XB1H104K C 0.1UF, K, 50V 1 SC C6809 F1L2E1040002 E 1000UF, 25V 1 SU C6810 ECJ2VB1H471K C 470PF, K, 50V 1 SU C6810 ECJ2XB1H104K C 0.1UF, K, 50V 1 SC C6811 ECJ2VB1H471K C 470PF, K, 50V 1 SU C6811,12 ECJ2XB1H104K C 0.1UF, K, 50V 2 SC C6813 ECA2CM101 E 100UF, 160V 1 SC C6813,14 F1L2E1040002 E 1000UF, 25V 2 SU C6814 F2A1E221A487 E 220UF, 25V 1 SC C6815 ECJ2XC1H222J C 2200PF, J, 50V 1 SC C6815 F1L2E1040002 E 1000UF, 25V 1 SU C6816,17 ECJ2XB1H104K C 0.1UF, K, 50V 2 C6818 ECJ3YB1E105K C 1UF, K, 25V 1 C6819 F1L2E1040002 E 1000UF, 25V 1 SU C6819 F2A1H101A493 E 100UF, 50V 1 SC C6820 F1L1E4750004 C 4.7UF, 25V 1 SC C6820 F1L2E1040002 E 1000UF, 25V 1 SU C6821 F1L1E4750004 C 4.7UF, 25V 1 SC C6821 F1L2E1040002 E 1000UF, 25V 1 SU C6822 F2A2W470A017 E 47UF, 450V 1 C6823 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6825 F1L1E4750004 C 4.7UF, 25V 1 C6826,27 F1H1C105A072 C 1UF, K, 16V 2 C6829 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6830 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6831 ECJ2XC1H102J C 1000PF, J, 50V 1 C6832 ECJ2XB1H392K C 3900PF, K, 50V 1 C6834 ECJ2VC1H561J C 560PF, K, 50V 1 C6835 ECA2CM101 E 100UF, 160V 1 C6839 ECJ2VC1H561J C 560PF, K, 50V 1 C6841 ECA2DHG101 E 100UF, 200V 1 C6842 ECA2CM101 E 100UF, 160V 1 C6845 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6851-54 TCUY1C105ZFN C 1UF, 16V 4 C6856-59 TCUY1C105ZFN C 1UF, 16V 4 C6871 ECJ2VB1H821K C 820PF, K, 50V 1 SU C6871 F1H1C105A072 C 1UF, K, 16V 1 SC C6872 ECJ2VB1H221K C 220PF, K, 50V 1 SU C6872 ECJ3YB1E105K C 1UF, K, 25V 1 SC C6873 ECJ2VB1H103K C 0.01UF, K, 50V 1 SC C6873 ECJ2VB1H821K C 820PF, K, 50V 1 SU C6874 ECA2DHG101 E 100UF, 200V 1 C6875 ECJ2VB1H221K C 220PF, K, 50V 1 参考号 部品号 部品名称 & 说明 件数 备注 C6881 ECJ2VB1H821K C 820PF, K, 50V 1 C6882 ECJ2VB1H221K C 220PF, K, 50V 1 SU C6882 F2A1E470A454 E 47UF, 25V 1 SC C6883 F1L1E4750004 C 4.7UF, 25V 1 C6884,85 F1K2J102A014 C 1000UF, K,6.3V 2 C6887 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6901-03 F1L2E1040002 E 1000UF, 25V 3 C6907-09 F1L2E1040002 E 1000UF, 25V 3 C6910,11 ECJ2VB1H471K C 470PF, K, 50V 2 C6913-15 F1L2E1040002 E 1000UF, 25V 3 C6919-21 F1L2E1040002 E 1000UF, 25V 3 C6932 ECJ2VC1H561J C 560PF, K, 50V 1 C6937 ECJ2VC1H561J C 560PF, K, 50V 1 C6941 ECJ2VB1H821K C 820PF, K, 50V 1 C6942 ECJ2VB1H221K C 220PF, K, 50V 1 C6951 ECJ2VB1H821K C 820PF, K, 50V 1 C6953 ECJ2VB1H221K C 220PF, K, 50V 1 C6958 TCUY1C105ZFN C 1UF, 16V 1 C6966 ECJ2VB1H821K C 820PF, K, 50V 1 C6968 ECJ2VB1H221K C 220PF, K, 50V 1 C6972-75 TCUY1C105ZFN C 1UF, 16V 4 C6979-81 TCUY1C105ZFN C 1UF, 16V 3 C7101,02 F1H1C105A072 C 1UF, K, 16V 2 C7106 F1K2A105A006 C 1UF, 100V 1 C7110,11 F1H1C105A072 C 1UF, K, 16V 2 C7113 F1K2A105A006 C 1UF, 100V 1 C7120 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7129,30 F1H1C105A072 C 1UF, K, 16V 2 C7132 F1K2A105A006 C 1UF, 100V 1 C7139,40 F1H1C105A072 C 1UF, K, 16V 2 C7147,48 F1K2A105A006 C 1UF, 100V 2 C7151 F1K2A105A006 C 1UF, 100V 1 C7153 F1K2A105A006 C 1UF, 100V 1 C7159,60 F1H1C105A072 C 1UF, K, 16V 2 C7162 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7167-69 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C7182 F1K2A105A006 C 1UF, 100V 1 C7186 F1H1C105A072 C 1UF, K, 16V 1 C7190 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7191-95 F1H1C105A072 C 1UF, K, 16V 5 C7196-99 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C7202 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7204 F1K2A105A006 C 1UF, 100V 1 C7205,06 F1H1C105A072 C 1UF, K, 16V 2 C7212 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7214 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7218 F1H1C105A072 C 1UF, K, 16V 1 C7220 F1K2A105A006 C 1UF, 100V 1 C7226 F1H1C105A072 C 1UF, K, 16V 1 C7228 F1K2A105A006 C 1UF, 100V 1 C7236 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7237,38 F1H1C105A072 C 1UF, K, 16V 2 C7247,48 F1K2A105A006 C 1UF, 100V 2 C7250,51 F1K2A105A006 C 1UF, 100V 2 C7258,59 F1H1C105A072 C 1UF, K, 16V 2 C7270 F1K2A105A006 C 1UF, 100V 1 C7274 F1H1C105A072 C 1UF, K, 16V 1 C7278 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7279-83 F1H1C105A072 C 1UF, K, 16V 5 C7284-86 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C7301 F1K2A105A006 C 1UF, 100V 1 C7305,06 F1H1C105A072 C 1UF, K, 16V 2 C7311,12 F1K2A105A006 C 1UF, 100V 2 C7318,19 F1K2A105A006 C 1UF, 100V 2 C7324,25 F1H1C105A072 C 1UF, K, 16V 2 C7334-37 F1H1C105A072 C 1UF, K, 16V 4 C7340,41 F1H1C105A072 C 1UF, K, 16V 2 C7346,47 F1K2A105A006 C 1UF, 100V 2 C7352 F1K2A105A006 C 1UF, 100V 1 C7355 F1H1C105A072 C 1UF, K, 16V 1 C7362,63 F1H1C105A072 C 1UF, K, 16V 2 C7365 F1H1C105A072 C 1UF, K, 16V 1 C7367,68 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7373 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7381 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7405 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7407 ECJ1XB1C104K C 0.1UF, Z, 16V 1 参考号 部品号 部品名称 & 说明 件数 备注 157 C7419,20 F1H1C105A072 C 1UF, K, 16V 2 C7427,28 F1K2A105A006 C 1UF, 100V 2 C7432,33 F1K2A105A006 C 1UF, 100V 2 C7438,39 F1H1C105A072 C 1UF, K, 16V 2 C7448-51 F1H1C105A072 C 1UF, K, 16V 4 C7455 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7462,63 F1H1C105A072 C 1UF, K, 16V 2 C7470,71 F1K2A105A006 C 1UF, 100V 2 C7475,76 F1K2A105A006 C 1UF, 100V 2 C7481,82 F1H1C105A072 C 1UF, K, 16V 2 C7491-94 F1H1C105A072 C 1UF, K, 16V 4 C7724,25 ECJ1VC1H330J C 33PF, J, 50V 2 C7729 ECJ1VC1H330J C 33PF, J, 50V 1 C7731 ECJ1VC1H330J C 33PF, J, 50V 1 C7732,33 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C7736 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C7737 F1J0J106A020 C 0.010UF, K, 16V 1 C7738 EEEHB0G101R C 100PF, J, 4V 1 C7742 F1J0J106A020 C 0.010UF, K, 16V 1 C8001 F1G1C104A081 C 0.10UF, K, 16V 1 C8002-05 F1H0J1050012 C 1UF, K, 16V 4 C8006-08 F1G1C104A081 C 0.10UF, K, 16V 3 C8009,10 F1J1A106A043 C 0.010UF, K, 10V 2 C8011-14 F1G1C104A081 C 0.10UF, K, 16V 4 C8015,16 F1H0J1050012 C 1UF, K, 16V 2 C8017 F1J1A106A043 C 0.010UF, K, 10V 1 C8018-21 F1G1C104A081 C 0.10UF, K, 16V 4 C8022 F1H0J1050012 C 1UF, K, 16V 1 C8023,24 F1J1A106A043 C 0.010UF, K, 10V 2 C8025-29 F1G1C104A081 C 0.10UF, K, 16V 5 C8030,31 F1H0J1050012 C 1UF, K, 16V 2 C8032 F1J1A106A043 C 0.010UF, K, 10V 1 C8033,34 F1G1C104A081 C 0.10UF, K, 16V 2 C8035,36 F1J1A106A043 C 0.010UF, K, 10V 2 C8037-41 F1G1C104A081 C 0.10UF, K, 16V 5 C8042 ECGRL0G680ER C 68PF, J, 4V 1 C8043-51 F1G1C104A081 C 0.10UF, K, 16V 9 C8052 F1H0J1050012 C 1UF, K, 16V 1 C8053 F1G1E1030005 C 0.01UF, Z, 25V 1 C8056,57 F1G1C104A081 C 0.10UF, K, 16V 2 C8058 F1J1A106A043 C 0.010UF, K, 10V 1 C8067 F1G1E1030005 C 0.01UF, Z, 25V 1 C8068 F1G1C104A081 C 0.10UF, K, 16V 1 C8069 F1G1H820A565 E 82UF, 50V 1 C8070-74 F1G1C104A081 C 0.10UF, K, 16V 5 C8075 F1J0G2260001 C 0.001UF, 6.3V 1 C8076-80 F1G1C104A081 C 0.10UF, K, 16V 5 C8551,52 F1G1C104A081 C 0.10UF, K, 16V 2 C8555 F1G1C104A081 C 0.10UF, K, 16V 1 C8601 F1G1C104A081 C 0.10UF, K, 16V 1 C8621,22 F1G1C104A081 C 0.10UF, K, 16V 2 C8731 F1G1E1030005 C 0.01UF, Z, 25V 1 C8802,03 F1G1C104A081 C 0.10UF, K, 16V 2 C9028,29 F1J1A106A043 C 0.010UF, K, 10V 2 C9033,34 F1G1C104A083 C 0.10UF, K, 16V 2 C9035,36 F1J1A106A043 C 0.010UF, K, 10V 2 C9037 F1G1E1030005 C 0.01UF, Z, 25V 1 C9039 F1J1A106A043 C 0.010UF, K, 10V 1 C9040 F1G1C104A083 C 0.10UF, K, 16V 1 C9044 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1 C9045-53 F1G1C104A083 C 0.10UF, K, 16V 9 C9055-57 F1G1C104A083 C 0.10UF, K, 16V 3 C9058 F1J1A106A043 C 0.010UF, K, 10V 1 C9059-83 F1G1C104A077 C 0.10UF, K, 16V 25 C9084 EEFCD0G560ER C 56UF, K, 4V 1 C9085-99 F1G1C104A077 C 0.10UF, K, 16V 15 C9101-10 F1G1C104A077 C 0.10UF, K, 16V 10 C9111 EEFCD0G560ER C 56UF, K, 4V 1 C9112 F1G1C104A077 C 0.10UF, K, 16V 1 C9113 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1 C9114 F1G1C104A083 C 0.10UF, K, 16V 1 C9300-25 F1G1C104A077 C 0.10UF, K, 16V 26 C9355-59 F1G1C104A077 C 0.10UF, K, 16V 5 C9360-64 F1J1A106A043 C 0.010UF, K, 10V 5 C9365 EEFCD0G560ER C 56UF, K, 4V 1 C9368 F1G1C104A077 C 0.10UF, K, 16V 1 C9369-74 F1G1E1030005 C 0.01UF, Z, 25V 6 参考号 部品号 部品名称 & 说明 件数 备注 C9442-69 F1G1C104A077 C 0.10UF, K, 16V 28 C9496 F1G1C104A077 C 0.10UF, K, 16V 1 C9500 F1G1C104A077 C 0.10UF, K, 16V 1 C9501 F1J1A106A043 C 0.010UF, K, 10V 1 C9505 F1G1C104A077 C 0.10UF, K, 16V 1 C9508 F1G1C104A077 C 0.10UF, K, 16V 1 C9509,10 F1G1H120A565 E 12UF, 50V 2 C9511 F1J1A106A043 C 0.010UF, K, 10V 1 C9512,13 F1G1C104A077 C 0.10UF, K, 16V 2 C9515 F1G1C104A083 C 0.10UF, K, 16V 1 C9516-25 F1G1C104A077 C 0.10UF, K, 16V 10 C9526 F1J1A106A043 C 0.010UF, K, 10V 1 C9527,28 F1G1C104A077 C 0.10UF, K, 16V 2 C9531 F1J1A106A043 C 0.010UF, K, 10V 1 C9533 F1G1C104A077 C 0.10UF, K, 16V 1 C9534-38 F1J1A106A043 C 0.010UF, K, 10V 5 C9539 EEFCD0G560ER C 56UF, K, 4V 1 C9542 F1G1C104A077 C 0.10UF, K, 16V 1 C9543 F1J1A106A043 C 0.010UF, K, 10V 1 C9544 F1G1C104A083 C 0.10UF, K, 16V 1 C9559-61 F1G1C104A077 C 0.10UF, K, 16V 3 C9608 F1G1C104A083 C 0.10UF, K, 16V 1 C9609 F1J1A106A043 C 0.010UF, K, 10V 1 C9610 F1G1C104A083 C 0.10UF, K, 16V 1 C9823 ECJ3YB1E106M C 10 UF, K, 25V 1 C9826 F1G1C104A083 C 0.10UF, K, 16V 1 C9830-32 F1J1A106A043 C 0.010UF, K, 10V 3 C9837 F1J1A106A043 C 0.010UF, K, 10V 1 C9838 F1G1C104A083 C 0.10UF, K, 16V 1 C9840-43 F1G1C104A083 C 0.10UF, K, 16V 4 C9844 F1G1E1030005 C 0.01UF, Z, 25V 1 C9845,46 F1G1C104A083 C 0.10UF, K, 16V 2 C9858 ECJ3YB1E106M C 10 UF, K, 25V 1 C9859 F1G1E1030005 C 0.01UF, Z, 25V 1 C9860 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1 C9861,62 ECJ1VB1E104K C 0.10UF, K, 25V 2 C9863 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1 C9864 ECJ1VB1E104K C 0.10UF, K, 25V 1 C9865,66 ECGRL0G680ER C 68PF, J, 4V 2 C9867-72 ECJ3YB1E106M C 10 UF, K, 25V 6 C9873 ECGRL0G680ER C 68PF, J, 4V 1 C9874 F1G1H680A565 E 68UF, 50V 1 C9877 F1G1H680A565 E 68UF, 50V 1 C9878 F1G1E1030005 C 0.01UF, Z, 25V 1 C9879,80 F1G1E822A086 C 8200UF, Z, 25V 2 C9881 F1G1E1030005 C 0.01UF, Z, 25V 1 C9882 F1G1E822A086 C 8200UF, Z, 25V 1 C9883 F1G1H101A565 C 100PF, K, 50V 1 C9884,85 F1G1H1020008 E 1000UF, 50V 2 C9886,87 ECJ1VB1E104K C 0.10UF, K, 25V 2 C9888 F1G1H361A565 E 360UF, 50V 1 C9889 F1G1C104A083 C 0.10UF, K, 16V 1 C9890 F1G1H101A565 C 100PF, K, 50V 1 CA1-15 K1MN68BA0052 68P 连接头 15 CB1-15 K1MN68BA0052 68P 连接头 15 D3 K1KA30B00078 30P 连接头 1 D5 K1KB31BA0064 31P 连接头 1 D6 K1KA21A00011 21P 连接头 1 D9 K1KA07A00292 7P 连接头 1 D20 K1KA31B00005 31P 连接头 1 D25 K1KA20B00155 20P 连接头 1 D31-36 K1MN68BA0251 68P 连接头 6 D1107 MA704A 二极管 1 D1112 MA2J72800L 二极管 1 D2025 K7AAAY000003 光纤端子 1 D2026 MA2J11100L 二极管 1 D2028,29 MA2J11100L 二极管 2 D2031-34 MA2J11100L 二极管 4 D2119 B0BC01100001 稳压二极管 1 D2189 MA2J11100L 二极管 1 D2301,02 MA2J11100L 二极管 2 D2303 MA3056HTX 二极管 1 D2304 MA2J11100L 二极管 1 D2510,11 MAZ80560ML 稳压二极管 2 参考号 部品号 部品名称 & 说明 件数 备注 158 D2512 MA8043LTX 稳压二极管 1 D2520 LNJ107W5PRW LED 1 D2524 MAZ80560ML 稳压二极管 1 D2632,33 MA2J11100L 二极管 2 D2634 MA3X78900L 稳压二极管 1 D2635 MA2J11100L 二极管 1 D2636 MA3047HTX 二极管 1 D2637 MA2J11100L 二极管 1 D2638 B0BC03900015 稳压二极管 1 D3003 MA8140M 稳压二极管 1 D3005,06 MA8140M 稳压二极管 2 D3035-43 MA8140M 稳压二极管 9 D3044 B0BC01100001 稳压二极管 1 D3045-49 MA8140M 稳压二极管 5 D3100 MA8140M 稳压二极管 1 D3102 MA2J11100L 二极管 1 D3334-38 MA2J11100L 二极管 5 D3401,02 MA2J72900L 二极管 2 D3405 B0JCCE000008 二极管 1 D3702 MA8140M 稳压二极管 1 D3801-11 EZAEG2A50AX 二极管 11 D3812 MA3056MTX 稳压二极管 1 D3813,14 B0HCMM000014 二极管 2 D4500-12 EZAEG2A50AX 二极管 13 D4513 MA3056MTX 稳压二极管 1 D4514 EZAEG2A50AX 二极管 1 D4515 MA3056MTX 稳压二极管 1 D4516-23 EZAEG2A50AX 二极管 8 D4524-27 B0HCMM000014 二极管 4 D4528 EZAEG2A50AX 二极管 1 D4532 B0HCMM000014 二极管 1 D5402 MA2J11100L 二极管 1 D5404 MA2J11100L 二极管 1 D5406 MA2J11100L 二极管 1 D5408 MA2J11100L 二极管 1 D5409 B0JCME000037 二极管 1 D5410 MAZ81100ML 稳压二极管 1 D5411 MA2J11100L 二极管 1 D5412 MA8033L 稳压二极管 1 D5501,02 B0BC01000035 稳压二极管 2 D5521 MA2J11100L 二极管 1 D5522 MA3X152A0L 二极管 1 D5526 MA3X152A0L 二极管 1 D5528 MA8120M 稳压二极管 1 D5529 MAZ80680LL 稳压二极管 1 D5530 MA2J11100L 二极管 1 D5531,32 MA3X152A0L 二极管 2 D5533,34 MA8120M 稳压二极管 2 D5571 B0BC6R600005 稳压二极管 1 D5573-75 B0BC01100001 稳压二极管 3 D5601,02 MA22D3900L 二极管 2 D5603,04 B0JCDD000002 二极管 2 D5605 MA22D3900L 二极管 1 D5606 B0JCDD000002 二极管 1 D5607,08 MA8024LTX 稳压二极管 2 D5609 MA8056LTX 稳压二极管 1 D5670 MA2J11100L 二极管 1 D5671 B0HCMM000014 二极管 1 D5673 B0HCMM000014 二极管 1 D5690,91 B0BC6R600005 稳压二极管 2 D5901,02 MA22D3900L 二极管 2 D5903,04 B0JCDD000002 二极管 2 D5907,08 B0BC4R700007 稳压二极管 2 D6001,02 B0HBSN000008 二极管 2 D6021-23 B0HBSN000008 二极管 3 D6024,25 B0ECHP000003 二极管 2 D6032 MA2J11100L 二极管 1 D6061-64 B0HBSN000008 二极管 4 D6071,72 B0HBSN000008 二极管 2 D6081-83 B0HBSN000008 二极管 3 D6091 B0HBSN000008 二极管 1 D6092 MA3DF40000LZ 稳压二极管 1 D6101-04 B0JCME000037 二极管 4 D6131,32 B0ECHP000003 二极管 2 D6151-53 B0ECHP000003 二极管 3 D6191,92 B0ECHP000003 二极管 2 D6211 B0JCME000037 二极管 1 参考号 部品号 部品名称 & 说明 件数 备注 D6221 B0HDRP000003 二极管 1 D6222,23 MA2J11100L 二极管 2 D6225 B0ECHP000003 二极管 1 D6253 LNJ301MPUJA LED 1 D6255 MA2J11100L 二极管 1 D6273 MA2J11100L 二极管 1 D6275 MA8068M 稳压二极管 1 D6276-78 MA3X152A0L 二极管 3 D6280 MAZ80510LL 稳压二极管 1 D6283 B0JCME000037 二极管 1 D6401-03 B0HBSN000008 二极管 3 D6421-23 B0HASR000013 二极管 3 D6442 B0ECKP000047 二极管 1 D6452 B0HCKS000002 二极管 1 D6461-64 B0HBSN000008 二极管 4 D6466 MA2J11100L 二极管 1 D6471,72 B0HBSN000008 二极管 2 D6475-77 MA2J11100L 二极管 3 D6478,79 B0HCKS000002 二极管 2 D6480 MA2J11100L 二极管 1 D6481-83 B0HBSN000008 二极管 3 D6491 B0HASR000013 二极管 1 D6497 B0HCKS000002 二极管 1 D6501,02 B0ECKP000047 二极管 2 D6521-23 B0ECKP000047 二极管 3 D6583 LNJ301MPUJA LED 1 D6585 MA2J11100L 二极管 1 D6601 B0JCME000037 二极管 1 D6604 MA2J11100L 二极管 1 D6605 MAZ80510LL 稳压二极管 1 D6606 B0HCMM000014 二极管 1 D6607,08 MA2J11100L 二极管 2 D6609 B0HCMM000014 二极管 1 D6610 MA2J11100L 二极管 1 D6611 B0ECKP000047 二极管 1 D6619 B0HCKS000002 二极管 1 D6622-27 B0HDSN000003 二极管 6 D6631-33 MA8220-M 稳压二极管 3 D6641 B0HCKS000002 二极管 1 D6642 B0ECKP000047 二极管 1 D6643 B0JCME000037 二极管 1 D6644 B0HCKS000002 二极管 1 D6645 B0JCME000037 二极管 1 D6661 MA2J11100L 二极管 1 D6662-64 MA8330M 稳压二极管 3 D6665 MAZ80510LL 稳压二极管 1 D6666,67 MA2J11100L 二极管 2 D6671 B0JCME000037 二极管 1 D6672 MA2J11100L 二极管 1 D6673-76 B0JCME000037 二极管 4 D6680,81 B0JCME000037 二极管 2 D6690 B0JCME000037 二极管 1 D6691,92 MA8200M 稳压二极管 2 D6693,94 B0JCME000037 二极管 2 D6695 MA2J11100L 二极管 1 D6697 B0ECKP000047 二极管 1 D6698 B0HCKS000002 二极管 1 D6699 B0HDRP000003 二极管 1 D6701,02 MA8056H 稳压二极管 2 D6704 B0ECKP000047 二极管 1 D6705 MAZ81500ML 稳压二极管 1 D6706 B0BC027A0234 稳压二极管 1 D6707,08 B0ECKP000047 二极管 2 D6721 B0HCKS000002 二极管 1 D6722 MA2J11100L 二极管 1 D6725 MA2J11100L 二极管 1 D6726-33 MA8056H 稳压二极管 8 D6742,43 MA2J11100L 二极管 2 D6761 B0JCME000037 二极管 1 D6764-66 B0HCKS000002 二极管 3 D6767 B0ECKP000047 二极管 1 D6773 B0HCKS000002 二极管 1 D6792 MA8200M 稳压二极管 1 D6794 MA8056H 稳压二极管 1 D6795 B0HCKS000002 二极管 1 D6799 MA2J11100L 二极管 1 D6800 MA8056H 稳压二极管 1 参考号 部品号 部品名称 & 说明 件数 备注 159 D6801 B0JCME000037 二极管 1 D6802 B0BC01000044 稳压二极管 1 D6804 B0HCKS000002 二极管 1 D6805 MA8240MTX 稳压二极管 1 D6806 B0HCKS000002 二极管 1 D6807 B0ECKP000047 二极管 1 D6809 B0HCMM000014 二极管 1 D6810 MA2J11100L 二极管 1 D6811-17 MA8056H 稳压二极管 7 D6818 MAZ80510LL 稳压二极管 1 D6821-23 MA2J11100L 二极管 3 D6824,25 MA8330M 稳压二极管 2 D6826 MA2J11100L 二极管 1 D6827,28 MA8330M 稳压二极管 2 D6829 MA2J11100L 二极管 1 D6830 MA8056H 稳压二极管 1 D6831,32 MA8330M 稳压二极管 2 D6833 MAZ80510LL 稳压二极管 1 D6834 MA2J11100L 二极管 1 D6836 MAZ81500ML 稳压二极管 1 D6837 MA2J11100L 二极管 1 D6838 B0BC027A0234 稳压二极管 1 D6839 B0ECKP000047 二极管 1 D6840 MA8062L 稳压二极管 1 D6841 B0HCKS000002 二极管 1 D6842,43 MA2J11100L 二极管 2 D6844 B0ECKP000047 二极管 1 D6845 MA2J11100L 二极管 1 D6846,47 MA8200M 稳压二极管 2 D6859,60 B0HCKS000002 二极管 2 D6861 MA8056H 稳压二极管 1 D6862 B0HCMM000013 二极管 1 D6863,64 B0JCME000037 二极管 2 D6866 MA8056H 稳压二极管 1 D6867 B0HCMM000013 二极管 1 D6871 B0HCMM000013 二极管 1 SU D6871 MAZ80510LL 稳压二极管 1 SC D6872 B0HCMM000013 二极管 1 SU D6872 MA2J11100L 二极管 1 SC D6873 B0HCKS000002 二极管 1 D6878-80 B0ECKP000047 二极管 3 D6881 B0HCKS000002 二极管 1 D6882 MAZ80510LL 稳压二极管 1 D6883 MAZ80510ML 稳压二极管 1 D6884 MA2J11100L 二极管 1 D6961 B0HCMM000013 二极管 1 D6962 MA8056H 稳压二极管 1 D6963,64 B0JCME000037 二极管 2 D6965 B0HCMM000013 二极管 1 D6966 MA8056H 稳压二极管 1 D6967,68 B0HCMM000013 二极管 2 D7101-16 B0ECKM000038 二极管 16 D7201-14 B0ECKM000038 二极管 14 D7301-14 B0ECKM000038 二极管 14 D7401-16 B0ECKM000038 二极管 16 D7700 B3AEB0000107 LED 1 D9017-19 MA3033 稳压二极管 3 D9020 B0JCCE000008 二极管 1 D9110 B0JCGD000002 二极管 1 D9300-05 B0JCCE000008 二极管 6 D9802 B0JCCE000008 二极管 1 D9804 B0JCCE000008 二极管 1 D9811 B0JCCE000008 二极管 1 D9812 MA22D3900L 二极管 1 D9813-15 B0JCGD000002 二极管 3 D9816,17 MA22D3900L 二极管 2 D9818,19 B0JCCE000008 二极管 2 DG1 K1KA12B00151 12P 连接头 1 DG2 K1KB23A00003 23P 连接头 1 DG6 K1KB80AA0218 80P 连接头 1 DG7 K1KA04AA0104 4P 连接头 1 DG11 K1KY30A00017 30P 连接头 1 DG25 K1KBB0A00006 连接头 1 DG31 K1KA20AA0009 20P 连接头 1 DG32 K1KA07AA0266 7P 连接头 1 DG33 K1KA11AA0715 11P 连接头 1 参考号 部品号 部品名称 & 说明 件数 备注 DG34,35 K1KA30AA0009 30P 连接头 2 DG52 K1KA14A00248 14P 连接头 1 DH4 K1KA07AA0266 7P 连接头 1 DH5 K1KB31AA0140 31P 连接头 1 DH25 K1KAB0A00011 连接头 1 FL2001,02 J0HABB000004 LC 滤波器 2 FL2003-06 J0HABB000003 LC 滤波器 4 FL3001,02 J0HABB000003 LC 滤波器 2 FL3003-05 J0HABB000004 LC 滤波器 3 FL3006,07 J0JAD0000028 片状电感 2 FL3008 J0HABB000003 LC 滤波器 1 FL3710-12 J0MAB0000199 LC 滤波器 3 FL5015-20 J0JAD0000028 片状电感 6 FL5730-34 J0HABH000013 LC 滤波器 5 FL7101 J0HABH000013 LC 滤波器 1 FL7201 J0HABH000013 LC 滤波器 1 FL7301 J0HABH000013 LC 滤波器 1 FL7401 J0HABH000013 LC 滤波器 1 FL8801,02 J0HAAA000013 LC 滤波器 2 FL9000 F1J1E104A148 C 0.10UF, Z, 25V 1 FL9302-11 F1J1E104A148 C 0.10UF, Z, 25V 10 FL9501,02 F1J1E104A148 C 0.10UF, Z, 25V 2 FL9504 F1J1E104A148 C 0.10UF, Z, 25V 1 FL9800 F1J1E104A148 C 0.10UF, Z, 25V 1 FL9803 F1J1E104A148 C 0.10UF, Z, 25V 1 FL9805-07 F1J1E104A148 C 0.10UF, Z, 25V 3 G51 K1KY20A00015 20P 连接头 1 GH10 K1FA121E0001 121P 连接头 1 GH11 K1KY30A00017 30P 连接头 1 GS52 K1KA14B00129 14P 连接头 1 H2 K1KA23A00003 23P 连接头 1 H3 K1KA40AA0009 40P 连接头 1 H6 K1KB80AA0218 80P 连接头 1 H11 K1KA05AA0190 5P 连接头 1 H12 K1KA04AA0190 4P 连接头 1 H15 K1KA04AA0714 4P 连接头 1 H51 K1KA20AA0178 20P 连接头 1 IC1100 MNZSFD7GP42 IC 1 IC1101 TVRP399 IC 1 IC2000 C0JBAZ002261 IC 1 IC2008 C0CBCBE00001 IC 1 IC2010 C0CBCBC00190 IC 1 IC2011 C0ABBB000230 IC 1 IC2012 C1BB00000947 IC 1 IC2013 C0DBGYY00281 IC 1 IC2105 AN15862A-VT IC 1 IC2106 C1AB00002746 IC 1 IC2107 C0DBFFD00003 IC 1 IC2301,02 C1AB00002730 IC 2 IC2303 C0DBGYY00202 IC 1 IC2601 C0JBAU000034 IC 1 IC2610 C0DBAJB00004 IC 1 IC3001 AN15876A-VT IC 1 IC3801 C1AB00002641 IC 1 IC3802 TVRP315 IC 1 IC3803 C0JBAU000034 IC 1 IC4001 C1AB00002687 IC 1 IC4002 C0CBCAC00275 IC 1 IC4004 C0JBAZ002261 IC 1 IC4005 C0CBCBC00190 IC 1 IC4500 TVRP314 IC 1 IC4501 TVRP313 IC 1 IC4503 C1AB00002641 IC 1 IC4504 C3EBEY000009 IC 1 IC4506 C0DBGGF00001 IC 1 IC4507 C0CBCBC00190 IC 1 IC4508,09 C0CBCAD00082 IC 2 IC4510 C1AB00002753 IC 1 IC4513,14 C0JBAU000034 IC 2 IC4515 NJM2903V IC 1 参考号 部品号 部品名称 & 说明 件数 备注 160 IC4800 C1ZBZ0003577 IC 1 IC5000 TVRP341 IC 1 IC5001 C0CBCBC00190 IC 1 IC5002 C0CBCAC00282 IC 1 IC5003 C3ZBN0000026 IC 1 IC5006 C0CBCAF00031 IC 1 IC5008 C0CBCAF00023 IC 1 IC5009 C0CBCAF00031 IC 1 IC5010 TVRP342-1 IC 1 IC5012 C0CBCBC00190 IC 1 IC5013 C0EBD0000221 IC 1 IC5100 MN84525 IC 1 IC5102 C3ABQJ000055 IC 1 IC5105 C1ZBZ0003668 IC 1 IC5400 C0DBAZG00034 IC 1 IC5550,51 EHMDD9851 线形 IC 2 IC5600 C0DBAYY00273 IC 1 IC5601 C0DBAYY00274 IC 1 IC5660 C0EBM0000026 IC 1 IC5670 C0CBCBC00190 IC 1 IC5671 C0EBF0000376 IC 1 IC5901 C0DBAYY00274 IC 1 IC6131 C0ZBZ0000895 IC 1 IC6151 C0ZBZ0001324 IC 1 IC6191 C0ZBZ0000895 IC 1 IC6211 C0ZBZ0001325 IC 1 IC6221 C0DBEMC00043 IC 1 IC6241 C0JBAZ000005 IC 1 IC6251 NJM2903M 集成电路 1 IC6471 C0DBEKA00003 IC 1 IC6472 C0JBAA000377 IC 1 IC6501 C0ZBZ0000895 IC 1 IC6521 C0ZBZ0001324 IC 1 IC6561-63 C0JBAZ000005 IC 3 IC6581 NJM2903M 集成电路 1 IC6601 C0ZBZ0001325 IC 1 IC6671,72 C0ZBZ0001325 IC 2 IC6721,22 C0JBAZ000994 IC 2 IC6724,25 C0CBADC00072 IC 2 IC6752 C0ZBZ0001324 IC 1 IC6771 C0CBADC00072 IC 1 IC6772 C0ZBZ0001325 IC 1 IC6773,74 C0JBAA000377 IC 2 IC6791 EHMDD9863 线形 IC 1 IC6792 C0DBEKA00003 IC 1 IC6793,94 C0JBAZ000994 IC 2 IC6795,96 C0CBADC00072 IC 2 IC6797 NJM2903M 集成电路 1 IC6801 C0DBEMC00043 IC 1 IC6803 C5HABZZ00165 IC 1 IC6821 C0DBEMC00043 IC 1 IC6841 C0DBEMC00043 IC 1 IC6861-64 AN16177A-VT IC 4 IC6871 AN16177A-VT IC 1 SU IC6871 NJM2903M 集成电路 1 SC IC6872,73 AN16177A-VT IC 2 SU IC6873 C0ZBZ0001325 IC 1 SC IC6874 AN16177A-VT IC 1 IC6961-64 AN16177A-VT IC 4 IC6971-74 AN16177A-VT IC 4 IC7101 C0JBAZ001120 IC 1 IC7105-12 C0JBAZ001120 IC 8 IC7115 C0JBAZ001120 IC 1 IC7201 C0JBAZ001120 IC 1 IC7205-11 C0JBAZ001120 IC 7 IC7301 C0JBAZ001120 IC 1 IC7305,06 C0JBAZ001120 IC 2 IC7309 C0JBAZ001120 IC 1 IC7401 C0JBAZ001120 IC 1 IC7405,06 C0JBAZ001120 IC 2 IC8001 MN2WS0039AA IC 1 IC8002,03 C3ABSG000039 IC 2 IC8004 C0ZBZ0001030 IC 1 IC8554 TVRP558-1 IC 1 IC8601 TVRP484 IC 1 PPDS IC8621,22 C0JBAZ002845 IC 2 IC9001 TVRP681 IC 1 参考号 部品号 部品名称 & 说明 件数 备注 IC9002 C1ZBZ0003577 IC 1 IC9003 MNZSFC9GPF2 IC 1 IC9007 TVRP714 IC 1 IC9011 C0EBF0000431 IC 1 IC9013 C0JBAZ002060 IC 1 IC9200 C1ZBZ0003566 IC 1 IC9300 MN84524 IC 1 IC9301 C3ABQJ000051 IC 1 IC9304 TVRP515 IC 1 IC9400 MN84524 IC 1 IC9401 C3ABQJ000051 IC 1 IC9402 C0JBAZ002614 IC 1 IC9500 C1ZBZ0003575 IC 1 IC9504 C0JBAZ001120 IC 1 IC9603 C0JBAZ002636 IC 1 IC9802,03 C0JBAZ001120 IC 2 IC9805 C0DBAYY00274 IC 1 IC9806 C0DBAYY00273 IC 1 IC9807 C0JBAZ001120 IC 1 JK2003 K2HA204A0053 插孔 1 JK3001 K1FB315A0006 连接接头 1 JK3100 K1U936A00002 连接接头单元 1 JK3701C K4AK18B00003 端子 1 JK4500,01 K1FY119D0002 连接接头 2 JK7702 K1NA09E00088 9P 连接接头 1 JS1,S2 ERJ6GEY0R00V M 0 OHM, 1/10W 2 JS1100 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS1115 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS2031-33 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS2046 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS2048,49 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS2051 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS2059-62 ERJ3GEY0R00 M 0 OHM, 1/16W 4 JS2064 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS2096 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS2101 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS2300,01 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS2513 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3001 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3010-15 ERJ6GEY0R00V M 0 OHM, 1/10W 6 JS3023,24 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS3032 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3206 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3208,09 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS3213 ERJ6GEY0R00V M 0 OHM, 1/10W 1 JS3702 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3704,05 ERJ6GEY0R00V M 0 OHM, 1/10W 2 JS3707,08 ERJ6GEY0R00V M 0 OHM, 1/10W 2 JS3816 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS4001-03 D0YAR0000007 M 0.0 OHM, J,0.063W 3 JS4005 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS4007 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS4501 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS5000-09 D0YAR0000007 M 0.0 OHM, J,0.063W 10 JS5020-23 D0YAR0000007 M 0.0 OHM, J,0.063W 4 K1 K1KY12B00001 12P 连接接头 1 L1100 J0JHC0000078 片状电感 1 L2001,02 J0JCC0000364 片状电感 2 L2003,04 J0JCC0000100 扼流线圈 2 L2007,08 J0JCC0000100 扼流线圈 2 L2011,12 J0JCC0000100 扼流线圈 2 L2015,16 J0JCC0000100 扼流线圈 2 L2021 J0JHC0000078 片状电感 1 L2022 ERJ3GEY0R00 M 0 OHM, 1/16W 1 L2026 G1C6R8MA0061 感应线圈 1 L2027 J0JHC0000045 片状电感 1 L2029 J0JCC0000077 片状电感 1 L2034,35 J0JCC0000364 片状电感 2 L2039,40 J0JHC0000045 片状电感 2 L2300-07 G1C330MA0291 感应线圈 8 L2308-10 J0JJC0000011 片状电感 3 L2647 ERJ6GEY0R00V M 0 OHM, 1/10W 1 L2648 G1C470MA0077 感应线圈 1 参考号 部品号 部品名称 & 说明 件数 备注 161 L2649 G1C100MA0072 感应线圈 1 L2650 G1C3R3ZA0083 感应线圈 1 L3001-03 J0JCC0000100 扼流线圈 3 L3010 J0JCC0000100 扼流线圈 1 L3013 J0JCC0000100 扼流线圈 1 L3206-08 J0JCC0000241 片状电感 3 L3209 J0JGC0000021 片状电感 1 L3211 J0JGC0000021 片状电感 1 L3219,20 J0JCC0000241 片状电感 2 L3222 J0JGC0000021 片状电感 1 L3223-26 J0JCC0000241 片状电感 4 L3227 J0JGC0000021 片状电感 1 L3700,01 J0JCC0000364 片状电感 2 L3707,08 J0JCC0000100 扼流线圈 2 L3801 J0JHC0000045 片状电感 1 L3804,05 J0JHC0000045 片状电感 2 L4002 J0JHC0000045 片状电感 1 L4004 J0JHC0000078 片状电感 1 L4006 J0JHC0000045 片状电感 1 L4008 J0JHC0000078 片状电感 1 L4500-08 J0JHC0000078 片状电感 9 L4511 J0JHC0000078 片状电感 1 L4512 J0JCC0000077 片状电感 1 L4516-18 J0JHC0000078 片状电感 3 L4520,21 J0JHC0000078 片状电感 2 L4524 J0JHC0000078 片状电感 1 L5000 J0JHC0000078 片状电感 1 L5001 TALC168T100K 片状电感线圈 1 L5002,03 J0JCC0000077 片状电感 2 L5004-06 J0JHC0000078 片状电感 3 L5015 J0JHC0000078 片状电感 1 L5017,18 J0JHC0000078 片状电感 2 L5019,20 J0JCC0000077 片状电感 2 L5021 J0JCC0000241 片状电感 1 L5401 G0C101KA0167 校正线圈 1 L5550 TALL08N2R7MA 感应线圈 1 L5551,52 G0C150MA0056 校正线圈 2 L5553 TALL08N2R7MA 感应线圈 1 L5554,55 G0C150MA0056 校正线圈 2 L5564 TALL08N2R7MA 感应线圈 1 L5565 G0A220GA0002 扼流线圈 1 L5566-68 TALL08N2R7MA 感应线圈 3 L5600,01 G1C2R2ZA0083 感应线圈 2 L5602 G1C3R3ZA0083 感应线圈 1 L5604 G1C100MA0077 感应线圈 1 L5605 J0JCC0000241 片状电感 1 L5606 G1C100MA0077 感应线圈 1 L5610,11 J0JHC0000035 片状电感 2 L5670 J0JHC0000078 片状电感 1 L5690,91 J0JHC0000078 片状电感 2 L5692 J0JCC0000241 片状电感 1 L5735 J0JHC0000078 片状电感 1 L5900 G1C2R2ZA0083 感应线圈 1 L5901 G1C3R3ZA0083 感应线圈 1 L5904 G1C100MA0077 感应线圈 1 L5905 J0JCC0000241 片状电感 1 L6000 J0JJC0000015 片状电感 1 L6001-06 G0CR96KA0118 校正线圈 6 L6010 J0JJC0000015 片状电感 1 L6011-15 G0C1R4KA0118 校正线圈 5 L6061-72 J0JKB0000051 铁氧体磁芯 12 L6081-86 J0JKB0000051 铁氧体磁芯 6 L6101,02 J0JJC0000015 片状电感 2 L6103 G0ZZ00002183 校正线圈 1 L6105,06 J0JJC0000015 片状电感 2 L6211,12 J0JJC0000015 片状电感 2 L6214 J0JJC0000015 片状电感 1 L6221 G0ZZ00002183 校正线圈 1 L6241 G0ZZ00002183 校正线圈 1 L6262 G0ZZ00002183 校正线圈 1 L6271 G0ZZ00002183 校正线圈 1 L6401 ELC11P1R0 扼流线圈 1 L6403-06 ELC11P1R0 扼流线圈 4 L6411-15 G0A1R4MA0003 扼流线圈 5 L6461-68 J0JKB0000051 铁氧体磁芯 8 L6472 G0ZZ00002183 校正线圈 1 L6474 G0ZZ00002183 校正线圈 1 参考号 部品号 部品名称 & 说明 件数 备注 L6481-86 J0JKB0000051 铁氧体磁芯 6 L6591,92 G0ZZ00002183 校正线圈 2 L6601,02 G0ZZ00002183 校正线圈 2 L6606 G0ZZ00002183 校正线圈 1 L6801-03 J0JJC0000015 片状电感 3 L6841 J0JJC0000015 片状电感 1 L7701 J0JCC0000143 片状电感 1 L7702 ERJ6GEY0R00V M 0 OHM, 1/10W 1 L7706 ERJ3GEY0R00 M 0 OHM, 1/16W 1 L8001-05 J0JHC0000045 片状电感 5 L8006 ERJ3GEY0R00 M 0 OHM, 1/16W 1 L8007-10 J0JHC0000045 片状电感 4 L8551 J0JCC0000241 片状电感 1 L8621 J0JCC0000241 片状电感 1 L8801 J0JHC0000045 片状电感 1 L8802 J0JCC0000100 扼流线圈 1 L9500 G1C150KA0038 感应线圈 L9501,02 J0JHC0000078 片状电感 2 L9504,05 J0JHC0000078 片状电感 2 L9800 G1C2R2Z00007 感应线圈 1 L9801 G1C1R5Z00006 感应线圈 1 L9802 G1C2R2Z00007 感应线圈 1 PA3 K1KA40AA0009 40P 连接接头 1 PA5 K1KA11AA0194 11P 连接接头 1 PA9 K1KA04AA0190 4P 连接接头 1 PA10 K1KA06A00452 6P 连接接头 1 PA32 K1KA03AA0192 3P 连接接头 1 PA34 K1KA03AA0192 3P 连接接头 1 PA36 K1KA03AA0192 3P 连接接头 1 PA38 K1KA03AA0192 3P 连接接头 1 PA3401 K5H8012A0023 FUSE 1 PA9800 K5H4022A0023 FUSE 1 PC2511 B3JB00000026 IC 1 PC6480 B3PBA0000223 IC 1 PC6701-03 B3PBA0000457 IC 3 PC6705 B3PBA0000397 IC 1 PC6706 B3PBA0000223 IC 1 PC6707,08 B3PBA0000457 IC 2 PC6709 B3PBA0000456 IC 1 PC6710,11 B3PBA0000223 IC 2 PC6801 B3PBA0000223 IC 1 PC6862 B3PBA0000223 IC 1 PC6871,72 B3PBA0000223 IC 2 PCB TNPA4279AC H 电路板 1 PCB TNPA4176AM DG 电路板 1 PPDS PCB TNPA4244AE DH 电路板 1 PPDS PCB TNPA4274AE PA 电路板 1 PCB ETX2MM681MF P 电路板 1 PCB TNPA4370 C1 电路板 1 PCB TNPA4371 C2 电路板 1 PCB TNPA4372 C3 电路板 1 PCB TNPA4373 C4 电路板 1 PCB TNPA4245AE D 电路板 1 PPDS PCB TNPA4250AB SC 电路板 1 PCB TNPA4384 SD 电路板 1 PCB TNPA4251AB SS 电路板 1 PCB TNPA4383 SU 电路板 1 PCB TNPA4262AD G 电路板 1 PCB TNPA4135AF GH 电路板 1 PCB TNPA4137AE K 电路板 1 PCB TNPA4138AD S 电路板 1 PCB TNPA4143AG GS 电路板 1 PPDS Q1107,08 2SD0601ARL 三极管 2 Q2000,01 2SD0601ARL 三极管 2 Q2002,03 2SC584500L 三极管 2 Q2015 2SA207700L 三极管 1 Q2016,17 2SC584500L 三极管 2 Q2021 2SA207700L 三极管 1 Q2031 2SA207700L 三极管 1 Q2033 2SA207700L 三极管 1 Q2034,35 2SC584500L 三极管 2 Q2039-42 2SC584500L 三极管 4 参考号 部品号 部品名称 & 说明 件数 备注 162 Q2101,02 2SC584500L 三极管 2 Q2301 2SA207700L 三极管 1 Q2510,11 2SD0601ARL 三极管 2 Q2513 2SD0601ARL 三极管 1 Q2635 2SC584500L 三极管 1 Q2636,37 2SA207700L 三极管 2 Q2638 2SC584500L 三极管 1 Q2639 2SK3065T100 FET 1 Q3031,32 2SC584500L 三极管 2 Q3200,01 2SA207700L 三极管 2 Q3401,02 2SC584500L 三极管 2 Q3801,02 2SD0601ARL 三极管 2 Q3804 2SD0601ARL 三极管 1 Q4000-02 2SA207700L 三极管 3 Q4500-05 2SD0601ARL 三极管 6 Q4514-17 2SB0709ARL 三极管 4 Q4520 2SD0601ARL 三极管 1 Q5000,01 B1CBHD000002 FET 2 Q5501,02 2SD0601ARL 三极管 2 Q5521,22 2SA207700L 三极管 2 Q5523,24 2SD0601ARL 三极管 2 Q5561 B1DHDC000028 三极管 1 Q5562 2SD0601ARL 三极管 1 Q5600-02 B1MBEDA00015 三极管 3 Q5603,04 2SD0601ARL 三极管 2 Q5690,91 2SD0601ARL 三极管 2 Q5692,93 B1DHDC000028 三极管 2 Q5901,02 B1MBEDA00015 三极管 2 Q6001-05 B1JAEP000001 三极管 5 Q6021-25 B1JAEP000001 三极管 5 Q6031 B1ADRD000001 三极管 1 Q6042-44 2PG0010000RP 三极管 3 Q6051-53 2PG0010000RP 三极管 3 Q6101,02 B1DFKM000002 三极管 2 Q6103 B1ABPF000014 三极管 1 Q6104 B1ADPF000004 三极管 1 Q6105,06 B1DFKM000002 三极管 2 Q6111,12 B1DFKM000001 三极管 2 Q6114 B1DFKM000001 三极管 1 Q6141 B1ABPF000014 三极管 1 Q6142 B1ADPF000004 三极管 1 Q6143 B1ABPF000014 三极管 1 Q6144 B1ADPF000004 三极管 1 Q6146 B1ABPF000014 三极管 1 Q6147 B1ADPF000004 三极管 1 Q6148 B1ABPF000014 三极管 1 Q6149 B1ADPF000004 三极管 1 Q6171 B1ABRD000003 三极管 1 Q6172 B1ADRD000001 三极管 1 Q6181 B1ABRD000003 三极管 1 Q6222 2SC1473AEA 三极管 1 Q6251 2SD0601ARL 三极管 1 Q6256 2SD1263A 三极管 1 Q6271 2SD0601ARL 三极管 1 Q6401-05 2PG0010000RP 三极管 5 Q6421-25 B1JAER000002 三极管 5 Q6442-44 2PG0010000RP 三极管 3 Q6451-53 B1JAER000003 三极管 3 Q6501 B1ABPF000014 三极管 1 Q6502 B1ADPF000004 三极管 1 Q6503 B1ABPF000014 三极管 1 Q6504 B1ADPF000004 三极管 1 Q6521 B1ABPF000014 三极管 1 Q6522 B1ADPF000004 三极管 1 Q6523 B1ABPF000014 三极管 1 Q6524 B1ADPF000004 三极管 1 Q6531 B1ABRD000003 三极管 1 Q6532 B1ADRD000001 三极管 1 Q6551 B1ABRD000003 三极管 1 Q6552 B1ADRD000001 三极管 1 Q6581 2SD0601ARL 三极管 1 Q6601 B1DFES000003 三极管 1 Q6602 2SD0601ARL 三极管 1 Q6603 2SB0709ARL 三极管 1 Q6604 B1DEET000002 三极管 1 Q6605 2SD0601ARL 三极管 1 Q6606 2SB0709ARL 三极管 1 参考号 部品号 部品名称 & 说明 件数 备注 Q6609 2SD0601ARL 三极管 1 Q6622-26 B1DFKM000002 三极管 5 Q6641-46 B1DFKM000002 三极管 6 Q6648,49 B1DFKM000002 三极管 2 Q6651-54 B1DFKM000002 三极管 4 Q6661 B1DEET000002 三极管 1 Q6662 2SD0601ARL 三极管 1 Q6665 B1ABPF000014 三极管 1 Q6671,72 B1DFET000001 三极管 2 Q6679 B1ABPF000014 三极管 1 Q6680 B1ADPF000004 三极管 1 Q6690 2SA19610Q0HW 三极管 1 Q6691 B1ABPF000014 三极管 1 Q6692 B1ADPF000004 三极管 1 Q6694 B1ADPF000004 三极管 1 Q6695,96 B1DFKM000002 三极管 2 Q6698 2SC4212H00RL 三极管 1 Q6699 2SC1473AEA 三极管 1 Q6700 2SD0601ARL 三极管 1 Q6742,43 2SD0601ARL 三极管 2 Q6763 B1ADPF000004 三极管 1 Q6781 B1ABPF000014 三极管 1 Q6782 B1ADPF000004 三极管 1 Q6791 2SD0601ARL 三极管 1 Q6792 2SA19610Q0HW 三极管 1 Q6793 2SD0601ARL 三极管 1 Q6805 2SC4212H00RL 三极管 1 Q6806 2SC1473AEA 三极管 1 Q6821 2SD1263A 三极管 1 Q6822 2SC3063 三极管 1 Q6824 2SD0601ARL 三极管 1 Q6841 2SD1263A 三极管 1 Q6842 2SC1473AEA 三极管 1 Q8801 2SD0601ARL 三极管 1 Q8802 2SB0709ARL 三极管 1 Q8911-13 2SD0601ARL 三极管 3 Q9010 2SD0601ARL 三极管 1 Q9044 2SD0601ARL 三极管 1 Q9046 2SD0601ARL 三极管 1 Q9050-54 2SD0601ARL 三极管 5 Q9300-06 2SD0601ARL 三极管 7 Q9805,06 2SD0601ARL 三极管 2 Q9807-09 B1MBEDA00015 三极管 3 R1100 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1101 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1102 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1103 ERJ2RKD330 M 33 OHM, J,0.063W 1 R1104 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1105-09 ERJ2GEJ101 M 100 OHM, J,0.063W 5 R1122 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1124,25 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1134 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1144 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1146 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R1147 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1153 ERJ2GEJ821 M 820 OHM, J,0.063W 1 R1162 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1163 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R1164 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1165 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R1166 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1169 ERJ2GED563X M 56KOHM ,J,0.063W 1 R1170 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1171 ERJ2GED563X M 56KOHM ,J,0.063W 1 R1172 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1173 ERJ6ENF2000 M 200 OHM,J,1/10W 1 R1174,75 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1179 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1181 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1182 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1183,84 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1194 ERJ2GED563X M 56KOHM ,J,0.063W 1 R1195 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1196 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1199 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1200,01 ERJ2GEJ562 M 5.6KOHM, J,0.063W 2 参考号 部品号 部品名称 & 说明 件数 备注 163 R1203 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1204 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1205,06 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1209 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1216 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1217 ERJ2GED563X M 56KOHM ,J,0.063W 1 R1218-20 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R1221 ERJ3EKF7151 M 7.15KOHM, 1/16W 1 R1222,23 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R1225-28 ERJ2GEJ473 M 47KOHM, J,0.063W 4 R1229 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1231-34 ERJ2GEJ473 M 47KOHM, J,0.063W 4 R1235 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1236,37 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R1243 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1255 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R2001 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R2006 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2007 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2010-15 ERJ2GEJ473 M 47KOHM, J,0.063W 6 R2018 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2020-23 ERJ2GEJ473 M 47KOHM, J,0.063W 4 R2024 ERJ2RKD330 M 33 OHM, J,0.063W 1 R2025 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2027 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R2028 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2029-34 ERJ6GEYJ184 M 180KOHM,J,1/10W 6 R2047 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R2048 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2049 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R2050 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2051,52 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R2053,54 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2056,57 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R2058 ERJ3GEYJ301 M 300 OHM,J,1/16W 1 R2059 D0GB105JA057 M 1MOHM,J,1/16W 1 R2084 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2085 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R2086 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2088 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2089 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R2092 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2093 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2094 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2096 D0GB103JA057 M 10KOHM,J,1/16W 1 R2097 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2098,99 D0GB103JA057 M 10KOHM,J,1/16W 2 R2100 ERJ3EKF2002 M 20KOHM, 1/16W 1 R2104 ERJ3EKF2001 M 2KOHM, 1/16W 1 R2106 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2110 D0GB103JA057 M 10KOHM,J,1/16W 1 R2111 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2112 D0GB105JA057 M 1MOHM,J,1/16W 1 R2113 ERJ3EKF1203 M 120KOHM, 1/16W 1 R2114 ERJ3EKF7502 M 75KOHM, 1/16W 1 R2116,17 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2118 D0GB105JA057 M 1MOHM,J,1/16W 1 R2119 D0GB103JA057 M 10KOHM,J,1/16W 1 R2122 D0GB103JA057 M 10KOHM,J,1/16W 1 R2123 D0GB473JA057 M 47KOHM,J,1/16W 1 R2124 D0GB103JA057 M 10KOHM,J,1/16W 1 R2125 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2127 D0GB103JA057 M 10KOHM,J,1/16W 1 R2128 D0GB473JA057 M 47KOHM,J,1/16W 1 R2129 D0GB103JA057 M 10KOHM,J,1/16W 1 R2131 D0GB103JA057 M 10KOHM,J,1/16W 1 R2132 D0GB473JA057 M 47KOHM,J,1/16W 1 R2137,38 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2143,44 D0GB103JA057 M 10KOHM,J,1/16W 2 R2145,46 ERJ3EKF2002 M 20KOHM, 1/16W 2 R2149 D0GB103JA057 M 10KOHM,J,1/16W 1 R2150,51 ERJ3EKF2002 M 20KOHM, 1/16W 2 R2152 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2154 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2156 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R2160 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2162 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R2164 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2165 D0GB103JA057 M 10KOHM,J,1/16W 1 R2166 ERJ3EKF1602 M16.0KOHM, 1/16W 1 R2167 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2168 ERJ3EKF1602 M16.0KOHM, 1/16W 1 R2169 ERJ3EKF2202 M 22KOHM, 1/16W 1 R2170-75 ERJ3GEYJ221 M 220 OHM,J,1/16W 6 R2178 D0GB102JA057 M 1KOHM,J,1/16W 1 R2179 D0GB103JA057 M 10KOHM,J,1/16W 1 R2180 D0GB102JA057 M 1KOHM,J,1/16W 1 R2181 ERJ3EKF2202 M 22KOHM, 1/16W 1 R2182,83 ERJ3EKF3602 M 36KOHM, 1/16W 2 R2184,85 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R2186 ERJ3GEYJ823 M 82KOHM,J,1/16W 1 R2187 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R2189 D0GB103JA057 M 10KOHM,J,1/16W 1 R2192,93 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2194 D0GB102JA057 M 1KOHM,J,1/16W 1 R2195,96 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2197 ERJ3EKF6802 M 68KOHM, 1/16W 1 R2198 ERJ3EKF1583 M 158KOHM, 1/16W 1 R2205 ERJ3GEYJ203 M 20KOHM,J,1/16W 1 R2206 D0GB103JA057 M 10KOHM,J,1/16W 1 R2208-10 D0GB103JA057 M 10KOHM,J,1/16W 3 R2216 D0GB103JA057 M 10KOHM,J,1/16W 1 R2217 D0GB473JA057 M 47KOHM,J,1/16W 1 R2218 D0GB102JA057 M 1KOHM,J,1/16W 1 R2220 D0GB123JA057 M 12KOHM,J,1/16W 1 R2223-25 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R2227-32 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R2233 D0GB103JA057 M 10KOHM,J,1/16W 1 R2235 D0GB473JA057 M 47KOHM,J,1/16W 1 R2236,37 D0GB102JA057 M 1KOHM,J,1/16W 2 R2238 D0GB473JA057 M 47KOHM,J,1/16W 1 R2257 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2263 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2265 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2266 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R2270,71 EXB28V220J 电阻阵列 2 R2276 D0GB103JA057 M 10KOHM,J,1/16W 1 R2290,91 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2294-97 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R2301,02 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R2305 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2306,07 ERJ3GEYJ683 M 68KOHM,J,1/16W 2 R2308,09 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 2 R2311-16 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 6 R2317-26 ERJ6GEYJ100V M 10 OHM,J,1/10W 10 R2330 D0GB102JA057 M 1KOHM,J,1/16W 1 R2331 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2506,07 J0JHC0000096 片状电感 2 R2512 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R2516 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2517 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R2520 ERJ3GEYJ224 M 220KOHM,J,1/16W 1 R2521 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R2524 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2525 ERJ3EKF5760 M 576 OHM, 1/16W 1 R2530 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2531 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R2542 D0GB473JA057 M 47KOHM,J,1/16W 1 R2556,57 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R2558 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R2575 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2576,77 J0JCC0000241 片状电感 2 R2578,79 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2601-03 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R2624,25 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R2628,29 ERJ3GEYJ752 M 7.5KOHM,J,1/16W 2 R2853 D0GB103JA057 M 10KOHM,J,1/16W 1 R2854 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2855 D0GB473JA057 M 47KOHM,J,1/16W 1 R2856 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2857 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2858 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2859 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2860 D0GB103JA057 M 10KOHM,J,1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 164 R2861 D0GB102JA057 M 1KOHM,J,1/16W 1 R2863,64 D0GB102JA057 M 1KOHM,J,1/16W 2 R2865 D0GB103JA057 M 10KOHM,J,1/16W 1 R2866 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2867 ERJ6ENF8202 M 82KOHM, 1/10W 1 R2868 ERJ6ENF1602 M 16KOHM, 1/10W 1 R2869 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2890 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3001-10 ERJ6RED750 M 75 OHM, 1/10W 10 R3012 ERJ6RED750 M 75 OHM, 1/10W 1 R3020-22 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R3044,45 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3059 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3062-65 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R3068 ERJ6RED750 M 75 OHM, 1/10W 1 R3069 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3072-74 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R3086,87 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3089 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3090 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3096-01 ERJ3GEYJ680 M 68 OHM,J,1/16W 6 R3103 J0JGC0000021 片状电感 1 R3105 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3107 D0GB103JA057 M 10KOHM,J,1/16W 1 R3109 J0JGC0000021 片状电感 1 R3110 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3111,12 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3113 D0GB103JA057 M 10KOHM,J,1/16W 1 R3119 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3120 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3121 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R3123 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R3130,31 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3133 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3135 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3137 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3140 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R3143 ERJ6ENF69R8 M 69.8OHM, 1/10W 1 R3145 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3168 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3174-76 ERJ3GEYJ680 M 68 OHM,J,1/16W 3 R3177 D0GB103JA057 M 10KOHM,J,1/16W 1 R3180 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3188 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3191 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3202 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3205 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3206 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3215,16 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3222 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3227-29 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R3233,34 ERJ6RED750 M 75 OHM, 1/10W 2 R3236-38 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R3239 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3240 ERJ3EKF5600 M 560 OHM, 1/16W 1 R3243 ERJ6GEYG271 M 270 OHM,J,1/10W 1 R3244 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3246 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3247 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3249-51 D0GB152JA057 M 1.5KOHM,J,1/16W 3 R3252 ERJ6GEYG271 M 270 OHM,J,1/10W 1 R3253,54 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3255 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3256 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3259 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3260 ERJ3EKF5600 M 560 OHM, 1/16W 1 R3266 D0GB152JA057 M 1.5KOHM,J,1/16W 1 R3302 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R3305 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R3306,07 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R3308,09 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R3310 ERJ6RED750 M 75 OHM, 1/10W 1 R3313 ERJ6RED750 M 75 OHM, 1/10W 1 R3318 ERJ6RED750 M 75 OHM, 1/10W 1 R3348,49 ERJ3GEYJ680 M 68 OHM,J,1/16W 2 R3350 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3401 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R3402 D0GB473JA057 M 47KOHM,J,1/16W 1 R3403 D0GB103JA057 M 10KOHM,J,1/16W 1 R3404 D0GB473JA057 M 47KOHM,J,1/16W 1 R3405 ERJ3GEYD153V M 15KOHM,J,1/16W 1 R3709-11 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R3714 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3716,17 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3721 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R3722-25 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R3732 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3746 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3748 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3750 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3751 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R3753 ERJ6ENF1741 M1.74KOHM, 1/10W 1 R3754 ERJ6ENF1621 M1.62KOHM, 1/10W 1 R3755 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3758 ERJ6ENF6651 M6.65KOHM, 1/10W 1 R3765 ERJ6ENF2321 M2.32KOHM, 1/10W 1 R3767 ERJ6ENF3161 M3.16KOHM, 1/10W 1 R3768 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3801,02 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R3803 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R3804,05 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R3806 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3807,08 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R3809,10 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R3811 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R3812 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3814 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R3815 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R3818 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3819,20 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R3821 ERJ2GEJ390 M 39 OHM, J,0.063W 1 R3822 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R3823 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3824-31 ERJ2GEJ2R7X M 2.7OHM, J,0.063W 8 R3832 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3834 ERJ3EKF49R9 M 49.9 OHM, 1/16W 1 R3835 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R3840,41 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4002,03 EXB2HV680J 电阻阵列 2 R4004,05 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4006 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4007 ERJ3EKF7500 M 750 OHM, 1/16W 1 R4010 ERJ3EKF1821 M1.82KOHM, 1/16W 1 R4011,12 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4013 ERJ2GEJ681 M 680 OHM, J,0.063W 1 R4014 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4016 ERJ2GEJ681 M 680 OHM, J,0.063W 1 R4017 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4019 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4025 D0GB202JA057 M 2KOHM,J,1/16W 1 R4028,29 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R4034 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4200-02 ERJ2RKD330 M 33 OHM, J,0.063W 3 R4203,04 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R4205,06 D1HG33080001 排阻 2 R4207 EXB2HV680J 电阻阵列 1 R4208,09 D1HG33080001 排阻 2 R4210 ERJ2RKD330 M 33 OHM, J,0.063W 1 R4229 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4230 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4241 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4244 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4246,47 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R4249 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4284 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4287,88 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R4291,92 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R4302-08 ERJ2RKD330 M 33 OHM, J,0.063W 7 R4309 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4311,12 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4317 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4320-23 ERJ2GEJ473 M 47KOHM, J,0.063W 4 R4325,26 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R4328-30 ERJ2GEJ473 M 47KOHM, J,0.063W 3 参考号 部品号 部品名称 & 说明 件数 备注 165 R4500,01 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4502,03 ERJ2RKD330 M 33 OHM, J,0.063W 2 R4506,07 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4508-23 ERJ2GEJ2R2X M 2.2OHM, J,0.063W 16 R4524,25 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4526,27 ERJ2GEJ102X M 1KOHM, J,0.063W 2 R4528 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4529 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4530 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4531 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4532,33 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4535,36 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4538 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4539 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4540 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4541-43 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4544-47 ERJ2GEJ103 M 10KOHM, J,0.063W 4 R4552 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4561 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4562,63 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4564,65 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4567 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R4578,79 ERJ2GEJ151 M 150 OHM, J,0.063W 2 R4585 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4587 ERJ3GEYF821 M 820 OHM, 1/16W 1 R4593 ERJ3EKF1001 M 1KOHM, 1/16W 1 R4596-98 ERJ6GEYG102 M 1KOHM,J,1/10W 3 R4601 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R4604 ERJ3EKF7501 M 7.5KOHM, 1/16W 1 R4606 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R4611 ERJ3EKF1371 M 1.37KOHM, 1/16W 1 R4612 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 R4613,14 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4615 ERJ3EKF1600 M 160 OHM, 1/16W 1 R4622 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4624 ERJ3EKF1691 M1.69KOHM, 1/16W 1 R4626 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R4627 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4628,29 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R4631 ERJ3EKF4990 M 499 OHM, 1/16W 1 R4634 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4635 EXB28V680JX 电阻阵列 1 R4636-38 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4639,40 EXB28V680JX 电阻阵列 2 R4641 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4642 EXB28V680JX 电阻阵列 1 R4643,44 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4645-47 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4648 EXB28V330J 电阻阵列 1 R4649 EXB28V680JX 电阻阵列 1 R4650,51 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4652 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4653 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4654 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R4655 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4656 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R4657,58 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4659 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4661 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4663 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4665,66 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R4667 ERJ2GEJ151 M 150 OHM, J,0.063W 1 R4670 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4672 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4676-81 ERJ2GEJ220 M 22 OHM, J,0.063W 6 R4682 ERJ3EKF1002 M 10KOHM, 1/16W 1 R4683 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4686 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4687,88 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4689-92 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R4694 ERJ2RKD330 M 33 OHM, J,0.063W 1 R4698,99 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R4702,03 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R4706 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4707 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4708 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4800 ERJ3GEY0R00 M 0 OHM, 1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R4819,20 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4832 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4833 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4834 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4838 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4841 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4842 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4844,45 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R4846 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4848 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R5000,01 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R5002-04 ERJ2GEJ220 M 22 OHM, J,0.063W 3 R5005 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5007 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R5008 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5009 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R5010 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5011,12 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R5013 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5014-18 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R5019,20 EXB2HV680J 电阻阵列 2 R5021-25 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R5026 EXB2HV680J 电阻阵列 1 R5027 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5028 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R5029,30 ERJ3EKF1000 M 100 OHM, 1/16W 2 R5031 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5032 ERJ3EKF1001 M 1KOHM, 1/16W 1 R5033 ERJ3EKF4751 M 4.75KOHM, 1/16W 1 R5034 ERJ3EKF75R0 M 0.75HM, 1/16W 1 R5035 ERJ3EKF2001 M 2KOHM, 1/16W 1 R5036 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5038 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R5039-41 D0YAR0000007 M 0.0 OHM, J,0.063W 3 R5043,44 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R5045 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5046 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5048 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5051-54 D1HG8208A002 排阻 4 R5055-58 EXB2HV221JV 电阻阵列 4 R5059-64 ERJ2GEJ470 M 47 OHM, J,0.063W 6 R5065,66 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R5067 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5068,69 ERJ2GEJ182 M 1.8KOHM, J,0.063W 2 R5070-72 ERJ2GEJ470 M 47 OHM, J,0.063W 3 R5087 ERJ3EKF5601 M 5.6KOHM, 1/16W 1 R5088 ERJ3EKF1001 M 1KOHM, 1/16W 1 R5091 ERJ3EKF3302 M 33KOHM, 1/16W 1 R5092 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5117 ERJ3EKF3302 M 33KOHM, 1/16W 1 R5118 ERJ3EKF3242 M32.4KOHM, 1/16W 1 R5119,20 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R5121 EXB2HV470JV 电阻阵列 1 R5122 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5123 EXB2HV470JV 电阻阵列 1 R5124 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5125 EXB2HV470JV 电阻阵列 1 R5126 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5127 EXB2HV470JV 电阻阵列 1 R5128 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R5129 EXB2HV470JV 电阻阵列 1 R5130,31 ERJ2GEJ470 M 47 OHM, J,0.063W 2 R5132,33 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R5134 EXB2HV470JV 电阻阵列 1 R5135 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R5136,37 ERJ3EKF1001 M 1KOHM, 1/16W 2 R5138-42 D0YAR0000007 M 0.0 OHM, J,0.063W 5 R5169 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R5170 ERJ3EKF3242 M32.4KOHM, 1/16W 1 R5172 ERJ3EKF1690 M 169 OHM, 1/16W 1 R5173,74 ERJ3GEYJ121 M 120 OHM,J,1/16W 2 R5176 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R5179 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5181 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5183,84 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R5191 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5194 D0YAR0000007 M 0.0 OHM, J,0.063W 1 参考号 部品号 部品名称 & 说明 件数 备注 166 R5196 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R5197,98 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R5199-02 ERJ2GEJ103 M 10KOHM, J,0.063W 4 R5203 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R5204 D0GB103JA057 M 10KOHM,J,1/16W 1 R5205,06 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R5214 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5215-34 ERJ3GEYJ121 M 120 OHM,J,1/16W 20 R5235-44 ERJ3EKF1690 M 169 OHM, 1/16W 10 R5246 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5248 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R5249 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R5250 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R5251 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R5300,01 D1HG8208A002 排阻 2 R5302-08 ERJ2GEJ820 M 82 OHM, J,0.063W 7 R5318 ERJ2GEJ821 M 820 OHM, J,0.063W 1 R5319 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R5329 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5336 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5337 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R5338 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5339 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5340 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5342-44 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R5345,46 ERJ2GEJ102X M 1KOHM, J,0.063W 2 R5347 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5402 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R5404 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R5406 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R5408 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R5409 ERJ6ENF4702 M 47KOHM, 1/10W 1 R5412 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R5413 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R5416 ERJ6ENF2741 M2.74KOHM, 1/10W 1 R5417 ERJ6ENF6340 M 634 OHM, 1/10W 1 R5418 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R5420 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R5423 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R5443 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R5483 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R5502,03 ERJ6ENF1271 M1.27KOHM, 1/10W 2 R5506,07 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R5508 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R5509 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R5525,26 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R5527 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R5531 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R5532 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R5533 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R5534 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R5535 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R5536 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R5537 ERJ6GEYG681 M 680 OHM,J,1/10W 1 R5538 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R5540 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R5542 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R5544 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R5546,47 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R5548,49 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R5552,53 ERJ6GEYJ471 M 470 OHM,J,1/10W 2 R5554 ERJ6ENF2611 M2.61KOHM, 1/10W 1 R5555 ERJ6ENF1271 M1.27KOHM, 1/10W 1 R5570 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R5571 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R5572 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R5573 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R5576,77 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R5600 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5604 ERJ3GEYF473 M 47KOHM, 1/16W 1 R5605 ERJ3EKF1272 M12.7KOHM, 1/16W 1 R5606-09 D0YAR0000007 M 0.0 OHM, J,0.063W 4 R5610 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5611 ERJ3EKF3602 M 36KOHM, 1/16W 1 R5612 ERJ3EKF2322 M23.2KOHM, 1/16W 1 R5620 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5621 ERJ3GEYF473 M 47KOHM, 1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R5622 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5623 ERJ3GEYF473 M 47KOHM, 1/16W 1 R5625-28 D0YAR0000007 M 0.0 OHM, J,0.063W 4 R5629 ERJ3EKF3012 M30.1KOHM, 1/16W 1 R5630 ERJ3EKF4752 M47.5KOHM, 1/16W 1 R5631 ERJ3EKF3602 M 36KOHM, 1/16W 1 R5632 ERJ3EKF3002 M 30KOHM, 1/16W 1 R5633,34 ERJ3EKF1602 M16.0KOHM, 1/16W 2 R5635 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R5636 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R5637 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5638 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5641 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5644 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5646 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5647 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5660 ERJ2GEJ562 M 5.6KOHM, J,0.063W 1 R5661 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5662 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5670 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5671 ERJ2GEJ183 M 18KOHM ,J,0.063W 1 R5672 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5674 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5690,91 D0GB103JA057 M 10KOHM,J,1/16W 2 R5692,93 D0GB473JA057 M 47KOHM,J,1/16W 2 R5694,95 D0GB102JA057 M 1KOHM,J,1/16W 2 R5696,97 D0GB103JA057 M 10KOHM,J,1/16W 2 R5730,31 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R5732 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R5733 ERJ2GED563X M 56KOHM ,J,0.063W 1 R5860,61 EXB2HV470JV 电阻阵列 2 R5865-67 D0YAR0000007 M 0.0 OHM, J,0.063W 3 R5868 ERJ2RKD330 M 33 OHM, J,0.063W 1 R5870-72 ERJ2RKD330 M 33 OHM, J,0.063W 3 R5875-78 ERJ2GEJ470 M 47 OHM, J,0.063W 4 R5908,09 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R5914 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5916 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5920 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5921 ERJ3GEYF473 M 47KOHM, 1/16W 1 R5922 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5923 ERJ3GEYF473 M 47KOHM, 1/16W 1 R5925-28 D0YAR0000007 M 0.0 OHM, J,0.063W 4 R5929 ERJ3EKF2802 M 28KOHM, 1/16W 1 R5930 ERJ3EKF4752 M47.5KOHM, 1/16W 1 R5931 ERJ3EKF3012 M30.1KOHM, 1/16W 1 R5932 ERJ3EKF1272 M12.7KOHM, 1/16W 1 R5933,34 ERJ3EKF1602 M16.0KOHM, 1/16W 2 R5937 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5938-40 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R6001 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R6003 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R6005 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R6007 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R6009 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R6019,20 ERF5TJ161 W 160 OHM, J, 5W 2 R6021 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R6024 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R6026 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R6028 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R6030 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R6031,32 ERJ6ENF1373 M 137KOHM, 1/10W 2 R6033 ERJ6ENF1213 M 121KOHM, 1/10W 1 R6034 ERJ6ENF4642 M46.4KOHM, 1/10W 1 R6043 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R6045 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R6047 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R6051 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R6053 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R6055 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R6102 ERJT06J101V M 100 OHM,F,0.25W 1 R6104 ERJT06J101V M 100 OHM,F,0.25W 1 R6106 ERJT06J101V M 100 OHM,F,0.25W 1 R6108 ERJT06J101V M 100 OHM,F,0.25W 1 R6109 ERJT06J100V M 10 OHM,F,0.25W 1 R6110 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6111,12 ERJT06J470V M 47 OHM,F,0.25W 2 参考号 部品号 部品名称 & 说明 件数 备注 167 R6113 ERJ14YJ224 M 220KOHM, J,1/4W 1 R6114 ERJT06J470V M 47 OHM,F,0.25W 1 R6116 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6131,32 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6134 ERJT06J750V M 75 OHM,F,0.25W 1 R6135-38 ERJT06J100V M 10 OHM,F,0.25W 4 R6141-44 ERJ6GEYF473 M 47KOHM,J,1/10W 4 R6145 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R6146-49 ERJ6GEYF473 M 47KOHM,J,1/10W 4 R6151,52 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6154 ERJT06J750V M 75 OHM,F,0.25W 1 R6157-60 ERJT08J1R0V M 1.8OHM,J, 0.33W 4 R6171 ERJT06J100V M 10 OHM,F,0.25W 1 R6172,73 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6181 ERJT06J100V M 10 OHM,F,0.25W 1 R6182,83 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6191,92 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6193 ERJT06J750V M 75 OHM,F,0.25W 1 R6194 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R6209 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6210 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6213 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6214 ERJT06J151V M 150 OHM,F,0.25W 1 R6222 ERG1FJS103D M 10KOHM, J, 1W 1 R6223 ERG2FJS123D M 12KOHM, J, 2W 1 R6225-27 ERJ6ENF4992 M49.9KOHM, 1/10W 3 R6232 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6233 ERJT08J134V M130KOHM,J, 0.33W 1 R6234 ERJ6GEYJ163V M 16KOHM,J,1/10W 1 R6241 EXB38V470J 电阻阵列 1 R6242 EXB38V472JV 电阻阵列 1 R6243 EXB38V470J 电阻阵列 1 R6244 EXB38V472JV 电阻阵列 1 R6246 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6247 ERJT08J154V M150KOHM,J, 0.33W 1 R6248 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6249 ERJT08J154V M150KOHM,J, 0.33W 1 R6252,53 ERJ6ENF5112 M51.1KOHM, 1/10W 2 R6254 ERJ6ENF8661 M8.66KOHM, 1/10W 1 R6255 ERJ6RBD123V M 12KOHM, 1/10W 1 R6256 ERJ6ENF1502 M 15KOHM, 1/10W 1 R6257 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6258 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6260 ERJ6RBD123V M 12KOHM, 1/10W 1 R6261 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6263 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6272 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6273 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6274 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6275 ERJT08J154V M150KOHM,J, 0.33W 1 R6276 ERJ6GEYG823 M 82KOHM,J,1/10W 1 R6277 ERJT08J154V M150KOHM,J, 0.33W 1 R6278 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6279,80 ERJT08J154V M150KOHM,J, 0.33W 2 R6283 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6285 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6292 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6401-05 ERJT08J7R5V M 7.5OHM,J, 0.33W 5 R6421-25 ERJT08J7R5V M 7.5OHM,J, 0.33W 5 R6442-44 ERJT08J7R5V M 7.5OHM,J, 0.33W 3 R6451-53 ERJT08J7R5V M 7.5OHM,J, 0.33W 3 R6465 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6466 ERJ6ENF6202 M 62KOHM, 1/10W 1 R6467,68 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6471 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6472 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6473 ERJ6GEYF561 M 560 OHM,J,1/10W 1 R6474 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6475,76 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R6477 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6478 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6479 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6490-97 ERJ6GEYJ184 M 180KOHM,J,1/10W 8 R6501,02 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6503 ERJT06J100V M 10 OHM,F,0.25W 1 R6504 ERJT06J750V M 75 OHM,F,0.25W 1 R6505 D0GF1R0JA047 M 1.0 OHM,J,0.33W 1 参考号 部品号 部品名称 & 说明 件数 备注 R6506 ERJT06J100V M 10 OHM,F,0.25W 1 R6507-09 ERJT08J1R0V M 1.8OHM,J, 0.33W 3 R6511,12 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6513 ERJT06J100V M 10 OHM,F,0.25W 1 R6514-17 ERJ6GEYF473 M 47KOHM,J,1/10W 4 R6518 ERJT06J100V M 10 OHM,F,0.25W 1 R6519,20 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6521,22 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6523 ERJT06J750V M 75 OHM,F,0.25W 1 R6531 ERJT06J100V M 10 OHM,F,0.25W 1 R6532,33 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6551 ERJT06J100V M 10 OHM,F,0.25W 1 R6552,53 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6561-64 EXB38V470J 电阻阵列 4 R6565-68 EXB38V472JV 电阻阵列 4 R6580 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6582,83 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6584 ERJ6ENF6801 M 6.8KOHM, 1/10W 1 R6585 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6586 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R6587 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6588 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6590 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6591 EXB38V472JV 电阻阵列 1 R6592 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6593 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R6594 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6595-98 ERJ6GEYG104 M 100KOHM,J,1/10W 4 R6604 ERJT06J470V M 47 OHM,F,0.25W 1 R6605 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R6606 ERJ6ENF7681 M7.68KOHM, 1/10W 1 R6608 ERJT08J102V M 1KOHM,J, 0.33W 1 R6609 D0GZ102JA020 M 1KOHM,J,1/16W 1 R6612 ERJT06J470V M 47 OHM,F,0.25W 1 R6622-26 ERJ6GEYG221 M 220 OHM,J,1/10W 5 R6638,39 ERJT08J1R0V M 1.8OHM,J, 0.33W 2 R6641-46 ERJ6GEYG330 M 33 OHM,J,1/10W 6 R6648,49 ERJ6GEYG330 M 33 OHM,J,1/10W 2 R6651-54 ERJ6GEYG330 M 33 OHM,J,1/10W 4 R6658 D0D1101JA009 M 100 OHM,J,1W 1 R6659,60 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6661 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6662 ERJ6ENF3001 M 3KOHM, 1/10W 1 R6663 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6664 ERJT08J222V M2.2KOHM,J, 0.33W 1 R6665 ERJT06J470V M 47 OHM,F,0.25W 1 R6666 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6667,68 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R6669 EXB38V470J 电阻阵列 1 R6670 EXB38V472JV 电阻阵列 1 R6671 ERJT06J470V M 47 OHM,F,0.25W 1 R6672 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6673,74 ERJ6GEYJ471 M 470 OHM,J,1/10W 2 R6676,77 ERJT06J470V M 47 OHM,F,0.25W 2 R6681 ERJT06J100V M 10 OHM,F,0.25W 1 R6683-86 ERJT06J100V M 10 OHM,F,0.25W 4 R6692 D0GZ392JA020 M 3.9 OHM,J, 0.5W 1 R6693 ERJ6GEYG823 M 82KOHM,J,1/10W 1 R6694 ERJ6GEYG153 M 15KOHM,J,1/10W 1 R6695 ERJ8GEYJ124 M 120KOHM, J,1/8W 1 R6696 ERF5TK2R2 W 2.2 OHM, K, 5W 1 R6697 ERJT06J151V M 150 OHM,F,0.25W 1 R6698 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6700-04 ERJ6GEYJ471 M 470 OHM,J,1/10W 5 R6705,06 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6707,08 ERJ6GEYJ471 M 470 OHM,J,1/10W 2 R6709 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6710-14 ERJ6GEYG222 M 2.2KOHM,J,1/10W 5 R6715 ERJ12YJ103 M 10KOHM,J, 1/2W 1 R6716-18 ERJ6GEYG222 M 2.2KOHM,J,1/10W 3 R6719 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R6720 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6721,22 EXB38V220JV 电阻阵列 2 R6723 ERJ6ENF6800 M 680 OHM, 1/10W 1 R6725 ERJ6ENF1003 M 100KOHM, 1/10W 1 R6726 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R6727 ERJ6GEYG104 M 100KOHM,J,1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 168 R6728 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R6729 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6731 ERJ6ENF7500 M 750 OHM, 1/10W 1 R6732 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R6733 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6734,35 ERJ6GEYJ471 M 470 OHM,J,1/10W 2 R6736 ERQ12AJW560E F 56 OHM, J,1/2W 1 R6737 ERJ12YJ124U M 120KOHM, 1/2W 1 R6738 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R6739 ERJ6ENF1001 M 1KOHM, 1/10W 1 R6742 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6743 ERJ6GEYG332 M 3.3KOHM,J,1/10W 1 R6745 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R6746,47 ERJT06J103V M 10KOHM,F,0.25W 2 R6748,49 ERJT08J102V M 1KOHM,J, 0.33W 2 R6750 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6751,52 ERJT06J100V M 10 OHM,F,0.25W 2 R6754 ERJ6GEYG152 M 1.5KOHM,J,1/10W 1 R6755 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6756 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6757 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6758 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6759 ERF5TK2R2 W 2.2 OHM, K, 5W 1 R6760 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6761 ERJT06J100V M 10 OHM,F,0.25W 1 R6762 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6765 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R6766 ERJT06J750V M 75 OHM,F,0.25W 1 R6768 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R6769 ERJT06J750V M 75 OHM,F,0.25W 1 R6772 ERJT08J2R2V M 2.2OHM,J, 0.33W 1 R6773 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6774 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6775,76 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6777 ERJT06J151V M 150 OHM,F,0.25W 1 R6778 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6779 ERJT06J151V M 150 OHM,F,0.25W 1 R6780 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6781 ERJT06J470V M 47 OHM,F,0.25W 1 R6782 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6783 ERJT06J333V M 33KOHM,F,0.25W 1 R6786 ERJ6GEYG152 M 1.5KOHM,J,1/10W 1 R6787 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6788 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6789 D0GZ392JA020 M 3.9 OHM,J, 0.5W 1 R6790 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R6791 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6792 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6793 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6794 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6795 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6796 ERJ6GEYF561 M 560 OHM,J,1/10W 1 R6797 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6798,99 ERJ6GEYJ471 M 470 OHM,J,1/10W 2 R6800 ERJT06J151V M 150 OHM,F,0.25W 1 R6801 ERG2FNJS8R2E M 8.2 OHM, J, 2W 1 R6802 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6804 ERJ6GEYG823 M 82KOHM,J,1/10W 1 R6805 ERJ6GEYG153 M 15KOHM,J,1/10W 1 R6806,07 ERX12SJ1R8 M 1.8 OHM, J,1/2W 2 R6808 D0GF272JA047 M 2.7 KOHM,J,0.33W 1 R6809 ERG1FJS393D M 39KOHM, J, 3W 1 R6810 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6811 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6812 ERJ6ENF1203 M 120KOHM, 1/10W 1 R6813 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6814 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R6815 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6816 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R6817 ERJ6GEYG122 M 1.2KOHM,J,1/10W 1 R6818 ERJ6GEYF561 M 560 OHM,J,1/10W 1 R6819 ERJ8GEYJ124 M 120KOHM, J,1/8W 1 R6820 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6821 ERF5TJ221 W 220 OHM, J, 5W 1 R6822 ERJ12YJ563U M 56KOHM, 1/2W 1 R6823 ERG1FJS104D M 100KOHM, J, 1W 1 R6824 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 R6825-27 ERJ6RED124 M 120KOHM, 1/10W 3 R6828 ERJ6RBD332 M 3.3KOHM,J,1/10W 1 R6829,30 ERJ6ENF1003 M 100KOHM, 1/10W 2 R6831 ERJ6ENF2002 M 20KOHM, 1/10W 1 R6832 ERJT08J4R7V M 4.7OHM,J, 0.33W 1 R6833 ERJ6RBD303 M 30KOHM, 1/10W 1 R6839 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6840 ERX12SJ1R8 M 1.8 OHM, J,1/2W 1 R6841 ERJ12YJ103 M 10KOHM,J, 1/2W 1 R6842 ERJ12YJ433U M 43KOHM, 1/2W 1 R6843 ERJ6GEYJ623 M 62KOHM,J,1/10W 1 R6844 D0D2101JA021 M 100 OHM,J,2W 1 R6845-47 ERJ6GEYJ623 M 62KOHM,J,1/10W 3 R6848 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6849 ERJ6ENF8202 M 82KOHM, 1/10W 1 R6850 ERJ6ENF1003 M 100KOHM, 1/10W 1 R6851 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6852 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 SC R6852,53 ERJ6GEYG221 M 220 OHM,J,1/10W 2 SU R6853 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 SC R6854 ERJ6ENF5102 M 51KOHM, 1/10W 1 SC R6854 ERJ6GEYG221 M 220 OHM,J,1/10W 1 SU R6855 ERJ12YJ103 M 10KOHM,J, 1/2W 1 R6856 ERJ6GEYG221 M 220 OHM,J,1/10W 1 SU R6856 ERQ12AJW560E F 56 OHM, J,1/2W 1 SC R6857 ERJ12YJ124U M 120KOHM, 1/2W 1 SC R6857-59 ERJ6GEYG221 M 220 OHM,J,1/10W 3 SU R6859 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 SC R6860 D0D28R2JA021 M 8.2 OHM,J,2W 1 R6861,62 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6864 EXB38V220JV 电阻阵列 1 R6865 EXB38V103JV 电阻阵列 1 R6866 EXB38V220JV 电阻阵列 1 R6870 ERJ6ENF1003 M 100KOHM, 1/10W 1 R6871 ERJ6ENF3902 M 39KOHM, 1/10W 1 SC R6871 ERJ8GEYJ224 M 220KOHM, J,1/8W 1 SU R6872 ERJ6ENF3902 M 39KOHM, 1/10W 1 SC R6872 ERJ6GEYG103 M 10KOHM,J,1/10W 1 SU R6873 ERJ6ENF3902 M 39KOHM, 1/10W 1 R6874 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R6875 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R6876 ERJ6RBD561 M 560 OHM, 1/10W 1 R6877 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 SC R6877 EXB38V220JV 电阻阵列 1 SU R6878 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 SC R6878 EXB38V103JV 电阻阵列 1 SU R6879 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 SC R6879 EXB38V220JV 电阻阵列 1 SU R6880 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6881 ERJT06J101V M 100 OHM,F,0.25W 1 R6882 ERJ6RED124 M 120KOHM, 1/10W 1 R6883 ERJ6GEYG103 M 10KOHM,J,1/10W 1 SU R6883,84 ERJ6GEYG222 M 2.2KOHM,J,1/10W 2 SC R6885 ERJ6GEYG103 M 10KOHM,J,1/10W 1 SU R6885 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 SC R6886 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6887,88 ERJ6ENF5102 M 51KOHM, 1/10W 2 SC R6888 ERJ8GEYJ224 M 220KOHM, J,1/8W 1 SU R6889,90 ERJ6GEYG222 M 2.2KOHM,J,1/10W 2 R6891 ERJ6GEYG183 M 18KOHM,J,1/10W 1 SC R6891 ERJ8GEYJ224 M 220KOHM, J,1/8W 1 SU R6892 ERJ6ENF5602 M 56KOHM, 1/10W 1 SC R6892 ERJ8GEYJ224 M 220KOHM, J,1/8W 1 SU R6893,94 EXB38V220JV 电阻阵列 2 R6895 ERJ6ENF6801 M 6.8KOHM, 1/10W 1 R6896 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R6897 ERJ6ENF6200 M 620 OHM, 1/10W 1 R6898 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6899 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6941 EXB38V220JV 电阻阵列 1 R6945 ERJ8GEYJ224 M 220KOHM, J,1/8W 1 R6947 ERJ8GEYJ224 M 220KOHM, J,1/8W 1 R6949-51 ERJ6GEYG103 M 10KOHM,J,1/10W 3 R6952 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6953 EXB38V220JV 电阻阵列 1 R6955 EXB38V103JV 电阻阵列 1 R6957 EXB38V220JV 电阻阵列 1 参考号 部品号 部品名称 & 说明 件数 备注 169 R6958 EXB38V103JV 电阻阵列 1 R6959 EXB38V220JV 电阻阵列 1 R6963 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6965 ERJ8GEYJ224 M 220KOHM, J,1/8W 1 R6966 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6967 ERJ8GEYJ224 M 220KOHM, J,1/8W 1 R6968 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6971-73 ERJ6GEYG221 M 220 OHM,J,1/10W 3 R6974 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6975 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6977-79 ERJ6GEYG221 M 220 OHM,J,1/10W 3 R7101-08 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7109-16 EXB38V470J 电阻阵列 8 R7117,18 ERJ3GEYJ681 M 680 OHM,J,1/16W 2 R7119 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R7120 EXB38V681J 电阻阵列 1 R7132,33 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7134-37 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7138 D0GF472JA047 M 4.7KOHM,J,0.33W 1 R7139-58 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 20 R7159-61 EXB38V471J 电阻阵列 3 R7162,63 EXB38V470J 电阻阵列 2 R7164,65 EXB38V681J 电阻阵列 2 R7166,67 EXB38V470J 电阻阵列 2 R7168 EXB38V681J 电阻阵列 1 R7170,71 EXB38V470J 电阻阵列 2 R7173 EXB38V470J 电阻阵列 1 R7176 EXB38V470J 电阻阵列 1 R7177 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7178 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R7180 EXB38V681J 电阻阵列 1 R7187-90 EXB38V220JV 电阻阵列 4 R7191 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7192 EXB38V681J 电阻阵列 1 R7193 EXB38V471J 电阻阵列 1 R7194,95 EXB38V681J 电阻阵列 2 R7196-99 EXB38V471J 电阻阵列 4 R7200-03 EXB38V470J 电阻阵列 4 R7210 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7212 EXB38V220JV 电阻阵列 1 R7213 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7214 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R7215 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7216-23 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7232-35 EXB38V470J 电阻阵列 4 R7236-39 EXB38V471J 电阻阵列 4 R7244,45 EXB38V470J 电阻阵列 2 R7246,47 EXB38V681J 电阻阵列 2 R7252-55 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7256 D0GF472JA047 M 4.7KOHM,J,0.33W 1 R7257-72 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 16 R7273 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7276-78 EXB38V220JV 电阻阵列 3 R7288,89 ERJ3GEYJ681 M 680 OHM,J,1/16W 2 R7290 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R7292,93 EXB38V681J 电阻阵列 2 R7294 EXB38V471J 电阻阵列 1 R7295 EXB38V681J 电阻阵列 1 R7296,97 EXB38V471J 电阻阵列 2 R7298,99 EXB38V470J 电阻阵列 2 R7301 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7302 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R7303 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7304-19 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 16 R7321-32 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 12 R7333,34 EXB38V470J 电阻阵列 2 R7343 EXB38V681J 电阻阵列 1 R7357 D0GF472JA047 M 4.7KOHM,J,0.33W 1 R7358,59 EXB38V470J 电阻阵列 2 R7364,65 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7367,68 EXB38V681J 电阻阵列 2 R7374-77 EXB38V220JV 电阻阵列 4 R7378 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R7379-92 EXB38V471J 电阻阵列 14 R7393-96 ERJ3GEYJ681 M 680 OHM,J,1/16W 4 R7401,02 EXB38V471J 电阻阵列 2 R7403,04 EXB38V681J 电阻阵列 2 参考号 部品号 部品名称 & 说明 件数 备注 R7405-13 EXB38V471J 电阻阵列 9 R7414 EXB38V681J 电阻阵列 1 R7415,16 EXB38V471J 电阻阵列 2 R7422 EXB38V681J 电阻阵列 1 R7423,24 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7425,26 EXB38V470J 电阻阵列 2 R7427-42 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 16 R7458 EXB38V681J 电阻阵列 1 R7468 D0GF472JA047 M 4.7KOHM,J,0.33W 1 R7469-84 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 16 R7485 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7486 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R7487-90 EXB38V220JV 电阻阵列 4 R7491 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7492,93 ERJ3GEYJ681 M 680 OHM,J,1/16W 2 R7494 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R7495 EXB38V471J 电阻阵列 1 R7496 EXB38V681J 电阻阵列 1 R7702 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R7719 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7723 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7725 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7730,31 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7733-35 ERJ3GEYJ680 M 68 OHM,J,1/16W 3 R7737,38 ERJ3GEYJ680 M 68 OHM,J,1/16W 2 R7744 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R7747 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7749-52 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R7755 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7758,59 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7769 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8001 ERJ2GEJ181 M 180 OHM, J,0.063W 1 R8002 ERJ2GEJ820 M 82 OHM, J,0.063W 1 R8003 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8004 ERJ3EKF2402 M 24KOHM, 1/16W 1 R8005 ERJ3EKF1002 M 10KOHM, 1/16W 1 R8006 ERJ3EKF6801 M 6.8KOHM, 1/16W 1 R8023-29 D0YAR0000007 M 0.0 OHM, J,0.063W 7 R8030 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8031,32 ERJ3EKF2700 M 270 OHM, 1/16W 2 R8035 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8039 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8056-73 ERJ2GEJ470 M 47 OHM, J,0.063W 18 R8074 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8075-78 ERJ2GEJ470 M 47 OHM, J,0.063W 4 R8079,80 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R8081 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8082 D1BA75R0A026 M0.75KOHM, 1/10W 1 R8083 ERJ2GEJ301 M 300 OHM, J,0.063W 1 R8084 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8086 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R8087 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8090 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8091 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8093 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8095 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8097 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8098,99 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8100 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8101 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8106 ERJ2GEJ202 M 2KOHM, J,0.063W 1 R8107 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8111 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8328 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8471 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8472 D1HG1038A002 排阻 1 R8474,75 EXB28V103JX 电阻阵列 2 R8501 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8502-04 ERJ2GEJ331 M 330 OHM, J,0.063W 3 R8506 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R8507-10 ERJ3EKF91R0 M 91 OHM, 1/16W 4 R8512 ERJ3EKF1800 M 180 OHM, 1/16W 1 R8513 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8517-19 D0YAR0000007 M 0.0 OHM, J,0.063W 3 R8551 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8555-61 ERJ2GEJ680 M 68 OHM, J,0.063W 7 R8564 ERJ2GEJ103 M 10KOHM, J,0.063W 1 参考号 部品号 部品名称 & 说明 件数 备注 170 R8601,02 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R8603 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R8604 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R8605 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8621-36 ERJ2GEJ680 M 68 OHM, J,0.063W 16 R8653 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8655 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8702 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8703 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8709 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8710 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8711,12 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8732 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8735-39 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R8742 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8745,46 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8749 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8802-09 ERJ2GEJ103 M 10KOHM, J,0.063W 8 R8812 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8813 EXB28V680JX 电阻阵列 1 R8814-17 ERJ2GEJ680 M 68 OHM, J,0.063W 4 R8818,19 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R8820 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8821 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R8822 ERJ6ENF2000 M 200 OHM,J,1/10W 1 R8823 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8826 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8828 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8832 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8833 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8851-54 D0YAR0000007 M 0.0 OHM, J,0.063W 4 R8855-60 ERJ2GEJ680 M 68 OHM, J,0.063W 6 R8862-64 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R8865-67 EXB2HV680J 电阻阵列 3 R8868 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8869 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8870 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8871 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8874-76 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R8877-89 ERJ2GEJ680 M 68 OHM, J,0.063W 13 R8891,92 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R8893 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8894 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8895-97 D0YAR0000007 M 0.0 OHM, J,0.063W 3 R8898,99 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8900,01 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R8904-10 ERJ2GEJ103 M 10KOHM, J,0.063W 7 R8911-18 ERJ2GEJ680 M 68 OHM, J,0.063W 8 R8919-22 ERJ2GEJ472 M 4.7KOHM, J,0.063W 4 R8923,24 ERJ2GEJ222 M 2.2KOHM, J,0.063W 2 R8925,26 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R8927 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8928 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R8929 EXB2HVR000 电阻阵列 1 R8930 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8932 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R8933-35 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R8947 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8948 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8952 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8958 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8963 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8965 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R9060-67 ERJ3GEYJ101 M 100 OHM,J,1/16W 8 R9070 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9074 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9076 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9077,78 D0GB103JA057 M 10KOHM,J,1/16W 2 R9079 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9080 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9082 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R9085-87 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 R9088,89 D0GB103JA057 M 10KOHM,J,1/16W 2 R9090 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9092 D0GB103JA057 M 10KOHM,J,1/16W 1 R9093,94 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9100 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R9101,02 D0GB103JA057 M 10KOHM,J,1/16W 2 R9104,05 D0GB103JA057 M 10KOHM,J,1/16W 2 R9107 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9108,09 D0GB103JA057 M 10KOHM,J,1/16W 2 R9111 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9113 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9115 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9117 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9118 ERJ3EKF1001 M 1KOHM, 1/16W 1 R9119 EXB38V470J 电阻阵列 1 R9121 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9122,23 D0GB103JA057 M 10KOHM,J,1/16W 2 R9124,25 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9127 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9129 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9130 ERJ3EKF1001 M 1KOHM, 1/16W 1 R9131-33 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R9134 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R9135 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9136,37 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9139 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R9141 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9143-45 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 R9147,48 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9149 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9150,51 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9152 ERJ3EKF1001 M 1KOHM, 1/16W 1 R9153 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9154,55 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9156 D0GB103JA057 M 10KOHM,J,1/16W 1 R9157 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9158,59 D0GB103JA057 M 10KOHM,J,1/16W 2 R9160,61 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9162 ERJ3EKF1001 M 1KOHM, 1/16W 1 R9164 D0GB103JA057 M 10KOHM,J,1/16W 1 R9165 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R9166 D0GB103JA057 M 10KOHM,J,1/16W 1 R9167 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9168 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9170-72 D0GB393JA041 M 39KOHM,J,1/16W 3 R9173,74 D0GB103JA057 M 10KOHM,J,1/16W 2 R9177 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9181-84 D0GB102JA057 M 1KOHM,J,1/16W 4 R9185,86 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9187,88 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9189,90 D0GB103JA057 M 10KOHM,J,1/16W 2 R9193 D0GB103JA057 M 10KOHM,J,1/16W 1 R9194 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9196 D0GB103JA057 M 10KOHM,J,1/16W 1 R9199 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9200,01 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R9203 D0GB102JA057 M 1KOHM,J,1/16W 1 R9205 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9206,07 D0GB102JA057 M 1KOHM,J,1/16W 2 R9215 D0GB123JA057 M 12KOHM,J,1/16W 1 R9217-22 D0GB103JA057 M 10KOHM,J,1/16W 6 R9223 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9225 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9237 D0GB103JA057 M 10KOHM,J,1/16W 1 R9240 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9367 ERJ6GEYG181 M 180 OHM,J,1/10W 1 R9371 EXB2HV470JV 电阻阵列 1 R9372 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9373 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9374 EXB38V470J 电阻阵列 1 R9375 D0GB151JA057 M 150 OHM,J,1/16W 1 R9376,77 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R9393-97 EXB2HV220JV 电阻阵列 5 R9398 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9399 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9400 D0GB103JA057 M 10KOHM,J,1/16W 1 R9402,03 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R9404 EXB2HV470JV 电阻阵列 1 R9406 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9409 EXB38V470J 电阻阵列 1 R9412-21 EXB38V470J 电阻阵列 10 R9425,26 ERJ3GEY0R00 M 0 OHM, 1/16W 2 参考号 部品号 部品名称 & 说明 件数 备注 171 R9427 D0GB102JA057 M 1KOHM,J,1/16W 1 R9428 EXB38V103JV 电阻阵列 1 R9432 D0GB103JA057 M 10KOHM,J,1/16W 1 R9442-45 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R9447-49 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R9450 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9451 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9452 D0GB103JA057 M 10KOHM,J,1/16W 1 R9453-58 EXB2HV220JV 电阻阵列 6 R9459 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9460 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9461 D0GB103JA057 M 10KOHM,J,1/16W 1 R9462 EXB2HV220JV 电阻阵列 1 R9463 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9464 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9465 D0GB103JA057 M 10KOHM,J,1/16W 1 R9466-71 EXB2HV220JV 电阻阵列 6 R9472,73 EXB38VR000V 电阻阵列 2 R9474 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9476 D0GB102JA057 M 1KOHM,J,1/16W 1 R9480 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9483 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9484,85 ERJ3EKF1001 M 1KOHM, 1/16W 2 R9486 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9487 D0GB151JA057 M 150 OHM,J,1/16W 1 R9488 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9489-95 ERJ3GEYJ470 M 47 OHM,J,1/16W 7 R9496 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9497 D0GB103JA057 M 10KOHM,J,1/16W 1 R9498 EXB38V470J 电阻阵列 1 R9499 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9501 D0GB103JA057 M 10KOHM,J,1/16W 1 R9503 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9506 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9507 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9513 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9514 D0GB103JA057 M 10KOHM,J,1/16W 1 R9516 D0GB103JA057 M 10KOHM,J,1/16W 1 R9520 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9521 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9523 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9525 D0GB103JA057 M 10KOHM,J,1/16W 1 R9528 EXB2HV222JV 电阻阵列 1 R9530,31 D0GB103JA057 M 10KOHM,J,1/16W 2 R9533 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9534 EXB38V470J 电阻阵列 1 R9535,36 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9539 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9540 D0GB103JA057 M 10KOHM,J,1/16W 1 R9543,44 D0GB103JA057 M 10KOHM,J,1/16W 2 R9545 ERJ3GEYJ304 M 300KOHM,J,1/16W 1 R9548-50 D0GB103JA057 M 10KOHM,J,1/16W 3 R9551,52 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9555 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9558 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9561-64 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R9566,67 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9568 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9569 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9570 D0GB103JA057 M 10KOHM,J,1/16W 1 R9571-73 EXB2HV220JV 电阻阵列 3 R9574 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9575-77 EXB2HV220JV 电阻阵列 3 R9578 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9580,81 ERJ3EKF1001 M 1KOHM, 1/16W 2 R9582 EXB2HV470JV 电阻阵列 1 R9583 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9584 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9585,86 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9587-95 EXB38V470J 电阻阵列 9 R9596-99 ERJ3GEYJ470 M 47 OHM,J,1/16W 4 R9602 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9603 D0GB103JA057 M 10KOHM,J,1/16W 1 R9604 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9605 EXB2HVR000 电阻阵列 1 R9606 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9607 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R9608-11 D1HG8208A002 排阻 4 R9612-15 EXB2HV470JV 电阻阵列 4 R9616 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9618 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9619,20 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9621 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9623 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9624 D0GB103JA057 M 10KOHM,J,1/16W 1 R9625-27 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9628 EXB2HV470JV 电阻阵列 1 R9629 EXB2HV220JV 电阻阵列 1 R9630 D0GB103JA057 M 10KOHM,J,1/16W 1 R9632 EXB38VR000V 电阻阵列 1 R9633 D0GB103JA057 M 10KOHM,J,1/16W 1 R9639 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9646,47 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9648 D0GB102JA057 M 1KOHM,J,1/16W 1 R9651 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9656 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9657 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9824-27 ERJ3GEYJ101 M 100 OHM,J,1/16W 4 R9828 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9830,31 D0GB103JA057 M 10KOHM,J,1/16W 2 R9839 EXB38V101JV 电阻阵列 1 R9840 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9845 D0GB103JA057 M 10KOHM,J,1/16W 1 R9846,47 EXB2HV222JV 电阻阵列 2 R9848,49 EXB2HV470JV 电阻阵列 2 R9850 EXB38V470J 电阻阵列 1 R9854 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9859 EXB38V101JV 电阻阵列 1 R9868 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9869-71 D0GB103JA057 M 10KOHM,J,1/16W 3 R9872 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9875-77 D0GB103JA057 M 10KOHM,J,1/16W 3 R9878 ERJ3EKF1102 M 11KOHM, 1/16W 1 R9879 ERJ3EKF1302 M 13KOHM, 1/16W 1 R9880-82 ERJ6GEY0R00V M 0 OHM, 1/10W 3 R9886,87 ERJ3EKF5602 M 56KOHM, 1/16W 2 R9888 ERJ3EKF1102 M 11KOHM, 1/16W 1 R9889 ERJ3EKF1822 M18.2KOHM, 1/16W 1 R9890 ERJ3EKF4752 M47.5KOHM, 1/16W 1 R9891 ERJ3EKF1272 M12.7KOHM, 1/16W 1 R9892 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9893 ERJ3EKF5602 M 56KOHM, 1/16W 1 R9894 ERJ3EKF1102 M 11KOHM, 1/16W 1 R9895 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9896 ERJ3EKF1822 M18.2KOHM, 1/16W 1 R9897 ERJ3EKF4752 M47.5KOHM, 1/16W 1 R9901 EXB2HV222JV 电阻阵列 1 R9902 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 RM2501 PNA4701M05TV 遥控接收器 1 S1 K1KA03BA0061 3P 连接头 1 SC2 K1KA02A00676 2P 连接头 1 SC20 K1KA31B00005 31P 连接头 1 SC30 K1KA10AA0191 10P 连接头 1 SC41-44 K1ML80B00001 80P 连接头 4 SC45,46 K1KA15AA0717 15P 连接头 2 SD46 K1KB15AA0227 15P 连接头 1 SD48 K1MN20BA0231 20P 连接头 1 SDI1-I4 K1MND6BA0264 6P 连接头 4 SS11 K1KA02A00676 2P 连接头 1 SS12 K1KA10AA0194 10P 连接头 1 SS23 K1KA04AA0193 4P 连接头 1 SS33 K1KA04AA0193 4P 连接头 1 SS34 K1KA03AA0193 3P 连接头 1 SS35 K1KA10A00416 10P 连接头 1 SS52-57 K1MN13BA0258 13P 连接头 6 SSMM1 TMME190 CLAMPER 1 SSMM2,M3 TMME260 CLAMPER 2 参考号 部品号 部品名称 & 说明 件数 备注 172 SU45 K1KB15AA0227 15P 连接头 1 SU47 K1MN20BA0231 20P 连接头 1 SUI1-I4 K1MND6BA0264 6P 连接头 4 SW2500 K0F162B00002 开关 1 SW3753-57 EVQPC105K 开关 5 T6602 ETS28AU3H9AC 转接变压器 1 TU3200 ENGF9701GF 调谐器 1 TU3201 ENG39D01GF 调谐器 1 VR6000 EVMEASA00B14 控制 10KOHMB 0.3W 1 VR6600 EVMEASA00B24 控制 20KOHMB 0.3W 1 VR6602 EVMEASA00B53 控制 5KOHMB 0.3W 1 VR6841 EVMEASA00B24 控制 20KOHMB 0.3W 1 X1100 H0J100500035 晶体 1 X2010 H0J245500082 晶体 1 X4500 H0J270500113 晶体 1 X5000 H0J270500087 晶体 1 X8001 H0J270500061 晶体 1 X9000 H2D100500004 晶体 1 X9200 H0J200500038 晶体 1 ZA0001 K4AZ01D00004 端子 1 ZA0002 K4CD08000002 AV 端子 1 ZA0004,05 K4AZ01D00004 端子 2 ZA0006,07 K4CD08000002 AV 端子 2 ZA3001-08 K4CD08000002 AV 端子 8 ZA3701 K4CZ01000027 与 JALCO K9 兼容 1 ZA5001-04 K4AZ01D00004 端子 4 ZA5501-04 K4CZ01000027 与 JALCO K9 兼容 4 ZA6001-03 K4CD01000011 AV 端子 3 ZA6401-03 K4CD01000011 AV 端子 3 ZA7101,02 K4AD01Z00001 端子 2 ZA7103,04 K4CD01000011 AV 端子 2 ZA7105 K4AD01Z00001 端子 1 ZA7201 K4CD01000011 AV 端子 1 ZA7202-04 K4AD01Z00001 端子 3 ZA7205 K4CD01000011 AV 端子 1 ZA7301-05 K4AD01Z00001 端子 5 ZA7401-05 K4AD01Z00001 端子 5 ZA7701 K4AD01D00004 端子 1 ZA9000 K4CD01000011 AV 端子 1 A601,02 RA362MSV7 放电管 2 C201 KZE1H220 电解电容器 1 C202,03 DE2R221K 陶瓷电容器 2 C204 MPEF12393H 塑料薄膜电容器 1 C205 MPEF12473H 塑料薄膜电容器 1 C251 MBB224K2 陶瓷电容器 1 C253 MBB104K5 陶瓷电容器 1 C254,55 ECQE6223KF P 0.022UF, K,400V 2 C256,57 EETHC2E821KH 电解电容器 2 C301 KZE1H220 电解电容器 1 C302,03 RR3DD101K 陶瓷电容器 2 C304 MPEF12393H 塑料薄膜电容器 1 C351 ECQV1H224JL 塑料薄膜电容器 1 C352 KZE1E182S C 1800UF 25V 1 C354,55 MBB224K2 陶瓷电容器 2 C357,58 KZE1E471L 电解电容器 2 C401,02 TAB104K2E 陶瓷电容器 2 C403 EETHC2C471HX 电解电容器 1 C404 KZE1H221 电解电容器 1 C405 MBB224K2 陶瓷电容器 1 C406 EETHC2A122JJ 电解电容器 1 C409 TAB104K2E 陶瓷电容器 1 C451 KZE1A471 电解电容器 1 C501 ECQU2A103ML 塑料薄膜电容器 1 C503 KMQ2W560 电解电容器 1 C504 KZE1H220 电解电容器 1 C505 MBB224K2 陶瓷电容器 1 C506 MBB106K1A 陶瓷电容器 1 参考号 部品号 部品名称 & 说明 件数 备注 C507 KZE1H221 电解电容器 1 C508 KZE1H220 电解电容器 1 C551 KZE1A471 电解电容器 1 C552 TBB474K2 陶瓷电容器 1 C554 MBB103K5 陶瓷电容器 1 C555 KZE1E470 C 470U 25V 1 C556 MBB103K5 陶瓷电容器 1 C601 ECQU2A105ML P 1UF, 250V 1 C602 ECQU2A474ML 塑料薄膜电容器 1 C603,04 ECKENA221KBR C 221P 250V 2 C605 DE1R102K 陶瓷电容器 1 C606 4MPH474K 塑料薄膜电容器 1 C610 MBB224K2 陶瓷电容器 1 C611 KZE1H220 电解电容器 1 C612-14 KMQ2W221KZ 电解电容器 3 C615 ECKENA221KBR C 221P 250V 1 C625 DE1R102K 陶瓷电容器 1 C626 DE2R471K 陶瓷电容器 1 C701 KZE1A471 电解电容器 1 D201,02 AG01A 二极管 2 D251 D4SBL40 二极管 1 D253 MA2J11100L 二极管 1 D351 G865C10R 二极管 1 D352 AG01A 二极管 1 D353 G865C10R 二极管 1 D401 D6SBN20 二极管 1 D402 AG01A 二极管 1 D403 YG901C3R 二极管 1 D451 RK39 二极管 1 D501 B0EBKT000007 二极管 1 D504 ST3D82 二极管 1 D505 AG01A 二极管 1 D506 RF101A2S 二极管 1 D551 RK39 二极管 1 D553 B0JCMD000024 二极管 1 D601,02 MA2J11100L 二极管 2 D603,04 AP01C 二极管 2 D606 B0EAKR000059 二极管 1 D701 MA2J11100L 二极管 1 D702 B0JCMD000024 二极管 1 F201 216005BP FUSE 250V 5A 1 F301 216005BP FUSE 250V 5A 1 F501 382T2C 微型保险丝 1 IC251 NJM1431AF 集成电路 1 IC351 NJM1431AF 集成电路 1 IC401 NJM1431AF 集成电路 1 IC451 PQ1CN41H2Z 电压调节器 1 IC501 MIP3E30MP IC 1 IC551 NJM1431AF 集成电路 1 IP701 ERBSE0R75U 微型保险丝 1 K601-03 KT329C93 继电器 3 L401 LH8TB681K 扼流线圈 1 L402 H221012HY 扼流线圈 1 L403 EXCELSA35 扼流线圈 1 L404 EXCELSR35 扼流线圈 1 L451 SNK1012A 扼流线圈 1 L501 EXCELSA35 扼流线圈 1 L502,03 EXCELDR35 扼流线圈 2 L504 EXCELSA35 扼流线圈 1 L601,02 P3110307Y 滤波扼流圈 2 L603 ETB50CZ13GAD 扼流变压器 1 MC201 MLQNF392 模块 1 MC202 MLKJA100 模块 1 MC203 MP00R3A1 模块 1 MC301 MLQNF682 模块 1 MC351 MLJFF103 模块 1 MC401 MLPSC223 模块 1 MC501 MLTZB100 模块 1 MC502 MLJHA103 模块 1 参考号 部品号 部品名称 & 说明 件数 备注 173 MC601 MLLPF562 模块 1 MC603 MP00P15A2 模块 1 MC701 MLZDE103 模块 1 P2 B2P3-VH-B 连接头 1 P5 B11B-PH-KS 连接头 1 P9 B03P-VL 连接头 1 P10 B6B-PH-KS 连接头 1 P11 B2P3-VH-B 连接头 1 P12 B10B-PH-KS 连接头 1 P25 B20B-PHDSS 连接头 1 PC201,02 TLP421F 光绝缘体 2 PC301,02 TLP421F 光绝缘体 2 PC401 TLP421F 光绝缘体 1 PC501,02 TLP421F 光绝缘体 2 Q301,02 FMA16N55G 场效应管 2 Q351,52 2SK2510 场效应管 2 Q401 2SK3607 场效应管 1 Q402,03 2SA17670Q1TV 三极管 2 Q551 HAT1130R FET 1 Q552 2SB710AQRSTX 三极管 1 Q602 2SD2185 三极管 1 Q603 2SB14400RL 三极管 1 Q701,02 2SD602A-R 三极管 2 Q704 2SK3018 场效应管 1 R201 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R202 ERQ14AJ4R7J 熔金属薄膜电阻 1 R203,04 ERJ6GEYJ334 M 330KOHM,J,1/10W 2 R205 ERJ6ENF9091 M9.09KOHM, 1/10W 1 R206-08 ERJ12YJ683 M 68KOHM, 1/2W 3 R215,16 SG732K220 片状电阻 2 R251-54 ERJ6ENF5902 M 59KOHM, 1/10W 4 R258 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R259 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R260 ERJ6GEYF151 M 150 OHM,F,1/10W 1 R261 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R263 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R264 ERJ6ENF1002 M 10KOHM, 1/10W 1 R265 ERJ6ENF2553 M 255KOHM, 1/10W 1 R266 ERJ6GEYF472 M 4.7KOHM,F,1/10W 1 R267 ERJ6ENF2553 M 255KOHM, 1/10W 1 R268 ERJ6ENF1743 M 174KOHM, 1/10W 1 R269 ERJ6ENF2703 M 270KOHM, 1/10W 1 R270 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R299 ERJ6ENF5902 M 59KOHM, 1/10W 1 R301 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R302 ERQ14AJ4R7J 熔金属薄膜电阻 1 R303,04 ERJ6GEYJ334 M 330KOHM,J,1/10W 2 R305 ERJ6ENF4021 M4.02KOHM, 1/10W 1 R306-08 ERJ12YJ683 M 68KOHM, 1/2W 3 R309 ERG1SJ680 金属氧化物电阻 1 R310 ERG12SJ220 金属氧化物电阻 1 R351 ERJ6ENF1052 M10.5KOHM, 1/10W 1 R352 ERJ12YJ100 M 10 OHM,J, 1/2W 1 R353 ERJ6GEYF561 M 560 OHM,F,1/10W 1 R355 ERJ6GEYG682 片状电阻 1 R356 ERJ6GEYF561 M 560 OHM,F,1/10W 1 R358 ERJ6RND1002 片状电阻 1 R359 ERJ6RND5362 片状电阻 1 R362 ERJ12YJ332 M 3.3KOHM,J, 1/2W 1 R363,64 ERJ6GEYF333 M 33KOHM,J,1/10W 2 R365 ERJ6ENF1052 M10.5KOHM, 1/10W 1 R366 ERJ6ENF6981 M6.98KOHM, 1/10W 1 R367 ERJ6ENF1002 M 10KOHM, 1/10W 1 R368,69 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R370 ERJ6ENF1002 M 10KOHM, 1/10W 1 R371 ERJ6ENF6981 M6.98KOHM, 1/10W 1 R372 ERJ6ENF7500 M 750 OHM, 1/10W 1 R403 ERJ12YJ100 M 10 OHM,J, 1/2W 1 R404 ERJ6ENF2152 M21.5KOHM, 1/10W 1 R405 MPC2WR10J 金属板电阻器 1 R406 ERJ6ENF2152 M21.5KOHM, 1/10W 1 R407 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 R408 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 1 R409 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R410 ERJ6ENF2152 M21.5KOHM, 1/10W 1 R411,12 ERJ6GEYG152 片状电阻 2 R413,14 ERJ6ENF1622 M16.2KOHM, 1/10W 2 R415 ERJ6ENF8872 片状电阻 1 R416 ERJ6ENF8061 M8.06KOHM, 1/10W 1 R417-19 ERJ6ENF3572 M35.7KOHM, 1/10W 3 R420 ERJ6ENF3570 片状电阻 1 R451 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R452 ERJ6GEYF124 片状电阻 1 R453 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R454 ERJ6ENF3001 M 3KOHM, 1/10W 1 R455 ERJ6ENF1001 M 1KOHM, 1/10W 1 R456 ERJ6ENF1332 M13.3KOHM, 1/10W 1 R502 RCR6J825 金属釉固定电阻器 1 R505 ERJ6GEYF561 M 560 OHM,F,1/10W 1 R506-11 ERJ6ENF8253 M 825KOHM, 1/10W 6 R514-21 ERJ6ENF2703 M 270KOHM, 1/10W 8 R522 ERJ6GEYJ180 M 18 OHM,J,1/10W 1 R551 ERJ6GEYG121 片状电阻 1 R552 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R553 ERJ6GEYJ150 M 15 OHM,J,1/10W 1 R555 ERJ6RND1102 片状电阻 1 R556 ERJ6RND1002 片状电阻 1 R557 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R558 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R559 ERJ6GEYG332 M 3.3KOHM,J,1/10W 1 R561 ERJ6ENF2152 M21.5KOHM, 1/10W 1 R562 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R563,64 ERJ6GEYG221 M 220 OHM,J,1/10W 2 R565 ERJ6ENF2200 M 220 OHM, 1/10W 1 R601 RCR5J624 金属釉固定电阻器 1 R602 R5B100J W 10 OHM, J, 5W 1 R603-06 ERJ6ENF2053 片状电阻 4 R607-10 ERJ6ENF3743 片状电阻 4 R611 ERJ6ENF2053 片状电阻 1 R617,18 RF5EJR15B 金属板电阻器 2 R619 RF5EJR10B 金属板电阻器 1 R621 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R622 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R623 ERJ12YJ470 M 47 OHM, J,1/2W 1 R624 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R625 ERJ12YJ470 M 47 OHM, J,1/2W 1 R626 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R627 ERJ12YJ470 M 47 OHM, J,1/2W 1 R628 ERQ14AJ330J 熔金属薄膜电阻 1 R629 ERJ6GEYG154 片状电阻 1 R630 ERJ6ENF5902 M 59KOHM, 1/10W 1 R631-36 ERJ6ENF1103 M 110KOHM, 1/10W 6 R701 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R702 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R703 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R704 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R706 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R707 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R708 ERJ14YJ471 片状电阻 1 R709 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R710 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R711 ERJ14YJ471 片状电阻 1 R712 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R713 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R716 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R717 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R718 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R719,20 ERJ6GEYJ1R0 M 1 OHM,J,1/10W 2 RF601 A5MC100JP2 139C 10 1 T201 ETB50LZ16GAD 变压器 1 T301 ETB50LZ17GAD 变压器 1 T501 ETB25BG118AD 变压器 1 VR251 EVMEASA01B55 可变电阻器 1 VR401 EVMEASA01B24 可变电阻器 1 Z501 ERZVGAD471 变阻器 1 参考号 部品号 部品名称 & 说明 件数 备注 174 FLE20071200002 Z601 ERZVGED751 变阻器 1 Z602 ERZVGAD471 变阻器 1 ZD201,02 MAZ4270NMF 稳压二极管 2 ZD301,02 MAZ4270NMF 稳压二极管 2 ZD305 MAZ4270NMF 稳压二极管 1 ZD401 MA4033 稳压二极管 1 ZD402 MA8360 稳压二极管 1 ZD451 MAZ4068NMF 稳压二极管 1 ZD501,02 MAZ83000ML 稳压二极管 2 ZD503 MA4082N 稳压二极管 1 ZD601 MA4047N 稳压二极管 1 参考号 部品号 部品名称 & 说明 件数 备注
