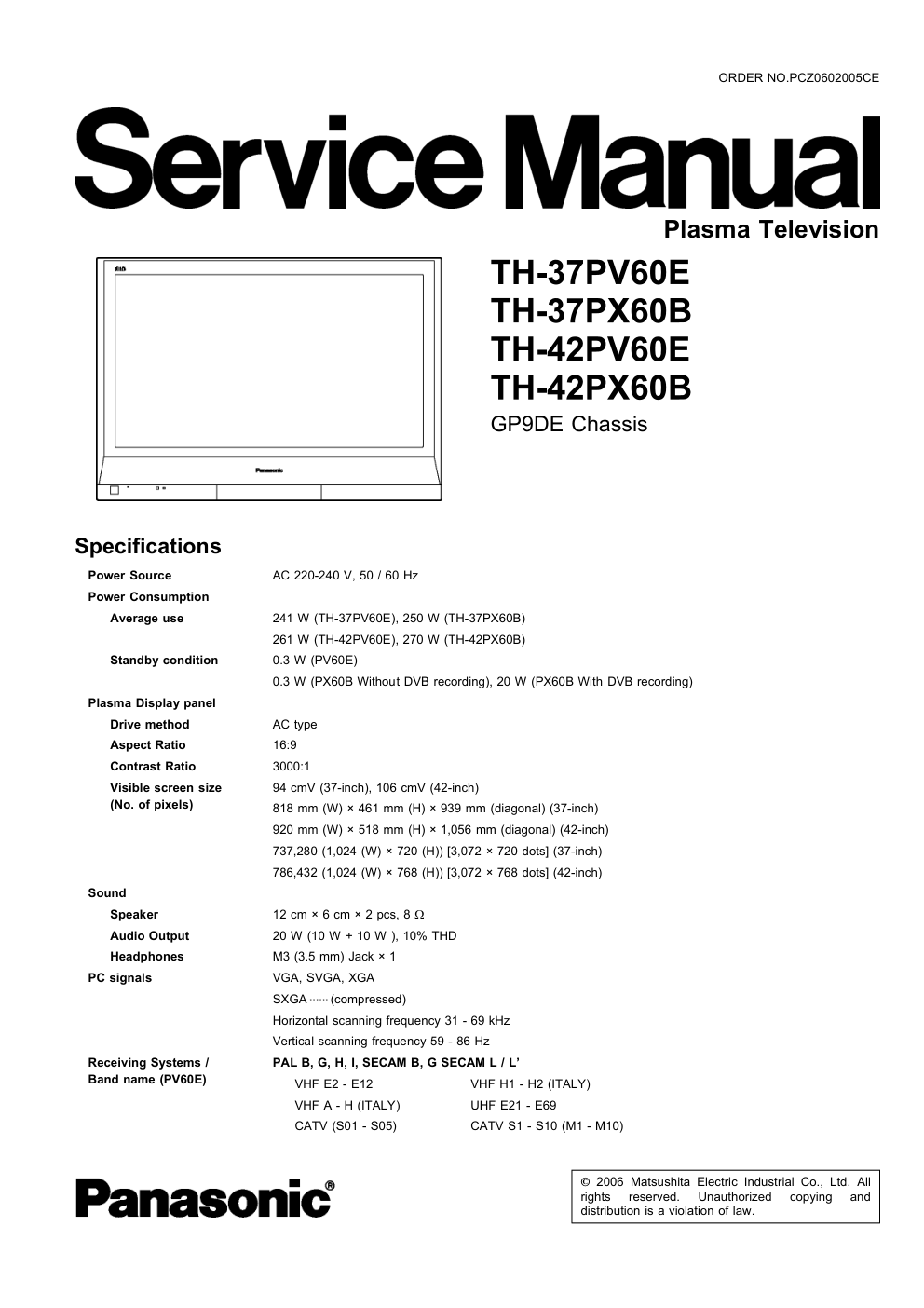

© 2006 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law. GP9DE Chassis Plasma Television Specifications Power Source AC 220-240 V, 50 / 60 Hz Power Consumption Average use 241 W (TH-37PV60E), 250 W (TH-37PX60B) 261 W (TH-42PV60E), 270 W (TH-42PX60B) Standby condition 0.3 W (PV60E) 0.3 W (PX60B Without DVB recording), 20 W (PX60B With DVB recording) Plasma Display panel Drive method AC type Aspect Ratio 16:9 Contrast Ratio 3000:1 Visible screen size (No. of pixels) 94 cmV (37-inch), 106 cmV (42-inch) 818 mm (W) × 461 mm (H) × 939 mm (diagonal) (37-inch) 920 mm (W) × 518 mm (H) × 1,056 mm (diagonal) (42-inch) 737,280 (1,024 (W) × 720 (H)) [3,072 × 720 dots] (37-inch) 786,432 (1,024 (W) × 768 (H)) [3,072 × 768 dots] (42-inch) Sound Speaker 12 cm × 6 cm × 2 pcs, 8 � Audio Output 20 W (10 W + 10 W ), 10% THD Headphones M3 (3.5 mm) Jack × 1 PC signals VGA, SVGA, XGA SXGA (compressed) Horizontal scanning frequency 31 - 69 kHz Vertical scanning frequency 59 - 86 Hz Receiving Systems / Band name (PV60E) PAL B, G, H, I, SECAM B, G SECAM L / L’ VHF E2 - E12 VHF H1 - H2 (ITALY) VHF A - H (ITALY) UHF E21 - E69 CATV (S01 - S05) CATV S1 - S10 (M1 - M10) ORDER NO.PCZ0602005CE CATV S11 - S20 (U1 - U10) CATV S21 - S41 (Hyperband) PAL D, K, SECAM D, K VHF R1 - R2 VHF R3 - R5 VHF R6 - R12 UHF E21 - E69 PAL 525/60 Playback of NTSC tape from some PAL Video recorders (VCR) M.NTSC Playback from M. NTSC Video recorders (VCR) NTSC (AV input only) Playback from NTSC Video recorders (VCR) Receiving Systems / Band name (PX60B) PAL I UHF E21 - 68. PAL 525/60 Playback of NTSC tape from some PAL Video recorders (VCR) or NTSC disc playback from DVD player and recorder. DVB Digital terrestrial services via UHF aerial input. M.NTSC Playback from M.NTSC Video recorders (VCR). NTSC (AV input only) Playback from NTSC Video recorders (VCR). Aerial - Rear VHF / UHF (PV60E) UHF (PX60B) Operating Conditions Temperature : 0 °C - 40 °C Humidity : 20 % - 80 % RH (non-condensing) Connection Terminals AV1 (Scart terminal) 21 Pin terminal (Audio / Video in, Audio / Video out, RGB in) AV2 (Scart terminal) 21 Pin terminal (Audio / Video in, Audio / Video out, S-Video in, Q-Link) AV3 (Scart terminal) 21 Pin terminal (Audio / Video in, Audio / Video out, RGB in, S-Video in, Q-Link) AV4 VIDEO RCA PIN Type × 1 1.0 V[p-p] (75 �) S-VIDEO Mini DIN 4-pin Y:1.0 V[p-p] (75 �) C:0.286 V[p-p] (75 �) AUDIO L - R RCA PIN Type × 2 0.5 V[rms] Others COMPONENT Y PB, PR 1.0 V[p-p] (including synchronization) ±0.35 V[p-p] HDMI 1/2 TYPE A Connectors PC HIGH-DENSITY D-SUB 15PIN R,G,B/0.7 V[p-p] (75 �) HD, VD/TTL Level 2.0 - 5.0 V[p-p] (high impedance) AUDIO L - R RCA PIN Type × 2 0.5 V[rms] Output AUDIO L - R RCA PIN Type × 2 0.5 V[rms] (high impedance) Dimensions ( W × H × D ) 917 mm × 645 mm × 95 mm (37-inch) 1,020 mm × 705 mm × 95 mm (42-inch) Weight 26.0 kg Net (37-inch) 30.0 kg Net (42-inch) Notes: ���� ·����Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate. ���� ·����This equipment complies with the EMC standards listed below. EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024. 2 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 1 Applicable signals 5 2 Safety Precautions 6 2.1. General Guidelines 6 2.2. Touch-Current Check 6 3 Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices 7 4 About lead free solder (PbF) 8 5 Service Hint 9 6 Plasma panel replacement method 10 6.1. Remove the Back cover 10 6.2. Remove the fan 10 6.3. Remove the rear terminal cover 10 6.4. Remove the P-Board 10 6.5. Remove the PA-Board 11 6.6. Remove the tuner unit 11 6.7. Remove the XV-Board (PX60B) 11 6.8. Remove the DG-Board 12 6.9. Remove the TA-Board 12 6.10. Remove the H-Board 12 6.11. Remove the HC-Board 13 6.12. Remove the D-Board 13 6.13. Remove the SU-Board (37inch) 13 6.14. Remove the SU-Board (42inch) 13 6.15. Remove the SD-Board (37inch) 14 6.16. Remove the SD-Board (42inch) 14 6.17. Remove the SC-Board 14 6.18. Remove the SS-Board 14 6.19. Remove the C1-Board 15 6.20. Remove the C2-Board 15 6.21. Remove the front bracket 15 6.22. Remove the G-Board and GK-Board 16 6.23. Remove the speaker L, R 16 6.24. Remove the S-Board 16 6.25. Remove the K-Board 17 6.26. Remove the stand brackets 17 6.27. Remove the Plasma panel section from the Front frame (glass) 17 6.28. Replace the plasma panel (finished) 17 7 Location of Lead Wiring 18 7.1. Lead of Wiring (1) 18 7.2. Lead of Wiring (2) 19 7.3. Lead of Wiring (3) 20 7.4. Lead of Wiring (4) 21 7.5. Lead of Wiring (5) 22 7.6. Lead of Wiring (6) 23 7.7. Lead of Wiring (7) 24 7.8. Lead of Wiring (8) 25 8 Self Check 26 8.1. Power LED Blinking timing chart 27 8.2. No Power 28 8.3. No Picture 29 8.4. Local screen failure 30 9 Service Mode Function 31 9.1. How to enter SERVICE 1 31 9.2. How to enter SERVICE 2 31 9.3. Option Description 33 10 Adjustment Procedure 35 10.1. Driver Set-up 35 10.2. Initialization Pulse Adjust 36 10.3. P.C.B. (Printed Circuit Board) exchange 36 10.4. Adjustment Volume Location 37 10.5. Test Point Location 37 11 Adjustment 38 11.1. PAL panel white balance adjustment 38 11.2. HD white balance adjustment 39 11.3. Sub bright adjustment 40 11.4. ABL adjustment 41 12 Hotel mode 42 13 Concuct Views 43 13.1. P-Board (37inch) 43 13.2. P-Board (42inch) 46 13.3. PA-Board 49 13.4. H-Board 51 13.5. G and TA-Board 53 13.6. GK, HC, K and S-Board 54 13.7. DG-Board 55 13.8. XV-Board (PX60B) 57 13.9. D-Board 59 13.10. C1-Board (37inch) 61 13.11. C1-Board (42inch) 62 13.12. C2-Board (37inch) 63 13.13. C2-Board (42inch) 64 13.14. SC-Board 65 13.15. SU-Board (37inch) 68 13.16. SU-Board (42inch) 69 13.17. SD-Board (37inch) 70 13.18. SD-Board (42inch) 71 13.19. SS-Board 72 14 Schemaatic and Block Diagram 75 14.1. Schematic Diagram Notes 75 14.2. Main Block Diagram (37inch) 76 14.3. Main Block Diagram (42inch) 77 CONTENTS Page Page 3 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 14.4. P-Board Block Diagram (37inch) 78 14.5. P-Board (1 of 6) Schematic Diagram (37inch) 79 14.6. P-Board (2 of 6) Schematic Diagram (37inch) 80 14.7. P-Board (3 of 6) Schematic Diagram (37inch) 81 14.8. P-Board (4 of 6) Schematic Diagram (37inch) 82 14.9. P-Board (5 of 6) Schematic Diagram (37inch) 83 14.10. P-Board (6 of 6) Schematic Diagram (37inch) 84 14.11. P-Board Block Diagram (42inch) 85 14.12. P-Board (1 of 6) Schematic Diagram (42inch) 86 14.13. P-Board (2 of 6) Schematic Diagram (42inch) 87 14.14. P-Board (3 of 6) Schematic Diagram (42inch) 88 14.15. P-Board (4 of 6) Schematic Diagram (42inch) 89 14.16. P-Board (5 of 6) Schematic Diagram (42inch) 90 14.17. P-Board (6 of 6) Schematic Diagram (42inch) 91 14.18. PA-Board Block Diagram 92 14.19. PA-Board (1 of 3) Schematic Diagram 93 14.20. PA-Board (2 of 3) Schematic Diagram 94 14.21. PA-Board (3 of 3) Schematic Diagram 95 14.22. H and TA-Board Block Diagram 96 14.23. G, GK, HC and K-Board Block Diagram 97 14.24. H-Board (1 of 3)Schematic Diagram 98 14.25. H-Board (2 of 3)Schematic Diagram 99 14.26. H-Board (3 of 3)Schematic Diagram 100 14.27. G-Board Schematic Diagram 101 14.28. GK, K, HC and TA-Board Schematic Diagram 102 14.29. DG-Board (1 of 3) Block Diagram 103 14.30. DG-Board (2 of 3) Block Diagram 104 14.31. DG-Board (3 of 3) Block Diagram 105 14.32. DG-Board (1 of 8) Schematic Diagram 106 14.33. DG-Board (2 of 8) Schematic Diagram 107 14.34. DG-Board (3 of 8) Schematic Diagram 108 14.35. DG-Board (4 of 8) Schematic Diagram 109 14.36. DG-Board (5 of 8) Schematic Diagram 110 14.37. DG-Board (6 of 8) Schematic Diagram 111 14.38. DG-Board (7 of 8) Schematic Diagram 112 14.39. DG-Board (8 of 8) Schematic Diagram 113 14.40. XV-Board Block Diagram (PX60B) 114 14.41. XV-Board (1 of 5) Schematic Diagram (PX60B) 115 14.42. XV-Board (2 of 5) Schematic Diagram (PX60B) 116 14.43. XV-Board (3 of 5) Schematic Diagram (PX60B) 117 14.44. XV-Board (4 of 5) Schematic Diagram (PX60B) 118 14.45. XV-Board (5 of 5) Schematic Diagram (PX60B) 119 14.46. D-Board Block Diagram 120 14.47. D-Board (1 of 6) Schematic Diagram 121 14.48. D-Board (2 of 6) Schematic Diagram 122 14.49. D-Board (3 of 6) Schematic Diagram 123 14.50. D-Board (4 of 6) Schematic Diagram 124 14.51. D-Board (5 of 6) Schematic Diagram 125 14.52. D-Board (6 of 6) Schematic Diagram 126 14.53. C1 and C2-Board Block Diagram 127 14.54. C1-Board (1 of 2) Schematic Diagram (37inch) 128 14.55. C1-Board (2 of 2) Schematic Diagram (37inch) 129 14.56. C1-Board (1 of 2) Schematic Diagram (42inch) 130 14.57. C1-Board (2 of 2) Schematic Diagram (42inch) 131 14.58. C2-Board (1 of 2) Schematic Diagram (37inch) 132 14.59. C2-Board (2 of 2) Schematic Diagram (37inch) 133 14.60. C2-Board (1 of 2) Schematic Diagram (42inch) 134 14.61. C2-Board (2 of 2) Schematic Diagram (42inch) 135 14.62. SC, SU and SD-Board Block Diagram (37inch) 136 14.63. SC, SU and SD-Board Block Diagram (42inch) 137 14.64. SC-Board (1 of 2) Schematic Diagram 138 14.65. SC-Board (2 of 2) Schematic Diagram 139 14.66. SU-Board (1 of 2) Schematic Diagram (37inch) 140 14.67. SU-Board (2 of 2) Schematic Diagram (37inch) 141 14.68. SU-Board (1 of 2) Schematic Diagram (42inch) 142 14.69. SU-Board (2 of 2) Schematic Diagram (42inch) 143 14.70. SD-Board (1 of 2) Schematic Diagram (37inch) 144 14.71. SD-Board (2 of 2) Schematic Diagram (37inch) 145 14.72. SD-Board (1 of 2) Schematic Diagram (42inch) 146 14.73. SD-Board (2 of 2) Schematic Diagram (42inch) 147 14.74. SS and S-Board Block Diagram 148 14.75. SS and S-Board Schematic Diagram 149 15 Parts Location & Mechanical Replacement Parts List 151 15.1. Parts Location 151 15.2. Packing Exploded Views (1) 152 15.3. Packing Exploded Views (2) 153 15.4. Packing Exploded Views (3) 154 15.5. Mechanical Replacement Parts List 155 16 Electrical Replacement Parts List 157 16.1. Replacement Parts List Notes 157 16.2. Electrical Replacement Parts List (37inch) 158 16.3. Electrical Replacement Parts List (42inch) 188 4 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 1 Applicable signals 5 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 2 Safety Precautions 2.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed. 3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards. 2.2. Touch-Current Check 1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check. 2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1. 3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network. 4. Check each exposed metallic part, and measure the voltage at each point. 5. Reserve the AC plug in the AC outlet and repeat each of the above measure. 6. The potential at any point (TOUGH CURRENT) expressed as voltage U1 and U2, does not exceed the following values: For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak); For d. c.: U1 = 1.0 V, Note: The limit value of U2 = 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and 2.0 mA d. c. The limit value U1 = 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100 kHz. 7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer. Figure 1 6 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 3 Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by electro static discharge (ESD). 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test. 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alminum foil, to prevent electrostatic charge buildup or exposure of the assembly. 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices. 4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can generate electrical charge sufficient to damage ES devices. 5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices. 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, alminum foil or comparable conductive material). 7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. Caution Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise hamless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device). 7 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 4 About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available. This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d suggest the use of Pb free solder as well, although Pb solder may be used. PCBs manufactured using lead free solder will have the PbF within a leaf Symbol stamped on the back of PCB. Caution ���� ·����Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40 °C) higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C). ���� ·����Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C). If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder. ���� ·����After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto the opposite side. (see figure below) Suggested Pb free solder There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder. However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used. 8 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 5 Service Hint Board Name Function Board Name Function P Power Supply C1 Data Driver (Lower Right) PA DC-DC Converter, Speaker out, Audio AMP, Fan Control C2 Data Driver (Lower Left) SC Scan Drive H AV Terminal, AV Switch, MSP SU Scan out (Upper) TA Tuner SD Scan out (Lower) DG Digital Signal Processor, Micom, HDMI Interface SS Sustain Drive XV D-TV Interface (PX60B only) K Remote receiver, Power LED D Format Converter, Plasma AI, Sub-Field Processor S Power Switch HC Jig Connection G Front Terminal GK Key Switch 9 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 6.1. Remove the Back cover 1. See Service Hint (Section 5) 6.2. Remove the fan 1. Disconnect the relay couplers. 2. Remove the screws (×3 each) and remove the fans. 6.3. Remove the rear terminal cover 1. Remove the screws (×9 , ×8 , ×2 ). 2. Remove the rear terminal cover. 6.4. Remove the P-Board Caution: To remove P.C.B. wait 1 minute after power was off for discharge from electrolysis capacitors. 1. Unlock the cable clampers to free the cable. 2. Disconnect the couplers (P2, P5, P9, P10, P11, P12, P23, and P25). 3. Remove the screws (×7 ) and remove the P-Board. 6 Plasma panel replacement method 10 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 6.5. Remove the PA-Board 1. Unlock the cable clampers to free the cable. 2. Disconnect the couplers (PA2, PA5, PA10, PA31, PA32, PA33, PA34 and PA40). 3. Disconnect the flexible cable (PA20). 4. Remove the screws (×4 ) and remove the earth cable. 5. Remove the PA-Board. 6.6. Remove the tuner unit 1. Unlock the cable clampers to free the cable. 2. Disconnect the couplers (DG5, G51 and PA40). 3. Disconnect the flexible cables (DG3 and PA20). 4. Remove the screws (×4 ) remove the tuner unit. 6.7. Remove the XV-Board (PX60B) 1. Unlock the cable clampers to free the cable. 2. Disconnect the tuner cable. 3. Remove the screws (×5 ) remove the XV-Board. (Be careful the couplers (XV01-DG22) when remove the XV-Board.) 11 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 6.8. Remove the DG-Board 1. Remove the XV-Board (PX60B). (See section 6.7.) 2. Remove the screws (×8 ) and remove the XV-Board metal frame (PX60B). 3. Disconnect the coupler (DG2). 4. Disconnect the flexible cables (DG1, DG15 and DG20). 5. Remove the screw (×1 ) remove the DG-Board. 6.9. Remove the TA-Board 1. Disconnect the tuner cable. 2. Remove the screw (×1 ) and remove the TA-Board. 6.10. Remove the H-Board 1. Remove the TA-Board. 2. Unlock the cable clampers to free the cable. 3. Disconnect the couplers (H2, H40 and H51). 4. Disconnect the flexible cable (H1). 5. Remove the screws (×5 ) and remove the H-Board. 12 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 6.11. Remove the HC-Board 1. Disconnect the flexible cable (HC15). 2. Remove the screws (×2 ) and remove the HC-Board. 6.12. Remove the D-Board 1. Remove the tuner unit. (See section 6.6.) 2. Disconnect the couplers (D5, D20 and D25). 3. Disconnect the flexible cables (D3, D31 and D32). 4. Remove the screws (×4 ) and remove the D-Board. 6.13. Remove the SU-Board (37inch) 1. Remove the screws (×2 ). 2. Remove the flexible cables (SU1, SU2 and SU3) and remove the bridge connector (SU45). 3. Slide the SU-Board to the left to disconnect from a coupler (SC41-SU41) on the SC-Board and remove the SU-Board. 6.14. Remove the SU-Board (42inch) 1. Remove the screws (×2 ). 2. Remove the flexible cables (SU1, SU2, SU3 and SU4) and remove the bridge connector (SU45). 3. Slide the SU-Board to the left to disconnect from a coupler (SC41-SU41) on the SC-Board and remove the SU-Board. 13 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 6.15. Remove the SD-Board (37inch) 1. Remove the screws (×2 ). 2. Remove the flexible cables (SD1, SD2 and SD3) and remove the bridge connector (SD46). 3. Slide the SD-Board to the left to disconnect from a coupler (SC42-SD42) on the SC-Board and remove the SD-Board. 6.16. Remove the SD-Board (42inch) 1. Remove the screws (×2 ). 2. Remove the flexible cables (SD1, SD2, SD3 and SD4) and remove the bridge connector (SD46). 3. Slide the SD-Board to the left to disconnect from a coupler (SC42-SD42) on the SC-Board and remove the SD-Board. 6.17. Remove the SC-Board 1. Unlock the cable clampers to free the cable. 2. Disconnect the couplers (SC2, SC20 and SC23). 3. Remove the screws (×6 ) and remove the SC-Board. 6.18. Remove the SS-Board 1. Disconnect the couplers (SS1, SS11, SS12 and SS23). 2. Disconnect the flexible cables (SS41A, SS42A, SS43A and SS44A) (37inch). Disconnect the flexible cables (SS41, SS42, SS43 and SS44) (42inch). 3. Remove the screws (×6 ) and remove the SS-Board. 14 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 6.19. Remove the C1-Board 1. Remove the tuner unit. (See section 6.6.) 2. Unlock the cable clampers to free the cable. 3. Remove the flexible cables holder fastening screws (×8 ). 4. Disconnect the flexible cables (CB1, CB2, CB3 and CB4). 5. Disconnect the flexible cables (C11 and C12). 6. Remove the screws (×4 ) and remove the C1-Board. 6.20. Remove the C2-Board 1. Remove the tuner unit. (See section 6.6.) 2. Unlock the cable clampers to free the cable. 3. Remove the flexible cables holder fastening screws (×8 ). 4. Disconnect the flexible cables (CB5, CB6, CB7 and CB8). 5. Disconnect the flexible cables (C21 and C22). 6. Disconnect the coupler (C23). 7. Remove the screws (×4 ) and remove the C2-Board. 6.21. Remove the front bracket 1. Unlock the cable clampers to free the cable. 2. Disconnect the couplers (G1 and G51). 3. Remove the screws (×5 ) and remove the front bracket. 15 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 6.22. Remove the G-Board and GK- Board 1. Remove the front bracket. (See section 6.21.) 2. Remove the screws (×3 ) and remove the metal cover. 3. Remove the screws (×3 ) and remove the front side metal frame. 4. Remove the screws (×3 ) and disconnect the couplers (G3-GK3). 5. Remove the G-Board and GK-Board. 6.23. Remove the speaker L, R 1. Remove the sponge 2. Disconnect the relay couplers 3. Remove the screws (×2 each) and remove the speaker L, R. 6.24. Remove the S-Board 1. Disconnect the coupler (S1). 2. Remove the screws (×2 ) and remove the S-Board metal frame. 3. Remove the screws (×2 ) and remove the S-Board. 16 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 6.25. Remove the K-Board 1. Unlock the cable clampers to free the cable. 2. Disconnect the coupler (G1). (See section 6.21.) 3. Remove the screws (×2 ) and remove the K-Board. 6.26. Remove the stand brackets 1. Remove the plasma panel section from the servicing stand and lay on a fiat surface such as a table (covered) with the plasma panel surface facing downward. 2. Remove the stand brackets (left, right) fastening screws (×5 each) and remove the stand brackets (left, right). 6.27. Remove the Plasma panel section from the Front frame (glass) 1. Remove the front frame and the plasma panel fastening screws (×6 ). 2. Remove the front frame and the stand brackets fastening screws (×4 ). 3. For leaving the plasma panel from the front frame, pull the bottom of the front frame forward, lift, and remove. 6.28. Replace the plasma panel (finished) 1. Place the new plasma panel (finished) on the flat surface of the table (covered by a soft cloth), with the plasma panel surface facing downward. 2. Attach the C1-Board and the C2-Board, connect the flexible cables (×8) from the Plasma panel to the C1-Board and the C2-Board, and fit the flexible cable holders. 3. Attach the Hooks (left, right) and fit the stand brackets (L, R) to the new plasma panel. 4. Place the plasma panel section on the servicing stand. 5. Attach the front frame and each P.C.Board and so on, to the new plasma panel. * When fitting the front frame, be careful to allow any debris, dust or handling residue to remain between the front glass and plasma panel. 17 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 7 Location of Lead Wiring 7.1. Lead of Wiring (1) 18 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 7.2. Lead of Wiring (2) 19 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 7.3. Lead of Wiring (3) 20 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 7.4. Lead of Wiring (4) 21 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 7.5. Lead of Wiring (5) 22 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 7.6. Lead of Wiring (6) 23 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 7.7. Lead of Wiring (7) 24 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 7.8. Lead of Wiring (8) 25 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 8 Self Check 1. Self-Check is used to automatically check the bus lines and hexadecimal code of the TV set. 2. To get into the Self -Check mode press the Down ( ) button on the customer controls at the front of the set, at the same time pressing the Information button on the remote control, and the screen will show : If the CCU ports have been checked and found to be incorrect or not located then “--” will appear in place of “O.K.”. Display Ref.No. Description Board MEM IC1102 EEPROM DG-Board GC5 IC4037 GC5 Processor DG-Board AVSW1 IC3005 Video SW H-Board AVSW2 IC2105 Audio SW H-Board Tun1 TU001 Tuner TA-Board VIF - - - MSP IC2106 Multi Sound Processor H-Board PANEL IC9003 Convert Micon D-Board IPC IC8013 PEAKS Lite XV-Board HDMI IC4026 HDMI I/F Receiver DG-Board ADV IC4019 10bit A/D DG-Board 26 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 8.1. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinkes of the Power LED on the front panel of the unit. 27 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 8.2. No Power First check point There are following 3 states of No Power indication by power LED. 1. No lit 2. Green is lit then turns red blinking a few seconds later. 3. Only red is lit. 28 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 8.3. No Picture 29 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 8.4. Local screen failure Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area. Fig-1 30 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 9 Service Mode Function MPU controls the functions switching for each IICs through IIC bus in this chassis. The following setting and adjustment can be adjusted by remote control in Service Mode. 9.1. How to enter SERVICE 1 1. In sound menu, set BASS to MAXIMUM, and set TREBLE to MINIMUM. 2. Simultaneously press INDEX button on remote control and DOWN button [ ] on the TV set. 9.2. How to enter SERVICE 2 1. Set the channel to CH99. 2. Select the EQ 12kHz. 3. Press HOLD button on remote control. Note: To exit to Service mode, press EXIT or Power button on remote control. 31 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 32 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 9.3. Option Description 33 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 34 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 10.1.1. Item / Preparation 1. Input a white signal to plasma video input. 2. Set the picture controls as follows. Picture menu: Dynamic P-NR: OFF Aspect: 16:9 Caution 1. First perform Vsus adjustment. 2. Confirmation of Vscn voltage should be performed after confirmation of Vad adjustment. When Vad=-90V, Voltage of Vscn is 30V ±3V. 10.1.2. Adjustments Adjust driver section voltages referring the panel data on the panel data label. Check or adjust the following voltages with the multimeter. Name Test Point Voltage Volume Remarks Vsus TPVSUS (SS) Vsus ± 2V R628 (P) * Ve TPVE (SS) Ve ± 2V VR6000 (SS) * Vset TPVSET (SC) 260V ± 7V Fixed Vad TPVAD (SC) -105V ± 1V VR6600 (SC) Vscn TPVSCN (SC) Vad+140V ± 4V Fixed Vda TPVDA (SS) 75V ± 1V Fixed Vdat P12-1, 5 (P) 75.5V ± 0.1V R665 (P) PFC C446 (+)(-) 396V ± 0.5V R443 (P) *See the Panel label. 10 Adjustment Procedure 10.1. Driver Set-up 35 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 10.2. Initialization Pulse Adjust 1. Input the White signal to plasma video input. 2. Set the picture controls as follows. Picture menu: Dynamic P-NR: OFF Aspect: 16:9 3. Connect Oscilloscope to TPSC1 (T2) and adjust VR6602 for 195+10µ Sec. Test point Volume Level T2 TPSC1 (SC) VR6602 (SC) 195 ± 10µ Sec 10.3. P.C.B. (Printed Circuit Board) exchange 10.3.1. Caution 1. To remove P.C.B. , wait 1 minute after power was off for discharge from electrolysis capacitors. 10.3.2. Quick adjustment after P.C.B. exchange Adjust the following voltages with the multimeter. P.C.B. Name Test Point Voltage Volume Remarks P Board Vsus TPVSUS (SS) Vsus ± 2V R628 (P) * Vdat P12-1, 5 (P) 75.5V ± 0.1V R665 (P) PFC C446 (+) (-) (P) 396V ± 0.5V R443 (P) SC Board Vad TPVAD (SC) -105V ± 1V VR6600 (SC) SS Board Ve TPVE (SS) Ve ± 2V VR6000 (SS) * D, DG Board White blance, Pedestal and Sub brightness for NTSC, PAL, HD, PC and 625i signals *See the Panel label. Caution: Absolutely do not reduce Vsus below Ve not to damage the P.C.B. 36 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 10.4. Adjustment Volume Location 10.5. Test Point Location 37 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 11 Adjustment 11.1. PAL panel white balance adjustment Instrument Name Connection Remarks ���� ·����W/B pattern ���� ·����Color analyzer (Minolta CA-100 or equivalent) RF input Panel surface User setting: Normal Procedure Remarks ���� ·����Asing time is longer than 15min. ���� ·����Make sure the front panel to be used on the final set is fitted. ���� ·����Make sure a color signal is not being shown before adjustment. ���� ·����Put the color analyzer where there is little colour variation. Complete the adjustment within 10 minutes after the turn on electricity. Turn on the power supply again when it is not possible to complete it by aging etc. 1. Display the white balance pattern. 2. Check that the color balance is “cool”. 3. Enter the mode. 4. Select “G-CUTOFF” item, using the color-key “Red” or “Green”, and set to “128”, using the color-key “Yellow” or “Blue”. Also, “B-CUTOFF” and “R-CUTOFF” set to “128”. 5. Set “G-DRIVE” at “224”. 6. Touch the signal receiver of color analyzer to the highlight window’s center, and adjust B drive and R drive so x, y become the “Color balance Cool” in the below table. 7. Set “ALL-DRIVE” to “252”. 8. Set colorbalance to “Normal”. 9. Fix G cutoff , B cutoff and R cutoff at “128”. 10. Fix G drive at “224”. 11. Adjust B drive and R drive so the highlight window’s x, y become the “Color balance “Normal” in the below table. 12. Set “ALL-DRIVE” to “252”. 13. Set color balance to “Warm”. 14. Set G cutoff, B cutoff and R cutoff to “128”. 15. Set G drive to “224”. 16. Adjust B drive and R drive so the highlight window’s x, y become the “Color balance Warm” shown in the below table. 17. Set “ALL-DRIVE” to “252”. Picture menu : Dynamic ASPECT : 16:9 ���� ·����Highlight section Signal amplitude 75% 38 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 11.2. HD white balance adjustment Instrument Name Connection Remarks ���� ·����1080i W/B Pattern ���� ·����Color analyzer(Minolta CA-100 or equivalent) �� ·��RF input ���� ·����Panel surface User setting: Normal Procedure Remarks ���� ·����Asing time is longer than 15min. ���� ·����Make sure the front panel to be used on the final set is fitted. ���� ·����Make sure a color signal is not being shown before adjustment. ���� ·����Put the color analyzer where there is little colour variation. Complete the adjustment within 10 minutes after the turn on electricity. Turn on the power supply again when it is not possible to complete it by aging etc. 1. Display the white balance pattern. 2. Check that the color balance is “cool”. 3. Enter the mode. 4. Select “G-CUTOFF” item, using the color-key “Red” or “Green”, and set to “128”, using the color-key “Yellow” or “Blue”. Also, “B-CUTOFF” and “R-CUTOFF” set to “128”. 5. Set “G-DRIVE” at “224”. 6. Touch the signal receiver of color analyzer to the highlight window’s center, and adjust B drive and R drive so x, y become the “Color balance Cool” in the below table. 7. Set “ALL-DRIVE” to “252”. 8. Set colorbalance to “Normal”. 9. Fix G cutoff , B cutoff and R cutoff at “128”. 10. Fix G drive at “224”. 11. Adjust B drive and R drive so the highlight window’s x, y become the “Color balance “Normal” in the below table. 12. Set “ALL-DRIVE” to “252”. 13. Set color balance to “Warm”. 14. Set G cutoff, B cutoff and R cutoff to “128”. 15. Set G drive to “224”. 16. Adjust B drive and R drive so the highlight window’s x, y become the “Color balance Warm” shown in the below table. 17. Set “ALL-DRIVE” to “252”. Picture menu: Dynamic ASPECT:16:9 ���� ·����Highlight section Signal amplitude 75% * The Color balance COOL differs from Japanese model values. 39 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 11.3. Sub bright adjustment Instrument Name Connection Remarks 1. PAL signal generator (or RF) Connect to the input terminal User setting: Normal Procedure Remarks ���� ·����Color balance adjustment is finished for each signal. ���� ·����Do adjustments in a dark room. ���� ·����Complete the adjustment within 10 minutes after the turn on electricity. Turn on the power supply again when it is not possible to complete it by aging etc. 1. Display the pattern for adjusting subbright from video input. 2. Use "Sub-Bright" in the mode to adjust so the 6th section shows up and the 7th fades away. Data Sub-Bright total 12bit data addresses LSB 8bit A0-016c bit7-0 MSB 4bit A0-016d bit3-0 Picture menu: Dynamic Color balance: Normal ASPECT: 16:9 * If using RF ch.E04 or E43 40 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 11.4. ABL adjustment Instrument Name Connection Remarks 1. HD signal emitter (or Leader : 1080i/No.9 signal) 2. Wattmeter COMPONENT input terminal Connect the AC power of the set to the wattmeter. Procedure Remarks ���� ·����Make sure the set is aged for 30 minutes or more before adjustment. (Do not switch off during or after aging.) ���� ·����Voltage 230V 50Hz (variation within 1%) ���� ·����Volume at minimum and screen size at “16:9” Component input, dynamic, standard 1. Connect the set´s AC power to the wattmeter. 2. Input the signal (top half: color bar, Bottom half :Horizontal 10steps bar). 3. Select the “PWRCTL” item in the Service1. 4. Adjust PWRCTL so the set´s power consumption is TH-37PV60E 271 ±10W TH-37PX60B 280 ±10W TH-42PV60E 331 ±10W TH-42PX60B 340 ±10W Remarks 1. The initial data are 0×00 for 37/42SD (A0-0102) 2. The power and data are in reverse relationship. (Lower the data to raise the power.) ���� ·����Raising direction (�):20�1F ���� ·����Lowering direction (�):20�1A 3. There is a possibility that the adjustment value can do two places, adjust it in that case, that the value of PWRCTL is large. 41 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 1. Purpose Restrict a function for hotels. 2. Access command ���� ·����Enter to the Service 2 Mode. ���� ·����Press Information button on remote control and entry to the EAROM EDITOR Mode. ���� ·����Press the RED/GREEN button to step up/down through the address. ���� ·����Press the YELLOW/BLUE button to step left/right through the address. ���� ·����Press the PROGRAMME UP/DOWN button to step up/down through the page. ���� ·����Press the VOLUME UP/DOWN button to change the function values. ���� ·����Set the data of EEPROM(ADDRESS 0BAF) to 01. ���� ·����Press the OK button to memorize the data. Push the Power switch(button) off/on the set(the remote control) to turn the set off/on. It can be made Hotel mode. 3. Exit command ���� ·����First, set the data of EEPROM(ADDRESS 0BAF) to 00. Next, Push the Power switch(button) off/on the set(the remote control) to turn the set off/on. Then, it is no longer hotel mode. 4. Access command to the Hotel mode setup menu ���� ·����Prerequisite : It is conditions that the data of EEPROM(ADDRESS 0BAF) is 01. In order to display the Hotel mode setup menu, please enter the following command (within 2 second). [TV]:down + [REMOTE]:TV/AV(3 times) Then, the Hotel mode setup menu is displayed. 5. Explain the Hotel mode setup menu item Function Initial INPUT Select input signal modes. Set the input, when each time power is switched on. Selection : Off/TV/AV1/AV2/AV2S/AV3/Av3S/AV4/Av4S/Co mponent/PC/HDMI1/HDMI2 ���� ·����Off: give priority to a last memory. However, Euro model is compulsorily set to TV. ���� ·����AVnS/AVnC: only Euro model selectable ���� ·����PC: selectable with VGA option Initial VOL level Adjust the volume when each time power is switched on. Selection/Range : Off/0 to 63 ���� ·����Off: give priority to a last memory Maximum VOL level Adjust maximum volume. Range : 0 to 63 Initial POS Select programme number. Selection : Off/0 to 99 ���� ·����Off: give priority to a last memory Button lock Select local key conditions. Selection : Off/SETUP/MENU/All ���� ·����Off: altogether valid ���� ·����SETUP: only F-key is invalid (Tuning guide(menu) can not be selected.) ���� ·����MENU: only F-key is invalid (only Volume/Mute can be selected.) ���� ·����All: altogether invalid. Remote lock Select remote control key conditions. Selection : Off/SETUP/MENU ���� ·����Off: altogether valid ���� ·����SETUP: only Setup menu is invalid ���� ·����MENU: Picture/Sound/Setup menu are invalid 6. To exit the Hotel mode Disconnect AC power cord from wall outlet 12 Hotel mode 42 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 13 Concuct Views 13.1. P-Board (37inch) A B C D E F G H I 1 2 3 4 5 6 P-BOARD (FOIL SIDE) TNPA3912 TH-37PV60E, TH-37PX60B P-BOARD TNPA3912 TH-37PV60E, TH-37PX60B P-BOARD TNPA3912 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 43 TH-37PV60E, TH-37PX60B P-BOARD PARTS LOCATION TH-37PV60E, TH-37PX60B P-BOARD PARTS LOCATION Parts Location Parts Location P-BOARD (COMPONENT SIDE) IC402 G-4 IC406 D-1 IC409 F-3 IC411 H-4 IC504 H-4 IC509 B-5 IC512 C-5 IC Q404 C-2 Q406 D-2 Q412 B-3 Q413 B-3 Q434 H-4 Q505 C-5 Q507 C-4 Q527 C-5 TRANSITOR R443 D-2 R628 C-5 R661 D-5 R665 C-5 R671 B-4 VOLUME P-BOARD (FOIL SIDE) IC401 B-4 IC402 C-4 IC403 B-4 IC404 C-4 IC405 B-4 IC406 F-1 IC408 B-4 IC409 C-3 IC410 B-4 IC411 B-4 IC412 A-4 IC501 B-5 IC502 B-5 IC504 B-4 IC505 H-5 IC506 G-5 IC507 G-5 IC509 H-5 IC510 C-5 IC512 F-5 IC520 F-5 IC Q401 B-4 Q402 E-2 Q404 F-1 Q406 F-2 Q407 F-1 Q408 H-3 Q409 H-3 Q412 H-3 Q413 H-3 Q415 B-4 Q418 G-1 Q420 F-1 Q421 G-1 Q422 F-1 Q434 A-4 Q501 A-5 Q502 A-5 Q505 G-5 Q507 G-4 Q508 E-5 Q509 E-5 Q510 F-5 Q512 A-4 Q517 E-4 Q520 E-4 Q521 D-5 Q524 C-5 Q525 G-5 Q527 F-4 Q530 G-5 TRANSISTOR R443 F-2 R628 G-5 R661 E-5 R665 G-5 R671 G-4 Q534 A-4 Q535 A-5 Q537 C-5 Q538 E-4 Q540 G-4 Q541 F-5 Q551 C-4 Q553 B-5 Q554 B-5 Q555 E-4 Q556 D-4 Q557 B-5 Q558 A-4 Q559 B-5 Q561 A-4 Q563 A-5 Q564 F-5 Q565 F-5 Q566 E-5 Q567 F-5 Q568 B-4 Q569 B-5 VOLUME P TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 44 A B C D E F G H I 1 2 3 4 5 6 P-BOARD (COMPONENT SIDE) TNPA3912 TH-37PV60E, TH-37PX60B P-BOARD TNPA3912 TH-37PV60E, TH-37PX60B P-BOARD TNPA3912 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 45 13.2. P-Board (42inch) A B C D E F G H I 1 2 3 4 5 6 P-BOARD (FOIL SIDE) TNPA3911 TH-42PV60E, TH-42PX60B P-BOARD TNPA3911 TH-42PV60E, TH-42PX60B P-BOARD TNPA3911 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 46 TH-42PV60E, TH-42PX60B P-BOARD PARTS LOCATION TH-42PV60E, TH-42PX60B P-BOARD PARTS LOCATION Parts Location Parts Location P-BOARD (COMPONENT SIDE) IC402 G-4 IC406 D-1 IC409 F-3 IC411 H-4 IC504 H-4 IC509 B-5 IC512 C-5 IC Q404 C-2 Q406 D-2 Q412 B-3 Q413 B-2 Q434 H-3 Q505 C-5 Q507 C-5 Q527 C-5 TRANSITOR R443 D-1 R628 C-5 R661 D-5 R665 C-5 R671 B-5 VOLUME P-BOARD (FOIL SIDE) IC401 B-4 IC402 C-4 IC403 B-4 IC404 C-4 IC405 C-4 IC406 F-1 IC408 B-4 IC409 C-3 IC410 B-4 IC411 B-4 IC412 A-4 IC501 B-5 IC502 B-5 IC504 B-4 IC505 H-5 IC506 G-5 IC507 G-6 IC509 H-5 IC510 C-6 IC512 F-5 IC520 F-6 IC Q401 B-4 Q402 E-1 Q404 F-1 Q406 F-2 Q407 F-1 Q408 H-3 Q409 H-2 Q412 H-3 Q413 H-2 Q415 B-4 Q418 G-1 Q420 F-1 Q421 G-1 Q422 F-1 Q434 B-4 Q501 A-5 Q502 A-5 Q505 G-6 Q507 G-5 Q508 E-5 Q509 E-5 Q510 F-5 Q512 A-4 Q517 E-4 Q520 E-4 Q521 C-5 Q524 D-5 Q525 G-5 Q527 F-5 Q530 G-5 TRANSISTOR R443 F-1 R628 G-5 R661 E-5 R665 G-5 R671 G-4 Q534 B-4 Q535 A-5 Q537 C-5 Q538 E-5 Q540 G-5 Q541 F-5 Q551 C-5 Q553 B-5 Q554 B-5 Q555 E-4 Q556 D-4 Q557 B-5 Q558 A-4 Q559 B-5 Q561 A-5 Q563 A-6 Q564 F-6 Q565 F-5 Q566 E-6 Q567 F-5 Q568 B-4 Q569 B-6 VOLUME P TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 47 A B C D E F G H I 1 2 3 4 5 6 P-BOARD (COMPONENT SIDE) TNPA3911 TH-42PV60E, TH-42PX60B P-BOARD TNPA3911 TH-42PV60E, TH-42PX60B P-BOARD TNPA3911 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 48 13.3. PA-Board A B C D E F G H I 1 2 3 4 5 6 TP5613 TP5615 TP5616 TP5617 L5651 L5666 PA1 PA2 PA5 TPFSOS C2300 C2301 C2302 C2303 Q2306 Q2307 Q2308 Q2309 R2303 R2307 C2332 C2333 IC2306 IC2307 C5604 C5605 C5606 C5607 C5609 Q5606 PA10 C5801 C5802 C5803 C5610 C5804 C5805 C5611 C5612 C5613 C5614 C5615 C5616 R2326 R2327 C5617 C5618 R2328 C5619 C5810 PA21 C5812 C5815 C5622 C5623 C5626 D5605 C2361 R5601 R5602 C2362 D5606 R5603 D5607 R5604 PA31 PA32 PA33 R5607 C5630 PA34 R5608 IC5601 R5609 C5631 IC5602 C5632 C5633 R2344 D5610 R2345 R5801 D5612 R5802 C5636 D5807 R5803 C5637 R5804 R5610 R5805 R5611 D5616 R5612 D5617 R5807 R5613 R5808 R5614 R5615 IC5611 C5641 C5642 C5644 C5645 R5812 C5647 R5622 R5625 R5626 R5627 C5654 R5822 R5823 R5824 R5631 R5632 R5826 R5633 R5634 R5635 R2370 R2371 C5666 C5667 C5668 R5836 R5644 D5649 R5648 C5670 C5672 C5673 TPM18 R5650 R5652 R5655 R5656 R5657 R5658 R5659 R2397 R5660 R5662 R5663 R5664 R5666 R5667 TPM33 JS2302 JS2303 D5671 R5670 R5671 R5675 R5677 R5679 JS2316 JS2317 JS2318 JS2319 R5682 R5684 JS2322 JS2323 TPS33 JS2329 R5692 TPSSOS R5693 TPMUTE TPM5 R5695 JS2330 TPM9 C2401 C2402 C2403 C2404 C2405 ZA2300 ZA2301 C2416 C2417 C2418 R2401 R2402 TP16 R2403 TP17 R2404 R2405 R2406 R2407 R2408 R2409 R2410 R2411 R2412 R2413 R2414 R2415 R2416 R2417 R2418 R2419 TPSTB5V L2300 ZA5600 ZA5601 L2301 L2302 L2303 R2420 L2304 R2421 L2305 R2422 L2306 R2423 L2307 L2308 R2424 L2309 TPS5 L2311 TPS9 L5602 L5604 L5605 L5606 L5607 L5609 L5801 L5802 L5803 L5612 L5615 TNPA3761 1 PA PbF 1 4 1 5 1 11 1 4 5 8 1 4 5 8 1 6 1 3 SEE REVERSE FOR ORDER NO. 1 3 1 3 1 3 1 3 1 16 1 16 1 16 1 5 2 4 3 1 16 TH-37/42PV60E, TH-37/42PX60B PA-BOARD TNPA3761AC TH-37/42PV60E, TH-37/42PX60B PA-BOARD TNPA3761AC PA-BOARD (FOIL SIDE) TNPA3761AC Parts Location PA-BOARD (FOIL SIDE) IC IC2306 B-2 IC2307 C-2 IC5601 E-2 IC5602 F-4 IC5611 D-4 Q2306 B-3 Q2307 A-2 Q2308 C-3 Q2309 B-3 Q5606 E-3 TRANSISTOR PA TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 49 A B C D E F G H I 1 2 3 4 5 6 L5624 L5651 L5666 PA1 PA2 PA5 C2301 C2302 C2303 Q2300 C2304 Q2301 C2305 C2306 Q2302 Q2303 C2307 Q2304 C2308 Q2305 C2309 C2310 C2311 C2312 C2313 C2314 C2315 C2316 C2317 C2318 C2319 TPM33V C2320 C2321 C2322 C2323 C2324 D2300 D2301 C2325 D2302 C2326 C2327 D2303 C2328 R2300 D2304 D2305 C2329 R2301 D2306 R2302 D2307 R2304 D2308 D2309 R2305 R2306 R2308 C2330 IC2300 C2331 IC2301 R2309 IC2302 C2332 C2333 IC2303 IC2304 C2334 C2335 IC2305 C2336 C2337 R2310 C2338 R2311 R2312 R2313 R2314 C5604 R2315 Q5601 C5605 C5606 R2316 Q5602 Q5603 R2317 C5607 Q5604 R2318 C2341 C5609 Q5605 R2319 C2342 C2343 PA10 C2344 Q5608 C2345 Q5609 C5801 C2346 C5802 C2347 C5803 C5610 R2320 C2348 C2349 R2321 C5611 C5612 R2322 R2323 R2324 Q5610 C5809 R2325 Q5611 C5615 Q5612 Q5613 C5617 C2350 R2329 C2351 C2352 C2353 PA20 C5810 C2354 C2355 C5811 PA21 C2356 C2357 C5813 C2358 C5814 R2330 R2331 C2359 C5622 R2332 R2333 R2334 R2335 R2336 R2337 C2360 R2338 R2339 C2361 TPM18V C2362 C2363 C2364 C2365 R5605 PA31 PA32 R5606 C2366 PA33 C2367 R2340 C5630 C2368 PA34 D5801 C2369 IC5601 R2341 C5631 IC5602 C5632 R2342 TPS33V C5633 R2343 D5803 IC5604 D5804 D5805 R2346 D5806 R2347 C2370 R2348 R2349 C2371 TP16V C2372 R5806 C2373 PA40 C2374 C2375 R5809 IC5801 C2376 R5617 C2377 C2378 R2350 R5619 C2379 IC5611 R2351 R2352 C5643 R2353 R2354 C5645 R2355 Q5641 Q5642 C5646 R2356 R2357 Q5643 C5647 R5620 C5648 R2358 C2380 Q5644 R5621 C2381 R2359 C2382 TP17V C2383 C2384 C2385 C2386 C2387 C2388 R2360 R2361 C2389 R2362 R2363 R2364 R2365 R2366 Q5653 R2367 R2368 C2390 D5634 R2369 D5635 C2391 D5636 C2392 C2393 D5637 C2394 D5638 C2395 D5639 C2396 R5637 R5638 R5639 R2372 R2373 D5640 R2374 D5641 R2375 R2376 D5642 C5667 D5643 R2377 R2378 D5644 R5640 R5641 R2379 D5646 R5642 R5643 D5647 R5645 R5646 R5647 R2380 R2381 R5649 R2382 C5672 R2383 R2384 C5674 R2385 R2386 R2387 R2388 R2389 R5653 R5654 D5658 D5659 R2390 R2391 R2392 R2393 R2394 R2395 R2396 R2398 R5665 R5668 JS2300 R5669 JS2301 D5672 R5672 R5673 R5676 R5678 JS2312 JS2313 JS2314 JS2315 R5683 JS2320 JS2321 JS2328 R5691 R5694 R5697 R5698 R5699 JS2331 JS5600 JS5601 JS5602 JS5603 JS5604 TPM5V ZA2300 ZA2301 TPS5V L2300 ZA5600 ZA5601 L2301 L2302 L2303 L2304 L2305 TPM9V L2306 L2307 L2308 L2309 L2311 TPS9V L5602 L5604 L5605 L5606 L5607 L5609 L5801 L5802 L5803 L5612 L5615 L5621 L5622 L5623 TNPA3761 1 DIP PA THERMAL PAD PAMM4 PAMM5 PAMM3 PAMM2 PAMM1 AE AF AD AC AB PAMM6 PAMM7 PbF 1 4 1 5 1 1 1 1 4 5 8 1 4 5 8 1 12 13 24 25 36 37 48 1 12 13 24 25 36 37 48 1 4 5 8 1 4 5 8 ORDER NO. 1 6 1 40 1 3 1 3 1 3 1 3 1 3 1 1 6 1 16 1 3 4 5 1 2 19 20 1 5 1 1 6 1 3 4 5 2 1 16 TH-37/42PV60E, TH-37/42PX60B PA-BOARD TNPA3761AB TH-37/42PV60E, TH-37/42PX60B PA-BOARD TNPA3761AB PA-BOARD (COMPONENT SIDE) TNPA3761AC Parts Location PA-BOARD (COMPONENT SIDE) IC IC2300 E-2 IC2301 D-2 IC2302 E-4 IC2303 E-4 IC2304 E-2 IC2305 D-3 IC5601 B-2 IC5602 A-3 IC5604 C-2 IC5611 C-4 IC5801 C-5 Q2300 F-3 Q2301 F-3 Q2303 E-3 Q2304 D-3 Q2305 E-3 Q5601 A-3 Q5602 A-3 Q5603 A-1 Q5604 C-3 Q5605 A-2 Q5608 C-4 Q5609 C-4 Q5610 C-3 Q5612 B-1 Q5613 A-1 Q5641 C-3 Q5642 C-3 Q5643 C-3 Q5644 C-3 Q5653 C-4 TRANSISTOR PA TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 50 13.4. H-Board A B C D E F G H I 1 2 3 4 5 6 R3224 C3058 R3227 R3033 R3228 R3035 L3301 R3229 L3302 L3303 C3065 C3067 L2178 L2179 R3236 R3044 R3238 R3045 C3263 C3070 C3264 C3072 C3267 C3074 L2184 L2185 C3075 R3245 R3052 R3247 R3248 R3249 R3059 R3251 R3252 R3253 R3254 R3060 R3255 R3061 JS2021 JS2022 JS2026 R3070 JS2031 JS2032 R3073 JS2033 R3076 R3086 C2307 C2118 C2119 R3099 C2125 C2126 C2127 C2128 R2103 JS3005 C2135 JS3201 C2136 JS3010 R2113 R2114 JS3015 JS3016 JS3017 JS3019 C2143 L2001 L2002 C2147 C5604 JS3020 L2005 JS3215 L2006 JS3023 L2009 R2128 R2129 C2153 L2203 L2010 L2204 L2205 L2206 L2013 L2014 R2130 R2131 JS3033 R2139 C2161 C2162 C2163 C2164 C2165 C2166 C2167 C2168 R2140 C2169 PA3104 JS3238 C3301 JS3239 C3302 C2173 C2175 C2372 D3100 H5 ZA3401 ZA3402 H6 ZA3403 C2187 ZA3404 R3100 C2188 ZA3405 R3101 JS3256 D3301 D3302 C2195 R3302 C2196 R2170 R3305 C2199 R2171 R3111 R3306 R2172 R3112 R3307 R3113 R2173 C3330 R3308 R3114 R2174 R3309 R2175 JK2002 C3332 R2176 R2177 JK2003 C3334 C3336 L3000 C3338 L3002 R3314 R3315 R2181 R2184 R2185 L3009 R2189 L3201 L3202 R3320 R3321 L3205 R3323 R3324 R2191 R2389 R2195 R2196 R2197 L3212 R3330 D3334 R2391 D3336 D3338 C5685 R3336 R3143 R2397 R3145 JS2108 R3341 R3150 R3346 R3152 R3155 R3157 JS2121 JS2122 R3163 C2003 C2004 Q2001 Q2002 C2007 Q2003 C2008 Q2004 JK3001 C2009 JK3002 Q2006 Q2007 JK3003 C2200 JK3004 Q2009 JK3005 X2102 X2103 H53 C2203 C2204 C2205 C2012 Q2010 C2015 C2209 C2018 C2019 C2211 C2213 C2020 C2021 C2022 C2217 R2003 R2004 C2222 D2200 D2201 C2227 R2200 C2229 R2203 R2205 R2013 R2014 C2230 R2209 C2231 C2232 C2233 R2018 C2234 R2019 C2236 JS3302 JS3303 JS3304 R2211 JS3307 R2213 JS3308 R2214 JS3309 R2215 R2216 R2023 R2217 R2219 C2241 C2242 R2027 JS3310 R2028 JS3311 JS3312 R2224 L2108 R2031 R2225 R2033 R2035 R2036 R2038 L2110 C3001 L2111 L2112 C3002 R2230 L2115 R2231 R2232 L2117 R2233 R2040 L2118 Q3005 L2119 L2120 L2121 C3207 C3208 R2240 L2124 R2241 L2125 R2242 L2126 L2127 R2244 R2051 R2245 R2052 R2247 C3212 C3216 C3217 C3218 C3024 C3219 C3025 C3026 Q3024 D3005 R3002 D3006 D3008 R3006 C3030 R3009 C3226 JS3352 C3227 JS3353 C3034 C3228 D3013 R3204 R3010 D3015 C3039 R3011 D3016 R3206 R3012 R3016 R3017 R3018 C3234 C3041 C3235 C3236 JS3362 JS3363 D3021 C3045 C3046 R3213 R3020 R3214 C3048 R3215 D3025 R3021 R3023 R3028 R3029 C3054 C3055 D3031 C3056 D3032 R3222 D3033 R3223 TNPA3759 1 H C3076 C2243 PbF 1 2 3 4 1 2 1 2 3 4 SEE REVERSE FOR SUFFIX . 1 1 5 1 9 1 2 3 4 1 5 6 10 11 15 2 2 0 21 1 1 2 20 21 1 2 20 21 1 12 TH-37/42PV60E, TH-37/42PX60B H-BOARD TNPA3759AB TH-37/42PV60E, TH-37/42PX60B H-BOARD TNPA3759AB H-BOARD (FOIL SIDE) TNPA3759AB Parts Location H-BOARD (FOIL SIDE) TRANSISTOR Q2001 B-2 Q2002 B-2 Q2003 B-4 Q2004 B-4 Q2006 B-3 Q2007 B-3 Q2009 B-3 Q2010 B-3 Q2102 E-4 Q2103 E-4 Q2104 E-4 Q2105 E-4 Q2106 E-2 Q2107 F-2 Q2108 E-2 Q2109 F-2 Q3005 B-3 Q3024 C-3 Q3203 E-2 H TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 51 A B C D E F G H I 1 2 3 4 5 6 R3030 C3058 C3059 R3031 R3032 D3038 R3034 L3301 D3039 L3302 R3036 L3303 C3061 C3255 C3062 C3063 C3064 D3040 D3041 D3235 D3042 R3232 D3236 C3066 D3043 R3233 D3044 R3234 C3068 R3041 R3042 R3043 R3237 R3239 C3262 C3070 R3048 R3049 C3071 C3265 L2182 C3266 C3072 C3073 L2183 C3074 R3240 C3268 C3075 R3241 R3242 L2186 R3243 L2187 R3244 R3050 R3051 R3246 C3270 C3271 C3272 R3057 C3273 R3058 C3274 C3275 C3276 R3250 R3062 R3256 R3063 R3257 R3064 R3068 R3072 R3074 R3075 R3077 FL3204 R3078 FL3205 C2103 C2104 Q2102 Q2103 Q2104 R3080 Q2105 Q2106 Q2107 Q2108 Q2109 R3085 R3087 R3088 Q2300 Q2301 R3089 C2111 Q2302 C2307 C2116 Q2113 Q2114 R3090 C2118 C2119 R3092 R3094 FL3220 R3095 FL3221 R3096 R3097 R3098 C2122 C2123 Q2314 Q2315 Q2316 D2102 Q2317 C2127 D2103 JS3000 JS3001 R2101 C2129 JS3002 R2102 JS3003 JS3004 JS3007 C2130 JS3008 D2300 D2301 C2131 JS3009 C2132 C2133 D2303 IC2103 C2134 IC2104 D2304 IC2105 R2302 IC2106 R2303 IC2107 R2304 JS3011 IC2109 R2305 C2139 JS3012 R2306 JS3206 JS3013 R2307 JS3014 D2119 R2116 C2140 JS3018 C2141 C2142 C2144 D2120 R2310 R2311 C2145 C2146 L2003 C2147 L2004 C2148 C5604 C2149 L2007 L2008 R2124 R2125 R2126 R2127 C2150 C2152 C2154 JS3220 L2011 C2155 JS3221 C2156 L2012 C2157 C2158 C5614 L2015 C2159 JS3032 L2016 R2132 L2017 R2133 JS3034 L2018 R2134 Q5614 JS3035 R2135 L2019 JS3036 R2136 JS3037 R2137 JS3038 C2160 R2138 JS3039 C2161 D2333 JS3230 PA3100 JS3237 R2338 C3303 R2147 C3304 R2148 C2170 C3305 R2149 C2171 C3306 C2172 C2174 R2340 C2176 IC5603 C2177 C2178 D5610 C2179 R2152 R2153 R2154 R5611 R2155 R2156 R5612 C2372 R2157 R2158 C2180 D5618 C2181 R2159 H1 H2 C2182 C2183 C2184 H5 C2185 ZA3401 ZA3402 H6 JS3252 ZA3403 ZA3404 R2354 R2160 C2189 JS3255 R2161 ZA3405 R2162 R3102 R2163 R3103 JS3257 R2164 R2165 R3105 R2166 R3107 R2167 R2168 C2190 R2169 R3109 C2191 C2192 C2193 C2194 R3301 R3303 C2197 C2198 C3330 C3331 R3115 IC3301 JK2002 R3116 R3117 JK2003 C3334 R3118 Q3331 C3335 R3119 Q3332 C3336 Q3333 C3337 L3000 R3310 C3338 R3311 C3339 L3001 R3312 R3313 L3003 R3120 R3121 R3316 R2182 R3122 R3317 R3123 R2183 C3340 R3124 R3318 C3341 R3319 R3125 C3342 R3126 R2186 R3127 R2187 R3128 R2188 R3129 L3201 R2190 R3130 R3131 R3132 R2192 R2193 R3133 R3134 R2388 R2194 R3135 R3136 R3137 D3330 R2198 R3138 R3139 R2199 R2390 D3335 H15 R2392 D3337 R2393 R3140 D3339 R3141 C5685 R3142 L3026 C5686 R2396 R3337 JS2103 R3338 R3144 R2398 JS2104 R3339 R2399 R3146 R3147 R3148 JS2109 R3149 R3340 R3342 R3343 R3344 R3345 R3151 JS2111 R3347 R3153 R3348 R3154 R3349 R3156 R3158 R3159 R3350 R3351 R3352 R3160 R3161 JS2123 JS2124 H40 R3168 R3170 C2005 R3171 C2006 R3172 R3173 FL3301 JK3001 JK3002 FL3302 FL3303 JK3003 FL3304 JK3004 FL3305 X2101 C2201 H51 JK3005 C2202 H52 X2102 X2103 H53 C2010 C2011 C2206 C2207 C2013 C2208 C2014 Q2011 Q2012 C2016 Q2013 C2017 C2019 ZA2101 ZA2102 ZA2103 C2210 ZA2104 ZA2105 ZA2106 C2212 ZA2107 C2020 ZA2108 C2214 C2215 C2218 C2219 C2220 R2005 C2221 R2006 R2007 C2223 R2008 C2224 R2009 C2225 C2226 C2227 C2228 JS3100 D2011 C2229 R2201 D2012 R2202 D2013 D2014 R2010 R2204 R2011 R2012 R2206 R2207 R2208 C2230 R2015 C2231 R2016 R2400 C2235 C2236 C2237 C2238 R2210 C2239 R2212 C2430 R2218 C2240 R2220 L2107 L2109 FL3352 R2227 R2228 FL3354 R2229 FL3355 FL3356 FL3357 FL3358 FL3359 C3003 Q3001 L2117 L2118 R2234 R2235 L2119 R2042 R2236 R2043 R2237 R2044 Q3008 R2238 R2045 R2239 R2046 R2048 R2049 L2121 Q3203 C3207 L2123 Q3011 Q3012 Q3013 R2243 R2050 Q3014 Q3015 R2246 Q3016 Q3017 R2053 Q3018 R2054 Q3019 C3214 C3021 C3022 C3023 Q3020 Q3021 Q3022 D3002 D3003 Q3023 C3027 D3004 C3028 R3001 C3029 R3003 Q3027 D3007 R3004 Q3028 R3005 D3009 Q3029 R3007 R3008 C3031 C3033 D3010 JS3354 C3035 C3229 IC3005 JS3355 D3011 JS3356 C3036 D3012 JS3357 D3014 C3038 JS3358 JS3359 L5605 R3205 R3013 R3014 L5608 C3230 IC3200 R3015 C3231 C3232 C3233 C3040 R3019 C3042 C3236 C3043 L5610 C3044 D3022 C3047 D3023 JS3368 D3024 C3049 R3022 D3027 D3028 R3024 R3025 C3241 R3026 R3027 C3050 C3051 C3052 C3247 C3053 D3030 C3057 H 1 DIP TNPA3759 AB AC AD AE AF C3076 PA2100 IC2108 R2248 SUFFIX C2243 IC2110 PbF 1 2 3 4 1 2 4 3 2 3 4 1 NP NP 1 4 5 8 1 11 12 22 23 33 34 44 1 24 25 40 41 64 65 80 1 5 1 4 5 8 1 3 4 5 1 80 1 15 1 15 1 9 1 4 5 8 NP NP NP 1 2 3 4 1 4 1 2 20 19 1 5 6 10 11 15 1 20 21 2 1 2 2 0 21 1 2 21 20 1 2 29 30 1 2 19 20 1 12 1 16 17 32 33 48 49 64 1 4 5 8 TH-37/42PV60E, TH-37/42PX60B H-BOARD TNPA3759AB TH-37/42PV60E, TH-37/42PX60B H-BOARD TNPA3759AB H-BOARD (COMPONENT SIDE) TNPA3759AB Parts Location H-BOARD (COMPONENT SIDE) IC IC2103 F-4 IC2104 F-4 IC2105 D-2 IC2106 E-4 IC2107 F-3 IC2108 G-4 IC2109 C-2 IC2110 C-2 IC3005 D-4 IC3200 E-2 IC3301 C-5 IC5603 G-2 Q2011 C-4 Q2012 C-5 Q2013 C-4 Q2113 F-4 Q2114 F-4 Q2300 E-4 Q2301 E-3 Q2302 E-3 Q2314 F-4 Q2315 F-5 Q2316 F-4 Q2317 F-4 Q3001 C-5 Q3008 F-3 Q3011 D-3 Q3012 E-3 Q3013 D-3 Q3014 D-3 Q3015 E-3 Q3016 E-3 Q3017 D-3 Q3018 E-3 Q3019 E-3 Q3020 E-3 Q3021 D-4 Q3022 E-4 Q3023 D-4 Q3027 C-4 Q3028 C-3 Q3029 C-3 Q3331 B-5 Q3332 B-5 Q3333 C-5 Q5614 F-2 TRANSISTOR H TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 52 13.5. G and TA-Board A B C D E F G H I 1 2 3 4 5 6 L3704 L3705 L3706 L3707 L3708 L3713 JK3701 C3701 C3702 C3703 C3704 C3705 C3706 C3707 C3708 C3713 C3714 D3701 D3702 D3703 D3704 D3705 D3706 D3707 D3708 D3709 R3709 D3710 D3711 R3710 R3711 R3712 R3713 R3716 R3717 R3718 R3719 R3720 R3721 R3732 R3733 JS3700 JS3701 JS3702 JS3707 JS3708 JS3711 JS3712 JS3713 JS3714 JS3715 JS3716 PbF TNPA3764 G 1 AB AC AD AE AF L V R L V R L V R L V ORDER NO. L3700 L3701 L3702 L3703 G51 JK3701 G1 G3 C3709 C3710 C3711 C3712 C3715 C3716 C3717 C3718 C3719 R3701 R3704 R3705 R3706 R3707 R3708 R3714 R3724 R3725 R3728 R3729 R3730 R3731 R3736 R3737 R3738 R3739 R3740 R3741 R3742 R3743 R3744 R3745 R3746 R3747 R3748 R3749 FL3710 FL3711 FL3712 JS3704 JS3705 ZA3701 PbF TNPA3764 1 G R L V R L V R L V 1 2 29 30 SEE REVERSE FOR ORDER NO. R L V 1 12 1 3 1 2 3 4 1 2 3 4 1 2 3 4 C001 TNPA3767 TA 1 C002 C003 TU001 TA6 TA5 JS002 JS001 AC AB SUFFIX PbF VIDEOOUT SCL BT SIFOUT SDA BTL RFAGC AFT AUDIOOUT BM 1 9 1 15 C001 TNPA3767 TA 1 C002 C003 TU001 TA6 TA5 JS002 JS001 AC AB SUFFIX PbF VIDEOOUT SCL BT SIFOUT SDA BTL RFAGC AFT AUDIOOUT BM 1 9 1 15 G-BOARD (FOIL SIDE) TNPA3764AE G-BOARD (COMPONENT SIDE) TNPA3764AE TA-BOARD (FOIL SIDE) TNPA3767 (PV60E) TNPA3767AB (PX60B) TA-BOARD (COMPONENT SIDE) TNPA3767 (PV60E) TNPA3767AB (PX60B) TH-37/42PV60B, TH-37/42PX60E G-BOARD TNPA3764AE TH-37/42PV60E TA-BOARD TNPA3767 TH-37/42PX60B TA-BOARD TNPA3767AB TH-37/42PV60B, TH-37/42PX60E G-BOARD TNPA3764AE TH-37/42PV60E TA-BOARD TNPA3767 TH-37/42PX60B TA-BOARD TNPA3767AB G TA TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 53 13.6. GK, HC, K and S-Board A B C D E F G H I 1 2 3 4 5 6 C2510 Q2511 D2510 R2512 IC2511 D2520 D2525 R2524 RM2501 R2557 K1 K2 R2572 R2573 PbF TNPA3762 K 1 ORDER NO. 1 2 11 12 1 2 C2511 C2512 Q2510 C2515 C2516 C2517 Q2513 Q2518 Q2519 C2520 C2521 Q2520 Q2521 Q2522 D2511 D2512 R2516 R2517 R2519 IC2511 D2524 R2520 R2521 D2526 D2528 R2525 D2530 R2530 R2531 RM2501 R2537 R2538 R2539 R2540 R2542 R2554 R2556 R2558 R2559 R2560 R2561 R2562 R2563 R2564 R2565 R2566 R2567 R2568 R2569 R2570 K1 R2571 K2 PbF TNPA3762 K 1 SEE REVERSE FOR ORDER NO. 1 2 11 12 1 2 SW2500 S1 S2 S TNPA3763 1 ORDER NO. 1 3 1 2 C2500 SW2500 R2504 S1 S2 PbF TNPA3763 1 S SEE REVERSE FOR ORDER NO. 1 3 1 2 C3750 C3751 SW3751 SW3752 SW3753 SW3754 SW3755 SW3756 SW3757 SW3758 D3750 D3751 R3750 R3751 R3752 R3753 R3754 R3755 R3756 R3757 R3758 R3759 R3760 R3761 R3762 R3763 R3764 R3765 R3766 R3767 R3768 R3769 GK3 PbF TNPA3848 GK 1 SEE REVERSE FOR ORDER NO. 1 3 SW3751 SW3752 SW3753 SW3754 SW3755 SW3756 SW3757 SW3758 GK3 PbF ASPECT TV/VTR -/ MENU VOL.DN TNPA3848 1 GK PRESET OK F VOL.UP CH.DN CH.UP +/ TV/AV VOL.UP CH.DN CH.UP ORDER NO. 1 3 JS3404 JS3405 HC15 HC21 HC22 TNPA3766 HC 1 HC12 HC01 PbF ORDER NO. 1 9 1 8 1 11 1 21 1 40 JS3400 JS3401 JS3402 JS3403 TNPA3766 HC 1 HC12 HC21 HC22 PbF SEE REVERSE FOR ORDER NO. 1 9 1 8 1 11 PbF STR VOL.DN 1 TNPA3848 TV GUIDE GK TV/VTR K-BOARD (COMPONENT SIDE) TNPA3762AC (PV60E) TNPA3762AD (PX60B) HC-BOARD (FOIL SIDE) TNPA3766 S-BOARD (FOIL SIDE) TNPA3763AC GK-BOARD (FOIL SIDE) TNPA3848AD GK-BOARD (COMPONENT SIDE) TNPA3848AD S-BOARD (COMPONENT SIDE) TNPA3763AC HC-BOARD (COMPONENT SIDE) TNPA3766 K-BOARD (FOIL SIDE) TNPA3762AC (PV60E) TNPA3762AD (PX60B) TH-37/42PV60E, TH-37/42PX60B GK-BOARD TNPA3848AD HC-BOARD TNPA3766 S-BOARD TNPA3763AC TH-37/42PV60E K-BOARD TNPA3762AC TH-37/42PX60B K-BOARD TNPA3762AD TH-37/42PV60E, TH-37/42PX60B GK-BOARD TNPA3848AD HC-BOARD TNPA3766 S-BOARD TNPA3763AC TH-37/42PV60E K-BOARD TNPA3762AC TH-37/42PX60B K-BOARD TNPA3762AD K S GK HC TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 54 13.7. DG-Board A B C D E F G H I 1 2 3 4 5 6 Q1117 Q1118 Q1120 Q1122 Q1125 IC1101 IC1104 Q1134 Q1135 Q1137 Q1138 Q1139 IC1110 Q1140 Q1141 IC016 IC017 IC018 Q045 IC024 Q053 IC029 Q055 IC030 Q061 Q067 Q068 Q069 Q070 Q073 Q074 Q075 Q076 Q077 Q078 Q079 Q082 Q083 TP1101 TP1102 TP1103 TP1104 TP1105 TP1106 TP1107 TP1113 TP1114 TP1115 TP1116 TP1117 TP1118 TP1119 TP1120 TP028 TP029 TP030 TP031 TP032 TP033 TP034 TP036 TP037 TP038 TP039 TP040 TP041 TP064 TP065 TP066 Q1100 Q1101 Q1102 Q1103 Q1106 Q1107 Q1111 Q1112 CR NO.4 TNPA3756 DG 1 Q919 Q918 Q071 Q066 Q065 SEE REVERSE FOR SUFFIX TP035 Q084 PbF + 1 + 1 1 1 1 1 1 1 + + + 1 24 25 48 TH-37/42PV60E DG-BOARD TNPA3756CB TH-37/42PX60B DG-BOARD TNPA3756CH DG-BOARD (FOIL SIDE) TNPA3756CB (PV60E) TNPA3756CH (PX60B) TH-37/42PX60B DG-BOARD TNPA3756CH TH-37/42PV60E DG-BOARD TNPA3756CB Parts Location DG-BOARD (FOIL SIDE) Q4045 C-2 Q4053 A-3 Q4055 A-3 Q4060 E-2 Q4061 D-2 Q4065 A-2 Q4066 A-2 Q4067 B-2 Q4068 B-2 Q4069 B-1 Q4070 B-1 Q4071 A-2 Q4073 B-3 Q4074 B-2 Q4075 B-3 Q4076 B-3 Q4077 B-1 Q4078 A-3 Q4079 B-3 Q4082 B-2 Q4083 B-2 Q4084 B-1 Q4918 E-2 Q4919 E-2 IC1101 E-3 IC1104 F-2 IC1110 F-2 IC4016 B-3 IC4017 B-2 IC4018 B-4 IC4024 B-2 IC4029 C-4 IC4030 C-3 Q1100 E-3 Q1101 E-3 Q1102 E-3 Q1103 E-3 Q1106 E-1 Q1107 E-2 Q1111 F-2 Q1112 F-2 Q1117 D-3 Q1118 D-3 Q1120 E-3 Q1122 D-2 Q1125 E-3 Q1134 E-2 Q1135 E-2 Q1137 F-2 Q1138 D-2 Q1139 E-3 Q1140 F-2 Q1141 F-2 IC TRANSISTOR TP TP1101 F-3 TP1102 F-3 TP1103 F-2 TP1104 F-2 TP1105 F-2 TP1106 F-2 TP1107 F-2 TP1113 C-5 TP1114 B-5 TP1115 D-5 TP1116 D-5 TP1117 C-5 TP1118 D-5 TP1119 D-5 TP1120 F-3 TP4028 B-4 TP4029 B-3 TP4030 B-3 TP4031 A-2 TP4032 A-4 TP4033 A-3 TP4034 A-1 TP4035 B-1 TP4036 B-1 TP4037 D-4 TP4038 B-5 TP4039 B-5 TP4040 B-5 TP4041 C-4 TP4064 B-1 TP4065 B-1 TP4066 B-2 DG TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 55 A B C D E F G H I 1 2 3 4 5 6 Q1114 Q1115 Q1116 Q1121 Q1130 Q1131 Q1132 Q1133 DG10 IC1111 DG15 Q1142 Q1143 DG20 DG22 DG35 Q040 IC014 Q041 Q042 Q043 Q044 Q046 Q050 DG1 Q051 Q052 DG2 DG3 IC027 Q054 DG5 Q056 Q057 DG7 Q058 Q059 DG9 Q060 Q062 IC037 Q063 Q064 IC038 IC040 Q080 Q081 TP1108 TP1109 Q1104 Q1105 Q1108 Q1113 TNPA3756 CRNO.4 THERMAL PAD THERMAL PAD CA CB CC CD CE CF CG CQ CR CS CT CU CV CW CX CY 1 DG THERMAL PAD CH CJ CK CL CM CN CP THERMAL PAD Q1109 Q1110 IC1103 IC1100 IC036 IC020 IC026 IC019 DG8 IC023 IC1106 IC1105 IC1102 IC1107 IC039 IC034 IC032 IC035 IC033 IC028 IC013 IC025 IC022 SUFFIX DA DB DC DD DE DF DG DH DJ DK DL DM DN DP DQ DR DS DT DU DV DW DX PbF 1 7 1 1 40 110 56 55 1 1 7 1 1 80 15 1 1 1 21 1 19 20 2 19 1 A 1 1 A 1 NP NP + NP 1 54 55 108 109 162 163 216 1 27 28 54 1 16 17 32 33 48 49 64 1 25 26 50 51 75 76 100 1 36 37 72 73 108 109 144 1 25 26 50 51 75 76 100 19 1 1 40 NP 1 1 1 1 40 1 4 5 8 1 7 8 14 1 7 8 14 1 4 5 8 1 7 8 14 1 4 5 8 1 8 9 16 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 8 9 16 1 4 5 8 TH-37/42PV60E DG-BOARD TNPA3756CB TH-37/42PX60B DG-BOARD TNPA3756CH DG-BOARD (COMPONENT SIDE) TNPA3756CB (PV60E) TNPA3756CH (PX60B) TH-37/42PX60B DG-BOARD TNPA3756CH TH-37/42PV60E DG-BOARD TNPA3756CB Parts Location DG-BOARD (COMPONENT SIDE) TRANSISTOR Q1104 B-2 Q1105 C-2 Q1108 B-2 Q1109 B-2 Q1110 B-2 Q1113 A-2 Q1114 B-2 Q1115 A-2 Q1116 B-2 Q1121 C-2 Q1130 D-2 Q1131 D-2 Q1132 C-2 Q1133 C-2 Q1142 C-1 Q1143 C-1 Q4040 E-2 Q4041 E-1 Q4042 E-2 Q4043 E-2 Q4044 E-2 Q4046 E-2 Q4050 F-5 Q4051 D-1 Q4052 D-2 Q4054 D-2 Q4056 F-4 Q4057 F-4 Q4058 F-4 Q4059 F-5 Q4062 D-2 Q4063 D-2 Q4080 F-4 Q4081 F-4 IC1100 C-4 IC1102 A-2 IC1103 B-3 IC1105 B-2 IC1106 C-2 IC1107 D-2 IC1111 A-2 IC4013 E-3 IC4014 D-1 IC4019 F-4 IC4020 D-3 IC4022 F-2 IC4023 F-1 IC4025 F-3 IC4026 F-2 IC4027 E-1 IC4028 F-3 IC4032 D-5 IC4033 F-5 IC4034 D-4 IC4035 E-4 IC4036 B-4 IC4037 D-4 IC4038 E-4 IC4039 C-4 IC4040 D-2 IC TP TP1108 A-4 TP1109 A-5 DG TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 56 13.8. XV-Board (PX60B) A B C D E F G H I 1 2 3 4 5 6 R238 R621 R046 R047 R624 R430 R048 C071 R431 R049 C073 R433 R434 R629 R241 L702 L703 R244 R050 R245 R051 R052 R246 R053 R630 R631 R056 R633 C273 R827 R057 R828 C274 R058 R635 R059 C275 R637 R443 R638 R250 R444 R445 R446 R253 R447 R254 R448 R255 R449 R640 R258 R834 R641 R259 R642 R643 C283 R838 R644 R450 R839 R645 C286 R646 R452 R454 L145 R456 R263 R457 R840 R458 R841 R265 C099 R459 R072 R073 R267 R268 C290 R074 R075 FL201 C292 R076 C293 R460 C870 R461 C871 R656 R462 C872 R463 C873 R270 R464 R659 R465 R466 R467 R274 R468 R469 R276 R277 R278 R084 R085 R088 R473 R282 R477 R478 R479 R286 R287 R288 R289 R482 R483 R484 IC864 R485 R486 R292 R487 R489 R682 R684 R490 R685 R495 R496 JK901 R690 R691 R692 R693 R694 R695 R899 X003 Q101 Q102 X006 Q103 Q104 C303 C110 C111 C305 C306 ZA007 C113 C307 ZA008 C114 ZA009 C115 C309 C116 C117 C118 C119 ZA010 ZA011 C314 C121 C509 C317 C123 C318 C124 C125 C701 C127 C128 R101 C129 R102 R103 R104 C320 R105 C321 C322 C323 R107 C130 D301 C901 C902 C904 C905 C136 C138 C139 R112 R113 C330 R114 C331 R115 R116 C334 C140 C335 C141 C142 C337 C143 R503 R310 C338 C144 R504 R311 L001 C145 R312 C146 C147 L003 R314 C148 L004 R315 C149 R121 R122 R123 L008 R124 R701 R125 R702 R126 R703 R127 R704 C150 R128 R705 C151 R129 C152 R706 C346 C153 R707 C347 C154 R320 R708 C348 C155 D901 R709 D902 C156 D903 C157 C158 R900 D904 R130 D905 C159 D906 R132 D907 R133 C350 D908 R134 R710 C351 D909 R135 R711 R136 R712 R713 C160 R138 R908 R714 C161 IC901 R909 TP001 R715 C162 TP002 R716 C163 TP003 C164 D910 TP004 C165 D911 TP005 C166 D912 TP006 TP007 C167 D913 C168 R140 R910 D914 TP008 L601 R141 C169 R911 D915 TP009 L602 L026 R912 R142 D916 L603 R913 L604 R144 R338 R914 L605 R145 R339 R915 L606 R916 L607 R917 R148 C170 R918 TP010 R919 TP011 TP012 C172 C173 TP013 R340 C174 TP014 R729 L031 R341 C175 TP015 L032 R342 C176 TP016 L033 TP017 R538 R150 R344 R920 TP018 R539 R345 TP019 R152 L037 R153 R923 R347 R730 L038 R731 R155 R732 R926 R733 R927 R157 R734 R158 C180 TP020 R735 R159 TP021 R736 TP022 TP023 R350 TP024 C379 XV01 R351 TP025 R739 R546 R352 TP026 R353 R547 C187 TP027 R548 XV04 C188 TP028 R931 R355 TP029 R932 R356 R163 R357 R934 R358 R740 L049 R165 R935 R166 R167 TP030 R168 TP031 R169 TP032 TP033 TP034 TP035 L051 C195 TP036 R170 C198 L055 R171 R172 R174 L059 R175 TP040 C397 C398 C399 R950 R375 R951 R952 JK202 R184 R187 R189 JK401 R960 R961 R962 R193 R963 R194 R964 R195 R196 R197 R969 R970 R971 L096 R984 R985 C001 C002 C003 C004 C005 C006 C007 C008 C009 Q007 C202 C203 C204 C207 C208 C015 C400 C019 C401 C404 Q401 C405 C406 Q402 C407 C020 C021 C409 C601 D001 C602 D002 C603 C604 D004 C410 C605 D005 R001 C606 R002 C607 R003 C413 C608 R004 C414 C609 C415 C416 C417 R008 C030 C419 IC003 C610 C611 C612 C613 C037 C614 R010 R204 C615 R011 C039 C421 C422 R012 C617 C423 C618 R014 C424 C619 R015 C425 R017 R018 IC010 C040 C428 C041 R401 C042 R402 C043 R403 C620 R404 C621 C239 R405 C622 C046 R406 C623 C047 R407 C624 C430 R408 D601 R021 C431 IC401 R409 D602 R022 IC402 C432 C433 C628 C434 IC404 C629 C241 R601 IC405 C243 R027 IC213 C244 IC408 C245 C051 IC409 C052 C247 C053 C630 R414 C631 C055 R415 R416 C056 L106 L107 R224 C058 L108 IC410 C635 C059 L109 IC411 R419 C636 R226 IC412 R802 R033 C638 R034 R610 C639 R035 R611 R036 R037 R038 C060 R420 R615 C061 R039 R421 C062 R422 C063 R423 C640 R424 R231 R425 R426 R427 R810 L118 R428 R040 R429 R041 L501 C646 XV 1 TNPA3740 A A B C D D C B CR NO.8 E E TU001 PbF 1 4 5 7 1 5 1 9 6 SEE REVERSE FOR NO. ORDER + + 14 15 28 1 55 56 110 1 4 1 2 16 15 1 2 35 36 68 67 34 33 1 16 17 32 33 48 49 64 1 34 66 33 1 4 5 8 1 12 13 24 1 10 11 20 1 3 4 6 10 11 20 1 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 IFD1 IFD2 IFAGC IFA1 RFAGCMON. DC/DC BM SCL SDA ACTIVE ANTENNA TU XTAL GPO BB TH-37/42PX60B XV-BOARD TNPA3740AB TH-37/42PX60B XV-BOARD TNPA3740AB XV-BOARD (FOIL SIDE) TNPA3740AB Parts Location XV-BOARD (FOIL SIDE) IC IC8003 C-5 IC8009 B-5 IC8010 E-4 IC8022 C-5 IC8213 B-3 IC8401 B-2 IC8402 B-2 IC8404 B-2 IC8405 B-1 IC8408 B-3 IC8409 C-3 IC8410 B-2 IC8411 B-3 IC8412 B-4 IC8501 C-5 IC8864 B-5 IC8901 B-3 TP8006 F-2 TP8007 E-4 TP8008 E-3 TP8009 E-4 TP8010 F-4 TP8011 F-4 TP8012 E-4 TP8013 F-3 TP8014 E-2 TP8015 D-2 TP8016 E-1 TP8017 E-2 TP8018 E-2 TP8019 E-3 TP8020 E-3 TP8021 E-3 TP8022 E-3 TP8023 E-1 TP8024 F-2 TP8025 B-1 TP8026 F-5 TP8027 D-2 TP8028 E-5 TP8029 D-4 TP8030 E-2 TP8031 E-2 TP8032 F-2 TP8033 C-6 TP8034 F-4 TP8035 F-4 TP8036 F-4 Q8007 B-5 Q8101 C-6 Q8102 C-5 Q8103 C-5 Q8104 C-5 Q8401 C-1 Q8402 D-2 TP8001 F-1 TP8002 E-3 TP8003 E-2 TP8004 E-3 TP8005 E-3 TRANSISTOR TP XV TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 57 A B C D E F G H I 1 2 3 4 5 6 R620 C648 R239 C649 R622 R623 R625 R626 IC042 R432 R627 IC043 R628 C268 R240 C269 R242 R243 R821 R439 R054 R055 R632 C272 R826 C467 R634 R440 R829 R441 R636 R442 C276 C277 R639 R252 R830 R831 R832 R256 R833 R257 R835 R836 R837 R451 R647 R453 R648 R260 R649 R261 R262 R264 C098 R266 R650 R651 R269 R652 R653 C294 R078 R655 R079 C296 C297 R658 R271 R272 R273 R275 R660 R661 R279 R662 R086 R663 R087 R664 R665 R666 R667 R668 R474 R669 R281 R475 R476 R283 R284 R285 R862 R863 R670 R864 R671 R672 R673 R674 R480 R675 R481 R676 R677 R678 R290 R679 R291 R488 R680 R681 JK701 R683 R491 R686 R492 R687 R493 R688 R494 R689 R497 R498 R499 JK901 C100 C101 C102 C103 C104 X005 C105 C106 C107 C108 C109 ZA001 ZA002 ZA003 ZA004 C304 ZA005 ZA006 C112 C501 C502 C503 C310 C504 C505 C506 C507 C120 C508 C315 C316 C122 C319 C126 R100 R106 R108 R109 C131 C132 C327 C903 C133 C134 C329 C135 C137 R110 R111 R308 IC301 D501 C332 R117 R500 R118 C910 R501 R119 R502 C336 R505 R313 R120 IC501 C340 R319 C341 C342 C343 C344 C345 R321 C349 R137 C355 R139 C356 R143 C361 R146 R147 L608 R149 C171 R343 C177 C178 R151 C179 R154 R348 R349 C372 R156 C373 R928 C375 C181 C376 C182 C183 C184 C185 L042 C186 R354 R160 R930 R161 C189 L046 R162 L047 R933 L048 R164 XV09 R936 C190 C191 C192 C193 TP037 TP038 TP039 R366 R173 R367 R368 R176 TP041 TP042 R372 R373 R374 R180 R181 R376 R182 JK202 R183 R953 R954 R185 R186 R188 JK401 FL703 FL704 R965 R966 R967 R968 R972 R980 R981 R982 R983 R986 R987 R988 R989 R990 C205 C206 C402 C403 C210 SW001 C212 C411 D005 C412 D007 R006 D203 C034 D204 C035 R201 R202 R203 C420 IC009 R205 C616 R207 D018 R209 C427 R019 C429 IC013 D020 R211 R213 R020 C048 C625 R215 IC019 C049 C626 R216 R217 C240 R218 R219 C242 R602 R603 R028 R604 R029 R605 IC022 C246 R606 R607 IC023 R220 IC024 R608 R221 R609 C632 R222 C633 R223 R417 C634 IC028 R030 R418 R801 R225 IC029 C637 R229 R612 R613 C254 R614 IC031 IC032 IC033 IC034 R230 C641 IC035 C642 IC036 R232 C643 R233 C644 R234 C645 C451 R235 R236 R237 C647 TNPA3740 1 A B B C D E F F E D C CR NO.8 XV A 94-V0 FR4 JK201 TU001 PbF 1 3 2 5 7 9 4 6 8 10 12 14 16 11 13 15 C E G J L N R B D F H K M P T A 1 3 4 5 + 9 1 8 10 12 5 1 9 6 ORDER NO. 28 29 56 1 1 7 8 14 + + 1 13 1 16 15 2 36 35 2 1 68 67 34 33 3 7 1 6 10 2 1 33 34 66 A B C E G J L N R U W AA D F H K M P T V Y AB 1 2 3 5 7 9 11 4 6 8 10 13 15 17 19 21 12 14 16 18 20 22 1 24 25 48 1 8 9 16 1 4 5 8 1 4 5 8 1 8 9 16 1 8 9 16 1 4 5 8 1 10 11 20 1 5 1 4 5 8 1 8 9 16 1 55 56 110 SDA SCL BB IFA1 IFAGC IFD2 BM RFAGC MON. IFD1 ACTIVE ANTENNA DC/DC TU GPO XTAL TH-37/42PX60B XV-BOARD TNPA3740AB TH-37/42PX60B XV-BOARD TNPA3740AB XV-BOARD (COMPONENT SIDE) TNPA3740AB Parts Location XV-BOARD (COMPONENT SIDE) IC IC8013 C-4 IC8019 D-5 IC8023 B-1 IC8024 B-1 IC8028 B-3 IC8029 B-2 IC8031 B-2 IC8032 C-2 IC8033 D-1 IC8034 B-6 IC8035 B-3 IC8036 B-2 IC8042 E-1 IC8043 E-1 IC8301 D-5 TP8037 B-6 TP8038 B-6 TP8039 B-5 TP8040 E-5 TP8041 A-2 TP8042 A-2 TP XV TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 58 13.9. D-Board A B C D E F G H I 1 2 3 4 5 6 Q010 C028 C029 C800 C801 C032 C802 IC002 C803 C033 C804 C034 C805 C035 C036 C807 C037 C038 Q805 C809 C039 Q806 D017 D018 D019 IC011 D020 C817 Q044 Q045 Q046 Q047 Q048 Q049 R028 C822 C054 C824 D801 C056 C827 R223 R800 R801 Q055 R225 R226 D806 R802 Q056 R803 Q057 R227 D807 R804 Q058 D808 D809 R805 R229 R806 R807 C830 IC800 R808 IC801 C831 R809 C832 D810 Q060 R230 R231 R232 IC806 D813 IC807 R810 C839 D815 IC809 L501 R811 L502 R813 R237 R814 R238 R815 R239 R816 C840 R819 R240 C846 C847 C848 R821 R824 C467 C850 C468 R828 C469 C853 C855 C857 C858 R830 C859 R834 R835 C860 R841 R842 R843 D9 R846 R847 R848 R849 R850 R854 R859 C882 C883 C884 C885 C886 C887 R861 R862 R863 R094 R095 R096 R097 R868 R098 C891 R869 C896 FL806 C897 C898 R870 C899 R871 R872 R873 R876 R877 R878 R879 R880 R883 R884 R887 R891 R892 R893 R896 R897 C100 Q300 Q301 Q302 Q500 R100 R101 C512 C513 C515 C516 C517 D300 C518 C900 D301 C519 C901 C902 C903 C904 C905 C906 C907 C520 R110 C908 C521 C909 C522 C523 C524 C525 C526 C527 C528 R500 C910 C529 R501 C911 C912 R503 C913 R504 C914 R505 C915 R506 C916 R507 C917 C530 R508 C918 R509 R121 C919 IC502 C532 R317 C536 C537 R127 C538 R128 C920 C539 R129 R511 C921 C922 R513 C923 C924 C925 C926 R516 C927 R900 C540 C928 R131 R901 C929 R132 R902 R133 R903 R134 R904 R135 R136 R906 R137 R907 R520 R138 R908 C930 R521 R139 C931 C932 R523 C933 R524 C934 R525 C935 C936 R527 C937 R528 R910 C938 R529 R141 R911 C939 R142 R915 R918 C940 R919 C941 C942 C943 C944 C945 C946 C947 R150 R151 C949 R152 R153 R154 R155 R925 R926 R157 R927 R158 R928 C950 R541 R542 C952 R543 R544 C954 R545 C955 C956 C957 R548 C958 R549 R355 C959 R356 R162 R163 R164 R936 R937 R550 R168 R551 R552 R553 R554 C966 C967 C968 R364 C969 R365 R941 R366 R367 R173 R943 R368 FL300 FL301 R369 R945 R176 R946 C970 R178 C971 R179 R949 R370 R371 R180 R950 R957 R959 R382 R383 R196 R197 FL900 R390 R391 R394 R395 CR NO.9 1 TNPA3810 D R929 R556 D105 D106 R177 D100 R070 1 2 3 PbF 1 3 4 6 1 4 6 1 12 24 13 1 3 4 6 1 3 4 5 1 12 13 24 1 12 13 24 1 6 SEE REVERSE FOR ORDER NO. 1 3 4 5 + + TH-37PV60E, TH-37PX60B D-BOARD TZTNP01BKTB TH-42PV60E, TH-42PX60B D-BOARD TZTNP01BJTB TH-37PV60E, TH-37PX60B D-BOARD TZTNP01BKTB TH-42PV60E, TH-42PX60B D-BOARD TZTNP01BJTB D-BOARD (FOIL SIDE) TZTNP01BKTB (37inch) TZTNP01BJTB (42inch) Parts Location D-BOARD (FOIL SIDE) IC IC9002 E-4 IC9011 E-4 IC9502 A-3 IC9800 B-2 IC9801 B-4 IC9806 A-5 IC9807 B-5 IC9809 B-4 Q9010 D-5 Q9044 E-3 Q9045 E-3 Q9046 E-3 Q9047 E-3 Q9048 E-3 Q9049 D-3 Q9055 D-5 Q9056 D-5 Q9057 E-4 Q9058 E-4 Q9060 D-5 Q9300 D-2 Q9301 E-2 Q9302 E-2 Q9500 C-4 Q9805 B-5 Q9806 C-5 TRANSISTOR D TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 59 A B C D E F G H I 1 2 3 4 5 6 IC001 IC003 Q800 Q801 C806 Q803 IC007 R203 C808 PA800 R205 R206 R207 IC200 C040 C041 C042 C043 C044 C815 C045 C046 C816 C047 C818 C048 R215 C049 R216 R217 R218 R219 C050 C051 C052 C823 C053 R220 Q050 D800 Q051 R221 C055 C825 R222 Q052 C826 D802 Q053 D803 C057 Q054 C058 D804 D805 C060 IC802 C833 IC803 C834 D811 C835 D812 C836 C837 D814 C838 L500 R812 R236 R818 C841 C842 C843 C844 C845 C849 R823 R825 R826 R827 C851 R829 C852 C854 C856 R060 R831 R061 R062 R063 R064 R065 R066 R067 R838 R839 D2 D3 R840 D5 D6 R074 R844 R845 R076 C880 C881 R864 R865 FL800 FL801 R099 FL803 FL804 FL805 FL807 X9000 X200 D20 ZA001 D25 C500 C501 C502 C503 C504 D31 C505 D32 C506 C507 C508 C509 C510 C511 R102 R103 C514 R104 R105 R106 R107 R108 R109 R111 R112 R113 IC303 R502 R120 IC500 C531 C533 IC503 C534 IC504 R510 R512 R514 R515 R517 R518 R519 R905 IC900 IC901 R909 R522 R526 R140 R912 R143 R144 R145 R916 R147 R917 R530 R148 R149 R531 R532 R533 R534 L800 R535 L801 R536 L802 R537 R538 R920 C948 R539 R921 R922 R923 R348 R349 R156 R540 R159 C951 C953 L810 R350 R351 R352 R353 R354 R160 R161 R357 R358 R359 R165 R166 R167 R938 C960 R169 R939 C961 C962 C963 R360 C964 R361 C965 R362 R363 R170 R940 R171 R172 R942 R174 R944 R175 R947 R948 FL500 R181 R951 R182 R952 R183 R953 R184 R954 R379 R185 R955 R186 R956 R187 R188 R958 R189 R380 R381 R190 R960 R191 R192 R193 R194 R199 FL901 FL902 FL903 FL904 R392 R393 CR NO.9 TP_HD TP_VD D 1 TNPA3810 DCK R244 R555 D102 D103 D101 D110 1 3 2 5 7 9 4 6 8 10 12 14 16 11 13 15 A C E G J L N R B D F H K M P T 1 4 5 8 1 20 21 40 41 60 61 80 + 1 4 5 8 1 14 15 28 + + 1 10 11 20 1 10 11 20 1 2 29 30 1 31 1 21 ORDER NO. 19 20 2 1 1 19 20 2 1 55 1 55 1 25 48 24 1 10 11 20 1 10 11 20 A B C E G J L N R U W AA D F H K M P T V Y AB 1 2 3 5 7 9 11 4 6 8 10 13 15 17 19 21 12 14 16 18 20 22 + + 1 40 13 11 9 7 5 3 12 10 8 6 4 2 B D F H K M N L J G E C TH-37PV60E, TH-37PX60B D-BOARD TZTNP01BKTB TH-42PV60E, TH-42PX60B D-BOARD TZTNP01BJTB TH-37PV60E, TH-37PX60B D-BOARD TZTNP01BKTB TH-42PV60E, TH-42PX60B D-BOARD TZTNP01BJTB D-BOARD (COMPONENT SIDE) TZTNP01BKTB (37inch) TZTNP01BJTB (42inch) Parts Location D-BOARD (COMPONENT SIDE) IC IC9001 B-5 IC9003 C-4 IC9007 C-5 IC9200 E-4 IC9303 E-3 IC9500 D-5 IC9503 C-4 IC9504 C-4 IC9802 B-5 IC9803 C-5 IC9900 D-3 IC9901 C-3 TP-HD D-4 TP-VD D-4 TP Q9050 C-5 Q9051 B-3 Q9052 B-3 Q9053 B-5 Q9054 B-5 Q9800 F-2 Q9801 E-4 Q9803 E-5 TRANSISTOR D TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 60 13.10. C1-Board (37inch) A B C D E F G H I 1 2 3 4 5 6 A A TNPA3802 C1MM1 C1MM2 C1MM3 C1MM4 C108 C110 C111 C112 C114 C115 C116 C117 C118 C119 C121 C122 C123 C124 C125 C126 C127 D103 D104 C128 C129 D105 D106 D107 D108 D109 C130 IC101 IC102 C133 IC103 IC104 C134 D110 C135 IC105 C136 C137 C138 C139 R112 R113 R114 R115 R116 R117 R118 C140 R119 C141 C142 C143 C145 C146 C147 C148 R120 R121 R122 R123 R124 R125 R126 R127 R128 C150 R129 C151 C152 C153 R132 R133 R134 R135 R136 R137 R138 R139 R140 R141 R142 R143 R144 R145 R146 R147 R148 R149 R150 R151 R152 R153 R154 R155 R156 R157 R158 R159 R162 R163 R164 R165 R166 R167 R168 FL101 R169 R170 R171 R172 R173 R174 R175 R176 R177 R178 R179 R180 R182 R183 R184 R185 R186 R187 CB1 CB2 CB3 CB4 ZA101 ZA102 ZA103 ZA104 C11 C12 PbF CRNO.7 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 ORDER NO. 1 68 1 68 1 68 1 6 8 1 55 1 20 1 C1 TNPA3802 1 2 3 SEE REVERSE FOR ORDER NO. 1 C1 C1-BOARD (COMPONENT SIDE) TNPA3802AB C1-BOARD (FOIL SIDE) TNPA3802AB TH-37PV60E, TH-37PX60B C1-BOARD TNPA3802AB TH-37PV60E, TH-37PX60B C1-BOARD TNPA3802AB Parts Location C1-BOARD IC7101 H-2 IC7102 H-2 IC7103 G-2 IC7104 F-2 IC7105 G-2 IC C1 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 61 13.11. C1-Board (42inch) A B C D E F G H I 1 2 3 4 5 6 TNPA3812 1 C1 C1MM1 C1MM2 C1MM3 C1MM4 C1MM5 C108 C110 C111 C112 C114 C115 C116 C117 C118 C119 C121 C122 C123 C124 C125 C126 C127 D103 D104 C128 C129 D105 D106 D107 D108 D109 C130 IC101 IC102 C133 IC103 IC104 C134 D110 C135 IC105 C136 C137 C138 C139 R112 R113 R114 R115 R116 R117 R118 C140 R119 C141 C142 C143 C145 C146 C147 C148 R120 R121 R122 R123 R124 R125 R126 R127 R128 C150 R129 C151 C152 C153 R132 R133 R134 R135 R136 R137 R138 R139 R140 R141 R142 R143 R144 R145 R146 R147 R148 R149 R150 R151 R152 R153 R154 R155 R156 R157 R158 R159 R162 R163 R164 R165 R166 R167 R168 FL101 R169 R170 R171 R172 R173 R174 R175 R176 R177 R178 R179 R180 R182 R183 R184 R185 R186 R187 CB1 CB2 CB3 CB4 ZA101 ZA102 ZA103 ZA104 C11 C12 PbF CRNO.7 1 10 11 20 1 10 11 20 1 10 11 20 1 11 20 10 1 10 11 20 ORDER NO. 1 68 1 68 1 68 1 68 1 55 1 20 1 2 3 TNPA3812 C1 1 SEE REVERSE FOR ORDER NO. C1-BOARD (COMPONENT SIDE) TNPA3812AB C1-BOARD (FOIL SIDE) TNPA3812AB TH-42PV60E, TH-42PX60B C1-BOARD TNPA3812AB TH-42PV60E, TH-42PX60B C1-BOARD TNPA3812AB Parts Location C1-BOARD IC7101 H-2 IC7102 I-2 IC7103 G-2 IC7104 F-1 IC7105 H-2 IC C1 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 62 13.12. C2-Board (37inch) A B C D E F G H I 1 2 3 4 5 6 TNPA3803 C2MM1 C2MM2 C2MM3 C2MM4 C21 C22 C23 ZA201 ZA202 ZA203 ZA204 CB5 CB6 CB7 CB8 C201 C203 C204 C205 C207 C208 C209 C210 C211 C212 C214 C215 C216 C217 C218 C219 C220 C221 C222 C223 C224 D201 C225 D202 C226 D203 C227 D204 C228 D205 C229 R201 D206 R202 R203 D207 R204 D208 R205 R206 R207 C230 R208 C231 R209 IC201 C232 IC202 C233 IC203 IC204 C235 IC205 C236 C237 R210 C238 R211 R212 R213 R214 R215 R216 R217 R218 C240 R219 C241 C242 C243 C244 R220 R221 R222 R223 R224 R225 R226 R227 R228 R229 R230 R231 R232 R233 R234 R235 R236 R237 R238 R239 R240 R241 R242 R243 R244 R245 R246 R247 R248 R249 R250 R251 R253 R254 R255 R256 R257 R258 R259 R260 R261 R262 R263 R264 R265 R266 R267 R268 R269 FL201 FL202 R270 R271 R272 PbF CRNO.7 1 55 1 20 1 12 ORDER NO. 1 68 1 68 1 68 1 68 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 20 11 C2 1 TNPA3803 1 2 3 SEE REVERSE FOR ORDER NO. 1 C2 C2-BOARD (COMPONENT SIDE) TNPA3803AB C2-BOARD (FOIL SIDE) TNPA3803AB TH-37PV60E, TH-37PX60B C2-BOARD TNPA3803AB TH-37PV60E, TH-37PX60B C2-BOARD TNPA3803AB Parts Location C2-BOARD IC7201 B-2 IC7202 A-1 IC7203 C-2 IC7204 C-2 IC7205 B-2 IC C2 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 63 13.13. C2-Board (42inch) A B C D E F G H I 1 2 3 4 5 6 TNPA3813 1 C2 C2MM1 C2MM2 C2MM3 C2MM4 C2MM5 C21 C22 C23 ZA201 ZA202 ZA203 ZA204 CB5 CB6 CB7 CB8 C201 C203 C204 C205 C207 C208 C209 C210 C211 C212 C214 C215 C216 C217 C218 C219 C220 C221 C222 C223 C224 D201 C225 D202 C226 D203 C227 D204 C228 D205 C229 R201 D206 R202 R203 D207 R204 D208 R205 R206 R207 C230 R208 C231 R209 IC201 C232 IC202 C233 IC203 IC204 C235 IC205 C236 C237 R210 C238 R211 R212 R213 R214 R215 R216 R217 R218 C240 R219 C241 C242 C243 C244 R220 R221 R222 R223 R224 R225 R226 R227 R228 R229 R230 R231 R232 R233 R234 R235 R236 R237 R238 R239 R240 R241 R242 R243 R244 R245 R246 R247 R248 R249 R250 R251 R253 R254 R255 R256 R257 R258 R259 R260 R261 R262 R263 R264 R265 R266 R267 R268 R269 FL201 FL202 R270 R271 R272 PbF CRNO.7 1 55 1 20 1 12 ORDER NO. 1 68 1 68 1 68 1 68 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 C2 1 TNPA3813 1 2 3 SEE REVERSE FOR ORDER NO. C2-BOARD (COMPONENT SIDE) TNPA3813AB C2-BOARD (FOIL SIDE) TNPA3813AB TH-42PV60E, TH-42PX60B C2-BOARD TNPA3813AB TH-42PV60E, TH-42PX60B C2-BOARD TNPA3813AB Parts Location C2-BOARD IC7201 B-2 IC7202 A-1 IC7203 B-2 IC7204 C-2 IC7205 B-1 IC C2 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 64 13.14. SC-Board A B C D E F G H I 1 2 3 4 5 6 SC41 SC42 SC45 SC46 C721 L401 L402 L403 L601 L602 L411 L412 L413 C754 C561 C563 C592 C791 C795 C796 L461 L462 L463 D583 L464 L465 L466 L467 L468 L472 L473 L481 L482 L483 L484 L485 L486 L487 L488 IC791 Q401 Q402 Q403 C604 C411 C412 C413 C414 C415 C802 C804 Q801 C806 C807 Q421 D401 Q422 D402 Q423 C431 C822 Q821 Q822 R801 R802 Q441 Q442 R808 C641 R620 R815 Q451 D431 Q452 D432 VR600 VR601 C841 VR602 C842 Q841 Q842 R821 R823 TP1 TP2 TP4 Q661 TP5 TP6 TP7 TP8 TP9 T602 R844 D461 D462 R658 SC2 D471 TP10 TP11 TP12 TP13 TP14 C691 TP15 TP16 TP17 R860 TP18 TP19 D481 D482 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 D491 TP30 TP31 TP32 TP33 TP34 TP35 TP38 TP39 TP40 TP41 R696 TP42 R697 TP43 TP44 TP45 TP46 TP47 TP48 TP49 TP50 TP51 TP52 TP53 TP54 TP55 TP56 TP57 TP58 L591 TP59 L592 TP60 TP61 TP62 TP63 TP64 SC23 SC30 C511 C512 PbF TNPA3814 1 SC 1 2 3 4 5 6 CRNo.6 A1 A2 B2 B1 B40 B39 A40 A39 A1 B2 B1 B40 B39 A40 A39 A2 1 2 8 9 1 2 8 9 SEE REVERSE FOR ORDER NO. 1 1 2 G C E G C E G C E E C B G C E A A K G C E A A K G C E B C E E C B G C E G C E G C E A A K G C E A A K B C E C B E G D S S5 B1 S4 S3 S2 S1 B2 P1 P2 A A K A A K 1 3 A A K A A K A A K A A K 3 1 1 8 TH-37PV60E, TH-37PX60B SC-BOARD TNPA3814AE TH-42PV60E, TH-42PX60B SC-BOARD TNPA3814AB TH-37PV60E, TH-37PX60B SC-BOARD TNPA3814AE TH-42PV60E, TH-42PX60B SC-BOARD TNPA3814AB SC-BOARD (FOIL SIDE) TNPA3814AE (37inch) TNPA3814AB(42inch) TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 65 TH-37/42PV60E, TH-37/42PX60B SC-BOARD PARTS LOCATION TH-37/42PV60E, TH-37/42PX60B SC-BOARD PARTS LOCATION Parts Location SC-BOARD (FOIL SIDE) Q6401 B-4 Q6402 B-4 Q6403 C-4 Q6421 D-4 Q6422 D-4 Q6423 D-4 Q6441 E-2 Q6442 D-2 Q6451 C-2 Q6452 C-2 Q6661 F-4 Q6801 H-1 Q6821 E-3 Q6822 F-3 Q6841 H-3 Q6842 H-3 TRANSISTOR TP1 A-1 TP2 B-1 TP4 B-2 TP5 B-2 TP6 C-1 TP7 C-1 TP8 B-2 TP9 B-2 TP10 F-2 TP11 F-2 TP12 G-1 TP13 G-1 TP14 E-2 TP15 F-2 TP16 G-1 TP17 G-1 TP18 F-2 TP19 F-1 TP20 F-2 TP21 E-1 TP22 F-2 TP23 F-1 TP24 F-1 TP25 F-1 TP26 E-1 TP27 F-1 TP28 H-2 TP29 H-5 TP30 A-5 TP31 H-4 TP32 E-5 TP33 B-3 TP34 E-1 TP35 E-3 TP38 F-1 TP39 E-1 TP40 D-5 TP VOLUME Parts Location SC-BOARD (COMPONENT SIDE) IC6471 B-4 IC6472 B-4 IC6501 G-4 IC6521 F-2 IC6561 C-1 IC6562 D-2 IC6581 F-1 IC6601 E-5 IC6602 A-4 IC6610 B-5 IC6671 D-4 IC6681 D-5 IC6682 A-4 IC6721 A-5 IC6722 A-4 IC6724 C-5 IC6725 C-5 IC6751 C-4 IC6752 C-4 IC6753 C-4 IC6771 C-5 IC6772 C-5 IC6773 C-5 IC6774 C-4 IC6791 C-2 IC6801 C-2 IC6802 C-2 IC6821 C-3 IC6841 A-3 IC6861 B-5 IC6871 B-2 IC PC6480 A-4 PC6701 A-4 PC6702 A-4 PC6703 A-4 PC6704 C-4 PC6705 B-4 PC6760 C-4 PC6801 B-2 PC6861 B-3 PC6871 C-1 Q6401 H-4 Q6402 H-4 Q6403 G-4 Q6421 F-4 Q6422 F-4 Q6423 E-4 Q6441 E-2 Q6442 E-2 Q6451 G-2 Q6452 G-2 Q6471 B-3 Q6511 G-4 Q6512 G-4 Q6516 F-4 Q6517 F-4 Q6531 F-2 Q6532 F-2 Q6551 F-2 Q6552 G-2 Q6581 F-1 Q6601 E-5 Q6602 D-5 Q6621 F-4 Q6622 G-4 PHOTO COUPLER TRANSISTOR TP15V G-1 TPSC1 D-6 TPSOS6 F-1 TPSOS7 D-2 TPVAD C-4 TPVSCN C-4 TPVSET C-3 TPVSET2 B-4 TPVSUS H-1 TP VR6600 C-2 VR6601 D-4 VR6602 D-5 VOLUME TP41 D-5 TP42 C-5 TP43 C-5 TP44 B-6 TP45 C-5 TP46 F-5 TP47 F-5 TP48 F-6 TP49 F-6 TP50 H-6 TP51 G-6 TP52 E-1 TP53 G-4 TP54 C-6 TP55 C-6 TP56 C-6 TP57 B-6 TP58 B-6 TP59 G-6 TP60 G-6 TP61 G-6 TP62 G-6 TP63 G-6 TP64 F-3 VR6600 G-2 VR6601 E-5 VR6602 F-5 Q6641 F-5 Q6642 F-5 Q6643 F-5 Q6644 G-5 Q6645 G-5 Q6646 G-5 Q6647 H-5 Q6648 H-5 Q6661 D-4 Q6662 C-5 Q6663 C-4 Q6671 E-4 Q6672 F-4 Q6680 E-4 Q6681 D-5 Q6682 D-5 Q6691 D-5 Q6742 A-5 Q6743 B-5 Q6744 A-5 Q6762 F-4 Q6781 F-5 Q6782 F-5 Q6791 B-2 Q6801 B-1 Q6802 B-1 Q6803 B-2 Q6804 B-1 Q6821 D-3 Q6822 D-3 Q6824 C-3 Q6841 B-3 Q6842 A-3 SC TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 66 A B C D E F G H I 1 2 3 4 5 6 C708 Q511 SC41 Q512 SC42 SC45 SC46 Q516 Q517 C521 C522 C524 C525 D501 D502 C527 R501 R502 R503 R504 R505 C721 R506 R507 C723 R508 C724 R509 C725 D701 IC501 C726 D702 C727 R700 C728 R701 Q531 R702 Q532 R703 R704 R705 R511 R706 R512 R707 R708 R516 R517 R710 D521 L401 R711 D522 L402 R712 D523 L403 R713 D524 R714 R715 R521 R522 R716 R523 R717 R524 R718 R525 R526 IC521 L601 D721 Q742 L602 D723 Q743 Q744 D724 Q551 D725 R721 L411 Q552 D726 R722 L412 D727 L413 R723 D728 R724 D729 R531 R532 R533 L801 PC701 IC721 L802 C752 PC702 IC722 PC703 C753 D730 IC724 C754 PC704 C755 PC705 D731 C561 IC725 D732 D733 C563 D734 C565 C566 Q762 R742 R743 R744 R551 R745 R552 R746 R553 R747 C771 C772 C773 C581 C775 C776 C582 D752 C777 D753 Q581 D758 R561 R755 R562 R756 R563 R757 R758 R564 R759 R565 IC751 R566 IC752 IC753 R567 R568 D760 Q781 D761 C591 IC561 Q782 D762 C592 IC562 C593 R760 R761 R762 C791 L841 Q791 C795 D771 C796 D773 D581 L461 D582 L462 L463 D583 D584 L464 L465 R581 D585 R775 L466 R776 R582 L467 R777 R583 L468 R584 R585 IC771 R586 IC772 IC773 R587 IC774 R588 R589 IC581 R781 R782 L472 L473 R590 R591 R592 PC760 D791 R791 L481 R792 L482 R793 L483 L484 L485 L486 L487 L488 IC791 C401 C402 C403 Q401 Q402 Q403 C601 C602 C603 C604 C605 Q601 C411 Q602 C412 C606 C413 C414 C415 C802 C803 C610 C804 C611 Q801 C805 C612 C806 Q802 Q803 C807 Q804 C421 C422 C423 Q421 D401 Q422 D402 Q423 C811 R401 C812 R402 R403 C620 R404 R405 R406 C431 D601 Q621 Q622 D602 D603 D604 D605 D606 R603 D607 R604 R605 C822 R606 C823 R607 R608 Q821 D801 IC601 R609 IC602 Q822 D802 D803 D610 Q824 D804 D611 R801 D805 C441 D612 D806 R802 D613 R803 D614 R610 D615 R611 Q441 R806 R612 Q442 R613 R807 R614 R808 R615 R809 IC801 R421 D619 R616 IC802 R422 R617 R423 R618 IC610 R424 R619 C641 R425 R426 D620 R810 D621 R811 Q641 C451 D622 R812 Q642 D623 R813 Q643 D624 R620 R814 Q644 R815 Q645 R621 Q451 D431 Q452 D432 R816 Q646 R622 R817 Q647 VR600 Q648 VR601 C841 VR602 C842 D820 D821 C845 Q841 D822 Q842 D823 R821 D825 C461 R822 D826 C463 R823 R824 D441 R825 R826 R827 R828 R829 IC821 PC801 R441 R442 R443 R444 C661 C662 C663 R830 R831 C471 D641 Q661 C472 Q662 D642 D643 R833 Q663 D644 R834 Q471 D451 R835 R641 R836 R642 R643 R837 R644 R838 C861 R451 R645 R839 R452 R646 C862 R453 R647 C863 R454 R648 D841 C671 T602 D842 D843 C480 Q671 R841 C481 Q672 R842 C483 R843 R844 R845 D461 D462 R846 R847 R848 D465 C871 R849 IC841 D466 C872 C873 R658 R465 R659 C681 C682 R466 C683 R467 R468 R850 Q680 Q681 R851 D661 C491 SC2 Q682 R852 D662 R853 D663 R660 D664 D859 R661 D665 D471 R662 D666 D472 R663 D667 R664 R471 R665 R666 R472 R473 R667 D477 R474 R668 D860 D478 R475 C691 D861 R476 D862 R477 R478 R860 R479 IC471 Q691 D671 R861 IC472 R862 R863 D480 R864 R671 D481 R865 D482 R672 R866 R673 R867 R674 R868 R869 IC861 IC671 D871 D872 D681 R871 D682 R872 D683 R873 D684 R874 D685 D491 R875 D686 R682 R876 R683 D687 R877 R684 R878 R879 R685 IC871 R686 R687 D497 R688 R689 IC681 IC682 R690 R691 R886 R887 R888 PC861 R696 R697 PC480 PC871 L591 L592 SC20 SC23 C502 SC30 C504 C505 C701 ZA401 C702 ZA402 C703 ZA403 C704 C511 C705 C512 C706 C707 SCMM1 TPVSUS TPVAD TPVSET TP15V TPVSCN TPSOS6 TPSOS7 TPSC1 DIP TPVSET2 SCMM2 SCMM3 PbF Discharge SC 1 CRNo.6 TNPA3814 A1 A2 B1 B2 A40 A39 B40 B39 A1 A2 B1 B2 A40 A39 B40 B39 1 2 8 9 1 2 8 9 9 16 8 1 1 8 16 9 1 7 14 ORDER NO. 1 4 8 5 4 5 1 3 1 10 11 20 1 10 11 20 1 4 5 8 3 4 5 1 1 3 4 5 1 4 5 8 1 2 3 4 12 1 C G E C G E C G E G S D B C E C G E A A K C G E A A K C G E G S D G S D B E C 1 4 5 4 B C E C G E C G E 1 4 5 G S D G S D G S D G S D G S D C G E A A K C G E A A K G S D G S D G S D C E B B C E 1 2 3 4 G S D S5 B1 S4 S3 S2 S1 B2 P1 P2 G S D G S D A A K A A K G S D 3 1 G S D A A K 1 3 1 A A K A A K 5 8 4 1 1 4 5 8 A A K 1 5 8 4 1 4 5 8 1 1 2 3 1 2 3 4 1 2 3 4 1 2 19 20 1 3 1 8 TH-37PV60E, TH-37PX60B SC-BOARD TNPA3814AE TH-42PV60E, TH-42PX60B SC-BOARD TNPA3814AB TH-37PV60E, TH-37PX60B SC-BOARD TNPA3814AE TH-42PV60E, TH-42PX60B SC-BOARD TNPA3814AB SC-BOARD (COMPONENT SIDE) TNPA3814AE (37inch) TNPA3814AB (42inch) TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 67 13.15. SU-Board (37inch) A B C D E F G H I 1 2 3 4 5 6 C6901 C6902 C6903 C6906 C6907 A40 C6910 C6911 C6914 C6915 C6916 C6917 C6918 D6901 R6901 R6908 C6931 R6909 IC6902 IC6904 IC6906 C6936 C6937 R6916 R6917 R6924 A1 R6931 R6932 R6933 R6934 SU45 SU1 SU2 SU3 TPSU1 TPSU2 TNPA3808 1 SU PbF 1 25 50 51 75 76 100 26 1 25 50 51 75 76 100 26 1 25 26 50 51 75 76 100 1 9 8 2 ORDER NO. A1 B1 A60 B60 A1 B1 A60 B60 A1 B1 A60 B60 C6904 C6905 C6908 C6909 C6912 C6913 D6902 D6903 D6904 R6902 R6903 R6904 IC6901 C6932 C6933 IC6903 C6934 C6935 IC6905 R6935 R6936 B1 B40 SU 1 1 2 3 TNPA3808 PbF 1 26 50 51 75 76 100 25 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 SEE REVERSE FOR ORDER NO. SU-BOARD (COMPONENT SIDE) TNPA3808AB SU-BOARD (FOIL SIDE) TNPA3808AB TH-37PV60E, TH-37PX60B SU-BOARD TNPA3808AB TH-37PV60E, TH-37PX60B SU-BOARD TNPA3808AB Parts Location SU-BOARD IC6901 B-3 IC6902 F-2 IC6903 D-3 IC6904 D-2 IC6905 G-3 IC6906 B-2 IC SU TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 68 13.16. SU-Board (42inch) A B C D E F G H I 1 2 3 4 5 6 C6901 C6902 C6903 C6904 C6905 C6906 C6907 C6908 C6909 C6910 C6911 C6912 C6913 C6914 C6915 C6916 C6917 C6918 C41 D6901 D6902 D6903 D6904 R6901 R6902 R6903 R6904 R6905 C6931 R6909 IC6901 C6932 IC6902 C6933 IC6903 C6934 IC6904 C6935 IC6905 IC6906 C6936 C6937 R6913 R6917 R6924 R6931 R6932 R6933 R6934 C80 R6935 R6936 SU45 SU1 SU2 SU3 SU4 TPSU1 TPSU2 SU TNPA3818 1 PbF 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 50 51 75 76 100 26 1 25 26 50 51 75 76 100 9 8 2 1 ORDER NO. A1 B1 A48 B48 A1 B1 A48 B48 A1 B1 A48 B48 A1 B1 A48 B48 C40 C1 TNPA3818 1 1 2 3 SU PbF SEE REVERSE FOR ORDER NO. SU-BOARD (COMPONENT SIDE) TNPA3818AB SU-BOARD (FOIL SIDE) TNPA3818AB TH-42PV60E, TH-42PX60B SU-BOARD TNPA3818AB TH-42PV60E, TH-42PX60B SU-BOARD TNPA3818AB Parts Location SU-BOARD IC6901 G-2 IC6902 F-2 IC6903 E-2 IC6904 D-1 IC6905 C-2 IC6906 B-2 IC SU TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 69 13.17. SD-Board (37inch) A B C D E F G H I 1 2 3 4 5 6 A41 A80 C6951 C6954 C6955 TPSD1 TPSD2 C6958 C6959 C6963 C6967 D6951 R6951 IC6951 IC6953 IC6955 R6966 R6967 R6984 SD46 SD1 SD2 SD3 TNPA3809 SD 1 PbF ORDER NO. 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 9 8 2 A1 B1 A60 B60 A1 B1 A60 B60 A1 B1 A60 B60 C6952 C6953 C6956 C6957 C6960 C6961 C6962 C6964 C6965 C6966 C6968 D6952 D6953 D6954 R6952 R6953 R6954 R6958 C6981 R6959 C6982 IC6952 C6983 C6984 IC6954 C6985 C6986 IC6956 C6987 R6974 R6981 R6982 R6983 R6985 R6986 B41 B80 SD 1 2 3 TNPA3809 1 PbF SEE REVERSE FOR ORDER NO. 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 SD-BOARD (COMPONENT SIDE) TNPA3809AB SD-BOARD (FOIL SIDE) TNPA3809AB TH-37PV60E, TH-37PX60B SD-BOARD TNPA3809AB TH-37PV60E, TH-37PX60B SD-BOARD TNPA3809AB Parts Location SD-BOARD IC6951 G-2 IC6952 C-4 IC6953 E-2 IC6954 E-4 IC6955 C-2 IC6956 G-4 IC SD TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 70 13.18. SD-Board (42inch) A B C D E F G H I 1 2 3 4 5 6 A41 A80 C6951 C6952 C6953 C6954 TPSD1 C6955 TPSD2 C6956 C6957 C6958 C6959 C6960 C6961 C6962 C6963 C6964 C6965 C6966 C6967 C6968 D6951 D6952 D6953 D6954 R6951 R6952 R6953 R6954 R6955 C6981 IC6951 R6959 C6982 IC6952 C6983 IC6953 C6984 IC6954 C6985 IC6955 IC6956 C6986 C6987 R6963 R6967 R6971 R6981 R6982 R6983 R6984 R6985 R6986 SD46 SD1 SD2 SD3 SD4 SD TNPA3819 1 PbF ORDER NO. 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 9 8 2 A1 B1 A48 B48 A1 B1 A48 B48 A1 B1 A48 B48 A1 B1 A48 B48 A40 A1 TNPA3819 1 1 2 3 SD PbF SEE REVERSE FOR ORDER NO. SD-BOARD (COMPONENT SIDE) TNPA3819AB SD-BOARD (FOIL SIDE) TNPA3819AB TH-42PV60E, TH-42PX60B SD-BOARD TNPA3819AB TH-42PV60E, TH-42PX60B SD-BOARD TNPA3819AB Parts Location SD-BOARD IC6951 G-2 IC6952 F-2 IC6953 E-2 IC6954 D-1 IC6955 C-2 IC6956 B-2 IC SD TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 71 13.19. SS-Board A B C D E F G H I 1 2 3 4 5 6 L001 L002 L003 L011 L012 L013 SS11 SS12 SS23 L221 SS34 SS41 SS42 SS43 SS44 L241 SS41A L061 L062 L063 L064 L065 L066 L067 L068 SS42A L262 L271 SS43A L272 L081 L082 L083 L084 L085 L086 L087 L088 SS44A Q001 Q002 Q003 C201 C202 C011 C012 C013 C014 C015 C213 C214 Q021 D001 Q022 Q023 C031 Q221 Q222 D021 Q041 Q042 R020 R022 VR000 C241 L103 Q051 Q052 R222 R223 C261 C262 C272 C273 D253 D061 TP1 D062 TP2 TP3 TP4 TP5 TP6 TP7 TP8 TP9 D071 D072 D081 D082 TP10 TP11 TP12 TP13 TP14 D091 TP15 TP16 TP17 TP18 TP19 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 TP32 C111 C112 1 SS 1 2 3 TNPA3815 6 5 4 CRNo.6 PbF 1 3 1 10 1 12 1 3 1 1 3 1 13 1 1 3 1 1 3 1 1 3 SEE REVERSE FOR ORDER NO. 1 13 1 13 1 1 3 G C E G C E G C E G C E A A K G C E G C E E C B E C B A A K G C E G C E G C E G C E A A K A A K A A K A A K A A K A A K A A K TH-37PV60E, TH-37PX60B SS-BOARD TNPA3815AE TH-42PV60E, TH-42PX60B SS-BOARD TNPA3815AB TH-37PV60E, TH-37PX60B SS-BOARD TNPA3815AE TH-42PV60E, TH-42PX60B SS-BOARD TNPA3815AB SS-BOARD (FOIL SIDE) TNPA3815AE (37inch) TNPA3815AB (42inch) Parts Location SS-BOARD (FOIL SIDE) TRANSISTOR Q6001 H-3 Q6002 H-3 Q6003 H-3 Q6021 G-3 Q6022 F-3 Q6023 F-3 Q6041 D-3 Q6042 D-3 Q6051 E-3 Q6052 E-3 Q6221 D-1 Q6222 D-2 TP16 B-2 TP17 B-2 TP18 B-2 TP19 B-2 TP20 B-2 TP21 B-2 TP22 B-2 TP23 B-2 TP24 I-3 TP25 H-3 TP26 F-3 TP27 F-3 TP28 D-3 TP29 D-3 TP30 B-3 TP31 A-3 TP32 C-1 TP1 H-1 TP2 H-2 TP3 H-2 TP4 H-2 TP5 H-2 TP6 H-2 TP7 H-2 TP8 H-2 TP9 H-2 TP10 G-2 TP11 G-2 TP12 B-3 TP13 B-2 TP14 B-2 TP15 A-2 TRANSISTOR TP VR6000 D-2 VOLUME SS TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 72 A B C D E F G H I 1 2 3 4 5 6 R104 R105 R106 R107 R108 R109 C132 C134 D111 C135 R110 R111 R112 R113 R114 R116 L001 Q141 Q142 L002 L003 Q146 Q147 C151 C152 C153 C154 C155 D131 L011 D132 L012 L013 R131 R132 R133 R134 SS11 R135 SS12 R136 IC131 L211 L212 R141 R142 R146 R147 SS23 L221 Q171 D151 Q172 D152 D153 D154 R151 R152 R153 R154 R155 R156 R157 R158 SS34 R159 IC151 Q181 Q182 R160 SS41 SS42 SS43 SS44 L241 C192 C193 C194 C195 R171 R172 R173 SS41A L061 L062 L063 L064 R181 L065 R182 L066 R183 L067 L068 SS42A L262 D191 D192 D193 R191 R192 R193 R194 R195 R196 IC191 L271 SS43A L272 L081 L082 L083 L084 L085 L086 L087 L088 SS44A C001 C002 C003 Q001 Q002 Q003 C201 C202 C011 C012 C013 C014 C015 C211 C212 C213 C214 C021 C022 C023 Q021 D001 Q022 Q023 R001 R002 R003 R004 C221 R005 R006 C031 Q221 Q222 D010 C039 C040 D211 C041 D212 C042 C043 C044 D021 Q041 Q042 R213 R020 R214 R021 R022 R023 VR000 R024 C241 R025 IC211 C242 R026 R027 C243 C050 D221 L101 C051 D222 L102 L103 D223 L104 D224 D031 Q051 L105 Q052 D032 R222 R223 R224 R031 R225 R032 R226 R227 R033 R034 R228 R229 C251 IC221 C061 Q251 C063 D041 R231 R232 R041 R042 R043 R044 C261 C262 C071 D051 R241 R242 R243 R244 R051 R245 R052 R246 R053 R054 C271 IC241 C272 C273 C081 D251 D252 C083 D253 D254 D255 D061 R251 D062 R252 R253 R254 R061 R255 R062 R256 R257 R258 IC251 C282 C283 C091 D071 R261 D072 D271 D272 D081 D082 D091 D092 C101 C102 C103 C104 Q101 Q102 Q103 Q104 Q105 Q106 ZA001 ZA002 C111 ZA005 C112 Q111 Q112 Q114 D101 D102 D103 D104 R101 D105 R102 R103 TPVe TPSS1 SSMM1 TNPA3815 CRNo.6 SS 1 discharge TPVSUS TP15V TPVDA PbF 3 1 10 1 1 8 9 16 12 1 3 1 16 9 8 1 13 1 13 1 13 1 13 1 13 1 13 1 ORDER NO. 16 9 8 1 13 1 13 1 E G C E G C E G C E G C K A A E G C E G C E C B E C B K A A E G C E G C 8 5 4 1 E G C E G C 20 11 10 1 K A A K A A 8 5 4 1 K A A K A A K A A K A A K A A D S G D S G D S G D S G S D G D S G D S G TH-37PV60E, TH-37PX60B SS-BOARD TNPA3815AE TH-42PV60E, TH-42PX60B SS-BOARD TNPA3815AB TH-37PV60E, TH-37PX60B SS-BOARD TNPA3815AE TH-42PV60E, TH-42PX60B SS-BOARD TNPA3815AB SS-BOARD (COMPONENT SIDE) TNPA3815AE (37inch) TNPA3815AB (42inch) Parts Location SS-BOARD (COMPONENT SIDE) IC IC6131 B-3 IC6151 E-2 IC6191 H-3 IC6211 F-2 IC6221 F-2 IC6241 H-2 IC6251 I-3 Q6001 A-3 Q6002 B-3 Q6003 B-3 Q6021 C-3 Q6022 C-3 Q6023 D-3 Q6041 F-3 Q6042 F-3 Q6051 E-3 Q6052 E-3 Q6101 H-3 Q6102 H-3 Q6103 H-2 Q6104 G-3 Q6105 G-3 Q6106 G-2 Q6111 G-2 Q6112 G-2 Q6114 G-2 Q6141 C-3 Q6142 C-3 Q6146 C-2 Q6147 C-3 Q6171 F-3 Q6172 F-3 Q6181 E-3 Q6182 F-3 Q6221 F-2 Q6222 F-1 Q6251 H-3 TRANSISTOR TP15V B-2 TPSS1 H-4 TPVDA A-2 TPVe F-2 TPVSUS A-2 TRANSISTOR TP VR6000 F-2 VOLUME SS TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 73 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 74 14 Schemaatic and Block Diagram 14.1. Schematic Diagram Notes TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 75 14.2. Main Block Diagram (37inch) VDA S.R. P2.5V VDA 5V D20 OUTPUT PA20 +15V P_ON/OFF CONTROL S.R. CONVERTER VIDEO IN D32 12V DG1 D25 D VOLTAGE DG2 PA SOS PROTECTION(SOS) DC/DC CONVERTER POWER SUPPLY DC/DC PA40 ADDRESS SPEAKER SUSTAIN AV4 IN VSUS S.R. S.R. DG5 CONVERTER PA5 DISCHARGE DG20 VOLTAGE D3 DATA DRIVER(LEFT) POWER LED 15V AV4 IN SUB-FIELD PA PICTURE AUDIO IN PA10 POWER ERASE SOUND SOS PLASMA AI EEPROM VDA LVDS P25 RECTIFIER CONTROL LED P2 IIC VOLTAGE PROCESS S.R. VSUS G SUSTAIN +15V SPEAKER G3 G51 P STBY5V_M DATA DRIVE L VOLTAGE PROCESSOR MEMORY K REMOTE RECEIVER C21 S.R. SS12 P1.2V SDRAM P3.3V RGB DC-DC CONVERTER PLASMA AI PROCESSOR C1 CONTROL F_STBY-14V IIC POWER SOS P10 SOS6/ P11 K1 G1 S-VIDEO IN VOLTAGE RECTIFIER S.R. Vda-75V L STB12V DATA DRIVER(RIGHT) SS CONTROL FACTOR MICOM SS_SOS8 KEY PA34 S.R. VIDEO VSUS P9 CONTROL FAN SOS P23 D5 FLASH C12 PA31 P5 FORMAT C2 PROCESS SUSTAIN SCAN STANDBY PA2 STANDBY SUSTAIN DRIVE AC CORD OSD DC POWER SS11 VOLTAGE SPEAKER C23 R REMOTE RECEIVER DG3 MCU VOLTAGE (VE) AMP SCAN CONTROL RECTIFIER C11 SUSTAIN CONTROL RECEIVER PULSE PULSE GK3 GK KEY FPGA STB5V CONTROL R SOS7 SS23 PROCESSOR 15V C22 MAIN DATA RECTIFIER SOS8 D31 FORMAT CONVERTER, SCAN L/R H5 L/R V,R,G,B INPUT V,R,G,B AUDIO VIDEO AV1 OUT DC POWER COMP MAIN H2 SCART VIDEO Y,PB,PR H SELECT TUNER L/R AV2 AV SWITCH,MSP INPUT SIF L/R AUDIO V MSP AUDIO TUNER SCART H1 TA5 PC IN R,G,B AV3 TA OUT IN L/R H51 SIF/AM(PV60E) AM SCART AV TERMINAL, L/R H40 L/R SELECT TV-V C,V R DVB-L/R G DVB_CVBS Y,PB/C,PR,CVBS DG22 B RGB PROCESSOR (GC5) LVDS TRANS- MITTER PC_R,G,B Y/UV TUNER D-TV INTERFACE XV01 HDSL PEAKS_LITE DAC DL_DR CVBS MVY/MVC DEMOD CI SLOT XV L/R DAC HDMI IN DG RECEIVER YG/UB AUDIO DIGITAL SIGNAL PROCESSOR HDMI I/F HDMI A/D TV_L/R HEADPHONE HP_L/R MAIN_L/R DVB LED SCAN SC23 S.R SCAN DRIVE 40 64 SC2 64 VOLTAGE 64 S.R PULSE 64 40 S.R 64 64 SCAN OUT PULSE S.R S.R S.R GENERATOR S.R SD S.R S.R 64 PULSE 64 64 SU S.R S.R CONTROL SC20 SOS7 64 SUSTAIN S.R SOS6 SCAN OUT SC RECTIFIER FILTER RELAY LINE FILTER LINE +15V PS_SOS +5V SOS SOUND +15V FAN SOS FAN POWER SW STB12V STB12V S STB_PS Vda P12 STB_PS SWITCH S34 S1 15V POWER STB12V STB_PS AI SENSOR PV60E ONLY PX60B ONLY PX60B ONLY TH-37PV60E, TH-37PX60B Main Block Diagram TH-37PV60E, TH-37PX60B Main Block Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 76 14.3. Main Block Diagram (42inch) SC23 64 VDA S.R. P2.5V VDA 5V D20 64 VOLTAGE SC2 OUTPUT PA20 +15V P_ON/OFF CONTROL S.R. CONVERTER 64 VIDEO IN D32 12V DG1 D25 D VOLTAGE DG2 PA SOS PROTECTION(SOS) DC/DC CONVERTER POWER SUPPLY DC/DC PA40 ADDRESS SCAN DRIVE S.R SPEAKER SUSTAIN SD S.R P12 AV4 IN VSUS S.R. S.R. DG5 CONVERTER PA5 S.R 64 DISCHARGE 64 DG20 VOLTAGE D3 SC20 DATA DRIVER(LEFT) S.R POWER LED 15V AV4 IN SUB-FIELD PA PICTURE AUDIO IN PA10 POWER ERASE S.R SOUND SOS PLASMA AI EEPROM VDA LVDS P25 RECTIFIER CONTROL LED P2 IIC VOLTAGE PROCESS SCAN OUT S.R. 64 VSUS G SUSTAIN SC +15V SPEAKER G3 G51 PULSE 64 P STBY5V_M S.R DATA DRIVE SCAN OUT L S1 VOLTAGE PROCESSOR MEMORY K REMOTE RECEIVER 64 C21 S.R. SS12 P1.2V SDRAM P3.3V RGB DC-DC CONVERTER PLASMA AI PROCESSOR C1 CONTROL F_STBY-14V IIC POWER SOS P10 SUSTAIN SOS6/ P11 K1 G1 S-VIDEO IN VOLTAGE RECTIFIER S.R. S.R Vda-75V L STB12V DATA DRIVER(RIGHT) SS CONTROL FACTOR MICOM SS_SOS8 KEY PA34 S.R. VIDEO VSUS P9 S.R CONTROL FAN SOS P23 PULSE D5 FLASH C12 SOS6 PA31 P5 PULSE SCAN FORMAT 15V C2 PROCESS SUSTAIN SCAN STANDBY PA2 STANDBY 64 SU CONTROL SUSTAIN DRIVE SOS7 AC CORD OSD DC POWER 64 SS11 VOLTAGE SPEAKER C23 R REMOTE RECEIVER DG3 S.R MCU VOLTAGE (VE) AMP SCAN CONTROL Vda S.R RECTIFIER C11 SUSTAIN CONTROL RECEIVER PULSE PULSE GK3 GK KEY 64 FPGA S.R STB5V CONTROL R SOS7 SS23 PROCESSOR 15V C22 64 MAIN DATA S.R RECTIFIER SOS8 D31 FORMAT CONVERTER, GENERATOR SCAN L/R H5 L/R V,R,G,B INPUT V,R,G,B AUDIO VIDEO AV1 OUT DC POWER COMP MAIN H2 SCART VIDEO Y,PB,PR H SELECT TUNER L/R AV2 AV SWITCH,MSP INPUT SIF L/R AUDIO V MSP AUDIO TUNER SCART H1 TA5 PC IN R,G,B AV3 TA OUT IN L/R H51 SIF/AM(PV60E) AM SCART AV TERMINAL, L/R H40 L/R SELECT TV-V C,V R DVB-L/R G DVB_CVBS Y,PB/C,PR,CVBS DG22 B RGB PROCESSOR (GC5) LVDS TRANS- MITTER PC_R,G,B Y/UV TUNER D-TV INTERFACE XV01 HDSL PEAKS_LITE DAC DL_DR CVBS MVY/MVC DEMOD CI SLOT XV L/R DAC HDMI IN DG RECEIVER YG/UB AUDIO DIGITAL SIGNAL PROCESSOR HDMI I/F HDMI A/D TV_L/R HEADPHONE HP_L/R MAIN_L/R AI SENSOR DVB LED RECTIFIER FILTER RELAY LINE FILTER LINE +5V +15V PS_SOS SOS SOUND +15V FAN SOS FAN S34 POWER SWITCH STB12V STB_PS STB12V STB_PS STB12V STB_PS S POWER SW PV60E ONLY PX60B ONLY PX60B ONLY TH-42PV60E, TH-42PX60B Main Block Diagram TH-42PV60E, TH-42PX60B Main Block Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 77 14.4. P-Board Block Diagram (37inch) + - + - + R628 D520 D511 Q409 Q408 D529 D435 D535 D416 R661 1 2 3 Q412 Q527 C469 D430 D521 D505 D563 D528 Q413 C555 D417 R671 D404 X501 4NHz D530 D420 D509 D596 D419 D401 R665 1 2 3 R443 1 2 3 D25 1 STB_PS(12V) 3 2 Vdat OVER VOLTAGE 17 INV. ON:L C447 2 +5Vc 4 INV. 1 Q434 9 R410 H:ON Q402 ECO ON 2 10 G IC409 7 2 L403 1 Q421 IC404 PHOTO (IPD) SS12 +15Vc CIRCUIT Vda Q401 IC403 POWER MCU +15Vs(S) Q510 RESET TO 3 73V D407 4 COLD +15Vs(W) 3 Q564 4 +15Vs(W) Q565 T601 D569 R455 COLD Q568 2 PHOTO F STB 14V D570 1 HOT R534 D571 10 3 1 D585 STB_PS R674 R670 OVER R676 D539 Q422 Q541 R626 3 Q524 2 R656 AC GOOD AC POWER Vda75V R650 OUT S R627 F STB ON 2 Q540 8 R649 PHOTO COUPLER F 5A 250V V LOW DET STB12V OUT T402 5V OUT OSC AC P DET DETECTION 13 VOLTAGE Q538 OSC Q509 DETECTION 12 (60V 40V) 15 R631 Vcc TV ON/OFF DETECTION 16 16 COUPLER PR805 VSUS DET (490V 80V) 17 PHOTO NEUTRAL F_STB ON/OFF DETECTION 15 IC405 D 6 15V OVER 18 Q555 D586 VCC F STB 14V 2 VOLTAGE 4 MOS T404 2 2 6 +15Vc (16V 2V) DRIVE 5 ERROR DET IC505 PFC ON/OFF 1 PROTECTION (Vda) CURR DETECTION(100V 25V) 3 COUPLER Q520 DET 8 Q517 HOT CURR LIVE +15Vc 7 POWER SUPPLY COMP P9 IC401 4 2 9 COUPLER IC501 1 D531 Vda PHOTO 15 Q508 3 PHOTO DC POWER CONTROL 15V RL402 7 COUPLER 7 GND 4 14 SC2 8 2 RL403 DC-DC POWER SOS Q407 13 TO IC512 LED BLINKING : 4TIMES POWER PS SOS CONVERTER D542 Q420 PR601 VSUS DET GND COLD Q556 INV. Q404 9 D544 1 DC/DC CONV. S INV. COUPLER P10 12V DET D545 Q406 8 6 VSUS ON/OFF 3 SW PHOTO Csus R406 5 R622 T407 Source TO CONTROL R533 7 19 R648 12V ON/OFF 1 D415 4 4 Source 5 +15Vc 1 R636 INV. D579 3 (3V 1.0V) Q521 IC406 1 3 P BUFF TO 7 5 Q569 HOT 178V ERROR DET POWER BUFF 5 BUFF 1 IC411 11 AC CORD INV. (1.7A) F402 Q537 ZCD FACTOR 1 Vdd ECO ON/OFF Q512 TO 7 SW CORRECTOR Vsus SWITCHING PFC DET IC510 GD Q535 K P11 R579 STB5V DET A 8 8 2 P2 Vsus VlOW DET VCC 6 FB Vsus 6 IC504 10 Drain SS11 D 14 PR401 7 5 3 2 1 9 REGULATOR PFC IC502 3 D513 2 R444 RESET S VFF 4 3 RECTIFIER 4 R475 G DC/DC CONV. 1 15 STANDBY POWER SAVE 2 4 Q558 R441 Q563 5V 5 D 1 (Vlow) VlOW DET R526 6 R442 2 4 A 3 15 Vsus 189V R527 ERROR DET D572 4 4 CS 19 PFC DET IC402 POWER Vlow S H:ON PA10 6 INV ERROR DET 24 Vlow OVER SW 4 3 4 IC509 BUFF 9 18 3 1 6 D441 Vsus POWER CURCUIT BUFF BUFF 2 10 1 2 22 STB5V ON/OFF VSUS DET 5 4 Vcs 6 OSC 1 8 13 STB5V 23 D602 VOLTAGE 5 R620 395V (15V) 4 14 Q507 16 Q561 VOLTAGE R589 R496 2 D549 Vda 12 AC_GOOD 17 PROTECTION R590 R495 P12 D531 21 MAIN RELAY 4 V LOW ON/OFF D536 R621 +15V R494 20 RUSH RELAY 1 RUSH +15Vc ON 2 VDD VSUS ON/OFF R666 TO R472 VSS ALL OFF D551 1 R473 XIN 11 S 2 XOUT COUPLER Q559 IC412 3 3 RESET 6 13 3 D574 STB PS D PA5 F_STBY_ON IC507 16 D PFC DET P5 ALL_OFF D514 STB 5 ON/OFF 13 3 R545 4 1 PS_SOS LOW 15 10 3 7 F401 PANEL_MAIN_ON D 8 1 D512 ECO_ON Q418 OSC 7 2 Q566 1 F STB 14V 5 K R497 L405 4 +15V R465 1 2 (350V 40V) 2 SW 1 2 PFC OUT 4 RECTIFIER +15V IC408 SW Q501 3 P23 L:ON 4 T410 Q502 Q557 TO 2 1 Q525,Q530 1 D 2 SC23 L404 1 D (Vsus) (490V 80V) 9 2 R413 3 Q551 COUPLER +5Vc 1 L410 1 12 Q505 IC410 PHOTO TO R407 3 R458 ERROR DET COUPLER STBY5V MAIN 4 R427 ECO R464 IC506 ON PHOTO 7 2 Q553 R435 12V D418 Q554 P25 1 2 3 IC520 S PR509 C446, (F STB 14V) 6 2 3 8 10 1 T401 14 7 11 TH-37PV60E, TH-37PX60B P-Board Block Diagram TH-37PV60E, TH-37PX60B P-Board Block Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 78 14.5. P-Board (1 of 6) Schematic Diagram (37inch) Q402 RTR040N03 Q404 2SB1443 TP6 ZH117 ZH1 C443 1000p R433 12K R496 560K R497 12K Z2 1 C421 1.0 C635 0.01 ZH55 C476 100P R401 10K D419 S3K60 2.5mm R406 ERX12SJ2R2V ZH36 C446 200uF/450V C440 10 R442 680K ZH34 R439 12 R467 1000 L404 TF3524V-123Y5R0 1 2 4 3 R495 560K 2.5mm C429 0.047 ZH104 ZH119 ZH3 R493 12 ZH19 ZH111 C423 4700P ZH58 R471 3.3K R464 33K R451 33K ZH22 ZN404 ERZVGAD681 ZH118 ZH32 C461 330p ZH114 L403 EXCELSA35T D503 MA165 R403 1M ZH110 TP2 ZH37 C474 100P ZH15 D415 D1NS4 R473 560K Q401 SSM3J14T R499 390K IC406 L6561 1 2 3 4 5 6 7 8 R491 47K ZH54 ZH120 R448 0.08 R692 4700 C404 1.0uF 1.0 C427 Q418 2SD1819A C436 1.0 T401 45H-5033 1 2 3 4 5 6 7 8 11 12 13 14 15 16 9 10 TP7 R415 10K TP8 R419 100K RL403 DG12D1-O(M)-2 1 4 2 3 ZH57 ZH97 ZN401 ERZVGED621 ZH116 ZH11 R490 47K R498 damy ZH21 ZH96 ZH122 R454 10K C470 1.0uF ZH10 C445 1.0 ZH40 C460 330p ZH33 ZH31 R430 430K F402 T8AH 250V R452 10K R410 10/5W TP1 D418 02DZ8.2 R492 0 ZH9 C468 0.01 R494 560K ZH92 ZH95 ZH109 R414 15K R453 3M R465 560K L513 EXCELDR25V C428 220P L405 TF3524V-123Y5R0 1 2 4 3 R472 560K ZH48 ZH123 ZH102 R426 10K P9 LIVE 4 NC 3 - 2 NEUTRAL 1 ZH49 D417 S3K60 IC402 TL431A1LPM5 1 2 3 R424 22K D504 MA165 R421 33K R402 820 ZH8 C426 470P Z453 EYF52BCY F401 T8AH 250V C462 1.0 ZH13 ZH2 ZH105 Z452 EYF52BCY ZH17 C444 1000p S402 RA-362MS-V7-Y R480 47K D401 D20XB80 ZH51 D433 02DZ15 C450 0.01[KB] ZH16 C447 200uF/450V ZH108 D420 S3K60 Z450 EYF52BCY ZH30 Z451 EYF52BCY ZN402 D4EAD7510001 ZH20 Q420 2SD1819A C473 100P ZH12 2.5mm R443 2K R437 18K R440 470K Q406 RJK5020DPK01 R438 330 ZH42 ZH43 C410 0.01 R449 0.08 S401 RA-362MS-V7-Y R463 33K R456 33K R444 12K D431 RB520 ZH103 2.5mm C409 2.2uF R475 680K RL402 DG12D1-O(M)-2 1 4 2 3 R436 15K D407 MA111 C432 1.0 ZH7 C431 1000P C463 22P R455 12K R450 1000 Q407 HN1B01F TP5 R458 4700 ZH18 ZH106 R693 10K Q422 2SD1819A ZH35 ZH4 R417 430K D429 ERA15-10 C478 100P ZH121 R441 680K C422 0.01 R428 10K Q421 2SD1819A R462 430K TP4 TP3 ZH107 R431 10K ZH38 CURR Vcc GND CURR DRIVE COMP MOS DET 2 3 D B 4 E 6 F 1 5 8 7 A C 9 CAUTION CAUTION AC CORD TO COLD HOT COLD HOT COLD HOT COLD HOT COLD HOT CORRECTOR FACTOR POWER PFC P-BOARD TNPA3912 (1/6) 2 1 3 C D F B E I A H G J K TO P-BOARD (3/6) ERROR DET PFC DET TH-37PV60E, TH-37PX60B P-Board (1 of 6) Schematic Diagram TH-37PV60E, TH-37PX60B P-Board (1 of 6) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 79 14.6. P-Board (2 of 6) Schematic Diagram (37inch) P5 GNDs(W) 11 GNDs(W) 10 GNDs(S) 9 +15Vs(W) 8 +15Vs(W) 7 +15Vs(S) 6 GND 5 +15Vc 4 GND 3 +15Vc 2 +15Vc 1 D586 1SR153 C620 0.01 R641 47K R566 1M D538 02DZ5.1 ZH64 D521 D1NS4 Q510 RSR015P03 P23 GND 3 +15V 2 +15V 1 R922 100 R712 0 D602 02DZ8.2 Q538 2SK3018 C550 330P R932 100K C643 47/50V Q556 RSS130N03 1 2 3 4 5 6 7 8 R632 220 ZH91 D579 MA165 C520 0.068u D507 02DZ7.5 R607 22K R551 330K R659 30K T404 ETS42LA115AD R713 4700 ZH66 R664 9100 C469 220P D574 MA165 D520 MA111 D528 MA3X15300L R582 10K C508 470P R585 33K R614 3300 R598 33K IC512 TL431A1LPM5 1 2 3 R635 WA5001 ZH99 Q517 HN1C01F C451 100P ZH83 R631 33K C584 0.022 C551 0.1[KB] D539 SF8L60 Q564 2SB1218AR R711 0.16 D551 02DZ13 R706 1M D545 MA4200-M D508 02DZ7.5 R564 100K ZH79 R633 1M ZH65 R612 2200 Q566 2SD1819A-RTX R563 2.2 ZH74 R651 10K Q413 2SK3683 C527 4.7 R574 330 C657 1000P R953 2.2K Q409 RSR025P03 R476 180 R700 1M ZH81 C562 0.022 R537 100K ZH94 R545 10K R937 1K R649 22K C554 1.0 R674 33K L514 10uH R556 1M R572 390 D544 MA4200-M C624 0.01 C603 1.0 D517 MA4330-M D572 02DZ24Z IC520 LSSK0062 1 2 3 4 5 6 7 8 11 12 13 14 15 16 9 10 C625 10 R588 390 R666 1000 ZH62 D423 MA188 C574 0.1 C552 0.1[KB] R638 1K R565 1M C605 150u/200V ZH84 J502 LSJW0001 C457 0.033u PR509 F Q408 RSR025P03 R704 1M R680 0.16 T402 MT180 ZH75 R645 100 C530 0.033 R600 390 Q508 HN1C01F Q527 2SK2882 C581 0.022 C656 2.2 R701 1M C547 1000P C546 1000P R679 0.16 C555 220u/100V D530 02DZ10 R562 4.7K D542 MA4200-M R676 33K D535 MA188 R653 33K C604 150u/200V R629 1M R705 1M C601 0.01 R662 150K C556 1500u/25V T407 ETQ11K5AZ 6 5 1 4 2 R670 1000 D540 SF8L60 R665 2000 D549 02DZ24Z ZH82 R587 0.16 P10 F_STBY 1 F_STBY 2 F_STBY 3 GND 4 GND 5 GND 6 ZH85 Q541 2SK3018 R708 1M ZH73 D518 MA4330-M D571 02DZ24Z C526 0.022 C534 470P C655 2.2 R707 1M ZH86 R478 22 R613 24K C571 33P C650 0.1 R573 390 R561 5.1K R697 4.7 R655 0.16 R699 1M Q520 HN1C01F D569 02DZ24Z R568 1M R592 3000 PR401 F 5A 250V R482 22 R669 130K R682 20K R567 1M D570 02DZ24Z C577 33/100V D531 RF2001T3D Q555 RSS130N03 1 2 3 4 5 6 7 8 C587 3300P R571 1M R579 10K R685 1K Q565 2SB1218AR R477 180 R951 10 Q509 HN1A01F R703 1M R672 1K R931 33K R660 12K Z1 1 R597 33K C557 1500u/25V D536 SF20JC6 R576 12K L510 EXCELDR25V R596 100 R560 9.1K D516 MA4330-M R702 1M D425 MA188 C523 1.0 R668 0 J501 LSJW0001 R933 1K R661 5K R599 390 ZH78 R696 10 R673 1K R584 10K ZH80 Q412 2SK3683 R698 0.16 R688 1K R667 0 R650 10K R593 5600 R690 4.7 C528 1.0 P12 STB_PS 10 NC 9 STB_12V 8 GND 7 GND 6 GND 5 +15V 4 NC 3 Vda 2 Vda 1 R952 10 R675 22K D598 02DZ5.1 ZH72 R624 0.22 D543 02DZ15 C503 470P R591 1M R555 1M D529 MA3X15300L R570 100K 18 16 12 11 13 15 14 17 10 (SS12) TO SS-BOARD (SC23) TO SC-BOARD PA-BOARD TO (PA5) PA-BOARD TO (PA10) COLD HOT COLD HOT Vlow Vda P-BOARD TNPA3912 (2/6) 2 1 3 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR P-BOARD TO (4/6) 67.0 0 12.0 15.0 12.0 67.0 0 0 0 0 15.0 15.0 0 0 15.0 0 0 15.0 15.0 15.0 0 15.0 15.0 0 ERROR DET(Vda) DC/DC CONV. DC/DC CONV. VLOW DET VLOW DET POWER CONTROL 14.0 14.0 0 0 0 14.0 TH-37PV60E, TH-37PX60B P-Board (2 of 6) Schematic Diagram TH-37PV60E, TH-37PX60B P-Board (2 of 6) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 80 14.7. P-Board (3 of 6) Schematic Diagram (37inch) R429 4.7 ZH59 D430 MA111 D595 WA5001=5 R459 680K C630 0.01 C513 50V 470P IC411 TL431A1LPM5 1 2 3 R677 470K ZH63 ZH67 C512 50V 470P ZH5 C585 0.1 C408 1000P D444 D1NL20U D601 02DZ5.1 R404 1K D435 ERA15-10 D432 RB520 R521 10 IC504 TL431A1LPM5 1 2 3 C494 1u/250V R413 10/5W Q521 2SK3018 R435 430K IC408 ON3171 2 1 4 3 ZH88 D563 02DZ6.2 R539 10K C529 1.0 ZN405 510V C402 1.0 ZH68 Q434 2SK3302 D436 MA4200-M R412 0 ZH89 C467 220P C627 1000P R544 330 IC409 MIP2G4 Vdd 1 FB 2 CL 3 Vcc 4 DRAIN 5 6 SOURCE 7 SOURCE 8 ZH6 D404 S1WB(A)80 C413 0.1 ZH44 R422 330K C497 47/50V D437 MA4200-M R461 10K R423 1K D438 MA4200-M C507 0.01 D509 D2S6M ZH41 C407 22u/450V R418 22 R594 150 R530 33K R524 1K C517 220u IC410 ON3171 2 1 4 3 1mm ZN406 510V R488 100K R416 3M C654 1.0 L410 40mH 1 2 4 3 R921 33K R541 1M R507 220 ZH45 1mm ZH60 R434 0 ZH61 D511 D1NJ10 D411 ST02D-170 D596 ERA15-10 C414 0.047u R432 1K C433 0.1 T410 ETS25AF115AH 9 7 5 4 1 2 10 11 12 13 14 16 15 C514 50V 470P Q524 2SK2090 C515 1200 D416 1SR153 C425 0.01 R943 1M R540 1M D412 D1NL20U R483 4.7M C434 1.0 R420 0 C516 0.47 R938 4.7K ZH52 R542 1K R407 430K R522 10 C493 47/50V D441 D1NL20U D445 MA4360-H R425 39K R427 430K ZH53 R549 10K Q537 RTR040N03 9 3 D B 7 A 4 E 6 F 1 2 5 8 C COLD HOT COLD HOT COLD HOT COLD HOT P-BOARD TNPA3912 (3/6) F B E I A J C D H G K 13 12 14 11 15 BG BK BE BD BB BI BH BA BJ BF BC BL BM BN BO BP P-BOARD (1/6) TO TO P-BOARD (5/6) DC POWER CONTROL COUPLER PHOTO COUPLER PHOTO ERROR DET ERROR DET TH-37PV60E, TH-37PX60B P-Board (3 of 6) Schematic Diagram TH-37PV60E, TH-37PX60B P-Board (3 of 6) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 81 14.8. P-Board (4 of 6) Schematic Diagram (37inch) C634 1000P R527 220K P2 3 NC 2 1 IC509 L6565N INV 1 COMP 2 VFF 3 CS 4 ZCD 5 GND 6 GD 7 Vcc 8 R526 220K ZH24 R634 0.39 R626 150K D587 MA188 ZH25 R550 47K IC506 HA17431 5 4 1 3 2 R652 9.1K R533 16K R646 22K R947 330 ZH100 Vsus R658 1M C640 0.1 R647 22K D585 02DZ7.5 D575 MA188 R528 4.7 ZH101 GND ZH113 GND R643 0.39 R644 0.39 C641 1000P C616 1000P R656 47K R671 10K R636 150K R619 0.39 C629 0.01 IC505 ON3171 2 1 4 3 R695 16K R945 22K PR601 T 3.15A 250V D582 MA7056 ZH27 R628 3K R637 0.39 D501 S3K60 R691 100K C531 1.0 Q505 2SK2998 R621 12K ZH112 Vsus ZH23 R603 33K R534 47K R627 7.5K D514 02DZ6.2 Q530 2SD1819A-RTX P11 3 NC 2 1 R654 22 T601 45H-5034A 5 9 4 6 ZH47 C619 0.1 ZH46 R622 150K ZH26 R543 15K R648 150K ZH39 R608 3300 R590 12K R601 47K Q540 RSR025P03 ZH29 C611 1400u/220V R620 10K 2SK3568 C632 330P R589 12K R946 33K C518 0.1 R642 0.39 C615 1400u/220V IC507 ON3171 2 1 4 3 D506 02DZ5.1 C653 1000P R657 1000 Q525 2SK3018 R595 2200 ZH28 12 17 10 18 16 11 13 15 14 (SC2) TO SC-BOARD (SS11) TO SC-BOARD Vsus ERROR DET(Vsus) Csus P-BOARD TNPA3912 (4/6) AA AB AG AH AC AD AE AF AI AJ AK AL AM AN AO AP AQ AR 14 12 11 15 13 CA CB CC CD CE CF CG CH CI CJ CK P-BOARD (2/6) TO P-BOARD (6/6) TO 189.0 0 189.0 0 0 0 COUPLER PHOTO COUPLER PHOTO DC-DC CONVERTER Q507 Q505 TH-37PV60E, TH-37PX60B P-Board (4 of 6) Schematic Diagram TH-37PV60E, TH-37PX60B P-Board (4 of 6) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 82 14.9. P-Board (5 of 6) Schematic Diagram (37inch) R575 1000 R936 10K C506 0.01 Q551 2SK3018 Q512 2SK3018 C626 0.01 R955 47K C638 0.01 R577 47K R516 1000 R939 1K D515 02DZ3.3 C612 0.01 C511 1000P R511 100K R520 100K C610 1.0 D555 02DZ7.5 IC502 R3111N401C 1 2 5 3 4 R505 33 R583 47K C583 1000P R538 100K R508 1000 R525 47K C613 0.01 R950 1M R553 100 R687 10K R678 0 R487 4.7K R586 47K X501 4MHz R515 1000 D505 D1NS4 C519 1.0 R506 1000 R578 47K D590 02DZ3.3 Q568 2SJ463A R504 1000 IC404 ON3171 2 1 4 3 Q561 2SD1819A-RTX R630 4.7K R686 1000 R546 1000 R514 100K R554 1000 R684 10K R548 1000 R535 1000 C607 1.0 R532 1K R509 100K C504 1.0 R513 100K Q558 2SD1819A-RTX R683 33K R501 22K IC401 ON3171 2 1 4 3 C505 1000P C631 0.01 Q569 2SK3018 R581 47K R715 100 R580 47K C502 0.01 C501 0.01 R606 1200 C510 0.1 R935 100K R689 1000 Q501 2SD1820A R617 10K IC412 ON3171 2 1 4 3 IC501 M34509G4FP VDD 1 VSS 2 XIN 3 XOUT 4 CNVSS 5 Reset 6 P21 7 P20 8 D5 9 D4 10 P01 21 P00 22 D1 13 D0 14 P13 15 P12 16 P11 17 P10 18 P03 19 P02 20 D3 11 D2 12 P31 23 P30 24 R714 100 R502 100K C509 100/25V R940 1K Q553 2SD1819A-RTX D513 MA111 R503 100K D588 02DZ3.3 R615 10K Q535 2SD1819A R609 1000 R552 10K R611 47K R512 22K R518 1K R956 100K R602 3300 C639 0.01 IC405 ON3171 2 1 4 3 R519 100K R618 100K Q559 2SD1819A-RTX R557 100K R536 1000 Q563 2SK2090 C608 0.01 D559 02DZ7.5 Q557 2SD1819A-RTX R510 100K C659 0.01 R517 10K D512 MA111 C533 0.01 R610 47K R558 470K Q502 2SD1820A Q554 RSR025P03 R616 10K IC403 ON3171 2 1 4 3 3 D B 7 A 4 E 6 F 9 1 2 5 8 C COLD HOT COLD HOT COLD HOT POWER MCU RESET P-BOARD TNPA3912 (5/6) BM BN BC BL BJ BO BB BA BF BK BI BD BE BH BP BG 42 41 32 45 46 36 34 39 38 40 33 37 43 31 44 35 47 P-BOARD TO (3/6) COUPLER PHOTO PHOTO COUPLER COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO TH-37PV60E, TH-37PX60B P-Board (5 of 6) Schematic Diagram TH-37PV60E, TH-37PX60B P-Board (5 of 6) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 83 14.10. P-Board (6 of 6) Schematic Diagram (37inch) L511 47uH C623 10 L512 4.7uH PR505 TF16N5.00 R529 100 R569 33K IC510 BD9703FP 1 2 3 4 5 C660 2.2 D599 D1FP3 C661 0.01 R523 47K C658 1.0 D502 WA5001=5 P25 ALL_OFF 18 Panel_Main_ON 17 PS_SOS 16 ECO_ON 15 FAN_SOS 14 F_STBY_ON 13 GND(STBY) 12 GND 11 STBY5V 10 +5Vc 9 GND 8 +5Vc 7 GND 6 GND 5 GND 4 NC 3 +15Vc 2 +15Vc 1 AC_GOOD 19 KILL_SOS 20 R547 100 D600 02DZ7.5 C662 0.01 C558 470u/25V R559 8.2K C559 1200 15 12 17 10 18 16 11 13 14 TO D-BOARD (D25) P-BOARD TNPA3912 (6/6) 33 37 38 40 44 35 46 36 42 45 47 41 43 31 32 34 39 CG CF CH CA CK CD CE CJ CC CB CI (4/6) TO P-BOARD 0 3.2 0 0 0 0 0 0 0 15.0 15.0 0 0 0 0 5.0 5.0 2.6 5.0 0 REGULATOR SWITCHING TH-37PV60E, TH-37PX60B P-Board (6 of 6) Schematic Diagram TH-37PV60E, TH-37PX60B P-Board (6 of 6) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 84 14.11. P-Board Block Diagram (42inch) + - + - + D509 X501 4NHz R661 1 2 3 R665 1 2 3 Q408 Q412 D417 D420 D419 C469 R671 C555 R443 1 2 3 D529 D528 D404 D596 D416 D435 D401 D430 D563 D511 D505 R628 Q527 D530 Q413 Q409 D520 D521 D535 1 2 IC408 4 2 1 3 1 3 4 2 1 3 4 2 IC404 IC403 9 2 3 17 8 10 13 1 T401 5 8 7 6 VCC MOS DRIVE CURR DET CURR COMP 2 1 3 4 Q407 Q420 Q404 Q406 R406 D415 IC406 POWER FACTOR CORRECTOR Q535 8 6 10 7 9 2 3 4 1 15 19 24 18 22 23 16 17 21 20 VDD VSS XIN XOUT RESET STB PS PFC DET STB 5 ON/OFF LOW 15 AC GOOD F STB ON V LOW DET AC P DET TV ON/OFF VSUS DET F_STB ON/OFF PS SOS PFC ON/OFF V LOW ON/OFF IC501 1 2 IC502 RESET 1 5 2 4 6 3 2 1 4 Vda P12 +15V +15Vc TO 1 2 6 PA5 P5 4 7 8 1 +15V 2 +15V P23 TO SC23 9 +5Vc TO STBY5V 7 P25 D25 +5Vc 10 Q421 POWER MCU COLD COLD HOT 10 STB_PS Q422 Vda75V 8 STB12V Q509 16 17 15 18 2 +15Vc 1 3 HOT POWER SUPPLY 4 Vda Q508 14 13 PR601 9 6 5 4 3 5 ZCD 7 GD 8 VCC 1 3 VFF 4 CS INV IC509 13 14 12 MAIN RELAY RUSH RELAY VSUS ON/OFF ALL OFF 11 Q559 13 F_STBY_ON ALL_OFF PS_SOS PANEL_MAIN_ON ECO_ON F STB 14V 2 1 3 F STB 14V F STB 14V P10 TO PA10 IC520 PR401 F401 F402 1 4 NEUTRAL RL402 RL403 4 2 4 2 IC412 3 1 1 3 5 16 13 10 17 9 7 SS12 TO T601 T410 T404 D539 LIVE P9 2 POWER COLD HOT AC CORD TO PFC DET STB5V DET VlOW DET VlOW DET Vsus 189V Vlow Vlow Vsus POWER CURCUIT OSC 395V R496 R495 R494 Q418 R497 (350V 40V) PFC OUT Q501 Q502 Q551 Q505 ERROR DET IC506 ON:L H:ON 2 Vda 73V D569 D570 D571 R670 Q541 R650 R649 5V OUT DETECTION COUPLER PHOTO IC405 COUPLER PHOTO CONTROL D579 R579 D549 R666 D551 R545 3 4 1 2 IC505 IC401 COUPLER PHOTO COUPLER DC-DC CONVERTER Csus R533 (3V 1.0V) 178V (1.7A) R526 R527 H:ON OVER VOLTAGE PROTECTION (490V 80V) COUPLER PHOTO COUPLER PHOTO PHOTO OVER VOLTAGE DETECTION (490V 80V) DETECTION 15V OVER VOLTAGE (16V 2V) PROTECTION COUPLER PHOTO SC2 TO GND 1 3 TO 1 Vsus P11 P2 Vsus SS11 3 PFC R444 R475 R441 R442 D441 4 R620 R589 R590 R621 D574 OSC L405 L404 R413 L410 R407 R427 R435 Q434 IC409 (IPD) DC POWER CONTROL 8 Source Source 7 1 Vdd 2 FB Drain 5 4 Vcs 7 14 12 4 16 R472 R473 R465 R464 D418 C446, C447 Q402 L403 Q401 D407 R455 1 3 2 PFC DET AC POWER RESET Q568 3 1 2 ECO STB_PS(12V) R410 PHOTO 4 2 1 3 IC410 COUPLER 7 12 11 3 2 1 IC504 14 15 Q563 Q521 Q569 Q537 Q512 Q561 AC_GOOD 19 1 S 2 S G 3 4 S 8 7 5 6 D D D D 6 4 S 8 5 S 3 D D D 7 G 1 2 S D Q555 Q556 DC/DC CONV. DC/DC CONV. Q558 Q557 Q525,Q530 R534 D585 Q524 OUT 2 1 Vcc PR805 ERROR DET (Vda) IC512 D542 D544 D545 SWITCHING IC510 REGULATOR D513 D512 Q566 13 15 4 6 12 16 2 PHOTO COUPLER 3 4 1 2 IC507 D514 3 1 2 (Vsus) K A Vsus R622 R648 R636 R626 R656 R627 OUT DETECTION (60V 40V) VOLTAGE Q507 2 4 3 5 9 10 6 T402 Q538 R631 R674 R676 3 1 2 K A D572 POWER CIRCUIT Q510 Q564 Q565 Q540 F 5A 250V OSC OSC 9 D531 15 7 D586 4 6 5 D531 D536 RUSH ON Q553 Q554 PR509 Vdat OVER VOLTAGE DETECTION(100V 25V) Q520 Q517 +15Vc +15Vc +15Vs(S) +15Vs(W) +15Vs(W) +15Vc P ERROR DET IC411 ERROR DET IC402 ERROR DET SW SW RECTIFIER SW L:ON RECTIFIER STANDBY POWER SAVE 5V (Vlow) R458 MAIN ON 12V BUFF INV. ECO ON/OFF SW BUFF STB5V ON/OFF STB5V (15V) (F STB 14V) INV. INV. ECO ON VSUS DET INV. INV. VSUS ON/OFF 12V ON/OFF INV. BUFF BUFF BUFF BUFF VSUS DET D602 12V DET SW T407 1 15V GND POWER SOS LED BLINKING : 4TIMES TH-42PV60E, TH-42PX60B P-Board Block Diagram TH-42PV60E, TH-42PX60B P-Board Block Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 85 14.12. P-Board (1 of 6) Schematic Diagram (42inch) R472 560K R419 100K R497 12K ZH57 ZH42 R426 10K C443 1000p R473 560K TP5 ZH105 R428 10K TP6 S402 RA-362MS-V7-Y ZH18 RL403 DG12D1-O(M)-2 1 4 2 3 ZN402 D4EAD7510001 R463 33K C423 4700P ZH33 ZH122 R439 12 R417 430K C431 1000P T401 G4D4A0000117 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R433 12K ZH109 D503 MA165 ZH96 R475 680K D418 02DZ8.2 L405 TF3524V-123Y5R0 1 2 4 3 ZH21 R414 15K D420 S3K60 Z450 EYF52BCY ZH51 R492 0 TP4 C409 2.2uF R450 1000 R437 18K ZH34 R442 680K ZH9 C404 1.0uF ZH120 IC402 TL431A1LPM5 1 2 3 D433 02DZ15 ZN401 ERZVGED621 ZH19 Q422 2SD1819A R471 3.3K C476 100P R451 33K TP8 ZN404 ERZVGAD681 L404 TF3524V-123Y5R0 1 2 4 3 ZH36 C421 1.0 ZH10 ZH32 ZH117 R430 430K D431 RB520 R465 560K ZH20 ZH40 C429 0.047 C478 100P ZH111 D415 D1NS4 R480 47K Z451 EYF52BCY ZH107 C446 200uF/450V ZH58 D419 S3K60 C470 1uF ZH123 R449 0.08 ZH35 C635 0.01 ZH106 R443 2K D429 ERA15-10 R495 560K ZH103 R444 12K R403 1M TP2 2.5mm R455 12K ZH8 ZH48 R453 3M C463 22P R438 330 R421 33K 2.5mm R431 10K C422 0.01 ZH1 2.5mm D417 S3K60 S401 RA-362MS-V7-Y C468 0.01 R436 15K R410 10/5W ZH38 C436 1.0 R456 33K ZH102 TP3 C462 1.0 C461 330p ZH31 C474 100P Q421 2SD1819A C450 0.01 ZH118 ZH49 R452 10K ZH95 R406 ERX12SJ2R2V R493 12 ZH55 C447 200uF/450V R464 33K ZH50 ZH110 R401 10K TP7 R441 680K R494 560K D504 MA165 F401 T8AH 250V ZH16 R692 4700 ZH43 ZH119 ZH92 ZH17 ZH54 ZH2 ZH12 Z453 EYF52BCY ZH7 R402 820 R491 47K C460 330p Q407 HN1B01F C445 1.0 L513 EXCELDR25V R498 0.08 2.5mm R454 10K ZH15 C432 1.0 ZH22 R448 0.08 RL402 DG12D1-O(M)-2 1 4 2 3 C410 0.01 TP1 Q418 2SD1819A D401 D20XB80 R458 4700 Q401 SSM3J14T R440 470K C444 1000p ZH30 Q404 2SB1443 R467 1000 F402 T8AH 250V ZH121 Q402 RTR040N03 C426 470P P9 LIVE 4 NC 3 - 2 NEUTRAL 1 R490 47K ZH108 L403 EXCELSA35T R424 22K C440 10 Z2 K4ZZ01000206 1 ZH37 ZH116 Z452 EYF52BCY R693 10K R415 10K ZH56 C473 100P ZH104 IC406 L6561 1 2 3 4 5 6 7 8 ZH11 R462 430K ZH3 C427 1.0 R496 560K D407 MA111 C428 220P Q420 2SD1819A ZH13 ZH97 ZH4 Q406 RJK5020DPK01 CURR Vcc GND CURR DRIVE COMP MOS DET CAUTION 2 3 D B 4 F 5 E 6 1 8 7 A C 9 CAUTION AC CORD TO P-BOARD TNPA3911 (1/6) HOT COLD HOT COLD COLD HOT POWER FACTOR CORRECTOR PFC COLD HOT HOT COLD 1 2 3 A B C D F G H I J K E P-BOARD (3/6) TO CORRECTOR FACTOR POWER ERROR DET PFC DET TH-42PV60E, TH-42PX60B P-Board (1 of 6) Schematic Diagram TH-42PV60E, TH-42PX60B P-Board (1 of 6) Schematic Diagram R499 390K TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 86 14.13. P-Board (2 of 6) Schematic Diagram (42inch) ZH72 ZH65 R600 390 C530 0.033 D531 RF2001T3D P10 F_STBY 1 F_STBY 2 F_STBY 3 GND 4 GND 5 GND 6 R685 1K C546 1000P PR509 F P23 GND 3 +15V 2 +15V 1 R563 2.2 R551 330K R713 4700 R673 1K ZH81 R932 100K Q565 2SB1218AR R697 4.7 ZH83 R649 22K ZH79 Q508 HN1C01F D544 MA4200-M D517 MA4330-M R587 0.16 R596 100 R537 100K R672 1K D529 MA3X15300L R669 130K R705 1M R688 1K R682 20K D579 MA165 R698 0.16 R676 33K R653 33K R574 330 T402 MT180 C571 33P C457 0.033u Q517 HN1C01F R478 22 D528 MA3X15300L R477 180 C527 4.7 R476 180 R662 150K C577 33/100V R555 1M R571 1M IC520 LSSK0062 1 2 3 4 5 6 7 8 11 12 13 14 15 16 9 10 Q527 2SK2882 R708 1M C624 0.01 D516 MA4330-M R667 0 R931 33K R707 1M Q541 2SK3018 C620 0.01 R675 22K PR401 F 5A 250V C469 220P Q555 RSS130N03 1 2 3 4 5 6 7 8 Q409 RSR025P03 C520 0.068u C523 1.0 R570 100K ZH99 L510 EXCELDR25V T407 ETQ11K5AZ 6 5 1 4 2 R593 5600 R700 1M R702 1M R607 22K D425 MA188 R679 0.16 R562 4.7K[F] C587 3300P R568 1M T404 ETS42LA115AD P5 GNDs(W) 11 GNDs(W) 10 GNDs(S) 9 +15Vs(W) 8 +15Vs(W) 7 +15Vs(S) 6 GND 5 +15Vc 4 GND 3 +15Vc 2 +15Vc 1 C528 1.0 R629 1M D551 02DZ13 C552 0.1 C604 150u/200V R560 9.1K R680 0.16 C556 1500u/25V R582 10K Q412 2SK3683 R706 1M C451 100P R632 220 C656 2.2 D598 02DZ5.1 R660 12K C625 10 ZH80 R598 33K C526 0.022[KB] C574 0.1 R573 390 R641 47K ZH86 C643 47/50V R703 1M L514 10uH C657 1000P R645 100 R655 0.16 C605 150u/200V ZH64 R701 1M R922 100 R668 0 C655 1.0 C584 0.022 D574 MA165 R482 22 D542 MA4200-M P12 STB_PS 10 NC 9 STB_12V 8 GND 7 GND 6 GND 5 +15V 4 NC 3 Vda 2 Vda 1 C503 470P R567 1M R592 3000 R670 1000 R665 2000 R674 33K R614 3300 R696 10 D536 SF20JC6 D507 02DZ7.5 R699 1M R561 5.1K R588 390 R564 100K C650 0.1 ZH74 D572 02DZ24Z ZH94 R576 12K R651 10K C562 0.022 R952 10 R579 10K R572 390 D535 MA188 IC512 TL431A1LPM5 1 2 3 D549 02DZ24Z ZH84 D602 02DZ8.2 R585 33K C551 0.1 ZH62 D545 MA4200-M D569 02DZ24Z ZH85 J502 LSJW0001 D521 D1NS4 R704 1M C547 1000P R591 1M D530 02DZ10 R933 1K ZH66 C603 1.0 R664 9100 R613 24K R951 10 Q566 2SD1819A-RTX R584 10K D508 02DZ7.5 D571 02DZ24Z ZH75 D423 MA188 R566 1M Q564 2SB1218AR D543 02DZ15 ZH78 R545 10K D540 SF8L60 R565 1M R597 33K C534 470P R659 30K C550 330P R631 33K R650 10K R666 1000 R711 0.16 R624 0.22/2W R953 2.2K Q413 2SK3683 R633 1M D539 SF8L60 ZH82 R937 1K Q408 RSR025P03 C557 1500u/25V C601 0.01 R661 5K C555 470u/100V R556 1M Z1 1 R635 WA5001 ZH73 D570 02DZ24Z Q520 HN1C01F ZH91 R599 390 C581 0.022 Q510 RSR015P03 Q509 HN1A01F C508 470P R690 4.7 Q556 RSS130N03 1 2 3 4 5 6 7 8 R712 4.7 R638 1K J501 LSJW0001 D538 02DZ5.1 D520 MA111 D518 MA4330-M D586 1SR153 Q538 2SK3018 C554 1.0 15 16 18 10 12 17 14 11 13 TO SS-BOARD (SS12) (SC23) TO SC-BOARD HOT COLD POWER CONTROL Vda ERROR DET(Vda) P-BOARD TNPA3911 (2/6) COLD HOT HOT COLD Vlow PA-BOARD TO (PA5) 2 1 3 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR P-BOARD TO (4/6) AS AT 12.0 15.0 12.0 0 67.0 0 0 67.0 0 0 15.0 0 15.0 15.0 15.0 15.0 0 0 0 15.0 15.0 0 15.0 0 VLOW DET VLOW DET DC/DC CONV. DC/DC CONV. PA-BOARD TO (PA10) 14.0 0 0 0 14.0 14.0 TH-42PV60E, TH-42PX60B P-Board (2 of 6) Schematic Diagram TH-42PV60E, TH-42PX60B P-Board (2 of 6) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 87 14.14. P-Board (3 of 6) Schematic Diagram (42inch) ZH6 C630 0.01 C514 470P R921 33K C507 0.01 C414 0.047u D430 MA111 R530 33K D436 MA4200-M ZH59 R427 430K R423 1K R483 4.7M R425 39K ZH5 ZH89 ZH67 ZH44 C585 0.022 Q521 2SK3018 R407 430K R938 4.7K C517 220u C433 0.1 C654 1.0 D437 MA4200-M ZH53 IC408 ON3171 2 1 4 3 R549 10K C512 50V 470P ZH41 R413 10/5W R521 10 2.5mm R404 1K ZH68 D601 02DZ5.1 R432 1K R412 0 R594 150 2.5mm R943 1M D411 ST02D-170 C408 1000P R435 430K R539 10K R461 10K C515 1200 D438 MA4200-M IC504 TL431A1LPM5 1 2 3 T410 ETS25AF115AH 9 7 5 4 1 2 10 11 12 13 14 16 15 R418 22 ZH88 R544 330 ZH61 D412 D1NL20U C627 1000P Q537 RTR040N03 C493 47/50V C413 0.1 IC410 ON3171 2 1 4 3 R488 100K IC409 MIP2G4 Vdd 1 FB 2 CL 3 Vcc 4 DRAIN 5 6 SOURCE 7 SOURCE 8 D432 RB520 C402 1.0 IC411 TL431A1LPM5 1 2 3 R459 680K C513 50V 470P D445 MA4360-H R541 1M D596 ERA15-10 ZH45 ZH63 C516 0.47 ZN406 ERZV07D511 D511 D1NJ10 C529 1.0 Q434 2SK3302 R429 4.7 ZN405 ERZV07D511 D441 D1NL20U Q524 2SK2090 R507 220 R422 330K D404 S1WB(A)80 R416 3M R542 1K R522 10 D435 ERA15-10 C434 1.0 L410 40mH 1 2 4 3 R434 0 D563 02DZ6.2 R420 0 D416 1SR153 D444 D1NL20U ZH60 C467 220P C494 1/250V D509 D2S6M R677 470K ZH52 R540 1M D595 WA5001=5 R524 1K C497 47/50V C407 22u/450V C425 0.01 2 3 D B 4 E 6 F 1 5 8 7 A C 9 COLD HOT COLD HOT COLD HOT COLD HOT P-BOARD TNPA3911 (3/6) ERROR DET 11 12 13 14 15 16 C J D F K B E I A H G BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO P-BOARD (1/6) TO (5/6) P-BOARD TO ERROR DET PHOTO COUPLER CONTROL DC POWER COUPLER PHOTO TH-42PV60E, TH-42PX60B P-Board (3 of 6) Schematic Diagram TH-42PV60E, TH-42PX60B P-Board (3 of 6) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 88 14.15. P-Board (4 of 6) Schematic Diagram (42inch) C632 330P R526 220K R528 4.7 R622 150K R534 47K C629 0.01 R640 0.68 ZH24 D587 MA188 D575 MA188 C653 1000P ZH27 R543 15K ZH100 Vsus R590 12K R691 100K R647 22K R550 47K Q505 2SK2998 R652 9.1K ZH112 Vsus R627 7.5K Q540 RSR025P03 ZH39 R595 2200 R589 12K ZH29 ZH23 ZH28 ZH26 T601 45H-5034A 5 9 4 6 IC509 L6565N INV 1 COMP 2 VFF 3 CS 4 ZCD 5 GND 6 GD 7 Vcc 8 P11 3 NC 2 1 C615 1400u/220V C641 1000P R620 10K C611 1400u/220V R671 10K C640 0.1 R643 0.68 PR601 T 3.15A 250V D501 S3K60 R634 0.68 R946 33K R644 0.68 R626 150K R657 1000 IC507 ON3171 2 1 4 3 R656 R947 330 R648 150K R621 12K R646 22K R527 220K C518 0.1 R612 2200 R619 0.68 IC506 HA17431 5 4 1 3 2 ZH25 P2 3 NC 2 1 C619 0.1 R628 3K R636 150K D514 02DZ6.2 R945 22K Q507 2SK3568 R639 0.68 R603 33K ZH113 GND C634 1000P Q530 2SD1819A-RTX D506 02DZ5.1 R601 47K D582 MA7056 R533 16K R654 22 ZH47 R637 0.68 ZH46 R658 1M Q525 2SK3018 R642 0.68 C531 1.0 D585 02DZ7.5 IC505 ON3171 2 1 4 3 R608 3300 R695 16K C616 1000P ZH101 GND 15 12 17 10 18 16 11 13 14 (SS11) TO SC-BOARD (SC2) TO SC-BOARD Csus ERROR DET(Vsus) Vsus P-BOARD TNPA3911 (4/6) 16 13 12 14 11 15 AC AF AD AA AG AB AE CA CB CC CD CE CF CG CH CI CJ CK CL P-BOARD (2/6) TO P-BOARD (6/6) TO AK AL AJ AO AQ AR AM AN AI AS AH AP AT 0 0 189.0 0 0 189.0 DC-DC CONVERTER PHOTO COUPLER COUPLER PHOTO TH-42PV60E, TH-42PX60B P-Board (4 of 6) Schematic Diagram TH-42PV60E, TH-42PX60B P-Board (4 of 6) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 89 14.16. P-Board (5 of 6) Schematic Diagram (42inch) Q558 2SD1819A-RTX R616 10K C511 1000P R501 22K R615 10K D588 02DZ3.3 Q557 2SD1819A-RTX R940 1K R512 22K C505 1000P R518 1K R509 100K R504 1000 C613 0.01 R936 10K Q568 2SJ463A R684 10K R525 47K C583 1000P R935 100K IC501 M34509G4FP VDD 1 VSS 2 XIN 3 XOUT 4 CNVSS 5 Reset 6 P21 7 P20 8 D5 9 D4 10 P01 21 P00 22 D1 13 D0 14 P13 15 P12 16 P11 17 P10 18 P03 19 P02 20 D3 11 D2 12 P31 23 P30 24 C506 0.01 R520 100K R487 4.7K C659 0.01 R678 0 R532 1K Q535 2SD1819A Q554 RSR025P03 Q563 2SK2090 R535 1000 Q561 2SD1819A-RTX C639 0.01 R955 47K R502 100K R558 470K R548 1000 R586 47K Q551 2SK3018 X501 4MHz IC502 R3111N401C 1 2 5 3 4 R939 1K R519 100K C608 0.01 C510 0.1 R606 1200 C533 0.01 C607 1.0 R950 1M C509 100/25V R538 100K R617 10K C501 0.01 IC405 ON3171 2 1 4 3 R689 1000 D555 02DZ7.5 IC403 ON3171 2 1 4 3 R511 100K R956 100K C519 1.0 R575 1000 R516 1000 R618 100K IC401 ON3171 2 1 4 3 R536 1000 R503 100K R505 33 IC412 ON3171 2 1 4 3 R580 47K R578 47K IC404 ON3171 2 1 4 3 R557 100K R517 10K R510 100K C502 0.01 R686 1000 R611 47K R554 1000 C638 0.01 Q559 2SD1819A-RTX C610 1.0 R514 100K R581 47K R687 10K R515 1000 Q512 2SK3018 D505 D1NS4 R714 100 C504 1.0 R610 47K D512 MA111 R583 47K Q553 2SD1819A-RTX R552 10K C626 0.01 Q502 2SD1820A R602 3300 D513 MA111 D559 02DZ7.5 R715 100 R546 1000 C612 0.01 R508 1000 Q569 2SK3018 Q501 2SD1820A C631 0.01 R683 33K R577 47K R609 1000 D590 02DZ3.3 R630 4.7K D515 02DZ3.3 R513 100K R506 1000 2 5 8 7 A C 9 3 D B 4 E 6 F 1 COLD HOT COLD HOT HOT COLD POWER MCU RESET P-BOARD TNPA3911 (5/6) 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 BO BG BK BE BD BN BM BL BB BI BH BA BJ BF BC P-BOARD TO (3/6) COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO PHOTO COUPLER TH-42PV60E, TH-42PX60B P-Board (5 of 6) Schematic Diagram TH-42PV60E, TH-42PX60B P-Board (5 of 6) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 90 14.17. P-Board (6 of 6) Schematic Diagram (42inch) P25 ALL_OFF 18 Panel_Main_ON 17 PS_SOS 16 ECO_ON 15 FAN_SOS 14 F_STBY_ON 13 GND(STBY) 12 GND 11 STBY5V 10 +5Vc 9 GND 8 +5Vc 7 GND 6 GND 5 GND 4 NC 3 +15Vc 2 +15Vc 1 AC_GOOD 19 KILL_SOS 20 R553 100 L512 4.7uH C658 1.0 R569 33K R547 100 D599 D1FP3 C661 0.01 R529 100 C558 470u/25V L511 47uH D502 WA5001=5 R523 47K C559 1200 C623 10 C660 2.2 IC510 BD9703FP 1 2 3 4 5 D600 02DZ7.5 R559 8.2K PR505 TF16N5.00 C662 0.01 15 12 17 10 16 13 18 11 14 P-BOARD TNPA3911 (6/6) (D25) D-BOARD TO 42 41 32 45 46 36 34 39 38 40 33 37 43 31 44 35 CG CK CL CB CA CE CF CI CC CD CJ CH (4/6) TO P-BOARD 0 5.0 2.6 0 5.0 5.0 0 0 0 0 0 15.0 0 3.2 0 0 15.0 0 0 0 REGULATOR SWITCHING TH-42PV60E, TH-42PX60B P-Board (6 of 6) Schematic Diagram TH-42PV60E, TH-42PX60B P-Board (6 of 6) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 91 14.18. PA-Board Block Diagram ON/OFF D5644 D5635 D5639 D5641 D5637 D5643 D5647 D5642 D5638 D5649 D5804 MAIN9V TP16 TPS9V TPS9 TPS5 TPS5V TPM5 TPM5V D2309 D5640 TPS33 TPS33V TPM33 TPM33V TPM18V TPM18 TPM9V TPM9 TP5616 TP5615 TP5617 D5634 D5805 D5806 D5807 MAIN9V D5646 6 SUB_5V Q5603 7 22 Q5602 SUB_9V-1 SUB9V PA_SOS 3 FAN_SOS F_STBY_14V 23 8 20 MAIN_5V SUB5V PA20 9 LINP 1 21 IC2306 19 W_L+ SUB_3.3V 35 W_R+ LOUTP 5 W_R- 1 LOUTN LOUTP SHUTDOWN IC2304 34 MAIN_9V(0.4A) PA2 8 SUB9V(2.2A) 26 SOUND_SOS TUNER_SUB_ON ON/OFF1 24 TUNER_MAIN_ON 3 16 3 SUB9V Q5643 SUB9V 1 SUB5V MAIN9V VOUT1 MAIN3.3V F_STBY_14V 1 TO P10 MAIN1.8V Q2306 6 NR14V 6 ROUTP RINP 1 5 27 7 OP AMP 39 VOUT1 VIN FAULT IC5601 5 PVCCR ROUTN MAIN3.3V AVR 5V/9V 13 48 40 ON/OFF1 2 2 42 ON/OFF2 9 TO SPEAKER 2 VIN Q5641 5 41 10 3 +15V VOUT2 OP AMP 14 2 4 MAIN3.3V 19 16 VOUT2 3 MAIN9V FAN_CONT PA40 6 STB5V 12 18 Q5601 MAIN1.8V MAIN5V ON/OFF2 ON/OFF 37 17 35 39 2 Q5605 MAIN5V 1 Q5644 +15V SR W_L- 7 SUB9V 32 AVCC 4 ROUTN PVCCL 15 5 IC5602 ROUTP SUB5VA PVCCL AMUTE SL 3 13 MAIN_1.8V 20 LOUTN 2 IC2302 7 46 1 44 3 MAIN_9V 33 PA5 Q2302 (W-R & W-L) F_STBY_14V PVCCR 2 34 +15V PA10 AVR 1.8V/3.3V +15V +15V FAN 3 PA32 SOS 3 FAN 1 PA33 FAN 1 FAN SOS 1 PA34 SOS 3 1 SOS PA31 3 AVR 15V Vin ON/OFF 5 1 IC5801 Q2307 SUB5VA TO P5 Q5642 PA SUB5V/MAIN5V SUB9V/ MAIN9V Q5613 STB5V1 STB5V1 TO H40 Q5604 ON/OFF TV_SUB_ON IC5604 VIN 5 AVR 3.3V VOUT 1 TO DG20 MAIN_9V(0.1A) SUB5V(1.0A) MAIN5V(0.37A) MAIN5V TUNER_MAIN_ON SPEAKER AMP Q2300 Q2301 11 SUB3.3V 13 MAIN3.3V SUB3.3V MAIN3.3V(1.55A) MAIN1.8V(1.2A) MAIN3.3V(2.5A) SUB9V(1.7A) MAIN1.8V(1.2A) SOS Vout 2 4 Vadj Q2303 15 Q5610 9 1 (sw) FAN CONTROL SPEAKER OUT/AUDIO AMP FAN CONTROL DC-DC CONVERTER LED BLINKING : 12TIMES SOUND SOS FAN SOS LED BLINKING : 11TIMES PA SOS LED BLINKING : 10TIMES TH-37/42PV60E, TH-37/42PX60B PA-Board Block Diagram TH-37/42PV60E, TH-37/42PX60B PA-Board Block Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 92 14.19. PA-Board (1 of 3) Schematic Diagram + + + + + + STB_5V 4.4V SUB_9V SUB_9V MAIN_1.8V MAIN_9V NR14V R5808 2.2k D5807 MA2J11100L R5648 3.9k R5802 13k D5634 MA2J11100L R5806 2.2k C5643 16V 0.1u L5606 22u L5622 G1C150MA0234 C5670 25V 0.1u R5644 2.2k R5627 4.7k R5650 220 R5672 10k Q5643 2SA207700L C5805 1u 16V R5805 2.2k R5641 2.2k R5836 1k C5641 16V 0.1u L5604 2.7u R5626 4.7k 1 2 3 R5634 470 R5639 2.2k R5694 47k R5695 10k D5649 MA2J11100L D5646 MA3X152E0L C5609 50V 22u R5693 33k R5633 1k Q5602 B1ABCF000138 R5662 4.7k C5637 16V 0.1u R5605 4.7k R5645 2.2k R5642 470 1 2 3 4 5 6 C5801 470u 25V L5602 2.7u R5660 0 R5646 4.7k R5692 1k R5649 100k L5801 G0C101K00023 C5642 16V 0.1u D5642 MAZ31200ML D5801 B0JCME000037 R5632 470 C5802 470u 25V C5804 0.1u 16V C5809 1u 25V R5659 470 R5822 100 R5804 TP16 D5639 MAZ30470HL R5826 100 R5609 200 Q5613 B1ABCF000138 R5637 10k R5665 47k D5643 MA3X152D0L D5638 MA3X152E0L Q5601 B1DHDC000028 R5640 4.7k Q5604 B1ABCF000138 R5606 2.2k L5624 G1C330MA0234 C5605 25V 470u R5625 4.7k R5824 100 D5635 MAZ30470HL R5621 4.7k D5606 B0BC01100001 R5801 845 R5823 100 C0DBAZF00003 IC5801 1 Vin 2 Vout(sw) 3 GND 4 Vadj 5 ON/OFF R5809 4.7k R5647 220 R5807 2.2k R5667 47k R5664 4.7k R5803 2k D5805 MA3X152E0L C5619 25V 0.1u R5643 1k 1 2 3 1 2 3 Q5642 2SA207700L R5638 10k C5644 16V 0.1u L5802 100u D5804 MAZ31200ML D5640 MAZ30390HL D5641 MA3X152D0L Q5644 B1ABCF000138 D5647 MA3X152D0L D5806 MA3X152E0L R5654 10k 1 2 3 R5635 220 D5644 MAZ30680ML Q5641 2SA207700L R5601 180 C5606 16V 470u C5810 47u 25V D5637 MA3X152E0L N0BG2DE00001 IC5601 1 N.C. 2 ON/OFF2 3 VAR2 4 VOUT2 5 SW-Node2 7 GND 8 N.C. 9 GND 10 VIN 11 N.C. 12 GND 13 SW-Node1 14 VOUT1 15 VAR1 16 ON/OFF1 < F_STBY_14V F_STBY_14V NR14V GND MAIN_9V SUB_5V SUB_9V-1 GND MAIN_5V SUB_9V TO FAN SUB_3.3V GND F_STBY_14V 1 6 D E 8 B 3 2 C 4 A 7 5 MAIN3.3V SUB_5V SUB_3.3V NR14V MAIN3.3V MAIN1.8V MAIN_5V 15V 15V PA_SOS PA 31 PA 32 PA 33 PA 34 PA 10 SUB_5V FAN_SOS TO P-BOARD (P10) AVR 5V/9V FAN SOS AVR 15V FAN CONTROL MAIN_9V MAIN_5V MAIN_1.8V STB_5V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 14.0 14.0 0 14.0 0 0 PA-BOARD TNPA3761AC (1/3) TH-37/42PV60E, TH-37/42PX60B PA-Board (1 of 3) Schematic Diagram TH-37/42PV60E, TH-37/42PX60B PA-Board (1 of 3) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 93 14.20. PA-Board (2 of 3) Schematic Diagram + + + + + + + + SOUND_SOS SOS SUB5V SUB_3.3V SUB_3.3V ODU_17V NR14V TV_SUB_ON TV_MAIN_ON MAIN_1.8V TPSTB5V TPM5V TPS33V C5646 50V 0.01u C5623 25V 0.1u D5610 B0BC4R700007 R5669 47k JS2303 0 JS2300 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 JS2302 0 TPM33V Q5605 B1ABCF000138 TPFSOS C5613 25V 0.1u TPS5V R5620 1k TPS9 R5619 33k TPSSOS D5607 B0BC6R600005 MAIN5V L5651 22u R5603 15.4k JS2319 0 L5612 2.7u Q5610 B1ABCF000138 TPMUTE R5615 10k L5621 G1C330MA0234 C5626 16V 0.1u TPM18 C0DBZGC00067 IC5604 1 VIN 2 GND 3 STBY 5 VOUT 4 NC R5668 47k TPM33 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 R5617 1k C5611 50V 330u TPM18V L5609 22u Q5603 B1DHDC000028 R5607 4.53k R5676 10k L5607 22u C5673 16V 0.1u C5647 16V 47u JS2331 0 TPM9 R5652 0 TPS33 L5623 G1C150MA0234 TP17V SUB3.3V C5672 50V 22u R5653 10k C5645 16V 47u C5617 16V 470u TPM5 MAIN3.3V TPM9V C5618 25V 0.1u JS2301 0 TPS9V C5633 25V 220u EHMDD9851 IC5602 1 ON/OFF2 2 VAR2 3 VOUT2 4 SW-Node2 6 GND 7 N.C. 8 GND 9 VIN 10 N.C. 11 GND 12 SW-Node1 13 VOUT1 14 VAR1 15 ON/OFF1 16 N.C. MAIN9V C5616 25V 0.1u C5648 50V 0.01u C5622 16V 470u SUB9V C5612 16V 470u TPS5 JS5601 0 L5615 15u D5612 B0BC3R700006 MAIN3.3V SUB3.3V MAIN9V SUB5VA SUB9V TP5617 TP5615 TP5616 MAIN1.8V AC SUFFIX SUB5V(0.63A) SUB9V(1.3A/0.766A) Tuner_Main_ON SUB_9V(1.7A) MAIN5V(0.37A/0.46A) ODU +B 17.5V / 0.27A TUNER_SUB_ON MAIN3.3V(1.55A/1.847A) PA_SOS SCL1(Main3.3V) SDA1(Main3.3V) MAIN_3.3V(1.55A) ODU_ON/OFF MAIN1.8V SUB9V(1.3A/0.766A) MAIN3.3V(1.55A/1.847A) MAIN_5V MAIN_3.3V SUB_5V MAIN_5V(0.37A) HP_R HP_L GND SUB_5V(1.0A) FAN_CONT FAN_SOS MAIN_1.8V (1.2A) MAIN_9V(0.1A) AMUTE HP_MUTE SOUND_SOS MAIN9V(0.1A/NC) MAIN1.8V SR SL 8 12 11 15 13 10 14 9 SUB9V(1.3A/0.766A) SUB5V(0.63A) MAIN5V(0.37A/0.46A) MAIN3.3V(1.55A/1.847A) SUB_5V SUB_9V MAIN_5V SUB_3.3V MAIN_9V MAIN3.3V 15V 15V PA 20 PA 40 SUB_5V H-BOARD TO (H40) TO DG-BOARD (DG20) AVR 1.8V/3.3V STB_5V STB_5V 15V 5 1 4 7 13 8 10 15 3 2 16 11 12 14 6 9 31 32 33 34 35 PA-BOARD TNPA3761AC (2/3) SUB5VA SUB5VA SUB5VA SUB5VA TH-37/42PV60E, TH-37/42PX60B PA-Board (2 of 3) Schematic Diagram TH-37/42PV60E, TH-37/42PX60B PA-Board (2 of 3) Schematic Diagram AVR 3.3V TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 94 14.21. PA-Board (3 of 3) Schematic Diagram + + + + Thermal Pad MAIN_9V +15V MAIN_9V Q2301 B1ABCF000138 R2406 4.7k R2357 0 C2322 1u 10V C2336 0.47u 50V R2407 1.24k C2333 25V 470u R2341 0 L2302 G0C330MA0049 R2422 787 R2421 1.62k R2397 0 R2404 330 R2311 0 C2320 1u 10V C2331 1u 25V C2387 1u 10V C2380 50V 0.01u C2334 0.1u 25V R2323 0 D2309 MA2J11100L R2325 10k R2312 10k C2374 10V 1u R2384 1.15k C2328 1u 25V R2398 0 R2332 10k Q2303 B1ABCF000138 C2324 0.22u 25V R2410 787 R2364 47k R2408 1.07k C2385 1u 10V C2402 10u 6.3V C2335 0.1u 25V C2330 1u 25V R2363 470 C2321 0.01u 50V C2325 0.1u 25V C2417 10u 6.3V C2373 50V 0.1u R2375 100 C2326 0.1u 25V C2327 0.47u 50V R2366 4.7k 2SA207700L Q2306 C2338 0.22u 25V ZA2300 K4CZ01000027 R2372 680 R2405 330 C2382 1u 16V IC2306 C0ABBA000168 1 2 3 4 5 6 7 8 C2394 1u 16V C2317 1u 10V R2349 100 R2373 680 R2402 330 C2301 25V 470u R2368 0 C2314 1u 16V L2301 G0C330MA0049 2SA207700L Q2307 R2361 5.6k R2329 100k PA5 1 2 3 4 5 6 7 8 9 10 11 ZA2301 K4CZ01000027 R2360 10k R2409 1.62k MAIN9V R2388 3.3k L2300 G0C330MA0049 Q2302 B1ABCF000138 C2393 1u 16V R2376 10k C2323 0.22u 25V C2332 25V 470u R2387 1.15k C2401 1u 10V C2342 1u 25V R2403 4.7k PA2 1 2 3 4 5 C2329 1u 25V R2383 3.3k R2369 18k R2324 0 L2303 G0C330MA0049 IC2304 C0ABBA000168 1 2 3 4 5 6 7 8 R2401 330 C2303 16V 100u L2308 3.9u R2310 0 Q2300 2SA207700L C1AB00002451 IC2302 1 NC 2 RINN 3 RINP 4 AGND 5 LINP 6 LINN 7 NC 8 GAIN0 9 GAIN1 10 MSTR/NSLV 11 SYNC 12 NC 13 NC 14 ROSC 15 VREG 16 VBYP 17 AGND 18 BSLP 19 LOUTP 20 LOUTP 21 LOUTN 22 LOUTN 23 BSLN 24 NC 25 NC 26 PVCCL 27 PVCCL 28 PGNDL 29 PGNDL 30 VCLAMPL 31 VCLAMPR 32 PGNDR 33 PGNDR 34 PVCCR 35 PVCCR 36 NC 37 NC 38 BSRN 39 ROUTN 40 ROUTN 41 ROUTP 42 ROUTP 43 BSRP 44 NSHUTDOWN 45 MUTE 46 FAULT 47 NC 48 AVCC C2337 0.22u 25V R2359 2.2k R2365 100 C2341 10u 25V C2403 50V 0.01u R2379 2.2k R2380 2.2k MAIN9V - GND W_L VCC TO WOOFER/SPEAKER 15V GND (W-R & W-L) +15V +15V GND GNDs GNDs R GNDs +15V W_R+ +15V W_R W_R- W-L NC W_L+ W-R W_L- + L +15V - + + L R - - + GND VCC SOUND_SOS 23 22 18 19 17 21 16 20 15V 15V TO P-BOARD (P5) OP AMP OP AMP SPEAKER AMP 34 31 33 35 32 15.0 0 0 0 0 15.0 0 15.0 15.0 15.0 15.0 PA-BOARD TNPA3761AC (3/3) TH-37/42PV60E, TH-37/42PX60B PA-Board (3 of 3) Schematic Diagram TH-37/42PV60E, TH-37/42PX60B PA-Board (3 of 3) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 95 14.22. H and TA-Board Block Diagram YPBPR_Y YPBPR_PR YPBPR_PB AV1_SLOW AV1_V AV_R AV2_SLOW AV2_V AV2_C AUDIO_LIN AUDIO_RIN AUDIO_LIN AUDIO_RIN TV_L TV_R AV1_L AV1_R AV2_L AV2_R AV3_L AV1_GREEN AV1_RED AV1_BLUE AV3_RED/C AV3_GREEN YPBPR_Y YPBPR_PB YPBPR_PR RM_IN AV1_RED AV1_GREEN AV1_BLUE AV1_L AV1_R AV1_SLOW AV1_VOUT AV2_VOUT AV2_V AV2_C AV2_R AV2_SLOW AV2_L AV3_V AV3_RED/C AV3_L AV3_VOUT AV3_ROUT DVB_CVBS BS_SR BS_SL DVB_CVBS AV3_LOUT AV1_V AV3_SLOW AV3_BLUE AV3_GREEN PC_B PC_G PC_R PC_V PC_H QLINK_AV2 QLINK_AV3 AV2_LOUT AV2_ROUT AV1_FB AV3_FB MSP AM AV3_RED/C AV3_V HDMI_SL HDMI_SR AV3_R AV4_R AV4_L AV3_LO AV3_RO AV_L AV_R AV4_Y AV4_V AV4_S HP_ROUT HP_LOUT AI_SENSOR AV4_R AV4_L AV4_Y AV4_V AV4_C AV4_S RM_IN STBY_LED AI_SENSOR STBY_LED KEY1 PC_V PC_H PC_R PC_B PC_G HDMI_SL HDMI_SR BS_SR AV_L AV2_VOUT AV3_VOUT AV1_VOUT AV4_C AV3_R AV3_BLUE AV3_SLOW AFC1 FB FB QLINK_AV2 QLINK_AV3 AFC1 KEY_EDGE KEY1 KEY_EDGE AV1_RO AV2_RO AV1_LO AV2_LO AM MSP TV_L TV_R AV1_ROUT AV1_LOUT BS_SL HP_LOUT HP_ROUT 1 2 3 6 7 8 10 11 12 15 16 19 20 1 2 3 6 7 8 10 11 15 19 20 1 2 3 6 8 10 15 19 20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 QLINK_AV2 69 68 MAIN PB/COUT1 IN IC3005 AV2 53 48 VIDEO SW 52 SA1 49 OUT PROUT1 AV1 IN 50 Y/VOUT1 58 Y2 C2 V2 59 57 SA2 4 3 6 Y4 C4 V4 36 SC1OR 27 24 57 SC1IL 25 56 SC1OL MSP 37 SC1IR 28 IC2106 + 7 Q2104 1 Q2105 3 5 - - + IC2104 VAO SC2OR 33 34 SC2OL AV3 L R Q2103 Q2102 Q2002 Q2001 Q3017 Q3011 38 VOUT4 TV OUT PB PR Y JK3004 JK3005 JK2002 AUDIO OUT H 67 SCL 36 SDA 35 SDA0B SCL0B MAIN PB MAIN PR 16 18 RM_IN AFC1 13 8 H5 10 TUNER AFT1 TA5 VIDEO_OUT 14 8 TUNER 17 TA TU001 12 SIF 11 12 S-CLOCK 14 RF AGC AFT SIF1(MSP) 6 S-DATA MAIN VIDEO 8 RFAGC1 30 29 27 PB3 PR3 CY3 YPBPR 51 VOUT V7 14 R L YPBPR SCART COMPONENT VIDEO R IN BLUE IN TV VIDEO OUT TV VIDEO OUT TV R OUT RED IN BLUE IN FB IN L IN Q-LINK BLK IN GREEN IN TV R OUT TV L OUT AV3 SLOW RED IN R IN Q-LINK L IN VIDEO IN CHROMA IN TV R OUT VIDEO IN VIDEO OUT TV L OUT L IN SDA2 AV1 SLOW GREEN IN SCL2 R IN AV2 SLOW VIDEO IN TV L OUT AUDIO_L AUDIO_R H6 2 TA6 1 9 8 SCL0B SDA0B SUB 30V 15 BTL SUB 5V Q2106,Q2108 60 59 16 17 1 2 3 4 8 9 30 32 33 31 L8 R8 L7 R7 L1 R1 L2 R2 L4 R4 AUDIO IN TV IN AV1 IN AV2 IN AV3 IN MAIN ROUT1 ROUT2 OUT LOUT2 AV3 LOUT1 OUT OUT AV2 SDA SCL 35 36 IC2105 AUDIO SW BT30V SDA0B SCL0B SUB 5V Q003 SDA0B SCL0B 61 23 ADP1 19 CY1 PR1 PB1 20 17 PR2 24 22 PB2 CY2 25 AV3 IN AV1 RGB IN RGB IN AV3 VOUT5 42 14 Q3014 MAIN Y/CVBS RGB_FB 22 Q3016 Q3019 Q3020 Q3021 Q3022 APD2 31 Q2006 Q2007 MUTE MUTE SC5IL SC5IR Q3015 RGB CVBS 20 STBY_LED 6 TO G51 H51 7 STBY_LED KEY1 RM_IN 9 14 Q002 JK3003 SCART AV2 JK3002 SCART AV1 JK2003 AUDIO IN 16 H15 1 AGC1 TV IN 13 12 L6 R6 DVB IN AI_SENSOR 4 DVB_CVBS BS_SL 46 BS_SR 40 44 TO DG1 H1 15 DVB IN V1 V8 PX60B ONLY AUDIO_OUT AM 13 10 PV60E ONLY PV60E ONLY PX60B ONLY PX60B ONLY JK3001 PC IN Q3333 Q3332 Q3331 PC_R PC_G PC_B 5 IC3301 3 6 2 SIF TRAP 11 10 L5 R5 HDMI IN 7 6 L3 R3 AV4 IN 23 24 ROUT5 LOUT5 OUT AV1 ROUT3 28 27 LOUT3 C3 64 63 Y3 V3 1 IN AV4 2 S-3 Q2012 Q2011 Q2013 STB5V 19 MAIN_R 17 AV4_C AV4_S AV4_Y 25 AV4_V 22 29 AV4_L 27 20 18 AV4_R AI_SENSOR 10 HDMI_SR 52 HDMI_SL 54 PC_H 34 30 PC_G 36 PC_B 32 PC_V PC_R 38 DVB_LED 5 SC2IR 54 53 SC2IL Q3024 Q3029 Q3027 Q3028 37 VOUT6 MUTE MUTE Q2004 Q2003 62 SA3 12 2 10 6 14 8 Q3204 QLINK_AV3 STB 5V 6 SUB 5V 8 STB 5V SUB 5V MAIN_L KEY_EDGE 10 PX60B ONLY 15 PX60B ONLY DVB_LED TO DG2 H2 KEY1 9 KEY_EDGE 12 22 01 1 9 8 14 15 37 02 72 XOUT 71 X2101 XIN MUTE Q2009 MUTE Q2010 SW SCL0B SDA0B SW Q3005 Q3001 SOS 80 77 RESET 74 AUDIO MUTE SP MUTE 1 SUB 3.3V 73 STB 3.3V SUB 3.3V STB 3.3V SL 3 SL 4 SR 7 SR 8 IN2 IN1 5 3 MUTE 2 OUT2 OUT1 7 1 IC2109 HP AMP Q2315 Q2302 Q2300 MUTE CCT MUTE CCT MUTE SW V DET Q2317 75 STB 5V Q2316 Q2301 Q2314 Q3008 SOS SCL 2 3 SDA SDA0B SCL0B 21 RESETQ Q2113 Q2114 SDA0B SCL0B SDA0B 66 SCL0B 65 76 MSP_RESET TO PA40 H40 1 STB 5V 7 SUB 5V 9 SUB 5V 3 SUB 9V MAIN 9V 5 11 SUB 3.3V MAIN 3.3V 13 A_MUTE 15 MAIN 3.3V SUB 9V SUB 5V SUB 3.3V MAIN 9V STB 5V IC2103 1 3 AVR 8V IN OUT SUB 9V SUB 8V SUB 5V AVR BT30V VDD VOUT SUB 9V IC5603 1 2 5 EXT Q5614 BT30V IN DACM L PROCESSING SELECT PRE- MODULATOR ANA IN+ SP OUT TV OUT SELECT OUT HEADPHONE PROCESSING PROCESSING DACA R DACM R LOUDSPEAKER SELECT SOUND OUTPUT DACA L ADC DE- AUDIO SOUND DSP PRESCALE INPUT DAC SOURCE DAC IN MAIN OUT DAC TV HP SURROUND ADC IN SUB AV TERMINAL/AV SWITCH/MSP 8 VCC 1 3 IN AVR 5V IC2110 MAIN 9V OUT A MUTE BUFFER LED BLINKING : 10TIMES TUNER SOS TH-37/42PV60E, TH-37/42PX60B H and TA-Board Block Diagram TH-37/42PV60E, TH-37/42PX60B H and TA-Board Block Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 96 14.23. G, GK, HC and K-Board Block Diagram R V L Y C C Y G CY-G G R2 R1 T NC1 SW1 NC2 SW2 R-SW R R-G L L-G V-SW V V-G NC3 SW3 IC2511 SW3754 +/ SW3757 SW3755 F SW3753 -/ STR TV/AV SW3756 STB3.3V AI SENSOR SUB5V K1 5 RM2501 Q2511 8 2 6 ON/OFF REMOTE RECEIVER/LED 9 VCC Q2510 REMOCON RECEIVER K VOUT RM_IN D2520A 8 G1 9 2 6 5 G3 2 KEY1 GK3 FRONT TERMINAL G KEY SWITCH GK 2 DVB LED 7 7 1 1 KEY2 POWER LED R_LED_ON /STBY_LED /KEY_EDGE TO H51 AV3_S G51 KEY_EDGE V_DET RM_IN KEY1 AI_SENSOR STB3.3V SUB5V AV4_C AV4_Y AV4_V AV4_L AV4_R 14 4 22 8 25 29 20 18 24 6 27 7 10 9 5 R_LED_ON /STBY_LED DVB LED S-VIDEO COMPOSITE HEADPHONE JK3701 AV4 IN MAIN_R 17 19 MAIN_L AI SENSOR D2525B DVB LED Q2518 ON/OFF PX60B AI SENSOR 21 10 MAIN ROUT DEVICE HC01 HC22 FACTORY IIC1 6 7 SD_RX 9 12 5 1 OUTPUT OF DVB 2 3 SUB5V IIC2 SDA0A SRQ1 17 GND SDA0A SD_RX SCL1 15 SD_TX SCL0B SCL0B 14 HC21 6 1 2 2 16 12 4 13 FACTORY STB5V 6 14 GND 9 SRQ SCL0A HC12 3 5 10 SDA0A 7 TO DG15 11 1 18 17 HC15 40 38 15 D_STB3R3V JIG CONNECTION D_IIC_CONT D_SDA2 35 IIC0 USE D_SCL2 36 34 33 D_TXD EEPROM ROUT D_RXD 29 19 26 D_PSTB 28 SUB ROUT DEVICE D_PBUSY 31 D_PDB1 8 D_IIC_INT + PANEL MICOM D_PSLCT D_PDB0 32 27 SCL1 REMOCON SDA1 G_LED SDA2 23 SCL2 22 20 5 4 25 IIC0B SDA0B D15V INPUT TO DVB SCL0A 1 STB5V SCL0B SRQ FACTORY SRQ 24 USE 19 STB5V 9 R_LED FOR 5 SDA1 SCL0A 11 11 18 4 SCL2 SDA2 USE 8 SDA0A FOR 6 HIGH SPEED DEVICE ROUTE SD_TX FOR 8 HC 2 FACTORY USE FOR 8 SDA0B SCL2 9 7 SDA2 7 SDA0A 6 SCL0A TH-37/42PV60E, TH-37/42PX60B G, GK, HC and K-Board Block Diagram TH-37/42PV60E, TH-37/42PX60B G, GK, HC and K-Board Block Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 97 14.24. H-Board (1 of 3)Schematic Diagram RED WHITE + + NP + RED WHITE + + + Y PR PB PC_GND_R PC_GND_B PC_B PC_R PC_G PC_H PC_V PC_RIN PC_LIN QLINK_AV2 AV3_L YPBPR_Y AV2_SLOW YPBPR_PB AV3_FB AV3_BLUE AV1_BLUE AV1_GREEN YPBPR_PR AV2_L AV2_V AUDIO_MUTE QLINK_AV3 AV3_SLOW AV1_R SCL0B AV1_FB AV1_SLOW AV2_C AV1_V O2 AV1_VOUT AV3_V AV3_RED/C AV3_R AV1_L AV3_VOUT AV3_GREEN AUDIOOUT_R AUDIOOUT_L AV1_VO AV2_VO AV3_VO 9V_PC_MAIN 9V_PC_MAIN AV1_LOUT AV1_LOUT AV1_ROUT AV1_ROUT AV2_LOUT AV2_LOUT AV2_ROUT AV2_ROUT AV2_R AV3_ROUT AV3_ROUT AV3_LOUT AV3_LOUT MAIN9V PC_GND_G AV1_RED SDA0B 9V 9V 3.3V_MAIN AV2_VOUT JK2002 K4BK03A00002 R2038 2.2k C3331 50V 0.01u C3340 50V 0.1u C2017 50V 560p JS2021 ERJ3GEY0R00V R2014 2.2k FL3305 J0HABB000004 1 2 3 4 R3310 75 Q2002 B1ABDF000034 R2028 100k JS3014 ERJ6GEY0R00V R3344 100 R2043 47k R3340 100 FL3302 J0HABB000003 1 2 3 4 D3016 MAZ81400ML JS3011 ERJ6GEY0R00V C3334 47u 16V D3030 MAZ81400ML Q3005 B1ABDF000034 R3341 47k L2012 J0JCC0000100 D3337 MA2J11100L R2046 10k R3156 220 R2016 330 C3072 25V 470u R2036 100k L2011 J0JCC0000100 C3332 50V 0.1u R2027 100k JK3003 K1FB121A0010 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 C2011 50V 560p R3320 0 SUB9V_VIDEO L2016 J0JCC0000100 R3337 18k D2013 MA2J11100L R2008 22k D3005 MAZ81400ML Q3029 2SA207700L R3011 75 R2010 22k R3336 47k R3025 10k R3043 330 R2011 22k Q3028 2SA207700L C3068 50V 0.1u C2013 50V 560p R3348 68 D2014 MA2J11100L D3004 MAZ81400ML Q3024 B1ABDF000034 MAIN9V_PC R2045 10k R2035 100k JS3307 0 C2018 50V 560p L2002 J0JCC0000364 D3011 MAZ81400ML R2009 22k R3154 360 C3335 16V 0.1u R2040 2.2k L2015 J0JCC0000100 R3157 100k ERJ6GEY0R00V JS3016 R3150 75 C2015 50V 560p D3040 MAZ81400ML L2014 J0JCC0000100 D3006 MAZ81400ML C3305 16V 0.1u R2012 100k R3024 12k C3341 50V 0.1u D2011 MA2J11100L JS2033 ERJ3GEY0R00V L2013 J0JCC0000100 C2012 50V 560p R3352 51 R3017 100 R2005 100k D3338 MA2J11100L D3038 MAZ81400ML C3073 50V 0.1u Q2012 B1ABDF000034 R3163 12k R3313 75 R3015 75 R3305 100 C0JBAZ002205 IC3301 1 /1OE 2 1A 3 2Y 4 GND 5 2A 6 1Y 7 2OE 8 Vcc D3032 MAZ81400ML C2020 50V 22u C3001 50V 1000p D3027 MAZ81400ML JS3017 0 C3071 50V 0.1u R3317 10k R3312 10k JS3010 ERJ6GEY0R00V C3074 25V 470u JS3009 ERJ6GEY0R00V MAIN9V JS3018 ERJ6GEY0R00V R3159 360 R2103 2.2k C3338 47u 16V D3039 MAZ81400ML C2014 50V 560p R3027 150 L2009 J0JCC0000100 R3005 75 MAIN3.3V R2051 180k R3146 360 R3342 18k Q3333 2SC24800VL R3152 100k C3076 470u 25V R3339 470 JK2003 K4BK03A00002 C2009 50V 560p R3145 100k R2052 180k JK3001 K1FB315A0005 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 R3008 150 R3350 51 D3007 MAZ81400ML C3003 50V 1000p R3032 ERJ3GEY0R00V D3012 MAZ81400ML R3343 470 R3002 150 Q2003 B1ABDF000034 R3143 75 R3302 100 R3309 0 R3019 68 JS3012 ERJ6GEY0R00V JS3013 ERJ6GEY0R00V SUB5V L2003 J0JCC0000100 D3031 MAZ81400ML C2005 50V 560p C3330 16V 47u R2031 2.2k L3002 J0JCC0000100 R2007 22k R3041 1.8k L2004 J0JCC0000100 R2015 330 JS2032 ERJ3GEY0R00V D3100 MAZ81400ML R3324 0 R3018 68 C2021 560p 50V D3015 MAZ81400ML R3144 220 FL3301 J0HABB000003 1 2 3 4 JS2022 ERJ3GEY0R00V R3308 0 C2016 50V 560p C2010 50V 560p C3070 25V 470u R3030 ERJ3GEY0R00V R3034 150 L2010 J0JCC0000100 Q2010 B1ABDF000034 C3002 50V 1000p R2049 10k R3001 150 R3330 ERJ3GEY0R00V C2008 50V 560p STB+5V R3023 12k R3345 18k JK3004 K1FB121A0010 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 R3153 360 L2005 J0JCC0000100 C2006 50V 560p Q2009 B1ABDF000034 R3012 75 Q2013 2SA207700L Q2007 B1ABDF000034 R2054 10k JS3312 0 R3003 75 R2042 1M D3336 MA2J11100L R3020 22k R2044 1k R3323 0 R3351 51 R3347 470 SUB9V_VIDEO R3338 100 JS3310 0 JS3309 0 R3013 75 Q3331 2SC24800VL JS3007 ERJ6GEY0R00V Q2004 B1ABDF000034 R3318 75 L2001 J0JCC0000364 D3335 MA2J11100L D3003 MAZ81400ML R3016 100 JS3015 ERJ6GEY0R00V R3036 150 D3339 MA2J11100L L3003 J0JCC0000100 JS2031 ERJ3GEY0R00V JS3019 ERJ6GEY0R00V D3025 MAZ81400ML FL3304 J0HABB000004 1 2 3 4 R3009 75 C2022 560p 50V C2007 50V 560p L2006 J0JCC0000100 Q2006 B1ABDF000034 R2019 100k JS3311 0 D3010 MAZ81400ML Q3027 2SA207700L JK3002 K1FB121A0010 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 D3009 MAZ81400ML D3002 MAZ81400ML R2013 2.2k R2023 2.2k D2012 MA2J11100L R2053 470 JS3005 ERJ6GEY0R00V JS3308 0 C3342 50V 0.1u R3010 75 C3337 16V 0.1u D3028 MAZ81400ML Q2011 2SA207700L STB+5V C3336 47u 16V R3346 47k FL3303 J0HABB000004 1 2 3 4 R3014 75 R3022 22k D3008 MAZ81400ML R3155 75 C3339 16V 0.1u L3001 J0JCC0000100 R3021 22k R3033 150 R2050 10k JS3008 ERJ6GEY0R00V R3349 68 D3334 MA2J11100L Q3001 B1ABDF000034 R2006 22k L2008 J0JCC0000100 R3004 75 R3007 150 R3151 220 R3006 150 SUB5V Q2001 B1ABDF000034 R2033 2.2k R2048 470 C2019 16V 220u R3149 360 R3031 ERJ3GEY0R00V R2018 100k R3158 360 L2007 J0JCC0000100 JS3020 ERJ6GEY0R00V R3026 47k R3028 150 Q3332 2SC24800VL R3042 1.8k JK3005 K2HA307A0007 Y-SW Y Y-G PB PB-G PR PR-G VD HD R G B VIDEO OUT VIDEO IN GND TV L OUT Chroma in GND(GREEN) TV VIDEO OUT SDA2 GND(BLK) BLK IN GND(VIDEO) AV1 TV R OUT GND GND(AUDIO) AV1 SLOW L IN L IN AV2 TV R OUT GND(PLUG) GREEN IN R IN GND AV1 SLOW AV2 SLOW GND(BLK) GND GND GND(BLK) GND(AUDIO) Q-LINK GND(BLUE) TV L OUT GND(PLUG) GND(RED) GND(BLUE) RED IN R IN R IN BLUE IN VIDEO IN FB IN L IN GND(VIDEO) TV L OUT TV VIDEO OUT GND(GREEN) GND(PLUG) GREEN IN Q-LINK GND(VIDEO) GND(AUDIO) AV3 VIDEO IN GND BLUE IN RED IN TV R OUT GND(RED) SCL2 B E 9 6 7 3 D 4 C 1 2 F 5 A 8 AUDIO IN PC IN SCART SCART SCART COMPONENT VIDEO AUDIO OUT 1 2 3 4 5 6 BUFFER H-BOARD TNPA3759AB (1/3) < < < R3307 4.7k R3306 4.7k TH-37/42PV60E,TH-37/42PX60B H-Board (1 of 3) Schematic Diagram TH-37/42PV60E,TH-37/42PX60B H-Board (1 of 3) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 98 14.25. H-Board (2 of 3)Schematic Diagram + + + + + NP + + + + NP + + + + + + + + + + AV2_R AV1_V AV4_R AV3_RED/C TV_R FB SD_AUDIO_GND TV_L AV4_L TV_L AV4_C AV1_L HDMI_SL AV3_L HDMI_SR AV1_R BS_SR AV4_YGND AV4_S AV4_VGND AV3_R AV1_SLOW SDA0B AV2_SLOW AV2_L AV2_C MAIN_RF_CVBS TV_R SCL0B AV2_V PC_LIN PC_RIN SCL0B SDA0B AV2_ROUT AV2_LOUT AV3_ROUT AV3_LOUT AV1_LOUT AV4_Y DVB_CVBS AV3_V AV3_GREEN AV1_VO MAIN_PB_OUT MAIN_Y_OUT MAIN_PR_OUT SUB_Y_OUT SUB_PB_OUT SUB_PR_OUT VOUT5 VOUT3 AV_R AV_L AV3_SLOW AUDIOOUT_R AUDIOOUT_L MSP_RESET MAIN_R SR_GND SL_GND AUDIO_MUTE SP_MUTE O1 AV2_VO AV3_VO RST AV1_ROUT YPBPR_Y SDA0B SCL0B MAIN_RF_GND O2 YPBPR_Y YPBPR_PB YPBPR_PR AV3_BLUE AV3_RED/C AV1_RED AV1_GREEN AV1_BLUE BS_SL SL SR AV_L AV_R AMUTE AV4_CGND AV4_V MAIN_L SUB9V SD_AUDIO_GND SUB5V_MSP AM MSP C2237 50V 0.01u L2206 J0JCC0000241 L2110 J0JCC0000100 JS2109 ERJ3GEY0R00V R2187 220 R3058 0 C2234 50V 1000p C2140 50V 0.01u R2233 15k R3222 0 C2239 50V 0.01u C2169 16V 1u C2104 10u 10V R2167 220 C2227 16V 100u C3046 50V 0.01u R3099 220 R2138 10k C2233 50V 1000p C3038 16V 0.1u R3077 220 R2396 10k R3068 75 C2203 50V 10p R2338 0 R2190 220 R2232 15k C2134 50V 47p R2175 220 R2239 0 C2164 16V 1u R2238 0 C3022 50V 0.01u C2168 16V 1u JS2123 ERJ3GEY0R00V R2184 220 C2111 50V 0.1u R2177 220 Q2301 2SD0601ASL C2189 16V 1u L2187 J0JCC0000241 R2211 0 R2354 1k Q2113 B1ABDF000034 L2183 J0JCC0000241 SUB9V_VIDEO R3096 220 C2146 50V 0.1u C3025 10V 1u L2109 J0JCC0000100 C2201 50V 3p C2193 16V 1u L2182 J0JCC0000241 C2156 10u 10V C2213 0 C2154 50V 0.1u C2157 16V 1u R3078 0 R2200 220 R2162 220 C3026 10V 1u SUB9V C3051 10V 1u R2302 22k C2229 16V 100u PA2100 K5H1622A0023 SUB5V R3092 220 D2303 MA2J11100L Q2316 B1ABDF000034 R2148 63.4k C3052 10V 1u R2155 220 R2234 10k R2215 0 R3075 220 C2179 16V 10u C2165 16V 1u R3057 0 C2143 50V 0.01u Q2103 2SA207700L R2195 100k R3087 220 C2141 50V 0.01u Q2108 B1ABDF000034 R2391 10k R2188 10k R2185 220 C2139 50V 0.01u L3000 G0C101K00023 R3076 0 C2430 10V 1u IC2106 C1AB00002468 1 NC 2 I2C_CL 3 I2C_DA 4 I2S_CL 5 I2S_WS 6 I2S_DA_OUT 7 I2S_DA_IN1 8 I2S_DEL_IN 9 I2S_DEL_OUT 10 I2S_DEL_CL 11 I2S_DEL_WS 12 DVSUP 13 DVSUP 14 DVSS 15 DVSS 16 DVSS 17 IS2_DA_IN2 18 NC 19 I2S_CL3 20 I2S_WS3 21 RESETQ 22 I2S_DA_IN3 23 I2S_DA_IN4 24 DACA_R 25 DACA_L 26 VREF2 27 DACM_R 28 DACM_L 29 DACM_C 30 DACM_SUB 31 DACM_SR 32 DACM_SL 33 SC2_OUT_R 34 SC2_OUT_L 35 VREF1 36 SC1_OUT_R 37 SC1_OUT_L 38 CAPL_A 39 AHVSUP 40 CAPL_M 41 SC3_OUT_R 42 SC3_OUT_L 43 AHVSS 44 AHVSS 45 AGNDC 46 NC 47 SC4_IN_L 48 SC4_IN_R 49 ASG 50 SC3_IN_L 51 SC3_IN_R 52 ASG 53 SC2_IN_L 54 SC2_IN_R 55 ASG 56 SC1_IN_L 57 SC1_IN_R 58 VREFTOP 59 SC5_IN_L 60 SC5_IN_R 61 AVSS 62 AVSS 63 NC 64 NC 65 AVSUP 66 AVSUP 67 ANA_IN1+ 68 ANA_IN- 69 ANA_IN2+ 70 TESTEN 71 XTAL_IN 72 XTAL_OUT 73 TP 74 AUD_CL_OUT 75 NC 76 SPDIF_OUT 77 D_CTR_I/O_1 78 D_CTR_I/O_0 79 ADR_SEL 80 STANDBYQ PA3100 K5H1622A0023 C2199 50V 56p R2209 3.3k R2311 1.8k IC3005 AN15867A-VT 1 C3 2 S-3 3 V4 4 Y4 5 PDD2 6 C4 7 VCC1 8 C5 9 PDD1 10 V5 11 Y5 12 GND1 13 V6 14 V7 15 V8 16 V9 17 CY1 18 SPD1 19 PB1 20 PR1 21 IPD1 22 CY2 23 APD1 24 PB2 25 PR2 26 SPD2 27 CY3 28 IPD2 29 PB3 30 PR3 31 APD2 32 CY4 33 PB4 34 PR4 35 SDA 36 SCL 37 VOUT6 38 VOUT4 39 VCC2 40 COUT3/VOUT7 41 VOUT3 42 YOUT3/VOUT5 43 GND2 44 PRout2 45 PBout2/Cout2 46 CYout2/Yout2/Vout2 47 DCOUT 48 PRout1 49 PBout1/Cout1 50 CYout1/Yout1/Vout1 51 VOUT 52 SA1 53 V1 54 Y1 55 S-1 56 C1 57 SA2 58 V2 59 Y2 60 S-2 61 C2 62 SA3 63 V3 64 Y3 C3056 10V 1u C3066 10V 1u R3234 75 C3036 10V 1u L2186 J0JCC0000241 C0ABBA000168 IC2104 1 2 3 4 5 6 7 8 SUB9V_VIDEO C3049 10V 1u R2399 1k L2178 J0JCC0000241 C2160 16V 1u C2161 16V 100u R2135 330 C3021 10V 1u C2238 50V 0.01u R2137 33k Q2106 B1ABDF000034 JS2026 ERJ3GEY0R00V C3028 10V 1u D2301 MA2J11100L C2166 16V 1u C3053 10V 1u AN7705SP-E1 IC2110 OUT 3 2 COMMON IN 1 C3055 10V 1u C2125 50V 1000p C2148 16V 1u R2227 0 SUB8V C3023 50V 0.01u R2164 220 R2210 1.2k R2169 4.7k C2307 16V 100u R2163 330 L2107 J0JCC0000100 R2170 220 C2218 10u 10V R2220 15k STB+5V R2306 820 C2162 16V 1u L2112 J0JCC0000241 D3041 MAZ81400ML R2158 220 C2149 16V 1u R2161 330 R2202 100 R2192 220 R3070 1k R2130 10k C3045 50V 0.01u Q2104 2SA207700L R3111 0 SUB5V C3043 10V 1u R3094 220 JS2124 ERJ3GEY0R00V R2208 470 R3059 220 L2118 EXCELDR35V C2119 16V 47u C3041 50V 0.01u C2171 50V 1000p R2165 1k R3062 220 D2300 MA2J11100L C2184 50V 0.1u C2177 50V 0.01u C2226 50V 1000p C3075 16V 220u C2217 1u 6.3V C2230 16V 100u C2130 10V 1u R2196 100k R2173 220 L2111 J0JCC0000241 L2108 J0JCC0000241 C2220 10u 10V C2159 16V 1u R2392 22k R2400 1.8k R3233 75 R2156 220 R3114 0 R2304 100k R2214 3.3k C2196 50V 0.1u JS3023 ERJ3GEY0R00V C2122 10u 10V R3045 0 R2152 22 C2172 50V 1000p C2142 50V 0.01u L2205 J0JCC0000241 Q2314 B1ABDF000034 R2186 220 R2224 0 D3043 MAZ81400ML C2194 16V 1u C2147 50V 22u SUB8V R2133 0 R2114 ERJ3GEY0R00V R2219 100 C3030 16V 0.1u MAIN9V R2199 220 L3026 J0JCC0000100 C2127 16V 100u JS2108 ERJ3GEY0R00V C3054 10V 1u R2172 220 C2118 16V 47u D3042 MAZ81400ML C2240 50V 0.01u Q2300 B1ABDF000034 IC2103 AN77L08M-E1 IN 3 2 COM OUT 1 C2150 16V 1u AN15862A-VT IC2105 1 L1 2 R1 3 L2 4 R2 5 VCC 6 L3 7 R3 8 L4 9 R4 10 L5 11 R5 12 L6 13 R6 14 L7 15 R7 16 L8 17 R8 18 L9 19 R9 20 L10 21 R10 22 O1 23 LOUT5 24 ROUT5 25 LOUT4 26 ROUT4 27 LOUT3 28 ROUT3 29 GND 30 LOUT2 31 ROUT2 32 LOUT1 33 ROUT1 34 ADR 35 SCL 36 SDA 37 O2 38 BIAS 39 L11 40 R11 41 L12 42 R12 43 L13 44 R13 C2144 10u 10V C2223 50V 39p SUB9V C2190 16V 1u C2200 50V 47p R2181 0 R3098 220 C2202 50V 5p C2158 10u 10V R2388 1k C2204 50V 22p C2185 50V 0.1u L2204 ERJ3GEY0R00V C2211 16V 0.1u C3024 10V 1u C2231 47u 16V R3088 220 R2101 330 C2183 3.3u 50V C2167 16V 1u R2183 100 Q2102 2SA207700L C2181 50V 0.1u R3086 220 R2113 ERJ3GEY0R00V R3052 0 R2116 J0JCC0000241 R2182 100 R3061 220 C3027 10V 1u R3095 220 R3044 0 R2203 100 R2160 220 R2166 1k R2153 220 C2198 6.3V 100u C2174 50V 1000p C2235 1u 6.3V C3040 16V 0.1u R3072 220 C2123 10u 10V C2132 16V 10u R2310 180k R3113 0 R2125 100 R2154 22 C2228 50V 0.01u C2372 50V 10u R2305 470 C3033 10V 1u R3074 220 C2173 50V 0.01u C2225 16V 1u C2221 10u 10V R3112 0 C2152 16V 1u Q2315 B1ABDF000034 L2115 J0JCC0000241 Q2302 B1ABDF000034 R3064 220 R2128 100 C3050 10V 1u R2398 12k C2175 50V 0.01u R2126 4.7k R2124 100 C3035 10V 1u C3065 50V 0.01u SUB5V_MSP R2171 220 C2145 10u 10V R3101 220 R3073 220 R2303 5.6k R3097 220 C2131 50V 0.1u R2127 4.7k C3029 16V 1u R2168 4.7k L3009 J0JCC0000100 L2123 J0JCC0000241 L2185 J0JCC0000241 C3031 10V 1u C2170 50V 1000p R2231 100k L2179 J0JCC0000241 R2131 8.2k C2103 10u 10V R2174 220 C2192 16V 10u C3048 50V 0.01u C2126 50V 1000p R2149 63.4k SUB5V R2235 10k R3090 22 R2102 330 C2232 1u 6.3V R2230 100k R2136 330 SUB5V C3067 50V 0.01u C2222 50V 0.1u R2204 560 C2219 10u 10V C2178 16V 10u R2147 10k R2237 10k C2153 16V 4.7u C2163 16V 1u R2397 47k R3089 22 R2197 470 C2133 50V 47p C2197 6.3V 2.2u R3063 220 R2193 220 R2213 10k X2101 H0J184500027 Q2317 B1ABDF000034 R2307 100k R2389 1k R3100 220 R2132 33k Q2114 B1ABDF000034 R2390 20k C2129 10V 1u C3058 25V 470u C2236 16V 47u C2243 16V 47u C2116 50V 0.1u D2304 MA2J11100L R2176 220 L2184 J0JCC0000241 C2176 50V 0.01u C2128 50V 0.1u R3060 220 C2191 50V 0.1u STB+5V C3047 10V 1u D3024 B0BC01100001 IC2109 C1BB00000947 1 OUT1 2 MUTE 3 IN1 4 GND 5 IN2 6 BIAS 7 OUT2 8 VCC C2155 16V 1u C3039 10V 1u Q2105 2SA207700L L2117 G0C6R8K00002 R2236 47k C2195 50V 47p MAIN9V R2129 100 D2119 B0BC01100001 R2393 10k R2225 0 4 MSP_ANALOG AGNDC DVSUP MAIN HP out MAIN in SUB in VREFTOP (MSP4450K-QA-D6) 8V SPEAKER L HEADPHONE R HEADPHONE L R GND SPEAKER R L AHVSS NC VCC Rin Lin MAIN9V STB5V MUTE CCT. MUTE SW 14 12 10 16 11 15 13 17 18 AUDIO SW VIDEO SW MSP HP AMP VAO AVR 8V 1 2 1 5 6 3 11 12 13 14 15 16 ! H-BOARD TNPA3759AB (2/3) AVR 5V TH-37/42PV60E,TH-37/42PX60B H-Board (2 of 3) Schematic Diagram TH-37/42PV60E,TH-37/42PX60B H-Board (2 of 3) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 99 14.26. H-Board (3 of 3)Schematic Diagram + + + O1 AV1_FB SD_AUDIO_GND FB AV3_FB MAIN3.3V MAIN_PB MAIN_RF_GND MAIN_PR MAIN_Y SD_RST SD_TXD MAIN_RF_CVBS STBY_LED G_LED KEY1 AI_SENSOR KEY_EDGE QLINK_AV2 QLINK_AV3 PC_GND_R PC_GND_B PC_GND_G AGC1 AGC1 SD_RXD AFC1 9.0V 9.0V 9.0V SR MAIN_Y MAIN_PB MAIN_PR MAIN_CVBS SUB_Y SUB_PB PC_R PC_G PC_B PC_H PC_V DVB_CVBS MAIN_PR_OUT SUB_Y_OUT SUB_PB_OUT SUB_PR_OUT BS_SR BS_SL SDA0B SCL0B MSP_RESET SP_MUTE AUDIO_MUTE RST SOS AV4_VGND AV4_CGND 30V SOS SCL0B SDA0B HDMI_SR HDMI_SL SR_GND FB MSP ACTIVE_STB_LED HP_LOUT AV4_L AV4_YGND SD_IRQ SD_RST SD_TXD SD_RXD RM_IN MAIN_CVBS AGC1 AV4_R AV4_Y AV4_C AV4_V AMUTE SUB3.3V SL_GND SL 0.0V AM AFC1 KEY1 MAIN_PB_OUT MAIN_Y_OUT KEY_EDGE RM_IN SUB_PR VOUT5 SD_IRQ HP_ROUT G_LED STBY_LED AI_SENSOR AV4_S ACTIVE_STB_LED R3050 2.4k R3109 330 SUB5V R3229 0 C3230 50V 0.1u H51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R2246 36k MAIN3.3V R3214 0 ZA2105 TESA169 Q3014 2SA207700L ZA3401 K4CZ01000027 ZA3405 K4CZ01000027 R3125 1k R3105 3.3k STB+B ZA3402 K4CZ01000027 R3049 220 R3238 0 ZA3403 K4CZ01000027 C3268 50V 0.01u JS3215 ERJ6GEY0R00V ZA2103 TESA169 ZA2101 TESA169 R3102 6.8k C3262 50V 4700p R3224 0 R3138 100 C3226 50V 0.1u R3115 100 BT30V SUB9V Q3017 2SA207700L R3134 33k SUB3.3V L5608 G1C100MA0072 SUB9V R3048 22k ZA2107 TESA169 C0DBAJB00004 IC5603 1 VOUT 2 VDD 3 NC 5 EXT 4 VSS C5604 50V 10u R3107 10k JS3256 ERJ3GEY0R00V PA3104 0 R3118 100 H5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 R3213 0 R3130 100 C3228 50V 0.1u C3241 50V 0.1u ZA3404 K4CZ01000027 H6 1 2 3 4 5 6 7 8 9 R3248 0 STB+B R3247 0 R3136 33k MAIN9V SUB5V H40 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 R3239 68k Q3019 B1ABDF000034 R3127 1k Q3015 2SA207700L R3161 1k Q3011 2SA207700L MAIN3.3V JS3000 ERJ3GEY0R00V D3022 MA2J11100L SUB5V_MSP R3246 0 D5618 B0BC03900015 C3233 50V 0.1u R3123 100 D3021 MA2J11100L C3227 50V 0.1u JS3362 ERJ3GEY0R00V R3126 100 SUB5V Q3008 2SA207700L R3103 2.2k R3140 130 JS3038 ERJ3GEY0R00V L3205 J0JCC0000241 D5610 MA3X78900L JS3304 ERJ3GEY0R00V Q3021 B1ABDF000034 JS3230 ERJ3GEY0R00V JS3239 ERJ3GEY0R00V JS3237 ERJ3GEY0R00V R3139 1k C5685 50V 10u H1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 R3245 0 JS3363 ERJ3GEY0R00V H15 1 2 3 4 JS3201 ERJ3GEY0R00V Q5614 B1CFNG000001 STB+5V SUB5V JS3255 ERJ6GEY0R00V L5610 G1C470MA0077 R3132 10k ZA2102 TESA169 Q3016 B1ABDF000034 D3044 MA2J11100L C3207 10V 1000u H2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 JS3252 ERJ6GEY0R00V JS3257 ERJ3GEY0R00V R3251 4.7k ZA2106 TESA169 C3063 50V 0.1u D3023 MA2J11100L R3227 0 SUB9V_VIDEO ZA2108 TESA169 SUB8V R3250 4.7k R3121 130 C3062 50V 0.1u L5605 G1C1R0MA0072 R3051 6.8k JS3037 ERJ3GEY0R00V C3064 50V 0.1u R3228 0 JS3303 ERJ3GEY0R00V BT30V C3216 50V 0.1u JS3302 ERJ3GEY0R00V R3133 10k JS3039 ERJ3GEY0R00V C5686 50V 0.01u Q3020 B1ABDF000034 R3131 100 Q3022 B1ABDF000034 C3059 16V 1u R5611 82k R3122 100 R3141 1k C3214 50V 0.1u R3206 100 L3202 J0JCC0000241 ZA2104 TESA169 JS3206 ERJ3GEY0R00V R5612 16k SUB3.3V STB+5V R3160 1k JS3352 J0JCC0000241 JS3354 J0JCC0000241 JS3355 J0JCC0000241 JS3356 J0JCC0000241 JS3357 J0JCC0000241 JS3358 J0JCC0000241 JS3359 J0JCC0000241 R3215 J0JCC0000241 R3249 J0JCC0000241 RFAGC1 AFT1 KEY1 AM TV_V1 STB5V TV_V1_GND HP_GND STBY_LED SIF HP_GND GND SUB30V G_LED AV4_L AV4_S GND AI_SENSOR ACTIVE_STB_LED NC GND NC SDA0B SCL0B GND RM_IN GND 2Vpp to ADV 2Vpp to ADV GND 2Vpp to ADV AV4_C 2Vpp to M2 GND GND GND MAIN_L MAIN_R GND AV4_Y GND GND GND GND GND GND GND GND GND GND GND GND GND GND A_MUTE SUB5V MAIN3.3V SUB3.3V MAIN9V NC SUB5V SUB9V SUB5V NC STB5V GND SUB5V GND GND SUB3.3 GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND SCL0B GND GND STB3.3V GND SOS SL SL SL_GND SL_GND SR_GND SR_GND SR SR BT30V(NC) BT30V(NC) MAIN_Y/CVBS MAIN_PB MAIN_PR RGB_CVBS RGB_FB PC_R SUB_PB SUB_Y SUB_PR PC_G PC_B PC_H PC_V BS_Y(V) NC BS_SR BS_SL MAIN_R MAIN_L HDMI_SR HDMI_SL AD_DAT AD_LRCK AD_BICK GND SDA0B QLINK_AV2 QLINK_AV3 NC NC AUDIO_MUTE SP_MUTE MSP_RESET RST STB5V HP_MUTE HP_R HP_L AV4_V AV4_R NC NC KEY_EDGE HP_DET SUB_MONO V_DET AB 27 22 20 19 21 25 26 23 24 SD_RX SD_TX SD_IRQ SD_RST GND STBY_LED G_LED RM_IN KEY1 AFC2 AI_SENSOR Active_STB_LED GND KEY_EDGE AFC1 AVR BT30V 11 12 13 14 15 16 TO (TA5) TA-BOARD TO (TA6) TA-BOARD TO (PA40) PA-BOARD DG-BOARD (DG1) TO (DG2) DG-BOARD TO (G51) DG-BOARD TO USE FACTORY FOR H-BOARD TNPA3759AB (3/3) SUFFIX TH-37/42PV60E,TH-37/42PX60B H-Board (3 of 3) Schematic Diagram TH-37/42PV60E,TH-37/42PX60B H-Board (3 of 3) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 100 14.27. G-Board Schematic Diagram R V L Y C C3703 560p 50V R3710 0 L3708 J0JCC0000100 R3740 0 R3716 180k R3733 0 JK3701 K4AK23B00001 C Y G CY-G G R2 R1 T NC1 SW1 NC2 SW2 R-SW R R-G L L-G V-SW V V-G NC3 SW3 D3702 MAZ81400ML R3746 0 JS3715 0 L3707 J0JCC0000100 JS3711 0 JS3705 0 R3711 0 JS3708 0 L3701 J0JCC0000364 R3721 10k JS3714 0 R3717 180k R3738 0 C3712 50V 0.033u C3711 50V 0.033u R3741 0 C3701 560p 50V G3 1 2 3 R3737 0 ZA3701 K4CD01000013 R3709 0 R3748 0 JS3707 0 G1 1 2 3 4 5 6 7 8 9 10 11 12 L3700 J0JCC0000364 R3704 0 JS3713 0 G51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R3732 0 R3736 0 R3739 0 JS3712 0 JS3704 0 SUB5V G_LED_ON GND GND AI_SENSOR G_LED_ON AI_SENSOR MODEM_LED/KEY3/ Active_STBY_LED STB3.3V MODEM_LED/KEY3/Active_STB_LED STB3.3V SUB5V RM_IN RM_IN GND GND R_LED_ON/STBY_LED GND PSM_LEDR GND KEY2/KEY_EDGE KEY1 GND KEY1 PSM_LEDR/KEY2/KEYEDGE GND GND HP_DET R_LED_ON/STNBY_LED HP_GND GND MAIN_L MAIN_R SUB_MONO HP_GND AV4_C AV4_R AV4_L AV4_S V_DET AV4_Y AV4_V GND GND GND SUFFIX AE B 1 3 6 8 A C 7 E 5 2 D 4 (GK3) GK-BOARD TO TO K-BOARD (K1) (H51) H-BOARD TO S-VIDEO COMPOSITE HEADPHONE G-BOARD TNPA3764AE ! AV4 IN < TH-37/42PV60E, TH-37/42PX60B G-Board Schematic Diagram TH-37/42PV60E, TH-37/42PX60B G-Board Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 101 14.28. GK, K, HC and TA-Board Schematic Diagram + + + 18 16 14 12 10 8 6 4 2 20 21 19 17 15 13 11 9 7 5 3 1 STB3.3V 3.3V AFT1 SDA0B SCL0B AM TV_V1_GND TV_V1_GND TV_V1 SDA0B SCL0B SIF TV_V1 AFT1 SIF AM D2510 MA8056MTX R2521 47 Q2518 B1ABCF000138 R2572 0 R2516 22k D2511 MA8056MTX C2517 50V 0.01u K1 1 2 3 4 5 6 7 8 9 10 11 12 R2520 220k RM2501 PNA4701M05TV VOUT GND VCC C2521 0.01u 50V R2554 75 R2512 47 C2510 16V 1u C2511 16V 1u R2559 0 R2557 5.6k R2517 47 IC2511 B3L000000020 D2520B LN1271RALTR Q2511 B1ABCF000138 R2560 576 D2526 MA8056MTX R2540 22k R2542 47k Q2510 B1ABCF000138 D2524 MA8056MTX R2539 47k R2524 22k D2512 MAZ80430LL C2512 6.3V 10u R2567 0 D2525B LN1471YTR C2515 50V 0.01u SW3754 EVQ11G05R SW3756 EVQ11G05R R3751 6.65k R3768 0 R3758 3.16k R3762 0 R3765 2.32k R3764 0 SW3755 EVQ11G05R R3753 1.62k R3759 0 R3763 0 C3751 1000p 50V SW3753 EVQ11G05R R3757 1.74k R3761 0 SW3757 EVQ11G05R R3760 0 GK3 1 2 3 R3754 2.32k R3755 0 C3750 1000p 50V R3767 3.16k R3750 14.3k L020 J0JGC0000021 L021 ERJ3GEY0R00V C021 50V 100p TU001 60E:ENG37A12GF 60B:ENGF7302GF NC 1 NC 2 BM 3 NC 4 NC 5 NC 6 BT 7 RF_AGC 8 NC 9 SCL 10 SDA 11 AFT 12 AUDIO_OUT 13 SIF_OUT 14 BTL 15 NC 16 VIDEO_OUT 17 C001 6.3V 1000u C020 50V 0.01u R002 220 L018 J0JGC0000021 R010 470 R011 270 R005 560 TA5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 C003 10u 50V TA6 1 2 3 4 5 6 7 8 9 R013 22 C019 50V 33p C007 16V 0.1u C013 16V 0.1u C002 10u 50V L008 J0JCC0000241 L019 J0JCC0000241 Q002 2SA207700L C009 50V 0.1u L012 J0JCC0000241 R012 22 C016 16V 0.1u R014 220 R008 0 JS001 ERJ3GEY0R00V L017 J0JCC0000241 JS012 0 R009 0 C018 50V 33p JS3405 0 JS3404 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 1 2 3 4 5 6 7 8 9 10 11 JS3402 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 HC01 1 JS3403 AI SENSOR REMOTE RECEIVER POWER LED STBY3.3V GND MODEM LED AI_SENSOR GND G_LED_ON REMOCON Modem_LED/KEY3 PSM_LEDR Active_STB_LED GND SUB5V R_LED_ON/STBY_LED GND GK-BOARD TNPA3848AD 5 6 D E C A 7 1 B 3 4 2 8 (G3) TO G-BOARD ! PX60B ONLY TO (G1) G-BOARD TV/AV -/ F +/ STR GND KEY KEY2/KEYEDGE GND GND GND GND GND GND NC NC NC TV_V1 GND NC SUFFIX AB H-BOARD TO (H5) (H6) H-BOARD TO TUNER GND SCL 0B GND AM SDA 0B AFT1 TV_V1_GND SIF SUB5V SUB30V GND RFAGC1 TA-BOARD TNPA3767 (PV60E) TNPA3767AB (PX60B) PX60B ONLY PX60B ONLY PV60E ONLY RXD PSLCT SD_TX G_LED IIC_DATA2 PDB1 TXD STB5V RXD STB5V SD_RX GND IIC_CONT SDA0B PDB1 STB5V SCL2 SRQ1 SDA2 SDA0A SCL1 SRQ1 HC SDA2 G_LED SDA1 15 SDA0B R_LED SCL2 SDA0A SCL2 SCL0B USE SCL1 DTV_EEP_SDA SCL0B IIC_CLK2 SRQ1 SCL0A SDA0A PDB0 DTV_EEP_SCL 12 SCL0B FACTORY DG-BOARD SDA1 FOR 21 FACTORY P15V HC IIC/INT IIC/INT SD_TX FACTORY SCL2 FOR PSTB PBUSY STBY3.3V PBUSY PDB0 STB5V FOR 22 SCL0A HC GND SCL0A SD_RX NC SDA2 TXD SDA0B SRQ1 GND STB5V SCL0A SDA0A REMOCON REMOCON PSLCT USE USE TO HC (DG15) R_LED SCL1 STBY3.3V IIC_CONT HC-BOARD TNPA3766 GND SDA1 P15V SDA2 PSTB K-BOARD TNPA3762AC (PV60E) TNPA3762AD (PX60B) ! TH-37/42PV60E, TH-37/42PX60B GK, K, HC and TA-Board Schematic Diagram TH-37/42PV60E, TH-37/42PX60B GK, K, HC and TA-Board Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 102 14.29. DG-Board (1 of 3) Block Diagram HDMI_DAC_PD RX_MCLK HDMI_RST MUTE_OUT 3.3V_SDA RX_SCK RX_SD0 HDMI_INT RX_WS 3.3V_SCL HSIB REFCH_HDMI VSIB CLKINB2 AP_DE HPD2 HDMI_CEC HDMI_5V_DET HPD1 HDMI_5V_DET1 HDMI_WP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 Divider CLK+ 5 INTERFACE S1 D1+ H:MUTE AUDIO DAC TMDS DECODER D2- 1 141 WS 119 SDA AUDIO D2G ROX1+ HPDT CEC IC4025 SD0 VIDEO (TO GC5 PORT-B) Interpolator YBIN0-YBIN9 HDMI 1 IN S2 2 BICK Modulator 5V MCLK 7 TMDS DECODER Interpolator +5V 1 INTERFACE ROX1- Q4069 INT D2 D2+ EEPROM SCL HDCP CIPHER DECRYPTOR 4 ROX2- D1- AND AOUTL INTERFACE 7 D0+ RECEIVER 123 R RECEIVE 8X DDCG P AOUTR 3 D1 R1X0+ DG9 142 L DDC DATA 102 Clock R1X0- Data R1XC- R1X1- DSCL0 HDCP D0G 2 110 Modulator MUTE OUT N.C. 3.3V 104 IC4023 Q4070 132 INTERFACE R1X2- R1X1+ TMDS DATA AND CPU D0- 6 SCK 8X PDN R1X2+ AUDIO RESET ROX2+ 6 MAIN9V SCL ROXC- DSDA0 ROXC+ 3 MCLK LRCK AUDIO AMP 136 CLKG D1G R1XC+ UBIN0-UBIN9 IC4028 TMDS DATA WC CIPHER DECRYPTOR 133 5 ROX0+ SMUTE ROX0- SDTI CLK- 52 51 48 47 39 43 40 44 66 70 62 63 67 71 59 58 32 31 77 88 86 84 85 1 6 2 3 4 5 10 11 VSYNC HSYNC ODCK 121 97 3 1 2 MAIN 1.8V XTALIN MAIN 3.3V DE HDMI I/F RECEIVER IC4026 MAIN 5V D0- CEC DDC DATA +5V N.C. HPDT CLKG D2+ D0+ D1+ CLK+ CLK- D2- DDCG D1- D1G D2G D0G SCL IC4022 SCL 5 SDA EEPROM 6 7 WC 3.3V Q4071 D1 5V S2 S1 D2 DDC_SDA0 DDC_SCL0 DDC_SDA1 DDC_SCL1 29 30 33 DSDA1 DSCL1 R1PWR5V 3.3V_SDA 3.3V_SCL Q4083 Q4068 Q4065 CABLE OUT;LOW/MUTE CABLE IN;Hi/NORM HOTPLUG Low;DETECT HPD5V AUDIO MUTE AND 5V DET Hi;MUTE CSCL CSDA 28 27 SCL1 SDA1 HDMI 2 IN DG8 Q4082 Q4067 Q4066 HOTPLUG MAIN 5V 34 R0PWR5V CABLE OUT;LOW/MUTE CABLE IN;Hi/NORM AUDIO MUTE AND 5V DET Hi;MUTE Low;DETECT HPD5V MAIN 1.8V CONT 5 VIN VOUT 1 MAIN1.8V IC4027 MAIN 3.3V 7 DIGITAL SIGNAL PROCESSOR HDMI INTERFACE DG MICOM Q4084 TH-37/42PV60E, TH-37/42PX60B DG-Board Block (1 of 3) Diagram TH-37/42PV60E, TH-37/42PX60B DG-Board (1 of 3) Block Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 103 14.30. DG-Board (2 of 3) Block Diagram TH-37/42PV60E, TH-37/42PX60B DG-Board Block (2 of 3) Diagram TH-37/42PV60E, TH-37/42PX60B DG-Board (2 of 3) Block Diagram MATRIX 8 1 HSIA SYNC 13 16 DETECT 36 DDR2.5V I/P CONV. 625i/p VIN 12 SCL TRST 11 IC4032 HS 15 IC4019 PORT-A A_DDR_CLK TCK DCLK_IN RESET 3D/2D com (ADV7499) (FS&HDMI) 3D Y/C SDA I/F MAIN1.2V VSIA NR PORT-B 78 4 8 A_DDR_NCLK MIX Sync REFCK_ADV 10bit A/D(ADV7499) SCL2 IC4038 RESIZE 1080i 720p 35 IC4037 SEPA 7 MAIN1.8V XTAL CHROMA SW CLK 99 MAIN 1.2V COLOUR INPUT DDR 2.5V SDA2 DIGITAL Macrovision VOUT 14 TMS MAIN3.3V 38 DEM. ->YUV VS CLKIA CK TDI VOUT CLK0A SELF,ID,ED2 YBIN0-9,UBIN0-9 NOISE LEVEL NRST 128M DDR SDRAM IC4035 CK LLC1 1 Detection RGB 525i/p JTAG VPK VIN CLKINB2 VSIB AP_DE HSIB REFCK_HDMI 5 CONT 5 CONT YIN0-YIN9 UVIN0-UVIN9 RIN0-RIN3 10 13 14 91 94 22 29 42 41 30 33 GC5 PROCESSOR SDA 1 VOUT MAIN_PR DG2 A/D 10bit AI_SENSOR 4 9 VDD Q1115,Q1113 MAIN 3.3V AIN1 5 1 82 PC_VS SCL2 A_MON_MUTE 37 A/D 10bit 86 SR STBY3.3V 5 1 VDOUT STBY3.3V VOUT 10 IC4016 KEY1 16 SOS 12 VIN IC4013 27 1 110MHz SUB3.3V 49 MAIN3.3V MAIN_PB/C SDA2 74 SCL0B IC4029 1.8V AUDIO MUTE 29 AFC1 80 AVR 1.8V SDA0B 3 STB 1.5V 4 Q1130 STB1.5V ON/ KEY_EDGE VS_IN 54 TO 41 SL VIN VDD 2 1 AD 3.3V Q4050,Q4058 AIN4 110MHz AVR 1.8V 5 8 BS_SR 5 43 51 73 MAIN_Y/CVBS 76 PC_R 5 STB 3.3V STBY3.3V AD 3.3V VOUT 1 8 H1 DVB_CVBS SCLK VOUT 78 IC1110 PLL3.3V RM_IN H2 PLL 3.3V 15 AIN6 VIN BS_SL 45 VIN CONT SP MUTE 65 MAIN 5V 6 56 IC4030 MAIN5V 1.8V TO 63 72 85 RST STBY5V OFF HDMI_R SUB3.3V MAIN3.3V 5 Q4056 81 15 VOUT 7 STBY_LED 4 67 4 3 110MHz PC_B AIN3 IC1111 47 DVB_LED 7 MAIN1.8V 5 13 PC_HS VOUT 1 SDA0B AIN5 IC4018 VOUT 35 HS_IN VIN IC4027 AIN2 PC_G MAIN3.3V DLL 2.5V SCL0B 58 1 A/D 10bit 6 5 RESET VOUT 1 8 DLL 2.5V HDMI_L DG1 VIN FAN_SOS SR MAIN5V SUB5V 29 SUB9V 32 SUB5V 8 SOS MAIN3.3V MAIN9V 22 33 23 SOUND_SOS DG20 28 38 SUB5V MAIN3.3V 18 7 MAIN1.8V 17 MAIN5V 25 35 24 SUB_ON PA20 MAIN3.3V 40 2 6 MAIN3.3V 21 MAIN5V MAIN9V TO 9 FAN_MAX MAIN1.8V 4 SUB 9V SUB 9V MAIN1.8V 39 SL SUB 9V TUNER TV_MAIN_ON RGB_CVBS 61 59 RGB_FB Q1140,Q1141 D1107 RST SUB5V Q1116,Q1114 Q1108,Q1111 STBY5V MAIN 1.8V CONT 5 77 SL SR 74 QLINK_AV3 12 13 QLINK_AV2 PX60B ONLY Q4053,Q4055 57 AIN9 51 FB EURO TEXT Q1134 Q4057 D1106 R1321 R1307 ONLY PV60B DIGITAL SIGNAL PROCESSOR HDMI INTERFACE DG MICOM Q1131 Q1135 _MSP.RESET SW OFF DET RM_IN BS_SR MAIN_PR BS_Y(V) AFC1 MCU_RST KEY1 BS_SL DVB_LED AUDIO_MUTE STBY_LED MAIN_PB/C SL FAN_MAX SOUND_SOS TV_MAIN_ON SR FAN_SOS SOS SOS TV_SUB_ON PC_R PC_G PC_B PC_HS PC_VS RGB_FB RGB/CVBS MAIN_Y/CVBS A_MON_MUTE_MSP_RESET SL SR SOS SP_MUTE QLINK_AV3 QLINK_AV2 KEY_EDGE AI_SENSOR RST MAIN_Y/CVBS MAIN_PB/C MAIN_PR PC_G RGB_FB PC_B PC_R PC_HS PC_VS CVBS0 AI_SENSOR RGB/CVBS CVBS1 B_DDR_CLK B_DDR_NCLK CLKINB2 HSIB VSIB AP_DE REFCH_HDMI GC_RST TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 104 14.31. DG-Board (3 of 3) Block Diagram TDO HDMI_INT SOS GENX_X_V GENX_X_H GENX_R0-R4 HDMI_RST KEY1 BS_Y(V) PANEL_SOS GENX_B0-B4 PANEL_STATUS TDI(FS) FAN_SOS ECO_ON DTV_TXD PANEL_STB_ON FAN_MAX DISPEN TV_MAIN_ON DVB_LED GENX_X_CLK SOUND_SOS HDMI_5V_DET1 BS_SR GENX_YS TMS PANEL_STB_ON ECO_ON DISPEN GENX_G0-G5 BS_SL STBY_LED MCU_RST GENX_YM PANEL_STATUS PANEL_SOS DTV_RXD TV_SUB_ON ALL_OFF WP RST GC_RST WP RM_IN AFC1 KEY_EDGE AI_SENSOR HDMI_CEC CVBS0 HDMI_DAC_PD CVBS1 GENX_HO GENX_CLKO QLINK_IN QLINK_OUT QLINK_SEL HDMI_WP ALL_OFF QLINK_SEL QLINK_OUT QLINK_AV2 QLINK_AV3 QLINK_IN HPD2 HDMI_5V_DET2 AUDIO_MUTE SP_MUTE HPD1 D_PSLCT(PSCLT) TX_TE- 107 REMOCON 43 9 117 D_RXD 56 4 109 IC4037 43 SDA0B OSDXI 20 2 PORT_E SDATA STBY_LED PEAKS_CLKIN GAMMA TX_TD+ D_IIC_INT 17 4 D_IIC_INT(IIC_INT) 19 SRQ XRST DTV_EEP_SCL 51 ECO_ON R_LED IRQ4A Q1110 STBY5V_DET 14 SCL0B 13 TUNER_SUB_ON YSOUT 11 SCL2 TRCD0 SCL2 103 MAIN3.3V_DET TX_TB- R04 PORT_D DISPEN(DRVMUTE) SCL1 SUB5V DG3 4 18 37 D_RXD D_PDB0 54 1 5 107 SWITCHING SUB9V PEAKS_VIN 13 FLASH FACTORY DG5 TDO 206 3 TX_TE+ 186 DTV_EEP_SDA Q1107 PEAKS_HIN 165 20 TRCD3 174 18 GENX_YS 1 9 XV01 UVIC0~UVIC7 53 PEAKS_CIN0 IC1105 GENX_HIN 105 Q1101,1139 1 PANEL_SCL1 DTV_SCL0B DTV_RST 109 33 32 178 8 TO 209 TO 17 100 Q1102 SDA0A DTV_RXD 57 2 208 52 3 WP 7 TX_TA+ BS_SL IC1106 29 TV_MAIN_ON DTV BUS SEL1 CECINA 16M KEY_EDGE FOR IIC/SERIAL 110 131 VMUTE SCL1 INV. 102 FOR EXTRG0 TX_TD- 5 13 14 33 MAIN MICOM 7 ALARM Q4063 1 133 D_15V(P15V) PEAKS_YIN7 (OSD INPUT) SCL0B 22 TO D_TXD 30 OSD MIX VSOE TX_TCLK+ X1101 Q4061 D_PDB1(PDB1) OUT RST 4 5 STBY3.3V 32 16 12 1 POWER_SOS 171 Q4064 TO D5 132 R00 23 STBY3.3V 187 22 FOR ROM(D-BOARD) TRCD3 G_LED(LED_G) (PEAKS) DG7 180 130 6 D_SCL2(IIC_CLK2) 40 1 122 SDA1 SUB5V 22 Q4062 LVDS_PD 5 STBY3.3V 9 D_15V PANEL STATUS 14 (DEBUGER) TX_TCLK- 138 TDI 179 4 SDA0B D_PBUSY(PBUSY) SUB9V Q1142,Q1143 TRCCLK IC1101 PANEL_STBY_ON CONVERTER SCL0A READY(STATUS) 116 6 SDA2 TRCD2 DG22 215 DTV_RST HC15 12 TRCD2 Q1106 FOR 95 USE 184 6 ALL_OFF RTCXO SCL0A 105 3 12 PEAKS_YIN0 136 TRCD1 38 160 Q1100 112 5 FAN_SOS SCL1 5 13 9 GENX_CLKIN TRCD1 DTV_SDA0B 6 SDA0B 29 216 USE 8 15 CONT MAIN3.3V TMS D_PSTB 10 Q1109 175 8 3 B00 X1100 DTV_SDA0B CLKOE PEAKS_CIN7 PANEL SCL1 D/A OSD PIXEL CONV. DG15 FACTORY 111 SCL2 D_PSLCT 159 135 11 13 G_LED PANEL_STB_ON 61 14 SCL1 3 SRQ VSIC 8 SUB9V REMOTE IN D3 D_IIC_CONT DTV_SCL0B 15 TV_SUB_ON STBY5V 13 96 SUB9V SDA0A GENX_VIN AFC1 2 MONITOR 26 10 Q1103 ACTIVE_STB_LED 4 6 41 19 R_LED(LED_R) 211 SXCO INV. D_PDB1 GC_RST 11 SUB5V_DET 97 97 21 123 IIC_CLK1 1 CLKIC DVB_CVBS 2 D_SDA2(IIC_DATA2) 169 16 TRCST 15 212 RTCXI 7 210 D_IIC_CONT(IIC_CONT) 13 SDA2 HDMI_RST 3 21 SCL2 TRCD0 10 168 KEYSCAN1 35 11 B04 17 STBY5V D_STB3R3V OSCXI TX_TB+ 10 DTV_SDA0B D_PBUSY ECO_ON DTV_TXD 3 27 D_STB3R3V(STBY3.3V) SDATA HSOE 17 164 RESET SDA1 NRST SOUND SOS DTV_EEP_SDA 172 SWITCHING SDA0B 6 176 23 PANEL SDA1 16 SUB9V_DET TCK 185 YIC0~YIC7 33 19 HSIC DTV_TXD(SBI1) DG35 VSYNC 8 TX_TC+ BS_SR 5 D_SDA2 SUB5V TX_TA- 27 D_SCL2 197 SDA2 72 TRCCLK 12 205 19 SCL0CK SCL0A 10 YMOUT0 44 PANEL_SDA1 101 G00 106 173 DTV_EEP_SDA 24 PANEL_SOS TRCST D_PSTB(PSTB) 50 57 34 SDA1 SDA0A SUB9V (RGB OUT) DTV_SCL0B IC1103 FAN_CONT REMOCON HSYNC HDMI_INT AI 128 2 2 11 TX_TC- SCL0CK 15 D_TXD 5 TRST 16 30 SUB5V GC5 PROCESSOR SDA2 STBY5V STBY3.3V EXTRG0 110MHz 3 207 SCL0B DTV_RXD(SBO1) HDMI 5V DET1 D_PDB0 SCL0A SDA1 7 D/A 10bit IIC_DATA1 SDA0A 88 ROM PORT_C D/A 8bit SCL0B OSD 9 G05 11 SUB9V 14 SUB5V 64M IC1100 SDRAM 41 ALL_OFF DTV BUS SEL2 SDA 5 7 6 SCL0A IC1102 SCL EEPROM SDA0A WP Q1137 SDA1 SCL1 SUB3.3V AI_SENSOR 162 46 62 CVBS0 HDMI_WP 199 142 HDMI_DAC_PD 183 151 CVBS1 189 QLINK_IN1 190 193 194 QLINK_IN2 QLINK_OUT QLINK_SELECT GENX_CLKO GENX_HO GENX_R0-R4 GENX_B0-B4 GENX_G0-G5 GENX_YM 4 5 61 59 33 38 (SERIAL) LVDS TRANSMITTER(10bit) 23 29 GOE0~GOE9 55 TB- CLKIN 18 22 LVDS 57 BOE0~BOE9 TC4 TA+ PARALLEL TC- TCLK- 25 TA- 24 20 31 30 TE- TD- TD+ IC4036 DATA 13 /PDWN 12 TE+ 19 TC+ TC5 28 TCLK+ TTL 21 TB+ 8 63 40 62 42 6 11 64 9 1 ROE0~ROE9 44 46 48 50 52 54 10Bit LVDS VCLKOUTA HOUTA 88 87 19 STBY5V STBY5V Q1122 INV. INV. 2 5 IC1107 Q1120 Q1117,Q1118 13 Q LINK SW Q1121 STBY5V 3 4 1 Q1138 195 HDMI_5V_DET2 HPD2 198 MSP RESET AUDIO MUTE 52 45 42 SPMUTE HPD1 196 D1119 DIGITAL SIGNAL PROCESSOR HDMI INTERFACE DG MICOM SD_RX SD_TX 35 36 60 59 AGC1_RX AGC1_TX PX60B ONLY PV60E ONLY PX60B ONLY PX60B ONLY PX60B ONLY PV60E ONLY PV60E ONLY MSP RESET TH-37/42PV60E, TH-37/42PX60B DG-Board Block (3 of 3) Diagram TH-37/42PV60E, TH-37/42PX60B DG-Board (3 of 3) Block Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 105 14.32. DG-Board (1 of 8) Schematic Diagram + AO_A6 AQ_D4 AO_A14 AQ_D13 AR_CLK AQ_D3 AR_RAS EXTRG0 AQ_D10 AQ_D5 PANEL_STATUS AO_A8 AQ_D2 AO_A3 AO_A11 SDA0A AO_A6 ECO_ON AQ_D7 AQ_D9 AO_A7 TRCCLK AQ_D14 AO_A11 AQ_D4 SDATA AO_A12 ALL_OFF AQ_D6 SCLOCK RST AQ_D6 MEMA10 AO_A2 AR_CS TRCST AQ_D10 AO_A9 AO_A19 TRCD3 AQ_D13 AO_A18 AR_CKE AQ_D1 AR_BA0 TRCD2 AR_CAS AP_CE AO_A9 AQ_D15 AQ_D12 TRCD1 TV_SUB_ON AO_A8 AO_A10 AR_LDQM TRCD0 AP_OE AQ_D0 AQ_D11 AQ_D5 AO_A15 AO_A5 AQ_D9 AQ_D11 AQ_D12 AO_A12 AQ_D14 AO_A3 PANEL_SOS AO_A10 AP_WE AO_A17 AO_A4 AQ_D3 AQ_D8 AR_UDQM AQ_D2 AO_A4 AO_A1 AR_WR AO_A13 AQ_D1 AO_A5 AO_A2 AO_A16 AO_A7 DISPEN PANEL_STBY_ON PANEL_SCL1 PANEL_SDA1 D_STB3R3V D_IIC_CONT D_SCL2 D_SDA2 D_TXD D_RXD D_IIC_INT D_15V D_PSTB D_PBUSY D_PDB0 D_PSLCT D_PDB1 AO_A0 RIMOCON R_LED G_LED AQ_D0 AQ_D7 AQ_D8 AQ_D15 STBY3.3V SCL0A AO_A0 STBY3.3V R1122 22 L1101 J0JHC0000078 TP1108 R1412 100k R1454 0 C1110 10V 0.1u C1116 10V 0.1u R1125 3.3k C1109 10V 0.1u R1458 100 C1106 10V 1u R1414 0 C1114 10V 0.1u R1112 100 Q1137 B1ABDF000034 R1113 3.3k R1413 100k C1223 6.3V 10u R1106 1k TP1101 IC1102 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC DG7 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 STBY3.3V R1111 100 STBY3.3V C3ABPG000145 IC1100 1 VDD 2 DQ0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 VDD 15 LDQM 16 /WE 17 /CAS 18 /RAS 19 /CS 20 BA0 21 BA1 22 A10 23 A0 24 A1 25 A2 26 A3 27 VDD 28 VSS 29 A4 30 A5 31 A6 32 A7 33 A8 34 A9 35 A11 36 NC 37 CKE 38 CLK 39 UDQM 40 NC 41 VSS 42 DQ8 43 VDDQ 44 DQ9 45 DQ10 46 VSSQ 47 DQ11 48 DQ12 49 VDDQ 50 DQ13 51 DQ14 52 VSSQ 53 DQ15 54 VSS C1102 10V 0.1u R1108 100 R1114 0 TP1109 R1102 1k R1105 1k R1123 47k C1227 50V 100p R1118 EXB2HV680JV R1408 100k R1109 100 C1111 10V 0.1u TP1105 C1100 10V 0.1u DG3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 R1110 100 TP1104 C1112 25V 270p R1101 100 TP1103 R1124 3.3k C1105 25V 270p C1107 4V 100u R1459 100 R1119 EXB2HV680JV IC1101 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 R1117 0 TP1102 STBY5V C1226 6.3V 10u C1222 6.3V 10u C1103 25V 270p STBY3.3V R1116 5.6k R1121 22 R1103 1k IIC_CLK1 DISPEN FANMAX ECO_ON GND GND FANSOS PANEL_STB_ON STB5V 16M FLASH GND GND IIC_DATA1 INEXCH READY ALL_OFF GND TUNER_SUB_ON ALARM Panasonic_Mode NC E A 6 8 7 1 C 3 9 B 4 F 5 2 D 64M SDRAM EEPROM G_LED R_LED REMOCON AC_GOOD D_IIC_INT D_RXD D_TXD D_SDA2 D_SCL2 D_IIC_CONT D_STB3R3V D_PDB1 D_PSLCT D_PDB0 D_PBUSY D_PSTB D_15V (D3) D-BOARD TO USE FOR FACTORY (DEBUGER) TRCD2 TRCD0 TRCD1 TRCST TRCCLK TRCD3 SDATA EXTRG0 STBY3.3V RST SCL0CK 1 2 3 4 5 6 7 8 9 10 11 12 13 DG-BOARD (1/8) TNPA3756CH (PX60B) TNPA3756CB (PV60E) TVRN774 PX60B:TVRN758-3 PV60E:TVRN752-3 TH-37/42PV60E, TH-37/42PX60B DG-Board (1 of 8) Schematic Diagram TH-37/42PV60E, TH-37/42PX60B DG-Board (1 of 8) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 106 14.33. DG-Board (2 of 8) Schematic Diagram + + AO_A8 R_LED_STBY_LED DTV_SCL0B GENX_R2 SDA0A AQ_D15 LVDS_PD GENX_G0 AO_A12 EXTRG0 GENX_R1 GENX_B1 SDA1 DTV_SDA0B TRCD3 AP_WE MEMA10 KEY1 GENX_HIN GENX_R3 PSM_LEDR_AFC1_KEY2 AUDIO_MUTE AQ_D2 TRCST SCL0A SDATA AR_RAS AQ_D9 AO_A2 AQ_D4 AO_A19 GENX_G2 SCL2 AR_BA0 SCL1 AO_A5 AO_A14 ODU_ON_ACTIVE_STB_LED AO_A1 AQ_D14 TRCD0 AGC1_TXD AGC2_RXD PANEL_SOS AP_OE AQ_D5 TRCD1 AR_UDQM SOUND_SOS AO_A3 SCL1 GENX_G3 SCLOCK AR_CKE AI_SENSOR AO_A17 SDA0B DTV_SDA0B AQ_D10 GENX_B2 PANEL_STATUS AO_A16 TRCD2 AQ_D12 GENX_B0 GC_RST AR_LDQM DTV_SCL0B AQ_D0 AO_A6 KEY3_KEY_EDGE AR_CLK AQ_D11 DTV_RST AQ_D7 AO_A10 RST QLINK_OUT_(SUB_SW1) ALL_OFF AQ_D8 SOS DISPEN GENX_R0 AQ_D3 ECO_ON SP_MUTE HDMI_DAC_PD AQ_D1 GENX_B3 FAN_MAX GENX_CLKIN GENX_VIN AR_WR AQ_D13 AO_A15 A_MON_MUTE_MSP_RESET AR_CAS FAN_SOS AP_CE RST AQ_D6 AO_A9 GENX_G1 GENX_R4 AO_A18 QLINK_IN2_(MAIN_SW2) AO_A7 AR_CS AO_A11 AO_A4 AO_A13 RM_IN MCU_RST TV_SUB_ON TV_SUB_ON SDA2 HPD2 QLINK_SEL_(SUB_SW2) DTV_TXD DTV_RXD HDMI_INT STB1.5V MCU_RST HDMI_5V_DET1 QLINK_IN1_(MAIN_SW1) AO_A0 HDMI_WP HPD1 HDMI_RST SCL0B GENX_B4 GENX_G4 GENX_G5 CVBS0 CVBS1 TV_MAIN_ON TV_MAIN_ON TRCCLK SDA1 DTV_BUS_CONNECT1 SRQ FORMAT_EDGE(MAIN) M_SDA0 PANEL_SDA1 PANEL_SCL1 GENX_YS GENX_YM STBY3.3V HDMI_A_MUTE HDMI_5V_DET2 HDMI_CEC PANEL_STBY_ON R1129 47k R1215 100 R1304 22 Q1143 B1ABDF000034 R1251 EXB2HV101JV R1177 100 Q1115 B1ABDF000034 C1156 50V 22p R1322 10 C1120 10V0.1u MAIN3.3V C1139 10V 0.1u R1225 22 R1207 100k C1168 10V 1u R1312 22 R1297 47k R1479 47k R1168 0 R1156 100k R1530 0 JS1102 0 R1275 7.15k R1174 100 C1127 10V 0.1u SUB3.3V R1331 100k R1292 100k R1310 22 R1234 0 R1199 47k R1153 100 R1228 22 C1150 10V 0.1u R1241 8.2k R1222 33 R1299 0 C1119 10V 0.1u R1220 68 R1316 10k Q1142 B1ABDF000034 R1238 47k R1330 47k C1158 10u 6.3V R1256 1k Q4918 B1ABDF000034 R1318 5.1k R1232 3.3k TP1107 R1132 100 C1190 16V 0.01u R1279 22 IC1105 C0JBAS000128 1 1A 2 1B 3 2B 4 2A 5 2C 6 3C 7 GND 8 3A 9 3B 10 4B 11 4A 12 4C 13 1C 14 Vcc STBY5V R1166 100 R1159 12k R1236 2.7k Q1107 B1ABDF000034 R1224 47k C1149 10V 0.1u JS1100 0 R1281 1k R1332 100k R1301 0 R1175 56k R1147 EXB2HV560JV R1197 47k R1466 10k C1167 10V 1u D1107 MA2J72900L C0EBY0000041 IC1111 1 VIN 2 VSS 3 ON/OFF 5 VOUT 4 VDOUT R1252 EXB2HV101JV R1284 6.8k R1313 10k C1161 10V 1u JS1101 0 Q1141 B1ABDF000034 R1130 47k R1282 15k R1375 100k R1249 47k R1167 100 Q1108 B1ABDF000034 R1203 1k R1263 100 R1470 0 C1178 10V 1u IC1106 C0JBAS000128 1 1A 2 1B 3 2B 4 2A 5 2C 6 3C 7 GND 8 3A 9 3B 10 4B 11 4A 12 4C 13 1C 14 Vcc R1325 100k R1155 4.7k R1154 4.7k R1218 68 R1128 10k C1137 10V 0.1u R1303 22 R1169 0 R1158 27k C1134 50V 15p R1376 27k R1183 EXB28V680JX R1149 EXB2HV680JV C1152 10V 0.1u C1145 10V 0.1u R1368 18k R1290 4.7k R1314 10k R1309 22 STBY3.3V SUB5V Q1110 B1CBHD000002 R1233 3.3k R1164 12k R1305 22 C1170 10V 0.1u R1226 22 R1369 0 R1141 68 R1480 47k C1133 50V 15p Q1111 B1ABDF000034 R1389 0 R1307 100k R1327 68k C1155 16V 0.01u C1221 50V 1000p R1319 5.1k R1489 47k R1372 47k R1326 100k R1270 22 L1104 J0JHC0000078 R1280 22 R1146 270 R1239 12k R1311 22 R1221 3.3k R1296 47k R1340 47k C1146 10V 0.1u L1102 J0JHC0000078 Q1140 B1ABDF000034 R1324 82k R1151 100 R1306 22 R1135 10k Q1102 B1ABDF000034 R1321 15k C1160 6.3V 47u C1172 10V 0.1u R1410 1k R1269 0 X1100 H0J100500030 R1229 1.8k R1293 100k R1308 27k D1119 MA3X704A0L C1147 10V 0.1u R1200 EXB2HV680JV R1140 68 R1189 10k R1157 100 STBY3.3V C1131 10V 0.1u R1323 82k R1300 0 R1346 47k C1171 10V 0.1u R1531 0 R1176 12k R1216 100 R1223 1k R1162 47k SUB5V Q1114 B1ABDF000034 C1132 10V 0.1u SUB5V R1160 47k R1187 EXB2HV680JV R1250 220k R1526 1k STBY3.3V Q1103 B1ABDF000034 R1231 47k Q1139 B1ABDF000034 C1162 16V 0.01u MN103SB20RGL IC1103 1 ZMEMD29 2 ZMEMD28 3 ZMEMD27 4 ZMEMD26 5 ZMEMD25 6 ZMEMD24 7 IVSS 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 IVDD 17 - 18 - 19 - 20 - 21 MVSS 22 MVDD 23 - 24 - 25 - 26 - 27 DQM0 28 DQM1 29 SDCKI 30 IVDD 31 SDCLK 32 IVSS 33 SDCKE 34 NSDWE 35 NSDCAS 36 NSDRAS 37 NSDCS 38 SDBS0 39 - 40 MEMA10 41 ZMEMA11 42 ZMEMA9 43 ZMEMA8 44 ZMEMA7 45 ZMEMA6 46 ZMEMA5 47 ZMEMA4 48 IVSS 49 IVDD 50 ZMEMA3 51 ZMEMA2 52 ZMEMA1 53 ZMEMA0 54 VSS 55 VDD 56 - 57 - 58 - 59 - 60 - 61 - 62 - 63 - 64 A17 65 A16 66 A15 67 A14 68 - 69 - 70 - 71 - 72 - 73 IVDD 74 IVSS 75 A20 76 A21 77 NWE0 78 A22 79 A19 80 A18 81 RTCCNT 82 - 83 - 84 - 85 IVSS 86 - 87 - 88 IVDD 89 - 90 - 91 - 92 A2 93 NRE 94 NCS0 95 ZA1 96 VSS 103 SCL1 104 NTEST 105 HSYNC 106 IVSS 107 OSDXI 108 IVDD 118 G04 119 G03 120 G02 121 - 122 - 123 B04 124 B03 125 B02 126 B01 127 IVSS 128 - 129 IVDD 130 - 131 - 132 SDA0A 133 SCL0A 134 VSS 135 RTCXI 136 RTCXO 137 VDD 138 RMIN_IRQ0 139 ROMCNT 140 TEST 141 AVSS1 142 CVBS0 143 AVDD1 144 VREFL0 145 VREFH0 146 VCMO0 147 IREF0 148 VCMO1 149 VREFH1 150 VREFL1 151 CVBS1 152 AVSS2 153 AVDD2 154 PVDD 155 CLL 156 CLH 157 PVSS 158 IVSS 159 - 160 - 161 - 162 - 163 ADIN4 164 ADIN5 165 CECINA 166 CECINB 167 IVSS 168 OSCXO 169 OSCXI 170 IVDD 171 TRCD3 184 - 185 - 186 - 187 - 188 - 189 - 190 - 191 IVDD 192 IVSS 193 - 194 - 195 - 196 - 197 - 198 - 199 - 200 - 201 IVDD 202 IVSS 203 MVSS 204 MVDD 205 - 206 - 207 - 208 - 209 - 210 - 211 - 212 - 213 IVSS 214 IVDD 215 ZMEMD31 216 ZMEMD30 109 - 111 YSOUT 113 R03 115 R01 117 G05 110 - 112 R04 114 R02 116 - 172 TRCD2 173 TRCD1 174 TRCD0 181 VSS 182 VDD 183 - 97 NRST 98 VDD 99 PSCNT 100 SDA2 101 SCL2 102 SDA1 175 TRCST 176 TRCCLK 177 EXTRG1 178 EXTRG0 179 SDATA 180 SCLOCK R1367 33k R1184 0 R1165 15k R1363 47k R1271 22 MAIN3.3V Q1109 B1CBHD000002 SUB3.3V R1302 0 R1214 10k STBY3.3V R1259 100 C1157 50V 22p R1150 100 PA1101 K5H8012A0023 C1141 10V 0.1u C1138 10V 0.1u R1283 100 R1264 100 R1448 47k Q1101 B1ABDF000034 C1128 10V 0.1u R1329 47k SUB9V STBY5V R1181 100 R1240 47k C1144 10V 0.1u R1148 EXB2HV560JV Q1116 B1ABDF000034 R1344 100 C1121 10V 0.1u R1384 100 R1131 100 R1478 68 R1452 47k X1101 H0J327200114 TP1106 L1103 J0JHC0000078 C1129 10V 0.1u D1106 MA2J72900L Q1113 B1ABDF000034 C1142 10V 0.1u R1449 47k R1134 1k C1177 10V 0.33u R1246 9.1k C1148 10V 0.1u Q4919 B1ABDF000034 C1153 4V 100u R1315 33k C1154 10V 0.1u C1135 10V 0.1u MAIN3.3V R1145 100 C1125 10V 0.1u C1140 10V 0.1u SUB3.3V C1122 10V 0.1u R1188 10k STBY5V D1121 MA2J72900L R1467 47k R1243 1k R1182 68k R1217 100 R1235 2.7k C1159 10V 0.1u C1136 10V 0.1u R1451 47k STBY5V R1328 68k C1118 10V 0.1u R1411 4.7k Q1100 B1ABDF000034 R1133 1k C1123 10V 0.1u C1130 10V 0.1u R1230 22 Q1106 B1ABDF000034 C0CBCAD00016 IC1110 1 Vcont 2 GND 3 Np 5 Vin 4 Vout MCU_ANALOG_VIDEO YMOUT0 MEMD5/D5/IRQ6A STB5V(SUB5V BACKUP) HOUTA A4/MEMA1 ADIN3 ADIN1 MEMD28/D28 MEMD6/D6/IRQ7A A10/MEMA7 ADIN0 SCL0B MEMD19/D19 MEMD30/D30 ZMEMD20/IRQ5B ZMEMD18/IRQ3B MEMD10/D10 MEMD20/D20 G01 A11/MEMA8 STB5V MEMD8/D8 SUB5V A7/MEMA4 A8/MEMA5 ZMEMD21/IRQ6B ZMEMD23/IRQ8B MEMD29/D29 MEMD7/D7/IRQ8A (USA:KEYSCAN3) (Euro:key EDGE) MEMD27/D27 SDBS1/A1 VSYNC MEMD25/D25 MEMD31/D31 MEMD16/D16 ZMEMD19/IRQ4B SDA0B ZMEMD22/IRQ7B A6/MEMA3 B00 MEMD17/D17 L1 G00 MEMD18/D18 MEMD21/D21 MEMD11/D11 VCLKOUTA ADIN2 MEMD24/D24 A5/MEMA2 A9/MEMA6 R00 MEMD22/D22 MEMD1/D1/IRQ2A ZMEMD16/NCS2B MEMD23/D23 MEMD4/D4/IRQ5A MEMD0/D0/NCS2A ZMEMD17/IRQ2B MEMD26/D26 MEMD15/D15 MEMD2/D2/IRQ3A MEMD14/D14 MEMD3/D3/IRQ4A A12/MEMA9 L1 MEMD13/D13 A13/MEMA11 MEMD9/D9 MEMD12/D12 A3/MEMA0 14 11 13 17 12 18 15 16 10 MAIN MICOM SWITCHING SWITCHING RESET STB 3.3V STB 1.5V PX60B ONLY PX60B ONLY PX60B ONLY PV60E ONLY PV60E ONLY PX60B ONLY PV60E ONLY PV60E ONLY PV60E ONLY PV60E ONLY PX60B ONLY PV60E ONLY 2 4 3 1 11 8 6 5 13 12 9 10 7 21 22 23 24 25 26 27 28 29 30 PV60E ONLY ONLY PX60B ONLY PX60B DG-BOARD (2/8) TNPA3756CH (PX60B) TNPA3756CB (PV60E) 31 TH-37/42PV60E, TH-37/42PX60B DG-Board (2 of 8) Schematic Diagram TH-37/42PV60E, TH-37/42PX60B DG-Board (2 of 8) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 107 14.34. DG-Board (3 of 8) Schematic Diagram + + + + + + NP NP + QLINK_OUT_(SUB_SW1) QLINK_AV4 QLINK_IN1_(MAIN_SW1) CVBS0 CVBS1 QLINK_AV2 QLINK_SEL_(SUB_SW2) AGC1_SD_TXD AGC2_SD_RXD AGC1_TXD AGC2_RXD AUDIO_MUTE RST A_MON_MUTE_MSP_RESET QLINK_AV4 SDA0B SCL0B HDMI_L HDMI_R PC_R PC_G PC_B PC_HS PC_VS RGB_FB RGB_CVBS MAIN_PR MAIN_Y/CVBS MAIN_PB/C BS_Y(V) MAIN_R MAIN_L BS_SL BS_SR SP_MUTE TV_MAIN_ON TV_SUB_ON SOS SOUND_SOS SL SL_GND SR SR_GND SL SL_GND SR SR_GND SOS AD_DAT AD_BICK AD_LRCK D_STB3R3V D_IIC_CONT D_SCL2 D_SDA2 D_TXD D_RXD D_IIC_INT AGC1_SD_TXD AGC2_SD_RXD SCL0A SDA0A SDA2 SCL0B SDA0B SCL1 SDA1 SRQ AFC2_AFT2_SUB-MUTE PSM_LEDR_AFC1_KEY2 AI_SENSOR KEY1 RM_IN G_LED_POWER R_LED_STBY_LED AGC2_SD_RXD AGC1_SD_TXD DTV_SCL0B DTV_SDA0B KEY3_KEY_EDGE FAN_SOS R_LED G_LED RIMOCON D_PSTB D_PBUSY D_PDB0 D_PSLCT D_PDB1 D_15V ODU_ON_ACTIVE_STB_LED SCL2 EURO_TEXT FAN_MAX QLINK_AV2 QLINK_IN2_(MAIN_SW2) D1117 B0BC3R5A0163 MAIN1.8V C1230 47u 16V STBY3.3V R1378 0 C1234 47u 16V R1441 0 TP1118 DG20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 SUB9V TP1117 TP1120 R1179 100 DG1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 STBY5V L1109 J0JHC0000078 Q1135 B1ABDF000034 R1178 100 TP1116 SUB5V Q1121 B1ABDF000034 R1428 0 R1475 270 C1233 47u 16V C1212 50V 150p MAIN9V R1359 220k C1180 50V 220p DG2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 R1212 0 Q1130 B1ABDF000034 R1352 47k C1209 10V 1u R1426 0 R1432 0 R1474 0 R1379 330 TP1113 R1335 100 R1427 0 C1231 47u 16V SUB3.3V R1429 0 R1554 0 R1373 68k R1556 330 JS1117 R1555 0 C1232 47u 16V R1351 100 R1358 100k Q1118 B1ABDF000034 R1381 470k R1333 100 JS1109 STBY3.3V R1361 0 C1181 50V 220p C1229 47u 16V R1431 0 STBY5V R1377 0 C1186 10V 0.1u C1219 16V 10u R1447 470 C1220 16V 10u TP1119 DG15 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 C1228 47u 16V R1380 100k R1341 47k R1461 0 R1353 22k Q1138 B1ABDF000034 R1462 0 Q1117 B1ABDF000034 R1491 0 R1439 270 IC1107 C0JBAS000128 1 1A 2 1B 3 2B 4 2A 5 2C 6 3C 7 GND 8 3A 9 3B 10 4B 11 4A 12 4C 13 1C 14 Vcc R1472 300 R1436 560 R1430 0 C1294 50V 33p R1334 0 Q1131 B1ABDF000034 R1350 100 R1490 0 MAIN3.3V R1437 560 STBY5V R1355 100k SUB9V R1473 300 R1364 27k R1337 4.7k Q1122 B1ABDF000034 R1370 100k R1354 100 TP1115 R1365 0 Q1120 B1ABDF000034 R1336 2.2M Q1134 B1ABDF000034 R1446 470 MAIN5V R1360 220 TP1114 BT30V MAIN1.8V SOUND_SOS MAIN9V SUB5V BT30V MAIN1.8V ODU_ON/OFF SUB9V SUB9V TV_MAIN_ON SUB3.3V SOS MAIN5V MAIN3.3V TUNER_SUB_ON SCL1(Main3.3V) SDA1(Main3.3V) 20 19 23 24 26 25 22 27 21 MAIN5V SUB5V SUB9V BT30V Q LINK SW PX60B ONLY PV60E ONLY (HC15) HC-BOARD TO D_PSLCT D_PDB1 D_IIC_CONT D_TXD REMOCON D_STB3R3V D_PSTB D_BUSY G_LED D_RXD D_SCL2 D_PDB0 D_SDA2 R_LED D_IIC_INT STBY5V SDA2 SCL2 SDA1 SCL1 SCL0B SDA0B SDA0A SRQ D_15V SCL0A DTV_EEP_SDA0B DTV_EEP_SCL0B SD_RX SD_TX SD_TX SD_RX SD_IRQ SD_RST STBY_LED G_LED RM_IN KEY1 AI_SENSOR KEY3_KEY_EDGE AFC1 AFC2 ACTIVE_STB_LED H-BOARD TO (H2) (PA20) PA-BOARD TO (H1) H-BOARD TO SUB3.3V SR SR SL SL MAIN_Y SR SL SUB_PR SUB_PB SUB_Y HDMI_L HDMI_R BS_Y(V) BS_SR BS_SL MAIN_R MAIN_L PC_VS PC_HS PC_B PC_G PC_R MAIN_PB/C MAIN_Y/CVBS MAIN_PR RGB_CVBS RGB_FB AUDIO_MUTE QLINK_AV2 SP_MUTE RST QLINK_AV3 SCL0B A_MON_MUTE_ SOS SDA0B AD_DAT AD_LRCK AD_BICK MSP_RESET FAN_SOS FAN_MAX MAIN3.3V MAIN3.3V 51 52 53 54 55 56 57 58 59 DG-BOARD (3/8) TNPA3756CH (PX60B) TNPA3756CB (PV60E) 29 30 31 21 22 23 24 25 26 27 28 TH-37/42PV60E, TH-37/42PX60B DG-Board (3 of 8) Schematic Diagram TH-37/42PV60E, TH-37/42PX60B DG-Board (3 of 8) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 108 14.35. DG-Board (4 of 8) Schematic Diagram + + + + Thermal Pad JTAG_GC5_BA JTAG_TMS JTAG_BA_FS UVIN0 RIN3 UVIN1 RIN2 YIN5 UVIN7 RIN1 YIN4 UVIN6 RIN0 YIN3 UVIN5 YIN6 UVIN2 UVIN4 PC_HS CLKOA PC_VS PC_B CLKIA SCL2 YIN2 SDA2 YIN0 UVIN9 YIN1 UVIN8 RGB_FB PC_G HSIA PC_R YIN7 YIN8 VSIA YIN9 REFCK_ADV MAIN_Y/CVBS MAIN_PB/C EURO_TEXT MAIN_PR TV_MAIN_ON RGB_CVBS JTAG_FS_GC5 JTAG_BA_FS GC_RST UVIN3 JTAG R4481 2.2k C4193 50V 1000p R4488 2.2k R4495 43k C4544 16V 1u C4168 50V 68p R4503 160 MAIN5V C4199 16V 0.01u MAIN9V R4004 0 C4208 10V 0.1u L4023 J0JHC0000078 R4577 2.2k C1AB00002456 IC4019 1 P32 2 P31 3 INT 4 CS/HS 5 DGND 6 DVDDIO 7 P15 8 P14 9 P13 10 P12 11 DGND 12 DVDD 13 P29 14 P28 15 SFL/SYNC_OUT 16 SCLK2 17 DGND 18 DVDDIO 19 SDA2 20 P11 21 P10 22 P9 23 P8 24 P27 25 P7 26 P6 27 P5 28 P4 29 P26 30 R_ACTIVE/P25 31 SRLIN/P24 32 SRLUP/P23 33 TRGIN/P22 34 P21 35 MEI_CK/DCLK_IN 36 BLC/LLC1 37 XTAL1 38 XTAL 39 DVDD 40 DGND 41 P3 42 P2 43 P1 44 P0 45 P20 46 ELPF 47 PVDD 48 PVDD 49 AGND 50 AGND 51 FB 52 SOG 53 AIN7 54 AIN1 55 AIN8 56 AIN2 57 AIN9 58 AIN3 59 ELPF2 60 AGND 61 CAPY1 62 CAPY2 63 AVDD 64 REFOUT 65 CML 66 AGND 67 BIAS 68 CAPC1 69 CAPC2 70 TEST0 71 AIN10 72 AIN4 73 AIN11 74 AIN5 75 AIN12 76 AIN6 77 SOY 78 RESET 79 DE_IN 80 ALSB 81 SDA 82 SCLK 83 P40 84 P39 85 VS_IN 86 HS_IN 87 P38 88 P37 89 DGND 90 DVDD 91 P19 92 P18 93 P17 94 P16 95 P36 96 P35 97 P34 98 FIELD/DE 99 VS 100 P33 R4527 22 TP4030 C4172 16V 0.1u Q4063 B1ABDF000034 C4158 10V 1u C4160 10V 0.1u Q4053 B1ABDF000034 Q4056 2SA207700L C4218 50V 1000p R4506 0 R4480 422 Q4064 B1ABDF000034 C0CBCAC00275 IC4016 1 VDD 2 GND 3 CE 5 VOUT 4 NC C4253 47u 6.3V R4517 1.37k R4024 0 R4019 0 C4217 16V 0.1u R4568 100 TP4028 C4216 47u 6.3V C4195 16V 0.1u C4178 16V 0.039u R4498 1k R4492 1k C4211 10V 0.1u R4572 10k R4552 EXB28V220JX R4533 22 R4474 1.21k Q4061 B1ABDF000034 C4215 10V 0.1u C4224 10V 0.1u C4180 16V 0.1u C4273 10V 0.1u R4550 EXB28V220JX MAIN3.3V C4200 47u 6.3V C4201 16V 0.01u R4578 2.2k Q4059 2SA207700L C4171 50V 470p L4073 J0JHC0000078 R4565 22 R4465 220k JS4017 C4227 16V 0.082u Q4058 2SA207700L R4487 560 C4186 6.3V 10u SUB5V C4262 10V 0.1u C4235 16V 0.01u C4248 10V 0.1u R4564 22 R4560 EXB28V220JX R4561 EXB28V220JX JS4111 0 L4029 J0JHC0000078 C4196 16V 0.1u C4219 10V 1u R4521 22 R4500 27k R4522 22 JS4023 0 R4479 422 C4245 10V 0.1u R4520 1.69k R4470 150 R4508 0 R4505 10k R4490 1k R4555 EXB28V220JX C0CBCAC00275 IC4018 1 VDD 2 GND 3 CE 5 VOUT 4 NC C4165 10V 0.1u C4244 10V 1u R4501 1k C4263 10V 0.1u C4177 16V 0.68u JS4024 0 R4482 1.78k R4483 1.78k C4228 16V 0.01u C4185 6.3V 10u R4008 0 C4191 10V 0.1u C4269 10V 1u R4554 22 L4038 J0JHC0000078 R4499 1k C4256 10V 1u C4264 10V 0.1u C4188 10u 6.3V R4486 487 R4025 0 C4194 16V 0.1u Q4062 B1ABDF000034 R4534 100 R4579 2.2k C4197 16V 0.1u C4206 16V 0.1u MAIN1.8V SUB9V Q4055 2SA207700L R4575 4.7k L4031 J0JHC0000078 R4001 1.21k TP4029 R4563 22 Q4057 2SA207700L C4175 16V 0.1u R4510 0 R4496 1k R4544 22 R4469 150 C4173 16V 0.1u MAIN3.3V Q4050 B1ABDF000034 C4266 16V 0.01u JS4016 C4176 6.3V 2.2u C4189 10V 0.1u C4190 10V 0.1u R4457 0 C4159 16V 0.1u C4543 16V 0.1u C4209 10V 0.1u R4502 1k R4535 100 C4204 10V 0.1u JS4022 0 C4272 47u 6.3V IC4013 C0CBCBF00009 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 NC 7 NC 8 VIN C4205 16V 0.1u R4497 1k C4174 10V 0.1u 1.8V Y FB PR RGB_CVBS PB/C SYS_RST(L_3.3V) 33 36 28 32 31 30 29 34 35 10bit A/D(ADV7499) AD 3.3V AVR 1.8V AVR 1.8V 72 73 74 75 77 78 DG-BOARD (4/8) TNPA3756CH (PX60B) TNPA3756CB (PV60E) 51 52 53 54 56 57 58 59 55 76 71 TH-37/42PV60E, TH-37/42PX60B DG-Board (4 of 8) Schematic Diagram TH-37/42PV60E, TH-37/42PX60B DG-Board (4 of 8) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 109 14.36. DG-Board (5 of 8) Schematic Diagram Thermal Pad + + + + + SCL1 HPD1 HDMI_DAC_PD UBIN3 UBIN2 UBIN9 YBIN6 UBIN0 HDMI_RST YBIN2 UBIN7 YBIN4 HDMI_5V_DET2 HDMI_5V_DET2 UBIN6 HDMI_5V_DET1 HDMI_5V_DET1 VSIB AP_DE SDA1 YBIN3 UBIN1 HSIB YBIN7 YBIN0 UBIN5 YBIN9 UBIN4 UBIN8 REFCK_HDMI YBIN5 HPD2 YBIN8 DDC_SDA0 DDC_SCL0 YBIN1 CLKINB2 HDMI_R HDMI_L HDMI_CEC HDMI_WP HDMI_INT JS4025 100 C4332 1u 10V C4305 1u 10V C4327 0.1u 10V R4677 18k D4021 EZJZ0V80008B R4630 4.7k L4046 J0JHC0000078 R4600 2.7 L4076 J0JHC0000078 TP4032 C4317 0.1u 10V D4033 EZJZ0V80008B C4347 1u 10V R4642 22 C4342 0.1u 10V C4306 1u 10V D4036 EZJZ0V80008B C4346 0.1u 10V R4599 2.7 R4634 22 C0FBBK000047 IC4025 1 MCLK 2 BICK 3 SDTI 4 LRCK 5 PDN 6 SMUTE/CSN 7 ACKS/CCLK 8 DIF0/CDTI 9 P/S 10 AOUTR 11 AOUTL 12 VCOM 13 VSS 14 VDD 15 DZFR 16 DZFL C1AB00002535 IC4026 1 DE 2 HSYNC 3 VSYNC 4 IOGND 5 IOVCC 6 NC 7 NC 8 NC 9 EVNODD 10 NC 11 NC 12 NC 13 NC 14 NC 15 IOGND 16 IOVCC 17 NC 18 NC 19 NC 20 NC 21 CGND 22 CVCC18 23 CVCC18 24 CGND 25 IOGND 26 IOVCC 27 CSDA 28 CSCL 29 DSDA1 30 DSCL1 31 DSDA0 32 DSCL0 33 R1PWR5V 34 R0PWR5V 35 CVCC18 36 CGND 37 PVCC0 38 AVCC 39 R0XC- 40 R0XC+ 41 AGND 42 AVCC 43 R0X0- 44 R0X0+ 45 AGND 46 AVCC 47 R0X1- 48 R0X1+ 49 AGND 50 AVCC 51 R0X2- 52 R0X2+ 53 AGND 54 TMDSPGND 55 PVCC1 56 RSVD_A 57 AVCC 58 R1XC- 59 R1XC+ 60 AGND 61 AVCC 62 R1X0- 63 R1X0+ 64 AGND 65 AVCC 66 R1X1- 67 R1X1+ 68 AGND 69 AVCC 70 R1X2- 71 R1X2+ 72 AGND 73 CGND 74 CVCC18 75 IOGND 76 IOVCC 77 MUTEOUT 78 SPDIF 79 CVCC18 80 CGND 81 NC 82 NC 83 NC 84 SD0 85 WS 86 SCK 87 NC 88 MCLK 89 IOVCC 90 IOGND 91 CGND 92 CVCC18 93 NC 94 AUDPVCC18 95 AUDPGND 96 XTALOUT 97 XTALIN 98 XTALVCC 99 REGVCC 100 NC 101 RSVDL 102 RESET# 103 SCDT 104 INT 105 CVCC18 106 CGND 107 CLK48B 108 IOGND 109 IOVCC 110 Q23 111 Q22 112 Q21 113 Q20 114 CVCC18 115 CGND 116 Q19 117 Q18 118 Q17 119 Q16 120 IOGND 121 ODCK 122 IOVCC 123 Q15 124 Q14 125 Q13 126 Q12 127 CGND 128 CVCC18 129 Q11 130 Q10 131 Q9 132 Q8 133 Q7 134 IOVCC 135 IOGND 136 Q6 137 Q5 138 CGND 139 CVCC18 140 Q4 141 Q3 142 Q2 143 Q1 144 Q0 C4314 0.1u 10V C4311 0.1u 10V IC4023 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC R4620 56 R4640 22 R4601 2.7 C4315 6.3V 10u R4644 22 TP4033 R4609 10k R4675 18k R4603 2.7 R4621 47k R4606 10k C4284 0.1u 10V JS4026 100 R4637 33 C4331 6.3V 10u C4281 0.1u 10V Q4068 B1ABDF000034 C4349 16V 0.01u D4048 MAZ30560ML L4048 J0JHC0000078 C0DBFFD00003 IC4027 1 2 3 4 5 6 7 D4028 EZJZ0V80008B D4041 EZJZ0V80008B Q4071 B1MBACA00008 G1 D1 S1 G2 D2 S2 D4026 EZJZ0V80008B L4043 J0JHC0000078 R4624 56 D4030 EZJZ0V80008B D4045 EZJZ0V80008B D4027 EZJZ0V80008B R4641 EXB28V330JX C4325 0.1u 10V D4052 B0HCMM000014 C4321 0.1u 10V MAIN3.3V C4337 0.1u 10V D4050 B0HCMM000014 TP4066 L4049 J0JBC0000080 L4075 J0JHC0000078 L4040 J0JHC0000078 R4658 22 C4298 1u 10V R4617 4.7k R4629 4.7k C4334 0.1u 10V C4302 1u 10V C4292 0.1u 10V R4619 47k C4322 0.1u 10V C4282 0.1u 10V R4286 0 R4605 10k IC4022 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC R4584 39 L4052 J0JCC0000077 TP4031 R4679 22k D4047 MAZ30560ML TP4034 R4589 2.7 L4045 J0JHC0000078 R4610 10k R4645 22 Q4084 B1ABDF000034 C4348 16V 47u C4300 1u 10V C4338 0.1u 10V D4038 EZJZ0V80008B R4596 2.7 R4595 2.7 D4044 EZJZ0V80008B R4593 2.7 R4662 22 R4628 10k C4026 0.1u 10V R4027 1k R4673 10k R4636 10k R4045 0 C4340 470p 50V C4304 1u 10V L4078 J0JHC0000078 C4333 0.1u 10V C4318 0.1u 10V D4023 EZJZ0V80008B C4335 0.1u 10V R4672 10k R4271 0 Q4069 B1ABDF000034 R4680 22k R4590 2.7 C4309 0.1u 10V L4071 J0JBC0000080 Q4083 2SK122800L D4019 EZJZ0V80008B C4354 0.01u 16V C4287 0.1u 10V R4602 2.7 R4622 56 D4037 EZJZ0V80008B R4681 33k R4101 10k R4631 4.7k C4339 2.2u 6.3V JS4104 R4643 22 R4639 10k C4312 0.01u 16V D4024 EZJZ0V80008B D4031 EZJZ0V80008B Q4066 B1ABDF000034 C4297 0.1u 10V D4025 EZJZ0V80008B TP4065 C4336 0.1u 10V R4665 EXB2HV220JV C4345 10u 6.3V R4607 22 C4288 0.1u 10V D4032 EZJZ0V80008B TP4036 C4310 0.01u 16V 33u 6.3V C4289 R4604 2.7 C4307 0.1u 10V D4035 EZJZ0V80008B D4034 EZJZ0V80008B R4661 4.7k R4618 4.7k R4682 33k C4343 16V 10u R4667 EXB2HV220JV C4541 0.1u 10V R4613 4.7k R4026 1k Q4082 2SK122800L C4352 50V 33p R4591 2.7 R4598 2.7 IC4028 C0ABBB000230 1 2 3 4 5 6 7 8 R4031 10k R4010 0 L4044 J0JHC0000078 C4296 6.3V 10u C4316 0.1u 10V R4594 2.7 R4626 56 DG9 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 C4313 0.1u 10V TP4064 D4029 EZJZ0V80008B 33u 6.3V C4290 Q4065 B1ABDF000034 R4592 2.7 MAIN5V C4330 0.1u 10V R4597 2.7 C4283 0.1u 10V R4668 68 L4041 J0JHC0000078 R4648 33 R4657 1.8k L4050 J0JHC0000078 R4655 33 C4329 0.1u 10V R4040 0 C4350 50V 180p L4051 J0JHC0000078 R4583 39 C4344 10u 6.3V R4647 22 C4353 50V 33p L4042 J0JHC0000078 C4351 50V 180p R4669 EXB2HV220JV C4303 1u 10V D4020 EZJZ0V80008B TP4035 R4633 22 Q4067 B1ABDF000034 C4301 1u 10V R4632 4.7k D4051 B0HCMM000014 MAIN9V C4308 0.1u 10V R4612 4.7k Q4070 B1MBACA00008 G1 D1 S1 G2 D2 S2 C4291 0.1u 10V C4320 0.1u 10V R4660 22 D4022 EZJZ0V80008B D4049 B0HCMM000014 C4299 1u 10V C4341 16V 47u DG8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 R4032 10k R4272 0 MAIN1.8V MAIN3.3V DDCG CEC D0+ CLKG D2- DDCG CEC D2+ GND +5V Cn D0+ CLK+ D0G D1- HDMI_SCL D1+ D2G L CLKG HDMI_SDA HDMI_Y0 HDMI_Y1 - HDMI_Y2 N.C. R D2- HPDT D1G HDMI_Y3 D0- HDMI_Y4 +5V HDMI_Y5 + - SDA SCL CLK- HDMI_UV0 HDMI_UV2 NC HDMI_Y6 D1G HDMI_UV6 HDMI_Y7 HDMI_CLK RX_MCLK RX_SCK R AUDIO DAC RX_WS HDMI_L_AUDIO + VIL < 0.8V HDMI_R_AUDIO SDA Vin sub L SCL HDMI_UV4 CLK- HDMI_UV3 CONT RX_SD0# HDMI_UV5 DIGITAL VIDEO SIGNAL (HDMI) Vo VIH > 2.2V HDMI_UV1 HDMI_UV7 D0- HIGH:MUTE HDMI_VS HDMI_DE HDMI_HS D2+ N.C. CLK+ HPDT D0G D1- D1+ D2G G D S D 43 44 38 42 37 41 45 39 40 G S HDMI I/F RECEIVER EEPROM EEPROM AUDIO AMP HDMI IN 1 HDMI IN 2 MAIN 1.8V 92 93 94 95 96 97 TNPA3756CB (PV60E) DG-BOARD (5/8) TNPA3756CH (PX60B) 72 73 74 76 77 78 75 71 91 TVRN917 TVRN916 TH-37/42PV60E, TH-37/42PX60B DG-Board (5 of 8) Schematic Diagram TH-37/42PV60E, TH-37/42PX60B DG-Board (5 of 8) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 110 14.37. DG-Board (6 of 8) Schematic Diagram + A_DDR_DQ2 CLKIA PEAKS-CIN6 A_DDR_DQ18 YBIN2 A_DDR_DQ1 VSIA CLKINB PEAKS-CIN2 GENX_HIN A_DDR_DQ17 A_DDR_DQ0 YBIN4 CLKOA PEAKS-CIN5 UVIN0 A_DDR_DQ16 A_DDR_DQ19 YBIN7 PEAKS-CIN4 YIN1 A_DDR_DQ20 PEAKS-CIN7 RIN1 AP_DE A_DDR_DQ21 PEAKS-YIN0 UVIN1 VSIB A_DDR_DQ22 HSIA UVIN3 GENX_YS PEAKS-YIN1 A_DDR_RAS RIN0 YBIN1 HSIB RIN2 YIN9 A_DDR_WE PEAKS-YIN2 A_DDR_DQ23 YIN0 YBIN6 UBIN3 UVIN9 A_DDR_BA0 PEAKS-YIN3 RIN3 YBIN9 A_DDR_BA1 UBIN2 PEAKS-YIN4 YIN3 PEAKS-YIN5 YBIN5 UBIN7 YIN7 REFCK_ADV A_DDR_DQ25 PEAKS-YIN6 A_DDR_A8 UVIN6 A_DDR_DQ26 PEAKS-YIN7 YIN6 A_DDR_A7 JTAG_TRST A_DDR_NCLK A_DDR_DQ27 A_DDR_A5 YIN2 JTAG_TCK A_DDR_CLK A_DDR_DQ28 A_DDR_A6 A_DDR_DQ10 UBIN1 UVIN7 A_DDR_DQS1 A_DDR_DQ9 JTAG_TMS A_DDR_A1 REFCK_HDMI A_DDR_DQ29 A_DDR_DQS3 UBIN9 YIN5 A_DDR_A9 A_DDR_DQ30 A_DDR_DQS2 JTAG_FS_GC5 UVIN2 UBIN6 A_DDR_DQ8 A_DDR_A2 A_DDR_SDCKE UVIN4 PEAKS-CLKIN UBIN4 A_DDR_DQ15 A_DDR_A0 A_DDR_DQ24 A_DDR_CAS PEAKS-HIN A_DDR_DQ3 A_DDR_A4 UBIN8 A_DDR_DQ31 PEAKS-VIN A_DDR_A3 A_DDR_DQS0 A_DDR_DQ4 UBIN0 A_DDR_DQ14 UVIN5 A_DDR_A11 A_DDR_DQ5 UBIN5 A_DDR_DQ13 A_DDR_A10 UVIN8 A_DDR_DQ6 A_DDR_DQ12 YBIN0 GENX_CLKIN PEAKS-CIN0 YIN8 A_DDR_DQ11 YBIN3 CLKINB2 PEAKS-CIN1 A_DDR_DQ7 YIN4 YBIN8 PEAKS-CIN3 GENX_VIN GENX_YM GENX_B0 GENX_G3 GENX_R2 GENX_B2 GENX_R1 GENX_R0 GENX_R3 GENX_B1 GENX_B3 GENX_G1 GENX_G4 GENX_G0 GENX_G2 JTAG_GC5_BA GENX_G5 GENX_R4 GENX_B4 IC4037 C30 UVIC0 IC4037 F30 CLKIC IC4037 A24 OSDYSI IC4037 A3 THQHOUT 1000p 50V C4414 IC4037 C17 OSDI15 IC4037 A17 CLKOD2 IC4037 AE5 AVSSCK IC4037 AK9 WE IC4037 R27 GND IC4037 K1 FRCKO3 IC4037 AF10 VDD25 IC4037 R13 GND IC4037 C18 OSDI12 IC4037 D28 UVIC1 IC4037 AB3 VDD25 IC4037 K4 YIB9 IC4037 T3 RVIA5 IC4037 AJ1 VDD25 IC4037 P16 GND IC4037 B24 OSDYMI 0.1u 10V C4397 IC4037 AE27 VDD12 IC4037 R12 GND IC4037 D18 GND IC4037 AD4 GND IC4037 R26 GND IC4037 AG3 DQ11 JS4029 220 IC4037 AJ20 GND IC4037 C28 GND IC4037 T16 VDD12 IC4037 A28 YIC4 IC4037 E10 GND IC4037 A4 THQCO7 IC4037 AH4 VREFSSTL2V_0 IC4037 R1 BUIA5 IC4037 AK29 GND IC4037 A6 THQYO9 IC4037 G5 GND IC4037 AE2 DQ24 IC4037 AG27 VDD12 0.1u 10V C4407 IC4037 U15 GND IC4037 A2 CLKOTHQ1 IC4037 C13 FHQCIN8 IC4037 B19 OSDI10 IC4037 T4 GND IC4037 V12 VDD25 IC4037 A5 THQCO3 IC4037 AJ5 A5 IC4037 AF4 GND IC4037 A18 OSDI14 0.1u 10V C4408 IC4037 AE4 GND IC4037 E22 GND IC4037 T5 GND IC4037 F2 UVIB5 IC4037 K3 HSIB IC4037 AF25 GND IC4037 A20 OSDI8 0.1u 10V C4389 IC4037 L1 BUIA1 IC4037 V2 GYIA2 IC4037 D29 UVIC2 C4362 6.3V 10u IC4037 D30 UVIC3 IC4037 B12 FHQYIN2 IC4037 AG8 GND C4367 10V 0.1u IC4037 D16 MOSDVSO2 IC4037 D25 TCK IC4037 AC1 DQ29 IC4037 G1 YIB0 0.1u 10V C4404 IC4037 AH7 A3 IC4037 AF15 GND IC4037 H1 YIB4 IC4037 A22 OSDI2 IC4037 AB1 DQ31 IC4037 W27 GND IC4037 N1 RVIA2 IC4037 R15 VDD12 IC4037 AK3 SDCLKO IC4037 J1 YIB8 IC4037 R16 GND IC4037 C16 FRCKO2 IC4037 AJ26 GND IC4037 N2 RVIA1 IC4037 AF24 GND IC4037 Y3 GYIA5 IC4037 AF14 AVSS_DDR IC4037 AC3 DQ28 IC4037 Y2 GYIA6 IC4037 AK11 DQS2 IC4037 P15 GND IC4037 E21 GND IC4037 L3 CLKIA2 R4037 EXB2HV103JV IC4037 AF7 VDD25 IC4037 B15 FHQCIN3 IC4037 P13 VDD12 IC4037 J3 YIB6 IC4037 B4 THQCO8 IC4037 D22 GND IC4037 B17 MOSDHSO2 IC4037 V15 GND 1000p 50V C4403 IC4037 R2 BUIA4 0.1u 10V C4398 IC4037 AJ28 GND 1u 10V C4400 IC4037 A14 FHQCIN7 IC4037 C12 FHQYIN1 IC4037 J2 YIB7 C4003 6.3V 10u 1000p 50V C4385 IC4037 F6 GND IC4037 V1 GYIA3 IC4037 B20 OSDI7 IC4037 E14 GND IC4037 A21 OSDI5 IC4037 C7 THQYO7 IC4037 P18 GND R4713 EXB2HV221JV IC4037 M12 VDD12 IC4037 AG12 GND IC4037 H2 YIB3 IC4037 C15 FHQCIN2 IC4037 D6 THQCO2 IC4037 D24 TDI R4711 10k IC4037 V18 VDD12 IC4037 D5 THQCO6 IC4037 AK17 GND IC4037 J5 GND R4727 0 IC4037 AJ9 RAS IC4037 V17 GND IC4037 B21 OSDI4 IC4037 AG15 GND IC4037 C1 ENBIB IC4037 AF6 AVDCLK IC4037 E3 UVIB1 IC4037 N17 GND IC4037 U5 GND IC4037 AJ11 DQ21 IC4037 D26 TDO MAIN1.2V IC4037 Y27 GND IC4037 AH20 GND IC4037 D3 VDD12 IC4037 A26 CLKOD IC4037 G28 GND IC4037 F29 HSIC IC4037 B27 YIC6 IC4037 D1 UVIB0 IC4037 C10 FHQYIN7 IC4037 D10 GND IC4037 D8 THQYO4 IC4037 U2 RVIA7 IC4037 J4 YIB5 IC4037 E30 UVIC7 IC4037 AC5 AVSS_DDR IC4037 W26 GND IC4037 N5 GND IC4037 T1 BUIA7 IC4037 D2 CLKIB2 1u 10V C4373 IC4037 AJ6 A4 IC4037 AG25 GND IC4037 AD3 DQ26 IC4037 AK30 VDD12 IC4037 B1 VDD12 IC4037 AF11 VDD25 1000p 50V C4413 IC4037 T15 GND IC4037 T12 GND IC4037 AJ4 CKE R4709 68 1000p 50V C4406 IC4037 AG11 VDD25 IC4037 E27 UVIC4 1000p 50V C4393 IC4037 AJ29 VDD12 IC4037 C3 GND IC4037 AJ12 DQ18 IC4037 C8 THQYO3 IC4037 AH16 DQ0 0.1u 10V C4384 IC4037 P17 GND JS4028 0 IC4037 AG16 GND IC4037 AH1 DQ8 IC4037 M4 GND L4053 J0JHC0000078 1000p 50V C4383 IC4037 B11 FHQYIN5 1000p 50V C4390 IC4037 E18 GND IC4037 F1 UVIB6 IC4037 AH15 DQ3 IC4037 AG22 GND IC4037 AD5 GND 0.1u 10V C4377 IC4037 A7 THQYO5 IC4037 B23 OSDHSI IC4037 AF9 GND IC4037 AH12 DQ19 IC4037 B7 THQYO6 IC4037 W1 GYIA4 IC4037 AK13 GND IC4037 K2 VSIB IC4037 AK4 A8 IC4037 T19 VDD12 IC4037 N4 GND IC4037 AC2 DQ30 C4004 6.3V 10u IC4037 T2 BUIA6 IC4037 AG4 GND IC4037 V3 GYIA1 IC4037 AJ8 A0 1u 10V C4391 IC4037 B9 FHQVIN IC4037 C9 FHQHIN IC4037 R14 GND R4039 EXB2HV103JV IC4037 U16 GND IC4037 A13 FHQYIN0 IC4037 AH26 GND R4041 0 IC4037 AF23 GND IC4037 A30 GND 1u 10V C4399 IC4037 AA2 VDD25 IC4037 C22 OSDI0 IC4037 AH21 GND IC4037 E1 UVIB2 IC4037 D17 GND R4898 10k IC4037 N16 GND IC4037 AG23 GND 0.1u 10V C4364 IC4037 AK10 DQ22 IC4037 AF16 GND IC4037 D7 THQYO8 IC4037 AF12 GND IC4037 AG6 VDD25 C4014 6.3V 10u IC4037 A1 GND JS4027 0 IC4037 AH13 DQ17 IC4037 AH6 A9 IC4037 P19 GND IC4037 L4 TEST IC4037 F3 UVIB4 IC4037 AK8 BA1 IC4037 AH8 A2 IC4037 AG7 VDD25 DDR2.5V IC4037 E9 GND IC4037 U1 GYIA0 IC4037 P2 RVIA4 IC4037 E28 UVIC5 IC4037 AK24 GND 0.1u 10V C4412 IC4037 N3 RVIA0 IC4037 W13 VDD25 C4366 47u 6.3V IC4037 B13 FHQCIN9 IC4037 AJ3 NSDCLO IC4037 E17 GND IC4037 AK14 DQS0 IC4037 W18 VDD12 IC4037 B8 THQYO2 0.1u 10V C4372 IC4037 W19 VDD12 IC4037 B6 THQCO0 1000p 50V C4402 IC4037 AF8 GND IC4037 C14 FHQCIN5 IC4037 W3 HSIA IC4037 C5 THQCO5 IC4037 Y5 GND IC4037 AF3 DQ12 IC4037 AK18 GND R4038 EXB2HV103JV IC4037 G4 UVIB7 0.1u 10V C4395 IC4037 AG2 DQ10 C4379 10V 0.1u IC4037 F28 VSIC IC4037 A16 FHQCIN1 IC4037 AJ10 DQ23 IC4037 M2 CLKIA IC4037 AG24 GND IC4037 C23 OSDVSI IC4037 E13 GND 0.1u 10V C4411 IC4037 B30 YIC1 R4022 1k IC4037 AG1 DQ14 IC4037 AH14 DQ7 IC4037 AE3 DQ15 IC4037 U17 VDD12 IC4037 W14 GND IC4037 AK1 GND IC4037 N14 VDD12 IC4037 E2 CLKIB1 IC4037 AJ2 GND IC4037 G27 GND IC4037 A8 THQYO1 1000p 50V C4394 IC4037 AH27 GND R4715 0 IC4037 AF2 DQ13 IC4037 AH28 VDD12 IC4037 A27 YIC7 IC4037 Y26 GND 0.1u 10V C4401 IC4037 AH24 GND IC4037 H3 YIB2 IC4037 A19 OSDI11 IC4037 AK7 A1 IC4037 AD27 CLKID2 R4719 68 IC4037 R18 GND IC4037 G3 UVIB8 R4714 EXB2HV221JV IC4037 AE1 DQS3 1000p 50V C4371 IC4037 W17 GND IC4037 A15 FHQCIN4 IC4037 AK15 DQ5 IC4037 C20 OSDI6 IC4037 G2 UVIB9 IC4037 B14 FHQCIN6 IC4037 P1 BUIA2 IC4037 AJ14 DQ6 IC4037 AH9 BA0 IC4037 A9 FHQCKIN IC4037 D27 GND C4388 10V 1u IC4037 B10 FHQYIN8 1u 10V C4410 IC4037 W2 VSIA R4708 68 IC4037 AC26 GND IC4037 C6 THQCO1 IC4037 AH5 A7 IC4037 C25 MOSDVSO IC4037 C19 OSDI9 IC4037 T13 GND IC4037 AJ13 DQ16 IC4037 AD26 GND IC4037 AF20 GND IC4037 U14 GND IC4037 H27 GND IC4037 H26 GND IC4037 U12 GND IC4037 AD1 DQ25 IC4037 AJ15 DQ4 IC4037 D14 GND 1000p 50V C4396 IC4037 G26 GND R4710 0 IC4037 C24 ALPHAI1 IC4037 AE26 VDD12 IC4037 AJ24 GND IC4037 AB2 VDD25 IC4037 AF26 VDD12 IC4037 M17 GND C4027 1u 10V IC4037 L27 GND IC4037 AK2 GND IC4037 A23 CLKID C4360 10V 1u IC4037 R3 BUIA3 IC4037 AK5 A6 IC4037 B28 YIC3 IC4037 D21 GND IC4037 AJ16 DQ2 IC4037 AF13 GND IC4037 M5 GND R4712 0 C4015 6.3V 10u IC4037 V19 VDD12 JS4069 220 IC4037 AH3 GND R4706 0 IC4037 H4 YIB1 IC4037 E25 GND IC4037 M27 GND IC4037 AG5 AVDD_DDR IC4037 B2 GND IC4037 AG26 GND IC4037 A12 FHQYIN3 IC4037 P12 VDD12 IC4037 A11 FHQYIN6 IC4037 AA5 GND IC4037 D9 THQYO0 IC4037 AH10 CAS IC4037 B22 OSDI1 IC4037 AG9 GND IC4037 M13 VDD12 1u 10V C4405 1000p 50V C4409 IC4037 D23 TRST IC4037 N12 VDD12 IC4037 C26 TMS IC4037 C29 YIC0 IC4037 H5 GND 0.1u 10V C4374 IC4037 A29 YIC2 C4365 10V 1u IC4037 T26 GND IC4037 C2 VDD12 IC4037 R19 GND IC4037 E4 VDD12 IC4037 P14 VDD12 IC4037 U3 RVIA6 IC4037 D4 GND IC4037 B26 MOSDHSO IC4037 AG14 AVDD_DDR 0.1u 10V C4382 IC4037 V13 VDD25 IC4037 U13 GND IC4037 E29 UVIC6 IC4037 N15 GND R4720 68 IC4037 R17 GND IC4037 M1 CLKOA C0CBCAC00282 IC4029 1 VDD 2 GND 3 CE 5 VOUT 4 NC C4363 10V 0.1u IC4037 M15 GND 0.1u 10V C4117 1000p 50V C4375 0.1u 10V C4392 IC4037 AB4 VDD25 IC4037 AJ17 GND IC4037 AA4 GND 0.1u 10V C4381 IC4037 B25 ENBID IC4037 U18 VDD12 IC4037 AF1 DQS1 0.1u 10V C4386 IC4037 P3 RVIA3 IC4037 E5 GND IC4037 AJ7 A10 IC4037 L2 BUIA0 IC4037 AD2 DQ27 IC4037 AH23 GND IC4037 AH2 DQ9 L4054 J0JHC0000078 IC4037 AG10 VDD25 IC4037 AA1 VDD25 IC4037 AG13 GND IC4037 C27 YIC5 IC4037 AK12 GND IC4037 T27 GND IC4037 E6 GND IC4037 A25 ALPHAI0 IC4037 U19 VDD12 IC4037 B16 FHQCIN0 IC4037 M3 FRCKO1 IC4037 C11 FHQYIN4 IC4037 B3 THQVOUT IC4037 N13 VDD12 IC4037 AF27 VDD12 IC4037 M16 GND 1000p 50V C4387 IC4037 A10 FHQYIN9 IC4037 T18 VDD12 IC4037 F5 VDD12 IC4037 AH17 GND IC4037 AB5 VDD25 IC4037 M14 VDD12 R4718 68 1000p 50V C4376 MAIN3.3V IC4037 T14 GND IC4037 M26 GND IC4037 W12 VDD25 IC4037 V14 GND IC4037 B18 OSDI13 IC4037 AK16 DQ1 IC4037 C21 OSDI3 IC4037 E26 GND IC4037 T17 VDD12 IC4037 B5 THQCO4 IC4037 AF5 AVSS_DDR IC4037 AH11 DQ20 IC4037 Y1 GYIA7 1000p 50V C4380 IC4037 AA3 GND IC4037 B29 GND R4701 68 IC4037 AK6 A11 IC4037 F4 UVIB3 IC4037 L26 GND IC4037 AC4 AVDD_DDR IC4037 C4 THQCO9 IC4037 AH18 GND R4287 0 MAIN1.2V PORT-C(PEAKS) PORT-D(OSD INPUT) PORT-A(ADV7499) PORT-B(FS&HDMI) PORT-FHQ(GC3E&HQ1) 27MHz 27MHz 50 53 47 51 48 49 54 46 52 IC4037 MN84522-A GC5 PROCESSOR DLL 2.5V 111 114 115 116 117 96 95 97 94 93 92 TNPA3756CH (PX60B) TNPA3756CB (PV60E) DG-BOARD (6/8) 91 112 113 TH-37/42PV60E, TH-37/42PX60B DG-Board (6 of 8) Schematic Diagram TH-37/42PV60E, TH-37/42PX60B DG-Board (6 of 8) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 111 14.38. DG-Board (7 of 8) Schematic Diagram Thermal Pad + + + Thermal Pad A_ROE0 B_DDR_DQ10 B_DDR_DQ12 A_VSOE B_DDR_A2 A_ROE1 B_DDR_DQ29 B_DDR_A10 B_DDR_DQ19 B_DDR_NCLK B_DDR_DQS2 B_DDR_CLK A_DDR_DQ4 B_DDR_A7 A_DDR_DQ8 B_DDR_CAS B_DDR_CLK A_DDR_DQ3 A_DDR_DQ9 A_DDR_DQ29 B_DDR_DQ26 A_DDR_NCLK B_DDR_DQ3 B_DDR_DQS3 B_DDR_NCLK A_DDR_SDCKE B_DDR_DQ4 A_ROE8 B_DDR_DQ16 A_DDR_CLK B_DDR_BA0 A_DDR_CAS B_DDR_DQ0 B_DDR_DQ30 B_DDR_DQ11 B_DDR_DQ27 A_ROE7 A_DDR_A10 B_DDR_A1 B_DDR_A0 A_DDR_DQ17 A_DDR_DQ14 A_ROE5 A_GOE8 B_DDR_DQ21 B_DDR_CAS B_DDR_A2 B_DDR_DQS3 B_DDR_DQ28 B_DDR_DQ1 B_DDR_DQ25 A_ROE6 A_GOE7 A_DDR_DQ28 B_DDR_DQ15 B_DDR_DQ4 A_DDR_A1 A_DDR_DQ2 A_ROE2 A_GOE5 B_DDR_DQ21 A_DDR_DQ21 B_DDR_WE A_ROE3 A_GOE6 B_DDR_A9 B_DDR_DQ5 B_DDR_WE B_DDR_DQ18 A_ROE4 B_DDR_DQ13 A_GOE2 B_DDR_DQ8 B_DDR_A5 B_DDR_DQ0 B_DDR_RAS A_DDR_DQS0 B_DDR_A7 A_ROE9 A_GOE3 B_DDR_DQ3 A_DDR_DQ25 A_DDR_DQ10 B_DDR_DQ22 B_DDR_A11 B_DDR_DQ22 A_DDR_DQ30 A_GOE4 A_DDR_A7 A_DDR_DQ6 B_DDR_SDCKE B_DDR_DQ27 A_DDR_A2 A_DDR_DQ12 A_GOE9 GC_RST B_DDR_DQS1 B_DDR_A4 B_DDR_DQS0 B_DDR_BA1 B_DDR_A6 B_DDR_DQ29 A_DDR_A0 B_DDR_DQ6 A_DDR_DQ16 B_DDR_DQ9 B_DDR_DQ28 B_DDR_DQ16 B_DDR_A8 B_DDR_DQ12 B_DDR_RAS A_GOE0 B_DDR_DQ9 B_DDR_DQ14 B_DDR_DQ8 B_DDR_DQ25 A_DDR_DQ13 A_DDR_DQS3 A_GOE1 B_DDR_DQ2 B_DDR_DQ18 A_DDR_BA1 B_DDR_DQ6 B_DDR_DQ13 B_DDR_DQ10 B_DDR_A5 A_DDR_BA0 A_BOE0 A_DDR_WE A_DDR_A8 A_DDR_DQ11 B_DDR_A4 B_DDR_DQ14 B_DDR_DQS2 A_DDR_DQ22 A_BOE1 B_DDR_DQ24 B_DDR_DQ31 B_DDR_A10 A_DDR_DQ19 B_DDR_DQ2 A_DDR_DQS1 B_DDR_BA1 A_BOE2 B_DDR_DQ23 A_DDR_DQ27 A_DDR_A11 A_DDR_DQ24 B_DDR_A1 A_DDR_DQ31 A_BOE7 A_DDR_DQ15 B_DDR_DQ30 B_DDR_DQ17 A_BOE3 A_DDR_DQ5 A_DDR_A5 A_DDR_DQ0 A_DDR_RAS A_BOE8 B_DDR_A11 B_DDR_DQ20 A_BOE4 A_DDR_A9 A_DDR_DQS2 B_DDR_DQ17 A_BOE9 A_DDR_DQ20 B_DDR_A3 B_DDR_DQ23 A_DDR_A4 A_DDR_DQ23 A_BOE5 B_DDR_A8 B_DDR_A0 B_DDR_DQ20 B_DDR_DQ5 A_DDR_A3 A_BOE6 B_DDR_DQS0 B_DDR_DQ24 A_DDR_DQ18 B_DDR_DQ19 B_DDR_DQ7 A_DDR_A6 A_DDR_DQ7 B_DDR_DQ11 A_OSDMSK B_DDR_BA0 A_DDR_DQ26 B_DDR_DQ26 B_DDR_A9 A_DDR_DQ1 B_DDR_A3 B_DDR_DQ1 B_DDR_DQ7 B_DDR_SDCKE A_HSOE B_DDR_DQ31 B_DDR_DQ15 B_DDR_A6 SDA2 SCL2 B_DDR_DQS1 A_CLKOE C4513 10V 0.1u R4791 47 IC4037 AD28 GOF5 R4759 68 IC4037 T28 ROE6 L4056 J0JCC0000077 R4788 EXB2HV470JV IC4037 R5 VDDW IC4038 D11 VDDQ IC4037 U30 ROE5 C4482 50V 18p C4428 10V 0.1u IC4038 A9 DQ28 R4732 4.75k IC4037 V5 VDDW IC4038 G12 DQS1 1000p 50V C4437 IC4038 F6 VSS_Thermal JS4035 0 IC4038 B1 DQ4 IC4038 L5 A2 R4265 32.4k IC4038 J2 DQ23 0.1u 10V C4452 IC4038 C12 DQ25 IC4037 U27 VDDW IC4038 K6 VDD IC4037 AK27 ROF0 R4750 EXB2HV680JV IC4037 E20 VDDW IC4038 G11 DM1 TP4041 DDR_2.5V C4023 6.3V 10u R4765 0 IC4032 C0DBGYY00052 1 VOUT 2 NC 3 GND 4 NC 5 CONT 6 NC 7 NC 8 VIN IC4038 M7 A4 R4739 3.3k IC4038 J1 DQ22 IC4037 W4 OEBLK 1000p 50V C4457 IC4037 N28 GOE5 IC4038 G4 VSSQ R4775 47 IC4037 D12 NRST C4462 10V 0.1u IC4038 K10 VDD IC4037 V29 ROE1 C4508 16V 0.01u IC4038 F11 DQ13 IC4037 H29 HSOE IC4037 E24 VDDW IC4038 G8 VSS_Thermal C4498 470p 50V JS4040 IC4038 C10 VSSQ IC4037 AF30 GOF1 1000p 50V C4481 R4796 EXB2HV470JV IC4038 D5 VSSQ IC4037 AH29 ROF4 C4510 10V 0.1u IC4037 K30 BOE6 IC4037 AE30 GOF4 1000p 50V C4475 IC4037 AG17 TESTIO_DDR 1u 10V C4435 IC4037 J29 BOE8 IC4037 AK21 VREF IC4038 F12 DQ12 L4060 J0JCC0000077 IC4037 AG21 GND_DAC IC4038 L3 NC IC4038 L1 RAS IC4037 J26 VDDW IC4038 J10 VDDQ IC4038 B9 VDDQ IC4038 M10 A8/AP IC4037 AK19 IOUT R4777 47 JS4036 0 IC4037 L28 BOE1 1000p 50V C4451 C4523 16V 0.01u IC4038 H10 VDDQ IC4037 K26 VDDW MAIN1.2V IC4037 L5 VDDW IC4038 E6 VSS_Thermal IC4037 AD30 GOF7 1000p 50V C4480 IC4038 M12 VREF IC4037 AA28 BOF4 IC4037 M29 GOE9 IC4037 H30 CLKOE R4779 47 IC4038 F3 VDDQ IC4038 K2 WE IC4038 C5 VSSQ IC4037 D19 VDDW R4794 22 1000p 50V C4439 IC4037 AA29 BOF5 IC4038 A5 DQ2 IC4037 E19 VDDW IC4037 AK28 ROF2 C4512 16V 0.01u IC4037 Y29 BOF8 IC4037 AA27 SSOUT IC4038 E2 DQ16 0.1u 10V C4440 C4493 10V 0.1u IC4038 D8 VSSQ C4448 16V 0.01u R4808 0 X4004 H0J270500087 C4496 10V 0.1u R4340 0 IC4038 B12 DQ27 IC4037 V26 VDDW R4804 100 C4420 10V 0.1u IC4038 A3 VSSQ IC4038 K12 NC IC4038 M2 NC IC4037 AK26 VDDW IC4038 D3 VDD R4762 EXB2HV680JV IC4038 B2 VDDQ C4470 10V 1u IC4037 AF17 GND_PLL1 IC4037 Y4 OEMUTE IC4037 AG28 ROF6 IC4038 B8 DQ30 IC4038 L4 BA1 R4746 68 IC4037 AF29 GOF0 IC4037 E8 VDDW C4421 10V 0.1u R4738 3.3k R4733 75 R4729 100 IC4037 N19 VDDW IC4038 H3 VDDQ R4807 0 IC4037 T30 ROE8 C4505 10V 0.1u IC4037 U26 VDDW JS4033 0 IC4038 G5 VSS_Thermal IC4038 C11 DQ26 IC4037 AC27 PWMK C4466 0.01u 16V IC4037 U28 ROE3 C4518 10V 0.1u IC4037 E7 VDDW 1u 10V C4478 IC4037 J30 BOE9 R4792 47 IC4038 J7 VSS IC4038 J9 VSSQ IC4037 R4 VDDW IC4037 H28 VSOE C4509 10V 0.1u IC4038 C9 VSSQ R4793 22 IC4038 C1 DQ6 IC4037 AH22 CPOUT2 IC4038 K11 NC IC4037 J28 BOE7 IC4037 F27 VDDW IC4038 B6 VDDQ IC4038 A6 DQ0 IC4038 L6 A11 R4743 68 IC4038 H12 DQ10 IC4037 V30 ROE2 IC4038 D6 VSS IC4037 L29 BOE2 C4112 6.3V 10u C4497 4V 100u IC4037 AA26 VDDW IC4037 W5 VDDW R4021 0 R4257 33k IC4038 D7 VSS IC4038 E11 DQ15 IC4037 M19 VDDW IC4037 N18 VDDW R4756 68 R4752 22 IC4037 Y30 BOF9 0.1u 10V C4477 1000p 50V C4429 IC4038 A7 DQ31 C4522 10V0.1u R4730 100 IC4037 AE28 GOF2 IC4038 B3 NC R4760 68 IC4038 A2 DM0 IC4037 V27 VDDW C4516 10V 0.1u R4764 0 1000p 50V C4438 IC4037 V16 GNDPLLDDR IC4037 M18 VDDW C4418 1u 10V C4006 6.3V 10u IC4037 AJ27 ROF1 IC4037 J27 VDDW IC4038 G6 VSS_Thermal C4504 16V 0.01u IC4037 K27 VDDW C4521 16V 0.01u IC4037 L30 BOE3 R4806 1k C4526 10V 0.1u IC4037 AH30 ROF5 IC4038 L8 A5 1000p 50V C4454 R4269 0 IC4037 AJ23 XTALOUT IC4037 N26 VDDW MAIN1.8V JS4034 0 IC4038 K3 VDD IC4037 N27 VDDW IC4037 Y28 BOF7 IC4037 R29 GOE0 IC4037 AC30 BOF0 IC4037 W29 HSOF R4805 1k IC4038 J8 VSS 1000p 50V C4442 IC4038 J3 VDDQ C4503 10V 0.1u IC4038 D12 DQ24 IC4037 P26 VDDW IC4038 J12 DQ8 C4511 10V 0.1u IC4038 G9 VSSQ IC4037 D13 LCDMODE IC4038 G3 NC IC4037 P4 VDDW IC4038 F7 VSS_Thermal IC4038 G10 NC IC4037 W30 CLKOF R4341 0 1000p 50V C4460 L4057 J0JCC0000077 IC4037 W15 VDDPLLDDR 0.1u 10V C4456 R4776 EXB2HV470JV JS4039 IC4038 A12 DQS3 L4061 J0JCC0000077 C4506 16V 0.01u IC4038 F9 VSSQ IC4037 K29 BOE5 IC4037 D15 VDDW IC4037 AE29 GOF3 IC4038 M4 A0 R4810 0 C0CBCBC00190 IC4030 1 VDD 2 GND 3 CE 5 VOUT 4 NC IC4038 J5 VSS IC4037 AB26 VDDW R4778 EXB2HV470JV IC4038 F1 DQ19 L4055 J0JHC0000078 IC4038 H7 VSS_Thermal IC4037 AK22 DDREFIN IC4037 N30 GOE7 IC4037 AK20 COMP IC4038 D1 DQ7 IC4038 D2 VDDQ IC4038 E3 VDDQ IC4038 E7 VSS_Thermal IC4037 AB27 PTVEN IC4038 M8 A6 IC4038 K7 VDD C4464 1u 10V C4447 1u 10V C4499 56u 4V IC4038 E8 VSS_Thermal IC4038 A4 DQ3 IC4038 L9 RFU2 R4734 22k IC4037 AH19 VCOINV2 1000p 50V C4476 IC4038 C8 VSSQ C4461 82p 50V IC4037 AG18 GND_PLL1 IC4037 AJ22 DDREFOUT IC4038 L11 CK R4745 68 IC4038 G1 DQS2 R4338 0 C4514 16V 0.01u R4773 47 R4774 EXB2HV470JV IC4038 J6 VSS 1000p 50V C4422 IC4038 E1 DQ17 IC4037 AD29 GOF6 IC4038 B7 VDDQ IC4038 F2 DQ18 IC4038 H11 DQ11 IC4037 E11 VDDW IC4038 M1 CS R4046 0 IC4038 M3 BA0 0.1u 10V C4459 IC4037 R28 ROE9 R4809 0 R4754 22 1000p 50V C4453 R4757 68 IC4037 AG29 ROF7 R4772 EXB2HV470JV IC4037 W16 GNDPLLDDR IC4038 F4 VSSQ IC4037 AK25 VCOIN R4758 68 IC4037 M30 BOE0 IC4038 A8 DQ29 IC4038 K5 A10 C4465 0.1u 10V L4066 J0JHC0000078 IC4038 B5 DQ1 C4527 16V 0.01u IC4037 AJ19 TESTIO_PLL2 IC4038 E9 VSSQ R4339 0 R4811 0 IC4038 E12 DQ14 C4474 10V 1u C4007 6.3V 10u MAIN5V IC4038 C4 VSSQ IC4038 K4 VSS IC4038 G7 VSS_Thermal IC4037 AA30 BOF6 IC4038 L12 MCL IC4037 D11 VDDW R4737 0 IC4038 F5 VSS_Thermal MAIN3.3V MAIN3.3V C4008 6.3V 10u IC4037 F26 VDDW IC4038 L7 A9 C4417 47u 6.3V IC4037 AF18 VDD_PLL1 0.1u 10V C4426 IC4037 AG19 GND_PLL2 IC4037 AG30 ROF8 IC4038 M6 A3 IC4037 E15 VDDW IC4038 E10 VDDQ IC4038 C7 VDD IC4037 P29 GOE3 1000p 50V C4430 IC4038 M5 A1 IC4038 D10 VDD IC4038 F8 VSS_Thermal IC4037 N29 GOE6 R4751 22 C4507 10V 0.1u IC4037 AC29 GOF9 IC4035 C0CBCAF00031 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 NC 7 NC 8 VIN IC4038 G2 DM2 IC4038 M9 A7 IC4038 D4 VSS IC4037 AB29 BOF2 L4077 J0JCC0000077 1000p 50V C4427 IC4037 T29 ROE7 R4293 0 IC4038 H8 VSS_Thermal IC4037 AF22 DAC_VDD IC4037 P28 GOE2 IC4038 H4 VSSQ 1000p 50V C4423 IC4038 C6 VDD IC4037 AJ25 EXCLKIN IC4037 P27 VDDW IC4038 B10 NC C4005 6.3V 10u IC4037 M28 GOE8 C4519 16V 0.01u C4415 10V 0.1u IC4037 AH25 FRCLKIN IC4037 V4 SCL_MC IC4038 H9 VSSQ IC4038 H6 VSS_Thermal IC4037 U4 SDA_MC TP4037 IC4038 E4 VSSQ IC4038 A1 DQS0 1000p 50V C4434 IC4037 AJ30 ROF3 IC4037 E23 VDDW C4525 16V 0.01u C4467 0.1u 10V 1000p 50V C4458 IC4038 A11 DM3 IC4037 AF28 ROF9 IC4038 H1 DQ21 IC4037 E16 VDDW IC4037 AB30 BOF3 C4501 10V 0.1u IC4037 AC28 GOF8 C4494 10V 1u IC4037 AJ18 TESTIO_PLL1 IC4037 P30 GOE4 IC4038 E5 VSS_Thermal R4342 0 IC4038 B11 VDDQ IC4037 R30 GOE1 IC4038 D9 VSS IC4038 F10 VDDQ IC4037 K28 BOE4 1000p 50V C4479 R4735 2k IC4037 K5 VDDW IC4038 M11 CKE IC4037 AF19 VDD_PLL2 1000p 50V C4441 IC4037 E12 VDDW C4419 1u 10V R4744 68 R4033 10k IC4038 B4 VDDQ IC4037 P5 VDDW IC4037 D20 VDDW JS4038 1u 10V C4455 IC4037 AG20 GND_PLL2 C4517 16V 0.01u IC4037 AB28 BOF1 C4524 10V 0.1u IC4038 K1 CAS 1000p 50V C4424 IC4038 K9 VSS IC4038 C2 DQ5 C4502 16V 0.01u R4731 1k IC4038 K8 RFU1 IC4038 A10 VSSQ R4749 EXB2HV680JV IC4038 L2 NC IC4038 J4 VSSQ R4763 0 IC4037 W28 VSOF IC4038 H5 VSS_Thermal R4753 22 C4520 10V 0.1u IC4037 G29 SCL IC4037 U29 ROE4 IC4038 J11 DQ9 IC4038 H2 DQ20 JS4037 IC4037 G30 SDA IC4037 V28 ROE0 0.1u 10V C4425 IC4037 AJ21 IREF C4483 50V 15p C4028 16V 0.01u 1000p 50V C4436 IC4037 AF21 GND_DAC IC4037 AK23 XTALIN R4747 68 C4515 10V 0.1u IC4038 C3 VSSQ IC4038 L10 CK L4065 J0JHC0000078 R4782 22 MAIN3.3V R4785 4.7k R4783 4.7k R4784 22 MAIN3.3V PLL3.3V Must Connect Low 0.49-0.51VDDQ (PWMC) (PWMD) (PWMB) (LVDS-EN) (LCDSS) (PWMA) PORT-E PORT-F(out) (output for FHD&PWM) (output for Panel) 58 59 61 55 60 62 56 63 57 GC5 PROCESSOR MN84522-A IC4037 128M DDR SDRAM IC4038 C3ABQJ000048 MAIN 1.2V DDR 2.5V PLL 3.3V 131 132 133 134 135 136 113 111 TNPA3756CB (PV60E) TNPA3756CH (PX60B) DG-BOARD (7/8) 111 115 114 117 116 112 TH-37/42PV60E, TH-37/42PX60B DG-Board (7 of 8) Schematic Diagram TH-37/42PV60E, TH-37/42PX60B DG-Board (7 of 8) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 112 14.39. DG-Board (8 of 8) Schematic Diagram + G G G G + G G B_CLKOE BS_SL MAIN_R PEAKS-HIN PEAKS-CIN0 PEAKS-VIN PEAKS-YIN0 PEAKS-YIN1 PEAKS-CIN1 PEAKS-YIN2 PEAKS-CIN2 PEAKS-YIN3 PEAKS-CIN3 PEAKS-YIN4 PEAKS-CIN4 PEAKS-YIN5 PEAKS-CIN5 BS_SR MAIN_L PEAKS-YIN6 PEAKS-CIN6 PEAKS-CIN7 PEAKS-YIN7 DTV_RST LVDS_PD DTV_RXD DTV_SCL0B DTV_SDA0B FORMAT_EDGE(MAIN) JTAG_TCK JTAG_TMS AD_BICK AD_LRCK AD_DAT DTV_TXD JTAG_TCK JTAG_TMS JTAG_TRST DTV_RST JTAG_GC5_BA A_OSDMSK A_BOE9 A_BOE8 A_BOE7 A_BOE6 A_BOE5 A_BOE4 A_BOE3 A_BOE2 A_BOE1 A_BOE0 A_GOE9 A_GOE8 A_GOE7 A_GOE6 A_GOE5 A_GOE4 A_GOE3 A_GOE2 A_GOE0 A_GOE1 B_BOE9 B_BOE8 B_BOE7 B_BOE6 B_BOE5 B_BOE4 B_BOE3 B_BOE2 B_BOE1 B_BOE0 B_GOE9 B_GOE8 B_GOE7 B_GOE6 B_GOE5 B_GOE4 B_GOE3 B_GOE2 A_CLKOE A_HSOE A_VSOE A_ROE0 A_ROE1 A_ROE2 A_ROE3 A_ROE4 A_ROE5 A_ROE6 A_ROE7 A_ROE8 A_ROE9 B_ROE9 B_ROE8 B_ROE7 B_ROE6 B_ROE5 B_ROE4 B_ROE3 B_ROE2 B_ROE1 B_ROE0 B_VSOE B_HSOE B_CLKOE B_OSDMSK B_GOE1 B_GOE0 B_OSDMSK B_VSOE B_HSOE B_BOE9 B_BOE8 B_BOE7 B_BOE6 B_BOE5 B_BOE4 B_ROE2 B_ROE3 B_GOE2 B_GOE3 B_ROE1 B_GOE0 B_BOE1 B_ROE4 B_ROE9 B_GOE5 B_GOE7 B_GOE9 MAIN3.3V B_BOE0 B_GOE1 B_BOE3 B_GOE8 B_GOE6 B_ROE8 B_GOE4 B_ROE6 B_ROE7 B_ROE5 B_BOE2 B_ROE0 BS_Y(V) JTAG_BA_FS JTAG_TRST PEAKS-CLKIN R4969 68 JS4046 0 C4534 50V 1000p C4538 10V 0.1u JS4077 0 R4960 EXB2HV680JV C4537 100u 4V C4530 50V 1000p R4343 0 SUB5V SUB9V DG22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 J0HABH000012 FL4011 1 2 3 R4962 68 SUB9V R4018 10k R4968 68 R4972 68 R4963 68 R4966 68 R4824 J0JAD0000025 1 2 3 4 JS4043 0 JS4042 0 R4472 0 L4068 J0JHC0000078 C4531 50V 1000p R4964 EXB2HV680JV R4823 J0JAD0000025 1 2 3 4 L4070 J0JHC0000078 R4838 1.1k SUB5V JS4079 0 ZA4002 K4CD08000002 R4831 0 JS4116 J0HABH000012 FL4010 1 2 3 R4826 EXB2HVR000V C4528 47u 6.3V R4827 EXB2HVR000V R4830 0 MAIN3.3V R4971 68 C4529 10V 0.1u C4532 10V 0.1u R4819 22k C4539 1u 10V R4967 EXB2HV680JV C4540 50V 1000p R4816 22k R4840 0 JS4048 0 JS4094 J0HABH000012 FL4015 1 2 3 L4069 J0JHC0000078 R4837 22 JS4103 R4814 10k R4965 68 C4533 10V 0.1u R4825 J0JAD0000025 1 2 3 4 R4822 10k R4817 22k JS4075 0 DG35 1 2 3 4 5 6 7 R4961 68 C4536 1u 10V R4029 22 JS4047 0 DG5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 ZA4001 K4CD08000002 R4970 68 C4535 10V 0.1u R4891 0 IC4036 C0JBAP000020 1 TD5 2 GND 3 TD6 4 TE0 5 TE1 6 TE2 7 VCC 8 TE3 9 TE4 10 GND 11 TE5 12 CLKIN 13 /PDWN 14 PLL_GND 15 PLL_VCC 16 TE6 17 LVDS_GND 18 TE+ 19 TE- 20 TD+ 21 TD- 22 TCLK+ 23 TCLK- 24 TC+ 25 TC- 26 LVDS_GND 27 LVDS_VCC 28 TB+ 29 TB- 30 TA+ 31 TA- 32 LVDS_GND 33 TA0 34 TA1 35 TA2 36 TA3 37 TA4 38 TA5 39 GND 40 TA6 41 TB0 42 TB1 43 RS 44 TB2 45 TB3 46 TB4 47 GND 48 TB5 49 TB6 50 TC0 51 VCC 52 TC1 53 TC2 54 TC3 55 TC4 56 GND 57 TC5 58 TC6 59 TD0 60 R/F 61 TD1 62 TD2 63 TD3 64 TD4 OPTICAL SOUND OUT SOFT_OFF BSD MONITOR OUT CB SUFFIX JTAG CH TMS TDI GND TDO TRST XRST TCK 67 68 70 64 69 71 65 72 66 LVDS TRANSMITTER(10bit) TX_TC+ TX_TD+ TX_TB+ TX_TB- TX_TCLK+ TX_TE+ TX_TC- TX_TE- TX_TD- TX_TA- TX_TA+ TX_TCLK- XV-BOARD (XV01) TO PX60B ONLY PV60E ONLY PV60E ONLY PV60E ONLY TO D-BOARD (D5) FOR FACTORY USE 136 135 132 133 131 134 TNPA3756CH (PX60B) DG-BOARD (8/8) TNPA3756CB (PV60E) TH-37/42PV60E, TH-37/42PX60B DG-Board (8 of 8) Schematic Diagram TH-37/42PV60E, TH-37/42PX60B DG-Board (8 of 8) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 113 14.40. XV-Board Block Diagram (PX60B) SBO1 SBI1 SBI1 SBO1 SPPKTST XFERST0 CHCLK CHVAL CHSYNC DR DL RESET POWER XCD1 XCD2 XWAIT XIREQ SPDATA7 POWER SPEN SPCLK XFERSTO SPDATA7 SPPKTST SPCLK SPEN XRST X8003 X8006 41 43 DL(BS_L) DR(BS_R) XV01 96 88 105 MVCLK0 MHSYNC0 MVSYNC0 XRST 22 SBO1(SBI1) 18 SBI1(SBO1) 19 SUB 9V 13 SUB 9V 51 52 SUB 9V 53 SUB 9V 54 SUB 5V 57 SUB 5V IC8023 PVIN DC-DC CONV.3.3V FB 2 3 INV 4 SUB 9V VIN SW 8 1 SUB 5V SUB 9V MVY0 MVY7 MVC0 MVC7 107 106 109 2 1 RESET VDD IC8042 VOUT VCC 1 VOUT AVR +2.5V IC8034 CTL 4 2 +2.5V SUB 9V SUB 9V TO DG22 MVY7 MVY0 MVC7 MVC0 MHSYNC0 MVSYNC0 MVCLK0 IEC_OUT MVY0 MVC0 MVY7 MVC7 DY DC SDA1 SCL0 SDA0 SCL1 SCL0 SDA1 SDA0 SCL1 XRST SBO1 SBI1 VDDQ 2.5V (DDR SDRAM) AVDD MVAVDD SVAVDD MAVDD DAVDD AAVDD VDD33 VDD12 2.5V XWAIT XIREQ MMA13 MMA0 XCD2 1.2V 3.3V PEAKS_Lite(2/3) HDSL PEAKS_Lite IC8013 AUDIO AMP IC8031 3 2 7 1 5 6 SUB 9V 256M DDR_SDRAM IC8009 64M CPU FLASH ROM IC8019 MMDQ0 MMDQ31 XECSO-XECS5 18 TU8001 IF_AGC VBB 11 VBM 17 14 SDA 3 IFD2 DVB TUNER 15 SCL 16 PEAKS_Lite(3/3) PEAKS_Lite(1/3) DATA BUS ADDRESS BUS CONTROL BUS DATA BUS ADDRESS BUS CONTROL BUS XRST 45 INTERFACE) 19 58 51 46 37 CI SLOT 63 20 62 8 36 67 44 59 57 JK8401 18 17 15 7 16 (COMMON 66 41 52 9 BUFFER IC8404 BUFFER IC8402 IC8213 BUFFER IC8412 BUFFER BUFFER IC8410,IC8411 64 Vpp1,Vpp2 VCC RESET A0~A14 CE1# OE#,WE# IORD#,IOWR# IREQ# CD1#,CD2# MCLK0,WAIT# ENOUT,PKTRTOUT MDO3-MDO7 MDO0-MDO2 MISTRT MDI0~MDI7 MIBAL,MCLKI IFD1 XV D-TV INTERFACE DG0-DQ15 A0-A21 WE,CE,OE RESET VOUT 6 4 FAULT 1 VIN EN 3 CARD 5V IC8405 SUB 5V XIRQ2 SCLT 18 SDAT 19 XTALI 62 XTALO 63 INM 9 INP 10 RESET 12 42 LOCK/OP2 SCL 20 SDA 21 D0 34 D3 31 STROUT 23 D4 29 CLKOUT 36 D/XP 38 25 D7 IC8003 COFDM DEMODULATOR AGC1 16 IC8408 TS BUFFER IC8409 TS BUFFER SCL1 SDA1 3.3V(0.87A) IC8024 SW 1.2V(0.6A) VIN SUB 9V 4 INV 3 2 FB DC-DC CONV.1.2V 1 8 PVIN DATA0-7 VOUT AVR +1.8V 3.3V IC8864 1 7 +1.8V VIN 3.3V BOOTSWAP,XEDK ELLK,XEWE2,XEWE3 XIORD,XIOWR XWE,XOE,REG XECS3 ED31 ED16 EA24 EA0 XCD1 HSCLKIN HSSYNCIN HSVALIN HSDIN7 HSDIN0 DATA ADDRESS CONTROL CONTROL DATA0-7 24.167MHz RESET CI I/F SUPPORT CARD& NOR FLASH ROM I/F XCD1,XCD2,XWAIT,XIREQ CHCLK,CHVAL,CHSYNC EA1-EA15 72 CVBS VDACOUT5 D0~D7 6 2 30 32 14 29 10 21 50 56 47 53 Q8101 CVBS XDACRST AOUTR 10 IC8029 AUDIO DAC 11 AOUTL SUB 5V 14 SPDATA0-7 SPEN,SPCLK STROUT DDR- SDRAM DACCK DMIX 1 5 PDN LRCK MCLK 4 LRCK SDTI SRCK BICK 3 2 3.3V SUB 5V XIRQ1 XIRQ2 VC27 CK27 INTERRUPTION 1 2 3 4 5 6 VCXO27M IC8501 CIRESET CIPOWER ED16-ED23 XIRQ1 XERE,ERXW 97 REG# 61 XRST Q8401 Q8402 XFERSTO ENABLE0 CHPSYNC0 SCHDATA0 SCHCLK0 DIGITAL VIDEO CK,MCK,CKE CS,RAS,CAS WE,BS0,BS1 SPDATA 0-3 SPDATA 4-7 DIGITAL AUDIO SDA0 SCL0 32 33 11 SUB 9V TH-37/42PX60B XV-Board Block Diagram TH-37/42PX60B XV-Board Block Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 114 14.41. XV-Board (1 of 5) Schematic Diagram (PX60B) + + + AA_EA8 AR_DATAINA6 AY_EAA13 AO_SPDATA1 AY_EAA12 AA_EA7 AS_IOWR- AA_EA4 AS_CE1- AO_SPPKTST AR_DATAINA1 AR_CLKINA AY_EAA10 AA_EA6 AO_SPDATA6 AR_DATAINA2 AR_ENINA AY_EAA3 AA_EA14 AY_EAA14 AO_SPDATA4 AO_SPDATA3 AR_DATAINA4 AY_EAA15 AY_EAA6 AR_DATAINA5 AA_EA10 AA_EA11 AR_DATAINA0 AY_EAA8 AY_EAA7 AA_EA2 AA_EA13 AA_EA9 AO_SPCLK AA_EA1 AO_SPDATA7 AA_EA5 AS_OE- AA_EA3 AY_EAA5 AS_REG- AA_EA12 AO_SPDATA2 AS_IORD- AA_EA15 AR_DATAINA7 AY_EAA2 AR_DATAINA3 AO_SPDATA0 AS_WE- AY_EAA9 AY_EAA1 AY_EAA4 AR_PKTSTINA AO_SPDATA5 AA_XECS3 ACI_IORD ACI_XWE ACI_IOWR ACI_XOE ACI_XEDBA ACI_XEAB AO_SPDATA2 AO_SPDATA1 AO_SPDATA0 AO_SPEN AO_SPEN AO_SPPKTST AO_SPPKTST AO_SPDATA5 AO_SPDATA7 AO_SPDATA7 AO_SPDATA4 AO_SPDATA6 AD_SCL1 AO_SPDATA3 AO_XFERST0 AA_XIRQ1 ACI_REG AO_SPCLK AO_SPCLK AD_SDA1 ACI_RESET AA_ERXW AA_ED18 AA_ED17 AA_ED16 AA_ED23 AA_ED22 AA_ED21 AA_ED20 AA_ED19 AA_XIRQ2 AU_DA3 AU_DA3 AU_DA4 AU_DA5 AU_DA5 AU_DA4 AU_DA6 AU_DA7 AU_DA0 AU_DA1 AU_DA2 AU_DA2 AU_DA1 AU_DA0 AU_DA7 AU_DA6 AY_EAA11 ACI_POWER AO_SPEN Card_5V R8495 EXB38V151JV R8057 68 C8015 50V 8p R8963 100 R8003 180 C8419 16V 0.1u C8870 50V 470p IC8003 STV0360CT 1 DGNDA 2 DVCCA1.8 3 VCCA1.8 4 GNDA 5 REFM 6 REFP 7 VR 8 PGAVCC3.3 9 INM 10 INP 11 PGAGND 12 XRESET 13 VDD 14 AGC2 15 GND 16 AGC1 17 TEST 18 SCLT 19 SDAT 20 SCL 21 SDA 22 VDD3.3 23 STR_OUT 24 GND 25 D7 26 D6 27 D5 28 VDD 29 D4 30 GND 31 D3 32 D2 33 D1 34 D0 35 VDD3.3 36 CLK_OUT 37 GND 38 D/XP 39 VDD 40 ERROR 41 GND 42 LOCK/OP2 43 LOCK/OP1 44 VDD3.3 45 OP0 46 GND 47 AUX_CLK 48 CIQ/HFEC3 49 CDATA/HFEC2 50 CCLK/HFEC1 51 HFEC0 52 VDD3.3 53 CS1 54 GND 55 CS0 56 GND 57 VDD 58 IP0 59 GND 60 TEST 61 VCCXTAL1.8 62 XTALI 63 XTALO 64 GNDXTAL C8059 0.01u 16V R8418 EXB38V473JV C8041 100u 4V R8422 100k C8051 16V 0.01u R8468 56 3.3V R8423 820 R8404 10k R8433 EXB38V560JV R8419 EXB38V101JV TU8001 ENV57M01D8F 1 Active_Antenna 2 NC 3 BB 4 [RF-AGC_Mon.] 5 NC 6 NC 7 [DC/DC] 8 TU 9 GPO 10 [X-Tal] 11 BM 12 NC 13 IFA1 14 SDA 15 SCL 16 IF-AGC 17 IFD2 18 IFD1 C8002 10V 0.1u R8058 EXB38V330JV R8505 100 R8469 EXB38V151JV C8414 16V 0.1u R8073 1M L8008 J0JHC0000045 R8036 16k R8403 0 C0JBAZ002691 IC8408 1 DIR 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 B8 12 B7 13 B6 14 B5 15 B4 16 B3 17 B2 18 B1 19 OE 20 Vcc R8401 0 R8074 180 C8043 50V 10p C0DBFFD00003 IC8864 1 2 3 4 5 6 7 C8046 16V 0.01u C8409 16V 0.1u C8872 6.3V 2.2u R8402 0 C8003 16V 0.01u C8052 16V 0.01u C8020 16V 0.01u SUB5V C8071 50V 27p R8004 180 R8048 100 C8056 16V 0.01u R8008 1k C8062 10V 0.15u C8040 16V 0.01u C8047 16V 0.01u R8406 0.1 X8003 H0J241500003 C8406 16V 0.1u C8037 16V 0.01u R8443 EXB38V560JV C8416 16V 0.1u 74LVC4245AD IC8402 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 C0JBAZ002691 IC8409 1 DIR 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 B8 12 B7 13 B6 14 B5 15 B4 16 B3 17 B2 18 B1 19 OE 20 Vcc C8001 16V 0.01u R8421 22k C8058 16V 0.01u R8964 100 R8051 EXB38V330JV R8444 100 R8407 33k Q8401 2SD0601A0L C8039 16V 0.01u C0JBAZ002691 IC8410 1 DIR 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 B8 12 B7 13 B6 14 B5 15 B4 16 B3 17 B2 18 B1 19 OE 20 Vcc C8073 50V 27p C8004 10V 0.1u R8474 0 R8425 EXB38V101JV R8040 4.7k C8403 16V 0.1u L8004 J0JHC0000045 C8030 16V 0.01u C8005 10u 16V C0JBAZ002691 IC8411 1 DIR 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 B8 12 B7 13 B6 14 B5 15 B4 16 B3 17 B2 18 B1 19 OE 20 Vcc 3.3V R8047 100 C0JBAZ002691 IC8404 1 DIR 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 B8 12 B7 13 B6 14 B5 15 B4 16 B3 17 B2 18 B1 19 OE 20 Vcc C8404 16V 0.1u R8039 4.7k R8426 EXB38V101JV R8445 150 C8060 16V 0.01u C8007 50V 1000p TP8025 C8413 16V 0.1u R8496 EXB38V560JV R8075 180 C8061 16V 0.01u SUB5V TP8033 R8056 33 R8962 100 R8050 100 R8466 EXB38V560JV R8046 33 R8467 56 C8019 16V 0.01u R8420 EXB38V101JV R8034 0 R8434 EXB38V560JV R8076 10k Q8402 2SD0601A0L R8446 150 R8035 0 C8021 50V 1000p IC8405 C0ZBZ0001333 1 Vin 2 GND 3 Enable 4 Fault/ 5 N/C 6 Vout C8424 16V 0.1u C8042 50V 10p C8055 47u 6.3V R8405 10k R8049 100 R8417 EXB38V473JV C8417 16V 0.1u R8041 150k OE# L: 0.44V 2.0V 0.8V REG# 3.8V IORD# INPUT AS3.3V XCIETS H:RESET AHCT XCIEAB WE# OUTPUT IOWR# L:NORMAL H: XCES3 Cn SUB CONT NC VOUT VIN GND OUTPUT 0.4V LVX 3.3V 0.8V 4.4V L: H: 2.0V 0.44V INPUT 2.4V 5.0V 5 A B E 6 8 7 3 D 4 C 9 1 2 F TS BUFFER TS BUFFER COFDM DEMODULATOR BUFFER BUFFER BUFFER BUFFER CARD 5V AVR +1.8V DVB TUNER 1 2 3 4 5 6 7 8 9 10 11 12 13 XV-BOARD TNPA3740AB (1/5) TH-37/42PX60B XV-Board (1 of 5) Schematic Diagram TH-37/42PX60B XV-Board (1 of 5) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 115 14.42. XV-Board (2 of 5) Schematic Diagram (PX60B) + AA_ED17 AA_EA11 AA_ED25 AA_EA10 AA_EA9 AA_ED26 AA_ED19 AA_EA1 AA_XEWE2 AA_ED27 AA_ED31 AA_EA8 AA_ED20 AA_EA17 AA_EA18 AA_ED28 AA_EA19 AA_ED21 AA_ED29 AA_ED22 AA_ED30 AA_ED23 AA_EA2 AA_EA3 AA_EA4 AA_EA5 AA_EA6 AA_EA7 AA_EA16 AA_EA15 AA_ED16 AA_EA13 AA_EA12 AA_ED24 AA_ED18 AA_XERE AA_XECS0 AY_EAA5 AQ_DATAOUTA2 AQ_DATAOUTA6 AQ_ENOUTA AR_DATAINA2 AY_EAA15 AY_EAA14 AQ_DATAOUTA0 AY_EAA11 AY_EAA1 AS_IOWR- AQ_DATAOUTA6 AS_IORD- AY_EAA3 AU_DA3 AY_EAA10 AQ_DATAOUTA5 AQ_DATAOUTA5 AQ_DATAOUTA4 AQ_DATAOUTA3 AR_ENINA AU_DA5 AR_DATAINA6 AS_REG- AQ_DATAOUTA5 AQ_DATAOUTA2 AQ_PKTSTOUTA AQ_PKTSTOUTA AQ_CLKOUTA AR_PKTSTINA AQ_ENOUTA AQ_DATAOUTA2 AS_CD2- AY_EAA6 AU_DA6 AU_DA4 AR_DATAINA3 AQ_DATAOUTA7 AY_EAA7 AS_CD1- AQ_DATAOUTA0 AQ_DATAOUTA4 AY_EAA12 AS_WAIT- AQ_DATAOUTA6 AR_DATAINA4 AU_DA2 AQ_DATAOUTA0 AU_DA1 AQ_DATAOUTA4 AQ_DATAOUTA7 AS_OE- AQ_CLKOUTA ACI_XETS AR_DATAINA5 AY_EAA4 AS_WE- AY_EAA2 AY_EAA8 AQ_DATAOUTA1 AS_WAIT- AQ_CLKOUTA AS_IREQ- AY_EAA13 AQ_DATAOUTA1 AY_EAA9 AQ_DATAOUTA1 AQ_DATAOUTA3 AR_DATAINA1 AR_DATAINA0 AR_CLKINA AA_EA21 AA_EA20 AA_EA22 AA_NAND_RY/BY ACI_XWAIT ACI_XCD2 ACI_CHSYNC ACI_CHVAL ACI_CHCLK ACI_CHDI7 ACI_CHDI6 ACI_CHDI5 ACI_CHDI4 ACI_CHDI3 ACI_CHDI2 ACI_CHDI1 ACI_CHDI0 ACI_XCD1 ACI_XIREQ 3.3V AS_CD2- AS_CD1- AQ_DATAOUTA7 AQ_ENOUTA AQ_PKTSTOUTA AS_IREQ- AS_CE1- AU_DA7 AU_DA0 AR_DATAINA7 AQ_DATAOUTA3 AA_XRST AA_EA14 R8454 100k C8035 16V 0.1u R8428 56 R8488 0 R8458 EXB38V560JV R8415 22k C8434 16V 0.01u R8452 100k C8431 16V 0.1u R8960 0 R8457 EXB38V560JV R8927 0 R8462 0 C0JBAZ001137 IC8213 DIR 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 B8 12 B7 13 B6 14 B5 15 B4 16 B3 17 B2 18 B1 19 OE 20 VCC R8487 56 C3FBPG000021 IC8019 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 A20 11 WE# 12 RST# 13 A21 14 WP#/ACC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 GND 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15 46 GND 47 NC 48 A16 R8503 10k L8051 J0JHC0000075 R8451 EXB38V104JV R8463 0 R8449 10k R8459 EXB38V560JV R8481 56 R8447 22k C8433 16V 0.01u R8482 56 C0JBAZ001137 IC8412 DIR 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 B8 12 B7 13 B6 14 B5 15 B4 16 B3 17 B2 18 B1 19 OE 20 VCC R8480 56 JK8401 K1NA68B00042 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 31 32 65 66 67 68 33 34 R8461 56 C8427 10V 100u R8431 56 R8934 0 R8450 10k C8428 16V 0.1u R8427 56 R8416 22k R8504 10k R8430 56 R8460 100k R8453 EXB38V104JV R8033 4.7k R8933 0 R8464 56 R8429 56 C8034 16V 0.1u R8930 0 R8936 10k R8448 47k R8478 56 C8430 16V 0.1u C8432 16V 0.1u R8414 0 R8477 56 R8456 EXB38V560JV R8465 10k A9 A14 A11 MCLKI IREQ# MIVAL A1 MDI7 (HSPSYNC) A12 CI SLOT A7 CE1# A10 A2 MCLKO A6 A3 MDI5 MDI6 VCC WAIT# VPP2 MDI4 A8 A4 GND A13 RESET VCC CD2# OE# CE2# IOIS16# (XCD1) A5 VPP1 VS1# A0 REG# WE# INPACK# (HSDIN0) GND 17 14 12 10 16 18 11 15 13 MDI1 MDI0 MDI2 MDI3 D0 D1 D2 MISTRT IOWR# IORD# MDO7 MDO6 MDO5 MDO4 MDO3 CD1# GND BUFFER 64M CPU FLASH ROM BUFFER (COMMON INTERFACE) 1 2 3 4 5 6 8 9 10 11 13 7 12 21 22 23 24 25 XV-BOARD TNPA3740AB (2/5) TH-37/42PX60B XV-Board (2 of 5) Schematic Diagram TH-37/42PX60B XV-Board (2 of 5) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 116 14.43. XV-Board (3 of 5) Schematic Diagram (PX60B) + AD_SCL1 AD_SDA1 AA_ED22 AA_ED21 AA_ED20 AA_ED19 AA_ED18 AA_ED17 AA_ED16 AA_ED28 AA_ED27 AA_ED26 AA_ED25 AA_ED24 AA_ED23 AA_ED31 AA_ED30 AA_ED29 AA_EA11 AA_EA4 AA_EA10 AA_EA3 AA_EA9 AA_EA2 AA_EA21 AA_EA20 AA_EA19 AA_EA24 AA_EA23 AA_EA22 AA_EA18 AA_EA1 AA_EA0 AA_EA17 AA_EA16 AA_EA15 AA_EA8 AA_EA14 AA_EA7 AA_EA13 AA_EA6 AA_EA12 AA_EA5 ACI_IOWR ACI_XWAIT ACI_XOE AA_XECS5 AA_XECS3 AE_SDWP AE_SDCD AE_SDDAT0 AE_SDDAT1 AE_SDDAT2 AE_SDDAT3 AE_SDCMD AE_SDCLK AA_XEWE2 AA_XEWE3 AA_NAND_RY/BY AA_XECS4 AA_ESZ0 AA_XERE AA_XNMIRQ AA_XIRQ0 AA_XECS0 AA_XERE AA_XECS1 AO_SPPKTST AO_SPEN AO_SPCLK AO_SPDATA7 AO_XFERST0 ACI_REG ACI_RESET ACI_XWE ACI_IORD AI_XDSR2 AI_XDCD2_P ACI_XCD2 ACI_XCD1 ACI_XCD1 AD_SDA0 AD_SCL0 AA_POWER_DET AI_SBI2_P AI_XRI2_P AI_XDTR2_P AI_XCTS2_P AA_ED16 AA_ED17 AA_ED18 AA_ED19 AA_ED20 AA_ED21 AA_ED22 AA_ED23 AA_ED24 AA_ED25 AA_ED26 AA_ED27 AA_ED28 AA_ED29 AA_ED30 AA_ED31 AI_XRTS2_P ACI_XEAB ACI_XETS ACI_XEDBA AT_ADCCK AT_DSRCK AA_FWP ACI_XIREQ AA_IS0DATA0 AA_IS0VAL AA_IS0SYNC AE_SDWP AE_SDCD AE_SDDAT1 AE_SDDAT2 AE_SDDAT3 AE_SDCMD AE_SDCLK AE_SDDAT0 AA_XIRQ3 AT_PDWN AA_XIRQ4 AA_XIRQ1 AA_XIRQ2 AD_SBI1 AA_SBI0 AA_SBO0 AA_XRST AA_DACRST AA_DONE AA_IS0CLK ACI_POWER AA_INIT_B AA_BOOTSWAP AA_FORMAT_EDGE AA_ERXW AA_ERXW AA_XEDK AA_ESZ1 AA_CLKSEL AA_XECS2 IC8013 D9 EA13 R8246 33 R8195 10k R8271 56 R8828 3.9k IC8013 A11 EA8 IC8013 D19 ED5 IC8013 F3 SBI0 R8267 10k 3.3V IC8013 D22 XRI2 R8238 33 IC8013 B11 EA9 IC8013 H19 CHDATA0 IC8013 D2 XEWE0 R8273 56 IC8013 M3 VC27 IC8013 L2 TSTSEL R8187 10k IC8013 H21 CHDATA1 R8216 56 3.3V R8735 10k R8010 10k R8242 33 IC8013 B17 ED21 R8263 56 IC8013 E19 XNFWE IC8013 J2 TDI IC8013 N2 SMTD0 R8233 33 IC8013 C12 EA4 R8284 56 IC8013 F2 SBT1 IC8013 E5 ERXW R8220 EXB2HV560JV R8261 56 R8235 33 R8022 10k R8268 10k 3.3V R8038 56 R8196 10k R8265 10k R8053 10k 3.3V IC8013 G21 IS0CLK IC8013 B12 EA6 IC8013 D8 EA17 IC8013 M18 DCLK IC8013 E1 SBO1 IC8013 G5 XEBGT IC8013 D17 ED18 IC8013 E4 XEDK R8282 56 R8218 EXB2HV330JV IC8013 A5 EA29 R8264 10k IC8013 C2 XEWE3 R8704 56 IC8013 F19 SCL1 IC8013 N3 SMTRST0 IC8013 C4 XECS1 R8272 EXB38V560JV R8355 EXB2HV104JV IC8013 E20 XNFRE IC8013 A6 EA26 R8707 56 R8703 56 IC8013 A15 ED27 IC8013 B6 EA27 IC8013 A19 ED14 R8167 10k IC8013 A3 XECS0 IC8013 J18 CHDATA4 R8133 56 IC8013 D7 EA21 IC8013 G2 XNMIRQ R8292 56 R8183 0 IC8013 J1 TDO R8239 33 IC8013 F21 IS0DATA0 R8219 EXB2HV330JV IC8013 E3 BOOTSWAP R8277 56 IC8013 H20 CHDATA3 R8012 10k R8224 10k IC8013 H2 XIRQ2 R8931 3.9k IC8013 B1 XEWE2 R8215 10k IC8013 C11 EA7 R8244 10k IC8013 K2 TMS R8729 10k IC8013 A2 XECS3 R8176 10k R8172 47k R8175 10k IC8013 B20 ED9 R8223 56 R8734 10k R8286 56 IC8013 C20 ED7 IC8013 B3 XECS2 IC8013 A16 ED23 IC8013 B9 EA16 R8170 10k R8356 EXB2HV104JV C8910 16V 0.01u IC8013 D6 EA28 R8253 33 IC8013 B22 ED3 IC8013 A13 EA2 R8221 EXB2HV560JV IC8013 F5 XEBRQ IC8013 F1 SBO0 R8932 3.9k IC8013 C17 ED19 IC8013 A4 ESZ1 IC8013 B19 ED12 IC8013 L3 XRSTOUT R8275 56 IC8013 D1 XEXDMR0 IC8013 H18 CHCLK1 R8266 10k R8701 56 R8257 10k R8171 10k R8287 56 R8730 10k R8217 56 IC8013 P20 DTCPOUT IC8013 C21 ED4 IC8013 C7 EA22 IC8013 K3 DRSTMSK R8104 56 R8827 3.9k IC8013 B21 ED6 R8706 56 R8234 33 IC8013 F22 IS0VAL IC8013 F20 SCL0 IC8013 C14 ED30 IC8013 M2 CLK74 IC8013 L1 XRST R8731 10k IC8013 C1 ECLK IC8013 A12 EA5 R8255 10k IC8013 D21 ED1 IC8013 E21 SDA1 R8021 10k IC8013 A7 EA23 IC8013 N1 SMTCLK0 R8259 10k R8184 22k R8014 10k IC8013 F4 SBI1 R8232 33 R8262 56 IC8013 D3 XEWE1 IC8013 C22 ED0 R8245 33 IC8013 P3 SMTSEL0 IC8013 G1 XIRQ0 R8732 10k IC8013 B14 EA0 R8136 10k R8226 33 IC8013 H1 XIRQ3 R8260 56 IC8013 C8 EA18 IC8013 A10 EA11 IC8013 D15 ED29 IC8013 B7 EA24 IC8013 K19 CHCLK0 R8132 56 3.3V R8201 10k R8204 10k R8011 10k IC8013 N18 MCLK R8225 10k IC8013 A20 ED11 R8254 33 IC8013 D18 ED13 R8708 56 R8241 33 IC8013 P4 SMTCMD0 IC8013 A21 ED8 IC8013 K1 EVTRG IC8013 G3 XIRQ1 IC8013 D20 ED2 R8250 10k IC8013 A14 ED31 IC8013 A17 ED20 IC8013 J20 CHVAL0 R8222 EXB2HV560JV IC8013 C5 EA31 IC8013 C9 EA14 IC8013 C15 ED26 R8733 10k R8269 56 R8736 10k R8015 10k IC8013 C19 ED10 3.3V IC8013 E22 SDA0 IC8013 B16 ED24 IC8013 H22 CHDATA2 IC8013 C10 EA10 IC8013 J19 CHDATA5 3.3V IC8013 B10 EA12 IC8013 D16 ED25 IC8013 G4 SBT0 IC8013 A9 EA15 R8173 EXB38V560JV IC8013 E2 XEXDMK0 IC8013 B8 EA20 IC8013 R19 MTCPOUT R8052 10k IC8013 H3 XIRQ4 IC8013 A8 EA19 IC8013 C3 XECS4 IC8013 C13 EA1 IC8013 K18 CHPSYNC0 IC8013 J21 CHDATA6 R8168 10k IC8013 B18 ED16 IC8013 G19 IS0SYNC IC8013 B2 XECS5 IC8013 B5 EA30 R8203 10k TP8029 R8243 33 R8279 0 3.3V IC8013 C16 ED22 IC8013 B13 EA3 IC8013 A18 ED17 R8236 33 R8193 10k R8252 33 R8256 4.7k IC8013 B4 XEAS R8702 56 IC8013 C6 EA25 IC8013 D5 ESZ0 R8705 56 IC8013 J22 CHDATA7 R8202 10k IC8013 C18 ED15 IC8013 B15 ED28 3.3V R8291 56 R8290 56 R8169 10k IC8013 D4 XERE IC8013 M1 CK27 R8240 33 IC8013 J3 TCK R8237 33 R8020 10k R8349 100k C8509 100u 6.3V C8506 16V 1u C C8504 10V 1u R8603 100 TP8039 74VHCU04MXNL IC8501 1 A0 2 O0 3 A1 4 O1 5 A2 6 O2 7 GND 8 O5 9 A5 10 O4 11 A4 12 O3 13 A3 14 VCC R8954 10k 3.3V R8608 1M TP8037 C8508 16V 0.33u X8006 H0J270500090 TP8040 R8610 3.3k C8502 50V 18p R8606 100k R8615 0 R8601 0 R8611 0 R8605 100k R8614 220 D8501 B0CCAB000039 R8602 100 C R8604 100 C8501 50V 18p C8240 6.3V 1u C8507 50V 1000p L8501 ELJNA2R7JFB XDSR2 XCIETS FORMAT_EDGE XOE SDDAT0 CIPOWER SBO2 XCD1 MDM INVALID Flash CIREG Debug XDACRST Debug AD_INIT_B SupportCard XCIEDBA INSPECTION AT_PDWN AD_DONE MN2WS0025AEA PSYNC0 CI P OCP XRTS2 SDDAT2 SD_CARD XWAIT XIOWR CIRESET XIORD XWE XIREQ AA_FWP XCTS2 XCD2 DTTINT SDWP SDCMD IPC(TV) XCIEAB SDDAT1 XDTR2 XDCD2 SDCLK SCHCLK0 SBI2 SCHDATA0 SDCD XFERST0 POWER_DET ENABLE0 XRI2 SDDAT3 IPC(TV) CI AD DSRCK ADCCK NARBY CLKCTRL AD_PROG_B PROM_RST 20 19 21 25 26 23 24 27 22 SUPPORT CARD VCXO27M 21 22 23 24 25 31 32 33 34 35 XV-BOARD TNPA3740AB (3/5) TH-37/42PX60B XV-Board (3 of 5) Schematic Diagram TH-37/42PX60B XV-Board (3 of 5) Schematic Diagram - - IC8013 PEAKS_Lite 1/3 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 117 14.44. XV-Board (4 of 5) Schematic Diagram (PX60B) + + AM_MVY1 AM_MVY2 AM_MVY3 AM_MVY4 AM_MVY5 AM_MVY6 AM_MVY7 AM_MVC0 AM_MVC1 AM_MVC2 AM_MVC3 AM_MVC4 AM_MVC5 AM_MVC6 AM_MVC7 AH_SRCK AH_DACCK AH_LRCK AH_DMIX AM_MVCLKO ACI_CHDI0 ACI_CHDI1 ACI_CHDI2 ACI_CHDI3 ACI_CHDI4 ACI_CHDI5 ACI_CHDI6 ACI_CHDI7 ACI_CHCLK ACI_CHVAL ACI_CHSYNC AF_VDACOUT0 AF_VDACOUT1 AF_VDACOUT2 AK_AUDCLK AT_SLRCK AT_ADIN AM_MVCLKO AM_MVSYNCO AM_MVSYNCO PE_MMDQ8 PE_MMDQ13 PE_MMDQ6 PE_MMDQ10 PE_MMDQ24 PE_MMDQ26 PE_MMDQ4 PE_MMA5 PE_MMA1 PE_MMDQ18 PE_MMDQ19 PE_MMDQ1 PE_MMDQ27 PE_MMDQ15 PE_MMDQ9 PE_MMDQ20 PE_MMDQ25 PE_MMDQ12 PE_MMDQ28 PE_MMDQ31 PE_MMDQ11 PE_MMDQ17 PE_MMA7 PE_MMDQ0 PE_MMDQ29 PE_MMDQ16 PE_MMA6 PE_MMDQ5 PE_MMDQ3 PE_MMA10 PE_MMDQ22 PE_MMA4 PE_MMDQ21 PE_MMA0 PE_MMA11 PE_MMA3 PE_MMA13 PE_MMA12 PE_MMA2 PE_MMA8 PE_MMA9 PE_MMDQ30 PE_MMDQ23 PE_MMDQ7 PE_MMDQ2 PE_MMDQ14 AM_MVY0 AM_MHSYNCO AM_MHSYNCO AF_VDACOUT5 AA_XRST PE_MMDQ6 AC_MMDQ14 AC_MMDQ3 PE_MMDQ3 AG_MMA9 AG_MMA13 PE_MMDQ5 PE_MMDQ9 PE_MMA6 PE_MMDQ12 AC_MMDQ12 AG_MMA4 PE_MMDQ15 PE_MMA0 PE_MMA11 PE_MMDQ7 AC_MMDQ6 PE_MMA9 AG_MMA4 AC_MMDQ8 AC_MMDQ11 PE_MMA13 PE_MMA12 AG_MMA11 PE_MMDQ8 AG_MMA12 AG_MMA2 PE_MMA8 AG_MMA10 PE_MMA7 AC_MMDQ14 PE_MMDQ10 AC_MMDQ1 AG_MMA8 AC_MMDQ4 AG_MMA12 AC_MMDQ9 PE_MMA3 AC_MMDQ13 AC_MMDQ10 AC_MMDQ15 AC_MMDQ15 PE_MMA5 AG_MMA10 AC_MMDQ10 AC_MMDQ9 PE_MMA2 AG_MMA8 AG_MMA0 PE_MMDQ13 PE_MMDQ2 AG_MMA5 AC_MMDQ4 AG_MMA6 AC_MMDQ5 AG_MMA7 PE_MMDQ14 AC_MMDQ7 AC_MMDQ13 AC_MMDQ2 AG_MMA9 PE_MMDQ0 AC_MMDQ5 AG_MMA6 AC_MMDQ3 AG_MMA2 PE_MMDQ1 AG_MMA5 AC_MMDQ0 AG_MMA0 AC_MMDQ2 AC_MMDQ1 AC_MMDQ8 AG_MMA1 AG_MMA3 PE_MMDQ11 AG_MMA7 AC_MMDQ6 AG_MMA1 PE_MMDQ4 AC_MMDQ11 AC_MMDQ0 AC_MMDQ7 AG_MMA11 PE_MMA10 PE_MMA1 AC_MMDQ12 AG_MMA3 PE_MMA4 IC8013 Y14 MMDQ16 IC8013 Y17 MVC5 IC8013 W15 MVY4 IC8013 R4 MMDQ1 IC8013 AB16 MVY2 IC8013 W1 MMDQ12 IC8013 AB12 MMLDQS1 R8311 75 R8372 56 IC8013 AB10 MMDQ26 3.3V IC8013 M22 HSDIN7 IC8013 T1 MMDQML0 R8314 75 IC8013 AA13 MMDQ20 IC8013 AA15 MVY7 IC8013 Y12 MMDQ22 C8321 6.3V 1u IC8013 AA17 MVC6 C8134 16V 0.01u IC8013 V12 MMDQ31 C8048 16V 0.01u R8027 EXB2HV560JV IC8013 U3 MMDQ15 IC8013 AA11 MMDQMU1 R8373 56 R8312 75 IC8013 V10 MMA1 IC8013 Y22 AVCOIN IC8013 Y18 MVC0 IC8013 AB9 MMA3 R8315 75 IC8013 AA8 MMA7 IC8013 AB17 MVC7 IC8013 U22 MVDACO2 IC8013 Y13 MMDQ19 C8268 6.3V 1u IC8013 R1 MMDQ4 R8375 56 IC8013 U21 SVCOMP IC8013 AB18 MVC4 IC8013 M21 HSDIN6 C8322 6.3V 1u IC8013 L20 HSDIN2 R8971 47k IC8013 AA10 MMDQ25 IC8013 AA7 MMA11 IC8013 W13 MMDQ18 IC8013 W9 MMA2 IC8013 Y6 MMA12 IC8013 R3 MMDQ2 C8135 10V 0.047u IC8013 Y4 MMVREF IC8013 AB15 MVY6 IC8013 U1 MMDQMU0 IC8013 V22 MVDACO1 IC8013 AB4 XMMWE R8054 10k IC8013 N20 IECOUT IC8013 Y21 MVCOMP R8079 47k IC8013 T22 SVDACO0 IC8013 W16 MVY0 IC8013 W12 MMDQ23 IC8013 R21 SVIREF IC8013 Y16 MVY1 R8368 56 R8321 8.2k IC8013 AB19 MVC1 IC8013 V4 MMDQ13 IC8013 R22 SVDACO1 IC8013 W8 MMA0 C8320 6.3V 1u IC8013 G20 ADIN IC8013 V21 MVIREF R8376 56 IC8013 W3 MMDQ10 IC8013 Y19 MVSYNCO IC8013 Y2 MMDQ8 R8353 3.3k R8366 10k IC8013 L18 HSDIN3 IC8013 Y5 XMMRAS 3.3V IC8013 R5 MMDQ0 IC8013 N19 SRCK IC8013 AB3 XMMCK R8319 27k R8367 56 R8352 27k IC8013 W2 MMDQ11 IC8013 AB7 MMA9 IC8013 W21 MVVREF IC8013 N21 LRCK IC8013 L21 HSDIN0 IC8013 AA16 MVY3 IC8013 Y1 MMDQ9 R8969 47k IC8013 AA19 MHSYNCO IC8013 W11 MMDQ29 R8106 10k IC8013 Y15 MVY5 L8037 J0JCC0000078 R8055 10k IC8013 Y10 MMDQ24 IC8013 AB13 MMDQ21 R8059 10k IC8013 P22 SVDACO2 IC8013 T4 MMDQ5 IC8013 M20 DMIX R8374 56 IC8013 W7 MMBS1 IC8013 AB8 MMA6 IC8013 W14 MMDQ17 C8323 6.3V 1u IC8013 G22 SLRCK IC8013 Y7 MMA10 IC8013 Y8 MMA8 IC8013 W20 ATVROUT IC8013 N22 DACCK IC8013 R2 MMDQ3 IC8013 V3 MMDQ14 IC8013 AA18 MVC2 R8030 56 IC8013 W5 MMA13 IC8013 T3 MMDQ6 IC8013 K22 HSSYNCIN IC8013 AB20 MVCLKO R8029 56 R8320 10k R8078 5.6k IC8013 L22 HSDIN1 IC8013 AA12 MMDQML1 IC8013 AA20 ATCPOUT IC8042 C0EBM0000026 1 OUT 2 Vdd 3 GND 5 Cd 4 NC IC8013 AB5 XMMCS IC8013 W22 MVDACO0 IC8013 Y11 MMDQ28 IC8013 T2 MMLDQS0 IC8013 U2 MMUDQS0 IC8013 T21 SVVREF IC8013 V11 MMDQ30 R8970 47k IC8013 K21 HSVALIN IC8013 L19 HSDIN4 IC8013 Y9 MMA5 IC8013 AA5 MMCKE IC8013 W18 AUDCLK R8354 2.7k IC8013 M19 HSDIN5 IC8013 AA4 XMMCAS SUB9V R8351 10k IC8013 AA9 MMA4 IC8013 W10 MMDQ27 R8028 56 D8002 MA2J72800L R8313 75 IC8013 AB11 MMUDQS1 IC8013 U4 MMDQ7 R8350 8.2k IC8013 W17 MVC3 IC8013 W6 MMBS0 C8269 10V 0.1u IC8013 AA3 MMCK IC8013 K20 HSBCLKIN R8310 75 R8152 39 R8140 1k R8162 39 IC8009 C3ABQG000095 1 VDD 2 DQ0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 NC 15 VDDQ 16 LDQS 17 NC 18 VDD 19 NC 20 LDM 21 WE 22 CAS 23 RAS 24 CS 25 NC 26 BA0 27 BA1 28 A10/AP 29 A0 30 A1 31 A2 32 A3 33 VDD 34 VSS 35 A4 36 A5 37 A6 38 A7 39 A8 40 A9 41 A11 42 NC 43 NC 44 CKE 45 CK 46 CK 47 UDM 48 VSS 49 VREF 50 NC 51 UDQS 52 VSSQ 53 NC 54 DQ8 55 VDDQ 56 DQ9 57 DQ10 58 VSSQ 59 DQ11 60 DQ12 61 VDDQ 62 DQ13 63 DQ14 64 VSSQ 65 DQ15 66 VSS 2.5V_1 R8157 39 C8105 4V 100u 0.1u 10V C8100 C8121 10V 0.1u R8144 EXB2HV560JV 0.1u 10V C8103 1u 6.3V C8107 R8154 39 R8145 EXB2HV560JV 1u 6.3V C8101 C8144 10V 0.1u R8158 39 R8156 39 R8163 56 C8109 4V 100u R8123 ERJ3GEY0R00V R8155 39 C8128 16V 0.01u R8150 39 0.1u 10V C8104 R8153 39 1u 6.3V C8106 R8141 1k C8099 10V 0.1u 2.5V_2 C8129 16V 0.01u 0.1u 10V C8110 1u 6.3V C8102 R8159 39 C8164 16V 0.01u R8165 56 C8162 16V 0.01u C8145 16V 0.01u R8151 39 R8137 120 R8149 EXB2HV390JV R8148 EXB2HV390JV 0.1u 10V C8108 R8161 39 R8188 ERJ3GEY0R00V R TXREADY B XAMUTE STBACK XVMUTE AUDIO SLRCK:48kHz G For DIT 36 28 33 30 34 35 29 31 32 RESET 256M DDR-SDRAM 51 52 53 54 55 56 57 XV-BOARD TNPA3740AB (4/5) 31 32 33 34 35 TH-37/42PX60B XV-Board (4 of 5) Schematic Diagram TH-37/42PX60B XV-Board (4 of 5) Schematic Diagram MN2WS0025AEA IC8013 PEAKS_Lite 3/3 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 118 14.45. XV-Board (5 of 5) Schematic Diagram (PX60B) + + + + + + + + + + + + + AD_SBI1 AD_SBO1 AL_MVC7 AL_MVC6 AL_MVC5 AL_MVC3 AL_MVC2 AL_MVC1 AL_MVC0 AL_MVY5 AL_MVY4 AL_MVY3 AL_MHSYNCO AL_MVSYNCO AL_MVY2 AL_MVY1 AL_MVY0 AL_MVY7 AL_MVY6 AL_MVC4 AF_CVBS AF_R AF_G AF_B AL_MHSYNCO AL_MVC7 AL_MVC6 AL_MVC5 AL_MVC4 AL_MVC3 AL_MVC2 AL_MVC1 AL_MVC0 AL_MVY7 AL_MVY6 AL_MVY5 AL_MVY4 AL_MVY3 AL_MVY2 AL_MVY1 AL_MVY0 AM_MVC7 AM_MVC6 AM_MVC5 AM_MVC4 AM_MVC3 AM_MVC2 AM_MVC1 AM_MVC0 AM_MVY7 AM_MVY6 AM_MVY5 AM_MVY4 AM_MVY3 AM_MVY2 AM_MVY1 AM_MVY0 AM_MVCLKO AM_MHSYNCO 3.9V AM_MVSYNCO AH_SRCK AH_LRCK AH_DMIX AF_VDACOUT5 AA_DACRST AH_DACCK AD_SBI1 AD_SCL0 AD_SDA0 AA_XRST AF_CVBS AL_MVSYNCO AL_MVCLKO 5.0V AL_MVCLKO 9.0V 9.0V 3.3V AD_SBO1 C8319 16V 0.1u IC8013 V17 VDD12 TP8023 IC8013 A22 GND IC8013 AA1 GND XV01 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 IC8013 U5 AVDD C8176 16V 0.1u C8376 10V 0.1u IC8013 V14 VDD12 C8315 10V 4.7u C8168 16V 0.01u C8163 16V 0.01u C8340 16V 6800p SUB9V IC8013 P11 GND IC8013 M4 VDD12 IC8013 Y20 GND R8500 10.5k R8485 33k C8136 68u 4V R8491 91k R8108 10k C8207 16V 47u C8138 16V 0.01u R8112 0 IC8013 G18 GND R8002 2.7k TP8020 TP8026 R8476 10k C8170 16V 0.1u C8151 10V 0.1u R8539 100 R8358 47k TP8027 R8115 2.7k C8361 47u 16V IC8013 T20 SVAVDD R8017 0 IC8013 J9 GND C8342 68u 4V TP8042 Q8101 2SA207700L IC8013 F18 GND C8421 16V 0.01u C8147 16V 0.01u L8038 J0JHC0000045 C8397 10V 0.1u IC8013 K13 GND IC8013 AB14 AVDD IC8013 L9 GND L8032 J0JHC0000045 TP8002 TP8014 C8157 16V 0.01u IC8013 U19 MVAVSS SUB5V IC8013 M10 GND R8489 1k TP8019 IC8013 E14 VDD33 C8329 16V 0.01u IC8013 V8 VDDQ C8169 4V 47u IC8013 V13 VDD12 R8483 20k IC8013 N9 GND R8493 91k R8863 0 R8110 1.5k G1C680MA0173 L8047 SUB5V C8160 10V 0.1u R8967 EXB2HV473JV R8087 56 C8139 68u 4V R8088 56 IC8013 E11 VDD33 IC8013 U20 SVAVDD C8317 10V 4.7u IC8013 AA21 GND TP8001 C8305 16V 0.01u R8357 47k IC8013 K12 GND C8148 10V 0.1u IC8013 E15 GND R8492 18k IC8013 K9 GND C8206 10V 0.1u IC8013 V9 VDDQ R8479 20k R8497 330 R8006 0 R8113 0 C8334 50V 33p R8862 0 IC8013 R20 MAVDD IC8013 E17 GND R8107 10k R8486 22k R8502 24k L8145 J0JHC0000045 IC8013 N5 VDD12 IC8013 W19 GND IC8013 N12 GND IC8013 L10 GND C8189 16V 0.1u IC8024 C0DBAMH00018 1 VIN 2 SW 3 FB 4 INV 5 SS 6 RT 7 GND 8 PVIN SUB9V IC8013 V20 MVAVDD C8372 10V 0.1u C8202 16V 47u R8912 0 SUB5V C8204 16V 10u IC8013 K10 GND IC8013 V6 VDDQ C8173 16V 0.01u L8049 J0JHC0000045 C8175 16V 0.01u IC8013 L4 VDD12 R8832 0 R8900 0 C8161 16V 0.01u R8864 0 IC8013 D10 VDD33 IC8013 D12 VDD33 C8154 10V 0.1u R8084 EXB2HV121JV R8109 22k IC8013 D13 VDD33 IC8013 E18 GND TP8021 TP8035 C8410 10V 0.1u C8171 0.1u 10V IC8013 A1 GND IC8013 E9 GND C8205 10V 0.1u IC8023 C0DBAMH00018 1 VIN 2 SW 3 FB 4 INV 5 SS 6 RT 7 GND 8 PVIN IC8013 V15 VDD12 C8303 16V 0.01u SUB9V IC8013 E7 GND R8117 470 C8193 100u 6.3V D8204 B0JCPE000004 xxxxxzz C8345 16V 0.015u C8349 10V 0.1u IC8013 J4 VDD12 IC8013 K11 GND R8124 470 R8546 33k R8968 EXB2HV473JV IC8013 AA2 GND IC8013 T19 SVAVSS L8055 G1C100MA0077 TP8036 L8042 J0JHC0000045 IC8013 M13 GND TP8008 R8831 0 IC8013 AB6 VDDQ IC8013 J14 GND C8335 50V 33p C8167 10V 0.1u IC8013 Y3 GND IC8013 K5 VDD12 IC8013 T5 AVSS TP8005 IC8013 F6 GND R8085 EXB2HV121JV R8111 0 L8059 J0JHC0000045 C8351 16V 0.1u IC8013 E13 VDD33 IC8013 H5 VDD12 TP8028 L8031 J0JHC0000045 2.5V C8350 16V 0.1u IC8013 V16 VDD12 R8501 5.6k IC8013 P9 GND R8001 10k R8127 0 C8318 10V 4.7u R8494 9.1k L8046 ELJPA1R0MFB IC8013 K14 GND IC8013 AA6 GND C8344 50V 3300p IC8013 V5 VDDQ TP8015 C8306 16V 0.01u IC8013 P12 GND R8547 1k IC8013 N13 GND L8026 J0JHC0000035 TP8041 C8425 10V 0.1u R8899 0 IC8013 P18 GND IC8013 J5 VDD12 R8538 100 TP8004 D8203 B0JCPE000004 IC8013 AB2 VDDQ C8210 10V 0.033u C8212 16V 0.022u IC8013 V18 GND C8330 50V 180p IC8013 E12 VDD33 2.5V_2 SUB5V IC8013 P13 GND IC8013 AB22 GND IC8013 P1 AVDD C8174 16V 0.01u IC8013 J11 GND IC8013 D11 VDD33 R8101 180 IC8013 J12 GND IC8013 H4 VDD12 C8166 16V 0.01u IC8013 AB21 AAVSS C8423 10V 0.1u C8186 50V 68p C8172 47u 4V C8142 10V 0.1u IC8013 E8 GND IC8031 BA15218FDXE2 1 2 3 4 5 6 7 8 C8343 68u 4V IC8013 M14 GND IC8013 V7 VDDQ C8150 16V 0.01u IC8013 D14 VDD33 IC8013 N10 GND IC8013 W4 GND R8475 10k C8341 16V 8200p C8155 10V 0.1u L8033 J0JHC0000045 C0FBBK000047 IC8029 1 MCLK 2 BICK 3 SDTI 4 LRCK 5 PDN 6 SMUTE/CSN 7 ACKS/CCLK 8 DIF0/CDTI 9 P/S 10 AOUTR 11 AOUTL 12 VCOM 13 VSS 14 VDD 15 DZFR 16 DZFL IC8013 AA14 AVSS TP8016 SUB5V IC8013 R18 MAVSS IC8013 J13 GND IC8013 E16 GND C8182 50V 120p C8332 16V 0.01u IC8013 V1 VDDQ IC8013 E6 GND IC8013 P2 AVSS IC8013 N14 GND C8156 10V 0.1u IC8013 P10 GND IC8013 V2 GND C8140 10V 0.1u TP8003 IC8013 L13 GND IC8013 L12 GND IC8013 T18 SVAVSS 3.3V IC8013 AA22 AAVDD IC8013 K4 VDD12 C8467 16V 0.01u C8327 47u 6.3V IC8013 M9 GND IC8013 E10 VDD33 IC8013 L11 GND R8018 0 IC8013 N11 GND IC8013 V19 MVAVDD IC8013 M11 GND L8106 ELJFA2R7JFB IC8013 P14 GND C8165 10V 0.1u TP8022 IC8013 U18 MVAVSS 3.3V IC8013 AB1 GND C8208 16V 10u IC8013 P5 VDD12 C8331 50V 180p IC8013 P19 DAVSS IC8013 L14 GND R8499 24.3k SUB5V R8086 56 IC8013 L5 VDD12 C8098 68u 4V IC8013 N4 VDD12 R8498 220 IC8013 J10 GND C8203 16V 47u C8146 10V 0.1u IC8013 P21 DAVDD C8314 16V 0.1u C8401 16V 0.01u L8048 G1C330MA0173 C8141 16V 0.01u IC8013 M12 GND C8149 6.3V 1u 1.2V R8484 22k IC8013 M5 VDD12 2.5V_1 C8143 16V 0.01u C0DBEHG00006 IC8034 1 CTL 2 Vcc 3 GND(FIN) 4 OUT 5 ADJ 2.5V_2 RM DC DY DR DL TRST SDA SCL MODEM_LED SRQ RESET BT30 - + + - L R +2.5V Comp. VIDEO LINES, GUARDING CVBS SD_BOOT VOUTENB 3.3/1.2ON 43 44 38 39 40 41 45 37 42 AUDIO DAC AUDIO AMP AVR +2.5V DC-DC CONV.1.2V DC-DC CONV.3.3V (DG22) DG-BOARD TO XV-BOARD TNPA3740AB (5/5) 51 52 53 54 55 56 57 TH-37/42PX60B XV-Board (5 of 5) Schematic Diagram TH-37/42PX60B XV-Board (5 of 5) Schematic Diagram MN2WS0025AEA IC8013 PEAKS_Lite 2/3 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 119 14.46. D-Board Block Diagram CLKD0 CLKD1 TXD_PC RXD_PC PANEL_MAIN_ON PANEL_MAIN_ON ALARM READY ECO_ON TUNER_SUB_ON ECO_ON TUNER_SUB_ON CLKM_IN FREE_RUN DRVMUTE RXD_PC IIC_INT TXD_PC RXD_PC IIC_CONT IIC_INT STB_SDA01 STB_SCL01 SOS8_SS CLKD3 READY ALARM IIC_CONT LED_R REMOCON IIC_CONT TXD_PC VDATA_DET VDATA_DET IIC_INT SOS6_SC1 SOS7_SC2 SOS7_SC2 SOS6_SC1 CLKD2 SOS4_PS REMOCON LED_R LED_G LED_R LED_G REMOCON LED_G SOS4-PS STB_SCL02 STB_SDA02 CLRD PCD1 LED PCD2 CLRD LED X9200 TP9372 TP9304 R 10bit Scan Control DATA 13bit IIC/INT G 10bit B 10bit (D)PDB1 (D)PBUSY B 10bit (D)PDB0 R 10bit (D)PSTB (D)PSLCT Sustain Control DATA 6bit G 10bit IC9503 4 10 PROCESSOR DRIVER TO C11 TO C21 14 50 13 51 26 15 TXD1 27 RXD1 IIC_CONT IIC_INT LVDS INPUT DISCHARGE CONTROL IIC1_SDA 28 LEVEL CONVERTER IIC2_SCL 29 12 15 Voltage 10 IIC2_SDA 14 21 IC9500 22 FPGA,ASIC 55 LSI_RST XRST SUB-FIELD PLASMA AI/SUB FIELD PROCESSOR/DATA DRIVER IC9003 IC9303 MICOM XIN XOUT X9000 44 9.216MHz IC9802,03 42 17 19 5 IIC1_SCL Video DATA 48bit(DA0-DC14) 3.3V 5V Low 3.3V 5V ROMDATA04-15(ROMADDRESS00-20) D32 D31 5VDET 46 1 TO DG3 D3 SOS7_SC2 76 73 72 SOS8_SS 5 READY ALARM 67 DRVMUTE IC9011 IIC_DATA1 IIC_CLK1 22 TUNER_SUB_ON 35 ALARM 33 34 DISPEN 37 READY PANEL_STBY_ON 27 30 21 ECO_ON 4 2 RXD TXD 6 D5 E+LVDSCLK (RX_TCLK+) E-LVDS2 (RX_TC-) 14 TO DG5 E-LVDS3 (RX_TD-) 16 7 15 11 12 E-LVDS1 (RX_TB-) 10 4 E-LVDS4 (RX_TE-) 1 9 E-LVDS0 (RX_TA-) 2 E-LVDSCLK (RX_TCLK-) E+LVDS2 (RX_TC+) E+LVDS1 (RX_TB+) E+LVDS4 (RX_TE+) 5 E+LVDS3 (RX_TD+) LVDS_DET STBY5V +5V D25 VDATA_DET 9 PANEL_MAIN_ON ECO_ON 1 +5V 7 2 13 +15V 15 +15V 17 20 10 TO P25 F_STBY_ON RXD 13 14 8 6 TXD 7 SDA1 PDB0 4 PSTB 5 IIC_INT 11 PSLCT PBUSY 9 D6 SCL1 12 15 LED_R PDB1 17 16 LED_G st-r IC9900 CONVERTER XRST CTI/TINT WB-ADJ I/P COLOR FORMAT CONVERTER/RGB PROCESSOR CONVERTER CONTRAST FORMAT Differential Signaling RECEIVER FPGA SOS4-PS 74 PANEL_MAIN_ON 24 P_ON/OFF Q9057 Q9058 Q9055 Q9056 P3V_SCL02 P3V_SDA02 TO SC20 D20 2 9 13 20 SCAN DATA 11 12 1 DRV_SOS7 P5V DRV_SOS2 21 43 14 12 5VDET 53 55 20 SOS6_SC1 SUSTAIN DATA 51 46 1 3 SS_SOS8 P3V_SCL1 P3V_SDA1 P15V P5V STB5V_M NRST DRV_RST DATA DRIVER 16M FLASH MEMORY RESET 4 5 VOUT VCC IC9502 RESET P3.3V SS PULSE SCAN OUT SC PULSE 3.3V 5V IC9504 37 UMH,UML,USH,USL,UEH,NUEL,ODED1,ODED2 CL,CLK,SIU,SID,SCSU,CEL2,CPH,CEL,CBK,CSL,CSH,CML,CMH IC9901 DDR SDRAM(128M) Q9302 Q9301 CLK4 17 CLK8 CLK1 21 24 7 CLK7 X1 1 28 X2 IC9200 PCK OCK D P3V_SCL1 P3V_SDA1 P5V CONTROL STBY5V P15V 21 19 IC9007 NCS ASDIO DATA0 DCLK ODED1 P5V Control DATA 70 SOS3_3V SOS2_15V 69 71 SOS5_5V Q9054 Q9053 Q9052 Q9051 P5V P15V 3.3V STB 5V_M STBY 5V 29 PROM(FPGA) LEVEL CONVERTER LEVEL CONVERTER CLOCK GENE. DIGITAL SIGNAL PROCESSOR PLASMA AI SUB-FIELD PROCESSOR FOR FACTORY USE P5V P5V DRVCLKD0-D3 21bit (DA8-DC14) (DA0-DC7) 24bit CLRD,LED,PCD1,PCD2 AVR P1.5V VOUT P2.5V P1.5V IC9801 6 1 VDD (LSI58 COMM) TDO,TDI TMS,TCK JTAG DCK HD VD JTAG PD1-MS FPCLK FPDAT0 FPDAT1 SFVRST LATCH SFRST R0-R9 G0-G9 VD B0-B9 HD DCK PICTURE OUTPUT LVDS LVDS SYNC PROCESSING WB ADJ DISCHARGE CONTROL FLASH CONTROL FPGA CONTROL CONTROL RESET CONTROL FLASH CLKM PRCKI -IN STB 3.3V 20 Q9044 IIC_CLK2 16 17 IIC_DATA2 IIC_CONT 19 IC9001 6 5 EEPROM SDA SCL 1 WP 25 EEP_WR_CTL 6 SDA SCL 1 3 ADD1 ADD0 5 IC9002 DIGITAL TEMPERATURE SENSOR P15V STB5V_M REMOCON 18 15V 2.5V OUT2 G2 17 S1 19 D1 OUT1 21 D2 20 13 D1 D2 VO 23 5 16 LX VCC VIN VDD 18 G1 IC9809 S2 DC-DC CONVERTER 24 FB -INC 9 CTL CB P15V P2.5V Q9805 Q9806 23 NCS DATA ADSI DCLK 10 IIC_CONT 1 2 STBY3.3V STB3.3V SDA2 SCL2 3 1 (D)P15V 6 VDATA_DET 68 NCS 36 37 ASDIO 38 DATA0 DCLK 39 8 LED_G REMOCON 9 LED_R 10 1 VOUT RESET 3 4 VDD CE 6 STB5V_M Q9046 STB3.3V 9 RESET Q9050 XRST SOS9_CONF 34 DRVRST Q9300 ODED1 ODED2 PLASMA AI NEW DATA ROMDATA00-03 DQ4-DQ15 A0-A19 DQ0-DQ3 ROMDATA00-03 ROMDATA04-15/ROMADDRESS00-20 3bit SOS4_PS 16 XRST 65 LED_R REM_IN 66 16 LED_G Q9010 STBY 3.3V RA_E ,RB_E ,RC_E ,RD_E ,RE_E RCLK_E E+LVDS0 (RX_TA+) STB_SCL02 STB_SDA02 STB_SDA02 STB_SCL02 DPCLK1 TSET TERMINAL (SC_SOS6) (SC_SOS7) P3.3V STB_SDA02 STB_SCL02 P3V_SCL1 P3V_SDA1 1 2 5 6 D9802 D9811 DCDC_ON Q9801 AVR 5V 5 1 VDD P15V VOUT IC9806 LDO_5V LDO_5V VIN VDD G2 18 17 S1 19 D1 -INC 9 D1 CTL CB D2 24 FB P15V P3.3V VO 23 LDO_5V 5 20 16 Q9803 D2 21 OUT1 G1 13 IC9807 S2 DC-DC CONVERTER 15V 3.3V LX VCC OUT2 VO 23 LDO_5V 5 20 16 Q9800 D2 21 OUT1 G1 13 IC9800 S2 DC-DC CONVERTER 15V 1.2V LX VCC OUT2 VIN VDD G2 18 17 S1 19 D1 -INC 9 D1 CTL CB D2 24 FB P15V P1.2V DOUTDC15 DOUTDA8 CLK2 CLRD CLK3 ODED1 LED PCD1 (DA15-DC15) , 13 15 P5V CLK0 CLK1 DOUTDA0 DOUTDC7 35 5 38 CLRD 39 LED PCD2 40 ODED2 (DA15-DC15) ODED2 FORMAT CONVERTER STB 3.3V RESET P+3.3V SOS / LED BLINKING : 3TIMES P+5V SOS / LED BLINKING : 5TIMES P+15V SOS / LED BLINKING : 2TIMES TH-37/42PV60E, TH-37/42PX60B D-Board Block Diagram TH-37/42PV60E, TH-37/42PX60B D-Board Block Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 120 14.47. D-Board (1 of 6) Schematic Diagram + G G G G 18 16 14 12 10 8 6 4 2 20 21 19 17 15 13 11 9 7 5 3 1 + G G G G G G G G TH-37/42PV60E, TH-37/42PX60B D-Board (1 of 6) Schematic Diagram + G G FP_CSL SC_CL SC_CSL SC_CBK SC_SID SC_SCSU SC_CLK FP_SCSU SC_CEL FP_CEL SC_CPH SC_CEL2 SC_SIU FP_CLK FP_CEL2 SC_CML SC_CSH SC_CL SC_CMH SC_CSH SC_CMH SC_CLK FP_CBK SC_SIU SC_CEL2 FP_SID SC_CML SC_SID SC_CEL FP_CPH FP_CL SC_CSL SC_CBK SC_CPH FP_SIU SC_SCSU PANEL_MAIN_ON ALL_OFF FAN_SOS PSTB PBUSY PDB0 ASDIO DCLK ECO_ON TUNER_SUB_ON P_ON/OFF SOS7_SC2 SOS6_SC1 PANASONIC_MODE DRVMUTE READY ALARM INEXCH AR_IIC_INT SOS9_CONF AC_GOOD AR_IIC_CONT STB_SCL02 STB_SDA02 RXD_PC STBY3.3V_ON DCDC_ON SOS4_PS PBUSY_2 PDB1_2 PDB0_2 LED_R REM_IN PSLCT_2 PSLCT PDB1 AR_IIC_CONT_D4 P3V_SCL1 LED_G P3V_SDA1 REMOCON DCDC_ON DISPEN_D2 READY_D2 ALARM_D2 INEXCH_D2 PANEL_STBY_ON PANEL_STBY_ON STBY5V_D2 P3V_SCL1 P3V_SDA1 STBY3.3V AR_IIC_CONT_D4 AR_IIC_CONT_D4 STB_SCL02_D4 STB_SDA02_D4 TXD_PC_D4 RXD_PC_D4 AR_IIC_INT_D2 FAN_CONT FAN_SOS ECO_ON LED_R LED_G REMOCON AC_GOOD PBUSY_2 PDB0_2 PSLCT_2 PDB1_2 RXD_PC_D4 TXD_PC_D4 STB_SDA02_D4 STB_SCL02_D4 AR_IIC_INT_D2 VDATA_DET C_SEL FAN_CONT PSTB_2 DATA0 NCS FP_CSH FP_CML FP_CMH TUNER_SUB_ON TUNER_SUB_ON ALL_OFF PSTB_2 TXD_PC D9813 B0JCDD000002 R9845 5.6k R9823 100 STB5V_M R9850 47k C0DBAYY00054 IC9800 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB P15V_MOTO Q9806 B1ABCF000138 R9814 68k D9811 MA2J72800L STB5V_M C9839 10u 25V P15V P15V_MOTO R9802 62k P3.3V R9891 47k R9839 100 C9823 10u 25V P15V C9815 68u 4V P5V L9800 G1C3R0MA0248 R9892 15k C9805 4.7u 6.3V C9896 0.1u 16V R9849 EXB2HV470JV C9801 4700p 25V C9833 10u 25V R9869 10k C0JBAZ000856 IC9803 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R9844 100 STB3.3V R9871 10k C9848 0.1u 25V R9821 10k R9847 EXB2HV272JV R9816 82k R9805 30k R9813 2.4k P5V R9880 36k IC9007 1 NCS 2 DATA 3 VCC 4 GND 5 ASDI 6 DCLK 7 VCC 8 VCC R9830 10k R9801 24k R9897 100k P5V C9881 50V 1000p C9807 10u 25V R9133 4.7k P3.3V C9838 16V 0.1u C9847 0.1u 25V C9818 10u 25V PA9800 K5H4022A0023 C9880 50V 1000p D9800 B0JCME000037 R9893 36k P5V IC9801 C0DBZFG00066 1 VOUT 2 GND 3 CE 4 NC 5 GND 6 VDD Q9803 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 R9824 100 D9804 MA3X152K0L P2.5V R9854 100 R9879 20k C9824 10u 25V STB5V_M FL9804 J0HABH000012 1 2 3 STB3.3V C9827 6.3V 10u D9808 MA3X152K0L C9886 0.1u 16V FL9801 J0HABH000013 1 2 3 C9809 0.1u 16V C0DBAYY00054 IC9809 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB R9099 100 P5V_MOTO P15V C9826 16V 0.1u R9825 100 D3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 R9896 0 C9926 0.1u 16V P15V D9802 MA2J72800L C9802 47p 50V C9831 10u 16V R9804 24k D6 C9891 0.1u 16V C9883 8200p 50V D9801 B0JCDD000002 STB3.3V R9870 10k C9845 16V 0.1u C9825 50V 100p C9029 6.3V 10u D9812 B0JCME000037 P5V_MOTO D20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C9830 10u 16V C9832 10u 16V P5V Q9801 SP8K2TB S1 G1 S2 G2 D2 D2 D1 D1 Q9800 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 R9846 EXB2HV272JV L9801 G1C2R2MA0241 R9831 10k P1.5V C9806 68u 4V C9882 0.1u 16V Q9805 B1ABCF000138 R9806 39k D9807 MA3X152K0L J0HABH000013 FL9806 R9815 22k R9840 22 R9807 0 C9897 8200p 50V C9843 16V 0.1u R9843 100 R9131 4.7k C9967 4.7u 6.3V C9846 16V 0.1u C9884 10p 50V J0HABH000013 FL9800 R9826 100 C9803 4700p 50V P15V J0HABH000013 FL9805 FL9807 J0HABH000013 1 2 3 R9878 39k C9841 16V 1u R9848 EXB2HV470JV LDO_5V D9814 B0JCME000037 C9804 0.1u 16V P2.5V P3.3V P1.2V R9868 100k LDO_5V C9817 10u 25V LDO_5V C9885 1000p 50V LDO_5V C9800 0.1u 16V R9842 100 P15V C9816 68u 4V R9803 0 R9859 EXB38V101JV L9810 J0JHC0000045 L9802 G1C2R2MA0241 STB3.3V C0DBAHD00011 IC9806 1 VOUT 2 GND 3 CE 5 VDD 4 NC C9028 6.3V 10u R9827 100 FL9803 J0HABH000012 1 2 3 P15V P15V C9899 1000p 50V R9810 3k R9132 4.7k C9971 0.1u 16V C9837 10u 16V C9844 50V 0.01u R9800 13k Q9010 B1ABCF000138 D9815 B0JCDD000002 C9808 10u 25V C0JBAZ000856 IC9802 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc P15V C0DBAYY00054 IC9807 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB C9887 4.7u 6.3V D25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 STB3.3V R9808 100k R9872 0 C9898 10p 50V R9883 0 C9840 16V 0.1u C9822 6.3V 10u C9842 16V 1u R9884 100k R9838 100 R9841 0 STBY5V CSL CEL CBK GND GND CEL2 FAN_SOS SID CL SIU SCSU CPH CLK GND GND P5V SOS7_SC2 SOS6_SC1 CMH FAN_CONT CML CSH (AC_GOOD) ALL_OFF GND GND +15V +15V GND GND GND +5V +5V F_STBY_ON GND ECO_ON PANEL_MAIN_ON FB=0.7V CTL FAN_CONT PANASONIC_MODE FAN_SOS ECO_ON GND GND GND GND GND GND GND REMOCON LED_G GND DISPEN INEXCH ALARM READY STBY5V TUNER_SUB_ON ALL_OFF IIC_DATA1 STBY3.3V IIC_CLK1 IIC_CONT IIC_CLK2 IIC_DATA2 TXD RXD IIC/INT ACGOOD LED_R P15V PSTB PBUSY PDB0 PSLCT PDB1 PANEL_STBY_ON SOS4_PS STBY3.3V IIC_CONT GND SCL1 SDA1 SCL2 SDA2 TXD RXD IIC_INT LED_G PSTB LED_R PDB0 PSLCT PDB1 PBUSY REMOCON STBY5V GND P15V VDATA_DET P5V CTL FB=0.7V FB=0.7V C_SEL B 5 8 7 6 4 D 1 3 F 2 A C 9 E TZTNP01BJTB (42inch) TZTNP01BKTB (37inch) D-BOARD (1/6) (P25) P-BOARD TO DG-BOARD TO (DG3) SC-BOARD TO (SC20) FOR FACTORY USE PROM(FPGA) 15V 2.5V DC-DC CONVERTER 15V 3.3V DC-DC CONVERTER 15V 1.2V DC-DC CONVERTER AVR P1.5V AVR 5V LEVEL CONVERTER LEVEL CONVERTER 1 3 2 TVRN813 TH-37/42PV60E, TH-37/42PX60B D-Board (1 of 6) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 121 14.48. D-Board (2 of 6) Schematic Diagram P3V_SCL02 P3V_SDA02 P3V_SDA1 P3V_SCL1 LVDS_MODE DRVRST SOS8_SS READY REM_IN DATA0 M_SEL2 LED_R LED_G M_SEL2 SOS9_CONF M_SEL1 SOS7_SC2 RXD_PC NCS XRST XRST AR_IIC_INT M_SEL4 PANASONIC_MODE NRST C_SEL M_SEL4 ASDIO TXD_PC PANEL_MAIN_ON DCLK LVDSBIT M_SEL3 SOS4_PS EEP_WR_CTL SOS6_SC1 PANEL_STBY_ON SOS9_CONF STB_SDA01 STB_SDA01 STB_SCL01 P3V_SDA02 P3V_SCL02 EEP_WR_CTL STB_SCL02 STB_SDA02 RD_E+ RD_E- RC_E+ RC_E- RB_E+ RB_E- RA_E+ RA_E- RCLK_E+ RCLK_E- LVDS_DET RE_0+ RE_0- RD_0+ RD_0- RC_0+ RC_0- RB_0+ RB_0- RA_0+ RA_0- VDATA_DET P_ON/OFF AR_IIC_CONT INEXCH STB_SCL02 STB_SDA02 D5_DETO M_SEL3 ALARM RE_E- RE_E+ STB_SCL02 STB_SDA02 STB_SCL01 XRST STBY3.3V_ON M_SEL1 M_SEL1 FVSEL XRST R9184 1k R9178 10k R9107 3.3k R9179 1k R9143 100 R9174 10k R9203 1k R9153 4.7k R9100 10k R9066 100 C9035 6.3V 10u STB5V R9157 10k R9188 5.6k R9220 10k R9074 100 Q9044 B1ABCF000138 C9048 16V 0.1u R9101 10k R9175 10k R9170 39k STB3.3V R9060 100 R9063 100 R9232 0 R9110 100 P3.3V R9098 10k STB3.3V P15V Q9046 B1ABCF000138 Q9052 B1ABCF000138 D9020 MA2J72800L R9159 10k R9111 22k C9045 16V 0.1u D9017 MAZ303300L R9155 5.6k R9144 100 R9164 10k R9154 5.6k Q9055 B1CBHD000002 R9192 0 R9206 1k R9183 1k Q9054 B1ABCF000138 Q9050 B1ABCF000138 R9105 4.7k R9181 1k R9171 39k R9113 10 R9165 10k R9120 100 TP9000 STB3.3V R9186 22 R9134 33k X9000 H2D200500011 C9034 16V 0.1u R9173 10k R9065 100 R9129 68k C9036 6.3V 10u R9222 10k R9168 100 R9102 100 IC9011 C0EBF0000431 1 RESET 2 Cd 3 VOUT 4 VDD 5 GND 6 CE R9185 22 R9149 4.7k R9182 1k R9150 22 R9062 100 R9187 5.6k R9194 0 D9018 MAZ303300L R9199 2.7k Q9053 B1ABCF000138 C9039 6.3V 10u R9145 100 R9237 10k C9037 0.01u 50V R9148 10k C9053 16V 0.1u D5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 R9180 10k C9060 16V 0.1u R9064 100 R9172 39k C9033 16V 0.1u R9140 0 C9052 16V 0.1u R9161 0 P3.3V R9218 10k P3.3V C9049 16V 0.1u P5V R9193 10k Q9049 B1ADCE000011 STB3.3V R9207 1k STB3.3V R9067 100 IC9002 C0ZBZ0001330 1 SCL 2 GND 3 ADD1 4 V+ 5 ADD0 6 SDA C9058 6.3V 10u Q9051 B1ABCF000138 R9158 10k TVRN805-1 IC9003 1 2 3 4 5 - 6 CNVss 7 8 9 RESET 10 XOUT 11 VSS 12 XIN 13 VCC 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 AVSS 76 77 VREF 78 Avcc 79 80 Q9056 B1CBHD000002 R9127 68k R9189 10k R9108 10k C9044 16V 0.1u R9190 10k R9160 0 STB3.3V IC9001 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 Vcc R9142 100 C9046 16V 0.1u Q9058 B1CBHD000002 R9221 10k C9056 16V 0.1u C9051 16V 0.1u R9141 100 R9240 0 R9166 10k R9076 100 R9205 4.7k C9055 16V 0.1u C9047 16V 0.1u R9236 0 Q9057 B1CBHD000002 R9109 10k R9230 0 R9156 10k R9223 4.7k R9215 12k R9061 100 C9050 16V 0.1u D9019 MAZ303300L R9151 22 C9040 16V 0.1u P3.3V R9196 10k R9121 100k C9057 16V 0.1u R9152 4.7k R9828 100k STB3.3V R9096 10k R9217 10k STB3.3V R9169 10k R9167 100 R9225 4.7k R9219 10k R9106 10k R9162 10k D9101 B0JCGD000002 D9103 B0JCGD000002 D9100 B0JCGD000002 D9102 B0JCGD000002 D9105 B0JCGD000002 D9106 B0JCGD000002 STB5V_M D9110 B0JCGD000002 R9177 22k E- LVDS4 GND E+ LVDS4 E- LVDS3 E+ LVDS3 E- LVDS2 GND E+ LVDS2 E- LVDS1 O+ LVDS4 GND GND E+ LVDS0 E+ LVDS1 GND O+ LVDS3 O- LVDS4 E- LVDS0 O- LVDS2 O+ LVDS2 O- LVDS1 O+ LVDS1 O- LVDS3 GND O+ LVDS0 O- LVDS0 O- LVDSCLK O+ LVDSCLK E- LVDSCLK E+ LVDSCLK LVDS_DET STB3.3V ON/OFF INEXCH SIN(FPGA) PLL_RST SOUT (FPGA) SOS7_SC2 FPGA_CE NC BUSY(for Loader) SOS4_PS NC CE(Loader) SOS8_SS SCLK(for Loader) NC SOS6_SC1 MAIN_CONF NC SOS2_15V LED_RED INT_CONF RXD(Loader) READY SOS3_3V LVDS_BIT TXD(Loader) NC LVDS_MODE IIC2_SDA NC SOS5_5V SOS_INH IIC2_SCL NC(ALL_OFF) M_SEL4 EEP_WR_CTL SOS9_CONF NC PANEL_MAIN_ON VDATA_DET NC P_ON/OFF AC_GOOD ALARM M_SEL3 LSI_RST NC M_SEL2 FVSEL D5_DETO REM_IN NC NC NC IIC1_SDA XRST IIC1_SCL DRIVER_RESET IIC_CONT M_SEL1 NC PANASONIC_MODE IIC_INT LED_GRN NC SCLK(FPGA) NC NC NC NC 11 15 14 10 17 13 18 16 12 D-BOARD (2/6) DG-BOARD TO (DG5) STB 3.3V SENSOR TEMPERATURE DIGITAL EEPROM MICOM 3 1 2 22 26 23 27 24 25 21 NC 42inch ONLY 37inch ONLY 42inch:TVRN808 37inch:TVRN807 TZTNP01BJTB (42inch) TZTNP01BKTB (37inch) TH-37/42PV60E, TH-37/42PX60B D-Board (2 of 6) Schematic Diagram TH-37/42PV60E, TH-37/42PX60B D-Board (2 of 6) Schematic Diagram RESET TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 122 14.49. D-Board (3 of 6) Schematic Diagram SOS9_CONF AA_BYTE L8DO_UA19 L8DO_UB16 L8DO_UC21 L8DO_UA18 L8DO_UA11 FVSEL FP_UEH FP_CSL FP_CSH L8DO_UA9 RD_0- RE_0- FPDAT1 FP_SID RE_E+ L8DO_UC12 L8DO_UA10 RB_0+ RCLK_E- FP_UMH L8DO_UA16 FP_CPH DD_CLRD L8DO_UA20 L8_HIN FP_CBK L8DO_UC11 RD_E+ L8DO_UA17 RC_E- L8DO_UB11 RE_0+ FP_UML NRST L8DO_UC18 L8DO_UA21 FP_CEL FP_NUEL RA_E- L8DO_UC15 RE_E- RC_0- RC_0+ RC_E+ L8DO_UB21 FP_USL DD_ODED1 RD_E- RB_E- L8DO_UC10 RD_0+ L8_VIN SFRST FPCLK FP_USH FP_SIU RA_E+ L8DO_UB17 LVDSBIT L8DO_UA14 L8DO_UB18 FPDAT0 FP_CL DD_PCD2 L8DO_UC17 L8DO_UB19 SFVRST LATCH FP_CEL2 DD_PCD1 L8DO_UB20 L8DO_UA15 RA_0- L8DO_UB15 RB_0- RB_E+ L8DO_UB10 RA_0+ FP_CML FP_SCSU FP_CMH LVDS_MODE L8DO_UC16 L8DO_UC19 DD_LED RCLK_E+ FP_CLK PSLCT PBUSY NCS DATA0 ENHMASK ASDIO LVDS_DET PSTB PDB1 PDB0 DRVRST TDI_TO_68 TMS TDO_TO_FPGA L8_B9 L8_B8 L8_B7 L8_B6 L8_B4 L8_B3 L8_B2 L8_B1 L8_B0 L8_G9 L8_G8 L8_G7 L8_G6 L8_G5 L8_G4 L8_G3 L8_G2 L8_G1 L8_G0 L8_R9 L8_R8 L8_R7 L8_R6 L8_R5 L8_R4 L8_R3 L8_R2 L8_R1 L8_R0 DRVMUTE L8_DCK L8DO_UC20 DD_ODED2 D5_DETO TCK AA_XCE AA_XOE AA_XWE L8_B5 INEXCH P3V_SCL02 P3V_SDA02 DCLK R9507 0 IC9500 L12 DPCLK5 IC9500 R4 LVDS69p IC9500 D10 LVDS27p IC9500 C15 LVDS36p IC9500 N1 LVDS4p IC9500 R7 LVDS65n R9544 10k IC9500 D6 LVDS19n IC9500 H6 VCCA_PLL1 IC9500 C14 LVDS35n IC9500 K7 VCCINT IC9500 D8 LVDS24p IC9500 L16 LVDS44n IC9500 H9 VCCINT IC9500 M15 LVDS46n IC9500 M9 IO IC9500 B1 LVDS13n IC9500 F16 LVDS42p IC9500 R10 LVDS59p IC9500 P16 VCCIO3 IC9500 P7 LVDS64p IC9500 A9 LVDS26n IC9500 R9 LVDS61p IC9500 B12 LVDS31n IC9500 P12 LVDS55p C9526 6.3V 10u IC9500 A5 GND IC9500 D9 LVDS25n IC9500 R8 LVDS63p IC9500 J3 MSEL0 IC9500 A11 LVDS28n IC9500 N16 LVDS49p IC9500 T6 LVDS65p IC9500 P11 LVDS57n IC9500 E2 LVDS10p IC9500 R3 LVDS70p P3.3V IC9500 G14 LVDS43n P3.3V IC9500 A16 GND C9530 16V 0.1u IC9500 E10 VREF1B2 IC9500 G13 LVDS43p IC9500 F15 LVDS40n IC9500 L6 GND IC9500 D4 LVDS14p(INIT_DONE) IC9500 A6 LVDS21p IC9500 A10 VCCINT IC9500 J16 PLL2_OUTp IC9500 M5 DPCLK7 IC9500 N6 LVDS67n R9525 10k C9525 16V 0.1u IC9500 F12 DPCLK4 IC9500 G4 nCSO IC9500 G1 LVDSCLK1p IC9500 J12 GNDG_PLL2 IC9500 J14 TCK IC9500 B10 LVDS28p IC9500 F10 VCCIO2 IC9500 B6 LVDS20n IC9500 N14 LVDS48n IC9500 H2 DATA0 IC9500 H15 TDO IC9500 M16 LVDS46p IC9500 K3 ASDO IC9500 E5 DPCLK2 IC9500 F6 GND IC9500 C9 LVDS25p IC9500 H4 nCEO IC9500 K6 GND IC9500 C12 LVDS31p IC9500 J13 nSTATUS IC9500 T12 GND IC9500 D12 LVDS30n IC9500 L15 LVDS45p IC9500 T8 LVDS63n P1.5V IC9500 A3 VCCIO2 IC9500 B5 LVDS18p IC9500 N11 LVDS56p IC9500 F8 GND C9524 16V 0.1u C9531 6.3V 10u IC9500 B2 LVDS15p IC9500 F13 LVDS41p IC9500 T16 GND IC9500 P15 LVDS50n IC9500 A15 LVDS34p IC9500 M12 DPCLK6 IC9500 A14 VCCIO2 IC9500 H1 LVDSCLK1n IC9500 N4 LVDS0n IC9500 M14 LVDS47n IC9500 B7 LVDS21n IC9500 C8 LVDS24n IC9500 T15 LVDS52p IC9500 D11 LVDS30p IC9500 N9 LVDS60n C9529 16V 0.1u R9529 10k IC9500 L14 LVDS45n C9528 16V 0.1u IC9500 H5 VREF1B1 IC9500 G11 GND IC9500 C3 LVDS14n IC9500 T2 LVDS71n IC9500 M2 LVDS4n IC9500 F7 VCCIO2 IC9500 P8 LVDS62n IC9500 E7 IO IC9500 C13 LVDS33p IC9500 J10 VCCINT IC9500 L13 LVDS47p IC9500 T7 VCCINT IC9500 B11 LVDS29p C9522 16V 0.1u IC9500 T3 VCCIO4 IC9500 A7 VCCINT IC9500 K5 VREF2B1 IC9500 B16 LVDS36n IC9500 R14 LVDS53p IC9500 E11 VREF0B2 R9550 10k IC9500 H12 VREF1B3 IC9500 K16 LVDS44p IC9500 D5 LVDS19p IC9500 E6 VREF2B2 IC9500 E12 DPCLK3 C9523 16V 0.1u R9862 10k IC9500 L11 GND R9552 10k IC9500 F4 IO IC9500 C1 VCCIO1 IC9500 G12 VREF0B3 IC9500 T1 GND IC9500 M8 IO IC9500 L7 VCCIO4 IC9500 E16 LVDS40p IC9500 R15 LVDS52n IC9500 L1 LVDS6n IC9500 L10 VCCIO4 IC9500 G2 LVDS7p IC9500 E4 LVDS12n IC9500 P1 VCCIO1 IC9500 K11 VCCIO3 IC9500 L2 LVDS5p P3.3V IC9500 G3 LVDS9n IC9500 D1 LVDS10n IC9500 K9 VCCINT C9521 16V 0.1u IC9500 F3 LVDS9p IC9500 J6 GNDA_PLL1 IC9500 R11 LVDS57p IC9500 M10 VREF1B4 IC9500 N7 LVDS64n C9519 16V 0.1u IC9500 P2 LVDS1n R9506 22 IC9500 B8 LVDS23p L9501 J0JHC0000078 IC9500 C6 LVDS20p IC9500 K10 GND IC9500 P9 LVDS60p IC9500 A4 LVDS17n IC9500 R16 LVDS50p IC9500 C16 VCCIO3 IC9500 E8 IO IC9500 E14 LVDS38p IC9500 B15 LVDS34n IC9500 D3 LVDS12p IC9500 C5 LVDS18n P3.3V IC9500 H11 VCCA_PLL2 C9518 16V 0.1u IC9500 M3 LVDS3n R9545 300k IC9500 D16 LVDS39p IC9500 P3 LVDS0p R9548 10k IC9500 N10 LVDS58p IC9500 N2 LVDS3p IC9500 M7 IO R9863 10k IC9500 H13 IO IC9500 D15 LVDS38n IC9500 M1 LVDS5n IC9500 D14 LVDS37p IC9500 P4 LVDS70n IC9500 L9 GND P3.3V IC9500 A13 LVDS32p IC9500 R13 LVDS54n IC9500 K14 IO R9535 47 IC9500 J15 TMS IC9500 R1 LVDS1p IC9500 D13 LVDS35p IC9500 E3 LVDS11p IC9500 P5 LVDS68n IC9500 G16 LVDSCLK2p L9502 J0JHC0000078 IC9500 J9 GND P3.3V IC9500 T13 LVDS54p IC9500 H10 GND IC9500 L3 IO IC9500 F14 LVDS41n IC9500 J8 VCCINT IC9500 M4 LVDS2p IC9500 K12 VREF2B3 IC9500 H7 VCCINT IC9500 F2 LVDS8p IC9500 J11 GNDA_PLL2 IC9500 P10 LVDS58n R9523 10k C9520 16V 0.1u IC9500 L5 DPCLK0 IC9500 L8 GND R9536 47 IC9500 P14 LVDS51p IC9500 P6 LVDS66p IC9500 N8 LVDS62p IC9500 J1 PLL1_OUTp IC9500 B3 LVDS16p IC9500 T4 LVDS69n IC9500 E13 LVDS37n IC9500 G8 VCCINT IC9500 R6 LVDS66n IC9500 A12 GND R9531 47 IC9500 C7 LVDS22p IC9500 B9 LVDS26p IC9500 J7 GND IC9500 G10 VCCINT IC9500 F9 GND IC9500 D7 LVDS22n IC9500 T5 GND R9861 10k IC9500 H3 nCONFIG IC9500 B13 LVDS32n IC9500 F1 LVDS7n C9517 16V 0.1u R9543 10k IC9500 N13 LVDS51n IC9500 A2 LVDS15n IC9500 H14 TDI IC9500 G5 VREF0B1 IC9500 T9 LVDS61n R9534 EXB38V470JV IC9500 F5 DPCLK1 IC9500 G7 GND IC9500 G9 GND IC9500 G6 VCCIO1 IC9500 G15 LVDS42n IC9500 T14 VCCIO4 IC9500 H16 LVDSCLK2n R9533 47 IC9500 K15 PLL2_OUTn IC9500 M11 VREF0B4 IC9500 A8 LVDS23n IC9500 J2 MSEL1 IC9500 D2 LVDS11n R9956 10k IC9500 R2 LVDS71p IC9500 C11 LVDS29n C9516 16V 0.1u IC9500 K8 GND IC9500 N5 LVDS67p IC9500 C10 LVDS27n IC9500 E9 IO IC9500 K4 DCLK IC9500 E1 LVDS8n IC9500 N12 LVDS56n IC9500 E15 LVDS39n IC9500 B14 LVDS33n IC9500 M13 LVDS48p IC9500 K1 LVDS6p C9527 16V 0.1u P3.3V IC9500 T10 VCCINT IC9500 K13 CONF_DONE IC9500 J4 nCE R9530 10k IC9500 N15 LVDS49n IC9500 N3 LVDS2n IC9500 C4 LVDS16n IC9500 R5 LVDS68p R9532 47 IC9500 B4 LVDS17p IC9500 F11 GND IC9500 A1 GND IC9500 K2 PLL1_OUTn R9549 10k IC9500 J5 GNDG_PLL1 IC9500 H8 GND IC9500 M6 VREF2B4 IC9500 L4 IO IC9500 C2 LVDS13p(CLKUSR) IC9500 P13 LVDS53n R9540 10k R9538 10k IC9500 R12 LVDS55n R9537 10k IC9500 T11 LVDS59n P3.3V R9539 10k R9526 0 R9070 47 D5_DETO /ROMADRS[19] DMHL DSLR M_GOUT9 M_GOUT5 M_BOUT0 NRST CLK M_ROUT9 FPCLK PCD2 DSLL DRVRST M_ROUT7 CEL /ROMADRS[03] ODED1 FPDATA0 M_BOUT1 /ROMADRS[02] M_GOUT4 /ROMADRS[11] DRVMUTE /ROMADRS[07] /ROMADRS[04] CBK FPDATA1 OSDCK CLRD /ROMADRS[18] /ROM_BYTE M_GOUT3 /ROMADRS[10] SFRST SCSU DSHL OSDG /ROMADRS[08] LATCH PCU2 /ROMDATA[06] M_ROUT3 CPH /ROMADRS[20] CEL2 CBK2 DMLR M_ROUT6 /ROMADRS[17] SDA SID2 M_GOUT1 CLK_INPUT OSD CL SCL DMHR /ROMDATA[07] OTHER CSH NUEL RESET USL SIU ODEU Flash_Control CLRU SIU2 M_ROUT2 LSI58 CLKM_IN M_ROUT1 M_ROUT5 LVDSmode SFVRST /ROMDATA[01] /ROMADRS[16] /ROMDATA[05] LVDS_INPUT /ROMADRS[13] /ROMDATA[00] /ROMADRS[05] M_GOUT6 DATA_DRIVER /ROMDATA[04] /ROM_OE PICTURE_OUTPUT /ROMDATA[03] /ROM_CE NC IIC /ROMDATA[02] /ROMADRS[00] CONTROL CML SS_PULSE UML CMH DMLL UMH SC_PULSE M_ROUT4 Nosync GND LVDSbit M_ROUT8 M_ROUT0 M_GOUT2 LEU FVSEL PCU M_BOUT3 M_BOUT4 VCCINT M_GOUT8 VCCI OSDHD /ROMADRS[01] M_BOUT5 OSDVD /ROMADRS[09] M_BOUT6 OSDB M_GOUT0 M_DCKO /ROMADRS[14] M_HDO M_BOUT7 OSDR /ROM_WE M_VDO M_BOUT8 M_GOUT7 M_BOUT9 USH SID UEL LED CSL PCD1 /ROMADRS[06] FPGA M_BOUT2 /ROMADRS[12] MASK INEXCH p_db1 p_db0 p_stb p_slct p_busy PRCKI FREE-RUN CLK PRCK_OUT CLKM_OUT TEST PIN LVDS_DET /ROMADRS[-1] /ROMADRS[15] ODED2 WHITE SIGNAL 21 22 20 19 23 24 25 26 27 DATA POWER FEEDBACK (NO USE) D-BOARD (3/6) IC9500 C1ZBZ0002599 DISCHARGE CONTROL FLASH CONTROL SYNC PROCESSING LVDS WB ADJ FPGA CONTROL 25 23 22 27 21 24 26 32 31 37 38 36 33 34 35 JTAG MODEL[1] MODEL[0] MODEL SELECTION 42inch 42inch 37inch ONLY 37inch TZTNP01BKTB (37inch) TZTNP01BJTB (42inch) ONLY ONLY ONLY TH-37/42PV60E, TH-37/42PX60B D-Board (3 of 6) Schematic Diagram TH-37/42PV60E, TH-37/42PX60B D-Board (3 of 6) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 123 14.50. D-Board (4 of 6) Schematic Diagram DD_LED FP_UMH USH UML DD_ODED1 UMH USL DD_CLRD DD_PCD2 NUEL FP_UEH FP_NUEL D-ODED1 FP_USH FP_USL FP_UML DD_PCD1 UEH L8DO_UB20 L8DO_UB18 L8DO_UA18 L8DO_UC17 L8DO_UC19 L8DO_UB15 L8DO_UC20 L8DO_UB21 L8DO_UC11 L8DO_UC12 LBDO_UA12 L8DO_UB10 LBDO_UA13 L8DO_UA11 LBDO_UB12 L8DO_UA16 LBDO_UB14 L8DO_UB16 L8DO_UA21 AA_XCE L8DO_UC16 L8DO_UB17 LBDO_UC13 LBDO_UC14 L8DO_UA10 L8DO_UB11 L8DO_UA14 L8DO_UA19 LBDO_UB13 L8DO_UA20 L8DO_UA15 L8DO_UC18 L8DO_UB19 L8DO_UC21 L8DO_UC15 L8DO_UC10 L8DO_UA9 AA_XWE AA_XOE AA_BYTE DD_ODED2 D-ODED2 D-CLRD D-LED D-PCD2 D-PCD1 L8_PCK L8_OCK L8DO_UA17 0V R9394 0 R9528 EXB2HV272JV C9505 16V 0.1u P3.3V P5V R9511 47 C9511 6.3V 10u C9509 50V 20p R9355 4.7k C9512 16V 0.1u R9527 EXB2HV272JV C9508 16V 0.1u C0JBAZ000856 IC9503 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R9512 47 C9502 16V 0.1u P3.3V C9504 16V 0.1u P5V C9503 16V 0.1u R9514 10k IC9303 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 C9506 16V 0.1u R9518 560 C1ZBZ0003185 IC9200 1 X1 2 VDD 3 CLK2 4 S1 5 S0 6 VDD 7 CLK7 8 GND 9 CLK5 10 VDD 11 GND 12 CLK6 13 VDD 14 CLK3 15 GND 16 VDD 17 CLK4 18 GND 19 CLK9 20 VDD 21 CLK8 22 GND 23 VDD 24 CLK1 25 S2 26 STBY 27 GND 28 X2 R9516 10k C0JBAZ000856 IC9504 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R9513 47 P3.3V R9503 47 X9200 H0J200500038 C9514 16V 1u C9510 50V 15p C9515 16V 1u R9356 4.7k L9500 G1C150KA0038 IC9502 C0EBE0000066 1 NC 2 SUB 3 GND 5 Vcc 4 Vout C9501 16V 0.1u R9501 10k C9469 16V 0.1u C9500 16V 0.1u CPG PD1M_ROM (SS20) (84/36) (63) (SS50/60/75) (20) (OFF) (39.5) (31.6) (36.6) 36 29 31 32 28 33 35 34 30 D-BOARD (4/6) TH-37/42PV60E, TH-37/42PX60B D-Board (4 of 6) Schematic Diagram TH-37/42PV60E, TH-37/42PX60B D-Board (4 of 6) Schematic Diagram LEVEL CONVERTER LEVEL CONVERTER 16M FLASH MEMORY RESET CLOCK GENE. 32 33 35 36 38 34 37 31 43 44 46 45 42 41 42inch:TVRN819 37inch:TVRN818 TZTNP01BJTB (42inch) TZTNP01BKTB (37inch) TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 124 14.51. D-Board (5 of 6) Schematic Diagram + G G G G + TERM SIDE + G G G G G G G G G G TERM SIDE L8R_MONOUT1 L8_G0 L8_G1 L8_G2 L8_G3 L8_G4 L8_G5 L8_G6 L8_G7 L8_G8 L8_G9 L8_B0 L8_B1 L8_B2 L8_B3 L8_B4 L8_B5 L8_B6 L8_B7 L8_B8 L8_B9 L8_R0 L8_R1 L8_R2 L8_R3 L8_R4 L8_R5 L8_R6 L8_R7 L8_R8 L8_R9 L8DO_UA14 L8DO_UA19 L8DO_UA21 L8DO_UA11 L8DO_UA20 L8DO_UA18 LBDO_UA13 LBDO_UA12 L8DO_UA15 L8DO_UA16 L8DO_UA17 L8R_DA03 L8R_DA11 L8DO_UA9 L8R_DA12 L8R_DA06 L8R_DA02 L8R_DA13 L8R_DA07 L8R_DA04 L8R_DA08 L8R_DA09 L8R_DA00 L8R_DA01 L8DO_UA10 L8R_DA05 L8R_DA10 L8DO_UB11 LBDO_UB13 LBDO_UB14 L8DO_UB20 L8DO_UB17 LBDO_UB12 L8DO_UB21 L8DO_UB15 L8DO_UB19 L8DO_UB18 L8DO_UB16 L8R_DB02 L8R_DB12 L8R_DB04 L8R_DB07 AA_XCE L8R_DB08 L8R_DB01 L8DO_UC10 L8R_DB13 L8R_DB09 L8R_DB05 L8R_DB10 L8R_DB00 L8R_DB14 L8R_DB03 L8R_DB06 L8R_DB11 LBDO_UC13 L8R_DC01 L8DO_UC15 L8DO_UC18 L8DO_UC16 L8DO_UC21 L8R_DC05 L8R_DC00 L8DO_UC11 L8R_DC09 LBDO_UC14 L8DO_UC17 L8R_DC06 L8R_DC10 L8DO_UC19 L8DO_UC20 L8DO_UC12 L8R_DC11 L8R_DC13 L8R_DC03 L8R_DC07 L8R_DC14 L8R_DC12 L8R_DC02 L8R_DC04 L8R_DC08 L8DO_UB10 L8R_MONOUT1 FPDAT1 FPCLK FPDAT0 SFRST SFVRST LATCH L8R_DRVCLKD0 L8R_DRVCLKD3 L8R_DRVCLKD2 L8R_DRVCLKD1 L8R_FULL0 L8R_DA03 D42_DOUTDA9 D42_DOUTDB9 L8R_DB10 L8R_DC00 D42_DOUTDC5 L8R_DC02 CLRD L8R_DA01 L8R_DB07 L8R_DA04 L8R_DA13 ODED1 L8R_DRVCLKD1 L8R_DA11 D42_DOUTDC13 L8R_DC07 D42_DOUTDC4 L8R_DC03 L8R_DC12 L8R_DC10 L8R_DA12 L8R_DRVCLKD2 D42_CLKD3 L8R_DA00 L8R_DC08 L8R_DC11 D42_DOUTDB12 L8R_DB01 D-CLRD D42_DOUTDB10 D42_DOUTDA11 L8R_DA02 L8R_DA06 L8R_DB00 L8R_DC01 L8R_DA07 D42_DOUTDC12 L8R_DA10 D42_DOUTDB8 D-PCD1 D-PCD2 L8R_DC05 D42_DOUTDC10 L8R_DB09 L8R_DB08 D42_DOUTDC11 L8R_DC09 L8R_DB02 D42_DOUTDA8 L8R_DB03 L8R_DB11 L8R_DB06 D42_DOUTDA13 L8R_DB12 L8R_DB04 D42_DOUTDB7 D42_DOUTDA12 D42_DOUTDA10 D42_CLKD2 D-ODED1 L8R_DB13 L8R_DA05 L8R_DA08 L8R_DC04 D-LED D42_DOUTDB13 L8R_DC06 D-ODED2 L8R_DRVCLKD3 D42_DOUTDB4 L8R_DC13 D42_DOUTDA7 D-CLRD D42_DOUTDB11 D42_DOUTDA4 LED D42_DOUTDC9 D-LED L8R_DA09 D42_DOUTDC8 L8R_DB05 PCD1 5V_SENSE TCK TMS TDI_TO_68 TDO_TO_FPGA XRST XRST 5V_DET4 MODEL1 MODEL1 M_SEL1 D42_DOUTDC14 D42_DOUTDB14 D42_DOUTDA14 D42_DOUTDC15 D42_DOUTDB15 D42_DOUTDA15 LED PCD1 CLRD ODED1 D42_CLKD3 D42_CLKD2 D42_DOUTDC12 D42_DOUTDB12 D42_DOUTDA12 D42_DOUTDC13 D42_DOUTDB13 D42_DOUTDA13 D42_DOUTDC10 D42_DOUTDB10 D42_DOUTDA10 D42_DOUTDC11 D42_DOUTDB11 D42_DOUTDA11 D42_DOUTDC8 D42_DOUTDB8 D42_DOUTDA8 D42_DOUTDC9 D42_DOUTDB9 D42_DOUTDA9 D42_DOUTDC4 D42_DOUTDB4 D42_DOUTDA4 D42_DOUTDC5 D42_DOUTDB5 D42_DOUTDA5 D42_DOUTDC2 D42_DOUTDB2 D42_DOUTDA2 D42_DOUTDC3 D42_DOUTDB3 D42_DOUTDA3 D42_DOUTDC0 D42_DOUTDB0 D42_DOUTDA0 D42_DOUTDC1 D42_DOUTDB1 D42_DOUTDA1 ODED2 CLRD PCD2 LED D42_CLKD1 C_SOS8_SS C_NUEL C_UMH C_UML C_USH C_USL C_UEH 5V_DET3 D42_DOUTDC6 D42_DOUTDB6 D42_DOUTDA6 D42_DOUTDC7 D42_DOUTDB5 D42_DOUTDA5 D42_DOUTDC2 D42_DOUTDB2 D42_DOUTDA2 D42_DOUTDC3 D42_DOUTDA3 D42_DOUTDC0 D42_DOUTDB0 D42_DOUTDA0 D42_DOUTDC1 D42_DOUTDB1 D42_DOUTDA1 D42_DOUTDB3 ODED2 CLRD PCD2 LED D42_CLKD1 D42_CLKD0 D42_DOUTDC6 D42_DOUTDB6 D42_DOUTDA6 D42_DOUTDC7 D42_DOUTDB7 D42_DOUTDA7 L8R_DQ9 L8R_TEST0 L8R_OCKOUT L8R_MONOUT0 L8R_DQ23 L8R_A6 L8R_MONOUT2 L8R_A5 L8R_A4 L8R_MONOUT2 L8R_DQ13 L8R_DQ24 0V L8R_BA0 L8R_TCPOUT L8R_DQS2 L8R_MUTE L8R_MONOUT0 L8R_BA1 L8R_DQ4 L8R_OCKOUT L8R_TCKSEL2 L8R_DQ2 L8R_RAS L8R_DQ18 L8R_A1 L8R_A10 L8R_A0 L8R_DQ31 L8R_TCKSEL1 L8R_DQ8 L8R_A3 L8R_DQ14 L8R_DQS3 L8R_WE L8R_DQ3 L8R_DQ10 L8R_DQ26 L8R_DQ1 L8R_SDSEL L8R_SDCKE L8R_DQ21 L8R_TCPOUT L8R_SDCLKO L8R_DQ12 L8R_DQ28 L8R_DQ30 L8R_DQ6 L8R_A9 L8R_DQS1 L8R_TCKSEL0 L8R_DQ22 L8R_TIIC L8R_A7 L8R_DQ17 L8R_NSDCLKO L8R_DQ5 L8R_DQ15 L8R_SDIV1 L8R_DQ11 L8R_FULL1 L8R_DQ25 L8R_DQ29 L8R_A8 L8_OCK L8R_DQ27 L8R_A11 L8R_SDIV0 L8R_TEST1 L8_PCK L8R_CS L8R_DQ20 L8R_DQS0 L8_DCK L8R_DQ19 L8R_TILD L8R_DQ16 L8R_SDSEL L8R_A2 L8R_K_TEST L8R_TCKSEL2 L8R_CAS L8R_DQ0 L8R_DQ7 L8R_TCKSEL1 L8R_TCKSEL0 L8R_TEST0 L8R_TEST1 5V_DET4 D42_DOUTDC15 D42_DOUTDA14 D42_DOUTDB15 D42_DOUTDB14 D42_DOUTDC14 D42_DOUTDA15 L8R_DC14 L8R_DB14 L8DO_UA10 L8DO_UB10 L8DO_UC10 L8DO_UA9 L8R_FULL1 L8R_MUTE L8R_K_TEST L8R_TIIC L8R_TILD ENHMASK L8_VIN L8_HIN L8R_SDIV0 L8R_SDIV1 5V_SENSE DRVRST C_UML UML UMH C_USH C_UEH USL C_UMH UEH C_NUEL NUEL C_USL USH C_SOS8_SS SOS8_SS 5V_DET3 D42_CLKD0 5V_SENSE L8R_DRVCLKD0 IC9900 N20 DOUTDC09 C9918 0.1u 16V IC9900 W8 A2 IC9900 AB22 VSS IC9900 AA5 CKE IC9900 Y11 DQ24 IC9900 Y21 VDD33 IC9900 P4 DQ18 IC9900 F21 DRVCLKU2 L8R3.3V IC9900 C21 DOUTUA02 C9965 56u 4V IC9900 L2 ID0 TP9350 C9960 6.3V 10u IC9900 D9 TCKSEL1 FL9901 F1J1E1040022 1 2 3 IC9900 V18 VSS IC9900 T2 DQ20 R9382 10k IC9900 U1 DQS2 C9917 0.1u 16V IC9900 AB9 VDD25 D9301 MA3X152K0L IC9900 AA4 VREF IC9900 V22 DOUTDA03 IC9900 F3 GI9 R9317 390 IC9900 A7 K_TEST IC9900 Y1 DQ0 IC9900 C6 RI4 IC9900 AB14 DQ8 IC9900 J22 DOUTDA13 IC9900 C8 TEST0 IC9900 E17 VSS TP9365 IC9900 L14 VSS IC9900 E3 GI5 IC9900 M11 VSS TP9307 C9904 0.1u 16V IC9900 K11 VSS IC9900 V2 DQ3 IC9900 M13 VSS R9918 0 IC9900 L4 TIIC IC9900 P9 VSS TP9370 IC9900 C15 DOUTUB09 FL9900 F1J1E1040022 1 2 3 R9555 0 IC9900 AA22 VSS IC9900 H20 DRVCLKD1 IC9900 L10 VSS IC9900 U20 DOUTDB03 IC9900 C19 DOUTUB04 R9349 EXB38V820JV IC9900 G5 VDD12 IC9900 AA9 A8 IC9900 N14 VSS C9925 0.1u 16V IC9900 AA17 SDIV0 IC9900 V6 AVSS_3 IC9900 J11 VSS L8R3.3V IC9900 AA2 VSS IC9900 V19 VDD33 IC9900 F18 VSS TP9349 IC9900 AB3 NCK IC9900 L12 VSS IC9900 N9 VSS IC9900 Y5 NCAS IC9900 Y13 DQ14 IC9900 H5 VDD12 P5V TP9336 R9352 EXB38V820JV IC9900 W17 VSS IC9900 Y19 VSS R9350 22 IC9900 H18 VDD33 IC9900 L19 DOUTDB12 TP9308 TP9358 IC9900 B17 DOUTUA07 TP9310 IC9900 G1 BI6 IC9900 K21 DOUTDC13 IC9900 D15 DOUTUB08 R9919 10k IC9900 D18 DOUTUC05 IC9900 D7 RI3 IC9900 W3 VDD25 IC9900 A5 RI2 C9958 0.1u 16V TP9305 IC9900 R18 VDD33 IC9900 W9 A10 L8R1.2V IC9900 B3 GI1 TP9352 IC9900 P5 VDD33 IC9900 F19 DOUTUA01 IC9900 AB2 VSS IC9900 C4 GI3 IC9900 P13 VSS IC9900 Y3 VSS R9370 10k TP9371 IC9900 A8 TCKSEL0 IC9900 T4 DQ7 TP9324 IC9900 M22 DOUTDC10 IC9900 V14 VDD12 IC9900 R19 DOUTDA05 IC9900 J18 VDD33 C9910 0.1u 16V IC9900 A20 DOUTUC04 IC9900 D4 VSS IC9900 AA8 A5 IC9900 C7 RI0 C9923 0.1u 16V IC9900 W18 VSS IC9900 V12 VDD25 IC9900 AB13 DQ10 TP9351 IC9900 E2 GI8 TP9322 IC9900 F20 DOUTUB00 P3.3V IC9900 J4 ENHMASK IC9900 B12 DOUTUC14 IC9900 G20 DRVCLKU1 IC9900 N3 TDI C9954 56u 4V TP9380 IC9900 C20 VSS IC9900 C10 SFVRST C9913 0.1u 16V IC9900 C11 DOUTUB15 TP9331 IC9900 W21 VDD33 IC9900 V3 DQ4 IC9900 T18 VDD33 TP9362 IC9900 R5 VDD25 L8R3.3V IC9900 U19 DOUTDA02 IC9900 A13 DOUTUC13 IC9900 E15 VDD12 IC9900 G3 BI4 R9395 22 IC9900 N12 VSS L8R3.3V IC9900 R22 DOUTDC07 IC9900 E4 VDD12 C9955 0.1u 16V C9909 0.1u 16V TP9384 IC9900 P10 VSS IC9900 E18 VSS TP9318 TP9317 R9917 0 IC9900 E22 DRVCLKU3 R9357 EXB2HV820JV IC9900 T19 DOUTDC04 IC9900 M21 DOUTDB10 IC9900 C16 DOUTUC08 IC9900 W1 DQ2 IC9900 B9 FPCLK IC9900 Y18 VSS IC9900 D19 VSS IC9900 C14 DOUTUC11 IC9900 N10 VSS IC9900 N19 DOUTDB09 IC9900 B20 DOUTUA03 IC9900 W12 AVDD25_4 IC9900 U5 VDD25 IC9900 W6 NWE D32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 IC9900 Y16 SDSEL IC9900 E12 VDD33 TP9341 TP9313 IC9900 M19 DOUTDC11 IC9900 AB21 VSS IC9900 K13 VSS IC9900 AB17 VSS TP9321 TP9309 IC9900 E11 VDD33 IC9900 V16 VDD33 L8R2.5V IC9900 H3 BI8 IC9900 MN84521-A A1 VSS C9919 0.1u 16V IC9900 D3 VDD12 R9353 EXB2HV820JV IC9900 A16 DOUTUA09 IC9900 N21 DOUTDA08 IC9900 F4 GI7 IC9900 A3 GI0 C9957 0.1u 16V IC9900 N13 VSS IC9900 L21 DOUTDA11 IC9900 H19 DRVCLKU0 TP9304 TP9314 IC9900 B14 DOUTUB11 TP9334 C9953 56u 4V C9916 0.1u 16V IC9900 P14 VSS IC9900 L11 VSS IC9900 A15 DOUTUA10 IC9900 K18 VDD33 R9359 EXB2HV820JV IC9900 H22 DOUTDA14 R9361 22 IC9900 P3 DQ19 IC9900 M10 VSS TP9332 TP9335 TP9344 R9369 4.7k TP9339 TP9343 C9922 0.1u 16V L8R2.5V C9961 6.3V 10u IC9900 A22 VSS IC9900 W22 DOUTDC02 TP9338 C9959 0.1u 16V IC9900 W11 DQ25 TP9330 J0HABH000013 FL9904 L8R3.3V IC9900 A4 RI6 IC9900 A9 FPDAT1 IC9900 R20 DOUTDB06 IC9900 P11 VSS L8R1.2V IC9900 Y7 A0 IC9900 V17 VDD33 IC9900 V5 VSS R9379 0 C9901 0.1u 16V TP9348 IC9900 T3 AVDD25_1 C9915 0.1u 16V IC9900 AA18 DOUTDB00 C9907 0.1u 16V IC9900 W16 SDIV1 IC9900 V13 VDD12 C9921 0.1u 16V IC9900 U3 DQ6 IC9900 R21 DOUTDA06 IC9900 J9 VSS IC9900 V7 VDD25 IC9900 B5 RI5 TP9355 IC9900 A10 SFLATCH IC9900 B19 DOUTUA04 P5V IC9900 M14 VSS J0HABH000013 FL9903 IC9900 H21 DOUTDB15 IC9900 F6 VSS IC9900 C22 DOUTUB01 IC9900 B21 VSS IC9900 AA15 AVSS1 IC9900 V8 VDD25 C9468 50V 0.01u IC9900 AB15 AVDD33_1 IC9900 M5 VDD33 IC9900 U4 DQ5 TP9329 IC9900 K12 VSS FL9301 F1J1E1040022 1 2 3 IC9900 K22 DOUTDA12 IC9900 J14 VSS IC9900 B10 SFRST IC9900 E1 BI0 IC9900 K20 DOUTDB13 IC9900 N5 VDD33 FL9300 F1J1E1040022 1 2 3 IC9900 E21 DOUTUA00 IC9900 J1 MONOUT2 IC9900 V20 DOUTDB02 IC9900 AB16 AVDD33_2 IC9900 AB11 DQ28 IC9900 C18 DOUTUB05 TP9325 IC9900 P21 DOUTDC08 IC9900 E20 DOUTUC02 IC9900 G22 DRVCLKD0 R9354 EXB2HV820JV IC9900 P18 VDD33 TP9327 C9963 6.3V 10u IC9900 A14 DOUTUA11 C9962 6.3V 10u IC9900 W13 DQ15 IC9900 C13 DOUTUB12 IC9900 P20 DOUTDA07 IC9900 V11 VDD25 IC9900 Y8 A1 IC9900 M4 PCK IC9900 M20 DOUTDA10 C9900 0.1u 16V IC9900 E8 VDD12 TP9346 TP9337 IC9900 D11 DOUTUA15 TP9359 TP9342 IC9900 B16 DOUTUC09 IC9900 J19 DOUTDA15 R9371 100k L8R2.5V IC9900 Y2 VDD25 IC9900 Y12 AVSS_4 IC9900 W2 DQ1 IC9900 C12 DOUTUB13 IC9900 J10 VSS IC9900 B13 DOUTUA12 IC9900 F1 BI3 TP9357 IC9900 C3 VSS L8R3.3V IC9900 U22 DOUTDC05 IC9900 J13 VSS IC9900 H1 MUTE IC9900 AB19 DOUTDA00 IC9900 D16 DOUTUC07 IC9900 T20 DOUTDA04 IC9900 W14 DQ13 IC9900 A12 DOUTUB14 C9906 0.1u 16V IC9900 D2 GI4 IC9900 Y17 VSS IC9900 G21 DRVCLKD2 TP9303 IC9900 L22 DOUTDB11 IC9900 W7 NCS IC9900 AA14 DQ9 IC9900 K14 VSS IC9900 D14 DOUTUC10 IC9900 K3 SDA R9922 0 IC9900 W19 VSS IC9900 AB6 A4 TP9345 TP9369 IC9900 L3 ID1 IC9900 Y10 DQ26 TP9347 IC9900 G18 VSS IC9900 T21 DOUTDB05 IC9900 J12 VSS IC9900 P12 VSS C9908 0.1u 16V IC9900 W5 AVDD25_3 IC9900 L5 VDD33 C9914 0.1u 16V IC9900 B4 RI8 IC9900 U21 DOUTDB04 IC9900 K9 VSS IC9900 C5 RI9 IC9900 C1 VDD12 TP9316 IC9900 J21 DOUTDB14 P2.5V IC9900 D10 FPDAT0 IC9900 M12 VSS IC9900 P22 DOUTDB08 IC9900 W20 VDD33 IC9900 W15 TCPOUT IC9900 B8 TCKSEL2 IC9900 L18 VDD12 IC9900 A17 DOUTUA08 IC9900 D17 DOUTUC06 TP9312 IC9900 N4 TMS IC9900 A11 DOUTUA14 IC9900 AA3 CK IC9900 Y4 AVDD25_2 C9920 0.1u 16V TP9372 IC9900 H4 BI7 IC9900 K4 HDI TP9360 R9936 1k TP9356 IC9900 C2 VDD12 IC9900 E10 VDD33 IC9900 Y15 VSS IC9900 E14 VDD33 IC9900 K1 DCK TP9363 FL9902 F1J1E1040022 1 2 3 TP9311 IC9900 Y20 VSS TP9319 IC9900 E13 VDD33 L8R3.3V IC9900 F5 VDD12 IC9900 E9 VDD33 IC9900 B15 DOUTUB10 IC9900 AB5 BA1 IC9900 AB7 A6 R9351 22 IC9900 B11 DOUTUC15 IC9900 J20 DOUTDC15 IC9900 N22 DOUTDA09 TP9382 R9360 EXB38V820JV IC9900 AA10 DQ31 TP9364 C9905 0.1u 16V IC9900 B2 VSS TP9333 IC9900 Y14 DQ12 IC9900 T22 DOUTDC06 R9380 56 IC9900 T1 DQ21 IC9900 AA7 A9 TP9377 TP9323 IC9900 J3 MONOUT0 TP9353 R9929 0 IC9900 E6 VSS IC9900 Y22 VDD33 TP9361 IC9900 U2 AVSS_1 P3.3V IC9900 AB8 A7 TP9306 IC9900 V21 DOUTDC03 IC9900 AA21 VSS IC9900 F22 DRVCLKD3 IC9900 D8 OCK IC9900 G2 BI5 IC9900 AA12 DQS3 IC9900 L20 DOUTDC12 TP9368 IC9900 W10 DQ27 IC9900 B1 VSS IC9900 D5 GI2 IC9900 E5 VSS C9902 0.1u 16V IC9900 A19 DOUTUA05 C9903 0.1u 16V IC9900 AB18 DOUTDC00 C9912 0.1u 16V IC9900 P1 TDO IC9900 R4 DQ16 IC9900 V10 VDD25 IC9900 R3 DQ17 R9920 10k C9956 0.1u 16V IC9900 V1 DQS0 IC9900 G19 DOUTUC00 L8R3.3V IC9900 D21 DOUTUB02 IC9900 N18 VDD12 IC9900 A21 VSS IC9900 R1 DQ22 IC9900 B6 RI1 TP9326 IC9900 K19 DOUTDC14 IC9900 AB4 BA0 IC9900 J5 VDD12 C9966 16V 0.1u TP9354 IC9900 V9 VSS C9911 0.1u 16V IC9900 F2 BI1 IC9900 C9 ROMCE IC9900 E7 VDD12 IC9900 R2 DQ23 IC9900 E16 VDD12 TP9328 IC9900 AA11 DQ30 IC9900 AA16 AVSS2 IC9900 M2 FULL0 IC9900 M9 VSS P1.2V TP9389 IC9900 B7 TEST1 IC9900 D22 DOUTUC01 TP9366 IC9900 K10 VSS IC9900 AB20 DOUTDB01 IC9900 L13 VSS IC9900 Y9 A3 D31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 IC9900 A2 VSS IC9900 D1 GI6 IC9900 W4 VSS IC9900 V4 VDD25 IC9900 AB12 DQS1 R9358 EXB2HV820JV IC9900 AB10 DQ29 IC9900 K2 VDI IC9900 D12 DOUTUA13 IC9900 M1 TILD IC9900 L9 VSS TP9367 IC9900 H2 BI9 IC9900 AA20 DOUTDA01 IC9900 C17 DOUTUA06 TP9388 IC9900 A6 OCKOUT IC9900 A18 DOUTUB07 R9937 1k IC9900 N11 VSS IC9900 N1 TRST IC9900 Y6 NRAS TP9320 IC9900 AA1 VDD25 IC9900 M3 FULL1 R9362 22 L8R2.5V IC9900 M18 VDD12 IC9900 AA19 DOUTDC01 IC9900 L1 SCL IC9900 D13 DOUTUC12 IC9900 N2 TCK IC9900 AA6 A11 IC9900 K5 VDD33 IC9900 B18 DOUTUB06 IC9900 D6 RI7 IC9900 B22 VSS IC9900 AA13 DQ11 IC9900 P19 DOUTDB07 Q9301 B1ABCF000138 TP9340 IC9900 V15 VDD12 C9964 6.3V 10u IC9900 AB1 VSS TP9315 IC9900 E19 DOUTUC03 IC9900 P2 XRST IC9900 J2 MONOUT1 IC9900 D20 DOUTUB03 IC9900 U18 VDD33 C9924 0.1u 16V IC9900 T5 AVSS_2 IC9900 G4 BI2 R9348 EXB2HV820JV R9367 10k R9366 4.7k C9467 50V 0.01u TP9387 D9300 MA3X152K0L Q9300 B1ABCF000138 Q9302 B1ABCF000138 R9390 100 R9368 100k P3.3V R9391 100k R9363 EXB2HV470JV IIC DOUTDA[5] DOUTDB[3] DOUTDC[2] NUEL LED P5V DOUTDA[15] GND DOUTDC[9] CLK[0](+) P5V UMH P5V DOUTDB[15] DOUTDB[4] DOUTDC[14] DOUTDA[4] GND P5V DOUTDB[1] UML DOUTDA[9] DOUTDC[1] GND DOUTDB[9] GND DOUTDA[14] GND GND P5V NC DOUTDC[8] DOUTDA[2] GND DOUTDC[5] 5V_DET DOUTDB[14] PCD1 DOUTDA[0] DOWN_LEFT DOUTDA[8] GND GND ODED1 CLRD DOUTDB[8] PCD2 CLRD DOUTDC[11] DOUTDC[12] DOUTDB[2] GND DOUTDA[11] MODEL1 P5V 5V_DET DOUTDB[11] GND GND DOUTDC[15] DOUTDC[10] DOUTDA[3] USH GND SOS8_SS DOUTDA[10] DOUTDB[10] GND DOUTDA[1] DOUTDC[13] DOUTDA[12] ODED2 DOUTDC[0] DOUTDA[13] USL GND DOUTDB[12] UEH DOUTDB[13] CLK[1](-) GND CLK[3](-) CLK[2](+) DOUTDC[3] DOUTDC[4] GND DOUTDB[0] DOUTDB[5] LED DOWN_RIGHT GND GND GND GND DOUTDB[6] DOUTDA[6] DOUTDC[6] GND DOUTDC[7] DOUTDB[7] DOUTDA[7] GND GND GND GND NC NC NC NC NC rromdata[14] rromadrs[00] rromdata[06] rromdata[09] rromdata[12] rromadrs[11] rromadrs[14] rromdata[15] rromadrs[01] rromadrs[04] rromadrs[17] rromadrs[20] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[16] rromdata[00] rromdata[01] rromdata[02] rromadrs[19] rromadrs[03] rromdata[03] rromdata[04] rromdata[07] rromdata[10] to DDR rromadrs[06] rromadrs[09] rromdata[13] rromadrs[12] rromdata[05] rromadrs[15] rromadrs[18] rromadrs[02] rromadrs[05] rromadrs[08] rromdata[08] rromdata[11] NC NC 42 43 44 38 39 40 41 45 37 IC9900 D-BOARD (5/6) C1-BOARD (C11) TO C2-BOARD (C21) TO FORMAT CONVERTER RGB PROCESSOR 46 42 44 43 45 41 51 TZTNP01BJTB (42inch) TZTNP01BKTB (37inch) TH-37/42PV60E, TH-37/42PX60B D-Board (5 of 6) Schematic Diagram TH-37/42PV60E, TH-37/42PX60B D-Board (5 of 6) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 125 14.52. D-Board (6 of 6) Schematic Diagram L8DR_DQ28 L8R_A0 L8DR_DQS0 L8DR_DQ31 L8DR_NCS L8R_DQ15 L8DR_A5 L8DR_A1 L8DR_NCAS L8R_A3 L8DR_A11 L8R_DQ17 L8DR_DQ21 L8DR_DQ23 L8DR_DQ22 L8DR_DQ25 L8R_DQ16 L8DR_BA1 L8DR_A11 L8DR_DQ10 L8DR_DQ3 L8R_DQ14 L8R_DQ24 L8DR_BA0 L8DR_DQ1 L8DR_DQ9 L8R_DQ10 L8DR_A7 L8DR_DQ4 L8R_SDCLKO L8DR_DQ31 L8DR_A2 L8R_BA0 L8DR_NRAS L8DR_DQ11 L8R_DQ31 L8DR_DQ2 L8DR_DQ26 L8DR_DQ0 L8DR_BA1 L8DR_DQ5 L8DR_DQ11 L8R_DQ0 L8R_DQ26 L8R_A4 L8R_BA1 L8R_DQ19 L8R_DQ13 L8DR_A6 L8DR_DQS3 L8R_DQ9 L8DR_NCLK L8DR_DQ20 L8R_A2 L8DR_DQ18 L8DR_A2 L8DR_A3 L8DR_A9 L8R_DQ22 L8DR_NRAS L8R_A8 L8R_A10 L8R_A1 L8DR_A3 L8R_WE L8R_DQS2 L8DR_DQ7 L8DR_DQ24 L8R_SDCKE L8DR_DQ8 L8DR_DQ16 L8R_DQ3 L8R_DQ4 L8R_RAS L8DR_DQ20 L8DR_DQ6 L8R_DQ11 L8DR_DQ19 L8DR_DQ24 L8DR_A4 L8DR_A0 L8R_DQ1 L8DR_DQ25 L8DR_DQ12 L8R_A6 L8DR_A6 L8DR_DQ8 L8R_DQ23 L8DR_DQ12 L8DR_DQ2 L8R_DQ8 L8DR_DQ18 L8DR_DQ4 L8DR_DQ0 L8R_DQ21 L8DR_DQS2 L8DR_A1 L8DR_A0 L8DR_DQ22 L8R_A9 L8DR_DQ6 L8DR_DQ29 L8DR_DQS0 L8DR_DQS2 L8DR_DQ7 L8DR_DQ19 L8DR_DQ14 L8DR_DQ5 L8DR_DQ23 L8DR_DQ14 L8DR_CKE L8DR_DQ13 L8DR_DQS1 L8DR_DQ30 L8DR_A8 L8DR_NCS L8DR_DQ16 L8DR_DQ17 L8R_DQ7 L8DR_DQ28 L8DR_DQ17 L8DR_DQ15 L8DR_DQ15 0V L8R_DQ30 L8R_DQ27 L8R_DQS3 L8DR_A5 L8DR_DQS1 L8R_DQS0 L8R_DQ6 L8DR_NCAS L8DR_DQ9 L8DR_DQS3 L8DR_NWE L8R_NSDCLKO L8R_A7 L8DR_DQ26 L8R_DQ29 L8DR_A9 L8DR_A8 L8DR_DQ21 L8R_DQ12 L8DR_BA0 L8R_DQ20 L8DR_DQ27 L8DR_A10 L8DR_A4 L8R_DQS1 L8R_CAS L8DR_NWE L8DR_DQ13 L8DR_CLK L8R_A5 L8R_DQ2 L8DR_DQ10 L8R_DQ28 L8DR_A7 L8DR_DQ30 L8R_DQ18 L8R_A11 L8DR_DQ1 L8DR_DQ29 L8DR_DQ27 L8DR_CKE L8DR_DQ3 L8R_DQ25 L8R_DQ5 L8DR_A10 L8DR_CLK L8DR_NCLK L8R_CS IC9901 A10 VSSQ IC9901 B12 DQ27 IC9901 A11 DM3 C9929 16V 0.1u IC9901 K3 VDD IC9901 J12 DQ8 C9949 16V 0.1u C9936 16V 0.1u R9952 47 IC9901 K7 VDD IC9901 H9 VSSQ IC9901 J3 VDDQ IC9901 E5 VSS_Thermal IC9901 C3 VSSQ IC9901 F3 VDDQ IC9901 J4 VSSQ IC9901 G5 VSS_Thermal IC9901 B5 DQ1 R9955 47 IC9901 M6 A3 IC9901 H1 DQ21 C9927 16V 0.1u IC9901 H8 VSS_Thermal IC9901 J5 VSS IC9901 F8 VSS_Thermal C9941 16V 0.1u IC9901 A1 DQS0 C9943 16V 0.1u IC9901 G7 VSS_Thermal IC9901 M11 CKE R9903 EXB2HV470JV IC9901 M4 A0 C9948 16V 0.1u IC9901 C12 DQ25 IC9901 L1 RAS IC9901 K8 RFU1 IC9901 H6 VSS_Thermal IC9901 K10 VDD IC9901 H12 DQ10 IC9901 E12 DQ14 IC9901 A4 DQ3 IC9901 F1 DQ19 IC9901 M1 CS IC9901 M5 A1 IC9901 H4 VSSQ IC9901 D2 VDDQ IC9901 J1 DQ22 C9931 16V 0.1u L8R2.5V IC9901 L12 MCL IC9901 H2 DQ20 IC9901 J7 VSS IC9901 E6 VSS_Thermal IC9901 E10 VDDQ IC9901 C1 DQ6 IC9901 D9 VSS IC9901 C10 VSSQ IC9901 M10 A8/AP IC9901 E7 VSS_Thermal L8R2.5V IC9901 B6 VDDQ IC9901 D12 DQ24 IC9901 D7 VSS R9947 EXB38V470JV L8R2.5V R9951 EXB38V470JV IC9901 M7 A4 IC9901 J9 VSSQ R9939 1k IC9901 H3 VDDQ IC9901 G3 NC IC9901 L11 CK IC9901 K9 VSS IC9901 A9 DQ28 IC9901 C2 DQ5 C9947 16V 0.1u IC9901 L9 RFU2 R9943 EXB38V470JV IC9901 C8 VSSQ C9940 16V 0.1u IC9901 K6 VDD IC9901 L4 BA1 R9944 EXB38V470JV IC9901 G4 VSSQ IC9901 B11 VDDQ IC9901 C6 VDD C9932 16V 0.1u IC9901 L5 A2 IC9901 D4 VSS IC9901 B7 VDDQ IC9901 B2 VDDQ IC9901 A5 DQ2 R9941 47 R9904 47 IC9901 K2 WE IC9901 J6 VSS IC9901 C5 VSSQ C9933 16V 0.1u IC9901 E9 VSSQ IC9901 M3 BA0 IC9901 A7 DQ31 C9930 16V 0.1u IC9901 J10 VDDQ IC9901 H7 VSS_Thermal IC9901 E3 VDDQ R9949 EXB38V470JV IC9901 B10 NC IC9901 L3 NC C9928 16V 0.1u IC9901 D10 VDD IC9901 H5 VSS_Thermal IC9901 G9 VSSQ IC9901 F6 VSS_Thermal IC9901 B4 VDDQ C9952 56u 4V C9934 16V 0.1u IC9901 G10 NC IC9901 D3 VDD IC9901 J2 DQ23 IC9901 F2 DQ18 IC9901 A2 DM0 R9948 EXB38V470JV C9950 16V 0.1u IC9901 G11 DM1 R9945 EXB38V470JV C9937 16V 0.1u IC9901 D8 VSSQ R9905 33 IC9901 K5 A10 IC9901 M12 VREF R9907 150 IC9901 G6 VSS_Thermal R9954 47 IC9901 J11 DQ9 IC9901 D11 VDDQ IC9901 E4 VSSQ IC9901 H10 VDDQ IC9901 F4 VSSQ IC9901 F10 VDDQ IC9901 B1 DQ4 R9906 EXB38V470JV IC9901 F7 VSS_Thermal IC9901 L10 CK R9942 47 IC9901 C9 VSSQ C9946 16V 0.1u IC9901 C7 VDD C9938 16V 0.1u IC9901 F9 VSSQ IC9901 L6 A11 IC9901 G1 DQS2 C9945 16V 0.1u R9938 1k IC9901 H11 DQ11 C9951 16V 0.1u IC9901 F11 DQ13 IC9901 G8 VSS_Thermal IC9901 C4 VSSQ IC9901 M9 A7 IC9901 D6 VSS IC9901 A8 DQ29 IC9901 K12 NC C9939 16V 0.1u IC9901 M8 A6 IC9901 E11 DQ15 IC9901 A3 VSSQ IC9901 A12 DQS3 IC9901 E8 VSS_Thermal IC9901 B9 VDDQ C9944 16V 0.1u R9946 EXB38V470JV R9953 47 IC9901 K4 VSS R9950 EXB38V470JV IC9901 F12 DQ12 C9935 16V 0.1u ZA9001 K4CD01000011 IC9901 A6 DQ0 IC9901 F5 VSS_Thermal IC9901 M2 NC IC9901 B3 NC IC9901 D1 DQ7 IC9901 E1 DQ17 IC9901 K11 NC IC9901 J8 VSS IC9901 K1 CAS IC9901 G2 DM2 C9942 16V 0.1u IC9901 E2 DQ16 IC9901 D5 VSSQ IC9901 C11 DQ26 IC9901 L7 A9 R9940 33 IC9901 L8 A5 IC9901 B8 DQ30 IC9901 L2 NC IC9901 G12 DQS1 DDR-Terminate DDR-SDRAM IC9901 DDR SDRAM(128M) D-BOARD (6/6) 50 53 47 51 48 49 54 46 52 C3ABQJ000051 51 TZTNP01BJTB (42inch) TZTNP01BKTB (37inch) TH-37/42PV60E, TH-37/42PX60B D-Board (6 of 6) Schematic Diagram TH-37/42PV60E, TH-37/42PX60B D-Board (6 of 6) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 126 14.53. C1 and C2-Board Block Diagram CLK0 LED CLK0 USL CLK2 CLRD UEH UMH ODED2 UML USH SS_SOS8 CLK3 CLRD CLRD ODED1 CLK1 ODED1 NUEL CLK3 CLK2 CLK1 PCD2 LED PCD1 CLRD ODED2 PCD2 LED R7115 R7318 16 VCC 1 12 VCC 5 2bit 5 4bit 6bit 6bit A4-C5 6bit 8 7 1 8bit 6 A12-C13 VCC 8 C12 2bit 17 4bit A6-C7 2 4 6 CB4 VCC 14 VCC 7 8bit A14-C15 21 44 51 C23 55 8bit 8bit 39 10 IC7104 BUFFER CB1 CB2 11 3 IC7103 4bit 6bit 6bit BUFFER 8bit CB8 IC7102 C21 BUFFER A2-C3 IC7101 CLK BUFFER 2bit IC7202 A0-C1 4bit BUFFER A10-C11 IC7203 BUFFER 2bit BUFFER IC7204 CLK BUFFER IC7201 CB6 4 Vda Vda C11 CB5 6bit DATA 24bit DA0-DC7 VCC 8bit 24bit VCC DA8-DC15 DATA TO D31 VCC CB3 A8-C9 9 CB7 43 37 13-35,46-52 DOUTDC15 DOUTDA8 CLK2 CLRD CLK3 ODED1 1 6 C22 6 1 3 1 LED 41 42 PCD1 IC7105 VCC BUFFER IC7205 VCC BUFFER 53 55 18 19 5V 5V 5VDET CLRD CLK0 ODED2 CLK1 PCD2 LED 5V 5VDET 5V UEH UML NUEL USH USL SS_SOS8 UMH DOUTDC7 DOUTDA0 12 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit NUEL USH USL UML UMH UEH SS_SOS8 5V Vda Vda DATA DRIVE LOWER RIGHT(FRONT VIEW) C1 C2 DATA DRIVE LOWER LEFT (FRONT VIEW) PANEL DATA DRIVER PANEL DATA DRIVER TO D32 TO SS23 TH-37/42PV60E, TH-37/42PX60B C1 and C2-Board Block Diagram TH-37/42PV60E, TH-37/42PX60B C1 and C2-Board Block Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 127 14.54. C1-Board (1 of 2) Schematic Diagram (37inch) TERM SIDE TERM SIDE TERM SIDE G G AB_CLK_P1 AB_CLK_N1 AB_LED1 AB_DDC14 AB_DDB14 AB_DDA14 AB_DDC15 AB_DDB15 AB_DDA15 AB_LED1 AB_DDC14 AB_DDB14 AB_DDA14 AB_DDC15 AB_DDB15 AB_DDA15 AB_ODED1 AB_CLRD AB_CLRD AB_ODED1 AB_PCD1_1 AB_DDC13 AB_CLRD AB_CLK_N1 AB_ODED1 AB_DDA12 AB_CLK_P1 AB_DDA13 AB_ODED1 AB_DDB13 AB_DDC13 AB_DDA12 AB_DDB12 AB_DDC12 AB_LED2 AB_DDB12 AB_DDC12 AB_LED2 AB_CLRD AB_DDA13 AB_DDB13 AA_DDC12 AA_DDB9 AA_DDA13 AA_DDC9 AA_DDB12 AA_DDB8 AA_DDC13 AA_DDC8 AA_DDB13 AA_CLRD AA_DDA12 AA_ODED1 AA_DDC10 AA_LED AA_DDB10 AA_CLK_P AA_DDC11 AA_DDA8 AA_DDB11 AA_DDA10 AA_CLK_N AA_DDA11 AA_PCD1 AA_DDC14 AA_DDA15 AA_DDB14 AA_DDC15 AA_DDB15 AA_DDA14 AA_DDA9 C1_5V R7128 47 R7125 6.8 C7117 50V 100p C7116 16V 1u R7120 47 C7111 100V 0.47u R7112 1k C7108 100V 0.47u R7122 6.8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7123 6.8 R7179 0 R7124 6.8 R7140 47 R7142 6.8 C7123 16V 1u C7115 100V 0.47u R7143 6.8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C1_5V C7112 100V 0.47u R7145 6.8 C7124 50V 100p R7146 47 R7144 6.8 C11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 C1_5V R7115 22k J0HABH000013 FL7101 1 2 3 R7116 100k C7110 16V 1u C7114 16V 1u FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND CB1 VDD2 NC VDD1 FDET GND VDD2 NC NC NC A4 GND VDD2 DM A3 VDD2 GND GND VDD1 NC FS A2 LEN GND CLR VDD2 BLK GND LEN A6 VDD2 A5 VDD2 GND NC NC A1 A3 A5 NC VDD2 BLK FS VDD2 A2 GND FDET1 ODE GND FX CB2 CLR VDD2 A1 GND A6 DM GND GND ODE VDD1 VDD2 VDD2 GND FX GND A4 VDD1 GND GND A B C 5 4 D E 2 1 7 3 6 8 DOUTDC[12] DOUTDC[8] CLK[2](+) GND DOUTDC[11] N.C. MODEL1 GND LED GND CLK[3](-) DOUTDA[12] DOUTDB[13] DOUTDB[14] DOUTDC[14] DOUTDB[15] DOUTDC[15] ODED1 DOUTDA[14] DOUTDA[15] GND N.C. GND GND DOUTDA[10] N.C. N.C. GND(DRV_RST) N.C. N.C. DOUTDC[9] DOUTDC[13] PCD1 DOUTDA[8] DOUTDA[9] DOUTDA[11] DOUTDB[11] GND GND DOUTDB[12] GND DOUTDC[10] P5V CLRD P5V 5V_DET DOUTDB[8] GND DOUTDB[10] DOUTDA[13] GND P5V GND GND DOUTDB[9] C1-BOARD TNPA3802AB (1/2) (D31) D-BOARD TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO 1 2 3 4 TH-37PV60E, TH-37PX60B C1-Board (1 of 2) Schematic Diagram TH-37PV60E, TH-37PX60B C1-Board (1 of 2) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 128 14.55. C1-Board (2 of 2) Schematic Diagram (37inch) SIDE TERM TERM SIDE TERM SIDE AB_CLK_P2 AB_CLK_N2 AB_LED3 AB_DDC10 AB_DDB10 AB_DDA10 AB_DDC11 AB_DDB11 AB_DDA11 AB_LED3 AB_DDC10 AB_DDB10 AB_DDA10 AB_DDC11 AB_DDB11 AB_DDA11 AB_DDB15 AB_DDA15 AB_DDC12 AB_DDB12 AB_DDC15 AB_DDA14 AB_DDB14 AB_DDC14 AB_DDB10 AB_DDC10 AB_DDA13 AB_DDB13 AB_DDC13 AB_DDA12 AB_CLRD AB_ODED1 AB_CLRD AB_ODED1 AA_DDB12 AA_DDC12 AA_DDA15 AA_DDB15 AA_DDC15 AA_DDA14 AA_DDB14 AA_DDC14 AA_DDC11 AA_DDA10 AA_DDB10 AA_DDC10 AA_DDA13 AA_DDB13 AA_DDC13 AA_DDA12 AB_LED4 AB_ODED1 AB_CLRD AB_ODED1 AB_DDA9 AB_DDB9 AB_DDC9 AB_CLK_N2 AB_DDA9 AB_DDA8 AB_DDA8 AB_DDB9 AB_DDB8 AB_DDB8 AB_CLK_P2 AB_DDC8 AB_DDC9 AB_DDC8 AB_LED4 AB_DDC8 AB_DDB8 AB_DDA8 AB_DDC9 AB_DDA9 AB_DDB9 AB_CLK_P2 AB_CLK_N2 AB_CLK_P1 AB_CLK_N1 AB_PCD1_1 AB_PCD1_2 AB_LED1 AB_ODED1 AA_PCD1 AB_DDB11 AB_DDA11 AB_DDA10 AB_DDC11 AA_LED AB_LED2 AB_LED3 AB_LED4 AA_CLK_P AA_CLK_N AA_CLRD AA_ODED1 AA_DDA8 AA_DDC9 AA_DDB9 AA_DDA9 AA_DDB11 AA_DDA11 AA_DDC8 AA_DDB8 AB_CLRD AB_CLRD AB_PCD1_2 C1_5V C1_5V C1_5V C1_5V C1_5V C1_5V C1_5V C12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7180 0 R7151 6.8 R7175 47 R7163 EXB38V102JV C7122 100V 0.47u C7130 16V 0.1u R7153 6.8 R7113 22 C7140 16V 1u R7177 EXB38V102JV R7156 47 C7127 50V 100p 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7138 16V 0.1u ZA7102 K4CD01000013 R7169 47 R7166 EXB38V102JV ZA7103 K4CD01000013 R7119 22 C0JBAZ002692 IC7101 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7104 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC7103 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7173 6.8 R7127 47 R7126 220k R7152 6.8 R7165 EXB38V102JV R7136 EXB38V470JV R7118 22 C0JBAZ002692 IC7105 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7143 100V 0.47u R7114 22 R7132 EXB38V470JV C7146 100V 0.47u R7167 EXB38V102JV R7158 EXB38V470JV R7172 6.8 C0JBAZ002692 IC7102 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7137 16V 0.1u R7174 6.8 R7159 EXB38V470JV 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7155 EXB38V102JV C7134 16V 0.1u C7126 16V 1u R7187 EXB38V470JV R7137 EXB38V470JV R7162 EXB38V102JV R7133 EXB38V470JV R7154 6.8 R7171 6.8 R7149 47 C7119 100V 0.47u R7164 EXB38V102JV C7141 50V 100p ZA7101 K4CD01000013 C7148 16V 0.1u R7134 EXB38V470JV R7139 47 R7135 EXB38V470JV ZA7104 K4CD01000013 R7186 EXB38V470JV C7121 16V 1u C7145 16V 1u FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND GND A1 GND GND FDET LEN GND A4 GND VDD2 VDD2 A4 FS VDD1 VDD2 A1 GND VDD2 GND CLR BLK NC FX A2 NC A3 VDD1 A6 BLK GND NC NC A3 A2 A6 DM VDD2 GND VDD2 NC GND VDD2 A5 CLR DM GND VDD2 NC VDD1 VDD1 GND GND ODE A5 VDD2 GND VDD2 GND FX NC VDD2 GND ODE NC FS LEN VDD2 Vda75V Vda75V Vda75V Vda75V NC NC NC GND GND GND NC NC NC NC GND GND GND NC Vda 75V Vda 75V FDET1 CB3 CB4 10 8 12 14 15 9 13 11 BUFFER BUFFER BUFFER BUFFER BUFFER C1-BOARD TNPA3802AB (2/2) DRIVER PANEL DATA TO DRIVER PANEL DATA TO 3 4 1 2 C2-BOARD TO (C22) TH-37PV60E, TH-37PX60B C1-Board (2 of 2) Schematic Diagram TH-37PV60E, TH-37PX60B C1-Board (2 of 2) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 129 14.56. C1-Board (1 of 2) Schematic Diagram (42inch) TERM SIDE TERM SIDE G G TERM SIDE AB_CLK_P1 AB_CLK_N1 AB_LED1 AB_DDC14 AB_DDB14 AB_DDA14 AB_DDC15 AB_DDB15 AB_DDA15 AB_LED1 AB_DDC14 AB_DDB14 AB_DDA14 AB_DDC15 AB_DDB15 AB_DDA15 AB_LED2 AB_DDC12 AB_DDB12 AB_DDA12 AB_DDC13 AB_DDB13 AB_DDA13 AB_LED2 AB_DDC12 AB_DDB12 AB_DDA12 AB_DDC13 AB_DDB13 AB_DDA13 AB_ODED1 AB_ODED1 AB_ODED1 AB_CLRD AB_CLRD AB_ODED1 AB_CLK_N1 AB_CLRD AB_CLK_P1 AB_CLRD AA_DDB8 AA_CLK_N AA_DDB15 AA_DDA14 AA_DDC14 AA_DDC11 AA_DDC8 AA_DDB9 AA_DDB13 AA_DDA8 AA_CLRD AA_DDC15 AA_DDA9 AA_DDA15 AA_DDB14 AA_DDA11 AA_CLK_P AA_DDB10 AA_DDB11 AA_DDA12 AA_DDA10 AA_DDC10 AA_ODED1 AA_DDB12 AA_DDC13 AA_LED AA_DDC9 AA_DDC12 AA_DDA13 AA_PCD1 AB_PCD1_1 C1_5V C1_5V R7123 6.8 R7140 47 C7111 100V 0.47u 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7146 47 R7144 6.8 C7117 50V 100p R7145 6.8 R7142 6.8 R7125 6.8 R7179 0 R7124 6.8 R7112 1k R7143 6.8 R7120 47 C7115 100V 0.47u R7122 6.8 C7112 100V 0.47u C7123 16V 1u C7116 16V 1u C7124 50V 100p C7108 100V 0.47u R7128 47 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C1_5V ZA7103 K4CD01000013 J0HABH000013 FL7101 1 2 3 ZA7101 K4CD01000013 C11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 ZA7104 K4CD01000013 R7115 22k ZA7102 K4CD01000013 R7116 100k C7110 16V 1u C7114 16V 1u FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND CB1 CB2 1 A 3 7 5 6 D E C 2 B 4 8 DOUTDA[10] DOUTDB[13] N.C. DOUTDA[9] DOUTDC[11] GND GND DOUTDB[10] DOUTDC[12] DOUTDB[15] DOUTDC[8] CLK[2](+) P5V GND DOUTDA[12] GND DOUTDB[12] DOUTDA[11] DOUTDB[14] N.C. GND DOUTDC[15] P5V DOUTDC[9] DOUTDA[14] GND MODEL1 N.C. GND DOUTDA[8] N.C. N.C. LED DOUTDB[9] GND PCD1 P5V ODED1 DOUTDA[15] DOUTDA[13] GND DOUTDB[8] CLRD GND DOUTDC[13] GND(DRV_RST) CLK[3](-) GND GND DOUTDC[14] DOUTDC[10] 5V_DET DOUTDB[11] GND N.C. DRIVER PANEL DATA TO DRIVER PANEL DATA TO 1 2 3 4 5 C1-BOARD TNPA3812AB (1/2) D-BOARD TO (D31) TH-42PV60E, TH-42PX60B C1-Board (1 of 2) Schematic Diagram TH-42PV60E, TH-42PX60B C1-Board (1 of 2) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 130 14.57. C1-Board (2 of 2) Schematic Diagram (42inch) SIDE TERM TERM SIDE TERM SIDE AB_CLK_P2 AB_CLK_N2 AB_LED3 AB_DDC10 AB_DDB10 AB_DDA10 AB_DDC11 AB_DDB11 AB_DDA11 AB_LED3 AB_DDC10 AB_DDB10 AB_DDA10 AB_DDC11 AB_DDB11 AB_DDA11 AB_DDB15 AB_DDA15 AB_DDC12 AB_DDB12 AB_DDC15 AB_DDA14 AB_DDB14 AB_DDC14 AB_DDB10 AB_DDC10 AB_DDA13 AB_DDB13 AB_DDC13 AB_DDA12 AB_CLRD AB_ODED1 AB_ODED1 AA_DDB12 AA_DDC12 AA_DDA15 AA_DDB15 AA_DDC15 AA_DDA14 AA_DDB14 AA_DDC14 AA_DDC11 AA_DDA10 AA_DDB10 AA_DDC10 AA_DDA13 AA_DDB13 AA_DDC13 AA_DDA12 AB_LED4 AB_ODED1 AB_DDA9 AB_DDB9 AB_DDC9 AB_CLK_N2 AB_DDA9 AB_DDA8 AB_DDA8 AB_DDB9 AB_DDB8 AB_DDB8 AB_CLK_P2 AB_DDC8 AB_DDC9 AB_DDC8 AB_LED4 AB_DDC8 AB_DDB8 AB_DDA8 AB_DDC9 AB_DDA9 AB_DDB9 AB_CLK_P2 AB_CLK_N2 AB_CLK_P1 AB_CLK_N1 AB_PCD1_1 AB_PCD1_2 AB_LED1 AA_CLRD AA_ODED1 AA_PCD1 AB_DDB11 AB_DDA11 AB_DDA10 AB_DDC11 AA_LED AA_CLK_P AA_CLK_N AB_LED2 AB_LED3 AB_LED4 AA_DDA8 AA_DDC9 AA_DDB9 AA_DDA9 AA_DDA11 AA_DDC8 AA_DDB8 AA_DDB11 AB_CLRD AB_CLRD AB_ODED1 AB_PCD1_2 AB_ODED1 AB_CLRD AB_CLRD C1_5V C1_5V C1_5V C1_5V C1_5V C1_5V C1_5V C7141 50V 100p C12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7152 6.8 C7137 16V 0.1u 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7130 16V 0.1u R7159 EXB38V470JV R7172 6.8 R7132 EXB38V470JV R7153 6.8 R7118 22 R7169 47 R7165 EXB38V102JV R7174 6.8 C7119 100V 0.47u R7136 EXB38V470JV C7148 16V 0.1u R7167 EXB38V102JV R7173 6.8 C7122 100V 0.47u R7180 0 C7126 16V 1u C0JBAZ002692 IC7102 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7163 EXB38V102JV C7143 100V 0.47u C0JBAZ002692 IC7104 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7138 16V 0.1u R7171 6.8 R7166 EXB38V102JV C0JBAZ002692 IC7105 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7127 50V 100p R7127 47 R7162 EXB38V102JV R7186 EXB38V470JV R7155 EXB38V102JV C7146 100V 0.47u C7140 16V 1u C0JBAZ002692 IC7101 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7114 22 R7134 EXB38V470JV C7134 16V 0.1u R7164 EXB38V102JV R7149 47 R7177 EXB38V102JV R7156 47 R7126 220k R7175 47 R7151 6.8 R7158 EXB38V470JV R7187 EXB38V470JV 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ002692 IC7103 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7119 22 R7133 EXB38V470JV R7137 EXB38V470JV R7135 EXB38V470JV R7139 47 R7113 22 R7154 6.8 C7121 16V 1u C7145 16V 1u FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND GND A1 GND GND FDET LEN GND A4 GND VDD2 VDD2 A4 FS VDD1 VDD2 A1 GND VDD2 GND CLR BLK NC FX A2 NC A3 VDD1 A6 BLK GND NC NC A3 A2 A6 DM VDD2 GND VDD2 NC GND VDD2 A5 CLR DM GND VDD2 NC VDD1 VDD1 GND GND ODE A5 VDD2 GND VDD2 GND FX NC VDD2 GND ODE NC FS LEN VDD2 Vda 75V Vda 75V Vda 75V Vda 75V NC NC NC GND GND GND NC NC NC NC GND GND GND NC Vda 75V Vda 75V FDET1 CB3 CB4 11 10 15 12 8 13 14 9 DRIVER PANEL DATA TO DRIVER PANEL DATA TO BUFFER BUFFER BUFFER BUFFER BUFFER 4 1 3 5 2 C1-BOARD TNPA3812AB (2/2) C2-BOARD TO (C22) TH-42PV60E, TH-42PX60B C1-Board (2 of 2) Schematic Diagram TH-42PV60E, TH-42PX60B C1-Board (2 of 2) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 131 14.58. C2-Board (1 of 2) Schematic Diagram (37inch) SIDE TERM TERM SIDE TERM SIDE TERM SIDE G G AB_LED6 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 AB_LED6 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 AB_CLRD AB_ODED2 AB_ODED2 AB_CLRD AA_DDB5 AA_DDA5 AA_DDC4 AA_DDB4 AA_DDA4 AA_DDA3 AA_DDC2 AA_DDB2 AA_DDA2 AA_DDC3 AA_DDB3 AA_DDC0 AA_DDB0 AA_DDA0 AA_DDC1 AA_DDB1 AA_DDA1 AA_PCD2 AA_LED AA_DDC5 BA_SOS8_SS BA_NUEL BA_UMH BA_UML BA_USH BA_USL AA_ODED2 AA_CLRD AB_LED6 AB_LED7 BA_UEH AA_CLK_P AA_CLK_N AB_DDB6 AB_DDB6 AB_LED5 AB_DDB7 AB_DDA7 AB_ODED2 AB_CLRD AB_DDC6 AB_DDC7 AB_DDC6 AB_DDA6 AB_DDA6 AB_DDA7 AB_ODED2 AB_DDC7 AB_DDB7 AB_CLRD AB_CLK_P2 AB_LED5 AA_DDA6 AA_DDB6 AA_DDC6 AA_DDA7 AA_DDB7 AA_DDC7 AB_CLK_P2 AB_CLK_N2 AB_CLK_P1 AB_CLK_N1 AB_PCD2_1 AB_PCD2_2 AB_LED5 AB_LED8 AA_LED AA_PCD2 AB_ODED2 AB_CLRD AA_CLRD AA_ODED2 AA_CLK_P AA_CLK_N AB_CLK_P2 AB_CLK_N2 AB_CLK_N2 C2_5V C2_5V C2_5V C2_5V C2_5V C0JBAZ002692 IC7205 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7217 47 R7245 EXB38V102JV R7208 47 R7265 6.8 C7236 50V 100p R7250 EXB38V470JV C7201 100V 0.47u R7264 6.8 C7238 100V 0.47u R7215 6.8 R7258 EXB38V102JV C0JBAZ002692 IC7201 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7235 16V 1u R7260 47 R7246 22 C7241 100V 0.47u C7204 100V 0.47u C22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7262 6.8 R7257 0 C7244 16V 0.1u R7212 6.8 R7214 6.8 C7209 16V 1u R7256 0 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7209 47 C21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 R7249 22 C7210 50V 100p C7229 16V 0.1u J0HABH000013 FL7201 1 2 3 R7266 47 R7248 22 R7271 100k R7213 6.8 R7263 6.8 R7247 22 R7210 47 R7270 22k R7251 EXB38V470JV C7203 16V 1u C7240 16V 1u FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND DOUTDA[4] DOUTDB[2] UMH PCD2 GND DOUTDA[0] GND DOUTDA[3] DOUTDB[0] P5V DOUTDC[0] DOUTDC[6] DOUTDC[2] GND DOUTDB[7] GND DOUTDC[3] GND DOUTDB[3] DOUTDB[1] DOUTDB[4] NUEL GND(DRV_RST) DOUTDC[5] DOUTDB[6] DOUTDC[1] DOUTDA[6] P5V DOUTDC[4] P5V 5V_DET LED DOUTDC[7] DRV_SOS8 UEH DOUTDA[2] DOUTDA[1] GND DOUTDA[7] DOUTDB[5] DOUTDA[5] GND GND ODED2 GND CLRD CLK[1](-) GND CLK[0](+) USL UML USH GND GND GND GND GND Vda 75V Vda 75V Vda 75V NC NC NC NC NC NC Vda 75V NC NC GND GND GND GND Vda 75V Vda 75V VDD2 A5 FDET1 GND VDD2 FDET DM GND FX VDD2 A2 LEN GND NC CLR GND VDD1 DM VDD1 GND A3 VDD2 A1 GND FS VDD2 GND ODE A1 A5 VDD2 A3 VDD1 NC A6 FS LEN VDD2 A4 NC GND VDD1 NC VDD2 CLR A2 NC FX NC GND VDD2 GND A4 GND GND NC VDD2 GND A6 ODE GND BLK GND NC GND VDD2 VDD2 BLK 1 E 3 C 8 5 A 6 D 4 7 2 B CB5 CB6 C2-BOARD TNPA3803AB (1/2) BUFFER BUFFER PANEL DATA DRIVER TO PANEL DATA DRIVER TO D-BOARD TO (D32) C1-BOARD TO (C12) 1 2 3 4 5 6 7 8 TH-37PV60E, TH-37PX60B C2-Board (1 of 2) Schematic Diagram TH-37PV60E, TH-37PX60B C2-Board (1 of 2) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 132 14.59. C2-Board (2 of 2) Schematic Diagram (37inch) TERM SIDE TERM SIDE AB_CLK_N1 AB_CLK_P1 AB_CLK_N1 AB_CLK_P1 AB_LED8 AB_DDC0 AB_DDB0 AB_DDA0 AB_DDC1 AB_DDB1 AB_DDA1 AB_LED8 AB_DDC0 AB_DDB0 AB_DDA0 AB_DDC1 AB_DDB1 AB_DDA1 AB_LED7 AB_DDC2 AB_DDB2 AB_DDA2 AB_DDC3 AB_DDB3 AB_DDA3 AB_LED7 AB_DDC2 AB_DDB2 AB_DDA2 AB_DDC3 AB_DDB3 AB_DDA3 AB_DDC1 AB_DDB1 AB_DDA1 AB_CLRD AB_ODED2 AB_CLRD AB_ODED2 AB_CLRD AB_ODED2 AB_ODED2 AB_CLRD BA_SOS8_SS BA_UEH BA_USL BA_NUEL BA_UMH BA_USH BA_UML AA_DDC4 AA_DDB4 AA_DDA7 AA_DDB7 AA_DDC0 AA_DDB0 AA_DDA3 AA_DDA0 AA_DDC1 AA_DDB1 AA_DDB3 AA_DDA1 AB_DDA4 AB_DDB4 AB_DDC6 AB_DDA6 AB_DDB6 AB_DDC7 AB_DDA7 AB_DDB7 AB_DDA2 AB_DDB2 AB_DDC2 AB_DDB5 AB_DDA5 AB_DDC4 AB_DDC5 AB_DDC3 AB_DDC0 AB_DDB0 AB_DDA0 AB_DDB3 AB_DDA3 AA_DDC3 AA_DDA2 AA_DDB2 AA_DDC2 AA_DDA5 AA_DDB5 AA_DDC5 AA_DDA4 AA_DDC6 AA_DDB6 AA_DDA6 AA_DDC7 C2_5V C2_5V C2_5V C2_5V C2_5V C2_5V R7216 EXB38V470JV C0JBAZ002692 IC7202 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7204 EXB38V470JV C7223 16V 0.1u R7206 EXB38V470JV C7219 16V 1u C23 1 2 3 4 5 6 7 8 9 10 11 12 R7205 EXB38V470JV ZA7204 K4CD01000013 R7231 47 C7216 16V 1u R7233 6.8 R7223 6.8 R7226 6.8 C7220 50V 100p C7215 100V 0.47u C7208 100V 0.47u ZA7203 K4CD01000013 R7237 EXB38V102JV R7229 0 C7227 16V 0.1u R7235 6.8 R7236 47 R7269 1k 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7239 EXB38V102JV C7212 100V 0.47u R7221 47 R7240 EXB38V102JV 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ002692 IC7203 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7207 EXB38V470JV R7227 47 C7225 16V 0.1u ZA7202 K4CD01000013 R7232 6.8 ZA7201 K4CD01000013 R7225 6.8 R7238 EXB38V102JV C7205 100V 0.47u R7234 6.8 R7201 EXB38V470JV C0JBAZ002692 IC7204 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7241 EXB38V102JV C7217 50V 100p R7202 EXB38V470JV R7224 6.8 R7242 EXB38V102JV R7203 EXB38V470JV R7219 220k C7207 16V 1u C7214 16V 1u FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND UML Vda75V NUEL SOS8_SS USH NC GND USL UEH 5V UMH Vda75V 14 11 12 8 9 10 15 13 CB7 CB8 C2-BOARD TNPA3803AB (2/2) BUFFER BUFFER BUFFER SS-BOARD TO (SS23) PANEL DATA DRIVER TO PANEL DATA DRIVER TO 7 2 8 3 1 4 5 6 0.5 0 0.5 5.0 75.5 1.7 0.6 0.9 0.4 75.5 3.7 0 TH-37PV60E, TH-37PX60B C2-Board (2 of 2) Schematic Diagram TH-37PV60E, TH-37PX60B C2-Board (2 of 2) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 133 14.60. C2-Board (1 of 2) Schematic Diagram (42inch) SIDE TERM TERM SIDE G G TERM SIDE TERM SIDE AB_LED6 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 AB_LED6 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 AB_CLRD AB_ODED2 AB_ODED2 AB_CLRD AA_DDB5 AA_DDA5 AA_DDC4 AA_DDB4 AA_DDA4 AA_DDA3 AA_DDC2 AA_DDB2 AA_DDA2 AA_DDC3 AA_DDB3 AA_DDC0 AA_DDB0 AA_DDA0 AA_DDC1 AA_DDB1 AA_DDA1 AA_PCD2 AA_LED AA_DDC5 BA_SOS8_SS BA_NUEL BA_UMH BA_UML BA_USH BA_USL AA_ODED2 AA_CLRD AB_LED6 AB_LED7 BA_UEH AA_CLK_P AA_CLK_N AB_DDB6 AB_DDB6 AB_LED5 AB_DDB7 AB_DDA7 AB_ODED2 AB_CLRD AB_DDC6 AB_DDC7 AB_DDC6 AB_DDA6 AB_DDA6 AB_DDA7 AB_CLK_N2 AB_ODED2 AB_DDC7 AB_DDB7 AB_CLRD AB_CLK_P2 AB_LED5 AA_DDA6 AA_DDB6 AA_DDC6 AA_DDA7 AA_DDB7 AA_DDC7 AB_CLK_P2 AB_CLK_N2 AB_CLK_P1 AB_CLK_N1 AB_PCD2_1 AB_LED5 AB_LED8 AA_LED AA_PCD2 AB_ODED2 AB_CLRD AA_CLRD AA_ODED2 AA_CLK_P AA_CLK_N AB_CLK_N2 AB_CLK_P2 AB_PCD2_2 C2_5V C2_5V C2_5V C2_5V C2_5V C7201 100V 0.47u R7210 47 R7251 EXB38V470JV R7265 6.8 R7213 6.8 C7235 16V 1u C22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C7229 16V 0.1u CB5 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7271 100k C7204 100V 0.47u R7249 22 R7262 6.8 R7256 0 R7258 EXB38V102JV J0HABH000013 FL7201 1 2 3 R7264 6.8 C7209 16V 1u CB6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7241 100V 0.47u C7238 100V 0.47u C7236 50V 100p R7209 47 R7263 6.8 C0JBAZ002692 IC7205 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7257 0 R7214 6.8 R7270 22k C0JBAZ002692 IC7201 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 R7217 47 R7248 22 R7250 EXB38V470JV R7245 EXB38V102JV R7266 47 R7212 6.8 R7208 47 R7260 47 C7244 16V 0.1u R7215 6.8 R7246 22 C7210 50V 100p R7247 22 C7203 16V 1u C7240 16V 1u FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND DOUTDA[4] DOUTDB[2] UMH PCD2 GND DOUTDA[0] GND DOUTDA[3] DOUTDB[0] P5V DOUTDC[0] DOUTDC[6] DOUTDC[2] GND DOUTDB[7] GND DOUTDC[3] GND DOUTDB[3] DOUTDB[1] DOUTDB[4] NUEL GND(DRV_RST) DOUTDC[5] DOUTDB[6] DOUTDC[1] DOUTDA[6] P5V DOUTDC[4] P5V 5V_DET LED DOUTDC[7] DRV_SOS8 UEH DOUTDA[2] DOUTDA[1] GND DOUTDA[7] DOUTDB[5] DOUTDA[5] GND GND ODED2 GND CLRD CLK[1](-) GND CLK[0](+) USL UML USH GND GND GND GND GND Vda 75V Vda 75V Vda 75V NC NC NC NC NC NC Vda 75V NC NC GND GND GND GND Vda 75V Vda 75V VDD2 A5 FDET1 GND VDD2 FDET DM GND FX VDD2 A2 LEN GND NC CLR GND VDD1 DM VDD1 GND A3 VDD2 A1 GND FS VDD2 GND ODE A1 A5 VDD2 A3 VDD1 NC A6 FS LEN VDD2 A4 NC GND VDD1 NC VDD2 CLR A2 NC FX NC GND VDD2 GND A4 GND GND NC VDD2 GND A6 ODE GND BLK GND NC GND VDD2 VDD2 BLK CB5 CB6 1 A 3 7 5 6 D E C 2 B 4 8 BUFFER BUFFER PANEL DATA DRIVER TO PANEL DATA DRIVER TO C2-BOARD TNPA3813AB (1/2) 1 2 3 4 5 6 7 8 9 C1-BOARD TO (C12) D-BOARD TO (D32) TH-42PV60E, TH-42PX60B C2-Board (1 of 2) Schematic Diagram TH-42PV60E, TH-42PX60B C2-Board (1 of 2) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 134 14.61. C2-Board (2 of 2) Schematic Diagram (42inch) TERM SIDE TERM SIDE AB_CLK_N1 AB_CLK_P1 AB_LED8 AB_DDC0 AB_DDB0 AB_DDA0 AB_DDC1 AB_DDB1 AB_DDA1 AB_LED8 AB_DDC0 AB_DDB0 AB_DDA0 AB_DDC1 AB_DDB1 AB_DDA1 AB_LED7 AB_DDC2 AB_DDB2 AB_DDA2 AB_DDC3 AB_DDB3 AB_DDA3 AB_LED7 AB_DDC2 AB_DDB2 AB_DDA2 AB_DDC3 AB_DDB3 AB_DDA3 AB_DDC1 AB_DDB1 AB_DDA1 AB_CLRD AB_ODED2 AB_CLRD AB_ODED2 AB_CLRD AB_ODED2 AB_ODED2 AB_CLRD BA_SOS8_SS BA_UEH BA_USL BA_NUEL BA_UMH BA_USH BA_UML AA_DDC4 AA_DDB4 AA_DDA7 AA_DDB7 AA_DDC0 AA_DDB0 AA_DDA3 AA_DDA0 AA_DDC1 AA_DDB1 AA_DDB3 AA_DDA1 AB_DDA4 AB_DDB4 AB_DDC6 AB_DDA6 AB_DDB6 AB_DDC7 AB_DDA7 AB_DDB7 AB_DDA2 AB_DDB2 AB_DDC2 AB_DDB5 AB_DDA5 AB_DDC4 AB_DDC5 AB_DDC3 AB_DDC0 AB_DDB0 AB_DDA0 AB_DDB3 AB_DDA3 AA_DDC3 AA_DDA2 AA_DDB2 AA_DDC2 AA_DDA5 AA_DDB5 AA_DDC5 AA_DDA4 AA_DDC6 AA_DDB6 AA_DDA6 AA_DDC7 AB_CLK_N1 AB_CLK_P1 C2_5V C2_5V C2_5V C2_5V C2_5V C2_5V R7224 6.8 C0JBAZ002692 IC7203 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7227 47 C7227 16V 0.1u C7223 16V 0.1u C0JBAZ002692 IC7204 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7242 EXB38V102JV C7208 100V 0.47u R7236 47 R7233 6.8 R7232 6.8 R7237 EXB38V102JV ZA7201 K4CD01000013 C7215 100V 0.47u CB7 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7204 EXB38V470JV R7269 1k R7235 6.8 R7216 EXB38V470JV R7202 EXB38V470JV R7240 EXB38V102JV R7231 47 R7234 6.8 ZA7204 K4CD01000013 C7205 100V 0.47u C7216 16V 1u R7219 220k C23 1 2 3 4 5 6 7 8 9 10 11 12 R7223 6.8 R7226 6.8 R7221 47 R7239 EXB38V102JV C7212 100V 0.47u C0JBAZ002692 IC7202 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7225 6.8 ZA7203 K4CD01000013 R7238 EXB38V102JV R7207 EXB38V470JV ZA7202 K4CD01000013 C7225 16V 0.1u R7206 EXB38V470JV CB8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7219 16V 1u R7205 EXB38V470JV R7201 EXB38V470JV R7229 0 R7241 EXB38V102JV R7203 EXB38V470JV C7220 50V 100p C7217 50V 100p C7207 16V 1u C7214 16V 1u FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND UML Vda75V NUEL SOS8_SS USH NC GND USL UEH 5V UMH Vda75V CB7 CB8 11 10 15 12 8 13 14 9 BUFFER BUFFER BUFFER PANEL DATA DRIVER TO PANEL DATA DRIVER TO C2-BOARD TNPA3813AB (2/2) 9 1 7 6 4 2 8 3 5 SS-BOARD TO (SS23) 3.7 0 0.5 0 0.5 5.0 0.6 0.9 0.4 75.5 75.5 1.7 TH-42PV60E, TH-42PX60B C2-Board (2 of 2) Schematic Diagram TH-42PV60E, TH-42PX60B C2-Board (2 of 2) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 135 14.62. SC, SU and SD-Board Block Diagram (37inch) + + CPH2 CEL2 PROD SID CL FCLU SIU FSID PROU CEL CLK CL CPH1 FCLKU SID FSIU CEL CEL2 CLK SCSU FCLD SCSU FCLKD CPH2 CPH1 SIU VSET D6421 R6839 D6860 D6872 VSET 15V 15V D6583 R6838 TPVSUS D6806 D6585 Q6824 D6760 VSUS 16V_F D6804 R6837 VSUS D6620 D6826 D6825 T6602 15V_F TP15V 16V_F D6480 Q6743 D6841 15V D6862 D6859 Q6742 5V (LOWER) C79 A30 PRO VDD PANEL ELECTRODES GND GND CL C1 ELECTRODES CL SO C50 SI A46 S/P 46 IC6956 S/P CL C11 VDD SI VDDH PANEL VDDH CLK SO PRO PRO A40 SO A48 CLK A73 PRO IC6901 CLK SI S/P GND CL VDDH IC6953 GND 3 C41 VDD C39 SO 64bit 64bit 64bit C49 GND GND S/P SI 360LINE CL S/P 5 Vf+5V 1 CL PRO VDDH 9 VDD SCAN CLK Vf+5V 7 FCLKU 8 IC6903 IC6954 3 PRO SO A72 IC6906 IC6951 VDDH 9 C34 VDD 5 VDD PRO SO A45 1 SO 7 8 PRO VDDH CLK SCAN C75 GND C73 SO SO CLK SO C33 GND S/P C8 A47 A33 A70 CL S/P CL A80 SD VDDH VDD VDDH GND C10 A6 40bit Vf+5V 64bit IC6952 SI C48 VDD SU SI Vf+5V 64bit CL C36 A32 CL VDD A71 64bit CLK SI GND A5 CLK CLK CLK IC6902 SO SI S/P A7 45 VDDH SI Vf+5V 64bit FCLKD 64bit A8 VDDH CLK S/P PRO C35 A31 SI S/P VDDH SU41 VDD SD42 IC6904 S/P A2 VDD C74 CL 40bit Vf+5V A42 SO 360LINE IC6905 S/P Vf+5V (UPPER) PRO Vf+5V VDDH PRO PRO C76 C51 CLK CL C9 GND VDD IC6955 64bit 64bit GND 8 120 LINE 120 40 64 64 LINE 48 SU2 SU1 SU3 LINE 56 16 120 64 64 LINE 8 64 56 LINE SD2 SD1 64 48 16 LINE 120 120 120 40 SD3 D6903 D6954 D6953 D6904 Vfo Vf Vscn Vscn FSID Vf PROU Vfo Vfo Vf Vf Vfo Vf FCLU FSIU Vf FCLD Vscn Vscn Vf Vf PROD B31 CSH (+140V) VCC 5 SC_SOS6 Q6801 A36 VCC 1 FACTORY Q6531,Q6532 13 SC SCAN DRIVE FET SC LO Q6681 R6833 HO IC6771 RATOR COUPLER CLK GND IC6861 BUFFER 3 18 BUFFER IC6561,6562 PHOTO +15V VCC SIU AVR Q6441,Q6442 B1 DRIVER Q6803 HIN Q6641,Q6642 VSCN Gen. SC30 LED(G) 7 Q6804 COUPLER 1 COUPLER CML VSETSOS DET SC_SOS7 Q6682 CML B2 GND CEL +5V(SC3) TPSC1 SIGNAL WAVE Q6762 VAD Gen.( 105V ) TO D20 COM Q6551,Q6552 VCC HO R6834 L6413 4 1 VSET2 12 11 PROD VAD COMPARATOR FCLD PC6704 3 (+8V) GND +5V +5V(SC2) VSCN SUPERIMEPOSED Q6451,Q6452 LO 3 2 A34 HIN IC6722 +5V VR6600 GND B34 HO 16V_F Vscn(VAD+140V) VCC Q6680 VSCN A8 PHOTO IC6751 FET B6 3 SID (+260V) PHOTO 20 DRIVER PC6871 FET 23 (Vf+5V) IC6501 A9 A39 CL PC6801 Q6647,Q6648 IN 17 IC6725 VSET SLOPE SIU COUPLER 3 R6836 IC6581 2 Q6581 2 VDD 1 COUPLER B10 Vad( 105V) CMH Vsus (SC3) VSET2 Gen. POWER OSC VAD SLOPE DRIVER FSIU FCLKU Q6622,D6621 CSH SC D6623,D6624 B35 COUPLER OUT GND A10 FET A1 IC6791 TPVSET IC6601 VCC IN A8 1 VSET Gen. B30 7 B32 Q6421-Q6423 VSET TPSCI A2 P+5V PC6701 B33 COUPLER DC/DC CONV. L6411 PC6861 A33 46 GND 8 CSL 3 IC6801 Adj. VDD FET PHOTO VAD CONST 1 Q6782 OUT Vad 105V Q6511,Q6512 SID TO P23 FET 1 9 OUT SC TPVSCN R6835 B36 A35 A30 A11 VOUT Vsus Gen. 19 A5 IC6682 GND FET CLK PC6703 (Vad 105V) +5V FCLKD CPH VCC CL 2 6 PHOTO BUFFER FET OUT VCC FET OUT FET OUT IC6671 Vsus Q6671,Q6672 IC6721 CSL (SC3) B11 HO 1 Q6802 PC6480 IC6752 A7 A33 9 IC6821 OUTFET CMH B33 OUTFET +5V(SC3) FSID VSET SEPARATE COMPAR- 8 A31 IC6724 IC6773 PHOTO IC6841 FET 1 DRIVEB 8 CEL2 20 TPSOS6 2 1 LO TPSOS7 B39 Q6601,Q6602 +15V PROU +5V (Vfo) FET PC6702 Q6644,Q6645 IN VDD IN FET PHOTO COUPLER VAD SEPARATE AVR 3 IN B8 DRIVER GND AVR 7 USE L6403 OUT B7 VIN SC41 (SC2) Q6781 (Vscn) FET GND IC6772 VCC LO GND IC6521 DRIVER LO PC6705 RATOR SC VSUS OUTFET B5 FOR AVR IC6802 VCC FCLU COMPAR- Q6821,Q6822 ENERGY RECOVERY 8 +5V(SC1) SC42 PHOTO COUPLER Q6841,Q6842 Q6401-Q6403 CEL2 45 PC6760 2 BUFFER DRIVER B9 5 VSET IC6681 BUFFER 9 GND Q6661-Q6663 B40 IC6871 COUPLER A6 (SC1) A40 PHOTO SC2 OUTFET +5V(SC3) PHOTO B8 VCC IC6774 A32 LIN 4 SCSU LIN Q6616,Q6617 LO TPVAD HO 2 L6401 Q6691 TO P2 IC6753 Q6621 RATOR COMPAR- 15Vf IC6610 SD SCAN OUT (LOWER) SU SCAN OUT (UPPER) COLD ENERGY RECOVERY SOS DET LED BLINKING : 6 TIMES FLOATING GND LED BLINKING : 7 TIMES SC FLOATING PART SOS DET FLOATING GND COLD TH-37PV60E, TH-37PX60B SC, SU and SD-Board Block Diagram TH-37PV60E, TH-37PX60B SC, SU and SD-Board Block Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 136 14.63. SC, SU and SD-Board Block Diagram (42inch) + + CLK FSIU SCSU CEL2 FCLD CEL2 CEL CLK CPH1 CEL FSID CPH1 SCSU SID PROD CL PROU SIU CL CPH2 SIU FCLKD FCLU SID CPH2 FCLKU D6620 D6806 D6804 R6838 D6583 Q6743 Q6742 T6602 TP15V VSET 15V 5V R6839 16V_F VSUS TPVSUS 16V_F D6862 VSET D6860 15V_F VSUS D6841 Q6824 R6837 D6872 15V D6760 15V D6585 D6825 D6859 D6421 D6480 D6826 SI B34 A6 13 Q6681 Q6804 CML Q6401-Q6403 2 CL CLK 96 BUFFER B40 IC6951 VCC Q6691 GND Q6762 GND A11 Q6531,Q6532 BUFFER VCC C39 HO 64bit C34 CLK SO 5 SD4 LO A47 PRO 1 CL (Vscn) Vf OUTFET SCAN 9 VDD Q6644,Q6645 CL 32 IC6521 64 7 IC6901 Q6601,Q6602 PROU VDD IC6904 VDDH ENERGY RECOVERY AVR A40 8 VDD DRIVER 64bit VCC 32 PRO BUFFER CLK (SC3) VSUS AVR 3 20 GND IC6955 A33 S/P HIN 64bit +5V 3 SU SCAN OUT (UPPER) GND C76 GND VDD POWER OSC GND VDDH PRO CLK Vsus IC6903 LO GND FET SO (Vf+5V) +5V(SC3) GND TO P2 B31 IC6751 (+260V) CL SU3 2 Vad( 105V) VDD 1 CLK B2 PROD FCLD A46 IN 2 C10 18 +15V A7 CMH IC6724 8 +5V PC6702 Vfo C35 CLK AVR PRO COUPLER 64bit SID VDD 4 A30 VSETSOS DET PHOTO SD3 64 11 VSCN SUPERIMEPOSED 2 GND CSL (LOWER) 9 IC6953 IC6802 45 A32 A33 Adj. C36 VDD FCLKD 2 SI A45 VSCN Gen. A71 TPSC1 SIGNAL WAVE Q6551,Q6552 CLK VDDH B1 HIN SO IC6841 Vf IC6561,6562 CLK Q6841,Q6842 PRO SI S/P VDD COM Q6821,Q6822 C11 SC2 B8 Vf+5V 96 VDDH 32 VIN 64bit SO Vf+5V B36 VOUT GND (Vad 105V) A40 (UPPER) A8 64 IC6791 A8 PC6861 Vscn PRO C9 GND S/P VDDH SC A35 VDD PRO Vscn SC41 B8 7 PC6480 SI DRIVEB 20 COUPLER (SC3) 64bit 96 IC6954 PC6703 PHOTO PRO 3 CLK SU41 Q6802 Vscn GND C1 CMH A2 64 SO Vf (+140V) IC6752 IC6821 +5V(SC3) C79 CML 64bit OUTFET VSET SEPARATE IC6753 CSH S/P CL Q6616,Q6617 L6401 CLK CPH 6 SI Vsus CSL Q6641,Q6642 7 Vf+5V L6403 (SC2) Vf+5V IN B32 TPSCI CL Vfo SCAN PANEL A8 GND CL L6413 CL A36 SC SCAN DRIVE R6833 B35 GND LINE VDD 64bit L6411 SU4 C75 VCC R6834 1 FCLU A34 Vfo 23 GND A39 IC6681 Q6661-Q6663 Vf LINE R6835 SI FSID GND A31 Vf Q6671,Q6672 B11 IC6725 R6836 IC6905 VCC S/P IC6501 46 12 COMPARATOR 3 B9 VSET GND VDD VDDH SD42 PRO 32 ELECTRODES IC6871 (SC1) TO P23 IC6906 TPVSCN IC6671 IC6721 HO DRIVER PROU 9 SCSU TPVAD C8 5 Q6801 LINE PRO 384LINE SIU 2 1 VDD SI SC IC6956 VCC 7 VSET VDDH 8 PC6760 C50 5 A48 A32 Vf SO VDDH 3 Q6421-Q6423 A2 8 C74 PANEL Vf SO LINE SD2 FET +5V CL VDDH IC6581 VDD VAD SLOPE Vfo CSH 64 IC6601 B30 C51 VAD CONST Q6511,Q6512 A6 A5 SO VR6600 A73 ELECTRODES SU2 (Vfo) LINE SD1 PROD Q6803 LED(G) CLK 32 96 (+8V) 32 S/P A1 TPVSET VSET Gen. 1 Vf B33 IC6801 SO GND FSIU GND SC_SOS7 CEL VAD Gen.( 105V ) 384LINE Q6680 VDDH SID DRIVER SIU CL A33 VSET2 Gen. FET SO C41 IN 46 VDD CL A72 64bit +5V(SC2) 64bit IC6902 96 B7 CL VCC FCLKD A7 PHOTO BUFFER GND 64 VSET2 VAD C33 COUPLER FCLD VDDH S/P A30 Vsus Gen. A5 HO Vscn(VAD+140V) PRO B6 PC6801 VSET SLOPE Q6581 1 SC IC6771 IC6861 S/P 64bit DRIVER SC 1 32 SU1 COMPAR- FET LINE Vf+5V LO 2 B39 +15V FET Q6451,Q6452 IC6722 +5V 64 Vf+5V FCLKU 1 9 OUTFET 8 IC6773 SI DC/DC CONV. S/P 1 VDD Vscn IN FSID COUPLER OUTFET IC6774 LIN PC6701 3 PHOTO Vad 105V Q6441,Q6442 DRIVER SC30 COUPLER LINE P+5V SU CL +5V(SC3) SO HO 4 CLK RATOR A80 96 VSCN S/P PHOTO PC6871 FACTORY 32 RATOR FSIU COUPLER 3 Vf+5V USE COMPAR- SC42 COUPLER CEL2 B33 45 A31 1 16V_F VCC PHOTO 3 GND PC6705 FOR 96 19 IC6682 PHOTO LIN LO 17 64 9 B10 B5 FCLU +5V(SC1) PHOTO C73 5 FET LO 64bit COUPLER 1 A9 Q6647,Q6648 SI COUPLER VCC SC_SOS6 7 BUFFER PHOTO AVR 8 SO LINE IC6952 SD GND COUPLER A10 3 A70 C48 VDDH S/P PHOTO CEL2 CLK 1 CLK PC6704 C49 Vf+5V Q6682 96 TO D20 VCC S/P SI CL FCLKU A42 PRO TPSOS6 TPSOS7 D6623,D6624 OUT FET FET OUT FET OUT FET OUT FET OUT FET OUT VCC FET HO GND FET VAD SEPARATE IN DRIVER OUT Q6781 IC6772 LO Q6782 D6904 D6953 D6903 D6954 Q6621 Q6622,D6621 IC6610 RATOR COMPAR- 15Vf SD SCAN OUT (LOWER) FLOATING GND COLD ENERGY RECOVERY SOS DET LED BLINKING : 6 TIMES SC FLOATING PART SOS DET LED BLINKING : 7 TIMES FLOATING GND COLD TH-42PV60E, TH-42PX60B SC, SU and SD-Board Block Diagram TH-42PV60E, TH-42PX60B SC, SU and SD-Board Block Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 137 14.64. SC-Board (1 of 2) Schematic Diagram + + + + + + + AA_CLK AA_SIU AA_SID AA_SCSU AA_CL AA_CEL CEL2 CPH CML CMH CSH CBK CEL CSL AA_CEL2 AC_CPH1 AC_CPH2 SOS6_SC1 100V SOS7_SC2 5V 0-305V 0-200V D6471 MA3DF30000LZ R6592 4.7k Q6422 B1JAEP000001 D6522 D1FL40 Q6517 2SA2071T100Q IC6871 C0BBBA000022 1 2 3 4 5 6 7 8 150 R6523 15V C6566 50V 0.01u R6866 2.2k C6565 50V 0.01u R6425 15 R6793 100 Q6441 B1JADN000002 PC6861 B3PBA0000223 1 2 3 4 TP23 R6564 EXB38V470JV R6475 4.7k R6531 10 1 2 3 TP52 R6791 1k R6875 3.3k D6451 D1FL40 L6484 G0ZZ00002183 C6563 10V 100u TP33 D6482 RF2001T3DFF55 D6524 B0ECHP000003 TP7 150 R6504 R6861 39k 1 R6508 R6585 1.2k C6414 220V 200u SOS7_SC2 C6593 50V 1000p TP9 D6431 B0HBSP000019 MAIN_STOP C6502 25V 4.7u 15V_F L6466 G0ZZ00002183 D6491 B0HBSP000019 R6877 3.9k R6581 10k D6441 B0ECHP000003 R6551 10 15V SC2 1 3 TP10 Q6512 2SA2071T100Q R6454 10 TP30 C6504 25V 4.7u L6411 L6488 G0ZZ00002183 Q6791 2SD0601A0L TP15 L6602 G0ZZ00002183 TP20 R6468 82k TP14 D6872 MA2J11100L C6521 25V 1u R6478 4.7k Q6401 B1JADN000001 G D S C6411 220V 200u TP25 R6876 1.2k R6584 10k 16V_F R6553 10k TP39 C6561 10V 100u R6563 EXB38V470JV TP17 C6581 25V 1u D6461 RF2001T3DFF55 16V_F R6863 47k R6865 2.2k R6872 39k D6501 B0ECHP000003 15V R6503 10 R6562 EXB38V470JV R6522 100 C6524 25V 4.7u 150 R6505 R6867 3.9k 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 L6412 L6468 G0ZZ00002183 R6511 10k TP2 PC6871 B3PBA0000223 1 2 3 4 TP4 L6465 G0ZZ00002183 C6412 220V 200u Q6451 B1JADP000002 C6527 25V 4.7u R6467 82k C6872 25V 1u R6561 EXB38V470JV R6583 39k C6512 250V 4u R6451 10 L6487 G0ZZ00002183 C0JBAA000377 IC6472 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y R6591 EXB38V472JV Q6442 B1JADN000002 150 R6524 IC6861 C0BBBA000022 1 2 3 4 5 6 7 8 R6452 10 TP12 C6480 50V 0.1u Q6421 B1JAEP000001 5V L6464 G0ZZ00002183 R6521 100 L6591 G0ZZ00002183 R6501 100 D6791 MAZ82000ML TP21 D6585 MA2J11100L C0JBAZ000005 IC6561 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R6453 10 R6862 47k R6424 15 TP19 R6533 10k R6532 10k R6587 2.2k R6405 15 L6481 G0ZZ00002183 TP6 R6871 39k C6522 25V 4.7u R6479 100k R6552 10k L6485 G0ZZ00002183 SOS7_SC2 L6413 TP24 L6486 G0ZZ00002183 R6516 10k R6566 EXB38V472JV R6565 EXB38V472JV R6422 15 C6873 50V 0.01u R6582 39k Q6423 B1JAEP000001 D6862 MA2J11100L R6401 15 Q6551 B1ABRD000003 TP11 C6401 630V 5600p TP1 D6583 LNJ301MPUJA C0JBAZ000005 IC6562 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R6590 220 L6601 G0ZZ00002183 C6431 250V 4u TP35 R6879 4.7k Q6471 B1CHGD000006 G D S 5V R6878 22k R6402 15 TP16 C6413 220V 200u R6526 0 R6506 10 L6482 G0ZZ00002183 Q6552 B1ADRD000001 TP38 Q6531 B1ABRD000003 C0ZBZ0000895 IC6501 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC D6521 D1FL40 SOS7_SC2 Q6516 2SC5824T100R D6480 MA2J11100L R6465 27k D6401 B0HBSN000008 R6441 10 R6502 100 R6443 10 Q6532 B1ADRD000001 D6523 D1FL40 R6442 10 R6568 EXB38V472JV R6864 9.1k VF_GND C6863 50V 0.01u C6592 25V 470u D6584 MAZ80510LL R6426 15 Q6403 B1JADN000001 C6505 25V 4.7u R6588 10k R6404 15 Q6452 B1JADP000002 Q6511 2SC5824T100R D6466 MA2J11100L TP18 R6792 10k L6463 G0ZZ00002183 D6861 MAZ80510LL L6592 G0ZZ00002183 R6586 1.8k 15V TP31 R6567 EXB38V472JV R6423 15 C6582 16V 1u VSUS C0ZBZ0001324 IC6521 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC D6871 MAZ80510LL R6869 4.7k B0ECHP000003 D6472 R6403 15 C6525 25V 4.7u TP26 R6512 10k D6581 MAZ83300ML R6466 56k TP27 5V D6462 RF2001T3DFF55 5V C6861 16V 1u 200u 220V C6415 R6525 0 Q6402 B1JADN000001 R6477 1k D6582 MAZ83300ML TP32 R6874 8.2k IC6581 C0BBBA000022 1 2 3 4 5 6 7 8 TP29 R6476 4.7k R6444 10 TP8 C6472 50V 0.1u R6517 10k TP5 TP22 R6406 15 C6871 16V 1u Q6581 2SD0601A0L D6502 B0ECHP000003 C6862 25V 1u L6462 G0ZZ00002183 TP34 D6432 B0HBSP000019 VSCN_F C6511 250V 4u MAIN_STOP 1 R6507 C6591 25V 1u 1 R6509 TP28 TP13 L6467 G0ZZ00002183 D6481 RF2001T3DFF55 R6873 39k L6461 G0ZZ00002183 L6483 G0ZZ00002183 R6421 15 R6868 22k VSUS C6402 2200p 630V D6402 B0HBSN000008 D6820 MA2J11100L D6821 MA2J11100L L6402 L6403 L6401 C6421 630V C6422 630V +15V GND (GREEN LED) + - + - TP15V +15V GND Vsus GND GND GND GND TPVSUS TPSOS7 TPSOS6 + + - - - - + + F E 1 5 6 8 7 3 4 C D B 9 A 2 BUFFER BUFFER FET DRIVER ENERGY RECOVERY COMPARATOR COMPARATOR COMPARATOR FET DRIVER Vsus Gen. SC 20 D-BOARD (D20) TO SC 23 P-BOARD (P23) TO TO (P2) P-BOARD TNPA3814AE(37inch) SC-BOARD (1/2) TNPA3814AB(42inch) 42inch:1.9u 37inch:2.2u 42inch:1.9u 37inch:2.2u 37inch:2.2u 42inch:1.9u 37inch:2.2u 42inch:1.9u 37inch:2.2u 42inch:1.9u 37inch:2.2u 42inch:1.9u 42inch ONLY 4 1 5 3 2 CLK SIU SCSU P5V CL SID FLOATING GND COLD NC 37inch:5600p 42inch:2700p 37inch:5600p 42inch:2700p 189.0 0 0 15.0 15.0 0 5.3 0 0 4.3 0 2.2 0.7 0.8 2.9 3.9 0 0.1 0.9 0 0 5.0 0 0 2.8 0.5 TH-37/42PV60E,TH-37/42PX60B SC-Board (1 of 2) Schematic Diagram TH-37/42PV60E,TH-37/42PX60B SC-Board (1 of 2) Schematic Diagram FLOATING GND COLD TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 138 14.65. SC-Board (2 of 2) Schematic Diagram REF K A + + + REF K A + + + REF K A + + REF K A + + + + + + AA_CEL -90V AB_FCLD AB_FCLU AC_CPH1 -80V AA_CEL2 AA_SID AA_SIU AA_CLK AA_CL AA_SCSU AB_FCLKU AB_FCLKD AB_PROD AB_PROU AB_FSID AB_FSIU 215V AC_CPH2 460V 460V 260-460V 15V 15V 460V 30V 30V AB_FSIU AB_FCLD -88V AB_FCLU AB_FCLKU AB_PROU AB_PROD AB_FCLKD AB_FSID 350V 460V -75V -90V 335V -105V 0V 330V 330V 460V +330V -105V +330V -105V C0JBAB000715 IC6602 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y VSET C6702 50V 0.1u D6661 MA2J11100L R6815 18k C6662 630V 1000p TP46 R6757 100 ZA6401 K4CD01000011 R6760 1.2k TP57 R6648 10 VR6600 1k 1 2 3 R6807 3.3k Q6661 B1DEET000002 G D S R6755 100 TP56 D6732 MAZ80560HL D6730 MAZ80560HL ZA6402 K4CD01000011 R6674 5.6 C6704 50V 0.1u R6834 56k Q6671 B1DFET000001 G D S R6809 10k C6805 16V 1u IC6821 C0DBEMB00005 C6726 16V 1u 1 2 3 4 5 6 7 8 9 R6775 100 IC6751 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 SOS7_SC2 R6762 10k R6716 2.2k D6825 MAZ8330 R6682 100 C6620 630V 2200p R6781 47 R6642 10 R6715 2.2k R6844 100 D6605 MAZ80510LL TP50 R6473 560 R6777 150 IC6725 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 C6708 50V 0.1u C6725 25V 4.7u D6725 B0ECHP000003 D6806 B0ECHP000003 15V R6668 4.7k 5V R6658 100 Q6682 2SK389500L G D S IC6671 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6721 EXB38V680JV R6607 5.6k D6624 B0HDSM000005 R6745 4.7k TP41 C6754 35V 47u R6847 56k R6822 100k Q6842 2SC1473AEA D6684 MA2J11100L D6773 B0HCKS000002 R6717 2.2k C6822 350V 10u Q6762 2SA2071T100Q D6701 MAZ80560HL C6842 160V 100u TP40 SC42 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 R6839 4.7k C6661 630V 1000p D6760 MA2J11100L R6621 220 R6841 15k IC6801 C0DBEMB00005 R6743 1k D6662 MAZ83300ML C6771 16V 1u R6673 5.6 Q6804 2SD0601A0L C6721 50V 100u D6729 MAZ80560HL D6642 B0HCKS000002 TP60 D6826 MA111 C0DBEKA00003 IC6471 1 NC 2 A 3 K 5 A 4 REF R6662 3k R6603 100 SOS7_SC2 IC6601 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6812 240k D6721 B0HCKS000002 IC6772 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6660 220k R6827 0 R6756 100 R6711 2.2k R6667 4.7k IC6681 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6831 15k Q6680 B1ADNF000006 R6690 150 TP55 R6620 8.2 Q6601 B1DFES000003 G D S Q6841 2SD1263AP0LB D6801 M1FS4 TP54 R6604 150 D6683 MA2J11100L C6845 50V 0.01u VSET R6860 8.2 C6776 50V 0.1u R6801 0.22 D6860 B0HCKS000002 D6802 B0JCME000037 R6837 47k TP58 1 2 3 4 5 6 7 8 9 15V_F R6702 470 D6477 MA2J11100L R6802 0.22 R6613 1M VSUS PC6480 B3PBA0000223 1 2 3 4 C6701 50V 0.1u R6823 100k C6753 25V 4.7u R6713 2.2k C6804 250V 10u R6826 270k D6667 MA2J11100L R6744 10k D6601 MAZ8240 T6602 ETS25AZ139AD 1 S5 2 S4 4 S2 5 S1 7 P1 10 B1 9 B2 3 S3 6 P2 R6471 3.9k R6609 1k Q6742 2SD0601A0L PC6701 B3PBA0000233 1 2 3 4 5 6 7 8 TP64 C6602 25V 4.7u D6604 MA2J11100L C6706 50V 0.1u C6777 50V 0.1u SC41 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 R6661 100k TP63 C6703 50V 0.1u R6825 270k D6619 B0HCKS000002 C6604 350V 47u IC6841 C0DBEMB00005 R6806 10k R6659 220k R6816 15.8k R6707 470 Q6641 B1DFKM000001 R6852 2.49k TP62 D6727 MAZ80560HL R6703 470 D6643 MA2J11100L 5V IC6771 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 IC6724 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 R6888 220k R6611 1M Q6642 B1DFKM000001 C0JBAA000377 IC6773 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y R6846 56k D6771 B0JCME000037 R6672 10k IC6721 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC R6782 10k D6665 MAZ80510LL R6813 10k D6842 MA2J11100L TP51 R6824 10k Q6782 2SA2071T100Q C6772 25V 4.7u R6718 2.2k VF_GND D6620 B0HCKS000002 C6802 25V 220u R6608 1k L6841 J0JJC0000011 D6728 MAZ80560HL C6603 630V 1000p D6723 B0JCME000037 TP59 R6704 470 D6682 B0HCMM000014 D6663 MAZ83300ML C0JBAB000715 IC6753 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y R6742 10k R6853 100 SOS7_SC2 C6796 25V 220u L6472 G0ZZ00002183 D6726 MAZ80560HL D6733 MAZ80560HL R6808 56 VR6602 5k 1 2 3 C6775 25V 4.7u D6623 B0HDSM000005 R6811 51k IC6802 C0DBEMB00005 C6841 160V 100u C6681 25V 4.7u C6807 160V 100u R6612 47 Q6681 2SK389500L G D S R6724 100 1 2 3 4 5 6 7 8 D6752 M1FS4-5063 R6776 100 R6710 2.2k R6706 470 N0BF1FB00001 IC6791 1 GND 2 GND 3 N.C. 4 VIN 5 VIN 6 N.C. 9 COM 10 COM 11 VOUT 12 VOUT R6605 100k PC6703 B3PBA0000233 1 2 3 4 5 6 7 8 D6702 MAZ80560HL VSCN_F C6803 50V 0.1u D6724 B0JCME000037 Q6647 B1DFKM000001 R6665 47 5V Q6691 2SK062000L G D S R6666 100k L6473 G0ZZ00002183 R6610 100k R6671 47 C6752 16V 1u 16V_F D6822 MA2J11100L D6603 MAZ82400ML R6644 10 C6773 25V 4.7u C6724 25V 4.7u PC6705 B3PBA0000233 1 2 3 4 5 6 7 8 Q6824 2SD601A Q6822 2SC3063000RL TP44 R6821 220 R6701 470 Q6662 2SD0601A0L R6886 220k R6641 10 Q6644 B1DFKM000001 Q6648 B1DFKM000001 D6478 B0HCKS000002 B0HDSM000005 R6696 2.2 R6828 5.23k 15V D6664 MAZ83300ML L6802 J0JJC0000011 PC6760 B3PBA0000223 1 2 3 4 Q6803 2SD814ARL D6686 MA2J11100L TP48 C6811 50V 0.01u R6663 10k R6835 56k ZA6403 K4CD01000011 R6759 4.7k C6691 160V 100u C6682 25V 4.7u D6823 MA2J11100L Q6802 2SB0709ARL Q6744 2SK062000L G D S C6795 25V 220u R6687 2.2k R6606 0 Q6801 B1BAEJ000014 D6805 MA2J11100L C6707 50V 0.1u R6700 470 Q6621 B1DFKM000001 R6647 10 Q6781 2SC5824T100R R6761 10 D6602 B0ECHP000003 D6606 B0HCMM000014 TP61 R6850 68k C6723 25V 4.7u D6804 B0ECHP000003 VSCN_F C6728 50V 1000p R6691 10k Q6645 B1DFKM000001 D6761 MA2J11100L Q6602 2SD0601A0L D6671 MA2J11100L PC6801 B3PBA0000223 1 2 3 4 R6833 56k D6687 MA2J11100L R6887 220k TP47 R6842 43k C6683 50V 0.1u R6685 470 C6705 50V 0.1u C6791 25V 220u R6848 10k Q6821 2SD1263AP0LB IC6752 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB C6755 50V 0.1u C0JBAA000377 IC6774 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y D6803 MA2J11100L R6836 68k 5V R6684 10 C0JBAZ000994 IC6722 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC VF_GND R6708 470 R6829 220k R6688 4.7k R6645 10 D6841 B0ECHP000003 D6859 B0ECHP000003 C6727 16V 1u D6641 B0HCKS000002 R6474 1k C6606 630V 1000p TP45 Q6743 2SD0601A0L R6830 220k TP49 D6666 MA2J11100L C6605 50V 0.1u R6810 51k TP43 D6734 MA2J11100L R6472 2.2k 5V PC6702 B3PBA0000233 1 2 3 4 5 6 7 8 Q6663 2SD21850RL TP42 C6641 0.22u 250V C6671 25V 4.7u D6731 MAZ80560HL C6812 25V 1u D6843 MA2J11100L R6714 2.2k R6814 5.6k PC6704 B3PBA0000234 1 2 3 4 5 R6849 68k D6758 B0ECHP000003 R6697 2.2 C6806 160V 100u R6705 470 D6497 MA111 R6851 1.2k C6823 50V 0.01u R6723 2.2k L6801 J0JJC0000011 R6664 2.2k R6722 EXB38V680JV Q6672 B1DFET000001 G D S R6689 10 TP53 C0JBAA000377 IC6682 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y D6607 MA2J11100L R6758 100 R6817 2.7k R6712 2.2k 15V R6686 10k C6601 25V 4.7u R6683 150 R6622 220 Q6622 B1DFKM000001 D6644 B0HCKS000002 R6746 10k R6747 10k R6843 62k R6845 62k R6619 1.5k C6610 25V 1u R6614 24k D6610 MAZ81500ML D6612 MA2J11100L IC6610 C0BBBA000022 1 2 3 4 5 6 7 8 C6612 25V 1u 15V_F D6611 MA2J11100L R6617 1M D6613 MA2J11100L R6618 12k R6615 24k R6616 15k C6611 50V 0.01u D6614 MA2J11100L (D1FK70) VAD TPVAD TPVSCN INIT-F VSET TPVSET TPSC1 AB_FSIU AB_FCLU AB_FCLKU AB_PROU AB_FSID AB_FCLD AB_FCLKD Vset SOS DET INIT-F AB_PROD TPVSET2 18 15 10 11 12 16 17 14 13 BUFFER BUFFER FET DRIVER SUPERIMEPOSED VSCN VSET SEPARATE FET DRIVER FET DRIVER VSET SLOPE VAD CONST FET DRIVER FET DRIVER VAD SEPARATE +5V(SC1) +5V(SC2) +5V(SC3) +5V(SC3) (SU41) SU-BOARD TO (SD42) SD-BOARD TO +5V(SC1) VAD Gen. VSET2 Gen. VSCN Gen. DC/DC CONV. SU-BOARD TO (SU45) TO SD-BOARD (SD46) SC 46 SC 45 SC 30 TNPA3814AB(42inch) TNPA3814AE(37inch) SC-BOARD (2/2) 1 5 3 2 4 Vf(High Voltage Floting GND) Vfo(Vscn Out) Vf(High Voltage Floting GND) Vscn volatage) (Vscn Vf(High Voltage Floting GND) Vfo(Vscn Out) volatage) VF5V Vf(High Voltage Floting GND) VF5V FLOATING GND COLD POWER OSC FLOATING GND COLD FLOATING GND COLD - - + + COMPARATOR * * * * m TH-37/42PV60E,TH-37/42PX60B SC-Board (2 of 2) Schematic Diagram TH-37/42PV60E,TH-37/42PX60B SC-Board (2 of 2) Schematic Diagram D6621 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 139 14.66. SU-Board (1 of 2) Schematic Diagram (37inch) TERM SIDE TERM SIDE AB_123 AD_223 AD_225 AD_227 AD_238 AD_240 AD_234 AD_236 AD_237 AD_239 AD_229 AD_231 AD_233 AD_235 AD_215 AD_199 AD_201 AD_203 AD_213 AD_221 AD_217 AD_219 AD_209 AD_205 AD_207 AD_211 AC_173 AC_175 AC_177 AC_179 AC_189 AD_197 AC_191 AD_193 AD_195 AC_185 AC_187 AC_181 AC_183 AC_151 AC_149 AC_153 AC_155 AC_167 AC_165 AC_163 AC_161 AC_159 AC_157 AC_169 AC_171 AB_128 AB_126 AB_127 AB_125 AC_129 AC_132 AC_130 AC_131 AC_142 AC_146 AC_144 AC_140 AC_138 AC_136 AC_134 AC_147 AC_145 AC_143 AC_141 AC_139 AC_137 AC_135 AC_133 AB_124 AB_122 AB_121 AF_359 AF_357 AF_358 AF_355 AF_356 AF_339 AF_333 AF_335 AF_337 AF_338 AF_340 AF_334 AF_336 AF_341 AF_343 AF_345 AF_342 AF_344 AF_346 AF_347 AF_348 AF_349 AF_351 AF_350 AF_352 AF_353 AF_354 AF_331 AF_332 AF_321 AF_323 AF_325 AF_322 AF_324 AF_326 AF_327 AF_328 AF_329 AF_330 AE_316 AE_314 AE_312 AE_310 AE_320 AE_318 AE_317 AE_315 AE_313 AE_311 AE_309 AE_319 AE_308 AE_306 AE_307 AE_304 AE_305 AE_294 AE_292 AE_290 AE_288 AE_286 AE_302 AE_300 AE_298 AE_296 AE_293 AE_291 AE_289 AE_287 AE_285 AE_303 AE_301 AE_299 AE_297 AE_295 AE_284 AE_282 AE_283 AE_281 AE_270 AE_268 AE_266 AE_264 AE_262 AE_280 AE_278 AE_276 AE_274 AE_272 AE_271 AE_269 AE_267 AE_265 AE_263 AE_261 AE_279 AE_277 AE_275 AE_273 AE_260 AE_258 AE_259 AD_248 AD_246 AD_244 AD_242 AD_256 AD_254 AD_252 AD_250 AD_247 AD_245 AD_243 AD_241 AE_257 AD_255 AD_253 AD_251 AD_249 AD_221 AD_222 AD_220 AD_216 AD_215 AD_218 AD_219 AD_217 AD_214 AD_213 AD_212 AD_211 AD_210 AD_209 AD_208 AD_207 AD_206 AD_205 AD_204 AD_198 AD_197 AD_196 AD_195 AD_203 AD_202 AD_201 AD_200 AD_199 AD_193 AD_194 AD_233 AD_234 AD_231 AD_230 AD_232 AD_235 AD_236 AD_237 AD_238 AD_239 AD_240 AD_241 AD_242 AD_243 AD_244 AD_245 AD_251 AD_252 AD_253 AD_254 AD_246 AD_247 AD_248 AD_249 AD_250 AG_SO4 AC_187 AC_191 AC_188 AC_189 AC_190 AC_182 AC_183 AC_184 AC_185 AC_186 AC_169 AC_170 AC_171 AC_172 AC_173 AC_174 AC_175 AC_176 AC_177 AC_178 AC_179 AC_180 AC_181 AC_167 AC_166 AC_168 AC_192 AC_134 AC_133 AC_132 AC_131 AC_139 AC_138 AC_137 AC_136 AC_135 AC_152 AC_151 AC_150 AC_149 AC_148 AC_147 AC_146 AC_145 AC_144 AC_143 AC_142 AC_141 AC_140 AC_154 AC_155 AC_153 AE_293 AE_291 AE_292 AE_296 AE_294 AE_295 AE_309 AE_308 AE_307 AE_306 AE_305 AE_304 AE_303 AE_302 AE_301 AE_300 AE_299 AE_298 AE_297 AE_314 AE_313 AE_312 AE_311 AE_310 AE_318 AE_317 AE_316 AE_315 AE_320 AE_319 AE_281 AE_283 AE_282 AE_268 AE_269 AE_270 AE_271 AE_272 AE_273 AE_274 AE_275 AE_276 AE_277 AE_278 AE_279 AE_280 AE_263 AE_264 AE_265 AE_266 AE_267 AE_259 AE_260 AE_261 AE_257 AE_262 AF_348 AF_349 AF_345 AF_347 AF_346 AF_350 AF_360 AF_358 AF_359 AD_232 AD_230 AD_228 AD_226 AD_224 AD_222 AD_220 AD_218 AD_216 AD_214 AD_212 AD_210 AD_206 AD_204 AD_208 AD_202 AD_200 AD_198 AD_196 AD_194 AC_192 AC_190 AC_188 AC_186 AC_184 AC_182 AC_180 AC_178 AC_176 AC_174 AC_172 AC_170 AC_148 AC_150 AC_152 AC_154 AC_156 AC_158 AC_160 AC_162 AC_164 AC_166 AC_168 AF_352 AF_351 AF_355 AF_353 AF_354 AF_356 AF_357 AF_360 AE_289 AE_290 AE_284 AE_285 AE_287 AE_286 AE_288 AD_256 AD_255 AD_229 AD_228 AD_225 AD_227 AD_226 AD_223 AD_224 AC_129 AC_130 AF_333 AF_327 AF_324 AF_331 AF_337 AF_335 AF_340 AF_332 AF_338 AF_330 AF_343 AF_328 AF_334 AF_342 AF_323 AF_336 AF_329 AF_344 AF_341 AF_326 AF_325 AF_339 AF_321 AG_SO3 AG_SO5 AG_SO4 AG_CL AG_SI AG_PRO AG_CLK AG_CLK AG_CL AG_PRO AG_CLK AG_CL AG_PRO AG_CLK AG_CL AG_PRO AG_CLK AG_CL AG_PRO AC_156 AC_157 AC_158 AC_159 AC_160 AC_161 AC_162 AC_163 AC_164 AC_165 AE_258 AF_322 5V AG_SO2 AG_SO3 AG_SO5 A9 A1 B40 C6933 250V 1u B5 B28 D6904 B0ECHP000003 C6908 16V 1u A38 B13 IC6905 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A29 B33 R6904 22 B19 B11 A8 R6903 22 R6936 220k IC6904 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 B17 B24 B37 A25 B21 A18 A12 B8 A21 B26 R6916 220 R6924 220 A13 B7 IC6906 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A3 B9 A7 R6902 22 A11 B38 A39 A23 B30 B14 R6917 220 IC6903 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A4 B6 A2 D6903 B0ECHP000003 A14 B36 A16 A20 C6932 250V 1u A28 B34 A24 A37 B20 B29 C6931 50V 1000p D6902 MAZ80560HL R6935 220k C6906 16V 1u 1 2 3 4 5 6 7 8 9 B23 A22 B18 B16 B4 A31 C6910 16V 1u C6934 250V 1u B36 B20 B4 A52 A36 A20 A4 B55 B39 B23 B7 A55 A39 A23 A7 B58 B42 B26 B10 A58 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B57 B41 B25 B9 A57 A41 A25 A9 B60 B44 B28 B12 A60 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B56 B40 B24 B8 A56 A40 A24 A2 A8 B59 B43 B27 B11 A59 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 B25 SU2 B36 B20 B4 A52 A36 A20 A4 B55 B39 B23 B7 A55 A39 A23 A7 B58 B42 B26 B10 A58 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B57 B41 B25 B9 A57 A41 A25 A9 B60 B44 B28 B12 A60 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B56 B40 B24 B8 A56 A40 A24 A2 A8 B59 B43 B27 B11 A59 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 A27 B3 A32 A35 A19 A34 A33 A26 B2 B1 A17 B35 B22 B15 C6912 16V 1u R6909 220 B27 B10 A5 A10 C6935 250V 1u A30 A15 A36 A40 B32 A6 B12 B31 B39 C6915 50V 220p C6916 50V 220p C6917 50V 220p C6918 50V 220p SU3 SU2 VF5V VF5V FCLK PRO FCL FSI AN16072A-VT AN16072A-VT AN16072A-VT AN16072A-VT F 5 2 1 4 C D 8 7 3 E 9 6 B A COMPONENT SIDE (LOWER) FOIL SIDE (UPPER) Vf(High Voltage Floting GND) Vf(High Voltage Floting GND) (Vscn voltage) Vfo(Vscn Out) SU41(Card Edge 80Pin) TO SC-BOARD (SC41) To 2nd 120pins of SCAN ELECTRODES SCAN ELECTRODES To 3rd 120pins of 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 40bit PDP SCAN DRIVER S/P (SC45) 45 SC-BOARD SU TO PRO FCLK FSI VF5V FCL VF5V Vf Vf5 Vfo Vscn Vf Vf5 Vfo SU-BOARD TNPA3808AB (1/2) 4 1 5 3 2 TH-37PV60E, TH-37PX60B SU-Board (1 of 2) Schematic Diagram TH-37PV60E, TH-37PX60B SU-Board (1 of 2) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 140 14.67. SU-Board (2 of 2) Schematic Diagram (37inch) TERM SIDE AA_45 AA_16 AA_18 AA_14 AA_12 AA_10 AA_8 AA_6 AA_4 AA_2 AA_42 AA_40 AA_38 AA_36 AA_34 AA_32 AA_30 AA_28 AA_26 AA_24 AA_20 AA_22 AA_48 AA_50 AA_52 AA_54 AA_44 AA_46 AB_80 AB_78 AB_76 AB_74 AB_72 AB_86 AB_84 AB_82 AB_70 AB_68 AB_90 AB_88 AB_104 AB_102 AB_100 AB_98 AB_96 AB_94 AB_92 AB_120 AA_3 AA_64 AA_63 AA_42 AA_43 AA_44 AA_45 AA_46 AA_47 AA_48 AA_49 AA_50 AA_51 AA_52 AA_53 AA_54 AA_41 AA_60 AA_61 AA_62 AA_55 AA_56 AA_57 AA_58 AA_59 AB_119 AB_91 AB_93 AB_95 AB_97 AB_99 AB_101 AB_103 AB_73 AB_75 AB_77 AB_79 AB_81 AB_83 AB_85 AB_87 AB_89 AA_43 AA_47 AA_49 AA_51 AA_53 AA_55 AA_57 AA_19 AA_25 AA_23 AA_21 AA_31 AA_29 AA_27 AA_39 AA_37 AA_35 AA_33 AA_1 AA_5 AA_7 AA_9 AA_17 AA_15 AA_13 AA_11 AA_40 AA_38 AA_39 AA_35 AA_36 AA_27 AA_26 AB_93 AB_94 AB_92 AB_88 AB_87 AB_86 AB_85 AB_84 AB_83 AB_82 AB_81 AB_80 AB_79 AB_78 AB_77 AB_76 AB_90 AB_91 AB_89 AB_70 AB_69 AB_68 AB_67 AB_75 AB_74 AB_73 AB_72 AB_71 AB_66 AB_65 AB_105 AB_106 AB_107 AB_108 AB_109 AB_110 AB_111 AB_112 AB_113 AB_114 AB_115 AB_116 AB_117 AB_103 AB_102 AB_104 AB_123 AB_124 AB_125 AB_126 AB_118 AB_119 AB_120 AB_121 AB_122 AB_128 AB_127 AB_101 AB_100 AB_97 AB_99 AB_98 AB_95 AB_96 AA_33 AA_34 AA_28 AA_29 AA_32 AA_31 AA_30 AA_25 AA_14 AA_15 AA_16 AA_17 AA_18 AA_19 AA_3 AA_20 AA_4 AA_21 AA_5 AA_22 AA_6 AA_23 AA_7 AA_24 AA_8 AA_9 AA_10 AA_11 AA_12 AA_13 AA_1 AA_41 AA_56 AA_58 AA_60 AA_62 AA_64 AA_59 AA_61 AA_63 AG_SI AB_65 AB_67 AB_69 AB_71 AB_66 AB_105 AB_107 AB_109 AB_111 AB_113 AB_115 AB_117 AB_118 AB_116 AB_114 AB_112 AB_110 AB_108 AB_106 AG_SO1 AG_SO2 AG_CL AG_CLK AG_SI AG_PRO AG_CLK AG_CL AG_PRO AG_CLK AG_CL AG_PRO AA_37 AA_2 AG_SO1 R6934 10k R6908 220 IC6902 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 IC6901 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6901 50V 1000p R6901 100 D6901 MAZ80560HL SU1 B36 B20 B4 A52 A36 A20 A4 B55 B39 B23 B7 A55 A39 A23 A7 B58 B42 B26 B10 A58 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B57 B41 B25 B9 A57 A41 A25 A9 B60 B44 B28 B12 A60 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B56 B40 B24 B8 A56 A40 A24 A2 A8 B59 B43 B27 B11 A59 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 R6931 10k R6933 10k C6904 16V 1u C6902 16V 1u R6932 10k C6914 50V 220p SU1 AN16072A-VT AN16072A-VT 13 11 15 18 16 12 10 14 17 To 1st 120pins of SCAN ELECTRODES 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P Vf Vf5 Vfo SU-BOARD TNPA3808AB (2/2) 4 1 3 2 5 TH-37PV60E, TH-37PX60B SU-Board (2 of 2) Schematic Diagram TH-37PV60E, TH-37PX60B SU-Board (2 of 2) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 141 14.68. SU-Board (1 of 2) Schematic Diagram (42inch) TERM SIDE TERM SIDE AB_766 AB_765 AB_764 AB_763 AB_762 AB_761 AB_760 AB_759 AB_758 AB_757 AB_756 AB_755 AB_754 AB_753 AB_752 AB_751 AB_750 AB_749 AB_748 AB_747 AB_746 AB_745 AB_744 AB_742 AB_743 AB_741 AB_739 AB_740 AC_702 AC_701 AC_700 AC_699 AC_698 AC_697 AC_696 AC_695 AC_694 AC_693 AC_692 AC_691 AC_690 AC_689 AC_688 AC_687 AC_686 AC_685 AC_684 AC_683 AC_682 AC_681 AC_680 AC_678 AC_679 AC_677 AC_675 AC_676 AD_638 AD_637 AD_636 AD_635 AD_634 AD_633 AD_632 AD_631 AD_630 AD_629 AD_628 AD_627 AD_626 AD_625 AD_624 AD_623 AD_622 AD_621 AD_620 AD_619 AD_618 AD_617 AD_616 AD_614 AD_615 AD_613 AD_611 AD_612 AB_705 AB_707 AB_709 AB_711 AB_713 AB_715 AB_717 AB_719 AB_721 AB_723 AB_725 AB_727 AB_729 AB_731 AB_733 AB_735 AB_737 AB_739 AB_741 AB_743 AB_745 AB_747 AB_749 AB_751 AB_753 AB_755 AB_757 AB_759 AB_761 AB_763 AB_767 AB_765 AB_706 AB_708 AB_710 AB_712 AB_714 AB_716 AB_718 AB_720 AB_722 AB_724 AB_726 AB_728 AB_730 AB_732 AB_734 AB_736 AB_738 AB_740 AB_742 AB_744 AB_746 AB_748 AB_750 AB_752 AB_754 AB_756 AB_758 AB_760 AB_762 AB_764 AB_768 AB_766 AC_641 AC_643 AC_645 AC_647 AC_649 AC_651 AC_653 AC_655 AC_657 AC_659 AC_661 AC_663 AC_665 AC_667 AC_671 AC_669 AC_673 AC_675 AC_677 AC_679 AC_681 AC_683 AC_685 AC_687 AC_689 AC_691 AC_693 AC_695 AC_697 AC_699 AC_703 AC_701 AC_642 AC_644 AC_646 AC_648 AC_650 AC_652 AC_654 AC_656 AC_658 AC_660 AC_662 AC_664 AC_666 AC_668 AC_670 AC_674 AC_676 AC_678 AC_680 AC_682 AC_684 AC_686 AC_688 AC_690 AC_692 AC_694 AC_696 AC_698 AC_700 AC_704 AC_702 AD_577 AD_579 AD_581 AD_583 AD_585 AD_587 AD_589 AD_591 AD_593 AD_595 AD_597 AD_599 AD_601 AD_603 AD_605 AD_607 AD_609 AD_611 AD_613 AD_615 AD_617 AD_619 AD_621 AD_623 AD_625 AD_627 AD_629 AD_633 AD_631 AD_635 AD_637 AD_639 AD_578 AD_584 AD_586 AD_588 AD_590 AD_592 AD_594 AD_596 AD_598 AD_600 AD_602 AD_604 AD_606 AD_608 AD_610 AD_612 AD_614 AD_616 AD_618 AD_620 AD_622 AD_624 AD_626 AD_628 AD_630 AD_632 AD_634 AD_636 AD_640 AD_638 AB_768 AB_767 AC_703 AC_704 AD_639 AD_640 AD_582 AC_672 AB_705 AB_706 AB_707 AB_708 AB_709 AB_710 AB_711 AB_712 AB_713 AB_714 AB_715 AB_716 AB_717 AB_718 AB_719 AB_720 AB_721 AB_722 AB_723 AB_724 AB_725 AB_726 AB_727 AB_728 AB_729 AB_730 AB_731 AB_732 AB_733 AB_734 AB_735 AB_736 AB_738 AB_737 AC_641 AC_642 AC_643 AC_644 AC_645 AC_646 AC_647 AC_648 AC_649 AC_650 AC_651 AC_652 AC_653 AC_654 AC_655 AC_656 AC_657 AC_658 AC_659 AC_660 AC_661 AC_662 AC_663 AC_664 AC_665 AC_666 AC_667 AC_668 AC_669 AC_670 AC_671 AC_672 AC_674 AC_673 AD_577 AD_578 AD_579 AD_580 AD_581 AD_582 AD_583 AD_584 AD_585 AD_586 AD_587 AD_588 AD_589 AD_590 AD_591 AD_592 AD_593 AD_594 AD_595 AD_596 AD_597 AD_598 AD_599 AD_600 AD_602 AD_601 AD_603 AD_604 AD_605 AD_606 AD_607 AD_608 AD_610 AD_609 AA_SI AA_SO1 AA_SO2 AA_SO3 AA_CLK AA_CL AA_PRO AA_PRO AA_CL AA_CLK AA_CLK AA_CL AA_SI AA_CL AA_CLK AA_PRO AD_580 AA_PRO AA_SO2 AA_SO1 AN16072A-VT IC6901 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6904 22 R6934 10k R6933 10k R6932 10k C6902 16V 1u R6909 220 C6904 16V 1u SU1 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 SU2 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C6931 50V 1000p AN16072A-VT IC6902 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6901 100 R6902 22 1 2 3 4 5 6 7 8 9 C6901 50V 1000p AN16072A-VT IC6903 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6931 10k R6905 220 R6903 22 C6906 16V 1u D6901 MAZ80560HL C6914 50V 220p C6915 50V 220p PRO FSI FCLK FCL 8 1 A 3 B D E C 7 4 2 5 6 FCL PRO FCLK FSI VF5V VF5V Vf5 Vfo PDP SCAN DRIVER S/P 64bit S/P PDP SCAN DRIVER 64bit PDP SCAN DRIVER S/P 64bit SU-BOARD TNPA3818AB (1/2) SCAN ELECTRODES To 1st 96pins of To 2nd 96pins of SCAN ELECTRODES 4 1 5 3 2 6 UP Vf5 Vf SC-BOARD (SC45) 45 SU TO TH-42PV60E, TH-42PX60B SU-Board (1 of 2) Schematic Diagram TH-42PV60E, TH-42PX60B SU-Board (1 of 2) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 142 14.69. SU-Board (2 of 2) Schematic Diagram (42inch) TERM SIDE TERM SIDE AE_574 AE_573 AE_572 AE_571 AE_570 AE_569 AE_568 AE_567 AE_566 AE_565 AE_564 AE_563 AE_562 AE_561 AE_560 AE_559 AE_558 AE_557 AE_556 AE_555 AE_554 AE_553 AE_552 AE_550 AE_551 AE_549 AE_547 AE_548 AF_510 AF_509 AF_508 AF_507 AF_506 AF_505 AF_504 AF_503 AF_502 AF_501 AF_500 AF_499 AF_498 AF_497 AF_496 AF_495 AF_494 AF_493 AF_492 AF_491 AF_490 AF_489 AF_488 AF_486 AF_487 AF_485 AF_483 AF_484 AG_446 AG_445 AG_444 AG_443 AG_442 AG_441 AG_440 AG_439 AG_438 AG_437 AG_436 AG_435 AG_434 AG_433 AG_432 AG_431 AG_430 AG_429 AG_428 AG_427 AG_426 AG_425 AG_424 AG_422 AG_423 AG_421 AG_419 AG_420 AE_513 AE_515 AE_517 AE_519 AE_521 AE_523 AE_525 AE_527 AE_529 AE_531 AE_533 AE_535 AE_537 AE_539 AE_541 AE_543 AE_545 AE_547 AE_549 AE_551 AE_553 AE_555 AE_557 AE_559 AE_561 AE_563 AE_565 AE_567 AE_569 AE_571 AE_575 AE_573 AE_514 AE_516 AE_518 AE_520 AE_522 AE_524 AE_526 AE_528 AE_530 AE_532 AE_534 AE_536 AE_538 AE_540 AE_542 AE_544 AE_546 AE_548 AE_550 AE_552 AE_554 AE_556 AE_558 AE_560 AE_562 AE_564 AE_566 AE_568 AE_570 AE_572 AE_576 AE_574 AF_449 AF_451 AF_453 AF_455 AF_457 AF_459 AF_461 AF_463 AF_465 AF_467 AF_469 AF_471 AF_473 AF_475 AF_479 AF_477 AF_481 AF_483 AF_485 AF_487 AF_489 AF_491 AF_493 AF_495 AF_497 AF_499 AF_501 AF_503 AF_505 AF_507 AF_511 AF_509 AF_450 AF_452 AF_454 AF_456 AF_458 AF_460 AF_462 AF_464 AF_466 AF_468 AF_470 AF_472 AF_474 AF_476 AF_478 AF_482 AF_484 AF_486 AF_488 AF_490 AF_492 AF_494 AF_496 AF_498 AF_500 AF_502 AF_504 AF_506 AF_508 AF_512 AF_510 AG_385 AG_387 AG_389 AG_391 AG_393 AG_395 AG_397 AG_399 AG_401 AG_403 AG_405 AG_407 AG_409 AG_411 AG_413 AG_415 AG_417 AG_419 AG_421 AG_423 AG_425 AG_427 AG_429 AG_431 AG_433 AG_435 AG_437 AG_439 AG_441 AG_443 AG_445 AG_447 AG_386 AG_388 AG_390 AG_392 AG_394 AG_396 AG_398 AG_400 AG_402 AG_404 AG_406 AG_408 AG_410 AG_412 AG_414 AG_416 AG_418 AG_420 AG_422 AG_424 AG_426 AG_428 AG_430 AG_432 AG_434 AG_436 AG_438 AG_440 AG_442 AG_444 AG_448 AG_446 AE_576 AE_575 AF_511 AF_512 AG_448 AG_447 AF_480 AE_513 AE_514 AE_515 AE_516 AE_517 AE_518 AE_519 AE_520 AE_521 AE_522 AE_523 AE_524 AE_525 AE_526 AE_527 AE_528 AE_529 AE_530 AE_531 AE_532 AE_533 AE_534 AE_535 AE_536 AE_537 AE_538 AE_539 AE_540 AE_541 AE_542 AE_543 AE_544 AE_546 AE_545 AF_449 AF_450 AF_451 AF_452 AF_453 AF_454 AF_455 AF_456 AF_457 AF_458 AF_459 AF_460 AF_461 AF_462 AF_463 AF_464 AF_465 AF_466 AF_467 AF_468 AF_469 AF_470 AF_471 AF_472 AF_473 AF_474 AF_475 AF_476 AF_477 AF_478 AF_479 AF_480 AF_482 AF_481 AG_385 AG_386 AG_387 AG_388 AG_389 AG_390 AG_391 AG_392 AG_393 AG_394 AG_395 AG_396 AG_397 AG_398 AG_399 AG_400 AG_401 AG_402 AG_403 AG_404 AG_405 AG_406 AG_407 AG_408 AG_409 AG_410 AG_411 AG_412 AG_413 AG_414 AG_415 AG_416 AG_418 AG_417 AA_SO4 AA_SO5 AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO 140V(DC) 140V AA_SO4 AA_SO3 AA_SO5 C8 C43 C40 C32 C23 C34 C24 C64 C19 C37 C22 C76 C4 C6933 250V 1u C31 C53 C6910 16V 1u C78 C44 C16 C18 C38 C12 C7 C33 C63 R6913 220 C10 C15 R6924 220 C41 C9 C39 C61 C26 C5 C6 C52 C6932 250V 1u C73 C54 D6903 B0ECHP000003 C6935 250V 1u C36 C17 C55 C46 C77 C67 C14 SU4 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C30 D6904 B0ECHP000003 R6935 220k C79 C57 C25 C6912 16V 1u AN16072A-VT IC6905 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C49 C69 C58 C47 C80 C13 C42 C35 C70 SU3 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C6908 16V 1u C62 C2 C75 C29 AN16072A-VT IC6906 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C3 C59 C56 C48 C68 C28 C21 C20 C65 C6934 250V 1u C60 C50 C51 C45 C11 C72 C27 C66 C71 C74 C1 R6917 220 AN16072A-VT IC6904 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D6902 MAZ80560HL R6936 220k C6916 50V 220p C6917 50V 220p C6918 50V 220p Vscn Vf Vfo Vf VF5V VF5V 15 11 10 13 8 14 12 9 FOIL SIDE (UPPER) COMPONENT SIDE (LOWER) Vfo(Vscn Out) (Vscn volatage) SU41(Card Edge 80Pin) Vf(High Voltage Floting GND) Vf(High Voltage Floting GND) Vf5 Vscn 64bit PDP SCAN DRIVER S/P PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit SU-BOARD TNPA3818AB (2/2) SCAN ELECTRODES To 3rd 96pins of SCAN ELECTRODES To 4th 96pins of TO SC-BOARD (SC41) 1 2 1 4 6 5 3 UP Vf5 Vf TH-42PV60E, TH-42PX60B SU-Board (2 of 2) Schematic Diagram TH-42PV60E, TH-42PX60B SU-Board (2 of 2) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 143 14.70. SD-Board (1 of 2) Schematic Diagram (37inch) TERM SIDE TERM SIDE AB_483 AD_578 AD_580 AD_582 AD_584 AD_586 AD_588 AD_590 AD_592 AD_594 AD_596 AD_598 AD_600 AD_577 AD_579 AD_581 AD_583 AD_585 AD_587 AD_589 AD_591 AD_593 AD_595 AD_597 AD_599 AC_552 AD_554 AD_556 AD_558 AD_560 AD_562 AD_564 AD_566 AD_568 AD_574 AD_576 AD_572 AD_570 AD_553 AD_555 AD_557 AD_559 AD_561 AD_563 AD_565 AD_567 AD_573 AD_575 AD_571 AD_569 AC_528 AC_540 AC_530 AC_532 AC_534 AC_536 AC_538 AC_542 AC_550 AC_544 AC_546 AC_548 AC_529 AC_531 AC_533 AC_535 AC_537 AC_539 AC_541 AC_549 AC_543 AC_545 AC_547 AC_551 AC_504 AC_508 AC_506 AC_510 AC_512 AC_514 AC_516 AC_526 AC_518 AC_520 AC_522 AC_524 AC_507 AC_505 AC_509 AC_511 AC_513 AC_515 AC_517 AC_525 AC_527 AC_519 AC_521 AC_523 AC_490 AC_492 AB_482 AB_488 AC_494 AC_496 AC_498 AC_500 AC_502 AB_486 AB_484 AC_489 AC_491 AC_493 AB_485 AB_487 AC_495 AC_497 AC_499 AC_501 AC_503 AB_481 AF_706 AF_708 AF_710 AF_712 AF_714 AF_716 AF_718 AF_720 AF_707 AF_709 AF_711 AF_713 AF_715 AF_717 AF_719 AF_682 AF_684 AF_686 AF_688 AF_690 AF_692 AF_694 AF_696 AF_698 AF_700 AF_702 AF_704 AF_683 AF_685 AF_687 AF_689 AF_691 AF_693 AF_695 AF_697 AF_699 AF_705 AF_701 AF_703 AE_658 AE_660 AE_662 AE_664 AE_666 AE_670 AE_672 AE_674 AE_676 AE_678 AE_680 AE_659 AE_661 AE_663 AE_665 AE_667 AE_669 AE_671 AE_673 AE_675 AF_681 AE_677 AE_679 AE_634 AE_636 AE_638 AE_640 AE_642 AE_644 AE_646 AE_648 AE_656 AE_650 AE_652 AE_654 AE_635 AE_637 AE_639 AE_641 AE_643 AE_645 AE_647 AE_649 AE_655 AE_657 AE_651 AE_653 AD_610 AD_612 AD_616 AE_618 AE_620 AE_622 AE_624 AE_632 AE_626 AE_628 AE_630 AD_611 AD_613 AD_615 AE_617 AE_619 AE_621 AE_623 AE_625 AE_633 AE_631 AE_627 AE_629 AD_608 AD_604 AD_602 AD_606 AD_601 AD_607 AD_609 AD_603 AD_605 AG_SO5 AF_682 AF_683 AC_515 AC_514 AC_513 AC_512 AC_511 AC_510 AC_509 AC_508 AC_507 AC_506 AC_505 AC_504 AC_503 AC_502 AC_501 AC_500 AC_499 AC_498 AC_497 AC_496 AC_495 AC_494 AC_493 AC_492 AC_491 AC_516 AC_517 AC_518 AC_490 AC_489 AC_526 AC_527 AC_528 AC_529 AC_530 AC_531 AC_532 AC_533 AC_534 AC_535 AC_536 AC_537 AC_538 AC_539 AC_540 AC_541 AC_542 AC_543 AC_544 AC_545 AC_546 AC_547 AC_548 AC_549 AC_550 AD_588 AD_587 AD_589 AD_590 AD_591 AD_592 AD_593 AD_594 AD_595 AD_596 AD_597 AD_598 AD_599 AD_600 AD_601 AD_602 AD_603 AD_604 AD_605 AD_606 AD_607 AD_608 AD_609 AD_610 AD_611 AD_612 AD_613 AD_614 AD_615 AD_616 AD_579 AD_578 AD_577 AD_576 AD_575 AD_574 AD_573 AD_572 AD_571 AD_570 AD_569 AD_568 AD_567 AD_566 AD_565 AD_564 AD_563 AD_562 AD_561 AD_560 AD_559 AD_558 AD_557 AD_556 AD_555 AE_645 AE_646 AE_644 AE_643 AE_642 AE_641 AE_640 AE_639 AE_638 AE_637 AE_636 AE_635 AE_634 AE_633 AE_632 AE_631 AE_630 AE_629 AE_628 AE_627 AE_626 AE_625 AE_624 AE_623 AE_622 AE_621 AE_620 AE_619 AE_617 AE_618 AE_679 AE_654 AE_655 AE_656 AE_657 AE_658 AE_659 AE_660 AE_661 AE_662 AE_663 AE_664 AE_665 AE_666 AE_667 AE_668 AE_669 AE_670 AE_671 AE_672 AE_673 AE_674 AE_675 AE_676 AE_677 AE_678 AF_716 AF_715 AF_717 AF_718 AF_719 AF_720 AF_709 AF_708 AF_710 AF_707 AF_706 AF_705 AF_704 AF_703 AF_702 AF_701 AF_700 AF_699 AF_698 AF_697 AF_696 AF_695 AF_694 AF_693 AF_692 AF_691 AF_690 AF_689 AF_688 AF_687 AF_686 AF_685 AF_684 AF_681 AF_712 AF_711 AF_714 AF_713 AE_680 AE_648 AE_647 AE_653 AE_652 AE_649 AE_651 AE_650 AD_553 AD_554 AD_580 AD_581 AD_582 AD_584 AD_583 AD_586 AD_585 AC_519 AC_520 AC_525 AC_524 AC_523 AC_521 AC_522 AC_551 AC_552 AE_668 AG_SO3 AG_SO4 AG_SO4 AG_SO5 AG_SI AG_PRO AG_CL AG_PRO AG_CLK AG_CLK AG_CL AG_CLK AG_CL AG_PRO AG_CLK AG_CL AG_PRO AG_CLK AG_CL AG_PRO AG_CLK AG_CL AG_PRO AD_614 AG_SO2 AG_SO3 A44 B45 R6967 220 A52 B53 B65 A75 B79 A64 A60 D6953 B0ECHP000003 A79 R6959 220 A51 B48 B71 B42 IC6956 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A56 C6984 250V 1u IC6954 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A48 A68 C6983 250V 1u A55 B51 A77 A59 R6974 220 A45 B62 B74 A80 B36 B20 B4 A52 A36 A20 A4 B55 B39 B23 B7 A55 A39 A23 A7 B58 B42 B26 B10 A58 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B57 B41 B25 B9 A57 A41 A25 A9 B60 B44 B28 B12 A60 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B56 B40 B24 B8 A56 A40 A24 A2 A8 B59 B43 B27 B11 A59 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 R6983 10k A69 B59 B67 B75 IC6953 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A76 B73 A58 A66 B41 B68 B56 B72 B61 C6958 16V 1u D6954 B0ECHP000003 B43 B52 A67 A47 A63 R6966 220 R6952 22 C6962 16V 1u A62 A41 B57 B77 C6981 50V 1000p B64 R6982 10k A57 B69 IC6955 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6985 220k B46 A74 C6956 16V 1u B50 A50 A49 A65 B49 D6952 MAZ80560HL A61 B66 A54 A70 A43 B78 B36 B20 B4 A52 A36 A20 A4 B55 B39 B23 B7 A55 A39 A23 A7 B58 B42 B26 B10 A58 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B57 B41 B25 B9 A57 A41 A25 A9 B60 B44 B28 B12 A60 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B56 B40 B24 B8 A56 A40 A24 A2 A8 B59 B43 B27 B11 A59 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 B54 B55 B63 B76 R6953 22 A71 A42 C6982 250V 1u A46 A73 C6960 16V 1u R6981 10k B60 1 2 3 4 5 6 7 8 9 B44 B70 A72 R6954 22 C6985 250V 1u B58 B47 B80 A53 A78 R6986 220k C6965 50V 220p C6966 50V 220p C6967 50V 220p C6968 50V 220p SD2 SD3 VF5V PRO FSI FCLK FCL VF5V AN16072A-VT AN16072A-VT AN16072A-VT AN16072A-VT 2 4 F 5 7 3 E 9 D 8 1 6 B A C SD-BOARD TNPA3809AB (1/2) COMPONENT SIDE (LOWER) FOIL SIDE (UPPER) (Vscn voltage) Vfo(Vscn Out) Vf(High Voltage Floting GND) Vf(High Voltage Floting GND) 46 (SC46) SC-BOARD SD TO FCLK PRO FSI VF5V FCL VF5V (SC42) TO SC-BOARD SD42(Card Edge 80Pin) 40bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P SCAN ELECTRODES To 3rd 120pins of To 2nd 120pins of SCAN ELECTRODES 4 1 5 3 2 TH-37PV60E, TH-37PX60B SD-Board (1 of 2) Schematic Diagram TH-37PV60E, TH-37PX60B SD-Board (1 of 2) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 144 14.71. SD-Board (2 of 2) Schematic Diagram (37inch) TERM SIDE AA_361 AA_363 AA_365 AA_367 AA_369 AA_371 AA_373 AA_362 AA_364 AA_366 AA_368 AA_370 AA_372 AA_374 AA_379 AA_381 AA_377 AA_383 AA_385 AA_387 AA_389 AA_391 AA_393 AA_395 AA_397 AA_399 AA_382 AA_380 AA_378 AA_384 AA_386 AA_388 AA_390 AA_392 AA_394 AA_396 AA_398 AA_400 AA_375 AA_376 AB_425 AB_426 AA_403 AA_405 AA_401 AA_413 AA_411 AA_409 AA_407 AA_417 AA_419 AA_421 AA_423 AA_415 AA_406 AA_402 AA_404 AA_414 AA_412 AA_410 AA_408 AA_418 AA_420 AA_422 AA_416 AB_449 AB_451 AB_448 AB_450 AB_452 AB_427 AB_429 AB_441 AB_443 AB_445 AB_447 AB_431 AB_433 AB_435 AB_437 AB_439 AB_428 AB_430 AB_442 AB_444 AB_446 AB_432 AB_434 AB_436 AB_438 AB_440 AB_473 AB_475 AB_477 AB_472 AB_474 AB_476 AB_478 AB_453 AB_455 AB_457 AB_459 AB_461 AB_463 AB_465 AB_467 AB_471 AB_454 AB_456 AB_458 AB_460 AB_462 AB_464 AB_466 AB_468 AB_470 AB_479 AB_480 AA_361 AA_362 AA_384 AA_383 AA_382 AA_380 AA_379 AA_378 AA_377 AA_376 AA_375 AA_374 AA_373 AA_372 AA_371 AA_370 AA_369 AA_368 AA_367 AA_366 AA_381 AA_365 AA_364 AA_363 AA_398 AA_399 AA_387 AA_386 AA_385 AA_389 AA_390 AA_388 AB_462 AB_463 AB_464 AB_465 AB_466 AB_467 AB_468 AB_469 AB_470 AB_471 AB_472 AB_473 AB_474 AB_475 AB_476 AB_477 AB_478 AB_479 AB_480 AB_481 AB_482 AB_483 AB_484 AB_485 AB_486 AB_460 AB_459 AB_461 AB_488 AB_487 AB_451 AB_450 AB_449 AB_448 AB_447 AB_446 AB_445 AB_444 AB_443 AB_442 AB_441 AB_440 AB_439 AB_438 AB_437 AB_436 AB_435 AB_434 AB_433 AB_432 AB_431 AB_430 AB_429 AB_428 AB_427 AB_425 AB_426 AB_452 AB_453 AB_455 AB_456 AB_454 AB_458 AB_457 AA_391 AA_392 AA_397 AA_396 AA_394 AA_393 AA_395 AA_400 AA_401 AA_417 AA_416 AA_415 AA_414 AA_413 AA_412 AA_411 AA_410 AA_409 AA_408 AA_407 AA_406 AA_422 AA_405 AA_404 AA_420 AA_403 AA_419 AA_402 AA_418 AA_421 AA_423 AA_424 AA_424 AB_469 AG_SO1 AG_SO2 AG_CLK AG_CL AG_PRO AG_CLK AG_CL AG_PRO AG_SI AG_SO1 R6958 220 IC6952 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 B36 B20 B4 A52 A36 A20 A4 B55 B39 B23 B7 A55 A39 A23 A7 B58 B42 B26 B10 A58 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B57 B41 B25 B9 A57 A41 A25 A9 B60 B44 B28 B12 A60 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B56 B40 B24 B8 A56 A40 A24 A2 A8 B59 B43 B27 B11 A59 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 R6984 10k R6951 100 C6951 50V 1000p D6951 MAZ80560HL IC6951 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6952 16V 1u C6954 16V 1u C6964 50V 220p SD1 AN16072A-VT AN16072A-VT 15 18 10 13 11 14 17 16 12 SD-BOARD TNPA3809AB (2/2) 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P To 1st 120pins of SCAN ELECTRODES 4 5 3 2 1 TH-37PV60E, TH-37PX60B SD-Board (2 of 2) Schematic Diagram TH-37PV60E, TH-37PX60B SD-Board (2 of 2) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 145 14.72. SD-Board (1 of 2) Schematic Diagram (42inch) TERM SIDE TERM SIDE AB_382 AB_381 AB_380 AB_379 AB_378 AB_377 AB_376 AB_375 AB_374 AB_373 AB_372 AB_371 AB_370 AB_369 AB_368 AB_367 AB_366 AB_365 AB_364 AB_363 AB_362 AB_361 AB_360 AB_358 AB_359 AB_357 AB_355 AB_356 AC_318 AC_317 AC_316 AC_315 AC_314 AC_313 AC_312 AC_311 AC_310 AC_309 AC_308 AC_307 AC_306 AC_305 AC_304 AC_303 AC_302 AC_301 AC_300 AC_299 AC_298 AC_297 AC_296 AC_294 AC_295 AC_293 AC_291 AC_292 AD_254 AD_253 AD_252 AD_251 AD_250 AD_249 AD_248 AD_247 AD_246 AD_245 AD_244 AD_243 AD_242 AD_241 AD_240 AD_239 AD_238 AD_237 AD_236 AD_235 AD_234 AD_233 AD_232 AD_230 AD_231 AD_229 AD_227 AB_365 AB_367 AB_369 AB_371 AB_373 AB_375 AB_377 AB_379 AB_381 AB_383 AB_366 AB_368 AB_370 AB_372 AB_374 AB_376 AB_380 AB_382 AB_341 AB_343 AB_345 AB_347 AB_349 AB_351 AB_353 AB_355 AB_357 AB_359 AB_361 AB_363 AB_342 AB_344 AB_346 AB_348 AB_350 AB_352 AB_354 AB_356 AB_358 AB_360 AB_362 AB_364 AB_321 AB_323 AB_325 AB_327 AB_329 AB_331 AB_333 AB_335 AB_337 AB_339 AB_322 AB_324 AB_326 AB_328 AB_330 AB_332 AB_334 AB_336 AB_338 AB_340 AC_319 AC_317 AC_316 AC_320 AC_318 AB_384 AB_383 AC_293 AC_295 AC_297 AC_299 AC_301 AC_303 AC_305 AC_307 AC_309 AC_311 AC_313 AC_315 AC_294 AC_296 AC_298 AC_300 AC_302 AC_304 AC_306 AC_308 AC_310 AC_312 AC_314 AC_281 AC_283 AC_287 AC_285 AC_282 AC_284 AC_288 AC_286 AC_289 AC_291 AC_257 AC_259 AC_261 AC_263 AC_265 AC_267 AC_269 AC_271 AC_273 AC_275 AC_277 AC_279 AC_258 AC_260 AC_262 AC_264 AC_266 AC_268 AC_270 AC_272 AC_274 AC_276 AC_278 AC_280 AD_256 AC_320 AC_319 AD_254 AD_252 AD_250 AD_248 AD_246 AD_244 AD_242 AD_240 AD_238 AD_236 AD_234 AD_232 AD_253 AD_255 AD_251 AD_249 AD_247 AD_245 AD_243 AD_241 AD_239 AD_237 AD_235 AD_233 AD_230 AD_228 AD_226 AD_224 AD_222 AD_220 AD_218 AD_216 AD_214 AD_212 AD_210 AD_208 AD_231 AD_229 AD_227 AD_225 AD_223 AD_221 AD_219 AD_217 AD_215 AD_213 AD_211 AD_209 AD_206 AD_204 AD_202 AD_200 AD_198 AD_196 AD_194 AD_207 AD_205 AD_203 AD_201 AD_199 AD_197 AD_195 AD_193 AD_256 AD_255 AB_378 AB_384 AC_292 AC_290 AB_321 AB_323 AB_324 AB_325 AB_326 AB_327 AB_328 AB_329 AB_330 AB_331 AB_332 AB_333 AB_334 AB_335 AB_336 AB_337 AB_338 AB_339 AB_340 AB_341 AB_342 AB_343 AB_344 AB_345 AB_346 AB_322 AB_347 AB_348 AB_349 AB_350 AB_351 AB_352 AB_353 AB_354 AC_257 AC_258 AC_259 AC_260 AC_261 AC_262 AC_263 AC_264 AC_265 AC_266 AC_267 AC_268 AC_269 AC_270 AC_271 AC_272 AC_273 AC_274 AC_275 AC_276 AC_277 AC_278 AC_279 AC_280 AC_281 AC_282 AC_283 AC_284 AC_285 AC_286 AC_287 AC_288 AC_289 AC_290 AD_193 AD_194 AD_195 AD_196 AD_197 AD_198 AD_199 AD_200 AD_201 AD_202 AD_203 AD_204 AD_205 AD_206 AD_207 AD_208 AD_209 AD_210 AD_211 AD_212 AD_213 AD_214 AD_215 AD_216 AD_217 AD_218 AD_219 AD_220 AD_221 AD_222 AD_223 AD_224 AD_226 AD_225 AD_228 AA_SO7 AA_SO7 AA_SO8 AA_SO8 AA_SO9 AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_SI 140V A24 A56 SD1 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 A12 A70 A47 AN16072A-VT IC6951 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A1 D6954 B0ECHP000003 A32 C6983 250V 1u A35 A23 A38 A10 A40 R6986 220k A14 A75 A2 C6982 250V 1u A46 A16 A6 D6953 B0ECHP000003 A76 A37 A33 A53 AN16072A-VT IC6952 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A20 A44 A41 A45 C6952 16V 1u A43 A11 A68 A67 A39 A3 A31 A21 A63 A72 A36 A77 C6985 250V 1u A66 A7 A28 A73 A61 A62 A19 C6955 16V 1u A57 AN16072A-VT IC6953 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A4 A48 A17 A49 A9 C6984 250V 1u A80 A22 A34 A69 A58 A13 A54 SD2 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C6957 16V 1u A25 A55 A52 A30 A79 A51 C6951 50V 1000p A29 A27 R6955 220 A15 A8 A18 A64 A50 R6984 10k A71 A74 R6951 100 A5 A78 A60 A65 A42 A26 A59 R6959 220 D6951 MAZ80560HL D6952 MAZ80560HL C6964 50V 220p C6965 50V 220p Vfo Vf5 VF5V VF5V Vf 8 1 A 3 B D E C 7 4 2 5 6 Vf Vf COMPONENT SIDE (LOWER) FOIL SIDE (UPPER) PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit SCAN ELECTRODES To 1st 96pins of To 2nd 96pins of SCAN ELECTRODES Vf(High Voltage Floting GND) Vfo(Vscn Out) (Vscn voltage) Vf(High Voltage Floting GND) Vscn (SC42) SD42(Card Edge 80Pin) TO SC-BOARD DOWN SD-BOARD TNPA3819AB (1/2) 2 1 4 6 5 3 TH-42PV60E, TH-42PX60B SD-Board (1 of 2) Schematic Diagram TH-42PV60E, TH-42PX60B SD-Board (1 of 2) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 146 14.73. SD-Board (2 of 2) Schematic Diagram (42inch) TERM SIDE TERM SIDE AE_190 AE_189 AE_188 AE_187 AE_186 AE_185 AE_184 AE_183 AE_182 AE_181 AE_180 AE_179 AE_178 AE_177 AE_176 AE_175 AE_174 AE_173 AE_172 AE_171 AE_170 AE_169 AE_168 AE_166 AE_167 AE_165 AE_163 AE_164 AF_126 AF_125 AF_124 AF_123 AF_122 AF_121 AF_120 AF_119 AF_118 AF_117 AF_116 AF_115 AF_114 AF_113 AF_112 AF_111 AF_110 AF_109 AF_108 AF_107 AF_106 AF_105 AF_104 AF_102 AF_103 AF_101 AF_99 AF_100 AG_62 AG_61 AG_60 AG_59 AG_58 AG_57 AG_56 AG_55 AG_54 AG_53 AG_52 AG_51 AG_50 AG_49 AG_48 AG_47 AG_46 AG_45 AG_44 AG_43 AG_42 AG_41 AG_40 AG_38 AG_39 AG_37 AG_35 AG_36 AE_187 AE_185 AE_183 AE_188 AE_186 AE_184 AE_182 AE_191 AE_192 AE_189 AE_190 AE_175 AE_173 AE_181 AE_179 AE_177 AE_176 AE_174 AE_172 AE_180 AE_178 AE_161 AE_159 AE_163 AE_164 AE_162 AE_160 AE_158 AE_165 AE_171 AE_169 AE_167 AE_170 AE_168 AE_166 AE_151 AE_157 AE_155 AE_153 AE_149 AE_152 AE_156 AE_154 AE_148 AE_150 AE_192 AE_191 AE_137 AE_135 AE_140 AE_138 AE_136 AE_134 AE_141 AE_143 AE_145 AE_147 AE_144 AE_146 AE_139 AE_142 AE_133 AE_131 AE_129 AF_127 AF_125 AF_123 AE_132 AE_130 AF_128 AF_126 AF_124 AF_113 AF_111 AF_114 AF_112 AF_110 AF_117 AF_121 AF_119 AF_122 AF_120 AF_115 AF_116 AF_118 AF_109 AF_107 AF_105 AF_103 AF_101 AF_99 AF_108 AF_106 AF_104 AF_102 AF_100 AF_97 AF_98 AF_94 AF_96 AF_92 AF_90 AF_93 AF_95 AF_91 AF_128 AF_127 AF_88 AF_86 AF_84 AF_82 AF_80 AF_78 AF_76 AF_74 AF_72 AF_70 AF_68 AF_66 AF_89 AF_87 AF_85 AF_83 AF_81 AF_79 AF_77 AF_75 AF_73 AF_71 AF_69 AF_67 AG_61 AG_63 AG_59 AG_57 AG_55 AG_53 AG_51 AG_49 AG_47 AG_45 AG_43 AG_41 AG_64 AG_62 AG_60 AG_58 AG_56 AG_54 AG_52 AG_50 AG_48 AG_46 AG_44 AG_42 AF_65 AG_39 AG_37 AG_35 AG_33 AG_31 AG_29 AG_27 AG_25 AG_23 AG_21 AG_19 AG_17 AG_40 AG_38 AG_36 AG_34 AG_32 AG_30 AG_28 AG_26 AG_24 AG_22 AG_20 AG_18 AG_64 AG_63 AG_15 AG_13 AG_11 AG_9 AG_7 AG_5 AG_3 AG_1 AG_16 AG_14 AG_12 AG_10 AG_8 AG_6 AG_4 AG_2 AE_130 AE_129 AE_132 AE_133 AE_134 AE_135 AE_136 AE_137 AE_138 AE_139 AE_140 AE_141 AE_142 AE_143 AE_144 AE_145 AE_146 AE_147 AE_148 AE_149 AE_150 AE_151 AE_152 AE_153 AE_154 AE_131 AE_155 AE_156 AE_157 AE_158 AE_159 AE_160 AE_162 AE_161 AF_65 AF_66 AF_67 AF_68 AF_69 AF_70 AF_71 AF_72 AF_73 AF_74 AF_75 AF_76 AF_77 AF_78 AF_79 AF_80 AF_81 AF_82 AF_83 AF_84 AF_85 AF_86 AF_87 AF_88 AF_89 AF_90 AF_91 AF_92 AF_93 AF_94 AF_95 AF_96 AF_97 AF_98 AG_1 AG_2 AG_3 AG_4 AG_5 AG_6 AG_7 AG_8 AG_9 AG_10 AG_11 AG_12 AG_13 AG_14 AG_15 AG_16 AG_17 AG_18 AG_19 AG_20 AG_21 AG_22 AG_23 AG_24 AG_25 AG_26 AG_27 AG_28 AG_29 AG_30 AG_31 AG_32 AG_34 AG_33 AA_SO9 AA_SO10 AA_SO11 AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_SI AA_CLK AA_PRO AA_CL AA_SO10 AA_SO11 R6953 22 R6967 220 R6983 10k R6952 22 R6981 10k SD4 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C6963 16V 1u 1 2 3 4 5 6 7 8 9 C6958 16V 1u C6981 50V 1000p R6971 220 R6982 10k SD3 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 AN16072A-VT IC6954 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16072A-VT IC6955 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6961 16V 1u R6963 220 AN16072A-VT IC6956 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6954 22 R6985 220k C6966 50V 220p C6967 50V 220p C6968 50V 220p PRO FSI FCLK FCL 15 11 10 13 8 14 12 9 PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit To 4th 96pins of To 3rd 96pins of SCAN ELECTRODES SCAN ELECTRODES 46 SC-BOARD SD (SC46) TO FSI FCL FCLK PRO VF5V VF5V Vf Vfo Vf5 DOWN SD-BOARD TNPA3819AB (2/2) Vf Vf5 4 6 5 3 2 1 TH-42PV60E, TH-42PX60B SD-Board (2 of 2) Schematic Diagram TH-42PV60E, TH-42PX60B SD-Board (2 of 2) Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 147 14.74. SS and S-Board Block Diagram PUSH D6221 TPVSUS SW2500 D6253 TP15V TPSS1 TPVE TPVDA D6255 R6113 Q6051,Q6052 Q6141-Q6142 +15V DRIVER LED(G) FET DRIVER VCC FET SS IC6191 TPSS1 SIGNAL WAVE 1 Q6103,Q6104 S34 4 Vsus Gen. S POWER SWITCH STB PS POWER SWITCH 34 Q6021-Q6023 VCC Vda Q6001-Q6003 SS_SOS8 OUTPUT VSUS TPSS1 VE 1 2 8 STB12V VCC Vda DRIVER 3 TO C23 Ve Gen. VCC 10 VCC 3 IC6251 1 STB PS IC6131 12 Ve2 BUFFER FET IC6241 P12 SS 5 7 11 3 8 12 1 2 4 6 23 SS Adj. (+150V) VE Gen. TPVE IC6221 Q6221,Q6222 VR6000 ENERGY RECOVERY FET OUTPUT FET COMPARATOR OUTPUT FET SS SUSTAIN DRIVE Vsus 11 SS 1 TO P11 UMH UEH SS_SOS8 5V Vda Vda NUEL USH USL UML Q6146-Q6147 IC6151 Q6041,Q6042 L6011-L6013 L6001-L6003 VCC FET OUTPUT IC6211 (+5V) IN Q6112,Q6114 Ve2 Gen. FET DRIVER SUSTAIN ELECTRODE PANEL SS43A SS41A SS44A SS42A SUSTAIN ELECTRODE PANEL SS43 SS41 SS44 SS42 37INCH 42INCH STB12V Q6101,Q6102 Q6111 LED BLINKING : 8 TIMES ENERGY RECOVERY SOS DET TH-37/42PV60E, TH-37/42PX60B SS and S-Board Block Diagram TH-37/42PV60E, TH-37/42PX60B SS and S-Board Block Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 148 14.75. SS and S-Board Schematic Diagram + + TERM SIDE TERM SIDE + TERM SIDE + + + + + TERM SIDE REF K A + + + TERM SIDE TERM SIDE TERM SIDE TERM SIDE + + + PUSH 5V 15V 0-200V 200V 200V 15V 75V 75V Q6111 2SK326800L G D S R6004 15 C6134 25V 4.7u TP30 L6082 G0ZZ00002183 R6052 10 Q6172 B1ADRD000001 R6141 10k VR6000 10k 1 2 3 100 R6194 C6212 25V 4.7u Q6103 B1DFKM000002 G D S TP22 IC6211 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB TP25 R6112 47 R6182 10k L6271 G0ZZ00002183 C0JBAZ000005 IC6241 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C6155 25V 4.7u R6246 4.7k D6152 B0ECHP000003 L6104 J0JJC0000011 Q6171 B1ABRD000003 C6213 25V 470u Q6146 2SC5824T100R Q6022 B1JADN000001 L6086 G0ZZ00002183 L6065 G0ZZ00002183 TP26 TP28 Q6147 2SA2071T100Q C6195 25V 4.7u D6253 LNJ301MPUJA TP2 TP6 150 R6214 TP13 R6152 100 D6103 B0JCME000037 L6062 G0ZZ00002183 C6012 220V 200u R6231 0 L6084 G0ZZ00002183 SS42 1 2 3 4 5 6 7 8 9 10 11 12 13 R6256 1.5k D6223 MA2J11100L ZA6001 K4CD01000011 D6151 B0ECHP000003 ZA6005 K4CD01000011 R6032 82k L6068 G0ZZ00002183 R6181 10 L6003 R6227 16k L6064 G0ZZ00002183 R6172 10k R6002 15 SS41 1 2 3 4 5 6 7 8 9 10 11 12 13 R6142 10k 150 R6134 TP24 L6081 G0ZZ00002183 1 R6160 R6106 100 R6105 100 R6025 15 TP11 D6251 MAZ83300ML TP32 L6012 Q6141 B1ABNF000006 D6102 B0JCME000037 TP10 R6027 15 C6214 25V 470u R6258 2.2k Q6001 B1JADN000001 C6251 16V 1u D6131 B0ECHP000003 R6255 1.2k SS44A 1 2 3 4 5 6 7 8 9 10 11 12 13 TP23 R6251 10k C6013 220V 200u C6031 250V 2.2u TP16 R6173 10k 100 R6193 150 R6153 L6002 200u 220V C6015 R6103 100 C6011 220V 200u L6085 G0ZZ00002183 C6221 50V 0.1u D6192 B0ECHP000003 TP5 R6131 100 Q6051 B1JADN000002 R6222 10k C6001 630V 5600p L6241 G0ZZ00002183 R6243 47 C6154 25V 4.7u D6191 B0ECHP000003 R6156 0 R6245 47 R6244 4.7k C6272 25V 220u R6022 100 R6226 16k L6262 G0ZZ00002183 R6242 EXB38V472JV R6042 10 TP17 L6272 G0ZZ00002183 C6273 25V 220u R6024 15 R6155 0 R6044 10 R6257 10k SS43A 1 2 3 4 5 6 7 8 9 10 11 12 13 L6087 G0ZZ00002183 R6228 5.6k D6132 B0ECHP000003 L6061 G0ZZ00002183 C0DBEMB00005 IC6221 R6023 15 TP20 R6053 10 D6252 MAZ83300ML L6102 J0JJC0000011 Q6101 B1DFKM000002 G D S ZA6002 K4CD01000011 R6005 15 R6034 27k TP12 R6001 15 R6213 100 R6033 56k R6132 100 C6261 160V 100u D6221 B0ECHP000003 Q6112 B1DFKM000002 G D S 150 R6133 1 R6157 R6020 100 L6101 J0JJC0000011 Q6142 B1ADNF000006 Q6023 B1JADN000001 D6082 B0HBSN000008 TP14 D6032 MA2J11100L TP7 R6241 EXB38V470JV Q6222 2SC3063000RL R6003 15 100k R6196 TP1 C0ZBZ0000895 IC6131 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC TP3 D6101 B0JCME000037 R6104 100 L6221 G0ZZ00002183 R6006 15 R6041 10 C6132 25V 4.7u R6223 12k TP9 D6222 MA2J11100L C0ZBZ0001324 IC6151 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC TP18 R6026 15 TP8 150 R6154 R6102 100 C6135 25V 4.7u R6151 100 C0ZBZ0000895 IC6191 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC L6011 Q6052 B1JADN000002 C6021 630V R6051 10 C6152 25V 4.7u C6242 16V 1u R6254 8.2k R6054 10 D6062 RF2001T3DFF55 Q6042 B1JADN000002 R6031 82k R6146 10k Q6251 2SD0601A0L R6101 100 D6061 RF2001T3DFF55 Q6021 B1JADN000001 R6021 15 1 2 3 4 5 6 7 8 9 10 C6153 25V 4.7u TP21 Q6003 B1JADN000001 R6183 10k L6001 R6116 10k 1 2 3 C6262 160V 100u L6013 Q6102 B1DFKM000002 G D S 1 2 3 4 5 6 7 8 9 10 11 12 TP31 L6067 G0ZZ00002183 C6194 25V 4.7u D6051 B0ECHP000003 D6254 MAZ80510LL D6153 B0ECHP000003 200u 220V C6014 L6066 G0ZZ00002183 R6147 10k TP19 R6136 10 R6113 220k R6261 100k R6043 10 SS42A 1 2 3 4 5 6 7 8 9 10 11 12 13 D6041 B0ECHP000003 Q6181 B1ABRD000003 1 R6158 Q6182 B1ADRD000001 L6103 G0ZZ00002183 D6021 RF2001T3DFF55 Q6002 B1JADN000001 D6211 B0JCME000037 L6088 G0ZZ00002183 R6253 39k TP15 L6083 G0ZZ00002183 R6252 39k R6171 10 TP29 R6232 1.2k IC6251 C0BBBA000022 1 2 3 4 5 6 7 8 R6225 20k R6111 47 SS41A 1 2 3 4 5 6 7 8 9 10 11 12 13 R6135 10 SS43 1 2 3 4 5 6 7 8 9 10 11 12 13 B0ECHP000003 D6092 Q6041 B1JADN000002 D6081 RF2001T3DFF55 100k R6195 D6001 B0HBSN000008 SS44 1 2 3 4 5 6 7 8 9 10 11 12 13 TP27 L6063 G0ZZ00002183 D6255 MA2J11100L R6192 100 C6243 50V 0.01u C6211 25V 4.7u D6071 MA3DF30000LZ D6072 MA3DF30000LZ D6091 MA3DF30000LZ C6241 25V 470u C6111 200V 220u C6112 200V 220u Q6114 B1DFKM000002 G D S R6114 47 L6211 J0JJC0000011 L6212 J0JJC0000011 Q6104 H5N2307LSTL-E G D S D6104 B0JCME000037 R6107 100 R6108 100 L6105 J0JJC0000011 Q6105 2SC5824T100R Q6106 2SA2071T100Q 10 R6109 10k R6110 R6229 16k C6201 250V 4u C6202 250V 4u C6041 16V 1u C6042 16V 1u C6043 16V 1u C6044 16V 1u C6151 25V 1u C6192 25V 1u C6271 25V 1u R6191 100 R6062 220k R6061 220k 1 3 Q6221 2SD1263AP0LB D6154 B0ECHP000003 1 R6159 S1 1 2 3 SW2500 K0F162B00002 D6193 B0ECHP000003 C6022 630V TP15V TPVDA - + - + (GREEN LED) TPSS1 TPVe TPVSUS C2-BOARD (C23) TO BUFFER FET DRIVER FET DRIVER FET DRIVER VE GEN. FET DRIVER COMPARATOR 5 D E 4 3 B 7 6 2 A 1 C 8 TNPA3815AE(37inch) SS-BOARD TNPA3815AB(42inch) 37inch 42inch Vda Vda GND GND GND NC STB12V STB PS +15V NC 5V NUEL USL USH UEH UMH UML SS_SOS8 GND NC Vda Vda 42inch ONLY SUSTAIN ELECTRODE PANEL TO 42inch:1.9u 37inch:2.2u GND NC Vsus P-BOARD (P11) TO SS 11 12 SS SS 34 SS 23 SUSTAIN ELECTRODE PANEL TO (P12) P-BOARD TO S-BOARD TNPA3763AC POWER SW GND 12V STB_PS 42inch:5600p 37inch:2700p 42inch:5600p 37inch:2700p 189.0 0 0 0 12.0 0 15.0 0 75.5 0 12.0 0 75.5 3.7 0 0.5 0 0.5 5.0 0.6 0.9 0.4 75.5 75.5 1.7 0 12.0 12.0 42inch:1.9u 37inch:2.2u 42inch:1.9u 37inch:2.2u 42inch:1.9u 37inch:2.2u 42inch:1.9u 37inch:2.2u 42inch:1.9u 37inch:2.2u TH-37/42PV60E, TH-37/42PX60B SS and S-Board Schematic Diagram TH-37/42PV60E, TH-37/42PX60B SS and S-Board Schematic Diagram TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 149 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 150 15 Parts Location & Mechanical Replacement Parts List 15.1. Parts Location 151 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 15.2. Packing Exploded Views (1) 152 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 15.3. Packing Exploded Views (2) 153 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 15.4. Packing Exploded Views (3) 154 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Note: All parts except parts mentioned [PAVCCZ] in the Remarks column are supplied by PAVC-CSG. Parts mentioned [PAVCCZ] are supplied by PAVCCZ. Ref. No. Part No. Part Name & Description Pcs Remarks 1 EAS12S10A SPEAKER 2 2 EUR7651080 REMOTE CONTROL 1 TH-37/42PX60B PAVCCZ 2 EUR7651090 REMOTE CONTROL 1 TH-37/42PV60E PAVCCZ J2ZZ00000054 RF-CABLE 1 TH-37/42PX60B PAVCCZ (see CHAP.6.7.2) 3 K2AHYH000005 AC INLET 1 4 K2CN3DH00006 AC CORD 1 TH-37/42PV60E 4 K2CT3DH00018 AC CORD 1 TH-37/42PX60B 5 L6FAKEDH0013 FAN (SMALL) 2 37inch 6 L6FALEFH0041 FAN (80MM) 1 37inch 7 L6FALEFH0041 FAN (80MM) 3 42inch 8 MD37H09A1J PLASMA DISPLAY PANEL 1 37inch 8 MD42H09A1J PLASMA DISPLAY PANEL 1 42inch TBMA185 PANASONIC BADGE 1 9 TBX0E81801 POWER BUTTON 1 PAVCCZ 10 TBX0E81900 CONTROL BUTTON 1 PAVCCZ 11 TES4G204 POWER BUTTON SPRING 1 PAVCCZ 33 TESA274 LEAF SPRING 1 THEL035N SCREW 72 37inch THEL035N SCREW 71 42inch THEL0429 SCREW 28 THTD010N SCREW 9 THTD011J SCREW 2 12 TKGA5263 FRONT GLASS 1 37inch PAVCCZ 12 TKGA5264 FRONT GLASS 1 42inch PAVCCZ 13 TKKC5239 PANEL LIGHT 1 TH-37/42PV60E 13 TKKC5240 PANEL LIGHT 1 TH-37/42PX60B PAVCCZ 14 TKKL5231 COVER 4 15 TKKL5269 COVER 1 16 TKPA94301 INLET COVER 1 17 TKP0E16302 DOOR 1 PAVCA 18 TKR0E0101 REAR COVER HANDLE 2 PAVCCZ TKR0E0102 REAR COVER HOOK LEFT 1 PAVCCZ TKR0E0103 REAR COVER HOOK RIGHT 1 PAVCCZ TMK0E724 SPONGE (FRONT GLASS V) 2 37inch PAVCCZ TMK0E722 SPONGE (FRONT GLASS V) 2 42inch PAVCCZ TMK0E730 SPONGE (FRONT GLASS H) 2 37inch PAVCCZ TMK0E729 SPONGE (FRONT GLASS H) 2 42inch PAVCCZ TMK0E736 SPEAKER SPONGE 2 37inch PAVCCZ TMK0E723 SPEAKER SPONGE 2 42inch PAVCCZ TMKG562 SPONGE (FAN) 1 37inch TMKG665 SPONGE (FAN) 2 37inch PAVCCZ TMKG562 SPONGE (FAN) 3 42inch TMKG666 SPONGE 1 TMM0E301 M8 SPACER 4 PAVCCZ TMM15481 CLAMPER 4 TMM17499 CLAMPER 1 TMM25401 CLAMPER 6 37inch TMM25401 CLAMPER 8 42inch TMM7464-2 CLAMPER 2 TMM7468-1 CLAMPER 1 TMME047 CLAMPER 3 TH-37/42PV60E Ref. No. Part No. Part Name & Description Pcs Remarks TMME047 CLAMPER 4 TH-37/42PX60B TMME061 CLAMPER 6 TMME075 EADG SADOLE 3 TMME190 CLAMPER 2 TMME226 CLAMPER 1 TMME258 CLAMPER 2 TMME260 CLAMPER 5 TMMJ068 RUBBER (FAN) 9 19 TPC0E64701 CARTON BOX BOTTOM 1 37inch PAVCCZ 19 TPC0E64901 CARTON BOX BOTTOM 1 42inch PAVCCZ 20 TPC0E67101 CARTON BOX TOP 1 37inch PAVCCZ 20 TPC0E66901 CARTON BOX TOP 1 42inch PAVCCZ 21 TPD0E0109 CUSHION BOTTOM 1 PAVCCZ 22 TPD0E0110 CUSHION TOP 1 PAVCCZ 23 TPD0E9030 TOP PAD 1 37inch PAVCCZ 23 TPD0E9031 TOP PAD 1 42inch PAVCCZ 24 TPD169487 JOINT 4 25 TPDF1197 ACCESSORIES BOX 1 26 TPE0E4010 PROTECT COVER 1 PAVCCZ 27 TPE0E4013 TOP PROTECT SHEET 1 PAVCCZ 28 TQB0E0254 INSTRUCTION BOOK (ENGLISH) 1 TH-37/42PX60B PAVCCZ 28 TQB0E0259A INSTRUCTION BOOK (GERMAN) 1 TH-37/42PV60E PAVCCZ 28 TQB0E0259B INSTRUCTION BOOK (DUTCH) 1 TH-37/42PV60E PAVCCZ 28 TQB0E0259C INSTRUCTION BOOK (ITALIAN) 1 TH-37/42PV60E PAVCCZ 28 TQB0E0259D INSTRUCTION BOOK (FRENCH) 1 TH-37/42PV60E PAVCCZ 28 TQB0E0259E INSTRUCTION BOOK (SPANISH) 1 TH-37/42PV60E PAVCCZ 28 TQB0E0259F INSTRUCTION BOOK (SWEDISH) 1 TH-37/42PV60E PAVCCZ 28 TQB0E0259K INSTRUCTION BOOK (DANISH) 1 TH-37/42PV60E PAVCCZ 28 TQB0E0259M INSTRUCTION BOOK (BULGARIA) 1 TH-37/42PV60E PAVCCZ 28 TQB0E0259N INSTRUCTION BOOK (ROMANIAN 1 TH-37/42PV60E PAVCCZ 28 TQB0E0259P INSTRUCTION BOOK (POLISH) 1 TH-37/42PV60E PAVCCZ 28 TQB0E0259Q INSTRUCTION BOOK (HUNGARIA 1 TH-37/42PV60E PAVCCZ 28 TQB0E0259R INSTRUCTION BOOK (CZECH) 1 TH-37/42PV60E PAVCCZ 28 TQB0E0259U INSTRUCTION BOOK (ENGLISH) 1 TH-37/42PV60E PAVCCZ TSXL513 CABLE (D31- C11/D32-C21) 2 TSXL519 CABLE (C12-C22) 1 TSXL520 CABLE (DG1-H1) 1 TSXL521 CABLE (DG15-HC15) 1 TSXL522 CABLE (DG20-PA20) 1 TSXL523 CABLE (DG3-D3) 1 29 TXFKU01BKTB REAR COVER 1 TH-37PX60B PAVCCZ 29 TXFKU01BJTB REAR COVER 1 TH-42PX60B PAVCCZ 29 TXFKU01BKTE REAR COVER 1 TH-37PV60E PAVCCZ 29 TXFKU01BJTE REAR COVER 1 TH-42PV60E PAVCCZ 30 TTY0E0101 ESCUTCHEON ASS’Y 1 TH-37PX60B PAVCCZ 30 TTY0E0100 ESCUTCHEON ASS’Y 1 TH-42PX60B PAVCCZ 30 TTY0E0099 ESCUTCHEON ASS’Y 1 TH-37PV60E PAVCCZ 30 TTY0E0098 ESCUTCHEON ASS’Y 1 TH-42PV60E PAVCCZ 31 TXFKZ04BJTB STAND BLOCK ASS’Y 2 PAVCCZ TXJ/SWYFSE SPEAKER LEAD WIRE 2 XTB4+12GFJ SCREW 41 15.5. Mechanical Replacement Parts List 155 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks XTB4+12GFJK SCREW 8 XTB4+16GFJ SCREW 2 XTV3+10JFJK SCREW 6 XTW4+25DFJ SCREW 12 PAVCCZ XYN3+F10FJ SCREW 2 XYN3+F6FJ SCREW 1 XYN3+F8FJ SCREW 40 XYN3+J10FJ SCREW 1 XYN3+J12FJ SCREW 39 37inch XYN3+J12FJ SCREW 31 42inch XYN3+J8FJ SCREW ROHS 6 XYN3+J8FJ SCREW ROHS 1 XYN4+E8FJ SCREW 1 XYN4+F10FJ SCREW 6 42inch XYN4+F10FJK SCREW 6 XYN4+F15FJK SCREW (ALCH-GHT 4 : ALCH) 6 42inch XYN4+F30FJK SCREW (BC TOP6 SIDE6: AL) 18 XYN5+C15FJ SCREW 8 32 XZBT6530 POLY BAG 1 156 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 16 Electrical Replacement Parts List 16.1. Replacement Parts List Notes 157 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 16.2. Electrical Replacement Parts List (37inch) Note: All parts except parts mentioned [PAVCCZ] in the Remarks column are supplied by PAVC-CSG. Parts mentioned [PAVCCZ] are supplied by PAVCCZ. Ref. No. Part No. Part Name & Description Pcs Remarks F401.40 2 K5D802BNA005 TIME LAG FUSE HIGH 2 C001 ECA0JM102 E 1000UF, 6.3V 1 C002,03 ECA1HM100 E 10UF, 50V 2 C007 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C009 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C11 K1MN55BA0076 55P CONNECTOR 1 C12 K1MN20BA0231 20P CONNECTOR 1 C013 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C016 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C018,19 ECJ1VC1H330J C 33PF, J, 50V 2 C020 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C021 ECJ1XC1H101J C 100PF, J, 50V 1 C21 K1MN55BA0076 55P CONNECTOR 1 C22 K1MN20BA0231 20P CONNECTOR 1 C23 K1KA12BA0107 12P CONNECTOR 1 C1100 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1102 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1103 ECJ0EB1E271K C 270PF, K, 25V 1 C1105 ECJ0EB1E271K C 270PF, K, 25V 1 C1106 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1107 EEEHB0G101R C 100PF, J, 4V 1 C1109- 11 ECJ0EB1A104K C 0.1UF, K, 10V 3 C1112 ECJ0EB1E271K C 270PF, K, 25V 1 C1114 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1116 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1118- 23 ECJ0EB1A104K C 0.1UF, K, 10V 6 C1125 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1127- 32 ECJ0EB1A104K C 0.1UF, K, 10V 6 C1133,3 4 ECJ1XC1H150J C 15PF, J, 50V 2 C1135- 42 ECJ0EB1A104K C 0.1UF, K, 10V 8 C1144- 50 ECJ0EB1A104K C 0.1UF, K, 10V 7 C1152 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1153 EEEHB0G101R C 100PF, J, 4V 1 C1154 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1155 ECJ0EB1C103K C0.010UF, K, 16V 1 C1156,5 7 ECJ1XC1H220J C 22PF, J, 50V 2 C1158 F1J0J1060004 C 0.010UF, K, 16V 1 C1159 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1160 EEEHB1C470P C 47PF, J, 16V 1 C1161 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1162 ECJ0EB1C103K C0.010UF, K, 16V 1 C1167,6 8 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C1170,7 1 ECJ0EB1A104K C 0.1UF, K, 10V 2 TH-37PX60B C1172 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1177 ECJ1VB1A334K C 0.1UF, K, 16V 1 C1178 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1180,8 1 ECJ1VB1H221K C 220UF, K, 50V 2 C1186 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1190 ECJ0EB1C103K C0.010UF, K, 16V 1 C1209 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1212 ECJ1XC1H151J C 150PF, J, 50V 1 C1219,2 0 EEEHP1C100R C 10PF, J, 16V 2 Ref. No. Part No. Part Name & Description Pcs Remarks C1221 ECJ0EB1H102K C 1000PF, K, 50V 1 C1222,2 3 F1J0J1060004 C 0.010UF, K, 16V 2 C1226 F1J0J1060004 C 0.010UF, K, 16V 1 C1227 ECJ0EB1H101K C 100PF, K, 50V 1 C1228- 34 EEEHB1C470P C 47PF, J, 16V 7 C1294 ECJ1XC1H330J C 33PF, J, 50V 1 C2005- 18 ECJ1XC1H561J C 560PF, J, 50V 14 C2019 ECA1CM221 E 220UF, 16V 1 C2020 ECA1HM220 E 22UF, 50V 1 C2021,2 2 ECJ1XC1H561J C 560PF, J, 50V 2 C2103,0 4 ECJ3YB1A106M C 10UF, M,6.3V 2 C2111 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2116 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2118,1 9 ECEA1CN470U E 47UF, 16V 2 C2122,2 3 ECJ3YB1A106M C 10UF, M,6.3V 2 C2125,2 6 ECJ1VB1H102K C 1000PF, K, 50V 2 C2127 ECA1CMH101 E 100UF, 16V 1 C2128 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2129,3 0 F1J1A1050002 C 1UF, Z, 50V 2 C2131 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2132 EEEHB1C100R C 10PF, J, 16V 1 C2133,3 4 ECJ1XC1H470J C 47PF, J, 50V 2 C2139- 43 ECJ1VB1H103K C 0.001UF, K, 50V 5 C2144,4 5 ECJ3YB1A106M C 10UF, M,6.3V 2 C2146 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2147 ECA1HM220 E 22UF, 50V 1 C2148- 50 ECJ2FB1C105K C 1UF, K, 16V 3 C2152 ECJ2FB1C105K C 1UF, K, 16V 1 C2153 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C2154 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2155 ECJ2FB1C105K C 1UF, K, 16V 1 C2156 ECJ3YB1A106M C 10UF, M,6.3V 1 C2157 ECJ2FB1C105K C 1UF, K, 16V 1 C2158 ECJ3YB1A106M C 10UF, M,6.3V 1 C2159,6 0 ECJ2FB1C105K C 1UF, K, 16V 2 C2161 ECA1CMH101 E 100UF, 16V 1 C2162- 69 ECJ2FB1C105K C 1UF, K, 16V 8 C2170- 72 ECJ1VB1H102K C 1000PF, K, 50V 3 C2173 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2174 ECJ1VB1H102K C 1000PF, K, 50V 1 C2175- 77 ECJ1VB1H103K C 0.001UF, K, 50V 3 C2178,7 9 EEEHB1C100R C 10PF, J, 16V 2 C2181 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2183 EEEHB1H3R3R C 3.3PF, J, 50V 1 C2184,8 5 ECJ2VF1C104Z C 0.1UF, Z, 16V 2 C2189,9 0 ECJ2FB1C105K C 1UF, K, 16V 2 C2191 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2192 EEEHB1C100R C 10PF, J, 16V 1 C2193,9 4 ECJ2FB1C105K C 1UF, K, 16V 2 C2195 ECJ1XC1H470J C 47PF, J, 50V 1 C2196 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2197 ECJ2FB0J225K C 2.2UF, Z, 16V 1 C2198 EEEHB0J101P C 100PF, J, 6.3V 1 C2199 ECJ1VC1H560J C 56PF, J, 50V 1 C2200 ECJ1XC1H470J C 47PF, J, 50V 1 C2201 ECJ1XC1H030C C 3PF, C, 50V 1 158 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks C2202 ECJ1XC1H050C C 5PF, C, 50V 1 C2203 ECJ1VC1H100C C 10PF, C, 50V 1 C2204 ECJ1XC1H220J C 22PF, J, 50V 1 C2211 ECJ1VB1C104K C 0.1UF, K, 16V 1 C2213 ERJ3GEY0R00 M 0 OHM, 1/16W 1 C2217 F1H0J1050012 C 1UF, K, 16V 1 C2218- 21 ECJ3YB1A106M C 10UF, M,6.3V 4 C2222 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2223 ECJ1XC1H390J C 39PF, J, 50V 1 C2225 ECJ2FB1C105K C 1UF, K, 16V 1 C2226 ECJ1VB1H102K C 1000PF, K, 50V 1 C2227 ECA1CMH101 E 100UF, 16V 1 C2228 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2229,3 0 ECA1CMH101 E 100UF, 16V 2 C2231 ECA1CHG470 E 47UF, 16V 1 C2232 F1H0J1050012 C 1UF, K, 16V 1 C2233,3 4 ECJ1VB1H102K C 1000PF, K, 50V 2 C2235 F1H0J1050012 C 1UF, K, 16V 1 C2236 ECA1CHG470 E 47UF, 16V 1 C2237- 40 ECJ1VB1H103K C 0.001UF, K, 50V 4 C2301 ECA1EHG471 E 470UF, 25V 1 C2303 ECA1CMH101 E 100UF, 16V 1 C2307 ECA1CMH101 E 100UF, 16V 1 C2314 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2317 ECJ2FB1A105K C 1UF, K, 10V 1 C2320 ECJ2FB1A105K C 1UF, K, 10V 1 C2321 ECJ2XB1H103K C 0.01UF, K, 50V 1 C2322 ECJ2FB1A105K C 1UF, K, 10V 1 C2323,2 4 ECJ2FB1E224K C 22UF, K, 25V 2 C2325,2 6 ECJ1VB1E104K C 0.10UF, K, 25V 2 C2327 F1J1H474A757 C 0.47UF, 50V 1 C2328- 31 ECJ2FB1E105K C 1UF, K, 25V 4 C2332,3 3 ECA1EHG471 E 470UF, 25V 2 C2334,3 5 ECJ1VB1E104K C 0.10UF, K, 25V 2 C2336 F1J1H474A757 C 0.47UF, 50V 1 C2337,3 8 ECJ2FB1E224K C 22UF, K, 25V 2 C2341 ECJ3YB1E106M C 10 UF, K, 25V 1 C2342 ECJ2FB1E105K C 1UF, K, 25V 1 C2372 ECA1HHG100 E 10UF, 50V 1 C2373 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C2374 ECJ1VF1A105Z C 1UF, Z, 10V 1 C2380 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2382 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2385 ECJ2FB1A105K C 1UF, K, 10V 1 C2387 ECJ2FB1A105K C 1UF, K, 10V 1 C2393,9 4 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2401 ECJ2FB1A105K C 1UF, K, 10V 1 C2402 ECJ2FB0J106M C 10UF, Z,6.3V 1 C2403 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2417 ECJ2FB0J106M C 10UF, Z,6.3V 1 C2430 ECJ1VF1A105Z C 1UF, Z, 10V 1 C2510,1 1 ECJ2VF1C105Z C 1UF, Z, 16V 2 C2512 ECJ3XB0J106M C 10UF, M,6.3V 1 C2515 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2517 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-37PX60B C2521 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3001- 03 ECJ1VB1H102K C 1000PF, K, 50V 3 C3021 F1J1A1050002 C 1UF, Z, 50V 1 C3022,2 3 ECJ1VB1H103K C 0.001UF, K, 50V 2 C3024- 28 F1J1A1050002 C 1UF, Z, 50V 5 C3029 ECJ2VF1C105Z C 1UF, Z, 16V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C3030 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3031 F1J1A1050002 C 1UF, Z, 50V 1 C3033 F1J1A1050002 C 1UF, Z, 50V 1 C3035,3 6 F1J1A1050002 C 1UF, Z, 50V 2 C3038 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3039 F1J1A1050002 C 1UF, Z, 50V 1 C3040 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3041 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3043 F1J1A1050002 C 1UF, Z, 50V 1 C3045,4 6 ECJ1VB1H103K C 0.001UF, K, 50V 2 C3047 F1J1A1050002 C 1UF, Z, 50V 1 C3048 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3049- 56 F1J1A1050002 C 1UF, Z, 50V 8 C3058 ECA1EM471 E 470UF, 25V 1 C3059 ECJ2VF1C105Z C 1UF, Z, 16V 1 C3062- 64 ECJ2VF1C104Z C 0.1UF, Z, 16V 3 C3065 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3066 F1J1A1050002 C 1UF, Z, 50V 1 C3067 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3068 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3070 ECA1EM471 E 470UF, 25V 1 C3071 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3072 ECA1EM471 E 470UF, 25V 1 C3073 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3074 ECA1EM471 E 470UF, 25V 1 C3075 ECA1CM221 E 220UF, 16V 1 C3076 ECA1EM471 E 470UF, 25V 1 C3207 ECA1AM102 E 1000UF, 10V 1 C3214 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3216 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3226- 28 ECJ2VF1C104Z C 0.1UF, Z, 16V 3 C3230 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3233 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3241 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3262 ECJ1VB1H472K C 4700PF, K, 50V 1 C3268 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3305 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3330 ECA1CM470 E 47UF, 16V 1 C3331 ECJ2XB1H103K C 0.01UF, K, 50V 1 C3332 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3334 ECEA1CN470U E 47UF, 16V 1 C3335 ECJ2VB1C104K C 0.1UF, K, 16V 1 C3336 ECEA1CN470U E 47UF, 16V 1 C3337 ECJ2VB1C104K C 0.1UF, K, 16V 1 C3338 ECEA1CN470U E 47UF, 16V 1 C3339 ECJ2VB1C104K C 0.1UF, K, 16V 1 C3340- 42 ECJ2VF1C104Z C 0.1UF, Z, 16V 3 C3701 ECJ2XC1H561K C 560PF, K, 50V 1 C3703 ECJ2XC1H561K C 560PF, K, 50V 1 C3711,1 2 ECJ2VF1H333Z C 0.033UF, Z, 50V 2 C3750,5 1 ECJ2XC1H102K C 1000PF, K, 50V 2 C4003- 08 F1J0J1060004 C 0.010UF, K, 16V 6 C4014,1 5 F1J0J1060004 C 0.010UF, K, 16V 2 C4023 F1J0J1060004 C 0.010UF, K, 16V 1 C4026 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4027 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4028 ECJ0EB1C103K C0.010UF, K, 16V 1 C4112 F1J0J1060004 C 0.010UF, K, 16V 1 C4117 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4158 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4159 F1H1C104A065 C 0.1UF, K, 16V 1 C4160 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4165 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4168 ECJ1XC1H680J C 68PF, J, 50V 1 C4171 ECJ1XC1H471J C 470PF, J, 50V 1 159 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks C4172,7 3 F1H1C104A065 C 0.1UF, K, 16V 2 C4174 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4175 F1H1C104A065 C 0.1UF, K, 16V 1 C4176 ECJ1VB0J225K C 2.2UF, K, 6.3V 1 C4177 ECJ2FB1C684K C 68UF, Z, 16V 1 C4178 ECJ1XB1C393K C 0.039UF, K, 16V 1 C4180 F1H1C104A065 C 0.1UF, K, 16V 1 C4185,8 6 ECJ3XB0J106M C 10UF, M,6.3V 2 C4188 F1J0J1060004 C 0.010UF, K, 16V 1 C4189- 91 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4193 ECJ0EB1H102K C 1000PF, K, 50V 1 C4194- 97 F1H1C104A065 C 0.1UF, K, 16V 4 C4199 ECJ0EB1C103K C0.010UF, K, 16V 1 C4200 EEEHB1C470P C 47PF, J, 16V 1 C4201 ECJ0EB1C103K C0.010UF, K, 16V 1 C4204 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4205,0 6 F1H1C104A065 C 0.1UF, K, 16V 2 C4208,0 9 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4211 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4215 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4216 EEEHB1C470P C 47PF, J, 16V 1 C4217 F1H1C104A065 C 0.1UF, K, 16V 1 C4218 ECJ0EB1H102K C 1000PF, K, 50V 1 C4219 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4224 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4227 ECJ1VB1C823K C 0.082UF, K, 16V 1 C4228 ECJ0EB1C103K C0.010UF, K, 16V 1 C4235 ECJ0EB1C103K C0.010UF, K, 16V 1 C4244 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4245 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4248 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4253 EEEHB1C470P C 47PF, J, 16V 1 C4256 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4262- 64 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4266 ECJ0EB1C103K C0.010UF, K, 16V 1 C4269 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4272 EEEHB1C470P C 47PF, J, 16V 1 C4273 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4281- 84 ECJ0EB1A104K C 0.1UF, K, 10V 4 C4287,8 8 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4289,9 0 EEEHB0J330R C 33PF, J, 6.3V 2 C4291,9 2 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4296 F1J0J1060004 C 0.010UF, K, 16V 1 C4297 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4298- 06 ECJ1VB1A105K C 0.01UF, Z, 50V 9 C4307- 09 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4310 ECJ0EB1C103K C0.010UF, K, 16V 1 C4311 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4312 ECJ0EB1C103K C0.010UF, K, 16V 1 C4313,1 4 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4315 F1J0J1060004 C 0.010UF, K, 16V 1 C4316- 18 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4320- 22 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4325 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4327 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4329,3 0 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4331 F1J0J1060004 C 0.010UF, K, 16V 1 C4332 ECJ1VB1A105K C 0.01UF, Z, 50V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C4333- 38 ECJ0EB1A104K C 0.1UF, K, 10V 6 C4339 ECJ1VB0J225K C 2.2UF, K, 6.3V 1 C4340 ECJ1XC1H471J C 470PF, J, 50V 1 C4341 EEEHB1C470P C 47PF, J, 16V 1 C4342 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4343 EEEHB1C100R C 10PF, J, 16V 1 C4344,4 5 F1J0J1060004 C 0.010UF, K, 16V 2 C4346 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4347 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4348 EEEHB1C470P C 47PF, J, 16V 1 C4349 ECJ0EB1C103K C0.010UF, K, 16V 1 C4350,5 1 ECJ1XC1H181J C 180PF, J, 50V 2 C4352,5 3 ECJ1XC1H330J C 33PF, J, 50V 2 C4354 ECJ0EB1C103K C0.010UF, K, 16V 1 C4360 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4362 F1J0J1060004 C 0.010UF, K, 16V 1 C4363,6 4 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4365 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4366 EEEHB1C470P C 47PF, J, 16V 1 C4367 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4371 ECJ0EB1H102K C 1000PF, K, 50V 1 C4372 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4373 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4374 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4375,7 6 ECJ0EB1H102K C 1000PF, K, 50V 2 C4377 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4379 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4380 ECJ0EB1H102K C 1000PF, K, 50V 1 C4381,8 2 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4383 ECJ0EB1H102K C 1000PF, K, 50V 1 C4384 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4385 ECJ0EB1H102K C 1000PF, K, 50V 1 C4386 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4387 ECJ0EB1H102K C 1000PF, K, 50V 1 C4388 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4389 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4390 ECJ0EB1H102K C 1000PF, K, 50V 1 C4391 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4392 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4393,9 4 ECJ0EB1H102K C 1000PF, K, 50V 2 C4395 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4396 ECJ0EB1H102K C 1000PF, K, 50V 1 C4397,9 8 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4399,0 0 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4401 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4402,0 3 ECJ0EB1H102K C 1000PF, K, 50V 2 C4404 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4405 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4406 ECJ0EB1H102K C 1000PF, K, 50V 1 C4407,0 8 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4409 ECJ0EB1H102K C 1000PF, K, 50V 1 C4410 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4411,1 2 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4413,1 4 ECJ0EB1H102K C 1000PF, K, 50V 2 C4415 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4417 EEEHB1C470P C 47PF, J, 16V 1 C4418,1 9 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4420,2 1 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4422- 24 ECJ0EB1H102K C 1000PF, K, 50V 3 160 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks C4425,2 6 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4427 ECJ0EB1H102K C 1000PF, K, 50V 1 C4428 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4429,3 0 ECJ0EB1H102K C 1000PF, K, 50V 2 C4434 ECJ0EB1H102K C 1000PF, K, 50V 1 C4435 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4436- 39 ECJ0EB1H102K C 1000PF, K, 50V 4 C4440 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4441,4 2 ECJ0EB1H102K C 1000PF, K, 50V 2 C4447 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4448 ECJ0EB1C103K C0.010UF, K, 16V 1 C4451 ECJ0EB1H102K C 1000PF, K, 50V 1 C4452 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4453,5 4 ECJ0EB1H102K C 1000PF, K, 50V 2 C4455 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4456 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4457,5 8 ECJ0EB1H102K C 1000PF, K, 50V 2 C4459 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4460 ECJ0EB1H102K C 1000PF, K, 50V 1 C4462 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4464 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4465 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4466 ECJ0EB1C103K C0.010UF, K, 16V 1 C4467 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4470 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4474 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4475,7 6 ECJ0EB1H102K C 1000PF, K, 50V 2 C4477 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4478 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4479- 81 ECJ0EB1H102K C 1000PF, K, 50V 3 C4482 ECJ1XC1H180J C 18PF, J, 50V 1 C4483 ECJ1XC1H150J C 15PF, J, 50V 1 C4493 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4494 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4496 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4497 EEEHB0G101R C 100PF, J, 4V 1 C4498 ECJ1XC1H471J C 470PF, J, 50V 1 C4499 EEFCD0G560ER 56UF, 1 C4501 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4502 ECJ0EB1C103K C0.010UF, K, 16V 1 C4503 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4504 ECJ0EB1C103K C0.010UF, K, 16V 1 C4505 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4506 ECJ0EB1C103K C0.010UF, K, 16V 1 C4507 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4508 ECJ0EB1C103K C0.010UF, K, 16V 1 C4509- 11 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4512 ECJ0EB1C103K C0.010UF, K, 16V 1 C4513 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4514 ECJ0EB1C103K C0.010UF, K, 16V 1 C4515,1 6 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4517 ECJ0EB1C103K C0.010UF, K, 16V 1 C4518 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4519 ECJ0EB1C103K C0.010UF, K, 16V 1 C4520 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4521 ECJ0EB1C103K C0.010UF, K, 16V 1 C4522 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4523 ECJ0EB1C103K C0.010UF, K, 16V 1 C4524 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4525 ECJ0EB1C103K C0.010UF, K, 16V 1 C4526 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4527 ECJ0EB1C103K C0.010UF, K, 16V 1 C4528 EEEHB1C470P C 47PF, J, 16V 1 C4529 ECJ0EB1A104K C 0.1UF, K, 10V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C4530,3 1 ECJ0EB1H102K C 1000PF, K, 50V 2 C4532,3 3 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4534 ECJ0EB1H102K C 1000PF, K, 50V 1 C4535 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4536 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4537 EEEHB0G101R C 100PF, J, 4V 1 C4538 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4539 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4540 ECJ0EB1H102K C 1000PF, K, 50V 1 C4541 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4543 F1H1C104A065 C 0.1UF, K, 16V 1 C4544 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5604 ECA1HHG100 E 10UF, 50V 1 C5605 EEUFC1E471 E 470UF, 25V 1 C5606 ECA1CM471 E 470UF, 16V 1 C5609 ECA1HM220 E 22UF, 50V 1 C5611 F2A1H331A257 E 330UF, 50V 1 C5612 ECA1CM471 E 470UF, 16V 1 C5613 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5616 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5617 ECA1CM471 E 470UF, 16V 1 C5618,1 9 ECJ1VB1E104K C 0.10UF, K, 25V 2 C5622 ECA1CM471 E 470UF, 16V 1 C5623 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5626 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5633 ECA1EM221 E 220UF, 25V 1 C5637 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5641- 44 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C5645 ECA1CHG470 E 47UF, 16V 1 C5646 ECJ1VB1H103K C 0.001UF, K, 50V 1 C5647 ECA1CHG470 E 47UF, 16V 1 C5648 ECJ1VB1H103K C 0.001UF, K, 50V 1 C5670 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5672 ECA1HM220 E 22UF, 50V 1 C5673 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5685 ECA1HHG100 E 10UF, 50V 1 C5686 ECJ2XB1H103K C 0.01UF, K, 50V 1 C5801,0 2 EEUFC1E471 E 470UF, 25V 2 C5804 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5805 ECJ2VF1C105Z C 1UF, Z, 16V 1 C5809 ECJ3XF1E105Z C 1UF, Z, 25V 1 C5810 ECA1EHG470 E 47UF, 25V 1 C6001 F1L2J562A022 C 5600UF, K,6.3V 1 C6011- 14 F2A2T201A001 E 200UF, 4 C6021 F1L2J562A022 C 5600UF, K,6.3V 1 C6031 ECQE2255JF P 2.5UF, K,250V 1 C6041- 44 TCUY1C105ZFN C 1UF, 16V 4 C6111,1 2 F2A2D221A022 E 220UF, 200V 2 C6132 F1L1E4750004 C 4.7UF, 25V 1 C6134,3 5 F1L1E4750004 C 4.7UF, 25V 2 C6151 ECJ3YB1E105K C 1UF, K, 25V 1 C6152- 55 F1L1E4750004 C 4.7UF, 25V 4 C6192 ECJ3YB1E105K C 1UF, K, 25V 1 C6194,9 5 F1L1E4750004 C 4.7UF, 25V 2 C6201,0 2 F0C2E405A176 E 0.040UF, 250V 2 C6211,1 2 F1L1E4750004 C 4.7UF, 25V 2 C6213,1 4 ECA1EM471 E 470UF, 25V 2 C6221 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6241 ECA1EM471 E 470UF, 25V 1 C6242 TCUY1C105ZFN C 1UF, 16V 1 C6243 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6251 TCUY1C105ZFN C 1UF, 16V 1 161 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks C6261,6 2 ECA2CM101 E 100UF, 160V 2 C6271 ECJ3YB1E105K C 1UF, K, 25V 1 C6272,7 3 EEUFC1E221 E 220UF, 25V 2 C6401 F1L2J562A022 C 5600UF, K,6.3V 1 C6411- 14 F2A2T201A001 E 200UF, 4 C6421 F1L2J562A022 C 5600UF, K,6.3V 1 C6431 F0C2E405A176 E 0.040UF, 250V 1 C6472 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6480 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6502 F1L1E4750004 C 4.7UF, 25V 1 C6504,0 5 F1L1E4750004 C 4.7UF, 25V 2 C6511,1 2 F0C2E405A176 E 0.040UF, 250V 2 C6521 ECJ3YB1E105K C 1UF, K, 25V 1 C6522 F1L1E4750004 C 4.7UF, 25V 1 C6524,2 5 F1L1E4750004 C 4.7UF, 25V 2 C6527 F1L1E4750004 C 4.7UF, 25V 1 C6561 F2A1A1010074 E 100UF, 10V 1 C6563 F2A1A1010074 E 100UF, 10V 1 C6565,6 6 ECJ2XB1H103K C 0.01UF, K, 50V 2 C6581 ECJ3YB1E105K C 1UF, K, 25V 1 C6582 TCUY1C105ZFN C 1UF, 16V 1 C6591 ECJ3YB1E105K C 1UF, K, 25V 1 C6592 ECA1EM471 E 470UF, 25V 1 C6593 ECJ2XC1H102J C 1000PF, J, 50V 1 C6601,0 2 F1L1E4750004 C 4.7UF, 25V 2 C6603 F1K2J102A014 C 1000UF, K,6.3V 1 C6604 F2A2V470A020 E 47UF, 350V 1 C6605 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6606 F1K2J102A014 C 1000UF, K,6.3V 1 C6620 ECJ3XB2J222K C 2200PF, K,630V 1 C6641 ECQE2224KF P 2.2UF, K,250V 1 C6661,6 2 F1K2J102A014 C 1000UF, K,6.3V 2 C6671 F1L1E4750004 C 4.7UF, 25V 1 C6681,8 2 F1L1E4750004 C 4.7UF, 25V 2 C6683 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6691 ECA2CM101 E 100UF, 160V 1 C6701- 08 ECJ2XB1H104K C 0.1UF, K, 50V 8 C6721 ECA1HM101 E 100UF, 50V 1 C6723- 25 F1L1E4750004 C 4.7UF, 25V 3 C6726,2 7 TCUY1C105ZFN C 1UF, 16V 2 C6728 ECJ2XC1H102J C 1000PF, J, 50V 1 C6752 TCUY1C105ZFN C 1UF, 16V 1 C6753 F1L1E4750004 C 4.7UF, 25V 1 C6754 ECA1VM470 E 47UF, 35V 1 C6755 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6771 TCUY1C105ZFN C 1UF, 16V 1 C6772,7 3 F1L1E4750004 C 4.7UF, 25V 2 C6775 F1L1E4750004 C 4.7UF, 25V 1 C6776,7 7 ECJ2XB1H104K C 0.1UF, K, 50V 2 C6791 EEUFC1E221 E 220UF, 25V 1 C6795,9 6 EEUFC1E221 E 220UF, 25V 2 C6802 EEUFC1E221 E 220UF, 25V 1 C6803 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6804 F2A2E100A022 E 10UF, 250V 1 C6805 TCUY1C105ZFN C 1UF, 16V 1 C6806,0 7 ECA2CM101 E 100UF, 160V 2 C6811 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6812 ECJ3YB1E105K C 1UF, K, 25V 1 C6822 F2A2V100A019 E 10UF, 350V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C6823 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6841,4 2 ECA2CM101 E 100UF, 160V 2 C6845 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6861 TCUY1C105ZFN C 1UF, 16V 1 C6862 ECJ3YB1E105K C 1UF, K, 25V 1 C6863 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6871 TCUY1C105ZFN C 1UF, 16V 1 C6872 ECJ3YB1E105K C 1UF, K, 25V 1 C6873 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6901 ECJ2XB1H102K C 1000PF, K, 50V 1 C6902 TCUY1C105ZFN C 1UF, 16V 1 C6904 TCUY1C105ZFN C 1UF, 16V 1 C6906 TCUY1C105ZFN C 1UF, 16V 1 C6908 TCUY1C105ZFN C 1UF, 16V 1 C6910 TCUY1C105ZFN C 1UF, 16V 1 C6912 TCUY1C105ZFN C 1UF, 16V 1 C6914- 18 ECJ2XB1H221K C 220PF, K, 50V 5 C6931 ECJ2XB1H102K C 1000PF, K, 50V 1 C6932- 35 F1L2E105A013 E 0.10UF, 25V 4 C6951 ECJ2XB1H102K C 1000PF, K, 50V 1 C6952 TCUY1C105ZFN C 1UF, 16V 1 C6954 TCUY1C105ZFN C 1UF, 16V 1 C6956 TCUY1C105ZFN C 1UF, 16V 1 C6958 TCUY1C105ZFN C 1UF, 16V 1 C6960 TCUY1C105ZFN C 1UF, 16V 1 C6962 TCUY1C105ZFN C 1UF, 16V 1 C6964- 68 ECJ2XB1H221K C 220PF, K, 50V 5 C6981 ECJ2XB1H102K C 1000PF, K, 50V 1 C6982- 85 F1L2E105A013 E 0.10UF, 25V 4 C7108 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7110 TCUY1C105ZFN C 1UF, 16V 1 C7111,1 2 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7114 TCUY1C105ZFN C 1UF, 16V 1 C7115 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7116 TCUY1C105ZFN C 1UF, 16V 1 C7117 ECJ1XC1H101J C 100PF, J, 50V 1 C7119 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7121 TCUY1C105ZFN C 1UF, 16V 1 C7122 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7123 TCUY1C105ZFN C 1UF, 16V 1 C7124 ECJ1XC1H101J C 100PF, J, 50V 1 C7126 TCUY1C105ZFN C 1UF, 16V 1 C7127 ECJ1XC1H101J C 100PF, J, 50V 1 C7130 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7134 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7137,3 8 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7140 TCUY1C105ZFN C 1UF, 16V 1 C7141 ECJ1XC1H101J C 100PF, J, 50V 1 C7143 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7145 TCUY1C105ZFN C 1UF, 16V 1 C7146 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7148 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7201 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7203 TCUY1C105ZFN C 1UF, 16V 1 C7204,0 5 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7207 TCUY1C105ZFN C 1UF, 16V 1 C7208 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7209 TCUY1C105ZFN C 1UF, 16V 1 C7210 ECJ1XC1H101J C 100PF, J, 50V 1 C7212 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7214 TCUY1C105ZFN C 1UF, 16V 1 C7215 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7216 TCUY1C105ZFN C 1UF, 16V 1 C7217 ECJ1XC1H101J C 100PF, J, 50V 1 C7219 TCUY1C105ZFN C 1UF, 16V 1 C7220 ECJ1XC1H101J C 100PF, J, 50V 1 C7223 ECJ1XB1C104K C 0.1UF, Z, 16V 1 162 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks C7225 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7227 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7229 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7235 TCUY1C105ZFN C 1UF, 16V 1 C7236 ECJ1XC1H101J C 100PF, J, 50V 1 C7238 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7240 TCUY1C105ZFN C 1UF, 16V 1 C7241 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7244 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C8001 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8002 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8003 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8004 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8005 EEEHB1C100R C 10PF, J, 16V 1 TH-37PX60B C8007 ECJ0EB1H102K C 1000PF, K, 50V 1 TH-37PX60B C8015 ECJ1VC1H080C C 8PF, C, 50V 1 TH-37PX60B C8019,2 0 ECJ0EB1C103K C0.010UF, K, 16V 2 TH-37PX60B C8021 ECJ0EB1H102K C 1000PF, K, 50V 1 TH-37PX60B C8030 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8034,3 5 ECJ0EF1C104Z C 0.10UF, Z, 16V 2 TH-37PX60B C8037 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8039,4 0 ECJ0EB1C103K C0.010UF, K, 16V 2 TH-37PX60B C8041 EEEHB0G101R C 100PF, J, 4V 1 TH-37PX60B C8042,4 3 ECJ1VC1H100C C 10PF, C, 50V 2 TH-37PX60B C8046- 48 ECJ0EB1C103K C0.010UF, K, 16V 3 TH-37PX60B C8051,5 2 ECJ0EB1C103K C0.010UF, K, 16V 2 TH-37PX60B C8055 EEEHB1C470P C 47PF, J, 16V 1 TH-37PX60B C8056 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8058- 61 ECJ0EB1C103K C0.010UF, K, 16V 4 TH-37PX60B C8062 F1G1A1540001 C 0.15UF, K, 10V 1 TH-37PX60B PAVCCZ C8071 ECJ0EC1H270J C 270PF, K, 50V 1 TH-37PX60B C8073 ECJ0EC1H270J C 270PF, K, 50V 1 TH-37PX60B C8098 ECGRL0G680ER C 68PF, J, 4V 1 TH-37PX60B C8099,0 0 ECJ0EB1A104K C 0.1UF, K, 10V 2 TH-37PX60B C8101,0 2 ECJ1VB0J105K C 1UF, K, 6.3V 2 TH-37PX60B C8103,0 4 ECJ0EB1A104K C 0.1UF, K, 10V 2 TH-37PX60B C8105 EEEHB0G101R C 100PF, J, 4V 1 TH-37PX60B C8106,0 7 ECJ1VB0J105K C 1UF, K, 6.3V 2 TH-37PX60B C8108 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8109 EEEHB0G101R C 100PF, J, 4V 1 TH-37PX60B C8110 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8121 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8128,2 9 ECJ0EB1C103K C0.010UF, K, 16V 2 TH-37PX60B C8134 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8135 ECJ0EB1A473K C 0.047UF, K, 10V 1 TH-37PX60B C8136 ECGRL0G680ER C 68PF, J, 4V 1 TH-37PX60B C8138 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8139 ECGRL0G680ER C 68PF, J, 4V 1 TH-37PX60B C8140 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8141 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8142 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8143 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8144 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8145 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8146 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8147 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8148 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8149 ECJ1VB0J105K C 1UF, K, 6.3V 1 TH-37PX60B C8150 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8151 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8154- 56 ECJ0EB1A104K C 0.1UF, K, 10V 3 TH-37PX60B C8157 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B Ref. No. Part No. Part Name & Description Pcs Remarks C8160 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8161- 64 ECJ0EB1C103K C0.010UF, K, 16V 4 TH-37PX60B C8165 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8166 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8167 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8168 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8169 EEEHB0G470R C 47PF, J, 4V 1 TH-37PX60B C8170 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-37PX60B C8171 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8172 EEEHB0G470R C 47PF, J, 4V 1 TH-37PX60B C8173- 75 ECJ0EB1C103K C0.010UF, K, 16V 3 TH-37PX60B C8176 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-37PX60B C8182 ECJ0EC1H121J C 120PF, K, 50V 1 TH-37PX60B C8186 ECJ0EC1H680J C 680PF, K, 50V 1 TH-37PX60B C8189 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-37PX60B C8193 EEEHB0J101P C 100PF, J, 6.3V 1 TH-37PX60B C8202,0 3 EEEHB1C470P C 47PF, J, 16V 2 TH-37PX60B C8204 ECJ3XB1C106M C 1.0UF, K, 16V 1 TH-37PX60B C8205,0 6 ECJ0EB1A104K C 0.1UF, K, 10V 2 TH-37PX60B C8207 EEEHB1C470P C 47PF, J, 16V 1 TH-37PX60B C8208 ECJ3XB1C106M C 1.0UF, K, 16V 1 TH-37PX60B C8210 ECJ0EB1A333K C 0.033UF, K, 10V 1 TH-37PX60B C8212 ECJ0EB1C223K C 0.022UF, K, 16V 1 TH-37PX60B C8240 ECJ1VB0J105K C 1UF, K, 6.3V 1 TH-37PX60B C8268 ECJ1VB0J105K C 1UF, K, 6.3V 1 TH-37PX60B C8269 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8303 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8305,0 6 ECJ0EB1C103K C0.010UF, K, 16V 2 TH-37PX60B C8314 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-37PX60B C8315 ECJ2FF1A475Z C 4.7UF, Z, 10V 1 TH-37PX60B C8317,1 8 ECJ2FF1A475Z C 4.7UF, Z, 10V 2 TH-37PX60B C8319 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-37PX60B C8320- 23 ECJ1VB0J105K C 1UF, K, 6.3V 4 TH-37PX60B C8327 EEEHB1C470P C 47PF, J, 16V 1 TH-37PX60B C8329 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8330,3 1 ECJ0EC1H181J C 180PF, K, 50V 2 TH-37PX60B C8332 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8334,3 5 ECJ0EC1H330J C 330PF, K, 50V 2 TH-37PX60B C8340 ECJ0EB1C682K C 6800UF, K, 16V 1 TH-37PX60B C8341 ECJ0EB1C822K C 8200UF, K, 16V 1 TH-37PX60B C8342,4 3 ECGRL0G680ER C 68PF, J, 4V 2 TH-37PX60B C8344 ECJ1VB1H332K C 3300PF, K, 50V 1 TH-37PX60B C8345 ECJ0EB1C153K C 0.015UF, K, 16V 1 TH-37PX60B C8349 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8350,5 1 ECJ0EF1C104Z C 0.10UF, Z, 16V 2 TH-37PX60B C8361 EEEHB1C470P C 47PF, J, 16V 1 TH-37PX60B C8372 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8376 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8397 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8401 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8403,0 4 ECJ0EF1C104Z C 0.10UF, Z, 16V 2 TH-37PX60B C8406 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-37PX60B C8409 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-37PX60B C8410 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8413,1 4 ECJ0EF1C104Z C 0.10UF, Z, 16V 2 TH-37PX60B C8416,1 7 ECJ0EF1C104Z C 0.10UF, Z, 16V 2 TH-37PX60B C8419 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-37PX60B C8421 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8423 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B C8424 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-37PX60B C8425 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-37PX60B 163 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks C8427 F2G1A101A019 E 100UF, 10V 1 TH-37PX60B PAVCCZ C8428 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-37PX60B C8430- 32 ECJ0EF1C104Z C 0.10UF, Z, 16V 3 TH-37PX60B C8433,3 4 ECJ0EB1C103K C0.010UF, K, 16V 2 TH-37PX60B C8467 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C8501,0 2 ECJ0EC1H180J C 180PF, K, 50V 2 TH-37PX60B C8504 ECJ1VF1A105Z C 1UF, Z, 10V 1 TH-37PX60B C8506 ECJ2VF1C105Z C 1UF, Z, 16V 1 TH-37PX60B C8507 ECJ1XC1H102J C 1000PF, J, 50V 1 TH-37PX60B C8508 ECJ1XF1C334Z C 0.33UF, Z, 16V 1 TH-37PX60B C8509 EEEHB0J101P C 100PF, J, 6.3V 1 TH-37PX60B C8870 ECJ1XC1H471J C 470PF, J, 50V 1 TH-37PX60B C8872 ECJ2FB0J225K C 2.2UF, Z, 16V 1 TH-37PX60B C8910 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-37PX60B C9028,2 9 F1J0J1060004 C 0.010UF, K, 16V 2 C9033,3 4 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9035,3 6 F1J0J1060004 C 0.010UF, K, 16V 2 C9037 ECJ1VB1H103K C 0.001UF, K, 50V 1 C9039 F1J0J1060004 C 0.010UF, K, 16V 1 C9040 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9044- 53 ECJ1XF1C104Z C 0.1UF, Z, 16V 10 C9055- 57 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9058 F1J0J1060004 C 0.010UF, K, 16V 1 C9467,6 8 ECJ1VF1H103Z C 0.010UF, Z, 50V 2 C9469 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9500- 06 ECJ1XB1C104K C 0.1UF, Z, 16V 7 C9508 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9509 ECJ1VC1H200J C 20PF, C, 50V 1 C9510 ECJ1XC1H150J C 15PF, J, 50V 1 C9511 F1J0J1060004 C 0.010UF, K, 16V 1 C9512 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9514,1 5 ECJ2VF1C105Z C 1UF, Z, 16V 2 C9516- 25 ECJ1XB1C104K C 0.1UF, Z, 16V 10 C9526 F1J0J1060004 C 0.010UF, K, 16V 1 C9527- 30 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C9531 F1J0J1060004 C 0.010UF, K, 16V 1 C9800 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9801 ECJ1VB1E272K C 2700PF, K, 25V 1 C9802 ECJ1XC1H470J C 47PF, J, 50V 1 C9803 ECJ1VB1H472K C 4700PF, K, 50V 1 C9804 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9805 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9806 ECGRL0G680ER C 68PF, J, 4V 1 C9807,0 8 ECJ3YB1E106M C 10 UF, K, 25V 2 C9809 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9815,1 6 ECGRL0G680ER C 68PF, J, 4V 2 C9817,1 8 ECJ3YB1E106M C 10 UF, K, 25V 2 C9822 F1J0J1060004 C 0.010UF, K, 16V 1 C9823,2 4 ECJ3YB1E106M C 10 UF, K, 25V 2 C9825 ECJ1XC1H101K C 100PF, K, 50V 1 C9826 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9827 F1J0J1060004 C 0.010UF, K, 16V 1 C9830- 32 ECJ3XB1C106M C 1.0UF, K, 16V 3 C9833 ECJ3YB1E106M C 10 UF, K, 25V 1 C9837 ECJ3XB1C106M C 1.0UF, K, 16V 1 C9838 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9839 ECJ3YB1E106M C 10 UF, K, 25V 1 C9840 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C9841,4 2 ECJ2VF1C105Z C 1UF, Z, 16V 2 C9843 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9844 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C9845,4 6 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9847,4 8 ECJ1VB1E104K C 0.10UF, K, 25V 2 C9880,8 1 ECJ1XB1H102K C 1000UF, Z, 50V 2 C9882 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9883 ECJ1VB1H822K C 8200PF, K, 50V 1 C9884 ECJ1VC1H100C C 10PF, C, 50V 1 C9885 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9886 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9887 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9891 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9896 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9897 ECJ1VB1H822K C 8200PF, K, 50V 1 C9898 ECJ1VC1H100C C 10PF, C, 50V 1 C9899 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9900- 51 ECJ1XB1C104K C 0.1UF, Z, 16V 52 C9952- 54 EEFCD0G560ER 56UF, 3 C9955- 59 ECJ1XB1C104K C 0.1UF, Z, 16V 5 C9960- 64 ECJ3XB0J106M C 10UF, M,6.3V 5 C9965 EEFCD0G560ER 56UF, 1 C9966 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9967 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9971 ECJ1XB1C104K C 0.1UF, Z, 16V 1 CB1-B8 K1MN68BA0002 68P CONNECTOR 8 D3 K1KY40B00003 40P CONNECTOR 1 D5 K1KB31BA0064 31P CONNECTOR 1 D6 K1KA21A00011 21P CONNECTOR 1 D20 K1KA20BA0296 20P CONNECTOR 1 D25 K1KA20B00155 20P CONNECTOR 1 D31,32 K1MN55BA0094 55P CONNECTOR 2 D1106,0 7 MA729 DIODE 2 D1117 MA3036L ZENER DIODE 1 D1119 MA704A DIODE 1 D1121 MA729 DIODE 1 D2011- 14 MA111 DIODE 4 D2119 B0BC01100001 ZENER DIODE 1 D2300,0 1 MA111 DIODE 2 D2303,0 4 MA111 DIODE 2 D2309 MA111 DIODE 1 D2510,1 1 MA8056-M ZENER DIODE 2 D2512 MA8043LTX ZENER DIODE 1 D2520B LN1271RALTR LED 1 D2524 MA8056-M ZENER DIODE 1 D2525B LN1471YTR LED 1 TH-37PX60B D2526 MA8056-M ZENER DIODE 1 TH-37PX60B D3002- 12 MA8140M ZENER DIODE 11 D3015,1 6 MA8140M ZENER DIODE 2 D3021- 23 MA111 DIODE 3 D3024 B0BC01100001 ZENER DIODE 1 D3025 MA8140M ZENER DIODE 1 D3027,2 8 MA8140M ZENER DIODE 2 D3030- 32 MA8140M ZENER DIODE 3 D3038- 40 MA8140M ZENER DIODE 3 164 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks D3042,4 3 MA8140M ZENER DIODE 2 D3044 MA111 DIODE 1 D3100 MA8140M ZENER DIODE 1 D3334- 39 MA111 DIODE 6 D3702 MA8140M ZENER DIODE 1 D4019- 38 EZJZ0V80008B VARISTOR 20 D4041 EZJZ0V80008B VARISTOR 1 D4044,4 5 EZJZ0V80008B VARISTOR 2 D4047,4 8 MA3056M ZENER DIODE 2 D4049- 52 B0HCMM000014 DIODE 4 D5606 B0BC01100001 ZENER DIODE 1 D5607 B0BC6R600005 ZENER DIODE 1 D5610 B0BC4R700007 ZENER DIODE 1 (PA) D5610 MA3X78900L ZENER DIODE 1 (H) D5612 B0BC3R700006 ZENER DIODE 1 D5618 B0BC03900015 ZENER DIODE 1 D5634 MA111 DIODE 1 D5635 MA3047H ZENER DIODE 1 D5637,3 8 MA152 DIODE 2 D5639 MA3047H ZENER DIODE 1 D5640 MA3039H ZENER DIODE 1 D5641 MA152 DIODE 1 D5642 MA3120M ZENER DIODE 1 D5643 MA152 DIODE 1 D5644 MA3068M ZENER DIODE 1 D5646,4 7 MA152 DIODE 2 D5649 MA111 DIODE 1 D5801 B0JCME000037 DIODE 1 D5804 MA3120M ZENER DIODE 1 D5805,0 6 MA152 DIODE 2 D5807 MA111 DIODE 1 D6001 B0HBSN000008 DIODE 1 D6021 B0HBSN000008 DIODE 1 D6032 MA111 DIODE 1 D6041 B0ECHP000003 DIODE 1 D6051 B0ECHP000003 DIODE 1 D6061,6 2 B0HBSN000008 DIODE 2 D6071,7 2 B0HBSN000008 DIODE 2 D6081,8 2 B0HBSN000008 DIODE 2 D6091 B0HBSN000008 DIODE 1 D6092 B0ECHP000003 DIODE 1 D6101- 04 B0JCME000037 DIODE 4 D6131,3 2 B0ECHP000003 DIODE 2 D6151- 54 B0ECHP000003 DIODE 4 D6191,9 2 B0ECHP000003 DIODE 2 D6211 B0JCME000037 DIODE 1 D6221 B0ECHP000003 DIODE 1 D6222,2 3 MA111 DIODE 2 D6251,5 2 MA8330M ZENER DIODE 2 D6253 LNJ301MPUJA LED 1 D6254 MA8051L ZENER DIODE 1 D6255 MA111 DIODE 1 D6401 B0HBSN000008 DIODE 1 D6431,3 2 B0HBSP000019 DIODE 2 D6441 B0ECHP000003 DIODE 1 D6451 B0ECHP000003 DIODE 1 D6461,6 2 B0HBSN000008 DIODE 2 Ref. No. Part No. Part Name & Description Pcs Remarks D6466 MA111 DIODE 1 D6471 B0HBSN000008 DIODE 1 D6472 B0ECHP000003 DIODE 1 D6477 MA111 DIODE 1 D6478 B0HCKS000002 DIODE 1 D6480 MA111 DIODE 1 D6481,8 2 B0HBSN000008 DIODE 2 D6491 B0HBSP000019 DIODE 1 D6497 MA111 DIODE 1 D6501,0 2 B0ECHP000003 DIODE 2 D6521- 24 B0ECHP000003 DIODE 4 D6581,8 2 MA8330M ZENER DIODE 2 D6583 LNJ301MPUJA LED 1 D6584 MA8051L ZENER DIODE 1 D6585 MA111 DIODE 1 D6601 MA8240M ZENER DIODE 1 D6602 B0ECHP000003 DIODE 1 D6603 MA8240M ZENER DIODE 1 D6604 MA111 DIODE 1 D6605 MA8051L ZENER DIODE 1 D6606 B0HCMM000014 DIODE 1 D6607 MA111 DIODE 1 D6619,2 0 B0HCKS000002 DIODE 2 D6621 B0HDSM000005 DIODE 1 D6623,2 4 B0HDSM000005 DIODE 2 D6641,4 2 B0HCKS000002 DIODE 2 D6643 MA111 DIODE 1 D6661 MA111 DIODE 1 D6662- 64 MA8330M ZENER DIODE 3 D6665 MA8051L ZENER DIODE 1 D6666,6 7 MA111 DIODE 2 D6671 MA111 DIODE 1 D6682 B0HCMM000014 DIODE 1 D6683,8 4 MA111 DIODE 2 D6686,8 7 MA111 DIODE 2 D6701,0 2 MA8056H ZENER DIODE 2 D6721 B0HCKS000002 DIODE 1 D6723,2 4 B0JCME000037 DIODE 2 D6725 B0ECHP000003 DIODE 1 D6726- 33 MA8056H ZENER DIODE 8 D6734 MA111 DIODE 1 D6752 B0JCME000037 DIODE 1 D6758 B0ECHP000003 DIODE 1 D6760,6 1 MA111 DIODE 2 D6771 B0JCME000037 DIODE 1 D6773 B0HCKS000002 DIODE 1 D6791 MA8200M ZENER DIODE 1 D6801,0 2 B0JCME000037 DIODE 2 D6803 MA111 DIODE 1 D6804 B0ECHP000003 DIODE 1 D6805 MA111 DIODE 1 D6806 B0ECHP000003 DIODE 1 D6822,2 3 MA111 DIODE 2 D6825 MA8330M ZENER DIODE 1 D6826 MA111 DIODE 1 D6841 B0ECHP000003 DIODE 1 D6842,4 3 MA111 DIODE 2 D6859 B0ECHP000003 DIODE 1 165 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks D6860 B0HCKS000002 DIODE 1 D6861 MA8051L ZENER DIODE 1 D6862 MA111 DIODE 1 D6871 MA8051L ZENER DIODE 1 D6872 MA111 DIODE 1 D6901,0 2 MA8056H ZENER DIODE 2 D6903,0 4 B0ECHP000003 DIODE 2 D6951,5 2 MA8056H ZENER DIODE 2 D6953,5 4 B0ECHP000003 DIODE 2 D8002 MA728 DIODE 1 TH-37PX60B D8203,0 4 B0JCPE000004 DIODE 2 TH-37PX60B D8501 B0CCAB000039 DIODE 1 TH-37PX60B D9017- 19 MA3033 ZENER DIODE 3 D9020 MA728 DIODE 1 D9300,0 1 MA152K DIODE 2 D9800 B0JCME000037 DIODE 1 D9801 B0JCDD000002 DIODE 1 D9802 MA728 DIODE 1 D9804 MA152K DIODE 1 D9805,0 6 B0JCGD000002 DIODE 2 D9807,0 8 MA152K DIODE 2 D9809,1 0 B0JCGD000002 DIODE 2 D9811 MA728 DIODE 1 D9812 B0JCME000037 DIODE 1 D9813 B0JCDD000002 DIODE 1 D9814 B0JCME000037 DIODE 1 D9815 B0JCDD000002 DIODE 1 DG1 K1KY80A00011 80P CONNECTOR 1 DG2 K1KA15B00074 15P CONNECTOR 1 DG3 K1KY40B00003 40P CONNECTOR 1 DG5 K1KB21BA0063 21P CONNECTOR 1 DG7 K1KA20B00155 20P CONNECTOR 1 DG8,G9 K1FY119D0001 CONNECTOR 2 DG15 K1KY40B00003 40P CONNECTOR 1 DG20 K1MN40B00045 40P CONNECTOR 1 DG22 K1KBB0A00009 CONNECTOR 1 TH-37PX60B DG35 K1KA07BA0047 7P CONNECTOR 1 FL3301, 02 J0HABB000003 LC FILTER 2 FL3303- 05 J0HABB000004 LC FILTER 3 FL4010, 11 J0HABH000012 LC FILTER 2 TH-37PX60B FL4015 J0HABH000012 LC FILTER 1 TH-37PX60B FL7101 J0HABH000013 LC FILTER 1 FL7201 J0HABH000013 LC FILTER 1 FL9300, 01 F1J1E1040022 LC FILTER 2 FL9800, 01 J0HABH000013 LC FILTER 2 FL9803, 04 J0HABH000012 LC FILTER 2 FL9805- 07 J0HABH000013 LC FILTER 3 FL9900- 02 F1J1E1040022 LC FILTER 3 FL9903, 04 J0HABH000013 LC FILTER 2 G1 K1KA12A00317 12P CONNECTOR 1 G3 K1KA03BA0047 3P CONNECTOR 1 G51 K1KA30AA0009 30P CONNECTOR 1 GK3 K1KA03BA0061 3P CONNECTOR 1 Ref. No. Part No. Part Name & Description Pcs Remarks H1 K1KY80A00011 80P CONNECTOR 1 H2 K1KA15A00148 15P CONNECTOR 1 H5 K1KA15AA0288 15P CONNECTOR 1 H6 K1KA09A00230 9P CONNECTOR 1 H15 K1KA04AA0150 4P CONNECTOR 1 H40 K1KA20AA0009 20P CONNECTOR 1 H51 K1KA30AA0009 30P CONNECTOR 1 HC01 K1KA21A00011 21P CONNECTOR 1 HC12 K1KA09AA0190 9P CONNECTOR 1 HC15 K1KY40B00003 40P CONNECTOR 1 HC21 K1KA08AA0193 8P CONNECTOR 1 HC22 K1KA11AA0194 11P CONNECTOR 1 IC1100 C3ABPG000145 IC 1 IC1101 TVRN774-1 IC 1 IC1102 TVRN752-3 IC 1 TH-37PV60E PAVCCZ IC1102 TVRN758-3 IC 1 TH-37PX60B PAVCCZ IC1103 MN103SB20RGL IC 1 IC1105, 06 C0JBAS000128 IC 2 TH-37PX60B IC1107 C0JBAS000128 IC 1 IC1110 C0CBCAD00016 IC 1 IC1111 C0EBY0000041 IC 1 IC2103 AN77L08M IC 1 IC2104 C0ABBA000168 IC 1 IC2105 AN15862A-VT IC 1 IC2106 C1AB00002468 IC 1 IC2109 C1BB00000947 IC 1 IC2302 C1AB00002451 IC 1 IC2304 C0ABBA000168 IC 1 IC2306 C0ABBA000168 IC 1 IC2511 B3L000000020 IC 1 IC3005 AN15867A-VT IC 1 IC3301 C0JBAZ002205 IC 1 IC4013 C0CBCBF00009 IC 1 IC4016 C0CBCAC00275 IC 1 IC4018 C0CBCAC00275 IC 1 IC4019 C1AB00002456 IC 1 IC4022 TVRN916 IC 1 IC4023 TVRN917 IC 1 IC4025 C0FBBK000038 IC 1 IC4026 C1AB00002442 IC 1 IC4027 C0DBFFD00003 IC 1 IC4028 C0ABBB000230 IC 1 IC4029 C0CBCAC00282 IC 1 IC4030 C0CBCBC00190 IC 1 IC4032 C0DBGYY00052 IC 1 IC4035 C0CBCAF00031 IC 1 IC4036 C0JBAP000020 IC 1 IC4037 MN84522-A IC 1 IC4038 C3ABQJ000048 IC 1 IC5601A N0BG2DE00001 IC 1 IC5602 EHMDD9851 LINEAR IC 1 IC5603 C0DBAJB00004 IC 1 IC5604 C0DBZGC00067 IC 1 IC5801 C0DBAZF00003 IC 1 IC6131 C0ZBZ0000895 IC 1 IC6151 C0ZBZ0001324 IC 1 IC6191 C0ZBZ0000895 IC 1 IC6211 C0ZBZ0001325 IC 1 IC6221 C0DBEMB00005 IC 1 IC6241 C0JBAZ000005 IC 1 IC6251 NJM2903M INTEGRATED CIRCUIT 1 IC6471 C0DBEKA00003 IC 1 IC6472 C0JBAA000377 IC 1 IC6501 C0ZBZ0000895 IC 1 IC6521 C0ZBZ0001324 IC 1 IC6561, 62 C0JBAZ000005 IC 2 IC6581 NJM2903M INTEGRATED CIRCUIT 1 IC6601 C0ZBZ0001325 IC 1 166 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks IC6602 C0JBAB000715 IC 1 IC6671 C0ZBZ0001325 IC 1 IC6681 C0ZBZ0001325 IC 1 IC6682 C0JBAA000377 IC 1 IC6721, 22 C0JBAZ000994 IC 2 IC6724, 25 C0CBADC00089 IC 2 IC6751 C0CBADC00089 IC 1 IC6752 C0ZBZ0001325 IC 1 IC6753 C0JBAB000715 IC 1 IC6771 C0CBADC00089 IC 1 IC6772 C0ZBZ0001325 IC 1 IC6773, 74 C0JBAA000377 IC 2 IC6791 N0BF1FB00001 IC 1 IC6801, 02 C0DBEMB00005 IC 2 IC6821 C0DBEMB00005 IC 1 IC6841 C0DBEMB00005 IC 1 IC6861 NJM2903M INTEGRATED CIRCUIT 1 IC6871 NJM2903M INTEGRATED CIRCUIT 1 IC6901- 06 AN16072A-VT IC 6 IC6951- 56 AN16072A-VT IC 6 IC7101- 05 C0JBAZ001120 IC 5 IC7201- 05 C0JBAZ001120 IC 5 IC8003 STV0360CT IC 1 TH-37PX60B PAVCCZ IC8009 C3ABQG000095 IC 1 TH-37PX60B PAVCCZ IC8013 MN2WS0025BEA IC 1 TH-37PX60B PAVCCZ IC8019 TVRN789 IC 1 TH-37PX60B PAVCCZ IC8023, 24 C0DBAMH00018 IC 2 TH-37PX60B IC8029 C0FBBK000038 IC 1 TH-37PX60B IC8031 BA15218FDX IC 1 TH-37PX60B IC8034 C0DBEHG00006 IC 1 TH-37PX60B PAVCCZ IC8042 C0EBM0000026 IC 1 TH-37PX60B IC8213 C0JBAZ001137 IC 1 TH-37PX60B IC8402 74LVC4245AD IC 1 TH-37PX60B PAVCCZ IC8404 C0JBAZ002691 IC 1 TH-37PX60B PAVCCZ IC8405 C0ZBZ0001333 IC 1 TH-37PX60B PAVCCZ IC8408- 11 C0JBAZ002691 IC 4 TH-37PX60B PAVCCZ IC8412 C0JBAZ001137 IC 1 TH-37PX60B IC8501 74VHCU04MXNL IC 1 TH-37PX60B PAVCCZ IC8864 C0DBFFD00003 IC 1 TH-37PX60B IC9001 TVRN807 IC 1 IC9002 C0ZBZ0001330 IC 1 IC9003 TVRN805-1 IC 1 IC9007 TVRN813 IC 1 IC9011 C0EBF0000431 IC 1 IC9200 C1ZBZ0003185 IC 1 IC9303 TVRN818 IC 1 PAVCCZ IC9500 C1ZBZ0002599 IC 1 IC9502 PST9128NR IC (LOGIC) 1 IC9503, 04 C0JBAZ000856 IC 2 IC9800 C0DBAYY00054 IC 1 IC9801 C0DBZFG00066 IC 1 IC9802, 03 C0JBAZ000856 IC 2 IC9806 C0DBAHD00011 IC 1 IC9807 C0DBAYY00054 IC 1 IC9809 C0DBAYY00054 IC 1 IC9900 MN84521-A IC 1 Ref. No. Part No. Part Name & Description Pcs Remarks IC9901 C3ABQJ000051 IC 1 JK2002, 03 K4BK03A00002 AV TERMENAL 2 JK3001 K1FB315AA001 CONNECTOR 1 JK3002- 04 K1FB121A0010 CONNECTOR 3 PAVCCZ JK3005 K2HA307A0007 JACK 1 PAVCCZ JK3701 K4AK23B00001 TERMINAL BOARD 1 PAVCCZ JK8401 K1NA68B00042 68P CONNECTOR 1 TH-37PX60B PAVCCZ JS001 ERJ3GEY0R00 M 0 OHM, 1/16W 1 TH-37PX60B JS012 ERJ3GEY0R00 M 0 OHM, 1/16W 1 TH-37PX60B JS1100- 02 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 JS1109 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 JS1117 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 JS2021, 22 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS2026 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS2031- 33 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS2108, 09 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS2123, 24 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS2300- 03 ERJ6GEY0R00 M 0 OHM, 1/10W 4 JS2319 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS2331 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3000 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3005 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3007- 20 ERJ6GEY0R00 M 0 OHM, 1/10W 14 JS3023 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3037- 39 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS3201 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3206 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3215 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3230 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3237 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3239 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3252 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3255 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3256, 57 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS3302- 04 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS3307- 12 ERJ3GEY0R00 M 0 OHM, 1/16W 6 JS3352 J0JCC0000241 CHIP INDUCTOR 1 JS3354- 59 J0JCC0000241 CHIP INDUCTOR 6 JS3362, 63 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS3402, 03 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS3404, 05 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS3704, 05 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS3707, 08 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS3711- 14 ERJ6GEY0R00 M 0 OHM, 1/10W 4 JS3715 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS4016, 17 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 JS4022- 24 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 JS4025, 26 ERJ2GEJ101 M 100 OHM, J,0.063W 2 JS4027, 28 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 167 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks JS4029 ERJ2GEJ221 M 220 OHM, J,0.063W 1 JS4033- 40 ERJ2GE0R00 M 0.0 OHM, J,0.063W 8 JS4042, 43 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 TH-37PX60B JS4046 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PV60E JS4047, 48 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 TH-37PX60B JS4069 ERJ2GEJ221 M 220 OHM, J,0.063W 1 JS4075 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B JS4077 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B JS4079 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B JS4094 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PV60E JS4103 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PV60E JS4104 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 JS4111 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS4116 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B JS5601 ERJ3GEY0R00 M 0 OHM, 1/16W 1 K1 K1KY12B00001 12P CONNECTOR 1 L008 J0JCC0000241 CHIP INDUCTOR 1 L012 J0JCC0000241 CHIP INDUCTOR 1 L017 J0JCC0000241 CHIP INDUCTOR 1 L018 J0JGC0000021 CHIP INDUCTOR COIL 1 L019 J0JCC0000241 CHIP INDUCTOR 1 TH-37PV60E L020 J0JGC0000021 CHIP INDUCTOR COIL 1 L021 ERJ3GEY0R00 M 0 OHM, 1/16W 1 L1101- 04 J0JHC0000078 CHIP INDUCTOR 4 L1109 J0JHC0000078 CHIP INDUCTOR 1 L2001,0 2 J0JCC0000364 CHIP INDUCTOR 2 L2003- 16 TSK1032 BEAD CHOKE 14 L2107 TSK1032 BEAD CHOKE 1 L2108 J0JCC0000241 CHIP INDUCTOR 1 L2109,1 0 TSK1032 BEAD CHOKE 2 L2111,1 2 J0JCC0000241 CHIP INDUCTOR 2 L2115 J0JCC0000241 CHIP INDUCTOR 1 L2117 ELESE6R8KA PEAKING COIL 1 L2118 EXCELDR35C BEAD CHOKE 1 L2123 J0JCC0000241 CHIP INDUCTOR 1 L2178,7 9 J0JCC0000241 CHIP INDUCTOR 2 L2182- 87 J0JCC0000241 CHIP INDUCTOR 6 L2204 ERJ3GEY0R00 M 0 OHM, 1/16W 1 L2205,0 6 J0JCC0000241 CHIP INDUCTOR 2 L2300- 03 G0C330MA0049 PEAKING COIL 4 L2308 TALL08N3R9MA INDUCTION COIL 1 L3000 G0C101K00023 PEAKING COIL 1 L3001- 03 TSK1032 BEAD CHOKE 3 L3009 TSK1032 BEAD CHOKE 1 L3026 TSK1032 BEAD CHOKE 1 L3202 J0JCC0000241 CHIP INDUCTOR 1 L3205 J0JCC0000241 CHIP INDUCTOR 1 L3700,0 1 J0JCC0000364 CHIP INDUCTOR 2 L3707,0 8 TSK1032 BEAD CHOKE 2 L4023 J0JCC0000077 CHIP INDUCTOR 1 L4029 J0JHC0000078 CHIP INDUCTOR 1 Ref. No. Part No. Part Name & Description Pcs Remarks L4031 J0JHC0000078 CHIP INDUCTOR 1 L4038 J0JHC0000078 CHIP INDUCTOR 1 L4040- 46 J0JHC0000078 CHIP INDUCTOR 7 L4048 J0JHC0000078 CHIP INDUCTOR 1 L4049 J0JBC0000080 CHIP INDUCTOR 1 L4050,5 1 J0JHC0000078 CHIP INDUCTOR 2 L4052 J0JCC0000077 CHIP INDUCTOR 1 L4053- 55 J0JHC0000078 CHIP INDUCTOR 3 L4056,5 7 J0JCC0000077 CHIP INDUCTOR 2 L4060,6 1 J0JCC0000077 CHIP INDUCTOR 2 L4065,6 6 J0JHC0000078 CHIP INDUCTOR 2 L4068- 70 J0JHC0000078 CHIP INDUCTOR 3 L4071 J0JBC0000080 CHIP INDUCTOR 1 L4073 J0JHC0000078 CHIP INDUCTOR 1 L4075,7 6 J0JHC0000078 CHIP INDUCTOR 2 L4077 J0JCC0000077 CHIP INDUCTOR 1 L4078 J0JHC0000078 CHIP INDUCTOR 1 L5602 TALL08N2R7MA INDUCTION COIL 1 L5604 TALL08N2R7MA INDUCTION COIL 1 L5605 G0A2R7ZA0021 CHOKE COIL 1 L5606,0 7 G0A220GA0002 CHOKE COIL 2 L5608 G1C100MA0072 INDUCTION COIL 1 L5609 G0A220GA0002 CHOKE COIL 1 L5610 G1C470MA0077 INDUCTION COIL 1 L5612 TALL08N2R7MA INDUCTION COIL 1 L5615 TALL08N150KA INDUCTION COIL 1 L5621 G1C330MA0234 INDUCTION COIL 1 L5622,2 3 G1C150MA0234 INDUCTION COIL 2 L5624 G1C330MA0234 INDUCTION COIL 1 L5651 G0A220GA0002 CHOKE COIL 1 L5801 G0C101K00023 PEAKING COIL 1 L5802 TALL08N101KA INDUCTION COIL 1 L6001- 03 G0C2R2JA0133 PEAKING COIL 3 PAVCCZ L6011- 13 G0C2R2KA0151 PEAKING COIL 3 PAVCCZ L6061- 68 G0ZZ00002183 PEAKING COIL 8 L6081- 88 G0ZZ00002183 PEAKING COIL 8 L6101,0 2 J0JJC0000011 CHIP INDUCTOR 2 L6103 G0ZZ00002183 PEAKING COIL 1 L6104,0 5 J0JJC0000011 CHIP INDUCTOR 2 L6211,1 2 J0JJC0000011 CHIP INDUCTOR 2 L6221 G0ZZ00002183 PEAKING COIL 1 L6241 G0ZZ00002183 PEAKING COIL 1 L6262 G0ZZ00002183 PEAKING COIL 1 L6271,7 2 G0ZZ00002183 PEAKING COIL 2 L6401- 03 G0C2R2JA0133 PEAKING COIL 3 PAVCCZ L6411- 13 G0C2R2KA0151 PEAKING COIL 3 PAVCCZ L6461- 68 G0ZZ00002183 PEAKING COIL 8 L6472,7 3 G0ZZ00002183 PEAKING COIL 2 L6481- 88 G0ZZ00002183 PEAKING COIL 8 L6591,9 2 G0ZZ00002183 PEAKING COIL 2 L6601,0 2 G0ZZ00002183 PEAKING COIL 2 L6801,0 2 J0JJC0000011 CHIP INDUCTOR 2 168 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks L6841 J0JJC0000011 CHIP INDUCTOR 1 L8004 J0JHC0000045 CHIP INDUCTOR 1 TH-37PX60B L8008 J0JHC0000045 CHIP INDUCTOR 1 TH-37PX60B L8026 J0JHC0000035 CHIP INDUCTOR 1 TH-37PX60B L8031- 33 J0JHC0000045 CHIP INDUCTOR 3 TH-37PX60B L8037 J0JCC0000078 CHIP INDUCTOR 1 TH-37PX60B L8038 J0JHC0000045 CHIP INDUCTOR 1 TH-37PX60B L8042 J0JHC0000045 CHIP INDUCTOR 1 TH-37PX60B L8046 ELJPA1R0MFB INDUCTION COIL 1 TH-37PX60B L8047 G1C680MA0173 INDUCTION COIL 1 TH-37PX60B PAVCCZ L8048 G1C330MA0173 INDUCTION COIL 1 TH-37PX60B PAVCCZ L8049 J0JHC0000045 CHIP INDUCTOR 1 TH-37PX60B L8051 J0JCC0000241 CHIP INDUCTOR 1 TH-37PX60B L8055 G1C100MA0077 INDUCTION COIL 1 TH-37PX60B L8059 J0JHC0000045 CHIP INDUCTOR 1 TH-37PX60B L8106 ELJFA2R7JBB CHIP INDUCTOR 1 TH-37PX60B PAVCCZ L8145 J0JHC0000045 CHIP INDUCTOR 1 TH-37PX60B L8501 ELJNA2R7JFB CHIP INDUCTOR 1 TH-37PX60B L9500 G1C150KA0038 INDUCTION COIL 1 L9501,0 2 J0JHC0000078 CHIP INDUCTOR 2 L9800 G1C3R0MA0248 INDUCTION COIL 1 L9801,0 2 G1C2R2MA0241 INDUCTION COIL 2 L9810 J0JHC0000045 CHIP INDUCTOR 1 PA2 K1KA05AA0192 5P CONNECTOR 1 PA5 K1KA11AA0194 11P CONNECTOR 1 PA10 K1KA06A00452 6P CONNECTOR 1 PA20 K1MN40A00024 40P CONNECTOR 1 PA31-34 K1KA03AA0192 3P CONNECTOR 4 PA40 K1KA20AA0009 20P CONNECTOR 1 PA2100 K5H1622A0023 FUSE 1 PA3100 K5H1622A0023 FUSE 1 PA3104 ERJ3GEY0R00 M 0 OHM, 1/16W 1 PA9800 K5H4022A0023 FUSE 1 PC6480 B3PBA0000223 IC 1 PC6701- 03 B3PBA0000233 IC 3 PC6704 B3PBA0000234 IC 1 PC6705 B3PBA0000233 IC 1 PC6760 B3PBA0000223 IC 1 PC6801 B3PBA0000223 IC 1 PC6861 B3PBA0000223 IC 1 PC6871 B3PBA0000223 IC 1 Q002 2SA207700L TRANSISTOR 1 Q1100- 03 2SC584500L TRANSISTOR 4 Q1106,0 7 2SC584500L TRANSISTOR 2 TH-37PX60B Q1108 2SC584500L TRANSISTOR 1 Q1109,1 0 B1CBHD000002 FET 2 Q1111 2SC584500L TRANSISTOR 1 Q1113- 18 2SC584500L TRANSISTOR 6 Q1120- 22 2SC584500L TRANSISTOR 3 Q1130 2SC584500L TRANSISTOR 1 Q1131 B1ABCF000138 TRANSISTOR 1 Q1134 2SC584500L TRANSISTOR 1 Q1135 B1ABCF000138 TRANSISTOR 1 Q1137- 43 2SC584500L TRANSISTOR 7 Q2001- 04 2SC584500L TRANSISTOR 4 Q2006,0 7 2SC584500L TRANSISTOR 2 Q2009,1 0 2SC584500L TRANSISTOR 2 Ref. No. Part No. Part Name & Description Pcs Remarks Q2011 2SA207700L TRANSISTOR 1 Q2012 2SC584500L TRANSISTOR 1 Q2013 2SA207700L TRANSISTOR 1 Q2102- 05 2SA207700L TRANSISTOR 4 Q2106 2SC584500L TRANSISTOR 1 Q2108 2SC584500L TRANSISTOR 1 Q2112- 14 2SC584500L TRANSISTOR 3 Q2300 2SA207700L TRANSISTOR 1 (PA) Q2300 2SC584500L TRANSISTOR 1 (H) Q2301 2SD601A TRANSISTOR 1 (H) Q2301 2SD601A TRANSISTOR 1 (PA) Q2302 2SC584500L TRANSISTOR 1 Q2303 2SD601A TRANSISTOR 1 Q2306,0 7 2SA207700L TRANSISTOR 2 Q2314- 17 2SC584500L TRANSISTOR 4 Q2510,1 1 2SD601A TRANSISTOR 2 Q2518 2SD601A TRANSISTOR 1 TH-37PX60B Q3001 2SC584500L TRANSISTOR 1 Q3005 2SC584500L TRANSISTOR 1 Q3008 2SA207700L TRANSISTOR 1 Q3011 2SA207700L TRANSISTOR 1 Q3014,1 5 2SA207700L TRANSISTOR 2 Q3016 2SC584500L TRANSISTOR 1 Q3017 2SA207700L TRANSISTOR 1 Q3019- 22 2SC584500L TRANSISTOR 4 Q3024 2SC584500L TRANSISTOR 1 Q3027- 29 2SA207700L TRANSISTOR 3 Q3331- 33 2SC2480 TRANSISTOR 3 Q4050 2SC584500L TRANSISTOR 1 Q4053 2SC584500L TRANSISTOR 1 Q4055- 59 2SA207700L TRANSISTOR 5 Q4061- 69 2SC584500L TRANSISTOR 9 Q4070,7 1 B1MBACA00008 TRANSISTOR 2 Q4082,8 3 2SK1228 FET 2 Q4918 B1ABCF000138 TRANSISTOR 1 Q4919 2SC584500L TRANSISTOR 1 Q5601 B1DHDC000028 TRANSISTOR 1 Q5602 2SD601A TRANSISTOR 1 Q5603 B1DHDC000028 TRANSISTOR 1 Q5604,0 5 2SD601A TRANSISTOR 2 Q5610 2SD601A TRANSISTOR 1 Q5613 2SD601A TRANSISTOR 1 Q5614 2SK3065T100 FET 1 Q5641- 43 2SA207700L TRANSISTOR 3 Q5644 2SD601A TRANSISTOR 1 Q6001- 03 B1JADN000001 TRANSISTOR 3 Q6021- 23 B1JADN000001 TRANSISTOR 3 Q6041,4 2 B1JADN000002 TRANSISTOR 2 Q6051,5 2 B1JADN000002 TRANSISTOR 2 Q6101- 04 B1DFKM000002 TRANSISTOR 4 Q6105 B1ABNF000006 TRANSISTOR 1 Q6106 B1ADNF000006 TRANSISTOR 1 Q6111 2SK326800L FET 1 Q6112 B1DFKM000002 TRANSISTOR 1 Q6114 B1DFKM000002 TRANSISTOR 1 Q6141 B1ABNF000006 TRANSISTOR 1 Q6142 B1ADNF000006 TRANSISTOR 1 169 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks Q6146 B1ABNF000006 TRANSISTOR 1 Q6147 B1ADNF000006 TRANSISTOR 1 Q6171 2SD2185 TRANSISTOR 1 Q6172 B1ADRD000001 TRANSISTOR 1 Q6181 2SD2185 TRANSISTOR 1 Q6182 B1ADRD000001 TRANSISTOR 1 Q6221 2SD1263A TRANSISTOR 1 Q6222 2SC3063 TRANSISTOR 1 Q6251 2SD601A TRANSISTOR 1 Q6401- 03 B1JADN000001 TRANSISTOR 3 Q6421- 23 B1JAEP000001 TRANSISTOR 3 Q6441,4 2 B1JADN000002 TRANSISTOR 2 Q6451,5 2 B1JADP000002 TRANSISTOR 2 Q6471 B1CHGD000006 TRANSISTOR 1 Q6511 B1ABNF000006 TRANSISTOR 1 Q6512 B1ADNF000006 TRANSISTOR 1 Q6516 B1ABNF000006 TRANSISTOR 1 Q6517 B1ADNF000006 TRANSISTOR 1 Q6531 2SD2185 TRANSISTOR 1 Q6532 B1ADRD000001 TRANSISTOR 1 Q6551 2SD2185 TRANSISTOR 1 Q6552 B1ADRD000001 TRANSISTOR 1 Q6581 2SD601A TRANSISTOR 1 Q6601 B1DFES000003 TRANSISTOR 1 Q6602 2SD601A TRANSISTOR 1 Q6621 B1DFKM000001 TRANSISTOR 1 Q6641,4 2 B1DFKM000001 TRANSISTOR 2 Q6644,4 5 B1DFKM000001 TRANSISTOR 2 Q6647,4 8 B1DFKM000001 TRANSISTOR 2 Q6661 B1DEET000002 TRANSISTOR 1 Q6662 2SD601A TRANSISTOR 1 Q6663 2SD2185 TRANSISTOR 1 Q6671,7 2 B1DFET000001 TRANSISTOR 2 Q6680 B1ADNF000006 TRANSISTOR 1 Q6681,8 2 2SK389500L FET 2 Q6691 2SK620 FET 1 Q6742,4 3 2SD601A TRANSISTOR 2 Q6744 2SK620 FET 1 Q6762 B1ADNF000006 TRANSISTOR 1 Q6781 B1ABNF000006 TRANSISTOR 1 Q6782 B1ADNF000006 TRANSISTOR 1 Q6791 2SD601A TRANSISTOR 1 Q6801 B1BAEJ000014 TRANSISTOR 1 Q6802 2SB0709A TRANSISTOR 1 Q6803 2SD814A TRANSISTOR 1 Q6804 2SD601A TRANSISTOR 1 Q6821 2SD1263A TRANSISTOR 1 Q6822 2SC3063 TRANSISTOR 1 Q6824 2SD601A TRANSISTOR 1 Q6841 2SD1263A TRANSISTOR 1 Q6842 2SC1473A TRANSISTOR 1 Q8101 2SA207700L TRANSISTOR 1 TH-37PX60B Q8401,0 2 2SD601A TRANSISTOR 2 TH-37PX60B Q9010 2SD601A TRANSISTOR 1 Q9044 2SD601A TRANSISTOR 1 Q9046 2SD601A TRANSISTOR 1 Q9049 2SB709A TRANSISTOR 1 Q9050- 54 2SD601A TRANSISTOR 5 Q9055- 58 B1CBHD000002 FET 4 Q9300- 02 2SD601A TRANSISTOR 3 Q9500 B1CBHD000002 FET 1 Ref. No. Part No. Part Name & Description Pcs Remarks Q9800,0 1 B1MBEDA00015 TRANSISTOR 2 Q9803 B1MBEDA00015 TRANSISTOR 1 Q9805,0 6 2SD601A TRANSISTOR 2 R002 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R005 ERJ3EKF5600 M 560 OHM, 1/16W 1 R008,09 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R010 ERJ3EKF4700 M 470 OHM, 1/16W 1 R011 ERJ6GEYJ271 M 270 OHM,J,1/10W 1 R012,13 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R014 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R1101 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1102,0 3 ERJ2GEJ102 M 1KOHM, J,0.063W 2 R1105,0 6 ERJ2GEJ102 M 1KOHM, J,0.063W 2 R1108- 12 ERJ2GEJ101 M 100 OHM, J,0.063W 5 R1113 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R1114 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1116 ERJ2GEJ562 M 5.6KOHM,J,0.063W 1 R1117 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1118,1 9 EXB2HV680J RESISTOR ARRAY 2 R1121,2 2 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1123 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1124,2 5 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R1128 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-37PX60B R1129 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-37PV60E R1130 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1131,3 2 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1133,3 4 ERJ2GEJ102 M 1KOHM, J,0.063W 2 R1135 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1140,4 1 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R1145 ERJ2GEJ101 M 100 OHM, J,0.063W 1 TH-37PX60B R1146 ERJ2GEJ271 M 270 OHM, J,0.063W 1 R1147,4 8 D1HG5608A002 NETWORK RESISTER 2 R1149 EXB2HV680J RESISTOR ARRAY 1 R1150 ERJ2GEJ101 M 100 OHM, J,0.063W 1 TH-37PX60B R1151 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1153 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1154,5 5 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R1156 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1157 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1158 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1159 ERJ2GEJ123X M 12KOHM ,J,0.063W 1 R1160 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-37PV60E R1162 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-37PV60E R1164 ERJ2GEJ123X M 12KOHM ,J,0.063W 1 R1165 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R1166,6 7 ERJ2GEJ101 M 100 OHM, J,0.063W 2 TH-37PX60B R1168,6 9 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R1174 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1175 ERJ2GEJ563 M 56KOHM ,J,0.063W 1 R1176 ERJ2GEJ123X M 12KOHM ,J,0.063W 1 170 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R1177 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1181 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1182 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1183 EXB28V680JX RESISTOR ARRAY 1 R1184 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1187 EXB2HV680J RESISTOR ARRAY 1 R1188,8 9 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R1197 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1199 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1200 EXB2HV680J RESISTOR ARRAY 1 R1203 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1207 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1212 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1214 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1215- 17 ERJ2GEJ101 M 100 OHM, J,0.063W 3 R1218 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R1220 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R1221 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R1222 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R1223 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1224 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1225,2 6 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1228 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1229 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R1230 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1231 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1232,3 3 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R1234 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1235,3 6 ERJ2GEJ272 M 2.7KOHM, J,0.063W 2 R1238 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1239 ERJ3EKF1202 M 12KOHM, 1/16W 1 R1240 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1241 ERJ2GEJ822 M 8.2KOHM, J,0.063W 1 R1243 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1246 ERJ2GEJ912 M 9.1KOHM, J,0.063W 1 R1249 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1250 ERJ2GEJ224 M 220KOHM, J,0.063W 1 R1251,5 2 EXB2HV101J RESISTOR ARRAY 2 R1256 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1259 ERJ2GEJ101 M 100 OHM, J,0.063W 1 TH-37PX60B R1263,6 4 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1269 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1270,7 1 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1275 ERJ3EKF7151 M7.15KOHM, 1/16W 1 R1279,8 0 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1281 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1282 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R1283 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1284 ERJ2GEJ682 M 6.8KOHM, J,0.063W 1 R1290 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1292,9 3 ERJ2GEJ104 M 100KOHM, J,0.063W 2 TH-37PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R1296,9 7 ERJ2GEJ473 M 47KOHM,J,0.063W 2 TH-37PX60B R1298 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1299- 02 ERJ2GE0R00 M 0.0 OHM, J,0.063W 4 TH-37PV60E R1303- 06 ERJ2GEJ220 M 22 OHM, J,0.063W 4 TH-37PX60B R1307 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1308 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1309- 12 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R1313,1 4 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R1315 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1316 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1318,1 9 ERJ2GEJ512X M5.12KOHM, J,0.063W 2 R1321 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R1322 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R1323,2 4 ERJ2GEJ823 M 82KOHM, J,0.063W 2 R1325,2 6 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R1327,2 8 ERJ2GEJ683 M 68KOHM, J,0.063W 2 R1329,3 0 ERJ2GEJ473 M 47KOHM,J,0.063W 2 R1331,3 2 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R1333 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1334 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1335 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1336 ERJ2GEJ225 M 1MOHM, J,0.063W 1 R1337 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1340 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-37PV60E R1341 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1344 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1346 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1350,5 1 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1352 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1353 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R1354 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1355 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1358 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1359 ERJ2GEJ224 M 220KOHM, J,0.063W 1 R1360 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R1361 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1363 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1364 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1365 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1367 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1368 ERJ2GEJ183 M 18KOHM ,J,0.063W 1 R1369 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1370 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1372 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1373 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1375 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1376 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1377 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R1378 ERJ3GEY0R00 M 0 OHM, 1/16W 1 171 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R1379 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R1380 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1381 ERJ2GEJ474 M 470KOHM, J,0.063W 1 R1384 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1389 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1391,9 2 ERJ2GEJ473 M 47KOHM,J,0.063W 2 R1408 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1410 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1411 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1412,1 3 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R1414 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1426- 32 ERJ8GEY0R00 M 0 OHM, 1/8W 7 R1436,3 7 ERJ2GEJ561 M 60 OHM, J,0.063W 2 R1439 ERJ2GEJ271 M 270 OHM, J,0.063W 1 R1441 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1446,4 7 ERJ2GEJ471 M 470 OHM, J,0.063W 2 R1448,4 9 ERJ2GEJ473 M 47KOHM,J,0.063W 2 R1451 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1452 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-37PV60E R1454 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1458,5 9 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1466 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1467 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1470 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1472,7 3 ERJ2GEJ301 M 300 OHM, J,0.063W 2 R1474 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R1475 ERJ2GEJ271 M 270 OHM, J,0.063W 1 R1478 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R1479 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1480 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-37PV60E R1489 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1490 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PV60E R1491 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B R1526 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1530,3 1 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R1554,5 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R1556 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R2005 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2006- 11 ERJ6GEYJ223 M 22KOHM,J,1/10W 6 R2012 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2013,1 4 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R2015,1 6 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2018,1 9 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2023 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2027,2 8 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2031 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2033 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R2035,3 6 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2038 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2040 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2042 ERJ3GEYJ105 M 1MOHM,J,1/16W 1 R2043 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2044 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2045,4 6 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R2048 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2049,5 0 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R2051,5 2 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R2053 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2054 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2101,0 2 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2103 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2113,1 4 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2116 J0JCC0000241 CHIP INDUCTOR 1 R2124,2 5 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R2126,2 7 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R2128,2 9 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R2130 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2131 ERJ3EKF8201 M 8.2KOHM, 1/16W 1 R2132 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R2133 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2135,3 6 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2137 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R2138 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2147 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2148,4 9 ERJ3EKF6342 M6.34KOHM, 1/16W 2 R2152 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2153 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2154 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2155,5 6 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2158 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2160 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2161 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R2162 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2163 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R2164 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2165,6 6 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R2167 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2168,6 9 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R2170- 77 ERJ3GEYJ221 M 220 OHM,J,1/16W 8 R2181 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2182,8 3 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R2184- 87 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R2188 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2190 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2192,9 3 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2195,9 6 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2197 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2199,0 0 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2202 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2203 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R2204 ERJ6GEYJ561 M 560 OHM,J,1/10W 1 R2208 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2209 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2210 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 172 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R2211 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2213 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2214 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2215 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2219 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R2220 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R2224,2 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2227 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R2228 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R2229 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2230,3 1 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2232,3 3 ERJ3GEYJ153 M 15KOHM,J,1/16W 2 R2234,3 5 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R2236 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2237 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2238,3 9 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2246 ERJ3EKF3602 M 36KOHM, 1/16W 1 R2302 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2303 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R2304 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2305 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2306 ERJ6GEYJ821 M 820 OHM,J,1/10W 1 R2307 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2310 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (PA) R2310 ERJ3GEYJ184 M 180KOHM,J,1/16W 1 (H) R2311 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (PA) R2311 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 (H) R2312 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2323,2 4 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2325 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2329 ERJ3EKF1003 M 100KOHM, 1/16W 1 R2332 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2338 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2341 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2349 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2354 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2357 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2359 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2360 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2361 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R2363 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2364 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2365 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2366 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2368 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2369 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R2372,7 3 ERJ6GEYJ681 M 680 OHM,J,1/10W 2 R2375 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2376 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2379,8 0 ERJ6ENF2201 M 2.2KOHM, 1/10W 2 R2383 ERJ3EKF3301 M 3.3KOHM, 1/16W 1 R2384 ERJ3EKF1151 M1.15KOHM, 1/16W 1 R2387 ERJ3EKF1151 M1.15KOHM, 1/16W 1 R2388 ERJ3EKF3301 M 3.3KOHM, 1/16W 1 (PA) R2388,8 9 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 (H) R2390 ERJ3GEYJ203 M 20KOHM,J,1/16W 1 R2391 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2392 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2393 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2396 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2397 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 (H) R2397 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (PA) R2398 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 (H) R2398 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (PA) R2399 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2400 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R2401,0 2 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2403 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2404,0 5 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2406 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2407 ERJ3EKF1241 M1.24KOHM, 1/16W 1 R2408 ERJ3EKF1071 M1.07KOHM, 1/16W 1 R2409 ERJ3EKF1621 M1.62KOHM, 1/16W 1 R2410 ERJ3EKF7870 M 787 OHM, 1/16W 1 R2421 ERJ3EKF1621 M1.62KOHM, 1/16W 1 R2422 ERJ3EKF7870 M 787 OHM, 1/16W 1 R2512 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R2516 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2517 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R2520 ERJ3GEYJ224 M 220KOHM,J,1/16W 1 R2521 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R2524 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2539 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 TH-37PX60B R2540 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 TH-37PX60B R2542 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2554 ERJ6ENF75R0 M 75 OHM, 1/10W 1 TH-37PX60B R2557 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R2559 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2560 ERJ3EKF5760 M 576 OHM, 1/16W 1 R2567 ERJ6GEY0R00 M 0 OHM, 1/10W 1 TH-37PX60B R2572 ERJ6GEY0R00 M 0 OHM, 1/10W 1 TH-37PX60B R3001,0 2 ERJ6ENF1500 M 150 OHM, 1/10W 2 R3003- 05 ERJ6ENF75R0 M 75 OHM, 1/10W 3 R3006- 08 ERJ6ENF1500 M 150 OHM, 1/10W 3 R3009- 15 ERJ6ENF75R0 M 75 OHM, 1/10W 7 R3016,1 7 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3018,1 9 ERJ6GEYJ680 M 68 OHM,J,1/10W 2 R3020- 22 ERJ6ENF2202 M 2.2KOHM, 1/10W 3 R3023,2 4 ERJ6ENF1202 M 12KOHM, 1/10W 2 R3025 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3026 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3027,2 8 ERJ6ENF1500 M 150 OHM, 1/10W 2 R3030- 32 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R3033,3 4 ERJ6ENF1500 M 150 OHM, 1/10W 2 R3036 ERJ6ENF1500 M 150 OHM, 1/10W 1 R3041,4 2 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 2 R3043 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3044,4 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3048 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R3049 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3050 ERJ3GEYJ242 M 2.4KOHM,J,1/16W 1 R3051 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R3052 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3057,5 8 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3059- 64 ERJ3GEYJ221 M 220 OHM,J,1/16W 6 R3068 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3070 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3072- 75 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R3076 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3077 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3078 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3086- 88 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R3089,9 0 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 173 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R3092 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3094- 01 ERJ3GEYJ221 M 220 OHM,J,1/16W 8 R3102 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R3103 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R3105 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R3107 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3109 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3111- 14 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R3115 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3118 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3121 ERJ3EKF1300V M 130 OHM, 1/16W 1 R3122 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3123 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3125 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3126 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3127 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3130,3 1 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R3132,3 3 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3134 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3136 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3138 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3139 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3140 ERJ3EKF1300V M 130 OHM, 1/16W 1 R3141 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3143 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3144 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3145 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3146 ERJ3GEYJ361 M 360 OHM,J,1/16W 1 R3149 ERJ3GEYJ361 M 360 OHM,J,1/16W 1 R3150 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3151 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3152 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3153,5 4 ERJ3GEYJ361 M 360 OHM,J,1/16W 2 R3155 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3156 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3157 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3158,5 9 ERJ3GEYJ361 M 360 OHM,J,1/16W 2 R3160,6 1 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R3163 ERJ6ENF1202 M 12KOHM, 1/10W 1 R3206 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3213,1 4 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3215 J0JCC0000241 CHIP INDUCTOR 1 R3222 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3224 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3227- 29 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R3233,3 4 ERJ6ENF75R0 M 75 OHM, 1/10W 2 R3238 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3239 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R3245- 48 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R3249 J0JCC0000241 CHIP INDUCTOR 1 R3250- 53 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 4 R3302 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3305 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3306,0 7 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R3308,0 9 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R3310 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3312 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3313 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3317 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3318 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3320 ERJ6GEY0R00 M 0 OHM, 1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R3323,2 4 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R3330 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3336 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3337 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R3338 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3339 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3340 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3341 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3342 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R3343 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3344 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3345 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R3346 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3347 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3348,4 9 ERJ3GEYJ680 M 68 OHM,J,1/16W 2 R3350,5 1 ERJ3GEYJ510 M 51 OHM,J,1/16W 2 R3352 J0JCC0000241 CHIP INDUCTOR 1 R3704 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3709- 11 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R3716,1 7 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3721 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R3732 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3733 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3736- 41 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R3746 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3748 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3750 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3751 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R3753 ERJ6ENF1741 M1.74KOHM, 1/10W 1 R3754 ERJ6ENF1621 M1.62KOHM, 1/10W 1 R3755 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3757 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3758 ERJ6ENF6651 M6.65KOHM, 1/10W 1 R3759- 64 ERJ6GEY0R00 M 0 OHM, 1/10W 6 R3765 ERJ6ENF2321 M2.32KOHM, 1/10W 1 R3767 ERJ6ENF3161 M3.16KOHM, 1/10W 1 R3768 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R4001 ERJ3EKF1211 M1.21KOHM, 1/16W 1 R4004 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4008 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4010 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4018 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-37PV60E R4019 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4021 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4022 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R4024,2 5 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4026,2 7 ERJ2GEJ102 M 1KOHM, J,0.063W 2 R4029 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4031- 33 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R4037- 39 D1HG1038A002 NETWORK RESISTER 3 R4040,4 1 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4045,4 6 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4257 ERJ3EKF3302 M 33KOHM, 1/16W 1 R4265 ERJ3EKF3242 M32.4KOHM, 1/16W 1 R4269 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4271,7 2 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 174 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R4286,8 7 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4293 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4338- 43 ERJ2GE0R00 M 0.0 OHM, J,0.063W 6 R4457 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4465 ERJ2GEJ224 M 220KOHM, J,0.063W 1 R4469,7 0 ERJ3EKF1500 M 150 OHM, 1/16W 2 R4472 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B R4474 ERJ3EKF1211 M1.21KOHM, 1/16W 1 R4479,8 0 ERJ3EKF4220 M 422 OHM, 1/10W 2 R4481 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R4482,8 3 ERJ3EKF1781 M1.78KOHM, 1/16W 2 R4486 ERJ3EKF4870 M 487 OHM, 1/16W 1 R4487 ERJ3EKF5600 M 560 OHM, 1/16W 1 R4488 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R4490 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4492 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4495 ERJ3EKF4302 M 43KOHM, 1/16W 1 R4496- 99 ERJ6GEYJ102 M 1KOHM,J,1/10W 4 R4500 ERJ3EKF2702V M27.0KOHM, 1/16W 1 R4501,0 2 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R4503 ERJ3EKF1600 M 160 OHM, 1/16W 1 R4505 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4506 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4508 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4510 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4517 ERJ3EKF1371 M 13.7 OHM, 1/16W 1 R4520 ERJ3EKF1691 M1.69KOHM, 1/16W 1 R4521,2 2 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4527 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4533 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4534,3 5 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R4544 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4550 EXB28V220J RESISTOR ARRAY 1 R4552 EXB28V220J RESISTOR ARRAY 1 R4554 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4555 EXB28V220J RESISTOR ARRAY 1 R4560,6 1 EXB28V220J RESISTOR ARRAY 2 R4563- 65 ERJ2GEJ220 M 22 OHM, J,0.063W 3 R4568 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4572 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4575 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4577- 79 ERJ2GEJ222 M 2.2KOHM, J,0.063W 3 R4583,8 4 ERJ2GEJ390 M 39 OHM, J,0.063W 2 R4589- 04 ERJ2GEJ2R7X M 2.7OHM, J,0.063W 16 R4605,0 6 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4607 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4609,1 0 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4612,1 3 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4617,1 8 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4619 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R4620 ERJ2GEJ560 M 56 OHM, J,0.063W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R4621 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R4622 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4624 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4626 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4628 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4629- 32 ERJ2GEJ472 M 4.7KOHM, J,0.063W 4 R4633,3 4 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4636 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4637 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R4639 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4640 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4641 EXB28V330J RESISTOR ARRAY 1 R4642- 45 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R4647 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4648 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R4655 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R4657 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R4658 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4660 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4661 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4662 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4665 EXB2HV220JV RESISTOR ARRAY 1 R4667 EXB2HV220JV RESISTOR ARRAY 1 R4668 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4669 EXB2HV220JV RESISTOR ARRAY 1 R4672,7 3 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4675 ERJ3EKF1802 M 18KOHM, 1/16W 1 R4677 ERJ3EKF1802 M 18KOHM, 1/16W 1 R4679,8 0 ERJ3EKF2202 M 22KOHM, 1/16W 2 R4681,8 2 ERJ3EKF3302 M 33KOHM, 1/16W 2 R4701 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4706 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4708,0 9 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4710 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4711 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4712 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4713,1 4 EXB2HV221JV RESISTOR ARRAY 2 R4715 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4718- 20 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4727 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4729,3 0 ERJ3EKF1000 M 100 OHM, 1/16W 2 R4731 ERJ3EKF1001 M 1KOHM, 1/16W 1 R4732 ERJ3EKF4751 M4.75KOHM, 1/16W 1 R4733 ERJ3EKF75R0 M 0.75HM, 1/16W 1 R4735 ERJ3EKF2001 M 2KOHM, 1/16W 1 R4737 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4738,3 9 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R4743- 47 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R4749,5 0 EXB2HV680J RESISTOR ARRAY 2 R4751- 54 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R4756- 60 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R4762 EXB2HV680J RESISTOR ARRAY 1 R4763- 65 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 R4772 EXB2HV470JV RESISTOR ARRAY 1 175 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R4773 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4774 EXB2HV470JV RESISTOR ARRAY 1 R4775 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4776 EXB2HV470JV RESISTOR ARRAY 1 R4777 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4778 EXB2HV470JV RESISTOR ARRAY 1 R4779 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4782 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4783 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4784 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4785 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4788 EXB2HV470JV RESISTOR ARRAY 1 R4791,9 2 ERJ2GEJ470 M 47 OHM, J,0.063W 2 R4793,9 4 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4796 EXB2HV470JV RESISTOR ARRAY 1 R4804 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4805,0 6 ERJ3EKF1001 M 1KOHM, 1/16W 2 R4807- 11 ERJ2GE0R00 M 0.0 OHM, J,0.063W 5 R4814 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4816,1 7 ERJ2GEJ223 M 22KOHM, J,0.063W 2 R4819 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R4822 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4823- 25 J0JAD0000025 CHIP INDUCTOR 3 R4826,2 7 EXB2HVR000 RESISTOR ARRAY 2 TH-37PX60B R4830,3 1 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 TH-37PX60B R4837 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4838 ERJ2GEJ112 M 1.1KOHM, J,0.063W 1 R4840 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B R4891 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4898 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4960 EXB2HV680J RESISTOR ARRAY 1 R4961- 63 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4964 EXB2HV680J RESISTOR ARRAY 1 R4965,6 6 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4967 EXB2HV680J RESISTOR ARRAY 1 R4968- 72 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R5601 ERJ3EKF1800 M 180 OHM, 1/16W 1 R5603 ERJ3EKF1542 M15.4KOHM, 1/16W 1 R5605 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5606 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5607 ERJ3EKF4531 M4.53KOHM, 1/16W 1 R5609 ERJ3EKF2000 M 200 OHM, 1/16W 1 R5611 ERJ6ENF8202 M 82KOHM, 1/10W 1 R5612 ERJ6ENF1602 M 16KOHM, 1/10W 1 R5615 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R5617 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R5619 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R5620 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5621 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5625- 27 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R5632 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R5633 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5634 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R5635 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5637,3 8 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R5639 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5640 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5641 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R5642 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R5643 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5644 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5645 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R5646 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R5647 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5648 ERJ3GEYJ392 M 3.9KOHM,J,1/16W 1 R5649 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R5650 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5652 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5653,5 4 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R5659 ERJ3EKF4700 M 470 OHM, 1/16W 1 R5660 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5662 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5664 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5665 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R5667- 69 ERJ3GEYJ473 M 47KOHM,J,1/16W 3 R5672 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5676 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5692 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5693 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R5694 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R5695 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5801 ERJ3EKF8450 M 845 OHM, 1/16W 1 R5802 ERJ3EKF1302 M 23KOHM, 1/16W 1 R5803 ERJ3EKF2001 M 2KOHM, 1/16W 1 R5804 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5805- 08 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 4 R5809 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5822- 24 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 R5826 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R5836 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R6001- 06 ERJ14YJ150U M 15 OHM, J,1/4W 6 R6020 ERG3FJS101D M 100 OHM, J, 3W 1 R6021 ERJ14YJ150U M 15 OHM, J,1/4W 1 R6022 ERG3FJS101D M 100 OHM, J, 3W 1 R6023- 27 ERJ14YJ150U M 15 OHM, J,1/4W 5 R6031,3 2 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6033 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6034 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6041- 44 ERJ14YJ100 M 10 OHM, J,1/4W 4 R6051- 54 ERJ14YJ100 M 10 OHM, J,1/4W 4 R6061,6 2 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6101- 08 ERJ6GEYJ101 M 100 OHM,J,1/10W 8 R6109 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6110 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6111,1 2 ERJ6GEYJ470 M 47 OHM,J,1/10W 2 R6113 ERJ14YJ224 M 220KOHM, J,1/4W 1 R6114 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6116 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6131,3 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6133,3 4 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6135,3 6 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6141,4 2 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6146,4 7 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6151,5 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6153,5 4 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 176 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R6155,5 6 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R6157- 60 D0GF1R0JA047 M 1.0 OHM,J, 0.33W 4 R6171 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6172,7 3 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6181 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6182,8 3 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6191- 94 ERJ6GEYJ101 M 100 OHM,J,1/10W 4 R6195,9 6 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6213 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6214 D0GD151JA036 M 150 OHM,J,0.25W 1 R6222 ERG1FJS103D M 10KOHM, J, 1W 1 R6223 ERG2FJS123D M 12KOHM, J, 2W 1 R6225 ERJ6GEYJ203 M 20KOHM,J,1/10W 1 R6226,2 7 ERJ6GEYJ163 M 16KOHM,J,1/10W 2 R6228 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R6229 ERJ6GEYJ163 M 16KOHM,J,1/10W 1 R6231 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6232 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6241 EXB38V470J RESISTOR ARRAY 1 R6242 EXB38V472J RESISTOR ARRAY 1 R6243 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6244 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6245 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6246 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6251 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6252,5 3 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6254 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R6255 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6256 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R6257 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6258 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6261 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6401- 06 ERJ14YJ150U M 15 OHM, J,1/4W 6 R6421- 26 ERJ14YJ150U M 15 OHM, J,1/4W 6 R6441- 44 ERJ14YJ100 M 10 OHM, J,1/4W 4 R6451- 54 ERJ14YJ100 M 10 OHM, J,1/4W 4 R6465 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6466 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6467,6 8 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6471 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6472 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6473 ERJ6GEYJ561 M 560 OHM,J,1/10W 1 R6474 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6475,7 6 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R6477 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6478 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6479 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6501,0 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6503 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6504,0 5 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6506 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6507- 09 D0GF1R0JA047 M 1.0 OHM,J, 0.33W 3 R6511,1 2 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6516,1 7 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6521,2 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6523,2 4 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 Ref. No. Part No. Part Name & Description Pcs Remarks R6525,2 6 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R6531 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6532,3 3 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6551 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6552,5 3 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6561- 64 EXB38V470J RESISTOR ARRAY 4 R6565- 68 EXB38V472J RESISTOR ARRAY 4 R6581 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6582,8 3 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6584 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6585 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6586 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R6587 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6588 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6590 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6591 EXB38V472J RESISTOR ARRAY 1 R6592 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6603 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6604 D0GD151JA036 M 150 OHM,J,0.25W 1 R6605 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6606 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6607 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R6608,0 9 D0GF102JA047 M 1.0 KOHM,J,0.33W 2 R6610 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6611 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R6612 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6613 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R6620 D0D28R2JA021 M 8.2 OHM,J,5W 1 R6621 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6641,4 2 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6644,4 5 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6647,4 8 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6658 D0D1101JA009 M 100 OHM,J,1W 1 R6659,6 0 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6661 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6662 ERJ6ENF3001 M 3KOHM, 1/10W 1 R6663 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6664 D0GF222JA047 M 2.2 KOHM,J,0.33W 1 R6665 ERJ14YJ470 M 47 OHM,J, 1/2W 1 R6666 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6667,6 8 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R6671 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6672 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6673,7 4 D0GD5R6JA059 M 5.6 OHM,J,0.25W 2 R6682 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6683 D0GD151JA036 M 150 OHM,J,0.25W 1 R6684 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6685 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6686 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6687 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6688 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6689 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6690 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6691 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6696,9 7 D0D32R2JA020 M 2.2 OHM,J,5W 2 R6700- 08 ERJ6GEYJ471 M 470 OHM,J,1/10W 9 R6710- 18 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 9 R6721,2 2 EXB38V220J RESISTOR ARRAY 2 R6723 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 177 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R6724 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6742 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6743 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6744 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6745 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6746,4 7 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6755 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6756- 58 D0GD101JA059 M 100 OHM,J,0.25W 3 R6759 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6760 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 R6761 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6762 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6775,7 6 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6777 D0GD151JA036 M 150 OHM,J,0.25W 1 R6781 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6782 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6791 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6792 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6793 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6801,0 2 ERX1FJSR22D M0.22 OHM, J, 1W 2 R6806 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6807 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6808 ERG3FJS560D M 56 OHM, J, 3W 1 R6809 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6810,1 1 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R6812 ERJ6ENF2403 M 240KOHM, 1/10W 1 R6813 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6814 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R6815 ERG2FJS183D M 18KOHM, J, 2W 1 R6816 ERJ6ENF1582 M15.8KOHM, 1/10W 1 R6817 ERJ6ENF2701 M 2.7KOHM, 1/10W 1 R6821 ERG2FJS221D M 220 OHM, J, 2W 1 R6822 ERJ12YJ104U M 100KOHM, 1/2W 1 R6823 ERG1FJS104D M 100KOHM, J, 1W 1 R6824 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R6825,2 6 ERJ6ENF2703 M 270KOHM, 1/10W 2 R6827 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6828 ERJ6ENF5231 M5.23KOHM, 1/10W 1 R6829,3 0 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6831 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R6833- 35 ERJ6ENF5602 M 56KOHM, 1/10W 3 R6836 ERJ6ENF6802 M 68KOHM, 1/10W 1 R6837 ERJ6ENF4702 M 47KOHM, 1/10W 1 R6839 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6841 ERJ12YJ153U M 15KOHM, 1/2W 1 R6842 ERJ14YJ433U M 43KOHM, 1/2W 1 R6843 ERJ6GEYJ513 M 51KOHM,J,1/10W 1 R6844 ERG2FJS101D M 100 OHM, J, 2W 1 R6845 ERJ6GEYJ513 M 51KOHM,J,1/10W 1 R6846,4 7 ERJ6GEYJ563 M 56KOHM,J,1/10W 2 R6848 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6849,5 0 ERJ6ENF6802 M 68KOHM, 1/10W 2 R6851 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6852 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6853 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6860 D0D28R2JA021 M 8.2 OHM,J,5W 1 R6861 ERJ6ENF3902 M 39KOHM, 1/10W 1 R6862,6 3 ERJ6ENF4702 M 47KOHM, 1/10W 2 R6864 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R6865,6 6 ERJ6ENF2201 M 2.2KOHM, 1/10W 2 R6867 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6868 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6869 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R6871- 73 ERJ6ENF3902 M 39KOHM, 1/10W 3 R6874 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R6875 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R6876 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6877 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6878 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6879 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6886- 88 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6901 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6902- 04 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R6908,0 9 ERJ6GEYJ221 M 220 OHM,J,1/10W 2 R6916,1 7 ERJ6GEYJ221 M 220 OHM,J,1/10W 2 R6924 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6931- 34 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6935,3 6 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R6951 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6952- 54 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R6958,5 9 ERJ6GEYJ221 M 220 OHM,J,1/10W 2 R6966,6 7 ERJ6GEYJ221 M 220 OHM,J,1/10W 2 R6974 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6981- 84 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6985,8 6 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R7112 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7113,1 4 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7115 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R7116 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R7118,1 9 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7120 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7122- 25 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7126 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7127,2 8 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7132- 37 EXB38V470J RESISTOR ARRAY 6 R7139,4 0 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7142- 45 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7146 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7149 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7151- 54 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7155 EXB38V102J RESISTOR ARRAY 1 R7156 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7158,5 9 EXB38V470J RESISTOR ARRAY 2 R7162- 67 EXB38V102J RESISTOR ARRAY 6 R7169 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7171- 74 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7175 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7177 EXB38V102J RESISTOR ARRAY 1 R7179,8 0 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7186,8 7 EXB38V470J RESISTOR ARRAY 2 R7201- 07 EXB38V470J RESISTOR ARRAY 7 R7208- 10 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R7212- 15 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 178 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R7216 EXB38V470J RESISTOR ARRAY 1 R7217 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7219 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7221 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7223- 26 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7227 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7229 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7231 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7232- 35 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7236 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7237- 42 EXB38V102J RESISTOR ARRAY 6 R7245 EXB38V102J RESISTOR ARRAY 1 R7246- 49 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R7250,5 1 EXB38V470J RESISTOR ARRAY 2 R7256,5 7 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7258 EXB38V102J RESISTOR ARRAY 1 R7260 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7262- 65 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7266 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7269 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7270 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R7271 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R8001 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-37PX60B R8002 ERJ2GEJ272 M 2.7KOHM, J,0.063W 1 TH-37PX60B R8003,0 4 ERJ2GEJ181 M 180 OHM, J,0.063W 2 TH-37PX60B R8006 ERJ8GEY0R00 M 0 OHM, 1/8W 1 TH-37PX60B R8008 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R8010- 12 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R8014,1 5 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8017,1 8 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R8021,2 2 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-37PX60B R8027 D1HG5608A002 NETWORK RESISTER 1 TH-37PX60B R8028- 30 ERJ2GEJ560 M 56 OHM, J,0.063W 3 TH-37PX60B R8033 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 TH-37PX60B R8034,3 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 TH-37PX60B R8036 ERJ3GEYJ163 M 16KOHM,J,1/16W 1 TH-37PX60B R8038 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-37PX60B R8039,4 0 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 TH-37PX60B R8041 ERJ2GEJ154 M 150KOHM, J,0.063W 1 TH-37PX60B R8046 ERJ2GEJ330 M 33 OHM, J,0.063W 1 TH-37PX60B R8047- 50 ERJ2GEJ101 M 100 OHM, J,0.063W 4 TH-37PX60B R8051 EXB38V330J RESISTOR ARRAY 1 TH-37PX60B R8052- 55 ERJ2GEJ103 M 10KOHM, J,0.063W 4 TH-37PX60B R8056 ERJ2GEJ330 M 33 OHM, J,0.063W 1 TH-37PX60B R8057 ERJ2GEJ680 M 68 OHM, J,0.063W 1 TH-37PX60B R8058 EXB38V330J RESISTOR ARRAY 1 TH-37PX60B R8059 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-37PX60B R8073 ERJ2GEJ105 M 1MOHM, J,0.063W 1 TH-37PX60B R8074,7 5 ERJ2GEJ181 M 180 OHM, J,0.063W 2 TH-37PX60B R8076 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-37PX60B R8078 ERJ2GEJ562 M 5.6KOHM,J,0.063W 1 TH-37PX60B R8079 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-37PX60B R8084,8 5 D1HG1218A002 NETWORK RESISTER 2 TH-37PX60B R8086- 88 ERJ2GEJ560 M 56 OHM, J,0.063W 3 TH-37PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R8101 ERJ3GEYF181 M 180 OHM,J,1/16W 1 TH-37PX60B PAVCCZ R8104 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-37PX60B R8106,0 7 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-37PX60B R8108 ERJ3EKF1002 M 10KOHM, 1/16W 1 TH-37PX60B R8109 ERJ3EKF2202 M 22KOHM, 1/16W 1 TH-37PX60B R8110 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 TH-37PX60B R8111 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B R8112,1 3 ERJ3GEY0R00 M 0 OHM, 1/16W 2 TH-37PX60B R8115 ERJ3GEYF272 M 2.7KOHM, 1/16W 1 TH-37PX60B R8117 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 TH-37PX60B R8123 ERJ3GEY0R00 M 0 OHM, 1/16W 1 TH-37PX60B R8124 ERJ2GEJ471 M 470 OHM, J,0.063W 1 TH-37PX60B R8127 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B R8132,3 3 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-37PX60B R8136 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-37PX60B R8137 ERJ2GEJ121 M 120 OHM, J,0.063W 1 TH-37PX60B R8140,4 1 ERJ3EKF1001 M 1KOHM, 1/16W 2 TH-37PX60B R8144,4 5 D1HG5608A002 NETWORK RESISTER 2 TH-37PX60B R8148,4 9 D1HG3908A002 NETWORK RESISTER 2 TH-37PX60B R8150- 59 ERJ2GEJ390 M 39 OHM, J,0.063W 10 TH-37PX60B R8161,6 2 ERJ2GEJ390 M 39 OHM, J,0.063W 2 TH-37PX60B R8163 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-37PX60B R8165 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-37PX60B R8167- 71 ERJ2GEJ103 M 10KOHM, J,0.063W 5 TH-37PX60B R8172 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-37PX60B R8173 EXB38V560J RESISTOR ARRAY 1 TH-37PX60B R8175,7 6 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-37PX60B R8183 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B R8184 ERJ2GEJ223 M 22KOHM, J,0.063W 1 TH-37PX60B R8187 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-37PX60B R8188 ERJ3GEY0R00 M 0 OHM, 1/16W 1 TH-37PX60B R8193 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-37PX60B R8195,9 6 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-37PX60B R8201- 04 ERJ2GEJ103 M 10KOHM, J,0.063W 4 TH-37PX60B R8215 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-37PX60B R8216,1 7 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-37PX60B R8218,1 9 D1HG33080001 NETWORK RESISTER 2 TH-37PX60B R8220- 22 D1HG5608A002 NETWORK RESISTER 3 TH-37PX60B R8223 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-37PX60B R8224,2 5 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-37PX60B R8226 ERJ2GEJ330 M 33 OHM, J,0.063W 1 TH-37PX60B R8232- 43 ERJ2GEJ330 M 33 OHM, J,0.063W 12 TH-37PX60B R8244 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-37PX60B R8245,4 6 ERJ2GEJ330 M 33 OHM, J,0.063W 2 TH-37PX60B R8250 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-37PX60B R8252- 54 ERJ2GEJ330 M 33 OHM, J,0.063W 3 TH-37PX60B R8255 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-37PX60B R8256 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 TH-37PX60B R8257 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-37PX60B R8259 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-37PX60B R8260- 63 ERJ2GEJ560 M 56 OHM, J,0.063W 4 TH-37PX60B 179 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R8264- 68 ERJ2GEJ103 M 10KOHM, J,0.063W 5 TH-37PX60B R8269 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-37PX60B R8271 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-37PX60B R8272 EXB38V560J RESISTOR ARRAY 1 TH-37PX60B R8273 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-37PX60B R8275 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-37PX60B R8277 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-37PX60B R8279 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B R8282 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-37PX60B R8284 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-37PX60B R8286,8 7 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-37PX60B R8290 EXB38V560J RESISTOR ARRAY 1 TH-37PX60B R8291,9 2 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-37PX60B R8310- 15 ERJ3EKF75R0 M 0.75HM, 1/16W 6 TH-37PX60B R8319 ERJ3EKF2702V M27.0KOHM, 1/16W 1 TH-37PX60B R8320 ERJ3EKF1002 M 10KOHM, 1/16W 1 TH-37PX60B R8321 ERJ3EKF8201 M 8.2KOHM, 1/16W 1 TH-37PX60B R8349 ERJ2GEJ104 M 100KOHM, J,0.063W 1 TH-37PX60B R8350 ERJ3EKF8201 M 8.2KOHM, 1/16W 1 TH-37PX60B R8351 ERJ3EKF1002 M 10KOHM, 1/16W 1 TH-37PX60B R8352 ERJ3EKF2702V M27.0KOHM, 1/16W 1 TH-37PX60B R8353 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 TH-37PX60B R8354 ERJ2GEJ272 M 2.7KOHM, J,0.063W 1 TH-37PX60B R8355,5 6 EXB2HV104JV RESISTOR ARRAY 2 TH-37PX60B R8357,5 8 ERJ2GEJ473 M 47KOHM,J,0.063W 2 TH-37PX60B R8366 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-37PX60B R8367,6 8 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-37PX60B R8372- 76 ERJ2GEJ560 M 56 OHM, J,0.063W 5 TH-37PX60B R8401 ERJ8GEY0R00 M 0 OHM, 1/8W 1 TH-37PX60B R8402 ERJ6GEY0R00 M 0 OHM, 1/10W 1 TH-37PX60B R8403 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B R8404,0 5 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-37PX60B R8406 ERJ8RSJR10 M 1 OHM, 1/8W 1 TH-37PX60B R8407 ERJ2GEJ333 M 33KOHM, J,0.063W 1 TH-37PX60B R8414 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B R8415,1 6 ERJ2GEJ223 M 22KOHM, J,0.063W 2 TH-37PX60B R8417,1 8 EXB38V473J RESISTOR ARRAY 2 TH-37PX60B R8419,2 0 EXB38V101J RESISTOR ARRAY 2 TH-37PX60B R8421 ERJ2GEJ223 M 22KOHM, J,0.063W 1 TH-37PX60B R8422 ERJ2GEJ104 M 100KOHM, J,0.063W 1 TH-37PX60B R8423 ERJ2GEJ821 M 820 OHM, J,0.063W 1 TH-37PX60B R8425,2 6 EXB38V101J RESISTOR ARRAY 2 TH-37PX60B R8427- 31 ERJ2GEJ560 M 56 OHM, J,0.063W 5 TH-37PX60B R8433,3 4 EXB38V560J RESISTOR ARRAY 2 TH-37PX60B R8443 EXB38V560J RESISTOR ARRAY 1 TH-37PX60B R8444 ERJ2GEJ101 M 100 OHM, J,0.063W 1 TH-37PX60B R8445,4 6 ERJ2GEJ151 M 150 OHM, J,0.063W 2 TH-37PX60B R8447 ERJ2GEJ223 M 22KOHM, J,0.063W 1 TH-37PX60B R8448 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-37PX60B R8449,5 0 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-37PX60B R8451 EXB38V104J RESISTOR ARRAY 1 TH-37PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R8452 ERJ2GEJ104 M 100KOHM, J,0.063W 1 TH-37PX60B R8453 EXB38V104J RESISTOR ARRAY 1 TH-37PX60B R8454 ERJ2GEJ104 M 100KOHM, J,0.063W 1 TH-37PX60B R8456- 59 EXB38V560J RESISTOR ARRAY 4 TH-37PX60B R8460 ERJ2GEJ104 M 100KOHM, J,0.063W 1 TH-37PX60B R8461 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-37PX60B R8462,6 3 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 TH-37PX60B R8464 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-37PX60B R8465 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-37PX60B R8466 EXB38V560J RESISTOR ARRAY 1 TH-37PX60B R8467,6 8 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-37PX60B R8469 EXB38V151J RESISTOR ARRAY 1 TH-37PX60B R8474 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B R8475,7 6 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-37PX60B R8477,7 8 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-37PX60B R8479 ERJ2GEJ203 M 20KOHM,J,0.063W 1 TH-37PX60B R8480- 82 ERJ2GEJ560 M 56 OHM, J,0.063W 3 TH-37PX60B R8483 ERJ2GEJ203 M 20KOHM,J,0.063W 1 TH-37PX60B R8484 ERJ2GEJ223 M 22KOHM, J,0.063W 1 TH-37PX60B R8485 ERJ2GEJ333 M 33KOHM, J,0.063W 1 TH-37PX60B R8486 ERJ2GEJ223 M 22KOHM, J,0.063W 1 TH-37PX60B R8487 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-37PX60B R8488 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B R8489 ERJ2GEJ102 M 1KOHM, J,0.063W 1 TH-37PX60B R8491 ERJ3EKF9102 M91.0KOHM, 1/16W 1 TH-37PX60B R8492 ERJ3EKF1802 M 18KOHM, 1/16W 1 TH-37PX60B R8493 ERJ3EKF9102 M91.0KOHM, 1/16W 1 TH-37PX60B R8494 ERJ3EKF9101 M 9.1KOHM, 1/16W 1 TH-37PX60B R8495 EXB38V151J RESISTOR ARRAY 1 TH-37PX60B R8496 EXB38V560J RESISTOR ARRAY 1 TH-37PX60B R8497 ERJ3EKF3300 M 330 OHM, 1/16W 1 TH-37PX60B R8498 ERJ3EKF2200 M 220 OHM, 1/16W 1 TH-37PX60B R8499 ERJ3EKF2432 M24.3KOHM, 1/16W 1 TH-37PX60B R8500 ERJ3EKF1052 M10.5KOHM, 1/16W 1 TH-37PX60B R8501 ERJ3EKF5601 M 5.6KOHM, 1/16W 1 TH-37PX60B R8502 ERJ3EKF2402 M 24KOHM, 1/16W 1 TH-37PX60B R8503,0 4 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-37PX60B R8505 ERJ2GEJ101 M 100 OHM, J,0.063W 1 TH-37PX60B R8538,3 9 ERJ2GEJ101 M 100 OHM, J,0.063W 2 TH-37PX60B R8546 ERJ2GEJ333 M 33KOHM, J,0.063W 1 TH-37PX60B R8547 ERJ2GEJ102 M 1KOHM, J,0.063W 1 TH-37PX60B R8601 ERJ3GEY0R00 M 0 OHM, 1/16W 1 TH-37PX60B R8602- 04 ERJ2GEJ101 M 100 OHM, J,0.063W 3 TH-37PX60B R8605,0 6 ERJ2GEJ104 M 100KOHM, J,0.063W 2 TH-37PX60B R8608 ERJ2GEJ105 M 1MOHM, J,0.063W 1 TH-37PX60B R8610 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 TH-37PX60B R8611 ERJ6GEY0R00 M 0 OHM, 1/10W 1 TH-37PX60B R8614 ERJ2GEJ221 M 220 OHM, J,0.063W 1 TH-37PX60B R8615 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B R8701- 08 ERJ2GEJ560 M 56 OHM, J,0.063W 8 TH-37PX60B R8729- 36 ERJ2GEJ103 M 10KOHM, J,0.063W 8 TH-37PX60B R8827,2 8 ERJ2GEJ392 M 3.9KOHM, J,0.063W 2 TH-37PX60B R8831,3 2 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 TH-37PX60B R8862- 64 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 TH-37PX60B 180 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R8899,0 0 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 TH-37PX60B R8912 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B R8927 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B R8930 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B R8931,3 2 ERJ2GEJ392 M 3.9KOHM, J,0.063W 2 TH-37PX60B R8933,3 4 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 TH-37PX60B R8936 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-37PX60B R8954 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-37PX60B R8960 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-37PX60B R8962- 64 ERJ2GEJ101 M 100 OHM, J,0.063W 3 TH-37PX60B R8967,6 8 EXB2HV473JV RESISTOR ARRAY 2 TH-37PX60B PAVCCZ R8969- 71 ERJ2GEJ473 M 47KOHM,J,0.063W 3 TH-37PX60B R9060- 67 ERJ3GEYJ101 M 100 OHM,J,1/16W 8 R9074 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9076 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9096 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9098 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9099 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9100,0 1 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9102 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9105 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9106 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9107 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9108,0 9 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9110,1 1 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9113 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9120 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9121 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9127 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9129 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9131- 33 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R9134 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R9140 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9141- 45 ERJ3GEYJ101 M 100 OHM,J,1/16W 5 R9148 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9149 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9150,5 1 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9152,5 3 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9154,5 5 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9156 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9158,5 9 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9160,6 1 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9162 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9164- 66 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9167,6 8 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9169 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9170- 72 ERJ3GEYJ393 M 39KOHM,J,1/16W 3 R9173- 75 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9178 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9179 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9180 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9181- 84 ERJ3GEYJ101 M 100 OHM,J,1/16W 4 Ref. No. Part No. Part Name & Description Pcs Remarks R9185,8 6 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9187,8 8 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9189,9 0 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9192 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9193 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9194 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9196 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9199 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9203 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9205 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9206,0 7 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R9215 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 R9217- 22 ERJ3GEYJ103 M 10KOHM,J,1/16W 6 R9223 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9225 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9230 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9232 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9236 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9237 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9240 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9317 ERJ3GEYJ391 M 390 OHM,J,1/16W 1 R9348 D1HG8208A002 NETWORK RESISTER 1 R9349 EXB38V820J RESISTOR ARRAY 1 R9350,5 1 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9352 EXB38V820J RESISTOR ARRAY 1 R9353,5 4 D1HG8208A002 NETWORK RESISTER 2 R9355,5 6 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9357- 59 D1HG8208A002 NETWORK RESISTER 3 R9360 EXB38V820J RESISTOR ARRAY 1 R9361,6 2 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9363 EXB2HV470JV RESISTOR ARRAY 1 R9366 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9367 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9368 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9369 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9370 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9371 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9379 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9380 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9382 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9390 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9391 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9394 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9395 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9501 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9503 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9506 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9507 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9511- 13 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9514 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9516 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9518 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R9522- 25 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R9527,2 8 EXB2HV272JV RESISTOR ARRAY 2 R9529,3 0 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9531- 33 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9534 EXB38V470J RESISTOR ARRAY 1 R9535,3 6 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9538 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9540 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 181 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R9543,4 4 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9545 ERJ3GEYJ304V M 300KOHM,J,1/16W 1 R9548- 50 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9552 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9555 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9800 ERJ3EKF1302 M 23KOHM, 1/16W 1 R9801 ERJ3EKF2402 M 24KOHM, 1/16W 1 R9802 ERJ3EKF6202 M 62KOHM, 1/16W 1 R9803 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9804 ERJ3EKF2402 M 24KOHM, 1/16W 1 R9805 ERJ3EKF3002 M 30KOHM, 1/16W 1 R9806 ERJ3EKF3902 M 39KOHM, 1/16W 1 R9807 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9808 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9810 ERJ3EKF3001 M 3KOHM, 1/16W 1 R9813 ERJ3EKF2401 M 2.4KOHM, 1/16W 1 R9814 ERJ3EKF6802 M 68KOHM, 1/16W 1 R9815 ERJ3EKF2202 M 22KOHM, 1/16W 1 R9816 ERJ3EKF8202 M 82KOHM, 1/16W 1 R9821 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9823- 27 ERJ3GEYJ101 M 100 OHM,J,1/16W 5 R9828 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9830,3 1 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9838,3 9 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9840 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9842- 44 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 R9845 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9846,4 7 EXB2HV272JV RESISTOR ARRAY 2 R9848,4 9 EXB2HV470JV RESISTOR ARRAY 2 R9850 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9854 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9859 EXB38V101J RESISTOR ARRAY 1 R9861- 63 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9864,6 5 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R9868 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9869- 71 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9872 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9878 ERJ3EKF3902 M 39KOHM, 1/16W 1 R9879 ERJ3EKF2002 M 20KOHM, 1/16W 1 R9880 ERJ3EKF3602 M 36KOHM, 1/16W 1 R9883 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9884 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9891 ERJ3EKF4702 M 47KOHM, 1/16W 1 R9892 ERJ3EKF1502 M 15KOHM, 1/16W 1 R9893 ERJ3EKF3602 M 36KOHM, 1/16W 1 R9896 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9897 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9903 EXB2HV470JV RESISTOR ARRAY 1 R9904 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9905 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9906 EXB38V470J RESISTOR ARRAY 1 R9907 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9917,1 8 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9919,2 0 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9922 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9929 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9936- 39 ERJ3EKF1001 M 1KOHM, 1/16W 4 R9940 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9941,4 2 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9943- 51 EXB38V470J RESISTOR ARRAY 9 Ref. No. Part No. Part Name & Description Pcs Remarks R9952- 55 ERJ3GEYJ470 M 47 OHM,J,1/16W 4 R9956 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 RM2501 PNA4701M05TV REMOTE RECEIVER 1 RTL TZTNP01BKTB CIRCUIT BOARD D 1 PAVCCZ RTL TNPA3740AB CIRCUIT BOARD XV 1 TH-37PX60B PAVCCZ RTL TNPA3756CB CIRCUIT BOARD DG 1 TH-37PV60E PAVCCZ RTL TNPA3756CH CIRCUIT BOARD DG 1 TH-37PX60B PAVCCZ RTL TNPA3759AB CIRCUIT BOARD H 1 PAVCCZ RTL TNPA3766 CIRCUIT BOARD HC 1 PAVCCZ RTL TNPA3767 CIRCUIT BOARD TA 1 TH-37PV60E PAVCCZ RTL TNPA3767AB CIRCUIT BOARD TA 1 TH-37PX60B PAVCCZ RTL TNPA3761AC CIRCUIT BOARD PA 1 RTL TNPA3802AB CIRCUIT BOARD C1 1 PAVCCZ RTL TNPA3803AB CIRCUIT BOARD C2 1 PAVCCZ RTL TNPA3912 CIRCUIT BOARD P 1 PAVCCZ RTL TNPA3814AE CIRCUIT BOARD SC 1 PAVCCZ RTL TNPA3809AB CIRCUIT BOARD SD 1 PAVCCZ RTL TNPA3815AE CIRCUIT BOARD SS 1 PAVCCZ RTL TNPA3808AB CIRCUIT BOARD SU 1 PAVCCZ RTL TNPA3764AE CIRCUIT BOARD G 1 PAVCCZ RTL TNPA3848AD CIRCUIT BOARD GK 1 RTL TNPA3762AC CIRCUIT BOARD K 1 TH-37PV60E PAVCCZ RTL TNPA3762AD CIRCUIT BOARD K 1 TH-37PX60B PAVCCZ RTL TNPA3763AC CIRCUIT BOARD S 1 S1 K1KA03BA0061 3P CONNECTOR 1 SC2 K1KA02A00626 2P CONNECTOR 1 SC20 K1KA20AA0008 20P CONNECTOR 1 SC23 K1KA03AA0193 3P CONNECTOR 1 SC30 K1KA08AA0192 8P CONNECTOR 1 SC41,42 K1ML80B00001 80P CONNECTOR 2 SC45,46 K1KA09A00239 9P CONNECTOR 2 SD1-D3 K1MNC0B00002 CONNECTOR 3 PAVCCZ SD46 K1KB09A00045 9P CONNECTOR 1 SS11 K1KA02A00626 2P CONNECTOR 1 SS12 K1KA10AA0194 10P CONNECTOR 1 SS23 K1KA12AA0194 12P CONNECTOR 1 SS34 K1KA03AA0193 3P CONNECTOR 1 SS41A- 4A K1MN13B00020 13P CONNECTOR 4 SU1-U3 K1MNC0B00002 CONNECTOR 3 PAVCCZ SU45 K1KB09A00045 9P CONNECTOR 1 SW2500 K0F162B00002 SWITCH 1 SW3753- 57 EVQ11G05R SWITCH 5 T6602 ETS25AZ139AD SWITCHING TRANS 1 TA5 K1KB15B00013 15P CONNECTOR 1 TA6 K1KB09B00019 9P CONNECTOR 1 TU001 ENG37A12GF TUNER 1 TH-37PV60E TU001 ENGF7301GF TUNER 1 TH-37PX60B PAVCCZ TU8001 ENV57M01D8F TUNER 1 TH-37PX60B PAVCCZ VR6000 EVMEASA00B14 CONTROL 10KOHMB 0.3W 1 VR6600 EVMEASA00B13 CONTROL 1KOHMB 0.3W 1 182 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks VR6602 EVMEASA00B53 CONTROL 5KOHMB 0.3W 1 X1100 H0J100500030 CRYSTAL 1 X1101 H0J327200114 CRYSTAL 1 X2101 H0J184500027 CRYSTAL 1 X4004 H0J270500087 CRYSTAL 1 X8003 H0J241500003 CRYSTAL 1 TH-37PX60B PAVCCZ X8006 H0J270500090 CRYSTAL 1 TH-37PX60B PAVCCZ X9000 H2D200500011 CRYSTAL 1 X9200 H0J200500038 CRYSTAL 1 XV01 K1KAB0A00011 CONNECTOR 1 TH-37PX60B ZA2101- 08 TESA169 SHIELD CLIP 8 ZA2300, 01 K4CZ01000027 COMPATIBLE WITH JALCO K9 2 ZA3401- 05 K4CZ01000027 COMPATIBLE WITH JALCO K9 5 ZA3701 K4CD01000013 TERMINAL 1 ZA4001, 02 K4CD08000002 TERMINAL 2 ZA6001, 02 K4CD01000011 TERMINAL 2 ZA6005 K4CD01000011 TERMINAL 1 ZA6401- 03 K4CD01000011 TERMINAL 3 ZA7101- 04 K4CD01000013 TERMINAL 4 ZA7201- 04 K4CD01000013 TERMINAL 4 ZA9001 K4CD01000011 TERMINAL 1 C402 F1J1C1050011 C 1UF, Z, 50V 1 C404 F0CAF105A021 C 1UF, 250V 1 C407 EEUEB2W220B E 22UF, 450V 1 C408 ECJ2XB1H102K C 1000PF, K, 50V 1 C409 F0CAF225A021 C 22UF, 250V 1 C410 ECJ2XB1H103K C 0.01UF, K, 50V 1 C413 ECJ2XB1H104K C 0.1UF, K, 50V 1 C414 ECQU2A473ML P 0.047UF, M,250V 1 C421 F1J1C1050011 C 1UF, Z, 50V 1 C422 ECJ2XB1H103K C 0.01UF, K, 50V 1 C423 ECJ2XB1H472K C 4700PF, K, 50V 1 C425 ECJ2XB1H103K C 0.01UF, K, 50V 1 C426 ECJ2XC1H471J C 470PF, J, 50V 1 C427 F1J1C1050011 C 1UF, Z, 50V 1 C428 ECJ2XC1H221J C 220PF, J, 50V 1 C429 F1E2J4730001 C 0.047PF, , 600V 1 C431 ECJ2XB1H102K C 1000PF, K, 50V 1 C432 F1J1C1050011 C 1UF, Z, 50V 1 C433 ECJ3XB1E104K C 0.1UF, K, 25V 1 C434 F1J1C1050011 C 1UF, Z, 50V 1 C436 F1J1C1050011 C 1UF, Z, 50V 1 C440 ECA1HM100 E 10UF, 50V 1 C443,44 F1A3A102A040 C 1000PF, J, 1KV 2 C445 F1J1C1050011 C 1UF, Z, 50V 1 C446,47 F2B2W2010001 C 200UF, 450V 2 C450 ECJ2XB1H103K C 0.01UF, K, 50V 1 C451 F1A3A101A040 C 100PF, J, 1KV 1 C457 ECWH12333RHV P 0.013UF,J,1.2KV 1 C460,61 F1A3A331A039 E 330UF, 1KV 2 C462 ECJ3YB1E105K C 1UF, K, 25V 1 C463 ECJ2XC1H220J C 22UF, J, 50V 1 C467 ECKCNA221KB7 C 220PF, M, 1 C468 ECJ2XB1H103K C 0.01UF, K, 50V 1 C469 ECKCNA221KB7 C 220PF, M, 1 C470 F0CAF105A021 C 1UF, 250V 1 C473,74 ECKCNA101KB7 C 100PF 2 C476 ECKCNA101KB7 C 100PF 1 C478 ECKCNA101KB7 C 100PF 1 C493 ECA1HM470 E 47UF, 50V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C494 F2A2E1R00008 E 1.0UF, 250V 1 C497 ECA1HM470 E 47UF, 50V 1 C501,02 ECJ2XB1H103K C 0.01UF, K, 50V 2 C503 ECJ2XC1H471J C 470PF, J, 50V 1 C504 F1J1C1050011 C 1UF, Z, 50V 1 C505 ECJ2XB1H102K C 1000PF, K, 50V 1 C506,07 ECJ2XB1H103K C 0.01UF, K, 50V 2 C508 ECJ2XC1H471J C 470PF, J, 50V 1 C509 ECA1EHG101 E 100UF, 25V 1 C510 ECJ2XB1H104K C 0.1UF, K, 50V 1 C511 ECJ2XB1H102K C 1000PF, K, 50V 1 C512-14 ECJ2XC1H471J C 470PF, J, 50V 3 C515 F2A1A1220011 E 1200UF, 10V 1 C516 ECJ2XB1C474K C 0.47UF, Z, 16V 1 C517 F2A1E221A096 E 220UF, 25V 1 C518 ECJ2XB1H104K C 0.1UF, K, 50V 1 C519 F1J1C1050011 C 1UF, Z, 50V 1 C520 ECWH8683RHV P 0.068PF, J, 8KV 1 C523 ECJ3YB1E105K C 1UF, K, 25V 1 C526 ECJ2XB1H223K C 0.022UF, K, 50V 1 C527 ECJ3YB1E475K C 4.7UF, K, 25V 1 C528,29 F1J1C1050011 C 1UF, Z, 50V 2 C530 ECJ2VB1H333K C 0.033UF, K, 50V 1 C531 ECJ3YB1E105K C 1UF, K, 25V 1 C533 ECJ2XB1H103K C 0.01UF, K, 50V 1 C534 ECJ2XC1H471J C 470PF, J, 50V 1 C546,47 ECJ2XB1H102K C 1000PF, K, 50V 2 C550 ECJ2XC1H331J C 330PF, J, 50V 1 C551,52 ECJ2XB1H104K C 0.1UF, K, 50V 2 C554 F1J1C1050011 C 1UF, Z, 50V 1 C555 F2A2C101A120 E 1000UF, 160V 1 C556,57 EEUFC1E152 E 1500UF, 25V 2 C558 F2A1E471A096 E 470UF, 25V 1 C559 F2A1A1220011 E 1200UF, 10V 1 C562 ECJ2XB1H223K C 0.022UF, K, 50V 1 C571 ECJ2XC1H330J C 33PF, J, 50V 1 C574 ECJ2XB1H104K C 0.1UF, K, 50V 1 C577 F2A2A330A022 E 33UF, 100V 1 C581 ECJ2XB1H223K C 0.022UF, K, 50V 1 C583 ECJ2XB1H102K C 1000PF, K, 50V 1 C584,85 ECJ2XB1H223K C 0.022UF, K, 50V 2 C587 ECJ2XB1H332K C 3300PF, K, 50V 1 C601 ECJ2XB1H103K C 0.01UF, K, 50V 1 C603 ECJ2FB1E105K C 1UF, K, 25V 1 C604,05 F2A2D1510008 E 150UF, 200V 2 C607 F1J1C1050011 C 1UF, Z, 50V 1 C608 ECJ2XB1H103K C 0.01UF, K, 50V 1 C610 F1J1C1050011 C 1UF, Z, 50V 1 C611 F2B2T1420003 E 142UF, 220V 1 C612,13 ECJ2XB1H103K C 0.01UF, K, 50V 2 C615 F2B2T1420003 E 142UF, 220V 1 C616 F1A3A102A040 C 1000PF, J, 1KV 1 C619 ECJ2XB1H104K C 0.1UF, K, 50V 1 C620 ECJ2XB1H103K C 0.01UF, K, 50V 1 C623 ECA1HM100 E 10UF, 50V 1 C624 ECJ2XB1H103K C 0.01UF, K, 50V 1 C625 ECA1HM100 E 10UF, 50V 1 C626 ECJ2XB1H103K C 0.01UF, K, 50V 1 C627 ECJ2XB1H102K C 1000PF, K, 50V 1 C629-31 ECJ2XB1H103K C 0.01UF, K, 50V 3 C632 ECJ2XC1H331J C 330PF, J, 50V 1 C634 ECJ2XB1H102K C 1000PF, K, 50V 1 C635 ECJ2XB1H103K C 0.01UF, K, 50V 1 C638,39 ECJ2XB1H103K C 0.01UF, K, 50V 2 C640 ECJ2XB1H104K C 0.1UF, K, 50V 1 C641 ECJ2XB1H102K C 1000PF, K, 50V 1 C643 ECA1HM470 E 47UF, 50V 1 C650 ECJ2XB1H104K C 0.1UF, K, 50V 1 C653 ECJ2XB1H102K C 1000PF, K, 50V 1 C654 ECJ3YB1E105K C 1UF, K, 25V 1 C655,56 ECJ3YB1E225K C 2.2UF, K, 25V 2 C657 ECJ2XB1H102K C 1000PF, K, 50V 1 C658 ECJ3YB1E105K C 1UF, K, 25V 1 183 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks C659 ECJ2XB1H103K C 0.01UF, K, 50V 1 C660 ECJ2FB1C225K C 22UF, K, 16V 1 C661,62 ECJ2XB1H103K C 0.01UF, K, 50V 2 D401 B0FBAT000006 DIODE 1 D404 B0EBKT000007 DIODE 1 D407 MA111 DIODE 1 D411 B0BB17000009 DIODE 1 D412 B0HAMM000122 DIODE 1 D415 B0JAME000099 DIODE 1 D416 B0HAMP000067 DIODE 1 D417 B0HAPR000013 DIODE 1 D418 B0BC8R100013 DIODE 1 D419,20 B0HAPR000013 DIODE 2 D423 MA188 DIODE 1 D425 MA188 DIODE 1 D429 ERA15-10 DIODE 1 D430 MA111 DIODE 1 D431,32 B0JCDD000002 DIODE 2 D433 B0BC01400033 DIODE 1 D435 ERA15-10 DIODE 1 D436-38 MA4200M ZENER DIODE 3 D441 B0HAMM000122 DIODE 1 D444 B0HAMM000122 DIODE 1 D445 MA4360H ZENER DIODE 1 D501 B0HAPR000012 DIODE 1 D503,04 MA165 DIODE 2 D505 B0JAME000099 DIODE 1 D506 MAZ80470LL ZENER DIODE 1 D507,08 B0BC7R400023 DIODE 2 D509 B0JANG000018 DIODE 1 D511 B0JAML000011 DIODE 1 D512,13 MA111 DIODE 2 D514 B0BC6R100025 DIODE 1 D515 B0BC3R200008 DIODE 1 D516-18 MA4330M ZENER DIODE 3 D520 MA111 DIODE 1 D521 B0JAME000099 DIODE 1 D528,29 MA153 DIODE 2 D530 B0BC9R900013 DIODE 1 D531 B0HBSN000013 DIODE 1 D535 MA188 DIODE 1 D536 B0JBSG000026 DIODE 1 D538 B0BC5R100039 DIODE 1 D539,40 B0AARR000010 DIODE 2 D542 MA4200M ZENER DIODE 1 D543 B0BC01400033 DIODE 1 D544,45 MA4200M ZENER DIODE 2 D549 B0BC02500008 DIODE 1 D551 B0BC01300033 DIODE 1 D555 B0BC7R400023 DIODE 1 D559 B0BC7R400023 DIODE 1 D563 B0BC6R100025 DIODE 1 D569-72 B0BC02500008 DIODE 4 D574 MA165 DIODE 1 D575 MA188 DIODE 1 D579 MA165 DIODE 1 D582 MAZ705600F ZENER DIODE 1 D585 B0BC7R400023 DIODE 1 D586 B0HAMP000067 DIODE 1 D587 MA188 DIODE 1 D588 B0BC3R200008 DIODE 1 D590 B0BC3R200008 DIODE 1 D596 ERA15-10 DIODE 1 D598 B0BC5R100039 DIODE 1 D599 B0JCND000009 DIODE 1 D600 B0BC7R400023 DIODE 1 D601 B0BC5R100039 DIODE 1 D602 B0BC8R100013 DIODE 1 F410 K5G102B00020 FUSE 1 IC401 CNC1S171R IC 1 Ref. No. Part No. Part Name & Description Pcs Remarks IC402 C0DAEMB00004 IC 1 IC403- 05 CNC1S171R IC 3 IC406 C0DAZZZ00021 IC 1 IC408 CNC1S171R IC 1 IC409 MIP2G40MPSCF IC 1 IC410 CNC1S171R IC 1 IC411 C0DAEMB00004 IC 1 IC412 CNC1S171R IC 1 IC501 C2ABDB000108 IC 1 IC502 C0EBH0000210 IC 1 IC504 C0DAEMB00004 IC 1 IC505 CNC1S171R IC 1 IC506 C0ZBZ0000878 IC 1 IC507 CNC1S171R IC 1 IC509 C0DABZZ00010 IC 1 IC510 C0DBAZG00034 IC 1 IC512 C0DAEMB00004 IC 1 IC520 LSSK0062 IC 1 L403 EXCELSA35 BEAD CHOKE 1 L404,05 G0B123K00004 CHOKE COIL 2 L410 ELF17N004A LINE FILTER 1 L510 EXCELDR25C BEAD CHOKE 1 L511 G0A470ZA0033 CHOKE COIL 1 L512 ELESE4R7JA PEAKING COIL 1 L513 EXCELDR25C BEAD CHOKE 1 L514 G0A100GA0013 CHOKE COIL 1 P2 K1KA02A00626 2P CONNECTOR 1 P5 K1KA11AA0194 11P CONNECTOR 1 P9 K1KA03A00537 3P CONNECTOR 1 P10 K1KA06A00452 6P CONNECTOR 1 P11 K1KA02A00626 2P CONNECTOR 1 P12 K1KA10AA0194 10P CONNECTOR 1 P23 K1KA03AA0193 3P CONNECTOR 1 P25 K1KA20AA0178 20P CONNECTOR 1 PMM1 TMM7464-2 CLAMPER 1 PMM2,M3 TMME088 CLAMPER 2 PMM4-M6 TMM7464-2 CLAMPER 3 PMM7 TMME047 CLAMPER 1 PR401 K5Y502BA0001 FUSE 1 PR505 K5H5022A0023 FUSE 1 PR509 ERBSE0R50U FUSE 1 PR601 K5G312B00012 FUSE 1 Q401 B1CHND000004 TRANSISTOR 1 Q402 B1DFDD000019 TRANSISTOR 1 Q404 B1BCCF000022 TRANSISTOR 1 Q407 B1HFCFA00021 TRANSISTOR 1 Q408,09 B1DHCD000034 TRANSISTOR 2 Q413 B1DEGQ000070 TRANSISTOR 1 Q418 2SD1819A TRANSISTOR 1 Q420-22 2SD1819A TRANSISTOR 3 Q434 B1CEJQ000003 eds 1 Q501,02 2SD1820A TRANSISTOR 2 Q505 B1CEJQ000002 eds 1 Q507 B1DAGQ000013 TRANSISTOR 1 Q508 B1HBCFA00033 TRANSISTOR 1 Q509 B1HDCEA00001 TRANSISTOR 1 Q510 B1DHBD000005 TRANSISTOR 1 Q512 B1CBGD000001 FET 1 Q517 B1HBCFA00033 TRANSISTOR 1 Q520 B1HBCFA00033 TRANSISTOR 1 Q521 B1CBGD000001 FET 1 Q524 B1CFGF000008 TRANSISTOR 1 Q525 B1CBGD000001 FET 1 Q527 B1CERL000005 TRANSISTOR 1 Q530 2SD1819A TRANSISTOR 1 Q535 2SD1819A TRANSISTOR 1 Q537 B1DFDD000019 TRANSISTOR 1 184 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks Q538 B1CBGD000001 FET 1 Q540 B1DHCD000034 TRANSISTOR 1 Q541 B1CBGD000001 FET 1 Q551 B1CBGD000001 FET 1 Q553 2SD1819A TRANSISTOR 1 Q554 B1DHCD000034 TRANSISTOR 1 Q555,56 B1DFGD000045 TRANSISTOR 2 Q557-59 2SD1819A TRANSISTOR 3 Q561 2SD1819A TRANSISTOR 1 Q563 B1CFGF000008 TRANSISTOR 1 Q564,65 2SB1218ARL TRANSISTOR 2 Q566 2SD1819A TRANSISTOR 1 Q568 B1CHGD000006 TRANSISTOR 1 Q569 B1CBGD000001 FET 1 R401 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R402 ERJ6GEYJ821 M 820 OHM,J,1/10W 1 R403 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R404 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R406 ERX12SJ2R2V M 2.2 OHM, J,1/2W 1 R407 ERJ8ENF4303 M 43KOHM, 1/8W 1 R410 D1F5100E0003 CHIP RESISTOR 1 R412 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R413 D1F5100E0003 CHIP RESISTOR 1 R414 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R415 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R416 ERJ6GEYJ305 M 3MOHM,J,1/10W 1 R417 ERJ6ENF4303 M 430KOHM, 1/10W 1 R418 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R419 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R420 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R421 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R422 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R423 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R424 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R425 ERJ6ENF3902 M 39KOHM, 1/10W 1 R426 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R427 ERJ8ENF4303 M 43KOHM, 1/8W 1 R428 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R429 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R430 ERJ6ENF4303 M 430KOHM, 1/10W 1 R431 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R432 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R433 ERJ6ENF1202 M 12KOHM, 1/10W 1 R434 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R435 ERJ8ENF4303 M 43KOHM, 1/8W 1 R436 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R437 ERJ6GEYJ183 M 18KOHM,J,1/10W 1 R438 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R439 ERG12SJ120 M 12 OHM, J,1/2W 1 R440 ERJ8GEYJ474 M 470KOHM, J,1/8W 1 R441,42 ERJ6EKF6803 M 680KOHM, 1/10W 2 R443 EVMAASA00B23 CONTROL 2KOHMB 1 R444 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R448,49 D0XGR08J0001 M 0.08OHM,J, 5W 2 R450 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R451 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R452 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R453 ERJ6GEYJ305 M 3MOHM,J,1/10W 1 R454 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R455 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R456 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R458 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R459 ERJ6EKF6803 M 680KOHM, 1/10W 1 R461 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R462 ERJ6ENF4303 M 430KOHM, 1/10W 1 R463 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R464 ERJ6ENF3302 M 33KOHM, 1/10W 1 R465 ERJ6ENF5603 M 560KOHM, 1/10W 1 R467 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R471 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 1 R472,73 ERJ6ENF5603 M 560KOHM, 1/10W 2 R475 ERJ6EKF6803 M 680KOHM, 1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R476,77 ERJ14YJ181U M 181 OHM, J,1/4W 2 R478 ERJ8GEYJ220 M 22 OHM, J,1/8W 1 R480 ERJ6ENF4702 M 47KOHM, 1/10W 1 R482 ERJ8GEYJ220 M 22 OHM, J,1/8W 1 R483 D0BF225JA030 M 22MOHM,J,0.05W 1 R487 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R488 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R490,91 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R492 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R493 ERG12SJ120 M 12 OHM, J,1/2W 1 R494-96 ERJ6ENF5603 M 560KOHM, 1/10W 3 R497 ERJ6ENF1202 M 12KOHM, 1/10W 1 R498 ERG3SJ101 M 100 OHM, J, 3W 1 R499 D0BF394JA029 M 390KOHM,J,0.05W 1 R501 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R502,03 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R504 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R505 ERJ8GEYJ330 M 33 OHM, J,1/8W 1 R506 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R507 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R508 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R509-11 ERJ6GEYJ104 M 100KOHM,J,1/10W 3 R512 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R513,14 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R515,16 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R517 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R518 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R519,20 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R521,22 ERJ8GEYJ100 M 10 OHM, J,1/8W 2 R523 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R524 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R525 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R526,27 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R528 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R529 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R530 ERJ6RBD3302 M 33KOHM,F,1/10W 1 R532 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R533 ERJ6GEYJ163 M 16KOHM,J,1/10W 1 R534 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R535,36 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R537 ERJ6ENF1003 M 100KOHM, 1/10W 1 R538 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R539 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R540,41 ERJ6GEYJ105 M 1MOHM,J,1/10W 2 R542 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R543 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R544 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R545 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R546 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R547 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R548 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R549 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R550 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R551 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R552 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R553 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R554 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R555,56 ERJ6GEYJ105 M 1MOHM,J,1/10W 2 R557 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R558 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R559 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R560 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R561 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R562 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R563 ERJ6GEYJ2R2 M 2.2 OHM,J,1/10W 1 R564 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R565,66 ERJ6GEYJ105 M 1MOHM,J,1/10W 2 R567,68 ERJ8ENF1004 M 100KOHM, 1/8W 2 R569 ERJ6ENF3302 M 33KOHM, 1/10W 1 R570 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R571 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R572,73 ERJ8ENF3900 M 390 OHM, 1/8W 2 R574 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 185 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R575 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R576 ERJ6ENF1202 M 12KOHM, 1/10W 1 R577,78 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R579 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R580,81 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R582 ERJ6ENF1002 M 10KOHM, 1/10W 1 R583 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R584 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R585 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R586 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R587 ERJ8RSJR16V M 16 OHM, 1/8W 1 R588 ERJ8ENF3900 M 390 OHM, 1/8W 1 R589,90 ERJ8GEYJ123 M 12KOHM, J,1/8W 2 R591 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R592 ERJ6ENF3001 M 3KOHM, 1/10W 1 R593 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R594 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R595 ERJ8GEYJ222 M 2.2KOHM, J,1/8W 1 R596 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R597,98 ERJ6ENF3302 M 33KOHM, 1/10W 2 R599,00 ERJ8ENF3900 M 390 OHM, 1/8W 2 R601 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R602 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R603 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R606 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R607 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R608 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 1 R609 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R610,11 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R612 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R613 ERJ6ENF2702 M 27KOHM, 1/10W 1 R614 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R615 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R616,17 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R618 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R619 ERJ8RQJR39 M0.39 OHM, 1/8W 1 R620 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R621 ERJ8GEYJ123 M 12KOHM, J,1/8W 1 R622 ERJ8ENF1503 M 15KOHM, 1/8W 1 R624 ERX2SJR22 M0.22 OHM, J, 2W 1 R626 ERJ8ENF1503 M 15KOHM, 1/8W 1 R627 ERJ6GEYJ752 M 7.5KOHM,J,1/10W 1 R628 EVMAASA00B33 CONTROL 3KOHMB 1 R629 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R630 ERJ8GEYJ472 M 4.7KOHM, J,1/8W 1 R631 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R632 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R633 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R634 ERJ8RQJR39 M0.39 OHM, 1/8W 1 R636 ERJ8ENF1503 M 15KOHM, 1/8W 1 R637 ERJ8RQJR39 M0.39 OHM, 1/8W 1 R638 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R641 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R642-44 ERJ8RQJR39 M0.39 OHM, 1/8W 3 R645 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R646,47 ERJ8GEYJ223 M 22KOHM, J,1/8W 2 R648 ERJ8ENF1503 M 15KOHM, 1/8W 1 R649 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R650 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R651,52 ERJ6ENF1002 M 10KOHM, 1/10W 2 R653 ERJ6ENF3302 M 33KOHM, 1/10W 1 R654 ERJ8GEYJ220 M 22 OHM, J,1/8W 1 R655 ERJ8RSJR16V M 16 OHM, 1/8W 1 R656 ERJ6ENF4702 M 47KOHM, 1/10W 1 R657 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R658 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R659 ERJ6ENF3002 M 30KOHM, 1/10W 1 R660 ERJ6ENF1202 M 12KOHM, 1/10W 1 R661 EVMEASA00B53 CONTROL 5KOHMB 0.3W 1 R662 ERJ6ENF1503 M 150KOHM, 1/10W 1 R664 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R665 EVMEASA00B23 CONTROL 2KOHMB 0.3W 1 R666 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R667,68 ERJ8GEY0R00 M 0 OHM, 1/8W 2 R669 ERJ6ENF1303 M 130KOHM, 1/10W 1 R670 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R671 EVMEASA00B14 CONTROL 10KOHMB 0.3W 1 R672,73 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R674 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R675 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R676 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R677 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R678 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R679,80 ERJ8RSJR16V M 16 OHM, 1/8W 2 R682 ERJ6ENF2002 M 20KOHM, 1/10W 1 R683 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R684 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R685,86 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R687 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R688,89 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R690 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R691 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R692 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R693 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R695 ERJ6ENF1202 M 12KOHM, 1/10W 1 R696 ERJ8GEYJ100 M 10 OHM, J,1/8W 1 R697 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R698 ERJ8RSJR16V M 16 OHM, 1/8W 1 R699-08 ERJ8GEYJ105 M 1MOHM, J,1/8W 10 R711 ERJ8RSJR16V M 16 OHM, 1/8W 1 R712 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R713 ERJ8GEYJ472 M 4.7KOHM, J,1/8W 1 R714 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R715 ERDS2TJ101 C 100 OHM, J,1/4W 1 R921 ERJ6RBD3302 M 33KOHM,F,1/10W 1 R922 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R931 ERJ6ENF3002 M 30KOHM, 1/10W 1 R932 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R933 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R935 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R936 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R937 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R938 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R939,40 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R943 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R945 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R946 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R947 ERJ8GEYJ331 M 330 OHM, J,1/8W 1 R950 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R951,52 ERJ8GEYJ100 M 10 OHM, J,1/8W 2 R953 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R955 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R956 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 RL402,0 3 TSEH8011 RELAY 2 S401,02 J0LT00000009 SWITCH 2 T401 G4D4A0000119 SWITCHING TRANSFORMER 1 T402 G4D1A0000098 SWITCHING TRANSFORMER 1 T404 ETS42LA12GAD SWITCHING TRANS 1 T407 ETQ11K5AZ CHOKE TRANS 1 T410 ETS25AF115AH SWITCHING TRANS 1 T601 G4D2A0000264 SWITCHING TRANS 1 W9,10 J0JKB0000037 FLAT CORE 2 X501 H2B400400021 CRYSTAL 1 Z1,Z2 K4ZZ01000206 TERMINAL 2 186 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks Z420 TMM23417 CLAMPER 1 Z450-53 EYF52BCY FUSE HOLDER 4 ZN401 ERZVGED621T2 VARISTOR 1 ZN402 D4EAD7510001 VARISTOR 1 ZN404 ERZVGAD681T2 VARISTOR 1 ZN405- 06 ERZVA7D511 VARISTOR 2 187 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B 16.3. Electrical Replacement Parts List (42inch) Note: All parts except parts mentioned [PAVCCZ] in the Remarks column are supplied by PAVC-CSG. Parts mentioned [PAVCCZ] are supplied by PAVCCZ. Ref. No. Part No. Part Name & Description Pcs Remarks F401.40 2 K5D802BNA005 TIME LAG FUSE HIGH 2 C001 ECA0JM102 E 1000UF, 6.3V 1 C002,03 ECA1HM100 E 10UF, 50V 2 C007 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C009 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C11 K1MN55BA0076 55P CONNECTOR 1 C12 K1MN20BA0231 20P CONNECTOR 1 C013 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C016 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C018,19 ECJ1VC1H330J C 33PF, J, 50V 2 C020 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C021 ECJ1XC1H101J C 100PF, J, 50V 1 C21 K1MN55BA0076 55P CONNECTOR 1 C22 K1MN20BA0231 20P CONNECTOR 1 C23 K1KA12BA0107 12P CONNECTOR 1 C1100 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1102 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1103 ECJ0EB1E271K C 270PF, K, 25V 1 C1105 ECJ0EB1E271K C 270PF, K, 25V 1 C1106 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1107 EEEHB0G101R C 100PF, J, 4V 1 C1109- 11 ECJ0EB1A104K C 0.1UF, K, 10V 3 C1112 ECJ0EB1E271K C 270PF, K, 25V 1 C1114 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1116 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1118- 23 ECJ0EB1A104K C 0.1UF, K, 10V 6 C1125 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1127- 32 ECJ0EB1A104K C 0.1UF, K, 10V 6 C1133,3 4 ECJ1XC1H150J C 15PF, J, 50V 2 C1135- 42 ECJ0EB1A104K C 0.1UF, K, 10V 8 C1144- 50 ECJ0EB1A104K C 0.1UF, K, 10V 7 C1152 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1153 EEEHB0G101R C 100PF, J, 4V 1 C1154 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1155 ECJ0EB1C103K C0.010UF, K, 16V 1 C1156,5 7 ECJ1XC1H220J C 22PF, J, 50V 2 C1158 F1J0J1060004 C 0.010UF, K, 16V 1 C1159 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1160 EEEHB1C470P C 47PF, J, 16V 1 C1161 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1162 ECJ0EB1C103K C0.010UF, K, 16V 1 C1167,6 8 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C1170,7 1 ECJ0EB1A104K C 0.1UF, K, 10V 2 TH-42PX60B C1172 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1177 ECJ1VB1A334K C 0.1UF, K, 16V 1 C1178 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1180,8 1 ECJ1VB1H221K C 220UF, K, 50V 2 C1186 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1190 ECJ0EB1C103K C0.010UF, K, 16V 1 C1209 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1212 ECJ1XC1H151J C 150PF, J, 50V 1 C1219,2 0 EEEHP1C100R C 10PF, J, 16V 2 Ref. No. Part No. Part Name & Description Pcs Remarks C1221 ECJ0EB1H102K C 1000PF, K, 50V 1 C1222,2 3 F1J0J1060004 C 0.010UF, K, 16V 2 C1226 F1J0J1060004 C 0.010UF, K, 16V 1 C1227 ECJ0EB1H101K C 100PF, K, 50V 1 C1228- 34 EEEHB1C470P C 47PF, J, 16V 7 C1294 ECJ1XC1H330J C 33PF, J, 50V 1 C2005- 18 ECJ1XC1H561J C 560PF, J, 50V 14 C2019 ECA1CM221 E 220UF, 16V 1 C2020 ECA1HM220 E 22UF, 50V 1 C2021,2 2 ECJ1XC1H561J C 560PF, J, 50V 2 C2103,0 4 ECJ3YB1A106M C 10UF, M,6.3V 2 C2111 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2116 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2118,1 9 ECEA1CN470U E 47UF, 16V 2 C2122,2 3 ECJ3YB1A106M C 10UF, M,6.3V 2 C2125,2 6 ECJ1VB1H102K C 1000PF, K, 50V 2 C2127 ECA1CMH101 E 100UF, 16V 1 C2128 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2129,3 0 F1J1A1050002 C 1UF, Z, 50V 2 C2131 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2132 EEEHB1C100R C 10PF, J, 16V 1 C2133,3 4 ECJ1XC1H470J C 47PF, J, 50V 2 C2139- 43 ECJ1VB1H103K C 0.001UF, K, 50V 5 C2144,4 5 ECJ3YB1A106M C 10UF, M,6.3V 2 C2146 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2147 ECA1HM220 E 22UF, 50V 1 C2148- 50 ECJ2FB1C105K C 1UF, K, 16V 3 C2152 ECJ2FB1C105K C 1UF, K, 16V 1 C2153 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C2154 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2155 ECJ2FB1C105K C 1UF, K, 16V 1 C2156 ECJ3YB1A106M C 10UF, M,6.3V 1 C2157 ECJ2FB1C105K C 1UF, K, 16V 1 C2158 ECJ3YB1A106M C 10UF, M,6.3V 1 C2159,6 0 ECJ2FB1C105K C 1UF, K, 16V 2 C2161 ECA1CMH101 E 100UF, 16V 1 C2162- 69 ECJ2FB1C105K C 1UF, K, 16V 8 C2170- 72 ECJ1VB1H102K C 1000PF, K, 50V 3 C2173 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2174 ECJ1VB1H102K C 1000PF, K, 50V 1 C2175- 77 ECJ1VB1H103K C 0.001UF, K, 50V 3 C2178,7 9 EEEHB1C100R C 10PF, J, 16V 2 C2181 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2183 EEEHB1H3R3R C 3.3PF, J, 50V 1 C2184,8 5 ECJ2VF1C104Z C 0.1UF, Z, 16V 2 C2189,9 0 ECJ2FB1C105K C 1UF, K, 16V 2 C2191 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2192 EEEHB1C100R C 10PF, J, 16V 1 C2193,9 4 ECJ2FB1C105K C 1UF, K, 16V 2 C2195 ECJ1XC1H470J C 47PF, J, 50V 1 C2196 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2197 ECJ2FB0J225K C 2.2UF, Z, 16V 1 C2198 EEEHB0J101P C 100PF, J, 6.3V 1 C2199 ECJ1VC1H560J C 56PF, J, 50V 1 C2200 ECJ1XC1H470J C 47PF, J, 50V 1 C2201 ECJ1XC1H030C C 3PF, C, 50V 1 188 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks C2202 ECJ1XC1H050C C 5PF, C, 50V 1 C2203 ECJ1VC1H100C C 10PF, C, 50V 1 C2204 ECJ1XC1H220J C 22PF, J, 50V 1 C2211 ECJ1VB1C104K C 0.1UF, K, 16V 1 C2213 ERJ3GEY0R00 M 0 OHM, 1/16W 1 C2217 F1H0J1050012 C 1UF, K, 16V 1 C2218- 21 ECJ3YB1A106M C 10UF, M,6.3V 4 C2222 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2223 ECJ1XC1H390J C 39PF, J, 50V 1 C2225 ECJ2FB1C105K C 1UF, K, 16V 1 C2226 ECJ1VB1H102K C 1000PF, K, 50V 1 C2227 ECA1CMH101 E 100UF, 16V 1 C2228 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2229,3 0 ECA1CMH101 E 100UF, 16V 2 C2231 ECA1CHG470 E 47UF, 16V 1 C2232 F1H0J1050012 C 1UF, K, 16V 1 C2233,3 4 ECJ1VB1H102K C 1000PF, K, 50V 2 C2235 F1H0J1050012 C 1UF, K, 16V 1 C2236 ECA1CHG470 E 47UF, 16V 1 C2237- 40 ECJ1VB1H103K C 0.001UF, K, 50V 4 C2243 ECA1CHG470 E 47UF, 16V 1 C2301 ECA1EHG471 E 470UF, 25V 1 C2303 ECA1CMH101 E 100UF, 16V 1 C2307 ECA1CMH101 E 100UF, 16V 1 C2314 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2317 ECJ2FB1A105K C 1UF, K, 10V 1 C2320 ECJ2FB1A105K C 1UF, K, 10V 1 C2321 ECJ2XB1H103K C 0.01UF, K, 50V 1 C2322 ECJ2FB1A105K C 1UF, K, 10V 1 C2323,2 4 ECJ2FB1E224K C 22UF, K, 25V 2 C2325,2 6 ECJ1VB1E104K C 0.10UF, K, 25V 2 C2327 F1J1H474A757 C 0.47UF, 50V 1 C2328- 31 ECJ2FB1E105K C 1UF, K, 25V 4 C2332,3 3 ECA1EHG471 E 470UF, 25V 2 C2334,3 5 ECJ1VB1E104K C 0.10UF, K, 25V 2 C2336 F1J1H474A757 C 0.47UF, 50V 1 C2337,3 8 ECJ2FB1E224K C 22UF, K, 25V 2 C2341 ECJ3YB1E106M C 10 UF, K, 25V 1 C2342 ECJ2FB1E105K C 1UF, K, 25V 1 C2372 ECA1HHG100 E 10UF, 50V 1 C2373 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C2374 ECJ1VF1A105Z C 1UF, Z, 10V 1 C2380 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2382 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2385 ECJ2FB1A105K C 1UF, K, 10V 1 C2387 ECJ2FB1A105K C 1UF, K, 10V 1 C2393,9 4 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2401 ECJ2FB1A105K C 1UF, K, 10V 1 C2402 ECJ2FB0J106M C 10UF, Z,6.3V 1 C2403 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2417 ECJ2FB0J106M C 10UF, Z,6.3V 1 C2430 ECJ1VF1A105Z C 1UF, Z, 10V 1 C2510,1 1 ECJ2VF1C105Z C 1UF, Z, 16V 2 C2512 ECJ3XB0J106M C 10UF, M,6.3V 1 C2515 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2517 ECJ1VB1H103K C 0.001UF, K, 50V 1 TH-42PX60B C2521 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3001- 03 ECJ1VB1H102K C 1000PF, K, 50V 3 C3021 F1J1A1050002 C 1UF, Z, 50V 1 C3022,2 3 ECJ1VB1H103K C 0.001UF, K, 50V 2 C3024- 28 F1J1A1050002 C 1UF, Z, 50V 5 Ref. No. Part No. Part Name & Description Pcs Remarks C3029 ECJ2VF1C105Z C 1UF, Z, 16V 1 C3030 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3031 F1J1A1050002 C 1UF, Z, 50V 1 C3033 F1J1A1050002 C 1UF, Z, 50V 1 C3035,3 6 F1J1A1050002 C 1UF, Z, 50V 2 C3038 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3039 F1J1A1050002 C 1UF, Z, 50V 1 C3040 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3041 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3043 F1J1A1050002 C 1UF, Z, 50V 1 C3045,4 6 ECJ1VB1H103K C 0.001UF, K, 50V 2 C3047 F1J1A1050002 C 1UF, Z, 50V 1 C3048 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3049- 56 F1J1A1050002 C 1UF, Z, 50V 8 C3058 ECA1EM471 E 470UF, 25V 1 C3059 ECJ2VF1C105Z C 1UF, Z, 16V 1 C3062- 64 ECJ2VF1C104Z C 0.1UF, Z, 16V 3 C3065 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3066 F1J1A1050002 C 1UF, Z, 50V 1 C3067 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3068 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3070 ECA1EM471 E 470UF, 25V 1 C3071 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3072 ECA1EM471 E 470UF, 25V 1 C3073 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3074 ECA1EM471 E 470UF, 25V 1 C3075 ECA1CM221 E 220UF, 16V 1 C3076 ECA1EM471 E 470UF, 25V 1 C3207 ECA1AM102 E 1000UF, 10V 1 C3214 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3216 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3226- 28 ECJ2VF1C104Z C 0.1UF, Z, 16V 3 C3230 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3233 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3241 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3262 ECJ1VB1H472K C 4700PF, K, 50V 1 C3268 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3305 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3330 ECA1CM470 E 47UF, 16V 1 C3331 ECJ2XB1H103K C 0.01UF, K, 50V 1 C3332 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3334 ECEA1CN470U E 47UF, 16V 1 C3335 ECJ2VB1C104K C 0.1UF, K, 16V 1 C3336 ECEA1CN470U E 47UF, 16V 1 C3337 ECJ2VB1C104K C 0.1UF, K, 16V 1 C3338 ECEA1CN470U E 47UF, 16V 1 C3339 ECJ2VB1C104K C 0.1UF, K, 16V 1 C3340- 42 ECJ2VF1C104Z C 0.1UF, Z, 16V 3 C3701 ECJ2XC1H561K C 560PF, K, 50V 1 C3703 ECJ2XC1H561K C 560PF, K, 50V 1 C3711,1 2 ECJ2VF1H333Z C 0.033UF, Z, 50V 2 C3750,5 1 ECJ2XC1H102K C 1000PF, K, 50V 2 C4003- 08 F1J0J1060004 C 0.010UF, K, 16V 6 C4014,1 5 F1J0J1060004 C 0.010UF, K, 16V 2 C4023 F1J0J1060004 C 0.010UF, K, 16V 1 C4026 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4027 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4028 ECJ0EB1C103K C0.010UF, K, 16V 1 C4112 F1J0J1060004 C 0.010UF, K, 16V 1 C4117 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4158 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4159 F1H1C104A065 C 0.1UF, K, 16V 1 C4160 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4165 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4168 ECJ1XC1H680J C 68PF, J, 50V 1 189 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks C4171 ECJ1XC1H471J C 470PF, J, 50V 1 C4172,7 3 F1H1C104A065 C 0.1UF, K, 16V 2 C4174 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4175 F1H1C104A065 C 0.1UF, K, 16V 1 C4176 ECJ1VB0J225K C 2.2UF, K, 6.3V 1 C4177 ECJ2FB1C684K C 68UF, Z, 16V 1 C4178 ECJ1XB1C393K C 0.039UF, K, 16V 1 C4180 F1H1C104A065 C 0.1UF, K, 16V 1 C4185,8 6 ECJ3XB0J106M C 10UF, M,6.3V 2 C4188 F1J0J1060004 C 0.010UF, K, 16V 1 C4189- 91 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4193 ECJ0EB1H102K C 1000PF, K, 50V 1 C4194- 97 F1H1C104A065 C 0.1UF, K, 16V 4 C4199 ECJ0EB1C103K C0.010UF, K, 16V 1 C4200 EEEHB1C470P C 47PF, J, 16V 1 C4201 ECJ0EB1C103K C0.010UF, K, 16V 1 C4204 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4205,0 6 F1H1C104A065 C 0.1UF, K, 16V 2 C4208,0 9 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4211 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4215 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4216 EEEHB1C470P C 47PF, J, 16V 1 C4217 F1H1C104A065 C 0.1UF, K, 16V 1 C4218 ECJ0EB1H102K C 1000PF, K, 50V 1 C4219 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4224 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4227 ECJ1VB1C823K C 0.082UF, K, 16V 1 C4228 ECJ0EB1C103K C0.010UF, K, 16V 1 C4235 ECJ0EB1C103K C0.010UF, K, 16V 1 C4244 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4245 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4248 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4253 EEEHB1C470P C 47PF, J, 16V 1 C4256 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4262- 64 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4266 ECJ0EB1C103K C0.010UF, K, 16V 1 C4269 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4272 EEEHB1C470P C 47PF, J, 16V 1 C4273 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4281- 84 ECJ0EB1A104K C 0.1UF, K, 10V 4 C4287,8 8 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4289,9 0 EEEHB0J330R C 33PF, J, 6.3V 2 C4291,9 2 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4296 F1J0J1060004 C 0.010UF, K, 16V 1 C4297 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4298- 06 ECJ1VB1A105K C 0.01UF, Z, 50V 9 C4307- 09 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4310 ECJ0EB1C103K C0.010UF, K, 16V 1 C4311 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4312 ECJ0EB1C103K C0.010UF, K, 16V 1 C4313,1 4 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4315 F1J0J1060004 C 0.010UF, K, 16V 1 C4316- 18 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4320- 22 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4325 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4327 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4329,3 0 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4331 F1J0J1060004 C 0.010UF, K, 16V 1 C4332 ECJ1VB1A105K C 0.01UF, Z, 50V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C4333- 38 ECJ0EB1A104K C 0.1UF, K, 10V 6 C4339 ECJ1VB0J225K C 2.2UF, K, 6.3V 1 C4340 ECJ1XC1H471J C 470PF, J, 50V 1 C4341 EEEHB1C470P C 47PF, J, 16V 1 C4342 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4343 EEEHB1C100R C 10PF, J, 16V 1 C4344,4 5 F1J0J1060004 C 0.010UF, K, 16V 2 C4346 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4347 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4348 EEEHB1C470P C 47PF, J, 16V 1 C4349 ECJ0EB1C103K C0.010UF, K, 16V 1 C4350,5 1 ECJ1XC1H181J C 180PF, J, 50V 2 C4352,5 3 ECJ1XC1H330J C 33PF, J, 50V 2 C4354 ECJ0EB1C103K C0.010UF, K, 16V 1 C4360 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4362 F1J0J1060004 C 0.010UF, K, 16V 1 C4363,6 4 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4365 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4366 EEEHB1C470P C 47PF, J, 16V 1 C4367 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4371 ECJ0EB1H102K C 1000PF, K, 50V 1 C4372 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4373 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4374 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4375,7 6 ECJ0EB1H102K C 1000PF, K, 50V 2 C4377 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4379 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4380 ECJ0EB1H102K C 1000PF, K, 50V 1 C4381,8 2 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4383 ECJ0EB1H102K C 1000PF, K, 50V 1 C4384 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4385 ECJ0EB1H102K C 1000PF, K, 50V 1 C4386 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4387 ECJ0EB1H102K C 1000PF, K, 50V 1 C4388 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4389 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4390 ECJ0EB1H102K C 1000PF, K, 50V 1 C4391 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4392 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4393,9 4 ECJ0EB1H102K C 1000PF, K, 50V 2 C4395 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4396 ECJ0EB1H102K C 1000PF, K, 50V 1 C4397,9 8 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4399,0 0 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4401 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4402,0 3 ECJ0EB1H102K C 1000PF, K, 50V 2 C4404 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4405 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4406 ECJ0EB1H102K C 1000PF, K, 50V 1 C4407,0 8 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4409 ECJ0EB1H102K C 1000PF, K, 50V 1 C4410 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4411,1 2 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4413,1 4 ECJ0EB1H102K C 1000PF, K, 50V 2 C4415 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4417 EEEHB1C470P C 47PF, J, 16V 1 C4418,1 9 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4420,2 1 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4422- 24 ECJ0EB1H102K C 1000PF, K, 50V 3 190 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks C4425,2 6 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4427 ECJ0EB1H102K C 1000PF, K, 50V 1 C4428 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4429,3 0 ECJ0EB1H102K C 1000PF, K, 50V 2 C4434 ECJ0EB1H102K C 1000PF, K, 50V 1 C4435 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4436- 39 ECJ0EB1H102K C 1000PF, K, 50V 4 C4440 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4441,4 2 ECJ0EB1H102K C 1000PF, K, 50V 2 C4447 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4448 ECJ0EB1C103K C0.010UF, K, 16V 1 C4451 ECJ0EB1H102K C 1000PF, K, 50V 1 C4452 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4453,5 4 ECJ0EB1H102K C 1000PF, K, 50V 2 C4455 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4456 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4457,5 8 ECJ0EB1H102K C 1000PF, K, 50V 2 C4459 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4460 ECJ0EB1H102K C 1000PF, K, 50V 1 C4461 ECJ1XC1H820J C 82PF, J, 50V 1 C4462 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4464 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4465 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4466 ECJ0EB1C103K C0.010UF, K, 16V 1 C4467 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4470 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4474 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4475,7 6 ECJ0EB1H102K C 1000PF, K, 50V 2 C4477 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4478 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4479- 81 ECJ0EB1H102K C 1000PF, K, 50V 3 C4482 ECJ1XC1H180J C 18PF, J, 50V 1 C4483 ECJ1XC1H150J C 15PF, J, 50V 1 C4493 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4494 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4496 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4497 EEEHB0G101R C 100PF, J, 4V 1 C4498 ECJ1XC1H471J C 470PF, J, 50V 1 C4499 EEFCD0G560ER 56UF, 1 C4501 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4502 ECJ0EB1C103K C0.010UF, K, 16V 1 C4503 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4504 ECJ0EB1C103K C0.010UF, K, 16V 1 C4505 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4506 ECJ0EB1C103K C0.010UF, K, 16V 1 C4507 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4508 ECJ0EB1C103K C0.010UF, K, 16V 1 C4509- 11 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4512 ECJ0EB1C103K C0.010UF, K, 16V 1 C4513 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4514 ECJ0EB1C103K C0.010UF, K, 16V 1 C4515,1 6 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4517 ECJ0EB1C103K C0.010UF, K, 16V 1 C4518 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4519 ECJ0EB1C103K C0.010UF, K, 16V 1 C4520 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4521 ECJ0EB1C103K C0.010UF, K, 16V 1 C4522 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4523 ECJ0EB1C103K C0.010UF, K, 16V 1 C4524 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4525 ECJ0EB1C103K C0.010UF, K, 16V 1 C4526 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4527 ECJ0EB1C103K C0.010UF, K, 16V 1 C4528 EEEHB1C470P C 47PF, J, 16V 1 C4529 ECJ0EB1A104K C 0.1UF, K, 10V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C4530,3 1 ECJ0EB1H102K C 1000PF, K, 50V 2 C4532,3 3 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4534 ECJ0EB1H102K C 1000PF, K, 50V 1 C4535 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4536 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4537 EEEHB0G101R C 100PF, J, 4V 1 C4538 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4539 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4540 ECJ0EB1H102K C 1000PF, K, 50V 1 C4541 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4543 F1H1C104A065 C 0.1UF, K, 16V 1 C4544 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5604 ECA1HHG100 E 10UF, 50V 1 C5605 EEUFC1E471 E 470UF, 25V 1 C5606 ECA1CM471 E 470UF, 16V 1 C5609 ECA1HM220 E 22UF, 50V 1 C5611 F2A1H331A257 E 330UF, 50V 1 C5612 ECA1CM471 E 470UF, 16V 1 C5613 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5616 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5617 ECA1CM471 E 470UF, 16V 1 C5618,1 9 ECJ1VB1E104K C 0.10UF, K, 25V 2 C5622 ECA1CM471 E 470UF, 16V 1 C5623 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5626 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5633 ECA1EM221 E 220UF, 25V 1 C5637 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5641- 44 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C5645 ECA1CHG470 E 47UF, 16V 1 C5646 ECJ1VB1H103K C 0.001UF, K, 50V 1 C5647 ECA1CHG470 E 47UF, 16V 1 C5648 ECJ1VB1H103K C 0.001UF, K, 50V 1 C5670 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5672 ECA1HHG100 E 10UF, 50V 1 C5673 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5685 ECA1HHG100 E 10UF, 50V 1 C5686 ECJ2XB1H103K C 0.01UF, K, 50V 1 C5801,0 2 EEUFC1E471 E 470UF, 25V 2 C5804 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5805 ECJ2VF1C105Z C 1UF, Z, 16V 1 C5809 ECJ3XF1E105Z C 1UF, Z, 25V 1 C5810 ECA1EHG470 E 47UF, 25V 1 C6001 F1L2J332A022 C 3300UF, K,6.3V 1 C6002 F1L2J222A022 C 2200UF, K,6.3V 1 C6011- 15 F2A2T201A001 E 200UF, 5 C6021,2 2 F1L2J272A022 C 2700UF, K,6.3V 2 PAVCCZ C6031 ECQE2255JF P 2.5UF, K,250V 1 C6041- 44 TCUY1C105ZFN C 1UF, 16V 4 C6091 F1L2J1020001 C 1000UF, K,6.3V 1 C6111,1 2 F2A2D221A022 E 220UF, 200V 2 C6132 F1L1E4750004 C 4.7UF, 25V 1 C6134,3 5 F1L1E4750004 C 4.7UF, 25V 2 C6151 ECJ3YB1E105K C 1UF, K, 25V 1 C6152- 55 F1L1E4750004 C 4.7UF, 25V 4 C6192 ECJ3YB1E105K C 1UF, K, 25V 1 C6194,9 5 F1L1E4750004 C 4.7UF, 25V 2 C6201,0 2 F0C2E405A176 E 0.040UF, 250V 2 C6211,1 2 F1L1E4750004 C 4.7UF, 25V 2 C6213,1 4 ECA1EM471 E 470UF, 25V 2 C6221 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6241 ECA1EM471 E 470UF, 25V 1 191 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks C6242 TCUY1C105ZFN C 1UF, 16V 1 C6243 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6251 TCUY1C105ZFN C 1UF, 16V 1 C6261,6 2 ECA2CM101 E 100UF, 160V 2 C6271 ECJ3YB1E105K C 1UF, K, 25V 1 C6272,7 3 EEUFC1E221 E 220UF, 25V 2 C6401 F1L2J332A022 C 3300UF, K,6.3V 1 C6402 F1L2J222A022 C 2200UF, K,6.3V 1 C6411- 15 F2A2T201A001 E 200UF, 5 C6421,2 2 F1L2J272A022 C 2700UF, K,6.3V 2 PAVCCZ C6431 F0C2E405A176 E 0.040UF, 250V 1 C6472 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6480 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6502 F1L1E4750004 C 4.7UF, 25V 1 C6504,0 5 F1L1E4750004 C 4.7UF, 25V 2 C6511,1 2 F0C2E405A176 E 0.040UF, 250V 2 C6521 ECJ3YB1E105K C 1UF, K, 25V 1 C6522 F1L1E4750004 C 4.7UF, 25V 1 C6524,2 5 F1L1E4750004 C 4.7UF, 25V 2 C6527 F1L1E4750004 C 4.7UF, 25V 1 C6561 F2A1A1010074 E 100UF, 10V 1 C6563 F2A1A1010074 E 100UF, 10V 1 C6565,6 6 ECJ2XB1H103K C 0.01UF, K, 50V 2 C6581 ECJ3YB1E105K C 1UF, K, 25V 1 C6582 TCUY1C105ZFN C 1UF, 16V 1 C6591 ECJ3YB1E105K C 1UF, K, 25V 1 C6592 ECA1EM471 E 470UF, 25V 1 C6593 ECJ2XC1H102J C 1000PF, J, 50V 1 C6601,0 2 F1L1E4750004 C 4.7UF, 25V 2 C6603 F1K2J102A014 C 1000UF, K,6.3V 1 C6604 F2A2V470A020 E 47UF, 350V 1 C6605 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6606 F1K2J102A014 C 1000UF, K,6.3V 1 C6610 ECJ3YB1E105K C 1UF, K, 25V 1 C6611 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6612 ECJ3YB1E105K C 1UF, K, 25V 1 C6620 ECJ3XB2J222K C 2200PF, K,630V 1 C6641 ECQE2224KF P 2.2UF, K,250V 1 C6661,6 2 F1K2J102A014 C 1000UF, K,6.3V 2 C6671 F1L1E4750004 C 4.7UF, 25V 1 C6681,8 2 F1L1E4750004 C 4.7UF, 25V 2 C6683 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6691 ECA2CM101 E 100UF, 160V 1 C6701- 08 ECJ2XB1H104K C 0.1UF, K, 50V 8 C6721 ECA1HM101 E 100UF, 50V 1 C6723- 25 F1L1E4750004 C 4.7UF, 25V 3 C6726,2 7 TCUY1C105ZFN C 1UF, 16V 2 C6728 ECJ2XC1H102J C 1000PF, J, 50V 1 C6752 TCUY1C105ZFN C 1UF, 16V 1 C6753 F1L1E4750004 C 4.7UF, 25V 1 C6754 ECA1VM470 E 47UF, 35V 1 C6755 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6771 TCUY1C105ZFN C 1UF, 16V 1 C6772,7 3 F1L1E4750004 C 4.7UF, 25V 2 C6775 F1L1E4750004 C 4.7UF, 25V 1 C6776,7 7 ECJ2XB1H104K C 0.1UF, K, 50V 2 C6791 EEUFC1E221 E 220UF, 25V 1 C6795,9 6 EEUFC1E221 E 220UF, 25V 2 C6802 EEUFC1E221 E 220UF, 25V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C6803 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6804 F2A2E100A022 E 10UF, 250V 1 C6805 TCUY1C105ZFN C 1UF, 16V 1 C6806,0 7 ECA2CM101 E 100UF, 160V 2 C6811 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6812 ECJ3YB1E105K C 1UF, K, 25V 1 C6822 F2A2V100A019 E 10UF, 350V 1 C6823 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6841,4 2 ECA2CM101 E 100UF, 160V 2 C6845 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6861 TCUY1C105ZFN C 1UF, 16V 1 C6862 ECJ3YB1E105K C 1UF, K, 25V 1 C6863 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6871 TCUY1C105ZFN C 1UF, 16V 1 C6872 ECJ3YB1E105K C 1UF, K, 25V 1 C6873 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6901 ECJ2XB1H102K C 1000PF, K, 50V 1 C6902 TCUY1C105ZFN C 1UF, 16V 1 C6904 TCUY1C105ZFN C 1UF, 16V 1 C6906 TCUY1C105ZFN C 1UF, 16V 1 C6908 TCUY1C105ZFN C 1UF, 16V 1 C6910 TCUY1C105ZFN C 1UF, 16V 1 C6912 TCUY1C105ZFN C 1UF, 16V 1 C6914- 18 ECJ2XB1H221K C 220PF, K, 50V 5 C6931 ECJ2XB1H102K C 1000PF, K, 50V 1 C6932- 35 F1L2E105A013 E 0.10UF, 25V 4 C6951 ECJ2XB1H102K C 1000PF, K, 50V 1 C6952 TCUY1C105ZFN C 1UF, 16V 1 C6955 TCUY1C105ZFN C 1UF, 16V 1 C6957,5 8 TCUY1C105ZFN C 1UF, 16V 2 C6961 TCUY1C105ZFN C 1UF, 16V 1 C6963 TCUY1C105ZFN C 1UF, 16V 1 C6964- 68 ECJ2XB1H221K C 220PF, K, 50V 5 C6981 ECJ2XB1H102K C 1000PF, K, 50V 1 C6982- 85 F1L2E105A013 E 0.10UF, 25V 4 C7108 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7110 TCUY1C105ZFN C 1UF, 16V 1 C7111,1 2 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7114 TCUY1C105ZFN C 1UF, 16V 1 C7115 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7116 TCUY1C105ZFN C 1UF, 16V 1 C7117 ECJ1XC1H101J C 100PF, J, 50V 1 C7119 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7121 TCUY1C105ZFN C 1UF, 16V 1 C7122 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7123 TCUY1C105ZFN C 1UF, 16V 1 C7124 ECJ1XC1H101J C 100PF, J, 50V 1 C7126 TCUY1C105ZFN C 1UF, 16V 1 C7127 ECJ1XC1H101J C 100PF, J, 50V 1 C7130 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7134 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7137,3 8 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7140 TCUY1C105ZFN C 1UF, 16V 1 C7141 ECJ1XC1H101J C 100PF, J, 50V 1 C7143 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7145 TCUY1C105ZFN C 1UF, 16V 1 C7146 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7148 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7201 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7203 TCUY1C105ZFN C 1UF, 16V 1 C7204,0 5 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7207 TCUY1C105ZFN C 1UF, 16V 1 C7208 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7209 TCUY1C105ZFN C 1UF, 16V 1 C7210 ECJ1XC1H101J C 100PF, J, 50V 1 192 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks C7212 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7214 TCUY1C105ZFN C 1UF, 16V 1 C7215 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7216 TCUY1C105ZFN C 1UF, 16V 1 C7217 ECJ1XC1H101J C 100PF, J, 50V 1 C7219 TCUY1C105ZFN C 1UF, 16V 1 C7220 ECJ1XC1H101J C 100PF, J, 50V 1 C7223 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7225 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7227 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7229 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7235 TCUY1C105ZFN C 1UF, 16V 1 C7236 ECJ1XC1H101J C 100PF, J, 50V 1 C7238 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7240 TCUY1C105ZFN C 1UF, 16V 1 C7241 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7244 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C8001 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8002 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8003 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8004 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8005 EEEHB1C100R C 10PF, J, 16V 1 TH-42PX60B C8007 ECJ0EB1H102K C 1000PF, K, 50V 1 TH-42PX60B C8015 ECJ1VC1H080C C 8PF, C, 50V 1 TH-42PX60B C8019,2 0 ECJ0EB1C103K C0.010UF, K, 16V 2 TH-42PX60B C8021 ECJ0EB1H102K C 1000PF, K, 50V 1 TH-42PX60B C8030 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8034,3 5 ECJ0EF1C104Z C 0.10UF, Z, 16V 2 TH-42PX60B C8037 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8039,4 0 ECJ0EB1C103K C0.010UF, K, 16V 2 TH-42PX60B C8041 EEEHB0G101R C 100PF, J, 4V 1 TH-42PX60B C8042,4 3 ECJ1VC1H100C C 10PF, C, 50V 2 TH-42PX60B C8046- 48 ECJ0EB1C103K C0.010UF, K, 16V 3 TH-42PX60B C8051,5 2 ECJ0EB1C103K C0.010UF, K, 16V 2 TH-42PX60B C8055 EEEHB1C470P C 47PF, J, 16V 1 TH-42PX60B C8056 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8058- 61 ECJ0EB1C103K C0.010UF, K, 16V 4 TH-42PX60B C8062 F1G1A1540001 C 0.15UF, K, 10V 1 TH-42PX60B PAVCCZ C8071 ECJ0EC1H270J C 270PF, K, 50V 1 TH-42PX60B C8073 ECJ0EC1H270J C 270PF, K, 50V 1 TH-42PX60B C8098 ECGRL0G680ER C 68PF, J, 4V 1 TH-42PX60B C8099,0 0 ECJ0EB1A104K C 0.1UF, K, 10V 2 TH-42PX60B C8101,0 2 ECJ1VB0J105K C 1UF, K, 6.3V 2 TH-42PX60B C8103,0 4 ECJ0EB1A104K C 0.1UF, K, 10V 2 TH-42PX60B C8105 EEEHB0G101R C 100PF, J, 4V 1 TH-42PX60B C8106,0 7 ECJ1VB0J105K C 1UF, K, 6.3V 2 TH-42PX60B C8108 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8109 EEEHB0G101R C 100PF, J, 4V 1 TH-42PX60B C8110 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8121 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8128,2 9 ECJ0EB1C103K C0.010UF, K, 16V 2 TH-42PX60B C8134 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8135 ECJ0EB1A473K C 0.047UF, K, 10V 1 TH-42PX60B C8136 ECGRL0G680ER C 68PF, J, 4V 1 TH-42PX60B C8138 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8139 ECGRL0G680ER C 68PF, J, 4V 1 TH-42PX60B C8140 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8141 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8142 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8143 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8144 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8145 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8146 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks C8147 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8148 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8149 ECJ1VB0J105K C 1UF, K, 6.3V 1 TH-42PX60B C8150 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8151 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8154- 56 ECJ0EB1A104K C 0.1UF, K, 10V 3 TH-42PX60B C8157 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8160 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8161- 64 ECJ0EB1C103K C0.010UF, K, 16V 4 TH-42PX60B C8165 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8166 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8167 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8168 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8169 EEEHB0G470R C 47PF, J, 4V 1 TH-42PX60B C8170 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-42PX60B C8171 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8172 EEEHB0G470R C 47PF, J, 4V 1 TH-42PX60B C8173- 75 ECJ0EB1C103K C0.010UF, K, 16V 3 TH-42PX60B C8176 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-42PX60B C8182 ECJ0EC1H121J C 120PF, K, 50V 1 TH-42PX60B C8186 ECJ0EC1H680J C 680PF, K, 50V 1 TH-42PX60B C8189 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-42PX60B C8193 EEEHB0J101P C 100PF, J, 6.3V 1 TH-42PX60B C8202,0 3 EEEHB1C470P C 47PF, J, 16V 2 TH-42PX60B C8204 ECJ3XB1C106M C 1.0UF, K, 16V 1 TH-42PX60B C8205,0 6 ECJ0EB1A104K C 0.1UF, K, 10V 2 TH-42PX60B C8207 EEEHB1C470P C 47PF, J, 16V 1 TH-42PX60B C8208 ECJ3XB1C106M C 1.0UF, K, 16V 1 TH-42PX60B C8210 ECJ0EB1A333K C 0.033UF, K, 10V 1 TH-42PX60B C8212 ECJ0EB1C223K C 0.022UF, K, 16V 1 TH-42PX60B C8240 ECJ1VB0J105K C 1UF, K, 6.3V 1 TH-42PX60B C8268 ECJ1VB0J105K C 1UF, K, 6.3V 1 TH-42PX60B C8269 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8303 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8305,0 6 ECJ0EB1C103K C0.010UF, K, 16V 2 TH-42PX60B C8314 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-42PX60B C8315 ECJ2FF1A475Z C 4.7UF, Z, 10V 1 TH-42PX60B C8317,1 8 ECJ2FF1A475Z C 4.7UF, Z, 10V 2 TH-42PX60B C8319 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-42PX60B C8320- 23 ECJ1VB0J105K C 1UF, K, 6.3V 4 TH-42PX60B C8327 EEEHB1C470P C 47PF, J, 16V 1 TH-42PX60B C8329 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8330,3 1 ECJ0EC1H181J C 180PF, K, 50V 2 TH-42PX60B C8332 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8334,3 5 ECJ0EC1H330J C 330PF, K, 50V 2 TH-42PX60B C8340 ECJ0EB1C682K C 6800UF, K, 16V 1 TH-42PX60B C8341 ECJ0EB1C822K C 8200UF, K, 16V 1 TH-42PX60B C8342,4 3 ECGRL0G680ER C 68PF, J, 4V 2 TH-42PX60B C8344 ECJ1VB1H332K C 3300PF, K, 50V 1 TH-42PX60B C8345 ECJ0EB1C153K C 0.015UF, K, 16V 1 TH-42PX60B C8349 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8350,5 1 ECJ0EF1C104Z C 0.10UF, Z, 16V 2 TH-42PX60B C8361 EEEHB1C470P C 47PF, J, 16V 1 TH-42PX60B C8372 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8376 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8397 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8401 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8403,0 4 ECJ0EF1C104Z C 0.10UF, Z, 16V 2 TH-42PX60B C8406 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-42PX60B C8409 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-42PX60B C8410 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8413,1 4 ECJ0EF1C104Z C 0.10UF, Z, 16V 2 TH-42PX60B 193 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks C8416,1 7 ECJ0EF1C104Z C 0.10UF, Z, 16V 2 TH-42PX60B C8419 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-42PX60B C8421 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8423 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8424 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-42PX60B C8425 ECJ0EB1A104K C 0.1UF, K, 10V 1 TH-42PX60B C8427 F2G1A101A019 E 100UF, 10V 1 TH-42PX60B PAVCCZ C8428 ECJ0EF1C104Z C 0.10UF, Z, 16V 1 TH-42PX60B C8430- 32 ECJ0EF1C104Z C 0.10UF, Z, 16V 3 TH-42PX60B C8433,3 4 ECJ0EB1C103K C0.010UF, K, 16V 2 TH-42PX60B C8467 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C8501,0 2 ECJ0EC1H180J C 180PF, K, 50V 2 TH-42PX60B C8504 ECJ1VF1A105Z C 1UF, Z, 10V 1 TH-42PX60B C8506 ECJ2VF1C105Z C 1UF, Z, 16V 1 TH-42PX60B C8507 ECJ1XC1H102J C 1000PF, J, 50V 1 TH-42PX60B C8508 ECJ1XF1C334Z C 0.33UF, Z, 16V 1 TH-42PX60B C8509 EEEHB0J101P C 100PF, J, 6.3V 1 TH-42PX60B C8870 ECJ1XC1H471J C 470PF, J, 50V 1 TH-42PX60B C8872 ECJ2FB0J225K C 2.2UF, Z, 16V 1 TH-42PX60B C8910 ECJ0EB1C103K C0.010UF, K, 16V 1 TH-42PX60B C9028,2 9 F1J0J1060004 C 0.010UF, K, 16V 2 C9033,3 4 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9035,3 6 F1J0J1060004 C 0.010UF, K, 16V 2 C9037 ECJ1VB1H103K C 0.001UF, K, 50V 1 C9039 F1J0J1060004 C 0.010UF, K, 16V 1 C9040 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9044- 53 ECJ1XF1C104Z C 0.1UF, Z, 16V 10 C9055- 57 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9058 F1J0J1060004 C 0.010UF, K, 16V 1 C9467,6 8 ECJ1VF1H103Z C 0.010UF, Z, 50V 2 C9469 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9500- 06 ECJ1XB1C104K C 0.1UF, Z, 16V 7 C9508 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9509 ECJ1VC1H200J C 20PF, C, 50V 1 C9510 ECJ1XC1H150J C 15PF, J, 50V 1 C9511 F1J0J1060004 C 0.010UF, K, 16V 1 C9512 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9514,1 5 ECJ2VF1C105Z C 1UF, Z, 16V 2 C9516- 25 ECJ1XB1C104K C 0.1UF, Z, 16V 10 C9526 F1J0J1060004 C 0.010UF, K, 16V 1 C9527- 30 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C9531 F1J0J1060004 C 0.010UF, K, 16V 1 C9800 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9801 ECJ1VB1H472K C 4700PF, K, 50V 1 C9802 ECJ1XC1H470J C 47PF, J, 50V 1 C9803 ECJ1VB1H472K C 4700PF, K, 50V 1 C9804 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9805 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9806 ECGRL0G680ER C 68PF, J, 4V 1 C9807,0 8 ECJ3YB1E106M C 10 UF, K, 25V 2 C9809 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9815,1 6 ECGRL0G680ER C 68PF, J, 4V 2 C9817,1 8 ECJ3YB1E106M C 10 UF, K, 25V 2 C9822 F1J0J1060004 C 0.010UF, K, 16V 1 C9823,2 4 ECJ3YB1E106M C 10 UF, K, 25V 2 C9825 ECJ1XC1H101K C 100PF, K, 50V 1 C9826 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9827 F1J0J1060004 C 0.010UF, K, 16V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C9830- 32 ECJ3XB1C106M C 1.0UF, K, 16V 3 C9833 ECJ3YB1E106M C 10 UF, K, 25V 1 C9837 ECJ3XB1C106M C 1.0UF, K, 16V 1 C9838 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9839 ECJ3YB1E106M C 10 UF, K, 25V 1 C9840 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9841,4 2 ECJ2VF1C105Z C 1UF, Z, 16V 2 C9843 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9844 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C9845,4 6 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9847,4 8 ECJ1VB1E104K C 0.10UF, K, 25V 2 C9880,8 1 ECJ1XB1H102K C 1000UF, Z, 50V 2 C9882 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9883 ECJ1VB1H822K C 8200PF, K, 50V 1 C9884 ECJ1VC1H100C C 10PF, C, 50V 1 C9885 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9886 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9887 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9891 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9896 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9897 ECJ1VB1H822K C 8200PF, K, 50V 1 C9898 ECJ1VC1H100C C 10PF, C, 50V 1 C9899 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9900- 51 ECJ1XB1C104K C 0.1UF, Z, 16V 52 C9952- 54 EEFCD0G560ER 56UF, 3 C9955- 59 ECJ1XB1C104K C 0.1UF, Z, 16V 5 C9960- 64 ECJ3XB0J106M C 10UF, M,6.3V 5 C9965 EEFCD0G560ER 56UF, 1 C9966 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9967 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9971 ECJ1XB1C104K C 0.1UF, Z, 16V 1 CB1-B8 K1MN68BA0002 68P CONNECTOR 8 D3 K1KY40B00003 40P CONNECTOR 1 D5 K1KB31BA0064 31P CONNECTOR 1 D6 K1KA21A00011 21P CONNECTOR 1 D20 K1KA20BA0296 20P CONNECTOR 1 D25 K1KA20B00155 20P CONNECTOR 1 D31,32 K1MN55BA0094 55P CONNECTOR 2 D1106,0 7 MA729 DIODE 2 D1117 MA3036L ZENER DIODE 1 D1119 MA704A DIODE 1 D1121 MA729 DIODE 1 D2011- 14 MA111 DIODE 4 D2119 B0BC01100001 ZENER DIODE 1 D2300,0 1 MA111 DIODE 2 D2303,0 4 MA111 DIODE 2 D2309 MA111 DIODE 1 D2510,1 1 MA8056-M ZENER DIODE 2 D2512 MA8043LTX ZENER DIODE 1 D2520B LN1271RALTR LED 1 D2524 MA8056-M ZENER DIODE 1 D2525B LN1471YTR LED 1 TH-42PX60B D2526 MA8056-M ZENER DIODE 1 TH-42PX60B D3002- 12 MA8140M ZENER DIODE 11 D3015,1 6 MA8140M ZENER DIODE 2 D3021- 23 MA111 DIODE 3 D3024 B0BC01100001 ZENER DIODE 1 194 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks D3025 MA8140M ZENER DIODE 1 D3027,2 8 MA8140M ZENER DIODE 2 D3030- 32 MA8140M ZENER DIODE 3 D3038- 43 MA8140M ZENER DIODE 6 D3044 MA111 DIODE 1 D3100 MA8140M ZENER DIODE 1 D3334- 39 MA111 DIODE 6 D3702 MA8140M ZENER DIODE 1 D4019- 38 EZJZ0V80008B VARISTOR 20 D4041 EZJZ0V80008B VARISTOR 1 D4044,4 5 EZJZ0V80008B VARISTOR 2 D4047,4 8 MA3056M ZENER DIODE 2 D4049- 52 B0HCMM000014 DIODE 4 D5606 B0BC01100001 ZENER DIODE 1 D5607 B0BC6R600005 ZENER DIODE 1 D5610 B0BC4R700007 ZENER DIODE 1 (PA) D5610 MA3X78900L ZENER DIODE 1 (H) D5612 B0BC3R700006 ZENER DIODE 1 D5618 B0BC03900015 ZENER DIODE 1 D5634 MA111 DIODE 1 D5635 MA3047H ZENER DIODE 1 D5637,3 8 MA152 DIODE 2 D5639 MA3047H ZENER DIODE 1 D5640 MA3039H ZENER DIODE 1 D5641 MA152 DIODE 1 D5642 MA3120M ZENER DIODE 1 D5643 MA152 DIODE 1 D5644 MA3068M ZENER DIODE 1 D5646,4 7 MA152 DIODE 2 D5649 MA111 DIODE 1 D5801 B0JCME000037 DIODE 1 D5804 MA3120M ZENER DIODE 1 D5805,0 6 MA152 DIODE 2 D5807 MA111 DIODE 1 D6001 B0HBSN000008 DIODE 1 D6021 B0HBSN000008 DIODE 1 D6032 MA111 DIODE 1 D6041 B0ECHP000003 DIODE 1 D6051 B0ECHP000003 DIODE 1 D6061,6 2 B0HBSN000008 DIODE 2 D6071,7 2 B0HBSN000008 DIODE 2 D6081,8 2 B0HBSN000008 DIODE 2 D6091 B0HBSN000008 DIODE 1 D6092 B0ECHP000003 DIODE 1 D6101- 04 B0JCME000037 DIODE 4 D6131,3 2 B0ECHP000003 DIODE 2 D6151- 54 B0ECHP000003 DIODE 4 D6191- 93 B0ECHP000003 DIODE 3 D6211 B0JCME000037 DIODE 1 D6221 B0ECHP000003 DIODE 1 D6222,2 3 MA111 DIODE 2 D6251,5 2 MA8330M ZENER DIODE 2 D6253 LNJ301MPUJA LED 1 D6254 MA8051L ZENER DIODE 1 D6255 MA111 DIODE 1 D6401,0 2 B0HBSN000008 DIODE 2 Ref. No. Part No. Part Name & Description Pcs Remarks D6431,3 2 B0HBSP000019 DIODE 2 D6441 B0ECHP000003 DIODE 1 D6451 B0ECHP000003 DIODE 1 D6461,6 2 B0HBSN000008 DIODE 2 D6466 MA111 DIODE 1 D6471 B0HBSN000008 DIODE 1 D6472 B0ECHP000003 DIODE 1 D6477 MA111 DIODE 1 D6478 B0HCKS000002 DIODE 1 D6480 MA111 DIODE 1 D6481,8 2 B0HBSN000008 DIODE 2 D6491 B0HBSP000019 DIODE 1 D6497 MA111 DIODE 1 D6501,0 2 B0ECHP000003 DIODE 2 D6521- 24 B0ECHP000003 DIODE 4 D6581,8 2 MA8330M ZENER DIODE 2 D6583 LNJ301MPUJA LED 1 D6584 MA8051L ZENER DIODE 1 D6585 MA111 DIODE 1 D6601 MA8240M ZENER DIODE 1 D6602 B0ECHP000003 DIODE 1 D6603 MA8240M ZENER DIODE 1 D6604 MA111 DIODE 1 D6605 MA8051L ZENER DIODE 1 D6606 B0HCMM000014 DIODE 1 D6607 MA111 DIODE 1 D6610 MAZ81500ML ZENER DIODE 1 D6611- 14 MA111 DIODE 4 D6619,2 0 B0HCKS000002 DIODE 2 D6621 B0HDSM000005 DIODE 1 D6623,2 4 B0HDSM000005 DIODE 2 D6641,4 2 B0HCKS000002 DIODE 2 D6643 MA111 DIODE 1 D6644 B0HCKS000002 DIODE 1 D6661 MA111 DIODE 1 D6662- 64 MA8330M ZENER DIODE 3 D6665 MA8051L ZENER DIODE 1 D6666,6 7 MA111 DIODE 2 D6671 MA111 DIODE 1 D6682 B0HCMM000014 DIODE 1 D6683,8 4 MA111 DIODE 2 D6686,8 7 MA111 DIODE 2 D6701,0 2 MA8056H ZENER DIODE 2 D6721 B0HCKS000002 DIODE 1 D6723,2 4 B0JCME000037 DIODE 2 D6725 B0ECHP000003 DIODE 1 D6726- 33 MA8056H ZENER DIODE 8 D6734 MA111 DIODE 1 D6752 B0JCME000037 DIODE 1 D6758 B0ECHP000003 DIODE 1 D6760,6 1 MA111 DIODE 2 D6771 B0JCME000037 DIODE 1 D6773 B0HCKS000002 DIODE 1 D6791 MA8200M ZENER DIODE 1 D6801,0 2 B0JCME000037 DIODE 2 D6803 MA111 DIODE 1 D6804 B0ECHP000003 DIODE 1 D6805 MA111 DIODE 1 195 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks D6806 B0ECHP000003 DIODE 1 D6820- 23 MA111 DIODE 4 D6825 MA8330M ZENER DIODE 1 D6826 MA111 DIODE 1 D6841 B0ECHP000003 DIODE 1 D6842,4 3 MA111 DIODE 2 D6859 B0ECHP000003 DIODE 1 D6860 B0HCKS000002 DIODE 1 D6861 MA8051L ZENER DIODE 1 D6862 MA111 DIODE 1 D6871 MA8051L ZENER DIODE 1 D6872 MA111 DIODE 1 D6901,0 2 MA8056H ZENER DIODE 2 D6903,0 4 B0ECHP000003 DIODE 2 D6951,5 2 MA8056H ZENER DIODE 2 D6953,5 4 B0ECHP000003 DIODE 2 D8002 MA728 DIODE 1 TH-42PX60B D8203,0 4 B0JCPE000004 DIODE 2 TH-42PX60B D8501 B0CCAB000039 DIODE 1 TH-42PX60B D9017- 19 MA3033 ZENER DIODE 3 D9020 MA728 DIODE 1 D9100- 03 B0JCGD000002 DIODE 4 D9105,0 6 B0JCGD000002 DIODE 2 D9110 B0JCGD000002 DIODE 1 D9300,0 1 MA152K DIODE 2 D9800 B0JCME000037 DIODE 1 D9801 B0JCDD000002 DIODE 1 D9802 MA728 DIODE 1 D9804 MA152K DIODE 1 D9807,0 8 MA152K DIODE 2 D9811 MA728 DIODE 1 D9812 B0JCME000037 DIODE 1 D9813 B0JCDD000002 DIODE 1 D9814 B0JCME000037 DIODE 1 D9815 B0JCDD000002 DIODE 1 DG1 K1KY80A00011 80P CONNECTOR 1 DG2 K1KA15B00074 15P CONNECTOR 1 DG3 K1KY40B00003 40P CONNECTOR 1 DG5 K1KB21BA0063 21P CONNECTOR 1 DG7 K1KA20B00155 20P CONNECTOR 1 DG8,G9 K1FY119D0001 CONNECTOR 2 DG15 K1KY40B00003 40P CONNECTOR 1 DG20 K1MN40B00045 40P CONNECTOR 1 DG22 K1KBB0A00009 CONNECTOR 1 TH-42PX60B DG35 K1KA07BA0047 7P CONNECTOR 1 FL3301, 02 J0HABB000003 LC FILTER 2 FL3303- 05 J0HABB000004 LC FILTER 3 FL4010, 11 J0HABH000012 LC FILTER 2 TH-42PX60B FL4015 J0HABH000012 LC FILTER 1 TH-42PX60B FL7101 J0HABH000013 LC FILTER 1 FL7201 J0HABH000013 LC FILTER 1 FL9300, 01 F1J1E1040022 LC FILTER 2 FL9800, 01 J0HABH000013 LC FILTER 2 FL9803, 04 J0HABH000012 LC FILTER 2 FL9805- 07 J0HABH000013 LC FILTER 3 Ref. No. Part No. Part Name & Description Pcs Remarks FL9900- 02 F1J1E1040022 LC FILTER 3 FL9903, 04 J0HABH000013 LC FILTER 2 G1 K1KA12A00317 12P CONNECTOR 1 G3 K1KA03BA0047 3P CONNECTOR 1 G51 K1KA30AA0009 30P CONNECTOR 1 GK3 K1KA03BA0061 3P CONNECTOR 1 H1 K1KY80A00011 80P CONNECTOR 1 H2 K1KA15A00148 15P CONNECTOR 1 H5 K1KA15AA0288 15P CONNECTOR 1 H6 K1KA09A00230 9P CONNECTOR 1 H15 K1KA04AA0150 4P CONNECTOR 1 H40 K1KA20AA0009 20P CONNECTOR 1 H51 K1KA30AA0009 30P CONNECTOR 1 HC01 K1KA21A00011 21P CONNECTOR 1 HC12 K1KA09AA0190 9P CONNECTOR 1 HC15 K1KY40B00003 40P CONNECTOR 1 HC21 K1KA08AA0193 8P CONNECTOR 1 HC22 K1KA11AA0194 11P CONNECTOR 1 IC1100 C3ABPG000145 IC 1 IC1101 TVRN774-1 IC 1 PAVCCZ IC1102 TVRN752-3 IC 1 TH-42PV60E PAVCCZ IC1102 TVRN758-3 IC 1 TH-42PX60B PAVCCZ IC1103 MN103SB20RGL IC 1 IC1105, 06 C0JBAS000128 IC 2 TH-42PX60B IC1107 C0JBAS000128 IC 1 IC1110 C0CBCAD00016 IC 1 IC1111 C0EBY0000041 IC 1 IC2103 AN77L08M IC 1 IC2104 C0ABBA000168 IC 1 IC2105 AN15862A-VT IC 1 IC2106 C1AB00002468 IC 1 IC2109 C1BB00000947 IC 1 IC2110 AN7705SP IC 1 IC2302 C1AB00002451 IC 1 IC2304 C0ABBA000168 IC 1 IC2306 C0ABBA000168 IC 1 IC2511 B3L000000020 IC 1 IC3005 AN15867A-VT IC 1 IC3301 C0JBAZ002205 IC 1 IC4013 C0CBCBF00009 IC 1 IC4016 C0CBCAC00275 IC 1 IC4018 C0CBCAC00275 IC 1 IC4019 C1AB00002456 IC 1 IC4022 TVRN916 IC 1 IC4023 TVRN917 IC 1 IC4025 C0FBBK000038 IC 1 IC4026 C1AB00002535 IC 1 IC4027 C0DBFFD00003 IC 1 IC4028 C0ABBB000230 IC 1 IC4029 C0CBCAC00282 IC 1 IC4030 C0CBCBC00190 IC 1 IC4032 C0DBGYY00052 IC 1 IC4035 C0CBCAF00031 IC 1 IC4036 C0JBAP000020 IC 1 IC4037 MN84522-A IC 1 IC4038 C3ABQJ000048 IC 1 IC5601 N0BG2DE00001 IC 1 IC5602 EHMDD9851 LINEAR IC 1 IC5603 C0DBAJB00004 IC 1 IC5604 C0DBZGC00067 IC 1 IC5801 C0DBAZF00003 IC 1 IC6131 C0ZBZ0000895 IC 1 IC6151 C0ZBZ0001324 IC 1 IC6191 C0ZBZ0000895 IC 1 196 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks IC6211 C0ZBZ0001325 IC 1 IC6221 C0DBEMB00005 IC 1 IC6241 C0JBAZ000005 IC 1 IC6251 NJM2903M INTEGRATED CIRCUIT 1 IC6471 C0DBEKA00003 IC 1 IC6472 C0JBAA000377 IC 1 IC6501 C0ZBZ0000895 IC 1 IC6521 C0ZBZ0001324 IC 1 IC6561, 62 C0JBAZ000005 IC 2 IC6581 NJM2903M INTEGRATED CIRCUIT 1 IC6601 C0ZBZ0001325 IC 1 IC6602 C0JBAB000715 IC 1 IC6610 NJM2903M INTEGRATED CIRCUIT 1 IC6671 C0ZBZ0001325 IC 1 IC6681 C0ZBZ0001325 IC 1 IC6682 C0JBAA000377 IC 1 IC6721, 22 C0JBAZ000994 IC 2 IC6724, 25 C0CBADC00089 IC 2 IC6751 C0CBADC00089 IC 1 IC6752 C0ZBZ0001325 IC 1 IC6753 C0JBAB000715 IC 1 IC6771 C0CBADC00089 IC 1 IC6772 C0ZBZ0001325 IC 1 IC6773, 74 C0JBAA000377 IC 2 IC6791 N0BF1FB00001 IC 1 IC6801, 02 C0DBEMB00005 IC 2 IC6821 C0DBEMB00005 IC 1 IC6841 C0DBEMB00005 IC 1 IC6861 NJM2903M INTEGRATED CIRCUIT 1 IC6871 NJM2903M INTEGRATED CIRCUIT 1 IC6901- 06 AN16072A-VT IC 6 IC6951- 56 AN16072A-VT IC 6 IC7101- 05 C0JBAZ001120 IC 5 IC7201- 05 C0JBAZ001120 IC 5 IC8003 STV0360CT IC 1 TH-42PX60B PAVCCZ IC8009 C3ABQG000095 IC 1 TH-42PX60B PAVCCZ IC8013 MN2WS0025BEA IC 1 TH-42PX60B PAVCCZ IC8019 TVRN789 IC 1 TH-42PX60B PAVCCZ IC8023, 24 C0DBAMH00018 IC 2 TH-42PX60B IC8029 C0FBBK000038 IC 1 TH-42PX60B IC8031 BA15218FDX IC 1 TH-42PX60B IC8034 C0DBEHG00006 IC 1 TH-42PX60B PAVCCZ IC8042 C0EBM0000026 IC 1 TH-42PX60B IC8213 C0JBAZ001137 IC 1 TH-42PX60B IC8402 74LVC4245AD IC 1 TH-42PX60B PAVCCZ IC8404 C0JBAZ002691 IC 1 TH-42PX60B PAVCCZ IC8405 C0ZBZ0001333 IC 1 TH-42PX60B PAVCCZ IC8408- 11 C0JBAZ002691 IC 4 TH-42PX60B PAVCCZ IC8412 C0JBAZ001137 IC 1 TH-42PX60B IC8501 74VHCU04MXNL IC 1 TH-42PX60B PAVCCZ IC8864 C0DBFFD00003 IC 1 TH-42PX60B IC9001 TVRN808 IC 1 IC9002 C0ZBZ0001330 IC 1 IC9003 TVRN805 IC 1 PAVCCZ IC9007 TVRN813 IC 1 IC9011 C0EBF0000431 IC 1 IC9200 C1ZBZ0003185 IC 1 Ref. No. Part No. Part Name & Description Pcs Remarks IC9303 TVRN819 IC 1 PAVCCZ IC9500 C1ZBZ0002599 IC 1 IC9502 PST9128NR IC (LOGIC) 1 IC9503, 04 C0JBAZ001120 IC 2 IC9800 C0DBAYY00054 IC 1 IC9801 C0DBZFG00066 IC 1 IC9802, 03 C0JBAZ001120 IC 2 IC9806 C0DBAHD00011 IC 1 IC9807 C0DBAYY00054 IC 1 IC9809 C0DBAYY00054 IC 1 IC9900 MN84521-A IC 1 IC9901 C3ABQJ000051 IC 1 JK2002, 03 K4BK03A00002 AV TERMENAL 2 JK3001 K1FB315A0005 JACK 1 JK3002- 04 K1FB121A0010 CONNECTOR 3 PAVCCZ JK3005 K2HA307A0007 JACK 1 PAVCCZ JK3701 K4AK23B00001 TERMINAL BOARD 1 PAVCCZ JK8401 K1NA68B00042 68P CONNECTOR 1 TH-42PX60B PAVCCZ JS001 ERJ3GEY0R00 M 0 OHM, 1/16W 1 TH-42PX60B JS012 ERJ3GEY0R00 M 0 OHM, 1/16W 1 TH-42PX60B JS1100- 02 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 JS1109 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 JS1117 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 JS2021, 22 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS2026 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS2031- 33 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS2108, 09 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS2123, 24 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS2300- 03 ERJ6GEY0R00 M 0 OHM, 1/10W 4 JS2319 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS2331 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3000 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3005 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3007- 20 ERJ6GEY0R00 M 0 OHM, 1/10W 14 JS3023 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3037- 39 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS3201 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3206 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3215 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3230 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3237 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3239 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3252 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3255 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3256, 57 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS3302- 04 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS3307- 12 ERJ3GEY0R00 M 0 OHM, 1/16W 6 JS3352 J0JCC0000241 CHIP INDUCTOR 1 JS3354- 59 J0JCC0000241 CHIP INDUCTOR 6 JS3362, 63 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS3402, 03 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS3404, 05 ERJ6GEY0R00 M 0 OHM, 1/10W 2 197 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks JS3704, 05 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS3707, 08 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS3711- 14 ERJ6GEY0R00 M 0 OHM, 1/10W 4 JS3715 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS4016, 17 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 JS4022- 24 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 JS4025, 26 ERJ2GEJ101 M 100 OHM, J,0.063W 2 JS4027, 28 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 JS4029 ERJ2GEJ221 M 220 OHM, J,0.063W 1 JS4033- 40 ERJ2GE0R00 M 0.0 OHM, J,0.063W 8 JS4042, 43 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 TH-42PX60B JS4046 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PV60E JS4047, 48 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 TH-42PX60B JS4069 ERJ2GEJ221 M 220 OHM, J,0.063W 1 JS4075 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B JS4077 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B JS4079 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B JS4094 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PV60E JS4103 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PV60E JS4104 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 JS4111 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS4116 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B JS5601 ERJ3GEY0R00 M 0 OHM, 1/16W 1 K1 K1KY12B00001 12P CONNECTOR 1 L008 J0JCC0000241 CHIP INDUCTOR 1 L012 J0JCC0000241 CHIP INDUCTOR 1 L017 J0JCC0000241 CHIP INDUCTOR 1 L018 J0JGC0000021 CHIP INDUCTOR COIL 1 L019 J0JCC0000241 CHIP INDUCTOR 1 TH-42PV60E L020 J0JGC0000021 CHIP INDUCTOR COIL 1 L021 ERJ3GEY0R00 M 0 OHM, 1/16W 1 L1101- 04 J0JHC0000078 CHIP INDUCTOR 4 L1109 J0JHC0000078 CHIP INDUCTOR 1 L2001,0 2 J0JCC0000364 CHIP INDUCTOR 2 L2003- 16 TSK1032 BEAD CHOKE 14 L2107 TSK1032 BEAD CHOKE 1 L2108 J0JCC0000241 CHIP INDUCTOR 1 L2109,1 0 TSK1032 BEAD CHOKE 2 L2111,1 2 J0JCC0000241 CHIP INDUCTOR 2 L2115 J0JCC0000241 CHIP INDUCTOR 1 L2117 ELESE6R8KA PEAKING COIL 1 L2118 EXCELDR35C BEAD CHOKE 1 L2123 J0JCC0000241 CHIP INDUCTOR 1 L2178,7 9 J0JCC0000241 CHIP INDUCTOR 2 L2182- 87 J0JCC0000241 CHIP INDUCTOR 6 L2204 ERJ3GEY0R00 M 0 OHM, 1/16W 1 L2205,0 6 J0JCC0000241 CHIP INDUCTOR 2 L2300- 03 G0C330MA0049 PEAKING COIL 4 Ref. No. Part No. Part Name & Description Pcs Remarks L2308 TALL08N3R9MA INDUCTION COIL 1 L3000 G0C101K00023 PEAKING COIL 1 L3001- 03 TSK1032 BEAD CHOKE 3 L3009 TSK1032 BEAD CHOKE 1 L3026 TSK1032 BEAD CHOKE 1 L3202 J0JCC0000241 CHIP INDUCTOR 1 L3205 J0JCC0000241 CHIP INDUCTOR 1 L3700,0 1 J0JCC0000364 CHIP INDUCTOR 2 L3707,0 8 TSK1032 BEAD CHOKE 2 L4023 J0JHC0000078 CHIP INDUCTOR 1 L4029 J0JHC0000078 CHIP INDUCTOR 1 L4031 J0JHC0000078 CHIP INDUCTOR 1 L4038 J0JHC0000078 CHIP INDUCTOR 1 L4040- 46 J0JHC0000078 CHIP INDUCTOR 7 L4048 J0JHC0000078 CHIP INDUCTOR 1 L4049 J0JBC0000080 CHIP INDUCTOR 1 L4050,5 1 J0JHC0000078 CHIP INDUCTOR 2 L4052 J0JCC0000077 CHIP INDUCTOR 1 L4053- 55 J0JHC0000078 CHIP INDUCTOR 3 L4056,5 7 J0JCC0000077 CHIP INDUCTOR 2 L4060,6 1 J0JCC0000077 CHIP INDUCTOR 2 L4065,6 6 J0JHC0000078 CHIP INDUCTOR 2 L4068- 70 J0JHC0000078 CHIP INDUCTOR 3 L4071 J0JBC0000080 CHIP INDUCTOR 1 L4073 J0JHC0000078 CHIP INDUCTOR 1 L4075,7 6 J0JHC0000078 CHIP INDUCTOR 2 L4077 J0JCC0000077 CHIP INDUCTOR 1 L4078 J0JHC0000078 CHIP INDUCTOR 1 L5602 TALL08N2R7MA INDUCTION COIL 1 L5604 TALL08N2R7MA INDUCTION COIL 1 L5605 G0A2R7ZA0021 CHOKE COIL 1 L5606,0 7 G0A220GA0002 CHOKE COIL 2 L5608 G1C100MA0072 INDUCTION COIL 1 L5609 G0A220GA0002 CHOKE COIL 1 L5610 G1C470MA0077 INDUCTION COIL 1 L5612 TALL08N2R7MA INDUCTION COIL 1 L5615 TALL08N150KA INDUCTION COIL 1 L5621 G1C330MA0234 INDUCTION COIL 1 L5622,2 3 G1C150MA0234 INDUCTION COIL 2 L5624 G1C330MA0234 INDUCTION COIL 1 L5651 G0A220GA0002 CHOKE COIL 1 L5801 G0C101K00023 PEAKING COIL 1 L5802 TALL08N101KA INDUCTION COIL 1 L6001- 03 G0C1R9KA0147 PEAKING COIL 3 L6011- 13 G0C1R9KA0147 PEAKING COIL 3 L6061- 68 G0ZZ00002183 PEAKING COIL 8 L6081- 88 G0ZZ00002183 PEAKING COIL 8 L6101,0 2 J0JJC0000011 CHIP INDUCTOR 2 L6103 G0ZZ00002183 PEAKING COIL 1 L6104,0 5 J0JJC0000011 CHIP INDUCTOR 2 L6211,1 2 J0JJC0000011 CHIP INDUCTOR 2 L6221 G0ZZ00002183 PEAKING COIL 1 L6241 G0ZZ00002183 PEAKING COIL 1 L6262 G0ZZ00002183 PEAKING COIL 1 L6271,7 2 G0ZZ00002183 PEAKING COIL 2 198 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks L6401- 03 G0C1R9KA0147 PEAKING COIL 3 L6411- 13 G0C1R9KA0147 PEAKING COIL 3 L6461- 68 G0ZZ00002183 PEAKING COIL 8 L6472,7 3 G0ZZ00002183 PEAKING COIL 2 L6481- 88 G0ZZ00002183 PEAKING COIL 8 L6591,9 2 G0ZZ00002183 PEAKING COIL 2 L6601,0 2 G0ZZ00002183 PEAKING COIL 2 L6801,0 2 J0JJC0000011 CHIP INDUCTOR 2 L6841 J0JJC0000011 CHIP INDUCTOR 1 L8004 J0JHC0000045 CHIP INDUCTOR 1 TH-42PX60B L8008 J0JHC0000045 CHIP INDUCTOR 1 TH-42PX60B L8026 J0JHC0000035 CHIP INDUCTOR 1 TH-42PX60B L8031- 33 J0JHC0000045 CHIP INDUCTOR 3 TH-42PX60B L8037 J0JCC0000078 CHIP INDUCTOR 1 TH-42PX60B L8038 J0JHC0000045 CHIP INDUCTOR 1 TH-42PX60B L8042 J0JHC0000045 CHIP INDUCTOR 1 TH-42PX60B L8046 ELJPA1R0MFB INDUCTION COIL 1 TH-42PX60B L8047 G1C680MA0173 INDUCTION COIL 1 TH-42PX60B PAVCCZ L8048 G1C330MA0173 INDUCTION COIL 1 TH-42PX60B PAVCCZ L8049 J0JHC0000045 CHIP INDUCTOR 1 TH-42PX60B L8051 J0JCC0000241 CHIP INDUCTOR 1 TH-42PX60B L8055 G1C100MA0077 INDUCTION COIL 1 TH-42PX60B L8059 J0JHC0000045 CHIP INDUCTOR 1 TH-42PX60B L8106 ELJFA2R7JBB CHIP INDUCTOR 1 TH-42PX60B PAVCCZ L8145 J0JHC0000045 CHIP INDUCTOR 1 TH-42PX60B L8501 ELJNA2R7JFB CHIP INDUCTOR 1 TH-42PX60B L9500 G1C150KA0038 INDUCTION COIL 1 L9501,0 2 J0JHC0000078 CHIP INDUCTOR 2 L9800 G1C3R0MA0248 INDUCTION COIL 1 L9801,0 2 G1C2R2MA0241 INDUCTION COIL 2 L9810 J0JHC0000045 CHIP INDUCTOR 1 PA2 K1KA05AA0192 5P CONNECTOR 1 PA5 K1KA11AA0194 11P CONNECTOR 1 PA10 K1KA06A00452 6P CONNECTOR 1 PA20 K1MN40A00024 40P CONNECTOR 1 PA31-34 K1KA03AA0192 3P CONNECTOR 4 PA40 K1KA20AA0009 20P CONNECTOR 1 PA1101 K5H8012A0023 FUSE 1 PA2100 K5H1622A0023 FUSE 1 PA3100 K5H1622A0023 FUSE 1 PA3104 ERJ3GEY0R00 M 0 OHM, 1/16W 1 PA9800 K5H4022A0023 FUSE 1 PC6480 B3PBA0000223 IC 1 PC6701- 03 B3PBA0000233 IC 3 PC6704 B3PBA0000234 IC 1 PC6705 B3PBA0000233 IC 1 PC6760 B3PBA0000223 IC 1 PC6801 B3PBA0000223 IC 1 PC6861 B3PBA0000223 IC 1 PC6871 B3PBA0000223 IC 1 Q002 2SA207700L TRANSISTOR 1 Q1100- 03 2SC584500L TRANSISTOR 4 Q1106,0 7 2SC584500L TRANSISTOR 2 TH-42PX60B Q1108 2SC584500L TRANSISTOR 1 Q1109,1 0 B1CBHD000002 FET 2 Ref. No. Part No. Part Name & Description Pcs Remarks Q1111 2SC584500L TRANSISTOR 1 Q1113- 18 2SC584500L TRANSISTOR 6 Q1120- 22 2SC584500L TRANSISTOR 3 Q1130 2SC584500L TRANSISTOR 1 Q1131 B1ABCF000138 TRANSISTOR 1 Q1134 2SC584500L TRANSISTOR 1 Q1135 B1ABCF000138 TRANSISTOR 1 Q1137- 43 2SC584500L TRANSISTOR 7 Q2001- 04 2SC584500L TRANSISTOR 4 Q2006,0 7 2SC584500L TRANSISTOR 2 Q2009,1 0 2SC584500L TRANSISTOR 2 Q2011 2SA207700L TRANSISTOR 1 Q2012 2SC584500L TRANSISTOR 1 Q2013 2SA207700L TRANSISTOR 1 Q2102- 05 2SA207700L TRANSISTOR 4 Q2106 2SC584500L TRANSISTOR 1 Q2108 2SC584500L TRANSISTOR 1 Q2113,1 4 2SC584500L TRANSISTOR 2 Q2300 2SA207700L TRANSISTOR 1 (PA) Q2300 2SC584500L TRANSISTOR 1 (H) Q2301 2SD601A TRANSISTOR 1 (H) Q2301 2SD601A TRANSISTOR 1 (PA) Q2302 2SC584500L TRANSISTOR 1 Q2303 2SD601A TRANSISTOR 1 Q2306,0 7 2SA207700L TRANSISTOR 2 Q2314- 17 2SC584500L TRANSISTOR 4 Q2510,1 1 2SD601A TRANSISTOR 2 Q2518 2SD601A TRANSISTOR 1 TH-42PX60B Q3001 2SC584500L TRANSISTOR 1 Q3005 2SC584500L TRANSISTOR 1 Q3008 2SA207700L TRANSISTOR 1 Q3011 2SA207700L TRANSISTOR 1 Q3014,1 5 2SA207700L TRANSISTOR 2 Q3016 2SC584500L TRANSISTOR 1 Q3017 2SA207700L TRANSISTOR 1 Q3019- 22 2SC584500L TRANSISTOR 4 Q3024 2SC584500L TRANSISTOR 1 Q3027- 29 2SA207700L TRANSISTOR 3 Q3331- 33 2SC2480 TRANSISTOR 3 Q4050 2SC584500L TRANSISTOR 1 Q4053 2SC584500L TRANSISTOR 1 Q4055- 59 2SA207700L TRANSISTOR 5 Q4061- 69 2SC584500L TRANSISTOR 9 Q4070,7 1 B1MBACA00008 TRANSISTOR 2 Q4082,8 3 2SK1228 FET 2 Q4084 B1ABCF000138 TRANSISTOR 1 Q4918 B1ABCF000138 TRANSISTOR 1 Q4919 2SC584500L TRANSISTOR 1 Q5601 B1DHDC000028 TRANSISTOR 1 Q5602 2SD601A TRANSISTOR 1 Q5603 B1DHDC000028 TRANSISTOR 1 Q5604,0 5 2SD601A TRANSISTOR 2 Q5610 2SD601A TRANSISTOR 1 Q5613 2SD601A TRANSISTOR 1 Q5614 2SK3065T100 FET 1 Q5641- 43 2SA207700L TRANSISTOR 3 199 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks Q5644 2SD601A TRANSISTOR 1 Q6001- 03 B1JADN000001 TRANSISTOR 3 Q6021- 23 B1JADN000001 TRANSISTOR 3 Q6041,4 2 B1JADN000002 TRANSISTOR 2 Q6051,5 2 B1JADN000002 TRANSISTOR 2 Q6101- 04 B1DFKM000002 TRANSISTOR 4 Q6105 B1ABNF000006 TRANSISTOR 1 Q6106 B1ADNF000006 TRANSISTOR 1 Q6111 2SK326800L FET 1 Q6112 B1DFKM000002 TRANSISTOR 1 Q6114 B1DFKM000002 TRANSISTOR 1 Q6141 B1ABNF000006 TRANSISTOR 1 Q6142 B1ADNF000006 TRANSISTOR 1 Q6146 B1ABNF000006 TRANSISTOR 1 Q6147 B1ADNF000006 TRANSISTOR 1 Q6171 2SD2185 TRANSISTOR 1 Q6172 B1ADRD000001 TRANSISTOR 1 Q6181 2SD2185 TRANSISTOR 1 Q6182 B1ADRD000001 TRANSISTOR 1 Q6221 2SD1263A TRANSISTOR 1 Q6222 2SC3063 TRANSISTOR 1 Q6251 2SD601A TRANSISTOR 1 Q6401- 03 B1JADN000001 TRANSISTOR 3 Q6421- 23 B1JAEP000001 TRANSISTOR 3 Q6441,4 2 B1JADN000002 TRANSISTOR 2 Q6451,5 2 B1JADP000002 TRANSISTOR 2 Q6471 B1CHGD000006 TRANSISTOR 1 Q6511 B1ABNF000006 TRANSISTOR 1 Q6512 B1ADNF000006 TRANSISTOR 1 Q6516 B1ABNF000006 TRANSISTOR 1 Q6517 B1ADNF000006 TRANSISTOR 1 Q6531 2SD2185 TRANSISTOR 1 Q6532 B1ADRD000001 TRANSISTOR 1 Q6551 2SD2185 TRANSISTOR 1 Q6552 B1ADRD000001 TRANSISTOR 1 Q6581 2SD601A TRANSISTOR 1 Q6601 B1DFES000003 TRANSISTOR 1 Q6602 2SD601A TRANSISTOR 1 Q6621,2 2 B1DFKM000001 TRANSISTOR 2 Q6641,4 2 B1DFKM000001 TRANSISTOR 2 Q6644,4 5 B1DFKM000001 TRANSISTOR 2 Q6647,4 8 B1DFKM000001 TRANSISTOR 2 Q6661 B1DEET000002 TRANSISTOR 1 Q6662 2SD601A TRANSISTOR 1 Q6663 2SD2185 TRANSISTOR 1 Q6671,7 2 B1DFET000001 TRANSISTOR 2 Q6680 B1ADNF000006 TRANSISTOR 1 Q6681,8 2 2SK389500L FET 2 Q6691 2SK620 FET 1 Q6742,4 3 2SD601A TRANSISTOR 2 Q6744 2SK620 FET 1 Q6762 B1ADNF000006 TRANSISTOR 1 Q6781 B1ABNF000006 TRANSISTOR 1 Q6782 B1ADNF000006 TRANSISTOR 1 Q6791 2SD601A TRANSISTOR 1 Q6801 B1BAEJ000014 TRANSISTOR 1 Q6802 2SB0709A TRANSISTOR 1 Q6803 2SD814A TRANSISTOR 1 Q6804 2SD601A TRANSISTOR 1 Q6821 2SD1263A TRANSISTOR 1 Ref. No. Part No. Part Name & Description Pcs Remarks Q6822 2SC3063 TRANSISTOR 1 Q6824 2SD601A TRANSISTOR 1 Q6841 2SD1263A TRANSISTOR 1 Q6842 2SC1473A TRANSISTOR 1 Q8101 2SA207700L TRANSISTOR 1 TH-42PX60B Q8401,0 2 2SD601A TRANSISTOR 2 TH-42PX60B Q9010 2SD601A TRANSISTOR 1 Q9044 2SD601A TRANSISTOR 1 Q9046 2SD601A TRANSISTOR 1 Q9049 2SB709A TRANSISTOR 1 Q9050- 54 2SD601A TRANSISTOR 5 Q9055- 58 B1CBHD000002 FET 4 Q9300- 02 2SD601A TRANSISTOR 3 Q9800,0 1 B1MBEDA00015 TRANSISTOR 2 Q9803 B1MBEDA00015 TRANSISTOR 1 Q9805,0 6 2SD601A TRANSISTOR 2 R002 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R005 ERJ3EKF5600 M 560 OHM, 1/16W 1 R008,09 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R010 ERJ3EKF4700 M 470 OHM, 1/16W 1 R011 ERJ6GEYJ271 M 270 OHM,J,1/10W 1 R012,13 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R014 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R1101 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1102,0 3 ERJ2GEJ102 M 1KOHM, J,0.063W 2 R1105,0 6 ERJ2GEJ102 M 1KOHM, J,0.063W 2 R1108- 12 ERJ2GEJ101 M 100 OHM, J,0.063W 5 R1113 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R1114 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1116 ERJ2GEJ562 M 5.6KOHM,J,0.063W 1 R1117 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1118,1 9 EXB2HV680J RESISTOR ARRAY 2 R1121,2 2 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1123 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1124,2 5 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R1128 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-42PX60B R1129 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-42PV60E R1130 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1131,3 2 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1133,3 4 ERJ2GEJ102 M 1KOHM, J,0.063W 2 R1135 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1140,4 1 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R1145 ERJ2GEJ101 M 100 OHM, J,0.063W 1 TH-42PX60B R1146 ERJ2GEJ271 M 270 OHM, J,0.063W 1 R1147,4 8 D1HG5608A002 NETWORK RESISTER 2 R1149 EXB2HV680J RESISTOR ARRAY 1 R1150 ERJ2GEJ101 M 100 OHM, J,0.063W 1 TH-42PX60B R1151 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1153 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1154,5 5 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 200 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R1156 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1157 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1158 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1159 ERJ2GEJ123X M 12KOHM ,J,0.063W 1 R1160 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-42PV60E R1162 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-42PV60E R1164 ERJ2GEJ123X M 12KOHM ,J,0.063W 1 R1165 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R1166,6 7 ERJ2GEJ101 M 100 OHM, J,0.063W 2 TH-42PX60B R1168,6 9 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R1174 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1175 ERJ2GEJ563 M 56KOHM ,J,0.063W 1 R1176 ERJ2GEJ123X M 12KOHM ,J,0.063W 1 R1177- 79 ERJ2GEJ101 M 100 OHM, J,0.063W 3 R1181 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1182 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1183 EXB28V680JX RESISTOR ARRAY 1 R1184 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1187 EXB2HV680J RESISTOR ARRAY 1 R1188,8 9 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R1197 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1199 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1200 EXB2HV680J RESISTOR ARRAY 1 R1203 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1207 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1212 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1214 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1215- 17 ERJ2GEJ101 M 100 OHM, J,0.063W 3 R1218 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R1220 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R1221 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R1222 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R1223 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1224 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1225,2 6 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1228 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1229 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R1230 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1231 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1232,3 3 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R1234 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1235,3 6 ERJ2GEJ272 M 2.7KOHM, J,0.063W 2 R1238 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1239 ERJ3EKF1202 M 12KOHM, 1/16W 1 R1240 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1241 ERJ2GEJ822 M 8.2KOHM, J,0.063W 1 R1243 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1246 ERJ2GEJ912 M 9.1KOHM, J,0.063W 1 R1249 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1250 ERJ2GEJ224 M 220KOHM, J,0.063W 1 R1251,5 2 EXB2HV101J RESISTOR ARRAY 2 R1256 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1259 ERJ2GEJ101 M 100 OHM, J,0.063W 1 TH-42PX60B R1263,6 4 ERJ2GEJ101 M 100 OHM, J,0.063W 2 Ref. No. Part No. Part Name & Description Pcs Remarks R1269 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1270,7 1 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1275 ERJ3EKF7151 M7.15KOHM, 1/16W 1 R1279,8 0 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1281 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1282 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R1283 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1284 ERJ2GEJ682 M 6.8KOHM, J,0.063W 1 R1290 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1292,9 3 ERJ2GEJ104 M 100KOHM, J,0.063W 2 TH-42PX60B R1296,9 7 ERJ2GEJ473 M 47KOHM,J,0.063W 2 TH-42PX60B R1298- 02 ERJ2GE0R00 M 0.0 OHM, J,0.063W 5 TH-42PV60E R1303- 06 ERJ2GEJ220 M 22 OHM, J,0.063W 4 TH-42PX60B R1307 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1308 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1309- 12 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R1313,1 4 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R1315 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1316 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1318,1 9 ERJ2GEJ512X M5.12KOHM, J,0.063W 2 R1321 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R1322 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R1323,2 4 ERJ2GEJ823 M 82KOHM, J,0.063W 2 R1325,2 6 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R1327,2 8 ERJ2GEJ683 M 68KOHM, J,0.063W 2 R1329,3 0 ERJ2GEJ473 M 47KOHM,J,0.063W 2 R1331,3 2 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R1333 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1334 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1335 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1336 ERJ2GEJ225 M 1MOHM, J,0.063W 1 R1337 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1340 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-42PV60E R1341 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1344 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1346 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1350,5 1 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1352 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1353 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R1354 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1355 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1358 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1359 ERJ2GEJ224 M 220KOHM, J,0.063W 1 R1360 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R1361 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1363 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1364 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 201 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R1365 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1367 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1368 ERJ2GEJ183 M 18KOHM ,J,0.063W 1 R1369 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1370 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1372 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1373 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1375 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1376 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1377 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R1378 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R1379 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R1380 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1381 ERJ2GEJ474 M 470KOHM, J,0.063W 1 R1384 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1389 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1408 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1410 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1411 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1412,1 3 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R1414 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1426- 32 ERJ8GEY0R00 M 0 OHM, 1/8W 7 R1436,3 7 ERJ2GEJ561 M 60 OHM, J,0.063W 2 R1439 ERJ2GEJ271 M 270 OHM, J,0.063W 1 R1441 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1446,4 7 ERJ2GEJ471 M 470 OHM, J,0.063W 2 R1448,4 9 ERJ2GEJ473 M 47KOHM,J,0.063W 2 R1451 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1452 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-42PV60E R1454 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1458,5 9 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1461,6 2 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R1466 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1467 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1470 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1472,7 3 ERJ2GEJ301 M 300 OHM, J,0.063W 2 R1474 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R1475 ERJ2GEJ271 M 270 OHM, J,0.063W 1 R1478 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R1479 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1480 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-42PV60E R1489 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1490 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PV60E R1491 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B R1526 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1530,3 1 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R1554,5 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R1556 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R2005 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R2006- 11 ERJ6GEYJ223 M 22KOHM,J,1/10W 6 R2012 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2013,1 4 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R2015,1 6 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2018,1 9 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2023 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2027,2 8 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2031 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2033 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2035,3 6 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2038 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2040 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2042 ERJ3GEYJ105 M 1MOHM,J,1/16W 1 R2043 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2044 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2045,4 6 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R2048 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2049,5 0 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R2051,5 2 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R2053 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2054 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2101,0 2 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2103 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2113,1 4 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2116 J0JCC0000241 CHIP INDUCTOR 1 R2124,2 5 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R2126,2 7 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R2128,2 9 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R2130 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2131 ERJ3EKF8201 M 8.2KOHM, 1/16W 1 R2132 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R2133 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2135,3 6 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2137 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R2138 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2147 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2148,4 9 ERJ3EKF6342 M6.34KOHM, 1/16W 2 R2152 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2153 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2154 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2155,5 6 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2158 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2160 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2161 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R2162 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2163 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R2164 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2165,6 6 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R2167 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2168,6 9 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R2170- 77 ERJ3GEYJ221 M 220 OHM,J,1/16W 8 R2181 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2182,8 3 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R2184- 87 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R2188 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 202 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R2190 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2192,9 3 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2195,9 6 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2197 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2199,0 0 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2202 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2203 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R2204 ERJ6GEYJ561 M 560 OHM,J,1/10W 1 R2208 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2209 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2210 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 R2211 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2213 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2214 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2215 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2219 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R2220 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R2224,2 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2227 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2230,3 1 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2232,3 3 ERJ3GEYJ153 M 15KOHM,J,1/16W 2 R2234,3 5 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R2236 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2237 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2238,3 9 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2246 ERJ3EKF3602 M 36KOHM, 1/16W 1 R2302 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2303 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R2304 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2305 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2306 ERJ6GEYJ821 M 820 OHM,J,1/10W 1 R2307 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2310 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (PA) R2310 ERJ3GEYJ184 M 180KOHM,J,1/16W 1 (H) R2311 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (PA) R2311 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 (H) R2312 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2323,2 4 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2325 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2329 ERJ3EKF1003 M 100KOHM, 1/16W 1 R2332 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2338 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2341 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2349 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2354 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2357 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2359 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2360 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2361 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R2363 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2364 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2365 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2366 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2368 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2369 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R2372,7 3 ERJ6GEYJ681 M 680 OHM,J,1/10W 2 R2375 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2376 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2379,8 0 ERJ6ENF2201 M 2.2KOHM, 1/10W 2 R2383 ERJ3EKF3301 M 3.3KOHM, 1/16W 1 R2384 ERJ3EKF1151 M1.15KOHM, 1/16W 1 R2387 ERJ3EKF1151 M1.15KOHM, 1/16W 1 R2388 ERJ3EKF3301 M 3.3KOHM, 1/16W 1 (PA) Ref. No. Part No. Part Name & Description Pcs Remarks R2388,8 9 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 (H) R2390 ERJ3GEYJ203 M 20KOHM,J,1/16W 1 R2391 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2392 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2393 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2396 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2397 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 (H) R2397 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (PA) R2398 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 (H) R2398 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (PA) R2399 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2400 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R2401,0 2 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2403 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2404,0 5 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2406 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2407 ERJ3EKF1241 M1.24KOHM, 1/16W 1 R2408 ERJ3EKF1071 M1.07KOHM, 1/16W 1 R2409 ERJ3EKF1621 M1.62KOHM, 1/16W 1 R2410 ERJ3EKF7870 M 787 OHM, 1/16W 1 R2421 ERJ3EKF1621 M1.62KOHM, 1/16W 1 R2422 ERJ3EKF7870 M 787 OHM, 1/16W 1 R2512 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R2516 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2517 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R2520 ERJ3GEYJ224 M 220KOHM,J,1/16W 1 R2521 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R2524 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2539 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 TH-42PX60B R2540 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 TH-42PX60B R2542 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2554 ERJ6ENF75R0 M 75 OHM, 1/10W 1 TH-42PX60B R2557 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R2559 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2560 ERJ3EKF5760 M 576 OHM, 1/16W 1 R2567 ERJ6GEY0R00 M 0 OHM, 1/10W 1 TH-42PX60B R2572 ERJ6GEY0R00 M 0 OHM, 1/10W 1 TH-42PX60B R3001,0 2 ERJ6ENF1500 M 150 OHM, 1/10W 2 R3003- 05 ERJ6ENF75R0 M 75 OHM, 1/10W 3 R3006- 08 ERJ6ENF1500 M 150 OHM, 1/10W 3 R3009- 15 ERJ6ENF75R0 M 75 OHM, 1/10W 7 R3016,1 7 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3018,1 9 ERJ6GEYJ680 M 68 OHM,J,1/10W 2 R3020- 22 ERJ6ENF2202 M 2.2KOHM, 1/10W 3 R3023,2 4 ERJ6ENF1202 M 12KOHM, 1/10W 2 R3025 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3026 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3027,2 8 ERJ6ENF1500 M 150 OHM, 1/10W 2 R3030- 32 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R3033,3 4 ERJ6ENF1500 M 150 OHM, 1/10W 2 R3036 ERJ6ENF1500 M 150 OHM, 1/10W 1 R3041,4 2 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 2 R3043 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3044,4 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3048 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R3049 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3050 ERJ3GEYJ242 M 2.4KOHM,J,1/16W 1 R3051 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R3052 ERJ3GEY0R00 M 0 OHM, 1/16W 1 203 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R3057,5 8 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3059- 64 ERJ3GEYJ221 M 220 OHM,J,1/16W 6 R3068 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3070 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3072- 75 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R3076 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3077 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3078 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3086- 88 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R3089,9 0 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3092 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3094- 01 ERJ3GEYJ221 M 220 OHM,J,1/16W 8 R3102 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R3103 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R3105 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R3107 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3109 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3111- 14 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R3115 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3118 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3121 ERJ3EKF1300V M 130 OHM, 1/16W 1 R3122 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3123 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3125 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3126 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3127 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3130,3 1 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R3132,3 3 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3134 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3136 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3138 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3139 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3140 ERJ3EKF1300V M 130 OHM, 1/16W 1 R3141 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3143 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3144 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3145 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3146 ERJ3GEYJ361 M 360 OHM,J,1/16W 1 R3149 ERJ3GEYJ361 M 360 OHM,J,1/16W 1 R3150 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3151 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3152 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3153,5 4 ERJ3GEYJ361 M 360 OHM,J,1/16W 2 R3155 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3156 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3157 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3158,5 9 ERJ3GEYJ361 M 360 OHM,J,1/16W 2 R3160,6 1 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R3163 ERJ6ENF1202 M 12KOHM, 1/10W 1 R3206 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3213,1 4 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3215 J0JCC0000241 CHIP INDUCTOR 1 R3222 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3224 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3227- 29 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R3233,3 4 ERJ6ENF75R0 M 75 OHM, 1/10W 2 R3238 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3239 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R3245- 48 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R3249 J0JCC0000241 CHIP INDUCTOR 1 Ref. No. Part No. Part Name & Description Pcs Remarks R3250,5 1 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R3302 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3305 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3306,0 7 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R3308,0 9 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R3310 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3312 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3313 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3317 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3318 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3320 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3323,2 4 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R3330 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3336 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3337 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R3338 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3339 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3340 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3341 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3342 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R3343 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3344 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3345 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R3346 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3347 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3348,4 9 ERJ3GEYJ680 M 68 OHM,J,1/16W 2 R3350- 52 ERJ3GEYJ510 M 51 OHM,J,1/16W 3 R3704 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3709- 11 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R3716,1 7 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3721 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R3732 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3733 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3736- 41 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R3746 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3748 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3750 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3751 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R3753 ERJ6ENF1741 M1.74KOHM, 1/10W 1 R3754 ERJ6ENF1621 M1.62KOHM, 1/10W 1 R3755 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3757 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3758 ERJ6ENF6651 M6.65KOHM, 1/10W 1 R3759- 64 ERJ6GEY0R00 M 0 OHM, 1/10W 6 R3765 ERJ6ENF2321 M2.32KOHM, 1/10W 1 R3767 ERJ6ENF3161 M3.16KOHM, 1/10W 1 R3768 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R4001 ERJ3EKF1211 M1.21KOHM, 1/16W 1 R4004 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4008 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4010 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4018 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-42PV60E R4019 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4021 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4022 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R4024,2 5 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4026,2 7 ERJ2GEJ102 M 1KOHM, J,0.063W 2 R4029 ERJ2GEJ220 M 22 OHM, J,0.063W 1 204 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R4031- 33 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R4037- 39 D1HG1038A002 NETWORK RESISTER 3 R4040,4 1 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4045,4 6 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4101 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4257 ERJ3EKF3302 M 33KOHM, 1/16W 1 R4265 ERJ3EKF3242 M32.4KOHM, 1/16W 1 R4269 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4271,7 2 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4286,8 7 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4293 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4338- 43 ERJ2GE0R00 M 0.0 OHM, J,0.063W 6 R4457 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4465 ERJ2GEJ224 M 220KOHM, J,0.063W 1 R4469,7 0 ERJ3EKF1500 M 150 OHM, 1/16W 2 R4472 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B R4474 ERJ3EKF1211 M1.21KOHM, 1/16W 1 R4479,8 0 ERJ3EKF4220 M 422 OHM, 1/10W 2 R4481 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R4482,8 3 ERJ3EKF1781 M1.78KOHM, 1/16W 2 R4486 ERJ3EKF4870 M 487 OHM, 1/16W 1 R4487 ERJ3EKF5600 M 560 OHM, 1/16W 1 R4488 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R4490 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4492 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4495 ERJ3EKF4302 M 43KOHM, 1/16W 1 R4496- 99 ERJ6GEYJ102 M 1KOHM,J,1/10W 4 R4500 ERJ3EKF2702V M27.0KOHM, 1/16W 1 R4501,0 2 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R4503 ERJ3EKF1600 M 160 OHM, 1/16W 1 R4505 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4506 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4508 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4510 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4517 ERJ3EKF1371 M 13.7 OHM, 1/16W 1 R4520 ERJ3EKF1691 M1.69KOHM, 1/16W 1 R4521,2 2 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4527 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4533 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4534,3 5 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R4544 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4550 EXB28V220J RESISTOR ARRAY 1 R4552 EXB28V220J RESISTOR ARRAY 1 R4554 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4555 EXB28V220J RESISTOR ARRAY 1 R4560,6 1 EXB28V220J RESISTOR ARRAY 2 R4563- 65 ERJ2GEJ220 M 22 OHM, J,0.063W 3 R4568 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4572 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4575 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4577- 79 ERJ2GEJ222 M 2.2KOHM, J,0.063W 3 Ref. No. Part No. Part Name & Description Pcs Remarks R4583,8 4 ERJ2GEJ390 M 39 OHM, J,0.063W 2 R4589- 04 ERJ2GEJ2R7X M 2.7OHM, J,0.063W 16 R4605,0 6 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4607 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4609,1 0 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4612,1 3 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4617,1 8 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4619 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R4620 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4621 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R4622 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4624 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4626 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4628 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4629- 32 ERJ2GEJ472 M 4.7KOHM, J,0.063W 4 R4633,3 4 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4636 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4637 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R4639 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4640 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4641 EXB28V330J RESISTOR ARRAY 1 R4642- 45 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R4647 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4648 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R4655 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R4657 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R4658 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4660 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4661 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4662 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4665 EXB2HV220JV RESISTOR ARRAY 1 R4667 EXB2HV220JV RESISTOR ARRAY 1 R4668 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4669 EXB2HV220JV RESISTOR ARRAY 1 R4672,7 3 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4675 ERJ3EKF1802 M 18KOHM, 1/16W 1 R4677 ERJ3EKF1802 M 18KOHM, 1/16W 1 R4679,8 0 ERJ3EKF2202 M 22KOHM, 1/16W 2 R4681,8 2 ERJ3EKF3302 M 33KOHM, 1/16W 2 R4701 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4706 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4708,0 9 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4710 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4711 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4712 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4713,1 4 EXB2HV221JV RESISTOR ARRAY 2 R4715 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4718- 20 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4727 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4729,3 0 ERJ3EKF1000 M 100 OHM, 1/16W 2 R4731 ERJ3EKF1001 M 1KOHM, 1/16W 1 R4732 ERJ3EKF4751 M4.75KOHM, 1/16W 1 R4733 ERJ3EKF75R0 M 0.75HM, 1/16W 1 R4734 ERJ2GEJ223 M 22KOHM, J,0.063W 1 205 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R4735 ERJ3EKF2001 M 2KOHM, 1/16W 1 R4737 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4738,3 9 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R4743- 47 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R4749,5 0 EXB2HV680J RESISTOR ARRAY 2 R4751- 54 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R4756- 60 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R4762 EXB2HV680J RESISTOR ARRAY 1 R4763- 65 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 R4772 EXB2HV470JV RESISTOR ARRAY 1 R4773 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4774 EXB2HV470JV RESISTOR ARRAY 1 R4775 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4776 EXB2HV470JV RESISTOR ARRAY 1 R4777 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4778 EXB2HV470JV RESISTOR ARRAY 1 R4779 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4782 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4783 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4784 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4785 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4788 EXB2HV470JV RESISTOR ARRAY 1 R4791,9 2 ERJ2GEJ470 M 47 OHM, J,0.063W 2 R4793,9 4 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4796 EXB2HV470JV RESISTOR ARRAY 1 R4804 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4805,0 6 ERJ3EKF1001 M 1KOHM, 1/16W 2 R4807- 11 ERJ2GE0R00 M 0.0 OHM, J,0.063W 5 R4814 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4816,1 7 ERJ2GEJ223 M 22KOHM, J,0.063W 2 R4819 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R4822 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4823- 25 J0JAD0000025 CHIP INDUCTOR 3 R4826,2 7 EXB2HVR000 RESISTOR ARRAY 2 TH-42PX60B R4830,3 1 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 TH-42PX60B R4837 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4838 ERJ2GEJ112 M 1.1KOHM, J,0.063W 1 R4840 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B R4891 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4898 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4960 EXB2HV680J RESISTOR ARRAY 1 R4961- 63 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4964 EXB2HV680J RESISTOR ARRAY 1 R4965,6 6 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4967 EXB2HV680J RESISTOR ARRAY 1 R4968- 72 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R5601 ERJ3EKF1800 M 180 OHM, 1/16W 1 R5603 ERJ3EKF1542 M15.4KOHM, 1/16W 1 R5605 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5606 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5607 ERJ3EKF4531 M4.53KOHM, 1/16W 1 R5609 ERJ3EKF2000 M 200 OHM, 1/16W 1 R5611 ERJ6ENF8202 M 82KOHM, 1/10W 1 R5612 ERJ6ENF1602 M 16KOHM, 1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R5615 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5617 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5619 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R5620 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5621 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5625- 27 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R5632 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R5633 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5634 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R5635 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5637,3 8 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R5639 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5640 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5641 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5642 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R5643 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5644 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5645 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R5646 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R5647 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5648 ERJ3GEYJ392 M 3.9KOHM,J,1/16W 1 R5649 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R5650 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5652 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5653,5 4 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R5659 ERJ3EKF4700 M 470 OHM, 1/16W 1 R5660 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5662 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5664 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5665 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R5667- 69 ERJ3GEYJ473 M 47KOHM,J,1/16W 3 R5672 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5676 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5692 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5693 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R5694 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R5695 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5801 ERJ3EKF8450 M 845 OHM, 1/16W 1 R5802 ERJ3EKF1302 M 23KOHM, 1/16W 1 R5803 ERJ3EKF2001 M 2KOHM, 1/16W 1 R5804 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5805- 08 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 4 R5809 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5822- 24 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 R5826 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R5836 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R6001- 06 ERJ14YJ150U M 15 OHM, J,1/4W 6 R6020 ERG3FJS101D M 100 OHM, J, 3W 1 R6021 ERJ14YJ150U M 15 OHM, J,1/4W 1 R6022 ERG3FJS101D M 100 OHM, J, 3W 1 R6023- 27 ERJ14YJ150U M 15 OHM, J,1/4W 5 R6031,3 2 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6033 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6034 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6041- 44 ERJ14YJ100 M 10 OHM, J,1/4W 4 R6051- 54 ERJ14YJ100 M 10 OHM, J,1/4W 4 R6061,6 2 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6101- 08 ERJ6GEYJ101 M 100 OHM,J,1/10W 8 R6109 D0GD100JA036 M 10 OHM,J,0.25W 1 R6110 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6111,1 2 D0GD470JA036 M 47 OHM,J,0.25W 2 R6113 ERJ14YJ224 M 220KOHM, J,1/4W 1 206 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R6114 D0GD470JA036 M 47 OHM,J,0.25W 1 R6116 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6131,3 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6133,3 4 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6135,3 6 D0GD100JA036 M 10 OHM,J,0.25W 2 R6141,4 2 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6146,4 7 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6151,5 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6153,5 4 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6155,5 6 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R6157- 60 D0GF1R0JA047 M 1.0 OHM,J, 0.33W 4 R6171 D0GD100JA036 M 10 OHM,J,0.25W 1 R6172,7 3 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6181 D0GD100JA036 M 10 OHM,J,0.25W 1 R6182,8 3 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6191- 94 ERJ6GEYJ101 M 100 OHM,J,1/10W 4 R6195 D0GD104JA036 M 100KOHM,J,0.25W 1 R6196 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6213 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6214 D0GD151JA036 M 150 OHM,J,0.25W 1 R6222 ERG1FJS103D M 10KOHM, J, 1W 1 R6223 ERG2FJS123D M 12KOHM, J, 2W 1 R6225 D0GD203JA036 M 20KOHM,J,0.25W 1 PAVCCZ R6226,2 7 ERJ6GEYJ163 M 16KOHM,J,1/10W 2 R6228 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R6229 ERJ6GEYJ163 M 16KOHM,J,1/10W 1 R6231 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6232 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6241 EXB38V470J RESISTOR ARRAY 1 R6242 EXB38V472J RESISTOR ARRAY 1 R6243 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6244 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6245 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6246 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6251 D0GD103JA036 M 10KOHM,J,0.25W 1 R6252,5 3 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6254 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R6255 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6256 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R6257 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6258 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6261 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6401- 06 ERJ14YJ150U M 15 OHM, J,1/4W 6 R6421- 26 ERJ14YJ150U M 15 OHM, J,1/4W 6 R6441- 44 ERJ14YJ100 M 10 OHM, J,1/4W 4 R6451- 54 ERJ14YJ100 M 10 OHM, J,1/4W 4 R6465 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6466 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6467,6 8 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6471 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6472 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6473 ERJ6GEYJ561 M 560 OHM,J,1/10W 1 R6474 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6475,7 6 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R6477 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6478 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6479 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R6501,0 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6503 D0GD100JA036 M 10 OHM,J,0.25W 1 R6504,0 5 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6506 D0GD100JA036 M 10 OHM,J,0.25W 1 R6507- 09 D0GF1R0JA047 M 1.0 OHM,J, 0.33W 3 R6511,1 2 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6516,1 7 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6521,2 2 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6523,2 4 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6525,2 6 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R6531 D0GD100JA036 M 10 OHM,J,0.25W 1 R6532,3 3 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6551 D0GD100JA036 M 10 OHM,J,0.25W 1 R6552,5 3 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6561- 64 EXB38V470J RESISTOR ARRAY 4 R6565- 68 EXB38V472J RESISTOR ARRAY 4 R6581 D0GD103JA036 M 10KOHM,J,0.25W 1 R6582,8 3 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6584 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6585 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6586 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R6587 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6588 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6590 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6591 EXB38V472J RESISTOR ARRAY 1 R6592 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6603 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6604 D0GD151JA036 M 150 OHM,J,0.25W 1 R6605 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6606 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6607 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R6608,0 9 D0GF102JA047 M 1.0 KOHM,J,0.33W 2 R6610 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6611 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R6612 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6613 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R6614,1 5 D0GF243JA047 M 24 KOHM,J,0.33W 2 R6616 ERJ6ENF1502 M 15KOHM, 1/10W 1 R6617 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R6618 ERJ6ENF1202 M 12KOHM, 1/10W 1 R6619 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R6620 D0D28R2JA021 M 8.2 OHM,J,5W 1 R6621,2 2 ERJ6GEYJ221 M 220 OHM,J,1/10W 2 R6641,4 2 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6644,4 5 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6647,4 8 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6658 D0D1101JA009 M 100 OHM,J,1W 1 R6659,6 0 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6661 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6662 ERJ6ENF3001 M 3KOHM, 1/10W 1 R6663 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6664 D0GF222JA047 M 2.2 KOHM,J,0.33W 1 R6665 ERJ14YJ470 M 47 OHM,J, 1/2W 1 R6666 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6667,6 8 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R6671 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 207 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R6672 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6673,7 4 D0GD5R6JA059 M 5.6 OHM,J,0.25W 2 R6682 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6683 D0GD151JA036 M 150 OHM,J,0.25W 1 R6684 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6685 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6686 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6687 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6688 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6689 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6690 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6691 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6696,9 7 D0D32R2JA020 M 2.2 OHM,J,5W 2 R6700- 08 ERJ6GEYJ471 M 470 OHM,J,1/10W 9 R6710- 18 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 9 R6721,2 2 EXB38V220J RESISTOR ARRAY 2 R6723 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6724 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6742 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6743 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6744 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6745 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6746,4 7 D0GD103JA036 M 10KOHM,J,0.25W 2 R6755 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6756- 58 D0GD101JA059 M 100 OHM,J,0.25W 3 R6759 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6760 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 R6761 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6762 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6775,7 6 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6777 D0GD151JA036 M 150 OHM,J,0.25W 1 R6781 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6782 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6791 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6792 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6793 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6801,0 2 ERX1FJSR22D M0.22 OHM, J, 1W 2 R6806 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6807 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6808 ERG3FJS560D M 56 OHM, J, 3W 1 R6809 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6810,1 1 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R6812 ERJ6ENF2403 M 240KOHM, 1/10W 1 R6813 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6814 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R6815 ERG2FJS183D M 18KOHM, J, 2W 1 R6816 ERJ6ENF1582 M15.8KOHM, 1/10W 1 R6817 ERJ6ENF2701 M 2.7KOHM, 1/10W 1 R6821 ERG2FJS221D M 220 OHM, J, 2W 1 R6822 ERJ12YJ104U M 100KOHM, 1/2W 1 R6823 ERG1FJS104D M 100KOHM, J, 1W 1 R6824 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R6825,2 6 ERJ6ENF2703 M 270KOHM, 1/10W 2 R6827 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6828 ERJ6ENF5231 M5.23KOHM, 1/10W 1 R6829,3 0 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6831 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R6833- 35 ERJ6ENF5602 M 56KOHM, 1/10W 3 R6836 ERJ6ENF6802 M 68KOHM, 1/10W 1 R6837 ERJ6ENF4702 M 47KOHM, 1/10W 1 R6839 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6841 ERJ12YJ153U M 15KOHM, 1/2W 1 R6842 ERJ14YJ433U M 43KOHM, 1/2W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R6843 ERJ6GEYJ623 M 62KOHM,J,1/10W 1 R6844 ERG2FJS101D M 100 OHM, J, 2W 1 R6845 ERJ6GEYJ623 M 62KOHM,J,1/10W 1 R6846,4 7 ERJ6GEYJ563 M 56KOHM,J,1/10W 2 R6848 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6849,5 0 ERJ6ENF6802 M 68KOHM, 1/10W 2 R6851 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6852 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6853 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6860 D0D28R2JA021 M 8.2 OHM,J,5W 1 R6861 ERJ6ENF3902 M 39KOHM, 1/10W 1 R6862,6 3 ERJ6ENF4702 M 47KOHM, 1/10W 2 R6864 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R6865,6 6 ERJ6ENF2201 M 2.2KOHM, 1/10W 2 R6867 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6868 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6869 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6871- 73 ERJ6ENF3902 M 39KOHM, 1/10W 3 R6874 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R6875 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R6876 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6877 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6878 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6879 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6886- 88 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6901 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6902- 04 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R6905 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6909 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6913 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6917 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6924 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6931- 34 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6935,3 6 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R6951 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6952- 54 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R6955 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6959 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6963 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6967 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6971 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6981- 84 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6985,8 6 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R7112 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7113,1 4 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7115 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R7116 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R7118,1 9 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7120 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7122- 25 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7126 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7127,2 8 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7132- 37 EXB38V470J RESISTOR ARRAY 6 R7139,4 0 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7142- 45 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7146 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7149 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 208 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R7151- 54 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7155 EXB38V102J RESISTOR ARRAY 1 R7156 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7158,5 9 EXB38V470J RESISTOR ARRAY 2 R7162- 67 EXB38V102J RESISTOR ARRAY 6 R7169 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7171- 74 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7175 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7177 EXB38V102J RESISTOR ARRAY 1 R7179,8 0 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7186,8 7 EXB38V470J RESISTOR ARRAY 2 R7201- 07 EXB38V470J RESISTOR ARRAY 7 R7208- 10 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R7212- 15 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7216 EXB38V470J RESISTOR ARRAY 1 R7217 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7219 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7221 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7223- 26 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7227 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7229 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7231 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7232- 35 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7236 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7237- 42 EXB38V102J RESISTOR ARRAY 6 R7245 EXB38V102J RESISTOR ARRAY 1 R7246- 49 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R7250,5 1 EXB38V470J RESISTOR ARRAY 2 R7256,5 7 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7258 EXB38V102J RESISTOR ARRAY 1 R7260 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7262- 65 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7266 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7269 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7270 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R7271 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R8001 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-42PX60B R8002 ERJ2GEJ272 M 2.7KOHM, J,0.063W 1 TH-42PX60B R8003,0 4 ERJ2GEJ181 M 180 OHM, J,0.063W 2 TH-42PX60B R8006 ERJ8GEY0R00 M 0 OHM, 1/8W 1 TH-42PX60B R8008 ERJ2GEJ102 M 1KOHM, J,0.063W 1 TH-42PX60B R8010- 12 ERJ2GEJ103 M 10KOHM, J,0.063W 3 TH-42PX60B R8014,1 5 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-42PX60B R8017,1 8 ERJ3GEY0R00 M 0 OHM, 1/16W 2 TH-42PX60B R8021,2 2 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-42PX60B R8027 D1HG5608A002 NETWORK RESISTER 1 TH-42PX60B R8028- 30 ERJ2GEJ560 M 56 OHM, J,0.063W 3 TH-42PX60B R8033 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 TH-42PX60B R8034,3 5 ERJ3GEY0R00 M 0 OHM, 1/16W 2 TH-42PX60B R8036 ERJ3GEYJ163 M 16KOHM,J,1/16W 1 TH-42PX60B R8038 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-42PX60B R8039,4 0 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R8041 ERJ2GEJ154 M 150KOHM, J,0.063W 1 TH-42PX60B R8046 ERJ2GEJ330 M 33 OHM, J,0.063W 1 TH-42PX60B R8047- 50 ERJ2GEJ101 M 100 OHM, J,0.063W 4 TH-42PX60B R8051 EXB38V330J RESISTOR ARRAY 1 TH-42PX60B R8052- 55 ERJ2GEJ103 M 10KOHM, J,0.063W 4 TH-42PX60B R8056 ERJ2GEJ330 M 33 OHM, J,0.063W 1 TH-42PX60B R8057 ERJ2GEJ680 M 68 OHM, J,0.063W 1 TH-42PX60B R8058 EXB38V330J RESISTOR ARRAY 1 TH-42PX60B R8059 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-42PX60B R8073 ERJ2GEJ105 M 1MOHM, J,0.063W 1 TH-42PX60B R8074,7 5 ERJ2GEJ181 M 180 OHM, J,0.063W 2 TH-42PX60B R8076 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-42PX60B R8078 ERJ2GEJ562 M 5.6KOHM,J,0.063W 1 TH-42PX60B R8079 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-42PX60B R8084,8 5 D1HG1218A002 NETWORK RESISTER 2 TH-42PX60B R8086- 88 ERJ2GEJ560 M 56 OHM, J,0.063W 3 TH-42PX60B R8101 ERJ3GEYF181 M 180 OHM,J,1/16W 1 TH-42PX60B PAVCCZ R8104 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-42PX60B R8106,0 7 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-42PX60B R8108 ERJ3EKF1002 M 10KOHM, 1/16W 1 TH-42PX60B R8109 ERJ3EKF2202 M 22KOHM, 1/16W 1 TH-42PX60B R8110 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 TH-42PX60B R8111 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B R8112,1 3 ERJ3GEY0R00 M 0 OHM, 1/16W 2 TH-42PX60B R8115 ERJ3GEYF272 M 2.7KOHM, 1/16W 1 TH-42PX60B R8117 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 TH-42PX60B R8123 ERJ3GEY0R00 M 0 OHM, 1/16W 1 TH-42PX60B R8124 ERJ2GEJ471 M 470 OHM, J,0.063W 1 TH-42PX60B R8127 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B R8132,3 3 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-42PX60B R8136 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-42PX60B R8137 ERJ2GEJ121 M 120 OHM, J,0.063W 1 TH-42PX60B R8140,4 1 ERJ3EKF1001 M 1KOHM, 1/16W 2 TH-42PX60B R8144,4 5 D1HG5608A002 NETWORK RESISTER 2 TH-42PX60B R8148,4 9 D1HG3908A002 NETWORK RESISTER 2 TH-42PX60B R8150- 59 ERJ2GEJ390 M 39 OHM, J,0.063W 10 TH-42PX60B R8161,6 2 ERJ2GEJ390 M 39 OHM, J,0.063W 2 TH-42PX60B R8163 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-42PX60B R8165 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-42PX60B R8167- 71 ERJ2GEJ103 M 10KOHM, J,0.063W 5 TH-42PX60B R8172 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-42PX60B R8173 EXB38V560J RESISTOR ARRAY 1 TH-42PX60B R8175,7 6 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-42PX60B R8183 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B R8184 ERJ2GEJ223 M 22KOHM, J,0.063W 1 TH-42PX60B R8187 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-42PX60B R8188 ERJ3GEY0R00 M 0 OHM, 1/16W 1 TH-42PX60B R8193 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-42PX60B R8195,9 6 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-42PX60B R8201- 04 ERJ2GEJ103 M 10KOHM, J,0.063W 4 TH-42PX60B R8215 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-42PX60B R8216,1 7 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-42PX60B 209 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R8218,1 9 D1HG33080001 NETWORK RESISTER 2 TH-42PX60B R8220- 22 D1HG5608A002 NETWORK RESISTER 3 TH-42PX60B R8223 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-42PX60B R8224,2 5 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-42PX60B R8226 ERJ2GEJ330 M 33 OHM, J,0.063W 1 TH-42PX60B R8232- 43 ERJ2GEJ330 M 33 OHM, J,0.063W 12 TH-42PX60B R8244 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-42PX60B R8245,4 6 ERJ2GEJ330 M 33 OHM, J,0.063W 2 TH-42PX60B R8250 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-42PX60B R8252- 54 ERJ2GEJ330 M 33 OHM, J,0.063W 3 TH-42PX60B R8255 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-42PX60B R8256 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 TH-42PX60B R8257 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-42PX60B R8259 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-42PX60B R8260- 63 ERJ2GEJ560 M 56 OHM, J,0.063W 4 TH-42PX60B R8264- 68 ERJ2GEJ103 M 10KOHM, J,0.063W 5 TH-42PX60B R8269 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-42PX60B R8271 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-42PX60B R8272 EXB38V560J RESISTOR ARRAY 1 TH-42PX60B R8273 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-42PX60B R8275 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-42PX60B R8277 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-42PX60B R8279 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B R8282 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-42PX60B R8284 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-42PX60B R8286,8 7 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-42PX60B R8290 EXB38V560J RESISTOR ARRAY 1 TH-42PX60B R8291,9 2 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-42PX60B R8310- 15 ERJ3EKF75R0 M 0.75HM, 1/16W 6 TH-42PX60B R8319 ERJ3EKF2702V M27.0KOHM, 1/16W 1 TH-42PX60B R8320 ERJ3EKF1002 M 10KOHM, 1/16W 1 TH-42PX60B R8321 ERJ3EKF8201 M 8.2KOHM, 1/16W 1 TH-42PX60B R8349 ERJ2GEJ104 M 100KOHM, J,0.063W 1 TH-42PX60B R8350 ERJ3EKF8201 M 8.2KOHM, 1/16W 1 TH-42PX60B R8351 ERJ3EKF1002 M 10KOHM, 1/16W 1 TH-42PX60B R8352 ERJ3EKF2702V M27.0KOHM, 1/16W 1 TH-42PX60B R8353 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 TH-42PX60B R8354 ERJ2GEJ272 M 2.7KOHM, J,0.063W 1 TH-42PX60B R8355,5 6 EXB2HV104JV RESISTOR ARRAY 2 TH-42PX60B R8357,5 8 ERJ2GEJ473 M 47KOHM,J,0.063W 2 TH-42PX60B R8366 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-42PX60B R8367,6 8 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-42PX60B R8372- 76 ERJ2GEJ560 M 56 OHM, J,0.063W 5 TH-42PX60B R8401 ERJ8GEY0R00 M 0 OHM, 1/8W 1 TH-42PX60B R8402 ERJ6GEY0R00 M 0 OHM, 1/10W 1 TH-42PX60B R8403 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B R8404,0 5 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-42PX60B R8406 ERJ8RSJR10 M 1 OHM, 1/8W 1 TH-42PX60B R8407 ERJ2GEJ333 M 33KOHM, J,0.063W 1 TH-42PX60B R8414 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B R8415,1 6 ERJ2GEJ223 M 22KOHM, J,0.063W 2 TH-42PX60B R8417,1 8 EXB38V473J RESISTOR ARRAY 2 TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R8419,2 0 EXB38V101J RESISTOR ARRAY 2 TH-42PX60B R8421 ERJ2GEJ223 M 22KOHM, J,0.063W 1 TH-42PX60B R8422 ERJ2GEJ104 M 100KOHM, J,0.063W 1 TH-42PX60B R8423 ERJ2GEJ821 M 820 OHM, J,0.063W 1 TH-42PX60B R8425,2 6 EXB38V101J RESISTOR ARRAY 2 TH-42PX60B R8427- 31 ERJ2GEJ560 M 56 OHM, J,0.063W 5 TH-42PX60B R8433,3 4 EXB38V560J RESISTOR ARRAY 2 TH-42PX60B R8443 EXB38V560J RESISTOR ARRAY 1 TH-42PX60B R8444 ERJ2GEJ101 M 100 OHM, J,0.063W 1 TH-42PX60B R8445,4 6 ERJ2GEJ151 M 150 OHM, J,0.063W 2 TH-42PX60B R8447 ERJ2GEJ223 M 22KOHM, J,0.063W 1 TH-42PX60B R8448 ERJ2GEJ473 M 47KOHM,J,0.063W 1 TH-42PX60B R8449,5 0 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-42PX60B R8451 EXB38V104J RESISTOR ARRAY 1 TH-42PX60B R8452 ERJ2GEJ104 M 100KOHM, J,0.063W 1 TH-42PX60B R8453 EXB38V104J RESISTOR ARRAY 1 TH-42PX60B R8454 ERJ2GEJ104 M 100KOHM, J,0.063W 1 TH-42PX60B R8456- 59 EXB38V560J RESISTOR ARRAY 4 TH-42PX60B R8460 ERJ2GEJ104 M 100KOHM, J,0.063W 1 TH-42PX60B R8461 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-42PX60B R8462,6 3 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 TH-42PX60B R8464 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-42PX60B R8465 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-42PX60B R8466 EXB38V560J RESISTOR ARRAY 1 TH-42PX60B R8467,6 8 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-42PX60B R8469 EXB38V151J RESISTOR ARRAY 1 TH-42PX60B R8474 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B R8475,7 6 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-42PX60B R8477,7 8 ERJ2GEJ560 M 56 OHM, J,0.063W 2 TH-42PX60B R8479 ERJ2GEJ203 M 20KOHM,J,0.063W 1 TH-42PX60B R8480- 82 ERJ2GEJ560 M 56 OHM, J,0.063W 3 TH-42PX60B R8483 ERJ2GEJ203 M 20KOHM,J,0.063W 1 TH-42PX60B R8484 ERJ2GEJ223 M 22KOHM, J,0.063W 1 TH-42PX60B R8485 ERJ2GEJ333 M 33KOHM, J,0.063W 1 TH-42PX60B R8486 ERJ2GEJ223 M 22KOHM, J,0.063W 1 TH-42PX60B R8487 ERJ2GEJ560 M 56 OHM, J,0.063W 1 TH-42PX60B R8488 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B R8489 ERJ2GEJ102 M 1KOHM, J,0.063W 1 TH-42PX60B R8491 ERJ3EKF9102 M91.0KOHM, 1/16W 1 TH-42PX60B R8492 ERJ3EKF1802 M 18KOHM, 1/16W 1 TH-42PX60B R8493 ERJ3EKF9102 M91.0KOHM, 1/16W 1 TH-42PX60B R8494 ERJ3EKF9101 M 9.1KOHM, 1/16W 1 TH-42PX60B R8495 EXB38V151J RESISTOR ARRAY 1 TH-42PX60B R8496 EXB38V560J RESISTOR ARRAY 1 TH-42PX60B R8497 ERJ3EKF3300 M 330 OHM, 1/16W 1 TH-42PX60B R8498 ERJ3EKF2200 M 220 OHM, 1/16W 1 TH-42PX60B R8499 ERJ3EKF2432 M24.3KOHM, 1/16W 1 TH-42PX60B R8500 ERJ3EKF1052 M10.5KOHM, 1/16W 1 TH-42PX60B R8501 ERJ3EKF5601 M 5.6KOHM, 1/16W 1 TH-42PX60B R8502 ERJ3EKF2402 M 24KOHM, 1/16W 1 TH-42PX60B R8503,0 4 ERJ2GEJ103 M 10KOHM, J,0.063W 2 TH-42PX60B R8505 ERJ2GEJ101 M 100 OHM, J,0.063W 1 TH-42PX60B R8538,3 9 ERJ2GEJ101 M 100 OHM, J,0.063W 2 TH-42PX60B R8546 ERJ2GEJ333 M 33KOHM, J,0.063W 1 TH-42PX60B 210 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R8547 ERJ2GEJ102 M 1KOHM, J,0.063W 1 TH-42PX60B R8601 ERJ3GEY0R00 M 0 OHM, 1/16W 1 TH-42PX60B R8602- 04 ERJ2GEJ101 M 100 OHM, J,0.063W 3 TH-42PX60B R8605,0 6 ERJ2GEJ104 M 100KOHM, J,0.063W 2 TH-42PX60B R8608 ERJ2GEJ105 M 1MOHM, J,0.063W 1 TH-42PX60B R8610 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 TH-42PX60B R8611 ERJ6GEY0R00 M 0 OHM, 1/10W 1 TH-42PX60B R8614 ERJ2GEJ221 M 220 OHM, J,0.063W 1 TH-42PX60B R8615 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B R8701- 08 ERJ2GEJ560 M 56 OHM, J,0.063W 8 TH-42PX60B R8729- 36 ERJ2GEJ103 M 10KOHM, J,0.063W 8 TH-42PX60B R8827,2 8 ERJ2GEJ392 M 3.9KOHM, J,0.063W 2 TH-42PX60B R8831,3 2 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 TH-42PX60B R8862- 64 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 TH-42PX60B R8899,0 0 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 TH-42PX60B R8912 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B R8927 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B R8930 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B R8931,3 2 ERJ2GEJ392 M 3.9KOHM, J,0.063W 2 TH-42PX60B R8933,3 4 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 TH-42PX60B R8936 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-42PX60B R8954 ERJ2GEJ103 M 10KOHM, J,0.063W 1 TH-42PX60B R8960 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 TH-42PX60B R8962- 64 ERJ2GEJ101 M 100 OHM, J,0.063W 3 TH-42PX60B R8967,6 8 EXB2HV473JV RESISTOR ARRAY 2 TH-42PX60B PAVCCZ R8969- 71 ERJ2GEJ473 M 47KOHM,J,0.063W 3 TH-42PX60B R9060- 67 ERJ3GEYJ101 M 100 OHM,J,1/16W 8 R9070 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9074 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9076 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9096 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9098 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9099 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9100,0 1 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9102 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9105 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9106 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9107 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9108,0 9 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9110 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9111 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9113 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9120 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9121 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9127 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9129 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9131- 33 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R9134 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R9140 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9141- 45 ERJ3GEYJ101 M 100 OHM,J,1/16W 5 R9148 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9149 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R9150,5 1 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9152,5 3 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9154,5 5 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9156- 59 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R9160,6 1 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9164- 66 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9167,6 8 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9169 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9170- 72 ERJ3GEYJ393 M 39KOHM,J,1/16W 3 R9173- 75 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9177 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9178 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9179 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9180 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9181- 84 ERJ3GEYJ102 M 1KOHM,J,1/16W 4 R9185,8 6 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9187,8 8 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9189,9 0 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9192 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9193 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9194 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9196 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9199 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9203 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9205 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9206,0 7 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R9215 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 R9217- 22 ERJ3GEYJ103 M 10KOHM,J,1/16W 6 R9223 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9225 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9230 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9232 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9236 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9237 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9240 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9317 ERJ3GEYJ391 M 390 OHM,J,1/16W 1 R9348 D1HG8208A002 NETWORK RESISTER 1 R9349 EXB38V820J RESISTOR ARRAY 1 R9350,5 1 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9352 EXB38V820J RESISTOR ARRAY 1 R9353,5 4 D1HG8208A002 NETWORK RESISTER 2 R9355,5 6 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9357- 59 D1HG8208A002 NETWORK RESISTER 3 R9360 EXB38V820J RESISTOR ARRAY 1 R9361,6 2 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9363 EXB2HV470JV RESISTOR ARRAY 1 R9366 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9367 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9368 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9369 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9370 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9371 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9379 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9380 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9382 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9390 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9391 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 211 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R9394 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9395 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9501 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9503 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9506 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9507 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9511- 13 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9514 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9516 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9518 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R9523 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9525 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9526 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9527,2 8 EXB2HV272JV RESISTOR ARRAY 2 R9529,3 0 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9531- 33 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9534 EXB38V470J RESISTOR ARRAY 1 R9535,3 6 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9537 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9539 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9543,4 4 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9545 ERJ3GEYJ304V M 300KOHM,J,1/16W 1 R9548- 50 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9552 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9555 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9800 ERJ3EKF1302 M 23KOHM, 1/16W 1 R9801 ERJ3EKF2402 M 24KOHM, 1/16W 1 R9802 ERJ3EKF6202 M 62KOHM, 1/16W 1 R9803 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9804 ERJ3EKF2402 M 24KOHM, 1/16W 1 R9805 ERJ3EKF3002 M 30KOHM, 1/16W 1 R9806 ERJ3EKF3902 M 39KOHM, 1/16W 1 R9807 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9808 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9810 ERJ3EKF3001 M 3KOHM, 1/16W 1 R9813 ERJ3EKF2401 M 2.4KOHM, 1/16W 1 R9814 ERJ3EKF6802 M 68KOHM, 1/16W 1 R9815 ERJ3EKF2202 M 22KOHM, 1/16W 1 R9816 ERJ3EKF8202 M 82KOHM, 1/16W 1 R9821 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9823- 27 ERJ3GEYJ101 M 100 OHM,J,1/16W 5 R9828 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9830,3 1 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9838,3 9 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9840 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9841 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9842- 44 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 R9845 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9846,4 7 EXB2HV272JV RESISTOR ARRAY 2 R9848,4 9 EXB2HV470JV RESISTOR ARRAY 2 R9850 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9854 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9859 EXB38V101J RESISTOR ARRAY 1 R9861- 63 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9868 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9869- 71 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9872 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9878 ERJ3EKF3902 M 39KOHM, 1/16W 1 R9879 ERJ3EKF2002 M 20KOHM, 1/16W 1 R9880 ERJ3EKF3602 M 36KOHM, 1/16W 1 R9883 ERJ3GEY0R00 M 0 OHM, 1/16W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R9884 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9891 ERJ3EKF4702 M 47KOHM, 1/16W 1 R9892 ERJ3EKF1502 M 15KOHM, 1/16W 1 R9893 ERJ3EKF3602 M 36KOHM, 1/16W 1 R9896 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9897 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9903 EXB2HV470JV RESISTOR ARRAY 1 R9904 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9905 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9906 EXB38V470J RESISTOR ARRAY 1 R9907 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9917,1 8 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9919,2 0 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9922 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9929 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9936- 39 ERJ3EKF1001 M 1KOHM, 1/16W 4 R9940 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9941,4 2 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9943- 51 EXB38V470J RESISTOR ARRAY 9 R9952- 55 ERJ3GEYJ470 M 47 OHM,J,1/16W 4 R9956 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 RM2501 PNA4701M05TV REMOTE RECEIVER 1 RTL TZTNP01BJTB CIRCUIT BOARD D 1 PAVCCZ RTL TNPA3740AB CIRCUIT BOARD XV 1 TH-42PX60B PAVCCZ RTL TNPA3756CB CIRCUIT BOARD DG 1 TH-42PV60E PAVCCZ RTL TNPA3756CH CIRCUIT BOARD DG 1 TH-42PX60B PAVCCZ RTL TNPA3759AB CIRCUIT BOARD H 1 PAVCCZ RTL TNPA3766 CIRCUIT BOARD HC 1 PAVCCZ RTL TNPA3767 CIRCUIT BOARD TA 1 TH-42PV60E PAVCCZ RTL TNPA3767AB CIRCUIT BOARD TA 1 TH-42PX60B PAVCCZ RTL TNPA3761AC CIRCUIT BOARD PA 1 RTL TNPA3812AB CIRCUIT BOARD C1 1 PAVCCZ RTL TNPA3813AB CIRCUIT BOARD C2 1 PAVCCZ RTL TNPA3911 CIRCUIT BOARD P 1 RTL TNPA3814AB CIRCUIT BOARD SC 1 PAVCCZ RTL TNPA3819AB CIRCUIT BOARD SD 1 PAVCCZ RTL TNPA3815AB CIRCUIT BOARD SS 1 PAVCCZ RTL TNPA3818AB CIRCUIT BOARD SU 1 PAVCCZ RTL TNPA3764AE CIRCUIT BOARD G 1 PAVCCZ RTL TNPA3848AD CIRCUIT BOARD GK 1 RTL TNPA3762AC CIRCUIT BOARD K 1 TH-42PV60E RTL TNPA3762AD CIRCUIT BOARD K 1 TH-42PV60B RTL TNPA3763AC CIRCUIT BOARD S 1 S1 K1KA03BA0061 3P CONNECTOR 1 SC2 K1KA02A00626 2P CONNECTOR 1 SC20 K1KA20AA0008 20P CONNECTOR 1 SC23 K1KA03AA0193 3P CONNECTOR 1 SC30 K1KA08AA0192 8P CONNECTOR 1 SC41,42 K1ML80B00001 80P CONNECTOR 2 SC45,46 K1KA09A00239 9P CONNECTOR 2 SCMM1 TMME260 CLAMPER 1 SCMM3 TMME260 CLAMPER 1 SD1-D4 K1MN96B00005 96P CONNECTOR 4 SD46 K1KB09A00045 9P CONNECTOR 1 SS11 K1KA02A00626 2P CONNECTOR 1 SS12 K1KA10AA0194 10P CONNECTOR 1 SS23 K1KA12AA0194 12P CONNECTOR 1 212 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks SS34 K1KA03AA0193 3P CONNECTOR 1 SS41-44 K1MN13B00020 13P CONNECTOR 4 SU1-U4 K1MN96B00005 96P CONNECTOR 4 SU45 K1KB09A00045 9P CONNECTOR 1 SW2500 K0F162B00002 SWITCH 1 SW3753- 57 EVQ11G05R SWITCH 5 T6602 ETS25AZ139AD SWITCHING TRANS 1 TA5 K1KB15B00013 15P CONNECTOR 1 TA6 K1KB09B00019 9P CONNECTOR 1 TU001 ENG37A12GF TUNER 1 TH-42PV60E TU001 ENGF7301GF TUNER 1 TH-42PX60B PAVCCZ TU8001 ENV57M01D8F TUNER 1 TH-42PX60B PAVCCZ VR6000 EVMEASA00B14 CONTROL 10KOHMB 0.3W 1 VR6600 EVMEASA00B13 CONTROL 1KOHMB 0.3W 1 VR6602 EVMEASA00B53 CONTROL 5KOHMB 0.3W 1 X1100 H0J100500030 CRYSTAL 1 X1101 H0J327200114 CRYSTAL 1 X2101 H0J184500027 CRYSTAL 1 X4004 H0J270500087 CRYSTAL 1 X8003 H0J241500003 CRYSTAL 1 TH-42PX60B PAVCCZ X8006 H0J270500090 CRYSTAL 1 TH-42PX60B PAVCCZ X9000 H2D200500011 CRYSTAL 1 X9200 H0J200500038 CRYSTAL 1 XV01 K1KAB0A00011 CONNECTOR 1 TH-42PX60B ZA2101- 08 TESA169 SHIELD CLIP 8 ZA2300, 01 K4CZ01000027 COMPATIBLE WITH JALCO K9 2 ZA3401- 05 K4CZ01000027 COMPATIBLE WITH JALCO K9 5 ZA3701 K4CD01000013 TERMINAL 1 ZA4001, 02 K4CD08000002 TERMINAL 2 ZA6001, 02 K4CD01000011 TERMINAL 2 ZA6005 K4CD01000011 TERMINAL 1 ZA6401- 03 K4CD01000011 TERMINAL 3 ZA7101- 04 K4CD01000013 TERMINAL 4 ZA7201- 04 K4CD01000013 TERMINAL 4 ZA9001 K4CD01000011 TERMINAL 1 C402 F1J1C1050011 C 1UF, Z, 50V 1 C404 F0CAF105A021 C 1UF, 250V 1 C407 EEUEB2W220B E 22UF, 450V 1 C408 ECJ2XB1H102K C 1000PF, K, 50V 1 C409 F0CAF225A021 C 22UF, 250V 1 C410 ECJ2XB1H103K C 0.01UF, K, 50V 1 C413 ECJ2XB1H104K C 0.1UF, K, 50V 1 C414 ECQU2A473ML P 0.047UF, M,250V 1 C421 F1J1C1050011 C 1UF, Z, 50V 1 C422 ECJ2XB1H103K C 0.01UF, K, 50V 1 C423 ECJ2XB1H472K C 4700PF, K, 50V 1 C425 ECJ2XB1H103K C 0.01UF, K, 50V 1 C426 ECJ2XC1H471J C 470PF, J, 50V 1 C427 F1J1C1050011 C 1UF, Z, 50V 1 C428 ECJ2XC1H221J C 220PF, J, 50V 1 Ref. No. Part No. Part Name & Description Pcs Remarks C429 F1E2J4730001 C 0.047PF, , 600V 1 C431 ECJ2XB1H102K C 1000PF, K, 50V 1 C432 F1J1C1050011 C 1UF, Z, 50V 1 C433 ECJ3XB1E104K C 0.1UF, K, 25V 1 C434 F1J1C1050011 C 1UF, Z, 50V 1 C436 F1J1C1050011 C 1UF, Z, 50V 1 C440 ECA1HM100 E 10UF, 50V 1 C443,44 F1A3A102A040 C 1000PF, J, 1KV 2 C445 F1J1C1050011 C 1UF, Z, 50V 1 C446,47 F2B2W2010001 C 200UF, 450V 2 C450 ECJ2XB1H103K C 0.01UF, K, 50V 1 C451 F1A3A101A040 C 100PF, J, 1KV 1 C457 ECWH12333RHV P 0.013UF,J,1.2KV 1 C460,61 F1A3A331A039 E 330UF, 1KV 2 C462 ECJ3YB1E105K C 1UF, K, 25V 1 C463 ECJ2XC1H220J C 22UF, J, 50V 1 C467 ECKCNA221KB7 C 220PF, M, 1 C468 ECJ2XB1H103K C 0.01UF, K, 50V 1 C469 ECKCNA221KB7 C 220PF, M, 1 C470 F0CAF105A021 C 1UF, 250V 1 C473,74 ECKCNA101KB7 C 100PF 2 C476 ECKCNA101KB7 C 100PF 1 C478 ECKCNA101KB7 C 100PF 1 C493 ECA1HM470 E 47UF, 50V 1 C494 F2A2E1R00008 E 1.0UF, 250V 1 C497 ECA1HM470 E 47UF, 50V 1 C501,02 ECJ2XB1H103K C 0.01UF, K, 50V 2 C503 ECJ2XC1H471J C 470PF, J, 50V 1 C504 F1J1C1050011 C 1UF, Z, 50V 1 C505 ECJ2XB1H102K C 1000PF, K, 50V 1 C506,07 ECJ2XB1H103K C 0.01UF, K, 50V 2 C508 ECJ2XC1H471J C 470PF, J, 50V 1 C509 ECA1EHG101 E 100UF, 25V 1 C510 ECJ2XB1H104K C 0.1UF, K, 50V 1 C511 ECJ2XB1H102K C 1000PF, K, 50V 1 C512-14 ECJ2XC1H471J C 470PF, J, 50V 3 C515 F2A1A1220011 E 1200UF, 10V 1 C516 ECJ2XB1C474K C 0.47UF, Z, 16V 1 C517 F2A1E221A096 E 220UF, 25V 1 C518 ECJ2XB1H104K C 0.1UF, K, 50V 1 C519 F1J1C1050011 C 1UF, Z, 50V 1 C520 ECWH8683RHV P 0.068PF, J, 8KV 1 C523 ECJ3YB1E105K C 1UF, K, 25V 1 C526 ECJ2XB1H223K C 0.022UF, K, 50V 1 C527 ECJ3YB1E475K C 4.7UF, K, 25V 1 C528,29 F1J1C1050011 C 1UF, Z, 50V 2 C530 ECJ2VB1H333K C 0.033UF, K, 50V 1 C531 ECJ3YB1E105K C 1UF, K, 25V 1 C533 ECJ2XB1H103K C 0.01UF, K, 50V 1 C534 ECJ2XC1H471J C 470PF, J, 50V 1 C546,47 ECJ2XB1H102K C 1000PF, K, 50V 2 C550 ECJ2XC1H331J C 330PF, J, 50V 1 C551,52 ECJ2XB1H104K C 0.1UF, K, 50V 2 C554 F1J1C1050011 C 1UF, Z, 50V 1 C555 F2A2C471A119 E 470UF, 160V 1 C556,57 EEUFC1E152 E 1500UF, 25V 2 C558 F2A1E471A096 E 470UF, 25V 1 C559 F2A1A1220011 E 1200UF, 10V 1 C562 ECJ2XB1H223K C 0.022UF, K, 50V 1 C571 ECJ2XC1H330J C 33PF, J, 50V 1 C574 ECJ2XB1H104K C 0.1UF, K, 50V 1 C577 F2A2A330A022 E 33UF, 100V 1 C581 ECJ2XB1H223K C 0.022UF, K, 50V 1 C583 ECJ2XB1H102K C 1000PF, K, 50V 1 C584,85 ECJ2XB1H223K C 0.022UF, K, 50V 2 C587 ECJ2XB1H332K C 3300PF, K, 50V 1 C601 ECJ2XB1H103K C 0.01UF, K, 50V 1 C603 ECJ2FB1E105K C 1UF, K, 25V 1 C604,05 F2A2D1510008 E 150UF, 200V 2 C607 F1J1C1050011 C 1UF, Z, 50V 1 C608 ECJ2XB1H103K C 0.01UF, K, 50V 1 C610 F1J1C1050011 C 1UF, Z, 50V 1 C611 F2B2T1420003 E 1400UF, 220V 1 213 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks C612,13 ECJ2XB1H103K C 0.01UF, K, 50V 2 C615 F2B2T1420003 E 1400UF, 220V 1 C616 F1A3A102A040 C 1000PF, J, 1KV 1 C619 ECJ2XB1H104K C 0.1UF, K, 50V 1 C620 ECJ2XB1H103K C 0.01UF, K, 50V 1 C623 ECA1HM100 E 10UF, 50V 1 C624 ECJ2XB1H103K C 0.01UF, K, 50V 1 C625 ECA1HM100 E 10UF, 50V 1 C626 ECJ2XB1H103K C 0.01UF, K, 50V 1 C627 ECJ2XB1H102K C 1000PF, K, 50V 1 C629-31 ECJ2XB1H103K C 0.01UF, K, 50V 3 C632 ECJ2XC1H331J C 330PF, J, 50V 1 C634 ECJ2XB1H102K C 1000PF, K, 50V 1 C635 ECJ2XB1H103K C 0.01UF, K, 50V 1 C638,39 ECJ2XB1H103K C 0.01UF, K, 50V 2 C640 ECJ2XB1H104K C 0.1UF, K, 50V 1 C641 ECJ2XB1H102K C 1000PF, K, 50V 1 C643 ECA1HM470 E 47UF, 50V 1 C650 ECJ2XB1H104K C 0.1UF, K, 50V 1 C653 ECJ2XB1H102K C 1000PF, K, 50V 1 C654 ECJ3YB1E105K C 1UF, K, 25V 1 C655,56 ECJ3YB1E225K C 2.2UF, K, 25V 2 C657 ECJ2XB1H102K C 1000PF, K, 50V 1 C658 ECJ3YB1E105K C 1UF, K, 25V 1 C659 ECJ2XB1H103K C 0.01UF, K, 50V 1 C660 ECJ2FB1C225K C 22UF, K, 16V 1 C661,62 ECJ2XB1H103K C 0.01UF, K, 50V 2 D401 B0FBCT000004 DIODE 1 D404 B0EBKT000007 DIODE 1 D407 MA111 DIODE 1 D411 B0BB17000009 DIODE 1 D412 B0HAMM000122 DIODE 1 D415 B0JAME000099 DIODE 1 D416 B0HAMP000067 DIODE 1 D417 B0HAPR000013 DIODE 1 D418 B0BC8R100013 DIODE 1 D419,20 B0HAPR000013 DIODE 2 D423 MA188 DIODE 1 D425 MA188 DIODE 1 D429 ERA15-10 DIODE 1 D430 MA111 DIODE 1 D431,32 B0JCDD000002 DIODE 2 D433 B0BC01400033 DIODE 1 D435 ERA15-10 DIODE 1 D436-38 MA4200M ZENER DIODE 3 D441 B0HAMM000122 DIODE 1 D444 B0HAMM000122 DIODE 1 D445 MA4360H ZENER DIODE 1 D501 B0HAPR000012 DIODE 1 D503,04 MA165 DIODE 2 D505 B0JAME000099 DIODE 1 D506 MAZ80470LL ZENER DIODE 1 D507,08 B0BC7R400023 DIODE 2 D509 B0JANG000018 DIODE 1 D511 B0JAML000011 DIODE 1 D512,13 MA111 DIODE 2 D514 B0BC6R100025 DIODE 1 D515 B0BC3R200008 DIODE 1 D516-18 MA4330M ZENER DIODE 3 D520 MA111 DIODE 1 D521 B0JAME000099 DIODE 1 D528,29 MA153 DIODE 2 D530 B0BC9R900013 DIODE 1 D531 B0HBSN000013 DIODE 1 D535 MA188 DIODE 1 D536 B0JBSG000026 DIODE 1 D538 B0BC5R100039 DIODE 1 D539,40 B0AARR000010 DIODE 2 D542 MA4200M ZENER DIODE 1 D543 B0BC01400033 DIODE 1 D544,45 MA4200M ZENER DIODE 2 D549 B0BC02500008 DIODE 1 Ref. No. Part No. Part Name & Description Pcs Remarks D551 B0BC01300033 DIODE 1 D555 B0BC7R400023 DIODE 1 D559 B0BC7R400023 DIODE 1 D563 B0BC6R100025 DIODE 1 D569-72 B0BC02500008 DIODE 4 D574 MA165 DIODE 1 D575 MA188 DIODE 1 D579 MA165 DIODE 1 D582 MAZ705600F ZENER DIODE 1 D585 B0BC7R400023 DIODE 1 D586 B0HAMP000067 DIODE 1 D587 MA188 DIODE 1 D588 B0BC3R200008 DIODE 1 D590 B0BC3R200008 DIODE 1 D596 ERA15-10 DIODE 1 D598 B0BC5R100039 DIODE 1 D599 B0JCND000009 DIODE 1 D600 B0BC7R400023 DIODE 1 D601 B0BC5R100039 DIODE 1 D602 B0BC8R100013 DIODE 1 F410 K5G102B00020 FUSE 1 IC401 CNC1S171R IC 1 IC402 C0DAEMB00004 IC 1 IC403- 05 CNC1S171R IC 3 IC406 C0DAZZZ00021 IC 1 IC408 CNC1S171R IC 1 IC409 MIP2G40MPSCF IC 1 IC410 CNC1S171R IC 1 IC411 C0DAEMB00004 IC 1 IC412 CNC1S171R IC 1 IC501 C2ABDB000108 IC 1 IC502 C0EBH0000210 IC 1 IC504 C0DAEMB00004 IC 1 IC505 CNC1S171R IC 1 IC506 C0ZBZ0000878 IC 1 IC507 CNC1S171R IC 1 IC509 C0DABZZ00010 IC 1 IC510 C0DBAZG00034 IC 1 IC512 C0DAEMB00004 IC 1 IC520 LSSK0062 IC 1 L403 EXCELSA35 BEAD CHOKE 1 L404,05 G0B123K00004 CHOKE COIL 2 L410 ELF17N004A LINE FILTER 1 L510 EXCELDR25C BEAD CHOKE 1 L511 G0A470ZA0033 CHOKE COIL 1 L512 ELESE4R7JA PEAKING COIL 1 L513 EXCELDR25C BEAD CHOKE 1 L514 G0A100GA0013 CHOKE COIL 1 P2 K1KA02A00626 2P CONNECTOR 1 P5 K1KA11AA0194 11P CONNECTOR 1 P9 K1KA03A00537 3P CONNECTOR 1 P10 K1KA06A00452 6P CONNECTOR 1 P11 K1KA02A00626 2P CONNECTOR 1 P12 K1KA10AA0194 10P CONNECTOR 1 P23 K1KA03AA0193 3P CONNECTOR 1 P25 K1KA20AA0178 20P CONNECTOR 1 PMM1 TMM7464-2 CLAMPER 1 PMM2,M3 TMME088 CLAMPER 2 PMM4-M6 TMM7464-2 CLAMPER 3 PMM7 TMME047 CLAMPER 1 PR401 K5Y502BA0001 FUSE 1 PR505 K5H5022A0023 FUSE 1 PR509 ERBSE0R50U FUSE 1 PR601 K5G312B00012 FUSE 1 Q401 B1CHND000004 TRANSISTOR 1 214 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks Q402 B1DFDD000019 TRANSISTOR 1 Q404 B1BCCF000022 TRANSISTOR 1 Q406 B1DEKQ000003 TRANSISTOR 1 Q407 B1HFCFA00021 TRANSISTOR 1 Q408,09 B1DHCD000034 TRANSISTOR 2 Q412,13 B1DEGQ000070 TRANSISTOR 2 Q418 2SD1819A TRANSISTOR 1 Q420-22 2SD1819A TRANSISTOR 3 Q434 B1CEJQ000003 TRANSISTOR 1 Q501,02 2SD1820A TRANSISTOR 2 Q505 B1CEJQ000002 TRANSISTOR 1 Q507 B1DAGQ000013 TRANSISTOR 1 Q508 B1HBCFA00033 TRANSISTOR 1 Q509 B1HDCEA00001 TRANSISTOR 1 Q510 B1DHBD000005 TRANSISTOR 1 Q512 B1CBGD000001 FET 1 Q517 B1HBCFA00033 TRANSISTOR 1 Q520 B1HBCFA00033 TRANSISTOR 1 Q521 B1CBGD000001 FET 1 Q524 B1CFGF000008 TRANSISTOR 1 Q525 B1CBGD000001 FET 1 Q527 B1CERL000005 TRANSISTOR 1 Q530 2SD1819A TRANSISTOR 1 Q535 2SD1819A TRANSISTOR 1 Q537 B1DFDD000019 TRANSISTOR 1 Q538 B1CBGD000001 FET 1 Q540 B1DHCD000034 TRANSISTOR 1 Q541 B1CBGD000001 FET 1 Q551 B1CBGD000001 FET 1 Q553 2SD1819A TRANSISTOR 1 Q554 B1DHCD000034 TRANSISTOR 1 Q555,56 B1DFGD000045 TRANSISTOR 2 Q557-59 2SD1819A TRANSISTOR 3 Q561 2SD1819A TRANSISTOR 1 Q563 B1CFGF000008 TRANSISTOR 1 Q564,65 2SB1218ARL TRANSISTOR 2 Q566 2SD1819A TRANSISTOR 1 Q568 B1CHGD000006 TRANSISTOR 1 Q569 B1CBGD000001 FET 1 R401 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R402 ERJ6GEYJ821 M 820 OHM,J,1/10W 1 R403 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R404 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R406 ERX12SJ2R2V M 2.2 OHM, J,1/2W 1 R407 ERJ8ENF4303 M 43KOHM, 1/8W 1 R410 D1F5100E0003 CHIP RESISTOR 1 R412 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R413 D1F5100E0003 CHIP RESISTOR 1 R414 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R415 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R416 ERJ6GEYJ305 M 3MOHM,J,1/10W 1 R417 ERJ6ENF4303 M 430KOHM, 1/10W 1 R418 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R419 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R420 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R421 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R422 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R423 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R424 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R425 ERJ6ENF3902 M 39KOHM, 1/10W 1 R426 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R427 ERJ8ENF4303 M 43KOHM, 1/8W 1 R428 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R429 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R430 ERJ6ENF4303 M 430KOHM, 1/10W 1 R431 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R432 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R433 ERJ6ENF1202 M 12KOHM, 1/10W 1 R434 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R435 ERJ8ENF4303 M 43KOHM, 1/8W 1 R436 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R437 ERJ6GEYJ183 M 18KOHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R438 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R439 ERG12SJ120 M 12 OHM, J,1/2W 1 R440 ERJ8GEYJ474 M 470KOHM, J,1/8W 1 R441,42 ERJ6EKF6803 M 680KOHM, 1/10W 2 R443 EVMAASA00B23 CONTROL 2KOHMB 1 R444 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R448,49 D0XGR08J0001 M 0.08OHM,J, 5W 2 R450 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R451 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R452 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R453 ERJ6GEYJ305 M 3MOHM,J,1/10W 1 R454 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R455 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R456 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R458 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R459 ERJ6EKF6803 M 680KOHM, 1/10W 1 R461 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R462 ERJ6ENF4303 M 430KOHM, 1/10W 1 R463 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R464 ERJ6ENF3302 M 33KOHM, 1/10W 1 R465 ERJ6ENF5603 M 560KOHM, 1/10W 1 R467 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R471 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 1 R472,73 ERJ6ENF5603 M 560KOHM, 1/10W 2 R475 ERJ6EKF6803 M 680KOHM, 1/10W 1 R476,77 ERJ14YJ181U M 181 OHM, J,1/4W 2 R478 ERJ8GEYJ220 M 22 OHM, J,1/8W 1 R480 ERJ6ENF4702 M 47KOHM, 1/10W 1 R482 ERJ8GEYJ220 M 22 OHM, J,1/8W 1 R483 D0BF225JA030 M 22MOHM,J,0.05W 1 R487 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R488 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R490,91 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R492 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R493 ERG12SJ120 M 12 OHM, J,1/2W 1 R494-96 ERJ6ENF5603 M 560KOHM, 1/10W 3 R497 ERJ6ENF1202 M 12KOHM, 1/10W 1 R498 ERG3SJ101 M 100 OHM, J, 3W 1 R499 D0BF394JA029 M 390KOHM,J,0.05W 1 R501 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R502,03 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R504 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R505 ERJ8GEYJ330 M 33 OHM, J,1/8W 1 R506 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R507 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R508 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R509-11 ERJ6GEYJ104 M 100KOHM,J,1/10W 3 R512 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R513,14 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R515,16 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R517 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R518 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R519,20 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R521,22 ERJ8GEYJ100 M 10 OHM, J,1/8W 2 R523 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R524 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R525 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R526,27 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R528 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R529 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R530 ERJ6RBD3302 M 33KOHM,F,1/10W 1 R532 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R533 ERJ6GEYJ163 M 16KOHM,J,1/10W 1 R534 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R535,36 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R537 ERJ6ENF1003 M 100KOHM, 1/10W 1 R538 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R539 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R540,41 ERJ6GEYJ105 M 1MOHM,J,1/10W 2 R542 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R543 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R544 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R545 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 215 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R546 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R547 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R548 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R549 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R550 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R551 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R552 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R553 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R554 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R555,56 ERJ6GEYJ105 M 1MOHM,J,1/10W 2 R557 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R558 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R559 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R560 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R561 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R562 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R563 ERJ6GEYJ2R2 M 2.2 OHM,J,1/10W 1 R564 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R565,66 ERJ6GEYJ105 M 1MOHM,J,1/10W 2 R567,68 ERJ8ENF1004 M 100KOHM, 1/8W 2 R569 ERJ6ENF3302 M 33KOHM, 1/10W 1 R570 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R571 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R572,73 ERJ8ENF3900 M 390 OHM, 1/8W 2 R574 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R575 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R576 ERJ6ENF1202 M 12KOHM, 1/10W 1 R577,78 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R579 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R580,81 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R582 ERJ6ENF1002 M 10KOHM, 1/10W 1 R583 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R584 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R585 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R586 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R587 ERJ8RSJR16V M 16 OHM, 1/8W 1 R588 ERJ8ENF3900 M 390 OHM, 1/8W 1 R589,90 ERJ8GEYJ123 M 12KOHM, J,1/8W 2 R591 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R592 ERJ6ENF3001 M 3KOHM, 1/10W 1 R593 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R594 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R595 ERJ8GEYJ222 M 2.2KOHM, J,1/8W 1 R596 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R597,98 ERJ6ENF3302 M 33KOHM, 1/10W 2 R599,00 ERJ8ENF3900 M 390 OHM, 1/8W 2 R601 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R602 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R603 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R606 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R607 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R608 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 1 R609 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R610,11 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R612 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R613 ERJ6ENF2702 M 27KOHM, 1/10W 1 R614 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R615 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R616,17 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R618 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R619 ERJ8RQJR39 M0.39 OHM, 1/8W 1 R620 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R621 ERJ8GEYJ123 M 12KOHM, J,1/8W 1 R622 ERJ8ENF1503 M 15KOHM, 1/8W 1 R624 ERX2SJR22 M0.22 OHM, J, 2W 1 R626 ERJ8ENF1503 M 15KOHM, 1/8W 1 R627 ERJ6GEYJ752 M 7.5KOHM,J,1/10W 1 R628 EVMAASA00B33 CONTROL 3KOHMB 1 R629 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R630 ERJ8GEYJ472 M 4.7KOHM, J,1/8W 1 R631 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R632 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R633 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 Ref. No. Part No. Part Name & Description Pcs Remarks R634 ERJ8RQJR39 M0.39 OHM, 1/8W 1 R636 ERJ8ENF1503 M 15KOHM, 1/8W 1 R637 ERJ8RQJR39 M0.39 OHM, 1/8W 1 R638 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R639,40 ERJ8RQJR39 M0.39 OHM, 1/8W 2 R641 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R642-44 ERJ8RQJR39 M0.39 OHM, 1/8W 3 R645 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R646,47 ERJ8GEYJ223 M 22KOHM, J,1/8W 2 R648 ERJ8ENF1503 M 15KOHM, 1/8W 1 R649 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R650 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R651,52 ERJ6ENF1002 M 10KOHM, 1/10W 2 R653 ERJ6ENF3302 M 33KOHM, 1/10W 1 R654 ERJ8GEYJ220 M 22 OHM, J,1/8W 1 R655 ERJ8RSJR16V M 16 OHM, 1/8W 1 R656 ERJ6ENF4702 M 47KOHM, 1/10W 1 R657 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R658 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R659 ERJ6ENF3002 M 30KOHM, 1/10W 1 R660 ERJ6ENF1202 M 12KOHM, 1/10W 1 R661 EVMEASA00B53 CONTROL 5KOHMB 0.3W 1 R662 ERJ6ENF1503 M 150KOHM, 1/10W 1 R664 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R665 EVMEASA00B23 CONTROL 2KOHMB 0.3W 1 R666 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R667,68 ERJ8GEY0R00 M 0 OHM, 1/8W 2 R669 ERJ6ENF1303 M 130KOHM, 1/10W 1 R670 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R671 EVMEASA00B14 CONTROL 10KOHMB 0.3W 1 R672,73 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R674 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R675 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R676 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R677 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R678 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R679,80 ERJ8RSJR16V M 16 OHM, 1/8W 2 R682 ERJ6ENF2002 M 20KOHM, 1/10W 1 R683 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R684 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R685,86 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R687 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R688,89 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R690 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R691 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R692 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R693 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R695 ERJ6ENF1202 M 12KOHM, 1/10W 1 R696 ERJ8GEYJ100 M 10 OHM, J,1/8W 1 R697 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R698 ERJ8RSJR16V M 16 OHM, 1/8W 1 R699-08 ERJ8GEYJ105 M 1MOHM, J,1/8W 10 R711 ERJ8RSJR16V M 16 OHM, 1/8W 1 R712 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R713 ERJ8GEYJ472 M 4.7KOHM, J,1/8W 1 R714 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R715 ERDS2TJ101 C 100 OHM, J,1/4W 1 R921 ERJ6RBD3302 M 33KOHM,F,1/10W 1 R922 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R931 ERJ6ENF3002 M 30KOHM, 1/10W 1 R932 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R933 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R935 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R936 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R937 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R938 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R939,40 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R943 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R945 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R946 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R947 ERJ8GEYJ331 M 330 OHM, J,1/8W 1 216 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B Ref. No. Part No. Part Name & Description Pcs Remarks R950 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R951,52 ERJ8GEYJ100 M 10 OHM, J,1/8W 2 R953 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R955 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R956 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 RL402,0 3 TSEH8011 RELAY 2 S401,02 J0LT00000009 SWITCH 2 T401 G4D4A0000117 SWITCHING TRANSFORMER 1 T402 G4D1A0000098 SWITCHING TRANSFORMER 1 T404 ETS42LA12GAD SWITCHING TRANS 1 T407 ETQ11K5AZ CHOKE TRANS 1 T410 ETS25AF115AH SWITCHING TRANS 1 T601 G4D2A0000264 SWITCHING TRANS 1 W9,10 J0JKB0000037 FLAT CORE 2 X501 H2B400400021 CRYSTAL 1 Z1,Z2 K4ZZ01000206 TERMINAL 2 Z420 TMM23417 CLAMPER 2 Z450-53 EYF52BCY FUSE HOLDER 4 ZN401 ERZVGED621T2 VARISTOR 1 ZN402 D4EAD7510001 VARISTOR 1 ZN404 ERZVGAD681T2 VARISTOR 1 ZN405- 06 ERZVA7D511 VARISTOR 2 217 TH-37PV60E / TH-37PX60B / TH-42PV60E / TH-42PX60B
