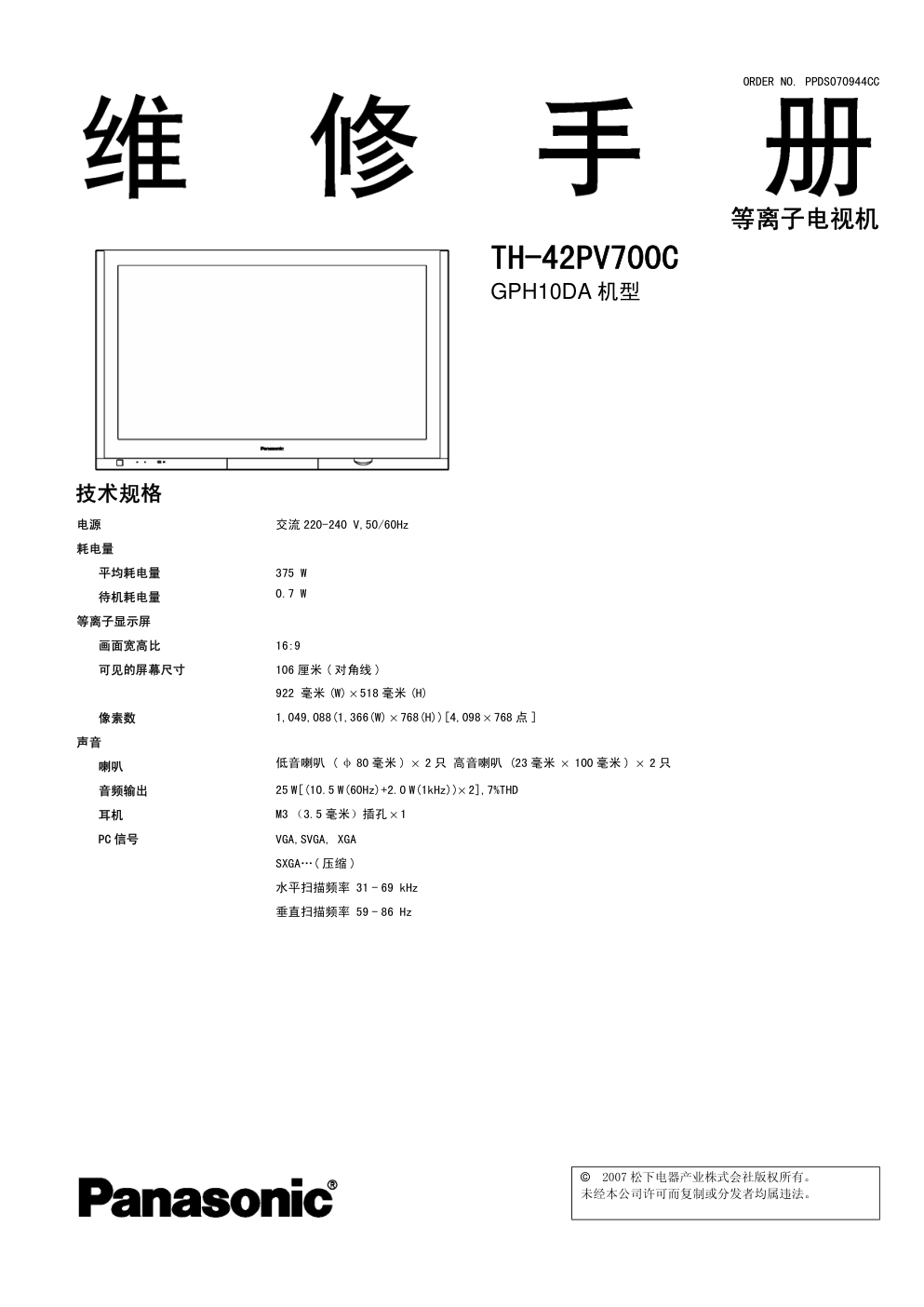

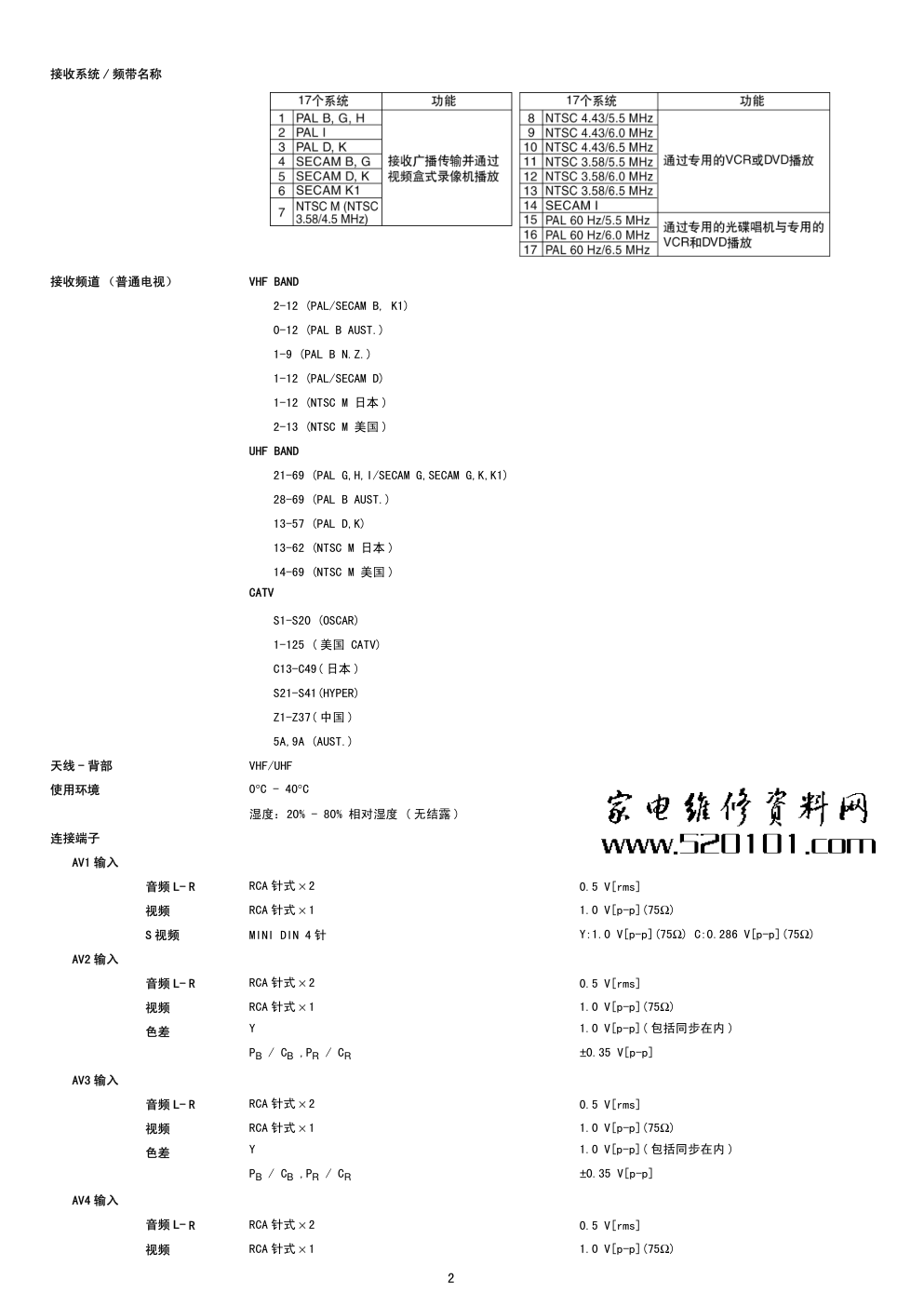

© 2007 松下电器产业株式会社版权所有。 未经本公司许可而复制或分发者均属违法。 ORDER NO. PPDS070944CC 等离子电视机 TH-42PV700C GPH10DA 机型 技术规格 电源 交流 220-240 V,50/60Hz 耗电量 平均耗电量 375 W 待机耗电量 0.7 W 等离子显示屏 画面宽高比 16:9 可见的屏幕尺寸 106 厘米 ( 对角线 ) 922 毫米 (W) × 518 毫米 (H) 像素数 1,049,088(1,366(W) × 768(H))[4,098 × 768 点 ] 声音 喇叭 低音喇叭 ( φ 80 毫米 ) × 2 只 高音喇叭 (23 毫米 × 100 毫米 ) × 2 只 音频输出 25 W[(10.5 W(60Hz)+2.0 W(1kHz))× 2],7%THD 耳机 M3 （3.5 毫米）插孔 × 1 PC 信号 VGA,SVGA, XGA SXGA…( 压缩 ) 水平扫描频率 31 - 69 kHz 垂直扫描频率 59 - 86 Hz 2 接收系统 / 频带名称 接收频道 （普通电视） VHF BAND 2-12 (PAL/SECAM B, K1) 0-12 (PAL B AUST.) 1-9 (PAL B N.Z.) 1-12 (PAL/SECAM D) 1-12 (NTSC M 日本 ) 2-13 (NTSC M 美国 ) UHF BAND 21-69 (PAL G,H,I/SECAM G,SECAM G,K,K1) 28-69 (PAL B AUST.) 13-57 (PAL D,K) 13-62 (NTSC M 日本 ) 14-69 (NTSC M 美国 ) CATV S1-S20 (OSCAR) 1-125 ( 美国 CATV) C13-C49( 日本 ) S21-S41(HYPER) Z1-Z37( 中国 ) 5A,9A (AUST.) 天线 - 背部 VHF/UHF 使用环境 0°C - 40°C 湿度：20% - 80% 相对湿度 ( 无结露 ) 连接端子 AV1 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) S 视频 MINI DIN 4 针 Y:1.0 V[p-p](75Ω) C:0.286 V[p-p](75Ω) AV2 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) 色差 Y 1.0 V[p-p]( 包括同步在内 ) PB / CB ,PR / CR ±0.35 V[p-p] AV3 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) 色差 Y 1.0 V[p-p]( 包括同步在内 ) PB / CB ,PR / CR ±0.35 V[p-p] AV4 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) 3 目录 页数 页数 1 适用信号----------------------------------------- 5 2 安全警告----------------------------------------- 6 2.1. 一般准则 ----------------------------------- 6 2.2. 漏电检查 ----------------------------------- 6 3 静电敏感设备 (ES) 的静电放电保护 (ESD) ------------ 7 4 关于无铅焊接 (PbF) ------------------------------- 8 5 维修提示----------------------------------------- 9 6 等离子显示屏更换方式---------------------------- 10 6.1. 取下后盖 ---------------------------------- 10 6.2. 取下后端子盖 ------------------------------ 10 6.3. 取下左扬声器 ------------------------------ 10 6.4. 取下右扬声器 ------------------------------ 10 6.5. 取下 P 电路板 ------------------------------ 10 6.6. 取下 PA 电路板 ----------------------------- 11 6.7. 取下调谐器组件 ---------------------------- 11 6.8. 取下 DG 电路板 ----------------------------- 11 6.9. 取下 H 电路板 ------------------------------ 11 6.10. 取下 D 电路板 ------------------------------ 12 6.11. 取下 SU 电路板 ----------------------------- 12 6.12. 取下 SD 电路板 ----------------------------- 12 6.13. 取下 SC 电路板 ----------------------------- 12 6.14. 取下 SS 电路板 ----------------------------- 13 6.15. 取下支架 ---------------------------------- 13 6.16. 取下 C1 电路板 ----------------------------- 13 6.17. 取下 C2 电路板 ----------------------------- 13 6.18. 取下前支架和前屏蔽仓盖 -------------------- 13 6.19. 取下 G 和 GH 电路板 ------------------------- 14 6.20. 取下 GS 电路板 ----------------------------- 14 6.21. 取下 S 电路板 ------------------------------ 14 6.22. 取下 K 电路板 ------------------------------ 14 6.23. 取下前面框 （玻璃）上的等离子显示屏部件 --- 15 6.24. 安装等离子显示屏 （完成）------------------ 15 7 注意事项---------------------------------------- 16 7.1. 注意事项 ---------------------------------- 16 8 导线布置 ----------------------------------------17 8.1. 导线 (1) -----------------------------------17 8.2. 导线 (2) -----------------------------------18 8.3. 导线 (3) -----------------------------------19 9 自检功能 ----------------------------------------20 9.1. IIC 总线检测 -------------------------------20 9.2. 电源 LED 闪烁次数图-------------------------21 9.3. 无电源-------------------------------------22 9.4. 无图像-------------------------------------23 9.5. 显示器局部故障-----------------------------24 10 维修模式 ----------------------------------------25 10.1. 如何进入维修模式---------------------------25 10.2. 维修工具模式-------------------------------27 11 调整步骤 ----------------------------------------28 11.1. 驱动器设置---------------------------------28 11.2. 初始化脉冲调整-----------------------------29 11.3. P.C.B. （印刷电路版）更换 ------------------29 11.4. 调整点位置---------------------------------30 11.5. 测试点位置---------------------------------30 12 调整 --------------------------------------------31 12.1. 副对比度调整-------------------------------31 12.2. PAL 显示屏白平衡调整 -----------------------32 12.3. HD 白平衡调整 ------------------------------33 13 旅馆模式 ----------------------------------------34 14 导线图 ------------------------------------------35 14.1. P 电路板 -----------------------------------35 14.2. PA 电路板 ----------------------------------38 14.3. H 电路板 -----------------------------------39 14.4. DG 电路板 ----------------------------------41 14.5. D 电路板 -----------------------------------44 14.6. C1 电路板 ----------------------------------46 14.7. C2 电路板 ----------------------------------47 14.8. SC 电路板 ----------------------------------48 14.9. SU 电路板 ----------------------------------51 S 视频 MINI DIN 4 针 Y:1.0 V[p-p](75Ω) C:0.286 V[p-p](75Ω) Monitor 输出 音频 L- R RCA 针式 × 2 0.5 V[rms] ( 高阻抗 ) 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) 其他 HDMI1/2/3 输入 A 型接头 本机支持 “HDAVI Control 2”功能 PC 输入 高密度 D-SUB15 针 R,G,B /0.7V[p-p](75Ω) HD,VD/TTL Level 2.0-5.0V[p-p] ( 高阻抗 ) 音频输入 RCA 针式 × 2 0.5 V[rms] 数字音频输出 PCM, 光纤 卡插槽 SD 卡插槽 × 1 尺寸 (W × H × D) 1,077 mm × 689 mm × 138 mm 重量 净重 32.0 公斤 说明： • 设计和技术规格如有变更，恕不另行通知。所示尺寸和质量均为近似值。 4 14.10. SD 电路板---------------------------------- 52 14.11. SS 电路板---------------------------------- 53 14.12. K 和 S 电路板------------------------------- 55 14.13. G 电路板----------------------------------- 56 14.14. GH 和 GS 电路板----------------------------- 57 15 方框图和线路图---------------------------------- 58 15.1. 线路图注意事项 ---------------------------- 58 15.2. 主要集成电路方框图 ------------------------ 59 15.3. P 电路板方框图----------------------------- 60 15.4. P 电路板 (1/4) 线路图----------------------- 61 15.5. P 电路板 (2/4) 线路图----------------------- 62 15.6. P 电路板 (3/4) 线路图----------------------- 63 15.7. P 电路板 (4/4) 线路图----------------------- 64 15.8. PA 电路板方框图---------------------------- 65 15.9. PA 电路板线路图---------------------------- 66 15.10. H 电路板 (1/2) 方框图----------------------- 67 15.11. H 电路板 (2/2) 方框图----------------------- 68 15.12. H 电路板 (1/5) 线路图----------------------- 69 15.13. H 电路板 (2/5) 线路图----------------------- 70 15.14. H 电路板 (3/5) 线路图----------------------- 71 15.15. H 电路板 (4/5) 线路图----------------------- 72 15.16. H 电路板 (5/5) 线路图----------------------- 73 15.17. DG 电路板 (1/3) 方框图---------------------- 74 15.18. DG 电路板 (2/3) 方框图---------------------- 75 15.19. DG 电路板 (3/3) 方框图---------------------- 76 15.20. DG 电路板 (1/10) 线路图--------------------- 77 15.21. DG 电路板 (2/10) 线路图--------------------- 78 15.22. DG 电路板 (3/10) 线路图--------------------- 79 15.23. DG 电路板 (4/10) 线路图--------------------- 80 15.24. DG 电路板 (5/10) 线路图--------------------- 81 15.25. DG 电路板 (6/10) 线路图--------------------- 82 15.26. DG 电路板 (7/10) 线路图--------------------- 83 15.27. DG 电路板 (8/10) 线路图--------------------- 84 15.28. DG 电路板 (9/10) 线路图--------------------- 85 15.29. DG 电路板 (10/10) 线路图-------------------- 86 15.30. D 电路板方框图----------------------------- 87 15.31. D 电路板 (1/6) 线路图----------------------- 88 15.32. D 电路板 (2/6) 线路图 -----------------------89 15.33. D 电路板 (3/6) 线路图 -----------------------90 15.34. D 电路板 (4/6) 线路图 -----------------------91 15.35. D 电路板 (5/6) 线路图 -----------------------92 15.36. D 电路板 (6/6) 线路图 -----------------------93 15.37. C1 和 C2 电路板方框图 -----------------------94 15.38. C1 电路板 (1/3) 线路图 ----------------------95 15.39. C1 电路板 (2/3) 线路图 ----------------------96 15.40. C1 电路板 (3/3) 线路图 ----------------------97 15.41. C2 电路板 (1/5) 线路图 ----------------------98 15.42. C2 电路板 (2/5) 线路图 ----------------------99 15.43. C2 电路板 (3/5) 线路图 ---------------------100 15.44. C2 电路板 (4/5) 线路图 ---------------------101 15.45. C2 电路板 (5/5) 线路图 ---------------------102 15.46. SC 电路板方框图 ---------------------------103 15.47. SC 电路板 (1/2) 线路图 ---------------------104 15.48. SC 电路板 (2/2) 线路图 ---------------------105 15.49. SU 和 SD 电路板方框图 ----------------------106 15.50. SU 电路板 (1/2) 线路图 ---------------------107 15.51. SU 电路板 (2/2) 线路图 ---------------------108 15.52. SD 电路板 (1/2) 线路图 ---------------------109 15.53. SD 电路板 (2/2) 线路图 ---------------------110 15.54. SS 和 S 电路板方框图 -----------------------111 15.55. S 电路板和 SS 电路板 (1/2) 线路图 -----------112 15.56. SS 电路板 (2/2) 线路图 ---------------------113 15.57. G 和 GS 电路板方框图及 G 和 GS 电路板线路图 --114 15.58. GH 和 K 电路板方框图及 GH 和 K 电路板线路图 --115 16 部件布置及机械部件更换清单 ---------------------117 16.1. 部件布置 ----------------------------------117 16.2. 包装分解图 (1) ----------------------------118 16.3. 包装分解图 (2) ----------------------------119 16.4. 包装分解图 (3) ----------------------------120 16.5. 更换部件清单注意事项 ----------------------121 16.6. 机械部件更换清单 --------------------------122 17 电器部件更换清单--------------------------------123 17.1. 电器部件更换清单 --------------------------123 5 1 适用信号 6 2 安全警告 2.1. 一般准则 1. 进行维修和维护时，请勿试图更改设备及其部件或其材料。 2. 维修连接线 （如电缆、柔性电缆或导线）时，当仅有一条导线或几条导线损坏或断开时，请勿试图维修或重新为其连接。请更 换整条连接线。 3. 进行维修和维护时，应直接拉出或插入固定连接器，而不应将其扭曲。 4. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 5. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸屏蔽等安装正确。 6. 维修后，进行以下漏电检查，以免用户遭受触电危险。 2.2. 漏电检查 1. 将 AC 电源线直接插入 AC 电源插座。进行检查时，请勿使用隔离变压器。 2. 在设备上各外露金属部分和良好接地 （如水管）之间连接一个电流测量装置，如图 1 所示。 3. 用漏电测试仪 （Simpson 228 或类似型号）测量通过该装置的电势。 4. 检查各外露金属部件，并测量各点电压。 5. 变换 AC 插座中的 AC 插头，并重复上述各项测量。 6. 各点 （漏电）的电势表示为电压 U1 和 U2，并且不能超过以下各值： 交流：U1=35V （峰值） U2=0.35V （峰值）； 直流：U1=1.0V， 注： 与交流的 U2 限定峰值 0.35V 和直流的 U1 限定峰值 1.0V 相对应的电流峰值分别为 0.7mA 和 2.0mA。 与交流的 U1 限定峰值 35V 相对应的 100kHz 以上的电流峰值为 70mA。 7. 当测量值超出规定的限制时，可能会引起触电。所以必须在机器返回用户手中之前对其进行修理和再检测。 漏电测量电路 电阻值 （Ω） V：电压表或示波器 （r.m.s. 或峰值） 输入电阻：≥ 1MΩ 输入电容：≤ 200pF 频率范围：分别为直流 15Hz 到 1MHz 注：必须使用合适的测量设备，以便在非正弦波形时测量准确。 图 1 7 3 静电敏感设备 (ES) 的静电放电保护 (ESD) 一些半导体（固态）装置很容易被静电损坏。这些装置通称为静电敏感装置（ES）。典型的 ES 装置有集成电路和一些场效应晶体管以 及半导体 “芯片”组件。以下方法通常被用来减少由于静电释放 （ESD） 所造成的组件损坏。 1. 在处理任何半导体组件或是配备有半导体组件的设备之前，接触已知地线以排除身体上的静电。或者戴上市面上可购买到的抗静 电腕带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 在拆卸配有静电敏感装置的电气组件后，请将组件放置于导体表面上 （如铝箔），以防止聚集静电或组件外露。 3. 仅使用末端接地的烙铁焊接或拆焊静电敏感装置。 4. 仅使用防静电拆焊装置。不属于 “防静电 （静电释放保护）”的拆焊装置可能会产生足以损坏静电敏感装置的电荷。 5. 禁止使用氟里昂驱动化学物质。它们能产生足以损坏静电敏感装置的电荷。 6. 在准备立即安装之前，才能拆开静电敏感备换装置的保护性包装，取出备换静电敏感装置。（大多数备换静电敏感装置都使用导 电泡沫、铝箔或类似导电性材料包装，其导线被短接。） 7. 从备换静电敏感装置导线上取下防护性材料前，使防护性材料接触机芯或即将安装的电路组件。 注意： 确定机芯或电路无电源，并遵守其它所有安全注意事项。 8. 在处理未包装的备换静电敏感装置时，尽量减少身体活动。（否则，如衣物纤维的摩擦或从铺有地毯的地面抬起脚等动作都会产 生足以损坏静电敏感装置的静电 （静电释放））。 8 4 关于无铅焊接 (PbF) 注：在元素周期表中，铅用 Pb 表示。 在下文中，Pb 表示有铅焊接，PbF 表示无铅焊接。 在制造流程中使用和下文中介绍的无铅焊接 （Sn+Ag+Cu）。 即：锡 （Sn），银 （Ag）和铜 （Cu），其他类型也可使用。 出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维修和修理工作中最好使用无铅焊接，不过也允许使用有铅焊 接。 使用无铅焊接工艺制造的印刷电路板背面的树叶形符号 内有 PbF 字样。 注意： • 无铅焊接的熔点比标准焊接的熔点高。通常熔点超过 50-70°F （30-40°C）。 请使用高温烙铁，并将其温度设为 700±20°F （370±10°C）。 • 当温度过高 （约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。 如果必须使用有铅焊接，请在焊接前先全部去除焊脚或焊区上的无铅焊料。如果做到这点实际操作困难，则确保无铅焊料加热到熔 化后再进行有铅焊接。 • 在对双面电路板进行无铅焊接后，请检查部件侧部是否有过量焊料，否则会流到另一侧。（见下图） 推荐的无铅焊料 有几种无铅焊料可供选购。本产品使用 Sn+Ag+Cu( 锡 + 银 + 铜 ) 焊料。 也可使用 Sn+Cu （锡，铜），Sn+Zn+Bi( 锡，锌，铋 ) 焊料。 9 5 维修提示 取下后盖 电路板名称 功能 电路板名称 功能 P 主电源 D 格式转换，等离子 AI， 子场处理器 DG 数字信号处理器、Micom、HDMI 接口 峰值 Lite 2 C1 数据驱动 ( 下右 ) C2 数据驱动 ( 下左 ) K 遥控接收器，电源指示灯 SC 扫描驱动 S 电源开关 SU 扫描输出 ( 上 ) H 扬声器输出、声音处理器、 AV 端子、AV 切换 SD 扫描输出 ( 下 ) SS 维持驱动 PA DC-DC 转换器 G 按键开关、前端子 GH HDMI 3 IN GS SD 卡插槽 10 6 等离子显示屏更换方式 6.1. 取下后盖 1. 参见维修提示 （请参见第 5 章节） 6.2. 取下后端子盖 1. 松开螺丝 （×12 ， ×4 ， ×2 ）。 2. 取下后端子盖。 6.3. 取下左扬声器 1. 松开线夹，取下电缆。 2. 断开继电器连接件。 3. 松开螺丝 （×2 ），并取下左扬声器。 6.4. 取下右扬声器 1. 松开线夹，取下电缆。 2. 断开继电器连接件。 3. 松开螺丝 （×2 ），并取下右扬声器。 6.5. 取下 P 电路板 注意： 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.C.B.。 1. 松开线夹，取下电缆。 2. 断开连接件 （P2，P5，P9，P11，P12 和 P25）。 3. 松开螺丝 （×10 ），并取下 P 电路板。 11 6.6. 取下 PA 电路板 1. 松开线夹，取下电缆。 2. 断开连接件 （PA3，PA4，PA5，PA32 和 PA34）。 3. 松开螺丝 （×3 ），并取下 PA 板。 6.7. 取下调谐器组件 1. 松开线夹，取下电缆。 2. 断开连接件 （H3, H4, H11, H12, H51, DG1, DG5 和 DG52）。 3. 从连接件 DG11 断开柔性电缆。 4. 松开螺丝 （×4 ），并取下调谐器组件。 6.8. 取下 DG 电路板 1. 取下调谐器组件。（请参见 6.7 章节） 2. 断开连接件 （DG2 和 DG6）。 3. 松开螺丝 （×7 ），并取下 DG 电路板。 6.9. 取下 H 电路板 1. 取下调谐器组件。（请参见 6.7 章节） 1. 松开螺丝 （×1 ），并取下调谐器固定金属。 2. 松开螺丝 （×7 ），并取下 H 电路板。 12 6.10. 取下 D 电路板 1. 取下调谐器组件。（请参见 6.7 章节）。 2. 断开连接件 （D5 和 D25）。 3. 断开柔性电缆 （D20，D31 和 D32）。 4. 松开螺丝 （×4 ），并取下 D 电路板。 6.11. 取下 SU 电路板 1. 松开螺丝 （×2 ）。 2. 断开连接到 SU 板上的柔性电缆 （SU1，SU2，SU3 和 SU4）， 并取下桥连接器 （SC45-SU45）。 3. 将 SU 板移到左边，并与 SC 板的连接件（SC41-SU41）断开， 取下 SU 电路板。 6.12. 取下 SD 电路板 1. 松开螺丝 （×2 ）。 2. 断开连接到 SD 板上的柔性电缆 （SD1，SD2，SD3 和 SD4）， 并取下桥连接器 （SC46-SD46）。 3. 将 SD 板移到左边，并与 SC 板的连接件（SC42-SD42）断开， 取下 SD 电路板。 6.13. 取下 SC 电路板 1. 取下 SU 电路板和 SD 电路板。 （请参见第 6.11 章节和第 6.12 章节） 2. 松开线夹，取下电缆。 3. 断开连接件 （SC2）。 4. 断开柔性电缆 （SC20）。 5. 松开螺丝 （×6 ），并取下 SC 电路板。 13 6.14. 取下 SS 电路板 1. 断开连接件 （SS11，SS12，SS23 和 SS34）。 2. 断开柔性电缆 （SS53A，SS54A，SS55A 和 SS56A）。 3. 松开螺丝 （×6 ），并取下 SS 电路板。 6.15. 取下支架 1. 将等离子显示屏从维修支架上取下，将显示屏朝下放置在 类似桌子 （铺有软布）的表面上。 2. 松开支架 （左、右）固定螺丝 （各 ×5 ），并取下支架 （左、右） 6.16. 取下 C1 电路板 1. 取下调谐器组件。（请参见 6.7 章节） 2. 松开线夹，取下电缆。 3. 取下柔性电缆固定器的固定螺丝 （×10 ）。 4. 断开柔性电缆 （CB1，CB2，CB3，CB4 和 CB5）。 5. 断开柔性电缆 （C10 和 C11）。 6. 松开螺丝 （×4 ），并取下 C1 电路板。 6.17. 取下 C2 电路板 1. 取下调谐器组件。 （请参见 6.7 章节） 2. 松开线夹，取下电缆。 3. 取下柔性电缆固定器的固定螺丝 （×12 ）。 4. 断开柔性电缆 （CB6，CB7，CB8，CB9，CB10 和 CB11）。 5. 断开柔性电缆 （C20 和 C21）。 6. 断开连接件 （C23）。 7. 松开螺丝 （×4 ），并取下 C2 电路板。 6.18. 取下前支架和前屏蔽仓盖 1. 松开螺丝 （×2 ,×1 ）, 并取下前屏蔽仓。 14 6.19. 取下 G 和 GH 电路板 1. 取下前支架和前屏蔽仓盖。 （请参见第 6.18 章节） 2. 松开螺丝 （×4 ），并取下前屏蔽仓盖。 3. 松开螺丝 （×4 ），断开连接件 （G51 和 GH11）。 4. 取下 G 和 GH 电路板。 6.20. 取下 GS 电路板 1. 松开螺丝 （×2 ）, 并取下 GS 组件。 2. 断开连接件 （GS52）。 3. 松开螺丝 （ ）, 并取下 GS 电路板。 6.21. 取下 S 电路板 1. 松开螺丝 （×2 ），并取下 S 电路板金属框。 2. 断开连接件 （S1）。 3. 松开螺丝 （×2 ），并取下 S 电路板。 6.22. 取下 K 电路板 1. 取下 S 电路板。（请参见第 6.21 章节） 2. 松开线夹，取下电缆。 3. 断开连接件 （DG1）。（请参见第 6.7 章节） 4. 松开螺丝 （×2 ），滑至右侧卸下 K 电路板。 15 5. 断开连接件 （K1）, 并取下 K 电路板。 6.23. 取下前面框（玻璃）上的等离子显 示屏部件 1. 从维修支架上取下等离子显示屏部件，放置在类似桌子（铺 有软布）等的平坦的表面上，并且等离子显示屏表面朝下。 2. 取下支架 （左，右）固定螺丝 （各 ×1 ）。 3. 重新放置维修支架，并固定电视机。 4. 取下前面框和等离子显示屏固定螺丝 （×12 ）。 5. 将等离子显示屏从前面框上取下时，拉住前面框底部，抬 起，并向前拉出。 6.24. 安装等离子显示屏 （完成） 1. 将新的等离子显示屏（完成）放置在类似桌子（铺有软布） 等的表面上，并且等离子显示屏表面朝下。 2. 安装 C1 和 C2 电路板，用柔性电缆 (× 11) 将等离子显示屏 与 C1 和 C2 电路板连接，并固定柔性电缆固定器。 3. 安装卡钩 （左，右） ，并将支架 （左，右）安装到新的等 离子显示屏上。 4. 将等离子显示屏放置到维修架上。 5. 将前面框和电路板等安装到新的等离子显示屏上。 * 安装机壳组件时，注意前玻璃和等离子显示屏之间不要有 碎屑、灰尘或杂质存在。 16 7 注意事项 7.1. 注意事项 注意 : 请确认所有的柔性电缆都正确束起，并且锁定在连接器内。 轻拉一下柔性电缆进行确认。 17 8 导线布置 8.1. 导线 (1) 如下图所示布置导线。 18 8.2. 导线 (2) 如下图所示布置导线。 19 8.3. 导线 (3) 如下图所示布置导线。 20 9 自检功能 应用自检功能测试本机。 1. 检测 IIC 总线 2. 电源 LED 闪烁次数 9.1. IIC 总线检测 9.1.1. 如何进入 仅自检指示： 进入 TV 接收屏幕，然后按主机 按钮的同时按下遥控器上的 [ 确定 ] 按钮 3 秒钟以上。 自检指示和恢复出厂设置： 进入 TV 接收屏幕，然后按主机 按钮的同时按下遥控器上的 [ 菜单 ] 按钮 3 秒钟以上。 9.1.2. 屏幕显示 9.1.3. 检查点 如果显示 NG，请确认检查下列部件。 9.1.4. 退出 从墙面插座上拔下 AC 电源线。 显示 参考号 说明 电路板 ADV IC4510 AD/HDMI DG 电路板 VSW IC3001 视频开关 H 电路板 ADAV IC2106 声音处理器 H 电路板 ASW IC3101 音频开关 H 电路板 GEN IC1100 GenX （STB MCU） DG 电路板 MEM1 IC1101 EEPROM （GenX） DG 电路板 MEM2 IC8601 EEPROM （Peaks） DG 电路板 TUN1 TU3200 调谐器 ( 主 ) H 电路板 TUN2 TU3201 调谐器 ( 副 ) H 电路板 GC3FS IC4001 Global core ( 副 ) DG 电路板 PDP-PANEL IC9003 MICOM D 电路板 TEMP IC4800 Temp 传感器 DG 电路板 21 9.2. 电源 LED 闪烁次数图 1. 主题 发光二极管闪烁时间图信息。 2. 内容 当设备出现异常时，保护电路将运行并将设备复位到待机状态。此时，通过本机前端的 LED 电源闪烁次数便可识别出故障部位。 22 9.3. 无电源 第一检测点 LED 无电源指示有二种情况： 1. 不亮 2. 红灯亮，几秒钟后转为红灯闪烁。（请参见第 9.2 章节） 23 9.4. 无图像 24 9.5. 显示器局部故障 等离子显示屏屏幕上可能会出现局部故障。图 1 是各局部可能会出现故障的 P.C.B. 印刷电路板。 25 10 维修模式 10.1. 如何进入维修模式 按主机 按钮的同时，在 3 秒钟内按遥控器上的 [RECALL] 按钮三次。 10.1.1. 主要指令 “1”按钮…正向选择主项目 “2”按钮…反向选择主项目 “3”按钮…正向选择副项目 “4”按钮…反向选择副项目 “RED”按钮…所有副项目选择反向 “GREEN”按钮…所有副项目选择正向 “VOL”按钮…正向 （+）或反向 （-）更改副项目的数据。 26 10.1.2. 调整模式内容 • 按十六进制显示数值。 • 预设值根据型号的不同而不同。 • 进入调整模式后，在开始调整前请记录各项目的值。 10.1.3. 如何退出 使用主机或遥控器上的 [POWER] 按钮关闭电源。 主项目 副项目 示例数据 备注 ADJUST CONTRAST 243 COLOR 2B TINT 00 Video-Gain2 199 SUB-BRT 810 H-POS 0 H-AMP 0 V-POS 0 V-AMP 0 WB-ADJ R-CUT 80 G-CUT 80 B-CUT 80 R-DRV F6 G-DRV EC B-DRV FC ALL-CUT 80 ALL-DRV FC OPTION Panel-Type 42WHD 出厂预设 Boot ROM STBY-SET 00 Emergency ON Y/C Delay -1 OPT 1 00111000 OPT 2 11100010 OPT 3 01101111 AGING RGBW All white (COUNTER) All white All red All green All blue ON/OFF Diagonal lamp W Diagonal lamp R Diagonal lamp G Diagonal lamp B 1%WINDOW COLOR BAR A B zone/checkerd4 trio SCROLL BAR 2dot width border SRV-TOOL 参见下页 销售地区 C 中国 选项 1 38 选项 2 E2 选项 3 6F 27 10.2. 维修工具模式 10.2.1. 如何进入 1. 选择维修模式下的 “SRV-TOOL”。 2. 按遥控器上的 [ 确定 ] 按钮。 10.2.2. 显示 SOS 历史纪录 SOS 历史纪录 （LED 闪烁次数）指示。 从左侧开始依次为：最后一次 SOS、倒数第二次、倒数第三次、出厂后第二次、出厂后第一次。通过 “自检指示和恢复出厂设置”即 可清除该指示。 10.2.3. 开启 TIME/COUNT TIME （计时）：累计开启时间，显示小时：十进制分钟 COUNT （计数）：十进制开启次数 注意：无法通过自检或任何指令清除该指示。 10.2.4. 退出 1. 从墙面插座上拔下 AC 电源线。 28 11 调整步骤 11.1. 驱动器设置 11.1.1. 项目 / 准备 1. 输入白色信号到等离子显示屏视频。 2. 如下设定图像控制： 图像菜单：最佳 PNR：关闭 宽高比：16:9 注意 1. 首先进行 Vsus 调整。 2. Vad 调整确认后，再确定 Vscn 电压。当 Vad = -105V 时， Vscn 的电压为 40V ± 4V。 11.1.2. 调整 参照显示屏数据标牌上的显示屏数据，调整驱动器各部分的电 压。 使用万用表检查或调整下列电压。 * 见显示屏标签。 名称 测试点 电压 调整点 备注 Vsus TPVSUS(SS) Vsus±2V R628(P) * Ve TPVE(SS) Ve±1V VR6000(SS) * Vset TPVSET(SC) 330V±7V 固定 Vad TPVAD(SC) -105V±1V VR6600(SC) Vscn TPVSCN(SC) Vad+145V±4V 固定 Vda TPVDA(SS) 75V+1V, -2V 固定 PFC C446(+)(-) 396V±0.5V R443(P) 29 11.2. 初始化脉冲调整 1. 输入白色信号到等离子显示屏视频。 2. 如下设定图像控制： 图像菜单：最佳 PNR：关闭 宽高比：16:9 3. 连接示波器至测试点 TPSC1 （SC）。 检查并将每个短时脉冲 （T2）时长调整至规格范围之内。 11.3. P.C.B. （印刷电路版）更换 11.3.1. 注意 1. 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.C.B.。 11.3.2. P.C.B. 更换后进行快速调整 使用万用表调整以下电压。 * 见显示屏标牌签。 注意： 请勿将 Vsus 设置到 Ve 以下，以防损坏 P.C.B 板。 测试点 调整点 等级 T2 TPSC1(SC) VR6602 (SC) 190 ± 10μ Sec P.C.B. 名称 测试点 电压 调整点 备注 P 电路板 Vsus TPVSUS (SS) Vsus ± 2V R628(P) * PFC C446 396V ± 0.5V R443(P) SC 电路板 Vad TPVAD (SC) -105V ± 1V VR6600(SC) SS 电路板 Ve TPVE (SS) Ve ± 1V VR6000(SS) * D,DG 电路板 NTSC, PAL, HD, PC 和 625i 信号的白平衡和副亮度。 30 11.4. 调整点位置 11.5. 测试点位置 31 12 调整 12.1. 副对比度调整 仪器名称 连接 备注 RF 发生器 基带发生器 准备 （AV） 备注 1. 接收 AV1 ( 如下所示 PAL 100% 全白或彩条，如下图 )。 2. 进入维修模式。 3. 按 “1”或 “2”键，进入 “副对比度”维修模式。 AV 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为黑色。 4. 结束。 准备 （RF） 备注 1. 接收 RF (PAL 100% 全白或彩条，如下图 )。 2. 进入维修模式。 3. 按 “1”或 “2”键，进入 “副对比度”维修模式。 RF 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为黑色。 4. 结束。 准备 （HD） 备注 1. 接收分量。 (1080i/ 60Hz 或 1080i/ 50Hz, 100% 全白或彩条，如下图。) 2. 进入维修模式。 3. 按 “1”或 “2”键，进入 “副对比度”维修模式。 HD 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为黑色。 4. 结束。 32 12.2. PAL 显示屏白平衡调整 仪器名称 连接 备注 • 黑白模式 • 彩色分析仪 （Minolta CA-100 或同等产品） RF 输入 显示屏表面 用户设定：正常 步骤 备注 • 确保充分老练 15 分钟以上。 • 确保前面板已经安装在整机上。 • 确认调整之前无彩色信号显示。 • 将彩色分析仪放置在有轻微色差的地方。 通电后 10 分钟内完成调整。 通过老练等不能完成调整时，重新打开电源。 1. 显示白平衡图像。 2. 进入维修模式。 3. 操作数字键 “1”或 “2”，然后显示 “WB-ADJ”。 查看确保色温为 “高”。 4. 使用数字键 “3”或 “4”选择 “G-CUTOFF”项目，使用音量 “+”或 “-”键将其设置为 “80”，并将 “B-CUTOFF”和 “R-CUTOFF”也设置为 “80”。 5. 将 “G-DRIVE”设置为 “E0”。 6. 将彩色分析仪的信号接收器放到高亮窗口的中间位置，然后调整 B-DRIVE 和 R-DRIVE，将 x, y 的值调整为下表中的 “色温 - 高”的值。 7. 将 “ALL-DRIVE”设置为 “FC”。 8. 使用 “7”键将色温设置为 “中”。 9. 将 G-CUTOFF、B-CUTOFF 和 R-CUTOFF 固定为 “80”。 10. 将 G-DRIVE 固定为 “E0”。 11. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 中”的值。 12. 将 “ALL-DRIVE”设置为 “FC”。 13. 使用 “7”键将色温设置为 “低”。 14. 将 G-CUTOFF、B-CUTOFF 和 R-CUTOFF 固定为 “80”。 15. 将 G-DRIVE 固定为 “E0”。 16. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 低”的值。 17. 将 “ALL-DRIVE”设置为 “FC”。 图像菜单：最佳 宽高比：16:9 • 高亮显示部分 信号振幅 75% 33 12.3. HD 白平衡调整 仪器名称 连接 备注 • 1080i 黑白模式 • 彩色分析仪 （Minolta CA-100 或同等产品） RF 输入 显示屏表面 用户设定：标准 步骤 备注 • 确保充分老练 15 分钟以上。 • 确保前面板已经安装在整机上。 • 确认调整之前无彩色信号显示。 • 将彩色分析仪放置在有轻微色差的地方。 通电后 10 分钟内完成调整。 通过老练等不能完成调整时，重新打开电源。 1. 显示白平衡图像。 2. 进入维修模式。 3. 操作数字键 “1”或 “2”，然后显示 “WB-ADJ”。 查看确保色温为 “高”。 4. 使用数字键 “3”或 “4”选择 “G-CUTOFF”项目，使用音量 “+”或 “-”键将其设置为 “80”，并将 “B-CUTOFF”和 “R-CUTOFF”也设置为 “80”。 5. 将 “G-DRIVE”设置为 “E0”。 6. 将彩色分析仪的信号接收器放到高亮窗口的中间位置，然后调整 B-DRIVE 和 R-DRIVE，将 x, y 的值调整为下表中的 “色温 - 高”的值。 7. 将 “ALL-DRIVE”设置为 “FC”。 8. 使用 “7”键将色温设置为 “中”。 9. 将 G-CUTOFF、B-CUTOFF 和 R-CUTOFF 固定为 “80”。 10. 将 G-DRIVE 固定为 “E0”。 11. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 中”的值。 12. 将 “ALL-DRIVE”设置为 “FC”。 13. 使用 “7”键将色温设置为 “低”。 14. 将 G-CUTOFF、B-CUTOFF 和 R-CUTOFF 固定为 “80”。 15. 将 G-DRIVE 固定为 “E0”。 16. 调整 B-DRIVE 和 R-DRIVE，将高亮窗口的 x, y 的值调整为下表中的 “色温 - 低”的值。 17. 将 “ALL-DRIVE”设置为 “FC”。 图像菜单：最佳 宽高比：16:9 • 高亮部分 信号振幅 75% * 色彩平衡 COOL 与日本型号的值不同。 34 13 旅馆模式 1. 目的 设置旅馆功能。 2. 进入旅馆模式设置菜单指令 为了显示旅馆模式设置菜单，请输入以下指令 （在 2 秒钟 内）。 随后将显示旅馆模式设置菜单。 3. 若要退出旅馆模式设置菜单 从墙面插座上拔下 AC 电源线。 4. 旅馆模式设置菜单说明 项目 功能 旅馆模式 选择旅馆模式开启 / 关闭。 初始输入 选择输入信号模式。 每次接通电源后都设置此输入。 选项： Off/TV/AV1/AV2/AV3/AV4/PC/HDMI1/HDMI2/HDMI3 • Off: 以最后一次存储为准。 • PC: VGA 可选 初始位置 选择频道号。 选项： Off/0 到 99 • Off: 以最后一次存储为准。 初始音量等级 每次接通电源后都设置音量 选项 / 范围： Off/0 到 100 • Off: 以最后一次储存为准。 最大音量等级 调节最大音量。 范围： 0 到 100 键锁定 选择按键键入条件。 选项： Off/SETUP/MENU/ALL • Off: 所有按键有效 • SETUP: 只有 F 键无效 （菜单中调谐状态无） • MENU: 只有 F 键无效 （只可选择音量 / 静音。） • ALL: 所有按键全部无效。 遥控锁定 选择遥控键入条件。 选项： Off/SETUP/MENU • Off: 所有按键有效 • SETUP: 只有设置菜单无效 • MENU: 图像 / 声音 / 设置菜单无效 35 14 导线图 14.1. P 电路板 A B C D E F G H I 1 2 3 4 5 6 P-BOARD (FOIL SIDE) TXN/P1HLTC TH-42PV700C P-BOARD TXN/P1HLTC TH-42PV700C P-BOARD TXN/P1HLTC 36 TH-42PV700C P-BOARD PARTS LOCATION TH-42PV700C P-BOARD PARTS LOCATION Parts Location Parts Location P-BOARD (COMPONENT SIDE) IC402 E-2 IC409 E-2 IC411 F-2 IC504 D-2 IC506 B-4 IC508 B-4 IC511 C-4 IC512 B-3 IC513 B-3 IC Q404 F-3 Q406 G-3 Q412 E-3 Q413 E-4 Q507 D-4 Q527 A-4 TRANSITOR R443 F-3 R661 C-2 R665 B-3 VOLUME P-BOARD (FOIL SIDE) IC401 E-2 IC402 E-2 IC403 F-2 IC406 D-4 IC408 F-2 IC409 E-2 IC411 D-2 IC412 F-3 IC501 H-2 IC502 H-1 IC504 F-2 IC505 H-5 IC506 H-4 IC507 G-4 IC508 H-4 IC509 G-4 IC510 I-1 IC511 G-4 IC512 H-3 IC513 H-3 IC520 H-3 IC Q401 D-4 Q402 D-4 Q403 E-2 Q404 D-4 Q406 C-3 Q407 D-3 Q408 E-3 Q409 E-4 Q410 F-2 Q411 E-2 Q412 E-3 Q413 E-4 Q420 D-4 Q422 D-3 Q434 D-2 Q501 H-1 Q502 G-1 Q507 F-4 Q508 G-2 Q509 G-3 Q510 G-4 Q517 E-4 Q520 F-4 Q521 G-1 Q524 H-2 Q525 H-4 Q527 H-4 Q530 H-4 TRANSISTOR R443 C-3 R661 G-2 R665 H-3 Q535 H-4 Q537 G-1 Q538 H-2 Q540 G-5 Q541 G-2 Q553 G-2 Q554 G-2 Q555 G-3 Q556 G-3 Q563 G-2 Q564 G-3 Q565 H-3 Q566 G-3 Q567 G-2 Q569 G-2 VOLUME P 37 A B C D E F G H I 1 2 3 4 5 6 P-BOARD (COMPONENT SIDE) TXN/P1HLTC TH-42PV700C P-BOARD TXN/P1HLTC TH-42PV700C P-BOARD TXN/P1HLTC 38 14.2. PA 电路板 A B C D E F G H I 1 2 3 4 5 6 J124 J125 J126 J127 IC5550 C5589 C5592 C5595 C5596 PA3 PA4 PA5 PA6 PA7 C5410 C5418 C5419 ZA5501 ZA5502 ZA5503 PA32 PA33 PA34 JS5568 JS5569 PA35 J201 J202 J203 J204 J205 J206 J207 J208 J209 J1 J2 J3 J210 J4 J211 J5 J212 J6 J213 J214 L5550 L5551 L5552 L5564 L5565 L5566 C5501 C5503 D5517 D5518 D5519 L5400 L5401 J101 C5551 J103 J104 J105 J106 J107 J108 J109 J110 J111 J112 J113 J114 J115 J116 J117 J118 J119 J120 J121 J122 J123 DIP PAMM2 PAMM3 PAMM1 PAMM4 PAMM6 PAMM5 TNPA4178 PA 1 PAMM7 PbF 1 16 23 22 1 2 23 22 1 2 1 2 22 23 1 12 11 1 3 1 3 1 3 1 3 1 REVERSE FOR SUFFIX. SEE R5550 R5554 R5555 R5556 R5557 R5558 IC5550 R5559 R5560 C5589 R5561 C5591 C5592 C5593 C5595 D5571 JA2 C5596 JA3 D5573 C5597 JA4 R5570 C5598 JA5 R5571 JA6 R5572 JA7 R5573 JA8 PA3 PA4 PA5 PA6 PA7 C5402 C5403 C5404 C5405 Q5401 C5409 C5410 C5411 C5412 C5413 C5414 C5415 C5416 C5417 C5418 C5419 ZA5501 ZA5502 ZA5503 C5420 D5402 D5403 D5404 D5405 R5402 R5403 R5404 R5405 D5409 IC5400 D5410 D5411 D5412 D5413 R5410 R5411 PA32 R5412 PA33 R5413 PA34 R5414 PA35 R5415 R5416 R5417 R5418 R5419 TPC0F R5420 R5421 R5422 R5423 R5424 R5425 TPS15V TPFA9 TPM0N L5550 L5551 TPS0F L5552 R5480 R5481 R5482 TPS0N R5483 R5484 R5485 R5486 TPS0S L5564 L5565 L5566 TPST5 C5501 C5502 TPS5V C5503 C5504 Q5501 TPM9V C5521 C5522 Q5521 D5501 Q5522 Q5523 Q5524 R5506 R5507 R5508 R5509 D5517 D5518 D5519 TPS9V L5400 D5521 L5401 D5522 D5526 D5528 D5529 TPFA15 C5551 TPAC1 C5552 C5553 D5530 C5554 Q5551 R5531 R5532 R5533 TPF0S R5534 R5535 R5536 R5537 R5538 TP5400 R5539 Q5561 Q5562 TPEC0 R5540 R5541 R5542 R5543 R5544 R5545 R5546 R5547 R5548 R5549 PA 1 TNPA4178 AB AC AE AF AG PAMM12 PAMM13 PAMM15 PAMM14 AH AD PAMM11 PAMM16 R5487 R5489 R5490 R5488 R5491 AJ AK AL AM AN PbF 16 1 23 22 1 2 22 1 2 23 1 2 22 23 1 12 1 11 1 5 1 3 1 3 1 3 1 3 SUFFIX. TH-42PV700C PA-BOARD TXNPA1HLTC TH-42PV700C PA-BOARD TXNPA1HLTC PA-BOARD (FOIL SIDE) TXNPA1HLTC PA-BOARD (COMPONENT SIDE) TXNPA1HLTC PA Parts Location PA-BOARD IC5400 B-3 IC5550 D-2 IC Q5401 B-4 Q5501 D-2 Q5521 B-2 Q5522 B-2 Q5523 B-3 Q5524 C-2 Q5551 D-2 Q5561 D-1 Q5562 D-1 TRANSISTOR TP5400 B-3 TPAC1 B-1 TPC0F C-3 TPECO A-2 TPF0S C-4 TPFA9 B-4 TPFA15 B-3 TPM9V D-1 TPMON A-1 TPS0F D-2 TPS15V C-1 TPS5V D-1 TPS9V C-2 TPSON A-2 TPSOS A-2 TPST5 B-1 TP 39 14.3. H 电路板 A B C D E F G H I 1 2 3 4 5 6 D3034 C3059 D3035 R3032 D3036 D3037 D3038 R288 R289 D3039 R867 R868 C3060 C3062 C3064 D3040 D3041 D3042 D3043 C3068 D3045 R296 D3046 R297 D3047 D3048 R3044 R3239 D3049 R3045 C3263 R3048 C3265 R3049 C3266 R3240 C3269 R3244 C3078 R3246 R3052 R3054 R3249 C3274 C3275 C3276 C3277 R3250 C3278 R3251 R3252 R3253 R3254 R3255 R3256 C3280 R3259 C3281 R3065 C3283 R3067 C3284 C3287 C3288 R3260 JS031 R3266 JS032 JS033 R3073 R3268 C3291 R3269 C101 R3270 C3299 Q103 JK3100 R3274 R3275 R3276 JS044 JS045 R3086 JS047 JS052 JS053 JS054 JS055 JS056 JS057 JS059 C317 C318 C319 C128 JS061 JS062 JS063 C320 C321 JS065 C322 JS066 R106 C323 JS067 C324 JS068 C325 JS069 C326 R303 R304 R110 JS3010 R111 JS3011 R112 JS3012 JS3207 JS3013 R308 JS3014 C331 R309 JS3209 JS3015 C332 R116 C333 R117 C334 C335 C336 C337 C144 C338 JS3210 D120 R311 C339 L001 R312 JS3212 L002 R313 JS3213 L003 R314 C148 L004 C149 R315 R316 L007 C340 L008 JS3024 C341 JS279 C342 R126 C343 C344 C150 C345 C346 C152 C347 C348 L011 L012 L015 R132 L016 JS3032 R327 JS098 C3106 L022 C3107 JS3040 C3108 C3109 C3301 C3302 C3303 C3304 C3110 C3305 R149 C3111 C3306 C3112 TP012 C173 C3308 C174 TP014 TP015 C3115 TP016 R152 L036 R154 C180 C375 C181 C376 C182 H2 C377 H3 C183 C378 C184 D3100 C3124 H4 L040 C379 C185 H8 R3102 TP606 R3103 R3104 C380 TP608 C381 TP609 R165 R3105 C382 R3106 C383 C384 R3108 C385 D3301 C386 D3302 C387 C388 TP610 C389 C195 TP611 TP612 C197 C198 R3112 R3306 R3113 TP617 R3307 C390 R3308 R3309 JK003 L3001 L3002 L3003 R184 R3124 R185 R3125 D189 R186 R187 R3127 R188 R3128 L3201 R189 L3010 L3207 L3013 L3208 R190 L3209 R191 R192 R193 R3134 R195 R196 L3211 H11 L3212 H12 R3141 R3142 R3143 R3144 R3145 R3146 L3220 R3149 L3222 L3223 JS300 L3224 JS301 L3225 L3226 R3350 R3160 R3168 C003 C004 C005 C006 Q002 Q003 JK3001 R3177 H51 C202 C010 C205 C011 C206 C013 R3180 C014 C016 C017 R3186 R3188 C021 C022 C219 C802 C803 C805 C806 C807 D015 D016 D017 C237 C238 C814 D020 C817 R214 R215 D025 C049 R602 R603 C050 R029 C052 C246 C053 R223 R030 D035 R031 D036 R032 R033 R034 L308 C068 R235 R236 R237 R238 R239 C3201 R047 Q3200 R048 R624 Q3201 R049 R625 R242 R050 R051 TP302 R052 TP303 R053 TP304 R054 TP305 TP306 C272 R056 TP307 R057 TP308 TP309 C3216 C3022 C3023 D3003 TP310 C088 D3005 R3001 C3029 D3006 R3002 R062 R3003 R063 Q3027 TU3200 C280 R3004 TU3201 R3005 R3006 R3007 C3030 R3008 R3009 C3226 C3227 C288 C3228 C289 R3202 R263 R3010 R3205 R265 R3206 R3012 R074 C291 C3040 C3042 C298 R3213 R3020 R3214 R3215 R3021 R3216 R3022 R277 R084 R278 R279 R280 R281 R282 R3222 CR NO.2 TNPA4179 H 1 PbF AV3 COMPONENT AV3 AV2 COMPONENT MONITOR OUT AV1 AV2 REVERSE FOR SUFFIX. SEE 1 2 22 23 1 2 22 23 1 2 22 23 1 10 L R 1 2 3 4 1 5 1 2 3 4 1 4 23 22 1 2 1 5 6 10 11 15 1 2 19 20 23 22 1 2 VIDEOOUT AFTOUT BTL VB RFAGC SDA SCL BB SIFOUT AUDIOOUT +B SW1 SW2 VIDEOOUT AFTOUT SCL SDA RFAGC VB BTL +B SW2 SW1 TH-42PV700C H-BOARD TNPA4179AE TH-42PV700C H-BOARD TNPA4179AE H-BOARD (FOIL SIDE) TNPA4179AE H Parts Location H-BOARD (FOIL SIDE) Q2002 B-3 Q2003 B-3 Q2103 C-3 Q3027 D-4 Q3200 F-2 Q3201 E-1 TRANSISTOR TP2012 C-5 TP2014 C-5 TP2015 C-5 TP2016 C-5 TP2302 B-2 TP2303 B-1 TP2304 C-1 TP2305 B-1 TP2306 C-1 TP2307 B-1 TP2308 C-1 TP2309 C-1 TP2310 B-1 TP2606 G-4 TP2608 G-2 TP2609 F-3 TP2610 F-3 TP2611 G-4 TP2612 G-4 TP2617 F-3 TP 40 A B C D E F G H I 1 2 3 4 5 6 R284 R860 R090 R285 R091 R861 R286 R092 R862 R3227 R287 R863 R093 R3228 R094 R864 R3229 R865 R095 R866 R096 R3037 R097 R3038 R098 R3039 R869 R099 C3063 R290 R291 C3066 R292 R3233 R293 R3040 D3044 R3234 R294 R3041 R871 R295 R3236 R872 R3237 R873 R3238 R299 C3264 C3070 C3267 C3268 C3075 C3076 R3243 R3247 C3270 C3271 C3272 C3273 C3081 R3059 C3082 C3083 C3084 C3279 C3085 C3086 C3087 R890 R3062 R3063 R3064 C3282 R3068 C3285 R3069 FL3001 C3286 FL3002 FL3003 FL3004 C3289 FL3005 FL3006 FL3007 FL3008 R3070 R3072 C3290 JS034 R3074 JS035 C3292 C3293 C100 C3296 C102 C3298 Q101 C105 Q102 C106 C107 JK3100 C108 C109 R3277 R3278 C301 JS046 C302 C303 R3087 JS048 C304 C110 X010 R3088 C305 JS049 Q301 R3089 C111 C306 C112 C307 C113 C308 C114 C309 C115 C116 C117 JS050 C118 R3090 JS051 C119 C310 C311 C312 R3096 C313 R3097 C314 C120 JS058 R3098 C315 C121 R3099 C316 C124 C126 C127 JS060 R100 C129 JS064 R104 R108 C130 R109 D301 C131 D302 C132 C327 D303 C133 C328 D304 C134 C135 IC105 C329 R301 C136 R302 IC106 IC107 C137 C138 R305 R306 JS3206 R307 R113 C330 JS3208 R114 D119 IC301 R115 IC302 IC303 R118 R119 C143 C145 C146 C147 R122 R317 JS3023 R123 R318 R124 R319 R125 R127 R128 R129 C151 C153 C154 R320 C155 R321 C349 R322 C157 R323 R324 R130 C159 R325 R131 R326 R133 R134 C350 R328 JS3034 R135 C351 JS3035 C352 R136 JS096 JS3036 C353 R137 JS3037 JS097 R138 C160 C354 JS3038 C3100 C355 C161 C3101 JS3039 C162 C356 C3102 C357 C163 C3103 C358 C164 R330 C165 C359 R331 L021 C166 C167 L023 C168 R140 C169 R141 R142 L026 R143 L027 C360 C3300 L028 R144 C361 ZA3001 L029 R145 ZA3002 C362 R146 C363 ZA3003 C364 ZA3004 C170 C365 ZA3005 C171 C172 ZA3006 C3113 ZA3007 ZA3008 C175 C176 C3116 C3117 L034 R150 C3118 C3119 C179 R151 L035 L038 L039 R156 C3120 H2 H3 H4 D3101 C3125 C186 H6 C3126 D3102 C187 R160 H8 C188 R3100 C189 R3101 R162 TP607 R164 R166 R3107 R167 R168 C190 C191 R3109 R169 C192 C193 C194 R3301 C196 R3302 R3303 R170 R3110 R171 R3305 R3111 C199 R172 R173 R174 R175 R3115 IC3302 R3116 R3117 JK003 R3118 R178 R179 R3119 L3000 R3310 R3311 R3313 R180 R3120 L3004 R3121 R181 R182 R3316 R3122 R3123 R183 R3318 R3319 R3126 L647 L648 L3201 L649 R3129 L3206 L650 R3130 R3131 R3133 R194 R3135 R197 R3137 R198 R3138 H11 R3139 L3212 H12 D3334 H15 D3335 D3336 D3337 R3140 D3338 JS101 L3219 JS102 JS103 R3147 R3148 L3227 R3348 R3349 R3351 R3352 R3353 R3161 R3162 R3164 R3165 R3166 R3167 R3174 JK3001 R3175 R3176 C200 H51 C201 C203 C204 ZA101 Q015 Q016 ZA102 ZA103 Q017 ZA104 ZA105 ZA106 ZA107 C213 ZA108 C216 C023 C218 C601 Q021 R3191 C602 Q023 Q024 Q025 Q026 Q027 Q028 Q029 C224 C801 IC002 IC003 Q030 C804 Q031 IC006 Q033 IC007 R203 IC008 Q034 R204 R205 Q035 R206 R207 R208 R209 Q039 IC010 IC011 C812 IC012 IC013 C813 R210 Q040 Q041 C815 C816 Q042 C818 C048 C819 D025 R216 D026 R217 R218 D028 R601 D029 R219 C244 C245 R220 C054 IC601 R221 C055 D031 R222 C056 D032 D033 C057 C058 D034 R224 R225 C059 R226 R227 L300 R228 L301 C251 R229 Q635 L302 C252 Q636 L303 C253 Q637 L304 C254 C060 Q638 L305 Q639 C255 C061 L306 C062 C256 L307 C063 C257 IC610 C258 C064 R230 L309 C259 R231 C065 C066 R232 C067 R233 R234 Q640 C069 Q641 L310 C3202 C263 C070 C264 C071 C265 C072 C266 C073 C267 R240 R628 C268 R241 R629 Q3011 Q3012 Q3013 R243 Q3014 R244 TP301 Q3015 D632 D633 Q3017 D634 Q3018 C270 C271 D635 D636 D637 C273 D638 R058 C274 C3214 C3021 R059 C276 C3024 C279 C3025 C3026 R252 R253 C3027 C3028 R254 C089 R257 TU3200 R064 TU3201 R065 C281 R066 R067 R068 R069 IC3001 FL001 C3031 C091 FL002 C092 FL003 C093 C3033 FL004 C094 Q3030 Q3031 FL005 C3035 C095 Q3032 FL006 C096 C097 R070 C098 R071 C099 R266 R072 R073 C3230 C290 R075 C292 C293 C294 C295 C296 C297 C3043 R270 R271 C3047 R275 C3049 R276 R853 R854 R085 R855 R856 R086 R857 R088 R858 C3050 R089 C3051 R859 C3052 C3053 C3054 C3055 C3056 R283 B DIP A AB AD AE AF A B D D E E F C F C AG AH AJ AK AL AM AN AP AQ AR AS DA DB DC DD 1 HMM1 HMM2 HMM3 HMM5 HMM4 HMM8 HMM11 CR NO.2 HMM9 G G AC H HMM13 HMM14 HMM6 HMM15 TNPA4179 HMM7 HMM10 HMM12 H H PbF 1 1 AV3 COMPONENT AV3 COMPONENT AV1 AV2 AV2 MONITOR OUT 1 11 12 22 23 33 34 44 1 20 21 40 41 60 61 80 1 4 5 7 1 22 23 44 1 22 23 44 SUFFIX. 1 2 22 23 1 2 22 23 1 2 22 23 2 79 80 1 1 10 1 4 5 8 L R 1 2 3 4 1 5 2 3 4 1 1 4 1 4 23 22 1 2 1 5 6 10 11 15 1 2 19 20 23 22 1 2 1 8 9 16 1 4 5 8 1 4 5 8 1 4 5 7 1 3 4 5 1 4 5 8 1 4 5 8 1 3 4 5 1 4 5 8 1 3 4 5 SCL SDA RFAGC VB BTL AUDIOOUT SIFOUT BB +B SW1 SW2 VIDEOOUT AFTOUT VB AFTOUT VIDEOOUT SW1 SW2 +B SCL SDA RFAGC BTL 1 25 26 50 51 75 76 100 TH-42PV700C H-BOARD TNPA4179AE TH-42PV700C H-BOARD TNPA4179AE H-BOARD (COMPONENT SIDE) TNPA4179AE H Parts Location H-BOARD (COMPONENT SIDE) IC2002 A-5 IC2003 E-4 IC2006 A-5 IC2007 B-5 IC2008 B-3 IC2010 B-4 IC2011 C-5 IC2012 C-3 IC2013 C-3 IC2105 F-2 IC2106 B-4 IC2107 B-3 IC2301 E-2 IC2302 E-2 IC2303 D-1 IC2601 B-5 IC2610 B-2 IC3001 D-4 IC3302 C-5 IC Q2015 C-5 Q2016 B-5 Q2017 B-5 Q2021 C-5 Q2023 C-3 Q2024 C-3 Q2025 C-3 Q2026 C-3 Q2027 E-4 Q2028 E-4 Q2029 E-4 Q2030 E-4 Q2031 E-4 Q2033 E-4 Q2034 F-5 Q2035 F-5 Q2039 F-5 Q2040 F-5 Q2041 F-5 Q2042 F-5 Q2101 B-4 Q2102 B-4 Q2301 D-2 Q2635 A-4 Q2636 A-5 Q2637 A-5 Q2638 A-4 Q2639 B-2 Q2640 B-5 Q2641 B-5 Q3011 D-5 Q3012 D-4 Q3013 D-4 Q3014 C-5 Q3015 A-5 Q3017 C-5 Q3018 D-4 Q3030 C-5 Q3031 B-5 Q3032 B-5 TRANSISTOR TP TP2301 D-2 TP2607 A-2 41 14.4. DG 电路板 A B C D E F G H I 1 2 3 4 5 6 Q4000 Q4001 Q4002 Q8850 Q4200 Q8851 Q4201 Q8852 Q8853 IC4000 IC4002 IC4003 Q4800 IC4004 Q4801 IC4005 Q4802 Q4803 Q4805 TP8744 TP5670 TP8745 TP4504 JK8731 TP4505 TP4506 TP4507 TP4508 TP4512 TP4513 TP4514 TP4515 TP4517 TP4518 Q8301 IC5600 IC5601 TU8301 TP2024 IC8301 Q8911 Q8912 Q8913 TP5707 TP8404 TP8601 TP8602 TP8603 TP8604 TP8605 Q4500 Q5694 Q4501 TP8037 IC5670 Q4509 Q4511 Q4512 Q4513 Q4514 Q4515 Q4516 Q4517 Q4518 Q4519 Q4520 Q4521 TP1100 JK8401 TP1101 TP1102 TP1103 TP1104 TP1105 IC4501 IC4504 IC4506 IC4507 IC4508 IC4509 IC4513 IC4514 IC4515 IC2000 TP4200 TP8851 TP4201 TP8852 TP8853 TP8854 TP4800 TP4801 TP4802 TP4803 TP4804 TP4805 TP4806 TP4807 TP4808 TP4809 Q8403 TP4810 Q8404 TP4811 TP4818 IC8004 Q8801 Q8802 TP4451 IC8408 IC8409 IC8601 Q1100 Q1101 Q1102 Q1103 Q1104 Q1105 Q1106 Q1107 Q1108 IC8801 Q1109 TP5600 TP5601 TP5602 Q1110 Q1111 TNPA4176 1 DG IC8551 IC8552 PbF 1 3 4 5 1 3 4 5 1 3 4 5 1 3 4 5 REVERSE FOR SUFFIX. SEE 1 2 16 15 12 13 24 1 1 15 16 30 ACTIVE ANTENNA DC/DC TU BM SCL IFD2 IFD1 SDA IFA1 BB IFAGC RFAGC MON 1 16 17 32 33 48 49 64 1 3 4 5 34 33 68 67 1 2 35 36 1 4 5 8 1 4 5 8 1 4 5 7 1 3 4 5 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 8 9 16 + 1 10 11 20 1 10 11 20 1 4 5 8 1 4 5 7 1 24 25 48 24 25 1 48 C1118 R8044 TP5608 R8045 R8818 R8048 C8070 R8819 C8071 R8049 C8072 R8433 C8073 C4000 C8074 R8435 C4001 C8075 R8436 C4002 C8076 R8437 C4003 C8077 R8438 R8820 D1100 C1124 Q4000 C8078 R8821 Q4001 D1101 C8079 R8822 D1102 Q4002 R8052 D1103 R8823 R8053 D1104 R1100 R8824 R1101 D1105 R8825 R1102 R8056 R1103 D1107 R8440 R1104 C8080 C8851 R8441 R1105 R8059 R8829 C8852 R1106 C8853 R8443 R1107 C4203 C8854 Q8850 R1108 Q4200 Q8851 C8855 R1109 TP8501 Q4201 Q8852 C8856 R8446 Q8853 R8447 C4013 R8448 C4014 R8060 R8449 R8831 R8061 R8832 R8834 C4018 R1110 R1111 R1112 R1113 R8067 R8450 TP8700 R1114 R8068 C4210 R8451 TP8701 R8069 TP8702 TP8703 R8454 TP8704 C4020 TP8705 TP8706 TP8707 C4023 X4500 C4024 C4600 TP8708 TP8709 C4601 R8071 C4026 C4602 C4603 C4028 C4604 R8074 R8651 R8075 C4607 R8077 TP8710 R1124 C4608 R8078 C4609 R1125 TP8711 R8079 R8655 TP8712 R1126 R8463 TP8713 C4800 TP8714 IC4000 C4801 TP8715 C4802 IC4002 TP8716 IC4003 C4803 TP8717 C4804 Q4800 C4610 IC4004 TP8718 R4200 R8080 C4805 Q4801 C4035 IC4005 R8469 TP8719 C4611 R8081 R8852 Q4802 C4806 C4036 C4612 R4202 R8082 Q4803 C4613 R8083 R8854 C4614 R8084 R1131 R4011 C4615 Q4805 R4012 R8086 R8856 R1133 R8087 R8470 TP8720 C4618 R4014 R8088 R4208 R8859 R1135 TP8721 R8089 R4209 R8472 R1136 TP8722 R1137 TP8723 R1138 TP8724 R8474 C4041 TP8725 R1139 R8475 R8476 C4042 TP8726 R8477 C4043 TP8727 R8478 C4044 C4620 L5670 TP8728 R8090 R8479 TP8729 L8551 R8091 C4621 C4046 R8092 C4622 R8863 C4623 C4047 R8093 R1140 C4048 R8094 R1141 C4049 R8095 R8096 C4626 R1143 C4627 R8480 R8868 R4600 TP8730 R8098 C4628 R8481 TP8731 R8099 C4629 R1146 TP8732 R4026 TP8733 R4603 R1147 R4604 C4050 TP8734 R8484 R4605 TP8735 R1149 R4029 R8485 R4606 C4052 TP8736 R8486 TP8737 C4053 R8487 D4800 TP8738 R8870 R8488 R8871 TP8739 R8872 R8875 R1151 R8876 R4802 R1152 R8877 R4803 R4804 TP8740 R8879 R4805 R4611 R4229 TP8741 R4806 R4612 TP8742 R4807 TP8743 R1157 R4808 TP8744 TP5670 TP8745 R4809 R4615 TP8746 TP8747 TP8748 L5690 R8881 TP8749 L5691 R8882 L5692 R8883 R8884 R4810 L5694 R4811 R8886 R4812 L4502 R8887 R4813 L4503 R4814 L4504 TP8750 R8889 L4505 TP8751 R4816 R4622 TP8752 TP8753 L4508 R4818 TP8754 TP8755 TP8756 R4626 R4627 TP8757 TP8758 R8890 R8891 TP8759 R4241 R4242 R8893 R8894 L4510 R4244 L4512 R8896 R4246 TP8760 R4631 TP8761 L4515 L4516 TP8762 TP8763 L4517 R4634 L4518 TP8764 L4519 TP8765 TP8766 TP8767 C5600 TP4500 TP8768 C5601 TP4501 TP4502 C5603 TP4503 C5604 L4520 TP4504 C5605 L4521 JK8731 TP4505 C5606 TP4506 R1182 C5607 TP4507 C5608 L4524 TP4508 C5609 TP4509 X8001 R4835 R4836 R4837 R4838 R4839 C5610 TP4510 R4648 TP4511 TP4512 TP4513 R4840 TP4514 C8301 TP4515 C5616 C8302 TP4516 C5617 C8303 TP4517 R4844 C8304 TP4518 Q8301 TP4519 R1195 R4846 C8307 R4847 R1197 R4653 R4848 R1198 TP2000 R4654 C8309 R1199 TP2001 TP2002 TP2003 C5620 TP2004 C5621 TP2005 C5622 TP2006 C5623 TP2007 C5624 R4850 R4274 TP2008 C5625 C8311 C8505 R4851 TP2009 C8506 C5626 C8312 C5627 D5603 C8313 D5604 R5600 C8314 C8315 R4661 R4279 D5606 C8316 R4663 D5607 C8317 R5604 C8318 R4664 D5608 R4858 TP2010 R5605 C8319 R4859 TP2011 R4665 R5606 TP2012 R5607 R4667 TP2013 IC5600 C5630 R4668 R8100 TP2014 IC5601 C5631 R4669 R8101 R4281 TP2015 C5632 TP2016 C5633 R4283 TP2017 C5634 C8320 R8104 R4284 TP2018 C5635 C8321 TU8301 R4285 R8105 TP2019 C8322 R8106 R4286 C5637 R8107 R5610 C5638 R8108 R4288 R5611 R8109 R4289 R5612 C8326 R5613 R4673 R4674 TP2020 R5615 R8301 C8329 TP2021 TP2022 R4676 R5617 TP2023 R4677 R8110 C5640 R5618 R4290 TP2024 R4678 R8111 R5619 C5641 R4291 R4679 R4292 C5643 JS4000 C8330 R4870 JS4001 IC8301 JS4002 C8332 R4872 JS4003 C8333 R4873 R5620 JS4004 C8334 R4874 R4680 R5621 C8335 R4875 R4681 R5622 JS4006 C8336 R4682 R5623 R8503 R4683 R5624 C8338 Q8911 R5625 C8339 R8505 L8001 R4685 Q8912 R5626 R8506 L8002 R4686 Q8913 R5627 R8313 L8003 R8507 R4687 R5628 R8508 L8004 R4688 R5629 R8509 R4689 L8006 L8007 C8340 L8008 R8319 C8341 R8701 L8009 R8703 R5630 R8704 R8510 R4690 R5631 R8705 R5632 R8706 R5633 R4693 R5634 R8320 R4694 L8010 R8709 R5636 R4696 R5637 R4697 R8900 R8325 R8901 R8326 R8902 R8327 R8903 R8904 R8328 R8710 R8905 R8711 R8906 R8907 R8908 R8909 R5643 TP5700 TP5701 TP5702 TP5703 R8910 C5670 TP5704 R8911 TP5705 C5671 TP5706 C5672 C8552 C5673 TP5707 R8914 R8915 R8916 R8917 R8918 R8919 L8802 R8920 R8921 TP8401 R8922 TP8402 R8923 TP8403 TP8404 R8924 R1200 R1201 R8925 R8926 R8927 R8928 R1204 R8735 R8736 R8737 R1207 R8738 TP8601 TP8602 TP8603 R8930 C5690 TP8604 R8931 TP8605 C5691 R8932 R8933 R8934 R8740 D5670 R1210 R8741 R8935 R1211 D5671 C4501 R8742 R8936 R1212 R8743 R8937 R1213 D5673 C4503 R8938 R5670 R1214 Q4500 C4504 Q5694 R8745 R8939 Q4501 R5671 C4505 R8551 R1215 TP8801 R8746 R8552 TP8802 R8747 R8553 R5673 TP8803 R8748 R8554 C4508 R1218 TP8804 C4509 R1219 R8555 TP8805 R8556 TP8806 R8557 TP8037 TP8807 R8940 IC5670 TP8808 R8941 Q4509 R8942 R8943 R8944 R1220 R8945 R1221 C4511 C4512 R8946 R1222 C4513 R1223 C4514 R8948 R1224 R8949 Q4511 R1225 C4515 Q4512 R1226 C4517 R8563 R1227 Q4513 C4518 R1228 R8564 Q4514 C4519 R1229 Q4515 Q4516 R8567 Q4517 R8950 Q4518 C2000 R8951 Q4519 R8952 R4302 R4303 C4520 R1230 D5690 R4304 C4521 D5691 R4305 R4306 R4307 D5693 Q4520 R4308 D4501 Q4521 C4526 R1236 R1237 C4527 C4528 TP1100 JK8401 C4529 TP1101 R4501 TP1102 TP1103 R4503 TP1104 L4000 R4505 TP1105 R4311 R4506 R8963 L4003 R4507 R8964 L4004 C4530 L4005 C4531 IC4501 R4315 R8965 L4006 C4532 R4316 R8966 L4007 R8967 R4317 C4533 R1243 R4700 L4008 R4318 IC4504 R4701 R4319 IC4506 R4702 D4512 R4703 IC4507 C4538 IC4508 R1249 C4539 IC4509 R4705 R4706 R4707 R4320 D4518 R4708 R4709 R4324 C4540 R1250 R4325 C4541 C4542 R4326 C4543 IC4513 C4544 IC4514 C4545 R4329 IC4515 C4546 R1256 C4547 R1257 D4524 TP4000 R1258 D4525 R1259 D4526 D4527 R4524 IC2000 R4330 R4525 R4527 C4550 R1260 R1261 R1262 R1264 TP4200 TP8851 R2011 C4555 TP4201 TP8852 C4556 R2012 C4557 TP8853 D4533 TP8854 D4534 D4535 C4559 R4531 R2016 D4536 R2017 L4800 R2018 L4801 C4560 R4538 C4561 R4539 C4562 C4563 C4564 C4565 R2021 C4566 R2022 R4540 R2024 C8001 R4541 C4569 C8002 R2026 R4542 R2027 R4543 C8003 R2028 C8004 C8006 C8007 C8008 C8009 C4573 C4576 C4577 TP4800 C8010 C4579 C8011 TP4801 R4552 TP4802 C8012 ZA0013 TP4803 C8013 ZA0014 TP4804 C8014 ZA0015 C8015 TP4805 C5712 ZA0016 TP4806 C8016 ZA0017 C5713 C8017 TP4807 C5714 C4580 ZA0018 C8018 TP4808 C5715 X8301 C4581 ZA0019 C8019 TP4809 C4583 C4584 C4585 Q8403 C4587 ZA0020 C8020 TP4810 Q8404 C4589 ZA0021 TP4811 C8021 ZA0022 C8022 ZA0023 C8023 R4564 C8024 ZA0024 TP4814 R4565 C8601 C8025 TP4815 C8026 TP4816 C8027 TP4817 FL4500 R4568 C4590 C8028 TP4818 C8411 FL4501 C4591 R4569 R8001 C8029 R8002 C8412 C4592 FL4502 C8413 C4593 FL4503 C8414 C4594 FL4504 C8415 FL4505 C4595 FL4506 R8006 C4597 R8007 C4598 C8030 R8008 C8031 C8802 C8032 C8803 C8033 R4574 C8804 C5730 C8034 IC8004 R4575 C8805 C5731 Q8801 C8035 R4576 C5732 C8806 Q8802 C8036 C8807 R4577 C8037 C8808 C5734 R4578 C8038 R4579 C8809 C8039 R8011 R8012 R8015 R8016 R4580 C8040 R8019 R8401 R4581 C8041 C8812 R4582 C8042 C8043 C8813 R4583 C8814 R4584 C8044 R4585 C8045 R4586 C8046 R4587 C8047 R8020 R8408 R4588 C8048 TP4451 R4589 C8049 R8023 R8024 L5605 R8601 R8025 L5606 R8602 R8603 IC8408 R8604 R8028 C8050 IC8409 R8029 C8051 R8412 R4592 C8052 R4593 C8053 R4594 C8054 R4595 IC8601 C8055 C8056 C8057 Q1100 L5610 C8058 R8030 Q1101 C1105 R8031 Q1102 R8032 Q1103 R8033 R8034 Q1104 L8301 C1109 Q1105 R8035 L8302 R5732 Q1106 Q1107 R5733 R8037 Q1108 R8038 IC8801 JS4501 Q1109 R5735 R8039 C8061 L8306 JS4502 C8062 R2087 R5737 TP5600 R5738 TP5601 R5739 C8065 C8066 TP5602 C8067 TP5603 R8810 Q1110 C8068 R8040 TP5604 Q1111 R8811 C8069 R8041 TP5605 R8812 TP5606 R8813 L8503 TP5607 TNPA4176 B IC8551 IC8552 TH-42PV700C DG-BOARD TXNDG1HLTC TH-42PV700C DG-BOARD TXNDG1HLTC DG-BOARD (FOIL SIDE) TXNDG1HLTC 42 TH-42PV700C DG-BOARD PARTS LOCATION TH-42PV700C DG-BOARD PARTS LOCATION Parts Location DG-BOARD (FOIL SIDE) IC2000 E-5 IC4000 E-4 IC4002 E-4 IC4003 D-5 IC4004 E-4 IC4005 E-4 IC4501 G-5 IC4504 H-4 IC4506 F-4 IC4507 G-4 IC4508 F-5 IC4509 E-4 IC4513 F-5 IC4514 G-5 IC4515 G-4 IC5600 C-3 IC5601 B-3 IC5670 H-4 IC8004 B-4 IC8301 C-2 IC8408 C-3 IC8409 C-2 IC8601 F-3 IC8801 H-3 IC8851 H-2 IC8852 H-2 IC Q1100 H-3 Q1101 H-3 Q1102 G-3 Q1103 G-2 Q1104 G-3 Q1105 G-3 Q1106 G-2 Q1107 G-3 Q1108 G-3 Q1109 G-3 Q1110 G-3 Q1111 G-3 Q4000 E-5 Q4001 E-5 Q4002 E-4 Q4200 B-6 Q4201 B-5 Q4500 G-4 Q4501 H-5 Q4509 H-3 Q4511 F-5 Q4512 F-5 Q4513 F-5 Q4514 F-5 Q4515 E-5 Q4516 F-5 Q4517 F-5 Q4518 E-5 Q4519 E-5 Q4520 G-5 Q4521 H-5 Q4800 B-2 Q4801 A-3 Q4802 A-2 Q4803 A-3 Q4805 C-5 Q5694 F-3 Q8301 E-2 Q8403 D-3 Q8404 E-3 Q8801 H-3 Q8802 H-2 Q8850 D-4 Q8851 E-4 Q8852 E-4 Q8853 D-4 Q8911 H-5 Q8912 H-5 Q8913 H-5 TRANSISTOR TP Parts Location DG-BOARD (COMPONENT SIDE) IC1100 B-3 IC1101 B-4 IC4001 E-4 IC4500 C-5 IC4503 C-5 IC4510 C-4 IC4800 A-3 IC5660 H-3 IC5671 B-4 IC5672 D-3 IC8001 F-4 IC8002 G-4 IC8003 G-4 IC8302 H-2 IC8401 E-3 IC8402 F-3 IC8403 E-2 IC8404 F-3 IC8405 F-2 IC8406 E-3 IC8407 E-3 IC8553 B-2 IC8621 C-2 IC8622 C-2 IC8654 C-2 IC Q2000 B-3 Q2001 B-3 Q4502 B-5 Q4503 B-4 Q4504 B-6 Q4505 B-5 Q5600 G-3 Q5601 H-3 Q5602 H-3 Q5603 H-3 Q5604 H-3 Q5690 C-3 Q5691 C-3 Q5692 C-3 Q5693 D-3 Q8401 E-2 Q8402 E-2 Q8501 F-5 TRANSISTOR TP1100 H-4 TP1101 H-4 TP1102 G-4 TP1103 H-1 TP1104 H-3 TP1105 G-3 TP2024 E-6 TP4200 C-6 TP4201 C-6 TP4451 A-5 TP4504 G-5 TP4505 G-5 TP4506 H-5 TP4507 G-5 TP4508 H-5 TP4512 F-5 TP4513 F-4 TP4514 F-5 TP4515 F-4 TP4517 H-3 TP4518 F-4 TP4800 B-4 TP4801 B-4 TP4802 B-4 TP4803 B-4 TP4804 B-5 TP4805 B-4 TP4806 B-4 TP4807 B-4 TP4808 B-5 TP4809 B-4 TP4810 B-4 TP4811 B-4 TP4818 A-2 TP5600 C-3 TP5601 B-3 TP5602 B-3 TP5670 H-4 TP5707 D-6 TP8037 B-4 TP8404 E-2 TP8601 F-3 TP8602 F-3 TP8603 F-3 TP8604 G-3 TP8605 F-3 TP8745 B-2 TP8851 H-3 TP8852 G-3 TP8853 G-4 TP8854 E-3 TP8744 E-3 DG 43 A B C D E F G H I 1 2 3 4 5 6 IC8621 IC8622 IC1100 IC1101 DG11 DG23 IC4001 DG25 DG26 DG31 DG32 DG33 DG34 DG35 DG1 DG2 JK8701 DG5 DG6 JK8702 DG7 DG52 IC4800 Q5600 Q5601 JK8731 Q5602 Q5603 Q5604 Q8501 TU8301 JK4500 JK4501 IC8302 IC5660 Q5690 Q5691 Q5692 Q5693 Q4502 Q4503 Q4504 Q4505 IC5671 IC5672 IC8553 IC8554 Q2000 Q2001 JK8401 IC4500 IC4503 IC4510 JK8801 Q8401 Q8402 IC8001 IC8002 IC8003 IC8401 IC8402 IC8403 IC8404 IC8405 IC8406 IC8407 B E C F D G H J K L N M W V Q R U ( A AA B BA C D E CA DA EA FA ( ) ) F ( ) ( ) ( ) ( ) P Y X T S 1 DG TNPA4176 DGMM1 DGMM2 DGMM3 PbF 1 10 11 20 1 10 11 20 1 32 33 64 65 96 97 128 1 4 5 8 1 30 + 1 9 1 20 21 40 41 60 61 80 110 56 55 1 1 6 1 2 19 20 7 1 1 11 1 2 29 30 1 2 29 30 3 7 1 6 2 10 1 12 1 23 22 2 1 55 56 110 1 31 2 79 80 1 1 4 1 4 14 1 1 3 4 6 SUFFIX. + 1 2 16 15 + + ACTIVE ANTENNA BB DC/DC TU BM IFA1 SDA SCL IFD2 IFD1 IFAGC RFAGC MON 19 1 1 19 1 1 1 1 4 8 5 1 5 3 4 1 3 4 5 1 24 25 48 28 56 29 1 67 68 33 34 2 35 1 36 1 4 5 8 1 12 13 24 25 36 37 48 1 36 37 72 73 108 109 144 1 9 12 10 8 + A 1 1 A 1 A 1 12 13 24 1 11 20 10 1 4 6 3 1 10 11 20 1 10 11 20 10 1 11 20 1 10 11 20 R8814 R8815 C1119 R8621 R8622 R8816 R8046 R8623 R8817 R8047 R8430 R8624 R8431 R8625 R8432 R8626 R8627 R8434 R8628 C1120 R8629 IC8621 C1122 IC8622 C1123 C4004 R8050 C4005 C1125 R8051 C4006 C1126 C4007 C4008 R8630 R8054 R8631 C4009 R8055 D1106 R8632 R8826 R8827 R8633 R8057 R8634 D1108 R8828 R8058 D1109 R8635 R8636 C4010 IC1100 C4204 R8445 C4011 IC1101 C4012 C4206 D1110 R8830 C4208 C4015 D1112 C4016 R8062 R8833 C4017 D1113 R8063 R8064 C4019 R8065 R8066 DG11 R1115 R8452 R1116 R8453 R1117 R1118 R8455 R1119 C4021 R8456 C4022 R8457 R8458 R8070 R8459 C4025 R8072 C4027 R8073 R1120 R4000 C4029 R4001 R1121 C4605 R4002 C4606 R1122 R8076 R4003 R1123 R8653 R4004 R8460 R8461 R4005 R4006 R8462 DG23 R1127 R4007 C4030 R1128 D8850 R8465 C4031 IC4001 R1129 DG25 C4032 R8466 DG26 C4033 R8467 R8468 C4034 R8851 R4201 C4037 R4203 R8853 C4807 C4808 C4038 R4010 R1130 R4204 C4039 R8855 R4205 C4616 R1132 R4206 R8857 C4617 R4013 R4207 R8858 R1134 R8471 DG31 C4619 DG32 R4016 DG33 R4017 C4040 DG34 DG35 R4019 R4210 R8860 C4045 R8862 R8864 C4624 R8865 C4625 R8866 R1142 R8867 R8097 R1144 R4025 R1145 FL8801 R4601 R8869 R8482 FL8802 R4602 R8483 R4027 R4028 FL5730 R1148 FL5731 C4051 FL5732 FL5733 R4607 R4608 FL5734 DG1 R4609 DG2 R8873 R8874 R1150 R4800 JK8701 R4801 DG5 DG6 JK8702 R1153 DG7 R8878 R1154 R4034 R4610 R1155 R1156 DG52 R4613 R1158 R4614 IC4800 R1159 R4616 R4617 R8880 R4230 R4618 R4619 C4450 R1160 L4500 R8885 L4501 R1161 R1162 R1163 R4620 R8888 R1164 R4621 R4815 R1165 R1166 L4506 R4623 R4817 R1167 L4507 R4624 R4625 L4509 R1169 R4819 R4628 R4629 R8892 R1170 R4820 R1171 L4511 R8895 R1172 L4513 R1173 R8897 R4247 R1174 R4630 R8898 R8899 R1175 R4249 R4632 R1176 R1177 R4633 R1178 R1179 R4635 R4636 R4637 R4638 R4639 C5602 Q5600 R1180 Q5601 JK8731 R1181 Q5602 R4832 R4833 R1183 Q5603 R4834 R4640 R1184 Q5604 R1185 R4641 R4642 R1186 R4643 R1188 R4644 R1189 R4645 R4646 R4647 C5611 R4649 C5612 R4841 C5615 R4842 R1192 R1193 C5618 R1194 R4650 C5619 R4845 R4651 C8306 R1196 R4652 C8308 R4655 R4656 R4657 R4658 R4659 C8501 C8502 C8503 D5600 C8310 JS1100 C8504 D5601 JS1101 Q8501 D5602 JS1102 R4852 JS1103 R4853 C5628 R4660 JS1104 R4854 D5605 C5629 JS1105 R4855 R4662 JS1106 R4856 JS1107 R4857 JS1108 JS1109 D5609 R4666 R5608 R5609 R8102 R8103 JS1110 R4860 TU8301 JS1111 R4861 C5636 JS1112 R4862 C8323 JS1113 R4287 R4863 C8324 R4670 JS1114 R4864 C5639 C8325 R4671 JS1115 R4865 R4672 JS1116 R4866 C8327 JS1117 R4867 C8328 JK4500 JS1118 R4868 FL4800 R4675 JK4501 JS1119 R4869 FL4801 FL4802 R8303 R8304 R8305 R8306 C5642 R8307 R8308 JS1120 C5644 R8309 C8331 JS1121 R4871 C5645 IC8302 JS1122 JS1123 JS1124 JS4005 JS1125 R8501 R4876 JS1126 R8502 JS4007 C8337 JS1127 R8310 FL4810 R4684 R8504 R8311 FL4811 FL4812 R8312 FL4813 R8314 R8315 L8005 R8317 R8318 R8702 R4691 R8511 R4692 R8512 R8707 R8513 R8708 X1100 R8514 IC8003-A R5635 R8321 C8731 R4695 R8515 R8322 R8516 R8323 R8517 C5660 R8324 R4698 R8518 R5638 C5661 R4699 R8519 C5662 C5663 R8329 R8712 R5640 R5641 R5642 R5644 R5646 R5647 C8551 R8912 R8913 C8553 C8554 C5674 C8555 C5675 C5676 SW5660 L8801 R8731 L5735 R8732 R1202 R8733 R1203 R8734 R5660 R1205 R8929 R5661 R5662 R1206 R1208 R8739 R1209 IC5660 L8621 C5692 C5693 Q5690 C5694 C4500 Q5691 C5695 C4502 D5672 Q5692 Q5693 R8744 C4506 R5672 R1216 Q4502 Q4503 C4507 R1217 Q4504 R5674 R8749 Q4505 L1100 R8558 IC5671 R8559 IC5672 IC8553 IC8554 C4510 R8947 R8560 R8561 R8562 R8565 R8566 Q2000 R8954 Q2001 R1231 R1232 D5692 R1233 D4500 R5690 R1234 R8958 C4525 R1235 R5691 R4309 R5692 D4502 R5693 D4503 D4504 R1238 R5694 R4500 JK8401 R5695 R1239 D4505 R5696 R4502 D4506 R5697 D4507 D4508 R4504 R4310 D4509 L4001 L4002 R4312 R1240 R4508 IC4500 R4509 R1241 IC4503 D4510 C4534 R1244 D4511 R1245 C4535 C4536 R1246 C4537 D4513 R1247 D4514 R4704 R4510 R1248 R4511 D4515 R4512 D4516 R4513 D4517 R4514 R4321 R4515 D4519 R4322 R4516 R4517 R4323 IC4510 R4518 R1251 R4519 JK8801 R1252 R1253 R4327 D4520 R1254 R4328 R2000 D4521 R1255 R2001 D4522 R2002 D4523 R2003 C4548 R4520 R2004 R4521 C4549 R4522 R2006 R2007 R4523 D4528 R4526 R4528 C4551 R4529 C4552 R1263 C4553 R2010 D4530 D4531 D4532 R2013 R4530 R2014 C4558 R2015 R4532 R4533 D4537 R4535 R2019 R4536 R2020 R2023 C4567 C4568 R2025 ZA0001 ZA0002 ZA0004 R4544 R4545 ZA0005 C8005 ZA0006 R4546 ZA0007 R4547 C4570 ZA0008 C4571 ZA0009 C4572 C4574 C4575 ZA0010 C4578 ZA0011 ZA0012 C5710 C5711 C8401 C8402 C4582 C5716 C8403 C8404 C8405 Q8401 Q8402 C8406 C4586 C8407 C4588 C8408 C8409 R4561 R4562 R4563 R4567 C8410 R8003 R8004 R8005 C8416 C4596 C8417 C4599 C8801 IC8001 R8009 IC8002 IC8003 C5733 R8010 R8013 R8014 R8017 C8810 R8018 C8811 R8402 R8403 R8404 R8405 C8815 C8621 R8406 C8622 R8407 L5600 R8409 L5601 IC8401 R8021 IC8402 L5602 R8022 L5603 IC8403 IC8404 L5604 IC8405 IC8406 R8026 IC8407 R8027 R8410 R8605 R8411 R8414 D8801 IC8002-A R8416 C1102 R4596 R8417 R4597 C1103 R8418 R4598 C1104 R4599 L5611 R8419 C8059 C1106 R8802 C1107 R8803 C1108 R8804 R5730 R8805 R5731 R8806 L8303 R8807 L8304 R5734 R8808 C8060 R8421 R8809 R8422 R5736 R8423 C8063 R8424 C1110 C8064 R8425 C1111 R8426 C1112 R8427 R8428 C1114 L8501 C1116 L8502 R8042 C1117 R8043 TNPA4176 A DG-BOARD (COMPONENT SIDE) TXNDG1HLTC TH-42PV700C DG-BOARD TXNDG1HLTC TH-42PV700C DG-BOARD TXNDG1HLTC 44 14.5. D 电路板 A B C D E F G H I 1 2 3 4 5 6 C028 C029 IC001 C032 IC002 IC007 R203 R205 Q805 R206 Q806 R207 D017 R400 D020 C044 C045 Q044 C048 R215 Q046 R217 R218 R219 C050 C051 C052 R220 Q050 C825 R221 Q051 D802 R222 C056 C057 Q053 D804 C058 D807 D808 C062 C832 C063 D811 IC805 IC806 D813 D814 C838 L501 D815 L502 L504 L505 C840 C843 C844 C846 R827 R828 C856 C860 R839 C861 C862 C863 C864 R070 R840 R845 R846 R847 R848 R849 C874 C877 C878 R850 C879 C880 R859 C881 C882 C883 C884 C885 C886 C887 C888 R861 R862 R863 R868 R869 FL806 R870 R871 R872 R875 R878 R879 R886 R887 R888 R889 R890 R891 R892 R893 R894 R895 R896 R897 R898 R899 C507 C511 R101 C512 C513 R105 C516 C517 C900 C518 R108 C901 C519 R109 C902 C903 C904 C905 C906 C907 C908 C520 R110 C521 C909 C522 R112 C523 C524 C525 C526 C527 C910 C528 C911 R501 C912 R503 C913 C914 R504 R505 C915 C916 R507 C917 C918 C919 C531 IC502 R122 R317 R123 R127 C920 R511 R129 C921 C922 C923 C924 R514 C925 R515 R516 C927 C928 R519 R901 C929 R902 R132 R903 R134 R904 R906 R907 R520 C930 R908 R521 C931 C932 C933 C934 C935 R526 C936 C937 R910 C938 R141 C939 R911 R142 R915 R918 TP010 R530 C940 C559 R919 C941 C942 C943 C944 C945 C946 R537 C947 C560 R538 C561 R539 C949 C562 C563 C564 C565 R925 C566 R926 R927 R928 C950 R540 R541 C952 R543 R544 C954 C955 R545 C956 C957 C958 C959 R936 R166 R937 C960 R552 C966 C967 R557 R558 R364 R365 R941 R171 R172 R943 R174 FL300 R945 FL301 R175 R946 R949 R568 R950 R957 R959 R189 R382 R383 R384 R385 R193 FL900 R199 FL902 R394 3 CR NO.9 TNPA4134 D 2 1 1 PbF 8 5 4 1 6 4 3 1 8 5 4 1 30 16 15 1 12 13 24 1 SEE REVERSE FOR ORDER NO. 5 4 3 1 + + TH-42PV700C D-BOARD TNPA4134AQ/TNPA4134BQ TH-42PV700C D-BOARD TNPA4134AQ/TNPA4134BQ D-BOARD (FOIL SIDE) TNPA4134AQ/TNPA4134BQ Parts Location D-BOARD (FOIL SIDE) IC TEST POINT IC9001 E-5 IC9002 E-5 IC9007 D-5 IC9502 C-3 IC9805 E-2 IC9806 E-3 TP010 D-2 Q9044 C-5 Q9046 D-5 Q9050 D-4 Q9051 E-3 Q9053 E-4 Q9805 F-4 Q9806 F-4 TRANSISTOR D 45 A B C D E F G H I 1 2 3 4 5 6 Q010 C033 IC003 C034 R200 C035 R201 C036 C037 C038 PA800 C039 Q807 IC200 Q808 D018 Q809 D019 C040 IC011 C041 R402 C042 R403 IC013 C046 C047 C049 C823 C053 C055 Q052 R223 Q054 R225 C061 IC802 IC803 IC804 D812 C837 L500 D816 D817 R237 C841 C842 R240 C845 R242 R243 R244 R245 R824 R825 R826 C468 C469 C853 C854 C855 C858 C859 R062 R063 R064 R065 R066 R067 C865 C866 C867 C868 C869 D5 D6 D9 C870 C871 C872 C873 C875 C876 R854 R099 FL803 FL805 R874 R885 X9000 X200 D20 ZA001 D25 Q301 Q302 C500 C505 D31 D32 C508 C509 C510 R102 R103 R104 R107 D110 D111 PA900 R113 R115 R116 IC303 R500 R119 R502 R506 IC500 R508 R120 R121 C532 C533 C534 C536 R126 C537 R128 R512 R513 R517 R518 R131 R133 R905 R135 IC900 R909 IC901 R523 R524 R525 R912 R143 R144 R145 R916 R917 R531 R149 R532 R533 R534 L800 R535 L801 R536 L802 R920 C948 R150 R921 R151 R922 R347 R154 R348 R155 R349 R156 C567 R158 R929 R159 C951 R542 C953 R350 R351 R352 R353 R354 R548 R160 R549 R355 R161 R356 R357 R164 R358 R165 R359 R167 R550 R938 R939 C961 C962 R553 C963 R554 C964 R555 C965 R361 R362 R556 R363 R940 R170 R942 R173 R944 R369 R947 R177 R948 R561 R562 R563 R564 R370 R565 R371 R566 R567 FL500 R569 R181 R951 R952 R182 R953 R183 FL504 R184 R954 R379 R185 R955 R956 R186 R187 R958 R188 R380 R381 R960 R190 R961 R194 R196 R197 FL901 FL903 FL904 R391 R392 R393 R396 R397 R398 R399 D 1 TP_VD TP_HD CR NO.9 TNPA4134 PbF 1 25 26 50 51 75 76 100 20 11 10 1 6 4 3 1 1 7 8 14 20 11 10 1 20 11 10 1 5 4 3 1 + + 31 1 21 1 1 7 ORDER NO. + 1 55 1 30 13 1 68 1 48 25 24 1 A 1 A 1 C E G J L NM K H F D B 2 4 6 8 10 12 3 5 7 9 11 13 + + TH-42PV700C D-BOARD TNPA4134AQ/TNPA4134BQ TH-42PV700C D-BOARD TNPA4134AQ/TNPA4134BQ D-BOARD (COMPONENT SIDE) TNPA4134AQ/TNPA4134BQ Parts Location D-BOARD (COMPONENT SIDE) IC IC9003 C-4 IC9011 C-5 IC9013 B-5 IC9200 E-5 IC9303 F-3 IC9500 D-5 IC9802 D-5 IC9803 D-4 IC9804 F-5 IC9900 D-2 IC9901 C-3 TP-HD D-4 TP-VD D-4 TP Q9010 B-5 Q9052 C-3 Q9054 B-4 Q9301 A-2 Q9302 C-1 Q9807 B-3 Q9808 B-3 Q9809 B-3 TRANSISTOR D 46 14.6. C1 电路板 A B C D E F G H I 1 2 3 4 5 6 C103 C105 C106 C107 C108 C110 C111 C114 C115 C117 C118 C119 C120 C121 C122 C124 D101 C125 D102 D103 C127 D104 C128 D105 R102 D106 D107 D108 D109 R108 C130 IC101 C131 IC102 C133 D110 C134 C135 C137 R110 C138 R113 R115 R116 R117 R118 C140 C141 C142 R122 R123 R124 R125 R127 R130 R131 R132 R133 R139 R140 R141 R142 R143 R144 R145 R146 R147 R148 R149 R150 R152 R154 R155 R156 R157 R158 R160 R165 R166 R167 R168 FL101 R169 R170 R171 R172 R173 R179 R183 R184 R193 R194 R195 CB1 CB2 CB3 CB4 CB5 ZA101 ZA102 ZA103 ZA104 C10 C11 C1MM3 C1MM4 C1MM1 C1MM2 CR NO.7 C1 1 C1MM5 TNPA4299 P b F 1 10 11 20 1 10 11 20 O R D E R N O . 1 68 1 68 1 68 1 68 1 68 1 20 1 55 C1 1 TNPA4299 3 2 1 P b F S E E R E V E R S EF O R O R D E R N O . C1-BOARD (FOIL SIDE) TXNC11HLTC C1-BOARD (COMPONENT SIDE) TXNC11HLTC TH-42PV700C C1-BOARD TXNC11HLTC TH-42PV700C C1-BOARD TXNC11HLTC Parts Location C1-BOARD IC7101 H-2 IC7102 H-2 IC IC C1 47 14.7. C2 电路板 A B C D E F G H I 1 2 3 4 5 6 C20 C21 C23 ZA201 ZA202 ZA203 ZA204 CB10 CB11 CB6 CB7 CB8 CB9 C203 C206 C209 C210 C212 C213 C215 C216 C217 C219 C220 C222 C223 C224 D201 C225 D202 D203 C227 R200 D204 C228 R201 D205 R202 D206 D207 D208 D209 C231 IC201 R209 IC202 C233 D210 C234 IC205 D211 C235 IC206 D212 C237 R210 C238 R211 R212 R213 R214 R215 R216 R217 C240 R219 C241 C242 C244 C245 C247 R220 C248 R221 C249 R222 R223 R224 R225 R226 R227 R229 C251 C252 C254 C256 R230 R231 R232 R236 R237 R238 C261 R239 R240 R241 R243 R244 R245 R246 R247 R248 R250 R251 R252 R253 R254 R255 R256 R257 R258 R260 R262 R263 R264 R265 R266 R268 FL201 R270 R271 R272 R273 R274 R275 R276 R277 R278 R279 R283 R284 R287 R288 R289 C2MM2 C2MM1 C2MM3 CR NO.7 C2 1 TNPA4300 PbF 1 20 1 68 1 12 O R D E R N O . 1 68 1 68 1 68 1 68 1 10 11 20 1 68 1 10 11 20 1 10 11 20 1 10 11 20 1 68 C2 1 3 2 1 TNPA4300 PbF S E E R E V E R S EF O R O R D E R N O . C2-BOARD (FOIL SIDE) TXNC21HLTC C2-BOARD (COMPONENT SIDE) TXNC21HLTC TH-42PV700C C2-BOARD TXNC21HLTC TH-42PV700C C2-BOARD TXNC21HLTC Parts Location C2-BOARD IC7201 B-2 IC7202 E-2 IC7205 D-2 IC7206 F-2 IC IC C2 48 14.8. SC 电路板 A B C D E F G H I 1 2 3 4 5 6 SC41 SC42 SC45 SC46 C721 C531 C532 L401 L402 L403 L601 L602 L411 L412 L413 C561 C563 C592 C791 C795 C796 L461 L462 D583 L463 L464 L465 L466 L467 L468 L472 L473 L474 L481 L482 L483 L484 L485 L486 L487 L488 IC791 L690 Q401 Q402 Q403 C411 C412 C413 C414 C415 C801 C803 C804 C806 Q805 Q806 D401 Q421 D402 Q422 Q423 C813 C814 C620 C621 C431 C822 Q821 Q822 C440 R801 D421 Q441 D422 Q442 R806 R807 R809 IC803 C641 C450 Q451 Q452 R623 VR600 C841 C842 VR602 Q841 Q842 C460 R821 R823 TP1 TP2 TP4 TP5 Q661 TP6 TP7 TP8 TP9 T602 R840 R844 D461 D462 R658 SC2 D471 R856 TP10 TP11 TP12 TP13 TP14 TP15 C691 C692 TP16 TP17 Q690 TP18 R860 TP19 D481 D482 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 D491 TP30 TP31 TP32 TP33 TP34 TP35 TP36 TP37 TP38 TP39 TP40 TP41 TP42 R696 TP43 R697 TP44 TP45 TP46 TP47 TP48 TP49 TP50 TP51 TP52 TP53 TP54 TP55 TP56 TP57 TP58 TP59 L591 L592 TP60 TP61 TP62 TP63 TP64 SC23 TP70 SC30 SC31 PbF TNPA4182 1 2 3 4 5 6 CRNo.6 1 SC A1 A2 B2 B1 B40 B39 A40 A39 A1 B2 B1 B40 B39 A40 A39 A2 1 2 8 9 1 2 8 9 SEE REVERSE FOR ORDER NO. 1 12 G C E G C E G C E E C B E B C A A K G C E A A K G C E G C E E C B E C B A A K G C E A A K G C E 7 1 2 9 G C E G C E E C B C B E G D S S5 V2 S4 S3 S2 S1 V1 P1 P2 A A K A A K 1 3 A A K E B C A A K A A K A A K 3 1 1 10 1 6 TH-42PV700C SC-BOARD TXNSC1HLTC TH-42PV700C SC-BOARD TXNSC1HLTC SC-BOARD (FOIL SIDE) TXNSC1HLTC 49 TH-42PV700C SC-BOARD PARTS LOCATION TH-42PV700C SC-BOARD PARTS LOCATION Parts Location SC-BOARD (FOIL SIDE) IC6791 H-2 IC6803 F-1 Q6401 B-4 Q6402 B-4 Q6403 C-4 Q6421 D-4 Q6422 D-4 Q6423 E-4 Q6441 E-2 Q6442 E-2 Q6451 C-2 Q6452 C-2 Q6661 F-4 Q6690 H-5 Q6805 H-5 Q6806 H-5 Q6821 G-3 Q6822 F-4 Q6841 H-3 Q6842 H-3 IC TRANSISTOR TP1 A-2 TP2 A-2 TP4 B-2 TP5 B-2 TP6 B-1 TP7 B-1 TP8 B-1 TP9 B-1 TP10 H-1 TP11 H-2 TP12 H-1 TP13 G-1 TP14 H-1 TP15 H-2 TP16 G-2 TP17 G-2 TP18 G-1 TP19 G-2 TP20 G-2 TP21 G-1 TP22 G-2 TP23 G-2 TP24 G-2 TP25 H-2 TP26 H-1 TP27 H-2 TP28 H-1 TP29 H-3 TP30 H-5 TP31 E-1 TP32 E-5 TP33 A-1 TP34 A-4 TP35 A-5 TP36 G-2 TP37 H-2 TP38 G-1 TP39 H-1 TP40 D-5 TP VOLUME Parts Location SC-BOARD (COMPONENT SIDE) IC6471 B-4 IC6472 B-3 IC6501 G-4 IC6521 F-2 IC6561 C-1 IC6562 B-1 IC6581 F-1 IC6671 E-4 IC6721 A-5 IC6722 A-4 IC6724 C-5 IC6725 C-5 IC6752 D-4 IC6771 C-5 IC6772 C-5 IC6773 C-4 IC6774 C-4 IC6791 B-2 IC6801 C-2 IC6802 B-2 IC6803 D-1 IC6821 C-4 IC6841 B-3 IC6861 B-4 IC6871 C-3 IC PC6480 B-4 PC6701 A-4 PC6702 A-4 PC6704 A-4 PC6705 B-4 PC6801 C-2 PC6861 B-4 PC6871 B-2 Q6401 H-4 Q6402 H-4 Q6403 G-4 Q6421 F-4 Q6422 F-4 Q6423 E-4 Q6441 E-2 Q6442 E-2 Q6451 G-1 Q6452 G-1 Q6501 G-4 Q6502 G-4 Q6521 F-4 Q6522 F-4 Q6531 F-2 Q6532 F-2 Q6551 G-1 Q6552 G-1 Q6581 F-1 Q6601 E-6 Q6602 D-4 Q6603 E-6 Q6621 F-4 Q6622 G-4 PHOTO COUPLER TRANSISTOR TP15V G-1 TPSC1 D-5 TPSOS6 C-2 TPSOS7 B-2 TPVDA C-2 TPVSCN B-3 TPVSET C-4 TPVSET2 B-4 TPVSUS H-1 TP VR6600 C-2 VR6602 C-4 VOLUME TP41 D-5 TP42 D-5 TP43 D-5 TP44 B-5 TP45 D-5 TP46 F-5 TP47 F-5 TP48 F-5 TP49 F-5 TP50 H-5 TP51 G-5 TP52 H-1 TP53 H-3 TP54 C-5 TP55 C-5 TP56 C-5 TP57 C-5 TP58 B-5 TP59 G-5 TP60 G-5 TP61 G-5 TP62 G-5 TP63 G-5 TP64 G-3 TP70 H-2 VR6600 G-2 VR6602 G-4 Q6642 F-5 Q6643 F-5 Q6644 G-5 Q6645 G-5 Q6646 G-5 Q6647 H-5 Q6648 H-5 Q6661 D-4 Q6662 C-4 Q6665 D-4 Q6671 E-5 Q6672 F-4 Q6679 E-5 Q6680 E-5 Q6690 B-5 Q6742 B-4 Q6743 B-4 Q6762 F-4 Q6781 F-5 Q6782 F-5 Q6791 C-3 Q6801 D-1 Q6802 D-1 Q6805 B-5 Q6806 B-5 Q6821 C-3 Q6822 D-4 Q6824 B-3 Q6841 B-3 Q6842 B-3 SC 50 A B C D E F G H I 1 2 3 4 5 6 C708 SC41 SC42 SC45 SC46 C521 C522 C524 Q521 D501 C525 Q522 D503 C527 R501 R502 R503 R504 C721 R506 C722 C723 R507 C724 R508 C531 IC501 D701 C725 R509 C532 D702 C726 D703 C727 C728 R700 Q531 R701 Q532 R702 R703 R510 R704 R511 R705 R512 R706 R707 R708 R709 R516 R517 R710 R711 L401 D521 R712 L402 D522 R713 L403 D523 R714 R521 R522 R717 R523 C740 R718 D721 L601 IC521 L602 Q742 D722 Q743 D723 D724 L411 R721 D725 Q551 L412 R722 D726 Q552 L413 D727 R723 R724 D728 R531 D729 R532 R533 IC721 PC701 IC722 PC702 C752 C753 PC704 C754 IC724 D730 IC725 C561 D731 PC705 C755 C756 D732 C562 C563 D733 C564 C565 C566 Q762 R742 R745 R551 R746 R552 R747 R553 R748 C771 C772 C773 C775 C581 C582 C776 C777 Q581 R754 R561 R562 R563 R564 R565 IC752 R566 R567 R568 IC561 D761 Q781 IC562 C592 Q782 D763 C593 D764 D765 R761 D766 R762 R765 R766 R768 R769 C791 D771 C795 Q791 C796 D773 L461 L462 D583 L463 L464 D584 R580 R775 D585 L465 R582 R776 L466 R583 R777 L467 R584 L468 IC771 R585 IC772 R586 R587 IC773 R588 IC774 IC581 R589 R781 L472 R782 L473 L474 R590 R591 R785 R592 R786 R593 R788 R789 D791 L481 R791 L482 R792 L483 R793 L484 R795 L485 R796 L486 R797 L487 L488 IC791 L690 C401 C402 C403 Q401 Q402 Q403 C603 C604 C411 Q601 C605 C606 C412 Q602 C413 Q603 C414 C415 C801 C803 C804 C805 Q801 C806 Q802 Q805 C421 Q806 C422 C423 D401 Q421 D402 Q422 Q423 R401 C811 R402 C812 C813 R403 C814 C620 C815 C621 Q621 C431 Q622 D604 D605 D606 D607 R605 C822 R607 C823 R608 R609 Q821 D801 D802 Q822 C440 D804 Q824 D805 R801 D806 R802 R803 R804 R610 D421 D809 Q441 R805 D422 Q442 R612 R806 R807 R808 D619 R421 IC801 R809 C832 R422 IC802 IC803 R423 C641 C450 R810 R811 D621 Q642 R812 D622 D816 Q643 R813 D623 D817 Q644 R814 D624 Q451 R621 Q645 R815 R622 Q646 R816 Q452 R623 Q647 R817 R818 Q648 VR600 C841 R819 C842 VR602 D820 Q841 C845 D821 Q842 D822 D823 C460 D824 D631 D825 R821 D632 D826 R822 D827 R823 D828 R824 R825 D441 R826 R827 R828 R441 PC801 IC821 R829 R442 D830 R638 C661 R639 C662 C663 R830 Q661 D641 C471 R831 D836 R832 D642 Q662 D837 R833 D643 D838 R834 D644 Q665 D839 R835 D451 R642 R836 R837 R643 R838 R644 R839 R645 R451 C861 C862 R646 R452 C863 R647 R648 C671 D841 D842 T602 D843 R840 C480 R841 Q671 R842 Q672 R843 R844 D461 R845 R846 D462 R847 R848 Q679 IC841 R849 C871 D465 C872 D466 C873 R658 R659 R465 R466 R467 Q680 R850 R468 C491 D661 R851 D662 R852 SC2 D663 R853 D664 R660 R855 D471 D665 R661 D859 R856 D472 D666 R662 R857 D667 R663 R664 R665 R471 R472 R666 D477 R667 R473 D478 D860 R668 R474 D861 C691 R475 C692 D862 R476 R477 C694 Q690 R860 D670 C695 R861 IC471 D671 R862 IC472 R863 R864 D480 R865 D481 R671 R866 R672 D482 R867 R673 R868 R674 IC861 R869 D871 IC671 D872 R871 R872 R873 R874 R680 R875 D491 R681 R876 R877 R878 IC871 R879 D497 D690 D691 D692 R692 R886 R693 R887 R694 R888 R695 PC861 R696 R697 PC480 R891 PC871 L591 L592 SC20 SC23 C502 SC30 C504 SC31 Q501 C505 Q502 ZA401 ZA402 C702 ZA403 C703 C704 C705 C706 SCMM1 TPVAD TP15V TPVSCN TPSOS6 TPSOS7 TPSC1 DIP SCMM2 TPVSET2 TPVSET TPVSUS PbF Discharge SC CRNo.6 TNPA4182 1 A1 A2 B1 B2 A40 A39 B40 B39 A1 A2 B1 B2 A40 A39 B40 B39 1 2 8 9 1 2 8 9 9 16 8 1 1 8 16 9 1 7 8 14 14 1 7 8 ORDER NO. 1 8 9 16 1 10 11 20 1 10 11 20 1 4 5 8 3 4 5 1 3 4 5 1 1 4 5 8 12 1 C G E C G E C G E G S D B C E B C E A A K C G E A A K C G E C G E D G S D G S B C E B C E A A K C G E A A K C G E 7 2 9 1 D G S D G S D G S C G E D G S D G S C G E D G S D G S B C E B C E 1 2 3 4 G S D S5 V2 S4 S3 S2 S1 V1 P1 P2 D G S D G S A A K A A K 3 1 A A K B C E 1 1 3 4 5 A A K A A K 5 1 4 8 1 4 5 8 A A K 1 5 8 4 1 2 3 4 1 2 3 4 1 2 3 4 1 30 1 3 1 10 1 6 TH-42PV700C SC-BOARD TXNSC1HLTC TH-42PV700C SC-BOARD TXNSC1HLTC SC-BOARD (COMPONENT SIDE) TXNSC1HLTC 51 14.9. SU 电路板 A B C D E F G H I 1 2 3 4 5 6 C6901 C6902 C6903 C6904 C6905 C6906 C6907 C6908 C6909 C6910 C6911 C6912 C6913 C6914 C6915 C6916 C6917 C6918 C41 C6921 C6923 C6924 D6901 D6902 C6926 D6903 C6927 D6904 R6901 D6905 C6929 R6902 R6903 R6904 R6905 IC6901 R6909 C6931 IC6902 IC6903 IC6904 IC6905 C6936 IC6906 C6937 R6913 R6917 C6940 IC6910 C6941 IC6911 C6942 C6943 R6924 R6925 R6926 R6927 R6928 R6931 R6932 R6933 C80 R6934 R6935 R6936 R6938 SU45 SU1 SU2 SU3 SU4 L6901 TPSU1 TPSU2 SU TNPA4184 1 PbF B1 B48 A48 A1 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 50 51 75 76 100 26 1 25 26 50 51 75 76 100 3 4 5 1 3 4 5 1 9 8 2 1 ORDER NO. A1 B1 A48 B48 A1 A48 B48 B1 A1 A48 B48 B1 A1 B1 A48 B48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 C40 C1 TNPA4184 1 1 2 3 SU PbF SEE REVERSE FOR ORDER NO. TH-42PV700C SU-BOARD TNPA4184 TH-42PV700C SU-BOARD TNPA4184 SU-BOARD (COMPONENT SIDE) TNPA4184 SU-BOARD (FOIL SIDE) TNPA4184 Parts Location SU-BOARD IC6901 G-2 IC6902 F-2 IC6903 E-2 IC6904 D-2 IC6905 C-2 IC6906 B-2 IC6910 B-2 IC6911 B-2 IC TPSU1 C-2 TPSU2 F-1 TP SU 52 14.10.SD 电路板 A B C D E F G H I 1 2 3 4 5 6 A41 A80 C6951 C6952 C6953 C6954 C6955 TPSD1 C6956 TPSD2 C6957 C6958 C6959 C6960 C6961 C6962 C6963 C6964 C6965 C6966 C6967 C6968 C6971 C6973 C6974 D6951 D6952 C6976 D6953 C6977 D6954 R6951 D6955 C6979 R6952 R6953 R6954 R6955 R6959 IC6951 C6981 IC6952 IC6953 IC6954 IC6955 C6986 IC6956 C6987 R6963 R6967 C6990 IC6960 C6991 IC6961 C6992 C6993 R6971 R6975 R6976 R6977 R6978 R6981 R6982 R6983 R6984 R6985 R6986 R6989 SD46 SD1 SD2 SD3 SD4 L6951 SD TNPA4185 1 PbF ORDER NO. 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 50 51 75 76 100 26 B1 B48 A1 A48 3 4 5 1 3 4 5 1 B1 B48 A1 A48 9 8 2 1 B1 B48 A1 A48 A1 B1 A48 B48 A1 B1 A48 B48 A1 B1 A48 B48 A1 B1 A48 B48 B1 B48 A1 A48 TNPA4185 1 1 2 3 SD PbF SEE REVERSE FOR ORDER NO. TH-42PV700C SD-BOARD TNPA4185 TH-42PV700C SD-BOARD TNPA4185 SD-BOARD (COMPONENT SIDE) TNPA4185 SD-BOARD (FOIL SIDE) TNPA4185 Parts Location SD-BOARD IC6951 G-2 IC6952 F-2 IC6953 E-2 IC6954 D-2 IC6955 C-2 IC6956 B-2 IC6960 G-2 IC6961 G-2 IC TPSD1 D-2 TPSD2 F-2 TP SD 53 14.11.SS 电路板 A B C D E F G H I 1 2 3 4 5 6 L001 L002 L003 L011 L012 L013 SS11 SS12 SS23 L221 SS34 L045 L046 L047 L048 L241 L055 L056 L057 L058 SS53 SS54 SS55 SS56 L061 L062 L063 L064 L262 L271 L272 L081 L082 L083 L084 Q001 Q002 Q003 C201 C202 C011 C012 C013 C014 C015 C213 Q021 D001 Q022 Q023 C031 Q222 D021 Q041 D022 Q042 R020 VR000 C241 L103 Q051 Q052 R222 R223 Q256 C261 C262 C272 C273 D253 D061 TP1 D062 TP2 TP3 TP4 TP5 TP6 TP7 TP8 TP9 D071 D072 D081 D082 TP10 TP11 TP12 TP13 TP14 D091 TP15 TP16 TP17 TP18 TP19 TP20 TP22 TP24 TP25 TP26 TP27 TP28 TP29 SS53A TP30 TP31 TP33 TP34 TP36 SS54A SS55A SS56A C111 C112 1 SS 1 2 3 TNPA4183 6 5 4 CRNo.6 TPVe2 PbF 1 3 1 1 0 1 12 1 3 1 1 3 1 1 3 1 1 3 1 1 3 SEE REVERSE FOR ORDER NO. G C E G C E G C E G C E A A K G C E G C E E B C A A K G C E A A K G C E G C E G C E E C B A A K A A K A A K A A K A A K A A K A A K 1 13 1 1 3 1 13 1 1 3 1 1 3 1 1 3 1 1 3 1 1 3 1 1 3 1 1 3 1 1 3 1 1 3 SS-BOARD (FOIL SIDE) TXNSS1HLTC TH-42PV700C SS-BOARD TXNSS1HLTC TH-42PV700C SS-BOARD TXNSS1HLTC Parts Location SS-BOARD (FOIL SIDE) TRANSISTOR Q6001 H-3 Q6002 H-3 Q6003 G-3 Q6021 G-3 Q6022 F-3 Q6023 F-3 Q6041 D-3 Q6042 D-3 Q6051 E-3 Q6052 E-3 Q6222 D-1 Q6256 D-1 TP22 B-2 TP24 H-3 TP25 G-3 TP26 F-3 TP27 F-3 TP28 D-3 TP29 D-3 TP30 C-3 TP31 B-3 TP33 B-2 TP34 B-2 TP36 D-3 TPVe2 D-1 TP1 H-1 TP2 H-1 TP3 H-1 TP4 H-1 TP5 H-1 TP6 H-1 TP7 H-2 TP8 H-2 TP9 H-2 TP10 G-2 TP11 G-2 TP12 B-3 TP13 B-2 TP14 B-2 TP15 B-2 TP16 B-2 TP17 B-2 TP18 B-2 TP19 B-2 TP20 B-2 TRANSISTOR TP VR6000 D-2 VOLUME SS 54 A B C D E F G H I 1 2 3 4 5 6 R104 R106 R107 R108 R109 C132 D110 C134 D111 C135 R110 R111 R112 R113 R114 R116 L000 L001 Q141 Q142 L002 L003 Q146 Q147 C151 C152 C153 L010 C154 D131 L011 D132 L012 L013 R131 R132 R134 SS11 R135 SS12 R136 IC131 L211 L212 R141 R142 R145 R146 R147 SS23 L221 Q171 D151 Q172 D152 D153 R151 R152 R154 R157 R158 SS34 R159 IC151 Q181 R160 L045 L046 L047 L048 L241 C193 C194 C195 C197 L055 R171 L056 R172 L057 R173 L058 SS53 SS54 SS55 SS56 L061 L062 L063 L064 R181 R182 R183 L262 D191 D193 R191 R192 R193 R194 IC191 L271 L272 L081 L082 L083 L084 C001 C002 C003 Q001 Q002 Q003 C201 C202 C011 C012 C013 C014 C209 C015 C211 C212 C213 C021 C022 C023 Q021 D001 Q022 Q023 R001 R003 C220 C221 R005 C031 Q222 C033 D010 Q031 C037 D211 R210 D021 Q041 D022 Q042 R213 D024 R020 R214 D025 R021 VR000 R024 C241 IC211 C242 R026 C243 D221 L101 D222 L102 L103 D223 R220 R221 D031 Q051 L105 L106 Q052 D032 R222 R223 R031 R225 R032 R226 R227 R033 R034 R228 R229 C251 IC221 C252 Q251 R230 R231 Q256 R232 R041 R043 C261 C262 C071 R241 R242 R051 R246 R247 R053 R248 R249 IC241 C272 C273 Q271 C276 D253 C278 D254 D255 D061 D062 R252 R253 R254 R255 R062 R256 R257 R064 R258 R259 IC251 R066 C282 C283 R068 C284 C091 C286 C287 C288 C289 D071 R261 D072 D073 R070 R071 R072 R073 R269 R077 D270 D271 D272 D273 R270 D275 D081 D276 R272 D082 R273 D278 R080 R274 R082 R276 R084 R278 R279 R086 R088 D280 R089 D281 D091 D092 R090 R284 R091 R290 R292 R293 SS53A SS54A SS55A SS56A Q101 Q102 Q103 Q104 Q105 Q106 ZA001 ZA002 C111 ZA005 C112 Q111 Q112 Q114 D101 D102 D103 D104 R102 TPVe SSMM1 TNPA4183 CRNo.6 SS 1 Discharge TPVSUS TP15V TPVDA TPSS1 Discharge TPSOS8 SSMM2 PbF 1 3 1 10 1 8 9 16 1 12 1 3 1 8 9 16 1 13 1 13 1 13 1 13 ORDER NO. 1 8 9 16 C G E C G E C G E C G E A A K C G E C G E B C E A A K C G E A A K C G E 1 4 5 8 C G E C G E B C E 1 10 11 20 A A K A A K 1 4 5 A A K A A K A A K A A K A A K 1 13 13 1 13 1 1 13 13 1 13 1 1 13 13 1 13 1 1 13 13 1 13 1 G S D G S D G S D G S D G S D G S D G S D SS-BOARD (COMPONENT SIDE) TXNSS1HLTC TH-42PV700C SS-BOARD TXNSS1HLTC TH-42PV700C SS-BOARD TXNSS1HLTC Parts Location SS-BOARD (COMPONENT SIDE) IC IC6131 C-2 IC6151 E-2 IC6191 H-2 IC6211 G-1 IC6221 F-1 IC6241 H-2 IC6251 H-2 Q6001 B-2 Q6002 B-2 Q6003 C-2 Q6021 C-2 Q6022 D-2 Q6023 D-2 Q6031 F-2 Q6041 F-2 Q6042 F-2 Q6051 E-2 Q6052 E-2 Q6101 H-3 Q6102 H-2 Q6103 G-2 Q6104 G-2 Q6105 G-3 Q6106 H-2 Q6111 F-2 Q6112 G-1 Q6114 G-1 Q6141 C-2 Q6142 C-2 Q6146 C-2 Q6147 C-2 Q6171 F-2 Q6172 F-2 Q6181 E-2 Q6222 F-1 Q6251 H-3 Q6256 E-2 Q6271 F-3 TRANSISTOR TP15V B-2 TPSOS8 H-3 TPSS1 G-3 TPVDA B-2 TPVe F-2 TPVSUS B-2 TRANSISTOR TP VR6000 F-2 VOLUME SS 55 14.12.K 和 S 电路板 A B C D E F G H I 1 2 3 4 5 6 C2510 C2513 C2515 C2522 C2523 C2524 C2525 C2526 C2527 D2510 R2512 D2520 D2524 D2525 R2524 R2530 R2531 RM2501 R2538 PC2511 R2539 R2540 R2554 R2556 R2557 R2569 R2570 R2571 K1 R2572 K2 R2573 R2575 R2576 R2577 R2578 R2579 PbF K 1 TNPA4137 AB AC AD AE AF AG AH AJ SUFFIX. 1 2 11 12 1 2 C2511 C2512 Q2510 Q2511 C2516 Q2513 C2517 Q2518 Q2519 C2520 C2521 Q2520 Q2521 Q2522 D2511 D2512 R2516 R2517 R2519 R2520 R2521 D2526 D2528 R2525 D2530 RM2501 R2537 R2542 R2558 R2559 R2560 R2561 R2562 R2563 R2564 R2565 R2566 R2567 R2568 K1 K2 PbF K1 TNPA4137 REVERSEFORSUFFIX. SEE 1 2 11 12 1 2 SW2500 S1 TNPA4138 1 S PbF ORDER NO. 1 3 C2502 C2503 SW2500 R2506 R2507 S1 TNPA4138 1 S PbF SEE REVERSE FOR ORDER NO. 1 3 TH-42PV700C S-BOARD TNPA4138AD K-BOARD TNPA4137AE TH-42PV700C S-BOARD TNPA4138AD K-BOARD TNPA4137AE K-BOARD (FOIL SIDE) TNPA4137AE K-BOARD (COMPONENT SIDE) TNPA4137AE S-BOARD (FOIL SIDE) TNPA4138AD S-BOARD (COMPONENT SIDE) TNPA4138AD Parts Location K-BOARD Q2510 B-3 Q2511 D-3 Q2513 D-3 Q2518 C-3 Q2519 B-4 Q2520 B-3 Q2521 C-4 Q2522 D-3 TRANSISTOR K S 56 14.13.G 电路板 A B C D E F G H I 1 2 3 4 5 6 L3700 L3701 L3704 L3705 L3706 L3707 L3708 L3713 JK3701 C3701 C3702 C3703 C3704 C3705 C3706 C3707 C3708 C3711 C3712 C3713 C3714 C3715 D3701 D3702 D3703 D3704 D3705 D3706 D3707 D3708 R3705 D3709 R3706 R3709 D3710 D3711 R3710 R3711 R3712 R3713 R3714 R3716 R3717 R3718 R3719 R3720 R3721 R3732 R3736 R3737 R3738 R3739 R3740 R3741 SW3751 R3746 R3747 SW3753 R3748 SW3754 R3749 SW3755 SW3757 SW3758 FL3713 FL3714 FL3715 FL3716 FL3717 JS3700 JS3701 JS3702 JS3704 JS3705 JS3707 JS3708 JS3711 JS3712 JS3713 JS3714 JS3715 JS3716 JS3717 ZA3701 ZA3702 AB AC AD AE AF AG R3724 R3722 R3723 R3725 SW3756 PbF 1 TNPA4262 CH.UP CH.UP CH.DN CH.DN VOL.UP VOL.UP -/ VOL.DN VOL.DN TV/VTR TV/VTR F ASPECT STR OK MENU JAPAN USA EURO +/ TV/AV G L V R L V R SUFFIX. 1 2 3 4 1 2 3 4 2 3 4 1 1 2 3 4 1 2 3 4 R L V G51 JK3701 C3750 SW3751 SW3753 SW3754 SW3755 SW3757 D3750 SW3758 R3750 R3751 R3752 R3753 R3754 R3755 R3756 R3758 R3765 R3766 R3767 R3768 FL3710 FL3711 FL3712 ZA3701 TNPA4262 1 G G52 SW3756 PbF CH.UP CH.UP CH.DN TV/AV CH.DN VOL.UP +/ VOL.UP VOL.DN -/ VOL.DN TV/VTR F TV/VTR ASPECT STR OK MENU USA EURO JAPAN R L V R L V REVERSE FOR SUFFIX. SEE 1 19 20 2 1 2 R L V TH-42PV700C G-BOARD TNPA4262AD TH-42PV700C G-BOARD TNPA4262AD G-BOARD (FOIL SIDE) TNPA4262AD G-BOARD (COMPONENT SIDE) TNPA4262AD G 57 14.14.GH 和 GS 电路板 A B C D E F G H I 1 2 3 4 5 6 D807 D808 R806 R807 R808 IC803 D812 D813 D814 R815 R819 R820 R833 R834 R835 R840 R841 GH11 FL801 JS800 JS801 JS802 JS815 JS816 ZA801 ZA802 L805 TP801 TP802 TP803 TP804 TP805 C805 C807 C808 C809 C810 C811 C812 C813 C814 C815 C816 C817 C818 C819 C820 C823 C824 C825 C826 TNPA4135 1 GH CRNO.3 AB AC AD AE AF PbF 1 4 5 8 1 30 SUFFIX. D804 D805 R801 D806 R802 R803 R804 D809 R805 R809 IC801 IC802 D810 D811 R810 R811 R812 R813 R814 R816 R817 R818 R821 R822 R823 R824 R825 R826 R827 R828 R829 R830 R831 R832 GH10 L801 L804 C801 C802 C803 C804 Q801 C806 Q802 Q804 C821 C822 D801 D802 D803 GH CRNO.3 1 TNPA4135 PbF 1 12 13 24 25 36 37 48 1 4 5 8 1 19 REVERSE FOR SUFFIX. SEE C700 C703 Q700 Q701 C705 Q702 Q703 C712 C714 C716 C717 C718 C719 C720 C721 D700 C724 C725 C726 C727 R700 R701 C729 R702 R703 R704 R705 R706 R707 IC700 R708 R709 C731 C733 IC705 C736 C737 R710 R712 R713 C742 C743 C744 R725 R726 R727 R733 R734 R735 R736 R737 R738 R742 R743 R744 R751 R752 R760 R761 R762 R777 R778 R780 JS700 L701 L702 L705 L706 TP700 TP701 TP702 TP703 TP704 TP705 TP706 TP707 TP708 TNPA4143 1 GS CR NO.7 PbF REVERSE FOR SUFFIX. SEE 1 24 25 48 1 3 4 5 JK702 C701 C702 C704 C706 C707 C708 C709 C710 C711 C713 C715 C722 C723 D701 D702 C728 C730 IC701 IC702 C732 IC703 IC704 C734 C735 C738 R711 R714 R715 R716 R717 R718 C740 R719 C741 R720 R721 R723 R724 R728 R729 R730 R731 R739 R740 R741 R745 R746 R747 R749 R750 R753 R754 R755 R758 R759 AI AB AC AD AE AF AG AH R771 R772 R773 R779 R781 R782 X700 ZA701 GS09 L703 L704 GS52 CR NO.7 GS 1 TNPA4143 PbF 1 810 9 SUFFIX. 1 5 1 32 33 64 65 96 97 128 1 8 9 16 1 8 9 16 1 6 1 14 TH-42PV700C GH-BOARD TNPA4135AF GS-BOARD TXNGS1HLTC TH-42PV700C GH-BOARD TNPA4135AF GS-BOARD TXNGS1HLTC GS-BOARD (FOIL SIDE) TXNGS1HLTC GH-BOARD (FOIL SIDE) TNPA4135AF GS-BOARD (COMPONENT SIDE) TXNGS1HLTC GH-BOARD (COMPONENT SIDE) TNPA4135AF Parts Location GS-BOARD Q7700 D-2 Q7701 D-2 Q7702 A-2 Q7703 A-2 TRANSISTOR IC7700 B-2 IC7701 H-2 IC7702 H-1 IC7703 G-2 IC7704 G-2 IC7705 B-2 IC TP7700 A-2 TP7701 B-2 TP7702 D-2 TP7703 D-2 TP7705 D-3 TP7706 C-2 TP7707 C-1 TP7708 D-2 TP Parts Location GH-BOARD IC3802 C-4 IC3803 E-4 IC Q3801 C-5 Q3802 B-4 IC3801 B-4 Q3804 C-4 TRANSISTOR TP3801 D-5 TP3802 D-5 TP3803 D-4 TP3804 D-4 TP3805 D-4 TP GH GS 58 15 方框图和线路图 15.1. 线路图注意事项 59 15.2. 主要集成电路方框图 AV1 D32 LATCH,SFVRST,SFRST AMP DG6 DISPEN FCLK,FPDATA[1:0] H11 EEPROM S.R +15V 32k D S.R. OUT PA R[9:0] [ANALOG] VOLTAGE B[9:0],HD,VD C23 PA4 PROTECTION(SOS) LVDS format DC POWER THERMAL POWER SUPPLY SENSOR C2 DC/DC P9 D5 +15V ADDRESS L/R SCAN DRIVE POWER KEY SCAN AV2 XRST S.R STB12V S.R. S.R AV SWITCH,MSP G[9:0] SUSTAIN INPUT Discharge Control(SC) SD WOOFER SOS1 L/R VOLTAGE OSD S.R SUSTAIN SQ STB_PS REG RESET MONITOR SC AV4 IN KEY SW MSP +15V VSUS GC3FS AUDIO (VE) PULSE DG5 CONTROL L *LVDS receiver L P_ON/OFF L TUNER 64 CONVERTER DC/DC CONVERTER P PA5 DG S.R NOR FLASH PD1-M plus H6 H2 S.R 64 DG2 PC IN 64 64 R,G,B +5V RECTIFIER AV3 VOLTAGE OUT S.R IN MAIN POWER LED SOS2 SUSTAIN H51 AV4 IN STB12V PULSE SIF *Discharge Control AUDIO IN S G51 P3.3V POWER MAIN STB_PS P1.2V AV TERMINAL, ERASE Vda 75V Vda *H,V Snyc Control S.R MCU P5 LINE P12 DIGITAL SIGNAL PROCESSOR IIC2 H4 P25 PULSE C11 H WRITE PROTECT RECTIFIER L/R DATA DRIVER(RIGHT) DATA DRIVER(LEFT) CONTROL SELECT 64 STB_PS/ PROCESS P2 TV-V SWITCH *CLK VOLTAGE SELECT PROCESS SS34 S.R. S.R SCAN OUT S1 POWER SW HDMI EQ R D-LATCH SPEAKER STB5V MEM +15V DDR2x2 C1 HDMI 3 RELAY SC20 BOOT ROM GH D25 HDMI3 IN D20 SS23 VDA GH11 SU 64 64 15V DC POWER FPGA VSUS H3 P2.5V G SS11 S.R. MICOM VSUS STB12V TV_L/R PULSE STBY5V_M 64 ADV/HDMI VOLTAGE *Sub Filed Processor P5V S.R C21 P5V AI SENSOR SCAN OUT S.R VOLTAGE PULSE REMOTE RECEIVER HEADPHONE K GS52 RECTIFIER SD CARD SLOT REMOTE/LED VCXO GS *Plasma AI X'tal 64 DG52 CLOCK STANDBY DC/DC 1.8V SS12 R DC/DC 1.2V RECTIFIER PLASMA AI PROCESSOR WOOFER S.R. CONTROL HDMI 2 SCAN D31 HDMI 1 S.R. STB5V HDMI EQ POWER SOS DG11 DC-DC CONVERTER SUSTAIN FORMAT CONVERTER, PS_SOS SUSTAIN DRIVE L P11 AMP K1 LINE GENERATOR H12 DG1 R *RGB:10bit(or8bit) FILTER S-VIDEO IN GENERATOR SQ FILTER RESET IC VOLTAGE RECTIFIER HP_L/R S.R STB12V CONTROL C10 SS C20 CONTROL FACTOR PCLK/NCLK SS_SOS8 *VD,HD STB3.3V Discharge Control(SS) RESET 12V INPUT Data Driver Control 64 16/32Mbit Flash-ROM DRVRST VDA (4MByte) VDA 5V DCLK S.R. ASDIO OUT 64 [27MHz] AUDIO VOLTAGE DATA0 DC/DC 3.3V PROM DCK SC2 STANDBY 128Mbit DDR AC CORD PA3 FLASH CONTROL R F_STBY_15V +15V SPEAKER VIDEO 64 Peaks-Lite 2 VIDEO IN SUB SD CARD SLOT S.R. L/R L/R V,Y,PB,PR V,Y,C V,Y,PB,PR L/R L/R TV-V (SUB) TUNER S.R. TH-42PV700C Main Block Diagram TH-42PV700C Main Block Diagram PA32 PA34 FAN S.R. S.R. 60 15.3. P 电路板方框图 + - + - + REF K A REF K A REF K A D509 X501 4NHz R661 1 2 3 R665 1 2 3 Q408 Q412 D417 D420 D419 C469 C555 D404 D416 D435 D401 D511 R628 Q527 Q413 Q409 R443 1 2 3 1 2 IC408 4 2 1 3 1 3 4 2 IC403 8 7 10 2 T401 5 8 7 6 VCC MOS DRIVE CURR DET CURR COMP 2 1 3 4 Q420 Q404,Q406 R406,D415 IC406 PFC 8 6 10 7 9 2 3 4 1 15 19 24 18 22 23 16 17 21 20 VDD VSS XIN XOUT RESET STB PS Vdat_GO_L STB 5 ON/OFF LOW 15 PANEL_ MAIN_ON AC_DET/ F STB H V LOW DET AC_P_DET (FAIL:H) AC_GO_L VSUS DET F_15V_ON/OFF SOS4_PS PFC ON/OFF V LOW ON/OFF IC501 1 2 IC502 RESET 6 4 1 4 Vdat P12 +15V NO 1 2 4 USE NO USE P5 3 5 10 6 +5Vc TO STBY5V 5 P25 D25 +5Vc 9 POWER MCU COLD COLD HOT 10 STB_PS Vda75V 8 STB12V Q509 12 11 13 2 +15Vc 1 3 HOT POWER SUPPLY 4 Vdat Q508 10 9 13 14 12 MAIN RELAY(H) RUSH RELAY(H) VSUS ON/OFF ALL OFF 11 VDATA_DET SOS4_PS PANEL_MAIN_ON IC520 PR401 F401 F402 1 4 NEUTRAL RL402 RL403 2 4 IC412 1 3 5 13 11 10 14 9 7 SS12 TO T410 T404 D540 LIVE P9 2 POWER COLD HOT AC CORD TO VlOW DET VlOW DET Vsus 192V Vlow Vlow OSC 395V Q501 Q502 Q525 ERROR DET IC506 ON:L 2 Vdat 73V D569 D570 R670 Q541 R650 R649 5V OUT DETECTION COUPLER PHOTO CONTROL D579 R579 D549 IC401 COUPLER (3V 1.0V) OVER VOLTAGE PROTECTION (490V 80V) COUPLER PHOTO PHOTO COUPLER PHOTO R441 D441 4 OSC L405 L404 L410 R407 Q434 IC409 IPD 8 Source Source 7 1 2 Drain 5 3 3 14 6 11 C446 Q402 L403 Q401 D407 R455 R438 (AC DET) RESET 1 2 3 ECO R411 7 3 2 1 IC504 12 15 Q521 Q569 Q537 1 S 2 S G 3 4 S 8 7 5 6 D D D D 6 4 S 8 5 S 3 D D D 7 G 1 2 S D Q555 Q556 DC/DC CONV. DC/DC CONV. Q524 OUT 2 1 Vcc PR505 ERROR DET (Vda) IC512 D544 D545 DC-DC CONV. IC510 Q566 13 4 6 12 2 PHOTO COUPLER 3 4 1 2 IC507 3 1 2 (Vsus) K A Vsus R622 R648 R636 R626 R627 OUT DETECTION (60V 40V) VOLTAGE 2 4 3 9 5 6 10 T402 R631 R674 3 1 2 K A POWER CIRCUIT F_5A_250V OSC OSC D531 8 7 D506 2 5 1 D536 Q563 Q554 Vdat OVER VOLTAGE DETECTION(100V 25V) Q520 Q517 +15Vc P ERROR DET IC411 ERROR DET SW SW RECTIFIER RECTIFIER 5V (Vlow) STB_12V STB5V ON/OFF STB5V (15V) (F STB 5V) INV. 12V ON/OFF BUFF D602 3 15V 250V 8A 250V 8A LINE FILTER 4 5 1 12 13 9 PR402 PFC R444 R442 R445 680kx3 R474 R472 R473 560kx3 Q422 Q407 D418 A K Vref LINE FILTER Q411 RL401 R410 R415 250V T630mA F403 4 Source Source Source Q410 PR509 16 15 D539 R676 Control Q540 Q507 Q510 Q538 RELAY ON RUSH ON RELAY MAIN ON:H D522 D523 ON IC513 7 10 2 3 PR601 T601 Vda DET Vref IC508 180k x4 2 1 3 5 4 IC509 IC511 TO 1 Vsus P11 P2 Vsus SS11 3 SC2 TO GND GND 1 3 7 PA5 TO P6 3 8 9 1 +15Vs(S) 2 F_STBY +15Vs(S) +15Vs(S) F_STBY F_STBY +15Vc +15Vs(S) +15Vs(S) STBY5V +15Vc +15Vs(S) 13 F_STB F_STB F_STB 12 15 17 F_STBY_ON 16 ALL_OFF 18 AC_GOOD +5Vc 20 +15Vc +15Vc STBY5V ALL_OFF AC_GOOD 1 8 F_STBY_ON 5 P7 9 2 6 +5Vc 10 Q564 BUFF BUFF Q565 Q535 PHOTO COUPLER 3 4 1 2 IC505 D701 D535 Q530 Q553 0.1 + - P_OUT P_OUT VDD2 VDD1 Vref 5V CRT_ON FB (PFC_ON/OFF) RCC CONV. (100KHz) (120-145KHz) CONVERTER RESONANCE ON:L ON:L ON:H ON:L GO:L 16 15 ON:H 11 12 15 16 D521 POWER SOS LED BLINKING : 4TIMES TH-42PV700C P-Board Block Diagram TH-42PV700C P-Board Block Diagram D408 D450 61 15.4. P 电路板 (1/4) 线路图 AA AB AC AD AE AF AG AH AI AJ 1 2 3 E 9 6 7 8 1 2 F B 4 C 5 A 3 D TH-42PV700C P-Board (1 of 4) Schematic Diagram TH-42PV700C P-Board (1 of 4) Schematic Diagram P-BOARD (1/4) TXN/P1HLTC TO P-BOARD (3/4) COLD HOT COLD HOT To AC Cord 62 15.5. P 电路板 (2/4) 线路图 P-BOARD (2/4) TXN/P1HLTC 15 16 17 10 9 11 13 14 12 TH-42PV700C P-Board (2 of 4) Schematic Diagram TH-42PV700C P-Board (2 of 4) Schematic Diagram 1 BA BB BC BD BF BH BJ BL BN BP BR BK BM BO BQ BS BI BE BG 2 3 To SS-Board (SS12) TO P-BOARD (4/4) 63 15.6. P 电路板 (3/4) 线路图 AA AB AC AD AE AF AG AH AI AJ 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 23 22 24 25 E 9 6 7 8 1 2 F B 4 C 5 A 3 D TH-42PV700C P-Board (3 of 4) Schematic Diagram TH-42PV700C P-Board (3 of 4) Schematic Diagram P-BOARD (3/4) TXN/P1HLTC COLD HOT TO P-BOARD (1/4) 64 15.7. P 电路板 (4/4) 线路图 15 16 17 10 9 11 13 14 12 TH-42PV700C P-Board (4 of 4) Schematic Diagram TH-42PV700C P-Board (4 of 4) Schematic Diagram P-BOARD (4/4) TXN/P1HLTC 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 24 23 25 BA BB BC BD BF BH BJ BL BN BP BR BK BM BO BQ BS BI BE BG To SC-Board (SC2) To SS-Board (SS11) No USE No USE To PA-Board (PA5) To D-Board (D25) TO P-BOARD (2/4) 65 15.8. PA 电路板方框图 TPS0S TPST5 TPAC1 R5533 D5530 R5534 Q5562 R5532 R5536 R5531 R5535 R5537 Q5521 R5538 Q5523 Q5522 C5521 C5522 Q5561 D5528 D5521 R5540 D5529 R5544 R5542 D5526 R5549 D5522 R5548 Q5524 R5546 R5547 TPM9V TPS15V TPS5V TPS9V TPEC0 TPS0N Q5501 D5501 OVER VOLTAGE DET SUB+5V SUB+9V (+6.8V) (+12V) SUB+5V/SUB+9V SHORT DET F STB+15V (+10V) +15Vs(S) +15Vc STBY_5V F_STBY_15V F_STBY_15V ECO_ON ALL_OFF F_STBY_15V AC_GOOD +15Vs(S) +15Vs(S) 18 16 14 12 TUNER_SUB_ON 17 15 13 10 5 4 3 SUB+5V/SUB+9V TV_ON OFF MAIN9V FAN SOS FAN SOS SUB9V SUB9V SUB5V 23 22 21 +15V_S +15V_S AC_GOOD T TO FAN O H3 18 +15V_S PA3 7 1 3 6 2 SUB5V FAN_SOS FAN_CONT PA5 TUNER_SUB_ON PA4 TUNER_SUB_ON 23 ALL_OFF SOS STB5V TUNER_MAIN_ON ECO_ON TO H4 11 21 16 17 18 SUB+9V SUB+5V 9 3 13 15 1 IC5550 SOS DET ERROR DET MAIN+9V F STB+15V DET SUB+9V DET SUB+5V DET TO P5 PA DC-DC CONVERTER TH-42PV700C PA-Board Block Diagram TH-42PV700C PA-Board Block Diagram PA32 1 3 PA34 1 3 D5402 D5404 FAN CONTROL +9V +7V 1 5 2 4 IC5400 2 1 9 5 TPS0F 7V 9V D5410 R5412 D5411 TPC0F 66 15.9. PA 电路板线路图 + + + + R5571 47k R5570 10k PA5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 L5565 22u LHL08TB220K R5572 2.2k R5573 4.7k PA3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 C5595 50V 22u L5566 2.7u LHL08TB2R7M R5536 4.7k R5544 220 R5546 10k R5538 2.2k R5549 4.7k R5540 470 R5548 4.7k R5533 10k D5526 MA3X152E0L R5535 2.2k D5528 MAZ81200ML 12V R5531 2.2k D5529 MAZ80680LL 6.6V R5547 10k R5542 470 R5534 47k R5532 4.7k R5537 680 1% R5555 1.27k L5550 2.7u LHL08TB2R7M 1% R5554 2.61k JS5568 JS5569 ZA5501 K4CZ01000027 ZA5502 K4CZ01000027 ZA5503 K4CZ01000027 C5502 16V 0.1u C5552 25V 0.1u D5530 MA2J11100L D5521 MA2J11100L R5506 10k R5507 10k Q5501 2SD0601ASL R5508 47k EHMDD9851 IC5550 1 ON/OFF2 2 VAR2 3 VOUT2 4 SW-Node2 6 GND 7 N.C. 8 GND 9 VIN 10 N.C. 11 GND 12 SW-Node1 13 VOUT1 14 VAR1 15 ON/OFF1 16 N.C. Q5521 2SA207700L Q5522 2SA207700L D5522 MA3X152D0L L5564 2.7u LHL08TB2R7M L5551 15u LHLP10TB150MB R5509 0 PA4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 TPS0S TPST5 TPS0N TPM0N TPEC0 TPAC1 TPS15V TPS9V TPS5V TPM9V FAN_CONT FAN_SOS TPS0F TPC0F Q5562 2SD0601ASL Q5523 2SD0601ASL Q5524 2SD0601ASL L5552 15u LHLP10TB150MB Q5561 B1DHDC000028 C5501 470u 16V C5503 470u 16V C5551 330u 50V C5504 16V 0.1u C5521 16V 0.1u C5522 16V 0.1u *R5487 0 D5519 B0BA6R600008 D5517 B0BA9R600002 D5518 B0BA01100004 +15V_S FAN_SOS N.C. N.C. FAN_CONT N.C. SUB9V(H264)/HQ3.3V SUB9V(H264)/HQ3.3V SUB9V(FHD)/P12V SUB9V(FHD)/P12V P5V(MON)/P12V-ON < S_GND GND GND N.C.(BT_30V) ODU GND S_GND GND SUB5V MAIN9V SUB9V SUB9V +15V_S +15V_S GND SUB5V N.C. GNDs(S) +15Vs(S) +15Vc STBY_5V GND SUB5V/SUB9V AJ C C SUFFIX JW GND GND GND GND GNDs(S) F_STBY_15V F_STBY_15V ECO_ON ALL_OFF F_STBY_15V AC_GOOD GND NC TUNER_SUB_ON GND GND SOS STB5V TUNER_MAIN_ON GND ECO_ON GND TO H-BOARD (H4) GND N.C./KEY ALL_OFF ODU_ON TO H-BOARD (H3) +15Vs(S) +15Vc +15Vs(S) GNDs(S) GND AC_GOOD TV_ON OFF GND GND MAIN9V F_STBY_15V ERROR DET SOS DET TUNER_SUB_ON TUNER_MAIN_ON SUB5V/9V OVER VOLTAGE DET SUB5V/9V SHORT DET F STBY 15V SHORT DET TUNER_SUB_ON 6 E 3 B D 1 2 F 9 4 8 C A 7 5 PA-BOARD TXNPA1HLTC ! TUNER_SUB_ON TO P-BOARD (P5) TH-42PV700C PA-Board Schematic Diagram TH-42PV700C PA-Board Schematic Diagram 1 3 0 25V 0.1u 1 C0DBAZF00003 IC5400 R5423 1k (FIN) 3 Vin Vout(sw) Vadj ON/OFF GND 2 4 5 SMD C5420 0.1u 25V D5409 B0JCME000037 C5410 470u 25V + L5401 LHLP10TB101KB R5416 R5417 R5418 2k 845 13k 1% 1% 1% C5412 C5419 470u 25V + 9V TPFA9 TPFA15 TP5400 7V 9V D5411 MA3X152E0L C5409 25V 0.1u D5412 MAZ80330LL TPF0S R5415 0 D5410 MAZ81100ML R5413 470 R5412 4.7k C5413 25V 0.1u C R5410 0 9V FAN_SOS R5402 4.7k D5402 MA2J11100L +B FOR FAN GND FOR FAN 2 3 PA32 TO FAN TO FAN PA34 1 2 D5404 MA2J11100L R5404 4.7k R5420 R5424 0 67 15.10.H 电路板 (1/2) 方框图 DRIVE IC VCC Vin GND COMPONENT COMPONENT AV1 AV1S AV2 AV3 AV2 AV3 PR PB Y PR V L C R R L Y R L V R V V L MONITOR OUT PB Y + PC_B PC_H_IN PC_V SUB_Y_OUT PC_H RGB_CVBS SUB_PR_OUT AV1_Y AV3_V PC_H_IN PC_V_IN PC_LIN PC_RIN PC_R PC_G AV1_L AV1_R AV2_L AV2_R AV3_L AV3_R PC_LIN PC_RIN AV4_R AV4_L TV_R TV_L AV_R AV_L SCL0B_5V SDA0B_5V AV3C_Y AV3C_PB AV3C_PR AV4_V AV4_S AV4_Y AV4_C PC_R PC_B PC_G PC_V_IN AV2C_YSW AV2C-PR AV2C_PB AV2_V AV1_C SUS_RF_CVBS MAIN_Y_OUT MAIN_PB_OUT MAIN_PR_OUT SUB_PB_OUT VOUT AV1_S AV1_V MAIN_RF_CVBS VIDEO_STATUS SCL0B_5V SDA0B_5V AV3C_YSW SPDIF_OUT AV3_R AV2C_Y AV2C_YSW AV2_R AV3_L AV1_Y AV1_V AV1_R AV2C_PB AV1_C AV2_V AV3C_YSW AUDIOOUT_L AV2C_PR AV1_S AV2_L AV3C_PR AV3C_PB AV1_L AV3_V VOUT VOUT_FEED_B AUDIOOUT_R AV2C-Y VOUT_FEED_B TUNER_MAIN_ON MON_MUTE DTV9V *D2025 *Q2003 SUB3.3V *Q2002 JK2003 L L-G R R-G *JK3001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 DTV9V JK3100 Y-SW Y G PB PR V L R-SW R G Y-SW Y G PB PR V L R-SW R G C Y G Y-G C-G G V L R-SW R G V L R G Q3032 Q3032 AV1 PC AUDIO IN B G AV2 AV3 PC IN HD R VD AV SW1 Video SW L8 17 13 L6 16 R6 R8 14 R7 L7 15 11 L5 R5 12 10 6 L3 7 R3 R12 41 L12 42 LOUT1 33 32 ROUT1 35 SDA SCL 36 IC3001 V7 91 V2 14 G3 63 B3 65 R3 67 V5 95 S13 96 Y5 97 S23 98 C5 99 R4 75 B4 73 G4 71 HIN2 60 VIN2 58 LP2 78 G5 77 R5 81 V3 8 B5 79 5 C4 3 Y4 87 V9 VOUT7 44 HOUT 42 VOUT 41 OUT1(CY) 40 OUT1(Pb) 39 OUT1(Pr) 38 36 OUT2(CY) 35 OUT2(Pb) 34 OUT2(Pr) 33 VOUT3 VCC4 45 HVOE 43 VCC3 25 VCC2 6 69 VCC1 V4 1 S12 2 84 SDA SCL 83 FLAG 85 AV3 AV2 AV1 PC LP3 19 AV4 TV(MAIN) TV(SUB) 5 VCC AV SW2 (AUDIO SW) IC2105 TV PC AV2 AV1 AV3 AV4 7 2 8 6 5 4 3 1 AV TERMINAL, H MONITOR OUT 32 VOUT3FB TH-42PV700C H-Board (1 of 2) Block Diagram TH-42PV700C H-Board (1 of 2) Block Diagram 68 15.11.H 电路板 (2/2) 方框图 MAIN_PR_OUT MAIN_PB_OUT MAIN_Y_OUT SUB_PR_OUT SUB_Y_OUT SDA0B TUNER_MAIN_ON AUDIO_MUTE AUDIO_XRST SP_MUTE SOUND_SOS AFC1 TUNER_SUB_ON PANEL_STBY_ON AC_GOOD AV_L HDMI_SDIN HDMI_LRCK HDMI_BCLK SCL0B_5V RGB_CVBS SUB_PB_OUT TV_SUB_ON_DELAY AFC2 FAN_CONT FAN_SOS KEY SPDIF_IN HDMI_INT2 ECO_ON ALL_OFF VIDEO_STATUS SQ_L- SQ_L+ W_L+ W_L- SQ_R- SQ_R+ W_R+ W_R- WO_R+ WO_L+ SQ_R+ SQ_L+ SQ_L- WO_R- WO_L- AV_R SDA0B SCL0B HDMI_SDIN HDMI_LRCK HDMI_BCLK TV_R TV_L SQ_R- HP_LOUT HP_ROUT AUDIOOUT_R AUDIOOUT_L A_MUTE SOUND_SOS SDA0B_5V AFC1 MAIN_RF_CVBS AUDIO_MUTE SOUND_SOS AUDIO_XRST FB PC_H PC_V SPDIF_IN TV_SUB_ON_DELAY ALL_OFF TUNER_SUB_ON ECO_ON FAN_CONT SOS TUNER_MAIN_ON AV4_S AV4_C AV4_Y AV4_V FAN_SOS AC_GOOD KEY HP_LOUT HP_ROUT AGC1 SCL0B_5V SUB_RF_CVBS AFC2 SDA0B_5V AGC2 AGC1 AGC2 AV4_R AV4_L KEY A_MUTE MON_MUTE HDMI_INT2 SP_MUTE AUDIO_MUTE SOS SCL0B_5V SDA0B_5V SCL0B MAIN9V Q2636 BT30V Q2635 D2632 Q2301 SUB5V D2635 SUB3.3V D2637 SOUND12V SOUND15V STB+5V DVDD1.8V Q2638 D2301 Q2637 D2633 BT30V IC2610 Q2639 DTV9V STB+5V SUB5V SOUND12V SOUND15V SOUND12V SOUND15V SUB3.3V DTV9V BT30V DTV9V D2636 AUD3.3V Q2101 Q2102 MAIN9V D2303 D2304 X2010 SOUND15V SUB3.3V STB+5V SUB5V MAIN9V SUB9V_H264 DTV9V SUB5V DTV9V MAIN9V BT30V SUB5V SUB3.3V SUB5V MAIN_Y/CVBS/G PC_V RGB_FB SCL0B_3.3V SUB_PB/C ALL_OFF SUB_PR SUB_Y/CVBS AUDIO_MUTE SOS VIDEO_STATUS AFC1 RGB_CVBS AFC2 SP_MUTE SDA0B_3.3V PC_H SOUND PROCESSOR RESET MUTE(ES2-) HDMI_SDIN HDMI_LRCK HDMI_BCLK ECO_ON SUB_3.3V SHORT DET To SOS SQ_L+ SQ_R+ SQ_R- SQ_L- W_R- W_L+ W_R+ W_L- MAIN_PB/C/B MAIN_PR/R AUDIO_XRST SOUND_SOS TUNER_MAIN_ON TUNER_SUB_ON FAN_CONT FAN_SOS KEY SPDIF_IN HDMI_INT2 PANEL_STBY_ON OPERATE RESET AC_GOOD TV_SUB_ON_DELAY BT+30V DC-DC Q2031,Q2033-Q2035 MUTE SW MUTE DTV+9V Q2039-Q2040 MONITOR MUTE HDMI INT AUDIO MUTE SPEAKER STB+5V BT30V SHORT DET 3 5 7 10 12 14 16 19 21 23 28 30 32 33 34 35 38 39 41 42 48 49 51 52 54 55 56 66 68 70 72 74 76 77 79 AVR+3.3V IC2010 AUD3.3V IC2008 SOUND12V IC2303 3 AVR 1 AMP 36 31 +15V +12V AUDIO AMP 28 5 7 SOS RESET 39 AMP IC2301 8 6 18 16 17 RESET RESET 17 16 18 IC2302 AMP 36 31 +15V +12V AUDIO AMP 28 5 7 SOS RESET 39 AMP 6 8 AMP 5 2 6 7 L R 3 1 HPOUTR1 58 HPOUTL1 57 PWM4B 49 PWM4A 48 PWM3B 47 PWM3A 46 PWM2B 45 PWM2A 44 PWM1B 43 PWM1A 42 AINL1 78 AINR1 79 SIF_IN1 8 SDA 16 MUTE 15 SCL 17 SDIN0 22 LRCLK0 26 BCLK0 27 AUXOUTL1 72 AUXOUTR1 73 AUXOUTR2 75 AUXOUTL2 74 IC2107 DVDD1.8VV 2 5 7 MUTE 1 3 HP AMP IC2012 Q2021 Q2015 SOS OPERATE AUDIO MUTE 8 5 9 13 14 16 15 18 20 21 11 BB +B SIF_OUT SCL SDA RF_AGC VB BTL AFT_OUT VIDEO_OUT Q3200 TUNER(MAIN) TU3200 1 2 4 5 4 3 2 1 H12 H11 Q2017 Q2016 1 3 5 AVR 1 AVR 7 5 AUD3.3V SIF3.3V DVDD1.8V 7 5 1 AVR IC2106 50 4 3 5 AVR5V IC2013 AVR 8 VCC SUB_3.3V OVER VOLTAGE XIN 33 SPDIF_IN 39 SPDIF_OUT 38 XOUT 34 1 2 AC_GOOD SUB9V_H264 7 8 11 16 17 18 +15V_S +15V_S 21 +15V_S 22 23 FAN_SOS H3 SUB5V H4 SUB5V MAIN9V SOS 8 14 12 9 13 STB5V MAIN9V TUNER_MAIN_ON ALL_OFF SUB3.3V TUNER_SUB_ON SUB5V SUB3.3V ECO_ON SUB5V SUB5V 2 DTV9V STB5V DTV9V 23 1 DTV9V DTV9V 18 21 17 FAN_CONT FHD9V FHD9V H2 FHD9V 5 FHD9V 6 7 9 18 21 23 1 2 3 SUB9V_H264 10 8 15 17 19 1 H51 G51 AV4_R AV4_Y HP_L AV4_S AV4_V AV4_L KEY AV4_C HP_R 9 7 12 IC2011 H6 DG6 AGC1 1 H15 DG2 8 6 7 1 5 3 2 AV TERMINAL, H AV SWITCH,MSP 4 SUB3.3V 5 9 10 12 11 14 16 AFT_OUT VIDEO_OUT Q3201 SCL SDA 17 +B TUNER(SUB) TU3201 RF_AGC VB BTL AGC2 3 PA4 PA3 10 KEY SPEAKER SPEAKER 8 7 SCLB SDAB 2 3 SDAA SCLA 8 VCCA 1 VCCB IC2601 LEVEL CHANGE 5V<->3.3V TH-42PV700C H-Board (2 of 2) Block Diagram TH-42PV700C H-Board (2 of 2) Block Diagram 69 15.12.H 电路板 (1/5) 线路图 + + + COMPONENT COMPONENT AV1 AV1S AV2 AV3 AV2 AV3 PR PB Y PR V L C R R L Y R L V R V V L MONITOR OUT PB Y + DRIVE IC VCC Vin GND AV_L AV3_R SDA0B_5V SCL0B_5V AV4_L AV2_R AV1_R AV3_L AV1_L AV2_L AV4_R AV_R PC_RIN PC_LIN TV_L TV_R PC_B SPDIF_OUT DAC_PD PC_H_IN PC_V_IN PC_G PC_R PC_LIN PC_RIN A_AV1_R AV1_V AV1_S A_AV2_RSW AV3C_YSW A_AV3_RSW AV3C_PR A_AV1_R AV2_V AV1_C AV1_Y A_AV1_L A_AV3_L A_AV2_R A_LOUT A_AV2_L A_AV2_L A_AV1_RSW AV2C_YSW AV3C_Y AV2C_PB A_AV3_L A_AV2_RSW A_AV1_RSW A_AV1_L AV3C_PB A_AV2_R AV3_V A_AV3_R AV2C_PR A_ROUT A_AV3_R A_AV3_RSW A_LOUT AV2C_Y A_ROUT MONITOROUT_MUTE AV3_L AV3_R VOUT AV2_L AV2_R AV1_L AV1_R AUDIOOUT_L AUDIOOUT_R VOUT_FEED_B TUNER_MAIN_ON HV/FB_CONT 1% *R3313 75 L2001 J0JCC0000364 1% R3004 75 JS2031 JS2032 R2032 22k 1% R3002 75 R2195 100k Q3032 2SC584500L *C3119 10u 16V C2021 560p 50V AN15862A-VT IC2105 1 L1 2 R1 3 L2 4 R2 5 VCC 6 L3 7 R3 8 L4 9 R4 10 L5 11 R5 12 L6 13 R6 14 L7 15 R7 16 L8 17 R8 18 L9 19 R9 20 L10 21 R10 22 O1 23 LOUT5 24 ROUT5 25 LOUT4 26 ROUT4 27 LOUT3 28 ROUT3 29 GND 30 LOUT2 31 ROUT2 32 LOUT1 33 ROUT1 34 ADR 35 SCL 36 SDA 37 O2 38 BIAS 39 L11 40 R11 41 L12 42 R12 43 L13 44 R13 R3020 4.7k L2012 J0JCC0000100 C2161 16V 100u *C2128 50V 0.1u C3070 6.3V 220u R2196 100k C2164 16V 1u L3002 J0JCC0000100 L2004 J0JCC0000100 FL2002 J0HABB000004 1 2 3 4 C2136 16V 1u JS2049 C2167 16V 1u C2160 16V 1u R2138 220 *C2155 16V 1u C2022 560p 50V SUB9V_PRCT R2164 220 R2049 330 *D3334 MA2J11100L R2052 180k *C3100 10V 1u JS2062 *FL3003 J0HABB000004 1 2 3 4 R3022 4.7k 1% R3006 75 L2008 J0JCC0000100 JS2064 JS3011 0 L2015 J0JCC0000100 *R2106 0 R2034 22k JK3100 K1U936A00002 Y-SW Y G PB PR V L R-SW R G Y-SW Y G PB PR V L R-SW R G C Y G Y-G C-G G V L R-SW R G V L R G R2173 220 *R3308 0 R2154 22 D3003 MAZ81400ML *C3102 10V 1u *FL3001 J0HABB000003 1 2 3 4 R2172 220 JS3015 0 FL2001 J0HABB000004 1 2 3 4 R2170 220 C2014 50V 560p *R3306 4.7k Q2003 2SC584500L L2016 J0JCC0000100 D3036 MAZ81400ML *JS3003 JS2060 10k R3107 JK2003 K2HA204A0041 L L-G R R-G R2152 22 1% R3001 75 C2159 16V 1u R2137 220 1% *R3143 69.8 *C2157 16V 1u SUB9V_VIDEO D3006 MAZ81400ML SUB5V R2132 47k *D3102 MA2J11100L L2002 J0JCC0000364 C2017 50V 560p R2053 100k 1% R3003 75 C3120 50V 0.1u R3188 0 R2050 2.2k 1% R3012 75 R2174 220 C2154 50V 0.1u R2051 180k JS3013 0 R2235 47k D2119 B0BC01100001 L3013 J0JCC0000100 1% R3008 75 10k R3113 1% *R3318 75 *D3338 MA2J11100L SUB3.3V R3130 220 D3040 MAZ81400ML D3005 MAZ81400ML R3131 220 L3001 J0JCC0000100 R2033 22k D3100 MAZ81400ML R2054 100k R2048 2.2k C2166 16V 1u R3145 100k C2013 50V 560p *R2162 220 C2005 50V 560p C2010 50V 560p R2167 220 DTV9V C2135 16V 1u 1% R3009 75 JS2048 1% R3005 75 *FL3002 J0HABB000003 1 2 3 4 Q2002 2SC584500L C2147 16V 22u L2003 J0JCC0000100 R2031 22k JS3010 0 R2171 220 JS2059 L2007 J0JCC0000100 D3048 MAZ81400ML L3010 J0JCC0000100 D3035 MAZ81400ML 1% R3010 75 D3038 MAZ81400ML D3039 MAZ81400ML SUB9V_PRCT JS2033 L2011 J0JCC0000100 L3003 J0JCC0000100 D3047 MAZ81400ML R2030 22k R2029 22k Q3031 2SC584500L 10k R3177 D3045 MAZ81400ML R2047 330 *R3307 4.7k *D3335 MA2J11100L C2011 50V 560p D3046 MAZ81400ML JS2051 *R2160 220 *FL3005 J0HABB000004 1 2 3 4 C3060 16V 1u 1% *R3310 75 DTV9V *FL3004 J0HABB000004 1 2 3 4 *D3336 MA2J11100L JS3012 0 R2175 220 C2165 16V 1u R3021 4.7k *D2025 K7AAAY000003 D3049 MAZ81400ML C2163 16V 1u *R3309 0 JS2046 C2016 50V 560p *JK3001 K1FB315A0006 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 D3037 MAZ81400ML 1% R3007 75 JS3014 0 C2006 50V 560p C2162 16V 1u *C3101 10V 1u *D3337 MA2J11100L JS2061 B G PC IN SUFFIX JW AE R Audio SW 7 1 C 6 F 4 5 2 3 B 8 D A E 9 3 2 4 1 H-BOARD (1/5) ! TNPA4179AE TH-42PV700C H-Board (1 of 5) Schematic Diagram TH-42PV700C H-Board (1 of 5) Schematic Diagram 70 15.13.H 电路板 (2/5) 线路图 + + + + + + + + + + + RGB_CVBS MAIN_RGB_CVBS_OUT AV2C_Y AV2C_PB AV2C_PR MAIN_RF_CVBS MAIN_RF_GND PC_H PC_V SUB_PB_OUT AV4_VGND AV4_YGND AV3C_PB PC_G PC_R PC_B AV4_V AV4_Y AV4_S AV4_CGND SUB_TNR_SW1 SUB_Y_OUT MAIN_RGB_CVBS_OUT MAIN_Y_OUT MAIN_PB_OUT MAIN_PR_OUT SUB_PR_OUT VIDEO_STATUS SDA0B_5V AGC1 SIF1 AFC1 AV1_Y AV2_V AV3_V AV3C_Y AV3C_PR SUB_RF_GND AV1_V AV1_S AV1_C AV3C_YSW AV2C_YSW SDA0B_5V SCL0B_5V MAIN_TNR_SW1 MAIN_TNR_SW2 AGC2 AGC1 MAIN_RF_CVBS MAIN_RF_GND SCL0B_5V SDA0B_5V AGC2 SUB_RF_CVBS SUB_RF_GND SUB_TNR_SW2 MAIN_Y/CBVS/G MAIN_Y_OUT MAIN_PB/C/B MAIN_PB_OUT MAIN_PR/R MAIN_PR_OUT SUB_Y SUB_PB_OUT SUB_PB SUB_PR SUB_PR_OUT SUB_RF_CVBS SCL0B_5V SUB_TNR_SW2 SUB_TNR_SW1 MAIN_TNR_SW1 MAIN_TNR_SW2 PC_H_IN PC_V_IN VOUT_FEED_B VOUT SUB_Y_OUT AV4_C HV/FB_CONT AFC2 *R3063 220 *L3208 J0JCC0000241 *D3042 MAZ81400ML C3275 16V 0.1u R3140 47 *R3348 68 R3168 220 R3044 0 *C3291 16V 0.1u *D3043 MAZ81400ML R3074 220 *C3106 10V 1u R3089 330 L3209 J0JGC0000021 *L3227 J0JGC0000021 *C3300 6.3V 100u *C3286 16V 0.1u *C3293 10u 16V R3087 220 C3118 16V 47u C3103 16V 10u C3279 16V 0.1u *H15 K1KA04AA0150 1 2 3 4 *R3256 100 C3053 10V 1u 100 R3180 C3051 10V 1u *R3252 270 *D3041 MAZ81400ML DTV9V C3054 10V 1u C3272 50V 0.1u *R3062 220 C3052 10V 1u 1% *R3135 100 C3056 10V 1u R3249 1.5k L3207 J0JCC0000241 *R3112 22 *R3073 220 R3244 0 R3133 22 C3116 50V 0.1u *R3174 68 R3266 1.5k BT30V *C3027 10V 1u *C3285 6.3V 1000u JS3032 C3117 50V 0.1u AN15876A-VT IC3001 1 V4 2 S12 3 Y4 4 S22 5 C4 6 VCC2 7 LP5 8 V3 9 O3 10 Y3 11 GND2 12 C3 13 LP4 14 V2 15 S11 16 Y2 17 S21 18 C2 19 LP3 20 V1 21 O2 22 Y1 23 O1 24 C1 25 VCC3 26 VOUT6 27 DCOUT 28 VOUT5FB 29 VOUT5 30 VOUT4FB 31 VOUT4 32 VOUT3FB 33 VOUT3 34 OUT2(Pr) 35 OUT2(Pb) 36 OUT2(CY) 37 GND3 38 OUT1(Pr) 39 OUT1(Pb) 40 OUT1(CY) 41 VOUT 42 HOUT 43 HVOE 44 VOUT7 45 VCC4 46 FBLOUT 47 FBL3 48 FBL2 49 FBL1 50 FBLOE 51 G1 52 VIN1 53 B1 54 HIN1 55 R1 56 GND4 57 G2 58 VIN2 59 B2 60 HIN2 61 R2 62 NC 63 G3 64 TEST 65 B3 66 NC 67 R3 68 NC 69 VCC1 70 NC 71 G4 72 LP1 73 B4 74 L31 75 R4 76 NC 77 G5 78 LP2 79 B5 80 L32 81 R5 82 GND1 83 SDA 84 SCL 85 FLAG 86 BIAS 87 V9 88 NC 89 V8 90 NC 91 V7 92 O4 93 V6 94 LP7 95 V5 96 S13 97 Y5 98 S23 99 C5 100 LP6 C3115 50V 0.1u SUB5V *TU3200 ENGF9701GF BB 5 NC 6 SW1 7 SW2 8 +B 9 AUDIO_OUT 10 SIF_OUT 11 NC 12 SCL 13 SDA 14 RF_AGC 15 VB 16 NC 17 BTL 18 NC 19 AFT_OUT 20 VIDEO_OUT 21 *C3298 22u 35V R3065 220 R3111 22 *L3224 J0JCC0000241 *L3222 J0JGC0000021 *L3219 J0JCC0000241 R3069 220 SUB9V_VIDEO R3205 0 C3055 10V 1u *R3259 220 *R3068 75 1% C3078 6.3V 22u *C3081 6.3V 100u *R3072 220 *R3215 0 R3247 220 SUB5V *R3176 68 R3222 0 *R3260 560 1% R3123 47 *C3274 16V 0.1u D3044 B0BC01100001 R3240 560 1% *R3253 0 R3097 68 1% R3137 100 L3211 J0JGC0000021 C3276 16V 0.1u R3059 220 R3110 0 C3033 10V 1u *TU3201 ENG39D01GF NC 1 NC 2 SW1 3 SW2 4 +B 5 NC 6 NC 7 NC 8 SCL 9 SDA 10 RF_AGC 11 VB 12 NC 13 BTL 14 NC 15 AFT_OUT 16 VIDEO_OUT 17 R3099 68 C3281 16V 0.1u C3280 50V 100p *R3254 0 *L3223 J0JCC0000241 1% *R3233 75 C3024 10V 1u R3239 220 JS3024 *R3216 0 JS3208 ERJ3GEY0R00V *C3305 16V 0.1u C3040 50V 0.1u C3026 50V 0.1u R3109 0 L3206 J0JCC0000241 C3021 10V 1u *C3299 16V 0.1u Q3200 2SA207700L R3191 22 1% *R3119 100 R3045 0 R3101 68 *R3251 1.5k C3271 10u 16V *C3028 10V 1u *C3031 50V 0.1u R3064 220 R3103 0 *L3220 J0JCC0000241 R3246 0 *R3206 100 *C3308 16V 0.1u R3096 68 *R3302 100 C3270 6.3V 1000u *R3349 68 R3202 0 *R3105 22 *C3296 50V 0.1u 1% *R3120 100 *R3086 220 C3043 10V 1u *R3255 220 1% *R3234 75 *R3175 68 *C3292 50V 100p R3100 68 L3226 J0JCC0000241 *C3029 16V 1u BT30V C3023 10V 1u C3273 10u 50V *JS3209 0 JS3023 R3090 22 *R3305 100 *R3250 1.5k R3098 68 R3243 270 L3225 J0JCC0000241 R3121 47 *Q3201 2SA207700L *C3202 0.47u 50V C3075 16V 220u Video SW 11 18 14 15 16 12 10 17 13 1 2 3 4 13 16 14 15 11 12 H-BOARD (2/5) ! TNPA4179AE ! ! TH-42PV700C H-Board (2 of 5) Schematic Diagram TH-42PV700C H-Board (2 of 5) Schematic Diagram 71 15.14.H 电路板 (3/5) 线路图 + + + + + + + + + + + + + 5V WO_R+ DTV_LRCK SQ_L+ SQ_R+ WO_L- WO_L+ SQ_R- SQ_L- WO_R- DTV_BCLK TV_R AUDIOOUT_R AUDIOOUT_L AV_R HDMI_SDIN HDMI_BCLK HDMI_LRCK DTV2_SDIN SOUND_SOS AUDIO_MUTE DAC_PD TV_L AV_L SPDIF_OUT DTV_SDIN HP_ROUT HP_LOUT SPDIF_IN SDA0B SCL0B PWM_SQ_L+ PWM_SQ_L- WO_R+ WO_R- PWM_W_L+ PWM_W_L- SQ_L+ SQ_L- PWM_SQ_R+ SQ_R+ PWM_W_R+ SQ_R- WO_L+ PWM_W_R- WO_L- PWM_SQ_R- AUDIO_XRST AMUTE C2023 0.1u 50V L2027 J0JHC0000045 DVDD3.3V *C2271 470p 50V *R2236 15k C2116 470p 50V Q2015 2SA207700L *R2185 100 C2097 50V 0.1u C2173 4.7u 16V R2149 10k C2186 0.1u 50V C0CBCBC00190 IC2010 1 VDD 2 GND 3 CE 5 VOUT 4 NC R2266 560 *D2189 MA2J11100L 2k 1% R2104 C2130 6.3V 10u *R2270 22 EXB28V220JX *R2210 10k 1% R2197 68k C2246 10u 10V C2138 0.1u 50V C2216 0.1u 50V C2131 50V 0.1u C2108 47u 6.3V *C2176 50V 0.01u 1% R2182 36k C2188 470p 50V C2109 0.1u 50V Q2102 2SC584500L C2054 10u 10V C2053 0.1u 50V C2153 50V 33p C2091 50V 10p L2039 J0JHC0000045 *R2271 22 EXB28V220JX 10k R2276 C2089 560p 50V *R2186 82k C2117 0.1u 50V 22 R2056 IC2011 C0ABBB000230 1 2 3 4 5 6 7 8 C2268 100p 50V C2052 0.1u 50V *R2099 10k *R2233 10k R2094 2.2k *R2237 15k C2055 12p 50V 0 R2257 C2100 0.1u 50V C2048 0.1u 50V C2059 47u 6.3V *C2179 16V 47u C2058 0.1u 50V C2288 10u 10V 1% R2169 22k C2272 4.7u 16V R2295 0 *R2187 0 *R2209 10k 1% *R2113 120k R2093 3.3k C2264 10u 10V C2192 47u 6.3V *C2184 50V 1000p Q2021 2SA207700L *C2198 25V 0.033u C2280 4.7u 10V R2291 0 R2296 0 *R2189 10k 1% R2181 22k R2265 4.7k C1AB00002746 IC2106 1 FILTA 2 VREF 3 AGND 4 AVDD 5 SIF_REEP 6 SIF_REFCM 7 SIF_REFN 8 SIF_IN1 9 SIF_PGA_REF 10 SIF_IN2 11 AGND 12 AVDD 13 DGND 14 DVDD 15 MUTE 16 SDA 17 SCL 18 LRCLK2 19 BCLK2 20 DGND 21 DVDD 22 SDIN0 23 SDIN1 24 SDIN2 25 SDIN3 26 LRCLK0 27 BCLK0 28 ODGND 29 ODVDD 30 VDRIVE 31 DVDD 32 DGND 33 MCLKI/XIN 34 XOUT 35 BCLK1 36 LRCLK1 37 SDO0 38 SPDIF_OUT 39 SPDIF_IN 40 DVDD 41 DGND 42 PWM1A 43 PWM1B 44 PWM2A 45 PWM2B 46 PWM3A 47 PWM3B 48 PWM4A 49 PWM4B 50 RESET 51 DVDD 52 DGND 53 AVDD 54 PLL_LF 55 AGND 56 AGND 57 HPOUTL1 58 HPOUTR1 59 AVDD 60 NC 61 NC 62 NC 63 NC 64 NC 65 NC 66 VOUT_SW 67 FILTD 68 AVDD 69 AGND 70 AGND 71 AVDD 72 AUXOUTL1 73 AUXOUTR1 74 AUXOUTL2 75 AUXOUTR2 76 AINL2 77 AINR2 78 AINL1 79 AINR1 80 ISET C2106 0.1u 50V R2088 100 *R2184 100 C2096 50V 0.1u SUB3.3V R2084 4.7k *C2133 50V 4.7u 1% R2168 16k *C2098 6.3V 220u *R2192 100k C2124 0.1u 50V 2.2k R2125 100 R2111 C2171 0.01u 50V R2290 0 C2050 0.1u 50V 20k 1% R2100 C2281 560p 50V L2040 J0JHC0000045 *C2195 50V 1000p C2251 10u 10V *C2270 470p 50V L2026 G1C6R8MA0061 300 R2058 *R2179 10k R2165 10k *R2180 1k C2110 0.1u 50V C2114 0.1u 50V *C2197 25V 0.033u C2057 0.1u 50V C2170 50V 33p *R2178 1k C2105 0.1u 50V *C2099 6.3V 220u C2120 56p 50V C2191 10u 10V 1M R2112 SUB5V *C2174 1u 10V C2213 1000p 50V H0J245500082 X2010 C2190 10u 10V C2245 1000p 50V C2143 50V 180p C2049 0.1u 50V 0 *R2116 C2146 50V 180p 1% *R2114 75k C2244 0.1u 50V C0CBCBE00001 IC2008 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 SUB 7 VIN *L2022 ERJ3GEY0R00V *R2098 10k C2189 1u 10V *C2180 1u 10V C2265 100p 50V DTV9V C2101 10u 10V 1% R2166 16k DVDD1.8V C2185 10u 10V SUB5V C2289 10u 10V *C2204 1u 16V *L2035 J0JCC0000364 SUB5V 1M *R2059 C2187 2.2u 6.3V C0DBGYY00281 *IC2013 1 NC 2 VSS 3 CE 5 VOUT 4 VIN R2263 0 C2113 47u 6.3V Q2101 2SC584500L 1% R2198 158k *IC2012 C1BB00000947 1 OUT1 2 MUTE 3 IN1 4 GND 5 IN2 6 BIAS 7 OUT2 8 VCC SUB3.3V *L2034 J0JCC0000364 C2111 2.2u 6.3V DTV9V JS3206 0 R2096 10k C2115 0.1u 50V 20k 1% R2145 DVDD3.3V AUD3.3V 22 R2057 L2029 J0JCC0000077 C2263 10u 10V C2118 1u 10V DVDD1.8V R2223 0 C2112 47u 6.3V R2085 560 *C2175 16V 47u C2151 47u 6.3V R2086 470 C2266 100p 50V C2183 10u 10V 20k 1% R2146 20k 1% R2150 MAIN9V Q2016 2SC584500L R2294 0 C2088 4.7u 10V C2121 56p 50V 20k 1% R2151 R2089 560 C2134 50V 0.01u *C2056 12p 50V R2097 3.3k 10k R2110 0 *R2117 C2107 47u 6.3V Q2017 2SC584500L R2092 470 JS2096 *C2203 1u 10V *C2202 2.2u 6.3V C2126 10u 10V 1% R2183 36k C2267 100p 50V C2102 0.1u 50V L2021 J0JHC0000078 C0DBFFD00003 IC2107 1 2 3 4 5 6 7 C2092 50V 22p R2297 0 *R2193 100k C2137 47u 6.3V >> RESETB << SPDIF_IN, OUT>> - R L + - + HP AMP Rin Lin 3.3V AUD3.3V DVDD1.8V AUDIO DSP AMP 5V 26 23 20 27 21 19 24 25 22 14 15 16 13 11 12 22 21 25 24 23 26 H-BOARD (3/5) ! TNPA4179AE TH-42PV700C H-Board (3 of 5) Schematic Diagram TH-42PV700C H-Board (3 of 5) Schematic Diagram 72 15.15.H 电路板 (4/5) 线路图 + + + + PWM_SQ_R+ PWM_SQ_R- PWM_W_L- PWM_W_L+ AMUTE SOUND_SOS MONITOROUT_MUTE AUDIO_MUTE AMUTE HDMI_INT2 SP_MUTE PWM_SQ_L+ PWM_SQ_L- PWM_W_R+ PWM_W_R- DTV9V C2305 25V 1u Q2031 2SA207700L STB+5V D2034 MA2J11100L *C2306 25V 1u *R2320 10 SOUND15V R2144 10k C2302 16V 0.1u C2301 16V 0.1u C2307 25V 1u L2310 J0JJC0000011 C2349 50V 0.1u R2131 10k C2357 50V 0.1u TP2307 R2127 10k C1AB00002730 *IC2301 1 GVDD_B 44 GVDD_A 2 OTW 3 NC 4 NC 5 SD 6 PWM_A 7 RESET_AB 8 PWM_B 9 OC_ACJ 10 GND 11 AGND 12 VREG 13 M3 14 M2 15 M1 16 PWM_C 17 RESET_CD 18 PWM_D 19 NC 20 NC 21 VDD 22 GVDD_C 23 GVDD_D 24 BST_D 25 NC 26 PVDD_D 27 PVDD_D 28 OUT_D 29 GND_D 30 GND_C 31 OUT_C 32 PVDD_C 33 BST_C 34 BST_B 35 PVDD_B 36 OUT_B 37 GND_B 38 GND_A 39 OUT_A 40 PVDD_A 41 PVDD_A 42 NC 43 BST_A C2313 50V 0.1u *C2384 50V 1000p R2330 1k *C2330 50V 0.1u C2333 50V 0.1u C2347 50V 0.022u *R2309 3.3 R2302 2.2k R2194 1k *C2376 50V 0.022u D2302 MA2J11100L D2028 MA2J11100L Q2034 2SC584500L SOUND12V *R2316 3.3 C2389 50V 1000p *R2326 10 C1AB00002730 *IC2302 1 GVDD_B 44 GVDD_A 2 OTW 3 NC 4 NC 5 SD 6 PWM_A 7 RESET_AB 8 PWM_B 9 OC_ACJ 10 GND 11 AGND 12 VREG 13 M3 14 M2 15 M1 16 PWM_C 17 RESET_CD 18 PWM_D 19 NC 20 NC 21 VDD 22 GVDD_C 23 GVDD_D 24 BST_D 25 NC 26 PVDD_D 27 PVDD_D 28 OUT_D 29 GND_D 30 GND_C 31 OUT_C 32 PVDD_C 33 BST_C 34 BST_B 35 PVDD_B 36 OUT_B 37 GND_B 38 GND_A 39 OUT_A 40 PVDD_A 41 PVDD_A 42 NC 43 BST_A D2301 MA2J11100L R2331 2.2k *C2390 50V 1000p D2029 MA2J11100L Q2033 2SA207700L C2387 50V 1000p C2119 10V 220u *C2326 50V 0.47u *C2324 0.033u 25V R2317 10 R2208 10k *TP2309 D2031 MA2J11100L *C2304 25V 1u Q2039 2SC584500L *C2342 50V 0.1u D2026 MA2J11100L Q2041 2SC584500L C2309 25V 1u R2315 3.3 *C2344 50V 0.1u *C2356 50V 0.1u *R2324 10 *L2309 J0JJC0000011 *C2358 50V 0.1u *TP2306 *C2382 50V 0.022u C2303 25V 1u R2323 10 *C2329 50V 0.1u R2311 3.3 C2377 50V 0.022u C2321 0.033u 25V C2345 50V 0.022u *C2378 50V 0.022u *C2336 50V 0.1u R2321 10 D2303 MAZ30560HL *C2348 50V 0.022u D2304 MA2J11100L C2375 50V 0.022u *C2314 50V 0.1u Q2301 2SA207700L *C2334 50V 0.1u *R2322 10 C2381 50V 0.022u *C2322 0.033u 25V C2383 50V 1000p *C2332 50V 0.47u *C2311 50V 0.1u R2128 47k C2353 50V 0.1u STB+5V C2335 50V 0.1u C2379 50V 0.022u *H11 1 2 3 4 5 Q2040 2SC584500L R2216 10k C2337 50V 0.022u *C2338 50V 0.022u *R2123 47k TP2303 *R2314 3.3 D2032 MA2J11100L R2305 470 R2301 2.2k *C2380 50V 0.022u *R2312 3.3 *C2388 50V 1000p *C2386 50V 1000p R2319 10 *C2315 50V 0.1u *C2363 50V 0.1u *C2328 50V 0.1u TP2305 *C2310 25V 1u C2359 50V 0.1u C2319 0.033u 25V R2122 10k MAIN9V C2325 50V 0.47u R2308 3.3 R2205 20k *C2318 0.033u 25V C2331 50V 0.47u Q2035 2SC584500L R2306 68k C2323 0.033u 25V R2325 10 C2385 50V 1000p *R2307 68k R2118 1M C2317 0.033u 25V R2313 3.3 C2355 50V 0.1u *C2364 50V 0.1u TP2310 *JS2301 SOUND15V *C2362 25V 470u R2219 47k *TP2308 *C2308 25V 1u *C2360 50V 0.1u *C2340 50V 0.022u TP2301 *TP2304 MAIN9V *C2354 50V 0.1u *R2217 47k *JS2300 *C2312 50V 0.1u R2124 10k C0DBGYY00202 IC2303 VIN 3 2 VSS VOUT 1 TP2302 C2343 50V 0.1u D2033 MA2J11100L *C2316 50V 0.1u R2206 10k C2341 50V 0.1u C2365 220u 16V *R2318 10 C2352 16V 1u R2119 10k R2220 12k C2339 50V 0.022u *C2346 50V 0.022u R2129 10k *C2327 50V 0.1u *C2320 0.033u 25V C2361 25V 470u R2156 330 L2308 J0JJC0000011 H12 1 2 3 4 *L2303 G1C330MA0291 *L2305 G1C330MA0291 *L2301 G1C330MA0291 *L2302 G1C330MA0291 *L2300 G1C330MA0291 *L2306 G1C330MA0291 *L2304 G1C330MA0291 *L2307 G1C330MA0291 SQ_L+ SQ_R+ SQ_R- SQ_L- W_R- W_L+ W_R+ NC W_L- OPERATE RESET SOS OPERATE OPERATE RESET SOS OPERATE MUTE MUTE SW OPERATE MUTE MUTE MUTE MUTE SOUND SOS DET SOUND12V AUDIO AMP AUDIO AMP 30 35 29 31 32 36 28 33 34 25 24 26 23 22 21 31 32 34 35 33 H-BOARD (4/5) ! TNPA4179AE TH-42PV700C H-Board (4 of 5) Schematic Diagram TH-42PV700C H-Board (4 of 5) Schematic Diagram 73 15.16.H 电路板 (5/5) 线路图 + + AV4_CGND AV4_YGND AV4_VGND HDMI_INT2 MAIN_PR/R MAIN_PB/C/B MAIN_Y/CBVS/G RGB_CVBS PC_H PC_V DVB_CVBS SUB_PR SUB_PB SUB_Y SDA0B TUNER_MAIN_ON AUDIO_MUTE AUDIO_XRST SP_MUTE SOUND_SOS AFC1 SOS TUNER_SUB_ON GENX_RST PANEL_STBY_ON 24V_DET KEY SCL0B FAN_SOS ECO_ON ALL_OFF AFC2 FAN_CONT SCL0B VIDEO_STATUS SDA0B SOS TV_SUB_ON_DELAY DTV_BCLK DTV_SDIN DTV_LRCK DTV2_SDIN HDMI_SDIN HDMI_LRCK HDMI_BCLK SPDIF_IN KEY HP_LOUT AV4_R HP_ROUT AV4_L AV4_S AV4_V TV_SUB_ON_DELAY 24V_DET FAN_CONT FAN_SOS SOS TUNER_MAIN_ON ALL_OFF TUNER_SUB_ON ECO_ON KEY PANEL_STBY_ON AV4_Y AV4_C SDA0B_5V SCL0B_5V C3228 50V 0.1u ZA3005 K4CD08000002 ZA3006 K4CD08000002 SUB3.3V SUB3.3V R2864 1k STB+5V TP2612 R2602 0 R2859 4.7k *H4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 H6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 C3263 50V 0.1u C3268 50V 0.1u R2624 22 L2650 G1C3R3ZA0083 C3267 50V 0.1u C3266 50V 0.1u R2229 0 D2638 B0BC03900015 C2813 50V 0.1u R2628 7.5k ZA3003 K4CD08000002 TP2608 *FL3007 J0JAD0000028 1 2 3 4 C2817 50V 1000p *R3237 0 BT30V R2853 10k H2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 *R3236 0 D2632 MA2J11100L *H51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R2856 0 R2228 0 SUB5V TP2012 TP2016 R3350 0 *FL2006 J0HABB000003 1 2 3 4 R2629 7.5k *R3227 0 STB+5V C2602 50V 0.1u R2225 0 C2801 10u 16V L2649 G1C100MA0072 C2816 35V 22u C3216 50V 0.1u MAIN9V *FL3008 J0HABB000003 1 2 3 4 C0DBAJB00004 IC2610 1 VOUT 2 VDD 3 NC 5 EXT 4 VSS R2224 0 MAIN9V TP2609 C3265 50V 0.1u R2855 47k LCD3.3V TP2617 SUB5V R2861 1k C2802 0.47u 50V SUB5V *FL3006 J0JAD0000028 1 2 3 4 R2854 2.2k Q2638 2SC584500L R2231 0 Q2635 2SC584500L 1% R2867 82k D2635 MA2J11100L C3214 50V 0.1u JS3213 0 *R2232 0 R2863 1k DTV9V *R3229 0 C3226 50V 0.1u R2890 100k ZA3007 K4CD08000002 SUB3.3V *R3238 0 D2637 MA2J11100L TP2611 TP2014 R2230 0 R2601 0 C3201 50V 0.1u SUB5V P12V P12V R2603 0 TP2610 *FL2003 J0HABB000003 1 2 3 4 C2803 0.47u 50V *R3228 0 Q2637 2SA207700L C2819 25V 47u TP2606 C3230 50V 0.1u ZA3004 K4CD08000002 D2633 MA2J11100L R2860 10k *FL2005 J0HABB000003 1 2 3 4 R2625 22 *L2647 0 Q2639 B1CFNG000001 R2865 10k TP2607 R2858 2.2k *JS2101 0 Q2636 2SA207700L DTV9V C3227 50V 0.1u R2866 2.2k *H3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 D2636 MAZ30470HL SUB9V_H264 R2869 4.7k DTV9V STB+5V 1% R2868 16k TP2015 C2814 4700p 50V ZA3001 K4CD08000002 IC2601 C0JBAU000034 1 VCCA 2 SCLA 3 SDAA 4 GND 5 EN 6 SDAB 7 SCLB 8 VCCB D2634 MA3X78900L SOUND15V R2857 4.7k C2601 50V 0.1u LCD3.3V *FL2004 J0HABB000003 1 2 3 4 ZA3008 K4CD08000002 L2648 G1C470MA0077 C2815 50V 0.1u R2227 0 ZA3002 K4CD08000002 *C2804 10u 16V *C2805 0.47u 50V *C2806 0.47u 50V *C2807 0.47u 50V < < MAIN_Y/CVBS/G GND PC_V GND NC(RGB_FB) SCL0B_3.3V SUB_PB/C GND GND ALL_OFF GND GND GND SUB_PR SUB_Y/CVBS AUDIO_MUTE SOS GND GND GND GND GND VIDEO_STATUS TV_SUB_ON_DELAY GND GND AFC1 RGB_CVBS GND GND NC(QLINK_AV2) NC(QLINK_AV3) GND GND SP_MUTE SDA0B_3.3V GND GND GND GND GND PC_H GND DTV2_SDIN DTV_LRCK DTV_BCLK DTV_SDIN HDMI_SDIN HDMI_LRCK HDMI_BCLK ECO_ON GND GND GND GND GND GND GND MAIN_PB/C/B MAIN_PR/R GND DVB_CVBS AUDIO_XRST GENX_RST SOUND_SOS AFC2 TUNER_MAIN_ON TUNER_SUB_ON SPDIF_IN GND GND GND HDMI_INT2 GND FAN_CONT FAN_SOS KEY PANEL_STBY_ON GND DTV9V STB5V SUB5V SUB5V SUB3.3V GND SUB5V GND GND GND GND NC GND DTV9V GND FHD9V SUB3.3V GND FHD9V GND NC MAIN9V GND GND N.C. SUB5V N.C. GND N.C. +15V_S GND GND +15V_S GND S_GND SUB5V S_GND GND FAN_SOS MAIN9V DTV9V FAN_CONT +15V_S DTV9V GND AC_GOOD TUNER_SUB_ON GND GND KEY STB5V ALL_OFF N.C. SOS N.C. FHD9V ECO_ON GND GND N.C. GND FHD9V GND GND N.C. TUNER_MAIN_ON N.C. HP_R AV4_R AV4_C AV4_L NC NC GND GND GND NC HP_L GND HP_GND AV4_S HP_GND AV4_V GND GND KEY AV4_Y PDP AC_GOOD AC_GOOD SUB9V_H264 SUB9V_H264 Location of Earth Lug LEVEL SHIFT 5V<->3.3V TO G-BOARD (G51) TO DG-BOARD (DG2) TO DG-BOARD (DG6) TO PA-BOARD (PA3) TO PA-BOARD (PA4) BT30V SOS DET 41 45 37 42 43 44 38 39 40 32 31 34 35 33 H-BOARD (5/5) ! TNPA4179AE TH-42PV700C H-Board (5 of 5) Schematic Diagram TH-42PV700C H-Board (5 of 5) Schematic Diagram 74 15.17.DG 电路板 (1/3) 方框图 AG_ECO_ON HDMI_INT2 AG_TV_SUB_ON HDMI_SDIN STB_RST AG_TV_SUB_ON_DELAY AG_AUDIO_MUTE AG_RF_AFT1 PC_VS AG_A_MON_MUTE/SP_MUTE AG_TV_MAIN_ON MAIN_PB/C MAIN_PR AG_ALL_OFF HDMI_LRCK HDMI_BCLK PC_HS AG_AUDIO_XRST AG_KEY1(CON-PANE) AG_SOS AG_SOUND_SOS PANEL_STBY/VCC_ON MAIN_Y/CVBS RXA_2N RXA_0P RXA_CP RXA_2P RXA_1P RXA_CN RXA_1N RXA_0N RXB_CN RXB_2N RXB_CP RXB_2P RXB_1N RXB_1P RXB_0N RXB_0P VI1P8 VI1P5 VI1P4 VI1P6 VI1P3 VI1P2 VI1P9 VI1P7 VI1P17 VI1HSYNC VI1P19 VI1P15 VI1VSYNC VI1P18 VI1ENB VI1P14 VI1P29 VI1P16 VI1P13 VI1P28 VI1P12 VI1CLK CLKOA VI1P23 VI1P25 VI1P24 VI1P22 VI1P26 VI1P27 MAIN_PR RGB_CVBS MAIN_Y/CVBS MAIN_PB/C RXB_CN RXB_0P RXB_1N RXB_2P RXB_CP RXB_1P RXB_0N RXB_2N RXA_CN RXA_1P RXA_0N RXA_2P RXA_CP RXA_0P RXA_1N RXA_2N PC_HS PC_VS AG_HDMI_5V_DET1 AG_EDID_WP AG_HPD1 AG_HDMI_5V_DET2 AG_HPD2 XIRQ3 AG_7493_XRST RGB_CVBS AG_VIDEO_STATUS AD_SCL1 AD_SDA1 AG_PANEL_STBY_ON/PANEL_VCC_ON HDMI_SPDIF HDMI_SPDIF HDMI_SDIN HDMI_LRCK HDMI_BCLK HDMI_INT2 PANEL_STBY/VCC_ON AH_FS_Y AG_YG7 AG_YG6 AG_YG0 AG_UB4 AD_TRST AG_VPO AD_TMS AG_UB2 AG_HQ1_XRST AG_VI2CLK AD_TCK AG_UB3 AG_UB1 AG_UB5 AG_YG2 AH_FS_V AG_YG5 AG_YG3 AD_SCL1 AG_UB0 AD_SDA1 AG_UB6 AG_YG1 AG_YG4 AD_TO_GC3FS_NEXT AD_TO_HQ1L AG_HPO AG_UB7 AH_FS_U RXB_CN RXB_CP RXB_0N RXB_0P RXB_1N RXB_1P RXB_2N RXB_2P HDMI_REP_EN EDID_WP HPD3 HDMI_5V_DET3 AH_FS_Y AH_FS_U AH_FS_V RXA_2P RXA_2N RXA_1P RXA_1N RXA_0P RXA_0N RXA_CP RXA_CN RXB_0N RXB_1P RXB_1N RXB_2P RXB_CP RXB_2N RXB_CN RXB_0P HDMI_MUX_SEL HDMI_MUX_EN AG_HDMI_CEC AG_TV_MAIN_ON AG_HDMI_OPT_ENB AD_SDA2 AD_SCL2 MAIN9V SUB5V SUB9V(FHD) P12V STB5V DTV9V SUB3.3V SUB3.3V SUB3.3V SUB5V X4500 Q4500 JK4500 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 D4524 Q4502 D4526 Q4501 JK4501 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 Q4503 D4527 MAIN5V MAIN5V D4525 MAIN3.3V STB5V Q2000 Q2001 R2001 MAIN_FS_1.8V SUB5V SUB3.3V MAIN_3.3V MAIN5V MAIN3.3V MAIN5V MAIN3.3V MAIN3.3V MAIN_3.3V SUB5V MAIN5V SUB5V MAIN5V SUB3.3V TV_SUB_ON PC_V AFC1 HDMI_BCLK HDMI_LRCK ALL_OFF AUDIO_XRST AUDIO_MUTE TV_MAIN_ON VIDEO_STATUS HDMI_INT2 MAIN_PB/C/B KEY1 SOUND_SOS GENX_RST ECO_ON PC_H MAIN_Y/CVBS/G RGB_CVBS SOS SP_MUTE TO H6 MAIN_PR/R HDMI_SDIN SPDIF_IN(OPT) SUB3.3V SUB5V P12V DTV9V SUB5V P12V STB5V SUB9V(FHD)/LCD3.3V DTV9V SUB9V(FHD)/LCD3.3V SUB3.3V SUB5V MAIN9V 1 2 5 6 8 9 12 13 14 17 18 21 23 DG2 +1.8V 5 8 1 DVDD+1.8V +1.8V 5 8 1 IC4508 +1.8V 7 1 +3.3V +3.3V 5 112 113 115 116 118 119 121 122 128 129 131 132 134 135 137 138 38 39 40 41 42 43 44 45 55 58 30 28 17 29 33 27 18 25 16 26 24 32 31 65 66 51 48 53 52 46 47 ROUT0 ROUT2 ROUT1 ROUT3 CLKOA CLKIA VSIA HSIA XTAL1 XTAL YOUT6 YOUT8 YOUT4 YOUT0 YOUT3 YOUT7 YOUT1 YOUT9 YOUT5 YOUT2 UVOUT1 UVOUT6 UVOUT3 UVOUT5 UVOUT0 UVOUT8 UVOUT7 UVOUT2 UVOUT9 UVOUT4 80 94 99 78 97 Q4517 BUFFER Q4519 BUFFER Q4514 BUFFER Q4515 BUFFER Q4516 BUFFER SDA D1G D0+ HDMI2 +5V DET D2+ HPDT D2- CEC SCL D1+ +5V DDCG CLK+ HDMI2 RESET CLKG N.C. D0G D2G CLK- D0- D1- SDA HPDT CEC HDMI1 +5V DET D0- N.C. D2+ CLK- +5V D1+ SDA CLKG D2- HDMI1 RESET D0G CLK+ SCL D0+ D1G D1- DDCG D2G 62 63 6 SCL 5 7 WC 8 VCC EEPROM EDID1 SDA EEPROM EDID2 7 SCL 6 IC4500 8 VCC 5 WC INV. Q4505 INV. Q4504 105 106 DDC_SDA0 DDC_SCL0 DDC_SDA1 DDC_SCL1 1 144 108 107 7 SCL 6 8 VCC 5 WC EEPROM KEY SDA MDA MCL 19 21 AVDD TVDD CVDD DVDD 11 12 3 5 7 10 14 16 32 33 34 35 36 38 39 41 48 49 54 55 66 68 70 72 74 76 77 79 DG6 20 8 3 2 7 HDMI_BCLK HDMI_LRCK HDMI_SDIN HDMI_SPDIF HDMI_INT2 IC4510 AD/HDMI I2C DG DIGITAL SIGNAL PROCESSOR 5 3 1 2 TO H2 8 IC4005 3 15 NRST MAIN+3.3V I2C 69 BUFFER IC4004 MAIN+1.8V 73 27 41 14 TDI BUFFER 4 72 +3.3V 70 +1.8V TRST (MAIN) YIN 1 1 TDO BUFFER 46 IC4001 MAIN+1.8V GC3FS-next 44 5 62 Q4001 1 45 63 MAIN+3.3V 79 TMS 5 71 18 IC4002 VIN UIN 40 3 80 SDA Q4000 5 JTAG 4 6 (MAIN) FRCLKIN 33 Q4002 3 TCK 77 SCL 61 64 78 VCC 39 12 7 65 BUFFER 2 VPO HPO 29 25 11 24 12 DG 3 2 2 23 15 26 21 20 9 6 5 2 7 2 8 11 MAIN 3.3V 19 21 23 SUB_PB/C/B SUB_Y/CVBS/G MAIN_PR/R SDAB 7 SCLB 6 8 VCCB 5 EN 2 VCCA SCLA SDAA 3 1 MAIN5V MAIN3.3V HDMI_CE1 CEC MAIN3.3V HDMI_5V_DET3 RXB_CN RXB_CP RXB_0N RXB_0P RXB_1N RXB_1P RXB_2N RXB_2P HPD3 WP SDA SCL IC4509 IC4506 5V<->3.3V IC4501 IC4514 SCLA 7 SDAB 2 IC4513 3 1 VCCA SDAA 5V<->3.3V VCCB 5 EN SCLB 6 8 45 46 3 6 7 9 10 DDCB_SCL DDCB_SDA DDCA_SCL DDCA_SDA 24 23 21 20 13 17 16 14 25 36 27 39 28 30 31 33 34 40 4 ACKN ACKP ADT0P ADT0N ADT1P ADT1N ADT2N ADT2P BCKP BDT1N BDT2P BDT0P BDT0N BCKN BDT1P BDT2N CE SEL YCKP YDT1N YDT2P YDT0P YDT0N YCKN YDT1P YDT2N RXB_2P RXB_0N RXB_1N RXB_2N RXB_0P RXB_CN RXB_CP RXB_1P RXA_0N RXA_1N RXA_2P RXA_2N RXA_0P RXA_CN RXA_CP RXA_1P IC4504 INV. Q4520 VS_IN HS_IN SOY AIN9 AIN4 AIN8 AIN6 IC4507 MAIN+3.3V 5 1 3 +1.8V PVDD DVDDIO IC4503 HDMI IN SW UVIN4 UVIN9 UVIN2 UVIN7 UVIN8 UVIN0 UVIN5 UVIN3 UVIN6 UVIN1 DE RESET HDMI_INT1 TO GH11 HDMI1 HDMI2 B 6 7 IC4515 DELAYED OUT VCC 5 8 OUTPUT -INPUT B +INPUT B VCC 2 5 4 SWITCH IC2000 1 I2C SCL0B SDA0B 28 30 TH-42PV700C DG-Board (1 of 3) Block Diagram TH-42PV700C DG-Board (1 of 3) Block Diagram 75 15.18.DG 电路板 (2/3) 方框图 AA_XRST AD_SCL3 AD_SDA3 AD_SDA1 AD_SCL0 AD_SCL3 AD_SDA3 AD_SCL1 AD_SDA0 AD_SDA2 AD_SCL2 AD_TO_GC3FS_NEXT AD_TMS AD_TO_BA01 AD_TCK AD_TRST SBO2 SBI2 SBO0 SBI0 XIRQ3 VMUTE VI2P21 VI2P10 AUDCLK VI2ENB ADCCK SLRCK AG_SD_BOOT_STS VOUTENB AG_SW_OFF_DET CLK74SEL AG_SD_LED_ON DTV9V SUB1.2V SUB3.3V SUB1.8V SUB3.3V SCL1 SDA0 SDA2 SCL0 SDA3 SDA1 SCL2 SCL3 TMS TDI TRST TCK TDO VOUTENB CK27D CLK74 VC27 CK27 SBO0 SBO2 SBI2 SBI0 XIRQ3 DSRCK VI2P21 VI2P10 VI2ENB ADCCK SLRCK AUDCLK ADIN RMCO XRST SUB3.3V 1 RESET 2 PEAKS LITE2 RESET CLOCK GEN DDR IC8002,03 1.8V 74M CLOCK GENE. 27M 4 9 7 S2 14 VIN SUB3.3V IC8004 PEAKS_Lite 2 IC8001 IC8601 EEPROM 8 7 6 5 EEPROM_WP VCC WC SCL SDA IIC I/F LVDS I/F JTAG FOR ADV7493 JTAG SERIAL I/F HDMI_IRQ VMUTE PANEL_STATUS PANEL_SOS RSV4 RSV1(SD_ERROR) RSV2(SDRAMCHK2) RSV3(SDRAM_CHK1) COMMON PORT .etc SDBOOT ETHER_IRQ I2C I2C VDD 14 15 13 17 16 11 12 3 1 2 5 13 Q8801 Q8802 SDWP 3 SDAT2 SDDTC 7 SDDAT2 SDCLK DG52 10 SDDAT0 8 11 SDCMD SDCLK 3.3V SD CARD I/F SDAT0 SDAT1 SDWP SDDAT3 5 SDDAT1 SD_LED_ON 9 SD CARD SDCD 12 SDCMD SDAT3 1 B PORT (Sub Video Input or Address) UV0-9,Y0-9 R0-4 VS,HS.CLK VS,HS.CLK UV0-7,YG0-7 IC5660 GS52 DIGITAL SIGNAL PROCESSOR DG TH-42PV700C DG-Board (2 of 3) Block Diagram TH-42PV700C DG-Board (2 of 3) Block Diagram 76 15.19.DG 电路板 (3/3) 方框图 + + + + SBO2 SBI2 SCL SDA SLRCK AUDCLK SDA SCL AG_EDID_WP AG_HDCP_WP AG_7493_XRST AG_HPD3 AG_HDMI_5V_DET3 AG_HPD1 AG_HDMI_5V_DET1 AG_RF_AFT1 AG_VIDEO_STATUS AG_AUDIO_XRST AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE AG_SOUND_SOS AG_SOS AG_BUS_CONNECT2 AG_AVSW_OFF AG_TV_SUB_ON_DELAY AG_HDMI_OPT_ENB CLK74SEL AG_SD_BOOT_STS AG_SD_LED_ON SCL SDA AD_SCL3 AD_SDA3 AD_SCL1 AD_SDA1 AD_SCL2 AD_SDA2 STB_RST SBI2 G_LED_ON R_LED_ON RMIN AI_SENSOR KEY1 ACTIVE_STB_LED_ON AG_ECO_ON AG_ECO_ON AG_ALL_OFF AG_ALL_OFF AG_HDMI_CEC VI2ENB ADCCK AG_TV_MAIN_ON AA_XRST AG_DTV_VOUTENB AG_DTV_VOUTENB AG_SRQ-GENX AG_SRQ-GENX AG_SW_OFF_DET PANEL_STBY/VCC_ON AG_TV_SUB_ON AG_TV_SUB_ON TA1N TA1P TB1P TC1N TCLK1P PANEL_MUTE TD1N AD_SCL0 TE1N AR_IIC_CONT VI2P21 AR_PANEL_RXD AR_PANEL_TXD AR_PANEL_SCL AR_PANEL_SDA AD_SDA0 PANEL_STBY/VCC_ON TB1N TC1P TCLK1N TD1P TE1P AA_SBO0 CFG_TRST CFG_TDI CFG_TDO CFG_TMS CFG_TCK AR_PANEL_RXD AD_SCL0 AD_SDA0 AR_PANEL_TXD AR_PANEL_SCL AA_SBI0 AR_IIC_CONT AR_PANEL_SDA AG_SRQ-GENX SBO2 AG_PANEL_STBY_ON/PANEL_VCC_ON AG_PWM_POW_ON AD_SCL3 AD_SDA3 AG_HDMI_5V_DET2 AG_HPD2 HDMI_REP_EN HDMI_MUX_EN HDMI_MUX_SEL AG_HQ1_XRST AG_DTV_VOUTENB VI2P10 C5691 R5695 MAIN3.3V R5697 Q5690 R5691 Q5692 R5693 R5696 R5690 SUB5V C5690 Q5691 MAIN5V R5694 D5691 C5694 D5690 Q5693 C5695 R5692 SUB3.3V STB5V D5670 D5673 D5671 SUB5V STB3.3V STB5V STB3.3V SUB5V MAIN9V MAIN3.3V X1100 MAIN5V DTV9V Q1107 Q1108 SUB1.2V DTV9V SUB3.3V DTV9V SUB1.8V STB5V STB3.3V SUB5V R8870 SD3.3V R8830 STB5V D_15V STB3.3V MAIN3.3V SUB5V STB3.3V RSV3(LITE2) GenX4 MAIN3.3V MAIN5V MAIN+5V ON/OFF 5 +3.3V AVR 1 (STB) STB+3.3V MAIN+3.3V ON/OFF (Lite2 E2PROM) (Device Control) LITE2_SCL1 (Device Control) SRQ STB5V (GenX4 Loarder/E2PROM) (GenX4 Loarder/E2PROM) (Device Control) GenX4_SDA LITE2_SDA1 LITE2_SDA3 GenX4_SCL LITE2_SDA2 (Lite2 E2PROM) (Device Control) LITE2_SCL2 LITE2_SCL3 RSV1(LITE2) SUB5V_SENSE SBI0A 63 64 52 33 34 35 SBO0A MAIN3.3V_SENSE 66 67 83 84 10MHz MAIN9V_SENSE 110 121 RSV4(LITE2) 93 30 DTV9V_SENSE 27 MAIN5V_SENSE RSV2(LITE2) 24 8 7 6 5 28 GenX-EEP_WP EEPROM EDID_WP HDCP_WP 106 109 69 7493_XRST 38 HPD3 HDMI_5V_Det1 55 36 HDMI_5V_Det3 53 HPD1 HDMI_CEC 65 (HDMI_CEC_PU_ON) (HDMI_CEC_PU_ON) 21 DTV_1.5V_ON 3 1 TV_SUB_ON 14 PWM_POWER_ON 46 TV_MAIN_ON PANEL_STBY_ON 105 RF_AFT1 111 VIDEO_STATUS 58 AUDIO_XRST 68 ECO_ON 2 126 127 AUDIO_MUTE A_MON_MUTE/SP_MUTE SOUND_SOS 118 SOS 114 25 ALL_OFF 20 (BUS_CONNECT2) 48 AVSW_OFF(US) FE_XRST 71 MODEM_XRST 72 88 DTV_VOUTENB 16 125 SD_BOOT_STS 124 DTV_XRST SRQ_GenX 26 SD_LED_ON 17 56 SD_COIN_DET SW_OFF_DET 12 92 NBOOT IC1100 SDA WC SCL VCC K1 (SUB) SUB+1.8V/SUB+1.2V DC-DC CONV. IC5601 +3.3V 8 DTV_1.5V_ON (SUB) +1.8V 3 12 23 16 17 (SUB) 23 DC-DC CONV. SUB+3.3V +1.2V IC5600 1 2 4 5 6 7 8 9 10 11 DG33 2 RESET STB RESET 1 IC5671 5 7 96 9 100 11 13 15 17 19 DG31 1 3 104 102 103 99 97 TRCD1 for DEBUGER TRCCLK SCLOCK 101 SDATA STB3.3V TRCST TRCD0 TRCD2 TRCD3 STB_RST EXTRG0 95 4 89 G_LED_ON 45 KEY1 AI_SENSOR 113 115 87 REMOTE R_LED_ON 49 CLK74SEL I2C I2C 23 24 Rx1-(RB-) 26 27 29 Rx2+(RC+) Rx2-(RC-) IIC_SDA2 IIC_CONT PANEL_STATUS(READY) Rx0-(RA-) IIC_SCL2 TXD PANEL_STBY_ON PANEL_SDA(IIC_SDA1) 1 Rx4+)RE+) 2 3 4 6 7 9 10 11 12 30 31 DG5 Rx4-(RE-) RXD RxCLK+(RCLK+) 17 Rx3+(RD+) I2C GND(INEXCH) Rx3-(RD-) RxCLK-(RCLK-) Rx0+(RA+) PANEL_SCL(IIC_SCL1) PANEL_SOS(ALRAM) Rx1+(RB+) PANEL_MUTE(DISPEN) 14 15 18 19 20 21 TO D5 7 (Device Control) 8 Panel_TXD 9 10 12 Panel_RXD IIC_CONT Ex IIC Panel_SDA LITE2_SCL0 19 21 STB5V LITE2_SDA0 22 24 26 27 30 28 29 DG34 1 2 I2C 4 5 6 STB3.3V Panel_SCL (Panel Dpr.E2PROM) IIC_CONT/SRQ (Panel Dpr.E2PROM) (Device Control) ACTIVE_STBY_LED_ON 3 2 1 DG7 SUB5V SBO2 SBI2 4 6 7 9 12 G_LED_ON AI_SENSOR SUB5V RMIN ACTIVE_STBY _LED_ON STB3.3V R_LED_ON KEY1 DG1 1 2 3 40 39 JTAG FOR FACTORY USED FOR FACTORY USED FOR FACTORY USED DG DIGITAL SIGNAL PROCESSOR 15 13 17 16 12 14 11 SOS LED BLINKING : 10TIMES SOS LED BLINKING : 12TIMES SOS LED BLINKING : 10TIMES IC1101 IC5670 HDMI_5V_Det2 54 37 HPD2 TRCST TRCD0 TRCD2 TRCD3 EXTRG0 SDATA TRCD1 TRCCLK SCLOCK NRST HDMI_MUX_EN HDMI_MUX_SEL 8 7 HDMI_REP_EN 6 SDA3 SCL3 SDA1 SCL1 HQ1_XRET 70 16 DTV_VOUTENB AG_DTV_VOUTENB TH-42PV700C DG-Board (3 of 3) Block Diagram TH-42PV700C DG-Board (3 of 3) Block Diagram 77 15.20.DG 电路板 (1/10) 线路图 + CH0DQ30 CH0DQ31 CH0DQ26 CH0XRAS CH0DQS0 CH0XRAS CH0A5 CH0CKE CH0A8 CH0DQ18 CH0CK CH0DQ8 CH0DQ21 CH0XWE CH0XCS0 CH0CK CH0DM2 CH0A7 CH0DQ11 CH0DQ5 CH0XCAS CH0DQ9 CH0ODT CH0ODT CH0BA2 CH0XRAS CH0BA0 CH0DQ27 CH0A2 CH0A2 CH0A12 CH0DQS3 CH0BA1 CH0DM1 CH0A12 CH0BA2 CH0DM0 CH0DQ4 CH0A3 CH0DQ15 CH0A9 CH0CKE CH0A8 CH0XCS1 CH0DQ10 CH0BA2 CH0DQ1 CH0DQ14 CH0A7 CH0DQ29 CH0A1 CH0DM3 CH0XCK CH0XWE CH0A0 CH0DQ25 CH0DQ7 CH0A5 CH0A4 CH0ODT CH0DQS3 CH0A4 CH0A11 CH0DQ0 CH0A10 CH0DM3 CH0BA1 CH0DQ12 CH0A9 CH0BA0 CH0DM2 CH0DQ20 CH0A11 CH0XCS0 CH0A6 CH0A7 CH0A11 CH0DQ2 CH0DQ23 CH0DQS0 CH0DQ22 CH0BA0 CH0A9 CH0XCAS CH0XWE CH0A10 CH0A0 CH0XCK CH0A5 CH0DQ6 CH0A2 CH0XCAS CH0A10 CH0A12 CH0A1 CH0A3 CH0A6 CH0DQ16 CH0A6 CH0DQ28 CH0DQ13 CH0A0 CH0DQS2 CH0XCS1 CH0A4 CH0DM1 CH0BA1 CH0DQ19 CH0ODT CH0DQ17 CH0DQ24 CH0A8 CH0DQS1 CH0CKE CH0DM0 CH0DQ3 CH0A3 CH0A1 CH0DQS1 CH0XCK CH0CKE CH0DQS2 CH0DQ16 CH0DQ17 CH0DQ18 CH0DQ19 CH0DQ20 CH0DQ21 CH0DQ22 CH0DQ23 CH0DQ24 CH0DQ25 CH0DQ26 CH0DQ27 CH0DQ28 CH0DQ29 CH0DQ30 CH0DQ31 CH0DQ0 CH0DQ1 CH0DQ2 CH0DQ3 CH0DQ5 CH0DQ6 CH0DQ7 CH0DQ8 CH0DQ9 CH0DQ10 CH0DQ11 CH0DQ12 CH0DQ13 CH0DQ14 CH0DQ15 CH0DQ4 CH0CK R8002 82 ED7 XECS1 L8005 J0JHC0000045 XECS6 R8077 47 R8039 0 SUB1.2V 1.8V_DDRI/F R8024 0 R8076 47 SRCK0 C8040 16V 0.1u TDO VI2P15 ESZ0 XRST BOOTSWAP C8030 6.3V 1u MVDACO1 ED10 C8058 10u 10V R8078 47 R8084 0 NFCLE TD1P VI1CLK R8082 75 SDA0 XEWE0 EA0 RXD0 XNMIRQ SBT0 XEXDMK0 VI1P24 VI2P16 SLRCK XECS5 R8058 47 ED1 C8052 6.3V 1u 1% R8005 10k VI1HSYNC XCTS0 R8095 10k R8003 0 L8004 J0JHC0000045 XDSR0 XRTS0 TB1P R8101 10k C8039 16V 0.1u VI1P22 C8004 1u 6.3V VI2VSYNC R8100 47 TD1N VI2P29 SMTCMD1 NFALE C8053 25V 0.01u VI2P22 R8001 180 CH0VAL EA3 VI1CLK2 R8099 10k VI2ENB IS0DATA VI1P14 R8072 47 SMTCLK1 VI2P26 VI1ENB VI2P14 C8069 50V 82p R8066 47 C8007 16V 0.1u SMTCLK0 NANDRYBY ED0 R8059 47 XRI0 R8056 47 VI1P17 SDDAT2 C8043 16V 0.1u R8062 47 XEWE1 TE1N TE1P L8001 J0JHC0000045 XDTR0 EA6 L8010 J0JHC0000045 EA5 1% R8004 24k TCK TA1N SMTRST1 VI2P12 ED15 XIRQ3 C8018 16V 0.1u VI1P5 C8076 16V 0.1u MVDACO2 R8079 0 C8031 6.3V 1u L8002 J0JHC0000045 R8023 0 R8069 47 XECS2 R8026 0 C8051 16V 0.1u C8041 16V 0.1u XIRQ2 SMTD1 SUB1.8V ESZ1 VI1P8 C8024 10u 10V R8097 220 C8011 16V 0.1u C8013 16V 0.1u VI1P2 C8050 16V 0.1u ED11 VI1P19 C8077 16V 0.1u MVDACO0 R8087 10k R8060 47 SBO2 VI1P3 VI1P16 XEDK SDDAT3 ED4 C8005 1u 6.3V XECS4 C8037 16V 0.1u RMCO CH1PSYNC VI2CLK2 SMTD0 C8073 16V 0.1u IS0PSYNC R8107 100 CH0PSYNC ED2 XNFRE SDCLK VI1P26 TB1N SDCMD XNFCE DSRCK EA1 SDA1 C0ZBZ0001030 IC8004 1 X1 2 S0 3 S1 4 VIN 5 VDD 6 GND 7 74M 8 COMM 9 27M 10 4.9152M 11 24.576/33M 12 GND 13 VDD 14 S2 15 VDD 16 X2 SMTCMD0 SDDAT1 XDCD0 SDDAT0 C8029 16V 0.1u C8012 16V 0.1u VI1CKOUT SCL0 VI2P18 SMTSEL0 VI1P25 C8016 6.3V 1u C8056 16V 0.1u SBT2 DAUDIO C8071 16V 0.1u R8106 2k SUB3.3V VOUTENB VI2HSYNC TCLK1P C8028 16V 0.1u R8065 47 MVDACO3 SDCD VI2P24 SUB1.2V L8008 J0JHC0000045 TRST R8081 10k R8080 0 C8057 16V 0.1u R8071 47 R8098 10k VI1P15 R8093 47 C8080 16V 0.1u C8019 16V 0.1u R8035 0 VI1P7 SCL1 TDI XEXDMR0 TXD0 R8083 300 VI2P23 R8075 47 XNFWP XNFWE IS1DATA C8006 16V 0.1u SBI0 SUB3.3V C8033 16V 0.1u VI2P17 ED8 C8021 16V 0.1u C8074 16V 0.1u ADIN ADCCK VI2CLK ED5 VI2P19 XECS7 R8061 47 CH1DATA C8038 16V 0.1u XECS0 DMIX0 R8068 47 VI2P27 SDWP VI1P20 EA7 C8044 16V 0.1u L8009 J0JHC0000045 CH0DATA SUB3.3V C8020 16V 0.1u VI1P6 C8072 16V 0.1u TP8037 XECS3 L8007 J0JHC0000045 C8003 1u 6.3V R8073 47 VI1P9 C8025 16V 0.1u R8057 47 XIRQ1 ED13 SBI2 1.8V_DDRI/F C8010 10u 10V VI2P4 C8002 6.3V 1u C8022 6.3V 1u SUB1.2V C8008 16V 0.1u C8046 16V 0.1u C8079 16V 0.1u SUB3.3V C8047 16V 0.1u VI1P18 VI1P4 EA2 C8075 4V 22u VI1P27 TC1N C8026 16V 0.1u TA1P SUB3.3V TCLK1N VREF C8067 25V 0.01u R8027 0 TC1P C8009 10u 10V VI2P20 C8042 68u 4V 1.8V_DDRI/F XERE C8027 16V 0.1u C8078 16V 0.1u VI1P23 ED14 VI1VSYNC C8035 10u 10V SMTSEL1 VI1P13 R8091 100 R8067 47 VI2P10 C8001 16V 0.1u C8014 16V 0.1u L8006 0 ERXW IECOUT0 CH0CLK EA4 TMS ED9 R8064 47 VI1P29 C8034 16V 0.1u 1% R8031 270 R8029 0 C8068 16V 0.1u SUB3.3V C8070 16V 0.1u VI2P13 VI1P12 1% R8032 270 VI1P28 C8032 10u 10V R8070 47 C8036 10u 10V R8028 0 C8045 16V 0.1u R8025 0 R8074 220 VI2P25 ED3 R8030 100 LRCK0 C8049 16V 0.1u CLKGEN_S2 L8003 J0JHC0000045 ED12 SBO0 1.8V_DDRI/F C8048 16V 0.1u 1% R8006 6.8k C8015 6.3V 1u VI2P28 CH1CLK VI2P21 R8086 100k C8017 10u 10V R8063 47 C8023 10u 10V ED6 R8090 10k *R8111 10k X8001 H0J270500061 IC8001 T22 VSS IC8001 K22 MMDQ4 IC8001 T10 VDD12 IC8001 M4 VSS IC8001 C4 VI1P13 IC8001 D11 MVCOMP IC8001 AF9 SMTCMD0 IC8001 C20 VOP2 IC8001 Y3 ED13 IC8001 B25 TA1N IC8001 AE16 VDDIO IC8001 AB9 XDCD0 IC8001 C11 DACVSS1 IC8001 N11 VSS IC8001 T26 MMA10 IC8001 A15 LCSCK IC8001 A20 VOP17 IC8001 AB19 VDDIO IC8001 AE19 MMDM2 IC8001 P22 MMDQ13 IC8001 U12 VDD12 IC8001 Y26 MMA6 IC8001 AD20 MMDQ19 IC8001 AC12 VSS IC8001 F1 VI2HSYNC IC8001 C15 VOP21 IC8001 AB4 XECS2 IC8001 AF10 CH1DATA IC8001 F3 VI1P10 IC8001 B19 VOP14 IC8001 C6 VI1P27 IC8001 L23 MMDQ0 IC8001 AD16 MMDQ30 IC8001 N2 XNMIRQ IC8001 F18 VOP15 IC8001 AB18 MMVREF1 IC8001 R12 VDD12 IC8001 AA7 VSS IC8001 C24 SBI0 IC8001 K21 CK27 IC8001 B26 TA1P IC8001 G5 VI1P1 IC8001 AB11 SMTSEL0 IC8001 L13 VSS IC8001 A5 VI1P8 IC8001 AD24 CK27D IC8001 AE12 SDWP IC8001 W21 VSS IC8001 C19 VOP16 IC8001 B14 ADCCK IC8001 Y1 ED10 IC8001 AA18 VSS IC8001 K17 LVVDD12 IC8001 N13 VSS IC8001 AE15 VDDR IC8001 L10 VSS IC8001 E21 VDD33 IC8001 U2 EA6 IC8001 F23 LVVSS IC8001 C23 VDD33 IC8001 B3 VI1P15 IC8001 T2 EA1 IC8001 AD22 VDDIO IC8001 AB22 VDDIO IC8001 AE14 VDD12 IC8001 AC20 VSS IC8001 H22 TCPOUT IC8001 F4 VI2P9 IC8001 V3 ED4 IC8001 W23 MMA0 IC8001 L24 VSS IC8001 J22 VC27 IC8001 P6 VDD33 IC8001 G23 LPFIN IC8001 J5 VI2P11 IC8001 T25 VDDIO IC8001 A9 VI1P22 IC8001 AF22 MMDQ22 IC8001 P17 VSS IC8001 AE21 VDDIO IC8001 G1 VI2P10 IC8001 AE22 VSS IC8001 U23 MMA12 IC8001 N16 VSS IC8001 AF13 SDCLK IC8001 N1 XIRQ2 IC8001 V23 MMA11 IC8001 F22 LVVSS IC8001 N4 XIRQ1 IC8001 F16 VOP11 IC8001 AA5 XECS0 IC8001 G6 VI1P0 IC8001 H3 VI2P12 IC8001 L14 VSS IC8001 G26 TE1P IC8001 H21 MVAVDD IC8001 D5 VI2P5 IC8001 AC7 IS1PSYNC IC8001 U1 EA5 IC8001 G25 TE1N IC8001 AF11 CH0DATA IC8001 K13 VSS IC8001 AA26 MMA2 IC8001 AE1 XECS7 IC8001 D3 VI2P8 IC8001 C12 DACVDD1 IC8001 P3 AGAVDD IC8001 K4 VI2P18 IC8001 Y4 XERE IC8001 C8 VI1P25 IC8001 E9 VI1CVBS0 IC8001 AA2 ED15 IC8001 B4 VI1P12 IC8001 R5 ATCPOUT IC8001 D22 VDD33 IC8001 AB7 IS0VAL IC8001 K6 VDD33 IC8001 K5 VI2P16 IC8001 AB12 SDDAT0 IC8001 D15 DAUDIO IC8001 T6 EA2 IC8001 AC6 NANDRYBY IC8001 AB1 ECLK IC8001 G21 LVVSS IC8001 AA8 VDD33 IC8001 N15 VSS IC8001 AF18 MMDM3 IC8001 P2 AGAVSS IC8001 AC23 VDDIO IC8001 B17 VOP24 IC8001 U22 MMA5 IC8001 AA6 VSS IC8001 W2 ED6 IC8001 U13 VDD12 IC8001 AB17 VSS IC8001 E10 VI1CVBS2 IC8001 L15 VSS IC8001 U3 EA7 IC8001 A21 VOP3 IC8001 E5 VSS IC8001 AB3 XEWE1 IC8001 D1 VI1HSYNC IC8001 T17 VDDA IC8001 E22 LVVDD IC8001 E11 VI1CVBS3 IC8001 D14 VSS IC8001 AA9 VDD33 IC8001 AE11 CH0VAL IC8001 J1 VI2CLK2 IC8001 AC24 MMPCLKEXT IC8001 AE13 SDDAT1 IC8001 R22 MMXCS0 IC8001 D9 VSS IC8001 V26 MMA1 IC8001 AA23 MMMONB IC8001 L22 VSS IC8001 F21 LVVDD IC8001 AA10 SMTRST1 IC8001 A7 VI1P26 IC8001 AF26 VDDIO IC8001 B10 VI1P2 IC8001 A3 VI1P14 IC8001 AC17 MMDQ25 IC8001 A2 VI1P16 IC8001 E18 VOP29 IC8001 AF1 VSS IC8001 D25 TC1N IC8001 N12 VSS IC8001 K12 VSS IC8001 T15 VDDR IC8001 F20 VDD33 IC8001 C7 VI1P5 IC8001 L11 VSS IC8001 T1 EA0 IC8001 K1 VI2P24 IC8001 U10 VDD12 IC8001 R24 VSS IC8001 AE3 NFALE IC8001 P12 VSS IC8001 C22 MHSYNC IC8001 A19 VOP13 IC8001 W1 ED5 IC8001 C21 VOP6 IC8001 AB15 VDDR IC8001 D24 TSTAIO IC8001 D18 VSS IC8001 A12 DACVSS2 IC8001 AC16 VSS IC8001 W4 ED9 IC8001 A6 VI1P6 IC8001 Y6 VSS IC8001 AB20 MMDQ16 IC8001 AA3 XEWE0 IC8001 L1 VI2P28 IC8001 F12 VDD33 IC8001 J21 MVAVSS IC8001 F6 VSS IC8001 K26 VDDIO IC8001 AE25 VSS IC8001 K23 VDDIO IC8001 AD21 MMDQ23 IC8001 AD17 VDDIO IC8001 AD26 VSS IC8001 M23 VDDIO IC8001 R16 DPAVSS IC8001 K11 VSS IC8001 P5 AVCOIN IC8001 W25 MMXRAS IC8001 AC10 VDD33 IC8001 R2 TRST IC8001 AC19 MMDQ17 IC8001 N3 SDA1 IC8001 B9 VI1P23 IC8001 AD1 XECS3 IC8001 AB5 XEXDMK0 IC8001 C17 VOP25 IC8001 M6 VI2P27 IC8001 K3 VI2P20 IC8001 AA14 VDD12 IC8001 AB23 VSS IC8001 A24 SBI2 IC8001 F11 VDD33 IC8001 H26 VOUTENB IC8001 L3 VI2P25 IC8001 A16 VOP10 IC8001 G2 VI2CLK IC8001 AC15 VDDR IC8001 AA13 SDDAT3 IC8001 AC11 VDD33 IC8001 AD14 VDD12 IC8001 AA24 MMODT IC8001 AF15 VDDR IC8001 AD7 XCTS0 IC8001 C26 TB1P IC8001 G22 LPFOUT IC8001 AE7 TXD0 IC8001 AC26 MMCK IC8001 L12 VSS IC8001 D7 VDD33 IC8001 P13 VSS IC8001 N5 SCL1 IC8001 U17 VSS IC8001 AA25 VSS IC8001 M5 RMCO IC8001 AD19 VSS IC8001 B1 VI1P17 IC8001 P26 MMDQ15 IC8001 D20 VOP8 IC8001 AF19 MMDQS2 IC8001 Y24 VDDIO IC8001 W5 ED12 IC8001 M25 VSS IC8001 F19 VOP5 IC8001 AE5 IS1VAL IC8001 V24 MMBA1 IC8001 M11 VSS IC8001 G7 VSS IC8001 T12 VDD12 IC8001 E19 VOP18 IC8001 AF3 IS0CLK IC8001 C16 VOP1 IC8001 AD6 SBT2 IC8001 A22 VOP7 IC8001 W3 ED8 IC8001 P1 XIRQ3 IC8001 A13 DMIX0 IC8001 N17 VDDR IC8001 B24 VDD33 IC8001 AE20 MMDQ18 IC8001 D17 VDD33 IC8001 V21 MMA4 IC8001 P16 DPAVDD IC8001 AD12 SDCMD IC8001 B16 VOP0 IC8001 U25 MMA9 IC8001 J25 VSS IC8001 T21 MMA3 IC8001 B7 VI1P4 IC8001 P10 VDD12 IC8001 D19 VSS IC8001 N21 MMDQ8 IC8001 Y22 VDDIOCK IC8001 F15 VDD33 IC8001 R13 VDD12 IC8001 AC13 VSS IC8001 U26 MMA7 IC8001 AA1 ED14 IC8001 P11 VSS IC8001 C10 VI1P3 IC8001 E1 VI1P11 IC8001 AB10 SMTSEL1 IC8001 T13 VDD12 IC8001 J26 MMDQ6 IC8001 A4 VI1P29 IC8001 N24 VDDIO IC8001 N10 VDD12 IC8001 V6 ED7 IC8001 H5 VI2VSYNC IC8001 E16 VOP20 IC8001 E17 VOP22 IC8001 F17 VOP27 IC8001 H23 VSS IC8001 D4 VSS IC8001 K14 VSS IC8001 T23 MMBA0 IC8001 C18 VOP12 IC8001 H6 VI1P20 IC8001 R1 TMS IC8001 B5 VI1P9 IC8001 AE6 XRTS0 IC8001 AD5 IS1CLK IC8001 N6 VDD33 IC8001 AA15 VSS IC8001 AA4 ESZ0 IC8001 AC22 VSS IC8001 J24 MMDQ7 IC8001 P23 VSS IC8001 AD9 SMTCLK0 IC8001 L6 VI2P21 IC8001 R10 VDD12 IC8001 AD23 VSS IC8001 D23 SBO0 IC8001 F25 TD1N IC8001 P4 GTCPOUT IC8001 J3 VI2P17 IC8001 E23 LVVDD IC8001 AD18 MMDQS3 IC8001 A26 VDD33 IC8001 N14 VSS IC8001 R11 VDD12 IC8001 F10 VI1CVBS1 IC8001 A17 VOP23 IC8001 N23 MMDQ9 IC8001 D21 XRST IC8001 G4 VDD33 IC8001 AC9 XRI0 IC8001 AE23 MCLK IC8001 C13 DACCK0 IC8001 AA17 MMDQ24 IC8001 E15 SLRCK IC8001 AB25 VDDIO IC8001 A8 VI1CKOUT IC8001 AA20 MMDQ21 IC8001 F8 VI2P0 IC8001 E12 VVREF IC8001 C14 DSRCK IC8001 K10 VSS IC8001 AF4 IS0DATA IC8001 Y23 VSS IC8001 C5 VI1P28 IC8001 R15 VSS IC8001 R25 MMXWE IC8001 AA19 MMDQ20 IC8001 D8 VDD33 IC8001 B18 VOP28 IC8001 AC2 XECS1 IC8001 L5 VI2P23 IC8001 AF16 MMDQ31 IC8001 M13 VSS IC8001 E14 DACVDD2 IC8001 AD25 VDDIO IC8001 AF2 XNFWP IC8001 AE26 MMRODT IC8001 U5 ED0 IC8001 K25 MMDQ2 IC8001 M16 VSS IC8001 A18 VOP26 IC8001 F14 LRCK0 IC8001 U24 VDDIO IC8001 D2 VI1VSYNC IC8001 V22 VDDIO IC8001 N25 MMDQ10 IC8001 P14 VSS IC8001 AD10 CH1CLK IC8001 AC14 VDD12 IC8001 AC5 XNFCE IC8001 B13 SRCK0 IC8001 AA16 MMDQ29 IC8001 C3 VSS IC8001 E20 MVSYNC IC8001 P24 MMDQ14 IC8001 T24 MMBA2 IC8001 E6 VI2P4 IC8001 A10 IECOUT0 IC8001 K16 VSS IC8001 AB6 NFCLE IC8001 V25 VSS IC8001 A25 VDD33 IC8001 AD4 XNFRE IC8001 T16 VSS IC8001 M24 MMDQS1 IC8001 F24 VSS IC8001 E2 VI1CLK2 IC8001 G24 VSS IC8001 E7 VI2P1 IC8001 G3 VI2ENB IC8001 K2 VI2P22 IC8001 V2 ED2 IC8001 H2 VI2P14 IC8001 AC25 VSS IC8001 M1 SDA0 IC8001 U6 VDD33 IC8001 AE9 SMTRST0 IC8001 T14 VSS IC8001 AF24 VSS IC8001 B6 VI1P7 IC8001 K24 MMDQ3 IC8001 AF5 IS1DATA IC8001 AE24 DTCPOUT IC8001 D6 VI2P3 IC8001 AF21 VSS IC8001 B15 LCSID IC8001 A23 MVCLK IC8001 H1 VI2P15 IC8001 AF6 XDSR0 IC8001 AA12 CH1VAL IC8001 Y25 MMA8 IC8001 AA22 VSS IC8001 AE2 XEXDMR0 IC8001 Y2 ED11 IC8001 AC21 TSTSEL IC8001 R23 MMCKE IC8001 R21 VDDIO IC8001 AE4 IS0PSYNC IC8001 W6 VSS IC8001 F5 VI2P6 IC8001 E25 TCLK1N IC8001 AB21 VSS IC8001 J2 VI2P19 IC8001 T4 VDD33 IC8001 AD13 SDCD IC8001 AB24 MMMONA IC8001 AF23 BOOTSWAP IC8001 M2 SCL0 IC8001 D13 VSS IC8001 E13 MVDACO0 IC8001 B21 VOP4 IC8001 W26 VDDIO IC8001 M17 VDDA IC8001 AA21 VDDIO IC8001 W24 VSS IC8001 C1 VI1P19 IC8001 V4 VSS IC8001 U4 EA4 IC8001 AE17 MMDQ26 IC8001 AB14 VDD12 IC8001 AF7 RXD0 IC8001 U16 VDDR IC8001 E26 TCLK1P IC8001 D26 TC1P IC8001 T3 EA3 IC8001 AE18 VSS IC8001 R4 VDD33 IC8001 E4 VI2P7 IC8001 AE8 SMTD1 IC8001 AF20 VDDIO IC8001 B22 VOP9 IC8001 F2 VI1P21 IC8001 AD3 XNFWE IC8001 C9 VI1CLK IC8001 AB13 SDDAT2 IC8001 L16 VSS IC8001 U14 DPAVDD12 IC8001 D16 VDD33 IC8001 J4 VI2P13 IC8001 AE10 CH1PSYNC IC8001 R17 VDDR IC8001 H24 AUDCLK IC8001 C2 VI1P18 IC8001 K15 VSS IC8001 M12 VSS IC8001 N26 MMDQ11 IC8001 AF17 MMDQ27 IC8001 C25 TB1N IC8001 AA11 SMTD0 IC8001 N22 VSS IC8001 D12 MVDACO3 IC8001 F9 VI1CK204F IC8001 L4 VSS IC8001 AC8 XDTR0 IC8001 AB16 MMDQ28 IC8001 Y21 MMVCAL IC8001 B2 VSS IC8001 L25 MMDM0 IC8001 Y5 XEDK IC8001 L21 MMDQ1 IC8001 AD11 CH0PSYNC IC8001 F13 MVDACO2 IC8001 B11 MVIREF IC8001 J23 MMDQ5 IC8001 T5 TDI IC8001 M26 MMDM1 IC8001 H25 CLK74 IC8001 E24 VSS IC8001 AD15 VDDR IC8001 AB8 SBT0 IC8001 W22 MMXCS1 IC8001 U21 MMXCAS IC8001 R26 VSS IC8001 F7 VI2P2 IC8001 T11 VDD12 IC8001 AC18 VDDIO IC8001 B12 MVDACO1 IC8001 V1 ED1 IC8001 L26 MMDQS0 IC8001 M14 VSS IC8001 D10 VSS IC8001 U11 VDD12 IC8001 AB26 MMXCK IC8001 AB2 ERXW IC8001 J6 VDD33 IC8001 AD2 XECS6 IC8001 AF8 SMTCMD1 IC8001 MN2WS0039A A1 VSS IC8001 R14 VSS IC8001 U15 VDDA IC8001 AC1 ESZ1 IC8001 F26 TD1P IC8001 M22 MMVREF0 IC8001 A14 ADIN IC8001 M15 VSS IC8001 M3 VI2P29 IC8001 AC4 XECS5 IC8001 H4 VDD33 IC8001 M21 VDDIO IC8001 R3 TDO IC8001 E3 VI1ENB IC8001 E8 VI1CK208F IC8001 L17 VSS IC8001 B23 SBO2 IC8001 B20 VOP19 IC8001 AD8 SMTCLK1 IC8001 A11 SVCOMP IC8001 P21 MMDQ12 IC8001 R6 TCK IC8001 M10 VSS IC8001 V5 ED3 IC8001 P25 VDDIO IC8001 AF14 VDD12 IC8001 AC3 XECS4 IC8001 L2 VI2P26 IC8001 AF25 MMRDRV IC8001 P15 VSS IC8001 AF12 CH0CLK IC8001 B8 VI1P24 *IC8002 = E3 VSS *IC8002 = M8 A0 *IC8002 = H3 DQ3 *IC8002 = G3 VDDQ *IC8002 = A9 VDDQ *IC8002 = P8 A8 *IC8002 = G8 DQ0 *IC8002 = P7 A11 *IC8002 = F9 DQ7 *IC8002 = G2 DQ1 *IC8002 = P3 A9 *IC8002 = M3 A1 *IC8002 = C3 VDDQ *IC8002 = R2 A12 *IC8002 = M2 A10 *IC8002 = D2 VSSQ *IC8002 = N2 A3 *IC8002 = J8 CK *IC8002 = E2 NC *IC8002 = R8 NC *IC8002 = H2 VSSQ *IC8002 = F8 VSSQ *IC8002 C3ABRG000080 = A1 VDD *IC8002 = L1 NC *IC8002 = R7 NC *IC8002 = G1 VDDQ *IC8002 = D1 DQ12 *IC8002 = D8 VSSQ *IC8002 = D7 DQ10 *IC8002 = D9 DQ13 *IC8002 = E8 LDQS *IC8002 = D3 DQ11 *IC8002 = K2 CKE *IC8002 = F1 DQ6 *IC8002 = C7 VDDQ *IC8002 = G7 VDDQ *IC8002 = B7 UDQS *IC8002 = M9 VDD *IC8002 = B1 DQ14 *IC8002 = K8 CK *IC8002 = N7 A6 *IC8002 = B8 VSSQ *IC8002 = J3 VSS *IC8002 = P2 A7 *IC8002 = E9 VDDQ *IC8002 = C2 DQ9 *IC8002 = B9 DQ15 *IC8002 = F2 VSSQ *IC8002 = G9 VDDQ *IC8002 = A3 VSS *IC8002 = J9 VDD *IC8002 = A2 NC *IC8002 = M7 A2 *IC8002 = L7 CAS *IC8002 = H7 DQ2 *IC8002 = C9 VDDQ *IC8002 = N8 A4 *IC8002 = K9 ODT *IC8002 = L8 CS *IC8002 = B2 VSSQ *IC8002 = N1 VSS *IC8002 = R3 NC *IC8002 = B3 UDM *IC8002 = L2 BA0 *IC8002 = H1 DQ4 *IC8002 = J1 VDDL *IC8002 = L3 BA1 *IC8002 = P9 VSS *IC8002 = K3 WE *IC8002 = N3 A5 *IC8002 = F7 LDQS *IC8002 = K7 RAS *IC8002 = E7 VSSQ *IC8002 = C1 VDDQ *IC8002 = J7 VSSDL *IC8002 = F3 LDM *IC8002 = R1 VDD *IC8002 = J2 VREF *IC8002 = A7 VSSQ *IC8002 = C8 DQ8 *IC8002 = H9 DQ5 *IC8002 = H8 VSSQ *IC8002 = A8 UDQS *IC8002 = E1 VDD *IC8003 = A2 NC *IC8003 = E8 LDQS *IC8003 = E9 VDDQ *IC8003 = K7 RAS *IC8003 = C2 DQ9 *IC8003 = H3 DQ3 *IC8003 = F9 DQ7 *IC8003 = K9 ODT *IC8003 = R7 NC *IC8003 = K3 WE *IC8003 = M7 A2 *IC8003 = L7 CAS *IC8003 = L8 CS *IC8003 = D8 VSSQ *IC8003 = J3 VSS *IC8003 = P9 VSS *IC8003 = F3 LDM *IC8003 = J7 VSSDL *IC8003 = P2 A7 *IC8003 = K2 CKE *IC8003 = B9 DQ15 *IC8003 = J1 VDDL *IC8003 = N7 A6 *IC8003 = F1 DQ6 *IC8003 = D2 VSSQ *IC8003 = D3 DQ11 *IC8003 = C7 VDDQ *IC8003 = B8 VSSQ *IC8003 = C8 DQ8 *IC8003 = R8 NC *IC8003 = G1 VDDQ *IC8003 C3ABRG000080 = A1 VDD *IC8003 = L3 BA1 *IC8003 = C1 VDDQ *IC8003 = J2 VREF *IC8003 = H9 DQ5 *IC8003 = E3 VSS *IC8003 = P8 A8 *IC8003 = M9 VDD *IC8003 = G3 VDDQ *IC8003 = N3 A5 *IC8003 = A7 VSSQ *IC8003 = D7 DQ10 *IC8003 = E7 VSSQ *IC8003 = A3 VSS *IC8003 = F8 VSSQ *IC8003 = N2 A3 *IC8003 = H7 DQ2 *IC8003 = H1 DQ4 *IC8003 = H8 VSSQ *IC8003 = B3 UDM *IC8003 = D9 DQ13 *IC8003 = J8 CK *IC8003 = B2 VSSQ *IC8003 = P3 A9 *IC8003 = E2 NC *IC8003 = F7 LDQS *IC8003 = R3 NC *IC8003 = L2 BA0 *IC8003 = C9 VDDQ *IC8003 = M8 A0 *IC8003 = G8 DQ0 *IC8003 = C3 VDDQ *IC8003 = H2 VSSQ *IC8003 = F2 VSSQ *IC8003 = N8 A4 *IC8003 = R2 A12 *IC8003 = L1 NC *IC8003 = R1 VDD *IC8003 = G9 VDDQ *IC8003 = D1 DQ12 *IC8003 = M3 A1 *IC8003 = A9 VDDQ *IC8003 = G2 DQ1 *IC8003 = E1 VDD *IC8003 = B7 UDQS *IC8003 = B1 DQ14 *IC8003 = P7 A11 *IC8003 = J9 VDD *IC8003 = G7 VDDQ *IC8003 = K8 CK *IC8003 = N1 VSS *IC8003 = M2 A10 *IC8003 = A8 UDQS R4284 10k R4287 47k *R4286 47k R4202 33 R4201 33 R4200 33 R4288 47k R4330 47k R8655 10k R8653 10k R8952 68 R8963 10k EA19 IIC I/F AUDIO IF XDTR0 SD CARD I/F JTAG SERIAL I/F LVDS I/F SBI1 SCL2 SDA2 SCL3 SDA3 PORT14[1] PORT14[2] PORT14[3] RSV2(SDRAMCHK2) PORT14[4] PORT16[1] VMUTE SCARD_NMIRQ XRI0 SCARD_IRQ XDCD0 RXD0 TXD0 XCTS0 XDSR0 RSV3(SDRAM_CHK1) B PORT (Sub Video Input or Address) SBO1 XRTS0 HSVALIN Analog Video I/F HSSYNIN POD,CI I/F HSBCLKIN CPU BUS I/F COMMON PORT .etc PORT5[6] CLOCK GEN SMT_OFF RSV1(SD_ERROR) PORT5[7] PORT16[0] HSDIN0 HSDIN1 PORT15[5] NAND I/F POWER_DET HSDIN2 HSDIN3 PORT15[7] HSDIN4 EA20 FOR HQ1L VIDEO HSDIN5 EA13 HSDIN6 EA22 EA15 EA16 HSDIN7 EA10 PORT10[6] EA21 PORT10[7] PORT5[4] PORT5[5] PORT6[4] PORT6[5] PORT6[7] SDBOOT EA12 LOSD OUT (for HQ1) C Y Cmp V EA09 FOR ADV7493 U EA18 Y EA17 Cmp RSV4 CH,IS IF EA24 PORT9[5] EA11 R G B Cmp PANEL_STATUS EA23 EEPROM_WP FE_IRQ P_MAIN_SW HDMI_IRQ ETHER_IRQ PANEL_SOS EA08 EA14 CLOCK GEN F 5 1 9 B 2 C 8 7 3 D A 4 E 6 to (10/10) to (2/10) to (2/10) to (10/10) to (4/10) to (9/10) to (3/10) to (2/10) to (3/10) to (2/10) to (3/10) to (2/10) to (2/10) to (2/10) to (2/10) to (2/10) to (7/10) IC8001 MN2WS0039AA Peaks-Lite2 IC8003 IC8002 DDR2 #1 DDR2 #0 CRNo.8000-8299 DG-BOARD (1/10) ! Peaks-Lite2/DDR2 TXNDG1HLTC to (7/10) to (2/10) TH-42PV700C DG-Board (1 of 10) Schematic Diagram TH-42PV700C DG-Board (1 of 10) Schematic Diagram 78 15.21.DG 电路板 (2/10) 线路图 AA_XERE AA_ED10 AA_ED0 AC_CHCLK AA_XEAS AA_EA20 AA_ED10 AA_EA14 AA_ED7 AA_XNMIRQ AA_EA19 AC_CHSYNC SMTCMD0 AA_EA17 AA_EA12 AA_ED13 AA_EA4 AA_EA22 AA_XEWE0 AA_XEWE0 AC_XEAB NET0031261 AC_XETS AA_ED6 AA_ED10 AD_TRST AA_ED12 AA_EA8 AC_CHDI3 AA_EA15 NET0031303 AA_ED6 AA_EA18 AA_EA21 AA_ED0 AD_SDA3 AA_XECS1 AG_DTV_VOUTENB AA_ED0 AD_SCL0 AA_EA9 AA_EA14 AD_TO_BA01 AA_EA11 AF_NAND_RY/BY AA_EA15 AA_ED4 AD_SCL3 AG_DTV_XRST AF_NFCLE1 AA_ED15 AA_ED5 AA_ED11 AA_ED4 AA_EA19 AA_XERE AA_EA5 AA_ESZ1 AA_ED13 AA_EA3 AA_ESZ0 AA_ED11 AA_ED2 AA_ED1 AA_EA8 AD_SCL2 AD_TO_GC3FS_NEXT AA_BOOTSWAP SMTSEL0 AA_EA7 AA_ED1 AC_IOWR AA_ED7 AA_EA16 AA_SBI0 AA_EA9 AC_XPDWE AA_ED8 AA_ERXW AA_XECS0 AF_XNFWE1 AD_SDA0 AA_ED14 AA_XIRQ1 AA_EA23 AA_EA22 AF_NAND_RY/BY AD_SDA2 AA_EA6 AA_XECS0 AA_ED9 AA_EA5 AC_IORD AA_EA21 AC_CHDI5 AA_ED5 AA_ED15 AA_EA16 AC_XPDWT AD_TMS AA_ED9 AA_ED12 AA_ED1 AA_EA10 AF_NFALE1 AA_EA6 AA_XRST AA_ED14 AD_SCL1 AA_EA2 AA_XIRQ2 AA_EA18 AA_EA1 AA_ED9 AA_EA13 AC_CHDI7 AA_XRST AA_ED15 AC_CHDI6 AF_XNFRE1 AA_EA10 AA_EA12 AA_EA1 AF_XNFWP1 AA_EA11 AA_XRST AA_EA3 AA_ED2 AA_EA20 AC_CHDI2 AA_EA7 AA_ED7 AA_ED13 AC_CHDI1 AA_XEWE1 AA_ED8 AA_ED3 AC_CI_XRST AC_CHDI4 AC_XPDOE AA_ED8 AA_ED11 AC_XPDCE1 AA_EA2 AA_ED12 AA_SBO0 AA_ED14 SMTCLK0 AC_REG AA_XEDK AA_EA25 AC_CHVAL AA_EA17 AA_EA24 AA_ED5 AA_EA13 AA_ED2 AD_SDA1 AA_EA0 AA_ED4 AF_XNFCE AA_ED6 AA_ED3 AA_EA4 AC_CHDI0 AA_ED3 AD_TCK AA_XECS2 AG_MODEM_LED2/CLK74SEL AA_ESZ1 AA_ESZ0 AG_SD_BOOT_STS AG_SW_OFF_DET IS0PSYNC AA_FE_XRST AA_EA23 SMTSEL0 AC_CHDI5 AC_CHDI0 SMTCMD0 AC_CHDI4 AC_CHSYNC AC_CHDI3 AC_CHVAL AC_CHCLK AC_CHDI7 AC_CHDI2 AC_XPDWT SMTCLK0 AC_CHDI6 AC_CHDI1 R8560 68 R8557 68 R8628 68 AA_SBI0 R8917 68 R8885 68 XDCD0 SUB3.3V R8633 68 XNFRE SUB3.3V R8878 68 C8552 16V 0.1u R8735 68 R8856 68 R8555 68 ESZ1 R8896 0 R8711 10k SMTD1 R8631 68 XECS4 R8634 68 R8901 68 CH1DATA R8881 68 SDA1 C8622 16V 0.1u C0JBAZ002845 IC8622 OE 1 2 Q0 3 D0 4 D1 5 Q1 6 Q2 7 D2 8 D3 9 Q3 10 GND 11 LE 12 Q4 13 D4 14 D5 15 Q5 16 Q6 17 D6 18 D7 19 Q7 20 Vcc R8914 68 *R8923 2.2k R8906 10k ED3 XNMIRQ R8909 10k XEXDMK0 R8895 0 ADIN VI1P20 R8915 68 R8899 10k L8551 J0JHC0000075 R8921 4.7k *R8924 2.2k R8561 68 SCL1 NANDRYBY R8865 EXB2HV680JV SDA0 R8911 68 R8886 68 XECS3 XEDK ED15 XDTR0 R8736 68 R8858 68 TP8750 R8712 10k ED0 EA3 XRST R8851 0 SMTCMD1 *R8935 10k R8912 68 R8948 10k R8742 10k R8622 68 R8898 10k R8882 68 ED1 R8559 68 XECS1 CH1CLK VOUTENB CH1PSYNC R8636 68 R8854 0 EA2 EA1 XNFWP XCTS0 R8916 68 TCK R8926 4.7k ED14 ED12 XECS0 SBI0 R8904 10k R8632 68 R8624 68 R8852 0 ED7 R8879 68 VI2P4 XIRQ2 R8710 68 R8737 68 R8870 0 SCL0 CLKGEN_S2 R8883 68 R8889 68 VI2P20 R8947 68 R8749 10k R8907 10k SBT2 R8892 68 R8913 68 R8745 10k AA_SBO0 R8863 68 EA5 MAIN3.3V R8625 68 TDO XECS5 R8894 68 TXD0 R8893 0 IS1DATA R8621 68 SMTCMD0 R8925 4.7k XRTS0 XDSR0 TDI R8738 68 R8857 68 R8558 68 SMTCLK1 R8919 4.7k R8876 10k R8875 10k R8927 0 SUB3.3V SMTSEL0 ED13 XIRQ1 CH0CLK R8703 68 R8905 10k R8859 68 C8621 16V 0.1u SUB3.3V R8635 68 R8853 0 R8891 68 ED11 R8855 68 R8866 EXB2HV680JV ED10 R8556 68 SMTRST1 R8900 68 R8908 10k R8929 EXB2HVR000V ED2 SMTSEL1 XEWE1 R8746 10k R8864 68 R8897 0 R8630 68 DSRCK RXD0 R8871 10k SBT0 R8623 68 ERXW TMS VI1CLK2 SMTCLK0 SUB3.3V XNFCE BOOTSWAP XERE R8877 68 R8888 68 EA4 R8862 68 NFCLE RMCO IS0PSYNC SBO0 SUB3.3V R8920 4.7k XNFWE XEXDMR0 TP8851 XEWE0 R8874 10k XECS7 R8627 68 R8868 68 R8918 68 ED5 R8910 10k C8555 16V 0.1u L8621 J0JHC0000075 EA6 R8922 4.7k ED9 TRST ESZ0 XECS2 R8884 68 R8564 10k ED6 R8739 68 EA0 XRI0 NFALE ED4 R8867 EXB2HV680JV R8551 10k R8860 68 TP8751 R8887 68 XECS6 EA7 SUB3.3V R8626 68 R8629 68 SMTD0 SUB3.3V ED8 R8880 68 C0JBAZ002845 IC8621 OE 1 2 Q0 3 D0 4 D1 5 Q1 6 Q2 7 D2 8 D3 9 Q3 10 GND 11 LE 12 Q4 13 D4 14 D5 15 Q5 16 Q6 17 D6 18 D7 19 Q7 20 Vcc TVRP554-4 *IC8554 1 N.C. 2 A22 3 A15 4 A14 5 A13 6 A12 7 A11 8 A10 9 A9 10 A8 11 A19 12 A20 13 WE 14 RESET 15 A21 16 WP/ACC 17 RY/BY 18 A18 19 A17 20 A7 21 A6 22 A5 23 A4 24 A3 25 A2 26 A1 27 N.C. 28 N.C. 29 Vio 30 N.C. 31 A0 32 CE 33 Vss 34 OE 35 DQ0 36 DQ8 37 DQ1 38 DQ9 39 DQ2 40 DQ10 41 DQ3 42 DQ11 43 Vcc 44 DQ4 45 DQ12 46 DQ5 47 DQ13 48 DQ6 49 DQ14 50 DQ7 51 DQ15/A-1 52 Vss 53 BYTE 54 A16 55 N.C. 56 N.C. SUB3.3V SUB3.3V R8475 EXB28V103JX R8474 EXB28V103JX R8472 EXB2HV103JV R8328 10k SUB3.3V *R8471 10k ExBUS JTAG XCI_IREQ INT.PU /EA10 INT.PU /EA9 I2C /EA11 INT.PU PORT16[7], SD_BOOT OUTPUT OUTPUT/(BOOTBT) XPDCD2 Hi-Z (XECS2,3 setting) /EA17 BOOTBT INT.PU INT.PD PORT15[4] Hi-Z INT.PU Hi-Z CI I/F LiteII OUTPUT /EA12 INT.PU B_PORT OUTPUT PORT16[5] PORT9[5] CI_XRST /EA16 /EA14 INT.PU INT.PU INT.PD OUTPUT /EA21 /EA22 L:ADMPX INT.PU INT.PU Hi-Z see also SDA2 for ea_pullup_sel EA24 /EA15 XPDCD1 Reserved for NAND I/F ED/EA with Int.PU at start INT.PU NEED EXT.PU XIRQ3 for HDMI_INT in ADV sheet DUBUG/JIG TUNER SERIAL TS INT.PU Hi-Z /EA23 Hi-Z NEED EXT.PU Hi-Z INT.PD INT.PU Hi-Z Hi-Z INT.PU ExBUS Hi-Z /EA20 /EA13 CI_#CE1 Hi-Z non NAND I/F ADDRESS MPXed, if D-Latch INT.PU (ea_pullup_sel) CI PARALLEL TS clk_mode[0-5] non ExBUS /EA18 Reserved/(ed_pullup_sel) LiteII (VIO) /EA19 non Hi-Z /EA8 H:Int.PU on EA Debug Use CI_POWER_ON CI_OCP Hi-Z XECS3,5,7: USED FOR OTHER PORPOSE PINS INT.PU PORT16[4] Hi-Z D-LATCH D-LATCH 128/256Mbit NOR FLASH to (1/10) to (10/10) 13 14 15 11 12 to (1/10) to (1/10) to (1/10) to (1/10) to (1/10) to (1/10) to (1/10) XPDCD1 XCI_IREQ XPDCD2 18 17 13 11 15 16 12 10 14 DG-BOARD (2/10) ! TXNDG1HLTC TH-42PV700C DG-Board (2 of 10) Schematic Diagram TH-42PV700C DG-Board (2 of 10) Schematic Diagram 79 15.22.DG 电路板 (3/10) 线路图 G G G G AH_LRCK0 DVB_CVBS AE_SDCLK AA_XRST AD_SCL2 AG_SD_LED_ON AD_TO_SC AG_SW_OFF_DET AD_TRST AD_SDA2 AH_IECOUT0 AD_SDA1 MVDACO3 AG_DTV_VOUTENB AH_DAUDIO AE_SDDAT0 AG_DTV_XRST AH_DAUDIO AG_SD_BOOT_STS AE_SDDAT1 AE_SDCMD AD_SCL1 AE_SDCLK AD_TO_GC3FS_NEXT AH_DMIX0 AD_SDA3 AD_SDA0 AD_TMS AH_SRCK0 AD_SCL0 AH_IECOUT0 AH_LRCK0 AE_SDDAT3 AE_SDDAT2 AD_TCK AD_SCL3 AD_SDA3 AD_SCL3 AH_SRCK0 MVDACO3 AH_DMIX0 AE_SDCD AE_SDWP AG_MODEM_LED2/CLK74SEL STB_RST AE_SDCD AE_SDWP AG_SD_LED_ON AE_SDDAT1 AE_SDCMD AE_SDDAT3 AE_SDDAT2 AE_SDDAT0 AG_SRQ-GENX AG_TV_MAIN_ON IS0DATA *IC8601 1 A0 2 A1 3 A2 4 VSS 5 SDA 6 SCL 7 WP 8 VCC DMIX0 R8808 10k AD_SDA1 TP8808 *R8821 56 TP8807 TP8605 SUB3.3V R8503 330 R8828 10k AG_DTV_VOUTENB L8801 J0JHC0000045 R8812 0 *Q8801 2SD0601ASL R8601 22 R8506 330 MVDACO3 STB_RST AD_TO_SC AH_DMIX0 R8501 100 *R8820 10k *L8802 J0JCC0000100 SUB3.3V SDCD SDCMD R8603 47k AG_SD_LED_ON DTV9V C8802 16V 0.1u TP8604 DVB_CVBS SUB3.3V *R8823 4.7k R8814 68 TP8602 R8519 0 *R8822 200 R8826 68 SDWP TP8806 MVDACO2 SUB3.3V SDDAT0 AD_TCK R8832 10k AG_SW_OFF_DET R8809 10k SUB3.3V_SD C8601 16V 0.1u AD_SCL1 AA_XRST R8813 EXB28V680JX AH_DAUDIO R8604 0 AG_DTV_XRST AH_SRCK0 AD_SDA3 VI2CLK2 TP8801 C8803 16V 0.1u R8513 0 R8802 10k R8517 0 TP8804 R8815 68 AD_SDA2 FL8802 J0HAAA000013 1 2 3 4 5 6 7 8 9 10 R8805 10k AG_MODEM_LED2/CLK74SEL 1% R8508 91 MVDACO1 1% R8509 91 TP8805 R8817 68 AD_SCL0 TP8601 SDDAT3 SRCK0 SDCLK TP8802 TP8803 AG_SD_BOOT_STS DAUDIO VMUTE *R8819 4.7k AD_SCL2 1% R8512 180 MVDACO0 FL8801 J0HAAA000013 1 2 3 4 5 6 7 8 9 10 R8806 10k AG_TV_MAIN_ON DG52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 TP8603 AD_TRST TP8501 R8602 22 IECOUT0 *R8818 4.7k 1% R8510 91 R8518 0 R8605 68 AD_TMS AD_SDA0 R8807 10k 1% R8507 91 *Q8802 2SB0709ASL R8502 330 AH_LRCK0 R8816 68 AD_SCL3 R8504 330 VI1P0 AH_IECOUT0 LRCK0 AD_TO_GC3FS_NEXT SDDAT1 AG_SRQ-GENX SDDAT2 *R8833 0 *R8804 10k *R8803 10k MAIN AUDIO DATA Comp. Comp. Comp. 3.3V FROM HQ1L SD_CARD OUTPUT INT.PD GENX4 GND TO GC3FS SDDAT0 GND SDCLK for PHOTO OUT COMMON for EACH DEVICES I2C COMMON LR/SR CLK Y Y G SDCMD YC YUV RGB SDDAT2 SDDTC SDDAT3 DIGITAL AUDIO CONNECTOR Comp. JTAG SDWP GND C U B PORT9[4] EEPROM_WP to other devices SDDAT1 SC --> LiteII --> GC3FS --> HQ1L --> SC with AUDIO DESCRIPTION DATA HQ1L/FHD - V R to H-PCB CRNo.8300-8999 DTV FE 8300-8399 CI 8400-8499 AV_OUT 8500-8549 NAND/NOR 8550-8599 EEPROM 8600-8619 D-LATCH 8620-8649 SMART_CARD 8650-8699 SUPPORT_CARD 8700-8799 SD_CARD 8800-8849 MPEG 8850-8949 MODEM 8950-8999 FOR H.264 BOARD Hi-Z PORT5[4] SD_COIN_DET TO GS-BOARD (GS52) EEPROM to (10/10) to (4,9,10,/10) to (6,10/10) to (7,10/10) to (10/10) to (6/10) 13 14 11 12 15 to (1/10) to (4/10) to (7/10) to (4,5,6,7/10) to (7,10/10) to (5,6,7/10) to (1/10) LiteII TVRP293 27 22 26 23 25 19 20 21 24 DG-BOARD (3/10) ! TXNDG1HLTC TH-42PV700C DG-Board (3 of 10) Schematic Diagram TH-42PV700C DG-Board (3 of 10) Schematic Diagram 80 15.23.DG 电路板 (4/10) 线路图 AG_UB1 AG_YG0 AG_UB2 AG_UB4 AG_UB5 AG_YG0 AG_YG3 AG_VI2CLK AD_TCK AG_UB0 AG_UB6 AG_YG5 AG_UB4 AG_UB3 AH_FS_U AG_TV_MAIN_ON AG_YG7 AG_YG1 AG_YG4 AG_YG2 AG_UB7 AG_VPO AG_UB1 AG_YG6 AG_UB5 AG_UB7 AD_TO_GC3FS_NEXT AG_YG4 AG_YG2 AG_UB3 AG_HQ1_XRST AG_YG5 AD_SDA1 AG_YG3 AG_YG7 AD_SCL1 AH_FS_V AG_UB6 AG_HPO AG_YG6 AD_TRST AG_VI2CLK AG_HPO AG_UB0 AD_TMS AG_YG1 AG_UB2 AG_VPO AH_FS_Y AD_TCK AD_TMS AD_TRST AD_TO_HQ1L AD_TO_GC3FS_NEXT AD_TO_HQ1L *C4032 16V 0.1u *C4053 16V 0.1u VI2CLK VI2P17 SUB3.3V *C4006 16V 0.1u *C4005 16V 0.1u VI2P29 *C4014 16V 0.1u VI2P26 VI2P18 *C4033 16V 0.1u *R4013 680 VI2P14 VI2P12 *C4030 16V 0.1u 1% *R4010 1.82k *L4002 J0JHC0000045 VI2P16 VI2P19 *R4002 EXB2HV680JV *C4020 16V 0.1u AD_SCL1 *C4047 10V 1u *C4039 25V 0.01u *R4011 22 *R4019 1k *C4013 16V 0.1u *R4005 68 1% *R4007 680 *C4049 16V 0.1u VI2P25 SUB5V *IC4004 C0JBAZ002261 1 G 2 IN A 3 GND 5 VCC 4 OUT Y *R4034 10k *C4022 50V 0.47u *IC4005 C0CBCBC00190 1 VDD 2 GND 3 CE 5 VOUT 4 NC *C4019 50V 0.47u *C4034 16V 0.1u AD_SDA1 *C4010 16V 0.1u *C4045 16V 0.1u VI2P27 MAIN_FS_1.8V *C4024 16V 0.1u AG_HQ1_XRST AD_TMS *C4025 16V 0.1u *C4038 16V 0.1u *C4018 16V 0.1u *C4027 16V 0.1u *C4051 16V 0.1u AD_TO_GC3FS_NEXT *R4003 EXB2HV680JV VI2P24 *R4016 680 VI2P28 AH_FS_U AG_TV_MAIN_ON VI2P22 *R4012 22 AH_FS_Y MAIN_FS_1.8V *Q4000 2SA207700L *R4025 2k VI2P15 *C4008 16V 0.1u *C4021 16V 0.1u FS_FRCLKIN *C4015 16V 0.1u AD_TCK JS4002 *IC4002 C0CBCAC00275 1 VDD 2 GND 3 CE 5 VOUT 4 NC *R4014 1k *R4017 1k *Q4001 2SA207700L *C4040 50V 15p *Q4002 2SA207700L *C4028 16V 0.1u *R4028 100 VI2HSYNC *C4052 16V 0.1u *L4006 J0JHC0000045 *C4046 16V 0.1u AH_FS_V *R4029 100 MAIN9V MAIN_FS_1.8V *R4006 22 VI2VSYNC *L4004 J0JHC0000078 *C4023 16V 0.1u VI2P13 *R4004 68 VI2P23 AD_TRST *L4008 J0JHC0000078 *C4016 16V 4.7u *C4011 16V 0.1u TP4000 C1AB00002687 *IC4001 1 VDDE 2 VSS 3 UBOUT3 4 UBOUT2 5 VDDI 6 UBOUT1 7 UBOUT0 8 CLKO 9 VDDE 10 VSS 11 VDDI 12 FRCLKIN 13 TEST 14 SDA 15 SCL 16 CTRL0 17 CTRL1 18 NRST 19 VSS 20 VDDE 21 VPD 22 RT1 23 RB1 24 AVD1 25 AVS1 26 MON1 27 YIN 28 RT2 29 RB2 30 AVD2 31 AVS2 32 MON2 33 UIN 34 RT3 35 RB3 36 AVD3 37 AVS3 38 MON3 39 VIN 40 TDI 41 TDO 42 VDDE 43 VSS 44 TRST 45 TMS 46 TCK 47 VDDI 48 VREF 49 AVD4 50 AVS4 51 AOUT 52 VSS 53 CW358 54 VDDE 55 BXS 56 VDDI 57 PLLVS 58 PLLVD 59 VSS 60 VDDE 61 VPO 62 HPO 63 YGOUT7 64 YGOUT6 65 YGOUT5 66 VDDE 67 VSS 68 VDDI 69 YGOUT4 70 YGOUT3 71 YGOUT2 72 YGOUT1 73 YGOUT0 74 VDDI 75 VSS 76 VDDE 77 UBOUT7 78 UBOUT6 79 UBOUT5 80 UBOUT4 *C4035 10V 1u *C4036 10V 1u *C4050 10V 1u JS4001 AD_TO_SC *R4242 0 EA23, Y7 EA10, UV2 GC3FS-next EA17, Y1 GenX4 EA18, Y2 EA15, UV7 CN_to_H MAIN1.8V EA22, Y6 Peaks Lite II GenX4 EA8, UV0 ADV7493 EA19, Y3 EA21, Y5 H:ACTIV EA12, UV4 EA13, UV5 EA11, UV3 EA20, Y4 EA9. UV1 ADV7493 DTV JTAG CRNo.4000-4199 DTV EA14, UV6 EA16, Y0 I2C GC3FS-next LVDS_OUT MAIN3.3V BUFFER to (6/10) to (3/10) to (7/10) to (9/10) to (3,9,10/10) to (1/10) to (3,5,6,7/10) DG-BOARD (4/10) ! TXNDG1HLTC 34 28 33 36 32 31 30 35 29 TH-42PV700C DG-Board (4 of 10) Schematic Diagram TH-42PV700C DG-Board (4 of 10) Schematic Diagram 81 15.24.DG 电路板 (5/10) 线路图 G G G G G G + + + + + + + + + G G + G G + + C5674 10V 1u R5690 10k L5605 J0JHC0000075 C5627 0.1u 16V Q5693 B1DHDC000028 SUB3.3V C0CBCBC00190 IC5670 1 VDD 2 GND 3 CE 5 VOUT 4 NC R5633 16k 1% R5622 100k D5670 MA2J11100L C5621 0.01u 25V STB5V R5732 6.8k Q5690 B1ABCF000138 TP5604 SUB5V C5625 0.01u 25V C5645 2.2u 10V TP5702 C5632 1u 16V TP5606 DTV9V C5713 50V 0.1u J0HABH000013 FL5731 J0HABH000013 FL5734 SUB3.3V AG_R_LED_ON R5604 47k 1% C5710 50V 0.1u C5605 4.7u 10V J0HABH000013 FL5732 C5716 50V 0.1u AG_TV_MAIN_ON SUB5V C5714 50V 0.1u L5606 G1C100MA0077 C5602 68u 4V DTV9V R5638 10k C5694 47u 6.3V R5646 10k R5635 22k TP5601 C5670 10V 1u TP5600 C5695 47u 6.3V C5617 1u 16V L5691 J0JHC0000078 L5670 J0JHC0000078 TP5706 C5730 25V 0.01u STB_RST R5607 0 C5624 220p 50V TP5607 Q5603 2SD0601ASL TP5703 R5623 47k 1% STB3.3V R5621 47k 1% DTV9V R5626 0 R5692 47k TP5701 L5600 G1C2R2ZA0083 TP5707 C5618 10u 10V D5605 MA22D3900L C5731 6.3V 47u C5676 16V 0.1u MAIN5V C5690 47u 6.3V C5622 4.7u 10V L5611 J0JHC0000035 R5661 47k Q5600 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 D5603 B0JCDD000002 TP5608 SUB1.8V IC5660 C0EBM0000026 1 OUT 2 Vdd 3 GND 5 Cd 4 NC R5647 47k D5690 B0BC6R600005 D5602 MA22D3900L R5608 0 C5607 50V 220p R5610 100k C5643 0.1u 50V C5600 1u 16V R5733 15k SUB9V(FHD) C5601 0.1u 16V MAIN9V R5636 68k R5627 0 TP5670 C5623 470p 50V R5662 10k R5631 36k 1% TP5705 L5735 J0JHC0000078 L5601 G1C2R2ZA0083 TP5704 L5610 J0JHC0000035 R5674 47k STB5V R5696 10k TP5602 STB5V R5691 10k C5712 50V 0.1u SUB3.3V R5693 47k R5670 0 DTV9V C5692 50V 0.1u C5619 10u 10V C5691 47u 6.3V C5641 0.1u 16V R5606 0 P12V R5605 12.7k 1% AG_AI_SENSOR C5663 25V 0.01u L5692 J0JHC0000075 STB3.3V C5606 470p 50V D5673 B0HCMM000014 D5606 B0JCDD000002 R5609 0 SUB1.2V C5616 0.047u 10V SUB3.3V R5671 18k C5609 47u 16V R5629 30.1k 1% C5662 10V 0.047u C5631 16V 47u C5644 0.01u 25V AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON C0EBF0000376 IC5671 1 RST 2 VDD 3 GND 5 Cd 4 NC C5693 50V 0.1u C5620 0.1u 50V R5694 1k C5629 68u 4V C5711 50V 0.1u R5660 5.6k L5602 G1C3R3ZA0083 D5604 B0JCDD000002 C5637 0.1u 16V R5600 68 D5601 MA22D3900L TP5700 C5604 0.01u 25V R5632 30k 1% R5625 0 C5715 50V 0.1u TP5605 R5634 16k 1% MAIN3.3V D5671 B0HCMM000014 C5638 0.1u 16V D5609 MAZ80560LL C5661 25V 0.01u Q5604 2SD0601ASL R5697 10k J0HABH000013 FL5730 AA_XRST C5615 10u 10V R5612 23.2k 1% C5628 68u 4V R5611 36k 1% C5640 0.1u 16V D5691 B0BC6R600005 Q5691 B1ABCF000138 Q5602 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 R5695 1k C5673 10V 1u J0HABH000013 FL5733 Q5601 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 R5620 68 C5610 16V 47u C5630 16V 47u C5608 0.1u 16V L5604 G1C100MA0077 C5636 0.1u 16V AG_RMIN R5641 47k TP5603 AG_G_LED_ON R5628 0 C5626 0.1u 16V Q5692 B1DHDC000028 C5603 0.01u 25V L5690 J0JHC0000078 AG_KEY1(CON-PANE) SUB5V SUB5V C5639 0.1u 16V STB3.3V R5672 0 R5630 47.5k 1% R5644 2.2k D5608 MAZ802400L D5607 MAZ802400L R5637 0 DG1 1 2 3 4 5 6 7 8 9 10 11 12 DG2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 C0DBAYY00273 IC5600 1 GND 2 REFIN 3 VREF 4 CS 5 COVP 6 CUVP 7 PGOOD 8 CTL 9 LSAT 10 ILIM 11 +INC 12 -INC 13 FSW 14 PGND 15 OUT-2 16 VB 17 VCC 18 VBIN 19 LX 20 OUT-1 21 CB 22 RT 23 VO 24 FB C0DBAYY00274 IC5601 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP GenX4 From GenX4 SUB5V GND RESET GND CRNo.5600-5749 SUB3.3V SUB5V GND P12V GND GND Peaks-LITE2 RST 5660-5669 GenX4 POWER/RST 5670-5689 Peaks-LITE2 POWER 5600-5659 MAIN5V/MAIN3.3V 5690-5709 DG-H Connecter 5710-5729 DG-G Connecter 5730-5749 GND GND MAIN5V P12V DTV9V DTV9V SUB3.3V GenX4 SUB5V MAIN3.3V GND GND MAIN9V STB5V SUB9V(FHD)/LCD3.3V SUB9V(FHD)/LCD3.3V GND G_LED_ON GND AI_SENSOR SUB5V RMIN ACTIVE_STBY_LED_ON GND STB3.3V R_LED_ON GND KEY1 GND GenX4 RESET STB+3.3V SUB+1.8V/+1.2V SUB+3.3V TO H-BOARD (H2) TO K-BOARD (K1) to (7/10) to (6,7/10) to (3,4,6,7/10) to (3/10) to (3,6,7,/10) ! TXNDG1HLTC DG-BOARD (5/10) 39 40 41 44 38 42 43 45 37 TH-42PV700C DG-Board (5 of 10) Schematic Diagram TH-42PV700C DG-Board (5 of 10) Schematic Diagram 82 15.25.DG 电路板 (6/10) 线路图 AG_A_MON_MUTE/SP_MUTE AD_SDA2 AG_VIDEO_STATUS AH_FS_U AG_SOS AD_SCL2 MAIN_Y/CVBS AH_DMIX0 MAIN_PR AH_FS_Y AH_FS_U AH_DMIX0 MAIN_PB/C PC_VS AH_LRCK0 AG_FAN_SOS PC_VS RGB_CVBS STB_RST AH_DAUDIO HDMI_SDIN RGB_CVBS AH_LRCK0 AH_FS_V DVB_CVBS AD_SCL2 AG_RF_AFT2 AH_FS_V AG_RF_AFT1 AG_KEY1(CON-PANE) AD_SDA2 HDMI_SDIN AG_AUDIO_MUTE HDMI_INT2 HDMI_INT2 AG_ECO_ON MAIN_PR RGB_FB MAIN_PB/C AH_SRCK0 PC_HS AG_FAN_MAX/INV_PSU_ON MAIN_Y/CVBS AG_KEY1(CON-PANE) AH_SRCK0 HDMI_LRCK RGB_FB HDMI_BCLK PC_HS HDMI_LRCK AG_ALL_OFF AH_DAUDIO HDMI_BCLK AH_FS_Y AG_SOUND_SOS AG_A_MON_MUTE/SP_MUTE AG_TV_SUB_ON AG_AUDIO_MUTE AG_AUDIO_XRST AG_VIDEO_STATUS PANEL_STBY/VCC_ON AG_RF_AFT2 AG_FAN_SOS AG_ECO_ON AG_ALL_OFF AG_QLINK1 AG_QLINK2 DVB_CVBS AG_FAN_MAX/INV_PSU_ON AH_IECOUT0 AG_TV_SUB_ON_DELAY AH_IECOUT0 PANEL_STBY/VCC_ON AG_TV_SUB_ON AG_TV_MAIN_ON AG_QLINK2 AG_QLINK1 AG_RF_AFT1 AG_SOUND_SOS AG_SOS AG_TV_SUB_ON_DELAY AG_AUDIO_XRST AG_TV_MAIN_ON STB_RST TP2021 TP2023 AH_DAUDIO R2010 47k DG6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 TP2016 SUB3.3V MAIN_PB/C HDMI_LRCK MAIN_PR HDMI_SPDIF TP2000 *R2001 100k TP2001 AG_TV_SUB_ON AG_BUS_CONNECT2 TP2006 AG_AUDIO_XRST TP2009 33 *R2024 STB_RST R2012 47k AG_FAN_MAX AG_TV_MAIN_ON AH_FS_Y *C2000 16V 0.1u R2013 47k RGB_FB AG_TV_SUB_ON_DELAY TP2013 DVB_CVBS TP2005 AG_RF_AFT1 HDMI_BCLK AG_KEY1(CON-PANE) HDMI_INT2 TP2003 *Q2000 2SD0601ASL R2018 47k R2011 47k TP2014 AH_SRCK0 AG_QLINK_PU_ON TP2019 TP2011 AG_VIDEO_STATUS AG_FAN_SOS AG_ECO_ON R2025 47k RGB_CVBS AG_ODU_ON/GEMSTER_STBY_EN C0JBAZ002261 *IC2000 1 G 2 IN A 3 GND 5 VCC 4 OUT Y AH_FS_V TP2017 AH_DMIX0 TP2002 AG_RF_AFT2 AG_HDMI_OPT_ENB R2015 47k PC_HS AG_QLINK1 R2020 47k TP2018 AG_AUDIO_MUTE AD_SCL2 TP2007 R2014 47k *R2007 47k TP2004 TP2022 AH_IECOUT0 AU_SBO(HOTEL) TP2024 PC_VS STB5V TP2015 AG_A_MON_MUTE/SP_MUTE AG_ODU_DET TP2010 *Q2001 2SD0601ASL R2023 47k AG_QLINK2 MAIN_Y/CVBS AG_RF_AGC1 TP2008 AU_SBI(HOTEL) 47k *R2028 AH_LRCK0 *R2027 0 AG_ALL_OFF TP2012 AG_SOS AH_FS_U PANEL_STBY/VCC_ON AG_SOUND_SOS HDMI_SDIN *R2006 10k AD_SDA2 AG_PANEL_STBY_ON/PANEL_VCC_ON TP2020 AG_AVSW_OFF R2021 47k R2022 47k SPDIF_IN(OPT) AFC2 FAN_SOS SUB_PB/C DTV_LRCK CRNo.2699-2999:Without AVSW AC_GOOD/24V_DET ALL_OFF TV_MAIN_ON GenX4 DTV_BCKL QLINK_AV3 EURO QLINK CONTROL ADV7493 GENX_RST ECO_ON MAIN_Y/CVBS/G 3.3V:V-AVSW/ADV4422/FE/DVB-TNR DTV_SDIN GC3FS next SOS DVB_CVBS MAIN_PR/R HDMI_SDIN MAIN_PB/C/B << Connection Device >> KEY1 SOUND_SOS SUB_PR PC_V AFC1 HDMI_BCLK HDMI_LRCK AUDIO_XRST FAN_MAX CRNo.3000-3199:AVSW 5V :A-AVSW/A-TNR DTV2_SDIN CRNo.2000-2299:Without AVSW to Sheet 003 IRD PC_H SUB_Y/CVBS RGB_CVBS SP_MUTE IIC2 QLINK_AV2 SCL0B SDA0B GenX4 HDMI_INT2 Panel_STBY_ON/Pannel_VCC_ON RGB_FB TV_SUB_ON CN to H AUDIO_MUTE (EURO/ASIA) (ASIA) GenX VIDEO_STATUS TO H-BOARD (H6) to (3/10) to (3,10/10) to (7/10) to (4/10) to (9/10) to (10/10) to (7/10) to (7/10) to (5,7/10) to (7/10) to (7/10) to (7/10) to (3,4,5,7/10) to (3,5,7/10) to (7/10) ! TXNDG1HLTC DG-BOARD (6/10) 47 50 53 51 54 48 46 49 52 TH-42PV700C DG-Board (6 of 10) Schematic Diagram TH-42PV700C DG-Board (6 of 10) Schematic Diagram 83 15.26.DG 电路板 (7/10) 线路图 AD_SCL3 AG_HDMI_CEC AG_RMIN AG_G_LED_ON AG_R_LED_ON AG_ODU_ON/GEMSTER_STBY_EN AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON AG_HPD2 AG_HDMI_REP_EN AD_SDA3 AG_HDMI_5V_DET3 SCL AU_SBI(HOTEL) AG_TV_MAIN_ON AG_SD_LED_ON SDA AG_QLINK2 AU_SBO(HOTEL) AG_DTV_XRST AG_HPD1 AG_HDCP_WP AG_HDMI_5V_DET2 AG_ECO_ON AG_HDMI_MUX_EN AG_HDMI_MUX_SEL AG_HPD3 AG_DTV_VOUTENB AG_TV_SUB_ON AG_SD_BOOT_STS AG_KEY1(CON-PANE) AG_PWM_POW_ON AG_QLINK1 AG_HDMI_5V_DET1 AG_QLINK1 AG_AVSW_OFF AG_RF_AGC1 AG_QLINK2 AG_BUS_CONNECT2 AG_ALL_OFF AG_RF_AFT1 AG_RF_AFT2 AG_SOUND_SOS AG_SOS AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE AG_AUDIO_XRST AG_FAN_MAX AG_FAN_SOS AG_QLINK_PU_ON AG_7493_XRST AG_EDID_WP SCL SDA AG_VIDEO_STATUS AG_PANEL_STBY_ON/PANEL_VCC_ON SBI2 SBO2 AD_SCL3 AD_SDA3 AG_HPD3 AG_HPD2 AG_HPD1 DTV9V_SENSE ADCCK AG_BUS_CONNECT2 AG_ODU_DET AG_SW_OFF_DET AG_RF_AGC1 AUDCLK SLRCK SCL SDA AG_G_LED_ON AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON AG_FAN_MAX AG_ODU_ON/GEMSTER_STBY_EN AG_AVSW_OFF AG_KEY2 AG_MODEM_LED2/CLK74SEL AUDCLK VI2ENB AG_ODU_DET MAIN9V_SENSE AG_HDMI_CEC AG_HQ1_XRST AG_7493_XRST AG_AUDIO_XRST AG_HDMI_5V_DET2 AG_SRQ-GENX MAIN5V_SENSE AG_SRQ-GENX AG_AI_SENSOR AG_SW_OFF_DET AG_HDMI_5V_DET3 AG_HDMI_5V_DET1 AG_VIDEO_STATUS AG_KEY3 AG_ECO_ON AG_HQ1_VOUTENB AG_HDMI_MUX_SEL AG_HDMI_MUX_EN AG_INVERTER_ON AG_PWM_POW_ON AG_LVDS_EN AG_DTV_VOUTENB HDMI_CEC_PU_ON AG_QLINK_PU_ON AG_ALL_OFF AG_TV_MAIN_ON AG_R_LED_ON AU_SBO(HOTEL) AU_SBI(HOTEL) AG_PANEL_STBY_ON/PANEL_VCC_ON AG_EDID_WP AG_HDCP_WP AG_RF_AFT1 AG_FAN_SOS AG_SOUND_SOS AG_FPGA_XRST AG_DTV_XRST AG_SD_BOOT_STS AG_A_MON_MUTE/SP_MUTE AG_AUDIO_MUTE AG_HDMI_OPT_ENB AG_TV_SUB_ON_DELAY AG_HDMI_OPT_ENB AG_TV_SUB_ON_DELAY AG_AI_SENSOR SBO2 SBI2 AG_TV_SUB_ON AG_MODEM_LED2/CLK74SEL AG_INVERTER_SOS AG_SOS AG_HDMI_REP_EN AG_RF_AFT2 AG_LVDS_EN AG_INVERTER_ON AG_FPGA_XRST AG_CONFIG_DONE AG_INVERTER_SOS AG_HQ1_VOUTENB AG_HQ1_XRST AG_RMIN AG_CONFIG_DONE AG_KEY1(CON-PANE) AG_KEY2 AG_KEY3 ADCCK SLRCK VI2ENB AG_SRQ-GENX R1184 22 R1203 47k R1255 1k AG_HDMI_5V_DET3 R1205 22 AG_QLINK2 AG_A_MON_MUTE/SP_MUTE R1109 100 AG_DTV_XRST R1134 100 R1106 100 AU_SBI(HOTEL) C1114 16V 0.1u SUB5V R1179 100 R1225 47k AG_AI_SENSOR STB3.3V TP1100 Q1108 2SD0601ASL AG_7493_XRST R1237 47k ADCCK Q1107 2SD0601ASL R1165 1.8k R1164 10k R1153 820 AG_VIDEO_STATUS R1105 100 C1108 16V 0.1u R1100 100 AG_MODEM_LED1/DT_IFSW/ACTIVE_STB_LED_ON DG7 1 2 3 4 AG_SW_OFF_DET R1182 27k AG_HDMI_5V_DET1 AG_HDMI_CEC L1100 J0JHC0000078 R1162 100 R1235 100k R1125 22 AG_HPD2 R1231 47k AG_SRQ-GENX AG_RF_AFT1 AG_SOUND_SOS R1227 47k R1196 33k R1172 27k R1216 33k VI2ENB SDA MAIN9V R1147 47k R1206 22 AG_RF_AFT2 R1173 200 R1222 47k R1233 47k R1201 5.6k R1234 47k R1228 47k AG_SD_BOOT_STS C1122 25V 0.01u AG_ECO_ON C1106 50V 27p R1226 47k TP1104 AG_TV_SUB_ON_DELAY R1103 33 AG_HDMI_REP_EN AG_BUS_CONNECT2 *R1243 47k STB3.3V AG_SD_LED_ON D1107 MA3X704A0L AG_SOS AG_HDCP_WP R1174 22 R1108 100 C1117 16V 0.1u AG_HDMI_5V_DET2 R1194 56k TP1103 DTV9V AG_TV_SUB_ON AG_TV_MAIN_ON AD_SCL3 R1204 0 AG_MODEM_LED2/CLK74SEL SCL R1166 100k AG_RF_AGC1 AG_FAN_MAX AG_AVSW_OFF R1183 22 AG_ALL_OFF R1195 100k AG_HDMI_OPT_ENB AG_PANEL_STBY_ON/PANEL_VCC_ON R1175 22 AG_AUDIO_MUTE C1102 10u 10V AG_KEY1(CON-PANE) R1146 1k SUB5V C1104 16V 0.1u D1112 MA2J72800L AG_RMIN R1163 1M R1223 47k R1217 56k AG_HDMI_MUX_SEL AG_HPD3 R1221 7.15k 1% C1123 1u 10V R1170 27k R1200 5.6k AG_QLINK1 R1101 0 AG_EDID_WP R1220 10k STB3.3V R1218 10k AG_HPD1 MAIN3.3V STB3.3V C1112 16V 0.1u SBO2 AD_SDA3 R1181 100 R1229 100 SBI2 R1199 47k AG_HDMI_MUX_EN C1109 1u 10V R1219 10k R1236 47k R1107 100 C1107 50V 22p R1104 47k AG_ODU_ON/GEMSTER_STBY_EN AU_SBO(HOTEL) *IC1101 1 2 3 4 6 5 7 8 MAIN5V R1102 100 C1111 1u 10V AG_DTV_VOUTENB AG_R_LED_ON R1144 47k SLRCK AG_AUDIO_XRST DG31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 AG_FAN_SOS C1103 16V 0.1u R1169 56k R1122 47k R1232 47k R1209 47k AG_G_LED_ON R1124 22 AG_ODU_DET TP1102 TP1105 X1100 H0J100500035 AG_QLINK_PU_ON R1171 56k STB_RST MNZSFD7GP42 IC1100 1 P41/TMIO1 2 P42/TMIO2 3 P43/TMIO3 4 P44/TMIO4 5 P00/TMIO5 6 P01 7 P02 8 P03/SBT0B 9 P04/SBO0B 10 P51/IRQ2 11 P52/IRQ3 12 PB2 13 PB3 14 PB4 15 PB5 16 PB6 17 PB7 18 P53/IRQ4 19 P54/IRQ5 20 PA7 21 PA6 22 PA5 23 VSS 24 PA4 25 PA3 26 PA2 27 PA1/IRQ1 28 PA0 29 P45 30 P46 31 IVDD 32 VDD 33 P60/SBO0A 34 P61/SBT0A 35 P62/SBI0A 36 P05/IRQ6 37 P06/IRQ7 38 P07/IRQ8 39 P70/SDA0 40 P71/SCL0 41 N.C. 42 N.C. 43 N.C. 44 N.C. 45 P50/RMIN/IRQ0 46 P20 47 P21 48 P22 49 P23 50 IVDD 51 VSS 52 P10 53 P11 54 P12 55 P13 56 P14 57 P15 58 P16 59 P17 60 N.C. 61 N.C. 62 N.C. 63 P72/SDA1 64 P73/SCL1 65 P76/CEC0 66 P65/SBO2 67 P66/SBI2 68 P30 69 P31 70 P32 71 P33 72 P34 73 P35 74 VPPEX 75 N.C. 76 N.C. 77 N.C. 78 IVDD 79 VDD 80 N.C. 81 RONA 82 VSS 83 OSCXO 84 OSCXI 85 IVDD 86 P24 87 P25 88 P26 89 P27 90 P64/SBI1 91 P63/SBO1 92 NBOOT 93 NRST 94 NTEST 95 SCLOCK 96 SDATA 97 EXTRG0 98 EXTRG1 99 TRCCLK 100 TRCST 101 TRCD0 102 TRCD1 103 TRCD2 104 TRCD3 105 P90 106 P91 107 VSS 108 IVDD 109 P92 110 P93 111 P80/ADIN0 112 P81/ADIN1 113 P82/ADIN2 114 P83/ADIN3 115 P84/ADIN4 116 P85/ADIN5 117 P86/ADIN6 118 P87/ADIN7 119 P74/SDA2/CECAVL1B 120 P75/SCL2/CECAVL1A 121 P36 122 P37 123 P47 124 PB0 125 PB1 126 PC0 127 PC1 128 P40/TMIO0/SYSCLK TP1101 *R4326 47k AG_HQ1_XRST *R4321 47k R4328 47k *R4329 47k *R4322 47k *R4326 47k *R4327 47k *R4323 47k R5731 47k R5730 47k TP8852 TP8853 R8869 10k TRCD1 VIDEO_STATUS CONFIG_DONE TV_MAIN_ON ODU_ON/GEMSTER_STBY_EN AVSW_OFF(US) (SD_LED_ON) ODU_DET (BUS_CONNECT2) SUB5V_SENSE GenX-EEP_WP MAIN5V_SENSE SRQ_GenX ALL_OFF RSV2(LITE2) (QLINK_PU_ON) (HDMI_CEC_PU_ON) (For LCD) UART (HOTEL) HQ1_VOUTENB SCLOCK HDMI_MUX_SEL (For LCD) HDMI_MUX_EN HPD3 LVDS Out HDMI_5V_Det1 IIC HDMI_5V_Det2 HDMI_5V_Det3 MAIN9V_SENSE MAIN3.3V_SENSE RF_AFT1 RF_AFT2 AI_SENSOR SOS KEY2(US) KEY1 STB3.3V FAN_SOS STB_RST SOUND_SOS SBI GND PANEL_STBY_ON R_LED_ON TRCCLK EDID_WP FAN_MAX SBO HDCP_WP 7493_XRST RSV3(LITE2) HQ1_XRET GND RSV3 FE_XRST G_LED_ON PORT5[2] MODEM_XRST AUDIO_XRST PORT0[0] ETHER/1394_XRST PORT5[1] TV_SUB_ON RSV3(LITE2) Power Supply RSV4(LITE2) RSV2(LITE2) GND GND SYSCLK_OUT Lite2 UART(LITE2-GenX4) TRCD0 CN to H A_MON_MUTE/SP_MUTE GND AUDIO_MUTE Lite2 ExBUS/Etc. RSV4 RSV2 GND for DEBUGER Hand Sheke Reserve TRCD3 DTV_XRST SD_BOOT_STS SW_OFF_DET INVERTER_ON PWM_POWER_ON DTV_VOUTENB LVDS_EN LITE2 GND GenX4 E2PROM LINE EXTRG0 Lite2 E2PROM LINE GND Power Supply HDMI_REP_EN SDATA RSV4(LITE2) FPGA_RST HPD2 GND HPD1 CRNo.1100-1999 TRCD2 GenX4,EEPROM TRCST ADV7493 ECO_ON DTV_1.5V_ON RF_AGC1 DTV9V_SENSE STB5V_SENSE INVERTER_SOS GenX4 RST 10MHz KEY3(TV_POWER) PORT6[6] RSV1 RSV1(LITE2) GenX4 EEPROM STB MCU to (10/10) TVRP465-1 to (1/10) to (6/10) to (1/10) to (3,10/10) to (3/10) to (3,10/10) FOR FACTORY USED to (3,5,6/10) to (9/10) to (4/10) to (3,4,5,6/10) to (6/10) to (6/10) to (5/10) to (5,6/10) TXNDG1HLTC DG-BOARD (7/10) ! 57 63 61 60 58 62 59 56 55 TH-42PV700C DG-Board (7 of 10) Schematic Diagram TH-42PV700C DG-Board (7 of 10) Schematic Diagram 84 15.27.DG 电路板 (8/10) 线路图 + + AG_HDMI_5V_DET2 RXA_1N RXA_CP DDC_SDA0 DDC_SDA1 AG_HDMI_5V_DET1 RXA_2P DDC_SCL1 AG_HDMI_CEC AG_HPD2 RXA_0P RXA_0N RXA_1P RXA_2N RXA_CN AG_HPD1 DDC_SCL0 AG_HDMI_MUX_EN AG_HDMI_MUX_SEL AG_EDID_WP R4563 4.7k R4552 22 C4502 0.1u 16V C4627 16V 0.1u D4524 B0HCMM000014 R4561 47k R4540 47k TP4500 R4538 47k MAIN3.3V MAIN3.3V IC4513 C0JBAU000034 1 VCCA 2 SCLA 3 SDAA 4 GND 5 EN 6 SDAB 7 SCLB 8 VCCB D4510 EZAEG2A50AX D4525 B0HCMM000014 R4530 10k D4513 MAZ30560ML R4634 47k C4621 16V 0.1u R4539 68 D4516 EZAEG2A50AX R4501 10k D4526 B0HCMM000014 TP4507 L4503 J0JHC0000078 TP4509 D4503 EZAEG2A50AX R4678 22 R4545 10k D4500 EZAEG2A50AX MAIN5V R4513 2.2 R4547 10k D4505 EZAEG2A50AX R4686 47k R4500 10k R4680 22 JK4500 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 C4515 16V 0.1u R4518 2.2 Q4520 2SD0601ASL TP4501 TP4503 C4511 0.1u 16V D4511 EZAEG2A50AX C4510 0.1u 16V R4546 10k R4506 10k R4532 10k D4508 EZAEG2A50AX R4690 22 Q4501 2SD0601ASL L4500 J0JHC0000078 R4523 2.2 TP4504 C4520 10V 10u D4515 MAZ30560ML R4516 2.2 R4517 2.2 L4507 J0JHC0000078 D4522 EZAEG2A50AX R4677 22 TP4506 R4527 1k R4681 22 D4502 EZAEG2A50AX R4676 22 0.1u 16V C4513 R4528 10k L4501 J0JHC0000078 TP4511 R4543 68 *IC4500 TVRP314 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC C4506 0.1u 16V 0.1u 16V C4514 D4517 EZAEG2A50AX MAIN3.3V TP4510 D4504 EZAEG2A50AX C4507 0.1u 16V 33u 6.3V C4509 L4506 J0JHC0000078 R4510 2.2 R4509 2.2 R4503 33 Q4504 2SD0601ASL 33u 6.3V C4508 R4702 0 D4507 EZAEG2A50AX R4544 10k L4502 J0JHC0000078 R4520 2.2 Q4500 2SD0601ASL R4512 2.2 D4501 EZAEG2A50AX R4541 68 C4501 0.1u 16V R4515 2.2 D4520 EZAEG2A50AX R4533 10k L4504 J0JHC0000078 D4521 EZAEG2A50AX *IC4501 TVRP313 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC D4523 EZAEG2A50AX 0.1u 16V C4521 Q4502 2SD0601ASL R4679 22 R4511 2.2 R4688 4.7k D4514 EZAEG2A50AX R4687 4.7k R4521 2.2 D4519 EZAEG2A50AX IC4504 C3EBEY000009 1 NC 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC D4532 B0HCMM000014 L4508 J0JHC0000078 R4526 1k C4500 0.1u 16V R4524 10k DG32 1 2 3 4 5 6 7 1% R4567 4.7k Q4503 2SD0601ASL D4518 EZAEG2A50AX R4514 2.2 R4529 4.7k R4689 22 0.1u 16V C4517 R4525 10k R4663 4.7k R4562 4.7k TP4516 R4508 2.2 R4564 22 C4503 0.1u 16V D4506 EZAEG2A50AX R4703 0 D4509 EZAEG2A50AX D4512 EZAEG2A50AX C1AB00002641 IC4503 1 TEST 2 VCC 3 BDT0N 4 BDT0P 5 GND 6 BDT1N 7 BDT1P 8 GND 9 BDT2N 10 BDT2P 11 VCC 12 REXT 13 YDT2P 14 YDT2N 15 GND 16 YDT1P 17 YDT1N 18 VCC 19 VCC 20 YDT0P 21 YDT0N 22 GND 23 YCKP 24 YCKN 25 CE 26 VCC 27 ACKN 28 ACKP 29 GND 30 ADT0N 31 ADT0P 32 GND 33 ADT1N 34 ADT1P 35 VCC 36 SEL 37 VCC 38 VCC 39 ADT2N 40 ADT2P 41 GND 42 VCC 43 VCC 44 GND 45 BCKN 46 BCKP 47 VCC 48 VCC R4531 4.7k Q4505 2SD0601ASL D4527 B0HCMM000014 C4626 16V 0.1u L4505 J0JHC0000078 TP4502 R4536 4.7k JK4501 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 R4507 10k IC4514 C0JBAU000034 1 VCCA 2 SCLA 3 SDAA 4 GND 5 EN 6 SDAB 7 SCLB 8 VCCB R4542 68 TP4517 D4528 EZAEG2A50AX R4535 4.7k R4565 22 TP4505 TP4508 R4502 33 R4519 2.2 R4522 2.2 C4622 16V 0.1u DDCG D0G D1+ +5V CLKG D0- D0G N.C. SCL D1+ CLKG CLK+ D1G D2+ D2G CLK+ D2- +5V N.C. D1- SDA CEC D2+ HPDT CEC DDCG SDA SCL D0+ CLK- D0- D1- CLK- D1G HPDT D2- D2G D0+ 5V<->3.3V 5V<->3.3V HDMI2 HDMI1 EEPROM EDID1 EEPROM EDID2 EEPROM KEY HDMI SW 29 27 28 26 22 21 25 24 23 CRNo.4500-4799 ADV7493,HDMI-Mux TXNDG1HLTC DG-BOARD (8/10) ! 67 65 72 71 70 64 66 69 68 TH-42PV700C DG-Board (8 of 10) Schematic Diagram TH-42PV700C DG-Board (8 of 10) Schematic Diagram 85 15.28.DG 电路板 (9/10) 线路图 TOP + + + + VI1P25 VI1P22 VI1P28 CLKOA VI1P27 VI1P8 VI1HSYNC MAIN_PB/C AG_HDMI_5V_DET3 PC_VS RXA_1P AG_HDMI_5V_DET3 RXA_0N XIRQ3 VI1P25 AG_HDMI_5V_DET1 VI1P7 VI1ENB AG_HPD1 VI1P7 AG_HDMI_MUX_SEL AG_HDMI_5V_DET2 VI1VSYNC AG_HPD3 VI1P22 HDMI_LRCK VI1P26 VI1P19 VI1P12 VI1P29 RXA_1N VI1P9 XIRQ3 RXA_2P RXA_2N VI1P12 VI1P3 AG_HDCP_WP VI1P15 HDMI_SDIN VI1P16 FS_FRCLKIN MAIN_PB/C VI1P9 MAIN_PR RGB_CVBS PC_VS VI1P6 VI1P2 VI1CLK VI1HSYNC PC_HS VI1P24 VI1P4 VI1P13 AG_HDMI_MUX_EN AG_HDMI_CEC VI1P3 AG_EDID_WP AG_7493_XRST RXA_0P VI1P15 PC_HS VI1P29 RGB_FB VI1P2 VI1P27 VI1P18 VI1VSYNC VI1P13 VI1P24 VI1P28 VI1P26 AG_HDMI_REP_EN VI1P17 MAIN_Y/CVBS VI1P14 VI1P5 VI1P18 VI1P4 VI1P8 AG_HPD2 VI1ENB AG_EDID_WP VI1P19 VI1P23 AG_7493_XRST DVDD_1.8V VI1CLK RXA_CN VI1P16 VI1P5 AG_HDMI_REP_EN VI1P6 VI1P23 RXA_CP MAIN_PR CVDD_1.8V VI1P14 VI1P17 HDMI_BCLK AG_HPD3 HDMI_SPDIF RXB_CN RXB_CP RXB_0N RXB_0P RXB_1N RXB_1P RXB_2N RXB_2P MAIN_Y/CVBS CLKOA DVDDIO_3.3V RGB_CVBS FS_FRCLKIN R4655 100 C4582 16V 0.1u R4597 1k R4644 22 SUB5V IC4508 C0CBCAD00082 1 Vout 2 NC 3 Cn 4 GND 5 Cont 6 NC 7 NC 8 Vin HDMI_SPDIF VI1P18 TP4515 C4534 50V 0.1u R4578 150 C4628 16V 0.1u AG_HDMI_REP_EN R4650 68 R4601 1k C4549 50V 0.1u R4666 47k VI1HSYNC C4585 1u 10V 1% R4624 1.69k IC4515 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC 0 R4627 C4546 6.3V 2.2u C4565 25V 0.01u R4667 150 C4583 16V 0.1u C4557 16V 0.1u R4658 22 C4563 16V 0.082u Q4514 2SB0709ASL C4550 16V 0.1u TP4514 L4520 J0JHC0000078 VI1P24 AG_HDMI_MUX_SEL C4545 16V 0.1u R4596 1k VI1P25 C4620 10V 1u R4640 68 EXB28V680JX DG11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 G1 G2 G3 1% R4612 1.5k VI1P15 R4691 22 AG_HPD1 *R4694 33 C4553 50V 1000p RGB_FB R4637 68 R4708 1k HDMI_LRCK R4699 0 C4604 6.3V 2.2u TP4513 SUB5V PC_HS R4642 68 EXB28V680JX C4528 16V 0.1u MAIN5V R4629 100 VI1CKOUT C4598 1u 10V C4573 16V 0.1u R4585 100 1% R4587 820 C4578 16V 0.1u L4517 J0JHC0000078 VI1CLK TP4519 R4628 100 XIRQ3 VI1ENB HDMI_INT2 C4568 16V 0.1u C4555 10V 10u VI1P19 R4635 68 EXB28V680JX Q4517 2SB0709ASL C4548 50V 0.1u R4698 0 HDMI_BCLK VI1P26 R4641 22 C4567 50V 0.1u C4617 16V 0.1u MAIN9V AG_HDMI_5V_DET3 VI1P8 C4566 16V 0.039u R4661 100 AG_HDMI_5V_DET2 IC4509 C0CBCAD00082 1 Vout 2 NC 3 Cn 4 GND 5 Cont 6 NC 7 NC 8 Vin C4588 16V 0.082u RGB_CVBS L4512 J0JCC0000077 VI1P3 C4614 16V 0.1u R4646 68 C4577 16V 0.1u C4590 18p 50V C4586 25V 0.01u 1M R4626 MAIN5V R4613 22 C4581 10V 1u C4595 25V 0.01u C4605 16V 0.1u X4500 H0J270500113 C4556 10V 10u C4527 10V 1u AG_EDID_WP C4593 25V 0.01u R4645 68 C4570 47u 6.3V R4648 EXB28V330JX VI1VSYNC C4596 16V 0.1u L4511 J0JHC0000078 AG_7493_XRST C4615 25V 0.01u JS4501 R4665 47k R4647 68 HDMI_SDIN VI1P27 AG_HDMI_5V_DET1 C0CBCBC00190 IC4507 1 VDD 2 GND 3 CE 5 VOUT 4 NC C4629 10V 10u L4521 J0JHC0000078 Q4515 2SB0709ASL C4587 16V 0.1u VI1P22 R4651 68 C1AB00002753 IC4510 1 DDCB_SDA 2 SPDIF 3 I2S0 4 I2S1 5 I2S2 6 I2S3 7 LRCLK 8 SCLK 9 MCLKOUT 10 MCLKIN 11 SDA 12 SCL 13 ALSB 14 DGND 15 DVDDIO 16 DE 17 HS 18 VS/FIELD 19 INT1 20 SFL/SYNC_OUT/INT2 21 RESET 22 DGND 23 DVDD 24 P19 25 P18 26 P17 27 P16 28 P15 29 P14 30 P13 31 P12 32 P29 33 P28 34 DGND 35 DVDDIO 36 P11 37 P10 38 P9 39 P8 40 P27 41 P7 42 P6 43 P5 44 P4 45 P26 46 R_ACTIVE/P25 47 SRLIN/P24 48 DCLKIN 49 DGND 50 DVDDIO 51 LLC 52 SRLUP/P23 53 TRGIN/P22 54 P21 55 P3 56 DGND 57 DVDD 58 P2 59 P1 60 P0 61 P20 62 VS_IN 63 HS_IN 64 DGND 65 XTAL1 66 XTAL 67 DVDDIO 68 PVDD 69 PGND 70 ELPF 71 PVDD 72 PGND 73 ELPF2 74 FB 75 SOG 76 AIN7 77 AIN1 78 AIN8 79 AIN2 80 AIN9 81 AIN3 82 AGND 83 AGND 84 AVDD 85 REFOUT 86 CML 87 AGND 88 AVDD 89 BIAS 90 CAPY1 91 CAPC1 92 CAPC2 93 AIN10 94 AIN4 95 AIN11 96 AIN5 97 SOY 98 AIN12 99 AIN6 100 PGND 101 PVDD 102 ELPF3 103 CGND 104 CVDD 105 DDCA_SCL 106 DDCA_SDA 107 MDA 108 MCL 109 CVDD 110 CGND 111 TVDD 112 RXA_CN 113 RXA_CP 114 TGND 115 RXA_0N 116 RXA_0P 117 TGND 118 RXA_1N 119 RXA_1P 120 TGND 121 RXA_2N 122 RXA_2P 123 TVDD 124 RTERM 125 CVDD 126 CGND 127 TVDD 128 RXB_CN 129 RXB_CP 130 TGND 131 RXB_0N 132 RXB_0P 133 TGND 134 RXB_1N 135 RXB_1P 136 TGND 137 RXB_2N 138 RXB_2P 139 TVDD 140 CGND 141 CVDD 142 DVDD 143 DGND 144 DDCB_SCL C4619 16V 0.1u MAIN_PR C4562 50V 8200p Q4516 2SB0709ASL VI1P12 AD_SCL1 C4576 47u 6.3V C4544 16V 0.1u C4552 50V 0.1u MAIN5V AG_HPD3 L4518 J0JHC0000078 FS_FRCLKIN C4541 50V 470p R4652 47k TP4518 C4560 16V 0.1u R4636 68 C4539 10u 10V MAIN_Y/CVBS C4592 1u 10V C4543 16V 0.1u C4609 10V 1u VI1P7 MAIN_PB/C C4591 1u 10V C4572 16V 0.1u VI1P23 TP4512 R4670 68 C4580 25V 0.01u R4692 22 VI1P6 SUB3.3V AG_HDMI_MUX_EN C4547 16V 0.1u C4611 1u 10V 1% R4654 4.7k C4600 25V 0.01u R4657 22 C4535 50V 0.1u C4564 25V 0.01u SUB5V C4538 47u 6.3V R4614 22 R4653 10k AG_HDMI_CEC R4656 2.2k R4643 22 VI1P28 VI1P5 C4551 50V 0.1u VI1P17 C4569 16V 0.68u C4601 25V 0.01u R4638 68 1% *R4593 1k C4625 50V 0.1u C4559 16V 0.1u R4706 1k C4623 16V 0.1u VI1P4 C4613 1u 10V VI1P16 C4618 25V 0.01u R4639 68 EXB28V680JX AD_SDA1 R4683 10k C4624 50V 0.1u R4649 68 EXB28V680JX 1% R4631 499 VI1P29 C4612 25V 0.01u 1% R4611 1.37k R4598 1k C4589 15p 50V MAIN3.3V C4574 25V 0.01u R4579 150 VI1P2 R4604 7.5k 1% AG_HPD2 VI1P9 C4616 16V 0.1u C4584 1u 10V 4.7k 1% R4606 L4516 J0JHC0000078 R4707 10k VI1P14 C4575 1u 10V L4524 J0JHC0000078 1% R4615 160 C4533 50V 68p C4602 16V 0.1u C0DBGGF00001 IC4506 1 Vo 2 NC 3 GND 4 Cn 5 Cont 6 Sub 7 Vin R4622 100 C4607 47u 6.3V 1% R4682 10k VI1P13 AG_HDCP_WP PC_VS C4531 16V 0.1u R4672 0 R4659 0 < YIN3 RX_SD0# GenX4 YIN1 YIN2 UVIN8 IN YIN4 OUT CN_to_H RIN2 UVIN9 RIN3 Peaks Lite II RIN0 Peaks Lite II DTV RIN1 YIN0 CLKOA UVIN7 HSIA UVIN4 UVIN2 VSIA UVIN3 CLKIA UVIN5 UVIN0 UVIN6 GC3FS-n YIN9 UVIN1 RX_WS YIN7 RX_SCK YIN5 CN_to_H CN_to_H YIN6 YIN8 GC3FS-n DTV TO GH-BOARD (GH11) AD/HDMI 3.3V 1.8V 3.3V DVDD1.8V COMPARATOR 24 26 25 27 28 29 21 22 23 to (6/10) to (6/10) to (6/10) to (3,4,10/10) to (1/10) to (4/10) to (7/10) to (1/10) CRNo.4500-4799 ADV7493,HDMI-Mux TXNDG1HLTC DG-BOARD (9/10) ! 81 80 74 75 78 73 76 77 79 TH-42PV700C DG-Board (9 of 10) Schematic Diagram TH-42PV700C DG-Board (9 of 10) Schematic Diagram 86 15.29.DG 电路板 (10/10) 线路图 VI2P21 VMUTE VI2P10 PANEL_MUTE PANEL_STBY/VCC_ON AR_PANEL_TXD PANEL_MUTE AD_SCL0 AD_SDA0 AR_IIC_CONT VI2P21 VI2P10 PANEL_STBY/VCC_ON AR_PANEL_SDA AR_PANEL_SCL AR_PANEL_RXD SDA AD_SDA1 AD_SDA1 AD_SCL3 AD_SCL1 AD_SDA3 AD_SDA3 AD_SDA2 AD_SDA0 AD_SDA2 AD_SCL1 AD_SCL2 AD_SDA0 AR_PANEL_TXD AD_SCL0 AR_PANEL_RXD AD_SCL2 AR_IIC_CONT AR_PANEL_SDA SCL AD_SCL0 AR_PANEL_SCL SCL SDA AD_SCL3 AA_SBI0 AA_SBO0 AD_SCL1 AD_SDA1 CFG_TRST CFG_TDI CFG_TDO CFG_TMS CFG_TCK R4819 22 AD_SDA3 *R4838 100 SDA *R4872 0 AA_SBI0 *R4857 0 TP4808 *R4858 0 *FL4802 J0JAD0000028 1 2 3 4 SCL AD_SCL2 IC4800 C1ZBZ0003577 1 SCL 2 GND 3 A1 4 VDD 5 A0 6 SDA TD1N TP4801 MAIN3.3V *R4865 0 AD_SCL3 DG33 1 2 3 4 5 6 7 8 9 10 11 R4820 22 *DG5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 TCLK1P R4800 0 AD_SCL0 *R4856 0 AD_SDA2 VI2P21 TCLK1N *R4862 0 VMUTE STB3.3V TE1N TP4804 PANEL_STBY/VCC_ON *R4863 0 AA_SBO0 STB5V *R4864 0 AG_SRQ-GENX TC1P VI2P10 AD_SDA0 TP4803 AD_SDA1 TP4811 TC1N TA1N TP4810 TA1P TP4805 TB1P DG34 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 *R4860 0 TD1P AD_SCL1 MAIN3.3V D_15V *R4859 0 TP4809 STB5V TP4800 TP4806 *FL4800 J0JAD0000028 1 2 3 4 TP4807 TE1P C4807 16V 0.1u *R4861 0 *FL4801 J0JAD0000028 1 2 3 4 TP4802 TB1N *R4318 47k *R4319 47k *R4324 47k R4317 47k R4320 47k ZA0006 K4CD08000002 ZA0005 K4AZ01D00004 ZA0001 K4AZ01D00004 ZA0002 K4CD08000002 ZA0007 K4CD08000002 ZA0004 K4AZ01D00004 JS1100 JS1124 GenX4 LVDS Out CRNo.4800-4999 CN to ExIIC Lite2 PANEL_STATUS PANEL_SOS LITE2 ExBUS/Etc. (Common) PANEL_SDA (GND) RXD PANEL_STBY_ON GND Rx2+ Rx0+ Rx0- (ALARM) (DISPEN) IIC_SCL2 TXD GND RxCLK+ RxCLK- Rx3- Rx3+ INEXCH Rx1+ Rx1- Rx2- IIC_CONT GND PANEL_SOS GND GND Rx4+ Rx4- (READY) IIC_SDA2 PANEL_STATUS PANEL_SCL GND GND PANEL_MUTE Rx1+ Rx3- Rx4+ Rx3+ RxCLK- Rx4- Rx2- Rx0- RxCLK+ Rx1- Rx0+ Rx2+ (VMUTE/DISPEN) (PANEL_STATUS) (PANEL_SOS) Lite2 LVDS OUT LITE2_SDA3 IIC (GenX4 Loarder/E2PROM) LITE2_SCL1 LITE2_SDA1 LITE2_SCL2 LITE2_SDA2 (GenX4 Loarder/E2PROM) (Lite2 E2PROM) (Lite2 E2PROM) (Device Control) (Device Control) (Device Control) GenX4 (Device Control) Panel_SDA LITE2_SCL0 SRQ GND LITE2_SDA0 STB3.3V IIC_CONT/SRQ Panel_SCL (Panel Dpr.E2PROM) (Device Control) (Device Control) GND (Panel Dpr.E2PROM) STB5V Panel_TXD GenX4_SDA GenX4_SCL Panel_RXD LITE2_SCL3 IIC_CONT GND STB5V TEMP SENSOR CI SD Card Location of Earth Lug TO D-BOARD (D5) FOR FACTORY USED FOR FACTORY USED to (3,7/10) to (6/10) to (3/10) to (1/10) to (1/10) to (3/11) to (7/10) to (3/10) to (3,4,9/10) to (3,6/10) to (3,7/10) SUFFIX SUFFIX UPPER SUFFIX LOWER A(AA) V TXNDG1HLTC DG-BOARD (10/10) ! 88 83 86 89 82 87 90 85 84 TH-42PV700C DG-Board (10 of 10) Schematic Diagram TH-42PV700C DG-Board (10 of 10) Schematic Diagram 87 15.30.D 电路板方框图 TXD_PC RXD_PC PANEL_MAIN_ON ALARM READY RXD_PC IIC_INT TXD_PC RXD_PC SOS8_SS ALARM LED_R REMOCON IIC_CONT TXD_PC VDATA_DET VDATA_DET SOS6_SC1 SOS7_SC2 SOS7_SC2 SOS6_SC1 PCD3 SOS4_PS LED_R LED_G REMOCON LED_G SOS4-PS PCD1 PCD2 ODED1 ODED2 PCD4 CLRD2 READY PANEL_MAIN_ON SOS9_CONF FVSEL LVDSBIT FVSEL SOS9_CONF LVDSBIT OSD_YS OSD_VO OSD_HO OSD_CLKO OSD_B OSD_G OSD_R IIC_CONT INEXCH DRVCLKD0 DRVCLKD3 DRVCLKD1 DRVCLKD2 LED1 LED2 DRVCLKU1 DRVCLKU2 DRVCLKU3 DRVCLKU0 CLRD1 STB_SCL01 STB_SDA01 STB_SCL02 STB_SDA02 OSD_R OSD_G OSD_B OSD_CLKO OSD_YS INEXCH IIC_CONT DRVMUTE X9200 TP9101 TP9100 TP9010 R 10bit Scan Control DATA 16bit G 10bit B 10bit B 10bit R 10bit Sustain Control DATA 7bit G 10bit 14 40 PROCESSOR DRIVER TO C11 TO C21 30 50 49 33 29 TXD1 32 RXD1 IIC_CONT IIC_CONT LVDS INPUT DISCHARGE CONTROL IIC1_SDA 70 IIC2_SCL 69 67 71 Voltage 66 IIC2_SDA 43 2 IC9500 1 FPGA LSI_RST XRST SUB-FIELD PLASMA AI/SUB FIELD PROCESSOR/PEAKS DATA DRIVER IC9003 IC9303 MICOM XIN XOUT X9000 9.216MHz IIC1_SCL Video DATA 59bit(UA00-UC04,DA00-DC13,DB14,DC14) Low ROMDATA04-15, ROMADDRESS00-20 D32 D31 68 1 SOS7_SC2 93 91 90 SOS8_SS 36 READY ALARM 37 DRVMUTE IC9011 IIC_CLK1 IIC_DATA1 23 18 ALARM 19 21 DISPEN READY PANEL_STBY_ON 20 24 RXD TXD 6 D5 RA+ RCLK- 14 TO DG5 RC- 7 15 11 12 RD- 10 3 RB- 1 9 RE-(LSB) 2 RA- RCLK+ RD+ RB+ 4 RC+ STBY5V +5V D25 VDATA_DET 6 PANEL_MAIN_ON 1 +5V 5 2 +15V +15V 11 13 9 TO P25 RXD 13 14 8 6 TXD 7 SDA1 PDB0 4 PSTB 5 IIC_INT 11 PSLCT PBUSY 9 D6 SCL1 12 15 LED_R PDB1 17 16 LED_G st-r IC9900 CONVERTER XRST CTI/TINT WB-ADJ I/P COLOR FORMAT CONVERTER/RGB PROCESSOR CONVERTER CONTRAST FORMAT Differential Signaling RECEIVER FPGA SOS4-PS 92 PANEL_MAIN_ON 100 P_ON/OFF P3V_SCL02 P3V_SDA02 TO SC20 D20 2 12 14 19 SCAN DATA 15 16 1 P5V 48 46 5VDET 53 55 3 SOS6_SC1 SUSTAIN DATA 60 66 3 1 SS_SOS8 P3V_SCL1 P3V_SDA1 P15V P5V STB5V_M NRST DRV_RST DATA DRIVER 16/32M FLASH MEMORY RESET 4 5 VOUT VCC IC9502 RESET P3.3V SS PULSE SCAN OUT SC PULSE 6 UMH,UML,USH,USL,UEH,NUEL(URH) OC1,OC2,CLK,SIU,SID,SCSU,CPH1,CPH2,(LAT),CEL,(CBK)CSL,CSH,CML,CMH,SC_DRV_RST IC9901 DDR SDRAM(128M) Q9302 Q9301 CLK7 12 CLK5 CLK6 14 13 4 CLK9 XT 1 20 XTN IC9200 PCK OCK D P5V CONTROL STBY5V P15V 21 19 IC9007 NCS ASDIO DATA0 DCLK P5V 86 SOS3_3V SOS2_15V 85 87 SOS5_5V Q9054 Q9053 Q9052 Q9051 P5V P15V STB3.3V PROM(FPGA) CLOCK GENE. DIGITAL SIGNAL PROCESSOR PLASMA AI SUB-FIELD PROCESSOR FOR FACTORY USE P5V P5V DRVCLKD0-D3 30bit (DA00-DC09) 32bit ODED1,ODED2,CLRD1,CLRD2,PCD1,PCD2,PCD3,PCD4,LED1,LED2 (LSI58 COMM) TDO,TDI TMS,TCK JTAG DCK HD VD JTAG PD1-Mplus FPCLK FPDAT0 FPDAT1 SFVRST LATCH SFRST R0-R9 G0-G9 VD B0-B9 HD DCK PICTURE OUTPUT LVDS LVDS RECEIVER SYNC PROCESSING WB ADJ DISCHARGE CONTROL FLASH CONTROL FPGA CONTROL CONTROL RESET CONTROL FLASH CLKM PRCKI -IN 17 Q9044 IIC_CLK2 27 26 IIC_DATA2 IIC_CONT/C_SEL 31 IC9001 6 5 32k EEPROM SDA SCL 7 WP 35 EEP_WR_CTL P15V STB5V_M REMOCON 18 15V->2.5V OUT2 G2 13 S1 20 D1 OUT1 17 D2 21 12 D1 D2 VO 23 16 15 LX VB VCC VDD 19 G1 IC9806 S2 DC-DC CONVERTER 24 FB -INC 8 CTL CB P15V P2.5V Q9805 Q9806 7 NCS DATA ASDI DCLK 10 IIC_CONT 1 2 STBY3.3V STB3.3V SDA2 SCL2 VDATA_DET 84 NCS 26 27 ASDIO 28 DATA0 DCLK 29 1 VOUT RESET 3 4 VDD CE 6 STB5V Q9046 STB3.3V 72 RESET Q9050 XRST SOS9_CONF 10 DRVRST PLASMA AI NEW DATA ROMDATA00-03 DQ4-DQ15 A0-A19 DQ0-DQ3 ROMDATA00-03 ROMDATA04-07/ROMADDRESS00-20,-1,CE,OE,WE,BYTE 4bit SOS4_PS 12 XRST 54 LED_R REM_IN 53 34 LED_G Q9010 INEXCH RA ,RB ,RC ,RD ,RE ,RCLK RE+(LSB) STB_SCL02 STB_SDA02 STB_SDA02 STB_SCL02 OSD SC_SOS6_SC1 SOS7_SC2 P3.3V STB_SDA02 STB_SCL02 P3V_SCL1 P3V_SDA1 1 2 5 6 D9811 DCDC_ON Q9809 VB1_5V VCC OUT2-2 G2 25 20 S1 26 D1 -INC1 D1 D2 4 FB1 P15V P3.3V VO1 3 24 Q9807 D2 23 OUT1-1 G1 7 IC9805 S2 DC-DC CONVERTER 15V->1.2V,15V->3.3V LX1 OUT1-2 Q9808 D2 G1 S2 G2 S1 D1 D1 D2 P15V P1.2V DOUTDC21 DOUTDA12 PC1_C1 LE_C1 ODE_C1 PC2_C1 (DA14,DA15-DC15) 47 49 P5V 7 8 9 (DA14,DA15-DC15) FORMAT CONVERTER STB 3.3V/RESET P+3.3V SOS / LED BLINKING : 3TIMES P+5V SOS / LED BLINKING : 5TIMES P+15V SOS / LED BLINKING : 2TIMES P1.2V P2.5V P3.3V OSD_HD OSD_VD 36.6MHz 60MHz 20MHz 84MHz D9802 NCS_FPGA INEXCH P15V_MOTO D9804 STB3.3V_ON 6 SDA SCL 1 3 A1 A0 5 IC9002 DIGITAL TEMPERATURE SENSOR SCL SDA IIC P3V_SCL01 P3V_SDA01 P3V_SCL02 P3V_SDA02 11 13 12 8 10 9 2 1 6 3 4 5 IC9013 IIC SWITCH DRVCLKU0-U3 P2.5V P2.5V P1.2V P3.3V LVDSbit FVSEL K_DONE 5 LVDSBIT 30 FVSEL 23 OSD_CLK 16 OSD_YS 17 OSD_B OSD_G 18 19 OSD_R OSD_VD 20 OSD_HD 21 42 INEXCH 18 22 26 20 SC_DRV_RST +15V P15V_MOTO 30 29 +15V 28 +15V 3.3V->5V LEVEL CONVERTER IC9802,03 P5V P3.3V CLK1N_C1 CLK0P_C1 CLK2P_C1 CLK3N_C1 3 5 42 44 5 CLK3N_C2 CLK2P_C2 11 CLK0P_C2 12 CLK1N_C2 58 56 SC_DRV_RST 50 CLR_C1 14 VCC STB3.3V 16 CTL 11 FB2 VO2 12 8 -INC2 19 LX2 OUT2-1 18 30 OVP 27 CB1 CB2 17 VB 21 FSW 10 OSD_YSI OSD_BI OSD_GI OSD_RI OSD_CLKO (FREE_RUN) P3V_SCL02 P3V_SDA02 SCL SDA P3.3V Control DATA 10bit STB3.3V NCS_FPGA 52 DCDC_ON CE,OE,WE,BYTE DOUTDA0 DOUTDC11 14 54 ODE_C2 PC3_C2 CLR_C2 LE_C2 PC4_C2 (UA00-UC05,DA10-DC13,DB14,DC14) 4bit(DA14,DA15-DC15) 3bit(UA05-UC05) 3bit (UA05-UC15) TH-42PV700C D-Board Block Diagram TH-42PV700C D-Board Block Diagram TMPA4134AQ only IC9804 VOUT 1 5 VDD P3.3V P2.5V 3.3V 2.5V TNPA4134BQ only 88 15.31.D 电路板 (1/6) 线路图 TERM SIDE + + G G G G G G + FP_CSL SC_CSL SC_DRV_RST SC_SID SC_SCSU SC_CLK FP_SCSU FP_CMH SC_CBK FP_CBK SC_CPH1 SC_OC2 SC_SIU FP_CSH FP_OC2 SC_CML SC_CSH SC_CMH SC_CSH FP_CML SC_CMH SC_CLK FP_SC_DRV_RST SC_SIU SC_OC2 FP_SID SC_CML SC_SID SC_CBK FP_CPH1 SC_CSL SC_DRV_RST SC_CPH1 FP_SIU SC_SCSU P_ON/OFF DCDC_ON PANEL_MAIN_ON SOS4_PS SC_OC1 SC_CPH2 SC_OC1 SC_CPH2 FP_OC1 FP_CPH2 VDATA_DET FP_CLK SC_LAT SC_CEL FP_LAT FP_CEL SC_LAT SC_CEL SOS6_SC1 SOS7_SC2 P15V D20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 C9883 100p 50V C9868 10u 25V R9893 56k C0DBAYY00273 IC9806 1 GND 2 REFIN 3 VREF 4 CS 5 COVP 6 CUVP 7 PGOOD 8 CTL 9 LSAT 10 ILIM 11 +INC 12 -INC 13 FSW 14 PGND 15 OUT-2 16 VB 17 VCC 18 VBIN 19 LX 20 OUT-1 21 CB 22 RT 23 VO 24 FB C9029 10V 10u C9837 10u 10V C9879 8200p 25V R9888 11k C9823 10u 25V R9889 18.2k C9886 0.1u 25V C9872 10u 25V C9862 0.1u 25V D9812 MA22D3900L D9814 B0JCGD000002 R9879 13k C9873 68u 4V C9865 68u 4V R9895 100k VB1_5V STB5V_M R9883 0 C9882 8200p 25V R9868 100k P5V R9869 10k P15V D25 1 2 3 4 5 6 7 8 9 10 11 12 13 PA9900 K5H5022A0023 R9115 100 C9884 1000p 50V P15V_MOTO R9896 18.2k D9808 B0JCCE000008 C9840 25V 0.01u P3.3V P5V VB1_5V R9886 56k P15V_MOTO C9877 68p 50V Q9809 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 D9816 MA22D3900L Q9808 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 D9813 B0JCGD000002 R9892 100k C9864 0.1u 25V R9890 47.5k L9800 G1C2R2Z00007 C0JBAZ002692 IC9803 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C9845 16V 0.1u Q9807 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 C9881 0.01u 25V C9869 10u 25V C9859 25V 0.01u C0DBAYY00274 IC9805 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP C9888 360p 50V R9847 EXB2HV222JV C9880 8200p 25V R9849 EXB2HV470JV C9832 10u 10V C9871 10u 25V C9841 16V 0.1u F1J1E104A148 FL9806 R9848 EXB2HV470JV P15V C9858 10u 25V C9887 0.1u 25V P1.2V R9872 0 L9801 G1C1R5Z00006 C9844 25V 0.01u P15V C9878 0.01u 25V R9873 0 R9850 47k R9894 11k F1J1E104A148 FL9805 C9861 0.1u 25V R9891 12.7k C9028 10V 10u C9860 4.7u 6.3V F1J1E104A148 FL9803 R9871 10k C9874 68p 50V L9802 G1C2R2Z00007 P5V R9897 47.5k C9866 68u 4V P15V VB1_5V R9880 0 R9881 0 R9846 EXB2HV222JV C9867 10u 25V PA9800 K5H4022A0023 C9885 1000p 50V D9815 B0JCGD000002 R9884 0 Q9806 B1ABCF000138 R9887 56k C9842 16V 0.1u D9807 B0JCCE000008 D9817 MA22D3900L C0JBAZ002692 IC9802 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc P2.5V R9882 0 C9870 10u 25V R9870 10k R9878 11k P3.3V C9863 4.7u 6.3V C9846 16V 0.1u P5V Q9805 B1ABCF000138 STBY5V GND GND +15V +15V GND GND +5V +5V GND VDATA_DET PANEL_MAIN_ON SOS4_PS P5V OC1 CPH2 GND GND GND GND GND GND GND CLK SIU SID SCSU OC2 CPH1 LAT SOS6_SC1 SOS7_SC2 CEL CBK SC_DRV_RST CSL CSH CML CMH NC +15V +15V +15V C B A E 5 6 7 D 1 2 3 4 F 8 9 LEVEL CONVERTER LEVEL CONVERTER 15V 3.3V 15V 1.2V DC-DC CONVERTER 15V 5.0V DC-DC CONVERTER 15V 2.5V ! D-BOARD TNPA4134AQ/TNPA4134BQ (1/6) TO P-BOARD (P25) TO SC-BOARD (SC20) 1 2 TH-42PV700C D-Board (1 of 6) Schematic Diagram TH-42PV700C D-Board (1 of 6) Schematic Diagram C9876 Only TNPA4134BQ 10V 10u R9885 P3.3V C0DBGFD00011 IC9804 C9875 10V 10u P2.5V_ASIC 5 4 0 VOUT VSS NC VIN ON/OFF 1 2 3 89 15.32.D 电路板 (2/6) 线路图 18 16 14 12 10 8 6 4 2 20 21 19 17 15 13 11 9 7 5 3 1 ASDIO DCLK EEP_WR_CTL STB_SCL02 STB_SDA02 RE+ RE- DATA0 NCS NRST DRVRST LVDSBIT P_ON/OFF PANEL_MAIN_ON LED_R LED_G TXD_PC ALARM READY REM_IN STB_SCL01 STB_SDA01 SOS7_SC2 SOS6_SC1 STB_SCL02 STB_SDA02 FVSEL DCLK DATA0 ASDIO XRST XRST IIC_CONT IIC_CONT STBY3.3V_ON DCDC_ON IIC_CONT STBY3.3V_ON RXD_PC AR_IIC_CONT AR_IIC_CONT AR_IIC_CONT AR_RXD_PC AR_TXD_PC AR_STB_SDA02 AR_STB_SCL02 PSTB PBUSY PDB0 PSLCT PDB1 LED_R LED_G REM_IN AR_RXD_PC RXD_PC TXD_PC STB_SCL02 AR_STB_SCL02 STB_SDA02 AR_STB_SDA02 P3V_SDA1 P3V_SCL1 ALARM READY INEXCH OSD_R OSD_G OSD_B OSD_YS OSD_CLKO OSD_HO OSD_VO AR_TXD_PC AR_IIC_CONT STB_SCL01 STB_SDA01 STB_SCL02 STB_SDA02 XRST P3V_SCL02 P3V_SDA02 DRVMUTE P3V_SDA02 VDATA_DET P3V_SCL1 P3V_SDA1 RD+ RD- RCLK+ RCLK- RC+ RC- RB+ RB- RA+ RA- P3V_SDA1 PANEL_STBY_ON P3V_SCL1 SOS8_SS SOS4_PS P3V_SCL02 AR_RXD_PC AR_TXD_PC AR_STB_SCL02 AR_STB_SDA02 C_SEL INEXCH NCS EEP_WR_CTL SOS9_CONF NCS_FPGA C9050 16V 0.1u STB3.3V R9225 2.7k R9062 100 R9144 100 STB5V_M R9099 10k IC9002 C1ZBZ0003577 1 SCL 2 GND 3 A1 4 VDD 5 A0 6 SDA R9104 10k C9048 16V 0.1u R9217 10k C9037 0.01u 25V R9165 2.2k C9058 10V 10u R9182 1k C9051 16V 0.1u MN103SC9GPH3 IC9003 1 P41_TM1IO 2 P42_TM2IO 3 P43_TM3IO 4 P44_TM4IO_SYSCLK 5 P00 6 P01 7 P02 8 P03_SBT0B 9 P04_SBO0B 10 P51_IRQ2 11 P52_IRQ3 12 P53_IRQ4 13 P54_IRQ5 14 PA7_VCLKOUT 15 PA6_HOUT 16 PA5_YSOUT 17 PA4_B00 18 PA3_G00 19 PA2_R00 20 PA1_VSYNC_IRQ1 21 PA0_HSYNC 22 VSS 23 OSDXI 24 IVDD 25 VDD 26 P60_SBO0A 27 P61_SBT0A 28 P62_SBI0A 29 P05_IRQ6 30 P06_IRQ7 31 P07_IRQ8 32 P70_SDA0 33 P71_SCL0 34 P50_RMIN_IRQ0 35 P20 36 P21 37 P22 38 P23 39 IVDD 40 VSS 41 P10 42 P11 43 P12 44 P13 45 P14 46 P15 47 P16 48 P17 49 P72_SDA1 50 P73_SCL1 51 P65_SBT2 52 P66_SBI2 53 P30 54 P31 55 P32 56 P33 57 P34 58 P35 59 P36 60 P37 61 VPPEX_(N.C.) 62 IVDD 63 VDD 64 RONA 65 VSS 66 OSCXO 67 OSCXI 68 IVDD 69 P64_SBI1 70 P63_SBT1 71 NBOOT_(N.C.) 72 NRST 73 NTEST 74 SCLOCK_(UND) 75 SDATA_(UND) 76 ENTRG0_(UND) 77 ENTRG1_(UND) 78 TRCCLK_(UND) 79 TRCST_(UND) 80 TRCD0_(UND) 81 TRCD1_(UND) 82 TRCD2_(UND) 83 TRCD3_(UND) 84 P80_ADIN0 85 P81_ADIN1 86 P82_ADIN2 87 P83_ADIN3 88 IVDD 89 VSS 90 P84_ADIN4 91 P85_ADIN5 92 P86_ADIN6 93 P87_ADIN7 94 P90_ADIN8 95 P91_ADIN9 96 P92_ADIN10 97 P93_ADIN11 98 P74_SDA2 99 P75_SCL2 100 P40_TM0IO R9215 12k R9166 10k R9200 10 D9018 MAZ303300L R9187 5.6k STB3.3V R9158 10k C9843 16V 0.1u R9828 100k R9154 5.6k X9000 H2D100500004 STB3.3V R9160 0 C9033 16V 0.1u IC9007 C1ZB0003631 only TNPA4134AQ 1 nCS 2 DATA 3 VCC 4 GND 5 ASDI 6 DCLK 7 VCC 8 VCC STB5V TP9000 R9122 10k R9240 0 R9119 EXB38V470JV R9194 0 D9110 B0JCGD000002 C9838 16V 0.1u C9825 50V 100p R9221 10k R9206 1k R9134 33k C9056 16V 0.1u R9189 10k P3.3V C9057 16V 0.1u D9020 B0JCCE000008 Q9053 B1ABCF000138 C9045 16V 0.1u R9840 22 R9139 0 R9163 0 R9825 100 D9802 B0JCCE000008 R9107 3.3k R9123 10k C9039 10V 10u R9142 100 R9113 10 R9184 1k R9174 10k C9034 16V 0.1u R9190 10k R9065 100 R9237 10k STB3.3V R9105 10k Q9010 B1ABCF000138 Q9046 B1ABCF000138 R9164 2.2k C9036 10V 10u R9159 10k R9131 4.7k R9101 10k P5V R9845 10k R9188 5.6k R9102 10k C9063 16V 0.1u C9061 16V 0.1u STB3.3V R9156 10k D6 R9223 2.7k P3.3V R9218 10k R9186 22 Q9051 B1ABCF000138 C9040 16V 0.1u R9826 100 R9116 100 R9110 100 STB3.3V R9219 10k Q9054 B1ABCF000138 R9183 1k R9874 0 R9193 10k P3.3V STB3.3V R9177 22k R9181 1k R9133 4.7k R9854 100 R9063 100 R9150 22 IC9011 C0EBF0000431 1 RESET 2 Cd 3 VOUT 4 VDD 5 GND 6 CE R9839 EXB38V101JV P3.3V R9561 EXB38V222JV C9052 16V 0.1u R9841 0 C9046 16V 0.1u R9132 4.7k C9049 16V 0.1u R9140 0 R9129 68k R9161 0 P15V_MOTO STB3.3V D9017 MAZ303300L R9066 100 R9109 10k R9824 100 C9035 10V 10u R9220 10k R9170 39k R9185 22 R9167 100 R9196 10k C9053 16V 0.1u R9203 1k R9827 100 D5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Q9050 B1ABCF000138 R9108 10k P15V R9207 1k R9126 10k Q9052 B1ABCF000138 R9149 4.7k R9145 100 STB5V_M R9201 10 STB3.3V R9173 10k STB3.3V R9151 22 R9064 100 R9155 5.6k C9055 16V 0.1u IC9001 TVRP436 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 Vcc R9127 68k R9135 4.7k R9143 100 D9811 B0JCCE000008 D9019 MAZ303300L R9112 10k D9804 B0JCCE000008 C9062 4.7u 6.3V R9859 EXB38V101JV R9172 39k Q9044 B1ABCF000138 R9222 10k STB3.3V R9199 2.7k IC9013 C0JBAZ002060 1 1OE 2 1A 3 1B 4 2OE 5 2A 6 2B 7 GND 8 3B 9 3A 10 3OE 11 4B 12 4A 13 4OE 14 VCC R9205 4.7k R9120 100 R9121 100k R9067 100 STB3.3V R9171 39k R9141 100 C9047 16V 0.1u C9044 6.3V 4.7u RB- RB+ RC- RC+ RCLK- GND RCLK+ GND GND GND RE+(LSB) RD+ GND IIC_CLK2 IIC_CONT/C_SEL RE-(LSB) RXD TXD PANEL_STBY_ON ALARM IIC_DATA2 GND IIC_CLK1 IIC_DATA1 READY DISPEN RA- RA+ INEXCH STB3.3V ON/OFF GND P15V PBUSY STBY5V STBY3.3V RXD IIC_CONT LED_G GND SDA2 SCL2 PSTB PSLCT PDB1 SCL1 SDA1 LED_R PDB0 IIC_INT TXD REMOCON RD- GND 12 13 14 10 11 18 17 15 16 MICON PROM(FPGA) SWITCH EEPROM STB 3.3V RESET FOR FACTORY USE 1 2 11 12 13 14 15 TEMPERATURE DIGITAL SENSOR TO A-BOARD (A5) TH-42PV700C D-Board (2 of 6) Schematic Diagram TH-42PV700C D-Board (2 of 6) Schematic Diagram ! D-BOARD TNPA4134AQ/TNPA4134BQ (2/6) 90 15.33.D 电路板 (3/6) 线路图 G G SOS9_CONF AA_BYTE L8R_UA09 L8R_UB06 L8R_UC11 L8R_UA08 L8R_UA12 FVSEL FP_CSL FP_CSH L8R_DA15 FPDAT1 FP_SID L8R_UC13 L8R_DA14 FP_UMH L8R_UA06 FP_CPH1 DD_CLRD1 L8R_UA10 FP_SC_DRV_RST L8R_UC12 L8R_UA07 L8R_UB12 FP_UML NRST L8R_UC08 L8R_UA11 FP_CEL FP_NUEL L8R_UC05 L8R_UB11 FP_USL DD_ODED1 L8R_DB15 SFRST FPCLK FP_USH FP_SIU L8R_UB07 LVDSBIT L8R_UB08 FPDAT0 FP_OC1 DD_PCD2 L8R_UC07 L8R_UB09 SFVRST LATCH FP_OC2 DD_PCD1 L8R_UB10 L8R_UB05 L8R_DC15 FP_CML FP_SCSU FP_CMH L8R_UC06 L8R_UC09 DD_LED1 FP_CLK PSLCT PBUSY NCS DATA0 ENHMASK ASDIO INEXCH PSTB PDB1 PDB0 DRVRST L8_B9 L8_B7 L8_B6 L8_B5 L8_B4 L8_B3 L8_B2 L8_G7 L8_G6 L8_G5 L8_G4 L8_G3 L8_G2 L8_G1 L8_G0 L8_R7 L8_R6 L8_R5 L8_R4 L8_R3 L8_R2 L8_R1 L8_R0 DRVMUTE L8_DCK L8R_UC10 P3V_SCL02 P3V_SDA02 DD_ODED2 AA_XOE AA_XWE DCLK FP_LAT OSD_R OSD_G OSD_B OSD_YS L8_VIN L8_HIN OSD_VO OSD_HO OSD_CLKO NCS_FPGA L8_R8 L8_R9 L8_G8 L8_G9 L8_B0 L8_B1 L8_B8 TDO_TO_FPGA DD_PCD3 DD_PCD4 FP_UEH FP_URH FP_CBK FP_CPH2 RA+ RA- RB+ RB- RCLK+ RCLK- RD+ RD- RE+ RE- DD_LED2 DD_CLRD2 RC+ RC- DCLK DATA0 ASDIO TDI_TO_68 TRST TMS TCK AA_XCE IC9500 J13 MSEL0 IC9500 P4 IO IC9500 M8 GND IC9500 F9 IO IC9500 G7 IO IC9500 M2 IO R9545 300k IC9500 F15 IO P3.3V R9553 0 IC9500 T7 IO IC9500 K13 IO IC9500 J16 CLK7 IC9500 T3 IO IC9500 L13 CONF_DONE C9564 16V 0.1u IC9500 H8 GND IC9500 K12 MSEL1 C9516 16V0.1u IC9500 C6 IO IC9500 R10 IO IC9500 L9 IO IC9500 D15 IO IC9500 K3 VCCIO1 IC9500 B3 IO IC9500 K16 IO IC9500 K7 IO IC9500 J1 CLK3 IC9500 T9 IO IC9500 E13 IO R9523 10k IC9500 C7 VCCIO2 IC9500 J6 IO D9 1 2 3 4 5 6 7 R9541 10k IC9500 D16 IO IC9500 J11 IO IC9500 B5 IO R9549 10k C9528 R9505 0 16V 0.1u IC9500 R13 IO IC9500 E1 IO IC9500 F8 IO IC9500 P2 IO P3.3V IC9500 C3 IO IC9500 K8 VCCINT IC9500 K2 IO C9518 16V 0.1u IC9500 R5 IO IC9500 C12 IO IC9500 M13 nSTATUS R9548 10k R9402 0 R9544 10k IC9500 K6 IO R9565 EXB2HV470JV IC9500 R16 VCCIO3 IC9500 P14 IO IC9500 A2 VCCIO2 IC9500 C5 IO C9523 16V 0.1u IC9500 C15 IO R9564 EXB2HV470JV IC9500 D13 IO IC9500 N4 IO IC9500 G11 IO R9554 0 P3.3V C9560 16V 0.1u IC9500 A6 IO L9505 J0JHC0000078 C9527 16V 0.1u IC9500 H5 TDI IC9500 D4 IO IC9500 N12 IO IC9500 N5 GND_PLL1 IC9500 F3 IO IC9500 A13 IO IC9500 P13 IO IC9500 H3 GND IC9500 T13 IO IC9500 M11 IO R9526 TNPA4134AQ ONLY 0 IC9500 B14 IO IC9500 T6 IO IC9500 N2 IO IC9500 F13 IO IC9500 J15 CLK6 IC9500 F11 VCCD_PLL2 IC9500 D8 IO C9562 16V 0.1u IC9500 M1 IO IC9500 P5 IO IC9500 R8 IO IC9500 H15 CLK5 IC9500 R1 VCCIO1 IC9500 G14 VCCIO3 IC9500 B9 IO R9558 0 IC9500 L7 IO IC9500 H11 IO IC9500 P15 IO IC9500 P12 IO IC9500 A7 IO IC9500 K11 IO IC9500 H16 CLK4 IC9500 G4 IO C9563 16V 0.1u IC9500 B7 IO IC9500 D10 IO IC9500 E3 IO IC9500 B12 IO P2.5V_ASIC IC9500 M4 IO IC9500 H6 IO R9569 0 IC9500 A15 VCCIO2 IC9500 D6 IO IC9500 M10 VCCIO4 IC9500 L1 IO IC9500 G6 IO IC9500 A16 GND R9536 47 *R9539 10k D0GB103JA057 IC9500 D11 IO IC9500 N14 IO C9517 16V 0.1u C9524 16V 0.1u IC9500 F4 IO IC9500 E10 VCCIO2 IC9500 B1 VCCIO1 IC9500 L4 IO R9550 10k IC9500 H9 GND IC9500 F7 IO IC9500 L14 IO IC9500 G3 VCCIO1 IC9500 K15 IO IC9500 C8 GND IC9500 T11 IO IC9500 N15 IO IC9500 F6 IO R9956 10k IC9500 N7 IO *R9538 10k IC9500 J3 GND IC9500 D9 IO IC9500 C2 IO IC9500 J12 IO IC9500 M7 VCCIO4 IC9500 B8 IO IC9500 C4 IO IC9500 R11 IO IC9500 H2 CLK0 IC9500 J4 IO IC9500 L11 IO C9559 16V 0.1u R9530 10k IC9500 E15 IO C9519 16V 0.1u IC9500 N11 IO R9566 EXB2HV470JV IC9500 R2 GND R9531 47 IC9500 J2 CLK2 P3.3V IC9500 J14 GND IC9500 A9 IO C9522 16V 0.1u IC9500 G13 IO IC9500 R4 IO IC9500 L2 IO IC9500 A4 IO IC9500 P10 VCCIO4 TP9014 R9567 10k IC9500 C1 IO IC9500 M6 GNDA_PLL1 IC9500 T10 IO IC9500 N10 IO IC9500 T1 GND IC9500 H10 VCCINT R9552 10k R9525 10k R9379 0 IC9500 A1 GND IC9500 H12 IO FL9504 F1J1E104A148 1 2 3 IC9500 H7 VCCINT IC9500 J7 VCCINT IC9500 M5 VCCA_PLL1 IC9500 L16 IO R9863 10k IC9500 E14 IO IC9500 G15 IO IC9500 B11 IO IC9500 F2 TCK R9070 47 IC9500 B13 IO IC9500 G8 GND R9510 0 IC9500 G1 TMS IC9500 K4 IO IC9500 E6 IO IC9500 M16 IO IC9500 K9 GND IC9500 T14 IO IC9500 P11 IO IC9500 E8 GND R9532 47 IC9500 P1 IO IC9500 H14 GND IC9500 A3 IO C9521 16V 0.1u P1.2V IC9500 F14 IO TP9011 P3.3V IC9500 T2 VCCIO4 R9562 47 IC9500 J9 GND R9543 10k IC9500 R9 IO IC9500 L5 GND_PLL1 IC9500 L6 VCCD_PLL1 IC9500 T8 IO IC9500 D12 GND_PLL2 IC9500 P6 IO IC9500 N3 IO IC9500 G12 IO IC9500 A14 IO IC9500 D2 IO IC9500 E5 IO IC9500 J5 nCONFIG IC9500 R6 IO IC9500 T16 GND IC9500 N6 IO IC9500 C11 IO P3.3V IC9500 J10 VCCINT IC9500 G9 VCCINT IC9500 K10 IO R9563 EXB2HV470JV C9526 10V 10u IC9500 C9 GND IC9500 L15 IO IC9500 N8 IO IC9500 N13 IO IC9500 R12 IO IC9500 G10 IO IC9500 M3 IO IC9500 C13 IO IC9500 P7 VCCIO4 R9535 47 IC9500 D5 IO IC9500 E12 VCCA_PLL2 L9502 J0JHC0000078(TNPA4134AQ) IC9500 B15 GND IC9500 M14 IO C9520 16V 0.1u IC9500 E16 IO IC9500 E9 GND R9534 EXB38V470JV TP9015 IC9500 L3 IO IC9500 A10 IO IC9500 D3 IO IC9500 F1 DATA0 IC9500 N1 IO IC9500 L12 IO IC9500 M12 IO IC9500 P9 GND IC9500 E11 GNDA_PLL2 IC9500 F12 GND_PLL2 IC9500 G2 TDO R9507 0 IC9500 K1 IO IC9500 D7 IO R9506 22 R9861 10k IC9500 L8 IO TP9013 IC9500 D1 IO IC9500 N9 IO IC9500 M15 IO IC9500 B4 IO IC9500 L10 IO IC9500 N16 IO IC9500 A8 IO R9862 10k IC9500 F10 IO IC9500 A12 IO IC9500 J8 GND IC9500 B16 VCCIO3 IC9500 A5 IO IC9500 E4 IO IC9500 H4 DCLK IC9500 R14 IO IC9500 B6 IO IC9500 E2 IO P3.3V IC9500 C14 IO IC9500 B10 IO C9531 10V 10u IC9500 H13 IO IC9500 R7 IO IC9500 F5 IO IC9500 T4 IO IC9500 C10 VCCIO2 IC9500 K14 VCCIO3 TP9012 IC9500 D14 IO IC9500 R15 GND R9961 10k IC9500 G5 nCE IC9500 P3 IO R9533 47 IC9500 T12 IO C9561 16V 0.1u IC9500 G16 IO IC9500 E7 VCCIO2 IC9500 T5 IO IC9500 R3 IO C9525 16V 0.1u IC9500 P8 GND TP9016 K1KA07A00292 only TNPA4134AQ R9557 0 IC9500 A11 IO IC9500 T15 VCCIO4 IC9500 M9 GND IC9500 K5 IO IC9500 C16 IO L9501 J0JHC0000078(TNPA4134AQ) ERJ3GEY0R00V(TNPA4134BQ) ERJ3GEY0R00V(TNPA4134BQ) IC9500 B2 GND IC9500 F16 IO IC9500 P16 IO IC9500 H1 CLK1 L9504 J0JHC0000078 only TNPA4134AQ /ROMADRS[19] M_GOUT9 M_GOUT5 M_BOUT0 NRST CLK M_ROUT9 FPCLK PCD2 DRVRST M_ROUT7 CEL /ROMADRS[03] ODED1 FPDATA0 M_BOUT1 /ROMADRS[02] M_GOUT4 /ROMADRS[11] DRVMUTE /ROMADRS[07] /ROMADRS[04] SC_DRV_RST FPDATA1 OSD_CLKO CLRD1 /ROMADRS[18] /ROM_BYTE M_GOUT3 /ROMADRS[10] SFRST SCSU OSD_GI /ROMADRS[08] LATCH MODEL[1] /ROMDATA[06] M_ROUT3 CPH1 /ROMADRS[20] OC2 MODEL[0] CBK M_ROUT6 /ROMADRS[17] SDA LAT M_GOUT1 CLK_INPUT OSD OC1 SCL /ROMDATA[07] OTHER CSH NUEL RESET USL SIU Flash_Control M_ROUT2 LSI58 CLKM_IN M_ROUT1 M_ROUT5 SFVRST /ROMDATA[01] /ROMADRS[16] /ROMDATA[05] LVDS_INPUT /ROMADRS[13] /ROMDATA[00] /ROMADRS[05] M_GOUT6 DATA_DRIVER /ROMDATA[04] /ROM_OE PICTURE_OUTPUT /ROMDATA[03] /ROM_CE NC IIC /ROMDATA[02] /ROMADRS[00] CONTROL CML SS_PULSE UML CMH UMH SC_PULSE M_ROUT4 K_DONE GND LVDSbit M_ROUT8 M_ROUT0 M_GOUT2 FVSEL M_BOUT3 M_BOUT4 VCCINT M_GOUT8 VCCI /ROMADRS[01] M_BOUT5 JTAG OSD_YSI /ROMADRS[09] M_BOUT6 OSD_BI M_GOUT0 M_DCKO /ROMADRS[14] M_HDO M_BOUT7 OSD_RI /ROM_WE M_VDO M_BOUT8 M_GOUT7 M_BOUT9 USH SID UEL LED1 CSL PCD1 /ROMADRS[06] M_BOUT2 /ROMADRS[12] MASK p_db1 p_db0 p_stb p_slct p_busy TP_CLK FREE RUN CLK XRST /ROMADRS[-1] /ROMADRS[15] MODEL2 MODEL1 MODEL0 RSV0 L L L SD L L H 37HD L H L 42HD L H H 58HD H L L 50HD H L H RSV1 H H L 42WH H H H ODED2 OSD_HI MICON nCS_FPGA SOUT SIN SCLK TRST TDO GND TDI TMS TCK PCD3 PCD4 URH CPH2 RC-[inv->RC+] RB- RB+ RC+[inv->RC-] RCLK- RCLK+ RE+(LSB) RD+[inv->RD-] RA- RA+ RD-[inv->RD+] RE-(LSB) MODEL[2] LED2 CLRD2 TEST PRCKI P3.3V TRST 27 24 23 25 26 20 19 22 21 IC9500 FPGA C1ZBZ0003575(TNPA4134AQ) C1ZBZ0003711(TNPA4134BQ) ! D-BOARD (3/6) TNPA4134AQ TNPA4134BQ 11 12 14 15 13 21 22 23 24 25 26 TH-42PV700C D-Board (3 of 6) Schematic Diagram TH-42PV700C D-Board (3 of 6) Schematic Diagram only TNPA4134AQ only TNPA4134AQ ERJ6GEY0R00V C9566 16V 0.1u C9565 16V 0.1u Only TNPA4134BQ Only TNPA4134BQ 91 15.34.D 电路板 (4/6) 线路图 DD_PCD1 USH_C2 UML_C2 UEH_C2 USL_C2 DD_LED1 DD_PCD2 NUEL_C2 DD_ODED1 UMH_C2 L8R_UB10 L8R_UB08 L8R_UA08 L8R_UC07 L8R_UC09 L8R_UB05 L8R_UC10 L8R_UB11 L8R_UC12 L8R_UC13 L8R_UA13 L8R_DC15 L8R_UA14 L8R_UA12 L8R_UB13 L8R_UA06 L8R_UB15 L8R_UB06 L8R_UA07 AA_XCE L8R_UC06 L8R_UB07 L8R_UC14 L8R_UC15 L8R_DA14 L8R_UB12 L8R_UA15 L8R_UA09 L8R_UB14 L8R_UA10 L8R_UA05 L8R_UC08 L8R_UB09 L8R_UC11 L8R_UC05 L8R_DB15 L8R_DA15 AA_XWE AA_XOE AA_BYTE D-LED1 D-PCD1 D-PCD2 D-ODED1 L8_PCK L8_OCK DD_CLRD1 DD_LED2 D-CLRD1 D-LED2 DD_PCD3 DD_PCD4 D-PCD4 D-PCD3 FP_UMH FP_USL FP_USH FP_UML FP_UEH FP_URH FP_NUEL URH_C2 DD_ODED2 DD_CLRD2 D-CLRD2 D-ODED2 L8R_UA11 R9403 EXB2HV470JV X9200 H0J200500038 L9500 G1C150KA0038 C C R9384 4.7k R9516 10k R9518 0 C1ZBZ0003600 IC9200 X1 1 2 S0 3 S1 4 CLK9 5 VDD 6 GND 7 CLK1 8 GND 9 CLK2 10 GND 11 GND 12 CLK7 13 CLK6 14 CLK5 15 GND 16 VDD 17 S2 18 STBY 19 VDD 20 X2 C9500 16V 0.1u R9349 EXB2HV470JV C9469 16V 0.1u R9363 EXB2HV470JV R9513 47 C9508 16V 0.1u C9512 16V 0.1u C9510 50V 12p R9502 10k D0GB103JA057 D0GB103JA057 C9505 16V 0.1u R9503 47 TVRP437 IC9303 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 P3.3V R9394 0 R9500 10k R9400 4.7k C9509 50V 12p P3.3V C9511 10V 10u IC9502 C0EBE0000066 1 NC 2 SUB 3 GND 5 Vcc 4 Vout R9520 47 R9385 4.7k R9512 47 P3.3V CPG 36.6MHz 20SSMHz 60SSMHz 84MHz 39.5MHz 20MHz 28 33 36 32 31 30 29 34 35 CPG PD1M_ROM RESET H SD 37HD 42HD 50HD S2 S1 S0 L H L H H L H L H L H 25 26 22 23 24 21 31 32 33 34 35 36 TH-42PV700C D-Board (4 of 6) Schematic Diagram TH-42PV700C D-Board (4 of 6) Schematic Diagram ! D-BOARD TNPA4134AQ/TNPA4134BQ (4/6) 92 15.35.D 电路板 (5/6) 线路图 TERM SIDE G G G G G G G G G G G G G G TERM SIDE L8R_MONOUT1 L8_G0 L8_G1 L8_G2 L8_G3 L8_G4 L8_G5 L8_G6 L8_G7 L8_G8 L8_G9 L8_B0 L8_B1 L8_B2 L8_B3 L8_B4 L8_B5 L8_B6 L8_B7 L8_B8 L8_B9 L8_R0 L8_R1 L8_R2 L8_R3 L8_R4 L8_R5 L8_R6 L8_R7 L8_R8 L8_R9 L8R_UA15 L8R_UA09 L8R_UA11 L8R_UA12 L8R_UA10 L8R_UA08 L8R_UA14 L8R_UA13 L8R_UA05 L8R_UA06 L8R_UA07 L8R_DA03 L8R_DA11 L8R_DA15 L8R_DA12 L8R_DA06 L8R_DA02 L8R_DA13 L8R_DA07 L8R_DA04 L8R_DA08 L8R_DA09 L8R_DA00 L8R_DA01 L8R_DA14 L8R_DA05 L8R_DA10 L8R_UB12 L8R_UB14 L8R_UB15 L8R_UB10 L8R_UB07 L8R_UB13 L8R_UB11 L8R_UB05 L8R_UB09 L8R_UB08 L8R_UB06 L8R_DB02 L8R_DB12 L8R_DB04 L8R_DB07 AA_XCE L8R_DB08 L8R_DB01 L8R_DB15 L8R_DB13 L8R_DB09 L8R_DB05 L8R_DB10 L8R_DB00 L8R_DB14 L8R_DB03 L8R_DB06 L8R_DB11 L8R_UC14 L8R_DC01 L8R_UC05 L8R_UC08 L8R_UC06 L8R_UC11 L8R_DC05 L8R_DC00 L8R_UC12 L8R_DC09 L8R_UC15 L8R_UC07 L8R_DC06 L8R_DC10 L8R_UC09 L8R_UC10 L8R_UC13 L8R_DC11 L8R_DC13 L8R_DC03 L8R_DC07 L8R_DC14 L8R_DC12 L8R_DC02 L8R_DC04 L8R_DC08 L8R_DC15 L8R_MONOUT1 FPDAT1 FPCLK FPDAT0 SFRST SFVRST LATCH L8R_DRVCLKD0 L8R_DRVCLKD3 L8R_DRVCLKD2 L8R_DRVCLKD1 L8R_DB09 L8R_DC04 L8R_UB03 L8R_UA04 L8R_DA04 L8R_DA08 L8R_DB10 L8R_UC03 L8R_DC07 L8R_DC09 L8R_DA07 L8R_DA10 L8R_DA03 L8R_UA02 L8R_DB03 L8R_UA03 L8R_DA09 L8R_UC05 L8R_DC11 L8R_DA11 L8R_DC10 L8R_UB02 L8R_DB07 L8R_UB04 L8R_DB08 L8R_UA05 L8R_DB11 L8R_UC04 L8R_UC02 L8R_DC08 L8R_UB05 L8R_DC05 L8R_DB04 L8R_UA03 L8R_UA02 L8R_UA00 L8R_UA01 L8R_UA04 L8R_UB00 L8R_UB01 L8R_UB02 L8R_UB03 L8R_UB04 L8R_UC04 L8R_UC03 L8R_UC02 L8R_UC00 L8R_UC01 TCK TMS TDI_TO_68 TDO_TO_FPGA XRST P3V_SDA02 P3V_SCL02 L8R_DQ9 L8R_TEST0 L8R_OCKOUT L8R_MONOUT0 L8R_DQ23 L8R_A6 L8R_MONOUT2 L8R_A5 L8R_A4 L8R_MONOUT2 L8R_DQ13 L8R_DQ24 L8R_BA0 L8R_DQS2 L8R_MUTE L8R_MONOUT0 L8R_BA1 L8R_DQ4 L8R_OCKOUT L8R_TCKSEL2 L8R_DQ2 L8R_RAS L8R_DQ18 L8R_A1 L8R_A10 L8R_A0 L8R_DQ31 L8R_TCKSEL1 L8R_DQ8 L8R_A3 L8R_DQ14 L8R_DQS3 L8R_WE L8R_DQ3 L8R_DQ10 L8R_DQ26 L8R_DQ1 L8R_SDCKE L8R_DQ21 L8R_SDCLKO L8R_DQ12 L8R_DQ28 L8R_DQ30 L8R_DQ6 L8R_A9 L8R_DQS1 L8R_TCKSEL0 L8R_DQ22 L8R_TIIC L8R_A7 L8R_DQ17 L8R_NSDCLKO L8R_DQ5 L8R_MUTE L8R_DQ15 L8R_SDIV1 L8R_DQ11 L8R_DQ25 L8R_DQ29 L8R_TIIC L8R_A8 L8_OCK L8R_DQ27 L8R_A11 L8R_SDIV0 L8R_TEST1 L8_PCK L8R_CS L8R_TILD L8R_DQ20 L8R_DQS0 L8R_DQ19 L8R_TILD L8R_DQ16 L8R_A2 L8R_K_TEST L8R_TCKSEL2 L8R_CAS L8R_K_TEST L8R_DQ0 L8R_DQ7 L8R_TCKSEL1 L8R_TCKSEL0 L8R_TEST0 L8R_TEST1 L8R_DRVCLKU0 L8R_DRVCLKU1 L8R_DRVCLKU2 L8R_DRVCLKU3 L8R_DRVCLKD3 L8R_DRVCLKD2 L8R_DC03 L8R_DA02 L8R_DA06 L8R_DB06 L8R_DA05 L8R_DB05 L8R_DC06 L8R_DB02 L8R_DC01 L8R_DC02 L8R_DB01 L8R_DA01 L8R_DA00 L8R_DC00 L8R_DB00 L8R_DRVCLKD1 L8R_DRVCLKU1 L8R_DRVCLKU0 L8R_DRVCLKU3 L8R_DRVCLKU2 DDC15 DDB16 DDC16 DDA18 DDC19 DDB17 DDA21 DDB12 DDA17 DDB13 DDB21 DDB14 DDC12 DDC18 DDA13 DDB20 DDA19 DDC21 DDC20 DDB15 DDA14 DDB18 DDB19 DDC14 DDA12 DDA20 DDC17 DDA15 DDA16 DDC13 DDA20 DDB20 DDB21 DDC20 DDC21 DDA21 DDC19 DDA18 DDA19 DDB19 DDC18 DDB18 DDB17 DDA16 DDC16 DDC17 DDB16 DDA17 DDA15 DDC15 DDC14 DDA14 DDB14 DDB15 DDC13 DDA12 DDA13 DDC12 DDB13 DDB12 CLKD_0P CLKD_1N CLKD_2P CLKD_3N CLKD_2P CLKU_1N CLKD_0P CLKU_0P D-LED1 D-PCD1 D-PCD2 D-ODED1 D-LED1 D-ODED1 D-CLRD1 D-LED2 D-PCD4 D-PCD3 D-ODED2 L8_DCK CLKD_1N CLKD_3N L8R_SDIV1 L8R_SDIV0 C_5V_DET DRVRST D-PCD2 D-CLRD1 D-CLRD2 DDB08 DDC08 DDA10 DDC11 DDC10 DDB11 DDA11 DDB10 DDA06 DDB06 DDC06 DDA09 DDB09 DDC09 DDA08 DDC07 DDA00 DDB00 DDA01 DDC00 DDB01 DDA03 DDC01 DDB03 DDC02 DDC03 DDA05 DDA02 DDB05 DDB02 DDC05 DDA04 DDB04 DDC04 DDA07 DDB07 CLKU_3N CLKU_2P L8R_DC12 L8R_DB12 L8R_DA12 L8R_DC13 L8R_DB13 L8R_DA13 L8R_DC14 L8R_DB14 L8R_DA14 L8R_DC15 L8R_DB15 L8R_DA15 L8R_UC00 L8R_UB00 L8R_UA00 L8R_UC01 L8R_UB01 L8R_UA01 D-PCD1 DDC10 DDB07 DDC11 DDC05 CLKU_1N DDA07 DDA10 DDB05 DDB09 DDA03 DDA05 D-CLRD2 DDA09 DDC00 DDC04 DDC08 DDB00 DDB04 DDB08 DDA00 DDA04 DDA08 DDC01 DDC02 NUEL_C2 DDC09 DDB01 DDB02 UEH_C2 DDC06 DDA01 DDA02 USL_C2 D-PCD3 URH_C2 DDB06 DDC03 USH_C2 D-LED2 D-ODED2 DDB03 CLKU_0P UML_C2 D-PCD4 UMH_C2 DDB10 CLKU_3N DDA06 DDA11 CLKU_2P SOS8_SS DDC07 DDB11 TRST L8R_DRVCLKD0 L8_VIN L8_HIN ENHMASK IC9900 V5 VSS IC9900 V7 VDD25 IC9900 C14 DOUTUC11 IC9900 K12 VSS IC9900 L12 VSS IC9900 L13 VSS IC9900 C22 DOUTUB01 IC9900 C13 DOUTUB12 IC9900 W19 VSS R9398 22 IC9900 D18 DOUTUC05 IC9900 H22 DOUTDA14 C9923 0.1u 16V IC9900 C2 VDD12 IC9900 AA12 DQS3 IC9900 A19 DOUTUA05 IC9900 B15 DOUTUB10 IC9900 C15 DOUTUB09 IC9900 A22 VSS IC9900 M19 DOUTDC11 IC9900 F20 DOUTUB00 IC9900 J18 VDD33 IC9900 E8 VDD12 IC9900 AB22 VSS IC9900 M5 VDD33 TP9215 IC9900 AA5 CKE IC9900 AA1 VDD25 IC9900 C21 DOUTUA02 IC9900 D14 DOUTUC10 IC9900 H20 DRVCLKD1 C9902 0.1u 16V IC9900 AA14 DQ9 C9907 0.1u 16V P5V IC9900 P14 VSS IC9900 C20 VSS IC9900 AA20 DOUTDA01 R9556 10k IC9900 V11 VDD25 IC9900 W9 A10 L8R2.5V IC9900 L19 DOUTDB12 IC9900 H4 BI7 L8R3.3V IC9900 M4 PCK TP9228 IC9900 D5 GI2 TP9243 IC9900 L11 VSS IC9900 W21 VDD33 IC9900 E3 GI5 TP9200 IC9900 B1 VSS IC9900 J21 DOUTDB14 TP9227 R9362 22 C9958 0.1u 16V IC9900 D6 RI7 IC9900 F21 DRVCLKU2 TP9211 IC9900 M21 DOUTDB10 IC9900 U3 DQ6 C9910 0.1u 16V R9361 22 R9915 0 IC9900 C17 DOUTUA06 D31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 IC9900 C9 ROMCE TP9219 IC9900 B10 SFRST Q9302 B1ABCF000138 R9902 0 IC9900 K5 VDD33 IC9900 W22 DOUTDC02 C9906 0.1u 16V IC9900 N19 DOUTDB09 IC9900 E20 DOUTUC02 IC9900 H21 DOUTDB15 IC9900 J10 VSS P1.2V IC9900 L5 VDD33 IC9900 B16 DOUTUC09 IC9900 C7 RI0 IC9900 AB1 VSS TP9010 R9922 0 R9358 EXB2HV220JV IC9900 B9 FPCLK IC9900 A12 DOUTUB14 IC9900 A6 OCKOUT IC9900 U5 VDD25 IC9900 K10 VSS IC9900 V13 VDD12 IC9900 B18 DOUTUB06 TP9209 IC9900 B21 VSS IC9900 A5 RI2 IC9900 U4 DQ5 F1J1E104A148 FL9904 IC9900 K14 VSS IC9900 Y21 VDD33 IC9900 AA15 AVSS1 C9920 0.1u 16V IC9900 D21 DOUTUB02 IC9900 D17 DOUTUC06 IC9900 N5 VDD33 IC9900 AB7 A6 C9922 0.1u 16V IC9900 L22 DOUTDB11 C9949 16V 0.1u IC9900 A8 TCKSEL0 IC9900 W5 AVDD25_3 IC9900 B4 RI8 IC9900 F4 GI7 IC9900 R20 DOUTDB06 IC9900 M2 FULL0 IC9900 T18 VDD33 IC9900 Y13 DQ14 IC9900 D20 DOUTUB03 IC9900 J13 VSS IC9900 T4 DQ7 IC9900 M12 VSS IC9900 P12 VSS C9921 0.1u 16V P3.3V IC9900 H18 VDD33 IC9900 W2 DQ1 IC9900 M13 VSS IC9900 AA3 CK IC9900 Y5 NCAS IC9900 K22 DOUTDA12 IC9900 L21 DOUTDA11 L8R3.3V C9914 0.1u 16V TP9242 IC9900 AA19 DOUTDC01 IC9900 E4 VDD12 IC9900 B5 RI5 TP9220 IC9900 R4 DQ16 IC9900 T22 DOUTDC06 IC9900 C10 SFVRST IC9900 Y20 VSS IC9900 N11 VSS IC9900 G19 DOUTUC00 IC9900 E16 VDD12 IC9900 A7 K_TEST IC9900 V4 VDD25 IC9900 B14 DOUTUB11 IC9900 AB13 DQ10 IC9900 T3 AVDD25_1 IC9900 AB17 VSS IC9900 T20 DOUTDA04 IC9900 L3 ID1 IC9900 V12 VDD25 IC9900 AB3 NCK IC9900 F18 VSS IC9900 A9 FPDAT1 IC9900 E21 DOUTUA00 IC9900 C6 RI4 IC9900 C4 GI3 C9963 10V 10u C9925 0.1u 16V TP9216 R9348 EXB2HV220JV IC9900 D15 DOUTUB08 IC9900 R21 DOUTDA06 IC9900 Y1 DQ0 IC9900 P4 DQ18 C9908 0.1u 16V IC9900 AB4 BA0 IC9900 N22 DOUTDA09 R9918 0 TP9222 C9904 0.1u 16V L8R3.3V IC9900 AB11 DQ28 IC9900 Y12 AVSS_4 IC9900 M9 VSS TP9224 IC9900 V3 DQ4 R9919 1k IC9900 V6 AVSS_3 C9960 10V 10u R9383 1k C9919 0.1u 16V IC9900 Y3 VSS IC9900 G22 DRVCLKD0 IC9900 J2 MONOUT1 IC9900 F3 GI9 TP9231 IC9900 L18 VDD12 TP9232 IC9900 AB5 BA1 IC9900 P21 DOUTDC08 R9357 EXB2HV220JV IC9900 E10 VDD33 L8R1.2V IC9900 A15 DOUTUA10 IC9900 J9 VSS IC9900 P5 VDD33 TP9223 IC9900 AB6 A4 IC9900 D7 RI3 TP9213 IC9900 Y16 SDSEL IC9900 K2 VDI L8R3.3V L8R3.3V IC9900 E9 VDD33 IC9900 AB20 DOUTDB01 IC9900 W15 TCPOUT IC9900 M14 VSS IC9900 D1 GI6 IC9900 Y2 VDD25 IC9900 M18 VDD12 IC9900 AA7 A9 IC9900 A4 RI6 IC9900 W16 SDIV1 IC9900 N4 TMS IC9900 N12 VSS IC9900 F5 VDD12 IC9900 D10 FPDAT0 IC9900 G21 DRVCLKD2 IC9900 AB21 VSS IC9900 B6 RI1 IC9900 A16 DOUTUA09 IC9900 Y6 NRAS IC9900 AA4 VREF IC9900 R5 VDD25 IC9900 D16 DOUTUC07 IC9900 N18 VDD12 IC9900 D8 OCK FL9900 F1J1E104A148 1 2 3 TP9205 IC9900 AA22 VSS IC9900 AA17 SDIV0 IC9900 C18 DOUTUB05 IC9900 D4 VSS P2.5V IC9900 W4 VSS IC9900 D22 DOUTUC01 IC9900 R19 DOUTDA05 IC9900 D2 GI4 L8R2.5V C9468 25V 0.01u TP9221 IC9900 Y22 VDD33 IC9900 W17 VSS IC9900 V9 VSS C9924 0.1u 16V IC9900 L10 VSS R9350 22 IC9900 E6 VSS IC9900 P3 DQ19 R9370 10k IC9900 C11 DOUTUB15 R9936 1k IC9900 V21 DOUTDC03 IC9900 W6 NWE IC9900 E11 VDD33 TP9208 IC9900 J14 VSS IC9900 T1 DQ21 IC9900 K19 DOUTDC14 R9355 EXB2HV220JV IC9900 U21 DOUTDB04 IC9900 W7 NCS R9353 EXB2HV220JV IC9900 K21 DOUTDC13 IC9900 Y7 A0 IC9900 R22 DOUTDC07 IC9900 N14 VSS IC9900 B2 VSS IC9900 K3 SDA IC9900 W18 VSS IC9900 V2 DQ3 TP9225 C9903 0.1u 16V IC9900 A11 DOUTUA14 IC9900 V8 VDD25 IC9900 J20 DOUTDC15 IC9900 P20 DOUTDA07 IC9900 J12 VSS TP9244 HIN IC9900 E17 VSS R9351 22 IC9900 L14 VSS IC9900 G3 BI4 IC9900 K18 VDD33 R9356 EXB2HV220JV IC9900 E13 VDD33 R9399 22 TP9214 TP9212 IC9900 C1 VDD12 IC9900 U1 DQS2 R9917 0 IC9900 V22 DOUTDA03 Q9301 B1ABCF000138 IC9900 J1 MONOUT2 IC9900 N20 DOUTDC09 IC9900 A13 DOUTUC13 IC9900 D13 DOUTUC12 IC9900 V16 VDD33 TP9204 IC9900 Y10 DQ26 IC9900 W12 AVDD25_4 IC9900 D11 DOUTUA15 IC9900 G4 BI2 R9916 0 FL9300 F1J1E104A148 1 2 3 IC9900 W11 DQ25 IC9900 F19 DOUTUA01 IC9900 V10 VDD25 IC9900 B3 GI1 IC9900 AA9 A8 IC9900 N10 VSS IC9900 Y11 DQ24 IC9900 E7 VDD12 IC9900 AB9 VDD25 IC9900 P13 VSS C9913 0.1u 16V IC9900 V20 DOUTDB02 IC9900 E1 BI0 IC9900 B19 DOUTUA04 IC9900 A17 DOUTUA08 IC9900 B13 DOUTUA12 R9901 0 IC9900 A2 VSS IC9900 L1 SCL IC9900 R18 VDD33 IC9900 J22 DOUTDA13 IC9900 AB10 DQ29 IC9900 K1 DCK R9393 0 IC9900 A1 VSS IC9900 L9 VSS TP9226 IC9900 W20 VDD33 IC9900 E22 DRVCLKU3 IC9900 W8 A2 R9352 EXB2HV220JV TP9206 IC9900 E18 VSS IC9900 P1 TDO IC9900 A18 DOUTUB07 IC9900 C12 DOUTUB13 IC9900 E19 DOUTUC03 IC9900 V1 DQS0 IC9900 T19 DOUTDC04 IC9900 AB8 A7 IC9900 V17 VDD33 IC9900 AB14 DQ8 IC9900 G1 BI6 IC9900 C3 VSS IC9900 AA13 DQ11 IC9900 P19 DOUTDB07 IC9900 N1 TRST IC9900 Y4 AVDD25_2 C9964 10V 10u IC9900 D3 VDD12 IC9900 G18 VSS IC9900 A10 SFLATCH R9317 390 TP9207 IC9900 H3 BI8 IC9900 B17 DOUTUA07 IC9900 M20 DOUTDA10 IC9900 U2 AVSS_1 IC9900 W13 DQ15 IC9900 B11 DOUTUC15 IC9900 C16 DOUTUC08 IC9900 K11 VSS IC9900 C19 DOUTUB04 IC9900 C8 TEST0 IC9900 J4 ENHMASK C9950 16V 0.1u IC9900 G2 BI5 IC9900 U22 DOUTDC05 IC9900 L2 ID0 C9959 0.1u 16V IC9900 AB19 DOUTDA00 IC9900 H19 DRVCLKU0 C9911 0.1u 16V IC9900 M10 VSS TP9230 R9347 EXB2HV220JV IC9900 P2 XRST IC9900 E12 VDD33 IC9900 Y8 A1 R9397 22 TP9229 TP9240 IC9900 J11 VSS C9955 0.1u 16V TP9202 C9900 0.1u 16V IC9900 M1 TILD C9966 16V 0.1u R9937 1k IC9900 U18 VDD33 IC9900 AA10 DQ31 IC9900 R2 DQ23 IC9900 L20 DOUTDC12 FL9901 F1J1E104A148 1 2 3 IC9900 K13 VSS IC9900 P18 VDD33 IC9900 R1 DQ22 IC9900 M22 DOUTDC10 C9916 0.1u 16V C9905 0.1u 16V IC9900 T2 DQ20 F1J1E104A148 FL9903 IC9900 Y14 DQ12 IC9900 Y19 VSS IC9900 P10 VSS IC9900 H5 VDD12 IC9900 T5 AVSS_2 IC9900 AA6 A11 TP9233 IC9900 F1 BI3 IC9900 E2 GI8 IC9900 B7 TEST1 IC9900 G5 VDD12 IC9900 L4 TIIC IC9900 J5 VDD12 C9961 10V 10u IC9900 F22 DRVCLKD3 IC9900 AB18 DOUTDC00 IC9900 AA11 DQ30 TP9217 IC9900 B22 VSS IC9900 AB2 VSS IC9900 G20 DRVCLKU1 IC9900 W14 DQ13 TP9100 IC9900 N3 TDI R9391 100k IC9900 V18 VSS R9354 EXB2HV220JV R9380 56 IC9900 W10 DQ27 IC9900 U19 DOUTDA02 C9918 0.1u 16V IC9900 J3 MONOUT0 IC9900 H1 MUTE IC9900 N21 DOUTDA08 C9912 0.1u 16V C9909 0.1u 16V IC9900 AA16 AVSS2 IC9900 A3 GI0 IC9900 B12 DOUTUC14 IC9900 K9 VSS IC9900 N13 VSS R9555 0 TP9241 TP9210 VIN IC9900 D9 TCKSEL1 C9901 0.1u 16V L8R2.5V IC9900 Y9 A3 IC9900 V14 VDD12 R9359 EXB2HV220JV C9957 0.1u 16V IC9900 Y17 VSS TP9201 R9960 0 C9915 0.1u 16V IC9900 M11 VSS IC9900 U20 DOUTDB03 IC9900 AA2 VSS IC9900 R3 DQ17 IC9900 V19 VDD33 IC9900 E15 VDD12 R9928 0 C9956 0.1u 16V IC9900 K20 DOUTDB13 IC9900 Y18 VSS IC9900 F2 BI1 R9371 100k IC9900 D19 VSS IC9900 P9 VSS R9396 22 IC9900 N2 TCK IC9900 B8 TCKSEL2 IC9900 AB12 DQS1 IC9900 AA8 A5 IC9900 D12 DOUTUA13 IC9900 AA21 VSS C9917 0.1u 16V IC9900 C5 RI9 P3.3V L8R1.2V IC9900 E14 VDD33 FL9902 F1J1E104A148 1 2 3 IC9900 F6 VSS IC9900 B20 DOUTUA03 IC9900 W3 VDD25 L8R3.3V IC9900 A20 DOUTUC04 IC9900 AB15 AVDD33_1 IC9900 A21 VSS IC9900 K4 HDI IC9900 J19 DOUTDA15 IC9900 P11 VSS IC9900 P22 DOUTDB08 IC9900 M3 FULL1 IC9900 Y15 VSS C9962 10V 10u R9392 0 IC9900 W1 DQ2 TP9218 IC9900 N9 VSS TP9234 IC9900 V15 VDD12 IC9900 T21 DOUTDB05 IC9900 AB16 AVDD33_2 TP9203 IC9900 H2 BI9 IC9900 A14 DOUTUA11 IC9900 E5 VSS L8R2.5V IC9900 AA18 DOUTDB00 R9369 4.7k C9967 0.1u 16V TP9271 TP9301 TP9270 TP9284 TP9287 TP9282 TP9304 TP9260 TP9255 TP9267 TP9280 FL9301 F1J1E104A148 1 2 3 TP9276 TP9272 TP9283 TP9274 TP9277 TP9303 TP9101 TP9268 TP9235 TP9310 TP9289 TP9286 TP9269 TP9285 TP9281 TP9249 TP9258 TP9273 TP9288 TP9259 TP9305 TP9262 TP9278 TP9246 TP9248 TP9265 TP9251 TP9254 TP9302 TP9253 TP9266 TP9245 TP9264 TP9275 P5V TP9257 TP9306 TP9252 TP9279 TP9300 TP9250 TP9261 TP9256 D32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 TP9263 from FPGA1 IIC P5V DOUTDA[20] P5V P5V DOUTDB[20] PC1_C1 DOWN_LEFT GND ODE_C1 CLR_C1 DOUTDC[12] DOUTDC[20] DOUTDC[13] DOUTDA[12] DOUTDA[13] DOUTDB[12] DOUTDB[13] CLK1N_C1 CLK0P_C1 LE_C1 rromdata[14] rromadrs[00] rromdata[06] rromdata[09] rromdata[12] rromadrs[11] rromadrs[14] rromdata[15] rromadrs[01] rromadrs[04] rromadrs[17] rromadrs[20] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[16] rromdata[00] rromdata[01] rromdata[02] rromadrs[19] rromadrs[03] rromdata[03] rromdata[04] rromdata[07] rromdata[10] to DDR rromadrs[06] rromadrs[09] rromdata[13] rromadrs[12] rromdata[05] rromadrs[15] rromadrs[18] rromadrs[02] rromadrs[05] rromadrs[08] rromdata[08] rromdata[11] DOUTDC[21] DOUTDB[21] DOUTDA[21] DOUTDC[19] DOUTDA[19] DOUTDC[18] DOUTDB[19] DOUTDB[18] DOUTDA[18] DOUTDB[17] DOUTDC[16] DOUTDB[16] DOUTDA[17] DOUTDA[16] DOUTDC[17] DOUTDB[15] DOUTDC[14] DOUTDB[14] DOUTDA[15] DOUTDC[15] DOUTDA[14] GND GND GND GND GND GND GND GND NC CLK2P_C1 CLK3N_C1 SDIV1 SDIV0 x08 L L x09 L H x10 H L x11 H H GND GND C_5V_DET PC2_C1 42 45 37 41 39 40 44 38 43 DOUTDA[5] DOUTDB[3] DOUTDC[2] DOUTDC[9] UMH DOUTDB[4] DOUTDA[4] DOUTDB[1] UML DOUTDA[9] DOUTDC[1] DOUTDB[9] DOUTDC[8] DOUTDA[2] DOUTDC[5] DOUTDA[0] DOUTDA[8] DOUTDB[8] DOUTDC[11] DOUTDB[2] DOUTDA[11] DOUTDB[11] DOUTDC[10] DOUTDA[3] USH SOS8_SS DOUTDA[10] DOUTDB[10] DOUTDA[1] DOUTDC[0] USL UEH DOUTDC[3] DOUTDC[4] DOUTDB[0] DOUTDB[5] DOWN_RIGHT DOUTDB[6] DOUTDA[6] DOUTDC[6] DOUTDC[7] DOUTDB[7] DOUTDA[7] P5V P5V P5V UEL NC LE_C2 ODE_C2 PC3_C2 CLR_C2 CLK0P_C2 CLK1N_C2 GND GND GND CLK2P_C2 CLK3N_C2 GND GND GND GND GND GND GND URH GND PC4_C2 MN84524 PD1-Mplus IC9900 36 35 31 33 32 34 41 TO C1-BOARD (C11) TO C2-BOARD (C21) TH-42PV700C D-Board (5 of 6) Schematic Diagram TH-42PV700C D-Board (5 of 6) Schematic Diagram ! D-BOARD TNPA4134AQ/TNPA4134BQ (5/6) 93 15.36.D 电路板 (6/6) 线路图 L8DR_DQ28 L8R_A0 L8DR_DQS0 L8DR_DQ31 L8DR_NCS L8R_DQ15 L8DR_A5 L8DR_A1 L8DR_NCAS L8R_A3 L8DR_A11 L8R_DQ17 L8DR_DQ21 L8DR_DQ23 L8DR_DQ22 L8DR_DQ25 L8R_DQ16 L8DR_BA1 L8DR_A11 L8DR_DQ10 L8DR_DQ3 L8R_DQ14 L8R_DQ24 L8DR_BA0 L8DR_DQ1 L8DR_DQ9 L8R_DQ10 L8DR_A7 L8DR_DQ4 L8R_SDCLKO L8DR_DQ31 L8DR_A2 L8R_BA0 L8DR_NRAS L8DR_DQ11 L8R_DQ31 L8DR_DQ2 L8DR_DQ26 L8DR_DQ0 L8DR_BA1 L8DR_DQ5 L8DR_DQ11 L8R_DQ0 L8R_DQ26 L8R_A4 L8R_BA1 L8R_DQ19 L8R_DQ13 L8DR_A6 L8DR_DQS3 L8R_DQ9 L8DR_NCLK L8DR_DQ20 L8R_A2 L8DR_DQ18 L8DR_A2 L8DR_A3 L8DR_A9 L8R_DQ22 L8DR_NRAS L8R_A8 L8R_A10 L8R_A1 L8DR_A3 L8R_WE L8R_DQS2 L8DR_DQ7 L8DR_DQ24 L8R_SDCKE L8DR_DQ8 L8DR_DQ16 L8R_DQ3 L8R_DQ4 L8R_RAS L8DR_DQ20 L8DR_DQ6 L8R_DQ11 L8DR_DQ19 L8DR_DQ24 L8DR_A4 L8DR_A0 L8R_DQ1 L8DR_DQ25 L8DR_DQ12 L8R_A6 L8DR_A6 L8DR_DQ8 L8R_DQ23 L8DR_DQ12 L8DR_DQ2 L8R_DQ8 L8DR_DQ18 L8DR_DQ4 L8DR_DQ0 L8R_DQ21 L8DR_DQS2 L8DR_A1 L8DR_A0 L8DR_DQ22 L8R_A9 L8DR_DQ6 L8DR_DQ29 L8DR_DQS0 L8DR_DQS2 L8DR_DQ7 L8DR_DQ19 L8DR_DQ14 L8DR_DQ5 L8DR_DQ23 L8DR_DQ14 L8DR_CKE L8DR_DQ13 L8DR_DQS1 L8DR_DQ30 L8DR_A8 L8DR_NCS L8DR_DQ16 L8DR_DQ17 L8R_DQ7 L8DR_DQ28 L8DR_DQ17 L8DR_DQ15 L8DR_DQ15 0V L8R_DQ30 L8R_DQ27 L8DR_A5 L8DR_DQS1 L8R_DQS0 L8R_DQ6 L8DR_NCAS L8DR_DQ9 L8DR_DQS3 L8DR_NWE L8R_CS L8R_NSDCLKO L8R_A7 L8DR_DQ26 L8R_DQ29 L8DR_A9 L8DR_A8 L8DR_DQ21 L8R_DQ12 L8DR_BA0 L8R_DQ20 L8DR_DQ27 L8DR_A10 L8DR_A4 L8R_DQS1 L8R_CAS L8DR_NWE L8DR_DQ13 L8DR_CLK L8R_A5 L8R_DQ2 L8DR_DQ10 L8R_DQ28 L8DR_A7 L8DR_DQ30 L8R_DQ18 L8R_A11 L8DR_DQ1 L8DR_DQ29 L8DR_DQ27 L8DR_CKE L8DR_DQ3 L8R_DQ25 L8R_DQ5 L8DR_A10 L8DR_CLK L8DR_NCLK L8R_DQS3 IC9901 B10 DQ28 IC9901 M3 NC IC9901 G13 DQ12 IC9901 G8 VSS_Thermal IC9901 C12 VDDQ C9943 16V 0.1u L8R2.5V IC9901 K12 DQ9 IC9901 F2 DQ17 R9945 EXB38V470JV IC9901 L3 WE IC9901 B2 DQS0 R9944 EXB38V470JV IC9901 G11 VDDQ IC9901 N6 A1 IC9901 M12 CK C9934 16V 0.1u IC9901 C13 DQ27 IC9901 H8 VSS_Thermal IC9901 L4 VDD IC9901 N5 A0 IC9901 C3 VDDQ L8R2.5V IC9901 G6 VSS_Thermal IC9901 E10 VSS IC9901 D4 VSSQ IC9901 J8 VSS_Thermal R9941 47 C9932 16V 0.1u C9936 16V 0.1u R9955 47 IC9901 N8 A4 IC9901 E5 VSS IC9901 N9 A6 IC9901 J3 DQ20 IC9901 L7 VDD IC9901 J5 VSSQ IC9901 E4 VDD IC9901 J12 DQ11 IC9901 D2 DQ6 IC9901 N7 A3 IC9901 K4 VDDQ IC9901 H12 DM1 C9941 16V 0.1u IC9901 H5 VSSQ IC9901 D6 VSSQ IC9901 K10 VSSQ IC9901 K13 DQ8 C9928 16V 0.1u IC9901 G12 DQ13 IC9901 L11 VDD IC9901 D12 DQ26 IC9901 H3 DM2 IC9901 N13 VREF IC9901 B4 VSSQ IC9901 G4 VDDQ R9949 EXB38V470JV IC9901 K3 DQ23 IC9901 F6 VSS_Thermal IC9901 M10 RFU R9939 1k IC9901 N10 A7 IC9901 E7 VSS C9939 16V 0.1u IC9901 K5 VSSQ IC9901 M9 A5 IC9901 F11 VDDQ IC9901 G3 DQ18 IC9901 B9 DQ29 IC9901 B3 DM0 C9947 16V 0.1u C9951 16V 0.1u IC9901 L10 VSS IC9901 L6 A10 C9945 16V 0.1u R9950 EXB38V470JV IC9901 J11 VDDQ IC9901 M6 A2 IC9901 C7 VDDQ IC9901 M8 A9 IC9901 L9 RFU IC9901 C8 VDDQ R9906 EXB38V470JV C9942 16V 0.1u C9929 16V 0.1u IC9901 B12 DM3 IC9901 E6 VSSQ IC9901 E8 VSS C9938 16V 0.1u IC9901 J6 VSS_Thermal IC9901 C4 NC C9935 16V 0.1u IC9901 C11 NC IC9901 N4 BA0 IC9901 M13 NC IC9901 D10 VSSQ C9927 16V 0.1u IC9901 F5 VSSQ IC9901 H6 VSS_Thermal IC9901 H9 VSS_Thermal IC9901 J13 DQ10 IC9901 G5 VSSQ R9953 47 R9908 0 IC9901 B8 DQ31 IC9901 E13 DQ24 IC9901 K7 VSS IC9901 J7 VSS_Thermal IC9901 B5 DQ3 IC9901 G2 DQ19 C9930 16V 0.1u IC9901 L8 VDD R9954 47 IC9901 H7 VSS_Thermal R9948 EXB38V470JV IC9901 E9 VSSQ IC9901 M5 BA1 IC9901 C6 DQ1 IC9901 D13 DQ25 IC9901 F4 VDDQ IC9901 F12 DQ15 C9931 16V 0.1u IC9901 F8 VSS_Thermal IC9901 B13 DQS3 IC9901 D5 VSSQ R9943 EXB38V470JV L8R2.5V R9946 EXB38V470JV IC9901 M2 RAS IC9901 F7 VSS_Thermal IC9901 H4 NC IC9901 N12 CKE IC9901 H2 DQS2 IC9901 D3 DQ5 IC9901 B11 VSSQ IC9901 L12 NC IC9901 E3 VDDQ IC9901 D11 VSSQ IC9901 E12 VDDQ IC9901 J9 VSS_Thermal IC9901 L2 CAS R9911 0 IC9901 K6 VSS IC9901 H10 VSSQ R9938 1k ZA9001 K4CD01000011 IC9901 M11 CK IC9901 M7 A11 IC9901 G7 VSS_Thermal R9909 0 C9933 16V 0.1u IC9901 E11 VDD C9948 16V 0.1u R9942 47 R9951 EXB38V470JV IC9901 L5 VSS IC9901 B6 DQ2 IC9901 N11 A8/AP IC9901 K11 VDDQ IC9901 G10 VSSQ IC9901 D9 VSSQ IC9901 C5 VDDQ IC9901 K8 VSS R9910 0 R9905 33 IC9901 F10 VSSQ R9952 47 R9907 150 R9903 EXB2HV470JV R9940 33 C9946 16V 0.1u IC9901 C2 DQ4 IC9901 L13 NC C9937 16V 0.1u IC9901 N2 CS C9940 16V 0.1u R9904 47 IC9901 K2 DQ22 IC9901 E2 DQ7 IC9901 H11 NC IC9901 B7 DQ0 IC9901 J10 VSSQ IC9901 C10 VDDQ R9947 EXB38V470JV IC9901 G9 VSS_Thermal IC9901 D7 VDD C9944 16V 0.1u IC9901 H13 DQS1 IC9901 D8 VDD IC9901 J4 VDDQ IC9901 N3 NC IC9901 F13 DQ14 IC9901 F3 DQ16 IC9901 C9 DQ30 IC9901 M4 NC IC9901 K9 VSS IC9901 J2 DQ21 IC9901 F9 VSS_Thermal DDR-Terminate DDR-SDRAM 47 50 53 51 54 48 46 49 52 IC9901 C3ABQJ000055 DDR_SDRAM 41 TH-42PV700C D-Board (6 of 6) Schematic Diagram TH-42PV700C D-Board (6 of 6) Schematic Diagram ! D-BOARD TNPA4134AQ/TNPA4134BQ (6/6) 94 15.37.C1 和 C2 电路板方框图 USL UEH UMH UML USH NUEL CLKU_0P CLKU_1N SS_SOS8 CLKU_2P CLRD ODED1 PC2 PC1 LED CLKD_0P CLKD_1N R7281 +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V 5 5 A8-C9 8 7 1 6 8 2 4 6 7 C23 1 11 3 CB11 C21 A4-C5 A0-C1 CB7 4 Vda75V Vda75V CB6 DATA 36bit DA0-DC11 9 CB9 C20 20 14 IC7206 VCC BUFFER UML UEL USH USL SS_SOS8 UMH 12 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit NUEL USH USL UML UMH UEH SS_SOS8 5V Vda Vda C2 DATA DRIVE LOWER LEFT (FRONT VIEW) PANEL DATA DRIVER TO D32 TO SS23 1 5V DET Vda75V Vda75V 5V DET 6bit A10-C11 6bit 6bit 6bit P5V P5V 66 68 DOUTDC11 DOUTDA0 55 - 15 CLK(0)(+) CLK(1)(-) VCC LED PC3 PC4 ODED2 CLRD 58 57 IC7201 BUFFER UEH NUEL USH USL UMH UML UEH 13 IC7202 VCC BUFFER CLK(2)(+) CLK(3)(-) 06P,16N 07P,17N 29P,39N 2BP,3BN PC4 PC4 PC3 PC3 LED 55 9 PC1 IC7101 VCC BUFFER 25P,35N CB1 24P,34N CB3 23P,33N CLK(0)(+) P5V CLK(1)(-) P5V 01P,11N 5VDET IC7102 BUFFER A14-C15 PC1,PC2 6bit 6bit 6bit 6bit 6bit PANEL DATA DRIVER 6bit C11 6bit 6bit 6bit 6bit 30bit DA12-DC21 DATA TO D31 VCC 6bit 6 CLR_C1 6bit 53 51 CB4 A12-C13 A16-C17 C10 TO C20 TO C10 8 10 49 - 16 DOUTDC21 DOUTDA12 PC2 CB5 PC1 ODE_C1 20 PC2 7 PC2 1 DATA DRIVE PC2 A20-C21 LOWER RIGHT(FRONT VIEW) C1 7 3 1 CLKU_3N 11 CLKD_3N CLKD_2P 14 12 CLK(2)(+) CLK(3)(-) +5V A2-C3 CB10 6bit 6bit 6bit 2AP,3AN PC4 PC3 CLRD ODED2 PC4 +5V +5V A6-C7 CB8 6bit 6bit 6bit 61 60 IC7205 VCC 62 BUFFER 63 08P,18N PC3 +5V CB2 02P,12N 6bit 6bit 6bit A18-C19 PC1 TH-42PV700C C1 and C2-Board Block Diagram TH-42PV700C C1 and C2-Board Block Diagram LED 64 95 15.38.C1 电路板 (1/3) 线路图 C B A E 5 6 7 D 1 2 3 4 F 8 9 TH-42PV700C C1-Board (1 of 3) Schematic Diagram TH-42PV700C C1-Board (1 of 3) Schematic Diagram 1 2 3 4 ! C1-BOARD TXNC11HLTC (1/3) 96 15.39.C1 电路板 (2/3) 线路图 15 16 17 10 9 11 13 14 12 TH-42PV700C C1-Board (2 of 3) Schematic Diagram TH-42PV700C C1-Board (2 of 3) Schematic Diagram ! C1-BOARD TXNC11HLTC (2/3) 1 2 3 4 11 12 13 14 97 15.40.C1 电路板 (3/3) 线路图 23 24 25 18 17 19 21 22 20 TH-42PV700C C1-Board (3 of 3) Schematic Diagram TH-42PV700C C1-Board (3 of 3) Schematic Diagram ! C1-BOARD TXNC11HLTC (3/3) 11 12 13 14 TO C2-BOARD (C20) TO D-BOARD (D31) 98 15.41.C2 电路板 (1/5) 线路图 C B A E 5 6 7 D 1 2 3 4 F 8 9 TH-42PV700C C2-Board (1 of 5) Schematic Diagram TH-42PV700C C2-Board (1 of 5) Schematic Diagram ! C2-BOARD TXNC21HLTC (1/5) 2 1 3 4 A B 5 6 TO D-BOARD (D32) TO C1-BOARD (C10) TO C2-BOARD (4/5) 99 15.42.C2 电路板 (2/5) 线路图 15 16 17 10 9 11 13 14 12 TH-42PV700C C2-Board (2 of 5) Schematic Diagram TH-42PV700C C2-Board (2 of 5) Schematic Diagram ! C2-BOARD TXNC21HLTC (2/5) 2 1 3 4 5 6 TO SS-BOARD (SS23) 12 11 13 14 100 15.43.C2 电路板 (3/5) 线路图 23 24 25 18 17 19 21 22 20 TH-42PV700C C2-Board (3 of 5) Schematic Diagram TH-42PV700C C2-Board (3 of 5) Schematic Diagram ! C2-BOARD TXNC21HLTC (3/5) 12 11 13 14 101 15.44.C2 电路板 (4/5) 线路图 C B A E 5 6 7 D 1 2 3 4 F 8 9 TH-42PV700C C2-Board (4 of 5) Schematic Diagram TH-42PV700C C2-Board (4 of 5) Schematic Diagram ! C2-BOARD TXNC21HLTC (4/5) A B 21 22 23 TO C2-BOARD (1/5) 102 15.45.C2 电路板 (5/5) 线路图 TH-42PV700C C2-Board (5 of 5) Schematic Diagram TH-42PV700C C2-Board (5 of 5) Schematic Diagram ! C2-BOARD TXNC21HLTC (5/5) 21 22 23 15 16 17 10 9 11 13 14 12 103 15.46.SC 电路板方框图 + + REF K A REF K A REF K A REF K A CLK FSIU SCSU OC2 FCLD OC2 CEL CLK CEL FSID CPH1 SCSU SID PROD OC1 PROU SIU OC1 SIU FCLKD FCLU SID CPH2 FCLKU CPH2 CPH1 D6806 D6804 D6583 T6602 VSET +16V_F VSUS D6862 VSET D6860 15V_F VSUS D6872 VSUS D6585 D6825 D6859 D6721 +5V G D S G D S G D S G D S +5V +15V +5V D6480 +15V +5V +5V_F 15V +16V_F D6841 D6466 D2826 IC6802 R6815 +15V CPH1 IC6801 VR6600 1 2 3 D6703 D6478 D6619 G D S G D S D6805 D6861 +15V D6690 D6871 VAD D6791 +16V_F D6839 15V_F VAD CPH1 +5V_F VR6602 1 2 3 G D S B36 13 CML Q6401-Q6403 2 BUFFER A1 VCC A11 Q6531,Q6532 BUFFER VCC HO CLK LO Vf Q6646-Q6648 IC6521 PROU ENERGY RECOVERY AVR VCC BUFFER VSUS AVR A33 HIN +5V 3 GND GND Vsus LO FET +5V TO P2 A7 (+330V) OC1 2 Vad( 105V) A32 PROD FCLD 8 B33 CMH IC6725 8 PC6702 Vfo COUPLER SID 26 VSETSOS DET PHOTO 16 GND CSL 19 45 B5 FCLKD 2 VSCN Gen. TPSC1 SIGNAL WAVE Q6551,Q6552 B1 HIN IC6841 Vf IC6561,6562 Q6842 SC2 A30 Vf Vfo B34 GND (Vad 105V) B1 B30 PC6861 Vscn GND SC A40 SC41 B8 7 PC6480 DRIVER 20 COUPLER PC6704 PHOTO Vscn CMH Vf (+145V) IC6752 IC6821 CML VSET SEPARATE CSH Q6521,Q6522 L6401 CLK CPH1 25 Vsus CSL Q6642-Q6644 23 Vf+5V L6403 Vf+5V IN A6 Vf A8 L6413 A34 SC SCAN DRIVE R6833 B40 L6411 VCC R6834 1 FCLU A36 Vfo A35 Vf+5V R6835 FSID Vf+5V Q6671,Q6672 B11 IC6724 R6836 IC6501 15 COMPARATOR 3 B9 VSET COM IC6871 TPVSCN IC6671 IC6721 DRIVER PROU 9 TPVAD 5 SIU 29 1 VCC 7 VSET 8 5 B6 Vscn 3 Q6421-Q6423 B32 Vscn +5V OC1 IC6581 Vf CSH A8 VAD CONST Q6501,Q6502 B40 PROD LED(G) A1 TPVSET VSET Gen. Vf A5 FSIU SOS7_SC2 CEL SID DRIVER SIU FET 46 VCC2 +5V A33 VCC FCLKD PHOTO BUFFER VSET2 VAD COUPLER FCLD B8 Vsus Gen. B31 Vscn(VAD+140V) A40 PC6801 Q6581 30 SC IC6771 IC6861 DRIVER SC 1 COMPA- FET Vfo LO 2 B35 FET Q6451 IC6722 +5V Vf FCLKU 1 9 20 IC6773 1 HIN FSID COUPLER IC6774 LIN PC6701 3 PHOTO Vad 105V Q6441,Q6442 COUPLER +5V HO RATOR VSCN PHOTO PC6871 RATOR FSIU COUPLER 3 Vf+5V COMPA- SC42 OC2 B33 B7 16V_F VCC 28 PC6705 6 PHOTO LIN 9 B10 A31 FCLU +5V_F PHOTO LO COUPLER A9 COUPLER VCC SOS6_SC1 BUFFER PHOTO AVR A10 OC2 1 Vf+5V TO D20 VCC FCLKU TPSOS6 TPSOS7 VCC FET HO GND VAD SEPARATE IN DRIVER IC6772 LO IC6471 RATOR COMPA- SCSU 22 CPH2 5 FET OUTPUT FET OUTPUT FET OUTPUT FET OUTPUT 2 +15V 1 +15V +15V 3 1 5 IC6471 AND GATE VCC IN_B 2 4 OUT_Y IN_A 2G LIN DC/DC CONV. COM VIN VOUT IC6791 GND R6466 R6467 R6468 R6465 TPVSUS +5V_F DET Q6824 SC30 FOR 10 USE 7 8 6 3 4 1 Vscn DET OPERATES AT 160V OR MORE AND 125V OR LESS. VCC2 OUTPUT FET D S G S G OUTPUT FET D Q6602 Q6762 HO Q6601 Q6621 VAD GENE IN_A IN_B OUT_Y IN_A IN_B OUT_Y AND AND Q6742,Q6743 VSET2 GENE 6 3 5 1 SC31 FOR FACTORY USE Q6781,Q6782 FET OUTPUT FET OUTPUT 4 1 7 9 VCC Z/C VIN D 2 F/B 3 5 GND S IC6803 POWER OSC R6861 R6863 R6862 VDA DET OPERATES AT 91VOR MORE AND 120V OR LESS Q6690 R6696 R6697 TPSC1 Q6841 Q6791 Q6805,Q6806 OFF SET D6836-D6838 Vf+5V Vf+5V TPVSET2 (+14V) Vscn VAD SOS7_SC +15V 189V+7V,-6V 11 SS_DRV_RST COM SS_DRV_RST TP15V Vf+5V Vf Vfo Vscn Q6679,Q6680 Q6821 Q6822 VAD SLOPE Q6661 FET OUTPUT Q6662 Q6665 FLOATING GND COLD ENERGY RECOVERY SOS DET LED BLINKING : 6 TIMES SC FLOATING PART SOS DET LED BLINKING : 7 TIMES FLOATING GND COLD TH-42PV700C SC-Board Block Diagram TH-42PV700C SC-Board Block Diagram 104 15.47.SC 电路板 (1/2) 线路图 + + + + + + + + TOP + AA_CSH AA_CSL AA_CML AA_CMH AB_FSIU AB_FCLKD AB_FCLKU AA_SIU AB_PROD AB_FCLU AB_PROU AB_FCLD AA_SID AB_FSID AA_OC2 AA_DRV_RST AA_CPH2 AA_CEL AA_SCSU AA_OC1 AA_CLK CPH2 AA_CLK OC2 CMH DRV_RST CML CEL CSH AA_CSL AA_CML AA_OC2 AA_CPH2 AA_CMH AA_SCSU AA_CPH1 AA_CSH CSL AA_CEL CPH1 AA_SIU AA_SID AA_OC1 AA_DRV_RST AA_CPH1 Q6532 B1ADRD000001 R6501 100 C6431 250V 4u D6703 MA2J11100L R6711 2.2k R6714 2.2k R6533 47k R6580 2.2k C6480 50V 0.1u C6772 25V 4.7u C6532 250V 4u TP4 PC6705 B3PBA0000397 1 2 3 4 5 6 7 8 *L6463 C6581 25V 1u R6466 56k C6413 220V 200u R6465 27k C6525 25V 4.7u D6441 B0ECHP000003 R6742 10k 75 R6504 R6503 10 R6713 2.2k R6721 EXB38V220JV D6503 B0ECHP000003 C6703 50V 0.1u R6705 100 R6512 47k C6702 50V 0.1u C6776 50V 0.1u C6561 10V 100u MAIN_STOP *L6468 5V *C6401 630V 3300p R6509 1 C6722 50V 100p R6402 7.5 R6521 100 IC6725 C0CBADC00072 VIN 3 2 COM VOUT 1 R6552 47k PC6480 B3PBA0000223 1 2 3 4 D6732 MAZ80560HL *L6467 *Q6441 B1JADN000002 SC2 1 3 Q6552 B1ADRD000001 16V_F D6478 B0HCKS000002 TP2 D6730 MAZ80560HL D6522 B0ECHP000003 *L6412 1.8u *L6482 G0ZZ00002183 R6477 100 R6422 5.6 5V C0ZBZ0001324 IC6521 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC *D6422 MA3DF40000LZ R6586 1.2k R6748 3.3k R6507 1 TP5 *PC6704 B3PBA0000456 1 2 3 4 5 VSUS 15V D6477 MA2J11100L *L6411 1.8u *D6481 MA3DF30000LZ R6584 8.2k IC6721 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC D6726 MAZ80560HL Q6522 B1ADNF000006 *L6402 1.8u D6480 MA2J11100L *L6462 R6718 2.2k C6721 50V 100u Q6743 2SD0601A0L 15V D6701 MAZ80560HL C6704 50V 0.1u R6423 5.6 C6727 16V 1u Q6531 B1ABRD000003 R6401 7.5 *L6401 1.8u C6582 16V 1u C6504 25V 4.7u D6702 MA2J11100L *L6403 1.8u C6771 16V 1u C6522 25V 4.7u IC6771 C0CBADC00072 VIN 3 2 COM VOUT 1 D6466 MA2J11100L R6707 470 R6712 2.2k *L6481 G0ZZ00002183 *L6486 G0ZZ00002183 Q6521 B1ABNF000006 D6451 B0ECHP000003 C6725 25V 4.7u D6733 MAZ80560HL Q6742 2SD0601A0L D6725 B0ECHP000003 R6700 470 D6727 MAZ80560HL R6722 EXB38V220JV R6506 10 IC6722 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC R6551 10 C6502 25V 4.7u *C6422 630V 2700p C0DBEKA00003 IC6471 1 NC 2 A 3 K 5 A 4 REF R6511 47k C6724 25V 4.7u *Q6401 B1JADN000001 G D S R6582 39k R6517 47k R6516 47k R6708 470 D6471 B0HBSN000008 C6726 16V 1u *Q6423 B1JADP000002 R6745 4.7k Q6581 2SD0601A0L D6728 MAZ80560HL *Q6422 B1JADP000002 IC6581 C0BBBA000022 1 2 3 4 5 6 7 8 C6527 25V 4.7u *PC6701 B3PBA0000457 1 2 3 4 5 6 7 8 *Q6442 B1JADN000002 5V 5V C0JBAA000377 IC6773 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y IC6724 C0CBADC00072 VIN 3 2 COM VOUT 1 R6476 4.7k C6524 25V 4.7u R6442 5.6 R6441 5.6 *C6402 2200p 630V 200u 220V C6415 *Q6451 B1JADP000002 C6414 220V 200u D6402 B0HBSN000008 75 R6523 *Q6402 B1JADN000001 R6468 82k R6588 10k R6508 1 C0JBAA000377 IC6774 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y R6587 2.2k D6521 B0ECHP000003 *L6413 1.8u Q6502 B1ADNF000006 R6531 10 C6777 50V 0.1u C0ZBZ0000895 IC6501 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC D6731 MAZ80560HL R6701 470 R6724 100 R6467 82k *L6465 G0ZZ00002183 R6723 1.8k R6704 470 D6584 MAZ80510LL R6451 5.6 *Q6403 B1JADN000001 *Q6421 B1JADP000002 *L6464 L6591 *D6421 MA3DF40000LZ 15V R6471 3.9k D6721 B0HCKS000002 D6401 B0HBSN000008 *D6461 MA3DF30000LZ R6747 10k TP1 5V_F D6491 MA3DF40000LZ R6702 470 R6706 100 15V VSUS D6583 LNJ301MPUJA R6583 39k R6776 100 *L6461 G0ZZ00002183 D6501 D1FL40-7063 Q6501 B1ABNF000006 D6472 D1FL40-7063 R6510 1 R6421 5.6 R6746 10k R6502 100 VF_GND C6531 250V 4u R6717 2.2k *C6411 220V 200u R6473 560 R6474 1k VSET2 VSUS R6403 7.5 *D6462 MA3DF30000LZ SOS7_SC2 *PC6702 B3PBA0000457 1 2 3 4 5 6 7 8 R6475 4.7k *C6421 630V 2700p R6585 1.8k D6585 MA2J11100L R6553 47k C6505 25V 4.7u VF_GND *L6485 G0ZZ00002183 D6523 B0ECHP000003 C0JBAA000377 IC6472 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y C6723 25V 4.7u C6705 50V 0.1u C6740 50V 100p C6708 50V 0.1u R6522 100 *L6466 Q6551 B1ABRD000003 15V_F C6706 50V 0.1u R6703 470 C6521 25V 1u R6532 47k C6412 220V 200u R6472 2.2k R6710 2.2k D6729 MAZ80560HL D6722 MA2J11100L TP52 C0JBAZ000005 IC6562 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC TP19 R6566 EXB38V472JV TP28 R6564 EXB38V470JV TP29 TP8 15V TP13 R6568 EXB38V472JV TP15 R6591 EXB38V472JV TP22 L6602 G0ZZ00002183 5V TP7 R6567 EXB38V472JV TP21 C6565 50V 0.01u TP27 TP25 R6592 4.7k TP26 TP23 R6590 220 R6562 EXB38V470JV MAIN_STOP TP33 TP20 C6564 16V 1u TP34 TP36 C6593 50V 1000p TP30 C6562 16V 1u TP70 TP11 C6566 50V 0.01u C6563 10V 100u SOS7_SC2 TP14 TP18 TP10 SC20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 TP35 TP24 R6565 EXB38V472JV TP32 TP9 TP17 L6601 G0ZZ00002183 TP37 C0JBAZ000005 IC6561 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R6563 EXB38V470JV TP12 TP39 TP38 TP16 L6592 G0ZZ00002183 C6592 25V 220u R6561 EXB38V470JV TP6 TP31 FLOATING GND COLD FLOATING GND COLD GND Vsus TPVSUS 189V+7V-8V + + - - SG73P2A 7 3 4 C D B 9 E A 1 2 5 6 8 F COMPARATOR SOS6_SC1 LAT CML CSH CSL SC_DRV_RST CBK CEL P5V TPSOS6 +15V +15V GND GND GND GND CPH1 OC2 SCSU OC1 TPSOS7 GND BUFFER GND BUFFER +15V CMH NC GND SID SIU CLK CPH2 TP15V SOS7_SC2 BUFFER BUFFER FET DRIVER ENERGY RECOVERY Vsus Gen. FET DRIVER +5V(SC1) +5V(SC2) TO P-BOARD (P2) TO D-BOARD (D20) ! SC-BOARD (1/2) TXNSC1HLTC AND 53V OR LESS OPERATES AT 98V OR MORE 1 2 3 4 5 6 7 8 9 10 (GREEN LED) L6463,L6464 L6461,L6462 L6467,L6468 L6465,L6466 TH-42PV700C SC-Board (1 of 2) Schematic Diagram TH-42PV700C SC-Board (1 of 2) Schematic Diagram 105 15.48.SC 电路板 (2/2) 线路图 + + + + + + REF K A + + + REF K A + + + REF K A REF K A AB_FSIU AB_FCLU AB_FCLKU AB_PROU AB_PROD AB_FCLKD AB_FCLD AB_FSID R6863 56k D6820 MA2J11100L R6610 100k C6832 50V 3900p TP59 5V_F R6680 10 D6764 B0HCKS000002 TP63 TP60 R6608 1k D6662 MAZ83300ML R6696 2.2 Q6680 B1ADNF000006 ZA6401 K4CD01000011 VSCN_F Q6646 2SK399500L R6648 33 R6662 3k R6857 120k D6670 B0JCME000037 Q6601 B1DFES000003 G D S D6827 MAZ83300ML D6872 MA2J11100L L6472 G0ZZ00002183 5V R6793 100 R6791 1k L6474 G0ZZ00002183 TP50 D6761 B0JCME000037 M1FS4-5063 C6796 25V 220u R6831 15k D6661 MA2J11100L R6807 1.5 Q6806 2SC1473AEA R6817 2.49k D6641 B0HCKS000002 D6841 B0HCKS000002 R6878 22k D6861 MAZ80510LL R6842 43k VR6600 1k 1 2 3 R6864 6.8k C6871 16V 1u R6612 47 TP41 R6782 47k R6840 1.5 R6822 100k C6801 250V 47u C6842 160V 100u R6844 100 R6875 3.3k R6830 100k C6815 50V 1000p ZA6402 K4CD01000011 R6647 33 C6775 25V 4.7u SC45 1 2 3 4 5 6 7 8 9 R6888 220k R6851 18k C6791 25V 220u R6761 10 D6632 MAZ82400ML D6667 MA2J11100L D6604 MA2J11100L D6690 MA2J11100L 16V_F R6869 4.7k ZA6403 K4CD01000011 R6879 4.7k D6665 MAZ80510LL C6671 25V 4.7u N0BF1FB00001 IC6791 1 GND 2 GND 3 N.C. 4 VIN 5 VIN 6 N.C. 9 COM 10 COM 11 VOUT 12 VOUT TP45 R6668 4.7k R6812 240k Q6642 2SK399500L R6607 6.81k D6837 MA2J11100L TP55 R6777 150 R6792 10k 5V R6853 100 R6665 47 T6602 ETS25AZ169AD 1 S5 2 S4 4 S2 5 S1 7 P1 10 V2 9 V1 3 S3 6 P2 VAD R6813 10k TP62 D6497 B0ECHP000003 R6848 10k C6606 630V 4700p D6825 MAZ83300ML R6809 27k C6845 50V 0.01u IC6861 C0BBBA000022 1 2 3 4 5 6 7 8 D6806 B0HCKS000002 R6827 200k R6867 3.9k IC6671 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB C6803 2kV 220p PC6801 B3PBA0000223 1 2 3 4 SOS7_SC2 D6822 MA2J11100L Q6648 2SK399500L R6639 1 D6663 MAZ83300ML R6672 47k R6843 62k R6850 68k R6658 100 R6828 4.7k R6622 220 R6872 39k R6671 47 D6773 B0HCKS000002 D1FK70-7063 C6822 400V 47u R6834 75k R6862 51k D6607 MA2J11100L R6605 1.8k SOS7_SC2 Q6781 B1ABNF000006 R6821 220 R6837 56k Q6822 2SD1263AP0LB *SC41 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 TP46 Q6671 B1DFDR000001 G D S R6839 4.7k Q6672 B1DFDR000001 RJK6026DPE-00-J3 G D S R6841 15k R6642 33 1 R6765 Q6662 2SD0601A0L C6694 25V 1u R6762 47k TP57 C6641 0.22u 250V R6856 56 R6621 220 R6874 6.8k C6805 50V 330p TP64 R6855 10k Q6603 2SB0709ASL C6605 630V 4700p R6825 200k R6806 1.5 TP42 R6865 3.3k C6804 250V 10u D6843 MA2J11100L D6804 B0ECHP000003 IC6821 C0DBEMC00043 15V C5HABZZ00165 IC6803 1 Z/C 2 F/B 3 GND 4 Vcc 5 Souce/OCL 7 Vin 9 Drain TP44 Q6824 2SD0601A0L C6691 160V 100u D6643 B0JCME000037 C0ZBZ0001324 IC6752 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C6621 630V 2200p VAD VR6602 5k 1 2 3 R6818 470k C6662 630V 1000p D6644 B0HCKS000002 *D6624 B0HDSM000005 R6810 1k SC46 1 2 3 4 5 6 7 8 9 R6789 47k TP47 Q6665 B1ABNF000006 *R6815 ERJ6ENF1801 Q6621 2SK399500L D6830 MAZ80560HL R6673 47 C6841 250V 47u C6862 25V 1u C6755 25V 4.7u R6659 220k 5V D6836 MAZ81500ML TP43 R6871 39k C6806 160V 100u 16V_F R6666 100k R6646 33 R6801 8.2 SOS7_SC2 VF_GND D6823 MA2J11100L D6824 MAZ83300ML D6619 B0HCKS000002 D6828 MAZ83300ML R6638 1 Q6782 B1ADNF000006 IC6802 C0DBEMC00043 R6769 75 R6868 22k R6847 62k D6605 MAZ80510LL D6805 MAZ82400ML R6814 5.6k Q6647 2SK399500L R6775 100 VSET2 R6797 16.9k *D6621 B0HDSM000005 D6871 MAZ80510LL *Q6661 B1DEET000002 G D S D6859 B0ECHP000003 C6604 630V 1000p VSUS R6833 75k R6873 39k D6821 MA2J11100L C6873 50V 0.01u C6795 25V 220u R6860 8.2 1 R6768 IC6871 C0BBBA000022 1 2 3 4 5 6 7 8 R6832 4.7 SC30 1 2 3 4 5 6 7 8 9 10 D6826 MA2J11100L PC6871 B3PBA0000223 1 2 3 4 75 R6766 TP40 D6838 B0BC027A0234 *R6816 ERJ6ENF4531 R6660 220k Q6841 2SD1263AP0LB R6644 33 C6861 16V 1u R6823 100k 16V_F D6664 MAZ83300ML C6823 50V 0.01u Q6762 B1ADNF000006 C6752 25V 1u Q6821 2SD1263AP0LB C6620 630V 2200p 5V_F C6695 50V 1000p D6606 B0HCMM000014 VSUS Q6679 B1ABNF000006 TP51 R6664 2.2k PC6861 B3PBA0000223 1 2 3 4 R6788 470k TP61 C6872 25V 1u R6681 10 VSET R6876 560 R6866 620 R6694 27k R6845 62k TP49 D6860 D1FK70-7063 Q6690 2SA19610QAHW D6763 B0ECHP000003 C6753 25V 4.7u R6674 47 TP53 D6642 B0HCKS000002 Q6805 2SC3063000RL R6849 68k R6826 200k D6766 B0ECHP000003 R6836 75k 16V_F D6765 B0ECHP000003 C6814 25V 220u SOS7_SC2 D6666 MA2J11100L IC6772 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6802 10k R6661 100k R6667 4.7k R6886 220k R6887 220k L6690 G0ZZ00002183 *D6623 B0HDSM000005 TP54 C6756 25V 4.7u D6692 MAZ82000ML R6877 3.9k 15V R6796 100k Q6791 2SD0601A0L R6846 62k TP56 15V D6809 B0HCMM000014 R6692 4.7k Q6622 2SK399500L C6812 25V 4.7u VSCN_F D6631 MAZ82400ML R6835 75k D6842 MA2J11100L R6852 2.7k C6603 630V 1000p *SC42 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 D6862 MA2J11100L C6813 160V 100u D6839 B0ECHP000003 R6808 2.7k Q6602 2SD0601AQL C6811 25V 1u R6795 100k 15V_F R6695 120k R6609 1k R6824 3.9k VAD Q6644 2SK399500L 2W R6623 33k VSCN R6811 10k C6661 630V 1000p C6773 25V 4.7u VSET D6691 MAZ82000ML D6791 MAZ82000ML 15V D6802 B0BC01000044 D6671 B0JCME000037 R6829 100k R6709 100 IC6841 C0DBEMC00043 R6663 10k R6861 51k Q6842 2SC1473AEA R6693 82k R6781 47 VF_GND IC6801 C0DBEMC00043 TP58 R6643 33 TP48 Q6643 2SK399500L R6891 18k SC31 1 2 3 4 5 6 C6863 50V 0.01u FLOATING GND COLD COLD FLOATING GND COLD FLOATING GND * * * m * * * TPSC1 + + - - - - + + INIT-R SG73P2A INIT-F VSET:330V TPVSET2:14V TPVAD TPVSCN TPVSET VSCN:145V VAD:-105V 11 12 16 17 18 14 15 13 10 POWER OSC DC/DC CONV. COMPARATOR COMPARATOR FET DRIVER VAD SEPARATE VAD CONT FET DRIVER VAD Gen. VSCN Gen. VSET2 Gen. VSET Gen. VSET SEPARATE OPERATES AT 160V OR MORE AND 125V OR LESS. Vscn DET VAD DET OPERATES AT 91V OR MORE AND 120V OR LESS OPERATES AT 21V OR MORE F16V DET (Vscn volatage) Vf(High Voltage Floting GND) Vfo(Vscn Out) VF5V Vf Vfo(Vscn Out) Vf Vf(High Voltage Floting GND) VF5V (Vscn volatage) (SU41) TO SU-BOARD SD-BOARD (SD42) TO TO (SU45) SU-BOARD TO (SD46) SD-BOARD OPERATES AT 214V OR LESS VSET DET FET DRIVER 7 10 1 4 5 3 9 2 8 6 TH-42PV700C SC-Board (2 of 2) Schematic Diagram TH-42PV700C SC-Board (2 of 2) Schematic Diagram ! SC-BOARD (2/2) TXNSC1HLTC 106 15.49.SU 和 SD 电路板方框图 64 SU2 Vfo A6 3 A5 45 SO LINE D6905 IC6952 SO SD SU CLK 96 C40 CLK LINE GND SCAN PRO PRO IC6906 SU SCAN OUT (UPPER) GND VDDH C9 64bit PROD VDD CLK 1 32 64bit CLK LINE 64bit GND CLK Vf+5V Vf Vf SO VDD A30 SU3 32 A46 CL Vf+5V VDDH A31 96 CLK C74 FCLKD CLK Vfo 64 FSIU PRO CL 96 PRO SI S/P 32 SD4 VDDH A32 C41 S/P A72 32 IC6903 C50 CL CLK C49 46 Vfo 64bit 96 32 PRO PRO CLK VDD VDD Vscn CL VDD S/P VDD A1 VDD 384LINE SO SO Vf C51 IC6901 CL GND A45 SU41 S/P 1 C80 VDDH SI GND Vf+5V CL Vf+5V 384LINE VDDH C75 C11 VDD Vf IC6951 C76 GND Vf+5V Vf+5V GND C34 CL C33 Vf SD3 VDD C73 64 VDDH VDDH 96 IC6905 CLK GND S/P FCLKU PROU A73 PANEL 7 64 ELECTRODES (UPPER) SD SCAN OUT (LOWER) C35 VDDH 96 C36 C1 S/P PRO FSID 64 9 SCAN CL D6904 D6903 SI 5 SU4 LINE SI GND VDD CL IC6953 IC6956 CL Vscn D6955 S/P SI S/P SI 64bit VDD 64bit SO 8 SO PRO Vscn S/P PRO S/P Vf VDDH 96 CL LINE Vf+5V Vfo SD1 SI IC6904 C48 9 3 LINE 64bit SI SO 64 GND Vf+5V SO A70 SI A71 VDDH A41 LINE 7 VDDH S/P Vscn 64bit A33 SD42 SI VDDH 96 IC6955 D6953 64 D6954 A80 IC6954 PRO SU1 FCLD S/P A7 64bit LINE A47 SD2 SO 64 A8 GND Vf Vf 32 FCLU 8 32 PRO 64bit SI 32 VDD 5 CLK 64bit A48 A40 SI PRO C10 PANEL (LOWER) C8 CL CLK GND 64bit IC6902 ELECTRODES TH-42PV700C SU and SD-Board Block Diagram TH-42PV700C SU and SD-Board Block Diagram 107 15.50.SU 电路板 (1/2) 线路图 TERM SIDE TERM SIDE AB_766 AB_765 AB_764 AB_763 AB_762 AB_761 AB_760 AB_759 AB_758 AB_757 AB_756 AB_755 AB_754 AB_753 AB_752 AB_751 AB_750 AB_749 AB_748 AB_747 AB_746 AB_745 AB_744 AB_742 AB_743 AB_741 AB_739 AB_740 AC_702 AC_701 AC_700 AC_699 AC_698 AC_697 AC_696 AC_695 AC_694 AC_693 AC_692 AC_691 AC_690 AC_689 AC_688 AC_687 AC_686 AC_685 AC_684 AC_683 AC_682 AC_681 AC_680 AC_678 AC_679 AC_677 AC_675 AC_676 AD_638 AD_637 AD_636 AD_635 AD_634 AD_633 AD_632 AD_631 AD_630 AD_629 AD_628 AD_627 AD_626 AD_625 AD_624 AD_623 AD_622 AD_621 AD_620 AD_619 AD_618 AD_617 AD_616 AD_614 AD_615 AD_613 AD_611 AD_612 AB_705 AB_707 AB_709 AB_711 AB_713 AB_715 AB_717 AB_719 AB_721 AB_723 AB_725 AB_727 AB_729 AB_731 AB_733 AB_735 AB_737 AB_739 AB_741 AB_743 AB_745 AB_747 AB_749 AB_751 AB_753 AB_755 AB_757 AB_759 AB_761 AB_763 AB_767 AB_765 AB_706 AB_708 AB_710 AB_712 AB_714 AB_716 AB_718 AB_720 AB_722 AB_724 AB_726 AB_728 AB_730 AB_732 AB_734 AB_736 AB_738 AB_740 AB_742 AB_744 AB_746 AB_748 AB_750 AB_752 AB_754 AB_756 AB_758 AB_760 AB_762 AB_764 AB_768 AB_766 AC_641 AC_643 AC_645 AC_647 AC_649 AC_651 AC_653 AC_655 AC_657 AC_659 AC_661 AC_663 AC_665 AC_667 AC_671 AC_669 AC_673 AC_675 AC_677 AC_679 AC_681 AC_683 AC_685 AC_687 AC_689 AC_691 AC_693 AC_695 AC_697 AC_699 AC_703 AC_701 AC_642 AC_644 AC_646 AC_648 AC_650 AC_652 AC_654 AC_656 AC_658 AC_660 AC_662 AC_664 AC_666 AC_668 AC_670 AC_674 AC_676 AC_678 AC_680 AC_682 AC_684 AC_686 AC_688 AC_690 AC_692 AC_694 AC_696 AC_698 AC_700 AC_704 AC_702 AD_577 AD_579 AD_581 AD_583 AD_585 AD_587 AD_589 AD_591 AD_593 AD_595 AD_597 AD_599 AD_601 AD_603 AD_605 AD_607 AD_609 AD_611 AD_613 AD_615 AD_617 AD_619 AD_621 AD_623 AD_625 AD_627 AD_629 AD_633 AD_631 AD_635 AD_637 AD_639 AD_578 AD_580 AD_584 AD_586 AD_588 AD_590 AD_592 AD_594 AD_596 AD_598 AD_600 AD_602 AD_604 AD_606 AD_608 AD_610 AD_612 AD_614 AD_616 AD_618 AD_620 AD_622 AD_624 AD_626 AD_628 AD_630 AD_632 AD_634 AD_636 AD_640 AD_638 AB_768 AB_767 AC_703 AC_704 AD_639 AD_640 AD_582 AC_672 AB_705 AB_706 AB_707 AB_708 AB_709 AB_710 AB_711 AB_712 AB_713 AB_714 AB_715 AB_716 AB_717 AB_718 AB_719 AB_720 AB_721 AB_722 AB_723 AB_724 AB_725 AB_726 AB_727 AB_728 AB_729 AB_730 AB_731 AB_732 AB_733 AB_734 AB_735 AB_736 AB_738 AB_737 AC_641 AC_642 AC_643 AC_644 AC_645 AC_646 AC_647 AC_648 AC_649 AC_650 AC_651 AC_652 AC_653 AC_654 AC_655 AC_656 AC_657 AC_658 AC_659 AC_660 AC_661 AC_662 AC_663 AC_664 AC_665 AC_666 AC_667 AC_668 AC_669 AC_670 AC_671 AC_672 AC_674 AC_673 AD_577 AD_578 AD_579 AD_580 AD_581 AD_582 AD_583 AD_584 AD_585 AD_586 AD_587 AD_588 AD_589 AD_590 AD_591 AD_592 AD_593 AD_594 AD_595 AD_596 AD_597 AD_598 AD_599 AD_600 AD_602 AD_601 AD_603 AD_604 AD_605 AD_606 AD_607 AD_608 AD_610 AD_609 AA_SO1 AA_SO1 AA_SO2 AA_SO3 AA_SO2 AA_CLK AA_CL AA_PRO AA_CL AA_CLK AA_CL AA_SI AA_CL AA_CLK AA_PRO AA_PRO AA_CLK AA_PRO AA_SI C6906 16V 1u AN16077A-VT IC6902 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D6901 MAZ80560HL R6932 10k SU45 1 2 3 4 5 6 7 8 9 R6903 22 R6933 10k C6931 50V 1000p R6909 220 R6905 220 R6926 0 C6936 50V 680p SU2 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C6937 50V 220p AN16077A-VT IC6903 AN16077AAVT 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6938 10k R6925 0 C6904 16V 1u R6934 10k SU1 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 R6901 100 C6901 50V 1000p R6904 22 AN16077A-VT IC6901 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6902 16V 1u R6931 10k R6902 22 PRO FSI FCLK FCL S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER SC-BOARD (SC45) TO Vfo Vf5 Vf5 Vf B 1 ! D 8 7 5 C 6 E A 2 3 4 SCAN ELECTRODES To 2nd 96pins of UP To 1st 96pins of SCAN ELECTRODES 1 2 3 4 5 SU-BOARD TNPA4184 (1/2) TH-42PV700C SU-Board (1 of 2) Schematic Diagram TH-42PV700C SU-Board (1 of 2) Schematic Diagram 108 15.51.SU 电路板 (2/2) 线路图 TERM SIDE TERM SIDE AE_574 AE_573 AE_572 AE_571 AE_570 AE_569 AE_568 AE_567 AE_566 AE_565 AE_564 AE_563 AE_562 AE_561 AE_560 AE_559 AE_558 AE_557 AE_556 AE_555 AE_554 AE_553 AE_552 AE_550 AE_551 AE_549 AE_547 AE_548 AF_510 AF_509 AF_508 AF_507 AF_506 AF_505 AF_504 AF_503 AF_502 AF_501 AF_500 AF_499 AF_498 AF_497 AF_496 AF_495 AF_494 AF_493 AF_492 AF_491 AF_490 AF_489 AF_488 AF_486 AF_487 AF_485 AF_483 AF_484 AG_446 AG_445 AG_444 AG_443 AG_442 AG_441 AG_440 AG_439 AG_438 AG_437 AG_436 AG_435 AG_434 AG_433 AG_432 AG_431 AG_430 AG_429 AG_428 AG_427 AG_426 AG_425 AG_424 AG_422 AG_423 AG_421 AG_419 AG_420 AE_513 AE_515 AE_517 AE_519 AE_521 AE_523 AE_525 AE_527 AE_529 AE_531 AE_533 AE_535 AE_537 AE_539 AE_541 AE_543 AE_545 AE_547 AE_549 AE_551 AE_553 AE_555 AE_557 AE_559 AE_561 AE_563 AE_565 AE_567 AE_569 AE_571 AE_575 AE_573 AE_514 AE_516 AE_518 AE_520 AE_522 AE_524 AE_526 AE_528 AE_530 AE_532 AE_534 AE_536 AE_538 AE_540 AE_542 AE_544 AE_546 AE_548 AE_550 AE_552 AE_554 AE_556 AE_558 AE_560 AE_562 AE_564 AE_566 AE_568 AE_570 AE_572 AE_576 AE_574 AF_449 AF_451 AF_453 AF_455 AF_457 AF_459 AF_461 AF_463 AF_465 AF_467 AF_469 AF_471 AF_473 AF_475 AF_479 AF_477 AF_481 AF_483 AF_485 AF_487 AF_489 AF_491 AF_493 AF_495 AF_497 AF_499 AF_501 AF_503 AF_505 AF_507 AF_511 AF_509 AF_450 AF_452 AF_454 AF_456 AF_458 AF_460 AF_462 AF_464 AF_466 AF_468 AF_470 AF_472 AF_474 AF_476 AF_478 AF_482 AF_484 AF_486 AF_488 AF_490 AF_492 AF_494 AF_496 AF_498 AF_500 AF_502 AF_504 AF_506 AF_508 AF_512 AF_510 AG_385 AG_387 AG_389 AG_391 AG_393 AG_395 AG_397 AG_399 AG_401 AG_403 AG_405 AG_407 AG_409 AG_411 AG_413 AG_415 AG_417 AG_419 AG_421 AG_423 AG_425 AG_427 AG_429 AG_431 AG_433 AG_435 AG_437 AG_439 AG_441 AG_443 AG_445 AG_447 AG_386 AG_388 AG_390 AG_392 AG_394 AG_396 AG_398 AG_400 AG_402 AG_404 AG_406 AG_408 AG_410 AG_412 AG_414 AG_416 AG_418 AG_420 AG_422 AG_424 AG_426 AG_428 AG_430 AG_432 AG_434 AG_436 AG_438 AG_440 AG_442 AG_444 AG_448 AG_446 AE_576 AE_575 AF_511 AF_512 AG_448 AG_447 AF_480 AE_513 AE_514 AE_515 AE_516 AE_517 AE_518 AE_519 AE_520 AE_521 AE_522 AE_523 AE_524 AE_525 AE_526 AE_527 AE_528 AE_529 AE_530 AE_531 AE_532 AE_533 AE_534 AE_535 AE_536 AE_537 AE_538 AE_539 AE_540 AE_541 AE_542 AE_543 AE_544 AE_546 AE_545 AF_449 AF_450 AF_451 AF_452 AF_453 AF_454 AF_455 AF_456 AF_457 AF_458 AF_459 AF_460 AF_461 AF_462 AF_463 AF_464 AF_465 AF_466 AF_467 AF_468 AF_469 AF_470 AF_471 AF_472 AF_473 AF_474 AF_475 AF_476 AF_477 AF_478 AF_479 AF_480 AF_482 AF_481 AG_385 AG_386 AG_387 AG_388 AG_389 AG_390 AG_391 AG_392 AG_393 AG_394 AG_395 AG_396 AG_397 AG_398 AG_399 AG_400 AG_401 AG_402 AG_403 AG_404 AG_405 AG_406 AG_407 AG_408 AG_409 AG_410 AG_411 AG_412 AG_413 AG_414 AG_415 AG_416 AG_418 AG_417 AA_SO3 AA_SO4 AA_SO4 AA_SO5 AA_SO5 AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO C80 C47 C79 C78 SU4 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C40 D6905 B0HCMM000013 D6903 B0HCMM000013 C8 D6904 B0HCMM000013 C3 C6 C45 C1 C48 SU3 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C77 C37 C34 C7 C5 AN16077A-VT IC6904 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6908 16V 1u C41 C46 C43 C6924 250V 0.1u D6902 MAZ80560HL R6936 220k C38 C74 C4 C49 C44 R6924 220 C42 C75 C76 C50 C2 C6910 16V 1u C6912 16V 1u R6913 220 C10 C39 R6917 220 AN16077A-VT IC6905 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C35 C9 AN16077A-VT IC6906 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6926 250V 0.1u C36 C26 C32 C15 C70 C31 C33 C54 C14 C61 C22 C64 C58 C55 C17 C65 C71 C68 C29 C66 C16 C62 C60 C23 C11 C63 C51 C13 C67 C57 C28 C27 C72 C25 C18 C12 C56 C19 C20 C53 C30 C69 C73 C21 C24 C52 C59 C6929 250V 0.1u C6927 250V 0.1u C6923 250V 0.1u R6935 220k C6921 250V 0.1u Vscn Vf5 Vf Vfo Vf VF5V VF5V S/P 64bit PDP SCAN DRIVER PDP SCAN DRIVER S/P 64bit S/P 64bit PDP SCAN DRIVER (UPPER) (LOWER) COMPONENT SIDE FOIL SIDE TO (SC41) SC-BOARD SU41(Card Edge 80Pin) Vf5 Vscn voltage Vfo(Vscn Out) Vf(High Voltage Floting GND) Vf(High Voltage Floting GND) 12 8 15 14 9 13 10 11 ! To 4th 96pins of SCAN ELECTRODES UP To 3rd 96pins of SCAN ELECTRODES 2 5 3 4 1 SU-BOARD TNPA4184 (2/2) TH-42PV700C SU-Board (2 of 2) Schematic Diagram TH-42PV700C SU-Board (2 of 2) Schematic Diagram 109 15.52.SD 电路板 (1/2) 线路图 TERM SIDE TERM SIDE AB_382 AB_381 AB_380 AB_379 AB_378 AB_377 AB_376 AB_375 AB_374 AB_373 AB_372 AB_371 AB_370 AB_369 AB_368 AB_367 AB_366 AB_365 AB_364 AB_363 AB_362 AB_361 AB_360 AB_358 AB_359 AB_357 AB_355 AB_356 AC_318 AC_317 AC_316 AC_315 AC_314 AC_313 AC_312 AC_311 AC_310 AC_309 AC_308 AC_307 AC_306 AC_305 AC_304 AC_303 AC_302 AC_301 AC_300 AC_299 AC_298 AC_297 AC_296 AC_294 AC_295 AC_293 AC_291 AC_292 AD_254 AD_253 AD_252 AD_251 AD_250 AD_249 AD_248 AD_247 AD_246 AD_245 AD_244 AD_243 AD_242 AD_241 AD_240 AD_239 AD_238 AD_237 AD_236 AD_235 AD_234 AD_233 AD_232 AD_230 AD_231 AD_229 AD_227 AB_365 AB_367 AB_369 AB_371 AB_373 AB_375 AB_377 AB_379 AB_381 AB_383 AB_366 AB_368 AB_370 AB_372 AB_374 AB_376 AB_380 AB_382 AB_341 AB_343 AB_345 AB_347 AB_349 AB_351 AB_353 AB_355 AB_357 AB_359 AB_361 AB_363 AB_342 AB_344 AB_346 AB_348 AB_350 AB_352 AB_354 AB_356 AB_358 AB_360 AB_362 AB_364 AB_321 AB_323 AB_325 AB_327 AB_329 AB_331 AB_333 AB_335 AB_337 AB_339 AB_322 AB_324 AB_326 AB_328 AB_330 AB_332 AB_334 AB_336 AB_338 AB_340 AC_319 AC_317 AC_316 AC_320 AC_318 AB_384 AB_383 AC_293 AC_295 AC_297 AC_299 AC_301 AC_303 AC_305 AC_307 AC_309 AC_311 AC_313 AC_315 AC_294 AC_296 AC_298 AC_300 AC_302 AC_304 AC_306 AC_308 AC_310 AC_312 AC_314 AC_281 AC_283 AC_287 AC_285 AC_282 AC_284 AC_288 AC_286 AC_289 AC_291 AC_257 AC_259 AC_261 AC_263 AC_265 AC_267 AC_269 AC_271 AC_273 AC_275 AC_277 AC_279 AC_258 AC_260 AC_262 AC_264 AC_266 AC_268 AC_270 AC_272 AC_274 AC_276 AC_278 AC_280 AD_256 AC_320 AC_319 AD_254 AD_252 AD_250 AD_248 AD_246 AD_244 AD_242 AD_240 AD_238 AD_236 AD_234 AD_232 AD_253 AD_255 AD_251 AD_249 AD_247 AD_245 AD_243 AD_241 AD_239 AD_237 AD_235 AD_233 AD_230 AD_228 AD_226 AD_224 AD_222 AD_220 AD_218 AD_216 AD_214 AD_212 AD_210 AD_208 AD_231 AD_229 AD_227 AD_225 AD_223 AD_221 AD_219 AD_217 AD_215 AD_213 AD_211 AD_209 AD_206 AD_204 AD_202 AD_200 AD_198 AD_196 AD_194 AD_207 AD_205 AD_203 AD_201 AD_199 AD_197 AD_195 AD_193 AD_256 AD_255 AB_378 AB_384 AC_292 AC_290 AB_321 AB_323 AB_324 AB_325 AB_326 AB_327 AB_328 AB_329 AB_330 AB_331 AB_332 AB_333 AB_334 AB_335 AB_336 AB_337 AB_338 AB_339 AB_340 AB_341 AB_342 AB_343 AB_344 AB_345 AB_346 AB_322 AB_347 AB_348 AB_349 AB_350 AB_351 AB_352 AB_353 AB_354 AC_257 AC_258 AC_259 AC_260 AC_261 AC_262 AC_263 AC_264 AC_265 AC_266 AC_267 AC_268 AC_269 AC_270 AC_271 AC_272 AC_273 AC_274 AC_275 AC_276 AC_277 AC_278 AC_279 AC_280 AC_281 AC_282 AC_283 AC_284 AC_285 AC_286 AC_287 AC_288 AC_289 AC_290 AD_193 AD_194 AD_195 AD_196 AD_197 AD_198 AD_199 AD_200 AD_201 AD_202 AD_203 AD_204 AD_205 AD_206 AD_207 AD_208 AD_209 AD_210 AD_211 AD_212 AD_213 AD_214 AD_215 AD_216 AD_217 AD_218 AD_219 AD_220 AD_221 AD_222 AD_223 AD_224 AD_226 AD_225 AD_228 AA_SO7 AA_SO7 AA_SO8 AA_SO9 AA_CLK AA_CL AA_PRO AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_SI AA_SO8 A36 A6 D6953 B0HCMM000013 A46 AN16077A-VT *IC6953 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6984 10k A33 A80 D6952 MAZ80560HL R6959 220 A32 R6951 100 A39 A8 R6985 220k A37 R6955 220 D6954 B0HCMM000013 A71 A9 A74 A79 C6951 50V 1000p A72 A76 A47 C6957 16V 1u A75 A35 D6955 B0HCMM000013 A77 SD2 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 A48 A31 A78 A40 C6952 16V 1u A34 AN16077A-VT *IC6951 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D6951 MAZ80560HL A7 SD1 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 A38 AN16077A-VT *IC6952 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6955 16V 1u A73 A16 A12 A24 A52 A56 A26 A10 A65 A64 C6973 250V 0.1u A62 A58 A21 A49 A66 A14 A51 A17 A30 A23 A60 A50 A70 A15 A54 C6977 250V 0.1u C6976 250V 0.1u A18 A28 A29 A13 A57 A20 A68 C6979 250V 0.1u A69 A27 A11 C6971 250V 0.1u A22 A67 A55 A63 C6974 250V 0.1u A59 A61 R6986 220k A53 A25 A19 A4 A43 A5 A1 A45 A3 A41 A44 A42 A2 VF5V VF5V COMPONENT SIDE (LOWER) FOIL SIDE (UPPER) D B C E A 1 8 7 5 6 2 3 4 ! S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER Vscn Vf(High Voltage Floting GND) Vscn voltage Vf(High Voltage Floting GND) Vfo(Vscn Out) Vf Vfo Vf5 Vf5 SD42(Card Edge 80Pin) SC-BOARD (SC42) TO SCAN ELECTRODES To 2nd 96pins of To 1st 96pins of SCAN ELECTRODES DOWN 1 2 3 4 5 SD-BOARD TNPA4185 (1/2) TH-42PV700C SD-Board (1 of 2) Schematic Diagram TH-42PV700C SD-Board (1 of 2) Schematic Diagram 110 15.53.SD 电路板 (2/2) 线路图 TERM SIDE TERM SIDE AE_190 AE_189 AE_188 AE_187 AE_186 AE_185 AE_184 AE_183 AE_182 AE_181 AE_180 AE_179 AE_178 AE_177 AE_176 AE_175 AE_174 AE_173 AE_172 AE_171 AE_170 AE_169 AE_168 AE_166 AE_167 AE_165 AE_163 AE_164 AF_126 AF_125 AF_124 AF_123 AF_122 AF_121 AF_120 AF_119 AF_118 AF_117 AF_116 AF_115 AF_114 AF_113 AF_112 AF_111 AF_110 AF_109 AF_108 AF_107 AF_106 AF_105 AF_104 AF_102 AF_103 AF_101 AF_99 AF_100 AG_62 AG_61 AG_60 AG_59 AG_58 AG_57 AG_56 AG_55 AG_54 AG_53 AG_52 AG_51 AG_50 AG_49 AG_48 AG_47 AG_46 AG_45 AG_44 AG_43 AG_42 AG_41 AG_40 AG_38 AG_39 AG_37 AG_35 AG_36 AE_187 AE_185 AE_183 AE_188 AE_186 AE_184 AE_182 AE_191 AE_192 AE_189 AE_190 AE_175 AE_173 AE_181 AE_179 AE_177 AE_176 AE_174 AE_172 AE_180 AE_178 AE_161 AE_159 AE_163 AE_164 AE_162 AE_160 AE_158 AE_165 AE_171 AE_169 AE_167 AE_170 AE_168 AE_166 AE_151 AE_157 AE_155 AE_153 AE_149 AE_152 AE_156 AE_154 AE_148 AE_150 AE_192 AE_191 AE_137 AE_135 AE_140 AE_138 AE_136 AE_134 AE_141 AE_143 AE_145 AE_147 AE_144 AE_146 AE_139 AE_142 AE_133 AE_131 AE_129 AF_127 AF_125 AF_123 AE_132 AE_130 AF_128 AF_126 AF_124 AF_113 AF_111 AF_114 AF_112 AF_110 AF_117 AF_121 AF_119 AF_122 AF_120 AF_115 AF_116 AF_118 AF_109 AF_107 AF_105 AF_103 AF_101 AF_99 AF_108 AF_106 AF_104 AF_102 AF_100 AF_97 AF_98 AF_94 AF_96 AF_92 AF_90 AF_93 AF_95 AF_91 AF_128 AF_127 AF_88 AF_86 AF_84 AF_82 AF_80 AF_78 AF_76 AF_74 AF_72 AF_70 AF_68 AF_66 AF_89 AF_87 AF_85 AF_83 AF_81 AF_79 AF_77 AF_75 AF_73 AF_71 AF_69 AF_67 AG_61 AG_63 AG_59 AG_57 AG_55 AG_53 AG_51 AG_49 AG_47 AG_45 AG_43 AG_41 AG_64 AG_62 AG_60 AG_58 AG_56 AG_54 AG_52 AG_50 AG_48 AG_46 AG_44 AG_42 AF_65 AG_39 AG_37 AG_35 AG_33 AG_31 AG_29 AG_27 AG_25 AG_23 AG_21 AG_19 AG_17 AG_40 AG_38 AG_36 AG_34 AG_32 AG_30 AG_28 AG_26 AG_24 AG_22 AG_20 AG_18 AG_64 AG_63 AG_15 AG_13 AG_11 AG_9 AG_7 AG_5 AG_3 AG_1 AG_16 AG_14 AG_12 AG_10 AG_8 AG_6 AG_4 AG_2 AE_130 AE_129 AE_132 AE_133 AE_134 AE_135 AE_136 AE_137 AE_138 AE_139 AE_140 AE_141 AE_142 AE_143 AE_144 AE_145 AE_146 AE_147 AE_148 AE_149 AE_150 AE_151 AE_152 AE_153 AE_154 AE_131 AE_155 AE_156 AE_157 AE_158 AE_159 AE_160 AE_162 AE_161 AF_65 AF_66 AF_67 AF_68 AF_69 AF_70 AF_71 AF_72 AF_73 AF_74 AF_75 AF_76 AF_77 AF_78 AF_79 AF_80 AF_81 AF_82 AF_83 AF_84 AF_85 AF_86 AF_87 AF_88 AF_89 AF_90 AF_91 AF_92 AF_93 AF_94 AF_95 AF_96 AF_97 AF_98 AG_1 AG_2 AG_3 AG_4 AG_5 AG_6 AG_7 AG_8 AG_9 AG_10 AG_11 AG_12 AG_13 AG_14 AG_15 AG_16 AG_17 AG_18 AG_19 AG_20 AG_21 AG_22 AG_23 AG_24 AG_25 AG_26 AG_27 AG_28 AG_29 AG_30 AG_31 AG_32 AG_34 AG_33 AA_SO10 AA_SO11 AA_SO11 AA_CL AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_PRO AA_CL AA_SI AA_CLK AA_PRO AA_SO10 AA_SO9 C6981 50V 1000p R6976 0 AN16077A-VT IC6955 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6952 22 R6981 10k R6967 220 R6971 220 SD46 1 2 3 4 5 6 7 8 9 C6961 16V 1u C6958 16V 1u AN16077A-VT IC6956 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16077A-VT IC6954 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SD4 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 R6975 0 SD3 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C6987 50V 220p R6953 22 R6963 220 R6954 22 C6963 16V 1u C6986 50V 680p R6983 10k R6982 10k R6989 10k Vf5 PRO FSI FCLK FCL Vf 8 15 13 14 11 10 9 12 S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER Vfo Vf5 TO SC-BOARD (SC46) To 4th 96pins of SCAN ELECTRODES DOWN To 3rd 96pins of SCAN ELECTRODES ! 2 1 4 5 3 SD-BOARD TNPA4185 (2/2) TH-42PV700C SD-Board (2 of 2) Schematic Diagram TH-42PV700C SD-Board (2 of 2) Schematic Diagram 111 15.54.SS 和 S 电路板方框图 PUSH REF K A D6221 SW2500 D6253 TP15V D6255 R6113 G D S G D S G D S G D S G D S G D S G D S VR6000 1 2 3 D6281 +5V +5V D6273 D6278 D6276 D6275 Q6052 Q6141-Q6142 +15V LED(G) FET DRIVER VCC SS IC6191 TPSS1 SIGNAL WAVE 1 Q6103,Q6104 S1 4 Vsus Gen. S POWER SWITCH POWER SWITCH 34 Q6021-Q6023 VCC Vda Q6001-Q6003 SS_SOS8 VSUS VE 1 2 8 MAIN_SW_1 VCC Vda 3 Ve Gen. 10 VCC 3 IC6251 1 MAIN_SW_2 IC6131 12 Ve2 P12 SS ENERGY RECOVERY COMPARATOR SS SUSTAIN DRIVE Vsus 11 SS 1 TO P11 Q6146-Q6147 IC6151 Q6041,Q6042 L6011-L6013 L6001-L6003 VCC IC6211 (+5V) IN Ve2 Gen. FET DRIVER SUSTAIN ELECTRODE PANEL SS55A SS53A SS56A SS54A Q6101,Q6102, Q6105,Q6106 12 IC6241 1 2 4 6 TO C23 UMH UEH SOS8_SS P5V Vda 23 Vda SS NUEL USH USL UML 5 7 11 3 VCC 8 BUFFER OUTPUT FET IC6221 HIN LIN OUTPUT FET HIN LIN HO LO OUTPUT OUTPUT FET FET HO LO FET DRIVER Q6171,Q6172 Q6181,Q6031 VCC2 FET DRIVER HO HIN LIN OUTPUT FET FET OUTPUT OUTPUT FET Q6111 Q6114 LO HO Q6256,Q6222 Ve Det Adj. Q6271 Q6251 TPVSUS 189V+7V,-6V TPVDA TPSS1 TPVE MAIN_SW_2 MAIN_SW_1 TPSOS8 UEL UML UEH USH USL UML UMH TPVe2 LED BLINKING : 8 TIMES ENERGY RECOVERY SOS DET TH-42PV700C SS-Board Block Diagram TH-42PV700C SS-Board Block Diagram 112 15.55.S 电路板和 SS 电路板 (1/2) 线路图 + + + + + + + + + + PUSH AA_SOS8 AA_UEH AA_USL AA_UEL AA_USH AA_UML AA_UMH AA_USH AA_USL AA_SOS8 Q6181 B1ABRD000003 *L6013 1.8u D6072 B0HBSN000008 R6261 100k TP1 R6253 39k C6202 250V 4u L6010 J0JJC0000015 L6241 G0ZZ00002183 R6258 2.2k D6253 LNJ301MPUJA R6220 47 TP22 SS11 1 3 TP12 TP13 R6041 5.6 TP11 L6262 G0ZZ00002183 Q6031 B1ADRD000001 R6252 39k *L6047 D6024 B0ECHP000003 R6230 47 R6231 4.7k *L6058 G0ZZ00002183 R6210 2.2k C6252 25V 1u C6037 25V 4.7u C0JBAZ000005 IC6241 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C0ZBZ0001324 IC6151 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC *L6061 *L6012 1.8u C6011 220V 200u R6032 82k C6272 25V 220u L6000 J0JJC0000015 C6014 220V 200u D6151 B0ECHP000003 Q6171 B1ABRD000003 C6242 16V 1u *L6046 *Q6042 B1JADN000002 B1JADN000002 R6160 1 VEEXT160V *L6083 G0ZZ00002183 TP9 R6043 5.6 R6241 EXB38V470JV *L6011 1.8u R6034 27k D6071 B0HBSN000008 TP2 *Q6052 R6256 1.5k Q6251 2SD0601A0L C6261 100V 220u L6271 TP19 R6152 100 *L6045 G0ZZ00002183 *L6062 R6159 1 D6092 B0ECHP000003 C6151 25V 1u C6262 100V 220u *L6003 1.8u R6172 47k R6242 EXB38V472JV TP33 R6031 82k R6183 47k TP18 *L6002 1.8u D6153 B0ECHP000003 SS23 1 2 3 4 5 6 7 8 9 10 11 12 *L6048 G0ZZ00002183 R6182 47k D6255 MA2J11100L D6152 B0ECHP000003 TP10 TP16 D6254 MAZ80510LL *L6057 G0ZZ00002183 C6012 220V 200u C6243 50V 0.01u Q6172 B1ADRD000001 *C6091 630V 1000p 5V IC6251 C0BBBA000022 1 2 3 4 5 6 7 8 5V TP17 R6181 10 R6053 5.6 TP8 C6251 16V 1u D6025 B0ECHP000003 R6257 10k TP3 TP6 TP14 D6032 MA2J11100L R6254 8.2k R6173 47k *D6082 MA3DF30000LZ SS12 1 2 3 4 5 6 7 8 9 10 C6013 220V 200u R6171 10 C6154 25V 4.7u C6273 25V 220u *L6064 *D6062 MA3DF30000LZ TP5 R6033 56k D6091 B0HBSN000008 *L6084 G0ZZ00002183 TP15 C6031 250V 2.2u C6241 10V 100u TP34 *L6001 1.8u C6201 250V 4u R6221 4.7k R6255 1.2k *L6063 C6152 25V 4.7u TP7 R6151 100 *C6015 220V 200u SS34 1 2 3 C6153 25V 4.7u 75 R6154 TP20 *D6061 MA3DF30000LZ *Q6041 B1JADN000002 SW2500 K0F162B00002 C2502 1000p 50V S1 1 2 3 R2506 0 C2503 1000p 50V R2507 0 TP15V TPVDA - + - + (GREEN LED) TPVSUS VSUS GND P5V TPSOS8 UEL UEH USL USH UML UMH SOS8_SS GND NC VDA VDA 189V+7V-8V FET DRIVER BUFFER COMPARATOR (P12) TO P-BOARD (C23) C2-BOARD TO (P11) TO P-BOARD 1 2 3 4 5 6 7 GND 12V STB_PS POWER SW ! S-BOARD TNPA4138AD SS-BOARD (1/2) TXNSS1HLTC ! L6047,L6048 L6045,L6046 L6063,L6064 L6061,L6062 ! 6 B 8 5 D E 1 F 9 A 7 3 4 C 2 TH-42PV700C S and SS-Board (1 of 2) Schematic Diagram TH-42PV700C S and SS-Board (1 of 2) Schematic Diagram 113 15.56.SS 电路板 (2/2) 线路图 + TERM SIDE TERM SIDE + TERM SIDE + REF K A TERM SIDE AA_UEL AA_UEH AA_UML AA_UML AA_UMH AA_SOS8 C6111 200V 220u C6289 0.1u 50V Q6104 B1ADNF000006 R6247 150k R6222 10k R6109 10 C6212 25V 4.7u R6113 220k Q6141 B1ABNF000006 TP24 Q6103 B1ABNF000006 VR6000 10k 1 2 3 R6026 7.5 R6227 16k TP27 *R6064 0 R6191 100 R6142 47k R6192 100 D6104 B0JCME000037 R6272 2.2k *SS56A 1 2 3 4 5 6 7 8 9 10 11 12 13 D6222 MA2J11100L R6157 1 D6275 MAZ80680ML D6001 B0HBSN000008 C6134 25V 4.7u *R6062 0 D6131 B0ECHP000003 C6211 25V 4.7u D6191 B0ECHP000003 D6273 MA2J11100L C6287 0.1u 50V TP29 R6146 47k R6276 82k D6280 MAZ80510LL 75 R6193 C6220 630V 1000p R6114 47 *R6068 0 R6158 1 R6003 7.5 C6132 25V 4.7u Q6222 2SC1473AEA R6229 16k *Q6021 B1JADN000001 *Q6002 B1JADN000001 ZA6005 K4CD01000011 C6221 50V 0.1u C0ZBZ0000895 IC6191 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC R6021 7.5 R6135 10 75 R6134 Q6146 B1ABNF000006 D6021 MA3DF30000LZ C6209 25V 4.7u D6211 B0JCME000037 TP25 D6101 B0JCME000037 R6225 20k *R6066 0 Q6111 B1DFKM000001 G D S R6226 16k D6281 B0JCME000037 *R6070 0 D6276 MA3X152D0L *SS54A 1 2 3 4 5 6 7 8 9 10 11 12 13 C6193 25V 4.7u *R6071 0 C6135 25V 4.7u R6020 33 D6221 B0ECHP000003 R6116 47k C6194 25V 4.7u ZA6002 K4CD01000011 C0ZBZ0000895 IC6131 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC Q6147 B1ADNF000006 *Q6001 B1JADN000001 C6286 0.1u 50V D6132 B0ECHP000003 R6278 27k R6194 1 TP31 R6279 150k C6112 200V 220u R6248 27k R6246 27k Q6101 B1DFKM000002 G D S R6292 47k R6005 7.5 R6108 220 R6249 150k *C6001 630V 3300p J0JJC0000015 L6106 J0JJC0000015 L6212 TP26 R6274 220 R6110 47k C6276 25V 4.7u *SS53A 1 2 3 4 5 6 7 8 9 10 11 12 13 R6024 7.5 *R6072 0 R6001 7.5 TP30 *R6073 0 D6193 B0ECHP000003 D6223 MA2J11100L R6147 47k *C6021 630V 2700p *Q6022 B1JADN000001 C6197 25V 4.7u R6213 100 C6288 0.1u 50V ZA6001 K4CD01000011 R6145 1 Q6256 2SD1263AP0LB IC6211 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB C6213 25V 1000u R6136 10 R6269 27k R6223 12k R6228 5.6k Q6114 B1DFKM000001 G D S Q6271 2SD0601A0L R6102 220 TP28 *Q6023 B1JADN000001 R6270 150k C6195 25V 4.7u R6232 1.2k *C6002 2200p 630V D6278 MA3X152D0L R6111 47 Q6142 B1ADNF000006 R6284 1k C0DBEMC00043 IC6221 J0JJC0000015 L6101 D6103 B0JCME000037 Q6105 B1DFKM000002 G D S R6106 220 J0JJC0000015 L6105 *SS55A 1 2 3 4 5 6 7 8 9 10 11 12 13 R6131 100 L6221 G0ZZ00002183 R6214 150 R6273 10k Q6106 B1DFKM000002 G D S R6141 47k *Q6003 B1JADN000001 R6132 100 *C6022 2700p 630V L6103 G0ZZ00002183 * * TPSS1 TPVe FET DRIVER FET DRIVER VE GEN. FET DRIVER SUSTAIN PANEL ELECTRODE 7 6 5 1 2 4 3 12 10 17 14 15 16 18 11 13 TH-42PV700C SS-Board (2 of 2) Schematic Diagram TH-42PV700C SS-Board (2 of 2) Schematic Diagram SS-BOARD (2/2) TXNSS1HLTC ! Q6102 B1DFKM000002 R6104 220 J0JJC0000015 L6102 D6102 B0JCME000037 G D S 114 15.57.G 和 GS 电路板方框图及 G 和 GS 电路板线路图 D.SW W.P. + R V L Y C R V L Y C AE_SDCLK AE_SDDAT0 AE_SDDAT3 AE_SDDAT1 AE_SDCMD AE_SDDAT2 AE_SDDTC AE_SDCMD AH_SDCMD AE_SDDAT2 AE_SDDAT3 AH_SDDAT0 AH_SDDAT1 AH_SDDAT2 AH_SDDAT3 AH_SDWP AH_SDDAT1 AE_SDWP AH_SDCMD AH_SDCLK AE_SDWP AH_SDCLK AE_SDDAT1 AH_SDWP AE_SDDAT0 AH_SDDAT0 AH_SDDAT2 AH_SDDAT3 AE_SDCLK *R7744 100 *R7730 0 C7733 16V 0.1u *R7735 68 JK7702 1 2 3 4 5 6 7 8 9 10 11 12 *C7725 50V 33p *GS52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 C7738 4V 100u R7719 0 *R7725 0 *R7758 0 C7732 16V 0.1u *R7737 68 R7751 0 *C7724 50V 33p R7749 0 *R7752 0 *R7747 0 *R7723 0 *L7701 J0JCC0000143 *C7731 50V 33p *C7737 10u 6.3V *R7759 0 *R7738 68 *C7729 50V 33p *R7733 68 R7750 0 *R7755 0 *R7702 56 *R7731 0 *R7734 68 *L7702 ERJ6GEY0R00V *R7769 0 C7742 10u 6.3V D7700 B3AEB0000107 C7736 16V 0.1u ZA7701 K4AD01D00004 TP7702 TP7706 TP7707 TP7708 *L7706 ERJ3GEY0R00V D7700 R3751 R3767 R3754 R3766 SW3755 SW3756 JK3701 C Y G CY-G G R2 R1 T NC SW R-SW R R-G L L-G V-SW V V-G R3758 SW3757 R3753 SW3753 SW3754 R3721 10k R3723 0 G51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 ZA3701 K4CZ01000027 1% R3767 3.16k R3724 0 R3711 0 FL3712 J0MAB0000199 1 2 3 4 C3701 560p 50V JS3704 0 C3715 16V 0.1u L3708 J0JCC0000100 SW3757 EVQPC105K FL3710 J0MAB0000199 1 2 3 4 JK3701C K4AK18B00001 C Y G CY-G G R2 R1 T NC SW R-SW R R-G L L-G V-SW V V-G JS3702 0 1% R3758 6.65k JS3708 0 R3755 0 C3750 1000p 50V R3710 0 C3712 50V 0.033u R3717 180k R3714 0 R3732 0 1% R3754 1.62k SW3753 EVQPC105K R3746 0 SW3755 EVQPC105K FL3711 J0MAB0000199 1 2 3 4 R3748 0 D3702 MAZ81400ML SW3756 EVQPC105K 1% R3751 14.3k R3709 0 R3722 0 L3707 J0JCC0000100 JS3705 0 C3711 50V 0.033u C3703 560p 50V R3768 0 SW3754 EVQPC105K 1% R3753 1.74k L3700 J0JCC0000364 R3716 180k 1% R3765 2.32k L3701 J0JCC0000364 R3725 0 JS3707 0 < < < < < < < < < SDDAT2 3.3V SDDAT1 GND GND SDCLK SDDAT0 SDDAT3 SDCMD SDDAT3 SDWP SDDAT0 SDDAT2 SDDAT1 3.3V GND SDCMD GND SDDTC SDCLK GND AG SDLED TO DG-BOARD (DG52) SD LED SUFFIX JW SD CARD SLOT 5 10 8 9 SDCMD 8 SDDAT0 11 3 10 12 SD DATA3 1 SD DATA1 SDDAT2 7 SD CARD W.P +3.3V 2 1 +3.3V 12 SDDAT1 5 GS 52 SDDAT3 11 SDCLK SD CLOCK 4 9 SD DATA0 SD DATA2 JK7702 7 SD CARD SOCKET SD WP SD CMD SD DTC SD LED SD LED 13 GS SD CARD SLOT 5 1 2 3 4 C D 8 7 E 9 6 B A F GS-BOARD TXNGS1HLTC ! TO DG52 19 AV4/HP/KEY SW AV4 1 TO H51 HP_DET 15 KEY1 V_DET AV4_C TV/AV AV4_V 12 -/ +/ STR HPOUT_L HPOUT_R AV4_Y AV4_R AV4_L AV4_S F 3 8 10 2 9 7 G 17 HEAD PHONE G 51 4.GND AD -/ F KEY1 TNPA4262AD 14.GND +/ 17.AV4_Y 7.MAIN_L/HPOUT_L 8.AV4_R 10.AV4_L 12.AV4_S 2.V_DET 15.AV4_C 19.AV4_V 18.GND TV/AV SUFFIX JW 6.GND 5.HP_GND TO H-BOARD (H51) 9.MAIN_R/HPOUT_R 3.HP_DET 11.SUB_MONO 1.KEY1 13.HP_GND STR G-BOARD ! 20.GND 16.GND TH-42PV700C G and GS-Board Schematic Diagram TH-42PV700C G and GS-Board Schematic Diagram 115 15.58.GH 和 K 电路板方框图及 GH 和 K 电路板线路图 + D2 D1 TOP D2 D1 VCC GND OUT R G VCC GND OUT R G R3825 2.7 R3803 3.3k R3808 0 R3805 4.7k TP3802 C3823 0.1u 10V L3805 J0JHC0000045 D3812 MAZ30560ML C3817 16V 0.01u D3807 EZAEG2A50AX R3818 10k D3814 B0HCMM000014 C3819 16V 0.01u TP3803 C1AB00002641 IC3801 1 TEST 2 VCC 3 BDT0N 4 BDT0P 5 GND 6 BDT1N 7 BDT1P 8 GND 9 BDT2N 10 BDT2P 11 VCC 12 REXT 13 YDT2P 14 YDT2N 15 GND 16 YDT1P 17 YDT1N 18 VCC 19 VCC 20 YDT0P 21 YDT0N 22 GND 23 YCKP 24 YCKN 25 CE 26 VCC 27 ACKN 28 ACKP 29 GND 30 ADT0N 31 ADT0P 32 GND 33 ADT1N 34 ADT1P 35 VCC 36 SEL 37 VCC 38 VCC 39 ADT2N 40 ADT2P 41 GND 42 VCC 43 VCC 44 GND 45 BCKN 46 BCKP 47 VCC 48 VCC 0.1u 10V C3814 L3801 J0JHC0000045 *Q3802 2SD0601A0L D3813 B0HCMM000014 R3820 0 R3814 1k R3810 4.7k R3830 2.7 R3829 2.7 C3806 0.1u 10V C3801 0.1u 10V 1% R3811 4.7k 0.1u 10V C3809 R3807 0 D3804 EZAEG2A50AX R3834 49.9 1% TP3804 R3828 2.7 D3811 EZAEG2A50AX TP3805 0.1u 10V C3810 IC3803 C0JBAU000034 1 VCCA 2 SCLA 3 SDAA 4 GND 5 EN 6 SDAB 7 SCLB 8 VCCB C3816 16V 0.01u R3827 2.7 R3806 47k R3821 39 0.1u 10V C3808 C3815 16V 0.01u R3801 10k D3809 EZAEG2A50AX C3813 6.3V 10u D3806 EZAEG2A50AX R3840 22 *Q3801 2SD0601A0L C3818 16V 0.01u R3802 10k R3826 2.7 D3810 EZAEG2A50AX D3802 EZAEG2A50AX D3805 EZAEG2A50AX C3802 0.1u 10V C3804 0.1u 10V R3812 10k R3823 10k D3803 EZAEG2A50AX 33u 6.3V C3805 R3809 4.7k R3841 22 *JS3816 0 D3808 EZAEG2A50AX *Q3804 2SD0601A0L GH10 K1FA121E0001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 C3824 0.1u 10V *IC3802 TVRP315 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC 0.1u 10V C3811 D3801 EZAEG2A50AX R3822 1k R3815 0 L3804 J0JHC0000045 0.1u 10V C3812 GH11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 G1 G2 G3 C3820 16V 0.01u R3832 4.7k R3819 0 R3824 2.7 0.1u 10V C3807 R3835 0 R3804 4.7k TP3801 R3831 2.7 GH10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 D3814 D3813 RM2501 B3RAD0000127 1 2 3 PC2511 B3JB00000026 1 2 3 4 Q2511 2SD0601ASL C2511 16V 1u C2521 0.01u 50V C2512 6.3V 10u D2520 LNJ107W5PRW JS2513 0 D2524 MAZ80560ML RM2501 1 2 3 R2542 47k C2515 50V 0.01u R2556 5.6k D2520 K1 1 2 3 4 5 6 7 8 9 10 11 12 R2558 0 D2510 MAZ80560ML Q2510 C2522 50V 1000p 1% R2525 910 R2578 0 C2510 6.3V 10u R2524 22k R2512 47 R2521 47 R2579 0 PC2511 1 2 3 4 R2516 22k Q2513 Q2511 D2512 MAZ80430LL D2511 MAZ80560ML R2531 270 C2524 50V 1000p R2577 0 Q2510 2SD0601ASL R2520 220k C2527 50V 1000p C2523 50V 1000p C2525 50V 1000p R2576 0 Q2513 2SD0601ASL R2557 5.6k R2517 47 R2530 22k R2575 0 C2526 50V 1000p < SUFFIX JW AF DDCG Main2_3.3V Main2_3.3V SDA D0- D2+ D2+ CEC HDMI_CE1 CEC D1- D2G HDMI_5V_DET3 SCL N.C. HPDT WP CLK- D1+ D0+ Main5V HPD3 SCL DDC5V D2- CLK+ D1- CLK- D0- D0+ CLKG D1+ +5V D2- D0G CLK+ D1G SDA TO DG-BOARD (DG11) HDMI EQ 5V->3V EEPROM 5 1 2 3 4 C D 8 7 E 9 6 B A F GH-BOARD TNPA4135AF ! SDA CEC D0- D2+ D1- HPDT SCL CLK- D0+ D1+ +5V D2- CLK+ 45 46 3 4 6 7 9 10 29 3 2 6 7 SDAB SCLB SDAA SCLA SCL 5 SDA 6 EDID EEPROM IC3802 SCL 26 SDA 27 CEC LEVEL SHIFT IC3803 5V<->3.3V 7 25 WP WC 8 VCC VCCB 8 5 VCCA 15 MAIN_5V DDC5_V 17 HDMI EQUALIZER IC3801 EQUALIZER BCKN BCKP BDT0N BDT0P BDT1P BDT1N BDT2P BDT2N YCKN 24 23 YCKP YDT0P 21 20 YDT0N 16 17 YDT1P YDT1N 13 14 YDT2P YDT2N VCC 2 3 5 6 8 9 11 21 20 12 MAIN2_3.3V MAIN2_3.3V D2+ CLK- D1+ D0+ D2- CLK+ D1- D0- HDMI_5V DET3 HDMI_5V_DET3 24 Q3802 HOT PLUG DET Q3801 23 HPD3 GH 11 TO DG11 GH FRONT HDMI HDMI3 IN AI_SENSOR GND G_LED_ON 1 REMOCON 2 PSM_LEDR Active_STB_LED GND 3 SUB5V 4 R_LED_ON/STBY_LED GND 9 12 K1 REMOTE/LED/AI REMOCON SENSOR GND STBY3.3V TO DG-BOARD (DG1) R_LED_ON C.A.T.S. SENSOR REMOCON SENSOR POWER LAMP K STBY3.3V AE SUFFIX JW ! TNPA4137AE AI_SENSOR G_LED_ON K-BOARD REMOCON POWER LAMP C.A.T.S. SENSOR TO DG1 SUB5V TH-42PV700C GH and K-Board Schematic Diagram TH-42PV700C GH and K-Board Schematic Diagram 116 117 16 部件布置及机械部件更换清单 16.1. 部件布置 118 16.2. 包装分解图 (1) 119 16.3. 包装分解图 (2) 120 16.4. 包装分解图 (3) 121 16.5. 更换部件清单注意事项 122 16.6. 机械部件更换清单 参考号 部品号 部品名称 & 说明 件数 备注 1 EAB844JL 低音音箱 ( 左 ) 1 2 EAB844JR 低音音箱 ( 右 ) 1 3 EAS10D85E 喇叭 （左右） 2 GQZB-42 高清标签 1 4 K2CK3DH00028 AC 电源线 1 K5D802BNA005 主保险丝 2 L6FAYYYH0050 风扇 (80MM) 2 5 MC106H23FC10 10 系列 WHD 屏 1 6 N2QAYB000118 遥控器 1 7 R6PND/2SP PANASONIC 干电池 （中文） 2 TBMG554 机型铭牌 1 TBMU745 后端子标贴 1 8 TBXA51103 电源按钮 1 9 TBXA51401 操作开关 1 10 TESA309 SD 门弹簧 1 11 TESD0085 弹簧 1 THEL0429 螺丝 32 THEL047J 螺丝 2 THEL049 螺丝 4 THTA0419 螺丝 2 THTD013N 风扇螺丝 6 THTF011N 螺丝 71 12 TKGA5344-1 前面玻璃 1 13 TKKC5289 LED 透光板 1 14 TKKL5344-1 M8 垫片盖 4 15 TKKL5384 调整盖 1 16 TKPB06109 门 1 17 TKPB06403 SD 门 1 TKPB09702 SD 透光板 1 18 TKPB14001 AC 接入口盖 （黑） 1 19 TKRA52602 后盖把手 2 TKRA53102 孔盖 2 20 TKUX11901 后盖 1 21 TKYA31301 面框 1 TMKG717 风扇海绵 2 22 TMKG734 海绵 （上 / 下） 2 23 TMKG735 海绵 （左 / 右） 2 TMKG742 海绵 4 TMM7468-1 空中线夹 1 24 TMME226 AC 电源线夹 1 TMME258 线夹 2 TMMJ068 风扇橡胶 6 25 TMMX156 M8 垫片 4 26 TMMX200 门弹簧 1 27 TPCB96001 包装箱底箱 1 28 TPCB96102 包装箱本体 1 29 TPDA1567 顶部衬垫 1 30 TPDA1568 底部衬垫 1 TPDA1619 顶部衬垫 中 1 TPDA1620 底部衬垫 中 1 31 TPDF0764-3 附属品盒 （ROHS） 1 32 TPDF1655-1 顶盖 1 33 TPDX0035 箱扣 （ROHS） 4 34 TPEH343 顶面保护片 3 35 TPEH344 整机保护袋 1 TQFD070601 中国节能认证标志 1 TQFD945 线夹说明标签 1 36 TQZC970 使用说明书 1 TQZF163 保修证 1 TSXL519 FFC(C10-C20) 1 TSXL562 FFC(D31-C11) 1 TSXL600 FFC(D32-C21) 1 TSXL604 FFC(SC20-D20) 1 TSXL615 FFC(DG11-GH11) 1 TUXL174 TUNER 盖 1 TXAUX01HLTC TUNER 组件 1 37 TXAUX02HLTC AC 接入口 1 38 TXFMZ01HLTC 台座安装块 左 1 39 TXFMZ02HLTC 台座安装块 右 1 TXJ/P2HNTU 线束 (SC2-P2) 1 TXJ/P9HNTU 线束 (INLET-P9) 1 TXJ/S1HLTC 线束 (S1-SS34) 1 TXJD25HNTU 线束 (D25-P25) 1 TXJDG1HLTP 线束 (DG1-K1) 1 TXJDG5HNTB 线束 (DG5-D5) 1 TXJFA1HLTC 线束 (PA-FAN) 2 TXJFGNHNTU 线束 (GND-INLET) 1 TXJG51HLTP 线束 (G51-H51) 1 TXJGS5HLTB 线束 (DG52-GS52) 1 TXJH11HLTC 线束 (H11-WL/SQL) 1 TXJH12HLTC 线束 (H12-WR/SQR) 1 TXJP11HNTU 线束 (P11-SS11) 1 TXJP12HNTU 线束 (P12-SS12) 1 TXJS23BJTU 线束 (SS23-C23) 1 TXN/D1HLTC D 线路板 1 TXN/G1HLTC G 线路板 1 TXN/K1HLTC K 线路板 1 TXN/P1HLTC P 线路板 1 TXN/S1HLTC S 线路板 1 TXNC11HLTC C1 线路板 1 TXNC21HLTC C2 线路板 1 TXNGH1HLTC GH 线路板 1 TXNGS1HLTC GS 线路板 1 TXNPA1HLTC PA 线路板 1 TXNSC1HLTC SC 线路板 1 TXNSD1HLTC SD 线路板 1 TXNSS1HLTC SS 线路板 1 TXNSU1HLTC SU 线路板 1 XTB4+12GFJ 螺丝 40 XTB4+12GFJK 螺丝 20 XTW3+10TFJ 螺丝 2 XYN3+F8FJ 螺丝 39 XYN3+J6FJ 螺丝 1 XYN3+J8FJ 风扇螺丝 8 XYN4+E8FJ 螺丝 1 XYN4+F10FJ 螺丝 12 XYN5+C15FJ 带垫螺丝 （标准垫片） 8 参考号 部品号 部品名称 & 说明 件数 备注 123 17 电器部件更换清单 17.1. 电器部件更换清单 所有在备注栏 [PPDS] 中提到的部件均由 PPDS 提供。 参考号 部品号 部品名称 & 说明 件数 备注 F401.402 K5D802BNA005 延时保险丝 高 2 C10 K1MN20BA0231 20P 连接接头 1 C11 K1MN55BA0076 55P 连接接头 1 C20 K1MN20BA0231 20P 连接接头 1 C21 K1MN68BA0076 68P 连接接头 1 C23 K1KA12BA0107 12P 连接接头 1 C1102 F1J1A106A043 C 0.010UF, K, 10V 1 C1103,04 F1G1C104A081 C 0.10UF, K, 16V 2 C1106 F1H1H2700008 E 27UF, 50V 1 C1107 F1H1H2200008 E 22UF, 50V 1 C1108 F1G1C104A081 C 0.10UF, K, 16V 1 C1109 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1111 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1112 F1G1C104A081 C 0.10UF, K, 16V 1 C1114 F1G1C104A081 C 0.10UF, K, 16V 1 C1117 F1G1C104A081 C 0.10UF, K, 16V 1 C1122 F1G1E1030005 C 0.01UF, Z, 25V 1 C1123 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2000 F1G1C104A081 C 0.10UF, K, 16V 1 C2005,06 F1H1H5610007 E 560UF, 50V 2 C2010,11 F1H1H5610007 E 560UF, 50V 2 C2013,14 F1H1H5610007 E 560UF, 50V 2 C2016,17 F1H1H5610007 E 560UF, 50V 2 C2021,22 F1H1H5610007 E 560UF, 50V 2 C2023 ECJ1XB1H104K C 10PF, J, 50V 1 C2048-50 ECJ1XB1H104K C 10PF, J, 50V 3 C2052,53 ECJ1XB1H104K C 10PF, J, 50V 2 C2054 F1J1A106A043 C 0.010UF, K, 10V 1 C2055,56 ECJ1VC1H120J C 12PF, J, 50V 2 C2057,58 ECJ1XB1H104K C 10PF, J, 50V 2 C2059 F2G0J470A019 E 47UF 6.3V 1 C2088 ECJ2FB1A475K C 4.7UF, K, 10V 1 C2089 F1H1H5610007 E 560UF, 50V 1 C2091 ECJ1VC1H100C C 10PF, C, 50V 1 C2092 F1H1H2200008 E 22UF, 50V 1 C2096,97 ECJ1XB1H104K C 10PF, J, 50V 2 C2098,99 EEEHB0J221UP C 220PF, J, 6.3V 2 C2100 ECJ1XB1H104K C 10PF, J, 50V 1 C2101 F1J1A106A043 C 0.010UF, K, 10V 1 C2102 ECJ1XB1H104K C 10PF, J, 50V 1 C2105,06 ECJ1XB1H104K C 10PF, J, 50V 2 C2107,08 F2G0J470A019 E 47UF 6.3V 2 C2109,10 ECJ1XB1H104K C 10PF, J, 50V 2 C2111 F1H0J2250008 C 2.2UF, K, 16V 1 C2112,13 F2G0J470A019 E 47UF 6.3V 2 C2114,15 ECJ1XB1H104K C 10PF, J, 50V 2 C2116 F1H1H471A792 E 470UF, 50V 1 C2117 ECJ1XB1H104K C 10PF, J, 50V 1 C2118 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2119 EEEHB1A221P C 220PF, J, 10V 1 C2120,21 F1H1H5600007 E 56UF, 50V 2 C2124 ECJ1XB1H104K C 10PF, J, 50V 1 C2126 F1J1A106A043 C 0.010UF, K, 10V 1 C2128 ECJ1XB1H104K C 10PF, J, 50V 1 C2130 F1J0J106A021 C 0.010UF, K, 16V 1 C2131 ECJ1XB1H104K C 10PF, J, 50V 1 C2133 EEEHB1H4R7R C 4.7PF, J, 50V 1 C2134 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2135,36 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2137 F2G0J470A019 E 47UF 6.3V 1 C2138 ECJ1XB1H104K C 10PF, J, 50V 1 C2143 F1H1H181A792 E 180UF, 50V 1 C2146 F1H1H181A792 E 180UF, 50V 1 C2147 EEEHB1C220R C 22PF, J, 16V 1 C2151 F2G0J470A019 E 47UF 6.3V 1 C2153 ECJ1VC1H330J C 33PF, J, 50V 1 C2154 ECJ1XB1H104K C 10PF, J, 50V 1 C2155 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2157 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2159,60 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2161 EEEHB1C101UP C 100PF, J, 16V 1 C2162-67 ECJ1VB1C105K C 0.01UF, K, 16V 6 C2170 ECJ1VC1H330J C 33PF, J, 50V 1 C2171 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2173 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C2174 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2175 EEEHB1C470P C 47PF, J, 16V 1 C2176 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2179 EEEHB1C470P C 47PF, J, 16V 1 C2180 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2183 F1J1A106A043 C 0.010UF, K, 10V 1 C2184 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2185 F1J1A106A043 C 0.010UF, K, 10V 1 C2186 ECJ1XB1H104K C 10PF, J, 50V 1 C2187 F1H0J2250008 C 2.2UF, K, 16V 1 C2188 F1H1H471A792 E 470UF, 50V 1 C2189 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2190,91 F1J1A106A043 C 0.010UF, K, 10V 2 C2192 F2G0J470A019 E 47UF 6.3V 1 C2195 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2197,98 ECJ1VB1C333K C 0.033UF, K, 16V 2 C2202 F1H0J2250008 C 2.2UF, K, 16V 1 C2203 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C2204 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2213 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2216 ECJ1XB1H104K C 10PF, J, 50V 1 C2244 ECJ1XB1H104K C 10PF, J, 50V 1 C2245 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2246 F1J1A106A043 C 0.010UF, K, 10V 1 C2251 F1J1A106A043 C 0.010UF, K, 10V 1 C2263,64 F1J1A106A043 C 0.010UF, K, 10V 2 C2265-68 ECJ1XC1H101J C 100PF, J, 50V 4 C2270,71 F1H1H471A792 E 470UF, 50V 2 C2272 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C2280 ECJ2FB1A475K C 4.7UF, K, 10V 1 C2281 F1H1H5610007 E 560UF, 50V 1 C2288,89 F1J1A106A043 C 0.010UF, K, 10V 2 C2301,02 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C2303-10 F1J1E105A171 E 1 UF 25V 8 C2311-16 ECJ1XB1H104K C 10PF, J, 50V 6 C2317-24 ECJ1VB1C333K C 0.033UF, K, 16V 8 C2325,26 F1J1H474A757 C 0.47UF, 50V 2 C2327-30 ECJ1XB1H104K C 10PF, J, 50V 4 C2331,32 F1J1H474A757 C 0.47UF, 50V 2 C2333-36 ECJ1XB1H104K C 10PF, J, 50V 4 C2337-40 F1H1H223A219 E 0.022UF, 50V 4 C2341-44 ECJ1XB1H104K C 10PF, J, 50V 4 C2345-48 F1H1H223A219 E 0.022UF, 50V 4 C2349 ECJ1XB1H104K C 10PF, J, 50V 1 C2352 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2353-60 ECJ1XB1H104K C 10PF, J, 50V 8 C2361,62 EEEFG1E471P E 470UF, 25V 2 C2363,64 ECJ1XB1H104K C 10PF, J, 50V 2 C2365 EEEHB1C221UP C 220PF, J, 16V 1 C2375-82 F1H1H223A219 E 0.022UF, 50V 8 C2383-90 ECJ1VB1H102K C 1000UF, Z, 50V 8 C2502,03 ECJ2XB1H102K C 1000PF, K, 50V 2 C2510 F1K0J1060020 C 10UF, K,6.3V 1 C2511 ECJ2XF1C105Z C 1UF, Z, 16V 1 C2512 F1K0J1060020 C 10UF, K,6.3V 1 C2515 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2521 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2522-27 ECJ1VB1H102K C 1000UF, Z, 50V 6 C2601,02 ECJ1XB1H104K C 10PF, J, 50V 2 C2801 ECJ3XB1C106M C 1.0UF, K, 16V 1 C2802,03 F1J1H474A757 C 0.47UF, 50V 2 C2804 ECJ3XB1C106M C 1.0UF, K, 16V 1 C2805-07 F1J1H474A757 C 0.47UF, 50V 3 C2813 ECJ1XB1H104K C 10PF, J, 50V 1 C2814 ECJ1VB1H472K C 4700PF, K, 50V 1 参考号 部品号 部品名称 & 说明 件数 备注 124 C2815 ECJ1XB1H104K C 10PF, J, 50V 1 C2816 EEEHB1V220P E 22UF, 35V 1 C2817 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2819 EEEHB1E470P C 47PF, J, 25V 1 C3021 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3023,24 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C3026 ECJ1XB1H104K C 10PF, J, 50V 1 C3027,28 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C3029 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3031 ECJ1XB1H104K C 10PF, J, 50V 1 C3033 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3040 ECJ1XB1H104K C 10PF, J, 50V 1 C3043 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3051-56 ECJ1VB1A105K C 0.01UF, Z, 50V 6 C3059,60 ECJ1VB1C105K C 0.01UF, K, 16V 2 C3062-64 ECJ1VB1C105K C 0.01UF, K, 16V 3 C3070 EEEHB0J221UP C 220PF, J, 6.3V 1 C3075 EEEHB1C221UP C 220PF, J, 16V 1 C3078 F1K0J226A008 C 22UF, K,6.3V 1 C3081 F2H0J1010009 C 100UF, 6.3V 1 C3100-02 ECJ1VB1A105K C 0.01UF, Z, 50V 3 C3103 EEEHB1C100R C 10PF, J, 16V 1 C3106 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3115-17 ECJ1XB1H104K C 10PF, J, 50V 3 C3118 EEEHB1C470P C 47PF, J, 16V 1 C3119 EEEHB1C100R C 10PF, J, 16V 1 C3120 ECJ1XB1H104K C 10PF, J, 50V 1 C3201 ECJ1XB1H104K C 10PF, J, 50V 1 C3202 F1J1H474A757 C 0.47UF, 50V 1 C3214 ECJ1XB1H104K C 10PF, J, 50V 1 C3216 ECJ1XB1H104K C 10PF, J, 50V 1 C3226-28 ECJ1XB1H104K C 10PF, J, 50V 3 C3230 ECJ1XB1H104K C 10PF, J, 50V 1 C3263 ECJ1XB1H104K C 10PF, J, 50V 1 C3265-68 ECJ1XB1H104K C 10PF, J, 50V 4 C3270 EEEHB0J102UP C 1100PF, J, 6.3V 1 C3271 EEEHB1C100R C 10PF, J, 16V 1 C3272 ECJ1XB1H104K C 10PF, J, 50V 1 C3273 F2G1H100A031 E 10UF, 50V 1 C3274-76 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C3279 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3280 ECJ1XC1H101J C 100PF, J, 50V 1 C3281 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3285 EEEHB0J102UP C 1100PF, J, 6.3V 1 C3286 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3291 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3292 ECJ1XC1H101J C 100PF, J, 50V 1 C3293 EEEHB1C100R C 10PF, J, 16V 1 C3296 ECJ1XB1H104K C 10PF, J, 50V 1 C3298 EEEHB1V220P E 22UF, 35V 1 C3299 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3300 F2H0J1010009 C 100UF, 6.3V 1 C3305 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3308 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3701 ECJ2XC1H561K C 560PF, K, 50V 1 C3703 ECJ2XC1H561K C 560PF, K, 50V 1 C3711,12 ECJ2VF1H333Z C 0.033UF, Z, 50V 2 C3715 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3750 F1J1H102A721 E 1000UF, 50V 1 C3801,02 F1G1A104A012 C 0.01UF, K, 10V 2 C3804 F1G1A104A012 C 0.01UF, K, 10V 1 C3805 EEEHB0J330R C 33PF, J, 6.3V 1 C3806-12 F1G1A104A012 C 0.01UF, K, 10V 7 C3813 F1J0J106A004 C 0.010UF, K, 16V 1 C3814 F1G1A104A012 C 0.01UF, K, 10V 1 C3815-20 ECJ0EB1C103K C 0.010UF, K, 16V 6 C3823,24 F1G1A104A012 C 0.01UF, K, 10V 2 C4005,06 F1G1C104A081 C 0.10UF, K, 16V 2 C4008 F1G1C104A081 C 0.10UF, K, 16V 1 C4010,11 F1G1C104A081 C 0.10UF, K, 16V 2 C4013-15 F1G1C104A081 C 0.10UF, K, 16V 3 C4016 F1J1C475A170 C 4.7UF, K, 16V 1 C4018 F1G1C104A081 C 0.10UF, K, 16V 1 C4019 F1J1H474A757 C 0.47UF, 50V 1 C4020,21 F1G1C104A081 C 0.10UF, K, 16V 2 C4022 F1J1H474A757 C 0.47UF, 50V 1 C4023-25 F1G1C104A081 C 0.10UF, K, 16V 3 参考号 部品号 部品名称 & 说明 件数 备注 C4027,28 F1G1C104A081 C 0.10UF, K, 16V 2 C4030 F1G1C104A081 C 0.10UF, K, 16V 1 C4032-34 F1G1C104A081 C 0.10UF, K, 16V 3 C4035,36 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4038 F1G1C104A081 C 0.10UF, K, 16V 1 C4039 F1G1E1030005 C 0.01UF, Z, 25V 1 C4040 F1G1H150A565 E 15UF, 50V 1 C4045,46 F1G1C104A081 C 0.10UF, K, 16V 2 C4047 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4049 F1G1C104A081 C 0.10UF, K, 16V 1 C4050 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4051-53 F1G1C104A081 C 0.10UF, K, 16V 3 C4054 ECJ3XB1C106M C 1.0UF, K, 16V 1 C4500-03 F1G1C104A081 C 0.10UF, K, 16V 4 C4506,07 F1G1C104A081 C 0.10UF, K, 16V 2 C4508,09 EEEHB0J330R C 33PF, J, 6.3V 2 C4510,11 F1G1C104A081 C 0.10UF, K, 16V 2 C4513-15 F1G1C104A081 C 0.10UF, K, 16V 3 C4517 F1G1C104A081 C 0.10UF, K, 16V 1 C4520 F1J1A106A043 C 0.010UF, K, 10V 1 C4521 F1G1C104A081 C 0.10UF, K, 16V 1 C4522 ECJ3XB1C106M C 1.0UF, K, 16V 1 C4523 F1J1H474A757 C 0.47UF, 50V 1 C4524 ECJ3XB1C106M C 1.0UF, K, 16V 1 C4527 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4528 F1G1C104A081 C 0.10UF, K, 16V 1 C4531 F1G1C104A081 C 0.10UF, K, 16V 1 C4533 F1G1H680A565 E 68UF, 50V 1 C4534,35 ECJ1XB1H104K C 10PF, J, 50V 2 C4538 F2G0J470A019 E 47UF 6.3V 1 C4539 F1J1A106A043 C 0.010UF, K, 10V 1 C4541 F1H1H471A219 E 470UF, 50V 1 C4543-45 F1G1C104A081 C 0.10UF, K, 16V 3 C4546 F1H0J2250008 C 2.2UF, K, 16V 1 C4547 F1G1C104A081 C 0.10UF, K, 16V 1 C4548,49 ECJ1XB1H104K C 10PF, J, 50V 2 C4550 F1G1C104A081 C 0.10UF, K, 16V 1 C4551,52 ECJ1XB1H104K C 10PF, J, 50V 2 C4553 F1G1H1020008 E 1000UF, 50V 1 C4555,56 F1J1A106A043 C 0.010UF, K, 10V 2 C4557 F1G1C104A081 C 0.10UF, K, 16V 1 C4559,60 F1G1C104A081 C 0.10UF, K, 16V 2 C4562 F1H1H822A219 E 8200UF, 50V 1 C4563 ECJ1VB1C823K C 0.082UF, K, 16V 1 C4564,65 F1G1E1030005 C 0.01UF, Z, 25V 2 C4566 ECJ1XB1C393K C 0.039UF, K, 16V 1 C4567 ECJ1XB1H104K C 10PF, J, 50V 1 C4568 F1G1C104A081 C 0.10UF, K, 16V 1 C4569 F1J1C684A097 C 0.68UF, Z, 16V 1 C4570 F2G0J470A019 E 47UF 6.3V 1 C4572,73 F1G1C104A081 C 0.10UF, K, 16V 2 C4574 F1G1E1030005 C 0.01UF, Z, 25V 1 C4575 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4576 F2G0J470A019 E 47UF 6.3V 1 C4577,78 F1G1C104A081 C 0.10UF, K, 16V 2 C4580 F1G1E1030005 C 0.01UF, Z, 25V 1 C4581 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4582,83 F1G1C104A081 C 0.10UF, K, 16V 2 C4584,85 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4586 F1G1E1030005 C 0.01UF, Z, 25V 1 C4587 F1G1C104A081 C 0.10UF, K, 16V 1 C4588 ECJ1VB1C823K C 0.082UF, K, 16V 1 C4589 F1G1H150A565 E 15UF, 50V 1 C4590 ECJ0EC1H180J C 180PF, K, 50V 1 C4591,92 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4593 F1G1E1030005 C 0.01UF, Z, 25V 1 C4595 F1G1E1030005 C 0.01UF, Z, 25V 1 C4596 F1G1C104A081 C 0.10UF, K, 16V 1 C4598 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4600,01 F1G1E1030005 C 0.01UF, Z, 25V 2 C4602 F1G1C104A081 C 0.10UF, K, 16V 1 C4604 F1H0J2250008 C 2.2UF, K, 16V 1 C4605 F1G1C104A081 C 0.10UF, K, 16V 1 C4607 F2G0J470A019 E 47UF 6.3V 1 C4609 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4611 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4612 F1G1E1030005 C 0.01UF, Z, 25V 1 参考号 部品号 部品名称 & 说明 件数 备注 125 C4613 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4614 F1G1C104A081 C 0.10UF, K, 16V 1 C4615 F1G1E1030005 C 0.01UF, Z, 25V 1 C4616,17 F1G1C104A081 C 0.10UF, K, 16V 2 C4618 F1G1E1030005 C 0.01UF, Z, 25V 1 C4619 F1G1C104A081 C 0.10UF, K, 16V 1 C4620 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4621-23 F1G1C104A081 C 0.10UF, K, 16V 3 C4624,25 ECJ1XB1H104K C 10PF, J, 50V 2 C4626-28 F1G1C104A081 C 0.10UF, K, 16V 3 C4629 F1J1A106A043 C 0.010UF, K, 10V 1 C4807 F1G1C104A081 C 0.10UF, K, 16V 1 C5409 ECJ2VB1E104K C 0.1UF, K, 25V 1 C5410 ECA1EM471 E 470UF, 25V 1 C5412,13 ECJ2VB1E104K C 0.1UF, K, 25V 2 C5419 ECA1EM471 E 470UF, 25V 1 C5420 ECJ2VB1E104K C 0.1UF, K, 25V 1 C5501 F2A1C471A537 E 470UF, 16V 1 C5502 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5503 F2A1C471A537 E 470UF, 16V 1 C5504 ECJ2VB1C104K C 0.1UF, K, 16V 1 C5521,22 ECJ2VB1C104K C 0.1UF, K, 16V 2 C5551 F2A1H331A257 E 330UF, 50V 1 C5552 ECJ2VB1E104K C 0.1UF, K, 25V 1 C5595 ECA1HM220 E 22UF, 50V 1 C5600 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5601 F1G1C104A081 C 0.10UF, K, 16V 1 C5602 ECGRL0G680ER C 68PF, J, 4V 1 C5603,04 F1G1E1030005 C 0.01UF, Z, 25V 2 C5605 F1J1A475A039 C 4.7UF, K, 10V 1 C5606 F1H1H471A219 E 470UF, 50V 1 C5607 F1G1H221A459 E 220UF, 50V 1 C5608 F1G1C104A081 C 0.10UF, K, 16V 1 C5609,10 EEEHB1C470P C 47PF, J, 16V 2 C5615 F1J1A106A043 C 0.010UF, K, 10V 1 C5616 ECJ0EB1A473K C 0.047UF, K, 10V 1 C5617 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5618,19 F1J1A106A043 C 0.010UF, K, 10V 2 C5620 ECJ1XB1H104K C 10PF, J, 50V 1 C5621 F1G1E1030005 C 0.01UF, Z, 25V 1 C5622 F1J1A475A039 C 4.7UF, K, 10V 1 C5623 ECJ0EB1H471K C 470PF, K, 50V 1 C5624 F1G1H221A459 E 220UF, 50V 1 C5625 F1G1E1030005 C 0.01UF, Z, 25V 1 C5626,27 F1G1C104A081 C 0.10UF, K, 16V 2 C5628,29 ECGRL0G680ER C 68PF, J, 4V 2 C5630,31 EEEHB1C470P C 47PF, J, 16V 2 C5632 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5636-41 F1G1C104A081 C 0.10UF, K, 16V 6 C5643 ECJ1XB1H104K C 10PF, J, 50V 1 C5644 F1G1E1030005 C 0.01UF, Z, 25V 1 C5645 F1H1A225A051 E 22UF, 50V 1 C5661 F1G1E1030005 C 0.01UF, Z, 25V 1 C5662 ECJ0EB1A473K C 0.047UF, K, 10V 1 C5663 F1G1E1030005 C 0.01UF, Z, 25V 1 C5670 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C5673,74 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C5676 F1G1C104A081 C 0.10UF, K, 16V 1 C5690,91 F2G0J470A019 E 47UF 6.3V 2 C5692,93 ECJ1XB1H104K C 10PF, J, 50V 2 C5694,95 F2G0J470A019 E 47UF 6.3V 2 C5710-16 ECJ2VF1C104Z C 0.1UF, Z, 16V 7 C5730 F1G1E1030005 C 0.01UF, Z, 25V 1 C5731 F2G0J470A019 E 47UF 6.3V 1 C6001 F1L2J332A022 C 3300UF, K,6.3V 1 C6002 F1L2J222A022 C 2200UF, K,6.3V 1 C6011-15 F2A2T201A002 E 200UF, 5 C6021,22 F1L2J272A022 C 2700UF, K,6.3V 2 C6031 F0C2E225A218 E 0.022UF, 250V 1 C6037 F1L1E4750004 C 4.7UF, 25V 1 C6091 F1L2J1020001 C 1000UF, K,6.3V 1 C6111,12 F2A2D221A022 E 220UF, 200V 2 C6132 F1L1E4750004 C 4.7UF, 25V 1 C6134,35 F1L1E4750004 C 4.7UF, 25V 2 C6151 ECJ3YB1E105K C 1UF, K, 25V 1 C6152-54 F1L1E4750004 C 4.7UF, 25V 3 C6193-95 F1L1E4750004 C 4.7UF, 25V 3 参考号 部品号 部品名称 & 说明 件数 备注 C6197 F1L1E4750004 C 4.7UF, 25V 1 C6201,02 F0C2E405A176 E 0.040UF, 250V 2 C6209 F1L1E4750004 C 4.7UF, 25V 1 C6211,12 F1L1E4750004 C 4.7UF, 25V 2 C6213 F2A1E102A220 E 1000UF, 25V 1 C6220 F1L2J1020001 C 1000UF, K,6.3V 1 C6221 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6241 F2A1A101A439 E 100UF, 10V 1 C6242 F1H1C105A072 C 1UF, K, 16V 1 C6243 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6251 F1H1C105A072 C 1UF, K, 16V 1 C6252 ECJ3YB1E105K C 1UF, K, 25V 1 C6261,62 F2A2A221A073 E 220UF, 100V 2 C6272,73 F2A1E221A487 E 220UF, 25V 2 C6276 F1L1E4750004 C 4.7UF, 25V 1 C6286-89 ECJ2XB1H104K C 0.1UF, K, 50V 4 C6401 F1L2J332A022 C 3300UF, K,6.3V 1 C6402 F1L2J222A022 C 2200UF, K,6.3V 1 C6411-15 F2A2T201A002 E 200UF, 5 C6421,22 F1L2J272A022 C 2700UF, K,6.3V 2 C6431 F0C2E405A176 E 0.040UF, 250V 1 C6480 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6502 F1L1E4750004 C 4.7UF, 25V 1 C6504,05 F1L1E4750004 C 4.7UF, 25V 2 C6521 ECJ3YB1E105K C 1UF, K, 25V 1 C6522 F1L1E4750004 C 4.7UF, 25V 1 C6524,25 F1L1E4750004 C 4.7UF, 25V 2 C6527 F1L1E4750004 C 4.7UF, 25V 1 C6531,32 F0C2E405A176 E 0.040UF, 250V 2 C6561 F2A1A101A439 E 100UF, 10V 1 C6562 F1H1C105A072 C 1UF, K, 16V 1 C6563 F2A1A101A439 E 100UF, 10V 1 C6564 F1H1C105A072 C 1UF, K, 16V 1 C6565,66 ECJ2VB1H103K C 0.01UF, K, 50V 2 C6581 ECJ3YB1E105K C 1UF, K, 25V 1 C6582 F1H1C105A072 C 1UF, K, 16V 1 C6592 F2A1E221A487 E 220UF, 25V 1 C6593 ECJ2XC1H102J C 1000PF, J, 50V 1 C6603,04 F1K2J102A014 C 1000UF, K,6.3V 2 C6605,06 F1L2J472A022 C 4700UF, K,6.3V 2 C6620,21 F1E2J222A002 C 2200PF, 600V 2 C6641 ECQE2224KF3 P 2.2UF, K,250V 1 C6661,62 F1K2J102A014 C 1000UF, K,6.3V 2 C6671 F1L1E4750004 C 4.7UF, 25V 1 C6691 ECA2CM101 E 100UF, 160V 1 C6694 ECJ3YB1E105K C 1UF, K, 25V 1 C6695 ECJ2XC1H102J C 1000PF, J, 50V 1 C6702-06 ECJ2XB1H104K C 0.1UF, K, 50V 5 C6708 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6721 ECA1HM101 E 100UF, 50V 1 C6722 ECJ2XC1H101J C 100PF, J, 50V 1 C6723-25 F1L1E4750004 C 4.7UF, 25V 3 C6726,27 F1H1C105A072 C 1UF, K, 16V 2 C6740 ECJ2XC1H101J C 100PF, J, 50V 1 C6752 ECJ3YB1E105K C 1UF, K, 25V 1 C6753 F1L1E4750004 C 4.7UF, 25V 1 C6755,56 F1L1E4750004 C 4.7UF, 25V 2 C6771 F1H1C105A072 C 1UF, K, 16V 1 C6772,73 F1L1E4750004 C 4.7UF, 25V 2 C6775 F1L1E4750004 C 4.7UF, 25V 1 C6776,77 ECJ2XB1H104K C 0.1UF, K, 50V 2 C6791 F2A1E221A487 E 220UF, 25V 1 C6795,96 F2A1E221A487 E 220UF, 25V 2 C6801 F2A2E470A022 E 47UF, 250V 1 C6803 ECKD3D221KBP C 220PF, K, 2KV 1 C6804 F2A2E100A022 E 10UF, 250V 1 C6805 ECJ2XC1H331J C 330PF, J, 50V 1 C6806 ECA2CM101 E 100UF, 160V 1 C6811 ECJ3YB1E105K C 1UF, K, 25V 1 C6812 F1L1E4750004 C 4.7UF, 25V 1 C6813 ECA2CM101 E 100UF, 160V 1 C6814 F2A1E221A487 E 220UF, 25V 1 C6815 ECJ2XC1H102J C 1000PF, J, 50V 1 C6822 F2A2G470A018 E 470UF, 400V 1 C6823 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6832 ECJ2XB1H392K C 3900PF, K, 50V 1 C6841 F2A2E470A022 E 47UF, 250V 1 参考号 部品号 部品名称 & 说明 件数 备注 126 C6842 ECA2CM101 E 100UF, 160V 1 C6845 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6861 F1H1C105A072 C 1UF, K, 16V 1 C6862 ECJ3YB1E105K C 1UF, K, 25V 1 C6863 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6871 F1H1C105A072 C 1UF, K, 16V 1 C6872 ECJ3YB1E105K C 1UF, K, 25V 1 C6873 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6901 ECJ2XB1H102K C 1000PF, K, 50V 1 C6902 TCUY1C105ZFN C 1UF, 16V 1 C6904 TCUY1C105ZFN C 1UF, 16V 1 C6906 TCUY1C105ZFN C 1UF, 16V 1 C6908 TCUY1C105ZFN C 1UF, 16V 1 C6910 TCUY1C105ZFN C 1UF, 16V 1 C6912 TCUY1C105ZFN C 1UF, 16V 1 C6921 F1L2E1040002 E 1000UF, 25V 1 C6923,24 F1L2E1040002 E 1000UF, 25V 2 C6926,27 F1L2E1040002 E 1000UF, 25V 2 C6929 F1L2E1040002 E 1000UF, 25V 1 C6931 ECJ2XB1H102K C 1000PF, K, 50V 1 C6936 ECJ2XB1H681K C 680PF, K, 50V 1 C6937 ECJ2VB1H221K C 220PF, K, 50V 1 C6951 ECJ2XB1H102K C 1000PF, K, 50V 1 C6952 TCUY1C105ZFN C 1UF, 16V 1 C6955 TCUY1C105ZFN C 1UF, 16V 1 C6957,58 TCUY1C105ZFN C 1UF, 16V 2 C6961 TCUY1C105ZFN C 1UF, 16V 1 C6963 TCUY1C105ZFN C 1UF, 16V 1 C6971 F1L2E1040002 E 1000UF, 25V 1 C6973,74 F1L2E1040002 E 1000UF, 25V 2 C6976,77 F1L2E1040002 E 1000UF, 25V 2 C6979 F1L2E1040002 E 1000UF, 25V 1 C6981 ECJ2XB1H102K C 1000PF, K, 50V 1 C6986 ECJ2XB1H681K C 680PF, K, 50V 1 C6987 ECJ2VB1H221K C 220PF, K, 50V 1 C7103 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7105 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7106-08 ECJ1XC1H101J C 100PF, J, 50V 3 C7110,11 F1H1C105A072 C 1UF, K, 16V 2 C7114,15 F1H1C105A072 C 1UF, K, 16V 2 C7117-22 F1K2A474A006 C 0.47UF, 6.3V 6 C7124,25 F1H1C105A072 C 1UF, K, 16V 2 C7127,28 F1K2A474A006 C 0.47UF, 6.3V 2 C7130,31 F1H1C105A072 C 1UF, K, 16V 2 C7133 ECJ1XC1H101J C 100PF, J, 50V 1 C7134,35 F1K2A474A006 C 0.47UF, 6.3V 2 C7137,38 F1H1C105A072 C 1UF, K, 16V 2 C7140 ECJ1XC1H101J C 100PF, J, 50V 1 C7141 F1H1C105A072 C 1UF, K, 16V 1 C7142 F1K2A474A006 C 0.47UF, 6.3V 1 C7203 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7206 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7209,10 F1K2A474A006 C 0.47UF, 6.3V 2 C7212,13 F1H1C105A072 C 1UF, K, 16V 2 C7215-17 ECJ1XC1H101J C 100PF, J, 50V 3 C7219,20 F1H1C105A072 C 1UF, K, 16V 2 C7222-25 F1K2A474A006 C 0.47UF, 6.3V 4 C7227,28 F1H1C105A072 C 1UF, K, 16V 2 C7231 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7233-35 F1K2A474A006 C 0.47UF, 6.3V 3 C7237,38 F1H1C105A072 C 1UF, K, 16V 2 C7240 ECJ1XC1H101J C 100PF, J, 50V 1 C7241,42 F1K2A474A006 C 0.47UF, 6.3V 2 C7244,45 F1H1C105A072 C 1UF, K, 16V 2 C7247 ECJ1XC1H101J C 100PF, J, 50V 1 C7248,49 F1K2A474A006 C 0.47UF, 6.3V 2 C7251,52 F1H1C105A072 C 1UF, K, 16V 2 C7254 ECJ1XC1H101J C 100PF, J, 50V 1 C7256 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7261 F1H1C105A072 C 1UF, K, 16V 1 C7724,25 ECJ1VC1H330J C 33PF, J, 50V 2 C7729 ECJ1VC1H330J C 33PF, J, 50V 1 C7731 ECJ1VC1H330J C 33PF, J, 50V 1 C7732,33 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C7736 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C7737 F1J0J106A020 C 0.010UF, K, 16V 1 C7738 EEEHB0G101R C 100PF, J, 4V 1 参考号 部品号 部品名称 & 说明 件数 备注 C7742 F1J0J106A020 C 0.010UF, K, 16V 1 C8001 F1G1C104A081 C 0.10UF, K, 16V 1 C8002-05 F1H0J1050012 C 1UF, K, 16V 4 C8006-08 F1G1C104A081 C 0.10UF, K, 16V 3 C8009,10 F1J1A106A043 C 0.010UF, K, 10V 2 C8011-14 F1G1C104A081 C 0.10UF, K, 16V 4 C8015,16 F1H0J1050012 C 1UF, K, 16V 2 C8017 F1J1A106A043 C 0.010UF, K, 10V 1 C8018-21 F1G1C104A081 C 0.10UF, K, 16V 4 C8022 F1H0J1050012 C 1UF, K, 16V 1 C8023,24 F1J1A106A043 C 0.010UF, K, 10V 2 C8025-29 F1G1C104A081 C 0.10UF, K, 16V 5 C8030,31 F1H0J1050012 C 1UF, K, 16V 2 C8032 F1J1A106A043 C 0.010UF, K, 10V 1 C8033,34 F1G1C104A081 C 0.10UF, K, 16V 2 C8035,36 F1J1A106A043 C 0.010UF, K, 10V 2 C8037-41 F1G1C104A081 C 0.10UF, K, 16V 5 C8042 ECGRL0G680ER C 68PF, J, 4V 1 C8043-51 F1G1C104A081 C 0.10UF, K, 16V 9 C8052 F1H0J1050012 C 1UF, K, 16V 1 C8053 F1G1E1030005 C 0.01UF, Z, 25V 1 C8056,57 F1G1C104A081 C 0.10UF, K, 16V 2 C8058 F1J1A106A043 C 0.010UF, K, 10V 1 C8067 F1G1E1030005 C 0.01UF, Z, 25V 1 C8068 F1G1C104A081 C 0.10UF, K, 16V 1 C8069 F1G1H820A565 E 82UF, 50V 1 C8070-74 F1G1C104A081 C 0.10UF, K, 16V 5 C8075 F1J0G2260001 C 0.001UF, 6.3V 1 C8076-80 F1G1C104A081 C 0.10UF, K, 16V 5 C8551,52 F1G1C104A081 C 0.10UF, K, 16V 2 C8555 F1G1C104A081 C 0.10UF, K, 16V 1 C8601 F1G1C104A081 C 0.10UF, K, 16V 1 C8621,22 F1G1C104A081 C 0.10UF, K, 16V 2 C8731 F1G1E1030005 C 0.01UF, Z, 25V 1 C8802,03 F1G1C104A081 C 0.10UF, K, 16V 2 C9028,29 F1J1A106A043 C 0.010UF, K, 10V 2 C9033,34 F1G1C104A083 C 0.10UF, K, 16V 2 C9035,36 F1J1A106A043 C 0.010UF, K, 10V 2 C9037 F1G1E1030005 C 0.01UF, Z, 25V 1 C9039 F1J1A106A043 C 0.010UF, K, 10V 1 C9040 F1G1C104A083 C 0.10UF, K, 16V 1 C9044 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1 C9045-53 F1G1C104A083 C 0.10UF, K, 16V 9 C9055-57 F1G1C104A083 C 0.10UF, K, 16V 3 C9058 F1J1A106A043 C 0.010UF, K, 10V 1 C9061 F1G1C104A077 C 0.10UF, K, 16V 1 C9062 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1 C9063 F1G1C104A083 C 0.10UF, K, 16V 1 C9468 F1G1E1030005 C 0.01UF, Z, 25V 1 C9469 F1G1C104A083 C 0.10UF, K, 16V 1 C9500 F1G1C104A077 C 0.10UF, K, 16V 1 C9505 F1G1C104A077 C 0.10UF, K, 16V 1 C9508 F1G1C104A077 C 0.10UF, K, 16V 1 C9509,10 F1G1H120A565 E 12UF, 50V 2 C9511 F1J1A106A043 C 0.010UF, K, 10V 1 C9516-25 F1G1C104A077 C 0.10UF, K, 16V 10 C9526 F1J1A106A043 C 0.010UF, K, 10V 1 C9527,28 F1G1C104A077 C 0.10UF, K, 16V 2 C9531 F1J1A106A043 C 0.010UF, K, 10V 1 C9559-64 F1G1C104A077 C 0.10UF, K, 16V 6 C9565 F1G1C104A077 C 0.1UF, K, 16V 1 TNPA4134BQ C9566 F1G1C104A077 C 0.1UF, K, 16V 1 TNPA4134BQ C9823 ECJ3YB1E106M C 10 UF, K, 25V 1 C9825 F1G1H101A565 C 100PF, K, 50V 1 C9832 F1J1A106A043 C 0.010UF, K, 10V 1 C9837 F1J1A106A043 C 0.010UF, K, 10V 1 C9838 F1G1C104A083 C 0.10UF, K, 16V 1 TNPA4134AQ C9840 F1G1E1030005 C 0.01UF, Z, 25V 1 C9841-42 F1G1C104A083 C 0.10UF, K, 16V 3 C9843 F1G1C104A083 C 0.10UF, K, 16V 3 TNPA4134AQ C9844 F1G1E1030005 C 0.01UF, Z, 25V 1 C9845,46 F1G1C104A083 C 0.10UF, K, 16V 2 C9858 ECJ3YB1E106M C 10 UF, K, 25V 1 C9859 F1G1E1030005 C 0.01UF, Z, 25V 1 C9860 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1 C9861,62 ECJ1VB1E104K C 0.10UF, K, 25V 2 C9863 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1 参考号 部品号 部品名称 & 说明 件数 备注 127 C9864 ECJ1VB1E104K C 0.10UF, K, 25V 1 C9865,66 ECGRL0G680ER C 68PF, J, 4V 2 C9867-72 ECJ3YB1E106M C 10 UF, K, 25V 6 C9873 ECGRL0G680ER C 68PF, J, 4V 1 C9874 F1G1H680A565 E 68UF, 50V 1 C9875 F1J1A106A043 C 10UF, 10V 1 TNPA4134BQ C9876 F1J1A106A043 C 10UF, 10V 1 TNPA4134BQ C9877 F1G1H680A565 E 68UF, 50V 1 C9878 F1G1E1030005 C 0.01UF, Z, 25V 1 C9879,80 F1G1E822A086 C 8200UF, Z, 25V 2 C9881 F1G1E1030005 C 0.01UF, Z, 25V 1 C9882 F1G1E822A086 C 8200UF, Z, 25V 1 C9883 F1G1H101A565 C 100PF, K, 50V 1 C9884,85 F1G1H1020008 E 1000UF, 50V 2 C9886,87 ECJ1VB1E104K C 0.10UF, K, 25V 2 C9888 F1G1H361A565 E 360UF, 50V 1 C9900-25 F1G1C104A077 C 0.10UF, K, 16V 26 C9927-51 F1G1C104A077 C 0.10UF, K, 16V 25 C9955-59 F1G1C104A077 C 0.10UF, K, 16V 5 C9960-64 F1J1A106A043 C 0.010UF, K, 10V 5 C9966,67 F1G1C104A077 C 0.10UF, K, 16V 2 CB1-11 K1MN68BA0052 68P 连接接头 11 D5 K1KB31BA0064 31P 连接接头 1 D6 K1KA21A00011 21P 连接接头 1 D9 K1KA07A00292 7P 连接接头 1 TNPA4134AQ D20 K1KY30BA0090 30P 连接接头 1 D25 K1KA13B00069 13P 连接接头 1 D31 K1MN55BA0257 55P 连接接头 1 D32 K1MN68BA0251 68P 连接接头 1 D1107 MA704A 二极管 1 D1112 MA2J72800L 二极管 1 D2025 K7AAAY000003 光纤端子 1 D2026 MA2J11100L 二极管 1 D2028,29 MA2J11100L 二极管 2 D2031-34 MA2J11100L 二极管 4 D2119 B0BC01100001 稳压二极管 1 D2189 MA2J11100L 二极管 1 D2301,02 MA2J11100L 二极管 2 D2303 MA3056H 稳压二极管 1 D2304 MA2J11100L 二极管 1 D2510,11 MAZ80560ML 稳压二极管 2 D2512 MA8043LTX 稳压二极管 1 D2520 LNJ107W5PRW LED 1 D2524 MAZ80560ML 稳压二极管 1 D2632,33 MA2J11100L 二极管 2 D2634 MA3X78900L 稳压二极管 1 D2635 MA2J11100L 二极管 1 D2636 MA3047H 稳压二极管 1 D2637 MA2J11100L 二极管 1 D2638 B0BC03900015 稳压二极管 1 D3003 MA8140M 稳压二极管 1 D3005,06 MA8140M 稳压二极管 2 D3035-43 MA8140M 稳压二极管 9 D3044 B0BC01100001 稳压二极管 1 D3045-49 MA8140M 稳压二极管 5 D3100 MA8140M 稳压二极管 1 D3102 MA2J11100L 二极管 1 D3334-38 MA2J11100L 二极管 5 D3702 MA8140M 稳压二极管 1 D3801-11 EZAEG2A50AX 二极管 11 D3812 MA3056MTX 稳压二极管 1 D3813,14 B0HCMM000014 二极管 2 D4500-12 EZAEG2A50AX 二极管 13 D4513 MA3056MTX 稳压二极管 1 D4514 EZAEG2A50AX 二极管 1 D4515 MA3056MTX 稳压二极管 1 D4516-23 EZAEG2A50AX 二极管 8 D4524-27 B0HCMM000014 二极管 4 D4528 EZAEG2A50AX 二极管 1 D4532 B0HCMM000014 二极管 1 D5402 MA2J11100L 二极管 1 D5404 MA2J11100L 二极管 1 D5409 B0JCME000037 二极管 1 D5410 MAZ81100ML 稳压二极管 1 D5411 MA3X152A0L 二极管 1 参考号 部品号 部品名称 & 说明 件数 备注 D5412 MA8033L 稳压二极管 1 D5517 MTZJ10B 稳压二极管 1 D5518 MTZJ12B 稳压二极管 1 D5519 MTZJ6R8B 稳压二极管 1 D5521 MA2J11100L 二极管 1 D5522 MA3X152A0L 二极管 1 D5526 MA3X152A0L 二极管 1 D5528 MA8120M 稳压二极管 1 D5529 MAZ80680LL 稳压二极管 1 D5530 MA2J11100L 二极管 1 D5601,02 MA22D3900L 二极管 2 D5603,04 B0JCDD000002 二极管 2 D5605 MA22D3900L 二极管 1 D5606 B0JCDD000002 二极管 1 D5607,08 MA8024LTX 稳压二极管 2 D5609 MA8056LTX 稳压二极管 1 D5670 MA2J11100L 二极管 1 D5671 B0HCMM000014 二极管 1 D5673 B0HCMM000014 二极管 1 D5690,91 B0BC6R600005 稳压二极管 2 D6001 B0HBSN000008 二极管 1 D6021 MA3DF30000LZ 稳压二极管 1 D6024,25 B0ECHP000003 二极管 2 D6032 MA2J11100L 二极管 1 D6061,62 MA3DF30000LZ 稳压二极管 2 D6071,72 B0HBSN000008 二极管 2 D6082 MA3DF30000LZ 稳压二极管 1 D6091 B0HBSN000008 二极管 1 D6092 B0ECHP000003 二极管 1 D6101-04 B0JCME000037 二极管 4 D6131,32 B0ECHP000003 二极管 2 D6151-53 B0ECHP000003 二极管 3 D6191 B0ECHP000003 二极管 1 D6193 B0ECHP000003 二极管 1 D6211 B0JCME000037 二极管 1 D6221 B0ECHP000003 二极管 1 D6222,23 MA2J11100L 二极管 2 D6253 LNJ301MPUJA LED 1 D6254 MAZ80510LL 稳压二极管 1 D6255 MA2J11100L 二极管 1 D6273 MA2J11100L 二极管 1 D6275 MA8068M 稳压二极管 1 D6276 MA3X152A0L 二极管 1 D6278 MA3X152A0L 二极管 1 D6280 MAZ80510LL 稳压二极管 1 D6281 B0JCME000037 二极管 1 D6401,02 B0HBSN000008 二极管 2 D6422 MA3DF40000LZ 稳压二极管 1 D6441 B0ECHP000003 二极管 1 D6451 B0ECHP000003 二极管 1 D6461,62 MA3DF30000LZ 稳压二极管 2 D6466 MA2J11100L 二极管 1 D6471 B0HBSN000008 二极管 1 D6472 B0ECHP000003 二极管 1 D6477 MA2J11100L 二极管 1 D6478 B0HCKS000002 二极管 1 D6480 MA2J11100L 二极管 1 D6481 MA3DF30000LZ 稳压二极管 1 D6491 MA3DF40000LZ 稳压二极管 1 D6497 B0ECHP000003 二极管 1 D6501 B0ECHP000003 二极管 1 D6503 B0ECHP000003 二极管 1 D6521-23 B0ECHP000003 二极管 3 D6583 LNJ301MPUJA LED 1 D6584 MAZ80510LL 稳压二极管 1 D6585 MA2J11100L 二极管 1 D6604 MA2J11100L 二极管 1 D6605 MAZ80510LL 稳压二极管 1 D6606 B0HCMM000014 二极管 1 D6607 MA2J11100L 二极管 1 D6619 B0HCKS000002 二极管 1 D6621 B0HDSM000005 二极管 1 D6623,24 B0HDSM000005 二极管 2 D6631,32 MA8240MTX 稳压二极管 2 D6641,42 B0HCKS000002 二极管 2 D6643 B0JCME000037 二极管 1 D6644 B0HCKS000002 二极管 1 参考号 部品号 部品名称 & 说明 件数 备注 128 D6661 MA2J11100L 二极管 1 D6662-64 MA8330M 稳压二极管 3 D6665 MAZ80510LL 稳压二极管 1 D6666,67 MA2J11100L 二极管 2 D6670,71 B0JCME000037 二极管 2 D6690 MA2J11100L 二极管 1 D6691,92 MA8200M 稳压二极管 2 D6701 MA8056H 稳压二极管 1 D6702,03 MA2J11100L 二极管 2 D6721 B0HCKS000002 二极管 1 D6722 MA2J11100L 二极管 1 D6725 B0ECHP000003 二极管 1 D6726-33 MA8056H 稳压二极管 8 D6761 B0JCME000037 二极管 1 D6763 B0ECHP000003 二极管 1 D6764 B0HCKS000002 二极管 1 D6765,66 B0ECHP000003 二极管 2 D6773 B0HCKS000002 二极管 1 D6791 MA8200M 稳压二极管 1 D6802 B0BC01000044 稳压二极管 1 D6804 B0ECHP000003 二极管 1 D6805 MA8240MTX 稳压二极管 1 D6806 B0HCKS000002 二极管 1 D6809 B0HCMM000014 二极管 1 D6820-23 MA2J11100L 二极管 4 D6824,25 MA8330M 稳压二极管 2 D6826 MA2J11100L 二极管 1 D6827,28 MA8330M 稳压二极管 2 D6830 MA8056H 稳压二极管 1 D6836 MAZ81500ML 稳压二极管 1 D6837 MA2J11100L 二极管 1 D6838 B0BC027A0234 稳压二极管 1 D6839 B0ECHP000003 二极管 1 D6841 B0HCKS000002 二极管 1 D6842,43 MA2J11100L 二极管 2 D6859 B0ECHP000003 二极管 1 D6860 B0HCKS000002 二极管 1 D6861 MAZ80510LL 稳压二极管 1 D6862 MA2J11100L 二极管 1 D6871 MAZ80510LL 稳压二极管 1 D6872 MA2J11100L 二极管 1 D6901,02 MA8056H 稳压二极管 2 D6903-05 B0HCMM000013 二极管 3 D6951,52 MA8056H 稳压二极管 2 D6953-55 B0HCMM000013 二极管 3 D7101-10 B0HCMM000014 二极管 10 D7201-12 B0HCMM000014 二极管 12 D7700 B3AEB0000107 LED 1 D9017-19 MA3033 稳压二极管 3 D9020 B0JCCE000008 二极管 1 D9110 B0JCGD000002 二极管 1 D9802 B0JCCE000008 二极管 1 D9804 B0JCCE000008 二极管 1 D9807,08 B0JCCE000008 二极管 2 D9811 B0JCCE000008 二极管 1 D9812 MA22D3900L 二极管 1 D9813-15 B0JCGD000002 二极管 3 D9816,17 MA22D3900L 二极管 2 DG1 K1KA12B00151 12P 连接接头 1 DG2 K1KB23A00003 23P 连接接头 1 DG5 K1KB31AA0140 31P 连接接头 1 DG6 K1KB80AA0218 80P 连接接头 1 DG7 K1KA04AA0104 4P 连接接头 1 DG11 K1KY30A00017 30P 连接接头 1 DG31 K1KA20AA0009 20P 连接接头 1 DG32 K1KA07AA0266 7P 连接接头 1 DG33 K1KA11AA0715 11P 连接接头 1 DG34 K1KA30AA0009 30P 连接接头 1 DG52 K1KA14A00248 14P 连接接头 1 FL2001,02 J0HABB000004 LC 滤波器 2 FL2003-06 J0HABB000003 LC 滤波器 4 FL3001,02 J0HABB000003 LC 滤波器 2 FL3003-05 J0HABB000004 LC 滤波器 3 FL3006,07 J0JAD0000028 片状电感 2 FL3008 J0HABB000003 LC 滤波器 1 参考号 部品号 部品名称 & 说明 件数 备注 FL3710-12 J0MAB0000199 LC 滤波器 3 FL4800-02 J0JAD0000028 片状电感 3 FL5730-34 J0HABH000013 LC 滤波器 5 FL7101 J0HABH000013 LC 滤波器 1 FL7201 J0HABH000013 LC 滤波器 1 FL8801,02 J0HAAA000013 LC 滤波器 2 FL9300,01 F1J1E104A148 C 0.10UF, Z, 25V 2 FL9504 F1J1E104A148 C 0.10UF, Z, 25V 1 FL9803 F1J1E104A148 C 0.10UF, Z, 25V 1 FL9805,06 F1J1E104A148 C 0.10UF, Z, 25V 2 FL9900-04 F1J1E104A148 C 0.10UF, Z, 25V 5 G51 K1KY20A00015 20P 连接接头 1 GH10 K1FA121E0001 121P 连接接头 1 GH11 K1KY30A00017 30P 连接接头 1 GS52 K1KA14B00129 14P 连接接头 1 H2 K1KA23A00003 23P 连接接头 1 H3,H4 K1KA23A00005 23P 连接接头 2 H6 K1KB80AA0218 80P 连接接头 1 H11 K1KA05AA0190 5P 连接接头 1 H12 K1KA04AA0190 4P 连接接头 1 H15 K1KA04AA0714 4P 连接接头 1 H51 K1KA20AA0178 20P 连接接头 1 IC1100 MNZSFD7GP42 IC 1 IC1101 TVRP465-1 IC 1 IC2000 C0JBAZ002261 IC 1 IC2008 C0CBCBE00001 IC 1 IC2010 C0CBCBC00190 IC 1 IC2011 C0ABBB000230 IC 1 IC2012 C1BB00000947 IC 1 IC2013 C0DBGYY00281 IC 1 IC2105 AN15862A-VT IC 1 IC2106 C1AB00002746 IC 1 IC2107 C0DBFFD00003 IC 1 IC2301,02 C1AB00002730 IC 2 IC2303 C0DBGYY00202 IC 1 IC2601 C0JBAU000034 IC 1 IC2610 C0DBAJB00004 IC 1 IC3001 AN15876A-VT IC 1 IC3801 C1AB00002641 IC 1 IC3802 TVRP315 IC 1 IC3803 C0JBAU000034 IC 1 IC4001 C1AB00002687 IC 1 IC4002 C0CBCAC00275 IC 1 IC4004 C0JBAZ002261 IC 1 IC4005 C0CBCBC00190 IC 1 IC4500 TVRP314 IC 1 IC4501 TVRP313 IC 1 IC4503 C1AB00002641 IC 1 IC4504 C3EBEY000009 IC 1 IC4506 C0DBGGF00001 IC 1 IC4507 C0CBCBC00190 IC 1 IC4508,09 C0CBCAD00082 IC 2 IC4510 C1AB00002753 IC 1 IC4513,14 C0JBAU000034 IC 2 IC4515 NJM2903V IC 1 IC4800 C1ZBZ0003577 IC 1 IC5400 C0DBAZF00003 IC 1 IC5550 EHMDD9851 线形 IC 1 IC5600 C0DBAYY00273 IC 1 IC5601 C0DBAYY00274 IC 1 IC5660 C0EBM0000026 IC 1 IC5670 C0CBCBC00190 IC 1 IC5671 C0EBF0000376 IC 1 IC6131 C0ZBZ0000895 IC 1 IC6151 C0ZBZ0001324 IC 1 IC6191 C0ZBZ0000895 IC 1 IC6211 C0ZBZ0001325 IC 1 IC6221 C0DBEMC00043 IC 1 IC6241 C0JBAZ000005 IC 1 IC6251 NJM2903M 集成电路 1 IC6471 C0DBEKA00003 IC 1 IC6472 C0JBAA000377 IC 1 参考号 部品号 部品名称 & 说明 件数 备注 129 IC6501 C0ZBZ0000895 IC 1 IC6521 C0ZBZ0001324 IC 1 IC6561,62 C0JBAZ000005 IC 2 IC6581 NJM2903M 集成电路 1 IC6671 C0ZBZ0001325 IC 1 IC6721,22 C0JBAZ000994 IC 2 IC6724,25 C0CBADC00072 IC 2 IC6752 C0ZBZ0001324 IC 1 IC6771 C0CBADC00072 IC 1 IC6772 C0ZBZ0001325 IC 1 IC6773,74 C0JBAA000377 IC 2 IC6791 N0BF1FB00001 IC 1 IC6801,02 C0DBEMC00043 IC 2 IC6803 C5HABZZ00165 IC 1 IC6821 C0DBEMC00043 IC 1 IC6841 C0DBEMC00043 IC 1 IC6861 NJM2903M 集成电路 1 IC6871 NJM2903M 集成电路 1 IC6901-06 AN16077A-VT IC 6 IC6951-56 AN16077A-VT IC 6 IC7101,02 C0JBAZ001120 IC 2 IC7201,02 C0JBAZ001120 IC 2 IC7205,06 C0JBAZ001120 IC 2 IC8001 MN2WS0039AA IC 1 IC8002,03 C3ABRY000015 IC 2 IC8004 C0ZBZ0001030 IC 1 IC8554 TVRP554-4 IC 1 PPDS IC8601 TVRP293 IC 1 PPDS IC8621,22 C0JBAZ002845 IC 2 IC9001 TVRP436 IC 1 PPDS IC9002 C1ZBZ0003577 IC 1 IC9003 MN103SC9GPH3 IC 1 IC9007 C1ZBZ0003631 IC 1 TNPA4134AQ IC9011 C0EBF0000431 IC 1 IC9013 C0JBAZ002060 IC 1 IC9200 C1ZBZ0003600 IC 1 IC9303 TVRP437 IC 1 PPDS IC9500 C1ZBZ0003575 IC 1 TNPA4134AQ IC9500 C1ZBZ0003711 IC 1 TNPA4134BQ IC9802,03 C0JBAZ001120 IC 2 IC9804 C0DBGFD00011 IC 1 TNPA4134BQ IC9805 C0DBAYY00274 IC 1 IC9806 C0DBAYY00273 IC 1 IC9900 MN84524 IC 1 IC9901 C3ABQJ000055 IC 1 JA2 ERJ6GEY0R00V M 0 OHM, 1/10W 1 JA4-A8 ERJ6GEY0R00V M 0 OHM, 1/10W 5 JK2003 K2HA204A0053 插孔 1 JK3001 K1FB315A0006 连接接头 1 JK3100 K1U936A00002 连接接头 UNIT 1 JK3701C K4AK18B00003 端子 1 JK4500,01 K1FY119D0002 连接接头 2 JK7702 K1NA09E00088 9P 连接接头 1 JS1100 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS1124 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS2031-33 J0JCC0000100 片状电感 3 JS2046 J0JCC0000100 片状电感 1 JS2048,49 J0JCC0000100 片状电感 2 JS2051 J0JCC0000100 片状电感 1 JS2059-62 J0JCC0000100 片状电感 4 JS2064 J0JCC0000100 片状电感 1 JS2096 J0JCC0000100 片状电感 1 JS2101 J0JCC0000100 片状电感 1 JS2300,01 J0JCC0000100 片状电感 2 JS2513 J0JCC0000100 片状电感 1 JS3003 J0JCC0000100 片状电感 1 JS3010-15 ERJ6GEY0R00V M 0 OHM, 1/10W 6 JS3023,24 J0JCC0000100 片状电感 2 JS3032 J0JCC0000100 片状电感 1 JS3206 J0JCC0000100 片状电感 1 JS3208,09 J0JCC0000100 片状电感 2 JS3213 ERJ6GEY0R00V M 0 OHM, 1/10W 1 JS3702 J0JCC0000100 片状电感 1 JS3704,05 ERJ6GEY0R00V M 0 OHM, 1/10W 2 参考号 部品号 部品名称 & 说明 件数 备注 JS3707,08 ERJ6GEY0R00V M 0 OHM, 1/10W 2 JS3816 J0JCC0000100 片状电感 1 JS4001-03 D0YAR0000007 M 0.0 OHM, J,0.063W 3 JS4005 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS4007 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS4501 D0YAR0000007 M 0.0 OHM, J,0.063W 1 K1 K1KY12B00001 12P 连接接头 1 L1100 J0JHC0000078 片状电感 1 L2001,02 J0JCC0000364 片状电感 2 L2003,04 J0JCC0000100 扼流线圈 2 L2007,08 J0JCC0000100 扼流线圈 2 L2011,12 J0JCC0000100 扼流线圈 2 L2015,16 J0JCC0000100 扼流线圈 2 L2021 J0JHC0000078 片状电感 1 L2022 J0JCC0000100 片状电感 1 L2026 G1C6R8MA0061 感应线圈 1 L2027 J0JHC0000045 片状电感 1 L2029 J0JCC0000077 片状电感 1 L2034,35 J0JCC0000364 片状电感 2 L2039,40 J0JHC0000045 片状电感 2 L2300-07 G1C330MA0291 感应线圈 8 L2308-10 J0JJC0000011 片状电感 3 L2647 ERJ6GEY0R00V M 0 OHM, 1/10W 1 L2648 G1C470MA0077 感应线圈 1 L2649 G1C100MA0072 感应线圈 1 L2650 G1C3R3ZA0083 感应线圈 1 L3001-03 J0JCC0000100 扼流线圈 3 L3010 J0JCC0000100 扼流线圈 1 L3013 J0JCC0000100 扼流线圈 1 L3206-08 J0JCC0000241 片状电感 3 L3209 J0JGC0000021 片状电感 1 L3211 J0JGC0000021 片状电感 1 L3219,20 J0JCC0000241 片状电感 2 L3222 J0JGC0000021 片状电感 1 L3223-26 J0JCC0000241 片状电感 4 L3227 J0JGC0000021 片状电感 1 L3700,01 J0JCC0000364 片状电感 2 L3707,08 J0JCC0000100 扼流线圈 2 L3801 J0JHC0000045 片状电感 1 L3804,05 J0JHC0000045 片状电感 2 L4002 J0JHC0000045 片状电感 1 L4004 J0JHC0000078 片状电感 1 L4006 J0JHC0000045 片状电感 1 L4008 J0JHC0000078 片状电感 1 L4500-08 J0JHC0000078 片状电感 9 L4511 J0JHC0000078 片状电感 1 L4512 J0JCC0000077 片状电感 1 L4516-18 J0JHC0000078 片状电感 3 L4520,21 J0JHC0000078 片状电感 2 L4524 J0JHC0000078 片状电感 1 L5401 G0C101KA0167 校正线圈 1 L5550 TALL08N2R7MA 感应线圈 1 L5551,52 G0C150MA0056 校正线圈 2 L5564 TALL08N2R7MA 感应线圈 1 L5565 G0A220GA0002 扼流线圈 1 L5566 TALL08N2R7MA 感应线圈 1 L5600,01 G1C2R2ZA0083 感应线圈 1 L5602 G1C3R3ZA0083 感应线圈 1 L5604 G1C100MA0077 感应线圈 1 L5605 J0JCC0000241 片状电感 1 L5606 G1C100MA0077 感应线圈 1 L5610,11 J0JHC0000035 片状电感 2 L5670 J0JHC0000078 片状电感 1 L5690,91 J0JHC0000078 片状电感 2 L5692 J0JCC0000241 片状电感 1 L5735 J0JHC0000078 片状电感 1 L6000 J0JJC0000015 片状电感 1 L6001-03 ELC13P1R9 扼流线圈 3 L6010 J0JJC0000015 片状电感 1 L6011-13 ELC13P1R9 扼流线圈 3 L6045-48 G0ZZ00002183 校正线圈 4 L6057,58 G0ZZ00002183 校正线圈 2 L6061-64 G0ZZ00002183 校正线圈 4 L6083,84 G0ZZ00002183 校正线圈 2 L6101,02 J0JJC0000015 片状电感 2 参考号 部品号 部品名称 & 说明 件数 备注 130 L6103 G0ZZ00002183 校正线圈 1 L6105,06 J0JJC0000015 片状电感 2 L6212 J0JJC0000015 片状电感 1 L6221 G0ZZ00002183 校正线圈 1 L6241 G0ZZ00002183 校正线圈 1 L6262 G0ZZ00002183 校正线圈 1 L6271 G0ZZ00002183 校正线圈 1 L6401-03 ELC13P1R9 扼流线圈 3 L6411-13 ELC13P1R9 扼流线圈 3 L6461-68 G0ZZ00002183 校正线圈 8 L6472 G0ZZ00002183 校正线圈 1 L6474 G0ZZ00002183 校正线圈 1 L6481,82 G0ZZ00002183 校正线圈 2 L6485,86 G0ZZ00002183 校正线圈 2 L6591,92 G0ZZ00002183 校正线圈 2 L6601,02 G0ZZ00002183 校正线圈 2 L6690 G0ZZ00002183 校正线圈 1 L7701 J0JCC0000143 片状电感 1 L7702 ERJ6GEY0R00V M 0 OHM, 1/10W 1 L7706 J0JCC0000100 片状电感 1 L8001-05 J0JHC0000045 片状电感 5 L8006 J0JCC0000100 片状电感 1 L8007-10 J0JHC0000045 片状电感 4 L8551 J0JCC0000241 片状电感 1 L8621 J0JCC0000241 片状电感 1 L8801 J0JHC0000045 片状电感 1 L8802 J0JCC0000100 扼流线圈 1 L9500 G1C150KA0038 感应线圈 1 L9501,02 J0JHC0000078 片状电感 2 TNPA4134AQ L9501,02 ERJ3GEY0R00V 片状电感 2 TNPA4134BQ L9504,05 J0JHC0000078 片状电感 2 TNPA4134AQ L9800 G1C2R2Z00007 感应线圈 1 L9801 G1C1R5Z00006 感应线圈 1 L9802 G1C2R2Z00007 感应线圈 1 PA3,A4 K1KB23A00004 23P 连接接头 2 PA5 K1KA23A00005 23P 连接接头 1 PA32 K1KA03AA0192 3P 连接接头 1 PA34 K1KA03AA0192 3P 连接接头 1 PA9800 K5H4022A0023 保险丝 1 PA9900 K5H5022A0023 保险丝 1 PAMM3 TMME047 线夹 1 PAMM7 TMME047 线夹 1 PAMM11,12 TMME300 线夹 2 PC2511 B3JB00000026 IC 1 PC6480 B3PBA0000223 IC 1 PC6701,02 B3PBA0000457 IC 2 PC6704 B3PBA0000456 IC 1 PC6705 B3PBA0000397 IC 1 PC6801 B3PBA0000223 IC 1 PC6861 B3PBA0000223 IC 1 PC6871 B3PBA0000223 IC 1 PCB TNPA4179AE H 电路板 1 PCB TXNDG1HLTC DG 电路板 1 PPDS PCB TXNPA1HLTC PA 电路板 1 PPDS PCB TXNC11HLTC C1 电路板 1 PPDS PCB TXNC21HLTC C2 电路板 1 PPDS PCB TZTNP01HLTC D 电路板 1 PPDS PCB TXN/P1HLTC P 电路板 1 PPDS PCB TXNSC1HLTC SC 电路板 1 PPDS PCB TNPA4185 SD 电路板 1 PCB TXNSS1HLTC SS 电路板 1 PPDS PCB TNPA4184 SU 电路板 1 PCB TNPA4262AD G 电路板 1 PCB TNPA4135AF GH 电路板 1 PCB TNPA4137AE K 电路板 1 PCB TNPA4138AD S 电路板 1 PCB TXNGS1HLTC GS 电路板 1 PPDS Q1107,08 2SD0601ARL 三极管 2 Q2000,01 2SD0601ARL 三极管 2 Q2002,03 2SC584500L 三极管 2 Q2015 2SA207700L 三极管 1 参考号 部品号 部品名称 & 说明 件数 备注 Q2016,17 2SC584500L 三极管 2 Q2021 2SA207700L 三极管 1 Q2031 2SA207700L 三极管 1 Q2033 2SA207700L 三极管 1 Q2034,35 2SC584500L 三极管 2 Q2039-42 2SC584500L 三极管 4 Q2101,02 2SC584500L 三极管 2 Q2301 2SA207700L 三极管 1 Q2510,11 2SD0601ARL 三极管 2 Q2513 2SD0601ARL 三极管 1 Q2635 2SC584500L 三极管 1 Q2636,37 2SA207700L 三极管 2 Q2638 2SC584500L 三极管 1 Q2639 2SK3065T100 FET 1 Q3031,32 2SC584500L 三极管 2 Q3200,01 2SA207700L 三极管 2 Q3801,02 2SD0601ARL 三极管 2 Q3804 2SD0601ARL 三极管 1 Q4000-02 2SA207700L 三极管 3 Q4500-05 2SD0601ARL 三极管 6 Q4514-17 2SB0709ARL 三极管 4 Q4520 2SD0601ARL 三极管 1 Q5501 2SD0601ARL 三极管 1 Q5521,22 2SA207700L 三极管 2 Q5523,24 2SD0601ARL 三极管 2 Q5561 B1DHDC000028 三极管 1 Q5562 2SD0601ARL 三极管 1 Q5600-02 B1MBEDA00015 三极管 3 Q5603,04 2SD0601ARL 三极管 2 Q5690,91 2SD0601ARL 三极管 2 Q5692,93 B1DHDC000028 三极管 2 Q6001-03 B1JADN000001 三极管 3 Q6021-23 B1JADN000001 三极管 3 Q6031 B1ADRD000001 三极管 1 Q6041,42 B1JADN000002 三极管 2 Q6052 B1JADN000002 三极管 1 Q6101,02 B1DFKM000002 三极管 2 Q6103 B1ABNF000006 三极管 1 Q6104 B1ADNF000006 三极管 1 Q6105,06 B1DFKM000002 三极管 2 Q6111 B1DFKM000001 三极管 1 Q6114 B1DFKM000001 三极管 1 Q6141 B1ABNF000006 三极管 1 Q6142 B1ADNF000006 三极管 1 Q6146 B1ABNF000006 三极管 1 Q6147 B1ADNF000006 三极管 1 Q6171 B1ABRD000003 三极管 1 Q6172 B1ADRD000001 三极管 1 Q6181 B1ABRD000003 三极管 1 Q6222 2SC1473AEA 三极管 1 Q6251 2SD0601ARL 三极管 1 Q6256 2SD1263A 三极管 1 Q6271 2SD0601ARL 三极管 1 Q6401-03 B1JADN000001 三极管 3 Q6421-23 B1JADP000002 三极管 3 Q6441,42 B1JADN000002 三极管 2 Q6451 B1JADP000002 三极管 1 Q6501 B1ABNF000006 三极管 1 Q6502 B1ADNF000006 三极管 1 Q6521 B1ABNF000006 三极管 1 Q6522 B1ADNF000006 三极管 1 Q6531 B1ABRD000003 三极管 1 Q6532 B1ADRD000001 三极管 1 Q6551 B1ABRD000003 三极管 1 Q6552 B1ADRD000001 三极管 1 Q6581 2SD0601ARL 三极管 1 Q6601 B1DFES000003 三极管 1 Q6602 2SD0601ARL 三极管 1 Q6603 2SB0709ARL 三极管 1 Q6621,22 2SK399500L FET 2 Q6642-44 2SK399500L FET 3 Q6646-48 2SK399500L FET 3 Q6661 B1DEET000002 三极管 1 Q6662 2SD0601ARL 三极管 1 Q6665 B1ABNF000006 三极管 1 Q6671,72 B1DFDR000001 三极管 2 Q6679 B1ABNF000006 三极管 1 参考号 部品号 部品名称 & 说明 件数 备注 131 Q6680 B1ADNF000006 三极管 1 Q6690 2SA19610Q0HW 三极管 1 Q6742,43 2SD0601ARL 三极管 2 Q6762 B1ADNF000006 三极管 1 Q6781 B1ABNF000006 三极管 1 Q6782 B1ADNF000006 三极管 1 Q6791 2SD0601ARL 三极管 1 Q6805 2SC3063 三极管 1 Q6806 2SC1473AEA 三极管 1 Q6821,22 2SD1263A 三极管 2 Q6824 2SD0601ARL 三极管 1 Q6841 2SD1263A 三极管 1 Q6842 2SC1473AEA 三极管 1 Q8801 2SD0601ARL 三极管 1 Q8802 2SB0709ARL 三极管 1 Q8911-13 2SD0601ARL 三极管 3 Q9010 2SD0601ARL 三极管 1 Q9044 2SD0601ARL 三极管 1 Q9046 2SD0601ARL 三极管 1 Q9050-54 2SD0601ARL 三极管 5 Q9301,02 2SD0601ARL 三极管 2 Q9805,06 2SD0601ARL 三极管 2 Q9807-09 B1MBEDA00015 三极管 3 R1100 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1101 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1102 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1103 ERJ2RKD330 M 33 OHM, J,0.063W 1 R1104 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1105-09 ERJ2GEJ101 M 100 OHM, J,0.063W 5 R1122 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1124,25 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1134 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1144 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1146 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R1147 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1153 ERJ2GEJ821 M 820 OHM, J,0.063W 1 R1162 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1163 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R1164 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1165 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R1166 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1169 ERJ2GED563X M 56KOHM ,J,0.063W 1 R1170 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1171 ERJ2GED563X M 56KOHM ,J,0.063W 1 R1172 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1173 ERJ6ENF2000 M 200 OHM,J,1/10W 1 R1174,75 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1179 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1181 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1182 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1183,84 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1194 ERJ2GED563X M 56KOHM ,J,0.063W 1 R1195 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1196 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1199 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1200,01 ERJ2GEJ562 M 5.6KOHM, J,0.063W 2 R1203 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1204 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1205,06 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1209 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1216 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1217 ERJ2GED563X M 56KOHM ,J,0.063W 1 R1218-20 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R1221 ERJ3EKF7151 M 7.15KOHM, 1/16W 1 R1222,23 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R1225-28 ERJ2GEJ473 M 47KOHM, J,0.063W 4 R1229 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1231-34 ERJ2GEJ473 M 47KOHM, J,0.063W 4 R1235 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1236,37 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R1243 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1255 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R2001 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R2006 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R2007 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2010-15 ERJ2GEJ473 M 47KOHM, J,0.063W 6 参考号 部品号 部品名称 & 说明 件数 备注 R2018 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2020-23 ERJ2GEJ473 M 47KOHM, J,0.063W 4 R2024 ERJ2RKD330 M 33 OHM, J,0.063W 1 R2025 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2027 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R2028 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R2029-34 ERJ6GEYJ184 M 180KOHM,J,1/10W 6 R2047 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R2048 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2049 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R2050 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2051,52 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R2053,54 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2056,57 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R2058 ERJ3GEYJ301 M 300 OHM,J,1/16W 1 R2059 D0GB105JA057 M 1MOHM,J,1/16W 1 R2084 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2085 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R2086 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2088 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2089 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R2092 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2093 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2094 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2096 D0GB103JA057 M 10KOHM,J,1/16W 1 R2097 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2098,99 D0GB103JA057 M 10KOHM,J,1/16W 2 R2100 ERJ3EKF2002 M 20KOHM, 1/16W 1 R2104 ERJ3EKF2001 M 2KOHM, 1/16W 1 R2106 J0JCC0000100 片状电感 1 R2110 D0GB103JA057 M 10KOHM,J,1/16W 1 R2111 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2112 D0GB105JA057 M 1MOHM,J,1/16W 1 R2113 ERJ3EKF1203 M 120KOHM, 1/16W 1 R2114 ERJ3EKF7502 M 75KOHM, 1/16W 1 R2116,17 J0JCC0000100 片状电感 2 R2118 D0GB105JA057 M 1MOHM,J,1/16W 1 R2119 D0GB103JA057 M 10KOHM,J,1/16W 1 R2122 D0GB103JA057 M 10KOHM,J,1/16W 1 R2123 D0GB473JA057 M 47KOHM,J,1/16W 1 R2124 D0GB103JA057 M 10KOHM,J,1/16W 1 R2125 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2127 D0GB103JA057 M 10KOHM,J,1/16W 1 R2128 D0GB473JA057 M 47KOHM,J,1/16W 1 R2129 D0GB103JA057 M 10KOHM,J,1/16W 1 R2131 D0GB103JA057 M 10KOHM,J,1/16W 1 R2132 D0GB473JA057 M 47KOHM,J,1/16W 1 R2137,38 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2143,44 D0GB103JA057 M 10KOHM,J,1/16W 2 R2145,46 ERJ3EKF2002 M 20KOHM, 1/16W 2 R2149 D0GB103JA057 M 10KOHM,J,1/16W 1 R2150,51 ERJ3EKF2002 M 20KOHM, 1/16W 2 R2152 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2154 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2156 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R2160 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2162 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2164 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2165 D0GB103JA057 M 10KOHM,J,1/16W 1 R2166 ERJ3EKF1602 M16.0KOHM, 1/16W 1 R2167 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2168 ERJ3EKF1602 M16.0KOHM, 1/16W 1 R2169 ERJ3EKF2202 M 22KOHM, 1/16W 1 R2170-75 ERJ3GEYJ221 M 220 OHM,J,1/16W 6 R2178 D0GB102JA057 M 1KOHM,J,1/16W 1 R2179 D0GB103JA057 M 10KOHM,J,1/16W 1 R2180 D0GB102JA057 M 1KOHM,J,1/16W 1 R2181 ERJ3EKF2202 M 22KOHM, 1/16W 1 R2182,83 ERJ3EKF3602 M 36KOHM, 1/16W 2 R2184,85 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R2186 ERJ3GEYJ823 M 82KOHM,J,1/16W 1 R2187 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R2189 D0GB103JA057 M 10KOHM,J,1/16W 1 R2192,93 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2194 D0GB102JA057 M 1KOHM,J,1/16W 1 R2195,96 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2197 ERJ3EKF6802 M 68KOHM, 1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 132 R2198 ERJ3EKF1583 M 158KOHM, 1/16W 1 R2205 ERJ3GEYJ203 M 20KOHM,J,1/16W 1 R2206 D0GB103JA057 M 10KOHM,J,1/16W 1 R2208-10 D0GB103JA057 M 10KOHM,J,1/16W 3 R2216 D0GB103JA057 M 10KOHM,J,1/16W 1 R2217 D0GB473JA057 M 47KOHM,J,1/16W 1 R2218 D0GB102JA057 M 1KOHM,J,1/16W 1 R2220 D0GB123JA057 M 12KOHM,J,1/16W 1 R2223-25 J0JCC0000100 片状电感 3 R2227-32 J0JCC0000100 片状电感 6 R2233 D0GB103JA057 M 10KOHM,J,1/16W 1 R2235 D0GB473JA057 M 47KOHM,J,1/16W 1 R2236,37 D0GB102JA057 M 1KOHM,J,1/16W 2 R2257 J0JCC0000100 片状电感 1 R2263 J0JCC0000100 片状电感 1 R2265 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2266 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R2270,71 EXB28V220J 电阻阵列 2 R2276 D0GB103JA057 M 10KOHM,J,1/16W 1 R2290,91 J0JCC0000100 片状电感 2 R2294-97 J0JCC0000100 片状电感 4 R2301,02 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R2305 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2306,07 ERJ3GEYJ683 M 68KOHM,J,1/16W 2 R2308,09 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 2 R2311-16 ERJ8GEYJ3R3V M 3.3 OHM, J,1/8W 6 R2317-26 ERJ6GEYJ100V M 10 OHM,J,1/10W 10 R2330 D0GB102JA057 M 1KOHM,J,1/16W 1 R2331 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2506,07 J0JHC0000096 片状电感 2 R2512 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R2516 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2517 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R2520 ERJ3GEYJ224 M 220KOHM,J,1/16W 1 R2521 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R2524 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2525 ERJ3EKF5760 M 576 OHM, 1/16W 1 R2530 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2531 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R2542 D0GB473JA057 M 47KOHM,J,1/16W 1 R2556,57 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R2558 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R2575 J0JCC0000100 片状电感 1 R2576,77 J0JCC0000241 片状电感 2 R2578,79 J0JCC0000100 片状电感 2 R2601-03 J0JCC0000100 片状电感 3 R2624,25 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R2628,29 ERJ3GEYJ752 M 7.5KOHM,J,1/16W 2 R2853 D0GB103JA057 M 10KOHM,J,1/16W 1 R2854 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2855 D0GB473JA057 M 47KOHM,J,1/16W 1 R2856 J0JCC0000100 片状电感 1 R2857 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2858 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2859 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2860 D0GB103JA057 M 10KOHM,J,1/16W 1 R2861 D0GB102JA057 M 1KOHM,J,1/16W 1 R2863,64 D0GB102JA057 M 1KOHM,J,1/16W 2 R2865 D0GB103JA057 M 10KOHM,J,1/16W 1 R2866 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2867 ERJ6ENF8202 M 82KOHM, 1/10W 1 R2868 ERJ6ENF1602 M 16KOHM, 1/10W 1 R2869 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2890 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3001-10 ERJ6RED750 M 75 OHM, 1/10W 10 R3012 ERJ6RED750 M 75 OHM, 1/10W 1 R3020-22 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R3044,45 J0JCC0000100 片状电感 2 R3059 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3062-65 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R3068 ERJ6RED750 M 75 OHM, 1/10W 1 R3069 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3072-74 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R3086,87 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3089 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3090 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3096-01 ERJ3GEYJ680 M 68 OHM,J,1/16W 6 参考号 部品号 部品名称 & 说明 件数 备注 R3103 J0JGC0000021 片状电感 1 R3105 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3107 D0GB103JA057 M 10KOHM,J,1/16W 1 R3109 J0JGC0000021 片状电感 1 R3110 J0JCC0000100 片状电感 1 R3111,12 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3113 D0GB103JA057 M 10KOHM,J,1/16W 1 R3119 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3120 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3121 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R3123 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R3130,31 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3133 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3135 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3137 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3140 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R3143 ERJ6ENF69R8 M 69.8OHM, 1/10W 1 R3145 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3168 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3174-76 ERJ3GEYJ680 M 68 OHM,J,1/16W 3 R3177 D0GB103JA057 M 10KOHM,J,1/16W 1 R3180 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3188 J0JCC0000100 片状电感 1 R3191 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3202 J0JCC0000100 片状电感 1 R3205 J0JCC0000100 片状电感 1 R3206 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3215,16 J0JCC0000100 片状电感 2 R3222 J0JCC0000100 片状电感 1 R3227-29 J0JCC0000100 片状电感 3 R3233,34 ERJ6RED750 M 75 OHM, 1/10W 2 R3236-38 J0JCC0000100 片状电感 3 R3239 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3240 ERJ3EKF5600 M 560 OHM, 1/16W 1 R3243 ERJ6GEYG271 M 270 OHM,J,1/10W 1 R3244 J0JCC0000100 片状电感 1 R3246 J0JCC0000100 片状电感 1 R3247 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3249-51 D0GB152JA057 M 1.5KOHM,J,1/16W 3 R3252 ERJ6GEYG271 M 270 OHM,J,1/10W 1 R3253,54 J0JCC0000100 片状电感 2 R3255 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3256 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3259 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3260 ERJ3EKF5600 M 560 OHM, 1/16W 1 R3266 D0GB152JA057 M 1.5KOHM,J,1/16W 1 R3302 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R3305 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R3306,07 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R3308,09 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R3310 ERJ6RED750 M 75 OHM, 1/10W 1 R3313 ERJ6RED750 M 75 OHM, 1/10W 1 R3318 ERJ6RED750 M 75 OHM, 1/10W 1 R3348,49 ERJ3GEYJ680 M 68 OHM,J,1/16W 2 R3350 J0JCC0000100 片状电感 1 R3709-11 J0JCC0000100 片状电感 3 R3714 J0JCC0000100 片状电感 1 R3716,17 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3721 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R3722-25 J0JCC0000100 片状电感 4 R3732 J0JCC0000100 片状电感 1 R3746 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3748 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3750 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3751 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R3753 ERJ6ENF1741 M1.74KOHM, 1/10W 1 R3754 ERJ6ENF1621 M1.62KOHM, 1/10W 1 R3755 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3758 ERJ6ENF6651 M6.65KOHM, 1/10W 1 R3765 ERJ6ENF2321 M2.32KOHM, 1/10W 1 R3767 ERJ6ENF3161 M3.16KOHM, 1/10W 1 R3768 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3801,02 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R3803 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R3804,05 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R3806 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R3807,08 D0YAR0000007 M 0.0 OHM, J,0.063W 2 参考号 部品号 部品名称 & 说明 件数 备注 133 R3809,10 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R3811 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R3812 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3814 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R3815 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R3818 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3819,20 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R3821 ERJ2GEJ390 M 39 OHM, J,0.063W 1 R3822 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R3823 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R3824-31 ERJ2GEJ2R7X M 2.7OHM, J,0.063W 8 R3832 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R3834 ERJ3EKF49R9 M 49.9 OHM, 1/16W 1 R3835 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R3840,41 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4002,03 EXB2HV680J 电阻阵列 2 R4004,05 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4006 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4007 ERJ3EKF7500 M 750 OHM, 1/16W 1 R4010 ERJ3EKF1821 M1.82KOHM, 1/16W 1 R4011,12 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4013 ERJ2GEJ681 M 680 OHM, J,0.063W 1 R4014 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4016 ERJ2GEJ681 M 680 OHM, J,0.063W 1 R4017 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4019 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4025 D0GB202JA057 M 2KOHM,J,1/16W 1 R4028,29 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R4034 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4200-02 ERJ2RKD330 M 33 OHM, J,0.063W 3 R4242 J0JCC0000100 片状电感 1 R4284 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4286-88 ERJ2GEJ473 M 47KOHM, J,0.063W 3 R4317-30 ERJ2GEJ473 M 47KOHM, J,0.063W 14 R4500,01 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4502,03 ERJ2RKD330 M 33 OHM, J,0.063W 2 R4506,07 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4508-23 ERJ2GEJ2R2X M 2.2OHM, J,0.063W 16 R4524,25 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4526,27 ERJ2GEJ102X M 1KOHM, J,0.063W 2 R4528 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4529 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4530 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4531 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4532,33 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4535,36 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4538 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4539 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4540 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4541-43 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4544-47 ERJ2GEJ103 M 10KOHM, J,0.063W 4 R4552 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4561 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4562,63 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4564,65 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4567 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R4578,79 ERJ2GEJ151 M 150 OHM, J,0.063W 2 R4585 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4587 ERJ3GEYF821 M 820 OHM, 1/16W 1 R4593 ERJ3EKF1001 M 1KOHM, 1/16W 1 R4596-98 ERJ6GEYG102 M 1KOHM,J,1/10W 3 R4601 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R4604 ERJ3EKF7501 M 7.5KOHM, 1/16W 1 R4606 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R4611 ERJ3EKF1371 M 1.37KOHM, 1/16W 1 R4612 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 R4613,14 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4615 ERJ3EKF1600 M 160 OHM, 1/16W 1 R4622 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4624 ERJ3EKF1691 M1.69KOHM, 1/16W 1 R4626 ERJ2GEJ105 M 1MOHM, J,0.063W 1 R4627 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4628,29 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R4631 ERJ3EKF4990 M 499 OHM, 1/16W 1 R4634 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4635 EXB28V680JX 电阻阵列 1 R4636-38 ERJ2GEJ680 M 68 OHM, J,0.063W 3 参考号 部品号 部品名称 & 说明 件数 备注 R4639,40 EXB28V680JX 电阻阵列 2 R4641 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4642 EXB28V680JX 电阻阵列 1 R4643,44 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4645-47 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4648 EXB28V330J 电阻阵列 1 R4649 EXB28V680JX 电阻阵列 1 R4650,51 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4652 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4653 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4654 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R4655 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4656 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R4657,58 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4659 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4661 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4663 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4665,66 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R4667 ERJ2GEJ151 M 150 OHM, J,0.063W 1 R4670 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4672 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4676-81 ERJ2GEJ220 M 22 OHM, J,0.063W 6 R4682 ERJ3EKF1002 M 10KOHM, 1/16W 1 R4683 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4686 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R4687,88 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4689-92 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R4694 ERJ2RKD330 M 33 OHM, J,0.063W 1 R4698,99 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R4702,03 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R4706 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4707 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4708 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4800 J0JCC0000100 片状电感 1 R4819,20 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4838 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4856-65 D0YAR0000007 M 0.0 OHM, J,0.063W 10 R4872 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5402 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R5404 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R5410 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R5412 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R5413 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R5415 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R5416 ERJ6ENF2001 M 2KOHM, 1/10W 1 R5417 ERJ6ENF8450 M 845 OHM, 1/10W 1 R5418 ERJ6ENF1302 M 13KOHM, 1/10W 1 R5420 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R5423 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R5424 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R5487 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R5506,07 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R5508 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R5509 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R5531 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R5532 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R5533 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R5534 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R5535 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R5536 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R5537 ERJ6GEYG681 M 680 OHM,J,1/10W 1 R5538 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R5540 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R5542 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R5544 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R5546,47 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R5548,49 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R5554 ERJ6ENF2611 M2.61KOHM, 1/10W 1 R5555 ERJ6ENF1271 M1.27KOHM, 1/10W 1 R5570 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R5571 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R5572 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R5573 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R5600 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5604 ERJ3GEYF473 M 47KOHM, 1/16W 1 R5605 ERJ3EKF1272 M12.7KOHM, 1/16W 1 R5606-09 D0YAR0000007 M 0.0 OHM, J,0.063W 4 参考号 部品号 部品名称 & 说明 件数 备注 134 R5610 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5611 ERJ3EKF3602 M 36KOHM, 1/16W 1 R5612 ERJ3EKF2322 M23.2KOHM, 1/16W 1 R5620 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R5621 ERJ3GEYF473 M 47KOHM, 1/16W 1 R5622 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R5623 ERJ3GEYF473 M 47KOHM, 1/16W 1 R5625-28 D0YAR0000007 M 0.0 OHM, J,0.063W 4 R5629 ERJ3EKF3012 M30.1KOHM, 1/16W 1 R5630 ERJ3EKF4752 M47.5KOHM, 1/16W 1 R5631 ERJ3EKF3602 M 36KOHM, 1/16W 1 R5632 ERJ3EKF3002 M 30KOHM, 1/16W 1 R5633,34 ERJ3EKF1602 M16.0KOHM, 1/16W 2 R5635 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R5636 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R5637 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5638 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5641 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5644 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R5646 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5647 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5660 ERJ2GEJ562 M 5.6KOHM, J,0.063W 1 R5661 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5662 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R5670 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5671 ERJ2GEJ183 M 18KOHM ,J,0.063W 1 R5672 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R5674 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R5690,91 D0GB103JA057 M 10KOHM,J,1/16W 2 R5692,93 D0GB473JA057 M 47KOHM,J,1/16W 2 R5694,95 D0GB102JA057 M 1KOHM,J,1/16W 2 R5696,97 D0GB103JA057 M 10KOHM,J,1/16W 2 R5730,31 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R5732 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R5733 ERJ2GED563X M 56KOHM ,J,0.063W 1 R6001 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6003 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6005 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6020 ERF5TJ330 W 33 OHM, 5W 1 R6021 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6024 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6026 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6031,32 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6033 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6034 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6041 D0GF5R6JA047 M 5.6 OHM,J, 0.33W 1 R6043 D0GF5R6JA047 M 5.6 OHM,J, 0.33W 1 R6053 D0GF5R6JA047 M 5.6 OHM,J, 0.33W 1 R6062 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6064 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6066 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6068 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6070-73 ERJ6GEY0R00V M 0 OHM, 1/10W 4 R6102 D0GD221JA059 M 220 OHM,J,1/10W 1 R6104 D0GD221JA059 M 220 OHM,J,1/10W 1 R6106 D0GD221JA059 M 220 OHM,J,1/10W 1 R6108 D0GD221JA059 M 220 OHM,J,1/10W 1 R6109 D0GD100JA059 M 10 OHM,J,0.25W 1 R6110 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6111 D0GD470JA059 M 47 OHM,J,0.25W 1 R6113 ERJ14YJ224 M 220KOHM, J,1/4W 1 R6114 D0GD470JA059 M 47 OHM,J,0.25W 1 R6116 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6131,32 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6134 D0GD750JA059 M 75 OHM,J,0.25W 1 R6135,36 D0GD100JA059 M 10 OHM,J,0.25W 2 R6141,42 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6145 D0GF1R0JA047 M 1.0 OHM,J,0.33W 1 R6146,47 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6151,52 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6154 D0GD750JA059 M 75 OHM,J,0.25W 1 R6157-60 D0GF1R0JA047 M 1.0 OHM,J,0.33W 4 R6171 D0GD100JA059 M 10 OHM,J,0.25W 1 R6172,73 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6181 D0GD100JA059 M 10 OHM,J,0.25W 1 R6182,83 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6191,92 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 参考号 部品号 部品名称 & 说明 件数 备注 R6193 D0GD750JA059 M 75 OHM,J,0.25W 1 R6194 D0GF1R0JA047 M 1.0 OHM,J,0.33W 1 R6210 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6213 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6214 D0GD151JA059 M 150 OHM,J,0.25W 1 R6220 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R6221 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6222 ERG1FJS103D M 10KOHM, J, 1W 1 R6223 ERG2FJS123D M 12KOHM, J, 2W 1 R6225 D0GD203JA059 M 20KOHM,J,1/10W 1 R6226,27 ERJ6GEYJ163V M 16KOHM,J,1/10W 2 R6228 ERJ6GEYG562 M 5.6KOHM,J,1/10W 1 R6229 ERJ6GEYJ163V M 16KOHM,J,1/10W 1 R6230 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R6231 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6232 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6241 EXB38V470J 电阻阵列 1 R6242 EXB38V472JV 电阻阵列 1 R6246 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6247 D0GF154JA047 M 150 KOHM,J,0.33W 1 R6248 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6249 D0GF154JA047 M 150 KOHM,J,0.33W 1 R6252,53 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6254 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R6255 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6256 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R6257 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6258 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6261 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6269 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6270 D0GF154JA047 M 150 KOHM,J,0.33W 1 R6272 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6273 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6274 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6276 ERJ6GEYG823 M 82KOHM,J,1/10W 1 R6278 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6279 D0GF154JA047 M 150 KOHM,J,0.33W 1 R6284 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6292 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6401-03 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 3 R6421-23 D0GF5R6JA047 M 5.6 OHM,J, 0.33W 3 R6441,42 D0GF5R6JA047 M 5.6 OHM,J, 0.33W 2 R6451 D0GF5R6JA047 M 5.6 OHM,J, 0.33W 1 R6465 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6466 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6467,68 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6471 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6472 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6473 ERJ6GEYF561 M 560 OHM,J,1/10W 1 R6474 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6475,76 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R6477 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6501,02 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6503 D0GD100JA059 M 10 OHM,J,0.25W 1 R6504 D0GD750JA059 M 75 OHM,J,0.25W 1 R6506 D0GD100JA059 M 10 OHM,J,0.25W 1 R6507-10 D0GF1R0JA047 M 1.0 OHM,J,0.33W 4 R6511,12 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6516,17 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6521,22 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6523 D0GD750JA059 M 75 OHM,J,0.25W 1 R6531 D0GD100JA059 M 10 OHM,J,0.25W 1 R6532,33 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6551 D0GD100JA059 M 10 OHM,J,0.25W 1 R6552,53 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6561-64 EXB38V470J 电阻阵列 4 R6565-68 EXB38V472JV 电阻阵列 4 R6580 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6582,83 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6584 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R6585 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R6586 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6587 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6588 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6590 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6591 EXB38V472JV 电阻阵列 1 R6592 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 135 R6605 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R6607 ERJ6ENF6811 M6.81KOHM, 1/10W 1 R6608,09 D0GF102JA047 M 1.0 KOHM,J,0.33W 2 R6610 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6612 D0GD470JA059 M 47 OHM,J,0.25W 1 R6621,22 ERJ6GEYG221 M 220 OHM,J,1/10W 2 R6623 ERG2FJS333D M 33KOHM, J, 2W 1 R6638,39 D0GF1R0JA047 M 1.0 OHM,J,0.33W 2 R6642-44 D0GD330JA059 M 33 OHM,J,1/10W 3 R6646-48 D0GD330JA059 M 33 OHM,J,1/10W 3 R6658 D0D1101JA009 M 100 OHM,J,1W 1 R6659,60 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6661 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6662 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R6663 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6664 D0GF222JA047 M 2.2KOHM,J,0.33W 1 R6665 D0GD470JA059 M 47 OHM,J,0.25W 1 R6666 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6667,68 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R6671 D0GD470JA059 M 47 OHM,J,0.25W 1 R6672 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6673,74 D0GD470JA059 M 47 OHM,J,0.25W 2 R6680,81 D0GD100JA059 M 10 OHM,J,0.25W 2 R6692 D0GZ472JA020 M 4.7KOHM,J, 0.5W 1 R6693 ERJ6GEYG823 M 82KOHM,J,1/10W 1 R6694 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6695 ERJ8GEYJ124 M 120KOHM, J,1/8W 1 R6696 ERF5TK2R2 W 2.2 OHM, K, 5W 1 R6700-04 ERJ6GEYJ471 M 470 OHM,J,1/10W 5 R6705,06 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6707,08 ERJ6GEYJ471 M 470 OHM,J,1/10W 2 R6709 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6710-14 ERJ6GEYG222 M 2.2KOHM,J,1/10W 5 R6717,18 ERJ6GEYG222 M 2.2KOHM,J,1/10W 2 R6721,22 EXB38V220JV 电阻阵列 2 R6723 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R6724 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6742 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6745 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6746,47 D0GD103JA059 M 10KOHM,J,0.25W 2 R6748 ERJ6GEYG332 M 3.3KOHM,J,1/10W 1 R6761 D0GD100JA059 M 10 OHM,J,0.25W 1 R6762 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6765 D0GF1R0JA047 M 1.0 OHM,J,0.33W 1 R6766 D0GD750JA059 M 75 OHM,J,0.25W 1 R6768 D0GF1R0JA047 M 1.0 OHM,J,0.33W 1 R6769 D0GD750JA059 M 75 OHM,J,0.25W 1 R6775,76 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6777 D0GD151JA059 M 150 OHM,J,0.25W 1 R6781 D0GD470JA059 M 47 OHM,J,0.25W 1 R6782 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6788 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R6789 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6791 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6792 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6793 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6795,96 ERJ6GEYG104 M 100KOHM,J,1/10W 2 R6797 ERJ6ENF1692 M16.9KOHM, 1/10W 1 R6801 ERG2FNJS8R2E M 8.2 OHM, J, 2W 1 R6802 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6806,07 ERX12SJ1R5 M 1.5 OHM, J,1/2W 2 R6808 D0GF272JA047 M 2.7 KOHM,J,0.33W 1 R6809 ERG1SJ273 M 27KOHM, J, 1W 1 R6810 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6811 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6812 ERJ6ENF2403 M 240KOHM, 1/10W 1 R6813 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6814 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R6815 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R6816 ERJ6ENF4531 M4.53KOHM, 1/10W 1 R6817 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6818 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R6821 ERF5TJ221 W 220 OHM, J, 5W 1 R6822 ERJ12YJ104U M 100KOHM, 1/2W 1 R6823 ERG1FJS104D M 100KOHM, J, 1W 1 R6824 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6825-27 ERJ6ENF2003 M 200KOHM, 1/10W 3 参考号 部品号 部品名称 & 说明 件数 备注 R6828 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R6829,30 ERJ6GEYG104 M 100KOHM,J,1/10W 2 R6831 ERJ6GEYG153 M 15KOHM,J,1/10W 1 R6832 D0GF4R7JA047 M 4.7 OHM,J, 0.33W 1 R6833-36 ERJ6ENF7502 M 75KOHM, 1/10W 4 R6837 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6839 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6840 ERX12SJ1R5 M 1.5 OHM, J,1/2W 1 R6841 ERJ12YJ153U M 15KOHM, 1/2W 1 R6842 ERJ12YJ433U M 43KOHM, 1/2W 1 R6843 ERJ6GEYJ623 M 62KOHM,J,1/10W 1 R6844 D0D2101JA021 M 100 OHM,J,2W 1 R6845-47 ERJ6GEYJ623 M 62KOHM,J,1/10W 3 R6848 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6849,50 ERJ6ENF6802 M 68KOHM, 1/10W 2 R6851 ERJ6ENF1802 M 18KOHM, 1/10W 1 R6852 ERJ6ENF2701 M 2.7KOHM, 1/10W 1 R6853 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6855 ERJ12YJ103 M 10KOHM,J, 1/2W 1 R6856 ERQ12AJW560E F 56 OHM, J,1/2W 1 R6857 ERJ12YJ124U M 120KOHM, 1/2W 1 R6860 D0D28R2JA021 M 8.2 OHM,J,2W 1 R6861,62 ERJ6ENF5102 M 51KOHM, 1/10W 2 R6863 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6864 ERJ6ENF6801 M 6.8KOHM, 1/10W 1 R6865 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R6866 ERJ6ENF6200 M 620 OHM, 1/10W 1 R6867 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6868 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6869 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6871-73 ERJ6ENF3902 M 39KOHM, 1/10W 3 R6874 ERJ6ENF6801 M 6.8KOHM, 1/10W 1 R6875 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R6876 ERJ6RBD561 M 560 OHM, 1/10W 1 R6877 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6878 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6879 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6886-88 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6891 ERJ6GEYG183 M 18KOHM,J,1/10W 1 R6901 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6902-04 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R6905 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6909 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6913 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6917 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6924 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6925,26 J0JCC0000100 片状电感 2 R6931-34 ERJ6GEYG103 M 10KOHM,J,1/10W 4 R6935,36 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R6938 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6951 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6952-54 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R6955 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6959 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6963 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6967 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6971 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6975,76 J0JCC0000100 片状电感 2 R6981-84 ERJ6GEYG103 M 10KOHM,J,1/10W 4 R6985,86 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R6989 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R7102 EXB38V220JV 电阻阵列 1 R7108 EXB38V102J 电阻阵列 1 R7110 EXB38V220JV 电阻阵列 1 R7113 EXB38V102J 电阻阵列 1 R7115-18 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7122-25 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7127 EXB38V471J 电阻阵列 1 R7130-33 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7145 EXB38V471J 电阻阵列 1 R7146-49 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7154-57 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7166-73 EXB38V471J 电阻阵列 8 R7179 D0GF472JA047 M 4.7KOHM,J,0.33W 1 R7183 EXB38V220JV 电阻阵列 1 R7184 D0GB102JA057 M 1KOHM,J,1/16W 1 R7193 J0JCC0000100 片状电感 1 参考号 部品号 部品名称 & 说明 件数 备注 136 R7195 EXB38V220JV 电阻阵列 1 R7201 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R7202 EXB38V220JV 电阻阵列 1 R7209 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7210 EXB38V222J 电阻阵列 1 R7211-14 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7216 EXB38V220JV 电阻阵列 1 R7219 EXB38V471J 电阻阵列 1 R7220 EXB38V222J 电阻阵列 1 R7221-23 EXB38V471J 电阻阵列 3 R7224-27 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7229-32 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7240,41 EXB38V471J 电阻阵列 2 R7243 EXB38V102J 电阻阵列 1 R7244 EXB38V222J 电阻阵列 1 R7245-47 EXB38V470J 电阻阵列 3 R7248 EXB38V220JV 电阻阵列 1 R7250 EXB38V470J 电阻阵列 1 R7251 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R7252 J0JCC0000100 片状电感 1 R7254-57 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7262-65 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7270-73 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7275 EXB38V471J 电阻阵列 1 R7277,78 EXB38V471J 电阻阵列 2 R7279 EXB38V220JV 电阻阵列 1 R7283,84 EXB38V471J 电阻阵列 2 R7287,88 EXB38V471J 电阻阵列 2 R7289 D0GF472JA047 M 4.7KOHM,J,0.33W 1 R7702 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R7719 J0JCC0000100 片状电感 1 R7723 J0JCC0000100 片状电感 1 R7725 J0JCC0000100 片状电感 1 R7730,31 J0JCC0000100 片状电感 2 R7733-35 ERJ3GEYJ680 M 68 OHM,J,1/16W 3 R7737,38 ERJ3GEYJ680 M 68 OHM,J,1/16W 2 R7744 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R7747 J0JCC0000100 片状电感 1 R7749-52 J0JCC0000100 片状电感 4 R7755 J0JCC0000100 片状电感 1 R7758,59 J0JCC0000100 片状电感 2 R7769 J0JCC0000100 片状电感 1 R8001 ERJ2GEJ181 M 180 OHM, J,0.063W 1 R8002 ERJ2GEJ820 M 82 OHM, J,0.063W 1 R8003 J0JCC0000100 片状电感 1 R8004 ERJ3EKF2402 M 24KOHM, 1/16W 1 R8005 ERJ3EKF1002 M 10KOHM, 1/16W 1 R8006 ERJ3EKF6801 M 6.8KOHM, 1/16W 1 R8023-29 D0YAR0000007 M 0.0 OHM, J,0.063W 7 R8030 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8031,32 ERJ3EKF2700 M 270 OHM, 1/16W 2 R8035 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8039 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8056-73 ERJ2GEJ470 M 47 OHM, J,0.063W 18 R8074 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8075-78 ERJ2GEJ470 M 47 OHM, J,0.063W 4 R8079,80 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R8081 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8082 D1BA75R0A026 M0.75KOHM, 1/10W 1 R8083 ERJ2GEJ301 M 300 OHM, J,0.063W 1 R8084 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8086 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R8087 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8090 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8091 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8093 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8095 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8097 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R8098,99 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8100 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R8101 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8106 ERJ2GEJ202 M 2KOHM, J,0.063W 1 R8107 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8111 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8328 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8471 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8472 D1HG1038A002 排阻 1 参考号 部品号 部品名称 & 说明 件数 备注 R8474,75 EXB28V103JX 电阻阵列 2 R8501 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8502-04 ERJ2GEJ331 M 330 OHM, J,0.063W 3 R8506 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R8507-10 ERJ3EKF91R0 M 91 OHM, 1/16W 4 R8512 ERJ3EKF1800 M 180 OHM, 1/16W 1 R8513 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8517-19 D0YAR0000007 M 0.0 OHM, J,0.063W 3 R8551 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8555-61 ERJ2GEJ680 M 68 OHM, J,0.063W 7 R8564 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8601,02 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R8603 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R8604 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R8605 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8621-36 ERJ2GEJ680 M 68 OHM, J,0.063W 16 R8653 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8655 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8702 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8703 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8709 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8710 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8711,12 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8732 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R8735-39 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R8742 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8745,46 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8749 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8802-09 ERJ2GEJ103 M 10KOHM, J,0.063W 8 R8812 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8813 EXB28V680JX 电阻阵列 1 R8814-17 ERJ2GEJ680 M 68 OHM, J,0.063W 4 R8818,19 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R8820 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8821 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R8822 ERJ6ENF2000 M 200 OHM,J,1/10W 1 R8823 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R8826 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8828 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8832 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8833 J0JCC0000100 片状电感 1 R8851-54 D0YAR0000007 M 0.0 OHM, J,0.063W 4 R8855-60 ERJ2GEJ680 M 68 OHM, J,0.063W 6 R8862-64 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R8865-67 EXB2HV680J 电阻阵列 3 R8868 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8869 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8870 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8871 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8874-76 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R8877-89 ERJ2GEJ680 M 68 OHM, J,0.063W 13 R8891,92 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R8893 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8894 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8895-97 D0YAR0000007 M 0.0 OHM, J,0.063W 3 R8898,99 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R8900,01 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R8904-10 ERJ2GEJ103 M 10KOHM, J,0.063W 7 R8911-18 ERJ2GEJ680 M 68 OHM, J,0.063W 8 R8919-22 ERJ2GEJ472 M 4.7KOHM, J,0.063W 4 R8923,24 ERJ2GEJ222 M 2.2KOHM, J,0.063W 2 R8925,26 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R8927 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R8928 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R8929 EXB2HVR000 电阻阵列 1 R8930 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8932 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R8933-35 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R8947 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8948 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8952 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R8963 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9062-67 ERJ3GEYJ101 M 100 OHM,J,1/16W 6 R9070 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9099 D0GB103JA057 M 10KOHM,J,1/16W 1 R9101,02 D0GB103JA057 M 10KOHM,J,1/16W 2 R9104,05 D0GB103JA057 M 10KOHM,J,1/16W 2 参考号 部品号 部品名称 & 说明 件数 备注 137 R9107 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9108,09 D0GB103JA057 M 10KOHM,J,1/16W 2 R9110 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9112 D0GB103JA057 M 10KOHM,J,1/16W 1 R9113 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9115,16 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9119 EXB38V470J 电阻阵列 1 R9120 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9121 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9122,23 D0GB103JA057 M 10KOHM,J,1/16W 2 R9126 D0GB103JA057 M 10KOHM,J,1/16W 1 R9127 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9129 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9131-33 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R9134 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R9135 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9141-45 ERJ3GEYJ101 M 100 OHM,J,1/16W 5 R9149 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9150,51 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9154,55 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9156 D0GB103JA057 M 10KOHM,J,1/16W 1 R9158,59 D0GB103JA057 M 10KOHM,J,1/16W 2 R9160,61 J0JCC0000100 片状电感 2 R9164,65 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R9166 D0GB103JA057 M 10KOHM,J,1/16W 1 R9167 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9170-72 D0GB393JA041 M 39KOHM,J,1/16W 3 R9173,74 D0GB103JA057 M 10KOHM,J,1/16W 2 R9177 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9181-84 D0GB102JA057 M 1KOHM,J,1/16W 4 R9185,86 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9187,88 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9189,90 D0GB103JA057 M 10KOHM,J,1/16W 2 R9193 D0GB103JA057 M 10KOHM,J,1/16W 1 R9194 J0JCC0000100 片状电感 1 R9196 D0GB103JA057 M 10KOHM,J,1/16W 1 R9199 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9200,01 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R9203 D0GB102JA057 M 1KOHM,J,1/16W 1 R9205 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9206,07 D0GB102JA057 M 1KOHM,J,1/16W 2 R9215 D0GB123JA057 M 12KOHM,J,1/16W 1 R9217-22 D0GB103JA057 M 10KOHM,J,1/16W 6 R9223 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9225 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9237 D0GB103JA057 M 10KOHM,J,1/16W 1 R9240 J0JCC0000100 片状电感 1 R9317 ERJ3GEYJ391 M 390 OHM,J,1/16W 1 R9347,48 EXB2HV220JV 电阻阵列 2 R9349 EXB2HV470JV 电阻阵列 1 R9350,51 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9352-59 EXB2HV220JV 电阻阵列 8 R9361,62 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9363 EXB2HV470JV 电阻阵列 1 R9369 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9370 D0GB103JA057 M 10KOHM,J,1/16W 1 R9371 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9379 J0JCC0000100 片状电感 1 R9380 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9383 D0GB102JA057 M 1KOHM,J,1/16W 1 R9384,85 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9391 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9392,93 J0JCC0000100 片状电感 2 R9396-99 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R9402 ERJ6GEY0R00V M 0 OHM, 1/10W 1 TNPA4134AQ R9403 EXB2HV470JV 电阻阵列 1 R9500 D0GB103JA057 M 10KOHM,J,1/16W 1 R9502 D0GB103JA057 M 10KOHM,J,1/16W 1 R9503 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9505 ERJ6GEY0R00V M 0 OHM, 1/10W 1 TNPA4134BQ R9506 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9507 J0JCC0000100 片状电感 1 R9512,13 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9516 D0GB103JA057 M 10KOHM,J,1/16W 1 R9518 J0JCC0000100 片状电感 1 R9520 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9523 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R9525 D0GB103JA057 M 10KOHM,J,1/16W 1 R9526 ERJ3GEY0R00V 片状电感 1 TNPA4134AQ R9530 D0GB103JA057 M 10KOHM,J,1/16W 1 R9531-33 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9534 EXB38V470J 电阻阵列 1 R9535,36 ERJ3GEY0R00V M 47 OHM,J,1/16W 2 R9538,39 D0GB103JA057 M 10KOHM,J,1/16W 2 R9541 D0GB103JA057 M 10KOHM,J,1/16W 1 R9543,44 D0GB103JA057 M 10KOHM,J,1/16W 2 R9545 ERJ3GEYJ304 M 300KOHM,J,1/16W 1 R9548-50 D0GB103JA057 M 10KOHM,J,1/16W 3 R9552 D0GB103JA057 M 10KOHM,J,1/16W 1 R9553-55 J0JCC0000100 片状电感 3 R9556 D0GB103JA057 M 10KOHM,J,1/16W 1 R9557,58 J0JCC0000100 片状电感 2 R9561 EXB38V222J 电阻阵列 1 R9562 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9563-66 EXB2HV470JV 电阻阵列 4 R9567 D0GB103JA057 M 10KOHM,J,1/16W 1 R9569 J0JCC0000100 片状电感 1 R9824-27 ERJ3GEYJ101 M 100 OHM,J,1/16W 4 R9828 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9839 EXB38V101JV 电阻阵列 1 R9840 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9845 D0GB103JA057 M 10KOHM,J,1/16W 1 R9846,47 EXB2HV222JV 电阻阵列 2 R9848,49 EXB2HV470JV 电阻阵列 2 R9850 D0GB473JA057 M 47KOHM,J,1/16W 1 R9854 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9859 EXB38V101JV 电阻阵列 1 R9861-63 D0GB103JA057 M 10KOHM,J,1/16W 3 R9868 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9869-71 D0GB103JA057 M 10KOHM,J,1/16W 3 R9872 J0JCC0000100 片状电感 1 R9874 J0JCC0000100 片状电感 1 R9878 ERJ3EKF1102 M 11KOHM, 1/16W 1 R9879 ERJ3EKF1302 M 13KOHM, 1/16W 1 R9885 ERJ3GEY0R00V M 0 OHM, 1/10W 1 TNPA4134BQ R9886,87 ERJ3EKF5602 M 56KOHM, 1/16W 2 R9888 ERJ3EKF1102 M 11KOHM, 1/16W 1 R9889 ERJ3EKF1742 M17.2KOHM, 1/16W 1 R9890 ERJ3EKF4752 M47.5KOHM, 1/16W 1 R9891 ERJ3EKF1272 M12.7KOHM, 1/16W 1 R9892 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9893 ERJ3EKF5602 M 56KOHM, 1/16W 1 R9894 ERJ3EKF1102 M 11KOHM, 1/16W 1 R9895 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9896 ERJ3EKF1822 M18.2KOHM, 1/16W 1 R9897 ERJ3EKF4752 M47.5KOHM, 1/16W 1 R9901,02 J0JCC0000100 片状电感 2 R9903 EXB2HV470JV 电阻阵列 1 R9904 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9905 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9906 EXB38V470J 电阻阵列 1 R9907 D0GB151JA057 M 150 OHM,J,1/16W 1 R9908-11 J0JCC0000100 片状电感 4 R9915-18 J0JCC0000100 片状电感 4 R9919 D0GB102JA057 M 1KOHM,J,1/16W 1 R9922 J0JCC0000100 片状电感 1 R9928 J0JCC0000100 片状电感 1 R9936-39 ERJ3EKF1001 M 1KOHM, 1/16W 4 R9940 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9941,42 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9943-51 EXB38V470J 电阻阵列 9 R9952-55 ERJ3GEYJ470 M 47 OHM,J,1/16W 4 R9956 D0GB103JA057 M 10KOHM,J,1/16W 1 R9960 J0JCC0000100 片状电感 1 R9961 D0GB103JA057 M 10KOHM,J,1/16W 1 RM2501 PNA4701M05TV 远程接收器 1 S1 K1KA03BA0061 3P 连接接头 1 SC2 K1KA02A00676 2P 连接接头 1 SC20 K1KY30AA0369 30P 连接接头 1 SC30 K1KA10AA0191 10P 连接接头 1 SC41,42 K1ML80B00001 80P 连接接头 2 参考号 部品号 部品名称 & 说明 件数 备注 138 SC45,46 K1KA09A00239 9P 连接接头 2 SCMM1,M2 TMME260 线夹 2 SD1-D4 K1MN96B00005 96P 连接接头 4 SD46 K1KB09AA0213 9P 连接接头 1 SS11 K1KA02A00676 2P 连接接头 1 SS12 K1KA10AA0194 10P 连接接头 1 SS23 K1KA12AA0194 12P 连接接头 1 SS34 K1KA03AA0193 3P 连接接头 1 SS53A-6A K1MN13BA0258 13P 连接接头 4 SU1-U4 K1MN96B00005 96P 连接接头 4 SU45 K1KB09AA0213 9P 连接接头 1 SW2500 K0F162B00002 开关 1 SW3753-57 EVQPC105K 开关 5 T6602 ETS25AZ169AD 转接变压器 1 TU3200 ENGF9701GF 调谐器 1 TU3201 ENG39D01GF 调谐器 1 VR6000 EVMEASA00B14 控制 10KOHMB 0.3W 1 VR6600 EVMEASA00B13 控制 1KOHMB 0.3W 1 VR6602 EVMEASA00B53 控制 5KOHMB 0.3W 1 X1100 H0J100500035 晶体 1 X2010 H0J245500082 晶体 1 X4500 H0J270500113 晶体 1 X8001 H0J270500061 晶体 1 X9000 H2D100500004 晶体 1 X9200 H0J200500038 晶体 1 ZA0001 K4AZ01D00004 端子 1 ZA0002 K4CD08000002 AV 端子 1 ZA0004,05 K4AZ01D00004 端子 2 ZA0006,07 K4CD08000002 AV 端子 2 ZA3001-08 K4CD08000002 AV 端子 8 ZA3701 K4CZ01000027 与 ALCO K9 兼容 1 ZA5501-03 K4CZ01000027 与 ALCO K9 兼容 3 ZA6001,02 K4CD01000011 AV 端子 2 ZA6005 K4CD01000011 AV 端子 1 ZA6401-03 K4CD01000011 AV 端子 3 ZA7101-04 K4AD01Z00001 端子 4 ZA7201-04 K4AD01Z00001 端子 4 ZA7701 K4AD01D00004 端子 1 ZA9001 K4CD01000011 AV 端子 1 C404 F0CZZ445A097 E 0.044UF, 200V 1 C406 F1E2J4730001 C 0.047PF, , 600V 1 C407 F2B2W220A032 C 22UF, 450V 1 C408 ECJ1VB1H102K C 1000PF, K, 50V 1 C410 F1J1E105A080 E 1 UF 25V 1 C413 ECJ1VB1E104K C 0.10UF, K, 25V 1 C420 F1J1E105A080 E 1 UF 25V 1 C421 ECJ1VB1E104K C 0.10UF, K, 25V 1 C423 ECJ1VB1H472K C 4700PF, K, 50V 1 C425 F1J1E105A080 E 1 UF 25V 1 C426 ECJ1VC1H471J C 470PF, J, 50V 1 C427 F1H1C105A071 C 1UF, K, 16V 1 C428 ECJ1XC1H221J C 220PF, J, 50V 1 C429 F1E2J4730001 C 0.047PF, , 600V 1 C431 ECJ1VB1H102K C 1000PF, K, 50V 1 C432,33 F1H1C105A071 C 1UF, K, 16V 2 C435 ECJ1XC1H101J C 100PF, J, 50V 1 C436 F1H1C105A071 C 1UF, K, 16V 1 C437 ECJ1VB1H103K C 0.001UF, K, 50V 1 C443,44 ECKD3A102KBP C 1000PF, K, 1KV 2 C445 F1H1C105A071 C 1UF, K, 16V 1 C446 F2B2W3910010 C 390UF, 450V 1 C450 ECJ1VB1H103K C 0.001UF, K, 50V 1 C451 ECKD3A101KBP C 100PF, K, 1KV 1 C457 ECWH12333RHV P 0.013UF,J,1.2KV 1 C462 F1J1E105A080 E 1 UF 25V 1 参考号 部品号 部品名称 & 说明 件数 备注 C463 F1H1H2200008 E 22UF, 50V 1 C467 F1BAF221A107 C 220UF, 250V 1 C468 ECJ1VB1H103K C 0.001UF, K, 50V 1 C469 F1BAF221A107 C 220UF, 250V 1 C470 F0CAF335A080 C 0.033UF, 250V 1 C472 F1BAF221A107 C 220UF, 250V 1 C474,75 F1BAF221A107 C 220UF, 250V 2 C478 F1BAF221A107 C 220UF, 250V 1 C492 ECA1HM100 E 10UF, 50V 1 C493 ECA1HM470 E 47UF, 50V 1 C493 F2A1H4700057 E 47UF, 50V 1 C497 F2A1H4700057 E 47UF, 50V 1 C501,02 ECJ1VB1H103K C 0.001UF, K, 50V 2 C504 F1H1C105A071 C 1UF, K, 16V 1 C505 ECJ1VB1H102K C 1000PF, K, 50V 1 C506 ECJ1VB1H103K C 0.001UF, K, 50V 1 C507 ECJ1VB1E104K C 0.10UF, K, 25V 1 C509 ECA1EHG101 E 100UF, 25V 1 C511 ECJ1VB1H102K C 1000PF, K, 50V 1 C515 F2A1A1220015 E 1200UF, 10V 1 C516 ECJ1VB1C474K C 0.47UF,K, 16V 1 C517 F2A1E221A096 E 220UF, 25V 1 C518,19 F1H1C105A071 C 1UF, K, 16V 2 C520 F0C2E683A160 E 0.068UF, 250V 1 C521 ECJ1VB1H103K C 0.001UF, K, 50V 1 C522 F1E2E1030002 C 0.010PF, , 600V 1 C523 F1J1E105A080 E 1 UF 25V 1 C526 ECJ1VB1H223K C 0.22UF, K, 50V 1 C528 ECJ1VB1H102K C 1000PF, K, 50V 1 C529 ECJ2FB1C475K C 47UF, K, 16V 1 C530 ECJ1VB1E333K C 0.033UF, K, 25V 1 C531 ECJ1VB1E104K C 0.10UF, K, 25V 1 C534 F1H1H471A792 E 470UF, 50V 1 C546,47 ECJ1VB1H102K C 1000PF, K, 50V 2 C552 ECJ1VB1E104K C 0.10UF, K, 25V 1 C554 F1H1C105A071 C 1UF, K, 16V 1 C555 F2A2C4710003 E 470UF, 160V 1 C556 F2A1E3320040 E 3300PF, 25V 1 C558 F2A1E4710065 E 470UF, 25V 1 C559 F2A1A1020085 E 1000UF, 10V 1 C562 F1H1H223A219 E 0.022UF, 50V 1 C571 ECJ1VC1H330J C 33PF, J, 50V 1 C574 ECJ1VB1E104K C 0.10UF, K, 25V 1 C577 F2A2A330A022 E 33UF, 100V 1 C581 ECJ2VB1H223K C 0.022UF, K, 50V 1 C583 ECJ1VB1H102K C 1000PF, K, 50V 1 C584 ECJ2VB1H223K C 0.022UF, K, 50V 1 C585 F1H1H223A219 E 0.022UF, 50V 1 C587 ECJ1VB1H332K C 3300PF, K, 50V 1 C590 ECJ1XB1H104K C 10PF, J, 50V 1 C601 ECJ1VB1H103K C 0.001UF, K, 50V 1 C603 F1J1E105A080 E 1 UF 25V 1 C604,05 F2A2D1510008 E 150UF, 200V 2 C607 F1H1C105A071 C 1UF, K, 16V 1 C610 F1J1E105A080 E 1 UF 25V 1 C611 F2B2T1420003 E 142UF, 220V 1 C612 ECJ1VB1H103K C 0.001UF, K, 50V 1 C616 ECKD3A102KBP C 1000PF, K, 1KV 1 C619 F1H1C105A071 C 1UF, K, 16V 1 C620 F1J1E105A080 E 1 UF 25V 1 C623 ECA1HM100 E 10UF, 50V 1 C624 ECJ1VB1H103K C 0.001UF, K, 50V 1 C625 F2A1H1000083 E 10UF, 50V 1 C626 ECJ1VB1H103K C 0.001UF, K, 50V 1 C627 ECJ1VB1H102K C 1000PF, K, 50V 1 C630,31 ECJ1VB1H103K C 0.001UF, K, 50V 2 C632 ECJ2XC1H330J C 33PF, J, 50V 1 C639 ECJ1VB1H103K C 0.001UF, K, 50V 1 C640 ECJ1VC1H330J C 33PF, J, 50V 1 C641 ECJ1VB1H102K C 1000PF, K, 50V 1 C650,51 ECJ1VB1E104K C 0.10UF, K, 25V 2 C653 ECJ1VB1H102K C 1000PF, K, 50V 1 C657 ECJ1VB1H102K C 1000PF, K, 50V 1 C658 F1J1E105A080 E 1 UF 25V 1 C660 ECJ2FB1C225K C 22UF, K, 16V 1 C661 ECJ1VB1H103K C 0.001UF, K, 50V 1 参考号 部品号 部品名称 & 说明 件数 备注 139 C662 ECJ2VB1H103K C 0.01UF, K, 50V 1 C665 ECJ1XC1H101J C 100PF, J, 50V 1 C666 ECJ1VB1H103K C 0.001UF, K, 50V 1 C667,68 ECJ1VB1H102K C 1000PF, K, 50V 2 C670 ECJ1VB1E104K C 0.10UF, K, 25V 1 C671 ECJ2VB1E104K C 0.1UF, K, 25V 1 C672 ECJ1VB1E104K C 0.10UF, K, 25V 1 C673 F1E2J4730001 C 0.047PF, , 600V 1 D401 B0FBBT000008 二极管 1 D404 B0EBKT000007 二极管 1 D407,08 B0ACDJ000010 二极管 2 D411 B0BB17000009 二极管 1 D415 B0JAME000099 二极管 1 D416 B0HAMP000067 二极管 1 D417 B0EAMR000009 二极管 1 D418 B0BC8R100013 稳压二极管 1 D419,20 B0EAMR000009 二极管 2 D423 MA188 二极管 1 D425 MA188 二极管 1 D429 B0EAKT000048 二极管 1 D431 B0JCDD000002 二极管 1 D433 B0BC01400033 稳压二极管 1 D435 B0EAKT000048 二极管 1 D436 B0AACK000004 二极管 1 D436 MA165TA5 二极管 1 D438 B0BC02000014 稳压二极管 1 D439 B0EAKT000048 二极管 1 D441 B0HAMM000122 二极管 1 D444 B0HAMM000122 二极管 1 D445 MTZJ10B 稳压二极管 1 D450 MA188 二极管 1 D501 B0EAMR000010 二极管 1 D503 B0AACK000004 二极管 1 D503 MA165TA5 二极管 1 D504 B0AACK000004 二极管 1 D504 MA165TA5 二极管 1 D506 B0ACDJ000010 二极管 1 D507,08 B0BC7R400023 稳压二极管 2 D509 B0JANG000018 二极管 1 D511 B0JAML000011 二极管 1 D512 B0ACDJ000010 二极管 1 D516-18 B0BA03300004 稳压二极管 3 D520 B0ACDJ000010 二极管 1 D521 B0JAME000099 二极管 1 D522,23 B0JCDD000002 二极管 2 D524 B0AACK000004 二极管 1 D524 MA165TA5 二极管 1 D531 B0HBSN000013 二极管 1 D535 MA188 二极管 1 D536 B0JBSG000026 二极管 1 D538 B0BC5R100039 稳压二极管 1 D539,40 B0HARR000019 二极管 2 D543 B0BC01400033 稳压二极管 1 D544,45 B0BA02100001 稳压二极管 2 D546 B0BA02800001 稳压二极管 1 D549 B0BC02500008 稳压二极管 1 D569,70 B0BA05100010 稳压二极管 2 D579 B0AACK000004 二极管 1 D582 MAZ705600F 稳压二极管 1 D584 MAZ706200F 稳压二极管 1 D586 B0HAMP000067 二极管 1 D598 B0BC5R100039 稳压二极管 1 D599 B0JCND000009 二极管 1 D600 B0BC7R400023 稳压二极管 1 D601 B0BC5R100039 稳压二极管 1 D602 B0BC8R100013 稳压二极管 1 D603 B0BA01900005 稳压二极管 1 D701,02 B0BC5R100039 稳压二极管 2 D703 B0EAKT000048 二极管 1 F403 K5G631B00007 保险丝 1 IC401 CNC1S171R IC 1 IC403 CNC1S171R IC 1 IC406 C0DBZZZ00082 IC 1 IC408 B3PBA0000459 IC 1 参考号 部品号 部品名称 & 说明 件数 备注 IC409 MIP3E30MPSCF IC 1 IC411 C0DAEMZ00001 IC 1 IC412 CNC1S171R IC 1 IC501 C2ABDB000114 IC 1 IC502 C0EBH0000210 IC 1 IC504 C0DAEMZ00001 IC 1 IC505 B3PBA0000459 IC 1 IC506 C0DAEMZ00001 IC 1 IC507 B3PBA0000459 IC 1 IC508 C0DAEMZ00001 IC 1 IC509 C0BBAA000039 IC 1 IC510 C0DBAZG00034 IC 1 IC511-13 C0DAEMZ00001 IC 3 IC520 C9ZB00000561 IC 1 J410 D0X0R0000056 M 0 OHM,J,1/10W 1 L403 EXCELSA35 扼流线圈 1 L404,05 G0B123K00004 扼流线圈 2 L406 J0JCC0000004 片状电感 1 L410 G0B353D00002 扼流线圈 1 L511 G0A470ZA0035 扼流线圈 1 L512 G0C4R7JA0021 校正线圈 1 L514 G0A100GA0013 扼流线圈 1 L515 J0JKB0000037 铁氧体磁芯 1 L518 J0JCC0000004 片状电感 1 P2 K1KA02A00676 2P 连接接头 1 P5 K1KB23A00004 23P 连接接头 1 P9 K1KA03A00608 3P 连接接头 1 P11 K1KA02A00676 2P 连接接头 1 P12 K1KA08A00514 8P 连接接头 1 P25 K1KA13AA0194 13P 连接接头 1 PMM1 TMME047 线夹 1 PMM2,M3 TMM7464-2 线夹 2 PMM5 TMM7464-2 线夹 1 PMM6-M8 TMME260 线夹 3 PR401 K5Y502BA0001 保险丝 1 PR402 ERBSE0R50U 保险丝 1 PR501 ERBSE0R50U 保险丝 1 PR505 ERBSE5R00U 保险丝 1 PR509 ERBSE0R50U 保险丝 1 PR601 K5G312B00012 保险丝 1 Q401 B1CHND000004 三极管 1 Q402 B1CBGD000001 FET 1 Q404 B1BCCF000022 三极管 1 Q406 B1DEKQ000003 三极管 1 Q407 B1HFCFA00021 三极管 1 Q408,09 B1DHCD000034 三极管 2 Q410 2SD1819ARL 三极管 1 Q411 B1HFCFA00021 三极管 1 Q412,13 B1DEGQ000070 三极管 2 Q420 2SD1819ARL 三极管 1 Q422 B1CBGD000001 FET 1 Q501,02 2SD1820A0L 三极管 2 Q507 B1DAGQ000013 三极管 1 Q508 B1HBCFA00033 三极管 1 Q509 B1HDCEA00001 三极管 1 Q510 B1DFDD000019 三极管 1 Q517 B1HBCFA00033 三极管 1 Q520 B1HBCFA00033 三极管 1 Q521 B1CBGD000001 FET 1 Q524 B1CFGF000008 三极管 1 Q525 B1CBGD000001 FET 1 Q527 B1CERM000012 FET 1 Q530 B1ADCF000111 三极管 1 Q535 2SD1819ARL 三极管 1 Q537 B1DFDD000019 三极管 1 Q538 B1CBGD000001 FET 1 Q540 B1DFDD000019 三极管 1 Q541 B1CBGD000001 FET 1 Q553 2SD1819ARL 三极管 1 Q554 B1CHND000004 三极管 1 参考号 部品号 部品名称 & 说明 件数 备注 140 Q555,56 B1CFRD000018 FET 2 Q563 2SD1819ARL 三极管 1 Q564,65 B1ADCF000111 三极管 2 Q566 2SD1819ARL 三极管 1 Q569 B1CBGD000001 FET 1 R401 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R402 ERJ6GEYG821 M 820 OHM,J,1/10W 1 R403 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R404 ERJ6GEYG153 M 15KOHM,J,1/10W 1 R405 D0B1825JA033 M1.22MOHM,J,0.05W 1 R406 ERX12SJ4R7 M 4.7 OHM, J,1/2W 1 R407 D1AB2203A023 片状电阻 1 R408 ERJ6GEYF472 M 4.7KOHM,F,1/10W 1 R409 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R410 D1AB2203A023 片状电阻 1 R411 ERF5TJ100 W 10 OHM, J, 5W 1 R414 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R415 D1AB2203A023 片状电阻 1 R417 D1AB4303A023 片状电阻 1 R418 ERJ6GEYJ6R8V M 6.8 OHM,J,1/10W 1 R419 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R421 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R422 ERJ6GEYF472 M 4.7KOHM,F,1/10W 1 R423 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R424 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R425 ERJ6ENF1802 M 18KOHM, 1/10W 1 R426 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R428 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R429 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R430 D1AB4303A023 片状电阻 1 R431 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R432 D1AB4303A023 片状电阻 1 R433 ERJ6RBD123V M 12KOHM, 1/10W 1 R436 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R437 ERJ6GEYG183 M 18KOHM,J,1/10W 1 R438 ERJ6GEYG331 M 330 OHM,G,1/10W 1 R439 ERG12SJ120 M 12 OHM, J,1/2W 1 R440 ERJ8GEYJ474 M 470KOHM, J,1/8W 1 R441,42 D1AB6803A023 片状电阻 2 R443 EVMAASA00B23 控制 2KOHMB 1 R444 ERJ6GEYF123 M 12KOHM,J,1/10W 1 R445 D1AB6803A023 片状电阻 1 R448,49 D0XGR10J0003 M 0.1OOHM,J, 5W 2 R450 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R451 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R452 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R454 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R455 ERJ6GEYF123 M 12KOHM,J,1/10W 1 R456 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R458 ERJ6GEYF472 M 4.7KOHM,F,1/10W 1 R460 ERDS2TC0 C 0 OHM, 1/4W 1 R461 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R463 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R464 ERJ6ENF3302 M 33KOHM, 1/10W 1 R467 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R468,69 ERX12SJ1R0 M 0.1 OHM, J,1/2W 2 R471 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 1 R472-74 D1AB5603A023 片状电阻 3 R476,77 ERJ14YJ181 M 181 OHM, J,1/4W 2 R478 ERJ8GEYJ220 M 22 OHM, J,1/8W 1 R482 ERJ8GEYJ220 M 22 OHM, J,1/8W 1 R483 D0BF334JA030 片状电阻 1 R484 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R485 ERJ6GEYF472 M 4.7KOHM,F,1/10W 1 R488 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R490 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R491 ERJ6GEYG821 M 820 OHM,J,1/10W 1 R493 ERG12SJ120 M 12 OHM, J,1/2W 1 R498 ERG3SJ101 M 100 OHM, J, 3W 1 R500 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R501 ERJ6GEYG154 M 150KOHM,J,1/10W 1 R502,03 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R505 ERJ8GEYJ330 M 33 OHM, J,1/8W 1 R507 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R508 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R510 ERJ8GEY0R00 M 0 OHM, 1/8W 1 参考号 部品号 部品名称 & 说明 件数 备注 R512 ERJ6GEYG823 M 82KOHM,J,1/10W 1 R513 ERJ6GEYG332 M 3.3KOHM,J,1/10W 1 R514 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R518 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R519 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R520 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R523 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R524 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R526,27 ERJ6ENF1803 M 180KOHM, 1/10W 2 R528 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R529 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R530,31 ERJ6RBD333 M 33KOHM,J,1/10W 2 R532 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R533 ERJ6ENF1803 M 180KOHM, 1/10W 1 R534 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R537 ERJ6ENF1003 M 100KOHM, 1/10W 1 R538 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R539 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R540,41 ERJ6GEYG105 M 1MOHM,J,1/10W 2 R542 ER0S2CKF2202 M 22KOHM, F,1/4W 1 R543 ERJ6ENF3902 M 39KOHM, 1/10W 1 R545 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R546 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R547 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R550 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R551 ERJ6GEYF151 M 150 OHM,F,1/10W 1 R553 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R555 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R556 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R557,58 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R559 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R560 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R561 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R562 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R563 ERJ6GEYJ2R2 M 2.2 OHM,J,1/10W 1 R564 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R565,66 ERJ6GEYG105 M 1MOHM,J,1/10W 2 R567,68 ERJ8GEYJ105 M 1MOHM, J,1/8W 2 R569 ERJ6ENF3302 M 33KOHM, 1/10W 1 R570 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R571 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R572,73 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R574 ERJ6GEYG331 M 330 OHM,G,1/10W 1 R576 ERJ6RBD123V M 12KOHM, 1/10W 1 R579 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R581 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R582 ERJ6ENF1002 M 10KOHM, 1/10W 1 R584 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R585 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R586 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R587 ERJ8RSJR16V M 16 OHM, 1/8W 1 R592 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R593 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R594 ERJ6GEYF151 M 150 OHM,F,1/10W 1 R595 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R596 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R597,98 ERJ6ENF3302 M 33KOHM, 1/10W 2 R599,00 ERJ8ENF3900 M 390 OHM, 1/8W 2 R601 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R603 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R604 ERJ6RBD303 M 30KOHM,J,1/10W 1 R605 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R606 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R607 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R608 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 1 R609 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R610 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R611 ERDS2FJ101 C 100 OHM, J,1/4W 1 R612 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R613 ERJ6ENF2402 M 24KOHM, 1/10W 1 R614 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R616,17 ERJ6GEYJ223 M 22KOHM,J,1/10W 2 R618 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R619 ERJ8RQFR39 M 0.39OHM, J,1/8W 1 R620 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R622 ERJ6ENF1603 M 160KOHM, 1/10W 1 R624 ERX2SJR22P M0.22 OHM, J, 2W 1 参考号 部品号 部品名称 & 说明 件数 备注 141 FLE20070800000 R625 B0BC8R100013 稳压二极管 1 R626 ERJ6ENF1603 M 160KOHM, 1/10W 1 R627 ERJ6GEYJ752 M 7.5KOHM,J,1/10W 1 R628 EVMAASA00B33 控制 3KOHMB 1 R629 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R630 ERJ6GEYF472 M 4.7KOHM,F,1/10W 1 R631 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R632 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R633 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R634 ERJ8RQFR39 M 0.39OHM, J,1/8W 1 R635 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R636 ERJ6ENF1603 M 160KOHM, 1/10W 1 R637 ERJ8RQFR39 M 0.39OHM, J,1/8W 1 R639,40 ERJ8RQFR39 M 0.39OHM, J,1/8W 2 R641 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R642-44 ERJ8RQFR39 M 0.39OHM, J,1/8W 3 R645 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R646,47 ERJ14YJ330 M 33 OHM, J,1/4W 2 R648 ERJ6ENF1603 M 160KOHM, 1/10W 1 R649 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R650 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R651 ERJ6ENF1002 M 10KOHM, 1/10W 1 R652 ERJ6GEYF123 M 12KOHM,J,1/10W 1 R653 ERJ6ENF3302 M 33KOHM, 1/10W 1 R654 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R655 ERJ8RSJR16V M 16 OHM, 1/8W 1 R656 ERJ6ENF1803 M 180KOHM, 1/10W 1 R657 ERJ6GEYF561 M 560 OHM,F,1/10W 1 R658 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R659 ERJ6RBD303 M 30KOHM,J,1/10W 1 R660 ERJ6RBD123V M 12KOHM, 1/10W 1 R661 EVMAASA00B53 控制 5KOHMB 1 R662 ERJ6ENF1503 M 150KOHM, 1/10W 1 R664 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R665 EVMAASA00B23 控制 2KOHMB 1 R669 ERJ6ENF1503 M 150KOHM, 1/10W 1 R670 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R671 ERJ6RBD751 M 750 OHM,J,1/10W 1 R672,73 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R674 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R675 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R676 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R677 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R678-80 ERJ8RSJR16V M 16 OHM, 1/8W 3 R682 ERJ6ENF2002 M 20KOHM, 1/10W 1 R683 ERJ14YJ330 M 33 OHM, J,1/4W 1 R684,85 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R686 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R687 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R688 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R689 ERJ8GEYJ472 M 4.7KOHM, J,1/8W 1 R690 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R691 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R693 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R695 ERJ6RBD123V M 12KOHM, 1/10W 1 R696 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R697 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R698 ERJ8RSJR16V M 16 OHM, 1/8W 1 R699 ERJ8GEYJ105 M 1MOHM, J,1/8W 1 R700,01 ERJ6ENF1503 M 150KOHM, 1/10W 2 R702 ERJ6ENF1102 M 11KOHM, 1/10W 1 R707,08 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R709,10 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R711,12 ERJ6GEYG222 M 2.2KOHM,J,1/10W 2 R713 ERJ6GEYG152 M 1.5KOHM,J,1/10W 1 R714 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R715 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R716 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R717 ERJ6GEYG122 M 1.2KOHM,J,1/10W 1 R718 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R719 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R720 ERJ6GEYG152 M 1.5KOHM,J,1/10W 1 R721 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R722-24 ERJ6GEYG102 M 1KOHM,J,1/10W 3 R726,27 ERJ6GEYG222 M 2.2KOHM,J,1/10W 2 R729 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R730-38 ERJ8GEYJ105 M 1MOHM, J,1/8W 9 参考号 部品号 部品名称 & 说明 件数 备注 R739 ERJ6ENF1003 M 100KOHM, 1/10W 1 R740 ERJ6GEYJ243 M 24KOHM,J,1/10W 1 R741 ERJ8GEYJ205 M 2MOHM, J,1/8W 1 R742 ERJ6GEYG102 M 1KOHM,J,1/10W 1 RL401-03 K6B1CGA00055 继电器 3 S401,02 J0LT00000009 开关 2 T401 G4D4A0000123 转接变压器 1 T402 G4D1A0000128 转接变压器 1 T404 ETS42LB11GAD 转接变压器 1 T410 G4D2A0000283 转接变压器 1 T601 G4D2A0000284 转接变压器 1 W13 ERJ6GEY0R00V M 0 OHM, 1/10W 1 W46 ERJ6GEY0R00V M 0 OHM, 1/10W 1 X501 H2B400400021 晶体 1 Z1-Z3 K4ZZ01000206 端子 3 ZN401,02 D4EAD6210001 变阻器 2 ZN403 ERZVGAD681T2 变阻器 1 ZN404,05 ERZVA7D511 变阻器 2 参考号 部品号 部品名称 & 说明 件数 备注
