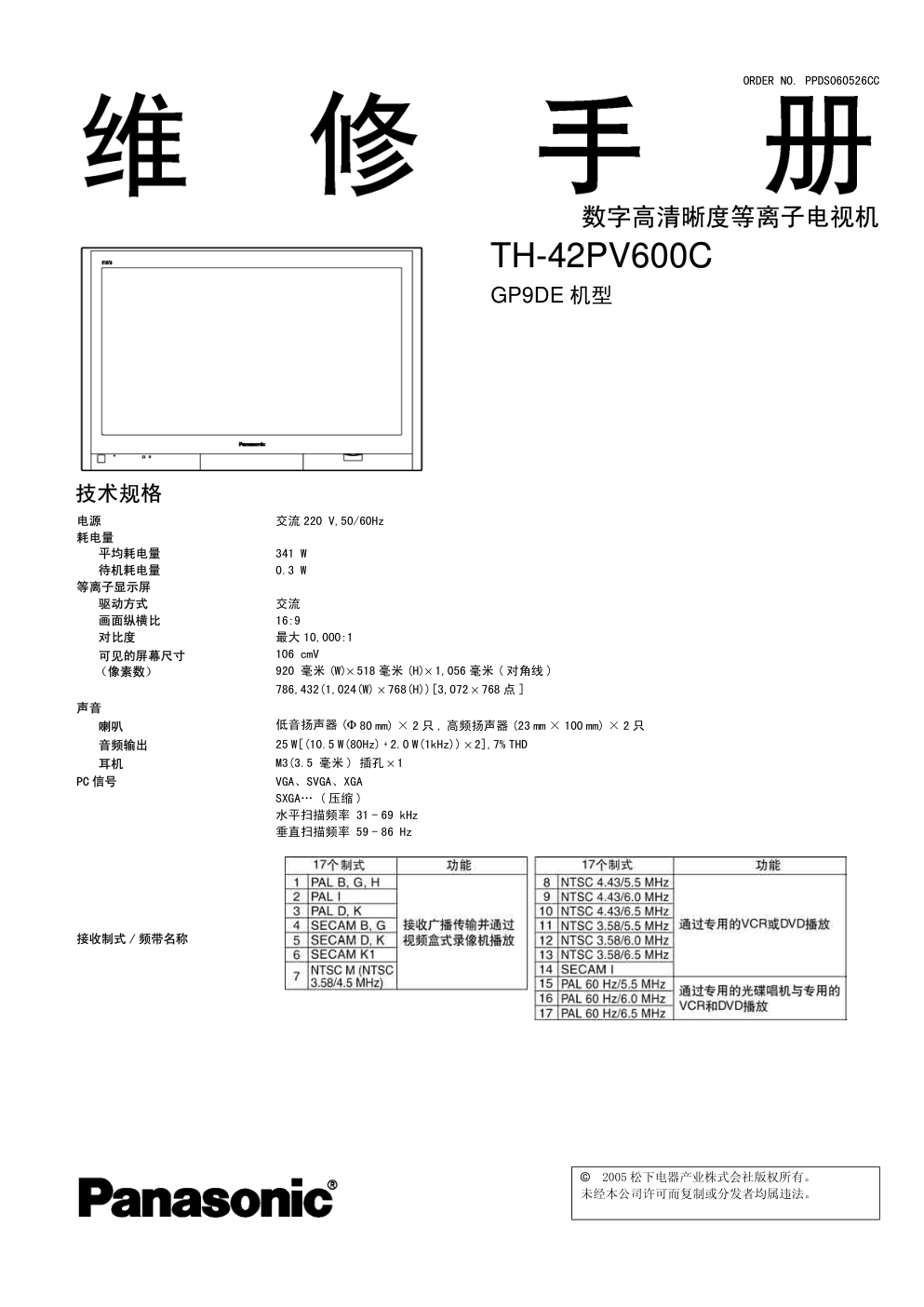

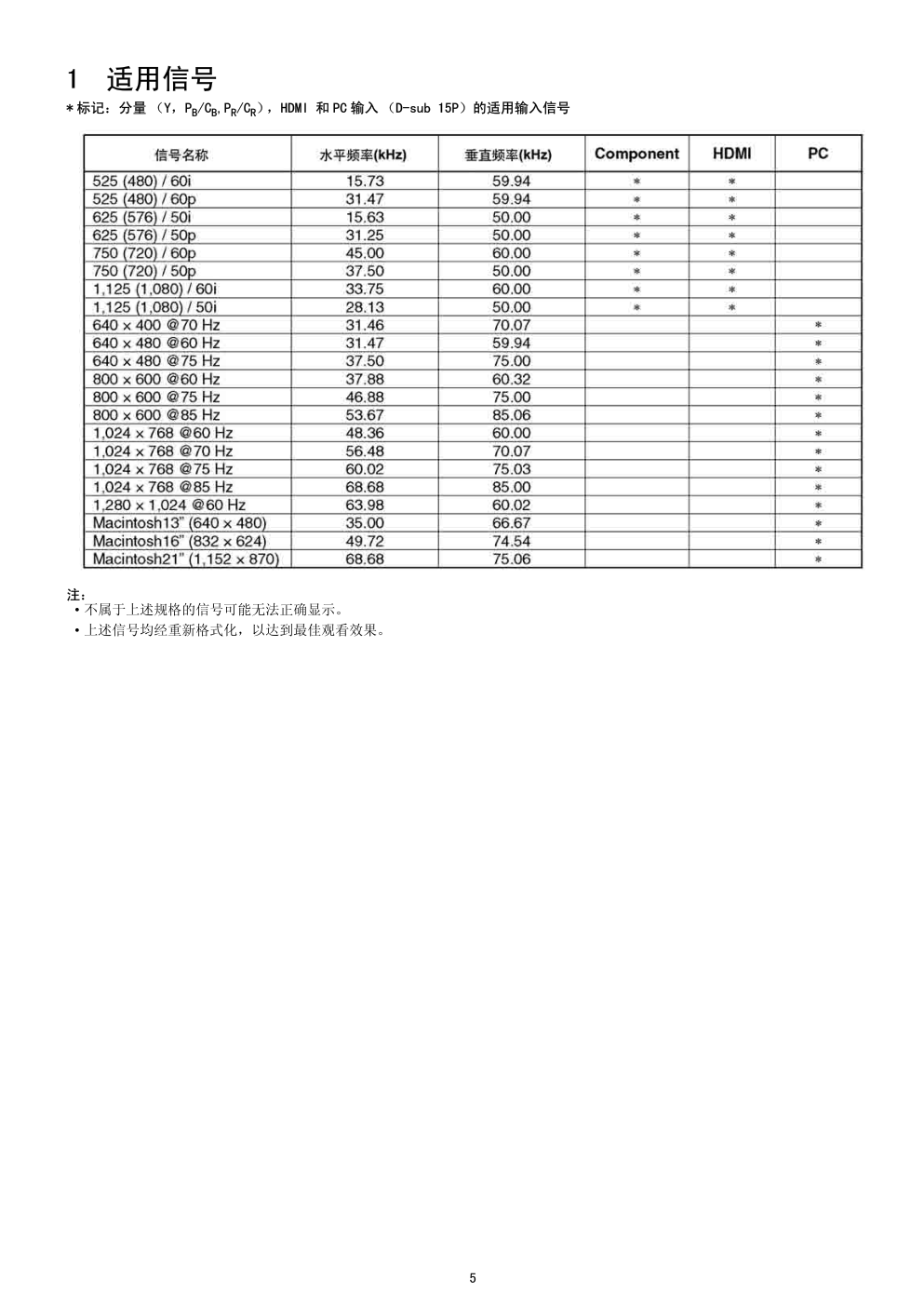

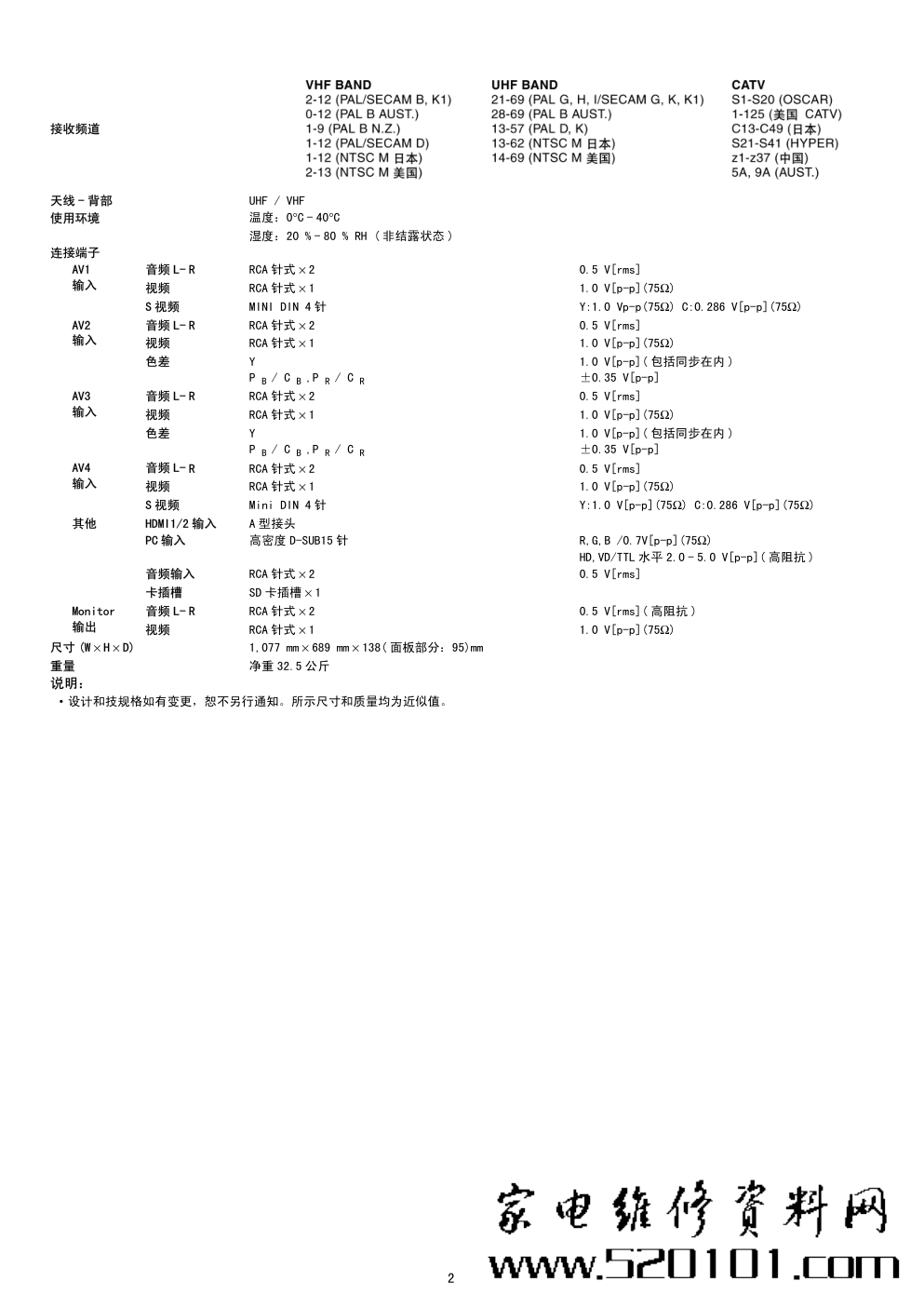

© 2005 松下电器产业株式会社版权所有。 未经本公司许可而复制或分发者均属违法。 ORDER NO. PPDS060526CC 数字高清晰度等离子电视机 TH-42PV600C GP9DE 机型 技术规格 电源 交流 220 V,50/60Hz 耗电量 平均耗电量 341 W 待机耗电量 0.3 W 等离子显示屏 驱动方式 交流 画面纵横比 16:9 对比度 最大 10,000:1 可见的屏幕尺寸 （像素数） 106 cmV 920 毫米 (W)× 518 毫米 (H)× 1,056 毫米 ( 对角线 ) 786,432(1,024(W) × 768(H))[3,072 × 768 点 ] 声音 喇叭 低音扬声器 (Φ 80 mm) × 2 只 , 高频扬声器 (23 mm × 100 mm) × 2 只 音频输出 25 W[(10.5 W(80Hz) + 2.0 W(1kHz)) × 2],7% THD 耳机 M3(3.5 毫米 ) 插孔 × 1 PC 信号 VGA、SVGA、XGA SXGA… ( 压缩 ) 水平扫描频率 31 - 69 kHz 垂直扫描频率 59 - 86 Hz 接收制式 / 频带名称 2 接收频道 天线 - 背部 UHF / VHF 使用环境 温度：0°C - 40°C 湿度：20 % - 80 % RH ( 非结露状态 ) 连接端子 AV1 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) S 视频 MINI DIN 4 针 Y:1.0 Vp-p(75Ω) C:0.286 V[p-p](75Ω) AV2 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) 色差 Y P B / C B ,P R / C R 1.0 V[p-p]( 包括同步在内 ) ± 0.35 V[p-p] AV3 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) 色差 Y P B / C B ,P R / C R 1.0 V[p-p]( 包括同步在内 ) ± 0.35 V[p-p] AV4 输入 音频 L- R RCA 针式 × 2 0.5 V[rms] 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) S 视频 Mini DIN 4 针 Y:1.0 V[p-p](75Ω) C:0.286 V[p-p](75Ω) 其他 HDMI1/2 输入 A 型接头 PC 输入 高密度 D-SUB15 针 R,G,B /0.7V[p-p](75Ω) HD,VD/TTL 水平 2.0 - 5.0 V[p-p]( 高阻抗 ) 音频输入 RCA 针式 × 2 0.5 V[rms] 卡插槽 SD 卡插槽 × 1 Monitor 输出 音频 L- R RCA 针式 × 2 0.5 V[rms]( 高阻抗 ) 视频 RCA 针式 × 1 1.0 V[p-p](75Ω) 尺寸 (W × H × D) 1,077 mm × 689 mm × 138( 面板部分：95)mm 重量 净重 32.5 公斤 说明： • 设计和技规格如有变更，恕不另行通知。所示尺寸和质量均为近似值。 3 目录 页数 页数 1 适用信号----------------------------------------- 5 2 安全警告----------------------------------------- 6 2.1. 一般准则 ----------------------------------- 6 2.2. 漏电检查 ----------------------------------- 6 3 静电敏感设备 (ES) 的静电放电保护 (ESD) ------------ 7 4 关于无铅焊接 (PbF) ------------------------------- 8 5 维修提示----------------------------------------- 9 6 等离子显示屏更换方式---------------------------- 10 6.1. 取下后盖 ---------------------------------- 10 6.2. 取下风扇 ---------------------------------- 10 6.3. 取下扬声器音箱组件 （左）------------------ 10 6.4. 取下扬声器音箱组件 （右）------------------ 10 6.5. 取下调谐器盖 ------------------------------ 10 6.6. 取下 P 电路板 ------------------------------ 11 6.7. 取下 PA 电路板 ----------------------------- 11 6.8. 取下调谐器组件 ---------------------------- 11 6.9. 取下 DG 电路板 ----------------------------- 11 6.10. 取下 TA 电路板 ----------------------------- 12 6.11. 取下 H 电路板 ------------------------------ 12 6.12. 取下 HC 电路板 ----------------------------- 12 6.13. 取下 D 电路板 ------------------------------ 12 6.14. 取下 SU 电路板 ----------------------------- 13 6.15. 取下 SD 电路板 ----------------------------- 13 6.16. 取下 SC 电路板 ----------------------------- 13 6.17. 取下 SS 电路板 ----------------------------- 13 6.18. 取下 C1 电路板 ----------------------------- 14 6.19. 取下 C2 电路板 ----------------------------- 14 6.20. 取下前支架 -------------------------------- 14 6.21. 取下 G 电路板和 GK 电路板 ------------------- 14 6.22. 取下 S 电路板 ------------------------------ 15 6.23. 取下支架 ---------------------------------- 15 6.24. 取下 GS 电路板和 SD 模块 -------------------- 15 6.25. 取下前面框 （玻璃）上的等离子显示屏部件 --- 16 6.26. 取下中音扬声器 ---------------------------- 17 6.27. 取下 K 电路板 ------------------------------ 17 6.28. 安装等离子显示屏 （完成）------------------ 18 7 导线布置---------------------------------------- 19 7.1. 导线 （1）--------------------------------- 19 7.2. 导线 （2）--------------------------------- 20 7.3. 导线 （3）--------------------------------- 21 7.4. 导线 （4）--------------------------------- 22 7.5. 导线 （5）--------------------------------- 23 8 自检-------------------------------------------- 24 8.1. 电源 LED 闪烁次数图 ------------------------ 25 8.2. 无电源 ------------------------------------ 26 8.3. 无图像 ------------------------------------ 27 8.4. 显示器局部故障 ---------------------------- 28 9 维修模式功能------------------------------------ 29 9.1. 如何进入维修模式 1 ------------------------ 29 9.2. 如何进入维修模式 2 ------------------------ 29 9.3. 选项说明 ---------------------------------- 31 10 调整步骤---------------------------------------- 33 10.1. 驱动器设置 -------------------------------- 33 10.2. 初始化脉冲调整-----------------------------34 10.3. P.C.B. （印刷电路版）更换 ------------------34 10.4. 调整点位置---------------------------------35 10.5. 测试点位置---------------------------------35 11 调整 --------------------------------------------36 11.1. PAL 显示屏白平衡调整 -----------------------36 11.2. HD 白平衡调整 ------------------------------37 11.3. 副亮度调整---------------------------------38 11.4. ABL 调整 -----------------------------------39 11.5. 副对比度调整-------------------------------40 11.6. 多窗口调整---------------------------------41 12 旅馆模式 ----------------------------------------42 13 导线图 ------------------------------------------43 13.1. P 电路板 -----------------------------------43 13.2. PA 电路板 ----------------------------------46 13.3. H，HC 和 TA 电路板 --------------------------48 13.4. G 电路板 -----------------------------------50 13.5. GK，K 和 S 电路板 ---------------------------51 13.6. DG 电路板 ----------------------------------52 13.7. D 电路板 -----------------------------------54 13.8. C1 电路板 ----------------------------------56 13.9. C2 电路板 ----------------------------------57 13.10. SC 电路板 ----------------------------------58 13.11. SU 电路板 ----------------------------------61 13.12. SD 电路板 ----------------------------------62 13.13. SS 电路板 ----------------------------------63 13.14. GS 电路板 ----------------------------------65 14 方框图和线路图 ----------------------------------66 14.1. 线路图注意事项-----------------------------66 14.2. 主要集成电路方框图-------------------------67 14.3. P 电路板方框图 -----------------------------68 14.4. P 电路板 (1/6) 线路图 -----------------------69 14.5. P 电路板 (2/6) 线路图 -----------------------70 14.6. P 电路板 (3/6) 线路图 -----------------------71 14.7. P 电路板 (4/6) 线路图 -----------------------72 14.8. P 电路板 (5/6) 线路图 -----------------------73 14.9. P 电路板 (6/6) 线路图 -----------------------74 14.10. PA 电路板方框图 ----------------------------75 14.11. PA 电路板 (1/3) 线路图 ----------------------76 14.12. PA 电路板 (2/3) 线路图 ----------------------77 14.13. PA 电路板 (3/3) 线路图 ----------------------78 14.14. H 和 TA 电路板方框图 ------------------------79 14.15. G，GK，HC 和 K 电路板方框图 -----------------80 14.16. H 电路板 (1/3) 线路图 -----------------------81 14.17. H 电路板 (2/3) 线路图 -----------------------82 14.18. H 电路板 (3/3) 线路图 -----------------------83 14.19. G，GK，和 K 电路板线路图--------------------84 14.20. HC 和 TA 电路板线路图 -----------------------85 14.21. DG 电路板 (1/3) 方框图 ----------------------86 14.22. DG 电路板 (2/3) 方框图 ----------------------87 14.23. DG 电路板 (3/3) 方框图 ----------------------88 14.24. DG 电路板 (1/8) 线路图 ----------------------89 14.25. DG 电路板 (2/8) 线路图 ----------------------90 4 14.26. DG 电路板 (3/8) 线路图---------------------- 91 14.27. DG 电路板 (4/8) 线路图---------------------- 92 14.28. DG 电路板 (5/8) 线路图---------------------- 93 14.29. DG 电路板 (6/8) 线路图---------------------- 94 14.30. DG 电路板 (7/8) 线路图---------------------- 95 14.31. DG 电路板 (8/8) 线路图---------------------- 96 14.32. D 电路板方框图----------------------------- 97 14.33. D 电路板 (1/6) 线路图----------------------- 98 14.34. D 电路板 (2/6) 线路图----------------------- 99 14.35. D 电路板 (3/6) 线路图---------------------- 100 14.36. D 电路板 (4/6) 线路图---------------------- 101 14.37. D 电路板 (5/6) 线路图---------------------- 102 14.38. D 电路板 (6/6) 线路图---------------------- 103 14.39. C1 和 C2 电路板方框图---------------------- 104 14.40. C1 电路板 (1/2) 线路图--------------------- 105 14.41. C1 电路板 (2/2) 线路图--------------------- 106 14.42. C2 电路板 (1/2) 线路图--------------------- 107 14.43. C2 电路板 (2/2) 线路图--------------------- 108 14.44. SC，SU 和 SD 电路板方框图------------------ 109 14.45. SC 电路板 (1/2) 线路图 ---------------------110 14.46. SC 电路板 (2/2) 线路图 ---------------------111 14.47. SU 电路板 (1/2) 线路图 ---------------------112 14.48. SU 电路板 (2/2) 线路图 ---------------------113 14.49. SD 电路板 (1/2) 线路图 ---------------------114 14.50. SD 电路板 (2/2) 线路图 ---------------------115 14.51. SS 和 S 电路板方框图 -----------------------116 14.52. SS 和 S 电路板线路图 -----------------------117 14.53. GS 电路板方框图和线路图 -------------------118 15 部件布置及机械部件更换清单 ---------------------119 15.1. 部件布置 ----------------------------------119 15.2. 包装分解图 (1) ----------------------------120 15.3. 包装分解图 (2) ----------------------------121 15.4. 包装分解图 (3) ----------------------------122 15.5. 机械部件更换清单 --------------------------123 16 电器部件更换清单--------------------------------124 16.1. 更换部件清单注意事项 ----------------------124 16.2. 电器部件更换清单 --------------------------125 5 1 适用信号 * 标记：分量 （Y，PB/CB,PR/CR），HDMI 和 PC 输入 （D-sub 15P）的适用输入信号 注： • 不属于上述规格的信号可能无法正确显示。 • 上述信号均经重新格式化，以达到最佳观看效果。 6 2 安全警告 2.1. 一般准则 1. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 2. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸、屏蔽等安装正确。 3. 维修后，进行以下漏电检查，以免用户遭受触电危险。 2.2. 漏电检查 1. 将 AC 电源线直接插入 AC 电源插座。进行检查时，请勿使用隔离变压器。 2. 在设备上各外露金属部分和良好接地 （如水管）之间连接一个电流测量装置，如图 1 所示。 3. 用漏电测试仪 （Simpson 228 或类似型号）测量通过该装置的电势。 4. 检查各外露金属部件，并测量各点电压。 5. 变换 AC 插座中的 AC 插头，并重复上述各项测量。 6. 各点 （漏电）的电势表示为电压 U1 和 U2，并且不能超过以下各值： 交流：U1=35V （峰值） U2=0.35V （峰值）； 直流：U1=1.0V， 注： 与交流的 U2 限定峰值 0.35V 和直流的 U1 限定峰值 1.0V 相对应的电流峰值分别为 0.7mA 和 2.0mA。 与交流的 U1 限定峰值 35V 相对应的 100kHz 以上的电流峰值为 70mA。 7. 当测量值超出规定的限制时，可能会引起触电。所以必须在机器返回用户手中之前对其进行修理和再检测。 漏电测量电路 电阻值 （Ω） V：电压表或示波器 （r.m.s. 或峰值） 输入电阻：≥ 1MΩ 输入电容：≤ 200pF 频率范围：分别为直流 15Hz 到 1MHz 注：必须使用合适的测量设备，以便在非正弦波形时测量准确。 图 1 7 3 静电敏感设备 (ES) 的静电放电保护 (ESD) 一些半导体（固态）装置很容易被静电损坏。这些装置通称为静电敏感装置（ES）。典型的 ES 装置有集成电路和一些场效应晶体管以 及半导体 “芯片”组件。以下方法通常被用来减少由于静电释放 （ESD） 所造成的组件损坏。 1. 在处理任何半导体组件或是配备有半导体组件的设备之前，接触已知地线以排除身体上的静电。或者戴上市面上可购买到的抗静 电腕带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 在拆卸配有静电敏感装置的电气组件后，请将组件放置于导体表面上 （如铝箔），以防止聚集静电或组件外露。 3. 仅使用末端接地的烙铁焊接或拆焊静电敏感装置。 4. 仅使用防静电拆焊装置。不属于 “防静电 （静电释放保护）”的拆焊装置可能会产生足以损坏静电敏感装置的电荷。 5. 禁止使用氟里昂驱动化学物质。它们能产生足以损坏静电敏感装置的电荷。 6. 在准备立即安装之前，才能拆开静电敏感备换装置的保护性包装，取出备换静电敏感装置。（大多数备换静电敏感装置都使用导 电泡沫、铝箔或类似导电性材料包装，其导线被短接。） 7. 从备换静电敏感装置导线上取下防护性材料前，使防护性材料接触机芯或即将安装的电路组件。 注意 确定机芯或电路无电源，并遵守其它所有安全注意事项。 8. 在处理未包装的备换静电敏感装置时，尽量减少身体活动。（否则，如衣物纤维的摩擦或从铺有地毯的地面抬起脚等动作都会产 生足以损坏静电敏感装置的静电 （静电释放））。 8 4 关于无铅焊接 (PbF) 注：在元素周期表中，铅用 Pb 表示。 在下文中，Pb 表示有铅焊接，PbF 表示无铅焊接。 在制造流程中使用和下文中介绍的无铅焊接 （Sn+Ag+Cu）。 即：锡 （Sn），银 （Ag）和铜 （Cu），其他类型也可使用。 出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维修和修理工作中最好使用无铅焊接，不过也允许使用有铅焊 接。 使用无铅焊接工艺制造的印刷电路板背面的树叶形符号 内有 PbF 字样。 注意： • 无铅焊接的熔点比标准焊接的熔点高。通常熔点超过 50-70°F （30-40°C）。 请使用高温烙铁，并将其温度设为 700±20°F （370±10°C）。 • 当温度过高 （约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。 如果必须使用有铅焊接，请在焊接前先全部去除焊脚或焊区上的无铅焊料。如果做到这点实际操作困难，则确保无铅焊料加热到熔 化后再进行有铅焊接。 • 在对双面电路板进行无铅焊接后，请检查部件侧部是否有过量焊料，否则会流到另一侧。（见下图） 推荐的无铅焊料 有几种无铅焊料可供选购。本产品使用 Sn+Ag+Cu( 锡 + 银 + 铜 ) 焊料。 也可使用 Sn+Cu （锡，铜），Sn+Zn+Bi( 锡，锌，铋 ) 焊料。 9 5 维修提示 电路板名称 功能 电路板名称 功能 P 电源 SC 扫描驱动 PA DC-DC 转换器 , 电源 SOS SU 扫描输出 ( 上 ) 扬声器输出，音频放大，风扇控制 SD 扫描输出 ( 下 ) H AV 端口，AV 切换 ,MSP SS 维持驱动 TA 高频调谐器 K 遥控接收器，电源指示灯 DG 数字信号处理器 , Micon，HDMI 接口 S 电源开关 D 格式转换，等离子 AI， 子场处理器 G 前端子 HC 夹具连接 GK 按键开关 C1 数据驱动 ( 下右 ) GS SD 卡插槽 C2 数据驱动 ( 下左 ) SD-M SD 模块 (MPEG4 /PHOTO 浏览 , SD 记录 ) 不可维修。 维修时应更换 SD 模块。 10 6 等离子显示屏更换方式 6.1. 取下后盖 1. 参见维修提示 （请参见第 5 章节） 6.2. 取下风扇 1. 断开继电器连接件。 2. 松开螺丝 （×3 每个），取下风扇。 6.3. 取下扬声器音箱组件 （左） 1. 松开线夹，取下电缆。 2. 断开继电器连接件。 3. 取下扬声器音箱组件 （左）。 6.4. 取下扬声器音箱组件 （右） 1. 松开线夹，取下电缆。 2. 断开继电器连接件。 3. 松开扬声器音箱组件 （右）。 6.5. 取下调谐器盖 1. 松开螺丝 （×7 ， ×4 ， ×2 ， ×2 ）。 2. 取下调谐器盖。 11 6.6. 取下 P 电路板 注意： 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.C.B.。 1. 松开线夹，取下电缆。 2. 断开连接件 （P2, P5, P10, P11, P12, P23 和 P25）。 3. 松开螺丝 （×5 ， ×1 ），取下 P 电路板。 6.7. 取下 PA 电路板 1. 松开线夹，取下电缆。 2. 断开连接件 （PA1, PA2, PA5, PA10, PA31, PA32, PA33, PA34 和 PA40）。 3. 断开柔性电缆 （PA20）。 4. 松开螺丝 （×4 ），取下接地电缆。 5. 取下 PA 电路板。 6.8. 取下调谐器组件 1. 松开线夹，取下电缆。 2. 断开连接件 （DG5, G51, PA40 ）。 3. 断开柔性电缆 （DG3 和 PA20）。 4. 松开螺丝 （×4 ），取下调谐器组件。 6.9. 取下 DG 电路板 1. 断开连接件 （DG2）。 2. 断开柔性电缆 （DG1, DG15 和 DG20）。 3. 松开螺丝 （×7 ），并取下 DG 电路板。 12 6.10. 取下 TA 电路板 1. 松开调谐器线夹。 2. 松开螺丝 （×1 ）并取下 TA 板。 6.11. 取下 H 电路板 1. 取下 TA 电路板。 2. 松开线夹，取下电缆。 3. 断开连接件 （H2，H40 和 H51）。 4. 断开柔性电缆 （H1）。 5. 松开螺丝 （×5 ）并取下 H 电路板。 6.12. 取下 HC 电路板 1. 断开柔性电缆 （HC15）。 2. 松开螺丝 （×2 ）并取下 HC 电路板。 6.13. 取下 D 电路板 1. 取下调谐器组件。 （请参见 6.8 章节） 2. 断开连接件 （D5，D20 和 D25）。 3. 断开柔性电缆 （D3，D31 和 D32）。 4. 松开螺丝 （×4 ）并取下 D 电路板。 13 6.14. 取下 SU 电路板 1. 松开螺丝 （×2 ）。 2. 断开柔性电缆 （SU1，SU2，SU3 和 SU4），并取下桥连接器 （SU45）。 3. 将 SU 电路板移到左边，并与 SC 板的连接件 （SC41-SU41） 断开，取下 SU 电路板。 6.15. 取下 SD 电路板 1. 松开螺丝 （×2 ）。 2. 断开柔性电缆 （SD1，SD2，SD3 和 SD4），并取下桥连接器 （SD46）。 3. 将 SD 电路板移到左边，并与 SC 板的连接件 （SC42-SD42） 断开，取下 SD 电路板。 6.16. 取下 SC 电路板 1. 松开线夹，取下电缆。 2. 断开连接件 （SC2，SC20 和 SC23）。 3. 松开螺丝 （×6 ）并取下 SC 电路板。 6.17. 取下 SS 电路板 1. 断开连接件 （SS1，SS11，SS12 和 SS23）。 2. 断开柔性电缆 （SS41，SS42，SS43 和 SS44）。 3. 松开螺丝 （×6 ）并取下 SS 电路板。 14 6.18. 取下 C1 电路板 1. 取下调谐器单元 （请参见第 6.8 章节） 2. 松开线夹，取下电缆。 3. 取下柔性电缆的固定器固定螺丝 （×8 ）。 4. 断开柔性电缆 （CB1, CB2,CB3 和 CB4）。 5. 断开柔性电缆 （C11 和 C12）。 6. 松开螺丝 （×4 ），并取下 C1 电路板。 6.19. 取下 C2 电路板 1. 取下调谐器单元 （请参见第 6.8 章节）。 2. 松开线夹，取下电缆。 3. 取下柔性电缆的固定器固定螺丝 （×8 ）。 4. 断开柔性电缆 （CB5，CB6，CB7 和 CB8）。 5. 断开柔性电缆 （C21 和 C22）。 6. 断开适配器 （C23）。 7. 松开螺丝 （×4 ），并取下 C2 电路板。 6.20. 取下前支架 1. 松开线夹，取下电缆。 2. 断开连接件 （G1 和 G51）。 3. 松开螺丝 （×5 ），并取下前支架。 6.21. 取下 G 电路板和 GK 电路板 1. 取下前支架。 （请参见第 6.20 章节） 2. 松开螺丝 （×3 ），取下前侧金属框。 3. 松开螺丝 （×3 ），并断开连接件 （G3-GK3）。 4. 取下 G 电路板和 GK 电路板。 15 6.22. 取下 S 电路板 1. 断开连接件 （S1）。 2. 松开螺丝 （×2 ）并取下 S 电路板金属框。 3. 松开螺丝 （×2 ）并取下 S 电路板。 6.23. 取下支架 1. 将等离子显示屏从维修支架上取下，放置在类似桌子 （铺 有软布）的表面上，并且显示屏表面朝下。 2. 取下支撑架 （左、右）固定螺丝 （×10 ）并取下支架 （左、右）。 6.24. 取下 GS 电路板和 SD 模块 1. 取下右支架 （请参见第 6.23 章节）。 2. 松开线夹，取下电缆。 3. 断开连接件 （G52）。 4. 松开螺丝 （×3 ）。 5. 取下 SD 卡组件。 6. 松开螺丝 （×3 ）并取下 SD 卡组件盖。 16 7. 断开柔性电缆 （GS12）。 8. 松开螺丝 （×1 ）。 9. 取下 GS 电路板和 SD 模块。 6.25. 取下前面框（玻璃）上的等离子显 示屏部件 1. 从维修支架上取下等离子显示屏部件，放置在类似桌子（铺 有软布）等的平坦的表面上，并且等离子显示屏表面朝下。 2. 取下支架 （左，右）固定螺丝 （×2 ）。 3. 重新放置维修支架，并固定电视机。 4. 取下前面框和等离子显示屏固定螺丝 （×12 ）。 5. 将等离子显示屏从前面框上取下时，拉住前面框底部，抬 起，并向前拉出。 17 6.26. 取下中音扬声器 1. 取下前面框 （请参见第 6.25 章节）。 2. 取下螺丝 （×12 ）。 3. 取下左、右玻璃支架。 4. 取下螺丝 （×2 ）。 5. 取下中音扬声器。 6.27. 取下 K 电路板 1. 取下前面框 （请参见第 6.25 章节）。 2. 取下左、右玻璃支架 （请参见第 6.26 章节）。 3. 取下螺丝 （×3 ）。 4. 取下底罩。 5. 取下螺丝 （×5 ）。 6. 取下底部左、右玻璃支架尾端。 7. 取下螺丝 （×9 ）。 8. 取下底部玻璃支架尾端。 9. 取下螺丝 （×2 ）。 10. 断开连接件 （K1）。 11. 取下 K 电路板。 18 6.28. 安装等离子显示屏 （完成） 1. 将新的等离子显示屏（完成）放置在类似桌子（铺有软布） 等的表面上，并且等离子显示屏表面朝下。 2. 安装 C1 和 C2 电路板，用柔性电缆 (×8) 将等离子显示屏与 C1 和 C2 电路板连接，并固定柔性电缆固定器。 3. 安装卡钩 （左，右） ，并将支架 （左，右）安装到新的等 离子显示屏上。 4. 将等离子显示屏放置到维修架上。 5. 将前面框和 P.C. 板等安装到新的等离子显示屏上。 * 安装前面框时，注意前玻璃和等离子显示屏之间不要有碎屑、 灰尘或杂质存在。 19 7 导线布置 7.1. 导线 （1） 如下图所示布置导线。 20 7.2. 导线 （2） 如下图所示布置导线。 21 7.3. 导线 （3） 如下图所示布置导线。 22 7.4. 导线 （4） 如下图所示布置导线。 23 7.5. 导线 （5） 如下图所示布置导线。 24 8 自检 1. 自检用来自动检测电视机的总线和十六进制编码。 2. 进入自检模式，按下电视机前面的用户控制中的下 （DOWN） 键，同时按下遥控器上的菜单键，屏幕上将会显示： 如果 CCU 端口经过检测，发现异常或位置不正确，则 “--”将会显示在 “O.K.”的位置。 25 8.1. 电源 LED 闪烁次数图 1. 主题 发光二极管闪烁时间图信息。 2. 内容 当设备出现异常时，保护电路将运行并将设备复位到待机状态。此时，通过本机前端的 LED 电源闪烁次数便可识别出故障部位。 26 8.2. 无电源 第一检测点 LED 无电源指示有三种情况： 1. 不亮 2. 绿灯亮，几秒钟后转为红灯闪烁。（请参见第 8.1 章节） 3. 只有红灯亮。 27 8.3. 无图像 28 8.4. 显示器局部故障 等离子显示器屏幕上可能会出现局部故障。图 1 是各局部可能会出现故障的印刷电路板。 29 9 维修模式功能 MPU 通过此机型的 IIC 总线来控制各 IIC 模式的功能转换。以下各项可在维修模式下通过遥控来进行设置和调节。 9.1. 如何进入维修模式 1 1. 将音量设置为最小，将定时关机设置为 15 分钟。 2. 同时按下电视机上的 DOWN （下） 键和遥控器上的 RECALL[ ] 键。 9.2. 如何进入维修模式 2 1. 进入维修模式 1。 2. 同时按下电视机上的 DOWN （下） 键和遥控器上的静音 [ ] 键。 注： 要退出维修模式，按下遥控器上的 N 或 Power 键。 30 31 9.3. 选项说明 PV600C 选项 1 0F b0 1 彩色制式 自动 (1) b1 1 SECAM(1) b2 1 NTSC(1) b3 1 M.NTSC(1) b4 0 A2 选择 6.5MHz 5.742MHz(0) 6.742MHz(1) b5 0 SIF 4.5/5.5/6.0/6.5(0)，5.5/6.0/6.5(1) b6 0 5.5/6.5(2)，6.0/6.5(3) b7 0 闲置 选项 2 E2 b0 0 A2 启动 4.5 （1） b1 1 5.5 （1） b2 0 6.0 （1） b3 0 6.5 （1） b4 0 NICAM 启动 4.5 （1） b5 1 5.5 （1） b6 1 6.0 （1） b7 1 6.5 （1） 选项 3 1A b0 0 SASO 启动 SASO 启动 (1) b1 1 微调 启动 (1) b2 0 搜索速度 慢 (1) 快 (0) b3 1 调谐器 MACO 调谐器 (1), 其它 (0) b4 1 HYPER 仅 UHF(0), UHF/VHF(1) b5 0 IF I2C 12C 控制调谐器 IF 模块 (1) b6 0 NICAM C4 比特 启动 (1) b7 0 蓝底 菜单中蓝背景开 / 关选择 （0） 选项 4 08 b0 0 ASPECT 自动 启动 (1) b1 0 S1/S2 启动 启动 (1) b2 0 ID-1 启动 (1) b3 1 用户比例调整 启动 (1) b4 0 用户比例调整 14:9 启动 (1) b5 0 ALBD 14:9 14:9 启动 , self wide (1) 时 Zoom 3 未启动 / self wide (0) 时 Zoom1, Zoom 3 启动 b6 0 TEXT 启动 (1) b7 0 TEXT TOP TOP 启动 (1) 选项 5 3B b0 1 CH 闪烁 闪烁启动 (1) b1 1 AV 闪烁 闪烁启动 (1) b2 0 静音 静音启动 (0) b3 1 副图像 无副图像 (0)，有副图像 (1) b4 1 2 调谐器 2 调谐器 (1)，1 调谐器 (0) b5 1 AV 输入 3 旋转 (1)/2 无前 RCA 旋转 (0) b6 0 显示屏 ( 液晶 ) Samsung 显示屏 (1)/SHARP 显示屏 (0) b7 0 大尺寸 ( 液晶 ) 液晶 32(1)/26(0) 选项 6 AF b0 1 SD 模块 有 SD 模块 (1) b1 1 SD 模块外部 Rec(PAL) SD 模块外部 Rec(NTSC) SD 模块外部 Rec.(SECAM) 启动 (1) b2 1 启动 (1) b3 1 启动 (1) b4 0 IDTV 启动 (1) b5 1 HDMI 启动 (1) b6 0 外部 HV 输入 无 HV 输入 (0)/ 有 HV 输入 (1) b7 1 PC 启动 (1) 选项 7 61 b0 1 亚洲 亚洲 (1), 欧洲 (0) b1 0 澳大利亚 澳大利亚 (1) b2 0 爱尔兰 / 印度 印度 (1) b3 0 英国 / 韩国 韩国 (1) b4 0 Lang1 语言 (0)/ 小 (1) b5 1 Lang2 OSD 语言：阿拉伯 (1) b6 1 较低 POS 低 POS 启动 (1) b7 0 用户 ID 不使用 32 PV600C 选项 8 40 欧洲选项 b0 0 ACI 所有国家 ACI 启动 (1)，仅在荷兰 (0) b1 0 ACI 自动 MP ACI 自动多包装启动 (1) b2 0 ACI 补偿 VCR 程序的 ACI 补偿启动 (1) b3 0 供电 EC 模式 EC 电源启动 (1) b4 0 AV 接线 不可在菜单中选择 Q-Link(1) b5 0 音量调节 TV 音量调节启动 (1) b6 1 MPX/NICAM 显示 显示 NICAM(0)，显示 MPX(1) b7 0 Albd 复位关闭 启动 (1) 选项 9 FF b0 1 CH 方案 亚洲 / 中东 / 香港 / 英国 / 中国 (1) b1 1 新西兰 / 印度尼西亚 (1) b2 1 澳大利亚 (1) b3 1 东欧 (1) b4 1 SPECIAL (1) b5 1 美国 (1) b6 1 CATV(1) b7 1 日本 (1) 选项 10 6F b0 1 NICAM 优先 亚洲 / 中东 (1) b1 1 香港 / 英国 (1) b2 1 中国 (1) b3 1 新西兰 / 印度 (1) b4 0 奥地利 (1) b5 1 东欧 (1) b6 1 SPECIAL (1) b7 0 HDMI AVI Aspect 启动 (1) 选项 11 4F 其它 b0 1 Remocon 类型 Delux(1)/ 导线 (0) b1 1 环境 AI(PDP) 启动，有自动视图模式 (1)/ 未启动，无自动视图模式 (0) b2 1 WSS14:9 关闭 WSS14:9 关闭 (1) b3 1 儿童锁码 儿童锁码开： 调谐菜单跳过 （1） b4 0 b5 0 对比 AI 启动 (1) b6 1 维修 H-POS 启动 (1) b7 0 维修 V-VOS 启动 (1) 选项 12 21 其它 b0 1 aspect 最新记忆 单个来源 （1）/ 所有来源 （0） b1 0 保留 b2 0 TEXT 频道刷新 刷新启动 （1）/ 关闭 （0） b3 0 STILL 1: 启动 /0： 启动 b4 0 LATIN Latin: SAP/ 固定 SIF 4.5MHz/PAL-M,N/CC/ 黑色电平 / 语言 b5 1 SRS 启动 (1) b6 0 HDMI Quali 电视 启动 (0) b7 0 HDMI EC 功能 启动 (1) 选项 13 00 其它 b0 0 DVB ALBD 启动 (1) b1 0 HDMI 端口 启动 (0) 2 端口型号 / (1) 1 端口型号 ( 仅适用于 TV MCU 端口设置 ) b2 0 HDMI 格式错误 OSD 显示 (0)/ 未显示 (1) b3 0 CEC 控制 启动 (1) b4 0 Aspect 4:3 全屏 启动 (0) b5 0 FTZ 启动 (1) b6 0 b7 0 33 10 调整步骤 10.1. 驱动器设置 10.1.1. 项目 / 准备 1. 输入白色信号到等离子显示屏视频。 2. 如下设定图像控制： 图像菜单：最佳 图像： +30 图像：25 宽高比：全屏 注意 1. 首先进行 Vsus 调整。 2. Vad 调整确认后，再确定 Vscn 电压。当 Vad = -90V 时， Vscn 的电压为 35V ± 4V。 10.1.2. 调整 参照显示屏数据标牌上的显示屏数据，调整驱动器各部分的电 压。 * 见显示屏标牌 名称 测试点 电压 调整点 备注 Vsus TPVSUS(SS) Vsus ±2V R628(P) * Ve TPVE(SS) Ve ±1V VR6000(SS) * Vset TPVSET(SC) 260V ±7V 固定 Vad TPVAD(SC) -105V ±1V VR6600(SC) Vscn TPVSCN(SC) Vad+140V ±4V 固定 Vda TPVDA(SS) 75V ±1V 固定 Vdat P12-1,5(P) 75.5V ±0.1V R665(P) PFC C446(+)(-) 396V ±0.5V R443(P) Vlow C555(+)(-) 78.5V ±0.1V R661(P) Vda load current： 0.4A 34 10.2. 初始化脉冲调整 1. 输入白色信号到等离子显示屏视频。 2. 如下设定图像控制： 图像菜单：最佳 图像： +25 图像：25 宽高比：全屏 3. 连接示波器至测试点 TPSC1 （T2），并调整 VR6602 至 195 ± 10µ Sec。 10.3. P.C.B. （印刷电路版）更换 10.3.1. 注意 1. 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.B.C.。 10.3.2. P.C.B. 更换后进行快速调整 * 见显示屏标牌。 注意： 请勿将 Vsus 设置到 Ve 以下，以防损坏 PCB 板。 测试点 调整点 等级 T2 TPSC1(SC) VR6602 (SC) 195 ± 10µ Sec P.C.B. 名称 测试点 电压 调整点 备注 P 电路板 Vsus TPVSUS (SS) Vsus ± 2V VR628 (P) * Vdat P12-1,5(P) 75.5V ±0.1V R665(P) PFC C446(+)(-)(P) 396V ±0.5V R443(P) Vlow C555(+)(-)(P) 78.5V ±0.1V R661(P) Vda 负载电流：0.4A SC 电路板 Vad TPVAD (SC) -105V ± 1V VR6600 (SC) SS 电路板 Ve TPVE (SS) Ve ± 1V VR6000 (SS) * D,DG 电路板 NTSC, PAL, HD, PC 和 625i 信号的白平衡、背景设定和副亮度。 35 10.4. 调整点位置 10.5. 测试点位置 36 11 调整 11.1. PAL 显示屏白平衡调整 仪器名称 连接 备注 • 黑白模式 • 彩色分析仪 （Minolta CA-100 或同等产品） RF 输入 显示屏表面 用户设定：正常 步骤 备注 • 确保充分老练 15 分钟以上。 • 确保前面板已经安装在整机上。 • 确认调整之前无彩色信号显示。 • 将彩色分析仪放置在有轻微色差的地方。 打开电源后 10 分钟之内完成调整。 通过老炼处理等不能完成调整时，要重新打开电源。 1. 显示白平衡类型。 2. 检查以确认彩色平衡为 “冷色”。 3. 进入到 “维修菜单 1”模式。 4. 用红键或绿键选择 “G-CUTOFF”，并通过黄键或蓝键将其设定到 “128”。 同样，“B-CUTOFF”和 “R-CUTOFF”设定为 “128”。 5. 设定 “G-DRIVE”为 “224”。 6. 触摸彩色分析仪的信号接收器到高亮窗口的中间位置，然后调整 B 驱动和 R 驱动，将 x, y 的值调整为表 1 中色温度 （冷色）的值。 7. 设定 “ALL-DRIVE”为 “252”。 8. 将色调设定设置为 “标准”。 9. 设定 G cutoff,B cutoff 和 R cutoff 为 “128”。 10. 确定 G 驱动为 “224”。 11. 调整 B 驱动和 R 驱动，将高亮显示窗口中的 x, y 的值调整为下表中色温 （标准）的值。 12. 设定 “ALL-DRIVE”为 “252”。 13. 设色调设定设置为 “暖色”。 14. 设定 G cutoff,B cutoff 和 R cutoff 为 “128”。 15. 确定 G 驱动为 “224”。 16. 调整 B 驱动和 R 驱动，将高亮窗口中的 x, y 的值调整为下表 1 中色温 （暖色）的值。 17. 设定 “ALL-DRIVE”为 “252”。 图像菜单：最佳 宽高比：16:9 • 高亮显示部分 信号振幅 75% 37 11.2. HD 白平衡调整 仪器名称 连接 备注 • 1080i 黑白模式 • 彩色分析仪 （Minolta CA-100 或同等产品） RF 输入 显示屏表面 用户设定：标准 步骤 备注 • 确保充分老练 15 分钟以上。 • 确保前面板已经安装在整机上。 • 确认调整之前无彩色信号显示。 • 将彩色分析仪放置在有轻微色差的地方。 • 通电后 10 分钟内完调整。 在老练没有完成的情况下，再插上电源。 1. 显示白平衡图像。 2. 确认色温设定为 “冷色”。 3. 进入 < 维修菜单 1>。 4. 用红键或绿键选择 “G-CUTOFF”，并通过黄键或蓝键将其设定到 “128”。 同样，“B-CUTOFF”和 “R-CUTOFF”设定为 “128”。 5. 设定 “G-DRIVE”为 “224”。 6. 触摸彩色分析仪的信号接收器到高亮窗口的中间位置，然后调整 B 驱动和 R 驱动，将 x, y 的值调整为表 1 中色温度 （冷色）的值。 7. 设定 “ALL-DRIVE”为 “252”。 8. 将色调设定设置为 “标准”。 9. 设定 G cutoff,B cutoff 和 R cutoff 为 “128”。 10. 确定 G 驱动为 “224”。 11. 调整 B 驱动和 R 驱动，将高亮显示窗口中的 x, y 的值调整为下表中色温 （标准）的值。 12. 设定 “ALL-DRIVE”为 “252”。 13. 设色调设定设置为 “暖色”。 14. 设定 G cutoff,B cutoff 和 R cutoff 为 “128”。 15. 确定 G 驱动为 “224”。 16. 调整 B 驱动和 R 驱动，将高亮窗口中的 x, y 的值调整为下表 1 中色温 （暖色）的值。 17. 设定 “ALL-DRIVE”为 “252”。 图像菜单：最佳 宽高比：16:9 • 高亮部分 信号振幅 75% * 白平衡冷色不同于日本模型值。 38 11.3. 副亮度调整 仪器名称 连接 备注 1. PAL 信号发生器 （或 RF） 连接到输入端子 用户设定：正常 步骤 备注 • 每个信号的色彩平衡调整都已完成。 • 务必在暗室中调整。 • 接通电源 10 分钟内完成调整。 时效之内无法完成调整时请再次打开电源。 1. 显示通过视频输入调整亮度的 10 级灰度图案。 2. 通过 < 维修菜单 1> 中的 “Sub-Bright”进行调整，使图中第 6 级灰度显示，而第 7 级灰度 不显示。 数据 副亮度数据地址 副亮度 （高）A2-0116 副亮度 （低）A2-0117 图像菜单：最佳 彩色平衡：正常 宽高比：16:9 39 11.4. ABL 调整 仪器名称 连接 备注 1. HD 信号发射器 （或引导器 1080i/No.9 信号） 2. 功率计 分量输入端子 将调整设备的交流电源连接到功率计 上。 步骤 备注 • 确保在调整之前经过 30 分钟以上的老炼。 （运行期间或之后请勿关闭设备。） • 电压 230V 50Hz （变化在 1%） • 音量为最小，屏幕尺寸为 “16:9” 设定 分量输入，最佳，标准 1. 连接机器设备的交流电源至功率计。 2. 输入信号 ( 上半部：彩色条形图，下半部：10 级灰度 )。 3. 在 < 维修模式 1> 中选择 “PWRCTL”。 4. 调整 PWRCTL，使机器的功耗为 331±10W 备注 1. 初始数据为： 数据地址： A2-0102 默认数据： 0 ×00 2. 所调电压和显示数字呈反比。 （数字变小，电压升高。） • 上升方向 ( ↑): 0 → 255, 254, 253 • 下降方向 ( ↓ ): 0 → 1, 2, 3 3. 有可能调整值在两处均可使用，此时调整 PWRCTL 数值大那种情况。 40 11.5. 副对比度调整 仪器名称 连接 备注 RF 发生器 基带发生器 准备 （AV） 备注 1. 接收 AV1 ( 如下所示 PAL 100% 全白或彩条，如下图 )。 2. 进入维修模式，选择副对比度，并检查数据值为 512。 （检查发现初始值为默认值） AV 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为白色。 4. 结束。 准备 （RF） 备注 1. 接收 RF (PAL 100% 全白或彩条，如下图 )。 2. 进入维修模式，选择副对比度，并检查数据值为 512。 （检查发现初始值为默认值） RF 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为白色。 4. 结束。 准备 （HD） 备注 1. 接收分量。 (1080i/ 60Hz 或 1080i/ 50Hz, 100% 全白或彩条，如下图。) 2. 进入维修模式，选择副对比度，并检查数据值为 384。 （检查发现初始值为默认值） HD 制式调整 备注 1. 按遥控器上的黄色键。 2. 副对比度的屏幕显示字符变为红色。 （由内部自动调整完成） 3. 副对比度的屏幕显示字符恢复为白色。 4. 结束。 41 11.6. 多窗口调整 仪器名称 连接 备注 基带信号发生器 条件 备注 完成副对比度调整。 准备 1. 退出维修模式，输入 AV1 （PAL 100% 全白）信号。 2. 进入维修模式，选择 VIDEO Gain2, 并检查数据值为 255。 （检查发现初始值为默认值） 调整 备注 1. 通过目视检查主屏幕和副屏幕的亮度。 2. 当副屏幕的亮度比主屏幕的亮度高时，执行步骤 3。 相反，当副屏幕的亮度比主屏幕的亮度低时，将不进行调整，调整结束。 3. 调整 VIDEO Gain2 直至主画面和子画面的界线表现得不明显。 按 OK （确定）按钮。 42 12 旅馆模式 1. 目的 设置旅馆功能。 2. 进入指令 • 进入维修模式 2。 • 同时按下电视机上的 DOWN[—/V] 键和遥控器上的静音键， 进入 EAROM EDITOR 模式。 • 按红 / 绿键，在各地址间上下选择。 • 按黄 / 蓝键在各地址间左右选择。 • 按节目键在各页之间上下选择。 • 按黄 / 蓝键来改变功能值。 • 设定 EEPROM （ADDRESS 0BAF）为 01。 • 按 OK 键，存储数据。 通过遥控器上的开关键来进行开 / 关机操作。 由此进入旅馆模式。 3. 退出指令 • 首先，设定 EEPROM （ADDRESS 0BAF）为 00。 然后，通过遥控器上的开关键来进行开关机操作。 之后便退出旅馆模式。 4. 进入旅馆模式设置菜单指令 • 前提：EEPROM (ADDRESS 0BAF) 的数据应为 01。 为了显示旅馆模式设置菜单，请输入以下指令 （在 2 秒钟 内） 之后便退出旅馆模式。 5. 旅馆模式设置菜单说明 6. 退出旅馆模式 从壁装插座上拔出 AC 电源线 项目 功能 初始输入 选择输入信号模式。 每次接通电源后都设置此信号。 选项： Off/TV/AV1/AV2/AV3/AV4/PC/HDMI1/HDMI2 • 关：以最后一次存储为准。 • PC: VGA 可选 初始音量等级 每次接通电源后都设置音量 选项 / 范围： Off/0 到 100 • 关 : 以最后一次储存为准。 最大音量等级 调节最大音量。 范围： 0 到 100 初始位置 选择频道号。 选项： Off/0 到 99 • 关 : 以最后一次存储为准。 键锁定 选择按键键入条件。 选项： Off/SETUP/MENU/ALL • 关 : 所有按键有效 • 设定：只有 F 键无效 （菜单中调谐状态无） • 菜单：只有 F 键无效 （只可选择音量 / 静音。） • 所有：所有按键全部无效。 遥控锁定 选择遥控键入条件。 选项： Off/SETUP/MENU • 关 : 所有按键有效 • 设置：只有设置菜单无效 • 菜单：图像 / 声音 / 设置菜单无效 66 14 方框图和线路图 14.1. 线路图注意事项 67 14.2. 主要集成电路方框图 SC23 64 VDA P2.5V VDA 5V D20 64 VOLTAGE SC2 OUTPUT PA20 +15V P_ON/OFF CONTROL CONVERTER 64 VIDEO IN D32 12V DG1 D25 +15V D VOLTAGE DG2 PA SOS PROTECTION(SOS) DC/DC CONVERTER POWER SUPPLY DC/DC PA40 ADDRESS SCAN DRIVE S.R SPEAKER SUSTAIN SD S.R AV4 IN VSUS DG5 CONVERTER PA5 S.R 64 DISCHARGE 64 +5V DG20 VOLTAGE D3 SC20 S.R POWER LED +15V AV4 IN SUB-FIELD PICTURE AUDIO IN PA10 POWER ERASE S.R SOUND SOS PLASMA AI EEPROM LVDS P25 RECTIFIER CONTROL P2 IIC VOLTAGE PROCESS SCAN OUT 64 VSUS G SUSTAIN SC +15V G3 G51 PULSE 64 P STBY5V_M S.R DATA DRIVE SCAN OUT VOLTAGE PROCESSOR MEMORY K REMOTE RECEIVER, 64 SS12 P1.2V SDRAM P3.3V RGB PLASMA AI PROCESSOR CONTROL F_STBY-14V IIC POWER SOS P10 SUSTAIN SOS6/ P11 K1 G1 S-VIDEO IN VOLTAGE RECTIFIER S.R L STB12V SS CONTROL FACTOR MICOM SS_SOS8 KEY SCAN PA34 VIDEO VSUS P9 S.R CONTROL FAN SOS P23 PULSE D5 FLASH SOS1 PA31 P5 PULSE SCAN FORMAT PROCESS SUSTAIN STANDBY PA2 STANDBY 64 SU CONTROL SUSTAIN DRIVE SOS2 AC CORD OSD DC POWER 64 SS11 VOLTAGE REMOTE RECEIVER DG3 S.R MCU VOLTAGE (VE) AMP SCAN CONTROL S.R RECTIFIER SUSTAIN CONTROL RECEIVER PULSE PULSE GK3 GK KEY SCAN 64 FPGA S.R STB5V CONTROL R SOS7 SS23 PROCESSOR 15V 64 MAIN DATA S.R RECTIFIER SOS8 D31 FORMAT CONVERTER, GENERATOR L/R L/R INPUT AUDIO VIDEO AV2 OUT DC POWER MAIN H2 H SELECT TUNER L/R AV1 AV SWITCH,MSP INPUT L/R MONITOR MSP AUDIO H1 PC IN R,G,B AV3 TA OUT IN L/R H51 AV TERMINAL, L/R H40 L/R H52 SELECT R G Y,PB/C,PR,CVBS B RGB PROCESSOR (GC5) LVDS TRANS- MITTER PC_R,G,B L/R DAC HDMI IN 2 DG RECEIVER YG/UB AUDIO DIGITAL SIGNAL PROCESSOR HDMI I/F HDMI A/D TV_L/R HEADPHONE HP_L/R MAIN_L/R AI SENSOR RECTIFIER FILTER RELAY LINE FILTER LINE PS_SOS +15V FAN SOS FAN POWER SW STB12V STB12V S STB_PS Vda P12 STB_PS/ SWITCH SS34 S1 +15V POWER STB12V STB_PS LED Vda-75V DATA DRIVER(LEFT) S.R. C1 DATA DRIVER(RIGHT) VDA S.R. C31 S.R. S.R. C12 C22 S.R. C23 C2 S.R. S.R. S.R. C11 HDMI IN 1 GS52 GS12 SLOT SD CARD GS SD CARD SD_V_IN/OUT L/R SD_MONO_IN MODULE SD 150Hz LPF EQ AMP SOUND SOS PA DC-DC CONVERTER EQ AMP 600Hz HPF AMP SPEAKER SPEAKER WOOFER L R L PA1 SQUAWKER R SPEAKER R L +15V OUT SUB Y,PB/ C,PR (GC3FS) A/D V,Y,PB,PR V,Y,PB,PR V,Y,C MAIN TUNER TA6 TV-V2 TV-V1 H6 SIF TA5 H5 TV-V1 TV-V2 SUB TUNER SIF TH-42PV600C Main Block Diagram TH-42PV600C Main Block Diagram 68 14.3. P 电路板方框图 + - + - + D509 X501 4NHz R661 1 2 3 R665 1 2 3 Q408 Q412 D417 D420 D419 C469 R671 C555 R443 1 2 3 D529 D528 D404 D596 D416 D435 D401 D430 D563 D511 D505 R628 Q527 D530 Q413 Q409 D520 D521 D535 1 2 IC408 4 2 1 3 1 3 4 2 1 3 4 2 IC404 IC403 9 2 3 17 8 10 13 1 T401 5 8 7 6 VCC MOS DRIVE CURR DET CURR COMP 2 1 3 4 Q407 Q420 Q404 Q406 R406 D415 IC406 POWER FACTOR CORRECTOR Q535 8 6 10 7 9 2 3 4 1 15 19 24 18 22 23 16 17 21 20 VDD VSS XIN XOUT RESET STB PS PFC DET STB 5 ON/OFF LOW 15 AC GOOD F STB ON V LOW DET AC P DET TV ON/OFF VSUS DET F_STB ON/OFF PS SOS PFC ON/OFF V LOW ON/OFF IC501 1 2 IC502 RESET 1 5 2 4 6 3 2 1 4 Vda P12 +15V +15Vc TO 1 2 6 PA5 P5 4 7 8 1 +15V 2 +15V P23 TO SC23 9 +5Vc TO STBY5V 7 P25 D25 +5Vc 10 Q421 POWER MCU COLD COLD HOT 10 STB_PS Q422 Vda75V 8 STB12V Q509 16 17 15 18 2 +15Vc 1 3 HOT POWER SUPPLY 4 Vda Q508 14 13 PR601 9 6 5 4 3 5 ZCD 7 GD 8 VCC 1 3 VFF 4 CS INV IC509 13 14 12 MAIN RELAY RUSH RELAY VSUS ON/OFF ALL OFF 11 Q559 13 F_STBY_ON ALL_OFF PS_SOS PANEL_MAIN_ON ECO_ON F STB 14V 2 1 3 F STB 14V F STB 14V P10 TO PA10 IC520 PR401 F401 F402 1 4 NEUTRAL RL402 RL403 4 2 4 2 IC412 3 1 1 3 5 16 13 10 17 9 7 SS12 TO T601 T410 T404 D539 LIVE P9 2 POWER COLD HOT AC CORD TO PFC DET STB5V DET VlOW DET VlOW DET Vsus 189V Vlow Vlow Vsus POWER CURCUIT OSC 395V R496 R495 R494 Q418 R497 (350V 40V) PFC OUT Q501 Q502 Q551 Q505 ERROR DET IC506 ON:L H:ON 2 Vda 73V D569 D570 D571 R670 Q541 R650 R649 5V OUT DETECTION COUPLER PHOTO IC405 COUPLER PHOTO CONTROL D579 R579 D549 R666 D551 R545 3 4 1 2 IC505 IC401 COUPLER PHOTO COUPLER DC-DC CONVERTER Csus R533 (3V 1.0V) 178V (1.7A) R526 R527 H:ON OVER VOLTAGE PROTECTION (490V 80V) COUPLER PHOTO COUPLER PHOTO PHOTO OVER VOLTAGE DETECTION (490V 80V) DETECTION 15V OVER VOLTAGE (16V 2V) PROTECTION COUPLER PHOTO SC2 TO GND 1 3 TO 1 Vsus P11 P2 Vsus SS11 3 PFC R444 R475 R441 R442 D441 4 R620 R589 R590 R621 D574 OSC L405 L404 R413 L410 R407 R427 R435 Q434 IC409 (IPD) DC POWER CONTROL 8 Source Source 7 1 Vdd 2 FB Drain 5 4 Vcs 7 14 12 4 16 R472 R473 R465 R464 D418 C446, C447 Q402 L403 Q401 D407 R455 1 3 2 PFC DET AC POWER RESET Q568 3 1 2 ECO STB_PS(12V) R410 PHOTO 4 2 1 3 IC410 COUPLER 7 12 11 3 2 1 IC504 14 15 Q563 Q521 Q569 Q537 Q512 Q561 AC_GOOD 19 1 S 2 S G 3 4 S 8 7 5 6 D D D D 6 4 S 8 5 S 3 D D D 7 G 1 2 S D Q555 Q556 DC/DC CONV. DC/DC CONV. Q558 Q557 Q525,Q530 R534 D585 Q524 OUT 2 1 Vcc PR505 ERROR DET (Vda) IC512 D542 D544 D545 SWITCHING IC510 REGULATOR D513 D512 Q566 13 15 4 6 12 16 2 PHOTO COUPLER 3 4 1 2 IC507 D514 3 1 2 (Vsus) K A Vsus R622 R648 R636 R626 R656 R627 OUT DETECTION (60V 40V) VOLTAGE Q507 2 4 3 5 9 10 6 T402 Q538 R631 R674 R676 3 1 2 K A D572 POWER CIRCUIT Q510 Q564 Q565 Q540 F 5A 250V OSC OSC 9 D531 15 7 D586 4 6 5 D531 D536 RUSH ON Q553 Q554 PR509 Vdat OVER VOLTAGE DETECTION(100V 25V) Q520 Q517 +15Vc +15Vc +15Vs(S) +15Vs(W) +15Vs(W) +15Vc P ERROR DET IC411 ERROR DET IC402 ERROR DET SW SW RECTIFIER SW L:ON RECTIFIER STANDBY POWER SAVE 5V (Vlow) R458 MAIN ON 12V BUFF INV. ECO ON/OFF SW BUFF STB5V ON/OFF STB5V (15V) (F STB 14V) INV. INV. ECO ON VSUS DET INV. INV. VSUS ON/OFF 12V ON/OFF INV. BUFF BUFF BUFF BUFF VSUS DET D602 12V DET SW T407 1 15V GND POWER SOS LED BLINKING : 4TIMES TH-42PV600C P-Board Block Diagram TH-42PV600C P-Board Block Diagram 69 14.4. P 电路板 (1/6) 线路图 R472 560K R419 100K R497 12K ZH57 ZH42 R426 10K C443 1000p R473 560K TP5 ZH105 R428 10K TP6 S402 RA-362MS-V7-Y ZH18 RL403 DG12D1-O(M)-2 1 4 2 3 ZN402 D4EAD7510001 R463 33K C423 4700P ZH33 ZH122 R439 12 R417 430K C431 1000P T401 G4D4A0000117 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R433 12K ZH109 D503 MA165 ZH96 R475 680K D418 02DZ8.2 L405 TF3524V-123Y5R0 1 2 4 3 ZH21 R414 15K D420 S3K60 Z450 EYF52BCY ZH51 R492 0 TP4 C409 2.2uF R450 1000 R437 18K ZH34 R442 680K ZH9 C404 1.0uF ZH120 IC402 TL431A1LPM5 1 2 3 D433 02DZ15 ZN401 ERZVGED621 ZH19 Q422 2SD1819A R471 3.3K C476 100P R451 33K TP8 ZN404 ERZVGAD681 L404 TF3524V-123Y5R0 1 2 4 3 ZH36 C421 1.0 ZH10 ZH32 ZH117 R430 430K D431 RB520 R465 560K ZH20 ZH40 C429 0.047 C478 100P ZH111 D415 D1NS4 R480 47K Z451 EYF52BCY ZH107 C446 200uF/450V ZH58 D419 S3K60 C470 1uF ZH123 R449 0.08 ZH35 C635 0.01 ZH106 R443 2K D429 ERA15-10 R495 560K ZH103 R444 12K R403 1M TP2 2.5mm R455 12K ZH8 ZH48 R453 3M C463 22P R438 330 R421 33K 2.5mm R431 10K C422 0.01 ZH1 2.5mm D417 S3K60 S401 RA-362MS-V7-Y C468 0.01 R436 15K R410 10/5W ZH38 C436 1.0 R456 33K ZH102 TP3 C462 1.0 C461 330p ZH31 C474 100P Q421 2SD1819A C450 0.01 ZH118 ZH49 R452 10K ZH95 R406 ERX12SJ2R2V R493 12 ZH55 C447 200uF/450V R464 33K ZH50 ZH110 R401 10K TP7 R441 680K R494 560K D504 MA165 F401 T8AH 250V ZH16 R692 4700 ZH43 ZH119 ZH92 ZH17 ZH54 ZH2 ZH12 Z453 EYF52BCY ZH7 R402 820 R491 47K C460 330p Q407 HN1B01F C445 1.0 L513 EXCELDR25V R498 0.08 2.5mm R454 10K ZH15 C432 1.0 ZH22 R448 0.08 RL402 DG12D1-O(M)-2 1 4 2 3 C410 0.01 TP1 Q418 2SD1819A D401 D20XB80 R458 4700 Q401 SSM3J14T R440 470K C444 1000p ZH30 Q404 2SB1443 R467 1000 F402 T8AH 250V ZH121 Q402 RTR040N03 C426 470P P9 LIVE 4 NC 3 - 2 NEUTRAL 1 R490 47K ZH108 L403 EXCELSA35T R424 22K C440 10 Z2 K4ZZ01000206 1 ZH37 ZH116 Z452 EYF52BCY R693 10K R415 10K ZH56 C473 100P ZH104 IC406 L6561 1 2 3 4 5 6 7 8 ZH11 R462 430K ZH3 C427 1.0 R496 560K D407 MA111 C428 220P Q420 2SD1819A ZH13 ZH97 ZH4 Q406 RJK5020DPK01 CURR Vcc GND CURR DRIVE COMP MOS DET CAUTION 2 3 D B 4 F 5 E 6 1 8 7 A C 9 CAUTION AC CORD TO P-BOARD TNPA3911 (1/6) HOT COLD HOT COLD COLD HOT POWER FACTOR CORRECTOR PFC COLD HOT HOT COLD 1 2 3 A B C D F G H I J K E P-BOARD (3/6) TO CORRECTOR FACTOR POWER ERROR DET PFC DET TH-42PV600C P-Board (1 of 6) Schematic Diagram TH-42PV600C P-Board (1 of 6) Schematic Diagram R499 390K 70 14.5. P 电路板 (2/6) 线路图 ZH72 ZH65 R600 390 C530 0.033 D531 RF2001T3D P10 F_STBY 1 F_STBY 2 F_STBY 3 GND 4 GND 5 GND 6 R685 1K C546 1000P PR509 F P23 GND 3 +15V 2 +15V 1 R563 2.2 R551 330K R713 4700 R673 1K ZH81 R932 100K Q565 2SB1218AR R697 4.7 ZH83 R649 22K ZH79 Q508 HN1C01F D544 MA4200-M D517 MA4330-M R587 0.16 R596 100 R537 100K R672 1K D529 MA3X15300L R669 130K R705 1M R688 1K R682 20K D579 MA165 R698 0.16 R676 33K R653 33K R574 330 T402 MT180 C571 33P C457 0.033u Q517 HN1C01F R478 22 D528 MA3X15300L R477 180 C527 4.7 R476 180 R662 150K C577 33/100V R555 1M R571 1M IC520 LSSK0062 1 2 3 4 5 6 7 8 11 12 13 14 15 16 9 10 Q527 2SK2882 R708 1M C624 0.01 D516 MA4330-M R667 0 R931 33K R707 1M Q541 2SK3018 C620 0.01 R675 22K PR401 F 5A 250V C469 220P Q555 RSS130N03 1 2 3 4 5 6 7 8 Q409 RSR025P03 C520 0.068u C523 1.0 R570 100K ZH99 L510 EXCELDR25V T407 ETQ11K5AZ 6 5 1 4 2 R593 5600 R700 1M R702 1M R607 22K D425 MA188 R679 0.16 R562 4.7K[F] C587 3300P R568 1M T404 ETS42LA115AD P5 GNDs(W) 11 GNDs(W) 10 GNDs(S) 9 +15Vs(W) 8 +15Vs(W) 7 +15Vs(S) 6 GND 5 +15Vc 4 GND 3 +15Vc 2 +15Vc 1 C528 1.0 R629 1M D551 02DZ13 C552 0.1 C604 150u/200V R560 9.1K R680 0.16 C556 1500u/25V R582 10K Q412 2SK3683 R706 1M C451 100P R632 220 C656 2.2 D598 02DZ5.1 R660 12K C625 10 ZH80 R598 33K C526 0.022[KB] C574 0.1 R573 390 R641 47K ZH86 C643 47/50V R703 1M L514 10uH C657 1000P R645 100 R655 0.16 C605 150u/200V ZH64 R701 1M R922 100 R668 0 C655 1.0 C584 0.022 D574 MA165 R482 22 D542 MA4200-M P12 STB_PS 10 NC 9 STB_12V 8 GND 7 GND 6 GND 5 +15V 4 NC 3 Vda 2 Vda 1 C503 470P R567 1M R592 3000 R670 1000 R665 2000 R674 33K R614 3300 R696 10 D536 SF20JC6 D507 02DZ7.5 R699 1M R561 5.1K R588 390 R564 100K C650 0.1 ZH74 D572 02DZ24Z ZH94 R576 12K R651 10K C562 0.022 R952 10 R579 10K R572 390 D535 MA188 IC512 TL431A1LPM5 1 2 3 D549 02DZ24Z ZH84 D602 02DZ8.2 R585 33K C551 0.1 ZH62 D545 MA4200-M D569 02DZ24Z ZH85 J502 LSJW0001 D521 D1NS4 R704 1M C547 1000P R591 1M D530 02DZ10 R933 1K ZH66 C603 1.0 R664 9100 R613 24K R951 10 Q566 2SD1819A-RTX R584 10K D508 02DZ7.5 D571 02DZ24Z ZH75 D423 MA188 R566 1M Q564 2SB1218AR D543 02DZ15 ZH78 R545 10K D540 SF8L60 R565 1M R597 33K C534 470P R659 30K C550 330P R631 33K R650 10K R666 1000 R711 0.16 R624 0.22/2W R953 2.2K Q413 2SK3683 R633 1M D539 SF8L60 ZH82 R937 1K Q408 RSR025P03 C557 1500u/25V C601 0.01 R661 5K C555 470u/100V R556 1M Z1 1 R635 WA5001 ZH73 D570 02DZ24Z Q520 HN1C01F ZH91 R599 390 C581 0.022 Q510 RSR015P03 Q509 HN1A01F C508 470P R690 4.7 Q556 RSS130N03 1 2 3 4 5 6 7 8 R712 4.7 R638 1K J501 LSJW0001 D538 02DZ5.1 D520 MA111 D518 MA4330-M D586 1SR153 Q538 2SK3018 C554 1.0 15 16 18 10 12 17 14 11 13 TO SS-BOARD (SS12) (SC23) TO SC-BOARD HOT COLD POWER CONTROL Vda ERROR DET(Vda) P-BOARD TNPA3911 (2/6) COLD HOT HOT COLD Vlow PA-BOARD TO (PA5) 2 1 3 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR P-BOARD TO (4/6) AS AT 12.0 15.0 12.0 0 67.0 0 0 67.0 0 0 15.0 0 15.0 15.0 15.0 15.0 0 0 0 15.0 15.0 0 15.0 0 VLOW DET VLOW DET DC/DC CONV. DC/DC CONV. PA-BOARD TO (PA10) 14.0 0 0 0 14.0 14.0 TH-42PV600C P-Board (2 of 6) Schematic Diagram TH-42PV600C P-Board (2 of 6) Schematic Diagram 71 14.6. P 电路板 (3/6) 线路图 ZH6 C630 0.01 C514 470P R921 33K C507 0.01 C414 0.047u D430 MA111 R530 33K D436 MA4200-M ZH59 R427 430K R423 1K R483 4.7M R425 39K ZH5 ZH89 ZH67 ZH44 C585 0.022 Q521 2SK3018 R407 430K R938 4.7K C517 220u C433 0.1 C654 1.0 D437 MA4200-M ZH53 IC408 ON3171 2 1 4 3 R549 10K C512 50V 470P ZH41 R413 10/5W R521 10 2.5mm R404 1K ZH68 D601 02DZ5.1 R432 1K R412 0 R594 150 2.5mm R943 1M D411 ST02D-170 C408 1000P R435 430K R539 10K R461 10K C515 1200 D438 MA4200-M IC504 TL431A1LPM5 1 2 3 T410 ETS25AF115AH 9 7 5 4 1 2 10 11 12 13 14 16 15 R418 22 ZH88 R544 330 ZH61 D412 D1NL20U C627 1000P Q537 RTR040N03 C493 47/50V C413 0.1 IC410 ON3171 2 1 4 3 R488 100K IC409 MIP2G4 Vdd 1 FB 2 CL 3 Vcc 4 DRAIN 5 6 SOURCE 7 SOURCE 8 D432 RB520 C402 1.0 IC411 TL431A1LPM5 1 2 3 R459 680K C513 50V 470P D445 MA4360-H R541 1M D596 ERA15-10 ZH45 ZH63 C516 0.47 ZN406 ERZV07D511 D511 D1NJ10 C529 1.0 Q434 2SK3302 R429 4.7 ZN405 ERZV07D511 D441 D1NL20U Q524 2SK2090 R507 220 R422 330K D404 S1WB(A)80 R416 3M R542 1K R522 10 D435 ERA15-10 C434 1.0 L410 40mH 1 2 4 3 R434 0 D563 02DZ6.2 R420 0 D416 1SR153 D444 D1NL20U ZH60 C467 220P C494 1/250V D509 D2S6M R677 470K ZH52 R540 1M D595 WA5001=5 R524 1K C497 47/50V C407 22u/450V C425 0.01 2 3 D B 4 E F 1 5 6 7 8 9 A C COLD HOT COLD HOT COLD HOT COLD HOT P-BOARD TNPA3911 (3/6) ERROR DET 11 12 13 14 15 16 C J D F K B E I A H G BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO P-BOARD (1/6) TO (5/6) P-BOARD TO ERROR DET PHOTO COUPLER CONTROL DC POWER COUPLER PHOTO TH-42PV600C P-Board (3 of 6) Schematic Diagram TH-42PV600C P-Board (3 of 6) Schematic Diagram 72 14.7. P 电路板 (4/6) 线路图 C632 330P R526 220K R528 4.7 R622 150K R534 47K C629 0.01 R640 0.68 ZH24 D587 MA188 D575 MA188 C653 1000P ZH27 R543 15K ZH100 Vsus R590 12K R691 100K R647 22K R550 47K Q505 2SK2998 R652 9.1K ZH112 Vsus R627 7.5K Q540 RSR025P03 ZH39 R595 2200 R589 12K ZH29 ZH23 ZH28 ZH26 T601 45H-5034A 5 9 4 6 IC509 L6565N INV 1 COMP 2 VFF 3 CS 4 ZCD 5 GND 6 GD 7 Vcc 8 P11 3 NC 2 1 C615 1400u/220V C641 1000P R620 10K C611 1400u/220V R671 10K C640 0.1 R643 0.68 PR601 T 3.15A 250V D501 S3K60 R634 0.68 R946 33K R644 0.68 R626 150K R657 1000 IC507 ON3171 2 1 4 3 R656 R947 330 R648 150K R621 12K R646 22K R527 220K C518 0.1 R612 2200 R619 0.68 IC506 HA17431 5 4 1 3 2 ZH25 P2 3 NC 2 1 C619 0.1 R628 3K R636 150K D514 02DZ6.2 R945 22K Q507 2SK3568 R639 0.68 R603 33K ZH113 GND C634 1000P Q530 2SD1819A-RTX D506 02DZ5.1 R601 47K D582 MA7056 R533 16K R654 22 ZH47 R637 0.68 ZH46 R658 1M Q525 2SK3018 R642 0.68 C531 1.0 D585 02DZ7.5 IC505 ON3171 2 1 4 3 R608 3300 R695 16K C616 1000P ZH101 GND 15 12 17 10 18 16 11 13 14 (SS11) TO SC-BOARD (SC2) TO SC-BOARD Csus ERROR DET(Vsus) Vsus P-BOARD TNPA3911 (4/6) 16 13 12 14 11 15 AC AF AD AA AG AB AE CA CB CC CD CE CF CG CH CI CJ CK CL P-BOARD (2/6) TO P-BOARD (6/6) TO AK AL AJ AO AQ AR AM AN AI AS AH AP AT 0 0 189.0 0 0 189.0 DC-DC CONVERTER PHOTO COUPLER COUPLER PHOTO TH-42PV600C P-Board (4 of 6) Schematic Diagram TH-42PV600C P-Board (4 of 6) Schematic Diagram 73 14.8. P 电路板 (5/6) 线路图 Q558 2SD1819A-RTX R616 10K C511 1000P R501 22K R615 10K D588 02DZ3.3 Q557 2SD1819A-RTX R940 1K R512 22K C505 1000P R518 1K R509 100K R504 1000 C613 0.01 R936 10K Q568 2SJ463A R684 10K R525 47K C583 1000P R935 100K IC501 M34509G4FP VDD 1 VSS 2 XIN 3 XOUT 4 CNVSS 5 Reset 6 P21 7 P20 8 D5 9 D4 10 P01 21 P00 22 D1 13 D0 14 P13 15 P12 16 P11 17 P10 18 P03 19 P02 20 D3 11 D2 12 P31 23 P30 24 C506 0.01 R520 100K R487 4.7K C659 0.01 R678 0 R532 1K Q535 2SD1819A Q554 RSR025P03 Q563 2SK2090 R535 1000 Q561 2SD1819A-RTX C639 0.01 R955 47K R502 100K R558 470K R548 1000 R586 47K Q551 2SK3018 X501 4MHz IC502 R3111N401C 1 2 5 3 4 R939 1K R519 100K C608 0.01 C510 0.1 R606 1200 C533 0.01 C607 1.0 R950 1M C509 100/25V R538 100K R617 10K C501 0.01 IC405 ON3171 2 1 4 3 R689 1000 D555 02DZ7.5 IC403 ON3171 2 1 4 3 R511 100K R956 100K C519 1.0 R575 1000 R516 1000 R618 100K IC401 ON3171 2 1 4 3 R536 1000 R503 100K R505 33 IC412 ON3171 2 1 4 3 R580 47K R578 47K IC404 ON3171 2 1 4 3 R557 100K R517 10K R510 100K C502 0.01 R686 1000 R611 47K R554 1000 C638 0.01 Q559 2SD1819A-RTX C610 1.0 R514 100K R581 47K R687 10K R515 1000 Q512 2SK3018 D505 D1NS4 R714 100 C504 1.0 R610 47K D512 MA111 R583 47K Q553 2SD1819A-RTX R552 10K C626 0.01 Q502 2SD1820A R602 3300 D513 MA111 D559 02DZ7.5 R715 100 R546 1000 C612 0.01 R508 1000 Q569 2SK3018 Q501 2SD1820A C631 0.01 R683 33K R577 47K R609 1000 D590 02DZ3.3 R630 4.7K D515 02DZ3.3 R513 100K R506 1000 2 3 4 5 6 7 8 9 A C D B E F 1 COLD HOT COLD HOT HOT COLD POWER MCU RESET P-BOARD TNPA3911 (5/6) 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 BO BG BK BE BD BN BM BL BB BI BH BA BJ BF BC P-BOARD TO (3/6) COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO PHOTO COUPLER TH-42PV600C P-Board (5 of 6) Schematic Diagram TH-42PV600C P-Board (5 of 6) Schematic Diagram 74 14.9. P 电路板 (6/6) 线路图 P25 ALL_OFF 18 Panel_Main_ON 17 PS_SOS 16 ECO_ON 15 FAN_SOS 14 F_STBY_ON 13 GND(STBY) 12 GND 11 STBY5V 10 +5Vc 9 GND 8 +5Vc 7 GND 6 GND 5 GND 4 NC 3 +15Vc 2 +15Vc 1 AC_GOOD 19 KILL_SOS 20 R553 100 L512 4.7uH C658 1.0 R569 33K R547 100 D599 D1FP3 C661 0.01 R529 100 C558 470u/25V L511 47uH D502 WA5001=5 R523 47K C559 1200 C623 10 C660 2.2 IC510 BD9703FP 1 2 3 4 5 D600 02DZ7.5 R559 8.2K PR505 TF16N5.00 C662 0.01 15 12 17 10 16 13 18 11 14 P-BOARD TNPA3911 (6/6) (D25) D-BOARD TO 42 41 32 45 46 36 34 39 38 40 33 37 43 31 44 35 CG CK CL CB CA CE CF CI CC CD CJ CH (4/6) TO P-BOARD 0 5.0 2.6 0 5.0 5.0 0 0 0 0 0 15.0 0 3.2 0 0 15.0 0 0 0 REGULATOR SWITCHING TH-42PV600C P-Board (6 of 6) Schematic Diagram TH-42PV600C P-Board (6 of 6) Schematic Diagram 75 14.10.PA 电路板方框图 ON/OFF D5644 D5635 D5639 D5641 D5637 D5643 D5647 D5642 D5638 D5649 MAIN9V TP16 TPS9V TPS9 TPS5 TPS5V TPM5 TPM5V D2309 D5640 TPS33 TPM33 TPM33V TPM18V TPM18 TPM9V TPM9 TP5616 TP5615 TP5617 D5634 D5805 D5806 D5807 D5646 TPS33V D5804 MAIN_9V MAIN9V 6 SUB_5V Q5603 7 22 Q5602 SUB_9V-1 SUB9V PA_SOS 3 FAN_SOS F_STBY_14V 23 8 20 MAIN_5V SUB5V PA20 9 LINP 1 21 IC2305 19 W_L+ SUB_3.3V 35 W_R+ LOUTP 5 W_R- 1 LOUTN LOUTP SHUTDOWN IC2304 34 MAIN_9V(0.4A) PA2 8 SUB9V(2.2A) 26 SOUND_SOS TUNER_SUB_ON ON/OFF1 24 TUNER_MAIN_ON 3 16 3 SUB9V Q5643 SUB9V 1 SUB5V MAIN9V VOUT1 MAIN3.3V F_STBY_14V 1 TO P10 MAIN1.8V Q2306 6 NR14V 6 ROUTP RINP 1 5 27 7 39 VOUT1 VIN FAULT IC5601 5 PVCCR ROUTN MAIN3.3V AVR 5V/9V 13 48 40 ON/OFF1 2 2 42 ON/OFF2 9 2 VIN Q5641 5 41 10 3 +15V VOUT2 EQUALIZER AMP 14 2 4 MAIN3.3V 19 16 VOUT2 3 MAIN9V FAN_CONT PA40 6 STB5V 12 18 Q5601 MAIN1.8V MAIN5V ON/OFF2 ON/OFF 37 17 35 39 2 Q5605 MAIN5V 1 Q5644 +15V SR W_L- 7 SUB9V 32 AVCC 4 ROUTN PVCCL 15 5 IC5602 ROUTP SUB5VA PVCCL AMUTE SL 3 13 MAIN_1.8V 20 LOUTN 2 IC2302 7 46 1 44 3 MAIN_9V 33 PA5 Q2302 F_STBY_14V PVCCR 2 34 +15V PA10 AVR 1.8V/3.3V +15V +15V FAN 3 PA32 SOS 3 FAN 1 PA33 FAN 1 FAN SOS 1 PA34 SOS 3 1 SOS PA31 3 AVR 15V Vin ON/OFF 5 1 IC5801 Q2307 SUB5VA TO P5 Q5642 PA SUB5V/MAIN5V SUB9V/ MAIN9V Q5613 STB5V1 STB5V1 TO H40 Q5604 ON/OFF TV_SUB_ON IC5604 VIN 5 AVR 3.3V VOUT 1 TO DG20 MAIN_9V SUB5V MAIN5V MAIN5V TUNER_MAIN_ON SPEAKER AMP Q2300 Q2301 11 SUB3.3V 13 MAIN3.3V SUB3.3V MAIN3.3V MAIN1.8V MAIN3.3V SUB9V MAIN1.8V SOS Vout 2 4 Vadj Q2303 15 Q5610 9 1 (sw) FAN CONTROL SPEAKER OUT/AUDIO AMP FAN CONTROL DC-DC CONVERTER/POWER SOS LED BLINKING : 12TIMES SOUND SOS FAN SOS LED BLINKING : 11TIMES PA SOS LED BLINKING : 10TIMES 2 5 3 120Hz LPF 2 7 1 IC2300 3 6 6 7 IC2301 5 1 FAULT SPEAKER AMP 5 42 27 41 LINP 46 21 20 LOUTN IC2303 AVCC ROUTN PVCCL ROUTP 44 34 PVCCL ROUTN 39 26 48 PVCCR 40 ROUTP RINP PVCCR 3 22 19 35 LOUTP LOUTN LOUTP SHUTDOWN 2 1 4 5 SQ_L- PA1 SQ_L+ SQ_R+ SQ_R- Q2305 Q2309 Q2308 Q2304 2 5 1 3 6 7 OP AMP IC2307 600Hz HPF 3 2 7 6 5 1 OP AMP IC2306 EQUALIZER AMP TO FAN WOOFER SPEAKER L WOOFER SPEAKER R SPEAKER R SPEAKER L SQUAWKER SQUAWKER TH-42PV600C PA-Board Block Diagram TH-42PV600C PA-Board Block Diagram 76 14.11.PA 电路板 (1/3) 线路图 + + + + + + STB_5V 4.4V SUB_9V SUB_9V MAIN_1.8V MAIN_9V NR14V R5808 2.2k D5807 MA2J11100L R5648 3.9k R5802 13k D5634 MA2J11100L R5806 2.2k C5643 16V 0.1u L5606 22u L5622 G1C150MA0234 C5670 25V 0.1u R5644 2.2k R5627 4.7k R5650 220 R5672 10k Q5643 2SA207700L C5805 1u 16V R5805 2.2k R5641 2.2k R5836 1k C5641 16V 0.1u L5604 2.7u R5626 4.7k 1 2 3 R5634 470 R5639 2.2k R5694 47k R5695 10k D5649 MA2J11100L D5646 MA3X152E0L C5609 50V 22u R5693 33k R5633 1k Q5602 B1ABCF000138 R5662 4.7k C5637 16V 0.1u R5605 4.7k R5645 2.2k R5642 470 1 2 3 4 5 6 C5801 470u 25V L5602 2.7u R5660 0 R5646 4.7k R5692 1k R5649 100k L5801 G0C101K00023 C5642 16V 0.1u D5642 MAZ31200ML D5801 B0JCME000037 R5632 470 C5802 470u 25V C5804 0.1u 16V C5809 1u 25V R5659 470 R5822 100 R5804 TP16 D5639 MAZ30470HL R5826 100 R5609 200 Q5613 B1ABCF000138 R5637 10k R5665 47k D5643 MA3X152D0L D5638 MA3X152E0L Q5601 B1DHDC000028 R5640 4.7k Q5604 B1ABCF000138 R5606 2.2k L5624 G1C330MA0234 C5605 25V 470u R5625 4.7k R5824 100 D5635 MAZ30470HL R5621 4.7k D5606 B0BC01100001 R5801 845 R5823 100 C0DBAZF00003 IC5801 1 Vin 2 Vout(sw) 3 GND 4 Vadj 5 ON/OFF R5809 4.7k R5647 220 R5807 2.2k R5667 47k R5664 4.7k R5803 2k D5805 MA3X152E0L C5619 25V 0.1u R5643 1k 1 2 3 1 2 3 Q5642 2SA207700L R5638 10k C5644 16V 0.1u L5802 100u D5804 MAZ31200ML D5640 MAZ30390HL D5641 MA3X152D0L Q5644 B1ABCF000138 D5647 MA3X152D0L D5806 MA3X152E0L R5654 10k 1 2 3 R5635 220 D5644 MAZ30680ML Q5641 2SA207700L R5601 180 C5606 16V 470u C5810 47u 25V D5637 MA3X152E0L N0BG2DE00001 IC5601 1 N.C. 2 ON/OFF2 3 VAR2 4 VOUT2 5 SW-Node2 7 GND 8 N.C. 9 GND 10 VIN 11 N.C. 12 GND 13 SW-Node1 14 VOUT1 15 VAR1 16 ON/OFF1 F_STBY_14V F_STBY_14V NR14V GND MAIN_9V SUB_5V SUB_9V-1 GND MAIN_5V SUB_9V TO FAN SUB_3.3V GND F_STBY_14V 1 6 D E 8 B 3 2 C 4 A 7 5 MAIN3.3V SUB_5V SUB_3.3V NR14V MAIN3.3V MAIN1.8V MAIN_5V 15V 15V PA_SOS PA 31 PA 32 PA 33 PA 34 PA 10 SUB_5V FAN_SOS TO P-BOARD (P10) AVR 5V/9V FAN SOS AVR 15V FAN CONTROL MAIN_9V MAIN_5V MAIN_1.8V STB_5V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 14.0 14.0 0 14.0 0 0 PA-BOARD TNPA3761AF(1/3) TH-42PV600C PA-Board (1 of 3) Schematic Diagram TH-42PV600C PA-Board (1 of 3) Schematic Diagram 77 14.12.PA 电路板 (2/3) 线路图 + + + + + + + + SOUND_SOS SOS SUB5V SUB_3.3V SUB_3.3V ODU_17V NR14V TV_SUB_ON MAIN_1.8V TV_MAIN_ON TPSTB5V TPM5V TPS33V C5646 50V 0.01u C5623 25V 0.1u D5610 B0BC4R700007 R5669 47k JS2303 0 JS2300 0 JS5604 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 JS2302 0 TPM33V Q5605 B1ABCF000138 TPFSOS C5613 25V 0.1u TPS5V R5620 1k TPS9 R5619 33k TPSSOS D5607 B0BC6R600005 MAIN5V L5651 22u R5603 15.4k JS2319 0 L5612 2.7u Q5610 B1ABCF000138 TPMUTE R5615 10k L5621 G1C330MA0234 C5626 16V 0.1u TPM18 C0DBZGC00067 IC5604 1 VIN 2 GND 3 STBY 5 VOUT 4 NC ZA2300 K4CZ01000027 R5668 47k TPM33 JS2318 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 SUB5VA R5617 1k C5611 50V 330u ZA2301 K4CZ01000027 TPM18V L5609 22u Q5603 B1DHDC000028 R5607 4.53k R5676 10k L5607 22u C5673 16V 0.1u C5647 16V 47u JS2331 0 TPM9 R5652 0 TPS33 L5623 G1C150MA0234 TP17V SUB3.3V C5672 50V 22u R5653 10k C5645 16V 47u C5617 16V 470u TPM5 MAIN3.3V TPM9V C5618 25V 0.1u JS2301 0 TPS9V C5633 25V 220u EHMDD9851 IC5602 1 ON/OFF2 2 VAR2 3 VOUT2 4 SW-Node2 6 GND 7 N.C. 8 GND 9 VIN 10 N.C. 11 GND 12 SW-Node1 13 VOUT1 14 VAR1 15 ON/OFF1 16 N.C. MAIN9V C5616 25V 0.1u C5648 50V 0.01u C5622 16V 470u SUB9V C5612 16V 470u TPS5 L5615 15u D5612 B0BC3R700006 MAIN3.3V SUB3.3V MAIN9V SUB5VA SUB9V TP5617 TP5615 TP5616 MAIN1.8V SUFFIX AF SUB5V(0.63A) SUB9V(1.3A/0.766A) Tuner_Main_ON SUB_9V(1.7A) MAIN5V(0.37A/0.46A) ODU +B 17.5V / 0.27A TUNER_SUB_ON MAIN3.3V(1.55A/1.847A) PA_SOS SCL1(Main3.3V) SDA1(Main3.3V) MAIN_3.3V(1.55A) ODU_ON/OFF MAIN1.8V SUB9V(1.3A/0.766A) MAIN3.3V(1.55A/1.847A) MAIN_5V MAIN_3.3V SUB_5V MAIN_5V(0.37A) HP_R HP_L GND SUB_5V(1.0A) FAN_CONT FAN_SOS MAIN_1.8V (1.2A) MAIN_9V(0.1A) AMUTE HP_MUTE SOUND_SOS MAIN9V(0.1A/NC) MAIN1.8V SR SL 8 12 11 15 13 10 14 9 SUB9V(1.3A/0.766A) SUB5V(0.63A) MAIN5V(0.37A/0.46A) MAIN3.3V(1.55A/1.847A) SUB_5V SUB_9V MAIN_5V SUB_3.3V MAIN_9V MAIN3.3V 15V 15V PA 20 PA 40 SUB_5V H-BOARD TO (H40) TO DG-BOARD (DG20) AVR 1.8V/3.3V STB_5V STB_5V 15V 5 1 4 7 13 8 10 15 3 2 16 11 12 14 6 9 31 32 33 34 35 AVR 3.3V PA-BOARD TNPA3761AF(2/3) TH-42PV600C PA-Board (2 of 3) Schematic Diagram TH-42PV600C PA-Board (2 of 3) Schematic Diagram 78 14.13.PA 电路板 (3/3) 线路图 + Thermal Pad + + + + + + Thermal Pad MAIN_9V +15V MAIN_9V Q2301 B1ABCF000138 R2406 4.7k C2391 1u 10V R2350 100 R2354 10k R2357 0 R2391 2.8k C2416 50V 0.01u IC2307 C0ABBA000168 1 2 3 4 5 6 7 8 C2351 10k R2415 330 R2424 787 C2322 1u 10V C2336 0.47u 50V R2396 1.65k PA1 1 2 3 4 R2407 1.24k C2333 25V 470u R2341 0 L2302 G0C330MA0049 R2422 787 R2421 1.62k R2397 0 R2404 330 R2313 2.2k IC2301 C0ABBA000168 NJM2904M(TE1) 1 2 3 4 5 6 7 8 R2311 C2320 1u 10V R2347 C2331 1u 25V C2418 10u 6.3V C2349 1u 10V C2387 1u 10V C2380 50V 0.01u R2352 0 R2419 1.5k C2334 0.1u 25V C2313 0.039u 16V R2323 0 L2304 G0C330MA0049 D2309 MA2J11100L C2312 8200p 50V R2325 10k L2307 G0C330MA0049 R2306 22k R2423 1.5k C2360 1u 25V R2312 10k C2374 10V 1u C2351 1u 10V R2308 22k R2384 715 C2328 1u 25V R2309 22k R2398 0 R2332 10k R2412 330 Q2303 B1ABCF000138 C2324 0.22u 25V 2SA207700L Q2308 R2410 787 C2353 0.22u 25V R2303 43k R2364 47k C1AB00002452 IC2303 1 NC 2 RINN 3 RINP 4 AGND 5 LINP 6 LINN 7 NC 8 GAIN0 9 GAIN1 10 MSTR/NSLV 11 SYNC 12 NC 13 NC 14 ROSC 15 VREG 16 VBYP 17 AGND 18 BSLP 19 LOUTP 20 LOUTP 21 LOUTN 22 LOUTN 23 BSLN 24 NC 25 NC 26 PVCCL 27 PVCCL 28 PGNDL 29 PGNDL 30 VCLAMPL 31 VCLAMPR 32 PGNDR 33 PGNDR 34 PVCCR 35 PVCCR 36 NC 37 NC 38 BSRN 39 ROUTN 40 ROUTN 41 ROUTP 42 ROUTP 43 BSRP 44 NSHUTDOWN 45 MUTE 46 FAULT 47 NC 48 AVCC C2366 0.22u 25V R2408 1.07k C2309 8200p 50V C2354 0.1u 25V C2385 1u 10V Q2305 B1ABCF000138 C2346 1u 10V Q2304 B1ABCF000138 C2370 10u 25V C2402 10u 6.3V C2335 0.1u 25V R2356 2.2k C2330 1u 25V R2362 15k C2368 0.1u 16V C2362 25V 470u R2363 470 C2381 50V 0.01u R2305 22k C2321 0.01u 50V C2325 0.1u 25V C2417 10u 6.3V R2367 680 C2373 50V 0.1u C2371 1u 25V C2326 0.1u 25V C2327 0.47u 50V R2366 4.7k 2SA207700L Q2306 L2305 G0C330MA0049 C2338 0.22u 25V R2392 1.65k C2404 1u 10V R2372 10k R2405 330 C2382 1u 16V IC2306 C0ABBA000168 1 2 3 4 5 6 7 8 C2395 1u 16V C2389 1u 10V R2411 330 C2394 1u 16V C2317 1u 10V R2349 100 C2304 50V 0.01u R2373 10k R2301 1k R2346 R2402 330 R2342 0 R2420 787 C2301 25V 470u R2368 0 R2304 22k C2314 1u 16V C2307 0.082u 16V L2301 G0C330MA0049 2SA207700L Q2307 R2361 5.6k C2367 0.22u 25V R2329 100k L2306 G0C330MA0049 C2363 0.1u 25V PA5 1 2 3 4 5 6 7 8 9 10 11 C2356 0.47u 50V R2395 2.8k R2360 10k R2409 1.62k R2374 680 C2364 0.1u 25V R2413 4.7k IC2300 C0ABBA000168 NJM2904M(TE1) 1 2 3 4 5 6 7 8 C2355 0.1u 25V C2311 8200p 50V C2305 50V 0.01u R2418 1k MAIN9V R2377 0 R2388 3.74k L2300 G0C330MA0049 Q2302 B1ABCF000138 C2393 1u 16V R2376 10k C2350 0.01u 50V C2369 0.1u 16V C2323 0.22u 25V C2332 25V 470u R2414 330 R2307 43k D2308 MA3X152E0L R2387 715 R2353 10k 2SA207700L Q2309 C2352 0.22u 25V C2401 1u 10V C2405 10u 6.3V C2342 1u 25V C2358 1u 25V R2358 0 C2302 16V 100u R2403 4.7k R2314 2.2k PA2 1 2 3 4 5 C2329 1u 25V C2308 8200p 50V R2383 3.74k R2378 0 R2348 100k C2359 1u 25V C2306 0.082u 16V R2343 0 R2324 0 L2303 G0C330MA0049 R2328 0 IC2304 C0ABBA000168 1 2 3 4 5 6 7 8 C2310 0.039u 16V R2300 1k R2401 330 C2361 25V 470u C2303 16V 100u R2416 4.7k L2308 3.9u R2310 1.5k Q2300 2SA207700L C1AB00002451 IC2302 1 NC 2 RINN 3 RINP 4 AGND 5 LINP 6 LINN 7 NC 8 GAIN0 9 GAIN1 10 MSTR/NSLV 11 SYNC 12 NC 13 NC 14 ROSC 15 VREG 16 VBYP 17 AGND 18 BSLP 19 LOUTP 20 LOUTP 21 LOUTN 22 LOUTN 23 BSLN 24 NC 25 NC 26 PVCCL 27 PVCCL 28 PGNDL 29 PGNDL 30 VCLAMPL 31 VCLAMPR 32 PGNDR 33 PGNDR 34 PVCCR 35 PVCCR 36 NC 37 NC 38 BSRN 39 ROUTN 40 ROUTN 41 ROUTP 42 ROUTP 43 BSRP 44 NSHUTDOWN 45 MUTE 46 FAULT 47 NC 48 AVCC C2337 0.22u 25V IC2305 C0ABBA000168 NJM2904M(TE1) 1 2 3 4 5 6 7 8 R2302 22k C2396 1u 16V R2359 2.2k R2355 2.2k C2357 1u 25V C2365 0.47u 50V C2341 10u 25V R2417 1.24k C2403 50V 0.01u ZA5601 K4CZ01000027 ZA5600 K4CZ01000027 SQ_AMP SQ_HPF TO SQUAKER SQ-R SQ_L+ SQ_R- SQ_L- SQ-L MAIN9V - GND L MAIN_9V - 600Hz HPF - W_L - GND L VCC 120Hz LPF TO WOOFER/SPEAKER SQ_L 15V GND (W-R & W-L) +15V SQ_R +15V - GND GNDs GNDs R GNDs +15V W_R+ +15V W_R W_R- - W-L NC GND W_L+ W-R W_L- VCC VCC VCC + + L R SQUAWKER for 600 series + L + GND +15V - - + + R R + + SQ_R+ (SQ-R & SQ-L) + L R - - + GND VCC + VCC + R - GND - L SOUND_SOS 23 22 18 19 17 21 16 20 15V 15V TO P-BOARD (P5) OP AMP SPEAKER AMP SQUAKER AMP 34 31 33 35 32 15.0 0 0 0 0 15.0 0 15.0 15.0 15.0 15.0 EQUALIZER AMP OP AMP PA-BOARD TNPA3761AF(3/3) EQUALIZER AMP TH-42PV600C PA-Board (3 of 3) Schematic Diagram TH-42PV600C PA-Board (3 of 3) Schematic Diagram 1.5k 1.5k 1.5k 79 14.14.H 和 TA 电路板方框图 PR PB Y PR AV2 V L C R R L Y R L V AV3 R V V AV1 L MONITOR OUT PB Y RED WHITE AV1_R AV1_YSW AV2C_PR AV2_R AV3_V AV1_L AV2C_Y AV2C_PB AV2C_YSW AV3_L AV2_L AV3C_YSW AV1_V AV1_C AV3_R AV3C_PR AV3C_PB AV3C_Y AV2_V AV1_Y PC_R PC_H PC_B PC_G PC_V RIN LIN AV3C-YSW MAIN_R AV3C_PR TV_R AV2_L AV3C_PB SD_A_LO RIN SUB_PB HDMI_L HDMI_R MAIN_R SUB_PR SD_MONO_IN AV4_V AV4_Y AV2_R TV_L AV4_R SD_A_RO AV1_L AV2C_PB AV3_R AV4_C AV4_S AV2C_PR AV2C_YSW AV2_V R_OUT AV1_YSW L_OUT AV3_L AV4_L MAIN_L R_OUT AV1_C SD_V AV1_R L_OUT SUB_Y AV1_Y LIN MAIN_L AV1_V TV_R TV_L PC_B PC_G HP_ROUT HP_LOUT RMCN KEY1 G_LED AI_SENSOR STBY_LED HDMI_SR HP_ROUT AV4_R PC_V STBY_LED RMIN AV4_Y HDMI_SL PC_R G_LED KEY1 AV4_C HP_LOUT AI_SENSOR AV4_L AV4_S PC_H KEY_EDGE KEY_EDGE AV4_V M_SW2 M_SW1 S_SW2 S_SW1 M_SW2 AFC1 AFC2 S_SW2 S_SW1 M_SW1 MAIN_Y MAIN_CVBS MAIN_PR MAIN_PB MAIN_PR SUB_PR SUB_PB MAIN_Y MAIN_CVBS MAIN_PB SUB_Y SD_A_RO SD_A_LO SD_V SD_MONO_IN AFT1 AV3_V AV3C_Y AV2C_Y AFC2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 JK3100 Y-SW Y G PB PR V L R-SW R G Y-SW Y G PB PR V L R-SW R G C Y G Y-G C-G G V L R-SW R G V L R G D3022 SUB5V_MSP SUB5V BT30V SUB8V D3021 Q3008 D3023 BT30V SUB5V SUB5V SUB5V SUB3.3V SUB9V SUB9V SUB9V SUB5V RFAGC2 SUB_SW1 SUB_SW2 SUB5V MAIN_SW2 RFAGC1 SIF SDA0B TV_V1 AFT1 SCL0B BT30V AFT2 TV_V2 MAIN_SW1 SUB5V 3 1 TA5 6 8 9 11 13 14 15 2 TA6 6 8 11 12 13 15 S-DATA MAIN TUNER AFAGC 5 17 8 12 AFT 14 SIF TU001 VIDEO TA SW1 TUNER 11 6 SW2 10 S-CLOCK 3 BM 15 BTL Q002 Q003 15 AFAGC 5 17 8 12 AFT TU002 VIDEO SW1 11 6 SW2 10 S-CLOCK 3 SUB TUNER BM S-DATA BTL AV TERMINAL H JK3001 PC IN Q3333 Q3332 Q3331 PC_R PC_G AUDIO VIDEO SWICTHING MSP PC_L PC_R JK2003 Q2103 Q2102 PC_B 5 AUDIO IN Q3002 IC3301 3 Q2001 Q2002 6 2 H6 6 11 8 9 1 12 13 14 H5 15 15 11 2 8 13 3 6 STB 5V 5 MAIN 3.3V SUB 9V TO PA30 13 7 3 SUB 9V SUB 5V 11 SUB 3.3V MAIN 9V STB 5V SUB 3.3V 15 9 MAIN 3.3V SUB 5V A_MUTE MAIN 9V SUB 5V 1 H40 9 R5 OUT 48 IN IN HP OUT HDMI SDA OUT SCL IN 56 IC3005 35 9 SELECT 25 36 DAC C/PBOUT1 SC1IL IC2105 MAIN AUDIO SW 10 PROCESSING SDA0B 25 SCL0B 24 + ANA IN+ - IN 22 SC2OR VOUT5 PB2 33 IN 42 AV1 PROUT2 44 L4 34 SD SC2OL R4 - VIDEO SW OUT PR2 5 V3OUT CY2 3 Q2105 SOURCE AV4 53 1 56 IN HEADPHONE Q3015 Q2104 LOUDSPEAKER DACM R Q3014 V4 V1 18 7 Y1 Q3011 IN + Q3017 3 41 DAC PROCESSING Q3023 57 54 R C1 IN L Q2106,Q2108 DAC SIF TRAP 55 ADC S-1 TV OUT 37 SUB9V SURROUND IN AVR 8V VAO Q3210 SOUND 1 3 19 IC2103 R9 CY1 SELECT IN L9 16 OUT SD MAIN IN 17 SUB8V SC1OL 19 36 14 21 25 15 RESETQ 26 IC2106 1 SC1OR DACA L DACM L S-3 2 AUDIO OUT PR1 SELECT PB1 3 SP OUT 4 ROUT4 20 7 17 28 8 DACA R 32 LOUT4 24 SC1IR 33 OUT ADC SOUND L8 SD DE- MODULATOR MONITOR R8 S-2 13 OUT 60 VOUT4 L7 2 16 R7 27 TV(M) 38 L1 V6 XIN R1 72 PRE- PROCESSING L2 67 PB/COUT2 AV2C R2 SD-V XOUT C3 IN 71 3 L3 64 INPUT X2101 SDA0B V7 63 14 IC2104 46 R3 V/YOUT2 TV IN AUDIO OUTPUT Y3 IN 45 V2 V3 TV 58 1 IN V8 V/YOUT1 AV1 AV3 SCL0B IN IN MSP SDA AV2 AV2 PRESCALE 50 IN IN AV3C PDD1 AV4 AV3 SUB SCL 2 IN PROUT1 TV(S) 11 MAIN OUT 10 ROUT2 L5 LOUT2 49 SUB 3.3V SDA0B 36 14 9 PC_B SOS 38 18 SCL0B KEY_EDGE SDA0B 25 MSP_RESET H51 TO DG1 8 STB 5V KEY_EDGE AV4_Y STB 5V AV4_S MAIN_L 4 52 4 PC_H STB 3.3V SCL0B 9 AI_SENSOR 10 HDMI_SL 20 8 22 3 65 66 MAIN Y/CVBS 32 PC_V 7 6 27 G_LED 76 PC_R 34 KEY1 PC_G SR 8 SR TO DG2 7 12 H2 19 54 STB 3.3V SUB 5V 18 RMIN 1 7 10 MAIN_R AV4_V STBY_LED MAIN PR KEY1 1 20 SL SUB 5V 13 MAIN PB RMCN G_LED TO G51 16 6 80 H1 HDMI_SR AFC1 29 17 AV4_R AI_SENSOR 14 STBY_LED AV4_L AV4_C SUB 3.3V SL 30 73 IN1 3 7 5 IC2109 OUT2 IN2 OUT1 HP AMP 1 49 +8V MAIN_CVBS 24 26 28 SUB_PB SUB_PR SUB_Y 68 69 72 71 MAIN_SW1 SUB_SW1 SUB_SW2 MAIN_SW2 STB 5V 78 STB 5V Q2113 Q2114 SHORT SOS DET AGC2 AGC1 1 FOR USE FACTORY 2 H15 14 AFC2 SCL0B SDA0B Q5614 EXT SUB 9V AVR BT30V 1 BT30V VDD IC5603 5 2 VOUT Q3204 Q3205 Q3206 Q3207 2 3 4 1 SD_RX SD_TX SD_IRQ SD_RST +5V MUTE CCT Q2301 AUDIO MUTE Q2302 Q2314 Q2315 77 RESET Q2316 Q2300 74 SP MUTE STB 5V Q2112 75 MUTE CCT V DET MUTE SW Q2317 MUTE 2 SD TX SUB5V SD_AUDIO_LOUT SD RX TO G5S2 SUB5V SUB3.3V SD RST SD V-IN SD IRQ SD V-OUT SD_AUDIO_ROUT SD_MONO_IN 1 H52 3 5 7 9 11 13 14 12 16 18 20 Q2012 Q2011 Q2013 STB5V 36 SCL SCL0B SDA0B 35 SDA 4 Y4 Y2 59 5 VCC VCC 7 VCC 39 VCC 8 VCC 8 TH-42PV600C H and TA-Board Block Diagram TH-42PV600C H and TA-Board Block Diagram 80 14.15.G，GK，HC 和 K 电路板方框图 R V L Y C R G C Y G CY-G G R2 R1 T NC1 SW1 NC2 SW2 R-SW R R-G L L-G V-SW V V-G NC3 SW3 IC2511 D2520 SW3754 +/ SW3757 SW3755 F SW3753 -/ STR TV/AV SW3756 STB3.3V AI SENSOR SUB5V K1 5 RM2501 Q2511 8 2 6 ON/OFF REMOTE RECEIVER/LED 9 VCC Q2510 REMOCON RECEIVER K VOUT RM_IN 8 G1 9 2 6 5 G3 2 KEY1 GK3 FRONT TERMINAL G KEY SWITCH GK 2 G LED 11 11 1 1 KEY2 POWER LED R_LED_ON /STBY_LED /KEY_EDGE TO H51 AV3_S G51 KEY_EDGE V_DET RM_IN KEY1 AI_SENSOR STB3.3V SUB5V AV4_C AV4_Y AV4_V AV4_L AV4_R 14 4 22 8 25 29 20 18 24 6 27 7 10 9 1 R_LED_ON /STBY_LED G LED S-VIDEO COMPOSITE HEADPHONE JK3701 AV4 IN MAIN_R 17 19 MAIN_L AI SENSOR Q2513 ON/OFF AI SENSOR 21 10 MAIN ROUT DEVICE HC01 HC22 FACTORY IIC1 6 7 SD_RX 9 12 5 1 OUTPUT OF DVB 2 SUB5V IIC2 SDA0A SRQ1 17 SDA0A SD_RX SCL1 15 SD_TX SCL0B SCL0B 14 HC21 6 1 2 2 16 12 4 13 FACTORY STB5V 6 14 9 SRQ SCL0A HC12 5 10 SDA0A 7 TO DG15 11 1 18 17 HC15 40 38 15 D_STB3R3V JIG CONNECTION D_IIC_CONT D_SDA2 35 IIC0 USE D_SCL2 36 34 33 D_TXD EEPROM ROUT D_RXD 29 19 26 D_PSTB 28 SUB ROUT DEVICE D_PBUSY 31 D_PDB1 8 D_IIC_INT + PANEL MICOM D_PSLCT D_PDB0 32 27 SCL1 REMOCON SDA1 G_LED SDA2 23 SCL2 22 20 5 4 25 IIC0B SDA0B D15V INPUT TO DVB SCL0A 1 STB5V SCL0B SRQ FACTORY SRQ 24 USE 19 STB5V 9 R_LED FOR 5 SDA1 SCL0A 11 11 18 4 SCL2 SDA2 USE 8 SDA0A FOR 6 HIGH SPEED DEVICE ROUTE SD_TX FOR 8 HC 2 FACTORY USE FOR 8 SDA0B SCL2 9 7 SDA2 7 SDA0A 6 SCL0A TH-42PV600C G, GK, K, nad HC-Board Block Diagram TH-42PV600C G, GK, K, and HC-Board Block Diagram 81 14.16.H 电路板 (1/3) 线路图 + + PR PB Y PR AV2 V L C R R L Y R L V R V V AV1 L MONITOR OUT PB Y NP RED WHITE + NP + NP PC_R PC_B PC_GND_R PC_GND_G PC_RIN PC_G PC_GND_B AUDIO_MUTE A_AV3_L A_AV2_L A_AV1_L AV3_R AV2C_Y A_AV2_R AV2C_YSW A_AV1_RSW AV3_L AV3_V AV1_R A_LOUT A_AV3_L AV3C_PR AV1_V A_ROUT A_AV3_R AV3C_PB AV3C_YSW A_AV1_L AV3C_Y A_AV2_L A_AV1_R A_AV3_RSW AV1_S A_AV2_RSW A_AV2_R AV1_Y AV2_V AV1_L A_LOUT A_AV3_R AV1_C AV2_R A_AV3_RSW AV2C_PR A_AV2_RSW A_AV1_R AV2_L A_AV1_RSW AV2C_PB A_ROUT A_AV1_V AUDIOOUT_L AUDIOOUT_R PC_LIN PC_V PC_H D3047 MAZ81400ML *Q3331 2SC24800VL JS3011 0 C2011 50V 560p JS2022 D3046 MAZ81400ML *R3338 100 *JS3310 0 L2016 J0JCC0000100 D3042 MAZ81400ML Q2001 B1ABDF000034 *D3338 MA2J11100L R3323 0 R3324 0 SUB5V C2017 50V 560p 1% R3001 75 *R3344 100 1% *R3318 75 C2010 50V 560p *R3350 51 D3043 MAZ81400ML *C3340 50V 0.1u *R3349 68 C2013 50V 560p *FL3303 J0HABB000004 1 2 3 4 Q2002 B1ABDF000034 C2021 560p 50V *R3346 47k *R3342 18k C3005 50V 0.1u 1% *R3313 75 Q3002 2SA207700L C2019 16V 220u 1% R3008 75 R2049 10k C0JBAZ002205 *IC3301 1 /1OE 2 1A 3 2Y 4 GND 5 2A 6 1Y 7 2OE 8 Vcc L2012 J0JCC0000100 C3069 25V 470u *C3339 16V 0.1u R3011 0 JS2031 JS3014 0 JS3015 0 *R3317 10k L2004 J0JCC0000100 R3320 0 L2002 J0JCC0000364 *JS3309 0 R2046 10k JK3100 TJB0A639 Y-SW Y G PB PR V L R-SW R G Y-SW Y G PB PR V L R-SW R G C Y G Y-G C-G G V L R-SW R G V L R G D3017 MAZ81400ML *R3351 51 R2016 330 *FL3301 J0HABB000003 1 2 3 4 *JK3001 K1FB315A0005 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 SUB9V_VIDEO L2008 J0JCC0000100 R2010 22k 1% R3027 75 *C3335 16V 0.1u *C3331 50V 0.01u *Q3333 2SC24800VL 1% R3002 75 *R3341 47k JS3010 0 C3060 16V 1u 1% R3004 75 *C3334 47u 16V JK2003 K2HA204A0038 R2013 2.2k STB+5V *R3347 470 *R3343 470 D2014 MA2J11100L R2043 47k *C3330 16V 47u D3003 MAZ81400ML D3100 MAZ81400ML *D3335 MA2J11100L 1% R3006 75 1% R3010 75 R2011 22k R2054 10k R2014 2.2k JS3012 0 R2005 100k R2012 100k MAIN9V *R3352 51 *R3345 18k D3048 MAZ81400ML *R3305 100 *JS3307 0 1% R3020 22k R3408 360 JS2021 *C3338 47u 16V D2013 MA2J11100L L2015 J0JCC0000100 L3001 J0JCC0000100 *C3332 50V 0.1u D3049 MAZ81400ML R2050 10k *R3308 0 STB+5V L3013 J0JCC0000100 D3006 MAZ81400ML *C3305 16V 0.1u R2006 22k *FL3304 J0HABB000004 1 2 3 4 *D3339 MA2J11100L D3041 MAZ81400ML C2014 50V 560p L2003 J0JCC0000100 D3039 MAZ81400ML D3038 MAZ81400ML *JS3308 0 JS2032 *R3302 100 *C3337 16V 0.1u *R3336 47k R2042 1M D3045 MAZ81400ML *D3334 MA2J11100L *FL3302 J0HABB000003 1 2 3 4 C2020 50V 22u R2051 180k *R3340 100 *R3309 0 R2048 470 *C3341 50V 0.1u JS3013 0 R2009 22k Q2013 2SA207700L R3409 360 L2001 J0JCC0000364 R3039 220 *C3342 50V 0.1u R2007 22k 1% *R3310 75 MAIN9V_PC *R3337 18k R2045 10k R2044 1k R3134 100k R2015 330 D3040 MAZ81400ML L3003 J0JCC0000100 R3022 10k *JS3311 0 D2011 MA2J11100L R2052 180k 1% R3003 75 *R3312 10k R3021 10k 1% R3005 75 D2012 MA2J11100L *R3339 470 1% R3009 75 C2022 560p 50V L3010 J0JCC0000100 D3005 MAZ81400ML L2011 J0JCC0000100 R2053 470 Q2011 2SA207700L C2016 50V 560p *R3330 0 R2008 22k *D3336 MA2J11100L C2006 50V 560p *JS3312 0 C2005 50V 560p L2007 J0JCC0000100 Q2012 B1ABDF000034 *D3337 MA2J11100L *Q3332 2SC24800VL *R3348 68 1% R3012 75 MAIN3.3V *FL3305 J0HABB000004 1 2 3 4 *C3336 47u 16V 1% R3007 75 L3002 J0JCC0000100 JS2033 B PC IN R G AV3 AUDIO IN BUFFER ! H-BOARD TNPA3760 (1/3) D F 9 4 3 E 8 B 1 A 2 7 5 6 C 1 4 2 3 5 *R3307 4.7k *R3306 4.7k = = TH-42PV600C H-Board (1 of 3) Schematic Diagram TH-42PV600C H-Board (1 of 3) Schematic Diagram 82 14.17.H 电路板 (2/3) 线路图 + + + + + + NP + + + + + + + + + + NP + + + RST TV_L AV1_R SDA0B TV_R AV2C_YSW AUDIO_MUTE VOUT3 AV4_R AV2_R SDA0B VOUT5 AV3C_YSW SCL0B AV4_Y SD_V_OUT SD_AUDIO_GND AV4_VGND SUB_PR_OUT HP_LOUT HDMI_SL AV4_S AV2_L SCL0B SUB_PB_OUT MAIN_RF_CVBS HDMI_SR AV4_C TV_L SD_AUDIO_R_OUT SUB_Y_OUT SL_GND HP_ROUT AV_L AV2C_Y SD_AUDIO_GND SR_GND MAIN_PR_OUT AV_R AV1_V MAIN_Y_OUT AV4_YGND AV4_CGND MAIN_PB_OUT AV3_R AV1_S MSP_RESET SP_MUTE SD_AUDIO_L_OUT AV3_L AV1_L PC_RIN AV4_L PC_LIN TV_R AV3C_Y AV2C_Y AV2C_PR AV1_Y AV1_C SUB_RF_CVBS SCL0B AV2C_PB AV3C_PB AV3C_PR AV2_V AV3C_Y AV3_V MAIN_RF_GND SUB_RF_GND SUB5V_MSP SR SL SD_MONO_IN AV_R AV_L AMUTE SDA0B SUB9V AV4_V AUDIOOUT_L AUDIOOUT_R STB+5V R2188 10k C2177 50V 0.01u C2165 16V 1u C2169 16V 1u C2200 50V 47p L2112 J0JCC0000241 C2240 50V 0.01u R3059 220 *C3029 16V 1u R3064 220 C2201 50V 3p *C2236 16V 47u R2184 220 R2172 220 R2170 220 C3053 50V 0.01u R3100 220 C3046 50V 0.01u R3095 220 *R2139 220 *R2214 3.3k C2192 16V 10u *R2203 100 C3065 50V 0.01u C2238 50V 0.01u C2163 16V 1u SUB5V 1% *R3233 75 C2189 16V 1u C3058 25V 470u C2196 50V 0.1u *Q2108 B1ABDF000034 JS2108 C2199 50V 56p JS2026 R2152 22 C2150 16V 1u R2181 0 C2195 50V 47p C2134 50V 47p *C2232 1u 6.3V C2164 16V 1u R2132 33k R3113 0 C2152 16V 1u C3040 16V 0.1u 1% R2138 10k L3026 J0JCC0000100 *IC2106 C1AB00002469 1 NC 2 I2C_CL 3 I2C_DA 4 I2S_CL 5 I2S_WS 6 I2S_DA_OUT 7 I2S_DA_IN1 8 I2S_DEL_IN 9 I2S_DEL_OUT 10 I2S_DEL_CL 11 I2S_DEL_WS 12 DVSUP 13 DVSUP 14 DVSS 15 DVSS 16 DVSS 17 IS2_DA_IN2 18 NC 19 I2S_CL3 20 I2S_WS3 21 RESETQ 22 I2S_DA_IN3 23 I2S_DA_IN4 24 DACA_R 25 DACA_L 26 VREF2 27 DACM_R 28 DACM_L 29 DACM_C 30 DACM_SUB 31 DACM_SR 32 DACM_SL 33 SC2_OUT_R 34 SC2_OUT_L 35 VREF1 36 SC1_OUT_R 37 SC1_OUT_L 38 CAPL_A 39 AHVSUP 40 CAPL_M 41 SC3_OUT_R 42 SC3_OUT_L 43 AHVSS 44 AHVSS 45 AGNDC 46 NC 47 SC4_IN_L 48 SC4_IN_R 49 ASG 50 SC3_IN_L 51 SC3_IN_R 52 ASG 53 SC2_IN_L 54 SC2_IN_R 55 ASG 56 SC1_IN_L 57 SC1_IN_R 58 VREFTOP 59 SC5_IN_L 60 SC5_IN_R 61 AVSS 62 AVSS 63 NC 64 NC 65 AVSUP 66 AVSUP 67 ANA_IN1+ 68 ANA_IN- 69 ANA_IN2+ 70 TESTEN 71 XTAL_IN 72 XTAL_OUT 73 TP 74 AUD_CL_OUT 75 NC 76 SPDIF_OUT 77 D_CTR_I/O_1 78 D_CTR_I/O_0 79 ADR_SEL 80 STANDBYQ C2130 10V 1u *R3073 220 C2141 50V 0.01u R3111 0 C2147 50V 22u Q2113 B1ABDF000034 SUB8V Q2114 B1ABDF000034 Q2300 B1ABDF000034 *R3222 0 C2179 16V 10u R2158 220 C2139 50V 0.01u R2156 220 R2127 4.7k R3094 220 R2239 0 R2185 220 *R3070 1k *L2179 J0JCC0000241 Q2104 2SA207700L C2191 50V 0.1u C2173 50V 0.01u R3096 0 D2301 MA2J11100L *R2204 560 *R2162 220 R3167 1k R3060 220 C2154 50V 0.1u R3112 0 R2195 100k C3048 50V 0.01u *C2125 50V 1000p C2111 50V 0.1u *R2219 100 R2302 22k R2168 4.7k 1% R2131 8.2k R3090 22 SUB5V D2300 MA2J11100L C2184 50V 0.1u JS3023 SUB5V C3056 10V 1u *IC2109 C1BB00000947 1 OUT1 2 MUTE 3 IN1 4 GND 5 IN2 6 BIAS 7 OUT2 8 VCC C2223 50V 39p R2338 0 *C2227 16V 100u X2101 H0J184500027 L2111 J0JCC0000241 *R2211 0 C2237 50V 0.01u 1% R2130 10k R2177 220 *C2222 50V 0.1u C3038 16V 0.1u C2226 50V 1000p C3049 10V 1u R3061 0 *C3031 10V 1u C2172 50V 1000p SUB9V R2393 10k R2133 0 R2392 22k *C2155 16V 1u C2119 16V 47u R2114 0 *C2211 16V 0.1u C3033 10V 1u 1% R2147 10k C2127 16V 100u L2182 J0JCC0000241 *C2235 1u 6.3V C2225 16V 1u L2205 J0JCC0000241 *C2231 47u 16V STB+5V *L2178 J0JCC0000241 SUB8V Q2103 2SA207700L *R3068 75 1% L2117 G0C6R8K00002 Q2105 2SA207700L R2193 220 C2198 6.3V 100u *R2209 3.3k C2171 50V 1000p *C2228 50V 0.01u C3025 10V 1u *C2243 16V 47u R2186 220 *R2157 220 R2389 1k R3099 220 C3039 50V 0.01u R2137 33k *D3052 MAZ81400ML C2131 50V 0.1u C2142 50V 0.01u R3075 220 *C2135 16V 1u R2304 100k Q2315 B1ABDF000034 C2170 50V 1000p AN7705SP-E1 *IC2110 OUT 3 2 COMMON IN 1 R2187 220 PA3100 K5H1622A0023 C2175 50V 0.01u *Q2106 B1ABDF000034 C3051 50V 0.01u R2224 0 R2237 10k C2132 16V 10u C2197 6.3V 2.2u R2305 470 R2225 0 *C2230 16V 100u C3055 10V 1u R2116 J0JCC0000241 *C2157 16V 1u *R2230 100k *C3027 10V 1u Q2102 2SA207700L C2133 50V 47p C3023 10V 1u R2165 1k C2203 50V 10p R3092 220 *C3028 10V 1u C3036 50V 0.01u C2140 50V 0.01u *C3030 16V 0.1u *C2136 16V 1u SUB5V R2182 100 *R2227 0 *R2213 10k D2303 MA2J11100L L2110 J0JCC0000100 D2119 B0BC01100001 R3114 0 *R2128 100 R2388 1k L2184 J0JCC0000241 R2235 10k R2197 470 R2171 220 *R2233 15k L2123 J0JCC0000241 L2107 J0JCC0000100 C2372 50V 10u R2238 0 C2159 16V 1u R2167 220 C2161 16V 100u *C2213 0 *D3051 MAZ81400ML R3101 220 C0ABBA000168 IC2104 1 2 3 4 5 6 7 8 C3050 10V 1u C2146 50V 0.1u C2174 50V 1000p *R2232 15k SUB5V_MSP *R3045 0 AN15862A-VT IC2105 1 L1 2 R1 3 L2 4 R2 5 VCC 6 L3 7 R3 8 L4 9 R4 10 L5 11 R5 12 L6 13 R6 14 L7 15 R7 16 L8 17 R8 18 L9 19 R9 20 L10 21 R10 22 O1 23 LOUT5 24 ROUT5 25 LOUT4 26 ROUT4 27 LOUT3 28 ROUT3 29 GND 30 LOUT2 31 ROUT2 32 LOUT1 33 ROUT1 34 ADR 35 SCL 36 SDA 37 O2 38 BIAS 39 L11 40 R11 41 L12 42 R12 43 L13 44 R13 R2169 4.7k R3097 220 L2187 J0JCC0000241 R3044 0 Q2302 B1ABDF000034 L2204 0 *C3045 10V 1u C2204 50V 22p *C3042 10V 1u R3080 0 C3052 50V 0.01u *R2129 100 *R2159 220 *D3050 MAZ81400ML D3024 B0BC01100001 R2399 1k C2307 16V 100u *C2234 50V 1000p R2306 820 R3074 220 L2108 J0JCC0000241 R2155 220 L2115 J0JCC0000241 IC3005 AN15867A-VT 1 C3 2 S-3 3 V4 4 Y4 5 PDD2 6 C4 7 VCC1 8 C5 9 PDD1 10 V5 11 Y5 12 GND1 13 V6 14 V7 15 V8 16 V9 17 CY1 18 SPD1 19 PB1 20 PR1 21 IPD1 22 CY2 23 APD1 24 PB2 25 PR2 26 SPD2 27 CY3 28 IPD2 29 PB3 30 PR3 31 APD2 32 CY4 33 PB4 34 PR4 35 SDA 36 SCL 37 VOUT6 38 VOUT4 39 VCC2 40 COUT3/VOUT7 41 VOUT3 42 YOUT3/VOUT5 43 GND2 44 PRout2 45 PBout2/Cout2 46 CYout2/Yout2/Vout2 47 DCOUT 48 PRout1 49 PBout1/Cout1 50 CYout1/Yout1/Vout1 51 VOUT 52 SA1 53 V1 54 Y1 55 S-1 56 C1 57 SA2 58 V2 59 Y2 60 S-2 61 C2 62 SA3 63 V3 64 Y3 SUB9V_VIDEO C3067 50V 0.01u Q2301 2SD0601ASL R2153 220 R2396 10k D2304 MA2J11100L C2143 50V 0.01u L3000 G0C101K00023 *R3062 220 C2430 10V 1u C3035 10V 1u C2128 50V 0.1u SUB9V C3054 10V 1u C2162 16V 1u R2310 180k C2168 16V 1u JS2109 0 C2239 50V 0.01u R3076 0 R2236 10k R2164 220 R3174 220 *R3072 220 *R2215 0 *R2160 220 *R2140 220 C2148 16V 1u R2390 20k MAIN9V Q2314 B1ABDF000034 R2303 5.6k *L2118 EXCELDR35V 1% *R3234 75 PA2055 K5H1622A0023 L2206 J0JCC0000241 C3022 10V 1u L2109 J0JCC0000100 R2307 100k JS2124 0 C2116 50V 0.1u L2183 J0JCC0000241 C3026 50V 0.01u C2153 16V 4.7u C2202 50V 5p L2186 J0JCC0000241 C2178 16V 10u R2173 220 L3009 J0JCC0000100 Q2317 B1ABDF000034 C2185 50V 0.1u R2154 22 R3057 0 R3087 220 R3058 0 R2234 10k *R3176 220 C2129 10V 1u C2118 16V 47u C2176 50V 0.01u 1% R2149 63.4k JS2123 0 C2190 16V 1u C3075 16V 220u C3043 10V 1u C2149 16V 1u R2176 220 *C2217 1u 6.3V C3041 50V 0.01u C3047 10V 1u R2196 100k *R2220 15k R2397 47k C3021 10V 1u R2183 100 R2311 1.8k R3175 220 R2166 1k R2400 1.8k SUB9V_VIDEO L2185 J0JCC0000241 C2160 16V 1u R2391 10k *R3063 220 *JS3029 *R2231 100k *C2233 50V 1000p R2202 100 IC2103 AN77L08M-E1 IN 3 2 COM OUT 1 *C2229 16V 100u R2192 220 MAIN9V C3070 16V 0.1u Q2316 B1ABDF000034 R2398 12k C3024 10V 1u R3089 22 R2113 0 R2124 100 *R3085 220 *C2126 50V 1000p R2354 1k *R2208 470 *R2210 1.2k R2125 100 1% R2148 63.4k C2183 3.3u 50V R2126 4.7k C2181 50V 0.1u DVSUP SPEAKER L Rin Lin MAIN HP out MAIN in HEADPHONE R SUB in HEADPHONE L SPEAKER R L AHVSS VREFTOP NC R (MSP4450K-QA-D6) VCC GND AGNDC AVR 5V HP AMP VAO AVR 8V MSP VIDEO SW AUDIO SW ! H-BOARD TNPA3760 (2/3) 11 16 12 10 18 17 14 15 13 4 5 2 3 1 15 13 14 17 16 11 12 TH-42PV600C H-Board (2 of 3) Schematic Diagram TH-42PV600C H-Board (2 of 3) Schematic Diagram 83 14.18.H 电路板 (3/3) 线路图 + + KEY1 SUB_PB SD_V_OUT SD_REC_V G_LED STBY_LED VOUT3 AV4_VGND MAIN_PB AV4_CGND SD_IRQ SD_RST SD_AUDIO_GND MAIN_Y MAIN_SW2 SUB_PR SUB_Y PC_GND_G PC_GND_B MAIN_PR PC_GND_R SD_REC_V AFC2 AI_SENSOR AGC2 AGC1 AGC1 AGC2 SUB_SW1 SUB_SW2 KEY_EDGE AFC1 MAIN_Y_OUT MAIN_PB_OUT SUB_Y_OUT SUB_PB_OUT SUB_PR_OUT SOS SOS RST MSP_RESET SP_MUTE AUDIO_MUTE SDA0B SCL0B PC_V PC_H PC_B PC_G PC_R SUB_Y SUB_PB SUB_PR MAIN_PB MAIN_PR MAIN_CVBS MAIN_Y SL_GND SL AMUTE HDMI_SR HDMI_SL SD_TXD SD_RXD AV4_YGND MAIN_SW1 MAIN_SW2 SUB_SW1 SUB_SW2 SD_MONO_IN SUB_RF_GND SUB_RF_CVBS MAIN_RF_GND MAIN_RF_CVBS ACTIVE_STB_LED AV4_L AV4_Y AV4_R AV4_C AV4_V SD_IRQ SD_RST SD_TXD SD_RXD SCL0B SDA0B RM_IN SD_AUDIO_L_OUT SD_AUDIO_R_OUT MAIN_PR_OUT MAIN_CVBS AFC2 ACTIVE_STB_LED KEY1 KEY_EDGE AV4_S G_LED STBY_LED AI_SENSOR MAIN_SW1 RM_IN VOUT5 AFC1 SR SR_GND HP_LOUT HP_ROUT *C3061 50V 0.1u R3206 100 JS3252 0 R3250 0 *JS3352 J0JCC0000241 C3230 50V 0.1u SUB5V *JS3363 JS3256 0 C5604 50V 10u ZA3401 K4CZ01000027 *JS3202 J0JCC0000241 *R3214 0 SUB9V ZA3405 K4CZ01000027 H1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 JS3215 0 SUB5V C3253 16V 0.1u H5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 *R3263 0 1% *R3120 91 *JS3358 J0JCC0000241 Q3014 2SA207700L SUB3.3V C0DBAJB00004 IC5603 1 VOUT 2 VDD 3 NC 5 EXT 4 VSS ZA3403 K4CZ01000027 *R3266 0 C3063 50V 0.1u 1% *R3354 150k *JS3355 J0JCC0000241 C3227 10V 10u JS3304 0 SUB5V D3023 MA2J11100L Q3011 2SA207700L 1% R3123 130 C3241 50V 0.1u R3259 220 ZA2106 TESA169 *JS3035 0 PA3104 0 C3059 16V 1u SUB9V *R3254 0 *R3215 J0JCC0000241 *JS3354 J0JCC0000241 1% *R3135 91 D3021 MA2J11100L 1% R5612 16k *Q3210 2SA207700L BT30V C3062 50V 0.1u *JS3205 J0JCC0000241 *C3064 50V 0.1u JS3303 0 *C3229 10V 10u C3216 10V 10u *R3213 0 C5686 50V 0.01u *R3253 220 SUB5V ZA2108 TESA169 *Q3204 B1ABDF000034 *JS3356 J0JCC0000241 MAIN9V *C3248 1u 16V *C3257 16V 0.1u R3102 6.8k *JS3368 0 SUB5V_MSP *R3219 100 R3227 0 1% R5611 82k H15 1 2 3 4 ZA2101 TESA169 R3049 220 H40 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 *JS3244 J0JCC0000241 C3208 16V 0.47u 1% R3140 130 C3233 50V 0.1u STB+B BT30V *R3171 470 ZA2104 TESA169 *H52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 *JS3033 0 *JS3230 0 R3284 0 R3122 100 C5685 50V 10u *JS3357 J0JCC0000241 SUB8V *R3264 0 MAIN3.3V *Q3023 B1ABDF000034 *JS3246 0 1% R3121 130 *R3240 10k *R3261 0 L5610 G1C470MA0077 C3226 10V 10u JS3206 0 R3229 0 *R3256 0 C3214 10V 10u *R3241 10k *R3255 560 R3048 22k ZA2107 TESA169 R3118 100 R3160 1k 1% R3138 100 *Q3207 B1ABDF000034 *C3249 16V 0.47u *R3242 10k *C3254 16V 0.1u Q3015 2SA207700L Q3008 2SA207700L ZA3402 K4CZ01000027 *R3278 0 D3044 MA2J11100L *R3267 0 R3281 0 ZA2105 TESA169 *R3286 J0JCC0000241 ZA2103 TESA169 *JS3255 0 R3224 0 *JS3237 0 ZA2102 TESA169 C3228 10V 10u JS3239 0 D3022 MA2J11100L R3228 0 C3252 1u 16V R3127 1k *R3173 270 L5608 G1C100MA0072 D5618 B0BC03900015 *JS3359 J0JCC0000241 C3262 50V 4700p *JS3220 0 STB+5V *JS3245 J0JCC0000241 R3141 1k R3161 1k *JS3221 0 *JS3238 0 STB+5V *C3231 16V 0.1u L5605 G1C1R0MA0072 SUB5V *L3219 J0JGC0000021 JS3302 0 *Q3205 B1ABDF000034 Q5614 B1CFNG000001 *R3239 10k C3207 1u 16V SUB5V *C3256 1u 16V *JS3362 *R3170 0 R3283 0 R3115 100 1% *R3119 91 STB+B R3126 100 *R3262 0 *Q3206 B1ABDF000034 SUB3.3V *JS3034 0 *R3238 0 C3251 16V 0.1u R3050 2.4k R3051 6.8k H6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 SUB9V_VIDEO JS3265 0 *H51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R3279 0 L3212 J0JCC0000100 H2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 C3268 50V 0.01u 1% *R3353 270k D5610 MA3X78900L 1% *R3236 75 JS3266 0 R3251 0 SUB3.3V R3139 1k Q3017 2SA207700L L3216 J0JGC0000021 *R3168 75 R3125 1k SL_GND SL_GND GND SL GND GND SUB5V STB5V GND SL STB3.3V SP_MUTE GND SUB3.3V SUB_SW2 GND MAIN_SW2 GND AUDIO_MUTE SCL0B SD IRQ GND GND GND GND GND SD V-OUT GND MAIN_SW1 GND SUB_SW1 GND GND SUB5V GND AD_LRCK GND NC GND GND SDA0B GND GND GND A_MUTE AD_DAT GND GND GND MAIN_L MSP_RESET GND RST BS_SL GND BS_SR MAIN3.3V GND GND GND NC GND MAIN_R SD RX GND PC_V SD RST GND SUB_PR SUB3.3V GND GND SUB_Y GND MAIN9V PC_H GND HDMI_SL GND PC_B BT30V PC_G GND SUB_PB SUB3.3V GND SUB9V AD_BICK PC_R NC DVB_CVBS GND MAIN_CVBS SUB5V MAIN_PB SR SR MAIN_Y SD TX GND BT30V MAIN_PR STB5V SR_GND GND SR_GND SUB5V HDMI_SR SD V-IN TV_V2 AFT2 SDA0B TV_V2_GND GND GND GND GND SCL0B TV_V1 TV_V1_GND GND AGC2 GND SUB_SW1 GND GND MAIN_SW2 AGC1 GND GND GND SUB_SW2 SIF SUB5V AFT1 SUB30V AM SUB5V MAIN_SW1 NC HP_MUTE HP_R HP_L V_DET KEY_EDGE STB5V HP_GND MAIN_L MAIN_R STBY_LED HP_GND GND AV4_R G_LED AV4_V AV4_L AV4_S SUB5V AV4_Y GND AI_SENSOR ACTIVE_STB_LED GND GND GND GND RM_IN GND SUB_MONO GND AV4_C KEY1 HP_DET GND GND SD_MONO_IN SD_AUDIO_LOUT SD_AUDIO_ROUT GND GND DG-BOARD TO (DG2) SD_TX SD_RX SD_IRQ SD_RST STBY_LED G_LED RM_IN KEY1 AI_SENSOR KEY3_KEY_EDGE AFC1 AFC2 ACTIVE_STB_LED TO G-BOARD (G51) TO GS-BOARD (GS52) USE FOR FACTORY AVR BT30V ! H-BOARD TNPA3760 (3/3) PA-BOARD (PA40) TO TA-BOARD (TA6) TO TA-BOARD (TA5) TO TO (DG1) DG-BOARD 27 24 20 22 19 21 25 26 23 11 13 15 16 14 12 17 TH-42PV600C H-Board (3 of 3) Schematic Diagram TH-42PV600C H-Board (3 of 3) Schematic Diagram 84 14.19.G，GK，和 K 电路板线路图 R V L Y C R G *C3703 560p 50V R3710 0 *L3708 J0JCC0000100 *R3740 0 *R3716 180k *R3733 0 D3702 MAZ81400ML *R3746 0 *JK3701C K4AK22B00002 C Y G CY-G G R2 R1 T NC1 SW1 NC2 SW2 R-SW R R-G L L-G V-SW V V-G NC3 SW3 *L3707 J0JCC0000100 *JS3711 0 JS3705 0 *R3711 0 JS3708 0 *L3701 J0JCC0000364 R3721 10k *JS3714 0 *R3717 180k *R3738 0 *C3712 50V 0.033u *C3711 50V 0.033u *R3741 0 *C3701 560p 50V G3 1 2 3 *R3737 0 ZA3701 K4CD01000013 *JS3716 0 JS3704 0 R3709 0 *R3748 0 JS3707 0 G1 1 2 3 4 5 6 7 8 9 10 11 12 *L3700 J0JCC0000364 *R3704 0 *JS3713 0 G51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 *R3714 0 R3732 0 *R3736 0 *R3739 0 *JS3712 0 GK3 1 2 3 SW3754 EVQ11G05R R3759 0 R3753 1.62k R3760 0 SW3755 EVQ11G05R SW3756 EVQ11G05R R3750 14.3k R3755 0 R3762 0 R3768 0 R3758 3.16k C3751 1000p 50V R3761 0 SW3757 EVQ11G05R R3754 2.32k R3763 0 R3751 6.65k R3767 0 C3750 1000p 50V SW3753 EVQ11G05R R3764 0 1% R3765 2.32k R3757 1.74k R2516 22k *D2520 LNJ107W5PRW C2521 0.01u 50V R2517 47 C2515 50V 0.01u D2524 MA8056MTX D2512 MAZ80430LL C2512 6.3V 10u IC2511 B3L000000020 R2521 47 D2510 MA8056MTX Q2510 B1ABCF000138 1% *R2525 576 R2542 47k C2511 16V 1u R2520 220k R2557 5.6k RM2501 B3RAD0000127 VOUT GND VCC R2512 47 1% R2531 270 C2510 16V 1u K1 1 2 3 4 5 6 7 8 9 10 11 12 R2558 0 R2556 5.6k D2511 MA8056MTX R2524 22k Q2511 B1ABCF000138 Q2513 B1ABCF000138 R2530 22k SUB5V G_LED_ON GND GND AI_SENSOR G_LED_ON AI_SENSOR MODEM_LED/KEY3/Active_STBY_LED STB3.3V STB3.3V SUB5V RM_IN RM_IN GND GND R_LED_ON/STBY_LED GND PSM_LEDR GND KEY2/KEY_EDGE KEY1 GND KEY1 PSM_LEDR/KEY2/KEYEDGE GND GND HP_DET R_LED_ON/STNBY_LED HP_GND GND MAIN_L MAIN_R SUB_MONO HP_GND AV4_C AV4_R AV4_L AV4_S V_DET AV4_Y AV4_V GND GND GND SUFFIX JW AF TV/AV -/ F STR +/ ! GK-BOARD TNPA3848AD ! K-BOARD TNPA3762AE 5 6 D E C A 7 1 B 3 4 2 8 G-BOARD TNPA3764AF ! POWER LED AI SENSOR REMOTE RECEIVER (H51) H-BOARD TO < TH-42PV600C G, GK, and K-Board Schematic Diagram TH-42PV600C G, GK, and K-Board Schematic Diagram 85 14.20.HC 和 TA 电路板线路图 + + + 18 16 14 12 10 8 6 4 2 20 21 19 17 15 13 11 9 7 5 3 1 MAIN_SW1 MAIN_SW2 TV_V2_GND TV_V2 SIF SCL0B SCL0B SDA0B SCL0B SDA0B MAIN_SW1 MAIN_SW2 AFT2 TV_V2 TV_V2_GND SUB_SW1 SUB_SW2 AFT1 SIF TV_V1 TV_V1_GND TV_V1 TV_V1_GND SDA0B AFT1 AFT2 SUB_SW1 SUB_SW2 *L028 J0JGC0000021 L001 J0JGC0000021 C030 50V 33p Q002 2SA207700L *R016 270 R022 220 C029 50V 33p R014 0 R009 220 R017 22 C002 10u 50V 1% *R029 JS012 ERJ3GEY0R00V 0 C008 16V 0.1u 1% *R028 L031 J0JGC0000021 *TU001 NC 1 NC 2 BM 3 NC 4 SW1 5 SW2 6 BT 7 RF_AGC 8 NC 9 SCL 10 SDA 11 AFT 12 AUDIO_OUT 13 SIF_OUT 14 BTL 15 IF_OUT 16 VIDEO_OUT 17 18 19 20 21 *R020 *C022 50V 100p *L026 J0JCC0000241 *JS027 0 TA5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 L007 J0JCC0000241 *R027 220 TA6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 R011 270 C041 16V 0.1u *C024 50V 0.1u *C040 16V 0.1u *C043 16V 0.1u *L011 J0JCC0000241 *L025 J0JCC0000241 C011 50V 33p *TU002 ENG39A01GF NC 1 NC 2 BM 3 NC 4 SW1 5 SW2 6 BT 7 RF_AGC 8 NC 9 SCL 10 SDA 11 AFT 12 NC 13 NC 14 BTL 15 NC 16 VIDEO_OUT 17 R008 0 *JS001 *L024 J0JCC0000100 L032 J0JGC0000021 *R013 1k *C020 6.3V 1000u *R019 *R005 *C021 16V 0.1u *L015 J0JGC0000021 L013 J0JCC0000241 C042 16V 0.1u *L010 J0JCC0000241 *R001 1k C010 50V 33p *R024 0 L021 0 *JS031 0 C009 50V 100p *R023 R018 22 C016 16V 0.1u *R012 1k C003 50V 0.1u *R021 1k C006 6.3V 1000u JS3403 JS3405 0 HC12 1 2 3 4 5 6 7 8 9 JS3404 0 JS3402 HC01 1 HC21 1 2 3 4 5 6 7 8 HC22 1 2 3 4 5 6 7 8 9 10 11 HC15 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 TV_V1 AFT1 GND TV_V1_GND SCL0B BT30V GND GND GND GND AFT2 GND TV_V2 SDA0B MAIN_SW1 SUB5V GND GND GND RFAGC2 SUB_SW1 SUB_SW2 GND SUB5V MAIN_SW2 RFAGC1 GND NC SIF TV_V2_GND SUFFIX JW AB 560 22 22 0 150k 270k ENGF9301GF 5 6 D E C A 7 1 B 3 4 2 8 TA-BOARD TNPA3768AB ! ! ! (H5) TO H-BOARD TO H-BOARD (H6) HC-BOARD TNPA3852 SDA1 SDA0B TXD RXD IIC_CONT IIC_INT P15V PSTB STBY3.3V PBUSY PDB0 GND SCL1 SCL1 GND GND SD_TX SD_RX PSLCT SDA0B PDB1 SCL2 SDA2 STB5V G_LED R_LED REMOCON SDA0B RIMOCON SRQ1 GND STB5V SCL0A SDA0A GND SCL0B GND SD_TX NC GND SCL2 SDA0A SCL0B GND SDA1 GND SCL0A FACTORY P15V SRQ1 GND SDA2 USE SDA2 GND PSLCT SCL1 DG-BOARD TXD PDB1 USE SDA0A RXD DTV_EEP_SDA STB5V USE IIC_CLK2 IIC_CONT FACTORY FOR G_LED IIC/INT STB5V (DG15) SCL0A SDA0A PSTB R_LED SCL0B FACTORY STBY3.3V IIC_DATA2 GND FOR SCL0A STB5V SD_RX SRQ1 PBUSY DTV_EEP_SCL FOR SRQ1 PDB0 SCL1 SDA1 TO SCL2 GND FOR GND SDA2 USE GND FACTORY ! TH-42PV600C HC and TA-Board Schematic Diagram TH-42PV600C HC and TA-Board Schematic Diagram 86 14.21.DG 电路板 (1/3) 方框图 HDMI_DAC_PD RX_MCLK HDMI_RST HDMI_WP MUTE_OUT 3.3V_SDA RX_SCK RX_SD0 HDMI_INT RX_WS 3.3V_SCL HSIB REFCH_HDMI VSIB CLKINB2 AP_DE HPD2 HDMI_CEC HDMI_5V_DET2 HPD1 HDMI_5V_DET1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 Divider CLK+ 5 INTERFACE S1 D1+ H:MUTE AUDIO DAC TMDS DECODER D2- 1 141 WS 119 SDA AUDIO D2G ROX1+ HPDT CEC IC4025 SD0 VIDEO (TO GC5 PORT-B) Interpolator YBIN0-YBIN9 HDMI 1 IN S2 2 BICK Modulator 5V MCLK 7 TMDS DECODER Interpolator +5V DG 1 INTERFACE ROX1- Q4069 INT D2 D2+ EEPROM SCL HDCP MICOM,DIGITAL SIGNAL PROCESSOR/ CIPHER DECRYPTOR 4 ROX2- D1- AND AOUTL INTERFACE 7 D0+ RECEIVER 123 R RECEIVE 8X DDCG P AOUTR 3 D1 R1X0+ DG9 142 L DDC DATA 102 Clock R1X0- Data R1XC- R1X1- DSCL0 HDCP D0G 2 110 Modulator MUTE OUT N.C. 3.3V 104 IC4023 Q4070 132 INTERFACE R1X2- R1X1+ TMDS DATA AND CPU D0- 6 SCK 8X HDMI INTERFACE PDN R1X2+ AUDIO RESET ROX2+ 6 MAIN9V SCL ROXC- DSDA0 ROXC+ 3 MCLK LRCK AUDIO AMP 136 CLKG D1G R1XC+ UBIN0-UBIN9 IC4028 TMDS DATA WC CIPHER DECRYPTOR 133 5 ROX0+ SMUTE ROX0- SDTI CLK- 52 51 48 47 39 43 40 44 66 70 62 63 67 71 59 58 32 31 77 88 86 84 85 1 6 2 3 4 5 10 11 VSYNC HSYNC ODCK 121 97 3 1 2 MAIN 1.8V XTALIN MAIN 3.3V DE HDMI I/F RECEIVER IC4026 MAIN 5V D0- CEC DDC DATA +5V N.C. HPDT CLKG D2+ D0+ D1+ CLK+ CLK- D2- DDCG D1- D1G D2G D0G SCL IC4022 SCL 5 SDA EEPROM 6 7 WC 3.3V Q4071 D1 5V S2 S1 D2 DDC_SDA0 DDC_SCL0 DDC_SDA1 DDC_SCL1 29 30 33 DSDA1 DSCL1 R1PWR5V 3.3V_SDA 3.3V_SCL Q4083 Q4068 Q4065 CABLE OUT;LOW/MUTE CABLE IN;Hi/NORM HOTPLUG Low;DETECT HPD5V AUDIO MUTE AND 5V DET Hi;MUTE CSCL CSDA 28 27 SCL1 SDA1 HDMI 2 IN DG8 Q4082 Q4067 Q4066 HOTPLUG MAIN 5V 34 R0PWR5V CABLE OUT;LOW/MUTE CABLE IN;Hi/NORM AUDIO MUTE AND 5V DET Hi;MUTE Low;DETECT HPD5V MAIN 1.8V CONT 5 VIN VOUT 1 MAIN1.8V IC4027 MAIN 3.3V 7 TH-42PV600C DG-Board (1 of 3) Block Diagram TH-42PV600C DG-Board (1 of 3) Block Diagram 87 14.22.DG 电路板 (2/3) 方框图 RM_IN MAIN_PR AFC1 MCU_RST MAIN_Y/CVBS KEY1 STBY_LED MAIN_PB/C SL FAN_MAX SOUND_SOS TV_MAIN_ON SR FAN_SOS SOS SOS TV_SUB_ON CLKINB2 HSIB VSIB AP_DE REFCH_HDMI PC_R PC_G PC_B PC_HS PC_VS MAIN_CVBS MAIN_Y/CVBS RST SL SR SOS SP_MUTE SUB_SW1 SUB_SW2 KEY_EDGE AI_SENSOR MAIN_PB/C MAIN_PR PC_G PC_B PC_R PC_HS PC_VS CVBS0 CVBS1 MAIN_SW2 MAIN_SW1 G_LED AFC2 SD_RST SD_IRQ SUB_PB SUB_PR SUB_Y SUB_PB SUB_PR SUB_Y HSIB VSIB JTAG_GC5_FS TD0_FS_4PRO JTAG_TMS JTAG_TRST JTAG_TCK CLKINA GC_RST MAIN_CVBS X4006 SDA MATRIX 8 1 1 VOUT HSIA MAIN_PR DG2 SYNC A/D 10bit AI_SENSOR 4 9 16 VDD Q1113,Q1115 MAIN 3.3V AIN1 5 1 DETECT 82 36 DDR2.5V PC_VS SCL2 MSP.RESET I/P CONV. 625i/p VIN 12 SCL GC5 A/D 10bit 86 TRST SR 11 STBY3.3V 5 1 VDOUT IC4032 STBY3.3V HS VOUT 10 IC4016 KEY1 16 SOS 12 VIN IC4013 IC4019 27 1 110MHz SUB3.3V 49 MAIN3.3V PORT-A A_DDR_CLK TCK MAIN_PB/C DCLK_IN SDA2 RESET 74 SCL0B IC4029 1.8V AUDIO MUTE HDMI INTERFACE 29 AFC1 80 MICOM,DIGITAL SIGNAL PROCESSOR/ 3D/2D com (ADV7499) AVR 1.8V SDA0B 3 (FS&HDMI) 3D Y/C SDA I/F AVR STB1.5V 4 MAIN1.2V VSIA Q1131 STB1.5V ON/ NR KEY_EDGE VS_IN PORT-B 78 54 TO 4 SL DG VIN VDD 8 2 A_DDR_NCLK MIX 1 AD 3.3V Q4050,Q4058 Sync AIN4 REFCK_ADV 110MHz AVR 1.8V 5 8 5 43 AUDIO MUTE 51 73 MAIN_Y/CVBS 10bit A/D(ADV7499) 76 SCL2 PC_R 5 STB 3.3V STBY3.3V AD 3.3V IC4038 RESIZE 1080i 720p 35 IC4037 SEPA 7 VOUT MAIN1.8V XTAL CHROMA 1 SW CLK 8 H1 SCLK VOUT 78 IC1110 99 PLL3.3V RM_IN MAIN 1.2V COLOUR H2 PLL 3.3V INPUT DDR 2.5V 15 SDA2 DIGITAL Macrovision AIN6 VOUT VIN 14 45 VIN CONT SP MUTE 65 MAIN 5V 6 56 IC4030 MAIN5V TMS 1.8V TO MAIN3.3V 38 63 72 85 RST STBY5V OFF DEM. HDMI_R SUB3.3V MAIN3.3V ->YUV 5 Q4056 81 VOUT 7 VS STBY_LED CLKIA 4 67 4 CK 3 110MHz PC_B AIN3 TDI IC1111 VOUT 47 7 MAIN1.8V CLK0A 5 SELF,ID,ED2 13 YBIN0-9,UBIN0-9 NOISE LEVEL NRST PC_HS VOUT 1 SDA0B 128M DDR SDRAM AIN5 IC4018 IC4035 VOUT CK LLC1 HS_IN 1 VIN Detection IC4027 AIN2 RGB PC_G MAIN3.3V DLL 2.5V SCL0B 58 1 A/D 10bit 525i/p 6 5 JTAG RESET VPK VOUT VIN 1 8 DLL 2.5V HDMI_L DG1 VIN FAN_SOS SR MAIN5V SUB5V 29 SUB9V 32 SUB 5V 8 PA_SOS MAIN3.3V MAIN9V 22 33 23 SOUND SOS DG20 28 38 SUB 5V MAIN3.3V 18 7 MAIN 1.8V 17 MAIN 5V 25 35 24 SUB_ON PA20 MAIN3.3V 40 2 TUNER 6 MAIN3.3V 21 MAIN 5V MAIN9V TO 9 FAN_MAX MAIN1.8V 4 SUB 9V SUB 9V MAIN 1.8V 39 SL SUB 9V TUNER MAIN_ON CLKINB2 VSIB AP_DE HSIB REFCK_HDMI MAIN_CVBS 61 Q1140,Q1141 D1107 RST SUB5V D1106 Q1114,Q1116 Q1108,Q1111 STBY5V MAIN 1.8V CONT 5 5 CONT 5 CONT YIN0-YIN9 UVIN0-UVIN9 RIN0-RIN3 10 13 14 91 94 22 29 42 41 30 33 MSP RESET 77 SL SR 74 SUB_SW1 10 9 SUB_SW2 Q4053,Q4055 57 AIN9 EURO TEXT Q1135 Q1134 Q4057 MAIN_SW1 13 12 MAIN_SW2 G_LED 7 14 AFC2 2 3 4 1 SD_RX SD_TX SD_IRQ SD_RST SD_RX SD_TX 57 55 53 SUB_PB SUB_PR SUB_Y Q4043,Q4051 30 Q4046,Q4054 40 Q4044,Q4052 35 VIN3 VIN2 VIN1 80 74 NRST 61 24 73 TD0 23 TCK TMS CLK0 VPO 94 14 UBOUT7 HPO 72 85 SCL 83 YGOUT2 IC4020 YGOUT1 65 TRST SDA YGOUT7 64 SCL1 22 UBOUT0 GC3FS 21 93 16 XTALIN TDI XTALOUT 25 84 YGOUT0 SDA1 Q1130 TH-42PV600C DG-Board (2 of 3) Block Diagram TH-42PV600C DG-Board (2 of 3) Block Diagram 88 14.23.DG 电路板 (3/3) 方框图 TDO HDMI_INT SOS GENX_X_V GENX_X_H GENX_R0-R4 HDMI_RST KEY1 PANEL_SOS GENX_B0-B4 PANEL_STATUS HPD1 TDI(FS) FAN_SOS ECO_ON SP_MUTE PANEL_STB_ON FAN_MAX DISPEN TV_MAIN_ON GENX_X_CLK SOUND_SOS HDMI_5V_DET1 GENX_YS AUDIO_MUTE TMS PANEL_STB_ON ECO_ON DISPEN GENX_G0-G5 STBY_LED MCU_RST GENX_YM PANEL_SOS TV_SUB_ON ALL_OFF WC RST GC_RST HPD2 HDMI_5V_DET2 WC RM_IN KEY_EDGE AI_SENSOR CVBS0 HDMI_DAC_PD CVBS1 GENX_HO GENX_CLKO SUB_SW1 SUB_SW2 HDMI_WP ALL_OFF MAIN_SW1 MAIN_SW2 G_LED AFC2 SD_RST SD_IRQ PANEL_STATUS HDMI_CEC AFC1 AFC2 D_PSLCT(PSCLT) TX_TE- REMOCON 9 117 D_RXD 4 109 IC4037 SDA0B OSDXI 20 2 PORT_E SDATA STBY_LED GAMMA TX_TD+ D_IIC_INT 17 4 D_IIC_INT(IIC_INT) SRQ DTV_SCL0B ECO_ON R_LED 45 IRQ4A Q1110 STBY5V_DET 14 SCL0B 42 13 TUNER_SUB_ON YSOUT 11 SCL2 TRCD0 SCL2 103 MAIN3.3V_DET TX_TB- R04 PORT_D DISPEN(DRVMUTE) SCL1 DG3 18 37 D_RXD D_PDB0 1 107 13 FLASH FACTORY DG5 TDO 206 3 TX_TE+ 186 DTV_SDA0B SPMUTE 165 20 TRCD3 174 GENX_YS 1 9 GENX_HIN 105 Q1101,1139 1 33 32 178 TO 209 TO 17 100 Q1102 SDA0A HPD1 208 WC 7 TX_TA+ 29 TV_MAIN_ON CECINA 16M KEY_EDGE FOR IIC/SERIAL 110 131 VMUTE 102 FOR EXTRG0 TX_TD- 5 13 14 33 MAIN MICOM 7 ALARM Q4063 133 D_15V(P15V) (OSD INPUT) 196 SCL0B 22 D_TXD 30 OSD MIX VSOE TX_TCLK+ X1101 Q4061 D_PDB1(PDB1) RST 5 STBY3.3V 16 1 POWER_SOS 171 Q4064 TO D5 132 R00 23 STBY3.3V 187 FOR ROM(D-BOARD) TRCD3 G_LED(LED_G) DG DG7 180 (HC15) 130 6 D_SCL2(IIC_CLK2) 40 1 122 SDA1 22 Q4062 LVDS_PD 5 STBY3.3V D_15V PANEL STATUS 14 (DEBUGER) TX_TCLK- 138 TDI 179 4 SDA0B D_PBUSY(PBUSY) SUB9V Q1142,Q1143 TRCCLK IC1101 PANEL_STBY_ON CONVERTER SCL0A READY(STATUS) 116 SDA2 TRCD2 215 DG-BOARD TRCD2 FOR 95 USE 184 6 ALL_OFF RTCXO SCL0A 3 12 136 TRCD1 38 160 Q1100 112 FAN_SOS SCL1 5 9 GENX_CLKIN TRCD1 6 SDA0B 29 216 USE 15 CONT MAIN3.3V TMS D_PSTB Q1109 175 8 3 B00 X1100 CLKOE SCL1 D/A OSD PIXEL CONV. DG15 FACTORY 111 SCL2 D_PSLCT 159 135 11 G_LED PANEL_STB_ON 61 14 SCL1 3 SRQ 8 REMOTE IN D3 D_IIC_CONT 15 TV_SUB_ON STBY5V SDA0A GENX_VIN AFC1 26 10 Q1103 4 19 R_LED(LED_R) 211 SXCO D_PDB1 GC_RST SUB5V_DET 97 21 123 IIC_CLK1 2 D_SDA2(IIC_DATA2) 169 16 TRCST 15 212 RTCXI 210 D_IIC_CONT(IIC_CONT) 13 SDA2 HDMI_RST 3 21 SCL2 TRCD0 10 168 KEYSCAN1 35 B04 17 STBY5V D_STB3R3V OSCXI TX_TB+ 10 D_PBUSY ECO_ON 27 D_STB3R3V(STBY3.3V) SDATA HSOE 17 RESET NRST SOUND SOS DTV_SDA0B 172 SDA0B 6 176 23 MICOM,DIGITAL SIGNAL PROCESSOR/ SDA1 16 SUB9V_DET TCK 185 19 DG35 VSYNC 8 TX_TC+ 5 D_SDA2 TX_TA- 27 D_SCL2 197 SDA2 TRCCLK 12 205 19 SCL0CK SCL0A YMOUT0 44 101 G00 173 DTV_SCL0B 24 PANEL_SOS TRCST D_PSTB(PSTB) 52 34 SDA1 SDA0A HDMI INTERFACE (RGB OUT) IC1103 FAN_CONT REMOCON HSYNC HDMI_INT AI 128 2 2 MSP RESET 11 TX_TC- SCL0CK D_TXD 5 TRST 16 30 SUB5V GC5 SDA2 STBY5V STBY3.3V EXTRG0 110MHz 3 207 SCL0B HDMI 5V DET1 D_PDB0 SCL0A SDA1 7 D/A 10bit IIC_DATA1 AUDIO MUTE SDA0A ROM D/A 8bit SCL0B OSD G05 64M IC1100 SDRAM 41 ALL_OFF SDA 5 7 6 SCL0A IC1102 SCL 256K EEPROM SDA0A WC Q1137 SDA1 SCL1 SUB3.3V 198 HDMI_5V_DET2 HPD2 195 AI_SENSOR 162 46 MSP RESET CVBS0 HDMI_WP 199 142 HDMI_DAC_PD 183 151 CVBS1 189 MAIN_SW1 190 193 194 MAIN_SW2 SUB_SW1 SUB_SW2 GENX_CLKO GENX_HO GENX_R0-R4 GENX_B0-B4 GENX_G0-G5 GENX_YM 4 5 61 59 33 38 (SERIAL) LVDS TRANSMITTER(10bit) 23 29 GOE0~GOE9 55 TB- CLKIN 18 22 LVDS 57 BOE0~BOE9 TC4 TA+ PARALLEL TC- TCLK- 25 TA- 24 20 31 30 TE- TD- TD+ IC4036 DATA 13 /PDWN 12 TE+ 19 TC+ TC5 28 TCLK+ TTL 21 TB+ 8 63 40 62 42 6 11 64 9 1 ROE0~ROE9 44 46 48 50 52 54 10Bit LVDS VCLKOUTA HOUTA 88 87 19 STBY5V STBY5V 47 G_LED 161 AFC2 35 SD_RX SD_TX 36 59 SD_RX SD_TX 60 SD_RX SD_TX 78 SD_IRQ SD_RST 76 161 AFC2 TH-42PV600C DG-Board (3 of 3) Block Diagram TH-42PV600C DG-Board (3 of 3) Block Diagram 89 14.24.DG 电路板 (1/8) 线路图 + AO_A6 AQ_D4 AO_A14 AQ_D13 AR_CLK AQ_D3 AR_RAS EXTRG0 AQ_D10 AQ_D5 PANEL_STATUS AO_A8 AQ_D2 AO_A3 AO_A11 SDA0A AO_A6 ECO_ON AQ_D7 AQ_D9 AO_A7 TRCCLK AQ_D14 AO_A11 AQ_D4 SDATA AO_A12 ALL_OFF AQ_D6 SCLOCK RST AQ_D6 MEMA10 AO_A2 AR_CS TRCST AQ_D10 AO_A9 AO_A19 TRCD3 AQ_D13 AO_A18 AR_CKE AQ_D1 AR_BA0 TRCD2 AR_CAS AP_CE AO_A9 AQ_D15 AQ_D12 TRCD1 TV_SUB_ON AO_A8 AO_A10 AR_LDQM TRCD0 AP_OE AQ_D0 AQ_D11 AQ_D5 AO_A15 AO_A5 AQ_D9 AQ_D11 AQ_D12 AO_A12 AQ_D14 AO_A3 PANEL_SOS AO_A10 AP_WE AO_A17 AO_A4 AQ_D3 AQ_D8 AR_UDQM AQ_D2 AO_A4 AO_A1 AR_WR AO_A13 AQ_D1 AO_A5 AO_A2 AO_A16 AO_A7 DISPEN PANEL_STBY_ON PANEL_SCL1 PANEL_SDA1 D_STB3R3V D_IIC_CONT D_SCL2 D_SDA2 D_TXD D_RXD D_IIC_INT D_15V D_PSTB D_PBUSY D_PDB0 D_PSLCT D_PDB1 AO_A0 RIMOCON R_LED G_LED AQ_D0 AQ_D7 AQ_D8 AQ_D15 STBY3.3V SCL0A AO_A0 STBY3.3V R1122 22 L1101 J0JHC0000078 TP1108 R1412 100k R1454 0 *C1110 10V 0.1u C1116 10V 0.1u R1125 3.3k *C1109 10V 0.1u R1458 100 C1106 10V 1u *R1414 0 *C1114 10V 0.1u R1112 100 Q1137 B1ABDF000034 R1113 3.3k R1413 100k *C1223 6.3V 10u R1106 1k TP1101 *IC1102 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC DG7 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 STBY3.3V R1111 100 STBY3.3V C3ABPG000145 IC1100 1 VDD 2 DQ0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 VDD 15 LDQM 16 /WE 17 /CAS 18 /RAS 19 /CS 20 BA0 21 BA1 22 A10 23 A0 24 A1 25 A2 26 A3 27 VDD 28 VSS 29 A4 30 A5 31 A6 32 A7 33 A8 34 A9 35 A11 36 NC 37 CKE 38 CLK 39 UDQM 40 NC 41 VSS 42 DQ8 43 VDDQ 44 DQ9 45 DQ10 46 VSSQ 47 DQ11 48 DQ12 49 VDDQ 50 DQ13 51 DQ14 52 VSSQ 53 DQ15 54 VSS *C1102 10V 0.1u R1108 100 R1114 0 TP1109 R1102 1k R1105 1k R1123 47k C1227 50V 100p R1118 EXB2HV680JV R1408 100k R1109 100 C1111 10V 0.1u TP1105 *C1100 10V 0.1u DG3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 R1110 100 TP1104 *C1112 25V 270p R1101 100 TP1103 R1124 3.3k *C1105 25V 270p *C1107 4V 100u R1459 100 R1119 EXB2HV680JV *IC1101 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 R1117 0 TP1102 STBY5V C1226 6.3V 10u *C1222 6.3V 10u *C1103 25V 270p STBY3.3V R1116 5.6k R1121 22 R1103 1k DG7 IIC_CLK1 DISPEN FANMAX ECO_ON GND GND FANSOS PANEL_STB_ON STB5V 16M FLASH GND GND IIC_DATA1 INEXCH READY ALL_OFF GND TUNER_SUB_ON ALARM Panasonic_Mode NC E A 6 7 8 9 1 C 3 B 4 F 5 2 D 64M SDRAM EEPROM G_LED R_LED REMOCON AC_GOOD D_IIC_INT D_RXD D_TXD D_SDA2 D_SCL2 D_IIC_CONT D_STB3R3V D_PDB1 D_PSLCT D_PDB0 D_PBUSY D_PSTB D_15V (D3) D-BOARD TO USE FOR FACTORY (DEBUGER) TRCD2 TRCD0 TRCD1 TRCST TRCCLK TRCD3 SDATA EXTRG0 STBY3.3V RST SCL0CK 1 2 3 4 5 6 7 8 9 10 11 12 13 TVRN991-1 TVRN760-1 ! DG-BOARD (1/8) TNPA3756CK TH-42PV600C DG-Board (1 of 8) Schematic Diagram TH-42PV600C DG-Board (1 of 8) Schematic Diagram 90 14.25.DG 电路板 (2/8) 线路图 + + AO_A8 R_LED_STBY_LED GENX_R2 SDA0A AQ_D15 LVDS_PD GENX_G0 AO_A12 EXTRG0 GENX_R1 GENX_B1 SDA1 TRCD3 AP_WE MEMA10 KEY1 GENX_HIN GENX_R3 PSM_LEDR_AFC1_KEY2 AUDIO_MUTE AQ_D2 TRCST SCL0A AFC2_AFT2_SUB-MUTE SDATA AR_RAS AQ_D9 AO_A2 AQ_D4 AO_A19 GENX_G2 SCL2 AR_BA0 SCL1 AO_A5 AO_A14 ODU_ON_ACTIVE_STB_LED AO_A1 AQ_D14 TRCD0 AGC1_TXD PANEL_SOS AP_OE AQ_D5 TRCD1 AR_UDQM SOUND_SOS AO_A3 SCL1 GENX_G3 SCLOCK AR_CKE AI_SENSOR AO_A17 SDA0B AQ_D10 GENX_B2 PANEL_STATUS AO_A16 TRCD2 AQ_D12 GENX_B0 GC_RST AR_LDQM AQ_D0 AO_A6 KEY3_KEY_EDGE AR_CLK AQ_D11 AQ_D7 AO_A10 RST ALL_OFF AQ_D8 SOS DISPEN GENX_R0 AQ_D3 ECO_ON SP_MUTE HDMI_DAC_PD AQ_D1 GENX_B3 FAN_MAX GENX_CLKIN GENX_VIN AR_WR AQ_D13 AO_A15 G_LED_POWER A_MON_MUTE_MSP_RESET AR_CAS FAN_SOS AP_CE RST AQ_D6 AO_A9 GENX_G1 GENX_R4 AO_A18 AO_A7 AR_CS AO_A11 AO_A4 AO_A13 RM_IN MCU_RST TV_SUB_ON TV_SUB_ON SDA2 HPD2 HDMI_A_MUTE QLINK_SEL_(SUB_SW2) HDMI_INT PANEL_STBY_ON MCU_RST HDMI_5V_DET1 QLINK_IN1_(MAIN_SW1) AO_A0 HDMI_WP HPD1 HDMI_RST SCL0B GENX_B4 GENX_G4 GENX_G5 CVBS0 CVBS1 TV_MAIN_ON TV_MAIN_ON HDMI_5V_DET2 TRCCLK HDMI_CEC STBY3.3V SDA1 SRQ FORMAT_EDGE(MAIN) M_SDA0 GENX_YS GENX_YM SD_RST PANEL_SDA1 PANEL_SCL1 SD_IRQ QLINK_OUT_(SUB_SW1) R1215 100 *R1348 100 Q1143 B1ABDF000034 R1251 EXB2HV101JV R1177 100 Q1115 B1ABDF000034 C1156 50V 22p R1322 10 C1120 10V0.1u MAIN3.3V C1139 10V 0.1u R1225 22 R1207 100k C1168 10V 1u R1312 22 R1479 47k R1168 0 R1156 100k R1530 0 JS1102 0 R1275 7.15k R1174 100 C1127 10V 0.1u SUB3.3V *R1331 100k R1310 22 R1234 0 R1199 47k R1153 100 R1228 22 C1150 10V 0.1u *R1241 8.2k R1222 33 *R1299 0 C1119 10V 0.1u R1220 68 R1316 10k Q1142 B1ABDF000034 R1238 47k R1330 47k C1158 10u 6.3V R1256 1k *Q4918 B1ABDF000034 R1318 5.1k R1232 3.3k TP1107 R1132 100 C1190 16V 0.01u R1279 22 R1159 12k R1236 2.7k R1224 47k C1149 10V 0.1u JS1100 0 R1281 1k R1332 100k *R1301 0 R1175 56k R1147 EXB2HV560JV R1466 10k C1167 10V 1u D1107 MA2J72900L C0EBY0000041 IC1111 1 VIN 2 VSS 3 ON/OFF 5 VOUT 4 VDOUT R1252 EXB2HV101JV *R1284 6.8k R1313 10k C1161 10V 1u JS1101 0 Q1141 B1ABDF000034 *R1130 47k *R1282 15k R1375 100k R1249 47k Q1108 B1ABDF000034 R1203 1k R1263 100 R1470 0 C1178 10V 1u *R1325 100k R1155 4.7k R1154 4.7k R1218 68 *R1128 10k C1137 10V 0.1u R1169 0 R1158 27k C1134 50V 15p R1376 27k R1183 EXB28V680JX R1149 EXB2HV680JV C1152 10V 0.1u C1145 10V 0.1u R1368 18k R1290 4.7k R1314 10k R1309 22 STBY3.3V SUB5V Q1110 B1CBHD000002 R1233 3.3k R1164 12k R1226 22 *R1369 0 *R1141 68 *R1480 47k C1133 50V 15p Q1111 B1ABDF000034 *R1389 0 R1307 100k *R1327 68k C1155 16V 0.01u C1221 50V 1000p R1319 5.1k R1372 47k R1326 100k *R1152 1k R1270 22 L1104 J0JHC0000078 R1280 22 *R1146 270 R1239 12k R1311 22 R1221 3.3k *R1340 47k C1146 10V 0.1u L1102 J0JHC0000078 Q1140 B1ABDF000034 R1324 82k *R1151 100 R1135 10k *Q1102 B1ABDF000034 R1321 15k *C1160 6.3V 47u C1172 10V 0.1u R1410 1k R1269 0 X1100 H0J100500030 R1229 1.8k R1308 27k D1119 MA3X704A0L C1147 10V 0.1u R1200 EXB2HV680JV *R1140 68 *R1189 10k R1157 100 STBY3.3V C1131 10V 0.1u *R1323 82k *R1300 0 *R1531 0 R1176 12k R1216 100 R1223 1k *R1162 47k SUB5V Q1114 B1ABDF000034 C1132 10V 0.1u SUB5V *R1160 47k R1187 EXB2HV680JV R1250 220k R1526 1k STBY3.3V Q1103 B1ABDF000034 R1231 47k Q1139 B1ABDF000034 *C1162 16V 0.01u MN103SB20RGL IC1103 1 ZMEMD29 2 ZMEMD28 3 ZMEMD27 4 ZMEMD26 5 ZMEMD25 6 ZMEMD24 7 IVSS 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 IVDD 17 - 18 - 19 - 20 - 21 MVSS 22 MVDD 23 - 24 - 25 - 26 - 27 DQM0 28 DQM1 29 SDCKI 30 IVDD 31 SDCLK 32 IVSS 33 SDCKE 34 NSDWE 35 NSDCAS 36 NSDRAS 37 NSDCS 38 SDBS0 39 - 40 MEMA10 41 ZMEMA11 42 ZMEMA9 43 ZMEMA8 44 ZMEMA7 45 ZMEMA6 46 ZMEMA5 47 ZMEMA4 48 IVSS 49 IVDD 50 ZMEMA3 51 ZMEMA2 52 ZMEMA1 53 ZMEMA0 54 VSS 55 VDD 56 - 57 - 58 - 59 - 60 - 61 - 62 - 63 - 64 A17 65 A16 66 A15 67 A14 68 - 69 - 70 - 71 - 72 - 73 IVDD 74 IVSS 75 A20 76 A21 77 NWE0 78 A22 79 A19 80 A18 81 RTCCNT 82 - 83 - 84 - 85 IVSS 86 - 87 - 88 IVDD 89 - 90 - 91 - 92 A2 93 NRE 94 NCS0 95 ZA1 96 VSS 103 SCL1 104 NTEST 105 HSYNC 106 IVSS 107 OSDXI 108 IVDD 118 G04 119 G03 120 G02 121 - 122 - 123 B04 124 B03 125 B02 126 B01 127 IVSS 128 - 129 IVDD 130 - 131 - 132 SDA0A 133 SCL0A 134 VSS 135 RTCXI 136 RTCXO 137 VDD 138 RMIN_IRQ0 139 ROMCNT 140 TEST 141 AVSS1 142 CVBS0 143 AVDD1 144 VREFL0 145 VREFH0 146 VCMO0 147 IREF0 148 VCMO1 149 VREFH1 150 VREFL1 151 CVBS1 152 AVSS2 153 AVDD2 154 PVDD 155 CLL 156 CLH 157 PVSS 158 IVSS 159 - 160 - 161 - 162 - 163 ADIN4 164 ADIN5 165 CECINA 166 CECINB 167 IVSS 168 OSCXO 169 OSCXI 170 IVDD 171 TRCD3 184 - 185 - 186 - 187 - 188 - 189 - 190 - 191 IVDD 192 IVSS 193 - 194 - 195 - 196 - 197 - 198 - 199 - 200 - 201 IVDD 202 IVSS 203 MVSS 204 MVDD 205 - 206 - 207 - 208 - 209 - 210 - 211 - 212 - 213 IVSS 214 IVDD 215 ZMEMD31 216 ZMEMD30 109 - 111 YSOUT 113 R03 115 R01 117 G05 110 - 112 R04 114 R02 116 - 172 TRCD2 173 TRCD1 174 TRCD0 181 VSS 182 VDD 183 - 97 NRST 98 VDD 99 PSCNT 100 SDA2 101 SCL2 102 SDA1 175 TRCST 176 TRCCLK 177 EXTRG1 178 EXTRG0 179 SDATA 180 SCLOCK R1367 33k R1184 0 R1165 15k R1363 47k R1271 22 MAIN3.3V Q1109 B1CBHD000002 SUB3.3V *R1302 0 *R1214 10k STBY3.3V C1157 50V 22p PA1101 K5H8012A0023 C1141 10V 0.1u C1138 10V 0.1u R1283 100 R1264 100 Q1101 B1ABDF000034 C1128 10V 0.1u *R1329 47k SUB9V STBY5V R1181 100 R1240 47k C1144 10V 0.1u R1148 EXB2HV560JV Q1116 B1ABDF000034 *R1344 100 C1121 10V0.1u *R1384 100 R1131 100 R1478 68 *R1452 47k X1101 H0J327200114 TP1106 L1103 J0JHC0000078 C1129 10V 0.1u D1106 MA2J72900L Q1113 B1ABDF000034 C1142 10V 0.1u R1449 47k R1134 1k *C1177 10V 0.33u *R1246 9.1k C1148 10V 0.1u Q4919 B1ABDF000034 C1153 4V 100u R1315 33k C1154 10V 0.1u C1135 10V 0.1u MAIN3.3V C1125 10V 0.1u C1140 10V 0.1u SUB3.3V C1122 10V 0.1u R1188 10k STBY5V D1121 MA2J72900L R1467 47k R1243 1k R1182 68k R1217 100 R1235 2.7k C1159 10V 0.1u C1136 10V 0.1u R1451 47k STBY5V R1328 68k C1118 10V 0.1u R1411 4.7k Q1100 B1ABDF000034 R1133 1k C1123 10V 0.1u C1130 10V 0.1u R1230 22 C0CBCAD00016 IC1110 1 Vcont 2 GND 3 Np 5 Vin 4 Vout STBY5V MCU_ANALOG_VIDEO YMOUT0 MEMD5/D5/IRQ6A STB5V(SUB5V BACKUP) HOUTA A4/MEMA1 ADIN3 ADIN1 MEMD28/D28 MEMD6/D6/IRQ7A A10/MEMA7 ADIN0 SCL0B MEMD19/D19 MEMD30/D30 ZMEMD20/IRQ5B ZMEMD18/IRQ3B MEMD10/D10 MEMD20/D20 G01 A11/MEMA8 STB5V MEMD8/D8 SUB5V A7/MEMA4 A8/MEMA5 ZMEMD21/IRQ6B ZMEMD23/IRQ8B MEMD29/D29 MEMD7/D7/IRQ8A (Euro:key EDGE) MEMD27/D27 SDBS1/A1 VSYNC MEMD25/D25 MEMD31/D31 MEMD16/D16 ZMEMD19/IRQ4B SDA0B ZMEMD22/IRQ7B A6/MEMA3 B00 MEMD17/D17 G00 MEMD18/D18 MEMD21/D21 MEMD11/D11 VCLKOUTA ADIN2 MEMD24/D24 A5/MEMA2 A9/MEMA6 R00 MEMD22/D22 MEMD1/D1/IRQ2A ZMEMD16/NCS2B MEMD23/D23 MEMD4/D4/IRQ5A MEMD0/D0/NCS2A ZMEMD17/IRQ2B MEMD26/D26 MEMD15/D15 MEMD2/D2/IRQ3A MEMD14/D14 MEMD3/D3/IRQ4A A12/MEMA9 MEMD13/D13 A13/MEMA11 MEMD9/D9 MEMD12/D12 A3/MEMA0 14 11 13 17 12 18 15 16 10 MAIN MICOM RESET STB 3.3V STB 1.5V 2 4 3 1 11 8 6 5 13 12 9 10 7 21 22 23 24 25 26 27 28 29 30 31 32 TH-42PV600C DG-Board (2 of 8) Schematic Diagram TH-42PV600C DG-Board (2 of 8) Schematic Diagram ! DG-BOARD (2/8) TNPA3756CK 91 14.26.DG 电路板 (3/8) 线路图 + + + + + + NP NP + CVBS0 CVBS1 SD_IRQ SD_RST AGC1_SD_TXD AGC2_SD_RXD AUDIO_MUTE RST A_MON_MUTE_MSP_RESET SDA0B SCL0B HDMI_L HDMI_R PC_R PC_G PC_B PC_HS PC_VS SUB_PR SUB_PB SUB_Y RGB_CVBS MAIN_PR MAIN_Y/CVBS MAIN_PB/C SP_MUTE TV_MAIN_ON TV_SUB_ON SOS SOUND_SOS SL SL_GND SR SR_GND SL SL_GND SR SR_GND SOS D_STB3R3V D_IIC_CONT D_SCL2 D_SDA2 D_TXD D_RXD D_IIC_INT AGC1_SD_TXD AGC2_SD_RXD SCL0A SDA0A SDA2 SCL0B SDA0B SCL1 SDA1 SRQ AFC2_AFT2_SUB-MUTE PSM_LEDR_AFC1_KEY2 AI_SENSOR KEY1 RM_IN G_LED_POWER R_LED_STBY_LED AGC2_SD_RXD AGC1_SD_TXD DTV_SCL0B DTV_SDA0B KEY3_KEY_EDGE QLINK_IN1_(MAIN_SW1) QLINK_IN2_(MAIN_SW2) QLINK_SEL_(SUB_SW2) FAN_SOS R_LED G_LED RIMOCON D_PSTB D_PBUSY D_PDB0 D_PSLCT D_PDB1 D_15V ODU_ON_ACTIVE_STB_LED QLINK_OUT_(SUB_SW1) SCL2 EURO_TEXT FAN_MAX *D1117 B0BC3R5A0163 MAIN1.8V C1230 47u 16V STBY3.3V C1234 47u 16V *R1441 0 TP1118 DG20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 *R1254 0 SUB9V TP1117 TP1120 *R1179 100 DG1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 STBY5V *L1109 J0JHC0000078 *Q1135 B1ABDF000034 *R1178 100 TP1116 SUB5V R1428 0 *R1475 270 *R1193 100 C1233 47u 16V *C1212 50V 150p MAIN9V DG2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 R1212 0 *R1382 0 Q1130 B1ABDF000034 R1352 47k *C1209 10V 1u R1426 0 R1432 0 R1474 0 *R1194 100 *R1379 330 TP1113 R1427 0 C1231 47u 16V SUB3.3V R1429 0 R1554 0 *R1556 330 *JS1117 R1555 0 C1232 47u 16V *R1351 100 R1333 100 C1229 47u 16V R1431 0 STBY5V R1377 0 *C1219 16V 10u *R1447 470 *C1220 16V 10u *R1383 0 TP1119 DG15 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 *R1213 0 C1228 47u 16V R1461 0 R1462 0 *R1491 0 *R1439 270 *R1472 300 *R1436 560 *JS4103 R1430 0 *C1294 50V 33p *Q1131 B1ABDF000034 MAIN3.3V *R1437 560 SUB9V *R1473 300 *R1354 100 TP1115 Q1134 B1ABDF000034 *R1446 470 MAIN5V TP1114 *R4891 0 BT30V MAIN1.8V SOUND_SOS MAIN9V SUB5V BT30V MAIN1.8V ODU_ON/OFF SUB9V SUB9V TV_MAIN_ON SUB3.3V SOS MAIN5V MAIN3.3V TUNER_SUB_ON SCL1(Main3.3V) SDA1(Main3.3V) 20 19 23 24 26 25 22 27 21 MAIN5V SUB5V SUB9V BT30V (HC15) HC-BOARD TO D_PSLCT D_PDB1 D_IIC_CONT D_TXD REMOCON D_STB3R3V D_PSTB D_BUSY G_LED D_RXD D_SCL2 D_PDB0 D_SDA2 R_LED D_IIC_INT STBY5V SDA2 SCL2 SDA1 SCL1 SCL0B SDA0B SDA0A SRQ D_15V SCL0A DTV_SDA0B DTV_SCL0B SD_RX SD_TX SD_TX SD_RX SD_IRQ SD_RST STBY_LED G_LED RM_IN KEY1 AI_SENSOR KEY3_KEY_EDGE AFC1 AFC2 ACTIVE_STB_LED H-BOARD TO (H2) (PA20) PA-BOARD TO (H1) H-BOARD TO SUB3.3V SR SR SL SL MAIN_Y SR SL SUB_PR SUB_PB SUB_Y HDMI_L HDMI_R BS_Y(V) BS_SR BS_SL MAIN_R MAIN_L PC_VS PC_HS PC_B PC_G PC_R MAIN_PB/C MAIN_Y/CVBS MAIN_PR RGB_CVBS RGB_FB AUDIO_MUTE QLINK_AV2 SP_MUTE RST QLINK_AV3 SCL0B A_MON_MUTE_ SOS SDA0B AD_DAT AD_LRCK AD_BICK MSP_RESET FAN_SOS FAN_MAX MAIN3.3V MAIN3.3V 51 52 54 55 56 57 58 59 60 21 22 23 24 25 26 27 28 29 30 31 32 TH-42PV600C DG-Board (3 of 8) Schematic Diagram TH-42PV600C DG-Board (3 of 8) Schematic Diagram ! DG-BOARD (3/8) TNPA3756CK 92 14.27.DG 电路板 (4/8) 线路图 + + + + + + Thermal Pad SDA1 JTAG_TMS JTAG_GC5_BA UBIN6 UBIN7 JTAG_TMS YBIN2 UBIN3 YBIN7 UBIN8 JTAG_TCK HSIB YBIN4 UBIN2 JTAG_TRST VSIB YBIN5 SUB_PR UBIN9 SCL1 YBIN6 UBIN4 UBIN5 YBIN9 YBIN3 SUB_Y JTAG_BA_FS YBIN8 UVIN0 RIN3 UVIN1 RIN2 YIN5 UVIN7 RIN1 YIN4 UVIN6 RIN0 YIN3 UVIN5 YIN6 UVIN2 UVIN4 PC_HS CLKOA PC_VS PC_B CLKIA SCL2 YIN2 SDA2 YIN0 UVIN9 YIN1 UVIN8 PC_G HSIA PC_R YIN7 YIN8 VSIA YIN9 REFCK_ADV MAIN_Y/CVBS MAIN_PB/C EURO_TEXT MAIN_PR SUB_PB MAIN2.5V CLKINB 1.8V MAIN9V MAIN9V MAIN9V TV_MAIN_ON RGB_CVBS JTAG_FS_GC5 GC_RST UVIN3 JTAG REFCK_FS JTAG_BA_FS *C4237 10V 0.1u *R4477 470 R4481 2.2k *C4193 50V 1000p *R4514 0 *R4434 0 MAIN3.3V *R4507 0 R4488 2.2k R4495 43k C4544 16V 1u C4168 50V 68p R4503 160 *R4476 33 MAIN5V C4199 16V 0.01u MAIN9V *R4445 3.3k R4004 0 *C4151 10V 1u C4208 10V 0.1u L4023 J0JHC0000078 R4577 2.2k C1AB00002456 IC4019 1 P32 2 P31 3 INT 4 CS/HS 5 DGND 6 DVDDIO 7 P15 8 P14 9 P13 10 P12 11 DGND 12 DVDD 13 P29 14 P28 15 SFL/SYNC_OUT 16 SCLK2 17 DGND 18 DVDDIO 19 SDA2 20 P11 21 P10 22 P9 23 P8 24 P27 25 P7 26 P6 27 P5 28 P4 29 P26 30 R_ACTIVE/P25 31 SRLIN/P24 32 SRLUP/P23 33 TRGIN/P22 34 P21 35 MEI_CK/DCLK_IN 36 BLC/LLC1 37 XTAL1 38 XTAL 39 DVDD 40 DGND 41 P3 42 P2 43 P1 44 P0 45 P20 46 ELPF 47 PVDD 48 PVDD 49 AGND 50 AGND 51 FB 52 SOG 53 AIN7 54 AIN1 55 AIN8 56 AIN2 57 AIN9 58 AIN3 59 ELPF2 60 AGND 61 CAPY1 62 CAPY2 63 AVDD 64 REFOUT 65 CML 66 AGND 67 BIAS 68 CAPC1 69 CAPC2 70 TEST0 71 AIN10 72 AIN4 73 AIN11 74 AIN5 75 AIN12 76 AIN6 77 SOY 78 RESET 79 DE_IN 80 ALSB 81 SDA 82 SCLK 83 P40 84 P39 85 VS_IN 86 HS_IN 87 P38 88 P37 89 DGND 90 DVDD 91 P19 92 P18 93 P17 94 P16 95 P36 96 P35 97 P34 98 FIELD/DE 99 VS 100 P33 *R4447 768 R4527 22 *L4034 J0JCC0000077 *C4181 16V 0.01u TP4030 C4172 16V 0.1u Q4063 B1ABDF000034 C4158 10V 1u C4160 10V 0.1u Q4053 B1ABDF000034 *IC4014 C0CBCAC00282 1 VDD 2 GND 3 CE 5 VOUT 4 NC *JS4112 0 *R4442 422 *C4144 50V 5p Q4056 2SA207700L *R4549 0 *C4169 10V 1u *C4214 10V 1u *C4236 10V 0.1u *R4551 0 C4218 50V 1000p *C4157 6.3V 10u R4480 422 Q4064 B1ABDF000034 C0CBCAC00275 IC4016 1 VDD 2 GND 3 CE 5 VOUT 4 NC *Q4043 2SA207700L C4253 47u 6.3V *JS4014 0 *L4027 J0JHC0000078 *R4571 56 EXB28V560JX *C4149 10V 1u R4517 1.37k R4024 0 *C4233 10V 0.1u *R4516 0 *R4538 150 *C4270 10V 0.1u C4217 16V 0.1u *C4274 10V 0.1u *C4257 6.3V 2.2u *C4239 10V 0.1u R4568 100 *C4242 10V 0.1u TP4028 C4216 47u 6.3V *C4195 16V 0.1u C4178 16V 0.039u R4498 1k *C4259 6.3V 2.2u *R4492 1k C4211 10V 0.1u R4572 10k R4552 EXB28V220JX *R4529 33 R4533 22 R4474 1.21k *IC4017 C0CBCAC00282 1 VDD 2 GND 3 CE 5 VOUT 4 NC *R4536 150 Q4061 B1ABDF000034 C4215 10V 0.1u C4224 10V 0.1u C4180 16V 0.1u C4273 10V 0.1u R4550 EXB28V220JX MAIN3.3V C4200 47u 6.3V C4201 16V 0.01u *C4234 10V 0.1u R4578 2.2k Q4059 2SA207700L C4171 50V 470p L4073 J0JHC0000078 *R4436 0 *R4557 22 *JS4013 0 R4565 22 *JS4020 0 MAIN3.3V *R4484 0 *R4491 0 R4465 220k JS4017 *R4454 680 C4227 16V 0.082u Q4058 2SA207700L *R4438 0 *R4545 0 R4487 560 *C4267 10V 0.1u C4186 6.3V 10u MAIN9V SUB5V *R4515 0 C4262 10V 0.1u C4235 16V 0.01u *R4541 0 *R4547 0 *L4028 J0JHC0000078 C4248 10V 0.1u R4564 22 R4560 EXB28V220JX *C4246 10V 0.1u *L4033 G1C100KA0009 *C4275 10V 0.1u R4561 EXB28V220JX *R4478 470 JS4111 0 L4029 J0JHC0000078 *C4196 16V 0.1u *C4198 10V 1u C4219 10V 1u R4521 22 R4500 27k R4522 22 JS4023 0 *R4479 422 *C4220 16V 0.01u *C4241 10V0.1u *R4570 EXB28V560JX C4245 10V 0.1u *R456656 R4520 1.69k *R4470 150 *R4449 1.21k *C4255 50V 5600p *C4182 10V 0.1u *C4187 47u 6.3V R4508 0 *L4021 J0JHC0000078 *R4523 33 *R4490 1k R4555 EXB28V220JX *C4243 10V 1u *C4258 10V 0.1u *R4466 33 C0CBCAC00275 IC4018 1 VDD 2 GND 3 CE 5 VOUT 4 NC *C4146 50V 5p *R4467 33 *R4531 2.7k C4165 10V 0.1u C4244 10V 1u R4501 1k C4263 10V 0.1u C4177 16V 0.68u *R4548 910 *C4192 10V 0.1u JS4024 0 *L4037 J0JCC0000077 *C4212 220u 4V *R4546 0 *R4524 33 *C4232 10V 0.1u R4482 1.78k R4483 1.78k *R4485 0 *C4225 10V 1u *JS4015 0 C4228 16V 0.01u *R4450 820 C4185 6.3V 10u R4008 0 *Q4044 2SA207700L C4191 10V 0.1u *R4539 1k *C4142 16V 0.1u C4269 10V 1u *C4226 50V 68p *C4238 10V 0.1u R4554 22 *R4525 33 *R4532 470 *L4032 J0JHC0000078 *R4528 33 L4038 J0JHC0000078 R4499 1k C4256 10V 1u *C4276 6.3V 2.2u C4264 10V 0.1u *Q4046 2SA207700L C4188 10u 6.3V *R4443 422 *R4444 3.3k R4486 487 R4025 0 *C4194 16V 0.1u *R4530 33 Q4062 B1ABDF000034 *R4567 47 *R4562 56 *R4534 100 R4579 2.2k *R4553 100 *C4213 10V 0.1u *C4197 16V 0.1u C1AB00002202 *IC4020 1 VROUT4 2 VROUT3 3 VROUT2 4 VROUT1 5 VROUT0 6 VDDE 7 VSS 8 VDDI 9 SASW 10 TEST 11 VPD 12 VDDE 13 VSS 14 XTALOUT 15 VDDI 16 XTALIN 17 VDDE 18 VSS 19 EXHPIN 20 EXVPIN 21 TCK 22 TRST 23 TMS 24 TDO 25 TDI 26 AVSAD1 27 VRH1 28 AVDAD1 29 VRL1 30 VIN1 31 AVSAD2 32 VRH2 33 AVDAD2 34 VRL2 35 VIN2 36 AVSAD3 37 VRH3 38 AVDAD3 39 VRL3 40 VIN3 41 AVDCLP 42 AVSCLP 43 UCLP 44 VCLP 45 YCLP 46 VRO1 47 VREF1 48 AVSDA1 49 AVDDA1 50 AOUT1 51 VDDE 52 BXS 53 VDDI 54 CW358 55 VSS 56 AVSPL1 57 AVDPL1 58 CPO1 59 VGS1 60 VSS 61 NRST 62 VDDE 63 CTRL1 64 SDA 65 SCL 66 VDDI 67 VSS 68 FRCLKO1 69 VDDE 70 FRCLKO2 71 CTRL0 72 VPO 73 HPO 74 YGOUT7 75 YGOUT6 76 YGOUT5 77 VSS 78 YGOUT4 79 YGOUT3 80 YGOUT2 81 VDDE 82 VDDI 83 YGOUT1 84 YGOUT0 85 UBOUT7 86 UBOUT6 87 VSS 88 UBOUT5 89 UBOUT4 90 UBOUT3 91 UBOUT2 92 UBOUT1 93 UBOUT0 94 CLKO 95 VDDI 96 VSS 97 VDDE 98 VROUT7 99 VROUT6 100 VROUT5 C4206 16V 0.1u *R4556 22 *C4265 10V 0.1u MAIN1.8V SUB9V *Q4055 2SA207700L R4575 4.7k L4031 J0JHC0000078 R4001 1.21k TP4029 *C4229 16V 0.1u *Q4051 2SD10300TL *JS4113 0 *IC4040 C0CBCAC00282 1 VDD 2 GND 3 CE 5 VOUT 4 NC *C4161 10V 1u *R4451 820 R4563 22 *R4519 0 Q4057 2SA207700L C4175 16V 0.1u *Q4052 2SD10300TL R4510 0 *C4268 10V 0.1u R4496 1k *C4252 1u 10V R4544 22 R4469 150 C4173 16V 0.1u *R4543 0 MAIN3.3V Q4050 B1ABDF000034 *C4162 10V 1u C4266 16V 0.01u JS4016 C4176 6.3V 2.2u *R4569 EXB2HV560JV C4189 10V 0.1u C4190 10V 0.1u *R4457 0 *C4261 10V 0.1u C4159 16V 0.1u *C4543 16V 0.1u C4209 10V 0.1u R4502 1k *R4535 100 *R4537 150 *C4230 10V 0.1u *C4009 10V 1u C4204 10V 0.1u *C4277 6.3V 2.2u *C4150 10V 1u JS4022 0 *R4526 1.4k C4272 47u 6.3V *C4240 10V 0.1u *R4489 330 *C4251 10V 0.1u *JS4021 0 IC4013 C0CBCBF00009 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 NC 7 NC 8 VIN *C4148 10V 1u *Q4054 2SD10300TL *C4231 10V 0.1u C4205 16V 0.1u R4497 1k C4174 10V 0.1u *C4145 50V 5p *C4250 10V 0.1u JS4108 SUB AD 2.5V from MCU GC3FS PLL 2.5V Y PR RGB_CVBS PB/C SYS_RST(L_3.3V) 33 36 28 32 31 30 29 34 35 10bit A/D(ADV7499) MAIN 2.5V AD 3.3V AVR 1.8V AVR 1.8V 55 51 56 54 60 58 57 59 52 72 73 75 76 77 78 79 71 TH-42PV600C DG-Board (4 of 8) Schematic Diagram TH-42PV600C DG-Board (4 of 8) Schematic Diagram ! DG-BOARD (4/8) TNPA3756CK 93 14.28.DG 电路板 (5/8) 线路图 Thermal Pad + + + + + SCL1 HPD1 HDMI_DAC_PD UBIN3 UBIN2 UBIN9 YBIN6 UBIN0 HDMI_RST YBIN2 UBIN7 YBIN4 HDMI_5V_DET2 HDMI_5V_DET2 UBIN6 HDMI_5V_DET1 HDMI_5V_DET1 VSIB AP_DE SDA1 YBIN3 UBIN1 HSIB YBIN7 YBIN0 UBIN5 YBIN9 UBIN4 UBIN8 REFCK_HDMI YBIN5 HPD2 YBIN8 DDC_SDA0 DDC_SCL0 YBIN1 CLKINB2 MAIN1.8V HDMI_R HDMI_L HDMI_WP MAIN3.3V HDMI_INT HDMI_CEC JS4025 100 C4332 1u 10V C4305 1u 10V C4327 0.1u 10V R4677 18k *D4021 EZJZ0V80008B R4630 4.7k L4046 J0JHC0000078 R4600 2.7 *L4076 J0JHC0000078 TP4032 C4317 0.1u 10V *D4033 EZJZ0V80008B C4347 1u 10V R4642 22 C4342 0.1u 10V C4306 1u 10V D4036 EZJZ0V80008B C4346 0.1u 10V R4599 2.7 R4634 22 C0FBBK000047 IC4025 1 MCLK 2 BICK 3 SDTI 4 LRCK 5 PDN 6 SMUTE/CSN 7 ACKS/CCLK 8 DIF0/CDTI 9 P/S 10 AOUTR 11 AOUTL 12 VCOM 13 VSS 14 VDD 15 DZFR 16 DZFL C1AB00002535 IC4026 SII9023CTU-L 1 DE 2 HSYNC 3 VSYNC 4 IOGND 5 IOVCC 6 NC 7 NC 8 NC 9 EVNODD 10 NC 11 NC 12 NC 13 NC 14 NC 15 IOGND 16 IOVCC 17 NC 18 NC 19 NC 20 NC 21 CGND 22 CVCC18 23 CVCC18 24 CGND 25 IOGND 26 IOVCC 27 CSDA 28 CSCL 29 DSDA1 30 DSCL1 31 DSDA0 32 DSCL0 33 R1PWR5V 34 R0PWR5V 35 CVCC18 36 CGND 37 PVCC0 38 AVCC 39 R0XC- 40 R0XC+ 41 AGND 42 AVCC 43 R0X0- 44 R0X0+ 45 AGND 46 AVCC 47 R0X1- 48 R0X1+ 49 AGND 50 AVCC 51 R0X2- 52 R0X2+ 53 AGND 54 TMDSPGND 55 PVCC1 56 RSVD_A 57 AVCC 58 R1XC- 59 R1XC+ 60 AGND 61 AVCC 62 R1X0- 63 R1X0+ 64 AGND 65 AVCC 66 R1X1- 67 R1X1+ 68 AGND 69 AVCC 70 R1X2- 71 R1X2+ 72 AGND 73 CGND 74 CVCC18 75 IOGND 76 IOVCC 77 MUTEOUT 78 SPDIF 79 CVCC18 80 CGND 81 NC 82 NC 83 NC 84 SD0 85 WS 86 SCK 87 NC 88 MCLK 89 IOVCC 90 IOGND 91 CGND 92 CVCC18 93 NC 94 AUDPVCC18 95 AUDPGND 96 XTALOUT 97 XTALIN 98 XTALVCC 99 REGVCC 100 NC 101 RSVDL 102 RESET# 103 SCDT 104 INT 105 CVCC18 106 CGND 107 CLK48B 108 IOGND 109 IOVCC 110 Q23 111 Q22 112 Q21 113 Q20 114 CVCC18 115 CGND 116 Q19 117 Q18 118 Q17 119 Q16 120 IOGND 121 ODCK 122 IOVCC 123 Q15 124 Q14 125 Q13 126 Q12 127 CGND 128 CVCC18 129 Q11 130 Q10 131 Q9 132 Q8 133 Q7 134 IOVCC 135 IOGND 136 Q6 137 Q5 138 CGND 139 CVCC18 140 Q4 141 Q3 142 Q2 143 Q1 144 Q0 C4314 0.1u 10V C4311 0.1u 10V *IC4023 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC *R4620 56 R4640 22 R4601 2.7 C4315 6.3V 10u R4644 22 *TP4033 R4609 10k R4675 18k R4603 2.7 R4621 47k R4606 10k C4284 0.1u 10V JS4026 100 R4637 33 C4331 6.3V 10u *C4281 0.1u 10V *Q4068 B1ABDF000034 C4349 16V 0.01u *D4048 MAZ30560ML L4048 J0JHC0000078 C0DBFFD00003 IC4027 1 2 3 4 5 6 7 D4028 EZJZ0V80008B *D4041 EZJZ0V80008B *Q4071 B1MBACA00008 G1 D1 S1 G2 D2 S2 D4026 EZJZ0V80008B *L4043 J0JHC0000078 *R4624 56 *D4030 EZJZ0V80008B *D4045 EZJZ0V80008B *D4027 EZJZ0V80008B R4641 EXB28V330JX C4325 0.1u 10V *D4052 B0HCMM000014 C4321 0.1u 10V MAIN3.3V C4337 0.1u 10V D4050 B0HCMM000014 *TP4066 L4049 J0JBC0000080 L4075 J0JHC0000078 *L4040 J0JHC0000078 R4658 22 C4298 1u 10V *R4617 4.7k R4629 4.7k C4334 0.1u 10V C4302 1u 10V C4292 0.1u 10V *R4619 47k C4322 0.1u 10V C4282 0.1u 10V R4286 0 *R4605 10k *IC4022 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC R4584 39 L4052 J0JCC0000077 *TP4031 R4679 22k D4047 MAZ30560ML TP4034 *R4589 2.7 L4045 J0JHC0000078 *R4610 10k R4645 22 *Q4084 B1ABDF000034 C4348 16V 47u C4300 1u 10V C4338 0.1u 10V D4038 EZJZ0V80008B *R4596 2.7 *R4595 2.7 D4044 EZJZ0V80008B *R4593 2.7 R4662 22 R4628 10k C4026 0.1u 10V *R4027 1k R4673 10k R4636 10k R4045 0 C4340 470p 50V C4304 1u 10V L4078 J0JHC0000078 C4333 0.1u 10V C4318 0.1u 10V *D4023 EZJZ0V80008B C4335 0.1u 10V R4672 10k R4271 0 Q4069 B1ABDF000034 R4680 22k *R4590 2.7 C4309 0.1u 10V L4071 J0JBC0000080 *Q4083 2SK122800L *D4019 EZJZ0V80008B C4354 0.01u 16V *C4287 0.1u 10V R4602 2.7 R4622 56 *D4037 EZJZ0V80008B R4681 33k *R4101 10k R4631 4.7k C4339 2.2u 6.3V JS4104 R4643 22 R4639 10k *C4312 0.01u 16V D4024 EZJZ0V80008B D4031 EZJZ0V80008B Q4066 B1ABDF000034 C4297 0.1u 10V *D4025 EZJZ0V80008B TP4065 C4336 0.1u 10V R4665 EXB2HV220JV C4345 10u 6.3V R4607 22 C4288 0.1u 10V D4032 EZJZ0V80008B TP4036 C4310 0.01u 16V 33u 6.3V *C4289 R4604 2.7 C4307 0.1u 10V D4035 EZJZ0V80008B *D4034 EZJZ0V80008B R4661 4.7k R4618 4.7k R4682 33k C4343 16V 10u R4667 EXB2HV220JV C4541 0.1u 10V R4613 4.7k R4026 1k Q4082 2SK122800L C4352 50V 33p *R4591 2.7 R4598 2.7 IC4028 C0ABBB000230 1 2 3 4 5 6 7 8 R4031 10k R4010 0 L4044 J0JHC0000078 C4296 6.3V 10u C4316 0.1u 10V *R4594 2.7 R4626 56 DG9 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 C4313 0.1u 10V TP4064 *D4029 EZJZ0V80008B 33u 6.3V C4290 *Q4065 B1ABDF000034 *R4592 2.7 MAIN5V C4330 0.1u 10V R4597 2.7 *C4283 0.1u 10V R4668 68 L4041 J0JHC0000078 R4648 33 R4657 1.8k L4050 J0JHC0000078 R4655 33 C4329 0.1u 10V R4040 0 C4350 50V 180p L4051 J0JHC0000078 *R4583 39 C4344 10u 6.3V R4647 22 C4353 50V 33p *L4042 J0JHC0000078 C4351 50V 180p R4669 EXB2HV220JV C4303 1u 10V D4020 EZJZ0V80008B TP4035 *R4633 22 Q4067 B1ABDF000034 C4301 1u 10V R4632 4.7k *D4051 B0HCMM000014 MAIN9V C4308 0.1u 10V *R4612 4.7k Q4070 B1MBACA00008 G1 D1 S1 G2 D2 S2 *C4291 0.1u 10V C4320 0.1u 10V R4660 22 D4022 EZJZ0V80008B D4049 B0HCMM000014 C4299 1u 10V C4341 16V 47u *DG8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 *R4032 10k R4272 0 DDCG CEC D0+ CLKG D2- DDCG CEC D2+ GND +5V Cn D0+ CLK+ D0G D1- HDMI_SCL D1+ D2G L CLKG HDMI_SDA HDMI_Y0 HDMI_Y1 - HDMI_Y2 N.C. R D2- HPDT D1G HDMI_Y3 D0- HDMI_Y4 +5V HDMI_Y5 + - SDA SCL CLK- HDMI_UV0 HDMI_UV2 NC HDMI_Y6 D1G HDMI_UV6 HDMI_Y7 HDMI_CLK RX_MCLK RX_SCK R AUDIO DAC RX_WS HDMI_L_AUDIO + VIL < 0.8V HDMI_R_AUDIO SDA Vin sub L SCL HDMI_UV4 CLK- HDMI_UV3 CONT RX_SD0# HDMI_UV5 DIGITAL VIDEO SIGNAL (HDMI) Vo VIH > 2.2V HDMI_UV1 HDMI_UV7 D0- HIGH:MUTE HDMI_VS HDMI_DE HDMI_HS D2+ N.C. CLK+ HPDT D0G D1- D1+ D2G G D S D TVRN917 TVRN916 43 44 38 42 37 41 45 39 40 G S HDMI I/F RECEIVER EEPROM EEPROM AUDIO AMP HDMI IN 1 HDMI IN 2 MAIN 1.8V 92 93 94 95 96 73 75 72 77 79 76 78 71 91 TH-42PV600C DG-Board (5 of 8) Schematic Diagram TH-42PV600C DG-Board (5 of 8) Schematic Diagram ! DG-BOARD (5/8) TNPA3756CK 94 14.29.DG 电路板 (6/8) 线路图 + A_DDR_DQ2 CLKIA A_DDR_DQ18 YBIN2 A_DDR_DQ1 VSIA CLKINB GENX_HIN A_DDR_DQ17 A_DDR_DQ0 YBIN4 CLKOA UVIN0 A_DDR_DQ16 A_DDR_DQ19 YBIN7 YIN1 A_DDR_DQ20 RIN1 AP_DE A_DDR_DQ21 UVIN1 VSIB A_DDR_DQ22 HSIA UVIN3 GENX_YS A_DDR_RAS RIN0 YBIN1 HSIB RIN2 YIN9 A_DDR_WE A_DDR_DQ23 YIN0 YBIN6 UBIN3 UVIN9 A_DDR_BA0 RIN3 YBIN9 A_DDR_BA1 UBIN2 YIN3 YBIN5 UBIN7 YIN7 REFCK_ADV A_DDR_DQ25 A_DDR_A8 UVIN6 A_DDR_DQ26 YIN6 A_DDR_A7 JTAG_TRST A_DDR_NCLK A_DDR_DQ27 A_DDR_A5 YIN2 JTAG_TCK A_DDR_CLK A_DDR_DQ28 A_DDR_A6 A_DDR_DQ10 UBIN1 UVIN7 A_DDR_DQS1 A_DDR_DQ9 JTAG_TMS A_DDR_A1 REFCK_HDMI A_DDR_DQ29 A_DDR_DQS3 UBIN9 YIN5 A_DDR_A9 A_DDR_DQ30 A_DDR_DQS2 JTAG_FS_GC5 UVIN2 UBIN6 A_DDR_DQ8 A_DDR_A2 A_DDR_SDCKE UVIN4 UBIN4 A_DDR_DQ15 A_DDR_A0 A_DDR_DQ24 A_DDR_CAS A_DDR_DQ3 A_DDR_A4 UBIN8 A_DDR_DQ31 A_DDR_A3 A_DDR_DQS0 A_DDR_DQ4 UBIN0 A_DDR_DQ14 UVIN5 A_DDR_A11 A_DDR_DQ5 UBIN5 A_DDR_DQ13 A_DDR_A10 UVIN8 A_DDR_DQ6 A_DDR_DQ12 YBIN0 GENX_CLKIN YIN8 A_DDR_DQ11 YBIN3 CLKINB2 A_DDR_DQ7 YIN4 YBIN8 GENX_VIN GENX_YM GENX_B0 GENX_G3 GENX_R2 GENX_B2 GENX_R1 GENX_R0 GENX_R3 GENX_B1 GENX_B3 GENX_G1 GENX_G4 GENX_G0 GENX_G2 JTAG_GC5_BA MAIN1.2V GENX_G5 GENX_R4 GENX_B4 REFCK_FS IC4037 C30 UVIC0 IC4037 F30 CLKIC IC4037 A24 OSDYSI IC4037 A3 THQHOUT 1000p 50V C4414 IC4037 C17 OSDI15 IC4037 A17 CLKOD2 IC4037 AE5 AVSSCK IC4037 AK9 WE IC4037 R27 GND IC4037 K1 FRCKO3 IC4037 AF10 VDD25 IC4037 R13 GND IC4037 C18 OSDI12 IC4037 D28 UVIC1 IC4037 AB3 VDD25 IC4037 K4 YIB9 IC4037 T3 RVIA5 IC4037 AJ1 VDD25 IC4037 P16 GND IC4037 B24 OSDYMI 0.1u 10V C4397 IC4037 AE27 VDD12 IC4037 R12 GND IC4037 D18 GND IC4037 AD4 GND IC4037 R26 GND IC4037 AG3 DQ11 *JS4029 220 IC4037 AJ20 GND IC4037 C28 GND IC4037 T16 VDD12 IC4037 A28 YIC4 IC4037 E10 GND IC4037 A4 THQCO7 IC4037 AH4 VREFSSTL2V_0 IC4037 R1 BUIA5 IC4037 AK29 GND IC4037 A6 THQYO9 IC4037 G5 GND IC4037 AE2 DQ24 IC4037 AG27 VDD12 0.1u 10V C4407 IC4037 U15 GND IC4037 A2 CLKOTHQ1 IC4037 C13 FHQCIN8 IC4037 B19 OSDI10 IC4037 T4 GND IC4037 V12 VDD25 IC4037 A5 THQCO3 IC4037 AJ5 A5 IC4037 AF4 GND IC4037 A18 OSDI14 0.1u 10V C4408 IC4037 AE4 GND IC4037 E22 GND IC4037 T5 GND IC4037 F2 UVIB5 IC4037 K3 HSIB IC4037 AF25 GND IC4037 A20 OSDI8 0.1u 10V C4389 IC4037 L1 BUIA1 IC4037 V2 GYIA2 IC4037 D29 UVIC2 C4362 6.3V 10u IC4037 D30 UVIC3 IC4037 B12 FHQYIN2 IC4037 AG8 GND C4367 10V 0.1u IC4037 D16 MOSDVSO2 IC4037 D25 TCK IC4037 AC1 DQ29 IC4037 G1 YIB0 0.1u 10V C4404 IC4037 AH7 A3 IC4037 AF15 GND IC4037 H1 YIB4 IC4037 A22 OSDI2 IC4037 AB1 DQ31 IC4037 W27 GND IC4037 N1 RVIA2 IC4037 R15 VDD12 IC4037 AK3 SDCLKO IC4037 J1 YIB8 IC4037 R16 GND IC4037 C16 FRCKO2 IC4037 AJ26 GND IC4037 N2 RVIA1 IC4037 AF24 GND IC4037 Y3 GYIA5 IC4037 AF14 AVSS_DDR IC4037 AC3 DQ28 IC4037 Y2 GYIA6 IC4037 AK11 DQS2 IC4037 P15 GND IC4037 E21 GND IC4037 L3 CLKIA2 R4037 EXB2HV103JV IC4037 AF7 VDD25 IC4037 B15 FHQCIN3 IC4037 P13 VDD12 IC4037 J3 YIB6 IC4037 B4 THQCO8 IC4037 D22 GND IC4037 B17 MOSDHSO2 IC4037 V15 GND 1000p 50V C4403 IC4037 R2 BUIA4 0.1u 10V C4398 IC4037 AJ28 GND 1u 10V C4400 IC4037 A14 FHQCIN7 IC4037 C12 FHQYIN1 IC4037 J2 YIB7 C4003 6.3V 10u 1000p 50V C4385 IC4037 F6 GND IC4037 V1 GYIA3 IC4037 B20 OSDI7 IC4037 E14 GND IC4037 A21 OSDI5 IC4037 C7 THQYO7 IC4037 P18 GND R4713 EXB2HV221JV IC4037 M12 VDD12 IC4037 AG12 GND IC4037 H2 YIB3 IC4037 C15 FHQCIN2 IC4037 D6 THQCO2 IC4037 D24 TDI R4711 10k IC4037 V18 VDD12 IC4037 D5 THQCO6 IC4037 AK17 GND IC4037 J5 GND R4727 0 *R4018 10k IC4037 AJ9 RAS IC4037 V17 GND IC4037 B21 OSDI4 IC4037 AG15 GND IC4037 C1 ENBIB IC4037 AF6 AVDCLK IC4037 E3 UVIB1 IC4037 N17 GND IC4037 U5 GND IC4037 AJ11 DQ21 IC4037 D26 TDO MAIN1.2V IC4037 Y27 GND IC4037 AH20 GND IC4037 D3 VDD12 IC4037 A26 CLKOD IC4037 G28 GND IC4037 F29 HSIC IC4037 B27 YIC6 IC4037 D1 UVIB0 IC4037 C10 FHQYIN7 IC4037 D10 GND IC4037 D8 THQYO4 IC4037 U2 RVIA7 IC4037 J4 YIB5 IC4037 E30 UVIC7 IC4037 AC5 AVSS_DDR IC4037 W26 GND IC4037 N5 GND IC4037 T1 BUIA7 IC4037 D2 CLKIB2 1u 10V C4373 IC4037 AJ6 A4 IC4037 AG25 GND IC4037 AD3 DQ26 IC4037 AK30 VDD12 IC4037 B1 VDD12 IC4037 AF11 VDD25 1000p 50V C4413 IC4037 T15 GND IC4037 T12 GND IC4037 AJ4 CKE R4709 68 1000p 50V C4406 IC4037 AG11 VDD25 IC4037 E27 UVIC4 1000p 50V C4393 IC4037 AJ29 VDD12 IC4037 C3 GND IC4037 AJ12 DQ18 IC4037 C8 THQYO3 IC4037 AH16 DQ0 0.1u 10V C4384 IC4037 P17 GND JS4028 0 IC4037 AG16 GND IC4037 AH1 DQ8 IC4037 M4 GND L4053 J0JHC0000078 1000p 50V C4383 IC4037 B11 FHQYIN5 1000p 50V C4390 IC4037 E18 GND IC4037 F1 UVIB6 IC4037 AH15 DQ3 IC4037 AG22 GND IC4037 AD5 GND 0.1u 10V C4377 IC4037 A7 THQYO5 IC4037 B23 OSDHSI IC4037 AF9 GND IC4037 AH12 DQ19 IC4037 B7 THQYO6 IC4037 W1 GYIA4 IC4037 AK13 GND IC4037 K2 VSIB IC4037 AK4 A8 IC4037 T19 VDD12 IC4037 N4 GND IC4037 AC2 DQ30 C4004 6.3V 10u IC4037 T2 BUIA6 IC4037 AG4 GND IC4037 V3 GYIA1 IC4037 AJ8 A0 1u 10V C4391 IC4037 B9 FHQVIN IC4037 C9 FHQHIN IC4037 R14 GND R4039 EXB2HV103JV IC4037 U16 GND IC4037 A13 FHQYIN0 IC4037 AH26 GND R4041 0 IC4037 AF23 GND IC4037 A30 GND 1u 10V C4399 IC4037 AA2 VDD25 IC4037 C22 OSDI0 IC4037 AH21 GND IC4037 E1 UVIB2 IC4037 D17 GND R4898 10k IC4037 N16 GND IC4037 AG23 GND 0.1u 10V C4364 IC4037 AK10 DQ22 IC4037 AF16 GND IC4037 D7 THQYO8 IC4037 AF12 GND IC4037 AG6 VDD25 C4014 6.3V 10u IC4037 MN84522-A A1 GND JS4027 0 IC4037 AH13 DQ17 IC4037 AH6 A9 IC4037 P19 GND IC4037 L4 TEST IC4037 F3 UVIB4 IC4037 AK8 BA1 IC4037 AH8 A2 IC4037 AG7 VDD25 DDR2.5V IC4037 E9 GND IC4037 U1 GYIA0 IC4037 P2 RVIA4 IC4037 E28 UVIC5 IC4037 AK24 GND 0.1u 10V C4412 IC4037 N3 RVIA0 IC4037 W13 VDD25 C4366 47u 6.3V IC4037 B13 FHQCIN9 IC4037 AJ3 NSDCLO IC4037 E17 GND IC4037 AK14 DQS0 IC4037 W18 VDD12 IC4037 B8 THQYO2 0.1u 10V C4372 IC4037 W19 VDD12 IC4037 B6 THQCO0 1000p 50V C4402 IC4037 AF8 GND IC4037 C14 FHQCIN5 IC4037 W3 HSIA IC4037 C5 THQCO5 IC4037 Y5 GND IC4037 AF3 DQ12 IC4037 AK18 GND R4038 EXB2HV103JV IC4037 G4 UVIB7 0.1u 10V C4395 IC4037 AG2 DQ10 C4379 10V 0.1u IC4037 F28 VSIC IC4037 A16 FHQCIN1 IC4037 AJ10 DQ23 IC4037 M2 CLKIA IC4037 AG24 GND IC4037 C23 OSDVSI IC4037 E13 GND 0.1u 10V C4411 IC4037 B30 YIC1 R4022 1k IC4037 AG1 DQ14 IC4037 AH14 DQ7 IC4037 AE3 DQ15 IC4037 U17 VDD12 IC4037 W14 GND IC4037 AK1 GND IC4037 N14 VDD12 IC4037 E2 CLKIB1 IC4037 AJ2 GND IC4037 G27 GND IC4037 A8 THQYO1 1000p 50V C4394 IC4037 AH27 GND *R4715 0 IC4037 AF2 DQ13 IC4037 AH28 VDD12 IC4037 A27 YIC7 IC4037 Y26 GND 0.1u 10V C4401 IC4037 AH24 GND IC4037 H3 YIB2 IC4037 A19 OSDI11 IC4037 AK7 A1 IC4037 AD27 CLKID2 R4719 68 IC4037 R18 GND IC4037 G3 UVIB8 R4714 EXB2HV221JV IC4037 AE1 DQS3 1000p 50V C4371 IC4037 W17 GND IC4037 A15 FHQCIN4 IC4037 AK15 DQ5 IC4037 C20 OSDI6 IC4037 G2 UVIB9 IC4037 B14 FHQCIN6 IC4037 P1 BUIA2 IC4037 AJ14 DQ6 IC4037 AH9 BA0 IC4037 A9 FHQCKIN IC4037 D27 GND C4388 10V 1u IC4037 B10 FHQYIN8 1u 10V C4410 IC4037 W2 VSIA R4708 68 IC4037 AC26 GND IC4037 C6 THQCO1 IC4037 AH5 A7 IC4037 C25 MOSDVSO IC4037 C19 OSDI9 IC4037 T13 GND IC4037 AJ13 DQ16 IC4037 AD26 GND IC4037 AF20 GND IC4037 U14 GND IC4037 H27 GND IC4037 H26 GND IC4037 U12 GND IC4037 AD1 DQ25 IC4037 AJ15 DQ4 IC4037 D14 GND 1000p 50V C4396 IC4037 G26 GND IC4037 C24 ALPHAI1 IC4037 AE26 VDD12 IC4037 AJ24 GND IC4037 AB2 VDD25 IC4037 AF26 VDD12 R4837 22 IC4037 M17 GND C4027 1u 10V IC4037 L27 GND IC4037 AK2 GND IC4037 A23 CLKID C4360 10V 1u IC4037 R3 BUIA3 IC4037 AK5 A6 IC4037 B28 YIC3 IC4037 D21 GND IC4037 AJ16 DQ2 IC4037 AF13 GND IC4037 M5 GND R4712 0 C4015 6.3V 10u IC4037 V19 VDD12 *JS4069 220 IC4037 AH3 GND R4706 0 IC4037 H4 YIB1 IC4037 E25 GND IC4037 M27 GND IC4037 AG5 AVDD_DDR IC4037 B2 GND IC4037 AG26 GND IC4037 A12 FHQYIN3 IC4037 P12 VDD12 IC4037 A11 FHQYIN6 IC4037 AA5 GND IC4037 D9 THQYO0 IC4037 AH10 CAS IC4037 B22 OSDI1 IC4037 AG9 GND IC4037 M13 VDD12 1u 10V C4405 1000p 50V C4409 IC4037 D23 TRST IC4037 N12 VDD12 IC4037 C26 TMS IC4037 C29 YIC0 IC4037 H5 GND 0.1u 10V C4374 IC4037 A29 YIC2 C4365 10V 1u IC4037 T26 GND IC4037 C2 VDD12 IC4037 R19 GND IC4037 E4 VDD12 IC4037 P14 VDD12 IC4037 U3 RVIA6 IC4037 D4 GND IC4037 B26 MOSDHSO IC4037 AG14 AVDD_DDR 0.1u 10V C4382 IC4037 V13 VDD25 IC4037 U13 GND IC4037 E29 UVIC6 IC4037 N15 GND R4720 68 IC4037 R17 GND IC4037 M1 CLKOA C0CBCAC00282 IC4029 1 VDD 2 GND 3 CE 5 VOUT 4 NC C4363 10V 0.1u IC4037 M15 GND 0.1u 10V C4117 1000p 50V C4375 0.1u 10V C4392 IC4037 AB4 VDD25 IC4037 AJ17 GND IC4037 AA4 GND 0.1u 10V C4381 IC4037 B25 ENBID IC4037 U18 VDD12 IC4037 AF1 DQS1 0.1u 10V C4386 IC4037 P3 RVIA3 IC4037 E5 GND IC4037 AJ7 A10 IC4037 L2 BUIA0 IC4037 AD2 DQ27 IC4037 AH23 GND IC4037 AH2 DQ9 L4054 J0JHC0000078 IC4037 AG10 VDD25 IC4037 AA1 VDD25 IC4037 AG13 GND IC4037 C27 YIC5 IC4037 AK12 GND IC4037 T27 GND IC4037 E6 GND IC4037 A25 ALPHAI0 IC4037 U19 VDD12 IC4037 B16 FHQCIN0 IC4037 M3 FRCKO1 IC4037 C11 FHQYIN4 IC4037 B3 THQVOUT IC4037 N13 VDD12 IC4037 AF27 VDD12 IC4037 M16 GND 1000p 50V C4387 IC4037 A10 FHQYIN9 IC4037 T18 VDD12 IC4037 F5 VDD12 IC4037 AH17 GND IC4037 AB5 VDD25 IC4037 M14 VDD12 R4718 68 1000p 50V C4376 MAIN3.3V IC4037 T14 GND IC4037 M26 GND IC4037 W12 VDD25 IC4037 V14 GND IC4037 B18 OSDI13 IC4037 AK16 DQ1 IC4037 C21 OSDI3 IC4037 E26 GND IC4037 T17 VDD12 IC4037 B5 THQCO4 IC4037 AF5 AVSS_DDR IC4037 AH11 DQ20 IC4037 Y1 GYIA7 1000p 50V C4380 IC4037 AA3 GND IC4037 B29 GND R4701 68 IC4037 AK6 A11 IC4037 F4 UVIB3 IC4037 L26 GND IC4037 AC4 AVDD_DDR IC4037 C4 THQCO9 IC4037 AH18 GND R4287 0 *R4023 68 PORT-C(PEAKS) PORT-D(OSD INPUT) PORT-A(ADV7499) PORT-B(FS&HDMI) PORT-FHQ(GC3E&HQ1) 27MHz 27MHz 50 53 47 51 48 49 54 46 52 IC4037 MN84522-A GC5 PROCESSOR DLL 2.5V 114 115 116 117 95 94 96 93 92 91 111 TH-42PV600C DG-Board (6 of 8) Schematic Diagram TH-42PV600C DG-Board (6 of 8) Schematic Diagram ! DG-BOARD (6/8) TNPA3756CK 95 14.30.DG 电路板 (7/8) 线路图 Thermal Pad + + + Thermal Pad A_ROE0 B_DDR_DQ10 B_DDR_DQ12 A_VSOE B_DDR_A2 A_ROE1 B_DDR_DQ29 B_DDR_A10 B_DDR_DQ19 B_DDR_NCLK B_DDR_DQS2 B_DDR_CLK A_DDR_DQ4 B_DDR_A7 A_DDR_DQ8 B_DDR_CAS B_DDR_CLK A_DDR_DQ3 A_DDR_DQ9 A_DDR_DQ29 B_DDR_DQ26 A_DDR_NCLK B_DDR_DQ3 B_DDR_DQS3 B_DDR_NCLK A_DDR_SDCKE B_DDR_DQ4 A_ROE8 B_DDR_DQ16 A_DDR_CLK B_DDR_BA0 A_DDR_CAS B_DDR_DQ0 B_DDR_DQ30 B_DDR_DQ11 B_DDR_DQ27 A_ROE7 A_DDR_A10 B_DDR_A1 B_DDR_A0 A_DDR_DQ17 A_DDR_DQ14 A_ROE5 A_GOE8 B_DDR_DQ21 B_DDR_CAS B_DDR_A2 B_DDR_DQS3 B_DDR_DQ28 B_DDR_DQ1 B_DDR_DQ25 A_ROE6 A_GOE7 A_DDR_DQ28 B_DDR_DQ15 B_DDR_DQ4 A_DDR_A1 A_DDR_DQ2 A_ROE2 A_GOE5 B_DDR_DQ21 A_DDR_DQ21 B_DDR_WE A_ROE3 A_GOE6 B_DDR_A9 B_DDR_DQ5 B_DDR_WE B_DDR_DQ18 A_ROE4 B_DDR_DQ13 A_GOE2 B_DDR_DQ8 B_DDR_A5 B_DDR_DQ0 B_DDR_RAS A_DDR_DQS0 B_DDR_A7 A_ROE9 A_GOE3 B_DDR_DQ3 A_DDR_DQ25 A_DDR_DQ10 B_DDR_DQ22 B_DDR_A11 B_DDR_DQ22 A_DDR_DQ30 A_GOE4 A_DDR_A7 A_DDR_DQ6 B_DDR_SDCKE B_DDR_DQ27 A_DDR_A2 A_DDR_DQ12 A_GOE9 GC_RST B_DDR_DQS1 B_DDR_A4 B_DDR_DQS0 B_DDR_BA1 B_DDR_A6 B_DDR_DQ29 A_DDR_A0 B_DDR_DQ6 A_DDR_DQ16 B_DDR_DQ9 B_DDR_DQ28 B_DDR_DQ16 B_DDR_A8 B_DDR_DQ12 B_DDR_RAS A_GOE0 B_DDR_DQ9 B_DDR_DQ14 B_DDR_DQ8 B_DDR_DQ25 A_DDR_DQ13 A_DDR_DQS3 A_GOE1 B_DDR_DQ2 B_DDR_DQ18 A_DDR_BA1 B_DDR_DQ6 B_DDR_DQ13 B_DDR_DQ10 B_DDR_A5 A_DDR_BA0 A_BOE0 A_DDR_WE A_DDR_A8 A_DDR_DQ11 B_DDR_A4 B_DDR_DQ14 B_DDR_DQS2 A_DDR_DQ22 A_BOE1 B_DDR_DQ24 B_DDR_DQ31 B_DDR_A10 A_DDR_DQ19 B_DDR_DQ2 A_DDR_DQS1 B_DDR_BA1 A_BOE2 B_DDR_DQ23 A_DDR_DQ27 A_DDR_A11 A_DDR_DQ24 B_DDR_A1 A_DDR_DQ31 A_BOE7 A_DDR_DQ15 B_DDR_DQ30 B_DDR_DQ17 A_BOE3 A_DDR_DQ5 A_DDR_A5 A_DDR_DQ0 A_DDR_RAS A_BOE8 B_DDR_A11 B_DDR_DQ20 A_BOE4 A_DDR_A9 A_DDR_DQS2 B_DDR_DQ17 A_BOE9 A_DDR_DQ20 B_DDR_A3 B_DDR_DQ23 A_DDR_A4 A_DDR_DQ23 A_BOE5 B_DDR_A8 B_DDR_A0 B_DDR_DQ20 B_DDR_DQ5 A_DDR_A3 A_BOE6 B_DDR_DQS0 B_DDR_DQ24 A_DDR_DQ18 B_DDR_DQ19 B_DDR_DQ7 A_DDR_A6 A_DDR_DQ7 B_DDR_DQ11 A_OSDMSK B_DDR_BA0 A_DDR_DQ26 B_DDR_DQ26 B_DDR_A9 A_DDR_DQ1 B_DDR_A3 B_DDR_DQ1 B_DDR_DQ7 B_DDR_SDCKE A_HSOE B_DDR_DQ31 B_DDR_DQ15 B_DDR_A6 SDA2 SCL2 MAIN3.3V PLL3.3V B_DDR_DQS1 A_CLKOE C4513 10V 0.1u R4791 47 IC4037 AD28 GOF5 R4759 68 IC4037 T28 ROE6 L4056 J0JCC0000077 R4788 EXB2HV470JV IC4037 R5 VDDW IC4038 D11 VDDQ IC4037 U30 ROE5 C4482 50V 18p C4428 10V 0.1u IC4038 A9 DQ28 R4732 4.75k IC4037 V5 VDDW IC4038 G12 DQS1 1000p 50V C4437 IC4038 F6 VSS_Thermal JS4035 0 IC4038 B1 DQ4 IC4038 L5 A2 R4265 32.4k IC4038 J2 DQ23 0.1u 10V C4452 IC4038 C12 DQ25 IC4037 U27 VDDW IC4038 K6 VDD IC4037 AK27 ROF0 R4750 EXB2HV680JV IC4037 E20 VDDW IC4038 G11 DM1 TP4041 C4023 6.3V 10u R4765 0 IC4032 C0DBGYY00052 1 VOUT 2 NC 3 GND 4 NC 5 CONT 6 NC 7 NC 8 VIN IC4038 M7 A4 R4739 3.3k IC4038 J1 DQ22 IC4037 W4 OEBLK 1000p 50V C4457 IC4037 N28 GOE5 IC4038 G4 VSSQ R4775 47 IC4037 D12 NRST C4462 10V 0.1u IC4038 K10 VDD IC4037 V29 ROE1 C4508 16V 0.01u IC4038 F11 DQ13 IC4037 H29 HSOE IC4037 E24 VDDW IC4038 G8 VSS_Thermal C4498 470p 50V JS4040 IC4038 C10 VSSQ IC4037 AF30 GOF1 1000p 50V C4481 R4796 EXB2HV470JV IC4038 D5 VSSQ IC4037 AH29 ROF4 C4510 10V 0.1u IC4037 K30 BOE6 IC4037 AE30 GOF4 1000p 50V C4475 IC4037 AG17 TESTIO_DDR 1u 10V C4435 IC4037 J29 BOE8 IC4037 AK21 VREF IC4038 F12 DQ12 L4060 J0JCC0000077 IC4037 AG21 GND_DAC IC4038 L3 NC IC4038 L1 RAS IC4037 J26 VDDW IC4038 J10 VDDQ IC4038 B9 VDDQ IC4038 M10 A8/AP IC4037 AK19 IOUT R4777 47 JS4036 0 IC4037 L28 BOE1 1000p 50V C4451 C4523 16V 0.01u IC4038 H10 VDDQ IC4037 K26 VDDW MAIN1.2V IC4037 L5 VDDW IC4038 E6 VSS_Thermal IC4037 AD30 GOF7 1000p 50V C4480 IC4038 M12 VREF IC4037 AA28 BOF4 IC4037 M29 GOE9 IC4037 H30 CLKOE R4779 47 IC4038 F3 VDDQ IC4038 K2 WE IC4038 C5 VSSQ IC4037 D19 VDDW R4794 22 1000p 50V C4439 IC4037 AA29 BOF5 IC4038 A5 DQ2 IC4037 E19 VDDW IC4037 AK28 ROF2 C4512 16V 0.01u IC4037 Y29 BOF8 IC4037 AA27 SSOUT IC4038 E2 DQ16 0.1u 10V C4440 C4493 10V 0.1u IC4038 D8 VSSQ C4448 16V 0.01u R4808 0 X4004 H0J270500087 C4496 10V 0.1u R4340 0 IC4038 B12 DQ27 IC4037 V26 VDDW R4804 100 C4420 10V 0.1u IC4038 A3 VSSQ IC4038 K12 NC IC4038 M2 NC IC4037 AK26 VDDW IC4038 D3 VDD R4762 EXB2HV680JV IC4038 B2 VDDQ C4470 10V 1u IC4037 AF17 GND_PLL1 IC4037 Y4 OEMUTE IC4037 AG28 ROF6 IC4038 B8 DQ30 IC4038 L4 BA1 R4746 68 IC4037 AF29 GOF0 IC4037 E8 VDDW C4421 10V 0.1u R4738 3.3k R4733 75 R4729 100 IC4037 N19 VDDW IC4038 H3 VDDQ R4807 0 IC4037 T30 ROE8 C4505 10V 0.1u IC4037 U26 VDDW JS4033 0 IC4038 G5 VSS_Thermal IC4038 C11 DQ26 IC4037 AC27 PWMK C4466 0.01u 16V IC4037 U28 ROE3 C4518 10V 0.1u IC4037 E7 VDDW 1u 10V C4478 IC4037 J30 BOE9 R4792 47 IC4038 J7 VSS IC4038 J9 VSSQ IC4037 R4 VDDW IC4037 H28 VSOE C4509 10V 0.1u IC4038 C9 VSSQ R4793 22 IC4038 C1 DQ6 IC4037 AH22 CPOUT2 IC4038 K11 NC IC4037 J28 BOE7 IC4037 F27 VDDW IC4038 B6 VDDQ IC4038 A6 DQ0 IC4038 L6 A11 R4743 68 IC4038 H12 DQ10 IC4037 V30 ROE2 IC4038 D6 VSS IC4037 L29 BOE2 C4112 6.3V 10u C4497 4V 100u IC4037 AA26 VDDW IC4037 W5 VDDW R4021 0 R4257 33k IC4038 D7 VSS IC4038 E11 DQ15 IC4037 M19 VDDW IC4037 N18 VDDW R4756 68 R4752 22 IC4037 Y30 BOF9 0.1u 10V C4477 1000p 50V C4429 IC4038 A7 DQ31 C4522 10V0.1u R4730 100 IC4037 AE28 GOF2 IC4038 B3 NC R4760 68 IC4038 A2 DM0 IC4037 V27 VDDW C4516 10V 0.1u R4764 0 1000p 50V C4438 IC4037 V16 GNDPLLDDR IC4037 M18 VDDW C4418 1u 10V C4006 6.3V 10u IC4037 AJ27 ROF1 IC4037 J27 VDDW IC4038 G6 VSS_Thermal C4504 16V 0.01u IC4037 K27 VDDW C4521 16V 0.01u IC4037 L30 BOE3 R4806 1k C4526 10V 0.1u IC4037 AH30 ROF5 IC4038 L8 A5 1000p 50V C4454 R4269 0 IC4037 AJ23 XTALOUT IC4037 N26 VDDW MAIN1.8V JS4034 0 IC4038 K3 VDD IC4037 N27 VDDW IC4037 Y28 BOF7 IC4037 R29 GOE0 IC4037 AC30 BOF0 IC4037 W29 HSOF R4805 1k IC4038 J8 VSS 1000p 50V C4442 IC4038 J3 VDDQ C4503 10V 0.1u IC4038 D12 DQ24 IC4037 P26 VDDW IC4038 J12 DQ8 C4511 10V 0.1u IC4038 G9 VSSQ IC4037 D13 LCDMODE IC4038 G3 NC IC4037 P4 VDDW IC4038 F7 VSS_Thermal IC4038 G10 NC IC4037 W30 CLKOF R4341 0 1000p 50V C4460 L4057 J0JCC0000077 IC4037 W15 VDDPLLDDR 0.1u 10V C4456 R4776 EXB2HV470JV JS4039 IC4038 A12 DQS3 L4061 J0JCC0000077 C4506 16V 0.01u IC4038 F9 VSSQ IC4037 K29 BOE5 IC4037 D15 VDDW IC4037 AE29 GOF3 IC4038 M4 A0 R4810 0 C0CBCBC00190 IC4030 1 VDD 2 GND 3 CE 5 VOUT 4 NC IC4038 J5 VSS IC4037 AB26 VDDW R4778 EXB2HV470JV IC4038 F1 DQ19 L4055 J0JHC0000078 IC4038 H7 VSS_Thermal IC4037 AK22 DDREFIN IC4037 N30 GOE7 IC4037 AK20 COMP IC4038 D1 DQ7 IC4038 D2 VDDQ IC4038 E3 VDDQ IC4038 E7 VSS_Thermal IC4037 AB27 PTVEN IC4038 M8 A6 IC4038 K7 VDD C4464 1u 10V C4447 1u 10V C4499 56u 4V IC4038 E8 VSS_Thermal IC4038 A4 DQ3 IC4038 L9 RFU2 R4734 22k IC4037 AH19 VCOINV2 1000p 50V C4476 IC4038 C8 VSSQ C4461 82p 50V IC4037 AG18 GND_PLL1 IC4037 AJ22 DDREFOUT IC4038 L11 CK R4745 68 IC4038 G1 DQS2 R4338 0 C4514 16V 0.01u R4773 47 R4774 EXB2HV470JV IC4038 J6 VSS 1000p 50V C4422 IC4038 E1 DQ17 IC4037 AD29 GOF6 IC4038 B7 VDDQ IC4038 F2 DQ18 IC4038 H11 DQ11 IC4037 E11 VDDW IC4038 M1 CS R4046 0 IC4038 M3 BA0 0.1u 10V C4459 IC4037 R28 ROE9 R4809 0 R4754 22 1000p 50V C4453 R4757 68 IC4037 AG29 ROF7 R4772 EXB2HV470JV IC4037 W16 GNDPLLDDR IC4038 F4 VSSQ IC4037 AK25 VCOIN R4758 68 IC4037 M30 BOE0 IC4038 A8 DQ29 IC4038 K5 A10 C4465 0.1u 10V L4066 J0JHC0000078 IC4038 B5 DQ1 C4527 16V 0.01u IC4037 AJ19 TESTIO_PLL2 IC4038 E9 VSSQ R4339 0 R4811 0 IC4038 E12 DQ14 C4474 10V 1u C4007 6.3V 10u MAIN5V IC4038 C4 VSSQ IC4038 K4 VSS IC4038 G7 VSS_Thermal IC4037 AA30 BOF6 IC4038 L12 MCL IC4037 D11 VDDW R4737 0 IC4038 F5 VSS_Thermal MAIN3.3V MAIN3.3V C4008 6.3V 10u IC4037 F26 VDDW IC4038 L7 A9 C4417 47u 6.3V IC4037 AF18 VDD_PLL1 0.1u 10V C4426 IC4037 AG19 GND_PLL2 IC4037 AG30 ROF8 IC4038 M6 A3 IC4037 E15 VDDW IC4038 E10 VDDQ IC4038 C7 VDD IC4037 P29 GOE3 1000p 50V C4430 IC4038 M5 A1 IC4038 D10 VDD IC4038 F8 VSS_Thermal IC4037 N29 GOE6 R4751 22 C4507 10V 0.1u IC4037 AC29 GOF9 IC4035 C0CBCAF00031 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 NC 7 NC 8 VIN IC4038 G2 DM2 IC4038 M9 A7 IC4038 D4 VSS IC4037 AB29 BOF2 L4077 J0JCC0000077 1000p 50V C4427 IC4037 T29 ROE7 R4293 0 IC4038 H8 VSS_Thermal IC4037 AF22 DAC_VDD IC4037 P28 GOE2 IC4038 H4 VSSQ 1000p 50V C4423 IC4038 C6 VDD IC4037 AJ25 EXCLKIN IC4037 P27 VDDW IC4038 B10 NC C4005 6.3V 10u IC4037 M28 GOE8 C4519 16V 0.01u C4415 10V 0.1u IC4037 AH25 FRCLKIN IC4037 V4 SCL_MC IC4038 H9 VSSQ IC4038 H6 VSS_Thermal IC4037 U4 SDA_MC TP4037 IC4038 E4 VSSQ IC4038 A1 DQS0 1000p 50V C4434 IC4037 AJ30 ROF3 IC4037 E23 VDDW C4525 16V 0.01u C4467 0.1u 10V 1000p 50V C4458 IC4038 A11 DM3 IC4037 AF28 ROF9 IC4038 H1 DQ21 IC4037 E16 VDDW IC4037 AB30 BOF3 C4501 10V 0.1u IC4037 AC28 GOF8 C4494 10V 1u IC4037 AJ18 TESTIO_PLL1 IC4037 P30 GOE4 IC4038 E5 VSS_Thermal R4342 0 IC4038 B11 VDDQ IC4037 R30 GOE1 IC4038 D9 VSS IC4038 F10 VDDQ IC4037 K28 BOE4 1000p 50V C4479 R4735 2k IC4037 K5 VDDW IC4038 M11 CKE IC4037 AF19 VDD_PLL2 1000p 50V C4441 IC4037 E12 VDDW C4419 1u 10V R4744 68 R4033 10k IC4038 B4 VDDQ IC4037 P5 VDDW IC4037 D20 VDDW JS4038 1u 10V C4455 IC4037 AG20 GND_PLL2 C4517 16V 0.01u IC4037 AB28 BOF1 C4524 10V 0.1u IC4038 K1 CAS 1000p 50V C4424 IC4038 K9 VSS IC4038 C2 DQ5 C4502 16V 0.01u R4731 1k IC4038 K8 RFU1 IC4038 A10 VSSQ R4749 EXB2HV680JV IC4038 L2 NC IC4038 J4 VSSQ R4763 0 IC4037 W28 VSOF IC4038 H5 VSS_Thermal R4753 22 C4520 10V 0.1u IC4037 G29 SCL IC4037 U29 ROE4 IC4038 J11 DQ9 IC4038 H2 DQ20 JS4037 IC4037 G30 SDA IC4037 V28 ROE0 0.1u 10V C4425 IC4037 AJ21 IREF C4483 50V 15p C4028 16V 0.01u 1000p 50V C4436 IC4037 AF21 GND_DAC IC4037 AK23 XTALIN R4747 68 C4515 10V 0.1u IC4038 C3 VSSQ IC4038 L10 CK L4065 J0JHC0000078 R4782 22 MAIN3.3V R4785 4.7k R4783 4.7k R4784 22 DDR2.5V Must Connect Low 0.49-0.51VDDQ (PWMC) (PWMD) (PWMB) (LVDS-EN) (LCDSS) (PWMA) PORT-E PORT-F(out) (output for FHD&PWM) (output for Panel) 58 59 61 55 60 62 56 63 57 GC5 PROCESSOR MN84522-A IC4037 128M DDR SDRAM IC4038 C3ABQJ000048 MAIN 1.2V DDR 2.5V PLL 3.3V 134 135 136 116 115 114 117 111 TH-42PV600C DG-Board (7 of 8) Schematic Diagram TH-42PV600C DG-Board (7 of 8) Schematic Diagram ! DG-BOARD (7/8) TNPA3756CK 96 14.31.DG 电路板 (8/8) 线路图 + + B_CLKOE LVDS_PD JTAG_TCK JTAG_TMS DTV_RST JTAG_GC5_BA A_OSDMSK A_BOE9 A_BOE8 A_BOE7 A_BOE6 A_BOE5 A_BOE4 A_BOE3 A_BOE2 A_BOE1 A_BOE0 A_GOE9 A_GOE8 A_GOE7 A_GOE6 A_GOE5 A_GOE4 A_GOE3 A_GOE2 A_GOE0 A_GOE1 B_BOE9 B_BOE8 B_BOE7 B_BOE6 B_BOE5 B_BOE4 B_BOE3 B_BOE2 B_BOE1 B_BOE0 B_GOE9 B_GOE8 B_GOE7 B_GOE6 B_GOE5 B_GOE4 B_GOE3 B_GOE2 A_CLKOE A_HSOE A_VSOE A_ROE0 A_ROE1 A_ROE2 A_ROE3 A_ROE4 A_ROE5 A_ROE6 A_ROE7 A_ROE8 A_ROE9 B_ROE9 B_ROE8 B_ROE7 B_ROE6 B_ROE5 B_ROE4 B_ROE3 B_ROE2 B_ROE1 B_ROE0 B_VSOE B_HSOE B_CLKOE B_OSDMSK B_GOE1 B_GOE0 B_OSDMSK B_VSOE B_HSOE B_BOE9 B_BOE8 B_BOE7 B_BOE6 B_BOE5 B_BOE4 B_ROE2 B_ROE3 B_GOE2 B_GOE3 B_ROE1 B_GOE0 B_BOE1 B_ROE4 B_ROE9 B_GOE5 B_GOE7 B_GOE9 MAIN3.3V B_BOE0 B_GOE1 B_BOE3 B_GOE8 B_GOE6 B_ROE8 B_GOE4 B_ROE6 B_ROE7 B_ROE5 B_BOE2 B_ROE0 JTAG_TRST JTAG_BA_FS R4969 68 C4534 50V 1000p C4538 10V0.1u R4960 EXB2HV680JV *JS4118 C4537 100u 4V C4530 50V 1000p R4343 0 R4962 68 R4968 68 R4972 68 R4963 68 R4966 68 R4824 J0JAD0000025 1 2 3 4 L4068 J0JHC0000078 C4531 50V 1000p R4964 EXB2HV680JV R4823 J0JAD0000025 1 2 3 4 L4070 J0JHC0000078 ZA4002 K4CD08000002 C4528 47u 6.3V MAIN3.3V R4971 68 C4529 10V 0.1u C4532 10V 0.1u R4819 22k C4539 1u 10V R4967 EXB2HV680JV C4540 50V1000p R4816 22k L4069 J0JHC0000078 R4814 10k R4965 68 C4533 10V 0.1u R4825 J0JAD0000025 1 2 3 4 R4822 10k R4817 22k *DG35 1 2 3 4 5 6 7 R4961 68 C4536 1u 10V *R4029 22 DG5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 ZA4001 K4CD08000002 R4970 68 C4535 10V 0.1u IC4036 C0JBAP000020 1 TD5 2 GND 3 TD6 4 TE0 5 TE1 6 TE2 7 VCC 8 TE3 9 TE4 10 GND 11 TE5 12 CLKIN 13 /PDWN 14 PLL_GND 15 PLL_VCC 16 TE6 17 LVDS_GND 18 TE+ 19 TE- 20 TD+ 21 TD- 22 TCLK+ 23 TCLK- 24 TC+ 25 TC- 26 LVDS_GND 27 LVDS_VCC 28 TB+ 29 TB- 30 TA+ 31 TA- 32 LVDS_GND 33 TA0 34 TA1 35 TA2 36 TA3 37 TA4 38 TA5 39 GND 40 TA6 41 TB0 42 TB1 43 RS 44 TB2 45 TB3 46 TB4 47 GND 48 TB5 49 TB6 50 TC0 51 VCC 52 TC1 53 TC2 54 TC3 55 TC4 56 GND 57 TC5 58 TC6 59 TD0 60 R/F 61 TD1 62 TD2 63 TD3 64 TD4 *R4838 1.1k *JS4046 0 SUFFIX JW TMS TDI GND TDO TRST XRST TCK CK 67 68 70 64 69 71 65 72 66 LVDS TRANSMITTER(10bit) TX_TC+ TX_TD+ TX_TB+ TX_TB- TX_TCLK+ TX_TE+ TX_TC- TX_TE- TX_TD- TX_TA- TX_TA+ TX_TCLK- TO D-BOARD (D5) FOR FACTORY USE 136 135 134 TH-42PV600C DG-Board (8 of 8) Schematic Diagram TH-42PV600C DG-Board (8 of 8) Schematic Diagram ! DG-BOARD (8/8) TNPA3756CK 97 14.32.D 电路板方框图 CLKD0 CLKD1 TXD_PC RXD_PC PANEL_MAIN_ON PANEL_MAIN_ON ALARM READY ECO_ON TUNER_SUB_ON ECO_ON TUNER_SUB_ON CLKM_IN FREE_RUN DRVMUTE RXD_PC IIC_INT TXD_PC RXD_PC IIC_CONT IIC_INT STB_SDA01 STB_SCL01 SOS8_SS CLKD3 READY ALARM IIC_CONT LED_R REMOCON IIC_CONT TXD_PC VDATA_DET VDATA_DET IIC_INT SOS6_SC1 SOS7_SC2 SOS7_SC2 SOS6_SC1 CLKD2 SOS4_PS REMOCON LED_R LED_G LED_R LED_G REMOCON LED_G SOS4-PS STB_SCL02 STB_SDA02 CLRD PCD1 LED PCD2 CLRD LED X9200 TP9372 TP9304 R 10bit Scan Control DATA 13bit IIC/INT G 10bit B 10bit (D)PDB1 (D)PBUSY B 10bit (D)PDB0 R 10bit (D)PSTB (D)PSLCT Sustain Control DATA 6bit G 10bit IC9503 4 10 PROCESSOR DRIVER TO C11 TO C21 14 50 13 51 26 15 TXD1 27 RXD1 IIC_CONT IIC_INT LVDS INPUT DISCHARGE CONTROL IIC1_SDA 28 LEVEL CONVERTER IIC2_SCL 29 12 15 Voltage 10 IIC2_SDA 14 21 IC9500 22 FPGA,ASIC 55 LSI_RST XRST SUB-FIELD PLASMA AI/SUB FIELD PROCESSOR/DATA DRIVER IC9003 IC9303 MICOM XIN XOUT X9000 44 9.216MHz IC9802,03 42 17 19 5 IIC1_SCL Video DATA 48bit(DA0-DC14) 3.3V 5V Low 3.3V 5V ROMDATA04-15(ROMADDRESS00-20) D32 D31 5VDET 46 1 TO DG3 D3 SOS7_SC2 76 73 72 SOS8_SS 5 READY ALARM 67 DRVMUTE IC9011 IIC_DATA1 IIC_CLK1 22 TUNER_SUB_ON 35 ALARM 33 34 DISPEN 37 READY PANEL_STBY_ON 27 30 21 ECO_ON 4 2 RXD TXD 6 D5 E+LVDSCLK (RX_TCLK+) E-LVDS2 (RX_TC-) 14 TO DG5 E-LVDS3 (RX_TD-) 16 7 15 11 12 E-LVDS1 (RX_TB-) 10 4 E-LVDS4 (RX_TE-) 1 9 E-LVDS0 (RX_TA-) 2 E-LVDSCLK (RX_TCLK-) E+LVDS2 (RX_TC+) E+LVDS1 (RX_TB+) E+LVDS4 (RX_TE+) 5 E+LVDS3 (RX_TD+) LVDS_DET STBY5V +5V D25 VDATA_DET 9 PANEL_MAIN_ON ECO_ON 1 +5V 7 2 13 +15V 15 +15V 17 20 10 TO P25 F_STBY_ON RXD 13 14 8 6 TXD 7 SDA1 PDB0 4 PSTB 5 IIC_INT 11 PSLCT PBUSY 9 D6 SCL1 12 15 LED_R PDB1 17 16 LED_G st-r IC9900 CONVERTER XRST CTI/TINT WB-ADJ I/P COLOR FORMAT CONVERTER/RGB PROCESSOR CONVERTER CONTRAST FORMAT Differential Signaling RECEIVER FPGA SOS4-PS 74 PANEL_MAIN_ON 24 P_ON/OFF Q9057 Q9058 Q9055 Q9056 P3V_SCL02 P3V_SDA02 TO SC20 D20 2 9 13 20 SCAN DATA 11 12 1 DRV_SOS7 P5V DRV_SOS2 21 43 14 12 5VDET 53 55 20 SOS6_SC1 SUSTAIN DATA 51 46 1 3 SS_SOS8 P3V_SCL1 P3V_SDA1 P15V P5V STB5V_M NRST DRV_RST DATA DRIVER 16M FLASH MEMORY RESET 4 5 VOUT VCC IC9502 RESET P3.3V SS PULSE SCAN OUT SC PULSE 3.3V 5V IC9504 37 UMH,UML,USH,USL,UEH,NUEL,ODED1,ODED2 CL,CLK,SIU,SID,SCSU,CEL2,CPH,CEL,CBK,CSL,CSH,CML,CMH IC9901 DDR SDRAM(128M) Q9302 Q9301 CLK4 17 CLK8 CLK1 21 24 7 CLK7 X1 1 28 X2 IC9200 PCK OCK D P3V_SCL1 P3V_SDA1 P5V CONTROL STBY5V P15V 21 19 IC9007 NCS ASDIO DATA0 DCLK ODED1 P5V Control DATA 70 SOS3_3V SOS2_15V 69 71 SOS5_5V Q9054 Q9053 Q9052 Q9051 P5V P15V 3.3V STB 5V_M STBY 5V 29 PROM(FPGA) LEVEL CONVERTER LEVEL CONVERTER CLOCK GENE. DIGITAL SIGNAL PROCESSOR PLASMA AI SUB-FIELD PROCESSOR FOR FACTORY USE P5V P5V DRVCLKD0-D3 21bit (DA8-DC14) (DA0-DC7) 24bit CLRD,LED,PCD1,PCD2 AVR P1.5V VOUT P2.5V P1.5V IC9801 6 1 VDD (LSI58 COMM) TDO,TDI TMS,TCK JTAG DCK HD VD JTAG PD1-MS FPCLK FPDAT0 FPDAT1 SFVRST LATCH SFRST R0-R9 G0-G9 VD B0-B9 HD DCK PICTURE OUTPUT LVDS LVDS SYNC PROCESSING WB ADJ DISCHARGE CONTROL FLASH CONTROL FPGA CONTROL CONTROL RESET CONTROL FLASH CLKM PRCKI -IN STB 3.3V 20 Q9044 IIC_CLK2 16 17 IIC_DATA2 IIC_CONT 19 IC9001 6 5 EEPROM SDA SCL 1 WP 25 EEP_WR_CTL 6 SDA SCL 1 3 ADD1 ADD0 5 IC9002 DIGITAL TEMPERATURE SENSOR P15V STB5V_M REMOCON 18 15V 2.5V OUT2 G2 17 S1 19 D1 OUT1 21 D2 20 13 D1 D2 VO 23 5 16 LX VCC VIN VDD 18 G1 IC9809 S2 DC-DC CONVERTER 24 FB -INC 9 CTL CB P15V P2.5V Q9805 Q9806 23 NCS DATA ADSI DCLK 10 IIC_CONT 1 2 STBY3.3V STB3.3V SDA2 SCL2 3 1 (D)P15V 6 VDATA_DET 68 NCS 36 37 ASDIO 38 DATA0 DCLK 39 8 LED_G REMOCON 9 LED_R 10 1 VOUT RESET 3 4 VDD CE 6 STB5V_M Q9046 STB3.3V 9 RESET Q9050 XRST SOS9_CONF 34 DRVRST Q9300 ODED1 ODED2 PLASMA AI NEW DATA ROMDATA00-03 DQ4-DQ15 A0-A19 DQ0-DQ3 ROMDATA00-03 ROMDATA04-15/ROMADDRESS00-20 3bit SOS4_PS 16 XRST 65 LED_R REM_IN 66 16 LED_G Q9010 STBY 3.3V RA_E ,RB_E ,RC_E ,RD_E ,RE_E RCLK_E E+LVDS0 (RX_TA+) STB_SCL02 STB_SDA02 STB_SDA02 STB_SCL02 DPCLK1 TSET TERMINAL (SC_SOS6) (SC_SOS7) P3.3V STB_SDA02 STB_SCL02 P3V_SCL1 P3V_SDA1 1 2 5 6 D9802 D9811 DCDC_ON Q9801 AVR 5V 5 1 VDD P15V VOUT IC9806 LDO_5V LDO_5V VIN VDD G2 18 17 S1 19 D1 -INC 9 D1 CTL CB D2 24 FB P15V P3.3V VO 23 LDO_5V 5 20 16 Q9803 D2 21 OUT1 G1 13 IC9807 S2 DC-DC CONVERTER 15V 3.3V LX VCC OUT2 VO 23 LDO_5V 5 20 16 Q9800 D2 21 OUT1 G1 13 IC9800 S2 DC-DC CONVERTER 15V 1.2V LX VCC OUT2 VIN VDD G2 18 17 S1 19 D1 -INC 9 D1 CTL CB D2 24 FB P15V P1.2V DOUTDC15 DOUTDA8 CLK2 CLRD CLK3 ODED1 LED PCD1 (DA15-DC15) , 13 15 P5V CLK0 CLK1 DOUTDA0 DOUTDC7 35 5 38 CLRD 39 LED PCD2 40 ODED2 (DA15-DC15) ODED2 FORMAT CONVERTER STB 3.3V RESET P+3.3V SOS / LED BLINKING : 3TIMES P+5V SOS / LED BLINKING : 5TIMES P+15V SOS / LED BLINKING : 2TIMES TH-42PV600C D-Board Block Diagram TH-42PV600C D-Board Block Diagram 98 14.33.D 电路板 (1/6) 线路图 + G G G G 18 16 14 12 10 8 6 4 2 20 21 19 17 15 13 11 9 7 5 3 1 + G G G G G G G G TH-42PV600C D-Board (1 of 6) Schematic Diagram + G G FP_CSL SC_CL SC_CSL SC_CBK SC_SID SC_SCSU SC_CLK FP_SCSU SC_CEL FP_CEL SC_CPH SC_CEL2 SC_SIU FP_CLK FP_CEL2 SC_CML SC_CSH SC_CL SC_CMH SC_CSH SC_CMH SC_CLK FP_CBK SC_SIU SC_CEL2 FP_SID SC_CML SC_SID SC_CEL FP_CPH FP_CL SC_CSL SC_CBK SC_CPH FP_SIU SC_SCSU PANEL_MAIN_ON ALL_OFF FAN_SOS PSTB PBUSY PDB0 ASDIO DCLK ECO_ON TUNER_SUB_ON P_ON/OFF SOS7_SC2 SOS6_SC1 PANASONIC_MODE DRVMUTE READY ALARM INEXCH AR_IIC_INT SOS9_CONF AC_GOOD AR_IIC_CONT STB_SCL02 STB_SDA02 RXD_PC STBY3.3V_ON DCDC_ON SOS4_PS PBUSY_2 PDB1_2 PDB0_2 LED_R REM_IN PSLCT_2 PSLCT PDB1 AR_IIC_CONT_D4 P3V_SCL1 LED_G P3V_SDA1 REMOCON DCDC_ON DISPEN_D2 READY_D2 ALARM_D2 INEXCH_D2 PANEL_STBY_ON PANEL_STBY_ON STBY5V_D2 P3V_SCL1 P3V_SDA1 STBY3.3V AR_IIC_CONT_D4 AR_IIC_CONT_D4 STB_SCL02_D4 STB_SDA02_D4 TXD_PC_D4 RXD_PC_D4 AR_IIC_INT_D2 FAN_CONT FAN_SOS ECO_ON LED_R LED_G REMOCON AC_GOOD PBUSY_2 PDB0_2 PSLCT_2 PDB1_2 RXD_PC_D4 TXD_PC_D4 STB_SDA02_D4 STB_SCL02_D4 AR_IIC_INT_D2 VDATA_DET C_SEL FAN_CONT PSTB_2 DATA0 NCS FP_CSH FP_CML FP_CMH TUNER_SUB_ON TUNER_SUB_ON ALL_OFF PSTB_2 TXD_PC D9813 B0JCDD000002 R9845 5.6k R9823 100 STB5V_M R9850 47k C0DBAYY00054 IC9800 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB P15V_MOTO Q9806 B1ABCF000138 R9814 68k D9811 MA2J72800L STB5V_M C9839 10u 25V P15V P15V_MOTO R9802 62k P3.3V R9891 47k R9839 100 C9823 10u 25V P15V C9815 68u 4V P5V L9800 G1C3R0MA0248 R9892 15k C9805 4.7u 6.3V C9896 0.1u 16V R9849 EXB2HV470JV C9801 4700p 25V C9833 10u 25V R9869 10k C0JBAZ000856 IC9803 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R9844 100 STB3.3V R9871 10k C9848 0.1u 25V R9821 10k R9847 EXB2HV272JV R9816 82k R9805 30k R9813 2.4k P5V R9880 36k IC9007 1 NCS 2 DATA 3 VCC 4 GND 5 ASDI 6 DCLK 7 VCC 8 VCC R9830 10k R9801 24k R9897 100k P5V C9881 50V 1000p C9807 10u 25V R9133 4.7k P3.3V C9838 16V 0.1u C9847 0.1u 25V C9818 10u 25V PA9800 K5H4022A0023 C9880 50V 1000p D9800 B0JCME000037 R9893 36k P5V IC9801 C0DBZFG00066 1 VOUT 2 GND 3 CE 4 NC 5 GND 6 VDD Q9803 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 R9824 100 D9804 MA3X152K0L P2.5V R9854 100 R9879 20k C9824 10u 25V STB5V_M FL9804 J0HABH000012 1 2 3 STB3.3V C9827 6.3V 10u D9808 MA3X152K0L C9886 0.1u 16V FL9801 J0HABH000013 1 2 3 C9809 0.1u 16V C0DBAYY00054 IC9809 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB R9099 100 P5V_MOTO P15V C9826 16V 0.1u R9825 100 D3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 R9896 0 C9926 0.1u 16V P15V D9802 MA2J72800L C9802 47p 50V C9831 10u 16V R9804 24k D6 C9891 0.1u 16V C9883 8200p 50V D9801 B0JCDD000002 STB3.3V R9870 10k C9845 16V 0.1u C9825 50V 100p C9029 6.3V 10u D9812 B0JCME000037 P5V_MOTO D20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C9830 10u 16V C9832 10u 16V P5V Q9801 SP8K2TB S1 G1 S2 G2 D2 D2 D1 D1 Q9800 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 R9846 EXB2HV272JV L9801 G1C2R2MA0241 R9831 10k P1.5V C9806 68u 4V C9882 0.1u 16V Q9805 B1ABCF000138 R9806 39k D9807 MA3X152K0L J0HABH000013 FL9806 R9815 22k R9840 22 R9807 0 C9897 8200p 50V C9843 16V 0.1u R9843 100 R9131 4.7k C9967 4.7u 6.3V C9846 16V 0.1u C9884 10p 50V J0HABH000013 FL9800 R9826 100 C9803 4700p 50V P15V J0HABH000013 FL9805 FL9807 J0HABH000013 1 2 3 R9878 39k C9841 16V 1u R9848 EXB2HV470JV LDO_5V D9814 B0JCME000037 C9804 0.1u 16V P2.5V P3.3V P1.2V R9868 100k LDO_5V C9817 10u 25V LDO_5V C9885 1000p 50V LDO_5V C9800 0.1u 16V R9842 100 P15V C9816 68u 4V R9803 0 R9859 EXB38V101JV L9810 J0JHC0000045 L9802 G1C2R2MA0241 STB3.3V C0DBAHD00011 IC9806 1 VOUT 2 GND 3 CE 5 VDD 4 NC C9028 6.3V 10u R9827 100 FL9803 J0HABH000012 1 2 3 P15V P15V C9899 1000p 50V R9810 3k R9132 4.7k C9971 0.1u 16V C9837 10u 16V C9844 50V 0.01u R9800 13k Q9010 B1ABCF000138 D9815 B0JCDD000002 C9808 10u 25V C0JBAZ000856 IC9802 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc P15V C0DBAYY00054 IC9807 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB C9887 4.7u 6.3V D25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 STB3.3V R9808 100k R9872 0 C9898 10p 50V R9883 0 C9840 16V 0.1u C9822 6.3V 10u C9842 16V 1u R9884 100k R9838 100 R9841 0 STBY5V CSL CEL CBK GND GND CEL2 FAN_SOS SID CL SIU SCSU CPH CLK GND GND P5V SOS7_SC2 SOS6_SC1 CMH FAN_CONT CML CSH (AC_GOOD) ALL_OFF GND GND +15V +15V GND GND GND +5V +5V F_STBY_ON GND ECO_ON PANEL_MAIN_ON FB=0.7V CTL FAN_CONT PANASONIC_MODE FAN_SOS ECO_ON GND GND GND GND GND GND GND REMOCON LED_G GND DISPEN INEXCH ALARM READY STBY5V TUNER_SUB_ON ALL_OFF IIC_DATA1 STBY3.3V IIC_CLK1 IIC_CONT IIC_CLK2 IIC_DATA2 TXD RXD IIC/INT ACGOOD LED_R P15V PSTB PBUSY PDB0 PSLCT PDB1 PANEL_STBY_ON SOS4_PS STBY3.3V IIC_CONT GND SCL1 SDA1 SCL2 SDA2 TXD RXD IIC_INT LED_G PSTB LED_R PDB0 PSLCT PDB1 PBUSY REMOCON STBY5V GND P15V VDATA_DET P5V CTL FB=0.7V FB=0.7V C_SEL B 5 6 7 8 9 D 1 2 3 4 F A C E TNPA3810AG D-BOARD (1/6) (P25) P-BOARD TO DG-BOARD TO (DG3) SC-BOARD TO (SC20) FOR FACTORY USE PROM(FPGA) 15V 2.5V DC-DC CONVERTER 15V 3.3V DC-DC CONVERTER 15V 1.2V DC-DC CONVERTER AVR P1.5V AVR 5V LEVEL CONVERTER LEVEL CONVERTER 1 3 2 TVRN813-1 TH-42PV600C D-Board (1 of 6) Schematic Diagram 99 14.34.D 电路板 (2/6) 线路图 P3V_SCL02 P3V_SDA02 P3V_SDA1 P3V_SCL1 LVDS_MODE DRVRST SOS8_SS READY REM_IN DATA0 M_SEL2 LED_R LED_G M_SEL2 SOS9_CONF M_SEL1 SOS7_SC2 RXD_PC NCS XRST XRST AR_IIC_INT M_SEL4 PANASONIC_MODE NRST C_SEL M_SEL4 ASDIO TXD_PC PANEL_MAIN_ON DCLK LVDSBIT M_SEL3 SOS4_PS EEP_WR_CTL SOS6_SC1 PANEL_STBY_ON SOS9_CONF STB_SDA01 STB_SDA01 STB_SCL01 P3V_SDA02 P3V_SCL02 EEP_WR_CTL STB_SCL02 STB_SDA02 RD_E+ RD_E- RC_E+ RC_E- RB_E+ RB_E- RA_E+ RA_E- RCLK_E+ RCLK_E- LVDS_DET RE_0+ RE_0- RD_0+ RD_0- RC_0+ RC_0- RB_0+ RB_0- RA_0+ RA_0- VDATA_DET P_ON/OFF AR_IIC_CONT INEXCH STB_SCL02 STB_SDA02 D5_DETO M_SEL3 ALARM RE_E- RE_E+ STB_SCL02 STB_SDA02 STB_SCL01 XRST STBY3.3V_ON M_SEL1 M_SEL1 FVSEL XRST R9184 1k R9178 10k R9107 3.3k R9179 1k R9143 100 R9174 10k R9203 1k R9153 4.7k R9100 10k R9066 100 C9035 6.3V 10u STB5V R9157 10k R9188 5.6k R9220 10k R9074 100 Q9044 B1ABCF000138 C9048 16V 0.1u R9101 10k R9175 10k R9170 39k STB3.3V R9060 100 R9063 100 R9232 0 R9110 100 P3.3V R9098 10k STB3.3V P15V Q9046 B1ABCF000138 Q9052 B1ABCF000138 D9020 MA2J72800L R9159 10k R9111 22k C9045 16V 0.1u D9017 MAZ303300L R9155 5.6k R9144 100 R9164 10k R9154 5.6k Q9055 B1CBHD000002 R9192 0 R9206 1k R9183 1k Q9054 B1ABCF000138 Q9050 B1ABCF000138 R9105 4.7k R9181 1k R9171 39k R9113 10 R9165 10k R9120 100 TP9000 STB3.3V R9186 22 R9134 33k X9000 H2D200500011 C9034 16V 0.1u R9173 10k R9065 100 R9129 68k C9036 6.3V 10u R9222 10k R9168 100 R9102 100 IC9011 C0EBF0000431 1 RESET 2 Cd 3 VOUT 4 VDD 5 GND 6 CE R9185 22 R9149 4.7k R9182 1k R9150 22 R9062 100 R9187 5.6k R9194 0 D9018 MAZ303300L R9199 2.7k Q9053 B1ABCF000138 C9039 6.3V 10u R9145 100 R9237 10k C9037 0.01u 50V R9148 10k C9053 16V 0.1u D5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 R9180 10k C9060 16V 0.1u R9064 100 R9172 39k C9033 16V 0.1u R9140 0 C9052 16V 0.1u R9161 0 P3.3V R9218 10k P3.3V C9049 16V 0.1u P5V R9193 10k Q9049 B1ADCE000011 STB3.3V R9207 1k STB3.3V R9067 100 IC9002 C0ZBZ0001330 1 SCL 2 GND 3 ADD1 4 V+ 5 ADD0 6 SDA C9058 6.3V 10u Q9051 B1ABCF000138 R9158 10k TVRN805-1 IC9003 1 2 3 4 5 - 6 CNVss 7 8 9 RESET 10 XOUT 11 VSS 12 XIN 13 VCC 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 AVSS 76 77 VREF 78 Avcc 79 80 Q9056 B1CBHD000002 R9127 68k R9189 10k R9108 10k C9044 16V 0.1u R9190 10k R9160 0 STB3.3V IC9001 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 Vcc R9142 100 C9046 16V 0.1u Q9058 B1CBHD000002 R9221 10k C9056 16V 0.1u C9051 16V 0.1u R9141 100 R9240 0 R9166 10k R9076 100 R9205 4.7k C9055 16V 0.1u C9047 16V 0.1u R9236 0 Q9057 B1CBHD000002 R9109 10k R9230 0 R9156 10k R9223 4.7k R9215 12k R9061 100 C9050 16V 0.1u D9019 MAZ303300L R9151 22 C9040 16V 0.1u P3.3V R9196 10k R9121 100k C9057 16V 0.1u R9152 4.7k R9828 100k STB3.3V R9096 10k R9217 10k STB3.3V R9169 10k R9167 100 R9225 4.7k R9219 10k R9106 10k D9101 B0JCGD000002 D9103 B0JCGD000002 D9100 B0JCGD000002 D9102 B0JCGD000002 D9105 B0JCGD000002 D9106 B0JCGD000002 STB5V_M D9110 B0JCGD000002 R9177 22k E- LVDS4 GND E+ LVDS4 E- LVDS3 E+ LVDS3 E- LVDS2 GND E+ LVDS2 E- LVDS1 O+ LVDS4 GND GND E+ LVDS0 E+ LVDS1 GND O+ LVDS3 O- LVDS4 E- LVDS0 O- LVDS2 O+ LVDS2 O- LVDS1 O+ LVDS1 O- LVDS3 GND O+ LVDS0 O- LVDS0 O- LVDSCLK O+ LVDSCLK E- LVDSCLK E+ LVDSCLK LVDS_DET STB3.3V ON/OFF INEXCH SIN(FPGA) PLL_RST SOUT (FPGA) SOS7_SC2 FPGA_CE NC BUSY(for Loader) SOS4_PS NC CE(Loader) SOS8_SS SCLK(for Loader) NC SOS6_SC1 MAIN_CONF NC SOS2_15V LED_RED INT_CONF RXD(Loader) READY SOS3_3V LVDS_BIT TXD(Loader) NC LVDS_MODE IIC2_SDA NC SOS5_5V SOS_INH IIC2_SCL NC(ALL_OFF) M_SEL4 EEP_WR_CTL SOS9_CONF NC PANEL_MAIN_ON VDATA_DET NC P_ON/OFF AC_GOOD ALARM M_SEL3 LSI_RST NC M_SEL2 FVSEL D5_DETO REM_IN NC NC NC IIC1_SDA XRST IIC1_SCL DRIVER_RESET IIC_CONT M_SEL1 NC PANASONIC_MODE IIC_INT LED_GRN NC SCLK(FPGA) NC NC NC NC 11 15 14 10 17 13 18 16 12 D-BOARD (2/6) DG-BOARD TO (DG5) STB 3.3V SENSOR TEMPERATURE DIGITAL EEPROM MICOM 3 1 2 22 26 23 27 24 25 21 NC TVRN808-2 TNPA3810AG TH-42PV600C D-Board (2 of 6) Schematic Diagram TH-42PV600C D-Board (2 of 6) Schematic Diagram RESET 100 14.35.D 电路板 (3/6) 线路图 SOS9_CONF AA_BYTE L8DO_UA19 L8DO_UB16 L8DO_UC21 L8DO_UA18 L8DO_UA11 FVSEL FP_UEH FP_CSL FP_CSH L8DO_UA9 RD_0- RE_0- FPDAT1 FP_SID RE_E+ L8DO_UC12 L8DO_UA10 RB_0+ RCLK_E- FP_UMH L8DO_UA16 FP_CPH DD_CLRD L8DO_UA20 L8_HIN FP_CBK L8DO_UC11 RD_E+ L8DO_UA17 RC_E- L8DO_UB11 RE_0+ FP_UML NRST L8DO_UC18 L8DO_UA21 FP_CEL FP_NUEL RA_E- L8DO_UC15 RE_E- RC_0- RC_0+ RC_E+ L8DO_UB21 FP_USL DD_ODED1 RD_E- RB_E- L8DO_UC10 RD_0+ L8_VIN SFRST FPCLK FP_USH FP_SIU RA_E+ L8DO_UB17 LVDSBIT L8DO_UA14 L8DO_UB18 FPDAT0 FP_CL DD_PCD2 L8DO_UC17 L8DO_UB19 SFVRST LATCH FP_CEL2 DD_PCD1 L8DO_UB20 L8DO_UA15 RA_0- L8DO_UB15 RB_0- RB_E+ L8DO_UB10 RA_0+ FP_CML FP_SCSU FP_CMH LVDS_MODE L8DO_UC16 L8DO_UC19 DD_LED RCLK_E+ FP_CLK PSLCT PBUSY NCS DATA0 ENHMASK ASDIO LVDS_DET PSTB PDB1 PDB0 DRVRST TDI_TO_68 TMS TDO_TO_FPGA L8_B9 L8_B8 L8_B7 L8_B6 L8_B4 L8_B3 L8_B2 L8_B1 L8_B0 L8_G9 L8_G8 L8_G7 L8_G6 L8_G5 L8_G4 L8_G3 L8_G2 L8_G1 L8_G0 L8_R9 L8_R8 L8_R7 L8_R6 L8_R5 L8_R4 L8_R3 L8_R2 L8_R1 L8_R0 DRVMUTE L8_DCK L8DO_UC20 DD_ODED2 D5_DETO TCK AA_XCE AA_XOE AA_XWE L8_B5 INEXCH P3V_SCL02 P3V_SDA02 DCLK R9507 0 IC9500 L12 DPCLK5 IC9500 R4 LVDS69p IC9500 D10 LVDS27p IC9500 C15 LVDS36p IC9500 N1 LVDS4p IC9500 R7 LVDS65n R9544 10k IC9500 D6 LVDS19n IC9500 H6 VCCA_PLL1 IC9500 C14 LVDS35n IC9500 K7 VCCINT IC9500 D8 LVDS24p IC9500 L16 LVDS44n IC9500 H9 VCCINT IC9500 M15 LVDS46n IC9500 M9 IO IC9500 B1 LVDS13n IC9500 F16 LVDS42p IC9500 R10 LVDS59p IC9500 P16 VCCIO3 IC9500 P7 LVDS64p IC9500 A9 LVDS26n IC9500 R9 LVDS61p IC9500 B12 LVDS31n IC9500 P12 LVDS55p C9526 6.3V 10u IC9500 A5 GND IC9500 D9 LVDS25n IC9500 R8 LVDS63p IC9500 J3 MSEL0 IC9500 A11 LVDS28n IC9500 N16 LVDS49p IC9500 T6 LVDS65p IC9500 P11 LVDS57n IC9500 E2 LVDS10p IC9500 R3 LVDS70p P3.3V IC9500 G14 LVDS43n P3.3V IC9500 A16 GND C9530 16V 0.1u IC9500 E10 VREF1B2 IC9500 G13 LVDS43p IC9500 F15 LVDS40n IC9500 L6 GND IC9500 D4 LVDS14p(INIT_DONE) IC9500 A6 LVDS21p IC9500 A10 VCCINT IC9500 J16 PLL2_OUTp IC9500 M5 DPCLK7 IC9500 N6 LVDS67n R9525 10k C9525 16V 0.1u IC9500 F12 DPCLK4 IC9500 G4 nCSO IC9500 G1 LVDSCLK1p IC9500 J12 GNDG_PLL2 IC9500 J14 TCK IC9500 B10 LVDS28p IC9500 F10 VCCIO2 IC9500 B6 LVDS20n IC9500 N14 LVDS48n IC9500 H2 DATA0 IC9500 H15 TDO IC9500 M16 LVDS46p IC9500 K3 ASDO IC9500 E5 DPCLK2 IC9500 F6 GND IC9500 C9 LVDS25p IC9500 H4 nCEO IC9500 K6 GND IC9500 C12 LVDS31p IC9500 J13 nSTATUS IC9500 T12 GND IC9500 D12 LVDS30n IC9500 L15 LVDS45p IC9500 T8 LVDS63n P1.5V IC9500 A3 VCCIO2 IC9500 B5 LVDS18p IC9500 N11 LVDS56p IC9500 F8 GND C9524 16V 0.1u C9531 6.3V 10u IC9500 B2 LVDS15p IC9500 F13 LVDS41p IC9500 T16 GND IC9500 P15 LVDS50n IC9500 A15 LVDS34p IC9500 M12 DPCLK6 IC9500 A14 VCCIO2 IC9500 H1 LVDSCLK1n IC9500 N4 LVDS0n IC9500 M14 LVDS47n IC9500 B7 LVDS21n IC9500 C8 LVDS24n IC9500 T15 LVDS52p IC9500 D11 LVDS30p IC9500 N9 LVDS60n C9529 16V 0.1u R9529 10k IC9500 L14 LVDS45n C9528 16V 0.1u IC9500 H5 VREF1B1 IC9500 G11 GND IC9500 C3 LVDS14n IC9500 T2 LVDS71n IC9500 M2 LVDS4n IC9500 F7 VCCIO2 IC9500 P8 LVDS62n IC9500 E7 IO IC9500 C13 LVDS33p IC9500 J10 VCCINT IC9500 L13 LVDS47p IC9500 T7 VCCINT IC9500 B11 LVDS29p C9522 16V 0.1u IC9500 T3 VCCIO4 IC9500 A7 VCCINT IC9500 K5 VREF2B1 IC9500 B16 LVDS36n IC9500 R14 LVDS53p IC9500 E11 VREF0B2 R9550 10k IC9500 H12 VREF1B3 IC9500 K16 LVDS44p IC9500 D5 LVDS19p IC9500 E6 VREF2B2 IC9500 E12 DPCLK3 C9523 16V 0.1u R9862 10k IC9500 L11 GND R9552 10k IC9500 F4 IO IC9500 C1 VCCIO1 IC9500 G12 VREF0B3 IC9500 T1 GND IC9500 M8 IO IC9500 L7 VCCIO4 IC9500 E16 LVDS40p IC9500 R15 LVDS52n IC9500 L1 LVDS6n IC9500 L10 VCCIO4 IC9500 G2 LVDS7p IC9500 E4 LVDS12n IC9500 P1 VCCIO1 IC9500 K11 VCCIO3 IC9500 L2 LVDS5p P3.3V IC9500 G3 LVDS9n IC9500 D1 LVDS10n IC9500 K9 VCCINT C9521 16V 0.1u IC9500 F3 LVDS9p IC9500 J6 GNDA_PLL1 IC9500 R11 LVDS57p IC9500 M10 VREF1B4 IC9500 N7 LVDS64n C9519 16V 0.1u IC9500 P2 LVDS1n R9506 22 IC9500 B8 LVDS23p L9501 J0JHC0000078 IC9500 C6 LVDS20p IC9500 K10 GND IC9500 P9 LVDS60p IC9500 A4 LVDS17n IC9500 R16 LVDS50p IC9500 C16 VCCIO3 IC9500 E8 IO IC9500 E14 LVDS38p IC9500 B15 LVDS34n IC9500 D3 LVDS12p IC9500 C5 LVDS18n P3.3V IC9500 H11 VCCA_PLL2 C9518 16V 0.1u IC9500 M3 LVDS3n R9545 300k IC9500 D16 LVDS39p IC9500 P3 LVDS0p R9548 10k IC9500 N10 LVDS58p IC9500 N2 LVDS3p IC9500 M7 IO R9863 10k IC9500 H13 IO IC9500 D15 LVDS38n IC9500 M1 LVDS5n IC9500 D14 LVDS37p IC9500 P4 LVDS70n IC9500 L9 GND P3.3V IC9500 A13 LVDS32p IC9500 R13 LVDS54n IC9500 K14 IO R9535 47 IC9500 J15 TMS IC9500 R1 LVDS1p IC9500 D13 LVDS35p IC9500 E3 LVDS11p IC9500 P5 LVDS68n IC9500 G16 LVDSCLK2p L9502 J0JHC0000078 IC9500 J9 GND P3.3V IC9500 T13 LVDS54p IC9500 H10 GND IC9500 L3 IO IC9500 F14 LVDS41n IC9500 J8 VCCINT IC9500 M4 LVDS2p IC9500 K12 VREF2B3 IC9500 H7 VCCINT IC9500 F2 LVDS8p IC9500 J11 GNDA_PLL2 IC9500 P10 LVDS58n R9523 10k C9520 16V 0.1u IC9500 L5 DPCLK0 IC9500 L8 GND R9536 47 IC9500 P14 LVDS51p IC9500 P6 LVDS66p IC9500 N8 LVDS62p IC9500 J1 PLL1_OUTp IC9500 B3 LVDS16p IC9500 T4 LVDS69n IC9500 E13 LVDS37n IC9500 G8 VCCINT IC9500 R6 LVDS66n IC9500 A12 GND R9531 47 IC9500 C7 LVDS22p IC9500 B9 LVDS26p IC9500 J7 GND IC9500 G10 VCCINT IC9500 F9 GND IC9500 D7 LVDS22n IC9500 T5 GND R9861 10k IC9500 H3 nCONFIG IC9500 B13 LVDS32n IC9500 F1 LVDS7n C9517 16V 0.1u R9543 10k IC9500 N13 LVDS51n IC9500 A2 LVDS15n IC9500 H14 TDI IC9500 G5 VREF0B1 IC9500 T9 LVDS61n R9534 EXB38V470JV IC9500 F5 DPCLK1 IC9500 G7 GND IC9500 G9 GND IC9500 G6 VCCIO1 IC9500 G15 LVDS42n IC9500 T14 VCCIO4 IC9500 H16 LVDSCLK2n R9533 47 IC9500 K15 PLL2_OUTn IC9500 M11 VREF0B4 IC9500 A8 LVDS23n IC9500 J2 MSEL1 IC9500 D2 LVDS11n R9956 10k IC9500 R2 LVDS71p IC9500 C11 LVDS29n C9516 16V 0.1u IC9500 K8 GND IC9500 N5 LVDS67p IC9500 C10 LVDS27n IC9500 E9 IO IC9500 K4 DCLK IC9500 E1 LVDS8n IC9500 N12 LVDS56n IC9500 E15 LVDS39n IC9500 B14 LVDS33n IC9500 M13 LVDS48p IC9500 K1 LVDS6p C9527 16V 0.1u P3.3V IC9500 T10 VCCINT IC9500 K13 CONF_DONE IC9500 J4 nCE R9530 10k IC9500 N15 LVDS49n IC9500 N3 LVDS2n IC9500 C4 LVDS16n IC9500 R5 LVDS68p R9532 47 IC9500 B4 LVDS17p IC9500 F11 GND IC9500 A1 GND IC9500 K2 PLL1_OUTn R9549 10k IC9500 J5 GNDG_PLL1 IC9500 H8 GND IC9500 M6 VREF2B4 IC9500 L4 IO IC9500 C2 LVDS13p(CLKUSR) IC9500 P13 LVDS53n IC9500 R12 LVDS55n R9537 10k IC9500 T11 LVDS59n P3.3V R9539 10k R9526 0 R9070 47 D5_DETO /ROMADRS[19] DMHL DSLR M_GOUT9 M_GOUT5 M_BOUT0 NRST CLK M_ROUT9 FPCLK PCD2 DSLL DRVRST M_ROUT7 CEL /ROMADRS[03] ODED1 FPDATA0 M_BOUT1 /ROMADRS[02] M_GOUT4 /ROMADRS[11] DRVMUTE /ROMADRS[07] /ROMADRS[04] CBK FPDATA1 OSDCK CLRD /ROMADRS[18] /ROM_BYTE M_GOUT3 /ROMADRS[10] SFRST SCSU DSHL OSDG /ROMADRS[08] LATCH PCU2 /ROMDATA[06] M_ROUT3 CPH /ROMADRS[20] CEL2 CBK2 DMLR M_ROUT6 /ROMADRS[17] SDA SID2 M_GOUT1 CLK_INPUT OSD CL SCL DMHR /ROMDATA[07] OTHER CSH NUEL RESET USL SIU ODEU Flash_Control CLRU SIU2 M_ROUT2 LSI58 CLKM_IN M_ROUT1 M_ROUT5 LVDSmode SFVRST /ROMDATA[01] /ROMADRS[16] /ROMDATA[05] LVDS_INPUT /ROMADRS[13] /ROMDATA[00] /ROMADRS[05] M_GOUT6 DATA_DRIVER /ROMDATA[04] /ROM_OE PICTURE_OUTPUT /ROMDATA[03] /ROM_CE NC IIC /ROMDATA[02] /ROMADRS[00] CONTROL CML SS_PULSE UML CMH DMLL UMH SC_PULSE M_ROUT4 Nosync GND LVDSbit M_ROUT8 M_ROUT0 M_GOUT2 LEU FVSEL PCU M_BOUT3 M_BOUT4 VCCINT M_GOUT8 VCCI OSDHD /ROMADRS[01] M_BOUT5 OSDVD /ROMADRS[09] M_BOUT6 OSDB M_GOUT0 M_DCKO /ROMADRS[14] M_HDO M_BOUT7 OSDR /ROM_WE M_VDO M_BOUT8 M_GOUT7 M_BOUT9 USH SID UEL LED CSL PCD1 /ROMADRS[06] FPGA M_BOUT2 /ROMADRS[12] MASK INEXCH p_db1 p_db0 p_stb p_slct p_busy PRCKI FREE-RUN CLK PRCK_OUT CLKM_OUT TEST PIN LVDS_DET /ROMADRS[-1] /ROMADRS[15] ODED2 WHITE SIGNAL 21 22 20 19 23 24 25 26 27 DATA POWER FEEDBACK (NO USE) D-BOARD (3/6) IC9500 C1ZBZ0002599 DISCHARGE CONTROL FLASH CONTROL SYNC PROCESSING LVDS WB ADJ FPGA CONTROL 25 23 22 27 21 24 26 32 31 37 38 36 33 34 35 JTAG MODEL[1] MODEL[0] MODEL SELECTION TNPA3810AG TH-42PV600C D-Board (3 of 6) Schematic Diagram TH-42PV600C D-Board (3 of 6) Schematic Diagram 101 14.36.D 电路板 (4/6) 线路图 DD_LED FP_UMH USH UML DD_ODED1 UMH USL DD_CLRD DD_PCD2 NUEL FP_UEH FP_NUEL D-ODED1 FP_USH FP_USL FP_UML DD_PCD1 UEH L8DO_UB20 L8DO_UB18 L8DO_UA18 L8DO_UC17 L8DO_UC19 L8DO_UB15 L8DO_UC20 L8DO_UB21 L8DO_UC11 L8DO_UC12 LBDO_UA12 L8DO_UB10 LBDO_UA13 L8DO_UA11 LBDO_UB12 L8DO_UA16 LBDO_UB14 L8DO_UB16 L8DO_UA21 AA_XCE L8DO_UC16 L8DO_UB17 LBDO_UC13 LBDO_UC14 L8DO_UA10 L8DO_UB11 L8DO_UA14 L8DO_UA19 LBDO_UB13 L8DO_UA20 L8DO_UA15 L8DO_UC18 L8DO_UB19 L8DO_UC21 L8DO_UC15 L8DO_UC10 L8DO_UA9 AA_XWE AA_XOE AA_BYTE DD_ODED2 D-ODED2 D-CLRD D-LED D-PCD2 D-PCD1 L8_PCK L8_OCK L8DO_UA17 0V R9394 0 R9528 EXB2HV272JV C9505 16V 0.1u P3.3V P5V R9511 47 C9511 6.3V 10u C9509 50V 20p R9355 4.7k C9512 16V 0.1u R9527 EXB2HV272JV C9508 16V 0.1u C0JBAZ000856 IC9503 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R9512 47 C9502 16V 0.1u P3.3V C9504 16V 0.1u P5V C9503 16V 0.1u R9514 10k IC9303 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 C9506 16V 0.1u R9518 560 C1ZBZ0003185 IC9200 1 X1 2 VDD 3 CLK2 4 S1 5 S0 6 VDD 7 CLK7 8 GND 9 CLK5 10 VDD 11 GND 12 CLK6 13 VDD 14 CLK3 15 GND 16 VDD 17 CLK4 18 GND 19 CLK9 20 VDD 21 CLK8 22 GND 23 VDD 24 CLK1 25 S2 26 STBY 27 GND 28 X2 R9516 10k C0JBAZ000856 IC9504 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R9513 47 P3.3V R9503 47 X9200 H0J200500038 C9514 16V 1u C9510 50V 15p C9515 16V 1u R9356 4.7k L9500 G1C150KA0038 IC9502 C0EBE0000066 1 NC 2 SUB 3 GND 5 Vcc 4 Vout C9501 16V 0.1u R9501 10k C9469 16V 0.1u C9500 16V 0.1u CPG PD1M_ROM (SS20) (84/36) (63) (SS50/60/75) (20) (OFF) (39.5) (31.6) (36.6) 36 29 31 32 28 33 35 34 30 D-BOARD (4/6) TH-42PV600C D-Board (4 of 6) Schematic Diagram TH-42PV600C D-Board (4 of 6) Schematic Diagram LEVEL CONVERTER LEVEL CONVERTER 16M FLASH MEMORY RESET CLOCK GENE. 32 33 35 36 38 34 37 31 43 44 46 45 42 41 TVRN819-1 TNPA3810AG 102 14.37.D 电路板 (5/6) 线路图 + G G G G + TERM SIDE + G G G G G G G G G G TERM SIDE L8R_MONOUT1 L8_G0 L8_G1 L8_G2 L8_G3 L8_G4 L8_G5 L8_G6 L8_G7 L8_G8 L8_G9 L8_B0 L8_B1 L8_B2 L8_B3 L8_B4 L8_B5 L8_B6 L8_B7 L8_B8 L8_B9 L8_R0 L8_R1 L8_R2 L8_R3 L8_R4 L8_R5 L8_R6 L8_R7 L8_R8 L8_R9 L8DO_UA14 L8DO_UA19 L8DO_UA21 L8DO_UA11 L8DO_UA20 L8DO_UA18 LBDO_UA13 LBDO_UA12 L8DO_UA15 L8DO_UA16 L8DO_UA17 L8R_DA03 L8R_DA11 L8DO_UA9 L8R_DA12 L8R_DA06 L8R_DA02 L8R_DA13 L8R_DA07 L8R_DA04 L8R_DA08 L8R_DA09 L8R_DA00 L8R_DA01 L8DO_UA10 L8R_DA05 L8R_DA10 L8DO_UB11 LBDO_UB13 LBDO_UB14 L8DO_UB20 L8DO_UB17 LBDO_UB12 L8DO_UB21 L8DO_UB15 L8DO_UB19 L8DO_UB18 L8DO_UB16 L8R_DB02 L8R_DB12 L8R_DB04 L8R_DB07 AA_XCE L8R_DB08 L8R_DB01 L8DO_UC10 L8R_DB13 L8R_DB09 L8R_DB05 L8R_DB10 L8R_DB00 L8R_DB14 L8R_DB03 L8R_DB06 L8R_DB11 LBDO_UC13 L8R_DC01 L8DO_UC15 L8DO_UC18 L8DO_UC16 L8DO_UC21 L8R_DC05 L8R_DC00 L8DO_UC11 L8R_DC09 LBDO_UC14 L8DO_UC17 L8R_DC06 L8R_DC10 L8DO_UC19 L8DO_UC20 L8DO_UC12 L8R_DC11 L8R_DC13 L8R_DC03 L8R_DC07 L8R_DC14 L8R_DC12 L8R_DC02 L8R_DC04 L8R_DC08 L8DO_UB10 L8R_MONOUT1 FPDAT1 FPCLK FPDAT0 SFRST SFVRST LATCH L8R_DRVCLKD0 L8R_DRVCLKD3 L8R_DRVCLKD2 L8R_DRVCLKD1 L8R_FULL0 L8R_DA03 D42_DOUTDA9 D42_DOUTDB9 L8R_DB10 L8R_DC00 D42_DOUTDC5 L8R_DC02 CLRD L8R_DA01 L8R_DB07 L8R_DA04 L8R_DA13 ODED1 L8R_DRVCLKD1 L8R_DA11 D42_DOUTDC13 L8R_DC07 D42_DOUTDC4 L8R_DC03 L8R_DC12 L8R_DC10 L8R_DA12 L8R_DRVCLKD2 D42_CLKD3 L8R_DA00 L8R_DC08 L8R_DC11 D42_DOUTDB12 L8R_DB01 D-CLRD D42_DOUTDB10 D42_DOUTDA11 L8R_DA02 L8R_DA06 L8R_DB00 L8R_DC01 L8R_DA07 D42_DOUTDC12 L8R_DA10 D42_DOUTDB8 D-PCD1 D-PCD2 L8R_DC05 D42_DOUTDC10 L8R_DB09 L8R_DB08 D42_DOUTDC11 L8R_DC09 L8R_DB02 D42_DOUTDA8 L8R_DB03 L8R_DB11 L8R_DB06 D42_DOUTDA13 L8R_DB12 L8R_DB04 D42_DOUTDB7 D42_DOUTDA12 D42_DOUTDA10 D42_CLKD2 D-ODED1 L8R_DB13 L8R_DA05 L8R_DA08 L8R_DC04 D-LED D42_DOUTDB13 L8R_DC06 D-ODED2 L8R_DRVCLKD3 D42_DOUTDB4 L8R_DC13 D42_DOUTDA7 D-CLRD D42_DOUTDB11 D42_DOUTDA4 LED D42_DOUTDC9 D-LED L8R_DA09 D42_DOUTDC8 L8R_DB05 PCD1 5V_SENSE TCK TMS TDI_TO_68 TDO_TO_FPGA XRST XRST 5V_DET4 MODEL1 MODEL1 M_SEL1 D42_DOUTDC14 D42_DOUTDB14 D42_DOUTDA14 D42_DOUTDC15 D42_DOUTDB15 D42_DOUTDA15 LED PCD1 CLRD ODED1 D42_CLKD3 D42_CLKD2 D42_DOUTDC12 D42_DOUTDB12 D42_DOUTDA12 D42_DOUTDC13 D42_DOUTDB13 D42_DOUTDA13 D42_DOUTDC10 D42_DOUTDB10 D42_DOUTDA10 D42_DOUTDC11 D42_DOUTDB11 D42_DOUTDA11 D42_DOUTDC8 D42_DOUTDB8 D42_DOUTDA8 D42_DOUTDC9 D42_DOUTDB9 D42_DOUTDA9 D42_DOUTDC4 D42_DOUTDB4 D42_DOUTDA4 D42_DOUTDC5 D42_DOUTDB5 D42_DOUTDA5 D42_DOUTDC2 D42_DOUTDB2 D42_DOUTDA2 D42_DOUTDC3 D42_DOUTDB3 D42_DOUTDA3 D42_DOUTDC0 D42_DOUTDB0 D42_DOUTDA0 D42_DOUTDC1 D42_DOUTDB1 D42_DOUTDA1 ODED2 CLRD PCD2 LED D42_CLKD1 C_SOS8_SS C_NUEL C_UMH C_UML C_USH C_USL C_UEH 5V_DET3 D42_DOUTDC6 D42_DOUTDB6 D42_DOUTDA6 D42_DOUTDC7 D42_DOUTDB5 D42_DOUTDA5 D42_DOUTDC2 D42_DOUTDB2 D42_DOUTDA2 D42_DOUTDC3 D42_DOUTDA3 D42_DOUTDC0 D42_DOUTDB0 D42_DOUTDA0 D42_DOUTDC1 D42_DOUTDB1 D42_DOUTDA1 D42_DOUTDB3 ODED2 CLRD PCD2 LED D42_CLKD1 D42_CLKD0 D42_DOUTDC6 D42_DOUTDB6 D42_DOUTDA6 D42_DOUTDC7 D42_DOUTDB7 D42_DOUTDA7 L8R_DQ9 L8R_TEST0 L8R_OCKOUT L8R_MONOUT0 L8R_DQ23 L8R_A6 L8R_MONOUT2 L8R_A5 L8R_A4 L8R_MONOUT2 L8R_DQ13 L8R_DQ24 0V L8R_BA0 L8R_TCPOUT L8R_DQS2 L8R_MUTE L8R_MONOUT0 L8R_BA1 L8R_DQ4 L8R_OCKOUT L8R_TCKSEL2 L8R_DQ2 L8R_RAS L8R_DQ18 L8R_A1 L8R_A10 L8R_A0 L8R_DQ31 L8R_TCKSEL1 L8R_DQ8 L8R_A3 L8R_DQ14 L8R_DQS3 L8R_WE L8R_DQ3 L8R_DQ10 L8R_DQ26 L8R_DQ1 L8R_SDSEL L8R_SDCKE L8R_DQ21 L8R_TCPOUT L8R_SDCLKO L8R_DQ12 L8R_DQ28 L8R_DQ30 L8R_DQ6 L8R_A9 L8R_DQS1 L8R_TCKSEL0 L8R_DQ22 L8R_TIIC L8R_A7 L8R_DQ17 L8R_NSDCLKO L8R_DQ5 L8R_DQ15 L8R_SDIV1 L8R_DQ11 L8R_FULL1 L8R_DQ25 L8R_DQ29 L8R_A8 L8_OCK L8R_DQ27 L8R_A11 L8R_SDIV0 L8R_TEST1 L8_PCK L8R_CS L8R_DQ20 L8R_DQS0 L8_DCK L8R_DQ19 L8R_TILD L8R_DQ16 L8R_SDSEL L8R_A2 L8R_K_TEST L8R_TCKSEL2 L8R_CAS L8R_DQ0 L8R_DQ7 L8R_TCKSEL1 L8R_TCKSEL0 L8R_TEST0 L8R_TEST1 5V_DET4 D42_DOUTDC15 D42_DOUTDA14 D42_DOUTDB15 D42_DOUTDB14 D42_DOUTDC14 D42_DOUTDA15 L8R_DC14 L8R_DB14 L8DO_UA10 L8DO_UB10 L8DO_UC10 L8DO_UA9 L8R_FULL1 L8R_MUTE L8R_K_TEST L8R_TIIC L8R_TILD ENHMASK L8_VIN L8_HIN L8R_SDIV0 L8R_SDIV1 5V_SENSE DRVRST C_UML UML UMH C_USH C_UEH USL C_UMH UEH C_NUEL NUEL C_USL USH C_SOS8_SS SOS8_SS 5V_DET3 D42_CLKD0 5V_SENSE L8R_DRVCLKD0 IC9900 N20 DOUTDC09 C9918 0.1u 16V IC9900 W8 A2 IC9900 AB22 VSS IC9900 AA5 CKE IC9900 Y11 DQ24 IC9900 Y21 VDD33 IC9900 P4 DQ18 IC9900 F21 DRVCLKU2 L8R3.3V IC9900 C21 DOUTUA02 C9965 56u 4V IC9900 L2 ID0 TP9350 C9960 6.3V 10u IC9900 D9 TCKSEL1 FL9901 F1J1E1040022 1 2 3 IC9900 V18 VSS IC9900 T2 DQ20 R9382 10k IC9900 U1 DQS2 C9917 0.1u 16V IC9900 AB9 VDD25 D9301 MA3X152K0L IC9900 AA4 VREF IC9900 V22 DOUTDA03 IC9900 F3 GI9 R9317 390 IC9900 A7 K_TEST IC9900 Y1 DQ0 IC9900 C6 RI4 IC9900 AB14 DQ8 IC9900 J22 DOUTDA13 IC9900 C8 TEST0 IC9900 E17 VSS TP9365 IC9900 L14 VSS IC9900 E3 GI5 IC9900 M11 VSS TP9307 C9904 0.1u 16V IC9900 K11 VSS IC9900 V2 DQ3 IC9900 M13 VSS R9918 0 IC9900 L4 TIIC IC9900 P9 VSS TP9370 IC9900 C15 DOUTUB09 FL9900 F1J1E1040022 1 2 3 R9555 0 IC9900 AA22 VSS IC9900 H20 DRVCLKD1 IC9900 L10 VSS IC9900 U20 DOUTDB03 IC9900 C19 DOUTUB04 R9349 EXB38V820JV IC9900 G5 VDD12 IC9900 AA9 A8 IC9900 N14 VSS C9925 0.1u 16V IC9900 AA17 SDIV0 IC9900 V6 AVSS_3 IC9900 J11 VSS L8R3.3V IC9900 AA2 VSS IC9900 V19 VDD33 IC9900 F18 VSS TP9349 IC9900 AB3 NCK IC9900 L12 VSS IC9900 N9 VSS IC9900 Y5 NCAS IC9900 Y13 DQ14 IC9900 H5 VDD12 P5V TP9336 R9352 EXB38V820JV IC9900 W17 VSS IC9900 Y19 VSS R9350 22 IC9900 H18 VDD33 IC9900 L19 DOUTDB12 TP9308 TP9358 IC9900 B17 DOUTUA07 TP9310 IC9900 G1 BI6 IC9900 K21 DOUTDC13 IC9900 D15 DOUTUB08 R9919 10k IC9900 D18 DOUTUC05 IC9900 D7 RI3 IC9900 W3 VDD25 IC9900 A5 RI2 C9958 0.1u 16V TP9305 IC9900 R18 VDD33 IC9900 W9 A10 L8R1.2V IC9900 B3 GI1 TP9352 IC9900 P5 VDD33 IC9900 F19 DOUTUA01 IC9900 AB2 VSS IC9900 C4 GI3 IC9900 P13 VSS IC9900 Y3 VSS R9370 10k TP9371 IC9900 A8 TCKSEL0 IC9900 T4 DQ7 TP9324 IC9900 M22 DOUTDC10 IC9900 V14 VDD12 IC9900 R19 DOUTDA05 IC9900 J18 VDD33 C9910 0.1u 16V IC9900 A20 DOUTUC04 IC9900 D4 VSS IC9900 AA8 A5 IC9900 C7 RI0 C9923 0.1u 16V IC9900 W18 VSS IC9900 V12 VDD25 IC9900 AB13 DQ10 TP9351 IC9900 E2 GI8 TP9322 IC9900 F20 DOUTUB00 P3.3V IC9900 J4 ENHMASK IC9900 B12 DOUTUC14 IC9900 G20 DRVCLKU1 IC9900 N3 TDI C9954 56u 4V TP9380 IC9900 C20 VSS IC9900 C10 SFVRST C9913 0.1u 16V IC9900 C11 DOUTUB15 TP9331 IC9900 W21 VDD33 IC9900 V3 DQ4 IC9900 T18 VDD33 TP9362 IC9900 R5 VDD25 L8R3.3V IC9900 U19 DOUTDA02 IC9900 A13 DOUTUC13 IC9900 E15 VDD12 IC9900 G3 BI4 R9395 22 IC9900 N12 VSS L8R3.3V IC9900 R22 DOUTDC07 IC9900 E4 VDD12 C9955 0.1u 16V C9909 0.1u 16V TP9384 IC9900 P10 VSS IC9900 E18 VSS TP9318 TP9317 R9917 0 IC9900 E22 DRVCLKU3 R9357 EXB2HV820JV IC9900 T19 DOUTDC04 IC9900 M21 DOUTDB10 IC9900 C16 DOUTUC08 IC9900 W1 DQ2 IC9900 B9 FPCLK IC9900 Y18 VSS IC9900 D19 VSS IC9900 C14 DOUTUC11 IC9900 N10 VSS IC9900 N19 DOUTDB09 IC9900 B20 DOUTUA03 IC9900 W12 AVDD25_4 IC9900 U5 VDD25 IC9900 W6 NWE D32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 IC9900 Y16 SDSEL IC9900 E12 VDD33 TP9341 TP9313 IC9900 M19 DOUTDC11 IC9900 AB21 VSS IC9900 K13 VSS IC9900 AB17 VSS TP9321 TP9309 IC9900 E11 VDD33 IC9900 V16 VDD33 L8R2.5V IC9900 H3 BI8 IC9900 MN84521-A A1 VSS C9919 0.1u 16V IC9900 D3 VDD12 R9353 EXB2HV820JV IC9900 A16 DOUTUA09 IC9900 N21 DOUTDA08 IC9900 F4 GI7 IC9900 A3 GI0 C9957 0.1u 16V IC9900 N13 VSS IC9900 L21 DOUTDA11 IC9900 H19 DRVCLKU0 TP9304 TP9314 IC9900 B14 DOUTUB11 TP9334 C9953 56u 4V C9916 0.1u 16V IC9900 P14 VSS IC9900 L11 VSS IC9900 A15 DOUTUA10 IC9900 K18 VDD33 R9359 EXB2HV820JV IC9900 H22 DOUTDA14 R9361 22 IC9900 P3 DQ19 IC9900 M10 VSS TP9332 TP9335 TP9344 R9369 4.7k TP9339 TP9343 C9922 0.1u 16V L8R2.5V C9961 6.3V 10u IC9900 A22 VSS IC9900 W22 DOUTDC02 TP9338 C9959 0.1u 16V IC9900 W11 DQ25 TP9330 J0HABH000013 FL9904 L8R3.3V IC9900 A4 RI6 IC9900 A9 FPDAT1 IC9900 R20 DOUTDB06 IC9900 P11 VSS L8R1.2V IC9900 Y7 A0 IC9900 V17 VDD33 IC9900 V5 VSS R9379 0 C9901 0.1u 16V TP9348 IC9900 T3 AVDD25_1 C9915 0.1u 16V IC9900 AA18 DOUTDB00 C9907 0.1u 16V IC9900 W16 SDIV1 IC9900 V13 VDD12 C9921 0.1u 16V IC9900 U3 DQ6 IC9900 R21 DOUTDA06 IC9900 J9 VSS IC9900 V7 VDD25 IC9900 B5 RI5 TP9355 IC9900 A10 SFLATCH IC9900 B19 DOUTUA04 P5V IC9900 M14 VSS J0HABH000013 FL9903 IC9900 H21 DOUTDB15 IC9900 F6 VSS IC9900 C22 DOUTUB01 IC9900 B21 VSS IC9900 AA15 AVSS1 IC9900 V8 VDD25 C9468 50V 0.01u IC9900 AB15 AVDD33_1 IC9900 M5 VDD33 IC9900 U4 DQ5 TP9329 IC9900 K12 VSS FL9301 F1J1E1040022 1 2 3 IC9900 K22 DOUTDA12 IC9900 J14 VSS IC9900 B10 SFRST IC9900 E1 BI0 IC9900 K20 DOUTDB13 IC9900 N5 VDD33 FL9300 F1J1E1040022 1 2 3 IC9900 E21 DOUTUA00 IC9900 J1 MONOUT2 IC9900 V20 DOUTDB02 IC9900 AB16 AVDD33_2 IC9900 AB11 DQ28 IC9900 C18 DOUTUB05 TP9325 IC9900 P21 DOUTDC08 IC9900 E20 DOUTUC02 IC9900 G22 DRVCLKD0 R9354 EXB2HV820JV IC9900 P18 VDD33 TP9327 C9963 6.3V 10u IC9900 A14 DOUTUA11 C9962 6.3V 10u IC9900 W13 DQ15 IC9900 C13 DOUTUB12 IC9900 P20 DOUTDA07 IC9900 V11 VDD25 IC9900 Y8 A1 IC9900 M4 PCK IC9900 M20 DOUTDA10 C9900 0.1u 16V IC9900 E8 VDD12 TP9346 TP9337 IC9900 D11 DOUTUA15 TP9359 TP9342 IC9900 B16 DOUTUC09 IC9900 J19 DOUTDA15 R9371 100k L8R2.5V IC9900 Y2 VDD25 IC9900 Y12 AVSS_4 IC9900 W2 DQ1 IC9900 C12 DOUTUB13 IC9900 J10 VSS IC9900 B13 DOUTUA12 IC9900 F1 BI3 TP9357 IC9900 C3 VSS L8R3.3V IC9900 U22 DOUTDC05 IC9900 J13 VSS IC9900 H1 MUTE IC9900 AB19 DOUTDA00 IC9900 D16 DOUTUC07 IC9900 T20 DOUTDA04 IC9900 W14 DQ13 IC9900 A12 DOUTUB14 C9906 0.1u 16V IC9900 D2 GI4 IC9900 Y17 VSS IC9900 G21 DRVCLKD2 TP9303 IC9900 L22 DOUTDB11 IC9900 W7 NCS IC9900 AA14 DQ9 IC9900 K14 VSS IC9900 D14 DOUTUC10 IC9900 K3 SDA R9922 0 IC9900 W19 VSS IC9900 AB6 A4 TP9345 TP9369 IC9900 L3 ID1 IC9900 Y10 DQ26 TP9347 IC9900 G18 VSS IC9900 T21 DOUTDB05 IC9900 J12 VSS IC9900 P12 VSS C9908 0.1u 16V IC9900 W5 AVDD25_3 IC9900 L5 VDD33 C9914 0.1u 16V IC9900 B4 RI8 IC9900 U21 DOUTDB04 IC9900 K9 VSS IC9900 C5 RI9 IC9900 C1 VDD12 TP9316 IC9900 J21 DOUTDB14 P2.5V IC9900 D10 FPDAT0 IC9900 M12 VSS IC9900 P22 DOUTDB08 IC9900 W20 VDD33 IC9900 W15 TCPOUT IC9900 B8 TCKSEL2 IC9900 L18 VDD12 IC9900 A17 DOUTUA08 IC9900 D17 DOUTUC06 TP9312 IC9900 N4 TMS IC9900 A11 DOUTUA14 IC9900 AA3 CK IC9900 Y4 AVDD25_2 C9920 0.1u 16V TP9372 IC9900 H4 BI7 IC9900 K4 HDI TP9360 R9936 1k TP9356 IC9900 C2 VDD12 IC9900 E10 VDD33 IC9900 Y15 VSS IC9900 E14 VDD33 IC9900 K1 DCK TP9363 FL9902 F1J1E1040022 1 2 3 TP9311 IC9900 Y20 VSS TP9319 IC9900 E13 VDD33 L8R3.3V IC9900 F5 VDD12 IC9900 E9 VDD33 IC9900 B15 DOUTUB10 IC9900 AB5 BA1 IC9900 AB7 A6 R9351 22 IC9900 B11 DOUTUC15 IC9900 J20 DOUTDC15 IC9900 N22 DOUTDA09 TP9382 R9360 EXB38V820JV IC9900 AA10 DQ31 TP9364 C9905 0.1u 16V IC9900 B2 VSS TP9333 IC9900 Y14 DQ12 IC9900 T22 DOUTDC06 R9380 56 IC9900 T1 DQ21 IC9900 AA7 A9 TP9377 TP9323 IC9900 J3 MONOUT0 TP9353 R9929 0 IC9900 E6 VSS IC9900 Y22 VDD33 TP9361 IC9900 U2 AVSS_1 P3.3V IC9900 AB8 A7 TP9306 IC9900 V21 DOUTDC03 IC9900 AA21 VSS IC9900 F22 DRVCLKD3 IC9900 D8 OCK IC9900 G2 BI5 IC9900 AA12 DQS3 IC9900 L20 DOUTDC12 TP9368 IC9900 W10 DQ27 IC9900 B1 VSS IC9900 D5 GI2 IC9900 E5 VSS C9902 0.1u 16V IC9900 A19 DOUTUA05 C9903 0.1u 16V IC9900 AB18 DOUTDC00 C9912 0.1u 16V IC9900 P1 TDO IC9900 R4 DQ16 IC9900 V10 VDD25 IC9900 R3 DQ17 R9920 10k C9956 0.1u 16V IC9900 V1 DQS0 IC9900 G19 DOUTUC00 L8R3.3V IC9900 D21 DOUTUB02 IC9900 N18 VDD12 IC9900 A21 VSS IC9900 R1 DQ22 IC9900 B6 RI1 TP9326 IC9900 K19 DOUTDC14 IC9900 AB4 BA0 IC9900 J5 VDD12 C9966 16V 0.1u TP9354 IC9900 V9 VSS C9911 0.1u 16V IC9900 F2 BI1 IC9900 C9 ROMCE IC9900 E7 VDD12 IC9900 R2 DQ23 IC9900 E16 VDD12 TP9328 IC9900 AA11 DQ30 IC9900 AA16 AVSS2 IC9900 M2 FULL0 IC9900 M9 VSS P1.2V TP9389 IC9900 B7 TEST1 IC9900 D22 DOUTUC01 TP9366 IC9900 K10 VSS IC9900 AB20 DOUTDB01 IC9900 L13 VSS IC9900 Y9 A3 D31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 IC9900 A2 VSS IC9900 D1 GI6 IC9900 W4 VSS IC9900 V4 VDD25 IC9900 AB12 DQS1 R9358 EXB2HV820JV IC9900 AB10 DQ29 IC9900 K2 VDI IC9900 D12 DOUTUA13 IC9900 M1 TILD IC9900 L9 VSS TP9367 IC9900 H2 BI9 IC9900 AA20 DOUTDA01 IC9900 C17 DOUTUA06 TP9388 IC9900 A6 OCKOUT IC9900 A18 DOUTUB07 R9937 1k IC9900 N11 VSS IC9900 N1 TRST IC9900 Y6 NRAS TP9320 IC9900 AA1 VDD25 IC9900 M3 FULL1 R9362 22 L8R2.5V IC9900 M18 VDD12 IC9900 AA19 DOUTDC01 IC9900 L1 SCL IC9900 D13 DOUTUC12 IC9900 N2 TCK IC9900 AA6 A11 IC9900 K5 VDD33 IC9900 B18 DOUTUB06 IC9900 D6 RI7 IC9900 B22 VSS IC9900 AA13 DQ11 IC9900 P19 DOUTDB07 Q9301 B1ABCF000138 TP9340 IC9900 V15 VDD12 C9964 6.3V 10u IC9900 AB1 VSS TP9315 IC9900 E19 DOUTUC03 IC9900 P2 XRST IC9900 J2 MONOUT1 IC9900 D20 DOUTUB03 IC9900 U18 VDD33 C9924 0.1u 16V IC9900 T5 AVSS_2 IC9900 G4 BI2 R9348 EXB2HV820JV R9367 10k R9366 4.7k C9467 50V 0.01u TP9387 D9300 MA3X152K0L Q9300 B1ABCF000138 Q9302 B1ABCF000138 R9390 100 R9368 100k P3.3V R9391 100k R9363 EXB2HV470JV IIC DOUTDA[5] DOUTDB[3] DOUTDC[2] NUEL LED P5V DOUTDA[15] GND DOUTDC[9] CLK[0](+) P5V UMH P5V DOUTDB[15] DOUTDB[4] DOUTDC[14] DOUTDA[4] GND P5V DOUTDB[1] UML DOUTDA[9] DOUTDC[1] GND DOUTDB[9] GND DOUTDA[14] GND GND P5V NC DOUTDC[8] DOUTDA[2] GND DOUTDC[5] 5V_DET DOUTDB[14] PCD1 DOUTDA[0] DOWN_LEFT DOUTDA[8] GND GND ODED1 CLRD DOUTDB[8] PCD2 CLRD DOUTDC[11] DOUTDC[12] DOUTDB[2] GND DOUTDA[11] MODEL1 P5V 5V_DET DOUTDB[11] GND GND DOUTDC[15] DOUTDC[10] DOUTDA[3] USH GND SOS8_SS DOUTDA[10] DOUTDB[10] GND DOUTDA[1] DOUTDC[13] DOUTDA[12] ODED2 DOUTDC[0] DOUTDA[13] USL GND DOUTDB[12] UEH DOUTDB[13] CLK[1](-) GND CLK[3](-) CLK[2](+) DOUTDC[3] DOUTDC[4] GND DOUTDB[0] DOUTDB[5] LED DOWN_RIGHT GND GND GND GND DOUTDB[6] DOUTDA[6] DOUTDC[6] GND DOUTDC[7] DOUTDB[7] DOUTDA[7] GND GND GND GND NC NC NC NC NC rromdata[14] rromadrs[00] rromdata[06] rromdata[09] rromdata[12] rromadrs[11] rromadrs[14] rromdata[15] rromadrs[01] rromadrs[04] rromadrs[17] rromadrs[20] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[16] rromdata[00] rromdata[01] rromdata[02] rromadrs[19] rromadrs[03] rromdata[03] rromdata[04] rromdata[07] rromdata[10] to DDR rromadrs[06] rromadrs[09] rromdata[13] rromadrs[12] rromdata[05] rromadrs[15] rromadrs[18] rromadrs[02] rromadrs[05] rromadrs[08] rromdata[08] rromdata[11] NC NC 42 43 44 38 39 40 41 45 37 IC9900 D-BOARD (5/6) C1-BOARD (C11) TO C2-BOARD (C21) TO FORMAT CONVERTER RGB PROCESSOR 46 42 44 43 45 41 51 TNPA3810AG TH-42PV600C D-Board (5 of 6) Schematic Diagram TH-42PV600C D-Board (5 of 6) Schematic Diagram 103 14.38.D 电路板 (6/6) 线路图 L8DR_DQ28 L8R_A0 L8DR_DQS0 L8DR_DQ31 L8DR_NCS L8R_DQ15 L8DR_A5 L8DR_A1 L8DR_NCAS L8R_A3 L8DR_A11 L8R_DQ17 L8DR_DQ21 L8DR_DQ23 L8DR_DQ22 L8DR_DQ25 L8R_DQ16 L8DR_BA1 L8DR_A11 L8DR_DQ10 L8DR_DQ3 L8R_DQ14 L8R_DQ24 L8DR_BA0 L8DR_DQ1 L8DR_DQ9 L8R_DQ10 L8DR_A7 L8DR_DQ4 L8R_SDCLKO L8DR_DQ31 L8DR_A2 L8R_BA0 L8DR_NRAS L8DR_DQ11 L8R_DQ31 L8DR_DQ2 L8DR_DQ26 L8DR_DQ0 L8DR_BA1 L8DR_DQ5 L8DR_DQ11 L8R_DQ0 L8R_DQ26 L8R_A4 L8R_BA1 L8R_DQ19 L8R_DQ13 L8DR_A6 L8DR_DQS3 L8R_DQ9 L8DR_NCLK L8DR_DQ20 L8R_A2 L8DR_DQ18 L8DR_A2 L8DR_A3 L8DR_A9 L8R_DQ22 L8DR_NRAS L8R_A8 L8R_A10 L8R_A1 L8DR_A3 L8R_WE L8R_DQS2 L8DR_DQ7 L8DR_DQ24 L8R_SDCKE L8DR_DQ8 L8DR_DQ16 L8R_DQ3 L8R_DQ4 L8R_RAS L8DR_DQ20 L8DR_DQ6 L8R_DQ11 L8DR_DQ19 L8DR_DQ24 L8DR_A4 L8DR_A0 L8R_DQ1 L8DR_DQ25 L8DR_DQ12 L8R_A6 L8DR_A6 L8DR_DQ8 L8R_DQ23 L8DR_DQ12 L8DR_DQ2 L8R_DQ8 L8DR_DQ18 L8DR_DQ4 L8DR_DQ0 L8R_DQ21 L8DR_DQS2 L8DR_A1 L8DR_A0 L8DR_DQ22 L8R_A9 L8DR_DQ6 L8DR_DQ29 L8DR_DQS0 L8DR_DQS2 L8DR_DQ7 L8DR_DQ19 L8DR_DQ14 L8DR_DQ5 L8DR_DQ23 L8DR_DQ14 L8DR_CKE L8DR_DQ13 L8DR_DQS1 L8DR_DQ30 L8DR_A8 L8DR_NCS L8DR_DQ16 L8DR_DQ17 L8R_DQ7 L8DR_DQ28 L8DR_DQ17 L8DR_DQ15 L8DR_DQ15 0V L8R_DQ30 L8R_DQ27 L8R_DQS3 L8DR_A5 L8DR_DQS1 L8R_DQS0 L8R_DQ6 L8DR_NCAS L8DR_DQ9 L8DR_DQS3 L8DR_NWE L8R_NSDCLKO L8R_A7 L8DR_DQ26 L8R_DQ29 L8DR_A9 L8DR_A8 L8DR_DQ21 L8R_DQ12 L8DR_BA0 L8R_DQ20 L8DR_DQ27 L8DR_A10 L8DR_A4 L8R_DQS1 L8R_CAS L8DR_NWE L8DR_DQ13 L8DR_CLK L8R_A5 L8R_DQ2 L8DR_DQ10 L8R_DQ28 L8DR_A7 L8DR_DQ30 L8R_DQ18 L8R_A11 L8DR_DQ1 L8DR_DQ29 L8DR_DQ27 L8DR_CKE L8DR_DQ3 L8R_DQ25 L8R_DQ5 L8DR_A10 L8DR_CLK L8DR_NCLK L8R_CS IC9901 A10 VSSQ IC9901 B12 DQ27 IC9901 A11 DM3 C9929 16V 0.1u IC9901 K3 VDD IC9901 J12 DQ8 C9949 16V 0.1u C9936 16V 0.1u R9952 47 IC9901 K7 VDD IC9901 H9 VSSQ IC9901 J3 VDDQ IC9901 E5 VSS_Thermal IC9901 C3 VSSQ IC9901 F3 VDDQ IC9901 J4 VSSQ IC9901 G5 VSS_Thermal IC9901 B5 DQ1 R9955 47 IC9901 M6 A3 IC9901 H1 DQ21 C9927 16V 0.1u IC9901 H8 VSS_Thermal IC9901 J5 VSS IC9901 F8 VSS_Thermal C9941 16V 0.1u IC9901 A1 DQS0 C9943 16V 0.1u IC9901 G7 VSS_Thermal IC9901 M11 CKE R9903 EXB2HV470JV IC9901 M4 A0 C9948 16V 0.1u IC9901 C12 DQ25 IC9901 L1 RAS IC9901 K8 RFU1 IC9901 H6 VSS_Thermal IC9901 K10 VDD IC9901 H12 DQ10 IC9901 E12 DQ14 IC9901 A4 DQ3 IC9901 F1 DQ19 IC9901 M1 CS IC9901 M5 A1 IC9901 H4 VSSQ IC9901 D2 VDDQ IC9901 J1 DQ22 C9931 16V 0.1u L8R2.5V IC9901 L12 MCL IC9901 H2 DQ20 IC9901 J7 VSS IC9901 E6 VSS_Thermal IC9901 E10 VDDQ IC9901 C1 DQ6 IC9901 D9 VSS IC9901 C10 VSSQ IC9901 M10 A8/AP IC9901 E7 VSS_Thermal L8R2.5V IC9901 B6 VDDQ IC9901 D12 DQ24 IC9901 D7 VSS R9947 EXB38V470JV L8R2.5V R9951 EXB38V470JV IC9901 M7 A4 IC9901 J9 VSSQ R9939 1k IC9901 H3 VDDQ IC9901 G3 NC IC9901 L11 CK IC9901 K9 VSS IC9901 A9 DQ28 IC9901 C2 DQ5 C9947 16V 0.1u IC9901 L9 RFU2 R9943 EXB38V470JV IC9901 C8 VSSQ C9940 16V 0.1u IC9901 K6 VDD IC9901 L4 BA1 R9944 EXB38V470JV IC9901 G4 VSSQ IC9901 B11 VDDQ IC9901 C6 VDD C9932 16V 0.1u IC9901 L5 A2 IC9901 D4 VSS IC9901 B7 VDDQ IC9901 B2 VDDQ IC9901 A5 DQ2 R9941 47 R9904 47 IC9901 K2 WE IC9901 J6 VSS IC9901 C5 VSSQ C9933 16V 0.1u IC9901 E9 VSSQ IC9901 M3 BA0 IC9901 A7 DQ31 C9930 16V 0.1u IC9901 J10 VDDQ IC9901 H7 VSS_Thermal IC9901 E3 VDDQ R9949 EXB38V470JV IC9901 B10 NC IC9901 L3 NC C9928 16V 0.1u IC9901 D10 VDD IC9901 H5 VSS_Thermal IC9901 G9 VSSQ IC9901 F6 VSS_Thermal IC9901 B4 VDDQ C9952 56u 4V C9934 16V 0.1u IC9901 G10 NC IC9901 D3 VDD IC9901 J2 DQ23 IC9901 F2 DQ18 IC9901 A2 DM0 R9948 EXB38V470JV C9950 16V 0.1u IC9901 G11 DM1 R9945 EXB38V470JV C9937 16V 0.1u IC9901 D8 VSSQ R9905 33 IC9901 K5 A10 IC9901 M12 VREF R9907 150 IC9901 G6 VSS_Thermal R9954 47 IC9901 J11 DQ9 IC9901 D11 VDDQ IC9901 E4 VSSQ IC9901 H10 VDDQ IC9901 F4 VSSQ IC9901 F10 VDDQ IC9901 B1 DQ4 R9906 EXB38V470JV IC9901 F7 VSS_Thermal IC9901 L10 CK R9942 47 IC9901 C9 VSSQ C9946 16V 0.1u IC9901 C7 VDD C9938 16V 0.1u IC9901 F9 VSSQ IC9901 L6 A11 IC9901 G1 DQS2 C9945 16V 0.1u R9938 1k IC9901 H11 DQ11 C9951 16V 0.1u IC9901 F11 DQ13 IC9901 G8 VSS_Thermal IC9901 C4 VSSQ IC9901 M9 A7 IC9901 D6 VSS IC9901 A8 DQ29 IC9901 K12 NC C9939 16V 0.1u IC9901 M8 A6 IC9901 E11 DQ15 IC9901 A3 VSSQ IC9901 A12 DQS3 IC9901 E8 VSS_Thermal IC9901 B9 VDDQ C9944 16V 0.1u R9946 EXB38V470JV R9953 47 IC9901 K4 VSS R9950 EXB38V470JV IC9901 F12 DQ12 C9935 16V 0.1u ZA9001 K4CD01000011 IC9901 A6 DQ0 IC9901 F5 VSS_Thermal IC9901 M2 NC IC9901 B3 NC IC9901 D1 DQ7 IC9901 E1 DQ17 IC9901 K11 NC IC9901 J8 VSS IC9901 K1 CAS IC9901 G2 DM2 C9942 16V 0.1u IC9901 E2 DQ16 IC9901 D5 VSSQ IC9901 C11 DQ26 IC9901 L7 A9 R9940 33 IC9901 L8 A5 IC9901 B8 DQ30 IC9901 L2 NC IC9901 G12 DQS1 DDR-Terminate DDR-SDRAM IC9901 DDR SDRAM(128M) D-BOARD (6/6) 50 53 47 51 48 49 54 46 52 C3ABQJ000051 51 TNPA3810AG TH-42PV600C D-Board (6 of 6) Schematic Diagram TH-42PV600C D-Board (6 of 6) Schematic Diagram 104 14.39.C1 和 C2 电路板方框图 CLK0 LED CLK0 USL CLK2 CLRD UEH UMH ODED2 UML USH SS_SOS8 CLK3 CLRD CLRD ODED1 CLK1 ODED1 NUEL CLK3 CLK2 CLK1 PCD2 LED PCD1 CLRD ODED2 PCD2 LED R7115 R7318 16 VCC 1 12 VCC 5 2bit 5 4bit 6bit 6bit A4-C5 6bit 8 7 1 8bit 6 A12-C13 VCC 8 C12 2bit 17 4bit A6-C7 2 4 6 CB4 VCC 14 VCC 7 8bit A14-C15 21 44 51 C23 55 8bit 8bit 39 10 IC7104 BUFFER CB1 CB2 11 3 IC7103 4bit 6bit 6bit BUFFER 8bit CB8 IC7102 C21 BUFFER A2-C3 IC7101 CLK BUFFER 2bit IC7202 A0-C1 4bit BUFFER A10-C11 IC7203 BUFFER 2bit BUFFER IC7204 CLK BUFFER IC7201 CB6 4 Vda Vda C11 CB5 6bit DATA 24bit DA0-DC7 VCC 8bit 24bit VCC DA8-DC15 DATA TO D31 VCC CB3 A8-C9 9 CB7 43 37 13-35,46-52 DOUTDC15 DOUTDA8 CLK2 CLRD CLK3 ODED1 1 6 C22 6 1 3 1 LED 41 42 PCD1 IC7105 VCC BUFFER IC7205 VCC BUFFER 53 55 18 19 5V 5V 5VDET CLRD CLK0 ODED2 CLK1 PCD2 LED 5V 5VDET 5V UEH UML NUEL USH USL SS_SOS8 UMH DOUTDC7 DOUTDA0 12 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit NUEL USH USL UML UMH UEH SS_SOS8 5V Vda Vda DATA DRIVE LOWER RIGHT(FRONT VIEW) C1 C2 DATA DRIVE LOWER LEFT (FRONT VIEW) PANEL DATA DRIVER PANEL DATA DRIVER TO D32 TO SS23 TH-42PV600C C1 and C2-Board Block Diagram TH-42PV600C C1 and C2-Board Block Diagram 105 14.40.C1 电路板 (1/2) 线路图 TERM SIDE TERM SIDE G G TERM SIDE AB_CLK_P1 AB_CLK_N1 AB_LED1 AB_DDC14 AB_DDB14 AB_DDA14 AB_DDC15 AB_DDB15 AB_DDA15 AB_LED1 AB_DDC14 AB_DDB14 AB_DDA14 AB_DDC15 AB_DDB15 AB_DDA15 AB_LED2 AB_DDC12 AB_DDB12 AB_DDA12 AB_DDC13 AB_DDB13 AB_DDA13 AB_LED2 AB_DDC12 AB_DDB12 AB_DDA12 AB_DDC13 AB_DDB13 AB_DDA13 AB_ODED1 AB_ODED1 AB_ODED1 AB_CLRD AB_CLRD AB_ODED1 AB_CLK_N1 AB_CLRD AB_CLK_P1 AB_CLRD AA_DDB8 AA_CLK_N AA_DDB15 AA_DDA14 AA_DDC14 AA_DDC11 AA_DDC8 AA_DDB9 AA_DDB13 AA_DDA8 AA_CLRD AA_DDC15 AA_DDA9 AA_DDA15 AA_DDB14 AA_DDA11 AA_CLK_P AA_DDB10 AA_DDB11 AA_DDA12 AA_DDA10 AA_DDC10 AA_ODED1 AA_DDB12 AA_DDC13 AA_LED AA_DDC9 AA_DDC12 AA_DDA13 AA_PCD1 AB_PCD1_1 C1_5V C1_5V R7123 6.8 R7140 47 C7111 100V 0.47u 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7146 47 R7144 6.8 C7117 50V 100p R7145 6.8 R7142 6.8 R7125 6.8 R7179 0 R7124 6.8 R7112 1k R7143 6.8 R7120 47 C7115 100V 0.47u R7122 6.8 C7112 100V 0.47u C7123 16V 1u C7116 16V 1u C7124 50V 100p C7108 100V 0.47u R7128 47 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C1_5V ZA7103 K4CD01000013 J0HABH000013 FL7101 1 2 3 ZA7101 K4CD01000013 C11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 ZA7104 K4CD01000013 R7115 22k ZA7102 K4CD01000013 R7116 100k C7110 16V 1u C7114 16V 1u FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND CB1 CB2 1 A 3 7 5 6 D E C 2 B 4 8 DOUTDA[10] DOUTDB[13] N.C. DOUTDA[9] DOUTDC[11] GND GND DOUTDB[10] DOUTDC[12] DOUTDB[15] DOUTDC[8] CLK[2](+) P5V GND DOUTDA[12] GND DOUTDB[12] DOUTDA[11] DOUTDB[14] N.C. GND DOUTDC[15] P5V DOUTDC[9] DOUTDA[14] GND MODEL1 N.C. GND DOUTDA[8] N.C. N.C. LED DOUTDB[9] GND PCD1 P5V ODED1 DOUTDA[15] DOUTDA[13] GND DOUTDB[8] CLRD GND DOUTDC[13] GND(DRV_RST) CLK[3](-) GND GND DOUTDC[14] DOUTDC[10] 5V_DET DOUTDB[11] GND N.C. DRIVER PANEL DATA TO DRIVER PANEL DATA TO 1 2 3 4 5 C1-BOARD TNPA3812 (1/2) D-BOARD TO (D31) TH-42PV600C C1-Board (1 of 2) Schematic Diagram TH-42PV600C C1-Board (1 of 2) Schematic Diagram 106 14.41.C1 电路板 (2/2) 线路图 SIDE TERM TERM SIDE TERM SIDE AB_CLK_P2 AB_CLK_N2 AB_LED3 AB_DDC10 AB_DDB10 AB_DDA10 AB_DDC11 AB_DDB11 AB_DDA11 AB_LED3 AB_DDC10 AB_DDB10 AB_DDA10 AB_DDC11 AB_DDB11 AB_DDA11 AB_DDB15 AB_DDA15 AB_DDC12 AB_DDB12 AB_DDC15 AB_DDA14 AB_DDB14 AB_DDC14 AB_DDB10 AB_DDC10 AB_DDA13 AB_DDB13 AB_DDC13 AB_DDA12 AB_CLRD AB_ODED1 AB_ODED1 AA_DDB12 AA_DDC12 AA_DDA15 AA_DDB15 AA_DDC15 AA_DDA14 AA_DDB14 AA_DDC14 AA_DDC11 AA_DDA10 AA_DDB10 AA_DDC10 AA_DDA13 AA_DDB13 AA_DDC13 AA_DDA12 AB_LED4 AB_ODED1 AB_DDA9 AB_DDB9 AB_DDC9 AB_CLK_N2 AB_DDA9 AB_DDA8 AB_DDA8 AB_DDB9 AB_DDB8 AB_DDB8 AB_CLK_P2 AB_DDC8 AB_DDC9 AB_DDC8 AB_LED4 AB_DDC8 AB_DDB8 AB_DDA8 AB_DDC9 AB_DDA9 AB_DDB9 AB_CLK_P2 AB_CLK_N2 AB_CLK_P1 AB_CLK_N1 AB_PCD1_1 AB_PCD1_2 AB_LED1 AA_CLRD AA_ODED1 AA_PCD1 AB_DDB11 AB_DDA11 AB_DDA10 AB_DDC11 AA_LED AA_CLK_P AA_CLK_N AB_LED2 AB_LED3 AB_LED4 AA_DDA8 AA_DDC9 AA_DDB9 AA_DDA9 AA_DDA11 AA_DDC8 AA_DDB8 AA_DDB11 AB_CLRD AB_CLRD AB_ODED1 AB_PCD1_2 AB_ODED1 AB_CLRD AB_CLRD C1_5V C1_5V C1_5V C1_5V C1_5V C1_5V C1_5V C7141 50V 100p C12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7152 6.8 C7137 16V 0.1u 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7130 16V 0.1u R7159 EXB38V470JV R7172 6.8 R7132 EXB38V470JV R7153 6.8 R7118 22 R7169 47 R7165 EXB38V102JV R7174 6.8 C7119 100V 0.47u R7136 EXB38V470JV C7148 16V 0.1u R7167 EXB38V102JV R7173 6.8 C7122 100V 0.47u R7180 0 C7126 16V 1u C0JBAZ002692 IC7102 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7163 EXB38V102JV C7143 100V 0.47u C0JBAZ002692 IC7104 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7138 16V 0.1u R7171 6.8 R7166 EXB38V102JV C0JBAZ002692 IC7105 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7127 50V 100p R7127 47 R7162 EXB38V102JV R7186 EXB38V470JV R7155 EXB38V102JV C7146 100V 0.47u C7140 16V 1u C0JBAZ002692 IC7101 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7114 22 R7134 EXB38V470JV C7134 16V 0.1u R7164 EXB38V102JV R7149 47 R7177 EXB38V102JV R7156 47 R7126 220k R7175 47 R7151 6.8 R7158 EXB38V470JV R7187 EXB38V470JV 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ002692 IC7103 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7119 22 R7133 EXB38V470JV R7137 EXB38V470JV R7135 EXB38V470JV R7139 47 R7113 22 R7154 6.8 C7121 16V 1u C7145 16V 1u FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND GND A1 GND GND FDET LEN GND A4 GND VDD2 VDD2 A4 FS VDD1 VDD2 A1 GND VDD2 GND CLR BLK NC FX A2 NC A3 VDD1 A6 BLK GND NC NC A3 A2 A6 DM VDD2 GND VDD2 NC GND VDD2 A5 CLR DM GND VDD2 NC VDD1 VDD1 GND GND ODE A5 VDD2 GND VDD2 GND FX NC VDD2 GND ODE NC FS LEN VDD2 Vda 75V Vda 75V Vda 75V Vda 75V NC NC NC GND GND GND NC NC NC NC GND GND GND NC Vda 75V Vda 75V FDET1 CB3 CB4 11 10 15 12 8 13 14 9 DRIVER PANEL DATA TO DRIVER PANEL DATA TO BUFFER BUFFER BUFFER BUFFER BUFFER 4 1 3 5 2 C1-BOARD TNPA3812 (2/2) C2-BOARD TO (C22) TH-42PV600C C1-Board (2 of 2) Schematic Diagram TH-42PV600C C1-Board (2 of 2) Schematic Diagram 107 14.42.C2 电路板 (1/2) 线路图 SIDE TERM TERM SIDE G G TERM SIDE TERM SIDE AB_LED6 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 AB_LED6 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 AB_CLRD AB_ODED2 AB_ODED2 AB_CLRD AA_DDB5 AA_DDA5 AA_DDC4 AA_DDB4 AA_DDA4 AA_DDA3 AA_DDC2 AA_DDB2 AA_DDA2 AA_DDC3 AA_DDB3 AA_DDC0 AA_DDB0 AA_DDA0 AA_DDC1 AA_DDB1 AA_DDA1 AA_PCD2 AA_LED AA_DDC5 BA_SOS8_SS BA_NUEL BA_UMH BA_UML BA_USH BA_USL AA_ODED2 AA_CLRD AB_LED6 AB_LED7 BA_UEH AA_CLK_P AA_CLK_N AB_DDB6 AB_DDB6 AB_LED5 AB_DDB7 AB_DDA7 AB_ODED2 AB_CLRD AB_DDC6 AB_DDC7 AB_DDC6 AB_DDA6 AB_DDA6 AB_DDA7 AB_CLK_N2 AB_ODED2 AB_DDC7 AB_DDB7 AB_CLRD AB_CLK_P2 AB_LED5 AA_DDA6 AA_DDB6 AA_DDC6 AA_DDA7 AA_DDB7 AA_DDC7 AB_CLK_P2 AB_CLK_N2 AB_CLK_P1 AB_CLK_N1 AB_PCD2_1 AB_LED5 AB_LED8 AA_LED AA_PCD2 AB_ODED2 AB_CLRD AA_CLRD AA_ODED2 AA_CLK_P AA_CLK_N AB_CLK_N2 AB_CLK_P2 AB_PCD2_2 C2_5V C2_5V C2_5V C2_5V C2_5V C7201 100V 0.47u R7210 47 R7251 EXB38V470JV R7265 6.8 R7213 6.8 C7235 16V 1u C22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C7229 16V 0.1u CB5 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7271 100k C7204 100V 0.47u R7249 22 R7262 6.8 R7256 0 R7258 EXB38V102JV J0HABH000013 FL7201 1 2 3 R7264 6.8 C7209 16V 1u CB6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7241 100V 0.47u C7238 100V 0.47u C7236 50V 100p R7209 47 R7263 6.8 C0JBAZ002692 IC7205 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7257 0 R7214 6.8 R7270 22k C0JBAZ002692 IC7201 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 R7217 47 R7248 22 R7250 EXB38V470JV R7245 EXB38V102JV R7266 47 R7212 6.8 R7208 47 R7260 47 C7244 16V 0.1u R7215 6.8 R7246 22 C7210 50V 100p R7247 22 C7203 16V 1u C7240 16V 1u FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND DOUTDA[4] DOUTDB[2] UMH PCD2 GND DOUTDA[0] GND DOUTDA[3] DOUTDB[0] P5V DOUTDC[0] DOUTDC[6] DOUTDC[2] GND DOUTDB[7] GND DOUTDC[3] GND DOUTDB[3] DOUTDB[1] DOUTDB[4] NUEL GND(DRV_RST) DOUTDC[5] DOUTDB[6] DOUTDC[1] DOUTDA[6] P5V DOUTDC[4] P5V 5V_DET LED DOUTDC[7] DRV_SOS8 UEH DOUTDA[2] DOUTDA[1] GND DOUTDA[7] DOUTDB[5] DOUTDA[5] GND GND ODED2 GND CLRD CLK[1](-) GND CLK[0](+) USL UML USH GND GND GND GND GND Vda 75V Vda 75V Vda 75V NC NC NC NC NC NC Vda 75V NC NC GND GND GND GND Vda 75V Vda 75V VDD2 A5 FDET1 GND VDD2 FDET DM GND FX VDD2 A2 LEN GND NC CLR GND VDD1 DM VDD1 GND A3 VDD2 A1 GND FS VDD2 GND ODE A1 A5 VDD2 A3 VDD1 NC A6 FS LEN VDD2 A4 NC GND VDD1 NC VDD2 CLR A2 NC FX NC GND VDD2 GND A4 GND GND NC VDD2 GND A6 ODE GND BLK GND NC GND VDD2 VDD2 BLK CB5 CB6 1 A 3 7 5 6 D E C 2 B 4 8 BUFFER BUFFER PANEL DATA DRIVER TO PANEL DATA DRIVER TO C2-BOARD TNPA3813 (1/2) 1 2 3 4 5 6 7 8 9 C1-BOARD TO (C12) D-BOARD TO (D32) TH-42PV600C C2-Board (1 of 2) Schematic Diagram TH-42PV600C C2-Board (1 of 2) Schematic Diagram 108 14.43.C2 电路板 (2/2) 线路图 TERM SIDE TERM SIDE AB_CLK_N1 AB_CLK_P1 AB_LED8 AB_DDC0 AB_DDB0 AB_DDA0 AB_DDC1 AB_DDB1 AB_DDA1 AB_LED8 AB_DDC0 AB_DDB0 AB_DDA0 AB_DDC1 AB_DDB1 AB_DDA1 AB_LED7 AB_DDC2 AB_DDB2 AB_DDA2 AB_DDC3 AB_DDB3 AB_DDA3 AB_LED7 AB_DDC2 AB_DDB2 AB_DDA2 AB_DDC3 AB_DDB3 AB_DDA3 AB_DDC1 AB_DDB1 AB_DDA1 AB_CLRD AB_ODED2 AB_CLRD AB_ODED2 AB_CLRD AB_ODED2 AB_ODED2 AB_CLRD BA_SOS8_SS BA_UEH BA_USL BA_NUEL BA_UMH BA_USH BA_UML AA_DDC4 AA_DDB4 AA_DDA7 AA_DDB7 AA_DDC0 AA_DDB0 AA_DDA3 AA_DDA0 AA_DDC1 AA_DDB1 AA_DDB3 AA_DDA1 AB_DDA4 AB_DDB4 AB_DDC6 AB_DDA6 AB_DDB6 AB_DDC7 AB_DDA7 AB_DDB7 AB_DDA2 AB_DDB2 AB_DDC2 AB_DDB5 AB_DDA5 AB_DDC4 AB_DDC5 AB_DDC3 AB_DDC0 AB_DDB0 AB_DDA0 AB_DDB3 AB_DDA3 AA_DDC3 AA_DDA2 AA_DDB2 AA_DDC2 AA_DDA5 AA_DDB5 AA_DDC5 AA_DDA4 AA_DDC6 AA_DDB6 AA_DDA6 AA_DDC7 AB_CLK_N1 AB_CLK_P1 C2_5V C2_5V C2_5V C2_5V C2_5V C2_5V R7224 6.8 C0JBAZ002692 IC7203 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7227 47 C7227 16V 0.1u C7223 16V 0.1u C0JBAZ002692 IC7204 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7242 EXB38V102JV C7208 100V 0.47u R7236 47 R7233 6.8 R7232 6.8 R7237 EXB38V102JV ZA7201 K4CD01000013 C7215 100V 0.47u CB7 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7204 EXB38V470JV R7269 1k R7235 6.8 R7216 EXB38V470JV R7202 EXB38V470JV R7240 EXB38V102JV R7231 47 R7234 6.8 ZA7204 K4CD01000013 C7205 100V 0.47u C7216 16V 1u R7219 220k C23 1 2 3 4 5 6 7 8 9 10 11 12 R7223 6.8 R7226 6.8 R7221 47 R7239 EXB38V102JV C7212 100V 0.47u C0JBAZ002692 IC7202 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7225 6.8 ZA7203 K4CD01000013 R7238 EXB38V102JV R7207 EXB38V470JV ZA7202 K4CD01000013 C7225 16V 0.1u R7206 EXB38V470JV CB8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7219 16V 1u R7205 EXB38V470JV R7201 EXB38V470JV R7229 0 R7241 EXB38V102JV R7203 EXB38V470JV C7220 50V 100p C7217 50V 100p C7207 16V 1u C7214 16V 1u FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND UML Vda75V NUEL SOS8_SS USH NC GND USL UEH 5V UMH Vda75V CB7 CB8 11 10 15 12 8 13 14 9 BUFFER BUFFER BUFFER PANEL DATA DRIVER TO PANEL DATA DRIVER TO C2-BOARD TNPA3813 (2/2) 9 1 7 6 4 2 8 3 5 SS-BOARD TO (SS23) 3.7 0 0.5 0 0.5 5.0 0.6 0.9 0.4 75.5 75.5 1.7 TH-42PV600C C2-Board (2 of 2) Schematic Diagram TH-42PV600C C2-Board (2 of 2) Schematic Diagram 109 14.44.SC，SU 和 SD 电路板方框图 + + CLK FSIU SCSU CEL2 FCLD CEL2 CEL CLK CPH1 CEL FSID CPH1 SCSU SID PROD CL PROU SIU CL CPH2 SIU FCLKD FCLU SID CPH2 FCLKU D6620 D6806 D6804 R6838 D6583 Q6743 Q6742 T6602 TP15V VSET 15V 5V R6839 16V_F VSUS TPVSUS 16V_F D6862 VSET D6860 15V_F VSUS D6841 Q6824 R6837 D6872 15V D6760 15V D6585 D6825 D6859 D6421 D6480 D6826 SO B34 A6 13 Q6681 Q6804 CML Q6401-Q6403 2 CL CLK 96 BUFFER B40 IC6951 VCC Q6691 GND Q6762 GND A11 Q6531,Q6532 BUFFER VCC C39 HO 64bit C34 CLK SI 5 SD4 LO A47 PRO 1 CL (Vscn) Vf OUTFET SCAN 9 VDD Q6644,Q6645 CL 32 IC6521 64 7 IC6901 Q6601,Q6602 PROU VDD IC6904 VDDH ENERGY RECOVERY AVR A40 8 VDD DRIVER 64bit VCC 32 PRO BUFFER CLK (SC3) VSUS AVR 3 20 GND IC6955 A33 S/P HIN 64bit +5V 3 SU SCAN OUT (UPPER) GND C76 GND VDD POWER OSC GND VDDH PRO CLK Vsus IC6903 LO GND FET SI (Vf+5V) +5V(SC3) GND TO P2 B31 IC6751 (+260V) CL SU3 2 Vad( 105V) VDD 1 CLK B2 PROD FCLD A46 IN 2 C10 18 +15V A7 CMH IC6724 8 +5V PC6702 Vfo C35 CLK AVR PRO COUPLER 64bit SID VDD 4 A30 VSETSOS DET PHOTO SD3 64 11 VSCN SUPERIMPOSED 2 GND CSL (LOWER) 9 IC6953 IC6802 45 A32 A33 Adj. C36 VDD FCLKD 2 SO A45 VSCN Gen. A71 TPSC1 SIGNAL WAVE Q6551,Q6552 CLK VDDH B1 HIN SI IC6841 Vf IC6561,6562 CLK Q6841,Q6842 PRO SO S/P VDD COM Q6821,Q6822 C11 SC2 B8 Vf+5V 96 VDDH 32 VIN 64bit SI Vf+5V B36 VOUT GND (Vad 105V) A40 (UPPER) A8 64 IC6791 A8 PC6861 Vscn PRO C9 GND S/P VDDH SC A35 VDD PRO Vscn SC41 B8 7 PC6480 SO DRIVEB 20 COUPLER (SC3) 64bit 96 IC6954 PC6703 PHOTO PRO 3 CLK SU41 Q6802 Vscn GND C1 CMH A2 64 SI Vf (+140V) IC6752 IC6821 +5V(SC3) C79 CML 64bit OUTFET VSET SEPARATE IC6753 CSH S/P CL Q6616,Q6617 L6401 CLK CPH 6 SO Vsus CSL Q6641,Q6642 7 Vf+5V L6403 (SC2) Vf+5V IN B32 TPSCI CL Vfo SCAN PANEL A8 GND CL L6413 CL A36 SC SCAN DRIVE R6833 B35 GND LINE VDD 64bit L6411 SU4 C75 VCC R6834 1 FCLU A34 Vfo 23 GND A39 IC6681 Q6661-Q6663 Vf LINE R6835 SO FSID GND A31 Vf Q6671,Q6672 B11 IC6725 R6836 IC6905 VCC S/P IC6501 46 12 COMPARATOR 3 B9 VSET GND VDD VDDH SD42 PRO 32 ELECTRODES IC6871 (SC1) TO P23 IC6906 TPVSCN IC6671 IC6721 HO DRIVER PROU 9 SCSU TPVAD C8 5 Q6801 LINE PRO 384LINE SIU 2 1 VDD SO SC IC6956 VCC 7 VSET VDDH 8 PC6760 C50 5 A48 A32 Vf SI VDDH 3 Q6421-Q6423 A2 8 C74 PANEL Vf SI LINE SD2 FET +5V CL VDDH IC6581 VDD VAD SLOPE Vfo CSH 64 IC6601 B30 C51 VAD CONT Q6511,Q6512 A6 A5 SI VR6600 A73 ELECTRODES SU2 (Vfo) LINE SD1 PROD Q6803 LED(G) CLK 32 96 (+8V) 32 S/P A1 TPVSET VSET Gen. 1 Vf B33 IC6801 SI GND FSIU GND SC_SOS7 CEL VAD Gen.( 105V ) 384LINE Q6680 VDDH SID DRIVER SIU CL A33 VSET2 Gen. FET SI C41 IN 46 VDD CL A72 64bit +5V(SC2) 64bit IC6902 96 B7 CL VCC FCLKD A7 PHOTO BUFFER GND 64 VSET2 VAD C33 COUPLER FCLD VDDH S/P A30 Vsus Gen. A5 HO Vscn(VAD+140V) PRO B6 PC6801 VSET SLOPE Q6581 1 SC IC6771 IC6861 S/P 64bit DRIVER SC 1 32 SU1 COMPA- FET LINE Vf+5V LO 2 B39 +15V FET Q6451,Q6452 IC6722 +5V 64 Vf+5V FCLKU 1 9 OUTFET 8 IC6773 SO DC/DC CONV. S/P 1 VDD Vscn IN FSID COUPLER OUTFET IC6774 LIN PC6701 3 PHOTO Vad 105V Q6441,Q6442 DRIVER SC30 COUPLER LINE P+5V SU CL +5V(SC3) SI HO 4 CLK RATOR A80 96 VSCN S/P PHOTO PC6871 FACTORY 32 RATOR FSIU COUPLER 3 Vf+5V USE COMPA- SC42 COUPLER CEL2 B33 45 A31 1 16V_F VCC PHOTO 3 GND PC6705 FOR 96 19 IC6682 PHOTO LIN LO 17 64 9 B10 B5 FCLU +5V(SC1) PHOTO C73 5 FET LO 64bit COUPLER 1 A9 Q6647,Q6648 SO COUPLER VCC SC_SOS6 7 BUFFER PHOTO AVR 8 SI LINE IC6952 SD GND COUPLER A10 3 A70 C48 VDDH S/P PHOTO CEL2 CLK 1 CLK PC6704 C49 Vf+5V Q6682 96 TO D20 VCC S/P SO CL FCLKU A42 PRO TPSOS6 TPSOS7 D6623,D6624 OUT FET FET OUT FET OUT FET OUT FET OUT FET OUT VCC FET HO GND FET VAD SEPARATE IN DRIVER OUT Q6781 IC6772 LO Q6782 D6904 D6953 D6903 D6954 Q6621 Q6622,D6621 IC6610 RATOR COMPA- 15Vf SD SCAN OUT (LOWER) FLOATING GND COLD ENERGY RECOVERY SOS DET LED BLINKING : 6 TIMES SC FLOATING PART SOS DET LED BLINKING : 7 TIMES FLOATING GND COLD TH-42PV600C SC, SU and SD-Board Block Diagram TH-42PV600C SC, SU and SD-Board Block Diagram 110 14.45.SC 电路板 (1/2) 线路图 + + + + + + + AA_CLK AA_SIU AA_SID AA_SCSU AA_CL AA_CEL CEL2 CPH CML CMH CSH CBK CEL CSL AA_CEL2 AC_CPH1 AC_CPH2 SOS6_SC1 100V SOS7_SC2 5V 0-305V 0-200V D6471 MA3DF30000LZ R6592 4.7k Q6422 B1JAEP000001 D6522 D1FL40 Q6517 2SA2071T100Q IC6871 C0BBBA000022 1 2 3 4 5 6 7 8 150 R6523 15V C6566 50V 0.01u R6866 2.2k C6565 50V 0.01u R6425 15 R6793 100 Q6441 B1JADN000002 PC6861 B3PBA0000223 1 2 3 4 TP23 R6564 EXB38V470JV R6475 4.7k R6531 10 1 2 3 TP52 R6791 1k R6875 3.3k D6451 D1FL40 L6484 G0ZZ00002183 C6563 10V 100u TP33 D6482 RF2001T3DFF55 D6524 B0ECHP000003 TP7 150 R6504 R6861 39k 1 R6508 R6585 1.2k C6414 220V 200u SOS7_SC2 C6593 50V 1000p TP9 D6431 B0HBSP000019 MAIN_STOP C6502 25V 4.7u 15V_F L6466 G0ZZ00002183 D6491 B0HBSP000019 R6877 3.9k R6581 10k D6441 B0ECHP000003 R6551 10 15V SC2 1 3 TP10 Q6512 2SA2071T100Q R6454 10 TP30 C6504 25V 4.7u L6411 L6488 G0ZZ00002183 Q6791 2SD0601A0L TP15 L6602 G0ZZ00002183 TP20 R6468 82k TP14 D6872 MA2J11100L C6521 25V 1u R6478 4.7k Q6401 B1JADN000001 G D S C6411 220V 200u TP25 R6876 1.2k R6584 10k 16V_F R6553 10k TP39 C6561 10V 100u R6563 EXB38V470JV TP17 C6581 25V 1u D6461 RF2001T3DFF55 16V_F R6863 47k R6865 2.2k R6872 39k D6501 B0ECHP000003 15V R6503 10 R6562 EXB38V470JV R6522 100 C6524 25V 4.7u 150 R6505 R6867 3.9k 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 L6412 L6468 G0ZZ00002183 R6511 10k TP2 PC6871 B3PBA0000223 1 2 3 4 TP4 L6465 G0ZZ00002183 C6412 220V 200u Q6451 B1JADP000002 C6527 25V 4.7u R6467 82k C6872 25V 1u R6561 EXB38V470JV R6583 39k C6512 250V 4u R6451 10 L6487 G0ZZ00002183 C0JBAA000377 IC6472 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y R6591 EXB38V472JV Q6442 B1JADN000002 150 R6524 IC6861 C0BBBA000022 1 2 3 4 5 6 7 8 R6452 10 TP12 C6480 50V 0.1u Q6421 B1JAEP000001 5V L6464 G0ZZ00002183 R6521 100 L6591 G0ZZ00002183 R6501 100 D6791 MAZ82000ML TP21 D6585 MA2J11100L C0JBAZ000005 IC6561 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R6453 10 R6862 47k R6424 15 TP19 R6533 10k R6532 10k R6587 2.2k R6405 15 L6481 G0ZZ00002183 TP6 R6871 39k C6522 25V 4.7u R6479 100k R6552 10k L6485 G0ZZ00002183 SOS7_SC2 L6413 TP24 L6486 G0ZZ00002183 R6516 10k R6566 EXB38V472JV R6565 EXB38V472JV R6422 15 C6873 50V 0.01u R6582 39k Q6423 B1JAEP000001 D6862 MA2J11100L R6401 15 Q6551 B1ABRD000003 TP11 C6401 630V 5600p TP1 D6583 LNJ301MPUJA C0JBAZ000005 IC6562 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R6590 220 L6601 G0ZZ00002183 C6431 250V 4u TP35 R6879 4.7k Q6471 B1CHGD000006 G D S 5V R6878 22k R6402 15 TP16 C6413 220V 200u R6526 0 R6506 10 L6482 G0ZZ00002183 Q6552 B1ADRD000001 TP38 Q6531 B1ABRD000003 C0ZBZ0000895 IC6501 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC D6521 D1FL40 SOS7_SC2 Q6516 2SC5824T100R D6480 MA2J11100L R6465 27k D6401 B0HBSN000008 R6441 10 R6502 100 R6443 10 Q6532 B1ADRD000001 D6523 D1FL40 R6442 10 R6568 EXB38V472JV R6864 9.1k VF_GND C6863 50V 0.01u C6592 25V 470u D6584 MAZ80510LL R6426 15 Q6403 B1JADN000001 C6505 25V 4.7u R6588 10k R6404 15 Q6452 B1JADP000002 Q6511 2SC5824T100R D6466 MA2J11100L TP18 R6792 10k L6463 G0ZZ00002183 D6861 MAZ80510LL L6592 G0ZZ00002183 R6586 1.8k 15V TP31 R6567 EXB38V472JV R6423 15 C6582 16V 1u VSUS C0ZBZ0001324 IC6521 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC D6871 MAZ80510LL R6869 4.7k B0ECHP000003 D6472 R6403 15 C6525 25V 4.7u TP26 R6512 10k D6581 MAZ83300ML R6466 56k TP27 5V D6462 RF2001T3DFF55 5V C6861 16V 1u 200u 220V C6415 R6525 0 Q6402 B1JADN000001 R6477 1k D6582 MAZ83300ML TP32 R6874 8.2k IC6581 C0BBBA000022 1 2 3 4 5 6 7 8 TP29 R6476 4.7k R6444 10 TP8 C6472 50V 0.1u R6517 10k TP5 TP22 R6406 15 C6871 16V 1u Q6581 2SD0601A0L D6502 B0ECHP000003 C6862 25V 1u L6462 G0ZZ00002183 TP34 D6432 B0HBSP000019 VSCN_F C6511 250V 4u MAIN_STOP 1 R6507 C6591 25V 1u 1 R6509 TP28 TP13 L6467 G0ZZ00002183 D6481 RF2001T3DFF55 R6873 39k L6461 G0ZZ00002183 L6483 G0ZZ00002183 R6421 15 R6868 22k VSUS C6402 2200p 630V D6402 B0HBSN000008 D6820 MA2J11100L D6821 MA2J11100L L6402 L6403 L6401 C6421 630V C6422 630V +15V GND (GREEN LED) + - + - TP15V +15V GND Vsus GND GND GND GND TPVSUS TPSOS7 TPSOS6 + + - - - - + + F E 1 5 6 8 7 3 4 C D B 9 A 2 BUFFER BUFFER FET DRIVER ENERGY RECOVERY COMPARATOR COMPARATOR COMPARATOR FET DRIVER Vsus Gen. SC 20 D-BOARD (D20) TO SC 23 P-BOARD (P23) TO TO (P2) P-BOARD SC-BOARD (1/2) TNPA3814 1.9u 1.9u 1.9u 1.9u 1.9u 1.9u 4 1 5 3 2 CLK SIU SCSU P5V CL SID FLOATING GND COLD NC 2700p 2700p 189.0 0 0 15.0 15.0 0 5.3 0 0 4.3 0 2.2 0.7 0.8 2.9 3.9 0 0.1 0.9 0 0 5.0 0 0 2.8 0.5 TH-42PV600C SC-Board (1 of 2) Schematic Diagram TH-42PV600C SC-Board (1 of 2) Schematic Diagram FLOATING GND COLD 111 14.46.SC 电路板 (2/2) 线路图 REF K A + + + REF K A + + + REF K A + + REF K A + + + + + + AA_CEL -90V AB_FCLD AB_FCLU AC_CPH1 -80V AA_CEL2 AA_SID AA_SIU AA_CLK AA_CL AA_SCSU AB_FCLKU AB_FCLKD AB_PROD AB_PROU AB_FSID AB_FSIU 215V AC_CPH2 460V 460V 260-460V 15V 15V 460V 30V 30V AB_FSIU AB_FCLD -88V AB_FCLU AB_FCLKU AB_PROU AB_PROD AB_FCLKD AB_FSID 350V 460V -75V -90V 335V -105V 0V 330V 330V 460V +330V -105V +330V -105V C0JBAB000715 IC6602 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y VSET C6702 50V 0.1u D6661 MA2J11100L R6815 18k C6662 630V 1000p TP46 R6757 100 ZA6401 K4CD01000011 R6760 1.2k TP57 R6648 10 VR6600 1k 1 2 3 R6807 3.3k Q6661 B1DEET000002 G D S R6755 100 TP56 D6732 MAZ80560HL D6730 MAZ80560HL ZA6402 K4CD01000011 R6674 5.6 C6704 50V 0.1u R6834 56k Q6671 B1DFET000001 G D S R6809 10k C6805 16V 1u IC6821 C0DBEMB00005 C6726 16V 1u 1 2 3 4 5 6 7 8 9 R6775 100 IC6751 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 SOS7_SC2 R6762 10k R6716 2.2k D6825 MAZ8330 R6682 100 C6620 630V 2200p R6781 47 R6642 10 R6715 2.2k R6844 100 D6605 MAZ80510LL TP50 R6473 560 R6777 150 IC6725 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 C6708 50V 0.1u C6725 25V 4.7u D6725 B0ECHP000003 D6806 B0ECHP000003 15V R6668 4.7k 5V R6658 100 Q6682 2SK389500L G D S IC6671 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6721 EXB38V680JV R6607 5.6k D6624 B0HDSM000005 R6745 4.7k TP41 C6754 35V 47u R6847 56k R6822 100k Q6842 2SC1473AEA D6684 MA2J11100L D6773 B0HCKS000002 R6717 2.2k C6822 350V 10u Q6762 2SA2071T100Q D6701 MAZ80560HL C6842 160V 100u TP40 SC42 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 R6839 4.7k C6661 630V 1000p D6760 MA2J11100L R6621 220 R6841 15k IC6801 C0DBEMB00005 R6743 1k D6662 MAZ83300ML C6771 16V 1u R6673 5.6 Q6804 2SD0601A0L C6721 50V 100u D6729 MAZ80560HL D6642 B0HCKS000002 TP60 D6826 MA111 C0DBEKA00003 IC6471 1 NC 2 A 3 K 5 A 4 REF R6662 3k R6603 100 SOS7_SC2 IC6601 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6812 240k D6721 B0HCKS000002 IC6772 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6660 220k R6827 0 R6756 100 R6711 2.2k R6667 4.7k IC6681 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6831 15k Q6680 B1ADNF000006 R6690 150 TP55 R6620 8.2 Q6601 B1DFES000003 G D S Q6841 2SD1263AP0LB D6801 M1FS4 TP54 R6604 150 D6683 MA2J11100L C6845 50V 0.01u VSET R6860 8.2 C6776 50V 0.1u R6801 0.22 D6860 B0HCKS000002 D6802 B0JCME000037 R6837 47k TP58 1 2 3 4 5 6 7 8 9 15V_F R6702 470 D6477 MA2J11100L R6802 0.22 R6613 1M VSUS PC6480 B3PBA0000223 1 2 3 4 C6701 50V 0.1u R6823 100k C6753 25V 4.7u R6713 2.2k C6804 250V 10u R6826 270k D6667 MA2J11100L R6744 10k D6601 MAZ8240 T6602 ETS25AZ139AD 1 S5 2 S4 4 S2 5 S1 7 P1 10 B1 9 B2 3 S3 6 P2 R6471 3.9k R6609 1k Q6742 2SD0601A0L PC6701 B3PBA0000233 1 2 3 4 5 6 7 8 TP64 C6602 25V 4.7u D6604 MA2J11100L C6706 50V 0.1u C6777 50V 0.1u SC41 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 R6661 100k TP63 C6703 50V 0.1u R6825 270k D6619 B0HCKS000002 C6604 350V 47u IC6841 C0DBEMB00005 R6806 10k R6659 220k R6816 15.8k R6707 470 Q6641 B1DFKM000001 R6852 2.49k TP62 D6727 MAZ80560HL R6703 470 D6643 MA2J11100L 5V IC6771 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 IC6724 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 R6888 220k R6611 1M Q6642 B1DFKM000001 C0JBAA000377 IC6773 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y R6846 56k D6771 B0JCME000037 R6672 10k IC6721 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC R6782 10k D6665 MAZ80510LL R6813 10k D6842 MA2J11100L TP51 R6824 10k Q6782 2SA2071T100Q C6772 25V 4.7u R6718 2.2k VF_GND D6620 B0HCKS000002 C6802 25V 220u R6608 1k L6841 J0JJC0000011 D6728 MAZ80560HL C6603 630V 1000p D6723 B0JCME000037 TP59 R6704 470 D6682 B0HCMM000014 D6663 MAZ83300ML C0JBAB000715 IC6753 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y R6742 10k R6853 100 SOS7_SC2 C6796 25V 220u L6472 G0ZZ00002183 D6726 MAZ80560HL D6733 MAZ80560HL R6808 56 VR6602 5k 1 2 3 C6775 25V 4.7u D6623 B0HDSM000005 R6811 51k IC6802 C0DBEMB00005 C6841 160V 100u C6681 25V 4.7u C6807 160V 100u R6612 47 Q6681 2SK389500L G D S R6724 100 1 2 3 4 5 6 7 8 D6752 M1FS4-5063 R6776 100 R6710 2.2k R6706 470 N0BF1FB00001 IC6791 1 GND 2 GND 3 N.C. 4 VIN 5 VIN 6 N.C. 9 COM 10 COM 11 VOUT 12 VOUT R6605 100k PC6703 B3PBA0000233 1 2 3 4 5 6 7 8 D6702 MAZ80560HL VSCN_F C6803 50V 0.1u D6724 B0JCME000037 Q6647 B1DFKM000001 R6665 47 5V Q6691 2SK062000L G D S R6666 100k L6473 G0ZZ00002183 R6610 100k R6671 47 C6752 16V 1u 16V_F D6822 MA2J11100L D6603 MAZ82400ML R6644 10 C6773 25V 4.7u C6724 25V 4.7u PC6705 B3PBA0000233 1 2 3 4 5 6 7 8 Q6824 2SD601A Q6822 2SC3063000RL TP44 R6821 220 R6701 470 Q6662 2SD0601A0L R6886 220k R6641 10 Q6644 B1DFKM000001 Q6648 B1DFKM000001 D6478 B0HCKS000002 B0HDSM000005 R6696 2.2 R6828 5.23k 15V D6664 MAZ83300ML L6802 J0JJC0000011 PC6760 B3PBA0000223 1 2 3 4 Q6803 2SD814ARL D6686 MA2J11100L TP48 C6811 50V 0.01u R6663 10k R6835 56k ZA6403 K4CD01000011 R6759 4.7k C6691 160V 100u C6682 25V 4.7u D6823 MA2J11100L Q6802 2SB0709ARL Q6744 2SK062000L G D S C6795 25V 220u R6687 2.2k R6606 0 Q6801 B1BAEJ000014 D6805 MA2J11100L C6707 50V 0.1u R6700 470 Q6621 B1DFKM000001 R6647 10 Q6781 2SC5824T100R R6761 10 D6602 B0ECHP000003 D6606 B0HCMM000014 TP61 R6850 68k C6723 25V 4.7u D6804 B0ECHP000003 VSCN_F C6728 50V 1000p R6691 10k Q6645 B1DFKM000001 D6761 MA2J11100L Q6602 2SD0601A0L D6671 MA2J11100L PC6801 B3PBA0000223 1 2 3 4 R6833 56k D6687 MA2J11100L R6887 220k TP47 R6842 43k C6683 50V 0.1u R6685 470 C6705 50V 0.1u C6791 25V 220u R6848 10k Q6821 2SD1263AP0LB IC6752 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB C6755 50V 0.1u C0JBAA000377 IC6774 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y D6803 MA2J11100L R6836 68k 5V R6684 10 C0JBAZ000994 IC6722 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC VF_GND R6708 470 R6829 220k R6688 4.7k R6645 10 D6841 B0ECHP000003 D6859 B0ECHP000003 C6727 16V 1u D6641 B0HCKS000002 R6474 1k C6606 630V 1000p TP45 Q6743 2SD0601A0L R6830 220k TP49 D6666 MA2J11100L C6605 50V 0.1u R6810 51k TP43 D6734 MA2J11100L R6472 2.2k 5V PC6702 B3PBA0000233 1 2 3 4 5 6 7 8 Q6663 2SD21850RL TP42 C6641 0.22u 250V C6671 25V 4.7u D6731 MAZ80560HL C6812 25V 1u D6843 MA2J11100L R6714 2.2k R6814 5.6k PC6704 B3PBA0000234 1 2 3 4 5 R6849 68k D6758 B0ECHP000003 R6697 2.2 C6806 160V 100u R6705 470 D6497 MA111 R6851 1.2k C6823 50V 0.01u R6723 2.2k L6801 J0JJC0000011 R6664 2.2k R6722 EXB38V680JV Q6672 B1DFET000001 G D S R6689 10 TP53 C0JBAA000377 IC6682 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y D6607 MA2J11100L R6758 100 R6817 2.7k R6712 2.2k 15V R6686 10k C6601 25V 4.7u R6683 150 R6622 220 Q6622 B1DFKM000001 D6644 B0HCKS000002 R6746 10k R6747 10k R6843 62k R6845 62k R6619 1.5k C6610 25V 1u R6614 24k D6610 MAZ81500ML D6612 MA2J11100L IC6610 C0BBBA000022 1 2 3 4 5 6 7 8 C6612 25V 1u 15V_F D6611 MA2J11100L R6617 1M D6613 MA2J11100L R6618 12k R6615 24k R6616 15k C6611 50V 0.01u D6614 MA2J11100L (D1FK70) VAD TPVAD TPVSCN INIT-F VSET TPVSET TPSC1 AB_FSIU AB_FCLU AB_FCLKU AB_PROU AB_FSID AB_FCLD AB_FCLKD Vset SOS DET INIT-F AB_PROD TPVSET2 18 15 10 11 12 16 17 14 13 BUFFER BUFFER FET DRIVER SUPERIMPOSED VSCN VSET SEPARATE FET DRIVER FET DRIVER VSET SLOPE VAD CONT FET DRIVER FET DRIVER VAD SEPARATE +5V(SC1) +5V(SC2) +5V(SC3) +5V(SC3) (SU41) SU-BOARD TO (SD42) SD-BOARD TO +5V(SC1) VAD Gen. VSET2 Gen. VSCN Gen. DC/DC CONV. SU-BOARD TO (SU45) TO SD-BOARD (SD46) SC 46 SC 45 SC 30 TNPA3814 SC-BOARD (2/2) 1 5 3 2 4 Vf(High Voltage Floting GND) Vfo(Vscn Out) Vf(High Voltage Floting GND) Vscn volatage) (Vscn Vf(High Voltage Floting GND) Vfo(Vscn Out) volatage) VF5V Vf(High Voltage Floting GND) VF5V FLOATING GND COLD POWER OSC FLOATING GND COLD FLOATING GND COLD - - + + COMPARATOR * * * * m TH-42PV600C SC-Board (2 of 2) Schematic Diagram TH-42PV600C SC-Board (2 of 2) Schematic Diagram D6621 112 14.47.SU 电路板 (1/2) 线路图 TERM SIDE TERM SIDE AB_766 AB_765 AB_764 AB_763 AB_762 AB_761 AB_760 AB_759 AB_758 AB_757 AB_756 AB_755 AB_754 AB_753 AB_752 AB_751 AB_750 AB_749 AB_748 AB_747 AB_746 AB_745 AB_744 AB_742 AB_743 AB_741 AB_739 AB_740 AC_702 AC_701 AC_700 AC_699 AC_698 AC_697 AC_696 AC_695 AC_694 AC_693 AC_692 AC_691 AC_690 AC_689 AC_688 AC_687 AC_686 AC_685 AC_684 AC_683 AC_682 AC_681 AC_680 AC_678 AC_679 AC_677 AC_675 AC_676 AD_638 AD_637 AD_636 AD_635 AD_634 AD_633 AD_632 AD_631 AD_630 AD_629 AD_628 AD_627 AD_626 AD_625 AD_624 AD_623 AD_622 AD_621 AD_620 AD_619 AD_618 AD_617 AD_616 AD_614 AD_615 AD_613 AD_611 AD_612 AB_705 AB_707 AB_709 AB_711 AB_713 AB_715 AB_717 AB_719 AB_721 AB_723 AB_725 AB_727 AB_729 AB_731 AB_733 AB_735 AB_737 AB_739 AB_741 AB_743 AB_745 AB_747 AB_749 AB_751 AB_753 AB_755 AB_757 AB_759 AB_761 AB_763 AB_767 AB_765 AB_706 AB_708 AB_710 AB_712 AB_714 AB_716 AB_718 AB_720 AB_722 AB_724 AB_726 AB_728 AB_730 AB_732 AB_734 AB_736 AB_738 AB_740 AB_742 AB_744 AB_746 AB_748 AB_750 AB_752 AB_754 AB_756 AB_758 AB_760 AB_762 AB_764 AB_768 AB_766 AC_641 AC_643 AC_645 AC_647 AC_649 AC_651 AC_653 AC_655 AC_657 AC_659 AC_661 AC_663 AC_665 AC_667 AC_671 AC_669 AC_673 AC_675 AC_677 AC_679 AC_681 AC_683 AC_685 AC_687 AC_689 AC_691 AC_693 AC_695 AC_697 AC_699 AC_703 AC_701 AC_642 AC_644 AC_646 AC_648 AC_650 AC_652 AC_654 AC_656 AC_658 AC_660 AC_662 AC_664 AC_666 AC_668 AC_670 AC_674 AC_676 AC_678 AC_680 AC_682 AC_684 AC_686 AC_688 AC_690 AC_692 AC_694 AC_696 AC_698 AC_700 AC_704 AC_702 AD_577 AD_579 AD_581 AD_583 AD_585 AD_587 AD_589 AD_591 AD_593 AD_595 AD_597 AD_599 AD_601 AD_603 AD_605 AD_607 AD_609 AD_611 AD_613 AD_615 AD_617 AD_619 AD_621 AD_623 AD_625 AD_627 AD_629 AD_633 AD_631 AD_635 AD_637 AD_639 AD_578 AD_584 AD_586 AD_588 AD_590 AD_592 AD_594 AD_596 AD_598 AD_600 AD_602 AD_604 AD_606 AD_608 AD_610 AD_612 AD_614 AD_616 AD_618 AD_620 AD_622 AD_624 AD_626 AD_628 AD_630 AD_632 AD_634 AD_636 AD_640 AD_638 AB_768 AB_767 AC_703 AC_704 AD_639 AD_640 AD_582 AC_672 AB_705 AB_706 AB_707 AB_708 AB_709 AB_710 AB_711 AB_712 AB_713 AB_714 AB_715 AB_716 AB_717 AB_718 AB_719 AB_720 AB_721 AB_722 AB_723 AB_724 AB_725 AB_726 AB_727 AB_728 AB_729 AB_730 AB_731 AB_732 AB_733 AB_734 AB_735 AB_736 AB_738 AB_737 AC_641 AC_642 AC_643 AC_644 AC_645 AC_646 AC_647 AC_648 AC_649 AC_650 AC_651 AC_652 AC_653 AC_654 AC_655 AC_656 AC_657 AC_658 AC_659 AC_660 AC_661 AC_662 AC_663 AC_664 AC_665 AC_666 AC_667 AC_668 AC_669 AC_670 AC_671 AC_672 AC_674 AC_673 AD_577 AD_578 AD_579 AD_580 AD_581 AD_582 AD_583 AD_584 AD_585 AD_586 AD_587 AD_588 AD_589 AD_590 AD_591 AD_592 AD_593 AD_594 AD_595 AD_596 AD_597 AD_598 AD_599 AD_600 AD_602 AD_601 AD_603 AD_604 AD_605 AD_606 AD_607 AD_608 AD_610 AD_609 AA_SI AA_SO1 AA_SO2 AA_SO3 AA_CLK AA_CL AA_PRO AA_PRO AA_CL AA_CLK AA_CLK AA_CL AA_SI AA_CL AA_CLK AA_PRO AD_580 AA_PRO AA_SO2 AA_SO1 AN16072A-VT IC6901 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6904 22 R6934 10k R6933 10k R6932 10k C6902 16V 1u R6909 220 C6904 16V 1u SU1 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 SU2 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C6931 50V 1000p AN16072A-VT IC6902 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6901 100 R6902 22 1 2 3 4 5 6 7 8 9 C6901 50V 1000p AN16072A-VT IC6903 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6931 10k R6905 220 R6903 22 C6906 16V 1u D6901 MAZ80560HL C6914 50V 220p C6915 50V 220p PRO FSI FCLK FCL A B D E C FCL PRO FCLK FSI VF5V VF5V Vf5 Vfo PDP SCAN DRIVER S/P 64bit S/P PDP SCAN DRIVER 64bit PDP SCAN DRIVER S/P 64bit SU-BOARD TNPA3818 (1/2) SCAN ELECTRODES To 1st 96pins of To 2nd 96pins of SCAN ELECTRODES 4 1 5 3 2 6 UP Vf5 Vf SC-BOARD (SC45) 45 SU TO TH-42PV600C SU-Board (1 of 2) Schematic Diagram TH-42PV600C SU-Board (1 of 2) Schematic Diagram 1 2 3 4 5 6 7 113 14.48.SU 电路板 (2/2) 线路图 TERM SIDE TERM SIDE AE_574 AE_573 AE_572 AE_571 AE_570 AE_569 AE_568 AE_567 AE_566 AE_565 AE_564 AE_563 AE_562 AE_561 AE_560 AE_559 AE_558 AE_557 AE_556 AE_555 AE_554 AE_553 AE_552 AE_550 AE_551 AE_549 AE_547 AE_548 AF_510 AF_509 AF_508 AF_507 AF_506 AF_505 AF_504 AF_503 AF_502 AF_501 AF_500 AF_499 AF_498 AF_497 AF_496 AF_495 AF_494 AF_493 AF_492 AF_491 AF_490 AF_489 AF_488 AF_486 AF_487 AF_485 AF_483 AF_484 AG_446 AG_445 AG_444 AG_443 AG_442 AG_441 AG_440 AG_439 AG_438 AG_437 AG_436 AG_435 AG_434 AG_433 AG_432 AG_431 AG_430 AG_429 AG_428 AG_427 AG_426 AG_425 AG_424 AG_422 AG_423 AG_421 AG_419 AG_420 AE_513 AE_515 AE_517 AE_519 AE_521 AE_523 AE_525 AE_527 AE_529 AE_531 AE_533 AE_535 AE_537 AE_539 AE_541 AE_543 AE_545 AE_547 AE_549 AE_551 AE_553 AE_555 AE_557 AE_559 AE_561 AE_563 AE_565 AE_567 AE_569 AE_571 AE_575 AE_573 AE_514 AE_516 AE_518 AE_520 AE_522 AE_524 AE_526 AE_528 AE_530 AE_532 AE_534 AE_536 AE_538 AE_540 AE_542 AE_544 AE_546 AE_548 AE_550 AE_552 AE_554 AE_556 AE_558 AE_560 AE_562 AE_564 AE_566 AE_568 AE_570 AE_572 AE_576 AE_574 AF_449 AF_451 AF_453 AF_455 AF_457 AF_459 AF_461 AF_463 AF_465 AF_467 AF_469 AF_471 AF_473 AF_475 AF_479 AF_477 AF_481 AF_483 AF_485 AF_487 AF_489 AF_491 AF_493 AF_495 AF_497 AF_499 AF_501 AF_503 AF_505 AF_507 AF_511 AF_509 AF_450 AF_452 AF_454 AF_456 AF_458 AF_460 AF_462 AF_464 AF_466 AF_468 AF_470 AF_472 AF_474 AF_476 AF_478 AF_482 AF_484 AF_486 AF_488 AF_490 AF_492 AF_494 AF_496 AF_498 AF_500 AF_502 AF_504 AF_506 AF_508 AF_512 AF_510 AG_385 AG_387 AG_389 AG_391 AG_393 AG_395 AG_397 AG_399 AG_401 AG_403 AG_405 AG_407 AG_409 AG_411 AG_413 AG_415 AG_417 AG_419 AG_421 AG_423 AG_425 AG_427 AG_429 AG_431 AG_433 AG_435 AG_437 AG_439 AG_441 AG_443 AG_445 AG_447 AG_386 AG_388 AG_390 AG_392 AG_394 AG_396 AG_398 AG_400 AG_402 AG_404 AG_406 AG_408 AG_410 AG_412 AG_414 AG_416 AG_418 AG_420 AG_422 AG_424 AG_426 AG_428 AG_430 AG_432 AG_434 AG_436 AG_438 AG_440 AG_442 AG_444 AG_448 AG_446 AE_576 AE_575 AF_511 AF_512 AG_448 AG_447 AF_480 AE_513 AE_514 AE_515 AE_516 AE_517 AE_518 AE_519 AE_520 AE_521 AE_522 AE_523 AE_524 AE_525 AE_526 AE_527 AE_528 AE_529 AE_530 AE_531 AE_532 AE_533 AE_534 AE_535 AE_536 AE_537 AE_538 AE_539 AE_540 AE_541 AE_542 AE_543 AE_544 AE_546 AE_545 AF_449 AF_450 AF_451 AF_452 AF_453 AF_454 AF_455 AF_456 AF_457 AF_458 AF_459 AF_460 AF_461 AF_462 AF_463 AF_464 AF_465 AF_466 AF_467 AF_468 AF_469 AF_470 AF_471 AF_472 AF_473 AF_474 AF_475 AF_476 AF_477 AF_478 AF_479 AF_480 AF_482 AF_481 AG_385 AG_386 AG_387 AG_388 AG_389 AG_390 AG_391 AG_392 AG_393 AG_394 AG_395 AG_396 AG_397 AG_398 AG_399 AG_400 AG_401 AG_402 AG_403 AG_404 AG_405 AG_406 AG_407 AG_408 AG_409 AG_410 AG_411 AG_412 AG_413 AG_414 AG_415 AG_416 AG_418 AG_417 AA_SO4 AA_SO5 AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO 140V(DC) 140V AA_SO4 AA_SO3 AA_SO5 C8 C43 C40 C32 C23 C34 C24 C64 C19 C37 C22 C76 C4 C6933 250V 1u C31 C53 C6910 16V 1u C78 C44 C16 C18 C38 C12 C7 C33 C63 R6913 220 C10 C15 R6924 220 C41 C9 C39 C61 C26 C5 C6 C52 C6932 250V 1u C73 C54 D6903 B0ECHP000003 C6935 250V 1u C36 C17 C55 C46 C77 C67 C14 SU4 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C30 D6904 B0ECHP000003 R6935 220k C79 C57 C25 C6912 16V 1u AN16072A-VT IC6905 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C49 C69 C58 C47 C80 C13 C42 C35 C70 SU3 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C6908 16V 1u C62 C2 C75 C29 AN16072A-VT IC6906 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C3 C59 C56 C48 C68 C28 C21 C20 C65 C6934 250V 1u C60 C50 C51 C45 C11 C72 C27 C66 C71 C74 C1 R6917 220 AN16072A-VT IC6904 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D6902 MAZ80560HL R6936 220k C6916 50V 220p C6917 50V 220p C6918 50V 220p Vscn Vf Vfo Vf VF5V VF5V 15 11 10 13 8 14 12 9 FOIL SIDE (UPPER) COMPONENT SIDE (LOWER) Vfo(Vscn Out) (Vscn volatage) SU41(Card Edge 80Pin) Vf(High Voltage Floting GND) Vf(High Voltage Floting GND) Vf5 Vscn 64bit PDP SCAN DRIVER S/P PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit SU-BOARD TNPA3818 (2/2) SCAN ELECTRODES To 3rd 96pins of SCAN ELECTRODES To 4th 96pins of TO SC-BOARD (SC41) 1 2 1 4 6 5 3 UP Vf5 Vf TH-42PV600C SU-Board (2 of 2) Schematic Diagram TH-42PV600C SU-Board (2 of 2) Schematic Diagram 114 14.49.SD 电路板 (1/2) 线路图 TERM SIDE TERM SIDE AB_382 AB_381 AB_380 AB_379 AB_378 AB_377 AB_376 AB_375 AB_374 AB_373 AB_372 AB_371 AB_370 AB_369 AB_368 AB_367 AB_366 AB_365 AB_364 AB_363 AB_362 AB_361 AB_360 AB_358 AB_359 AB_357 AB_355 AB_356 AC_318 AC_317 AC_316 AC_315 AC_314 AC_313 AC_312 AC_311 AC_310 AC_309 AC_308 AC_307 AC_306 AC_305 AC_304 AC_303 AC_302 AC_301 AC_300 AC_299 AC_298 AC_297 AC_296 AC_294 AC_295 AC_293 AC_291 AC_292 AD_254 AD_253 AD_252 AD_251 AD_250 AD_249 AD_248 AD_247 AD_246 AD_245 AD_244 AD_243 AD_242 AD_241 AD_240 AD_239 AD_238 AD_237 AD_236 AD_235 AD_234 AD_233 AD_232 AD_230 AD_231 AD_229 AD_227 AB_365 AB_367 AB_369 AB_371 AB_373 AB_375 AB_377 AB_379 AB_381 AB_383 AB_366 AB_368 AB_370 AB_372 AB_374 AB_376 AB_380 AB_382 AB_341 AB_343 AB_345 AB_347 AB_349 AB_351 AB_353 AB_355 AB_357 AB_359 AB_361 AB_363 AB_342 AB_344 AB_346 AB_348 AB_350 AB_352 AB_354 AB_356 AB_358 AB_360 AB_362 AB_364 AB_321 AB_323 AB_325 AB_327 AB_329 AB_331 AB_333 AB_335 AB_337 AB_339 AB_322 AB_324 AB_326 AB_328 AB_330 AB_332 AB_334 AB_336 AB_338 AB_340 AC_319 AC_317 AC_316 AC_320 AC_318 AB_384 AB_383 AC_293 AC_295 AC_297 AC_299 AC_301 AC_303 AC_305 AC_307 AC_309 AC_311 AC_313 AC_315 AC_294 AC_296 AC_298 AC_300 AC_302 AC_304 AC_306 AC_308 AC_310 AC_312 AC_314 AC_281 AC_283 AC_287 AC_285 AC_282 AC_284 AC_288 AC_286 AC_289 AC_291 AC_257 AC_259 AC_261 AC_263 AC_265 AC_267 AC_269 AC_271 AC_273 AC_275 AC_277 AC_279 AC_258 AC_260 AC_262 AC_264 AC_266 AC_268 AC_270 AC_272 AC_274 AC_276 AC_278 AC_280 AD_256 AC_320 AC_319 AD_254 AD_252 AD_250 AD_248 AD_246 AD_244 AD_242 AD_240 AD_238 AD_236 AD_234 AD_232 AD_253 AD_255 AD_251 AD_249 AD_247 AD_245 AD_243 AD_241 AD_239 AD_237 AD_235 AD_233 AD_230 AD_228 AD_226 AD_224 AD_222 AD_220 AD_218 AD_216 AD_214 AD_212 AD_210 AD_208 AD_231 AD_229 AD_227 AD_225 AD_223 AD_221 AD_219 AD_217 AD_215 AD_213 AD_211 AD_209 AD_206 AD_204 AD_202 AD_200 AD_198 AD_196 AD_194 AD_207 AD_205 AD_203 AD_201 AD_199 AD_197 AD_195 AD_193 AD_256 AD_255 AB_378 AB_384 AC_292 AC_290 AB_321 AB_323 AB_324 AB_325 AB_326 AB_327 AB_328 AB_329 AB_330 AB_331 AB_332 AB_333 AB_334 AB_335 AB_336 AB_337 AB_338 AB_339 AB_340 AB_341 AB_342 AB_343 AB_344 AB_345 AB_346 AB_322 AB_347 AB_348 AB_349 AB_350 AB_351 AB_352 AB_353 AB_354 AC_257 AC_258 AC_259 AC_260 AC_261 AC_262 AC_263 AC_264 AC_265 AC_266 AC_267 AC_268 AC_269 AC_270 AC_271 AC_272 AC_273 AC_274 AC_275 AC_276 AC_277 AC_278 AC_279 AC_280 AC_281 AC_282 AC_283 AC_284 AC_285 AC_286 AC_287 AC_288 AC_289 AC_290 AD_193 AD_194 AD_195 AD_196 AD_197 AD_198 AD_199 AD_200 AD_201 AD_202 AD_203 AD_204 AD_205 AD_206 AD_207 AD_208 AD_209 AD_210 AD_211 AD_212 AD_213 AD_214 AD_215 AD_216 AD_217 AD_218 AD_219 AD_220 AD_221 AD_222 AD_223 AD_224 AD_226 AD_225 AD_228 AA_SO7 AA_SO7 AA_SO8 AA_SO8 AA_SO9 AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_SI 140V A24 A56 SD1 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 A12 A70 A47 AN16072A-VT IC6951 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A1 D6954 B0ECHP000003 A32 C6983 250V 1u A35 A23 A38 A10 A40 R6986 220k A14 A75 A2 C6982 250V 1u A46 A16 A6 D6953 B0ECHP000003 A76 A37 A33 A53 AN16072A-VT IC6952 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A20 A44 A41 A45 C6952 16V 1u A43 A11 A68 A67 A39 A3 A31 A21 A63 A72 A36 A77 C6985 250V 1u A66 A7 A28 A73 A61 A62 A19 C6955 16V 1u A57 AN16072A-VT IC6953 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A4 A48 A17 A49 A9 C6984 250V 1u A80 A22 A34 A69 A58 A13 A54 SD2 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C6957 16V 1u A25 A55 A52 A30 A79 A51 C6951 50V 1000p A29 A27 R6955 220 A15 A8 A18 A64 A50 R6984 10k A71 A74 R6951 100 A5 A78 A60 A65 A42 A26 A59 R6959 220 D6951 MAZ80560HL D6952 MAZ80560HL C6964 50V 220p C6965 50V 220p Vfo Vf5 VF5V VF5V Vf 8 A B D E C Vf Vf COMPONENT SIDE (LOWER) FOIL SIDE (UPPER) PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit SCAN ELECTRODES To 1st 96pins of To 2nd 96pins of SCAN ELECTRODES Vf(High Voltage Floting GND) Vfo(Vscn Out) (Vscn voltage) Vf(High Voltage Floting GND) Vscn (SC42) SD42(Card Edge 80Pin) TO SC-BOARD DOWN SD-BOARD TNPA3819 (1/2) 2 1 4 6 5 3 TH-42PV600C SD-Board (1 of 2) Schematic Diagram TH-42PV600C SD-Board (1 of 2) Schematic Diagram 1 2 3 4 5 6 7 115 14.50.SD 电路板 (2/2) 线路图 TERM SIDE TERM SIDE AE_190 AE_189 AE_188 AE_187 AE_186 AE_185 AE_184 AE_183 AE_182 AE_181 AE_180 AE_179 AE_178 AE_177 AE_176 AE_175 AE_174 AE_173 AE_172 AE_171 AE_170 AE_169 AE_168 AE_166 AE_167 AE_165 AE_163 AE_164 AF_126 AF_125 AF_124 AF_123 AF_122 AF_121 AF_120 AF_119 AF_118 AF_117 AF_116 AF_115 AF_114 AF_113 AF_112 AF_111 AF_110 AF_109 AF_108 AF_107 AF_106 AF_105 AF_104 AF_102 AF_103 AF_101 AF_99 AF_100 AG_62 AG_61 AG_60 AG_59 AG_58 AG_57 AG_56 AG_55 AG_54 AG_53 AG_52 AG_51 AG_50 AG_49 AG_48 AG_47 AG_46 AG_45 AG_44 AG_43 AG_42 AG_41 AG_40 AG_38 AG_39 AG_37 AG_35 AG_36 AE_187 AE_185 AE_183 AE_188 AE_186 AE_184 AE_182 AE_191 AE_192 AE_189 AE_190 AE_175 AE_173 AE_181 AE_179 AE_177 AE_176 AE_174 AE_172 AE_180 AE_178 AE_161 AE_159 AE_163 AE_164 AE_162 AE_160 AE_158 AE_165 AE_171 AE_169 AE_167 AE_170 AE_168 AE_166 AE_151 AE_157 AE_155 AE_153 AE_149 AE_152 AE_156 AE_154 AE_148 AE_150 AE_192 AE_191 AE_137 AE_135 AE_140 AE_138 AE_136 AE_134 AE_141 AE_143 AE_145 AE_147 AE_144 AE_146 AE_139 AE_142 AE_133 AE_131 AE_129 AF_127 AF_125 AF_123 AE_132 AE_130 AF_128 AF_126 AF_124 AF_113 AF_111 AF_114 AF_112 AF_110 AF_117 AF_121 AF_119 AF_122 AF_120 AF_115 AF_116 AF_118 AF_109 AF_107 AF_105 AF_103 AF_101 AF_99 AF_108 AF_106 AF_104 AF_102 AF_100 AF_97 AF_98 AF_94 AF_96 AF_92 AF_90 AF_93 AF_95 AF_91 AF_128 AF_127 AF_88 AF_86 AF_84 AF_82 AF_80 AF_78 AF_76 AF_74 AF_72 AF_70 AF_68 AF_66 AF_89 AF_87 AF_85 AF_83 AF_81 AF_79 AF_77 AF_75 AF_73 AF_71 AF_69 AF_67 AG_61 AG_63 AG_59 AG_57 AG_55 AG_53 AG_51 AG_49 AG_47 AG_45 AG_43 AG_41 AG_64 AG_62 AG_60 AG_58 AG_56 AG_54 AG_52 AG_50 AG_48 AG_46 AG_44 AG_42 AF_65 AG_39 AG_37 AG_35 AG_33 AG_31 AG_29 AG_27 AG_25 AG_23 AG_21 AG_19 AG_17 AG_40 AG_38 AG_36 AG_34 AG_32 AG_30 AG_28 AG_26 AG_24 AG_22 AG_20 AG_18 AG_64 AG_63 AG_15 AG_13 AG_11 AG_9 AG_7 AG_5 AG_3 AG_1 AG_16 AG_14 AG_12 AG_10 AG_8 AG_6 AG_4 AG_2 AE_130 AE_129 AE_132 AE_133 AE_134 AE_135 AE_136 AE_137 AE_138 AE_139 AE_140 AE_141 AE_142 AE_143 AE_144 AE_145 AE_146 AE_147 AE_148 AE_149 AE_150 AE_151 AE_152 AE_153 AE_154 AE_131 AE_155 AE_156 AE_157 AE_158 AE_159 AE_160 AE_162 AE_161 AF_65 AF_66 AF_67 AF_68 AF_69 AF_70 AF_71 AF_72 AF_73 AF_74 AF_75 AF_76 AF_77 AF_78 AF_79 AF_80 AF_81 AF_82 AF_83 AF_84 AF_85 AF_86 AF_87 AF_88 AF_89 AF_90 AF_91 AF_92 AF_93 AF_94 AF_95 AF_96 AF_97 AF_98 AG_1 AG_2 AG_3 AG_4 AG_5 AG_6 AG_7 AG_8 AG_9 AG_10 AG_11 AG_12 AG_13 AG_14 AG_15 AG_16 AG_17 AG_18 AG_19 AG_20 AG_21 AG_22 AG_23 AG_24 AG_25 AG_26 AG_27 AG_28 AG_29 AG_30 AG_31 AG_32 AG_34 AG_33 AA_SO9 AA_SO10 AA_SO11 AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_SI AA_CLK AA_PRO AA_CL AA_SO10 AA_SO11 R6953 22 R6967 220 R6983 10k R6952 22 R6981 10k SD4 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C6963 16V 1u 1 2 3 4 5 6 7 8 9 C6958 16V 1u C6981 50V 1000p R6971 220 R6982 10k SD3 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 AN16072A-VT IC6954 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16072A-VT IC6955 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6961 16V 1u R6963 220 AN16072A-VT IC6956 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6954 22 R6985 220k C6966 50V 220p C6967 50V 220p C6968 50V 220p PRO FSI FCLK FCL 15 11 10 13 8 14 12 9 PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit To 4th 96pins of To 3rd 96pins of SCAN ELECTRODES SCAN ELECTRODES 46 SC-BOARD SD (SC46) TO FSI FCL FCLK PRO VF5V VF5V Vf Vfo Vf5 DOWN SD-BOARD TNPA3819 (2/2) Vf Vf5 4 6 5 3 2 1 TH-42PV600C SD-Board (2 of 2) Schematic Diagram TH-42PV600C SD-Board (2 of 2) Schematic Diagram 116 14.51.SS 和 S 电路板方框图 PUSH D6221 TPVSUS SW2500 D6253 TP15V TPSS1 TPVE TPVDA D6255 R6113 Q6051,Q6052 Q6141-Q6142 +15V DRIVER LED(G) FET DRIVER VCC FET SS IC6191 TPSS1 SIGNAL WAVE 1 Q6103,Q6104 S34 4 Vsus Gen. S POWER SWITCH STB PS POWER SWITCH 34 Q6021-Q6023 VCC Vda Q6001-Q6003 SS_SOS8 OUTPUT VSUS TPSS1 VE 1 2 8 STB12V VCC Vda DRIVER 3 TO C23 Ve Gen. VCC 10 VCC 3 IC6251 1 STB PS IC6131 12 Ve2 BUFFER FET IC6241 P12 SS 5 7 11 3 8 12 1 2 4 6 23 SS Adj. (+150V) VE Gen. TPVE IC6221 Q6221,Q6222 VR6000 ENERGY RECOVERY FET OUTPUT FET COMPARATOR OUTPUT FET SS SUSTAIN DRIVE Vsus 11 SS 1 TO P11 UMH UEH SS_SOS8 5V Vda Vda NUEL USH USL UML Q6146-Q6147 IC6151 Q6041,Q6042 L6011-L6013 L6001-L6003 VCC FET OUTPUT IC6211 (+5V) IN Q6112,Q6114 Ve2 Gen. FET DRIVER SUSTAIN ELECTRODE PANEL SS43 SS41 SS44 SS42 STB12V Q6101,Q6102 Q6111 LED BLINKING : 8 TIMES ENERGY RECOVERY SOS DET TH-42PV600C SS and S-Board Block Diagram TH-42PV600C SS and S-Board Block Diagram 117 14.52.SS 和 S 电路板线路图 + + TERM SIDE TERM SIDE + + + + + + REF K A + + + TERM SIDE TERM SIDE + + + PUSH 5V 15V 0-200V 200V 200V 15V 75V 75V Q6111 2SK326800L G D S R6004 15 C6134 25V 4.7u TP30 L6082 G0ZZ00002183 R6052 10 Q6172 B1ADRD000001 R6141 10k VR6000 10k 1 2 3 100 R6194 C6212 25V 4.7u Q6103 B1DFKM000002 G D S TP22 IC6211 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB TP25 R6112 47 R6182 10k L6271 G0ZZ00002183 C0JBAZ000005 IC6241 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C6155 25V 4.7u R6246 4.7k D6152 B0ECHP000003 L6104 J0JJC0000011 Q6171 B1ABRD000003 C6213 25V 470u Q6146 2SC5824T100R Q6022 B1JADN000001 L6086 G0ZZ00002183 L6065 G0ZZ00002183 TP26 TP28 Q6147 2SA2071T100Q C6195 25V 4.7u D6253 LNJ301MPUJA TP2 TP6 150 R6214 TP13 R6152 100 D6103 B0JCME000037 L6062 G0ZZ00002183 C6012 220V 200u R6231 0 L6084 G0ZZ00002183 SS42 1 2 3 4 5 6 7 8 9 10 11 12 13 R6256 1.5k D6223 MA2J11100L ZA6001 K4CD01000011 D6151 B0ECHP000003 ZA6005 K4CD01000011 R6032 82k L6068 G0ZZ00002183 R6181 10 L6003 R6227 16k L6064 G0ZZ00002183 R6172 10k R6002 15 SS41 1 2 3 4 5 6 7 8 9 10 11 12 13 R6142 10k 150 R6134 TP24 L6081 G0ZZ00002183 1 R6160 R6106 100 R6105 100 R6025 15 TP11 D6251 MAZ83300ML TP32 L6012 Q6141 B1ABNF000006 D6102 B0JCME000037 TP10 R6027 15 C6214 25V 470u R6258 2.2k Q6001 B1JADN000001 C6251 16V 1u D6131 B0ECHP000003 R6255 1.2k TP23 R6251 10k C6013 220V 200u C6031 250V 2.2u TP16 R6173 10k 100 R6193 150 R6153 L6002 200u 220V C6015 R6103 100 C6011 220V 200u L6085 G0ZZ00002183 C6221 50V 0.1u D6192 B0ECHP000003 TP5 R6131 100 Q6051 B1JADN000002 R6222 10k C6001 630V 5600p L6241 G0ZZ00002183 R6243 47 C6154 25V 4.7u D6191 B0ECHP000003 R6156 0 R6245 47 R6244 4.7k C6272 25V 220u R6022 100 R6226 16k L6262 G0ZZ00002183 R6242 EXB38V472JV R6042 10 TP17 L6272 G0ZZ00002183 C6273 25V 220u R6024 15 R6155 0 R6044 10 R6257 10k L6087 G0ZZ00002183 R6228 5.6k D6132 B0ECHP000003 L6061 G0ZZ00002183 C0DBEMB00005 IC6221 R6023 15 TP20 R6053 10 D6252 MAZ83300ML L6102 J0JJC0000011 Q6101 B1DFKM000002 G D S ZA6002 K4CD01000011 R6005 15 R6034 27k TP12 R6001 15 R6213 100 R6033 56k R6132 100 C6261 160V 100u D6221 B0ECHP000003 Q6112 B1DFKM000002 G D S 150 R6133 1 R6157 R6020 100 L6101 J0JJC0000011 Q6142 B1ADNF000006 Q6023 B1JADN000001 D6082 B0HBSN000008 TP14 D6032 MA2J11100L TP7 R6241 EXB38V470JV Q6222 2SC3063000RL R6003 15 100k R6196 TP1 C0ZBZ0000895 IC6131 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC TP3 D6101 B0JCME000037 R6104 100 L6221 G0ZZ00002183 R6006 15 R6041 10 C6132 25V 4.7u R6223 12k TP9 D6222 MA2J11100L C0ZBZ0001324 IC6151 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC TP18 R6026 15 TP8 150 R6154 R6102 100 C6135 25V 4.7u R6151 100 C0ZBZ0000895 IC6191 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC L6011 Q6052 B1JADN000002 C6021 630V R6051 10 C6152 25V 4.7u C6242 16V 1u R6254 8.2k R6054 10 D6062 RF2001T3DFF55 Q6042 B1JADN000002 R6031 82k R6146 10k Q6251 2SD0601A0L R6101 100 D6061 RF2001T3DFF55 Q6021 B1JADN000001 R6021 15 1 2 3 4 5 6 7 8 9 10 C6153 25V 4.7u TP21 Q6003 B1JADN000001 R6183 10k L6001 R6116 10k 1 2 3 C6262 160V 100u L6013 Q6102 B1DFKM000002 G D S 1 2 3 4 5 6 7 8 9 10 11 12 TP31 L6067 G0ZZ00002183 C6194 25V 4.7u D6051 B0ECHP000003 D6254 MAZ80510LL D6153 B0ECHP000003 200u 220V C6014 L6066 G0ZZ00002183 R6147 10k TP19 R6136 10 R6113 220k R6261 100k R6043 10 D6041 B0ECHP000003 Q6181 B1ABRD000003 1 R6158 Q6182 B1ADRD000001 L6103 G0ZZ00002183 D6021 RF2001T3DFF55 Q6002 B1JADN000001 D6211 B0JCME000037 L6088 G0ZZ00002183 R6253 39k TP15 L6083 G0ZZ00002183 R6252 39k R6171 10 TP29 R6232 1.2k IC6251 C0BBBA000022 1 2 3 4 5 6 7 8 R6225 20k R6111 47 R6135 10 SS43 1 2 3 4 5 6 7 8 9 10 11 12 13 B0ECHP000003 D6092 Q6041 B1JADN000002 D6081 RF2001T3DFF55 100k R6195 D6001 B0HBSN000008 SS44 1 2 3 4 5 6 7 8 9 10 11 12 13 TP27 L6063 G0ZZ00002183 D6255 MA2J11100L R6192 100 C6243 50V 0.01u C6211 25V 4.7u D6071 MA3DF30000LZ D6072 MA3DF30000LZ D6091 MA3DF30000LZ C6241 25V 470u C6111 200V 220u C6112 200V 220u Q6114 B1DFKM000002 G D S R6114 47 L6211 J0JJC0000011 L6212 J0JJC0000011 Q6104 H5N2307LSTL-E G D S D6104 B0JCME000037 R6107 100 R6108 100 L6105 J0JJC0000011 Q6105 2SC5824T100R Q6106 2SA2071T100Q 10 R6109 10k R6110 R6229 16k C6201 250V 4u C6202 250V 4u C6041 16V 1u C6042 16V 1u C6043 16V 1u C6044 16V 1u C6151 25V 1u C6192 25V 1u C6271 25V 1u R6191 100 R6062 220k R6061 220k 1 3 Q6221 2SD1263AP0LB D6154 B0ECHP000003 1 R6159 S1 1 2 3 SW2500 K0F162B00002 D6193 B0ECHP000003 C6022 630V TP15V TPVDA - + - + (GREEN LED) TPSS1 TPVe TPVSUS C2-BOARD (C23) TO BUFFER FET DRIVER FET DRIVER FET DRIVER VE GEN. FET DRIVER COMPARATOR 5 D E 4 3 B 7 6 2 A 1 C 8 SS-BOARD TNPA3815 Vda Vda GND GND GND NC STB12V STB PS +15V NC 5V NUEL USL USH UEH UMH UML SS_SOS8 GND NC Vda Vda SUSTAIN ELECTRODE PANEL TO 1.9u GND NC Vsus P-BOARD (P11) TO SS 11 12 SS SS 34 SS 23 (P12) P-BOARD TO S-BOARD TNPA3763AC POWER SW GND 12V STB_PS 42inch:5600p 37inch:2700p 42inch:5600p 37inch:2700p 189.0 0 0 0 12.0 0 15.0 0 75.5 0 12.0 0 75.5 3.7 0 0.5 0 0.5 5.0 0.6 0.9 0.4 75.5 75.5 1.7 0 12.0 12.0 1.9u 1.9u 1.9u 1.9u 1.9u TH-42PV600C SS and S-Board Schematic Diagram TH-42PV600C SS and S-Board Schematic Diagram 118 14.53.GS 电路板方框图和线路图 D.SW W.P. + TOP + AA_SDCMD AA_SDDAT2 AA_SDCLK AA_SDCLK AA_SDDAT1 AB_IRQ AB_RX AA_SDDAT3 AC_R-IN AD_V-IN AD_V-IN AC_R-IN AC_L-IN AA_SDDAT3 AA_SDDAT1 AA_SDDAT2 AD_V-OUT AC_A-OUT AC_L-IN AB_RST AB_IRQ AA_SDDAT0 AB_TX AB_RX AC_A-OUT AA_SDWP AA_SDDTC AA_SDCMD AA_SDDAT0 AD_V-OUT AB_TX AA_SDDTC AA_SDWP SUB5V R7765 0 C7760 10V 1u R7727 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7783 10k R7760 10k C7755 16V 0.1u R7705 47 C7763 50V 33p R7798 0 C7704 50V 33p C7705 16V 0.1u R7802 0 R7714 47k R7773 47 R7779 100 R7766 0 C7758 16V 0.1u JS7702 0 R7713 22 C7701 50V 33p Q7753 2SC584500L Q7754 2SD0601ASL Q7752 2SD0601ASL R7774 47 C7707 0.1u 16V JS7723 0 R7752 10k R7725 0 R7708 0 R7722 0 R7753 10k R7709 47 R7775 47 C7762 50V 33p C7711 50V 33p R7728 0 C7709 16V 0.1u R7721 0 R7707 5.6k Q7751 2SD0601ASL PA7751 K5H1622A0023 R7780 22k R7762 10k R7724 0 R7801 0 R7769 0 R7702 0 R7776 47 R7764 0 R7757 0 R7710 100 R7761 10k JK7701 K1NA09E00080 1 2 3 4 5 6 7 8 9 10 11 12 C7751 220u 4V C7721 16V 0.1u JS7711 0 C7756 10V 1u R7755 10k R7768 0 R7754 10k R7771 0 R7759 0 D7752 B3AEB0000065 R7770 0 R7800 0 R7781 5.6k R7799 0 R7803 0 C7761 50V 33p R7767 0 R7726 0 C7764 50V 33p C7708 50V 0.01u GS12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 R7777 47k R7716 0 IC7751 C0JBAZ000851 1 1OE 2 1A 3 1Y 4 2OE 5 2A 6 2Y 7 GND 8 3Y 9 3A 10 3OE 11 4Y 12 4A 13 4OE 14 VCC R7729 0 R7703 47 R7751 10k R7706 0 JS7721 0 C7703 50V 33p R7723 0 C7702 47u 4V C7722 16V 0.1u R7701 47 R7704 47 JS7722 0 SDDAT3 SDCMD GND GND SDDAT1 SD V-IN 3.3V SDDAT2 SDCLK SDDAT0 SD V-OUT SD-MODULE HIGH:LED ON LOW:RESET LOW:RESET AC SUFFIX A B C D E D5V D5V D5V DGND SD_CLK DGND SD_CMD SD_CD SD_WP SD_DATA0 SD_DATA1 SD_DATA2 SD_DATA3 DGND LED_SD TXD(SDRX) RXD(SDTX) RESET IO0 DGND AGND ALIN ARIN AGND ALOUT AGND AGND VGND VGND GND(YIN) GND(CIN) AROUT VIN VGND VOUT VGND GND(YOUT) VGND GND(COUT) VGND SUB5V GND GND SUB5V SD_RX GND SD_RST SD_TX SD_AUDIO_LOUT SD_IRQ GND GND SD_AUDIO_ROUT SD_MONO_IN SD_V_IN GND GND SD_V_OUT GND SD3.3V GS 52 TO SD CARD SLOT H-BOARD TO (H52) SWITCHING GS-BOARD TNPA3765AC TH-42PV600C GS-Board Block and Schematic Diagram TH-42PV600C GS-Board Block and Schematic Diagram 3.3V 3.3V 5V 5V 20 1 GS52 18 SUB5V SUB5V SUB3.3V 16 SDTX 14 SDIRQ 12 SDRST 13 SDRX AUDIO_L IN SD V.IN SD_MONO_IN 11 9 5 7 3 SD V.OUT AUDIO_R IN GS12 D5V 40 39 38 D5V D5V 36 SD_CLK 34 SD_CMD 33 SD_CD 32 SD_WP 31 RXD(SDTX) 23 25 RESET 22 IO0 TXD(SDRX) 24 ARIN 12 18 14 20 6 ALIN V OUT AROUT JK7701 4 2 5 7 8 1 9 LED_SD 26 V IN 28 SD_DATA0 SD_DATA3 SD CARD SLOT GS Q7753 ON/OFF D7752 SD LED 2 6 9 Q7752 Q7751 3 1 4 5 10 8 Q7754 IC7751 TO H52 SD CARD SLOT 3.3V CMD DATA0-3 CLK D_SW WP SD MODULE SWITCHING H:LED ON 10 12 14 L:RESET 5V 1 2 3 4 5 6 7 8 119 15 部件布置及机械部件更换清单 15.1. 部件布置 120 15.2. 包装分解图 (1) 121 15.3. 包装分解图 (2) 122 15.4. 包装分解图 (3) 123 15.5. 机械部件更换清单 参考号 品番 中文说明 数量 备注 EAB844AL 喇叭盒 （LEFT） 1 EAB844AR 喇叭盒 （RIGHT） 1 1 EAS10D85A 喇叭 (L&R) 2 J0KF00000038 铁氧磁环 2 2 K2CK3DH00028 电源线 1 K5D802BNA005 保险丝 (F401 F402) 2 3 L6FALEFH0041 风扇元件 （80mm） 2 4 MC106H30F9 42HD PDP 屏 1 5 N2QAYB000045 遥控器 1 6 R6PND/2SP L/ 干电池 2 TBMG208 L/ 机种铭牌 1 TBMU660-1 端子说明标签 1 TBMU625 指示片 A 1 TBMU626 指示片 B 1 7 TBXA48602 电源开关 （涂装完） 1 8 TBXA48801 操作开关 （涂装完） 1 9 TESA274 弹簧 1 10 TESA275-1 SD 门弹簧 1 11 TESD078 电源开关弹簧 1 THEL0429 螺丝 (CH-BC) 26 THEL044N 螺丝 1 THEL047J 螺丝 (HDMI:2) 2 THTD013N 螺丝 6 THTF011N 螺丝 47 12 TKEA15003 面框 1 13 TKGA5280 前面玻璃 1 14 TKKC5238 SD 光屏 1 15 TKKC5247 L/LED 屏 1 16 TKKL5344 M8 垫片盖 4 TKKL5361 L/ 调整盖 1 TKNA088 SP- 片 （L） 1 TKNA089 SP- 片 （R） 1 17 TKPA98101 AC 接入口盖 1 18 TKPB00605 门 1 TKPB00901 装饰屏 1 19 TKPB02902A SD 门 1 20 TKRA52601 后盖把手 2 21 TKRA53101 L/ 孔盖 2 22 TKUX09501 后盖 1 TMKG696 L/ 海绵 （前面玻璃 H） 2 TMKG697 L/ 海绵 （前面玻璃 V） 2 TMM15414-2 线夹 1 TMM7468-1 线夹 2 TMME226 AC 线夹 1 23 TMME258 线夹 2 TMME260 线夹 1 TMMX156 M8 垫片 4 24 TPCB96001 L/ 包装箱底箱 1 25 TPCB96101 L/ 包装箱本体 1 26 TPD0A9002L L/ 箱扣 4 27 TPDA1305 L/ 缓冲材 （底面） 1 28 TPDA1306 L/ 缓冲材 （顶面） 1 29 TPDF0764 L/ 附属品盒 1 30 TPDF1655 L/ 顶盖 1 31 TPEH165 L/ 保护袋 1 32 TPEH277 L/ 顶面保护片 1 TPFD330 CCTV 标贴 1 33 TQBC2105 L/ 说明书 （中文） 1 TQD1712010 合格票 1 TQDC19018 附属单 1 TQFD239 L/ 线夹小标签 1 TQZF163 L/ 保证书本体 1 TSXL513 FFC(D31-C11/D32-C21) 2 TSXL519 FFC(C12-C22) 1 TSXL520 FPC DG1-H1 1 TSXL521 FPC DG15-HC15 1 TSXL522 FPC DG20-PA20 1 TSXL523 FFC(D3-DG3) 1 TSXL545 FPC （GS12-SD） 1 TXAUX01BFTC 高频头块 半成品 1 34 TXAUX03BFTC AC 接入口 （半）包装入 1 35 TXFMZ01BFTC L/ 台座安装块 半成品 2 TXJ/G1BJTU 线束 （G1 ～ K1） 1 TXJ/G3BJTU 线束 （G3 ～ GK3） 1 TXJ/H2BJTU 线束 DG2-H2 1 TXJ/P2BJTU 线束 （SC2 ～ P2） 1 TXJ/P9BJTU 线束 (P9-INLET) 1 TXJ/S1BFTB 线束 (S1-SS34) 1 TXJ/SJ0QJS 线束 1 TXJD20BJTU 线束 （D20 ～ SC20） 1 TXJD25BJTU 线束 (D25 ～ P25) 1 TXJDG5BJTU 线束 D5-DG5 1 TXJEARBJTU 线束 （PA-H GND） 1 TXJFA1BJTU 线束 (PA31/PA32-FAN) 2 TXJFGNYFSU 线束 (GND-INLET) 1 TXJG51BFTU 线束 H51-G51 1 TXJH40BJTU 线束 （H40-PA40） 1 TXJH52BETB 线束 (H52-GS52) 1 TXJP10BJTU 线束 PA10-P10 1 TXJP11BJTU 线束 （P11 ～ SS11） 1 TXJP12BJTU 线束 （P12 ～ SS12） 1 TXJP23BJTU 线束 （P23 ～ SC23） 1 TXJPA1BFTB 线束 PA1-RELAY 1 TXJPA2BFTB 线束 PA2-RELAY 1 TXJPA5BJTU 线束 PA5-P5 1 TXJS23BJTU 线束 （SS23 ～ C23） 1 TXJSQLBFTB 线束 RELAY-SQL 1 TXJWHLBETB 线束 RELAY-WOL 1 TXN/D1BJTC D 线路板 完成品 1 TXN/G1BJTA G 线路板 完成品 1 TXN/K1BHTC K 线路板 半成品 1 TXN/P1BJTC P 线路板 完成品 1 TXN/S1BJTC S 线路板 完成品 1 TXNC11BJTC C1 线路板 包装入 1 TXNC21BJTC C2 线路板 包装入 1 TXNGK1BJTA GK 线路板 完成品 1 TXNGS1BETC GS 元件 完成品 1 TXNPA1BETC PA 线路板 完成品 1 TXNSC1BJTC SC 线路板 完成品 1 TXNSD1BJTC SD 线路板 完成品 1 TXNSS1BJTC SS 线路板 半成品 1 TXNSU1BJTC SU 线路板 完成品 1 VKC0558 插销 1 XTB4+12GFJ 螺丝 40 XTB4+12GFJK 螺丝 27 XTV3+10GFJ 螺丝 (BUTTON:2/SD_SPR:1/ LOW_SPR:1) 4 XTV3+10JFJK 螺丝 (TERMINAL:4) 4 XTW3+10TFJ 螺丝 (K:2) 2 XYN2+F5FJ 螺丝 1 XYN3+F6FJ 螺丝 1 XYN3+F8FJ 螺丝 23 XYN3+J8FJ 螺丝 8 XYN4+E8FJ 螺丝 1 XYN4+F10FJK 螺丝 11 XYN5+C15FJ 螺丝 8 参考号 品番 中文说明 数量 备注 124 16 电器部件更换清单 16.1. 更换部件清单注意事项 125 16.2. 电器部件更换清单 所有在备注栏 [PPDS] 中提到的部件均由 PPDS 提供。 参考号 部品号 部品名称 & 说明 件数 备注 F401.402 K5D802BNA005 延时保险丝 2 C002 ECA1HM100 E 10UF, 50V 1 C003 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C006 ECA0JM102 E 1000UF, 6.3V 1 C008 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C009 ECJ1XC1H101J C 100PF, J, 50V 1 C010,11 ECJ1VC1H330J C 33PF, J, 50V 2 C11 K1MN55BA0076 55P 连接接头 1 C12 K1MN20BA0231 20P 连接接头 1 C016 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C020 ECA0JM102 E 1000UF, 6.3V 1 C021 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C21 K1MN55BA0076 55P 连接接头 1 C022 ECJ1XC1H101J C 100PF, J, 50V 1 C22 K1MN20BA0231 20P 连接接头 1 C23 K1KA12BA0107 12P 连接接头 1 C024 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C029,30 ECJ1VC1H330J C 33PF, J, 50V 2 C040-43 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C1100 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1102 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1103 ECJ0EB1E271K C 270PF, K, 25V 1 C1105 ECJ0EB1E271K C 270PF, K, 25V 1 C1106 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1107 EEEHB0G101R C 100PF, J, 4V 1 C1109-11 ECJ0EB1A104K C 0.1UF, K, 10V 3 C1112 ECJ0EB1E271K C 270PF, K, 25V 1 C1114 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1116 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1118-23 ECJ0EB1A104K C 0.1UF, K, 10V 6 C1125 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1127-32 ECJ0EB1A104K C 0.1UF, K, 10V 6 C1133,34 ECJ1XC1H150J C 15PF, J, 50V 2 C1135-42 ECJ0EB1A104K C 0.1UF, K, 10V 8 C1144-50 ECJ0EB1A104K C 0.1UF, K, 10V 7 C1152 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1153 EEEHB0G101R C 100PF, J, 4V 1 C1154 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1155 ECJ0EB1C103K C0.010UF, K, 16V 1 C1156,57 ECJ1XC1H220J C 22PF, J, 50V 2 C1158 F1J0J1060004 C 0.010UF, K, 16V 1 C1159 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1160 F2G0J470A019 E 47UF 6.3V 1 C1161 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1162 ECJ0EB1C103K C0.010UF, K, 16V 1 C1167,68 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C1172 ECJ0EB1A104K C 0.1UF, K, 10V 1 C1177 ECJ1VB1A334K C 0.1UF, K, 16V 1 C1178 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1190 ECJ0EB1C103K C0.010UF, K, 16V 1 C1209 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1212 ECJ1XC1H151J C 150PF, J, 50V 1 C1219,20 EEEHP1C100R C 10PF, J, 16V 2 C1221 ECJ0EB1H102K C 1000PF, K, 50V 1 C1222,23 F1J0J1060004 C 0.010UF, K, 16V 2 C1226 F1J0J1060004 C 0.010UF, K, 16V 1 C1227 ECJ0EB1H101K C 100PF, K, 50V 1 C1228-34 EEEHB1C470P C 47PF, J, 16V 7 C1294 ECJ1XC1H330J C 33PF, J, 50V 1 C2005,06 ECJ1XC1H561J C 560PF, J, 50V 2 C2010,11 ECJ1XC1H561J C 560PF, J, 50V 2 C2013,14 ECJ1XC1H561J C 560PF, J, 50V 2 C2016,17 ECJ1XC1H561J C 560PF, J, 50V 2 C2019 ECA1CM221 E 220UF, 16V 1 C2020 ECA1HM220 E 22UF, 50V 1 C2021,22 ECJ1XC1H561J C 560PF, J, 50V 2 C2111 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2116 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2118,19 ECEA1CN470U E 47UF, 16V 2 C2125,26 ECJ1VB1H102K C 1000PF, K, 50V 2 C2127 ECA1CMH101 E 100UF, 16V 1 C2128 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2129,30 F1J1A1050002 C 1UF, Z, 50V 2 C2131 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2132 EEEHB1C100R C 10PF, J, 16V 1 C2133,34 ECJ1XC1H470J C 47PF, J, 50V 2 C2135,36 ECJ2FB1C105K C 1UF, K, 16V 2 C2139-43 ECJ1VB1H103K C 0.001UF, K, 50V 5 C2146 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2147 ECA1HM220 E 22UF, 50V 1 C2148-50 ECJ2FB1C105K C 1UF, K, 16V 3 C2152 ECJ2FB1C105K C 1UF, K, 16V 1 C2153 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C2154 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2155 ECJ2FB1C105K C 1UF, K, 16V 1 C2157 ECJ2FB1C105K C 1UF, K, 16V 1 C2159,60 ECJ2FB1C105K C 1UF, K, 16V 2 C2161 ECA1CMH101 E 100UF, 16V 1 C2162-65 ECJ2FB1C105K C 1UF, K, 16V 4 C2168,69 ECJ2FB1C105K C 1UF, K, 16V 2 C2170-72 ECJ1VB1H102K C 1000PF, K, 50V 3 C2173 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2174 ECJ1VB1H102K C 1000PF, K, 50V 1 C2175-77 ECJ1VB1H103K C 0.001UF, K, 50V 3 C2178,79 EEEHB1C100R C 10PF, J, 16V 2 C2181 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2183 EEEHB1H3R3R C 3.3PF, J, 50V 1 C2184,85 ECJ2VF1C104Z C 0.1UF, Z, 16V 2 C2189,90 ECJ2FB1C105K C 1UF, K, 16V 2 C2191 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2192 EEEHB1C100R C 10PF, J, 16V 1 C2195 ECJ1XC1H470J C 47PF, J, 50V 1 C2196 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2197 ECJ2FB0J225K C 2.2UF, Z, 16V 1 C2198 EEEHB0J101P C 100PF, J, 6.3V 1 C2199 ECJ1VC1H560J C 56PF, J, 50V 1 C2200 ECJ1XC1H470J C 47PF, J, 50V 1 C2201 ECJ1XC1H030C C 3PF, C, 50V 1 C2202 ECJ1XC1H050C C 5PF, C, 50V 1 C2203 ECJ1VC1H100C C 10PF, C, 50V 1 C2204 ECJ1XC1H220J C 22PF, J, 50V 1 C2211 ECJ1VB1C104K C 0.1UF, K, 16V 1 C2213 ERJ3GEY0R00 M 0 OHM, 1/16W 1 C2217 F1H0J1050012 C 1UF, K, 16V 1 C2222 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2223 ECJ1XC1H390J C 39PF, J, 50V 1 C2225 ECJ2FB1C105K C 1UF, K, 16V 1 C2226 ECJ1VB1H102K C 1000PF, K, 50V 1 C2227 ECA1CMH101 E 100UF, 16V 1 C2228 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2229,30 ECA1CMH101 E 100UF, 16V 2 C2231 ECA1CHG470 E 47UF, 16V 1 C2232 F1H0J1050012 C 1UF, K, 16V 1 C2233,34 ECJ1VB1H102K C 1000PF, K, 50V 2 C2235 F1H0J1050012 C 1UF, K, 16V 1 C2236 ECA1CHG470 E 47UF, 16V 1 C2237-40 ECJ1VB1H103K C 0.001UF, K, 50V 4 C2243 ECA1CHG470 E 47UF, 16V 1 C2301 ECA1EHG471 E 470UF, 25V 1 C2302,03 ECA1CMH101 E 100UF, 16V 2 C2304,05 ECJ1VB1H103K C 0.001UF, K, 50V 2 C2306 ECJ1XB1C393K C 0.039UF, K, 16V 1 C2307 ECA1CMH101 E 100UF, 16V 1 H 板 C2307 ECJ1XB1C393K C 0.039UF, K, 16V 1 PA 板 C2308-13 ECJ1VB1E183K C 0.018UF, K, 25V 6 C2314 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2317 ECJ2FB1A105K C 1UF, K, 10V 1 C2320 ECJ2FB1A105K C 1UF, K, 10V 1 C2321 ECJ2XB1H103K C 0.01UF, K, 50V 1 C2322 ECJ2FB1A105K C 1UF, K, 10V 1 C2323,24 ECJ2FB1E224K C 22UF, K, 25V 2 C2325,26 ECJ1VB1E104K C 0.10UF, K, 25V 2 C2327 F1J1H474A757 C 0.47UF, 50V 1 C2328-31 ECJ2FB1E105K C 1UF, K, 25V 4 C2332,33 ECA1EHG471 E 470UF, 25V 2 C2334,35 ECJ1VB1E104K C 0.10UF, K, 25V 2 参考号 部品号 部品名称 & 说明 件数 备注 126 C2336 F1J1H474A757 C 0.47UF, 50V 1 C2337,38 ECJ2FB1E224K C 22UF, K, 25V 2 C2341 ECJ3YB1E106M C 10 UF, K, 25V 1 C2342 ECJ2FB1E105K C 1UF, K, 25V 1 C2346 ECJ2FB1A105K C 1UF, K, 10V 1 C2349 ECJ2FB1A105K C 1UF, K, 10V 1 C2350 ECJ2XB1H103K C 0.01UF, K, 50V 1 C2351 ECJ2FB1A105K C 1UF, K, 10V 1 C2352,53 ECJ2FB1E224K C 22UF, K, 25V 2 C2354,55 ECJ1VB1E104K C 0.10UF, K, 25V 2 C2356 F1J1H474A757 C 0.47UF, 50V 1 C2357-60 ECJ2FB1E105K C 1UF, K, 25V 4 C2361,62 ECA1EHG471 E 470UF, 25V 2 C2363,64 ECJ1VB1E104K C 0.10UF, K, 25V 2 C2365 F1J1H474A757 C 0.47UF, 50V 1 C2366,67 ECJ2FB1E224K C 22UF, K, 25V 2 C2368,69 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2370 ECJ3YB1E106M C 10 UF, K, 25V 1 C2371 ECJ2FB1E105K C 1UF, K, 25V 1 C2372 ECA1HHG100 E 10UF, 50V 1 C2373 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C2374 ECJ1VF1A105Z C 1UF, Z, 10V 1 C2380,81 ECJ1VB1H103K C 0.001UF, K, 50V 2 C2382 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2385 ECJ2FB1A105K C 1UF, K, 10V 1 C2387 ECJ2FB1A105K C 1UF, K, 10V 1 C2389 ECJ2FB1A105K C 1UF, K, 10V 1 C2391 ECJ2FB1A105K C 1UF, K, 10V 1 C2393-96 ECJ1VB1C105K C 0.01UF, K, 16V 4 C2401 ECJ2FB1A105K C 1UF, K, 10V 1 C2402 ECJ2FB0J106M C 10UF, Z,6.3V 1 C2403 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2404 ECJ2FB1A105K C 1UF, K, 10V 1 C2405 ECJ2FB0J106M C 10UF, Z,6.3V 1 C2416 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2417,18 ECJ2FB0J106M C 10UF, Z,6.3V 2 C2430 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3005 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3021-25 F1J1A1050002 C 1UF, Z, 50V 5 C3026 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3027,28 F1J1A1050002 C 1UF, Z, 50V 2 C3029 ECJ2VF1C105Z C 1UF, Z, 16V 1 C3030 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3031 F1J1A1050002 C 1UF, Z, 50V 1 C3033 F1J1A1050002 C 1UF, Z, 50V 1 C3035 F1J1A1050002 C 1UF, Z, 50V 1 C3036 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3038 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3039 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3040 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3041 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3042,43 F1J1A1050002 C 1UF, Z, 50V 2 C3045 F1J1A1050002 C 1UF, Z, 50V 1 C3046 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3047 F1J1A1050002 C 1UF, Z, 50V 1 C3048 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3049,50 F1J1A1050002 C 1UF, Z, 50V 2 C3051-53 ECJ1VB1H103K C 0.001UF, K, 50V 3 C3054-56 F1J1A1050002 C 1UF, Z, 50V 3 C3058 ECA1EM471 E 470UF, 25V 1 C3059,60 ECJ2VF1C105Z C 1UF, Z, 16V 2 C3061-64 ECJ2VF1C104Z C 0.1UF, Z, 16V 4 C3065 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3067 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3069 ECA1EM471 E 470UF, 25V 1 C3070 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3075 ECA1CM221 E 220UF, 16V 1 C3207 ECJ2FB1C105K C 1UF, K, 16V 1 C3208 ECJ2FB1C474K C 0.47UF, Z, 16V 1 C3214 ECJ2FF1A106Z C 0.001UF, Z, 10V 1 C3216 ECJ2FF1A106Z C 0.001UF, Z, 10V 1 C3226-29 ECJ2FF1A106Z C 0.001UF, Z, 10V 4 C3230 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3231 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3233 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3241 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3248 ECJ2FB1C105K C 1UF, K, 16V 1 参考号 部品号 部品名称 & 说明 件数 备注 C3249 ECJ2FB1C474K C 0.47UF, Z, 16V 1 C3251 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3252 ECJ2FB1C105K C 1UF, K, 16V 1 C3253,54 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3256 ECJ2FB1C105K C 1UF, K, 16V 1 C3257 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3262 ECJ1VB1H472K C 4700PF, K, 50V 1 C3268 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3305 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3330 ECA1CM470 E 47UF, 16V 1 C3331 ECJ2XB1H103K C 0.01UF, K, 50V 1 C3332 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3334 ECEA1CN470U E 47UF, 16V 1 C3335 ECJ2VB1C104K C 0.1UF, K, 16V 1 C3336 ECEA1CN470U E 47UF, 16V 1 C3337 ECJ2VB1C104K C 0.1UF, K, 16V 1 C3338 ECEA1CN470U E 47UF, 16V 1 C3339 ECJ2VB1C104K C 0.1UF, K, 16V 1 C3340-42 ECJ2VF1C104Z C 0.1UF, Z, 16V 3 C3701 ECJ2XC1H561K C 560PF, K, 50V 1 C3703 ECJ2XC1H561K C 560PF, K, 50V 1 C3711,12 ECJ2VF1H333Z C 0.033UF, Z, 50V 2 C3750,51 ECJ2XC1H102K C 1000PF, K, 50V 2 C4003-08 F1J0J1060004 C 0.010UF, K, 16V 6 C4009 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C4014,15 F1J0J1060004 C 0.010UF, K, 16V 2 C4023 F1J0J1060004 C 0.010UF, K, 16V 1 C4026 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4027 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4028 ECJ0EB1C103K C0.010UF, K, 16V 1 C4112 F1J0J1060004 C 0.010UF, K, 16V 1 C4117 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4142 F1H1C104A065 C 0.1UF, K, 16V 1 C4144-46 ECJ1XC1H050C C 5PF, C, 50V 3 C4148-51 ECJ1VB0J475K C 4.7UF, K, 6.3V 4 C4152,53 F1J0J1060004 C 0.010UF, K, 16V 2 C4157 F1J0J1060004 C 0.010UF, K, 16V 1 C4158 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4159 F1H1C104A065 C 0.1UF, K, 16V 1 C4160 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4161,62 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4165 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4168 ECJ1XC1H680J C 68PF, J, 50V 1 C4169 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4171 ECJ1XC1H471J C 470PF, J, 50V 1 C4172,73 F1H1C104A065 C 0.1UF, K, 16V 2 C4174 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4175 F1H1C104A065 C 0.1UF, K, 16V 1 C4176 ECJ1VB0J225K C 2.2UF, K, 6.3V 1 C4177 ECJ2FB1C684K C 68UF, Z, 16V 1 C4178 ECJ1XB1C393K C 0.039UF, K, 16V 1 C4180 F1H1C104A065 C 0.1UF, K, 16V 1 C4181 ECJ0EB1C103K C0.010UF, K, 16V 1 C4182 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4185,86 ECJ3XB0J106M C 10UF, M,6.3V 2 C4187 F2G0J470A019 E 47UF 6.3V 1 C4188 F1J0J1060004 C 0.010UF, K, 16V 1 C4189-92 ECJ0EB1A104K C 0.1UF, K, 10V 4 C4193 ECJ0EB1H102K C 1000PF, K, 50V 1 C4194-97 F1H1C104A065 C 0.1UF, K, 16V 4 C4198 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4199 ECJ0EB1C103K C0.010UF, K, 16V 1 C4200 F2G0J470A019 E 47UF 6.3V 1 C4201 ECJ0EB1C103K C0.010UF, K, 16V 1 C4204 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4205,06 F1H1C104A065 C 0.1UF, K, 16V 2 C4208,09 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4211 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4212 EEEHB0G221P C 220PF, J, 4V 1 C4213 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4214 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4215 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4216 F2G0J470A019 E 47UF 6.3V 1 C4217 F1H1C104A065 C 0.1UF, K, 16V 1 C4218 ECJ0EB1H102K C 1000PF, K, 50V 1 C4219 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4220 ECJ0EB1C103K C0.010UF, K, 16V 1 参考号 部品号 部品名称 & 说明 件数 备注 127 C4224 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4225 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4226 ECJ1XC1H680J C 68PF, J, 50V 1 C4227 ECJ1VB1C823K C 0.082UF, K, 16V 1 C4228 ECJ0EB1C103K C0.010UF, K, 16V 1 C4229 F1H1C104A065 C 0.1UF, K, 16V 1 C4230-34 ECJ0EB1A104K C 0.1UF, K, 10V 5 C4235 ECJ0EB1C103K C0.010UF, K, 16V 1 C4236-42 ECJ0EB1A104K C 0.1UF, K, 10V 7 C4243,44 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4245,46 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4248 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4250,51 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4252 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4253 F2G0J470A019 E 47UF 6.3V 1 C4255 ECJ1VB1H562K C 5600PF, K, 50V 1 C4256 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4257 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C4258 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4259 ECJ1VB0J225K C 2.2UF, K, 6.3V 1 C4261-65 ECJ0EB1A104K C 0.1UF, K, 10V 5 C4266 ECJ0EB1C103K C0.010UF, K, 16V 1 C4267,68 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4269 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4270 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4272 F2G0J470A019 E 47UF 6.3V 1 C4273-75 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4276 ECJ1VB0J225K C 2.2UF, K, 6.3V 1 C4277 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C4281-84 ECJ0EB1A104K C 0.1UF, K, 10V 4 C4287,88 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4289,90 EEEHB0J330R C 33PF, J, 6.3V 2 C4291,92 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4296 F1J0J1060004 C 0.010UF, K, 16V 1 C4297 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4298-06 ECJ1VB1A105K C 0.01UF, Z, 50V 9 C4307-09 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4310 ECJ0EB1C103K C0.010UF, K, 16V 1 C4311 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4312 ECJ0EB1C103K C0.010UF, K, 16V 1 C4313,14 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4315 F1J0J1060004 C 0.010UF, K, 16V 1 C4316-18 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4320-22 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4325 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4327 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4329,30 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4331 F1J0J1060004 C 0.010UF, K, 16V 1 C4332 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4333-38 ECJ0EB1A104K C 0.1UF, K, 10V 6 C4339 ECJ1VB0J225K C 2.2UF, K, 6.3V 1 C4340 ECJ1XC1H471J C 470PF, J, 50V 1 C4341 EEEHB1C470P C 47PF, J, 16V 1 C4342 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4343 EEEHB1C100R C 10PF, J, 16V 1 C4344,45 F1J0J1060004 C 0.010UF, K, 16V 2 C4346 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4347 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4348 EEEHB1C470P C 47PF, J, 16V 1 C4349 ECJ0EB1C103K C0.010UF, K, 16V 1 C4350,51 ECJ1XC1H181J C 180PF, J, 50V 2 C4352,53 ECJ1XC1H330J C 33PF, J, 50V 2 C4354 ECJ0EB1C103K C0.010UF, K, 16V 1 C4360 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4362 F1J0J1060004 C 0.010UF, K, 16V 1 C4363,64 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4365 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4366 F2G0J470A019 E 47UF 6.3V 1 C4367 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4371 ECJ0EB1H102K C 1000PF, K, 50V 1 C4372 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4373 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4374 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4375,76 ECJ0EB1H102K C 1000PF, K, 50V 2 C4377 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4379 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4380 ECJ0EB1H102K C 1000PF, K, 50V 1 参考号 部品号 部品名称 & 说明 件数 备注 C4381,82 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4383 ECJ0EB1H102K C 1000PF, K, 50V 1 C4384 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4385 ECJ0EB1H102K C 1000PF, K, 50V 1 C4386 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4387 ECJ0EB1H102K C 1000PF, K, 50V 1 C4388 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4389 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4390 ECJ0EB1H102K C 1000PF, K, 50V 1 C4391 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4392 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4393,94 ECJ0EB1H102K C 1000PF, K, 50V 2 C4395 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4396 ECJ0EB1H102K C 1000PF, K, 50V 1 C4397,98 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4399,00 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4401 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4402,03 ECJ0EB1H102K C 1000PF, K, 50V 2 C4404 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4405 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4406 ECJ0EB1H102K C 1000PF, K, 50V 1 C4407,08 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4409 ECJ0EB1H102K C 1000PF, K, 50V 1 C4410 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4411,12 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4413,14 ECJ0EB1H102K C 1000PF, K, 50V 2 C4415 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4417 F2G0J470A019 E 47UF 6.3V 1 C4418,19 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4420,21 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4422-24 ECJ0EB1H102K C 1000PF, K, 50V 3 C4425,26 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4427 ECJ0EB1H102K C 1000PF, K, 50V 1 C4428 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4429,30 ECJ0EB1H102K C 1000PF, K, 50V 2 C4434 ECJ0EB1H102K C 1000PF, K, 50V 1 C4435 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4436-39 ECJ0EB1H102K C 1000PF, K, 50V 4 C4440 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4441,42 ECJ0EB1H102K C 1000PF, K, 50V 2 C4447 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4448 ECJ0EB1C103K C0.010UF, K, 16V 1 C4451 ECJ0EB1H102K C 1000PF, K, 50V 1 C4452 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4453,54 ECJ0EB1H102K C 1000PF, K, 50V 2 C4455 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4456 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4457,58 ECJ0EB1H102K C 1000PF, K, 50V 2 C4459 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4460 ECJ0EB1H102K C 1000PF, K, 50V 1 C4461 ECJ1XC1H820J C 82PF, J, 50V 1 C4462 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4464 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4465 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4466 ECJ0EB1C103K C0.010UF, K, 16V 1 C4467 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4470 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4474 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4475,76 ECJ0EB1H102K C 1000PF, K, 50V 2 C4477 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4478 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4479-81 ECJ0EB1H102K C 1000PF, K, 50V 3 C4482 ECJ1XC1H180J C 18PF, J, 50V 1 C4483 ECJ1XC1H150J C 15PF, J, 50V 1 C4493 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4494 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4496 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4497 EEEHB0G101R C 100PF, J, 4V 1 C4498 ECJ1XC1H471J C 470PF, J, 50V 1 C4499 EEFCD0G560ER 56UF, 1 C4501 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4502 ECJ0EB1C103K C0.010UF, K, 16V 1 C4503 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4504 ECJ0EB1C103K C0.010UF, K, 16V 1 C4505 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4506 ECJ0EB1C103K C0.010UF, K, 16V 1 C4507 ECJ0EB1A104K C 0.1UF, K, 10V 1 参考号 部品号 部品名称 & 说明 件数 备注 128 C4508 ECJ0EB1C103K C0.010UF, K, 16V 1 C4509-11 ECJ0EB1A104K C 0.1UF, K, 10V 3 C4512 ECJ0EB1C103K C0.010UF, K, 16V 1 C4513 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4514 ECJ0EB1C103K C0.010UF, K, 16V 1 C4515,16 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4517 ECJ0EB1C103K C0.010UF, K, 16V 1 C4518 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4519 ECJ0EB1C103K C0.010UF, K, 16V 1 C4520 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4521 ECJ0EB1C103K C0.010UF, K, 16V 1 C4522 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4523 ECJ0EB1C103K C0.010UF, K, 16V 1 C4524 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4525 ECJ0EB1C103K C0.010UF, K, 16V 1 C4526 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4527 ECJ0EB1C103K C0.010UF, K, 16V 1 C4528 F2G0J470A019 E 47UF 6.3V 1 C4529 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4530,31 ECJ0EB1H102K C 1000PF, K, 50V 2 C4532,33 ECJ0EB1A104K C 0.1UF, K, 10V 2 C4534 ECJ0EB1H102K C 1000PF, K, 50V 1 C4535 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4536 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4537 EEEHB0G101R C 100PF, J, 4V 1 C4538 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4539 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4540 ECJ0EB1H102K C 1000PF, K, 50V 1 C4541 ECJ0EB1A104K C 0.1UF, K, 10V 1 C4543 F1H1C104A065 C 0.1UF, K, 16V 1 C4544 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5604 ECA1HHG100 E 10UF, 50V 1 C5605 EEUFC1E471 E 470UF, 25V 1 C5606 ECA1CM471 E 470UF, 16V 1 C5609 ECA1HM220 E 22UF, 50V 1 C5611 F2A1H331A257 E 330UF, 50V 1 C5612 ECA1CM471 E 470UF, 16V 1 C5613 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5616 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5617 ECA1CM471 E 470UF, 16V 1 C5618,19 ECJ1VB1E104K C 0.10UF, K, 25V 2 C5622 ECA1CM471 E 470UF, 16V 1 C5623 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5626 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5633 ECA1EM221 E 220UF, 25V 1 C5637 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5641-44 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C5645 ECA1CHG470 E 47UF, 16V 1 C5646 ECJ1VB1H103K C 0.001UF, K, 50V 1 C5647 ECA1CHG470 E 47UF, 16V 1 C5648 ECJ1VB1H103K C 0.001UF, K, 50V 1 C5670 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5672 ECA1HHG100 E 10UF, 50V 1 C5673 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5685 ECA1HHG100 E 10UF, 50V 1 C5686 ECJ2XB1H103K C 0.01UF, K, 50V 1 C5801,02 EEUFC1E471 E 470UF, 25V 2 C5804 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C5805 ECJ2VF1C105Z C 1UF, Z, 16V 1 C5809 ECJ3XF1E105Z C 1UF, Z, 25V 1 C5810 ECA1EHG470 E 47UF, 25V 1 C6001 F1L2J332A022 C 3300UF, K,6.3V 1 C6002 F1L2J222A022 C 2200UF, K,6.3V 1 C6011-15 F2A2T201A001 E 200UF, 5 C6021,22 F1L2J272A022 C 2700UF, K,6.3V 2 C6031 ECQE2255JF P 2.5UF, K,250V 1 C6041-44 TCUY1C105ZFN C 1UF, 16V 4 C6091 F1L2J1020001 C 1000UF, K,6.3V 1 C6111,12 F2A2D221A022 E 220UF, 200V 2 C6132 F1L1E4750004 C 4.7UF, 25V 1 C6134,35 F1L1E4750004 C 4.7UF, 25V 2 C6151 F1K1E1050001 C 1UF, Z, 25V 1 C6152-55 F1L1E4750004 C 4.7UF, 25V 4 C6192 F1K1E1050001 C 1UF, Z, 25V 1 C6194,95 F1L1E4750004 C 4.7UF, 25V 2 C6201,02 F0C2E405A176 E 0.040UF, 250V 2 C6211,12 F1L1E4750004 C 4.7UF, 25V 2 参考号 部品号 部品名称 & 说明 件数 备注 C6213,14 ECA1EM471 E 470UF, 25V 2 C6221 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6241 ECA1EM471 E 470UF, 25V 1 C6242 TCUY1C105ZFN C 1UF, 16V 1 C6243 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6251 TCUY1C105ZFN C 1UF, 16V 1 C6261,62 ECA2CM101 E 100UF, 160V 2 C6271 F1K1E1050001 C 1UF, Z, 25V 1 C6272,73 EEUFC1E221 E 220UF, 25V 2 C6401 F1L2J332A022 C 3300UF, K,6.3V 1 C6402 F1L2J222A022 C 2200UF, K,6.3V 1 C6411-15 F2A2T201A001 E 200UF, 5 C6421,22 F1L2J272A022 C 2700UF, K,6.3V 2 C6431 F0C2E405A176 E 0.040UF, 250V 1 C6472 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6480 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6502 F1L1E4750004 C 4.7UF, 25V 1 C6504,05 F1L1E4750004 C 4.7UF, 25V 2 C6511,12 F0C2E405A176 E 0.040UF, 250V 2 C6521 ECJ3YB1E105K C 1UF, K, 25V 1 C6522 F1L1E4750004 C 4.7UF, 25V 1 C6524,25 F1L1E4750004 C 4.7UF, 25V 2 C6527 F1L1E4750004 C 4.7UF, 25V 1 C6561 F2A1A1010074 E 100UF, 10V 1 C6563 F2A1A1010074 E 100UF, 10V 1 C6565,66 ECJ2XB1H103K C 0.01UF, K, 50V 2 C6581 ECJ3YB1E105K C 1UF, K, 25V 1 C6582 TCUY1C105ZFN C 1UF, 16V 1 C6591 ECJ3YB1E105K C 1UF, K, 25V 1 C6592 ECA1EM471 E 470UF, 25V 1 C6593 ECJ2XC1H102J C 1000PF, J, 50V 1 C6601,02 F1L1E4750004 C 4.7UF, 25V 2 C6603 F1K2J102A014 C 1000UF, K,6.3V 1 C6604 F2A2V470A020 E 47UF, 350V 1 C6605 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6606 F1K2J102A014 C 1000UF, K,6.3V 1 C6610 ECJ3YB1E105K C 1UF, K, 25V 1 C6611 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6612 ECJ3YB1E105K C 1UF, K, 25V 1 C6620 ECJ3XB2J222K C 2200PF, K,630V 1 C6641 ECQE2224KF P 2.2UF, K,250V 1 C6661,62 F1K2J102A014 C 1000UF, K,6.3V 2 C6671 F1L1E4750004 C 4.7UF, 25V 1 C6681,82 F1L1E4750004 C 4.7UF, 25V 2 C6683 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6691 ECA2CM101 E 100UF, 160V 1 C6701-08 ECJ2XB1H104K C 0.1UF, K, 50V 8 C6721 ECA1HM101 E 100UF, 50V 1 C6723-25 F1L1E4750004 C 4.7UF, 25V 3 C6726,27 TCUY1C105ZFN C 1UF, 16V 2 C6728 ECJ2XC1H102J C 1000PF, J, 50V 1 C6752 TCUY1C105ZFN C 1UF, 16V 1 C6753 F1L1E4750004 C 4.7UF, 25V 1 C6754 ECA1VM470 E 47UF, 35V 1 C6755 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6771 TCUY1C105ZFN C 1UF, 16V 1 C6772,73 F1L1E4750004 C 4.7UF, 25V 2 C6775 F1L1E4750004 C 4.7UF, 25V 1 C6776,77 ECJ2XB1H104K C 0.1UF, K, 50V 2 C6791 EEUFC1E221 E 220UF, 25V 1 C6795,96 EEUFC1E221 E 220UF, 25V 2 C6802 EEUFC1E221 E 220UF, 25V 1 C6803 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6804 F2A2E100A022 E 10UF, 250V 1 C6805 TCUY1C105ZFN C 1UF, 16V 1 C6806,07 ECA2CM101 E 100UF, 160V 2 C6811 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6812 ECJ3YB1E105K C 1UF, K, 25V 1 C6822 F2A2V100A019 E 10UF, 350V 1 C6823 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6841,42 ECA2CM101 E 100UF, 160V 2 C6845 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6861 TCUY1C105ZFN C 1UF, 16V 1 C6862 ECJ3YB1E105K C 1UF, K, 25V 1 C6863 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6871 TCUY1C105ZFN C 1UF, 16V 1 C6872 ECJ3YB1E105K C 1UF, K, 25V 1 参考号 部品号 部品名称 & 说明 件数 备注 129 C6873 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6901 ECJ2XB1H102K C 1000PF, K, 50V 1 C6902 TCUY1C105ZFN C 1UF, 16V 1 C6904 TCUY1C105ZFN C 1UF, 16V 1 C6906 TCUY1C105ZFN C 1UF, 16V 1 C6908 TCUY1C105ZFN C 1UF, 16V 1 C6910 TCUY1C105ZFN C 1UF, 16V 1 C6912 TCUY1C105ZFN C 1UF, 16V 1 C6914-18 ECJ2XB1H221K C 220PF, K, 50V 5 C6931 ECJ2XB1H102K C 1000PF, K, 50V 1 C6932-35 F1L2E105A013 E 0.10UF, 25V 4 C6951 ECJ2XB1H102K C 1000PF, K, 50V 1 C6952 TCUY1C105ZFN C 1UF, 16V 1 C6955 TCUY1C105ZFN C 1UF, 16V 1 C6957,58 TCUY1C105ZFN C 1UF, 16V 2 C6961 TCUY1C105ZFN C 1UF, 16V 1 C6963 TCUY1C105ZFN C 1UF, 16V 1 C6964-68 ECJ2XB1H221K C 220PF, K, 50V 5 C6981 ECJ2XB1H102K C 1000PF, K, 50V 1 C6982-85 F1L2E105A013 E 0.10UF, 25V 4 C7108 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7110 TCUY1C105ZFN C 1UF, 16V 1 C7111,12 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7114 TCUY1C105ZFN C 1UF, 16V 1 C7115 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7116 TCUY1C105ZFN C 1UF, 16V 1 C7117 ECJ1XC1H101J C 100PF, J, 50V 1 C7119 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7121 TCUY1C105ZFN C 1UF, 16V 1 C7122 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7123 TCUY1C105ZFN C 1UF, 16V 1 C7124 ECJ1XC1H101J C 100PF, J, 50V 1 C7126 TCUY1C105ZFN C 1UF, 16V 1 C7127 ECJ1XC1H101J C 100PF, J, 50V 1 C7130 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7134 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7137,38 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7140 TCUY1C105ZFN C 1UF, 16V 1 C7141 ECJ1XC1H101J C 100PF, J, 50V 1 C7143 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7145 TCUY1C105ZFN C 1UF, 16V 1 C7146 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7148 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7201 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7203 TCUY1C105ZFN C 1UF, 16V 1 C7204,05 ECJ3XB2A474K C 0.47UF, 6.3V 2 C7207 TCUY1C105ZFN C 1UF, 16V 1 C7208 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7209 TCUY1C105ZFN C 1UF, 16V 1 C7210 ECJ1XC1H101J C 100PF, J, 50V 1 C7212 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7214 TCUY1C105ZFN C 1UF, 16V 1 C7215 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7216 TCUY1C105ZFN C 1UF, 16V 1 C7217 ECJ1XC1H101J C 100PF, J, 50V 1 C7219 TCUY1C105ZFN C 1UF, 16V 1 C7220 ECJ1XC1H101J C 100PF, J, 50V 1 C7223 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7225 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7227 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7229 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7235 TCUY1C105ZFN C 1UF, 16V 1 C7236 ECJ1XC1H101J C 100PF, J, 50V 1 C7238 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7240 TCUY1C105ZFN C 1UF, 16V 1 C7241 ECJ3XB2A474K C 0.47UF, 6.3V 1 C7244 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7701 ECJ1XC1H330J C 33PF, J, 50V 1 C7702 EEEHB0G470R C 47PF, J, 4V 1 C7703,04 ECJ1XC1H330J C 33PF, J, 50V 2 C7705 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C7707 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C7708 ECJ1VB1H103K C 0.001UF, K, 50V 1 C7709 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C7711 ECJ1XC1H330J C 33PF, J, 50V 1 C7721,22 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C7723 ECJ1XC1H101J C 100PF, J, 50V 1 参考号 部品号 部品名称 & 说明 件数 备注 C7751 EEVHB0G221P E 220UF, 4V 1 C7755 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C7756 ECJ2FB1A105K C 1UF, K, 10V 1 C7758 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C7760 ECJ2FB1A105K C 1UF, K, 10V 1 C7761-64 ECJ1XC1H330J C 33PF, J, 50V 4 C9028,29 F1J0J1060004 C 0.010UF, K, 16V 2 C9033,34 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9035,36 F1J0J1060004 C 0.010UF, K, 16V 2 C9037 ECJ1VB1H103K C 0.001UF, K, 50V 1 C9039 F1J0J1060004 C 0.010UF, K, 16V 1 C9040 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9044-53 ECJ1XF1C104Z C 0.1UF, Z, 16V 10 C9055-57 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9058 F1J0J1060004 C 0.010UF, K, 16V 1 C9467,68 ECJ1VF1H103Z C 0.010UF, Z, 50V 2 C9469 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9500-06 ECJ1XB1C104K C 0.1UF, Z, 16V 7 C9508 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9509 ECJ1VC1H200J C 20PF, C, 50V 1 C9510 ECJ1XC1H150J C 15PF, J, 50V 1 C9511 F1J0J1060004 C 0.010UF, K, 16V 1 C9512 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9514,15 ECJ2VF1C105Z C 1UF, Z, 16V 2 C9516-25 ECJ1XB1C104K C 0.1UF, Z, 16V 10 C9526 F1J0J1060004 C 0.010UF, K, 16V 1 C9527-30 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C9531 F1J0J1060004 C 0.010UF, K, 16V 1 C9800 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9801 ECJ1VB1H472K C 4700PF, K, 50V 1 C9802 ECJ1XC1H470J C 47PF, J, 50V 1 C9803 ECJ1VB1H472K C 4700PF, K, 50V 1 C9804 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9805 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9806 ECGRL0G680ER C 68PF, J, 4V 1 C9807,08 ECJ3YB1E106M C 10 UF, K, 25V 2 C9809 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9815,16 ECGRL0G680ER C 68PF, J, 4V 2 C9817,18 ECJ3YB1E106M C 10 UF, K, 25V 2 C9822 F1J0J1060004 C 0.010UF, K, 16V 1 C9823,24 ECJ3YB1E106M C 10 UF, K, 25V 2 C9825 ECJ1XC1H101K C 100PF, K, 50V 1 C9826 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9827 F1J0J1060004 C 0.010UF, K, 16V 1 C9830-32 ECJ3XB1C106M C 1.0UF, K, 16V 3 C9833 ECJ3YB1E106M C 10 UF, K, 25V 1 C9837 ECJ3XB1C106M C 1.0UF, K, 16V 1 C9838 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9839 ECJ3YB1E106M C 10 UF, K, 25V 1 C9840 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9841,42 ECJ2VF1C105Z C 1UF, Z, 16V 2 C9843 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9844 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C9845,46 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9847,48 ECJ1VB1E104K C 0.10UF, K, 25V 2 C9880,81 ECJ1XB1H102K C 1000UF, Z, 50V 2 C9882 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9883 ECJ1VB1H822K C 8200PF, K, 50V 1 C9884 ECJ1VC1H100C C 10PF, C, 50V 1 C9885 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9886 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9887 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9891 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9896 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9897 ECJ1VB1H822K C 8200PF, K, 50V 1 C9898 ECJ1VC1H100C C 10PF, C, 50V 1 C9899 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9900-51 ECJ1XB1C104K C 0.1UF, Z, 16V 52 C9952-54 EEFCD0G560ER 56UF, 3 C9955-59 ECJ1XB1C104K C 0.1UF, Z, 16V 5 C9960-64 ECJ3XB0J106M C 10UF, M,6.3V 5 C9965 EEFCD0G560ER 56UF, 1 C9966 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9967 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9971 ECJ1XB1C104K C 0.1UF, Z, 16V 1 CB1-B8 K1MN68BA0002 68P 连接接头 8 参考号 部品号 部品名称 & 说明 件数 备注 130 D3 K1KY40B00003 40P 连接接头 1 D5 K1KB31BA0064 31P 连接接头 1 D6 K1KA21A00011 21P 连接接头 1 D20 K1KA20BA0296 20P 连接接头 1 D25 K1KA20B00155 20P 连接接头 1 D31,32 K1MN55BA0094 55P 连接接头 2 D1106,07 MA729 二极管 2 D1117 MA3036L 稳压二极管 1 D1119 MA704A 二极管 1 D1121 MA729 二极管 1 D2011-14 MA111 二极管 4 D2119 B0BC01100001 稳压二极管 1 D2300,01 MA111 二极管 2 D2303,04 MA111 二极管 2 D2308 MA152 二极管 1 D2309 MA111 二极管 1 D3003 MA8140M 稳压二极管 1 D3005,06 MA8140M 稳压二极管 2 D3017 MA8140M 稳压二极管 1 D3021-23 MA111 二极管 3 D3024 B0BC01100001 稳压二极管 1 D3038-43 MA8140M 稳压二极管 6 D3044 MA111 二极管 1 D3045-52 MA8140M 稳压二极管 8 D3100 MA8140M 稳压二极管 1 D3334-39 MA111 二极管 6 D3702 MA8140M 稳压二极管 1 D4019-38 EZJZ0V80008B 变阻器 20 D4041 EZJZ0V80008B 变阻器 1 D4044,45 EZJZ0V80008B 变阻器 2 D4047,48 MA3056M 稳压二极管 2 D4049-52 B0HCMM000014 二极管 4 D5606 B0BC01100001 稳压二极管 1 D5607 B0BC6R600005 稳压二极管 1 D5610 B0BC4R700007 稳压二极管 1 PA 板 D5610 MA3X78900L 稳压二极管 1 H 板 D5612 B0BC3R700006 稳压二极管 1 D5618 B0BC03900015 稳压二极管 1 D5634 MA111 二极管 1 D5635 MA3047H 稳压二极管 1 D5637,38 MA152 二极管 2 D5639 MA3047H 稳压二极管 1 D5640 MA3039H 稳压二极管 1 D5641 MA152 二极管 1 D5642 MA3120M 稳压二极管 1 D5643 MA152 二极管 1 D5644 MA3068M 稳压二极管 1 D5646,47 MA152 二极管 2 D5649 MA111 二极管 1 D5801 B0JCME000037 二极管 1 D5804 MA3120M 稳压二极管 1 D5805,06 MA152 二极管 2 D6001 B0HBSN000008 二极管 1 D6021 B0HBSN000008 二极管 1 D6032 MA111 二极管 1 D6041 B0ECHP000003 二极管 1 D6051 B0ECHP000003 二极管 1 D6061,62 B0HBSN000008 二极管 2 D6071,72 B0HBSN000008 二极管 2 D6081,82 B0HBSN000008 二极管 2 D6091 B0HBSN000008 二极管 1 D6092 B0ECHP000003 二极管 1 D6101-04 B0JCME000037 二极管 4 D6131,32 B0ECHP000003 二极管 2 D6151-54 B0ECHP000003 二极管 4 D6191-93 B0ECHP000003 二极管 3 D6211 B0JCME000037 二极管 1 D6221 B0ECHP000003 二极管 1 D6222,23 MA111 二极管 2 D6251,52 MA8330M 稳压二极管 2 D6253 LNJ301MPUJA LED 1 D6254 MA8051L 稳压二极管 1 D6255 MA111 二极管 1 D6401,02 B0HBSN000008 二极管 2 D6431,32 B0HBSP000019 二极管 2 D6441 B0ECHP000003 二极管 1 参考号 部品号 部品名称 & 说明 件数 备注 D6451 B0ECHP000003 二极管 1 D6461,62 B0HBSN000008 二极管 2 D6466 MA111 二极管 1 D6471 B0HBSN000008 二极管 1 D6472 B0ECHP000003 二极管 1 D6477 MA111 二极管 1 D6478 B0HCKS000002 二极管 1 D6480 MA111 二极管 1 D6481,82 B0HBSN000008 二极管 2 D6491 B0HBSP000019 二极管 1 D6497 MA111 二极管 1 D6501,02 B0ECHP000003 二极管 2 D6521-24 B0ECHP000003 二极管 4 D6581,82 MA8330M 稳压二极管 2 D6583 LNJ301MPUJA LED 1 D6584 MA8051L 稳压二极管 1 D6585 MA111 二极管 1 D6601 MA8240M 稳压二极管 1 D6602 B0ECHP000003 二极管 1 D6603 MA8240M 稳压二极管 1 D6604 MA111 二极管 1 D6605 MA8051L 稳压二极管 1 D6606 B0HCMM000014 二极管 1 D6607 MA111 二极管 1 D6610 MAZ81500ML 稳压二极管 1 D6611-14 MA111 二极管 4 D6619,20 B0HCKS000002 二极管 2 D6621 B0HDSM000005 二极管 1 D6623,24 B0HDSM000005 二极管 2 D6641,42 B0HCKS000002 二极管 2 D6643 MA111 二极管 1 D6644 B0HCKS000002 二极管 1 D6661 MA111 二极管 1 D6662-64 MA8330M 稳压二极管 3 D6665 MA8051L 稳压二极管 1 D6666,67 MA111 二极管 2 D6671 MA111 二极管 1 D6682 B0HCMM000014 二极管 1 D6683,84 MA111 二极管 2 D6686,87 MA111 二极管 2 D6701,02 MA8056H 稳压二极管 2 D6721 B0HCKS000002 二极管 1 D6723,24 B0JCME000037 二极管 2 D6725 B0ECHP000003 二极管 1 D6726-33 MA8056H 稳压二极管 8 D6734 MA111 二极管 1 D6752 B0JCME000037 二极管 1 D6758 B0ECHP000003 二极管 1 D6760,61 MA111 二极管 2 D6771 B0JCME000037 二极管 1 D6773 B0HCKS000002 二极管 1 D6791 MA8200M 稳压二极管 1 D6801,02 B0JCME000037 二极管 2 D6803 MA111 二极管 1 D6804 B0ECHP000003 二极管 1 D6805 MA111 二极管 1 D6806 B0ECHP000003 二极管 1 D6820-23 MA111 二极管 4 D6825 MA8330M 稳压二极管 1 D6826 MA111 二极管 1 D6841 B0ECHP000003 二极管 1 D6842,43 MA111 二极管 2 D6859 B0ECHP000003 二极管 1 D6860 B0HCKS000002 二极管 1 D6861 MA8051L 稳压二极管 1 D6862 MA111 二极管 1 D6871 MA8051L 稳压二极管 1 D6872 MA111 二极管 1 D6901,02 MA8056H 稳压二极管 2 D6903,04 B0ECHP000003 二极管 2 D6951,52 MA8056H 稳压二极管 2 D6953,54 B0ECHP000003 二极管 2 D7752 B3AEB0000065 二极管 1 D9017-19 MA3033 稳压二极管 3 D9020 MA728 二极管 1 D9100-03 B0JCGD000002 二极管 4 D9105,06 B0JCGD000002 二极管 2 参考号 部品号 部品名称 & 说明 件数 备注 131 D9110 B0JCGD000002 二极管 1 D9300,01 MA152K 二极管 2 D9800 B0JCME000037 二极管 1 D9801 B0JCDD000002 二极管 1 D9802 MA728 二极管 1 D9804 MA152K 二极管 1 D9807,08 MA152K 二极管 2 D9811 MA728 二极管 1 D9812 B0JCME000037 二极管 1 D9813 B0JCDD000002 二极管 1 D9814 B0JCME000037 二极管 1 D9815 B0JCDD000002 二极管 1 DG1 K1KY80A00011 80P 连接接头 1 DG2 K1KA15B00074 15P 连接接头 1 DG3 K1KY40B00003 40P 连接接头 1 DG5 K1KB21BA0063 21P 连接接头 1 DG8,G9 K1FY119D0001 连接接头 2 DG15 K1KY40B00003 40P 连接接头 1 DG20 K1MN40B00045 40P 连接接头 1 DG35 K1KA07BA0047 7P 连接接头 1 FL3301,02 J0HABB000003 LC 滤波器 2 FL3303-05 J0HABB000004 LC 滤波器 3 FL7101 J0HABH000013 LC 滤波器 1 FL7201 J0HABH000013 LC 滤波器 1 FL9300,01 F1J1E1040022 C 0.10UF, Z, 25V 2 FL9800,01 J0HABH000013 LC 滤波器 2 FL9803,04 J0HABH000012 LC 滤波器 2 FL9805-07 J0HABH000013 LC 滤波器 3 FL9900-02 F1J1E1040022 C 0.10UF, Z, 25V 3 FL9903,04 J0HABH000013 LC 滤波器 2 G1 K1KA12A00317 12P 连接接头 1 G3 K1KA03BA0047 3P 连接接头 1 G51 K1KA30AA0009 30P 连接接头 1 GK3 K1KA03BA0061 3P 连接接头 1 GS12 K1MN40A00025 40P 连接接头 1 GS52 K1KA20AA0009 20P 连接接头 1 H1 K1KY80A00011 80P 连接接头 1 H2 K1KA15A00148 15P 连接接头 1 H5,H6 K1KA15AA0288 15P 连接接头 2 H15 K1KA04AA0150 4P 连接接头 1 H40 K1KA20AA0009 20P 连接接头 1 H51 K1KA30AA0009 30P 连接接头 1 H52 K1KA20AA0009 20P 连接接头 1 HC01 K1KA21A00011 21P 连接接头 1 HC12 K1KA09AA0190 9P 连接接头 1 HC15 K1KY40B00003 40P 连接接头 1 HC21 K1KA08AA0193 8P 连接接头 1 HC22 K1KA11AA0194 11P 连接接头 1 IC1100 C3ABPG000145 IC 1 IC1101 TVRN991-1 IC 1 PPDS IC1102 TVRN760-1 IC 1 PPDS IC1103 MN103SB20RGL IC 1 IC1110 C0CBCAD00016 IC 1 IC1111 C0EBY0000041 IC 1 IC2103 AN77L08M IC 1 IC2104 C0ABBA000168 IC 1 IC2105 AN15862A-VT IC 1 IC2106 C1AB00002469 IC 1 IC2109 C1BB00000947 IC 1 IC2110 AN7705SP IC 1 IC2300,01 C0ABBA000168 IC 2 IC2302 C1AB00002451 IC 1 IC2303 C1AB00002452 IC 1 IC2304-07 C0ABBA000168 IC 4 IC3005 AN15867A-VT IC 1 IC3301 C0JBAZ002205 IC 1 IC4013 C0CBCBF00009 IC 1 IC4014 C0CBCAC00282 IC 1 IC4016 C0CBCAC00275 IC 1 参考号 部品号 部品名称 & 说明 件数 备注 IC4017 C0CBCAC00282 IC 1 IC4018 C0CBCAC00275 IC 1 IC4019 C1AB00002456 IC 1 IC4020 C1AB00002202 IC 1 IC4022 TVRN916 IC 1 IC4023 TVRN917 IC 1 IC4025 C0FBBK000038 IC 1 IC4026 C1AB00002535 IC 1 IC4027 C0DBFFD00003 IC 1 IC4028 C0ABBB000230 IC 1 IC4029 C0CBCAC00282 IC 1 IC4030 C0CBCBC00190 IC 1 IC4032 C0DBGYY00052 IC 1 IC4035 C0CBCAF00031 IC 1 IC4036 C0JBAP000020 IC 1 IC4037 MN84522-A IC 1 IC4038 C3ABQJ000048 IC 1 IC4040 C0CBCAC00282 IC 1 IC5601 N0BG2DE00001 IC 1 IC5602 EHMDD9851 LINEAR IC 1 IC5603 C0DBAJB00004 IC 1 IC5604 C0DBZGC00067 IC 1 IC5801 C0DBAZF00003 IC 1 IC6131 C0ZBZ0000895 IC 1 IC6151 C0ZBZ0001324 IC 1 IC6191 C0ZBZ0000895 IC 1 IC6211 C0ZBZ0001325 IC 1 IC6221 C0DBEMB00005 IC 1 IC6241 C0JBAZ000005 IC 1 IC6251 NJM2903M 集成电路 1 IC6471 C0DBEKA00003 IC 1 IC6472 C0JBAA000377 IC 1 IC6501 C0ZBZ0000895 IC 1 IC6521 C0ZBZ0001324 IC 1 IC6561,62 C0JBAZ000005 IC 2 IC6581 NJM2903M 集成电路 1 IC6601 C0ZBZ0001325 IC 1 IC6602 C0JBAB000715 IC 1 IC6610 NJM2903M 集成电路 1 IC6671 C0ZBZ0001325 IC 1 IC6681 C0ZBZ0001325 IC 1 IC6682 C0JBAA000377 IC 1 IC6721,22 C0JBAZ000994 IC 2 IC6724,25 C0CBADC00089 IC 2 IC6751 C0CBADC00089 IC 1 IC6752 C0ZBZ0001325 IC 1 IC6753 C0JBAB000715 IC 1 IC6771 C0CBADC00089 IC 1 IC6772 C0ZBZ0001325 IC 1 IC6773,74 C0JBAA000377 IC 2 IC6791 N0BF1FB00001 IC 1 IC6801,02 C0DBEMB00005 IC 2 IC6821 C0DBEMB00005 IC 1 IC6841 C0DBEMB00005 IC 1 IC6861 NJM2903M 集成电路 1 IC6871 NJM2903M 集成电路 1 IC6901-06 AN16072A-VT IC 6 IC6951-56 AN16072A-VT IC 6 IC7101-05 C0JBAZ001120 IC 5 IC7201-05 C0JBAZ001120 IC 5 IC7751 C0JBAZ000851 IC 1 IC9001 TVRN808-2 IC 1 IC9002 C0ZBZ0001330 IC 1 IC9003 TVRN805-1 IC 1 IC9007 TVRN813-1 IC 1 IC9011 C0EBF0000431 IC 1 IC9200 C1ZBZ0003185 IC 1 IC9303 TVRN819-1 IC 1 IC9500 C1ZBZ0002599 IC 1 IC9502 PST9128NR IC ( 逻辑 ) 1 IC9503,04 C0JBAZ001120 IC 2 IC9800 C0DBAYY00054 IC 1 IC9801 C0DBZFG00066 IC 1 IC9802,03 C0JBAZ001120 IC 2 IC9806 C0DBAHD00011 IC 1 IC9807 C0DBAYY00054 IC 1 IC9809 C0DBAYY00054 IC 1 参考号 部品号 部品名称 & 说明 件数 备注 132 IC9900 MN84521-A IC 1 IC9901 C3ABQJ000051 IC 1 JK2003 K2HA204A0038 插孔 1 JK3001 K1FB315A0005 插孔 1 JK3100 TJB0A639 端子 1 JK3701C K4AK22B00002 端子板 1 JK7701 K1NA09E00080 9P 连接接头 1 JS001 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS012 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS027 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS031 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS1100-02 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 JS1109 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 JS1117 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 JS2021,22 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS2026 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS2031-33 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS2108,09 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS2123,24 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS2300-03 ERJ6GEY0R00 M 0 OHM, 1/10W 4 JS2318,19 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS2331 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3010-15 ERJ6GEY0R00 M 0 OHM, 1/10W 6 JS3023 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3029 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3033-35 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS3202 J0JCC0000241 片状电感 1 JS3205 J0JCC0000241 片状电感 1 JS3206 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3215 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3220,21 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS3230 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3237-39 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS3244,45 J0JCC0000241 片状电感 2 JS3246 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3252 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3255 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3256 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3265,66 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS3302-04 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS3307-12 ERJ3GEY0R00 M 0 OHM, 1/16W 6 JS3352 J0JCC0000241 片状电感 1 JS3354-59 J0JCC0000241 片状电感 6 JS3362,63 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS3368 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS3402,03 ERJ3GEY0R00 M 0 OHM, 1/16W 2 JS3404,05 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS3704,05 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS3707,08 ERJ6GEY0R00 M 0 OHM, 1/10W 2 JS3711-14 ERJ6GEY0R00 M 0 OHM, 1/10W 4 JS3716 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS4013-17 ERJ2GE0R00 M 0.0 OHM, J,0.063W 5 JS4020-24 ERJ2GE0R00 M 0.0 OHM, J,0.063W 5 JS4025,26 ERJ2GEJ101 M 100 OHM, J,0.063W 2 JS4027,28 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 JS4029 ERJ2GEJ221 M 220 OHM, J,0.063W 1 JS4033-40 ERJ2GE0R00 M 0.0 OHM, J,0.063W 8 JS4046 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 JS4069 ERJ2GEJ221 M 220 OHM, J,0.063W 1 JS4103,04 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 JS4108 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 JS4111-13 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS4118 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 JS5604 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS7702 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS7711 ERJ3GEY0R00 M 0 OHM, 1/16W 1 JS7721-23 ERJ6GEY0R00 M 0 OHM, 1/10W 3 L001 J0JGC0000021 片状电感线圈 1 L007 J0JCC0000241 片状电感 1 L010,11 J0JCC0000241 片状电感 2 L013 J0JCC0000241 片状电感 1 L015 J0JGC0000021 片状电感线圈 1 L021 ERJ3GEY0R00 M 0 OHM, 1/16W 1 L024 TSK1032 扼流圈 1 参考号 部品号 部品名称 & 说明 件数 备注 L025,26 J0JCC0000241 片状电感 2 L028 J0JGC0000021 片状电感线圈 1 L031,32 J0JGC0000021 片状电感线圈 2 L1101-04 J0JHC0000078 片状电感 4 L1109 J0JHC0000078 片状电感 1 L2001,02 J0JCC0000364 片状电感 2 L2003,04 TSK1032 扼流圈 2 L2007,08 TSK1032 扼流圈 2 L2011,12 TSK1032 扼流圈 2 L2015,16 TSK1032 扼流圈 2 L2107 TSK1032 扼流圈 1 L2108 J0JCC0000241 片状电感 1 L2109,10 TSK1032 扼流圈 2 L2111,12 J0JCC0000241 片状电感 2 L2115 J0JCC0000241 片状电感 1 L2117 ELESE6R8KA 校正线圈 1 L2118 EXCELDR35C 扼流圈 1 L2123 J0JCC0000241 片状电感 1 L2178,79 J0JCC0000241 片状电感 2 L2182-87 J0JCC0000241 片状电感 6 L2204 ERJ3GEY0R00 M 0 OHM, 1/16W 1 L2205,06 J0JCC0000241 片状电感 2 L2300-07 G0C330MA0049 校正线圈 8 L2308 TALL08N3R9MA 电感线圈 1 L3000 G0C101K00023 校正线圈 1 L3001-03 TSK1032 扼流圈 3 L3009,10 TSK1032 扼流圈 2 L3013 TSK1032 扼流圈 1 L3026 TSK1032 扼流圈 1 L3212 TSK1032 扼流圈 1 L3216 J0JGC0000021 片状电感线圈 1 L3219 J0JGC0000021 片状电感线圈 1 L3700,01 J0JCC0000364 片状电感 2 L3707,08 TSK1032 扼流圈 2 L4021 J0JHC0000078 片状电感 1 L4023 J0JHC0000078 片状电感 1 L4027 J0JBC0000080 片状电感 1 L4028,29 J0JHC0000078 片状电感 2 L4031,32 J0JHC0000078 片状电感 2 L4033 TALC168T100K 片状电感线圈 1 L4034 J0JCC0000077 片状电感 1 L4037 J0JCC0000077 片状电感 1 L4038 J0JHC0000078 片状电感 1 L4040-46 J0JHC0000078 片状电感 7 L4048 J0JHC0000078 片状电感 1 L4049 J0JBC0000080 片状电感 1 L4050,51 J0JHC0000078 片状电感 2 L4052 J0JCC0000077 片状电感 1 L4053-55 J0JHC0000078 片状电感 3 L4056,57 J0JCC0000077 片状电感 2 L4060,61 J0JCC0000077 片状电感 2 L4065,66 J0JHC0000078 片状电感 2 L4068-70 J0JHC0000078 片状电感 3 L4071 J0JBC0000080 片状电感 1 L4073 J0JHC0000078 片状电感 1 L4075,76 J0JHC0000078 片状电感 2 L4077 J0JCC0000077 片状电感 1 L4078 J0JHC0000078 片状电感 1 L5602 TALL08N2R7MA 电感线圈 1 L5604 TALL08N2R7MA 电感线圈 1 L5605 G0A2R7ZA0021 扼流线圈 1 L5606,07 G0A220GA0002 扼流线圈 2 L5608 G1C100MA0072 电感线圈 1 L5609 G0A220GA0002 扼流线圈 1 L5610 G1C470MA0077 电感线圈 1 L5612 TALL08N2R7MA 电感线圈 1 L5615 TALL08N150KA 电感线圈 1 L5621,22 G1C330MA0234 电感线圈 2 L5623 G1C150MA0234 电感线圈 1 L5624 G1C330MA0234 电感线圈 1 L5651 G0A220GA0002 扼流线圈 1 L5801 G0C101K00023 校正线圈 1 L5802 TALL08N101KA 电感线圈 1 L6001-03 G0C1R9KA0147 校正线圈 3 L6011-13 G0C1R9KA0147 校正线圈 3 L6061-68 G0ZZ00002183 校正线圈 8 L6081-88 G0ZZ00002183 校正线圈 8 参考号 部品号 部品名称 & 说明 件数 备注 133 L6101,02 J0JJC0000011 片状电感 2 L6103 G0ZZ00002183 校正线圈 1 L6104,05 J0JJC0000011 片状电感 2 L6211,12 J0JJC0000011 片状电感 2 L6221 G0ZZ00002183 校正线圈 1 L6241 G0ZZ00002183 校正线圈 1 L6262 G0ZZ00002183 校正线圈 1 L6271,72 G0ZZ00002183 校正线圈 2 L6401-03 G0C1R9KA0147 校正线圈 3 L6411-13 G0C1R9KA0147 校正线圈 3 L6461-68 G0ZZ00002183 校正线圈 8 L6472,73 G0ZZ00002183 校正线圈 2 L6481-88 G0ZZ00002183 校正线圈 8 L6591,92 G0ZZ00002183 校正线圈 2 L6601,02 G0ZZ00002183 校正线圈 2 L6801,02 J0JJC0000011 片状电感 2 L6841 J0JJC0000011 片状电感 1 L9500 G1C150KA0038 电感线圈 1 L9501,02 J0JHC0000078 片状电感 2 L9800 G1C3R0MA0248 电感线圈 1 L9801,02 G1C2R2MA0241 电感线圈 2 L9810 J0JHC0000045 片状电感 1 NPM RD-SD0010P SD 模块 1 PA1 K1KA04AA0192 4P 连接接头 1 PA2 K1KA05AA0192 5P 连接接头 1 PA5 K1KA11AA0194 11P 连接接头 1 PA10 K1KA06A00452 6P 连接接头 1 PA20 K1MN40A00024 40P 连接接头 1 PA31-33 K1KA03AA0192 3P 连接接头 3 PA40 K1KA20AA0009 20P 连接接头 1 PA1101 K5H8012A0023 熔断器 1 PA2055 K5H1622A0023 熔断器 1 PA3100 K5H1622A0023 熔断器 1 PA3104 ERJ3GEY0R00 M 0 OHM, 1/16W 1 PA7751 K5H1622A0023 熔断器 1 PA9800 K5H4022A0023 熔断器 1 PC6480 B3PBA0000223 IC 1 PC6701-03 B3PBA0000233 IC 3 PC6704 B3PBA0000234 IC 1 PC6705 B3PBA0000233 IC 1 PC6760 B3PBA0000223 IC 1 PC6801 B3PBA0000223 IC 1 PC6861 B3PBA0000223 IC 1 PC6871 B3PBA0000223 IC 1 Q002 2SA207700L 三极管 1 Q1100-03 B1ABDF000034 三极管 4 Q1108 B1ABDF000034 三极管 1 Q1109,10 B1CBHD000002 FET 2 Q1111 B1ABDF000034 三极管 1 Q1113-16 B1ABDF000034 三极管 4 Q1130,31 B1ABDF000034 三极管 2 Q1134,35 B1ABDF000034 三极管 2 Q1137 B1ABDF000034 三极管 1 Q1139-43 B1ABDF000034 三极管 5 Q2001,02 2SC584500L 三极管 2 Q2011 2SA207700L 三极管 1 Q2012 2SC584500L 三极管 1 Q2013 2SA207700L 三极管 1 Q2102-05 2SA207700L 三极管 4 Q2106 2SC584500L 三极管 1 Q2108 2SC584500L 三极管 1 Q2113,14 2SC584500L 三极管 2 Q2300 2SA207700L 三极管 1 PA 板 Q2300 2SC584500L 三极管 1 H 板 Q2301 2SD601A 三极管 1 H 板 Q2301 2SD601A 三极管 1 PA 板 Q2302 2SC584500L 三极管 1 Q2305 2SD601A 三极管 1 Q2306-09 2SA207700L 三极管 4 Q2314-17 2SC584500L 三极管 4 Q3002 2SA207700L 三极管 1 Q3008 2SA207700L 三极管 1 Q3011 2SA207700L 三极管 1 参考号 部品号 部品名称 & 说明 件数 备注 Q3014,15 2SA207700L 三极管 2 Q3017 2SA207700L 三极管 1 Q3023 2SC584500L 三极管 1 Q3204-07 2SC584500L 三极管 4 Q3210 2SA207700L 三极管 1 Q3331-33 2SC2480 三极管 3 Q4043,44 2SA207700L 三极管 2 Q4046 2SA207700L 三极管 1 Q4050 B1ABDF000034 三极管 1 Q4051,52 2SD1030 三极管 2 Q4053 B1ABDF000034 三极管 1 Q4054 2SD1030 三极管 1 Q4055-59 2SA207700L 三极管 5 Q4061-69 B1ABDF000034 三极管 9 Q4070,71 B1MBACA00008 三极管 2 Q4082,83 2SK1228 FET 2 Q4084 B1ABDF000034 三极管 1 Q4918,19 B1ABDF000034 三极管 2 Q5601 B1DHDC000028 三极管 1 Q5602 2SD601A 三极管 1 Q5603 B1DHDC000028 三极管 1 Q5604,05 2SD601A 三极管 2 Q5610 2SD601A 三极管 1 Q5613 2SD601A 三极管 1 Q5614 2SK3065T100 FET 1 Q5641-43 2SA207700L 三极管 3 Q5644 2SD601A 三极管 1 Q6001-03 B1JADN000001 三极管 3 Q6021-23 B1JADN000001 三极管 3 Q6041,42 B1JADN000002 三极管 2 Q6051,52 B1JADN000002 三极管 2 Q6101-04 B1DFKM000002 三极管 4 Q6105 B1ABNF000006 三极管 1 Q6106 B1ADNF000006 三极管 1 Q6111 2SK326800L FET 1 Q6112 B1DFKM000002 三极管 1 Q6114 B1DFKM000002 三极管 1 Q6141 B1ABNF000006 三极管 1 Q6142 B1ADNF000006 三极管 1 Q6146 B1ABNF000006 三极管 1 Q6147 B1ADNF000006 三极管 1 Q6171 2SD2185 三极管 1 Q6172 B1ADRD000001 三极管 1 Q6181 2SD2185 三极管 1 Q6182 B1ADRD000001 三极管 1 Q6221 2SD1263A 三极管 1 Q6222 2SC3063 三极管 1 Q6251 2SD601A 三极管 1 Q6401-03 B1JADN000001 三极管 3 Q6421-23 B1JAEP000001 三极管 3 Q6441,42 B1JADN000002 三极管 2 Q6451,52 B1JADP000002 三极管 2 Q6471 B1CHGD000006 三极管 1 Q6511 B1ABNF000006 三极管 1 Q6512 B1ADNF000006 三极管 1 Q6516 B1ABNF000006 三极管 1 Q6517 B1ADNF000006 三极管 1 Q6531 2SD2185 三极管 1 Q6532 B1ADRD000001 三极管 1 Q6551 2SD2185 三极管 1 Q6552 B1ADRD000001 三极管 1 Q6581 2SD601A 三极管 1 Q6601 B1DFES000003 三极管 1 Q6602 2SD601A 三极管 1 Q6621,22 B1DFKM000001 三极管 2 Q6641,42 B1DFKM000001 三极管 2 Q6644,45 B1DFKM000001 三极管 2 Q6647,48 B1DFKM000001 三极管 2 Q6661 B1DEET000002 三极管 1 Q6662 2SD601A 三极管 1 Q6663 2SD2185 三极管 1 Q6671,72 B1DFET000001 三极管 2 Q6680 B1ADNF000006 三极管 1 Q6681,82 2SK389500L FET 2 Q6691 2SK620 FET 1 Q6742,43 2SD601A 三极管 2 Q6744 2SK620 FET 1 参考号 部品号 部品名称 & 说明 件数 备注 134 Q6762 B1ADNF000006 三极管 1 Q6781 B1ABNF000006 三极管 1 Q6782 B1ADNF000006 三极管 1 Q6791 2SD601A 三极管 1 Q6801 B1BAEJ000014 三极管 1 Q6802 2SB0709A 三极管 1 Q6803 2SD814A 三极管 1 Q6804 2SD601A 三极管 1 Q6821 2SD1263A 三极管 1 Q6822 2SC3063 三极管 1 Q6824 2SD601A 三极管 1 Q6841 2SD1263A 三极管 1 Q6842 2SC1473A 三极管 1 Q7751,52 2SD601A 三极管 2 Q7753 2SC584500L 三极管 1 Q7754 2SD601A 三极管 1 Q9010 2SD601A 三极管 1 Q9044 2SD601A 三极管 1 Q9046 2SD601A 三极管 1 Q9049 2SB709A 三极管 1 Q9050-54 2SD601A 三极管 5 Q9055-58 B1CBHD000002 FET 4 Q9300-02 2SD601A 三极管 3 Q9800,01 B1MBEDA00015 三极管 2 Q9803 B1MBEDA00015 三极管 1 Q9805,06 2SD601A 三极管 2 R001 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R005 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R008 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R009 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R011 ERJ6GEYJ271 M 270 OHM,J,1/10W 1 R012,13 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R014 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R016 ERJ6GEYJ271 M 270 OHM,J,1/10W 1 R017-20 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R021 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R022 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R023,24 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R027 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R028 ERJ3EKF1503 M 150KOHM, 1/16W 1 R029 ERJ3EKF2703 M 270KOHM, 1/16W 1 R1101 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1102,03 ERJ2GEJ102 M 1KOHM, J,0.063W 2 R1105,06 ERJ2GEJ102 M 1KOHM, J,0.063W 2 R1113 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R1116 ERJ2GEJ562 M 5.6KOHM,J,0.063W 1 R1117 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1118,19 EXB2HV680J 电阻阵列 2 R1121,22 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1123 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1124,25 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R1128 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1130 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1131,32 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1133,34 ERJ2GEJ102 M 1KOHM, J,0.063W 2 R1135 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1140,41 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R1146 ERJ2GEJ271 M 270 OHM, J,0.063W 1 R1147,48 D1HG5608A002 排阻 2 R1149 EXB2HV680J 电阻阵列 1 R1151 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1152 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1153 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1154,55 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R1156 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1157 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1158 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1159 ERJ2GEJ123X M 12KOHM ,J,0.063W 1 R1160 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1162 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1164 ERJ2GEJ123X M 12KOHM ,J,0.063W 1 R1165 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R1168,69 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R1174 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1175 ERJ2GEJ563 M 56KOHM ,J,0.063W 1 R1176 ERJ2GEJ123X M 12KOHM ,J,0.063W 1 参考号 部品号 部品名称 & 说明 件数 备注 R1177-79 ERJ2GEJ101 M 100 OHM, J,0.063W 3 R1181 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1182 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1183 EXB28V680JX 电阻阵列 1 R1184 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1187 EXB2HV680J 电阻阵列 1 R1188,89 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R1193,94 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1199 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1200 EXB2HV680J 电阻阵列 1 R1203 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1207 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1212,13 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R1214 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1215-17 ERJ2GEJ101 M 100 OHM, J,0.063W 3 R1218 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R1220 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R1221 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R1222 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R1223 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1224 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1225,26 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1228 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1229 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R1230 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1231 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1232,33 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R1234 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1235,36 ERJ2GEJ272 M 2.7KOHM, J,0.063W 2 R1238 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1239 ERJ3EKF1202 M 12KOHM, 1/16W 1 R1240 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1241 ERJ2GEJ822 M 8.2KOHM, J,0.063W 1 R1243 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1246 ERJ2GEJ912 M 9.1KOHM, J,0.063W 1 R1249 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1250 ERJ2GEJ224 M 220KOHM, J,0.063W 1 R1251,52 EXB2HV101J 电阻阵列 2 R1254 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1256 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1263,64 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1269 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1270,71 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1275 ERJ3EKF7151 M7.15KOHM, 1/16W 1 R1279,80 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1281 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1282 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R1283 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1284 ERJ2GEJ682 M 6.8KOHM, J,0.063W 1 R1290 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1299-02 ERJ2GE0R00 M 0.0 OHM, J,0.063W 4 R1307 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1308 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1309-12 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R1313,14 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R1315 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1316 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1318,19 ERJ2GEJ512X M5.12KOHM, J,0.063W 2 R1321 ERJ2GEJ153 M 15KOHM ,J,0.063W 1 R1322 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R1323,24 ERJ2GEJ823 M 82KOHM, J,0.063W 2 R1325,26 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R1327,28 ERJ2GEJ683 M 68KOHM, J,0.063W 2 R1329,30 ERJ2GEJ473 M 47KOHM,J,0.063W 2 R1331,32 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R1333 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1340 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1344 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1348 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1351 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1352 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1354 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1363 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1367 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1368 ERJ2GEJ183 M 18KOHM ,J,0.063W 1 R1369 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1372 ERJ2GEJ473 M 47KOHM,J,0.063W 1 参考号 部品号 部品名称 & 说明 件数 备注 135 R1375 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1376 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1377 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R1379 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R1382,83 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R1384 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1389 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1408 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1410 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1411 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1412,13 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R1414 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1426-32 ERJ8GEY0R00 M 0 OHM, 1/8W 7 R1436,37 ERJ2GEJ561 M 60 OHM, J,0.063W 2 R1439 ERJ2GEJ271 M 270 OHM, J,0.063W 1 R1441 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1446,47 ERJ2GEJ471 M 470 OHM, J,0.063W 2 R1449 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1451,52 ERJ2GEJ473 M 47KOHM,J,0.063W 2 R1454 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1458,59 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1461,62 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R1466 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1467 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R1470 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1472,73 ERJ2GEJ301 M 300 OHM, J,0.063W 2 R1474 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R1475 ERJ2GEJ271 M 270 OHM, J,0.063W 1 R1478 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R1479,80 ERJ2GEJ473 M 47KOHM,J,0.063W 2 R1491 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R1526 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R1530,31 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R1554,55 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R1556 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R2005 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2006-11 ERJ6GEYJ223 M 22KOHM,J,1/10W 6 R2012 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2013,14 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R2015,16 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2042 ERJ3GEYJ105 M 1MOHM,J,1/16W 1 R2043 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2044 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2045,46 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R2048 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2049,50 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R2051,52 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R2053 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2054 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2113,14 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2116 J0JCC0000241 片状电感 1 R2124,25 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R2126,27 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R2128,29 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R2130 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2131 ERJ3EKF8201 M 8.2KOHM, 1/16W 1 R2132 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R2133 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2137 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R2138 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2139,40 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2147 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2148,49 ERJ3EKF6342 M6.34KOHM, 1/16W 2 R2152 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2153 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2154 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2155-60 ERJ3GEYJ221 M 220 OHM,J,1/16W 6 R2162 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2164 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2165,66 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R2167 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2168,69 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R2170-73 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R2176,77 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2181 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2182,83 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R2184-87 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 参考号 部品号 部品名称 & 说明 件数 备注 R2188 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2192,93 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2195,96 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2197 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2202 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2203 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R2204 ERJ6GEYJ561 M 560 OHM,J,1/10W 1 R2208 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2209 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2210 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 R2211 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2213 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2214 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2215 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2219 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R2220 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R2224,25 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2227 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2230,31 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2232,33 ERJ3GEYJ153 M 15KOHM,J,1/16W 2 R2234-37 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R2238,39 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2300 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R2301 ERJ6GEYJ821 M 820 OHM,J,1/10W 1 R2302 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 H 板 R2302 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 PA 板 R2303 ERJ3GEYJ433 M 43KOHM,J,1/16W 1 PA 板 R2303 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 H 板 R2304 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2305 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 PA 板 R2305 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 H 板 R2306 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 PA 板 R2306 ERJ6GEYJ821 M 820 OHM,J,1/10W 1 H 板 R2307 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 H 板 R2307 ERJ3GEYJ433 M 43KOHM,J,1/16W 1 PA 板 R2308,09 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R2310 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 PA 板 R2310 ERJ3GEYJ184 M 180KOHM,J,1/16W 1 H 板 R2311 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 PA 板 R2311 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 H 板 R2312 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2313,14 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R2323,24 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2325 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2328 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2329 ERJ3EKF1003 M 100KOHM, 1/16W 1 R2332 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2338 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2341 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2342,43 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2346,47 ERJ3EKF1501 M 1.5KOHM, 1/16W 2 R2348 ERJ3EKF1003 M 100KOHM, 1/16W 1 R2349,50 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R2351 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2352 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2353,02 ERJ3EKF1002 M 10KOHM, 1/16W 2 R2354 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2355,56 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R2357,58 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R2359 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2360 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2361 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R2362 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R2363 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2364 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R2366 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2367 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R2368 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2372-74 ERJ6GEYJ681 M 680 OHM,J,1/10W 3 R2376 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2377,78 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2379,80 ERJ6ENF2201 M 2.2KOHM, 1/10W 2 R2383 ERJ3EKF3741 M3.74KOHM, 1/16W 1 R2384 ERJ3EKF7150 M 715 OHM, 1/16W 1 R2387 ERJ3EKF7150 M 715 OHM, 1/16W 1 R2388 ERJ3EKF3741 M3.74KOHM, 1/16W 1 PA 板 R2388,89 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 H 板 参考号 部品号 部品名称 & 说明 件数 备注 136 R2390 ERJ3GEYJ203 M 20KOHM,J,1/16W 1 R2391 ERJ3EKF2801 M 2.8KOHM, 1/16W 1 PA 板 R2391 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 H 板 R2392 ERJ3EKF1651 M1.65KOHM, 1/16W 1 PA 板 R2392 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 H 板 R2393 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R2395 ERJ3EKF2801 M 2.8KOHM, 1/16W 1 R2396 ERJ3EKF1651 M1.65KOHM, 1/16W 1 PA 板 R2396 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 H 板 R2397 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 H 板 R2397 ERJ6GEY0R00 M 0 OHM, 1/10W 1 PA 板 R2398 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 H 板 R2398 ERJ6GEY0R00 M 0 OHM, 1/10W 1 PA 板 R2399 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R2400 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R2401,02 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2403 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2404,05 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2406 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2407 ERJ3EKF1241 M1.24KOHM, 1/16W 1 R2408 ERJ3EKF1001 M 1KOHM, 1/16W 1 R2409 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 R2410 ERJ3EKF7870 M 787 OHM, 1/16W 1 R2411,12 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2413 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2414,15 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2416 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2417 ERJ3EKF1241 M1.24KOHM, 1/16W 1 R2418 ERJ3EKF1001 M 1KOHM, 1/16W 1 R2419 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 R2420 ERJ3EKF7870 M 787 OHM, 1/16W 1 R2421 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 R2422 ERJ3EKF7870 M 787 OHM, 1/16W 1 R2423 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 R2424 ERJ3EKF7870 M 787 OHM, 1/16W 1 R3001-10 ERJ6ENF75R0 M 75 OHM, 1/10W 10 R3011 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3012 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3020 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R3021,22 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3027 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3039 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3044,45 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3048 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R3049 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3050 ERJ3GEYJ242 M 2.4KOHM,J,1/16W 1 R3051 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R3057,58 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3059,60 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3061 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3062-64 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R3068 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3070 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3072-75 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R3076 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3080 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3085 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3087 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3089,90 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3092 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3094,95 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3096 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3097 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3099-01 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R3102 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R3111-14 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R3115 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3118 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3119,20 ERJ3EKF91R0 M 91 OHM, 1/16W 2 R3121 ERJ3EKF1300V M 130 OHM, 1/16W 1 R3122 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3123 ERJ3EKF1300V M 130 OHM, 1/16W 1 R3125 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3126 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3127 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3134 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3135 ERJ3EKF91R0 M 91 OHM, 1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R3138 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3139 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3140 ERJ3EKF1300V M 130 OHM, 1/16W 1 R3141 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R3160,61 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R3167 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3168 ERJ3GEYJ750 M 75 OHM,J,1/16W 1 R3170 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3171 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3173 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R3174-76 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R3206 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3213,14 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3215 J0JCC0000241 片状电感 1 R3219 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3222 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3224 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3227-29 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R3233,34 ERJ6ENF75R0 M 75 OHM, 1/10W 2 R3236 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3238 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3239-42 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R3250,51 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3253 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3254 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3255 ERJ6GEYJ561 M 560 OHM,J,1/10W 1 R3256 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3259 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3261-64 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R3266,67 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3278,79 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3281 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3283,84 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3286 J0JCC0000241 片状电感 1 R3302 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3305 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3306,07 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R3308,09 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R3310 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3312 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3313 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3317 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3318 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3320 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3323,24 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R3330 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3336 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3337 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R3338 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3339 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3340 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3341 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3342 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R3343 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3344 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3345 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R3346 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3347 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3348,49 ERJ3GEYJ680 M 68 OHM,J,1/16W 2 R3350-52 ERJ3GEYJ510 M 51 OHM,J,1/16W 3 R3353 ERJ3EKF2703 M 270KOHM, 1/16W 1 R3354 ERJ3EKF1503 M 150KOHM, 1/16W 1 R3408,09 ERJ3GEYJ361 M 360 OHM,J,1/16W 2 R3704 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3709-11 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R3714 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3716,17 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3721 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R3732 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3733 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3736-41 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R3746 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3748 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3750 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3751 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R3753 ERJ6ENF1741 M1.74KOHM, 1/10W 1 R3754 ERJ6ENF1621 M1.62KOHM, 1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 137 R3755 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3757 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3758 ERJ6ENF6651 M6.65KOHM, 1/10W 1 R3759-64 ERJ6GEY0R00 M 0 OHM, 1/10W 6 R3765 ERJ6ENF2321 M2.32KOHM, 1/10W 1 R3767 ERJ6ENF3161 M3.16KOHM, 1/10W 1 R3768 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R4001 ERJ3EKF1211 M1.21KOHM, 1/16W 1 R4004 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4008 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4010 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4018 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4021 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4022 ERJ2GEJ102 M 1KOHM, J,0.063W 1 R4023 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4024,25 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4026,27 ERJ2GEJ102 M 1KOHM, J,0.063W 2 R4029 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4031-33 ERJ2GEJ103 M 10KOHM, J,0.063W 3 R4037-39 D1HG1038A002 排阻 3 R4040,41 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4045,46 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4101 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4257 ERJ3EKF3302 M 33KOHM, 1/16W 1 R4265 ERJ3EKF3242 M32.4KOHM, 1/16W 1 R4269 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4271,72 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4286,87 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4293 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4338-43 ERJ2GE0R00 M 0.0 OHM, J,0.063W 6 R4434 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4436 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4438 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4442,43 ERJ3EKF4220 M 422 OHM, 1/10W 2 R4444,45 ERJ3EKF3301 M 3.3KOHM, 1/16W 2 R4447 ERJ3EKF7680 M 768 OHM, 1/16W 1 R4449 ERJ3EKF1211 M1.21KOHM, 1/16W 1 R4450,51 ERJ6GEYJ821 M 820 OHM,J,1/10W 2 R4454 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R4457 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4465 ERJ2GEJ224 M 220KOHM, J,0.063W 1 R4466,67 ERJ2GEJ330 M 33 OHM, J,0.063W 2 R4469,70 ERJ3EKF1500 M 150 OHM, 1/16W 2 R4474 ERJ3EKF1211 M1.21KOHM, 1/16W 1 R4476 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R4477,78 ERJ6GEYJ471 M 470 OHM,J,1/10W 2 R4479,80 ERJ3EKF4220 M 422 OHM, 1/10W 2 R4481 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R4482,83 ERJ3EKF1781 M1.78KOHM, 1/16W 2 R4484,85 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4486 ERJ3EKF4870 M 487 OHM, 1/16W 1 R4487 ERJ3EKF5600 M 560 OHM, 1/16W 1 R4488 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R4489 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R4490 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4491 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4492 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R4495 ERJ3EKF4302 M 43KOHM, 1/16W 1 R4496-99 ERJ6GEYJ102 M 1KOHM,J,1/10W 4 R4500 ERJ3EKF2702V M27.0KOHM, 1/16W 1 R4501,02 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R4503 ERJ3EKF1600 M 160 OHM, 1/16W 1 R4507,08 ERJ2GE0R00 M 0.0 OHM, J,0.063W 2 R4510 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4514-16 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 R4517 ERJ3EKF1371 M 13.7 OHM, 1/16W 1 R4519 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4520 ERJ3EKF1691 M1.69KOHM, 1/16W 1 R4521,22 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4523-25 ERJ3EKF33R0 M 33 OHM, 1/16W 3 R4526 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R4527 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4528-30 ERJ3EKF33R0 M 33 OHM, 1/16W 3 R4531 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 R4532 ERJ3EKF4700 M 470 OHM, 1/16W 1 R4533 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4534,35 ERJ2GEJ101 M 100 OHM, J,0.063W 2 参考号 部品号 部品名称 & 说明 件数 备注 R4536-38 ERJ3EKF1500 M 150 OHM, 1/16W 3 R4539 ERJ3EKF1001 M 1KOHM, 1/16W 1 R4541 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4543 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4544 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4545-47 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 R4548 ERJ2GEJ911X M 910 OHM, J,0.063W 1 R4549 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4550 EXB28V220J 电阻阵列 1 R4551 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4552 EXB28V220J 电阻阵列 1 R4553 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4554 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4555 EXB28V220J 电阻阵列 1 R4556,57 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4560,61 EXB28V220J 电阻阵列 2 R4562 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4563-65 ERJ2GEJ220 M 22 OHM, J,0.063W 3 R4566 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4567 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4568 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4569 D1HG5608A002 排阻 1 R4570,71 EXB28V560JX 电阻阵列 2 R4572 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4575 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4577-79 ERJ2GEJ222 M 2.2KOHM, J,0.063W 3 R4583,84 ERJ2GEJ390 M 39 OHM, J,0.063W 2 R4589-04 ERJ2GEJ2R7X M 2.7OHM, J,0.063W 16 R4605,06 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4607 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4609,10 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4612,13 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4617,18 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R4619 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R4620 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4621 ERJ2GEJ473 M 47KOHM,J,0.063W 1 R4622 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4624 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4626 ERJ2GEJ560 M 56 OHM, J,0.063W 1 R4628 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4629-32 ERJ2GEJ472 M 4.7KOHM, J,0.063W 4 R4633,34 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4636 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4637 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R4639 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4640 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4641 EXB28V330J 电阻阵列 1 R4642-45 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R4647 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4648 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R4655 ERJ2GEJ330 M 33 OHM, J,0.063W 1 R4657 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R4658 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4660 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4661 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4662 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4665 EXB2HV220JV 电阻阵列 1 R4667 EXB2HV220JV 电阻阵列 1 R4668 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4669 EXB2HV220JV 电阻阵列 1 R4672,73 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R4675 ERJ3EKF1802 M 18KOHM, 1/16W 1 R4677 ERJ3EKF1802 M 18KOHM, 1/16W 1 R4679,80 ERJ3EKF2202 M 22KOHM, 1/16W 2 R4681,82 ERJ3EKF3302 M 33KOHM, 1/16W 2 R4701 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4706 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4708,09 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4711 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4712 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4713,14 EXB2HV221JV 电阻阵列 2 R4715 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4718-20 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4727 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4729,30 ERJ3EKF1000 M 100 OHM, 1/16W 2 R4731 ERJ3EKF1001 M 1KOHM, 1/16W 1 R4732 ERJ3EKF4751 M 4.75KOHM, 1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 138 R4733 ERJ3EKF75R0 M 0.75HM, 1/16W 1 R4734 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R4735 ERJ3EKF2001 M 2KOHM, 1/16W 1 R4737 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4738,39 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R4743-47 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R4749,50 EXB2HV680J 电阻阵列 2 R4751-54 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R4756-60 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R4762 EXB2HV680J 电阻阵列 1 R4763-65 ERJ2GE0R00 M 0.0 OHM, J,0.063W 3 R4772 EXB2HV470JV 电阻阵列 1 R4773 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4774 EXB2HV470JV 电阻阵列 1 R4775 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4776 EXB2HV470JV 电阻阵列 1 R4777 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4778 EXB2HV470JV 电阻阵列 1 R4779 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4782 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4783 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4784 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4785 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4788 EXB2HV470JV 电阻阵列 1 R4791,92 ERJ2GEJ470 M 47 OHM, J,0.063W 2 R4793,94 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4796 EXB2HV470JV 电阻阵列 1 R4804 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4805,06 ERJ3EKF1001 M 1KOHM, 1/16W 2 R4807-11 ERJ2GE0R00 M 0.0 OHM, J,0.063W 5 R4814 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4816,17 ERJ2GEJ223 M 22KOHM, J,0.063W 2 R4819 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R4822 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4823-25 J0JAD0000025 片状电感 3 R4837 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4838 ERJ2GEJ112 M 1.1KOHM, J,0.063W 1 R4891 ERJ2GE0R00 M 0.0 OHM, J,0.063W 1 R4898 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4960 EXB2HV680J 电阻阵列 1 R4961-63 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4964 EXB2HV680J 电阻阵列 1 R4965,66 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4967 EXB2HV680J 电阻阵列 1 R4968-72 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R5601 ERJ3EKF1800 M 180 OHM, 1/16W 1 R5602 ECJ1VB1E104K C 0.10UF, K, 25V 1 R5603 ERJ3EKF1542 M15.4KOHM, 1/16W 1 R5605 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5606 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5607 ERJ3EKF4531 M4.53KOHM, 1/16W 1 R5609 ERJ3EKF2000 M 200 OHM, 1/16W 1 R5610 ECJ1VB1H472K C 4700PF, K, 50V 1 R5611 ERJ6ENF8202 M 82KOHM, 1/10W 1 R5612 ERJ6ENF1602 M 16KOHM, 1/10W 1 R5615 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5617 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5619 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R5620 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5621 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5625-27 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R5632 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R5633 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5634 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R5635 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5637,38 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R5639 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5640 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5641 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5642 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R5643 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5644 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5645 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R5646 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R5647 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5648 ERJ3GEYJ392 M 3.9KOHM,J,1/16W 1 R5649 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R5650 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5652 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5653,54 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R5659 ERJ3EKF4700 M 470 OHM, 1/16W 1 R5660 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5662 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5664 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5665 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R5667-69 ERJ3GEYJ473 M 47KOHM,J,1/16W 3 R5672 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5676 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5692 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R5693 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R5694 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R5695 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R5801 ERJ3EKF8450 M 845 OHM, 1/16W 1 R5802 ERJ3EKF1302 M 23KOHM, 1/16W 1 R5803 ERJ3EKF2001 M 2KOHM, 1/16W 1 R5804 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5805-07 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 3 R5809 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5822-24 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 R5836 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R6001-06 ERJ14YJ150U M 15 OHM, J,1/4W 6 R6020 ERG3FJS101D M 100 OHM, J, 3W 1 R6021 ERJ14YJ150U M 15 OHM, J,1/4W 1 R6022 ERG3FJS101D M 100 OHM, J, 3W 1 R6023-27 ERJ14YJ150U M 15 OHM, J,1/4W 5 R6031,32 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6033 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6034 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6041-44 ERJ14YJ100 M 10 OHM, J,1/4W 4 R6051-54 ERJ14YJ100 M 10 OHM, J,1/4W 4 R6061,62 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6101-08 ERJ6GEYJ101 M 100 OHM,J,1/10W 8 R6109 D0GD100JA036 M 10 OHM,J,0.25W 1 R6110 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6111,12 D0GD470JA036 M 47 OHM,J,0.25W 2 R6113 ERJ14YJ224 M 220KOHM, J,1/4W 1 R6114 D0GD470JA036 M 47 OHM,J,0.25W 1 R6116 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6131,32 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6133,34 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6135,36 D0GD100JA036 M 10 OHM,J,0.25W 2 R6141,42 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6146,47 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6151,52 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6153,54 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6155,56 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R6157-60 D0GF1R0JA047 M 1.0 OHM,J, 0.33W 4 R6171 D0GD100JA036 M 10 OHM,J,0.25W 1 R6172,73 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6181 D0GD100JA036 M 10 OHM,J,0.25W 1 R6182,83 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6191-94 ERJ6GEYJ101 M 100 OHM,J,1/10W 4 R6195 D0GD104JA036 M 100KOHM,J,0.25W 1 R6196 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6213 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6214 D0GD151JA036 M 150 OHM,J,0.25W 1 R6222 ERG1FJS103D M 10KOHM, J, 1W 1 R6223 ERG2FJS123D M 12KOHM, J, 2W 1 R6225 D0GD203JA036 M 20KOHM,J,0.25W 1 R6226,27 ERJ6GEYJ163 M 16KOHM,J,1/10W 2 R6228 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R6229 ERJ6GEYJ163 M 16KOHM,J,1/10W 1 R6231 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6232 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6241 EXB38V470J 电阻阵列 1 R6242 EXB38V472J 电阻阵列 1 R6243 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6244 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6245 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6246 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6251 D0GD103JA036 M 10KOHM,J,0.25W 1 R6252,53 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6254 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R6255 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 139 R6256 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R6257 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6258 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6261 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6401-06 ERJ14YJ150U M 15 OHM, J,1/4W 6 R6421-26 ERJ14YJ150U M 15 OHM, J,1/4W 6 R6441-44 ERJ14YJ100 M 10 OHM, J,1/4W 4 R6451-54 ERJ14YJ100 M 10 OHM, J,1/4W 4 R6465 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6466 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6467,68 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6471 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6472 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6473 ERJ6GEYJ561 M 560 OHM,J,1/10W 1 R6474 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6475,76 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R6477 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6478 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6479 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6501,02 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6503 D0GD100JA036 M 10 OHM,J,0.25W 1 R6504,05 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6506 D0GD100JA036 M 10 OHM,J,0.25W 1 R6507-09 D0GF1R0JA047 M 1.0 OHM,J, 0.33W 3 R6511,12 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6516,17 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6521,22 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6523,24 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6525,26 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R6531 D0GD100JA036 M 10 OHM,J,0.25W 1 R6532,33 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6551 D0GD100JA036 M 10 OHM,J,0.25W 1 R6552,53 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6561-64 EXB38V470J 电阻阵列 4 R6565-68 EXB38V472J 电阻阵列 4 R6581 D0GD103JA036 M 10KOHM,J,0.25W 1 R6582,83 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6584 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6585 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6586 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R6587 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6588 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6590 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6591 EXB38V472J 电阻阵列 1 R6592 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6603 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6604 D0GD151JA036 M 150 OHM,J,0.25W 1 R6605 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6606 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6607 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R6608,09 D0GF102JA047 M 1.0 KOHM,J,0.33W 2 R6610 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6611 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R6612 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6613 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R6614,15 D0GF243JA047 M 24 KOHM,J,0.33W 2 R6616 ERJ6ENF1502 M 15KOHM, 1/10W 1 R6617 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R6618 ERJ6ENF1202 M 12KOHM, 1/10W 1 R6619 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R6620 D0D28R2JA021 M 8.2 OHM,J,5W 1 R6621,22 ERJ6GEYJ221 M 220 OHM,J,1/10W 2 R6641,42 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6644,45 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6647,48 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6658 D0D1101JA009 M 100 OHM,J,1W 1 R6659,60 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6661 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6662 ERJ6ENF3001 M 3KOHM, 1/10W 1 R6663 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6664 D0GF222JA047 M 2.2 KOHM,J,0.33W 1 R6665 ERJ14YJ470 M 47 OHM,J, 1/2W 1 R6666 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6667,68 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R6671 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6672 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6673,74 D0GD5R6JA059 M 5.6 OHM,J,0.25W 2 参考号 部品号 部品名称 & 说明 件数 备注 R6682 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6683 D0GD151JA036 M 150 OHM,J,0.25W 1 R6684 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6685 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6686 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6687 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6688 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6689 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6690 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6691 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6696,97 D0D32R2JA020 M 2.2 OHM,J,5W 2 R6700-08 ERJ6GEYJ471 M 470 OHM,J,1/10W 9 R6710-18 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 9 R6721,22 EXB38V220J 电阻阵列 2 R6723 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6724 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6742 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6743 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6744 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6745 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6746,47 D0GD103JA036 M 10KOHM,J,0.25W 2 R6755 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6756-58 D0GD101JA059 M 100 OHM,J,0.25W 3 R6759 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6760 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 R6761 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6762 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6775,76 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6777 D0GD151JA036 M 150 OHM,J,0.25W 1 R6781 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6782 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6791 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6792 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6793 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6801,02 ERX1FJSR22D M0.22 OHM, J, 1W 2 R6806 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6807 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6808 ERG3FJS560D M 56 OHM, J, 3W 1 R6809 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6810,11 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R6812 ERJ6ENF2403 M 240KOHM, 1/10W 1 R6813 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6814 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R6815 ERG2FJS183D M 18KOHM, J, 2W 1 R6816 ERJ6ENF1582 M15.8KOHM, 1/10W 1 R6817 ERJ6ENF2701 M 2.7KOHM, 1/10W 1 R6821 ERG2FJS221D M 220 OHM, J, 2W 1 R6822 ERJ12YJ104U M 100KOHM, 1/2W 1 R6823 ERG1FJS104D M 100KOHM, J, 1W 1 R6824 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R6825,26 ERJ6ENF2703 M 270KOHM, 1/10W 2 R6827 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6828 ERJ6ENF5231 M5.23KOHM, 1/10W 1 R6829,30 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6831 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R6833-35 ERJ6ENF5602 M 56KOHM, 1/10W 3 R6836 ERJ6ENF6802 M 68KOHM, 1/10W 1 R6837 ERJ6ENF4702 M 47KOHM, 1/10W 1 R6839 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6841 ERJ12YJ153U M 15KOHM, 1/2W 1 R6842 ERJ14YJ433U M 43KOHM, 1/2W 1 R6843 ERJ6GEYJ623 M 62KOHM,J,1/10W 1 R6844 ERG2FJS101D M 100 OHM, J, 2W 1 R6845 ERJ6GEYJ623 M 62KOHM,J,1/10W 1 R6846,47 ERJ6GEYJ563 M 56KOHM,J,1/10W 2 R6848 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6849,50 ERJ6ENF6802 M 68KOHM, 1/10W 2 R6851 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6852 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6853 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6860 D0D28R2JA021 M 8.2 OHM,J,5W 1 R6861 ERJ6ENF3902 M 39KOHM, 1/10W 1 R6862,63 ERJ6ENF4702 M 47KOHM, 1/10W 2 R6864 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R6865,66 ERJ6ENF2201 M 2.2KOHM, 1/10W 2 R6867 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6868 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 140 R6869 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6871-73 ERJ6ENF3902 M 39KOHM, 1/10W 3 R6874 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R6875 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R6876 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6877 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6878 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6879 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6886-88 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6901 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6902-04 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R6905 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6909 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6913 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6917 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6924 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6931-34 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6935,36 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R6951 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6952-54 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R6955 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6959 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6963 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6967 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6971 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R6981-84 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6985,86 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R7112 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7113,14 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7115 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R7116 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R7118,19 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7120 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7122-25 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7126 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7127,28 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7132-37 EXB38V470J 电阻阵列 6 R7139,40 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7142-45 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7146 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7149 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7151-54 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7155 EXB38V102J 电阻阵列 1 R7156 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7158,59 EXB38V470J 电阻阵列 2 R7162-67 EXB38V102J 电阻阵列 6 R7169 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7171-74 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7175 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7177 EXB38V102J 电阻阵列 1 R7179,80 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7186,87 EXB38V470J 电阻阵列 2 R7201-07 EXB38V470J 电阻阵列 7 R7208-10 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R7212-15 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7216 EXB38V470J 电阻阵列 1 R7217 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7219 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7221 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7223-26 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7227 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7229 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7231 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7232-35 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7236 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7237-42 EXB38V102J 电阻阵列 6 R7245 EXB38V102J 电阻阵列 1 R7246-49 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R7250,51 EXB38V470J 电阻阵列 2 R7256,57 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7258 EXB38V102J 电阻阵列 1 R7260 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7262-65 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7266 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7269 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7270 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R7271 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 R7701 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7702 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7703-05 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R7706 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7707 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R7708 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7709 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7710 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R7713 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R7714 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R7716 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7721-29 ERJ3GEY0R00 M 0 OHM, 1/16W 9 R7751-55 ERJ3GEYJ103 M 10KOHM,J,1/16W 5 R7757 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7759 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7760-62 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R7764-71 ERJ3GEY0R00 M 0 OHM, 1/16W 8 R7773-76 ERJ3GEYJ470 M 47 OHM,J,1/16W 4 R7777 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R7779 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R7780 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R7781 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R7783 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7798-03 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R9060-67 ERJ3GEYJ101 M 100 OHM,J,1/16W 8 R9070 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9074 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9076 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9096 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9098 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9099 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9100,01 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9102 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9105 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9106 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9107 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9108,09 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9110 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9111 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9113 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9120 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9121 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9127 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9129 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9131-33 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R9134 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R9140 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9141-45 ERJ3GEYJ101 M 100 OHM,J,1/16W 5 R9148 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9149 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9150,51 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9152,53 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9154,55 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9156-59 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R9160,61 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9164-66 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9167,68 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9169 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9170-72 ERJ3GEYJ393 M 39KOHM,J,1/16W 3 R9173-75 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9177 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9178 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9179 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9180 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9181-84 ERJ3GEYJ102 M 1KOHM,J,1/16W 4 R9185,86 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9187,88 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9189,90 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9192 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9193 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9194 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9196 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9199 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9203 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9205 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9206,07 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R9215 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 参考号 部品号 部品名称 & 说明 件数 备注 141 R9217-22 ERJ3GEYJ103 M 10KOHM,J,1/16W 6 R9223 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9225 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9230 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9232 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9236 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9237 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9240 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9317 ERJ3GEYJ391 M 390 OHM,J,1/16W 1 R9348 D1HG8208A002 排阻 1 R9349 EXB38V820J 电阻阵列 1 R9350,51 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9352 EXB38V820J 电阻阵列 1 R9353,54 D1HG8208A002 排阻 2 R9355,56 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9357-59 D1HG8208A002 排阻 3 R9360 EXB38V820J 电阻阵列 1 R9361,62 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9363 EXB2HV470JV 电阻阵列 1 R9366 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9367 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9368 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9369 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9370 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9371 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9379 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9380 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9382 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9390 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9391 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9394 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9395 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9501 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9503 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9506 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9507 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9511-13 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9514 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9516 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9518 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R9523 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9525 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9526 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9527,28 EXB2HV272JV 电阻阵列 2 R9529,30 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9531-33 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9534 EXB38V470J 电阻阵列 1 R9535,36 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9537 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9539 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9543,44 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9545 ERJ3GEYJ304V M 300KOHM,J,1/16W 1 R9548-50 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9552 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9555 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9800 ERJ3EKF1302 M 23KOHM, 1/16W 1 R9801 ERJ3EKF2402 M 24KOHM, 1/16W 1 R9802 ERJ3EKF6202 M 62KOHM, 1/16W 1 R9803 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9804 ERJ3EKF2402 M 24KOHM, 1/16W 1 R9805 ERJ3EKF3002 M 30KOHM, 1/16W 1 R9806 ERJ3EKF3902 M 39KOHM, 1/16W 1 R9807 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9808 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9810 ERJ3EKF3001 M 3KOHM, 1/16W 1 R9813 ERJ3EKF2401 M 2.4KOHM, 1/16W 1 R9814 ERJ3EKF6802 M 68KOHM, 1/16W 1 R9815 ERJ3EKF2202 M 22KOHM, 1/16W 1 R9816 ERJ3EKF8202 M 82KOHM, 1/16W 1 R9821 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9823-27 ERJ3GEYJ101 M 100 OHM,J,1/16W 5 R9828 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9830,31 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9838,39 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9840 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9841 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9842-44 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 参考号 部品号 部品名称 & 说明 件数 备注 R9845 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9846,47 EXB2HV272JV 电阻阵列 2 R9848,49 EXB2HV470JV 电阻阵列 2 R9850 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9854 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9859 EXB38V101J 电阻阵列 1 R9861-63 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9868 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9869-71 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9872 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9878 ERJ3EKF3902 M 39KOHM, 1/16W 1 R9879 ERJ3EKF2002 M 20KOHM, 1/16W 1 R9880 ERJ3EKF3602 M 36KOHM, 1/16W 1 R9883 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9884 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9891 ERJ3EKF4702 M 47KOHM, 1/16W 1 R9892 ERJ3EKF1502 M 15KOHM, 1/16W 1 R9893 ERJ3EKF3602 M 36KOHM, 1/16W 1 R9896 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9897 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9903 EXB2HV470JV 电阻阵列 1 R9904 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9905 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9906 EXB38V470J 电阻阵列 1 R9907 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9917,18 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9919,20 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9922 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9929 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9936-39 ERJ3EKF1001 M 1KOHM, 1/16W 4 R9940 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9941,42 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9943-51 EXB38V470J 电阻阵列 9 R9952-55 ERJ3GEYJ470 M 47 OHM,J,1/16W 4 R9956 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 RTL TNPA3756CK 电路板 DG 1 PPDS RTL TNPA3760 电路板 H 1 RTL TNPA3768AB 电路板 TA 1 RTL TNPA3852 电路板 HC 1 RTL TNPA3761AF 电路板 PA 1 PPDS RTL TNPA3812 电路板 C1 1 PPDS RTL TNPA3813 电路板 C2 1 PPDS RTL TNPA3810AG 电路板 D 1 RTL TNPA3911 电路板 P 1 PPDS RTL TNPA3814 电路板 SC 1 PPDS RTL TNPA3819 电路板 SD 1 PPDS RTL TNPA3815 电路板 SS 1 PPDS RTL TNPA3818 电路板 SU 1 PPDS RTL TNPA3764AF 电路板 G 1 PPDS RTL TNPA3848AD 电路板 GK 1 PPDS RTL RD-SD0010 SD 模块 1 PPDS RTL TNPA3762AE 电路板 K 1 PPDS RTL TNPA3763AC 电路板 S 1 PPDS RTL TNPA3765AC 电路板 GS 1 PPDS S1 K1KA03BA0061 3P 连接接头 1 SC2 K1KA02A00626 2P 连接接头 1 SC20 K1KA20AA0008 20P 连接接头 1 SC23 K1KA03AA0193 3P 连接接头 1 SC30 K1KA08AA0192 8P 连接接头 1 SC41,42 K1ML80B00001 80P 连接接头 2 SC45,46 K1KA09A00239 9P 连接接头 2 SCMM1 TMME260 线夹 1 SCMM3 TMME260 线夹 1 SD1-D4 K1MN96B00005 96P 连接接头 4 SD46 K1KB09A00045 9P 连接接头 1 SS11 K1KA02A00626 2P 连接接头 1 SS12 K1KA10AA0194 10P 连接接头 1 SS23 K1KA12AA0194 12P 连接接头 1 SS34 K1KA03AA0193 3P 连接接头 1 SS41-44 K1MN13B00020 13P 连接接头 4 参考号 部品号 部品名称 & 说明 件数 备注 142 SU1-U4 K1MN96B00005 96P 连接接头 4 SU45 K1KB09A00045 9P 连接接头 1 SW2500 K0F162B00002 开关 1 SW3753-57 EVQ11G05R 开关 5 T6602 ETS25AZ139AD 开关变压器 1 TA5,A6 K1KB15B00013 15P 连接接头 2 TU001 ENGF9301GF 调谐器 1 TU002 ENG39A01GF 调谐器 1 VR6000 EVMEASA00B14 控制 10KOHMB 0.3W 1 VR6600 EVMEASA00B13 控制 1KOHMB 0.3W 1 VR6602 EVMEASA00B53 控制 5KOHMB 0.3W 1 X1100 H0J100500030 晶体 1 X1101 H0J327200114 晶体 1 X2101 H0J184500027 晶体 1 X4004 H0J270500087 晶体 1 X9000 H2D200500011 晶体 1 X9200 H0J200500038 晶体 1 ZA2101-08 TESA169 屏蔽线线夹 8 ZA2300,01 K4CZ01000027 与 ALCO K9 兼容 2 ZA3401-03 K4CZ01000027 与 ALCO K9 兼容 3 ZA3405 K4CZ01000027 与 ALCO K9 兼容 1 ZA3701 K4CD01000013 端子 1 ZA4001,02 K4CD08000002 端子 2 ZA6001,02 K4CD01000011 端子 2 ZA6005 K4CD01000011 端子 1 ZA6401-03 K4CD01000011 端子 3 ZA7101-04 K4CD01000013 端子 4 ZA7201-04 K4CD01000013 端子 4 ZA9001 K4CD01000011 端子 1 C402 F1J1C1050011 C 1UF, Z, 50V 1 C404 F0CAF105A021 C 1UF, 250V 1 C407 EEUEB2W220B E 22UF, 450V 1 C408 ECJ2XB1H102K C 1000PF, K, 50V 1 C409 F0CAF225A021 C 22UF, 250V 1 C410 ECJ2XB1H103K C 0.01UF, K, 50V 1 C413 ECJ2XB1H104K C 0.1UF, K, 50V 1 C414 ECQU2A473ML P 0.047UF, M,250V 1 C421 F1J1C1050011 C 1UF, Z, 50V 1 C422 ECJ2XB1H103K C 0.01UF, K, 50V 1 C423 ECJ2XB1H472K C 4700PF, K, 50V 1 C425 ECJ2XB1H103K C 0.01UF, K, 50V 1 C426 ECJ2XC1H471J C 470PF, J, 50V 1 C427 F1J1C1050011 C 1UF, Z, 50V 1 C428 ECJ2XC1H221J C 220PF, J, 50V 1 C429 F1E2J4730001 C 0.047PF, , 600V 1 C431 ECJ2XB1H102K C 1000PF, K, 50V 1 C432 F1J1C1050011 C 1UF, Z, 50V 1 C433 ECJ3XB1E104K C 0.1UF, K, 25V 1 C434 F1J1C1050011 C 1UF, Z, 50V 1 C436 F1J1C1050011 C 1UF, Z, 50V 1 C440 ECA1HM100 E 10UF, 50V 1 C443,44 F1A3A102A040 C 1000PF, J, 1KV 2 C445 F1J1C1050011 C 1UF, Z, 50V 1 C446,47 F2B2W2010001 C 200UF, 450V 2 C450 ECJ2XB1H103K C 0.01UF, K, 50V 1 C451 F1A3A101A040 C 100PF, J, 1KV 1 C457 ECWH12333RHV P 0.013UF,J,1.2KV 1 C460,61 F1A3A331A039 E 330UF, 1KV 2 C462 ECJ3YB1E105K C 1UF, K, 25V 1 C463 ECJ2XC1H220J C 22UF, J, 50V 1 C467 ECKCNA221KB7 C 220PF, M, 1 C468 ECJ2XB1H103K C 0.01UF, K, 50V 1 C469 ECKCNA221KB7 C 220PF, M, 1 C470 F0CAF105A021 C 1UF, 250V 1 C473,74 ECKCNA101KB7 C 100PF 2 C476 ECKCNA101KB7 C 100PF 1 C478 ECKCNA101KB7 C 100PF 1 参考号 部品号 部品名称 & 说明 件数 备注 C493 ECA1HM470 E 47UF, 50V 1 C494 F2A2E1R00008 E 1.0UF, 250V 1 C497 ECA1HM470 E 47UF, 50V 1 C501,02 ECJ2XB1H103K C 0.01UF, K, 50V 2 C503 ECJ2XC1H471J C 470PF, J, 50V 1 C504 F1J1C1050011 C 1UF, Z, 50V 1 C505 ECJ2XB1H102K C 1000PF, K, 50V 1 C506,07 ECJ2XB1H103K C 0.01UF, K, 50V 2 C508 ECJ2XC1H471J C 470PF, J, 50V 1 C509 ECA1EHG101 E 100UF, 25V 1 C510 ECJ2XB1H104K C 0.1UF, K, 50V 1 C511 ECJ2XB1H102K C 1000PF, K, 50V 1 C512-14 ECJ2XC1H471J C 470PF, J, 50V 3 C515 F2A1A1220011 E 1200UF, 10V 1 C516 ECJ2XB1C474K C 0.47UF, Z, 16V 1 C517 F2A1E221A096 E 220UF, 25V 1 C518 ECJ2XB1H104K C 0.1UF, K, 50V 1 C519 F1J1C1050011 C 1UF, Z, 50V 1 C520 ECWH8683RHV P 0.068PF, J, 8KV 1 C523 ECJ3YB1E105K C 1UF, K, 25V 1 C526 ECJ2XB1H223K C 0.022UF, K, 50V 1 C527 ECJ3YB1E475K C 4.7UF, K, 25V 1 C528,29 F1J1C1050011 C 1UF, Z, 50V 2 C530 ECJ2VB1H333K C 0.033UF, K, 50V 1 C531 ECJ3YB1E105K C 1UF, K, 25V 1 C533 ECJ2XB1H103K C 0.01UF, K, 50V 1 C534 ECJ2XC1H471J C 470PF, J, 50V 1 C546,47 ECJ2XB1H102K C 1000PF, K, 50V 2 C550 ECJ2XC1H331J C 330PF, J, 50V 1 C551,52 ECJ2XB1H104K C 0.1UF, K, 50V 2 C554 F1J1C1050011 C 1UF, Z, 50V 1 C555 F2A2C471A119 E 470UF, 160V 1 C556,57 EEUFC1E152 E 1500UF, 25V 2 C558 F2A1E471A096 E 470UF, 25V 1 C559 F2A1A1220011 E 1200UF, 10V 1 C562 ECJ2XB1H223K C 0.022UF, K, 50V 1 C571 ECJ2XC1H330J C 33PF, J, 50V 1 C574 ECJ2XB1H104K C 0.1UF, K, 50V 1 C577 F2A2A330A022 E 33UF, 100V 1 C581 ECJ2XB1H223K C 0.022UF, K, 50V 1 C583 ECJ2XB1H102K C 1000PF, K, 50V 1 C584,85 ECJ2XB1H223K C 0.022UF, K, 50V 2 C587 ECJ2XB1H332K C 3300PF, K, 50V 1 C601 ECJ2XB1H103K C 0.01UF, K, 50V 1 C603 ECJ2FB1E105K C 1UF, K, 25V 1 C604,05 F2A2D1510008 E 150UF, 200V 2 C607 F1J1C1050011 C 1UF, Z, 50V 1 C608 ECJ2XB1H103K C 0.01UF, K, 50V 1 C610 F1J1C1050011 C 1UF, Z, 50V 1 C611 F2B2T1420003 E 142UF, 220V 1 C612,13 ECJ2XB1H103K C 0.01UF, K, 50V 2 C615 F2B2T1420003 E 142UF, 220V 1 C616 F1A3A102A040 C 1000PF, J, 1KV 1 C619 ECJ2XB1H104K C 0.1UF, K, 50V 1 C620 ECJ2XB1H103K C 0.01UF, K, 50V 1 C623 ECA1HM100 E 10UF, 50V 1 C624 ECJ2XB1H103K C 0.01UF, K, 50V 1 C625 ECA1HM100 E 10UF, 50V 1 C626 ECJ2XB1H103K C 0.01UF, K, 50V 1 C627 ECJ2XB1H102K C 1000PF, K, 50V 1 C629-31 ECJ2XB1H103K C 0.01UF, K, 50V 3 C632 ECJ2XC1H331J C 330PF, J, 50V 1 C634 ECJ2XB1H102K C 1000PF, K, 50V 1 C635 ECJ2XB1H103K C 0.01UF, K, 50V 1 C638,39 ECJ2XB1H103K C 0.01UF, K, 50V 2 C640 ECJ2XB1H104K C 0.1UF, K, 50V 1 C641 ECJ2XB1H102K C 1000PF, K, 50V 1 C643 ECA1HM470 E 47UF, 50V 1 C650 ECJ2XB1H104K C 0.1UF, K, 50V 1 C653 ECJ2XB1H102K C 1000PF, K, 50V 1 C654 ECJ3YB1E105K C 1UF, K, 25V 1 C655,56 ECJ3YB1E225K C 2.2UF, K, 25V 2 C657 ECJ2XB1H102K C 1000PF, K, 50V 1 C658 ECJ3YB1E105K C 1UF, K, 25V 1 C659 ECJ2XB1H103K C 0.01UF, K, 50V 1 C660 ECJ2FB1C225K C 22UF, K, 16V 1 C661,62 ECJ2XB1H103K C 0.01UF, K, 50V 2 参考号 部品号 部品名称 & 说明 件数 备注 143 D401 B0FBCT000004 二极管 1 D404 B0EBKT000007 二极管 1 D407 MA111 二极管 1 D411 B0BB17000009 二极管 1 D412 B0HAMM000122 二极管 1 D415 B0JAME000099 二极管 1 D416 B0HAMP000067 二极管 1 D417 B0HAPR000013 二极管 1 D418 B0BC8R100013 二极管 1 D419,20 B0HAPR000013 二极管 2 D423 MA188 二极管 1 D425 MA188 二极管 1 D429 ERA15-10 二极管 1 D430 MA111 二极管 1 D431,32 B0JCDD000002 二极管 2 D433 B0BC01400033 二极管 1 D435 ERA15-10 二极管 1 D436-38 MA4200M 稳压二极管 3 D441 B0HAMM000122 二极管 1 D444 B0HAMM000122 二极管 1 D445 MA4360H 稳压二极管 1 D501 B0HAPR000012 二极管 1 D503,04 MA165 二极管 2 D505 B0JAME000099 二极管 1 D506 MAZ80470LL 稳压二极管 1 D507,08 B0BC7R400023 二极管 2 D509 B0JANG000018 二极管 1 D511 B0JAML000011 二极管 1 D512,13 MA111 二极管 2 D514 B0BC6R100025 二极管 1 D515 B0BC3R200008 二极管 1 D516-18 MA4330M 稳压二极管 3 D520 MA111 二极管 1 D521 B0JAME000099 二极管 1 D528,29 MA153 二极管 2 D530 B0BC9R900013 二极管 1 D531 B0HBSN000013 二极管 1 D535 MA188 二极管 1 D536 B0JBSG000026 二极管 1 D538 B0BC5R100039 二极管 1 D539,40 B0AARR000010 二极管 2 D542 MA4200M 稳压二极管 1 D543 B0BC01400033 二极管 1 D544,45 MA4200M 稳压二极管 2 D549 B0BC02500008 二极管 1 D551 B0BC01300033 二极管 1 D555 B0BC7R400023 二极管 1 D559 B0BC7R400023 二极管 1 D563 B0BC6R100025 二极管 1 D569-72 B0BC02500008 二极管 4 D574 MA165 二极管 1 D575 MA188 二极管 1 D579 MA165 二极管 1 D582 MAZ705600F 稳压二极管 1 D585 B0BC7R400023 二极管 1 D586 B0HAMP000067 二极管 1 D587 MA188 二极管 1 D588 B0BC3R200008 二极管 1 D590 B0BC3R200008 二极管 1 D596 ERA15-10 二极管 1 D598 B0BC5R100039 二极管 1 D599 B0JCND000009 二极管 1 D600 B0BC7R400023 二极管 1 D601 B0BC5R100039 二极管 1 D602 B0BC8R100013 二极管 1 F410 K5G102B00020 熔断器 1 IC401 CNC1S171R IC 1 IC402 C0DAEMB00004 IC 1 IC403-05 CNC1S171R IC 3 IC406 C0DAZZZ00021 IC 1 IC408 CNC1S171R IC 1 IC409 MIP2G40MPSCF IC 1 IC410 CNC1S171R IC 1 IC411 C0DAEMB00004 IC 1 参考号 部品号 部品名称 & 说明 件数 备注 IC412 CNC1S171R IC 1 IC501 C2ABDB000110 IC 1 IC502 C0EBH0000210 IC 1 IC504 C0DAEMB00004 IC 1 IC505 CNC1S171R IC 1 IC506 C0ZBZ0000878 IC 1 IC507 CNC1S171R IC 1 IC509 C0DABZZ00010 IC 1 IC510 C0DBAZG00034 IC 1 IC512 C0DAEMB00004 IC 1 IC520 LSSK0062 IC 1 L403 EXCELSA35 扼流圈 1 L404,05 G0B123K00004 扼流圈 2 L410 ELF17N004A 线性滤波器 1 L510 EXCELDR25C 扼流圈 1 L511 G0A470ZA0033 扼流圈 1 L512 ELESE4R7JA 校正线圈 1 L513 EXCELDR25C 扼流圈 1 L514 G0A100GA0013 扼流圈 1 P2 K1KA02A00626 2P 连接接头 1 P5 K1KA11AA0194 11P 连接接头 1 P9 K1KA03A00537 3P 连接接头 1 P10 K1KA06A00452 6P 连接接头 1 P11 K1KA02A00626 2P 连接接头 1 P12 K1KA10AA0194 10P 连接接头 1 P23 K1KA03AA0193 3P 连接接头 1 P25 K1KA20AA0178 20P 连接接头 1 PMM1 TMM7464-2 线夹 1 PMM2,M3 TMME088 线夹 2 PMM4-M6 TMM7464-2 线夹 3 PMM7 TMME047 线夹 1 PR401 K5Y502BA0001 熔断器 1 PR505 K5H5022A0023 熔断器 1 PR509 ERBSE0R50U 熔断器 1 PR601 K5G312B00012 熔断器 1 Q401 B1CHND000004 三极管 1 Q402 B1DFDD000019 三极管 1 Q404 B1BCCF000022 三极管 1 Q406 B1DEKQ000003 三极管 1 Q407 B1HFCFA00021 三极管 1 Q408,09 B1DHCD000034 三极管 2 Q412,13 B1DEGQ000070 三极管 2 Q418 2SD1819A 三极管 1 Q420-22 2SD1819A 三极管 3 Q434 B1CEJQ000003 三极管 1 Q501,02 2SD1820A 三极管 2 Q505 B1CEJQ000002 三极管 1 Q507 B1DAGQ000013 三极管 1 Q508 B1HBCFA00033 三极管 1 Q509 B1HDCEA00001 三极管 1 Q510 B1DHBD000005 三极管 1 Q512 B1CBGD000001 FET 1 Q517 B1HBCFA00033 三极管 1 Q520 B1HBCFA00033 三极管 1 Q521 B1CBGD000001 FET 1 Q524 B1CFGF000008 三极管 1 Q525 B1CBGD000001 FET 1 Q527 B1CERL000005 三极管 1 Q530 2SD1819A 三极管 1 Q535 2SD1819A 三极管 1 Q537 B1DFDD000019 三极管 1 Q538 B1CBGD000001 FET 1 Q540 B1DHCD000034 三极管 1 Q541 B1CBGD000001 FET 1 Q551 B1CBGD000001 FET 1 Q553 2SD1819A 三极管 1 Q554 B1DHCD000034 三极管 1 Q555,56 B1DFGD000045 三极管 2 Q557-59 2SD1819A 三极管 3 Q561 2SD1819A 三极管 1 Q563 B1CFGF000008 三极管 1 参考号 部品号 部品名称 & 说明 件数 备注 144 Q564,65 2SB1218ARL 三极管 2 Q566 2SD1819A 三极管 1 Q568 B1CHGD000006 三极管 1 Q569 B1CBGD000001 FET 1 R401 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R402 ERJ6GEYJ821 M 820 OHM,J,1/10W 1 R403 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R404 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R406 ERX12SJ2R2V M 2.2 OHM, J,1/2W 1 R407 ERJ8ENF4303 M 43KOHM, 1/8W 1 R410 D1F5100E0003 片状电阻 1 R412 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R413 D1F5100E0003 片状电阻 1 R414 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R415 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R416 ERJ6GEYJ305 M 3MOHM,J,1/10W 1 R417 ERJ6ENF4303 M 430KOHM, 1/10W 1 R418 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R419 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R420 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R421 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R422 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R423 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R424 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R425 ERJ6ENF3902 M 39KOHM, 1/10W 1 R426 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R427 ERJ8ENF4303 M 43KOHM, 1/8W 1 R428 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R429 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R430 ERJ6ENF4303 M 430KOHM, 1/10W 1 R431 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R432 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R433 ERJ6ENF1202 M 12KOHM, 1/10W 1 R434 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R435 ERJ8ENF4303 M 43KOHM, 1/8W 1 R436 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R437 ERJ6GEYJ183 M 18KOHM,J,1/10W 1 R438 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R439 ERG12SJ120 M 12 OHM, J,1/2W 1 R440 ERJ8GEYJ474 M 470KOHM, J,1/8W 1 R441,42 ERJ6EKF6803 M 680KOHM, 1/10W 2 R443 EVMAASA00B23 控制 2KOHMB 1 R444 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R448,49 D0XGR08J0001 M 0.08OHM,J, 5W 2 R450 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R451 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R452 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R453 ERJ6GEYJ305 M 3MOHM,J,1/10W 1 R454 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R455 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R456 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R458 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R459 ERJ6EKF6803 M 680KOHM, 1/10W 1 R461 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R462 ERJ6ENF4303 M 430KOHM, 1/10W 1 R463 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R464 ERJ6ENF3302 M 33KOHM, 1/10W 1 R465 ERJ6ENF5603 M 560KOHM, 1/10W 1 R467 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R471 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 1 R472,73 ERJ6ENF5603 M 560KOHM, 1/10W 2 R475 ERJ6EKF6803 M 680KOHM, 1/10W 1 R476,77 ERJ14YJ181U M 181 OHM, J,1/4W 2 R478 ERJ8GEYJ220 M 22 OHM, J,1/8W 1 R480 ERJ6ENF4702 M 47KOHM, 1/10W 1 R482 ERJ8GEYJ220 M 22 OHM, J,1/8W 1 R483 D0BF225JA030 M 22MOHM,J,0.05W 1 R487 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R488 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R490,91 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R492 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R493 ERG12SJ120 M 12 OHM, J,1/2W 1 R494-96 ERJ6ENF5603 M 560KOHM, 1/10W 3 R497 ERJ6ENF1202 M 12KOHM, 1/10W 1 R498 ERG3SJ101 M 100 OHM, J, 3W 1 R499 D0BF394JA029 M 390KOHM,J,0.05W 1 参考号 部品号 部品名称 & 说明 件数 备注 R501 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R502,03 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R504 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R505 ERJ8GEYJ330 M 33 OHM, J,1/8W 1 R506 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R507 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R508 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R509-11 ERJ6GEYJ104 M 100KOHM,J,1/10W 3 R512 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R513,14 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R515,16 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R517 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R518 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R519,20 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R521,22 ERJ8GEYJ100 M 10 OHM, J,1/8W 2 R523 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R524 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R525 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R526,27 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R528 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R529 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R530 ERJ6RBD3302 M 33KOHM,F,1/10W 1 R532 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R533 ERJ6GEYJ163 M 16KOHM,J,1/10W 1 R534 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R535,36 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R537 ERJ6ENF1003 M 100KOHM, 1/10W 1 R538 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R539 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R540,41 ERJ6GEYJ105 M 1MOHM,J,1/10W 2 R542 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R543 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R544 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R545 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R546 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R547 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R548 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R549 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R550 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R551 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R552 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R553 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R554 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R555,56 ERJ6GEYJ105 M 1MOHM,J,1/10W 2 R557 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R558 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R559 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R560 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R561 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R562 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R563 ERJ6GEYJ2R2 M 2.2 OHM,J,1/10W 1 R564 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R565,66 ERJ6GEYJ105 M 1MOHM,J,1/10W 2 R567,68 ERJ8ENF1004 M 100KOHM, 1/8W 2 R569 ERJ6ENF3302 M 33KOHM, 1/10W 1 R570 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R571 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R572,73 ERJ8ENF3900 M 390 OHM, 1/8W 2 R574 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R575 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R576 ERJ6ENF1202 M 12KOHM, 1/10W 1 R577,78 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R579 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R580,81 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R582 ERJ6ENF1002 M 10KOHM, 1/10W 1 R583 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R584 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R585 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R586 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R587 ERJ8RSJR16V M 16 OHM, 1/8W 1 R588 ERJ8ENF3900 M 390 OHM, 1/8W 1 R589,90 ERJ8GEYJ123 M 12KOHM, J,1/8W 2 R591 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R592 ERJ6ENF3001 M 3KOHM, 1/10W 1 R593 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R594 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R595 ERJ8GEYJ222 M 2.2KOHM, J,1/8W 1 参考号 部品号 部品名称 & 说明 件数 备注 145 FLE20060600001 R596 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R597,98 ERJ6ENF3302 M 33KOHM, 1/10W 2 R599,00 ERJ8ENF3900 M 390 OHM, 1/8W 2 R601 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R602 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R603 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R606 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R607 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R608 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 1 R609 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R610,11 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R612 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R613 ERJ6ENF2702 M 27KOHM, 1/10W 1 R614 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R615 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R616,17 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R618 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R619 ERJ8RQJR39 M0.39 OHM, 1/8W 1 R620 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R621 ERJ8GEYJ123 M 12KOHM, J,1/8W 1 R622 ERJ8ENF1503 M 15KOHM, 1/8W 1 R624 ERX2SJR22 M0.22 OHM, J, 2W 1 R626 ERJ8ENF1503 M 15KOHM, 1/8W 1 R627 ERJ6GEYJ752 M 7.5KOHM,J,1/10W 1 R628 EVMAASA00B33 控制 3KOHMB 1 R629 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R630 ERJ8GEYJ472 M 4.7KOHM, J,1/8W 1 R631 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R632 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R633 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R634 ERJ8RQJR39 M0.39 OHM, 1/8W 1 R636 ERJ8ENF1503 M 15KOHM, 1/8W 1 R637 ERJ8RQJR39 M0.39 OHM, 1/8W 1 R638 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R639,40 ERJ8RQJR39 M0.39 OHM, 1/8W 2 R641 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R642-44 ERJ8RQJR39 M0.39 OHM, 1/8W 3 R645 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R646,47 ERJ8GEYJ223 M 22KOHM, J,1/8W 2 R648 ERJ8ENF1503 M 15KOHM, 1/8W 1 R649 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R650 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R651,52 ERJ6ENF1002 M 10KOHM, 1/10W 2 R653 ERJ6ENF3302 M 33KOHM, 1/10W 1 R654 ERJ8GEYJ220 M 22 OHM, J,1/8W 1 R655 ERJ8RSJR16V M 16 OHM, 1/8W 1 R656 ERJ6ENF4702 M 47KOHM, 1/10W 1 R657 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R658 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R659 ERJ6ENF3002 M 30KOHM, 1/10W 1 R660 ERJ6ENF1202 M 12KOHM, 1/10W 1 R661 EVMEASA00B53 控制 5KOHMB 0.3W 1 R662 ERJ6ENF1503 M 150KOHM, 1/10W 1 R664 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R665 EVMEASA00B23 控制 2KOHMB 0.3W 1 R666 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R667,68 ERJ8GEY0R00 M 0 OHM, 1/8W 2 R669 ERJ6ENF1303 M 130KOHM, 1/10W 1 R670 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R671 EVMEASA00B14 控制 10KOHMB 0.3W 1 R672,73 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R674 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R675 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R676 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R677 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R678 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R679,80 ERJ8RSJR16V M 16 OHM, 1/8W 2 R682 ERJ6ENF2002 M 20KOHM, 1/10W 1 R683 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R684 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R685,86 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R687 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R688,89 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R690 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R691 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R692 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R693 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 参考号 部品号 部品名称 & 说明 件数 备注 R695 ERJ6ENF1202 M 12KOHM, 1/10W 1 R696 ERJ8GEYJ100 M 10 OHM, J,1/8W 1 R697 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R698 ERJ8RSJR16V M 16 OHM, 1/8W 1 R699-08 ERJ8GEYJ105 M 1MOHM, J,1/8W 10 R711 ERJ8RSJR16V M 16 OHM, 1/8W 1 R712 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R713 ERJ8GEYJ472 M 4.7KOHM, J,1/8W 1 R714 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R715 ERDS2TJ101 C 100 OHM, J,1/4W 1 R921 ERJ6RBD3302 M 33KOHM,F,1/10W 1 R922 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R931 ERJ6ENF3002 M 30KOHM, 1/10W 1 R932 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R933 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R935 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R936 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R937 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R938 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R939,40 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R943 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R945 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R946 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R947 ERJ8GEYJ331 M 330 OHM, J,1/8W 1 R950 ERJ6GEYJ105 M 1MOHM,J,1/10W 1 R951,52 ERJ8GEYJ100 M 10 OHM, J,1/8W 2 R953 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R955 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R956 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 RL402,03 TSEH8011 中继器 2 S401,02 J0LT00000009 开关 2 T401 G4D4A0000117 开关变压器 1 T402 G4D1A0000098 开关变压器 1 T404 ETS42LA12GAD 开关变压器 1 T407 ETQ11K5AZ 扼流晶体管 1 T410 ETS25AF115AH 开关变压器 1 T601 G4D2A0000264 开关变压器 1 W9,10 J0JKB0000037 扁平内芯 2 X501 H2B400400021 晶体 1 Z1,Z2 K4ZZ01000206 端子 2 Z420 TMM23417 线夹 2 Z450-53 EYF52BCY 熔断器固定器 4 ZN401 ERZVGED621T2 变阻器 1 ZN402 D4EAD7510001 变阻器 1 ZN404 ERZVGAD681T2 变阻器 1 ZN406 ERZVA7D511 变阻器 1 参考号 部品号 部品名称 & 说明 件数 备注
