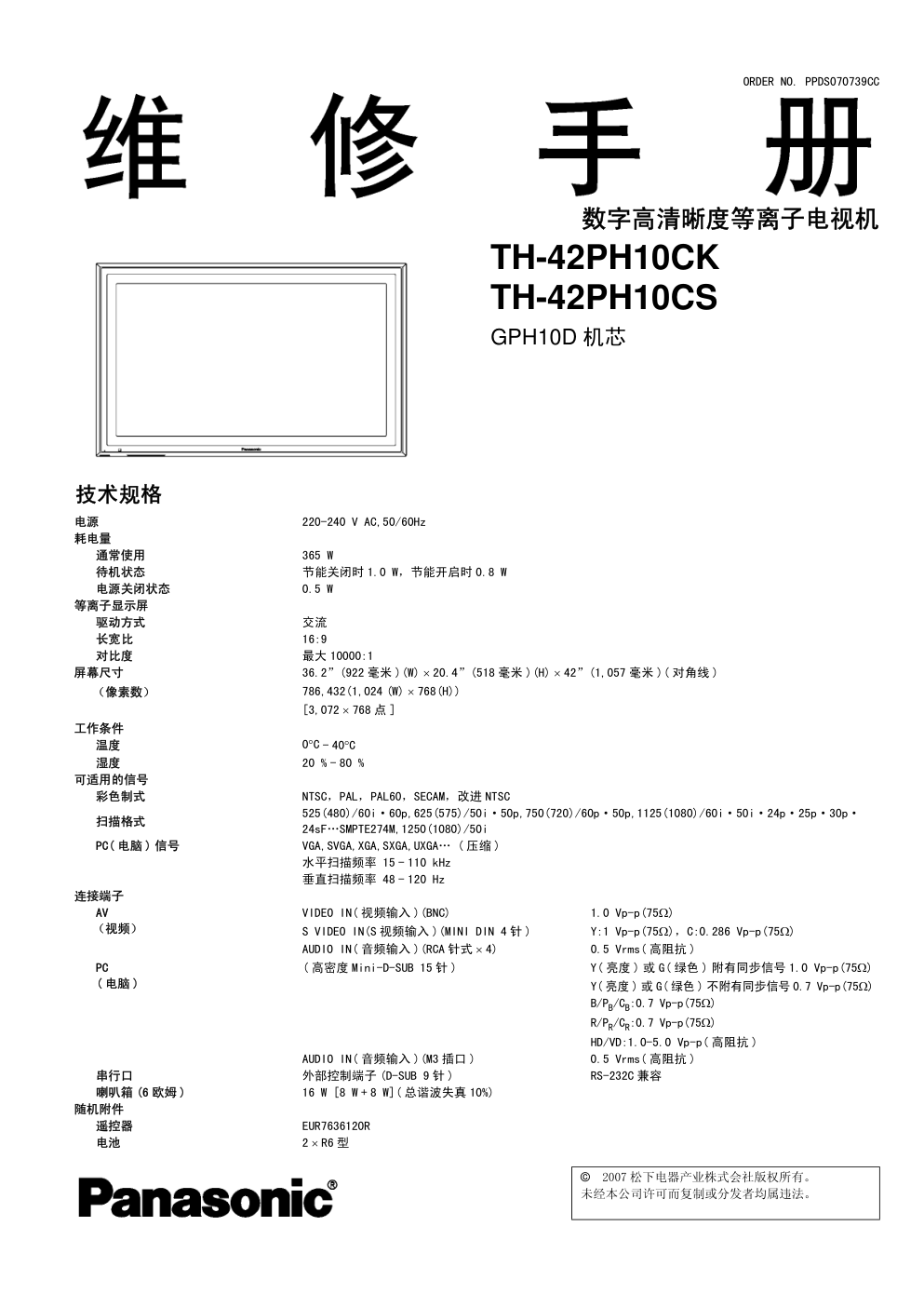

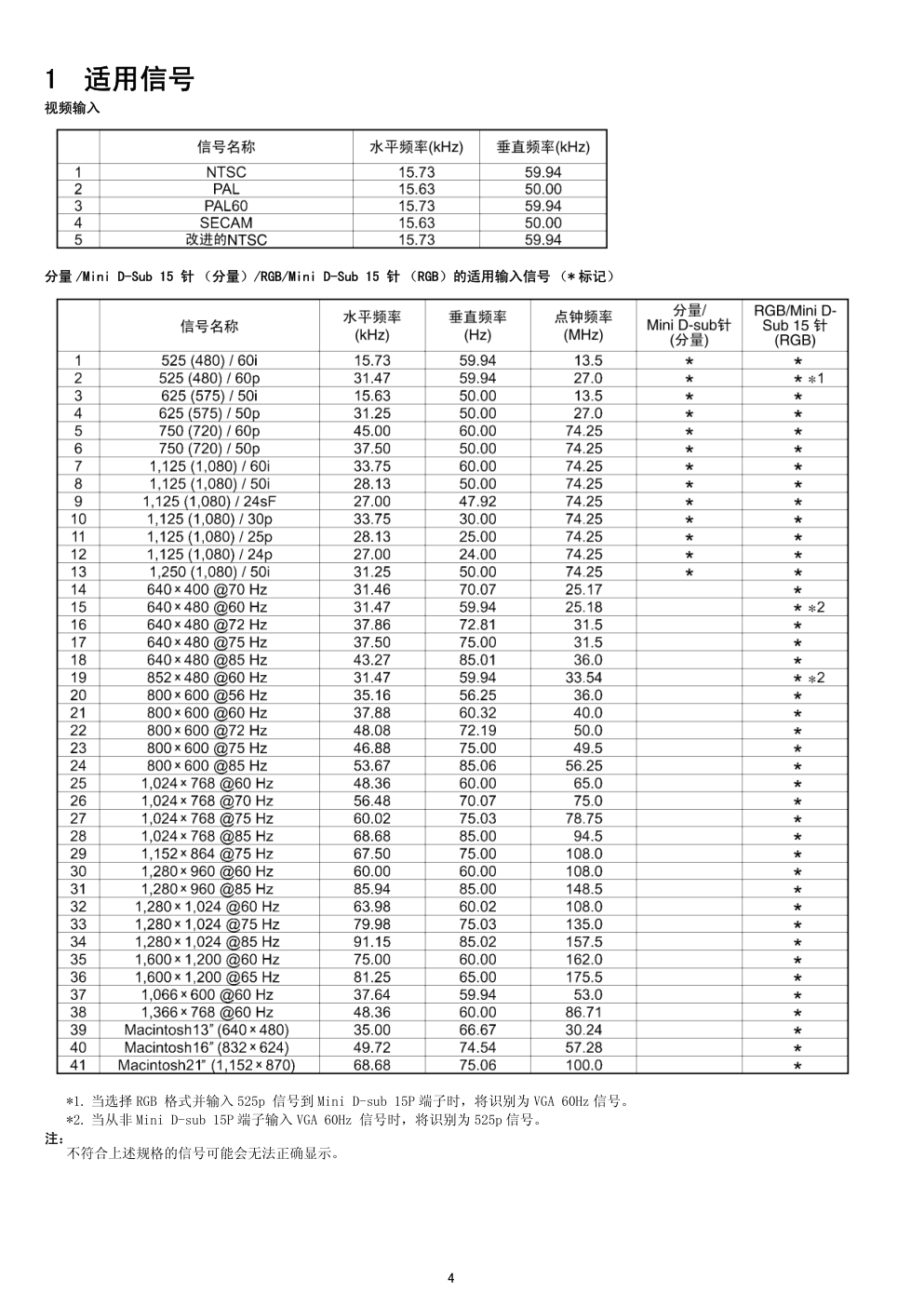

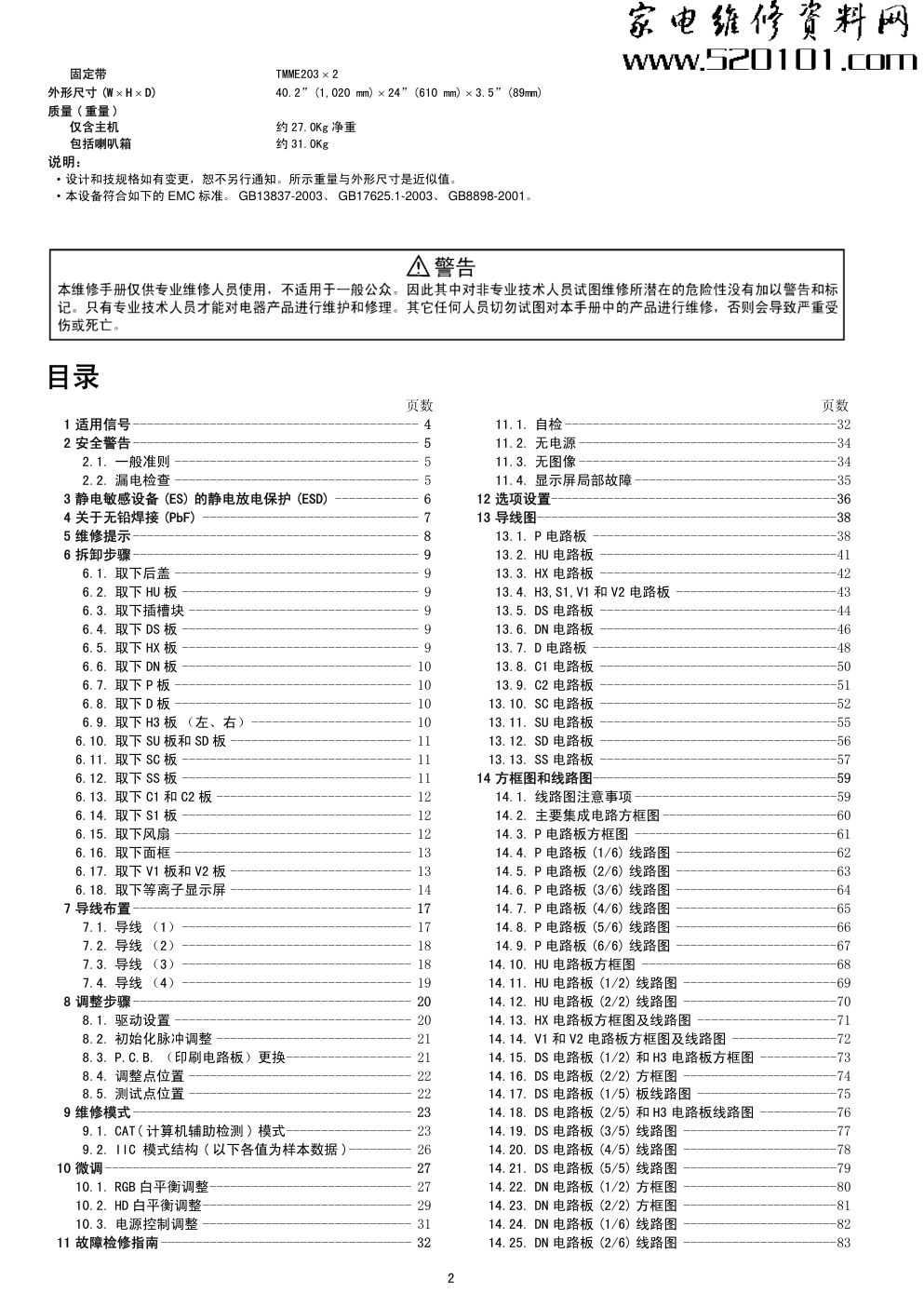

© 2007 松下电器产业株式会社版权所有。 未经本公司许可而复制或分发者均属违法。 ORDER NO. PPDS070739CC 数字高清晰度等离子电视机 TH-42PH10CK TH-42PH10CS GPH10D 机芯 技术规格 电源 220-240 V AC,50/60Hz 耗电量 通常使用 365 W 待机状态 节能关闭时 1.0 W，节能开启时 0.8 W 电源关闭状态 0.5 W 等离子显示屏 驱动方式 交流 长宽比 16:9 对比度 最大 10000:1 屏幕尺寸 36.2”(922 毫米 )(W) × 20.4”(518 毫米 )(H) × 42”(1,057 毫米 )( 对角线 ) （像素数） 786,432(1,024 (W) × 768(H)) [3,072 × 768 点 ] 工作条件 温度 0°C - 40°C 湿度 20 % - 80 % 可适用的信号 彩色制式 NTSC，PAL，PAL60，SECAM，改进 NTSC 扫描格式 525(480)/60i·60p,625(575)/50i·50p,750(720)/60p·50p,1125(1080)/60i·50i·24p·25p·30p· 24sF…SMPTE274M,1250(1080)/50i PC( 电脑 ) 信号 VGA,SVGA,XGA,SXGA,UXGA… ( 压缩 ) 水平扫描频率 15 - 110 kHz 垂直扫描频率 48 - 120 Hz 连接端子 AV （视频） VIDEO IN( 视频输入 )(BNC) 1.0 Vp-p(75Ω) S VIDEO IN(S 视频输入 )(MINI DIN 4 针 ) Y:1 Vp-p(75Ω)，C:0.286 Vp-p(75Ω) AUDIO IN( 音频输入 )(RCA 针式 × 4) 0.5 Vrms( 高阻抗 ) PC ( 电脑 ) ( 高密度 Mini-D-SUB 15 针 ) Y( 亮度 ) 或 G( 绿色 ) 附有同步信号 1.0 Vp-p(75Ω) Y( 亮度 ) 或 G( 绿色 ) 不附有同步信号 0.7 Vp-p(75Ω) B/PB/CB:0.7 Vp-p(75Ω) R/PR/CR:0.7 Vp-p(75Ω) HD/VD:1.0-5.0 Vp-p( 高阻抗 ) AUDIO IN( 音频输入 )(M3 插口 ) 0.5 Vrms( 高阻抗 ) 串行口 外部控制端子 (D-SUB 9 针 ) RS-232C 兼容 喇叭箱 (6 欧姆 ) 16 W [8 W + 8 W]( 总谐波失真 10%) 随机附件 遥控器 EUR7636120R 电池 2 × R6 型 2 目录 页数 页数 1 适用信号----------------------------------------- 4 2 安全警告----------------------------------------- 5 2.1. 一般准则 ----------------------------------- 5 2.2. 漏电检查 ----------------------------------- 5 3 静电敏感设备 (ES) 的静电放电保护 (ESD) ------------ 6 4 关于无铅焊接 (PbF) ------------------------------- 7 5 维修提示----------------------------------------- 8 6 拆卸步骤----------------------------------------- 9 6.1. 取下后盖 ----------------------------------- 9 6.2. 取下 HU 板 ---------------------------------- 9 6.3. 取下插槽块 --------------------------------- 9 6.4. 取下 DS 板 ---------------------------------- 9 6.5. 取下 HX 板 ---------------------------------- 9 6.6. 取下 DN 板 --------------------------------- 10 6.7. 取下 P 板 ---------------------------------- 10 6.8. 取下 D 板 ---------------------------------- 10 6.9. 取下 H3 板 （左、右）----------------------- 10 6.10. 取下 SU 板和 SD 板 -------------------------- 11 6.11. 取下 SC 板 --------------------------------- 11 6.12. 取下 SS 板 --------------------------------- 11 6.13. 取下 C1 和 C2 板 ---------------------------- 12 6.14. 取下 S1 板 --------------------------------- 12 6.15. 取下风扇 ---------------------------------- 12 6.16. 取下面框 ---------------------------------- 13 6.17. 取下 V1 板和 V2 板 -------------------------- 13 6.18. 取下等离子显示屏 -------------------------- 14 7 导线布置---------------------------------------- 17 7.1. 导线 （1）--------------------------------- 17 7.2. 导线 （2）--------------------------------- 18 7.3. 导线 （3）--------------------------------- 18 7.4. 导线 （4）--------------------------------- 19 8 调整步骤---------------------------------------- 20 8.1. 驱动设置 ---------------------------------- 20 8.2. 初始化脉冲调整 ---------------------------- 21 8.3. P.C.B. （印刷电路板）更换------------------ 21 8.4. 调整点位置 -------------------------------- 22 8.5. 测试点位置 -------------------------------- 22 9 维修模式---------------------------------------- 23 9.1. CAT( 计算机辅助检测 ) 模式------------------ 23 9.2. IIC 模式结构 ( 以下各值为样本数据 )--------- 26 10 微调-------------------------------------------- 27 10.1. RGB 白平衡调整----------------------------- 27 10.2. HD 白平衡调整------------------------------ 29 10.3. 电源控制调整 ------------------------------ 31 11 故障检修指南------------------------------------ 32 11.1. 自检 ---------------------------------------32 11.2. 无电源 -------------------------------------34 11.3. 无图像 -------------------------------------34 11.4. 显示屏局部故障 -----------------------------35 12 选项设置-----------------------------------------36 13 导线图-------------------------------------------38 13.1. P 电路板 -----------------------------------38 13.2. HU 电路板 ----------------------------------41 13.3. HX 电路板 ----------------------------------42 13.4. H3,S1,V1 和 V2 电路板 -----------------------43 13.5. DS 电路板 ----------------------------------44 13.6. DN 电路板 ----------------------------------46 13.7. D 电路板 -----------------------------------48 13.8. C1 电路板 ----------------------------------50 13.9. C2 电路板 ----------------------------------51 13.10. SC 电路板 ----------------------------------52 13.11. SU 电路板 ----------------------------------55 13.12. SD 电路板 ----------------------------------56 13.13. SS 电路板 ----------------------------------57 14 方框图和线路图-----------------------------------59 14.1. 线路图注意事项 -----------------------------59 14.2. 主要集成电路方框图 -------------------------60 14.3. P 电路板方框图 -----------------------------61 14.4. P 电路板 (1/6) 线路图 -----------------------62 14.5. P 电路板 (2/6) 线路图 -----------------------63 14.6. P 电路板 (3/6) 线路图 -----------------------64 14.7. P 电路板 (4/6) 线路图 -----------------------65 14.8. P 电路板 (5/6) 线路图 -----------------------66 14.9. P 电路板 (6/6) 线路图 -----------------------67 14.10. HU 电路板方框图 ----------------------------68 14.11. HU 电路板 (1/2) 线路图 ----------------------69 14.12. HU 电路板 (2/2) 线路图 ----------------------70 14.13. HX 电路板方框图及线路图 --------------------71 14.14. V1 和 V2 电路板方框图及线路图 ---------------72 14.15. DS 电路板 (1/2) 和 H3 电路板方框图 -----------73 14.16. DS 电路板 (2/2) 方框图 ----------------------74 14.17. DS 电路板 (1/5) 板线路图 --------------------75 14.18. DS 电路板 (2/5) 和 H3 电路板线路图 -----------76 14.19. DS 电路板 (3/5) 线路图 ----------------------77 14.20. DS 电路板 (4/5) 线路图 ----------------------78 14.21. DS 电路板 (5/5) 线路图 ----------------------79 14.22. DN 电路板 (1/2) 方框图 ----------------------80 14.23. DN 电路板 (2/2) 方框图 ----------------------81 14.24. DN 电路板 (1/6) 线路图 ----------------------82 14.25. DN 电路板 (2/6) 线路图 ----------------------83 固定带 TMME203 × 2 外形尺寸 (W × H × D) 40.2”(1,020 mm) × 24”(610 mm) × 3.5”(89mm) 质量 ( 重量 ) 仅含主机 约 27.0Kg 净重 包括喇叭箱 约 31.0Kg 说明： • 设计和技规格如有变更，恕不另行通知。所示重量与外形尺寸是近似值。 • 本设备符合如下的 EMC 标准。 GB13837-2003、 GB17625.1-2003、 GB8898-2001。 3 14.26. DN 电路板 (3/6) 线路图 --------------------- 84 14.27. DN 电路板 (4/6) 线路图 --------------------- 85 14.28. DN 电路板 (5/6) 线路图 --------------------- 86 14.29. DN 电路板 (6/6) 线路图 --------------------- 87 14.30. D 电路板方框图 ---------------------------- 88 14.31. D 电路板 (1/6) 线路图 ---------------------- 89 14.32. D 电路板 (2/6) 线路图 ---------------------- 90 14.33. D 电路板 (3/6) 线路图 ---------------------- 91 14.34. D 电路板 (4/6) 线路图 ---------------------- 92 14.35. D 电路板 (5/6) 线路图 ---------------------- 93 14.36. D 电路板 (6/6) 线路图 ---------------------- 94 14.37. C1 和 C2 电路板方框图 ---------------------- 95 14.38. C1 电路板 （1/2）线路图 -------------------- 96 14.39. C1 电路板 （2/2）线路图 -------------------- 97 14.40. C2 电路板 （1/2）线路图 -------------------- 98 14.41. C2 电路板 （2/2）线路图 -------------------- 99 14.42. SC 电路板方框图 -------------------------- 100 14.43. SC 电路板 （1/2）线路图 ------------------- 101 14.44. SC 电路板 （2/2）线路图 ------------------- 102 14.45. SU 和 SD 电路板方框图 ----------------------103 14.46. SU 电路板 （1/2）线路图--------------------104 14.47. SU 电路板 （2/2）线路图--------------------105 14.48. SD 电路板 （1/2）线路图--------------------106 14.49. SD 电路板 （2/2）线路图--------------------107 14.50. SS 和 S1 电路板方框图 ----------------------108 14.51. SS 电路板 （1/2）和 S1 电路板线路图---------109 14.52. SS 电路板 （2/2）线路图--------------------110 15 部件布置及机械部件更换清单 ---------------------111 15.1. 分解图------------------------------------111 15.2. 面框部分放大图----------------------------112 15.3. 风扇部分放大图----------------------------112 15.4. 线缆位置----------------------------------113 15.5. 包装指南----------------------------------114 16 机械部件更换清单 -------------------------------116 17 电器部件更换清单 -------------------------------117 17.1. 更换部件清单注意事项----------------------117 17.2. 电器部件更换清单--------------------------118 4 1 适用信号 视频输入 分量 /Mini D-Sub 15 针 （分量）/RGB/Mini D-Sub 15 针 （RGB）的适用输入信号 （* 标记） *1. 当选择 RGB 格式并输入 525p 信号到 Mini D-sub 15P 端子时，将识别为 VGA 60Hz 信号。 *2. 当从非 Mini D-sub 15P 端子输入 VGA 60Hz 信号时，将识别为 525p 信号。 注： 不符合上述规格的信号可能会无法正确显示。 5 2 安全警告 2.1. 一般准则 1. 维修时，请勿试图更改设备及其部件或其材料。 2. 维修连接线 （如电缆、柔性电缆或导线）时，当仅有一条导线或几条导线损坏或断开时，请勿试图维修或重新为其连接。请更 换整条连接线。 3. 维修时，应直接拉出或插入固定连接器，而不应将其扭曲。 4. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 5. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸、屏蔽等安装正确。 6. 维修后，进行以下漏电检查，以免用户遭受触电危险。 2.2. 漏电检查 1. 将 AC 电源线直接插入 AC 电源插座。进行检查时，请勿使用隔离变压器。 2. 在设备上各外露金属部分和良好接地 （如水管）之间连接一个电流测量装置，如图 1 所示。 3. 用漏电测试仪 （Simpson 228 或类似型号）测量通过该装置的电势。 4. 检查各外露金属部件，并测量各点电压。 5. 变换 AC 插座中的 AC 插头，并重复上述各项测量。 6. 各点 （漏电）的电势表示为电压 U1 和 U2，并且不能超过以下各值： 交流：U1=35V （峰值） U2=0.35V （峰值）； 直流：U1=1.0V， 注： 与交流的 U2 限定峰值 0.35V 和直流的 U1 限定峰值 1.0V 相对应的电流峰值分别为 0.7mA 和 2.0mA。 与交流的 U1 限定峰值 35V 相对应的 100kHz 以上的电流峰值为 70mA。 7. 当测量值超出规定的限制时，可能会引起触电。所以必须在机器返回用户手中之前对其进行修理和再检测。 漏电测量电路 电阻值 （Ω） V：电压表或示波器 （r.m.s. 或峰值） 输入电阻：≥ 1MΩ 输入电容：≤ 200pF 频率范围：分别为直流 15Hz 到 1MHz 注：必须使用合适的测量设备，以便在非正弦波形时测量准确。 图 1 6 3 静电敏感设备 (ES) 的静电放电保护 (ESD) 一些半导体（固态）装置很容易被静电损坏。这些装置通称为静电敏感装置（ES）。典型的 ES 装置有集成电路和一些场效应晶体管以 及半导体 “芯片”组件。以下方法通常被用来减少由于静电释放 （ESD） 所造成的组件损坏。 1. 在处理任何半导体组件或是配备有半导体组件的设备之前，接触已知地线以排除身体上的静电。或者戴上市面上可购买到的抗静 电腕带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 在拆卸配有静电敏感装置的电气组件后，请将组件放置于导体表面上 （如铝箔），以防止聚集静电或组件外露。 3. 仅使用末端接地的烙铁焊接或拆焊静电敏感装置。 4. 仅使用防静电拆焊装置。不属于 “防静电 （静电释放保护）”的拆焊装置可能会产生足以损坏静电敏感装置的电荷。 5. 禁止使用氟里昂驱动化学物质。它们能产生足以损坏静电敏感装置的电荷。 6. 在准备立即安装之前，才能拆开静电敏感备换装置的保护性包装，取出备换静电敏感装置。（大多数备换静电敏感装置都使用导 电泡沫、铝箔或类似导电性材料包装，其导线被短接。） 7. 从备换静电敏感装置导线上取下防护性材料前，使防护性材料接触机芯或即将安装的电路组件。 注意 确定机芯或电路无电源，并遵守其它所有安全注意事项。 8. 在处理未包装的备换静电敏感装置时，尽量减少身体活动。（否则，如衣物纤维的摩擦或从铺有地毯的地面抬起脚等动作都会产 生足以损坏静电敏感装置的静电 （静电释放））。 7 4 关于无铅焊接 (PbF) 注：在元素周期表中，铅用 Pb 表示。 在下文中，Pb 表示有铅焊接，PbF 表示无铅焊接。 在制造流程中使用和下文中介绍的无铅焊接 （Sn+Ag+Cu）。 即：锡 （Sn），银 （Ag）和铜 （Cu），其他类型也可使用。 出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维修和修理工作中最好使用无铅焊接，不过也允许使用有铅焊 接。 使用无铅焊接工艺制造的印刷电路板背面的树叶形符号 内有 PbF 字样。 注意： • 无铅焊接的熔点比标准焊接的熔点高。通常熔点超过 50-70°F （30-40°C）。 请使用高温烙铁，并将其温度设为 700±20°F （370±10°C）。 • 当温度过高 （约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。 如果必须使用有铅焊接，请在焊接前先全部去除焊脚或焊区上的无铅焊料。如果做到这点实际操作困难，则确保无铅焊料加热到熔 化后再进行有铅焊接。 • 在对双面电路板进行无铅焊接后，请检查部件侧部是否有过量焊料，否则会流到另一侧。（见下图） 推荐的无铅焊料 有几种无铅焊料可供选购。本产品使用 Sn+Ag+Cu( 锡 + 银 + 铜 ) 焊料。 也可使用 Sn+Cu （锡，铜），Sn+Zn+Bi( 锡，锌，铋 ) 焊料。 8 5 维修提示 注意： • 延长电缆插槽板将作为维修设备或工具提供。 （部品号：TZSC0704） 电路板名称 功能 DN 数字信号处理器，Micom D 格式转换器， 等离子 AI 处理器 , 子场处理器 DS 插槽接口 （音频 / 视频 / 同步输入转换）， SYNC 处理器，音频处理器， 扬声器输出放大器以及 DC-DC 转换器 SS 维持驱动 SC 扫描驱动 SU 扫描输出 （上） SD 扫描输出 （下） C1 数据驱动 （右） C2 数据驱动 （左） H3 扬声器接线端子 S1 电源开关 V1 遥控接收器，LED （待机 / 开机） V2 按键开关 P 主电源 HX PC/RS-232C_ 输入端子 HU 双视频端子 (BNC/S) 9 6 拆卸步骤 • 由于电解电容放电原因，电源切断后等候一分钟再取下 P.C.B.。 • 和 表明螺丝位置。 6.1. 取下后盖 1. 松开螺丝 （×12 ， ×8 ， ×4 ， ×5 ），取下后盖。 6.2. 取下 HU 板 1. 松开 4 颗螺丝 (A)，取下 HU 端子块。 2. 松开 4 颗螺丝 (B)。 3. 松开 3 颗螺丝 (C)，取下 HU 板。 6.3. 取下插槽块 1. 断开连接件 （DS2，DS4，DS6，DS7，DS8，DS15）。 2. 从连接件 （DS1）取下柔性电缆。 3. 松开 4 颗螺丝，取下插槽块。 6.4. 取下 DS 板 1. 取下 HU 端子组件 （请参见取下 HU 板）。 2. 取下插槽块 （请参见取下插槽块）。 3. 断开连接件 （DS14）。 4. 插槽块向外翻出。 5. 松开 6 颗螺丝，取下插槽盖。 6. 松开 6 颗螺丝，取下 DS 板。 6.5. 取下 HX 板 1. 取下 HU 端子块 （请参见取下 HU 板）。 2. 取下插槽块 （请参见取下插槽块）。 3. 取下 DS 板 （请参见取下 DS 板）。 4. 松开 2 颗螺丝，取下插槽盒。 10 5. 松开 4 颗六角形螺丝和 2 颗螺丝，取下 HX 板。 6.6. 取下 DN 板 1. 断开连接件 （DN6，DN31，DN33，DN35）。 2. 从连接件 （DN1）取下柔性电缆。 3. 松开 4 颗螺丝，取下 DN 板。 注意： 交换 DN 板后在 MS 模式中进行目的地重新设定。 6.7. 取下 P 板 1. 断开连接件 （P2，P6，P7，P9，P11，P12，P25）。 2. 松开 10 颗螺丝，取下 P 板。 6.8. 取下 D 板 1. 取下插槽块 （请参见取下插槽块）。 2. 断开连接件 （D5，D20，D25）。 3. 从连接件 （D31，D32）取下柔性电缆。 4. 松开 4 颗螺丝，取下 D 板。 6.9. 取下 H3 板 （左、右） 1. 松开 2 颗螺丝，取下左、右扬声器接线端子组件。 11 2. 断开连接件 （H37）。 3. 松开 3 颗螺丝 （G），取下 H3 板。 6.10. 取下 SU 板和 SD 板 1. 从连接件（SU1，SU2，SU3，SU4，SD1，SD2，SD3，SD4）取 下柔性电缆。 2. 松开 3 颗螺丝。 3. 断开连接件 （SU45，SD46）。 4. 将 SU 板和 SD 板滑至左侧，从连接件 （SC41，SC42）取下 SU 和 SD 板。 6.11. 取下 SC 板 1. 断开连接件 （SU45，SD46）。 2. 松开 3 颗螺丝 （ ），将 SU 板和 SD 板滑至左侧。 3. 断开连接件 （SC2，SC20）。 4. 松开 6 颗螺丝，取下 SC 板。 6.12. 取下 SS 板 1. 断开连接件 （SS11，SS12，SS23，SS34）。 2. 从连接件（SS53A，SS54A，SS55A，SS56A）取下柔性电缆。 3. 松开 6 颗螺丝，取下 SS 板。 12 6.13. 取下 C1 和 C2 板 1. 取下插槽块 （请参见取下插槽块）。 2. 将等离子显示器平放在垫有软布的台面上。 3. 松开各 6 颗螺丝，取下左、右支架组件。 6.13.1. 取下 C1 板 1. 从连接件 （C10，C11）取下柔性电缆。 2. 松开 8 颗螺丝（ ），再从连接件（CB1，CB2，CB3，CB4） 取下柔性电缆。 3. 松开 4 颗螺丝 （ ），取下 C1 板。 6.13.2. 取下 C2 板 1. 松开 3 颗螺丝，取下 AC 接入口组件。 2. 从连接件 （C20，C21）取下柔性电缆。 3. 断开连接件 （C23）。 4. 松开 8 颗螺丝（ ），再从连接件（CB5，CB6，CB7，CB8） 取下柔性电缆。 5. 松开 4 颗螺丝 （ ），取下 C2 板。 6.14. 取下 S1 板 1. 松开 2 颗螺丝 （H），取下 S1 板组件。 2. 断开连接件 （S34）。 3. 松开 1 颗螺丝 （J），取下 S1 板。 6.15. 取下风扇 1. 松开 4 颗螺丝，取下风扇组件。 2. 断开风扇中继连接件。 13 3. 松开 12 颗螺丝 （K），取下风扇组件。 4. 按相反顺序重装风扇。 5. 将风扇海棉扣在风扇组件上。 注意： 风扇海棉不能重复使用。 请在更换风扇的同时更换新的风扇海棉。 6.16. 取下面框 1. 取下 S1 板组件 （请参见取下 S1 板）。 2. 断开连接件 （DS2，DS15）。 3. 从面框取下 6 颗螺丝。 4. 将面框底部按箭头 1 方向拉出，再将面框按箭头 2 方向抬 升，取下面框。 6.17. 取下 V1 板和 V2 板 1. 取下面框。（请参见取下面框）。 2. 松开 6 颗螺丝，取下固定压条。 14 3. 取下 1 颗螺丝 （L）。 4. 断开连接件 （V2），取下 V1 板。 5. 从 V2 板上卸下操作按钮。 6. 断开连接件 （V15），取下 V2 板。 6.18. 取下等离子显示屏 1. 将等离子显示器平放在垫有软布的台面上。 2. 松开 4 颗螺丝，取下风扇组件。 3. 断开风扇中继连接件。 4. 松开 6 颗螺丝，取下支架组件 （左、右）。 5. 断开连接件 （DS2，DS4，DS6，DS7，DS8，DS15）。 6. 从连接件 （DS1）取下柔性电缆。 7. 松开 4 颗螺丝，取下插槽块。 8. 断开连接件 （DN6）。 9. 松开 4 颗螺丝，取下 DN 板。 10. 松开 4 颗螺丝，取下固定面板。 15 11. 断开连接件 （P2，P9，P11，P12，P25）。 12. 松开 10 颗螺丝 （ ），取下 P 板。 13. 松开 2 颗螺丝 （ ），取下左、右扬声器接线端子组件。 14. 断开连接件 （D20）。 15. 从连接件 （D31，D32）取下柔性电缆。 16. 松开 4 颗螺丝，取下 D 板。 17. 取下 SU 板和 SD 板 （请参见取下 SU 板和 SD 板）。 18. 松开 6 颗螺丝，取下 SC 板。 19. 断开连接件 （SS23，SS34）。 20. 从连接件（SS53A，SS54A，SS55A，SS56A）取下柔性电缆。 21. 松开 6 颗螺丝，取下 SS 板。 22. 松开 2 颗螺丝 （ ），取下 S1 板组件。 23. 松开 3 颗螺丝 （ ），取下 AC 接入口组件。 24. 从连接件 （C10）取下柔性电缆。 16 25. 从面框取下 6 颗螺丝。 26. 从等离子显示屏面板松开 12 处垫片及垫片环。 注意： • 更换等离子显示屏时，请确认垫片和垫片环的安装位置， 且在更换等离子显示屏后将垫片和垫片环安装在原先的位 置。 27. 按箭头 1 方向将等离子显示屏底部抬升，再按箭头 2 方向 将等离子显示屏拖动，取下等离子显示屏。 17 7 导线布置 7.1. 导线 （1） 如下图所示布置导线。 18 7.2. 导线 （2） 如下图所示布置导线。 7.3. 导线 （3） 如下图所示布置导线。 19 7.4. 导线 （4） 如下图所示布置导线。 20 8 调整步骤 8.1. 驱动设置 8.1.1. 项目 / 准备 1. IIC 模式下设置老化模式 0 （Vset 调整模式）。 2. 如下设定图像控制： 图像菜单：最佳 图像： +25 长宽比：全屏 注意 1. 首先进行 Vsus 电压调整。 2. Vad 电压调整确认后，再确定 Vscn 电压。 当 Vad = -105V 时，Vscn 的电压为 40V ± 4V。 8.1.2. 调整 参照显示屏数据标牌上的显示屏数据，调整驱动器各部分的电 压。 使用万用表检查或调整下列电压。 * 见显示屏标牌 名称 测试点 电压 调整点 备注 Vsus TPVSUS(SS) Vsus ± 2V R628(P) * Ve TPVE(SS) Ve ± 1V VR6000(SS) * Vset TPVSET(SC) 330V ± 7V 固定 Vad TPVAD(SC) -105V ± 1V VR6600(SC) Vscn TPVSCN(SC) Vad+145V±4V 固定 Vda TPVDA(SS) 75V+1V,-2V 固定 PFC C446 (+)(-) 396V ± 0.5V R443(P) 21 8.2. 初始化脉冲调整 1. IIC 模式下设置老化模式 0 （Vset 调整模式）。 2. 如下设定图像控制： 图像菜单：最佳 图像：+25 长宽比：全屏 3. 连接示波器至测试点 TPSC1 （T2），并调整 VR6602 至 190 ± 10μ Sec。 8.3. P.C.B. （印刷电路板）更换 8.3.1. 注意 1. 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.B.C.。 8.3.2. P.C.B. 更换后进行快速调整 使用万用表调整下列电压。 * 见显示屏标牌。 注意： 请勿将 Vsus 设置到 Ve 以下，以防损坏 PCB 板。 测试点 调整点 等级 T2 TPSC1(SS) VR6602 (SC) 190 ± 10μ Sec. P.C.B. 名称 测试点 电压 调整点 备注 P 板 Vsus TPVSUS(SS) Vsus ± 2V R628 (P) * PFC C446 (+)(-)(P) 396 ± 0.5V R443 (P) SC 板 Vad TPVAD(SC) -105V ± 1V VR6600 (SC) SS 板 Ve TPVE(SS) Ve ± 1V VR6000 (SS) * D,DS,DN 板 NTSC, PAL, HD, PC 和 625i 信号的白平衡、背景设定和副亮度。 DN 板 通过 MS 模式设置市场选定编号来更正目的地。（见 10.1.4 章节） 22 8.4. 调整点位置 8.5. 测试点位置 23 9 维修模式 9.1. CAT( 计算机辅助检测 ) 模式 若要退出 CAT 模式，请进入 ID 模式，并关闭主电源。 9.1.1. IIC 模式 在 CAT 模式的首页位置处，通过遥控器上的上 / 下键选择 IIC 模式，然后按下遥控器上的开始键。 主题和项目在 “IIC 模式结构”中提及。 按遥控器上的返回键退出 IIC 模式。 24 9.1.2. CD 模式 在 CAT 模式的前首页位置处，通过遥控器上的上 / 下键选择 CD 模式，然后按下遥控器上的静音键 3 秒钟以上。 Micom 软件版本 （IC9702），该版本可通过以下方式升级： 1. 更换新版本 IC 2. 从装载工具上装入新的软件版本 TZSC07036。 存储数据变更 按遥控器上的返回键退出 CD 模式。 9.1.3. SD 模式 在 CAT 模式的首页位置处，通过遥控器上的上 / 下键选择 SD 模式，然后按下遥控器上的开始键。 按遥控器上的返回键退出 SD 模式。 25 9.1.4. MS 模式 在 CAT 模式的前首页位置处，通过遥控器上的上 / 下键选择 MS 模式，然后按下遥控器上的静音键 3 秒钟以上。 按遥控器上的返回键退出 MS 模式。 注意： 更换 DN 板后设置市场选项。 目的地编号 默认设置 9.1.5. ID 模式 在 CAT 模式的前首页位置处，通过遥控器上的上 / 下键选择 ID 模式，然后按下遥控器上的静音键 3 秒钟以上。 按遥控器上的返回键退出 ID 模式。 编号 目的地 编号 目的地 0 日本 16 -- 1 北美 17 -- 2 欧洲 18 中国 3 其他国家 19 中国 （旅馆） 4 英国 20 俄罗斯 5 台湾 21 俄罗斯 （旅馆） 6 泰国 22 香港 7 -- 23 -- 8 日本 （旅馆） 24 -- 9 北美 （旅馆） 25 -- 10 欧洲 （旅馆） 26 -- 11 -- 27 -- 12 英国 （旅馆） 28 中东 / 香港 13 -- 29 中东 / 香港 （旅馆） 14 泰国 （旅馆） 30 澳大利亚 15 -- 31 澳大利亚 （旅馆） 编号 目的地 18 中国 26 9.2. IIC 模式结构 ( 以下各值为样本数据 ) 27 10 微调 10.1. RGB 白平衡调整 仪器名称 连接 备注 • RGB VGA 黑白模式 • 彩色分析仪 （Minolta CA-100 或同等产品） PC 输入 显示屏表面 用户设定：正常 （图像菜单：最佳） 步骤 备注 [ 条件 ] • 确保充分老练。 • 确保前面框已经安装在整机上。 • 确认调整之前无彩色信号显示。 • 将彩色分析仪放置在有轻微色差的地方。 1. 设置 COMPONET/RGB 输入选择 RGB。 2. 选择 IIC 模式 “PANEL W/B Adj.”（显示屏白平衡调整）项目。 3. 检查以确认色温为 “冷色 （高）”。 4. 输出白平衡模式。 5. 将彩色分析仪的信号接收器放到高亮窗口的中心位置。 6. 固定 G 驱动为 E0h，然后调整 B 驱动和 R 驱动，将 x,y 的值调整为下表 “高色温”的值。 7. 同时增加 R/G/B，将 R/G/B 的最大驱动值调整为 FCh。 8. 将色温设置为 “正常 （中）”。 9. 固定 G 驱动为 E0h，然后调整 B 驱动和 R 驱动，将 x,y 的值调整为下表 “中色温”的值。 10. 同时增加 R/G/B，将 R/G/B 的最大驱动值调整为 FCh。 11. 将色温设置为 “暖色 （低）”。 12. 设置 G 驱动为 E0h，然后调整 B 驱动和 R 驱动，将 x,y 的值调整为下表 “低色温”的值。 13. 同时增加 R/G/B，将 R/G/B 的最大驱动值调整为 FCh。 14. 将以上步骤中取得的 R 驱动，G 驱动和 B 驱动数据复制到 NTSC，PAL DVI 区域。 调整目标值 高亮：x ± 0.003 y ± 0.003 高亮指的是在高亮窗口驱动调整的目标值。 因此它不是调整白平衡后的高亮目标值。 图像菜单：最佳 图像：25 宽高比：全屏 位置及尺寸：正常 • 高亮显示部分信号振幅 75% • 截止标准 G: 80h • 驱动标准 G: E0h 28 29 10.2. HD 白平衡调整 仪器名称 连接 备注 • HD 黑白模式 （分量输出） • 彩色分析仪 （Minolta CA-100 或同等产品） PC 输入 显示屏表面 用户设定：正常 （图像菜单：最佳） 步骤 备注 [ 条件 ] • 确保充分老练。 • 确保前面框已经安装在整机上。 • 确认调整之前无彩色信号显示。 • 将彩色分析仪放置在有轻微色差的地方。 1. 设置 COMPONET/RGB 输入选择分量。 2. 选择 IIC 模式 “PANEL W/B Adj.”（显示屏白平衡调整）项目。 3. 检查以确认色温为 “冷色 （高）”。 4. 输出白平衡模式。 5. 将彩色分析仪的信号接收器放到高亮窗口的中心位置。 6. 固定 G 驱动为 E0h，然后调整 B 驱动和 R 驱动，将 x,y 的值调整为下表 “高色温”的值。 7. 同时增加 R/G/B，将 R/G/B 的最大驱动值调整为 FCh。 8. 将色温设置为 “正常 （中）”。 9. 固定 G 驱动为 E0h，然后调整 B 驱动和 R 驱动，将 x,y 的值调整为下表 “中色温”的值。 10. 同时增加 R/G/B，将 R/G/B 的最大驱动值调整为 FCh。 11. 将色温设置为 “暖色 （低）”。 12. 设置 G 驱动为 E0h，然后调整 B 驱动和 R 驱动，将 x,y 的值调整为下表 “低色温”的值。 13. 同时增加 R/G/B，将 R/G/B 的最大驱动值调整为 FCh。 14. 将以上步骤中取得的 R 驱动，G 驱动和 B 驱动数据复制到 YUV1_525ip, YUV3_625ip 区域。 调整目标值 高亮：x ± 0.003 y ± 0.003 高亮指的是在高亮窗口驱动调整的目标值。 因此它不是调整白平衡后的高亮目标值。 图像菜单：最佳 图像：25 宽高比：全屏 位置及尺寸：正常 • 高亮显示部分信号振幅 75% • 截止标准 G: 80h • 驱动标准 G: E0h 30 31 10.3. 电源控制调整 仪器名称 连接 备注 • PC(RGB) 信号发生器。 （信号源：VGA/No.9 信号） • 功率计 • PC 输入 • 将要调整的整机AC电源连接到功率 计。 在设定菜单的 “COMPONENT/RGB-IN SELECT”项 目中设置 “RGB”。 步骤 备注 [ 条件 ] • 确保调整前充分实施老练 30 分钟或以上。 • 电压 220V 50/60Hz(±1%) • 音量最小，全屏状态 • PC 输入和图像菜单设为：标准动态 1. 将整机的 AC 电源连接到功率计。 2. 从信号源接收 VGA No.9 信号。 3. 在 IIC 模式下选择 Panel APL/ABL 的 PWRCTL 项目。 4. 调整 PWRCTL，将整机的电源消耗调整到下面所述的功率。 将 DAC 从大到小调整 有 OSD 的工厂调整 320+0/-10W No.9 信号 上半部：全彩条 下半部：16 级灰度等级 注意： 1. 当退出工厂模式时，约有数瓦的功率下 降。 2. 当有两个调整点时，调整 DAC 到较大值。 32 11 故障检修指南 11.1. 自检 11.1.1. 显示器指示 1. 自检用于自动检查等离子显示器的总线控制电路。 2. 要进入自检模式，按下机器前端用户控制器上的音量降低 键，同时按下遥控器上的关机定时键，显示屏将会显示：- 。 检查 CCU 端口时若发现其不正常或位置不对，则“--”将会显示 在 “OK”的位置。 “ PTCT ” 行上的 “01”表示电源 LED 闪烁次数是 1。 ( 请参见 第 12.1.2 章节 ) “ PTCT ” 行上的 “H09”表示故障码。 注： 仅在电源 LED 闪烁后，第一次进入自检模式时，才显示 “ PTCT ”行。 33 11.1.2. 电源 LED 闪烁次数图 1. 主题 发光二极管闪烁次数图。 2. 内容 当设备出现异常时，保护电路将运行并将设备复位到待机状态。此时，通过本机前端的 LED 电源闪烁次数便可识别出故障部位。 3. 备注 上述风扇功能仅在风扇安装后可用。 34 11.2. 无电源 第一检查点 LED 1. 不亮。 2. 绿灯亮，几秒钟后转为红灯闪烁。 3. 只有红灯亮。 11.3. 无图像 35 11.4. 显示屏局部故障 等离子显示屏上可能会出现局部故障。图 1 是各局部可能会出现故障的 P.C.B. 印刷电路板。 36 12 选项设置 37 GPH10D 机芯系列有特殊功能及操作设置装置，称为选项菜单。该选项菜单对于有特殊功能要求的客户很有用。该菜单在安装阶段设置。 由于隐藏于屏幕菜单上，最终用户无法对其进行设置或改变。 注 : 由于调节 “键锁定”，“Remocon 用户标准”或 “遥控 ID”，主机按钮和遥控器都不能启用时，将所有值设置为 “Off” ，这样所 有按钮就可以重新启用。 同时按住主机上的 “Volume down”（音量降）按钮和遥控器上的 “R”按钮 5 秒钟以上。 将显示 “SHIPPING” 菜单，当消失时，锁定解除。 GPH10D 机芯隐藏选项菜单 选项菜单 默认设置 内容 周定时器 --- 设置周定时。 屏前显示 开 在电源开、没有信号时，输入模式显示功能有效 / 无效。 初始输入 关 电源接通后设置初始输入模式。电源接通后可以进行输入模式选择。 初始音量等级 关 电源接通后设置初始音量标准。电源接通后可以进行音量调节。 最大音量等级 关 将最大音量设定到所希望的等级。音量不能超过此限制。 输入锁定 关 将输入模式固定为 AV，分量 /RGB 或 PC。不能通过输入选择键来改变输入模式。 键锁定 关 底部操作键有效 / 无效 （输入，菜单，确定 和 / 或 音量上 / 下）。 Remocon 用户标准 关 遥控键无效。 关：所有遥控键无效。 用户 1：只有待机 （开 / 关）、输入、直接输入、状态、环绕、静音开 / 关以及音 量调节键为有效。 用户 2：只有待机键 （开 / 关）为有效。 用户 3：所有键都无效。 高级 PIP （画中画） 关 关：设置正常两屏幕显示模式。 开：设置高级 PIP （画中画）模式。 “定时关机”功能 启动 定时关机功能有效 / 无效。 初始电源模式 正常 当电源恢复或将电源拔掉后再接通时设置本机电源模式。 ID 选择 0 将 ID 设置为 0 到 100。 遥控 ID 关 遥控 ID 功能开 / 关。 （当遥控 ID 为开时，标准遥控功能不能控制本机。） 串行 ID 关 串行 ID 功能开 / 关。 显示尺寸 关 在屏幕上调整图像显示尺寸。 开：设置图像显示尺寸约为正常图像显示的 95%。 演播室 W/B 关 将暖色模式色温设定为 3,200 Kelvin。 演播室增益 关 部分图像颜色过浅时可增强对比度以便更好地观看。 插槽电源 关 在电源接通时设置插槽电源模式。 允许在电源接通的情况下将可选接线端子板插入插槽。 V. 安装 关 V. 安装功能开 / 关。（未使用） 旋转 关 屏幕旋转 180° （上 - 下） 串行插槽选择 插槽 1 选择连接串行口的插槽。 注：只有从固定的串行端子才可设置外部指令。 38 13 导线图 13.1. P 电路板 A B C D E F G H I 1 2 3 4 5 6 P-BOARD (FOIL SIDE) TXN/P1XGTU (TNPA4221AN) TH-42PH10CK/CS TH-42PH10CK/CS P-BOARD TXN/P1XGTU (TNPA4221AN) P-BOARD TXN/P1XGTU (TNPA4221AN) 39 TH-42PH10CK/CS TH-42PH10CK/CS P-BOARD PARTS LOCATION P-BOARD PARTS LOCATION Parts Location Parts Location P-BOARD (COMPONENT SIDE) IC402 E-2 IC409 E-2 IC411 F-2 IC504 D-2 IC506 B-4 IC508 B-4 IC511 C-4 IC512 B-3 IC513 B-3 IC Q404 F-3 Q406 G-3 Q412 E-3 Q413 E-4 Q507 D-4 Q527 A-4 TRANSITOR R443 F-3 R661 C-2 R665 B-3 VOLUME P-BOARD (FOIL SIDE) IC401 E-2 IC402 E-2 IC403 F-2 IC406 D-4 IC408 F-2 IC409 E-2 IC411 D-2 IC412 F-3 IC501 H-2 IC502 H-1 IC504 F-2 IC505 H-5 IC506 H-4 IC507 G-4 IC508 H-4 IC509 G-4 IC510 I-1 IC511 G-4 IC512 H-3 IC513 H-3 IC520 H-3 IC Q401 D-4 Q402 D-4 Q403 E-2 Q404 D-4 Q406 C-3 Q407 D-3 Q408 E-3 Q409 E-4 Q410 F-2 Q411 E-2 Q412 E-3 Q413 E-4 Q420 D-4 Q422 D-3 Q434 D-2 Q501 H-1 Q502 G-1 Q507 F-4 Q508 G-2 Q509 G-3 Q510 G-4 Q517 E-4 Q520 F-4 Q521 G-1 Q524 H-2 Q525 H-4 Q527 H-4 Q530 H-4 TRANSISTOR R443 C-3 R661 G-2 R665 H-3 Q535 H-4 Q537 G-1 Q538 H-2 Q540 G-5 Q541 G-2 Q553 G-2 Q554 G-2 Q555 G-3 Q556 G-3 Q563 G-2 Q564 G-3 Q565 H-3 Q566 G-3 Q567 G-2 Q569 G-2 VOLUME P 40 A B C D E F G H I 1 2 3 4 5 6 P-BOARD (COMPONENT SIDE) TXN/P1XGTU (TNPA4221AN) TH-42PH10CK/CS P-BOARD TXN/P1XGTU (TNPA4221AN) TH-42PH10CK/CS P-BOARD TXN/P1XGTU (TNPA4221AN) 41 13.2. HU 电路板 A B C D E F G H I 1 2 3 4 5 6 C446 C448 L308 L309 L319 L320 JK301 JK302 JK303 JK304 Q301 C306 Q302 C307 Q303 Q304 C308 Q305 Q306 C310 C312 C314 H1 C317 C318 C319 C320 C321 C322 C323 C324 C325 C326 C327 C328 C329 D307 D308 D309 C330 C331 C332 D310 IC305 C335 C336 IC307 R310 R312 R314 R315 R316 R318 C340 R319 C341 C342 C345 R320 C348 R321 C349 R322 R323 R324 R325 R326 R327 R328 R329 C354 C356 R330 C358 R331 C359 R332 R333 R334 R335 R336 R337 R338 C360 R339 C361 C362 C364 C365 C367 C369 R345 R346 C370 C371 C373 C374 C375 R351 C379 R352 R353 R354 C380 C381 R359 C382 C384 C385 C386 C387 C388 R360 R361 R362 R363 C390 C391 C392 C393 C394 C395 R370 C398 R377 R383 R391 R392 R394 R395 R396 C400 C401 C402 C403 C404 C405 C406 C407 C408 C410 C411 C412 C413 C414 C415 C420 C423 R402 R405 R406 R409 C432 C433 C434 C435 C436 C437 C438 R410 HU 1 CR NO.3 TNPA3885 PbF L R L R C Y ORDER NO. B2 A1 A2 A40 A39 B39 B40 B1 1 25 26 50 1 28 29 56 C440 C441 C442 C443 C444 C445 L301 L302 C447 L303 L304 C449 L305 L306 L307 C450 C451 L310 L311 L312 L313 L314 L315 L316 L317 L318 TP301 TP302 TP303 TP304 TP305 JK301 JK302 JK303 JK304 C301 C302 C303 C304 C305 C309 Q307 Q308 C311 C313 H0 H1 C315 C316 D301 D302 D303 D304 D305 R301 D306 R302 R303 R304 R305 R306 R307 R308 IC301 R309 IC302 IC303 C333 IC304 C334 D311 IC306 C337 IC308 C338 C339 IC309 R311 R313 R317 C343 C344 C346 C347 C350 C351 C352 C353 C355 C357 C363 C366 C368 R340 R341 R342 R343 R344 R347 R348 R349 C372 C376 C377 C378 R350 R355 R356 R357 R358 C383 C389 R364 R365 R366 R367 R368 R369 C396 C397 C399 R371 R372 R373 R374 R375 R376 R378 R379 R380 R381 R382 R384 R385 R386 R389 R390 R397 R399 X301 C409 C416 C417 C418 C419 C421 C422 C424 C425 C426 C427 R400 C428 R401 C429 R403 R404 R407 R408 C430 C431 R411 C439 R412 R413 R414 R417 TNPA3885 1 HU CR NO.3 L R GND HD VD R415 R416 PbF L R L R C Y SEE REVERSE FOR ORDER NO. 1 8 A1 A2 B1 B2 A39 A40 B39 B40 1 12 13 24 25 36 37 48 1 3 4 5 1 3 4 5 1 44 45 88 89 132 133 176 1 4 5 8 1 8 9 16 1 4 5 8 + TH-42PH10CK/CS HU-BOARD TXNHU1XLTC (TNPA3885) TH-42PH10CK/CS HU-BOARD TXNHU1XLTC (TNPA3885) HU-BOARD (FOIL SIDE) TXNHU1XLTC (TNPA3885) HU-BOARD (COMPONENT SIDE) TXNHU1XLTC (TNPA3885) Parts Location HU-BOARD IC IC3301 IC3302 IC3303 IC3304 IC3305 IC3306 IC3307 IC3308 IC3309 Q3301 Q3302 Q3303 Q3304 Q3305 Q3306 Q3307 Q3308 TRANSISTOR TP3301 TP3302 TP3303 TP3304 TP3305 TRANSISTOR TP F-2 G-2 G-4 G-3 B-3 H-2 B-2 G-2 G-2 D-2 D-2 D-3 D-3 C-2 C-3 G-3 G-3 I-3 I-3 H-2 H-2 H-4 HU 42 13.3. HX 电路板 A B C D E F G H I 1 2 3 4 5 6 JA1 JA2 JA3 JA4 JA5 JA6 JA7 JA8 JA9 L526 R653 R654 R655 R656 JA10 JA11 JA12 JA13 JA14 JA15 JA16 R663 R664 R668 L555 R672 JK509 JK511 JK513 C523 C524 D504 D507 D508 D509 R508 R509 IC502 D510 Q531 Q532 R510 R511 C550 C551 R529 C552 C553 R530 C561 C562 R547 R548 FL510 FL511 FL512 FL513 FL514 FL515 FL516 FL517 R776 R777 R778 R585 R586 R589 R590 R591 R592 R593 R790 R791 HX1 C404 C405 C406 C407 C409 TP65 TP66 TP67 TP68 TP69 TP70 TP71 TP72 TP73 TP74 R400 TP75 3 CRNO. HX 1 TNPA4132 PbF 5 9 6 1 1 5 6 10 11 15 NO. ORDER SEE REVERSE FOR 1 4 5 8 1 15 JK509 JK511 JK513 J1 J2 J3 J4 J5 J6 J7 J8 J9 J10 J11 J12 J13 HX1 1 HX 3 CRNO. TNPA4132 PbF 6 1 9 5 1 5 ORDER NO. 1 15 HX-BOARD (COMPONENT SIDE) TZTNP03XGTC (TNPA4132) HX-BOARD (FOIL SIDE) TZTNP03XGTC (TNPA4132) TH-42PH10CK/CS HX-BOARD TZTNP03XGTC (TNPA4132) TH-42PH10CK/CS HX-BOARD TZTNP03XGTC (TNPA4132) Parts Location HX-BOARD IC IC502 D-3 Q3531 C-2 Q3532 C-2 TRANSISTOR HX 43 13.4. H3,S1,V1 和 V2 电路板 A B C D E F G H I 1 2 3 4 5 6 R1500 C1530 D1551 D1552 D1553 D1554 R1550 R1551 R1552 R1553 R1554 R1555 SN1550 L1501 L1502 L1503 L1504 L1505 L1506 RM001 TNPA3640 1 V1 R1556 SEE ORDER NO. FOR REVERSE PbF SW061 S34 S1 1 PbF 1 3 REVERSE FOR NO. ORDER SEE TNPA3642 SW061 S34 ORDER NO. TNPA3642 S1 1 1 3 Q1540 D1550 SN1550 V2 RM001 TNPA3640 V1 1 ORDER NO. 1 6 PbF L1507 L1508 V15 TNPA3641 V2 1 PbF ORDER NO. 3 1 R1513 SW1550 SW1551 SW1552 SW1553 SW1554 STR VOL.UP VOL.DOWN F TV/VTR R1511 R1510 R1512 SEE ORDER NO. FOR REVERSE PbF TNPA3641 1 V2 JK8500 H37 1 H3 TNPA3931 SEE REVERSE ORDER NO. FOR 3 1 JK8500 H37 TNPA3931 1 H3 PbF ORDER NO. 1 3 TH-42PH10CK/CS V2-BOARD TNPA3641 V1-BOARD TNPA3640 S1-BOARD TNPA3642 H3-BOARD TNPA3931 TH-42PH10CK/CS V2-BOARD TNPA3641 V1-BOARD TNPA3640 S1-BOARD TNPA3642 H3-BOARD TNPA3931 V2-BOARD(FOIL SIDE) TNPA3641 V2-BOARD(COMPONENT SIDE) TNPA3641 V1-BOARD(FOIL SIDE) TNPA3640 V1-BOARD(COMPONENT SIDE) TNPA3640 S1-BOARD(FOIL SIDE) TNPA3642 S1-BOARD(COMPONENT SIDE) TNPA3642 H3-BOARD (FOIL SIDE) TNPA3931 H3-BOARD (COMPONENT SIDE) TNPA3931 V1 V2 H3 S1 H3 44 13.5. DS 电路板 A B C D E F G H I 1 2 3 4 5 6 C8072 C8073 C8074 C8075 R802 R803 R804 R805 R806 R807 R3050 R8069 R810 R811 R3059 R812 R813 R814 R815 D3061 R3060 R3061 R3063 R825 R826 R3070 R3071 R3072 R8088 R3078 R3079 R836 R3080 R8096 C803 C804 C805 C806 R843 C808 R844 C809 R846 R3090 R3091 R3092 C810 C813 C814 C815 C818 C819 DS11 DS12 DS13 DS14 C820 D2303 R2301 R2302 C8112 C3101 C855 C856 C3103 D802 C864 C3110 C2364 C2365 C2366 C2367 C3114 C2368 C2369 C2372 Q2372 C2378 R8112 R8113 R2355 R2356 R2357 R3104 R2358 R3105 IC801 R2359 R3106 IC802 R2360 R8123 R3110 R3111 R2367 R2368 R8129 C2392 C2393 R3118 R2383 R2384 R2386 R2387 R2388 R3135 R3136 R3137 R2392 R2393 R2394 R2395 R2396 R2398 R3144 C8183 C8185 C8187 DS7 DS8 R3163 D8181 D8183 D8184 D8185 R8181 R3172 R8187 R8188 R8189 R8190 R3188 R3189 C2409 R3190 R3197 C2414 R3198 C2415 R3199 C2416 C2419 C2421 R2401 R2402 R2403 R2408 R2409 C8005 C8007 C8009 Q8200 Q8201 Q8202 Q8203 R2420 Q8204 R2421 R2422 C8016 R2423 Q3001 R2426 R2428 C3201 C3202 C3203 C8025 D8001 C3206 D8003 C3208 C3015 R8007 D8200 R8008 D8201 IC8003 D8203 D8204 R8200 R8201 R8202 R8203 R8204 D3001 R8205 D8209 R8206 R8207 D3003 C3028 D3004 R8208 C3029 R8209 R3001 R3002 R3003 L2330 R3004 D8210 L2331 D8211 D8212 D8213 C3030 C3035 R8021 R8023 R8025 R8026 L8101 L8102 L8103 L8104 L8105 L8106 L8107 L8108 R8033 D3024 R3025 R3026 R3027 TNPA4109 DS 1 3 1 2 PbF A1 A2 B1 B2 A40 A39 B39 B40 A1 A2 B1 B2 A40 A39 B39 B40 A1 A2 B1 B2 A40 A39 B39 B40 1 15 SEE REVERSE FOR ORDER NO. 1 4 5 8 1 4 5 8 1 3 1 3 1 10 11 20 DS-BOARD (FOIL SIDE) TNPA4109 TH-42PH10CK/CS DS-BOARD TNPA4109 TH-42PH10CK/CS DS-BOARD TNPA4109 Parts Location DS-BOARD IC801 E-2 IC802 E-2 IC8003 I-2 IC DS 45 A B C D E F G H I 1 2 3 4 5 6 C3058 R3030 C3059 R3031 R8045 R3032 R8047 R3033 C8070 R3034 R8048 C8071 R3035 R3036 R3037 C3060 R3038 R3039 R8050 R3230 R3231 R8051 R8054 R3040 R8055 R3041 R8056 R3042 R8057 R3043 C8080 R3044 R3045 C8081 C8082 R3046 R3047 C8083 C8084 R3048 R3049 R8060 R808 R3051 R8065 X8181 R809 R3053 R8067 R3054 FL8000 R3057 R3058 R8072 R816 R817 R818 R819 R3062 R8077 R3064 R3065 R3066 R3067 L3140 R820 R3068 FL3000 R821 FL3001 R3069 R822 FL3002 R823 FL3003 FL3004 R824 R8081 FL3005 FL3006 R827 FL3007 FL3008 FL3009 R3073 R3074 R8089 R3075 R3076 R3077 FL3010 R831 TPJV1 FL3011 R832 FL3012 R833 FL3013 R834 FL3014 R835 FL3015 R8093 R837 R838 R8094 R839 R3081 R3082 R8097 R3083 R8098 R3084 C801 R3085 R3086 C802 R3087 R840 Q2300 R3088 R3089 R841 R842 C807 R845 R847 R848 R849 R3093 R3094 R3095 C811 C812 R3096 C816 C817 DS11 DS12 DS13 DS14 DS15 C821 C822 C823 C824 C825 D2301 D2302 C827 C828 C829 R2303 R2304 C830 IC2301 C831 C832 IC2302 IC2303 C833 C834 IC2305 C835 Q2331 C837 C838 DS30 C839 C840 C8100 C841 C8101 C8102 C842 C8103 C843 C844 C8105 C845 C8106 C846 C847 C8107 C848 C8108 C8109 C2350 C2351 C8111 C2352 C2353 C8113 C8114 C2354 C2355 C8115 C2356 C8116 C2357 C857 C2358 C858 C2359 C859 C3105 C3106 C3107 C3108 C2360 C8120 C860 C2361 D801 C8121 C861 ZA3001 C862 ZA3002 C2362 C8122 D803 C863 C2363 C8123 ZA3003 ZA3004 D804 C2364 C3111 C865 C2365 ZA3005 D805 C3112 C866 ZA3006 D806 C3113 ZA3007 D807 C867 C868 ZA3008 R8100 C2368 D808 C2369 C869 C3115 D809 IC8100 C2370 D810 D811 C2371 C2373 C2374 C2375 C2376 C2377 C2379 R2351 R2352 R2353 R2354 R3101 R2355 R3102 R2356 R8117 R3103 R2357 R8118 C2380 R2358 R8119 C2381 R2359 C2382 R3107 IC803 C2383 R3108 IC804 C2384 C2385 IC3101 L8001 IC805 C2386 L8003 C2387 R8120 C2388 R2360 C3134 L8005 C3135 C2389 R8121 R2361 R2362 R8122 C3136 R2363 R8124 R2364 R8125 R2365 R8126 R2366 R8127 R3114 C2390 R8128 R3115 C2391 R3116 R3117 C2394 C2395 R3119 C2396 C2397 C3143 C3144 C2398 C2399 C3145 L3002 C3146 R3120 R3121 L3005 L3006 R3125 R3126 C3153 R2385 R3134 R2389 R2390 R2391 R3140 R3141 R2397 R3143 R2399 C8181 C8182 Q8181 C8185 Q8182 Q8183 Q8184 DS1 DS2 R3150 DS4 R3151 DS6 DS7 DS8 DS9 IC3153 R3160 R3161 D8180 L3050 R8180 R8182 R8183 R3170 R8184 R8185 R8186 IC8181 C2400 C2401 X2301 C2402 C2403 C2404 C2405 C2406 C2407 C2408 TPJH1 ZA2300 R3191 ZA2301 R3192 C2410 C2411 R3195 R3196 C2412 C2413 C2417 C2418 C2420 C2425 C2426 R2400 R2404 R2405 R2406 R2407 C8001 C8003 R2410 R2411 Q8002 R2412 R2413 R2414 R2415 R2416 R2417 R2418 C8200 R2419 C8201 C8013 Q8010 Q8011 C8015 C3001 Q8012 Q8013 C3004 R2424 R2425 C8019 R2427 C3009 Q8019 R2429 C3200 C8021 C8023 C3010 C3204 R2430 C3011 C3205 R2431 C3012 C8027 C3013 C3207 C3014 C8029 R8001 R8002 C3016 R8003 C3017 R8004 C3018 R8005 C3019 R8006 C8030 IC8001 R8009 C8033 IC8003 D8010 C3020 D8011 C3021 C8035 IC8005 C8036 C3022 C3023 IC8007 C3024 R8010 C8038 L801 C3025 IC8009 R8011 R8012 L802 C3026 L803 C3027 L804 L805 L807 R8017 R8018 L808 L2330 L2331 L809 IC8014 IC3001 C8045 C3031 C3032 IC3002 IC3003 C3033 IC8017 C3034 IC3004 L810 IC8018 IC3005 L811 C8049 C3036 IC3006 L812 IC3007 R8024 IC3008 C8051 R8029 C3040 C3041 C3042 C3043 R3210 R8031 R3211 R3212 R3213 R3214 R8035 R3215 R8036 R3216 R3217 R8037 R3218 R8039 R3219 R3028 C3051 R3029 C3052 C3053 C3054 R8041 C3055 C3056 C3057 1 DS TNPA4109 THERMAL PAD THERMAL PAD A A B B PbF B C E A39 A40 B39 B40 A1 A2 B1 B2 A1 A39 A40 B39 B40 B1 B2 A2 A1 A2 B1 B2 A39 A40 B39 B40 1 15 1 3 ORDER NO. 1 14 15 28 7 8 22 21 1 14 15 28 7 8 22 21 1 20 40 41 60 61 80 21 1 4 5 8 B C E 1 5 NP NP 1 4 5 8 1 14 15 28 7 8 22 21 1 7 NP NP 1 80 1 6 1 11 1 10 1 3 1 3 1 3 1 10 11 20 1 4 5 8 1 8 9 16 20 11 10 1 1 7 8 14 1 4 5 8 1 4 5 8 1 10 11 20 1 10 11 20 1 8 9 16 1 8 9 16 1 3 4 5 1 8 9 16 1 3 4 5 1 14 15 24 25 38 39 48 1 8 9 16 1 4 5 8 1 4 5 8 DS-BOARD (COMPONENT SIDE) TNPA4109 TH-42PH10CK/CS DS-BOARD TNPA4109 TH-42PH10CK/CS DS-BOARD TNPA4109 Parts Location DS-BOARD (COMPONENT SIDE) IC TP TRANSISTOR DS IC803 E-3 IC804 D-2 IC805 F-2 IC2301 H-2 IC2302 H-2 IC2303 H-2 IC2305 H-2 IC3001 F-2 IC3002 C-2 IC3003 C-2 IC3004 C-2 IC3005 B-2 IC3006 B-2 IC3007 C-2 IC3008 G-3 IC3101 A-3 IC3153 C-3 IC8001 B-2 IC8003 B-2 IC8005 A-2 IC8007 B-2 IC8009 B-2 IC8014 D-2 IC8017 D-2 IC8018 D-2 IC8100 D-2 IC8181 G-3 Q2300 H-3 Q2331 H-3 Q8002 B-2 Q8010 D-2 Q8011 D-2 Q8012 D-2 Q8013 D-2 Q8019 B-2 Q8181 G-3 Q8182 G-3 Q8183 D-2 Q8184 D-2 TPJH1 A-2 TPJV1 A-2 46 13.6. DN 电路板 A B C D E F G H I 1 2 3 4 5 6 R994 R995 C006 C202 C203 C204 C010 C205 C206 C207 C013 C014 C208 C015 C209 C016 C017 C018 C019 C210 C211 C020 C021 C025 C219 C026 C027 C605 R001 R002 C607 R003 C220 C221 C609 C222 R007 R009 IC002 IC003 C227 C803 C610 C611 Q801 Q802 C613 R011 R013 C230 R014 R017 R018 R019 C041 C042 C043 R020 R021 R022 R023 R024 R027 C051 C052 C053 C054 R221 C055 R222 C056 C057 R800 C058 IC605 R801 C059 R802 R804 L301 L302 R807 L303 R808 C060 R039 R809 C061 C062 R618 R619 R040 L501 L502 R812 R813 L503 L504 R620 R621 L505 R815 R622 R046 R817 R627 L702 L703 L704 R822 R823 R824 R825 R826 R827 R828 R829 TP501 TP502 R830 R831 R838 TP701 C861 R839 R260 R261 R840 R841 R842 R843 R845 TP901 TP902 R846 TP710 C871 R849 TP713 TP714 R271 TP715 R272 TP716 R273 R850 R851 R852 R277 R853 R278 R854 R279 R855 R856 TP721 R859 TP722 C884 C886 C887 R860 R861 C696 R867 R868 TP731 TP732 TP733 R871 TP351 R872 TP352 R876 R878 R879 R881 R882 R883 R691 R889 TP751 R891 R899 C302 C303 C309 C501 C502 C311 C312 C313 C314 Q707 Q708 C903 C711 C906 C712 C713 C908 C909 C715 PA901 Q712 Q714 C910 C911 C912 R503 C913 R504 C915 R505 R506 R313 R507 C918 R508 C919 D702 D703 R319 R702 R703 C920 R510 R704 C921 R513 R707 R514 R708 R320 D901 R516 C732 D903 C541 R903 C543 R904 R710 D714 C545 R905 R711 R906 C546 C352 R907 C353 C547 C930 R714 R908 C548 R520 C549 Q351 IC901 C932 R716 C357 R718 C358 C740 IC711 R719 C741 C359 C742 R526 C550 C551 IC715 R911 D721 R529 C552 R912 C553 R913 C554 R720 R914 C360 C555 C749 R915 C361 C556 R916 C362 C557 R917 C363 C558 C940 R918 D728 C364 C941 C559 R725 C365 R919 D729 R531 C942 R726 C366 C943 R728 C750 C369 C753 C560 R920 D730 C561 R921 C562 C756 C563 C564 C565 R731 C371 C566 C567 R733 R927 C568 R734 C569 R736 D352 D353 R544 D354 R351 D355 D356 R353 D357 C570 R354 D358 C571 D359 R355 C572 R356 C573 R357 C574 R358 C575 IC351 R359 C576 R742 C577 R743 C578 R744 D360 C579 R745 R746 R360 Q962 R362 R363 C580 R364 C581 R365 C582 R366 C583 R367 C584 R368 C585 FL301 R945 R369 C586 C587 C588 R754 C589 R756 R758 R370 R372 R373 C590 R950 R568 C591 R569 R951 FL501 R952 C592 FL502 R953 C593 FL503 R954 C594 R760 C595 R955 R956 C596 R957 C597 R958 R959 R573 IC953 IC954 IC956 R960 R962 R963 FL707 R964 FL708 FL709 R772 R773 C990 R774 C991 R776 C992 C993 FL710 C994 FL711 C995 C996 R587 C997 R588 C998 R971 R589 R972 R973 R974 R780 R975 R781 R976 R783 R977 R784 R590 R978 R591 R788 R595 R980 R981 R790 R791 R792 R987 R793 R795 R798 R799 R992 DN 1 TNPA4108 OSDHD TPFAN FANVO OSDVD CR NO.4 PbF 1 4 5 7 1 3 4 5 SEE REVERSE FOR ORDER NO. + 1 15 16 30 1 3 4 5 1 3 4 5 + 1 5 1 3 4 5 1 3 4 6 1 3 4 5 DN-BOARD (FOIL SIDE) TZTNP02XGTC (TNPA4108AC) TH-42PH10CK/CS DN-BOARD TZTNP02XGTC (TNPA4108AC) TH-42PH10CK/CS DN-BOARD TZTNP02XGTC (TNPA4108AC) Parts Location DN-BOARD (FOIL SIDE) IC IC4002 B-2 IC4003 A-2 IC4351 A-5 IC4605 D-4 IC4711 D-2 IC4715 C-1 IC4901 E-4 IC4953 F-3 IC4954 B-4 IC4956 F-2 Q4351 B-5 Q4707 D-2 Q4708 C-2 Q4712 C-2 Q4714 E-3 Q4801 E-2 Q4802 E-2 Q4962 E-3 TRANSISTOR DN 47 A B C D E F G H I 1 2 3 4 5 6 C001 C002 C003 C004 C005 C007 C008 C009 C201 C011 C012 C212 C213 C022 C023 C600 C024 C601 X501 C602 C603 C604 C606 C608 R004 R005 R006 R008 C031 C225 IC001 X701 C032 C228 C804 C229 R201 C612 Q803 R010 C614 R012 IC201 R016 R211 R212 R213 R214 R215 R216 R217 R218 R219 C629 R220 R803 R035 R805 R036 R806 R037 R038 IC031 IC032 IC803 R810 R041 R811 R042 R043 R044 R814 R045 R816 R818 R819 R626 L701 R242 R243 R244 R820 R245 R821 R631 L901 L902 R250 R251 R252 R832 R833 R640 R834 R835 R836 R837 FL001 C862 C863 C864 C865 C866 R844 R847 R848 C872 R657 C873 R658 R274 R275 R276 L351 L352 L353 R857 R858 C881 C882 R280 R281 C885 R282 R862 R863 R864 R865 R866 R869 DN1 DN2 DN4 R870 DN5 DN6 R873 R874 R875 R877 R880 R884 R885 R886 R887 R888 R890 R892 R893 R894 R895 C301 ZA001 ZA002 C304 C305 C306 C307 C308 C503 C504 C310 C505 C506 C315 C701 C702 C703 C704 C705 Q701 C706 Q702 C707 Q703 C708 Q704 C709 Q705 Q706 C901 C902 C904 C710 C905 Q901 Q902 C907 C714 C716 C717 Q713 C718 C719 IC301 R501 DN11 R502 C914 R312 C917 IC500 R314 IC501 R509 D701 R315 IC502 R316 R317 D704 R318 R701 L201 D709 R706 L203 C923 C924 R515 IC701 R709 R321 L206 D902 IC702 R322 IC703 C733 R323 R900 D904 IC704 R518 R324 R325 D711 C542 R902 C736 R326 D712 C737 R327 D713 C544 C738 C739 C351 R712 R713 C354 R139 C355 R715 DN31 R522 C356 DN32 R717 DN33 DN34 DN35 DN36 DN37 IC713 C743 C744 IC714 R142 D722 D723 R144 D724 R721 D725 R722 D726 R723 D727 R148 R724 DN41 R532 DN42 R533 R727 C367 C368 IC721 R729 C751 R536 C752 R537 R538 C754 C755 R539 R922 D732 R923 D733 R924 R730 D734 C370 R925 D735 R926 R732 R928 R735 R929 D351 R737 R738 R739 R546 R352 R930 R931 Q955 Q956 R740 R741 R747 R554 R748 Q961 R749 R361 R941 R171 R559 R942 R943 R750 R944 R751 R752 R753 R947 R560 R755 R757 R564 R565 R759 R371 R566 R567 R374 FL504 R761 R762 R763 C598 R764 C599 R765 R766 R767 R768 R574 R381 R769 R575 R382 R576 R383 FL703 R577 R384 R578 R385 R961 R579 FL705 R386 FL706 R387 R388 R770 R771 R580 R581 R775 R582 R777 R583 R778 R584 R779 R585 R586 R970 C999 R979 R786 R596 R983 R984 R985 R986 R796 R797 R991 CR NO.4 DNMM1 DNMM2 DNMM4 1 DNMM5 DNMM3 TNPA4108 DN DNMM7 DNMM6 DNMM8 PbF 1 20 21 40 41 60 61 80 A 1 1 3 4 5 1 3 4 5 1 4 5 8 1 6 7 12 ORDER NO. 1 80 1 40 14 1 1 21 1 31 1 16 17 32 48 49 64 33 1 21 1 10 11 20 AB C DE F G H J K L M N P R T U V W YAAABAC 2 1 4 3 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 1 30 31 50 51 80 100 81 + + 1 44 45 88 89 132 176 133 1 24 25 48 1 4 5 8 1 3 4 5 1 3 1 3 1 3 1 3 1 3 1 3 1 5 1 4 5 8 1 7 8 14 12 11 1 2 1 2 12 11 1 3 4 6 DN-BOARD (COMPONENT SIDE) TZTNP02XGTC (TNPA4108AC) TH-42PH10CK/CS DN-BOARD TZTNP02XGTC (TNPA4108AC) TH-42PH10CK/CS DN-BOARD TZTNP02XGTC (TNPA4108AC) Parts Location DN-BOARD (COMPONENT SIDE) IC IC4001 F-3 IC4031 E-2 IC4032 E-2 IC4201 D-2 IC4301 B-5 IC4500 C-4 IC4501 E-4 IC4502 F-4 IC4701 B-2 IC4702 C-3 IC4703 D-2 IC4704 C-3 IC4713 C-2 IC4714 A-2 IC4721 C-5 IC4803 A-2 Q4701 C-2 Q4702 C-5 Q4703 C-5 Q4704 C-5 Q4705 C-5 Q4706 C-2 Q4713 B-3 Q4803 B-2 Q4901 A-4 Q4902 A-4 Q4955 A-2 Q4956 A-2 Q4961 B-4 TRANSISTOR DN 48 13.7. D 电路板 A B C D E F G H I 1 2 3 4 5 6 C028 C029 IC001 IC002 C032 R203 IC007 Q805 R205 Q806 R206 D017 R207 R400 C044 D020 C045 C048 Q044 R215 Q046 R217 R218 R219 C050 C051 C052 Q050 R220 Q051 R221 C825 C056 R222 D802 Q053 C057 C058 D804 D807 D808 C832 C062 C063 IC805 D811 IC806 D813 C838 D814 D815 L501 L502 L504 L505 C840 C843 C844 C846 R827 R828 C856 C860 C861 R839 C862 C863 C864 R840 R070 R845 R846 R847 R848 R849 C874 C877 R850 C878 C879 C880 C881 R859 C882 C883 C884 C885 C886 C887 C888 R861 R862 R863 R868 R869 FL806 R870 R871 R872 R875 R878 R879 R886 R887 R888 R889 R890 R891 R892 R893 R894 R895 R896 R897 R898 R899 C507 R101 C511 C512 C513 R105 C516 C517 R108 C518 C900 R109 C519 C901 C902 C903 C904 C905 C906 C907 R110 C520 C908 C909 C521 R112 C522 C523 C524 C525 C526 C527 C528 C910 R501 C911 C912 C913 R503 R504 C914 C915 R505 C916 C917 R507 C918 C531 C919 R122 IC502 R123 R317 R127 C920 C921 R129 R511 C922 C923 R514 C924 R515 C925 R516 C927 C928 C929 R901 R519 R132 R902 R903 R904 R134 R906 R907 R908 C930 R520 C931 R521 C932 C933 C934 C935 C936 R526 C937 C938 R910 R911 C939 R141 R142 R915 C940 R530 TP010 R918 C941 R919 C559 C942 C943 C944 C945 C946 C947 R537 R538 C560 C949 R539 C561 C562 C563 C564 R925 C565 R926 C566 R927 R540 C950 R928 R541 C952 R543 C954 R544 R545 C955 C956 C957 C958 C959 R166 R936 R937 C960 R552 C966 R557 C967 R364 R558 R171 R941 R365 R172 R943 FL300 R174 R175 FL301 R945 R946 R949 R950 R568 R957 R189 R959 R382 R383 R384 R385 R193 FL900 R199 FL902 R394 3 CR NO.9 TNPA4133 D 2 1 1 PbF 8 5 4 1 6 4 3 1 8 5 4 1 30 16 15 1 12 13 24 1 SEE REVERSE FOR ORDER NO. 5 4 3 1 + + Parts Location D-BOARD (FOIL SIDE) IC TEST POINT IC9001 E-5 IC9002 E-5 IC9007 D-5 IC9502 B-3 IC9805 E-3 IC9806 E-2 TP010 C-2 Q9044 C-5 Q9046 C-5 Q9050 D-4 Q9051 D-3 Q9053 E-4 Q9805 F-4 Q9806 F-4 TRANSISTOR D-BOARD (FOIL SIDE) TZTNP01XGTC (TNPA4133AK) TH-42PH10CK/CS D-BOARD TZTNP01XGTC (TNPA4133AK) TH-42PH10CK/CS D-BOARD TZTNP01XGTC (TNPA4133AK) D 49 A B C D E F G H I 1 2 3 4 5 6 Q010 IC003 C033 R200 C034 R201 C035 C036 C037 PA800 C038 C039 Q807 D018 Q808 IC200 D019 Q809 C040 C041 IC011 C042 R402 IC013 R403 C046 C047 C049 C053 C823 C055 Q052 R223 Q054 R225 C061 IC802 IC803 IC804 D812 C837 L500 D816 R237 D817 C841 C842 R240 C845 R242 R243 R244 R245 R824 R825 R826 C468 C469 C853 C854 C855 C858 C859 R062 R063 R064 R065 R066 R067 C865 C866 C867 C868 D5 C869 D6 D9 C870 C871 C872 C873 C875 C876 R854 R099 FL803 FL805 R874 R885 X9000 D20 X200 ZA001 Q301 D25 Q302 C500 D31 C505 D32 C508 C509 C510 R102 R103 R104 R107 D110 D111 PA900 R113 R115 R116 IC303 R500 R119 R502 R506 R120 R508 IC500 R121 C532 C533 C534 R126 C536 C537 R128 R512 R513 R517 R518 R131 R133 R135 R905 IC900 IC901 R909 R523 R524 R525 R912 R143 R144 R145 R916 R917 R149 R531 R532 R533 L800 R534 L801 R535 L802 R536 R150 C948 R920 R151 R921 R922 R347 R348 R154 R349 R155 R156 C567 R158 C951 R159 R929 R542 C953 R350 R351 R352 R160 R548 R354 R161 R355 R549 R356 R164 R165 R167 R938 R550 C961 R939 C962 C963 R553 C964 R554 R361 C965 R555 R556 R362 R363 R170 R940 R942 R173 R944 R369 R177 R947 R948 R561 R562 R563 R370 R564 R371 R565 R566 R567 FL500 R569 R951 R181 R182 R952 R183 R953 R954 R184 FL504 R955 R185 R379 R186 R956 R187 R188 R958 R380 R381 R190 R960 R961 R194 R196 R197 FL901 FL903 FL904 R391 R392 R393 R396 R397 R398 R399 D 1 TP_VD TP_HD CR NO.9 TNPA4133 PbF 1 25 26 50 51 75 76 100 20 11 10 1 6 4 3 1 1 7 8 14 20 11 10 1 20 11 10 1 5 4 3 1 + + 31 1 21 1 1 7 + ORDER NO. 1 55 1 30 13 1 48 25 24 1 A 1 A 1 C E G J L NM K H F D B 2 4 6 8 10 12 3 5 7 9 11 13 + + 1 5 5 TH-42PH10CK/CS D-BOARD TZTNP01XGTC (TNPA4133AK) TH-42PH10CK/CS D-BOARD TZTNP01XGTC (TNPA4133AK) D-BOARD (COMPONENT SIDE) TZTNP01XGTC (TNPA4133AK) Parts Location D-BOARD (COMPONENT SIDE) IC IC9003 C-4 IC9011 C-5 IC9013 B-5 IC9200 E-5 IC9303 E-3 IC9500 D-5 IC9802 D-5 IC9803 D-5 IC9804 E-5 IC9900 D-3 IC9901 C-3 TP-HD D-4 TP-VD D-4 TP Q9010 B-5 Q9052 C-3 Q9054 B-4 Q9301 A-2 Q9302 C-2 Q9807 B-3 Q9808 B-3 Q9809 B-3 TRANSISTOR D 50 13.8. C1 电路板 A B C D E F G H I 1 2 3 4 5 6 C108 C110 C111 C112 C114 C115 C116 C117 C118 C119 C121 C122 C123 C124 C125 C126 C127 D103 D104 C128 D105 C129 D106 D107 D108 D109 C130 IC101 IC102 D110 C139 R112 C140 R119 C141 C142 C143 C145 C146 C147 C148 R121 R122 R123 R124 R125 R126 C150 R129 C151 C152 C153 R130 R131 R132 R133 R134 R135 R136 R141 R142 R143 R144 R145 R147 R150 R151 R152 R153 R154 R155 R157 R159 R162 FL101 R170 R171 R172 R173 R174 R176 R177 R180 R184 R185 R186 R187 CB1 CB2 CB3 CB4 ZA101 ZA102 ZA103 ZA104 C10 C11 TNPA4165 C1MM4 C1MM2 C1 CR NO.7 1 C1MM5 C1MM1 C1MM3 PbF 1 10 11 20 1 10 11 20 ORDER NO. 1 68 1 68 1 68 1 68 1 20 1 55 1 2 3 TNPA4165 1 C1 PbF SEE REVERSE FOR ORDER NO. TH-42PH10CK/CS C1-BOARD TNPA4165 TH-42PH10CK/CS C1-BOARD TNPA4165 C1-BOARD (FOIL SIDE) TNPA4165 C1-BOARD (COMPONENT SIDE) TNPA4165 Parts Location C1-BOARD IC7101 IC7102 IC G-2 G-2 C1 51 13.9. C2 电路板 A B C D E F G H I 1 2 3 4 5 6 C20 C21 C23 ZA201 ZA202 ZA203 ZA204 CB5 CB6 CB7 CB8 C201 C203 C204 C205 C207 C208 C209 C210 C211 C212 C214 C215 C216 C217 C218 C219 C220 C221 D201 D202 D203 C228 D204 C229 D205 D206 D207 D208 C230 IC201 C231 IC202 C232 C233 IC204 C235 C236 C237 C238 R211 R212 R213 R214 R215 C240 R218 C241 R219 C242 C243 C244 C245 C246 R222 R223 R224 R225 R226 R228 R229 R232 R233 R234 R235 R238 R243 R244 R245 R249 R250 R257 R258 R261 R262 R263 R264 R265 R267 FL201 R269 FL202 R273 R274 R275 R276 R277 R278 R279 R280 R281 R285 R286 R287 R288 R289 R290 R291 C2MM2 C2 1 TNPA4166 C2MM3 CR NO.7 C2MM5 C2MM4 C2MM1 PbF 1 20 1 55 1 12 ORDER NO. 1 68 1 68 1 68 1 68 1 10 11 20 1 10 11 20 1 10 11 20 3 1 2 C2 TNPA4166 1 PbF SEE REVERSE FOR NO. ORDER TH-42PH10CK/CS C2-BOARD TNPA4166 TH-42PH10CK/CS C2-BOARD TNPA4166 C2-BOARD (FOIL SIDE) TNPA4166 C2-BOARD (COMPONENT SIDE) TNPA4166 Parts Location C2-BOARD IC7201 IC7202 IC7204 IC B-1 B-2 C-2 C2 52 13.10.SC 电路板 A B C D E F G H I 1 2 3 4 5 6 SC41 SC42 SC45 SC46 C721 C531 C532 L401 L402 L403 L601 L602 L411 L412 L413 C561 C563 C592 C791 C795 C796 L461 L462 D583 L463 L464 L465 L466 L467 L468 L472 L473 L474 L481 L482 L483 L484 L485 L486 L487 L488 IC791 L690 Q401 Q402 Q403 C411 C412 C413 C414 C415 C801 C803 C804 C806 Q805 Q806 D401 Q421 D402 Q422 Q423 C813 C814 C620 C621 C431 C822 Q821 Q822 C440 R801 D421 Q441 D422 Q442 R806 R807 R809 IC803 C641 C450 Q451 Q452 R623 VR600 C841 C842 VR602 Q841 Q842 C460 R821 R823 TP1 TP2 TP4 TP5 Q661 TP6 TP7 TP8 TP9 T602 R840 R844 D461 D462 R658 SC2 D471 R856 TP10 TP11 TP12 TP13 TP14 TP15 C691 C692 TP16 TP17 Q690 TP18 R860 TP19 D481 D482 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 D491 TP30 TP31 TP32 TP33 TP34 TP35 TP36 TP37 TP38 TP39 TP40 TP41 TP42 R696 TP43 R697 TP44 TP45 TP46 TP47 TP48 TP49 TP50 TP51 TP52 TP53 TP54 TP55 TP56 TP57 TP58 TP59 L591 L592 TP60 TP61 TP62 TP63 TP64 SC23 TP70 SC30 SC31 PbF TNPA4182 1 2 3 4 5 6 CRNo.6 1 SC A1 A2 B2 B1 B40 B39 A40 A39 A1 B2 B1 B40 B39 A40 A39 A2 1 2 8 9 1 2 8 9 SEE REVERSE FOR ORDER NO. 1 12 G C E G C E G C E E C B E B C A A K G C E A A K G C E G C E E C B E C B A A K G C E A A K G C E 7 1 2 9 G C E G C E E C B C B E G D S S5 V2 S4 S3 S2 S1 V1 P1 P2 A A K A A K 1 3 A A K E B C A A K A A K A A K 3 1 1 10 1 6 TH-42PH10CK/CS SC-BOARD TNPA4182 TH-42PH10CK/CS SC-BOARD TNPA4182 SC-BOARD (FOIL SIDE) TNPA4182 53 TH-42PH10CK/CS SC-BOARD PARTS LOCATION TH-42PH10CK/CS SC-BOARD PARTS LOCATION Parts Location SC-BOARD (FOIL SIDE) IC6791 H-2 IC6803 F-1 Q6401 B-4 Q6402 B-4 Q6403 C-4 Q6421 D-4 Q6422 D-4 Q6423 E-4 Q6441 E-2 Q6442 E-2 Q6451 C-2 Q6452 C-2 Q6661 F-4 Q6690 H-5 Q6805 H-5 Q6806 H-5 Q6821 G-3 Q6822 F-4 Q6841 H-3 Q6842 H-3 TRANSISTOR TRANSISTOR TP1 A-2 TP2 A-2 TP4 B-2 TP5 B-2 TP6 B-1 TP7 B-1 TP8 B-1 TP9 B-1 TP10 H-1 TP11 H-2 TP12 H-1 TP13 G-1 TP14 H-1 TP15 H-2 TP16 G-2 TP17 G-2 TP18 G-1 TP19 G-2 TP20 G-2 TP21 G-1 TP22 G-2 TP23 G-2 TP24 G-2 TP25 H-2 TP26 H-1 TP27 H-2 TP28 H-1 TP29 H-3 TP30 H-5 TP31 E-1 TP32 E-5 TP33 A-1 TP34 A-4 TP35 A-5 TP36 G-2 TP37 H-2 TP38 G-1 TP39 H-1 TP40 D-5 TP VOLUME Parts Location SC-BOARD (COMPONENT SIDE) IC6471 B-4 IC6472 B-3 IC6501 G-4 IC6521 F-2 IC6561 C-1 IC6562 B-1 IC6581 F-1 IC6671 E-4 IC6721 A-5 IC6722 A-4 IC6724 C-5 IC6725 C-5 IC6752 D-4 IC6771 C-5 IC6772 C-5 IC6773 C-4 IC6774 C-4 IC6791 B-2 IC6801 C-2 IC6802 B-2 IC6803 D-1 IC6821 C-4 IC6841 B-3 IC6861 B-4 IC6871 C-3 IC PC6480 B-4 PC6701 A-4 PC6702 A-4 PC6704 A-4 PC6705 B-4 PC6801 C-2 PC6861 B-4 PC6871 B-2 Q6401 H-4 Q6402 H-4 Q6403 G-4 Q6421 F-4 Q6422 F-4 Q6423 E-4 Q6441 E-2 Q6442 E-2 Q6451 G-1 Q6452 G-1 Q6501 G-4 Q6502 G-4 Q6521 F-4 Q6522 F-4 Q6531 F-2 Q6532 F-2 Q6551 G-1 Q6552 G-1 Q6581 F-1 Q6601 E-6 Q6602 D-4 Q6603 E-6 Q6621 F-4 Q6622 G-4 PHOTO COUPLER TRANSISTOR TP15V G-1 TPSC1 D-5 TPSOS6 C-2 TPSOS7 B-2 TPVAD C-2 TPVSCN B-3 TPVSET C-4 TPVSET2 B-4 TPVSUS H-1 TP VR6600 C-2 VR6602 C-4 VOLUME TP41 D-5 TP42 D-5 TP43 D-5 TP44 B-5 TP45 D-5 TP46 F-5 TP47 F-5 TP48 F-5 TP49 F-5 TP50 H-5 TP51 G-5 TP52 H-1 TP53 H-3 TP54 C-5 TP55 C-5 TP56 C-5 TP57 C-5 TP58 B-5 TP59 G-5 TP60 G-5 TP61 G-5 TP62 G-5 TP63 G-5 TP64 G-3 TP70 H-2 VR6600 G-2 VR6602 G-4 Q6642 F-5 Q6643 F-5 Q6644 G-5 Q6645 G-5 Q6646 G-5 Q6647 H-5 Q6648 H-5 Q6661 D-4 Q6662 C-4 Q6665 D-4 Q6671 E-5 Q6672 F-4 Q6679 E-5 Q6680 E-5 Q6690 B-5 Q6742 B-4 Q6743 B-4 Q6762 F-4 Q6781 F-5 Q6782 F-5 Q6791 C-3 Q6801 D-1 Q6802 D-1 Q6805 B-5 Q6806 B-5 Q6821 C-3 Q6822 D-4 Q6824 B-3 Q6841 B-3 Q6842 B-3 SC 54 A B C D E F G H I 1 2 3 4 5 6 C708 SC41 SC42 SC45 SC46 C521 C522 C524 Q521 D501 C525 Q522 D503 C527 R501 R502 R503 R504 C721 R506 C722 C723 R507 C724 R508 C531 IC501 D701 C725 R509 C532 D702 C726 D703 C727 C728 R700 Q531 R701 Q532 R702 R703 R510 R704 R511 R705 R512 R706 R707 R708 R709 R516 R517 R710 R711 L401 D521 R712 L402 D522 R713 L403 D523 R714 R521 R522 R717 R523 C740 R718 D721 L601 IC521 L602 Q742 D722 Q743 D723 D724 L411 R721 D725 Q551 L412 R722 D726 Q552 L413 D727 R723 R724 D728 R531 D729 R532 R533 IC721 PC701 IC722 PC702 C752 C753 PC704 C754 IC724 D730 IC725 C561 D731 PC705 C755 C756 D732 C562 C563 D733 C564 C565 C566 Q762 R742 R745 R551 R746 R552 R747 R553 R748 C771 C772 C773 C775 C581 C582 C776 C777 Q581 R754 R561 R562 R563 R564 R565 IC752 R566 R567 R568 IC561 D761 Q781 IC562 C592 Q782 D763 C593 D764 D765 R761 D766 R762 R765 R766 R768 R769 C791 D771 C795 Q791 C796 D773 L461 L462 D583 L463 L464 D584 R580 R775 D585 L465 R582 R776 L466 R583 R777 L467 R584 L468 IC771 R585 IC772 R586 R587 IC773 R588 IC774 IC581 R589 R781 L472 R782 L473 L474 R590 R591 R785 R592 R786 R593 R788 R789 D791 L481 R791 L482 R792 L483 R793 L484 R795 L485 R796 L486 R797 L487 L488 IC791 L690 C401 C402 C403 Q401 Q402 Q403 C603 C604 C411 Q601 C605 C606 C412 Q602 C413 Q603 C414 C415 C801 C803 C804 C805 Q801 C806 Q802 Q805 C421 Q806 C422 C423 D401 Q421 D402 Q422 Q423 R401 C811 R402 C812 C813 R403 C814 C620 C815 C621 Q621 C431 Q622 D604 D605 D606 D607 R605 C822 R607 C823 R608 R609 Q821 D801 D802 Q822 C440 D804 Q824 D805 R801 D806 R802 R803 R804 R610 D421 D809 Q441 R805 D422 Q442 R612 R806 R807 R808 D619 R421 IC801 R809 C832 R422 IC802 IC803 R423 C641 C450 R810 R811 D621 Q642 R812 D622 D816 Q643 R813 D623 D817 Q644 R814 D624 Q451 R621 Q645 R815 R622 Q646 R816 Q452 R623 Q647 R817 R818 Q648 VR600 C841 R819 C842 VR602 D820 Q841 C845 D821 Q842 D822 D823 C460 D824 D631 D825 R821 D632 D826 R822 D827 R823 D828 R824 R825 D441 R826 R827 R828 R441 PC801 IC821 R829 R442 D830 R638 C661 R639 C662 C663 R830 Q661 D641 C471 R831 D836 R832 D642 Q662 D837 R833 D643 D838 R834 D644 Q665 D839 R835 D451 R642 R836 R837 R643 R838 R644 R839 R645 R451 C861 C862 R646 R452 C863 R647 R648 C671 D841 D842 T602 D843 R840 C480 R841 Q671 R842 Q672 R843 R844 D461 R845 R846 D462 R847 R848 Q679 IC841 R849 C871 D465 C872 D466 C873 R658 R659 R465 R466 R467 Q680 R850 R468 C491 D661 R851 D662 R852 SC2 D663 R853 D664 R660 R855 D471 D665 R661 D859 R856 D472 D666 R662 R857 D667 R663 R664 R665 R471 R472 R666 D477 R667 R473 D478 D860 R668 R474 D861 C691 R475 C692 D862 R476 R477 C694 Q690 R860 D670 C695 R861 IC471 D671 R862 IC472 R863 R864 D480 R865 D481 R671 R866 R672 D482 R867 R673 R868 R674 IC861 R869 D871 IC671 D872 R871 R872 R873 R874 R680 R875 D491 R681 R876 R877 R878 IC871 R879 D497 D690 D691 D692 R692 R886 R693 R887 R694 R888 R695 PC861 R696 R697 PC480 R891 PC871 L591 L592 SC20 SC23 C502 SC30 C504 SC31 Q501 C505 Q502 ZA401 ZA402 C702 ZA403 C703 C704 C705 C706 SCMM1 TPVAD TP15V TPVSCN TPSOS6 TPSOS7 TPSC1 DIP SCMM2 TPVSET2 TPVSET TPVSUS PbF Discharge SC CRNo.6 TNPA4182 1 A1 A2 B1 B2 A40 A39 B40 B39 A1 A2 B1 B2 A40 A39 B40 B39 1 2 8 9 1 2 8 9 9 16 8 1 1 8 16 9 1 7 8 14 14 1 7 8 ORDER NO. 1 8 9 16 1 10 11 20 1 10 11 20 1 4 5 8 3 4 5 1 3 4 5 1 1 4 5 8 12 1 C G E C G E C G E G S D B C E B C E A A K C G E A A K C G E C G E D G S D G S B C E B C E A A K C G E A A K C G E 7 2 9 1 D G S D G S D G S C G E D G S D G S C G E D G S D G S B C E B C E 1 2 3 4 G S D S5 V2 S4 S3 S2 S1 V1 P1 P2 D G S D G S A A K A A K 3 1 A A K B C E 1 1 3 4 5 A A K A A K 5 1 4 8 1 4 5 8 A A K 1 5 8 4 1 2 3 4 1 2 3 4 1 2 3 4 1 30 1 3 1 10 1 6 TH-42PH10CK/CS SC-BOARD TNPA4182 TH-42PH10CK/CS SC-BOARD TNPA4182 SC-BOARD (COMPONENT SIDE) TNPA4182 55 13.11.SU 电路板 A B C D E F G H I 1 2 3 4 5 6 C6901 C6902 C6903 C6904 C6905 C6906 C6907 C6908 C6909 C6910 C6911 C6912 C6913 C6914 C6915 C6916 C6917 C6918 C41 C6921 C6923 C6924 D6901 D6902 C6926 D6903 C6927 D6904 R6901 D6905 C6929 R6902 R6903 R6904 R6905 IC6901 R6909 C6931 IC6902 IC6903 IC6904 IC6905 C6936 IC6906 C6937 R6913 R6917 C6940 IC6910 C6941 IC6911 C6942 C6943 R6924 R6925 R6926 R6927 R6928 R6931 R6932 R6933 C80 R6934 R6935 R6936 R6938 SU45 SU1 SU2 SU3 SU4 L6901 TPSU1 TPSU2 SU TNPA4184 1 PbF B1 B48 A48 A1 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 50 51 75 76 100 26 1 25 26 50 51 75 76 100 3 4 5 1 3 4 5 1 9 8 2 1 ORDER NO. A1 B1 A48 B48 A1 A48 B48 B1 A1 A48 B48 B1 A1 B1 A48 B48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 C40 C1 TNPA4184 1 1 2 3 SU PbF SEE REVERSE FOR ORDER NO. TH-42PH10CK/CS SU-BOARD TNPA4184 TH-42PH10CK/CS SU-BOARD TNPA4184 SU-BOARD (COMPONENT SIDE) TNPA4184 SU-BOARD (FOIL SIDE) TNPA4184 Parts Location SU-BOARD IC6901 G-2 IC6902 IC6903 IC6904 IC6905 C-2 IC6906 B-2 IC6910 B-2 IC6911 B-2 IC TPSU1 C-2 TPSU2 TP F-2 E-2 D-2 F-2 SU 56 13.12.SD 电路板 A B C D E F G H I 1 2 3 4 5 6 A41 A80 C6951 C6952 C6953 C6954 C6955 TPSD1 C6956 TPSD2 C6957 C6958 C6959 C6960 C6961 C6962 C6963 C6964 C6965 C6966 C6967 C6968 C6971 C6973 C6974 D6951 D6952 C6976 D6953 C6977 D6954 R6951 D6955 C6979 R6952 R6953 R6954 R6955 R6959 IC6951 C6981 IC6952 IC6953 IC6954 IC6955 C6986 IC6956 C6987 R6963 R6967 C6990 IC6960 C6991 IC6961 C6992 C6993 R6971 R6975 R6976 R6977 R6978 R6981 R6982 R6983 R6984 R6985 R6986 R6989 SD46 SD1 SD2 SD3 SD4 L6951 SD TNPA4185 1 PbF ORDER NO. 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 50 51 75 76 100 26 B1 B48 A1 A48 3 4 5 1 3 4 5 1 B1 B48 A1 A48 9 8 2 1 B1 B48 A1 A48 A1 B1 A48 B48 A1 B1 A48 B48 A1 B1 A48 B48 A1 B1 A48 B48 B1 B48 A1 A48 TNPA4185 1 1 2 3 SD PbF SEE REVERSE FOR ORDER NO. TH-42PH10CK/CS SD-BOARD TNPA4185 TH-42PH10CK/CS SD-BOARD TNPA4185 SD-BOARD (COMPONENT SIDE) TNPA4185 SD-BOARD (FOIL SIDE) TNPA4185 Parts Location SD-BOARD IC6951 G-2 IC6952 IC6953 IC6954 IC6955 C-2 IC6956 B-2 IC6960 G-2 IC6961 G-2 IC TPSD1 D-2 TPSD2 TP F-2 E-2 D-2 F-2 SD 57 13.13.SS 电路板 A B C D E F G H I 1 2 3 4 5 6 L001 L002 L003 L011 L012 L013 SS11 SS12 SS23 L221 SS34 L045 L046 L047 L048 L241 L055 L056 L057 L058 SS53 SS54 SS55 SS56 L061 L062 L063 L064 L262 L271 L272 L081 L082 L083 L084 Q001 Q002 Q003 C201 C202 C011 C012 C013 C014 C015 C213 Q021 D001 Q022 Q023 C031 Q222 D021 Q041 D022 Q042 R020 VR000 C241 L103 Q051 Q052 R222 R223 Q256 C261 C262 C272 C273 D253 D061 TP1 D062 TP2 TP3 TP4 TP5 TP6 TP7 TP8 TP9 D071 D072 D081 D082 TP10 TP11 TP12 TP13 TP14 D091 TP15 TP16 TP17 TP18 TP19 TP20 TP22 TP24 TP25 TP26 TP27 TP28 TP29 SS53A TP30 TP31 TP33 TP34 TP36 SS54A SS55A SS56A C111 C112 1 SS 1 2 3 TNPA4183 6 5 4 CRNo.6 TPVe2 PbF 1 3 1 1 0 1 12 1 3 1 1 3 1 1 3 1 1 3 1 1 3 SEE REVERSE FOR ORDER NO. G C E G C E G C E G C E A A K G C E G C E E B C A A K G C E A A K G C E G C E G C E E C B A A K A A K A A K A A K A A K A A K A A K 1 13 1 1 3 1 13 1 1 3 1 1 3 1 1 3 1 1 3 1 1 3 1 1 3 1 1 3 1 1 3 1 1 3 SS-BOARD (FOIL SIDE) TNPA4183 Parts Location SS-BOARD (FOIL SIDE) TRANSISTOR Q6001 H-3 Q6002 H-3 Q6003 G-3 Q6021 G-3 Q6022 F-3 Q6023 F-3 Q6041 D-3 Q6042 D-3 Q6051 E-3 Q6052 E-3 Q6222 D-1 Q6256 D-1 TP22 B-2 TP24 H-3 TP25 G-3 TP26 F-3 TP27 F-3 TP28 D-3 TP29 D-3 TP30 C-3 TP31 B-3 TP33 B-2 TP34 B-2 TP36 D-3 TPVe2 D-1 TP1 H-1 TP2 H-1 TP3 H-1 TP4 H-1 TP5 H-1 TP6 H-1 TP7 H-2 TP8 H-2 TP9 H-2 TP10 G-2 TP11 G-2 TP12 B-3 TP13 B-2 TP14 B-2 TP15 B-2 TP16 B-2 TP17 B-2 TP18 B-2 TP19 B-2 TP20 B-2 TRANSISTOR TP VR6000 D-2 VOLUME TH-42PH10CK/CS SS-BOARD TNPA4183 TH-42PH10CK/CS SS-BOARD TNPA4183 SS 58 A B C D E F G H I 1 2 3 4 5 6 R104 R106 R107 R108 R109 C132 D110 C134 D111 C135 R110 R111 R112 R113 R114 R116 L000 L001 Q141 Q142 L002 L003 Q146 Q147 C151 C152 C153 L010 C154 D131 L011 D132 L012 L013 R131 R132 R134 SS11 R135 SS12 R136 IC131 L211 L212 R141 R142 R145 R146 R147 SS23 L221 Q171 D151 Q172 D152 D153 R151 R152 R154 R157 R158 SS34 R159 IC151 Q181 R160 L045 L046 L047 L048 L241 C193 C194 C195 C197 L055 R171 L056 R172 L057 R173 L058 SS53 SS54 SS55 SS56 L061 L062 L063 L064 R181 R182 R183 L262 D191 D193 R191 R192 R193 R194 IC191 L271 L272 L081 L082 L083 L084 C001 C002 C003 Q001 Q002 Q003 C201 C202 C011 C012 C013 C014 C209 C015 C211 C212 C213 C021 C022 C023 Q021 D001 Q022 Q023 R001 R003 C220 C221 R005 C031 Q222 C033 D010 Q031 C037 D211 R210 D021 Q041 D022 Q042 R213 D024 R020 R214 D025 R021 VR000 R024 C241 IC211 C242 R026 C243 D221 L101 D222 L102 L103 D223 R220 R221 D031 Q051 L105 L106 Q052 D032 R222 R223 R031 R225 R032 R226 R227 R033 R034 R228 R229 C251 IC221 C252 Q251 R230 R231 Q256 R232 R041 R043 C261 C262 C071 R241 R242 R051 R246 R247 R053 R248 R249 IC241 C272 C273 Q271 C276 D253 C278 D254 D255 D061 D062 R252 R253 R254 R255 R062 R256 R257 R064 R258 R259 IC251 R066 C282 C283 R068 C284 C091 C286 C287 C288 C289 D071 R261 D072 D073 R070 R071 R072 R073 R269 R077 D270 D271 D272 D273 R270 D275 D081 D276 R272 D082 R273 D278 R080 R274 R082 R276 R084 R278 R279 R086 R088 D280 R089 D281 D091 D092 R090 R284 R091 R290 R292 R293 SS53A SS54A SS55A SS56A Q101 Q102 Q103 Q104 Q105 Q106 ZA001 ZA002 C111 ZA005 C112 Q111 Q112 Q114 D101 D102 D103 D104 R102 TPVe SSMM1 TNPA4183 CRNo.6 SS 1 Discharge TPVSUS TP15V TPVDA TPSS1 Discharge TPSOS8 SSMM2 PbF 1 3 1 10 1 8 9 16 1 12 1 3 1 8 9 16 1 13 1 13 1 13 1 13 ORDER NO. 1 8 9 16 C G E C G E C G E C G E A A K C G E C G E B C E A A K C G E A A K C G E 1 4 5 8 C G E C G E B C E 1 10 11 20 A A K A A K 1 4 5 A A K A A K A A K A A K A A K 1 13 13 1 13 1 1 13 13 1 13 1 1 13 13 1 13 1 1 13 13 1 13 1 G S D G S D G S D G S D G S D G S D G S D SS-BOARD (COMPONENT SIDE) Parts Location SS-BOARD (COMPONENT SIDE) IC IC6131 C-2 IC6151 E-2 IC6191 H-2 IC6211 G-1 IC6221 F-1 IC6241 H-2 IC6251 H-2 Q6001 B-2 Q6002 B-2 Q6003 C-2 Q6021 C-2 Q6022 D-2 Q6023 D-2 Q6031 F-2 Q6041 F-2 Q6042 F-2 Q6051 E-2 Q6052 E-2 Q6101 H-3 Q6102 H-2 Q6103 G-2 Q6104 G-2 Q6105 G-3 Q6106 H-2 Q6111 F-2 Q6112 G-1 Q6114 G-1 Q6141 C-2 Q6142 C-2 Q6146 C-2 Q6147 C-2 Q6171 F-2 Q6172 F-2 Q6181 E-2 Q6222 F-1 Q6251 H-3 Q6256 E-2 Q6271 F-3 TRANSISTOR TP15V B-2 TPSOS8 H-3 TPSS1 G-3 TPVDA B-2 TPVe F-2 TPVSUS B-2 TRANSISTOR TP VR6000 F-2 VOLUME TH-42PH10CK/CS SS-BOARD TNPA4183 TH-42PH10CK/CS SS-BOARD TNPA4183 TNPA4183 SS 59 14 方框图和线路图 14.1. 线路图注意事项 60 14.2. 主要集成电路方框图 LED_G/LED_R/REMOCON L V L R S DUAL VIDEO L LVDS TX R TERMINAL R VIDEO HU H1 DECODER AV SW HD C Y RGB RGB POWER C2 STB_PS OSD DATA DRIVER(LEFT) P CONTROL SC S.R CONVERTER RGB (CLK) S.R. POWER SUPPLY STB_PS SELECT SYNC S.R. S.R HD,VD SDRAM PULSE DS4 MITTER IIC S.R. P6 S.R S.R DN CONTROL SC20 PICTURE RGB REMOTE SENSOR D SEPA/ VSUS V2 CPG SC2 OSD C1 MEMORY SCAN OUT 64 +15V LVDS D25 SUSTAIN +15V RELAY EEPROM CONTROL SYNC PULSE Vda-75V SERIAL DS1 LVDS /SYNC PROCESSOR DDR STANDBY IIC 64 FLASH VOLTAGE 64 SUSTAIN SOS8 P_ON/OFF P2 C21 TXD-PC,RXD-PC P3.3V STB12V SS12 64 64 SS11 R,G,B MAIN DS11 SPEAKER L DN6 Vda PICTURE DS15 DIGITAL FACTOR H3 SPEAKER P7 C23 SCAN OUT CONTROL TXD,RXD R,G,B HD,VD,CLK HD,VD ERASE SOS7 MAIN SDRAM SS 64 +5V CONTROL TXD-PC,RXD-PC TXD-TU,RXD-TU STB5V IIC DS8 SELECT 12V TRANS- DC/DC CONVERTER DS12 SPAMP-L B VSUS S.R 64 STANDBY CONTROL OUTPUT PROCESS PROCESSOR TXD,RXD PROTECTION(SOS) SUB IIC SW PULSE A/D RESET STB+5V STB_PS_ON S.R HD,VD,CLK MAIN TXD,RXD Y,PB,PR C20 POWER LED_G C10 R,G,B S.R STAND_BY LED_R PULSE IIC 15V S.R. /SOUND PROCESSOR 64 +15V VDA FILTER PC PLASMA AI S34 CONTROL AVR DATA DRIVER(RIGHT) D32 RECTIFIER RECTIFIER IIC D31 RECTIFIER SU LVDS S.R VIDEO D20 P9 64 SOS6 RECEIVER POWER SW L,R R KEY SW SS34 CONTROL L SS23 DN1 PROCESSOR P2.5V PS_SOS KEY_SW SOUND STBY5V_M R P11 5V PULSE DS6 128M HD,VD VD 8bit PROCESS HD DS +15V S.R. HD,VD SOS6/ SIGNAL P25 SCAN DS7 LVDS SLOT3 SLOT2 SUSTAIN RECTIFIER SW DS2 SUSTAIN PLASMA AI PROCESSOR KEY-SW,CABLE DET,LED,REMOCON SLOT INTERFACE HD S1 H37 RECTIFIER VOLTAGE SOS7 SCAN CONTROL V,Y,C RS-232C C11 LINE TXD,RXD IIC LINE DS13 L,R SPEAKER TXD,RXD G SOUND+12V REMOTE RECEIVER TERMINALS VSUS /LED_G,R RGB SS_SOS8 64 SYNC VOLTAGE +15V IIC TXD-TU,RXD-TU PROCESS 64 L,R ALARM,STB-ON S.R. DISCHARGE S.R RECEIVER SCAN DRIVE DS14 VDA LVDS_MAIN 64 KEY SCAN SW SOUND VOLTAGE LVDS SD V15 P12 D/A (VE) VOLTAGE AC CORD SPAMP-R FORMAT CONVERTER H37 L,R GENERATOR IIC HD,VD OUTPUT DATA DRIVE SUSTAIN CONTROL +15V IIC VOLTAGE MIX DATA S.R MCU FPGA MICOM SELECT VDA S.R. GREEN SW IIC +5V R CONTROL +15V VOLTAGE PC AUDIO IN HD,VD SIGNAL ADDRESS SYNC SUB-FIELD S.R 15V +5V VIDEO S.R. DIGITAL SIGNAL PROCESSOR FLASH SELECT VSUS 8M OSD INPUT S.R SUSTAIN DRIVE LVDS_SUB P1.2V RGB CABLE DET SUB HX1 FORMAT STB+5V HX SOUND+15V FILTER KEY_SW VOLTAGE FAN AVR FAN_SOS DN35 +15V DN33 DN31 V1 V2 D5 TH-42PH10CK/CS Main Block Diagram TH-42PH10CK/CS Main Block Diagram 61 14.3. P 电路板方框图 + - + - + REF K A REF K A REF K A D509 X501 4NHz R661 1 2 3 R665 1 2 3 Q408 Q412 D417 D420 D419 C469 C555 D404 D416 D435 D401 D511 R628 Q527 Q413 Q409 R443 1 2 3 1 2 IC408 4 2 1 3 1 3 4 2 IC403 8 7 10 2 T401 5 8 7 6 VCC MOS DRIVE CURR DET CURR COMP 2 1 3 4 Q420 Q404,Q406 R405,D415 IC406 PFC 8 6 10 7 9 2 3 4 1 15 19 24 18 22 23 16 17 21 20 VDD VSS XIN XOUT RESET STB PS Vdat_GO_L STB 5 ON/OFF LOW 15 PANEL_ MAIN_ON AC_DET/ F STB H V LOW DET AC_P_DET (FAIL:H) AC_GO_L VSUS DET F_15V_ON/OFF SOS4_PS PFC ON/OFF V LOW ON/OFF IC501 1 2 IC502 RESET 6 4 1 4 Vdat P12 +15V 1 2 4 NO USE P5 3 5 10 6 +5Vc TO STBY5V 5 P25 D25 +5Vc 9 POWER MCU COLD COLD HOT 10 STB_PS Vda75V 8 STB12V Q509 12 11 13 2 +15Vc 1 3 HOT POWER SUPPLY 4 Vdat Q508 10 9 13 14 12 MAIN RELAY(H) RUSH RELAY(H) VSUS ON/OFF ALL OFF 11 VDATA_DET SOS4_PS PANEL_MAIN_ON IC520 PR401 F401 F402 1 4 NEUTRAL RL402 RL403 2 4 IC412 1 3 5 13 11 10 14 9 7 SS12 TO T410 T404 D540 LIVE P9 2 POWER COLD HOT AC CORD TO VlOW DET VlOW DET Vsus 192V Vlow Vlow OSC 395V Q501 Q502 Q525 ERROR DET IC506 ON:L 2 Vdat 73V D569 D570 D571 R670 Q541 R650 R649 5V OUT DETECTION COUPLER PHOTO CONTROL D579 R579 D549 IC401 COUPLER (3V 1.0V) OVER VOLTAGE PROTECTION (490V 80V) COUPLER PHOTO PHOTO COUPLER PHOTO R441 D441 4 OSC L405 L404 R413 L410 R407 R427 R435 Q434 IC409 IPD 8 Source Source 7 1 2 Drain 5 3 3 14 6 11 C446 Q402 L403 Q401 D407 R455 (AC DET) RESET 1 2 3 ECO R411 7 3 2 1 IC504 12 15 Q521 Q569 Q537 1 S 2 S G 3 4 S 8 7 5 6 D D D D 6 4 S 8 5 S 3 D D D 7 G 1 2 S D Q555 Q556 DC/DC CONV. DC/DC CONV. Q524 OUT 2 1 Vcc PR505 ERROR DET (Vda) IC512 D544 D545 DC-DC CONV. IC510 Q566 13 4 6 12 2 PHOTO COUPLER 3 4 1 2 IC507 3 1 2 (Vsus) K A Vsus R622 R648 R636 R626 R627 OUT DETECTION (60V 40V) VOLTAGE 2 4 3 9 5 6 10 T402 R631 R674 3 1 2 K A D572 POWER CIRCUIT F_5A_250V OSC OSC D531 8 7 D506 1 5 2 D536 Q563 Q554 Vdat OVER VOLTAGE DETECTION(100V 25V) Q520 Q517 +15Vc P ERROR DET IC411 ERROR DET SW SW RECTIFIER RECTIFIER 5V (Vlow) STB_12V STB5V ON/OFF STB5V (15V) (F STB 5V) INV. 12V ON/OFF BUFF D602 3 15V 250V 8A 250V 8A LINE FILTER 4 5 1 12 13 9 PR402 PFC R444 R442 R445 R447 R470 340kx6 R480 R479 R472 R475 27.4kx6 Q422 Q407 D418 A K Vref LINE FILTER Q411 RL401 R420 R410 R415 250V T630mA F403 4 Source Source Source Q410 PR509 16 15 D539 R676 Control Q540 Q507 Q510 Q536 RELAY ON RUSH ON RELAY MAIN ON:H D522 D523 ON IC513 7 10 2 3 PR601 T601 Vda DET Vref IC508 180k x4 2 1 3 5 4 IC509 IC511 TO 1 Vsus P11 P2 Vsus SS11 3 SC2 TO GND GND 1 3 7 DS6 TO DS4 TO P6 3 8 9 1 +15Vs(S) 2 F_STBY +15Vs(S) +15Vs(S) F_STBY F_STBY +15Vc +15Vs(S) +15Vs(S) STBY5V +15Vc +15Vs(S) 13 F_STB F_STB F_STB 12 15 17 F_STBY_ON 16 ALL_OFF 18 AC_GOOD +5Vc 20 +15Vc +15Vc STBY5V ALL_OFF AC_GOOD 1 8 F_STBY_ON 5 P7 9 2 6 +5Vc 10 Q564 BUFF BUFF Q565 Q535 PHOTO COUPLER 3 4 1 2 IC505 D701 D535 Q530 Q553 0.1 + - P_OUT P_OUT VDD2 VDD1 Vref 5V CRT_ON FB (PFC_ON/OFF) RCC CONV. (100KHz) (120-145KHz) CONVERTER RESONANCE ON:L ON:L ON:H ON:L GO:L 16 15 ON:H 11 12 15 16 D521 POWER SOS LED BLINKING : 4TIMES TH-42PH10CK/CS P-Board Block Diagram TH-42PH10CK/CS P-Board Block Diagram 62 14.4. P 电路板 (1/6) 线路图 E 1 2 3 4 5 6 7 8 9 F B C A D TH-42PH10CK/CS P-Board (1 of 6) Schematic Diagram TH-42PH10CK/CS P-Board (1 of 6) Schematic Diagram P-BOARD (3/6) TO A B C D E F G H I J 1 2 3 PFC COLD HOT COLD HOT COLD HOT TO AC CORD P-BOARD TXN/P1XGTU (TNPA4221AN) (1/6) 63 14.5. P 电路板 (2/6) 线路图 16 18 15 13 14 11 17 12 10 TH-42PH10CK/CS P-Board (2 of 6) Schematic Diagram TH-42PH10CK/CS P-Board (2 of 6) Schematic Diagram P-BOARD (4/6) TO AA AB AC AD AF AH AJ AG AE AI AK AR AL AM AN AO AP AQ AS 1 2 3 POWER CONTROL (Vlow) ERROR DET (Vda) COLD HOT COLD HOT COLD HOT TO SS-BOARD (SS12) P-BOARD TXN/P1XGTU (TNPA4221AN) (2/6) 64 14.6. P 电路板 (3/6) 线路图 E 1 2 3 4 5 6 7 8 9 F B C A D TH-42PH10CK/CS P-Board (3 of 6) Schematic Diagram TH-42PH10CK/CS P-Board (3 of 6) Schematic Diagram P-BOARD (5/6) TO P-BOARD (1/6) TO 11 12 13 14 16 17 18 19 20 15 A CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR B C D E F G H I J ERROR DET IPD PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER ERROR DET PHOTO COUPLER COLD HOT COLD HOT COLD HOT P-BOARD TXN/P1XGTU (TNPA4221AN) (3/6) 65 14.7. P 电路板 (4/6) 线路图 16 18 15 13 14 11 17 12 10 TH-42PH10CK/CS P-Board (4 of 6) Schematic Diagram TH-42PH10CK/CS P-Board (4 of 6) Schematic Diagram P-BOARD (6/6) TO P-BOARD (2/6) TO DA DB DC DD DE DF DG DH DI DJ DK AA AB AC AD AF AH AJ AG AE AI AK AR AL AM AN AO AP AQ AS 11 12 13 14 16 17 18 19 20 15 PHOTO COUPLER PHOTO COUPLER ERROR DET ERROR DET TO SC-BOARD (SC2) TO SS-BOARD (SS11) P-BOARD TXN/P1XGTU (TNPA4221AN) (4/6) 66 14.8. P 电路板 (5/6) 线路图 E 1 2 3 4 5 6 7 8 9 F B C A D TH-42PH10CK/CS P-Board (5 of 6) Schematic Diagram TH-42PH10CK/CS P-Board (5 of 6) Schematic Diagram P-BOARD (3/6) TO 31 32 33 34 35 36 37 38 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR 39 40 41 42 POWER MCU RESET P-BOARD TXN/P1XGTU (TNPA4221AN) (5/6) 67 14.9. P 电路板 (6/6) 线路图 16 18 15 13 14 11 17 12 10 TH-42PH10CK/CS P-Board (6 of 6) Schematic Diagram TH-42PH10CK/CS P-Board (6 of 6) Schematic Diagram P-BOARD (4/6) TO DA DB DC DD DE DF DG DH DI DJ DK 31 32 33 34 35 36 37 38 39 40 41 42 DC-DC CONV. TO D-BOARD (D25) NO USE TO DS-BOARD (DS4) TO DS-BOARD (DS6) P-BOARD TXN/P1XGTU (TNPA4221AN) (6/6) 68 14.10.HU 电路板方框图 C Y L R L R 1.8V 1.8V 3.3V 3.3V 3.3V 5V 5V_STB 5V_STB 9V 5V 3.3V 3.3V 9V 1 2 4 12 10 14 9 11 HU DUAL VIDEO TERMINAL(BNC/S) B1 B2 5 A2 6 3 LEVEL CHANGE A1 2 SDA SCL 6 5 IC3309 CONFIG ROM 1 5 VOUT VDD IC3303 AVR 1.8V 43 45 40 36 Q3302,Q3306 29 V/Y (+6db) IN V/CVB (+6db) Q3301,Q3305 C C IN 68 6db 6db 6db Y IN 1 1 VOUT 1 COUT YOUT 1 V1 LV1 RV1 C2 Y2 S2 LV2 RV2 LOGIC 26 27 SCL SDA 6db 0db 6db 0db 39 1 LOUT 41 1 ROUT JK3301 VIDEO IN JK3302 AUDIO IN L R S-VIDEO IN JK3304 JK3303 R AUDIO IN L 164 X3301 27MHz HD VIDEO DECODER (10bit ADC) IC3304 SDRAM IC3305 16M bit 60 RESETX VCC VOUT 4 5 RESET IC3302 96 95 93 94 92 91 90 89 105 106 84 83 MPU I/F SCL SDATX SCL SDA IC3306 3,3V 5V 4 31 12 27 7 28 10 6 11 8 14 ANALOG FRONT END(MUX/CLAM/AGC) DOUT(2) SCL B12 TXC+ TXC- TO DS11 SDA H1 B25 B24 39 37 40 42 41 45 38 46 47 48 B11 B15 B9 B14 B6 B8 B3 B5 B2 TX3+ TX3- TX2+ TX2- TX1+ TX1- TX0+ TX0- B28 PLUG DETECT B23 SRQ H0 2 6 7 FACTORY FOR USE SRQ SCL SDA SCL(5V) SDA(5V) A26 L R A28 Q3304 Q3303 L(0dB) R(0dB) S2 DETECT B36 A22 5V_STB 9V A21 9V B21 A19 5V 5V 3.3V A17 B19 B17 3.3V SDRAM I/F XIN 99 CLOCK GENE DOUT(3) DOUT(4) DOUT(5) DOUT(7) DOUT(6) DOUT(8) DOUT(9) G0 G1 G2 G5 G3 G4 G7 G6 TCLK+ TD+ TC+ TB+ TD- TA+ TC- TB- TA- TCLK- IC3307 LVDS TX TC4 CLK_IN TC5 HD VD VD HD RCLK0 27MHz VIDEO SIGNAL PROCCESSOR Synchroni- zation Y/C Sepa Chroma Demo Noise Reduce Picture Adjust/ Enhancer Flame TBC OUTPUT I/F(FORMATTER/BUFFER) AV SW IC3301 ADC ADC SCL(3.3V) SDA(3.3V) TD2 TD3 TB0 TA6 TB2 TB1 TB4 TB3 TH-42PH10CK/CS HU-Board Block Diagram TH-42PH10CK/CS HU-Board Block Diagram 69 14.11.HU 电路板 (1/2) 线路图 C Y + + + AE_R AE_L F_SDA F_SCL 9V D3302 MAZ81400ML R3338 1k R3304 22k L3306 EXC3BB221H R3324 100 C3312 10V 1u D3309 MAZ81400ML R3327 330 Q3301 2SD0601ARL C3326 50V 47p R3322 33k S3302 GAP0.3 C3301 50V 560p C3303 50V 560p R3301 75 C3319 16V 0.1u R3326 330 R3339 1k S3303 GAP0.3 R3331 100 C3308 10V 1u C3310 10V 1u JK3304 K1CB106B0027 C3321 50V 10p R3306 22k C3446 16V 0.1u L3309 G1C100K00020 C3331 10V 10u S3305 GAP0.3 C3448 16V 0.1u Q3305 2SB0709ARL C3450 16V 1u C3426 16V 47u C3307 10V 10u C3309 16V 47u L3301 EXC3BB221H C3311 16V 0.1u R3413 22 R3334 430 D3310 MAZ81400ML L3303 EXC3BB221H Q3302 2SD0601ARL L3308 G1C100K00020 C3316 10V 1u D3306 MAZ81400ML D3307 MAZ81400ML R3336 100 R3307 22k R3335 430 9V C3329 1000p 50V S3307 GAP0.3 JK3302 K2HA204B0097 L L-G R R-G R3305 22k 9V C3328 16V 0.1u L3307 EXC3BB221H D3304 MAZ81400ML R3337 100 R3411 1k JK3301 K1QBB1AB0008 P2347 R3310 220 R3414 22 R3332 127 C3304 50V 560p C3427 16V 0.1u L3319 J0JHC0000078 R3329 1k R3333 127 R3316 220 Q3304 2SD0601ARL C3318 10u 10V R3321 47k R3328 1k R3325 100 S3306 GAP0.3 C3306 10V 1u JK3303 K2HA204B0097 L L-G R R-G L3302 EXC3BB221H C1AB00000461 IC3301 1 V1 2 LV1 3 Y1 4 RV1 5 C1 6 S2-1 7 S-1 8 V2 9 LV2 10 Y2 11 RV2 12 C2 13 S2-2 14 S-2 15 V3 16 LV3 17 Y3 18 RV3 19 C3 20 S2-3 21 S-3 22 LV4 23 V4 24 RV4 25 ADR 26 SCL 27 SDA 28 DC OUT 29 COUT2 30 LOUT2 31 YOUT2 32 ROUT2 33 VOUT2 34 Vcc 35 MUTE 36 YIN1 37 BIAS 38 CIN1 39 LOUT1 40 VOUT1 41 ROUT1 42 TRAP1 43 YOUT1 44 GND 45 COUT1 46 LTV 47 TV 48 RTV R3314 220 Q3303 2SD0601ARL Q3306 2SB0709ARL R3308 1k C3320 16V 0.1u C3325 50V 47p R3315 220 R3317 220 C3451 16V 0.1u C3315 16V 47u GAP0.3 S3301 R3330 100 R3302 75 C3317 10u 10V L3305 EXC3BB221H C3327 16V 0.1u R3319 100 C3302 50V 560p R3318 100 R3309 220 C3314 10V 10u R3303 75 L3304 EXC3BB221H D3308 MAZ81400ML C3305 10V 10u S3304 GAP0.3 C3332 10V 10u R3320 33k R3312 220 C3330 1000p 50V R3323 47k C3322 50V 10p C3313 10V 10u R3416 0 R_IN L_IN R_IN L_IN VIDEO S-VIDEO IN IN V L Y R C L R C(+6dB) 4.5V V/Y(+6dB) 3.3V R(0dB) 4.5V L(0dB) 4.5V C Y R L B E D C 1 2 3 4 5 6 7 8 9 F A 4 1 5 3 2 VIDEO IN AUDIO IN S-VIDEO IN AUDIO IN AV SW TH-42PH10CK/CS HU-Board (1 of 2) Schematic Diagram TH-42PH10CK/CS HU-Board (1 of 2) Schematic Diagram HU-BOARD TXNHU1XLTC (TNPA3885) (1/2) 70 14.12.HU 电路板 (2/2) 线路图 + + + + + + + + + SD_D15 SD_D14 SD_D13 SD_D12 SD_D11 SD_D10 SD_D9 SD_D8 SD_DQM SD_CLK SD_A9 SD_A8 SD_A7 SD_A6 SD_A5 SD_A4 SD_A3 SD_A2 SD_A1 SD_A0 SD_A10 SD_BA SD_RAS SD_CAS SD_WE SD_DQM SD_D7 SD_D6 SD_D5 SD_D4 SD_D3 SD_D2 SD_D1 SD_D0 G_SDA A_G4 G_SCL A_G6 5V A_G1 9V G_SRQ A_G3 A_G0 A_G2 A_G7 AE_R 3.3V AE_L A_G5 SD_D0 SD_D15 SD_D1 SD_D14 SD_D2 SD_D13 SD_D3 SD_D12 SD_D4 SD_D11 SD_D5 SD_D10 SD_D6 SD_D9 SD_D7 SD_D8 SD_WE SD_A3 A_G0 A_G1 A_G2 A_G3 A_G4 A_G5 A_G6 A_G7 A_CLK G_SDA G_SCL G_SRQ G_SCL G_SDA SD_RAS SD_BA SD_A10 SD_A0 SD_A1 SD_A2 A_CLK A_HD A_HD A_VD A_VD SD_A9 SD_A6 SD_A5 SD_A8 SD_A4 SD_A7 SD_DQM F_SDA F_SCL 5V 5V 1.8V 5V G_SCL G_SDA SD_CAS 5V SD_CLK AN_TX0- AN_TX0+ AO_TX1- AO_TX1+ AP_TX2- AP_TX2+ AR_TX3+ AR_TX3- AQ_TXC+ AQ_TXC- AN_TX0- AN_TX0+ AO_TX1- AO_TX1+ AP_TX2- AP_TX2+ AR_TX3+ AR_TX3- AQ_TXC+ AQ_TXC- 3.3V 3.3V C3355 16V 0.1u D3311 MAZ30360HL C3400 16V 0.1u C3429 0.1u 16V TP3304 H0 1 2 3 4 5 6 7 8 3.3V IC3307 C0JBCZ000523 1 RS 2 TD1 3 TA5 4 TA6 5 GND 6 TB0 7 TB1 8 TD2 9 VCC 10 TD3 11 TB2 12 TB3 13 GND 14 TB4 15 TB5 16 TD4 17 R/F 18 TD5 19 TB6 20 TC0 21 GND 22 TC1 23 TC2 24 TC3 25 TD6 26 VCC 27 TC4 28 TC5 29 GND 30 TC6 31 CLK_IN 32 /PDWN 33 PLL_GND 34 PLL_VCC 35 PLL_GND 36 LVDS_GND 37 TD+ 38 TD- 39 TCLK+ 40 TCLK- 41 TC+ 42 TC- 43 LVDS_GND 44 LVDS_VCC 45 TB+ 46 TB- 47 TA+ 48 TA- 49 LVDS_GND 50 TD0 51 TA0 52 TA1 53 GND 54 TA2 55 TA3 56 TA4 C3386 16V 0.1u C3381 16V 0.1u R3374 22 C3366 16V 0.1u C3359 16V 0.1u C3419 16V 0.1u TVRP523 IC3309 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC R3367 EXB38V220JV C3333 47u 6.3V C3351 16V 0.1u R3352 47k R3384 EXB38V220JV C3396 16V 0.1u C3385 16V 0.1u TP3305 R3356 10 C3369 10V 1u C3415 16V 0.1u C3380 16V 0.1u C3424 16V 47u C3437 16V 0.1u R3340 150 C3334 16V 0.1u C3367 16V 0.1u R3378 EXB38V220JV C3345 10V 1u C3378 16V 0.1u R3355 10 R3354 1.1k R3385 EXB38V220JV L3312 G1C6R8MA0061 C3337 50V 0.01u C3ABMG000227 IC3305 1 VCC 2 DQ1 3 DQ2 4 VSSQ 5 DQ3 6 DQ4 7 VCCQ 8 DQ5 9 DQ6 10 VSSQ 11 DQ7 12 DQ8 13 VCCQ 14 LDQM 15 WE 16 CAS 17 RAS 18 CS 19 A11 20 A10 21 A0 22 A1 23 A2 24 A3 25 VCC 26 VSS 27 A4 28 A5 29 A6 30 A7 31 A8 32 A9 33 NC 34 CKE 35 CLK 36 UDQM 37 NC 38 VCCQ 39 DQ9 40 DQ10 41 VSSQ 42 DQ11 43 DQ12 44 VCCQ 45 DQ13 46 DQ14 47 VSSQ 48 DQ15 49 DQ16 50 VSS 5V 3.3V R3370 10k C3388 16V 0.1u 5V_STB R3351 47k R3389 22 C3399 16V 0.1u C3356 16V 0.1u L3318 J0JHC0000078 R3381 22 R3406 4.7k C3347 16V 0.1u R3380 EXB38V220JV C3434 0.01u 50V C3431 0.1u 16V R3404 22 C3407 16V 0.1u R3344 1k 3.3V C3383 16V 0.1u R3408 10k C3384 16V 0.1u C3376 16V 0.1u R3368 EXB38V220JV R3345 330 TP3303 C1AB00002487 IC3304 1 AOUT2 2 AVSDA2 3 AVDDA1 4 VREF1 5 VRO1 6 AOUT1 7 AVSDA1 8 AVDPL1 9 AVSPL1 10 VDDE 11 SININ1 12 ITHR 13 VDDI 14 RCLKI 15 SMCK 16 VSS 17 AVDAD0 18 VRH0 19 VRL0 20 AVSAD0 21 AVDPG0 22 SYNCIN 23 GIN 24 CO0 25 AVSPG0 26 ATST0 27 AVSPG1 28 CO1 29 CVBSIN 30 AVDPG1 31 AVSAD1 32 VRL1 33 VRH1 34 AVDAD1 35 VSS 36 VDDI 37 VDDE 38 CLK8 39 CLK4 40 GCLP 41 REQ 42 VSS 43 VDDI 44 VDDE 45 AS 46 SEL 47 DIN[9] 48 DIN[8] 49 DIN[7] 50 DIN[6] 51 DIN[5] 52 DIN[4] 53 DIN[3] 54 DIN[2] 55 DIN[1] 56 DIN[0] 57 VDDI 58 DVCK 59 VSS 60 RESETX 61 TEST0 62 TEST1 63 AVDAD2 64 VRH2 65 VRL2 66 AVSAD2 67 AVDBF2 68 CCRIN 69 CO3 70 CO2 71 AVSBF2 72 ATST1 73 AVSBF3 74 CBIN 75 AVDBF3 76 AVSAD3 77 VRL3 78 VRH3 79 AVDAD3 80 VSS 81 VDDE 82 RX 83 SDATX 84 SCL 85 XCS 86 VDDI 87 VDDE 88 VSS 89 DOUT[9] 90 DOUT[8] 91 DOUT[7] 92 DOUT[6] 93 DOUT[5] 94 DOUT[4] 95 DOUT[3] 96 DOUT[2] 97 DOUT[1] 98 DOUT[0] 99 RCLKO 100 VDDE 101 VSS 102 VDDI 103 TIN 104 VSS 105 HD 106 VD 107 FID 108 VSS 109 VDDI 110 VDDE 111 MA[9] 112 MA[8] 113 MA[7] 114 MA[6] 115 MA[5] 116 MA[4] 117 MA[3] 118 MDQM 119 MCAS 120 VSS 121 VDDI 122 VDDE 123 MRAS 124 MBA 125 MA[10] 126 MA[0] 127 MA[1] 128 MA[2] 129 MD[17] 130 MD[16] 131 VSS 132 VDDI 133 VDDE 134 MCLK 135 MWE 136 MD[8] 137 MD[7] 138 MD[9] 139 MD[6] 140 MD[10] 141 MD[5] 142 MD[11] 143 VDDE 144 VSS 145 VDDI 146 MD[4] 147 MD[12] 148 MD[3] 149 MD[13] 150 MD[2] 151 MD[14] 152 MD[1] 153 MD[15] 154 MD[0] 155 VDDE 156 VSS 157 VDDI 158 PDOUT 159 VSS 160 AVSPL0 161 AVDPL0 162 CPO 163 VGS 164 XIN 165 XTST 166 VDDE 167 AVD 168 AVS 169 MST 170 SM 171 SININ2 172 VDDI 173 VSS 174 AVDDA2 175 VREF2 176 VRO2 C3397 16V 0.1u C3368 16V 0.1u R3382 22 R3369 EXB38V220JV L3320 J0JHC0000078 R3343 10 C3354 16V 0.1u C3408 16V 0.1u R3349 22 L3314 J0JHC0000078 R3364 10 Q3307 2SB0709ARL C3393 16V 0.1u C3413 16V 0.1u C3433 0.01u 50V R3350 100k C0JBAZ002269 IC3306 1 2 3 4 5 6 7 8 C3339 50V 33p R3363 10 C3410 50V 1000p L3313 G1C6R8MA0061 R3347 220 R3405 4.7k R3379 EXB38V220JV R3372 22 C3373 16V 0.1u C3423 16V 0.1u C3447 6.3V 1u R3359 2.7k C3394 16V 0.1u R3392 10k R3399 10k L3311 J0JHC0000078 C3341 50V 68p C3374 16V 0.1u R3417 10 C3403 16V 0.1u C3365 16V 0.1u C3382 16V 0.1u H1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R3361 1.1k IC3302 C0EBE0000066 1 NC 2 SUB 3 GND 5 Vcc 4 Vout C3425 10V 1u R3403 22 C3404 16V 0.1u C3364 16V 0.1u R3390 22 R3376 10k C3411 50V 1000p C3344 6.3V 1u C3353 16V 0.1u C3389 16V 0.1u C3430 0.1u 16V C3441 47u 6.3V C0CBCAC00275 IC3303 1 VDD 2 GND 3 CE 5 VOUT 4 NC C3358 16V 0.1u C3370 16V 0.1u R3371 EXB38V220JV TP3302 R3375 10k C3401 16V 0.1u C3357 16V 0.1u C3432 0.01u 50V L3317 J0JHC0000078 C3363 16V 0.1u C3342 50V 68p C3428 0.1u 16V C3336 16V 0.1u C3346 16V 0.1u C3387 16V 0.1u C3375 10V 1u C3416 50V 1000p C3362 16V 0.1u C3405 16V 0.1u C3412 50V 1000p C3361 50V 33p C3406 16V 0.1u 3.3V R3348 220 C3414 16V 0.1u L3310 J0JHC0000078 R3383 22 C3350 16V 0.1u R3377 10k C3436 0.01u 50V C3402 16V 0.1u C3379 16V 0.1u C3445 6.3V 47u R3346 330 C3409 10V 1u R3342 10 C3371 16V 0.1u C3390 16V 0.1u C3352 16V 0.1u TP3301 C3377 16V 0.1u C3417 50V 1000p C3348 16V 0.1u C3422 6.3V 47u R3386 EXB38V220JV L3316 J0JHC0000078 C3443 47u 6.3V C3335 16V 0.1u R3360 2.2k C3392 16V 0.1u R3373 22 C3395 16V 0.1u R3353 2.2k C3343 50V 0.01u R3358 10k C3340 50V 33p C3418 16V 0.1u C3444 47u 6.3V L3315 J0JHC0000078 X3301 H1A2705B0032 1 OE 2 GND 3 OUT 4 VDD C3372 16V 0.1u C3420 50V 18p C3349 16V 0.1u R3362 2.7k R3365 10 C3438 0.01u 50V C3391 16V 0.1u C3435 0.01u 50V C3360 16V 0.1u C3398 16V 0.1u Q3308 2SB0709ARL C3442 47u 6.3V R3366 22 R3341 150 5V_STB C3440 47u 6.3V 5V_STB 3.3V 9V 5V A=3.3V, B=5V GND /OE1 B1 A2 Vcc A1 B2 SDA(3.3V) /OE2 SCL(3.3V) CONFIG ROM EEPROM SDA SRQ WP GND SCL D+1.8V D+3.3V A+3.3V P+1.8V D+3.3V A+3.3V A+3.3V A+3.3V D+3.3V 100mA max 50mA max B2 B0 B1 B3 B4 B5 B6 B7 R7 R1 R6 R5 R4 R3 R2 R0 9V/0.5A 3slot 5V/0.4A 3slot 3.3V/1.2A 3slot D3.3V D1.8V P1.8V A3.3V A3.3V A3.3V A3.3V A3.3V D1.8V D3.3V D1.8V D3.3V D1.8V A3.3V A3.3V Y/CVB IN C IN A3.3V A3.3V D3.3V SDA SCL SDA SCL D1.8V D3.3V D3.3V 27MHz 1.65kHz D1.8V D1.8V D3.3V D1.8V D3.3V D1.8V D3.3V 57MHz D3.3V D1.8V D1.8V D1.8V P1.8V D3.3V P1.8V A3.3V Low=I2C 16kbit 14 18 12 10 16 11 15 13 17 3 4 1 2 5 16M bit SDRAM AVR 1.8V LVDS TX HD VIDEO DECODER(10bit ADC) RESET TO DS-BOARD (DS11) TO USE FACTORY LEVEL CHANGE 3.3V 5V TH-42PH10CK/CS HU-Board (2 of 2) Schematic Diagram TH-42PH10CK/CS HU-Board (2 of 2) Schematic Diagram HU-BOARD TXNHU1XLTC (TNPA3885) (2/2) 71 14.13.HX 电路板方框图及线路图 PC_B PC_G PC_G PC_R PC_HD PC_B PC_VD PC_HD PC_VD PC_R FL3513 J0MAB0000054 1 2 3 4 R3585 56 C3409 16V 0.1u IC3502 C3EBDC000067 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC R3653 33k R3509 4.7k FL3510 J0MAB0000054 1 2 3 4 R3590 56 JK3509 K1FA109B0062 1 2 3 4 5 8 9 6 7 FL3517 J0MAB0000054 1 2 3 4 JK3513 R3668 100 C3404 16V 0.1u TP69 L3526 ELJPA100KFB TP75 D3507 MAZ81600HL C3523 10u 25V D3504 MAZ30560ML TP71 R3656 68k SLOT9V R3791 100 TP68 C3551 10u 25V L3555 ELJPA100KFB R3510 100 R3672 100 R3508 4.7k R3776 100 R3778 47k C3524 50V 0.01u SLOT9V R3530 180k C3552 10u 25V R3529 180k FL3515 J0MAB0000054 1 2 3 4 R3547 100 Q3532 2SD0601A0L TP65 TP73 R3548 100 R3511 100 R3790 100 C3562 1u 16V R3655 33k D3508 MAZ81600HL R3400 10k FL3514 J0MAB0000054 1 2 3 4 TP70 FL3511 J0MAB0000054 1 2 3 4 TP67 TP74 R3654 68k C3405 10u 25V R3589 47k FL3512 J0MAB0000054 1 2 3 4 TP72 HX1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 C3406 10u 25V R3663 1k FL3516 J0MAB0000054 1 2 3 4 C3561 1u 16V D3510 MAZ81600HL R3592 0 Q3531 2SD0601A0L C3550 50V 0.01u R3664 1k P5V R3777 100 TP66 P5V D3509 MAZ81600HL R3593 0 JK3511 K1FB115BA020 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 R3591 0 JK3513 K2HC103B0105 R3586 56 PC VD TO DS14 R PC B PC HD PC G SDA TO DS-BOARD (DS14) R DDC EEPROM RXD TXD TXD 5 DTR AUDIO IN CD GND L DDC EEPROM TXD R PC Rs Q3531 14 6 4 1 P5V 13 13 2 RXD PC HD REMOTE IN SCL CTS PCis PC VD WC SDA 1 15 Q3532 3 SLOT9V R IN SCL RXD PC R 7 VD L AMP TXD 5 HD 3 L IN PC Ls 14 6 JK3509 RS-232C GND JK3511 8 GND 10 HX GND IC3502 RXD 3 PC B PC/RS232C Terminal 12 PC IN PC G HX1 PC R 9V 2 7 4 1 2 5V 5 RTS 6 D DSR E RI B C A PR/R L 8 Y/G PB/B GND L 12 R AMP 2 15 PC IN TH-42PH10CK/CS HX-Board Block and Schematic Diagram TH-42PH10CK/CS HX-Board Block and Schematic Diagram HX-BOARD TZTNP03XGTC (TNPA4132) 72 14.14.V1 和 V2 电路板方框图及线路图 VCC GND OUT R G R G VCC GND OUT STB3.3V R1554 270 SW1551 EVQPLHA15 D1551 MAZ80330LL R1500 1k SW1553 EVQPLHA15 SW1554 EVQPLHA15 SW1552 EVQPLHA15 R1550 1k L1501 C1530 6.3V 10u R1553 470 D1554 MAZ80330LL L1507 R1511 3k R1512 4.7k L1503 R1510 2.2k L1504 V15 1 2 3 R1552 220k SW1550 EVQPLHA15 RM001 PNA4701M05TV V2 1 2 3 4 5 6 R1513 8.2k L1502 Q1540 2SD0601ASL L1508 L1505 L1506 D1550 LNJ107W5PRW R1551 47 R1554 R1511 R1550 R1512 Q1540 D1550 R1500 R1510 SW1551 SW1550 RM001 D1554 SW1553 R1551 SW1552 R1552 R1553 C1530 D1551 SW1554 R1513 B E C A REMOTE RECIEVER F VOL.DOWN VOL.UP GND LED_G LED G OPT LED R TV/VTR D DS-BOARD (DS15) GND REMOCON TO LED_R (DS2) KEY_SW TO DS-BOARD STB3.3V 1 2 3 4 5 6 7 8 STR 6 3 V15 1 LED R REMOTE RECIEVER LED G STB+3.3V REMOTE_IN LED_R LED_G TO DS2 V2 KEY SWITCH VOL.UP F VOL.DOWN TV/VTR V1 STR TO DS15 KEY SW POWER LED 2 1 V2 REMOTE RECEIVER TH-42PH10CK/CS V1 and V2-Board Block and Schematic Diagram TH-42PH10CK/CS V1 and V2-Board Block and Schematic Diagram V1-BOARD TNPA3640 V2-BOARD TNPA3641 73 14.15.DS 电路板 (1/2) 和 H3 电路板方框图 AC_GOOD F_STB_ON ALL_OFF RESET SOUND_MUTE A+1.8V A+3.3V +5V_M D+1.8V +9V_2 D+3.3V A+5V JK8500 SLOT+9V D+1.8V +9V_2 A+5V SLOT+5V A+1.8V STB3.3V FAN+5V D+3.3V SLOT+3.3V A+3.3V +12V D+3.3V JK8500 SLOT15V 15V STB5V_S P5V LAN+14V IC2303 3 2 SW VDD VOL CE OUT+ VOUT OUT- 4 -R OUT 17 IC8100 AVR+3.3V 3 TONE 38 AUDIO L 8 AMP PRE AMP H37 A G C 10W MONO R BAL 71 VCC SDA 22 7 SCL 16 2 MUTE SW IN 1 1 2 73 IC2301 5 3 8 AUDIO R 6 4 3 21 SW_B 3 SW_OUT SW_E STBY BTL AMP R 22 AMP_ 20 PRE_ AMP_STB_SW OUT+ 5 -L OUT S_CLOCK3 5 DS SLOT INTERFACE/SYNC PROCESSOR/SOUND PROCESSOR 15 23 7 10 IC804 VCC 5 AVR+12V 23 Q2300 L IIC ON/OFF Q2331 IC3008 DS6 37 3 1 67 8 1 R OUT DS8 AVR+9V 7 10W MONO AVR SOUND+12V 1 SDA3 2 H3 SCL3 1 1 IC2302 16 IC802 H3 DS7 LPF 32 IC805 1 AVR+5V VIN SW 3 1 8 INPUT OUT PHASE S_DATA3 S+15V SW_OUT IC801 4 1 F+15V IN F+15V IC803 S+15V VCC S+15V STBY 3 AMP_ 20 1 OUT- +R OUT 17 15 SW_E SW_B TO P6 VIN VIN 2 SW VIN 3 SHIFT SOUND CONTROL 2 +L OUT BTL AMP L 27 10 2 L OUT D2303 RSTB AVR 1.8V Q2372 3 IC2305 1 1 21 PRE_ AMP_STB_SW VCC 1 H37 VIN SW VIN VIN SPEAKER SPEAKER R L 7 P+15V 1 DS4 TO P7 5 P+15V 8 STB+5V 2 9 P+5V 10 ALL_OFF AC_GOOD F_STB_ON 8 TH-42PH10CK/CS DS-Board (1 of 2) and H3-Board Block Diagram TH-42PH10CK/CS DS-Board (1 of 2) and H3-Board Block Diagram 74 14.16.DS 电路板 (2/2) 方框图 IIC_SW L3 L2 HD_3 R1 SCL3 VD_2 R2 VD_3 R_4 R3 L_4 RXD13 HD_1 VD_1 RXD12 PR-M IIC_SW VD_4 DAC0 PB-M RXD11 HD_2 HD_4 DAC1 Y-M TXD13 SLOT2_DET SLOT1_DET TXD12 TXD11 SLOT3_DET L1 SOS_ALL SDA3 SCL1 SDA1 VD_4 HD_4 HD_HX VD_HX DPMS_HD DPMS_VD RXD4 TXD4 HD-M VD-M S-TX3- S-TX3+ S-TX2+ S-TX2- S-TX1+ S-TX1- S-TX0+ S-TX0- S-TXC- S-TXC+ M-TXC- M-TXC+ M-TX3+ M-TX3- M-TX0- M-TX2+ M-TX2- M-TX1- M-TX1+ M-TX0+ ALL_OFF SOUND_MUTE AC_GOOD F_STB_ON RTC_INT FAN_CONT KEY_SW KEY_DET RESET RXD1 LED_G LED_R TXD1 REMOCON_IN DPMS_VD RXD4 CABLE_DET DPMS_HD TXD4 SCL1 SDA3 SCL3 SDA1 P_STATUS REMOCON_OUT LED_G LED_R KEY_DET REMOCON_IN KEY_SW SOS_ALL SRQ STB+3.3V +9V_2 +9V_2 9V_2 STB+5V_S +5V_M STB+5V_S 9V_2 9V_2 +12V STB5V_S +5V_M 9V_2 +9V_2 +5V_M +9V_2 STB+5V_S STB+5V_S P5V STB+5V_S STB+3.3V STB+3.3V STB3.3V P5V STB+3.3V LAN+14V SLOT5V SLOT3.3V STB+3.3V P+5V SLOT+9V SLOT+3.3V STB+5V_S LAN+14V SLOT+5V SLOT+9V SLOT+3.3V STB+5V_S SLOT+9V LAN+14V SLOT+5V SLOT+15V SLOT+15V LAN+14V SLOT9V SLOT3.3V STB5V_S SLOT5V SLOT+15V 36 14 4 14 R SCL3 7 SLOT2 SDA3 IC3003 IC8007 H SLOT3 3 L L Q8184 SYNC SWITCH SLOT2 AC_CS V Sync 3 L 12 2 SDA3 B 10 6 3.3V<=>5V 9 46 OUTPUT PORT(SW1) 2 CONT. 38 OUTPUT PORT IC3101 PROCESSOR 8bit DAC4 16 11 3.3V<=>5V Yout1 S_CLOCK3 9 INVERTER 10 2 Y_4 SCL3 11 S2_2 48 TO DN1 8 17 Q8019 DS1 SLOT3 SDA3 L LPF VIDEO BUFFER LPF 4 SLOT1 S2_3 6 G/Y IIC AUDIO L R/PR SYNC_INH(M) 13 2 B/PB SDA3 IC3005 VD_M Y_1 AUDIO R SDA_S3 7 16 IIC CONT. 8 6 L Q8002 SCL3 3 Q3001 CS(M) SCL3 1 1 B 9 9 A SERIAL SELECT HD in SCL3 H IIC_SCL IC3006 CS(M) S2_1 H Sync PR_1 AUDIO SELECT 12 10 3 Y_2 32 HD_M SCL3 IC8009 SDA3 15 3 7 VD 1 2 VFC 8 IC8001 SDA3 15 COMPONENT SELECT 14 6 SYNC SIGNAL SCL3 SEPA SDA_S1 CUT-OFF L FQ CONT PR_2 2 IC8003 A LEVEL SHIFT OUTPUT PORT(SW3) LEVEL SHIFT 6 L HD SWITCH 6 1 PB_M 4 8bit ADC(SYNC INH(M)) LPF(M) STB+5V 1 MAIN 12 17 8bit DAC(CS(M)) 34 4 2 8bit DAC(LPF(M)) Q8183 SW1 S_DATA3 SDA3 PBout1 3 IIC_DAT 59 40 30 CS(M) STB+3.3V IC3007 P-STATUS 4 55 5 SDA3 SCL3 15 Y_M SEPA L 16 H HD IC3002 L EX I/O(VIDEO/AUDIO SELECT) SCL_S1 18 PR_4 5 H P+5V 2 23 4 4 8 2 SW0 FAN_CONT DS SLOT INTERFACE/SYNC PROCESSOR/SOUND PROCESSOR 6 SCL_S3 68 PB_2 10 8bit DAC3 8 PB_3 OUTPUT PORT OUTPUT PORT 14 OUTPUT PORT IC3001 44 19 22 PRout1 PB_1 1 EX.I/O(IIC SW) PR_M 25 S1 S0 4 CONT. VCC 1 7 16 IIC SUB 10 16 PBout2 OUTPUT PORT(SW2) HD 1 Yout2 8bit DAC(FAN CONT) SW1 OUTPUT PORT(SW0) SYNC_INH(M) LPF 16 5 3 3 13 13 IC3004 HD/Green 5 1 8bit DAC0 VCC 13 7 VCC SW0 SDA3 Y_3 1 OUT1 SYNC SELECT SCL3 15 PR_3 LPF(M) Green 2 21 PB_4 27 24 6 21 PRout2 5 IC8005 IIC ON/OFF OUT2 SYNC SIGNAL 13 S0/S1 SDA EX.I/O(SLOT DET IIC CONTROL) 5 DAC1 6 ASPECT DET SCL 5 8 DAC2 42 VD 8bit DAC1 SLOT1 H H PC DS-BOARD SOS LED BLINKING :10TIMES 5 3 X8181 3.3V<=>5V 8 LEVEL SHIFT SCL TIME CLOCK 2 RTC INT 3.3V<=>5V Q8181 SDA LEVEL SHIFT Q8182 Q8010,11 Q8012,13 LEVEL SHIFT 3.3V<=>5V 2 4 IC8017 2 3.3V<=>5V LEVEL SHIFT 4 IC8018 RS232C DRIVER TXD_4 17 13 15 16 IC8014 RXD_4 19 54 P+5V 80 79 P+15V P+15V HD VD 10 8 S_TX3+ S_TX3- 13 12 S_TX2+ S_TX2- 16 15 S_TX1+ S_TX1- 19 18 S_TX0+ S_TX0- 22 21 S_TXC+ S_TXC- 25 24 28 27 M_TXC- M_TXC+ M_TX3+ M_TX0+ M_TX2- M_TX0- M_TX3- 40 39 34 33 37 36 M_TX2+ M_TX1+ M_TX1- 31 30 SOUND_MUTE F_STB_ON 45 44 43 42 ALL OFF AC GOOD 46 RTC_INT KEY_DET 48 FAN_CONT KEY_SW 50 49 47 RESET LED_R 52 RXD_TU(SBO) LED_G 57 56 51 TXD_TU(SBI) 61 REMOCON 65 DPMS_VD DPMS_HD 67 RXD PC CABLE DET 70 69 66 TXD PC 72 SCL1 77 IIC CONT SDA1 SDA3 73 SCL3 76 75 58 REMOCON OUT POWER_STATUS 63 LED_G 2 3 LED_R 4 KEY_DET 6 REMOCON KEY_SW 1 DS 15 TO V15 TO V2 DS2 STB+3.3V 1 SOS_ALL SOS OUT SOS Q8200-Q8202 STB_ON 3.3V 5V LEVEL SHIFT 20 IC3153 2 3 4 2 3 4 2 14 +9V 12 PB/B L TXD 4 13 5 VD_HX PR/R HD_HX R Y/G 8 RXD +5V 10 PB_4 Y_4 PR_4 6 15 1 R_4 L_4 TO HX1 DS 14 TXD_4 RXD_4 VD_HX HD_HX TX0+ B30 B31 B15 PR/R REMOTE B26 Y_1 B11 B3 AUDIO IN L VD_1 B2 SOS B19 B25 TX1+ A40 RXD_11 SDA_S1 B35 B8 TXG+ R_1 SLOT1_DET DS 11 SLOT3.3V SRQ SLOT1 HD_1 TX3- A38 TXC+ TXD A17 A26 SLOT9V SRQ TX3+ SLOT9V HD PR_1 B17 B21 B28 B32 A19 B24 TX0- B14 IIC_CLOCK A34 SCL_S1 STB5V A28 SLOT5V RESET CABLE_DET B36 POWER_STATUS TX1- IIC_DATA PB_1 A32 AUDIO IN R SOS A36 SLOT5V REMOTE A30 B12 PLUG DET B5 A21 S2_1 PB/B S2DETECT TXC- B29 B23 RESET Y/G L_1 CABLE DET B9 P_STATUS LAN+14V RXD B27 VD LAN+14V B6 SLOT3.3V TXD_11 TXG- A22 B40 STB5V SLOT2_DET SLOT2 TX1+ B19 B27 B40 PB/B B24 B15 SLOT9V B6 S2_2 TXC- B14 SOS A26 AUDIO IN L SOS A40 SLOT3.3V B11 HD B17 B9 A36 A38 TX0+ SLOT5V Y/G VD_2 TXD SLOT3.3V REMOTE TXD_12 PR/R S2 DETECT B5 PB_2 SRQ L_2 SLOT5V DS 12 R_2 A19 VD TX0- HD_2 B28 B2 RXD_12 RESET SLOT9V B25 A30 TX3- PR_2 IIC_CLOCK LAN+14V PLUG DET B36 B8 RXD REMOTE B26 AUDIO IN R B30 Y_2 A17 IIC_DATA B21 A32 IIC_SDA B12 A21 TX3+ B3 A22 SRQ TXC+ A34 RESET B23 B31 TXG+ TXG- LAN+14V IIC_SCL TX1- A28 B35 B37 SLOT15V B38 SLOT15V B37 B38 SLOT15V SLOT15V B19 A22 SLOT9V Y/G SLOT3.3V A17 VD B25 B35 DS 13 RESET RXD RESET RXD13 HD IIC_DATA A36 B27 TXD PLUG DET LAN+14V REMOTE B17 A38 B30 SDA_S3 A30 B26 TXD13 LAN+14V SOS SLOT3 B40 AUDIO IN R AUDIO IN L SOS VD_3 A34 S2 DETECT SCL_S3 A28 Y_3 REMOTE SLOT3_DET B28 B21 SLOT9V PB_3 PB/B A40 A19 PR/R B36 B23 B24 B31 S2_3 PR_3 IIC_CLOCK R_3 A26 SRQ SRQ L_3 HD_3 A21 A32 SLOT5V SLOT3.3V STB5V SLOT5V B37 B38 SLOT15V SLOT15V REMOCON OUT IC8181 42inch only TH-42PH10CK/CS DS-Board (2 of 2) Block Diagram TH-42PH10CK/CS DS-Board (2 of 2) Block Diagram TXD1 RXD1 75 14.17.DS 电路板 (1/5) 板线路图 + + G G G G + + + + + + G G + G G + G G + + + G G G G G G G G + G G + G G G G + + + F_STB_ON ALL_OFF AC_GOOD C811 16V 470u C837 10u 6.3V 1% R814 10.5k C829 10u 25V R836 68k C817 25V 2.2u R811 68k C838 16V 2.2u R809 0 C833 50V 0.01u C859 16V 1u C832 25V 0.1u C8102 16V 47u F1J1E1040022 FL3012 1 2 3 C856 0.01u 50V C823 50V 39p D803 B0JCME000037 D802 B0JCME000037 L809 J0JHC0000078 C808 25V 0.1u C866 25V 0.1u C865 0.01u 50V C864 25V 0.1u F1J1E1040022 FL3008 1 2 3 R808 0 C8108 16V 0.1u R847 0 R832 8.2k A_1.8V C8112 16V 0.1u C812 25V 470u C806 25V 0.1u D_1.8V L807 J0JHC0000078 C0DBAMH00027 IC805 1 VIN 2 SW 3 RT 4 GND 5 FB 8 GND 6 INV 7 EN/SYNC L811 J0JHC0000078 C809 16V 2.2u C822 25V 470u SLOT5V C815 25V 0.1u C0DBAMH00018 IC802 1 VIN 2 SW 3 FB 4 INV 5 SS 6 RT 7 GND 8 PVIN C831 47u 16V R817 0 C868 16V 2.2u C801 35V 220u C802 25V 470u R849 0 C843 10u 25V C8109 16V 0.1u C8107 16V 470u L803 G1C220MA0167 L810 J0JHC0000078 C3146 16V 2.2u L801 G1A101ZA0007 100u 1% R819 68k R831 33k F1J1E1040022 FL3004 1 2 3 R837 180k C858 25V 470u C827 25V 2.2u D_3.3V 1% R803 68k SOUND15V F1J1E1040022 FL3002 1 2 3 C0CBCAC00275 IC804 1 VDD 2 GND 3 CE 5 VOUT 4 NC C840 16V 2.2u C841 10u 6.3V C863 25V 2.2u R822 10.5k C860 16V 470u STB5V_S C819 16V 2.2u L3140 J0JHC0000078 C845 10u 25V C844 16V 2.2u R840 3.3k R820 33k L804 J0JHC0000078 C847 10u 6.3V R804 220k 5V_M D801 B0JCPD000026 9V_2 R842 0 L805 J0JHC0000078 C824 50V 0.01u F1J1E1040022 FL3009 1 2 3 A_5V R848 0 R812 68k C834 16V 47u 1% R834 75k C8106 16V 47u R816 0 SOUND12V C867 25V 0.1u FAN5V C804 50V 4700p C855 0.01u 50V D804 B0JCPE000004 C0DBAMH00018 IC801 1 VIN 2 SW 3 FB 4 INV 5 SS 6 RT 7 GND 8 PVIN C821 16V 470u C857 0.01u 50V F1J1E1040022 FL3006 1 2 3 C828 25V 0.1u F1J1E1040022 FL3007 1 2 3 C848 16V 2.2u C869 16V 2.2u 1% R813 42.2k R838 33 1/2W C816 25V 0.1u F1J1E1040022 FL3011 1 2 3 1% R805 84.5k L802 G1C101MA0167 100u P5V C8111 16V 0.1u R839 680 1/2W C818 25V 0.1u A_3.3V SLOT15V 1% R835 6.8k DS4 1 2 3 4 5 6 7 8 9 10 11 F1J1E1040022 FL3003 1 2 3 C839 10u 6.3V C807 2.2u 25V C835 16V 47u F1J1E1040022 FL3005 1 2 3 SLOT9V SLOT3.3V R821 24.3k 1% R806 10.5k C825 25V 0.1u C846 16V 2.2u C861 50V 4700p C8113 16V 0.1u C814 50V 4700p C0DBAMH00018 IC803 1 VIN 2 SW 3 FB 4 INV 5 SS 6 RT 7 GND 8 PVIN C8103 16V 47u L808 J0JHC0000078 C805 25V 0.1u R824 0 R3199 10k L812 G1C470M00012 D810 C8101 50V 0.01u DS6 1 2 3 4 5 6 7 8 9 10 F1J1E1040022 FL3001 1 2 3 D807 D805 B0JCPE000004 D808 D806 F1J1E1040022 FL3000 1 2 3 C8100 16V 47u SOUND15V LAN14V D809 15V 15V 15V 15V C8115 16V 47u C8116 50V 0.01u 15V R845 0 C8121 25V 2.2u C8120 25V 470u R846 0 12V C0CBAKD00001 IC8100 Output 3 2 Common Input 1 D811 MA2J11100L STB5V(HD) GND GND AC_GOOD(HD) P5V(HD) NC P15V P15V F_STB_ON(HD) ECO_ON(HD) ALL_OFF(HD) 15V->9V 15V->3.3V 3.3V->1.8V 15V->12V SOUND12V P6-3 === S15V P6-10 === GND P6-8 === F15V P6-9 === F15V P6-1 === S15V P6-11 === GND P6-6 ==== GND (HD) P6-4 ==== GND P6-5 ==== GND P6-2 === S15V 15V->5V TO P-BOARD (P7) TO P-BOARD (P6) 1 1 2 3 4 5 6 7 8 9 D A E C F B TH-42PH10CK/CS DS-Board (1 of 5) Schematic Diagram TH-42PH10CK/CS DS-Board (1 of 5) Schematic Diagram DS-BOARD TNPA4109 (1/5) 76 14.18.DS 电路板 (2/5) 和 H3 电路板线路图 Thermal Pad NP + + NP + + + + + + NP + + NP + + + + + + + Thermal Pad AK_R_3 AK_L_3 AL_L_2 AL_R_2 AI_L_1 AI_R_1 AD_L_4 AD_R_4 SOUND_MUTE AA_SDA3 AA_SCL3 SDA3 SCL3 RESET R2368 56 D_3.3V Q2300 B1BBCF000028 R2422 39k 1/2W R2356 2.2 C3053 1u 16V C3057 1u 16V C2367 25V 2.2u C2374 25V 0.1u R2406 10k R2396 10k C1AB00002534 IC2301 1 HP_IN 2 HP_RippleFilter 3 HP_Standby 4 IN 5 IN_VREF 6 PRE_GND 7 ON_TIME 8 DIAGNOSIS_OUT 9 NC 10 AMP_Standby 11 AMP_RippleFileter 12 Tj_Monitor 13 phase comp. 2 14 phase comp. 1 15 SW_OUT 16 SW_E 17 SW_B 18 SW_GND 19 NC 20 Vcc 21 PRE_Vcc 22 OUT+ 23 OUT- 24 NC 25 POWER_GND 26 NC 27 NC 28 HP_OUT R2391 10k C2393 1u 16V 9V_2 C2378 25V 0.1u R2387 0 C2413 25V 0.1u L3002 G1C100K00020 C2386 1u 50V R2389 10k C2389 10V 100u Q2331 B1BBCF000028 R3108 56 C2398 25V 0.1u R2425 0 R2362 10k *R2363 0 R2404 10k C3042 16V 10u C1AB00002530 IC3001 Front1 1 2 Front2 3 Tuner1 4 Tuner2 5 EXT11 6 EXT12 7 EXT21 8 EXT22 9 EXT31 10 EXT32 11 DGND 12 SDA 13 SCL 14 AGND 15 FILTER 16 VRR 17 VCC 18 OUT2 19 OUT1 20 SELECT R2385 15k C2396 25V 0.1u C2358 2.2u 35V C0ABBA000168 IC2305 1 2 3 4 5 6 7 8 C2392 1u 16V 1/2W R2355 2.2 C3058 1u 16V L2331 220u R3161 0 C3055 1u 16V R2415 1.2k *R2365 0 R3160 0 R2354 10k C2383 10V 100u R2407 10k R2397 5.1k C3051 1u 16V R2361 10k Q2372 2SD0601A0L C2375 25V 0.1u C2376 50V 15p C2410 50V 180p C2395 25V 0.1u C2420 25V 0.1u SOUND12V C2362 25V 470u C2394 50V 10u R2367 56 C2353 50V 10u C2400 25V 0.1u C2407 6.3V 10u C2399 25V 0.1u C2355 35V 47u X2301 H0J184500026 R2411 0 C2385 10V 100u R3051 33 C2391 25V 0.1u R2414 1.2k R2410 0 C2359 2.2u 35V 1/2W R2360 2.2 C2379 25V 0.1u C3054 1u 16V 1/2W R2359 2.2 C2369 50V 0.1u C2351 2.2u 16V D2302 B0JCME000037 R2392 10k R2394 10k C3052 1u 16V D2303 B0JCME000037 C2352 50V 10u A_3.3V C3056 1u 16V R3049 10k R2399 22 C3004 16V 47u C2364 50V 0.1u C2411 10u 25V A_5V C2387 1u 50V A_1.8V 9V_2 R2417 1.2k C2366 25V 2.2u C2365 50V 0.1u R2386 100k R2384 47k R2398 0 R2405 10k C2354 35V 47u C2363 25V 470u C2401 25V 0.1u C2390 50V 10u C2384 25V 0.1u D_1.8V C2371 50V 10u R2426 470 C2356 50V 1000p R2419 10k C2412 25V 0.1u DS7 1 2 3 D_3.3V 1/2W R2357 2.2 C2406 6.3V 2.2u C1BB00001006 IC2303 1 PLLPWRR 2 PLLGNDR 3 PLLAVDD 4 PLLAVSS 5 PLLDVDD 6 PLLDVSS 7 TEST2 8 TEST3 9 DVSS4 10 DVDD4 11 XVSS 12 XOUT 13 XIN 14 XVDD 15 CVDD4 16 CVSS4 17 TEST0 18 TEST1 19 TEST4 20 TEST5 21 BVSS1 22 BVDD1 23 AVSS4 24 AVDD4 25 AVDD3 26 AVSS3 27 AOUT1 28 EVRINL 29 DAOUTL 30 DAOUTR 31 EVRINR 32 AOUT2 33 AVSS2 34 AVDD2 35 VREF2 36 VREF1 37 INL 38 INR 39 AVSS1 40 AVDD1 41 TEST6 42 XSEL0 43 XSEL1 44 XSEL2 45 CVSS1 46 CVDD1 47 LRCKI 48 BCKI 49 DATAI 50 SCKI 51 DVSS1 52 DVDD1 53 SCK0 54 TEST7 55 DATAO2 56 DATAO1 57 DATAO0 58 BCKO 59 LRCKO 60 CVSS2 61 CVDD2 62 XPDESC 63 PDEN 64 DVSS2 65 DVDD2 66 PWDB 67 RSTB 68 INTB 69 MCUIFSEL 70 CE 71 SCL/CL 72 I2CBUSY/DI 73 SDA/DO 74 DVSS3 75 DVDD3 76 MRREQ 77 GPFLAG 78 EMPF 79 CVSS3 80 CVDD3 R2400 22 R2353 10k D2301 B0JCME000037 R2409 0 C2377 50V 15p C2350 2.2u 16V C2408 6.3V 10u C2404 50V 0.01u R2412 1.2k C3043 16V 10u C2403 25V 0.1u R2408 0 R2420 15k L2330 220u C2373 25V 0.1u C2381 25V 0.1u C2370 50V 10u 9V_2 R2393 22 R2395 10k A_3.3V SOUND12V R2424 0 C2405 6.3V 2.2u C3001 50V 0.01u C2357 50V 1000p R3107 56 C2397 10V 100u C2368 50V 0.1u R2390 10k R2421 39k R2413 0 1/2W R2358 2.2 C2360 50V 1000p C2361 50V 1000p C2409 50V 180p C2388 25V 0.1u R2351 10k R2388 0 DS8 1 2 3 C2380 25V 0.1u R2352 10k C1AB00002534 IC2302 1 HP_IN 2 HP_RippleFilter 3 HP_Standby 4 IN 5 IN_VREF 6 PRE_GND 7 ON_TIME 8 DIAGNOSIS_OUT 9 NC 10 AMP_Standby 11 AMP_RippleFileter 12 Tj_Monitor 13 phase comp. 2 14 phase comp. 1 15 SW_OUT 16 SW_E 17 SW_B 18 SW_GND 19 NC 20 Vcc 21 PRE_Vcc 22 OUT+ 23 OUT- 24 NC 25 POWER_GND 26 NC 27 NC 28 HP_OUT C2402 25V 0.1u R2383 4.7k C2382 25V 0.1u R2423 15k R2416 0 R2418 10k H37 1 2 3 JK8500 K4BC02B00013 JK8500 K4BC02B00013 H37 1 2 3 AOUT AIN- AIN+ GND VCC BOUT BIN- BIN+ -L OUT +R OUT +L OUT -R OUT L R AUDIO SW POWER AMP POWER AMP PRE AMP 1 13 11 12 11 14 12 15 16 10 18 13 17 SOUND CONTROL SPEAKER(R) SPEAKER(L) # # # # M M M # M # TH-42PH10CK/CS DS-Board (2 of 5) and H3-Board Schematic Diagram TH-42PH10CK/CS DS-Board (2 of 5) and H3-Board Schematic Diagram DS-BOARD TNPA4109 (2/5) H3-BOARD TNPA3931 H3-BOARD TNPA3931 77 14.19.DS 电路板 (3/5) 线路图 + + AJ_TXD_4 AJ_RXD_4 AJ_RXD4 AJ_TXD4 AH_SOS_ALL AJ_TXD11 F_STB_ON SDA1 SCL1 AH_SOS AUDIO_SOS AH_SOS_ALL AJ_RXD13 AJ_RXD12 AJ_RXD1 AJ_RXD11 AJ_DAC0 AJ_DAC1 AJ_TXD13 AJ_TXD1 AJ_TXD12 AA_SCL3 AA_SDA3 SYNC_INH LPF_VFC AC_CS((M)) AE_SW0 AE_SW1 AC_SDA3 AC_SCL3 AH_SLOT3_DET AH_SLOT2_DET AH_SLOT1_DET AJ_DAC1 AJ_DAC0 IIC_SW_DAC4 IIC_SW_DAC3 IIC_SCL AM_SCL_S3 AN_SCL_S1 AC_SCL3 IIC_SW_DAC3 IIC_SW_DAC4 AM_SDA_S3 IIC_DAT AN_SDA_S1 AC_SDA3 AC_SDA3 AC_SCL3 AB_SCL3 AC_SCL3 AC_SDA3 AB_SCL3 SCL3 SDA3 AB_SDA3 AB_SDA3 RTC_INT FAN_SOS FAN_CONT FAN_CONT SLOT5V D8180 MA2J11100L R8126 100 LAN14V R3095 5.6k STB3.3V STB5V_S C8183 16V 0.1u R3047 10k D8203 MAZ31000ML R3125 10k Q8200 2SD0601A0L R8127 100 C3010 25V 0.1u D8212 MAZ80560ML C3041 16V 0.1u R3195 10k R3035 330 R3040 330 LAN14V R8120 0 IC3004 C1AB00000454 1 SW1 2 SW0 3 DAC4 4 DAC3 5 DAC2 6 DAC1 7 DAC0 8 GND 9 SW2 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 VCC R8182 100 R8185 2.7k R3085 0 R8121 2.7k R8124 100 STB5V_S IC3008 C0JBAS000215 1 1A 2 1B 3 2C 4 GND 5 2A 6 2B 7 1C 8 Vcc L3005 G1C100K00020 R3039 330 C8080 16V 0.1u R8125 100 R3198 12k R8119 0 R3087 0 Q8184 B1CBHD000002 G D S R3096 5.6k C2425 25V 0.1u IC8181 C1DB00001208 1 2 3 4 5 6 7 8 R3042 0 R3083 0 D8201 MA2J11100L STB3.3V R8203 10k C8081 16V 0.1u IC3006 C0JBAR000241 1 Y0 2 Y2 3 Y 4 Y3 5 Y1 6 INH 7 VEE 8 VSS 9 B 10 A 11 X3 12 X0 13 X 14 X1 15 X2 16 VDD R8205 75k R3037 0 R3041 330 R3062 100 R3082 100 R3030 0 Q8183 B1CBHD000002 G D S IC3003 C1AB00000441 1 SW1 2 SW0 3 DAC4 4 DAC3 5 DAC2 6 DAC1 7 DAC0 8 GND 9 SW2 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 Vcc R3034 330 R3084 0 R8186 2.7k R8201 47k R3043 100 R3029 10k D8210 MAZ31000ML C8084 16V 1u Q8202 2SD0601A0L STB3.3V STB5V_S C2426 25V 0.1u Q8182 B1CBHD000002 G D S R3046 10k IC3007 C0JBAS000215 1 1A 2 1B 3 2C 4 GND 5 2A 6 2B 7 1C 8 Vcc SLOT3.3V R3032 100 R3141 47k R3134 100k R8112 0 R3026 10k R8180 82 X8181 H0J327200114 C8083 16V 0.1u R3038 0 R8200 56k R8202 22k R8122 2.7k Q8181 B1CBHD000002 G D S STB5V_S R3197 12k R3044 10k D8213 MA2J11100L D8211 MA2J11100L R3140 47k R3086 0 C8185 5.5V 1.5 C3040 16V 0.1u D8200 MAZ31600ML C8200 16V 47u R8184 0 STB5V_S R3031 0 C8082 16V 0.1u C8181 50V 15p D8204 MA2J11100L R3196 10k STB5V_S Q8201 2SD0601A0L R3060 0 IC3002 C0JBBR000002 1 1OE 2 S1 3 1B4 4 1B3 5 1B2 6 1B1 7 1A 8 GND 9 2A 10 2B1 11 2B2 12 2B3 13 2B4 14 S0 15 2OE 16 VCC C8182 50V 15p R3033 100 R8206 39k R3028 10k C3011 25V 0.1u R3045 10k R3036 330 D_3.3V C3009 25V 0.1u STB3.3V R8181 100 R8204 100k R3094 0 D8209 MA2J11100L R3027 10k R8183 0 9V_2 9V_2 STB5V_S STB5V_S C0ZBZ0001361 IC8014 EN 1 2 C1+ 3 V+ 4 C1- 5 C2+ 6 C2- 7 V- 8 T2OUT 9 R2IN 10 R2OUT 11 INVALID 12 T2IN 13 T1IN 14 FORCEON 15 R1OUT 16 R1IN 17 T1OUT 18 GND 19 VCC 20 FORCEOFF :FAN_CONT =75ohm :LPF(M) :CS(M) :SYNC_INH(M) SL3_DET= =SL2_DET =SL1_DET =IICSW =IICSW SCL SDA VSS /INTRB VDD OSCIN OSCOUT /INTRA S1 S0 32.768K PC HI HI LO LO LO LO SLOT3 SLOT2 HI HI SLOT1 SLOT1 A B LO SLOT2 SLOT3 LO LO LO HI HI EX.I/O SDA SCL HI:ON SLOT SERIAL SW HX SERIAL SW EX.I/O IIC SW CLOCK IC IIC SW IIC SW 13 11 12 22 21 23 27 21 22 24 23 26 25 19 20 TH-42PH10CK/CS DS-Board (3 of 5) Schematic Diagram TH-42PH10CK/CS DS-Board (3 of 5) Schematic Diagram DS-BOARD TNPA4109 (3/5) 78 14.20.DS 电路板 (4/5) 线路图 + + + + + + AG_PR_M AG_PB_M AG_Y_M AK_S2_3 AA_SDA3 AA_SCL3 AF_HD_HX AF_VD_HX AL_PB_2 AL_PR_2 AK_Y_3 AK_PB_3 AK_PR_3 AL_Y_2 AI_PR_1 AI_PB_1 AI_Y_1 AD_PR_4 AD_PB_4 AD_Y_4 GREEN_IN AK_HD_3 AL_HD_2 AI_HD_1 AD_HD_4 AE_SW1 AE_SW0 GREEN_IN AI_VD_1 AK_VD_3 AD_VD_4 AL_VD_2 AL_S2_2 AI_S2_1 AG_HD_M AG_VD_M AF_DPMS_HD AF_DPMS_VD LPF_VFC SYNC_INH AC_CS((M)) LPF_NC AD_VD_4 AD_HD_4 AF_VD_HX AF_HD_HX C3019 16V 0.1u 4.7k R3215 Q8019 2SD0601A0L 5V_M C3204 16V 0.1u L8003 G1C100K00020 R3064 56 L3050 G1C100K00020 1% R3190 75 1% R3102 180 C3014 50V 0.01u 1% R8029 3k TPJV1 R8041 18k R3080 56 C3136 16V 470u C3021 2.2u 16V C3106 16V 0.1u R3078 56 IC8001 C0JBAR000241 1 Y0 2 Y2 3 Y 4 Y3 5 Y1 6 INH 7 VEE 8 VSS 9 B 10 A 11 X3 12 X0 13 X 14 X1 15 X2 16 VDD 1% R3104 180 TPJH1 R8009 220 C3027 2.2u 16V R8096 0 C8045 16V 1u C8005 50V 0.01u C3108 16V 0.1u C3026 2.2u 16V C3032 16V 1u R3068 56 R3230 100 C0JBAB000715 IC8017 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y R8045 2.2k STB3.3V C3013 50V 0.01u R3231 100 C3028 2.2u 16V C3107 16V 0.1u R3057 56 R8021 2.2k R8017 5.6k C3103 16V 2.2u C3112 16V 0.1u C3025 2.2u 16V C8027 16V 2.2u R3050 56 L3006 G1C100K00020 R8072 0 C3022 2.2u 16V Q8012 2SD0601A0L 1% R3074 75 C3143 16V 2.2u C8007 50V 100p Q8002 2SD0601A0L R8117 0 R8007 0 1% R3071 75 C8049 50V 0.01u R8097 100 R8047 270 C8033 50V 1000p 1% R3089 75 C3023 2.2u 16V 1% R3088 75 R8048 2.2k 1% R8031 2.2k 1% R3188 75 C8074 1000p 50V R8004 100 R3054 56 R3126 0 R3212 4.7k C8003 16V 0.1u R3066 56 R8054 0 R8010 220 C8070 0.1u 25V 1% R3103 180 C3034 0.1u 16V 1% R3110 4.7k R8025 0 1% R3091 75 C3115 16V 0.1u 1% R3106 180 1% R3092 75 R8033 100k R3219 3.3 R3117 0 1% R8039 4.7k R3069 56 R3214 4.7k C8015 10V 10u L8001 G1C100K00020 C3113 16V 47u C0JBAS000251 IC8009 1 2 3 4 5 6 7 8 R3216 3.3 R3058 56 C8051 16V 0.1u C3110 16V 2.2u Q8011 2SB0709A0L C3030 2.2u 16V 12V 1% R3072 75 R8005 10k R3217 3.3 C8038 50V 1000p C8025 50V 0.01u R8065 910 R8050 2.2k R3065 56 C3114 16V 4.7u C3031 2.2u 16V C8073 10V 10u 1% R8035 330 Q8013 2SB0709A0L R8012 220 C8029 50V 0.01u 1% R3075 75 1% R3093 75 R3211 100 1% R8037 4.7k R8018 5.6k R8089 180 R8067 150 C3018 16V 47u C3024 2.2u 16V 4.7k R3213 C8036 50V 100p R3077 56 C1AB00002238 IC3101 1 GINA/UINA 2 GSG1 3 GINB/UINB 4 NC 5 BINA/VINA 6 GSB1 7 BINB/VINB 8 NC 9 DISABLE 10 GND3 11 BOUT/VOUT 12 VCC3 13 GND2 14 GOUT/UOUT 15 VCC2 16 GND1 17 ROUT/YOUT 18 VCC1 19 GND4 20 RFC 21 VFC 22 MUXSEL 23 NC 24 VCC4 25 RINA/YINA 26 GSR1 27 RINB/YINB 28 NC R8003 100 C8013 16V 0.1u IC8005 C0JBAB000646 1 2 3 4 5 6 7 8 9 10 11 12 13 14 C3205 16V 0.1u 1% R3101 180 R8093 100 IC8007 C0JBAR000419 1 2 3 4 5 6 7 8 C3017 50V 0.01u R8069 2.2k C8021 16V 0.47u C3035 0.1u 16V 1% R3118 820 R3079 56 1% R3105 180 R8055 100 D8011 MA3X15300L C3200 16V 1u R8094 0 R3048 330k 5V_M C0JBAB000715 IC8018 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y Q8010 2SD0601A0L C3012 50V 0.01u C3111 16V 0.1u C8009 6.3V 10u C3033 0.1u 16V C8072 10V 10u C8023 50V 0.01u R8011 220 1% R3070 75 C3016 50V 0.01u C3135 16V 470u C3105 16V 0.1u C8016 16V 4.7u R3053 56 C3134 16V 470u C3101 16V 2.2u 1% R3189 75 R8057 1k R3081 56 1% R3111 1.5k C3020 2.2u 16V R3076 56 R8051 10k D8001 MA2J11100L R8100 10k R3210 100 R3067 56 C8019 50V 0.01u 1% R3090 75 C8075 1000p 50V R8118 0 5V_M IC8003 C1AA00000706 H.State 1 2 V.State 3 Green Sep Filter 4 Green IN 5 GND 6 Comp/H IN 7 Comp/H Det 8 Vert IN 9 Vert Det 10 Vert S/S Adj 11 Vert S/S IN 12 Digital GND 13 VD+OUT 14 HD+OUT 15 HD-OUT 16 Vcc 17 Clamp OUT 18 H.Pol. 19 V.Pol. 20 Clamp Timing C8030 16V 47u 1% R8036 150 D8003 MA2J11100L C3029 2.2u 16V R8060 0 C3144 16V 2.2u R8002 100 R3218 3.3 C8035 16V 0.1u D8010 MA3X15300L 1% R3073 75 C3015 50V 0.01u R8001 100 R8056 100 R8026 330 R3163 1k C1AB00002529 IC3005 1 V+ 2 Pb_IN2 3 GND 4 Pr_IN2 5 GND 6 Y_IN1 7 V+ 8 Pb_IN1 9 V+ 10 Pr_IN1 11 GND 12 PORT3 13 PORT2 14 ADR 15 SCL 16 SDA 17 GND 18 DGND 19 VREF 20 V+ 21 Pr_OUT2 22 PORT1 23 PORT0 24 Pb_OUT2 25 AUX0 26 AUX1 27 Y_OUT2 28 AUX2 29 AUX3 30 Pr_OUT1 31 GND 32 Pb_OUT1 33 GND 34 Y_OUT1 35 V+ 36 Y_IN4 37 V+ Pb_IN4 38 39 GND 40 Pr_IN4 41 V+ 42 Y_IN3 43 GND 44 Pb_IN3 45 V+ 46 Pr_IN3 47 GND 48 Y_IN2 L8005 G1C100K00020 9V_2 9V_2 9V_2 9V_2 9V_2 9V_2 5V_M 9V_2 I0 VCC COM INH SEL I1 VEE GND H:ON CS/VIDEO SW SLOT1 :3 SLOT3 :1 PC :T SLOT1 A B HI LO SLOT2 PC SLOT3 LO LO LO HI HI HI SLOT2 :2 HD VD O5 I4 O4 GND O3 I3 O6 I5 O2 I2 O1 I1 I6 VCC HP VP DPMS 5V->3.3V SYNC SEPA VIDEO SW LOWPASS FILTER DPMS 5V->3.3V VD/HD SW 22 21 23 31 32 35 33 34 28 33 36 32 31 35 34 29 30 TH-42PH10CK/CS DS-Board (4 of 5) Schematic Diagram TH-42PH10CK/CS DS-Board (4 of 5) Schematic Diagram DS-BOARD TNPA4109 (4/5) 79 14.21.DS 电路板 (5/5) 线路图 + G G SIDE TERM G G G G G G AH_SLOT3_DET AH_SOS AM_SDA_S3 AM_SCL_S3 M_TX3+ M_TX3- M_TXC+ M_TXC- M_TX2- M_TX2+ M_TX1+ M_TX1- M_TX0+ M_TX0- S_TX2+ S_TX2- S_TX1+ S_TX1- S_TX0+ S_TX0- S_TXC+ S_TXC- AN_SCL_S1 AN_SDA_S1 AH_SOS AJ_RXD13 S_TX3+ S_TX3- AG_PR_M AG_Y_M AG_PB_M AG_HD_M AG_VD_M S_TX3+ S_TX3- S_TX2- S_TX1- S_TX1+ S_TX0- S_TXC- S_TXC+ M_TXC- M_TX3- M_TX3+ M_TX2- M_TX1- M_TX1+ M_TX0- AI_PB_1 AI_PR_1 AI_HD_1 AI_VD_1 AK_Y_3 RESET AK_PB_3 AK_PR_3 AK_HD_3 AK_VD_3 AJ_TXD_4 AJ_RXD_4 AD_L_4 AD_R_4 AD_PR_4 AD_Y_4 AD_PB_4 AF_HD_HX AF_VD_HX AK_R_3 AK_L_3 AI_R_1 AI_L_1 RESET RESET SRQ SRQ SRQ AJ_TXD13 AJ_TXD12 AJ_RXD12 AH_SLOT2_DET AJ_RXD11 AJ_TXD11 IIC_DAT IIC_SCL REMOCON_OUT3 REMOCON_OUT2 REMOCON_OUT3 REMOCON_OUT2 REMOCON_OUT1 PWR_STATUS AH_SLOT1_DET PWR_STATUS AL_HD_2 AL_PR_2 AL_PB_2 AL_S2_2 AL_Y_2 AL_VD_2 AL_R_2 AL_L_2 AK_S2_3 REMOCON_OUT1 AH_SOS CABLE_DET AI_Y_1 AB_SCL3 AB_SDA3 AI_S2_1 AF_DPMS_HD AJ_RXD4 AJ_TXD1 AJ_RXD1 SRQ CABLE_DET LED_G LED_R REMOCON KEY_SW REMOCON LED_R KEY_SW FAN_SOS ALL_OFF AC_GOOD REMOCON_OUT REMOCON_OUT AA_PWR_STATUS KEY_DET S_TX0+ S_TX2+ M_TXC+ M_TX2+ M_TX0+ F_STB_ON AF_DPMS_VD AA_PWR_STATUS LED_G AJ_TXD4 SCL1 SDA1 SOUND_MUTE RESET KEY_DET RTC_INT L8107 J0JHC0000078 ZA3007 K4CD01000013 L8105 J0JHC0000078 Q3001 2SB0709A0L R3063 100 R8188 56 R3150 100 C0JBAZ002692 IC3153 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R3003 47k L8108 J0JHC0000078 R8189 0 ZA3002 K4CD01000011 C8122 16V 47u R3004 100 STB5V_S R3025 100 R8190 0 LAN14V STB3.3V R3143 100 STB5V_S R843 0 SLOT5V D3003 MA2J11100L R3151 100 L8101 J0JHC0000078 F1J1E1040022 FL3010 1 2 3 R3144 100 DS15 1 2 3 P5V R3061 0 DS1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 STB5V_S L8102 J0JHC0000078 ZA3006 K4CD01000013 ZA3008 K4CD01000013 DS2 1 2 3 4 5 6 C3202 10u 6.3V ZA3004 K4CD01000013 R8187 56 R8129 0 STB5V_S D3061 MA2J72800L SLOT15V R3001 10k SLOT3.3V SLOT15V ZA3001 K4CD01000013 LAN14V F1J1E1040022 FL3014 1 2 3 L8106 J0JHC0000078 P5V R3002 1k STB3.3V C3153 16V 0.1u D8181 MAZ80560ML ZA3003 K4CD01000013 C8123 16V 0.1u SLOT9V SLOT15V SLOT9V L8103 J0JHC0000078 R3059 100 15V D3001 MA2J11100L LAN14V D8185 MAZ80560ML F1J1E1040022 FL3013 1 2 3 ZA3005 K4CD01000013 D8184 MAZ80560ML D3004 MA2J11100L L8104 J0JHC0000078 DS14 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 SLOT3.3V STB5V_S SLOT5V SLOT9V C3203 10u 6.3V DS13 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 DS12 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 SLOT3.3V STB5V_S SLOT5V SLOT9V C3201 10u 6.3V DS11 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 F1J1E1040022 FL3015 1 2 3 R3115 0 TX3- TX3+ TX1+ TX0G TX0- TX0+ GND LAN14V AUDIO GND TXD AUDIO IN R Y/G Y/G GND PB/B S2DETECT PB/B GND RESET1 PR/R RESET2 PR/R GND HD PWR_STATUS SYNC GND SOS VD REMOTE SYNC GND CABLE DET PLUG DET GND SLOT5V GND SLOT9V SLOT3.3V GND AUDIO IN L RXD AUDIO GND IIC SCL RSVD IIC DAT NC(OPEN) SRQ STB5V GND TX1G TX1- TX2G TX2- TX2+ TX3G TXCG TXC- TXC+ TXC- TX2- TX2G TX1- TX1G TX0+ TX0- TX0G LAN14V PLUG DET CABLE DET SYNC GND REMOTE VD SOS SYNC GND TXCG TX3G TX2+ PWR_STATUS HD PR/R GND RESET2 PR/R RESET1 PB/B GND S2DETECT PB/B Y/G GND Y/G GND GND STB5V SRQ NC(OPEN) IIC DAT RSVD IIC SCL AUDIO GND RXD AUDIO IN L TXD AUDIO GND AUDIO IN R GND SLOT3.3V SLOT9V GND SLOT5V TX1+ GND TX3+ TX3- TXC+ GND SLOT9V GND STB5V SRQ NC(OPEN) SOS SYNC GND PWR_STATUS HD PR/R GND RESET2 PR/R GND RESET1 PB/B GND S2DETECT PB/B Y/G GND LAN14V CABLE DET SYNC GND REMOTE VD SLOT5V IIC DAT RSVD IIC SCL AUDIO GND RXD AUDIO IN L TXD AUDIO GND PLUG DET AUDIO IN R SLOT3.3V GND TX2G TX2- TX2+ TX3G TXCG TXC- TXC+ TX3- TX3+ GND TX1+ TX0G TX0- TX0+ TX1G TX1- KEY-SW LED_G GND REMOCON LED_R KEY_DET STB3.3V GND NC LAN14V GND Y/G GND SLOT5V GND GND NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC LAN14V GND NC SLOT9V GND SLOT5V GND NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC LAN14V GND SLOT9V GND SLOT5V GND GND NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC GND GND VD R/PR GND GND HD G/Y GND B/RB S_TX2- S_TXC- S_TXC+ S_TX1G S_TX0+ S_TX2G S_TX3+ S_TX0- S_TX0G S_TX2+ S_TX1+ S_TXCG S_TX1- S_TX3- S_TX3G M_TXC- M_TX3- M_TX3+ M_TX0+ M_TX0- M_TX2G M_TX2+ M_TX1+ M_TX3G M_TXC+ M_TX1- M_TX1G M_TXCG M_TX0G M_TX2- GND FAN_SOS TXD_PC REMOCON GND RESET RTC_INT SCL1 LED_R KEY_SW SDA1 GND F_STB_ON LED_G SOUND_MUTE RXD_PC DPMS_VD GND GND SCL3 SDA3 CABLE_DET RXD_TU IIC_CONT GND REMOCON_OUT GND KEY_DET DPMS_HD P5V HD:--> TXD_TU GND AC_GOOD HD:--> ALL_OFF HD:--> P5V SD:<-- STB3.3V <-- P15V HD:--> P15V SD: x PR/R RXD GND GND L GND HD Y/G 9V 5V PB/B TXD R TO HX-BOARD (HX1) VD GND SLOT15V SLOT15V SLOT15V SLOT15V SLOT15V SLOT15V STB5V HD:-> SD:<- POWER_STATUS SLOT3 SLOT2 SLOT1 SLOT3.3V REMOCON OUT 3.3V->5V TO V1-BOARD (V15) TO V2-BOARD (V2) TO DN-BOARD (DN1) 35 34 33 32 31 42 45 37 41 39 40 44 38 43 TH-42PH10CK/CS DS-Board (5 of 5) Schematic Diagram TH-42PH10CK/CS DS-Board (5 of 5) Schematic Diagram DS-BOARD TNPA4109 (5/5) 80 14.22.DN 电路板 (1/2) 方框图 LED_R IIC_CONT SDA1 VD LED_G P3V_SDA2 ALARM REMOCON REMOCON_OUT 5VRXD_TU P3V_SCL2 CLK HD OSD-HDIN PSTB 3V_SCL1 IIC_CONT AC_GOOD 3V_SDA3 NRST 3V_SDA1 TXD IIC_INT 3V_SDA3 RXD_PC P3V_SDA2 TXD_PC LED_G RXD_PC UART_SW 5VRXD_TU OSD-VDO SCL1 FAN_CONT LVDS_PD OSD0-15 POWER_STATUS FAN_SOS IIC_CONT PDB1 P3V_SDA2 SOUND_MUTE UART_SW STB_ON REMOCON TXD_PC PSLCT P3V_SCL2 RXD_PC 3V_SCL1 CABLE_DET STB_ON 3V_SCL3 OSD_YM LED_R 3V_SDA3 3V_SCL1 SDA2 3V_SCL3 DPMS_HD CABLE_DET LED_G POWER_STATUS DPMS_VD 3V_SDA1 LED_G READY SCL2 5VTXD_TU KEY_INPUT LED_R IIC_CONT RXD_PC HD ALLOFF 3V_SDA3 5VTXD_TU P3V_SCL2 VD PDB0 IIC_CONT RTC_INT PBUSY P3V_SDA2 3V_SDA1 3VRXD_TU RTC_INT IIC_INT CLP P3V_SCL2 VD-M P3V_SCL2 OSD-CLKIN 3V_SCL3 IIC_CONT TXD_PC NRST RXD HD-M TXD_PC LED_R OSD_YS 3V_SDA1 IIC_INT 3V_SCL1 OSD-HDO NRST SOUND_MUTE 3V_SDA1 RXD 5VRXD_TU DPMS_HD DPMS_VD TXD 3V_SCL3 KEY_INPUT IIC_INT 3V_SCL1 SDA1 5VTXD_TU P3V_SDA2 DISPEN RXD_PC 3VTXD_TU PANEL_STBY_ON SCL1 TXD_PC STB+3.3V STB+5V P+5V D4713 Q4803 STB+5V +3.3V STB+1.5V D4712 STB+3.3V +3.3V STB+3.3V +3.3V P+5V STB+5V +2.5V P+15V STB+5V Q4707 +1.5V +2.5V Q4706 STB3.3V Q4705 STB+3.3V STB+3.3V Q4802 D4711 +3.3V P+15V P+5V STB+3.3V STB+3.3V STB+3.3V STB5V D_STB+3.3V 129 65 DATA STB5V 16 PDB0 IIC_BUS VSYNC TTL HD IIC_CONT 7 Voltage Q4712 R0 SCL2 25 50 IIC_BUS PDB1 A0 122 IC4703 8M FLASH MEMORY SDA0B 41 2 94 1 109 IC4715 162 VCC POWER STATUS 82 41 RXD 51 YSOUT 48 +2.5V SOS MN-RX0+ CLKM_IN R,G,B MAIN VIDEO 24bit 24 +3.3V SOS 158 ALLOFF PARALLEL 47 OSDKXI 73 6 CLK 46 TXD_PC MN-RX1+ 89 115 VCLKOUTA Pr/R IN 84 S-X1- MN_CLK+ IIC_INT OUT 1 M-XCLK- 7 SB-CLK- 119 VCC STBY5V 134 VOUT G SB_RX0-3+ MN-RX1- 35 1 IIC_CONT MCLD SB-RX3- LED_R P+15V SOS SB_CLK- 2 SCL0B 8 SCL1 37 IC4721 18 62 69 IC4002 Y/G IN 6 SDA1 CABEL_DET IC4704 25 IIC_INT/BOOT 6 LVDS 35 5 NRST STB3.3V RGB MCLD SB-RX0+ TXD MICOM 2 64 5 68 IICBUS CLP G7 HD,VD,DCK Y 56 PSTB HD,VD,DCK MICOM COMMU MN_RX0-3+ 118 SB-RX3+ SB-CLK+ 4 54 30 3 RXD_TU 12 32 VDD DRV_MUTE R TTL S/P R,G,B SUB VIDEO 24bit 3.3V 42 STB5V LEVEL CONVERTER S-XCLK+ P+5V SOS:LED 5TIMES B B(8Bit) M-X2- 90 8 TXD HD-M/VD-M 11 8 SDA3 CLP IIC_CONT VD-ADM,HD-ADM,CLP-M A/D CONVERTER(MAIN) R SDA2 171 M-X2+ RESET RMIN 28 B HD-M/VD-M M-X3- 104 REMOCON OUT REMOCON OUT SDA2 CLP 4 76 SCL2 RECEIVER LED_G RXD_PC STB3.3V HOUTA OSD AVR 3.3V 36 S-X2+ VDO-S,HDO-S,DCK-S MCDATA S-X0+ SDA1 11 MN-RX2- DTCLK R,G,B IIC_BUS MAIN VIDEO 140 LED_R 2.5V 5 61 97 REMOCON INH R(8Bit) FAN_SOS Pb/B IN LED_R MCCLK 6 77 14 RXD 7 FPGA/ASIC S-XCLK- TO DS1 KEY_INPUT 5V->3.3V LED_G MCDATA DN A 86 IC4031,IC4032 M-XCLK+ VDD ALARM M-X0+ IIC MICON Y 57 S-X3+ CABEL_DET 1 8 161 165 5V->3.3V IC4711 FAN CONT 5V<-3.3V AC_GOOD 63 SDA IIC_BUS 48 IIC_CONT 139 TEMP SENSOR 57 R7 36 LVDS RECEIVER 2 1 DPMS_HD SDA3 SYNC SIGNAL CONTROL 26 SCL1 YMOUT +2.5V DET OR GATE 30 R,G,B 19 PICTURE 14 P+15V SOS:LED 2TIMES SDA1 ADC SCL2 24 VCC D00 VD 96 38 SDA STB_ON 5 P_ON/OFF 120 MN_RX0-3- CLK 39 HD,VD,DCK B D15 RESET SB-RX2+ MAIN VIDEO SDA1 B7 TXD_TU MN_CLK- IC4702 SCL SB_CLK+ NRST 27 80 VDD SOUND MUTE 130 DN1 34 A 92 Q4704 8 21 RTC_INT 4 5 +1.5V SOS READY G0-G7 1 SOUND_MUTE 54 SDA0A NRST LED_G B0-B7 UART_SW VCC 5V DPMS_VD G/Y-M 14 69 IC4803 6 4 5 DN4 B04 43 121 33 7 12 NRST-FP OSD R04 42 CLAMP 4 P+5V SOS EEPROM Signaling IIC_INT RESETN DPMS_VD 110M 66 NRST-FP 5V<-3.3V Differential LEVEL CONVERTER SCL3 68 SCL1 B0 P+5V SOS VSYNC G0 4 59 1 LVDS_PD G05 12 SB-RX2- DN 11 110 SCL1 SCL3 29 CLK1 SB-RX0- IIC_BUS 101 MN-CLK+ SCL 37 SB-RX1- TXD_TU TXD_PC 4 R00 B 9 M-X0- G 31 S-X3- 18 44 65 24bit HD,VD,DCK P15V RESET IC4701 MN-CLK- SYNC SEPA 65 10 MN-RX0- G00 IC4201 NRST 170 44 88 CONT 31 8BIT 19 43 IIC_BUS P+3.3V SOS HSYNC 87 PBUSY M-X1+ TV_ON/OFF A18 CLP +15V DET S-X2- 33 7 EEPROM_WP 16 SUB VIDEO MN-RX3- 57 Q4713,14 29 7 45 R0-R7 SERIAL SWICTH (SBI1) Q4701 DIGITAL SIGNAL PROCESSOR 20 (SBO1) LEVEL CONVERTER 9 B0-B7 13 24 SCL0A RXD_PC 56 15 R/PR-M 7 Low R0-R7 B/PB-M 6 G(8Bit) 5 SDA2 HD,VD 40 G0-G7 +3.3V SOS:LED 3TIMES 30 IC4714 RTC INT 75 SOS BLINKING TIMES POWER STATUS +1.5V DET HD-M +3.3V DET VD-M CLK3 1 68 166 VDO-M,HDO-M,DCK-M DPMS_HD 27 2 PSLCT VCC VSYNC 11 STBY3.3V 61 23 95 6 B00 12 SCL 7 79 2 MCCLK Q4801 FOR FACTORY USE M-X1- 13 17 M-X3+ SDA MN-RX2+ 62 NRST IC4001 RXD_TU STB_ON HSYNC SB_RX0-3- 75 HD,VD KEY_INPUT 79 132 WC REMOCON 15 OUTPUT 2 10 22 71 REMOCON 60 SB-RX1+ HSYNC 53 131 S-X0- 24bit MN-RX3+ CONTROL 9 Q4702 S-X1+ SYNC SIGNAL Q4703 FOR FACTORY USE TH-42PH10CK/CS DN-Board (1 of 2) Block Diagram TH-42PH10CK/CS DN-Board (1 of 2) Block Diagram 81 14.23.DN 电路板 (2/2) 方框图 SCL2 OSD_HDO SDA2 OSD_HDIN OSD_YS IIC_CONT P3V_SDA2 SCL1 FAN_CONT P3V_SCL2 SDA1 FAN_SOS OSD_VDO ALARM DISPEN LVDS_PD OSD_CKIN OSD0-15 OSD_YM RXD READY TXD PANEL_STBY_ON D4355 P+15V +1.5V D4353 D4359 +1.5V STB+1.5V +3.3V STB+5V P+15V P+15V Q4962 +2.5V STB+3.3V +2.5V Q4961 +3.3V +3.3V +2.5V D4357 +2.5V +3.3V FAN+15V DIGITAL 59 19 1 OSD MIX 18 40 HSOE CLK 1 VSOE A11 IC4956 1.5V 30 IC4953 CLK6 7 30 TX_TA- 24 9 62 128M DDR SDRAM SDA1 TCLK+ DN STB+3.3V TXD 55 BUS 9 OUT2-1 31 INV 3 12 HD,VD OUT2-2 TX_TB+ Q4351 DN 33 4 CONVERTER 19 DDR-SDRAM DC-DC CONVERTER IMPROVER TX_TD- 10 TE+ 6 TX_TC+ X4501 VDD 7 TB- 61 15V->3.3V/1.5V RXD IIC TX_TC- SCL1 CLKIN 1 19 16 24 S1 22 D1 VDD 63 1 PROCESSING 2.5V AVR+2.5V COLOR Adj. 3.3V CONTRAST Adj. 23 DN 31 CLOCK GENE. 3 28 TD+ TB+ 8 CONTROL 5 D2 IIC 4 20 Q4901 12 3 5 2 LX2 G1 D2 18 S2 1 1 FAN DRIVE 1 D1 5 4 READY TCLK- CLK5 SCL2 DQ31 TX_TCLK+ SDA2 PANEL_STBY_ON OCKREF SIGNAL 48 TO D5 CLK7 Q4902 4 CLK4 44 HOUT VCC D1 3 20 G2 D2 54 PICTURE CLK3 25 29 SIGNAL PROCESSOR IIC_CONT TX_TE+ IC4501 IC4351 TX_TB- 21 DCK IC4500 4 31 LVDS 1 OUT1-1 3 TX_TCLK- R,G,B SUB VIDEO 24bit 52 BOE0-BOE9 DQ0 OSD INPUT 64 OUT1-2 24 23 A0 IC4901 INTERFACE CLK3 11 29 VO1 5 GOUT DATA IC4502 VOUT 12 6 CLKOE TC- COLOR SIGNAL PROCESSOR HD,VD,DCK WHITE BALANCE Adj. 8 GAMMA cor. 2 D2 15 26 2.5V LVDS TRANSMITTER(10bit) TX_TD+ TC5 18 OUT TX_TE- 1 VCC TC+ G1 3 S2 REFCK 33 13 23 10Bit LVDS FORMAT CONVERTER /PDWN 27 6 57 TTL VOUT I/P,FORMAT LX1 TE- IC4954 TX_TA+ (SERIAL) 1 3 3 SCKREF VOUT ADDRESS MCKREF 21 ROE0-ROE9 R,G,B MAIN VIDEO 24bit OSD VIN DATA XRST/XSYNCRST 46 PARALLEL 50 IC4301 DN 35 2 DN6 TA+ 25 STB+1.5V 11 GOE0-GOE9 NRST BOUT 1 G2 3 TC4 1 D1 CLK1 VOUT VDD VO2 ROUT S1 CLK TA- 6 42 14 CLK1 ALARM 20MHz 38 DISPEN MICON DIGITAL SIGNAL PROCESSOR 26 TD- 20 CONT TH-42PH10CK/CS DN-Board (2 of 2) Block Diagram TH-42PH10CK/CS DN-Board (2 of 2) Block Diagram 82 14.24.DN 电路板 (1/6) 线路图 + + + + P_ON/OFF FAN_SOS TP4351 1.5V R4352 0 C4999 50V 1000p FAN15V C4352 1u 25V C0CBCAD00016 IC4953 1 Vcont 2 GND 3 Np 5 Vin 4 Vout R4366 4.7k R4359 3.3k 1% TP4352 L4902 G1C2R2MA0248 R4992 10k R4954 11k 1% C4908 150p 50V P15V C4991 6.3V 10u 2.5V R4953 56k 1% IC4954 C0DBZFF00004 1 VOUT 2 GND 3 CE 4 NC 5 GND 6 VDD R4958 18.2k 1% C4932 16V 0.1u R4952 12.7k 1% D4351 B0JCME000037 STB5V C4995 6.3V 10u C4366 1u 10V C4906 8200p 50V Q4901 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 Q4351 B1ABCF000138 R4387 0 C4993 16V 0.1u P5V 3.3V C4909 8200p 50V Q4962 B1ABCF000138 L4352 100u STB3.3V C4351 220u 25V D4359 MA2J11100L C4940 10u 6.3V R4358 6.34k 1% C4994 6.3V 10u R4373 0 C4905 10u 25V D4353 MA3X152D0L R4383 0 D4355 MA3X152D0L R4368 4.7k DN35 1 2 3 R4960 100k R4361 0 R4374 0 C4998 16V 0.1u L4901 G1C1R8MA0248 C4901 10u 25V STB1.5V R4986 18k R4955 56k 1% R4388 0 P15V C4902 10u 25V C4943 68p 50V R4956 11k 1% R4995 10k DN31 1 2 3 D4901 B0JCGD000002 C4921 1000p 50V DN33 1 2 3 D4904 MA22D3900L C0DBAZG00034 IC4351 1 VCC 2 OUT 3 GND 4 INV 5 STBY R4354 470 R4360 10k 1% C4920 0.1u 25V R4364 4.7k R4355 47k C4924 68u 4V R4994 10k C4990 10V 1u R4384 0 R4353 22k C4992 16V 0.1u D4357 MA3X152D0L D4903 B0JCGD000002 R4357 910 1% C0CBCBC00190 IC4956 1 VDD 2 GND 3 CE 5 VOUT 4 NC C4910 0.01u 50V Q4902 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 C4358 1u 16V R4370 2.2k R4356 0 C4904 10u 25V R4372 0 C4918 4.7u 6.3V 3.3V R4991 10k C0DBAYY00274 IC4901 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP C4919 0.1u 25V C4997 6.3V 10u R4351 0 R4964 0 Q4961 B1ABCF000138 D4902 MA22D3900L C4354 470u 16V C4930 10u 6.3V R4957 20.5k 1% C4996 16V 0.1u FAN5V C4923 68u 4V C4903 0.1u 25V R4951 47k 1% R4941 10k STB5V->STB3.3V STB5V->STB1.5V 3.3V->2.5V CTL P15V->3.3V P15V->1.5V TPFAN FANVO FAN REG 6 7 4 D C 2 F 5 A 3 E 9 B 1 8 2 1 TH-42PH10CK/CS DN-Board (1 of 6) Schematic Diagram TH-42PH10CK/CS DN-Board (1 of 6) Schematic Diagram TO FAN TO FAN TO FAN DN-BOARD TZTNP02XGTC (TNPA4108AC) (1/6) 83 14.25.DN 电路板 (2/6) 线路图 G G G G + SIDE TERM G G 18 16 14 12 10 8 6 4 2 20 21 19 17 15 13 11 9 7 5 3 1 G G G G + MA_R6 MAIN_G3 MA_R1 MAIN_G6 MA_B2 MA_R2 MAIN_R5 MA_G3 MAIN_R6 MAIN_R7 MA_B1 MA_B3 MAIN_R0 MAIN_R1 MAIN_B6 MAIN_B1 MA_B6 MA_B5 MAIN_G7 MA_G0 MA_R0 MA_R7 MAIN_R3 MA_R4 MA_G4 MA_G7 MAIN_B0 MAIN_G1 MAIN_B4 MAIN_G2 MAIN_G0 MA_B4 MAIN_B3 MA_B7 MA_G6 MAIN_B5 MAIN_G5 MA_R3 MAIN_R2 MA_R5 MAIN_R4 MA_G5 MAIN_B2 MA_G2 MAIN_G4 MA_G1 MA_B0 LED_G 3VRXD_TU LED_R NRST MA_B2 MA_B5 MA_B6 MA_B7 MA_B0 MA_B3 MA_B1 P3V_SCL2 P3V_SDA2 MA_B4 HD_ADM NRST ANF_G_M ANF_R_M AM_VD AM_HD 5VNRST ANF_B_M MAIN_B7 5VRXD_TU 3VTXD_TU HD_M VD_M A_AM_CLK D_TXD D_IIC_CLK1 D_IIC_CLK2 D_IIC_DATA2 D_TXD D_RXD D_PSTB D_PBUSY D_PDB0 D_PSLCT D_PDB1 D_LED_G D_LED_R TXD_PC D_REMOCON RXD_PC 3V_SCL4 3V_SDA4 MA_G7 MA_G6 MA_G5 MA_G4 MA_G3 MA_G2 MA_G1 MA_G0 A_AM_CLK MA_R7 MA_R6 MA_R5 MA_R4 MA_R3 MA_R2 MA_R1 MA_R0 AM_CLK DCK_M RXD_PC TXD_PC 3V_SDA3 3V_SCL3 P3V_SDA2 P3V_SCL2 3V_SDA1 3V_SCL1 D_IIC_CLK1 D_IIC_DATA1 5VLED_R VD_ADM CLP_M ANF_B_M ANF_G_M ANF_R_M 3V_SCL1 D_RXD 5VLED_G 5VTXD_TU UART_SW SB_RX3- SB_RX3+ SB_RX2- SB_RX2+ SB_RX1- SB_RX1+ SB_RX0- SB_RX0+ SB_CLK- SB_CLK+ MN_CLK- MN_CLK+ MN_RX3- MN_RX3+ MN_RX2- MN_RX2+ MN_RX1- MN_RX1+ MN_RX0- MN_RX0+ REMOCON KEY_DET 5VNRST 5VLED_R REMOCON_OUT TXD_PC 3V_SDA3 3V_SCL3 3V_SDA1 IIC_CONT IIC_CONT IIC_CONT POWER_STAT CABLE_DET IIC_CONT D_IIC_CONT D_IIC_DATA1 AM_CLK RTC_INT ALL_OFF1 AC_GOOD STB_ON SOUND_MUTE KEY_INPUT 5VLED_G 5VRXD_TU 5VTXD_TU DPMS_VD DPMS_HD RXD_PC R4977 0 FL4711 F1J1E1040022 1 2 3 R4887 10k STB3.3V C4016 16V 0.1u R4920 100 R4004 0 D4733 B0ACCE000005 R4214 100 C4907 16V 0.1u R4024 0 R4216 100 STB5V TP4703 STB3.3V IC4001 C0FBAY000012 1 GOUT6 2 GOUT5 3 GOUT4 4 GOUT3 5 GOUT2 6 GOUT1 7 GOUT0 8 NC 9 NC 10 DVSS 11 DVDD 12 BOUT7 13 BOUT6 14 BOUT5 15 BOUT4 16 BOUT3 17 BOUT2 18 BOUT1 19 BOUT0 20 NC 21 NC 22 DVSS 23 DVDD 24 CLAMP 25 AVSS 26 TEST2 27 PVDD 28 AVSS 29 COAST 30 HSYNC 31 VSYNC 32 AVSS 33 FLT 34 PVDD 35 PVDD 36 AVSS 37 BIAS 38 TEST 39 AVDD 40 AVSS 41 AVSS 42 AVDD 43 BIN 44 AVSS 45 AVDD 46 AVDD 47 AVSS 48 GIN 49 SOGIN 50 AVSS 51 AVDD 52 AVDD 53 AVSS 54 RIN 55 A0 56 SCL 57 SDA 58 BYPASS 59 AVDD 60 AVSS 61 RESETN 62 VSYNCO 63 SOGOUT 64 HSYNCO 65 DTCLK 66 DVSS 67 DVDD 68 ROUT7 69 ROUT6 70 ROUT5 71 ROUT4 72 ROUT3 73 ROUT2 74 ROUT1 75 ROUT0 76 NC 77 NC 78 DVDD 79 DVSS 80 GOUT7 D4721 MAZ30360HL R4892 100 R4974 0 3.3V R4021 0 C4021 6.3V 10u TP4707 TP4714 TP4711 FL4707 F1J1E1040022 1 2 3 R4972 0 C4002 16V 0.1u C4913 16V 0.1u R4918 100 C4007 25V 0.1u R4900 0 0 R4041 C4914 16V 47u TP4704 R4925 0 C4004 16V 0.082u R4915 100 R4017 0 R4905 0 R4027 0 R4215 100 C4010 50V 1000p R4881 5.6k R4922 0 IC4032 C0JBAE000354 1 A 2 B 3 GND 5 VCC 4 Y R4942 22 TP4716 C4887 25V 0.1u D_STB3.3V DN1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 R4219 100 C4022 16V 0.1u R4893 0 P15V R4907 0 STB5V STB5V C4031 16V 0.1u C4012 16V 0.1u R4902 0 C4886 50V 100p 1% R4009 75 R4913 100 C4804 16V 0.1u FL4710 F1J1E1040022 1 2 3 R4906 100 PA4901 K5H4022A0023 C4032 16V 0.1u STB3.3V R4171 47 D_STB3.3V C0CBCBE00001 IC4002 1 VOUT 2 NC 3 GND 4 CNCONT 5 SUB 6 VIN 7 P5V 1% R4007 75 STB3.3V C4912 10u 25V FAN15V R4894 100 R4014 0 R4213 100 FL4001 J0MAB0000175 C4803 50V 1000p IC4714 C0JBAB000388 1 2 3 4 5 6 7 8 9 10 11 12 13 14 R4010 0 R4019 10 R4917 100 R4018 0 P15V C4008 25V 0.1u IC4803 C0JBAS000215 1 1A 2 1B 3 2C 4 GND 5 2A 6 2B 7 1C 8 Vcc D4734 B0ACCE000005 C4011 16V 0.1u C4881 16V 0.1u DN11 STB5V R4008 0 C4915 16V 0.1u P5V R4921 100 R4882 10k STB5V R4042 0 R4911 100 FL4708 F1J1E1040022 1 2 3 R4211 100 R4002 EXB2HV100JV C4024 6.3V 10u C4006 16V 0.1u R4859 10k R4020 0 R4220 100 STB3.3V TP4701 C4009 25V 0.1u R4891 0 C4020 6.3V 10u C4017 10u 6.3V R4919 100 R4904 10k C4001 16V 0.1u C4018 16V 0.1u TP4708 R4943 22 D4732 B0ACCE000005 R4914 100 C4882 16V 0.1u R4888 100 R4003 EXB2HV100JV TP4705 TP4702 R4980 0 TP4712 STB5V TP4715 R4886 100 C4003 50V 8200p STB5V C4911 50V 0.01u TP4710 R4212 100 R4858 100 R4903 100 C4019 16V 0.1u R4016 0 Q4801 B1ABCF000138 R4883 100 P15V R4012 0 R4916 100 1% R4011 75 IC4031 C0JBAE000354 1 A 2 B 3 GND 5 VCC 4 Y R4036 100 R4037 100 DN4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 R4005 2.7k D4735 B0ACCE000005 C4027 50V 1000p R4038 100 C4013 16V 0.1u 1% R4006 6.8k 3.3V TP4709 STB5V R4908 5.6k R4035 100 IC4715 C0JBAE000354 1 A 2 B 3 GND 5 VCC 4 Y R4912 100 FL4709 F1J1E1040022 1 2 3 R4013 0 R4023 0 R4217 100 R4825 10k TP4713 C4884 16V 0.1u C4917 16V 47u R4218 100 P5V STB5V R4001 EXB2HV100JV STB3.3V TP4706 R4899 0 3.3V->5V 5V->3.3V GND RESET GND R/PR_M GND DPMS_VD GND STB_ON VD_M GND B/PB_M HD_M KEY_SW DPMS_HD GND G/Y_M GND LED_G KEY_DET GND SDA3 GND SDA1 CABLE_DET 5V TXD_TU RXD_TU LED_R RTC INT GND SOUND MUTE GND SCL3 FAN_SOS SCL1 TXD_PC RXD_PC STB5V IIC_CONT GND GND REMOCON OUT REMOCON 5V->3.3V VP HP 5V->3.3V S_XCLK+ M_X1+ GND M_X3- S_X2+ S_X2- S_X0+ S_X0- S_X3- S_XCLK- S_X3+ M_XCLK+ M_XCLK- S_X1+ GND M_X1- S_X1- M_X0- GND GND M_X3+ GND GND M_X2+ M_X2- GND GND M_X0+ GND HI:ON GND P15V REMOCON STBY5V STBY3.3V IIC_CONT GND SCL1 SDA1 SCL2 SDA2 TXD RXD IIC_INT LED_G PSTB LED_R PDB0 PSLCT PDB1 PBUSY TXD SDA3 IIC_CONT SDA2 STB5V SDA1 GND STB3.3V IIC_INT/BOOT GND RXD SCL1 SCL3 SCL2 P15V P5V->3.3V AC_GOOD ALL_OFF1 5V POWER\STAT STB3.3V FAN15V UART_SW A/D FOR FACTORY USED FOR FACTORY USED TO DS-BOARD (DS1) 14 10 16 15 18 13 12 11 17 1 2 11 12 13 TH-42PH10CK/CS DN-Board (2 of 6) Schematic Diagram TH-42PH10CK/CS DN-Board (2 of 6) Schematic Diagram DN-BOARD TZTNP02XGTC (TNPA4108AC) (2/6) 84 14.26.DN 电路板 (3/6) 线路图 AQ_D13 AP_OE AQ_D14 P3V_SCL2 AO_A18 AO_A11 AO_A6 P3V_SDA2 AQ_D4 AO_A18 AQ_D11 3V_SCL1 RXD_PC OSD_YM AO_A10 AO_A14 OSD14 OSD12 AQ_D9 AQ_D10 IIC_CONT AO_A4 NRST AO_A1 OSD1 AO_A15 3VTXD_TU AP_CE AO_A7 OSD_CKIN AQ_D6 AP_CE AO_A14 AQ_D0 AO_A9 AO_A5 AQ_D5 AQ_D1 OSD_HDO AQ_D3 REM_IN RTC_INT 3V_SDA1 REM_INH OSD2 3V_SCL1 AO_A9 AQ_D15 AO_A0 AO_A7 OSD7 AQ_D7 AQ_D13 AO_A17 3V_SCL3 TXD_PC AQ_D5 AQ_D12 AQ_D7 AQ_D15 AO_A13 OSD4 MCLD MCCLK AQ_D1 AO_A3 AO_A6 AO_A0 AO_A16 OSD3 AQ_D9 AO_A1 OSD_VDO AP_WE AQ_D4 ALL_OFF1 AQ_D10 REMOCON OSD0 3V_SDA3 AO_A4 AO_A2 OSD11 OSD5 OSD9 AQ_D14 DN_SOS OSD10 AQ_D2 AQ_D6 AO_A12 TV_ON/OFF AO_A3 AO_A11 3V_SDA1 IIC_CONT AP_WE AQ_D8 AO_A12 AQ_D0 OSD6 3VRXD_TU REM_OUT OSD15 MCDATA_O AQ_D11 AO_A8 OSD_YS REM_OUT AP_OE OSD8 AO_A2 AQ_D8 STB_ON AO_A5 AQ_D12 AO_A17 AO_A16 OSD_HDIN AC_GOOD AO_A8 AQ_D2 AO_A19 AO_A10 AO_A13 OSD13 TRCD3 TRCD2 TRCD1 TRCD0 TRCST SOUND_MUTE EXTRG0 REMOCON_OUT REM_IN 5V_SOS 5V_SOS DN_SOS 15V_SOS DISPEN PANEL_STBY_ON DRVMUTE ALARM 15V_SOS KEY_INPUT 3V_SCL4 3V_SDA4 READY GENX_RST DRVMUTE TV_ON/OFF UART_SW LVDS_PD P_ON/OFF AO_A15 EXTRG0 KEY_DET LED_G LED_R AQ_D3 IIC_INT IIC_SW DPMS_HD POWER_STAT CABLE_DET NRST_FP DPMS_VD P3V_SDA2 P3V_SCL2 REM_INH FAN_SOS D4701 MA2J72800L R4823 10k R4828 100 R4709 100 R4755 22 R4791 100 IC4721 C1ZBZ0003577 1 SCL 2 GND 3 A1 4 VDD 5 A0 6 SDA R4762 0 R4772 100 R4873 22k R4771 2.7k R4947 10k C4712 16V 0.1u C4751 50V 15p R4851 10k C4861 16V 1u R4728 10k C4753 50V 1000p Q4713 B1ABCF000138 R4877 1k R4759 22 R4833 47k R4753 22 R4777 39k R4842 5.6k R4820 10k R4872 1k R4786 EXB38V103JV R4744 100 R4779 10k R4829 1k STB3.3V R4708 10k R4843 330 R4853 10k R4804 3.3k R4734 10k D4712 B0ACCE000005 3.3V Q4702 B1ABCF000138 R4790 100 R4717 100 R4792 1k R4884 22 C4718 16V 0.1u IC4702 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 NC 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 R4824 100k R4770 47 R4765 47 R4724 10k STB3.3V Q4705 B1ABCF000138 R4834 10k Q4802 B1ABCF000138 R4769 2.7k R4832 10k 2.5V R4718 10k R4839 47k R4826 100k R4788 100 C4885 16V 0.1u R4848 1k X4701 H0J100500030 R4702 2.7k R4750 0 C4713 16V 0.1u R4830 10k R4740 EXB2HV100JV C4704 16V 0.1u R4735 100 R4757 22 R4712 EXB2HV100JV R4781 100 D4713 B0ACCE000005 R4706 3.3k R4808 3.3k C4715 16V 0.1u R4812 10k 3.3V R4723 100 R4835 1k C4864 100p 50V R4715 100 R4852 10k TP4502 C4719 16V 0.1u R4814 100 3.3V Q4714 B1ABCF000138 R4870 10k C4703 6.3V 10u D4704 MAZ303300L R4840 10k R4743 22 Q4712 B1ABCF000138 R4895 100 C4742 16V 0.1u R4729 100 R4889 10k MN103SB30RGL IC4701 1 P235 2 P234 3 P233 4 P232 5 P231 6 P230 7 P120/D16 8 P121/D17 9 P122/D18 10 P123/D19 11 P124/D20 12 P125/D21 13 P126/D22 14 P127/D23 15 IVSS 16 IVDD 17 P137/D31 18 P136/D30 19 P135/D29 20 P134/D28 21 P133/D27 22 P132/D26 23 P131/D25 24 P130/D24 25 P213 26 P212 27 P211 28 P210 29 P207 30 P206 31 VSS 32 VDD 33 P205 34 P204 35 P203 36 P202 37 P201 38 P187/SBT2 39 P186/SBI2 40 P185/SBT1/TM910A 41 P184/SBI1 42 P183/SBO1 43 P182/SBT0/TM810A 44 P181/SBI0 45 P180/SBO0 46 P061/A17 47 P060/A16 48 P057/A15 49 P056/A14 50 P055/A13 51 P053/A12 52 P052/A11 53 P051/A10 54 P050/A9 55 IVDD 56 IVSS 57 P064/A20 58 P065/A21 59 P0C0/NWE0 60 P066/A22 61 P063/A19 62 P062/A18 63 P047/A8 64 P046/A7 65 P045/A6 66 VDD 67 IVSS 68 P145/HOUTA 69 P142/VCLKOUTA 70 IVDD 71 PWROUTR 72 RTCXI 73 RTCX0 74 PSCNT 75 NTEST 76 P044/A5 77 P043/A4 78 P042/A3 79 P041/A2 80 P0C1/NRE 81 P0C2/NCS0 82 P200/ZA1 83 VSS 84 NRST 85 VDD 86 P172/SDA2 87 P173/SCL2 88 P170/SDA1 89 P171/SCL1 90 P025/HSYNC 91 IVSS 92 OSDXI 93 IVDD 94 P024/VSYNC/IRQ1 95 P021/YMOUT0/TM810B 96 P020/YSOUT 97 P000/R04 98 P001/R03 99 P002/R02 100 P003/R01 101 P004/R00 102 IVDD 103 IVSS 104 P005/G05 105 P006/G04 106 P007/G03 107 P010/G02 108 P011/G01 109 P023/G00 110 P012/B04 111 P013/B03 112 P014/B02 113 P015/B01 114 IVSS 115 P022/B00/TM910B 116 VDD 117 IVDD 118 P177/SDA0B 119 P176/SCL0B 120 P175/SDA0A 121 P174/SCL0A 122 P030/RMIN/IRQ0 123 PVDD 124 PLLTST 125 PVSS 126 AVDD2 127 AVSS2 128 IVSS 129 AD1N6 130 ADIN7 131 ADIN8 132 ADIN9 133 ADIN10 134 ADIN11 135 P160/ADIN0/TM0IO 136 P161/ADIN1/TM1IO 137 P162/ADIN2/TM2IO 138 P163/ADIN3/TM3IO 139 P240/ADIN4 140 P241/ADIN5 141 P242/CECINA 142 P243/CECINB 143 IVSS 144 OSCXO 145 OSCXI 146 IVDD 147 TRCD3 148 TRCD2 149 TRCD1 150 TRCD0 151 TRCST 152 TRCCLK 153 EXTRG1 154 EXTRG0 155 SDATA 156 SCLOCK 157 P100/NCS2A 158 P101/IRQ2A 159 VDD 160 VSS 161 P102/IRQ3A 162 P103/IRQ4A 163 P104/IRQ5A 164 P105/IRQ6A 165 P106/IRQ7A 166 P107/IRQ8A 167 P117/DPHI0 168 P116/DPVI0 169 P115/DPHI1 170 P114/DPVI1 171 P113 172 P112 173 P111 174 P110 175 P237 176 P236 STB5V D4709 MA2J72800L C4707 16V 0.1u R4793 12k R4817 0 IC4703 C3EBKC000014 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC R4707 100 STB3.3V R4761 100 R4738 100 L4702 J0JHC0000096 R4819 100 C4752 50V 15p R4767 EXB2HV470JV R4748 0 R4732 100 C4862 16V 0.1u C4708 16V 0.1u C4865 16V 4.7u Q4703 B1ABCF000138 C4749 16V 0.1u R4845 3.9k R4796 1.8k R4722 2.7k R4876 10k R4857 10k R4764 47 R4719 10k C4710 16V 0.1u Q4708 B1CBHD000002 G D S STB3.3V R4850 1k TP4902 Q4706 B1ABCF000138 R4806 100 R4837 10k R4847 1k STB3.3V R4756 5.6k R4773 0 R4856 5.6k Q4701 B1CBHD000002 G D S R4768 47 TP4901 C4714 16V 0.1u R4737 10k R4760 2.7k R4703 100 R4713 EXB2HV100JV R4747 EXB38VR000V R4849 12k R4730 100 R4855 0 R4766 EXB2HV470JV R4780 100 Q4803 B1ABCF000138 R4795 10k C4701 16V 0.1u C4871 16V 0.1u C4733 50V 1000p R4745 0 R4815 10k C4754 16V 0.1u R4778 100 R4749 0 D4711 B0ACCE000005 R4704 2.7k R4865 10k R4885 22 R4813 10k R4841 5.6k C0EBE0000447 IC4704 1 Vout 2 VDD 3 GND 5 N.C. 4 N.C. IC4711 C0JBAE000354 1 A 2 B 3 GND 5 VCC 4 Y TP4501 R4836 47k R4860 10k STB3.3V R4775 10k Q4704 B1ABCF000138 3.3V P5V R4754 5.6k R4727 10k C4750 16V 0.1u R4879 100 R4869 100 R4866 10k R4821 1k TP4751 R4763 100 R4863 0 R4807 10k C4705 16V 0.1u R4774 1k C4706 16V 0.1u R4868 6.8k R4710 10k C4711 16V 0.1u 1.5V R4752 0 R4846 6.8k L4703 J0JHC0000096 R4783 10k R4742 22 L4704 J0JHC0000096 R4746 10k R4751 0 P15V R4844 1k C4717 16V 0.1u STB1.5V C4709 16V 0.1u R4822 10k 3.3V C4716 16V 0.1u R4711 10k R4838 1k R4864 5.6k C4743 16V 1u C4866 16V 0.1u R4874 22k C4863 16V 0.1u R4716 10k R4758 2.7k R4701 EXB38V103JV STB3.3V L4701 J0JHC0000096 R4741 EXB2HV100JV Q4707 B1ABCF000138 C4744 16V 0.1u 8M-FLASH EEPROM_WP 15V_SOS DN_SOS FAN_SOS 5V_SOS TVRP384-1 SOS8_SS SOS7_SC2 SOS6_SC1 SOS4_PS OSDHO OSDVO TEMP SENSOR EEPROM MCU RESET SWITCH 21 24 19 25 23 22 27 20 26 13 12 11 24 23 22 21 25 TH-42PH10CK/CS DN-Board (3 of 6) Schematic Diagram TH-42PH10CK/CS DN-Board (3 of 6) Schematic Diagram DN-BOARD TZTNP02XGTC (TNPA4108AC) (3/6) 85 14.27.DN 电路板 (4/6) 线路图 + MCCLK MCDATA_O MCLD P3V_SDA2 P3V_SCL2 HD_M VD_M MAIN_R5 MAIN_G0 MAIN_B7 MAIN_G4 MAIN_G3 MAIN_G1 GUARD_CLK VDO_M MAIN_R0 MAIN_R2 MAIN_B6 MAIN_G2 MAIN_B5 HDO_M MAIN_G6 MAIN_R7 MAIN_R3 MAIN_R4 MAIN_B2 MAIN_B0 MAIN_R6 MAIN_B4 MAIN_G5 MAIN_B3 MAIN_G7 MAIN_R1 MAIN_B1 SUB_R7 SUB_R6 SUB_R5 SUB_R4 SUB_R3 SUB_R2 SUB_R1 SUB_R0 SUB_B7 SUB_B6 SUB_B1 SUB_B5 SUB_G7 SUB_B0 SUB_B4 SUB_B3 SUB_B2 SUB_G6 SUB_G5 SUB_G4 SUB_G3 SUB_G2 SUB_G1 SUB_G0 VDO_S HDO_S DCK_S AM_CLK AM_HD AM_VD MN_RX3+ MN_RX3- MN_RX0- MN_RX0+ MN_RX1- MN_CLK- MN_CLK+ MN_RX2+ MN_RX2- MN_RX1+ SB_RX3- SB_RX3+ SB_RX2- SB_RX2+ SB_RX1- SB_RX1+ SB_RX0- SB_RX0+ SB_CLK- SB_CLK+ VD_ADM HD_ADM CLP_M NRST_FP CPG_7 IC4201 C6 SLAV IC4201 A7 NC IC4201 R10 ROA[1] IC4201 L2 ODED IC4201 F9 VDD3 IC4201 R9 NC IC4201 T11 VDD R4282 22 R4244 22 IC4201 D8 LVDS_TEST IC4201 G14 PCU2 IC4201 E15 CSH IC4201 J7 GND IC4201 T10 ROA[0] IC4201 H6 VDD3 IC4201 E12 NC C4201 16V 47u IC4201 T9 CLKM_IN IC4201 E10 NRST IC4201 N13 NC IC4201 G7 GND IC4201 A10 NC IC4201 F3 VD_ADB C4211 16V 0.1u C4212 16V 0.1u C4210 16V 0.1u IC4201 R12 GOA[1] IC4201 H10 GND IC4201 P1 ROB[1] IC4201 A3 NC IC4201 A12 NC R4261 0 IC4201 E8 VDD3 IC4201 K13 BOA[3] IC4201 B16 LVDSA_RXAN C4219 6.3V 10u IC4201 C4 NC IC4201 N11 ROA[7] 3.3V IC4201 J5 VDD3 IC4201 K7 GND IC4201 H12 VDD3 IC4201 E7 DSHR IC4201 R13 GOA[7] IC4201 C14 NC IC4201 L12 GOA[4] IC4201 K14 SFVRST IC4201 J6 VDD3 IC4201 F16 VDD IC4201 L1 VDD IC4201 P8 DCKA IC4201 B1 LVDSB_RXCP IC4201 P15 VDOA R4272 EXB2HV820JV IC4201 D4 NC IC4201 T12 GOA[0] IC4201 K4 USH IC4201 R6 BOB[2] IC4201 C11 LVDSA_RXDP IC4201 A6 VDD IC4201 M10 ROA[4] IC4201 R8 GND IC4201 M4 GOB[2] L4206 J0JHC0000096 IC4201 E4 DMLL IC4201 B6 NC IC4201 M15 SCL IC4201 E11 CSL IC4201 M1 LER IC4201 D12 ROM57AD[0] C4202 16V 0.1u IC4201 G8 GND IC4201 E5 NC IC4201 A15 NC IC4201 K16 FPCLK IC4201 J11 VDD3 IC4201 G5 DMHR IC4201 N5 GOB[7] IC4201 H1 HDA IC4201 H7 GND IC4201 J14 LEL IC4201 J13 LATCH IC4201 J12 VDD3 IC4201 F14 CEL IC4201 E2 VDB IC4201 T16 GND R4278 EXB2HV121JV IC4201 D7 DSLR IC4201 H11 VDD3 R4251 0 IC4201 C3 MODEL[2] R4260 0 IC4201 F10 VDD3 IC4201 B5 LVDSB_RXAP IC4201 N9 NC IC4201 L4 GOB[3] IC4201 R7 HDOB IC4201 N14 BOA[6] IC4201 H9 GND IC4201 M5 NC IC4201 M2 PCD IC4201 L10 VDD3 IC4201 P10 ROA[2] R4271 EXB2HV820JV IC4201 N8 DCKB IC4201 E1 HDB IC4201 A13 LVDSA_RXCN IC4201 D15 CMH C4206 16V 0.1u IC4201 B12 NC IC4201 F4 DSLL IC4201 P13 BOA[0] R4221 47 IC4201 T15 NC IC4201 H4 CLPA IC4201 L13 BOA[2] FPGA2.5V IC4201 H14 PCU IC4201 R3 ROB[5] IC4201 D11 ROM57AD[1] IC4201 M8 VDD3 FPGA3.3V IC4201 R15 GND R4242 0 IC4201 D13 NC IC4201 F5 DSHL IC4201 J16 MCDATA IC4201 B9 GND IC4201 J4 UMH C4220 6.3V 10u IC4201 A14 LVDSA_RXBN IC4201 B13 LVDSA_RXCP IC4201 G2 HDIAB IC4201 D10 ROM57AD[2] C4222 6.3V 10u R4279 EXB2HV121JV IC4201 C16 LVDSA_RXAP IC4201 G4 VD_ADA IC4201 M9 VDD3 IC4201 H13 CLRU IC4201 T4 GOB[0] IC4201 M14 BOA[7] IC4201 H5 VDD3 IC4201 D14 CML IC4201 C8 NC IC4201 K11 VDD3 IC4201 T5 GOB[4] IC4201 E3 CLPB IC4201 E16 SIU IC4201 N3 ROB[6] IC4201 K1 NUEL IC4201 G12 AC_TEST IC4201 M11 NC IC4201 M13 BOA[1] IC4201 L11 GND IC4201 N12 GOA[3] IC4201 C5 LVDSB_RXAN IC4201 J9 GND IC4201 C1 LVDSB_RXCN R4201 0 IC4201 C13 NC IC4201 K2 UEH IC4201 B15 GND IC4201 T7 DCKBO R4274 47 R4281 47 IC4201 F13 CBK IC4201 N2 ROB[3] IC4201 P9 NC IC4201 M3 ROB[7] IC4201 F1 VDD IC4201 A5 NC IC4201 A4 LVDSB_RXBP C4205 16V 0.1u IC4201 E6 DMHL IC4201 T8 NAND_TEST IC4201 C1ZBZ0003233 A1 GND IC4201 A8 LVDSB_CLKP IC4201 P14 BOA[5] IC4201 L7 VDD3 IC4201 K9 GND IC4201 D9 LVDSA_CLKP IC4201 N15 XNVD IC4201 F12 SCSU IC4201 A9 NC IC4201 E13 SID IC4201 N16 XNHD IC4201 F11 GND IC4201 H16 MCCLK IC4201 F8 VDD3 IC4201 A11 VDD R4273 EXB2HV820JV IC4201 H2 GND IC4201 K3 USL IC4201 B10 NC IC4201 C10 NC IC4201 P12 GOA[2] IC4201 D6 DMLR IC4201 P11 ROA[6] IC4201 L9 VDD3 IC4201 B8 LVDSB_CLKN IC4201 F15 CLK_D IC4201 F6 GND IC4201 E14 CL IC4201 L15 FPDATA[0] R4252 0 C4204 16V 0.1u IC4201 R2 GND IC4201 B2 GND IC4201 R11 ROA[5] IC4201 P3 NC IC4201 P2 ROB[2] IC4201 K5 BOB[1] IC4201 K15 FPDATA[1] IC4201 R4 GOB[1] IC4201 L16 VDD IC4201 M12 NC R4243 0 IC4201 D1 LVDSB_RXDN R4275 47 IC4201 M16 SDA IC4201 B4 LVDSB_RXBN IC4201 N6 BOB[4] IC4201 N4 NC IC4201 L8 VDD3 IC4201 D2 LVDSB_RXDP IC4201 C7 NC IC4201 N7 BOB[6] IC4201 K6 VDD3 C4213 16V 0.1u IC4201 T1 GND IC4201 L14 SFRST C4207 16V 0.1u IC4201 F7 VDD3 IC4201 J10 GND IC4201 J2 VDIAA IC4201 R5 GOB[5] IC4201 C12 KME_TEST IC4201 J1 HDIAA IC4201 L5 BOB[0] IC4201 G13 ODEU IC4201 T3 ROB[4] IC4201 R16 DCKAO IC4201 G6 VDD3 IC4201 G3 VDIAB IC4201 T6 VDD IC4201 A16 GND IC4201 G1 VDA IC4201 P6 BOB[3] IC4201 D16 DRVMUTE R4250 0 R4222 47 R4280 47 IC4201 P4 NC IC4201 D3 MODEL[1] IC4201 T13 GOA[6] IC4201 K8 GND IC4201 G15 CEL2 IC4201 K12 GOA[5] IC4201 H15 MCLD IC4201 P16 HDOA C4221 6.3V 10u C4209 16V 0.1u IC4201 F2 HD_ADB R4276 22 IC4201 D5 MODEL[0] IC4201 C2 NC C4227 6.3V 10u IC4201 L3 PCD2 IC4201 K10 GND IC4201 H3 HD_ADA IC4201 P7 VDO[B] IC4201 G9 GND IC4201 G16 CPH IC4201 T2 NC IC4201 G11 VDD3 IC4201 E9 VDD3 IC4201 G10 GND IC4201 M7 BOB[7] IC4201 H8 GND C4225 6.3V 10u IC4201 C15 DRVRST IC4201 P5 GOB[6] IC4201 B11 LVDSA_RXDN R4277 EXB2HV121JV IC4201 J3 UML IC4201 T14 BOA[4] IC4201 B7 NC IC4201 N10 ROA[3] IC4201 R14 NC IC4201 J8 GND IC4201 B14 LVDSA_RXBP 16V 0.1u C4203 IC4201 A2 NC IC4201 J15 GND 2.5V IC4201 B3 NC IC4201 N1 CLRD IC4201 L6 GND C4208 16V 0.1u IC4201 C9 LVDSA_CLKN IC4201 R1 ROB[0] R4245 1k IC4201 M6 BOB[5] CSL FPGA MODE FPDATA0 TEST M_BOUT1 RESET VD_ADB SS_PULSE M_GOUT7 CMH M_ROUT7 CEL FPDATA1 M_GOUT2 CLPA M_BOUT7 Flash Control HDB M_ROUT6 DCKAO M_BOUT0 HDA GND LVDS_INPUT LATCH HD_ADB CLK_D VDOA M_GOUT4 HD_ADA CLPB CBK M_GOUT5 SID CL M_ROUT5 VCCI(3.3V) DATA POWER SAVE OUTPUT_MAIN SFVRST HDOA M_GOUT1 CLK_INPUT M_BOUT2 M_GOUT3 SFRST SCSU M_ROUT0 OUTPUT_SUB FREE RUN CLK MCU COMMUNICATION FPCLK SYNC PROCESS M_BOUT5 CEL2 M_BOUT3 M_GOUT6 M_ROUT2 DATA DRIVER VDA PRCKI LSI58 COMMUNICATION M_BOUT4 VCCINT(1.2V) IIC M_GOUT0 CSH SIU CLKM M_ROUT1 MODEL SELECT M_ROUT4 CPH VDB M_BOUT6 CML SC PULSE M_ROUT3 VD_ADA JTAG HDIAA DCKA XNHD XNVD HDIAB DCKB VDIAA VDIAB LVDS-TEST SDA SCL NC CONTROL MCCLK MCLD MCDATA DSHL DMHR DSLR DMHL DSHR DMLR DSLL DMLL NRST DRVMUTE DRVRST ROM57AD[1] ROM57AD[2] ROM57AD[0] PCU PCU2 CLRU ODEU LEL PCD2 ODED PCD LER CLRD UEH USH UML USL UMH NUEL S_ROUT3 S_GOUT1 HDOB S_ROUT7 S_GOUT0 S_ROUT6 S_ROUT1 VDOB DCKBO S_ROUT2 S_BOUT4 S_BOUT2 S_GOUT5 S_GOUT2 S_BOUT5 S_BOUT1 S_ROUT4 S_GOUT3 S_GOUT6 S_BOUT0 S_BOUT6 S_ROUT0 S_ROUT5 S_BOUT3 S_GOUT4 S_BOUT7 S_GOUT7 KME-TEST MODEL2 MODEL1 MODEL0 LVDSB_RXAP LVDSB_RXBN LVDSB_RXCN LVDSB_RXBP LVDSB_RXCP LVDSB_CLKP LVDSB_CLKN LVDSB_RXDN LVDSB_RXDP LVDSB_RXAN LVDSA_RXBN LVDSA_RXAN LVDSA_CLKP LVDSA_RXDN LVDSA_RXDP LVDSA_RXCP LVDSA_RXAP LVDSA_RXBP LVDSA_RXCN LVDSA_CLKN VCCAUX(2.5V) IC4201 34 32 36 29 28 31 33 30 35 24 25 23 22 21 31 32 35 33 34 TH-42PH10CK/CS DN-Board (4 of 6) Schematic Diagram TH-42PH10CK/CS DN-Board (4 of 6) Schematic Diagram DN-BOARD TZTNP02XGTC (TNPA4108AC) (4/6) 86 14.28.DN 电路板 (5/6) 线路图 G G + G G G G + L7_DQ31 L7_DQ30 L7_DQ29 L7_DQ28 L7_DQ27 L7_DQ25 L7_DQ24 L7_DQ23 L7_DQ21 L7_DQ20 L7_DQ19 L7_DQ18 L7_DQ17 L7_DQ16 L7_DQ15 L7_DQ14 L7_DQ13 L7_DQ12 L7_DQ11 L7_DQ10 L7_DQ9 L7_DQ8 L7_DQ6 L7_DQ5 L7_DQ4 L7_DQ3 L7_DQ2 L7_DQ1 L7_DQ0 L7_DQ7 L7_DQ26 L7_ADRS6 L7_ADRS3 L7_ADRS10 L7_ADRS11 L7_ADRS9 L7_ADRS8 L7_ADRS7 L7_ADRS4 L7_ADRS2 L7_ADRS1 L7_ADRS0 L7_NRAS L7_NCAS L7_NCS L7_SDCKON L7_SDCKO L7_NWE L7_CKE L7_BANK1 L7_DQS0 L7_BANK0 MAIN_R7 MAIN_R6 MAIN_R5 MAIN_R4 MAIN_R3 MAIN_R2 MAIN_R1 MAIN_R0 MAIN_B0 MAIN_B3 MAIN_B7 MAIN_B2 MAIN_B1 MAIN_B5 MAIN_B6 MAIN_B4 MAIN_G3 MAIN_G7 MAIN_G2 MAIN_G1 MAIN_G5 MAIN_G6 MAIN_G4 SUB_R0 SUB_R3 SUB_R7 SUB_R2 SUB_R1 SUB_R5 SUB_R6 SUB_R4 SUB_B0 SUB_B3 SUB_B2 SUB_B1 SUB_B5 SUB_B4 SUB_G3 SUB_G7 SUB_G2 SUB_G1 SUB_G5 SUB_G6 SUB_G4 OSD15 OSD14 OSD12 OSD13 OSD10 OSD9 OSD11 OSD6 OSD4 OSD5 OSD2 OSD1 OSD0 OSD3 OSD_YM OSD_YS OSD_HDIN OSD_CKIN L7_OCK OSD7 TMS_BS TCK_BS TRST_BS MAIN_G0 SUB_G0 SUB_B7 SUB_B6 L7_REFCK L7_HOUT L7_VOUT OSD8 L7_DQ22 L7_ADRS5 TDI_57 L7_MCK L7_ROUT9 L7_ROUT8 L7_ROUT7 L7_ROUT6 L7_ROUT5 L7_ROUT4 L7_ROUT3 L7_ROUT2 L7_ROUT1 L7_ROUT0 L7_GOUT9 L7_GOUT8 L7_GOUT7 L7_GOUT6 L7_GOUT5 L7_GOUT4 L7_GOUT3 L7_GOUT2 L7_GOUT1 L7_GOUT0 L7_BOUT8 L7_BOUT7 L7_BOUT6 L7_BOUT5 L7_BOUT4 L7_BOUT3 L7_BOUT2 L7_BOUT1 L7_BOUT0 L7_BOUT9 L7_CLKOE DCK_M HDO_M VDO_M VDO_S HDO_S DCK_S OSD_VDO OSD_HDO L7_SCK P3V_SCL2 P3V_SDA2 NRST L7_MCK L7_REFCK TRST_BS TCK_BS TMS_BS TDI_57 L7_OCK L7_SCK CPG_7 IC4501 V3 RVIA1 R4514 47 IC4501 L10 VSS IC4501 J10 VSS IC4501 H9 VSS IC4501 U4 BUIA0 IC4501 B6 OSD12 IC4501 W21 SDIV0 IC4501 K21 GOUT7 IC4501 F2 BUIB3 IC4501 AB7 DQ22 IC4501 P9 VSS R4148 4.7k IC4501 U23 S2NCOPY IC4501 AC3 DQ5 2.5V_L7 IC4501 J8 VSS IC4501 R23 MCKO IC4501 AB1 TDO IC4501 B1 GYIB7 IC4501 E1 GYIB0 IC4501 L21 BOUT1 IC4501 L5 VDD15 IC4501 K12 VSS IC4501 E23 C78EN IC4501 AA17 VSS C4546 16V 0.1u IC4501 AA10 DQ29 IC4501 G1 BUIB0 IC4501 K19 VDD15 IC4501 V22 S4UDSEL0 C4552 6.3V 10u IC4501 E13 VDD33 IC4501 Y4 VSS IC4501 H10 VSS C4576 16V 0.1u IC4501 U3 RVIA5 R4546 0 IC4501 AC9 VDD25 IC4501 B3 OSD1 C4543 16V 0.1u IC4501 M1 DCKA IC4501 Y22 SDIV2 C4505 50V 12p IC4501 H23 ROUT7 IC4501 AA21 VSS IC4501 Y18 ADRS8 IC4501 F5 VDD15 IC4501 E12 VDD33 IC4501 AC17 SDCKON IC4501 K8 VSS IC4501 J9 VSS IC4501 K16 VSS IC4501 M15 VSS IC4501 T12 VSS 2.5V_L7 IC4501 B23 ROMD9 IC4501 J15 VSS C4574 16V 0.1u C4586 16V 0.1u IC4501 E8 VDD33 IC4501 R11 VSS IC4501 A1 VSS IC4501 Y1 AHARDPWN IC4501 AC7 DQS2 IC4501 K15 VSS IC4501 W14 VDD15 IC4501 D15 TEST3 IC4501 D4 VSS C4581 16V 0.1u IC4501 H16 VSS C4562 16V 0.1u IC4501 R3 BUIA5 IC4501 R21 MFJIO IC4501 J3 RVIB0 C4591 16V 0.1u C4548 6.3V 10u IC4501 AA15 VSS IC4501 H4 RVIB5 3.3V_L78 IC4501 C8 ALPHA0 IC4501 AA18 ADRS9 IC4501 P19 VDD33 IC4501 M11 VSS IC4501 AC11 DQ11 IC4501 C19 MCPOUT IC4501 AB20 ADRS2 IC4501 C1 GYIB4 C4558 16V 0.1u IC4501 E6 OSD7 IC4501 H3 RVIB2 IC4501 AC14 VSS C4541 50V 8p IC4501 Y7 DQ21 IC4501 E16 VDD15 C4578 16V 0.1u R4566 0 IC4501 T14 VSS IC4501 E22 ROMCE IC4501 Y8 VSS IC4501 Y6 DQ20 1% R4581 3.16k IC4501 R9 VSS R4518 0 IC4501 D1 GYIB1 R4522 0 IC4501 B14 MINTEST IC4501 AB11 DQ10 IC4501 N8 VSS IC4501 B9 ALPHA2 IC4501 C16 TEST6 IC4501 AA4 DQ16 IC4501 K13 VSS IC4501 AA19 ADRS4 IC4501 T10 VSS IC4501 AB8 VSS FL4503 F1J1E1040022 1 2 3 IC4501 M5 VDD15 IC4501 Y3 TDI R4502 0 C4593 16V 0.1u IC4501 AB9 DQ15 IC4501 K11 VSS IC4501 M23 BOUT3 IC4501 V1 RVIA3 IC4501 P3 GYIA1 R4142 4.7k IC4501 B15 TEST1 C4573 16V 0.1u IC4501 K20 GOUT8 IC4501 P12 VSS IC4501 G2 RVIB7 IC4501 D20 ROMD8 C4561 16V 0.1u IC4501 M4 VMASKA IC4501 V23 VSS IC4501 E14 VDD33 IC4501 AA9 DQ14 IC4501 H11 VSS IC4501 D22 ROMD15 IC4501 K3 RHB IC4501 AC8 VSS IC4501 K10 VSS IC4501 A9 OSDCKI IC4501 C4 OSD2 IC4501 W4 DLLON IC4501 C12 ZLPFON IC4501 M19 VDD33 IC4501 G19 VDD33 IC4501 E3 BUIB6 IC4501 L8 VSS IC4501 W19 VSS IC4501 H1 RVIB4 IC4501 AA14 AVSS C4551 16V 0.1u IC4501 P23 VP IC4501 F3 BUIB2 IC4501 N9 VSS 2.5V IC4501 AC22 BANK0 R4567 0 IC4501 T11 VSS IC4501 L20 BOUT2 IC4501 K2 CLAMPB IC4501 R2 BUIA6 IC4501 J16 VSS R4564 0 IC4501 J20 GOUT4 IC4501 L22 BOUT0 R4544 0 L4504 C4580 16V 0.1u IC4501 AB6 DQ0 1% R4579 1k IC4501 AC10 DQ13 IC4501 P1 GYIA3 IC4501 B22 ROMD6 IC4501 U20 S4NCOPY IC4501 A20 MDIV0 IC4501 F19 VDD33 IC4501 R13 VSS IC4501 L19 VDD15 IC4501 AC20 ADRS3 IC4501 A17 VSS C4506 50V 12p IC4501 A23 VSS C1ZBZ0003478 IC4500 XT 1 2 SL0 3 SL1 4 CLK7 5 VDD1 6 VSS1 7 CLK1 8 CLK2 9 CLK3 10 VSS 11 VSS 12 CLK6 13 CLK5 14 CLK4 15 VSS2 16 VDD2 17 SL2 18 STBY 19 VDD3 20 XTN IC4501 F20 ROUT2 IC4501 W10 VDD25 IC4501 P22 HP IC4501 Y14 AVDD25 *R4505 10k IC4501 A8 OSDHI C4545 6.3V 10u IC4501 A7 OCKREF IC4501 M8 VSS IC4501 W16 ADRS10 IC4501 W13 AVDD25 C4587 16V 0.1u IC4501 B19 MDIV2 IC4501 E9 VDD15 IC4501 W6 VDD25 L4503 IC4501 N15 VSS C4547 16V 0.1u IC4501 AA11 DQ27 C4565 16V 0.1u IC4501 J12 VSS IC4501 AC18 CKE IC4501 V20 XSPLLPDN IC4501 L9 VSS IC4501 R8 VSS C4567 16V 0.1u IC4501 U2 RVIA6 IC4501 W2 DDRIOCTR0 IC4501 G20 ROUT6 IC4501 K14 VSS IC4501 P21 SRLF IC4501 L23 GOUT9 IC4501 N23 OCKO IC4501 B20 AVDD33M IC4501 G23 ROUT3 C4549 6.3V 10u IC4501 D3 GYIB5 R4516 47 IC4501 AB10 DQ12 IC4501 J1 DCKB IC4501 J22 GOUT2 IC4501 W18 ADRS7 IC4501 B16 TEST5 IC4501 C10 REFCK IC4501 E21 PWMOUT IC4501 E4 GYIB2 IC4501 A3 OSD4 *R4529 0 IC4501 H12 VSS IC4501 T9 VSS 3.3V_L78 IC4501 AC4 DQ3 IC4501 C7 OSD15 IC4501 B2 VSS IC4501 U19 VDD15 IC4501 AB17 SDCKO IC4501 D5 OSD3 C4575 16V 0.1u IC4501 D7 YM IC4501 L2 CLAMPA IC4501 R1 BUIA7 IC4501 T19 VDD15 IC4501 C3 VSS C4596 16V 0.1u IC4501 R20 MVDIO IC4501 L1 HMASKA IC4501 U5 VDD15 3.3V IC4501 B21 ROMD1 3.3V IC4501 H8 VSS 1.5V_L7 IC4501 Y9 DQ31 IC4501 P16 VSS IC4501 Y15 VSS IC4501 A2 OSD0 IC4501 B4 OSD5 IC4501 B10 BFJ IC4501 T13 VSS IC4501 D10 AFJ IC4501 R10 VSS IC4501 L15 VSS R4573 10k C4570 16V 0.1u C4502 6.3V 10u R4596 10k IC4501 R12 VSS IC4501 L12 VSS IC4501 M9 VSS IC4501 AB23 AVSSS IC4501 G21 ROUT5 L4501 G1C150KA0038 IC4501 A6 OSD11 R4569 EXB2HV103JV IC4501 AC23 VSS IC4501 AB13 DQS1 IC4501 W9 DQ30 IC4501 N1 GYIA7 IC4501 M12 VSS C4569 16V 0.1u C4564 16V 0.1u IC4501 D23 ROMD14 IC4501 M14 VSS IC4501 E10 VDD15 IC4501 E5 VSS IC4501 AA1 TRSTZ IC4501 A15 TEST0 IC4501 T23 OVDIO X4501 H0J200500038 IC4501 W7 VDD15 IC4501 F1 BUIB4 IC4501 V5 VDD15 IC4501 Y23 VSS IC4501 Y19 ADRS6 IC4501 V21 S4UDSEL1 IC4501 B7 VSS R4507 10k IC4501 AA22 AVDD33S IC4501 H21 ROUT9 IC4501 N20 BOUT9 IC4501 F4 BUIB5 R4526 0 IC4501 J14 VSS IC4501 A13 I2CSLV1 IC4501 P8 VSS 4.7k R4554 IC4501 J2 DVB IC4501 Y10 DQ28 IC4501 AB18 VSS C4597 16V 0.1u R4565 0 IC4501 U22 S2UDSEL0 IC4501 C13 I2CSCL IC4501 H2 RVIB3 C4595 16V 0.1u 2.5V_L7 IC4501 E19 ROMD4 IC4501 N13 VSS IC4501 D19 ROMD3 IC4501 N12 VSS IC4501 L14 VSS IC4501 AC1 VSS IC4501 C20 ROMD2 IC4501 AA23 SDIV3 IC4501 AC5 DQ1 IC4501 Y11 DQ26 C4592 16V 0.1u IC4501 AB5 DQ2 IC4501 AB3 DQ6 IC4501 P5 VDD33 IC4501 W11 VDD25 IC4501 E18 ROMD0 IC4501 AA8 VSS 2.5V_L7 IC4501 AA20 ADRS1 C4599 16V 0.1u IC4501 N16 VSS IC4501 R5 VDD33 C4577 16V 0.1u IC4501 W8 VSS R4539 0 IC4501 R16 VSS IC4501 C21 ROMD7 IC4501 AC21 ADRS0 IC4501 J21 GOUT3 IC4501 T1 BUIA3 IC4501 H14 VSS IC4501 B13 I2CSLV2 IC4501 T22 S1NCOPY IC4501 C22 ROMD11 IC4501 B5 OSD9 IC4501 A16 TEST4 C4582 16V 0.1u IC4501 G3 RVIB6 R4139 1k C4504 16V 0.1u R4691 4.7k IC4501 A18 MCKREF IC4501 E20 ROMD13 IC4501 D13 I2CSDA C4553 16V 0.1u IC4501 B18 XPLLRST R4144 4.7k IC4501 AA16 NCAS IC4501 AB19 ADRS5 C4583 16V 0.1u C4598 220u 4V IC4501 AC15 NWE IC4501 E11 VDD15 IC4501 R14 VSS R4515 47 IC4501 G4 BUIB1 IC4501 U21 S2UDSEL1 IC4501 C18 MDIV3 3.3V_L78 IC4501 D6 OSD14 IC4501 T21 S1UDSEL0 IC4501 D14 SCANTEST IC4501 C9 ALPHA3 IC4501 W17 VDD25 IC4501 R19 VDD33 IC4501 A5 OSD10 IC4501 AB22 VSS C4550 16V 0.1u IC4501 R15 VSS IC4501 AC16 VREF C4557 16V 0.1u IC4501 W12 VDD25 IC4501 H19 VDD15 IC4501 K22 GOUT6 IC4501 J23 GOUT1 IC4501 P14 VSS IC4501 AA13 DQS3 IC4501 K4 DHB C4584 16V 0.1u IC4501 Y21 SCPOUT IC4501 H13 VSS IC4501 C23 ROMD10 IC4501 P4 GYIA4 L4502 R4533 100 IC4501 C14 SCANEN IC4501 A12 ZTSEL IC4501 T8 VSS IC4501 M13 VSS IC4501 E15 VDD15 IC4501 AA2 TMS FL4502 F1J1E1040022 1 2 3 3.3V_L78 IC4501 J13 VSS IC4501 H20 GOUT0 IC4501 AC12 DQ9 IC4501 N11 VSS IC4501 R22 ZLDENIO IC4501 AC2 DQ7 IC4501 K5 VDD33 L4505 IC4501 M22 BOUT4 IC4501 E7 VDD33 IC4501 D12 I2CSLV0 C4600 16V 0.1u IC4501 E17 VSS IC4501 K9 VSS IC4501 J4 RVIB1 C4568 16V 0.1u IC4501 Y13 AVSS IC4501 N2 GYIA6 R4509 47 IC4501 F22 ROUT0 IC4501 W23 SCKREF IC4501 W1 RVIA0 IC4501 M16 VSS IC4501 M21 BOUT5 IC4501 D8 ALPHA1 IC4501 T3 BUIA1 IC4501 M10 VSS IC4501 A4 OSD8 3.3V R4537 0 IC4501 M20 BOUT6 IC4501 AA6 DQ19 R4503 10k IC4501 C17 NPLLSEL C4559 16V 0.1u IC4501 C6 OSD13 FL4504 F1J1E1040022 1 2 3 IC4501 Y20 VSS C4554 16V 0.1u IC4501 N14 VSS IC4501 D21 ROMD12 IC4501 AA3 VSS IC4501 AC13 VDD25 IC4501 C5 OSD6 IC4501 L11 VSS IC4501 AB4 DQ4 IC4501 AB12 DQ8 1.5V_L7 IC4501 W3 DDRIOCTR1 IC4501 B17 WDLLON IC4501 P20 SRL IC4501 R4 GYIA0 C4594 16V 0.1u IC4501 D16 SDCLSEL C4579 16V 0.1u IC4501 E2 BUIB7 3.3V_L78 C4556 16V 0.1u IC4501 Y5 DQ18 IC4501 A14 OMASK R4568 EXB2HV103JV C4563 16V 0.1u IC4501 T16 VSS IC4501 A10 OSDVO IC4501 D17 XMPLLPDN 1% R4580 1.1k IC4501 C11 SLVSET 1k R4559 IC4501 J11 VSS IC4501 D18 MDIV1 IC4501 P11 VSS IC4501 AA5 DQ17 C4503 16V 0.1u IC4501 N22 BOUT7 IC4501 N19 VDD33 IC4501 J19 VDD15 IC4501 P2 GYIA2 C4590 16V 0.1u IC4501 N5 VDD15 IC4501 W20 SDIV1 IC4501 W22 DCPOUT IC4501 T2 BUIA2 C4566 16V 0.1u 2.5V_L7 IC4501 U1 RVIA7 R4513 22 IC4501 Y17 ADRS11 IC4501 H15 VSS IC4501 AC6 DQS0 C4555 16V 0.1u IC4501 T5 VDD15 R4536 0 IC4501 B8 YS IC4501 B12 ZTILD C4572 16V 0.1u IC4501 V19 VDD15 IC4501 Y16 VSS 3.3V_L78 C4571 16V 0.1u IC4501 N21 BOUT8 IC4501 G22 ROUT4 IC4501 F21 ROUT1 3.3V IC4501 W5 VSS IC4501 A22 ROMD5 IC4501 AB14 BIAS IC4501 L16 VSS IC4501 N3 GYIA5 IC4501 W15 VSS 3.3V_L78 IC4501 H5 VDD15 IC4501 P10 VSS C4589 16V 0.1u IC4501 J5 VDD33 IC4501 F23 VIAREA IC4501 P15 VSS IC4501 V4 RVIA4 IC4501 N10 VSS IC4501 K1 HMASKB IC4501 AA7 DQ23 IC4501 L4 VMASKB IC4501 AB15 NRAS C4588 16V 0.1u R4510 47 IC4501 C2 GYIB6 R4531 0 IC4501 T15 VSS IC4501 AA12 DQ25 IC4501 M3 DHA IC4501 P13 VSS IC4501 M2 DVA 1% R4578 1k IC4501 D2 GYIB3 1.5V IC4501 AB16 NCS IC4501 B11 XSYNCRST IC4501 T20 S1UDSEL1 IC4501 K23 GOUT5 IC4501 A21 AVSSM IC4501 H22 ROUT8 IC4501 T4 BUIA4 IC4501 D11 XRST IC4501 N4 RHA IC4501 A19 VSS IC4501 C15 TEST2 IC4501 L13 VSS C4544 220u 4V IC4501 A11 OSDCKO IC4501 AB21 BANK1 C4585 16V 0.1u IC4501 L3 ICKW IC4501 V2 RVIA2 IC4501 Y12 DQ24 IC4501 AC19 VSS IC4501 D9 OSDHO IC4501 AB2 VSS 1k R4560 C4560 16V 0.1u IC4501 Y2 TCK IC4501 G5 VDD15 MN845111-A POWER DDR I/F OSD IIC RESET (R4) (R3) (R2) (R1) (R0) (G5) (G4) (G3) (G2) (G1) (G0) (B4) (B3) (B2) (B1) (B0) 20 39.5 31.6/39.5 CPG 72 39.5 OFF 39.5/90 SS SD SL2 Low Hi Hi SL1 SL0 Hi HD Hi Hi IC4501 43 40 44 39 42 38 37 45 41 35 33 34 31 32 42 43 41 SIGNAL PROCESSOR FORMAT CONVERTER TH-42PH10CK/CS DN-Board (5 of 6) Schematic Diagram TH-42PH10CK/CS DN-Board (5 of 6) Schematic Diagram DN-BOARD TZTNP02XGTC (TNPA4108AC) (5/6) 87 14.29.DN 电路板 (6/6) 线路图 + L7DR_DQ23 L7DR_DQ21 L7DR_DQ4 L7DR_DQ5 L7DR_DQ8 L7DR_DQ29 L7DR_DQ15 L7DR_DQS0 L7DR_DQ10 L7DR_DQ17 L7DR_DQ19 L7DR_DQ9 L7DR_DQ13 L7DR_DQ30 L7DR_DQ25 L7DR_DQ27 L7DR_DQ6 L7DR_DQ20 L7DR_DQ31 L7DR_DQ22 L7DR_DQ11 L7DR_DQ24 L7DR_DQ14 L7DR_DQ0 L7DR_DQ16 L7DR_DQ3 L7DR_DQ28 L7DR_DQ12 L7DR_DQ7 L7DR_DQ1 L7DR_DQ18 L7DR_DQ26 L7_ADRS11 L7_ADRS6 L7DR_DQ2 L7_DQ24 L7_NWE L7_NCAS L7_NRAS L7_ADRS10 L7_NCS L7DR_NCS L7DR_AD10 L7DR_NRAS L7DR_NCAS L7DR_NWE L7DR_DQ24 L7_ADRS5 L7_ADRS1 L7_ADRS3 L7_ADRS0 L7_ADRS2 L7_BANK0 L7_BANK1 L7DR_BA1 L7DR_BA0 L7DR_AD2 L7DR_AD0 L7DR_AD3 L7DR_AD1 L7DR_AD5 L7DR_AD6 L7_SDCKON L7_ADRS8 L7_SDCKO L7_ADRS7 L7DR_AD7 L7DR_CK L7DR_NCK L7DR_AD11 L7_DQ7 L7_DQ6 L7_DQ16 L7_DQ5 L7_DQ4 L7_DQ18 L7_DQ17 L7_DQ3 L7DR_DQ3 L7DR_DQ17 L7DR_DQ18 L7DR_DQ4 L7DR_DQ5 L7DR_DQ16 L7DR_DQ6 L7DR_DQ7 L7_DQ29 L7_DQ13 L7_DQ28 L7_DQ10 L7_DQ27 L7_DQ11 L7_DQ26 L7_DQ8 L7DR_DQ8 L7DR_DQ26 L7DR_DQ11 L7DR_DQ27 L7DR_DQ10 L7DR_DQ28 L7DR_DQ13 L7DR_DQ29 L7_DQ20 L7_DQ2 L7_DQ19 L7_DQ1 L7_DQ21 L7_DQ0 L7DR_DQ0 L7DR_DQ21 L7DR_DQ1 L7DR_DQ19 L7DR_DQ2 L7DR_DQ20 L7_DQ23 L7_DQS0 L7_DQ30 L7_DQ22 L7_DQ14 L7_DQ15 L7_DQ31 L7_DQ12 L7DR_DQ12 L7DR_DQ31 L7DR_DQ15 L7DR_DQ14 L7DR_DQ22 L7DR_DQ30 L7DR_DQS0 L7DR_DQ23 L7_DQ25 L7_DQ9 L7DR_DQ9 L7DR_AD8 L7_CKE L7_ADRS4 L7_ADRS9 L7DR_CKE L7DR_AD4 L7DR_AD9 L7DR_CK L7DR_CKE L7DR_AD8 L7DR_NWE L7DR_NCAS L7DR_NRAS L7DR_NCS L7DR_BA0 L7DR_BA1 L7DR_AD7 L7DR_AD6 L7DR_AD5 L7DR_AD4 L7DR_AD9 L7DR_AD11 L7DR_AD10 L7DR_AD3 L7DR_AD2 L7DR_AD1 L7DR_AD0 L7DR_NCK BOE8 ROE4 GOE8 BOE2 ROE9 GOE9 BOE9 VSOE BOE6 BOE7 GOE7 BOE1 ROE7 ROE5 GOE1 ROE8 GOE5 HSOE ROE0 GOE2 GOE6 BOE0 GOE0 GOE3 ROE3 BOE5 ROE6 BOE3 ROE1 ROE2 GOE4 BOE4 GOE4 BOE4 GOE3 GOE1 BOE6 GOE6 GOE2 BOE1 BOE5 BOE2 GOE8 BOE3 GOE9 BOE9 GOE5 BOE0 BOE7 BOE8 GOE0 GOE7 ROE4 ROE9 ROE3 ROE7 ROE5 ROE8 ROE2 ROE0 ROE1 ROE6 L7_BOUT9 L7_BOUT8 L7_BOUT7 L7_BOUT6 L7_BOUT5 L7_BOUT4 L7_BOUT3 L7_BOUT2 L7_BOUT1 L7_BOUT0 L7_GOUT9 L7_GOUT8 L7_GOUT7 L7_GOUT6 L7_GOUT5 L7_GOUT4 L7_GOUT3 L7_GOUT2 L7_GOUT1 L7_GOUT0 L7_ROUT9 L7_ROUT8 L7_ROUT7 L7_ROUT6 L7_ROUT5 L7_ROUT4 L7_ROUT3 L7_ROUT2 L7_ROUT1 L7_ROUT0 VSOE HSOE L7_VOUT L7_HOUT L7_CLKOE L7DR_DQ25 CLKOE CLKOE TX_TE+ TX_TE- TX_TD+ TX_TD- TX_TCLK+ TX_TCLK- TX_TC+ TX_TC- TX_TB+ TX_TB- TX_TA+ TX_TA- DISPEN ALARM PANEL_STBY_ON READY D_IIC_DATA1 D_IIC_CLK1 D_IIC_CONT D_TXD D_RXD D_IIC_CLK2 D_IIC_DATA2 LVDS_PD C4311 16V 0.1u R4319 22k C4305 16V 0.1u C4302 16V 0.1u R4586 120 R4314 10k R4622 0 1% R4657 1k C4604 16V 0.1u 3.3V R4582 120 C4303 50V 1000p R4618 EXB2HV330JV R4576 120 R4583 120 R4585 120 R4595 68 L4302 J0JHC0000078 R4626 0 R4621 EXB2HV330JV C4610 16V 0.1u R4631 0 C3ABQJ000042 IC4502 1 DQ3 2 VDDQ 3 DQ4 4 DQ5 5 VSSQ 6 DQ6 7 DQ7 8 VDDQ 9 DQ16 10 DQ17 11 VSSQ 12 DQ18 13 DQ19 14 VDDQ 15 VDD 16 VSS 17 DQ20 18 DQ21 19 VSSQ 20 DQ22 21 DQ23 22 VDDQ 23 DM0 24 DM2 25 /WE 26 /CAS 27 /RAS 28 /CS 29 BA0 30 BA1 31 A0 32 A1 33 A2 34 A3 35 VDD 36 A10 37 A11 38 NC 39 NC 40 NC 41 NC 42 NC 43 NC 44 NC 45 A9 46 VSS 47 A4 48 A5 49 A6 50 A7 51 A8(AP) 52 MCL 53 CKE 54 /CK 55 CK 56 DM1 57 DM3 58 VREF 59 VDDQ 60 DQ8 61 DQ9 62 VSSQ 63 DQ10 64 DQ11 65 VDD 66 VSS 67 VDDQ 68 DQ12 69 DQ13 70 VSSQ 71 DQ14 72 DQ15 73 VDDQ 74 DQ24 75 DQ25 76 VSSQ 77 DQ26 78 DQ27 79 VDDQ 80 DQ28 81 DQ29 82 VSSQ 83 DQ30 84 DQ31 85 VSS 86 VDDQ 87 NC 88 NC 89 NC 90 NC 91 NC 92 VSSQ 93 NC 94 DQS 95 VDDQ 96 VDD 97 DQ0 98 DQ1 99 VSSQ DQ2 100 R4574 EXB2HV121JV ZA4002 K4CD01000011 C4607 16V 0.1u C4605 16V 0.1u C4603 16V 0.1u C4612 16V 0.1u R4325 EXB38VR000V C4301 47u 6.3V R4627 0 C4315 22u 6.3V C4609 16V 0.1u R4312 0 R4584 EXB2HV121JV C4309 1u 10V 2.5V_L7 C4602 16V 0.1u 1% R4658 1k C4313 50V 1000p C4613 16V 0.1u R4587 EXB2HV330JV C4601 16V 0.1u C4304 50V 1000p R4577 EXB2HV121JV IC4301 C0JBAP000020 1 TD5 2 GND 3 TD6 4 TE0 5 TE1 6 TE2 7 VCC 8 TE3 9 TE4 10 GND 11 TE5 12 CLKIN 13 /PDWN 14 PLL_GND 15 PLL_VCC 16 TE6 17 LVDS_GND 18 TE+ 19 TE- 20 TD+ 21 TD- 22 TCLK+ 23 TCLK- 24 TC+ 25 TC- 26 LVDS_GND 27 LVDS_VCC 28 TB+ 29 TB- 30 TA+ 31 TA- 32 LVDS_GND 33 TA0 34 TA1 35 TA2 36 TA3 37 TA4 38 TA5 39 GND 40 TA6 41 TB0 42 TB1 43 RS 44 TB2 45 TB3 46 TB4 47 GND 48 TB5 49 TB6 50 TC0 51 VCC 52 TC1 53 TC2 54 TC3 55 TC4 56 GND 57 TC5 58 TC6 59 TD0 60 R/F 61 TD1 62 TD2 63 TD3 64 TD4 R4619 EXB2HV330JV R4321 22k R4313 0 ZA4001 K4CD01000011 C4307 50V 1000p R4620 EXB2HV330JV R4589 EXB2HV330JV C4312 1u 10V C4606 16V 0.1u C4608 16V 0.1u L4303 J0JHC0000078 R4590 68 L4301 J0JHC0000078 R4588 EXB2HV330JV DN6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 R4575 120 R4640 120 C4306 16V 0.1u R4591 68 R4316 10k R4326 EXB38VR000V C4611 16V 0.1u R4318 22k R4945 0 C4614 16V 0.1u C4308 16V 0.1u C4310 22u 6.3V C4629 16V 0.1u R4324 10k R4327 EXB38VR000V DDR-SDRAM 10bit LVDS CLAMPER DNMM3 R001 R002 DNMM6 DNMM4 DNMM2 INEXCH DISPEN ALARM PANEL_STBY_ON READY GND SDA1 SCL1 SDA2 SCL2 GND GND TXD RXD IIC_CONT DNMM1 DNMM5 DNMM7 DNMM8 TO D-BOARD (D5) 48 52 53 47 50 49 51 54 46 41 43 42 TH-42PH10CK/CS DN-Board (6 of 6) Schematic Diagram TH-42PH10CK/CS DN-Board (6 of 6) Schematic Diagram DN-BOARD TZTNP02XGTC (TNPA4108AC) (6/6) 88 14.30.D 电路板方框图 TXD_PC RXD_PC PANEL_MAIN_ON ALARM READY RXD_PC IIC_INT TXD_PC RXD_PC SOS8_SS ALARM LED_R REMOCON IIC_CONT TXD_PC VDATA_DET VDATA_DET SOS6_SC1 SOS7_SC2 SOS7_SC2 SOS6_SC1 PCD3 SOS4_PS LED_R LED_G REMOCON LED_G SOS4-PS PCD1 PCD2 ODED1 ODED2 PCD4 CLRD2 READY PANEL_MAIN_ON SOS9_CONF FVSEL LVDSBIT FVSEL SOS9_CONF LVDSBIT OSD_YS OSD_VO OSD_HO OSD_CLKO OSD_B OSD_G OSD_R IIC_CONT INEXCH DRVCLKD0 DRVCLKD3 DRVCLKD1 DRVCLKD2 LED1 LED2 DRVCLKU1 DRVCLKU2 DRVCLKU3 DRVCLKU0 CLRD1 STB_SCL01 STB_SDA01 STB_SCL02 STB_SDA02 OSD_R OSD_G OSD_B OSD_CLKO OSD_YS INEXCH IIC_CONT DRVMUTE X9200 TP9101 TP9100 TP9010 P+3.3V SOS / LED BLINKING : 3TIMES P+5V SOS / LED BLINKING : 5TIMES P+15V SOS / LED BLINKING : 2TIMES LED BLINKING : 4TIMES POWER SOS R 10bit Scan Control DATA 16bit G 10bit B 10bit B 10bit R 10bit Sustain Control DATA 7bit G 10bit 14 40 PROCESSOR DRIVER TO C11 TO C21 30 50 49 33 29 TXD1 32 RXD1 IIC_CONT IIC_CONT LVDS INPUT DISCHARGE CONTROL IIC1_SDA 70 IIC2_SCL 69 67 71 Voltage 66 IIC2_SDA 43 2 IC9500 1 FPGA LSI_RST XRST SUB-FIELD PLASMA AI/SUB FIELD PROCESSOR/PEAKS DATA DRIVER IC9003 IC9303 MICOM XIN XOUT X9000 9.216MHz IIC1_SCL Video DATA 48bit(DA00-DC13,DB14-DC15) Low ROMDATA04-15,ROMADDRESS00-20,(UA05-UC15) D32 D31 55 1 SOS7_SC2 93 91 90 SOS8_SS 36 READY ALARM 37 DRVMUTE IC9011 IIC_CLK1 IIC_DATA1 23 18 ALARM 19 21 DISPEN READY PANEL_STBY_ON 20 24 RXD TXD 6 D5 RA+ RCLK- 14 TO DN6 RC- 7 15 11 12 RD- 10 3 RB- 1 9 RE-(LSB) 2 RA- RCLK+ RD+ RB+ 4 RC+ STBY5V +5V D25 VDATA_DET 6 PANEL_MAIN_ON 1 +5V 5 2 +15V +15V 11 13 9 TO P25 RXD 13 14 8 6 TXD 7 SDA1 PDB0 4 PSTB 5 IIC_INT 11 PSLCT PBUSY 9 D6 SCL1 12 15 LED_R PDB1 17 16 LED_G st-r IC9900 CONVERTER XRST CTI/TINT WB-ADJ I/P COLOR FORMAT CONVERTER/RGB PROCESSOR CONVERTER CONTRAST FORMAT Differential Signaling RECEIVER FPGA SOS4-PS 92 PANEL_MAIN_ON 100 P_ON/OFF P3V_SCL02 P3V_SDA02 TO SC20 D20 2 12 14 19 SCAN DATA 15 16 1 P5V 48 46 5VDET 53 55 3 SOS6_SC1 SUSTAIN DATA 47 53 3 1 SS_SOS8 P3V_SCL1 P3V_SDA1 P15V P5V STB5V_M NRST DRV_RST DATA DRIVER 16/32M FLASH MEMORY RESET 4 5 VOUT VCC IC9502 RESET P3.3V SS PULSE SCAN OUT SC PULSE 6 UMH,UML,USH,USL,UEH,NUEL(URH) OC1,OC2,CLK,SIU,SID,SCSU,CPH1,CPH2,(LAT),CEL,(CBK)CSL,CSH,CML,CMH,SC_DRV_RST IC9901 DDR SDRAM(128M) Q9302 Q9301 CLK7 12 CLK5 CLK6 14 13 4 CLK9 XT 1 20 XTN IC9200 PCK OCK D P5V CONTROL STBY5V P15V 21 19 IC9007 NCS ASDIO DATA0 DCLK P5V 86 SOS3_3V SOS2_15V 85 87 SOS5_5V Q9054 Q9053 Q9052 Q9051 P5V P15V STB3.3V PROM(FPGA) CLOCK GENE. DIGITAL SIGNAL PROCESSOR PLASMA AI SUB-FIELD PROCESSOR FOR FACTORY USE P5V P5V DRVCLKD0-D3 24bit (DA00-DC07) 20bit ODED1,ODED2,CLRD1,CLRD2,PCD1,PCD2,PCD3,PCD4,LED1,LED2 (LSI58 COMM) TDO,TDI TMS,TCK JTAG DCK HD VD JTAG PD1-Mplus FPCLK FPDAT0 FPDAT1 SFVRST LATCH SFRST R0-R9 G0-G9 VD B0-B9 HD DCK PICTURE OUTPUT LVDS LVDS RECEIVER SYNC PROCESSING WB ADJ DISCHARGE CONTROL FLASH CONTROL FPGA CONTROL CONTROL RESET CONTROL FLASH CLKM PRCKI -IN 17 Q9044 IIC_CLK2 27 26 IIC_DATA2 IIC_CONT/C_SEL 31 IC9001 6 5 32k EEPROM SDA SCL 7 WP 35 EEP_WR_CTL P15V STB5V_M REMOCON 18 15V->2.5V OUT2 G2 13 S1 20 D1 OUT1 17 D2 21 12 D1 D2 VO 23 16 15 LX VB VCC VDD 19 G1 IC9806 S2 DC-DC CONVERTER 24 FB -INC 8 CTL CB P15V P2.5V Q9805 Q9806 7 NCS DATA ASDI DCLK 10 IIC_CONT 1 2 STBY3.3V STB3.3V SDA2 SCL2 VDATA_DET 84 NCS 26 27 ASDIO 28 DATA0 DCLK 29 1 VOUT RESET 3 4 VDD CE 6 STB5V Q9046 STB3.3V 72 RESET Q9050 XRST SOS9_CONF 10 DRVRST PLASMA AI NEW DATA ROMDATA00-03 DQ4-DQ15 A0-A19 DQ0-DQ3 ROMDATA00-03 ROMDATA04-07/ROMADDRESS00-20,-1,CE,OE,WE,BYTE 4bit SOS4_PS 12 XRST 54 LED_R REM_IN 53 34 LED_G Q9010 INEXCH RA ,RB ,RC ,RD ,RE ,RCLK RE+(LSB) STB_SCL02 STB_SDA02 STB_SDA02 STB_SCL02 OSD SC_SOS6_SC1 SOS7_SC2 P3.3V STB_SDA02 STB_SCL02 P3V_SCL1 P3V_SDA1 1 2 5 6 D9811 DCDC_ON Q9809 VB1_5V VCC OUT2-2 G2 25 20 S1 26 D1 -INC1 D1 D2 4 FB1 P15V P3.3V VO1 3 24 Q9807 D2 23 OUT1-1 G1 7 IC9805 S2 DC-DC CONVERTER 15V->1.2V,15V->3.3V LX1 OUT1-2 Q9808 D2 G1 S2 G2 S1 D1 D1 D2 P15V P1.2V DOUTDC15 DOUTDA8 PC1_C1(PCD1) LE_C1(LED) ODE_C1(ODED1) PC2_C1(PCD2) (DA14,DA15-DC15) 47 49 P5V 7 8 9 (DA14,DA15-DC15) FORMAT CONVERTER STB 3.3V/RESET P1.2V P2.5V P3.3V OSD_HD OSD_VD 36.6MHz 60MHz 20MHz 84MHz D9802 NCS_FPGA INEXCH P15V_MOTO D9804 STB3.3V_ON 6 SDA SCL 1 3 A1 A0 5 IC9002 DIGITAL TEMPERATURE SENSOR SCL SDA IIC P3V_SCL01 P3V_SDA01 P3V_SCL02 P3V_SDA02 11 13 12 8 10 9 2 1 6 3 4 5 IC9013 IIC SWITCH DRVCLKU0-U3 P2.5V P2.5V P1.2V P3.3V LVDSbit FVSEL K_DONE 5 LVDSBIT 30 FVSEL 23 OSD_CLK 16 OSD_YS 17 OSD_B OSD_G 18 19 OSD_R OSD_VD 20 OSD_HD 21 42 INEXCH 18 22 26 20 SC_DRV_RST +15V P15V_MOTO 30 29 +15V 28 +15V 3.3V->5V LEVEL CONVERTER IC9802,03 P5V P3.3V CLK1N_C1(CLK(1)(-)) CLK0P_C1(CLK(0)(+)) CLK2P_C1(CLK(2)(+)) CLK3N_C1(CLK(3)(-)) 3 5 42 44 5 CLK3N_C2(CLK(3)(-)) CLK2P_C2(CLK(2)(+)) 11 CLK0P_C2(CLK(0)(+)) 13 CLK1N_C2(CLK(1)(-)) 45 43 SC_DRV_RST 50 CLR_C1(CLRD) 14 VCC STB3.3V 16 CTL 11 FB2 VO2 12 8 -INC2 19 LX2 OUT2-1 18 30 OVP 27 CB1 CB2 17 VB 21 FSW 10 OSD_YSI OSD_BI OSD_GI OSD_RI OSD_CLKO (FREE_RUN) P3V_SCL02 P3V_SDA02 SCL SDA P3.3V Control DATA 10bit STB3.3V NCS_FPGA 52 DCDC_ON CE,OE,WE,BYTE DOUTDA0 DOUTDC7 15 41 ODE_C2(ODED2) PC3_C2(PCD3) CLR_C2(CLRD) LE_C2(LED) PC4_C2(PCD4) (DA08-DC13,DB14,DC14) TH-42PH10CK/CS D-Board Block Diagram TH-42PH10CK/CS D-Board Block Diagram 89 14.31.D 电路板 (1/6) 线路图 TERM SIDE + G G + + G G G G FP_CSL SC_CSL SC_DRV_RST SC_SID SC_SCSU SC_CLK FP_SCSU FP_CMH SC_CBK FP_CBK SC_CPH1 SC_OC2 SC_SIU FP_CSH FP_OC2 SC_CML SC_CSH SC_CMH SC_CSH FP_CML SC_CMH SC_CLK FP_SC_DRV_RST SC_SIU SC_OC2 FP_SID SC_CML SC_SID SC_CBK FP_CPH1 SC_CSL SC_DRV_RST SC_CPH1 FP_SIU SC_SCSU P_ON/OFF DCDC_ON PANEL_MAIN_ON SOS4_PS SC_OC1 SC_CPH2 SC_OC1 SC_CPH2 FP_OC1 FP_CPH2 VDATA_DET FP_CLK SC_LAT SC_CEL FP_LAT FP_CEL SC_LAT SC_CEL SOS6_SC1 SOS7_SC2 R9881 0 VB1_5V R9892 100k P5V PA9800 K5H4022A0023 R9887 56k VB1_5V C9882 8200p 25V Q9805 B1ABCF000138 R9883 0 D20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 C9874 68p 50V P5V L9801 G1C1R5Z00006 Q9809 B1MBEDA00015 SP8K2TB 1 S1 2 G1 3 S2 4 G2 5 D2 6 D2 7 D1 8 D1 R9849 EXB2HV470JV P15V R9846 EXB2HV222JV C9877 68p 50V C9029 10V 10u C0DBAYY00273 IC9806 1 GND 2 REFIN 3 VREF 4 CS 5 COVP 6 CUVP 7 PGOOD 8 CTL 9 LSAT 10 ILIM 11 +INC 12 -INC 13 FSW 14 PGND 15 OUT-2 16 VB 17 VCC 18 VBIN 19 LX 20 OUT-1 21 CB 22 RT 23 VO 24 FB C9846 16V 0.1u C9832 10u 10V D25 1 2 3 4 5 6 7 8 9 10 11 12 13 C9888 360p 50V C9870 10u 25V R9872 0 D9817 MA22D3900L C0JBAZ002692 IC9803 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C9865 68u 4V L9800 G1C2R2Z00007 C9859 25V 0.01u C9860 4.7u 6.3V D9813 B0JCGD000002 C9887 0.1u 25V R9850 47k Q9807 B1MBEDA00015 SP8K2TB S1 G1 S2 G2 D2 D2 D1 D1 C9864 0.1u 25V C9878 0.01u 25V R9873 0 P3.3V P2.5V R9869 10k P3.3V C9823 10u 25V R9897 47.5k C9884 1000p 50V C9869 10u 25V C9879 8200p 25V P15V D9816 MA22D3900L R9879 13k R9884 0 P1.2V R9115 100 C9885 1000p 50V R9868 100k R9889 17.4k STB5V_M C9862 0.1u 25V C9868 10u 25V C9842 16V 0.1u R9847 EXB2HV222JV C9845 16V 0.1u R9848 EXB2HV470JV C9881 0.01u 25V C9883 100p 50V R9871 10k R9894 11k D9812 MA22D3900L P15V R9870 10k Q9806 B1ABCF000138 F1J1E104A148 FL9803 C9844 25V 0.01u C0JBAZ002692 IC9802 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc P15V_MOTO R9893 56k C9837 10u 10V C9863 4.7u 6.3V C9871 10u 25V D9814 B0JCGD000002 C9858 10u 25V C9873 68u 4V C9872 10u 25V C9861 0.1u 25V R9888 11k C9028 10V 10u P15V R9890 47.5k C0DBAYY00274 IC9805 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP C9841 16V 0.1u C9880 8200p 25V P5V C9867 10u 25V R9891 12.7k PA9900 K5H5022A0023 Q9808 B1MBEDA00015 SP8K2TB S1 G1 S2 G2 D2 D2 D1 D1 D9815 B0JCGD000002 R9886 56k D9807 B0JCCE000008 C9866 68u 4V L9802 G1C2R2Z00007 R9882 0 C9840 25V 0.01u D9808 B0JCCE000008 C9886 0.1u 25V F1J1E104A148 FL9805 P5V P15V R9880 0 R9878 11k R9895 100k VB1_5V P15V_MOTO F1J1E104A148 FL9806 R9896 18.2k STBY5V GND GND +15V +15V GND GND +5V +5V GND VDATA_DET PANEL_MAIN_ON SOS4_PS P5V OC1 CPH2 GND GND GND GND GND GND GND CLK SIU SID SCSU OC2 CPH1 LAT SOS6_SC1 SOS7_SC2 CEL CBK SC_DRV_RST CSL CSH CML CMH NC +15V +15V +15V A 1 5 F E 6 7 8 3 D 2 B 4 C 9 15V 1.2V DC-DC CONVERTER 15V 3.3V 15V 5.0V DC-DC CONVERTER 15V 2.5V TO P-BOARD (P25) TO SC-BOARD (SC20) LEVEL CONVERTER LEVEL CONVERTER 1 2 TH-42PH10CK/CS D-Board (1 of 6) Schematic Diagram TH-42PH10CK/CS D-Board (1 of 6) Schematic Diagram D-BOARD TZTNP01XGTC (TNPA4133AK) (1/6) 90 14.32.D 电路板 (2/6) 线路图 18 16 14 12 10 8 6 4 2 20 21 19 17 15 13 11 9 7 5 3 1 ASDIO DCLK EEP_WR_CTL STB_SCL02 STB_SDA02 RE+ RE- DATA0 NCS NRST DRVRST P_ON/OFF SOS9_CONF PANEL_MAIN_ON LED_R LED_G TXD_PC ALARM READY EEP_WR_CTL REM_IN STB_SCL01 STB_SDA01 SOS7_SC2 SOS6_SC1 STB_SCL02 STB_SDA02 FVSEL DCLK DATA0 ASDIO NCS XRST XRST IIC_CONT IIC_CONT STBY3.3V_ON DCDC_ON IIC_CONT RXD_PC AR_IIC_CONT AR_IIC_CONT AR_IIC_CONT AR_RXD_PC AR_TXD_PC AR_STB_SDA02 AR_STB_SCL02 PSTB PBUSY PDB0 PSLCT PDB1 LED_R LED_G REM_IN AR_RXD_PC RXD_PC TXD_PC STB_SCL02 AR_STB_SCL02 STB_SDA02 AR_STB_SDA02 P3V_SDA1 P3V_SCL1 ALARM READY INEXCH OSD_R OSD_G OSD_B OSD_YS OSD_CLKO OSD_HO OSD_VO AR_TXD_PC AR_IIC_CONT STB_SCL01 STB_SDA01 STB_SCL02 STB_SDA02 XRST P3V_SCL02 P3V_SDA02 DRVMUTE P3V_SDA02 VDATA_DET P3V_SCL1 P3V_SDA1 RD+ RD- RCLK+ RCLK- RC+ RC- RB+ RB- RA+ RA- P3V_SDA1 PANEL_STBY_ON P3V_SCL1 SOS8_SS SOS4_PS P3V_SCL02 AR_RXD_PC AR_TXD_PC AR_STB_SCL02 AR_STB_SDA02 C_SEL INEXCH LVDSBIT NCS_FPGA STBY3.3V_ON PANEL_STBY_ON R9222 10k C9062 4.7u 6.3V C9049 16V 0.1u STB3.3V R9841 0 C9053 16V 0.1u Q9010 B1ABCF000138 STB3.3V R9119 EXB38V470JV R9133 4.7k D9804 B0JCCE000008 R9166 10k R9132 4.7k D9017 MAZ303300L R9240 0 R9102 10k R9172 39k R9120 100 Q9044 B1ABCF000138 C9051 16V 0.1u C9036 10V 10u R9839 EXB38V101JV R9158 10k R9185 22 Q9052 B1ABCF000138 STB3.3V D9020 B0JCCE000008 C9034 16V 0.1u R9845 10k STB3.3V R9223 2.7k R9225 2.7k C9825 50V 100p R9156 10k STB3.3V R9184 1k R9105 10k R9201 10 Q9046 B1ABCF000138 *IC9001 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 Vcc R9826 100 R9194 0 R9149 4.7k R9151 22 C9050 16V 0.1u R9135 4.7k R9112 10k IC9011 C0EBF0000431 1 RESET 2 Cd 3 VOUT 4 VDD 5 GND 6 CE R9067 100 R9108 10k C9040 16V 0.1u R9107 3.3k R9186 22 R9141 100 C9037 0.01u 25V R9190 10k R9207 1k R9155 5.6k R9113 10 R9205 4.7k R9064 100 R9854 100 C9843 16V 0.1u R9145 100 Q9053 B1ABCF000138 R9200 10 R9063 100 R9129 68k C9061 16V 0.1u STB3.3V STB3.3V C9033 16V 0.1u R9173 10k P3.3V R9177 22k TP9000 R9188 5.6k R9220 10k C9048 16V 0.1u R9101 10k STB3.3V STB5V_M R9116 100 R9122 10k STB5V STB3.3V *R9099 10k D9811 B0JCCE000008 R9219 10k P3.3V R9167 100 R9165 2.2k D9019 MAZ303300L R9182 1k STB5V_M R9237 10k P3.3V P15V_MOTO R9159 10k Q9051 B1ABCF000138 R9123 10k R9206 1k R9217 10k R9170 39k P5V C9058 10V 10u R9134 33k R9859 EXB38V101JV D6 C9838 16V 0.1u R9171 39k R9062 100 P3.3V C9056 16V 0.1u R9160 0 R9139 0 R9121 100k D9802 B0JCCE000008 MNZSFC9GPH3 IC9003 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 VSS 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 VSS 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 RONA 65 VSS 66 67 68 69 70 71 72 73 NTEST 74 SCLOCK_(UND) 75 SDATA_(UND) 76 ENTRG0_(UND) 77 ENTRG1_(UND) 78 TRCCLK_(UND) 79 TRCST_(UND) 80 TRCD0_(UND) 81 TRCD1_(UND) 82 TRCD2_(UND) 83 TRCD3_(UND) 84 85 86 87 88 89 VSS 90 91 92 93 94 95 96 97 98 99 100 C9035 10V 10u STB3.3V R9174 10k D9110 B0JCGD000002 R9215 12k C9052 16V 0.1u R9203 1k Q9050 B1ABCF000138 R9221 10k R9196 10k C9045 16V 0.1u R9181 1k STB3.3V R9193 10k R9163 0 R9199 2.7k Q9054 B1ABCF000138 R9825 100 R9561 EXB38V222JV R9827 100 R9840 22 R9065 100 R9150 22 D9018 MAZ303300L R9140 0 R9161 0 X9000 H2D100500004 R9828 100k R9110 100 R9154 5.6k P15V R9164 2.2k R9143 100 C9055 16V 0.1u IC9013 C0JBAZ002060 1 1OE 2 1A 3 1B 4 2OE 5 2A 6 2B 7 GND 8 3B 9 3A 10 3OE 11 4B 12 4A 13 4OE 14 VCC STB3.3V C9063 16V 0.1u IC9002 C1ZBZ0003577 1 SCL 2 GND 3 A1 4 VDD 5 A0 6 SDA R9824 100 R9183 1k R9127 68k R9189 10k R9142 100 *R9874 0 R9126 10k IC9007 1 nCS 2 DATA 3 VCC 4 GND 5 ASDI 6 DCLK 7 VCC 8 VCC R9066 100 R9109 10k C9039 10V 10u C9046 16V 0.1u R9144 100 R9104 10k D5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 R9131 4.7k C9057 16V 0.1u R9218 10k R9187 5.6k C9044 6.3V 4.7u C9047 16V 0.1u RB- RB+ RC- RC+ RCLK- GND RCLK+ GND GND GND RE+(LSB) RD+ GND IIC_CLK2 IIC_CONT/C_SEL RE-(LSB) RXD TXD PANEL_STBY_ON ALARM IIC_DATA2 GND IIC_CLK1 IIC_DATA1 READY DISPEN RA- RA+ INEXCH STB3.3V ON/OFF GND P15V PBUSY STBY5V STBY3.3V RXD IIC_CONT LED_G GND SDA2 SCL2 PSTB PSLCT PDB1 SCL1 SDA1 LED_R PDB0 IIC_INT TXD REMOCON RD- GND LSI_RST XRST_M DRIVER_RESET XRST_S LVDS_BIT N.C. P_ON/OFF N.C. N.C. SOS9_CONFIG N.C. N.C. N.C. N.C. N.C. OSD_YS_OUT OSD_BLUE_OUT OSD_GREEN_OUT OSD_RED_OUT OSD_VSYNC_IN OSD_HSYNC_IN OSD_ CLKL_IN VCC 1.8V SOUT(for FPGA Loader) SCLK(for FPGA Loader) SIN(for FPGA Loader) FPGA_CE (for FPGA Loader) FVSEL N.C. IIC2_SDA IIC2_SCL REM_IN EEP_WP_CTL READY ALARM N.C. VCC Panasonic_MODE INEXCH IIC_CONT C_SEL N.C. N.C. N.C. IIC1_SDA IIC1_SCL N.C. N.C. NCS_FPGA LED_GRN LED_RED MAIN_CONF INT_CONF N.C. N.C. N.C. N.C. VCC VCC 1.8V XOUT XIN VCC Loader_Uart_RXD Loader_Uart_TXD BOOT RESET VDATA_DET SOS5_5V SOS3_3V SOS2_15V VCC SOS6_SC1 SOS8_SS SOS4_PS SOS7_SC2 SOS_INH N.C. N.C. N.C. N.C. N.C. PANENL_MAIN_ON 17 12 10 16 14 15 11 13 18 SWITCH EEPROM MICON PROM(FPGA) RESET STB 3.3V TO DN-BOARD (DN6) FOR FACTORY USE 1 2 11 12 13 14 15 SENSOR TEMPERATURE DIGITAL TH-42PH10CK/CS D-Board (2 of 6) Schematic Diagram TH-42PH10CK/CS D-Board (2 of 6) Schematic Diagram TVRP497 TVRP210-5 D-BOARD TZTNP01XGTC (TNPA4133AK) (2/6) 91 14.33.D 电路板 (3/6) 线路图 G G SOS9_CONF AA_BYTE L8R_UA09 L8R_UB06 L8R_UC11 L8R_UA08 L8R_UA12 FVSEL FP_CSL FP_CSH L8R_DA15 FPDAT1 FP_SID L8R_UC13 L8R_DA14 FP_UMH L8R_UA06 FP_CPH1 DD_CLRD1 L8R_UA10 FP_SC_DRV_RST L8R_UC12 L8R_UA07 L8R_UB12 FP_UML NRST L8R_UC08 L8R_UA11 FP_CEL FP_NUEL L8R_UC05 L8R_UB11 FP_USL DD_ODED1 L8R_DB15 SFRST FPCLK FP_USH FP_SIU L8R_UB07 LVDSBIT L8R_UA15 L8R_UB08 FPDAT0 FP_OC1 DD_PCD2 L8R_UC07 L8R_UB09 SFVRST LATCH FP_OC2 DD_PCD1 L8R_UB10 L8R_UA05 L8R_UB05 L8R_DC15 FP_CML FP_SCSU FP_CMH L8R_UC06 L8R_UC09 DD_LED1 FP_CLK PSLCT PBUSY NCS DATA0 ENHMASK ASDIO INEXCH PSTB PDB1 PDB0 DRVRST L8_B9 L8_B7 L8_B6 L8_B5 L8_B4 L8_B3 L8_B2 L8_G7 L8_G6 L8_G5 L8_G4 L8_G3 L8_G2 L8_G1 L8_G0 L8_R7 L8_R6 L8_R5 L8_R4 L8_R3 L8_R2 L8_R1 L8_R0 DRVMUTE L8_DCK L8R_UC10 P3V_SCL02 P3V_SDA02 DD_ODED2 AA_XOE AA_XWE FP_LAT OSD_R OSD_G OSD_B OSD_YS OSD_VO OSD_HO NCS_FPGA L8_R8 L8_R9 L8_G8 L8_G9 L8_B0 L8_B1 L8_B8 DD_PCD3 DD_PCD4 FP_UEH FP_URH FP_CBK FP_CPH2 RA+ RA- RB+ RB- RC+ RC- RCLK+ RCLK- RD+ RD- RE+ RE- DD_LED2 DD_CLRD2 ASDIO DATA0 DCLK TDI_TO_68 TCK TMS TRST L8_HIN L8_VIN OSD_CLKO TDO_TO_FPGA AA_XCE DCLK IC9500 P2 IO IC9500 M14 IO IC9500 F2 TCK IC9500 M12 IO IC9500 M10 VCCIO4 IC9500 T9 IO R9523 4.7K IC9500 R13 IO IC9500 E6 IO IC9500 K16 IO IC9500 D5 IO IC9500 J15 CLK6 IC9500 M15 IO IC9500 R5 IO IC9500 T5 IO C9524 16V 0.1u R9526 0 IC9500 E14 IO IC9500 T2 VCCIO4 IC9500 G10 IO IC9500 N14 IO C9560 16V 0.1u IC9500 H13 IO IC9500 N10 IO IC9500 N3 IO IC9500 H3 GND IC9500 T6 IO IC9500 C1 IO IC9500 F14 IO IC9500 A6 IO IC9500 R11 IO IC9500 E16 IO IC9500 R6 IO L9501 J0JHC0000078 IC9500 H1 CLK1 IC9500 T13 IO IC9500 P6 IO IC9500 P5 IO IC9500 M5 VCCA_PLL1 IC9500 R1 VCCIO1 R9558 0 R9530 10k R9564 EXB2HV470JV IC9500 R12 IO IC9500 C9 GND IC9500 C15 IO R9507 0 IC9500 C6 IO C9521 16V 0.1u IC9500 L14 IO IC9500 R3 IO IC9500 R7 IO IC9500 H2 CLK0 IC9500 B1 VCCIO1 IC9500 R4 IO IC9500 B11 IO L9504 J0JHC0000078 IC9500 J7 VCCINT IC9500 J3 GND L9505 J0JHC0000078 R9531 47 IC9500 L12 IO IC9500 F5 IO IC9500 H11 IO R9549 10k IC9500 L4 IO C9520 16V 0.1u IC9500 D14 IO IC9500 J10 VCCINT IC9500 H16 CLK4 R9552 10k IC9500 K11 IO IC9500 A4 IO IC9500 B5 IO R9541 10k IC9500 N7 IO IC9500 A11 IO R9402 0 IC9500 J5 nCONFIG TP9012 IC9500 L15 IO IC9500 B7 IO IC9500 F4 IO IC9500 L10 IO IC9500 N8 IO TP9011 IC9500 G12 IO R9557 0 IC9500 C10 VCCIO2 IC9500 G9 VCCINT D9 1 2 3 4 5 6 7 IC9500 D9 IO C9517 16V 0.1u IC9500 F3 IO R9565 EXB2HV470JV IC9500 H4 DCLK IC9500 N1 IO IC9500 A3 IO IC9500 C2 IO IC9500 E12 VCCA_PLL2 IC9500 P9 GND IC9500 C3 IO IC9500 C8 GND IC9500 G3 VCCIO1 IC9500 R10 IO IC9500 L3 IO IC9500 E9 GND IC9500 F8 IO IC9500 H14 GND R9548 10k IC9500 C14 IO IC9500 F11 VCCD_PLL2 IC9500 T10 IO IC9500 D12 GND_PLL2 IC9500 B2 GND IC9500 B15 GND IC9500 L6 VCCD_PLL1 IC9500 F1 DATA0 IC9500 M13 nSTATUS IC9500 M6 GNDA_PLL1 IC9500 D4 IO C9516 16V 0.1u IC9500 T8 IO R9525 10k IC9500 H15 CLK5 IC9500 M1 IO P1.2V IC9500 G8 GND IC9500 E1 IO IC9500 N9 IO IC9500 E15 IO IC9500 N2 IO R9862 10k C9525 16V 0.1u IC9500 L7 IO IC9500 R9 IO IC9500 F16 IO R9534 EXB38V470JV IC9500 B8 IO IC9500 T1 GND R9532 47 IC9500 J1 CLK3 IC9500 K14 VCCIO3 P3.3V IC9500 E8 GND IC9500 D15 IO C9563 16V 0.1u IC9500 G7 IO IC9500 J12 IO IC9500 K10 IO IC9500 H5 TDI FL9504 F1J1E104A148 1 2 3 IC9500 L8 IO IC9500 A15 VCCIO2 IC9500 D10 IO IC9500 K3 VCCIO1 IC9500 B12 IO C9528 16V 0.1u IC9500 R14 IO IC9500 N13 IO R9510 0 IC9500 L2 IO IC9500 H10 VCCINT IC9500 T11 IO R9566 EXB2HV470JV IC9500 L5 GND_PLL1 P3.3V IC9500 L9 IO IC9500 J8 GND IC9500 K12 MSEL1 IC9500 E4 IO C9564 16V 0.1u IC9500 G5 nCE IC9500 M16 IO P3.3V IC9500 L13 CONF_DONE IC9500 K6 IO TP9015 IC9500 M2 IO IC9500 B14 IO C9562 16V 0.1u IC9500 M4 IO IC9500 P10 VCCIO4 IC9500 E7 VCCIO2 IC9500 A7 IO IC9500 J4 IO IC9500 D7 IO IC9500 F15 IO R9070 47 C9527 16V 0.1u IC9500 B9 IO IC9500 F9 IO IC9500 J2 CLK2 IC9500 K7 IO IC9500 E13 IO P3.3V IC9500 K13 IO IC9500 F10 IO R9863 10k R9562 47 R9539 10k IC9500 K2 IO IC9500 T15 VCCIO4 IC9500 C11 IO IC9500 T14 IO IC9500 P14 IO C9531 10V 10u IC9500 L16 IO C9523 16V 0.1u R9563 EXB2HV470JV IC9500 D16 IO C9559 16V 0.1u IC9500 E2 IO TP9013 IC9500 M8 GND IC9500 D2 IO IC9500 F12 GND_PLL2 IC9500 D11 IO IC9500 B6 IO IC9500 G15 IO IC9500 E10 VCCIO2 IC9500 K9 GND IC9500 P16 IO IC9500 R2 GND IC9500 D1 IO IC9500 M11 IO L9502 J0JHC0000078 IC9500 A14 IO IC9500 D8 IO IC9500 M9 GND IC9500 C5 IO IC9500 A1 GND IC9500 P1 IO IC9500 C16 IO IC9500 G2 TDO IC9500 T4 IO IC9500 P15 IO IC9500 D6 IO IC9500 P3 IO IC9500 P4 IO IC9500 G16 IO IC9500 T12 IO C9519 16V 0.1u IC9500 H7 VCCINT IC9500 J9 GND IC9500 F7 IO IC9500 L11 IO IC9500 A13 IO R9553 0 R9543 10k P3.3V IC9500 B16 VCCIO3 R9536 47 IC9500 G6 IO C9526 10V 10u IC9500 A9 IO IC9500 K15 IO C9561 16V 0.1u C9518 16V 0.1u IC9500 P7 VCCIO4 IC9500 F6 IO IC9500 P8 GND IC9500 A5 IO IC9500 N12 IO IC9500 T16 GND IC9500 N15 IO P2.5V_ASIC IC9500 H8 GND IC9500 D13 IO IC9500 J6 IO IC9500 A10 IO TP9014 R9567 10k IC9500 B13 IO IC9500 A16 GND IC9500 K8 VCCINT IC9500 H9 GND IC9500 J11 IO IC9500 T3 IO IC9500 H12 IO IC9500 B3 IO R9545 300k IC9500 K5 IO R9554 0 IC9500 G1 TMS IC9500 N5 GND_PLL1 IC9500 N16 IO IC9500 G14 VCCIO3 IC9500 A2 VCCIO2 R9506 22 IC9500 J14 GND IC9500 G13 IO R9379 0 R9861 10k IC9500 E3 IO IC9500 R16 VCCIO3 IC9500 G11 IO IC9500 H6 IO IC9500 T7 IO IC9500 P11 IO IC9500 C7 VCCIO2 IC9500 L1 IO IC9500 N4 IO IC9500 A8 IO IC9500 D3 IO IC9500 E5 IO IC9500 M3 IO IC9500 C12 IO IC9500 K4 IO IC9500 P12 IO IC9500 N6 IO IC9500 P13 IO IC9500 K1 IO R9550 10k IC9500 J13 MSEL0 IC9500 N11 IO TP9016 IC9500 C13 IO IC9500 R8 IO IC9500 G4 IO R9961 10k IC9500 M7 VCCIO4 IC9500 J16 CLK7 P3.3V IC9500 C4 IO R9956 10k IC9500 E11 GNDA_PLL2 IC9500 F13 IO IC9500 A12 IO P3.3V R9533 47 C9522 16V 0.1u IC9500 B4 IO R9569 0 IC9500 R15 GND R9544 10k R9535 47 IC9500 B10 IO R9538 10k /ROMADRS[19] M_GOUT9 M_GOUT5 M_BOUT0 NRST CLK M_ROUT9 FPCLK PCD2 DRVRST M_ROUT7 CEL /ROMADRS[03] ODED1 FPDATA0 M_BOUT1 /ROMADRS[02] M_GOUT4 /ROMADRS[11] DRVMUTE /ROMADRS[07] /ROMADRS[04] SC_DRV_RST FPDATA1 OSD_CLKO CLRD1 /ROMADRS[18] /ROM_BYTE M_GOUT3 /ROMADRS[10] SFRST SCSU OSD_GI /ROMADRS[08] LATCH MODEL[1] /ROMDATA[06] M_ROUT3 CPH1 /ROMADRS[20] OC2 MODEL[0] CBK M_ROUT6 /ROMADRS[17] SDA LAT M_GOUT1 CLK_INPUT OSD OC1 SCL /ROMDATA[07] OTHER CSH NUEL RESET USL SIU Flash_Control M_ROUT2 LSI58 CLKM_IN M_ROUT1 M_ROUT5 SFVRST /ROMDATA[01] /ROMADRS[16] /ROMDATA[05] LVDS_INPUT /ROMADRS[13] /ROMDATA[00] /ROMADRS[05] M_GOUT6 DATA_DRIVER /ROMDATA[04] /ROM_OE PICTURE_OUTPUT /ROMDATA[03] /ROM_CE IIC /ROMDATA[02] /ROMADRS[00] CONTROL CML SS_PULSE UML CMH UMH SC_PULSE M_ROUT4 K_DONE LVDSbit M_ROUT8 M_ROUT0 M_GOUT2 FVSEL M_BOUT3 M_BOUT4 VCCINT M_GOUT8 /ROMADRS[01] M_BOUT5 JTAG OSD_YSI /ROMADRS[09] M_BOUT6 OSD_BI M_GOUT0 M_DCKO /ROMADRS[14] M_HDO M_BOUT7 OSD_RI /ROM_WE M_VDO M_BOUT8 M_GOUT7 M_BOUT9 USH SID UEL LED1 CSL PCD1 /ROMADRS[06] FPGA M_BOUT2 /ROMADRS[12] MASK INEXCH p_db1 p_db0 p_stb p_slct p_busy TP_CLK FREE RUN CLK /ROMADRS[-1] /ROMADRS[15] MODEL2 MODEL1 MODEL0 RSV0 L L L SD L L H 37HD L H L 42HD L H H 50HD H L L 58HD H L H RSV1 H H L 42WH H H H ODED2 OSD_HI MICON nCS_FPGA SOUT SIN SCLK TRST TDO GND TDI TMS TCK PCD3 PCD4 URH CPH2 RC+[inv->RC-] RB- RB+ RC-[inv->RC+] RCLK- RCLK+ RE+(LSB) RD-[inv->RD+] RA- RA+ RD+[inv->RD-] RE-(LSB) MODEL[2] LED2 CLRD2 TEST PRCKI VCCI GND P3.3V TRST 19 25 20 27 26 23 21 24 22 C1ZBZ0003575 IC9500 FPGA 15 14 13 11 12 21 22 23 24 25 26 TH-42PH10CK/CS D-Board (3 of 6) Schematic Diagram TH-42PH10CK/CS D-Board (3 of 6) Schematic Diagram D-BOARD TZTNP01XGTC (TNPA4133AK) (3/6) 92 14.34.D 电路板 (4/6) 线路图 DD_PCD1 USH_C2 UML_C2 UEH_C2 USL_C2 DD_LED1 DD_PCD2 NUEL_C2 DD_ODED1 UMH_C2 L8R_UB10 L8R_UB08 L8R_UA08 L8R_UC07 L8R_UC09 L8R_UB05 L8R_UC10 L8R_UB11 L8R_UC12 L8R_UC13 L8R_UA13 L8R_DC15 L8R_UA14 L8R_UA12 L8R_UB13 L8R_UA06 L8R_UB15 L8R_UB06 L8R_UA07 AA_XCE L8R_UC06 L8R_UB07 L8R_UC14 L8R_UC15 L8R_DA14 L8R_UB12 L8R_UA15 L8R_UA09 L8R_UB14 L8R_UA10 L8R_UA05 L8R_UC08 L8R_UB09 L8R_UC11 L8R_UC05 L8R_DB15 L8R_DA15 AA_XWE AA_XOE AA_BYTE D-LED1 D-PCD1 D-PCD2 D-ODED1 L8_OCK DD_CLRD1 DD_LED2 D-CLRD1 D-LED2 DD_PCD3 DD_PCD4 D-PCD4 D-PCD3 FP_UMH FP_USL FP_USH FP_UEH FP_URH FP_NUEL URH_C2 DD_ODED2 DD_CLRD2 D-CLRD2 D-ODED2 FP_UML L8_PCK C9512 16V 0.1u *IC9303 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 X9200 H0J200500038 C9505 16V 0.1u R9394 0 R9503 47 C9511 10V 10u R9384 4.7k C9509 50V 12p P3.3V R9518 0 P3.3V C9510 50V 12p C9469 16V 0.1u R9385 4.7k R9500 10k R9513 47 R9516 10k R9512 47 R9349 EXB2HV470JV C9500 16V 0.1u C9508 16V 0.1u L9500 G1C150KA0038 R9403 EXB2HV470JV R9363 EXB2HV470JV R9502 10k R9400 4.7k C1ZBZ0003600 IC9200 XT 1 2 SL0 3 SL1 4 CLK9 5 VDD1 6 VSS1 7 CLK1 8 N/C 9 CLK2 10 VSS 11 N/C 12 CLK7 13 CLK6 14 CLK5 15 VSS2 16 VDD2 17 SL2 18 STBY 19 VDD3 20 XTN R9511 47 P3.3V IC9502 C0EBE0000066 1 NC 2 SUB 3 GND 5 Vcc 4 Vout SD 37HD 42HD 50HD S2 S1 S0 L H L H H L H L H L H 36.6MHz 20SSMHz 60SSMHz 84MHz 39.5MHz 20MHz H 29 30 31 32 36 28 33 34 35 CPG PD1M_ROM RESET 22 24 21 25 26 23 31 32 33 34 35 36 TVRP215-3 TH-42PH10CK/CS D-Board (4 of 6) Schematic Diagram TH-42PH10CK/CS D-Board (4 of 6) Schematic Diagram D-BOARD TZTNP01XGTC (TNPA4133AK) (4/6) 93 14.35.D 电路板 (5/6) 线路图 TERM SIDE TERM SIDE G G G G G G G G G G G G G G L8R_MONOUT1 L8_G0 L8_G1 L8_G2 L8_G3 L8_G4 L8_G5 L8_G6 L8_G7 L8_G8 L8_G9 L8_B0 L8_B1 L8_B2 L8_B3 L8_B4 L8_B5 L8_B6 L8_B7 L8_B8 L8_B9 L8_R0 L8_R1 L8_R2 L8_R3 L8_R4 L8_R5 L8_R6 L8_R7 L8_R8 L8_R9 L8R_UA15 L8R_UA09 L8R_UA11 L8R_UA12 L8R_UA10 L8R_UA08 L8R_UA14 L8R_UA13 L8R_UA05 L8R_UA06 L8R_UA07 L8R_DA03 L8R_DA11 L8R_DA15 L8R_DA12 L8R_DA06 L8R_DA02 L8R_DA13 L8R_DA07 L8R_DA04 L8R_DA08 L8R_DA09 L8R_DA00 L8R_DA01 L8R_DA14 L8R_DA05 L8R_DA10 L8R_UB12 L8R_UB14 L8R_UB15 L8R_UB10 L8R_UB07 L8R_UB13 L8R_UB11 L8R_UB05 L8R_UB09 L8R_UB08 L8R_UB06 L8R_DB02 L8R_DB12 L8R_DB04 L8R_DB07 AA_XCE L8R_DB08 L8R_DB01 L8R_DB15 L8R_DB13 L8R_DB09 L8R_DB05 L8R_DB10 L8R_DB00 L8R_DB14 L8R_DB03 L8R_DB06 L8R_DB11 L8R_UC14 L8R_DC01 L8R_UC05 L8R_UC08 L8R_UC06 L8R_UC11 L8R_DC05 L8R_DC00 L8R_UC12 L8R_DC09 L8R_UC15 L8R_UC07 L8R_DC06 L8R_DC10 L8R_UC09 L8R_UC10 L8R_UC13 L8R_DC11 L8R_DC13 L8R_DC03 L8R_DC07 L8R_DC14 L8R_DC12 L8R_DC02 L8R_DC04 L8R_DC08 L8R_DC15 L8R_MONOUT1 FPDAT1 FPCLK FPDAT0 SFRST SFVRST LATCH L8R_DRVCLKD0 L8R_DRVCLKD3 L8R_DRVCLKD2 L8R_DRVCLKD1 L8R_DC04 L8R_DA04 L8R_DB08 L8R_DC07 L8R_DA07 L8R_DA08 L8R_DA03 L8R_DB03 L8R_DC10 L8R_DC09 L8R_DA09 L8R_DC08 L8R_DB07 L8R_DB09 L8R_DB10 L8R_DC05 L8R_DB04 TCK TMS TDO_TO_FPGA XRST P3V_SDA02 P3V_SCL02 L8R_DQ9 L8R_TEST0 L8R_OCKOUT L8R_MONOUT0 L8R_DQ23 L8R_A6 L8R_MONOUT2 L8R_A5 L8R_A4 L8R_MONOUT2 L8R_DQ13 L8R_DQ24 0V L8R_BA0 L8R_DQS2 L8R_MUTE L8R_MONOUT0 L8R_BA1 L8R_DQ4 L8R_OCKOUT L8R_TCKSEL2 L8R_DQ2 L8R_RAS L8R_DQ18 L8R_A1 L8R_A10 L8R_A0 L8R_DQ31 L8R_TCKSEL1 L8R_DQ8 L8R_A3 L8R_DQ14 L8R_DQS3 L8R_WE L8R_DQ3 L8R_DQ10 L8R_DQ26 L8R_DQ1 L8R_SDCKE L8R_DQ21 L8R_SDCLKO L8R_DQ12 L8R_DQ28 L8R_DQ30 L8R_DQ6 L8R_A9 L8R_DQS1 L8R_TCKSEL0 L8R_DQ22 L8R_TIIC L8R_A7 L8R_DQ17 L8R_NSDCLKO L8R_DQ5 L8R_MUTE L8R_DQ15 L8R_SDIV1 L8R_DQ11 L8R_DQ25 L8R_DQ29 L8R_TIIC L8R_A8 L8_OCK L8R_DQ27 L8R_A11 L8R_SDIV0 L8R_TEST1 L8_PCK L8R_CS L8R_TILD L8R_DQ20 L8R_DQS0 L8R_DQ19 L8R_TILD L8R_DQ16 L8R_A2 L8R_K_TEST L8R_TCKSEL2 L8R_CAS L8R_K_TEST L8R_DQ0 L8R_DQ7 L8R_TCKSEL1 L8R_TCKSEL0 L8R_TEST0 L8R_TEST1 TRST L8R_DRVCLKU0 L8R_DRVCLKU1 L8R_DRVCLKU2 L8R_DRVCLKU3 L8R_DRVCLKD3 L8R_DRVCLKD2 L8R_DC03 L8R_DA02 L8R_DA06 L8R_DB12 L8R_DA11 L8R_DA10 L8R_DA12 L8R_DC11 L8R_DC12 L8R_DB11 L8R_DC13 L8R_DB13 L8R_DA13 L8R_DB06 L8R_DA05 L8R_DB05 L8R_DC06 L8R_DB02 L8R_DC01 L8R_DC02 L8R_DB01 L8R_DA01 L8R_DA00 L8R_DC00 L8R_DB00 L8R_DRVCLKD0 L8R_DRVCLKD1 L8R_DRVCLKU1 L8R_DRVCLKU0 L8R_DRVCLKU3 L8R_DRVCLKU2 DDC15 DDA14 DDA15 DDB15 DDC14 DDB14 DDB13 DDA12 DDC12 DDC13 DDB12 DDA13 DDA11 DDC11 DDC10 DDA10 DDB10 DDB11 DDC09 DDA08 DDA09 DDC08 DDB09 CLKD_0P CLKD_1N CLKD_2P DDA00 DDB00 DDC00 DDA01 DDB01 DDC01 DDA03 DDB03 DDC03 DDA02 DDC05 DDA04 DDB04 DDC04 DDA05 DDB05 DDA06 DDC07 DDB07 DDA07 DDB06 CLKD_3N CLKD_2P CLKU_1N CLKU_2P CLKU_3N CLKU_2P CLKU_3N CLKD_0P CLKU_0P DDC06 D-LED1 UMH_C2 UML_C2 USH_C2 USL_C2 UEH_C2 NUEL_C2 D-PCD1 D-PCD2 D-ODED1 D-LED1 D-PCD1 D-ODED1 D-CLRD1 D-LED2 D-PCD4 D-PCD3 D-ODED2 D-PCD3 L8_DCK URH_C2 CLKD_1N CLKD_3N D-PCD4 D-ODED2 L8R_SDIV1 C_5V_DET D-PCD2 D-CLRD1 D-CLRD2 CLKU_0P D-CLRD2 DDB08 DDA15 DDC14 DDA14 DDB15 DDC15 DDB14 DDC12 DDB12 DDA12 DDA13 DDB13 DDC13 DDA10 DDC11 DDC10 DDB10 DDB11 DDA11 DDB08 DDC08 DDA09 DDC09 DDA08 L8R_DC14 L8R_DB14 L8R_DA14 L8R_DC15 L8R_DB15 L8R_DA15 DDA01 DDB01 DDC01 DDA00 DDB00 DDC00 DDA03 DDB03 DDA02 DDB02 DDC02 DDC03 DDA05 DDB05 DDC05 DDA04 DDB04 DDC04 DDA07 DDB07 DDC07 DDA06 DDB06 DDC06 DDC02 DDB02 CLKU_1N D-LED2 L8R_SDIV0 ENHMASK L8_VIN L8_HIN DRVRST SOS8_SS TDI_TO_68 DDB09 IC9900 B4 RI8 C9902 0.1u 16V IC9900 V9 VSS IC9900 AB16 AVDD33_2 IC9900 D17 DOUTUC06 R9393 0 C9922 0.1u 16V TP9221 IC9900 C18 DOUTUB05 IC9900 W14 DQ13 TP9245 HIN TP9252 IC9900 B8 TCKSEL2 IC9900 H18 VDD33 D32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 IC9900 J21 DOUTDB14 IC9900 E16 VDD12 IC9900 A6 OCKOUT TP9268 R9929 0 L8R1.2V IC9900 V1 DQS0 R9902 0 C9961 10V 10u P5V TP9229 IC9900 Y16 SDSEL C9912 0.1u 16V IC9900 V17 VDD33 R9352 EXB2HV220JV IC9900 Y20 VSS IC9900 J4 ENHMASK IC9900 T22 DOUTDC06 IC9900 AB8 A7 IC9900 C4 GI3 IC9900 T4 DQ7 IC9900 W19 VSS IC9900 K9 VSS IC9900 T1 DQ21 IC9900 V10 VDD25 IC9900 AB5 BA1 IC9900 D4 VSS IC9900 AA3 CK IC9900 G4 BI2 IC9900 AA1 VDD25 IC9900 D13 DOUTUC12 IC9900 P18 VDD33 C9903 0.1u 16V R9397 22 TP9202 IC9900 AA11 DQ30 IC9900 L10 VSS IC9900 T20 DOUTDA04 IC9900 U19 DOUTDA02 TP9269 IC9900 Y8 A1 IC9900 Y19 VSS R9901 0 IC9900 C17 DOUTUA06 R9351 22 R9392 0 IC9900 K19 DOUTDC14 IC9900 E4 VDD12 IC9900 L22 DOUTDB11 R9350 22 R9370 10k TP9220 TP9234 IC9900 D12 DOUTUA13 IC9900 M9 VSS IC9900 L19 DOUTDB12 IC9900 AB15 AVDD33_1 D31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 IC9900 AB9 VDD25 IC9900 J3 MONOUT0 IC9900 A20 DOUTUC04 TP9209 TP9210 C9900 0.1u 16V TP9260 IC9900 E19 DOUTUC03 IC9900 Y11 DQ24 IC9900 M20 DOUTDA10 IC9900 L4 TIIC IC9900 N19 DOUTDB09 L8R3.3V TP9249 TP9300 IC9900 F2 BI1 IC9900 AB7 A6 IC9900 K2 VDI IC9900 J22 DOUTDA13 IC9900 AA21 VSS IC9900 AA20 DOUTDA01 C9906 0.1u 16V R9936 1k IC9900 M1 TILD IC9900 W16 SDIV1 IC9900 K13 VSS TP9305 IC9900 V3 DQ4 IC9900 W18 VSS C9919 0.1u 16V IC9900 AB18 DOUTDC00 IC9900 K11 VSS IC9900 A17 DOUTUA08 IC9900 D18 DOUTUC05 IC9900 A1 VSS IC9900 U1 DQS2 IC9900 L11 VSS IC9900 D19 VSS C9960 10V10u IC9900 D21 DOUTUB02 C9920 0.1u 16V TP9250 TP9288 IC9900 E13 VDD33 IC9900 A22 VSS C9913 0.1u 16V IC9900 C3 VSS IC9900 B16 DOUTUC09 IC9900 A5 RI2 IC9900 B11 DOUTUC15 IC9900 U3 DQ6 R9396 22 IC9900 U2 AVSS_1 IC9900 F5 VDD12 IC9900 V5 VSS TP9263 IC9900 V11 VDD25 IC9900 C13 DOUTUB12 IC9900 Y3 VSS R9354 EXB2HV220JV IC9900 L13 VSS IC9900 AA12 DQS3 IC9900 P21 DOUTDC08 IC9900 Y2 VDD25 IC9900 Y7 A0 FL9301 F1J1E104A148 1 2 3 IC9900 D9 TCKSEL1 IC9900 L18 VDD12 TP9218 IC9900 E21 DOUTUA00 IC9900 C15 DOUTUB09 TP9306 P3.3V IC9900 D1 GI6 IC9900 F22 DRVCLKD3 IC9900 D14 DOUTUC10 IC9900 AB10 DQ29 TP9242 TP9228 IC9900 K4 HDI IC9900 AA2 VSS IC9900 W2 DQ1 VIN IC9900 V21 DOUTDC03 IC9900 K20 DOUTDB13 IC9900 H22 DOUTDA14 IC9900 L9 VSS TP9274 R9383 1k IC9900 K22 DOUTDA12 IC9900 T18 VDD33 TP9100 C9921 0.1u 16V IC9900 AB21 VSS IC9900 B6 RI1 P3.3V IC9900 M18 VDD12 TP9310 IC9900 Y22 VDD33 IC9900 J12 VSS IC9900 H4 BI7 IC9900 V22 DOUTDA03 IC9900 B5 RI5 IC9900 U21 DOUTDB04 R9928 0 TP9230 IC9900 Y1 DQ0 IC9900 M22 DOUTDC10 Q9302 B1ABCF000138 L8R3.3V IC9900 A15 DOUTUA10 IC9900 B17 DOUTUA07 IC9900 W21 VDD33 IC9900 C6 RI4 IC9900 M21 DOUTDB10 IC9900 Y5 NCAS IC9900 B9 FPCLK IC9900 G18 VSS TP9101 IC9900 B18 DOUTUB06 IC9900 G1 BI6 IC9900 W1 DQ2 IC9900 M19 DOUTDC11 TP9301 IC9900 A11 DOUTUA14 TP9232 IC9900 L12 VSS TP9256 IC9900 G3 BI4 IC9900 F21 DRVCLKU2 IC9900 F18 VSS C9911 0.1u 16V IC9900 Y4 AVDD25_2 IC9900 H21 DOUTDB15 IC9900 Y9 A3 TP9212 IC9900 P13 VSS R9356 EXB2HV220JV L8R2.5V IC9900 T2 DQ20 C9958 0.1u 16V IC9900 N9 VSS IC9900 W10 DQ27 TP9219 TP9302 L8R2.5V IC9900 E20 DOUTUC02 IC9900 A13 DOUTUC13 IC9900 W4 VSS IC9900 D10 FPDAT0 IC9900 Y21 VDD33 IC9900 B13 DOUTUA12 R9937 1k IC9900 W7 NCS IC9900 C11 DOUTUB15 IC9900 V4 VDD25 IC9900 C22 DOUTUB01 C9966 16V 0.1u IC9900 C14 DOUTUC11 IC9900 W22 DOUTDC02 TP9303 IC9900 C10 SFVRST IC9900 R5 VDD25 IC9900 M3 FULL1 IC9900 Y12 AVSS_4 IC9900 V13 VDD12 C9957 0.1u 16V TP9266 TP9246 IC9900 N18 VDD12 TP9211 IC9900 R2 DQ23 TP9235 TP9225 R9916 0 IC9900 H1 MUTE IC9900 K10 VSS IC9900 AB11 DQ28 IC9900 N3 TDI IC9900 R3 DQ17 IC9900 J11 VSS IC9900 K12 VSS TP9216 IC9900 AB6 A4 IC9900 AA7 A9 TP9304 IC9900 A7 K_TEST R9398 22 TP9231 IC9900 A18 DOUTUB07 IC9900 AA22 VSS IC9900 A16 DOUTUA09 IC9900 C1 VDD12 IC9900 P5 VDD33 IC9900 AB19 DOUTDA00 Q9301 B1ABCF000138 R9369 4.7k IC9900 N20 DOUTDC09 IC9900 AB4 BA0 IC9900 V12 VDD25 TP9289 IC9900 C5 RI9 R9380 56 IC9900 V14 VDD12 IC9900 H2 BI9 IC9900 Y10 DQ26 IC9900 E7 VDD12 TP9270 IC9900 J2 MONOUT1 IC9900 U22 DOUTDC05 IC9900 P10 VSS IC9900 P20 DOUTDA07 IC9900 K5 VDD33 IC9900 W17 VSS L8R3.3V IC9900 E10 VDD33 IC9900 E11 VDD33 IC9900 A3 GI0 IC9900 V8 VDD25 TP9010 IC9900 A8 TCKSEL0 IC9900 B14 DOUTUB11 IC9900 W9 A10 IC9900 P1 TDO IC9900 U4 DQ5 TP9222 IC9900 C12 DOUTUB13 R9371 100k IC9900 L5 VDD33 IC9900 V19 VDD33 IC9900 F20 DOUTUB00 TP9259 C9967 0.1u 16V R9362 22 FL9901 F1J1E104A148 1 2 3 IC9900 D5 GI2 IC9900 J13 VSS IC9900 J5 VDD12 IC9900 K1 DCK TP9217 L8R2.5V IC9900 L14 VSS IC9900 G19 DOUTUC00 C9955 0.1u 16V C9925 0.1u 16V IC9900 C16 DOUTUC08 IC9900 M12 VSS TP9272 IC9900 R22 DOUTDC07 TP9226 IC9900 M10 VSS IC9900 Y14 DQ12 TP9244 IC9900 AA16 AVSS2 IC9900 W8 A2 IC9900 E17 VSS IC9900 N5 VDD33 IC9900 AB2 VSS R9347 EXB2HV220JV IC9900 D6 RI7 IC9900 V2 DQ3 IC9900 L20 DOUTDC12 IC9900 J18 VDD33 IC9900 AA10 DQ31 C9963 10V 10u IC9900 E22 DRVCLKU3 TP9251 R9361 22 IC9900 W6 NWE IC9900 W5 AVDD25_3 TP9215 IC9900 AA6 A11 IC9900 P4 DQ18 IC9900 B7 TEST1 IC9900 D2 GI4 IC9900 C8 TEST0 IC9900 AA14 DQ9 IC9900 AB3 NCK IC9900 H20 DRVCLKD1 FL9902 F1J1E104A148 1 2 3 TP9248 TP9262 TP9254 IC9900 R1 DQ22 IC9900 AA5 CKE TP9224 C9962 10V10u IC9900 C20 VSS IC9900 AA13 DQ11 TP9223 R9348 EXB2HV220JV IC9900 N13 VSS IC9900 M2 FULL0 IC9900 W12 AVDD25_4 IC9900 J1 MONOUT2 IC9900 Y18 VSS TP9271 IC9900 P12 VSS C9905 0.1u 16V TP9253 IC9900 R21 DOUTDA06 TP9257 R9355 EXB2HV220JV IC9900 D8 OCK L8R3.3V IC9900 Y15 VSS IC9900 D15 DOUTUB08 IC9900 W20 VDD33 IC9900 D7 RI3 IC9900 AB1 VSS C9917 0.1u 16V IC9900 P22 DOUTDB08 IC9900 C2 VDD12 IC9900 Y13 DQ14 IC9900 J20 DOUTDC15 IC9900 F3 GI9 IC9900 A2 VSS IC9900 AA9 A8 IC9900 C21 DOUTUA02 IC9900 E6 VSS IC9900 T3 AVDD25_1 IC9900 G2 BI5 IC9900 G20 DRVCLKU1 IC9900 K21 DOUTDC13 IC9900 D20 DOUTUB03 C9909 0.1u 16V IC9900 L2 ID0 IC9900 B2 VSS IC9900 C7 RI0 IC9900 B3 GI1 IC9900 E12 VDD33 C9956 0.1u 16V IC9900 W3 VDD25 TP9227 C9904 0.1u 16V IC9900 J9 VSS IC9900 G5 VDD12 IC9900 M14 VSS C9949 16V 0.1u IC9900 AA17 SDIV0 FL9900 F1J1E104A148 1 2 3 IC9900 V15 VDD12 IC9900 K14 VSS R9399 22 IC9900 Y17 VSS R9391 100k R9917 0 IC9900 AB17 VSS IC9900 E15 VDD12 TP9241 IC9900 V16 VDD33 IC9900 N10 VSS IC9900 G22 DRVCLKD0 P5V TP9255 R9919 1k IC9900 L3 ID1 C9916 0.1u 16V IC9900 A9 FPDAT1 IC9900 L1 SCL L8R1.2V IC9900 F6 VSS C9924 0.1u 16V L8R3.3V IC9900 B12 DOUTUC14 IC9900 E5 VSS C9918 0.1u 16V IC9900 N4 TMS IC9900 AB22 VSS IC9900 B21 VSS IC9900 F19 DOUTUA01 IC9900 E8 VDD12 IC9900 D22 DOUTUC01 IC9900 V7 VDD25 TP9264 IC9900 M5 VDD33 IC9900 E2 GI8 R9317 390 IC9900 B20 DOUTUA03 P2.5V IC9900 W13 DQ15 IC9900 A4 RI6 IC9900 AB13 DQ10 L8R3.3V IC9900 N11 VSS F1J1E104A148 FL9903 IC9900 D3 VDD12 C9950 16V 0.1u C9959 0.1u 16V IC9900 A10 SFLATCH IC9900 K18 VDD33 C9915 0.1u 16V IC9900 E14 VDD33 IC9900 H5 VDD12 IC9900 A19 DOUTUA05 IC9900 V20 DOUTDB02 TP9267 TP9233 IC9900 J10 VSS C9908 0.1u 16V IC9900 A14 DOUTUA11 IC9900 E1 BI0 IC9900 B1 VSS IC9900 J19 DOUTDA15 IC9900 AA18 DOUTDB00 TP9243 IC9900 T19 DOUTDC04 IC9900 U5 VDD25 IC9900 N12 VSS IC9900 C9 ROMCE IC9900 P19 DOUTDB07 IC9900 AA4 VREF IC9900 D11 DOUTUA15 TP9273 IC9900 AA15 AVSS1 IC9900 P2 XRST IC9900 F4 GI7 IC9900 M13 VSS IC9900 U18 VDD33 TP9265 L8R2.5V C9964 10V 10u IC9900 AB12 DQS1 TP9213 IC9900 N2 TCK IC9900 A21 VSS R9918 0 IC9900 J14 VSS IC9900 R20 DOUTDB06 IC9900 P3 DQ19 TP9275 TP9240 IC9900 E18 VSS IC9900 B15 DOUTUB10 TP9201 C9914 0.1u 16V IC9900 Y6 NRAS IC9900 T5 AVSS_2 IC9900 F1 BI3 TP9200 TP9214 IC9900 N14 VSS IC9900 A12 DOUTUB14 IC9900 G21 DRVCLKD2 TP9261 IC9900 E3 GI5 IC9900 H19 DRVCLKU0 R9915 0 IC9900 W11 DQ25 IC9900 B19 DOUTUA04 IC9900 P14 VSS IC9900 E9 VDD33 C9468 25V 0.01u IC9900 W15 TCPOUT IC9900 V18 VSS IC9900 D16 DOUTUC07 IC9900 T21 DOUTDB05 IC9900 AA8 A5 IC9900 R4 DQ16 IC9900 U20 DOUTDB03 IC9900 AB14 DQ8 R9912 10k IC9900 AA19 DOUTDC01 IC9900 C19 DOUTUB04 IC9900 L21 DOUTDA11 IC9900 V6 AVSS_3 C9901 0.1u 16V F1J1E104A148 FL9904 IC9900 N1 TRST IC9900 N22 DOUTDA09 IC9900 P11 VSS FL9300 F1J1E104A148 1 2 3 R9922 0 IC9900 P9 VSS C9923 0.1u 16V IC9900 M4 PCK IC9900 H3 BI8 P1.2V IC9900 K3 SDA IC9900 M11 VSS C9910 0.1u 16V IC9900 N21 DOUTDA08 IC9900 B10 SFRST IC9900 R18 VDD33 IC9900 B22 VSS IC9900 AB20 DOUTDB01 TP9258 IC9900 R19 DOUTDA05 R9960 0 C9907 0.1u 16V IIC DOUTDA[5] DOUTDB[3] DOUTDC[2] P5V DOUTDC[9] P5V UMH P5V DOUTDB[4] DOUTDA[4] DOUTDB[1] UML DOUTDA[9] DOUTDC[1] DOUTDB[9] DOUTDC[8] DOUTDA[2] DOUTDC[5] PC1_C1 DOUTDA[0] DOWN_LEFT DOUTDA[8] GND ODE_C1 DOUTDB[8] CLR_C1 DOUTDC[11] DOUTDC[12] DOUTDB[2] DOUTDA[11] DOUTDB[11] NC DOUTDC[10] DOUTDA[3] USH SOS8_SS DOUTDA[10] DOUTDB[10] DOUTDA[1] DOUTDC[13] DOUTDA[12] DOUTDC[0] DOUTDA[13] USL DOUTDB[12] UEH DOUTDB[13] CLK1N_C1 CLK0P_C1 DOUTDC[3] DOUTDC[4] DOUTDB[0] DOUTDB[5] LE_C1 DOWN_RIGHT DOUTDB[6] DOUTDA[6] DOUTDC[6] DOUTDC[7] DOUTDB[7] DOUTDA[7] rromdata[14] rromadrs[00] rromdata[06] rromdata[09] rromdata[12] rromadrs[11] rromadrs[14] rromdata[15] rromadrs[01] rromadrs[04] rromadrs[17] rromadrs[20] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[16] rromdata[00] rromdata[01] rromdata[02] rromadrs[19] rromadrs[03] rromdata[03] rromdata[04] rromdata[07] rromdata[10] to DDR rromadrs[06] rromadrs[09] rromdata[13] rromadrs[12] rromdata[05] rromadrs[15] rromadrs[18] rromadrs[02] rromadrs[05] rromadrs[08] rromdata[08] rromdata[11] DOUTDB[15] DOUTDC[14] DOUTDB[14] DOUTDA[15] DOUTDC[15] DOUTDA[14] GND GND GND GND GND GND GND P5V P5V P5V UEL GND NC NC LE_C2 ODE_C2 PC3_C2 CLR_C2 CLK0P_C2 CLK1N_C2 GND GND GND CLK2P_C1 CLK3N_C1 CLK2P_C2 CLK3N_C2 GND GND GND GND GND URH SDIV1 SDIV0 x08 L L x09 L H x10 H L x11 H H GND GND GND C_5V_DET PC4_C2 PC2_C1 NC NC NC NC NC GND 39 40 41 45 37 42 43 44 38 PD1-Mplus IC9900 MN84524 TO C1-BOARD (C11) TO C2-BOARD (C21) 33 31 34 35 36 32 41 TH-42PH10CK/CS D-Board (5 of 6) Schematic Diagram TH-42PH10CK/CS D-Board (5 of 6) Schematic Diagram D-BOARD TZTNP01XGTC (TNPA4133AK) (5/6) 94 14.36.D 电路板 (6/6) 线路图 L8DR_DQ28 L8R_A0 L8DR_DQS0 L8DR_DQ31 L8DR_NCS L8R_DQ15 L8DR_A5 L8DR_A1 L8DR_NCAS L8R_A3 L8DR_A11 L8R_DQ17 L8DR_DQ21 L8DR_DQ23 L8DR_DQ22 L8DR_DQ25 L8R_DQ16 L8DR_BA1 L8DR_A11 L8DR_DQ10 L8DR_DQ3 L8R_DQ14 L8R_DQ24 L8DR_BA0 L8DR_DQ1 L8DR_DQ9 L8R_DQ10 L8DR_A7 L8DR_DQ4 L8R_SDCLKO L8DR_DQ31 L8DR_A2 L8R_BA0 L8DR_NRAS L8DR_DQ11 L8R_DQ31 L8DR_DQ2 L8DR_DQ26 L8DR_DQ0 L8DR_BA1 L8DR_DQ5 L8DR_DQ11 L8R_DQ0 L8R_DQ26 L8R_A4 L8R_BA1 L8R_DQ19 L8R_DQ13 L8DR_A6 L8DR_DQS3 L8R_DQ9 L8DR_NCLK L8DR_DQ20 L8R_A2 L8DR_DQ18 L8DR_A2 L8DR_A3 L8DR_A9 L8R_DQ22 L8DR_NRAS L8R_A8 L8R_A10 L8R_A1 L8DR_A3 L8R_WE L8R_DQS2 L8DR_DQ7 L8DR_NCLK L8DR_DQ24 L8R_SDCKE L8DR_DQ8 L8DR_DQ16 L8R_DQ3 L8R_DQ4 L8R_RAS L8DR_DQ20 L8DR_DQ6 L8R_DQ11 L8DR_DQ19 L8DR_DQ24 L8DR_A4 L8DR_A0 L8R_DQ1 L8DR_DQ25 L8DR_DQ12 L8R_A6 L8DR_A6 L8DR_DQ8 L8R_DQ23 L8DR_DQ12 L8DR_DQ2 L8R_DQ8 L8DR_DQ18 L8DR_DQ4 L8DR_DQ0 L8R_DQ21 L8DR_DQS2 L8DR_A1 L8DR_A0 L8DR_DQ22 L8R_A9 L8DR_DQ6 L8DR_DQ29 L8DR_DQS0 L8DR_DQS2 L8DR_DQ7 L8DR_DQ19 L8DR_DQ14 L8DR_DQ5 L8DR_DQ23 L8DR_DQ14 L8DR_CKE L8DR_DQ13 L8DR_DQS1 L8DR_DQ30 L8DR_A8 L8DR_NCS L8DR_DQ16 L8DR_DQ17 L8R_DQ7 L8DR_DQ28 L8DR_DQ17 L8DR_DQ15 L8DR_DQ15 0V L8R_DQ30 L8R_DQ27 L8R_DQS3 L8DR_A5 L8DR_DQS1 L8R_DQS0 L8R_DQ6 L8DR_NCAS L8DR_DQ9 L8DR_DQS3 L8DR_NWE L8R_CS L8R_NSDCLKO L8R_A7 L8DR_DQ26 L8R_DQ29 L8DR_A9 L8DR_A8 L8DR_DQ21 L8R_DQ12 L8DR_BA0 L8R_DQ20 L8DR_DQ27 L8DR_A10 L8DR_A4 L8R_DQS1 L8R_CAS L8DR_NWE L8DR_DQ13 L8DR_CLK L8R_A5 L8R_DQ2 L8DR_DQ10 L8R_DQ28 L8DR_A7 L8DR_DQ30 L8R_DQ18 L8R_A11 L8DR_DQ1 L8DR_DQ29 L8DR_DQ27 L8DR_CKE L8DR_DQ3 L8R_DQ25 L8R_DQ5 L8DR_A10 L8DR_CLK IC9901 C8 VDDQ R9950 EXB38V470JV IC9901 M9 A5 C9945 16V 0.1u IC9901 M12 CK L8R2.5V R9948 EXB38V470JV IC9901 F12 DQ15 IC9901 C2 DQ4 IC9901 F8 VSS_Thermal IC9901 J12 DQ11 IC9901 L8 VDD IC9901 N11 A8/AP IC9901 E8 VSS C9935 16V 0.1u IC9901 L3 WE IC9901 D12 DQ26 C9951 16V 0.1u IC9901 D4 VSSQ IC9901 K10 VSSQ R9949 EXB38V470JV IC9901 L7 VDD IC9901 N7 A3 IC9901 L11 VDD IC9901 F2 DQ17 IC9901 J8 VSS_Thermal R9906 EXB38V470JV C9936 16V 0.1u IC9901 C9 DQ30 IC9901 N5 A0 IC9901 D9 VSSQ IC9901 G12 DQ13 IC9901 L4 VDD IC9901 J5 VSSQ IC9901 F7 VSS_Thermal C9944 16V 0.1u IC9901 N9 A6 IC9901 B9 DQ29 IC9901 K11 VDDQ R9947 EXB38V470JV IC9901 B6 DQ2 R9907 150 IC9901 H2 DQS2 IC9901 E3 VDDQ IC9901 D2 DQ6 IC9901 N10 A7 IC9901 D13 DQ25 IC9901 H12 DM1 IC9901 N2 CS IC9901 B3 DM0 IC9901 H10 VSSQ IC9901 C6 DQ1 IC9901 H11 NC IC9901 N12 CKE R9903 EXB2HV470JV IC9901 E5 VSS IC9901 M5 BA1 IC9901 J7 VSS_Thermal C9928 16V 0.1u IC9901 E11 VDD IC9901 L5 VSS IC9901 G2 DQ19 IC9901 B13 DQS3 IC9901 H7 VSS_Thermal IC9901 M11 CK IC9901 G10 VSSQ R9940 33 IC9901 G5 VSSQ R9938 1k IC9901 L12 NC IC9901 J11 VDDQ IC9901 D10 VSSQ R9904 47 R9909 0 R9953 47 IC9901 N4 BA0 IC9901 D11 VSSQ IC9901 E4 VDD R9954 47 IC9901 J9 VSS_Thermal IC9901 E10 VSS IC9901 H6 VSS_Thermal IC9901 M13 NC IC9901 G6 VSS_Thermal IC9901 G3 DQ18 R9910 0 IC9901 C13 DQ27 IC9901 E6 VSSQ IC9901 C12 VDDQ IC9901 F11 VDDQ R9905 33 R9942 47 IC9901 G11 VDDQ C9940 16V 0.1u IC9901 J10 VSSQ C9942 16V 0.1u IC9901 F6 VSS_Thermal C9930 16V 0.1u IC9901 B10 DQ28 L8R2.5V IC9901 F9 VSS_Thermal IC9901 L13 NC IC9901 K9 VSS IC9901 E9 VSSQ L8R2.5V IC9901 N6 A1 R9908 0 IC9901 F4 VDDQ IC9901 B12 DM3 C9948 16V 0.1u IC9901 B4 VSSQ IC9901 M10 NC IC9901 D7 VDD IC9901 D6 VSSQ IC9901 M8 A9 IC9901 L2 CAS C9937 16V 0.1u IC9901 G8 VSS_Thermal IC9901 C10 VDDQ IC9901 K2 DQ22 IC9901 G7 VSS_Thermal R9952 47 IC9901 H5 VSSQ IC9901 H9 VSS_Thermal IC9901 E12 VDDQ IC9901 K4 VDDQ IC9901 M4 NC IC9901 G9 VSS_Thermal C9933 16V 0.1u IC9901 K13 DQ8 IC9901 K7 VSS IC9901 B2 DQS0 IC9901 E13 DQ24 IC9901 J3 DQ20 IC9901 F5 VSSQ IC9901 L6 A10 C9932 16V 0.1u IC9901 N13 VREF C9929 16V 0.1u IC9901 J6 VSS_Thermal R9911 0 IC9901 M3 NC C9946 16V 0.1u IC9901 K3 DQ23 IC9901 K6 VSS IC9901 K5 VSSQ IC9901 N8 A4 C9927 16V 0.1u IC9901 K8 VSS IC9901 L10 VSS IC9901 L9 NC C9938 16V 0.1u IC9901 C11 NC R9955 47 IC9901 C7 VDDQ IC9901 F13 DQ14 C9939 16V 0.1u IC9901 H4 NC IC9901 M7 A11 C9941 16V 0.1u IC9901 F10 VSSQ IC9901 E7 VSS IC9901 B5 DQ3 IC9901 J13 DQ10 IC9901 D8 VDD IC9901 C4 NC IC9901 C5 VDDQ IC9901 D5 VSSQ IC9901 H8 VSS_Thermal IC9901 B8 DQ31 R9943 EXB38V470JV R9945 EXB38V470JV R9939 1k IC9901 E2 DQ7 IC9901 H13 DQS1 IC9901 C3 VDDQ ZA9001 K4CD01000011 IC9901 N3 NC IC9901 G13 DQ12 IC9901 B11 VSSQ R9941 47 IC9901 M2 RAS R9951 EXB38V470JV C9931 16V 0.1u IC9901 D3 DQ5 C9947 16V 0.1u R9944 EXB38V470JV C9934 16V 0.1u R9946 EXB38V470JV IC9901 F3 DQ16 IC9901 M6 A2 C9943 16V 0.1u IC9901 K12 DQ9 IC9901 J4 VDDQ IC9901 J2 DQ21 IC9901 G4 VDDQ IC9901 B7 DQ0 IC9901 H3 DM2 DDR-Terminate DDR-SDRAM 49 54 48 51 53 47 50 52 46 IC9901 C3ABQJ000051 DDR_SDRAM 41 TH-42PH10CK/CS D-Board (6 of 6) Schematic Diagram TH-42PH10CK/CS D-Board (6 of 6) Schematic Diagram D-BOARD TZTNP01XGTC (TNPA4133AK) (6/6) 95 14.37.C1 和 C2 电路板方框图 USL UEH UMH UML USH NUEL ODED2 CLRD PC4 LED PC3 SS_SOS8 CLKU_0P CLKU_3N CLKU_2P CLKU_1N CLKD_3N CLKD_2P CLRD ODED1 PC2 PC1 LED CLKD_0P CLKD_1N R7281 +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V +5V 5 5 A4-C5 8 7 1 6 8 A6-C7 2 4 6 7 C23 1 11 3 6bit CB8 C21 A2-C3 A0-C1 CB6 4 Vda75V Vda75V CB5 DATA 24bit DA0-DC7 9 CB7 C20 20 14 IC7204 VCC BUFFER UML NUEL USH USL SS_SOS8 UMH 12 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit NUEL USH USL UML UMH UEH SS_SOS8 5V Vda Vda C2 DATA DRIVE LOWER LEFT (FRONT VIEW) PANEL DATA DRIVER TO D32 TO SS23 1 5V DET 6bit 6bit 6bit P5V P5V 53 55 DOUTDC7 DOUTDA0 41 - 15 48 LED PC3 VCC PC4 47 ODED2 CLRD 49 51 50 IC7201 BUFFER UEH NUEL USH USL UMH UML UEH 13 11 IC7202 VCC 43 BUFFER CLK(0)(+) CLK(2)(+) CLK(1)(-) 45 CLK(3)(-) PC3 PC3 PC4 PC4 2P7,3N7 2P8,3N8 0P5,1N5 0P6,1N6 LED 14 55 12 9 PC1 IC7101 VCC BUFFER PC2 CB1 PC2 CB2 PC1 CLK(0)(+) P5V CLK(1)(-) P5V CLK(2)(+) CLK(3)(-) PC1 5VDET IC7102 BUFFER A10-C11 6bit 6bit 6bit 6bit 6bit PANEL DATA DRIVER 6bit C11 6bit 6bit 6bit 6bit 24bit DA8-DC15 DATA TO D31 VCC 6bit 6 CLR_C1 6bit 53 51 CB3 A8-C9 A12-C13 C10 8 10 42 - 16 DOUTDC15 DOUTDA8 PC2 CB4 0P1,1N1 ODE_C1 20 0P2,1N2 7 2P3,3N3 1 DATA DRIVE 2P4,2N4 A14-C15 LOWER RIGHT(FRONT VIEW) C1 7 3 1 TH-42PH10CK/CS C1 and C2-Board Block Diagram TH-42PH10CK/CS C1 and C2-Board Block Diagram 96 14.38.C1 电路板 （1/2）线路图 TERM SIDE TERM SIDE AA_DDC15 AA_DDB15 AA_DDA15 CLKD_0P1 AA_DDC14 AA_DDB14 AA_DDA14 AA_DDC13 AA_DDB13 AA_DDA13 78V AA_DDC12 AA_DDB12 AA_DDA12 78V 78V 78V AA_DDB14 AA_DDB12 AA_DDB15 AA_DDA12 AA_DDC12 AA_DDA13 AA_DDB13 AA_DDC13 AA_DDA14 AA_DDC14 AA_DDA15 AA_DDC15 ODE_C1 CLKD_1N2 CLR_C1 LE_C1 ODE_C1 CLR_C1 LE_C1 PC1_C1 PC1_C1 LE_C1 CLR_C1 ODE_C1 PC1_C1 LE_C1 CLR_C1 ODE_C1 PC1_C1 CLKD_0P2 CLKD_1N1 R7112 4.7k C7116 16V 1u C7117 50V 100p VDA_75V D7104 B0HCMM000014 C7125 100V 0.47u D7105 B0HCMM000014 R7143 6.8 R7125 6.8 R7134 EXB38V471JV C7118 100V 0.47u C1_5V C1_5V C7124 50V 100p C7152 100V 0.47u C7114 16V 1u CB1 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 ZA7104 K4AD01Z00001 C7123 16V 1u ZA7102 K4AD01Z00001 C7150 100V 0.47u R7130 EXB38V471JV C7110 16V 1u R7133 EXB38V471JV R7142 6.8 R7123 6.8 D7103 B0HCMM000014 R7145 6.8 R7144 6.8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7124 6.8 D7106 B0HCMM000014 R7162 EXB38V471JV R7122 6.8 ZA7101 K4AD01Z00001 ZA7103 K4AD01Z00001 VDA_75V FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND CB1 CB2 8 5 1 A 6 E C 7 3 2 B 4 D TO DRIVER PANEL DATA TO DRIVER PANEL DATA 1 2 3 4 TH-42PH10CK/CS C1-Board (1 of 2) Schematic Diagram TH-42PH10CK/CS C1-Board (1 of 2) Schematic Diagram C1-BOARD TNPA4165 (1/2) 97 14.39.C1 电路板 （2/2）线路图 TERM SIDE TERM SIDE TERM SIDE SIDE TERM G G AA_DDC11 AA_DDB11 AA_DDA11 78V AA_DDC10 AA_DDB10 AA_DDA10 78V CLKD_3N4 AA_DDA9 AA_DDA8 78V AA_DDB9 AA_DDB8 AA_DDC8 AA_DDC9 CLKD_2P4 AA_DDB8 AA_DDB9 AA_DDB10 AA_DDB11 AA_DDA10 AA_DDC10 AA_DDA11 AA_DDC11 AA_DDA8 AA_DDC8 AA_DDA9 AA_DDC9 ODE_C1 CLR_C1 PC2_C1 LE_C1 ODE_C1 CLR_C1 LE_C1 PC2_C1 ODE_C1 CLR_C1 LE_C1 ODE_C1 CLR_C1 LE_C1 PC2_C1 PC2_C1 CLKD_3N3 CLKD_2P3 78V LE_C1A AA_DDA8 PC2_C1A AA_DDB8 AA_DDC8 CLKD_0P AA_DDA11 AA_DDB11 AA_DDC11 5V_DET_C1 CLKD_3N AA_DDA10 PC2_C1 CLKD_3N AA_DDB10 LE_C1A CLKD_3N3 AA_DDC10 CLKD_2P ODE_C1 AA_DDC13 CLKD_2P4 CLKD_1N2 AA_DDB13 CLR_C1 CLKD_2P3 CLKD_2P AA_DDA15 CLKD_3N4 AA_DDA13 AA_DDC15 AA_DDC12 AA_DDB15 AA_DDB12 AA_DDA12 CLKD_1N ODE_C1A AA_DDB14 AA_DDA14 PC2_C1A CLR_C1A AA_DDC14 CLKD_0P1 PC1_C1 ODE_C1A CLKD_0P2 CLKD_0P LE_C1 CLKD_1N1 CLR_C1A CLKD_1N AA_DDB9 PC1_C1A AA_DDC9 AA_DDA9 PC1_C1A C7142 100V 0.47u C7141 50V 100p R7172 6.8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C1_5V C7121 16V 1u C7145 16V 1u R7153 6.8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7174 6.8 VDA_75V D7108 B0HCMM000014 C7128 100V 0.47u R7131 EXB38V471JV R7173 6.8 C1_5V R7151 6.8 C7126 16V 1u D7107 B0HCMM000014 C7140 16V 1u C7127 50V 100p D7109 B0HCMM000014 R7171 6.8 R7136 EXB38V471JV VDA_75V R7132 EXB38V471JV C7153 100V 0.47u D7110 B0HCMM000014 C7151 100V 0.47u R7152 6.8 R7135 EXB38V471JV R7154 6.8 C1_5V C0JBAZ002692 IC7102 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7148 16V 0.1u C11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 C1_5V C1_5V R7177 EXB38V102JV R7186 0 C10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7185 1k VDA_75V R7155 EXB38V102JV C7130 16V 0.1u R7126 220k R7180 47 R7159 EXB38V470JV R7119 EXB38V220JV C0JBAZ002692 IC7101 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7184 EXB38V220JV J0HABH000013 FL7101 1 2 3 FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND GND A1 GND GND FDET LEN GND A4 GND VDD2 VDD2 A4 FS VDD1 VDD2 A1 GND VDD2 GND CLR BLK NC FX A2 NC A3 VDD1 A6 BLK GND NC NC A3 A2 A6 DM VDD2 GND VDD2 NC GND VDD2 A5 CLR DM GND VDD2 NC VDD1 VDD1 GND GND ODE A5 VDD2 GND VDD2 GND FX NC VDD2 GND ODE NC FS LEN VDD2 FDET1 CB3 CB4 DOUTDA[12] ODED1 GND DOUTDA[8] DOUTDB[12] Vda 75V GND GND NC Vda 75V 5V_DET DOUTDB[13] DOUTDA[15] DOUTDA[14] PCD1 DOUTDC[14] Vda 75V DOUTDA[11] GND NC GND DOUTDC[13] DOUTDB[9] PCD2 CLK[0]P DOUTDA[9] DOUTDB[10] 5V_DET DOUTDB[11] GND CLK[3]N CLK[2]P GND DOUTDC[11] GND DOUTDA[13] TO D-BOARD (D31) CLK[1]N DOUTDC[8] GND GND DOUTDC[15] DOUTDC[10] P5V CLRD DOUTDC[9] GND DOUTDB[15] GND NC DOUTDB[8] Vda 75V NC DOUTDC[12] GND LED Vda 75V NC NC Vda 75V P5V Vda 75V DOUTDB[14] GND GND DOUTDA[10] P5V GND GND NC NC NC NC NC NC NC 10 15 9 14 13 11 8 12 TO DRIVER PANEL DATA TO DRIVER PANEL DATA BUFFER BUFFER TO C2-BOARD (C20) 4 1 2 3 TH-42PH10CK/CS C1-Board (2 of 2) Schematic Diagram TH-42PH10CK/CS C1-Board (2 of 2) Schematic Diagram C1-BOARD TNPA4165 (2/2) 98 14.40.C2 电路板 （1/2）线路图 TERM SIDE TERM SIDE SIDE TERM TERM SIDE G G AA_DDC5 AA_DDB5 AA_DDA5 78V AA_DDC4 AA_DDB4 AA_DDA4 78V AA_DDC2 AA_DDB2 AA_DDA2 PC4_C2 ODE_C2 SOS8_SS 78V AA_DDB7 CLKU_1N5 AA_DDC7 AA_DDA7 AA_DDB6 AA_DDC6 PC3_C2 CLR_C2 78V AA_DDB6 AA_DDC6 AA_DDB6 AA_DDA6 AA_DDB7 AA_DDB4 AA_DDB5 CLKU_2P8 AA_DDA6 AA_DDC6 AA_DDA7 AA_DDC7 AA_DDA4 AA_DDC4 AA_DDA5 AA_DDC5 CLKU_0P CLKU_1N CLKU_2P AA_DDA6 AA_DDA7 AA_DDB7 AA_DDC7 AA_DDC5 AA_DDB5 AA_DDA5 AA_DDA4 AA_DDB4 AA_DDC4 AA_DDA3 AA_DDB3 AA_DDC3 AA_DDA0 AA_DDB0 AA_DDC0 AA_DDB1 AA_DDC1 CLR_C2A PC4_C2A CLKU_0P CLKU_3N CLKU_2P CLKU_1N ODE_C2A PC3_C2A CLKU_3N LE_C2A CLKU_0P6 LE_C2 CLR_C2A ODE_C2A PC4_C2A LE_C2A ODE_C2 CLR_C2 LE_C2 PC3_C2 ODE_C2 CLR_C2 LE_C2 PC3_C2 PC3_C2 LE_C2 ODE_C2 LE_C2 AA_DDA1 CLR_C2 CLKU_0P5 ODE_C2 CLR_C2 UMH USH UML NUEL UEH USL CLKU_3N7 CLKU_3N8 CLKU_1N6 CLKU_1N5 CLKU_0P5 CLKU_1N6 CLKU_2P7 CLKU_0P6 PC3_C2A PC3_C2 R7262 6.8 R7245 EXB38V102JV R7250 EXB38V470JV C7209 16V 1u R7214 6.8 C7231 100V 0.47u R7264 6.8 C7236 50V 100p 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7211 100V 0.47u R7263 6.8 VDA_75V R7238 EXB38V471JV R7286 0 D7202 B0HCMM000014 C2_5V 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7281 1k R7215 6.8 ZA7204 K4AD01Z00001 R7249 EXB38V220JV R7273 EXB38V471JV C2_5V R7265 6.8 ZA7202 K4AD01Z00001 D7207 B0HCMM000014 C2_5V C7229 16V 0.1u C2_5V D7208 B0HCMM000014 C7244 16V 0.1u C7235 16V 1u R7276 EXB38V471JV C20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7277 EXB38V471JV R7280 1k ZA7203 K4AD01Z00001 C0JBAZ002692 IC7202 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C2_5V D7201 B0HCMM000014 VDA_75V C7240 16V 1u C21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 C7210 50V 100p J0HABH000013 FL7201 1 2 3 ZA7201 K4AD01Z00001 VDA_75V R7258 EXB38V102JV C7242 100V 0.47u C7203 16V 1u R7285 EXB38V220JV R7212 6.8 C0JBAZ002692 IC7201 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7237 100V 0.47u R7257 47 R7213 6.8 FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND DOUTDA[4] DOUTDB[2] UMH PC4_C2 GND DOUTDA[0] GND DOUTDA[3] DOUTDB[0] P5V DOUTDC[0] LE_C2 DOUTDC[2] DOUTDB[7] DOUTDC[3] DOUTDB[3] DOUTDB[1] DOUTDB[4] NUEL NC DOUTDC[5] DOUTDB[6] DOUTDC[1] DOUTDA[6] P5V DOUTDC[4] P5V DOUTDC[7] DRV_SOS8 UEH DOUTDA[2] DOUTDA[1] GND DOUTDA[7] DOUTDB[5] DOUTDA[5] GND ODED2 CLRD CLK[1](-) CLK[0](+) USL UML USH VDD2 A5 FDET1 GND VDD2 FDET DM GND FX VDD2 A2 LEN GND NC CLR GND VDD1 DM VDD1 GND A3 VDD2 A1 GND FS VDD2 GND ODE A1 A5 VDD2 A3 VDD1 NC A6 FS LEN VDD2 A4 NC GND VDD1 NC VDD2 CLR A2 NC FX NC GND VDD2 GND A4 GND GND NC VDD2 GND A6 ODE GND BLK GND NC GND VDD2 VDD2 BLK CB5 CLK[1](-) CLK[0](+) GND GND GND NC(URH) GND PC3_C2 GND DOUTDC[6] GND GND Vda 75V GND Vda 75V NC GND NC GND GND NC GND Vda 75V Vda 75V NC Vda 75V NC NC Vda 75V Vda 75V 5V_DET CB6 2 5 6 7 3 4 8 1 A E C B D TO DRIVER PANEL DATA TO DRIVER PANEL DATA BUFFER BUFFER TO D-BOARD (D32) TO C1-BOARD (C10) 1 2 3 4 5 6 TH-42PH10CK/CS C2-Board (1 of 2) Schematic Diagram TH-42PH10CK/CS C2-Board (1 of 2) Schematic Diagram C2-BOARD TNPA4166 (1/2) 99 14.41.C2 电路板 （2/2）线路图 TERM SIDE TERM SIDE AA_DDC1 AA_DDB1 AA_DDA1 CLKU_2P8 78V AA_DDC0 AA_DDB0 AA_DDA0 AA_DDC3 AA_DDB3 AA_DDA3 CLKU_2P7 78V AA_DDC2 AA_DDB2 AA_DDA2 78V 78V BA_UEH BA_USL BA_NUEL BA_UMH BA_USH BA_UML AA_DDB3 AA_DDB2 AA_DDB0 AA_DDB1 AA_DDA2 AA_DDC2 AA_DDA3 AA_DDC3 AA_DDA0 AA_DDC0 AA_DDA1 AA_DDC1 ODE_C2 CLR_C2 PC4_C2 LE_C2 PC4_C2 ODE_C2 LE_C2 CLR_C2 ODE_C2 CLR_C2 PC4_C2 LE_C2 ODE_C2 CLR_C2 LE_C2 UMH BA_UML UML USL BA_USH NUEL UEH USH BA_UEH BA_UMH BA_NUEL BA_USL CLKU_3N8 CLKU_3N7 PC4_C2 SOS8_SS R7278 EXB38V471JV C7230 100V 0.47u 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7274 EXB38V471JV D7203 B0HCMM000014 C7219 16V 1u R7234 6.8 R7291 EXB38V470JV C7221 100V 0.47u C7216 16V 1u VDA_75V C2_5V R7225 6.8 D7205 B0HCMM000014 C23 1 2 3 4 5 6 7 8 9 10 11 12 C7217 50V 100p R7233 6.8 VDA_75V C7207 16V 1u C7218 100V 0.47u R7275 EXB38V471JV C2_5V R7219 220k C2_5V D7206 B0HCMM000014 R7290 EXB38V470JV 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7288 EXB38V222JV R7224 6.8 R7223 6.8 R7232 6.8 C7220 50V 100p C7233 100V 0.47u R7226 6.8 R7269 4.7k C7245 16V 0.1u R7289 EXB38V222JV C7214 16V 1u C2_5V C7232 100V 0.47u C0JBAZ002692 IC7204 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7235 6.8 R7229 0 VDA_75V R7279 EXB38V471JV D7204 B0HCMM000014 FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND UML Vda75V NUEL SOS8_SS USH NC GND USL UEH 5V UMH Vda75V 9 14 13 10 15 11 8 12 CB7 CB8 TO DRIVER PANEL DATA TO DRIVER PANEL DATA BUFFER TO SS-BOARD (SS23) 2 1 3 5 6 4 TH-42PH10CK/CS C2-Board (2 of 2) Schematic Diagram TH-42PH10CK/CS C2-Board (2 of 2) Schematic Diagram C2-BOARD TNPA4166 (2/2) 100 14.42.SC 电路板方框图 + + REF K A REF K A REF K A REF K A CLK FSIU SCSU OC2 FCLD OC2 CEL CLK CEL FSID CPH1 SCSU SID PROD OC1 PROU SIU OC1 SIU FCLKD FCLU SID CPH2 FCLKU CPH2 CPH1 D6806 D6804 D6583 T6602 VSET +16V_F VSUS D6862 VSET D6860 15V_F VSUS D6872 VSUS D6585 D6825 D6859 D6721 +5V G D S G D S G D S G D S +5V +15V +5V D6480 +15V +5V +5V_F 15V +16V_F D6841 D6466 D2826 IC6802 R6815 +15V CPH1 IC6801 VR6600 1 2 3 D6703 D6478 D6619 G D S G D S D6805 D6861 +15V D6690 D6871 VAD D6791 +16V_F D6839 15V_F VAD CPH1 +5V_F VR6602 1 2 3 G D S B36 13 CML Q6401-Q6403 2 BUFFER A1 VCC A11 Q6531,Q6532 BUFFER VCC HO CLK LO Vf Q6646-Q6648 IC6521 PROU ENERGY RECOVERY AVR VCC BUFFER VSUS AVR A33 HIN +5V 3 GND GND Vsus LO FET +5V TO P2 A7 (+330V) OC1 2 Vad( 105V) A32 PROD FCLD 8 B33 CMH IC6725 8 PC6702 Vfo COUPLER SID 26 VSETSOS DET PHOTO 16 GND CSL 19 45 B5 FCLKD 2 VSCN Gen. TPSC1 SIGNAL WAVE Q6551,Q6552 B1 HIN IC6841 Vf IC6561,6562 Q6842 SC2 A30 Vf Vfo B34 GND (Vad 105V) B1 B30 PC6861 Vscn GND SC A40 SC41 B8 7 PC6480 DRIVER 20 COUPLER PC6704 PHOTO Vscn CMH Vf (+145V) IC6752 IC6821 CML VSET SEPARATE CSH Q6521,Q6522 L6401 CLK CPH1 25 Vsus CSL Q6642-Q6644 23 Vf+5V L6403 Vf+5V IN A6 Vf A8 L6413 A34 SC SCAN DRIVE R6833 B40 L6411 VCC R6834 1 FCLU A36 Vfo A35 Vf+5V R6835 FSID Vf+5V Q6671,Q6672 B11 IC6724 R6836 IC6501 15 COMPARATOR 3 B9 VSET COM IC6871 TPVSCN IC6671 IC6721 DRIVER PROU 9 TPVAD 5 SIU 29 1 VCC 7 VSET 8 5 B6 Vscn 3 Q6421-Q6423 B32 Vscn +5V OC1 IC6581 Vf CSH A8 VAD CONST Q6501,Q6502 B40 PROD LED(G) A1 TPVSET VSET Gen. Vf A5 FSIU SOS7_SC2 CEL SID DRIVER SIU FET 46 VCC2 +5V A33 VCC FCLKD PHOTO BUFFER VSET2 VAD COUPLER FCLD B8 Vsus Gen. B31 Vscn(VAD+140V) A40 PC6801 Q6581 30 SC IC6771 IC6861 DRIVER SC 1 COMPA- FET Vfo LO 2 B35 FET Q6451 IC6722 +5V Vf FCLKU 1 9 20 IC6773 1 HIN FSID COUPLER IC6774 LIN PC6701 3 PHOTO Vad 105V Q6441,Q6442 COUPLER +5V HO RATOR VSCN PHOTO PC6871 RATOR FSIU COUPLER 3 Vf+5V COMPA- SC42 OC2 B33 B7 16V_F VCC 28 PC6705 6 PHOTO LIN 9 B10 A31 FCLU +5V_F PHOTO LO COUPLER A9 COUPLER VCC SOS6_SC1 BUFFER PHOTO AVR A10 OC2 1 Vf+5V TO D20 VCC FCLKU TPSOS6 TPSOS7 VCC FET HO GND VAD SEPARATE IN DRIVER IC6772 LO IC6471 RATOR COMPA- SCSU 22 CPH2 5 FET OUTPUT FET OUTPUT FET OUTPUT FET OUTPUT 2 +15V 1 +15V +15V 3 1 5 IC6471 AND GATE VCC IN_B 2 4 OUT_Y IN_A 2G LIN DC/DC CONV. COM VIN VOUT IC6791 GND R6466 R6467 R6468 R6465 TPVSUS +5V_F DET Q6824 SC30 FOR 10 USE FACTORY TO SD42 TO SD46 TO SU41 TO SU45 7 8 6 3 4 1 Vscn DET OPERATES AT 160V OR MORE AND 125V OR LESS. VCC2 OUTPUT FET D S G S G OUTPUT FET D Q6602 Q6762 HO Q6601 Q6621 VAD GENE IN_A IN_B OUT_Y IN_A IN_B OUT_Y AND AND Q6742,Q6743 VSET2 GENE 6 3 5 1 SC31 FOR FACTORY USE Q6781,Q6782 FET OUTPUT FET OUTPUT 4 1 7 9 VCC Z/C VIN D 2 F/B 3 5 GND S IC6803 POWER OSC R6861 R6863 R6862 VDA DET OPERATES AT 91VOR MORE AND 120V OR LESS Q6690 R6696 R6697 TPSC1 Q6841 Q6791 Q6805,Q6806 OFF SET D6836-D6838 Vf+5V Vf+5V TPVSET2 (+14V) Vscn VAD SOS7_SC +15V 189V+7V,-6V 11 SS_DRV_RST COM SS_DRV_RST TP15V Vf+5V Vf Vfo Vscn Q6679,Q6680 Q6821 Q6822 VAD SLOPE Q6661 FET OUTPUT Q6662 Q6665 FLOATING GND COLD ENERGY RECOVERY SOS DET LED BLINKING : 6 TIMES SC FLOATING PART SOS DET LED BLINKING : 7 TIMES FLOATING GND COLD TH-42PH10CK/CS SC-Board Block Diagram TH-42PH10CK/CS SC-Board Block Diagram 101 14.43.SC 电路板 （1/2）线路图 AA_CSH AA_CSL AA_CML AA_CMH AB_FSIU AB_FCLKD AB_FCLKU AA_SIU AB_PROD AB_FCLU AB_PROU AB_FCLD AA_SID AB_FSID AA_OC2 AA_DRV_RST AA_CPH2 AA_CEL AA_SCSU AA_OC1 AA_CLK CPH2 AA_CLK OC2 CMH DRV_RST CML CEL CSH AA_CSL AA_CML AA_OC2 AA_CPH2 AA_CMH AA_SCSU AA_CPH1 AA_CSH CSL AA_CEL CPH1 AA_SIU AA_SID AA_OC1 AA_DRV_RST AA_CPH1 Q6532 B1ADRD000001 R6501 100 C6431 250V 4u D6703 MA2J11100L R6711 2.2k R6714 2.2k R6533 47k R6580 2.2k C6480 50V 0.1u C6772 25V 4.7u C6532 250V 4u TP4 PC6705 B3PBA0000397 1 2 3 4 5 6 7 8 L6463 G0ZZ00002183 C6581 25V 1u R6466 56k C6413 220V 200u R6465 27k C6525 25V 4.7u D6441 B0ECHP000003 R6742 10k 75 R6504 R6503 10 R6713 2.2k R6721 EXB38V220JV D6503 B0ECHP000003 C6703 50V 0.1u R6705 100 R6512 47k C6702 50V 0.1u C6776 50V 0.1u C6561 10V 100u MAIN_STOP L6468 G0ZZ00002183 5V C6401 630V 3300p R6509 1 C6722 50V 100p R6402 7.5 R6521 100 IC6725 C0CBADC00072 VIN 3 2 COM VOUT 1 R6552 47k PC6480 B3PBA0000223 1 2 3 4 D6732 MAZ80560HL L6467 G0ZZ00002183 Q6441 B1JADN000002 SC2 1 3 Q6552 B1ADRD000001 16V_F D6478 B0HCKS000002 TP2 D6730 MAZ80560HL D6522 B0ECHP000003 L6412 1.8u L6482 G0ZZ00002183 R6477 100 R6422 5.6 5V C0ZBZ0001324 IC6521 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC D6422 MA3DF40000LZ R6586 1.2k R6748 3.3k R6507 1 TP5 PC6704 B3PBA0000456 1 2 3 4 5 VSUS 15V D6477 MA2J11100L L6411 1.8u D6481 MA3DF30000LZ R6584 8.2k IC6721 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC D6726 MAZ80560HL Q6522 B1ADNF000006 L6402 1.8u D6480 MA2J11100L L6462 G0ZZ00002183 R6718 2.2k C6721 50V 100u Q6743 2SD0601A0L 15V D6701 MAZ80560HL C6704 50V 0.1u R6423 5.6 C6727 16V 1u Q6531 B1ABRD000003 R6401 7.5 L6401 1.8u C6582 16V 1u C6504 25V 4.7u D6702 MA2J11100L L6403 1.8u C6771 16V 1u C6522 25V 4.7u IC6771 C0CBADC00072 VIN 3 2 COM VOUT 1 D6466 MA2J11100L R6707 470 R6712 2.2k L6481 G0ZZ00002183 L6486 G0ZZ00002183 Q6521 B1ABNF000006 D6451 B0ECHP000003 C6725 25V 4.7u D6733 MAZ80560HL Q6742 2SD0601A0L D6725 B0ECHP000003 R6700 470 D6727 MAZ80560HL R6722 EXB38V220JV R6506 10 IC6722 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC R6551 10 C6502 25V 4.7u C6422 630V 2700p C0DBEKA00003 IC6471 1 NC 2 A 3 K 5 A 4 REF R6511 47k C6724 25V 4.7u Q6401 B1JADN000001 G D S R6582 39k R6517 47k R6516 47k R6708 470 D6471 B0HBSN000008 C6726 16V 1u Q6423 B1JADP000002 R6745 4.7k Q6581 2SD0601A0L D6728 MAZ80560HL Q6422 B1JADP000002 IC6581 C0BBBA000022 1 2 3 4 5 6 7 8 C6527 25V 4.7u PC6701 B3PBA0000457 1 2 3 4 5 6 7 8 Q6442 B1JADN000002 5V 5V C0JBAA000377 IC6773 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y IC6724 C0CBADC00072 VIN 3 2 COM VOUT 1 R6476 4.7k C6524 25V 4.7u R6442 5.6 R6441 5.6 C6402 2200p 630V 200u 220V C6415 Q6451 B1JADP000002 C6414 220V 200u D6402 B0HBSN000008 75 R6523 Q6402 B1JADN000001 R6468 82k R6588 10k R6508 1 C0JBAA000377 IC6774 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y R6587 2.2k D6521 B0ECHP000003 L6413 1.8u Q6502 B1ADNF000006 R6531 10 C6777 50V 0.1u C0ZBZ0000895 IC6501 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC D6731 MAZ80560HL R6701 470 R6724 100 R6467 82k L6465 G0ZZ00002183 R6723 1.8k R6704 470 D6584 MAZ80510LL R6451 5.6 Q6403 B1JADN000001 Q6421 B1JADP000002 L6464 G0ZZ00002183 L6591 D6421 MA3DF40000LZ 15V R6471 3.9k D6721 B0HCKS000002 D6401 B0HBSN000008 D6461 MA3DF30000LZ R6747 10k TP1 5V_F D6491 MA3DF40000LZ R6702 470 R6706 100 15V VSUS D6583 LNJ301MPUJA R6583 39k R6776 100 L6461 G0ZZ00002183 D6501 D1FL40-7063 Q6501 B1ABNF000006 D6472 D1FL40-7063 R6510 1 R6421 5.6 R6746 10k R6502 100 VF_GND C6531 250V 4u R6717 2.2k C6411 220V 200u R6473 560 R6474 1k VSET2 VSUS R6403 7.5 D6462 MA3DF30000LZ SOS7_SC2 PC6702 B3PBA0000457 1 2 3 4 5 6 7 8 R6475 4.7k C6421 630V 2700p R6585 1.8k D6585 MA2J11100L R6553 47k C6505 25V 4.7u VF_GND L6485 G0ZZ00002183 D6523 B0ECHP000003 C0JBAA000377 IC6472 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y C6723 25V 4.7u C6705 50V 0.1u C6740 50V 100p C6708 50V 0.1u R6522 100 L6466 G0ZZ00002183 Q6551 B1ABRD000003 15V_F C6706 50V 0.1u R6703 470 C6521 25V 1u R6532 47k C6412 220V 200u R6472 2.2k R6710 2.2k D6729 MAZ80560HL D6722 MA2J11100L TP52 C0JBAZ000005 IC6562 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC TP19 R6566 EXB38V472JV TP28 R6564 EXB38V470JV TP29 TP8 15V TP13 R6568 EXB38V472JV TP15 R6591 EXB38V472JV TP22 L6602 G0ZZ00002183 5V TP7 R6567 EXB38V472JV TP21 C6565 50V 0.01u TP27 TP25 R6592 4.7k TP26 TP23 R6590 220 R6562 EXB38V470JV MAIN_STOP TP33 TP20 C6564 16V 1u TP34 TP36 C6593 50V 1000p TP30 C6562 16V 1u TP70 TP11 C6566 50V 0.01u C6563 10V 100u SOS7_SC2 TP14 TP18 TP10 SC20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 TP35 TP24 R6565 EXB38V472JV TP32 TP9 TP17 L6601 G0ZZ00002183 TP37 C0JBAZ000005 IC6561 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R6563 EXB38V470JV TP12 TP39 TP38 TP16 L6592 G0ZZ00002183 C6592 25V 220u R6561 EXB38V470JV TP6 TP31 FLOATING GND COLD FLOATING GND COLD GND Vsus TPVSUS 189V+7V-8V + + - - 7 3 4 C D B 9 E A 1 2 5 6 8 F COMPARATOR SOS6_SC1 LAT CML CSH CSL SC_DRV_RST CBK CEL P5V TPSOS6 +15V +15V GND GND GND GND CPH1 OC2 SCSU OC1 TPSOS7 GND BUFFER GND BUFFER +15V CMH NC GND SID SIU CLK CPH2 TP15V SOS7_SC2 BUFFER BUFFER FET DRIVER ENERGY RECOVERY Vsus Gen. FET DRIVER +5V(SC1) +5V(SC2) TO P-BOARD (P2) TO D-BOARD (D20) AND 53V OR LESS OPERATES AT 98V OR MORE 1 2 3 4 5 6 7 8 9 10 (GREEN LED) + + + + + + + + TOP + TH-42PH10CK/CS SC-Board (1 of 2) Schematic Diagram TH-42PH10CK/CS SC-Board (1 of 2) Schematic Diagram SC-BOARD TNPA4182 (1/2) 102 14.44.SC 电路板 （2/2）线路图 + + + + + + REF K A + + + REF K A + + + REF K A REF K A AB_FSIU AB_FCLU AB_FCLKU AB_PROU AB_PROD AB_FCLKD AB_FCLD AB_FSID R6863 56k D6820 MA2J11100L R6610 100k C6832 50V 3900p TP59 5V_F R6680 10 D6764 B0HCKS000002 TP63 TP60 R6608 1k D6662 MAZ83300ML R6696 2.2 Q6680 B1ADNF000006 ZA6401 K4CD01000011 VSCN_F Q6646 2SK399500L R6648 33 R6662 2.2K R6857 120k D6670 B0JCME000037 Q6601 B1DFES000003 G D S D6827 MAZ83300ML D6872 MA2J11100L L6472 G0ZZ00002183 5V R6793 100 R6791 1k L6474 G0ZZ00002183 TP50 D6761 B0JCME000037 M1FS4-5063 C6796 25V 220u R6831 15k D6661 MA2J11100L R6807 1.5 Q6806 2SC1473AEA R6817 2.49k D6641 B0HCKS000002 D6841 B0HCKS000002 R6878 22k D6861 MAZ80510LL R6842 43k VR6600 1k 1 2 3 R6864 6.8k C6871 16V 1u R6612 47 TP41 R6782 47k R6840 1.5 R6822 100k C6801 250V 47u C6842 160V 100u R6844 100 R6875 3.3k R6830 100k C6815 50V 1000p ZA6402 K4CD01000011 R6647 33 C6775 25V 4.7u SC45 1 2 3 4 5 6 7 8 9 R6888 220k R6851 18k C6791 25V 220u R6761 10 D6632 MAZ82400ML D6667 MA2J11100L D6604 MA2J11100L D6690 MA2J11100L 16V_F R6869 4.7k ZA6403 K4CD01000011 R6879 4.7k D6665 MAZ80510LL C6671 25V 4.7u N0BF1FB00001 IC6791 1 GND 2 GND 3 N.C. 4 VIN 5 VIN 6 N.C. 9 COM 10 COM 11 VOUT 12 VOUT TP45 R6668 4.7k R6812 240k Q6642 2SK399500L R6607 6.81k D6837 MA2J11100L TP55 R6777 150 R6792 10k 5V R6853 100 R6665 47 T6602 ETS25AZ169AD 1 S5 2 S4 4 S2 5 S1 7 P1 10 V2 9 V1 3 S3 6 P2 VAD R6813 10k TP62 D6497 B0ECHP000003 R6848 10k C6606 630V 4700p D6825 MAZ83300ML R6809 27k C6845 50V 0.01u IC6861 C0BBBA000022 1 2 3 4 5 6 7 8 D6806 B0HCKS000002 R6827 200k R6867 3.9k IC6671 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB C6803 2kV 220p PC6801 B3PBA0000223 1 2 3 4 SOS7_SC2 D6822 MA2J11100L Q6648 2SK399500L R6639 1 D6663 MAZ83300ML R6672 47k R6843 62k R6850 68k R6658 100 R6828 4.7k R6622 220 R6872 39k R6671 47 D6773 B0HCKS000002 D1FK70-7063 C6822 400V 47u R6834 75k R6862 51k D6607 MA2J11100L R6605 1.8k SOS7_SC2 Q6781 B1ABNF000006 R6821 220 R6837 56k Q6822 2SD1263AP0LB SC41 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 TP46 Q6671 B1DFDR000001 G D S R6839 4.7k Q6672 B1DFDR000001 RJK6026DPE-00-J3 G D S R6841 15k R6642 33 1 R6765 Q6662 2SD0601A0L C6694 25V 1u R6762 47k TP57 C6641 0.22u 250V R6856 56 R6621 220 R6874 6.8k C6805 50V 330p TP64 R6855 10k Q6603 2SB0709ASL C6605 630V 4700p R6825 200k R6806 1.5 TP42 R6865 3.3k C6804 250V 10u D6843 MA2J11100L D6804 B0ECHP000003 IC6821 C0DBEMC00043 15V C5HABZZ00165 IC6803 1 Z/C 2 F/B 3 GND 4 Vcc 5 Souce/OCL 7 Vin 9 Drain TP44 Q6824 2SD0601A0L C6691 160V 100u D6643 B0JCME000037 C0ZBZ0001324 IC6752 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C6621 630V 2200p VAD VR6602 5k 1 2 3 R6818 470k C6662 630V 1000p D6644 B0HCKS000002 D6624 B0HDSM000005 R6810 1k SC46 1 2 3 4 5 6 7 8 9 R6789 47k TP47 Q6665 B1ABNF000006 R6815 270 Q6621 2SK399500L D6830 MAZ80560HL R6673 47 C6841 250V 47u C6862 25V 1u C6755 25V 4.7u R6659 220k 5V D6836 MAZ81500ML TP43 R6871 39k C6806 160V 100u 16V_F R6666 100k R6646 33 R6801 8.2 SOS7_SC2 VF_GND D6823 MA2J11100L D6824 MAZ83300ML D6619 B0HCKS000002 D6828 MAZ83300ML R6638 1 Q6782 B1ADNF000006 IC6802 C0DBEMC00043 R6769 75 R6868 22k R6847 62k D6605 MAZ80510LL D6805 MAZ82400ML R6814 5.6k Q6647 2SK399500L R6775 100 VSET2 R6797 16.9k D6621 B0HDSM000005 D6871 MAZ80510LL Q6661 B1DEET000002 G D S D6859 B0ECHP000003 C6604 630V 1000p VSUS R6833 75k R6873 39k D6821 MA2J11100L C6873 50V 0.01u C6795 25V 220u R6860 8.2 1 R6768 IC6871 C0BBBA000022 1 2 3 4 5 6 7 8 R6832 4.7 SC30 1 2 3 4 5 6 7 8 9 10 D6826 MA2J11100L PC6871 B3PBA0000223 1 2 3 4 75 R6766 TP40 D6838 B0BC027A0234 R6816 11.5k R6660 220k Q6841 2SD1263AP0LB R6644 33 C6861 16V 1u R6823 100k 16V_F D6664 MAZ83300ML C6823 50V 0.01u Q6762 B1ADNF000006 C6752 25V 1u Q6821 2SD1263AP0LB C6620 630V 2200p 5V_F C6695 50V 1000p D6606 B0HCMM000014 VSUS Q6679 B1ABNF000006 TP51 R6664 2.2k PC6861 B3PBA0000223 1 2 3 4 R6788 470k TP61 C6872 25V 1u R6681 10 VSET R6876 560 R6866 620 R6694 27k R6845 62k TP49 D6860 D1FK70-7063 Q6690 2SA19610QAHW D6763 B0ECHP000003 C6753 25V 4.7u R6674 47 TP53 D6642 B0HCKS000002 Q6805 2SC3063000RL R6849 68k R6826 200k D6766 B0ECHP000003 R6836 75k 16V_F D6765 B0ECHP000003 C6814 25V 220u SOS7_SC2 D6666 MA2J11100L IC6772 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6802 10k R6661 100k R6667 4.7k R6886 220k R6887 220k L6690 G0ZZ00002183 D6623 B0HDSM000005 TP54 C6756 25V 4.7u D6692 MAZ82000ML R6877 3.9k 15V R6796 100k Q6791 2SD0601A0L R6846 62k TP56 15V D6809 B0HCMM000014 R6692 4.7k Q6622 2SK399500L C6812 25V 4.7u VSCN_F D6631 MAZ82400ML R6835 75k D6842 MA2J11100L R6852 2.7k C6603 630V 1000p SC42 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 D6862 MA2J11100L C6813 160V 100u D6839 B0ECHP000003 R6808 2.7k Q6602 2SD0601AQL C6811 25V 1u R6795 100k 15V_F R6695 120k R6609 1k R6824 3.9k VAD Q6644 2SK399500L 2W R6623 33k VSCN R6811 10k C6661 630V 1000p C6773 25V 4.7u VSET D6691 MAZ82000ML D6791 MAZ82000ML 15V D6802 B0BC01000044 D6671 B0JCME000037 R6829 100k R6709 100 IC6841 C0DBEMC00043 R6663 10k R6861 51k Q6842 2SC1473AEA R6693 82k R6781 47 VF_GND IC6801 C0DBEMC00043 TP58 R6643 33 TP48 Q6643 2SK399500L R6891 18k SC31 1 2 3 4 5 6 C6863 50V 0.01u FLOATING GND COLD COLD FLOATING GND COLD FLOATING GND m TPSC1 + + - - - - + + INIT-R SG73P2A INIT-F VSET:330V TPVSET2:14V TPVAD TPVSCN TPVSET VSCN:145V VAD:-105V 11 12 16 17 18 14 15 13 10 POWER OSC DC/DC CONV. COMPARATOR COMPARATOR FET DRIVER VAD SEPARATE VAD CONT FET DRIVER VAD Gen. VSCN Gen. VSET2 Gen. VSET Gen. VSET SEPARATE OPERATES AT 160V OR MORE AND 125V OR LESS. Vscn DET VAD DET OPERATES AT 91V OR MORE AND 120V OR LESS OPERATES AT 21V OR MORE F16V DET (Vscn volatage) Vf(High Voltage Floting GND) Vfo(Vscn Out) VF5V Vf Vfo(Vscn Out) Vf Vf(High Voltage Floting GND) VF5V (Vscn volatage) (SU41) TO SU-BOARD SD-BOARD (SD42) TO TO (SU45) SU-BOARD TO (SD46) SD-BOARD OPERATES AT 214V OR LESS VSET DET FET DRIVER 7 10 1 4 5 3 9 2 8 6 TH-42PH10CK/CS SC-Board (2 of 2) Schematic Diagram TH-42PH10CK/CS SC-Board (2 of 2) Schematic Diagram SC-BOARD TNPA4182 (2/2) 103 14.45.SU 和 SD 电路板方框图 64 SU2 Vfo A6 3 A5 45 SO LINE D6905 IC6952 SO SD SU CLK 96 C40 CLK LINE GND SCAN PRO PRO IC6906 SU SCAN OUT (UPPER) GND VDDH C9 64bit PROD VDD CLK 1 32 64bit CLK LINE 64bit GND CLK Vf+5V Vf Vf SO VDD A30 SU3 32 A46 CL Vf+5V VDDH A31 96 CLK C74 FCLKD CLK Vfo 64 FSIU PRO CL 96 PRO SI S/P 32 SD4 VDDH A32 C41 S/P A72 32 IC6903 C50 CL CLK C49 46 Vfo 64bit 96 32 PRO PRO CLK VDD VDD Vscn CL VDD S/P VDD A1 VDD 384LINE SO SO Vf C51 IC6901 CL GND A45 SU41 S/P 1 C80 VDDH SI GND Vf+5V CL Vf+5V 384LINE VDDH C75 C11 VDD Vf IC6951 C76 GND Vf+5V Vf+5V GND C34 CL C33 Vf SD3 VDD C73 64 VDDH VDDH 96 IC6905 CLK GND S/P FCLKU PROU A73 PANEL 7 64 ELECTRODES (UPPER) SD SCAN OUT (LOWER) C35 VDDH 96 C36 C1 S/P PRO FSID 64 9 SCAN CL D6904 D6903 SI 5 SU4 LINE SI GND VDD CL IC6953 IC6956 CL Vscn D6955 S/P SI S/P SI 64bit VDD 64bit SO 8 SO PRO Vscn S/P PRO S/P Vf VDDH 96 CL LINE Vf+5V Vfo SD1 SI IC6904 C48 9 3 LINE 64bit SI SO 64 GND Vf+5V SO A70 SI A71 VDDH A41 LINE 7 VDDH S/P Vscn 64bit A33 SD42 SI VDDH 96 IC6955 D6953 64 D6954 A80 IC6954 PRO SU1 FCLD S/P A7 64bit LINE A47 SD2 SO 64 A8 GND Vf Vf 32 FCLU 8 32 PRO 64bit SI 32 VDD 5 CLK 64bit A48 A40 SI PRO C10 PANEL (LOWER) C8 CL CLK GND 64bit IC6902 ELECTRODES TH-42PH10CK/CS SU and SD-Board Block Diagram TH-42PH10CK/CS SU and SD-Board Block Diagram 104 14.46.SU 电路板 （1/2）线路图 TERM SIDE TERM SIDE AB_766 AB_765 AB_764 AB_763 AB_762 AB_761 AB_760 AB_759 AB_758 AB_757 AB_756 AB_755 AB_754 AB_753 AB_752 AB_751 AB_750 AB_749 AB_748 AB_747 AB_746 AB_745 AB_744 AB_742 AB_743 AB_741 AB_739 AB_740 AC_702 AC_701 AC_700 AC_699 AC_698 AC_697 AC_696 AC_695 AC_694 AC_693 AC_692 AC_691 AC_690 AC_689 AC_688 AC_687 AC_686 AC_685 AC_684 AC_683 AC_682 AC_681 AC_680 AC_678 AC_679 AC_677 AC_675 AC_676 AD_638 AD_637 AD_636 AD_635 AD_634 AD_633 AD_632 AD_631 AD_630 AD_629 AD_628 AD_627 AD_626 AD_625 AD_624 AD_623 AD_622 AD_621 AD_620 AD_619 AD_618 AD_617 AD_616 AD_614 AD_615 AD_613 AD_611 AD_612 AB_705 AB_707 AB_709 AB_711 AB_713 AB_715 AB_717 AB_719 AB_721 AB_723 AB_725 AB_727 AB_729 AB_731 AB_733 AB_735 AB_737 AB_739 AB_741 AB_743 AB_745 AB_747 AB_749 AB_751 AB_753 AB_755 AB_757 AB_759 AB_761 AB_763 AB_767 AB_765 AB_706 AB_708 AB_710 AB_712 AB_714 AB_716 AB_718 AB_720 AB_722 AB_724 AB_726 AB_728 AB_730 AB_732 AB_734 AB_736 AB_738 AB_740 AB_742 AB_744 AB_746 AB_748 AB_750 AB_752 AB_754 AB_756 AB_758 AB_760 AB_762 AB_764 AB_768 AB_766 AC_641 AC_643 AC_645 AC_647 AC_649 AC_651 AC_653 AC_655 AC_657 AC_659 AC_661 AC_663 AC_665 AC_667 AC_671 AC_669 AC_673 AC_675 AC_677 AC_679 AC_681 AC_683 AC_685 AC_687 AC_689 AC_691 AC_693 AC_695 AC_697 AC_699 AC_703 AC_701 AC_642 AC_644 AC_646 AC_648 AC_650 AC_652 AC_654 AC_656 AC_658 AC_660 AC_662 AC_664 AC_666 AC_668 AC_670 AC_674 AC_676 AC_678 AC_680 AC_682 AC_684 AC_686 AC_688 AC_690 AC_692 AC_694 AC_696 AC_698 AC_700 AC_704 AC_702 AD_577 AD_579 AD_581 AD_583 AD_585 AD_587 AD_589 AD_591 AD_593 AD_595 AD_597 AD_599 AD_601 AD_603 AD_605 AD_607 AD_609 AD_611 AD_613 AD_615 AD_617 AD_619 AD_621 AD_623 AD_625 AD_627 AD_629 AD_633 AD_631 AD_635 AD_637 AD_639 AD_578 AD_580 AD_584 AD_586 AD_588 AD_590 AD_592 AD_594 AD_596 AD_598 AD_600 AD_602 AD_604 AD_606 AD_608 AD_610 AD_612 AD_614 AD_616 AD_618 AD_620 AD_622 AD_624 AD_626 AD_628 AD_630 AD_632 AD_634 AD_636 AD_640 AD_638 AB_768 AB_767 AC_703 AC_704 AD_639 AD_640 AD_582 AC_672 AB_705 AB_706 AB_707 AB_708 AB_709 AB_710 AB_711 AB_712 AB_713 AB_714 AB_715 AB_716 AB_717 AB_718 AB_719 AB_720 AB_721 AB_722 AB_723 AB_724 AB_725 AB_726 AB_727 AB_728 AB_729 AB_730 AB_731 AB_732 AB_733 AB_734 AB_735 AB_736 AB_738 AB_737 AC_641 AC_642 AC_643 AC_644 AC_645 AC_646 AC_647 AC_648 AC_649 AC_650 AC_651 AC_652 AC_653 AC_654 AC_655 AC_656 AC_657 AC_658 AC_659 AC_660 AC_661 AC_662 AC_663 AC_664 AC_665 AC_666 AC_667 AC_668 AC_669 AC_670 AC_671 AC_672 AC_674 AC_673 AD_577 AD_578 AD_579 AD_580 AD_581 AD_582 AD_583 AD_584 AD_585 AD_586 AD_587 AD_588 AD_589 AD_590 AD_591 AD_592 AD_593 AD_594 AD_595 AD_596 AD_597 AD_598 AD_599 AD_600 AD_602 AD_601 AD_603 AD_604 AD_605 AD_606 AD_607 AD_608 AD_610 AD_609 AA_SO1 AA_SO1 AA_SO2 AA_SO3 AA_SO2 AA_CLK AA_CL AA_PRO AA_CL AA_CLK AA_CL AA_SI AA_CL AA_CLK AA_PRO AA_PRO AA_CLK AA_PRO AA_SI C6906 16V 1u AN16077A-VT IC6902 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D6901 MAZ80560HL R6932 10k SU45 1 2 3 4 5 6 7 8 9 R6903 22 R6933 10k C6931 50V 1000p R6909 220 R6905 220 R6926 0 C6936 50V 680p SU2 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C6937 50V 220p AN16077A-VT IC6903 AN16077AAVT 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6938 10k R6925 0 C6904 16V 1u R6934 10k SU1 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 R6901 100 C6901 50V 1000p R6904 22 AN16077A-VT IC6901 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6902 16V 1u R6931 10k R6902 22 PRO FSI FCLK FCL S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER SC-BOARD (SC45) TO Vfo Vf5 Vf5 Vf B 1 D 8 7 5 C 6 E A 2 3 4 SCAN ELECTRODES To 2nd 96pins of UP To 1st 96pins of SCAN ELECTRODES 1 2 3 4 5 TH-42PH10CK/CS SU-Board (1 of 2) Schematic Diagram TH-42PH10CK/CS SU-Board (1 of 2) Schematic Diagram SU-BOARD TNPA4184 (1/2) 105 14.47.SU 电路板 （2/2）线路图 TERM SIDE TERM SIDE AE_574 AE_573 AE_572 AE_571 AE_570 AE_569 AE_568 AE_567 AE_566 AE_565 AE_564 AE_563 AE_562 AE_561 AE_560 AE_559 AE_558 AE_557 AE_556 AE_555 AE_554 AE_553 AE_552 AE_550 AE_551 AE_549 AE_547 AE_548 AF_510 AF_509 AF_508 AF_507 AF_506 AF_505 AF_504 AF_503 AF_502 AF_501 AF_500 AF_499 AF_498 AF_497 AF_496 AF_495 AF_494 AF_493 AF_492 AF_491 AF_490 AF_489 AF_488 AF_486 AF_487 AF_485 AF_483 AF_484 AG_446 AG_445 AG_444 AG_443 AG_442 AG_441 AG_440 AG_439 AG_438 AG_437 AG_436 AG_435 AG_434 AG_433 AG_432 AG_431 AG_430 AG_429 AG_428 AG_427 AG_426 AG_425 AG_424 AG_422 AG_423 AG_421 AG_419 AG_420 AE_513 AE_515 AE_517 AE_519 AE_521 AE_523 AE_525 AE_527 AE_529 AE_531 AE_533 AE_535 AE_537 AE_539 AE_541 AE_543 AE_545 AE_547 AE_549 AE_551 AE_553 AE_555 AE_557 AE_559 AE_561 AE_563 AE_565 AE_567 AE_569 AE_571 AE_575 AE_573 AE_514 AE_516 AE_518 AE_520 AE_522 AE_524 AE_526 AE_528 AE_530 AE_532 AE_534 AE_536 AE_538 AE_540 AE_542 AE_544 AE_546 AE_548 AE_550 AE_552 AE_554 AE_556 AE_558 AE_560 AE_562 AE_564 AE_566 AE_568 AE_570 AE_572 AE_576 AE_574 AF_449 AF_451 AF_453 AF_455 AF_457 AF_459 AF_461 AF_463 AF_465 AF_467 AF_469 AF_471 AF_473 AF_475 AF_479 AF_477 AF_481 AF_483 AF_485 AF_487 AF_489 AF_491 AF_493 AF_495 AF_497 AF_499 AF_501 AF_503 AF_505 AF_507 AF_511 AF_509 AF_450 AF_452 AF_454 AF_456 AF_458 AF_460 AF_462 AF_464 AF_466 AF_468 AF_470 AF_472 AF_474 AF_476 AF_478 AF_482 AF_484 AF_486 AF_488 AF_490 AF_492 AF_494 AF_496 AF_498 AF_500 AF_502 AF_504 AF_506 AF_508 AF_512 AF_510 AG_385 AG_387 AG_389 AG_391 AG_393 AG_395 AG_397 AG_399 AG_401 AG_403 AG_405 AG_407 AG_409 AG_411 AG_413 AG_415 AG_417 AG_419 AG_421 AG_423 AG_425 AG_427 AG_429 AG_431 AG_433 AG_435 AG_437 AG_439 AG_441 AG_443 AG_445 AG_447 AG_386 AG_388 AG_390 AG_392 AG_394 AG_396 AG_398 AG_400 AG_402 AG_404 AG_406 AG_408 AG_410 AG_412 AG_414 AG_416 AG_418 AG_420 AG_422 AG_424 AG_426 AG_428 AG_430 AG_432 AG_434 AG_436 AG_438 AG_440 AG_442 AG_444 AG_448 AG_446 AE_576 AE_575 AF_511 AF_512 AG_448 AG_447 AF_480 AE_513 AE_514 AE_515 AE_516 AE_517 AE_518 AE_519 AE_520 AE_521 AE_522 AE_523 AE_524 AE_525 AE_526 AE_527 AE_528 AE_529 AE_530 AE_531 AE_532 AE_533 AE_534 AE_535 AE_536 AE_537 AE_538 AE_539 AE_540 AE_541 AE_542 AE_543 AE_544 AE_546 AE_545 AF_449 AF_450 AF_451 AF_452 AF_453 AF_454 AF_455 AF_456 AF_457 AF_458 AF_459 AF_460 AF_461 AF_462 AF_463 AF_464 AF_465 AF_466 AF_467 AF_468 AF_469 AF_470 AF_471 AF_472 AF_473 AF_474 AF_475 AF_476 AF_477 AF_478 AF_479 AF_480 AF_482 AF_481 AG_385 AG_386 AG_387 AG_388 AG_389 AG_390 AG_391 AG_392 AG_393 AG_394 AG_395 AG_396 AG_397 AG_398 AG_399 AG_400 AG_401 AG_402 AG_403 AG_404 AG_405 AG_406 AG_407 AG_408 AG_409 AG_410 AG_411 AG_412 AG_413 AG_414 AG_415 AG_416 AG_418 AG_417 AA_SO3 AA_SO4 AA_SO4 AA_SO5 AA_SO5 AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO C80 C47 C79 C78 SU4 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C40 D6905 B0HCMM000013 D6903 B0HCMM000013 C8 D6904 B0HCMM000013 C3 C6 C45 C1 C48 SU3 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C77 C37 C34 C7 C5 AN16077A-VT IC6904 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6908 16V 1u C41 C46 C43 C6924 250V 0.1u D6902 MAZ80560HL R6936 220k C38 C74 C4 C49 C44 R6924 220 C42 C75 C76 C50 C2 C6910 16V 1u C6912 16V 1u R6913 220 C10 C39 R6917 220 AN16077A-VT IC6905 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C35 C9 AN16077A-VT IC6906 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6926 250V 0.1u C36 C26 C32 C15 C70 C31 C33 C54 C14 C61 C22 C64 C58 C55 C17 C65 C71 C68 C29 C66 C16 C62 C60 C23 C11 C63 C51 C13 C67 C57 C28 C27 C72 C25 C18 C12 C56 C19 C20 C53 C30 C69 C73 C21 C24 C52 C59 C6929 250V 0.1u C6927 250V 0.1u C6923 250V 0.1u R6935 220k C6921 250V 0.1u Vscn Vf5 Vf Vfo Vf VF5V VF5V S/P 64bit PDP SCAN DRIVER PDP SCAN DRIVER S/P 64bit S/P 64bit PDP SCAN DRIVER (UPPER) (LOWER) COMPONENT SIDE FOIL SIDE TO (SC41) SC-BOARD SU41(Card Edge 80Pin) Vf5 Vscn voltage Vfo(Vscn Out) Vf(High Voltage Floting GND) Vf(High Voltage Floting GND) 12 8 15 14 9 13 10 11 To 4th 96pins of SCAN ELECTRODES UP To 3rd 96pins of SCAN ELECTRODES 2 5 3 4 1 TH-42PH10CK/SC SU-Board (2 of 2) Schematic Diagram TH-42PH10CK/SC SU-Board (2 of 2) Schematic Diagram SU-BOARD TNPA4184 (2/2) 106 14.48.SD 电路板 （1/2）线路图 TERM SIDE TERM SIDE AB_382 AB_381 AB_380 AB_379 AB_378 AB_377 AB_376 AB_375 AB_374 AB_373 AB_372 AB_371 AB_370 AB_369 AB_368 AB_367 AB_366 AB_365 AB_364 AB_363 AB_362 AB_361 AB_360 AB_358 AB_359 AB_357 AB_355 AB_356 AC_318 AC_317 AC_316 AC_315 AC_314 AC_313 AC_312 AC_311 AC_310 AC_309 AC_308 AC_307 AC_306 AC_305 AC_304 AC_303 AC_302 AC_301 AC_300 AC_299 AC_298 AC_297 AC_296 AC_294 AC_295 AC_293 AC_291 AC_292 AD_254 AD_253 AD_252 AD_251 AD_250 AD_249 AD_248 AD_247 AD_246 AD_245 AD_244 AD_243 AD_242 AD_241 AD_240 AD_239 AD_238 AD_237 AD_236 AD_235 AD_234 AD_233 AD_232 AD_230 AD_231 AD_229 AD_227 AB_365 AB_367 AB_369 AB_371 AB_373 AB_375 AB_377 AB_379 AB_381 AB_383 AB_366 AB_368 AB_370 AB_372 AB_374 AB_376 AB_380 AB_382 AB_341 AB_343 AB_345 AB_347 AB_349 AB_351 AB_353 AB_355 AB_357 AB_359 AB_361 AB_363 AB_342 AB_344 AB_346 AB_348 AB_350 AB_352 AB_354 AB_356 AB_358 AB_360 AB_362 AB_364 AB_321 AB_323 AB_325 AB_327 AB_329 AB_331 AB_333 AB_335 AB_337 AB_339 AB_322 AB_324 AB_326 AB_328 AB_330 AB_332 AB_334 AB_336 AB_338 AB_340 AC_319 AC_317 AC_316 AC_320 AC_318 AB_384 AB_383 AC_293 AC_295 AC_297 AC_299 AC_301 AC_303 AC_305 AC_307 AC_309 AC_311 AC_313 AC_315 AC_294 AC_296 AC_298 AC_300 AC_302 AC_304 AC_306 AC_308 AC_310 AC_312 AC_314 AC_281 AC_283 AC_287 AC_285 AC_282 AC_284 AC_288 AC_286 AC_289 AC_291 AC_257 AC_259 AC_261 AC_263 AC_265 AC_267 AC_269 AC_271 AC_273 AC_275 AC_277 AC_279 AC_258 AC_260 AC_262 AC_264 AC_266 AC_268 AC_270 AC_272 AC_274 AC_276 AC_278 AC_280 AD_256 AC_320 AC_319 AD_254 AD_252 AD_250 AD_248 AD_246 AD_244 AD_242 AD_240 AD_238 AD_236 AD_234 AD_232 AD_253 AD_255 AD_251 AD_249 AD_247 AD_245 AD_243 AD_241 AD_239 AD_237 AD_235 AD_233 AD_230 AD_228 AD_226 AD_224 AD_222 AD_220 AD_218 AD_216 AD_214 AD_212 AD_210 AD_208 AD_231 AD_229 AD_227 AD_225 AD_223 AD_221 AD_219 AD_217 AD_215 AD_213 AD_211 AD_209 AD_206 AD_204 AD_202 AD_200 AD_198 AD_196 AD_194 AD_207 AD_205 AD_203 AD_201 AD_199 AD_197 AD_195 AD_193 AD_256 AD_255 AB_378 AB_384 AC_292 AC_290 AB_321 AB_323 AB_324 AB_325 AB_326 AB_327 AB_328 AB_329 AB_330 AB_331 AB_332 AB_333 AB_334 AB_335 AB_336 AB_337 AB_338 AB_339 AB_340 AB_341 AB_342 AB_343 AB_344 AB_345 AB_346 AB_322 AB_347 AB_348 AB_349 AB_350 AB_351 AB_352 AB_353 AB_354 AC_257 AC_258 AC_259 AC_260 AC_261 AC_262 AC_263 AC_264 AC_265 AC_266 AC_267 AC_268 AC_269 AC_270 AC_271 AC_272 AC_273 AC_274 AC_275 AC_276 AC_277 AC_278 AC_279 AC_280 AC_281 AC_282 AC_283 AC_284 AC_285 AC_286 AC_287 AC_288 AC_289 AC_290 AD_193 AD_194 AD_195 AD_196 AD_197 AD_198 AD_199 AD_200 AD_201 AD_202 AD_203 AD_204 AD_205 AD_206 AD_207 AD_208 AD_209 AD_210 AD_211 AD_212 AD_213 AD_214 AD_215 AD_216 AD_217 AD_218 AD_219 AD_220 AD_221 AD_222 AD_223 AD_224 AD_226 AD_225 AD_228 AA_SO7 AA_SO7 AA_SO8 AA_SO9 AA_CLK AA_CL AA_PRO AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_SI AA_SO8 A36 A6 D6953 B0HCMM000013 A46 AN16077A-VT *IC6953 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6984 10k A33 A80 D6952 MAZ80560HL R6959 220 A32 R6951 100 A39 A8 R6985 220k A37 R6955 220 D6954 B0HCMM000013 A71 A9 A74 A79 C6951 50V 1000p A72 A76 A47 C6957 16V 1u A75 A35 D6955 B0HCMM000013 A77 SD2 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 A48 A31 A78 A40 C6952 16V 1u A34 AN16077A-VT *IC6951 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D6951 MAZ80560HL A7 SD1 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 A38 AN16077A-VT *IC6952 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6955 16V 1u A73 A16 A12 A24 A52 A56 A26 A10 A65 A64 C6973 250V 0.1u A62 A58 A21 A49 A66 A14 A51 A17 A30 A23 A60 A50 A70 A15 A54 C6977 250V 0.1u C6976 250V 0.1u A18 A28 A29 A13 A57 A20 A68 C6979 250V 0.1u A69 A27 A11 C6971 250V 0.1u A22 A67 A55 A63 C6974 250V 0.1u A59 A61 R6986 220k A53 A25 A19 A4 A43 A5 A1 A45 A3 A41 A44 A42 A2 VF5V VF5V COMPONENT SIDE (LOWER) FOIL SIDE (UPPER) D B C E A 1 8 7 5 6 2 3 4 S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER Vscn Vf(High Voltage Floting GND) Vscn voltage Vf(High Voltage Floting GND) Vfo(Vscn Out) Vf Vfo Vf5 Vf5 SD42(Card Edge 80Pin) SD-BOARD (SD42) TO SCAN ELECTRODES To 2nd 96pins of To 1st 96pins of SCAN ELECTRODES DOWN 1 2 3 4 5 TH-42PH10CK/CS SD-Board (1 of 2) Schematic Diagram TH-42PH10CK/CS SD-Board (1 of 2) Schematic Diagram SD-BOARD TNPA4185 (1/2) 107 14.49.SD 电路板 （2/2）线路图 TERM SIDE TERM SIDE AE_190 AE_189 AE_188 AE_187 AE_186 AE_185 AE_184 AE_183 AE_182 AE_181 AE_180 AE_179 AE_178 AE_177 AE_176 AE_175 AE_174 AE_173 AE_172 AE_171 AE_170 AE_169 AE_168 AE_166 AE_167 AE_165 AE_163 AE_164 AF_126 AF_125 AF_124 AF_123 AF_122 AF_121 AF_120 AF_119 AF_118 AF_117 AF_116 AF_115 AF_114 AF_113 AF_112 AF_111 AF_110 AF_109 AF_108 AF_107 AF_106 AF_105 AF_104 AF_102 AF_103 AF_101 AF_99 AF_100 AG_62 AG_61 AG_60 AG_59 AG_58 AG_57 AG_56 AG_55 AG_54 AG_53 AG_52 AG_51 AG_50 AG_49 AG_48 AG_47 AG_46 AG_45 AG_44 AG_43 AG_42 AG_41 AG_40 AG_38 AG_39 AG_37 AG_35 AG_36 AE_187 AE_185 AE_183 AE_188 AE_186 AE_184 AE_182 AE_191 AE_192 AE_189 AE_190 AE_175 AE_173 AE_181 AE_179 AE_177 AE_176 AE_174 AE_172 AE_180 AE_178 AE_161 AE_159 AE_163 AE_164 AE_162 AE_160 AE_158 AE_165 AE_171 AE_169 AE_167 AE_170 AE_168 AE_166 AE_151 AE_157 AE_155 AE_153 AE_149 AE_152 AE_156 AE_154 AE_148 AE_150 AE_192 AE_191 AE_137 AE_135 AE_140 AE_138 AE_136 AE_134 AE_141 AE_143 AE_145 AE_147 AE_144 AE_146 AE_139 AE_142 AE_133 AE_131 AE_129 AF_127 AF_125 AF_123 AE_132 AE_130 AF_128 AF_126 AF_124 AF_113 AF_111 AF_114 AF_112 AF_110 AF_117 AF_121 AF_119 AF_122 AF_120 AF_115 AF_116 AF_118 AF_109 AF_107 AF_105 AF_103 AF_101 AF_99 AF_108 AF_106 AF_104 AF_102 AF_100 AF_97 AF_98 AF_94 AF_96 AF_92 AF_90 AF_93 AF_95 AF_91 AF_128 AF_127 AF_88 AF_86 AF_84 AF_82 AF_80 AF_78 AF_76 AF_74 AF_72 AF_70 AF_68 AF_66 AF_89 AF_87 AF_85 AF_83 AF_81 AF_79 AF_77 AF_75 AF_73 AF_71 AF_69 AF_67 AG_61 AG_63 AG_59 AG_57 AG_55 AG_53 AG_51 AG_49 AG_47 AG_45 AG_43 AG_41 AG_64 AG_62 AG_60 AG_58 AG_56 AG_54 AG_52 AG_50 AG_48 AG_46 AG_44 AG_42 AF_65 AG_39 AG_37 AG_35 AG_33 AG_31 AG_29 AG_27 AG_25 AG_23 AG_21 AG_19 AG_17 AG_40 AG_38 AG_36 AG_34 AG_32 AG_30 AG_28 AG_26 AG_24 AG_22 AG_20 AG_18 AG_64 AG_63 AG_15 AG_13 AG_11 AG_9 AG_7 AG_5 AG_3 AG_1 AG_16 AG_14 AG_12 AG_10 AG_8 AG_6 AG_4 AG_2 AE_130 AE_129 AE_132 AE_133 AE_134 AE_135 AE_136 AE_137 AE_138 AE_139 AE_140 AE_141 AE_142 AE_143 AE_144 AE_145 AE_146 AE_147 AE_148 AE_149 AE_150 AE_151 AE_152 AE_153 AE_154 AE_131 AE_155 AE_156 AE_157 AE_158 AE_159 AE_160 AE_162 AE_161 AF_65 AF_66 AF_67 AF_68 AF_69 AF_70 AF_71 AF_72 AF_73 AF_74 AF_75 AF_76 AF_77 AF_78 AF_79 AF_80 AF_81 AF_82 AF_83 AF_84 AF_85 AF_86 AF_87 AF_88 AF_89 AF_90 AF_91 AF_92 AF_93 AF_94 AF_95 AF_96 AF_97 AF_98 AG_1 AG_2 AG_3 AG_4 AG_5 AG_6 AG_7 AG_8 AG_9 AG_10 AG_11 AG_12 AG_13 AG_14 AG_15 AG_16 AG_17 AG_18 AG_19 AG_20 AG_21 AG_22 AG_23 AG_24 AG_25 AG_26 AG_27 AG_28 AG_29 AG_30 AG_31 AG_32 AG_34 AG_33 AA_SO10 AA_SO11 AA_SO11 AA_CL AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_PRO AA_CL AA_SI AA_CLK AA_PRO AA_SO10 AA_SO9 C6981 50V 1000p R6976 0 AN16077A-VT IC6955 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6952 22 R6981 10k R6967 220 R6971 220 SD46 1 2 3 4 5 6 7 8 9 C6961 16V 1u C6958 16V 1u AN16077A-VT IC6956 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16077A-VT IC6954 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SD4 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 R6975 0 SD3 B36 B20 B4 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B35 B19 B3 A35 A19 A3 B38 B22 B6 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B34 B18 B2 A34 A18 A1 B37 B21 B5 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B33 B17 B1 A33 A17 C6987 50V 220p R6953 22 R6963 220 R6954 22 C6963 16V 1u C6986 50V 680p R6983 10k R6982 10k R6989 10k Vf5 PRO FSI FCLK FCL Vf 8 15 13 14 10 11 12 9 S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER S/P 64bit PDP SCAN DRIVER Vfo Vf5 TO SC-BOARD (SC46) To 4th 96pins of SCAN ELECTRODES DOWN To 3rd 96pins of SCAN ELECTRODES 2 1 4 5 3 TH-42PH10CK/CS SD-Board (2 of 2) Schematic Diagram TH-42PH10CK/CS SD-Board (2 of 2) Schematic Diagram SD-BOARD TNPA4185 (2/2) 108 14.50.SS 和 S1 电路板方框图 PUSH REF K A D6221 SW061 D6253 TP15V D6255 R6113 G D S G D S G D S G D S G D S G D S G D S VR6000 1 2 3 D6281 +5V +5V D6273 D6278 D6276 D6275 Q6052 Q6141-Q6142 +15V LED(G) FET DRIVER VCC SS IC6191 TPSS1 SIGNAL WAVE 1 Q6103,Q6104 S34 4 Vsus Gen. S1 POWER SWITCH POWER SWITCH 34 Q6021-Q6023 VCC Vda Q6001-Q6003 SS_SOS8 VSUS VE 1 2 8 MAIN_SW_1 VCC Vda 3 Ve Gen. 10 VCC 3 IC6251 1 MAIN_SW_2 IC6131 12 Ve2 P12 SS ENERGY RECOVERY COMPARATOR SS SUSTAIN DRIVE Vsus 11 SS 1 TO P11 Q6146-Q6147 IC6151 Q6041,Q6042 L6011-L6013 L6001-L6003 VCC IC6211 (+5V) IN Ve2 Gen. FET DRIVER SUSTAIN ELECTRODE PANEL SS55A SS53A SS56A SS54A Q6101,Q6102 12 IC6241 1 2 4 6 TO C23 UMH UEH SOS8_SS P5V Vda 23 Vda SS NUEL USH USL UML 5 7 11 3 VCC 8 BUFFER OUTPUT FET IC6221 HIN LIN OUTPUT FET HIN LIN HO LO OUTPUT OUTPUT FET FET HO LO FET DRIVER Q6171,Q6172 Q6181,Q6031 VCC2 FET DRIVER HO HIN LIN OUTPUT FET FET OUTPUT OUTPUT FET Q6111 Q6114 LO HO Q6256,Q6222 Ve Det Adj. Q6271 Q6251 TPVSUS 189V+7V,-6V TPVDA TPSS1 TPVE MAIN_SW_2 MAIN_SW_1 TPSOS8 UEL UML UEH USH USL UML UMH TPVe2 LED BLINKING : 8 TIMES ENERGY RECOVERY SOS DET TH-42PH10CK/CS SS and S1-Board Block Diagram TH-42PH10CK/CS SS and S1-Board Block Diagram 109 14.51.SS 电路板 （1/2）和 S1 电路板线路图 + + + + + + + + + + AA_SOS8 AA_UEH AA_USL AA_UEL AA_USH AA_UML AA_UMH AA_USH AA_USL AA_SOS8 Q6181 B1ABRD000003 *L6013 1.8u D6072 B0HBSN000008 R6261 100k TP1 R6253 39k C6202 250V 4u L6010 J0JJC0000015 L6241 G0ZZ00002183 R6258 2.2k D6253 LNJ301MPUJA R6220 47 TP22 SS11 1 3 TP12 TP13 R6041 5.6 TP11 L6262 G0ZZ00002183 Q6031 B1ADRD000001 R6252 39k *L6047 D6024 B0ECHP000003 R6230 47 R6231 4.7k *L6058 G0ZZ00002183 R6210 2.2k C6252 25V 1u C6037 25V 4.7u C0JBAZ000005 IC6241 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C0ZBZ0001324 IC6151 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC *L6061 *L6012 1.8u C6011 220V 200u R6032 82k C6272 25V 220u L6000 J0JJC0000015 C6014 220V 200u D6151 B0ECHP000003 Q6171 B1ABRD000003 C6242 16V 1u *L6046 *Q6042 B1JADN000002 R6160 1 VEEXT160V *L6083 G0ZZ00002183 TP9 R6043 5.6 R6241 EXB38V470JV *L6011 1.8u R6034 27k D6071 B0HBSN000008 TP2 *Q6052 B1JADN000002 R6256 1.5k Q6251 2SD0601A0L C6261 100V 220u L6271 TP19 R6152 100 *L6045 G0ZZ00002183 *L6062 R6159 1 D6092 B0ECHP000003 C6151 25V 1u C6262 100V 220u *L6003 1.8u R6172 47k R6242 EXB38V472JV TP33 R6031 82k R6183 47k TP18 *L6002 1.8u D6153 B0ECHP000003 SS23 1 2 3 4 5 6 7 8 9 10 11 12 *L6048 G0ZZ00002183 R6182 47k D6255 MA2J11100L D6152 B0ECHP000003 TP10 TP16 D6254 MAZ80510LL *L6057 G0ZZ00002183 C6012 220V 200u C6243 50V 0.01u Q6172 B1ADRD000001 *C6091 630V 1000p 5V IC6251 C0BBBA000022 1 2 3 4 5 6 7 8 5V TP17 R6181 10 R6053 5.6 TP8 C6251 16V 1u D6025 B0ECHP000003 R6257 10k TP3 TP6 TP14 D6032 MA2J11100L R6254 8.2k R6173 47k *D6082 MA3DF30000LZ SS12 1 2 3 4 5 6 7 8 9 10 C6013 220V 200u R6171 10 C6154 25V 4.7u C6273 25V 220u *L6064 *D6062 MA3DF30000LZ TP5 R6033 56k D6091 B0HBSN000008 *L6084 G0ZZ00002183 TP15 C6031 250V 2.2u C6241 10V 100u TP34 *L6001 1.8u C6201 250V 4u R6221 4.7k R6255 1.2k *L6063 C6152 25V 4.7u TP7 R6151 100 *C6015 220V 200u SS34 1 2 3 C6153 25V 4.7u 75 R6154 TP20 *D6061 MA3DF30000LZ *Q6041 B1JADN000002 TP15V TPVDA - + - + (GREEN LED) TPVSUS VSUS GND P5V TPSOS8 UEL UEH USL USH UML UMH SOS8_SS GND NC VDA VDA 189V+7V-8V FET DRIVER BUFFER COMPARATOR (P12) TO P-BOARD (C23) C2-BOARD TO (P11) TO P-BOARD 1 2 3 4 5 6 7 GND 12V STB_PS L6047,L6048 L6045,L6046 L6063,L6064 L6061,L6062 6 B 8 5 D E 1 F 9 A 7 3 4 C 2 TH-42PH10CK/CS SS-Board (1 of 2) and S1-Board Schematic Diagram TH-42PH10CK/CS SS-Board (1 of 2) and S1-Board Schematic Diagram PUSH SW061 K0F162B00002 S34 1 2 3 POWER SW 12.0 0 12.0 SS-BOARD TNPA4183 (1/2) S1-BOARD TNPA3642 110 14.52.SS 电路板 （2/2）线路图 + + + REF K A AA_UEL AA_UEH AA_UML AA_UML AA_UMH AA_SOS8 C6111 200V 220u C6289 0.1u 50V Q6104 B1ADNF000006 R6247 150k R6222 10k R6109 10 C6212 25V 4.7u R6113 220k Q6141 B1ABNF000006 TP24 Q6103 B1ABNF000006 VR6000 10k 1 2 3 R6026 7.5 R6227 16k TP27 R6191 100 R6142 47k R6192 100 D6104 B0JCME000037 R6272 2.2k D6222 MA2J11100L R6157 1 D6275 MAZ80680ML D6001 B0HBSN000008 C6134 25V 4.7u D6131 B0ECHP000003 C6211 25V 4.7u D6191 B0ECHP000003 D6273 MA2J11100L C6287 0.1u 50V TP29 R6146 47k R6276 82k D6280 MAZ80510LL 75 R6193 C6220 630V 1000p R6114 47 R6158 1 R6003 7.5 C6132 25V 4.7u Q6222 2SC1473AEA R6229 16k *Q6021 B1JADN000001 *Q6002 B1JADN000001 ZA6005 K4CD01000011 C6221 50V 0.1u C0ZBZ0000895 IC6191 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC R6021 7.5 R6135 10 75 R6134 Q6146 B1ABNF000006 D6021 MA3DF30000LZ C6209 25V 4.7u D6211 B0JCME000037 TP25 D6101 B0JCME000037 R6225 20k Q6111 B1DFKM000001 G D S R6226 16k D6281 B0JCME000037 D6276 MA3X152D0L C6193 25V 4.7u C6135 25V 4.7u R6020 33 D6221 B0ECHP000003 R6116 47k C6194 25V 4.7u ZA6002 K4CD01000011 C0ZBZ0000895 IC6131 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC Q6147 B1ADNF000006 *Q6001 B1JADN000001 C6286 0.1u 50V D6132 B0ECHP000003 R6278 27k R6194 1 TP31 R6279 150k C6112 200V 220u R6248 27k R6246 27k Q6101 B1DFKM000002 G D S R6292 47k R6005 7.5 R6108 220 R6249 150k *C6001 630V 3300p J0JJC0000015 L6106 J0JJC0000015 L6212 TP26 R6274 220 R6110 47k C6276 25V 4.7u R6024 7.5 R6001 7.5 TP30 D6193 B0ECHP000003 D6223 MA2J11100L R6147 47k *C6021 630V 2700p *Q6022 B1JADN000001 C6197 25V 4.7u R6213 100 C6288 0.1u 50V ZA6001 K4CD01000011 R6145 1 Q6256 2SD1263AP0LB IC6211 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB C6213 25V 1000u R6136 10 R6269 27k R6223 12k R6228 5.6k Q6114 B1DFKM000001 G D S Q6271 2SD0601A0L R6102 220 TP28 *Q6023 B1JADN000001 R6270 150k C6195 25V 4.7u R6232 1.2k *C6002 2200p 630V D6278 MA3X152D0L R6111 47 Q6142 B1ADNF000006 R6284 1k C0DBEMC00043 IC6221 J0JJC0000015 L6101 R6131 100 L6221 G0ZZ00002183 R6214 150 R6273 10k Q6106 B1DFKM000002 G D S R6141 47k *Q6003 B1JADN000001 R6132 100 *C6022 2700p 630V L6103 G0ZZ00002183 * * TPSS1 TPVe FET DRIVER FET DRIVER VE GEN. FET DRIVER 7 6 5 1 2 4 3 12 10 17 14 15 16 18 11 13 TH-42PH10CK/CS SS-Board (2 of 2) Schematic Diagram TH-42PH10CK/CS SS-Board (2 of 2) Schematic Diagram TERM SIDE TERM SIDE TERM SIDE TERM SIDE R6064 0 SS56A 1 2 3 4 5 6 7 8 9 10 11 12 13 R6062 0 R6068 0 R6066 0 R6070 0 SS54A 1 2 3 4 5 6 7 8 9 10 11 12 13 R6071 0 SS53A 1 2 3 4 5 6 7 8 9 10 11 12 13 R6072 0 R6073 0 SS55A 1 2 3 4 5 6 7 8 9 10 11 12 13 SUSTAIN PANEL ELECTRODE SS-BOARD TNPA4183 (2/2) 111 15 部件布置及机械部件更换清单 15.1. 分解图 112 15.2. 面框部分放大图 15.3. 风扇部分放大图 113 15.4. 线缆位置 114 15.5. 包装指南 115 116 16 机械部件更换清单 参考号 部品号 部品名称及说明 数量 备注 1 EUR7636120R 遥控器 1 2 K2CK3DH00028 电源线 1 K5D802BNA005 主保险丝 2 3 L6FAYYYH0050 风扇 (80MM) 2 4 L6FAYYYH0051 风扇 1 R6PND/2SP PANASONIC 干电池 （中文） 2 5 TBMA226 PANASONIC 标牌 1 TBMG520 机型铭牌 （TH-42PH10CK） 1 TBMG521 机型铭牌 （TH-42PH10CS） 1 TBMU675 SP 标签 2 TBMU774 端子表示片 1 6 TBXA48001 电源开关 （TH-42PH10CK） 1 6 TBXA48002 电源开关 （TH-42PH10CS） 1 7 TBXA52201 操作开关 （TH-42PH10CK） 1 7 TBXA52202 操作开关 （TH-42PH10CS） 1 8 TESD039 电源按键弹簧 1 THEA068N 螺丝 4 THEL0239 带垫螺丝 12 THEL0429 螺丝 7 THTD013N 螺丝 4 THTD0179 螺丝 2 THTF011N 螺丝 （AC：3 H3：2 DN：8 SLOT：4 P：1） 18 THTF011N 螺丝 （P：7 SC：6 SS：6 SUSD：3 D：4） 26 THTF011N 螺丝 24 9 TKGA5355-1 前面玻璃 1 10 TKKC5286 LED 屏 1 11 TKKC5287 遥控器受光屏 （TH-42PH10CK） 1 11 TKKC5288 遥控器受光屏 （TH-42PH10CK） 1 TKKL5273-1 L/ 端子盖 2 12 TKRA29801 把手 2 13 TKUX13202 后盖 1 14 TKYA30903 面框 （TH-42PH10CK） 1 14 TKYA30904 面框 （TH-42PH10CS） 1 15 TMKG593 防尘海绵 2 16 TMKG594 防尘海绵 2 17 TMKG717 海绵 （风扇） 2 18 TMKG725 海绵 （风扇） 1 TMME185 尼龙铆钉 2 TMME203 扎带 2 TMME228 扎带固定件 2 19 TMMX153 M8 垫片 4 TMMX183 电源线夹 B 1 20 TMWC018-1 电源开关托架 1 21 TPCC01805 包装箱本体 （TH-42PH10CK） 1 21 TPCC01806 包装箱本体 （TH-42PH10CS） 1 22 TPCC01901 包装箱底部 1 23 TPDA1601-1 顶面缓冲材 1 24 TPDA1602-1 底面缓冲材 1 25 TPDF0764-1 附件盒 1 26 TPDF1934 顶板 1 27 TPDX0035 包装箱箱扣 4 TPEH343 顶面保护片 3 28 TPEH344 整机保护袋 1 TQD1712010 合格票 1 TQFD640 ROHS 环境标签 1 TQFD689 LDPE 标签 1 TQFD764 线夹标签 1 29 TQZC968-1 说明书 1 TQZF163 保修证 1 30 TSXL519 FFC(C10-C20) 1 31 TSXL562 FFC(D31-C11/D32-C21) 2 32 TSXL584 FFC(DS1-DN1) 1 33 TSXL604 FFC （SC20-D20） 1 TXAUW01XLTC H3 线路板 半成品 -L 1 TXAUW01ZMTC H3 线路板 半成品 -R 1 TXAUW02XGTC 开槽集成块 半成品 1 34 TXAJS010XGT AC 接入口 1 35 TXFMZ01XLTC 台座安装块 2 TXFUA01XGTC 42HD PDP 屏 1 MC106H30F 10 TXJ/P2HNTU WIRE(SC2-P2) 1 TXJ/P90XGT WIRE(P9-INLET) 1 TXJ/SP0XGT WIRE(DS7-H37) 2 TXJ/V20XGT WIRE(DS2-V2) 1 TXJD25HNTU WIRE(D25-P25) 1 TXJDN60XGT WIRE(DN6-D5) 1 TXJDS40XGT WIRE(DS4-P7) 1 TXJDS60XGT WIRE(DS6-P6) 1 TXJFA10XGT-1 WIRE(DN-FAN) 1 TXJFA20XGT WIRE(DN-FAN) 2 TXJFGNYFSU WIRE(GND-INLET) 1 TXJHX1YPTJ-1 WIRE(DS14-HX1) 1 TXJP11HNTU WIRE(P11-SS11) 1 TXJP12HNTU WIRE(P12-SS12) 1 TXJS23BJTU WIRE(SS23-C23) 1 TXJS340XGT WIRE(SS34-S34) 1 TXJV150XGT WIRE(DS15-V15) 1 TXN/D1XGTC D 线路板 完成品 1 TXN/P1XGTC P 线路板 完成品 1 TXNC11XGTC C1 线路板 完成品 1 TXNC21XGTC C2 线路板 完成品 1 TXNDN1XGTC DN 线路板 半成品 1 TXNHU1XLTC HU 线路板 （半）包装入 1 TXNS11XLTC S1 线路板 半成品 1 TXNSC1XGTC SC 线路板 完成品 1 TXNSD1XGTC SD 线路板 完成品 1 TXNSS1XGTC SS 线路板 半成品 1 TXNSU1XGTC SU 线路板 完成品 1 TXNV11YNSC V1 线路板 1 TXNV21YNSC V2 线路板 1 XTB4+10JFJ 螺丝 23 XTV3+10GFJ 螺丝 3 XTV3+10JFJ 螺丝 3 XTV3+8JFJ 螺丝 （风扇） 6 XYN3+F8FJ 螺丝 17 XYN3+J12FJ 螺丝 4 XYN3+J8FJ 螺丝 10 XYN4+E8FJ 螺丝 1 XYN4+F10FJ 螺丝 6 XYN4+F10FJK 螺丝 5 XYN4+F30FJK 螺丝 12 XYN5+C15FJ L/ 带垫螺丝 （标准垫片） 6 XYN8+F20FJK 螺丝 4 参考号 部品号 部品名称及说明 数量 备注 117 17 电器部件更换清单 17.1. 更换部件清单注意事项 118 17.2. 电器部件更换清单 参考号 部品号 部品名称及描述 数量 备注 F401.402 K5D802BNA005 延时型保险丝 2 C10 K1MN20BA0231 20P 连接器 1 C11 K1MN55BA0076 55P 连接器 1 C20 K1MN20BA0231 20P 连接器 1 C21 K1MN55BA0076 55P 连接器 1 C23 K1KA12BA0107 12P 连接器 1 C801 F2H1V221A004 E 220UF, 35V 1 C802 F2H1E471A010 E 470UF, 25V 1 C804 ECJ1VB1H472K C 4700PF, K, 50V 1 C805,06 ECJ1VB1E104K C 0.10UF, K, 25V 2 C807 ECJ3YF1E225Z C 2.2UF, Z, 25V 1 C808 ECJ1VB1E104K C 0.10UF, K, 25V 1 C809 ECJ3XB1C225K C 22UF, K, 16V 1 C811 EEEHB1C471P E 470UF, 16V 1 C812 F2H1E471A010 E 470UF, 25V 1 C814 ECJ1VB1H472K C 4700PF, K, 50V 1 C815,16 ECJ1VB1E104K C 0.10UF, K, 25V 2 C817 ECJ3YF1E225Z C 2.2UF, Z, 25V 1 C818 ECJ1VB1E104K C 0.10UF, K, 25V 1 C819 ECJ3XB1C225K C 22UF, K, 16V 1 C821 EEEHB1C471P E 470UF, 16V 1 C822 F2H1E471A010 E 470UF, 25V 1 C823 F1H1H390A831 C 39PF, K, 50V 1 C824 ECJ1VB1H103K C 0.001UF, K, 50V 1 C825 ECJ1VB1E104K C 0.10UF, K, 25V 1 C827 ECJ3YF1E225Z C 2.2UF, Z, 25V 1 C828 ECJ1VB1E104K C 0.10UF, K, 25V 1 C829 ECJ3YB1E106M C 10 UF, K, 25V 1 C831 EEEHB1C470P C 47PF, J, 16V 1 C832 ECJ1VB1E104K C 0.10UF, K, 25V 1 C833 ECJ1VB1H103K C 0.001UF, K, 50V 1 C834,35 EEEHB1C470P C 47PF, J, 16V 2 C837 F1J0J1060004 C 0.010UF, K, 16V 1 C838 ECJ3XB1C225K C 22UF, K, 16V 1 C839 F1J0J1060004 C 0.010UF, K, 16V 1 C840 ECJ3XB1C225K C 22UF, K, 16V 1 C841 F1J0J1060004 C 0.010UF, K, 16V 1 C843 ECJ3YB1E106M C 10 UF, K, 25V 1 C844 ECJ3XB1C225K C 22UF, K, 16V 1 C845 ECJ3YB1E106M C 10 UF, K, 25V 1 C846 ECJ3XB1C225K C 22UF, K, 16V 1 C847 F1J0J1060004 C 0.010UF, K, 16V 1 C848 ECJ3XB1C225K C 22UF, K, 16V 1 C855-57 ECJ1VB1H103K C 0.001UF, K, 50V 3 C858 F2H1E471A010 E 470UF, 25V 1 C859 ECJ1VB1C105K C 0.01UF, K, 16V 1 C860 EEEHB1C471P E 470UF, 16V 1 C861 ECJ1VB1H472K C 4700PF, K, 50V 1 C863 ECJ3YF1E225Z C 2.2UF, Z, 25V 1 C864 ECJ1VB1E104K C 0.10UF, K, 25V 1 C865 ECJ1VB1H103K C 0.001UF, K, 50V 1 C866,67 ECJ1VB1E104K C 0.10UF, K, 25V 2 C868,69 ECJ3XB1C225K C 22UF, K, 16V 2 C1530 ECJ3XB0J106M C 10UF, M,6.3V 1 C2350,51 ECJ3XB1C225K C 22UF, K, 16V 2 C2352,53 F2G1H100A031 E 10UF, 50V 2 C2354,55 EEEHB1V470P E 47UF, 35V 2 C2356,57 ECJ1VB1H102K C 1000UF, Z, 50V 2 C2358,59 EEEHP1V2R2R E 2.2UF, 35V 2 C2360,61 ECJ1XC1H102J C 1000PF, J, 50V 2 C2362,63 EEEHB1E471UP C 470PF, J, 25V 2 C2364,65 ECQV1H104JL P 0.1UF, J, 50V 2 C2366,67 ECJ3YB1E225K C 2.2UF, K, 25V 2 C2368,69 ECQV1H104JL P 0.1UF, J, 50V 2 C2370,71 F2G1H100A031 E 10UF, 50V 2 C2373-75 ECJ1VB1E104K C 0.10UF, K, 25V 3 C2376,77 ECJ1VC1H150J C 15PF, J, 50V 2 C2378-82 ECJ1VB1E104K C 0.10UF, K, 25V 5 C2383 EEEHB1A101P C 100PF, J, 10V 1 C2384 ECJ1VB1E104K C 0.10UF, K, 25V 1 C2385 EEEHB1A101P C 100PF, J, 10V 1 C2386,87 EEEHP1H1R0R C 1.0PF, J, 50V 2 C2388 ECJ1VB1E104K C 0.10UF, K, 25V 1 C2389 EEEHB1A101P C 100PF, J, 10V 1 C2390 F2G1H100A031 E 10UF, 50V 1 C2391 ECJ1VB1E104K C 0.10UF, K, 25V 1 C2392,93 F1J1C1050030 C 1UF, Z, 16V 2 C2394 F2G1H100A031 E 10UF, 50V 1 C2395,96 ECJ1VB1E104K C 0.10UF, K, 25V 2 C2397 EEEHB1A101P C 100PF, J, 10V 1 C2398-03 ECJ1VB1E104K C 0.10UF, K, 25V 6 C2404 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2405,06 F1H0J2250008 C 2.2UF, K, 16V 2 C2407,08 F1J0J1060004 C 0.010UF, K, 16V 2 C2409,10 F1H1H181A792 E 180UF, 50V 2 C2411 ECJ3YB1E106M C 10 UF, K, 25V 1 C2412,13 ECJ1VB1E104K C 0.10UF, K, 25V 2 C2420 ECJ1VB1E104K C 0.10UF, K, 25V 1 C2425,26 ECJ1VB1E104K C 0.10UF, K, 25V 2 C3001 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3004 EEEHB1C470P C 47PF, J, 16V 1 C3009-11 ECJ1VB1E104K C 0.10UF, K, 25V 3 C3012-17 ECJ1VB1H103K C 0.001UF, K, 50V 6 C3018 EEEHB1C470P C 47PF, J, 16V 1 C3019 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3020-31 ECJ3XB1C225K C 22UF, K, 16V 12 C3032 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3033-35 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C3040,41 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C3042,43 EEEHB1C100R C 10PF, J, 16V 2 C3051-58 ECJ1XF1C105Z C 1UF, Z, 16V 8 C3101 ECJ3XB1C225K C 22UF, K, 16V 1 C3103 ECJ3XB1C225K C 22UF, K, 16V 1 C3105-08 ECJ1VF1C104Z C 0.1UF, Z, 16V 4 C3110 ECJ3XB1C225K C 22UF, K, 16V 1 C3111,12 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C3113 EEEHB1C470P C 47PF, J, 16V 1 C3114 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C3115 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3134-36 EEEHB1C471P E 470UF, 16V 3 C3143,44 ECJ3XB1C225K C 22UF, K, 16V 2 C3146 ECJ3XB1C225K C 22UF, K, 16V 1 C3153 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3200 F1J1C1050030 C 1UF, Z, 16V 1 C3201-03 F1J0J1060004 C 0.010UF, K, 16V 3 C3204,05 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C3301-04 ECJ1XC1H561J C 560PF, J, 50V 4 C3305 ECJ3YB1A106M C 10UF, M,6.3V 1 C3306 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3307 ECJ3YB1A106M C 10UF, M,6.3V 1 C3308 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3309 EEEHB1C470P C 47PF, J, 16V 1 C3310 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3311 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3312 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3313,14 ECJ3YB1A106M C 10UF, M,6.3V 2 C3315 EEEHB1C470P C 47PF, J, 16V 1 C3316 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3317,18 ECJ3YB1A106M C 10UF, M,6.3V 2 C3319,20 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3321,22 ECJ1VC1H100C C 10PF, C, 50V 2 C3325,26 ECJ1XC1H470J C 47PF, J, 50V 2 C3327,28 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3329,30 ECJ1VB1H102K C 1000UF, Z, 50V 2 C3331,32 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C3333 EEEHB0J470R C 47PF, J, 6.3V 1 C3334-36 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C3337 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3339,40 ECJ1VC1H330J C 33PF, J, 50V 2 C3341,42 ECJ1XC1H680J C 68PF, J, 50V 2 C3343 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3344 ECJ1VB0J105K C 1UF, K, 16V 1 C3345 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3346-60 ECJ1XB1C104K C 0.1UF, Z, 16V 15 C3361 ECJ1VC1H330J C 33PF, J, 50V 1 C3362-68 ECJ1XB1C104K C 0.1UF, Z, 16V 7 C3369 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3370-74 ECJ1XB1C104K C 0.1UF, Z, 16V 5 C3375 ECJ1VB1A105K C 0.01UF, Z, 50V 1 参考号 部品号 部品名称及描述 数量 备注 119 C3376-04 ECJ1XB1C104K C 0.1UF, Z, 16V 29 HU C3404 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 HX C3405 ECJ1XB1C104K C 0.1UF, Z, 16V 1 HU C3405 ECJ3YB1E106M C 10 UF, K, 25V 1 HX C3406 ECJ1XB1C104K C 0.1UF, Z, 16V 1 HU C3406 ECJ3YB1E106M C 10 UF, K, 25V 1 HX C3407,08 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3409 ECJ1VB1A105K C 0.01UF, Z, 50V 1 HU C3409 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 HX C3410-12 ECJ1VB1H102K C 1000UF, Z, 50V 3 C3413-15 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C3416,17 ECJ1VB1H102K C 1000UF, Z, 50V 2 C3418,19 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3420 ECJ1VC1H180J C 18PF, J, 50V 1 C3422 EEEHB0J470R C 47PF, J, 6.3V 1 C3423 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3424 EEEHB1C470P C 47PF, J, 16V 1 C3425 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3426 EEEHB1C470P C 47PF, J, 16V 1 C3427-31 ECJ1XB1C104K C 0.1UF, Z, 16V 5 C3432-36 ECJ1VB1H103K C 0.001UF, K, 50V 5 C3437 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3438 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3440-42 EEEHB0J470R C 47PF, J, 6.3V 3 C3443 ECGRL0G680ER C 68PF, J, 4V 1 C3444,45 EEEHB0J470R C 47PF, J, 6.3V 2 C3446 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3447 ECJ1VB0J105K C 1UF, K, 16V 1 C3448 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3450 ECJ1XF1C105Z C 1UF, Z, 16V 1 C3451 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3523 ECJ3YB1E106M C 10 UF, K, 25V 1 C3524 ECJ2VF1H103Z C 0.010UF, Z, 50V 1 C3550 ECJ2VF1H103Z C 0.010UF, Z, 50V 1 C3551,52 ECJ3YB1E106M C 10 UF, K, 25V 2 C3561,62 F1J1C1050030 C 1UF, Z, 16V 2 C4001,02 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C4003 F1H1H822A219 E 8200UF, 50V 1 C4004 ECJ1VB1C823K C 0.082UF, K, 16V 1 C4006 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4007-09 F1J1E104A137 C 0.10UF, Z, 25V 3 C4010 ECJ1VB1H102K C 1000UF, Z, 50V 1 C4011-13 ECJ1VF1C104Z C 0.1UF, Z, 16V 3 C4016 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4017 ECJ2FB0J106K C 10UF, Z, 6.3V 1 C4018,19 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C4020,21 ECJ2FB0J106K C 10UF, Z, 6.3V 2 C4022 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4024 ECJ2FB0J106K C 10UF, Z, 6.3V 1 C4027 ECJ1VB1H102K C 1000UF, Z, 50V 1 C4031,32 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C4201 EEEHB1C470P C 47PF, J, 16V 1 C4202-13 ECJ1XB1C104K C 0.1UF, Z, 16V 12 C4219-22 ECJ2FB0J106K C 10UF, Z, 6.3V 4 C4225 ECJ2FB0J106K C 10UF, Z, 6.3V 1 C4227 ECJ2FB0J106K C 10UF, Z, 6.3V 1 C4301 F2G0J470A019 E 47UF, 6.3V 1 C4302 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4303,04 ECJ1VB1H102K C 1000UF, Z, 50V 2 C4305,06 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4307 ECJ1VB1H102K C 1000UF, Z, 50V 1 C4308 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4309 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4310 F1K0J226A008 C 22UF, K, 6.3V 1 C4311 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4312 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4313 ECJ1VB1H102K C 1000UF, Z, 50V 1 C4315 F1K0J226A008 C 22UF, K, 6.3V 1 C4351 F2H1E221A007 E 220UF, 25V 1 C4352 ECJ3XF1E105Z C 1UF, Z, 25V 1 C4354 EEEHB1C471P E 470UF, 16V 1 C4358 F1J1C1050030 C 1UF, Z, 16V 1 C4366 F1J1A1050016 C 1UF, Z, 10V 1 C4502 ECJ2FB0J106K C 10UF, Z, 6.3V 1 C4503,04 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4505,06 ECJ1VC1H120J C 12PF, J, 50V 2 参考号 部品号 部品名称及描述 数量 备注 C4541 F1H1H8R0A503 E 8.0UF, 50V 1 C4543 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4544 EEEHB0G221P E 220UF, 4V 1 C4545 ECJ2FB0J106K C 10UF, Z, 6.3V 1 C4546,47 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C4548,49 ECJ2FB0J106K C 10UF, Z, 6.3V 2 C4550,51 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C4552 ECJ2FB0J106K C 10UF, Z, 6.3V 1 C4553-97 ECJ1VF1C104Z C 0.1UF, Z, 16V 45 C4598 EEEHB0G221P E 220UF, 4V 1 C4599-14 ECJ1XB1C104K C 0.1UF, Z, 16V 16 C4629 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4701 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4703 ECJ2FB0J106K C 10UF, Z, 6.3V 1 C4704-19 ECJ1XB1C104K C 0.1UF, Z, 16V 16 C4733 ECJ1XF1H102Z C 1000PF, Z, 50V 1 C4742 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4743 TCUY1C105ZFN C 1UF, 16V 1 C4744 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4749,50 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C4751,52 ECJ1VC1H150J C 15PF, J, 50V 2 C4753 ECJ1XF1H102Z C 1000PF, Z, 50V 1 C4754 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4803 ECJ1VB1H102K C 1000UF, Z, 50V 1 C4804 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4861 TCUY1C105ZFN C 1UF, 16V 1 C4862 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4863 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4864 ECJ1XC1H101J C 100PF, J, 50V 1 C4865 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C4866 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4871 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4881,82 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C4884,85 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C4886 ECJ1XC1H101J C 100PF, J, 50V 1 C4887 ECJ1VB1E104K C 0.10UF, K, 25V 1 C4901,02 ECJ3YB1E106M C 10 UF, K, 25V 2 C4903 ECJ1VB1E104K C 0.10UF, K, 25V 1 C4904,05 ECJ3YB1E106M C 10 UF, K, 25V 2 C4906 F1H1H822A219 E 8200UF, 50V 1 C4907 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4908 F1H1H151A792 E 150UF, 50V 1 C4909 F1H1H822A219 E 8200UF, 50V 1 C4910,11 ECJ1VB1H103K C 0.001UF, K, 50V 2 C4912 ECJ3YB1E106M C 10 UF, K, 25V 1 C4913 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4914 EEEHB1C470P C 47PF, J, 16V 1 C4915 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4917 EEEHB1C470P C 47PF, J, 16V 1 C4918 F1H0J4750004 C 4.7UF, K, 16V 1 C4919,20 ECJ1VB1E104K C 0.10UF, K, 25V 2 C4921 ECJ1VB1H102K C 1000UF, Z, 50V 1 C4923,24 ECGRL0G680ER C 68PF, J, 4V 2 C4930 ECJ2FB0J106K C 10UF, Z, 6.3V 1 C4932 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4940 ECJ2FB0J106K C 10UF, Z, 6.3V 1 C4943 ECJ1VC1H680J C 68PF, J, 50V 1 C4990 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4991 ECJ2FB0J106K C 10UF, Z, 6.3V 1 C4992,93 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C4994,95 ECJ2FB0J106K C 10UF, Z, 6.3V 2 C4996 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4997 ECJ2FB0J106K C 10UF, Z, 6.3V 1 C4998 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4999 ECJ1VB1H102K C 1000UF, Z, 50V 1 C6001 F1L2J332A022 C 3300UF, K, 6.3V 1 C6002 F1L2J222A022 C 2200UF, K, 6.3V 1 C6011-15 F2A2T201A002 E 200UF 5 C6021,22 F1L2J272A022 C 2700UF, K, 6.3V 2 C6031 F0C2E225A218 E 0.022UF, 250V 1 C6037 F1L1E4750004 C 4.7UF, 25V 1 C6091 F1L2J1020001 C 1000UF, K, 6.3V 1 C6111,12 F2A2D221A022 E 220UF, 200V 2 C6132 F1L1E4750004 C 4.7UF, 25V 1 C6134,35 F1L1E4750004 C 4.7UF, 25V 2 C6151 ECJ3YB1E105K C 1UF, K, 25V 1 参考号 部品号 部品名称及描述 数量 备注 120 C6152-54 F1L1E4750004 C 4.7UF, 25V 3 C6193-95 F1L1E4750004 C 4.7UF, 25V 3 C6197 F1L1E4750004 C 4.7UF, 25V 1 C6201,02 F0C2E405A176 E 0.040UF, 250V 2 C6209 F1L1E4750004 C 4.7UF, 25V 1 C6211,12 F1L1E4750004 C 4.7UF, 25V 2 C6213 F2A1E102A220 E 1000UF, 25V 1 C6220 F1L2J1020001 C 1000UF, K, 6.3V 1 C6221 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6241 F2A1A101A439 E 100UF, 10V 1 C6242 F1H1C105A072 C 1UF, K, 16V 1 C6243 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6251 F1H1C105A072 C 1UF, K, 16V 1 C6252 ECJ3YB1E105K C 1UF, K, 25V 1 C6261,62 F2A2A221A073 E 220UF, 100V 2 C6272,73 F2A1E221A487 E 220UF, 25V 2 C6276 F1L1E4750004 C 4.7UF, 25V 1 C6286-89 ECJ2XB1H104K C 0.1UF, K, 50V 4 C6401 F1L2J332A022 C 3300UF, K, 6.3V 1 C6402 F1L2J222A022 C 2200UF, K, 6.3V 1 C6411-15 F2A2T201A002 E 200UF 5 C6421,22 F1L2J272A022 C 2700UF, K, 6.3V 2 C6431 F0C2E405A176 E 0.040UF, 250V 1 C6480 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6502 F1L1E4750004 C 4.7UF, 25V 1 C6504,05 F1L1E4750004 C 4.7UF, 25V 2 C6521 ECJ3YB1E105K C 1UF, K, 25V 1 C6522 F1L1E4750004 C 4.7UF, 25V 1 C6524,25 F1L1E4750004 C 4.7UF, 25V 2 C6527 F1L1E4750004 C 4.7UF, 25V 1 C6531,32 F0C2E405A176 E 0.040UF, 250V 2 C6561 F2A1A101A439 E 100UF, 10V 1 C6562 F1H1C105A072 C 1UF, K, 16V 1 C6563 F2A1A101A439 E 100UF, 10V 1 C6564 F1H1C105A072 C 1UF, K, 16V 1 C6565,66 ECJ2VB1H103K C 0.01UF, K, 50V 2 C6581 ECJ3YB1E105K C 1UF, K, 25V 1 C6582 F1H1C105A072 C 1UF, K, 16V 1 C6592 F2A1E221A487 E 220UF, 25V 1 C6593 ECJ2XC1H102J C 1000PF, J, 50V 1 C6603,04 F1K2J102A014 C 1000UF, K, 6.3V 2 C6605,06 F1L2J472A022 C 4700UF, K, 6.3V 2 C6620,21 F1E2J222A002 C 2200PF, 600V 2 C6641 ECQE2224KF3 P 2.2UF, K, 250V 1 C6661,62 F1K2J102A014 C 1000UF, K, 6.3V 2 C6671 F1L1E4750004 C 4.7UF, 25V 1 C6691 ECA2CM101 E 100UF, 160V 1 C6694 ECJ3YB1E105K C 1UF, K, 25V 1 C6695 ECJ2XC1H102J C 1000PF, J, 50V 1 C6702-06 ECJ2XB1H104K C 0.1UF, K, 50V 5 C6708 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6721 ECA1HM101 E 100UF, 50V 1 C6722 ECJ2XC1H101J C 100PF, J, 50V 1 C6723-25 F1L1E4750004 C 4.7UF, 25V 3 C6726,27 F1H1C105A072 C 1UF, K, 16V 2 C6740 ECJ2XC1H101J C 100PF, J, 50V 1 C6752 ECJ3YB1E105K C 1UF, K, 25V 1 C6753 F1L1E4750004 C 4.7UF, 25V 1 C6755,56 F1L1E4750004 C 4.7UF, 25V 2 C6771 F1H1C105A072 C 1UF, K, 16V 1 C6772,73 F1L1E4750004 C 4.7UF, 25V 2 C6775 F1L1E4750004 C 4.7UF, 25V 1 C6776,77 ECJ2XB1H104K C 0.1UF, K, 50V 2 C6791 F2A1E221A487 E 220UF, 25V 1 C6795,96 F2A1E221A487 E 220UF, 25V 2 C6801 F2A2E470A022 E 47UF, 250V 1 C6803 ECKD3D221KBP C 220PF, K, 2KV 1 C6804 F2A2E100A022 E 10UF, 250V 1 C6805 ECJ2XC1H331J C 330PF, J, 50V 1 C6806 ECA2CM101 E 100UF, 160V 1 C6811 ECJ3YB1E105K C 1UF, K, 25V 1 C6812 F1L1E4750004 C 4.7UF, 25V 1 C6813 ECA2CM101 E 100UF, 160V 1 C6814 F2A1E221A487 E 220UF, 25V 1 C6815 ECJ2XC1H102J C 1000PF, J, 50V 1 C6822 F2A2G470A018 E 470UF, 400V 1 C6823 ECJ2VB1H103K C 0.01UF, K, 50V 1 参考号 部品号 部品名称及描述 数量 备注 C6832 ECJ2XB1H392K C 3900PF, K, 50V 1 C6841 F2A2E470A022 E 47UF, 250V 1 C6842 ECA2CM101 E 100UF, 160V 1 C6845 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6861 F1H1C105A072 C 1UF, K, 16V 1 C6862 ECJ3YB1E105K C 1UF, K, 25V 1 C6863 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6871 F1H1C105A072 C 1UF, K, 16V 1 C6872 ECJ3YB1E105K C 1UF, K, 25V 1 C6873 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6901 ECJ2XB1H102K C 1000PF, K, 50V 1 C6902 TCUY1C105ZFN C 1UF, 16V 1 C6904 TCUY1C105ZFN C 1UF, 16V 1 C6906 TCUY1C105ZFN C 1UF, 16V 1 C6908 TCUY1C105ZFN C 1UF, 16V 1 C6910 TCUY1C105ZFN C 1UF, 16V 1 C6912 TCUY1C105ZFN C 1UF, 16V 1 C6921 F1L2E1040002 E 1000UF, 25V 1 C6923,24 F1L2E1040002 E 000UF, 25V 2 C6926,27 F1L2E1040002 E 1000UF, 25V 2 C6929 F1L2E1040002 E 1000UF, 25V 1 C6931 ECJ2XB1H102K C 1000PF, K, 50V 1 C6936 ECJ2XB1H681K C 680PF, K, 50V 1 C6937 ECJ2VB1H221K C 220PF, K, 50V 1 C6951 ECJ2XB1H102K C 1000PF, K, 50V 1 C6952 TCUY1C105ZFN C 1UF, 16V 1 C6955 TCUY1C105ZFN C 1UF, 16V 1 C6957,58 TCUY1C105ZFN C 1UF, 16V 2 C6961 TCUY1C105ZFN C 1UF, 16V 1 C6963 TCUY1C105ZFN C 1UF, 16V 1 C6971 F1L2E1040002 E 1000UF, 25V 1 C6973,74 F1L2E1040002 E 1000UF, 25V 2 C6976,77 F1L2E1040002 E 1000UF, 25V 2 C6979 F1L2E1040002 E 1000UF, 25V 1 C6981 ECJ2XB1H102K C 1000PF, K, 50V 1 C6986 ECJ2XB1H681K C 680PF, K, 50V 1 C6987 ECJ2VB1H221K C 220PF, K, 50V 1 C7110 F1H1C105A072 C 1UF, K, 16V 1 C7114 F1H1C105A072 C 1UF, K, 16V 1 C7116 F1H1C105A072 C 1UF, K, 16V 1 C7117 ECJ1XC1H101J C 100PF, J, 50V 1 C7118 F1K2A474A006 C 0.47UF, 6.3V 1 C7121 F1H1C105A072 C 1UF, K, 16V 1 C7123 F1H1C105A072 C 1UF, K, 16V 1 C7124 ECJ1XC1H101J C 100PF, J, 50V 1 C7125 F1K2A474A006 C 0.47UF, 6.3V 1 C7126 F1H1C105A072 C 1UF, K, 16V 1 C7127 ECJ1XC1H101J C 100PF, J, 50V 1 C7128 F1K2A474A006 C 0.47UF, 6.3V 1 C7130 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7140 F1H1C105A072 C 1UF, K, 16V 1 C7141 ECJ1XC1H101J C 100PF, J, 50V 1 C7142 F1K2A474A006 C 0.47UF, 6.3V 1 C7145 F1H1C105A072 C 1UF, K, 16V 1 C7148 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7150-53 F1K2A474A006 C 0.47UF, 6.3V 4 C7203 F1H1C105A072 C 1UF, K, 16V 1 C7207 F1H1C105A072 C 1UF, K, 16V 1 C7209 F1H1C105A072 C 1UF, K, 16V 1 C7210 ECJ1XC1H101J C 100PF, J, 50V 1 C7211 F1K2A474A006 C 0.47UF, 6.3V 1 C7214 F1H1C105A072 C 1UF, K, 16V 1 C7216 F1H1C105A072 C 1UF, K, 16V 1 C7217 ECJ1XC1H101J C 100PF, J, 50V 1 C7218 F1K2A474A006 C 0.47UF, 6.3V 1 C7219 F1H1C105A072 C 1UF, K, 16V 1 C7220 ECJ1XC1H101J C 100PF, J, 50V 1 C7221 F1K2A474A006 C 0.47UF, 6.3V 1 C7229 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7230-33 F1K2A474A006 C 0.47UF, 6.3V 4 C7235 F1H1C105A072 C 1UF, K, 16V 1 C7236 ECJ1XC1H101J C 100PF, J, 50V 1 C7237 F1K2A474A006 C 0.47UF, 6.3V 1 C7240 F1H1C105A072 C 1UF, K, 16V 1 C7242 F1K2A474A006 C 0.47UF, 6.3V 1 C7244,45 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C8003 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 参考号 部品号 部品名称及描述 数量 备注 121 C8005 ECJ1VB1H103K C 0.001UF, K, 50V 1 C8007 ECJ1XC1H101J C 100PF, J, 50V 1 C8009 ECJ3XB0J106M C 10UF, M, 6.3V 1 C8013 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C8015 ECJ3YF1A106Z C 10UF, Z, 10V 1 C8016 ECJ3YB1A475K C 0.047UF, K, 10V 1 C8019 ECJ1VB1H103K C 0.001UF, K, 50V 1 C8021 ECJ3VB1C474K C 0.47UF, K, 16V 1 C8023 ECJ1VB1H103K C 0.001UF, K, 50V 1 C8025 ECJ1VB1H103K C 0.001UF, K, 50V 1 C8027 ECJ3XB1C225K C 22UF, K, 16V 1 C8029 ECJ1VB1H103K C 0.001UF, K, 50V 1 C8030 EEEHB1C470P C 47PF, J, 16V 1 C8033 ECJ1XC1H102J C 1000PF, J, 50V 1 C8035 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C8036 ECJ1XC1H101J C 100PF, J, 50V 1 C8038 ECJ1XC1H102J C 1000PF, J, 50V 1 C8045 F1J1C1050030 C 1UF, Z, 16V 1 C8049 ECJ1VB1H103K C 0.001UF, K, 50V 1 C8051 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C8070 ECJ1VB1E104K C 0.10UF, K, 25V 1 C8072,73 ECJ3YF1A106Z C 10UF, Z, 10V 2 C8074,75 ECJ1XC1H102J C 1000PF, J, 50V 2 C8080-83 ECJ1VF1C104Z C 0.1UF, Z, 16V 4 C8084 TCUY1C105ZFN C 1UF, 16V 1 C8100 EEEHB1C470P C 47PF, J, 16V 1 C8101 ECJ1VB1H103K C 0.001UF, K, 50V 1 C8102,03 EEEHB1C470P C 47PF, J, 16V 2 C8106 EEEHB1C470P C 47PF, J, 16V 1 C8107 EEEHB1C471P E 470UF, 16V 1 C8108,09 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C8111-13 ECJ1VF1C104Z C 0.1UF, Z, 16V 3 C8115 EEEHB1C470P C 47PF, J, 16V 1 C8116 ECJ1VB1H103K C 0.001UF, K, 50V 1 C8120 F2H1E471A010 E 470UF, 25V 1 C8121 ECJ3YF1E225Z C 2.2UF, Z, 25V 1 C8122 EEEHB1C470P C 47PF, J, 16V 1 C8123 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C8181,82 ECJ1VC1H150J C 15PF, J, 50V 2 C8183 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C8185 EECS5R5H155 E 1.5UF, 5.5V 1 C8200 EEEHB1C470P C 47PF, J, 16V 1 C9028,29 F1J1A106A043 C 0.010UF, K, 10V 2 C9033,34 F1G1C104A083 C 0.10UF, K, 16V 2 C9035,36 F1J1A106A043 C 0.010UF, K, 10V 2 C9037 F1G1E1030005 C 0.01UF, Z, 25V 1 C9039 F1J1A106A043 C 0.010UF, K, 10V 1 C9040 F1G1C104A083 C 0.10UF, K, 16V 1 C9044 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1 C9045-53 F1G1C104A083 C 0.10UF, K, 16V 9 C9055-57 F1G1C104A083 C 0.10UF, K, 16V 3 C9058 F1J1A106A043 C 0.010UF, K, 10V 1 C9061 F1G1C104A077 C 0.10UF, K, 16V 1 C9062 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1 C9063 F1G1C104A083 C 0.10UF, K, 16V 1 C9468 F1G1E1030005 C 0.01UF, Z, 25V 1 C9469 F1G1C104A083 C 0.10UF, K, 16V 1 C9500 F1G1C104A077 C 0.10UF, K, 16V 1 C9505 F1G1C104A077 C 0.10UF, K, 16V 1 C9508 F1G1C104A077 C 0.10UF, K, 16V 1 C9509,10 F1G1H120A565 E 12UF, 50V 2 C9511 F1J1A106A043 C 0.010UF, K, 10V 1 C9516-25 F1G1C104A077 C 0.10UF, K, 16V 10 C9526 F1J1A106A043 C 0.010UF, K, 10V 1 C9527,28 F1G1C104A077 C 0.10UF, K, 16V 2 C9531 F1J1A106A043 C 0.010UF, K, 10V 1 C9559-64 F1G1C104A077 C 0.10UF, K, 16V 6 C9823 ECJ3YB1E106M C 10 UF, K, 25V 1 C9825 F1G1H101A565 C 100PF, K, 50V 1 C9832 F1J1A106A043 C 0.010UF, K, 10V 1 C9837 F1J1A106A043 C 0.010UF, K, 10V 1 C9838 F1G1C104A083 C 0.10UF, K, 16V 1 C9840 F1G1E1030005 C 0.01UF, Z, 25V 1 C9841-43 F1G1C104A083 C 0.10UF, K, 16V 3 C9844 F1G1E1030005 C 0.01UF, Z, 25V 1 C9845,46 F1G1C104A083 C 0.10UF, K, 16V 2 C9858 ECJ3YB1E106M C 10 UF, K, 25V 1 参考号 部品号 部品名称及描述 数量 备注 C9859 F1G1E1030005 C 0.01UF, Z, 25V 1 C9860 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1 C9861,62 ECJ1VB1E104K C 0.10UF, K, 25V 2 C9863 ECJ2YB0J475K C 3.3UF, Z, 4.7V 1 C9864 ECJ1VB1E104K C 0.10UF, K, 25V 1 C9865,66 ECGRL0G680ER C 68PF, J, 4V 2 C9867-72 ECJ3YB1E106M C 10 UF, K, 25V 6 C9873 ECGRL0G680ER C 68PF, J, 4V 1 C9874 F1G1H680A565 E 68UF, 50V 1 C9877 F1G1H680A565 E 68UF, 50V 1 C9878 F1G1E1030005 C 0.01UF, Z, 25V 1 C9879,80 F1G1E822A086 C 8200UF, Z, 25V 2 C9881 F1G1E1030005 C 0.01UF, Z, 25V 1 C9882 F1G1E822A086 C 8200UF, Z, 25V 1 C9883 F1G1H101A565 C 100PF, K, 50V 1 C9884,85 F1G1H1020008 E 1000UF, 50V 2 C9886,87 ECJ1VB1E104K C 0.10UF, K, 25V 2 C9888 F1G1H361A565 E 360UF, 50V 1 C9900-25 F1G1C104A077 C 0.10UF, K, 16V 26 C9927-51 F1G1C104A077 C 0.10UF, K, 16V 25 C9955-59 F1G1C104A077 C 0.10UF, K, 16V 5 C9960-64 F1J1A106A043 C 0.010UF, K, 10V 5 C9966,67 F1G1C104A077 C 0.10UF, K, 16V 2 CB1-B8 K1MN68BA0052 68P 连接器 8 D5 K1KB31BA0064 31P 连接器 1 D6 K1KA21A00011 21P 连接器 1 D9 K1KA07A00292 7P 连接器 1 D20 K1KY30BA0090 30P 连接器 1 D25 K1KA13B00069 13P 连接器 1 D31,32 K1MN55BA0257 55P 连接器 2 D801 B0JCPD000026 二极管 1 D802,03 B0JCME000037 二极管 2 D804-10 B0JCPE000004 二极管 7 D811 MA2J11100L 二极管 1 D1550 LNJ107W5PRW LED 1 D1551 MA8033L 齐纳二极管 1 D1554 MA8033L 齐纳二极管 1 D2301-03 B0JCME000037 二极管 3 D3001 MA2J11100L 二极管 1 D3003,04 MA2J11100L 二极管 2 D3061 MA2J72800L 二极管 1 D3302 MA8140M 齐纳二极管 1 D3304 MA8140M 齐纳二极管 1 D3306-10 MA8140M 齐纳二极管 5 D3311 MA3036H 齐纳二极管 1 D3504 MA3056MTX 齐纳二极管 1 D3507-10 MA8160H 齐纳二极管 4 D4351 B0JCME000037 二极管 1 D4353 MA3X152A0L 二极管 1 D4355 MA3X152A0L 二极管 1 D4357 MA3X152A0L 二极管 1 D4359 MA2J11100L 二极管 1 D4701 MA2J72800L 二极管 1 D4704 MA3033 齐纳二极管 1 D4709 MA2J72800L 二极管 1 D4711-13 MA152K 二极管 3 D4721 MA3036H 齐纳二极管 1 D4732-35 MA152K 二极管 4 D4901 B0JCGD000002 二极管 1 D4902 MA22D3900L 二极管 1 D4903 B0JCGD000002 二极管 1 D4904 MA22D3900L 二极管 1 D6001 B0HBSN000008 二极管 1 D6021 MA3DF30000LZ 齐纳二极管 1 D6024,25 B0ECHP000003 二极管 2 D6032 MA2J11100L 二极管 1 D6061,62 MA3DF30000LZ 齐纳二极管 2 D6071,72 B0HBSN000008 二极管 2 D6082 MA3DF30000LZ 齐纳二极管 1 D6091 B0HBSN000008 二极管 1 D6092 B0ECHP000003 二极管 1 D6101 B0JCME000037 二极管 1 D6104 B0JCME000037 二极管 1 D6131,32 B0ECHP000003 二极管 2 D6151-53 B0ECHP000003 二极管 3 参考号 部品号 部品名称及描述 数量 备注 122 D6191 B0ECHP000003 二极管 1 D6193 B0ECHP000003 二极管 1 D6211 B0JCME000037 二极管 1 D6221 B0ECHP000003 二极管 1 D6222,23 MA2J11100L 二极管 2 D6253 LNJ301MPUJA LED 1 D6254 MAZ80510LL 齐纳二极管 1 D6255 MA2J11100L 二极管 1 D6273 MA2J11100L 二极管 1 D6275 MA8068M 齐纳二极管 1 D6276 MA3X152A0L 二极管 1 D6278 MA3X152A0L 二极管 1 D6280 MAZ80510LL 齐纳二极管 1 D6281 B0JCME000037 二极管 1 D6401,02 B0HBSN000008 二极管 2 D6422 MA3DF40000LZ 齐纳二极管 1 D6441 B0ECHP000003 二极管 1 D6451 B0ECHP000003 二极管 1 D6461,62 MA3DF30000LZ 齐纳二极管 2 D6466 MA2J11100L 二极管 1 D6471 B0HBSN000008 二极管 1 D6472 B0ECHP000003 二极管 1 D6477 MA2J11100L 二极管 1 D6478 B0HCKS000002 二极管 1 D6480 MA2J11100L 二极管 1 D6481 MA3DF30000LZ 齐纳二极管 1 D6491 MA3DF40000LZ 齐纳二极管 1 D6497 B0ECHP000003 二极管 1 D6501 B0ECHP000003 二极管 1 D6503 B0ECHP000003 二极管 1 D6521-23 B0ECHP000003 二极管 3 D6583 LNJ301MPUJA LED 1 D6584 MAZ80510LL 齐纳二极管 1 D6585 MA2J11100L 二极管 1 D6604 MA2J11100L 二极管 1 D6605 MAZ80510LL 齐纳二极管 1 D6606 B0HCMM000014 二极管 1 D6607 MA2J11100L 二极管 1 D6619 B0HCKS000002 二极管 1 D6621 B0HDSM000005 二极管 1 D6623,24 B0HDSM000005 二极管 2 D6631,32 MA8240MTX 齐纳二极管 2 D6641,42 B0HCKS000002 二极管 2 D6643 B0JCME000037 二极管 1 D6644 B0HCKS000002 二极管 1 D6661 MA2J11100L 二极管 1 D6662-64 MA8330M 齐纳二极管 3 D6665 MAZ80510LL 齐纳二极管 1 D6666,67 MA2J11100L 二极管 2 D6670,71 B0JCME000037 二极管 2 D6690 MA2J11100L 二极管 1 D6691,92 MA8200M 齐纳二极管 2 D6701 MA8056H 齐纳二极管 1 D6702,03 MA2J11100L 二极管 2 D6721 B0HCKS000002 二极管 1 D6722 MA2J11100L 二极管 1 D6725 B0ECHP000003 二极管 1 D6726-33 MA8056H 齐纳二极管 8 D6761 B0JCME000037 二极管 1 D6763 B0ECHP000003 二极管 1 D6764 B0HCKS000002 二极管 1 D6765,66 B0ECHP000003 二极管 2 D6773 B0HCKS000002 二极管 1 D6791 MA8200M 齐纳二极管 1 D6802 B0BC01000044 齐纳二极管 1 D6804 B0ECHP000003 二极管 1 D6805 MA8240MTX 齐纳二极管 1 D6806 B0HCKS000002 二极管 1 D6809 B0HCMM000014 二极管 1 D6820-23 MA2J11100L 二极管 4 D6824,25 MA8330M 齐纳二极管 2 D6826 MA2J11100L 二极管 1 D6827,28 MA8330M 齐纳二极管 2 D6830 MA8056H 齐纳二极管 1 D6836 MAZ81500ML 齐纳二极管 1 D6837 MA2J11100L 二极管 1 D6838 B0BC027A0234 齐纳二极管 1 参考号 部品号 部品名称及描述 数量 备注 D6839 B0ECHP000003 二极管 1 D6841 B0HCKS000002 二极管 1 D6842,43 MA2J11100L 二极管 2 D6859 B0ECHP000003 二极管 1 D6860 B0HCKS000002 二极管 1 D6861 MAZ80510LL 齐纳二极管 1 D6862 MA2J11100L 二极管 1 D6871 MAZ80510LL 齐纳二极管 1 D6872 MA2J11100L 二极管 1 D6901,02 MA8056H 齐纳二极管 2 D6903-05 B0HCMM000013 二极管 3 D6951,52 MA8056H 齐纳二极管 2 D6953-55 B0HCMM000013 二极管 3 D7103-10 B0HCMM000014 二极管 8 D7201-08 B0HCMM000014 二极管 8 D8001 MA2J11100L 二极管 1 D8003 MA2J11100L 二极管 1 D8010,11 MA153A 二极管 2 D8180 MA2J11100L 二极管 1 D8181 MAZ80560ML 齐纳二极管 1 D8184,85 MAZ80560ML 齐纳二极管 2 D8200 MAZ31600ML 齐纳二极管 1 D8201 MA2J11100L 二极管 1 D8203 MA3100M 齐纳二极管 1 D8204 MA2J11100L 二极管 1 D8209 MA2J11100L 二极管 1 D8210 MA3100M 齐纳二极管 1 D8211 MA2J11100L 二极管 1 D8212 MAZ80560ML 齐纳二极管 1 D8213 MA2J11100L 二极管 1 D9017-19 MA3033 齐纳二极管 3 D9020 B0JCCE000008 二极管 1 D9110 B0JCGD000002 二极管 1 D9802 B0JCCE000008 二极管 1 D9804 B0JCCE000008 二极管 1 D9807,08 B0JCCE000008 二极管 2 D9811 B0JCCE000008 二极管 1 D9812 MA22D3900L 二极管 1 D9813-15 B0JCGD000002 二极管 3 D9816,17 MA22D3900L 二极管 2 DN1 K1MN80BA0076 80P 连接器 1 DN4 K1KA14A00248 14P 连接器 1 DN6 K1KB31BA0064 31P 连接器 1 DN11 K1KA21A00011 21P 连接器 1 DN31 K1KA03AA0714 3P 连接器 1 DN33 K1KA03AA0714 3P 连接器 1 DN35 K1KA03AA0714 3P 连接器 1 DS1 K1MN80BA0076 80P 连接器 1 DS2 K1KA06BA0047 6P 连接器 1 DS4 K1KA11BA0051 11P 连接器 1 DS6 K1KA10BA0051 10P 连接器 1 DS7,S8 K1KA03BA0055 3P 连接器 2 DS11-13 K1KB80B00024 80P 连接器 3 DS14 K1KA15AA0194 连接器 1 DS15 K1KA03BA0047 3P 连接器 1 FL3000-15 F1J1E1040022 C 0.10UF, Z, 25V 16 FL3510-17 TAXA0024 LC 滤波器 8 FL4001 J0MAB0000175 LC 滤波器 1 FL4502-04 F1J1E1040022 C 0.10UF, Z, 25V 3 FL4707-11 F1J1E1040022 C 0.10UF, Z, 25V 5 FL7101 J0HABH000013 LC 滤波器 1 FL7201 J0HABH000013 LC 滤波器 1 FL9300,01 F1J1E104A148 C 0.10UF, Z, 25V 2 FL9504 F1J1E104A148 C 0.10UF, Z, 25V 1 FL9803 F1J1E104A148 C 0.10UF, Z, 25V 1 FL9805,06 F1J1E104A148 C 0.10UF, Z, 25V 2 FL9900-04 F1J1E104A148 C 0.10UF, Z, 25V 5 H0 K1KA08AA0714 8P 连接器 1 H1 K1KA80B00037 80P 连接器 1 H37 K1KA03AA0190 3P 连接器 2 HX1 K1KA15AA0194 连接器 1 参考号 部品号 部品名称及描述 数量 备注 123 IC801-03 C0DBAMH00018 IC 3 IC804 C0CBCAC00275 IC 1 IC805 C0DBAMH00027 IC 1 IC2301,02 C1AB00002534 IC 2 IC2303 C1BB00001006 IC 1 IC2305 C0ABBA000168 IC 1 IC3001 C1AB00002530 IC 1 IC3002 C0JBBR000002 IC 1 IC3003 CXA1315M 线性 IC 1 IC3004 CXA1875AM 线性 IC 1 IC3005 C1AB00002529 IC 1 IC3006 MC14052BF MOS IC (CMOS 门阵列 ) 1 IC3007,08 C0JBAS000215 IC 2 IC3101 C1AB00002238 IC 1 IC3153 C0JBAZ001120 IC 1 IC3301 CXA2089Q 线性 IC 1 IC3302 C0EBE0000066 IC (LOGIC) 1 IC3303 C0CBCAC00275 IC 1 IC3304 C1AB00002487 IC 1 IC3305 C3ABMG000227 IC 1 IC3306 C0JBAZ002269 IC 1 IC3307 C0JBCZ000523 IC 1 IC3309 TVRP523 IC 1 IC3502 C3EBDC000067 IC 1 IC4001 C0FBAY000012 IC 1 IC4002 C0CBCBE00001 IC 1 IC4031,32 C0JBAE000354 IC 2 IC4201 C1ZBZ0003233 IC 1 IC4301 C0JBAP000020 IC 1 IC4351 C0DBAZG00034 IC 1 IC4500 C1ZBZ0003478 IC 1 IC4501 MN845111-A IC 1 IC4502 C3ABQJ000031 IC 1 IC4701 MN103SB30RGL IC 1 IC4702 TVRP384-1 IC 1 IC4703 C3EBKC000014 IC 1 IC4704 C0EBE0000447 IC 1 IC4711 C0JBAE000354 IC 1 IC4714 C0JBAB000388 IC 1 IC4715 C0JBAE000354 IC 1 IC4721 C1ZBZ0003577 IC 1 IC4803 C0JBAS000215 IC 1 IC4901 C0DBAYY00274 IC 1 IC4953 C0CBCAD00016 IC 1 IC4954 C0DBZFF00004 IC 1 IC4956 C0CBCBC00190 IC 1 IC6131 C0ZBZ0000895 IC 1 IC6151 C0ZBZ0001324 IC 1 IC6191 C0ZBZ0000895 IC 1 IC6211 C0ZBZ0001325 IC 1 IC6221 C0DBEMC00043 IC 1 IC6241 C0JBAZ000005 IC 1 IC6251 NJM2903M 集成电路 1 IC6471 C0DBEKA00003 IC 1 IC6472 C0JBAA000377 IC 1 IC6501 C0ZBZ0000895 IC 1 IC6521 C0ZBZ0001324 IC 1 IC6561,62 C0JBAZ000005 IC 2 IC6581 NJM2903M 集成电路 1 IC6671 C0ZBZ0001325 IC 1 IC6721,22 C0JBAZ000994 IC 2 IC6724,25 C0CBADC00072 IC 2 IC6752 C0ZBZ0001324 IC 1 IC6771 C0CBADC00072 IC 1 IC6772 C0ZBZ0001325 IC 1 IC6773,74 C0JBAA000377 IC 2 IC6791 N0BF1FB00001 IC 1 IC6801,02 C0DBEMC00043 IC 2 IC6803 C5HABZZ00165 IC 1 IC6821 C0DBEMC00043 IC 1 IC6841 C0DBEMC00043 IC 1 IC6861 NJM2903M 集成电路 1 IC6871 NJM2903M 集成电路 1 IC6901-06 AN16077A-VT IC 6 IC6951-56 AN16077A-VT IC 6 IC7101,02 C0JBAZ001120 IC 2 IC7201,02 C0JBAZ001120 IC 2 参考号 部品号 部品名称及描述 数量 备注 IC7204 C0JBAZ001120 IC 1 IC8001 MC14052BF MOS IC (CMOS 门阵列 ) 1 IC8003 C1AA00000706 IC 1 IC8005 C0JBAB000646 IC 1 IC8007 C0JBAR000419 IC 1 IC8009 C0JBAS000251 IC 1 IC8014 C0ZBZ0001361 IC 1 IC8017,18 C0JBAB000715 IC 2 IC8100 C0CBAKD00001 IC 1 IC8181 C1DB00001208 IC 1 IC9001 TVRP497 IC 1 IC9002 C1ZBZ0003577 IC 1 IC9003 MNZSFC9GPH3 IC 1 IC9007 TVRP210-5 IC 1 IC9011 C0EBF0000431 IC 1 IC9013 C0JBAZ002060 IC 1 IC9200 C1ZBZ0003600 IC 1 IC9303 TVRP215-3 IC 1 IC9500 C1ZBZ0003575 IC 1 IC9802,03 C0JBAZ001120 IC 2 IC9805 C0DBAYY00274 IC 1 IC9806 C0DBAYY00273 IC 1 IC9900 MN84524 IC 1 IC9901 C3ABQJ000051 IC 1 JA1-16 ERJ6GEY0R00V M 0 OHM, 1/10W 16 JK3301 K1QBB1AB0008 连接器 1 JK3302,03 K2HA204B0097 插孔 2 JK3304 K1CB106B0027 连接器 1 JK3509 K1FA109B0062 连接器 1 JK3511 K1FB115BA020 连接器 1 JK3513 K2HC103B0105 插孔 1 JK8500 K4BC02B00013 AV 端子 2 L801 G1A101ZA0007 电感线圈 1 L802 G1C101MA0167 感应线圈 1 L803 G1C220MA0167 感应线圈 1 L804,05 J0JHC0000078 芯片感应器 2 L807-11 J0JHC0000078 芯片感应器 5 L812 G1C470M00012 感应器线圈 1 L1501-08 J0JHC0000078 芯片感应器 8 L2330,31 G0A221ZA0041 电感线圈 2 L3002 G1C100K00020 感应线圈 1 L3005,06 G1C100K00020 感应线圈 2 L3050 G1C100K00020 感应线圈 1 L3140 J0JHC0000078 芯片感应器 1 L3301-07 EXC3BB221H 磁珠电感 7 L3308,09 G1C100K00020 感应线圈 2 L3310,11 J0JHC0000078 芯片感应器 2 L3312,13 G1C6R8MA0061 感应器线圈 2 L3314-20 J0JHC0000078 芯片感应器 7 L3526 ELJPA100KFB 芯片感应器 1 L3555 ELJPA100KFB 芯片感应器 1 L4206 J0JHC0000096 芯片感应器 1 L4301-03 J0JHC0000078 芯片感应器 3 L4352 G1A101ZA0007 电感线圈 1 L4501 G1C150KA0038 感应线圈 1 L4502-05 J0JHC0000096 芯片感应器 4 L4701-04 J0JHC0000096 芯片感应器 4 L4901 G1C1R8MA0248 电感线圈 1 L4902 G1C2R2MA0248 感应线圈 1 L6000 J0JJC0000015 芯片感应器 1 L6001-03 ELC13P1R9 电感线圈 3 L6010 J0JJC0000015 芯片感应器 1 L6011-13 ELC13P1R9 电感线圈 3 L6045-48 G0ZZ00002183 峰值线圈 4 L6057,58 G0ZZ00002183 峰值线圈 2 L6061-64 G0ZZ00002183 峰值线圈 4 L6083,84 G0ZZ00002183 峰值线圈 2 L6101 J0JJC0000015 芯片感应器 1 L6103 G0ZZ00002183 峰值线圈 1 L6106 J0JJC0000015 芯片感应器 1 L6212 J0JJC0000015 芯片感应器 1 L6221 G0ZZ00002183 峰值线圈 1 L6241 G0ZZ00002183 峰值线圈 1 L6262 G0ZZ00002183 峰值线圈 1 参考号 部品号 部品名称及描述 数量 备注 124 L6271 G0ZZ00002183 峰值线圈 1 L6401-03 ELC13P1R9 电感线圈 3 L6411-13 ELC13P1R9 电感线圈 3 L6461-68 G0ZZ00002183 峰值线圈 8 L6472 G0ZZ00002183 峰值线圈 1 L6474 G0ZZ00002183 峰值线圈 1 L6481,82 G0ZZ00002183 峰值线圈 2 L6485,86 G0ZZ00002183 峰值线圈 2 L6591,92 G0ZZ00002183 峰值线圈 2 L6601,02 G0ZZ00002183 峰值线圈 2 L6690 G0ZZ00002183 峰值线圈 1 L8001 G1C100K00020 感应线圈 1 L8003 G1C100K00020 感应线圈 1 L8005 G1C100K00020 感应线圈 1 L8101-08 J0JHC0000078 芯片感应器 8 L9500 G1C150KA0038 感应线圈 1 L9501,02 J0JHC0000078 芯片感应器 2 L9504,05 J0JHC0000078 芯片感应器 2 L9800 G1C2R2Z00007 感应线圈 1 L9801 G1C1R5Z00006 感应线圈 1 L9802 G1C2R2Z00007 感应线圈 1 NP TNPA3931 H3 电路板 2 NP TNPA4109 DS 电路板 1 NP TZTNP03XGTC HX 电路板 1 NP TXNHU1XLTC HU 电路板 1 NP TZTNP02XGTC DN 电路板 1 NP TNPA4165 C1 电路板 1 NP TNPA4166 C2 电路板 1 NP TZTNP01XGTC D 电路板 1 NP TXN/P1XGTU P 电路板 1 NP TNPA4182 SC 电路板 1 NP TNPA4185 SD 电路板 1 NP TNPA4183 SS 电路板 1 NP TNPA4184 SU 电路板 1 NP TNPA3641 V2 电路板 1 NP TNPA3640 V1 电路板 1 NP TNPA3642 S1 电路板 1 PA4901 K5H4022A0023 保险丝 1 PA9800 K5H4022A0023 保险丝 1 PA9900 K5H5022A0023 保险丝 1 PC6480 B3PBA0000223 IC 1 PC6701,02 B3PBA0000457 IC 2 PC6704 B3PBA0000456 IC 1 PC6705 B3PBA0000397 IC 1 PC6801 B3PBA0000223 IC 1 PC6861 B3PBA0000223 IC 1 PC6871 B3PBA0000223 IC 1 Q1540 2SD0601ARL 晶体管 1 Q2300 B1BBCF000028 晶体管 1 Q2331 B1BBCF000028 晶体管 1 Q2372 2SD0601ARL 晶体管 1 Q3001 2SB0709ARL 晶体管 1 Q3301-04 2SD0601ARL 晶体管 4 Q3305-08 2SB0709ARL 晶体管 4 Q3531,32 2SD0601ARL 晶体管 2 Q4351 2SD0601ARL 晶体管 1 Q4701 B1CBHD000002 FET 1 Q4702-07 2SD0601ARL 晶体管 6 Q4708 B1CBHD000002 FET 1 Q4712-14 2SD0601ARL 晶体管 3 Q4801-03 2SD0601ARL 晶体管 3 Q4901,02 B1MBEDA00015 晶体管 2 Q4961,62 2SD0601ARL 晶体管 2 Q6001-03 B1JADN000001 晶体管 3 Q6021-23 B1JADN000001 晶体管 3 Q6031 B1ADRD000001 晶体管 1 Q6041,42 B1JADN000002 晶体管 2 Q6052 B1JADN000002 晶体管 1 Q6101 B1DFKM000002 晶体管 1 Q6103 B1ABNF000006 晶体管 1 Q6104 B1ADNF000006 晶体管 1 Q6106 B1DFKM000002 晶体管 1 参考号 部品号 部品名称及描述 数量 备注 Q6111 B1DFKM000001 晶体管 1 Q6114 B1DFKM000001 晶体管 1 Q6141 B1ABNF000006 晶体管 1 Q6142 B1ADNF000006 晶体管 1 Q6146 B1ABNF000006 晶体管 1 Q6147 B1ADNF000006 晶体管 1 Q6171 B1ABRD000003 晶体管 1 Q6172 B1ADRD000001 晶体管 1 Q6181 B1ABRD000003 晶体管 1 Q6222 2SC1473AEA 晶体管 1 Q6251 2SD0601ARL 晶体管 1 Q6256 2SD1263A 晶体管 1 Q6271 2SD0601ARL 晶体管 1 Q6401-03 B1JADN000001 晶体管 3 Q6421-23 B1JADP000002 晶体管 3 Q6441,42 B1JADN000002 晶体管 2 Q6451 B1JADP000002 晶体管 1 Q6501 B1ABNF000006 晶体管 1 Q6502 B1ADNF000006 晶体管 1 Q6521 B1ABNF000006 晶体管 1 Q6522 B1ADNF000006 晶体管 1 Q6531 B1ABRD000003 晶体管 1 Q6532 B1ADRD000001 晶体管 1 Q6551 B1ABRD000003 晶体管 1 Q6552 B1ADRD000001 晶体管 1 Q6581 2SD0601ARL 晶体管 1 Q6601 B1DFES000003 晶体管 1 Q6602 2SD0601ARL 晶体管 1 Q6603 2SB0709ARL 晶体管 1 Q6621,22 2SK399500L FET 2 Q6642-44 2SK399500L FET 3 Q6646-48 2SK399500L FET 3 Q6661 B1DEET000002 晶体管 1 Q6662 2SD0601ARL 晶体管 1 Q6665 B1ABNF000006 晶体管 1 Q6671,72 B1DFDR000001 晶体管 2 Q6679 B1ABNF000006 晶体管 1 Q6680 B1ADNF000006 晶体管 1 Q6690 2SA19610Q0HW 晶体管 1 Q6742,43 2SD0601ARL 晶体管 2 Q6762 B1ADNF000006 晶体管 1 Q6781 B1ABNF000006 晶体管 1 Q6782 B1ADNF000006 晶体管 1 Q6791 2SD0601ARL 晶体管 1 Q6805 2SC3063 晶体管 1 Q6806 2SC1473AEA 晶体管 1 Q6821,22 2SD1263A 晶体管 2 Q6824 2SD0601ARL 晶体管 1 Q6841 2SD1263A 晶体管 1 Q6842 2SC1473AEA 晶体管 1 Q8002 2SD0601ARL 晶体管 1 Q8010 2SD0601ARL 晶体管 1 Q8011 2SB0709ARL 晶体管 1 Q8012 2SD0601ARL 晶体管 1 Q8013 2SB0709ARL 晶体管 1 Q8019 2SD0601ARL 晶体管 1 Q8181-84 B1CBHD000002 FET 4 Q8200-02 2SD0601ARL 晶体管 3 Q9010 2SD0601ARL 晶体管 1 Q9044 2SD0601ARL 晶体管 1 Q9046 2SD0601ARL 晶体管 1 Q9050-54 2SD0601ARL 晶体管 5 Q9301,02 2SD0601ARL 晶体管 2 Q9805,06 2SD0601ARL 晶体管 2 Q9807-09 B1MBEDA00015 晶体管 3 R803 ERJ3EKF6802 M 68KOHM, 1/16W 1 R804 ERJ3GEYJ224 M 220KOHM,J,1/16W 1 R805 ERJ3EKF8452 M84.5KOHM, 1/16W 1 R806 ERJ3EKF1052 M10.5KOHM, 1/16W 1 R808,09 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R811 ERJ3EKF6802 M 68KOHM, 1/16W 1 R812 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R813 ERJ3EKF4222 M42.2KOHM, 1/16W 1 R814 ERJ3EKF1052 M10.5KOHM, 1/16W 1 R816,17 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R819 ERJ3EKF6802 M 68KOHM, 1/16W 1 参考号 部品号 部品名称及描述 数量 备注 125 R820 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R821 ERJ3EKF2432 M24.3KOHM, 1/16W 1 R822 ERJ3EKF1052 M10.5KOHM, 1/16W 1 R824 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R831 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R832 ERJ3GEYJ822 M 8.2KOHM,J,1/16W 1 R834 ERJ6ENF7502 M 75KOHM, 1/10W 1 R835 ERJ6ENF6801 M 6.8KOHM, 1/10W 1 R836 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R837 D0GB184JA057 M 180KOHM,J,1/16W 1 R838 ERJ12YJ330 M 33 OHM,J, 1/2W 1 R839 ERJ12YJ681 M 680 OHM,J, 1/2W 1 R840 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R842,43 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R845-49 ERJ6GEY0R00V M 0 OHM, 1/10W 5 R1500 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R1510 ERJ3GEYD222V M 2.2KOHM,J,1/16W 1 R1511 ERJ3GEYF302 M 3.0KOHM, 1/16W 1 R1512 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R1513 ERJ3GEYD822V M 8.2KOHM,J,1/16W 1 R1550 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R1551 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R1552 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R1553 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R1554 ERJ6GEYG271 M 270 OHM,J,1/10W 1 R2351-54 D0GB103JA057 M 10KOHM,J,1/16W 4 R2355-60 ERDS1FJ2R2 C 2.2 OHM, J,1/2W 6 R2361,62 D0GB103JA057 M 10KOHM,J,1/16W 2 R2363 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R2365 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R2367,68 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R2383 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2384 D0GB473JA057 M 47KOHM,J,1/16W 1 R2385 ERJ3GEYD153V M 15KOHM,J,1/16W 1 R2386 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2387,88 J0JCC0000100 芯片感应器 2 R2389-92 D0GB103JA057 M 10KOHM,J,1/16W 4 R2393 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2394-96 D0GB103JA057 M 10KOHM,J,1/16W 3 R2397 ERJ3GEYD512V M 5.1KOHM,J,1/16W 1 R2398 J0JCC0000100 芯片感应器 1 R2399,00 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R2404-07 D0GB103JA057 M 10KOHM,J,1/16W 4 R2408-11 ERJ6GEY0R00V M 0 OHM, 1/10W 4 R2412 ERJ3GEYJ122 M 1.2KOHM,J,1/16W 1 R2413 J0JCC0000100 芯片感应器 1 R2414,15 ERJ3GEYJ122 M 1.2KOHM,J,1/16W 2 R2416 J0JCC0000100 芯片感应器 1 R2417 ERJ3GEYJ122 M 1.2KOHM,J,1/16W 1 R2418,19 D0GB103JA057 M 10KOHM,J,1/16W 2 R2420 ERJ3GEYD153V M 15KOHM,J,1/16W 1 R2421,22 D0GB393JA041 M 39KOHM,J,1/16W 2 R2423 ERJ3GEYD153V M 15KOHM,J,1/16W 1 R2424,25 J0JCC0000100 芯片感应器 2 R2426 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3001 D0GB103JA057 M 10KOHM,J,1/16W 1 R3002 D0GB102JA057 M 1KOHM,J,1/16W 1 R3003 D0GB473JA057 M 47KOHM,J,1/16W 1 R3004 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3025 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3026-29 D0GB103JA057 M 10KOHM,J,1/16W 4 R3030,31 J0JCC0000100 芯片感应器 2 R3032,33 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R3034-36 ERJ3GEYJ331 M 330 OHM,J,1/16W 3 R3037,38 J0JCC0000100 芯片感应器 2 R3039-41 ERJ3GEYJ331 M 330 OHM,J,1/16W 3 R3042 J0JCC0000100 芯片感应器 1 R3043 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3044-47 D0GB103JA057 M 10KOHM,J,1/16W 4 R3048 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 R3049 D0GB103JA057 M 10KOHM,J,1/16W 1 R3050 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3051 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R3053,54 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R3057,58 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R3059 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3060,61 J0JCC0000100 芯片感应器 2 参考号 部品号 部品名称及描述 数量 备注 R3062,63 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R3064-69 ERJ3GEYJ560 M 56 OHM,J,1/16W 6 R3070-75 ERJ6RED750 M 75 OHM, 1/10W 6 R3076-81 ERJ3GEYJ560 M 56 OHM,J,1/16W 6 R3082 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3083-87 J0JCC0000100 芯片感应器 5 R3088-93 ERJ6RED750 M 75 OHM, 1/10W 6 R3094 J0JCC0000100 芯片感应器 1 R3095,96 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R3101-06 ERJ6ENF1800 M 180 OHM, 1/10W 6 R3107,08 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R3110 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R3111 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R3115 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3117 J0JCC0000100 芯片感应器 1 R3118 ERJ6ENF8200 M 820 OHM, 1/10W 1 R3125 D0GB103JA057 M 10KOHM,J,1/16W 1 R3126 J0JCC0000100 芯片感应器 1 R3134 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3140,41 D0GB473JA057 M 47KOHM,J,1/16W 2 R3143,44 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R3150,51 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R3160,61 J0JCC0000100 芯片感应器 2 R3163 D0GB102JA057 M 1KOHM,J,1/16W 1 R3188-90 ERJ6RED750 M 75 OHM, 1/10W 3 R3195,96 D0GB103JA057 M 10KOHM,J,1/16W 2 R3197,98 D0GB123JA057 M 12KOHM,J,1/16W 2 R3199 D0GB103JA057 M 10KOHM,J,1/16W 1 R3210,11 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R3212-15 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 4 R3216-19 ERJ6GEYJ3R3 M 3.3KOHM,J,1/10W 4 R3230,31 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R3301-03 ERJ6RED750 M 75 OHM, 1/10W 3 R3304-07 ERJ6GEYJ223 M 22KOHM,J,1/10W 4 R3308 D0GB102JA057 M 1KOHM,J,1/16W 1 R3309,10 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3312 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3314-17 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R3318,19 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R3320 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3321 D0GB473JA057 M 47KOHM,J,1/16W 1 R3322 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3323 D0GB473JA057 M 47KOHM,J,1/16W 1 R3324,25 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R3326,27 ERJ3EKF3300 M 330 OHM, 1/16W 2 R3328,29 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R3330,31 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R3332,33 ERJ3EKF1270 M 127 OHM, 1/16W 2 R3334,35 ERJ3EKF4300 M 430 OHM, 1/16W 2 R3336,37 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R3338,39 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R3340,41 D0GB151JA057 M 150 OHM,J,1/16W 2 R3342,43 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R3344 D0GB102JA057 M 1KOHM,J,1/16W 1 R3345,46 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R3347,48 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3349 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3350 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3351,52 D0GB473JA057 M 47KOHM,J,1/16W 2 R3353 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R3354 D0GB112JA057 M 1.1KOHM,J,1/16W 1 R3355,56 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R3358 D0GB103JA057 M 10KOHM,J,1/16W 1 R3359 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R3360 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R3361 D0GB112JA057 M 1.1KOHM,J,1/16W 1 R3362 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R3363-65 ERJ3GEYJ100 M 10 OHM,J,1/16W 3 R3366 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3367-69 EXB38V220JV 电阻器组件 3 R3370 D0GB103JA057 M 10KOHM,J,1/16W 1 R3371 EXB38V220JV 电阻器组件 1 R3372-74 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R3375-77 D0GB103JA057 M 10KOHM,J,1/16W 3 R3378-80 EXB38V220JV 电阻器组件 3 R3381-83 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R3384-86 EXB38V220JV 电阻器组件 3 参考号 部品号 部品名称及描述 数量 备注 126 R3389,90 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3392 D0GB103JA057 M 10KOHM,J,1/16W 1 R3399 D0GB103JA057 M 10KOHM,J,1/16W 1 R3400 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R3403,04 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3405,06 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R3408 D0GB103JA057 M 10KOHM,J,1/16W 1 R3411 D0GB102JA057 M 1KOHM,J,1/16W 1 R3413,14 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3416 J0JCC0000100 芯片感应器 1 R3417 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R3508,09 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R3510,11 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R3529,30 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3547,48 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R3585,86 ERJ6ENF56R0 M 56 OHM,J,1/10W 2 R3589 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R3590 ERJ6ENF56R0 M 56 OHM,J,1/10W 1 R3591-93 ERJ6GEY0R00V M 0 OHM, 1/10W 3 R3653 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R3654 ERJ6GEYG683 M 68KOHM,J,1/10W 1 R3655 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R3656 ERJ6GEYG683 M 68KOHM,J,1/10W 1 R3663,64 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R3668 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R3672 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R3776,77 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R3778 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R3790,91 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R4001-03 D1HG1008A002 NETWORK RESISTER 3 R4004 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R4005 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R4006 ERJ3EKF6801 M 6.8KOHM, 1/16W 1 R4007 ERJ6RED750 M 75 OHM, 1/10W 1 R4008 J0JCC0000100 芯片感应器 1 R4009 ERJ6RED750 M 75 OHM, 1/10W 1 R4010 J0JCC0000100 芯片感应器 1 R4011 ERJ6RED750 M 75 OHM, 1/10W 1 R4012-14 J0JCC0000100 芯片感应器 3 R4016-18 J0JCC0000100 芯片感应器 3 R4019 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R4020 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R4021 J0JCC0000100 芯片感应器 1 R4023 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R4024 J0JCC0000100 芯片感应器 1 R4027 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R4035-38 ERJ3GEYJ101 M 100 OHM,J,1/16W 4 R4041,42 J0JCC0000100 芯片感应器 2 R4139 D0GB102JA057 M 1KOHM,J,1/16W 1 R4142 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R4144 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R4148 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R4171 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R4201 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R4211-20 ERJ3GEYJ101 M 100 OHM,J,1/16W 10 R4221,22 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R4242,43 J0JCC0000100 芯片感应器 2 R4244 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4245 D0GB102JA057 M 1KOHM,J,1/16W 1 R4250-52 J0JCC0000100 芯片感应器 3 R4260,61 J0JCC0000100 芯片感应器 2 R4271-73 D1HG8208A002 NETWORK RESISTER 3 R4274,75 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R4276 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4277-79 D1HG1218A002 NETWORK RESISTER 3 R4280,81 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R4282 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4312,13 J0JCC0000100 芯片感应器 2 R4314 D0GB103JA057 M 10KOHM,J,1/16W 1 R4316 D0GB103JA057 M 10KOHM,J,1/16W 1 R4318,19 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R4321 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R4324 D0GB103JA057 M 10KOHM,J,1/16W 1 R4325-27 EXB38VR000V 电阻器组件 3 R4351,52 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R4353 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R4354 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 参考号 部品号 部品名称及描述 数量 备注 R4355 D0GB473JA057 M 47KOHM,J,1/16W 1 R4356 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R4357 ERJ6ENF9100 M 910 OHM, 1/10W 1 R4358 ERJ6ENF6341 M6.34KOHM, 1/10W 1 R4359 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R4360 ERJ6ENF1002 M 10KOHM, 1/10W 1 R4361 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R4364 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R4366 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R4368 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R4370 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R4372 J0JCC0000100 芯片感应器 1 R4373,74 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R4383,84 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R4387,88 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R4502 J0JCC0000100 芯片感应器 1 R4503 D0GB103JA057 M 10KOHM,J,1/16W 1 R4505 D0GB103JA057 M 10KOHM,J,1/16W 1 R4507 D0GB103JA057 M 10KOHM,J,1/16W 1 R4509,10 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R4513 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4514-16 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R4518 J0JCC0000100 芯片感应器 1 R4522 J0JCC0000100 芯片感应器 1 R4526 J0JCC0000100 芯片感应器 1 R4529 J0JCC0000100 芯片感应器 1 R4531 J0JCC0000100 芯片感应器 1 R4533 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4536,37 J0JCC0000100 芯片感应器 2 R4539 J0JCC0000100 芯片感应器 1 R4544 J0JCC0000100 芯片感应器 1 R4546 J0JCC0000100 芯片感应器 1 R4554 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R4559,60 D0GB102JA057 M 1KOHM,J,1/16W 2 R4564-67 J0JCC0000100 芯片感应器 4 R4568,69 D1HG1038A002 NETWORK RESISTER 2 R4573 D0GB103JA057 M 10KOHM,J,1/16W 1 R4574 D1HG1218A002 NETWORK RESISTER 1 R4575,76 ERJ3GEYJ121 M 120 OHM,J,1/16W 2 R4577 D1HG1218A002 NETWORK RESISTER 1 R4578,79 ERJ6ENF1001 M 1KOHM, 1/10W 2 R4580 ERJ6ENF1101 M 1.1KOHM, 1/10W 1 R4581 ERJ6ENF3161 M3.16KOHM, 1/10W 1 R4582,83 ERJ3GEYJ121 M 120 OHM,J,1/16W 2 R4584 D1HG1218A002 NETWORK RESISTER 1 R4585,86 ERJ3GEYJ121 M 120 OHM,J,1/16W 2 R4587-89 D1HG33080001 NETWORK RESISTER 3 R4590,91 ERJ3GEYJ680 M 68 OHM,J,1/16W 2 R4595 ERJ3GEYJ680 M 68 OHM,J,1/16W 1 R4596 D0GB103JA057 M 10KOHM,J,1/16W 1 R4618-21 D1HG33080001 NETWORK RESISTER 4 R4622 J0JCC0000100 芯片感应器 1 R4626,27 J0JCC0000100 芯片感应器 2 R4631 J0JCC0000100 芯片感应器 1 R4640 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R4657,58 ERJ6ENF1001 M 1KOHM, 1/10W 2 R4691 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R4701 EXB38V103JV 电阻器组件 1 R4702 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R4703 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4704 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R4706 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R4707 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4708 D0GB103JA057 M 10KOHM,J,1/16W 1 R4709 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4710,11 D0GB103JA057 M 10KOHM,J,1/16W 2 R4712,13 D1HG1008A002 NETWORK RESISTER 2 R4715 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4716 D0GB103JA057 M 10KOHM,J,1/16W 1 R4717 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4718,19 D0GB103JA057 M 10KOHM,J,1/16W 2 R4722 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R4723 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4724 D0GB103JA057 M 10KOHM,J,1/16W 1 R4727,28 D0GB103JA057 M 10KOHM,J,1/16W 2 R4729,30 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R4732 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 参考号 部品号 部品名称及描述 数量 备注 127 R4734 D0GB103JA057 M 10KOHM,J,1/16W 1 R4735 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4737 D0GB103JA057 M 10KOHM,J,1/16W 1 R4738 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4740,41 D1HG1008A002 NETWORK RESISTER 2 R4742,43 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R4744 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4745 J0JCC0000100 芯片感应器 1 R4746 D0GB103JA057 M 10KOHM,J,1/16W 1 R4747 EXB38VR000V 电阻器组件 1 R4748-52 J0JCC0000100 芯片感应器 5 R4753 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4754 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R4755 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4756 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R4757 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4758 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R4759 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4760 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R4761 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4762 J0JCC0000100 芯片感应器 1 R4763 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4764,65 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R4766,67 EXB2HV470JV 电阻器组件 2 R4768 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R4769 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R4770 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R4771 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R4772 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4773 J0JCC0000100 芯片感应器 1 R4774 D0GB102JA057 M 1KOHM,J,1/16W 1 R4775 D0GB103JA057 M 10KOHM,J,1/16W 1 R4777 D0GB393JA041 M 39KOHM,J,1/16W 1 R4778 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4779 D0GB103JA057 M 10KOHM,J,1/16W 1 R4780,81 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R4783 D0GB103JA057 M 10KOHM,J,1/16W 1 R4786 EXB38V103JV 电阻器组件 1 R4788 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4790,91 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R4792 D0GB102JA057 M 1KOHM,J,1/16W 1 R4793 D0GB123JA057 M 12KOHM,J,1/16W 1 R4795 D0GB103JA057 M 10KOHM,J,1/16W 1 R4796 D0GB182JA057 M 1.8KOHM,J,1/16W 1 R4804 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R4806 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4807 D0GB103JA057 M 10KOHM,J,1/16W 1 R4808 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R4812,13 D0GB103JA057 M 10KOHM,J,1/16W 2 R4814 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4815 D0GB103JA057 M 10KOHM,J,1/16W 1 R4817 J0JCC0000100 芯片感应器 1 R4819 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4820 D0GB103JA057 M 10KOHM,J,1/16W 1 R4821 D0GB102JA057 M 1KOHM,J,1/16W 1 R4822,23 D0GB103JA057 M 10KOHM,J,1/16W 2 R4824 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R4825 D0GB103JA057 M 10KOHM,J,1/16W 1 R4826 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R4828 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4829 D0GB102JA057 M 1KOHM,J,1/16W 1 R4830 D0GB103JA057 M 10KOHM,J,1/16W 1 R4832 D0GB103JA057 M 10KOHM,J,1/16W 1 R4833 D0GB473JA057 M 47KOHM,J,1/16W 1 R4834 D0GB103JA057 M 10KOHM,J,1/16W 1 R4835 D0GB102JA057 M 1KOHM,J,1/16W 1 R4836 D0GB473JA057 M 47KOHM,J,1/16W 1 R4837 D0GB103JA057 M 10KOHM,J,1/16W 1 R4838 D0GB102JA057 M 1KOHM,J,1/16W 1 R4839 D0GB473JA057 M 47KOHM,J,1/16W 1 R4840 D0GB103JA057 M 10KOHM,J,1/16W 1 R4841,42 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R4843 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R4844 D0GB102JA057 M 1KOHM,J,1/16W 1 R4845 ERJ3GEYJ392 M 3.9KOHM,J,1/16W 1 R4846 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R4847,48 D0GB102JA057 M 1KOHM,J,1/16W 2 参考号 部品号 部品名称及描述 数量 备注 R4849 D0GB123JA057 M 12KOHM,J,1/16W 1 R4850 D0GB102JA057 M 1KOHM,J,1/16W 1 R4851-53 D0GB103JA057 M 10KOHM,J,1/16W 3 R4855 J0JCC0000100 芯片感应器 1 R4856 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R4857 D0GB103JA057 M 10KOHM,J,1/16W 1 R4858 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4859,60 D0GB103JA057 M 10KOHM,J,1/16W 2 R4863 J0JCC0000100 芯片感应器 1 R4864 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R4865,66 D0GB103JA057 M 10KOHM,J,1/16W 2 R4868 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R4869 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4870 D0GB103JA057 M 10KOHM,J,1/16W 1 R4872 D0GB102JA057 M 1KOHM,J,1/16W 1 R4873,74 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R4876 D0GB103JA057 M 10KOHM,J,1/16W 1 R4877 D0GB102JA057 M 1KOHM,J,1/16W 1 R4879 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4881 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R4882 D0GB103JA057 M 10KOHM,J,1/16W 1 R4883 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4884,85 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R4886 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4887 D0GB103JA057 M 10KOHM,J,1/16W 1 R4888 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4889 D0GB103JA057 M 10KOHM,J,1/16W 1 R4891 J0JCC0000100 芯片感应器 1 R4892 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4893 J0JCC0000100 芯片感应器 1 R4894,95 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R4899,00 J0JCC0000100 芯片感应器 2 R4902 J0JCC0000100 芯片感应器 1 R4903 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4904 D0GB103JA057 M 10KOHM,J,1/16W 1 R4905 J0JCC0000100 芯片感应器 1 R4906 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4907 J0JCC0000100 芯片感应器 1 R4908 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R4911-21 ERJ3GEYJ101 M 100 OHM,J,1/16W 11 R4922 J0JCC0000100 芯片感应器 1 R4925 J0JCC0000100 芯片感应器 1 R4927 J0JCC0000100 芯片感应器 1 R4941 D0GB103JA057 M 10KOHM,J,1/16W 1 R4942,43 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R4945 J0JCC0000100 芯片感应器 1 R4947 D0GB103JA057 M 10KOHM,J,1/16W 1 R4951 ERJ3GEYF473 M 47KOHM, 1/16W 1 R4952 ERJ3EKF1272 M12.7KOHM, 1/16W 1 R4953 ERJ3EKF5602 M 56KOHM, 1/16W 1 R4954 ERJ3EKF1102 M 11KOHM, 1/16W 1 R4955 ERJ3EKF5602 M 56KOHM, 1/16W 1 R4956 ERJ3EKF1102 M 11KOHM, 1/16W 1 R4957 ERJ3EKF2052 M20.5KOHM, 1/16W 1 R4958 ERJ3EKF1822 M18.2KOHM, 1/16W 1 R4960 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R4962,63 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R4964 J0JCC0000100 芯片感应器 1 R4972 J0JCC0000100 芯片感应器 1 R4974 J0JCC0000100 芯片感应器 1 R4977 J0JCC0000100 芯片感应器 1 R4980 J0JCC0000100 芯片感应器 1 R4986 D0GB183JA057 M 18KOHM,J,1/16W 1 R4991,92 D0GB103JA057 M 10KOHM,J,1/16W 2 R4994,95 D0GB103JA057 M 10KOHM,J,1/16W 2 R6001 D0GF7R5JA047 M 7.5 OHM,J,0.33W 1 R6003 D0GF7R5JA047 M 7.5 OHM,J,0.33W 1 R6005 D0GF7R5JA047 M 7.5 OHM,J,0.33W 1 R6020 ERF5TJ330 W 33 OHM, 5W 1 R6021 D0GF7R5JA047 M 7.5 OHM,J,0.33W 1 R6024 D0GF7R5JA047 M 7.5 OHM,J,0.33W 1 R6026 D0GF7R5JA047 M 7.5 OHM,J,0.33W 1 R6031,32 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6033 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6034 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6041 D0GF5R6JA047 M 5.6 OHM,J,0.33W 1 R6043 D0GF5R6JA047 M 5.6 OHM,J,0.33W 1 参考号 部品号 部品名称及描述 数量 备注 128 R6053 D0GF5R6JA047 M 5.6 OHM,J,0.33W 1 R6062 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6064 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6066 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6068 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6070-73 ERJ6GEY0R00V M 0 OHM, 1/10W 4 R6102 D0GD221JA059 M 220 OHM,J,1/10W 1 R6108 D0GD221JA059 M 220 OHM,J,1/10W 1 R6109 D0GD100JA059 M 10 OHM,J,0.25W 1 R6110 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6111 D0GD470JA059 M 47 OHM,J,0.25W 1 R6113 ERJ14YJ224 M 220KOHM, J,1/4W 1 R6114 D0GD470JA059 M 47 OHM,J,0.25W 1 R6116 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6131,32 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6134 D0GD750JA059 M 75 OHM,J,0.25W 1 R6135,36 D0GD100JA059 M 10 OHM,J,0.25W 2 R6141,42 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6145 D0GF1R0JA047 M 1.0 OHM,J,0.33W 1 R6146,47 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6151,52 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6154 D0GD750JA059 M 75 OHM,J,0.25W 1 R6157-60 D0GF1R0JA047 M 1.0 OHM,J,0.33W 4 R6171 D0GD100JA059 M 10 OHM,J,0.25W 1 R6172,73 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6181 D0GD100JA059 M 10 OHM,J,0.25W 1 R6182,83 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6191,92 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6193 D0GD750JA059 M 75 OHM,J,0.25W 1 R6194 D0GF1R0JA047 M 1.0 OHM,J,0.33W 1 R6210 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6213 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6214 D0GD151JA059 M 150 OHM,J,0.25W 1 R6220 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R6221 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6222 ERG1FJS103D M 10KOHM,J,1W 1 R6223 ERG2FJS123D M 12KOHM,J,2W 1 R6225 D0GD203JA059 M 20KOHM,J,1/10W 1 R6226,27 ERJ6GEYJ163V M 16KOHM,J,1/10W 2 R6228 ERJ6GEYG562 M 5.6KOHM,J,1/10W 1 R6229 ERJ6GEYJ163V M 16KOHM,J,1/10W 1 R6230 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R6231 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6232 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6241 EXB38V470J 电阻器组件 1 R6242 EXB38V472JV 电阻器组件 1 R6246 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6247 D0GF154JA047 M 150KOHM,J,0.33W 1 R6248 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6249 D0GF154JA047 M 150KOHM,J,0.33W 1 R6252,53 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6254 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R6255 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6256 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R6257 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6258 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6261 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6269 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6270 D0GF154JA047 M 150KOHM,J,0.33W 1 R6272 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6273 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6274 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6276 ERJ6GEYG823 M 82KOHM,J,1/10W 1 R6278 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6279 D0GF154JA047 M 150KOHM,J,0.33W 1 R6284 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6292 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6401-03 D0GF7R5JA047 M 7.5 OHM,J,0.33W 3 R6421-23 D0GF5R6JA047 M 5.6 OHM,J,0.33W 3 R6441,42 D0GF5R6JA047 M 5.6 OHM,J,0.33W 2 R6451 D0GF5R6JA047 M 5.6 OHM,J,0.33W 1 R6465 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6466 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6467,68 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6471 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6472 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6473 ERJ6GEYF561 M 560 OHM,J,1/10W 1 参考号 部品号 部品名称及描述 数量 备注 R6474 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6475,76 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R6477 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6501,02 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6503 D0GD100JA059 M 10 OHM,J,0.25W 1 R6504 D0GD750JA059 M 75 OHM,J,0.25W 1 R6506 D0GD100JA059 M 10 OHM,J,0.25W 1 R6507-10 D0GF1R0JA047 M 1.0 OHM,J,0.33W 4 R6511,12 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6516,17 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6521,22 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6523 D0GD750JA059 M 75 OHM,J,0.25W 1 R6531 D0GD100JA059 M 10 OHM,J,0.25W 1 R6532,33 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6551 D0GD100JA059 M 10 OHM,J,0.25W 1 R6552,53 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R6561-64 EXB38V470J 电阻器组件 4 R6565-68 EXB38V472JV 电阻器组件 4 R6580 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6582,83 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6584 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R6585 ERJ6ENF1801 M 1.8KOHM, 1/10W 1 R6586 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6587 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6588 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6590 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6591 EXB38V472JV 电阻器组件 1 R6592 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6605 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R6607 ERJ6ENF6811 M6.81KOHM, 1/10W 1 R6608,09 D0GF102JA047 M 1.0KOHM,J,0.33W 2 R6610 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6612 D0GD470JA059 M 47 OHM,J,0.25W 1 R6621,22 ERJ6GEYG221 M 220 OHM,J,1/10W 2 R6623 ERG2FJS333D M 33KOHM,J,2W 1 R6638,39 D0GF1R0JA047 M 1.0 OHM,J,0.33W 2 R6642-44 D0GD330JA059 M 33 OHM,J,1/10W 3 R6646-48 D0GD330JA059 M 33 OHM,J,1/10W 3 R6658 D0D1101JA009 M 100 OHM,J,1W 1 R6659,60 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6661 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6662 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R6663 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6664 D0GF222JA047 M 2.2KOHM,J,0.33W 1 R6665 D0GD470JA059 M 47 OHM,J,0.25W 1 R6666 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6667,68 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R6671 D0GD470JA059 M 47 OHM,J,0.25W 1 R6672 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6673,74 D0GD470JA059 M 47 OHM,J,0.25W 2 R6680,81 D0GD100JA059 M 10 OHM,J,0.25W 2 R6692 D0GZ472JA020 M 4.7KOHM,J,0.5W 1 R6693 ERJ6GEYG823 M 82KOHM,J,1/10W 1 R6694 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R6695 ERJ8GEYJ124 M 120KOHM,J,1/8W 1 R6696 ERF5TK2R2 W 2.2 OHM,K,5W 1 R6700-04 ERJ6GEYJ471 M 470 OHM,J,1/10W 5 R6705,06 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6707,08 ERJ6GEYJ471 M 470 OHM,J,1/10W 2 R6709 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6710-14 ERJ6GEYG222 M 2.2KOHM,J,1/10W 5 R6717,18 ERJ6GEYG222 M 2.2KOHM,J,1/10W 2 R6721,22 EXB38V220JV 电阻器组件 2 R6723 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R6724 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6742 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6745 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6746,47 D0GD103JA059 M 10KOHM,J,0.25W 2 R6748 ERJ6GEYG332 M 3.3KOHM,J,1/10W 1 R6761 D0GD100JA059 M 10 OHM,J,0.25W 1 R6762 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6765 D0GF1R0JA047 M 1.0 OHM,J,0.33W 1 R6766 D0GD750JA059 M 75 OHM,J,0.25W 1 R6768 D0GF1R0JA047 M 1.0 OHM,J,0.33W 1 R6769 D0GD750JA059 M 75 OHM,J,0.25W 1 R6775,76 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6777 D0GD151JA059 M 150 OHM,J,0.25W 1 参考号 部品号 部品名称及描述 数量 备注 129 R6781 D0GD470JA059 M 47 OHM,J,0.25W 1 R6782 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6788 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R6789 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6791 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6792 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6793 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6795,96 ERJ6GEYG104 M 100KOHM,J,1/10W 2 R6797 ERJ6ENF1692 M16.9KOHM, 1/10W 1 R6801 ERG2FNJS8R2E M 8.2 OHM,J,2W 1 R6802 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6806,07 ERX12SJ1R5 M 1.5 OHM,J,1/2W 2 R6808 D0GF272JA047 M 2.7KOHM,J,0.33W 1 R6809 ERG1SJ273 M 27KOHM,J,1W 1 R6810 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6811 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6812 ERJ6ENF2403 M 240KOHM, 1/10W 1 R6813 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6814 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R6815 ERJ6ENF2700 M 270 OHM, 1/10W 1 R6816 ERJ6ENF1152 M11.5KOHM, 1/10W 1 R6817 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6818 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R6821 ERF5TJ221 W 220 OHM,J,5W 1 R6822 ERJ12YJ104U M 100KOHM, 1/2W 1 R6823 ERG1FJS104D M 100KOHM,J,1W 1 R6824 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6825-27 ERJ6ENF2003 M 200KOHM, 1/10W 3 R6828 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R6829,30 ERJ6GEYG104 M 100KOHM,J,1/10W 2 R6831 ERJ6GEYG153 M 15KOHM,J,1/10W 1 R6832 D0GF4R7JA047 M 4.7 OHM,J, 0.33W 1 R6833-36 ERJ6ENF7502 M 75KOHM, 1/10W 4 R6837 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6839 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6840 ERX12SJ1R5 M 1.5 OHM,J,1/2W 1 R6841 ERJ12YJ153U M 15KOHM, 1/2W 1 R6842 ERJ12YJ433U M 43KOHM, 1/2W 1 R6843 ERJ6GEYJ623 M 62KOHM,J,1/10W 1 R6844 D0D2101JA021 M 100 OHM,J,2W 1 R6845-47 ERJ6GEYJ623 M 62KOHM,J,1/10W 3 R6848 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6849,50 ERJ6ENF6802 M 68KOHM, 1/10W 2 R6851 ERJ6ENF1802 M 18KOHM, 1/10W 1 R6852 ERJ6ENF2701 M 2.7KOHM, 1/10W 1 R6853 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6855 ERJ12YJ103 M 10KOHM,J,1/2W 1 R6856 ERQ12AJW560E F 56 OHM,J,1/2W 1 R6857 ERJ12YJ124U M 120KOHM, 1/2W 1 R6860 D0D28R2JA021 M 8.2 OHM,J,2W 1 R6861,62 ERJ6ENF5102 M 51KOHM, 1/10W 2 R6863 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6864 ERJ6ENF6801 M 6.8KOHM, 1/10W 1 R6865 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R6866 ERJ6ENF6200 M 620 OHM, 1/10W 1 R6867 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6868 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6869 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6871-73 ERJ6ENF3902 M 39KOHM, 1/10W 3 R6874 ERJ6ENF6801 M 6.8KOHM, 1/10W 1 R6875 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R6876 ERJ6RBD561 M 560 OHM, 1/10W 1 R6877 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6878 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6879 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6886-88 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6891 ERJ6GEYG183 M 18KOHM,J,1/10W 1 R6901 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6902-04 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R6905 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6909 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6913 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6917 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6924 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6925,26 J0JCC0000100 芯片感应器 2 R6931-34 ERJ6GEYG103 M 10KOHM,J,1/10W 4 R6935,36 ERJ8GEYJ224 M 220KOHM,J,1/8W 2 参考号 部品号 部品名称及描述 数量 备注 R6938 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6951 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6952-54 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R6955 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6959 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6963 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6967 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6971 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6975,76 J0JCC0000100 芯片感应器 2 R6981-84 ERJ6GEYG103 M 10KOHM,J,1/10W 4 R6985,86 ERJ8GEYJ224 M 220KOHM,J,1/8W 2 R6989 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R7112 D0GF472JA047 M 4.7KOHM,J,0.33W 1 R7119 EXB38V220JV 电阻器组件 1 R7122-25 D0GZ6R8JA020 M 6.8 OHM,J,0.5W 4 R7126 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7130-36 EXB38V471J 电阻器组件 7 R7142-45 D0GZ6R8JA020 M 6.8 OHM,J,0.5W 4 R7151-54 D0GZ6R8JA020 M 6.8 OHM,J,0.5W 4 R7155 EXB38V102J 电阻器组件 1 R7159 EXB38V470J 电阻器组件 1 R7162 EXB38V471J 电阻器组件 1 R7171-74 D0GZ6R8JA020 M 6.8 OHM,J,0.5W 4 R7177 EXB38V102J 电阻器组件 1 R7180 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7184 EXB38V220JV 电阻器组件 1 R7185 D0GB102JA057 M 1KOHM,J,1/16W 1 R7186 J0JCC0000100 芯片感应器 1 R7212-15 D0GZ6R8JA020 M 6.8 OHM,J,0.5W 4 R7219 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7223-26 D0GZ6R8JA020 M 6.8 OHM,J,0.5W 4 R7229 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R7232-35 D0GZ6R8JA020 M 6.8 OHM,J,0.5W 4 R7238 EXB38V471J 电阻器组件 1 R7245 EXB38V102J 电阻器组件 1 R7249 EXB38V220JV 电阻器组件 1 R7250 EXB38V470J 电阻器组件 1 R7257 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7258 EXB38V102J 电阻器组件 1 R7262-65 D0GZ6R8JA020 M 6.8 OHM,J,0.5W 4 R7269 D0GF472JA047 M 4.7KOHM,J,0.33W 1 R7273-79 EXB38V471J 电阻器组件 7 R7280 D0GB102JA057 M 1KOHM,J,1/16W 1 R7281 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R7285 EXB38V220JV 电阻器组件 1 R7286 J0JCC0000100 芯片感应器 1 R7288,89 EXB38V222J 电阻器组件 2 R7290,91 EXB38V470J 电阻器组件 2 R8001-04 ERJ3GEYJ101 M 100 OHM,J,1/16W 4 R8005 D0GB103JA057 M 10KOHM,J,1/16W 1 R8007 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R8009-12 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R8017,18 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R8021 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8025 J0JCC0000100 芯片感应器 1 R8026 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R8029 ERJ6ENF3001 M 3KOHM, 1/10W 1 R8031 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R8033 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R8035 ERJ6ENF3300 M 330 OHM, 1/10W 1 R8036 ERJ6ENF1500 M 150 OHM, 1/10W 1 R8037 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R8039 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R8041 D0GB183JA057 M 18KOHM,J,1/16W 1 R8045 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8047 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R8048 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8050 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8051 D0GB103JA057 M 10KOHM,J,1/16W 1 R8054 J0JCC0000100 芯片感应器 1 R8055,56 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R8057 D0GB102JA057 M 1KOHM,J,1/16W 1 R8060 J0JCC0000100 芯片感应器 1 R8065 ERJ3GEYJ911 M 910 OHM,J,1/16W 1 R8067 D0GB151JA057 M 150 OHM,J,1/16W 1 R8069 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R8072 J0JCC0000100 芯片感应器 1 参考号 部品号 部品名称及描述 数量 备注 130 R8089 D0GB181JA057 M 180 OHM,J,1/16W 1 R8093 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8094 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R8096 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R8097 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8100 D0GB103JA057 M 10KOHM,J,1/16W 1 R8112 J0JCC0000100 芯片感应器 1 R8117-20 J0JCC0000100 芯片感应器 4 R8121,22 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R8124-27 ERJ3GEYJ101 M 100 OHM,J,1/16W 4 R8129 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R8180 ERJ8GEYJ820V M 82 OHM,J,1/8W 1 R8181,82 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R8183,84 J0JCC0000100 芯片感应器 2 R8185,86 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R8187,88 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R8189,90 J0JCC0000100 芯片感应器 2 R8200 ERJ3GEYJ563 M 56KOHM,J,1/16W 1 R8201 D0GB473JA057 M 47KOHM,J,1/16W 1 R8202 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R8203 D0GB103JA057 M 10KOHM,J,1/16W 1 R8204 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R8205 D0GB753JA057 M 75KOHM,J,1/16W 1 R8206 D0GB393JA041 M 39KOHM,J,1/16W 1 R9062-67 ERJ3GEYJ101 M 100 OHM,J,1/16W 6 R9070 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9099 D0GB103JA057 M 10KOHM,J,1/16W 1 R9101,02 D0GB103JA057 M 10KOHM,J,1/16W 2 R9104,05 D0GB103JA057 M 10KOHM,J,1/16W 2 R9107 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9108,09 D0GB103JA057 M 10KOHM,J,1/16W 2 R9110 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9112 D0GB103JA057 M 10KOHM,J,1/16W 1 R9113 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9115,16 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9119 EXB38V470J 电阻器组件 1 R9120 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9121 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9122,23 D0GB103JA057 M 10KOHM,J,1/16W 2 R9126 D0GB103JA057 M 10KOHM,J,1/16W 1 R9127 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9129 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9131-33 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R9134 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R9135 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9141-45 ERJ3GEYJ101 M 100 OHM,J,1/16W 5 R9149 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9150,51 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9154,55 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9156 D0GB103JA057 M 10KOHM,J,1/16W 1 R9158,59 D0GB103JA057 M 10KOHM,J,1/16W 2 R9160,61 J0JCC0000100 芯片感应器 2 R9164,65 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R9166 D0GB103JA057 M 10KOHM,J,1/16W 1 R9167 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9170-72 D0GB393JA041 M 39KOHM,J,1/16W 3 R9173,74 D0GB103JA057 M 10KOHM,J,1/16W 2 R9177 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9181-84 D0GB102JA057 M 1KOHM,J,1/16W 4 R9185,86 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9187,88 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9189,90 D0GB103JA057 M 10KOHM,J,1/16W 2 R9193 D0GB103JA057 M 10KOHM,J,1/16W 1 R9194 J0JCC0000100 芯片感应器 1 R9196 D0GB103JA057 M 10KOHM,J,1/16W 1 R9199 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9200,01 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R9203 D0GB102JA057 M 1KOHM,J,1/16W 1 R9205 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9206,07 D0GB102JA057 M 1KOHM,J,1/16W 2 R9215 D0GB123JA057 M 12KOHM,J,1/16W 1 R9217-22 D0GB103JA057 M 10KOHM,J,1/16W 6 R9223 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9225 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9237 D0GB103JA057 M 10KOHM,J,1/16W 1 R9240 J0JCC0000100 芯片感应器 1 R9317 ERJ3GEYJ391 M 390 OHM,J,1/16W 1 参考号 部品号 部品名称及描述 数量 备注 R9347,48 EXB2HV220JV 电阻器组件 2 R9349 EXB2HV470JV 电阻器组件 1 R9350,51 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9352 EXB2HV220JV 电阻器组件 1 R9354-56 EXB2HV220JV 电阻器组件 3 R9361,62 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9363 EXB2HV470JV 电阻器组件 1 R9369 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9370 D0GB103JA057 M 10KOHM,J,1/16W 1 R9371 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9379 J0JCC0000100 芯片感应器 1 R9380 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9383 D0GB102JA057 M 1KOHM,J,1/16W 1 R9384,85 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9391 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9392,93 J0JCC0000100 芯片感应器 2 R9396-99 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R9402 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R9403 EXB2HV470JV 电阻器组件 1 R9500 D0GB103JA057 M 10KOHM,J,1/16W 1 R9502 D0GB103JA057 M 10KOHM,J,1/16W 1 R9503 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9506 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9507 J0JCC0000100 芯片感应器 1 R9511-13 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9516 D0GB103JA057 M 10KOHM,J,1/16W 1 R9518 J0JCC0000100 芯片感应器 1 R9523 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9525 D0GB103JA057 M 10KOHM,J,1/16W 1 R9526 J0JCC0000100 芯片感应器 1 R9530 D0GB103JA057 M 10KOHM,J,1/16W 1 R9531-33 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9534 EXB38V470J 电阻器组件 1 R9535,36 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9538,39 D0GB103JA057 M 10KOHM,J,1/16W 2 R9541 D0GB103JA057 M 10KOHM,J,1/16W 1 R9543,44 D0GB103JA057 M 10KOHM,J,1/16W 2 R9545 ERJ3GEYJ304 M 300KOHM,J,1/16W 1 R9548-50 D0GB103JA057 M 10KOHM,J,1/16W 3 R9552 D0GB103JA057 M 10KOHM,J,1/16W 1 R9553,54 J0JCC0000100 芯片感应器 2 R9557,58 J0JCC0000100 芯片感应器 2 R9561 EXB38V222J 电阻器组件 1 R9562 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9563-66 EXB2HV470JV 电阻器组件 4 R9567 D0GB103JA057 M 10KOHM,J,1/16W 1 R9569 J0JCC0000100 芯片感应器 1 R9824-27 ERJ3GEYJ101 M 100 OHM,J,1/16W 4 R9828 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9839 EXB38V101JV 电阻器组件 1 R9840 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9845 D0GB103JA057 M 10KOHM,J,1/16W 1 R9846,47 EXB2HV222JV 电阻器组件 2 R9848,49 EXB2HV470JV 电阻器组件 2 R9850 D0GB473JA057 M 47KOHM,J,1/16W 1 R9854 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9859 EXB38V101JV 电阻器组件 1 R9861-63 D0GB103JA057 M 10KOHM,J,1/16W 3 R9868 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9869-71 D0GB103JA057 M 10KOHM,J,1/16W 3 R9872 J0JCC0000100 芯片感应器 1 R9874 J0JCC0000100 芯片感应器 1 R9878 ERJ3EKF1102 M 11KOHM, 1/16W 1 R9879 ERJ3EKF1302 M 13KOHM, 1/16W 1 R9886,87 ERJ3EKF5602 M 56KOHM, 1/16W 2 R9888 ERJ3EKF1102 M 11KOHM, 1/16W 1 R9889 ERJ3EKF1742 M17.2KOHM, 1/16W 1 R9890 ERJ3EKF4752 M47.5KOHM, 1/16W 1 R9891 ERJ3EKF1272 M12.7KOHM, 1/16W 1 R9892 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9893 ERJ3EKF5602 M 56KOHM, 1/16W 1 R9894 ERJ3EKF1102 M 11KOHM, 1/16W 1 R9895 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9896 ERJ3EKF1822 M18.2KOHM, 1/16W 1 R9897 ERJ3EKF4752 M47.5KOHM, 1/16W 1 R9901,02 J0JCC0000100 芯片感应器 2 R9903 EXB2HV470JV 电阻器组件 1 参考号 部品号 部品名称及描述 数量 备注 131 R9904 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9905 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9906 EXB38V470J 电阻器组件 1 R9907 D0GB151JA057 M 150 OHM,J,1/16W 1 R9908-11 J0JCC0000100 芯片感应器 4 R9912 D0GB103JA057 M 10KOHM,J,1/16W 1 R9915-18 J0JCC0000100 芯片感应器 4 R9919 D0GB102JA057 M 1KOHM,J,1/16W 1 R9922 J0JCC0000100 芯片感应器 1 R9928,29 J0JCC0000100 芯片感应器 2 R9936-39 ERJ3EKF1001 M 1KOHM, 1/16W 4 R9940 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9941,42 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9943-51 EXB38V470J 电阻器组件 9 R9952-55 ERJ3GEYJ470 M 47 OHM,J,1/16W 4 R9956 D0GB103JA057 M 10KOHM,J,1/16W 1 R9960 J0JCC0000100 芯片感应器 1 R9961 D0GB103JA057 M 10KOHM,J,1/16W 1 RM001 PNA4701M05TV 遥控接收器 1 S34 K1KA03AA0193 3P 连接器 1 SC2 K1KA02A00676 2P 连接器 1 SC20 K1KY30AA0369 30P 连接器 1 SC30 K1KA10AA0191 10P 连接器 1 SC41,42 K1ML80B00001 80P 连接器 2 SC45,46 K1KA09A00239 9P 连接器 2 SCMM1,M2 TMME260 卡夹 2 SD1-D4 K1MN96B00005 96P 连接器 4 SD46 K1KB09AA0213 9P 连接器 1 SS11 K1KA02A00676 2P 连接器 1 SS12 K1KA10AA0194 10P 连接器 1 SS23 K1KA12AA0194 12P 连接器 1 SS34 K1KA03AA0193 3P 连接器 1 SS53A-6A K1MN13BA0258 13P 连接器 4 SU1-U4 K1MN96B00005 96P 连接器 4 SU45 K1KB09AA0213 9P 连接器 1 SW061 K0F162B00002 开关 1 SW1550-54 EVQPLHA15 开关 5 T6602 ETS25AZ169AD 转换变压器 1 V2 K1KA06BA0047 6P 连接器 1 V15 K1KA03BA0047 3P 连接器 1 VR6000 EVMEASA00B14 控制 10KOHMB 0.3W 1 VR6600 EVMEASA00B13 控制 1KOHMB 0.3W 1 VR6602 EVMEASA00B53 控制 5KOHMB 0.3W 1 X2301 H0J184500026 晶体 1 X3301 H1A2705B0032 晶体 1 X4501 H0J200500038 晶体 1 X4701 H0J100500030 晶体 1 X8181 H0J327200114 晶体 1 X9000 H2D100500004 晶体 1 X9200 H0J200500038 晶体 1 ZA3001 K4CD01000013 AV 端子 1 ZA3002 K4CD01000011 AV 端子 1 ZA3003-08 K4CD01000013 AV 端子 6 ZA4001,02 K4CD01000011 AV 端子 2 ZA6001,02 K4CD01000011 AV 端子 2 ZA6005 K4CD01000011 AV 端子 1 ZA6401-03 K4CD01000011 AV 端子 3 ZA7101-04 K4AD01Z00001 端子 4 ZA7201-04 K4AD01Z00001 端子 4 ZA9001 K4CD01000011 AV 端子 1 C404 F0CZZ445A097 E 0.044UF, 200V 1 C406 F1E2J4730001 C 0.047PF, 600V 1 C407 F2B2W220A032 C 22UF, 450V 1 参考号 部品号 部品名称及描述 数量 备注 C408 ECJ1VB1H102K C 1000PF, K, 50V 1 C410 F1J1E105A080 E 1 UF 25V 1 C413 ECJ1VB1E104K C 0.10UF, K, 25V 1 C420 F1J1E105A080 E 1 UF 25V 1 C421 ECJ1VB1E104K C 0.10UF, K, 25V 1 C423 ECJ1VB1H472K C 4700PF, K, 50V 1 C425 F1J1E105A080 E 1 UF 25V 1 C426 ECJ1VC1H471J C 470PF, J, 50V 1 C427 F1H1C105A071 C 1UF, K, 16V 1 C428 ECJ1XC1H221J C 220PF, J, 50V 1 C429 F1E2J4730001 C 0.047PF, 600V 1 C431 ECJ1VB1H102K C 1000PF, K, 50V 1 C432,33 F1H1C105A071 C 1UF, K, 16V 2 C435 ECJ1XC1H101J C 100PF, J, 50V 1 C436 F1H1C105A071 C 1UF, K, 16V 1 C437 ECJ1VB1H103K C 0.001UF, K, 50V 1 C443,44 ECKD3A102KBP C 1000PF, K, 1KV 2 C445 F1H1C105A071 C 1UF, K, 16V 1 C446 F2B2W3910010 C 390UF, 450V 1 C450 ECJ1VB1H103K C 0.001UF, K, 50V 1 C451 ECKD3A101KBP C 100PF, K, 1KV 1 C457 ECWH12333RHV P 0.013UF, J, 1.2KV 1 C462 F1J1E105A080 E 1 UF 25V 1 C463 F1H1H2200008 E 22UF, 50V 1 C467 F1BAF221A107 C 220UF, 250V 1 C468 ECJ1VB1H103K C 0.001UF, K, 50V 1 C469 F1BAF221A107 C 220UF, 250V 1 C470 F0CAF335A080 C 0.033UF, 250V 1 C472 F1BAF221A107 C 220UF, 250V 1 C474,75 F1BAF221A107 C 220UF, 250V 2 C478 F1BAF221A107 C 220UF, 250V 1 C492 ECA1HM100 E 10UF, 50V 1 C493 ECA1HM470 E 47UF, 50V 1 C493 F2A1H4700057 E 47UF, 50V 1 C497 F2A1H4700057 E 47UF, 50V 1 C501,02 ECJ1VB1H103K C 0.001UF, K, 50V 2 C504 F1H1C105A071 C 1UF, K, 16V 1 C505 ECJ1VB1H102K C 1000PF, K, 50V 1 C506 ECJ1VB1H103K C 0.001UF, K, 50V 1 C507 ECJ1VB1E104K C 0.10UF, K, 25V 1 C509 ECA1EHG101 E 100UF, 25V 1 C511 ECJ1VB1H102K C 1000PF, K, 50V 1 C515 F2A1A1220015 E 1200UF, 10V 1 C516 ECJ1VB1C474K C 0.47UF,K, 16V 1 C517 F2A1E221A096 E 220UF, 25V 1 C518,19 F1H1C105A071 C 1UF, K, 16V 2 C520 F0C2E683A160 E 0.068UF, 250V 1 C521 ECJ1VB1H103K C 0.001UF, K, 50V 1 C522 F1E2E1030002 C 0.010PF, 600V 1 C523 F1J1E105A080 E 1 UF 25V 1 C526 ECJ1VB1H223K C 0.22UF, K, 50V 1 C528 ECJ1VB1H102K C 1000PF, K, 50V 1 C529 ECJ2FB1C475K C 47UF, K, 16V 1 C530 ECJ1VB1E333K C 0.033UF, K, 25V 1 C531 ECJ1VB1E104K C 0.10UF, K, 25V 1 C534 F1H1H471A792 E 470UF, 50V 1 C546,47 ECJ1VB1H102K C 1000PF, K, 50V 2 C552 ECJ1VB1E104K C 0.10UF, K, 25V 1 C554 F1H1C105A071 C 1UF, K, 16V 1 C555 F2A2C4710003 E 470UF, 160V 1 C556 F2A1E3320039 E 3300PF, 25V 1 C558 F2A1E4710065 E 470UF, 25V 1 C559 F2A1A1020084 E 1000UF, 10V 1 C562 F1H1H223A219 E 0.022UF, 50V 1 C571 ECJ1VC1H330J C 33PF, J, 50V 1 C574 ECJ1VB1E104K C 0.10UF, K, 25V 1 C577 F2A2A330A022 E 33UF, 100V 1 C581 ECJ2VB1H223K C 0.022UF, K, 50V 1 C583 ECJ1VB1H102K C 1000PF, K, 50V 1 C584 ECJ2VB1H223K C 0.022UF, K, 50V 1 C585 F1H1H223A219 E 0.022UF, 50V 1 C587 ECJ1VB1H332K C 3300PF, K, 50V 1 C590 ECJ1XB1H104K C 10PF, J, 50V 1 C601 ECJ1VB1H103K C 0.001UF, K, 50V 1 C603 F1J1E105A080 E 1 UF 25V 1 C604,05 F2A2D1510008 E 150UF, 200V 2 参考号 部品号 部品名称及描述 数量 备注 132 C607 F1H1C105A071 C 1UF, K, 16V 1 C610 F1J1E105A080 E 1 UF 25V 1 C611 F2B2T1420003 E 142UF, 220V 1 C612 ECJ1VB1H103K C 0.001UF, K, 50V 1 C616 ECKD3A102KBP C 1000PF, K, 1KV 1 C619 F1H1C105A071 C 1UF, K, 16V 1 C620 F1J1E105A080 E 1 UF 25V 1 C623 ECA1HM100 E 10UF, 50V 1 C624 ECJ1VB1H103K C 0.001UF, K, 50V 1 C625 F2A1H1000083 E 10UF, 50V 1 C626 ECJ1VB1H103K C 0.001UF, K, 50V 1 C627 ECJ1VB1H102K C 1000PF, K, 50V 1 C630,31 ECJ1VB1H103K C 0.001UF, K, 50V 2 C632 ECJ2XC1H330J C 33PF, J, 50V 1 C639 ECJ1VB1H103K C 0.001UF, K, 50V 1 C640 ECJ1VC1H330J C 33PF, J, 50V 1 C641 ECJ1VB1H102K C 1000PF, K, 50V 1 C650,51 ECJ1VB1E104K C 0.10UF, K, 25V 2 C653 ECJ1VB1H102K C 1000PF, K, 50V 1 C657 ECJ1VB1H102K C 1000PF, K, 50V 1 C658 F1J1E105A080 E 1 UF 25V 1 C660 ECJ2FB1C225K C 22UF, K, 16V 1 C661 ECJ1VB1H103K C 0.001UF, K, 50V 1 C662 ECJ2VB1H103K C 0.01UF, K, 50V 1 C665 ECJ1XC1H101J C 100PF, J, 50V 1 C666 ECJ1VB1H103K C 0.001UF, K, 50V 1 C667,68 ECJ1VB1H102K C 1000PF, K, 50V 2 C670 ECJ1VB1E104K C 0.10UF, K, 25V 1 C671 ECJ2VB1E104K C 0.1UF, K, 25V 1 C672 ECJ1VB1E104K C 0.10UF, K, 25V 1 C673 F1E2J4730001 C 0.047PF, 600V 1 D401 B0FBBT000008 二极管 1 D404 B0EBKT000007 二极管 1 D407,08 B0ACDJ000010 二极管 2 D411 B0BB17000009 二极管 1 D415 B0JAME000099 二极管 1 D416 B0HAMP000067 二极管 1 D417 B0EAMR000009 二极管 1 D418 B0BC8R100013 齐纳二极管 1 D419,20 B0EAMR000009 二极管 2 D423 MA188 二极管 1 D425 MA188 二极管 1 D429 B0EAKT000048 二极管 1 D431 B0JCDD000002 二极管 1 D433 B0BC01400033 齐纳二极管 1 D435 B0EAKT000048 二极管 1 D436 B0AACK000004 二极管 1 D436 MA165TA5 二极管 1 D438 B0BC02000014 齐纳二极管 1 D439 B0EAKT000048 二极管 1 D441 B0HAMM000122 二极管 1 D444 B0HAMM000122 二极管 1 D445 MTZJ10B 齐纳二极管 1 D450 MA188 二极管 1 D501 B0EAMR000010 二极管 1 D503 B0AACK000004 二极管 1 D503 MA165TA5 二极管 1 D504 B0AACK000004 二极管 1 D504 MA165TA5 二极管 1 D506 B0ACDJ000010 二极管 1 D507,08 B0BC7R400023 齐纳二极管 2 D509 B0JANG000018 二极管 1 D511 B0JAML000011 二极管 1 D512 B0ACDJ000010 二极管 1 D516-18 B0BA03300004 齐纳二极管 3 D520 B0ACDJ000010 二极管 1 D521 B0JAME000099 二极管 1 D522,23 B0JCDD000002 二极管 2 D524 B0AACK000004 二极管 1 D524 MA165TA5 二极管 1 D531 B0HBSN000013 二极管 1 D535 MA188 二极管 1 D536 B0JBSG000026 二极管 1 D538 B0BC5R100039 齐纳二极管 1 D539,40 B0HARR000019 二极管 2 D543 B0BC01400033 齐纳二极管 1 参考号 部品号 部品名称及描述 数量 备注 D544,45 B0BA02100001 齐纳二极管 2 D546 B0BA02800001 齐纳二极管 1 D549 B0BC02500008 齐纳二极管 1 D569,70 B0BA05100010 齐纳二极管 2 D579 B0AACK000004 二极管 1 D582 MAZ705600F 齐纳二极管 1 D584 MAZ706200F 齐纳二极管 1 D586 B0HAMP000067 二极管 1 D598 B0BC5R100039 齐纳二极管 1 D599 B0JCND000009 二极管 1 D600 B0BC7R400023 齐纳二极管 1 D601 B0BC5R100039 齐纳二极管 1 D602 B0BC8R100013 齐纳二极管 1 D603 B0BA01900005 齐纳二极管 1 D701,02 B0BC5R100039 齐纳二极管 2 D703 B0EAKT000048 二极管 1 F403 K5G631B00007 保险丝 1 IC401 CNC1S171R IC 1 IC403 CNC1S171R IC 1 IC406 C0DBZZZ00082 IC 1 IC408 B3PBA0000459 IC 1 IC409 MIP3E30MPSCF IC 1 IC411 C0DAEMZ00001 IC 1 IC412 CNC1S171R IC 1 IC501 C2ABDB000114 IC 1 IC502 C0EBH0000210 IC 1 IC504 C0DAEMZ00001 IC 1 IC505 B3PBA0000459 IC 1 IC506 C0DAEMZ00001 IC 1 IC507 B3PBA0000459 IC 1 IC508 C0DAEMZ00001 IC 1 IC509 C0BBAA000039 IC 1 IC510 C0DBAZG00034 IC 1 IC511-13 C0DAEMZ00001 IC 3 IC520 C9ZB00000561 IC 1 J410 D0X0R0000056 M 0 OHM,J,1/10W 1 L403 EXCELSA35 磁珠电感 1 L404,05 G0B123K00004 电感线圈 2 L406 J0JCC0000004 芯片感应器 1 L410 G0B353D00002 电感线圈 1 L511 G0A470ZA0035 电感线圈 1 L512 G0C4R7JA0021 峰值线圈 1 L514 G0A100GA0013 电感线圈 1 L515 J0JKB0000037 扁平磁芯 1 L518 J0JCC0000004 芯片感应器 1 P2 K1KA02A00626 2P 连接器 1 P2 K1KA02A00676 2P 连接器 1 P6 K1KA12AA0191 12P 连接器 1 P7 K1KA11AA0191 11P 连接器 1 P9 K1KA03A00537 3P 连接器 1 P9 K1KA03A00608 3P 连接器 1 P11 K1KA02A00626 2P 连接器 1 P11 K1KA02A00676 2P 连接器 1 P12 K1KA08A00514 8P 连接器 1 P25 K1KA13AA0194 13P 连接器 1 PMM1 TMME047 卡夹 1 PMM2,M3 TMM7464-2 卡夹 2 PMM5 TMM7464-2 卡夹 1 PMM6-M8 TMME260 卡夹 3 PR401 K5Y502BA0001 保险丝 1 PR402 ERBSE0R50U 保险丝 1 PR501 ERBSE0R50U 保险丝 1 PR505 ERBSE5R00U 保险丝 1 PR509 ERBSE0R50U 保险丝 1 PR601 K5G312B00012 保险丝 1 Q401 B1CHND000004 晶体管 1 Q402 B1CBGD000001 FET 1 Q404 B1BCCF000022 晶体管 1 参考号 部品号 部品名称及描述 数量 备注 133 Q406 B1DEKQ000003 晶体管 1 Q407 B1HFCFA00021 晶体管 1 Q408,09 B1DHCD000034 晶体管 2 Q410 2SD1819ARL 晶体管 1 Q411 B1HFCFA00021 晶体管 1 Q412,13 B1DEGQ000070 晶体管 2 Q420 2SD1819ARL 晶体管 1 Q422 B1CBGD000001 FET 1 Q501,02 2SD1820A0L 晶体管 2 Q507 B1DAGQ000013 晶体管 1 Q508 B1HBCFA00033 晶体管 1 Q509 B1HDCEA00001 晶体管 1 Q510 B1DFDD000019 晶体管 1 Q517 B1HBCFA00033 晶体管 1 Q520 B1HBCFA00033 晶体管 1 Q521 B1CBGD000001 FET 1 Q524 B1CFGF000008 晶体管 1 Q525 B1CBGD000001 FET 1 Q527 B1CERM000012 FET 1 Q530 B1ADCF000111 晶体管 1 Q535 2SD1819ARL 晶体管 1 Q537 B1DFDD000019 晶体管 1 Q538 B1CBGD000001 FET 1 Q540 B1DFDD000019 晶体管 1 Q541 B1CBGD000001 FET 1 Q553 2SD1819ARL 晶体管 1 Q554 B1CHND000004 晶体管 1 Q555,56 B1CFRD000018 FET 2 Q563 2SD1819ARL 晶体管 1 Q564,65 B1ADCF000111 晶体管 2 Q566 2SD1819ARL 晶体管 1 Q569 B1CBGD000001 FET 1 R401 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R402 ERJ6GEYG821 M 820 OHM,J,1/10W 1 R403 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R404 ERJ6GEYG153 M 15KOHM,J,1/10W 1 R405 D0B1825JA033 M1.22MOHM,J,0.05W 1 R406 ERX12SJ4R7 M 4.7 OHM, J,1/2W 1 R407 D1AB2203A023 芯片电阻器 1 R408 ERJ6GEYF472 M 4.7KOHM,F,1/10W 1 R409 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R410 D1AB2203A023 芯片电阻器 1 R411 ERF5TJ100 W 10 OHM, J, 5W 1 R414 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R415 D1AB2203A023 芯片电阻器 1 R417 D1AB4303A023 芯片电阻器 1 R418 ERJ6GEYJ6R8V M 6.8 OHM,J,1/10W 1 R419 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R421 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R422 ERJ6GEYF472 M 4.7KOHM,F,1/10W 1 R423 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R424 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R425 ERJ6ENF1802 M 18KOHM, 1/10W 1 R426 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R428 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R429 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R430 D1AB4303A023 芯片电阻器 1 R431 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R432 D1AB4303A023 芯片电阻器 1 R433 ERJ6RBD123V M 12KOHM, 1/10W 1 R436 ERJ8GEYJ153 M 15KOHM,J,1/8W 1 R437 ERJ6GEYG183 M 18KOHM,J,1/10W 1 R438 ERJ6GEYG331 M 330 OHM,G,1/10W 1 R439 ERG12SJ120 M 12 OHM,J,1/2W 1 R440 ERJ8GEYJ474 M 470KOHM,J,1/8W 1 R441,42 D1AB6803A023 芯片电阻器 2 R443 EVMAASA00B23 控制 2KOHMB 1 R444 ERJ6GEYF123 M 12KOHM,J,1/10W 1 R445 D1AB6803A023 芯片电阻器 1 R448,49 D0XGR10J0003 M 0.1OOHM,J, 5W 2 R450 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R451 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R452 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R454 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R455 ERJ6GEYF123 M 12KOHM,J,1/10W 1 R456 ERJ6GEYF333 M 33KOHM,J,1/10W 1 参考号 部品号 部品名称及描述 数量 备注 R458 ERJ6GEYF472 M 4.7KOHM,F,1/10W 1 R460 ERDS2TC0 C 0 OHM, 1/4W 1 R461 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R463 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R464 ERJ6ENF3302 M 33KOHM, 1/10W 1 R467 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R468,69 ERX12SJ1R0 M 0.1 OHM,J,1/2W 2 R471 ERJ8GEYJ332 M 3.3KOHM,J,1/8W 1 R472-74 D1AB5603A023 芯片电阻器 3 R476,77 ERJ14YJ181 M 181 OHM,J,1/4W 2 R478 ERJ8GEYJ220 M 22 OHM,J,1/8W 1 R482 ERJ8GEYJ220 M 22 OHM,J,1/8W 1 R483 D0BF334JA030 芯片电阻器 1 R484 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R485 ERJ6GEYF472 M 4.7KOHM,F,1/10W 1 R488 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R490 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R491 ERJ6GEYG821 M 820 OHM,J,1/10W 1 R493 ERG12SJ120 M 12 OHM,J,1/2W 1 R498 ERG3SJ101 M 100 OHM,J,3W 1 R500 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R501 ERJ6GEYG154 M 150KOHM,J,1/10W 1 R502,03 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R505 ERJ8GEYJ330 M 33 OHM,J,1/8W 1 R507 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R508 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R510 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R512 ERJ6GEYG823 M 82KOHM,J,1/10W 1 R513 ERJ6GEYG332 M 3.3KOHM,J,1/10W 1 R514 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R518 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R519 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R520 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R523 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R524 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R526,27 ERJ6ENF1803 M 180KOHM, 1/10W 2 R528 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R529 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R530,31 ERJ6RBD333 M 33KOHM,J,1/10W 2 R532 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R533 ERJ6ENF1803 M 180KOHM, 1/10W 1 R534 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R537 ERJ6ENF1003 M 100KOHM, 1/10W 1 R538 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R539 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R540,41 ERJ6GEYG105 M 1MOHM,J,1/10W 2 R542 ER0S2CKF2202 M 22KOHM,F,1/4W 1 R543 ERJ6ENF3902 M 39KOHM, 1/10W 1 R545 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R546 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R547 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R550 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R551 ERJ6GEYF151 M 150 OHM,F,1/10W 1 R553 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R555 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R556 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R557,58 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R559 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R560 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R561 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R562 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R563 ERJ6GEYJ2R2 M 2.2 OHM,J,1/10W 1 R564 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R565,66 ERJ6GEYG105 M 1MOHM,J,1/10W 2 R567,68 ERJ8GEYJ105 M 1MOHM,J,1/8W 2 R569 ERJ6ENF3302 M 33KOHM, 1/10W 1 R570 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R571 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R572,73 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R574 ERJ6GEYG331 M 330 OHM,G,1/10W 1 R576 ERJ6RBD123V M 12KOHM, 1/10W 1 R579 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R581 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R582 ERJ6ENF1002 M 10KOHM, 1/10W 1 R584 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R585 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R586 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 参考号 部品号 部品名称及描述 数量 备注 134 FLE20070700001 R587 ERJ8RSJR16V M 16 OHM, 1/8W 1 R592 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R593 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R594 ERJ6GEYF151 M 150 OHM,F,1/10W 1 R595 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R596 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R597,98 ERJ6ENF3302 M 33KOHM, 1/10W 2 R599,00 ERJ8ENF3900 M 390 OHM, 1/8W 2 R601 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R603 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R604 ERJ6RBD303 M 30KOHM,J,1/10W 1 R605 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R606 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R607 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R608 ERJ8GEYJ332 M 3.3KOHM,J,1/8W 1 R609 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R610 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R611 ERDS2FJ101 C 100 OHM,J,1/4W 1 R612 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R613 ERJ6ENF2402 M 24KOHM, 1/10W 1 R614 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R616,17 ERJ6GEYJ223 M 22KOHM,J,1/10W 2 R618 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R619 ERJ8RQFR39 M 0.39OHM,J,1/8W 1 R620 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R622 ERJ6ENF1603 M 160KOHM, 1/10W 1 R624 ERX2SJR22P M0.22 OHM,J,2W 1 R625 B0BC8R100013 齐纳二极管 1 R626 ERJ6ENF1603 M 160KOHM, 1/10W 1 R627 ERJ6GEYJ752 M 7.5KOHM,J,1/10W 1 R628 EVMAASA00B33 控制 3KOHMB 1 R629 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R630 ERJ6GEYF472 M 4.7KOHM,F,1/10W 1 R631 ERJ8GEYJ333 M 33KOHM,J,1/8W 1 R632 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R633 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R634 ERJ8RQFR39 M 0.39OHM,J,1/8W 1 R635 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R636 ERJ6ENF1603 M 160KOHM, 1/10W 1 R637 ERJ8RQFR39 M 0.39OHM,J,1/8W 1 R639,40 ERJ8RQFR39 M 0.39OHM,J,1/8W 2 R641 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R642-44 ERJ8RQFR39 M 0.39OHM,J,1/8W 3 R645 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R646,47 ERJ14YJ330 M 33 OHM,J,1/4W 2 R648 ERJ6ENF1603 M 160KOHM, 1/10W 1 R649 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R650 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R651 ERJ6ENF1002 M 10KOHM, 1/10W 1 R652 ERJ6GEYF123 M 12KOHM,J,1/10W 1 R653 ERJ6ENF3302 M 33KOHM, 1/10W 1 R654 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R655 ERJ8RSJR16V M 16 OHM, 1/8W 1 R656 ERJ6ENF1803 M 180KOHM, 1/10W 1 R657 ERJ6GEYF561 M 560 OHM,F,1/10W 1 R658 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R659 ERJ6RBD303 M 30KOHM,J,1/10W 1 R660 ERJ6RBD123V M 12KOHM, 1/10W 1 R661 EVMAASA00B53 控制 5KOHMB 1 R662 ERJ6ENF1503 M 150KOHM, 1/10W 1 R664 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R665 EVMAASA00B23 控制 2KOHMB 1 R669 ERJ6ENF1503 M 150KOHM, 1/10W 1 R670 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R671 ERJ6RBD751 M 750 OHM,J,1/10W 1 R672,73 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R674 ERJ8GEYJ333 M 33KOHM,J,1/8W 1 R675 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R676 ERJ8GEYJ333 M 33KOHM,J,1/8W 1 R677 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R678-80 ERJ8RSJR16V M 16 OHM, 1/8W 3 R682 ERJ6ENF2002 M 20KOHM, 1/10W 1 R683 ERJ14YJ330 M 33 OHM,J,1/4W 1 R684,85 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R686 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R687 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R688 ERJ6GEYG102 M 1KOHM,J,1/10W 1 参考号 部品号 部品名称及描述 数量 备注 R689 ERJ8GEYJ472 M 4.7KOHM,J,1/8W 1 R690 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R691 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R693 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R695 ERJ6RBD123V M 12KOHM, 1/10W 1 R696 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R697 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R698 ERJ8RSJR16V M 16 OHM, 1/8W 1 R699 ERJ8GEYJ105 M 1MOHM,J,1/8W 1 R700,01 ERJ6ENF1503 M 150KOHM, 1/10W 2 R702 ERJ6ENF1102 M 11KOHM, 1/10W 1 R707,08 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R709,10 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R711,12 ERJ6GEYG222 M 2.2KOHM,J,1/10W 2 R713 ERJ6GEYG152 M 1.5KOHM,J,1/10W 1 R714 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R715 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R716 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R717 ERJ6GEYG122 M 1.2KOHM,J,1/10W 1 R718 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R719 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R720 ERJ6GEYG152 M 1.5KOHM,J,1/10W 1 R721 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R722-24 ERJ6GEYG102 M 1KOHM,J,1/10W 3 R726,27 ERJ6GEYG222 M 2.2KOHM,J,1/10W 2 R729 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R730-38 ERJ8GEYJ105 M 1MOHM,J,1/8W 9 R739 ERJ6ENF1003 M 100KOHM, 1/10W 1 R740 ERJ6GEYJ243 M 24KOHM,J,1/10W 1 R741 ERJ8GEYJ205 M 2MOHM,J,1/8W 1 R742 ERJ6GEYG102 M 1KOHM,J,1/10W 1 RL401-03 K6B1CGA00055 继电器 3 S401,02 J0LT00000009 开关 2 T401 G4D4A0000123 转换变压器 1 T402 G4D1A0000128 转换变压器 1 T404 ETS42LB11GAD 转换变压器 1 T410 G4D2A0000283 转换变压器 1 T601 G4D2A0000284 转换变压器 1 W13 ERJ6GEY0R00V M 0 OHM, 1/10W 1 W46 ERJ6GEY0R00V M 0 OHM, 1/10W 1 X501 H2B400400021 晶体 1 Z1-Z3 K4ZZ01000206 端子 3 ZN401,02 D4EAD6210001 电阻器 2 ZN403 ERZVGAD681T2 电阻器 1 ZN404,05 ERZVA7D511 电阻器 2 参考号 部品号 部品名称及描述 数量 备注
