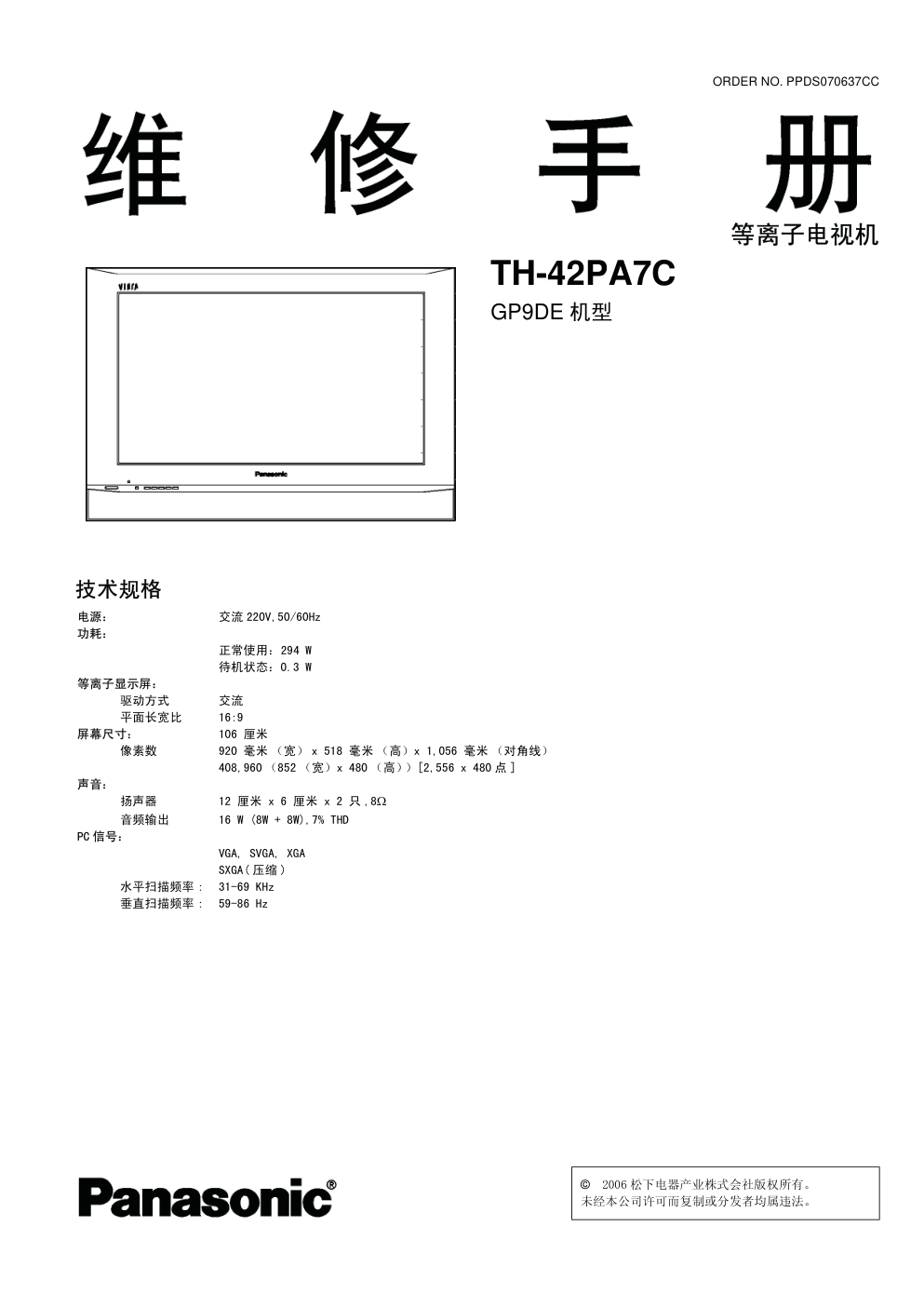

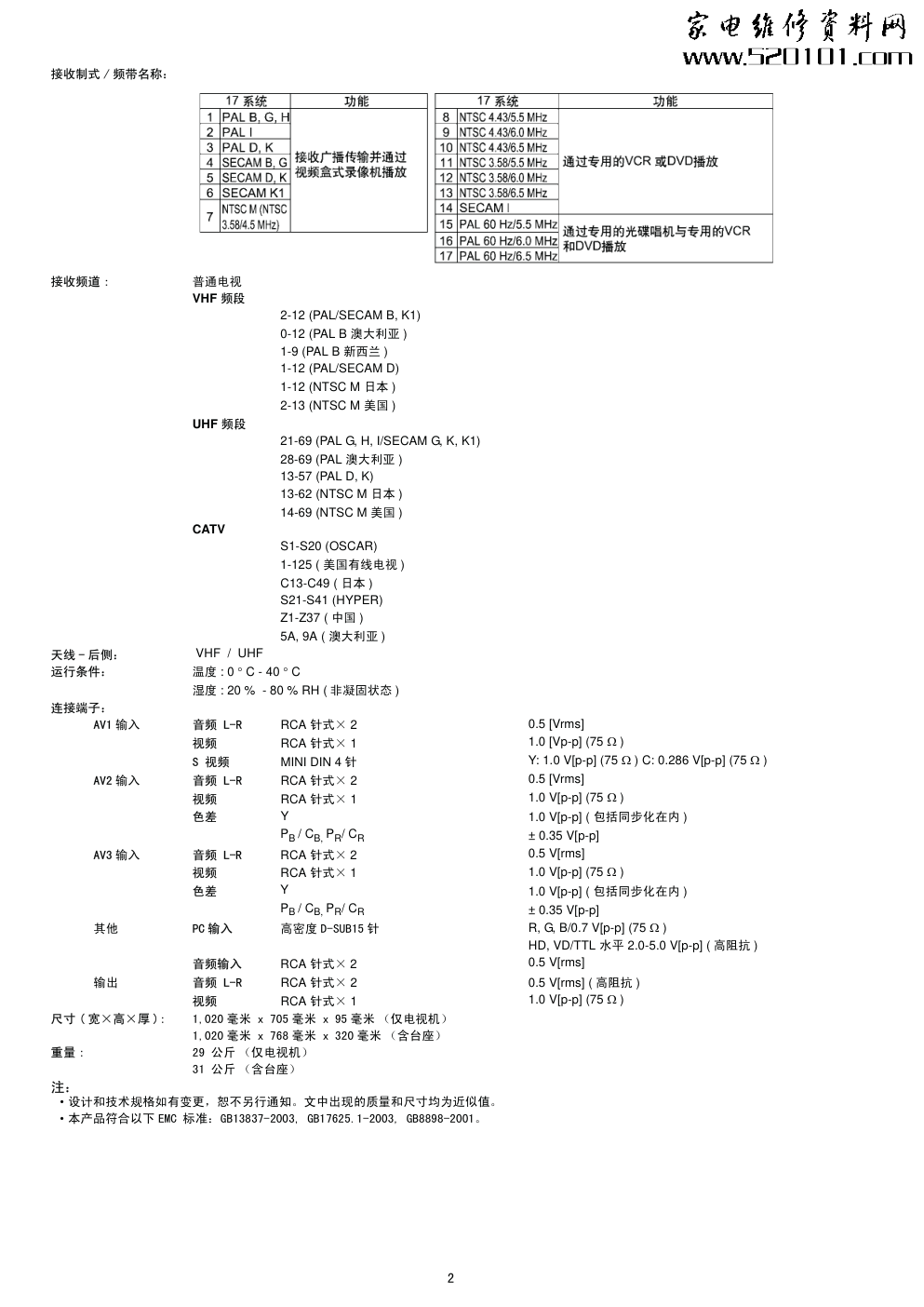

© 2006 松下电器产业株式会社版权所有。 未经本公司许可而复制或分发者均属违法。 ORDER NO. PPDS070637CC 等离子电视机 TH-42PA7C GP9DE 机型 技术规格 电源： 交流 220V,50/60Hz 功耗： 正常使用：294 W 待机状态：0.3 W 等离子显示屏： 驱动方式 交流 平面长宽比 16:9 屏幕尺寸： 106 厘米 像素数 920 毫米 （宽） x 518 毫米 （高）x 1,056 毫米 （对角线） 408,960 （852 （宽）x 480 （高））[2,556 x 480 点 ] 声音： 扬声器 12 厘米 x 6 厘米 x 2 只 ,8Ω 音频输出 16 W (8W + 8W),7% THD PC 信号： VGA, SVGA, XGA SXGA( 压缩 ) 水平扫描频率 : 31-69 KHz 垂直扫描频率 : 59-86 Hz 2 接收制式 / 频带名称： 接收频道 : 普通电视 VHF 频段 2-12 (PAL/SECAM B, K1) 0-12 (PAL B 澳大利亚 ) 1-9 (PAL B 新西兰 ) 1-12 (PAL/SECAM D) 1-12 (NTSC M 日本 ) 2-13 (NTSC M 美国 ) UHF 频段 21-69 (PAL G, H, I/SECAM G, K, K1) 28-69 (PAL 澳大利亚 ) 13-57 (PAL D, K) 13-62 (NTSC M 日本 ) 14-69 (NTSC M 美国 ) CATV S1-S20 (OSCAR) 1-125 ( 美国有线电视 ) C13-C49 ( 日本 ) S21-S41 (HYPER) Z1-Z37 ( 中国 ) 5A, 9A ( 澳大利亚 ) 天线 - 后侧： VHF / UHF 运行条件： 温度 : 0 ° C - 40 ° C 湿度 : 20 % - 80 % RH ( 非凝固状态 ) 连接端子： AV1 输入 音频 L-R RCA 针式× 2 0.5 [Vrms] 视频 RCA 针式× 1 1.0 [Vp-p] (75 Ω ) S 视频 MINI DIN 4 针 Y: 1.0 V[p-p] (75 Ω ) C: 0.286 V[p-p] (75 Ω ) AV2 输入 音频 L-R RCA 针式× 2 0.5 [Vrms] 视频 RCA 针式× 1 1.0 V[p-p] (75 Ω ) 色差 Y 1.0 V[p-p] ( 包括同步化在内 ) PB / CB, PR/ CR ± 0.35 V[p-p] AV3 输入 音频 L-R RCA 针式× 2 0.5 V[rms] 视频 RCA 针式× 1 1.0 V[p-p] (75 Ω ) 色差 Y 1.0 V[p-p] ( 包括同步化在内 ) PB / CB, PR/ CR ± 0.35 V[p-p] 其他 PC 输入 高密度 D-SUB15 针 R, G, B/0.7 V[p-p] (75 Ω ) HD, VD/TTL 水平 2.0-5.0 V[p-p] ( 高阻抗 ) 音频输入 RCA 针式× 2 0.5 V[rms] 输出 音频 L-R RCA 针式× 2 0.5 V[rms] ( 高阻抗 ) 视频 RCA 针式× 1 1.0 V[p-p] (75 Ω ) 尺寸 ( 宽×高×厚 ): 1,020 毫米 x 705 毫米 x 95 毫米 （仅电视机） 1,020 毫米 x 768 毫米 x 320 毫米 （含台座） 重量 : 29 公斤 （仅电视机） 31 公斤 （含台座） 注： • 设计和技术规格如有变更，恕不另行通知。文中出现的质量和尺寸均为近似值。 • 本产品符合以下 EMC 标准：GB13837-2003, GB17625.1-2003, GB8898-2001。 3 目录 页数 页数 1 适用信号----------------------------------------- 5 2 安全警告 ---------------------------------------- 6 2.1. 一般准则 ---------------------------------- 6 2.2. 漏电检查 ---------------------------------- 6 3 对静电灵敏设备 (ES) 的静电放电保护 (ESD) --------- 7 4 关于无铅焊接 (PbF) ------------------------------ 8 5 维修提示 ---------------------------------------- 9 6 等离子显示屏更换方式---------------------------- 10 6.1. 取下后盖 --------------------------------- 10 6.2. 取下调谐器盖 ------------------------------ 10 6.3. 取下 P 板 ---------------------------------- 10 6.4. 取下 PA 板 --------------------------------- 10 6.5. 取下调谐器单元 ---------------------------- 10 6.6. 取下 DG 板 --------------------------------- 11 6.7. 取下 TA 板 --------------------------------- 11 6.8. 取下 H 板 ---------------------------------- 11 6.9. 取下 HC 板 --------------------------------- 11 6.10. 取下 D 板 ---------------------------------- 12 6.11. 取下 SU 板 --------------------------------- 12 6.12. 取下 SD 板 --------------------------------- 12 6.13. 取下 SC 板 --------------------------------- 12 6.14. 取下 SS 板 --------------------------------- 13 6.15. 取下 C1 板 --------------------------------- 13 6.16. 取下 C2 板 --------------------------------- 13 6.17. 取下左右扬声器 ---------------------------- 13 6.18. 取下 S 板 ---------------------------------- 14 6.19. 取下 K 板 ---------------------------------- 14 6.20. 取下支撑架 -------------------------------- 14 6.21. 从前面框 （玻璃）上取下等离子显示屏 ------- 14 6.22. 安装新的等离子显示屏 ---------------------- 15 7 导线布置 --------------------------------------- 16 7.1. 导线 （1）--------------------------------- 16 7.2. 导线 （2）--------------------------------- 17 7.3. 导线 （3）--------------------------------- 18 7.4. 导线 （4）--------------------------------- 19 7.5. 导线 （5）--------------------------------- 20 7.6. 导线 （6）--------------------------------- 21 8 自检-------------------------------------------- 23 8.1. 发光二极管 LED 电源定时闪亮曲线图表 -------- 24 8.2. 无电源 ------------------------------------ 25 8.3. 无图像 ------------------------------------ 26 8.4. 显示屏局部故障 ---------------------------- 27 9 维修模式功能 ----------------------------------- 28 9.1. 如何进入维修模式 1 ------------------------ 28 9.2. 如何进入维修模式 2 ------------------------ 28 9.3. 选项说明 ---------------------------------- 30 10 调整步骤 --------------------------------------- 32 10.1. 驱动器设置 -------------------------------- 32 10.2. 起始脉冲调整 ------------------------------ 33 10.3. P.C.B. （印刷电路板）更换 ---------------- 33 10.4. 调整电压位置 ------------------------------ 34 10.5. 测试点位置 -------------------------------- 34 11 微调-------------------------------------------- 35 11.1. PAL 显示屏白平衡 -------------------------- 35 11.2. HD 白平衡调整 ------------------------------36 11.3. 副亮度调整---------------------------------37 11.4. ABL 调整 -----------------------------------38 11.5. 副对比度调整-------------------------------39 12 旅馆模式 ---------------------------------------40 13 导线图 -----------------------------------------41 13.1. P 电路板 ----------------------------------41 13.2. PA 电路板 ---------------------------------44 13.3. H，HC 和 TA 电路板 --------------------------46 13.4. K 和 S 电路板 ------------------------------48 13.5. DG 电路板 ---------------------------------49 13.6. D 电路板 ----------------------------------51 13.7. C1 电路板 ---------------------------------53 13.8. C2 电路板 ---------------------------------54 13.9. SC 电路板 ---------------------------------55 13.10. SU 电路板 ---------------------------------58 13.11. SD 电路板 ---------------------------------59 13.12. SS 电路板 ---------------------------------60 14 方框图和线路图 ---------------------------------62 14.1. 线路图注意事项 ----------------------------62 14.2. 主方框图 ----------------------------------63 14.3. P 电路板方框图 ----------------------------64 14.4. P 电路板 （1/6）线路图----------------------65 14.5. P 电路板 （2/6）线路图----------------------66 14.6. P 电路板 （3/6）线路图----------------------67 14.7. P 电路板 （4/6）线路图----------------------68 14.8. P 电路板 （5/6）线路图----------------------69 14.9. P 电路板 （6/6）线路图----------------------70 14.10. PA 电路板方框图 ----------------------------71 14.11. PA 电路板 （1/2）线路图---------------------72 14.12. PA 电路板 （2/2）线路图---------------------73 14.13. H 和 TA 电路板方框图 ------------------------74 14.14. H 电路板 （1/3）线路图----------------------75 14.15. H 电路板 （2/3）线路图----------------------76 14.16. H 电路板 （3/3）线路图----------------------77 14.17. TA 电路板线路图 ----------------------------78 14.18. HC 和 K 电路板方框图 ------------------------79 14.19. HC 和 K 电路板线路图 ------------------------80 14.20. DG 电路板 （1/2）方框图---------------------81 14.21. DG 电路板 （2/2）方框图---------------------82 14.22. DG 电路板 （1/7）线路图---------------------83 14.23. DG 电路板 （2/7）线路图---------------------84 14.24. DG 电路板 （3/7）线路图---------------------85 14.25. DG 电路板 （4/7）线路图---------------------86 14.26. DG 电路板 （5/7）线路图---------------------87 14.27. DG 电路板 （6/7）线路图---------------------88 14.28. DG 电路板 （7/7）线路图---------------------89 14.29. D 电路板方框图 -----------------------------90 14.30. D 电路板 （1/6）线路图----------------------91 14.31. D 电路板 （2/6）线路图----------------------92 14.32. D 电路板 （3/6）线路图----------------------93 14.33. D 电路板 （4/6）线路图----------------------94 14.34. D 电路板 （5/6）线路图----------------------95 14.35. D 电路板 （6/6）线路图----------------------96 4 14.36. C1 和 C2 电路板方框图----------------------- 97 14.37. C1 电路板 （1/2）线路图 -------------------- 98 14.38. C1 电路板 （2/2）线路图 -------------------- 99 14.39. C2 电路板 （1/2）线路图 ------------------- 100 14.40. C2 电路板 （2/2）线路图 ------------------- 101 14.41. SC，SU 和 SD 电路板方框图------------------ 102 14.42. SC 电路板 （1/2）线路图 ------------------- 103 14.43. SC 电路板 （2/2）线路图 ------------------- 104 14.44. SU 电路板线路图--------------------------- 105 14.45. SD 电路板线路图--------------------------- 106 14.46. SS 和 S 电路板方框图----------------------- 107 14.47. SS 和 S 电路板线路图----------------------- 108 15 部件布置和维修部品表 -------------------------- 109 15.1. 部件布置 --------------------------------- 109 15.2. 包装分解图 （1）-------------------------- 110 15.3. 包装分解图 （2）-------------------------- 111 15.4. 包装分解图 （3）-------------------------- 112 15.5. 包装分解图 （4）-------------------------- 113 15.6. 维修部品表 ------------------------------- 114 16 更换部件清单 ---------------------------------- 115 16.1. 更换部件清单注意事项 -------------------- 115 16.2. 电器部件更换清单 ------------------------ 116 5 1 适用信号 * 标记：可适用的分量 （Y, PB, PR）及 PC （D-Sub 15P）输入信号 注： • 不属于上述规格的信号可能无法正确显示。 • 上述信号均经重新格式化，以达到最佳观看效果。 • PC 的输入信号基本符合 VESA 标准。 • PC 信号的放大或压缩可能不能很好地显示细节。 信号名称 水平频率 (kHz) 垂直频率 (Hz) 分量色差 PC 525(480)/60i 15.73 59.94 * 525(480)/60p 31.47 59.94 * 625(576)/50i 15.63 50.00 * 625(576)/50p 31.25 50.00 * 750(720)/60p 45.00 60.00 * 750(720)/50p 37.50 50.00 * 1,125(1,080)/60i 33.75 60.00 * 1,125(1,080)/50i 28.13 50.00 * 640 x 400 @70Hz 31.46 70.07 * 640 x 480 @60Hz 31.47 59.94 * 640 x 480 @75Hz 37.50 75.00 * 800 x 600 @60Hz 37.88 60.32 * 800 x 600 @75Hz 46.88 75.00 * 800 x 600 @85Hz 53.67 85.06 * 1,024 x 768 @60Hz 48.36 60.00 * 1,024 x 768 @70Hz 56.48 70.07 * 1,024 x 768 @75Hz 60.02 75.03 * 1,024 x 768 @85Hz 68.68 85.00 * 1,280 x 1,024 @60Hz 63.98 60.02 * Macintosh13"(640 x 480) 35.00 66.67 * Macintosh16"(832 x 624) 49.72 74.54 * Macintosh21"(1,152 x 870) 68.68 75.06 * 6 2 安全警告 2.1. 一般准则 1. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 2. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸、屏蔽等安装正确。 3. 维修后，进行以下漏电检查，以免用户遭受触电危险。 2.2. 漏电检查 1. 将 AC 电源线直接插入 AC 电源插座。进行检查时，请勿使用隔离变压器。 2. 在设备上各外露金属部分和良好接地 （如水管）之间连接一个电流测量装置，如图 1 所示。 3. 用漏电测试仪 （Simpson 228 或类似型号）测量通过该装置的电势。 4. 检查各外露金属部件，并测量各点电压。 5. 变换 AC 插座中的 AC 插头，并重复上述各项测量。 6. 各点 （漏电）的电势表示为电压 U1 和 U2，并且不能超过以下各值： 交流：U1=35V （峰值） U2=0.35V （峰值） 直流：U1=1.0V 注： 与交流的 U2 限定峰值 0.35V 和直流的 U1 限定峰值 1.0V 相对应的电流峰值分别为 0.7mA 和 2.0mA。 与交流的 U1 限定峰值 35V 相对应的 100kHz 以上的电流峰值为 70mA。 7. 当测量值超出规定的限制时，可能会引起触电。所以必须在机器返回用户手中之前对其进行修理和再检测。 图 1 7 3 对静电灵敏设备 (ES) 的静电放电保护 (ESD) 一些半导体（固态）装置很容易遭静电损坏。这些组件通常被称为静电灵敏装置（ES）。典型的 ES 装置有集成电路和一些场效应晶体 管以及半导体 “芯片”组件。以下方法通常被用来减少由于静电放电 （ESD）所产生的组件损坏。 1. 在处理任何半导体组件或是配备有半导体组件的设备之前，及时排除身体上由于接触到已知地线的任何静电放电。或者戴上市场 上出售的抗静电放电腕带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 在移动配有静电灵敏装置的电器组件之后，要将该组件放置于导体表面上 （如铝箔），以防组件静电电荷的产生或辐射。 3. 只采用一块接地端烙铁来联结或断开静电灵敏装置。 4. 只采用抗静电联结移动装置。一些不属于“抗静电（静电放电保护）”范围的联结移动装置会产生足以损坏静电灵敏装置的电荷。 5. 切勿使用类似氟利昂推进剂的化学物质。这些化学物质会产生足以损坏静电灵敏装置的电荷。 6. 在准备立即安装之前才能拆开静电灵敏替代装置的保护性包装。（大多数静电灵敏替代装置都是采用铅制包装，通过与传导泡 沫、铝箔或是类似的导体材料一起造成短路）。 7. 在拆掉静电灵敏替代装置上的铅制保护性材料之前，立刻将保护性材料与即将安装该装置的机芯或是电路组件相接触。 注意 确定机型或电路无电源，并遵守其它所有的安全措施。 8. 当处理未包装的静电灵敏替代装置时，尽量减小身体的动作幅度。（否则，一些无关紧要的动作如：衣服织物一起掠过或是从铺 有地毯的地板上抬起脚，都会产生足以损坏静电灵敏装置的静电 （静电放电））。 8 4 关于无铅焊接 (PbF) 注：在元素周期表中，铅用 Pb 表示。 在下文中，Pb 表示有铅焊接，PbF 表示无铅焊接。 在制造中使用并且下文中讨论的无铅焊接是 (Sn+Ag+Cu)。 即：锡 （Sn），银 （Ag）和铜 （Cu），不过其它类型也可使用。 出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维修和修理工作中最好使用无铅焊接，不过也允许使用有铅焊 接。 使用无铅焊接工艺制造的印刷电路板背面的树叶形符号 内有 PbF 字样。 注意 • 无铅焊接的熔点比标准焊接的高。通常熔点是超过 50 ~ 70°F (30 ~ 40°C)。 请使用高温烙铁，并将其温度设为 700 ± 20°F (370 ± 10°C)。 • 在加热过度 （约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。 如果必须使用有铅焊接，请在焊接前先全部去除焊脚或焊接区上的无铅焊料。如果做到这点有实际困难，则确保无铅焊料加热到熔 化之后再进行有铅焊接。 • 在对双面电路板进行无铅焊接后，请检查部件侧部是否有过量焊料，否则会流到另一侧去。（见下图） 推荐的无铅焊料 有几种无铅焊料可供选购。本产品使用 Sn+Ag+Cu （锡 + 银 + 铜）焊料。 9 5 维修提示 电路板名称 功能 电路板名称 功能 P 电源 C2 数据驱动 （左下） PA DC-DC 转换，扬声器输出，音频放大 SC 扫描驱动 H AV 端子，AV 切换， MSP SU 扫描输出 （上） TA 高频调谐器 SD 扫描输出 （下） DG 数字信号处理器，Micom, HDMI 接口 SS 维持驱动 D 格式转换，等离子 AI， 子场处理器 K 遥控接收器，电源指示灯，按键开关 HC 夹具连接 S 电源开关 C1 数据驱动 （右下） 10 6 等离子显示屏更换方式 6.1. 取下后盖 1. 见维修提示 （第 5 章） 6.2. 取下调谐器盖 1. 松开螺丝 （x 8 ,x 3 ,x 4 ） 2. 取下调谐器盖。 6.3. 取下 P 板 注意： 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.C.B.。 1. 松开电缆线夹，以取出电缆。 2. 断开连接件 （P2, P5, P9, P10, P11, P12, P23 和 P25）。 3. 松开螺丝 （x 5 ,x 1 ）并取下 P 板。 6.4. 取下 PA 板 1. 松开电缆线夹，以取出电缆。 2. 断开连接件 （PA2, PA5, PA10 和 PA40）。 3. 断开柔性电缆 （PA20）。 4. 松开螺丝 （x 4 ）。 5. 取下 PA 板。 6.5. 取下调谐器单元 1. 松开电缆线夹，以取出电缆。 2. 松开 PA 板上的接地线 （见第 6.4 章节）。 3. 断开连接件 （DG5, H53 和 PA40）。 4. 断开柔性电缆 （DG3 和 PA20）。 5. 松开螺丝 （x 4 ），并取下调谐器单元。 11 6.6. 取下 DG 板 1. 断开连接件 （DG2, DG5）。 2. 断开柔性电缆 （DG1, DG3, DG15 和 DG20）。 3. 松开螺丝 （x 8 ）并取下 DG 板。 6.7. 取下 TA 板 1. 断开调谐器电缆。 2. 松开螺丝 （x 1 ）并取下 TA 板。 6.8. 取下 H 板 1. 取下 TA 板。 2. 松开电缆线夹，以取出电缆。 3. 断开连接件 （H2, H40 和 H53）。 4. 断开柔性电缆 （H1）。 5. 松开螺丝 （x 5 ）并取下 H 板。 6.9. 取下 HC 板 1. 断开柔性电缆 （HC15）。 2. 松开螺丝 （x 2 ）并取下 HC 板。 12 6.10. 取下 D 板 1. 取下调谐器单元。（见第 6.5 章节） 2. 断开连接件 （D5, D20 和 D25）。 3. 断开柔性电缆 （D3, D31 和 D32）。 4. 松开螺丝 （x 4 ）并取下 D 板。 6.11. 取下 SU 板 1. 松开螺丝 （x 2 ）。 2. 断开柔性电缆（SU1,SU2和SU3）并取下桥式联接器（SU45）。 3. 将 SU 板移到左边，使其与 SC 板的连接件（SC41-SU41）断 开，然后取下 SU 板。 6.12. 取下 SD 板 1. 松开螺丝 （x 2 ）。 2. 断开柔性电缆 (SD1,SD2 和 SD3)，并取下桥式连接器 （SD46）。 3. 将 SD 板移到左边，使其与 SC 板的连接件（SC42-SD42）断 开，然后取下 SD 板。 6.13. 取下 SC 板 1. 松开电缆线夹，以取出电缆。 2. 断开连接件 （SC2, SC20 和 SC23）。 3. 松开螺丝 （x 6 ）并取下 SC 板。 13 6.14. 取下 SS 板 1. 断开连接件 （SS11, SS12, SS23 和 SS34）。 2. 断开柔性电缆 （SS41, SS42, SS43 和 SS44）。 3. 松开螺丝 （x 6 ）并取下 SS 板。 6.15. 取下 C1 板 1. 取下调谐器单元。（见第 6.5 章节） 2. 松开电缆线夹，以取出电缆。 3. 松开柔性电缆支架固定螺丝 （x 6 ）。 4. 断开柔性电缆 （CB1, CB2 和 CB3）。 5. 断开柔性电缆 （C11 和 C12）。 6. 松开螺丝 （x 3 ），并取下 C1 板。 6.16. 取下 C2 板 1. 取下调谐器单元。（见第 6.5 章节） 2. 松开电缆线夹，以取出电缆。 3. 松开柔性电缆支架固定螺丝 （x 8 ）。 4. 断开柔性电缆 （CB4，CB5, CB6 和 CB7）。 5. 断开柔性电缆 （C21 和 C22）。 6. 断开连接件 （C23）。 7. 松开螺丝 （x 4 ），并取下 C2 板。 6.17. 取下左右扬声器 1. 断开继电器连接件。 2. 松开螺丝 （x 4 每个），并取下左右扬声器。 14 6.18. 取下 S 板 1. 松开螺丝 （x 2 ），并取下 S 板单元。 2. 松开电缆线夹，以取出电缆。 3. 断开连接件 （S1）。 4. 松开螺丝 （x 2 ），并取下 S 板。 6.19. 取下 K 板 1. 松开电缆线夹，以取出电缆。 2. 断开连接件 （H53）。（见第 6.5 章节） 3. 松开螺丝 （x 3 ）并取下 K 板。 6.20. 取下支撑架 1. 将等离子显示屏从维修架上取下，放置在类似桌子 （铺有 软布）的表面上，并且显示屏表面朝下。 2. 松开支撑架 （左、右）固定螺丝 （x 6 每个），并取下 支架 （左、右）。 6.21. 从前面框（玻璃）上取下等离子显 示屏 1. 取下前面框和等离子显示屏固定螺丝 （x 6 ）。 2. 取下前面框和支撑架固定螺丝 （x 2 , x 2 ）。 3. 从前面框上取下等离子显示屏时，向上拉前面框底部并抬 起，即可取出。 15 6.22. 安装新的等离子显示屏 1. 将新的等离子显示屏放置在铺有软布的桌子上，并且等离 子显示屏表面朝下。 2. 安装 C1 板和 C2 板，连接等离子显示屏的柔性电缆（X 7） 至 C1 和 C2 板，并固定柔性电缆支架。 3. 安装挂钩 （左、右） ，并将支撑架 （左、右）装配到新的 等离子显示屏上。 4. 将等离子显示屏放置到维修架上。 5. 将面框和 P.C.B. 板等装到新的等离子显示屏上。 * 安装面框时，注意不要让前玻璃和等离子显示屏之间有碎 屑、灰尘或杂质存在。 16 7 导线布置 7.1. 导线 （1） 如图中所示进行布线。 17 7.2. 导线 （2） 如图中所示进行布线。 18 7.3. 导线 （3） 如图中所示进行布线。 19 7.4. 导线 （4） 如图中所示进行布线。 20 7.5. 导线 （5） 如图中所示进行布线。 21 7.6. 导线 （6） 22 7.7. 导线 （7） 23 8 自检 1. 自检用于自动检查电视机的总线和十六进制码。 2. 要进入自检模式，按下电视机前端的 (-/v) 键，同时按下遥控器上的 “菜单”键，显示屏将会显示： 检查 CCU 端口时若发现其不正常或位置不对，“-”将会显示在 “O.K”的位置。 显示 参考号 说明 P.C.B. MEM IC1102 EEPROM DG 板 GC5 IC4037 GC5 处理器 DG 板 AVSW1 IC3005 视频切换 H 板 AVSW2 IC2105 音频切换 H 板 Tun1 TU001 调谐器 TA 板 MSP IC2106 多声音处理器 H 板 PANEL IC9003 Convert Micon D 板 ADV IC4019 10bit A/D DG 板 24 8.1. 发光二极管 LED 电源定时闪亮曲线图表 1. 主题 发光二极管闪烁时间图信息。 2. 内容 当设备出现异常时，保护电路将运行并将设备复位到待机状态。此时，通过本机前端的 LED 电源闪烁次数便可识别出故障部位。 闪烁次数 定时闪烁 内容 检查点 1 无特定检测点 - 2 15V SOS D 板 3 3.3V SOS D 板 4 电源 SOS P 板 5 5V SOS D 板 6 驱动器 SOS1 （SC 能量恢复电路） SU 板 SD 板 SC 板 7 驱动器 SOS2 （SC 浮置电压区域） SU 板 SD 板 SC 板 8 驱动器 SOS3 （SS 能量恢复电路） SS 板 9 显示屏状态 - 10 PA 板 SOS 调谐器 SOS PA 板 H 板 12 声音 SOS PA 板 25 8.2. 无电源 LED 无电源指示有 3 种情况： 1. 不亮。 2. 绿灯亮，几秒钟后转为红灯闪烁。 3. 只有红灯亮。 不亮 检查P电路板 检查PA电路板 OK OK 异常 但无AC电源 检测保险丝F401, F402, PR401, PR601 检查AC电源线或电源 26 8.3. 无图像 无图像 SC电路板 H电路板 驱动电路LED指示器 DG电路板 D6583 SC板 SS板 D6253 DG电路板 D-电路板 D-电路板 SS电路板 检查 OSD 什么信号？ 仅视频信号输入 (AV,分量) 视频和PC 信号输入 异常 异常 异常 OK OK 仅PC OK 检查SC电 路板LED 检查SS电 路板LED 27 8.4. 显示屏局部故障 等离子显示器屏幕上可能会出现局部故障。图 1 是各局部可能会出现故障的 P.C.B. 印刷电路板。 图 1 28 9 维修模式功能 MPU 通过此机型的 IIC 总线来控制各 IIC 模式的功能转换。以下各项可在维修模式下通过遥控来进行设置和调节。 9.1. 如何进入维修模式 1 1. 将音量设置为最小，将定时关机设置为 15 分钟。 2. 同时按下电视机上的 DOWN （下）[-/V] 键和遥控器上的 Recall[ ] 键。 9.2. 如何进入维修模式 2 1. 进入维修模式 1。 2. 同时按下电视机上的 DOWN （下）[-/V] 键和遥控器上的静音键。 注： 要退出维修模式，按下遥控器上的 N 或 Power 键。 29 30 9.3. 选项说明 选项 1 选项 2 选项 3 选项 4 选项 5 选项 6 选项 7 彩色制式 PA7C 0F b0 b1 b2 b3 b4 b5 b6 b7 b0 b1 b2 b3 b4 b5 b6 b7 b0 b1 b2 b3 b4 b5 b6 b7 b0 b1 b2 b3 b4 b5 b6 b7 b0 b1 b2 b3 b4 b5 b6 b7 b0 b1 b2 b3 b4 b5 b6 b7 b0 b1 b2 b3 b4 b5 b6 b7 1 1 1 1 0 0 E2 1A 08 03 80 61 0 0 0 1 0 0 1 1 1 0 0 1 0 1 0 0 0 1 0 0 0 1 0 0 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 1 0 0 1 0 0 0 1 0 1 0 自动（1） SECAM(1) NTSC(1) M.NTSC(1) A2选择6.5 MHz 5.742MHz (0) 6.742MHz(1) SIF 仅I(0), 仅BG (1) I/BG/DK/L (2), BG/DK (3) 闲置 A2启动 启动（1） 未使用 未使用 未使用 启动（1） 未使用 未使用 未使用 NICAM启动 SASO启动 调谐 搜索速度 调谐器 HYPER IF I2C NICAM C4比特 蓝底 Aspect 自动 S1/S2启动 ID-1 用户比例调整 用户比例14:9 ALBD 14:9 TEXT TEXT TOP CH闪烁 AV闪烁 静音 副图像 2调谐器 AV输入 屏（LCD） 大尺寸（LCD） 亚洲 澳大利亚 爱尔兰/印度 英国/韩国 语言1 语言2 较低位 用户ID 亚洲（1），欧洲（0） 未使用 爱尔兰（1） 英国（1） 未使用 未使用 未使用 未使用 SD模块 SD外置录音模块（PAL） SD外置录音模块（NTSC） SD外置录音模块（SECAM C） IDTV HDMI 外置HV输入 PC 带SD模块（1） 启动（1） 启动（1） 启动（1） 启动（1） 启动（1） 无HV输入（0）/带HV输入（1） 启动（1） 闪烁启动（1） 闪烁启动（1） 静音启动（0） 无副图像（0），有副图像（1） 2调谐器(1), 1调谐器(0) 3旋转(1)/ 2旋转 无前置RCA (0) 三星显示屏（1）/夏普显示屏（0） 32(1)/26 (0)液晶显示 启动（1） 启动（1） 启动（1） 启动（1） 启动（1） 14:9启动, self wide (1)时Zoom 3未启动/ self wide (0)时Zoom1, Zoom 3启动 启动（1） TOP启动（1） SASO启动（1） 启动（1） 慢（1） 快（0） MACO调谐器(1), 其它(0) 仅UHF (0), UHF/VHF (1) I2C控制调谐器IF模块(1) 启动（1） 菜单中蓝背景开/关选择（0） 31 选项 8 选项 9 选项 10 选项 11 选项 12 选项 13 PA7C b0 b1 b2 b3 b4 b5 b6 b7 b0 b1 b2 b3 b4 b5 b6 b7 b0 b1 b2 b3 b4 b5 b6 b7 b0 b1 b2 b3 b4 b5 b6 b7 b0 b1 b2 b3 b4 b5 b6 b7 b0 b1 b2 b3 b4 b5 b6 b7 40 0 0 0 0 1 0 0 0 FF 1 1 1 1 1 1 1 1 6F 1 1 1 1 1 0 1 0 4C 0 0 1 1 1 0 0 0 09 1 0 0 1 0 0 0 0 0A 0 1 0 1 0 0 0 0 ACI所有国家 欧洲选项 ACI自动MP ACI补偿 通电EC模式 AV接线 音量调节 MPX/NICAM显示器 Albd 复位 关 亚洲/中东/香港/英国/中国（1） 新西兰/印度尼西亚（1） 澳大利亚（1） 东欧（1） SPECIAL (1) 美国（1） CATV (1) 日本（1） 亚洲/中东（1） 香港/英国（1） 中国（1） 新西兰/印度（1） 奥地利（1） 东欧（1） SPECIAL (1) 启动（1） 宽高比最后记忆 保留 TEXT 频道刷新 静止 LATIN SRS HDMI Quali TV HDMI EC功能 各信号源（1）/所有信号源（0） 刷新启动（1）/未启动（0） 1：启动/0：未启动 Latin:SAP/Fixed SIF 4.5MHz/PAL-M, N/CC/Black level/Language 启动（1） 启动（0） 启动（1） Remocon型 其它 其它 DVB ALBD HDMI端口 HDMI格式错误屏显 CEC控制 宽高比4：3 全屏 FTZ 启动（1） 启动(0) 2端口模式/(1) 1端口模式(仅用于TV MCU端口设置) 显示(0)/未显示(1) 启动（0） 启动（0） 启动（1） 其它 环境AI（PDP） WSS 14:9关 儿童锁定 对比度AI 水平位置维修 垂直位置维修 Delux (1)/Leader (0) 启动，带自动浏览模式（1）/未启动，不带自动浏览模式（0） WSS 14:9关(1) 儿童锁定开：调谐菜单跳台（1） 启动（1） 启动（1） 启动（1） CH方案 NICAM优先 HDMI AVI Aspect ACI启动(1),仅荷兰(0) ACI自动多插件启动（1） VCR程序的ACI补偿启动（1） 通电EC启动（1） 可在菜单中选择Q-Link关（1） 启动电视机音量调节（1） 显示器 NICAM (0), 显示器MPX (1) 启动（1） 32 10 调整步骤 10.1. 驱动器设置 10.1.1. 项目 / 准备 1. 输入白色信号到等离子显示屏视频。 2. 如下设定图像控制： 图像菜单：鲜艳 图像： +30 宽高比：全屏 注意 1. 首先进行 Vsus 调整。 2. Vad 调整确认后，再确定 Vscn 电压。 当 Vad = -90V 时，Vscn 的电压为 35V ± 4V。 10.1.2. 调整 参照显示屏数据标牌上的显示屏数据，调整驱动器各部分的电 压。 * 见显示屏标牌。 33 10.2. 起始脉冲调整 1. 输入白色信号到等离子显示屏视频。 2. 如下设定图像控制： 图像菜单：鲜艳 图像： +25 宽高比：全屏 3. 连接示波器至测试点 TPSC1 （T2），并调整 VR6602 至 170±5μ Sec。 10.3. P.C.B. （印刷电路板）更换 10.3.1. 注意 1. 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.C.B.。 10.3.2. P.C.B. 更换后进行快速调整 * 见显示屏标牌。 注意： 请勿将 Vsus 设置到 Ve 以下，以防损坏 PCB 板。 测试点 调整点 电平 T2 TPSC1(SC) VR6602(SC) 170±5μs P.C.B. 名称 测试点 电压 容量 备注 P 电路板 Vsus TPVSUS(SS) Vsus ± 2V R628 (P) * Vdat P12-1,5(P) 70.2V ± 0.1V R665 (P) PFC C446(+)(-)(P) 396V ± 0.5V R443 (P) Vlow C555(+)(-)(P) 73.0V ± 0.1V R661 (P) Vda 负载电流：0.4A Csus TPVSUS(SS) 165V ± 0.5V R671 (P) Vsus 负载电流：1.25A SC 电路板 Vad TPVAD(SC) -90V ± 1V VR6600 (SC) SS 电路板 Ve TPVE(SS) Ve ± 2V VR6000 (SS) * D,DG 电路板 NTSC, PAL, HD, PC 和 625i 信号的白平衡、背景设定和副亮度。 34 10.4. 调整电压位置 10.5. 测试点位置 35 11 微调 11.1. PAL 显示屏白平衡 36 11.2. HD 白平衡调整 37 11.3. 副亮度调整 38 11.4. ABL 调整 39 11.5. 副对比度调整 AV AV RF RF HD HD RF 1. AV1 PAL 100% 2. *** 1. RF E-21 ch PAL 100% 2. *** . / / 2. *** 1. 2. 3. 4. 1. 2. 3. 4. 1. 2. 3. 4. 100% 100% 100% 40 12 旅馆模式 1. 目的 限制旅馆功能。 2. 进入指令 • 进入维修模式 2。 • 同时按下电视机上的 DOWN（下）[-/V] 键和遥控器上的静音 键，进入 EAROM EDITOR 模式。 • 按红 / 绿键，在各地址间上下选择。 • 按黄 / 蓝键在各地址间左右选择。 • 按节目 键在各页之间上下选择。 • 按音量 键来改变功能值。 • 设定 EEPROM （ADDRESS 0BAF）为 01。 • 按 OK 键，存储数据。 通过遥控器上的开关键来进行开 / 关机操作。 由此进入旅馆模式。 3. 退出指令 • 首先，设定 EEPROM （ADDRESS 0BAF）为 00。 然后，通过遥控器上的开关键来进行开关机操作。 之后便退出旅馆模式。 4. 进入旅馆模式设置菜单指令 • 前提：EEPROM (ADDRESS 0BAF) 的数据应为 01。 为了显示旅馆模式设置菜单，请输入以下指令 （在 2 秒钟 内） [TV]:down + [REMOTE]:TV/AV(3 times) 之后便退出旅馆模式。 5. 旅馆模式设置菜单说明 6. 退出旅馆模式 从壁装插座上拔出 AC 电源线 41 13 导线图 13.1. P 电路板 A B C D E F G H I 1 2 3 4 5 6 P-BOARD (FOIL SIDE) TXN/P1BLTC TH-42PA7C P-BOARD TXN/P1BLTC TH-42PA7C P-BOARD TXN/P1BLTC 42 TH-42PA7C P-BOARD PARTS LOCATION TH-42PA7C P-BOARD PARTS LOCATION Parts Location Parts Location P-BOARD (COMPONENT SIDE) IC402 G-4 IC406 D-1 IC409 F-3 IC411 H-4 IC504 H-4 IC509 B-5 IC512 C-5 IC Q404 C-2 Q406 D-2 Q412 B-3 Q413 B-2 Q434 H-3 Q505 C-5 Q507 C-5 Q527 C-5 TRANSITOR R443 D-1 R628 C-5 R661 D-5 R665 C-5 R671 B-5 VOLUME P-BOARD (FOIL SIDE) IC401 B-4 IC402 C-4 IC403 B-4 IC404 C-4 IC405 C-4 IC406 F-1 IC408 B-4 IC409 C-3 IC410 B-4 IC411 B-4 IC412 A-4 IC501 B-5 IC502 B-5 IC504 B-4 IC505 H-5 IC506 G-5 IC507 G-6 IC509 H-5 IC510 C-6 IC512 F-5 IC520 F-6 IC Q401 B-4 Q402 E-1 Q404 F-1 Q406 F-2 Q407 F-1 Q408 H-3 Q409 H-2 Q412 H-3 Q413 H-2 Q415 B-4 Q418 G-1 Q420 F-1 Q421 G-1 Q422 F-1 Q434 B-4 Q501 A-5 Q502 A-5 Q505 G-6 Q507 G-5 Q508 E-5 Q509 E-5 Q510 F-5 Q512 A-4 Q517 E-4 Q520 E-4 Q521 C-5 Q524 D-5 Q525 G-5 Q527 F-5 Q530 G-5 TRANSISTOR R443 F-1 R628 G-5 R661 E-5 R665 G-5 R671 G-4 Q535 A-5 Q537 C-5 Q538 E-5 Q540 G-5 Q541 F-5 Q551 C-5 Q553 B-5 Q554 B-5 Q555 E-4 Q556 D-4 Q557 B-5 Q558 A-4 Q559 B-5 Q561 A-5 Q563 A-6 Q564 F-6 Q565 F-5 Q566 E-6 Q567 F-5 Q568 B-4 Q569 B-6 VOLUME P 43 A B C D E F G H I 1 2 3 4 5 6 P-BOARD (COMPONENT SIDE) TXN/P1BLTC TH-42PA7C P-BOARD TXN/P1BLTC TH-42PA7C P-BOARD TXN/P1BLTC 44 13.2. PA 电路板 A B C D E F G H I 1 2 3 4 5 6 TP5613 TP5615 TP5616 TP5617 L5651 L5666 PA1 PA2 PA5 TPFSOS C2300 C2301 C2302 C2303 Q2306 Q2307 Q2308 Q2309 R2303 R2307 C2332 C2333 IC2306 IC2307 C5604 C5605 C5606 C5607 C5609 Q5606 PA10 C5801 C5802 C5803 C5610 C5804 C5805 C5611 C5612 C5613 C5614 C5615 C5616 R2326 R2327 C5617 C5618 R2328 C5619 C5810 PA21 C5812 C5815 C5622 C5623 C5626 D5605 C2361 R5601 R5602 C2362 D5606 R5603 D5607 R5604 PA31 PA32 PA33 R5607 C5630 PA34 R5608 IC5601 R5609 C5631 IC5602 C5632 C5633 R2344 D5610 R2345 R5801 D5612 R5802 C5636 D5807 R5803 C5637 R5804 R5610 R5805 R5611 D5616 R5612 D5617 R5807 R5613 R5808 R5614 R5615 IC5611 C5641 C5642 C5644 C5645 R5812 C5647 R5622 R5625 R5626 R5627 C5654 R5822 R5823 R5824 R5631 R5632 R5826 R5633 R5634 R5635 R2370 R2371 C5666 C5667 C5668 R5836 R5644 D5649 R5648 C5670 C5672 C5673 TPM18 R5650 R5652 R5655 R5656 R5657 R5658 R5659 R2397 R5660 R5662 R5663 R5664 R5666 R5667 TPM33 JS2302 JS2303 D5671 R5670 R5671 R5675 R5677 R5679 JS2316 JS2317 JS2318 JS2319 R5682 R5684 JS2322 JS2323 TPS33 JS2329 R5692 TPSSOS R5693 TPMUTE TPM5 R5695 JS2330 TPM9 C2401 C2402 C2403 C2404 C2405 ZA2300 ZA2301 C2416 C2417 C2418 R2401 R2402 TP16 R2403 TP17 R2404 R2405 R2406 R2407 R2408 R2409 R2410 R2411 R2412 R2413 R2414 R2415 R2416 R2417 R2418 R2419 TPSTB5V L2300 ZA5600 ZA5601 L2301 L2302 L2303 R2420 L2304 R2421 L2305 R2422 L2306 R2423 L2307 L2308 R2424 L2309 TPS5 L2311 TPS9 L5602 L5604 L5605 L5606 L5607 L5609 L5801 L5802 L5803 L5612 L5615 TNPA3761 1 PA PbF 1 4 1 5 1 11 1 4 5 8 1 4 5 8 1 6 1 3 SEE REVERSE FOR ORDER NO. 1 3 1 3 1 3 1 3 1 16 1 16 1 16 1 5 2 4 3 1 16 TH-42PA7C PA-BOARD TXNPA1BLTC TH-42PA7C PA-BOARD TXNPA1BLTC PA-BOARD (FOIL SIDE) TXNPA1BLTC Parts Location PA-BOARD (FOIL SIDE) IC IC2306 B-2 IC2307 C-2 IC5601 E-2 IC5602 F-4 IC5611 D-4 Q2306 B-3 Q2307 A-2 Q2308 C-3 Q2309 B-3 Q5606 E-3 TRANSISTOR PA 45 A B C D E F G H I 1 2 3 4 5 6 L5624 L5651 L5666 PA1 PA2 PA5 C2301 C2302 C2303 Q2300 C2304 Q2301 C2305 C2306 Q2302 Q2303 C2307 Q2304 C2308 Q2305 C2309 C2310 C2311 C2312 C2313 C2314 C2315 C2316 C2317 C2318 C2319 TPM33V C2320 C2321 C2322 C2323 C2324 D2300 D2301 C2325 D2302 C2326 C2327 D2303 C2328 R2300 D2304 D2305 C2329 R2301 D2306 R2302 D2307 R2304 D2308 D2309 R2305 R2306 R2308 C2330 IC2300 C2331 IC2301 R2309 IC2302 C2332 C2333 IC2303 IC2304 C2334 C2335 IC2305 C2336 C2337 R2310 C2338 R2311 R2312 R2313 R2314 C5604 R2315 Q5601 C5605 C5606 R2316 Q5602 Q5603 R2317 C5607 Q5604 R2318 C2341 C5609 Q5605 R2319 C2342 C2343 PA10 C2344 Q5608 C2345 Q5609 C5801 C2346 C5802 C2347 C5803 C5610 R2320 C2348 C2349 R2321 C5611 C5612 R2322 R2323 R2324 Q5610 C5809 R2325 Q5611 C5615 Q5612 Q5613 C5617 C2350 R2329 C2351 C2352 C2353 PA20 C5810 C2354 C2355 C5811 PA21 C2356 C2357 C5813 C2358 C5814 R2330 R2331 C2359 C5622 R2332 R2333 R2334 R2335 R2336 R2337 C2360 R2338 R2339 C2361 TPM18V C2362 C2363 C2364 C2365 R5605 PA31 PA32 R5606 C2366 PA33 C2367 R2340 C5630 C2368 PA34 D5801 C2369 IC5601 R2341 C5631 IC5602 C5632 R2342 TPS33V C5633 R2343 D5803 IC5604 D5804 D5805 R2346 D5806 R2347 C2370 R2348 R2349 C2371 TP16V C2372 R5806 C2373 PA40 C2374 C2375 R5809 IC5801 C2376 R5617 C2377 C2378 R2350 R5619 C2379 IC5611 R2351 R2352 C5643 R2353 R2354 C5645 R2355 Q5641 Q5642 C5646 R2356 R2357 Q5643 C5647 R5620 C5648 R2358 C2380 Q5644 R5621 C2381 R2359 C2382 TP17V C2383 C2384 C2385 C2386 C2387 C2388 R2360 R2361 C2389 R2362 R2363 R2364 R2365 R2366 Q5653 R2367 R2368 C2390 D5634 R2369 D5635 C2391 D5636 C2392 C2393 D5637 C2394 D5638 C2395 D5639 C2396 R5637 R5638 R5639 R2372 R2373 D5640 R2374 D5641 R2375 R2376 D5642 C5667 D5643 R2377 R2378 D5644 R5640 R5641 R2379 D5646 R5642 R5643 D5647 R5645 R5646 R5647 R2380 R2381 R5649 R2382 C5672 R2383 R2384 C5674 R2385 R2386 R2387 R2388 R2389 R5653 R5654 D5658 D5659 R2390 R2391 R2392 R2393 R2394 R2395 R2396 R2398 R5665 R5668 JS2300 R5669 JS2301 D5672 R5672 R5673 R5676 R5678 JS2312 JS2313 JS2314 JS2315 R5683 JS2320 JS2321 JS2328 R5691 R5694 R5697 R5698 R5699 JS2331 JS5600 JS5601 JS5602 JS5603 JS5604 TPM5V ZA2300 ZA2301 TPS5V L2300 ZA5600 ZA5601 L2301 L2302 L2303 L2304 L2305 TPM9V L2306 L2307 L2308 L2309 L2311 TPS9V L5602 L5604 L5605 L5606 L5607 L5609 L5801 L5802 L5803 L5612 L5615 L5621 L5622 L5623 TNPA3761 1 DIP PA THERMAL PAD PAMM4 PAMM5 PAMM3 PAMM2 PAMM1 AE AF AD AC AB PAMM6 PAMM7 PbF 1 4 1 5 1 1 1 1 4 5 8 1 4 5 8 1 12 13 24 25 36 37 48 1 12 13 24 25 36 37 48 1 4 5 8 1 4 5 8 ORDER NO. 1 6 1 40 1 3 1 3 1 3 1 3 1 3 1 1 6 1 16 1 3 4 5 1 2 19 20 1 5 1 1 6 1 3 4 5 2 1 16 TH-42PA7C PA-BOARD TXNPA1BLTC TH-42PA7C PA-BOARD TXNPA1BLTC PA-BOARD (COMPONENT SIDE) TXNPA1BLTC Parts Location PA-BOARD (COMPONENT SIDE) IC IC2300 E-2 IC2301 D-2 IC2302 E-4 IC2303 E-4 IC2304 E-2 IC2305 D-3 IC5601 B-2 IC5602 A-3 IC5604 C-2 IC5611 C-4 IC5801 C-5 Q2300 F-3 Q2301 F-3 Q2302 E-3 Q2303 E-3 Q2304 D-3 Q2305 E-3 Q5601 A-3 Q5602 A-3 Q5603 A-1 Q5604 C-3 Q5605 A-2 Q5608 C-4 Q5609 C-4 Q5610 C-3 Q5611 C-3 Q5612 B-1 Q5613 A-1 Q5641 C-3 Q5642 C-3 Q5643 C-3 Q5644 C-3 Q5653 C-4 TRANSISTOR PA 46 13.3. H，HC 和 TA 电路板 H-BOARD (FOIL SIDE) TNPA3760AF HC-BOARD (FOIL SIDE) TNPA3852 TA-BOARD (FOIL SIDE) TNPA3768AE TH-42PA7C HC-BOARD TNPA3852 TA-BOARD TNPA3768AE H-BOARD TNPA3760AF TH-42PA7C HC-BOARD TNPA3852 TA-BOARD TNPA3768AE H-BOARD TNPA3760AF Parts Location H-BOARD (FOIL SIDE) TRANSISTOR Q2001 F-4 Q2002 F-4 Parts Location TA-BOARD (FOIL SIDE) TRANSISTOR Q002 I-3 R3224 C3058 R3227 R3228 D3038 R3229 L3301 D3039 L3302 L3303 C3060 C3254 D3040 C3065 D3041 C3066 D3042 C3067 D3043 L2178 D3045 L2179 C3069 D3046 R3236 D3047 R3238 R3044 D3048 R3045 D3049 C3262 C3263 C3265 C3266 C3267 L2184 L2185 C3075 R3241 C3076 C3270 C3271 C3272 C3273 R3057 C3274 R3058 C3275 R3059 R3061 JS2021 JS2022 R3064 JS2026 R3070 R3264 JS2031 JS2032 R3073 JS2033 R3075 R3076 JK3100 R3277 R3278 R3279 R3087 R3088 C2307 R3283 R3284 C2118 C2119 R3286 R3096 R3097 R3099 C2125 R3291 R3292 C2126 R3293 C2127 C2128 R3294 R3295 C2135 JS3202 C2136 JS3010 JS3011 JS3205 JS3012 R2113 JS3013 R2114 JS3014 JS3015 C2143 L2001 L2002 L2003 C2147 L2004 C5604 L2007 JS3023 L2008 R2128 R2129 JS3029 L2203 C2153 L2204 L2205 L2011 L2206 L2012 R2130 R2131 L2015 L2016 R2139 C2161 C2162 C2163 JS3230 C2164 C2165 C2166 C2167 R2140 C2168 C2169 JS3237 PA3104 JS3238 C3301 JS3239 C2173 C2175 JS3244 JS3245 C2372 D3100 ZA3401 H5 ZA3402 H6 ZA3403 C2187 C2188 R3100 R3101 ZA3405 D3301 C2195 R3302 C2196 JS3262 JS3263 R2170 R3305 C2199 R3111 R2171 R3306 R3112 R2172 R3113 R2173 R3308 R3114 C3330 R2174 R3309 R2175 C3332 R2176 JK2003 R2177 C3334 C3336 L3000 C3338 L3001 L3002 L3003 R3314 R3315 R2181 R2184 L3009 R2185 R2189 L3201 R3320 L3010 R3321 L3012 R3323 L3013 R3324 R2191 R3134 R2389 R2197 D3334 R3330 R2390 R2391 D3336 D3338 C5685 R3336 R2397 JS2108 R3341 R3346 JS2121 JS2122 C2003 C2004 Q2001 C2005 Q2002 C2006 R3174 JK3001 R3176 C2200 X2102 C2203 X2103 H53 C2010 C2204 C2011 C2205 C2013 C2014 C2209 C2016 C2017 C2019 C2211 C2213 C2020 C2021 C2022 C2217 R2003 R2004 R2005 R2006 C2222 R2007 R2008 R2009 C2227 R2200 C2229 R2203 R2010 R2205 R2011 R2012 R2013 R2014 C2230 R2015 C2231 R2209 R2016 C2232 C2233 C2234 JS3302 C2236 JS3303 JS3304 R2211 JS3307 R2213 JS3308 R2214 JS3309 R2215 R2216 R2217 C2241 R2219 C2242 C2243 JS3310 JS3311 JS3312 L2108 R2224 R2225 L2110 L2111 L2112 R2230 L2115 R2231 R2232 R2233 L2117 L2118 L2119 L2120 L2121 L2124 L2125 R2242 L2126 L2127 R2244 R2051 R2245 R2052 C3212 C3021 C3022 C3216 C3217 C3024 C3218 C3219 C3026 D3003 D3005 R3001 R3002 D3006 R3003 R3004 C3220 C3221 R3005 R3006 R3007 C3030 R3008 R3009 JS3352 C3226 JS3353 C3227 JS3354 C3034 C3228 JS3355 JS3356 C3036 JS3357 JS3358 R3010 JS3359 C3039 R3012 C3233 C3235 C3041 C3236 C3044 C3045 D3021 C3046 R3213 C3048 R3020 R3214 R3215 R3021 R3022 R3027 C3054 C3055 C3056 R3222 TNPA3760 1 H SEE REVERSE FOR SUFFIX PbF 1 2 1 2 3 4 1 2 3 4 MONITOR AV1 AV2 AV4 1 1 5 1 15 1 2 3 4 1 2 3 4 1 5 6 10 11 15 1 12 R018 R019 R020 R021 R022 R023 R024 R025 R026 R027 R028 R029 R030 R031 C002 C003 C004 C006 C007 C008 C009 C010 C011 C016 C020 C021 C022 C024 C029 C030 C037 C038 TA6 C040 C041 C042 C043 C044 C045 JS012 JS026 JS027 JS028 JS029 JS030 JS031 TU001 TU002 Q002 L001 L007 L010 L011 L013 L015 L021 L024 L025 L026 L028 L031 L032 R001 R005 R008 R009 R011 R012 R013 R014 R016 R017 1 TA TNPA3768 TA5 SEE REVERSE FOR SUFFIX PbF 1 15 SDA SIFOUT BM BT SCL BTL VIDEOOUT IFOUT RFAGC AFT AUDIOOUT SW1SW2 SDA BM BT SCL BTL VIDEOOUT RFAGC AFT SW1 SW2 1 15 JS3400 JS3401 JS3402 JS3403 TNPA3852 HC 1 HC12 HC21 HC22 PbF SEE REVERSE FOR ORDER NO. 1 9 1 8 1 11 A B C D E F G I H 1 2 3 4 5 6 H TA HC 47 H-BOARD (COMPONENT SIDE) TNPA3760AF HC-BOARD (COMPONENT SIDE) TNPA3852 TA-BOARD (COMPONENT SIDE) TNPA3768AE Parts Location H-BOARD (COMPONENT SIDE) IC IC2103 F-4 IC2104 F-4 IC2105 D-2 IC2106 E-4 IC2107 F-3 IC2108 F-2 IC2109 C-2 IC2210 C-1 IC3005 D-3 IC3200 F-2 IC3301 C-5 IC5603 G-2 Q2011 D-4 Q2012 D-4 Q2013 D-4 Q2102 E-4 Q2103 E-4 Q2104 F-4 Q2105 F-4 Q2106 E-2 Q2107 F-2 Q2108 E-2 Q2109 F-2 Q2113 G-4 Q2114 G-3 TRANSISTOR Q2300 E-5 Q2301 E-4 Q2302 E-4 Q2314 G-4 Q2315 G-4 Q2316 G-4 Q2317 G-4 Q3002 C-4 Q3008 G-3 Q3011 C-4 Q3012 C-4 Q3013 C-4 Q3014 C-4 Q3015 C-4 Q3017 C-4 Q3018 C-4 Q3023 D-4 Q3203 F-2 Q3204 E-2 Q3205 E-2 Q3206 G-3 Q3207 G-3 Q3209 E-2 Q3210 E-2 Q3331 B-5 Q3332 C-5 Q3333 C-5 Q5614 F-2 C3058 C3059 L3301 C3251 L3302 C3252 L3303 C3253 C3061 R3039 C3255 C3062 C3256 C3063 C3257 C3064 D3235 D3236 R3232 R3233 R3234 D3044 C3069 R3237 R3239 C3070 R3048 R3049 L2182 L2183 D3050 C3268 R3240 C3075 D3051 C3269 C3076 D3052 L2186 R3242 L2187 R3050 R3051 C3276 R3250 R3251 R3252 R3253 R3060 R3254 R3255 R3062 R3256 R3063 R3257 R3259 R3068 R3261 R3262 R3263 R3072 R3266 R3267 R3074 R3268 FL3204 FL3205 R3271 Q2102 Q2103 Q2104 JK3100 R3274 R3080 Q2105 R3275 R3276 Q2106 Q2107 Q2108 Q2109 R3085 Q2300 Q2301 R3089 C2111 Q2302 C2307 R3281 C2116 Q2113 C2118 R3090 Q2114 C2119 R3285 R3092 FL3220 R3094 FL3221 R3095 Q2314 R3290 Q2315 Q2316 D2102 Q2317 D2103 C2127 JS3000 C2129 JS3001 JS3002 JS3003 JS3004 JS3005 JS3006 JS3007 C2130 D2300 C2131 D2301 C2132 IC2103 D2303 C2133 D2304 C2134 IC2104 IC2105 IC2106 R2302 R2303 IC2107 IC2108 R2304 R2305 C2139 IC2109 R2306 JS3206 R2307 D2119 R2116 C2140 IC2110 C2141 C2142 R2310 D2120 R2311 C2146 C2147 C5604 C2148 C2149 JS3215 R2124 R2125 R2126 R2127 C2150 C2152 JS3220 C2154 JS3221 C2155 C2157 JS3030 C5614 JS3031 C2159 R2132 JS3032 L2017 JS3033 R2133 JS3034 L2018 Q5614 R2134 JS3035 L2019 JS3036 R2137 R2138 C2160 C2161 D2333 PA3100 R2338 C3302 C3303 R2147 C2170 C3304 R2148 C2171 C3305 R2149 C3306 C2172 R2340 C2174 C2176 C2177 IC5603 R2343 C2178 R2344 D5610 C2179 JS3246 R2152 R2153 R2154 R2155 R5611 C2372 R2156 R5612 R2157 C2180 D5618 R2158 H1 C2181 R2159 H2 C2182 C2183 C2184 C2185 ZA3401 H5 JS3252 ZA3402 H6 ZA3403 R2354 R2160 JS3255 C2189 ZA3405 R3102 JS3256 R2162 R2164 JS3258 R2165 R2166 R2167 R2168 C2190 C2191 R2169 D3302 C2192 R3301 R3303 C2197 C2198 JS3264 JS3265 JS3266 R3307 C3330 C3331 IC3301 R3115 R3116 R3117 JK2003 C3334 R3118 C3335 Q3331 R3119 C3336 Q3332 Q3333 C3337 L3000 C3338 R3310 R3311 C3339 R3312 R3313 R3120 R3121 R3316 R3122 R2182 R3317 R2183 R3123 C3340 R3318 R3124 C3341 R3319 R3125 C3342 R2186 R3126 R3127 R2187 R2188 R3128 R3129 L3201 L3012 R2192 R2193 R2194 R2388 R3135 R2195 R2196 R3137 D3330 R3138 R2198 R3139 L3212 D3335 H15 R2392 L3216 D3337 R2393 R3140 D3339 R3141 L3219 C5685 R3142 R2396 C5686 L3026 R3337 JS2103 R3338 JS2104 R2398 R3339 R2399 JS2109 R3340 R3342 R3343 R3344 R3345 JS2111 R3347 R3348 R3349 R3350 R3351 R3352 R3353 R3160 R3354 R3161 JS2123 JS2124 R3167 R3168 H40 R3170 R3171 R3172 R3173 JK3001 FL3301 R3175 FL3302 FL3303 FL3304 FL3305 H51 X2101 C2201 H52 C2202 X2102 X2103 H53 C2206 C2207 C2208 Q2011 Q2012 Q2013 C2019 ZA2101 ZA2102 ZA2103 C2210 ZA2104 ZA2105 C2212 ZA2106 ZA2107 C2214 ZA2108 C2020 C2215 C2223 C2224 C2225 C2226 C2227 JS3100 C2228 D2011 R2201 C2229 D2012 R2202 D2013 D2014 R2204 R2206 R2207 C2230 R2208 C2231 R2400 C2235 C2236 C2237 C2238 R2210 C2239 R2212 C2430 R2218 C2240 C2243 R2220 L2107 L2109 FL3352 R2227 FL3354 R2228 PA2055 FL3355 R2229 FL3356 FL3357 FL3358 FL3359 C3005 Q3002 L2117 L2118 R2234 R2235 L2119 R2236 R2042 R2237 R2043 R2238 Q3008 R2044 R2239 R2045 R2046 R2048 R2049 L2121 L2123 C3207 Q3203 R2240 C3208 Q3204 Q3011 R2241 Q3205 Q3012 Q3206 Q3013 Q3207 Q3014 R2050 Q3015 Q3209 Q3017 R2053 R2248 Q3018 R2054 C3214 Q3210 C3023 C3025 C3027 Q3023 C3028 C3029 C3031 C3033 C3035 IC3005 C3229 C3038 R3204 R3011 R3205 L5605 R3206 D3017 C3230 IC3200 L5608 C3231 C3232 C3040 C3234 C3236 C3042 JS3362 C3043 JS3363 L5610 D3022 C3047 D3023 R3408 JS3368 D3024 C3049 R3409 C3241 R3219 C3050 C3051 C3052 C3053 C3247 C3248 C3249 C3057 R3223 A AD AE AF AG AH AJ A H 1 AB AC DIP SUFFIX TNPA3760 PbF 1 2 3 4 1 2 4 3 1 2 3 4 AV1 AV2 AV4 MONITOR NP NP 1 4 5 8 1 11 12 22 23 33 34 44 1 24 25 40 41 64 65 80 1 5 1 4 5 8 1 3 4 5 1 80 1 15 1 15 1 15 1 4 5 8 NP NP NP 1 2 3 4 1 2 3 4 1 4 1 2 19 20 1 5 6 10 11 15 1 2 29 30 1 2 19 20 1 12 1 16 17 32 33 64 48 49 1 4 5 8 C002 C006 C020 TA6 JS002 JS003 JS001 TU001 TU002 1 TA TNPA3768 AB AC AD TA5 SUFFIX PbF 1 15 VIDEOOUT IFOUT SCL BT BM SIFOUT SDA BTL RFAGC AFT AUDIOOUT SW1 SW2 VIDEOOUT SCL BT BM SDA BTL RFAGC AFT SW1 SW2 1 15 JS3404 JS3405 HC15 HC21 HC22 TNPA3852 HC 1 HC12 HC01 PbF ORDER NO. 1 9 1 8 1 11 1 21 1 40 A B C D E F G I H 1 2 3 4 5 6 TH-42PA7C HC-BOARD TNPA3852 TA-BOARD TNPA3768AE H-BOARD TNPA3760AF TH-42PA7C HC-BOARD TNPA3852 TA-BOARD TNPA3768AE H-BOARD TNPA3760AF H TA HC 48 13.4. K 和 S 电路板 A B C D E F G H I 1 2 3 4 5 6 SW2500 S1 TNPA4138 1 S PbF ORDER NO. 1 3 C2502 C2503 SW2500 R2506 R2507 S1 TNPA4138 1 S PbF SEE REVERSE FOR ORDER NO. 1 3 TH-42PA7C K-BOARD TXN/K1JPTC S-BOARD TNPA4138AD TH-42PA7C K-BOARD TXN/K1JPTC S-BOARD TNPA4138AD K-BOARD (FOIL SIDE) TXN/K1JPTC K-BOARD (COMPONENT SIDE) TXN/K1JPTC S-BOARD (FOIL SIDE) TNPA4138AD S-BOARD (COMPONENT SIDE) TNPA4138AD Parts Location K-BOARD Q2510 B-3 Q2511 C-3 Q2513 D-3 Q2518 D-3 Q2519 D-3 Q2520 D-3 TRANSISTOR K S 49 13.5. DG 电路板 1 2 3 4 5 6 Q1117 Q1118 Q1120 Q1122 Q1125 IC1101 IC1104 Q1134 Q1135 Q1137 Q1138 Q1139 IC1110 Q1140 Q1141 IC016 IC017 IC018 Q045 IC024 Q053 IC029 Q055 IC030 Q061 Q067 Q068 Q069 Q070 Q073 Q074 Q075 Q076 Q077 Q078 Q079 Q082 Q083 TP1101 TP1102 TP1103 TP1104 TP1105 TP1106 TP1107 TP1113 TP1114 TP1115 TP1116 TP1117 TP1118 TP1119 TP1120 TP028 TP029 TP030 TP031 TP032 TP033 TP034 TP036 TP037 TP038 TP039 TP040 TP041 TP064 TP065 TP066 Q1100 Q1101 Q1102 Q1103 Q1106 Q1107 Q1111 Q1112 CR NO.4 TNPA3756 DG 1 Q919 Q918 Q071 Q066 Q065 SEE REVERSE FOR SUFFIX TP035 Q084 PbF + 1 + 1 1 1 1 1 1 1 + + + 1 24 25 48 TH-42PA7C DG-BOARD TNPA3756DN DG-BOARD (FOIL SIDE) TNPA3756DN TH-42PA7C DG-BOARD TNPA3756DN Parts Location DG-BOARD (FOIL SIDE) Q4045 C-2 Q4053 A-3 Q4055 A-3 Q4061 D-2 Q4065 A-2 Q4066 A-2 Q4067 B-2 Q4068 B-2 Q4069 B-1 Q4070 B-1 Q4071 A-2 Q4073 B-3 Q4074 B-2 Q4075 B-3 Q4076 B-3 Q4077 B-1 Q4078 A-3 Q4079 B-3 Q4082 B-2 Q4083 B-2 Q4084 B-1 Q4918 E-2 Q4919 E-2 IC1101 E-3 IC1104 F-2 IC1110 F-2 IC4016 B-3 IC4017 B-2 IC4018 B-4 IC4024 B-2 IC4029 C-4 IC4030 C-3 Q1100 E-3 Q1101 E-3 Q1102 E-3 Q1103 E-3 Q1106 E-1 Q1107 E-2 Q1111 F-2 Q1112 F-2 Q1117 D-3 Q1118 D-3 Q1120 E-3 Q1122 D-2 Q1125 E-3 Q1134 E-2 Q1135 E-2 Q1137 F-2 Q1138 D-2 Q1139 E-3 Q1140 F-2 Q1141 F-2 IC TRANSISTOR TP TP1101 F-3 TP1102 F-3 TP1103 F-2 TP1104 F-2 TP1105 F-2 TP1106 F-2 TP1107 F-2 TP1113 C-5 TP1114 B-5 TP1115 D-5 TP1116 D-5 TP1117 C-5 TP1118 D-5 TP1119 D-5 TP1120 F-3 TP4028 B-4 TP4029 B-3 TP4030 B-3 TP4031 A-2 TP4032 A-4 TP4033 A-3 TP4034 A-1 TP4035 B-1 TP4036 B-1 TP4037 D-4 TP4038 B-5 TP4039 B-5 TP4040 B-5 TP4041 C-4 TP4064 B-1 TP4065 B-1 TP4066 B-2 DG A C E G H F I B D 50 A B C D E F G H I 1 2 3 4 5 6 Q1114 Q1115 Q1116 Q1121 Q1130 Q1131 Q1132 Q1133 DG10 IC1111 DG15 Q1142 Q1143 DG20 DG22 DG35 Q040 IC014 Q041 Q042 Q043 Q044 Q046 Q050 DG1 Q051 Q052 DG2 DG3 IC027 Q054 DG5 Q056 Q057 DG7 Q058 Q059 DG9 Q060 Q062 IC037 Q063 Q064 IC038 IC040 Q080 Q081 TP1108 TP1109 Q1104 Q1105 Q1108 Q1113 TNPA3756 CRNO.4 THERMAL PAD THERMAL PAD CA CB CC CD CE CF CG CQ CR CS CT CU CV CW CX CY 1 DG THERMAL PAD CH CJ CK CL CM CN CP THERMAL PAD Q1109 Q1110 IC1103 IC1100 IC036 IC020 IC026 IC019 DG8 IC023 IC1106 IC1105 IC1102 IC1107 IC039 IC034 IC032 IC035 IC033 IC028 IC013 IC025 IC022 SUFFIX DA DB DC DD DE DF DG DH DJ DK DL DM DN DP DQ DR DS DT DU DV DW DX PbF 1 7 1 1 40 110 56 55 1 1 7 1 1 80 15 1 1 1 21 1 19 20 2 19 1 A 1 1 A 1 NP NP + NP 1 54 55 108 109 162 163 216 1 27 28 54 1 16 17 32 33 48 49 64 1 25 26 50 51 75 76 100 1 36 37 72 73 108 109 144 1 25 26 50 51 75 76 100 19 1 1 40 NP 1 1 1 1 40 1 4 5 8 1 7 8 14 1 7 8 14 1 4 5 8 1 7 8 14 1 4 5 8 1 8 9 16 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 8 9 16 1 4 5 8 TH-42PA7C DG-BOARD TNPA3756DN TH-42PA7C DG-BOARD TNPA3756DN DG-BOARD (COMPONENT SIDE) TNPA3756DN Parts Location DG-BOARD (COMPONENT SIDE) TRANSISTOR Q1104 B-2 Q1105 C-2 Q1108 B-2 Q1109 B-2 Q1110 B-2 Q1113 A-2 Q1114 B-2 Q1115 A-2 Q1116 B-2 Q1121 C-2 Q1130 D-2 Q1131 D-2 Q1132 C-2 Q1133 C-2 Q1142 C-1 Q1143 C-1 Q4040 E-2 Q4041 E-1 Q4042 E-2 Q4043 E-2 Q4044 E-2 Q4046 E-2 Q4050 F-5 Q4051 D-1 Q4052 D-2 Q4054 D-2 Q4056 F-4 Q4057 F-4 Q4058 F-4 Q4059 F-5 Q4060 E-2 Q4062 D-2 Q4063 D-2 Q4064 D-2 Q4080 F-4 Q4081 F-4 IC1100 C-4 IC1102 A-2 IC1103 B-3 IC1105 B-2 IC1106 C-2 IC1107 D-2 IC1111 A-2 IC4013 E-3 IC4014 D-1 IC4019 F-4 IC4020 D-3 IC4022 F-2 IC4023 F-1 IC4025 F-3 IC4026 F-2 IC4027 E-1 IC4028 F-3 IC4032 D-5 IC4033 F-5 IC4034 D-4 IC4035 E-4 IC4036 B-4 IC4037 D-4 IC4038 E-4 IC4039 C-4 IC4040 D-2 IC TP TP1108 A-4 TP1109 A-5 DG 51 13.6. D 电路板 A 1 3 5 2 4 6 C E G B D F H I D D-BOARD (FOIL SIDE) TZTNP01BLTC TH-42PA7C D-BOARD TZTNP01BLTC TH-42PA7C D-BOARD TZTNP01BLTC Q010 C028 C029 C800 C801 IC002 C802 C032 C033 C803 C034 C804 C035 C805 C036 C037 C807 C038 C039 C809 Q805 Q806 D017 D018 D019 IC011 D020 C817 Q044 Q045 Q046 Q047 Q048 Q049 R028 C822 C824 C054 D801 C056 R223 C827 R800 R225 Q055 R801 Q056 R802 D806 R226 D807 R227 Q057 R803 D808 Q058 R804 R229 R805 D809 R806 R807 R808 IC800 C830 R809 C831 IC801 C832 R230 Q060 D810 R231 IC806 R232 IC807 D813 R810 R811 L501 IC809 D815 C839 L502 R237 R813 R238 R814 R239 R815 R816 C840 R819 R240 C846 C847 C848 R821 R824 C467 R828 C468 C850 C469 C853 C855 C857 R830 C858 C859 R834 R835 C860 R070 R841 R842 R843 D9 R846 R847 R848 R849 R850 R854 R859 C882 C883 C884 C885 C886 C887 R861 R862 R863 R094 R095 R096 R097 R098 R868 R869 C891 FL806 C896 C897 R870 C898 R871 C899 R872 R873 R876 R877 R878 R879 R880 R883 R884 R887 R891 R892 R893 R896 R897 C100 Q300 Q301 Q302 Q500 D100 R100 D105 R101 D106 C512 C513 C515 C516 C517 C900 C518 D300 C901 C519 D301 C902 C903 C904 C905 C906 C907 C908 R110 C520 C909 C521 C522 C523 C524 C525 C526 C527 C910 R500 C528 C911 R501 C529 C912 C913 R503 C914 R504 C915 R505 C916 R506 C917 R507 C918 R508 C530 C919 R121 R509 C532 IC502 R317 C536 R127 C537 C920 R128 C538 C921 R511 R129 C539 C922 C923 R513 C924 C925 R516 C926 C927 C928 C540 R900 C929 R901 R131 R902 R132 R903 R133 R904 R134 R135 R906 R136 R907 R137 C930 R908 R138 R520 C931 R139 R521 C932 C933 R523 C934 R524 C935 R525 C936 C937 R527 C938 R910 R528 C939 R911 R141 R529 R142 R915 C940 R918 C941 R919 C942 C943 C944 C945 C946 C947 R150 C949 R151 R152 R153 R154 R925 R155 R926 R927 R157 C950 R928 R158 R929 R541 C952 R542 R543 C954 R544 C955 R545 C956 C957 C958 R548 C959 R355 R549 R162 R356 R163 R164 R936 R937 R168 R550 R551 R552 R553 R554 R556 C966 C967 R364 C968 R941 R365 C969 R366 R943 R173 R367 FL300 R368 R945 R369 FL301 R946 R176 R177 R178 C970 R949 R179 C971 R370 R371 R950 R180 R957 R959 R382 R383 R196 R197 FL900 R390 R391 R394 R395 CR NO.9 1 TNPA3932 D 2 1 3 PbF 1 3 4 6 1 4 6 1 12 24 13 1 3 4 6 1 3 4 5 1 12 13 24 1 12 13 24 1 6 SEE REVERSE FOR ORDER NO. 1 3 4 5 + + Parts Location D-BOARD (FOIL SIDE) IC IC9002 E-4 IC9011 E-3 IC9502 A-3 IC9800 A-2 IC9801 B-1 IC9806 A-5 IC9807 B-5 IC9809 A-4 Q9010 D-5 Q9044 E-3 Q9045 E-3 Q9046 E-3 Q9047 E-3 Q9048 D-2 Q9049 C-3 Q9055 D-4 Q9056 D-4 Q9057 D-4 Q9058 E-4 Q9060 D-5 Q9300 C-1 Q9301 E-2 Q9302 E-2 Q9500 C-4 Q9805 B-5 Q9806 B-5 TRANSISTOR 52 A 1 3 5 2 4 6 C D E B F I H D-BOARD (COMPONENT SIDE) TZTNP01BLTC TH-42PA7C D-BOARD TZTNP01BLTC TH-42PA7C D-BOARD TZTNP01BLTC D IC001 IC003 Q800 Q801 C806 R203 IC007 Q803 PA800 C808 R205 R206 R207 IC200 C040 C041 C042 C043 C044 C045 C815 C816 C046 C047 C048 C818 C049 R215 R216 R217 R218 R219 C050 C051 C052 C053 C823 D800 Q050 R220 C825 C055 R221 Q051 D802 C826 Q052 R222 C057 D803 Q053 D804 C058 Q054 D805 C060 IC802 IC803 C833 C834 C835 D811 C836 D812 C837 L500 C838 D814 R236 R812 R818 C841 C842 C843 C844 C845 R244 C849 R823 R825 R826 R827 R829 C851 C852 C854 C856 R060 R061 R831 R062 R063 R064 R065 R066 R067 R838 R839 D2 D3 R840 D5 D6 R844 R074 R845 R076 C880 C881 R864 R865 FL800 R099 FL801 FL803 FL804 FL805 FL807 X9000 D20 X200 ZA001 D25 C500 C501 C502 C503 C504 C505 D31 C506 D32 C507 C508 C509 D101 D102 D103 C510 C511 R102 R103 R104 C514 R105 R106 R107 R108 R109 D110 R111 R112 R113 IC303 R502 IC500 R120 C531 IC503 C533 IC504 C534 R510 R512 R514 R515 R517 R518 R519 R905 IC900 IC901 R909 R522 R526 R140 R912 R143 R144 R145 R916 R917 R147 R148 R530 R531 R149 R532 R533 L800 R534 L801 R535 L802 R536 R537 C948 R920 R538 R921 R539 R922 R923 R348 R349 R156 R540 C951 R159 C953 R350 L810 R351 R352 R353 R160 R354 R161 R357 R358 R165 R359 R166 R167 C960 R938 C961 R939 R169 C962 C963 C964 R360 R555 C965 R361 R362 R363 R940 R170 R171 R942 R172 R944 R174 R175 R947 R948 FL500 R951 R181 R952 R182 R953 R183 R954 R184 R955 R185 R379 R956 R186 R187 R958 R188 R189 R380 R381 R960 R190 R191 R192 R193 R194 FL901 R199 FL902 FL903 FL904 R392 R393 CR NO.9 TP_HD TP_VD D 1 TNPA3932 DCK 1 3 2 5 7 9 4 6 8 10 12 14 16 11 13 15 A C E G J L N R B D F H K M P T 1 4 5 8 1 20 21 40 41 60 61 80 + 1 4 5 8 1 14 15 28 + + 1 10 11 20 1 10 11 20 1 2 29 30 1 40 1 31 1 21 ORDER NO. 19 20 2 1 1 19 20 2 1 55 1 55 1 25 48 24 1 10 11 20 1 10 11 20 A B C E G J L N R U W AA D F H K M P T V Y AB 1 2 3 5 7 9 11 4 6 8 10 13 15 17 19 21 12 14 16 18 20 22 13 11 9 7 5 3 12 8 6 4 2 B D F H K M N L J G E C 10 + + Parts Location D-BOARD (COMPONENT SIDE) IC IC9001 B-5 IC9003 B-3 IC9007 C-5 IC9200 D-3 IC9303 E-2 IC9500 C-5 IC9503 C-4 IC9504 C-3 IC9802 B-5 IC9803 B-5 IC9900 D-3 IC9901 C-3 TP_HD C-3 TP_VD C-3 TP Q9050 B-5 Q9051 B-3 Q9052 B-3 Q9053 A-4 Q9054 A-5 Q9800 E-2 Q9801 E-4 Q9803 D-5 TRANSISTOR G 53 13.7. C1 电路板 A 1 3 5 2 4 6 C D E G B F I H C1-BOARD (COMPONENT SIDE) TNPA3799AB C1-BOARD (FOIL SIDE) TNPA3799AB TH-42PA7C C1-BOARD TNPA3799AB TH-42PA7C C1-BOARD TNPA3799AB C1 TNPA3799 1 C1 C1MM1 C1MM2 C1MM3 C1MM4 C1MM5 C111 C112 C113 C114 C115 C116 C117 C118 C119 C120 C121 C122 C125 D101 C126 D102 C127 D103 C128 D104 C129 D105 D106 C130 C131 IC101 C132 IC102 C133 IC103 C134 IC104 C135 C136 C137 C138 R111 C139 R112 R113 R114 R115 R116 R117 C140 R118 C141 C142 R120 R121 R122 R123 R124 R125 R127 R128 R129 R130 R131 R132 R133 R134 R135 R136 R137 R138 R139 R140 R141 R142 R143 R144 R146 R147 R148 R149 R150 R151 R152 R153 R154 R155 R156 R157 R158 R159 R160 R161 R163 R164 R165 R166 R167 R168 R169 FL101 CB1 CB2 CB3 ZA101 ZA102 ZA103 C11 C12 PbF CRNO.7 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 ORDER NO. 1 68 1 68 1 68 1 55 1 20 1 2 3 C1 1 TNPA3799 SEE REVERSE FOR ORDER NO. Parts Location C1-BOARD IC7101 H-2 IC7102 I-1 IC7103 G-2 IC7104 F-2 IC 54 13.8. C2 电路板 A 1 3 5 2 4 6 C E G B D F H I C2-BOARD (COMPONENT SIDE) TNPA3800AB C2-BOARD (FOIL SIDE) TNPA3800AB TH-42PA7C C2-BOARD TNPA3800AB TH-42PA7C C2-BOARD TNPA3800AB C2 C2MM1 C2MM2 C2MM3 C2MM4 TNPA3800 1 C2 C2MM5 C21 C22 C23 ZA201 ZA202 ZA203 ZA204 CB4 CB5 CB6 CB7 C201 C202 C203 C204 C205 C206 C207 C208 C209 C210 C211 C212 C213 C214 C215 C216 C217 C218 C219 C220 C221 C222 C223 C224 C225 D201 C226 D202 C227 D203 D204 C228 D205 C229 R201 D206 R202 R203 D207 R204 D208 R205 R206 R207 C230 R208 C231 IC201 R209 C232 IC202 IC203 C233 IC204 C234 C235 IC205 C236 C237 R210 C238 R211 C239 R212 R213 R214 R215 R216 R217 R218 R219 R220 R221 R222 R223 R224 R225 R226 R227 R228 R229 R230 R231 R232 R233 R234 R235 R236 R237 R238 R239 R240 R241 R242 R243 R244 R245 R246 R247 R248 R249 R250 R251 R252 R253 R254 R255 R256 R257 R258 R259 R260 R261 R262 R263 R264 R265 R266 R267 R268 R269 FL201 FL202 R270 R271 PbF CRNO.7 1 55 1 20 1 12 ORDER NO. 1 68 1 68 1 68 1 6 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 C2 1 TNPA3800 1 2 3 SEE REVERSE FOR ORDER NO. Parts Location C2-BOARD IC7201 B-2 IC7202 A-2 IC7203 C-2 IC7204 D-2 IC7205 C-2 IC 55 13.9. SC 电路板 A 1 3 5 2 4 6 C D E G B F H I SC-BOARD (FOIL SIDE) TNPA3794 TH-42PA7C SC-BOARD TNPA3794 TH-42PA7C SC-BOARD TNPA3794 C514 SC41 C515 SC42 C516 C517 C518 SC45 SC46 C526 C721 L401 L402 L403 L601 L602 L411 L412 L413 C754 C561 C563 C592 C791 C795 L461 L462 D583 L463 L464 L472 L481 L482 L483 L484 IC791 C400 Q401 Q402 Q403 C604 C410 C411 C412 C413 C802 C804 Q801 C806 C807 C420 D401 Q421 Q422 Q423 C431 C822 Q821 Q822 Q441 Q442 R808 C641 R620 D431 Q451 VR600 C841 C842 VR602 Q841 Q842 R821 TP1 TP2 TP4 TP5 Q661 TP6 TP7 TP8 TP9 T602 R844 D461 R658 SC2 D471 TP10 TP11 TP12 TP13 TP14 TP15 C691 TP16 TP17 TP18 R860 TP19 D481 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 D491 TP30 TP31 TP32 TP33 TP34 TP35 TP38 TP39 TP40 TP41 TP42 R696 TP43 R697 TP44 TP45 TP46 TP47 TP48 TP49 TP50 TP51 TP52 TP53 TP54 TP55 TP56 TP57 TP58 TP59 L591 L592 TP60 TP61 TP62 TP63 TP64 SC23 SC30 C511 C512 C513 TNPA3794 1 SC 1 2 3 4 5 6 CRNo.6 PbF A1 A2 B2 B1 B40 B39 A40 A39 A1 A2 B2 B1 B40 B39 A40 A39 1 2 8 9 1 2 8 9 SEE REVERSE FOR ORDER NO. 1 12 G C E G C E G C E E C B A A K G C E G C E G C E E C B E C B G C E G C E A A K G C E E C B E B C G D S S5 S4 S2 S1 P2 P1 B2 B1 S3 A A K 1 3 A A K A A K A A K 1 3 1 8 56 TH-42PA7C SC-BOARD PARTS LOCATION TH-42PA7C SC-BOARD PARTS LOCATION Parts Location SC-BOARD (FOIL SIDE) Q6401 B-3 Q6402 B-3 Q6403 C-3 Q6421 C-2 Q6422 D-2 Q6423 D-2 Q6441 G-3 Q6442 F-3 Q6451 F-3 Q6661 G-3 Q6801 H-2 Q6821 F-4 Q6822 G-4 Q6841 G-3 Q6842 G-4 TRANSISTOR TP1 B-2 TP2 B-2 TP4 B-1 TP5 B-1 TP6 B-2 TP7 B-2 TP8 B-1 TP9 C-1 TP10 G-1 TP11 G-1 TP12 I-1 TP13 G-2 TP14 G-1 TP15 G-1 TP16 H-1 TP17 H-1 TP18 H-2 TP19 H-1 TP20 G-1 TP21 H-2 TP22 H-1 TP23 G-1 TP24 G-1 TP25 H-2 TP26 G-2 TP26 H-2 TP27 G-1 TP28 G-2 TP29 F-2 TP30 F-1 TP31 E-2 TP32 D-1 TP33 D-1 TP34 C-1 TP35 C-1 TP38 H-1 TP39 G-1 TP IC6791 H-2 IC VOLUME Parts Location SC-BOARD (COMPONENT SIDE) IC6471 B-4 IC6472 B-4 IC6501 G-1 IC6521 D-1 IC6561 B-1 IC6562 C-2 IC6581 F-2 IC6601 D-4 IC6602 B-4 IC6610 B-5 IC6671 E-3 IC6681 C-5 IC6682 B-4 IC6721 A-4 IC6722 B-5 IC6724 B-5 IC6725 B-5 IC6751 H-4 IC6752 H-4 IC6753 H-5 IC6771 D-3 IC6772 E-4 IC6773 C-3 IC6774 C-3 IC6791 A-2 IC6801 B-3 IC6802 C-4 IC6821 C-3 IC6841 C-4 IC6861 B-4 IC6871 C-3 IC PC6480 B-4 PC6701 A-3 PC6702 A-3 PC6703 A-3 PC6704 H-5 PC6705 C-3 PC6760 H-4 PC6801 B-3 PC6861 B-4 PC6871 C-3 Q6401 H-3 Q6402 H-3 Q6403 G-3 Q6421 G-3 Q6422 F-3 Q6423 F-3 Q6441 C-2 Q6442 D-2 Q6451 D-2 Q6471 B-3 Q6511 G-2 Q6512 H-2 Q6516 G-1 Q6517 G-1 Q6531 C-1 Q6532 C-1 Q6581 F-1 Q6601 D-5 Q6602 D-5 Q6621 H-3 Q6622 G-3 Q6642 F-5 Q6643 F-5 Q6644 F-5 Q6645 G-5 PHOTO COUPLER TRANSISTOR TP15V H-1 TPSC1 F-5 TPSOS6 B-1 TPSOS7 C-1 TPVAD D-3 TPVSCN D-4 TPVSET D-4 TPVSUS H-1 TP VR6600 C-2 VR6602 D-5 VOLUME TP40 D-5 TP41 D-5 TP42 D-5 TP43 D-5 TP44 B-5 TP45 B-5 TP46 F-5 TP47 F-5 TP48 F-5 TP49 F-5 TP50 H-5 TP51 H-5 TP52 H-1 TP53 H-4 TP54 C-5 TP55 C-5 TP56 C-5 TP57 C-5 TP58 C-5 TP59 G-5 TP60 G-5 TP61 G-5 TP62 G-5 TP63 G-5 TP64 F-4 VR6600 G-3 VR6602 E-4 Q6646 G-5 Q6647 G-5 Q6648 H-5 Q6661 C-2 Q6662 E-4 Q6663 E-4 Q6671 E-3 Q6680 E-3 Q6681 D-4 Q6682 D-4 Q6691 C-5 Q6742 C-4 Q6743 C-4 Q6744 B-4 Q6762 H-4 Q6781 E-4 Q6782 E-4 Q6791 D-3 Q6801 B-3 Q6802 B-2 Q6803 B-3 Q6821 D-4 Q6822 D-4 Q6824 C-3 Q6841 C-4 Q6842 C-4 SC 57 A 1 3 5 2 4 6 C D E G B F I H SC-BOARD (COMPONENT SIDE) TNPA3794 TH-42PA7C SC-BOARD TNPA3794 TH-42PA7C SC-BOARD TNPA3794 C708 C514 SC41 Q511 C515 SC42 Q512 C516 C517 C518 SC45 Q516 SC46 Q517 C522 C524 D501 C525 D502 C526 R501 R502 R503 R504 R505 C721 R506 C723 R507 C724 R508 IC501 D701 C725 D702 C726 C727 C728 R700 Q531 R701 Q532 R702 R703 R704 R511 R705 R512 R706 R707 R708 R516 R517 R710 R711 L401 D521 R712 L402 D522 R713 L403 D523 R714 D524 R521 R715 R716 R522 R717 R523 R718 R524 R525 R526 D721 L601 IC521 L602 Q742 Q743 D723 D724 Q744 L411 R721 D725 L412 R722 D726 R723 L413 D727 D728 R531 D729 R532 R533 R534 IC721 PC701 IC722 PC702 C752 C753 PC703 PC704 C754 IC724 D730 IC725 C561 D731 PC705 C755 C562 D732 C563 D733 C564 D734 C565 C566 Q762 R742 R743 R744 R745 R746 R747 C771 C772 C773 C775 C581 D752 C582 C776 D753 C777 Q581 D758 R755 R561 R756 R562 R757 R563 R564 R758 IC751 R565 R759 IC752 R566 R567 IC753 D760 R568 IC561 D761 Q781 IC562 C592 D762 Q782 C593 R760 R761 R762 C791 Q791 D771 C795 D773 L461 D581 L462 D582 D583 L463 L464 D584 R775 D585 R581 R582 R776 R583 R777 R584 IC771 R585 IC772 R586 R587 IC773 R588 IC774 IC581 R589 R781 L472 R782 R590 R591 R592 PC760 D791 R791 L481 R792 L482 R793 L483 L484 IC791 C400 C401 C402 C403 Q401 Q402 Q403 C601 C602 C603 C604 C410 C411 Q601 C605 C412 Q602 C606 C413 C801 C802 C803 C610 C804 C611 C805 Q801 C612 Q802 C806 C807 Q803 C420 C421 C422 C423 D401 Q421 Q422 Q423 R401 C811 R402 C812 R403 R404 C620 R405 R406 Q621 D601 C431 D602 Q622 D603 D604 D605 D606 D413 D607 R603 R604 R605 C439 C822 R606 C823 R608 R609 IC601 D801 Q821 D802 Q822 IC602 D803 D610 D804 Q824 C440 D611 D805 D612 D806 D613 D614 R610 D615 C445 D421 Q441 R611 C446 D422 Q442 R612 R806 R807 R613 R614 R808 R615 D619 R421 IC801 R809 R616 R422 IC802 R617 R423 R618 IC610 R424 R619 R425 C641 R426 R810 D620 R811 D621 Q642 R812 D622 Q643 R813 D623 Q644 R814 R620 D624 D431 Q451 R621 Q645 R815 R622 Q646 R816 Q647 R817 Q648 VR600 C841 C842 VR602 D820 D821 Q841 C845 Q842 D822 D823 C461 D825 R821 D826 R822 R823 C463 R824 R825 D441 R826 R827 R828 R441 PC801 IC821 R829 R442 R443 R444 C661 C662 C663 R830 Q661 D641 C471 R831 C472 D642 Q662 Q663 R833 D643 D644 R834 Q471 R835 D451 R642 R836 R837 R643 R838 R644 R839 R645 R451 C861 R646 R452 C862 R647 C863 R648 C671 D841 D842 T602 D843 C480 C481 R841 Q671 R842 R843 C483 R844 D461 R845 R846 R847 R848 IC841 R849 C871 C872 C873 R658 C681 R659 R465 C682 C683 Q680 R850 C491 D661 R851 Q681 D662 R852 Q682 SC2 D663 R853 D664 R660 D471 D665 R661 D859 D472 D666 R662 D667 R663 R664 R665 R471 R472 R666 D477 R667 R473 D478 D860 R668 R474 C691 D861 R475 R476 D862 R477 R478 R860 R479 D671 R861 Q691 IC471 IC472 R862 R863 D480 R864 D481 R671 R865 R672 R866 R673 R867 R868 R869 IC861 IC671 D871 D872 D681 R871 D682 R872 D683 R873 D684 R874 R681 D491 D685 R875 R682 D686 R876 D687 R683 R877 R684 R878 R879 R685 IC871 R686 D497 R687 R688 IC681 R689 IC682 R690 R691 R886 R887 R888 PC861 R696 R697 PC480 PC871 L591 L592 SC20 SC23 C502 C504 SC30 C505 ZA401 C701 ZA402 C702 ZA403 C703 C704 C705 C511 C706 C512 C707 C513 TP15V TPSC1 Discharge SC 37 42 TPVSUS TPVSET CRNo.6 1 TPSOS6 TPSOS7 TPVSCN SCMM1 TPVAD TNPA3794 37 42 PbF A1 A2 B1 B2 A40 A39 B40 B39 A1 A2 B1 B2 A39 B39 A40 B40 1 2 8 9 1 2 8 9 1 8 9 16 1 8 9 16 1 7 8 14 1 7 8 14 1 3 4 6 1 4 5 8 1 3 4 5 1 10 11 20 1 10 11 ORDER NO. 1 4 5 8 3 1 5 1 3 1 4 5 8 1 2 3 4 12 1 C G E C G E C G E G S D B C E A A K C G E C G E C G E D G S D G S 1 4 8 5 B C E B C E 1 4 5 3 C G E C G E 1 4 5 8 D G S D G S D G S A A K C G E D G S D G S D G S D G S B C E B C E 1 2 3 4 G S D S2 S1 P2 P1 B2 B1 S3 S4 S5 G S D A A K G S D G S D 1 3 A A K 1 3 1 3 5 4 A K A 1 8 4 1 4 5 8 A A K 1 4 5 8 1 4 5 8 3 5 1 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 19 20 1 3 1 8 58 13.10.SU 电路板 A 1 3 5 2 4 6 C D E G B F I H SU-BOARD (COMPONENT SIDE) TNPA3874AB SU-BOARD (FOIL SIDE) TNPA3874AB TH-42PA7C SU-BOARD TNPA3874AB TH-42PA7C SU-BOARD TNPA3874AB C6901 C6902 C6903 C6904 C6905 C6906 C6907 C6908 C6909 A40 C6914 C6915 C6916 C6921 D6901 Q6921 D6902 D6903 D6904 R6901 R6902 R6903 R6904 R6908 IC6901 C6931 R6909 IC6902 C6932 IC6903 C6933 IC6904 C6934 C6935 C6936 C6937 C6938 R6916 D6921 D6922 R6921 R6922 R6923 A1 R6931 R6932 R6933 R6934 R6935 R6936 SU45 SU1 SU2 SU3 TPSU1 TPSU2 PbF TNPA3874 SU 1 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 9 8 2 ORDER NO. A1 B1 A40 B40 A1 B1 A40 B40 A1 B1 A40 B40 A41 A80 1 SU TNPA3874 3 1 2 PbF SEE REVERSE FOR ORDER NO. SU Parts Location SU-BOARD IC6901 G-2 IC6902 E-2 IC6903 C-2 IC6904 B-2 TPSU1 E-2 TPSU2 C-2 Q6921 F-1 IC TRANSISTOR TP 59 13.11.SD 电路板 A 1 3 5 2 4 6 C D E G B F I H SD-BOARD (COMPONENT SIDE) TNPA3875AB SD-BOARD (FOIL SIDE) TNPA3875AB TH-42PA7C SD-BOARD TNPA3875AB TH-42PA7C SD-BOARD TNPA3875AB SD SD 1 TNPA3875 C6951 C6952 C6953 C6954 C6955 C6956 C6957 C6958 C6959 D6951 D6952 D6953 D6954 R6951 R6952 R6953 R6954 R6958 C6981 IC6951 R6959 C6982 IC6952 C6983 IC6953 C6984 IC6954 C6985 R6966 R6981 R6982 R6983 R6984 R6985 R6986 SD46 TPSD1 TPSD2 B1 B40 C6986 C6987 C6988 C6964 C6965 C6966 SD1 SD3 SD2 PbF ORDER NO. 1 9 8 2 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 A1 B1 A40 B40 A1 B1 A40 B40 A1 B1 A40 B40 TNPA3875 SD 1 2 1 3 B41 B80 PbF SEE REVERSE FOR ORDER NO. Parts Location SD-BOARD IC6951 F-2 IC6952 F-2 IC6953 D-2 IC6954 B-2 TPSD1 E-2 TPSD2 D-2 IC TP 60 13.12.SS 电路板 A 1 3 5 2 4 6 C D E G B F I H SS-BOARD (FOIL SIDE) TNPA3795 TH-42PA7C SS-BOARD TNPA3795 TH-42PA7C SS-BOARD TNPA3795 SS L001 L002 L003 L011 L012 C156 L013 SS11 SS12 SS23 L221 SS34 SS41 SS42 SS43 SS44 L241 SS41A L061 L062 L063 L064 SS42A L262 SS43A L271 L272 L081 L082 L083 L084 SS44A Q001 Q002 Q003 C201 C202 C203 C204 C011 C205 C012 C206 C013 C207 C208 C213 C214 C215 D001 Q021 Q022 Q023 Q221 C031 Q222 Q041 D021 Q042 R020 R022 VR000 C241 L103 Q051 R222 R223 C261 C262 C272 C273 D253 TP1 D061 TP2 TP3 TP4 TP5 TP6 TP7 TP8 TP9 D071 D081 TP10 TP11 TP12 TP13 TP14 TP15 D091 TP16 TP17 TP18 TP19 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 TP32 C111 C112 1 SS 1 2 3 TNPA3795 6 5 4 CRNo.6 PbF 1 3 1 10 1 12 1 3 1 1 3 1 1 3 1 1 3 1 1 3 1 1 3 SEE REVERSE FOR ORDER NO. 1 1 3 1 1 3 1 1 3 G C E G C E G C E A A K G C E G C E G C E E C B E B C G C E A A K G C E G C E A A K A A K A A K A A K Parts Location SS-BOARD (FOIL SIDE) TRANSISTOR Q6001 H-2 Q6002 H-2 Q6003 H-2 Q6021 G-2 Q6022 F-2 Q6023 F-2 Q6041 D-2 Q6042 D-2 Q6051 C-2 Q6221 E-1 Q6222 D-1 TP16 B-2 TP17 B-2 TP18 B-2 TP19 B-2 TP20 B-2 TP21 B-2 TP22 B-2 TP23 B-2 TP24 H-3 TP25 H-3 TP26 G-3 TP27 F-3 TP28 D-3 TP29 D-3 TP30 C-3 TP31 A-3 TP32 C-1 TP1 H-1 TP2 H-1 TP3 H-1 TP4 H-1 TP5 H-1 TP6 H-1 TP7 H-2 TP8 H-2 TP9 H-2 TP10 H-2 TP11 H-2 TP12 B-3 TP13 B-2 TP14 B-2 TP15 B-1 TRANSISTOR TP VR6000 E-1 VOLUME 61 A 1 3 5 2 4 6 C D E G B F I H SS-BOARD (COMPONENT SIDE) TNPA3795 TH-42PA7C SS-BOARD TNPA3795 TH-42PA7C SS-BOARD TNPA3795 R104 C132 C134 C135 D111 R111 R112 R113 Q141 L001 L002 Q142 L003 Q146 Q147 C152 C153 C154 L011 D131 L012 D132 C156 L013 R131 R132 R133 R134 R135 SS11 R136 SS12 IC131 R141 R142 R146 SS23 R147 L221 D151 Q171 D152 Q172 D153 D154 R151 R152 R153 R154 R155 R157 SS34 R158 IC151 R160 SS41 SS42 R166 SS43 SS44 L241 C192 C193 C194 C195 R171 R172 R173 R174 SS41A L061 L062 L063 L064 SS42A L262 D191 D192 D193 R191 R192 R193 R194 R195 R196 R197 SS43A L271 IC191 L272 L081 L082 L083 L084 SS44A C001 C002 C003 Q001 Q002 Q003 C201 C202 C203 C204 C011 C205 C012 C206 C013 C207 C208 C211 C212 C213 C214 C021 C215 C022 Q212 C023 D001 Q021 Q022 Q023 R001 R002 R003 R004 R005 C221 R006 Q221 C031 Q222 D010 C039 C040 C041 D211 C042 D212 C043 D213 C044 D214 C045 Q041 D021 D215 C046 Q042 R213 R214 R020 R021 R215 R022 R216 R023 R217 R024 VR000 R218 IC211 R025 C241 R026 C242 C243 R027 D221 L101 D222 L102 D223 L103 D224 Q051 R222 R223 R224 R225 R031 R226 R227 R229 IC221 C251 Q251 C061 C063 R231 D041 R232 R233 R234 R041 R235 R042 R236 R043 R044 C261 C262 C071 R241 D051 R242 R243 R244 R245 R051 R246 R052 IC241 C272 C273 D251 C081 D252 D253 C083 D254 R251 D061 D255 R252 R253 R254 R255 R061 R256 R062 R257 R258 IC251 C281 C282 C091 R261 D071 D072 D271 D272 D081 D091 D092 C101 C102 Q101 Q102 ZA001 ZA002 ZA003 C111 C112 Q111 Q112 D101 D102 R101 R102 R103 TPVe discharge 1 TPVDA SS 42 37 TP15V TPVSUS CRNo.6 TNPA3795 TPSS1 SSMM1 37 42 PbF 1 3 1 10 1 9 16 8 1 12 1 3 1 8 9 16 1 13 1 13 1 13 1 13 ORDER NO. 1 13 1 13 1 13 1 8 9 16 1 13 C G E C G E C G E A A K C G E C G E C G E B C E B C E C G E A A K C G E 1 4 5 8 C G E 1 10 11 20 A A K 1 4 5 8 A A K A A K A A K G S D G S D G D S G S D SS Parts Location SS-BOARD (COMPONENT SIDE) IC IC6131 C-2 IC6151 F-2 IC6191 H-2 IC6211 G-1 IC6221 F-1 IC6241 H-2 IC6251 H-3 Q6001 B-2 Q6002 B-2 Q6003 C-2 Q6021 C-3 Q6022 D-3 Q6023 D-3 Q6041 F-2 Q6042 F-2 Q6051 G-2 Q6101 H-2 Q6102 G-2 Q6111 G-1 Q6112 H-1 Q6141 C-2 Q6142 C-2 Q6146 C-2 Q6147 C-2 Q6171 F-2 Q6172 F-2 Q6212 F-1 Q6221 E-1 Q6222 F-2 Q6251 H-3 TRANSISTOR TP15V B-2 TPSS1 H-2 TPVDA B-2 TPVe E-1 TPVSUS B-2 TRANSISTOR TP VR6000 E-1 VOLUME 62 14 方框图和线路图 14.1. 线路图注意事项 63 14.2. 主方框图 VDA S.R. P2.5V VDA 5V D20 OUTPUT PA20 +15V P_ON/OFF CONTROL S.R. CONVERTER D32 12V DG1 D25 D VOLTAGE DG2 PA SOS PROTECTION(SOS) DC/DC CONVERTER POWER SUPPLY DC/DC PA40 ADDRESS SPEAKER SUSTAIN P12 VSUS S.R. S.R. DG5 CONVERTER PA5 DISCHARGE DG20 VOLTAGE D3 DATA DRIVER(LEFT) POWER LED +15V SUB-FIELD PA PICTURE PA10 POWER ERASE SOUND SOS PLASMA AI EEPROM VDA LVDS P25 RECTIFIER CONTROL LED P2 IIC VOLTAGE PROCESS S.R. VSUS SUSTAIN +15V SPEAKER P STBY5V DATA DRIVE L S1 VOLTAGE PROCESSOR MEMORY K REMOTE RECEIVER, C21 S.R. SS12 P1.2V SDRAM P3.3V RGB DC-DC CONVERTER PLASMA AI PROCESSOR C1 CONTROL F_STBY-14V IIC POWER SOS P10 SOS6/ P11 K3 VOLTAGE RECTIFIER S.R. Vda-70V L STB12V DATA DRIVER(RIGHT) SS CONTROL FACTOR MICOM SS_SOS8 VIDEO VSUS P9 CONTROL P23 D5 FLASH C12 P5 FORMAT +15V C2 PROCESS SUSTAIN STANDBY PA2 STANDBY SUSTAIN DRIVE AC CORD OSD DC POWER SS11 VOLTAGE SPEAKER C23 R REMOTE RECEIVER DG3 MCU VOLTAGE (VE) AMP SCAN CONTROL Vda RECTIFIER C11 SUSTAIN CONTROL RECEIVER PULSE PULSE FPGA STB5V CONTROL R SOS7 SS23 PROCESSOR 15V C22 MAIN DATA RECTIFIER SOS8 D31 FORMAT CONVERTER, L/R H5 L/R V, Y/PB/PR INPUT V, Y/C AUDIO VIDEO AV1 DC POWER MAIN H2 IN VIDEO OUT V H SELECT TUNER L/R RGB AV2 AV SWITCH,MSP INPUT SIF V MSP AUDIO TUNER IN H1 TA5 AV3 TA OUT IN L/R H53 SIF IN AV TERMINAL, L/R H40 L/R SELECT TV-V V, Y/PB/PR R G Y,PB/C,PR,CVBS B RGB PROCESSOR (GC5) LVDS TRANS- MITTER DG DIGITAL SIGNAL PROCESSOR A/D TV_L/R MAIN_L/R KEYSCAN RECTIFIER FILTER RELAY LINE FILTER LINE +5V +15V PS_SOS SOS SOUND S34 POWER SWITCH STB12V STB_PS STB12V STB_PS STB12V STB_PS/ S POWER KEY SCAN, SWITCH VOLTAGE SC SCAN OUT 48 64 64 PULSE 64 PULSE CONTROL S.R SC23 SD S.R S.R GENERATOR SUSTAIN SOS6 SC2 PULSE S.R SC20 SCAN DRIVE SOS7 SCAN OUT SU SCAN S.R S.R S.R S.R 48 64 64 64 TH-42PA7C Main Block Diagram TH-42PA7C Main Block Diagram OUT AUDIO IN PC 64 14.3. P 电路板方框图 + - + - + D509 X501 4NHz R661 1 2 3 R665 1 2 3 Q408 Q412 D417 D420 D419 C469 R671 C555 R443 1 2 3 D529 D528 D404 D596 D416 D435 D401 D430 D563 D511 D505 R628 Q527 D530 Q413 Q409 D520 D521 D535 1 2 IC408 4 2 1 3 1 3 4 2 1 3 4 2 IC404 IC403 9 2 3 17 8 10 13 1 T401 5 8 7 6 VCC MOS DRIVE CURR DET CURR COMP 2 1 3 4 Q407 Q420 Q404 Q406 R406 D415 IC406 POWER FACTOR CORRECTOR Q535 8 6 10 7 9 2 3 4 1 15 19 24 18 22 23 16 17 21 20 VDD VSS XIN XOUT RESET STB PS PFC DET STB 5 ON/OFF LOW 15 AC GOOD F STB ON V LOW DET AC P DET TV ON/OFF VSUS DET F_STB ON/OFF PS SOS PFC ON/OFF V LOW ON/OFF IC501 1 2 IC502 RESET 1 5 2 4 6 3 2 1 4 Vda P12 +15V +15Vc TO 1 2 6 PA5 P5 4 7 8 1 +15V 2 +15V P23 TO SC23 9 +5Vc TO STBY5V 7 P25 D25 +5Vc 10 Q421 POWER MCU COLD COLD HOT 10 STB_PS Q422 Vda75V 8 STB12V Q509 16 17 15 18 2 +15Vc 1 3 HOT POWER SUPPLY 4 Vda Q508 14 13 PR601 9 6 5 4 3 5 ZCD 7 GD 8 VCC 1 3 VFF 4 CS INV IC509 13 14 12 MAIN RELAY RUSH RELAY VSUS ON/OFF ALL OFF 11 Q559 13 F_STBY_ON ALL_OFF PS_SOS PANEL_MAIN_ON ECO_ON F STB 14V 2 1 3 F STB 14V F STB 14V P10 TO PA10 IC520 PR401 F401 F402 1 4 NEUTRAL RL402 RL403 4 2 4 2 IC412 3 1 1 3 5 16 13 10 17 9 7 SS12 TO T601 T410 T404 D539 LIVE P9 2 POWER COLD HOT AC CORD TO PFC DET STB5V DET VlOW DET VlOW DET Vsus 189V Vlow Vlow Vsus POWER CURCUIT OSC 395V R496 R495 R494 Q418 R497 (350V 40V) PFC OUT Q501 Q502 Q551 Q505 ERROR DET IC506 ON:L H:ON 2 Vda 73V D569 D570 D571 R670 Q541 R650 R649 5V OUT DETECTION COUPLER PHOTO IC405 COUPLER PHOTO CONTROL D579 R579 D549 R666 D551 R545 3 4 1 2 IC505 IC401 COUPLER PHOTO COUPLER DC-DC CONVERTER Csus R533 (3V 1.0V) 178V (1.7A) R526 R527 H:ON OVER VOLTAGE PROTECTION (490V 80V) COUPLER PHOTO COUPLER PHOTO PHOTO OVER VOLTAGE DETECTION (490V 80V) DETECTION 15V OVER VOLTAGE (16V 2V) PROTECTION COUPLER PHOTO SC2 TO GND 1 3 TO 1 Vsus P11 P2 Vsus SS11 3 PFC R444 R475 R441 R442 D441 4 R620 R589 R590 R621 D574 OSC L405 L404 R413 L410 R407 R427 R435 Q434 IC409 (IPD) DC POWER CONTROL 8 Source Source 7 1 Vdd 2 FB Drain 5 4 Vcs 7 14 12 4 16 R472 R473 R465 R464 D418 C446, C447 Q402 L403 Q401 D407 R455 1 3 2 PFC DET AC POWER RESET Q568 3 1 2 ECO STB_PS(12V) R410 PHOTO 4 2 1 3 IC410 COUPLER 7 12 11 3 2 1 IC504 14 15 Q563 Q521 Q569 Q537 Q512 Q561 AC_GOOD 19 1 S 2 S G 3 4 S 8 7 5 6 D D D D 6 4 S 8 5 S 3 D D D 7 G 1 2 S D Q555 Q556 DC/DC CONV. DC/DC CONV. Q558 Q557 Q525,Q530 R534 D585 Q524 OUT 2 1 Vcc PR805 ERROR DET (Vda) IC512 D542 D544 D545 SWITCHING IC510 REGULATOR D513 D512 Q566 13 15 4 6 12 16 2 PHOTO COUPLER 3 4 1 2 IC507 D514 3 1 2 (Vsus) K A Vsus R622 R648 R636 R626 R656 R627 OUT DETECTION (60V 40V) VOLTAGE Q507 2 4 3 5 9 10 6 T402 Q538 R631 R674 R676 3 1 2 K A D572 POWER CIRCUIT Q510 Q564 Q565 Q540 F 5A 250V OSC OSC 9 D531 15 7 D586 4 6 5 D531 D536 RUSH ON Q553 Q554 PR509 Vdat OVER VOLTAGE DETECTION(100V 25V) Q520 Q517 +15Vc +15Vc +15Vs(S) +15Vs(W) +15Vs(W) +15Vc P ERROR DET IC411 ERROR DET IC402 ERROR DET SW SW RECTIFIER SW L:ON RECTIFIER STANDBY POWER SAVE 5V (Vlow) R458 MAIN ON 12V BUFF INV. ECO ON/OFF SW BUFF STB5V ON/OFF STB5V (15V) (F STB 14V) INV. INV. ECO ON VSUS DET INV. INV. VSUS ON/OFF 12V ON/OFF INV. BUFF BUFF BUFF BUFF VSUS DET D602 12V DET SW T407 1 15V GND POWER SOS LED BLINKING : 4TIMES TH-42PA7C P-Board Block Diagram TH-42PA7C P-Board Block Diagram 65 14.4. P 电路板 （1/6）线路图 * R472 560K R419 100K R497 12K ZH57 ZH42 R426 10K C443 1000p R473 560K TP5 ZH105 R428 10K TP6 S402 RA-362MS-V7-Y ZH18 RL403 DG12D1-O(M)-2 1 4 2 3 ZN402 D4EAD7510001 R463 33K C423 4700P ZH33 ZH122 R439 12 R417 430K C431 1000P T401 G4D4A0000119 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R433 12K ZH109 D503 MA165 ZH96 R475 680K D418 02DZ8.2 L405 TF3524V-123Y5R0 1 2 4 3 ZH21 R414 15K D420 S3K60 Z450 EYF52BCY ZH51 R492 0 TP4 C409 2.2uF R450 1000 R437 18K ZH34 R442 680K ZH9 C404 1.0uF ZH120 IC402 TL431A1LPM5 1 2 3 D433 02DZ15 ZN401 ERZVGED621 ZH19 Q422 2SD1819A R471 3.3K C476 100P R451 33K TP8 ZN404 ERZVGAD681 L404 TF3524V-123Y5R0 1 2 4 3 ZH36 C421 1.0 ZH10 ZH32 ZH117 R430 430K D431 RB520 R465 560K ZH20 ZH40 C429 0.047 C478 100P ZH111 D415 D1NS4 R480 47K Z451 EYF52BCY ZH107 C446 200uF/450V ZH58 D419 S3K60 C470 1uF ZH123 R449 0.1 ZH35 C635 0.01 ZH106 R443 2K D429 ERA15-10 R495 560K ZH103 R444 12K R403 1M C472 *** TP2 2.5mm R455 12K ZH8 ZH48 R453 3M C463 22P R438 330 R421 33K 2.5mm R431 10K C422 0.01 ZH1 2.5mm D417 S3K60 S401 RA-362MS-V7-Y C468 0.01 R436 15K R410 10/5W ZH38 C436 1.0 R456 33K ZH102 TP3 C462 1.0 C461 330p ZH31 C474 100P C475 *** Q421 2SD1819A C450 0.01 ZH118 ZH49 R452 10K ZH95 R406 ERX12SJ2R2V R493 12 ZH55 C447 200uF/450V R464 33K ZH50 ZH110 R401 10K TP7 R441 680K R494 560K D504 MA165 F401 T8AH 250V ZH16 R692 4700 ZH43 ZH119 ZH92 ZH17 ZH54 ZH2 ZH12 Z453 EYF52BCY ZH7 R402 820 R491 47K C460 330p Q407 HN1B01F C445 1.0 L513 EXCELDR25V R498 0.08 2.5mm R454 10K ZH15 C432 1.0 ZH22 R499 390K R448 0.1 RL402 DG12D1-O(M)-2 1 4 2 3 C410 0.01 TP1 Q418 2SD1819A D401 B0FBAT000006 R458 4700 Q401 SSM3J14T R440 470K C444 1000p ZH30 Q404 2SB1443 R467 1000 F402 T8AH 250V ZH121 Q402 RTR040N03 C426 470P P9 LIVE 4 NC 3 - 2 NEUTRAL 1 R490 47K ZH108 L403 EXCELSA35T R424 22K C440 10 Z2 K4ZZ01000206 1 ZH37 ZH116 Z452 EYF52BCY R693 10K R415 10K ZH56 C473 100P ZH104 IC406 L6561 1 2 3 4 5 6 7 8 ZH11 R462 430K ZH3 C427 1.0 R496 560K D407 MA111 C428 220P Q420 2SD1819A ZH13 ZH97 ZH4 Q406 RJK5020DPK01 CURR Vcc GND CURR DRIVE COMP MOS DET CAUTION 2 3 D B 4 F 5 E 6 1 8 7 A C 9 CAUTION AC CORD TO P-BOARD TXN/P1BLTC (1/6) HOT COLD HOT COLD COLD HOT POWER FACTOR CORRECTOR PFC COLD HOT HOT COLD 1 2 3 A B C D F G H I J E P-BOARD (3/6) TO ERROR DET PFC DET TH-42PA7C P-Board (1 of 6) Schematic Diagram TH-42PA7C P-Board (1 of 6) Schematic Diagram K 66 14.5. P 电路板 （2/6）线路图 ZH72 ZH65 R600 390 C530 0.033 D531 RF2001T3D P10 F_STBY 1 F_STBY 2 F_STBY 3 GND 4 GND 5 GND 6 R685 1K C546 1000P PR509 F P23 GND 3 +15V 2 +15V 1 R563 2.2 R551 330K R713 4700 R673 1K ZH81 R932 100K Q565 2SB1218AR R697 4.7 ZH83 R649 22K ZH79 Q508 HN1C01F D544 MA4200-M D517 MA4330-M R587 0.22 R596 100 R537 100K R672 1K D529 MA3X15300L R669 130K R705 1M R688 1K R682 20K D579 MA165 R698 0.22 R676 33K R653 33K R574 330 T402 MT180 C571 33P C457 0.033u Q517 HN1C01F R478 22 D528 MA3X15300L R477 180 C527 4.7 R476 180 R662 150K C577 33/100V R555 1M R571 1M IC520 LSSK0062 1 2 3 4 5 6 7 8 11 12 13 14 15 16 9 10 Q527 2SK2882 R708 1M C624 0.01 D516 MA4330-M R667 0 R707 1M Q541 2SK3018 C620 0.01 R675 22K PR401 F 5A 250V C469 220P Q555 RSS130N03 1 2 3 4 5 6 7 8 Q409 RSR025P03 C523 1.0 R570 100K ZH99 L510 EXCELDR25V T407 ETQ11K5AZ 6 5 1 4 2 R593 5600 R700 1M R702 1M R607 22K D425 MA188 R679 0.22 R562 4.7K[F] C587 3300P R568 1M T404 G4D4A0000118 P5 GNDs(W) 11 GNDs(W) 10 GNDs(S) 9 +15Vs(W) 8 +15Vs(W) 7 +15Vs(S) 6 GND 5 +15Vc 4 GND 3 +15Vc 2 +15Vc 1 C528 1.0 R629 1M D551 02DZ13 C552 0.1 C604 150u/200V R560 9.1K R680 0.22 C556 1500u/25V R582 10K Q412 B1DAGQ000013 R706 1M C451 100P R632 220 C656 2.2 D598 02DZ5.1 R660 12K C625 10 ZH80 R598 33K C526 0.022[KB] C574 0.1 R573 390 R641 47K ZH86 C643 47/50V R703 1M L514 10uH C657 1000P R645 100 R655 0.22 C605 150u/200V ZH64 R701 1M R922 100 R668 0 C655 1.0 C584 0.022 D574 MA165 R482 22 D542 MA4200-M P12 STB_PS 10 NC 9 STB_12V 8 GND 7 GND 6 GND 5 +15V 4 NC 3 Vda 2 Vda 1 C503 470P R567 1M R592 3000 R670 1000 R665 2000 R674 33K R614 3300 R696 10 D536 SF20JC6 D507 02DZ7.5 R699 1M R561 5.1K R588 390 R564 100K C650 0.1 ZH74 D572 02DZ24Z ZH94 R576 12K R651 10K C562 0.022 R952 10 R579 10K R572 390 D535 MA188 IC512 TL431A1LPM5 1 2 3 D549 02DZ24Z ZH84 D602 02DZ8.2 R585 33K C551 0.1 ZH62 D545 MA4200-M D569 02DZ24Z ZH85 J502 LSJW0001 D521 D1NS4 R704 1M C547 1000P R591 1M D530 02DZ10 R933 1K ZH66 C603 1.0 R664 9100 R613 24K R951 10 Q566 2SD1819A-RTX R584 10K D508 02DZ7.5 D571 02DZ24Z ZH75 D423 MA188 R566 1M Q564 2SB1218AR D543 02DZ15 ZH78 R545 10K D540 SF8L60 R565 1M R597 33K C534 470P R659 30K C550 330P R631 33K R650 10K R666 1000 R711 0.22 R624 0.22/2W R953 2.2K Q413 B1DAGQ000013 R633 1M D539 SF8L60 ZH82 R937 1K Q408 RSR025P03 C557 1500u/25V C601 0.01 R661 5K C555 1000u/16V R556 1M Z1 1 R635 WA5001 ZH73 D570 02DZ24Z Q520 HN1C01F ZH91 R599 390 C581 0.022 Q510 RSR015P03 Q509 HN1A01F C508 470P R690 4.7 Q556 RSS130N03 1 2 3 4 5 6 7 8 R712 4.7 R638 1K J501 LSJW0001 D538 02DZ5.1 D520 MA111 D518 MA4330-M D586 1SR153 Q538 2SK3018 C554 1.0 R931 33K 15 16 18 10 12 17 14 11 13 TO SS-BOARD (SS12) (SC23) TO SC-BOARD HOT COLD POWER CONTROL Vda ERROR DET(Vda) COLD HOT HOT COLD Vlow PA-BOARD TO (PA5) 2 1 3 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR P-BOARD TO (4/6) AS AT VLOW DET VLOW DET DC/DC CONV. DC/DC CONV. PA-BOARD TO (PA10) P-BOARD TXN/P1BLTC (2/6) 12.0 15.0 12.0 0 70.0 0 0 70.0 0 0 15.0 0 15.0 15.0 15.0 15.0 0 0 0 15.0 15.0 0 15.0 0 14.0 0 0 0 14.0 14.0 TH-42PA7C P-Board (2 of 6) Schematic Diagram TH-42PA7C P-Board (2 of 6) Schematic Diagram 67 14.6. P 电路板 （3/6）线路图 5 ZH6 C630 0.01 C514 470P R921 33K C507 0.01 C414 0.047u D430 MA111 R530 33K D436 MA4200-M ZH59 R427 430K R423 1K R483 4.7M R425 39K ZH5 ZH89 ZH67 ZH44 C585 0.022 Q521 2SK3018 R407 430K R938 4.7K C517 220u C433 0.1 C654 1.0 D437 MA4200-M ZH53 IC408 ON3171 2 1 4 3 R549 10K C512 50V 470P ZH41 R413 10/5W R521 10 2.5mm R404 1K ZH68 D601 02DZ5.1 R432 1K R412 0 R594 150 2.5mm R943 1M D411 ST02D-170 C408 1000P R435 430K R539 10K R461 10K C515 1200 D438 MA4200-M IC504 TL431A1LPM5 1 2 3 T410 ETS25AF115AH 9 7 5 4 1 2 10 11 12 13 14 16 15 R418 22 ZH88 R544 330 ZH61 D412 D1NL20U C627 1000P Q537 RTR040N03 C493 47/50V C413 0.1 IC410 ON3171 2 1 4 3 R488 100K IC409 MIP2G4 Vdd 1 FB 2 CL 3 Vcc 4 DRAIN 5 6 SOURCE 7 SOURCE 8 D432 RB520 C402 1.0 IC411 TL431A1LPM5 1 2 3 R459 680K C513 50V 470P D445 MA4360-H R541 1M D596 ERA15-10 ZH45 ZH63 C516 0.47 ZN406 ERZV07D511 D511 D1NJ10 C529 1.0 Q434 2SK3302 R429 4.7 ZN405 ERZV07D511 D441 D1NL20U Q524 2SK2090 R507 220 R422 330K D404 S1WB(A)80 R416 3M R542 1K R522 10 D435 ERA15-10 C434 1.0 L410 40mH 1 2 4 3 R434 0 D563 02DZ6.2 R420 0 D416 1SR153 D444 D1NL20U ZH60 C467 220P C494 1/250V D509 D2S6M R677 470K ZH52 R540 1M D595 WA5001=5 R524 1K C497 47/50V C407 22u/450V C425 0.01 2 3 D B 4 E 6 F 1 7 8 A C 9 COLD HOT COLD HOT COLD HOT COLD HOT P-BOARD TXN/P1BLTC (3/6) ERROR DET 11 12 13 14 15 16 C J D E F K B I A H G BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO P-BOARD (1/6) TO (5/6) P-BOARD TO ERROR DET PHOTO COUPLER CONTROL DC POWER COUPLER PHOTO TH-42PA7C P-Board (3 of 6) Schematic Diagram TH-42PA7C P-Board (3 of 6) Schematic Diagram 68 14.7. P 电路板 （4/6）线路图 C632 330P R526 220K R528 4.7 R622 150K R534 47K C629 0.01 R640 0.68 ZH24 D587 MA188 D575 MA188 C653 1000P ZH27 R543 15K ZH100 Vsus R590 12K R691 100K R647 22K R550 47K Q505 2SK2998 R652 9.1K ZH112 Vsus R627 8.2K Q540 RSR025P03 ZH39 R595 2200 R589 12K ZH29 ZH23 ZH28 ZH26 T601 45H-5034A 5 9 4 6 IC509 L6565N INV 1 COMP 2 VFF 3 CS 4 ZCD 5 GND 6 GD 7 Vcc 8 P11 3 NC 2 1 C615 1700u/200V C641 1000P R620 10K C611 1700u/200V R671 10K C640 0.1 R643 0.68 PR601 T 3.15A 250V D501 S3K60 R634 0.68 R946 33K R644 0.68 R626 150K R657 1000 IC507 ON3171 2 1 4 3 R656 R947 330 R648 150K R621 12K R646 22K R527 220K C518 0.1 R612 2200 R619 0.68 IC506 HA17431 5 4 1 3 2 ZH25 P2 3 NC 2 1 C619 0.1 R628 3K R636 150K D514 02DZ6.2 R945 22K Q507 2SK3568 R639 0.68 R603 33K ZH113 GND C634 1000P Q530 2SD1819A-RTX D506 02DZ5.1 R601 47K D582 MA7056 R533 16K R654 22 ZH47 R637 0.68 ZH46 R658 1M Q525 2SK3018 R642 0.68 C531 1.0 D585 02DZ7.5 IC505 ON3171 2 1 4 3 R608 3300 R695 16K C616 1000P ZH101 GND 15 12 17 10 18 16 11 13 14 (SS11) TO SC-BOARD (SC2) TO SC-BOARD Csus ERROR DET(Vsus) Vsus 16 13 12 14 11 15 AC AF AD AA AG AB AE CA CB CC CD CE CF CG CH CI CJ CK CL P-BOARD (2/6) TO P-BOARD (6/6) TO AK AL AJ AO AQ AR AM AN AI AS AH AP AT DC-DC CONVERTER PHOTO COUPLER COUPLER PHOTO P-BOARD TXN/P1BLTC (4/6) 0 0 175.0 0 0 175.0 TH-42PA7C P-Board (4 of 6) Schematic Diagram TH-42PA7C P-Board (4 of 6) Schematic Diagram 69 14.8. P 电路板 （5/6）线路图 Q558 2SD1819A-RTX R616 10K C511 1000P R501 22K R615 10K D588 02DZ3.3 Q557 2SD1819A-RTX R940 1K R512 22K C505 1000P R518 1K R509 100K R504 1000 C613 0.01 R936 10K Q568 2SJ463A R684 10K R525 47K C583 1000P R935 100K IC501 M34509G4FP VDD 1 VSS 2 XIN 3 XOUT 4 CNVSS 5 Reset 6 P21 7 P20 8 D5 9 D4 10 P01 21 P00 22 D1 13 D0 14 P13 15 P12 16 P11 17 P10 18 P03 19 P02 20 D3 11 D2 12 P31 23 P30 24 C506 0.01 R520 100K R487 4.7K C659 0.01 R678 0 R532 1K Q535 2SD1819A Q554 RSR025P03 Q563 2SK2090 R535 1000 Q561 2SD1819A-RTX C639 0.01 R955 47K R502 100K R558 470K R548 1000 R586 47K Q551 2SK3018 X501 4MHz IC502 R3111N401C 1 2 5 3 4 R939 1K R519 100K C608 0.01 C510 0.1 R606 1200 C533 0.01 C607 1.0 R950 1M C509 100/25V R538 100K R617 10K C501 0.01 IC405 ON3171 2 1 4 3 R689 1000 D555 02DZ7.5 IC403 ON3171 2 1 4 3 R511 100K R956 100K C519 1.0 R575 1000 R516 1000 R618 100K IC401 ON3171 2 1 4 3 R536 1000 R503 100K R505 33 IC412 ON3171 2 1 4 3 R580 47K R578 47K IC404 ON3171 2 1 4 3 R557 100K R517 10K R510 100K C502 0.01 R686 1000 R611 47K R554 1000 C638 0.01 Q559 2SD1819A-RTX C610 1.0 R514 100K R581 47K R687 10K R515 1000 Q512 2SK3018 D505 D1NS4 R714 100 C504 1.0 R610 47K D512 MA111 R583 47K Q553 2SD1819A-RTX R552 10K C626 0.01 Q502 2SD1820A R602 3300 D513 MA111 D559 02DZ7.5 R715 100 R546 1000 C612 0.01 R508 1000 Q569 2SK3018 Q501 2SD1820A C631 0.01 R683 33K R577 47K R609 1000 D590 02DZ3.3 R630 4.7K D515 02DZ3.3 R513 100K R506 1000 2 7 8 A C 9 D B E 6 F 1 4 5 3 COLD HOT COLD HOT HOT COLD POWER MCU RESET P-BOARD TXN/P1BLTC (5/6) 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 BO BG BK BE BD BN BM BL BB BI BH BA BJ BF BC P-BOARD TO (3/6) COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO PHOTO COUPLER TH-42PA7C P-Board (5 of 6) Schematic Diagram TH-42PA7C P-Board (5 of 6) Schematic Diagram 70 14.9. P 电路板 （6/6）线路图 P25 ALL_OFF 18 Panel_Main_ON 17 PS_SOS 16 ECO_ON 15 FAN_SOS 14 F_STBY_ON 13 GND(STBY) 12 GND 11 STBY5V 10 +5Vc 9 GND 8 +5Vc 7 GND 6 GND 5 GND 4 NC 3 +15Vc 2 +15Vc 1 AC_GOOD 19 KILL_SOS 20 R553 100 L512 4.7uH C658 1.0 R569 33K R547 100 D599 D1FP3 C661 0.01 R529 100 C558 470u/25V L511 47uH D502 WA5001=5 R523 47K C559 1200 C623 10 C660 2.2 IC510 BD9703FP 1 2 3 4 5 D600 02DZ7.5 R559 8.2K PR505 TF16N5.00 C662 0.01 15 12 17 10 16 13 18 11 14 P-BOARD TXN/P1BLTC (6/6) (D25) D-BOARD TO 42 41 32 45 46 36 34 39 38 40 33 37 43 31 44 35 CG CK CL CB CA CE CF CI CC CD CJ CH (4/6) TO P-BOARD 0 5.0 2.6 0 5.0 5.0 0 0 0 0 0 15.0 0 3.2 0 0 15.0 0 0 0 REGULATOR SWITCHING TH-42PA7C P-Board (6 of 6) Schematic Diagram TH-42PA7C P-Board (6 of 6) Schematic Diagram 71 14.10.PA 电路板方框图 ON/OFF D5644 D5635 D5639 D5641 D5637 D5643 D5647 D5642 D5638 D5649 MAIN9V TPS9V TPS9 TPS5 TPS5V TPM5 TPM5V D2309 D5640 TPS33 TPS33V TPM33 TPM33V TPM18V TPM18 TPM9V TPM9 TP5616 TP5615 TP5617 D5634 MAIN9V D5646 TP16 6 SUB_5V Q5603 7 22 Q5602 SUB_9V-1 SUB9V PA_SOS 23 8 20 MAIN_5V SUB5V PA20 9 LINP 1 21 IC2306 19 W_L+ SUB_3.3V 35 W_R+ LOUTP 5 W_R- 1 LOUTN LOUTP SHUTDOWN IC2304 34 MAIN_9V(0.4A) PA2 8 SUB9V(2.2A) 26 SOUND_SOS TUNER_SUB_ON ON/OFF1 24 TUNER_MAIN_ON 3 3 SUB9V Q5643 SUB9V 1 SUB5V MAIN9V VOUT1 MAIN3.3V MAIN1.8V Q2306 6 NR14V 6 ROUTP RINP 1 5 27 7 OP AMP 39 VOUT1 VIN FAULT IC5601 5 PVCCR ROUTN MAIN3.3V AVR 5V/9V 13 48 40 ON/OFF1 2 2 42 ON/OFF2 9 TO SPEAKER 2 VIN Q5641 5 41 10 3 +15V VOUT2 OP AMP 14 2 4 MAIN3.3V 19 16 VOUT2 3 MAIN9V PA40 6 STB5V 12 18 Q5601 MAIN1.8V MAIN5V ON/OFF2 ON/OFF 37 35 39 2 Q5605 MAIN5V 1 Q5644 +15V SR W_L- 7 SUB9V 32 AVCC 4 ROUTN PVCCL 15 5 IC5602 ROUTP SUB5VA PVCCL AMUTE SL 3 13 MAIN_1.8V 20 LOUTN 2 IC2302 7 46 1 44 3 MAIN_9V 33 PA5 Q2302 (W-R & W-L) PVCCR 34 +15V AVR 1.8V/3.3V +15V +15V Q2307 SUB5VA TO P5 Q5642 PA SUB5V/MAIN5V SUB9V/ MAIN9V Q5613 STB5V1 STB5V1 TO H40 Q5604 ON/OFF TV_SUB_ON IC5604 VIN 5 AVR 3.3V VOUT 1 TO DG20 MAIN_9V(0.1A) SUB5V(1.0A) MAIN5V(0.37A) MAIN5V TUNER_MAIN_ON SPEAKER AMP Q2300 Q2301 11 SUB3.3V 13 MAIN3.3V SUB3.3V MAIN3.3V(1.55A) MAIN1.8V(1.2A) MAIN3.3V(2.5A) SUB9V(1.7A) MAIN1.8V(1.2A) SOS Q2303 15 Q5610 9 1 2 PA10 F_STBY_14V F_STBY_14V F_STBY_14V 3 TO P10 1 SPEAKER OUT/AUDIO AMP DC-DC CONVERTER/POWER SOS TH-42PA7C PA-Board Block Diagram TH-42PA7C PA-Board Block Diagram 72 14.11.PA 电路板 （1/2）线路图 + + + + + + + + + + + SUB_3.3V SUB_3.3V STB_5V NR14V NR14V MAIN_9V SUB_9V MAIN_1.8V SUB5V R5648 3.9k TPS33V C5646 50V 0.01u D5634 MA2J11100L C5623 25V 0.1u D5610 B0BC4R700007 R5669 47k C5643 16V 0.1u L5606 22u L5622 G1C150MA0234 C5670 25V 0.1u R5644 2.2k R5627 4.7k R5650 220 R5672 10k Q5643 2SA207700L Q5605 B1ABCF000138 R5641 2.2k C5641 16V 0.1u L5604 2.7u R5626 4.7k C5613 25V 0.1u R5634 470 R5639 2.2k R5620 1k R5694 47k R5695 10k D5649 MA2J11100L D5646 MA3X152E0L R5619 33k C5609 50V 22u R5693 33k D5607 B0BC6R600005 R5633 1k L5651 22u Q5602 B1ABCF000138 R5662 4.7k R5603 15.4k C5637 16V 0.1u L5612 2.7u R5605 4.7k R5645 2.2k R5642 470 Q5610 B1ABCF000138 R5615 10k 1 2 3 4 5 6 L5621 G1C330MA0234 L5602 2.7u C5626 16V 0.1u R5660 0 R5646 4.7k C0DBZGC00067 IC5604 1 VIN 2 GND 3 STBY 5 VOUT 4 NC R5692 1k R5649 100k C5642 16V 0.1u D5642 MAZ31200ML R5632 470 R5668 47k R5659 470 TP16 D5639 MAZ30470HL R5609 200 Q5613 B1ABCF000138 R5637 10k R5617 1k R5665 47k C5611 50V 330u D5643 MA3X152D0L D5638 MA3X152E0L Q5601 B1DHDC000028 R5640 4.7k Q5604 B1ABCF000138 L5609 22u R5606 2.2k L5624 G1C330MA0234 C5605 25V 470u R5625 4.7k Q5603 B1DHDC000028 R5607 4.53k D5635 MAZ30470HL R5621 4.7k R5676 10k D5606 B0BC01100001 L5607 22u C5673 16V 0.1u C5647 16V 47u R5647 220 R5652 0 TPS33 L5623 G1C150MA0234 R5667 47k R5664 4.7k C5672 50V 22u R5653 10k C5619 25V 0.1u C5645 16V 47u C5617 16V 470u R5643 680 Q5642 2SA207700L R5638 10k C5644 16V 0.1u C5618 25V 0.1u C5633 25V 220u D5640 MAZ30390HL D5641 MA3X152D0L EHMDD9851 IC5602 1 ON/OFF2 2 VAR2 3 VOUT2 4 SW-Node2 6 GND 7 N.C. 8 GND 9 VIN 10 N.C. 11 GND 12 SW-Node1 13 VOUT1 14 VAR1 15 ON/OFF1 16 N.C. Q5644 B1ABCF000138 D5647 MA3X152D0L C5616 25V 0.1u C5648 50V 0.01u R5654 10k C5622 16V 470u R5635 220 C5612 16V 470u D5644 MAZ30680ML Q5641 2SA207700L R5601 180 C5606 16V 470u L5615 15u D5612 B0BC3R700006 SUB3.3V D5637 MA3X152E0L N0BG2DE00001 IC5601 1 N.C. 2 ON/OFF2 3 VAR2 4 VOUT2 5 SW-Node2 7 GND 8 N.C. 9 GND 10 VIN 11 N.C. 12 GND 13 SW-Node1 14 VOUT1 15 VAR1 16 ON/OFF1 F_STBY_14V F_STBY_14V NR14V GND MAIN_9V SUB_5V MAIN_5V MAIN_3.3V SUB_9V-1 GND SUB_5V MAIN_5V SUB_9V SUB_3.3V GND F_STBY_14V 1 6 D E 8 B 3 2 C 4 A 7 5 MAIN3.3V SUB_5V SUB_3.3V NR14V MAIN3.3V MAIN1.8V PA_SOS PA 10 SUB_5V TO P-BOARD (P10) AVR 5V/9V AVR 1.8V/3.3V MAIN_9V MAIN_5V MAIN_1.8V STB_5V AVR 3.3V PA-BOARD TXNPA1BLTC (1/2) 1 2 3 4 5 6 7 8 9 10 14.0 14.0 0 14.0 0 0 TH-42PA7C PA-Board (1 of 2) Schematic Diagram TH-42PA7C PA-Board (1 of 2) Schematic Diagram 73 14.12.PA 电路板 （2/2）线路图 + + + + Thermal Pad SOUND_SOS SOS ODU_17V MAIN_9V +15V TV_SUB_ON MAIN_9V TV_MAIN_ON Q2301 B1ABCF000138 R2406 4.7k TPSTB5V TPM5V R2357 0 C2322 1u 10V C2336 0.47u 50V JS2303 0 R2407 1.24k C2333 25V 470u JS2300 0 R2341 0 L2302 G0C330MA0049 R2422 787 R2421 2k R2397 0 R2404 330 R2311 0 C2320 1u 10V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C2331 1u 25V JS2302 0 C2387 1u 10V C2380 50V 0.01u C2334 0.1u 25V TPM33V R2323 0 D2309 MA2J11100L R2325 10k R2312 10k C2374 10V 1u R2384 1.15k C2328 1u 25V TPS5V R2398 0 R2332 10k TPS9 Q2303 B1ABCF000138 C2324 0.22u 25V R2410 787 TPSSOS R2364 47k R2408 1.18k MAIN5V C2385 1u 10V JS2319 0 C2402 10u 6.3V C2335 0.1u 25V C2330 1u 25V TPMUTE R2363 470 C2321 0.01u 50V C2325 0.1u 25V C2417 10u 6.3V C2373 50V 0.1u R2375 100 TPM18 C2326 0.1u 25V C2327 0.47u 50V R2366 4.7k 2SA207700L Q2306 C2338 0.22u 25V ZA2300 K4CZ01000027 R2372 10k R2405 330 C2382 1u 16V IC2306 C0ABBA000168 1 2 3 4 5 6 7 8 TPM33 C2394 1u 16V C2317 1u 10V R2349 100 R2373 10k R2402 330 C2301 25V 470u R2368 0 C2314 1u 16V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 SUB5VA L2301 G0C330MA0049 2SA207700L Q2307 R2361 5.6k R2329 100k PA5 1 2 3 4 5 6 7 8 9 10 11 ZA2301 K4CZ01000027 TPM18V R2360 10k R2409 2k MAIN9V R2388 3.3k L2300 G0C330MA0049 Q2302 B1ABCF000138 C2393 1u 16V R2376 10k C2323 0.22u 25V C2332 25V 470u JS2331 0 TPM9 R2387 1.15k TP17V SUB3.3V C2401 1u 10V C2342 1u 25V R2403 4.7k PA2 1 2 3 4 5 C2329 1u 25V R2383 3.3k TPM5 MAIN3.3V R2369 18k R2324 0 L2303 G0C330MA0049 JS5600 0 TPM9V JS2301 0 IC2304 C0ABBA000168 1 2 3 4 5 6 7 8 R2401 330 TPS9V C2303 16V 100u L2308 3.9u R2310 0 Q2300 2SA207700L C1AB00002451 IC2302 1 NC 2 RINN 3 RINP 4 AGND 5 LINP 6 LINN 7 NC 8 GAIN0 9 GAIN1 10 MSTR/NSLV 11 SYNC 12 NC 13 NC 14 ROSC 15 VREG 16 VBYP 17 AGND 18 BSLP 19 LOUTP 20 LOUTP 21 LOUTN 22 LOUTN 23 BSLN 24 NC 25 NC 26 PVCCL 27 PVCCL 28 PGNDL 29 PGNDL 30 VCLAMPL 31 VCLAMPR 32 PGNDR 33 PGNDR 34 PVCCR 35 PVCCR 36 NC 37 NC 38 BSRN 39 ROUTN 40 ROUTN 41 ROUTP 42 ROUTP 43 BSRP 44 NSHUTDOWN 45 MUTE 46 FAULT 47 NC 48 AVCC MAIN9V C2337 0.22u 25V R2359 2.2k SUB9V TPS5 R2365 100 C2341 10u 25V JS5603 0 MAIN3.3V MAIN9V SUB5VA SUB9V TP5617 TP5615 TP5616 MAIN1.8V C2403 50V 0.01u ZA5601 K4CZ01000027 ZA5600 K4CZ01000027 AB AE SUFFIX MAIN9V - GND W_L VCC TO WOOFER/SPEAKER 15V GND (W-R & W-L) +15V +15V GND GNDs GNDs R GNDs +15V W_R+ +15V W_R W_R- W-L NC W_L+ W-R W_L- + L +15V - + SUB5V SUB9V Tuner_Main_ON SUB_9V MAIN5V ODU +B 17.5V / 0.27A TUNER_SUB_ON MAIN3.3V PA_SOS SCL1(Main3.3V) SDA1(Main3.3V) MAIN_3.3V ODU_ON/OFF MAIN1.8V SUB9V MAIN3.3V MAIN_5V HP_R HP_L GND SUB_5V FAN_CONT FAN_SOS MAIN_1.8V MAIN_9V AMUTE HP_MUTE SOUND_SOS MAIN9V MAIN1.8V + L R - - + GND VCC AJ SR SL SUB9V SUB5V MAIN5V MAIN3.3V SOUND_SOS PA 20 PA 40 H-BOARD TO (H40) TO DG-BOARD (DG20) TO P-BOARD (P5) OP AMP OP AMP SPEAKER AMP 14 9 11 15 8 12 13 10 PA-BOARD TXNPA1BLTC (2/2) 6 4 7 2 8 3 5 1 10 9 15.0 0 0 0 0 15.0 0 15.0 15.0 15.0 15.0 3.3 0 3.3 0 0 0 0 0 0 0 0 0 0 9.0 5.0 9.0 5.0 5.0 0 0 5.3 5.3 5.3 5.3 0 TH-42PA7C PA-Board (2 of 2) Schematic Diagram TH-42PA7C PA-Board (2 of 2) Schematic Diagram 74 14.13.H 和 TA 电路板方框图 TH-42PA7C H and TA-Board Block Diagram TH-42PA7C H and TA-Board Block Diagram 10 TUNER AFT1 TA6 VIDEO_OUT 8 6 TUNER 17 TA TU001 12 SIF 11 11 15 S-CLOCK 14 RF AGC AFT SIF1(MSP) 2 S-DATA MAIN VIDEO RFAGC1 TA5 1 9 8 8 SCL0B SDA0B SUB 30V 15 BTL SUB 5V SUB 5V SDA0B SCL0B BT30V Q002 6 8 6 11 15 2 H5 1 9 8 H AV1_C AV_R A AV2C_Y V2_V AV2C_YSW AUDIO_LIN AUDIO_RIN AUDIO_LIN AUDIO_RIN TV_L TV_R AV1_L AV1_R AV2_L AV2_R AV3_L AV2C_Y AV2C_PB AV2C_PR AV3C_PB AV3C_Y RM_IN AV3C_YSW AV3C_Y AV3C_PB AV3C_PR AV3_V AV3_L AV3_R AV2C_YSW AV2C_Y AV2C_PB AV2C_PR AV2_V AV2_L AV2_R AV1_C AV1_Y AV1_S AV1_V AV1_L AV1_R AV3C_YSW AV3C_Y AV3_V HDMI_SL HDMI_SR AV3_R AV_L AV_R RM_IN STBY_LED STBY_LED KEY1 HDMI_SL HDMI_SR AV_L AV3C_PR KEY_EDGE KEY1 KEY_EDGE TV_L TV_R MAIN PB/COUT1 IN IC3005 AV2 IN AV1 56 48 VIDEO SW 52 SA1 49 OUT PROUT1 50 Y/VOUT1 58 Y2 S-2 V2 59 4 3 8 Y4 PDD1 V4 36 SC1OR 27 57 SC1IL 56 SC1OL MSP 37 SC1IR 28 IC2106 + 7 Q2104 1 Q2105 3 5 - - + IC2104 VAO SC2OR 33 34 SC2OL L R Q2103 Q2102 Q2002 Q2001 Q3017 Q3011 38 VOUT4 TV OUT H 67 SCL 36 SDA 35 SDA0B SCL0B MAIN PB MAIN PR 16 18 RM_IN AFC1 13 8 V7 14 AUDIO_L AUDIO_R Q2106,Q2108 16 17 1 2 3 4 8 9 32 33 L8 R8 L7 R7 L1 R1 L2 R2 L4 R4 A IN TV IN AV1 IN AV2 IN AV3 IN MAIN ROUT1 LOUT1 OUT SDA SCL 35 36 IC2105 AUDIO SW SDA0B SCL0B 60 19 CY1 PR1 PB1 20 17 PR2 24 22 PB2 CY2 25 AV3 IN AV2 RGB IN RGB IN AV3 VOUT5 42 14 Q3014 MAIN Y/CVBS Q3015 MAIN CVBS 20 STBY_LED 6 TO K1 H53 12 STBY_LED KEY1 RM_IN 7 8 JK2003 AUDIO IN H15 1 AGC1 TV IN TO DG1 H1 C1 SIF TRAP 11 10 L5 R5 HDMI IN Q2012 Q2011 Q2013 STB5V HDMI_SR 52 HDMI_SL 54 Q3028 STB 5V 2 SUB 5V 5 STB 5V SUB 5V KEY_EDGE 1 TO DG2 H2 KEY1 9 KEY_EDGE 12 14 15 72 XOUT 71 X2101 XIN SOS 80 77 RESET 74 AUDIO MUTE SP MUTE 1 SUB 3.3V 73 STB 3.3V SUB 3.3V STB 3.3V SL 3 SL 4 SR 7 SR 8 Q2315 Q2302 Q2300 MUTE CCT MUTE CCT MUTE SW V DET Q2317 75 STB 5V Q2316 Q2301 Q2314 Q3008 SOS SCL 2 3 SDA SDA0B SCL0B 21 RESETQ Q2113 Q2114 SDA0B SCL0B SDA0B 66 SCL0B 65 76 MSP_RESET TO PA40 H40 1 STB 5V 7 SUB 5V 9 SUB 5V 3 SUB 9V MAIN 9V 5 11 SUB 3.3V MAIN 3.3V 13 A_MUTE 15 MAIN 3.3V SUB 9V SUB 5V SUB 3.3V MAIN 9V STB 5V SUB 8V SUB 5V BT30V DACM L PROCESSING SELECT PRE- MODULATOR ANA IN+ SP OUT OUT SELECT PROCESSING DACM R LOUDSPEAKER SELECT OUTPUT ADC DE- AUDIO SOUND DSP PRESCALE INPUT DAC SOURCE IN MAIN OUT DAC TV ADC AV TERMINAL/AV SWITCH/MSP A MUTE LED BLINKING : 10TIMES TUNER SOS AV1_S 55 S-1 AV1_Y 54 Y1 AV1_V 53 V1 PR PB Y PR AV2 V L C R R L Y R L V R V V AV1 L MONITOR OUT PB Y JK3100 TJB0A639 Y-SW Y G PB PR V L R-SW R G Y-SW Y G PB PR V L R-SW R G C Y G Y-G C-G G V L R-SW R G V L R G AV3 PC_B PC_G PC_R PC_V PC_H 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 JK3001 PC IN Q3333 Q3332 Q3331 PC_R PC_G PC_B 5 IC3301 3 6 2 BUFFER PC_V PC_H PC_R PC_B PC_G PC_H 34 30 PC_G 36 PC_B 32 PC_V PC_R 38 75 14.14.H 电路板 （1/3）线路图 3 9 7 A 8 6 E C D B 1 F 4 5 2 1 5 6 7 8 9 10 ! + + PR PB Y PR AV2 V L C R R L Y R L V AV4 R V V AV1 L MONITOR OUT PB Y RED WHITE + + RST AUDIO_MUTE PC_RIN SP_MUTE AUDIO_MUTE A_AV3_L A_AV2_L A_AV1_L AV3_R AV2C_Y A_AV2_R AV2C_YSW A_AV1_RSW AV3_L AV3_V AV1_R A_LOUT A_AV3_L AV3C_PR AV1_V A_ROUT A_AV3_R AV3C_PB AV3C_YSW A_AV1_L AV3C_Y A_AV2_L A_AV1_R A_AV3_RSW AV1_S A_AV2_RSW A_AV2_R AV1_Y AV2_V AV1_L A_LOUT A_AV3_R AV1_C AV2_R A_AV3_RSW AV2C_PR A_AV2_RSW A_AV1_R AV2_L A_AV1_RSW AV2C_PB A_ROUT A_AV1_V A_VOUT VOUT4 AUDIOOUT_L AUDIOOUT_R PC_LIN D3047 MAZ81400ML JS3011 0 C2011 50V 560p JS2022 D3046 MAZ81400ML L2016 J0JCC0000100 D3042 MAZ81400ML Q2001 B1ABDF000034 CL019 SUB5V C2017 50V 560p 1% R3001 75 C2010 50V 560p D3043 MAZ81400ML C2013 50V 560p Q2002 B1ABDF000034 C2021 560p 50V Q2300 B1ABDF000034 B1ABCF000138 2SC584500L 2SD0601A0L C3005 50V 0.1u Q3002 2SA207700L C2019 16V 220u 1% R3008 75 R2049 10k L2012 J0JCC0000100 C3069 25V 470u D2301 MA2J11100L R3011 0 ERJ3GEY0R00V R2302 22k JS2031 JS3014 0 ERJ6GEY0R00V JS3015 0 ERJ6GEY0R00V L2004 J0JCC0000100 CL215 D2300 MA2J11100L L2002 J0JCC0000364 R2046 10k JK3100 TJB0A639 Y-SW Y G PB PR V L R-SW R G Y-SW Y G PB PR V L R-SW R G C Y G Y-G C-G G V L R-SW R G V L R G D3017 MAZ81400ML R2338 0 R2016 330 SUB9V_VIDEO L2008 J0JCC0000100 R2010 22k 1% R3027 75 1% R3002 75 JS3010 0 ERJ6GEY0R00V C3060 16V 1u 1% R3004 75 JK2003 K2HA204A0038 R2013 2.2k STB+5V STB+5V D2014 MA2J11100L R2043 47k D3003 MAZ81400ML D3100 MAZ81400ML CL020 1% R3006 75 1% R3010 75 R2011 22k R2304 100k R2054 10k R2014 2.2k R2305 470 JS3012 0 R2005 100k R2012 100k D3048 MAZ81400ML D2303 MA2J11100L CL214 1% R3020 22k R3408 360 JS2021 D2013 MA2J11100L L2015 J0JCC0000100 L3001 J0JCC0000100 D3049 MAZ81400ML R2050 10k STB+5V L3013 J0JCC0000100 D3006 MAZ81400ML R2006 22k D3041 MAZ81400ML Q2302 B1ABDF000034 C2014 50V 560p L2003 J0JCC0000100 D3039 MAZ81400ML D3038 MAZ81400ML JS2032 C2307 16V 100u R2306 820 R2042 1M D3045 MAZ81400ML Q2301 2SD0601ASL C2020 50V 22u R2051 180k D2304 MA2J11100L C2430 10V 1u R2048 470 R2310 180k JS3013 0 ERJ6GEY0R00V R2009 22k Q2013 2SA207700L R3409 360 L2001 J0JCC0000364 R3039 220 R2303 5.6k R2007 22k R2045 10k R2044 1k R2307 100k R3134 100k R2015 330 D3040 MAZ81400ML L3003 J0JCC0000100 R3022 10k D2011 MA2J11100L R2052 180k 1% R3003 75 R3021 10k 1% R3005 75 D2012 MA2J11100L 1% R3009 75 C2022 560p 50V L3010 J0JCC0000100 R2311 1.8k D3005 MAZ81400ML L2011 J0JCC0000100 R2053 470 R2400 1.8k Q2011 2SA207700L C2016 50V 560p R2008 22k C2006 50V 560p C2005 50V 560p L2007 J0JCC0000100 Q2012 B1ABDF000034 R2354 1k 1% R3012 75 1% R3007 75 L3002 J0JCC0000100 JS2033 MAIN9V STB5V MUTE CCT. AV3 H-BOARD TNPA3760AF (1/3) TH-42PA7C H-Board (1 of 3) Schematic Diagram TH-42PA7C H-Board (1 of 3) Schematic Diagram NP + NP NP PC_R PC_B PC_GND_R PC_GND_G 3.3V_MAIN PC_H PC_G PC_V PC_GND_B 9V_PC 9V_PC C3334 47u 16V C3337 16V 0.1u C R3323 0 2.0 x 1.25 R3312 10k 1% R3310 75 C C0JBAZ002205 IC3301 1 /1OE 2 1A 3 2Y 4 GND 5 2A 6 1Y 7 2OE 8 Vcc C3335 16V 0.1u 1% R3313 75 R3340 100 R3320 0 2.0 x 1.25 Q3332 2SC24800VL C3332 50V 0.1u C JS3310 0 R3351 51 R3349 68 JS3307 0 JS3311 0 R3339 470 C3339 16V 0.1u C R3352 51 C3340 50V 0.1u D3336 MA2J11100L FL3305 J0HABB000004 1 2 3 4 R3342 18k R3324 0 2.0 x 1.25 R3336 47k C C3330 16V 47u D3339 MA2J11100L JS3308 0 R3345 18k MAIN3.3V R3348 68 R3343 470 R3346 47k C Q3333 2SC24800VL C3338 47u 16V R3337 18k C3331 50V 0.01u R3305 100 JK3001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 FL3302 J0HABB000003 1 2 3 4 R3338 100 C JS3309 0 R3309 0 C3305 16V 0.1u R3306 4.7k C R3307 4.7k 2.0 x 1.25 JS3312 0 R3317 10k Q3331 2SC24800VL R3344 100 C R3350 51 D3334 MA2J11100L R3302 100 C3341 50V 0.1u FL3301 J0HABB000003 1 2 3 4 D3338 MA2J11100L C3342 50V 0.1u FL3303 J0HABB000004 1 2 3 4 R3347 470 C3336 47u 16V D3337 MA2J11100L R3341 47k FL3304 J0HABB000004 1 2 3 4 1% R3318 75 R3330 0 ERJ3GEY0R00V C R3308 0 D3335 MA2J11100L VIDEO/2 B VD HD PC G 76 14.15.H 电路板 （2/3）线路图 12 18 16 17 15 10 13 14 11 1 5 6 7 8 9 10 11 12 13 14 15 16 ! + + + + NP + + + + + + NP + + GUARD_A TV_L SUB9V AV1_R SDA0B TV_R AV2C_YSW AV4_R AV2_R SDA0B VOUT5 AV3C_YSW SCL0B SD_AUDIO_GND AV4_VGND HDMI_SL AV2_L SCL0B MAIN_RF_CVBS HDMI_SR TV_L SL_GND AV_L AV2C_Y SD_AUDIO_GND SR_GND MAIN_PR_OUT AV_R AV1_V GUARD_A MAIN_Y_OUT AV4_YGND MAIN_PB_OUT AV3_R AV1_S MSP_RESET AV3_L VOUT4 AV1_L PC_RIN PC_LIN TV_R 5.00V MSP AUDIOOUT_L AUDIOOUT_R MAIN_L MAIN_R AV3C_Y AV2C_Y AV2C_PR AV1_Y AV1_C SDA0B SCL0B AV2C_PB AV3C_PB AV3C_PR AV2_V AV3C_Y AV3_V MAIN_RF_GND SUB5V_MSP SR SL AV_R AV_L AMUTE STB+5V R2188 10k C2177 50V 0.01u C2165 16V 1u C2169 16V 1u C2200 50V 47p L2112 J0JCC0000241 C2240 50V 0.01u R3059 220 R3064 220 C2201 50V 3p R2184 220 R2172 220 R2170 220 C3053 50V 0.01u R3100 220 C3046 50V 0.01u R3095 220 R2214 3.3k C2192 16V 10u C3065 50V 0.01u C2238 50V 0.01u C2163 16V 1u SUB5V C2189 16V 1u C3058 25V 470u C2196 50V 0.1u Q2108 B1ABDF000034 JS2108 C2199 50V 56p JS2026 R2152 22 C2150 16V 1u R2181 0 C2195 50V47p C2134 50V 47p C2164 16V 1u R2132 33k R3113 0 C2152 16V 1u C3040 16V 0.1u 1% R2138 10k L3026 J0JCC0000100 IC2106 C1AB00002468 1 NC 2 I2C_CL 3 I2C_DA 4 I2S_CL 5 I2S_WS 6 I2S_DA_OUT 7 I2S_DA_IN1 8 I2S_DEL_IN 9 I2S_DEL_OUT 10 I2S_DEL_CL 11 I2S_DEL_WS 12 DVSUP 13 DVSUP 14 DVSS 15 DVSS 16 DVSS 17 IS2_DA_IN2 18 NC 19 I2S_CL3 20 I2S_WS3 21 RESETQ 22 I2S_DA_IN3 23 I2S_DA_IN4 24 DACA_R 25 DACA_L 26 VREF2 27 DACM_R 28 DACM_L 29 DACM_C 30 DACM_SUB 31 DACM_SR 32 DACM_SL 33 SC2_OUT_R 34 SC2_OUT_L 35 VREF1 36 SC1_OUT_R 37 SC1_OUT_L 38 CAPL_A 39 AHVSUP 40 CAPL_M 41 SC3_OUT_R 42 SC3_OUT_L 43 AHVSS 44 AHVSS 45 AGNDC 46 NC 47 SC4_IN_L 48 SC4_IN_R 49 ASG 50 SC3_IN_L 51 SC3_IN_R 52 ASG 53 SC2_IN_L 54 SC2_IN_R 55 ASG 56 SC1_IN_L 57 SC1_IN_R 58 VREFTOP 59 SC5_IN_L 60 SC5_IN_R 61 AVSS 62 AVSS 63 NC 64 NC 65 AVSUP 66 AVSUP 67 ANA_IN1+ 68 ANA_IN- 69 ANA_IN2+ 70 TESTEN 71 XTAL_IN 72 XTAL_OUT 73 TP 74 AUD_CL_OUT 75 NC 76 SPDIF_OUT 77 D_CTR_I/O_1 78 D_CTR_I/O_0 79 ADR_SEL 80 STANDBYQ C2130 10V 1u C2141 50V 0.01u R3111 0 C2147 50V 22u Q2113 B1ABDF000034 SUB8V Q2114 B1ABDF000034 C2179 16V 10u R2158 220 C2139 50V 0.01u R2156 220 R2127 4.7k R3094 220 R2239 0 R2185 220 Q2104 2SA207700L C2191 50V 0.1u C2173 50V 0.01u R3096 0 R2204 560 R3167 1k R3060 220 C2154 50V 0.1u R3112 0 R2195 100k C3048 50V 0.01u C2111 50V 0.1u ZA2106 TESA169 R2168 4.7k 1% R2131 8.2k R3090 22 SUB5V C2184 50V 0.1u JS3023 SUB5V C3056 10V 1u C2223 50V 39p X2101 H0J184500027 L2111 J0JCC0000241 R2211 0 C2237 50V 0.01u 1% R2130 10k R2177 220 C2222 50V 0.1u C3038 16V 0.1u ZA2108 TESA169 C2226 50V 1000p C3049 10V 1u R3061 0 C2172 50V 1000p SUB9V R2393 10k R2133 0 R2392 22k C2119 16V 47u ZA2101 TESA169 R2114 0 ERJ3GEY0R00V C2211 16V 0.1u C3033 10V 1u 1% R2147 10k C2127 16V 100u L2182 J0JCC0000241 C2225 16V 1u L2205 J0JCC0000241 SUB8V Q2103 2SA207700L L2117 G0C6R8K00002 Q2105 2SA207700L R2193 220 C2198 6.3V 100u R2209 3.3k C2171 50V 1000p C3025 10V 1u R2186 220 R2389 1k ZA2104 TESA169 R3099 220 C3039 50V 0.01u R2137 33k C2131 50V 0.1u C2142 50V 0.01u R3075 220 Q2315 B1ABDF000034 C2170 50V 1000p R2187 220 PA3100 K5H1622A0023 C2175 50V 0.01u Q2106 B1ABDF000034 C3051 50V 0.01u R2224 0 R2237 10k C2132 16V 10u C2197 6.3V 2.2u R2225 0 C3055 10V 1u R2116 J0JCC0000241 Q2102 2SA207700L C2133 50V 47p C3023 10V 1u R2165 1k C2203 50V 10p R3092 220 C3036 50V 0.01u C2140 50V 0.01u SUB5V R2182 100 R2213 10k L2110 J0JCC0000100 D2119 B0BC01100001 R3114 0 R2388 1k L2184 J0JCC0000241 R2235 10k ZA2107 TESA169 R2197 470 R2171 220 L2123 J0JCC0000241 L2107 J0JCC0000100 C2372 50V 10u R2238 0 C2159 16V 1u R2167 220 C2161 16V 100u C2213 0 R3101 220 C0ABBA000168 IC2104 1 2 3 4 5 6 7 8 C3050 10V 1u C2146 50V 0.1u C2174 50V 1000p SUB5V_MSP R3045 0 AN15862A-VT IC2105 1 L1 2 R1 3 L2 4 R2 5 VCC 6 L3 7 R3 8 L4 9 R4 10 L5 11 R5 12 L6 13 R6 14 L7 15 R7 16 L8 17 R8 18 L9 19 R9 20 L10 21 R10 22 O1 23 LOUT5 24 ROUT5 25 LOUT4 26 ROUT4 27 LOUT3 28 ROUT3 29 GND 30 LOUT2 31 ROUT2 32 LOUT1 33 ROUT1 34 ADR 35 SCL 36 SDA 37 O2 38 BIAS 39 L11 40 R11 41 L12 42 R12 43 L13 44 R13 R2169 4.7k R3097 220 L2187 J0JCC0000241 R3044 0 L2204 0 ERJ3GEY0R00V C2204 50V 22p R3080 0 C3052 50V 0.01u D3024 B0BC01100001 R2399 1k ZA2105 TESA169 R3074 220 ZA2103 TESA169 L2108 J0JCC0000241 R2155 220 L2115 J0JCC0000241 ZA2102 TESA169 IC3005 AN15867A-VT 1 C3 2 S-3 3 V4 4 Y4 5 PDD2 6 C4 7 VCC1 8 C5 9 PDD1 10 V5 11 Y5 12 GND1 13 V6 14 V7 15 V8 16 V9 17 CY1 18 SPD1 19 PB1 20 PR1 21 IPD1 22 CY2 23 APD1 24 PB2 25 PR2 26 SPD2 27 CY3 28 IPD2 29 PB3 30 PR3 31 APD2 32 CY4 33 PB4 34 PR4 35 SDA 36 SCL 37 VOUT6 38 VOUT4 39 VCC2 40 COUT3/VOUT7 41 VOUT3 42 YOUT3/VOUT5 43 GND2 44 PRout2 45 PBout2/Cout2 46 CYout2/Yout2/Vout2 47 DCOUT 48 PRout1 49 PBout1/Cout1 50 CYout1/Yout1/Vout1 51 VOUT 52 SA1 53 V1 54 Y1 55 S-1 56 C1 57 SA2 58 V2 59 Y2 60 S-2 61 C2 62 SA3 63 V3 64 Y3 SUB9V_VIDEO C3067 50V 0.01u R2153 220 R2396 10k C2143 50V 0.01u L3000 G0C101K00023 C3035 10V 1u C2128 50V 0.1u SUB9V C3054 10V 1u C2162 16V 1u C2168 16V 1u JS2109 0 C2239 50V 0.01u R3076 0 R2236 10k R2164 220 R3174 220 R2215 0 C2148 16V 1u R2390 20k Q2314 B1ABDF000034 C_DVSS L2118 EXCELDR35V PA2055 K5H1622A0023 L2206 J0JCC0000241 C3022 10V 1u L2109 J0JCC0000100 JS2124 0 C2116 50V 0.1u L2183 J0JCC0000241 C3026 50V 0.01u C2153 16V 4.7u C2202 50V 5p L2186 J0JCC0000241 C2178 16V 10u R2173 220 L3009 J0JCC0000100 Q2317 B1ABDF000034 C2185 50V 0.1u R2154 22 R3057 0 R3087 220 R3058 0 R2234 10k C2129 10V 1u C2118 16V 47u C2176 50V 0.01u 1% R2149 63.4k JS2123 0 C2190 16V 1u C3075 16V 220u C3043 10V 1u C2149 16V 1u R2176 220 C3041 50V 0.01u C3047 10V 1u R2196 100k R2397 47k C3021 10V 1u R2183 100 R3175 220 R2166 1k SUB9V_VIDEO L2185 J0JCC0000241 C2160 16V 1u R2391 10k R2202 100 IC2103 AN77L08M-E1 IN 3 2 COM OUT 1 R2192 220 MAIN9V C3070 16V 0.1u Q2316 B1ABDF000034 R2398 12k C3024 10V 1u R3089 22 R2113 0 ERJ3GEY0R00V R2124 100 R2208 470 2.0 x 1.25 R2210 1.2k R2125 100 1% R2148 63.4k C2183 3.3u 50V R2126 4.7k C2181 50V 0.1u MSP_ANALOG POWER/1 AVSW/1 AVSW/2 POWER/2 MSP/DIGITAL SOUND/SIF DVSUP SPEAKER L MAIN HP out MAIN in SUB in SPEAKER R DIGITAL GND L AHVSS VREFTOP NC R (MSP4450K-QA-D6) VCC MUTE SW GND AGNDC 8V H-BOARD TNPA3760AF (2/3) TH-42PA7C H-Board (2 of 3) Schematic Diagram TH-42PA7C H-Board (2 of 3) Schematic Diagram 77 14.16.H 电路板 （3/3）线路图 21 27 25 26 24 19 22 23 20 11 12 13 14 15 16 ! + + KEY1 0.0V 9.0V G_LED STBY_LED MAIN_PB 9.0V SD_IRQ SD_RST SD_AUDIO_GND MAIN_Y MAIN_SW2 MAIN_SW1 MAIN_PR 9.0V AFC2 VOUT5 AGC1 AGC1 MSP KEY_EDGE AFC1 MAIN_Y_OUT MAIN_PB_OUT SOS SOS SOS RST MSP_RESET SP_MUTE AUDIO_MUTE SDA0B SCL0B MAIN_PB MAIN_PR MAIN_CVBS MAIN_Y SR_GND SR SL_GND SL AMUTE SUB3.3V HDMI_SR HDMI_SL SD_TXD SD_RXD MAIN_SW1 MAIN_SW2 MAIN_RF_GND MAIN_RF_CVBS ACTIVE_STB_LED SD_IRQ SD_RST SD_TXD SD_RXD 5.00V 30V 30.00V 30.00V SCL0B SDA0B RM_IN MAIN_PR_OUT MAIN_CVBS AFC2 AFC1 R3206 100 R3250 0 C3230 50V 0.1u CL053 SUB5V JS3256 0 C5604 50V 10u ZA3401 K4CZ01000027 CL078 CL077 R3214 0 SUB9V CL056 CL055 ZA3405 K4CZ01000027 H1 K1KY80A00011 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 JS3215 0 C3253 16V 0.1u CL034 H5 K1KA15AA0288 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 CL129 Q3014 VIDEO/1 2SA207700L SUB3.3V C0DBAJB00004 IC5603 1 VOUT 2 VDD 3 NC 5 EXT 4 VSS ZA3403 K4CZ01000027 C3063 50V 0.1u CL054 CL047 C3227 10V 10u JS3304 SUB5V D3023 MA2J11100L CL044 Q3011 2SA207700L 1% R3123 130 R3259 220 PA3104 0 C3059 16V 1u SUB9V R3215 J0JCC0000241 D3021 MA2J11100L 1% R5612 16k BT30V C3062 50V 0.1u JS3303 C3216 10V 10u R3213 0 C5686 50V 0.01u CL065 R3290 4.7k SUB5V Q3204 B1ABDF000034 MAIN9V R3102 6.8k JS3004 SUB5V_MSP 1% R5611 82k H15 K1KA04AA0150 1 2 3 4 R3049 220 H40 K1KA20AA0009 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 C3208 16V 0.47u 1% R3140 130 CL046 BT30V CL025 R3284 0 R3122 100 CL182 C5685 50V 10u CL057 CL022 SUB8V CL023 CL058 MAIN3.3V CL049 JS3246 0 1% R3121 130 R3240 10k R3261 0 L5610 G1C470MA0077 CL033 C3226 10V 10u JS3206 0 R3291 4.7k CL043 C3214 10V 10u R3048 22k R3118 100 R3160 1k 1% R3138 100 CL036 CL183 CL045 CL080 Q3015 2SA207700L CL051 Q3008 2SA207700L ZA3402 K4CZ01000027 D3044 MA2J11100L R3281 0 R3286 J0JCC0000241 CL021 C3228 10V 10u CL060 JS3239 0 CL219 D3022 MA2J11100L CL024 CL070 C3252 1u 16V R3127 1k L5608 G1C100MA0072 D5618 B0BC03900015 STB+5V R3141 1k R3161 1k STB+5V L5605 G1C1R0MA0072 JS3302 Q3205 B1ABDF000034 CL061 Q5614 B1CFNG000001 R3239 10k C3207 1u 16V SUB5V CL059 R3283 0 R3115 100 STB+B R3126 100 R3262 0 R3238 0 C3251 16V 0.1u R3050 2.4k R3051 6.8k H6 K1KA15AA0288 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 SUB9V_VIDEO JS3265 0 CL035 R3279 0 L3212 J0JCC0000100 H2 K1KA15A00148 1.25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 16 17 15 C3268 50V 0.01u CL124 1% R3353 68k D5610 MA3X78900L JS3266 0 CL050 R3251 0 SUB3.3V R3139 1k Q3017 2SA207700L CL048 L3216 J0JGC0000021 R3125 1k SL_GND SL_GND GND SL GND SOS STB5V GND SL STB3.3V 2Vpp to ADV SP_MUTE GND SUB_SW2 2Vpp to ADV GND MAIN_SW2 GND AUDIO_MUTE SCL0B 2Vpp to ADV GND GND 2Vpp to M2 GND GND GND MAIN_SW1 GND SUB_SW1 GND GND SUB5V GND AD_LRCK GND NC GND SDA0B GND GND GND A_MUTE AD_DAT GND GND GND MAIN_L MSP_RESET GND RST BS_SL GND BS_SR MAIN3.3V GND GND NC GND MAIN_R GND PC_V GND SUB_PR SUB3.3V GND SUB_Y GND MAIN9V PC_H GND HDMI_SL GND PC_B BT30V PC_G GND SUB_PB SUB3.3V GND SUB9V AD_BICK PC_R NC DVB_CVBS GND MAIN_CVBS SUB5V MAIN_PB SR SR MAIN_Y GND BT30V MAIN_PR STB5V SR_GND SD_RX SD_TX SD_IRQ SD_RST GND STBY_LED G_LED RM_IN KEY1 AI_SENSOR GND KEY_EDGE AFC1 AFC2 Active_STB_LED GND EURO\ASIA SR_GND HDMI_SR TV_V2 AFT2 SDA0B TV_V2_GND GND GND GND GND SCL0B TV_V1 TV_V1_GND GND AGC2 GND SUB_SW1 GND GND MAIN_SW2 AGC1 GND GND GND SUB_SW2 SIF SUB5V AFT1 SUB30V AM SUB5V MAIN_SW1 NC HP_MUTE HP_R HP_L AE AD AC AF AB AJ AH AG VCC H-BOARD TNPA3760AF (3/3) TH-42PA7C H-Board (3 of 3) Schematic Diagram TH-42PA7C H-Board (3 of 3) Schematic Diagram BALLAN L3201 G0B101Y00001 1 2 3 4 PC_GND_G PC_GND_B PC_GND_R PC-R PC-G PC-B PC-H PC-V 5.00V AV4_VGND AV4_CGND AV4_YGND ACTIVE_STB_LED RM_IN 5.00V KEY1 KEY_EDGE G_LED STBY_LED JS3252 0 JS3352 J0JCC0000241 C3265 50V 1000p SUB5V H53 K1KA12AA0194 To k3 1 2 3 4 5 6 7 8 9 10 11 12 C3273 50V 68p JS3355 J0JCC0000241 C3241 50V 0.1u JS3354 J0JCC0000241 JS3368 R3227 0 C3233 50V 0.1u STB+B JS3357 J0JCC0000241 R3277 0 R3229 0 C3271 50V 68p C3272 50V 68p JS3255 0 R3224 0 R3228 0 JS3359 J0JCC0000241 C3262 50V 4700p C3270 50V 68p C3274 50V 1000p KEY_EDGE GND SUB5V STBY_LED STBY5V/3.3V to GK3,K1 ACTIVE_STB_LED RM_IN GND GND KEY1 G_LED 78 14.17.TA 电路板线路图 3 9 7 A 8 6 E C D B 1 F 4 5 2 + + 0V 0V 0V 0V 0V MAIN_SW1 MAIN_SW2 0V 0V 30.00V 0V 5V GUARD_A SIF 0V 30.00V SCL0B GUARD_CLK SCL0B SDA0B GUARD_CLK 30.00V 5.00V 0V SCL0B SDA0B MAIN_SW1 MAIN_SW2 GUARD_CLK GUARD_CLK SUB5V 5.00V GUARD AFT1 SIF TV_V1 0V TV_V1_GND TV_V1 TV_V1_GND SDA0B 5.00V AFT1 5.00V L001 J0JGC0000021 CL018 C030 50V 33p Q002 2SA207700L R022 220 C029 50V 33p R014 0 CL009 CL016 R009 220 R017 22 C002 10u 50V CL011 1% R029 270k JS012 ERJ3GEY0R00V 0 C008 16V 0.1u CL010 1% R028 150k CL007 CL013 L031 J0JGC0000021 TU001 ENG39A26GF NC 1 NC 2 BM 3 NC 4 SW1 5 SW2 6 BT 7 RF_AGC 8 NC 9 SCL 10 SDA 11 AFT 12 AUDIO_OUT 13 SIF_OUT 14 BTL 15 IF_OUT 16 VIDEO_OUT 17 R020 0 TA5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 L007 J0JCC0000241 TA6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 R011 270 C041 16V 0.1u CL014 L011 J0JCC0000241 C011 50V 33p R008 0 CL017 L032 J0JGC0000021 CL008 R019 0 R005 560 L013 J0JCC0000241 C042 16V 0.1u L010 J0JCC0000241 CL015 R001 1k C010 50V 33p L021 0 CL002 C009 50V 100p R023 0 R018 22 C016 16V 0.1u CL012 C003 50V 0.1u R021 1k C006 6.3V 1000u TV_V1 AFT1 GND TV_V1_GND SCL0B BT30V GND GND GND GND AFT2 GND TV_V2 SDA0B MAIN_SW1 SUB5V GND GND GND RFAGC2 SUB_SW1 SUB_SW2 GND SUB5V MAIN_SW2 RFAGC1 GND NC SIF TV_V2_GND ! TH-42PA7C TA-Board Schematic Diagram TH-42PA7C TA-Board Schematic Diagram TA-BOARD TNPA3768AE 79 14.18.HC 和 K 电路板方框图 R G KEY SWITCH SW3752 SW3755 F SW3753 SW3754 TV/AV SW3751 VOL.UP STR VOL.DN LED VCC K1 9 RM2510 Q2511 6 ON/OFF Q2513 REMOTE RECEIVER Q2510 REMOCON RECEIVER K VOUT RM_IN KEY EDGE 1 TO H53 2 STB3.3V KEY1 Q2519 Q2520 5 ON_LED 7 POWER LED D2530 STBY_LED TH-42PA7C HC and K-Board Block Diagram TH-42PA7C HC and K-Board Block Diagram 21 10 MAIN ROUT DEVICE HC01 HC22 FACTORY IIC1 6 7 SD_RX 9 12 5 1 OUTPUT OF DVB 2 3 SUB5V IIC2 SDA0A SRQ1 17 GND SDA0B SD_RX SCL1 15 SD_TX SCL0B SCL0B 14 HC21 6 1 2 2 16 12 4 13 FACTORY STB5V 6 14 GND 9 SRQ SCL0A HC12 3 5 10 SDA0A 7 TO DG15 11 1 18 17 HC15 40 38 15 D_STB3R3V JIG CONNECTION D_IIC_CONT D_SDA2 35 IIC0 USE D_SCL2 36 34 33 D_TXD EEPROM ROUT D_RXD 29 19 26 D_PSTB 28 SUB ROUT DEVICE D_PBUSY 31 D_PDB1 8 D_IIC_INT + PANEL MICOM D_PSLCT D_PDB0 32 27 SCL1 REMOCON SDA1 G_LED SDA2 23 SCL2 22 20 5 4 25 IIC0B SDA0B D15V INPUT TO DVB SCL0A 1 STB5V SCL0B SRQ FACTORY SRQ 24 USE 19 STB5V 9 R_LED FOR 5 SDA1 SCL0A 11 11 18 4 SCL2 SDA2 USE 8 SDA0A FOR 6 HIGH SPEED DEVICE ROUTE SD_TX FOR 8 HC 2 FACTORY USE FOR 8 SDA0B SCL2 9 7 SDA2 7 SDA0A 6 SCL0A 80 14.19.HC 和 K 电路板线路图 5 6 D E C A 7 1 B 3 4 2 8 K-BOARD TXN/K1JPTC HC-BOARD TNPA3852 TH-42PA7C HC and K-Board Schematic Diagram TH-42PA7C HC and K-Board Schematic Diagram 18 16 14 12 10 8 6 4 2 20 21 19 17 15 13 11 9 7 5 3 1 HC21 B8B-PH-K-S(LF)(SN) K1KA08AA0193 1 2 3 4 5 6 7 8 JS3405 0 JS3403 HC22 B11B-PH-K-S(LF)(SN) K1KA11AA0194 1 2 3 4 5 6 7 8 9 10 11 HC12 K1KA09AA0190 B9B-EH-F1(LF)(SN) 1 2 3 4 5 6 7 8 9 HC15 K1KY40B00003 1871335-1 0.5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 JS3404 0 JS3402 HC01 K1KA21A00011 BM21B-SHLVS-G-TBT(LF)(SN) 1 2 SD_TX G_LED R_LED RIMOCON SD_RX SDA0B SCL2 SDA2 SRQ1 IIC0B GND IIC2 IIC1 IIC0 EEPROM STB5V SCL0A SDA0A SCL0B IIC_CLK2 IIC_DATA2 TXD RXD IIC_CONT IIC/INT P15V PSTB STBY3.3V PBUSY PDB0 PSLCT PDB1 STB5V GND STB5V SRQ1 SCL1 SDA1 SCL2 SDA2 SDA0B SRQ1 GND STB5V SCL0A SDA0A SCL0B NC SDA0A SCL0A G R C2515 25V 0.01u R2542 100 R2517 47 SW3751 EVQ11G05R R2516 22k C1 D2524 MAZ80560ML C1 C1 C1 R2525 10k 1% R3750 14.3k C1 C1 R2557 1k Q2510 2SD0601A0L D2532 MAZ80560ML SW3754 EVQ11G05R R2554 1k R2526 5.6k C2512 6.3V 10u D2530 B3AGA0000072 R2529 5.6k RM2510 PNA4701M05TV VOUT GND VCC Q2519 2SB0709A0L SW3752 EVQ11G05R Q2520 2SB0709A0L R2531 470 C1 R2565 0 K3 To H53 1 2 3 4 5 6 7 8 9 R2561 0 R2520 220k R2553 22k C1 Q2513 2SD0601A0L R2524 22k 1% R3751 6.65k SW3755 EVQ11G05R R2558 180 SW3753 EVQ11G05R R2530 22k Q2511 2SD0601A0L R2562 0 C1 D2529 MAZ80560ML R3752 0 1% R3754 7.15k 1% R3753 1.74k R2545 100 POWER LED TV/AV -/ F STR +/ GND KEYSCAN R G POWER LED TYPRM2510FTJ REMOTE CONTROL GND REMOCON G_LED_ON KEY R_LED_ON/STBY_LED STBY 3.3V GND Active STB LED/KEY3 KEY_EDGE K1KA09BA0061 81 14.20.DG 电路板 （1/2）方框图 RM_IN TV_MAIN_ON B_DDR_CLK GC_RST MAIN_PR AFC1 MCU_RST MAIN_Y/CVBS KEY1 B_DDR_NCLK AUDIO_MUTE STBY_LED MAIN_PB/C SL SOUND_SOS TV_MAIN_ON SR SOS SOS TV_SUB_ON RGB/CVBS MAIN_Y/CVBS A_MON_MUTE_MSP_RESET SL SR SOS SP_MUTE KEY_EDGE MAIN_PB/C MAIN_PR RST SENSOR SDA MATRIX 8 1 1 VOUT HSIA MAIN_PR DG2 SYNC A/D 10bit 4 9 14 VDD Q1115,Q1113 MAIN 3.3V AIN1 5 1 DETECT 82 36 DDR2.5V SCL2 A_MON_MUTE I/P CONV. 625i/p VIN 12 SCL A/D 10bit 86 TRST SR 11 STBY3.3V 5 1 VDOUT IC4032 STBY3.3V HS VOUT IC4016 KEY1 16 SOS 12 VIN IC4013 IC4019 110MHz SUB3.3V PORT-A A_DDR_CLK TCK MAIN_PB/C DCLK_IN SDA2 RESET 74 SCL0B IC4029 1.8V AUDIO MUTE AFC1 80 3D/2D com (ADV7499) AVR 1.8V SDA0B 3D Y/C SDA I/F STB 1.5V MAIN1.2V VSIA STB1.5V ON/ NR KEY_EDGE VS_IN 78 54 TO 4 SL VIN VDD 8 A_DDR_NCLK MIX 1 AD 3.3V Q4050,Q4058 Sync AIN4 REFCK_ADV 110MHz AVR 1.8V 5 8 5 73 MAIN_Y/CVBS 10bit A/D(ADV7499) 76 SCL2 5 STB 3.3V STBY3.3V AD 3.3V IC4038 RESIZE 1080i 720p 35 IC4037 SEPA 7 VOUT MAIN1.8V XTAL CHROMA 1 SW CLK 8 H1 SCLK VOUT 78 IC1110 99 PLL3.3V RM_IN MAIN 1.2V COLOUR H2 PLL 3.3V INPUT DDR 2.5V 15 SDA2 DIGITAL Macrovision AIN6 VOUT VIN 13 VIN CONT SP MUTE 65 MAIN 5V 6 56 IC4030 MAIN5V TMS 1.8V TO MAIN3.3V 38 63 72 85 RST STBY5V OFF DEM. SUB3.3V MAIN3.3V ->YUV 5 Q4056 81 7 VS STBY_LED CLKIA 4 67 4 CK 3 110MHz AIN3 TDI(FS) IC1111 VOUT CLK0A 5 SELF,ID,ED2 13 NOISE LEVEL NRST VOUT SDA0B 128M DDR SDRAM AIN5 IC4018 IC4035 VOUT CK LLC1 HS_IN 1 Detection AIN2 RGB MAIN3.3V DLL 2.5V SCL0B 58 1 A/D 10bit 525i/p 6 5 JTAG RESET VPK VOUT VIN 1 8 DLL 2.5V DG1 VIN SR MAIN5V SUB5V 29 SUB9V 32 SUB5V 8 SOS MAIN3.3V MAIN9V 22 33 23 SOUND_SOS DG20 28 38 SUB5V MAIN3.3V 18 7 MAIN1.8V 17 MAIN5V 35 SUB_ON PA20 MAIN3.3V 40 2 6 MAIN3.3V 21 MAIN5V MAIN9V TO 9 MAIN1.8V 4 SUB 9V SUB 9V MAIN1.8V 39 SL SUB 9V TUNER TV_MAIN_ON RGB_CVBS 61 Q1140,Q1141 D1107 RST SUB5V Q1116,Q1114 Q1108,Q1111 STBY5V 5 CONT 5 CONT YIN0-YIN9 UVIN0-UVIN9 RIN0-RIN3 10 13 14 91 94 22 29 42 41 30 33 77 SL SR 74 Q4057 R1307 DIGITAL SIGNAL PROCESSOR HDMI INTERFACE DG MICOM _MSP.RESET GC5 PROCESSOR SW OFF DET TDO 7 G_LED D1106 PC_R PC_G PC_B PC_HS PC_VS PC_B PC_G PC_R PC_B PC_G PC_R 49 47 51 PC_VS PC_HS PC_VS PC_HS 43 45 TH-42PA7C DG-Board Block (1 of 2) Diagram TH-42PA7C DG-Board (1 of 2) Block Diagram 82 14.21.DG 电路板 （2/2）方框图 SOS GENX_X_V GENX_X_H GENX_R0-R4 KEY1 PANEL_SOS GENX_B0-B4 PANEL_STATUS ECO_ON PANEL_STB_ON DISPEN TV_MAIN_ON GENX_X_CLK SOUND_SOS GENX_YS PANEL_STB_ON ECO_ON DISPEN GENX_G0-G5 STBY_LED MCU_RST GENX_YM PANEL_STATUS PANEL_SOS TV_SUB_ON ALL_OFF WP GC_RST WP RM_IN AFC1 KEY_EDGE SENSOR ALL_OFF AUDIO_MUTE SP_MUTE G_LED RST D_PSLCT(PSCLT) TX_TE- REMOCON 117 D_RXD 109 IC4037 SDA0B OSDXI 20 2 PORT_E STBY_LED GAMMA TX_TD+ D_IIC_INT 17 4 D_IIC_INT(IIC_INT) SRQ ECO_ON R_LED STBY5V_DET 13 SCL0B 13 TUNER_SUB_ON YSOUT 11 SCL2 SCL2 MAIN3.3V_DET TX_TB- R04 PORT_D DISPEN(DRVMUTE) SCL1 DG3 18 37 D_RXD D_PDB0 1 107 13 FLASH DG5 206 TX_TE+ 20 GENX_YS 1 9 GENX_HIN 105 Q1101,1139 33 32 209 TO 17 100 SDA0A 208 WP 7 TX_TA+ 29 TV_MAIN_ON 16M KEY_EDGE FOR IIC/SERIAL 110 VMUTE TX_TD- 5 13 14 33 ALARM 133 D_15V(P15V) (OSD INPUT) 22 D_TXD 30 OSD MIX VSOE TX_TCLK+ X1101 D_PDB1(PDB1) 16 POWER_SOS TO D5 132 R00 23 187 FOR ROM(D-BOARD) G_LED(LED_G) D_SCL2(IIC_CLK2) 1 122 22 LVDS_PD 5 D_15V PANEL STATUS 14 TX_TCLK- 138 4 D_PBUSY(PBUSY) SUB9V IC1101 PANEL_STBY_ON CONVERTER SCL0A READY(STATUS) 116 SDA2 215 95 6 ALL_OFF RTCXO SCL0A 3 12 136 160 Q1100 112 5 9 GENX_CLKIN 6 SDA0B 29 216 15 CONT MAIN3.3V D_PSTB 8 3 B00 X1100 CLKOE PANEL SCL1 D/A OSD PIXEL CONV. 111 SCL2 D_PSLCT 159 135 11 G_LED PANEL_STB_ON 61 14 SCL1 SRQ 8 REMOTE IN D3 D_IIC_CONT TV_SUB_ON STBY5V SDA0A GENX_VIN AFC1 26 10 Q1103 G_LED 4 R_LED(LED_R) SXCO D_PDB1 GC_RST SUB5V_DET 97 21 123 IIC_CLK1 2 D_SDA2(IIC_DATA2) 168 14 15 212 RTCXI 210 D_IIC_CONT(IIC_CONT) SDA2 3 21 SCL2 10 169 KEYSCAN1 35 B04 17 STBY5V D_STB3R3V OSCXI TX_TB+ 10 D_PBUSY ECO_ON 27 D_STB3R3V(STBY3.3V) HSOE RESET NRST SOUND SOS 23 PANEL SDA1 16 SUB9V_DET 19 VSYNC 8 TX_TC+ 5 D_SDA2 TX_TA- 27 D_SCL2 SDA2 12 205 19 SCL0A YMOUT0 44 101 G00 24 PANEL_SOS D_PSTB(PSTB) 34 SDA1 SDA0A (RGB OUT) REMOCON HSYNC AI 128 2 TX_TC- D_TXD 16 30 SUB5V GC5 PROCESSOR SDA2 STBY5V STBY3.3V 110MHz 3 207 D_PDB0 SCL0A SDA1 7 D/A 10bit IIC_DATA1 SDA0A ROM D/A 8bit SCL0B OSD G05 64M IC1100 SDRAM 41 ALL_OFF SDA 5 7 6 SCL0A IC1102 SCL 64K EEPROM SDA0A WP Q1137 AI_SENSOR 162 46 47 GENX_R0-R4 GENX_B0-B4 GENX_G0-G5 GENX_YM 4 5 61 59 33 38 (SERIAL) LVDS TRANSMITTER(10bit) 23 29 GOE0~GOE9 55 TB- CLKIN 18 22 LVDS 57 BOE0~BOE9 TC4 TA+ PARALLEL TC- TCLK- 25 TA- 24 20 31 30 TE- TD- TD+ IC4036 DATA 13 /PDWN 12 TE+ 19 TC+ TC5 28 TCLK+ TTL 21 TB+ 8 63 40 62 42 6 11 64 9 1 ROE0~ROE9 44 46 48 50 52 54 10Bit LVDS 19 STBY5V STBY5V MSP RESET AUDIO MUTE 52 45 42 SPMUTE DIGITAL SIGNAL PROCESSOR HDMI INTERFACE DG MICOM 174 1 172 11 179 TRCD1 5 TRCD2 180 TRCD2 17 TRCD0 TRCCLK 7 TRCST STBY3.3V SDATA USE TRCD0 3 STBY3.3V TRCST 178 173 (DEBUGER) 15 9 TRCCLK TRCD3 SCL0CK TRCD3 175 RST SDATA FOR 4 SCL0CK 19 171 TRCD1 FACTORY 13 EXTRG0 DG7 EXTRG0 176 IC1103 MAIN MICOM DG15 60 102 59 AGC1_RX AGC1_TX 103 SD_RX SD_TX 35 36 HC15 SDA1 SCL1 SCL1 SDA1 TO MSP RESET TH-42PA7C DG-Board Block (2 of 2) Diagram TH-42PA7C DG-Board (2 of 2) Block Diagram TDO TDI(FS) TMS Q4063 Q4061 Q4064 Q4062 83 14.22.DG 电路板 （1/7）线路图 + AO_A6 AQ_D4 AO_A14 AQ_D13 AR_CLK AQ_D3 AR_RAS EXTRG0 AQ_D10 AQ_D5 PANEL_STATUS AO_A8 AQ_D2 AO_A3 AO_A11 SDA0A AO_A6 ECO_ON AQ_D7 AQ_D9 AO_A7 TRCCLK AQ_D14 AO_A11 AQ_D4 SDATA AO_A12 ALL_OFF AQ_D6 SCLOCK RST AQ_D6 MEMA10 AO_A2 AR_CS TRCST AQ_D10 AO_A9 AO_A19 TRCD3 AQ_D13 AO_A18 AR_CKE AQ_D1 AR_BA0 TRCD2 AR_CAS AP_CE AO_A9 AQ_D15 AQ_D12 TRCD1 TV_SUB_ON AO_A8 AO_A10 AR_LDQM TRCD0 AP_OE AQ_D0 AQ_D11 AQ_D5 AO_A15 AO_A5 AQ_D9 AQ_D11 AQ_D12 AO_A12 AQ_D14 AO_A3 PANEL_SOS AO_A10 AP_WE AO_A17 AO_A4 AQ_D3 AQ_D8 AR_UDQM AQ_D2 AO_A4 AO_A1 AR_WR AO_A13 AQ_D1 AO_A5 AO_A2 AO_A16 AO_A7 DISPEN PANEL_STBY_ON PANEL_SCL1 PANEL_SDA1 D_STB3R3V D_IIC_CONT D_SCL2 D_SDA2 D_TXD D_RXD D_IIC_INT D_15V D_PSTB D_PBUSY D_PDB0 D_PSLCT D_PDB1 AO_A0 RIMOCON R_LED G_LED AQ_D0 AQ_D7 AQ_D8 AQ_D15 STBY3.3V SCL0A AO_A0 STBY3.3V R1122 22 L1101 J0JHC0000078 TP1108 R1412 100k R1454 0 C1110 10V 0.1u C1116 10V 0.1u R1125 3.3k C1109 10V 0.1u R1458 100 C1106 10V 1u R1414 0 C1114 10V 0.1u R1112 100 Q1137 B1ABDF000034 R1113 3.3k R1413 100k C1223 6.3V 10u R1106 1k TP1101 IC1102 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC DG7 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 STBY3.3V R1111 100 STBY3.3V C3ABPG000145 IC1100 1 VDD 2 DQ0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 VDD 15 LDQM 16 /WE 17 /CAS 18 /RAS 19 /CS 20 BA0 21 BA1 22 A10 23 A0 24 A1 25 A2 26 A3 27 VDD 28 VSS 29 A4 30 A5 31 A6 32 A7 33 A8 34 A9 35 A11 36 NC 37 CKE 38 CLK 39 UDQM 40 NC 41 VSS 42 DQ8 43 VDDQ 44 DQ9 45 DQ10 46 VSSQ 47 DQ11 48 DQ12 49 VDDQ 50 DQ13 51 DQ14 52 VSSQ 53 DQ15 54 VSS C1102 10V 0.1u R1108 100 R1114 0 TP1109 R1102 1k R1105 1k R1123 47k C1227 50V 100p R1118 EXB2HV680JV R1408 100k R1109 100 C1111 10V 0.1u TP1105 C1100 10V 0.1u DG3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 R1110 100 TP1104 C1112 25V 270p R1101 100 TP1103 R1124 3.3k C1105 25V 270p C1107 4V 100u R1459 100 R1119 EXB2HV680JV IC1101 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 R1117 0 TP1102 STBY5V C1226 6.3V 10u C1222 6.3V 10u C1103 25V 270p STBY3.3V R1116 5.6k R1121 22 R1103 1k IIC_CLK1 DISPEN FANMAX ECO_ON GND GND FANSOS PANEL_STB_ON STB5V 16M FLASH GND GND IIC_DATA1 INEXCH READY ALL_OFF GND TUNER_SUB_ON ALARM Panasonic_Mode NC E A 6 7 8 1 C 3 9 B 4 F 5 2 D 64M SDRAM EEPROM G_LED R_LED REMOCON AC_GOOD D_IIC_INT D_RXD D_TXD D_SDA2 D_SCL2 D_IIC_CONT D_STB3R3V D_PDB1 D_PSLCT D_PDB0 D_PBUSY D_PSTB D_15V (D3) D-BOARD TO USE FOR FACTORY (DEBUGER) TRCD2 TRCD0 TRCD1 TRCST TRCCLK TRCD3 SDATA EXTRG0 STBY3.3V RST SCL0CK 1 2 3 4 5 6 7 8 9 10 11 12 13 TVRP246-1 TVRP247 DG-BOARD TNPA3756DN (1/7) TH-42PA7C DG-Board (1 of 7) Schematic Diagram TH-42PA7C DG-Board (1 of 7) Schematic Diagram 84 14.23.DG 电路板 （2/7）线路图 + AO_A8 STBY_LED GENX_R2 SDA0A AQ_D15 LVDS_PD GENX_G0 AO_A12 EXTRG0 GENX_R1 GENX_B1 SDA1 TRCD3 AP_WE MEMA10 GENX_HIN GENX_R3 AUDIO_MUTE AQ_D2 TRCST SCL0A SDATA AR_RAS AQ_D9 AO_A2 AQ_D4 AO_A19 GENX_G2 SCL2 AR_BA0 SCL1 AO_A5 AO_A14 AO_A1 AQ_D14 TRCD0 AGC1_TXD PANEL_SOS AP_OE AQ_D5 TRCD1 AR_UDQM SOUND_SOS AO_A3 SCL1 GENX_G3 SCLOCK AR_CKE AO_A17 SDA0B AQ_D10 GENX_B2 PANEL_STATUS AO_A16 TRCD2 AQ_D12 GENX_B0 GC_RST AR_LDQM AQ_D0 AO_A6 KEY_EDGE AR_CLK AQ_D11 AQ_D7 AO_A10 RST ALL_OFF AQ_D8 SOS DISPEN GENX_R0 AQ_D3 ECO_ON SP_MUTE G_LED AQ_D1 GENX_B3 GENX_CLKIN GENX_VIN AR_WR AQ_D13 AO_A15 A_MON_MUTE_MSP_RESET AR_CAS FAN_SOS AP_CE RST AQ_D6 AO_A9 GENX_G1 GENX_R4 AO_A18 AO_A7 AR_CS AO_A11 AO_A4 AO_A13 RM_IN MCU_RST TV_SUB_ON TV_SUB_ON SDA2 PANEL_STBY_ON STB1.5V MCU_RST MAIN_SW1 MAIN_SW2 AO_A0 SCL0B GENX_B4 GENX_G4 GENX_G5 TV_MAIN_ON TV_MAIN_ON TRCCLK STBY3.3V SDA1 M_SDA0 PANEL_SDA1 PANEL_SCL1 GENX_YS GENX_YM SRQ R1129 47k R1215 100 R1251 EXB2HV101JV R1177 100 Q1115 B1ABDF000034 C1156 50V 22p R1322 10 C1120 10V0.1u MAIN3.3V C1139 10V 0.1u R1225 22 R1207 100k R1186 47k R1191 47k C1168 10V 1u R1312 22 R1479 47k R1168 0 R1156 100k JS1102 0 R1275 7.15k R1174 100 C1127 10V 0.1u R1331 100k R1310 22 R1234 0 R1199 47k R1153 100 R1228 22 C1150 10V 0.1u R1241 8.2k R1222 33 R1299 0 C1119 10V 0.1u R1220 68 R1316 10k R1238 47k R1330 47k C1158 10u 6.3V R1256 1k R1318 5.1k R1232 3.3k TP1107 R1132 100 C1190 16V 0.01u R1279 22 R1159 12k R1236 2.7k R1224 47k C1149 10V 0.1u JS1100 0 R1281 1k R1332 100k R1301 0 R1175 56k R1147 EXB2HV560JV R1197 47k R1466 10k C1167 10V 1u D1107 MA2J72900L C0EBY0000041 IC1111 1 VIN 2 VSS 3 ON/OFF 5 VOUT 4 VDOUT R1252 EXB2HV101JV R1313 10k C1161 10V 1u JS1101 0 Q1141 B1ABDF000034 R1130 47k R1282 15k R1249 47k Q1108 B1ABDF000034 R1263 100 R1470 0 C1178 10V 1u R1325 100k R1155 4.7k R1154 4.7k R1218 68 C1137 10V 0.1u R1169 0 R1158 27k C1134 50V 15p R1183 EXB28V680JX R1149 EXB2HV680JV C1152 10V 0.1u C1145 10V 0.1u R1368 18k R1290 4.7k R1314 10k R1309 22 STBY3.3V SUB5V Q1110 B1CBHD000002 R1233 3.3k R1164 12k R1226 22 R1369 0 R1141 68 C1133 50V 15p Q1111 B1ABDF000034 R1389 0 R1307 100k R1327 68k C1155 16V 0.01u C1221 50V 1000p R1319 5.1k R1152 1k R1492 0 R1326 100k R1270 22 L1104 J0JHC0000078 R1280 22 R1146 270 R1239 12k R1311 22 R1221 3.3k R1267 47k R1340 47k C1146 10V 0.1u L1102 J0JHC0000078 Q1140 B1ABDF000034 R1324 82k R1151 100 R1135 10k R1321 15k C1172 10V 0.1u R1269 0 X1100 H0J100500030 R1229 1.8k R1308 27k C1147 10V 0.1u R1200 EXB2HV680JV R1140 68 R1157 100 STBY3.3V C1131 10V 0.1u R1323 82k R1300 0 R1346 47k R1176 12k R1216 100 R1223 1k R1162 47k SUB5V Q1114 B1ABDF000034 C1132 10V 0.1u SUB5V R1160 47k R1187 EXB2HV680JV R1250 220k R1526 1k STBY3.3V Q1103 B1ABDF000034 R1231 47k Q1139 B1ABDF000034 MN103SB20RGL IC1103 1 ZMEMD29 2 ZMEMD28 3 ZMEMD27 4 ZMEMD26 5 ZMEMD25 6 ZMEMD24 7 IVSS 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 IVDD 17 - 18 - 19 - 20 - 21 MVSS 22 MVDD 23 - 24 - 25 - 26 - 27 DQM0 28 DQM1 29 SDCKI 30 IVDD 31 SDCLK 32 IVSS 33 SDCKE 34 NSDWE 35 NSDCAS 36 NSDRAS 37 NSDCS 38 SDBS0 39 - 40 MEMA10 41 ZMEMA11 42 ZMEMA9 43 ZMEMA8 44 ZMEMA7 45 ZMEMA6 46 ZMEMA5 47 ZMEMA4 48 IVSS 49 IVDD 50 ZMEMA3 51 ZMEMA2 52 ZMEMA1 53 ZMEMA0 54 VSS 55 VDD 56 - 57 - 58 - 59 - 60 - 61 - 62 - 63 - 64 A17 65 A16 66 A15 67 A14 68 - 69 - 70 - 71 - 72 - 73 IVDD 74 IVSS 75 A20 76 A21 77 NWE0 78 A22 79 A19 80 A18 81 RTCCNT 82 - 83 - 84 - 85 IVSS 86 - 87 - 88 IVDD 89 - 90 - 91 - 92 A2 93 NRE 94 NCS0 95 ZA1 96 VSS 103 SCL1 104 NTEST 105 HSYNC 106 IVSS 107 OSDXI 108 IVDD 118 G04 119 G03 120 G02 121 - 122 - 123 B04 124 B03 125 B02 126 B01 127 IVSS 128 - 129 IVDD 130 - 131 - 132 SDA0A 133 SCL0A 134 VSS 135 RTCXI 136 RTCXO 137 VDD 138 RMIN_IRQ0 139 ROMCNT 140 TEST 141 AVSS1 142 CVBS0 143 AVDD1 144 VREFL0 145 VREFH0 146 VCMO0 147 IREF0 148 VCMO1 149 VREFH1 150 VREFL1 151 CVBS1 152 AVSS2 153 AVDD2 154 PVDD 155 CLL 156 CLH 157 PVSS 158 IVSS 159 - 160 - 161 - 162 - 163 ADIN4 164 ADIN5 165 CECINA 166 CECINB 167 IVSS 168 OSCXO 169 OSCXI 170 IVDD 171 TRCD3 184 - 185 - 186 - 187 - 188 - 189 - 190 - 191 IVDD 192 IVSS 193 - 194 - 195 - 196 - 197 - 198 - 199 - 200 - 201 IVDD 202 IVSS 203 MVSS 204 MVDD 205 - 206 - 207 - 208 - 209 - 210 - 211 - 212 - 213 IVSS 214 IVDD 215 ZMEMD31 216 ZMEMD30 109 - 111 YSOUT 113 R03 115 R01 117 G05 110 - 112 R04 114 R02 116 - 172 TRCD2 173 TRCD1 174 TRCD0 181 VSS 182 VDD 183 - 97 NRST 98 VDD 99 PSCNT 100 SDA2 101 SCL2 102 SDA1 175 TRCST 176 TRCCLK 177 EXTRG1 178 EXTRG0 179 SDATA 180 SCLOCK R1367 33k R1184 0 R1165 15k R1363 47k R1271 22 MAIN3.3V Q1109 B1CBHD000002 SUB3.3V R1302 0 C1157 50V 22p PA1101 K5H8012A0023 C1141 10V 0.1u C1138 10V 0.1u R1283 100 R1264 100 R1448 47k Q1101 B1ABDF000034 C1128 10V 0.1u R1329 47k SUB9V STBY5V R1181 100 R1240 47k R1480 47k C1144 10V 0.1u R1148 EXB2HV560JV Q1116 B1ABDF000034 R1344 100 C1121 10V0.1u R1384 100 R1131 100 R1478 68 R1452 47k X1101 H0J327200114 TP1106 L1103 J0JHC0000078 C1129 10V 0.1u R1192 47k R1209 47k D1106 MA2J72900L Q1113 B1ABDF000034 C1142 10V 0.1u R1449 47k R1134 1k C1177 10V 0.33u R1246 9.1k C1148 10V 0.1u C1153 4V 100u R1315 33k C1154 10V 0.1u C1224 10V 0.1u C1225 10V 0.1u C1135 10V 0.1u MAIN3.3V C1125 10V 0.1u C1140 10V 0.1u C1122 10V 0.1u R1188 10k STBY5V D1121 MA2J72900L R1467 47k R1243 1k R1182 68k R1217 100 R1235 2.7k C1159 10V 0.1u C1136 10V 0.1u R1451 47k STBY5V R1328 68k C1118 10V 0.1u R1411 47k R1484 47k R1482 47k R1483 47k R1257 47k R1244 47k R1481 47k Q1100 B1ABDF000034 R1133 1k C1123 10V 0.1u C1130 10V 0.1u R1230 22 C0CBCAD00016 IC1110 1 Vcont 2 GND 3 Np 5 Vin 4 Vout STBY5V MCU_ANALOG_VIDEO YMOUT0 MEMD5/D5/IRQ6A HOUTA A4/MEMA1 ADIN3 ADIN1 MEMD28/D28 MEMD6/D6/IRQ7A A10/MEMA7 ADIN0 SCL0B MEMD19/D19 MEMD30/D30 ZMEMD20/IRQ5B ZMEMD18/IRQ3B MEMD10/D10 MEMD20/D20 G01 A11/MEMA8 STB5V MEMD8/D8 SUB5V A7/MEMA4 A8/MEMA5 ZMEMD21/IRQ6B ZMEMD23/IRQ8B MEMD29/D29 MEMD7/D7/IRQ8A (USA:KEYSCAN3) (Euro:key EDGE) MEMD27/D27 SDBS1/A1 VSYNC MEMD25/D25 MEMD31/D31 MEMD16/D16 ZMEMD19/IRQ4B SDA0B ZMEMD22/IRQ7B A6/MEMA3 B00 MEMD17/D17 G00 MEMD18/D18 MEMD21/D21 MEMD11/D11 VCLKOUTA ADIN2 MEMD24/D24 A5/MEMA2 A9/MEMA6 R00 MEMD22/D22 MEMD1/D1/IRQ2A ZMEMD16/NCS2B MEMD23/D23 MEMD4/D4/IRQ5A MEMD0/D0/NCS2A ZMEMD17/IRQ2B MEMD26/D26 MEMD15/D15 MEMD2/D2/IRQ3A MEMD14/D14 MEMD3/D3/IRQ4A A12/MEMA9 MEMD13/D13 A13/MEMA11 MEMD9/D9 MEMD12/D12 A3/MEMA0 14 11 13 17 12 18 15 16 10 MAIN MICOM RESET STB 3.3V STB 1.5V 2 4 3 1 11 8 6 5 13 12 9 10 7 21 24 23 25 27 28 29 30 31 AGC1_RXD TH-42PA7C DG-Board (2 of 7) Schematic Diagram TH-42PA7C DG-Board (2 of 7) Schematic Diagram DG-BOARD TNPA3756DN (2/7) KEY1 AFC1 85 14.24.DG 电路板 （3/7）线路图 + + + + + + + AGC1_SD_TXD AGC2_SD_RXD AGC2_RXD AUDIO_MUTE RST A_MON_MUTE_MSP_RESET SDA0B SCL0B HDMI_L HDMI_R MAIN_PR MAIN_Y/CVBS MAIN_PB/C SP_MUTE TV_MAIN_ON TV_SUB_ON SOS SOUND_SOS SL SL_GND SR SR_GND SL SL_GND SR SR_GND SOS D_STB3R3V D_IIC_CONT D_SCL2 D_SDA2 D_TXD D_RXD D_IIC_INT AGC1_SD_TXD AGC2_SD_RXD SCL0A SDA0A SDA2 SCL0B SDA0B SCL1 SDA1 SRQ AFC1 KEY1 RM_IN G_LED STBY_LED AGC2_SD_RXD AGC1_SD_TXD KEY_EDGE R_LED G_LED RIMOCON D_PSTB D_PBUSY D_PDB0 D_PSLCT D_PDB1 D_15V SCL2 FAN_SOS AGC1_TXD MAIN1.8V C1230 47u 16V STBY3.3V C1234 47u 16V TP1118 DG20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 TP1117 TP1120 R1179 100 DG1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 STBY5V R1178 100 TP1116 SUB5V R1428 0 C1233 47u 16V MAIN9V DG2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 R1212 0 R1352 47k R1426 0 R1432 0 R1474 0 TP1113 R1427 0 C1231 47u 16V SUB3.3V R1429 0 R1554 0 R1555 0 C1232 47u 16V R1333 100 JS1109 C1229 47u 16V R1431 0 STBY5V R1377 0 R1383 0 R1382 0 TP1119 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 C1228 47u 16V R1461 0 R1462 0 R1430 0 R1490 0 MAIN3.3V SUB9V TP1115 MAIN5V TP1114 BT30V MAIN1.8V SOUND_SOS MAIN9V SUB5V BT30V MAIN1.8V ODU_ON/OFF SUB9V SUB9V TV_MAIN_ON SUB3.3V SOS MAIN5V MAIN3.3V TUNER_SUB_ON SCL1(Main3.3V) SDA1(Main3.3V) 20 19 23 24 26 25 22 27 21 MAIN5V SUB5V SUB9V BT30V (HC15) HC-BOARD TO D_PSLCT D_PDB1 D_IIC_CONT D_TXD REMOCON D_STB3R3V D_PSTB D_BUSY G_LED D_RXD D_SCL2 D_PDB0 D_SDA2 R_LED D_IIC_INT STBY5V SDA2 SCL2 SDA1 SCL1 SCL0B SDA0B SDA0A SRQ D_15V SCL0A DTV_EEP_SDA DTV_EEP_SCL SD_RX SD_TX SD_TX SD_RX SD_IRQ SD_RST STBY_LED G_LED RM_IN KEY1 AI_SENSOR KEY_EDGE AFC1 AFC2 ACTIVE_STB_LED H-BOARD TO (H2) (PA20) PA-BOARD TO (H1) H-BOARD TO SUB3.3V SR SR SL SL MAIN_Y SR SL SUB_PR SUB_PB SUB_Y HDMI_L HDMI_R BS_Y(V) BS_SR BS_SL MAIN_R MAIN_L PC_VS PC_HS PC_B PC_G PC_R MAIN_PB/C MAIN_Y/CVBS MAIN_PR RGB_CVBS RGB_FB AUDIO_MUTE MAIN_SW1 SP_MUTE RST MAIN_SW2 SCL0B A_MON_MUTE_ SOS SDA0B AD_DAT AD_LRCK AD_BICK MSP_RESET FAN_SOS FAN_MAX MAIN3.3V MAIN3.3V 41 42 44 45 48 24 25 21 23 DG 15 27 30 28 29 31 PC_R PC_G PC_B PC_HS PC_VS 43 TH-42PA7C DG-Board (3 of 7) Schematic Diagram TH-42PA7C DG-Board (3 of 7) Schematic Diagram DG-BOARD TNPA3756DN (3/7) BS_Y(V) JS4103 R4891 0 86 14.25.DG 电路板 （4/7）线路图 + + + + Thermal Pad JTAG_GC5_BA JTAG_TMS JTAG_BA_FS UVIN0 RIN3 UVIN1 RIN2 YIN5 UVIN7 RIN1 YIN4 UVIN6 RIN0 YIN3 UVIN5 YIN6 UVIN2 UVIN4 CLKOA CLKIA SCL2 YIN2 SD PC_HS PC_VS A2 YIN0 UVIN9 YIN1 UVIN8 HSIA YIN7 YIN8 VSIA YIN9 REFCK_ADV MAIN_Y/CVBS MAIN_PB/C MAIN_PR PC_G PC_B PC_R 1.8V JTAG_FS_GC5 JTAG_BA_FS GC_RST UVIN3 JTAG R4481 2.2k R4488 2.2k R4495 43k C4544 16V 1u C4168 50V 68p R4503 160 R4534 0 MAIN5V C4194 16V 0.1u C4193 50V 1000p C4195 16V 0.1u C4197 16V 0.1u MAIN9V R4004 0 C4208 10V 0.1u L4023 J0JHC0000078 R4577 2.2k C1AB00002456 IC4019 1 P32 2 P31 3 INT 4 CS/HS 5 DGND 6 DVDDIO 7 P15 8 P14 9 P13 10 P12 11 DGND 12 DVDD 13 P29 14 P28 15 SFL/SYNC_OUT 16 SCLK2 17 DGND 18 DVDDIO 19 SDA2 20 P11 21 P10 22 P9 23 P8 24 P27 25 P7 26 P6 27 P5 28 P4 29 P26 30 R_ACTIVE/P25 31 SRLIN/P24 32 SRLUP/P23 33 TRGIN/P22 34 P21 35 MEI_CK/DCLK_IN 36 BLC/LLC1 37 XTAL1 38 XTAL 39 DVDD 40 DGND 41 P3 42 P2 43 P1 44 P0 45 P20 46 ELPF 47 PVDD 48 PVDD 49 AGND 50 AGND 51 FB 52 SOG 53 AIN7 54 AIN1 55 AIN8 56 AIN2 57 AIN9 58 AIN3 59 ELPF2 60 AGND 61 CAPY1 62 CAPY2 63 AVDD 64 REFOUT 65 CML 66 AGND 67 BIAS 68 CAPC1 69 CAPC2 70 TEST0 71 AIN10 72 AIN4 73 AIN11 74 AIN5 75 AIN12 76 AIN6 77 SOY 78 RESET 79 DE_IN 80 ALSB 81 SDA 82 SCLK 83 P40 84 P39 85 VS_IN 86 HS_IN 87 P38 88 P37 89 DGND 90 DVDD 91 P19 92 P18 93 P17 94 P16 95 P36 96 P35 97 P34 98 FIELD/DE 99 VS 100 P33 R4527 22 TP4030 C4172 16V 0.1u Q4063 B1ABDF000034 C4158 10V 1u C4160 10V 0.1u Q4056 2SA207700L C4218 50V 1000p R4480 422 Q4064 B1ABDF000034 R4512 0 C0CBCAC00275 IC4016 1 VDD 2 GND 3 CE 5 VOUT 4 NC C4253 47u 6.3V R4517 1.37k R4024 0 R4019 0 C4217 16V 0.1u R4568 100 TP4028 C4216 47u 6.3V C4178 16V 0.039u R4498 1k C4211 10V 0.1u R4572 10k R4552 EXB28V220JX R4533 22 R4474 1.21k Q4061 B1ABDF000034 C4215 10V 0.1u C4224 10V 0.1u C4180 16V 0.1u C4273 10V 0.1u R4550 EXB28V220JX MAIN3.3V C4200 47u 6.3V C4201 16V 0.01u R4578 2.2k Q4059 2SA207700L C4171 50V 470p L4073 J0JHC0000078 R4565 22 R4465 220k JS4017 C4227 16V 0.082u Q4058 2SA207700L R4487 560 C4186 6.3V 10u SUB5V C4262 10V 0.1u C4235 16V 0.01u C4248 10V 0.1u R4564 22 R4560 EXB28V220JX R4561 EXB28V220JX JS4111 0 L4029 J0JHC0000078 C4219 10V 1u R4521 22 R4500 27k R4522 22 JS4023 0 C4245 10V 0.1u R4520 1.69k R4508 0 R4507 0 R4555 EXB28V220JX C0CBCAC00275 IC4018 1 VDD 2 GND 3 CE 5 VOUT 4 NC R4535 0 C4165 10V 0.1u C4244 10V 1u R4501 1k C4263 10V 0.1u C4177 16V 0.68u JS4024 0 R4482 1.78k R4483 1.78k C4228 16V 0.01u C4185 6.3V 10u R4008 0 C4191 10V 0.1u C4269 10V 1u R4554 22 L4038 J0JHC0000078 R4499 1k C4256 10V 1u C4264 10V 0.1u C4188 10u 6.3V R4025 0 Q4062 B1ABDF000034 R4579 2.2k C4206 16V 0.1u MAIN1.8V SUB9V R4575 4.7k L4031 J0JHC0000078 R4001 1.21k TP4029 R4563 22 Q4057 2SA207700L C4175 16V 0.1u R4510 0 R4496 1k R4544 22 R4469 150 C4173 16V 0.1u MAIN3.3V Q4050 B1ABDF000034 C4266 16V 0.01u JS4016 C4176 6.3V 2.2u C4189 10V 0.1u C4199 16V 0.1u C4190 10V 0.1u C4159 16V 0.1u C4543 16V 0.1u C4209 10V 0.1u R4502 1k C4204 10V 0.1u JS4022 0 C4272 47u 6.3V IC4013 C0CBCBF00009 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 NC 7 NC 8 VIN C4205 16V 0.1u R4497 1k C4174 10V 0.1u Y PR PB/C SYS_RST(L_3.3V) 33 36 28 32 31 30 29 34 35 10bit A/D(ADV7499) AD 3.3V AVR 1.8V AVR 1.8V 62 63 65 68 61 45 48 42 41 44 43 TH-42PA7C DG-Board (4 of 7) Schematic Diagram TH-42PA7C DG-Board (4 of 7) Schematic Diagram DG-BOARD TNPA3756DN (4/7) R4692 0 c R4693 0 HDMI_R R4695 0 HDMI_L R4694 0 87 14.26.DG 电路板 （5/7）线路图 + A_DDR_DQ2 CLKIA A_DDR_DQ18 A_DDR_DQ1 VSIA GENX_HIN A_DDR_DQ17 A_DDR_DQ0 CLKOA UVIN0 A_DDR_DQ16 A_DDR_DQ19 YIN1 A_DDR_DQ20 RIN1 A_DDR_DQ21 UVIN1 A_DDR_DQ22 HSIA UVIN3 GENX_YS A_DDR_RAS RIN0 RIN2 YIN9 A_DDR_WE A_DDR_DQ23 YIN0 UVIN9 A_DDR_BA0 RIN3 A_DDR_BA1 YIN3 YIN7 REFCK_ADV A_DDR_DQ25 A_DDR_A8 UVIN6 A_DDR_DQ26 YIN6 A_DDR_A7 JTAG_TRST A_DDR_NCLK A_DDR_DQ27 A_DDR_A5 YIN2 JTAG_TCK A_DDR_CLK A_DDR_DQ28 A_DDR_A6 A_DDR_DQ10 UVIN7 A_DDR_DQS1 A_DDR_DQ9 JTAG_TMS A_DDR_A1 A_DDR_DQ29 A_DDR_DQS3 YIN5 A_DDR_A9 A_DDR_DQ30 A_DDR_DQS2 JTAG_FS_GC5 UVIN2 A_DDR_DQ8 A_DDR_A2 A_DDR_SDCKE UVIN4 A_DDR_DQ15 A_DDR_A0 A_DDR_DQ24 A_DDR_CAS A_DDR_DQ3 A_DDR_A4 A_DDR_DQ31 A_DDR_A3 A_DDR_DQS0 A_DDR_DQ4 A_DDR_DQ14 UVIN5 A_DDR_A11 A_DDR_DQ5 A_DDR_DQ13 A_DDR_A10 UVIN8 A_DDR_DQ6 A_DDR_DQ12 GENX_CLKIN YIN8 A_DDR_DQ11 A_DDR_DQ7 YIN4 GENX_VIN GENX_YM GENX_B0 GENX_G3 GENX_R2 GENX_B2 GENX_R1 GENX_R0 GENX_R3 GENX_B1 GENX_B3 GENX_G1 GENX_G4 GENX_G0 GENX_G2 JTAG_GC5_BA MAIN1.2V GENX_G5 GENX_R4 GENX_B4 IC4037 C30 UVIC0 IC4037 F30 CLKIC IC4037 A24 OSDYSI IC4037 A3 THQHOUT 1000p 50V C4414 IC4037 C17 OSDI15 IC4037 A17 CLKOD2 IC4037 AE5 AVSSCK IC4037 AK9 WE IC4037 R27 GND IC4037 K1 FRCKO3 IC4037 AF10 VDD25 IC4037 R13 GND IC4037 C18 OSDI12 IC4037 D28 UVIC1 IC4037 AB3 VDD25 IC4037 K4 YIB9 IC4037 T3 RVIA5 IC4037 AJ1 VDD25 IC4037 P16 GND IC4037 B24 OSDYMI 0.1u 10V C4397 IC4037 AE27 VDD12 IC4037 R12 GND IC4037 D18 GND IC4037 AD4 GND IC4037 R26 GND IC4037 AG3 DQ11 JS4029 220 IC4037 AJ20 GND IC4037 C28 GND IC4037 T16 VDD12 IC4037 A28 YIC4 IC4037 E10 GND IC4037 A4 THQCO7 IC4037 AH4 VREFSSTL2V_0 IC4037 R1 BUIA5 IC4037 AK29 GND IC4037 A6 THQYO9 IC4037 G5 GND IC4037 AE2 DQ24 IC4037 AG27 VDD12 0.1u 10V C4407 IC4037 U15 GND IC4037 A2 CLKOTHQ1 IC4037 C13 FHQCIN8 IC4037 B19 OSDI10 IC4037 T4 GND IC4037 V12 VDD25 IC4037 A5 THQCO3 IC4037 AJ5 A5 IC4037 AF4 GND IC4037 A18 OSDI14 0.1u 10V C4408 IC4037 AE4 GND IC4037 E22 GND IC4037 T5 GND IC4037 F2 UVIB5 IC4037 K3 HSIB IC4037 AF25 GND IC4037 A20 OSDI8 0.1u 10V C4389 IC4037 L1 BUIA1 IC4037 V2 GYIA2 IC4037 D29 UVIC2 C4362 6.3V 10u IC4037 D30 UVIC3 IC4037 B12 FHQYIN2 IC4037 AG8 GND C4367 10V 0.1u IC4037 D16 MOSDVSO2 IC4037 D25 TCK IC4037 AC1 DQ29 IC4037 G1 YIB0 0.1u 10V C4404 IC4037 AH7 A3 IC4037 AF15 GND IC4037 H1 YIB4 IC4037 A22 OSDI2 IC4037 AB1 DQ31 IC4037 W27 GND IC4037 N1 RVIA2 IC4037 R15 VDD12 IC4037 AK3 SDCLKO IC4037 J1 YIB8 IC4037 R16 GND IC4037 C16 FRCKO2 IC4037 AJ26 GND IC4037 N2 RVIA1 IC4037 AF24 GND IC4037 Y3 GYIA5 IC4037 AF14 AVSS_DDR IC4037 AC3 DQ28 IC4037 Y2 GYIA6 IC4037 AK11 DQS2 IC4037 P15 GND IC4037 E21 GND IC4037 L3 CLKIA2 R4037 EXB2HV103JV IC4037 AF7 VDD25 IC4037 B15 FHQCIN3 IC4037 P13 VDD12 IC4037 J3 YIB6 IC4037 B4 THQCO8 IC4037 D22 GND IC4037 B17 MOSDHSO2 IC4037 V15 GND 1000p 50V C4403 IC4037 R2 BUIA4 0.1u 10V C4398 IC4037 AJ28 GND 1u 10V C4400 IC4037 A14 FHQCIN7 IC4037 C12 FHQYIN1 IC4037 J2 YIB7 C4003 6.3V 10u 1000p 50V C4385 IC4037 F6 GND IC4037 V1 GYIA3 IC4037 B20 OSDI7 IC4037 E14 GND IC4037 A21 OSDI5 IC4037 C7 THQYO7 IC4037 P18 GND R4713 EXB2HV221JV IC4037 M12 VDD12 IC4037 AG12 GND IC4037 H2 YIB3 IC4037 C15 FHQCIN2 IC4037 D6 THQCO2 IC4037 D24 TDI R4711 0 IC4037 V18 VDD12 IC4037 D5 THQCO6 IC4037 AK17 GND IC4037 J5 GND R4727 0 IC4037 AJ9 RAS IC4037 V17 GND IC4037 B21 OSDI4 IC4037 AG15 GND IC4037 C1 ENBIB IC4037 AF6 AVDCLK IC4037 E3 UVIB1 IC4037 N17 GND IC4037 U5 GND IC4037 AJ11 DQ21 IC4037 D26 TDO MAIN1.2V IC4037 Y27 GND IC4037 AH20 GND IC4037 D3 VDD12 IC4037 A26 CLKOD IC4037 G28 GND IC4037 F29 HSIC IC4037 B27 YIC6 IC4037 D1 UVIB0 IC4037 C10 FHQYIN7 IC4037 D10 GND IC4037 D8 THQYO4 IC4037 U2 RVIA7 IC4037 J4 YIB5 IC4037 E30 UVIC7 IC4037 AC5 AVSS_DDR IC4037 W26 GND IC4037 N5 GND IC4037 T1 BUIA7 IC4037 D2 CLKIB2 1u 10V C4373 IC4037 AJ6 A4 IC4037 AG25 GND IC4037 AD3 DQ26 IC4037 AK30 VDD12 IC4037 B1 VDD12 IC4037 AF11 VDD25 1000p 50V C4413 IC4037 T15 GND IC4037 T12 GND IC4037 AJ4 CKE 1000p 50V C4406 IC4037 AG11 VDD25 IC4037 E27 UVIC4 1000p 50V C4393 IC4037 AJ29 VDD12 IC4037 C3 GND IC4037 AJ12 DQ18 IC4037 C8 THQYO3 IC4037 AH16 DQ0 0.1u 10V C4384 IC4037 P17 GND JS4028 0 IC4037 AG16 GND IC4037 AH1 DQ8 IC4037 M4 GND L4053 J0JHC0000078 1000p 50V C4383 IC4037 B11 FHQYIN5 1000p 50V C4390 IC4037 E18 GND IC4037 F1 UVIB6 IC4037 AH15 DQ3 IC4037 AG22 GND IC4037 AD5 GND 0.1u 10V C4377 IC4037 A7 THQYO5 IC4037 B23 OSDHSI IC4037 AF9 GND IC4037 AH12 DQ19 IC4037 B7 THQYO6 IC4037 W1 GYIA4 IC4037 AK13 GND IC4037 K2 VSIB IC4037 AK4 A8 IC4037 T19 VDD12 IC4037 N4 GND IC4037 AC2 DQ30 C4004 6.3V 10u IC4037 T2 BUIA6 IC4037 AG4 GND IC4037 V3 GYIA1 IC4037 AJ8 A0 1u 10V C4391 IC4037 B9 FHQVIN IC4037 C9 FHQHIN IC4037 R14 GND R4039 EXB2HV103JV IC4037 U16 GND IC4037 A13 FHQYIN0 IC4037 AH26 GND R4041 0 IC4037 AF23 GND IC4037 A30 GND 1u 10V C4399 IC4037 AA2 VDD25 IC4037 C22 OSDI0 IC4037 AH21 GND IC4037 E1 UVIB2 IC4037 D17 GND R4898 10k IC4037 N16 GND IC4037 AG23 GND 0.1u 10V C4364 IC4037 AK10 DQ22 IC4037 AF16 GND IC4037 D7 THQYO8 IC4037 AF12 GND IC4037 AG6 VDD25 C4014 6.3V 10u IC4037 A1 GND JS4027 0 IC4037 AH13 DQ17 IC4037 AH6 A9 IC4037 P19 GND IC4037 L4 TEST IC4037 F3 UVIB4 IC4037 AK8 BA1 IC4037 AH8 A2 IC4037 AG7 VDD25 DDR2.5V IC4037 E9 GND IC4037 U1 GYIA0 IC4037 P2 RVIA4 IC4037 E28 UVIC5 IC4037 AK24 GND 0.1u 10V C4412 IC4037 N3 RVIA0 IC4037 W13 VDD25 C4366 47u 6.3V IC4037 B13 FHQCIN9 IC4037 AJ3 NSDCLO IC4037 E17 GND IC4037 AK14 DQS0 IC4037 W18 VDD12 IC4037 B8 THQYO2 0.1u 10V C4372 IC4037 W19 VDD12 IC4037 B6 THQCO0 1000p 50V C4402 IC4037 AF8 GND IC4037 C14 FHQCIN5 IC4037 W3 HSIA IC4037 C5 THQCO5 IC4037 Y5 GND IC4037 AF3 DQ12 IC4037 AK18 GND R4038 EXB2HV103JV IC4037 G4 UVIB7 0.1u 10V C4395 IC4037 AG2 DQ10 C4379 10V 0.1u IC4037 F28 VSIC IC4037 A16 FHQCIN1 IC4037 AJ10 DQ23 IC4037 M2 CLKIA IC4037 AG24 GND IC4037 C23 OSDVSI IC4037 E13 GND 0.1u 10V C4411 IC4037 B30 YIC1 R4022 1k IC4037 AG1 DQ14 IC4037 AH14 DQ7 IC4037 AE3 DQ15 IC4037 U17 VDD12 IC4037 W14 GND IC4037 AK1 GND IC4037 N14 VDD12 IC4037 E2 CLKIB1 IC4037 AJ2 GND IC4037 G27 GND IC4037 A8 THQYO1 1000p 50V C4394 IC4037 AH27 GND R4715 0 IC4037 AF2 DQ13 IC4037 AH28 VDD12 IC4037 A27 YIC7 IC4037 Y26 GND 0.1u 10V C4401 IC4037 AH24 GND IC4037 H3 YIB2 IC4037 A19 OSDI11 IC4037 AK7 A1 IC4037 AD27 CLKID2 R4719 68 IC4037 R18 GND IC4037 G3 UVIB8 R4714 EXB2HV221JV IC4037 AE1 DQS3 1000p 50V C4371 IC4037 W17 GND IC4037 A15 FHQCIN4 IC4037 AK15 DQ5 IC4037 C20 OSDI6 IC4037 G2 UVIB9 IC4037 B14 FHQCIN6 IC4037 P1 BUIA2 IC4037 AJ14 DQ6 IC4037 AH9 BA0 IC4037 A9 FHQCKIN IC4037 D27 GND C4388 10V 1u IC4037 B10 FHQYIN8 1u 10V C4410 IC4037 W2 VSIA R4708 68 IC4037 AC26 GND IC4037 C6 THQCO1 IC4037 AH5 A7 IC4037 C25 MOSDVSO IC4037 C19 OSDI9 IC4037 T13 GND IC4037 AJ13 DQ16 IC4037 AD26 GND IC4037 AF20 GND IC4037 U14 GND IC4037 H27 GND IC4037 H26 GND IC4037 U12 GND IC4037 AD1 DQ25 IC4037 AJ15 DQ4 IC4037 D14 GND 1000p 50V C4396 IC4037 G26 GND R4710 0 IC4037 C24 ALPHAI1 IC4037 AE26 VDD12 IC4037 AJ24 GND IC4037 AB2 VDD25 IC4037 AF26 VDD12 IC4037 M17 GND C4027 1u 10V IC4037 L27 GND IC4037 AK2 GND IC4037 A23 CLKID C4360 10V 1u IC4037 R3 BUIA3 IC4037 AK5 A6 IC4037 B28 YIC3 IC4037 D21 GND IC4037 AJ16 DQ2 IC4037 AF13 GND IC4037 M5 GND R4712 0 C4015 6.3V 10u IC4037 V19 VDD12 JS4069 220 IC4037 AH3 GND R4706 0 IC4037 H4 YIB1 IC4037 E25 GND IC4037 M27 GND IC4037 AG5 AVDD_DDR IC4037 B2 GND IC4037 AG26 GND IC4037 A12 FHQYIN3 IC4037 P12 VDD12 IC4037 A11 FHQYIN6 IC4037 AA5 GND IC4037 D9 THQYO0 IC4037 AH10 CAS IC4037 B22 OSDI1 IC4037 AG9 GND IC4037 M13 VDD12 1u 10V C4405 1000p 50V C4409 IC4037 D23 TRST IC4037 N12 VDD12 IC4037 C26 TMS IC4037 C29 YIC0 IC4037 H5 GND 0.1u 10V C4374 IC4037 A29 YIC2 C4365 10V 1u IC4037 T26 GND IC4037 C2 VDD12 IC4037 R19 GND IC4037 E4 VDD12 IC4037 P14 VDD12 IC4037 U3 RVIA6 IC4037 D4 GND IC4037 B26 MOSDHSO IC4037 AG14 AVDD_DDR 0.1u 10V C4382 IC4037 V13 VDD25 IC4037 U13 GND IC4037 E29 UVIC6 IC4037 N15 GND R4720 68 IC4037 R17 GND IC4037 M1 CLKOA C0CBCAC00282 IC4029 1 VDD 2 GND 3 CE 5 VOUT 4 NC C4363 10V 0.1u IC4037 M15 GND 0.1u 10V C4117 1000p 50V C4375 0.1u 10V C4392 IC4037 AB4 VDD25 IC4037 AJ17 GND IC4037 AA4 GND 0.1u 10V C4381 IC4037 B25 ENBID IC4037 U18 VDD12 IC4037 AF1 DQS1 0.1u 10V C4386 IC4037 P3 RVIA3 IC4037 E5 GND IC4037 AJ7 A10 IC4037 L2 BUIA0 IC4037 AD2 DQ27 IC4037 AH23 GND IC4037 AH2 DQ9 L4054 J0JHC0000078 IC4037 AG10 VDD25 IC4037 AA1 VDD25 IC4037 AG13 GND IC4037 C27 YIC5 IC4037 AK12 GND IC4037 T27 GND IC4037 E6 GND IC4037 A25 ALPHAI0 IC4037 U19 VDD12 IC4037 B16 FHQCIN0 IC4037 M3 FRCKO1 IC4037 C11 FHQYIN4 IC4037 B3 THQVOUT IC4037 N13 VDD12 IC4037 AF27 VDD12 IC4037 M16 GND 1000p 50V C4387 IC4037 A10 FHQYIN9 IC4037 T18 VDD12 IC4037 F5 VDD12 IC4037 AH17 GND IC4037 AB5 VDD25 IC4037 M14 VDD12 R4718 68 1000p 50V C4376 MAIN3.3V IC4037 T14 GND IC4037 M26 GND IC4037 W12 VDD25 IC4037 V14 GND IC4037 B18 OSDI13 IC4037 AK16 DQ1 IC4037 C21 OSDI3 IC4037 E26 GND IC4037 T17 VDD12 IC4037 B5 THQCO4 IC4037 AF5 AVSS_DDR IC4037 AH11 DQ20 IC4037 Y1 GYIA7 1000p 50V C4380 IC4037 AA3 GND IC4037 B29 GND R4701 68 IC4037 AK6 A11 IC4037 F4 UVIB3 IC4037 L26 GND IC4037 AC4 AVDD_DDR IC4037 C4 THQCO9 IC4037 AH18 GND R4287 0 PORT-C(PEAKS) PORT-D(OSD INPUT) PORT-A(ADV7499) PORT-B(FS&HDMI) PORT-FHQ(GC3E&HQ1) 27MHz 27MHz 41 44 38 42 39 40 45 37 43 IC4037 MN84522-A GC5 PROCESSOR DLL 2.5V 102 105 104 107 65 68 62 63 61 TH-42PA7C DG-Board (5 of 7) Schematic Diagram TH-42PA7C DG-Board (5 of 7) Schematic Diagram DG-BOARD TNPA3756DN (5/7) PEAKS-CLKIN R4018 10k R4837 22 JTAG_BA_FS JTAG_TRST JS4046 0 R4838 1.1k 88 14.27.DG 电路板 （6/7）线路图 Thermal Pad + + + Thermal Pad A_ROE0 B_DDR_DQ10 B_DDR_DQ12 A_VSOE B_DDR_A2 A_ROE1 B_DDR_DQ29 B_DDR_A10 B_DDR_DQ19 B_DDR_NCLK B_DDR_DQS2 B_DDR_CLK A_DDR_DQ4 B_DDR_A7 A_DDR_DQ8 B_DDR_CAS B_DDR_CLK A_DDR_DQ3 A_DDR_DQ9 A_DDR_DQ29 B_DDR_DQ26 A_DDR_NCLK B_DDR_DQ3 B_DDR_DQS3 B_DDR_NCLK A_DDR_SDCKE B_DDR_DQ4 A_ROE8 B_DDR_DQ16 A_DDR_CLK B_DDR_BA0 A_DDR_CAS B_DDR_DQ0 B_DDR_DQ30 B_DDR_DQ11 B_DDR_DQ27 A_ROE7 A_DDR_A10 B_DDR_A1 B_DDR_A0 A_DDR_DQ17 A_DDR_DQ14 A_ROE5 A_GOE8 B_DDR_DQ21 B_DDR_CAS B_DDR_A2 B_DDR_DQS3 B_DDR_DQ28 B_DDR_DQ1 B_DDR_DQ25 A_ROE6 A_GOE7 A_DDR_DQ28 B_DDR_DQ15 B_DDR_DQ4 A_DDR_A1 A_DDR_DQ2 A_ROE2 A_GOE5 B_DDR_DQ21 A_DDR_DQ21 B_DDR_WE A_ROE3 A_GOE6 B_DDR_A9 B_DDR_DQ5 B_DDR_WE B_DDR_DQ18 A_ROE4 B_DDR_DQ13 A_GOE2 B_DDR_DQ8 B_DDR_A5 B_DDR_DQ0 B_DDR_RAS A_DDR_DQS0 B_DDR_A7 A_ROE9 A_GOE3 B_DDR_DQ3 A_DDR_DQ25 A_DDR_DQ10 B_DDR_DQ22 B_DDR_A11 B_DDR_DQ22 A_DDR_DQ30 A_GOE4 A_DDR_A7 A_DDR_DQ6 B_DDR_SDCKE B_DDR_DQ27 A_DDR_A2 A_DDR_DQ12 A_GOE9 GC_RST B_DDR_DQS1 B_DDR_A4 B_DDR_DQS0 B_DDR_BA1 B_DDR_A6 B_DDR_DQ29 A_DDR_A0 B_DDR_DQ6 A_DDR_DQ16 B_DDR_DQ9 B_DDR_DQ28 B_DDR_DQ16 B_DDR_A8 B_DDR_DQ12 B_DDR_RAS A_GOE0 B_DDR_DQ9 B_DDR_DQ14 B_DDR_DQ8 B_DDR_DQ25 A_DDR_DQ13 A_DDR_DQS3 A_GOE1 B_DDR_DQ2 B_DDR_DQ18 A_DDR_BA1 B_DDR_DQ6 B_DDR_DQ13 B_DDR_DQ10 B_DDR_A5 A_DDR_BA0 A_BOE0 A_DDR_WE A_DDR_A8 A_DDR_DQ11 B_DDR_A4 B_DDR_DQ14 B_DDR_DQS2 A_DDR_DQ22 A_BOE1 B_DDR_DQ24 B_DDR_DQ31 B_DDR_A10 A_DDR_DQ19 B_DDR_DQ2 A_DDR_DQS1 B_DDR_BA1 A_BOE2 B_DDR_DQ23 A_DDR_DQ27 A_DDR_A11 A_DDR_DQ24 B_DDR_A1 A_DDR_DQ31 A_BOE7 A_DDR_DQ15 B_DDR_DQ30 B_DDR_DQ17 A_BOE3 A_DDR_DQ5 A_DDR_A5 A_DDR_DQ0 A_DDR_RAS A_BOE8 B_DDR_A11 B_DDR_DQ20 A_BOE4 A_DDR_A9 A_DDR_DQS2 B_DDR_DQ17 A_BOE9 A_DDR_DQ20 B_DDR_A3 B_DDR_DQ23 A_DDR_A4 A_DDR_DQ23 A_BOE5 B_DDR_A8 B_DDR_A0 B_DDR_DQ20 B_DDR_DQ5 A_DDR_A3 A_BOE6 B_DDR_DQS0 B_DDR_DQ24 A_DDR_DQ18 B_DDR_DQ19 B_DDR_DQ7 A_DDR_A6 A_DDR_DQ7 B_DDR_DQ11 A_OSDMSK B_DDR_BA0 A_DDR_DQ26 B_DDR_DQ26 B_DDR_A9 A_DDR_DQ1 B_DDR_A3 B_DDR_DQ1 B_DDR_DQ7 B_DDR_SDCKE A_HSOE B_DDR_DQ31 B_DDR_DQ15 B_DDR_A6 SDA2 SCL2 MAIN3.3V PLL3.3V B_DDR_DQS1 A_CLKOE C4513 10V 0.1u R4791 47 IC4037 AD28 GOF5 R4759 68 IC4037 T28 ROE6 L4056 J0JCC0000077 R4788 EXB2HV470JV IC4037 R5 VDDW IC4038 D11 VDDQ IC4037 U30 ROE5 C4482 50V 18p C4428 10V 0.1u IC4038 A9 DQ28 R4732 4.75k IC4037 V5 VDDW IC4038 G12 DQS1 1000p 50V C4437 IC4038 F6 VSS_Thermal JS4035 0 IC4038 B1 DQ4 IC4038 L5 A2 R4265 32.4k IC4038 J2 DQ23 0.1u 10V C4452 IC4038 C12 DQ25 IC4037 U27 VDDW IC4038 K6 VDD IC4037 AK27 ROF0 R4750 EXB2HV680JV IC4037 E20 VDDW IC4038 G11 DM1 TP4041 C4023 6.3V 10u R4765 0 IC4032 C0DBGYY00052 1 VOUT 2 NC 3 GND 4 NC 5 CONT 6 NC 7 NC 8 VIN IC4038 M7 A4 R4739 3.3k IC4038 J1 DQ22 IC4037 W4 OEBLK 1000p 50V C4457 IC4037 N28 GOE5 IC4038 G4 VSSQ R4775 47 IC4037 D12 NRST C4462 10V 0.1u IC4038 K10 VDD IC4037 V29 ROE1 C4508 16V 0.01u IC4038 F11 DQ13 IC4037 H29 HSOE IC4037 E24 VDDW IC4038 G8 VSS_Thermal C4498 470p 50V JS4040 IC4038 C10 VSSQ IC4037 AF30 GOF1 1000p 50V C4481 R4796 EXB2HV470JV IC4038 D5 VSSQ IC4037 AH29 ROF4 C4510 10V 0.1u IC4037 K30 BOE6 IC4037 AE30 GOF4 1000p 50V C4475 IC4037 AG17 TESTIO_DDR 1u 10V C4435 IC4037 J29 BOE8 IC4037 AK21 VREF IC4038 F12 DQ12 L4060 J0JCC0000077 IC4037 AG21 GND_DAC IC4038 L3 NC IC4038 L1 RAS IC4037 J26 VDDW IC4038 J10 VDDQ IC4038 B9 VDDQ IC4038 M10 A8/AP IC4037 AK19 IOUT R4777 47 JS4036 0 IC4037 L28 BOE1 1000p 50V C4451 C4523 16V 0.01u IC4038 H10 VDDQ IC4037 K26 VDDW DDR_2.5V MAIN1.2V IC4037 L5 VDDW IC4038 E6 VSS_Thermal IC4037 AD30 GOF7 1000p 50V C4480 IC4038 M12 VREF IC4037 AA28 BOF4 IC4037 M29 GOE9 IC4037 H30 CLKOE R4779 47 IC4038 F3 VDDQ IC4038 K2 WE IC4038 C5 VSSQ IC4037 D19 VDDW R4794 22 1000p 50V C4439 IC4037 AA29 BOF5 IC4038 A5 DQ2 IC4037 E19 VDDW IC4037 AK28 ROF2 C4512 16V 0.01u IC4037 Y29 BOF8 IC4037 AA27 SSOUT IC4038 E2 DQ16 0.1u 10V C4440 C4493 10V 0.1u IC4038 D8 VSSQ C4448 16V 0.01u R4808 0 X4004 H0J270500087 C4496 10V 0.1u R4340 0 IC4038 B12 DQ27 IC4037 V26 VDDW R4804 100 C4420 10V 0.1u IC4038 A3 VSSQ IC4038 K12 NC IC4038 M2 NC IC4037 AK26 VDDW IC4038 D3 VDD R4762 EXB2HV680JV IC4038 B2 VDDQ C4470 10V 1u IC4037 AF17 GND_PLL1 IC4037 Y4 OEMUTE IC4037 AG28 ROF6 IC4038 B8 DQ30 IC4038 L4 BA1 R4746 68 IC4037 AF29 GOF0 IC4037 E8 VDDW C4421 10V 0.1u R4738 3.3k R4733 75 R4729 100 IC4037 N19 VDDW IC4038 H3 VDDQ R4807 0 IC4037 T30 ROE8 C4505 10V 0.1u IC4037 U26 VDDW JS4033 0 IC4038 G5 VSS_Thermal IC4038 C11 DQ26 IC4037 AC27 PWMK C4466 0.01u 16V IC4037 U28 ROE3 C4518 10V 0.1u IC4037 E7 VDDW 1u 10V C4478 IC4037 J30 BOE9 R4792 47 IC4038 J7 VSS IC4038 J9 VSSQ IC4037 R4 VDDW IC4037 H28 VSOE C4509 10V 0.1u IC4038 C9 VSSQ R4793 22 IC4038 C1 DQ6 IC4037 AH22 CPOUT2 IC4038 K11 NC IC4037 J28 BOE7 IC4037 F27 VDDW IC4038 B6 VDDQ IC4038 A6 DQ0 IC4038 L6 A11 R4743 68 IC4038 H12 DQ10 IC4037 V30 ROE2 IC4038 D6 VSS IC4037 L29 BOE2 C4112 6.3V 10u C4497 4V 100u IC4037 AA26 VDDW IC4037 W5 VDDW R4021 0 R4257 33k IC4038 D7 VSS IC4038 E11 DQ15 IC4037 M19 VDDW IC4037 N18 VDDW R4756 68 R4752 22 IC4037 Y30 BOF9 0.1u 10V C4477 1000p 50V C4429 IC4038 A7 DQ31 C4522 10V0.1u R4730 100 IC4037 AE28 GOF2 IC4038 B3 NC R4760 68 IC4038 A2 DM0 IC4037 V27 VDDW C4516 10V 0.1u R4764 0 1000p 50V C4438 IC4037 V16 GNDPLLDDR IC4037 M18 VDDW C4418 1u 10V C4006 6.3V 10u IC4037 AJ27 ROF1 IC4037 J27 VDDW IC4038 G6 VSS_Thermal C4504 16V 0.01u IC4037 K27 VDDW C4521 16V 0.01u IC4037 L30 BOE3 R4806 1k C4526 10V 0.1u IC4037 AH30 ROF5 IC4038 L8 A5 1000p 50V C4454 R4269 0 IC4037 AJ23 XTALOUT IC4037 N26 VDDW MAIN1.8V JS4034 0 IC4038 K3 VDD IC4037 N27 VDDW IC4037 Y28 BOF7 IC4037 R29 GOE0 IC4037 AC30 BOF0 IC4037 W29 HSOF R4805 1k IC4038 J8 VSS 1000p 50V C4442 IC4038 J3 VDDQ C4503 10V 0.1u IC4038 D12 DQ24 IC4037 P26 VDDW IC4038 J12 DQ8 C4511 10V 0.1u IC4038 G9 VSSQ IC4037 D13 LCDMODE IC4038 G3 NC IC4037 P4 VDDW IC4038 F7 VSS_Thermal IC4038 G10 NC IC4037 W30 CLKOF R4341 0 1000p 50V C4460 L4057 J0JCC0000077 IC4037 W15 VDDPLLDDR 0.1u 10V C4456 R4776 EXB2HV470JV JS4039 IC4038 A12 DQS3 L4061 J0JCC0000077 C4506 16V 0.01u IC4038 F9 VSSQ IC4037 K29 BOE5 IC4037 D15 VDDW IC4037 AE29 GOF3 IC4038 M4 A0 R4810 0 C0CBCBC00190 IC4030 1 VDD 2 GND 3 CE 5 VOUT 4 NC IC4038 J5 VSS IC4037 AB26 VDDW R4778 EXB2HV470JV IC4038 F1 DQ19 L4055 J0JHC0000078 IC4038 H7 VSS_Thermal IC4037 AK22 DDREFIN IC4037 N30 GOE7 IC4037 AK20 COMP IC4038 D1 DQ7 IC4038 D2 VDDQ IC4038 E3 VDDQ IC4038 E7 VSS_Thermal IC4037 AB27 PTVEN IC4038 M8 A6 IC4038 K7 VDD C4464 1u 10V C4447 1u 10V C4499 56u 4V IC4038 E8 VSS_Thermal IC4038 A4 DQ3 IC4038 L9 RFU2 R4734 22k IC4037 AH19 VCOINV2 1000p 50V C4476 IC4038 C8 VSSQ C4461 82p 50V IC4037 AG18 GND_PLL1 IC4037 AJ22 DDREFOUT IC4038 L11 CK R4745 68 IC4038 G1 DQS2 R4338 0 C4514 16V 0.01u R4773 47 R4774 EXB2HV470JV IC4038 J6 VSS 1000p 50V C4422 IC4038 E1 DQ17 IC4037 AD29 GOF6 IC4038 B7 VDDQ IC4038 F2 DQ18 IC4038 H11 DQ11 IC4037 E11 VDDW IC4038 M1 CS R4046 0 IC4038 M3 BA0 0.1u 10V C4459 IC4037 R28 ROE9 R4809 0 R4754 22 1000p 50V C4453 R4757 68 IC4037 AG29 ROF7 R4772 EXB2HV470JV IC4037 W16 GNDPLLDDR IC4038 F4 VSSQ IC4037 AK25 VCOIN R4758 68 IC4037 M30 BOE0 IC4038 A8 DQ29 IC4038 K5 A10 C4465 0.1u 10V L4066 J0JHC0000078 IC4038 B5 DQ1 C4527 16V 0.01u IC4037 AJ19 TESTIO_PLL2 IC4038 E9 VSSQ R4339 0 R4811 0 IC4038 E12 DQ14 C4474 10V 1u C4007 6.3V 10u MAIN5V IC4038 C4 VSSQ IC4038 K4 VSS IC4038 G7 VSS_Thermal IC4037 AA30 BOF6 IC4038 L12 MCL IC4037 D11 VDDW R4737 0 IC4038 F5 VSS_Thermal MAIN3.3V MAIN3.3V C4008 6.3V 10u IC4037 F26 VDDW IC4038 L7 A9 C4417 47u 6.3V IC4037 AF18 VDD_PLL1 0.1u 10V C4426 IC4037 AG19 GND_PLL2 IC4037 AG30 ROF8 IC4038 M6 A3 IC4037 E15 VDDW IC4038 E10 VDDQ IC4038 C7 VDD IC4037 P29 GOE3 1000p 50V C4430 IC4038 M5 A1 IC4038 D10 VDD IC4038 F8 VSS_Thermal IC4037 N29 GOE6 R4751 22 C4507 10V 0.1u IC4037 AC29 GOF9 IC4035 C0CBCAF00031 1 VOUT 2 NC 3 GND 4 CN 5 CONT 6 NC 7 NC 8 VIN IC4038 G2 DM2 IC4038 M9 A7 IC4038 D4 VSS IC4037 AB29 BOF2 L4077 J0JCC0000077 1000p 50V C4427 IC4037 T29 ROE7 R4293 0 IC4038 H8 VSS_Thermal IC4037 AF22 DAC_VDD IC4037 P28 GOE2 IC4038 H4 VSSQ 1000p 50V C4423 IC4038 C6 VDD IC4037 AJ25 EXCLKIN IC4037 P27 VDDW IC4038 B10 NC C4005 6.3V 10u IC4037 M28 GOE8 C4519 16V 0.01u C4415 10V 0.1u IC4037 AH25 FRCLKIN IC4037 V4 SCL_MC IC4038 H9 VSSQ IC4038 H6 VSS_Thermal IC4037 U4 SDA_MC TP4037 IC4038 E4 VSSQ IC4038 A1 DQS0 1000p 50V C4434 IC4037 AJ30 ROF3 IC4037 E23 VDDW C4525 16V 0.01u C4467 0.1u 10V 1000p 50V C4458 IC4038 A11 DM3 IC4037 AF28 ROF9 IC4038 H1 DQ21 IC4037 E16 VDDW IC4037 AB30 BOF3 C4501 10V 0.1u IC4037 AC28 GOF8 C4494 10V 1u IC4037 AJ18 TESTIO_PLL1 IC4037 P30 GOE4 IC4038 E5 VSS_Thermal R4342 0 IC4038 B11 VDDQ IC4037 R30 GOE1 IC4038 D9 VSS IC4038 F10 VDDQ IC4037 K28 BOE4 1000p 50V C4479 R4735 2k IC4037 K5 VDDW IC4038 M11 CKE IC4037 AF19 VDD_PLL2 1000p 50V C4441 IC4037 E12 VDDW C4419 1u 10V R4744 68 R4033 10k IC4038 B4 VDDQ IC4037 P5 VDDW IC4037 D20 VDDW JS4038 1u 10V C4455 IC4037 AG20 GND_PLL2 C4517 16V 0.01u IC4037 AB28 BOF1 C4524 10V 0.1u IC4038 K1 CAS 1000p 50V C4424 IC4038 K9 VSS IC4038 C2 DQ5 C4502 16V 0.01u R4731 1k IC4038 K8 RFU1 IC4038 A10 VSSQ R4749 EXB2HV680JV IC4038 L2 NC IC4038 J4 VSSQ R4763 0 IC4037 W28 VSOF IC4038 H5 VSS_Thermal R4753 22 C4520 10V 0.1u IC4037 G29 SCL IC4037 U29 ROE4 IC4038 J11 DQ9 IC4038 H2 DQ20 JS4037 IC4037 G30 SDA IC4037 V28 ROE0 0.1u 10V C4425 IC4037 AJ21 IREF C4483 50V 15p C4028 16V 0.01u 1000p 50V C4436 IC4037 AF21 GND_DAC IC4037 AK23 XTALIN R4747 68 C4515 10V 0.1u IC4038 C3 VSSQ IC4038 L10 CK L4065 J0JHC0000078 R4782 22 MAIN3.3V R4785 4.7k R4783 4.7k R4784 22 Must Connect Low 0.49-0.51VDDQ (PWMC) (PWMD) (PWMB) (LVDS-EN) (LCDSS) (PWMA) PORT-E PORT-F(out) (output for FHD&PWM) (output for Panel) 49 50 52 46 51 53 47 54 48 GC5 PROCESSOR MN84522-A IC4037 128M DDR SDRAM IC4038 C3ABQJ000048 MAIN 1.2V DDR 2.5V PLL 3.3V 124 125 102 105 104 107 TH-42PA7C DG-Board (6 of 7) Schematic Diagram TH-42PA7C DG-Board (6 of 7) Schematic Diagram DG-BOARD TNPA3756DN (6/7) 89 14.28.DG 电路板 （7/7）线路图 + + B_CLKOE LVDS_PD A_OSDMSK A_BOE9 A_BOE8 A_BOE7 A_BOE6 A_BOE5 A_BOE4 A_BOE3 A_BOE2 A_BOE1 A_BOE0 A_GOE9 A_GOE8 A_GOE7 A_GOE6 A_GOE5 A_GOE4 A_GOE3 A_GOE2 A_GOE0 A_GOE1 B_BOE9 B_BOE8 B_BOE7 B_BOE6 B_BOE5 B_BOE4 B_BOE3 B_BOE2 B_BOE1 B_BOE0 B_GOE9 B_GOE8 B_GOE7 B_GOE6 B_GOE5 B_GOE4 B_GOE3 B_GOE2 A_CLKOE A_HSOE A_VSOE A_ROE0 A_ROE1 A_ROE2 A_ROE3 A_ROE4 A_ROE5 A_ROE6 A_ROE7 A_ROE8 A_ROE9 B_ROE9 B_ROE8 B_ROE7 B_ROE6 B_ROE5 B_ROE4 B_ROE3 B_ROE2 B_ROE1 B_ROE0 B_VSOE B_HSOE B_CLKOE B_OSDMSK B_GOE1 B_GOE0 B_OSDMSK B_VSOE B_HSOE B_BOE9 B_BOE8 B_BOE7 B_BOE6 B_BOE5 B_BOE4 B_ROE2 B_ROE3 B_GOE2 B_GOE3 B_ROE1 B_GOE0 B_BOE1 B_ROE4 B_ROE9 B_GOE5 B_GOE7 B_GOE9 MAIN3.3V B_BOE0 B_GOE1 B_BOE3 B_GOE8 B_GOE6 B_ROE8 B_GOE4 B_ROE6 B_ROE7 B_ROE5 B_BOE2 B_ROE0 R4969 68 C4534 50V 1000p C4538 10V0.1u R4960 EXB2HV680JV C4537 100u 4V C4530 50V 1000p R4343 0 R4962 68 JS4121 JS4122 R4968 68 R4972 68 R4963 68 R4966 68 R4824 J0JAD0000025 1 2 3 4 L4068 J0JHC0000078 C4531 50V 1000p R4964 EXB2HV680JV R4823 J0JAD0000025 1 2 3 4 L4070 J0JHC0000078 ZA4002 K4CD08000002 C4528 47u 6.3V MAIN3.3V R4971 68 C4529 10V 0.1u C4532 10V 0.1u R4819 22k C4539 1u 10V R4967 EXB2HV680JV C4540 50V1000p R4816 22k L4069 J0JHC0000078 R4814 10k R4965 68 C4533 10V 0.1u R4825 J0JAD0000025 1 2 3 4 R4822 10k R4817 22k R4961 68 C4536 1u 10V DG5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 ZA4001 K4CD08000002 R4970 68 C4535 10V 0.1u IC4036 C0JBAP000020 1 TD5 2 GND 3 TD6 4 TE0 5 TE1 6 TE2 7 VCC 8 TE3 9 TE4 10 GND 11 TE5 12 CLKIN 13 /PDWN 14 PLL_GND 15 PLL_VCC 16 TE6 17 LVDS_GND 18 TE+ 19 TE- 20 TD+ 21 TD- 22 TCLK+ 23 TCLK- 24 TC+ 25 TC- 26 LVDS_GND 27 LVDS_VCC 28 TB+ 29 TB- 30 TA+ 31 TA- 32 LVDS_GND 33 TA0 34 TA1 35 TA2 36 TA3 37 TA4 38 TA5 39 GND 40 TA6 41 TB0 42 TB1 43 RS 44 TB2 45 TB3 46 TB4 47 GND 48 TB5 49 TB6 50 TC0 51 VCC 52 TC1 53 TC2 54 TC3 55 TC4 56 GND 57 TC5 58 TC6 59 TD0 60 R/F 61 TD1 62 TD2 63 TD3 64 TD4 SUFFIX DN 58 59 61 55 60 62 56 63 57 LVDS TRANSMITTER(10bit) TX_TC+ TX_TD+ TX_TB+ TX_TB- TX_TCLK+ TX_TE+ TX_TC- TX_TE- TX_TD- TX_TA- TX_TA+ TX_TCLK- TO D-BOARD (D5) 124 125 TH-42PA7C DG-Board (7 of 7) Schematic Diagram TH-42PA7C DG-Board (7 of 7) Schematic Diagram DG-BOARD TNPA3756DN (7/7) 90 14.29.D 电路板方框图 CLKD0 CLKD1 TXD_PC RXD_PC PANEL_MAIN_ON PANEL_MAIN_ON ALARM READY ECO_ON TUNER_SUB_ON ECO_ON TUNER_SUB_ON CLKM_IN FREE_RUN DRVMUTE RXD_PC IIC_INT TXD_PC RXD_PC IIC_CONT IIC_INT STB_SDA01 STB_SCL01 SOS8_SS CLKD3 READY ALARM IIC_CONT LED_R REMOCON IIC_CONT TXD_PC VDATA_DET VDATA_DET IIC_INT SOS6_SC1 SOS7_SC2 SOS7_SC2 SOS6_SC1 CLKD2 SOS4_PS REMOCON LED_R LED_G LED_R LED_G REMOCON LED_G SOS4-PS STB_SCL02 STB_SDA02 CLRD PCD1 LED PCD2 CLRD LED ALL_OFF ALL_OFF X9200 TP9372 TP9304 R 10bit Scan Control DATA 13bit IIC/INT G 10bit B 10bit (D)PDB1 (D)PBUSY B 10bit (D)PDB0 R 10bit (D)PSTB (D)PSLCT Sustain Control DATA 6bit G 10bit IC9503 4 10 PROCESSOR DRIVER TO C11 TO C21 14 50 13 51 26 15 TXD1 27 RXD1 IIC_CONT IIC_INT LVDS INPUT DISCHARGE CONTROL IIC1_SDA 28 LEVEL CONVERTER IIC2_SCL 29 12 15 Voltage 10 IIC2_SDA 14 21 IC9500 22 FPGA,ASIC 55 LSI_RST XRST SUB-FIELD PLASMA AI/SUB FIELD PROCESSOR/DATA DRIVER IC9003 IC9303 MICOM XIN XOUT X9000 44 9.216MHz IC9802,03 42 17 19 5 IIC1_SCL Video DATA 48bit(DA0-DC14) 3.3V 5V Low 3.3V 5V ROMDATA04-15(ROMADDRESS00-20) D32 D31 5VDET 46 1 TO DG3 D3 SOS7_SC2 76 73 72 SOS8_SS 5 READY ALARM 67 DRVMUTE IC9011 IIC_DATA1 IIC_CLK1 22 TUNER_SUB_ON 35 ALARM 33 34 DISPEN 37 READY PANEL_STBY_ON 27 30 21 ECO_ON 4 2 RXD TXD 6 D5 E+LVDSCLK (RX_TCLK+) E-LVDS2 (RX_TC-) 14 TO DG5 E-LVDS3 (RX_TD-) 16 7 15 11 12 E-LVDS1 (RX_TB-) 10 4 E-LVDS4 (RX_TE-) 1 9 E-LVDS0 (RX_TA-) 2 E-LVDSCLK (RX_TCLK-) E+LVDS2 (RX_TC+) E+LVDS1 (RX_TB+) E+LVDS4 (RX_TE+) 5 E+LVDS3 (RX_TD+) LVDS_DET STBY5V +5V D25 VDATA_DET 9 PANEL_MAIN_ON ECO_ON 1 +5V 7 2 13 +15V 15 +15V 17 20 10 TO P25 F_STBY_ON RXD 13 14 8 6 TXD 7 SDA1 PDB0 4 PSTB 5 IIC_INT 11 PSLCT PBUSY 9 D6 SCL1 12 15 LED_R PDB1 17 16 LED_G st-r IC9900 CONVERTER XRST CTI/TINT WB-ADJ I/P COLOR FORMAT CONVERTER/RGB PROCESSOR CONVERTER CONTRAST FORMAT Differential Signaling RECEIVER FPGA SOS4-PS 74 PANEL_MAIN_ON 24 P_ON/OFF Q9057 Q9058 Q9055 Q9056 P3V_SCL02 P3V_SDA02 TO SC20 D20 2 9 13 20 SCAN DATA 11 12 1 DRV_SOS7 P5V DRV_SOS2 21 43 14 12 5VDET 53 55 20 SOS6_SC1 SUSTAIN DATA 51 46 1 3 SS_SOS8 P3V_SCL1 P3V_SDA1 P15V P5V STB5V_M NRST DRV_RST DATA DRIVER 16M FLASH MEMORY RESET 4 5 VOUT VCC IC9502 RESET P3.3V SS PULSE SCAN OUT SC PULSE 3.3V 5V IC9504 37 UMH,UML,USH,USL,UEH,NUEL,ODED1,ODED2 CL,CLK,SIU,SID,SCSU,CEL2,CPH,CEL,CBK,CSL,CSH,CML,CMH IC9901 DDR SDRAM(128M) Q9302 Q9301 CLK4 17 CLK8 CLK1 21 24 7 CLK7 X1 1 28 X2 IC9200 PCK OCK D P3V_SCL1 P3V_SDA1 P5V CONTROL STBY5V P15V 21 19 IC9007 NCS ASDIO DATA0 DCLK ODED1 P5V Control DATA 70 SOS3_3V SOS2_15V 69 71 SOS5_5V Q9054 Q9053 Q9052 Q9051 P5V P15V 3.3V STB 5V_M STBY 5V 29 PROM(FPGA) LEVEL CONVERTER LEVEL CONVERTER CLOCK GENE. DIGITAL SIGNAL PROCESSOR PLASMA AI SUB-FIELD PROCESSOR FOR FACTORY USE P5V P5V DRVCLKD0-D3 20bit (DA8-DC14) (DA0-DC7) 24bit CLRD,LED,PCD1,PCD2 AVR P1.5V VOUT P2.5V P1.5V IC9801 6 1 VDD (LSI58 COMM) TDO,TDI TMS,TCK JTAG DCK HD VD JTAG PD1-MS FPCLK FPDAT0 FPDAT1 SFVRST LATCH SFRST R0-R9 G0-G9 VD B0-B9 HD DCK PICTURE OUTPUT LVDS LVDS SYNC PROCESSING WB ADJ DISCHARGE CONTROL FLASH CONTROL FPGA CONTROL CONTROL RESET CONTROL FLASH CLKM PRCKI -IN STB 3.3V 20 Q9044 IIC_CLK2 16 17 IIC_DATA2 IIC_CONT 19 IC9001 6 5 EEPROM SDA SCL 1 WP 25 EEP_WR_CTL P15V STB5V_M REMOCON 18 15V 2.5V OUT2 G2 17 S1 19 D1 OUT1 21 D2 20 13 D1 D2 VO 23 5 16 LX VCC VIN VDD 18 G1 IC9809 S2 DC-DC CONVERTER 24 FB -INC 9 CTL CB P15V P2.5V Q9805 Q9806 23 NCS DATA ADSI DCLK 10 IIC_CONT 1 2 STBY3.3V STB3.3V SDA2 SCL2 3 1 (D)P15V 6 VDATA_DET 68 NCS 36 37 ASDIO 38 DATA0 DCLK 39 8 LED_G REMOCON 9 LED_R 10 1 VOUT RESET 3 4 VDD CE 6 STB5V_M Q9046 STB3.3V 9 RESET Q9050 XRST SOS9_CONF 34 DRVRST Q9300 ODED1 ODED2 PLASMA AI NEW DATA ROMDATA00-03 DQ4-DQ15 A0-A19 DQ0-DQ3 ROMDATA00-03 ROMDATA04-15/ROMADDRESS00-20 3bit SOS4_PS 16 XRST 65 LED_R REM_IN 66 16 LED_G Q9010 STBY 3.3V RA_E ,RB_E ,RC_E ,RD_E ,RE_E RCLK_E E+LVDS0 (RX_TA+) STB_SCL02 STB_SDA02 STB_SDA02 STB_SCL02 DPCLK1 TSET TERMINAL (SC_SOS6) (SC_SOS7) P3.3V STB_SDA02 STB_SCL02 P3V_SCL1 P3V_SDA1 1 2 5 6 D9802 D9811 DCDC_ON Q9801 AVR 5V 5 1 VDD P15V VOUT IC9806 LDO_5V LDO_5V VIN VDD G2 18 17 S1 19 D1 -INC 9 D1 CTL CB D2 24 FB P15V P3.3V VO 23 LDO_5V 5 20 16 Q9803 D2 21 OUT1 G1 13 IC9807 S2 DC-DC CONVERTER 15V 3.3V LX VCC OUT2 VO 23 LDO_5V 5 20 16 Q9800 D2 21 OUT1 G1 13 IC9800 S2 DC-DC CONVERTER 15V 1.2V LX VCC OUT2 VIN VDD G2 18 17 S1 19 D1 -INC 9 D1 CTL CB D2 24 FB P15V P1.2V DOUTDC15 DOUTDA8 CLK2 CLRD CLK3 ODED1 LED PCD1 (DA15-DC15) , 13 15 P5V CLK0 CLK1 DOUTDA0 DOUTDC7 35 5 38 CLRD 39 LED PCD2 40 ODED2 (DA15-DC15) ODED2 ALL OFF 23 18 ALL OFF FORMAT CONVERTER STB 3.3V RESET P+3.3V SOS / LED BLINKING : 3TIMES P+5V SOS / LED BLINKING : 5TIMES P+15V SOS / LED BLINKING : 2TIMES TH-42PA7C D-Board Block Diagram TH-42PA7C D-Board Block Diagram 91 14.30.D 电路板 （1/6）线路图 G G + G G G G + G G 18 16 14 12 10 8 6 4 2 20 21 19 17 15 13 11 9 7 5 3 1 G G + G G G G FP_CSL SC_CL SC_CSL SC_CBK SC_SID SC_SCSU SC_CLK FP_SCSU SC_CEL FP_CEL SC_CPH SC_CEL2 SC_SIU FP_CSH FP_CLK FP_CEL2 SC_CML SC_CSH SC_CL SC_CMH SC_CSH FP_CML SC_CMH SC_CLK FP_CBK SC_SIU SC_CEL2 FP_SID SC_CML SC_SID SC_CEL FP_CPH FP_CL SC_CSL SC_CBK SC_CPH FP_SIU SC_SCSU PANEL_MAIN_ON ALL_OFF FAN_SOS PSTB PBUSY PDB0 ASDIO DCLK ECO_ON TUNER_SUB_ON P_ON/OFF SOS7_SC2 SOS6_SC1 PANASONIC_MODE DRVMUTE READY ALARM INEXCH AR_IIC_INT SOS9_CONF AC_GOOD AR_IIC_CONT STB_SCL02 STB_SDA02 TXD_PC RXD_PC STBY3.3V_ON DCDC_ON SOS4_PS PSTB_2 PBUSY_2 PDB1_2 PDB0_2 LED_R REM_IN PSLCT_2 PSLCT PDB1 AR_IIC_CONT_D4 P3V_SCL1 LED_G P3V_SDA1 REMOCON DCDC_ON PANEL_STBY_ON TUNER_SUB_ON ALL_OFF P3V_SCL1 P3V_SDA1 AR_IIC_CONT_D4 STB_SCL02_D4 STB_SDA02_D4 TXD_PC_D4 RXD_PC_D4 AR_IIC_INT_D2 FAN_CONT FAN_SOS ECO_ON LED_R LED_G REMOCON AC_GOOD PBUSY_2 PDB0_2 PSLCT_2 PDB1_2 RXD_PC_D4 TXD_PC_D4 STB_SDA02_D4 STB_SCL02_D4 AR_IIC_INT_D2 VDATA_DET FAN_CONT PSTB_2 DATA0 NCS FP_CMH R9883 0 D9802 MA2J72800L P1.5V R9869 10k C9805 4.7u 6.3V P15V R9810 3k C0JBAZ002692 IC9803 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R9893 36k 1% C9029 6.3V 10u L9810 J0JHC0000045 C0DBAYY00054 IC9800 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB R9813 2.4k FL9803 J0HABH000012 1 2 3 R9826 100 C0DBAYY00054 IC9807 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB C9881 50V 1000p C9824 10u 25V R9806 39k C9809 0.1u 16V C9815 68u 4V C9848 0.1u 25V R9824 100 STB3.3V C9837 10u 16V STB5V_M R9878 39k R9802 62k R9805 30k R9892 15k C9884 10p 50V R9814 68k R9846 EXB2HV272JV R9830 10k R9880 36k 1% D3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 R9872 0 R9823 100 C9842 16V 1u C9971 0.1u 16V C9823 10u 25V P15V_MOTO L9801 G1C2R2MA0241 D9800 B0JCME000037 R9850 47k R9133 4.7k R9841 0 D9812 B0JCME000037 P15V D25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 L9802 G1C2R2MA0241 C9886 0.1u 16V FL9804 J0HABH000012 1 2 3 Q9806 B1ABCF000138 C9839 10u 25V LDO_5V R9801 24k D20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Q9801 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 FL9801 J0HABH000013 1 2 3 C9967 4.7u 6.3V C9832 10u 16V L9800 G1C3R0MA0248 LDO_5V C9844 50V 0.01u R9840 22 R9847 EXB2HV272JV C9843 16V 0.1u C0JBAZ002692 IC9802 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc STB3.3V LDO_5V R9808 100k C9804 0.1u 16V R9816 82k P5V R9897 100k STB3.3V LDO_5V D9811 MA2J72800L C9806 68u 4V C9830 10u 16V P2.5V C9807 10u 25V C9841 16V 1u P5V_MOTO C9833 10u 25V C0DBAYY00054 IC9809 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB IC9007 TVRN941-1 1 NCS 2 DATA 3 VCC 4 GND 5 ASDI 6 DCLK 7 VCC 8 VCC C9808 10u 25V R9804 24k D9815 B0JCDD000002 R9870 10k R9827 100 D9808 MA3X152K0L C9880 50V 1000p R9879 20k C9826 16V 0.1u P3.3V C9897 8200p 50V C9887 4.7u 6.3V J0HABH000013 FL9805 C9802 47p 50V R9839 100 R9815 22k P1.2V C9846 16V 0.1u R9848 EXB2HV470JV P15V R9807 0 R9845 5.6k C9801 4700p 50V R9803 0 D6 C9896 0.1u 16V C9840 16V 0.1u C9822 6.3V 10u C9845 16V 0.1u R9842 100 Q9803 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 R9838 100 P15V FL9807 J0HABH000013 1 2 3 STB5V_M P15V D9807 MA3X152K0L R9131 4.7k R9854 100 D9804 MA3X152K0L P15V D9813 B0JCDD000002 P15V C9028 6.3V 10u R9871 10k C9838 16V 0.1u C9816 68u 4V P5V C0DBAHD00011 IC9806 1 VOUT 2 GND 3 CE 5 VDD 4 NC P5V C9891 0.1u 16V C9899 1000p 50V P15V C9800 0.1u 16V R9800 13k R9859 EXB38V101JV R9844 100 Q9800 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 STB3.3V P15V_MOTO C9882 0.1u 16V P5V_MOTO C9818 10u 25V P5V R9868 100k PA9800 K5H4022A0023 C9885 1000p 50V R9831 10k C9831 10u 16V J0HABH000013 FL9806 R9821 10k P15V R9896 0 C9847 0.1u 25V Q9010 B1ABCF000138 C9898 10p 50V D9814 B0JCME000037 D9801 B0JCDD000002 R9884 100k C9926 0.1u 16V C9883 8200p 50V C9803 4700p 50V IC9801 C0DBZFG00066 1 VOUT 2 GND 3 CE 4 NC 5 GND 6 VDD R9099 100 Q9805 B1ABCF000138 C9825 50V 100p STB3.3V C9827 6.3V 10u C9817 10u 25V STB5V_M R9825 100 R9891 47k P5V P2.5V R9843 100 R9132 4.7k J0HABH000013 FL9800 R9849 EXB2HV470JV P3.3V STBY5V CSL CEL CBK GND GND CEL2 FAN_SOS SID CL SIU SCSU CPH CLK GND GND P5V SOS7_SC2 SOS6_SC1 CMH FAN_CONT CML CSH (AC_GOOD) ALL_OFF GND GND +15V +15V GND GND GND +5V +5V F_STBY_ON GND ECO_ON PANEL_MAIN_ON FAN_CONT PANASONIC_MODE FAN_SOS ECO_ON GND GND GND GND GND GND GND REMOCON LED_G GND DISPEN INEXCH ALARM READY STBY5V TUNER_SUB_ON ALL_OFF IIC_DATA1 STBY3.3V IIC_CLK1 IIC_CONT IIC_CLK2 IIC_DATA2 TXD RXD IIC/INT ACGOOD LED_R P15V PSTB PBUSY PDB0 PSLCT PDB1 PANEL_STBY_ON SOS4_PS STBY3.3V IIC_CONT GND SCL1 SDA1 SCL2 SDA2 TXD RXD IIC_INT LED_G PSTB LED_R PDB0 PSLCT PDB1 PBUSY REMOCON STBY5V GND P15V VDATA_DET P5V D A C B E F LEVEL CONVERTER LEVEL CONVERTER 15V->3.3V DC-DC CONVERTER (P25) P-BOARD TO DG-BOARD TO (DG3) SC-BOARD TO (SC20) AVR P1.5V PROM(FPGA) D-BOARD TZTNP01BLTC (1/6) FOR FACTORY USE AVR 5V DC-DC CONVERTER 15V->1.2V DC-DC CONVERTER 15V->2.5V 1 2 3 TH-42PA7C D-Board (1 of 6) Schematic Diagram TH-42PA7C D-Board (1 of 6) Schematic Diagram 1 2 3 4 5 6 7 8 9 92 14.31.D 电路板 （2/6）线路图 XRST P3V_SCL02 P3V_SDA02 STB_SDA02 P3V_SDA1 P3V_SCL1 LVDS_MODE DRVRST READY REM_IN INEXCH STB_SDA02 DATA0 M_SEL2 LED_R LED_G M_SEL2 SOS9_CONF M_SEL1 SOS7_SC2 RXD_PC M_SEL3 NCS XRST XRST AR_IIC_INT M_SEL4 PANASONIC_MODE NRST C_SEL M_SEL4 ALARM ASDIO TXD_PC PANEL_MAIN_ON DCLK LVDSBIT M_SEL3 SOS4_PS EEP_WR_CTL SOS6_SC1 XRST STB_SDA01 STB_SDA01 STB_SCL01 STB_SCL01 EEP_WR_CTL STB_SCL02 STB_SDA02 RE_E+ RE_E- RD_E+ RD_E- RC_E+ RC_E- RB_E+ RB_E- RA_E+ RA_E- RCLK_E+ RCLK_E- LVDS_DET RE_0+ RD_0+ RD_0- RC_0+ RC_0- RB_0- RA_0+ RA_0- P_ON/OFF D5_DETO FVSEL AR_IIC_CONT STB_SCL02 STBY3.3V_ON PANEL_STBY_ON SOS9_CONF SOS8_SS M_SEL1 M_SEL1 RE_0- RB_0+ VDATA_DET STB_SCL02 R9111 22k R9100 10k R9165 10k R9173 10k C9048 16V 0.1u Q9050 B1ABCF000138 C9045 16V 0.1u D9105 B0JCGD000002 R9076 100 R9225 4.7k C9039 6.3V 10u R9219 10k Q9052 B1ABCF000138 R9177 22k Q9056 B1CBHD000002 R9181 1k C9033 16V 0.1u R9156 10k C9040 16V 0.1u Q9051 B1ABCF000138 R9199 2.7k R9113 10 D9106 B0JCGD000002 R9110 100 R9171 39k R9150 22 R9194 0 R9183 1k R9222 10k R9206 1k C9053 16V 0.1u R9157 10k R9188 5.6k R9158 10k R9098 10k STB5V R9074 100 R9105 4.7k R9220 10k D9017 MAZ303300L R9164 10k R9161 0 Q9044 B1ABCF000138 R9143 100 STB3.3V R9223 4.7k R9144 100 D5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 R9180 10k C9060 16V 0.1u R9203 1k STB3.3V R9142 100 P3.3V C9049 16V 0.1u STB3.3V D9101 B0JCGD000002 C2CBJG000730 IC9003 1 2 3 4 5 - 6 CNVss 7 8 9 RESET 10 XOUT 11 VSS 12 XIN 13 VCC 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 Avcc 79 80 R9169 10k R9148 10k R9155 5.6k R9121 100k R9179 1k Q9054 B1ABCF000138 R9221 10k C9055 16V 0.1u R9236 0 C9058 6.3V 10u Q9055 B1CBHD000002 STB3.3V R9065 100 1 RESET 2 Cd 3 VOUT 4 VDD 5 GND 6 CE R9127 68k C9047 16V 0.1u R9192 0 R9240 0 C9044 16V 0.1u Q9049 B1ADCE000011 R9066 100 D9102 B0JCGD000002 C9035 6.3V 10u R9172 39k R9159 10k R9152 4.7k R9064 100 R9196 10k P5V R9167 100 C9057 16V 0.1u R9182 1k STB3.3V R9187 5.6k Q9053 B1ABCF000138 R9184 1k R9170 39k IC9001 TVRN806-1 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 Vcc Q9058 B1CBHD000002 P3.3V R9145 100 C9050 16V 0.1u X9000 H2D200500011 C9037 0.01u 50V C9034 16V 0.1u R9174 10k R9237 10k R9828 100k R9140 0 R9185 22 R9166 10k D9100 B0JCGD000002 R9151 22 R9154 5.6k D9019 MAZ303300L C9036 6.3V 10u C9051 16V 0.1u STB3.3V R9109 10k R9106 10k R9190 10k R9101 10k R9189 10k R9120 100 R9129 68k P3.3V STB5V_M R9186 22 R9097 10k R9217 10k R9062 100 R9160 0 R9175 10k Q9046 B1ABCF000138 R9063 100 P15V R9178 10k R9205 4.7k TP9000 R9141 100 D9110 B0JCGD000002 R9218 10k D9020 MA2J72800L STB3.3V D9018 MAZ303300L R9193 10k R9215 12k R9134 33k R9153 4.7k D9103 B0JCGD000002 R9107 3.3k C9046 16V 0.1u R9108 10k R9061 100 R9168 100 C9052 16V 0.1u R9060 100 R9067 100 R9102 100 R9207 1k Q9057 B1CBHD000002 STB3.3V R9149 4.7k E- LVDS4 GND E+ LVDS4 E- LVDS3 E+ LVDS3 E- LVDS2 GND E+ LVDS2 E- LVDS1 O+ LVDS4 GND GND E+ LVDS0 E+ LVDS1 GND O+ LVDS3 O- LVDS4 E- LVDS0 O- LVDS2 O+ LVDS2 O- LVDS1 O+ LVDS1 O- LVDS3 GND O+ LVDS0 O- LVDS0 O- LVDSCLK O+ LVDSCLK E- LVDSCLK E+ LVDSCLK LVDS_DET INEXCH SIN(FPGA) PLL_RST VREF SOUT(FPGA) XOUT SOS7_SC2 FPGA_CE NC AVSS BUSY(for Loader) RESET SOS4_PS NC CE(Loader) SOS8_SS SCLK(for Loader) NC SOS6_SC1 MAIN_CONF NC SOS2_15V LED_RED INT_CONF RXD(Loader) READY SOS3_3V LVDS_BIT TXD(Loader) NC NC LVDS_MODE IIC2_SDA NC SOS5_5V SOS_INH IIC2_SCL NC(ALL_OFF) M_SEL4 EEP_WR_CTL SOS9_CONF NC PANEL_MAIN_ON VDATA_DET NC P_ON/OFF AC_GOOD ALARM M_SEL3 LSI_RST NC M_SEL2 FVSEL D5_DETO REM_IN NC NC NC IIC1_SDA XRST NC IIC1_SCL DRIVER_RESET IIC_CONT M_SEL1 VCC NC PANASONIC_MODE NC(C_SEL) XIN IIC_INT LED_GRN NC SCLK(FPGA) VSS NC NC NC 13 16 14 18 15 10 12 11 17 STB 3.3V RESET MICOM EEPROM DG-BOARD TO (DG5) 15 16 14 12 13 2 3 1 11 C0EBF0000431 IC9011 TH-42PA7C D-Board (2 of 6) Schematic Diagram TH-42PA7C D-Board (2 of 6) Schematic Diagram D-BOARD TZTNP01BLTC (2/6) 93 14.32.D 电路板 （3/6）线路图 SOS9_CONF AA_BYTE L8DO_UA19 L8DO_UB16 L8DO_UC21 L8DO_UA18 L8DO_UA11 FVSEL FP_UEH FP_CSL FP_CSH L8DO_UA9 RD_0- RE_0- FPDAT1 FP_SID RE_E+ L8DO_UC12 L8DO_UA10 RB_0+ RCLK_E- FP_UMH L8DO_UA16 FP_CPH DD_CLRD L8DO_UA20 L8_HIN FP_CBK L8DO_UC11 RD_E+ L8DO_UA17 RC_E- L8DO_UB11 RE_0+ FP_UML NRST L8DO_UC18 L8DO_UA21 FP_CEL FP_NUEL RA_E- L8DO_UC15 RE_E- RC_0- RC_0+ RC_E+ L8DO_UB21 FP_USL DD_ODED1 RD_E- RB_E- L8DO_UC10 RD_0+ L8_VIN SFRST FPCLK FP_USH FP_SIU RA_E+ L8DO_UB17 LVDSBIT L8DO_UA14 L8DO_UB18 FPDAT0 FP_CL DD_PCD2 L8DO_UC17 L8DO_UB19 SFVRST LATCH FP_CEL2 DD_PCD1 L8DO_UB20 L8DO_UA15 RA_0- L8DO_UB15 RB_0- RB_E+ L8DO_UB10 RA_0+ FP_CML FP_SCSU FP_CMH LVDS_MODE L8DO_UC16 L8DO_UC19 DD_LED RCLK_E+ FP_CLK PSLCT PBUSY NCS DATA0 ENHMASK ASDIO INEXCH LVDS_DET PSTB PDB1 PDB0 DRVRST TDI_TO_68 TMS TDO_TO_FPGA L8_B9 L8_B8 L8_B7 L8_B6 L8_B5 L8_B4 L8_B3 L8_B2 L8_B1 L8_B0 L8_G9 L8_G8 L8_G7 L8_G6 L8_G5 L8_G4 L8_G3 L8_G2 L8_G1 L8_G0 L8_R9 L8_R8 L8_R7 L8_R6 L8_R5 L8_R4 L8_R3 L8_R2 L8_R1 L8_R0 DRVMUTE L8_DCK L8DO_UC20 DD_ODED2 D5_DETO TCK AA_XCE AA_XOE AA_XWE DCLK IC9500 J1 PLL1_OUTp IC9500 G7 GND C9528 16V 0.1u R9537 10k IC9500 D8 LVDS24p IC9500 T6 LVDS65p IC9500 H16 LVDSCLK2n C9521 16V 0.1u IC9500 D6 LVDS19n IC9500 B13 LVDS32n IC9500 G8 VCCINT IC9500 E5 DPCLK2 IC9500 R6 LVDS66n IC9500 H5 VREF1B1 IC9500 K3 ASDO IC9500 H4 nCEO IC9500 P11 LVDS57n IC9500 M4 LVDS2p IC9500 H3 nCONFIG IC9500 L5 DPCLK0 R9529 10k IC9500 A1 GND IC9500 E8 IO IC9500 C1 VCCIO1 IC9500 C10 LVDS27n IC9500 E2 LVDS10p IC9500 L3 IO IC9500 B15 LVDS34n IC9500 L14 LVDS45n IC9500 L12 DPCLK5 IC9500 R16 LVDS50p R9544 10k IC9500 B8 LVDS23p IC9500 M11 VREF0B4 IC9500 A6 LVDS21p IC9500 P5 LVDS68n IC9500 D15 LVDS38n IC9500 L11 GND IC9500 N8 LVDS62p IC9500 D4 LVDS14p(INIT_DONE) IC9500 R13 LVDS54n IC9500 D10 LVDS27p IC9500 J11 GNDA_PLL2 IC9500 L9 GND IC9500 C6 LVDS20p IC9500 G3 LVDS9n IC9500 P4 LVDS70n IC9500 J13 nSTATUS IC9500 D11 LVDS30p IC9500 H15 TDO IC9500 T10 VCCINT IC9500 D16 LVDS39p R9506 22 IC9500 K2 PLL1_OUTn R9533 47 IC9500 R9 LVDS61p C9531 6.3V 10u IC9500 B7 LVDS21n IC9500 B6 LVDS20n IC9500 G4 nCSO IC9500 N4 LVDS0n IC9500 K16 LVDS44p IC9500 E12 DPCLK3 IC9500 T12 GND IC9500 B14 LVDS33n L9501 J0JHC0000078 IC9500 K8 GND IC9500 G9 GND IC9500 L16 LVDS44n R9532 47 IC9500 T13 LVDS54p IC9500 N14 LVDS48n IC9500 G16 LVDSCLK2p R9543 10k IC9500 C5 LVDS18n IC9500 M7 IO L9502 J0JHC0000078 IC9500 H8 GND IC9500 P6 LVDS66p IC9500 J9 GND IC9500 E11 VREF0B2 IC9500 T7 VCCINT IC9500 B4 LVDS17p IC9500 M2 LVDS4n C9526 6.3V 10u IC9500 H2 DATA0 IC9500 J10 VCCINT IC9500 A12 GND IC9500 T8 LVDS63n IC9500 N3 LVDS2n IC9500 E3 LVDS11p IC9500 R15 LVDS52n R9548 10k IC9500 K15 PLL2_OUTn IC9500 R1 LVDS1p IC9500 F8 GND C9522 16V 0.1u IC9500 H11 VCCA_PLL2 R9531 47 C9523 16V 0.1u IC9500 M14 LVDS47n IC9500 C7 LVDS22p IC9500 D14 LVDS37p IC9500 P7 LVDS64p IC9500 R14 LVDS53p IC9500 R11 LVDS57p C9527 16V 0.1u IC9500 D1 LVDS10n IC9500 G13 LVDS43p IC9500 L4 IO IC9500 P12 LVDS55p IC9500 C13 LVDS33p IC9500 C2 LVDS13p(CLKUSR) C9530 16V 0.1u IC9500 F5 DPCLK1 IC9500 N12 LVDS56n IC9500 J4 nCE C9525 16V 0.1u IC9500 H14 TDI C9517 16V 0.1u R9525 10k IC9500 C8 LVDS24n IC9500 F13 LVDS41p R9552 10k IC9500 P15 LVDS50n IC9500 E13 LVDS37n IC9500 N6 LVDS67n R9863 10k IC9500 C11 LVDS29n IC9500 L6 GND IC9500 R12 LVDS55n IC9500 K10 GND IC9500 M16 LVDS46p IC9500 A7 VCCINT IC9500 E9 IO IC9500 T14 VCCIO4 IC9500 R2 LVDS71p IC9500 R8 LVDS63p IC9500 L1 LVDS6n IC9500 J15 TMS IC9500 A4 LVDS17n IC9500 J5 GNDG_PLL1 IC9500 P10 LVDS58n IC9500 H1 LVDSCLK1n IC9500 H10 GND IC9500 B9 LVDS26p IC9500 C3 LVDS14n IC9500 K12 VREF2B3 IC9500 L2 LVDS5p IC9500 B16 LVDS36n R9540 10k IC9500 F12 DPCLK4 IC9500 P9 LVDS60p IC9500 B5 LVDS18p IC9500 L8 GND IC9500 C14 LVDS35n IC9500 B1 LVDS13n R9507 0 IC9500 G15 LVDS42n C9529 16V 0.1u IC9500 N5 LVDS67p IC9500 N1 LVDS4p C9516 16V 0.1u IC9500 A2 LVDS15n R9526 0 IC9500 N10 LVDS58p IC9500 M9 IO IC9500 C12 LVDS31p IC9500 E14 LVDS38p IC9500 M12 DPCLK6 IC9500 K5 VREF2B1 IC9500 D9 LVDS25n IC9500 F15 LVDS40n IC9500 F7 VCCIO2 IC9500 D12 LVDS30n IC9500 R5 LVDS68p IC9500 J14 TCK IC9500 M15 LVDS46n IC9500 T4 LVDS69n IC9500 E10 VREF1B2 C9519 16V 0.1u IC9500 R4 LVDS69p IC9500 F2 LVDS8p IC9500 D7 LVDS22n IC9500 A11 LVDS28n IC9500 A14 VCCIO2 R9523 10k IC9500 T3 VCCIO4 IC9500 R7 LVDS65n IC9500 A15 LVDS34p P3.3V IC9500 N7 LVDS64n IC9500 E15 LVDS39n IC9500 K6 GND IC9500 A5 GND IC9500 K11 VCCIO3 IC9500 H13 IO R9534 EXB38V470JV IC9500 M3 LVDS3n IC9500 P3 LVDS0p C9520 16V 0.1u IC9500 F11 GND IC9500 G11 GND IC9500 H7 VCCINT IC9500 E1 LVDS8n R9549 10k IC9500 N16 LVDS49p IC9500 K7 VCCINT IC9500 T9 LVDS61n R9862 10k IC9500 N15 LVDS49n IC9500 B3 LVDS16p P3.3V R9550 10k IC9500 D2 LVDS11n IC9500 F10 VCCIO2 IC9500 D5 LVDS19p IC9500 E6 VREF2B2 IC9500 L13 LVDS47p IC9500 N9 LVDS60n IC9500 H12 VREF1B3 IC9500 G14 LVDS43n R9530 10k IC9500 M13 LVDS48p IC9500 R10 LVDS59p IC9500 B11 LVDS29p IC9500 F14 LVDS41n IC9500 F6 GND IC9500 N2 LVDS3p IC9500 K1 LVDS6p IC9500 T11 LVDS59n IC9500 L15 LVDS45p IC9500 D3 LVDS12p C9524 16V 0.1u P3.3V IC9500 P16 VCCIO3 IC9500 J7 GND IC9500 N13 LVDS51n IC9500 T1 GND IC9500 A16 GND IC9500 F4 LVDS_DET IC9500 T15 LVDS52p IC9500 G10 VCCINT IC9500 P14 LVDS51p IC9500 A10 VCCINT IC9500 H6 VCCA_PLL1 IC9500 A13 LVDS32p IC9500 F9 GND IC9500 C16 VCCIO3 IC9500 C15 LVDS36p IC9500 N11 LVDS56p IC9500 J8 VCCINT IC9500 G6 VCCIO1 R9956 10k IC9500 F1 LVDS7n IC9500 T2 LVDS71n IC9500 M10 VREF1B4 IC9500 L10 VCCIO4 IC9500 P8 LVDS62n IC9500 B2 LVDS15p IC9500 B12 LVDS31n IC9500 G5 VREF0B1 P3.3V IC9500 E4 LVDS12n IC9500 E16 LVDS40p P3.3V IC9500 T5 GND IC9500 B10 LVDS28p IC9500 P2 LVDS1n IC9500 G12 VREF0B3 IC9500 A9 LVDS26n R9861 10k IC9500 K4 DCLK C9518 16V 0.1u IC9500 J12 GNDG_PLL2 IC9500 A3 VCCIO2 IC9500 H9 VCCINT IC9500 M1 LVDS5n IC9500 M6 VREF2B4 IC9500 G1 LVDSCLK1p R9535 47 IC9500 F3 LVDS9p IC9500 P1 VCCIO1 IC9500 L7 VCCIO4 IC9500 J3 MSEL0 IC9500 K14 IO IC9500 M8 IO IC9500 R3 LVDS70p P3.3V IC9500 C9 LVDS25p R9536 47 IC9500 K9 VCCINT IC9500 K13 CONF_DONE IC9500 C4 LVDS16n IC9500 F16 LVDS42p IC9500 T16 GND IC9500 M5 DPCLK7 IC9500 J16 PLL2_OUTp IC9500 J2 MSEL1 IC9500 G2 LVDS7p IC9500 A8 LVDS23n IC9500 D13 LVDS35p IC9500 E7 IO IC9500 J6 GNDA_PLL1 IC9500 P13 LVDS53n R9070 47 R9545 300k P3.3V P1.5V D5_DETO /ROMADRS[19] DMHL DSLR M_GOUT9 M_GOUT5 M_BOUT0 NRST CLK M_ROUT9 FPCLK PCD2 DSLL DRVRST M_ROUT7 CEL /ROMADRS[03] ODED1 FPDATA0 M_BOUT1 /ROMADRS[02] M_GOUT4 /ROMADRS[11] DRVMUTE /ROMADRS[07] /ROMADRS[04] CBK FPDATA1 OSDCK CLRD /ROMADRS[18] /ROM_BYTE M_GOUT3 /ROMADRS[10] SFRST SCSU DSHL OSDG /ROMADRS[08] LATCH PCU2 MODEL[1] /ROMDATA[06] M_ROUT3 CPH /ROMADRS[20] CEL2 MODEL[0] CBK2 DMLR M_ROUT6 /ROMADRS[17] SDA SID2 M_GOUT1 CLK_INPUT OSD CL SCL DMHR /ROMDATA[07] OTHER CSH NUEL RESET USL SIU ODEU Flash_Control CLRU SIU2 M_ROUT2 LSI58 CLKM_IN M_ROUT1 M_ROUT5 DATA POWER SAVING(NC) LVDSmode SFVRST /ROMDATA[01] /ROMADRS[16] /ROMDATA[05] LVDS_INPUT /ROMADRS[13] /ROMDATA[00] /ROMADRS[05] M_GOUT6 DATA_DRIVER /ROMDATA[04] /ROM_OE PICTURE_OUTPUT /ROMDATA[03] /ROM_CE NC IIC /ROMDATA[02] /ROMADRS[00] CONTROL CML SS_PULSE UML CMH DMLL UMH SC_PULSE M_ROUT4 Nosync GND LVDSbit M_ROUT8 M_ROUT0 M_GOUT2 LEU FVSEL PCU M_BOUT3 M_BOUT4 VCCINT M_GOUT8 VCCI OSDHD /ROMADRS[01] M_BOUT5 JTAG OSDVD /ROMADRS[09] M_BOUT6 OSDB M_GOUT0 M_DCKO /ROMADRS[14] M_HDO M_BOUT7 OSDR /ROM_WE M_VDO M_BOUT8 M_GOUT7 M_BOUT9 USH SID UEL LED MODEL SELECT CSL PCD1 /ROMADRS[06] FPGA M_BOUT2 /ROMADRS[12] MASK INEXCH p_db1 p_db0 p_stb p_slct p_busy PRCKI FREE RUN CLK PRCK_OUT CLKM_OUT TEST PIN /ROMADRS[-1] /ROMADRS[15] ODED2 WHITE SIGNAL 24 19 27 20 25 23 22 21 26 D-BOARD TZTNP01BLTC (3/6) 12 15 13 14 16 23 22 21 25 27 26 24 11 FLASH CONTROL SYNC PROCESSING FPGA CONTROL LVDS IC9500 WB ADJ C1ZBZ0002599 DISCHARGE CONTROL TH-42PA7C D-Board (3 of 6) Schematic Diagram TH-42PA7C D-Board (3 of 6) Schematic Diagram 94 14.33.D 电路板 （4/6）线路图 DD_LED FP_UMH USH UML DD_ODED1 UMH USL DD_CLRD DD_PCD2 NUEL FP_UEH FP_NUEL D-ODED1 FP_USH FP_USL FP_UML DD_PCD1 UEH L8DO_UB20 L8DO_UB18 L8DO_UA18 L8DO_UC17 L8DO_UC19 L8DO_UB15 L8DO_UC20 L8DO_UB21 L8DO_UC11 L8DO_UC12 LBDO_UA12 L8DO_UB10 LBDO_UA13 L8DO_UA11 LBDO_UB12 L8DO_UA16 LBDO_UB14 L8DO_UB16 L8DO_UA21 L8DO_UA17 AA_XCE L8DO_UC16 L8DO_UB17 LBDO_UC13 LBDO_UC14 L8DO_UA10 L8DO_UB11 L8DO_UA14 L8DO_UA19 LBDO_UB13 L8DO_UA20 L8DO_UA15 L8DO_UC18 L8DO_UB19 L8DO_UC21 L8DO_UC15 0V L8DO_UC10 L8DO_UA9 AA_XWE AA_XOE AA_BYTE L8_PCK L8_OCK DD_ODED2 D-ODED2 D-CLRD D-LED D-PCD2 D-PCD1 P3.3V C9515 16V 1u TVRN815 IC9303 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 C9501 16V 0.1u P5V C9505 16V 0.1u P5V X9200 H0J200500038 C9511 6.3V 10u P3.3V R9511 47 L9500 G1C150KA0038 R9502 10k R9501 10k C9506 16V 0.1u R9394 0 C9514 16V 1u R9518 560 C9500 16V 0.1u C9509 50V 20p R9513 47 R9355 4.7k R9516 10k R9512 47 C9508 16V 0.1u P3.3V C9510 50V 15p C0JBAZ002692 IC9503 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C1ZBZ0003185 IC9200 1 X1 2 VDD 3 CLK2 4 S1 5 S0 6 VDD 7 CLK7 8 GND 9 CLK5 10 VDD 11 GND 12 CLK6 13 VDD 14 CLK3 15 GND 16 VDD 17 CLK4 18 GND 19 CLK9 20 VDD 21 CLK8 22 GND 23 VDD 24 CLK1 25 S2 26 STBY 27 GND 28 X2 C9469 TH-42PA7C D-Board (4 of 6) Schematic Diagram TH-42PA7C D-Board (4 of 6) Schematic Diagram 16V 0.1u R9503 47 R9527 EXB2HV272JV R9356 4.7k R9528 EXB2HV272JV C9512 16V 0.1u C9502 16V 0.1u IC9502 C0EBE0000066 1 NC 2 SUB 3 GND 5 Vcc 4 Vout C0JBAZ002692 IC9504 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C9503 16V 0.1u C9504 16V 0.1u (SS20) (84/36) (63) (SS50/60/75) (20) (OFF) (39.5) (31.6) (36.6) 34 35 31 33 29 28 30 32 36 RESET CLOCK GENE. 16M FLASH MEMORY LEVEL CONVERTER LEVEL CONVERTER 31 32 35 33 34 24 25 27 26 23 22 21 D-BOARD TZTNP01BLTC (4/6) 95 14.34.D 电路板 （5/6）线路图 G G G G + G G TERM SIDE + G G + TERM SIDE G G G G G G ENHMASK L8_VIN L8_HIN L8_G0 L8_G1 L8_G2 L8_G3 L8_G4 L8_G5 L8_G6 L8_G7 L8_G8 L8_G9 L8_B0 L8_B1 L8_B2 L8_B3 L8_B4 L8_B5 L8_B6 L8_B7 L8_B8 L8_B9 L8_R0 L8_R1 L8_R2 L8_R3 L8_R4 L8_R5 L8_R6 L8_R7 L8_R8 L8_R9 L8DO_UA14 L8DO_UA19 L8DO_UA21 L8DO_UA11 L8DO_UA20 L8DO_UA18 LBDO_UA13 LBDO_UA12 L8DO_UA15 L8DO_UA16 L8DO_UA17 L8R_DA03 L8R_DA11 L8DO_UA9 L8R_DA12 L8R_DA06 L8R_DA02 L8R_DA13 L8R_DA07 L8R_DA04 L8R_DA08 L8R_DA09 L8R_DA00 L8R_DA01 L8DO_UA10 L8R_DA05 L8R_DA10 L8DO_UB11 LBDO_UB13 LBDO_UB14 L8DO_UB20 L8DO_UB17 LBDO_UB12 L8DO_UB21 L8DO_UB15 L8DO_UB19 L8DO_UB18 L8DO_UB16 L8R_DB02 L8R_DB12 L8R_DB04 L8R_DB07 AA_XCE L8R_DB08 L8R_DB01 L8DO_UC10 L8R_DB13 L8R_DB09 L8R_DB05 L8R_DB10 L8R_DB00 L8R_DB14 L8R_DB03 L8R_DB06 L8R_DB11 LBDO_UC13 L8R_DC01 L8DO_UC15 L8DO_UC18 L8DO_UC16 L8DO_UC21 L8R_DC05 L8R_DC00 L8DO_UC11 L8R_DC09 LBDO_UC14 L8DO_UC17 L8R_DC06 L8R_DC10 L8DO_UC19 L8DO_UC20 L8DO_UC12 L8R_DC11 L8R_DC13 L8R_DC03 L8R_DC07 L8R_DC14 L8R_DC12 L8R_DC02 L8R_DC04 L8R_DC08 L8DO_UB10 L8R_MONOUT1 FPDAT1 FPCLK FPDAT0 SFRST SFVRST LATCH L8R_DRVCLKD0 L8R_DRVCLKD3 L8R_DRVCLKD2 L8R_DRVCLKD1 L8R_DA03 D42_DOUTDA9 D42_DOUTDB9 L8R_DB10 L8R_DC00 D42_DOUTDC5 UMH L8R_DC02 L8R_DRVCLKD0 CLRD L8DO_UA10 L8R_DA01 L8R_DB07 L8R_DA04 L8DO_UC10 L8R_DA13 UEH ODED1 L8R_DRVCLKD1 L8R_DA11 D42_DOUTDC15 C_UEH D42_DOUTDC13 L8R_DC07 D42_DOUTDC4 L8R_DC03 L8R_DC12 L8R_DC10 D42_DOUTDB15 L8R_DA12 L8R_DRVCLKD2 D42_CLKD3 USH L8R_DA00 L8R_DC08 L8R_DC11 D42_DOUTDB12 D42_DOUTDC14 L8R_DB14 L8R_DB01 USL D-CLRD D42_DOUTDB10 D42_DOUTDA11 C_UML L8R_DA02 L8R_DA06 L8R_DB00 L8R_DC14 L8R_DC01 L8R_DA07 D42_DOUTDC12 D42_DOUTDB14 L8R_DA10 D42_DOUTDB8 D-PCD1 D-PCD2 L8R_DC05 D42_DOUTDC10 L8R_DB09 L8R_DB08 D42_DOUTDC11 L8R_DC09 L8R_DB02 D42_DOUTDA8 L8R_DB03 D42_DOUTDA15 L8R_DB11 L8R_DB06 D42_DOUTDA13 L8R_DB12 NUEL L8R_DB04 D42_DOUTDB7 D42_DOUTDA12 D42_DOUTDA10 D42_CLKD2 D-ODED1 C_NUEL L8R_DB13 L8R_DA05 C_USL L8R_DA08 L8R_DC04 D-LED C_USH D42_DOUTDB13 C_UMH L8R_DC06 D-ODED2 L8R_DRVCLKD3 D42_DOUTDB4 L8R_DC13 UML D42_DOUTDA7 D42_DOUTDA14 D-CLRD D42_DOUTDB11 D42_DOUTDA4 LED D42_DOUTDC9 D-LED L8R_DA09 D42_DOUTDC8 L8R_DB05 PCD1 L8DO_UA9 L8DO_UB10 5V_SENSE 5V_DET3 5V_SENSE 5V_DET4 C_SOS8_SS SOS8_SS DRVRST TCK TMS TDI_TO_68 TDO_TO_FPGA XRST XRST 5V_DET4 MODEL1 MODEL1 M_SEL1 D42_DOUTDC14 D42_DOUTDB14 D42_DOUTDA14 D42_DOUTDC15 D42_DOUTDB15 D42_DOUTDA15 LED PCD1 CLRD ODED1 D42_CLKD3 D42_CLKD2 D42_DOUTDC12 D42_DOUTDB12 D42_DOUTDA12 D42_DOUTDC13 D42_DOUTDB13 D42_DOUTDA13 D42_DOUTDC10 D42_DOUTDB10 D42_DOUTDA10 D42_DOUTDC11 D42_DOUTDB11 D42_DOUTDA11 D42_DOUTDC8 D42_DOUTDB8 D42_DOUTDA8 D42_DOUTDC9 D42_DOUTDB9 D42_DOUTDA9 D42_DOUTDC4 D42_DOUTDB4 D42_DOUTDA4 D42_DOUTDC5 D42_DOUTDB5 D42_DOUTDA5 D42_DOUTDC2 D42_DOUTDB2 D42_DOUTDA2 D42_DOUTDC3 D42_DOUTDB3 D42_DOUTDA3 D42_DOUTDC0 D42_DOUTDB0 D42_DOUTDA0 D42_DOUTDC1 D42_DOUTDB1 D42_DOUTDA1 ODED2 CLRD PCD2 LED D42_CLKD1 D42_CLKD0 C_SOS8_SS C_NUEL C_UMH C_UML C_USH C_USL C_UEH 5V_DET3 D42_DOUTDC6 D42_DOUTDB6 D42_DOUTDA6 D42_DOUTDC7 D42_DOUTDB5 D42_DOUTDA5 D42_DOUTDC2 D42_DOUTDB2 D42_DOUTDA2 D42_DOUTDC3 D42_DOUTDA3 D42_DOUTDC0 D42_DOUTDB0 D42_DOUTDA0 D42_DOUTDC1 D42_DOUTDB1 D42_DOUTDA1 D42_DOUTDB3 ODED2 CLRD PCD2 LED D42_CLKD1 D42_CLKD0 D42_DOUTDC6 D42_DOUTDB6 D42_DOUTDA6 D42_DOUTDC7 D42_DOUTDB7 D42_DOUTDA7 L8R_DQ9 L8R_DQ23 L8R_A6 L8R_A5 L8R_A4 L8R_DQ13 L8R_DQ24 L8R_BA0 L8R_DQS2 L8R_BA1 L8R_DQ4 L8R_DQ2 L8R_RAS L8R_DQ18 L8R_A1 L8R_A10 L8R_A0 L8R_DQ31 L8R_DQ8 L8R_A3 L8R_DQ14 L8R_DQS3 L8R_WE L8R_DQ3 L8R_DQ10 L8R_DQ26 L8R_DQ1 L8R_SDCKE L8R_DQ21 L8R_SDCLKO L8R_DQ12 L8R_DQ28 L8R_DQ30 L8R_DQ6 L8R_A9 L8R_DQS1 L8R_DQ22 L8R_A7 L8R_DQ17 L8R_NSDCLKO L8R_DQ5 L8R_DQ15 L8R_DQ11 L8R_DQ25 L8R_DQ29 L8R_A8 L8_OCK L8R_DQ27 L8R_A11 L8_PCK L8R_CS L8R_DQ20 L8R_DQS0 L8_DCK L8R_DQ19 L8R_DQ16 L8R_A2 L8R_CAS L8R_DQ0 L8R_DQ7 TRST 5V_SENSE C9955 0.1u 16V IC9900 R5 VDD25 IC9900 V14 VDD12 IC9900 AA16 AVSS2 TP9303 L8R3.3V C9957 0.1u 16V TP9345 IC9900 AB18 DOUTDC00 IC9900 E19 DOUTUC03 L8R2.5V R9350 22 L8R3.3V IC9900 G5 VDD12 IC9900 P13 VSS IC9900 AB11 DQ28 IC9900 V13 VDD12 IC9900 K4 HDI IC9900 B14 DOUTUB11 IC9900 D15 DOUTUB08 IC9900 K12 VSS R9360 EXB38V820JV IC9900 D2 GI4 IC9900 A6 OCKOUT IC9900 C20 VSS IC9900 V7 VDD25 C9914 0.1u 16V IC9900 D3 VDD12 IC9900 F21 DRVCLKU2 IC9900 W15 TCPOUT IC9900 U2 AVSS_1 IC9900 H2 BI9 IC9900 Y22 VDD33 IC9900 C18 DOUTUB05 IC9900 K5 VDD33 R9348 EXB2HV820JV IC9900 W20 VDD33 IC9900 W16 SDIV1 TP9388 IC9900 G19 DOUTUC00 IC9900 J2 MONOUT1 IC9900 R18 VDD33 IC9900 A21 VSS C9904 0.1u 16V IC9900 R21 DOUTDA06 IC9900 D5 GI2 IC9900 U5 VDD25 FL9301 F1J1E1040022 1 2 3 TP9350 IC9900 D19 VSS FL9300 F1J1E1040022 1 2 3 C9903 0.1u 16V IC9900 N20 DOUTDC09 IC9900 AB7 A6 IC9900 T18 VDD33 P5V IC9900 D20 DOUTUB03 C9912 0.1u 16V TP9317 TP9342 C9921 0.1u 16V IC9900 U22 DOUTDC05 IC9900 P20 DOUTDA07 IC9900 B17 DOUTUA07 IC9900 N2 TCK IC9900 M3 FULL1 TP9323 TP9365 IC9900 T4 DQ7 IC9900 K19 DOUTDC14 IC9900 B20 DOUTUA03 IC9900 G1 BI6 IC9900 Y9 A3 IC9900 R4 DQ16 R9937 1k TP9364 IC9900 E10 VDD33 IC9900 A15 DOUTUA10 IC9900 W3 VDD25 IC9900 W9 A10 IC9900 V20 DOUTDB02 IC9900 AB21 VSS IC9900 N21 DOUTDA08 IC9900 P22 DOUTDB08 TP9326 IC9900 E2 GI8 IC9900 AA9 A8 IC9900 M10 VSS TP9359 IC9900 F20 DOUTUB00 IC9900 Y14 DQ12 IC9900 D16 DOUTUC07 P1.2V IC9900 H21 DOUTDB15 IC9900 M11 VSS IC9900 J13 VSS IC9900 A7 K_TEST TP9355 IC9900 N19 DOUTDB09 IC9900 P4 DQ18 IC9900 V6 AVSS_3 IC9900 AB6 A4 IC9900 E17 VSS IC9900 M12 VSS IC9900 C14 DOUTUC11 IC9900 AA11 DQ30 IC9900 M18 VDD12 IC9900 L21 DOUTDA11 IC9900 D1 GI6 IC9900 A5 RI2 IC9900 C17 DOUTUA06 IC9900 L11 VSS IC9900 AA21 VSS IC9900 AB1 VSS P5V C9917 0.1u 16V IC9900 G22 DRVCLKD0 IC9900 A3 GI0 IC9900 P12 VSS TP9347 IC9900 V17 VDD33 TP9316 P3.3V R9349 EXB38V820JV C9965 56u 4V IC9900 T19 DOUTDC04 IC9900 U20 DOUTDB03 R9922 0 IC9900 H1 MUTE IC9900 Y16 SDSEL IC9900 F19 DOUTUA01 IC9900 A20 DOUTUC04 Q9301 B1ABCF000138 TP9333 IC9900 AB13 DQ10 IC9900 M21 DOUTDB10 IC9900 AA12 DQS3 D9301 MA3X152K0L IC9900 AB4 BA0 IC9900 J21 DOUTDB14 IC9900 L2 ID0 IC9900 A8 TCKSEL0 TP9331 IC9900 L3 ID1 TP9372 IC9900 C10 SFVRST IC9900 M20 DOUTDA10 IC9900 P19 DOUTDB07 IC9900 B7 TEST1 IC9900 Y6 NRAS IC9900 F1 BI3 TP9312 IC9900 W12 AVDD25_4 IC9900 A19 DOUTUA05 R9936 1k IC9900 L9 VSS IC9900 N13 VSS IC9900 E13 VDD33 IC9900 AA14 DQ9 IC9900 K10 VSS IC9900 L12 VSS R9317 390 IC9900 V9 VSS IC9900 K9 VSS FL9901 F1J1E1040022 1 2 3 TP9322 IC9900 J18 VDD33 D32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 R9369 4.7k C9900 0.1u 16V TP9321 C9966 16V 0.1u TP9341 IC9900 B9 FPCLK TP9387 C9959 0.1u 16V IC9900 V4 VDD25 IC9900 V19 VDD33 IC9900 AA6 A11 IC9900 AA10 DQ31 IC9900 J10 VSS IC9900 V16 VDD33 IC9900 R19 DOUTDA05 IC9900 F22 DRVCLKD3 L8R1.2V C9963 6.3V 10u IC9900 W21 VDD33 IC9900 B19 DOUTUA04 IC9900 H22 DOUTDA14 TP9353 ZA9001 K4CD01000011 TP9344 IC9900 P1 TDO IC9900 C15 DOUTUB09 C9954 56u 4V IC9900 V18 VSS IC9900 D22 DOUTUC01 IC9900 B5 RI5 IC9900 A11 DOUTUA14 IC9900 U18 VDD33 IC9900 J22 DOUTDA13 IC9900 E8 VDD12 IC9900 V8 VDD25 IC9900 A18 DOUTUB07 IC9900 Y3 VSS IC9900 E15 VDD12 IC9900 Y10 DQ26 IC9900 K20 DOUTDB13 IC9900 A12 DOUTUB14 IC9900 AA1 VDD25 C9910 0.1u 16V IC9900 R22 DOUTDC07 TP9305 L8R2.5V IC9900 M22 DOUTDC10 C9909 0.1u 16V IC9900 K2 VDI IC9900 Y1 DQ0 IC9900 AB3 NCK IC9900 AA22 VSS IC9900 E4 VDD12 C9958 0.1u 16V IC9900 D14 DOUTUC10 IC9900 K21 DOUTDC13 TP9370 IC9900 B16 DOUTUC09 IC9900 G20 DRVCLKU1 IC9900 AA18 DOUTDB00 TP9346 IC9900 C13 DOUTUB12 IC9900 AA5 CKE IC9900 V21 DOUTDC03 IC9900 V5 VSS IC9900 P2 XRST IC9900 M19 DOUTDC11 C9908 0.1u 16V IC9900 M9 VSS IC9900 N5 VDD33 IC9900 D13 DOUTUC12 TP9338 TP9304 C9906 0.1u 16V IC9900 B11 DOUTUC15 C9905 0.1u 16V IC9900 P21 DOUTDC08 IC9900 E9 VDD33 C9962 6.3V 10u IC9900 G3 BI4 R9367 10k R9918 0 IC9900 P3 DQ19 IC9900 J4 ENHMASK IC9900 V11 VDD25 IC9900 C16 DOUTUC08 IC9900 E22 DRVCLKU3 IC9900 L5 VDD33 IC9900 P11 VSS IC9900 K18 VDD33 IC9900 E11 VDD33 IC9900 F3 GI9 IC9900 B1 VSS IC9900 H3 BI8 IC9900 Y13 DQ14 C9911 0.1u 16V C9923 0.1u 16V Q9300 B1ABCF000138 IC9900 G2 BI5 IC9900 Y15 VSS TP9377 TP9369 IC9900 J11 VSS IC9900 C22 DOUTUB01 IC9900 K14 VSS R9368 100k IC9900 AA20 DOUTDA01 IC9900 AB22 VSS C9922 0.1u 16V IC9900 B10 SFRST C9467 50V 0.01u TP9315 IC9900 Y12 AVSS_4 IC9900 AA3 CK FL9902 F1J1E1040022 1 2 3 C9918 0.1u 16V TP9334 IC9900 T21 DOUTDB05 IC9900 AB5 BA1 IC9900 B15 DOUTUB10 IC9900 T22 DOUTDC06 TP9311 TP9325 IC9900 N11 VSS IC9900 D12 DOUTUA13 C9953 56u 4V IC9900 J3 MONOUT0 IC9900 T2 DQ20 R9555 0 IC9900 J12 VSS C9919 0.1u 16V IC9900 F2 BI1 R9363 EXB2HV470JV IC9900 N14 VSS IC9900 B12 DOUTUC14 IC9900 L18 VDD12 TP9380 IC9900 E7 VDD12 IC9900 J19 DOUTDA15 R9917 0 IC9900 J5 VDD12 TP9352 R9361 22 IC9900 F5 VDD12 IC9900 K13 VSS TP9384 IC9900 B21 VSS IC9900 AB20 DOUTDB01 IC9900 C7 RI0 TP9319 IC9900 E18 VSS TP9360 IC9900 D4 VSS IC9900 C3 VSS IC9900 A4 RI6 IC9900 U19 DOUTDA02 TP9367 IC9900 Y7 A0 IC9900 K1 DCK IC9900 C8 TEST0 IC9900 L13 VSS IC9900 AB16 AVDD33_2 R9382 10k R9354 EXB2HV820JV IC9900 L1 SCL IC9900 AB2 VSS D31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 IC9900 D8 OCK IC9900 AB19 DOUTDA00 IC9900 G4 BI2 IC9900 A9 FPDAT1 L8R2.5V IC9900 AB8 A7 R9379 0 IC9900 H20 DRVCLKD1 R9395 22 TP9332 Q9302 B1ABCF000138 TP9337 IC9900 R3 DQ17 IC9900 C5 RI9 R9359 EXB2HV820JV IC9900 N22 DOUTDA09 IC9900 Y2 VDD25 IC9900 M14 VSS IC9900 F4 GI7 L8R3.3V IC9900 U4 DQ5 TP9348 C9468 50V 0.01u TP9340 C9924 0.1u 16V IC9900 M1 TILD IC9900 M13 VSS L8R3.3V IC9900 W2 DQ1 IC9900 N3 TDI TP9356 IC9900 B4 RI8 TP9358 IC9900 AA15 AVSS1 FL9900 F1J1E1040022 1 2 3 IC9900 L22 DOUTDB11 IC9900 M2 FULL0 IC9900 T3 AVDD25_1 TP9327 IC9900 W19 VSS IC9900 R2 DQ23 TP9314 IC9900 L14 VSS IC9900 A14 DOUTUA11 TP9371 IC9900 K22 DOUTDA12 TP9339 R9351 22 TP9324 IC9900 J1 MONOUT2 IC9900 C4 GI3 IC9900 W7 NCS IC9900 K3 SDA IC9900 AB15 AVDD33_1 IC9900 U3 DQ6 IC9900 N1 TRST IC9900 L10 VSS TP9349 IC9900 AA19 DOUTDC01 R9380 56 IC9900 AB9 VDD25 TP9389 C9913 0.1u 16V IC9900 K11 VSS IC9900 A10 SFLATCH TP9343 IC9900 V10 VDD25 C9925 0.1u 16V IC9900 E16 VDD12 IC9900 D21 DOUTUB02 IC9900 V2 DQ3 IC9900 L4 TIIC TP9328 IC9900 B13 DOUTUA12 IC9900 P5 VDD33 IC9900 V15 VDD12 IC9900 B18 DOUTUB06 IC9900 W11 DQ25 TP9318 IC9900 AB12 DQS1 IC9900 P18 VDD33 IC9900 Y18 VSS IC9900 Y8 A1 R9919 10k C9902 0.1u 16V R9390 100 IC9900 T20 DOUTDA04 IC9900 Y21 VDD33 IC9900 C21 DOUTUA02 IC9900 AA13 DQ11 IC9900 Y19 VSS IC9900 C9 ROMCE IC9900 J20 DOUTDC15 IC9900 E6 VSS TP9306 R9352 EXB38V820JV TP9366 IC9900 AB10 DQ29 IC9900 H19 DRVCLKU0 L8R2.5V IC9900 V22 DOUTDA03 IC9900 B22 VSS TP9362 R9358 EXB2HV820JV D9300 MA3X152K0L P2.5V IC9900 N4 TMS IC9900 W10 DQ27 C9956 0.1u 16V IC9900 W8 A2 IC9900 D11 DOUTUA15 C9915 0.1u 16V IC9900 AA8 A5 TP9307 P3.3V IC9900 E21 DOUTUA00 IC9900 J9 VSS IC9900 W14 DQ13 IC9900 AA17 SDIV0 IC9900 P10 VSS TP9354 IC9900 E3 GI5 IC9900 M4 PCK IC9900 A22 VSS R9370 10k IC9900 E1 BI0 IC9900 AA4 VREF IC9900 Y4 AVDD25_2 IC9900 N10 VSS C9920 0.1u 16V IC9900 B2 VSS IC9900 R1 DQ22 IC9900 P14 VSS IC9900 D7 RI3 IC9900 G21 DRVCLKD2 C9901 0.1u 16V IC9900 W4 VSS IC9900 T5 AVSS_2 IC9900 M5 VDD33 IC9900 C11 DOUTUB15 IC9900 AA2 VSS IC9900 C1 VDD12 IC9900 D9 TCKSEL1 IC9900 D10 FPDAT0 IC9900 Y17 VSS IC9900 F6 VSS IC9900 U1 DQS2 L8R1.2V IC9900 E14 VDD33 IC9900 D6 RI7 TP9382 TP9368 IC9900 P9 VSS IC9900 W5 AVDD25_3 C9916 0.1u 16V TP9308 J0HABH000013 FL9904 TP9309 IC9900 E12 VDD33 TP9361 R9362 22 IC9900 Y5 NCAS J0HABH000013 FL9903 IC9900 A17 DOUTUA08 IC9900 B6 RI1 IC9900 E20 DOUTUC02 IC9900 V3 DQ4 IC9900 A2 VSS IC9900 L19 DOUTDB12 IC9900 V12 VDD25 TP9313 TP9329 IC9900 H4 BI7 C9907 0.1u 16V IC9900 C2 VDD12 P3.3V IC9900 W18 VSS IC9900 R20 DOUTDB06 C9960 6.3V 10u IC9900 C6 RI4 IC9900 B8 TCKSEL2 IC9900 C12 DOUTUB13 IC9900 W13 DQ15 R9391 100k IC9900 L20 DOUTDC12 TP9310 IC9900 B3 GI1 TP9357 IC9900 F18 VSS C9961 6.3V 10u IC9900 V1 DQS0 TP9351 IC9900 A16 DOUTUA09 C9964 6.3V 10u IC9900 Y11 DQ24 IC9900 T1 DQ21 IC9900 W17 VSS R9371 100k R9366 4.7k IC9900 Y20 VSS IC9900 C19 DOUTUB04 TP9363 IC9900 N12 VSS IC9900 J14 VSS IC9900 AB17 VSS IC9900 AA7 A9 IC9900 H18 VDD33 IC9900 G18 VSS TP9320 IC9900 D17 DOUTUC06 IC9900 H5 VDD12 R9357 EXB2HV820JV TP9335 IC9900 U21 DOUTDB04 IC9900 E5 VSS IC9900 N9 VSS R9353 EXB2HV820JV IC9900 W22 DOUTDC02 IC9900 D18 DOUTUC05 R9929 0 IC9900 A13 DOUTUC13 L8R3.3V TP9330 IC9900 MN84521-A A1 VSS IC9900 AB14 DQ8 IC9900 W1 DQ2 TP9336 IC9900 W6 NWE IC9900 N18 VDD12 L8R3.3V R9920 10k L8R3.3V IIC DOUTDA[5] DOUTDB[3] DOUTDC[2] NUEL LED P5V DOUTDA[15] GND DOUTDC[9] CLK[0](+) P5V UMH P5V DOUTDB[15] DOUTDB[4] DOUTDC[14] DOUTDA[4] GND P5V DOUTDB[1] UML DOUTDA[9] DOUTDC[1] GND DOUTDB[9] GND DOUTDA[14] GND GND P5V NC DOUTDC[8] DOUTDA[2] GND DOUTDC[5] 5V_DET DOUTDB[14] PCD1 DOUTDA[0] DOWN_LEFT DOUTDA[8] GND GND ODED1 CLRD DOUTDB[8] PCD2 CLRD DOUTDC[11] DOUTDC[12] DOUTDB[2] GND DOUTDA[11] MODEL1 P5V 5V_DET DOUTDB[11] GND GND DOUTDC[15] DOUTDC[10] DOUTDA[3] USH GND SOS8_SS DOUTDA[10] DOUTDB[10] GND DOUTDA[1] DOUTDC[13] DOUTDA[12] ODED2 DOUTDC[0] DOUTDA[13] USL GND DOUTDB[12] UEH DOUTDB[13] CLK[1](-) GND CLK[3](-) CLK[2](+) DOUTDC[3] DOUTDC[4] GND DOUTDB[0] DOUTDB[5] LED DOWN_RIGHT GND GND GND GND DOUTDB[6] DOUTDA[6] DOUTDC[6] GND DOUTDC[7] DOUTDB[7] DOUTDA[7] GND GND GND GND NC NC NC NC NC rromdata[14] rromadrs[00] rromdata[06] rromdata[09] rromdata[12] rromadrs[11] rromadrs[14] rromdata[15] rromadrs[01] rromadrs[04] rromadrs[17] rromadrs[20] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[16] rromdata[00] rromdata[01] rromdata[02] rromadrs[19] rromadrs[03] rromdata[03] rromdata[04] rromdata[07] rromdata[10] to DDR rromadrs[06] rromadrs[09] rromdata[13] rromadrs[12] rromdata[05] rromadrs[15] rromadrs[18] rromadrs[02] rromadrs[05] rromadrs[08] rromdata[08] rromdata[11] NC NC 42 37 41 45 39 40 43 44 38 FORMAT CONVERTER RGB PROCESSOR IC9900 C1-BOARD (C11) TO C2-BOARD (C21) TO 32 35 33 34 31 41 TH-42PA7C D-Board (5 of 6) Schematic Diagram TH-42PA7C D-Board (5 of 6) Schematic Diagram D-BOARD TZTNP01BLTC (5/6) 96 14.35.D 电路板 （6/6）线路图 + L8DR_DQ28 L8R_A0 L8DR_DQS0 L8DR_DQ31 L8DR_NCS L8R_DQ15 L8DR_A5 L8DR_A1 L8DR_NCAS L8R_A3 L8DR_A11 L8R_DQ17 L8DR_DQ21 L8DR_DQ23 L8DR_DQ22 L8DR_DQ25 L8R_DQ16 L8DR_BA1 L8DR_A11 L8DR_DQ10 L8DR_DQ3 L8R_DQ14 L8R_DQ24 L8DR_BA0 L8DR_DQ1 L8DR_DQ9 L8R_DQ10 L8DR_A7 L8DR_DQ4 L8R_SDCLKO L8DR_DQ31 L8DR_A2 L8R_BA0 L8DR_NRAS L8DR_DQ11 L8R_DQ31 L8DR_DQ2 L8DR_DQ26 L8DR_DQ0 L8DR_BA1 L8DR_DQ5 L8DR_DQ11 L8R_DQ0 L8R_DQ26 L8R_A4 L8R_BA1 L8R_DQ19 L8R_DQ13 L8DR_A6 L8DR_DQS3 L8R_DQ9 L8DR_NCLK L8DR_DQ20 L8R_A2 L8DR_DQ18 L8DR_A2 L8DR_A3 L8DR_A9 L8R_DQ22 L8DR_NRAS L8R_A8 L8R_A10 L8R_A1 L8DR_A3 L8R_WE L8R_DQS2 L8DR_DQ7 L8DR_NCLK L8DR_DQ24 L8R_SDCKE L8DR_DQ8 L8DR_DQ16 L8R_DQ3 L8R_DQ4 L8R_RAS L8DR_DQ20 L8DR_DQ6 L8R_DQ11 L8DR_DQ19 L8DR_DQ24 L8DR_A4 L8DR_A0 L8R_DQ1 L8DR_DQ25 L8DR_DQ12 L8R_A6 L8DR_A6 L8DR_DQ8 L8R_DQ23 L8DR_DQ12 L8DR_DQ2 L8R_DQ8 L8DR_DQ18 L8DR_DQ4 L8DR_DQ0 2.5V L8R_DQ21 L8DR_DQS2 L8DR_A1 L8DR_A0 L8DR_DQ22 L8R_A9 L8DR_DQ6 L8DR_DQ29 L8DR_DQS0 L8DR_DQS2 L8DR_DQ7 L8DR_DQ19 L8DR_DQ14 L8DR_DQ5 L8DR_DQ23 L8DR_DQ14 L8DR_CKE L8DR_DQ13 L8DR_DQS1 L8DR_DQ30 L8DR_A8 L8DR_NCS L8DR_DQ16 L8DR_DQ17 L8R_DQ7 L8DR_DQ28 L8DR_DQ17 L8DR_DQ15 L8DR_DQ15 0V L8R_DQ30 L8R_DQ27 L8R_DQS3 L8DR_A5 L8DR_DQS1 L8R_DQS0 L8R_DQ6 L8DR_NCAS L8DR_DQ9 L8DR_DQS3 L8DR_NWE L8R_CS L8R_NSDCLKO L8R_A7 L8DR_DQ26 L8R_DQ29 L8DR_A9 L8DR_A8 L8DR_DQ21 L8R_DQ12 L8DR_BA0 L8R_DQ20 L8DR_DQ27 L8DR_A10 L8DR_A4 L8R_DQS1 L8R_CAS L8DR_NWE L8DR_DQ13 L8DR_CLK L8R_A5 L8R_DQ2 L8DR_DQ10 L8R_DQ28 L8DR_A7 L8DR_DQ30 L8R_DQ18 L8R_A11 L8DR_DQ1 L8DR_DQ29 L8DR_DQ27 L8DR_CKE L8DR_DQ3 L8R_DQ25 L8R_DQ5 L8DR_A10 L8DR_CLK R9904 47 C9932 16V 0.1u L8R2.5V C9931 16V 0.1u C9944 16V 0.1u R9951 EXB38V470JV R9938 1k R9947 EXB38V470JV C9935 16V 0.1u R9950 EXB38V470JV C9933 16V 0.1u R9907 150 R9941 47 R9948 EXB38V470JV C9930 16V 0.1u L8R2.5V C9951 16V 0.1u R9953 47 C9940 16V 0.1u C9943 16V 0.1u R9942 47 C9934 16V 0.1u C9946 16V 0.1u C9936 16V 0.1u C9945 16V 0.1u R9946 EXB38V470JV C9929 16V 0.1u R9954 47 C9952 56u 4V R9905 33 R9940 33 C9939 16V 0.1u R9949 EXB38V470JV C9948 16V 0.1u C9949 16V 0.1u C9938 16V 0.1u R9945 EXB38V470JV R9903 EXB2HV470JV 47 L8R2.5V C9941 16V 0.1u C9947 16V 0.1u C9937 16V 0.1u C9942 16V 0.1u C9928 16V 0.1u C9927 16V 0.1u R9943 EXB38V470JV R9944 EXB38V470JV R9906 47 EXB38V470JV C9950 16V 0.1u R9955 47 R9952 47 R9939 1k IC9901 L7 VDD IC9901 E4 VDD IC9901 H10 VSSQ IC9901 M12 CK IC9901 B4 VSSQ IC9901 C12 VDDQ IC9901 J4 VDDQ IC9901 F13 DQ14 IC9901 B9 DQ29 IC9901 G2 DQ19 IC9901 K7 VSS IC9901 H8 VSS_Thermal IC9901 M8 A9 IC9901 C3ABQJ000051 B2 DQS0 IC9901 E13 DQ24 IC9901 D6 VSSQ IC9901 M11 CK IC9901 C5 VDDQ IC9901 N13 VREF IC9901 N6 A1 IC9901 K4 VDDQ IC9901 M3 NC IC9901 D5 VSSQ IC9901 H6 VSS_Thermal IC9901 E6 VSSQ IC9901 C9 DQ30 IC9901 C3 VDDQ IC9901 J7 VSS_Thermal IC9901 D4 VSSQ IC9901 J13 DQ10 IC9901 K8 VSS IC9901 J2 DQ21 IC9901 H9 VSS_Thermal IC9901 K6 VSS IC9901 D7 VDD IC9901 D3 DQ5 IC9901 N3 NC IC9901 J8 VSS_Thermal IC9901 B3 DM0 IC9901 K12 DQ9 IC9901 D12 DQ26 IC9901 F2 DQ17 IC9901 M10 NC IC9901 G7 VSS_Thermal IC9901 G13 DQ12 IC9901 G12 DQ13 IC9901 K10 VSSQ IC9901 L2 CAS IC9901 K9 VSS IC9901 E9 VSSQ IC9901 J11 VDDQ IC9901 H5 VSSQ IC9901 F6 VSS_Thermal IC9901 L8 VDD IC9901 B7 DQ0 IC9901 N9 A6 IC9901 C2 DQ4 IC9901 H2 DQS2 IC9901 F10 VSSQ IC9901 C10 VDDQ IC9901 D9 VSSQ IC9901 L11 VDD IC9901 G3 DQ18 IC9901 H12 DM1 IC9901 L9 NC IC9901 M2 RAS IC9901 H3 DM2 IC9901 C6 DQ1 IC9901 B6 DQ2 IC9901 J10 VSSQ IC9901 N8 A4 IC9901 B13 DQS3 IC9901 D2 DQ6 IC9901 G4 VDDQ IC9901 D13 DQ25 IC9901 G11 VDDQ IC9901 H7 VSS_Thermal IC9901 N4 BA0 IC9901 B8 DQ31 IC9901 N11 A8/AP IC9901 E7 VSS IC9901 F3 DQ16 IC9901 L5 VSS IC9901 E3 VDDQ IC9901 K3 DQ23 IC9901 E10 VSS IC9901 D11 VSSQ IC9901 K5 VSSQ IC9901 H4 NC IC9901 L4 VDD IC9901 E8 VSS IC9901 N5 A0 IC9901 F12 DQ15 IC9901 M9 A5 IC9901 K13 DQ8 IC9901 M6 A2 IC9901 M4 NC IC9901 D8 VDD IC9901 E12 VDDQ IC9901 F7 VSS_Thermal IC9901 J5 VSSQ IC9901 F11 VDDQ IC9901 H13 DQS1 IC9901 F9 VSS_Thermal IC9901 L10 VSS IC9901 G8 VSS_Thermal IC9901 N10 A7 IC9901 G5 VSSQ IC9901 B11 VSSQ IC9901 F4 VDDQ IC9901 J12 DQ11 IC9901 J3 DQ20 IC9901 E5 VSS IC9901 N7 A3 IC9901 G10 VSSQ IC9901 E2 DQ7 IC9901 M13 NC IC9901 L6 A10 IC9901 F5 VSSQ IC9901 C11 NC IC9901 J6 VSS_Thermal IC9901 L13 NC IC9901 N2 CS IC9901 G9 VSS_Thermal IC9901 L3 WE IC9901 N12 CKE IC9901 B5 DQ3 IC9901 B10 DQ28 IC9901 H11 NC IC9901 J9 VSS_Thermal IC9901 C8 VDDQ IC9901 D10 VSSQ IC9901 K11 VDDQ IC9901 K2 DQ22 IC9901 C4 NC IC9901 L12 NC IC9901 C13 DQ27 IC9901 F8 VSS_Thermal IC9901 C7 VDDQ IC9901 B12 DM3 IC9901 M5 BA1 IC9901 M7 A11 IC9901 G6 VSS_Thermal IC9901 E11 VDD DDR-Terminate 52 46 50 48 49 54 53 51 47 IC9901 DDR-SDRAM DDR SDRAM(128M) 41 TH-42PA7C D-Board (6 of 6) Schematic Diagram TH-42PA7C D-Board (6 of 6) Schematic Diagram D-BOARD TZTNP01BLTC (6/6) 97 14.36.C1 和 C2 电路板方框图 CLK0 LED CLK0 USL CLK2 UEH UMH ODED2 UML USH SS_SOS8 CLRD CLK1 NUEL CLK3 CLK1 PCD2 LED CLRD ODED2 PCD2 LED PCD1 ODED1 CLRD ODED1 CLRD LED PCD1 R7115 R7318 16 VCC 1 12 VCC 5 5 6bit 4A-5C 6bit 8 7 1 6bit 6 VCC OE 52 8 C12 2bit 17 4bit 6A-7C 2 4 6 OE VCC 14 VCC 7 8bit 12A-13C 21 51 4 C23 55 8bit 8bit 39 10 IC7104 BUFFER CB1 CB2 11 3 IC7103 6bit 6bit BUFFER CB7 IC7102 C21 BUFFER 2A-3C IC7101 CLK BUFFER 2bit IC7202 0A-1C 4bit BUFFER IC7203 BUFFER BUFFER IC7204 CLK BUFFER IC7201 CB5 4 Vda Vda C11 CB4 6bit DATA 24bit D0A-D7C VCC 18bit VCC D8A-D13C DATA TO D31 VCC CB3 9 CB6 37 13 DOUTD13C DOUTD8A CLK2 CLK3 1 6 C22 6 1 3 1 LED 41 42 PCD1 IC7205 VCC BUFFER 53 55 18 19 DRV_RST 5V 5V 5VDET CLRD CLK0 DRV_RST ODED2 CLK1 PCD2 LED 5V 5VDET 5V UEH UML NUEL USH USL SS_SOS8 UMH DOUTD7C DOUTD0A 12 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit 6bit NUEL USH USL UML UMH UEH SS_SOS8 5V Vda Vda DATA DRIVE DOWN RIGHT(FRONT VIEW) C1 C2 DATA DRIVE DOWN LEFT (FRONT VIEW) PANEL DATA DRIVER PANEL DATA DRIVER TO D32 TO SS23 10A-11C 6bit 6bit 8A-9C 44 43 CLRD ODED1 35 6bit 6bit TH-42PA7C C1 and C2-Board Block Diagram TH-42PA7C C1 and C2-Board Block Diagram 98 14.37.C1 电路板 （1/2）线路图 TERM SIDE G G TERM SIDE TERM SIDE AB_CLK_P2 AB_CLK_N2 AB_CLK_P1 AB_CLK_N1 AB_LED2 AB_DDC10 AB_DDB10 AB_DDA10 AB_DDC11 AB_DDB11 AB_DDA11 AB_LED2 AB_DDC10 AB_DDB10 AB_DDA10 AB_DDC11 AB_DDB11 AB_DDA11 AB_LED1 AB_DDC12 AB_DDB12 AB_DDA12 AB_DDC13 AB_DDB13 AB_DDA13 AB_LED1 AB_DDC12 AB_DDB12 AB_DDA12 AB_DDC13 AB_DDB13 AB_DDA13 AB_DDC12 AB_DDB12 AB_DDB13 AB_DDA13 AB_DDC11 AB_DDA10 AB_CLRD AB_ODED1 AB_CLRD AB_ODED1 AB_ODED1 AB_CLRD AB_CLRD AB_ODED1 AA_ODED1 AA_CLRD AA_DDC8 AA_DDB8 AA_DDC9 AA_DDB9 AA_DDB13 AA_DDC13 AA_DDA12 AA_DDB12 AA_DDC12 AB_DDA8 AB_DDC9 AB_DDA9 AB_DDB9 AA_DDA9 AA_DDA8 AA_CLK_P AA_CLK_N AA_DDA10 AA_DDB11 AA_DDC11 AA_DDB10 AA_DDC10 AA_DDA12 AA_DDB13 AA_DDC13 AA_DDB12 AA_DDA13 AA_DDC12 AA_PCD1 AA_LED AA_DDA11 AB_DDB11 AB_DDA11 AA_DDC8 AA_DDA13 AB_DDC13 AB_DDA12 AB_DDC8 AB_DDB8 AB_DDB10 AB_DDC10 AB_ODED1 AB_CLRD AA_DDC10 AA_DDB10 AA_DDA10 AA_DDC11 AA_DDB11 AA_DDA11 AA_ODED1 AA_CLRD AA_DDA8 AA_DDC9 AA_DDB9 AA_DDA9 AA_PCD1 AA_DDB8 R7143 47 C7130 16V 0.1u R7122 EXB38V470JV C7126 16V 0.1u C1_5V R7152 EXB38V102JV C11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 R7141 6.8 R7114 22k C1_5V C7116 100V 0.47u C7113 100V 0.47u C0JBAZ002692 IC7103 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7129 6.8 R7151 EXB38V102JV C7114 100V 0.47u R7111 1k C7111 100V 0.47u C0JBAZ002692 IC7104 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C1_5V J0HABH000013 FL7101 1 2 3 C0JBAZ002692 IC7102 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7112 16V 1u CB2 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7139 6.8 C1_5V CB1 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7169 EXB38V470JV R7130 6.8 R7136 47 C7120 16V 1u R7150 EXB38V102JV R7133 47 R7131 6.8 C1_5V C7129 16V 0.1u C1_5V R7138 6.8 R7123 EXB38V470JV R7115 100k R7149 EXB38V102JV C7118 50V 100p C7121 50V 100p R7132 6.8 R7165 0 C7117 16V 1u R7148 EXB38V102JV R7164 0 C7115 16V 1u R7124 EXB38V470JV R7147 EXB38V102JV R7140 6.8 R7121 EXB38V470JV R7120 EXB38V470JV R7127 47 FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND DOUTDB[8] GND DOUTDC[10] 5V_DET P5V DOUTDC[9] DOUTDB[11] GND CLRD DOUTDC[13] DOUTDA[11] N.C. GND DOUTDB[12] GND GND P5V P5V N.C. DOUTDA[9] PCD1 DOUTDA[8] GND GND GND DOUTDB[9] GND DOUTDA[10] DOUTDA[15] DOUTDA[13] ODED1 DOUTDB[15] DOUTDC[14] DOUTDB[13] CLK[3](-) DOUTDC[11] MODEL1 LED GND DOUTDB[10] DOUTDC[12] DOUTDC[8] CLK[2](+) GND DOUTDA[12] DOUTDB[14] DOUTDC[15] DOUTDA[14] GND N.C. GND N.C. N.C. N.C.(DRV_RST) N.C. CB1 CB2 BUFFER BUFFER BUFFER D-BOARD TO (D31) DRIVER PANEL DATA TO DRIVER PANEL DATA TO C1-BOARD TNPA3799AB (1/2) A D E C B 4 6 1 5 3 2 TH-42PA7C C1-Board (1 of 2) Schematic Diagram TH-42PA7C C1-Board (1 of 2) Schematic Diagram 1 2 3 4 5 6 7 99 14.38.C1 电路板 （2/2）线路图 SIDE TERM TERM SIDE AB_LED3 AB_CLRD AB_ODED1 AB_CLRD AB_ODED1 AB_DDA9 AB_DDB9 AB_DDC9 AB_CLK_N2 AB_DDA9 AB_DDA8 AB_DDA8 AB_DDB9 AB_DDB8 AB_DDB8 AB_CLK_P2 AB_DDC8 AB_DDC9 AB_DDC8 AB_LED3 AB_CLK_N2 AB_CLK_N1 AB_CLK_P1 AB_LED3 AB_LED2 AB_LED1 AB_CLK_P2 AA_CLK_P AA_CLK_N AA_LED R7117 22 R7142 EXB38V102JV R7146 EXB38V470JV ZA7102 K4CD01000013 R7159 6.8 C1_5V R7158 6.8 ZA7101 K4CD01000013 C7133 50V 100p C7137 100V 0.47u C7139 16V 0.1u R7113 22 C7132 16V 1u R7118 220k R7157 6.8 R7154 47 C0JBAZ002692 IC7101 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7112 22 ZA7103 K4CD01000013 C12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7160 47 CB3 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7136 16V 1u R7116 22 C7135 100V 0.47u R7156 6.8 C1_5V GND A1 GND GND FDET LEN GND A4 GND VDD2 VDD2 A4 FS VDD1 VDD2 A1 GND VDD2 GND CLR BLK NC FX A2 NC A3 VDD1 A6 BLK GND NC NC A3 A2 A6 DM VDD2 GND VDD2 NC GND VDD2 A5 CLR DM GND VDD2 NC VDD1 VDD1 GND GND ODE A5 VDD2 GND VDD2 GND FX NC VDD2 GND ODE NC FS LEN VDD2 Vda75V Vda75V Vda75V Vda75V NC NC NC GND GND GND NC NC NC NC GND GND GND NC Vda75V Vda75V FDET1 CB3 BUFFER C2-BOARD TO (C22) DRIVER PANEL DATA TO C1-BOARD TNPA3799AB (2/2) 14 9��� 10 11 15 13 12 8 6 4 1 5 3 2 TH-42PA7C C1-Board (2 of 2) Schematic Diagram TH-42PA7C C1-Board (2 of 2) Schematic Diagram 100 14.39.C2 电路板 （1/2）线路图 TERM SIDE TERM SIDE SIDE TERM TERM SIDE G G AB_CLK_P2 AB_LED5 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 AB_LED5 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 AB_CLRD AB_ODED2 AB_ODED2 AB_CLRD AA_DDB5 AA_DDA5 AA_DDC4 AA_DDB4 AA_DDA4 AA_DDA3 AA_DDC2 AA_DDB2 AA_DDA2 AA_DDC3 AA_DDB3 AA_DDC0 AA_DDB0 AA_DDA0 AA_DDC1 AA_DDB1 AA_DDA1 AA_PCD2 AA_LED AA_DDC5 BA_SOS8_SS BA_NUEL BA_UMH BA_UML BA_USH BA_USL AA_ODED2 AA_CLRD AB_LED5 AB_LED6 BA_UEH AA_CLK_P AA_CLK_N BA_SOS8_SS BA_UEH BA_USL BA_NUEL BA_UMH BA_USH BA_UML AB_CLK_N2 AB_DDB6 AB_DDB6 AB_LED4 AB_DDB7 AB_DDA7 AB_ODED2 AB_CLRD AB_DDC6 AB_DDC7 AB_DDC6 AB_DDA6 AB_DDA6 AB_DDA7 AB_CLK_N2 AB_ODED2 AB_DDC7 AB_DDB7 AB_CLRD AB_CLK_P2 AB_LED4 AA_DDA6 AA_DDB6 AA_DDC6 AA_DDA7 AA_DDB7 AA_DDC7 AB_CLK_P2 AB_CLK_N2 AB_CLK_P1 AB_CLK_N1 AB_LED4 AB_LED7 AA_LED AA_PCD2 AB_ODED2 AB_CLRD AA_CLRD AA_ODED2 AA_CLK_P AA_CLK_N AB_PCD2_1 AB_PCD2_2 C7208 50V 100p CB5 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7226 16V 0.1u R7210 47 R7245 EXB38V102JV R7219 220k R7261 6.8 R7262 6.8 C7202 16V 1u C7235 16V 1u C2_5V C7239 16V 0.1u R7217 47 R7208 47 R7212 6.8 R7209 47 R7269 22k R7264 6.8 C7207 16V 1u R7250 EXB38V470JV R7214 6.8 R7248 22 R7229 0 R7246 22 C0JBAZ002692 IC7205 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C7201 100V 0.47u C7231 16V 1u R7259 47 R7263 6.8 R7251 EXB38V470JV C7203 100V 0.47u R7257 EXB38V102JV C2_5V C2_5V R7249 22 C2_5V R7265 47 C7234 100V 0.47u C2_5V C7236 100V 0.47u R7256 0 R7247 22 R7255 0 R7213 6.8 C0JBAZ002692 IC7201 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc CB4 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7270 100k C2_5V C22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 R7215 6.8 C23 1 2 3 4 5 6 7 8 9 10 11 12 J0HABH000013 FL7201 1 2 3 C7232 50V 100p FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND UML Vda70V NUEL SOS8_SS USH NC GND USL UEH 5V UMH DOUTDA[4] DOUTDB[2] UMH PCD2 GND DOUTDA[0] GND DOUTDA[3] DOUTDB[0] P5V DOUTDC[0] DOUTDC[6] DOUTDC[2] GND DOUTDB[7] GND DOUTDC[3] GND DOUTDB[3] DOUTDB[1] DOUTDB[4] NUEL N.C.(DRV_RST) DOUTDC[5] DOUTDB[6] DOUTDC[1] DOUTDA[6] P5V DOUTDC[4] P5V 5V_DET LED DOUTDC[7] DRV_SOS8 UEH DOUTDA[2] DOUTDA[1] GND DOUTDA[7] DOUTDB[5] DOUTDA[5] GND GND ODED2 GND CLRD CLK[1](-) GND CLK[0](+) USL UML USH GND GND GND GND GND Vda 75V Vda 75V Vda 75V NC NC NC NC NC NC Vda 75V NC NC GND GND GND GND Vda70V Vda 75V Vda 75V VDD2 A5 FDET1 GND VDD2 FDET DM GND FX VDD2 A2 LEN GND NC CLR GND VDD1 DM VDD1 GND A3 VDD2 A1 GND FS VDD2 GND ODE A1 A5 VDD2 A3 VDD1 NC A6 FS LEN VDD2 A4 NC GND VDD1 NC VDD2 CLR A2 NC FX NC GND VDD2 GND A4 GND GND NC VDD2 GND A6 ODE GND BLK GND NC GND VDD2 VDD2 BLK CB4 CB5 4 6 1 5 3 2 C2-BOARD TNPA3800AB (1/2) PANEL DATA DRIVER TO PANEL DATA DRIVER TO SS-BOARD TO (SS23) D-BOARD TO (D32) C1-BOARD TO (C12) BUFFER D A C E B BUFFER TH-42PA7C C2-Board (1 of 2) Schematic Diagram TH-42PA7C C2-Board (1 of 2) Schematic Diagram 0.5 0 0.5 5.0 70.0 1.7 0.6 0.9 0.4 70.0 3.7 0 1 2 3 4 5 6 7 101 14.40.C2 电路板 （2/2）线路图 TERM SIDE TERM SIDE AB_CLK_N1 AB_CLK_P1 AB_CLK_N1 AB_CLK_P1 AB_LED7 AB_DDC0 AB_DDB0 AB_DDA0 AB_DDC1 AB_DDB1 AB_DDA1 AB_LED7 AB_DDC0 AB_DDB0 AB_DDA0 AB_DDC1 AB_DDB1 AB_DDA1 AB_LED6 AB_DDC2 AB_DDB2 AB_DDA2 AB_DDC3 AB_DDB3 AB_DDA3 AB_LED6 AB_DDC2 AB_DDB2 AB_DDA2 AB_DDC3 AB_DDB3 AB_DDA3 AB_DDC1 AB_DDB1 AB_DDA1 AB_CLRD AB_ODED2 AB_CLRD AB_ODED2 AB_CLRD AB_ODED2 AB_ODED2 AB_CLRD AA_DDC4 AA_DDB4 AA_DDA6 AA_DDA7 AA_DDC7 AA_DDB7 AA_DDC0 AA_DDB0 AA_DDA3 AA_DDA0 AA_DDC1 AA_DDB1 AA_DDB3 AA_DDA1 AB_DDA4 AB_DDB4 AB_DDC6 AB_DDA6 AB_DDB6 AB_DDC7 AB_DDA7 AB_DDB7 AB_DDA2 AB_DDB2 AB_DDC2 AB_DDB5 AB_DDA5 AB_DDC4 AB_DDC5 AB_DDC3 AB_DDC0 AB_DDB0 AB_DDA0 AB_DDB3 AB_DDA3 AA_DDC3 AA_DDA2 AA_DDB2 AA_DDC2 AA_DDA5 AA_DDB5 AA_DDC5 AA_DDA4 AA_DDB6 AA_DDC6 C2_5V C7211 16V 1u C7213 16V 1u R7231 47 C7210 100V 0.47u R7237 EXB38V102JV R7216 EXB38V470JV R7203 EXB38V470JV C2_5V ZA7203 K4CD01000013 ZA7201 K4CD01000013 C7222 16V 0.1u C0JBAZ002692 IC7204 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7201 EXB38V470JV R7234 6.8 C7204 100V 0.47u R7225 6.8 C2_5V R7223 6.8 C7214 50V 100p C7220 16V 0.1u C0JBAZ002692 IC7203 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7240 EXB38V102JV R7202 EXB38V470JV C7217 50V 100p C7212 100V 0.47u R7206 EXB38V470JV R7204 EXB38V470JV C7206 100V 0.47u ZA7202 K4CD01000013 R7221 47 R7233 6.8 C0JBAZ002692 IC7202 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R7207 EXB38V470JV R7226 6.8 R7235 6.8 C7216 16V 1u R7227 47 C2_5V R7236 47 CB7 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 ZA7204 K4CD01000013 R7232 6.8 R7268 1k CB6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7238 EXB38V102JV C7224 16V 0.1u R7241 EXB38V102JV R7239 EXB38V102JV R7224 6.8 R7205 EXB38V470JV C2_5V R7242 EXB38V102JV C7205 16V 1u FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN CLR VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND ODE CLR A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND ODE VDD2 GND CB7 CB6 6 1 5 3 2 4 C2-BOARD TNPA3800AB (2/2) PANEL DATA DRIVER TO PANEL DATA DRIVER TO BUFFER BUFFER BUFFER 12 10 8 9 14 15 13 11 TH-42PA7C C2-Board (2 of 2) Schematic Diagram TH-42PA7C C2-Board (2 of 2) Schematic Diagram 102 14.41.SC，SU 和 SD 电路板方框图 + + CLK FSIU SCSU CEL2 FCLD CEL2 CEL CLK CPH1 CEL FSID CPH1 SCSU SID PROD CL PROU SIU CL CPH2 SIU FCLKD FCLU SID CPH2 FCLKU D6620 D6806 D6804 R6838 D6583 Q6743 Q6742 T6602 TP15V VSET 15V 5V R6839 16V_F VSUS TPVSUS 16V_F D6862 VSET D6860 15V_F VSUS D6841 Q6824 R6837 D6872 15V D6760 15V D6585 D6825 D6859 D6421 D6480 D6826 B34 13 Q6681 CML Q6401-Q6403 2 BUFFER B40 VCC Q6691 GND Q6762 A11 BUFFER VCC HO CLK LO (Vscn) Vf OUTFET Q6642-Q6644 IC6521 Q6601,Q6602 PROU ENERGY RECOVERY AVR DRIVER VCC BUFFER (SC3) VSUS AVR 20 A33 HIN +5V 3 GND GND POWER OSC Vsus LO FET (Vf+5V) +5V(SC3) TO P2 B31 IC6751 (+232V) CL 2 Vad( 90V) 1 B2 PROD FCLD IN 2 18 +15V A7 CMH IC6724 8 +5V PC6702 Vfo AVR COUPLER SID 4 VSET SOS DET PHOTO 11 VSCN SUPERIMPOSED 2 GND CSL 9 IC6802 45 A33 Adj. FCLKD 2 VSCN Gen. TPSC1 SIGNAL WAVE B1 HIN IC6841 Vf IC6561,6562 Q6841,Q6842 COM Q6821,Q6822 SC2 B8 Vf+5V VIN Vf+5V B36 VOUT GND (Vad 90V) A40 IC6791 A8 PC6861 Vscn GND SC A35 Vscn SC41 B8 7 PC6480 DRIVEB 20 COUPLER (SC3) PC6703 PHOTO 3 Q6802 Vscn GND CMH Vf (+125V) IC6752 IC6821 +5V(SC3) CML OUTFET VSET SEPARATE IC6753 CSH Q6616,Q6617 L6401 CLK CPH 6 Vsus CSL 7 Vf+5V L6403 (SC2) Vf+5V IN B32 TPSCI Vfo A8 L6412 A36 SC SCAN DRIVE R6833 B35 GND L6411 VCC R6834 1 FCLU A34 Vfo 23 A39 IC6681 Q6661-Q6663 Vf R6835 FSID Vf Q6671 B11 IC6725 R6836 VCC IC6501 +5V(SC1),+5V(SC3) 12 COMPARATOR 3 B9 VSET GND Vscn,VAD( 90V) IC6871 (SC1) TO P23 TPVSCN IC6671 IC6721 HO DRIVER PROU 9 SCSU TPVAD 5 Q6801 SIU 2 1 SC VCC 7 VSET 8 PC6760 5 A32 Vf 3 Q6421-Q6423 A2 8 Vf FET +5V CL IC6581 VDD VAD SLOPE Vfo CSH IC6601 B30 VAD CONT Q6511,Q6512 A6 VR6600 (Vfo) PROD Q6803 LED(G) (+8V) A1 TPVSET VSET Gen. 1 Vf B33 IC6801 FSIU SC_SOS7 CEL VAD Gen.( 90V) Q6680 SID DRIVER SIU VSET2 Gen. FET IN 46 VDD +5V(SC2) B7 VCC FCLKD PHOTO BUFFER VSET2 VAD COUPLER FCLD A30 Vsus Gen. A5 HO Vscn(VAD+125V) B6 PC6801 VSET SLOPE Q6581 1 SC IC6771 IC6861 DRIVER SC 1 COMPA- FET Vf+5V LO 2 B39 +15V FET IC6722 +5V Vf+5V FCLKU 1 9 OUTFET 8 IC6773 DC/DC CONV. 1 VDD Vscn IN FSID COUPLER OUTFET IC6774 LIN PC6701 3 PHOTO Vad 90V Q6441,Q6442 DRIVER SC30 COUPLER P+5V +5V(SC3) HO 4 RATOR VSCN PHOTO PC6871 FACTORY RATOR FSIU COUPLER 3 Vf+5V USE COMPA- SC42 COUPLER CEL2 B33 A31 1 16V_F VCC PHOTO 3 GND PC6705 FOR 19 IC6682 +5V(SC1) PHOTO LIN LO 17 B10 B5 FCLU +5V(SC1) PHOTO FET LO COUPLER A9 Q6646-Q6648 COUPLER VCC SC_SOS6 BUFFER PHOTO AVR COUPLER A10 PHOTO CEL2 1 PC6704 Vf+5V Q6682 TO D20 VCC FCLKU TPSOS6 TPSOS7 Q6621,D6622 OUT FET FET OUT FET OUT FET OUT FET OUT FET OUT VCC FET HO GND FET VAD SEPARATE IN DRIVER OUT Q6781 IC6772 LO Q6782 Q6451 SI S/P C8 A47 46 LINE VDD 7 48 C36 45 8 C48 A40 GND 240LINE SI CLK IC6903 A48 A6 32 48bit SU2 48 A72 SU1 GND VDDH 3 CL C41 VDD A8 A31 A71 S/P C39 CL C76 C50 SO A80 C51 64bit SI IC6902 PRO 3 A45 1 S/P C35 7 SO C11 CL VDDH 5 C49 A33 A32 SCAN C75 64bit 80 SU3 LINE 80 64 C74 C9 SU41 VDD VDDH SD42 9 PRO IC6904 A7 GND 64bit S/P (UPPER) VDD A5 80 CLK LINE 32 SO 5 16 A46 1 A73 CLK PANEL C33 PRO C34 8 SCAN C73 9 SD IC6901 PRO SO A42 VDDH A2 ELECTRODES GND ELECTRODES CLK (LOWER) 240LINE A70 C79 CL SU A30 C10 C1 PANEL CL VDD 64bit 80 SD3 LINE 80 48 VDD VDDH PRO CLK IC6954 PRO GND 64bit S/P IC6951 VDD PRO SO 80 VDDH CLK LINE 16 GND SO CLK 32 SI S/P CL LINE VDD 32 S/P CL SO 64bit GND SI IC6952 SI PRO CLK IC6953 S/P 48 48bit SO SD2 64 CL VDDH SD1 GND VDDH D6953 D6954 D6904 D6903 SU SCAN OUT (UPPER) SD SCAN OUT (LOWER) FLOATING GND COLD ENERGY RECOVERY SOS DET LED BLINKING : 6 TIMES SC FLOATING PART SOS DET LED BLINKING : 7 TIMES FLOATING GND COLD TH-42PA7C SC, SU and SD-Board Block Diagram TH-42PA7C SC, SU and SD-Board Block Diagram 103 14.42.SC 电路板 （1/2）线路图 + AA_CLK AA_SIU AA_SID AA_SCSU AA_CL AA_CEL CEL2 CPH CML CMH CSH CBK CEL CSL AA_CEL2 200V AC_CPH1 AC_CPH2 SOS6_SC1 15V SOS7_SC2 5V 175V 175V C6524 25V 4.7u R6875 3.3k TP31 R6876 1.2k TP28 TP23 TP26 C0JBAA000377 IC6472 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y TP39 L6592 G0ZZ00002183 C6563 10V 100u R6563 EXB38V470JV R6465 200k D6585 MA2J11100L Q6423 2PG0020000RP C6565 50V 0.01u R6582 39k TP30 R6405 15 C6513 250V 1u C6431 250V 4u R6425 15 R6863 47k L6403 0.6u R6511 10k L6481 G0ZZ00002183 C6518 250V 1u R6616 15k SC2 1 3 R6567 EXB38V472JV 15V_F R6441 15 C6612 25V 1u Q6517 B1ADNF000006 TP38 C6517 250V 1u TP32 R6588 10k C0ZBZ0000895 IC6501 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC C6511 250V 1u TP29 D6481 MA3DF30000LZ Q6581 2SD0601A0L R6587 2.2k R6581 10k D6480 MA2J11100L R6517 10k R6507 1 R6512 10k SOS7_SC2 C6514 250V 1u R6403 15 R6476 4.7k D6871 MAZ80510LL L6482 G0ZZ00002183 R6478 4.7k R6402 15 5V PC6871 B3PBA0000223 1 2 3 4 R6878 22k L6463 G0ZZ00002183 5V Q6512 B1ADNF000006 L6412 1u TP13 R6586 1.5k D6431 MA3DF40000LZ 15V C6861 16V 1u D6523 MA2J11100L 1 2 3 R6477 1k R6452 15 D6501 B0ECHP000003 R6619 1.5k D6582 MAZ83300ML TP33 VSCN_F VF_GND R6516 10k D6872 MA2J11100L D6820 MA2J11100L 150 R6504 D6614 MA2J11100L D6461 MA3DF30000LZ D6862 MA2J11100L R6568 EXB38V472JV C0JBAZ000005 IC6562 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC TP11 R6861 39k 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 IC6861 C0BBBA000022 1 2 3 4 5 6 7 8 R6426 15 R6561 EXB38V470JV IC6871 C0BBBA000022 1 2 3 4 5 6 7 8 D6401 MA3DF30000LZ C6564 16V 1u R6521 100 TP7 C6566 50V 0.01u 150 R6524 R6865 1.8k R6566 EXB38V472JV IC6610 C0BBBA000022 1 2 3 4 5 6 7 8 16V_F D6610 MAZ81500ML R6583 39k R6404 15 D6583 LNJ301MPUJA C6526 250V 0.22u D6613 MA2J11100L TP24 L6402 0.6u R6564 EXB38V470JV Q6401 2PG0010000RP G D S R6508 1 TP21 TP16 R6442 15 150 R6523 C6422 630V 4700p R6866 1.5k R6584 7.5k D6581 MAZ83300ML 15V SOS7_SC2 TP34 R6562 EXB38V470JV TP18 C6525 25V 4.7u L6401 0.6u R6406 15 Q6471 B1CHGD000006 G D S C6412 200V 220u C6863 50V 0.01u R6503 10 TP4 IC6581 C0BBBA000022 1 2 3 4 5 6 7 8 C6522 25V 4.7u C6505 25V 4.7u R6591 EXB38V472JV Q6422 2PG0020000RP C6862 25V 1u R6421 15 L6591 G0ZZ00002183 TP9 D6502 B0ECHP000003 C6421 630V 5600p TP10 D6522 D1FL40 D6491 MA3DF40000LZ C6581 25V 1u VSUS R6522 100 Q6516 B1ABNF000006 D6821 MA2J11100L Q6402 2PG0010000RP C6872 25V 1u TP17 C6582 16V 1u Q6441 2PG0010000RP TP8 MAIN_STOP TP52 R6422 15 R6502 100 D6471 MA3DF30000LZ C6471 630V C6472 50V 0.1u TP27 C6561 10V 100u 5V C6611 50V 0.01u TP15 R6617 1M MAIN_STOP R6869 4.7k C0ZBZ0000895 IC6521 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC TP6 TP35 C6515 250V 1u TP5 D6584 MAZ80510LL 150 R6505 TP22 Q6403 2PG0010000RP 15V R6592 4.7k R6444 15 C6610 25V 1u D6451 D1FL40 R6534 0 L6602 G0ZZ00002183 R6479 100k L6461 G0ZZ00002183 TP14 R6879 4.7k R6443 15 R6501 100 C6593 50V 1000p C6420 630V 1800p C6516 250V 1u L6483 G0ZZ00002183 C6592 25V 470u C6512 250V 1u R6864 9.1k Q6511 B1ABNF000006 R6867 3.9k D6861 MAZ80510LL C6402 4700p 630V R6525 100k R6526 100 R6423 15 C6873 50V 0.01u R6615 24k R6565 EXB38V472JV R6618 12k R6614 24k R6877 3.9k D6524 MAZ80330LL L6462 G0ZZ00002183 L6411 1u TP1 R6585 1.5k R6401 15 C6401 630V 5600p PC6861 B3PBA0000223 1 2 3 4 D6441 D1FL40 D6612 MA2J11100L TP19 C6400 630V 2200p 15V C6562 16V 1u Q6421 2PG0020000RP 5V C6411 200V 220u C6439 630V 5600p C6504 25V 4.7u TP2 R6424 15 TP20 Q6451 2PG0020000RP C6480 50V 0.1u R6868 22k Q6442 2PG0010000RP L6484 G0ZZ00002183 R6475 4.7k R6590 220 L6464 G0ZZ00002183 C6410 630V 1000p R6862 47k B0ECHP000003 D6472 TP25 R6451 15 VSUS R6506 10 C6413 200V 220u R6533 10k C0JBAZ000005 IC6561 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC D6521 D1FL40 C6502 25V 4.7u TP12 D6611 MA2J11100L VF_GND 15V_F + + + + + C6440 630V 5600p m +15V GND + - + - TP15V +15V GND Vsus GND GND GND GND TPVSUS TPSOS7 TPSOS6 + - + - - + - + - + - + 3 D E 4 C 1 B A 9 F 5 2 8 6 7 FET DRIVER BUFFER BUFFER FET DRIVER 1 SC-BOARD TNPA3794 (1/2) COMPARATOR P5V CL CLK SIU SCSU SID TO (P2) P-BOARD P-BOARD (P23) TO D-BOARD (D20) TO COMPARATOR COMPARATOR COMPARATOR 2 3 4 5 6 7 8 9 10 SC 23 20 SC (GREEN LED) FLOATING GND COLD FLOATING GND COLD TH-42PA7C SC-Board (1 of 2) Schematic Diagram TH-42PA7C SC-Board (1 of 2) Schematic Diagram 5.3 0 0 4.3 0 2.2 0.7 0.8 2.9 3.9 0 0.1 0.9 0 0 5.0 0 0 2.8 0.5 15.0 15.0 0 175.0 0 0 C6491 630V 104 14.43.SC 电路板 （2/2）线路图 + REF K A + + REF K A + + + REF K A + + REF K A + + + AA_CEL AB_FCLD AB_FCLU AC_CPH1 AA_CEL2 AA_SID AA_SIU AA_CLK AA_CL AA_SCSU AB_FCLKU AB_FCLKD AB_PROD AB_PROU AB_FSID AB_FSIU AC_CPH2 260V 443V 260-443V 15V 15V -75V -90V 60V -74V -80V -90V AB_FSIU AB_FCLU AB_FCLKU AB_PROD AB_FCLKD AB_FCLD AB_FSID 460V +340V -90V AB_PROU -85V R6848 4.7k R6690 150 R6781 47 D6859 B0ECHP000003 D6603 MAZ82400ML R6689 10 C6841 160V 100u D6823 MA2J11100L R6850 62k R6808 33 C0JBAA000377 IC6774 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y D6702 MAZ80560HL D6644 B0HCKS000002 C0DBEKA00003 IC6471 1 NC 2 A 3 K 5 A 4 REF ZA6401 K4CD01000011 Q6662 2SD0601A0L R6852 2.49k Q6742 2SD0601A0L R6845 56k D6730 MAZ80560HL R6686 10k PC6702 B3PBA0000397 1 2 3 4 5 6 7 8 D6801 M1FS4 C6701 50V 0.1u R6643 10 R6776 100 R6746 10k 16V_F R6822 100k 5V D6733 MAZ80560HL R6836 51k D6725 B0ECHP000003 IC6681 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6806 5.6k IC6802 C0DBEMB00005 C6753 25V 4.7u R6691 10k Q6643 2SK399500L D6825 MAZ8330 D6701 MAZ80560HL R6708 470 Q6691 2SK062000L G D S D6664 MAZ83300ML N0BF1FB00001 IC6791 1 GND 2 GND 3 N.C. 4 VIN 5 VIN 6 N.C. 9 COM 10 COM 11 VOUT 12 VOUT C6662 630V 1000p R6745 4.7k TP62 C0JBAA000377 IC6682 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y R6758 100 C6661 630V 1000p C6804 250V 10u T6602 ETS22AE2G9AD 1 NC 2 S5 4 S3 5 S2 6 S1 7 P2 10 B1 9 B2 8 P1 3 S4 R6647 10 R6659 220k R6829 150k D6687 MA2J11100L Q6681 2SK389500L G D S D6671 MA2J11100L SC42 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 D6734 MA2J11100L D6727 MAZ80560HL R6812 274k R6747 10k D6623 B0HDSM000005 R6759 4.7k D6758 B0ECHP000003 D6806 B0ECHP000003 D6761 MA2J11100L R6843 56k R6658 100 R6611 1M TP42 C6803 50V 0.1u C6691 160V 100u IC6752 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6817 4.7k Q6824 2SD0601A0L R6782 10k VSET R6661 100k 5V R6757 100 C0JBAA000377 IC6773 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y R6664 2.2k R6702 470 D6642 B0HCKS000002 R6660 220k R6860 8.2 Q6648 2SK399500L IC6841 C0DBEMB00005 1 2 3 4 5 6 7 8 9 R6473 560 Q6647 2SK399500L VSCN_F 16V_F R6663 10k C6728 50V 1000p C6773 25V 4.7u C6682 25V 4.7u D6721 B0HCKS000002 IC6772 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB ZA6403 K4CD01000011 C6708 50V 0.1u D6723 B0JCME000037 R6853 100 R6642 10 D6661 MA2J11100L IC6722 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC D6841 B0ECHP000003 D6791 MAZ82000ML C6775 25V 4.7u R6775 100 IC6725 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 IC6771 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 TP51 D6643 B0JCME000037 VSUS R6793 100 R6874 9.1k IC6601 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6700 470 Q6841 2SD1263AP0LB C6845 50V 0.01u C6601 25V 4.7u TP46 Q6762 B1ADNF000006 R6715 2.2k R6622 220 R6705 470 R6849 59k R6606 2.74k 1 2 3 4 5 6 7 8 9 R6662 1.2k D6683 MA2J11100L R6620 8.2 R6665 47 R6603 100 C6777 50V 0.1u R6821 220 C6707 50V 0.1u 15V_F IC6671 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6844 100 R6842 10k D6771 B0JCME000037 C6606 630V 1000p D6605 MAZ80510LL R6744 10k VF_GND R6851 1.5k R6834 51k C6771 16V 1u R6760 1.2k SOS7_SC2 Q6622 2SK399500L TP56 R6743 1k C6723 25V 4.7u C6805 16V 1u C6724 25V 4.7u PC6703 B3PBA0000397 1 2 3 4 5 6 7 8 SC41 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 D6602 B0ECHP000003 R6472 2.2k R6713 2.2k D6666 MA2J11100L Q6842 2SC1473AEA R6792 10k C6605 50V 0.1u TP40 C6802 25V 220u R6711 2.2k R6777 150 R6612 47 C6807 160V 100u C6806 160V 100u R6813 1k R6646 10 TP48 Q6821 2SD1263AP0LB R6846 56k R6809 10k R6682 100 R6683 150 5V R6673 5.6 C6671 25V 4.7u R6826 270k Q6791 2SD0601A0L Q6822 2SC3063000RL R6672 10k R6648 10 5V D6842 MA2J11100L C6603 630V 1000p D6604 MA2J11100L IC6821 C0DBEMB00005 Q6682 2SK389500L G D S R6814 6.98k TP43 Q6642 2SK399500L TP50 R6873 39k TP54 Q6803 2SD0814ARL Q6781 B1ABNF000006 TP63 C6721 100u 50V Q6801 B1BAEJ000014 R6837 47k C6754 35V 47u D6477 MA2J11100L VSET PC6480 B3PBA0000223 1 2 3 4 R6714 2.2k R6701 470 D6822 MA2J11100L R6697 2.2 R6718 2.2k R6717 2.2k R6742 10k D6619 D1FK70-7063 R6703 470 R6666 100k R6830 150k C6681 25V 4.7u R6761 10 R6839 4.7k SOS7_SC2 R6723 2.2k R6688 4.7k R6755 100 D6621 B0HDSM000005 TP45 R6841 10k C6727 16V 1u TP44 D6726 MAZ80560HL TP47 R6811 43k C6755 50V 0.1u R6710 2.2k C6705 50V 0.1u C6683 50V 0.1u ZA6402 K4CD01000011 D6773 B0HCKS000002 D6731 MAZ80560HL 15V R6687 2.2k TP59 C0JBAB000715 IC6602 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y L6472 G0ZZ00002183 R6609 1k D6662 MAZ83300ML R6696 2.2 Q6621 2SK399500L R6887 220k C6706 50V 0.1u Q6601 B1DFES000003 G D S D6667 MA2J11100L C6702 50V 0.1u R6716 2.2k R6668 4.7k TP58 PC6705 B3PBA0000397 1 2 3 4 5 6 7 8 15V D6860 B0HCKS000002 R6835 56k R6825 200k IC6801 C0DBEMB00005 R6831 10k PC6704 K7GBZEE00007 1 3 4 5 6 5V R6684 10 R6608 1k Q6744 2SK062000L G D S R6667 4.7k D6752 B0JCME000037 TP41 D6620 D1FK70-7063 D6724 B0JCME000037 PC6801 B3PBA0000223 1 2 3 4 VSCN_F R6762 10k C6726 16V 1u R6816 14.3k D6607 MA2J11100L R6807 3.3k R6756 100 R6604 150 R6471 3.9k C6602 25V 4.7u D6843 MA2J11100L C6752 16V 1u D6497 MA111 C6776 50V 0.1u R6791 1k PC6760 B3PBA0000223 1 2 3 4 IC6751 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 15V R6888 220k Q6644 2SK399500L VR6602 10k 1 2 3 TP53 D6732 MAZ80560HL R6613 1M D6804 B0ECHP000003 R6827 14.3k Q6661 B1DEET000002 G D S D6601 MAZ8240 C6791 25V 220u Q6602 2SD0601A0L PC6701 B3PBA0000397 1 2 3 4 5 6 7 8 C6704 50V 0.1u R6847 56k C0JBAB000715 IC6753 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y C6703 50V 0.1u R6685 470 Q6743 2SD0601A0L C6795 25V 470u C6604 350V 47u R6824 5.6k IC6721 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC D6478 B0HCKS000002 D6728 MAZ80560HL R6704 470 R6810 43k D6826 MA111 C6725 25V 4.7u C6641 0.22u 250V D6606 B0HCMM000014 Q6663 2SD21850RL R6833 56k R6621 220 Q6782 B1ADNF000006 R6815 2.2k Q6802 2SB0709ARL R6644 10 D6805 MA2J11100L R6823 100k D6684 MA2J11100L R6474 1k R6605 100k R6721 EXB38V220JV D6729 MAZ80560HL IC6724 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 R6706 470 R6707 470 SOS7_SC2 C6772 25V 4.7u TP55 C6871 16V 1u R6681 100 R6671 47 D6760 MA2J11100L D6803 MA2J11100L R6828 5.23k R6886 220k R6712 2.2k D6663 MAZ83300ML D6641 B0HCKS000002 D6665 MAZ80510LL C6811 50V 0.01u Q6680 B1ADNF000006 Q6671 B1DFES000003 G D S C6823 50V 0.01u D6682 B0HCMM000014 R6722 EXB38V220JV TP60 1 2 3 4 5 6 7 8 R6610 100k TP57 VR6600 2k 1 2 3 TP49 D6686 MA2J11100L TP61 Q6646 2SK399500L VF_GND C6620 630V 2200p R6872 39k R6871 39k TP64 * m (D1FK70) VAD TPVAD TPVSCN INIT-F VSET TPVSET TPSC1 AB_FSIU AB_FCLU AB_FCLKU AB_PROU AB_FSID AB_FCLD AB_FCLKD INIT-R AB_PROD 12 18 11 13 10 16 17 15 14 FET DRIVER BUFFER BUFFER FET DRIVER FET DRIVER FET DRIVER DC/DC CONV. +5V(SC3) +5V(SC3) SU-BOARD TO (SU45) Vf(High Voltage Floting GND) Vfo(Vscn Out) Vscn volatage Vf(High Voltage Floting GND) VF5V TO SD-BOARD (SD46) Vscn Vf(High Voltage Floting GND) Vfo(Vscn Out) volatage VF5V Vf(High Voltage Floting GND) VAD Gen. VSET2 Gen. VSCN Gen. +5V(SC1) 1 2 3 4 5 6 7 8 9 10 45 SC SC 46 SU-BOARD TO (SU41) TO SD-BOARD (SD42) +5V(SC1) +5V(SC2) VSET SEPARATE FET DRIVER VAD SEPARATE VSET SLOPE VAD CONST SUPERIMEPOSED VSCN 30 SC FLOATING GND COLD COLD FLOATING GND FLOATING GND COLD TH-42PA7C SC-Board (2 of 2) Schematic Diagram TH-42PA7C SC-Board (2 of 2) Schematic Diagram SC-BOARD TNPA3794 (2/2) 105 14.44.SU 电路板线路图 TERM SIDE TERM SIDE TERM SIDE AA_17 AA_18 AA_19 AA_20 AA_21 AA_22 AA_23 AA_24 AA_25 AA_26 AA_27 AA_28 AA_29 AA_30 AA_36 AA_37 AA_47 AA_46 AA_45 AA_44 AA_43 AA_42 AA_41 AA_40 AA_39 AA_38 AB_49 AB_50 AB_51 AB_52 AB_53 AB_54 AB_55 AB_56 AB_57 AB_58 AB_59 AB_60 AB_61 AB_62 AB_63 AB_64 AB_65 AB_66 AB_67 AB_68 AB_69 AB_70 AB_71 AB_72 AB_73 AB_74 AB_75 AB_76 AB_77 AB_78 AB_83 AB_84 AB_85 AB_110 AB_109 AB_108 AB_107 AB_106 AB_105 AB_104 AB_103 AB_102 AB_101 AB_100 AB_99 AB_98 AB_97 AB_96 AB_95 AB_94 AB_93 AB_92 AB_91 AB_90 AB_89 AB_88 AB_87 AB_86 AC_113 AC_114 AC_115 AC_116 AC_117 AC_118 AC_119 AC_120 AC_121 AC_122 AC_123 AC_124 AC_125 AC_126 AC_127 AC_128 AC_129 AC_130 AC_131 AC_132 AC_133 AC_134 AC_135 AC_136 AC_137 AC_138 AC_139 AC_140 AC_141 AC_142 AC_148 AC_149 AC_174 AC_173 AC_172 AC_171 AC_170 AC_169 AC_168 AC_167 AC_166 AC_165 AC_164 AC_163 AC_162 AC_161 AC_160 AC_159 AC_158 AC_157 AC_156 AC_155 AC_154 AC_153 AC_152 AC_151 AC_150 AD_177 AD_179 AD_180 AD_181 AD_182 AD_183 AD_184 AD_185 AD_186 AD_187 AD_188 AD_189 AD_190 AD_191 AD_192 AD_193 AD_194 AD_195 AD_196 AD_197 AD_198 AD_199 AD_200 AD_201 AD_202 AD_203 AD_204 AD_205 AD_206 AD_211 AD_212 AD_213 AD_222 AD_221 AD_220 AD_219 AD_218 AD_217 AD_216 AD_215 AD_214 AD_178 AB_81 AA_1 AA_3 AA_5 AA_7 AA_9 AA_11 AA_13 AA_15 AA_17 AA_19 AA_21 AA_23 AA_25 AA_27 AA_29 AA_31 AA_33 AA_35 AA_37 AA_39 AA_41 AA_43 AA_47 AA_45 AA_2 AA_4 AA_6 AA_8 AA_10 AA_12 AA_14 AA_16 AA_18 AA_20 AA_22 AA_24 AA_26 AA_28 AA_30 AA_32 AA_34 AA_36 AA_38 AA_40 AA_42 AA_44 AA_48 AA_46 AB_62 AB_54 AB_52 AB_50 AB_58 AB_60 AB_56 AB_53 AB_51 AB_49 AB_57 AB_59 AB_55 AB_64 AB_66 AB_68 AB_70 AB_72 AB_74 AB_76 AB_78 AB_80 AB_67 AB_63 AB_65 AB_71 AB_73 AB_75 AB_77 AB_79 AB_69 AB_61 AB_83 AB_85 AB_87 AB_89 AB_91 AB_93 AB_95 AB_97 AB_99 AB_101 AB_103 AB_105 AB_107 AB_111 AB_109 AB_82 AB_84 AB_86 AB_88 AB_90 AB_92 AB_94 AB_96 AB_98 AB_100 AB_102 AB_104 AB_106 AB_108 AB_112 AB_110 AC_113 AC_115 AC_117 AC_119 AC_121 AC_123 AC_125 AC_127 AC_129 AC_131 AC_133 AC_135 AC_137 AC_139 AC_141 AC_143 AC_145 AC_147 AC_149 AC_151 AC_153 AC_155 AC_159 AC_157 AC_114 AC_116 AC_118 AC_120 AC_122 AC_124 AC_126 AC_128 AC_130 AC_132 AC_134 AC_136 AC_138 AC_140 AC_142 AC_144 AC_146 AC_148 AC_150 AC_152 AC_154 AC_156 AC_160 AC_158 AC_161 AC_163 AC_165 AC_167 AC_169 AC_171 AC_175 AC_173 AC_162 AC_164 AC_166 AC_168 AC_170 AC_172 AC_174 AC_176 AD_194 AD_196 AD_198 AD_200 AD_202 AD_204 AD_206 AD_208 AD_210 AD_212 AD_214 AD_216 AD_218 AD_220 AD_222 AD_224 AD_226 AD_228 AD_230 AD_232 AD_234 AD_236 AD_238 AD_240 AD_177 AD_179 AD_181 AD_183 AD_185 AD_187 AD_189 AD_191 AD_193 AD_195 AD_197 AD_199 AD_201 AD_203 AD_205 AD_207 AD_209 AD_211 AD_213 AD_215 AD_217 AD_219 AD_221 AD_223 AD_225 AD_227 AD_229 AD_231 AD_233 AD_235 AD_239 AD_237 AE_FSO2 AE_FSO3 AE_FSI AC_147 AD_210 AD_209 AD_208 AD_207 AC_176 AC_146 AC_145 AC_144 AC_143 AB_112 AB_82 AB_81 AB_80 AB_79 AA_6 AA_5 AA_4 AA_3 AA_34 AA_33 AA_35 AA_32 AA_31 AA_7 AA_15 AA_14 AA_13 AA_12 AA_16 AA_11 AA_10 AA_9 AA_8 AA_2 AA_1 AE_FSO2 AE_FSO3 AD_223 AD_224 AD_238 AD_237 AD_228 AD_235 AD_226 AD_231 AD_227 AD_232 AD_234 AD_236 AD_229 AD_225 AD_233 AD_230 AD_186 AD_184 AD_182 AD_180 AD_178 AD_192 AD_190 AD_188 AD_240 AA_48 AE_FCLK AE_FCL AE_PRO AE_FCLK AE_FCL AE_PRO AE_FCLK AE_FCL AE_PRO AE_FCLK AE_FCL AE_PRO AE_PRO AE_FCLK AE_FCL AE_FSI AE_FCLK AE_FCL AE_PRO AE_FSI AC_175 AD_239 AB_111 A20 A17 C6934 250V 1u R6923 4.7k A15 A49 A57 A44 A30 A39 R6931 10k A76 A54 C6931 50V 1000p A21 A19 A12 SU2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 A74 A69 A31 A7 AN16071A-VT IC6902 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A29 D6902 MAZ80560HL A50 A22 R6922 100k C6901 50V 1000p AN16071A-VT IC6903 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A72 A18 A73 D6921 B0ECHP000003 A66 A37 A24 A70 R6932 10k A2 C6908 16V 1u A42 C6902 16V 1u A55 R6934 10k A48 A40 A77 A8 SU3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 A5 A61 A53 A45 A36 R6933 10k A58 A78 AN16071A-VT IC6901 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A1 A68 A10 A65 D6922 MAZ80560HL C6904 16V 1u A79 A25 A6 A62 A27 Q6921 2SK062000L G D S A46 R6901 100 SU1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R6921 100k A59 A80 A34 A47 A52 A14 A67 A16 A71 A33 A64 D6903 B0ECHP000003 A11 A51 R6935 220k D6901 MAZ80560HL A75 A43 C6906 16V 1u A13 R6916 220 D6904 B0ECHP000003 A41 A3 A32 A35 AN16071A-VT IC6904 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A63 A56 A9 C6921 50V 220p R6909 220 A23 A26 R6908 220 C6933 250V 1u A4 A60 A28 1 2 3 4 5 6 7 8 9 A38 R6936 220k C6915 50V 220p C6916 50V 220p R6904 22 R6902 22 R6903 22 Vf Vf5 Vfo FCL FCLK FSI VF5V PRO VF5V UP Vscn COMPONENT SIDE FOIL SIDE Vf(High Voltage Floting GND) Vf(High Voltage Floting GND) Vfo(Vscn Out) Vscn volatage 5 6 E F 3 4 B 2 8 1 D A C 9 7 TO SC-BOARD (SC45) SC-BOARD (SC41) SU41(Card Edge 80Pin) S/P PDP SCAN DRIVER 48bit S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit SCAN ELECTRODES To 3rd 80pins of To 2nd 80pins of SCAN ELECTRODES To 1st 80pins of SCAN ELECTRODES SU-BOARD TNPA3874AB Vfo SU 45 TO TH-42PA7C SU-Board Schematic Diagram TH-42PA7C SU-Board Schematic Diagram 106 14.45.SD 电路板线路图 TERM SIDE TERM SIDE TERM SIDE AA_241 AA_242 AA_243 AA_244 AA_245 AA_246 AA_247 AA_248 AA_249 AA_250 AA_251 AA_252 AA_253 AA_254 AA_255 AA_256 AA_257 AA_258 AA_259 AA_260 AA_261 AA_262 AA_263 AA_264 AA_265 AA_266 AA_267 AA_268 AA_269 AA_270 AA_275 AA_276 AA_277 AA_302 AA_301 AA_300 AA_299 AA_298 AA_297 AA_296 AA_295 AA_294 AA_293 AA_292 AA_291 AA_290 AA_289 AA_288 AA_287 AA_286 AA_285 AA_284 AA_283 AA_282 AA_281 AA_280 AA_279 AA_278 AB_305 AB_306 AB_307 AB_308 AB_309 AB_310 AB_311 AB_312 AB_313 AB_314 AB_315 AB_316 AB_317 AB_318 AB_319 AB_320 AB_321 AB_322 AB_323 AB_324 AB_325 AB_326 AB_327 AB_328 AB_329 AB_330 AB_331 AB_332 AB_333 AB_334 AB_339 AB_340 AB_341 AB_366 AB_365 AB_364 AB_363 AB_362 AB_361 AB_360 AB_359 AB_358 AB_357 AB_356 AB_355 AB_354 AB_353 AB_352 AB_351 AB_350 AB_349 AB_348 AB_347 AB_346 AB_345 AB_344 AB_343 AB_342 AC_369 AC_371 AC_372 AC_373 AC_374 AC_375 AC_376 AC_377 AC_378 AC_379 AC_380 AC_381 AC_382 AC_383 AC_384 AC_385 AC_386 AC_387 AC_388 AC_389 AC_390 AC_391 AC_392 AC_393 AC_394 AC_395 AC_405 AC_396 AC_397 AC_398 AC_403 AC_404 AC_430 AC_429 AC_428 AC_427 AC_426 AC_425 AC_424 AC_423 AC_422 AC_421 AC_420 AC_419 AC_418 AC_417 AC_416 AC_415 AC_414 AC_413 AC_412 AC_411 AC_410 AC_409 AC_408 AC_407 AC_406 AD_449 AD_450 AD_451 AD_452 AD_453 AD_454 AD_455 AD_456 AD_457 AD_459 AD_458 AD_460 AD_461 AD_462 AD_467 AD_469 AD_468 AD_480 AD_479 AD_478 AD_477 AD_476 AD_475 AD_474 AD_473 AD_472 AD_470 AD_471 AA_241 AA_243 AA_245 AA_247 AA_249 AA_251 AA_253 AA_255 AA_257 AA_259 AA_261 AA_263 AA_265 AA_267 AA_269 AA_271 AA_273 AA_275 AA_277 AA_279 AA_281 AA_283 AA_285 AA_287 AA_289 AA_291 AA_293 AA_295 AA_297 AA_299 AA_303 AA_301 AA_242 AA_244 AA_246 AA_248 AA_250 AA_252 AA_254 AA_256 AA_258 AA_260 AA_262 AA_264 AA_266 AA_268 AA_270 AA_272 AA_274 AA_276 AA_278 AA_280 AA_282 AA_284 AA_286 AA_288 AA_290 AA_292 AA_294 AA_296 AA_298 AA_300 AA_304 AA_302 AB_306 AB_308 AB_310 AB_312 AB_314 AB_316 AB_320 AB_318 AB_305 AB_307 AB_309 AB_311 AB_313 AB_315 AB_319 AB_317 AB_321 AB_323 AB_325 AB_327 AB_329 AB_331 AB_333 AB_335 AB_337 AB_339 AB_341 AB_343 AB_345 AB_347 AB_349 AB_351 AB_353 AB_355 AB_357 AB_359 AB_361 AB_363 AB_367 AB_365 AB_322 AB_324 AB_326 AB_328 AB_330 AB_332 AB_334 AB_336 AB_338 AB_340 AB_342 AB_344 AB_346 AB_348 AB_350 AB_352 AB_354 AB_356 AB_358 AB_360 AB_362 AB_364 AB_368 AB_366 AC_400 AC_369 AC_371 AC_373 AC_375 AC_377 AC_379 AC_381 AC_383 AC_385 AC_387 AC_389 AC_391 AC_393 AC_395 AC_399 AC_397 AC_370 AC_372 AC_374 AC_376 AC_378 AC_380 AC_382 AC_384 AC_386 AC_388 AC_390 AC_392 AC_394 AC_396 AC_398 AC_401 AC_403 AC_405 AC_407 AC_409 AC_411 AC_413 AC_415 AC_417 AC_419 AC_421 AC_423 AC_425 AC_427 AC_429 AC_431 AC_402 AC_404 AC_406 AC_408 AC_410 AC_412 AC_414 AC_416 AC_418 AC_420 AC_422 AC_424 AC_426 AC_428 AC_430 AC_432 AD_433 AD_435 AD_437 AD_439 AD_441 AD_443 AD_445 AD_447 AD_449 AD_451 AD_453 AD_455 AD_457 AD_459 AD_461 AD_463 AD_465 AD_467 AD_469 AD_471 AD_473 AD_475 AD_477 AD_479 AD_434 AD_436 AD_438 AD_440 AD_442 AD_444 AD_446 AD_448 AD_450 AD_452 AD_454 AD_456 AD_458 AD_460 AD_462 AD_464 AD_466 AD_468 AD_470 AD_472 AD_474 AD_476 AD_478 AD_480 AC_370 AE_FSI AD_466 AD_465 AD_464 AD_463 AC_432 AC_431 AC_402 AC_401 AC_400 AC_399 AB_368 AB_367 AB_338 AB_337 AB_336 AB_335 AA_304 AA_303 AA_274 AA_273 AA_272 AA_271 AE_FSO1 AE_FSO1 AE_FSO2 AE_FSO2 AE_FSO3 AE_FSO3 AD_444 AD_443 AD_448 AD_447 AD_445 AD_446 AD_438 AD_437 AD_442 AD_441 AD_439 AD_440 AD_435 AD_436 AD_433 AE_FCLK AE_FCL AE_PRO AE_FCLK AE_FCL AE_PRO AE_FCLK AE_FCL AE_PRO AE_FCLK AE_FCL AE_PRO AE_FSI AE_FCLK AE_PRO AE_FCL AE_FCLK AE_FCL AE_PRO 120V AE_FSI AD_434 R6982 10k B70 B45 B64 B48 B57 1 2 3 4 5 6 7 8 9 R6966 220 C6951 50V 1000p AN16071A-VT IC6951 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 B58 B53 B39 B26 B12 B52 B31 D6951 MAZ80560HL B1 R6958 220 B75 B73 C6982 250V 1u B71 B79 B14 B8 B78 B23 B5 B61 B9 B47 C6958 16V 1u B29 R6983 10k AN16071A-VT IC6953 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6981 10k B27 D6952 MAZ80560HL B65 B80 B21 B10 B40 B54 B44 B3 SD3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R6985 220k B51 B38 B15 B24 B62 B37 B2 R6959 220 B25 SD1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R6951 100 C6956 16V 1u C6952 16V 1u B46 AN16071A-VT IC6954 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 R6984 10k B66 B67 B59 B49 B36 B55 B19 B76 B56 B22 B18 SD2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B60 C6985 250V 1u C6981 50V 1000p C6954 16V 1u B7 B63 B4 B41 B74 B68 B11 B33 B42 B34 B72 AN16071A-VT IC6952 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 B28 B77 B6 B30 B16 B20 B43 B35 B50 D6954 B0ECHP000003 B17 B13 B32 B69 D6953 B0ECHP000003 R6986 220k C6965 50V 220p C6964 50V 220p C6966 50V 220p R6954 22 R6952 22 R6953 22 FSI VF5V FCL PRO FCLK VF5V DOWN PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER S/P 48bit S/P 64bit S/P 64bit S/P 64bit COMPONENT SIDE FOIL SIDE (SC42) SD42(Card Edge 80Pin) TO SC-BOARD SC-BOARD (SC46) TO Vfo(Vscn Out) Vscn voltage Vf(High Voltage Floting GND) Vf(High Voltage Floting GND) To 1st 80pins of SCAN ELECTRODES To 2nd 80pins of SCAN ELECTRODES To 3rd 80pins of SCAN ELECTRODES SD-BOARD TNPA3875AB Vf Vfo Vf5 Vscn SD 46 TH-42PA7C SD-Board Schematic Diagram TH-42PA7C SD-Board Schematic Diagram 7 8 3 D E 4 C 1 B A 9 F 5 2 6 107 14.46.SS 和 S 电路板方框图 PUSH D6221 TPVSUS SW2500 D6253 TP15V TPSS1 TPVE TPVDA D6255 R6113 Q6051 Q6141-Q6142 +15V DRIVER LED(G) FET DRIVER VCC FET SS IC6191 TPSS1 SIGNAL WAVE 1 Q6101,Q6102 S1 4 Vsus Gen. STB PS POWER SWITCH 34 Q6021-Q6023 VCC Vda Q6001-Q6003 SS_SOS8 OUTPUT VSUS TPSS1 VE 1 STB12V 2 8 STB12V VCC Vda DRIVER 3 TO C23 Ve Gen. VCC 10 VCC 3 IC6251 1 STB PS IC6131 12 Ve2 BUFFER FET IC6241 TO P12 SS 5 7 11 3 8 12 1 2 4 6 23 SS Adj. (+151V) VE Gen. TPVE IC6221 Q6221,Q6222 VR6000 ENERGY RECOVERY FET OUTPUT FET COMPARATOR OUTPUT FET SS SUSTAIN DRIVE Vsus 11 SS 1 TO P11 UMH UEH SS_SOS8 5V Vda Vda NUEL USH USL UML Q6146-Q6147 IC6151 Q6041,Q6042 L6011,L6013 L6001-L6003 VCC FET OUTPUT IC6211 (+5V) IN Q6111,Q6112 Ve2 Gen. FET DRIVER SUSTAIN ELECTRODE PANEL SS43 SS41 SS44 SS42 S POWER SWITCH LED BLINKING : 8 TIMES ENERGY RECOVERY SOS DET TH-42PA7C SS and S-Board Block Diagram TH-42PA7C SS and S-Board Block Diagram 108 14.47.SS 和 S 电路板线路图 + + + + TERM SIDE + TERM SIDE + + TERM SIDE + + TERM SIDE + + REF K A + 0-183V 0-183V 67V 67V 183V 183V 175V 15V 5V 0-183V C6221 50V 0.1u TP11 100k R6196 D6255 MA2J11100L R6252 39k R6026 15 C6021 630V 5600p C6022 2700p 630V D6051 D1FL40 D6131 B0ECHP000003 C6011 200V 220u C6039 5600p 630V R6225 16.9k TP18 C0ZBZ0000895 IC6131 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC C6013 200V 220u C6041 16V 1u L6061 G0ZZ00002183 D6191 B0ECHP000003 ZA6001 K4CD01000011 C6213 25V 330u C6211 25V 4.7u J0JJC0000011 L6102 R6256 1.5k L6082 G0ZZ00002183 R6062 220k TP31 R6146 10k TP24 L6063 G0ZZ00002183 ZA6002 K4CD01000011 TP22 R6254 7.5k TP23 L6002 0.6u R6006 15 100k R6195 L6103 G0ZZ00002183 R6104 100 R6258 2.2k R6051 15 R6020 100 D6001 MA3DF30000LZ R6041 15 TP16 D6154 MAZ80330LL C6156 250V 0.22u IC6251 C0BBBA000022 1 2 3 4 5 6 7 8 R6136 10 D6223 MA2J11100L R6192 100 R6246 4.7k R6024 15 D6152 B0ECHP000003 C6243 50V 0.01u R6251 10k R6236 5.6k Q6051 2PG0010000RP TP28 L6003 0.6u R6241 EXB38V470JV R6044 15 TP1 C6251 16V 1u C6044 16V 1u TP2 C6208 250V 1u R6031 200k R6111 47 L6083 G0ZZ00002183 R6027 15 C6203 250V 1u R6042 15 1 2 3 4 5 6 7 8 9 10 11 12 C6112 200V 150u SS41 1 2 3 4 5 6 7 8 9 10 11 12 13 R6174 0 C6205 250V 1u C0ZBZ0000895 IC6151 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC Q6042 2PG0010000RP TP25 R6222 10k L6062 G0ZZ00002183 R6152 100 R6023 15 TP20 R6157 1 1 3 C6192 25V 1u Q6022 2PG0010000RP R6022 100 D6251 MAZ83300ML R6003 15 IC6211 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB Q6111 2SK326800L G D S R6191 100 R6261 100k TP5 R6131 100 B0ECHP000003 D6092 C6261 160V 100u SS44 1 2 3 4 5 6 7 8 9 10 11 12 13 Q6023 2PG0010000RP ZA6003 K4CD01000011 TP3 R6132 100 Q6147 B1ADNF000006 Q6021 2PG0010000RP Q6002 2PG0010000RP D6102 B0JCME000037 R6102 100 C6134 25V 4.7u Q6112 B1DFKM000002 G D S D6081 MA3DF30000LZ D6252 MAZ83300ML D6254 MAZ80510LL C6043 16V 1u R6166 100 TP8 C6204 250V 1u R6147 10k 150 R6153 C6135 25V 4.7u TP27 C6201 250V 1u R6151 100 D6061 MA3DF30000LZ TP9 R6103 100 L6262 G0ZZ00002183 150 R6214 R6244 4.7k R6158 1 Q6041 2PG0010000RP L6272 G0ZZ00002183 D6193 B0ECHP000003 R6242 EXB38V472JV R6004 15 TP6 D6214 MA2J11100L J0JJC0000011 L6101 Q6212 2SD0601A0L D6151 B0ECHP000003 L6084 G0ZZ00002183 R6233 27k C6241 25V 330u R6141 10k D6071 MA3DF30000LZ C6071 630V TP10 R6226 16.9k TP12 TP7 Q6141 B1ABNF000006 C6273 25V 220u R6113 220k TP19 L6081 G0ZZ00002183 R6257 10k R6215 180 L6271 G0ZZ00002183 C0JBAZ000005 IC6241 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC TP29 R6155 100k D6222 MA2J11100L Q6142 B1ADNF000006 SS42 1 2 3 4 5 6 7 8 9 10 11 12 13 D6072 B0ECHP000003 D6041 D1FL40 C6194 25V 4.7u C6214 25V 330u Q6251 2SD0601A0L D6192 B0ECHP000003 R6255 1.5k R6223 12k Q6146 B1ABNF000006 C6202 250V 1u TP26 Q6003 2PG0010000RP C6206 250V 1u R6025 15 R6234 27k R6229 16.9k Q6102 B1DFKM000002 G D S L6001 0.6u 150 R6133 R6101 100 TP14 D6221 B0ECHP000003 1 2 3 4 5 6 7 8 9 10 R6160 1 C6042 16V 1u D6153 MA2J11100L L6221 G0ZZ00002183 C6272 25V 220u R6112 47 C6154 25V 4.7u 150 R6134 D6213 MA2J11100L 1 2 3 R6173 10k R6217 180 R6213 100 TP13 TP15 R6227 16.9k VR6000 10k 1 2 3 L6241 G0ZZ00002183 100 R6193 SS43 1 2 3 4 5 6 7 8 9 10 11 12 13 R6021 15 C6012 200V 220u R6135 10 R6216 1k C6111 200V 150u Q6001 2PG0010000RP R6245 47 C6132 25V 4.7u D6253 LNJ301MPUJA L6013 1u 150 R6154 C0DBEMB00005 IC6221 R6061 220k C6281 1000p 630V C6282 2200p 630V TP21 Q6101 B1DFKM000002 G D S R6043 15 Q6222 2SC1473AEA TP30 C0ZBZ0000895 IC6191 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC C6001 630V 5600p TP32 C6207 250V 1u L6011 1u C6195 25V 4.7u C6152 25V 4.7u D6215 MAZ80820ML D6021 MA3DF30000LZ C6031 250V 4u Q6221 2SD1263AP0LB C6153 25V 4.7u D6101 B0JCME000037 C6262 160V 100u C6212 25V 4.7u R6253 39k R6142 10k R6001 15 TP17 R6002 15 R6052 15 D6091 MA3DF30000LZ D6132 B0ECHP000003 R6243 47 R6005 15 100 R6194 R6235 27k L6064 G0ZZ00002183 R6232 1.2k C6242 16V 1u D6211 B0JCME000037 C6040 5600p 630V C6193 25V 4.7u C6091 630V C6002 630V 2700p C6003 630V 3900p = m F2A2D1510070 RUBICON TP15V TPVDA - + - + (GREEN LED) TPSS1 TPVe TPVSUS VSUS TO (P11) P-BOARD TO (P12) P-BOARD (C23) C2-BOARD TO SS-BOARD TNPA3795 SUSTAIN ELECTRODE PANEL TO GND 12V STB_PS VE GEN. FET DRIVER FET DRIVER FET DRIVER FET DRIVER COMPARATOR BUFFER GND NC Vda +15V STB PS STB12V GND GND GND NC Vda NC SS 11 12 SS 34 SS 23 SS TH-42PA7C SS and S-Board Schematic Diagram TH-42PA7C SS and S-Board Schematic Diagram 3.7 0 0.5 0 0.5 5.0 0.6 0.9 0.4 70.0 70.0 1.7 5V NUEL USL USH UEH UMH UML SS_SOS8 GND NC Vda Vda 0 12.0 0 15.0 0 70.0 0 12.0 0 12.0 12.0 0 70.0 175.0 0 0 7 8 3 D E 4 C 1 B A 9 F 5 2 6 S-BOARD TNPA4138AD PUSH C2 C2502 1000p 50V C2 C2 S1 K1KA03BA0061 1 2 3 C2 C2503 1000p 50V SW2500 K0F162B00002 R2506 J0JHC0000096 R2507 J0JHC0000096 GND 12V To SS34 STB_PS 109 15 部件布置和维修部品表 15.1. 部件布置 110 15.2. 包装分解图 （1） 111 15.3. 包装分解图 （2） 112 15.4. 包装分解图 （3） 113 15.5. 包装分解图 （4） 114 15.6. 维修部品表 参考号 部件号 部件名称及说明 数量 备注 1 EAS12S10A 喇叭 2 2 K2CK3DH00028 电源线 1 K5D802BNA005 保险丝 (F401 F402) 2 3 MC106W36FC9 42SD 屏 1 4 N2QAJB000155 遥控器 1 5 R6PND/2SP 电池 1 6 TBLA0293 台座本体 1 TBMA219 PANASONIC 标牌 1 TBMG493 机种铭牌 1 TBMU728 高频头标签 1 7 TBXA51602 控制开关 1 8 TBXA51702 电源开关 1 9 TESD076 电源开关弹簧 1 THEL037N 螺丝 (PA:1) 1 THEL0429 螺丝 ( 调谐器顶盖 ) 30 THEL044N 螺丝 (P:1) 1 THTF011N 螺丝 (EARTH:4 TU:4 INLET:3 PA:3 CL:2 P:5 SC:6 SS:6 SUSD:4 D:4 DD:14 C:7) 62 10 TKGA5369 前面玻璃 1 11 TKKC5275 导光板 1 12 TKKL5344 M8 垫片盖 4 13 TKKL5361 调整盖 1 14 TKPA98101 接入口盖 1 15 TKRA52601 后盖把手 2 16 TKUX12801 后盖本体 1 17 TKYA30601 面框本体 1 TMKG675-1 海绵 （前面玻璃 H） 2 TMKG676 海绵 （前面玻璃 V） 2 TMME226 电源线夹 1 18 TMME289 线夹 2 19 TMMX130 M8 垫片 4 20 TMZX5095 台座安装块 2 21 TPCC17701A 包装箱本体 1 22 TPCC17801 包装箱底部 1 23 TPDA1566 缓冲材 顶部 1 24 TPDA1615 缓冲材 顶中央部 1 25 TPDA1662 缓冲材 底部 1 26 TPDA1663 缓冲材 底中央部 1 27 TPDF0764-3 附件盒 1 28 TPDF1831 纸板支撑件 1 29 TPDF1896 顶片 1 30 TPDX0035 箱扣 4 TPEB297 EPE 包装袋 1 31 TPEH343 顶面保护片 2 32 TPEH344 整机袋 1 TQD1712010 合格票 1 TQDF070601 中国节能认证标志 1 TQFA360 遥控器说明注意标签 1 TQFD239 线夹标签 1 TQFD689 LDPE 标签 1 33 TQZC958 说明书 1 TQZF163 保修证 1 TSXL519 FFC(C12-C22) 1 TSXL520-1 FPC DG1-H1 1 TSXL521-1 FPC DG15-HC15 1 TSXL522 FPC DG20-PA20 1 TSXL523-1 FFC D3-DG3 1 TSXL562 FFC(D31-C11/D32-C21) 2 34 TXAJS01BJTB AC 接入口 半成品 1 TXAUX01JPTC 高频头块 半成品 1 35 TXFBL02LJTU 台座支架组件 2 TXFHM010VKSA 台座螺丝组件 1 TXFMM01LJTU 台座保护组件 1 TXJ/H2BJTU 线束 DG2-H2 1 TXJ/K1JPTC 线束 K1-H53 1 TXJ/P2BJTU 线束 （SC2 ～ P2） 1 TXJ/P9BJTU 线束 (P9-INLET) 1 TXJ/S1BJTU 线束 S1-SS34 1 TXJ/SPBJTU L/ 线束 SP-RELAY 2 TXJD20BJTU 线束 （D20 ～ SC20） 1 TXJD25BJTU 线束 (D25 ～ P25) 1 TXJDG5BLTB 线束 D5-DG5 1 TXJEARBJTU 线束 GND （H-PA） 1 TXJFGNYFSU 线束 (GND-INLET) 1 TXJGN1BZTU 线束 1 TXJH40BJTU 线束 H40-PA40 1 TXJP10BJTU 线束 PA10-P10 1 TXJP11BJTU 线束 （P11 ～ SS11） 1 TXJP12BJTU 线束 （P12 ～ SS12） 1 TXJP23BJTU 线束 （P23 ～ SC23） 1 TXJPA2BLTB 线束 PA2-RELAY 1 TXJPA5BJTU 线束 PA5-P5 1 TXJS23BJTU 线束 （SS23 ～ C23） 1 TXN/D1BLTC D 线路板 完成品 1 TXN/K1JPTC K 线路板 半成品 1 TXN/P1BLTC P 线路板 包装入 1 TXN/S2JPTC S 线路板 半成品 1 TXNC11BLTC C1 线路板 包装入 1 TXNC21BLTC C2 线路板 包装入 1 TXNPA1BLTC PA 线路板 完成品 1 TXNSC2BLTC SC 线路板 包装入 1 TXNSD1BLTC SD 线路板 包装入 1 TXNSS3BLTC SS 线路板 包装入 1 TXNSU1BLTC SU 线路板 包装入 1 XTB4+12GFJ 螺丝 (GH26 FR5 SP8 S2 K3) 44 XTB4+12GFJK 螺丝 ( 后盖底部 ) 10 XTB4+16GFJ 螺丝 ( 台座支架 - 面框 2) 2 XTV3+10JFJK 螺丝 ( 端子 ) 4 XTW3+10TFJ 螺丝 ( 导光板 ) 1 XYN3+F6FJ 螺丝 1 XYN3+F8FJ 螺丝 (DG:1 H:6 HC:2) 21 XYN4+E8FJ 螺丝 1 XYN4+F10FJ 螺丝 (AL-GHT:4 AL-GHB:3 STD- GHB:2) 9 XYN4+F10FJK 螺丝 (BC-TOP:6) 6 XYN4+F30FJK 螺丝 (SIDE:6) 6 XYN5+C15FJ 螺丝 ( 台座支架 8) 8 115 16 更换部件清单 16.1. 更换部件清单注意事项 116 16.2. 电器部件更换清单 参考号 部件号 部件名称及说明 件数 备注 F401.402 K5D802BNA005 延时保险丝 2 C002 ECA1HM100 E 10UF, 50V 1 C003 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C006 ECA0JM102 E 1000UF, 6.3V 1 C008 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C009 ECJ1XC1H101J C 100PF, J, 50V 1 C010,11 ECJ1VC1H330J C 33PF, J, 50V 2 C11 K1MN55BA0076 55P 连接接头 1 C12 K1MN20BA0231 20P 连接接头 1 C016 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C21 K1MN55BA0076 55P 连接接头 1 C22 K1MN20BA0231 20P 连接接头 1 C23 K1KA12BA0107 12P 连接接头 1 C029,30 ECJ1VC1H330J C 33PF, J, 50V 2 C041,42 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C1100 F1G1A104A012 C 0.1UF, K, 10V 1 C1102 F1G1A104A012 C 0.1UF, K, 10V 1 C1103 ECJ0EB1E271K C 270PF, K, 25V 1 C1105 ECJ0EB1E271K C 270PF, K, 25V 1 C1106 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1107 EEEHB0G101R C 100PF, J, 4V 1 C1109-11 F1G1A104A012 C 0.1UF, K, 10V 3 C1112 ECJ0EB1E271K C 270PF, K, 25V 1 C1114 F1G1A104A012 C 0.1UF, K, 10V 1 C1116 F1G1A104A012 C 0.1UF, K, 10V 1 C1118-23 F1G1A104A012 C 0.1UF, K, 10V 6 C1125 F1G1A104A012 C 0.1UF, K, 10V 1 C1127-32 F1G1A104A012 C 0.1UF, K, 10V 6 C1133,34 ECJ1VC1H150J C 15PF, J, 50V 2 C1135-42 F1G1A104A012 C 0.1UF, K, 10V 8 C1144-50 F1G1A104A012 C 0.1UF, K, 10V 7 C1152 F1G1A104A012 C 0.1UF, K, 10V 1 C1153 EEEHB0G101R C 100PF, J, 4V 1 C1154 F1G1A104A012 C 0.1UF, K, 10V 1 C1155 ECJ0EB1C103K C 0.010UF, K, 16V 1 C1156,57 ECJ1XC1H220J C 22PF, J, 50V 2 C1158 F1J0J1060004 C 0.010UF, K, 16V 1 C1159 F1G1A104A012 C 0.1UF, K, 10V 1 C1161 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1167,68 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C1172 F1G1A104A012 C 0.1UF, K, 10V 1 C1177 ECJ1VB1A334K C 0.1UF, K, 16V 1 C1178 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C1190 ECJ0EB1C103K C 0.010UF, K, 16V 1 C1221 F1G1H1020008 E 1000UF, 50V 1 C1222,23 F1J0J1060004 C 0.010UF, K, 16V 2 C1224,25 F1G1A104A012 C 0.1UF, K, 10V 2 C1226 F1J0J1060004 C 0.010UF, K, 16V 1 C1227 ECJ0EB1H101K C 100PF, K, 50V 1 C1228-34 EEEHB1C470P C 47PF, J, 16V 7 C2005,06 ECJ1XC1H561J C 560PF, J, 50V 2 C2010,11 ECJ1XC1H561J C 560PF, J, 50V 2 C2013,14 ECJ1XC1H561J C 560PF, J, 50V 2 C2016,17 ECJ1XC1H561J C 560PF, J, 50V 2 C2019 ECA1CM221 E 220UF, 16V 1 C2020 ECA1HM220 E 22UF, 50V 1 C2021,22 ECJ1XC1H561J C 560PF, J, 50V 2 C2111 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2116 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2118,19 F2J1C4700003 E 47UF, 16V 2 C2127 ECA1CMH101 E 100UF, 16V 1 C2128 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2129,30 ECJ2YB1A105K C 1UF, K, 10V 2 C2131 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2132 EEEHB1C100R C 10PF, J, 16V 1 C2133,34 ECJ1XC1H470J C 47PF, J, 50V 2 C2139-43 ECJ1VB1H103K C 0.001UF, K, 50V 5 C2146 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2147 ECA1HM220 E 22UF, 50V 1 C2148-50 ECJ2FB1C105K C 1UF, K, 16V 3 C2152 ECJ2FB1C105K C 1UF, K, 16V 1 C2153 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C2154 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2159,60 ECJ2FB1C105K C 1UF, K, 16V 2 C2161 ECA1CMH101 E 100UF, 16V 1 C2162-65 ECJ2FB1C105K C 1UF, K, 16V 4 C2168,69 ECJ2FB1C105K C 1UF, K, 16V 2 C2170-72 ECJ1VB1H102K C 1000UF, Z, 50V 3 C2173 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2174 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2175-77 ECJ1VB1H103K C 0.001UF, K, 50V 3 C2178,79 EEEHB1C100R C 10PF, J, 16V 2 C2181 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2183 EEEHB1H3R3R C 3.3PF, J, 50V 1 C2184,85 ECJ2VF1C104Z C 0.1UF, Z, 16V 2 C2189,90 ECJ2FB1C105K C 1UF, K, 16V 2 C2191 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2192 EEEHB1C100R C 10PF, J, 16V 1 C2195 ECJ1XC1H470J C 47PF, J, 50V 1 C2196 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2197 ECJ2FB0J225K C 2.2UF, Z, 16V 1 C2198 EEEHB0J101P C 100PF, J, 6.3V 1 C2199 ECJ1VC1H560J C 56PF, J, 50V 1 C2200 ECJ1XC1H470J C 47PF, J, 50V 1 C2201 ECJ1XC1H030C C 3PF, C, 50V 1 C2202 ECJ1VC1H050C C 5PF, C, 50V 1 C2203 ECJ1VC1H100C C 10PF, C, 50V 1 C2204 ECJ1XC1H220J C 22PF, J, 50V 1 C2211 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C2213 J0JCC0000100 片状电感 1 C2222 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C2223 ECJ1VC1H390J C 39PF, J, 50V 1 C2225 ECJ2FB1C105K C 1UF, K, 16V 1 C2226 ECJ1VB1H102K C 1000UF, Z, 50V 1 C2237-40 ECJ1VB1H103K C 0.001UF, K, 50V 4 C2301 ECA1EHG471 E 470UF, 25V 1 C2303 ECA1CMH101 E 100UF, 16V 1 C2307 ECA1CMH101 E 100UF, 16V 1 C2314 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2317 ECJ2YB1A105K C 1UF, K, 10V 1 C2320 ECJ2YB1A105K C 1UF, K, 10V 1 C2321 ECJ2VB1H103K C 0.01UF, K, 50V 1 C2322 ECJ2YB1A105K C 1UF, K, 10V 1 C2323,24 ECJ2FB1E224K C 22UF, K, 25V 2 C2325,26 ECJ1VB1E104K C 0.10UF, K, 25V 2 C2327 F1J1H474A757 C 0.47UF, 50V 1 C2328-31 ECJ2FB1E105K C 1UF, K, 25V 4 C2332,33 ECA1EHG471 E 470UF, 25V 2 C2334,35 ECJ1VB1E104K C 0.10UF, K, 25V 2 C2336 F1J1H474A757 C 0.47UF, 50V 1 C2337,38 ECJ2FB1E224K C 22UF, K, 25V 2 C2341 ECJ3YB1E106M C 10 UF, K, 25V 1 C2342 ECJ2FB1E105K C 1UF, K, 25V 1 C2372 ECA1HHG100 E 10UF, 50V 1 C2373 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C2374 ECJ1VF1A105Z C 1UF, Z, 10V 1 C2380 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2382 ECJ1VB1C105K C 0.01UF, K, 16V 1 C2385 ECJ2YB1A105K C 1UF, K, 10V 1 C2387 ECJ2YB1A105K C 1UF, K, 10V 1 C2393,94 ECJ1VB1C105K C 0.01UF, K, 16V 2 C2401 ECJ2YB1A105K C 1UF, K, 10V 1 C2402 ECJ2FB0J106M C 10UF, Z,6.3V 1 C2403 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2417 ECJ2FB0J106M C 10UF, Z,6.3V 1 C2430 ECJ1VF1A105Z C 1UF, Z, 10V 1 C2502,03 ECJ2XB1H102K C 1000PF, K, 50V 2 C2512 ECJ3XB0J106M C 10UF, M,6.3V 1 C2515 ECJ2VB1H103K C 0.01UF, M, 25V 1 C3005 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3021-25 ECJ2YB1A105K C 1UF, K, 10V 5 C3026 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3033 ECJ2YB1A105K C 1UF, K, 10V 1 C3035 ECJ2YB1A105K C 1UF, K, 10V 1 C3036 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3038 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3039 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3040 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3041 ECJ1VB1H103K C 0.001UF, K, 50V 1 参考号 部件号 部件名称及说明 件数 备注 117 C3043 ECJ2YB1A105K C 1UF, K, 10V 1 C3046 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3047 ECJ2YB1A105K C 1UF, K, 10V 1 C3048 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3049,50 ECJ2YB1A105K C 1UF, K, 10V 2 C3051-53 ECJ1VB1H103K C 0.001UF, K, 50V 3 C3054-56 ECJ2YB1A105K C 1UF, K, 10V 3 C3058 ECA1EM471 E 470UF, 25V 1 C3059,60 ECJ2XF1C105Z C 1.0UF, Z, 16V 2 C3062,63 ECJ2VF1C104Z C 0.1UF, Z, 16V 2 C3065 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3067 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3069 ECA1EM471 E 470UF, 25V 1 C3070 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3075 ECA1CM221 E 220UF, 16V 1 C3207 ECJ2FB1C105K C 1UF, K, 16V 1 C3208 ECJ2XB1C474K C 0.47UF, Z, 16V 1 C3214 ECJ2FF1A106Z C 0.001UF, Z, 10V 1 C3216 ECJ2FF1A106Z C 0.001UF, Z, 10V 1 C3226-28 ECJ2FF1A106Z C 0.001UF, Z, 10V 3 C3230 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3233 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3241 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3251 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3252 ECJ2FB1C105K C 1UF, K, 16V 1 C3253 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3262 ECJ1VB1H472K C 4700PF, K, 50V 1 C3265 ECJ1VB1H102K C 1000UF, Z, 50V 1 C3268 ECJ1VB1H103K C 0.001UF, K, 50V 1 C3270-73 ECJ1XC1H680J C 68PF, J, 50V 4 C3274 ECJ1VB1H102K C 1000UF, Z, 50V 1 C3305 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3330 ECA1CM470 E 47UF, 16V 1 C3331 ECJ2VB1H103K C 0.01UF, K, 50V 1 C3332 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3334 F2J1C4700003 E 47UF, 16V 1 C3335 ECJ2VB1C104K C 0.1UF, K, 16V 1 C3336 F2J1C4700003 E 47UF, 16V 1 C3337 ECJ2VB1C104K C 0.1UF, K, 16V 1 C3338 F2J1C4700003 E 47UF, 16V 1 C3339 ECJ2VB1C104K C 0.1UF, K, 16V 1 C3340-42 ECJ2VF1C104Z C 0.1UF, Z, 16V 3 C4003-08 F1J0J1060004 C 0.010UF, K, 16V 6 C4014,15 F1J0J1060004 C 0.010UF, K, 16V 2 C4023 F1J0J1060004 C 0.010UF, K, 16V 1 C4027 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4028 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4112 F1J0J1060004 C 0.010UF, K, 16V 1 C4117 F1G1A104A012 C 0.1UF, K, 10V 1 C4158 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4159 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4160 F1G1A104A012 C 0.1UF, K, 10V 1 C4165 F1G1A104A012 C 0.1UF, K, 10V 1 C4168 ECJ1XC1H680J C 68PF, J, 50V 1 C4171 ECJ1VC1H471J C 470PF, J, 50V 1 C4172,73 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4174 F1G1A104A012 C 0.1UF, K, 10V 1 C4175 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4176 ECJ1VB0J225K C 2.2UF, K, 6.3V 1 C4177 ECJ2FB1C684K C 68UF, Z, 16V 1 C4178 ECJ1XB1C393K C 0.039UF, K, 16V 1 C4180 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4185,86 ECJ3XB0J106M C 10UF, M,6.3V 2 C4188 F1J0J1060004 C 0.010UF, K, 16V 1 C4189-91 F1G1A104A012 C 0.1UF, K, 10V 3 C4193 F1G1H1020008 E 1000UF, 50V 1 C4194,95 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4197 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4199 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4200 F2G0J470A019 E 47UF 6.3V 1 C4201 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4204 F1G1A104A012 C 0.1UF, K, 10V 1 C4205,06 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C4208,09 F1G1A104A012 C 0.1UF, K, 10V 2 C4211 F1G1A104A012 C 0.1UF, K, 10V 1 C4215 F1G1A104A012 C 0.1UF, K, 10V 1 C4216 F2G0J470A019 E 47UF 6.3V 1 参考号 部件号 部件名称及说明 件数 备注 C4217 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4218 F1G1H1020008 E 1000UF, 50V 1 C4219 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4224 F1G1A104A012 C 0.1UF, K, 10V 1 C4227 ECJ1VB1C823K C 0.082UF, K, 16V 1 C4228 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4235 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4244 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4245 F1G1A104A012 C 0.1UF, K, 10V 1 C4248 F1G1A104A012 C 0.1UF, K, 10V 1 C4253 F2G0J470A019 E 47UF 6.3V 1 C4256 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4262-64 F1G1A104A012 C 0.1UF, K, 10V 3 C4266 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4269 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4272 F2G0J470A019 E 47UF 6.3V 1 C4273 F1G1A104A012 C 0.1UF, K, 10V 1 C4360 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4362 F1J0J1060004 C 0.010UF, K, 16V 1 C4363,64 F1G1A104A012 C 0.1UF, K, 10V 2 C4365 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4366 F2G0J470A019 E 47UF 6.3V 1 C4367 F1G1A104A012 C 0.1UF, K, 10V 1 C4371 F1G1H1020008 E 1000UF, 50V 1 C4372 F1G1A104A012 C 0.1UF, K, 10V 1 C4373 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4374 F1G1A104A012 C 0.1UF, K, 10V 1 C4375,76 F1G1H1020008 E 1000UF, 50V 2 C4377 F1G1A104A012 C 0.1UF, K, 10V 1 C4379 F1G1A104A012 C 0.1UF, K, 10V 1 C4380 F1G1H1020008 E 1000UF, 50V 1 C4381,82 F1G1A104A012 C 0.1UF, K, 10V 2 C4383 F1G1H1020008 E 1000UF, 50V 1 C4384 F1G1A104A012 C 0.1UF, K, 10V 1 C4385 F1G1H1020008 E 1000UF, 50V 1 C4386 F1G1A104A012 C 0.1UF, K, 10V 1 C4387 F1G1H1020008 E 1000UF, 50V 1 C4388 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4389 F1G1A104A012 C 0.1UF, K, 10V 1 C4390 F1G1H1020008 E 1000UF, 50V 1 C4391 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4392 F1G1A104A012 C 0.1UF, K, 10V 1 C4393,94 F1G1H1020008 E 1000UF, 50V 2 C4395 F1G1A104A012 C 0.1UF, K, 10V 1 C4396 F1G1H1020008 E 1000UF, 50V 1 C4397,98 F1G1A104A012 C 0.1UF, K, 10V 2 C4399,00 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4401 F1G1A104A012 C 0.1UF, K, 10V 1 C4402,03 F1G1H1020008 E 1000UF, 50V 2 C4404 F1G1A104A012 C 0.1UF, K, 10V 1 C4405 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4406 F1G1H1020008 E 1000UF, 50V 1 C4407,08 F1G1A104A012 C 0.1UF, K, 10V 2 C4409 F1G1H1020008 E 1000UF, 50V 1 C4410 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4411,12 F1G1A104A012 C 0.1UF, K, 10V 2 C4413,14 F1G1H1020008 E 1000UF, 50V 2 C4415 F1G1A104A012 C 0.1UF, K, 10V 1 C4417 F2G0J470A019 E 47UF 6.3V 1 C4418,19 ECJ1VB1A105K C 0.01UF, Z, 50V 2 C4420,21 F1G1A104A012 C 0.1UF, K, 10V 2 C4422-24 F1G1H1020008 E 1000UF, 50V 3 C4425,26 F1G1A104A012 C 0.1UF, K, 10V 2 C4427 F1G1H1020008 E 1000UF, 50V 1 C4428 F1G1A104A012 C 0.1UF, K, 10V 1 C4429,30 F1G1H1020008 E 1000UF, 50V 2 C4434 F1G1H1020008 E 1000UF, 50V 1 C4435 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4436-39 F1G1H1020008 E 1000UF, 50V 4 C4440 F1G1A104A012 C 0.1UF, K, 10V 1 C4441,42 F1G1H1020008 E 1000UF, 50V 2 C4447 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4448 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4451 F1G1H1020008 E 1000UF, 50V 1 C4452 F1G1A104A012 C 0.1UF, K, 10V 1 C4453,54 F1G1H1020008 E 1000UF, 50V 2 C4455 ECJ1VB1A105K C 0.01UF, Z, 50V 1 参考号 部件号 部件名称及说明 件数 备注 118 C4456 F1G1A104A012 C 0.1UF, K, 10V 1 C4457,58 F1G1H1020008 E 1000UF, 50V 2 C4459 F1G1A104A012 C 0.1UF, K, 10V 1 C4460 F1G1H1020008 E 1000UF, 50V 1 C4461 ECJ1XC1H820J C 82PF, J, 50V 1 C4462 F1G1A104A012 C 0.1UF, K, 10V 1 C4464 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4465 F1G1A104A012 C 0.1UF, K, 10V 1 C4466 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4467 F1G1A104A012 C 0.1UF, K, 10V 1 C4470 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4474 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4475,76 F1G1H1020008 E 1000UF, 50V 2 C4477 F1G1A104A012 C 0.1UF, K, 10V 1 C4478 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4479-81 F1G1H1020008 E 1000UF, 50V 3 C4482 ECJ1VC1H180J C 18PF, J, 50V 1 C4483 ECJ1VC1H150J C 15PF, J, 50V 1 C4493 F1G1A104A012 C 0.1UF, K, 10V 1 C4494 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4496 F1G1A104A012 C 0.1UF, K, 10V 1 C4497 EEEHB0G101R C 100PF, J, 4V 1 C4498 ECJ1VC1H471J C 470PF, J, 50V 1 C4499 EEFCD0G560ER 56UF, 1 C4501 F1G1A104A012 C 0.1UF, K, 10V 1 C4502 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4503 F1G1A104A012 C 0.1UF, K, 10V 1 C4504 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4505 F1G1A104A012 C 0.1UF, K, 10V 1 C4506 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4507 F1G1A104A012 C 0.1UF, K, 10V 1 C4508 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4509-11 F1G1A104A012 C 0.1UF, K, 10V 3 C4512 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4513 F1G1A104A012 C 0.1UF, K, 10V 1 C4514 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4515,16 F1G1A104A012 C 0.1UF, K, 10V 2 C4517 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4518 F1G1A104A012 C 0.1UF, K, 10V 1 C4519 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4520 F1G1A104A012 C 0.1UF, K, 10V 1 C4521 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4522 F1G1A104A012 C 0.1UF, K, 10V 1 C4523 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4524 F1G1A104A012 C 0.1UF, K, 10V 1 C4525 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4526 F1G1A104A012 C 0.1UF, K, 10V 1 C4527 ECJ0EB1C103K C 0.010UF, K, 16V 1 C4528 F2G0J470A019 E 47UF 6.3V 1 C4529 F1G1A104A012 C 0.1UF, K, 10V 1 C4530,31 F1G1H1020008 E 1000UF, 50V 2 C4532,33 F1G1A104A012 C 0.1UF, K, 10V 2 C4534 F1G1H1020008 E 1000UF, 50V 1 C4535 F1G1A104A012 C 0.1UF, K, 10V 1 C4536 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4537 EEEHB0G101R C 100PF, J, 4V 1 C4538 F1G1A104A012 C 0.1UF, K, 10V 1 C4539 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4540 F1G1H1020008 E 1000UF, 50V 1 C4543 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4544 ECJ1VB1C105K C 0.01UF, K, 16V 1 C5604 ECA1HHG100 E 10UF, 50V 1 C5605 EEUFC1E471 E 470UF, 25V 1 C5606 F2A1C471A537 E 470UF, 16V 1 C5609 F2A1H220A536 E 22UF, 50V 1 PPDS C5611 F2A1H331A257 E 330UF, 50V 1 C5612 F2A1C471A537 E 470UF, 16V 1 C5613 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5616 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5617 F2A1C471A537 E 470UF, 16V 1 C5618,19 ECJ1VB1E104K C 0.10UF, K, 25V 2 C5622 F2A1C471A537 E 470UF, 16V 1 C5623 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5626 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C5633 F2A1E221A487 E 220UF, 25V 1 C5637 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C5641-44 ECJ1VF1C104Z C 0.1UF, Z, 16V 4 参考号 部件号 部件名称及说明 件数 备注 C5645 ECA1EHG470 E 47UF, 16V 1 C5646 ECJ1VB1H103K C 0.001UF, K, 50V 1 C5647 ECA1EHG470 E 47UF, 16V 1 C5648 ECJ1VB1H103K C 0.001UF, K, 50V 1 C5670 ECJ1VB1E104K C 0.10UF, K, 25V 1 C5672 ECA1HHG100 E 10UF, 50V 1 C5673 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C5685 ECA1HHG100 E 10UF, 50V 1 C5686 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6001 F1L2J562A022 C 5600UF, K,6.3V 1 C6002 F1L2J272A022 C 2700UF, K,6.3V 1 C6003 F1L2J392A022 C 3900UF, K,6.3V 1 C6011-13 F2A2D221A022 E 220UF, 200V 3 C6021 F1L2J562A022 C 5600UF, K,6.3V 1 C6022 F1L2J272A022 C 2700UF, K,6.3V 1 C6031 F0C2E405A176 E 0.040UF, 250V 1 C6039,40 F1L2J562A022 C 5600UF, K,6.3V 2 C6041-44 TCUY1C105ZFN C 1UF, 16V 4 C6071 F1L2J1520001 C 1500UF, K,6.3V 1 PPDS C6091 F1L2J1520001 C 1500UF, K,6.3V 1 PPDS C6111,12 F2A2D151A070 E 150UF, 200V 2 C6132 F1L1E4750004 C 4.7UF, 25V 1 C6134,35 F1L1E4750004 C 4.7UF, 25V 2 C6152-54 F1L1E4750004 C 4.7UF, 25V 3 C6156 ECQE2224KF3 P 2.2UF, K,250V 1 C6192 ECJ3YB1E105K C 1UF, K, 25V 1 C6194,95 F1L1E4750004 C 4.7UF, 25V 2 C6201-08 ECQE2105B667 P 1UF, 250V 8 C6211,12 F1L1E4750004 C 4.7UF, 25V 2 C6213,14 F2A1E331A089 E 330UF, 25V 2 C6221 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6241 F2A1E331A089 E 330UF, 25V 1 C6242 TCUY1C105ZFN C 1UF, 16V 1 C6243 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6251 TCUY1C105ZFN C 1UF, 16V 1 C6261,62 ECA2CM101 E 100UF, 160V 2 C6272,73 EEUFC1E221 E 220UF, 25V 2 C6281 F1L2J1020001 C 1000UF, K,6.3V 1 C6282 F1L2J222A022 C 2200UF, K,6.3V 1 C6400 F1E2J222A002 C 2200PF, 600V 1 C6401 F1L2J562A022 C 5600UF, K,6.3V 1 C6402 F1L2J472A022 C 4700UF, K,6.3V 1 C6410 F1E2J102A002 C 1000PF, 600V 1 C6411-13 F2A2D221A022 E 220UF, 200V 3 C6420 F1E2J182A002 C 1800PF, 600V 1 PPDS C6421 F1L2J562A022 C 5600UF, K,6.3V 1 C6422 F1L2J472A022 C 4700UF, K,6.3V 1 C6431 F0C2E405A176 E 0.040UF, 250V 1 C6439,40 F1L2J562A022 C 5600UF, K,6.3V 2 C6471 F1L2J1520001 C 1500UF, K,6.3V 1 PPDS C6472 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6480 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6491 F1L2J1520001 C 1500UF, K,6.3V 1 PPDS C6502 F1L1E4750004 C 4.7UF, 25V 1 C6504,05 F1L1E4750004 C 4.7UF, 25V 2 C6511-18 ECQE2105B667 P 1UF, 250V 8 C6522 F1L1E4750004 C 4.7UF, 25V 1 C6524,25 F1L1E4750004 C 4.7UF, 25V 2 C6526 ECQE2224KF3 P 2.2UF, K,250V 1 C6561 F2A1A101A439 E 100UF, 10V 1 C6562 TCUY1C105ZFN C 1UF, 16V 1 C6563 F2A1A101A439 E 100UF, 10V 1 C6564 TCUY1C105ZFN C 1UF, 16V 1 C6565,66 ECJ2VB1H103K C 0.01UF, K, 50V 2 C6581 ECJ3YB1E105K C 1UF, K, 25V 1 C6582 TCUY1C105ZFN C 1UF, 16V 1 C6592 ECA1EM471 E 470UF, 25V 1 C6593 ECJ2XC1H102J C 1000PF, J, 50V 1 C6601,02 F1L1E4750004 C 4.7UF, 25V 2 C6603 F1K2J102A014 C 1000UF, K,6.3V 1 C6604 F2A2V470A020 E 47UF, 350V 1 C6605 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6606 F1K2J102A014 C 1000UF, K,6.3V 1 C6610 ECJ3YB1E105K C 1UF, K, 25V 1 C6611 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6612 ECJ3YB1E105K C 1UF, K, 25V 1 C6620 ECJ3XB2J222K C 2200PF, K,630V 1 参考号 部件号 部件名称及说明 件数 备注 119 C6641 ECQE2224KF3 P 2.2UF, K,250V 1 C6661,62 F1K2J102A014 C 1000UF, K,6.3V 2 C6671 F1L1E4750004 C 4.7UF, 25V 1 C6681,82 F1L1E4750004 C 4.7UF, 25V 2 C6683 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6691 ECA2CM101 E 100UF, 160V 1 C6701-08 ECJ2XB1H104K C 0.1UF, K, 50V 8 C6721 ECA1HM101 E 100UF, 50V 1 C6723-25 F1L1E4750004 C 4.7UF, 25V 3 C6726,27 TCUY1C105ZFN C 1UF, 16V 2 C6728 ECJ2XC1H102J C 1000PF, J, 50V 1 C6752 TCUY1C105ZFN C 1UF, 16V 1 C6753 F1L1E4750004 C 4.7UF, 25V 1 C6754 ECA1VM470 E 47UF, 35V 1 C6755 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6771 TCUY1C105ZFN C 1UF, 16V 1 C6772,73 F1L1E4750004 C 4.7UF, 25V 2 C6775 F1L1E4750004 C 4.7UF, 25V 1 C6776,77 ECJ2XB1H104K C 0.1UF, K, 50V 2 C6791 EEUFC1E221 E 220UF, 25V 1 C6795 ECA1EM471 E 470UF, 25V 1 C6802 EEUFC1E221 E 220UF, 25V 1 C6803 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6804 F2A2E100A022 E 10UF, 250V 1 C6805 TCUY1C105ZFN C 1UF, 16V 1 C6806,07 ECA2CM101 E 100UF, 160V 2 C6811 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6823 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6841 ECA2CM101 E 100UF, 160V 1 C6845 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6861 TCUY1C105ZFN C 1UF, 16V 1 C6862 ECJ3YB1E105K C 1UF, K, 25V 1 C6863 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6871 TCUY1C105ZFN C 1UF, 16V 1 C6872 ECJ3YB1E105K C 1UF, K, 25V 1 C6873 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6901 ECJ2XB1H102K C 1000PF, K, 50V 1 C6902 TCUY1C105ZFN C 1UF, 16V 1 C6904 TCUY1C105ZFN C 1UF, 16V 1 C6906 TCUY1C105ZFN C 1UF, 16V 1 C6908 TCUY1C105ZFN C 1UF, 16V 1 C6915,16 ECJ2VB1H221K C 220PF, K, 50V 2 C6921 ECJ2VB1H221K C 220PF, K, 50V 1 C6931 ECJ2XB1H102K C 1000PF, K, 50V 1 C6933,34 F1L2E105A013 E 0.10UF, 25V 2 C6951 ECJ2XB1H102K C 1000PF, K, 50V 1 C6952 TCUY1C105ZFN C 1UF, 16V 1 C6954 TCUY1C105ZFN C 1UF, 16V 1 C6956 TCUY1C105ZFN C 1UF, 16V 1 C6958 TCUY1C105ZFN C 1UF, 16V 1 C6964-66 ECJ2VB1H221K C 220PF, K, 50V 3 C6981 ECJ2XB1H102K C 1000PF, K, 50V 1 C6982 F1L2E105A013 E 0.10UF, 25V 1 C6985 F1L2E105A013 E 0.10UF, 25V 1 C7111 F1K2A474A006 C 0.47UF, 6.3V 1 C7112 TCUY1C105ZFN C 1UF, 16V 1 C7113,14 F1K2A474A006 C 0.47UF, 6.3V 2 C7115 TCUY1C105ZFN C 1UF, 16V 1 C7116 F1K2A474A006 C 0.47UF, 6.3V 1 C7117 TCUY1C105ZFN C 1UF, 16V 1 C7118 ECJ1XC1H101J C 100PF, J, 50V 1 C7120 TCUY1C105ZFN C 1UF, 16V 1 C7121 ECJ1XC1H101J C 100PF, J, 50V 1 C7126 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7129,30 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7132 TCUY1C105ZFN C 1UF, 16V 1 C7133 ECJ1XC1H101J C 100PF, J, 50V 1 C7135 F1K2A474A006 C 0.47UF, 6.3V 1 C7136 TCUY1C105ZFN C 1UF, 16V 1 C7137 F1K2A474A006 C 0.47UF, 6.3V 1 C7139 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7201 F1K2A474A006 C 0.47UF, 6.3V 1 C7202 TCUY1C105ZFN C 1UF, 16V 1 C7203,04 F1K2A474A006 C 0.47UF, 6.3V 2 C7205 TCUY1C105ZFN C 1UF, 16V 1 C7206 F1K2A474A006 C 0.47UF, 6.3V 1 C7207 TCUY1C105ZFN C 1UF, 16V 1 参考号 部件号 部件名称及说明 件数 备注 C7208 ECJ1XC1H101J C 100PF, J, 50V 1 C7210 F1K2A474A006 C 0.47UF, 6.3V 1 C7211 TCUY1C105ZFN C 1UF, 16V 1 C7212 F1K2A474A006 C 0.47UF, 6.3V 1 C7213 TCUY1C105ZFN C 1UF, 16V 1 C7214 ECJ1XC1H101J C 100PF, J, 50V 1 C7216 TCUY1C105ZFN C 1UF, 16V 1 C7217 ECJ1XC1H101J C 100PF, J, 50V 1 C7220 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7222 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7224 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7226 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7231 TCUY1C105ZFN C 1UF, 16V 1 C7232 ECJ1XC1H101J C 100PF, J, 50V 1 C7234 F1K2A474A006 C 0.47UF, 6.3V 1 C7235 TCUY1C105ZFN C 1UF, 16V 1 C7236 F1K2A474A006 C 0.47UF, 6.3V 1 C7239 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9028,29 F1J0J1060004 C 0.010UF, K, 16V 2 C9033,34 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C9035,36 F1J0J1060004 C 0.010UF, K, 16V 2 C9037 ECJ1VB1H103K C 0.001UF, K, 50V 1 C9039 F1J0J1060004 C 0.010UF, K, 16V 1 C9040 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9044-53 ECJ1VF1C104Z C 0.1UF, Z, 16V 10 C9055 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9057 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9058 F1J0J1060004 C 0.010UF, K, 16V 1 C9060 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9467,68 ECJ1VF1H103Z C 0.010UF, Z, 50V 2 C9469 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9500-06 ECJ1XB1C104K C 0.1UF, Z, 16V 7 C9508 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9509 ECJ1VC1H200J C 20PF, C, 50V 1 C9510 ECJ1VC1H150J C 15PF, J, 50V 1 C9511 F1J0J1060004 C 0.010UF, K, 16V 1 C9512 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9514,15 ECJ2XF1C105Z C 1.0UF, Z, 16V 2 C9516-25 ECJ1XB1C104K C 0.1UF, Z, 16V 10 C9526 F1J0J1060004 C 0.010UF, K, 16V 1 C9527-30 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C9531 F1J0J1060004 C 0.010UF, K, 16V 1 C9800 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9801 ECJ1VB1H472K C 4700PF, K, 50V 1 C9802 ECJ1XC1H470J C 47PF, J, 50V 1 C9803 ECJ1VB1H472K C 4700PF, K, 50V 1 C9804 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9805 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9806 ECGRL0G680ER C 68PF, J, 4V 1 C9807,08 ECJ3YB1E106M C 10 UF, K, 25V 2 C9809 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9815,16 ECGRL0G680ER C 68PF, J, 4V 2 C9817,18 ECJ3YB1E106M C 10 UF, K, 25V 2 C9822 F1J0J1060004 C 0.010UF, K, 16V 1 C9823,24 ECJ3YB1E106M C 10 UF, K, 25V 2 C9825 ECJ1XC1H101J C 100PF, J, 50V 1 C9826 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9827 F1J0J1060004 C 0.010UF, K, 16V 1 C9830-32 ECJ3XB1C106M C 1.0UF, K, 16V 3 C9833 ECJ3YB1E106M C 10 UF, K, 25V 1 C9837 ECJ3XB1C106M C 1.0UF, K, 16V 1 C9838 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9839 ECJ3YB1E106M C 10 UF, K, 25V 1 C9840 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9841,42 ECJ2XF1C105Z C 1.0UF, Z, 16V 2 C9843 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9844 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C9845,46 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C9847,48 ECJ1VB1E104K C 0.10UF, K, 25V 2 C9880,81 ECJ1VB1H102K C 1000UF, Z, 50V 2 C9882 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9883 ECJ1VB1H822K C 8200PF, K, 50V 1 C9884 ECJ1VC1H100C C 10PF, C, 50V 1 C9885 ECJ1VB1H102K C 1000UF, Z, 50V 1 C9886 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9887 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9891 ECJ1XB1C104K C 0.1UF, Z, 16V 1 参考号 部件号 部件名称及说明 件数 备注 120 C9896 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9897 ECJ1VB1H822K C 8200PF, K, 50V 1 C9898 ECJ1VC1H100C C 10PF, C, 50V 1 C9899 ECJ1VB1H102K C 1000UF, Z, 50V 1 C9900-51 ECJ1XB1C104K C 0.1UF, Z, 16V 52 C9952-54 EEFCD0G560ER 56UF, 3 C9955-59 ECJ1XB1C104K C 0.1UF, Z, 16V 5 C9960-64 ECJ3XB0J106M C 10UF, M,6.3V 5 C9965 EEFCD0G560ER 56UF, 1 C9966 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9967 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9971 ECJ1XB1C104K C 0.1UF, Z, 16V 1 CB1-B7 K1MN68BA0052 68P 连接接头 7 D3 K1KY40B00003 40P 连接接头 1 D5 K1KB31BA0064 31P 连接接头 1 D6 K1KA21A00011 21P 连接接头 1 D20 K1KA20BA0296 20P 连接接头 1 D25 K1KA20B00155 20P 连接接头 1 D31,32 K1MN55BA0094 55P 连接接头 2 D1106,07 MA2J72900L 二极管 2 D1121 MA2J72900L 二极管 1 D2011-14 MA2J11100L 二极管 4 D2119 B0BC01100001 稳压二极管 1 D2300,01 MA2J11100L 二极管 2 D2303,04 MA2J11100L 二极管 2 D2309 MA2J11100L 二极管 1 D2524 MAZ80560ML 稳压二极管 1 D2529 MAZ80560ML 稳压二极管 1 D2530 B3AGA0000072 LED 1 D2532 MAZ80560ML 稳压二极管 1 D3003 MA8140M 稳压二极管 1 D3005,06 MA8140M 稳压二极管 2 D3017 MA8140M 稳压二极管 1 D3021-23 MA2J11100L 二极管 3 D3024 B0BC01100001 稳压二极管 1 D3038-43 MA8140M 稳压二极管 6 D3044 MA2J11100L 二极管 1 D3045-49 MA8140M 稳压二极管 5 D3100 MA8140M 稳压二极管 1 D3334-39 MA2J11100L 二极管 6 D5606 B0BC01100001 稳压二极管 1 D5607 B0BC6R600005 稳压二极管 1 D5610 B0BC4R700007 稳压二极管 1 (PA) D5610 MA3X78900L 稳压二极管 1 (H) D5612 B0BC3R700006 稳压二极管 1 D5618 B0BC03900015 稳压二极管 1 D5634 MA2J11100L 二极管 1 D5635 MA3047H 稳压二极管 1 D5637,38 MA3X152A0L 二极管 2 D5639 MA3047H 稳压二极管 1 D5640 MA3039H 稳压二极管 1 D5641 MA3X152A0L 二极管 1 D5642 MA3120M 稳压二极管 1 D5643 MA3X152A0L 二极管 1 D5644 MA3068M 稳压二极管 1 D5646,47 MA3X152A0L 二极管 2 D5649 MA2J11100L 二极管 1 D6001 MA3DF30000LZ 稳压二极管 1 D6021 MA3DF30000LZ 稳压二极管 1 D6041 B0ECHP000003 二极管 1 D6051 B0ECHP000003 二极管 1 D6061 MA3DF30000LZ 稳压二极管 1 D6071 MA3DF30000LZ 稳压二极管 1 D6072 B0ECHP000003 二极管 1 D6081 MA3DF30000LZ 稳压二极管 1 D6091 MA3DF30000LZ 稳压二极管 1 D6092 B0ECHP000003 二极管 1 D6101,02 B0JCME000037 二极管 2 D6131,32 B0ECHP000003 二极管 2 D6151,52 B0ECHP000003 二极管 2 D6153 MA2J11100L 二极管 1 D6154 MA8033L 稳压二极管 1 D6191-93 B0ECHP000003 二极管 3 D6211 B0JCME000037 二极管 1 D6213,14 MA2J11100L 二极管 2 参考号 部件号 部件名称及说明 件数 备注 D6215 MA8082M 稳压二极管 1 D6221 B0ECHP000003 二极管 1 D6222,23 MA2J11100L 二极管 2 D6251,52 MA8330M 稳压二极管 2 D6253 LNJ301MPUJA LED 1 D6254 MAZ80510LL 稳压二极管 1 D6255 MA2J11100L 二极管 1 D6401 MA3DF30000LZ 稳压二极管 1 D6431 MA3DF40000LZ 稳压二极管 1 D6441 B0ECHP000003 二极管 1 D6451 B0ECHP000003 二极管 1 D6461 MA3DF30000LZ 稳压二极管 1 D6471 MA3DF30000LZ 稳压二极管 1 D6472 B0ECHP000003 二极管 1 D6477 MA2J11100L 二极管 1 D6478 B0HCKS000002 二极管 1 D6480 MA2J11100L 二极管 1 D6481 MA3DF30000LZ 稳压二极管 1 D6491 MA3DF40000LZ 稳压二极管 1 D6497 MA2J11100L 二极管 1 D6501,02 B0ECHP000003 二极管 2 D6521,22 B0ECHP000003 二极管 2 D6523 MA2J11100L 二极管 1 D6524 MA8033L 稳压二极管 1 D6581,82 MA8330M 稳压二极管 2 D6583 LNJ301MPUJA LED 1 D6584 MAZ80510LL 稳压二极管 1 D6585 MA2J11100L 二极管 1 D6601 MA8240MTX 稳压二极管 1 D6602 B0ECHP000003 二极管 1 D6603 MA8240MTX 稳压二极管 1 D6604 MA2J11100L 二极管 1 D6605 MAZ80510LL 稳压二极管 1 D6606 B0HCMM000014 二极管 1 D6607 MA2J11100L 二极管 1 D6610 MAZ81500ML 稳压二极管 1 D6611-14 MA2J11100L 二极管 4 D6619,20 B0HCKS000002 二极管 2 D6621 B0HDSM000005 二极管 1 D6623 B0HDSM000005 二极管 1 D6641,42 B0HCKS000002 二极管 2 D6643 B0JCME000037 二极管 1 D6644 B0HCKS000002 二极管 1 D6661 MA2J11100L 二极管 1 D6662-64 MA8330M 稳压二极管 3 D6665 MAZ80510LL 稳压二极管 1 D6666,67 MA2J11100L 二极管 2 D6671 MA2J11100L 二极管 1 D6682 B0HCMM000014 二极管 1 D6683,84 MA2J11100L 二极管 2 D6686,87 MA2J11100L 二极管 2 D6701,02 MA8056H 稳压二极管 2 D6721 B0HCKS000002 二极管 1 D6723,24 B0JCME000037 二极管 2 D6725 B0ECHP000003 二极管 1 D6726-33 MA8056H 稳压二极管 8 D6734 MA2J11100L 二极管 1 D6752 B0JCME000037 二极管 1 D6758 B0ECHP000003 二极管 1 D6760,61 MA2J11100L 二极管 2 D6771 B0JCME000037 二极管 1 D6773 B0HCKS000002 二极管 1 D6791 MA8200M 稳压二极管 1 D6801 B0JCME000037 二极管 1 D6803 MA2J11100L 二极管 1 D6804 B0ECHP000003 二极管 1 D6805 MA2J11100L 二极管 1 D6806 B0ECHP000003 二极管 1 D6820-23 MA2J11100L 二极管 4 D6825 MA8330M 稳压二极管 1 D6826 MA2J11100L 二极管 1 D6841 B0ECHP000003 二极管 1 D6842,43 MA2J11100L 二极管 2 D6859 B0ECHP000003 二极管 1 D6860 B0HCKS000002 二极管 1 D6861 MAZ80510LL 稳压二极管 1 D6862 MA2J11100L 二极管 1 参考号 部件号 部件名称及说明 件数 备注 121 D6871 MAZ80510LL 稳压二极管 1 D6872 MA2J11100L 二极管 1 D6901,02 MA8056H 稳压二极管 2 D6903,04 B0ECHP000003 二极管 2 D6921 B0ECHP000003 二极管 1 D6922 MA8056H 稳压二极管 1 D6951,52 MA8056H 稳压二极管 2 D6953,54 B0ECHP000003 二极管 2 D9017-19 MA3033 稳压二极管 3 D9020 MA2J72800L 二极管 1 D9100-03 B0JCGD000002 二极管 4 D9105,06 B0JCGD000002 二极管 2 D9110 B0JCGD000002 二极管 1 D9300,01 MA152K 二极管 2 D9800 B0JCME000037 二极管 1 D9801 B0JCDD000002 二极管 1 D9802 MA2J72800L 二极管 1 D9804 MA152K 二极管 1 D9807,08 MA152K 二极管 2 D9811 MA2J72800L 二极管 1 D9812 B0JCME000037 二极管 1 D9813 B0JCDD000002 二极管 1 D9814 B0JCME000037 二极管 1 D9815 B0JCDD000002 二极管 1 DG1 K1KY80A00011 80P 连接接头 1 DG2 K1KA15B00074 15P 连接接头 1 DG3 K1KY40B00003 40P 连接接头 1 DG5 K1KB21BA0063 21P 连接接头 1 DG15 K1KY40B00003 40P 连接接头 1 DG20 K1MN40B00045 40P 连接接头 1 FL3301,02 J0HABB000003 LC 滤波器 2 FL3303-05 J0HABB000004 LC 滤波器 3 FL7101 J0HABH000013 LC 滤波器 1 FL7201 J0HABH000013 LC 滤波器 1 FL9300,01 F1J1E1040022 C 0.10UF, Z, 25V 2 FL9800,01 J0HABH000013 LC 滤波器 2 FL9803,04 J0HABH000012 LC 滤波器 2 FL9805-07 J0HABH000013 LC 滤波器 3 FL9900-02 F1J1E1040022 C 0.10UF, Z, 25V 3 FL9903,04 J0HABH000013 LC 滤波器 2 H1 K1KY80A00011 80P 连接接头 1 H2 K1KA15A00148 15P 连接接头 1 H5,H6 K1KA15AA0288 15P 连接接头 2 H15 K1KA04AA0714 TO AGC （自动增益控 制）检查 1 PPDS H40 K1KA20AA0009 20P 连接接头 1 H53 K1KA12AA0194 12P 连接接头 1 HC01 K1KA21A00011 21P 连接接头 1 HC12 K1KA09AA0190 9P 连接接头 1 HC15 K1KY40B00003 40P 连接接头 1 HC21 K1KA08AA0193 8P 连接接头 1 HC22 K1KA11AA0194 11P 连接接头 1 IC1100 C3ABPG000145 IC 1 IC1101 TVRP246-1 IC 1 PPDS IC1102 TVRP247 IC 1 PPDS IC1103 MN103SB20RGL IC 1 IC1110 C0CBCAD00016 IC 1 IC1111 C0EBY0000041 IC 1 IC2103 AN77L08M IC 1 IC2104 C0ABBA000168 IC 1 IC2105 AN15862A-VT IC 1 IC2106 C1AB00002468 IC 1 IC2302 C1AB00002451 IC 1 IC2304 C0ABBA000168 IC 1 IC2306 C0ABBA000168 IC 1 IC3005 AN15867A-VT IC 1 IC3301 C0JBAZ002205 IC 1 IC4013 C0CBCBF00009 IC 1 IC4016 C0CBCAC00275 IC 1 IC4018 C0CBCAC00275 IC 1 IC4019 C1AB00002665 IC 1 IC4029 C0CBCAC00282 IC 1 参考号 部件号 部件名称及说明 件数 备注 IC4030 C0CBCBC00190 IC 1 IC4032 C0DBGYY00052 IC 1 IC4035 C0CBCAF00031 IC 1 IC4036 C0JBAP000020 IC 1 IC4037 MN84522-A IC 1 IC4038 C3ABQJ000048 IC 1 IC5601 N0BG2DE00001 IC 1 IC5602 EHMDD9851 线性 IC 1 IC5603 C0DBAJB00004 IC 1 IC5604 C0DBZGC00067 IC 1 IC6131 C0ZBZ0000895 IC 1 IC6151 C0ZBZ0000895 IC 1 IC6191 C0ZBZ0000895 IC 1 IC6211 C0ZBZ0001325 IC 1 IC6221 C0DBEMB00005 IC 1 IC6241 C0JBAZ000005 IC 1 IC6251 NJM2903M 集成电路 1 IC6471 C0DBEKA00003 IC 1 IC6472 C0JBAA000377 IC 1 IC6501 C0ZBZ0000895 IC 1 IC6521 C0ZBZ0000895 IC 1 IC6561,62 C0JBAZ000005 IC 2 IC6581 NJM2903M 集成电路 1 IC6601 C0ZBZ0001325 IC 1 IC6602 C0JBAB000715 IC 1 IC6610 NJM2903M 集成电路 1 IC6671 C0ZBZ0001325 IC 1 IC6681 C0ZBZ0001325 IC 1 IC6682 C0JBAA000377 IC 1 IC6721,22 C0JBAZ000994 IC 2 IC6724,25 C0CBADC00089 IC 2 IC6751 C0CBADC00089 IC 1 IC6752 C0ZBZ0001325 IC 1 IC6753 C0JBAB000715 IC 1 IC6771 C0CBADC00089 IC 1 IC6772 C0ZBZ0001325 IC 1 IC6773,74 C0JBAA000377 IC 2 IC6791 N0BF1FB00001 IC 1 IC6801,02 C0DBEMB00005 IC 2 IC6821 C0DBEMB00005 IC 1 IC6841 C0DBEMB00005 IC 1 IC6861 NJM2903M 集成电路 1 IC6871 NJM2903M 集成电路 1 IC6901-04 AN16071A-VT IC 4 IC6951-54 AN16071A-VT IC 4 IC7101-04 C0JBAZ001120 IC 4 IC7201-05 C0JBAZ001120 IC 5 IC9001 TVRN806-1 IC 1 IC9003 C2CBJG000730 IC 1 IC9007 TVRN941-1 IC 1 IC9011 C0EBF0000431 IC 1 IC9200 C1ZBZ0003185 IC 1 IC9303 TVRN815 IC 1 IC9500 C1ZBZ0002599 IC 1 IC9502 C0EBE0000066 IC ( 逻辑 ) 1 IC9503,04 C0JBAZ001120 IC 2 IC9800 C0DBAYY00054 IC 1 IC9801 C0DBZFG00066 IC 1 IC9802,03 C0JBAZ001120 IC 2 IC9806 C0DBAHD00011 IC 1 IC9807 C0DBAYY00054 IC 1 IC9809 C0DBAYY00054 IC 1 IC9900 MN84521-A IC 1 IC9901 C3ABQJ000051 IC 1 JK2003 K2HA204A0038 插孔 1 JK3001 K1FB315A0005 插孔 1 JK3100 TJB0A639 端子 1 JS012 J0JCC0000100 片状电感 1 JS1100-02 D0YAR0000007 M 0.0 OHM, J,0.063W 3 JS1109 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS2021,22 J0JCC0000100 片状电感 2 JS2026 J0JCC0000100 片状电感 1 JS2031-33 J0JCC0000100 片状电感 3 JS2108,09 J0JCC0000100 片状电感 2 JS2123,24 J0JCC0000100 片状电感 2 参考号 部件号 部件名称及说明 件数 备注 122 JS2300-03 ERJ6GEY0R00V M 0 OHM, 1/10W 4 JS2319 ERJ6GEY0R00V M 0 OHM, 1/10W 1 JS2331 ERJ6GEY0R00V M 0 OHM, 1/10W 1 JS3004 J0JCC0000100 片状电感 1 JS3010-15 ERJ6GEY0R00V M 0 OHM, 1/10W 6 JS3023 J0JCC0000100 片状电感 1 JS3206 J0JCC0000100 片状电感 1 JS3215 ERJ6GEY0R00V M 0 OHM, 1/10W 1 JS3239 J0JCC0000100 片状电感 1 JS3246 ERJ6GEY0R00V M 0 OHM, 1/10W 1 JS3252 ERJ6GEY0R00V M 0 OHM, 1/10W 1 JS3255 ERJ6GEY0R00V M 0 OHM, 1/10W 1 JS3256 J0JCC0000100 片状电感 1 JS3265,66 J0JCC0000100 片状电感 2 JS3302-04 J0JCC0000100 片状电感 3 JS3307-12 J0JCC0000100 片状电感 6 JS3352 J0JCC0000241 片状电感 1 JS3354,55 J0JCC0000241 片状电感 2 JS3357 J0JCC0000241 片状电感 1 JS3359 J0JCC0000241 片状电感 1 JS3368 J0JCC0000100 片状电感 1 JS3402,03 J0JCC0000100 片状电感 2 JS3404,05 ERJ6GEY0R00V M 0 OHM, 1/10W 2 JS4016,17 D0YAR0000007 M 0.0 OHM, J,0.063W 2 JS4022-24 D0YAR0000007 M 0.0 OHM, J,0.063W 3 JS4027,28 D0YAR0000007 M 0.0 OHM, J,0.063W 2 JS4029 ERJ2GEJ221 M 220 OHM, J,0.063W 1 JS4033-40 D0YAR0000007 M 0.0 OHM, J,0.063W 8 JS4046 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS4069 ERJ2GEJ221 M 220 OHM, J,0.063W 1 JS4103 D0YAR0000007 M 0.0 OHM, J,0.063W 1 JS4111 J0JCC0000100 片状电感 1 JS4121,22 D0YAR0000007 M 0.0 OHM, J,0.063W 2 JS5600 J0JCC0000100 片状电感 1 JS5603 J0JCC0000100 片状电感 1 K3 K1KA09BA0061 9P 连接接头 1 L001 J0JGC0000021 片状电感 1 L007 J0JCC0000241 片状电感 1 L010,11 J0JCC0000241 片状电感 2 L013 J0JCC0000241 片状电感 1 L021 J0JCC0000100 片状电感 1 L031,32 J0JGC0000021 片状电感 2 L1101-04 J0JHC0000078 片状电感 4 L2001,02 J0JCC0000364 片状电感 2 L2003,04 J0JCC0000100 头扼流圈 2 L2007,08 J0JCC0000100 头扼流圈 2 L2011,12 J0JCC0000100 头扼流圈 2 L2015,16 J0JCC0000100 头扼流圈 2 L2107 J0JCC0000100 头扼流圈 1 L2108 J0JCC0000241 片状电感 1 L2109,10 J0JCC0000100 头扼流圈 2 L2111,12 J0JCC0000241 片状电感 2 L2115 J0JCC0000241 片状电感 1 L2117 ELESE6R8KA 校正线圈 1 L2118 EXCELDR35C 头扼流圈 1 L2123 J0JCC0000241 片状电感 1 L2182-87 J0JCC0000241 片状电感 6 L2204 J0JCC0000100 片状电感 1 L2205,06 J0JCC0000241 片状电感 2 L2300-03 G0C330MA0049 校正线圈 4 L2308 TALL08N3R9MA 感应线圈 1 L3000 G0C101K00023 校正线圈 1 L3001-03 J0JCC0000100 头扼流圈 3 L3009,10 J0JCC0000100 头扼流圈 2 L3013 J0JCC0000100 头扼流圈 1 L3026 J0JCC0000100 头扼流圈 1 L3201 TSK1040 磁铁芯 1 L3212 J0JCC0000100 头扼流圈 1 L3216 J0JGC0000021 片状电感 1 L4023 J0JHC0000078 片状电感 1 L4029 J0JHC0000078 片状电感 1 L4031 J0JHC0000078 片状电感 1 L4038 J0JHC0000078 片状电感 1 L4053-55 J0JHC0000078 片状电感 3 L4056,57 J0JCC0000077 片状电感 2 参考号 部件号 部件名称及说明 件数 备注 L4060,61 J0JCC0000077 片状电感 2 L4065,66 J0JHC0000078 片状电感 2 L4068-70 J0JHC0000078 片状电感 3 L4073 J0JHC0000078 片状电感 1 L4077 J0JCC0000077 片状电感 1 L5602 TALL08N2R7MA 感应线圈 1 L5604 TALL08N2R7MA 感应线圈 1 L5605 G0A2R7ZA0021 扼流线圈 1 L5606,07 G0A220GA0002 扼流线圈 2 L5608 G1C100MA0072 感应线圈 1 L5609 G0A220GA0002 扼流线圈 1 L5610 G1C470MA0077 感应线圈 1 L5612 TALL08N2R7MA 感应线圈 1 L5615 TALL08N150KA 感应线圈 1 L5621,22 G1C330MA0234 感应线圈 2 L5623 G1C150MA0234 感应线圈 1 L5624 G1C330MA0234 感应线圈 1 L5651 G0A220GA0002 扼流线圈 1 L6001-03 ELC11P0R6 扼流线圈 3 L6011 ELC11P1R0 扼流线圈 1 L6013 ELC11P1R0 扼流线圈 1 L6061-64 G0ZZ00002183 校正线圈 4 L6081-84 G0ZZ00002183 校正线圈 4 L6101,02 J0JJC0000011 片状电感 2 L6103 G0ZZ00002183 校正线圈 1 L6221 G0ZZ00002183 校正线圈 1 L6241 G0ZZ00002183 校正线圈 1 L6262 G0ZZ00002183 校正线圈 1 L6271 G0ZZ00002183 校正线圈 1 L6401-03 ELC11P0R6 扼流线圈 3 L6411,12 ELC11P1R0 扼流线圈 2 L6461-64 G0ZZ00002183 校正线圈 4 L6472 G0ZZ00002183 校正线圈 1 L6481-84 G0ZZ00002183 校正线圈 4 L6591,92 G0ZZ00002183 校正线圈 2 L6602 G0ZZ00002183 校正线圈 1 L9500 G1C150KA0038 感应线圈 1 L9501,02 J0JHC0000078 片状电感 2 L9800 G1C3R0MA0248 感应线圈 1 L9801,02 G1C2R2MA0241 感应线圈 2 L9810 J0JHC0000045 片状电感 1 NP TNPA3756DN 电路板 DG 1 PPDS NP TNPA3760AF 电路板 H 1 PPDS NP TNPA3768AE 电路板 TA 1 PPDS NP TNPA3852 电路板 HC 1 NP TXNPA1BLTC 电路板 PA 1 PPDS NP TNPA3799AB 电路板 C1 1 NP TNPA3800AB 电路板 C2 1 NP TZTNP01BLTC 电路板 D 1 PPDS NP TXN/P1BLTC 电路板 P 1 PPDS NP TNPA3794 电路板 SC 1 NP TNPA3875AB 电路板 SD 1 NP TNPA3795 电路板 SS 1 NP TNPA3874AB 电路板 SU 1 NP TXN/K1JPTC 电路板 K 1 PPDS NP TNPA4138AD 电路板 S 1 PA2 K1KA05AA0192 5P 连接接头 1 PA5 K1KA11AA0194 11P 连接接头 1 PA10 K1KA06A00452 6P 连接接头 1 PA20 K1MN40A00024 40P 连接接头 1 PA40 K1KA20AA0009 20P 连接接头 1 PA1101 K5H8012A0023 熔断器 1 PA2055 K5H1622A0023 熔断器 1 PA3100 K5H1622A0023 熔断器 1 PA3104 J0JCC0000100 片状电感 1 PA9800 K5H4022A0023 熔断器 1 PC6480 B3PBA0000223 IC 1 参考号 部件号 部件名称及说明 件数 备注 123 PC6701-03 B3PBA0000397 IC 3 PC6704 K7GBZEE00007 光电耦合器 1 PC6705 B3PBA0000397 IC 1 PC6760 B3PBA0000223 IC 1 PC6801 B3PBA0000223 IC 1 PC6861 B3PBA0000223 IC 1 PC6871 B3PBA0000223 IC 1 Q002 2SA207700L 三极管 1 Q1100,01 2SC584500L 三极管 2 Q1103 2SC584500L 三极管 1 Q1108 2SC584500L 三极管 1 Q1109,10 B1CBHD000002 FET 2 Q1111 2SC584500L 1 Q1113-16 2SC584500L 三极管 4 Q1137 2SC584500L 三极管 1 Q1139-41 2SC584500L 三极管 3 Q2001,02 2SC584500L 三极管 2 Q2011 2SA207700L 三极管 1 Q2012 2SC584500L 三极管 1 Q2013 2SA207700L 三极管 1 Q2102-05 2SA207700L 三极管 4 Q2106 2SC584500L 三极管 1 Q2108 2SC584500L 三极管 1 Q2113,14 2SC584500L 三极管 2 Q2300 2SA207700L 三极管 1 (PA) Q2300 2SC584500L 三极管 1 (H) Q2301 2SD0601ARL 三极管 1 (PA) Q2301 2SD0601ARL 三极管 1 (H) Q2302 2SC584500L 三极管 1 Q2302,03 2SD0601ARL 三极管 2 Q2306,07 2SA207700L 三极管 2 Q2314-17 2SC584500L 三极管 4 Q2510,11 2SD0601ARL 三极管 2 Q2513 2SD0601ARL 三极管 1 Q2519,20 2SB0709ARL 三极管 2 Q3002 2SA207700L 三极管 1 Q3008 2SA207700L 三极管 1 Q3011 2SA207700L 三极管 1 Q3014,15 2SA207700L 三极管 2 Q3017 2SA207700L 三极管 1 Q3204,05 2SC584500L 三极管 2 Q3331-33 2SC2480 三极管 3 Q4050 2SC584500L 三极管 1 Q4056-59 2SA207700L 三极管 4 Q4061-64 2SC584500L 三极管 4 Q5601 B1DHDC000028 三极管 1 Q5602 2SD0601ARL 三极管 1 Q5603 B1DHDC000028 三极管 1 Q5604,05 2SD0601ARL 三极管 2 Q5610 2SD0601ARL 三极管 1 Q5613 2SD0601ARL 三极管 1 Q5614 2SK3065T100 FET 1 Q5641-43 2SA207700L 三极管 3 Q5644 2SD0601ARL 三极管 1 Q6001-03 2PG0010000RP 三极管 3 Q6021-23 2PG0010000RP 三极管 3 Q6041,42 2PG0010000RP 三极管 2 Q6051 2PG0010000RP 三极管 1 Q6101,02 B1DFKM000002 三极管 2 Q6111 2SK326800L FET 1 Q6112 B1DFKM000002 三极管 1 Q6141 B1ABNF000006 三极管 1 Q6142 B1ADNF000006 三极管 1 Q6146 B1ABNF000006 三极管 1 Q6147 B1ADNF000006 三极管 1 Q6212 2SD0601ARL 三极管 1 Q6221 2SD1263A 三极管 1 Q6222 2SC1473AEA 三极管 1 Q6251 2SD0601ARL 三极管 1 Q6401-03 2PG0010000RP 三极管 3 Q6421-23 2PG0020000RP 三极管 3 Q6441,42 2PG0010000RP 三极管 2 Q6451 2PG0020000RP 三极管 1 Q6471 B1CHGD000006 三极管 1 Q6511 B1ABNF000006 三极管 1 Q6512 B1ADNF000006 三极管 1 参考号 部件号 部件名称及说明 件数 备注 Q6516 B1ABNF000006 三极管 1 Q6517 B1ADNF000006 三极管 1 Q6581 2SD0601ARL 三极管 1 Q6601 B1DFES000003 三极管 1 Q6602 2SD0601ARL 三极管 1 Q6621,22 2SK399500L FET 2 Q6642-44 2SK399500L FET 3 Q6646-48 2SK399500L FET 3 Q6661 B1DEET000002 三极管 1 Q6662 2SD0601ARL 三极管 1 Q6663 2SD2185 三极管 1 Q6671 B1DFES000003 三极管 1 Q6680 B1ADNF000006 三极管 1 Q6681,82 2SK389500L FET 2 Q6691 2SK620 FET 1 Q6742,43 2SD0601ARL 三极管 2 Q6744 2SK620 FET 1 Q6762 B1ADNF000006 三极管 1 Q6781 B1ABNF000006 三极管 1 Q6782 B1ADNF000006 三极管 1 Q6791 2SD0601ARL 三极管 1 Q6801 B1BAEJ000014 三极管 1 Q6802 2SB0709ARL 三极管 1 Q6803 2SD814A 三极管 1 Q6821 2SD1263A 三极管 1 Q6822 2SC3063 三极管 1 Q6824 2SD0601ARL 三极管 1 Q6841 2SD1263A 三极管 1 Q6842 2SC1473AEA 三极管 1 Q6921 2SK620 FET 1 Q9010 2SD0601ARL 三极管 1 Q9044 2SD0601ARL 三极管 1 Q9046 2SD0601ARL 三极管 1 Q9050-54 2SD0601ARL 三极管 5 Q9055-58 B1CBHD000002 FET 4 Q9300-02 2SD0601ARL 三极管 3 Q9800,01 B1MBEDA00015 三极管 2 Q9803 B1MBEDA00015 三极管 1 Q9805,06 2SD0601ARL 三极管 2 R001 D0GB102JA057 M 1KOHM,J,1/16W 1 R005 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R008 J0JCC0000100 片状电感 1 R009 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R011 ERJ6GEYG271 M 270 OHM,J,1/10W 1 R014 J0JCC0000100 片状电感 1 R017,18 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R019,20 J0JCC0000100 片状电感 2 R021 D0GB102JA057 M 1KOHM,J,1/16W 1 R022 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R023 J0JCC0000100 片状电感 1 R028 ERJ3EKF1503 M 150KOHM, 1/16W 1 R029 ERJ3EKF2703 M 270KOHM, 1/16W 1 R1101 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1102,03 ERJ2GEJ102X M 1KOHM, J,0.063W 2 R1105,06 ERJ2GEJ102X M 1KOHM, J,0.063W 2 R1113 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R1116 ERJ2GEJ562 M 5.6KOHM, J,0.063W 1 R1117 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1118,19 EXB2HV680J 电阻阵列 2 R1121,22 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1123 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1124,25 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R1129,30 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R1131,32 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1133,34 ERJ2GEJ102X M 1KOHM, J,0.063W 2 R1135 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1140,41 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R1146 ERJ2GEJ271 M 270 OHM, J,0.063W 1 R1147,48 D1HG5608A002 排阻 2 R1149 EXB2HV680J 电阻阵列 1 R1151 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1152 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R1153 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1154,55 ERJ2GEJ472 M 4.7KOHM, J,0.063W 2 R1156 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1157 ERJ2GEJ101 M 100 OHM, J,0.063W 1 参考号 部件号 部件名称及说明 件数 备注 124 R1158 ERJ2GEJ273 M 27KOHM ,J,0.063W 1 R1159 ERJ2GEJ123 M 12KOHM ,J,0.063W 1 R1160 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1162 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1164 ERJ2GEJ123 M 12KOHM, J,0.063W 1 R1165 ERJ2GEJ153 M 15KOHM, J,0.063W 1 R1168,69 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R1174 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1175 ERJ2GED563X M 56KOHM, J,0.063W 1 R1176 ERJ2GEJ123 M 12KOHM, J,0.063W 1 R1177-79 ERJ2GEJ101 M 100 OHM, J,0.063W 3 R1181 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1182 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R1183 EXB28V680JX 电阻阵列 1 R1184 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1186 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1187 EXB2HV680J 电阻阵列 1 R1188 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1191,92 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R1197 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1199 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1200 EXB2HV680J 电阻阵列 1 R1207 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1209 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1212 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1215-17 ERJ2GEJ101 M 100 OHM, J,0.063W 3 R1218 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R1220 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R1221 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R1222 ERJ2RKD330 M 33 OHM, J,0.063W 1 R1223 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R1224 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1225,26 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1228 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1229 ERJ2GEJ182 M 1.8KOHM, J,0.063W 1 R1230 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R1231 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1232,33 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R1234 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1235,36 ERJ2RHD272 M 2.7KOHM, J,0.063W 2 R1238 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1239 ERJ3EKF1202 M 12KOHM, 1/16W 1 R1240 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1241 ERJ2GEJ822 M 8.2KOHM, J,0.063W 1 R1243 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R1244 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1246 ERJ2GEJ912 M 9.1KOHM, J,0.063W 1 R1249 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1250 ERJ2GEJ224 M 220KOHM, J,0.063W 1 R1251,52 EXB2HV101J 电阻阵列 2 R1256 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R1257 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1263,64 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1267 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1269 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1270,71 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1275 ERJ3EKF7151 M 7.15KOHM, 1/16W 1 R1279,80 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R1281 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R1282 ERJ2GEJ153 M 15KOHM, J,0.063W 1 R1283 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1290 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R1299-02 D0YAR0000007 M 0.0 OHM, J,0.063W 4 R1307 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1308 ERJ2GEJ273 M 27KOHM, J,0.063W 1 R1309-12 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R1313,14 ERJ2GEJ103 M 10KOHM, J,0.063W 2 R1315 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1316 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1318,19 ERJ2GEJ512X M5.12KOHM, J,0.063W 2 R1321 ERJ2GEJ153 M 15KOHM, J,0.063W 1 R1322 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R1323,24 ERJ2GEJ823 M 82KOHM, J,0.063W 2 R1325,26 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R1327,28 ERJ2GEJ683 M 68KOHM, J,0.063W 2 R1329,30 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R1331,32 ERJ2GEJ104 M 100KOHM, J,0.063W 2 参考号 部件号 部件名称及说明 件数 备注 R1333 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1340 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1344 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1346 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1352 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1363 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1367 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R1368 ERJ2GEJ183 M 18KOHM, J,0.063W 1 R1369 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1377 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R1382,83 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R1384 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R1389 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1408 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R1411 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1412,13 ERJ2GEJ104 M 100KOHM, J,0.063W 2 R1414 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1426-32 ERJ8GEY0R00 M 0 OHM, 1/8W 7 R1448,49 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R1451,52 ERJ2GEJ473 M 47KOHM, J,0.063W 2 R1454 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1458,59 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R1461,62 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R1466 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R1467 ERJ2GEJ473 M 47KOHM, J,0.063W 1 R1470 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1474 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R1478 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R1479-84 ERJ2GEJ473 M 47KOHM, J,0.063W 6 R1490 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1492 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R1526 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R1554,55 J0JCC0000100 片状电感 2 R2005 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2006-11 ERJ6GEYJ223 M 22KOHM,J,1/10W 6 R2012 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2013,14 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R2015,16 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2042 D0GB105JA057 M 1MOHM,J,1/16W 1 R2043 D0GB473JA057 M 47KOHM,J,1/16W 1 R2044 D0GB102JA057 M 1KOHM,J,1/16W 1 R2045,46 D0GB103JA057 M 10KOHM,J,1/16W 2 R2048 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2049,50 D0GB103JA057 M 10KOHM,J,1/16W 2 R2051,52 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R2053 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2054 D0GB103JA057 M 10KOHM,J,1/16W 1 R2113,14 J0JCC0000100 片状电感 2 R2116 J0JCC0000241 片状电感 1 R2124,25 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R2126,27 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R2130 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2131 ERJ3EKF8201 M 8.2KOHM, 1/16W 1 R2132 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R2133 J0JCC0000100 片状电感 1 R2137 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R2138 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2147 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2148,49 ERJ3EKF6342 M6.34KOHM, 1/16W 2 R2152 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2153 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2154 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2155,56 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2158 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2164 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2165,66 D0GB102JA057 M 1KOHM,J,1/16W 2 R2167 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R2168,69 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R2170-73 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R2176,77 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2181 J0JCC0000100 片状电感 1 R2182,83 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R2184-87 ERJ3GEYJ221 M 220 OHM,J,1/16W 4 R2188 D0GB103JA057 M 10KOHM,J,1/16W 1 R2192,93 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R2195,96 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R2197 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 125 R2202 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2204 ERJ6GEYF561 M 560 OHM,J,1/10W 1 R2208 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2209 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2210 ERJ6GEYG122 M 1.2KOHM,J,1/10W 1 R2211 J0JCC0000100 片状电感 1 R2213 D0GB103JA057 M 10KOHM,J,1/16W 1 R2214 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R2215 J0JCC0000100 片状电感 1 R2224,25 J0JCC0000100 片状电感 2 R2234-37 D0GB103JA057 M 10KOHM,J,1/16W 4 R2238,39 J0JCC0000100 片状电感 2 R2302 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2303 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R2304 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2305 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2306 ERJ6GEYG821 M 820 OHM,J,1/10W 1 R2307 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R2310 D0GB184JA057 M 180KOHM,J,1/16W 1 (H) R2310,11 ERJ3EKF1301 M 1.3KOHM, 1/16W 2 (PA) R2311 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 (H) R2312 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2323,24 J0JCC0000100 片状电感 2 R2325 D0GB103JA057 M 10KOHM,J,1/16W 1 R2329 ERJ3EKF1003 M 100KOHM, 1/16W 1 R2332 D0GB103JA057 M 10KOHM,J,1/16W 1 R2338 J0JCC0000100 片状电感 1 R2341 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R2349 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2354 D0GB102JA057 M 1KOHM,J,1/16W 1 R2357 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R2359 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R2360 D0GB103JA057 M 10KOHM,J,1/16W 1 R2361 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R2363 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R2364 D0GB473JA057 M 47KOHM,J,1/16W 1 R2365 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2366 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2368 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R2369 D0GB183JA057 M 18KOHM,J,1/16W 1 R2372,73 ERJ6GEYG681 M 680 OHM,J,1/10W 2 R2375 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R2376 ERJ3EKF1002 M 10KOHM, 1/16W 1 R2379,80 ERJ6ENF2201 M 2.2KOHM, 1/10W 2 R2383 ERJ3EKF3301 M 3.3KOHM, 1/16W 1 R2384 ERJ3EKF1151 M1.15KOHM, 1/16W 1 R2387 ERJ3EKF1151 M1.15KOHM, 1/16W 1 R2388 ERJ3EKF3301 M 3.3KOHM, 1/16W 1 (PA) R2388,89 ERJ6GEYG102 M 1KOHM,J,1/10W 2 (H) R2390 ERJ3GEYJ203 M 20KOHM,J,1/16W 1 R2391 D0GB103JA057 M 10KOHM,J,1/16W 1 R2392 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R2393 D0GB103JA057 M 10KOHM,J,1/16W 1 R2396 D0GB103JA057 M 10KOHM,J,1/16W 1 R2397 D0GB473JA057 M 47KOHM,J,1/16W 1 (H) R2397 ERJ6GEY0R00V M 0 OHM, 1/10W 1 (PA) R2398 D0GB123JA057 M 12KOHM,J,1/16W 1 (H) R2398 ERJ6GEY0R00V M 0 OHM, 1/10W 1 (PA) R2399 D0GB102JA057 M 1KOHM,J,1/16W 1 R2400 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R2401,02 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2403 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2404,05 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R2406 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2407 ERJ3EKF1241 M1.24KOHM, 1/16W 1 R2408 ERJ3EKF1071 M1.07KOHM, 1/16W 1 R2409 ERJ3EKF1621 M1.62KOHM, 1/16W 1 R2410 ERJ3EKF7870 M 787 OHM, 1/16W 1 R2421 ERJ3EKF1621 M1.62KOHM, 1/16W 1 R2422 ERJ3EKF7870 M 787 OHM, 1/16W 1 R2506,07 J0JHC0000096 片状电感 2 R2516 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R2517 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R2520 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R2524 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R2525 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R2526 ERJ6GEYG562 M 5.6KOHM,J,1/10W 1 参考号 部件号 部件名称及说明 件数 备注 R2529 ERJ6GEYG562 M 5.6KOHM,J,1/10W 1 R2530 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R2531 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2542 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R2545 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R2553 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R2554 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R2557 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R2558 ERJ6GEYG181 M 180 OHM,J,1/10W 1 R2561,62 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R2564,65 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R3001-10 ERJ6RED750 M 75 OHM, 1/10W 10 R3011 J0JCC0000100 片状电感 1 R3012 ERJ6RED750 M 75 OHM, 1/10W 1 R3020 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R3021,22 D0GB103JA057 M 10KOHM,J,1/16W 2 R3027 ERJ6RED750 M 75 OHM, 1/10W 1 R3039 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3044,45 J0JCC0000100 片状电感 2 R3048 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R3049 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3050 ERJ3GEYJ242 M 2.4KOHM,J,1/16W 1 R3051 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R3057,58 J0JCC0000100 片状电感 2 R3059,60 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3061 J0JCC0000100 片状电感 1 R3064 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3074,75 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3076 J0JCC0000100 片状电感 1 R3080 J0JCC0000100 片状电感 1 R3087 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3089,90 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3092 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3094,95 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3096 J0JCC0000100 片状电感 1 R3097 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3099-01 ERJ3GEYJ221 M 220 OHM,J,1/16W 3 R3102 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R3111-14 J0JCC0000100 片状电感 4 R3115 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3118 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3121 ERJ3EKF1300V M 130 OHM, 1/16W 1 R3122 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3123 ERJ3EKF1300V M 130 OHM, 1/16W 1 R3125 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R3126 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3127 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R3134 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R3138 ERJ3EKF1000 M 100 OHM, 1/16W 1 R3139 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R3140 ERJ3EKF1300V M 130 OHM, 1/16W 1 R3141 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R3160,61 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R3167 D0GB102JA057 M 1KOHM,J,1/16W 1 R3174,75 ERJ3GEYJ221 M 220 OHM,J,1/16W 2 R3206 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3213,14 J0JCC0000100 片状电感 2 R3215 J0JCC0000241 片状电感 1 R3224 J0JCC0000100 片状电感 1 R3227-29 J0JCC0000100 片状电感 3 R3238 J0JCC0000100 片状电感 1 R3239,40 D0GB103JA057 M 10KOHM,J,1/16W 2 R3250,51 J0JCC0000100 片状电感 2 R3259 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3261,62 J0JCC0000100 片状电感 2 R3277-79 J0JCC0000100 片状电感 3 R3281 J0JCC0000100 片状电感 1 R3283,84 J0JCC0000100 片状电感 2 R3286 J0JCC0000241 片状电感 1 R3290,91 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R3302 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R3305 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R3306,07 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R3308,09 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R3310 ERJ6RED750 M 75 OHM, 1/10W 1 R3312 D0GB103JA057 M 10KOHM,J,1/16W 1 R3313 ERJ6RED750 M 75 OHM, 1/10W 1 参考号 部件号 部件名称及说明 件数 备注 126 R3317 D0GB103JA057 M 10KOHM,J,1/16W 1 R3318 ERJ6RED750 M 75 OHM, 1/10W 1 R3320 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3323,24 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R3330 J0JCC0000100 片状电感 1 R3336 D0GB473JA057 M 47KOHM,J,1/16W 1 R3337 D0GB183JA057 M 18KOHM,J,1/16W 1 R3338 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3339 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3340 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3341 D0GB473JA057 M 47KOHM,J,1/16W 1 R3342 D0GB183JA057 M 18KOHM,J,1/16W 1 R3343 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3344 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3345 D0GB183JA057 M 18KOHM,J,1/16W 1 R3346 D0GB473JA057 M 47KOHM,J,1/16W 1 R3347 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R3348,49 ERJ3GEYJ680 M 68 OHM,J,1/16W 2 R3350-52 ERJ3GEYJ510 M 51 OHM,J,1/16W 3 R3353 ERJ3EKF6802 M 68KOHM, 1/16W 1 R3408,09 ERJ3RBD361 M 360 OHM,J,1/16W 2 R3750 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R3751 ERJ6ENF6651 M6.65KOHM, 1/10W 1 R3752 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3753 ERJ6ENF1741 M1.74KOHM, 1/10W 1 R3754 ERJ6ENF7151 M7.15KOHM, 1/10W 1 R4001 ERJ3EKF1211 M1.21KOHM, 1/16W 1 R4004 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4008 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4018 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4019 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4021 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4022 ERJ2GEJ102X M 1KOHM, J,0.063W 1 R4024,25 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R4033 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4037-39 D1HG1038A002 排阻 3 R4041 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4046 J0JCC0000100 片状电感 1 R4257 ERJ3EKF3302 M 33KOHM, 1/16W 1 R4265 ERJ3EKF3242 M32.4KOHM, 1/16W 1 R4269 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4287 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4293 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4338-43 D0YAR0000007 M 0.0 OHM, J,0.063W 6 R4465 ERJ2GEJ224 M 220KOHM, J,0.063W 1 R4469 ERJ3EKF1500 M 150 OHM, 1/16W 1 R4474 ERJ3EKF1211 M1.21KOHM, 1/16W 1 R4480 ERJ3EKF4220 M 422 OHM, 1/10W 1 R4481 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R4482,83 ERJ3EKF1781 M1.78KOHM, 1/16W 2 R4487 ERJ3EKF5600 M 560 OHM, 1/16W 1 R4488 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R4495 ERJ3EKF4302 M 43KOHM, 1/16W 1 R4496-99 ERJ6GEYG102 M 1KOHM,J,1/10W 4 R4500 ERJ3EKF2702V M27.0KOHM, 1/16W 1 R4501,02 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R4503 ERJ3EKF1600 M 160 OHM, 1/16W 1 R4507,08 D0YAR0000007 M 0.0 OHM, J,0.063W 2 R4510 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4512 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4517 ERJ3EKF1371 M 1.37KOHM, 1/16W 1 R4520 ERJ3EKF1691 M1.69KOHM, 1/16W 1 R4521,22 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4527 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4533 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4534,35 ERJ2GEJ101 M 100 OHM, J,0.063W 2 R4544 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4550 EXB28V220J 电阻阵列 1 R4552 EXB28V220J 电阻阵列 1 R4554 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4555 EXB28V220J 电阻阵列 1 R4560,61 EXB28V220J 电阻阵列 2 R4563-65 ERJ2GEJ220 M 22 OHM, J,0.063W 3 R4568 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4572 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4575 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4577-79 ERJ2GEJ222 M 2.2KOHM, J,0.063W 3 参考号 部件号 部件名称及说明 件数 备注 R4692-95 D0YAR0000007 M 0.0 OHM, J,0.063W 4 R4701 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4706 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4708 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R4710-12 D0YAR0000007 M 0.0 OHM, J,0.063W 3 R4713,14 EXB2HV221JV 电阻阵列 2 R4715 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4718-20 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4727 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4729,30 ERJ3EKF1000 M 100 OHM, 1/16W 2 R4731 ERJ3EKF1001 M 1KOHM, 1/16W 1 R4732 ERJ3EKF4751 M 4.75KOHM, 1/16W 1 R4733 ERJ3EKF75R0 M 0.75HM, 1/16W 1 R4734 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R4735 ERJ3EKF2001 M 2KOHM, 1/16W 1 R4737 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4738,39 ERJ2GEJ332 M 3.3KOHM, J,0.063W 2 R4743-47 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R4749,50 EXB2HV680J 电阻阵列 2 R4751-54 ERJ2GEJ220 M 22 OHM, J,0.063W 4 R4756-60 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R4762 EXB2HV680J 电阻阵列 1 R4763-65 D0YAR0000007 M 0.0 OHM, J,0.063W 3 R4772 EXB2HV470JV 电阻阵列 1 R4773 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4774 EXB2HV470JV 电阻阵列 1 R4775 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4776 EXB2HV470JV 电阻阵列 1 R4777 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4778 EXB2HV470JV 电阻阵列 1 R4779 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R4782 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4783 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4784 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4785 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4788 EXB2HV470JV 电阻阵列 1 R4791,92 ERJ2GEJ470 M 47 OHM, J,0.063W 2 R4793,94 ERJ2GEJ220 M 22 OHM, J,0.063W 2 R4796 EXB2HV470JV 电阻阵列 1 R4804 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4805,06 ERJ3EKF1001 M 1KOHM, 1/16W 2 R4807-11 D0YAR0000007 M 0.0 OHM, J,0.063W 5 R4814 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4816,17 ERJ2GEJ223 M 22KOHM, J,0.063W 2 R4819 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R4822 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4823-25 J0JAD0000025 片状电感 3 R4837 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4838 ERJ2GEJ112 M 1.1KOHM, J,0.063W 1 R4891 D0YAR0000007 M 0.0 OHM, J,0.063W 1 R4898 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4960 EXB2HV680J 电阻阵列 1 R4961-63 ERJ2GEJ680 M 68 OHM, J,0.063W 3 R4964 EXB2HV680J 电阻阵列 1 R4965,66 ERJ2GEJ680 M 68 OHM, J,0.063W 2 R4967 EXB2HV680J 电阻阵列 1 R4968-72 ERJ2GEJ680 M 68 OHM, J,0.063W 5 R5601 ERJ3EKF1800 M 180 OHM, 1/16W 1 R5602 ECJ1VB1E104K C 0.10UF, K, 25V 1 R5603 ERJ3EKF1542 M15.4KOHM, 1/16W 1 R5605 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5606 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5607 ERJ3EKF4531 M4.53KOHM, 1/16W 1 R5609 ERJ3EKF2000 M 200 OHM, 1/16W 1 R5610 ECJ1VB1H472K C 4700PF, K, 50V 1 R5611 ERJ6ENF8202 M 82KOHM, 1/10W 1 R5612 ERJ6ENF1602 M 16KOHM, 1/10W 1 R5615 D0GB103JA057 M 10KOHM,J,1/16W 1 R5617 D0GB102JA057 M 1KOHM,J,1/16W 1 R5619 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R5620 D0GB102JA057 M 1KOHM,J,1/16W 1 R5621 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5625-27 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R5632 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R5633 D0GB102JA057 M 1KOHM,J,1/16W 1 R5634 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R5635 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 127 R5637,38 D0GB103JA057 M 10KOHM,J,1/16W 2 R5639 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5640 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5641 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5642 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R5643 D0GB102JA057 M 1KOHM,J,1/16W 1 R5644 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R5645 ERJ3EKF2201 M 2.2KOHM, 1/16W 1 R5646 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R5647 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5648 ERJ3GEYJ392 M 3.9KOHM,J,1/16W 1 R5649 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R5650 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R5652 J0JCC0000100 片状电感 1 R5653,54 D0GB103JA057 M 10KOHM,J,1/16W 2 R5659 ERJ3EKF4700 M 470 OHM, 1/16W 1 R5660 J0JCC0000100 片状电感 1 R5662 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5664 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R5665 D0GB473JA057 M 47KOHM,J,1/16W 1 R5667-69 D0GB473JA057 M 47KOHM,J,1/16W 3 R5672 D0GB103JA057 M 10KOHM,J,1/16W 1 R5676 D0GB103JA057 M 10KOHM,J,1/16W 1 R5692 D0GB102JA057 M 1KOHM,J,1/16W 1 R5693 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R5694 D0GB473JA057 M 47KOHM,J,1/16W 1 R5695 D0GB103JA057 M 10KOHM,J,1/16W 1 R6001-06 ERJ14YJ150U M 15 OHM, J,1/4W 6 R6020 ERG2FJS101D M 100 OHM, J, 2W 1 R6021 ERJ14YJ150U M 15 OHM, J,1/4W 1 R6022 ERG2FJS101D M 100 OHM, J, 2W 1 R6023-27 ERJ14YJ150U M 15 OHM, J,1/4W 5 R6031 ERJ14YJ204 M 200KOHM, J,1/4W 1 R6041-44 ERJ14YJ150U M 15 OHM, J,1/4W 4 R6051,52 ERJ14YJ150U M 15 OHM, J,1/4W 2 R6061,62 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6101-04 ERJ6GEYJ101V M 100 OHM,J,1/10W 4 R6111,12 D0GD470JA036 M 47 OHM,J,0.25W 2 R6113 ERJ14YJ224 M 220KOHM, J,1/4W 1 R6131,32 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6133,34 ERJ6GEYF151 M 150 OHM,J,1/10W 2 R6135,36 D0GD100JA036 M 10 OHM,J,0.25W 2 R6141,42 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6146,47 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6151,52 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6153,54 ERJ6GEYF151 M 150 OHM,J,1/10W 2 R6155 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6157,58 D0GF1R0JA047 M 1.0 OHM,J, 0.33W 2 R6160 D0GF1R0JA047 M 1.0 OHM,J, 0.33W 1 R6166 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6173 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6174 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6191-94 ERJ6GEYJ101V M 100 OHM,J,1/10W 4 R6195 D0GD104JA036 M 100KOHM,J,0.25W 1 R6196 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6213 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6214 D0GD151JA036 M 150 OHM,J,0.25W 1 R6215 D0GF910JA047 M 91 OHM,J, 0.33W 1 R6216 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6217 D0GF910JA047 M 91 OHM,J, 0.33W 1 R6222 ERG1FJS103D M 10KOHM, J, 1W 1 R6223 ERG2FJS123D M 12KOHM, J, 2W 1 R6225-27 ERJ6ENF1692 M16.9KOHM, 1/10W 3 R6229 ERJ6ENF1692 M16.9KOHM, 1/10W 1 R6232 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6233-35 ERJ6GEYJ273 M 27KOHM,J,1/10W 3 R6236 ERJ6GEYG562 M 5.6KOHM,J,1/10W 1 R6241 EXB38V470J 电阻阵列 1 R6242 EXB38V472JV 电阻阵列 1 R6243 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R6244 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6245 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R6246 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6251 D0GD103JA036 M 10KOHM,J,0.25W 1 R6252,53 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6254 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R6255,56 ERJ6GEYG152 M 1.5KOHM,J,1/10W 2 参考号 部件号 部件名称及说明 件数 备注 R6257 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6258 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6261 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6401-06 ERJ14YJ150U M 15 OHM, J,1/4W 6 R6421-26 ERJ14YJ150U M 15 OHM, J,1/4W 6 R6441-44 ERJ14YJ150U M 15 OHM, J,1/4W 4 R6451,52 ERJ14YJ150U M 15 OHM, J,1/4W 2 R6465 ERJ14YJ204 M 200KOHM, J,1/4W 1 R6471 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6472 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6473 ERJ6GEYF561 M 560 OHM,J,1/10W 1 R6474 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6475,76 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R6477 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6478 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6479 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6501,02 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6503 D0GD100JA036 M 10 OHM,J,0.25W 1 R6504,05 ERJ6GEYF151 M 150 OHM,J,1/10W 2 R6506 D0GD100JA036 M 10 OHM,J,0.25W 1 R6507,08 D0GF1R0JA047 M 1.0 OHM,J, 0.33W 2 R6511,12 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6516,17 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6521,22 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6523,24 ERJ6GEYF151 M 150 OHM,J,1/10W 2 R6525 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6526 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6533 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6534 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6561-64 EXB38V470J 电阻阵列 4 R6565-68 EXB38V472JV 电阻阵列 4 R6581 D0GD103JA036 M 10KOHM,J,0.25W 1 R6582,83 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6584 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R6585,86 ERJ6GEYG152 M 1.5KOHM,J,1/10W 2 R6587 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6588 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6590 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6591 EXB38V472JV 电阻阵列 1 R6592 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6603 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6604 D0GD151JA036 M 150 OHM,J,0.25W 1 R6605 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6606 ERJ6ENF2741 M2.74KOHM, 1/10W 1 R6608,09 D0GF102JA047 M 1.0 KOHM,J,0.33W 2 R6610 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6611 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R6612 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R6613 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R6614,15 D0GF243JA047 M 24 KOHM,J,0.33W 2 R6616 ERJ6ENF1502 M 15KOHM, 1/10W 1 R6617 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R6618 ERJ6RBD123V M 12KOHM, 1/10W 1 R6619 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R6620 D0D28R2JA021 M 8.2 OHM,J,2W 1 R6621,22 ERJ6GEYG221 M 220 OHM,J,1/10W 2 R6642-44 ERJ6GEYJ100V M 10 OHM,J,1/10W 3 R6646-48 ERJ6GEYJ100V M 10 OHM,J,1/10W 3 R6658 D0D1101JA009 M 100 OHM,J,1W 1 R6659,60 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6661 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6662 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6663 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6664 D0GF222JA047 M 2.2 KOHM,J,0.33W 1 R6665 ERJ14YJ470 M 47 OHM,J, 1/2W 1 R6666 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6667,68 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R6671 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R6672 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6673 D0GD5R6JA059 M 5.6 OHM,J,0.25W 1 R6681,82 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6683 D0GD151JA036 M 150 OHM,J,0.25W 1 R6684 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R6685 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6686 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6687 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6688 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 参考号 部件号 部件名称及说明 件数 备注 128 R6689 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R6690 ERJ6GEYF151 M 150 OHM,J,1/10W 1 R6691 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6696,97 D0D32R2JA020 M 2.2 OHM,J,3W 2 R6700-08 ERJ6GEYJ471 M 470 OHM,J,1/10W 9 R6710-18 ERJ6GEYG222 M 2.2KOHM,J,1/10W 9 R6721,22 EXB38V220JV 电阻阵列 2 R6723 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6742 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6743 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6744 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6745 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6746,47 D0GD103JA036 M 10KOHM,J,0.25W 2 R6755 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6756-58 D0GD101JA059 M 100 OHM,J,0.25W 3 R6759 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6760 ERJ6GEYG122 M 1.2KOHM,J,1/10W 1 R6761 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R6762 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6775,76 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6777 D0GD151JA036 M 150 OHM,J,0.25W 1 R6781 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R6782 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6791 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6792 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6793 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6806 ERJ6GEYG562 M 5.6KOHM,J,1/10W 1 R6807 ERJ6GEYG332 M 3.3KOHM,J,1/10W 1 R6808 ERG2SJ330 M 33 OHM, J, 2W 1 R6809 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6810,11 ERJ6GEYJ433 M 43KOHM,J,1/10W 2 R6812 ERJ6ENF2743 M 274KOHM, 1/10W 1 R6813 ERJ6ENF1001 M 1KOHM, 1/10W 1 R6814 ERJ6ENF6981 M6.98KOHM, 1/10W 1 R6815 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6816 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R6817 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R6821 D0D2221JA021 M 220 OHM,J,2W 1 R6822,23 ERJ12YJ104U M 100KOHM, 1/2W 2 R6824 ERJ6GEYG562 M 5.6KOHM,J,1/10W 1 R6825 ERJ6ENF2003 M 200KOHM, 1/10W 1 R6826 ERJ6ENF2703 M 270KOHM, 1/10W 1 R6827 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R6828 ERJ6ENF5231 M5.23KOHM, 1/10W 1 R6829,30 ERJ6GEYG154 M 150KOHM,J,1/10W 2 R6831 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6833 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6834 ERJ6ENF5102 M 51KOHM, 1/10W 1 R6835 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6836 ERJ6ENF5102 M 51KOHM, 1/10W 1 R6837 ERJ6ENF4702 M 47KOHM, 1/10W 1 R6839 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6841 ERJ12YJ103 M 10KOHM,J, 1/2W 1 R6842 ERJ14YJ103 M 10KOHM, J,1/4W 1 R6843 ERJ6GEYJ563 M 56KOHM,J,1/10W 1 R6844 D0D2101JA021 M 100 OHM,J,2W 1 R6845-47 ERJ6GEYJ563 M 56KOHM,J,1/10W 3 R6848 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6849 ERJ6ENF5902 M 59KOHM, 1/10W 1 R6850 ERJ6ENF6202 M 62KOHM, 1/10W 1 R6851 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R6852 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6853 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6860 D0D28R2JA021 M 8.2 OHM,J,2W 1 R6861 ERJ6ENF3902 M 39KOHM, 1/10W 1 R6862,63 ERJ6ENF4702 M 47KOHM, 1/10W 2 R6864 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R6865 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R6866 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R6867 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6868 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6869 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6871-73 ERJ6ENF3902 M 39KOHM, 1/10W 3 R6874 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R6875 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R6876 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6877 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 参考号 部件号 部件名称及说明 件数 备注 R6878 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6879 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6886-88 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6901 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6902-04 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R6908,09 ERJ6GEYG221 M 220 OHM,J,1/10W 2 R6916 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6921,22 ERJ6GEYG104 M 100KOHM,J,1/10W 2 R6923 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6931-34 ERJ6GEYG103 M 10KOHM,J,1/10W 4 R6935,36 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R6951 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6952-54 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R6958,59 ERJ6GEYG221 M 220 OHM,J,1/10W 2 R6966 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6981-84 ERJ6GEYG103 M 10KOHM,J,1/10W 4 R6985,86 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R7111 D0GD472JA059 M 4.7KOHM,J,0.25W 1 R7112,13 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7114 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R7115 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R7116,17 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7118 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7120-24 EXB38V470J 电阻阵列 5 R7127 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7129-32 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7133 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7136 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7138-41 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7142 EXB38V102J 电阻阵列 1 R7143 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7146 EXB38V470J 电阻阵列 1 R7147-52 EXB38V102J 电阻阵列 6 R7154 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7156-59 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7160 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7164,65 J0JCC0000100 片状电感 2 R7169 EXB38V470J 电阻阵列 1 R7201-07 EXB38V470J 电阻阵列 7 R7208-10 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R7212-15 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7216 EXB38V470J 电阻阵列 1 R7217 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7219 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7221 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7223-26 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7227 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7229 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R7231 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7232-35 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7236 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7237-42 EXB38V102J 电阻阵列 6 R7245 EXB38V102J 电阻阵列 1 R7246-49 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R7250,51 EXB38V470J 电阻阵列 2 R7255,56 J0JCC0000100 片状电感 2 R7257 EXB38V102J 电阻阵列 1 R7259 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7261-64 ERJ12YJ6R8U M 6.8 OHM, J,1/2W 4 R7265 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7268 D0GD472JA059 M 4.7KOHM,J,0.25W 1 R7269 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R7270 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9060-67 ERJ3GEYJ101 M 100 OHM,J,1/16W 8 R9070 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9074 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9076 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9097,98 D0GB103JA057 M 10KOHM,J,1/16W 2 R9099 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9100,01 D0GB103JA057 M 10KOHM,J,1/16W 2 R9102 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9105 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9106 D0GB103JA057 M 10KOHM,J,1/16W 1 R9107 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9108,09 D0GB103JA057 M 10KOHM,J,1/16W 2 R9110 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9111 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 129 R9113 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9120 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9121 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9127 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9129 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9131-33 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R9134 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R9140 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R9141-45 ERJ3GEYJ101 M 100 OHM,J,1/16W 5 R9148 D0GB103JA057 M 10KOHM,J,1/16W 1 R9149 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9150,51 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9152,53 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9154,55 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9156-59 D0GB103JA057 M 10KOHM,J,1/16W 4 R9160,61 J0JCC0000100 片状电感 2 R9164-66 D0GB103JA057 M 10KOHM,J,1/16W 3 R9167,68 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9169 D0GB103JA057 M 10KOHM,J,1/16W 1 R9170-72 D0GB393JA041 M 39KOHM,J,1/16W 3 R9173-75 D0GB103JA057 M 10KOHM,J,1/16W 3 R9177 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9178 D0GB103JA057 M 10KOHM,J,1/16W 1 R9180 D0GB103JA057 M 10KOHM,J,1/16W 1 R9181-84 D0GB102JA057 M 1KOHM,J,1/16W 4 R9185,86 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9187,88 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9189,90 D0GB103JA057 M 10KOHM,J,1/16W 2 R9192 J0JCC0000100 片状电感 1 R9193 D0GB103JA057 M 10KOHM,J,1/16W 1 R9194 J0JCC0000100 片状电感 1 R9196 D0GB103JA057 M 10KOHM,J,1/16W 1 R9199 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9203 D0GB102JA057 M 1KOHM,J,1/16W 1 R9205 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9206,07 D0GB102JA057 M 1KOHM,J,1/16W 2 R9215 D0GB123JA057 M 12KOHM,J,1/16W 1 R9217-22 D0GB103JA057 M 10KOHM,J,1/16W 6 R9223 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9225 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9236 J0JCC0000100 片状电感 1 R9237 D0GB103JA057 M 10KOHM,J,1/16W 1 R9240 J0JCC0000100 片状电感 1 R9317 ERJ3GEYJ391 M 390 OHM,J,1/16W 1 R9348 D1HG8208A002 排阻 1 R9349 EXB38V820JV 电阻阵列 1 R9350,51 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9352 EXB38V820JV 电阻阵列 1 R9353,54 D1HG8208A002 排阻 2 R9355,56 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9357-59 D1HG8208A002 排阻 3 R9360 EXB38V820JV 电阻阵列 1 R9361,62 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9363 EXB2HV470JV 电阻阵列 1 R9366 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9367 D0GB103JA057 M 10KOHM,J,1/16W 1 R9368 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9369 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9370 D0GB103JA057 M 10KOHM,J,1/16W 1 R9371 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9379 J0JCC0000100 片状电感 1 R9380 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9382 D0GB103JA057 M 10KOHM,J,1/16W 1 R9390 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9391 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9394 J0JCC0000100 片状电感 1 R9395 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9501,02 D0GB103JA057 M 10KOHM,J,1/16W 2 R9503 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9506 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9507 J0JCC0000100 片状电感 1 R9511-13 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9516 D0GB103JA057 M 10KOHM,J,1/16W 1 R9518 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R9523 D0GB103JA057 M 10KOHM,J,1/16W 1 R9525 D0GB103JA057 M 10KOHM,J,1/16W 1 R9526 J0JCC0000100 片状电感 1 参考号 部件号 部件名称及说明 件数 备注 R9527,28 EXB2HV272JV 电阻阵列 2 R9529,30 D0GB103JA057 M 10KOHM,J,1/16W 2 R9531-33 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9534 EXB38V470J 电阻阵列 1 R9535,36 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9537 D0GB103JA057 M 10KOHM,J,1/16W 1 R9540 D0GB103JA057 M 10KOHM,J,1/16W 1 R9543,44 D0GB103JA057 M 10KOHM,J,1/16W 2 R9545 ERJ3GEYJ304 M 300KOHM,J,1/16W 1 R9548-50 D0GB103JA057 M 10KOHM,J,1/16W 3 R9552 D0GB103JA057 M 10KOHM,J,1/16W 1 R9555 J0JCC0000100 片状电感 1 R9800 ERJ3EKF1302 M 13KOHM, 1/16W 1 R9801 ERJ3EKF2402 M 24KOHM, 1/16W 1 R9802 ERJ3EKF6202 M 62KOHM, 1/16W 1 R9803 J0JCC0000100 片状电感 1 R9804 ERJ3EKF2402 M 24KOHM, 1/16W 1 R9805 ERJ3EKF3002 M 30KOHM, 1/16W 1 R9806 ERJ3EKF3902 M 39KOHM, 1/16W 1 R9807 J0JCC0000100 片状电感 1 R9808 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9810 ERJ3EKF3001 M 3KOHM, 1/16W 1 R9813 ERJ3EKF2401 M 2.4KOHM, 1/16W 1 R9814 ERJ3EKF6802 M 68KOHM, 1/16W 1 R9815 ERJ3EKF2202 M 22KOHM, 1/16W 1 R9816 ERJ3EKF8202 M 82KOHM, 1/16W 1 R9821 D0GB103JA057 M 10KOHM,J,1/16W 1 R9823-27 ERJ3GEYJ101 M 100 OHM,J,1/16W 5 R9828 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9830,31 D0GB103JA057 M 10KOHM,J,1/16W 2 R9838,39 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9840 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9841 J0JCC0000100 片状电感 1 R9842-44 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 R9845 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9846,47 EXB2HV272JV 电阻阵列 2 R9848,49 EXB2HV470JV 电阻阵列 2 R9850 D0GB473JA057 M 47KOHM,J,1/16W 1 R9854 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9859 EXB38V101JV 电阻阵列 1 R9861-63 D0GB103JA057 M 10KOHM,J,1/16W 3 R9868 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9869-71 D0GB103JA057 M 10KOHM,J,1/16W 3 R9872 J0JCC0000100 片状电感 1 R9878 ERJ3EKF3902 M 39KOHM, 1/16W 1 R9879 ERJ3EKF2002 M 20KOHM, 1/16W 1 R9880 ERJ3EKF3602 M 36KOHM, 1/16W 1 R9883 J0JCC0000100 片状电感 1 R9884 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9891 ERJ3GEYF473 M 47KOHM, 1/16W 1 R9892 ERJ3EKF1502 M 15KOHM, 1/16W 1 R9893 ERJ3EKF3602 M 36KOHM, 1/16W 1 R9896 J0JCC0000100 片状电感 1 R9897 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9903 EXB2HV470JV 电阻阵列 1 R9904 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9905 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9906 EXB38V470J 电阻阵列 1 R9907 D0GB151JA057 M 150 OHM,J,1/16W 1 R9917,18 J0JCC0000100 片状电感 2 R9919,20 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R9922 J0JCC0000100 片状电感 1 R9929 J0JCC0000100 片状电感 1 R9936-39 ERJ3EKF1001 M 1KOHM, 1/16W 4 R9940 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9941,42 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9943-51 EXB38V470J 电阻阵列 9 R9952-55 ERJ3GEYJ470 M 47 OHM,J,1/16W 4 R9956 D0GB103JA057 M 10KOHM,J,1/16W 1 RM2510 PNA4701M05TV 遥控接收器 1 S1 K1KA03BA0061 3P 连接接头 1 SC2 K1KA02A00676 2P 连接接头 1 SC20 K1KA20AA0008 20P 连接接头 1 SC23 K1KA03AA0193 3P 连接接头 1 参考号 部件号 部件名称及说明 件数 备注 130 SC30 K1KA08AA0192 8P 连接接头 1 SC41,42 K1ML80B00001 80P 连接接头 2 SC45,46 K1KA09A00239 9P 连接接头 2 SD1-D3 K1MN80B00012 80P 连接接头 3 SD46 K1KB09A00045 9P 连接接头 1 SS11 K1KA02A00676 2P 连接接头 1 SS12 K1KA10AA0194 10P 连接接头 1 SS23 K1KA12AA0194 12P 连接接头 1 SS34 K1KA03AA0193 3P 连接接头 1 SS41-44 K1MN13B00020 13P 连接接头 4 SSMM1 TMME260 线夹 1 SU1-U3 K1MN80B00012 80P 连接接头 3 SU45 K1KB09A00045 9P 连接接头 1 SW2500 K0F162B00002 开关 1 SW3751-55 EVQ11G05R 开关 5 T6602 ETS22AE2G9AD 转接变压器 1 TA5,A6 K1KB15B00013 15P 连接接头 2 TU001 ENG39A26GF 调谐器 1 PPDS VR6000 EVMEASA00B14 控制 10KOHMB 0.3W 1 VR6600 EVMEASA00B23 控制 2KOHMB 0.3W 1 VR6602 EVMEASA00B14 控制 10KOHMB 0.3W 1 X1100 H0J100500030 晶体 1 X1101 H0J327200114 晶体 1 X2101 H0J184500027 晶体 1 X4004 H0J270500087 晶体 1 X9000 H2D200500011 晶体 1 X9200 H0J200500038 晶体 1 ZA2101-08 TESA169 屏蔽夹 8 ZA2300,01 K4CZ01000027 与 JALCO K9 兼容 2 ZA3401-03 K4CZ01000027 与 JALCO K10 兼容 3 ZA3405 K4CZ01000027 与 JALCO K11 兼容 1 ZA4001,02 K4CD08000002 AV 端子 2 ZA6001-03 K4CD01000011 AV 端子 3 ZA6401-03 K4CD01000011 AV 端子 3 ZA7101-03 K4CD01000013 AV 端子 3 ZA7201-04 K4CD01000013 AV 端子 4 ZA9001 K4CD01000011 AV 端子 1 C402 ECJ2FB1C105K C 1UF, Z, 50V 1 C404 F0CAF105A021 C 1UF, 250V 1 C407 EEUEB2W220 E 22UF, 450V 1 C408 ECJ2XB1H102K C 1000PF, K, 50V 1 C409 F0CAF225A021 C 22UF, 250V 1 C410 ECJ2VB1H103K C 0.01UF, K, 50V 1 C413 ECJ2XB1H104K C 0.1UF, K, 50V 1 C414 ECQU2A473ML P 0.047UF, M,250V 1 C421 ECJ2FB1C105K C 1UF, Z, 50V 1 C422 ECJ2VB1H103K C 0.01UF, K, 50V 1 C423 ECJ2VB1H472K C 4700PF, K, 50V 1 C425 ECJ2VB1H103K C 0.01UF, K, 50V 1 C426 ECJ2XC1H471J C 470PF, J, 50V 1 C427 ECJ2FB1C105K C 1UF, Z, 50V 1 C428 ECJ2XC1H221J C 220PF, J, 50V 1 C429 F1E2J4730001 C 0.047PF, , 600V 1 C431 ECJ2XB1H102K C 1000PF, K, 50V 1 C432 ECJ2FB1C105K C 1UF, Z, 50V 1 C433 ECJ3XB1E104K C 0.1UF, K, 25V 1 C434 ECJ2FB1C105K C 1UF, Z, 50V 1 C436 ECJ2FB1C105K C 1UF, Z, 50V 1 C440 ECA1HM100 E 10UF, 50V 1 C443,44 ECKD3A102KBP C 1000PF, J, 1KV 2 C445 ECJ2FB1C105K C 1UF, Z, 50V 1 C446 F2B2W3910005 C 390UF, 450V 1 参考号 部件号 部件名称及说明 件数 备注 C450 ECJ2VB1H103K C 0.01UF, K, 50V 1 C451 ECKD3A101KBP C 100PF, J, 1KV 1 C457 ECWH12333RHV P 0.013UF,J,1.2KV 1 C460,61 F1A3A331A039 E 330UF, 1KV 2 C462 ECJ3YB1E105K C 1UF, K, 25V 1 C463 ECJ2XC1H220J C 22UF, J, 50V 1 C467 ECKCNA221KB7 C 220PF, M, 1 C468 ECJ2VB1H103K C 0.01UF, K, 50V 1 C469 ECKCNA221KB7 C 220PF, M, 1 C470 F0CAF105A021 C 1UF, 250V 1 C473,74 ECKCNA101KB7 C 100PF 2 C476 ECKCNA101KB7 C 100PF 1 C478 ECKCNA101KB7 C 100PF 1 C493 ECA1HM470 E 47UF, 50V 1 C494 F2A2E1R00008 E 1.0UF, 250V 1 C497 ECA1HM470 E 47UF, 50V 1 C501,02 ECJ2VB1H103K C 0.01UF, K, 50V 2 C503 ECJ2XC1H471J C 470PF, J, 50V 1 C504 ECJ2FB1C105K C 1UF, Z, 50V 1 C505 ECJ2XB1H102K C 1000PF, K, 50V 1 C506,07 ECJ2VB1H103K C 0.01UF, K, 50V 2 C508 ECJ2XC1H471J C 470PF, J, 50V 1 C509 ECA1EHG101 E 100UF, 25V 1 C510 ECJ2XB1H104K C 0.1UF, K, 50V 1 C511 ECJ2XB1H102K C 1000PF, K, 50V 1 C512-14 ECJ2XC1H471J C 470PF, J, 50V 3 C515 F2A1A1220015 E 1200UF, 10V 1 C516 ECJ2XB1C474K C 0.47UF, Z, 16V 1 C517 F2A1E221A096 E 220UF, 25V 1 C518 ECJ2XB1H104K C 0.1UF, K, 50V 1 C519 ECJ2FB1C105K C 1UF, Z, 50V 1 C523 ECJ3YB1E105K C 1UF, K, 25V 1 C526 ECJ2VB1H223K C 0.022UF, K, 50V 1 C527 ECJ3YB1E475K C 4.7UF, K, 25V 1 C528,29 ECJ2FB1C105K C 1UF, Z, 50V 2 C530 ECJ2XB1H333K C 0.033UF, K, 50V 1 C531 ECJ3YB1E105K C 1UF, K, 25V 1 C533 ECJ2VB1H103K C 0.01UF, K, 50V 1 C534 ECJ2XC1H471J C 470PF, J, 50V 1 C546,47 ECJ2XB1H102K C 1000PF, K, 50V 2 C550 ECJ2XC1H331J C 330PF, J, 50V 1 C551,52 ECJ2XB1H104K C 0.1UF, K, 50V 2 C554 ECJ2FB1C105K C 1UF, Z, 50V 1 C555 F2A2C101A120 E 1000UF, 160V 1 C556,57 EEUFC1E152 E 1500UF, 25V 2 C558 F2A1E4710065 E 470UF, 25V 1 C559 F2A1A1220015 E 1200UF, 10V 1 C562 ECJ2VB1H223K C 0.022UF, K, 50V 1 C571 ECJ2XC1H330J C 33PF, J, 50V 1 C574 ECJ2XB1H104K C 0.1UF, K, 50V 1 C577 F2A2A330A022 E 33UF, 100V 1 C581 ECJ2VB1H223K C 0.022UF, K, 50V 1 C583 ECJ2XB1H102K C 1000PF, K, 50V 1 C584,85 ECJ2VB1H223K C 0.022UF, K, 50V 2 C587 ECJ2XB1H332K C 3300PF, K, 50V 1 C601 ECJ2VB1H103K C 0.01UF, K, 50V 1 C603 ECJ2FB1E105K C 1UF, K, 25V 1 C604,05 F2A2D1510008 E 150UF, 200V 2 C607 ECJ2FB1C105K C 1UF, Z, 50V 1 C608 ECJ2VB1H103K C 0.01UF, K, 50V 1 C610 ECJ2FB1C105K C 1UF, Z, 50V 1 C611 F2B2D1720005 E 1700UF,　 200V 1 C612,13 ECJ2VB1H103K C 0.01UF, K, 50V 2 C615 F2B2D1720005 E 1700UF,　 200V 1 C616 ECKD3A102KBP C 1000PF, J, 1KV 1 C619 ECJ2XB1H104K C 0.1UF, K, 50V 1 C620 ECJ2VB1H103K C 0.01UF, K, 50V 1 C623 ECA1HM100 E 10UF, 50V 1 C624 ECJ2VB1H103K C 0.01UF, K, 50V 1 C625 ECA1HM100 E 10UF, 50V 1 C626 ECJ2VB1H103K C 0.01UF, K, 50V 1 C627 ECJ2XB1H102K C 1000PF, K, 50V 1 C629-31 ECJ2VB1H103K C 0.01UF, K, 50V 3 C632 ECJ2XC1H331J C 330PF, J, 50V 1 参考号 部件号 部件名称及说明 件数 备注 131 C634 ECJ2XB1H102K C 1000PF, K, 50V 1 C635 ECJ2VB1H103K C 0.01UF, K, 50V 1 C638,39 ECJ2VB1H103K C 0.01UF, K, 50V 2 C640 ECJ2XB1H104K C 0.1UF, K, 50V 1 C641 ECJ2XB1H102K C 1000PF, K, 50V 1 C643 ECA1HM470 E 47UF, 50V 1 C650 ECJ2XB1H104K C 0.1UF, K, 50V 1 C653 ECJ2XB1H102K C 1000PF, K, 50V 1 C654 ECJ3YB1E105K C 1UF, K, 25V 1 C655,56 ECJ3YB1E225K C 2.2UF, K, 25V 2 C657 ECJ2XB1H102K C 1000PF, K, 50V 1 C658 ECJ3YB1E105K C 1UF, K, 25V 1 C659 ECJ2VB1H103K C 0.01UF, K, 50V 1 C660 ECJ2FB1C225K C 22UF, K, 16V 1 C661,62 ECJ2VB1H103K C 0.01UF, K, 50V 2 D401 B0FBAT000006 二极管 1 D404 B0EBKT000007 二极管 1 D407 MA2J11100L 二极管 1 D411 B0BB17000009 二极管 1 D412 B0HAMM000122 二极管 1 D415 B0JAME000099 二极管 1 D416 B0HAMP000067 二极管 1 D417 B0HAPR000013 二极管 1 D418 B0BC8R100013 二极管 1 D419,20 B0HAPR000013 二极管 2 D423 MA188 二极管 1 D425 MA188 二极管 1 D429 EM1C 二极管 1 D430 MA2J11100L 二极管 1 D431,32 B0JCDD000002 二极管 2 D433 B0BC01400033 二极管 1 D435 EM1C 二极管 1 D436-38 MA4200M 稳压二极管 3 D441 B0HAMM000122 二极管 1 D444 B0HAMM000122 二极管 1 D445 MAZ43600HF 稳压二极管 1 D501 B0HAPR000012 二极管 1 D503,04 MA165TA5 二极管 2 D505 B0JAME000099 二极管 1 D506 MAZ80470LL 稳压二极管 1 D507,08 B0BC7R400023 二极管 2 D509 B0JANG000018 二极管 1 D511 B0JAML000011 二极管 1 D512,13 MA2J11100L 二极管 2 D514 B0BC6R100025 二极管 1 D515 B0BC3R200008 二极管 1 D516-18 MAZ43300MF 稳压二极管 3 D520 MA2J11100L 二极管 1 D521 B0JAME000099 二极管 1 D528,29 MA153A 二极管 2 D530 B0BC9R900013 二极管 1 D531 B0HBSN000013 二极管 1 D535 MA188 二极管 1 D536 B0JBSG000026 二极管 1 D538 B0BC5R100039 二极管 1 D539,40 B0AARR000010 二极管 2 D542 MA4200M 稳压二极管 1 D543 B0BC01400033 二极管 1 D544,45 MA4200M 稳压二极管 2 D549 B0BC02500008 二极管 1 D551 B0BC01300033 二极管 1 D555 B0BC7R400023 二极管 1 D559 B0BC7R400023 二极管 1 D563 B0BC6R100025 二极管 1 D569-72 B0BC02500008 二极管 4 D574 MA165TA5 二极管 1 D575 MA188 二极管 1 D579 MA165TA5 二极管 1 D582 MAZ705600F 稳压二极管 1 D585 B0BC7R400023 二极管 1 D586 B0HAMP000067 二极管 1 D587 MA188 二极管 1 D588 B0BC3R200008 二极管 1 D590 B0BC3R200008 二极管 1 D596 EM1C 二极管 1 参考号 部件号 部件名称及说明 件数 备注 D598 B0BC5R100039 二极管 1 D599 B0JCND000009 二极管 1 D600 B0BC7R400023 二极管 1 D601 B0BC5R100039 二极管 1 D602 B0BC8R100013 二极管 1 F410 K5G102B00020 熔断器 1 IC401 CNC1S171R IC 1 IC402 C0DAEMB00003 IC 1 IC403-05 CNC1S171R IC 3 IC406 C0DAZZZ00021 IC 1 IC408 CNC1S171R IC 1 IC409 MIP2G40MPSCF IC 1 IC410 CNC1S171R IC 1 IC411 C0DAEMB00003 IC 1 IC412 CNC1S171R IC 1 IC501 C2ABDB000110 IC 1 IC502 C0EBH0000210 IC 1 IC504 C0DAEMB00003 IC 1 IC505 CNC1S171R IC 1 IC506 C0ZBZ0000878 IC 1 IC507 CNC1S171R IC 1 IC509 C0DABZZ00010 IC 1 IC510 C0DBAZG00034 IC 1 IC512 C0DAEMB00003 IC 1 IC520 LSSK0062 IC 1 L403 EXCELSA35 头扼流圈 1 L404,05 G0B123K00004 扼流线圈 2 L410 ELF17N004A 线性滤波器 1 L510 EXCELDR25C 头扼流圈 1 L511 G0A470ZA0033 扼流线圈 1 L512 ELESE4R7JA 校正线圈 1 L513 EXCELDR25C 头扼流圈 1 P2 K1KA02A00676 2P 连接接头 1 P5 K1KA11AA0194 11P 连接接头 1 P9 K1KA03A00608 3P 连接接头 1 P10 K1KA06A00452 6P 连接接头 1 P11 K1KA02A00676 2P 连接接头 1 P12 K1KA10AA0194 10P 连接接头 1 P23 K1KA03AA0193 3P 连接接头 1 P25 K1KA20AA0178 20P 连接接头 1 PMM1 TMM7464-2 线夹 1 PMM2,M3 TMME088 线夹 2 PMM4-M6 TMM7464-2 线夹 3 PMM7 TMME047 线夹 1 PR401 K5Y502BA0001 熔断器 1 PR505 K5H5022A0023 熔断器 1 PR509 ERBSE0R50U 熔断器 1 PR601 K5G312B00012 熔断器 1 Q401 B1CHND000004 三极管 1 Q402 B1DFDD000019 三极管 1 Q404 B1BCCF000022 三极管 1 Q406 B1DEHQ000007 三极管 1 Q407 B1HFCFA00021 三极管 1 Q408,09 B1DHCD000034 三极管 2 Q412,13 B1DEGQ000070 三极管 2 Q418 2SD1819AWL 三极管 1 Q420-22 2SD1819AWL 三极管 3 Q434 B1CEJQ000004 三极管 1 Q501,02 2SD1820A 三极管 2 Q505 B1CEJQ000002 三极管 1 Q507 B1DAGQ000013 三极管 1 Q508 B1HBCFA00033 三极管 1 Q509 B1HDCEA00001 三极管 1 Q510 B1DHBD000005 三极管 1 参考号 部件号 部件名称及说明 件数 备注 132 Q512 B1CBGD000001 FET 1 Q517 B1HBCFA00033 三极管 1 Q520 B1HBCFA00033 三极管 1 Q521 B1CBGD000001 FET 1 Q524 B1CFGF000008 三极管 1 Q525 B1CBGD000001 FET 1 Q527 B1CERL000005 三极管 1 Q530 2SD1819AWL 三极管 1 Q535 2SD1819AWL 三极管 1 Q537 B1DFDD000019 三极管 1 Q538 B1CBGD000001 FET 1 Q540 B1DHCD000034 三极管 1 Q541 B1CBGD000001 FET 1 Q551 B1CBGD000001 FET 1 Q553 2SD1819AWL 三极管 1 Q554 B1DHCD000034 三极管 1 Q555,56 B1DFGD000045 三极管 2 Q557-59 2SD1819AWL 三极管 3 Q561 2SD1819AWL 三极管 1 Q563 B1CFGF000008 三极管 1 Q564,65 2SB1218ARL 三极管 2 Q566 2SD1819AWL 三极管 1 Q568 B1CHGD000006 三极管 1 Q569 B1CBGD000001 FET 1 R401 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R402 ERJ6GEYG821 M 820 OHM,J,1/10W 1 R403 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R404 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R406 ERX12SJ2R2V M 2.2 OHM, J,1/2W 1 R407 ERJ8ENF4303 M 43KOHM, 1/8W 1 R410 D1F5100E0003 片状电阻 1 R412 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R413 D1F5100E0003 片状电阻 1 R414 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R415 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R416 ERJ6GEYJ305 M 3MOHM,J,1/10W 1 R417 ERJ6ENF4303 M 430KOHM, 1/10W 1 R418 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R419 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R420 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R421 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R422 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R423 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R424 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R425 ERJ6ENF3902 M 39KOHM, 1/10W 1 R426 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R427 ERJ8ENF4303 M 43KOHM, 1/8W 1 R428 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R429 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R430 ERJ6ENF4303 M 430KOHM, 1/10W 1 R431 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R432 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R433 ERJ6RBD123V M 12KOHM, 1/10W 1 R434 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R435 ERJ8ENF4303 M 43KOHM, 1/8W 1 R436 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R437 ERJ6GEYG183 M 18KOHM,J,1/10W 1 R438 ERJ6GEYG331 M 330 OHM,J,1/10W 1 R439 ERG12SJ120 M 12 OHM, J,1/2W 1 R440 ERJ8GEYJ474 M 470KOHM, J,1/8W 1 R441,42 ERJ6RED684 M 680KOHM, 1/10W 2 R443 EVMAASA00B23 控制 2KOHMB 1 R444 ERJ6GEYF123 M 12KOHM,J,1/10W 1 R448,49 D0XGR10J0003 M 0.1OHM,J, 5W 2 R450 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R451 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R452 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R453 ERJ6GEYJ305 M 3MOHM,J,1/10W 1 R454 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R455 ERJ6GEYF123 M 12KOHM,J,1/10W 1 R456 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R458 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R459 ERJ6RED684 M 680KOHM, 1/10W 1 R461 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R462 ERJ6ENF4303 M 430KOHM, 1/10W 1 参考号 部件号 部件名称及说明 件数 备注 R463 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R464 ERJ6ENF3302 M 33KOHM, 1/10W 1 R465 ERJ6ENF5603 M 560KOHM, 1/10W 1 R467 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R471 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 1 R472,73 ERJ6ENF5603 M 560KOHM, 1/10W 2 R475 ERJ6RED684 M 680KOHM, 1/10W 1 R476,77 ERJ14YJ181 M 181 OHM, J,1/4W 2 R478 ERJ8GEYJ220 M 22 OHM, J,1/8W 1 R480 ERJ6ENF4702 M 47KOHM, 1/10W 1 R482 ERJ8GEYJ220 M 22 OHM, J,1/8W 1 R483 D0BF225JA030 M 22MOHM,J,0.05W 1 R487 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R488 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R490,91 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R492 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R493 ERG12SJ120 M 12 OHM, J,1/2W 1 R494-96 ERJ6ENF5603 M 560KOHM, 1/10W 3 R497 ERJ6RBD123V M 12KOHM, 1/10W 1 R498 ERG3SJ101 M 100 OHM, J, 3W 1 R499 D0BF394JA029 M 390KOHM,J,0.05W 1 R501 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R502,03 ERJ6GEYG104 M 100KOHM,J,1/10W 2 R504 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R505 ERJ8GEYJ330 M 33 OHM, J,1/8W 1 R506 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R507 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R508 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R509-11 ERJ6GEYG104 M 100KOHM,J,1/10W 3 R512 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R513,14 ERJ6GEYG104 M 100KOHM,J,1/10W 2 R515,16 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R517 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R518 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R519,20 ERJ6GEYG104 M 100KOHM,J,1/10W 2 R521,22 ERJ8GEYJ100 M 10 OHM, J,1/8W 2 R523 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R524 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R525 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R526,27 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R528 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R529 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R530 ERJ6RBD3302 M 33KOHM,F,1/10W 1 R532 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R533 ERJ6ENF1602 M 16KOHM,J,1/10W 1 R534 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R535,36 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R537 ERJ6ENF1003 M 100KOHM, 1/10W 1 R538 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R539 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R540,41 ERJ6GEYG105 M 1MOHM,J,1/10W 2 R542 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R543 ERJ6GEYG153 M 15KOHM,J,1/10W 1 R544 ERJ6GEYG331 M 330 OHM,J,1/10W 1 R545 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R546 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R547 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R548 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R549 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R550 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R551 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R552 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R553 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R554 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R555,56 ERJ6GEYG105 M 1MOHM,J,1/10W 2 R557 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R558 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R559 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R560 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R561 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R562 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R563 ERJ6GEYJ2R2 M 2.2 OHM,J,1/10W 1 R564 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R565,66 ERJ6GEYG105 M 1MOHM,J,1/10W 2 R567,68 ERJ8ENF1004 M 100KOHM, 1/8W 2 R569 ERJ6ENF3302 M 33KOHM, 1/10W 1 参考号 部件号 部件名称及说明 件数 备注 133 R570 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R571 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R572,73 ERJ8ENF3900 M 390 OHM, 1/8W 2 R574 ERJ6GEYG331 M 330 OHM,J,1/10W 1 R575 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R576 ERJ6RBD123V M 12KOHM, 1/10W 1 R577,78 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R579 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R580,81 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R582 ERJ6ENF1002 M 10KOHM, 1/10W 1 R583 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R584 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R585 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R586 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R587 ERJ8RQJR22V M0.22 OHM, 1/8W 1 R588 ERJ8ENF3900 M 390 OHM, 1/8W 1 R589,90 ERJ8GEYJ123 M 12KOHM, J,1/8W 2 R591 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R592 ERJ6ENF3001 M 3KOHM, 1/10W 1 R593 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R594 ERJ6GEYF151 M 150 OHM,J,1/10W 1 R595 ERJ8GEYJ222 M 2.2KOHM, J,1/8W 1 R596 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R597,98 ERJ6ENF3302 M 33KOHM, 1/10W 2 R599,00 ERJ8ENF3900 M 390 OHM, 1/8W 2 R601 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R602 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R603 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R606 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R607 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R608 ERJ8GEYJ332 M 3.3KOHM, J,1/8W 1 R609 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R610,11 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R612 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R613 ERJ6ENF2402 M 24KOHM, 1/10W 1 R614 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R615 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R616,17 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R618 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R619 ERJ8RQFR68 M 0.68OHM, J,1/8W 1 R620 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R621 ERJ8GEYJ123 M 12KOHM, J,1/8W 1 R622 ERJ8ENF1503 M 15KOHM, 1/8W 1 R624 ERX2SJR22P M0.22 OHM, J, 2W 1 R626 ERJ8ENF1503 M 15KOHM, 1/8W 1 R627 ERJ6GEYF822 M 8.2KOHM,J,1/10W 1 R628 EVMAASA00B33 控制 3KOHMB 1 R629 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R630 ERJ8GEYJ472 M 4.7KOHM, J,1/8W 1 R631 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R632 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R633 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R634 ERJ8RQFR68 M 0.68OHM, J,1/8W 1 R636 ERJ8ENF1503 M 15KOHM, 1/8W 1 R637 ERJ8RQFR68 M 0.68OHM, J,1/8W 1 R638 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R639,40 ERJ8RQFR68 M 0.68OHM, J,1/8W 2 R641 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R642-44 ERJ8RQFR68 M 0.68OHM, J,1/8W 3 R645 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R646,47 ERJ8GEYJ223 M 22KOHM, J,1/8W 2 R648 ERJ8ENF1503 M 15KOHM, 1/8W 1 R649 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R650 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R651,52 ERJ6ENF1002 M 10KOHM, 1/10W 2 R653 ERJ6ENF3302 M 33KOHM, 1/10W 1 R654 ERJ8GEYJ220 M 22 OHM, J,1/8W 1 R655 ERJ8RQJR22V M0.22 OHM, 1/8W 1 R656 ERJ6ENF4702 M 47KOHM, 1/10W 1 R657 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R658 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R659 ERJ6RBD303 M 30KOHM, 1/10W 1 R660 ERJ6RBD123V M 12KOHM, 1/10W 1 R661 EVMEASA00B53 控制 5KOHMB 0.3W 1 R662 ERJ6ENF1503 M 150KOHM, 1/10W 1 R664 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R665 EVMEASA00B23 控制 2KOHMB 0.3W 1 参考号 部件号 部件名称及说明 件数 备注 R666 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R667,68 ERJ8GEY0R00 M 0 OHM, 1/8W 2 R669 ERJ6ENF1303 M 130KOHM, 1/10W 1 R670 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R671 EVMEASA00B14 控制 10KOHMB 0.3W 1 R672,73 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R674 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R675 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R676 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R677 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R678 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R679,80 ERJ8RQJR22V M0.22 OHM, 1/8W 2 R682 ERJ6ENF2002 M 20KOHM, 1/10W 1 R683 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R684 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R685,86 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R687 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R688,89 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R690 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R691 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R692 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R693 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R695 ERJ6ENF1602 M 16KOHM, 1/10W 1 R696 ERJ8GEYJ100 M 10 OHM, J,1/8W 1 R697 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R698 ERJ8RQJR22V M0.22 OHM, 1/8W 1 R700-08 ERJ8GEYJ105 M 1MOHM, J,1/8W 9 R711 ERJ8RQJR22V M0.22 OHM, 1/8W 1 R712 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R713 ERJ8GEYJ472 M 4.7KOHM, J,1/8W 1 R714 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R715 ERDS2FJ101 C 100 OHM, J,1/4W 1 R921 ERJ6RBD3302 M 33KOHM,F,1/10W 1 R922 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R931 ERJ6ENF3302 M 33KOHM, 1/10W 1 R932 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R933 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R935 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R936 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R937 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R938 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R939,40 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R943 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R945 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R946 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R947 ERJ8GEYJ331 M 330 OHM, J,1/8W 1 R950 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R951,52 ERJ8GEYJ100 M 10 OHM, J,1/8W 2 R953 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R955 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R956 ERJ6GEYG104 M 100KOHM,J,1/10W 1 RL402,03 TSEH8011 继电器 2 S401,02 J0LT00000009 开关 2 T401 G4D4A0000119 转接变压器 1 T402 G4D1A0000098 转接变压器 1 T404 G4D4A0000118 转接变压器 1 T407 ETQ11K5AZ 扼流变压器 1 T410 ETS25AF115AH 转接变压器 1 T601 G4D2A0000264 转接变压器 1 W9,10 J0JKB0000037 扁磁芯 2 X501 H2B400400021 晶体 1 Z1,Z2 K4ZZ01000206 端子 2 Z420 TMM23417 线夹 2 Z450-53 EYF52BCY 熔断器座 4 ZN401 ERZVRED621 变阻器 1 ZN402 D4EAD7510001 变阻器 1 参考号 部件号 部件名称及说明 件数 备注 134 05/2007 iPress1167 中国制作 ZN404 ERZVGAD681T2 变阻器 1 ZN405,06 ERZVA7D511 变阻器 2 参考号 部件号 部件名称及说明 件数 备注
